Digital Imaging Systems

Before operating this equipment, please read these instructions completely and keep these operating

instructions for future reference.

Getting To Know Your

Machine

J

?

I

Before StartingMaking CopiesOptionsOthers

Model No. DP-1810P/2010E

Operating Instructions

(For Copier)

English

DP-2010E

with Options

DP-1810P

with Options

2

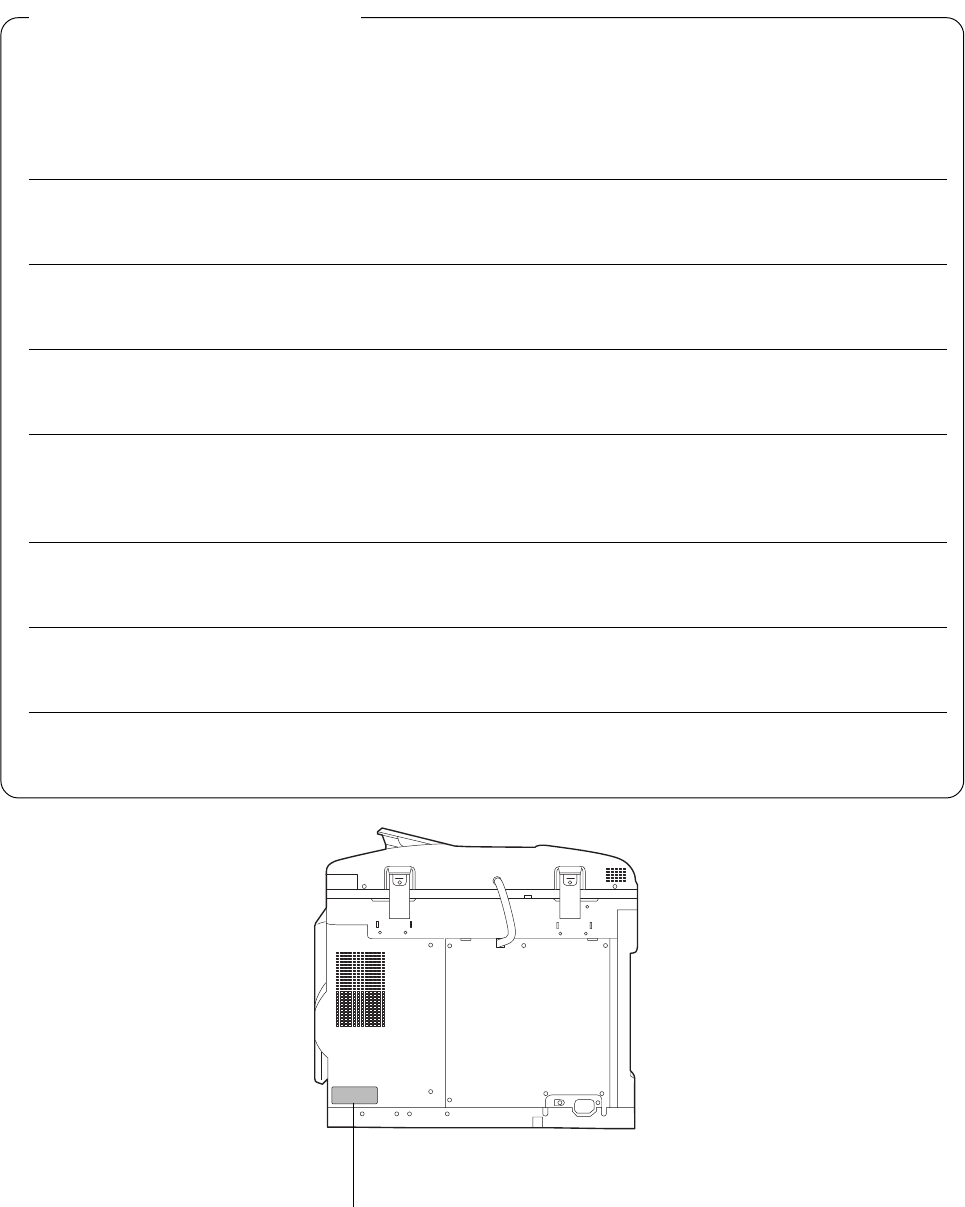

IMPORTANT INFORMATION

When requesting information, supplies or service always refer to the model and serial number of your

machine. The model and serial number plate (Main Name Plate) is located on the rear side of machine.

For your convenience, space is provided below to record information you may need in the future.

Model No.

Serial No.

Date of Purchase

Dealer

Address

Telephone Number

()

Supplies Telephone Number

()

Service Telephone Number

()

Model and Serial Number

Copyright  2002 by Matsushita Graphic Communication Systems, Inc.

All rights reserved. Unauthorized copying and distribution is a violation of law. Printed in Japan.

The contents of these Operating Instructions are subject to change without notice.

(Digital copier with ADF option)

3

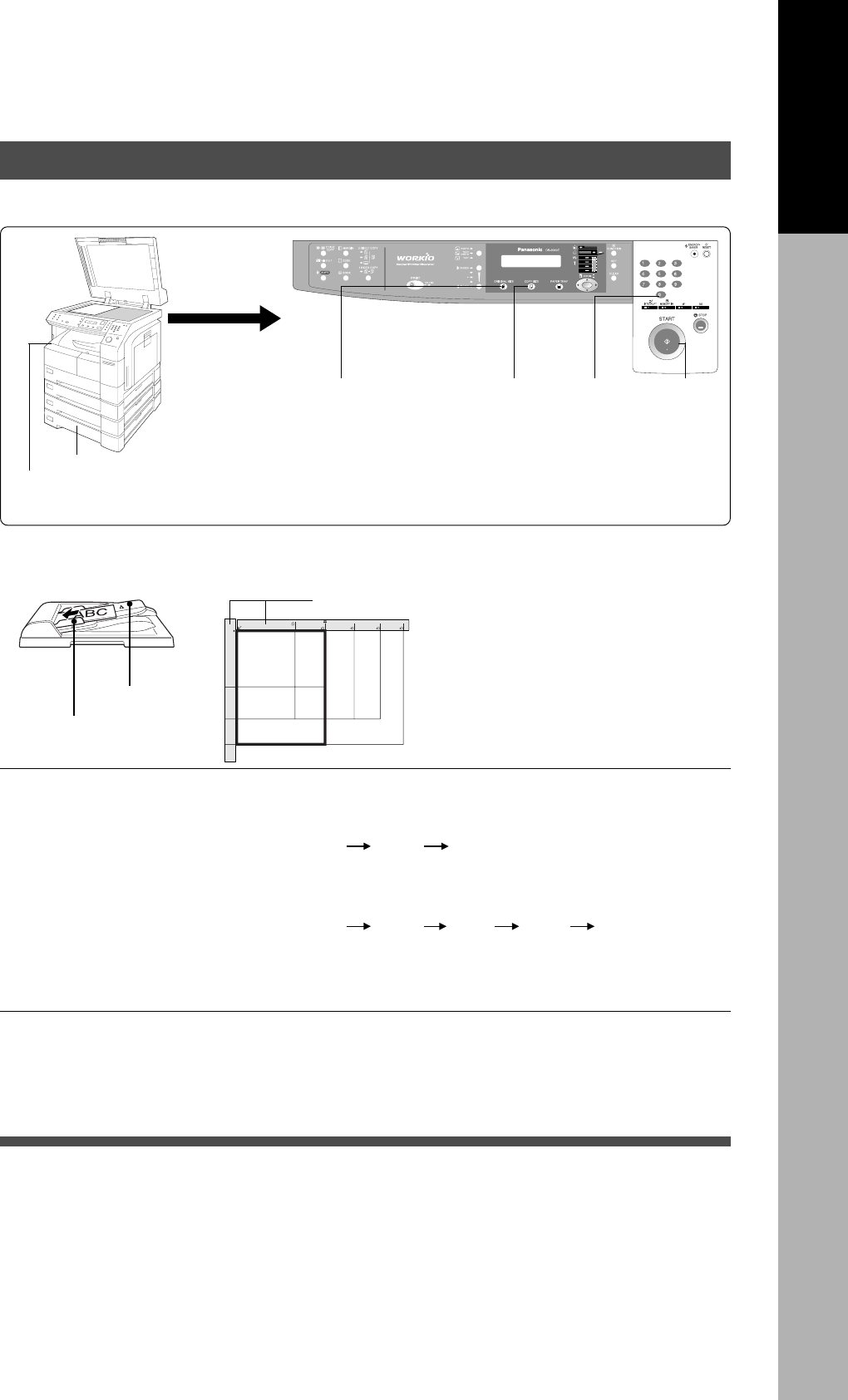

Operation Chart

Common Features and Usage

■■

■■

■Basic Operation

Original

1

Place the

Original

2

Original Size

(Reduction/

Enlargement

Only)

3

Copy Size

(Reduction/

Enlargement

Only)

4

Number

of Copies

5

Press

START

■■

■■

■Position of the Original

Load Paper

Turn the Power

Switch On

CPlace originals face down on the

platen or face up on the ADF.

CIf the original is not positioned

properly, a portion of the original

may not be copied.

CFor originals smaller than invoice

size, position the original within the

area of INVOICE and select invoice.

■■

■■

■Commonly Used Functions and Operating Procedures

Full Size

Makes a copy that is the same

size as the original 145

Reduction or Enlargement

Copies the original at a fixed

reduction or enlargement ratio 13425

■■

■■

■Memory Capacity

When the memory becomes full during original scanning, the message “OUT OF MEMORY”

“CONTINUE? 1: YES 2: NO” will be displayed in the message display. In this case, follow the

operating instruction in the message display.

When additional memory is required, consult with an authorized servicing dealer.

(See page 12)

(See page 13)

Getting To Know Your

Machine

INV

INV LTR LGL LDR

LTR

LDR

INV

LTR

LGL

INV

INVOICE

INVOICE R

LETTER R

LEGAL

LEDGER

LETTER

Original Guide

Original Guides

Adjust to the original’s width

ADF Tray

From PlatenFrom ADF (or i-ADF)

4

Energy Star

As an ENERGY STAR® Partner, Panasonic has determined that this product meets the

ENERGY STAR® guidelines for energy efficiency.

This voluntary program specifies certain energy consumption and usage standards. This

product will automatically “power down” after a specified period of non-use. The use of this

ENERGY STAR® compliant product will reduce energy consumption and ultimately benefit the

environment.

The default functions can be adjusted depending on your office requirements.

Please ask your authorized Panasonic dealer for more details.

5

Table of Contents

Getting To Know Your Machine

Operation Chart .............................................................................................................................. 3

■Common Features and Usage ..............................................................3

Before Starting

Precautions ..................................................................................................................................... 7

Control Panel ................................................................................................................................10

Making Copies

Basic Copy .................................................................................................................................... 12

■Full Size Copying ................................................................................ 12

■Reduction or Enlargement Copying .................................................... 13

■Zoom Copying ....................................................................................14

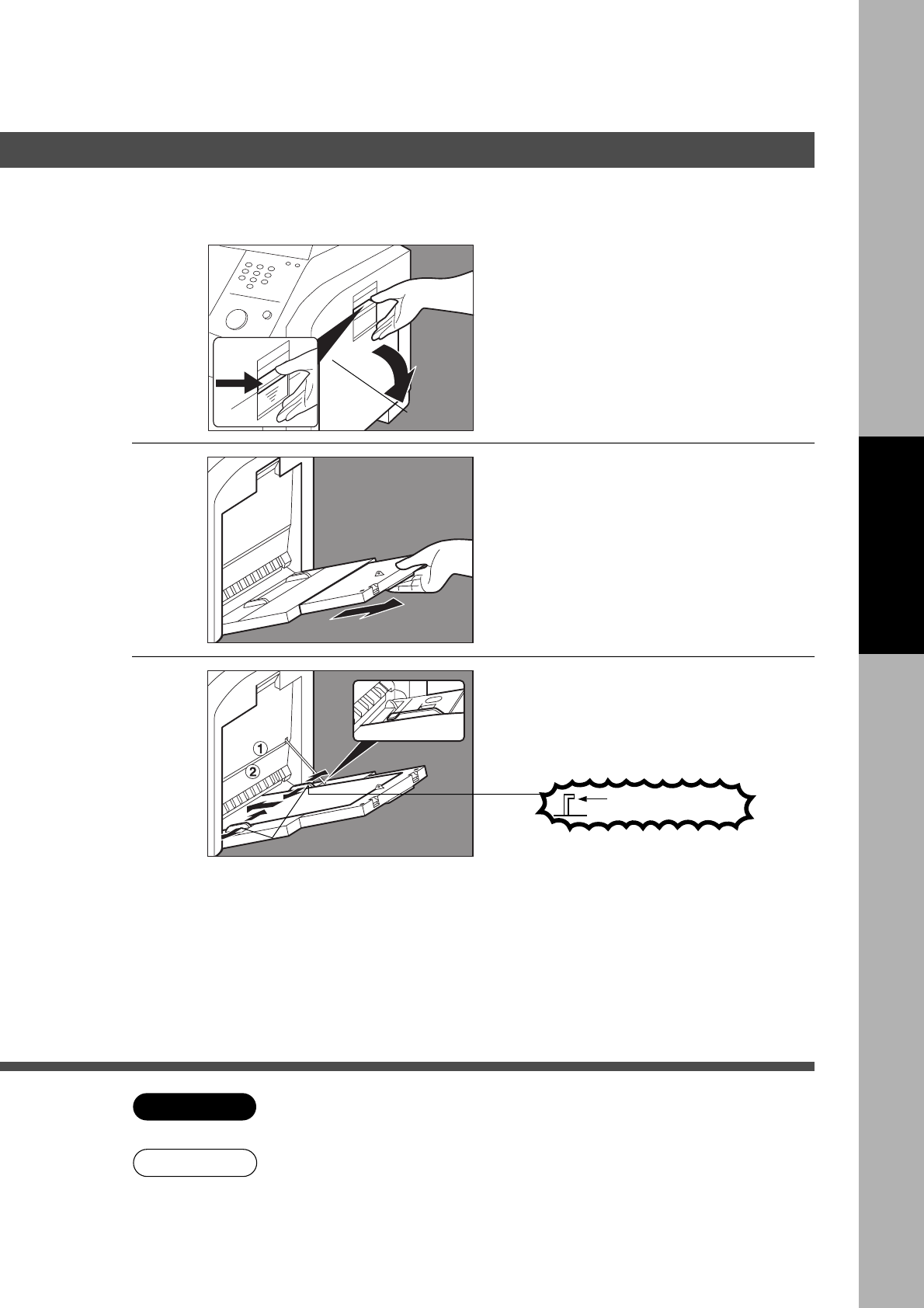

■Using the Sheet Bypass ..................................................................... 15

Creative Features ......................................................................................................................... 16

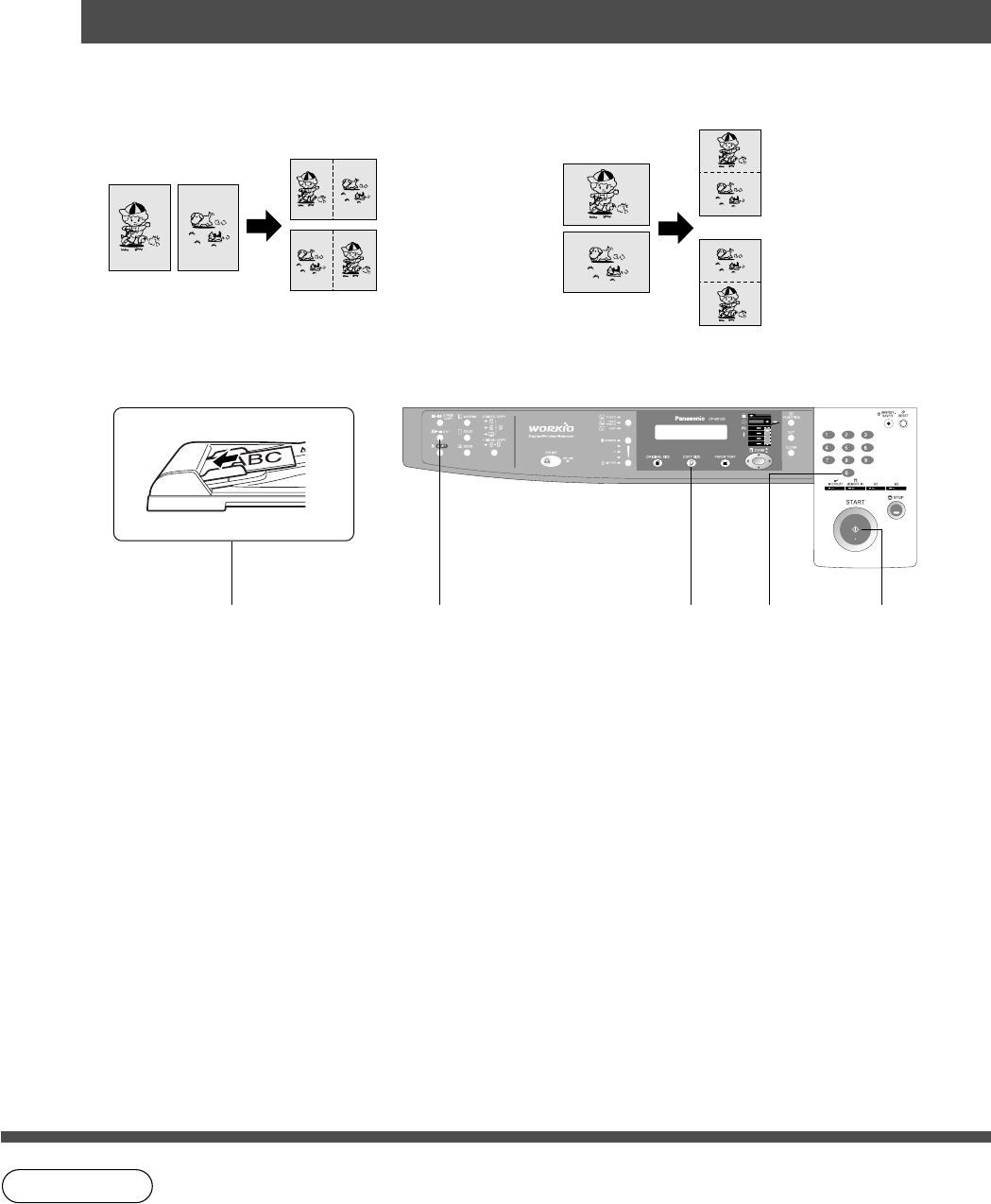

■2 in 1 Copy .........................................................................................16

■2 Page Copy ....................................................................................... 17

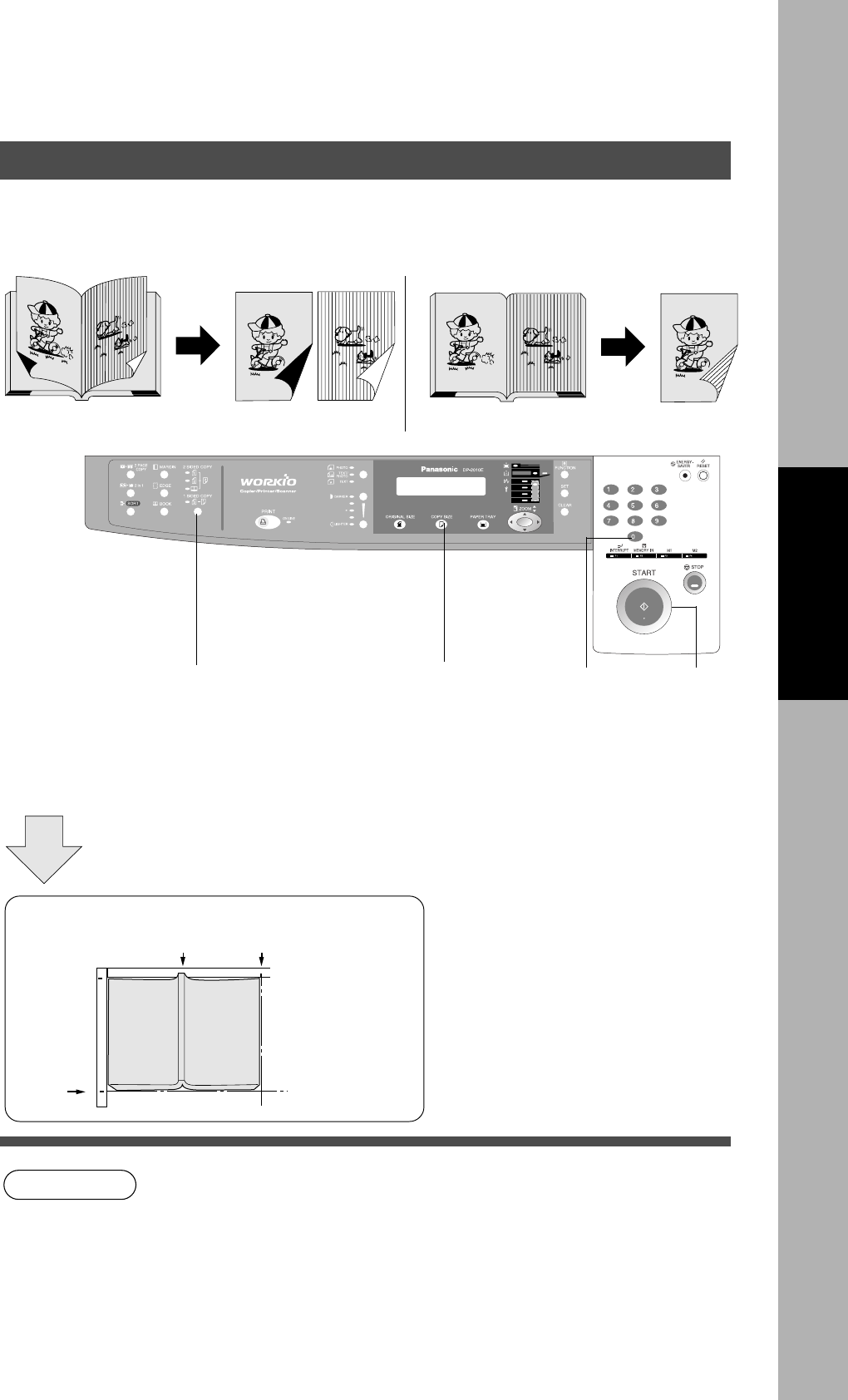

■Book/Edge/Margin ..............................................................................18

■2-Sided/1-Sided Copy.........................................................................19

■1 \ 2/2 \ 1/2 \ 2 Copy.................................................................... 20

■Book \ 2 Copy ..................................................................................21

■Job Memory ....................................................................................... 22

■Sort Copy ...........................................................................................23

Other Features .............................................................................................................................. 24

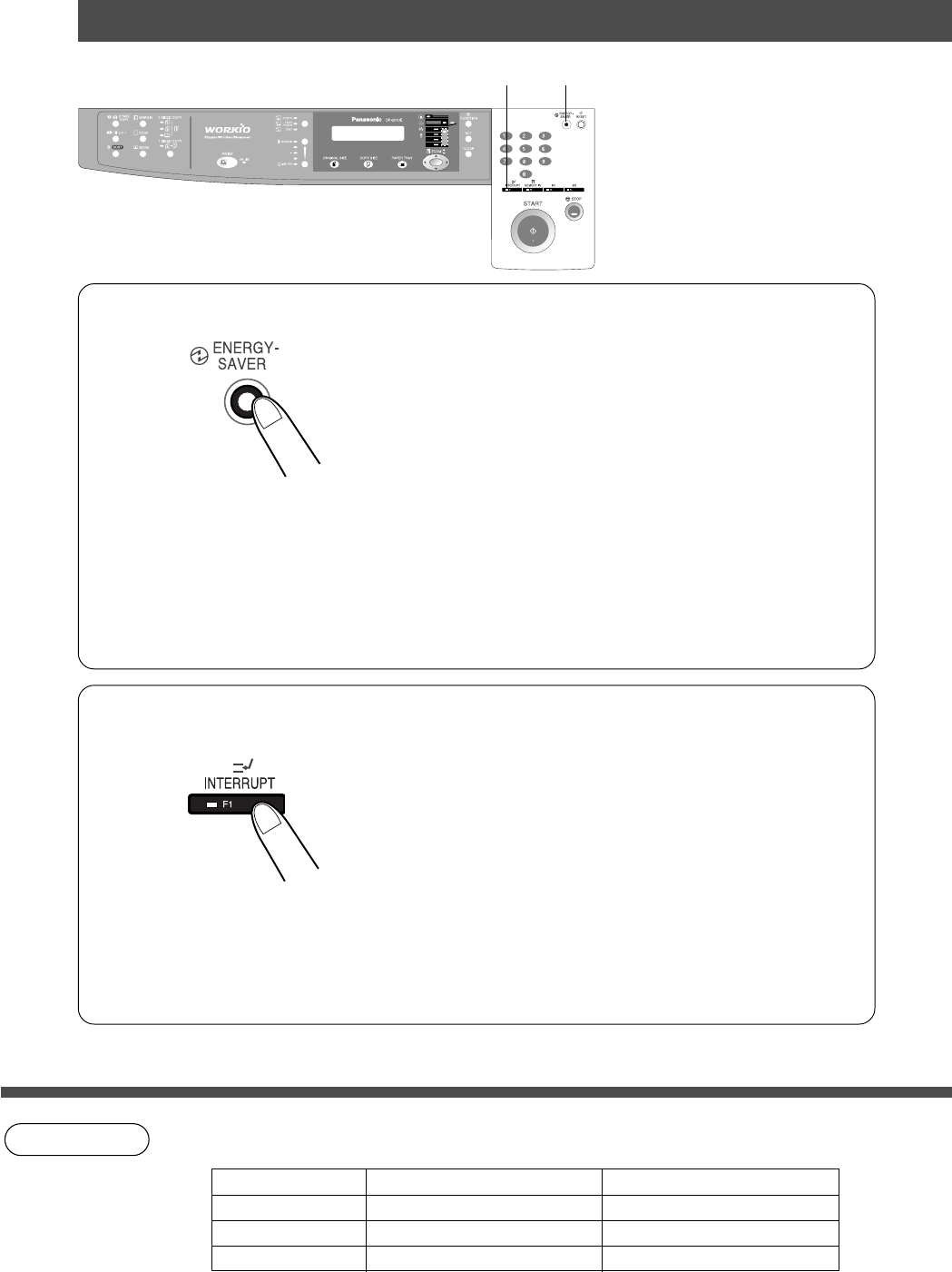

■Energy Saver/Interrupt Mode.............................................................. 24

■Skyshot Mode..................................................................................... 25

Combined Function Table ............................................................................................................ 27

Function ........................................................................................................................................ 28

■Checking the Copier’s Total Counter ...................................................28

■General Functions ..............................................................................29

■Copier Settings ...................................................................................30

■General Functions for Key Operator ................................................... 31

■Copier Settings for Key Operator ........................................................32

■Function Setting.................................................................................. 33

■Function Setting for Key Operator....................................................... 34

■For Your Safety ..................................................................................... 8

■Handling ...............................................................................................8

■Toner and Paper ...................................................................................8

■Ventilation .............................................................................................8

■Installation ............................................................................................9

Table of Contents

Energy Star ..................................................................................................................................... 4

6

Table of Contents

Options

Accessories .................................................................................................................................. 39

■Components .......................................................................................39

■Automatic Document Feeder .............................................................. 40

Problem Solving

Problem Solving ........................................................................................................................... 42

■Adding Paper (J) ............................................................................... 42

■Adding the Toner and Replacing Toner Waste Container (?) ............. 43

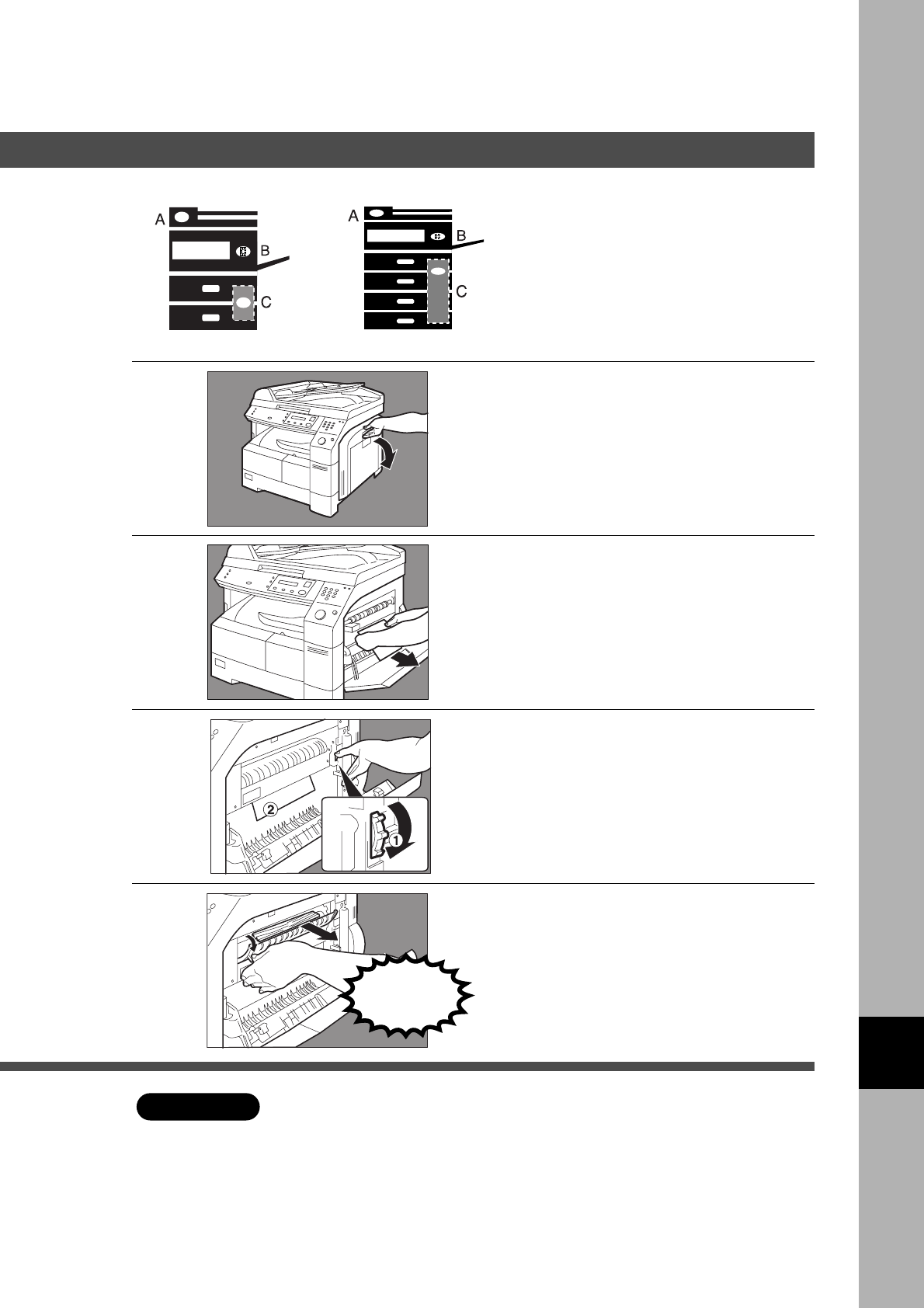

■Removing a Misfed Paper................................................................... 45

Troubleshooting ........................................................................................................................... 52

■Before Calling Service ........................................................................ 52

■User Error Codes (U Code) ................................................................ 54

Others

Specifications ............................................................................................................................... 55

Options and Supplies................................................................................................................... 57

7

Precautions

For Your Safety

■■

■■

■Laser Safety

LASER SAFETY

This unit employs a laser. Only qualified service personnel should

attempt to service this device due to possible eye injury.

CAUTION:

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

■■

■■

■Caution Labels

Manufacturer’s name and address Factory ID

Before Starting

(Digital copier with ADF option) (Digital copier with ADF option)

8

Precautions

Handling

■Do not look directly at the exposure lamp when

copying.

■Do not turn the power switch Off or open the front

panel during copying.

CDo not drop paper clips or other metal objects into

the copier.

Toner and Paper

■Store toner, drum and paper in cool areas with low

humidity.

CUse high quality 16 – 24 lb (60 – 90 g/m2) [Sheet

Bypass: 15 – 34 lb (56 – 128 g/m2)] paper.

CFor optimum performance, it is recommended that

only Panasonic Brand supplies are used in the

copier.

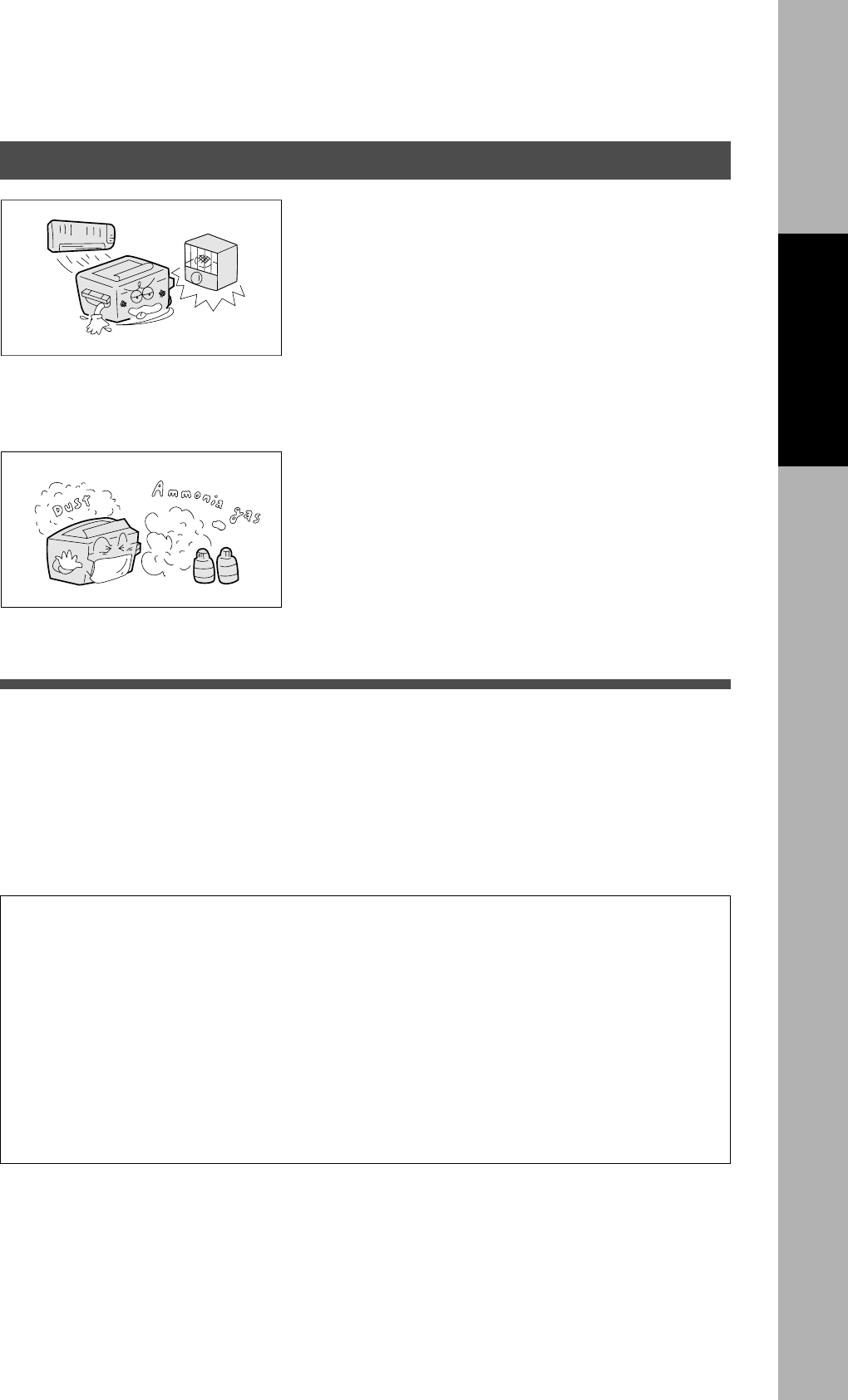

Ventilation

■The copier should be installed in a well-ventilated

area to minimize the ozone density in the air.

9

■The copier should not be installed in areas with the

following conditions:

CExtremely high or low temperature and humidity.

Ambient conditions

Temperature: 50 – 86°F (10 – 30°C)

Relative humidity: 30 – 80 %

CWhere temperature and humidity can change

rapidly, causing condensation.

CDirect exposure to sunlight.

CDirectly in the air conditioning flow.

CIn areas of high dust concentration.

CIn areas of poor ventilation.

CIn areas with chemical fume concentration.

CIn areas with extreme vibration.

CWith unstable or uneven conditions (floors, etc.).

■The maximum power consumption is 1.2 kW.

A properly wired (grounded), dedicated, 15 A, 120 VAC outlet is required.

Do not use an extension cord.

The power cord on this equipment must be used to disconnect the main power.

Please ensure that the socket outlet is installed near the equipment and is easily accessible.

FCC WARNING For U.S.A.

FCC WARNING:

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user will be required to correct the interference

at his/her own expense.

The user could lose the authority to operate this equipment if any unauthorized changes or

modifications are made to this equipment.

Installation

Precautions

Before Starting

10

No Contents Refer to

#2 in 1 Key

CFrom two 1-sided originals, side by side, to 1-sided copies. Page 16

$

2 Page Copy Key

CCopying two facing pages on a ledger size original on two separate

letter size sheets. Page 17

%Sort Key

CWhen using Electric Sorting Mode. Optional memory is required. Page 23

&MARGIN Key CShifts the image to the right or left. Page 18

(EDGE Key CCreates a blank edge. Page 18

)BOOK Key CEliminates dark inner binding shadows. Page 18

*

Photo; Text/Photo; Text Keys

CSelect the type of original(s) for image density adjustment.

PHOTO : Originals are mainly composed of photo.

TEXT/PHOTO: Combined originals with text and photo.

TEXT : Originals are mainly composed of text.

Page 12

+Exposure Keys (DARKER, LIGHTER) Page 12

.

FUNCTION Key

CUse when changing the paper size, initial values for functions (default

values) and key operator settings. Pages 28 – 37

-SET Key CSet the present selection. ——

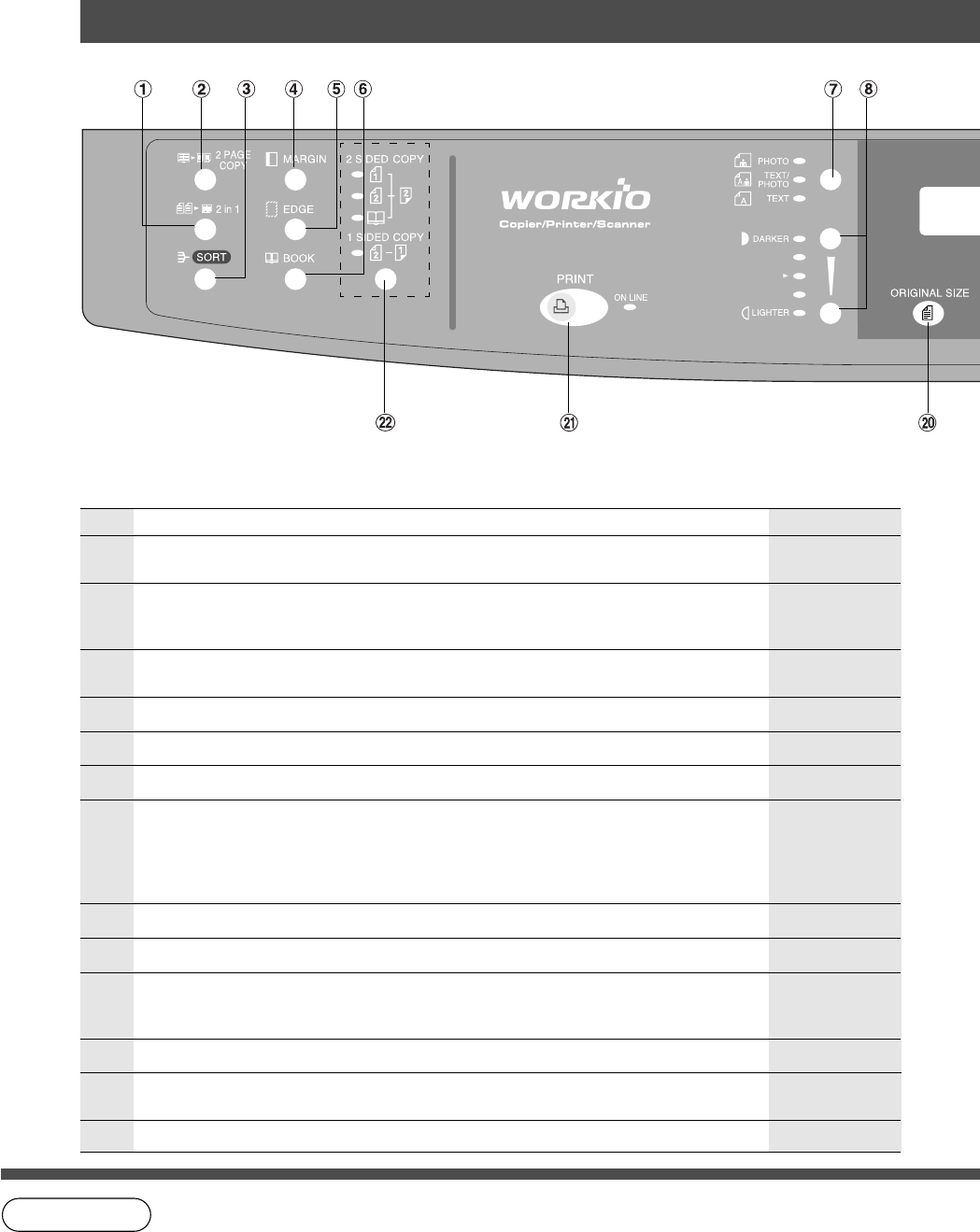

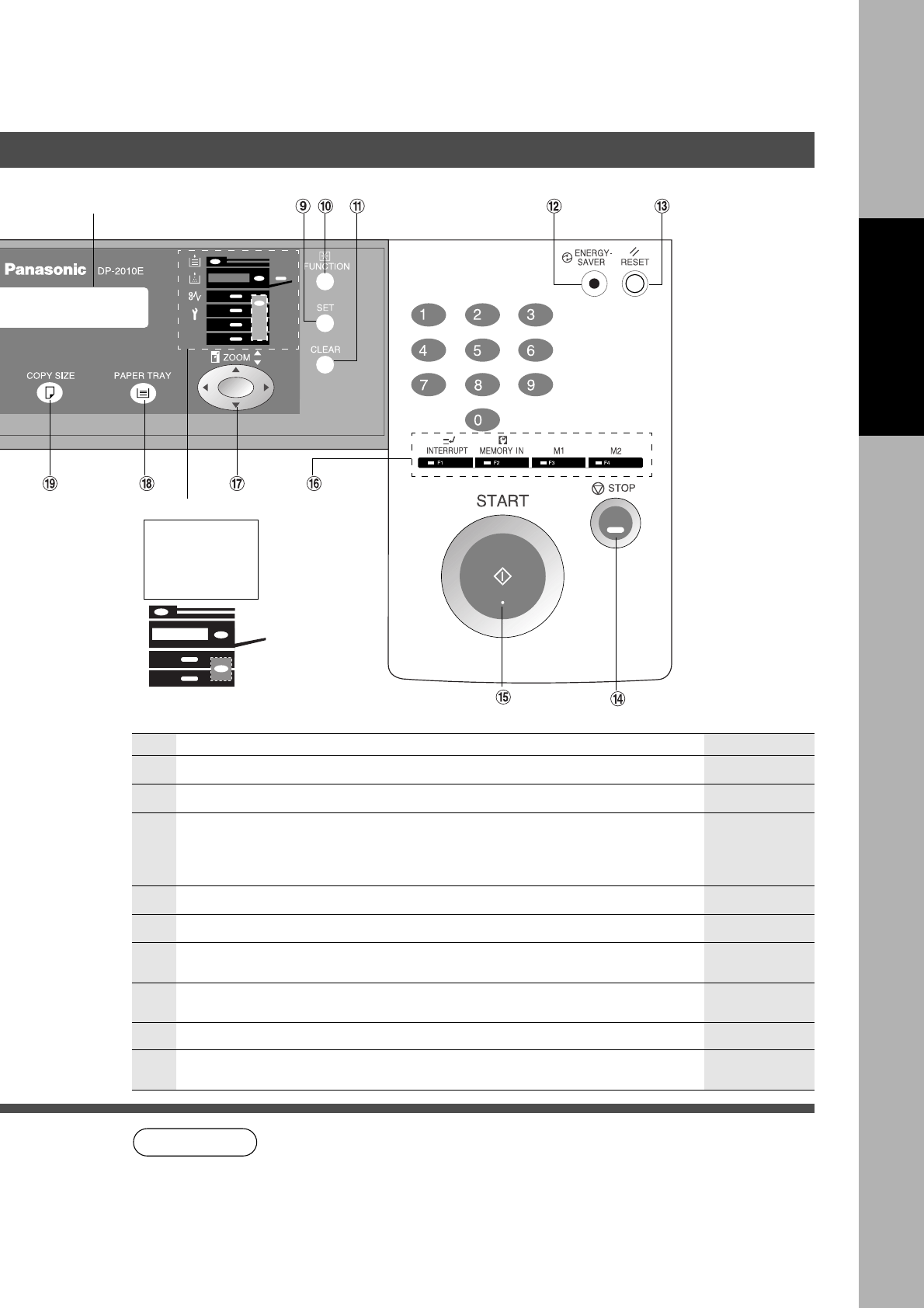

Control Panel

NOTE

CThe Control Panel displayed above shows only copier functions. Please refer to the

appropriate operating instructions for other control panel functions or in the Panasonic

Document Management System CD-ROM for the Printer control panel functions.

CThe illustration above shows the DP-2010E control panel.

/CLEAR Key CClears the copy count in the display. ——

0ENERGY-SAVER Key

CCan save power while the copier is not in use. Page 24

1RESET Key CResets all features to the initial power-on state. ——

(For DP-2010E only)

11

For DP-1810E

Control Panel

LCD Display

Warning Indications

JAdd Paper

?Add Toner

IMisfeed

2Call Service

No Contents Refer to

2STOP Key CStops the copy run. ——

3START Key CUsed to start an operation. ——

4

INTERRUPT Key, MEMORY IN Key, M1/M2 Keys

CInterrupt Key interrupts other copy or print jobs while making copies.

CMemory In Key registers two copy jobs for recall at a later time.

C

M1/M2 Keys are used to store a Job in Memory or to recall a Job stores in Memory.

Pages 22, 24

5Cursor Keys CC

CC

CSelect copy ratio and function modes using (G or F). ——

6PAPER TRAY Key CC

CC

CUsed to select the paper tray manually. ——

7COPY SIZE Key

C

Used to select Reduction/Enlargement only. For additional details, see page 13.

——

8ORIGINAL SIZE Key

C

Used to select the original size manually. For additional details, see page 13.

——

9PRINT Key CC

CC

CWhen selecting the Printer ON/OFF Line. ——

NOTE

CThe Control Panel displayed above shows only copier functions. Please refer

to the appropriate operating instructions for other control panel functions or in

the Panasonic Document Management System CD-ROM for the Printer

control panel functions.

Before Starting

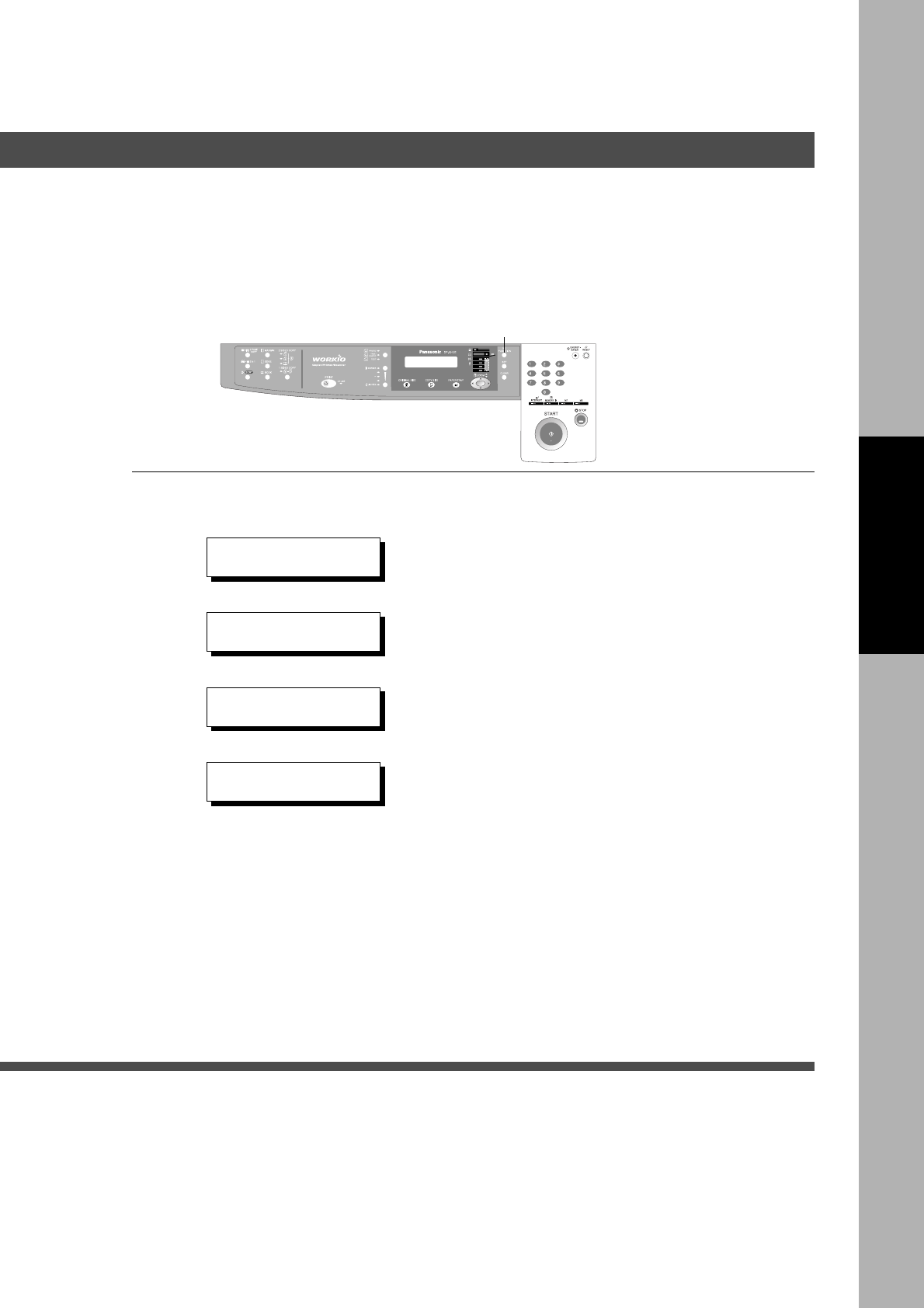

:2-Sided/1-Sided Copy Key

C Used to select 1 \ 2, 2 \ 2 and 2 \ 1, Book \ 2 copying ——

12

Basic Copy

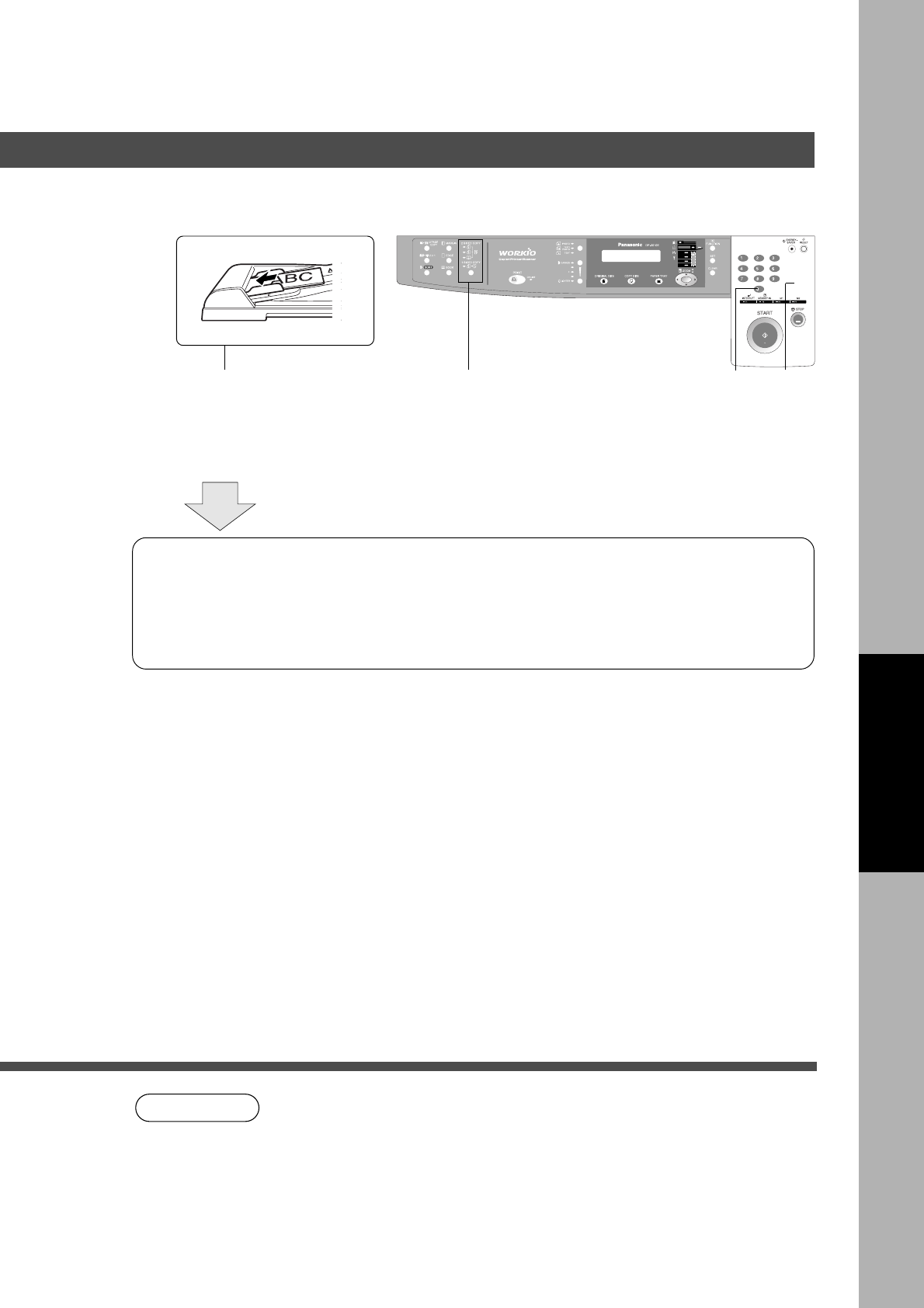

Full Size Copying

■■

■■

■Copying the Same Size Originals (1:1)

Copy size is automatically selected.

1

Place the Original LCD Display (Sample)

ORIGINAL SIZE Key

Select the Original Size on units

without the ADF/i-ADF Option.

NOTE

CLEAR Key 2

Number of Copies*

Up to 999

3

Press START**

#Select the Original Type

PHOTO :Originals are mainly composed of photo.

TEXT/PHOTO: Combined originals with text and photo.

TEXT :Originals are mainly composed of text.

$Select Exposure Control

Press the DARKER/LIGHTER keys to adjust the exposure.

■■

■■

■Manually Selecting Exposure Control or Original Type

∗Use Clear key when canceling the copy count.

∗∗ While the copier is warming up, you may position your original on the copier, enter

your copy job selections and press the Start key. The COPY JOB RESERVED

indicator displays until the warm up cycle is completed and the copy job is

automatically started.

READY TO COPY

COPIES:001

13

■■

■■

■Copying with Preset Ratios

Basic Copy

100 77 65 50

121 100 79 61

129 100 100 65

200 155 129 100

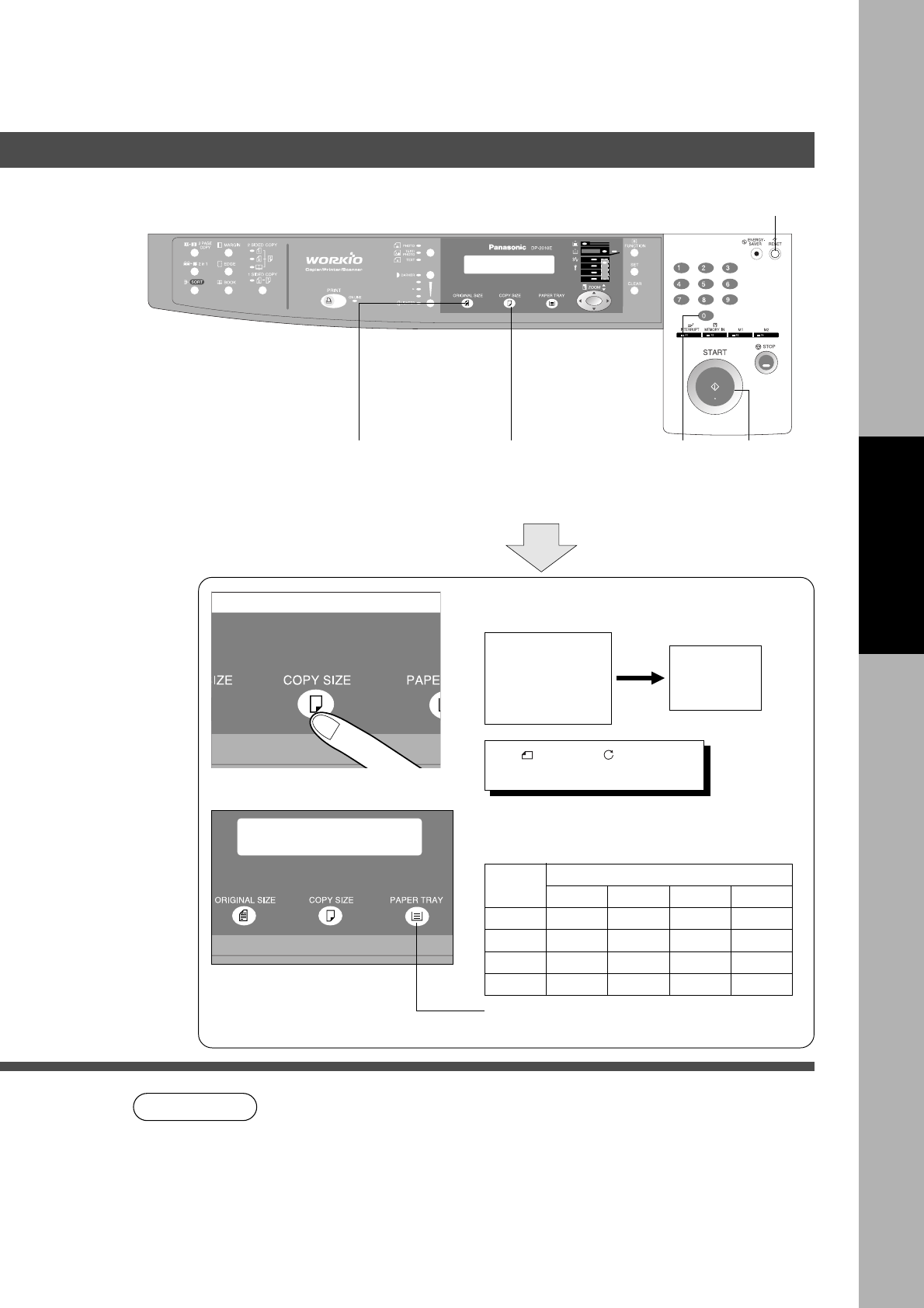

Reduction or Enlargement Copying

LDR

->LTR

B

[LTR

B

]

ZOOM: 65% COPIES:001

RESET

Making Copies

1

Place the

Original

2

Select the

ORIGINAL SIZE

3

Select the COPY

SIZE

4

Number of

Copies

CIf the desired copy size is different from the paper size loaded in the paper

tray, use the sheet bypass. (See page 15)

CPress the RESET key to cancel all job settings.

5

Press

START

Example: Reduction

Original size Copy size

LEDGER LETTER

The correct ratio is automatically selected.

Reduction and enlargement ratios (%)

Original

Size

Copy Size

Ledger Legal Letter Invoice

Ledger

Legal

Letter

Invoice

CWhen changing the paper tray, press the

Paper Tray key.

NOTE

14

NOTE

ATTENTION

■■

■■

■Zoom

Copies with variable zoom ratios from 50 % to 200 % in 1 % increments.

LTR ->LTR

B

[LTR

B

]

ZOOM:125% COPIES:001

B

RESET

Zoom Copying

Basic Copy

(Example: 125 % Zoom)

1

Place the

Original

2Press Cursor (G or F)

keys to select Zoom Ratio

4

Number

of Copies

5

Press

START

CWhen changing the paper size after setting the zoom ratio, please use the paper tray

key.

CPress the RESET key to cancel all job settings.

3

Select ORIGINAL

SIZE

(without using

ADF/i-ADF)

15

NOTE

ATTENTION

Sheet

Bypass

#Place the sheets of paper into

the tray. (approximately up to

50 Letter size sheets/20 lb)

Basic Copy

Using the Sheet Bypass

■■

■■

■Copying on Special Paper, etc.

1Place the original.

Open the sheet bypass.

2Pull out the sheet bypass tray

until it stops.

(For Ledger size only)

3

Insert the paper until it stops.

$Adjust the side guides.

Incorrect adjustment may cause the

paper to wrinkle, misfeed or skew.

Press START.

Side Guides

CAdjust the side guides properly to avoid skewing, wrinkling or misfeeding.

CDo not feed curled paper through the sheet bypass to avoid misfeed.

Do not fill above.

Making Copies

16

2 in 1 Copy

■2 in 1 Copy

From two 1-Sided originals, side by side, to 1-Sided pages.

Creative Features

1 \ 2 (Layout)*

2 \ 1 (Layout)*

Portrait (Orientation)*

Landscape (Orientation)*

1 \ 2 (Layout)*

2 \ 1 (Layout)*

4

Number of

Copies

■■

■■

■Procedure

ADF/i-ADF

Face-Up

1

Place the

Originals

2

Press 2

in 1 key

(3)

COPY SIZE

(Reduction/

Enlargement

Only)

5

Press

START

CThe ADF/i-ADF is required for 2 in 1 copy.

CPress the RESET key to cancel all job settings.

CNumbers in parenthesis “ ( ) ” represent that, an additional step is required to

activate the feature.

∗The Orientation and Layout can be set in the Copier Settings function mode.

(See page 27)

NOTE

17

NOTE

CTo reset all job settings, press the RESET key.

3

ORIGINAL SIZE

(Letter or Ledger

size Only)

4

Number of

Copies

5

Press

START

Platen Ledger size original

Letter

Book Mark

■2 PAGE Copy

Copying two facing pages on a ledger size original on two separate Letter size sheets.

■■

■■

■Procedure

1

Place the

Originals

2

Press the 2

PAGE COPY

key

2 PAGE COPY

Creative Features

Making Copies

Center book

by length

and width

according

to center

marks.

18

NOTE

BOOK/EDGE/MARGIN

Creative Features

■BOOK Key

Eliminates dark inner binding shadows when copying from a book.

■EDGE Key

Creates a blank edge.

■MARGIN Key

Shifts the image to the right or left.

■■

■■

■Procedure

∗Initial setting (Factory setting) can be changed in the Copier Settings function mode.

(See page 30)

∗∗ If a part of the copied image is missing when using the Margin mode, change the

Frame Reduction setting to ON.

(See page 30)

CPress the RESET key to cancel all job settings.

Book

∗Initial Book Margin setting (Factory setting): 20 mm

∗Initial Equal Rate setting (Factory setting): 5 mm

∗Initial Left Margin setting (Factory setting): 10 mm

Edge

Margin**

1

Place the

Original

2

Press BOOK, EDGE

or MARGIN key

5

Press

START

4

Number

of Copies

BOOK MARGIN

CENTER VOID = 20mm ∨∧

EQUAL RATE

VOID MARGIN = 5mm ∧

LEFT MARGIN

10mm ∨∧

3

Press Cursor (G or F) keys to adjust

the void width while the button is

blinking. (approx. 5 sec.)

CVoid/Margin width: 5-99 mm

19

2-Sided/1-Sided Copy (For DP-2010E)

Creative Features

■■

■■

■Key Operation

Press 2-Sided/1-Sided Copy key (circulation) to select a 2-Sided/1-Sided Copy function.

1 \ 2 From 1-Sided originals to 2-Sided

copies. (See page 20)

2 \ 2 From 2-Sided originals to 2-Sided

copies. (See page 20)

Book \ 2 From book originals to 2-Sided copies. (See page 21)

2 \ 1 From 2-Sided originals to 1-Sided

copies. (See page 20)

NOTE

2-Sided/1-Sided Copy key

C2-Sided originals may be handled either manually or automatically using the

i-ADF (DA-AR201).

C2-Sided/1-Sided Copy function is only available for DP-2010E.

Making Copies

20

1 \\

\\

\ 2 / 2 \\

\\

\1 / 2 \\

\\

\ 2 Copy (For DP-2010E)

■1 \\

\\

\ 2 Copy

From 1-Sided originals to

2-Sided copies.

(From Copier Platen & i-ADF/

ADF)

■2 \\

\\

\ 1 Copy

From 2-Sided originals to

1-Sided copies.

(Using i-ADF)

Creative Features

NOTE

■2 \\

\\

\ 2 Copy

From 2-Sided originals to

2-Sided copies.

(Using i-ADF)

Long Edge (Binding)*Long Edge (Binding)*Long Edge (Binding)

Short Edge (Binding)*Short Edge (Binding)*Short Edge (Binding)

■■

■■

■Procedure

i-ADF

Face-Up

1

Place the

Originals

2

Press 2-Sided/

1-Sided Copy key

(circulation) to

select 1 \ 2, 2 \ 2

or 2 \ 1

Number of

Copies

(3)

COPY SIZE

(Reduction/

Enlargement Only)

45

Press

START

CTo reset each selection, press the RESET key.

∗The initial setting of binding location for 1 \ 2 Copy and 2 \ 1 Copy (Long edge or

Short edge) can be set in function mode. (See page 30)

C1 \ 2, 2 \ 2, 2 \ 1 Copy function is only available for DP-2010E.

(When selecting 1 \ 2 Copy or 2 \ 1 Copy)

BINDING:LONG EDGE

PRESS < > TO SELECT

Press the I or H key to select

the binding location.

21

NOTE

4

Number of

Copies

5

Press

START

CTo reset each selection, press the RESET key.

CLedger and Legal copy sizes cannot be selected.

∗The book format and page order can be set in function mode. (See page 30)

CBook \ 2 Copy function is only available for DP-2010E.

Platen Ledger size original

Letter

Ledger

(3)

COPY SIZE

(Reduction/

Enlargement Only*)

Book \\

\\

\ 2 Copy (For DP-2010E)

■Book \\

\\

\ 2 Copy

From book originals to 2-Sided copies.

Ledger size originals only.

Facing (Book Format)*Flipping (Book Format)*

1

Place the

Original on

the Platen

2

Press 2-Sided/

1-Sided Copy key

(circulation) to select

Book \ 2

Creative Features

Making Copies

Book Mark

Center book by

length and width

according to

center marks.

22

NOTE

Creative Features

Job Memory

■■

■■

■Two Copy Jobs Can Be Programmed in Memory (M1, M2) for recall at a

later time.

To Store a Job in Memory

#Set up the copy job to be stored in memory,

by first selecting each function you wish the

copier to perform.

$Press the MEMORY IN (F2) key.

%Press the M1 (F3) or M2 (F4) key.

To Recall a Job Stored in Memory

&Place the Original

(Press the M1 (F3) or M2 (F4) key.

The stored contents will be displayed.

)Press START

CStored job(s) will not be deleted even if the power switch is turned Off.

CWhen storing a new job into programmed memory, the previously stored job will be

overwritten.

JOB MEMORY

PRESS M1,M2 TO STORE.

RECALL JOB MEMORY

LOADING...

23

Creative Features

Sort Copy

1

1

1

1

1

1

NOTE

CWhen the memory becomes full during original scanning, the message

“OUT OF MEMORY” “CONTINUE? 1: YES 2: NO” will be displayed in the

message display. If this occurs, follow the instructions in the message

display.

For additional memory consult your authorized servicing dealer.

CTo reset all job settings, press the RESET key.

■Sort Copy

The sort copy has 2 available electronic sorting functions as follows:

Note: Before using the sort copy, select the desired sorting mode by setting its function first

(See page 29).

1

ADF/i-ADF: Place the

Originals

Platen: Place the

First Original

2

Select the

SORT Mode

(3)

COPY SIZE

(Reduction/

Enlargement

Only)

4

Number of

Copies

5

Press

START

6ANOTHER ORIGINAL?

1:YES 2:NO

Press “1” key. 7Place next Original 8Press START

9Repeat steps 6 and 7

until all originals are

scanned and stored

into the copier’s memory. 10 ANOTHER ORIGINAL?

1:YES 2:NO

Press “2” key.

Sort Sort-Rotate

Multiple copies

sorted

automatically.

Multiple copies sorted

automatically and

Stacked in alternate

direction.

(Up to Letter size)

From Platen Glass only:

Platen Glass ADF/i-ADF

Making Copies

24

NOTE

INTERRUPT (F1) Key ENERGY-SAVER Key

■These modes can save power while the copier is not

in use.

Energy Saver Mode

#To enter this mode

Press the ENERGY-SAVER key or the copier will

automatically enter the ENERGY-SAVER Mode after

15 minutes* from the last copy. The indicator will flash.

$To cancel this mode and make copies

Press the ENERGY-SAVER key again.

Sleep Mode

#Automatically enters the Sleep Mode after 30

minutes from the last copy. The copier power will

drop and the indicator will light.

$To make copies, press the ENERGY-SAVER key.

Interrupt Mode

CThis mode can interrupt other copy jobs while

making copies.

#Press the INTERRUPT (F1) key, the indicator will

light.

$Make another copy job using the platen glass.

%Press the INTERRUPT (F1) key again to continue

the original job.

Note: The ADF can not be used with interrupt.

(Use only the Platen)

∗Energy saver time (15 minutes) and Sleep time (30 minutes) can be changed by the

key operator. (See page 31)

Other Features

Modes Power Consumption Warm Up Time

Normal Operation

Energy Saver Mode

Sleep Mode

Approximately 92 Wh

Approximately 40 Wh

Approximately 1.5 Wh

N/A

30 sec. recovery

30 sec. recovery

ENERGY SAVER

INTERRUPT

Energy Saver/Interrupt Mode

25

NOTE

CAn incorrect exposure may occur when there is a black line at the edge of

the original or an image which the copier interprets as a black pattern in the

Skyshot mode.

CAn incorrect position detection of the original may occur when a strong light

shines onto the glass during Skyshot mode.

Other Features

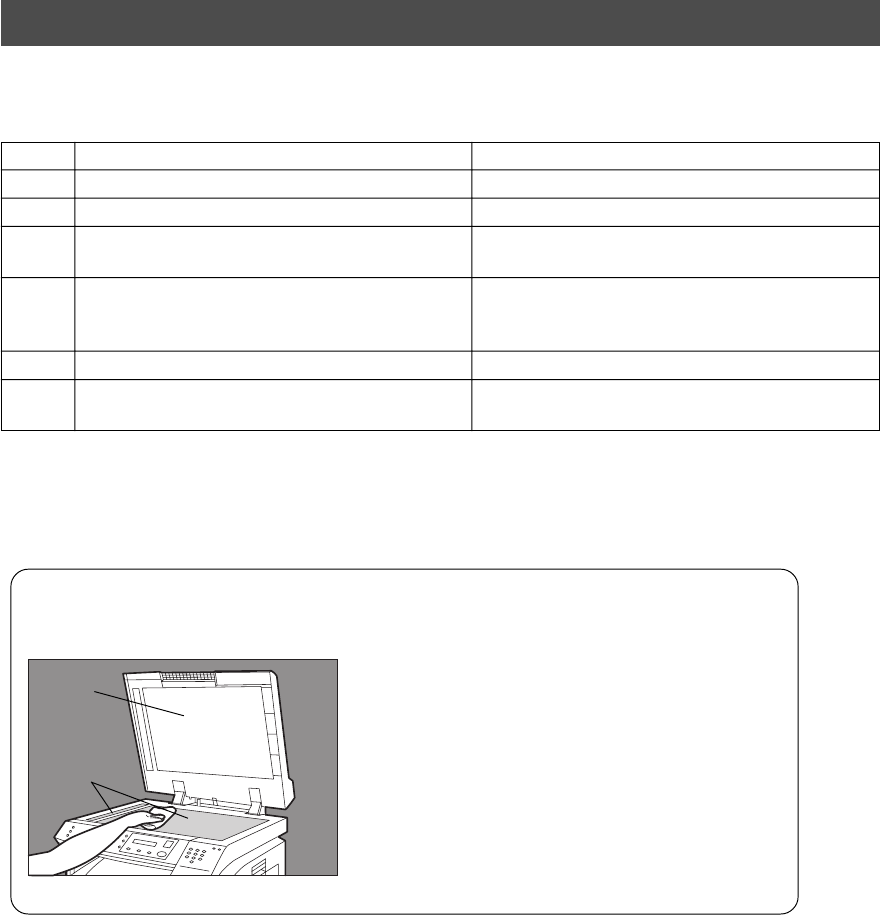

Skyshot Mode

■■

■■

■Skyshot allows copying a manuscript without generating dark borders

even if the platen cover or ADF/i-ADF is opened.

Skyshot mode eliminates dark borders around the originals, and is especially convenient for

copying small-sized originals like bank checks or documents with unusual shapes (round, oval,

etc.). These documents can be reproduced without generating any unnecessary black areas

simply by making a copy with the cover open.

Two types of Skyshot modes can be selected;

Digital Skyshot Mode : The scanning area (size) is not pre-determined.

Manual Skyshot Mode : The scanning area (size) is pre-registered into memory (M1 and M2) in

advance. (See page 30)

■■

■■

■Digital Skyshot Mode

1

Place the Original on

the platen (Opening the

Platen Cover/ADF)

Note:The default setting of Digital Skyshot Mode is “NORMAL”. In this setting, the unit scans once.

If there are black areas around the borders in the copies, set the Digital Skyshot Mode to

“QUALITY” to soften the dark borders. In this setting, the unit scans twice.

#Press the FUNCTION key.

$Press the 2 key to select COPIER SETTINGS.

%Press the SET key.

&Press 6 and SET key to select DIGITAL

SKYSHOT.

(

Press 1-3 key to select the Digital Skyshot Mode.

1: OFF NONE

2: NORMAL Default setting (usually select this

mode).

3: QUALITY For better definition, select the

Quality mode.

)Press the SET key.

*Press the RESET key.

FUNCTION MODE (1-2)

ENTER NO. OR ∨ ∧

2:COPIER SETTINGS

PRESS SET TO SELECT

COPIER PARAM. (00-14)

ENTER NO. OR ∨ ∧

06 DIGITAL SKYSHOT

2:NORMAL

3

Press

START Key

2

Number of

Copies

Making Copies

26

NOTE

1

Place the

Original

23

Number of

Copies

4

Press

START

Select the Custom

Size (M1 or M2)

Upper-

left

corner

Platen

Skyshot Mode

■■

■■

■Manual Skyshot Mode

When using this function, the custom size should be registered into memory (M1, M2) in

advance. (See page 32)

Other Features

2

∗The default size for M1 is: 70(X) × 160(Y) mm, and M2 is: 95(X) × 220(Y) mm

CWhen changing the M1 or M2 size, consult with the key operator.

CWhen using the Manual Skyshot mode, M1 and M2 are turned ON and other

job memory cannot be used.

CPress the RESET key to cancel all job settings.

FUNCTION MODE (1-2)

ENTER NO. OR ∨ ∧

2:COPIER SETTINGS

PRESS SET TO SELECT

COPIER PARAM. (00-14)

ENTER NO. OR ∨ ∧

07 MANUAL SKYSHOT

2:M1 ON

#Press the FUNCTION key.

$Press the 2 key to select COPIER SETTINGS.

%Press the SET key.

&Press 7 and SET key to select MANUAL SKYSHOT.

(

Press 2 or 3 key to select the Custom Size.

1: OFF NONE

2: M1 ON M1 size is ON*

3: M2 ON M2 size is ON*

4: M1, M2 ON Both sizes are ON

)Press the SET key.

*Press the RESET key.

27

Next

Selections

2-ORIGINAL

HH

HH

H COPY Margin SORT

Other

Functions

Zoom Copy

2 in 1 Copy

2 Page Copy

Sort-Rotate

Manual Skyshot

Job Memory Retrieval

Job Memory Storing

Remarks

First

Selections

Sort

Book

Edge

Margin

Non-Sort

Combined Function Table

OAAOAA A OOOOOO AAO

OAAAAAAOOOOOO AAO

O OOOOOO AOOOOO AAO

O OOOOOO O AOOOO AAO

O OOOOOO O O AOOO AAO

O OOOOOO O O O AAA A AO

O OOOOOO O O O AAA A AO

O OOOOOO O O O AAA A AO

O✕✕AAAAOOO ––– AA✕

O✕O✕✕✕✕OOO ––– ✕✕✕

Zoom Copy

2-ORIGINAL H

COPY

Margin

Other

Functions

SORT

2 in 1 Copy

2 Page Copy

Book

Edge

Margin

Non-Sort

Sort

Sort-Rotate

Manual Skyshot

Interrupt

O: Possible Combined Functions.

✕: Unavailable Combined Functions.

A : Next Selection is Carried Out.

–: Indicates that SORT mode cannot be used. Non-sort operation is carried out.

AOOOOOOOOOOOO AAO

1 \ 2

2 \ 2

Book -> 2

2 \ 1

OOAAAAAOOOOOO AAO1 \ 2

OOAAAAAOOOOOO AAO2 \ 2

OOAAAAAOOOOOO AAOBook \ 2

OOAAAAAOOOOOO AAO2 \ 1

Making Copies

28

NOTE

■■

■■

■Procedure FUNCTION Key

RESET Key

#Press the FUNCTION Key

$Press 1 (GENERAL FUNCTIONS) or 2

(COPIER SETTINGS) key. You may also use

the (G or F) keys.

%Press the SET key.

&Press the Keypad to select function modes

or use the (G or F) keys.

(Follow the on screen instructions.

)After setting, press the SET key to set up the

function.

CPlease refer to each option’s operating instructions for function settings.

Printer

Settings for

Key Operator

General

Functions for

Key Operator

Copier

Settings for

Key Operator

LAN Settings

for Key

Operator

Input Identification Code

Printer

Settings

■■

■■

■Using Function Modes to Change the Initial Copy Modes

General

Functions

Copier

Settings LAN Settings

Options

Function

■Checking the Copier’s Total Counter

To display the copier’s Total Counter, press the COPY SIZE and PAPER TRAY keys

simultaneously.

COPY SIZE

Key

PAPER

TRAY Key

FUNCTION MODE (1-2)

ENTER NO. OR ∨ ∧

29

Making Copies

Function

No. Modes Initial

Setting

Function

00 SORT MODE DEFAULT Selects the sort mode.

CNON-SORT, SORT

NON-SORT

General Functions

05 Displays the amount of sort memory used on

the panel.

COFF, DISPLAY

SORT MEMORY USAGE

OFF

Copy usage and copy limit of the selected

department and total copy usage will appear

on the screen.

DEPT. COUNTER Consult

your

service

technician.

06

08

09

Select Sort-Rotate mode.

COFF, ON

SORT-ROTATE DEFAULT OFF

KEY OPERATOR MODE Input the key operator ID code.

30

No. Modes Initial

Setting

Function

00 MARGIN DEFAULT Selects the margin position and shift value.

CPOSITION (Left, Right, Top, Bottom)

CVALUE (5 - 99 mm)

LEFT

10 mm

Copier Settings

Function

Selects the edge mode (Equal Rate = set the

same value for X & Y or Individual = set the

value for X & Y individually) and width.

CEQUAL RATE (X & Y ), INDIVIDUAL

C5 - 99 mm

EDGE DEFAULT

05 Selects whether or not to disable edge deletion.

CINVALID, VALID

2 in 1 WITH FRAME

Selects the book Center Void margin width.

C5- 99 mm

BOOK MARGIN DEF.

EQUAL RATE

5 mm

20 mm

INVALID

Enables or disables the use of skyshot mode.

COFF, NORMAL, QUALITY

DIGITAL SKYSHOT

NORMAL

OFF

VALID

Enables or disables the use of Manual

Skyshot.

COFF; M1 ON; M2 ON; M1, M2 ON

MANUAL SKYSHOT

Input key operator ID code.KEY OPERATOR MODE

Automatically adjusts the copy density for text

and photographic originals.

CINVALID, VALID

AUTO EXPOSURE

01

02

06

07

08

14

PORTRAIT

L \ R

Selects the orientation and layout for 2 in 1 Copy.

CORIENTATION (Portrait, LANDSCAPE)

CLAYOUT (L \ R, R \ L)

2 in 1 DEFAULT12

L \ RSelects the 2 page mode.

CL \ R, R \ L

2 PAGE MODE DEF.

13

INVALID

Select the reduction ratio in margin mode.

CINVALID, VALID

FRAME MARGIN03

OFF

Function sets the duplex priority mode.

C

OFF, 1 \ 2, 2 \ 2, Book \ 2 (For DP-2010E)

2-SIDED MODE DEF.04

09

10

11

LONG EDGE

Selects the binding location for 1 \ 2 Copy.

C

LONG EDGE, SHORT EDGE (For DP-2010E)

1 \ 2 BINDING DEF.

LONG EDGE

Selects the binding location for 2 \ 1 Copy.

C

LONG EDGE, SHORT EDGE (For DP-2010E)

2 \ 1 BINDING DEF.

FLIPPING

L \ R

Selects the page order and book format for

Book \ 2 Copy.

1. BOOK FORMAT (1: FACING, 2: FLIPPING)

2.

PAGE ORDER (1: L \ R, 2: R \ L) (For DP-2010E)

BOOK \ 2 DEFAULT

NOTE

CCertain Functions or Parameters are available for selection only when their

respective option is installed.

31

Function

General Functions for Key Operator

No. Modes Initial

Setting

Function

NOTE

Selects the Control Panel reset time.

COFF, 30 sec, 1 min., 2 min., 3 min., 4 min.

Selects the message language of the display.

CA-ENGLISH, C-FRENCH, SPANISH

AUTO RESET TIME

LANGUAGE DEFAULT

05

Sets the paper tray for special paper (ex: colored).

CNONE, TRAY 1, TRAY 2, BYPASS

SPECIAL TRAY 1 NONE

Sets the Energy Saver mode and time.

CINVALID, ENERGY-SAVER, SLEEP

Energy save mode timer : 1-120 minutes

Sleep mode timer : 1-120 minutes

ENERGY SAVER MODE

1 min.

SLEEP

A-ENGLISH

KEY/TOUCH BEEP Sets the panel touch sound.

COFF, SOFT, LOUD SOFT

01

02

04

09

Consult

your

service

technician.

Monitors copy usage of each department.

(1) TOTAL COUNTER

(2) DEPT. COUNTER

(3) DEPT. COUNTER LIST

DEPT. COUNTER MODE

∗

Sets the IP Address assigned to your machine.

C3 digit × 4 (Use the MEMORY IN key to

enter the “.” between each set of 3-digit

numbers)

TCP/IP ADDRESS

∗Sets the Subnet Mask.

C3 digit × 4 (Use the MEMORY IN key to

enter the “.” between each set of 3-digit

numbers)

TCP/IP SUBNET MSK

∗Sets the Subnet Mask.

C3 digit × 4 (Use the MEMORY IN key to

enter the “.” between each set of 3-digit

numbers)

TCP/IP G/W ADDR.

14

22

23

24

CIt is necessary to input the Key Operator ID code before changing items on

this page.

CThe Special Tray 1 and 2 are not auto-selectable in the switching mode.

∗Not available for plain copier, but will be available when installing options

with advanced functions. (See page 57)

Sets the paper tray for special paper.

CNONE, TRAY 1, TRAY 2, BYPASS

SPECIAL TRAY 2 NONE06

Sets the sound when put paper(s) on bypass

tray.

C1: INVALID 2: VALID

BYPASS SET BEEP INVALID

10

Sets the sound when put paper(s) on ADF.

C1: INVALID 2: VALID

ORIG. SET BEEP ADF VALID11

Prints list containing Current Setting and

Standard Setting.

COPY SETTING LIST

25

Contact

your

Network

Adminstrator.

Contact

your

Network

Adminstrator.

Contact

your

Network

Adminstrator.

Making Copies

Total print out volume from the main unit.TOTAL COUNT15

Total print out volume from the PC.PC PRINT COUNT

16

32

NOTE

No. Modes Initial

Setting

Function

Function

Copier Settings for Key Operator

ORIGINAL (HOME)

Selects contrast for Text/Photo mode

C1 ~ 5

T/P CONTRAST 3

PHOTO CONTRAST Selects contrast for Photo mode

C1 ~ 5

T/P

(

Text/Photo

)

Selects original setting

CTEXT, T/P (Text/Photo), PHOTO

3Selects contrast for Text mode

C1 ~ 5

TEXT CONTRAST

3

MAX. COPY SETTING Determines whether to limit number of copies

C1 ~ 999

999

01

02

03

04

10

Input a size in memory 2 for frequent usage

size.

CX: 5~432/Y: 5~297 mm

(See page 22)

M2, SIZE

95 ×220 mm

(X) (Y)

70 ×160 mm

(X) (Y)

Input a size in memory 1 for frequent usage

size.

CX: 5~432/Y: 5~297 mm

(See page 22)

M1, SIZE

16 MEM. FULL ACTION Selects the memory full action

CPRINT, CANCEL

Print

12

13

CIt is necessary to input the Key Operator ID code before changing items on

this page.

33

Making Copies

Function Setting

■■

■■

■Changing the Auto Exposure Setting

You can select whether the copying density is adjusted automatically for text and photographic

originals.

1FUNCTION Key

2#Press the 2 key to select COPIER SETTINGS.

$Press the SET key.

%Press 8 and SET key to select AUTO

EXPOSURE MODE.

&Press 1 or 2 key to select whether Auto

Exposure is to be carried out or not.

(Press the SET key to set up the AUTO

EXPOSURE MODE.

)Press the RESET key to exit the Function mode.

Function

Proceed as Follows:

FUNCTION MODE (1-2)

ENTER NO. OR ∨ ∧

COPIER PARAM. (00-14)

ENTER NO. OR ∨ ∧

2:COPIER SETTINGS

PRESS SET TO SELECT

08 AUTO EXPOSURE

2:VALID

Press the FUNCTION key.

34

Function Setting for Key Operator

■■

■■

■Changing the Paper Size

The Paper Trays are designed to accommodate Invoice, Letter, Letter R, Legal and Ledger size

paper. To change the paper size, perform the steps shown below.

1FUNCTION Key

2Proceed as Follows:

#Press the 1 key to select GENERAL

FUNCTIONS.

$Press the SET key.

%Press 9 key.

&Input the Key Operator ID code (3 digit)

and the SET key.

(Press 00 and 1 or 2 key to select

the PAPER SIZE.

)Press SET to select the paper tray and

press (G or F) keys to set the paper

size.

Paper size changes are as follows.

Letter R Invoice R

Ledger

Legal

*Press the SET key to set up the PAPER

SIZE.

+Press the RESET key to exit the Function

mode.

Function

FUNCTION MODE (1-2)

ENTER NO. OR ∨ ∧

1:GENERAL FUNCTIONS

PRESS SET TO SELECT

GENERAL PARAM. (0-9)

ENTER NO. OR ∨ ∧

09 KEY OPERATOR MODE

ENTER PASSWORD=- ■ ■

KEY OPR. MODE (00-25)

ENTER NO. OR ∨ ∧

00 PAPER SIZE

1:TRAY-1[LTR

B

]

Letter A3 B4 A4

A4R

B5

FLS2 FLS1 A5R B5R

Press the FUNCTION key.

35

NOTE

Function

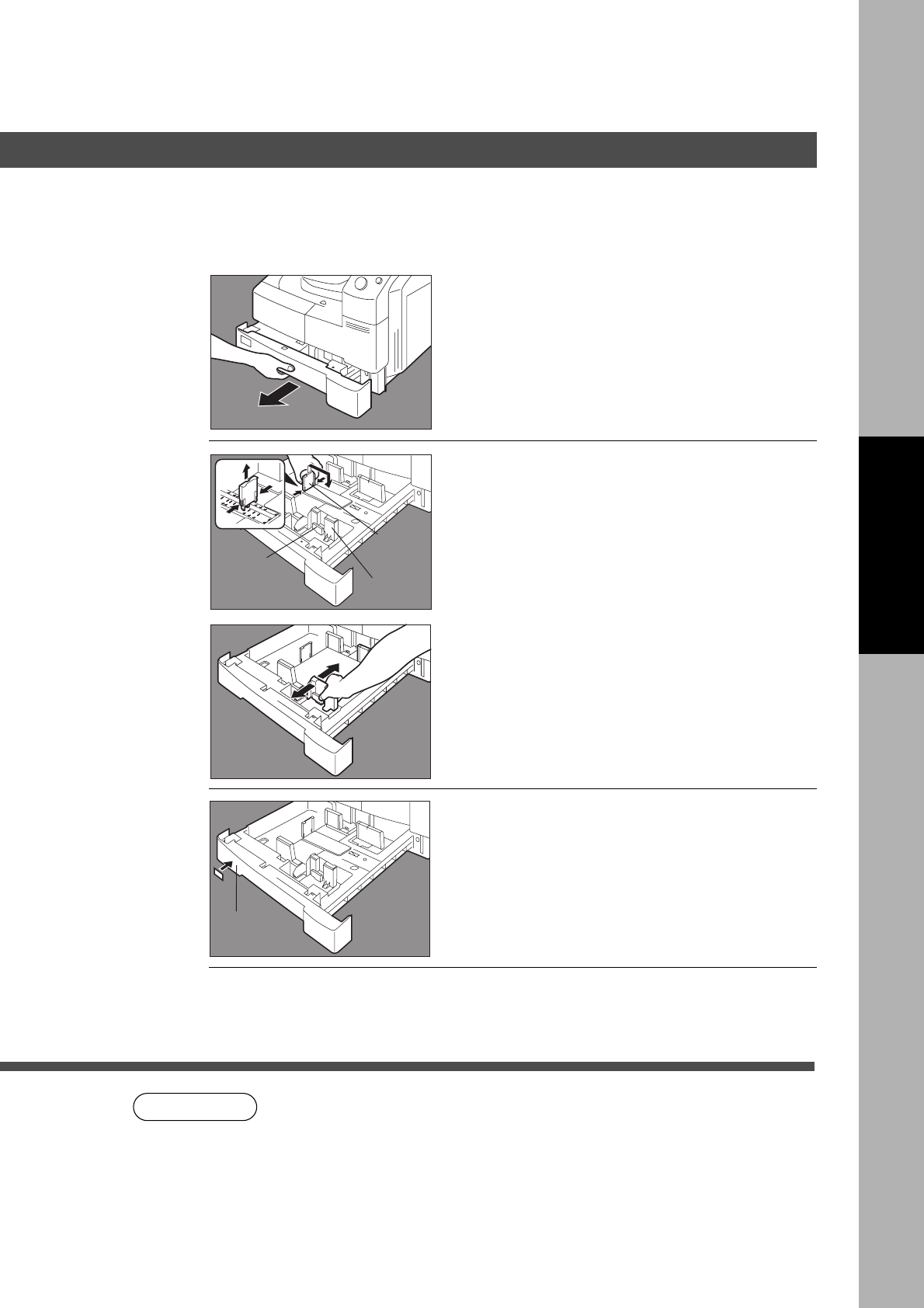

Changing the Paper Guide and Paper Size Indicator in the Paper Tray

#Pull the Paper Tray out and remove

paper.

$Adjust the paper guide a to the

required paper length.

%Adjust the Paper Guide b to the

required paper width.

Pinch the stopper to move the Paper

Guide b.

&Change the Paper Size Indicator.

Paper

Guide aa

aa

a

Stopper

Paper

Guide bb

bb

b

Size

Indicator

(Close the Paper Tray.

3

CIt is recommended that the paper guide b be fixed in place with screws.

Consult an authorized servicing dealer for details on how to fasten with

screws.

Function Setting for Key Operator

Making Copies

36

■■

■■

■Department Counter

The Key Operator can manage, limit copies, counters and code numbers for each department.

(Maximum department counters: 50)

1FUNCTION Key

2Proceed as Follows:

#Press the 1 key to select GENERAL

FUNCTIONS.

$Press the SET key.

%Press 9 key.

&Press the Key Operator ID code (3 digit)

and SET key.

(Press 14 and the SET key to select

DEPT. COUNTER MODE.

NOTE

CTo reset the function mode, press the RESET key.

C

Contact your authorized servicing dealer to enable the Department Counter

feature.

Function Setting for Key Operator

Function

FUNCTION MODE (1-2)

ENTER NO. OR ∨ ∧

1:GENERAL FUNCTIONS

PRESS SET TO SELECT

GENERAL PARAM. (0-9)

ENTER NO. OR ∨ ∧

09 KEY OPERATOR MODE

ENTER PASSWORD=- ■ ■

KEY OPR. MODE (00-25)

ENTER NO. OR ∨ ∧

Press the FUNCTION key.

37

Making Copies

Change the Department ID Code, limit the maximum number of copies

and Department Counter number.

#Press the Keypad and the SET key to input the

Department ID Code.

01: 1234 Department ID Code

Department No.

$Press the Keypad and the SET key to input the

maximun number of copies.

01: 123456

Maximun number of copies (6 digits)

Department No.

%Press the Keypad and the SET key (G or F keys) to

select the Department No.

01: 123456 Counter (6 digits)

Department No.

&Press 0 and the SET key (Input “0”) to clear the counter.

14 DEPT.COUNTER MODE

1:TOTAL COUNTER

3Select the Department Counter Mode.

Press 2 and the SET key.

NOTE

Function

CTo reset the function mode, press the RESET key.

DEPT. CODE (01-50)

ENTER NO. OR ∨ ∧

DEPT.COUNTER

01:123456

MAX COPIES

01:123456

ID CODE

01:1234

4

Function Setting for Key Operator

38

39

DP-2010E

with Options

DP-1810P

with Options

Accessories

Components

ADF (Automatic Document Feeder)

(DA-AS180)

CFeeds originals automatically.

C2 in 1 Copy

ADF

Zoom Copy

2 in 1 Copy

2 Page Copy

Book

Edge

Margin

Non-Sort

Sort

Sort-Rotate

Manual Skyshot

Image Memory

(DA-SM08B/SM16B/SM64B/SM28B)

C8/16/64/128 MB

CTo increase the memory capacity for

electronic sorting and sort printing.

2nd/4th Paper Feed Module

(DA-DS182)

CTo increase the paper feed sources

and capacity.

Paper Feed Module × 1 (550 sheets)

∗PCL6 is a Page Description Language of the Hewlett-Packard Company.

CThe table below shows the options which are required for various functions.

C

Contact your authorized servicing dealer for details on combinations of options.

2-ORIGINAL H

COPY Margin SORT

Other

Functions

Function

Options

i-ADF

:Required

NOTE

PCL6 Emulation Kit

(DA-PC210)

CPrinter Controller for PCL6*

10/100 Ethernet Interface/

Internet Fax Kit

(DA-NE200)

CNetwork Interface Board

Options

i-ADF

(Inverting Automatic Document Feeder)

(DA-AR201)

CFeeds original automatically

CDuplexing

C2:1 Copy

C2 in 1 Copy

3rd Paper Feed Module

(DA-DS183)

CTo increase the paper feed sources

and capacity.

Paper Feed Module × 1 (550 sheets)

1 \ 2

2 \ 2

Book \ 2

2 \ 1

2nd/3rd/4th Paper

Feed Module

40

■■

■■

■ADF (DA-AS180) / i-ADF (DA-AR201)

1. Features

#Automatic Original Feeding

CThe ADF/i-ADF tray can hold up to 50 Letter size originals of 20 lb (80 g/m2) paper (up to 30

Legal or Ledger size originals). It can accommodate from Invoice to Ledger size originals.

CAutomatic original size detection.

$2 in 1 Copy

CTo make a 1-Sided copy (full size or reduction), from two 1-Sided originals side-by-side.

%Duplex Copying (DA-AR201)

CThe i-ADF allows you to copy 2-sided originals either manually or automatically.

Accessories

2. Components

Original Guides

Adjust to the original’s width

ADF Tray

Automatic Document Feeder

CSet the originals up to the upper limit arrow.

ADF (DA-AS180)

Original Guides

Adjust to the original’s width

i-ADF Tray

i-ADF (DA-AR201)

41

3. Operation

■Operation Procedure

ADF/i-ADF

Face-Up

1

Place the

Original

34

Inappropriate Originals

CPaper with a smooth surface such as glossy

and coated papers

CTransparencies

COriginals with a lead edge that is “creased”,

“folded”, “punched” or “glued”

Accessories

CPaste-ups

CPressure sensitive or carbon backed papers

CPaper with excessive curl

CStapled originals

CFreshly printed copies from a laser printer

NOTE

CTo copy these kinds of originals, use the Platen Glass instead.

(2)

For Duplex Copy

(If required)

Number of

Copies

Press

START

Options

42

■■

■■

■550-Sheet Paper Tray

Problem Solving

1Pull the Paper Tray out.

2Place the paper with the copying

surface facing upward.

Special papers, like glossy paper, mailing

labels and transparencies cannot be used

in the paper tray.

Use the Sheet Bypass for special paper.

3Make sure paper is not loaded

above the overfill indicator located

in the Paper Tray.

Adding Paper (JJ

JJ

J)

ATTENTION

CDo not use paper with folds or wrinkles.

Refer to page 35 for details on adjusting the paper tray size.

CUnused paper should always be placed into a bag and the opening should be sealed

for storage.

If the paper is left exposed, problems such as paper curl, paper jams, wrinkles or

loss of copied image quality may occur.

4Firmly push the Paper Tray back

into the copier.

43

Adding the Toner and Replacing Toner Waste Container (??

??

?)

1Open the Front Cover.

2Remove the Toner Waste Container by

slowly pulling it towards the left as

illustrated.

3Seal the container with the enclosed

cap and dispose of it properly.

4#Turn the empty Toner Bottle

counter-clockwise until it stops. The

Arrow mark (Unlocked symbol )

visible on the end of the Toner

Bottle is aligned with the Arrow

mark on the machine.

Note: To prevent toner spill, ensure

that the key is facing upwards

before removing the toner bottle.

$Pull the empty Toner Bottle out.

Note: If the bottle will not pull out from

the machine, turn the bottle

slightly in either direction to

release the key and try it again.

Cap

Problem Solving/U13

CFor optimum copy quality use the recommended Panasonic toner. Store toner in a cool

dark place. Do not unseal toner before use. Use it as fast as possible after unsealing.

CWhen U13 is displayed the Add Toner Warning Indicator will begin to flash. This message

is to prompt you that the toner bottle is nearly empty (approx. 300-sheets can be printed).

This message will continue to be displayed until the bottle is replaced. When the count-

down counter reaches 0, the copier will stop operating. To clear the message and enable

the copier to operate, replace the empty toner bottle with a new one.

ATTENTION

?

J

2

1

Continued on the next page...

44

5#Shake the new Toner Bottle four

or five times to loosen the

contents.

$Remove the cap from the Toner

Bottle.

6#Align the Key of the bottle, also

represented by the Arrow mark

(Unlocked symbol ) visible on

the end of the Toner Bottle with

the Arrow mark on the machine.

Note: To prevent toner spill,

ensure that the key is facing

upwards before installing the

bottle.

$Insert the bottle as far as it will

go, then turn it clockwise (160°,

approx. 1/2 turn) until it locks

(Locked symbol ).

Note: If the bottle is not inserted

all the way into the machine

as illustrated, turn the bottle

slightly in either direction to

engage the key and try it

again.

7Install a new Toner Waste

Container.

8Close the Front Cover.

Problem Solving

CDo not reuse the toner from the Toner Waste Container.

1

2

ATTENTION

Adding the Toner and Replacing Toner Waste Container (??

??

?)

1

22-1

2-2

2-3

Incorrect Correct

45

NOTE

CMake sure that the misfeed indicator goes off after removing the misfed

paper.

CThe misfeed indicator will not go off if the paper is still jammed in the copier.

Check again and remove all misfed paper.

Paper Misfeed Locations

A: ADF (see page 51), i-ADF(see page 50)

(J70, J71)

B: Copier (Paper Exit, Paper Entry/Transport,

ADU) areas (see page 46-48) (J51 - J59,

J80)

C: Paper Feed Module (see page 49)

(J00 - J50)

IMisfeed Indicator

Removing a Misfed Paper

Problem Solving

■■

■■

■Paper Misfeed Indicators and Locations

When a paper misfeed occurs, the misfeed indicator and the misfeed

location(s) will be displayed on the panel display.

I

For DP-1810P For DP-2010E

46

ATTENTION

Removing a Misfed Paper

CMake sure that the misfeed indicator goes off after removing all misfed paper.

1Remove the misfed paper.

■Paper Exit Area

CMake sure that the misfeed indicator

goes off after removing all misfed

paper.

Problem Solving

For DP-1810P For DP-2010E

47

Problem Solving

1

2

3

Open the Right Cover.

Remove the misfed paper.

If copy paper is fed far into the copier:

#Turn the right paper clearing knob.

$Remove the misfed paper.

■Paper Entry/Transport Area

CMake sure that the misfeed indicator

goes off after removing all misfed

paper.

ATTENTION

4#Open the Heat Roller Cover.

$Remove the misfed paper.

%Close the Right Cover.

Caution: This fuser area may be

hot.

Caution

heated

surface

CMake sure that the misfeed indicator goes off after removing all misfed paper.

I

For DP-1810P For DP-2010E

48

Problem Solving

1

2

Open the Right Cover.

Remove the misfed paper.

■

ADU Area (For DP-2010E only)

CMake sure that the misfeed indicator

goes off after removing all misfed

paper.

Removing a Misfed Paper

3If copy paper is fed far into the copier;

#Turn the right paper clearing knob.

4Close the Right Cover.

$Remove the misfed paper.

49

Problem Solving

1

2

#Pull the paper tray out.

$Remove the misfed paper.

%Return the Paper Tray to the original

position.

#Open the Feed Cover.

$Remove the misfed paper.

%Close the Feed Cover.

■Paper Feed Module

CMake sure that the misfeed indicator

goes off after removing all misfed

paper.

CMake sure that the misfeed indicator goes off after removing all misfed

paper.

ATTENTION

For DP-1810P For DP-2010E

I

50

ATTENTION

Removing a Misfed Paper

CPush the tab on the center of the Entry Cover to close it.

CTo prevent original(s) damage, please make sure to open the ADF Cover before

removing misfed original(s).

■i-ADF (For DP-2010E only)

CMake sure that the misfeed indicator

goes off after removing all misfed

paper.

Problem Solving

1

2

#Open the Entry Cover.

$Remove the misfed paper.

%Close the Entry Cover.

#Open the ADF Cover.

$Remove the misfed paper.

%Close the ADF Cover.

&Open and close the Entry Cover to

reset the error.

3#Lift up the ADF Input Tray.

$Remove the misfed paper.

%Close the ADF Input Tray.

&Open and close the Entry Cover to

reset the error.

4#Lift up the ADF Input Tray.

$Open the ADF exit cover.

%Remove the misfed paper.

&Close the ADF exit cover.

(Close the ADF Input Tray.

51

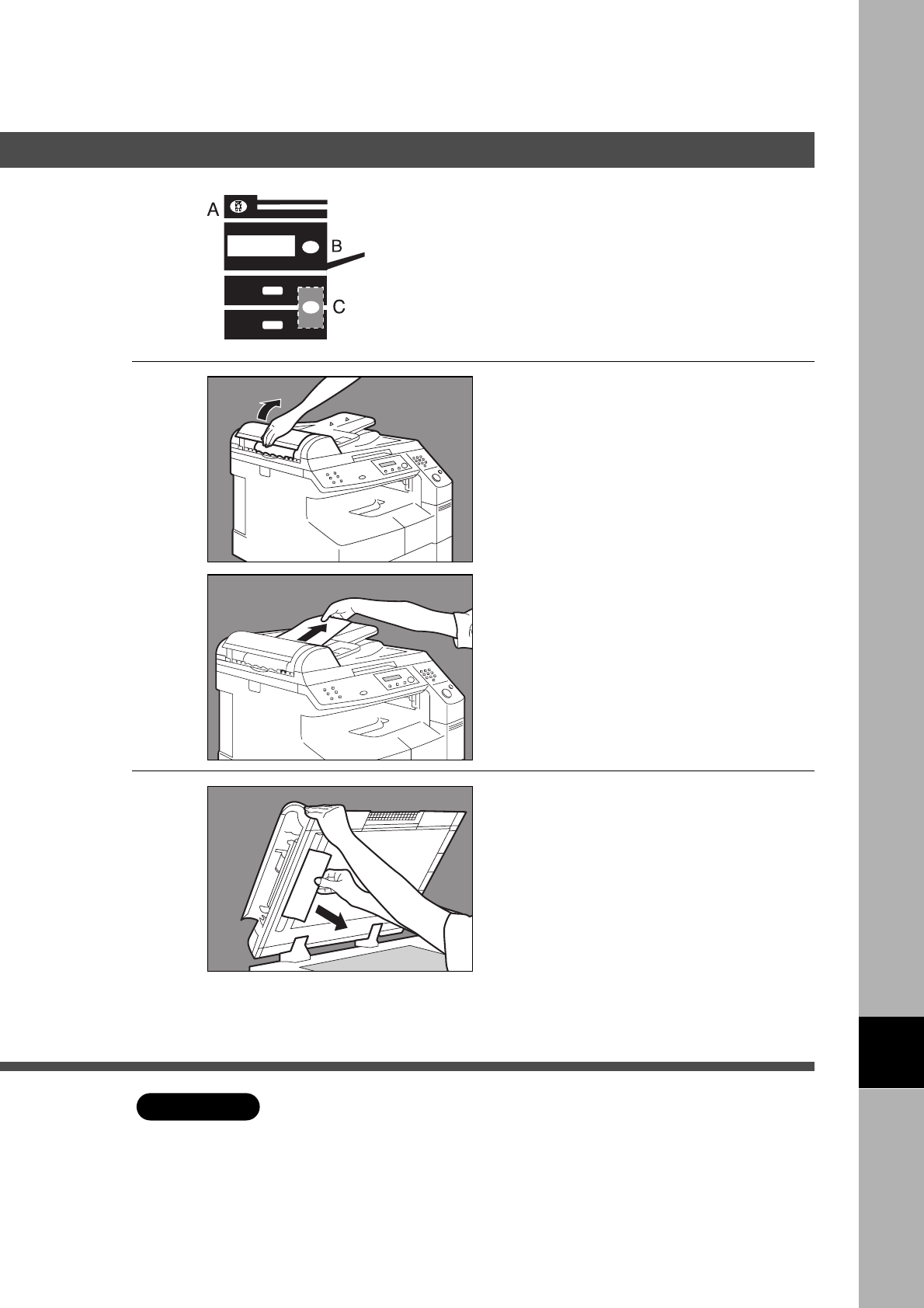

Problem Solving

ATTENTION

1

2

#Open the Entry Cover.

$Remove the misfed paper.

%Close the Entry Cover.

#Open the ADF Cover.

Note: To prevent damaging the originals,

open the ADF Cover before

removing the misfed original(s).

$Remove the misfed paper.

%Close the ADF Cover.

&Close the ADF.

■ADF

CMake sure that the misfeed indicator

goes off after removing all misfed

paper.

CTo prevent original(s) damage, please make sure to open the ADF Cover

before removing misfed original(s).

I

52

Troubleshooting

Before Calling Service

Check Action

Unit Does Not Operate

Does the display light?

Check if the Power Switch is turned On and

that the power cord is connected into the

outlet.

Does the Energy Saver key flash (or light)

and displays are turned OFF? (See page

24)

Press Energy Saver key on the Control

Panel.

Perform actions in accordance with each

message.

Does any of the U## codes and messages

appear on the display?

(U01, U07, U13, U14, U20 and U21)

(See page 54)

Add paper. (See page 42)

Does the add paper indicator and message

appear on the display? (J)∗

Remove the misfed paper. (See page 45)

Does the paper misfeed indicator and

message appear on the display? (I)

Turn the copier Off, then On. If the Error

Code does not clear, call for service.

Does E#-## indicator and message appear

on the display?

(No) (Yes)

When the Add Toner Warning Indicator begins to flash∗ or is lit, replace the toner bottle with a new

one. After this warning is activated, machine operation will begin with the Toner Charging Mode

(approximately 3 minutes to complete) each time the power switch is turned Off then On or if the

Front/Right Cover is opened and then closed.

Note: ∗When the warning indicator starts flashing, a 300-sheet count-down counter is activated,

and upon reaching 0 the machine will stop operating. The 300-sheet counter is based on

6 % fill, depending on the density some pages may print Blank.

Machine operation and displays are as follows:

1. When turning the power switch to On or opening and then closing the Front/Right Cover, the

machine starts to warm-up and the LCD displays:

PLEASE WAIT...

(No)

(No)

(No)

(No)

(Yes)

(Yes)

(Yes)

(Yes)

(Yes)

53

Troubleshooting

Check Action

Light Copies

Does the exposure indicator say “Lighter”?Press the Darker key until the indicator

LED is set to Darker. (See page 12)

Does the add toner indicator and message

appear on the display? (?)Add Toner. (See page 43)

Marked Copies

Is the copier Platen Glass or Platen Cover

dirty?

Clean the Glass or Platen Cover.

(See page 54)

2. The Toner Charging Mode starts and the LCD displays:

Add Toner Warning Indicator:

CFlashing = Toner Bottle is nearly empty

CLit = Toner Bottle is empty

3. This message is displayed for approximately 200 seconds.

∗Each “ ❚ ” is approximately 10 sec.

4. This massage will continue to be displayed until the warm-up cycle is completed, and if the toner

bottle was replaced. Upon completion, the Add Toner Warning Indicator automatically turns Off.

(No) (Yes)

CHARGING TONER

CHARGING TONER

❚ ❚ ❚ ❚ ❚

(Yes)

(Yes)

Others

54

■If the measures outlined above do not solve the problem, call your Service provider.

Copier Care

■ As a rule, clean weekly.

Platen/Platen Cover

#Wipe marks off with a cloth and a neutral

detergent.

$Wipe again with a dry cloth.

Platen

Cover

Platen

(Glass)

User Error Codes (U Code)

Troubleshooting

The self-diagnostic functions detect troubles in the important components of the copier.

When any trouble occurs, the copier stops.

Code Display Message Check Points

U01 CLOSE FRONT/RT COVER Front Cover is open.

U07 CLOSE FEED COVER Feed Cover is open.

U13 TONER IS RUNNING LOW

NO WASTE TONER BOX

1. Toner Cartridge is incorrectly installed.

2. Low Toner or No Toner Waste Container.

U14 WASTE TONER BOX IS FULL

1. Toner Waste Container is incorrectly

installed.

2. Toner Waste Container is full of toner.

U20 CLOSE ADF COVER ADF Cover is open.

U21 CLOSE PLATEN COVER While the copier is initializing, the ADF

Cover was opened. (Optional ADF installed)

55

Specifications

■■

■■

■DP-1810P/2010E (Copier)

Platen Type Fixed

Acceptable Originals Sheets, Books (max. size = Ledger)

Copying Method Laser Electrophotography

Fixing Method Heat Roller Fixing

Resolution Max. 600 dpi

Maximum Copy Size Ledger

Void Area Max. 0.2 in (5 mm)

Warm Up Time Approx. 30 seconds (68°F/20°C)

First Copy Time Approx. 6.5 seconds (Letter , from 1st tray)

Multi-Copy Speed DP-1810P : 18 cpm (Letter size)

DP-2010E : 20 cpm (Letter size)

Enlargement Ratios Preset: 121 %, 129 %, 155 %, 200 %

Variable: from 101 to 200 % in 1 % increments

Reduction Ratios Preset: 79 %, 77 %, 65 %, 61 %, 50 %

Variable: from 99 to 50 % in 1 % increments

Paper Feed Paper Tray (550 sheets × 1) + Sheet Bypass (50 sheets)

2nd Paper Feed Module (550 sheets - option)

3rd Paper Feed Module (550 sheets - option)

4th Paper Feed Module (550 sheets - option)

Paper Weight Paper Tray: 16 - 24 lb (60 - 90 g/m2)

[Sheet Bypass: 15 - 34 lb (56 - 128 g/m2)]

Quantity Selector Max. 999 sheets (Output Tray capacity is 250 sheets)

Electrical Consumption AC 120 V, 50/60 Hz, 9 A

Energy Consumption Max. 1.2 kW, 1.5 Wh in Sleep Mode

Imaging Method Dry-Type Single component imaging

Dimensions (W ××

××

× D ××

××

× H) DP-1810P: 23.1 × 23.8 × 18.0 in (588 × 605 × 458 mm)

DP-2010E: 23.1 × 23.8 × 22.6 in (588 × 573 × 573 mm)

Weight DP-1810P: 90 lb (41 kg)

DP-2010E: 113 lb (51 kg)

Operating Environment Temperature: 50 - 86°F (10 - 30°C) Relative Humidity: 30 - 80 %

(However, the humidity should be 70 % or less at a temperature of 86°F (30°C),

and the temperature should be 86°F (30°C) or less at a humidity level of 85 %.)

CSpecifications are subject to change without notice.

Type Desktop

Others

Minimum Copy Size Invoice, via paper tray

56

Specifications

■■

■■

■ADF (DA-AS180)

DA-AS180

■■

■■

■2nd/4th Paper Feed Module (DA-DS182)

DA-DS182

Weight 11.0 lb (5.0 kg)

Dimensions (W ××

××

× D ××

××

× H) 22.0 × 19.7 × 4.4 in (558 × 501 × 112 mm)

Tray Capacity Letter, Invoice: 50 sheets (20 lb)

Ledger, Legal: 30 sheets (20 lb)

Paper Size Invoice/Letter/Legal/Ledger

Paper Weight 14 – 28 lb (50 – 110 g/m2)

Electrical Requirements Supplied from the copier

20.9 lb (9.5 kg)

Dimensions (W ××

××

× D ××

××

× H)

Weight

Paper Size Invoice/Letter/Legal/Ledger

Paper Weight 16 – 24 lb (60 – 90 g/m2)

CSpecifications are subject to change without notice.

21.7 × 6.1 × 23.0 in (550 × 155 × 585 mm)

Electrical Requirements Supplied from the copier

■■

■■

■i-ADF (DA-AR201)

DA-AR201

Weight 20.5 lb (9.3 kg)

Dimensions (W ××

××

× D ××

××

× H) 21.7 × 20.5 × 5.3 in (552 × 520 × 135 mm)

Tray Capacity Letter, Invoice: 50 sheets (20 lb)

Ledger, Legal: 30 sheets (20 lb)

Paper Size Invoice/Letter/Legal/Ledger

Paper Weight 14 – 28 lb (50 – 110 g/m2)

Electrical Requirements Supplied from the copier

■■

■■

■3rd Paper Feed Module (DA-DS183)

DA-DS183

20.9 lb (9.5 kg)

Dimensions (W ××

××

× D ××

××

× H)

Weight

Paper Size Invoice/Letter/Legal/Ledger

Paper Weight 16 – 24 lb (60 – 90 g/m2)

21.7 × 6.1 × 23.0 in (550 × 155 × 585 mm)

Electrical Requirements Supplied from the copier

57

Options and Supplies

■

The DP-1810P/2010E is a digital photocopier which can produce images with great clarity.

Furthermore, its copying functionality can also be greatly enhanced by the addition of the following

options and supplies.

We hope you find that the wide ranging capabilities will make your office-place more productive and efficient.

RemarksPart Name Part No.

DA-SM16B

I

mage Memory (16 MB) For Electronic Sorting and Sort Printing

For Electronic Sorting and Sort Printing

DA-SM28BImage Memory (128 MB)

DA-AS180Automatic Document Feeder Also referred as ADF

DA-DS182

2nd/4th Paper Feed Module

PCL6 Emulation Kit DA-PC210 Printer Controller for PCL6.

(For Network Printing, DA-NE200 is also required)

■■

■■

■For Printer

Part Name Part No. Remarks

∗PCL6 is a Page Description Language of the Hewlett-Packard Company.

■■

■■

■Options

Toner Bottle DQ-TU10C Toner Waste Container included

■■

■■

■Supplies

Part Name Part No. Remarks

NOTE

Others

DA-AR201

Inverting Automatic Document Feeder

Also referred as i-ADF (For DP-2010E only)

DA-DS1833rd Paper Feed Module

10/100 Ethernet Interface/

Internet Fax Kit DA-NE200 Network Interface Board

■■

■■

■For Network Printing

Part Name Part No. Remarks

DA-DA180Plain Stand (High) For USA/Canada only

DA-DA181Plain Stand (Medium) For USA/Canada only

DA-DA182Plain Stand (Low) For USA/Canada only

DA-DA183Base Stand For USA/Canada only

DA-SM08BImage Memory (8 MB) For Electronic Sorting and Sort Printing

DA-SM64BImage Memory (64 MB) For Electronic Sorting and Sort Printing

(2nd Paper Feed Module is standard on DP-2010E)

(4th Paper Feed Module is for DP-2010E only)

(3rd Paper Feed Module is for DP-2010E only)

58

59

WARRANTY

PANASONIC DOCUMENT IMAGING COMPANY MAKES NO WARRANTIES, GUARANTEES OR

REPRESENTATIONS, EXPRESSED OR IMPLIED, TO THE CUSTOMER WITH RESPECT TO THIS

PANASONIC MACHINE, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

PANASONIC DOCUMENT IMAGING COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT

TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE

CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC MACHINE.

SEE YOUR DEALER FOR DETAILS OF DEALER’S WARRANTY.

Panasonic Document Imaging Company

A Business Unit of Matsushita Electric Corporation of America

Two Panasonic Way

Secaucus, New Jersey 07094

S0402-0

DZSD001728-0

April 2002

Printed in Japan

U.S.A. Only

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario L4W 2T3

For Service, Call:
