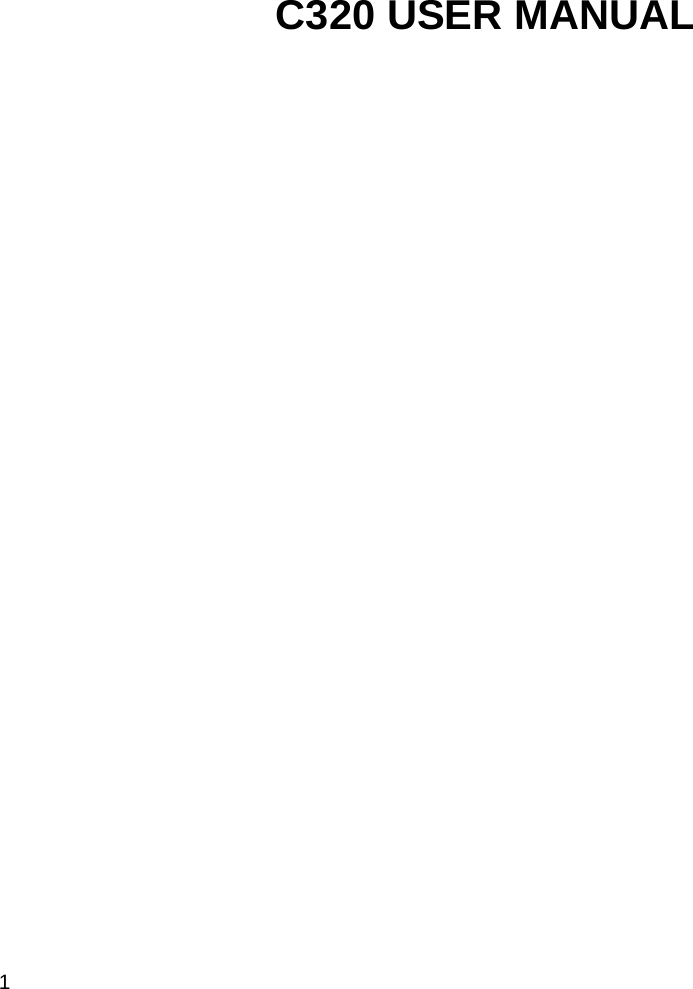

1 C320 USER MANUAL

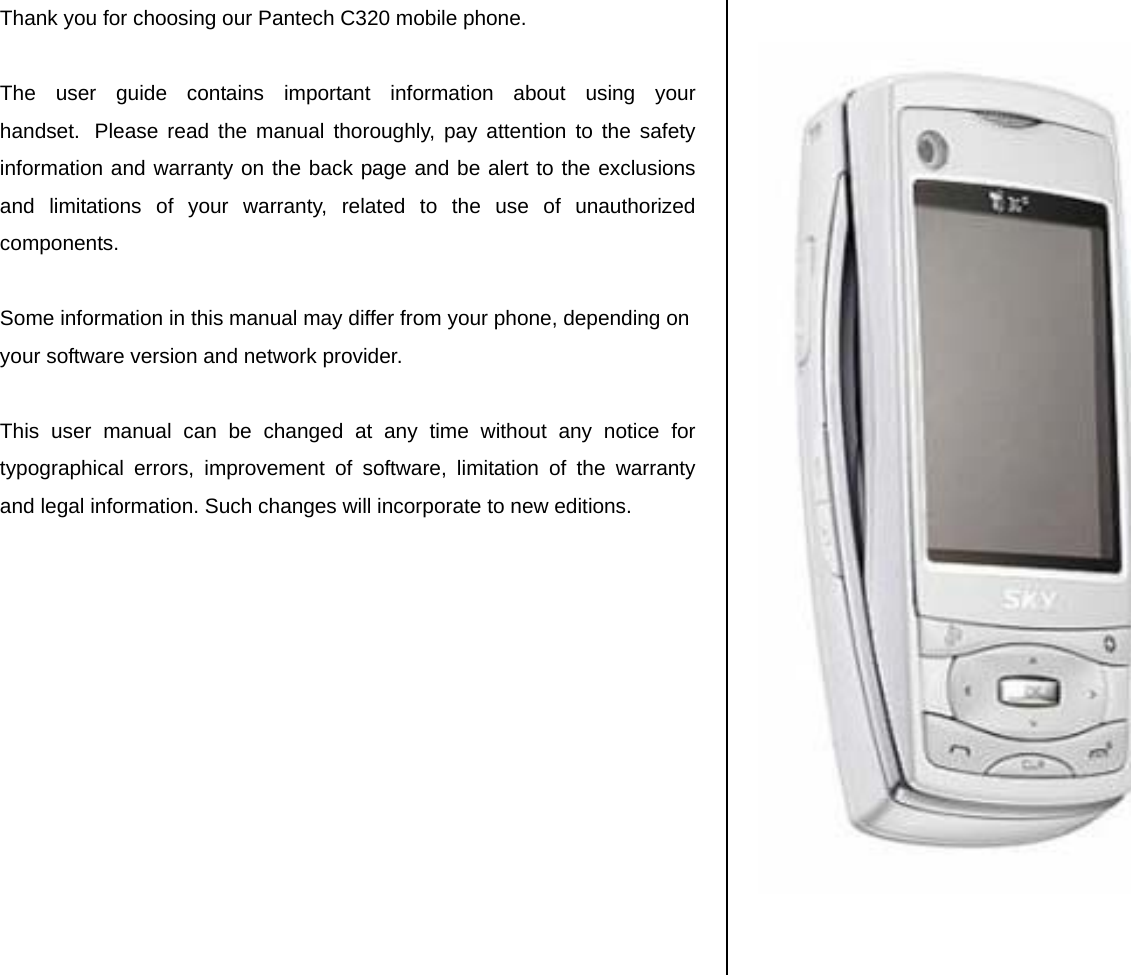

Thank you for choosing our Pantech C320 mobile phone. The user guide contains important information about using your handset. Please read the manual thoroughly, pay attention to the safety information and warranty on the back page and be alert to the exclusions and limitations of your warranty, related to the use of unauthorized components. Some information in this manual may differ from your phone, depending on your software version and network provider. This user manual can be changed at any time without any notice for typographical errors, improvement of software, limitation of the warranty and legal information. Such changes will incorporate to new editions.

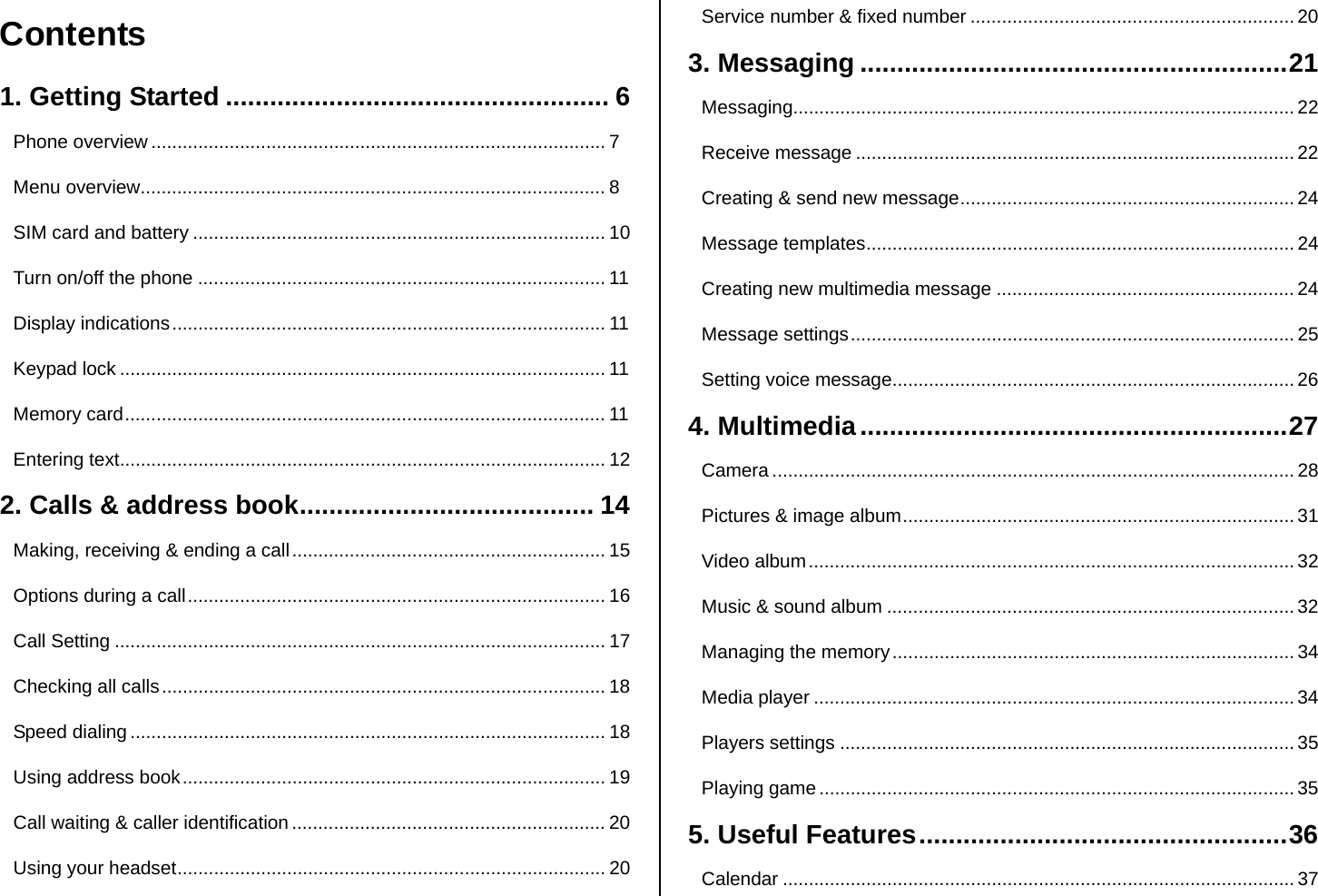

Contents 1. Getting Started .................................................... 6 Phone overview ....................................................................................... 7 Menu overview......................................................................................... 8 SIM card and battery ............................................................................... 10 Turn on/off the phone .............................................................................. 11 Display indications................................................................................... 11 Keypad lock ............................................................................................. 11 Memory card............................................................................................ 11 Entering text............................................................................................. 12 2. Calls & address book........................................ 14 Making, receiving & ending a call............................................................ 15 Options during a call................................................................................ 16 Call Setting .............................................................................................. 17 Checking all calls..................................................................................... 18 Speed dialing ........................................................................................... 18 Using address book................................................................................. 19 Call waiting & caller identification ............................................................ 20 Using your headset.................................................................................. 20 Service number & fixed number .............................................................. 20 3. Messaging ..........................................................21 Messaging................................................................................................ 22 Receive message .................................................................................... 22 Creating & send new message................................................................ 24 Message templates.................................................................................. 24 Creating new multimedia message ......................................................... 24 Message settings..................................................................................... 25 Setting voice message............................................................................. 26 4. Multimedia..........................................................27 Camera .................................................................................................... 28 Pictures & image album........................................................................... 31 Video album............................................................................................. 32 Music & sound album ..............................................................................32 Managing the memory............................................................................. 34 Media player ............................................................................................ 34 Players settings ....................................................................................... 35 Playing game ........................................................................................... 35 5. Useful Features..................................................36 Calendar .................................................................................................. 37

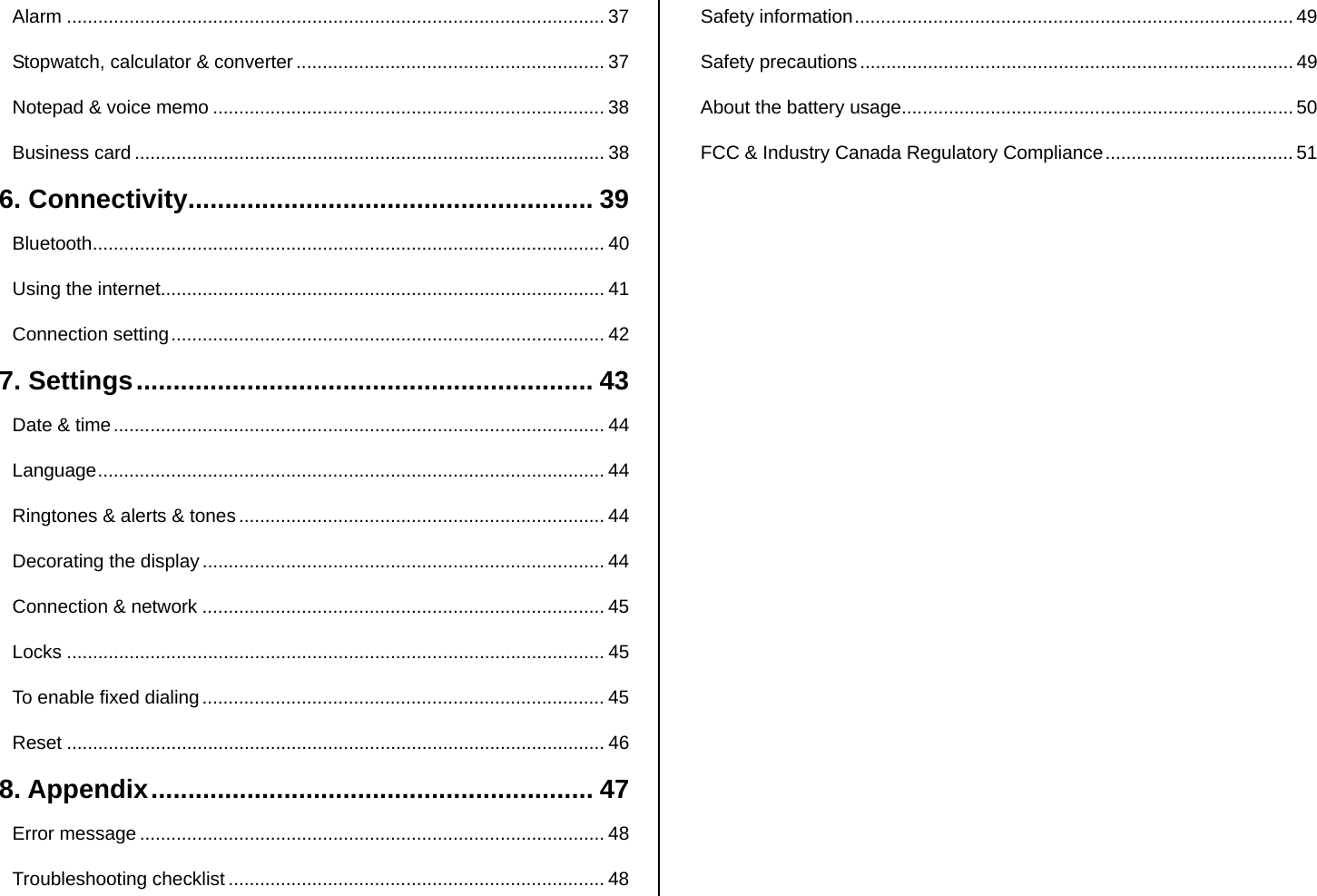

Alarm ....................................................................................................... 37 Stopwatch, calculator & converter........................................................... 37 Notepad & voice memo ........................................................................... 38 Business card .......................................................................................... 38 6. Connectivity....................................................... 39 Bluetooth.................................................................................................. 40 Using the internet..................................................................................... 41 Connection setting................................................................................... 42 7. Settings.............................................................. 43 Date & time.............................................................................................. 44 Language................................................................................................. 44 Ringtones & alerts & tones...................................................................... 44 Decorating the display ............................................................................. 44 Connection & network ............................................................................. 45 Locks ....................................................................................................... 45 To enable fixed dialing............................................................................. 45 Reset ....................................................................................................... 46 8. Appendix............................................................ 47 Error message ......................................................................................... 48 Troubleshooting checklist ........................................................................ 48 Safety information.................................................................................... 49 Safety precautions ................................................................................... 49 About the battery usage........................................................................... 50 FCC & Industry Canada Regulatory Compliance.................................... 51

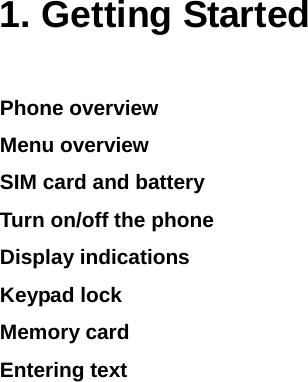

1. Getting Started Phone overview Menu overview SIM card and battery Turn on/off the phone Display indications Keypad lock Memory card Entering text

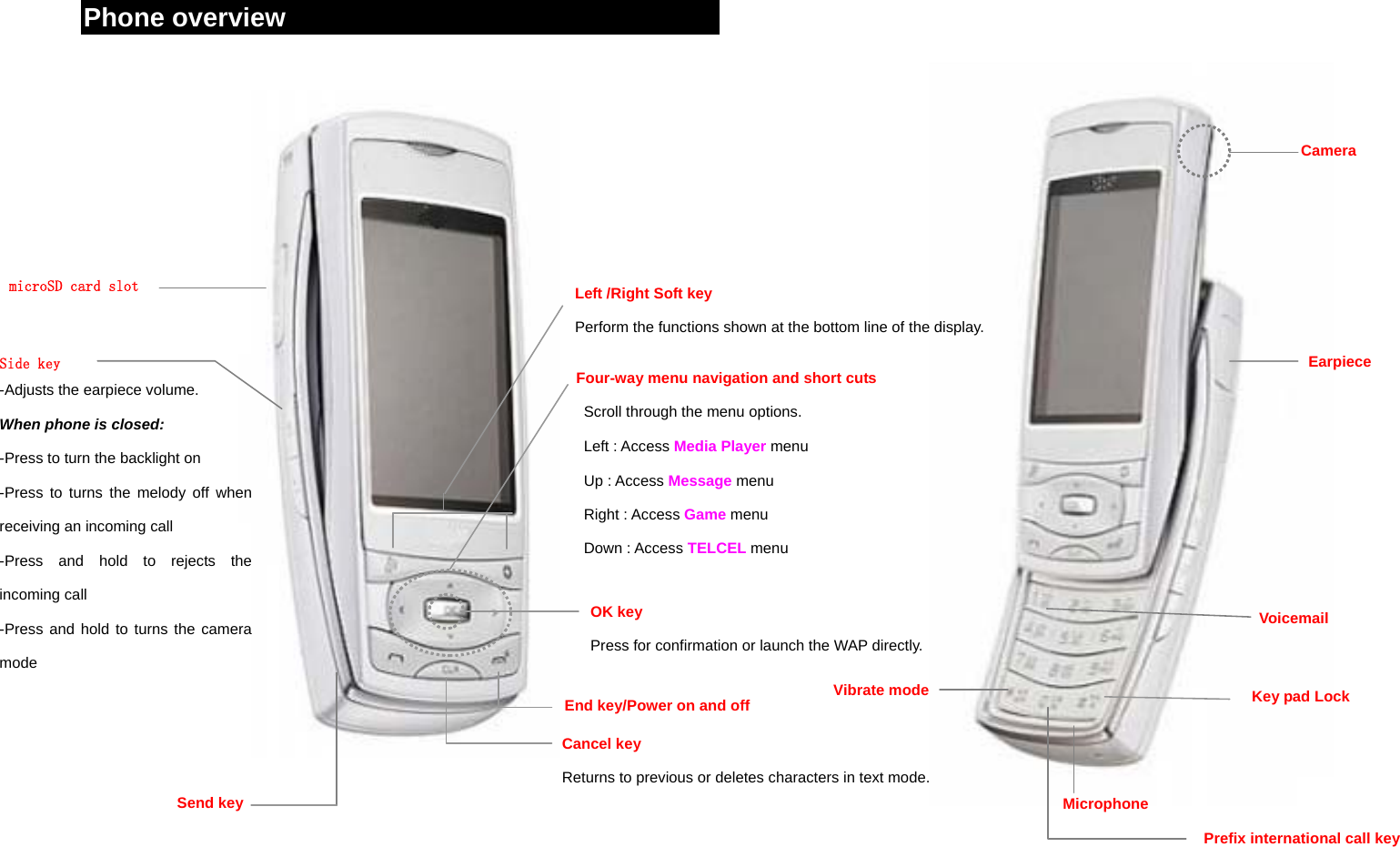

Phone overview Earpiece Camera Four-way menu navigation and short cuts Scroll through the menu options. Left : Access Media Player menu Up : Access Message menu Right : Access Game menu Down : Access TELCEL menu Left /Right Soft key Perform the functions shown at the bottom line of the display. OK key Press for confirmation or launch the WAP directly. End key/Power on and off Cancel key Returns to previous or deletes characters in text mode. Key pad Lock Send key Voicemail Prefix international call key Microphone Vibrate mode Side key -Adjusts the earpiece volume. When phone is closed: -Press to turn the backlight on -Press to turns the melody off when receiving an incoming call -Press and hold to rejects the incoming call -Press and hold to turns the camera mode microSD card slot

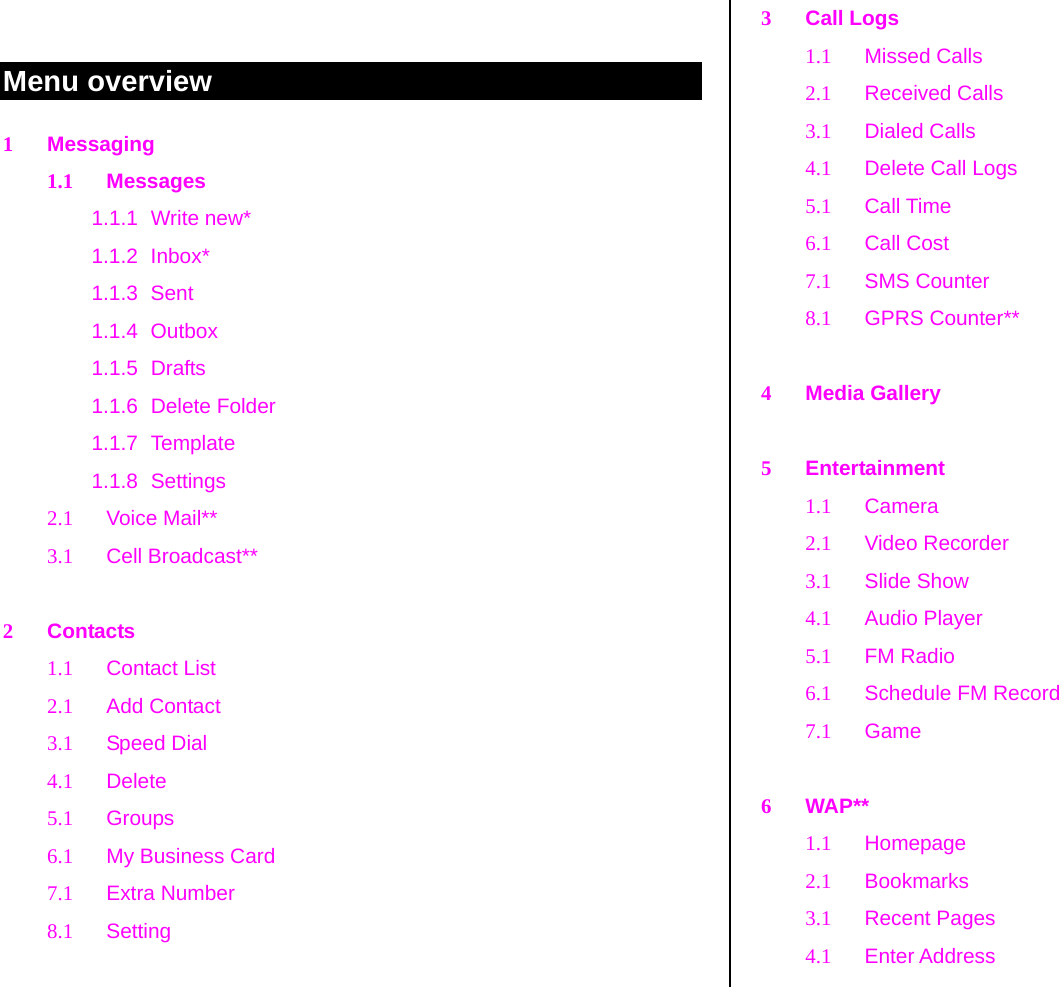

Menu overview 1 Messaging 1.1 Messages 1.1.1 Write new* 1.1.2 Inbox* 1.1.3 Sent 1.1.4 Outbox 1.1.5 Drafts 1.1.6 Delete Folder 1.1.7 Template 1.1.8 Settings 2.1 Voice Mail** 3.1 Cell Broadcast** 2 Contacts 1.1 Contact List 2.1 Add Contact 3.1 Speed Dial 4.1 Delete 5.1 Groups 6.1 My Business Card 7.1 Extra Number 8.1 Setting 3 Call Logs 1.1 Missed Calls 2.1 Received Calls 3.1 Dialed Calls 4.1 Delete Call Logs 5.1 Call Time 6.1 Call Cost 7.1 SMS Counter 8.1 GPRS Counter** 4 Media Gallery 5 Entertainment 1.1 Camera 2.1 Video Recorder 3.1 Slide Show 4.1 Audio Player 5.1 FM Radio 6.1 Schedule FM Record 7.1 Game 6 WAP** 1.1 Homepage 2.1 Bookmarks 3.1 Recent Pages 4.1 Enter Address

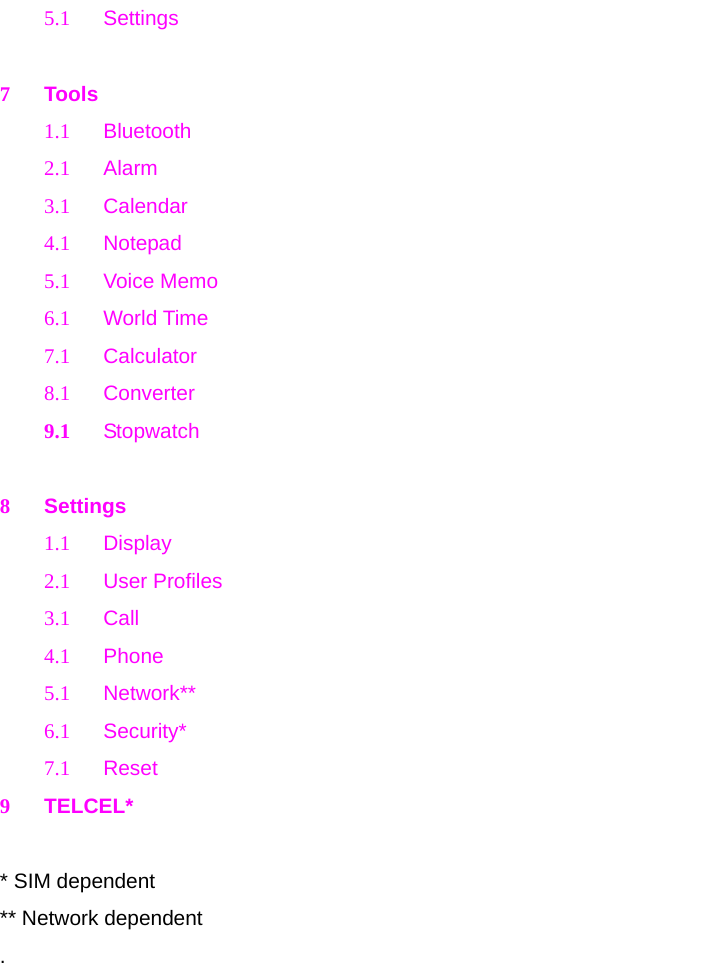

5.1 Settings 7 Tools 1.1 Bluetooth 2.1 Alarm 3.1 Calendar 4.1 Notepad 5.1 Voice Memo 6.1 World Time 7.1 Calculator 8.1 Converter 9.1 Stopwatch 8 Settings 1.1 Display 2.1 User Profiles 3.1 Call 4.1 Phone 5.1 Network** 6.1 Security* 7.1 Reset 9 TELCEL* * SIM dependent ** Network dependent .
SIM card and battery About your SIM card When you subscribe to your network operator, you receive a SIM (Subscriber Identity Module) card containing your registration information, PIN code, etc. About your battery Your phone uses a Li-Ion battery. Make sure to use an authorized battery and charger only. For more details, please inquire at your nearest dealer. To installing/removing SIM card and battery 1. Remove the battery cover from the unit. 2. Put the contacts of the battery into the hole located at the bottom of the unit insert(1) and press the upper side(2) of the battery until you hear the “click”. Put the SIM card into the slot. 3. To remove the battery push the top of the battery downwards(1) and remove(2) the battery. Push the SIM card in the arrow direction as shown. 4. Fit in the battery upper on the guide rail and push up. NOTE: Data will be loose if the SIM card is removed while the phone is turned on. To charge your battery 1. To charge open the protective cover on the bottom and connect the charger adapter. 2. To remove the adapter connection press the adapter’s side buttons(1) and pulling the adapter away(2). Battery performance Battery Type Capacity Standby Time Talk Time Standard Lithium-Ion (Li-ion) Up to 750 mAh Up to 250 hours 3 hours

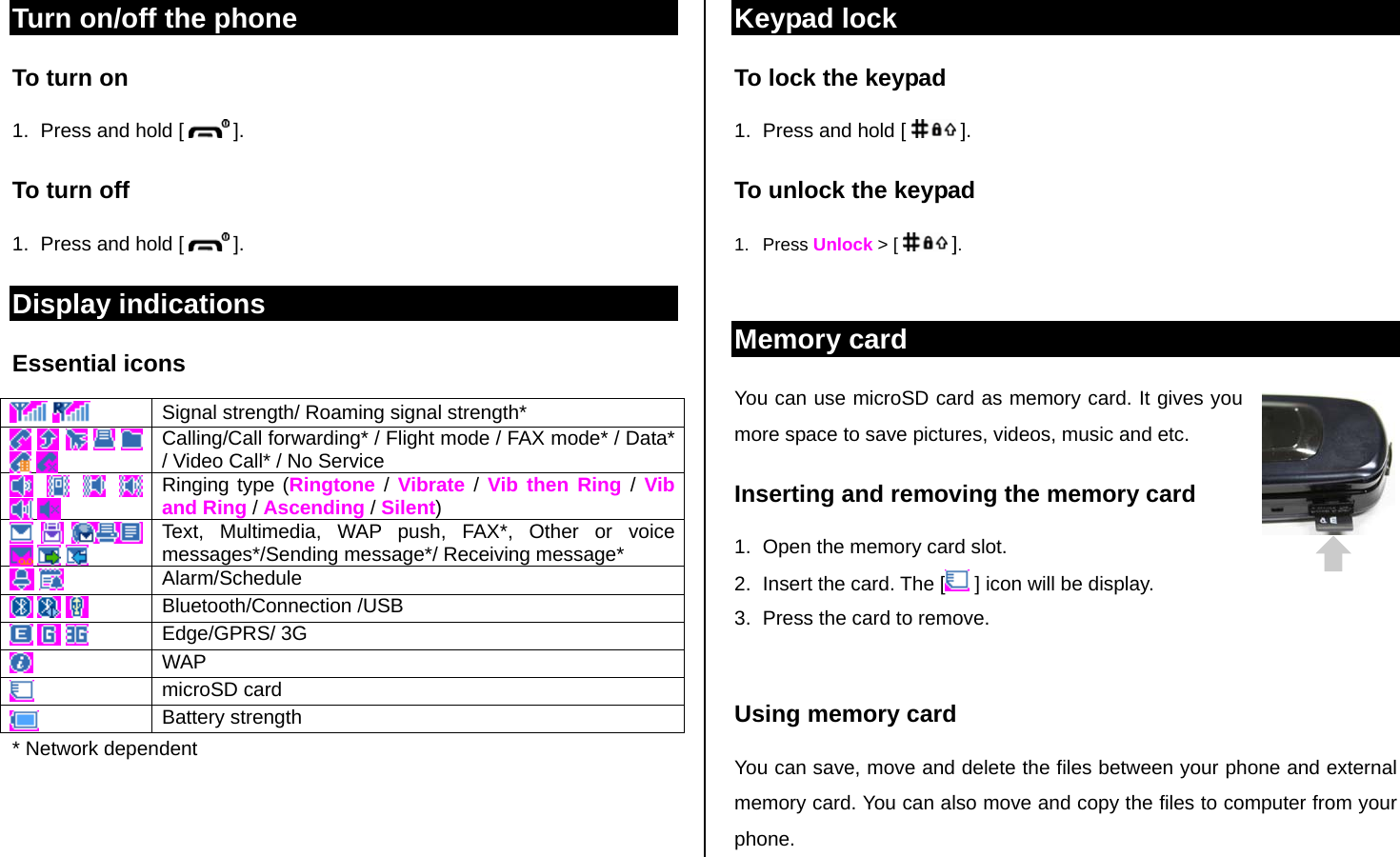

Turn on/off the phone To turn on 1. Press and hold [ ]. To turn off 1. Press and hold [ ]. Display indications Essential icons Signal strength/ Roaming signal strength* Calling/Call forwarding* / Flight mode / FAX mode* / Data* / Video Call* / No Service Ringing type (Ringtone / Vibrate / Vib then Ring / Vib and Ring / Ascending / Silent) Text, Multimedia, WAP push, FAX*, Other or voice messages*/Sending message*/ Receiving message* Alarm/Schedule Bluetooth/Connection /USB Edge/GPRS/ 3G WAP microSD card Battery strength * Network dependent Keypad lock To lock the keypad 1. Press and hold [ ]. To unlock the keypad 1. Press Unlock > [ ]. Memory card You can use microSD card as memory card. It gives you more space to save pictures, videos, music and etc. Inserting and removing the memory card 1. Open the memory card slot. 2. Insert the card. The [ ] icon will be display. 3. Press the card to remove. Using memory card You can save, move and delete the files between your phone and external memory card. You can also move and copy the files to computer from your phone.

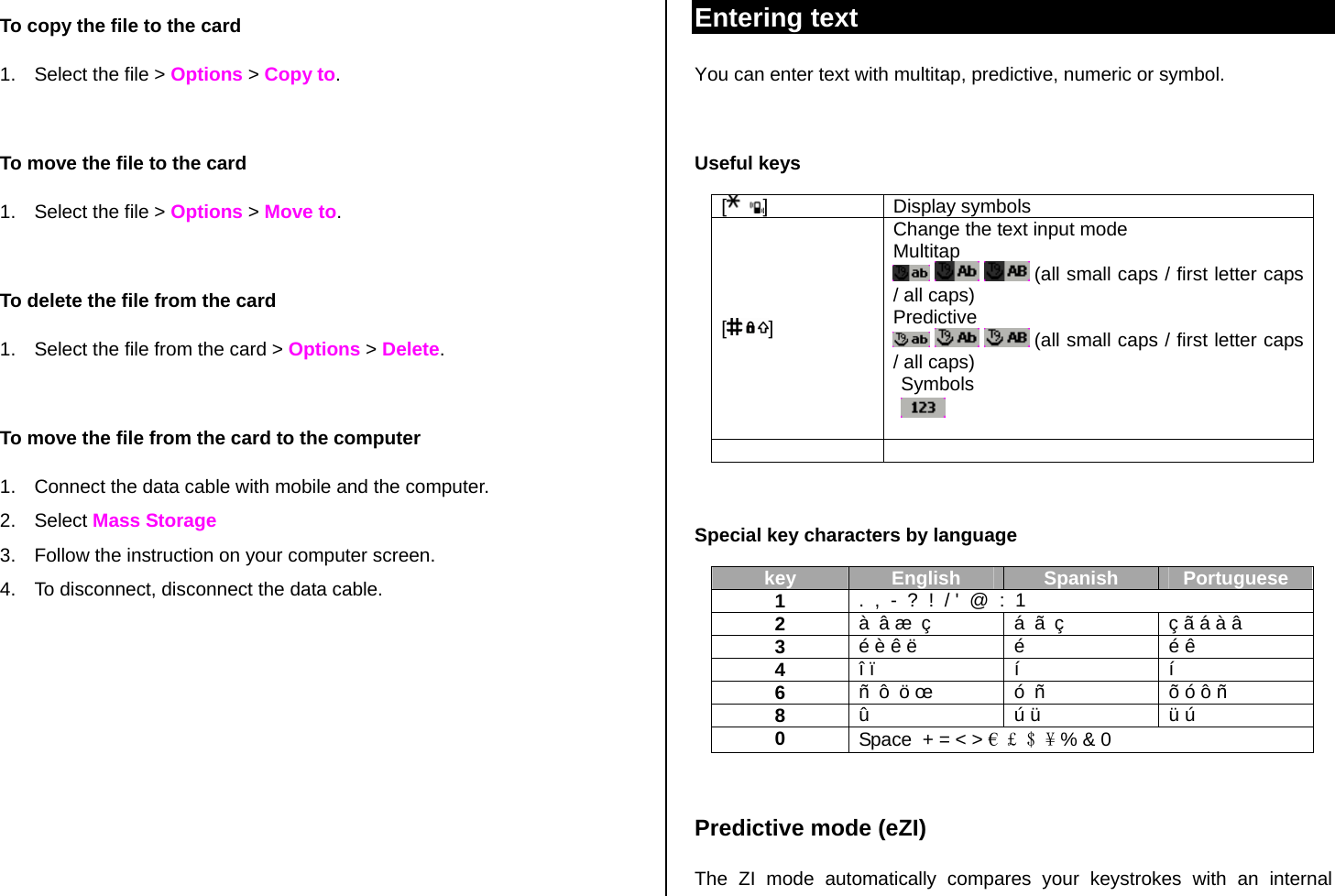

To copy the file to the card 1. Select the file > Options > Copy to. To move the file to the card 1. Select the file > Options > Move to. To delete the file from the card 1. Select the file from the card > Options > Delete. To move the file from the card to the computer 1. Connect the data cable with mobile and the computer. 2. Select Mass Storage 3. Follow the instruction on your computer screen. 4. To disconnect, disconnect the data cable. Entering text You can enter text with multitap, predictive, numeric or symbol. Useful keys [] Display symbols [] Change the text input mode Multitap (all small caps / first letter caps / all caps) Predictive (all small caps / first letter caps / all caps) Symbols Special key characters by language key English Spanish Portuguese 1 . , - ? ! / ' @ : 1 2 à â æ ç á ã ç ç ã á à â 3 é è ê ë é é ê 4 î ï í í 6 ñ ô ö œ ó ñ õ ó ô ñ 8 û ú ü ü ú 0 Space + = < > € £ $ ¥ % & 0 Predictive mode (eZI) The ZI mode automatically compares your keystrokes with an internal

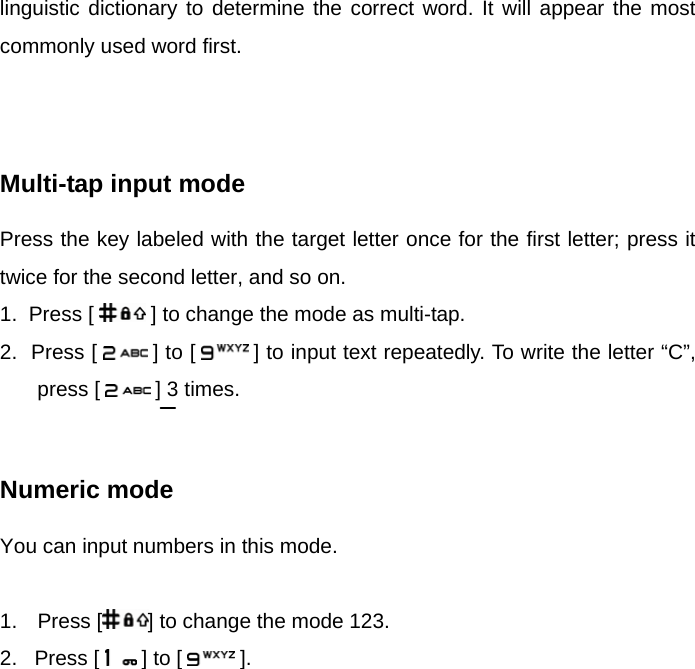

linguistic dictionary to determine the correct word. It will appear the most commonly used word first. Multi-tap input mode Press the key labeled with the target letter once for the first letter; press it twice for the second letter, and so on. 1. Press [ ] to change the mode as multi-tap. 2. Press [ ] to [ ] to input text repeatedly. To write the letter “C”, press [ ] 3 times. Numeric mode You can input numbers in this mode. 1. Press [ ] to change the mode 123. 2. Press [ ] to [ ].

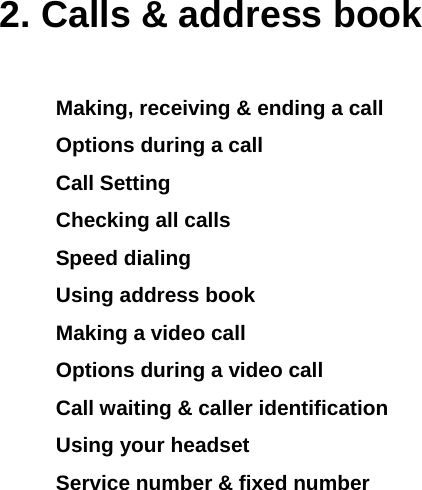

2. Calls & address book Making, receiving & ending a call Options during a call Call Setting Checking all calls Speed dialing Using address book Making a video call Options during a video call Call waiting & caller identification Using your headset Service number & fixed number

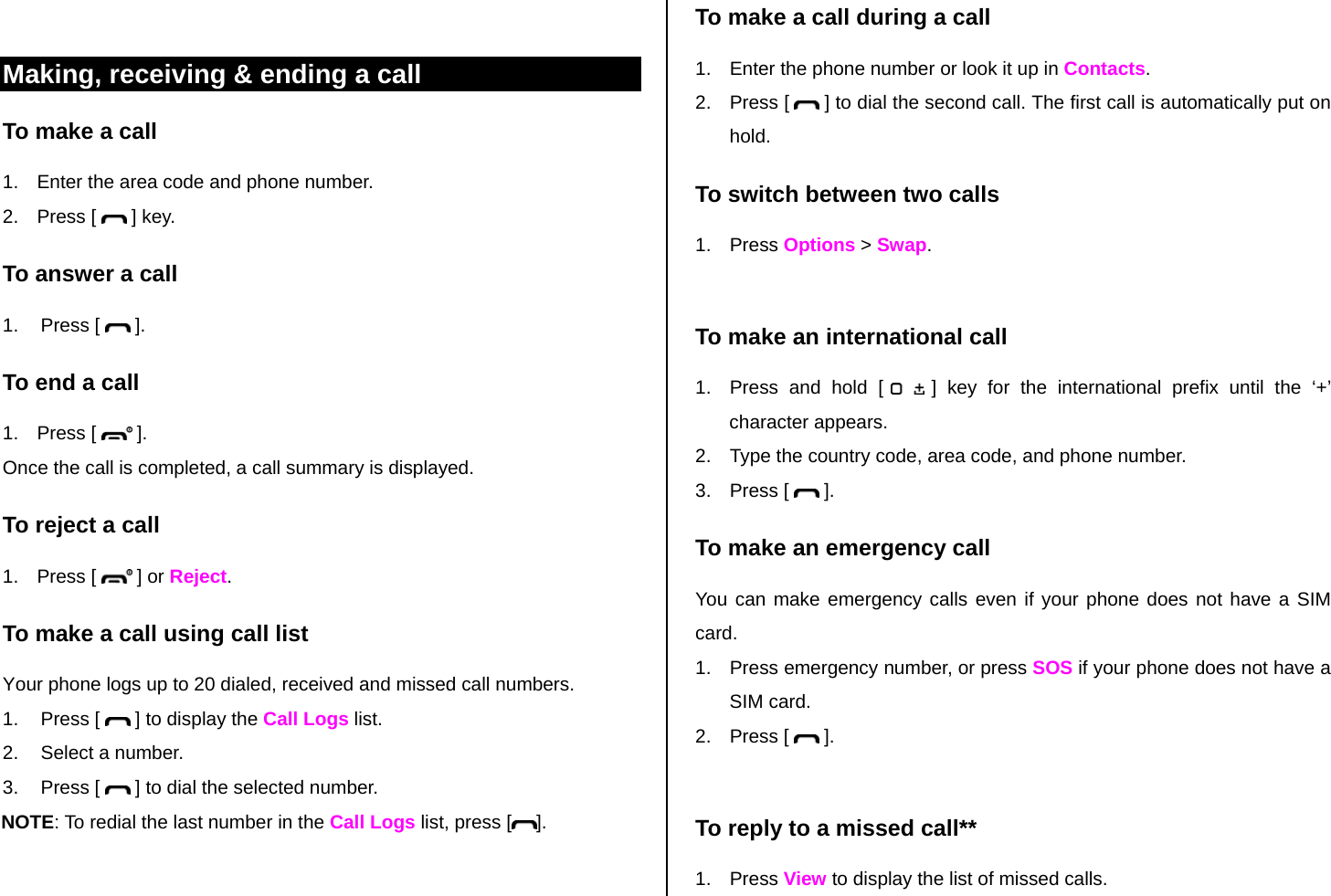

Making, receiving & ending a call To make a call 1. Enter the area code and phone number. 2. Press [ ] key. To answer a call 1. Press [ ]. To end a call 1. Press [ ]. Once the call is completed, a call summary is displayed. To reject a call 1. Press [ ] or Reject. To make a call using call list Your phone logs up to 20 dialed, received and missed call numbers. 1. Press [ ] to display the Call Logs list. 2. Select a number. 3. Press [ ] to dial the selected number. NOTE: To redial the last number in the Call Logs list, press [ ]. To make a call during a call 1. Enter the phone number or look it up in Contacts. 2. Press [ ] to dial the second call. The first call is automatically put on hold. To switch between two calls 1. Press Options > Swap. To make an international call 1. Press and hold [ ] key for the international prefix until the ‘+’ character appears. 2. Type the country code, area code, and phone number. 3. Press [ ]. To make an emergency call You can make emergency calls even if your phone does not have a SIM card. 1. Press emergency number, or press SOS if your phone does not have a SIM card. 2. Press [ ]. To reply to a missed call** 1. Press View to display the list of missed calls.

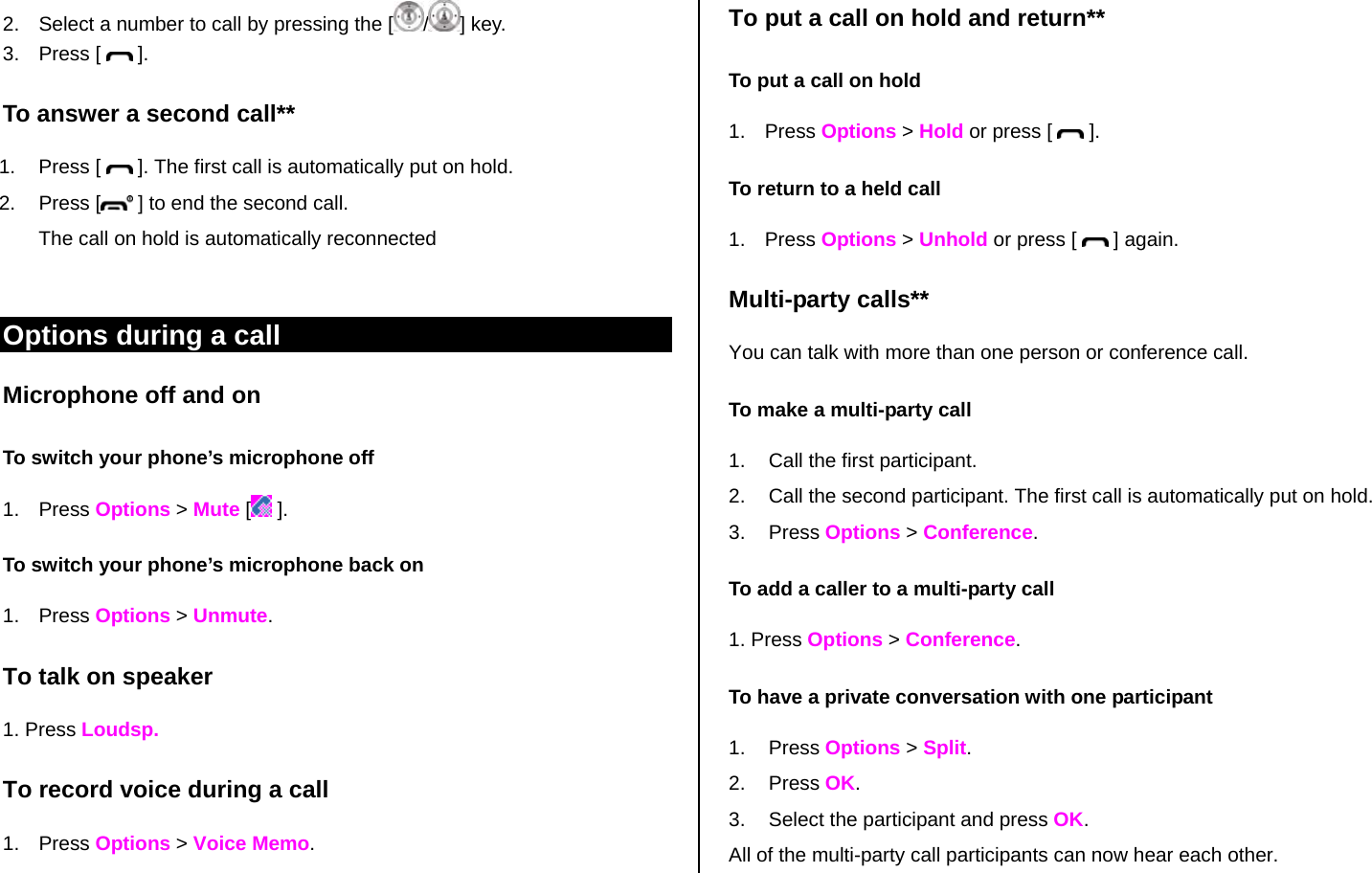

2. Select a number to call by pressing the [ /] key. 3. Press [ ]. To answer a second call** 1. Press [ ]. The first call is automatically put on hold. 2. Press [ ] to end the second call. The call on hold is automatically reconnected Options during a call Microphone off and on To switch your phone’s microphone off 1. Press Options > Mute [ ]. To switch your phone’s microphone back on 1. Press Options > Unmute. To talk on speaker 1. Press Loudsp. To record voice during a call 1. Press Options > Voice Memo. To put a call on hold and return** To put a call on hold 1. Press Options > Hold or press [ ]. To return to a held call 1. Press Options > Unhold or press [ ] again. Multi-party calls** You can talk with more than one person or conference call. To make a multi-party call 1. Call the first participant. 2. Call the second participant. The first call is automatically put on hold. 3. Press Options > Conference. To add a caller to a multi-party call 1. Press Options > Conference. To have a private conversation with one participant 1. Press Options > Split. 2. Press OK. 3. Select the participant and press OK. All of the multi-party call participants can now hear each other.

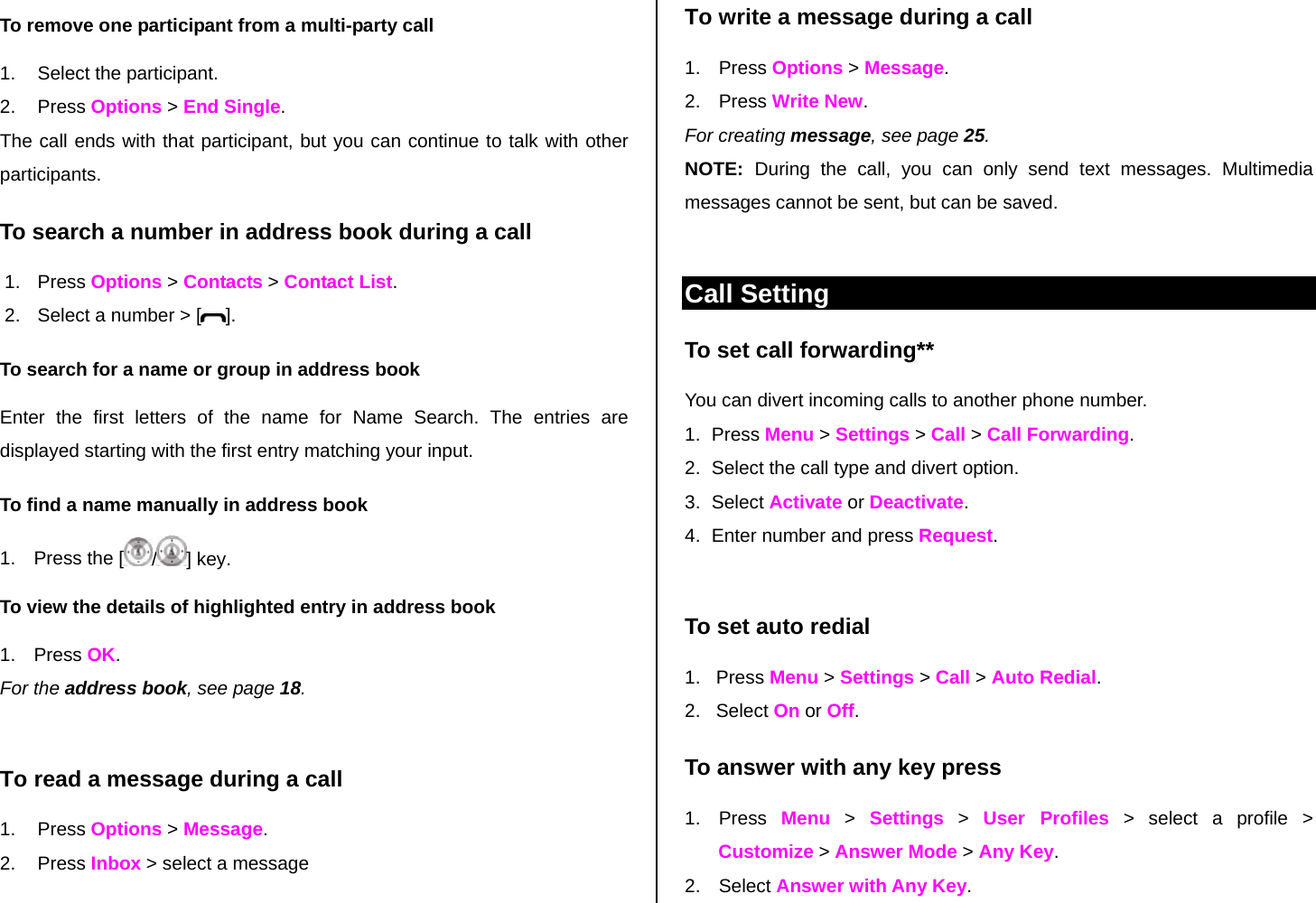

To remove one participant from a multi-party call 1. Select the participant. 2. Press Options > End Single. The call ends with that participant, but you can continue to talk with other participants. To search a number in address book during a call 1. Press Options > Contacts > Contact List. 2. Select a number > [ ]. To search for a name or group in address book Enter the first letters of the name for Name Search. The entries are displayed starting with the first entry matching your input. To find a name manually in address book 1. Press the [ /] key. To view the details of highlighted entry in address book 1. Press OK. For the address book, see page 18. To read a message during a call 1. Press Options > Message. 2. Press Inbox > select a message To write a message during a call 1. Press Options > Message. 2. Press Write New. For creating message, see page 25. NOTE: During the call, you can only send text messages. Multimedia messages cannot be sent, but can be saved. Call Setting To set call forwarding** You can divert incoming calls to another phone number. 1. Press Menu > Settings > Call > Call Forwarding. 2. Select the call type and divert option. 3. Select Activate or Deactivate. 4. Enter number and press Request. To set auto redial 1. Press Menu > Settings > Call > Auto Redial. 2. Select On or Off. To answer with any key press 1. Press Menu > Settings > User Profiles > select a profile > Customize > Answer Mode > Any Key. 2. Select Answer with Any Key.
NOTE: you can answer with any key except [ ] and Reject. Checking all calls You can view information about all Call Logs. For more options for all, missed, received and dialed calls press Options. To view all calls 1. Press Menu > Call Logs > All Calls. 2. Select the call and press OK to view the detail information. To view missed calls 1. Press Menu > Call Logs > Missed Calls. To view received calls 1. Press Menu > Call Logs > Received Calls. To view dialed calls 1. Press Menu > Call Logs > Dialed Calls. To delete call logs 1. Press Menu > Call Logs > Delete Call Logs. 2. Select Delete All > Yes. NOTE: If no logs exist, the message “No Call exist” appears. To view total call time 1. Press Menu > Call Logs > Call Time. 2. To reset press Reset All Time > password > Yes. To view data transmitted information 1. Press Menu > Call Logs > GPRS Counter - Last Sent: You can view Sent of transmitted in previous sessions, in Kbytes. - Last Received: You can view Received of transmitted in previous sessions, in Kbytes. - All Sent: You can view all Sent transmitted data in Kbytes. - All Received: You can view all Received transmitted data in Kbytes. - Reset Counter Speed dialing You can dial quickly using speed dialing. It can be saved of 8 numbers from 2 to 9. [ ] : Voice mail [ ] : Prefix for international call To set speed dial 1. Press Menu > Contacts > Speed Dial. 2. Select an empty entry and press Add.

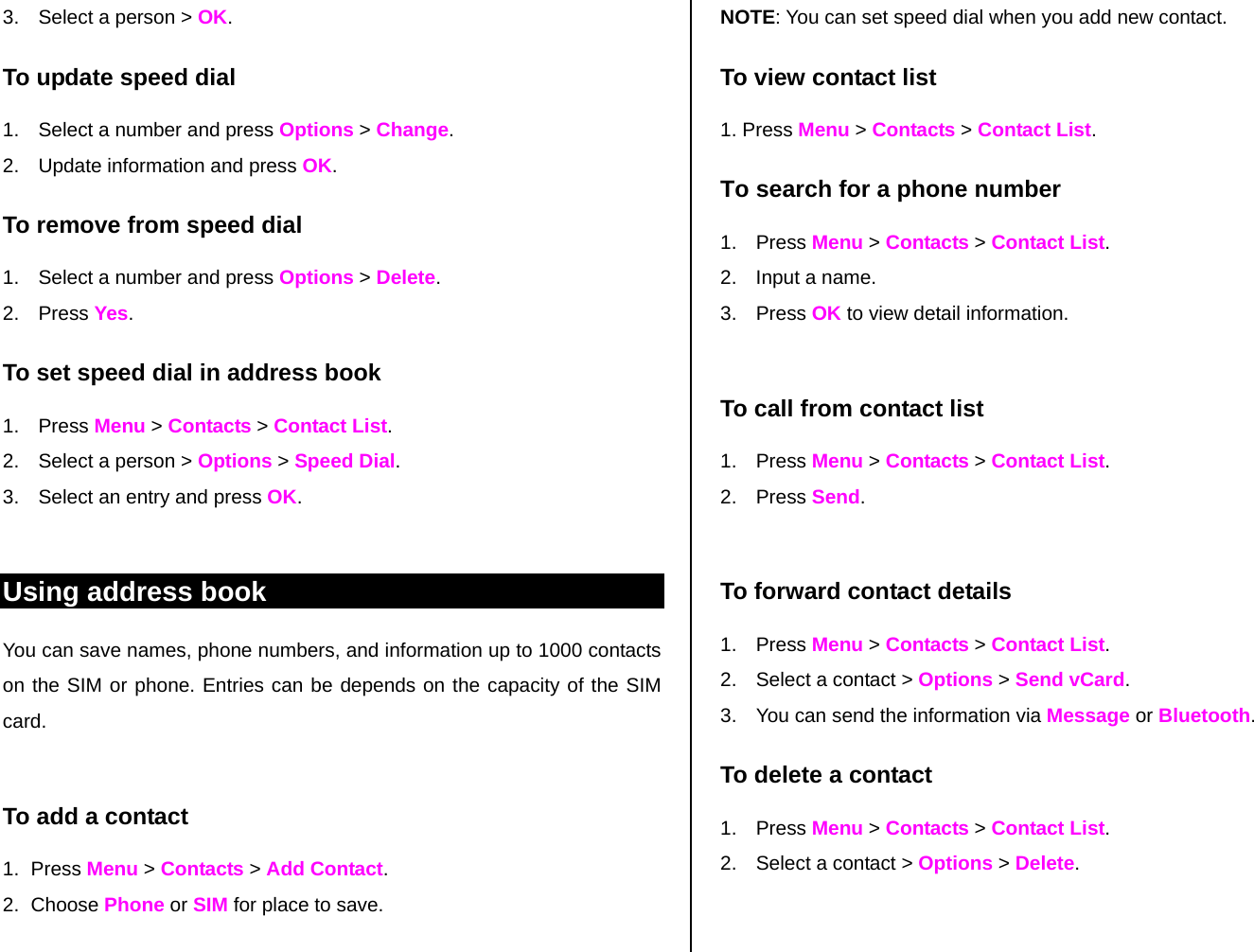

3. Select a person > OK. To update speed dial 1. Select a number and press Options > Change. 2. Update information and press OK. To remove from speed dial 1. Select a number and press Options > Delete. 2. Press Yes. To set speed dial in address book 1. Press Menu > Contacts > Contact List. 2. Select a person > Options > Speed Dial. 3. Select an entry and press OK. Using address book You can save names, phone numbers, and information up to 1000 contacts on the SIM or phone. Entries can be depends on the capacity of the SIM card. To add a contact 1. Press Menu > Contacts > Add Contact. 2. Choose Phone or SIM for place to save. NOTE: You can set speed dial when you add new contact. To view contact list 1. Press Menu > Contacts > Contact List. To search for a phone number 1. Press Menu > Contacts > Contact List. 2. Input a name. 3. Press OK to view detail information. To call from contact list 1. Press Menu > Contacts > Contact List. 2. Press Send. To forward contact details 1. Press Menu > Contacts > Contact List. 2. Select a contact > Options > Send vCard. 3. You can send the information via Message or Bluetooth. To delete a contact 1. Press Menu > Contacts > Contact List. 2. Select a contact > Options > Delete.

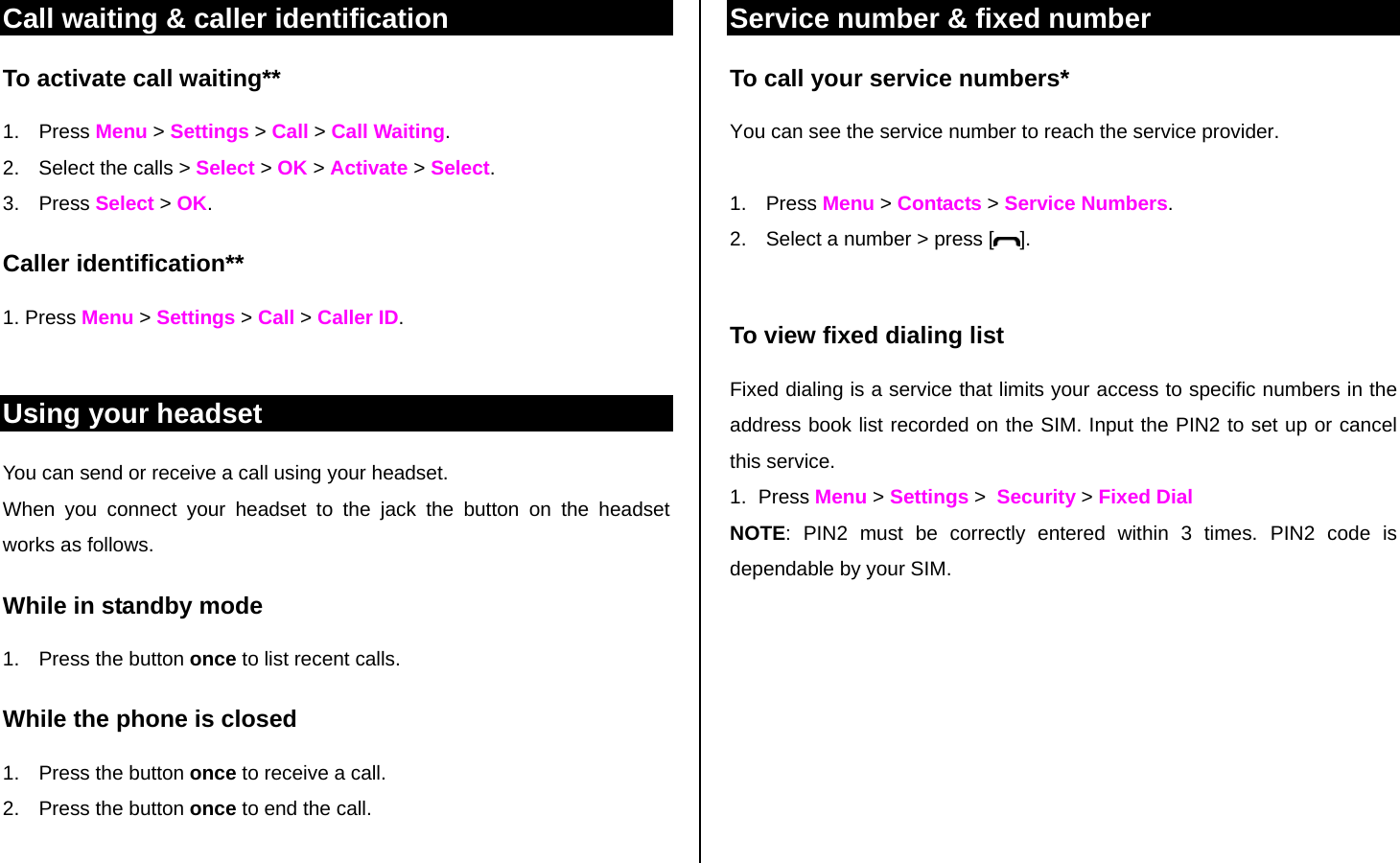

Call waiting & caller identification To activate call waiting** 1. Press Menu > Settings > Call > Call Waiting. 2. Select the calls > Select > OK > Activate > Select. 3. Press Select > OK. Caller identification** 1. Press Menu > Settings > Call > Caller ID. Using your headset You can send or receive a call using your headset. When you connect your headset to the jack the button on the headset works as follows. While in standby mode 1. Press the button once to list recent calls. While the phone is closed 1. Press the button once to receive a call. 2. Press the button once to end the call. Service number & fixed number To call your service numbers* You can see the service number to reach the service provider. 1. Press Menu > Contacts > Service Numbers. 2. Select a number > press [ ]. To view fixed dialing list Fixed dialing is a service that limits your access to specific numbers in the address book list recorded on the SIM. Input the PIN2 to set up or cancel this service. 1. Press Menu > Settings > Security > Fixed Dial NOTE: PIN2 must be correctly entered within 3 times. PIN2 code is dependable by your SIM.
3. Messaging Messaging Receive message Creating & send new message Message templates Creating new multimedia message Message settings Setting voice message

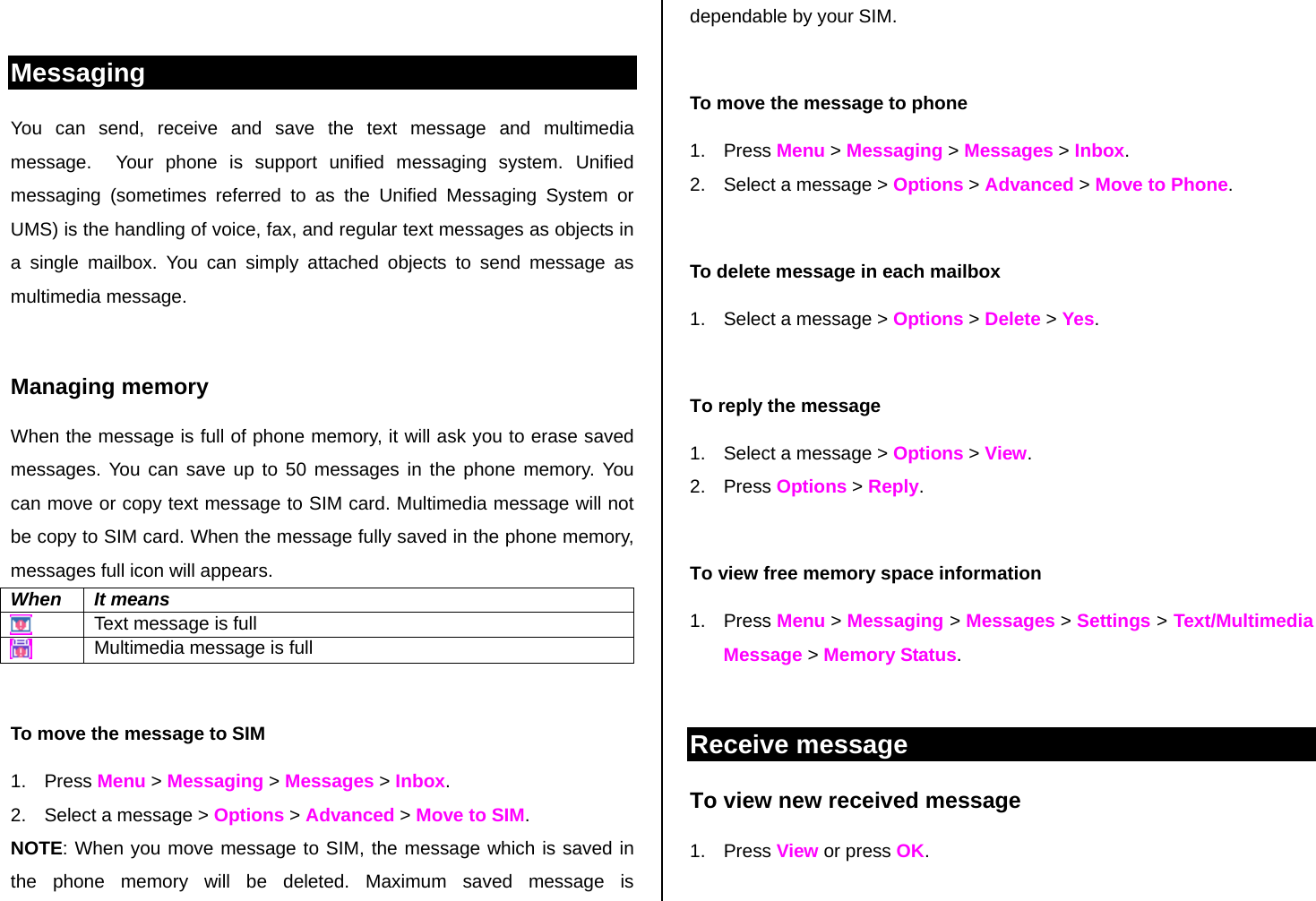

Messaging You can send, receive and save the text message and multimedia message. Your phone is support unified messaging system. Unified messaging (sometimes referred to as the Unified Messaging System or UMS) is the handling of voice, fax, and regular text messages as objects in a single mailbox. You can simply attached objects to send message as multimedia message. Managing memory When the message is full of phone memory, it will ask you to erase saved messages. You can save up to 50 messages in the phone memory. You can move or copy text message to SIM card. Multimedia message will not be copy to SIM card. When the message fully saved in the phone memory, messages full icon will appears. When It means Text message is full Multimedia message is full To move the message to SIM 1. Press Menu > Messaging > Messages > Inbox. 2. Select a message > Options > Advanced > Move to SIM. NOTE: When you move message to SIM, the message which is saved in the phone memory will be deleted. Maximum saved message is dependable by your SIM. To move the message to phone 1. Press Menu > Messaging > Messages > Inbox. 2. Select a message > Options > Advanced > Move to Phone. To delete message in each mailbox 1. Select a message > Options > Delete > Yes. To reply the message 1. Select a message > Options > View. 2. Press Options > Reply. To view free memory space information 1. Press Menu > Messaging > Messages > Settings > Text/Multimedia Message > Memory Status. Receive message To view new received message 1. Press View or press OK.

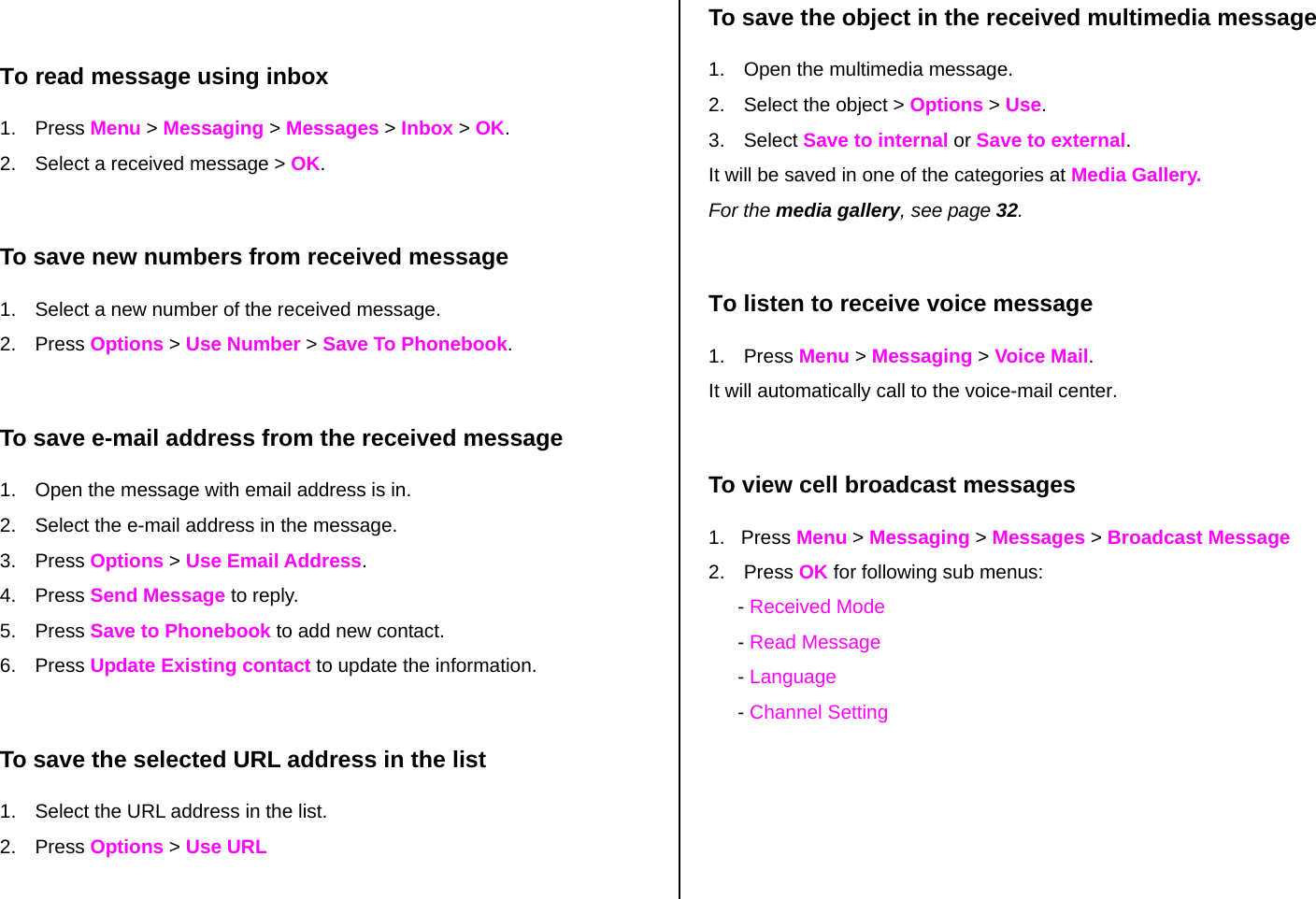

To read message using inbox 1. Press Menu > Messaging > Messages > Inbox > OK. 2. Select a received message > OK. To save new numbers from received message 1. Select a new number of the received message. 2. Press Options > Use Number > Save To Phonebook. To save e-mail address from the received message 1. Open the message with email address is in. 2. Select the e-mail address in the message. 3. Press Options > Use Email Address. 4. Press Send Message to reply. 5. Press Save to Phonebook to add new contact. 6. Press Update Existing contact to update the information. To save the selected URL address in the list 1. Select the URL address in the list. 2. Press Options > Use URL To save the object in the received multimedia message 1. Open the multimedia message. 2. Select the object > Options > Use. 3. Select Save to internal or Save to external. It will be saved in one of the categories at Media Gallery. For the media gallery, see page 32. To listen to receive voice message 1. Press Menu > Messaging > Voice Mail. It will automatically call to the voice-mail center. To view cell broadcast messages 1. Press Menu > Messaging > Messages > Broadcast Message 2. Press OK for following sub menus: - Received Mode - Read Message - Language - Channel Setting

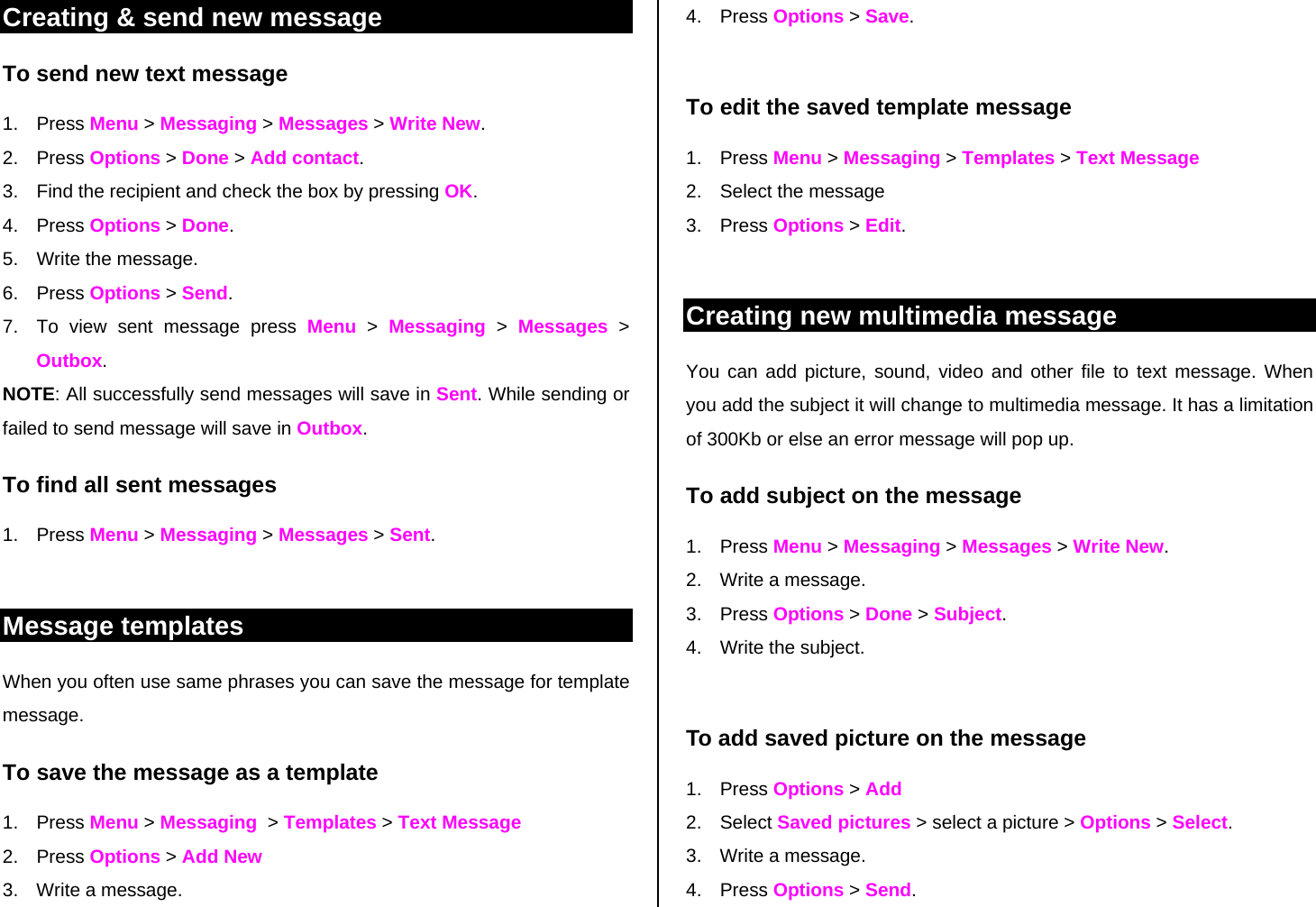

Creating & send new message To send new text message 1. Press Menu > Messaging > Messages > Write New. 2. Press Options > Done > Add contact. 3. Find the recipient and check the box by pressing OK. 4. Press Options > Done. 5. Write the message. 6. Press Options > Send. 7. To view sent message press Menu > Messaging > Messages > Outbox. NOTE: All successfully send messages will save in Sent. While sending or failed to send message will save in Outbox. To find all sent messages 1. Press Menu > Messaging > Messages > Sent. Message templates When you often use same phrases you can save the message for template message. To save the message as a template 1. Press Menu > Messaging > Templates > Text Message 2. Press Options > Add New 3. Write a message. 4. Press Options > Save. To edit the saved template message 1. Press Menu > Messaging > Templates > Text Message 2. Select the message 3. Press Options > Edit. Creating new multimedia message You can add picture, sound, video and other file to text message. When you add the subject it will change to multimedia message. It has a limitation of 300Kb or else an error message will pop up. To add subject on the message 1. Press Menu > Messaging > Messages > Write New. 2. Write a message. 3. Press Options > Done > Subject. 4. Write the subject. To add saved picture on the message 1. Press Options > Add 2. Select Saved pictures > select a picture > Options > Select. 3. Write a message. 4. Press Options > Send.

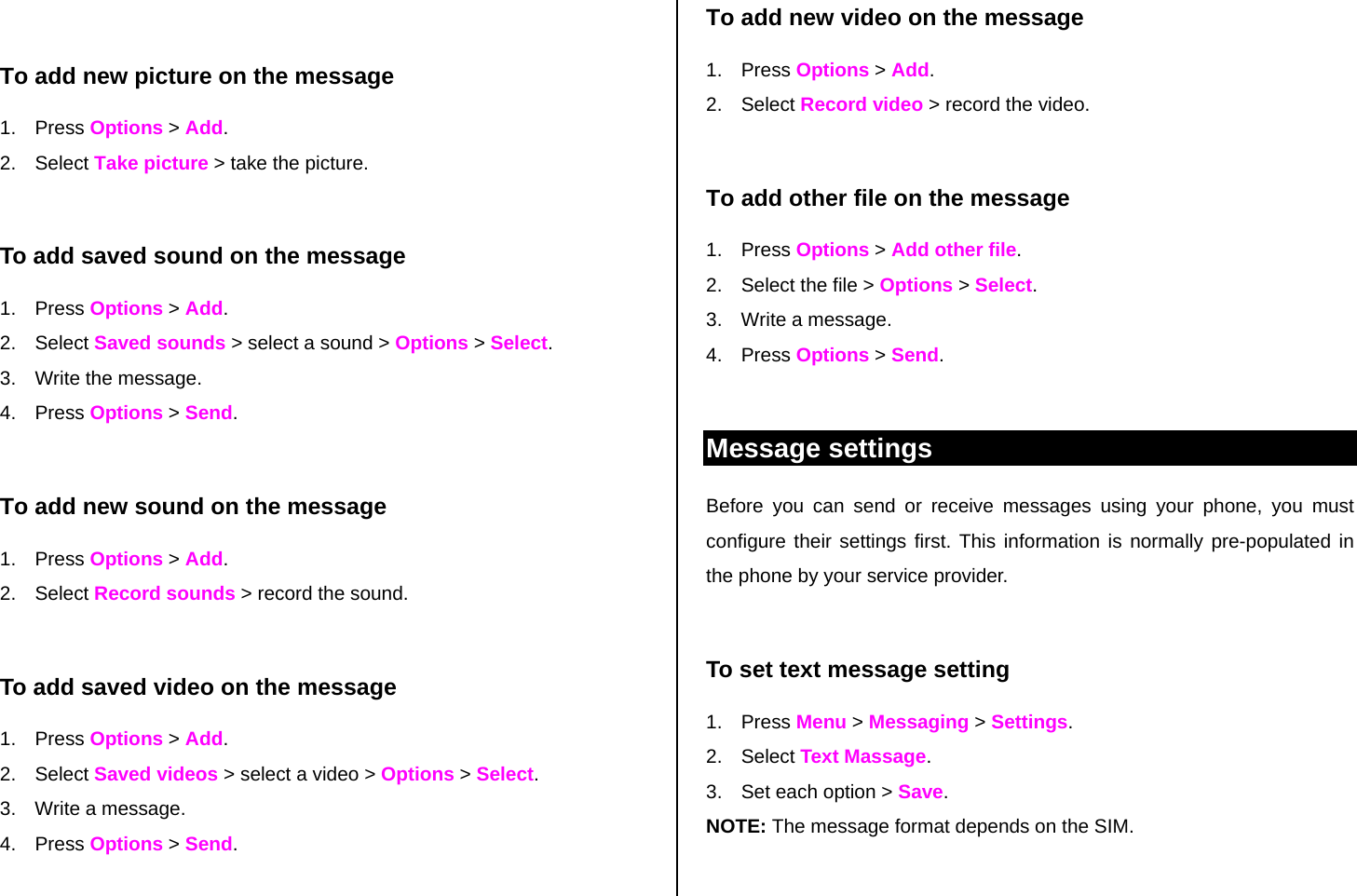

To add new picture on the message 1. Press Options > Add. 2. Select Take picture > take the picture. To add saved sound on the message 1. Press Options > Add. 2. Select Saved sounds > select a sound > Options > Select. 3. Write the message. 4. Press Options > Send. To add new sound on the message 1. Press Options > Add. 2. Select Record sounds > record the sound. To add saved video on the message 1. Press Options > Add. 2. Select Saved videos > select a video > Options > Select. 3. Write a message. 4. Press Options > Send. To add new video on the message 1. Press Options > Add. 2. Select Record video > record the video. To add other file on the message 1. Press Options > Add other file. 2. Select the file > Options > Select. 3. Write a message. 4. Press Options > Send. Message settings Before you can send or receive messages using your phone, you must configure their settings first. This information is normally pre-populated in the phone by your service provider. To set text message setting 1. Press Menu > Messaging > Settings. 2. Select Text Massage. 3. Set each option > Save. NOTE: The message format depends on the SIM.

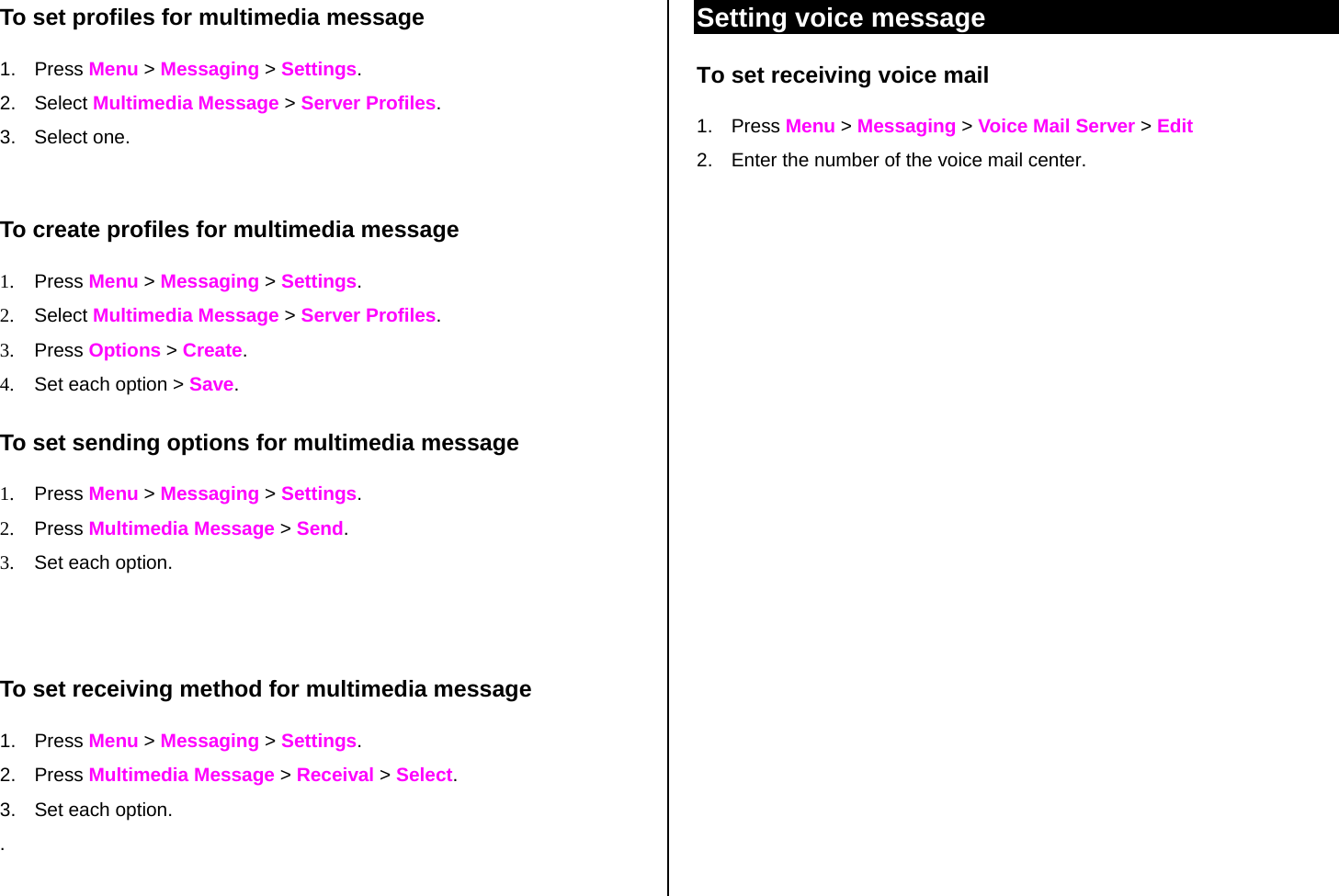

To set profiles for multimedia message 1. Press Menu > Messaging > Settings. 2. Select Multimedia Message > Server Profiles. 3. Select one. To create profiles for multimedia message 1. Press Menu > Messaging > Settings. 2. Select Multimedia Message > Server Profiles. 3. Press Options > Create. 4. Set each option > Save. To set sending options for multimedia message 1. Press Menu > Messaging > Settings. 2. Press Multimedia Message > Send. 3. Set each option. To set receiving method for multimedia message 1. Press Menu > Messaging > Settings. 2. Press Multimedia Message > Receival > Select. 3. Set each option. . Setting voice message To set receiving voice mail 1. Press Menu > Messaging > Voice Mail Server > Edit 2. Enter the number of the voice mail center.

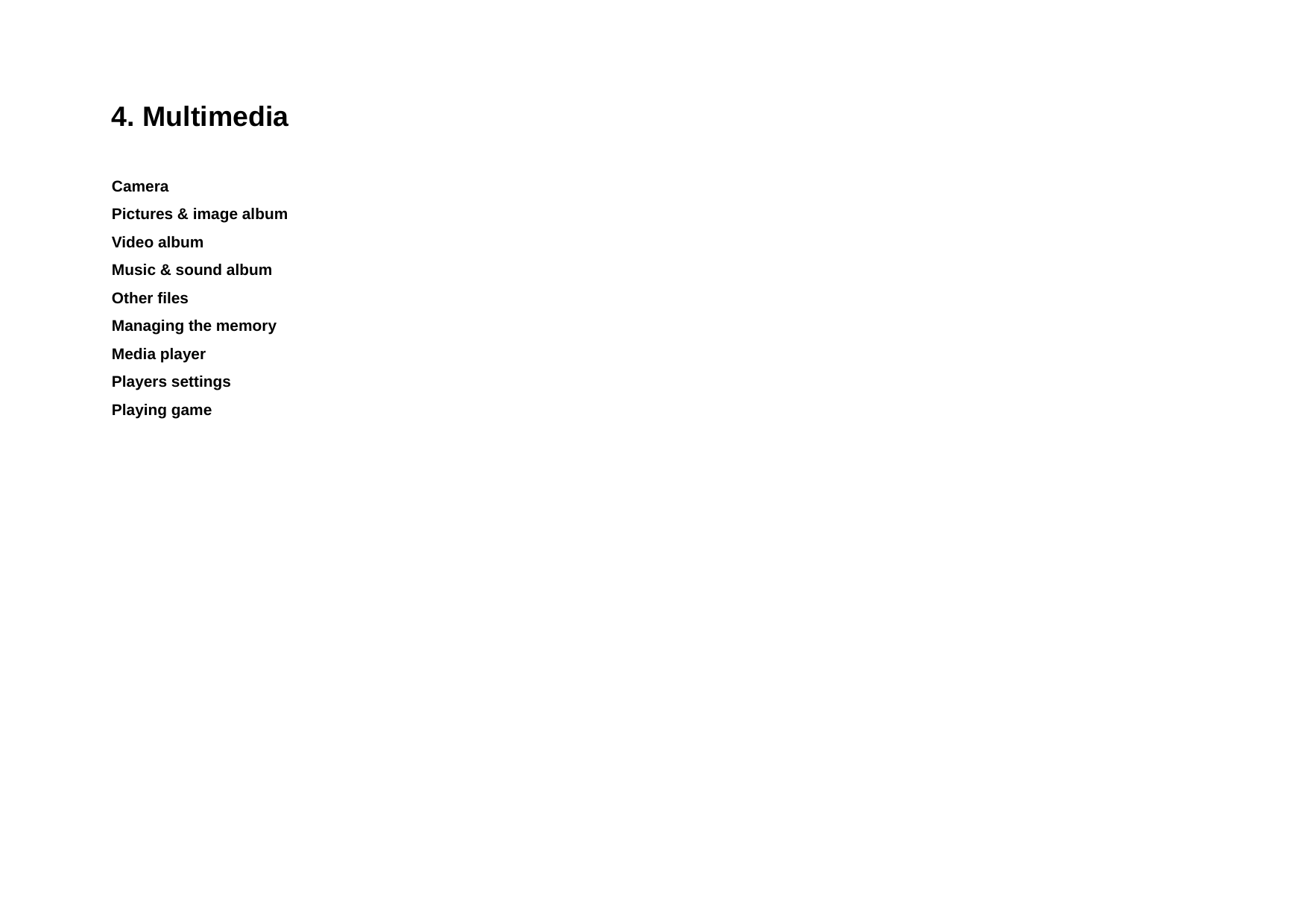

4. Multimedia Camera Pictures & image album Video album Music & sound album Other files Managing the memory Media player Players settings Playing game

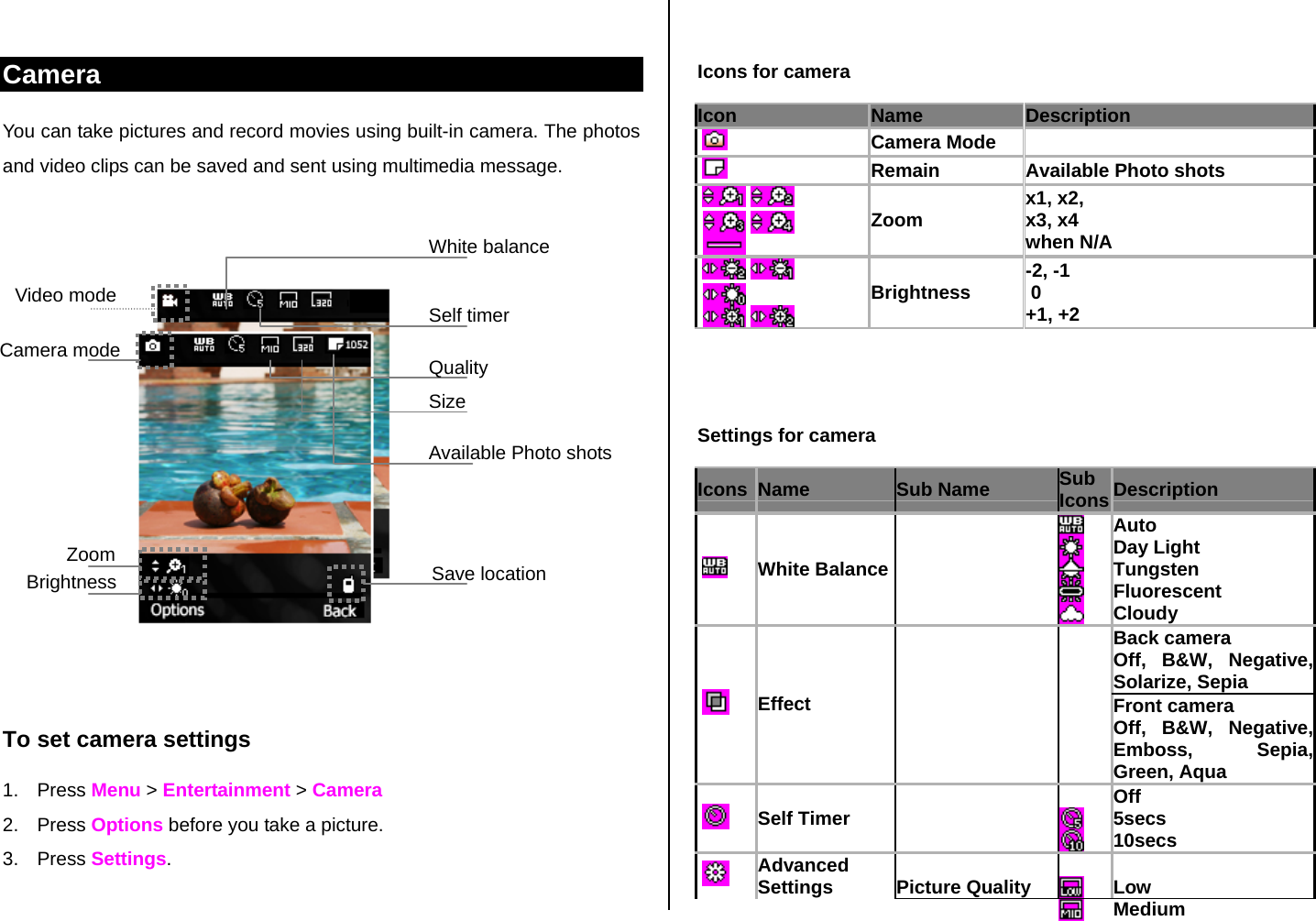

Camera You can take pictures and record movies using built-in camera. The photos and video clips can be saved and sent using multimedia message. To set camera settings 1. Press Menu > Entertainment > Camera 2. Press Options before you take a picture. 3. Press Settings. Icons for camera Icon Name Description Camera Mode Remain Available Photo shots Zoom x1, x2, x3, x4 when N/A Brightness -2, -1 0 +1, +2 Settings for camera Icons Name Sub Name Sub Icons Description White Balance Auto Day Light Tungsten Fluorescent Cloudy Back camera Off, B&W, Negative, Solarize, Sepia Effect Front camera Off, B&W, Negative, Emboss, Sepia, Green, Aqua Self Timer Off 5secs 10secs Advanced Settings Picture Quality Low Medium Video mode Camera mode Zoom White balance Self timer Save location Brightness Available Photo shots Quality Size

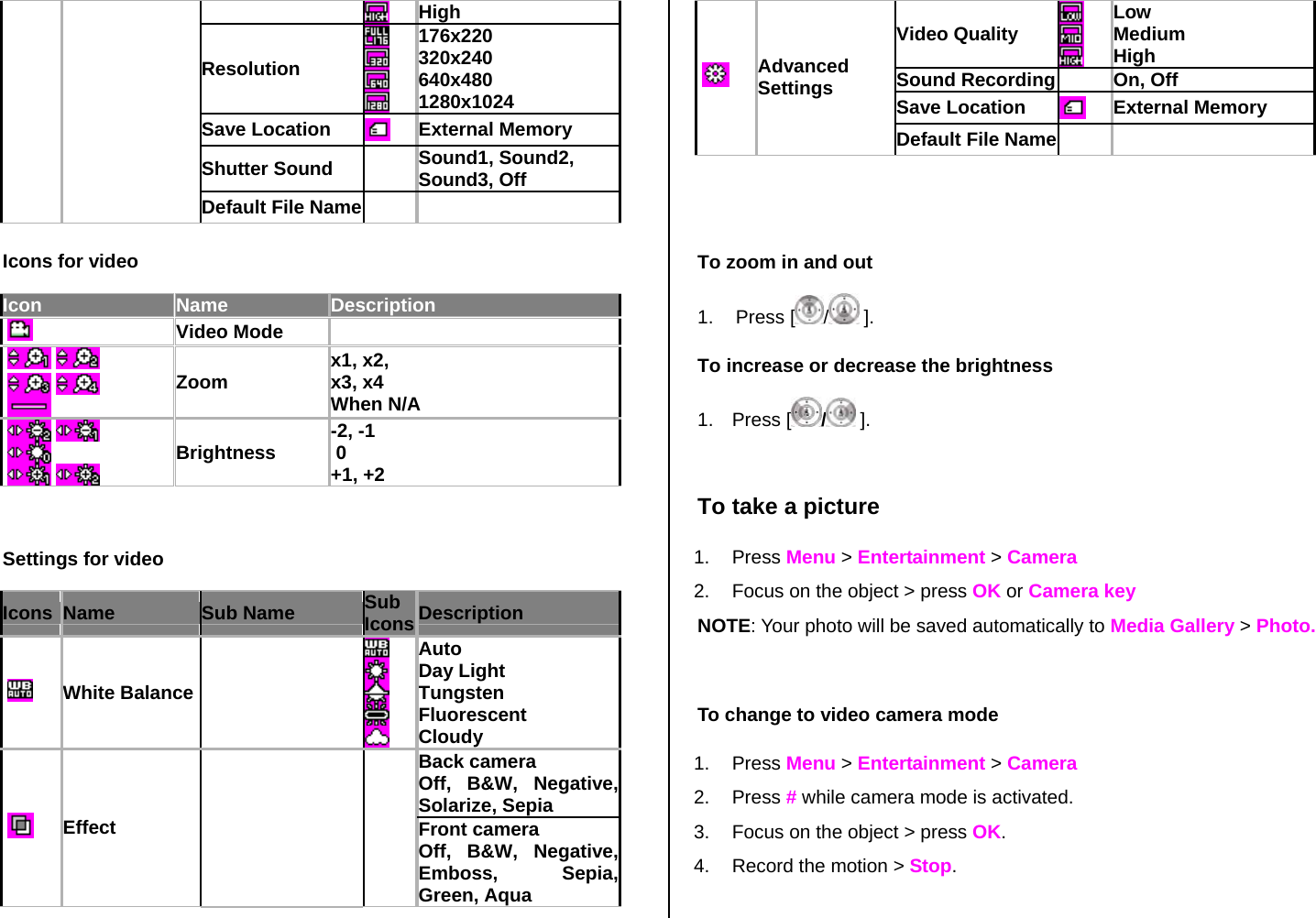

High Resolution 176x220 320x240 640x480 1280x1024 Save Location External Memory Shutter Sound Sound1, Sound2, Sound3, Off Default File Name Icons for video Icon Name Description Video Mode Zoom x1, x2, x3, x4 When N/A Brightness -2, -1 0 +1, +2 Settings for video Icons Name Sub Name Sub Icons Description White Balance Auto Day Light Tungsten Fluorescent Cloudy Back camera Off, B&W, Negative, Solarize, Sepia Effect Front camera Off, B&W, Negative, Emboss, Sepia, Green, Aqua Video Quality Low Medium High Sound Recording On, Off Save Location External Memory Advanced Settings Default File Name To zoom in and out 1. Press [ / ]. To increase or decrease the brightness 1. Press [ / ]. To take a picture 1. Press Menu > Entertainment > Camera 2. Focus on the object > press OK or Camera key NOTE: Your photo will be saved automatically to Media Gallery > Photo. To change to video camera mode 1. Press Menu > Entertainment > Camera 2. Press # while camera mode is activated. 3. Focus on the object > press OK. 4. Record the motion > Stop.

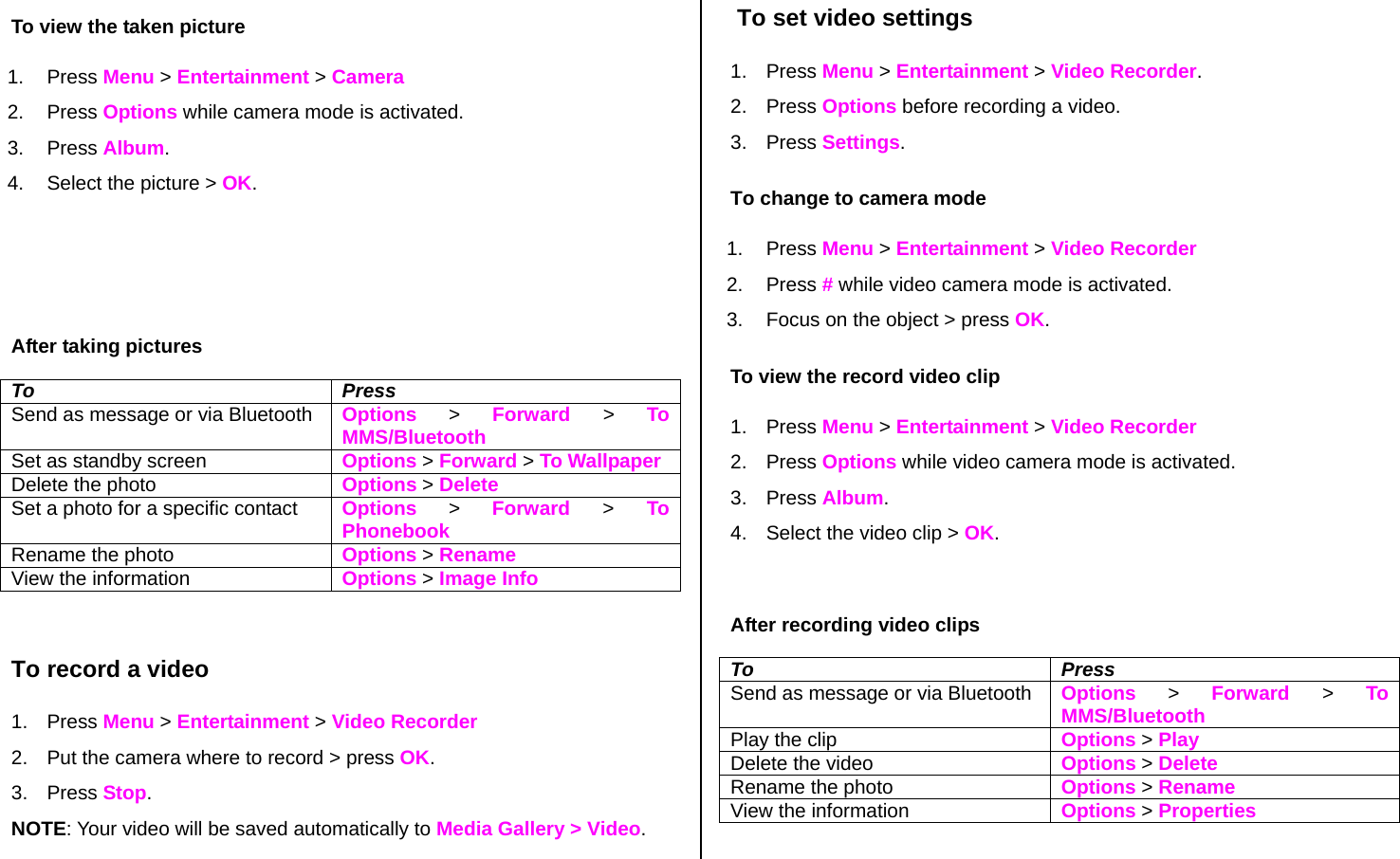

To view the taken picture 1. Press Menu > Entertainment > Camera 2. Press Options while camera mode is activated. 3. Press Album. 4. Select the picture > OK. After taking pictures To Press Send as message or via Bluetooth Options > Forward > To MMS/Bluetooth Set as standby screen Options > Forward > To Wallpaper Delete the photo Options > Delete Set a photo for a specific contact Options > Forward > To Phonebook Rename the photo Options > Rename View the information Options > Image Info To record a video 1. Press Menu > Entertainment > Video Recorder 2. Put the camera where to record > press OK. 3. Press Stop. NOTE: Your video will be saved automatically to Media Gallery > Video. To set video settings 1. Press Menu > Entertainment > Video Recorder. 2. Press Options before recording a video. 3. Press Settings. To change to camera mode 1. Press Menu > Entertainment > Video Recorder 2. Press # while video camera mode is activated. 3. Focus on the object > press OK. To view the record video clip 1. Press Menu > Entertainment > Video Recorder 2. Press Options while video camera mode is activated. 3. Press Album. 4. Select the video clip > OK. After recording video clips To Press Send as message or via Bluetooth Options > Forward > To MMS/Bluetooth Play the clip Options > Play Delete the video Options > Delete Rename the photo Options > Rename View the information Options > Properties

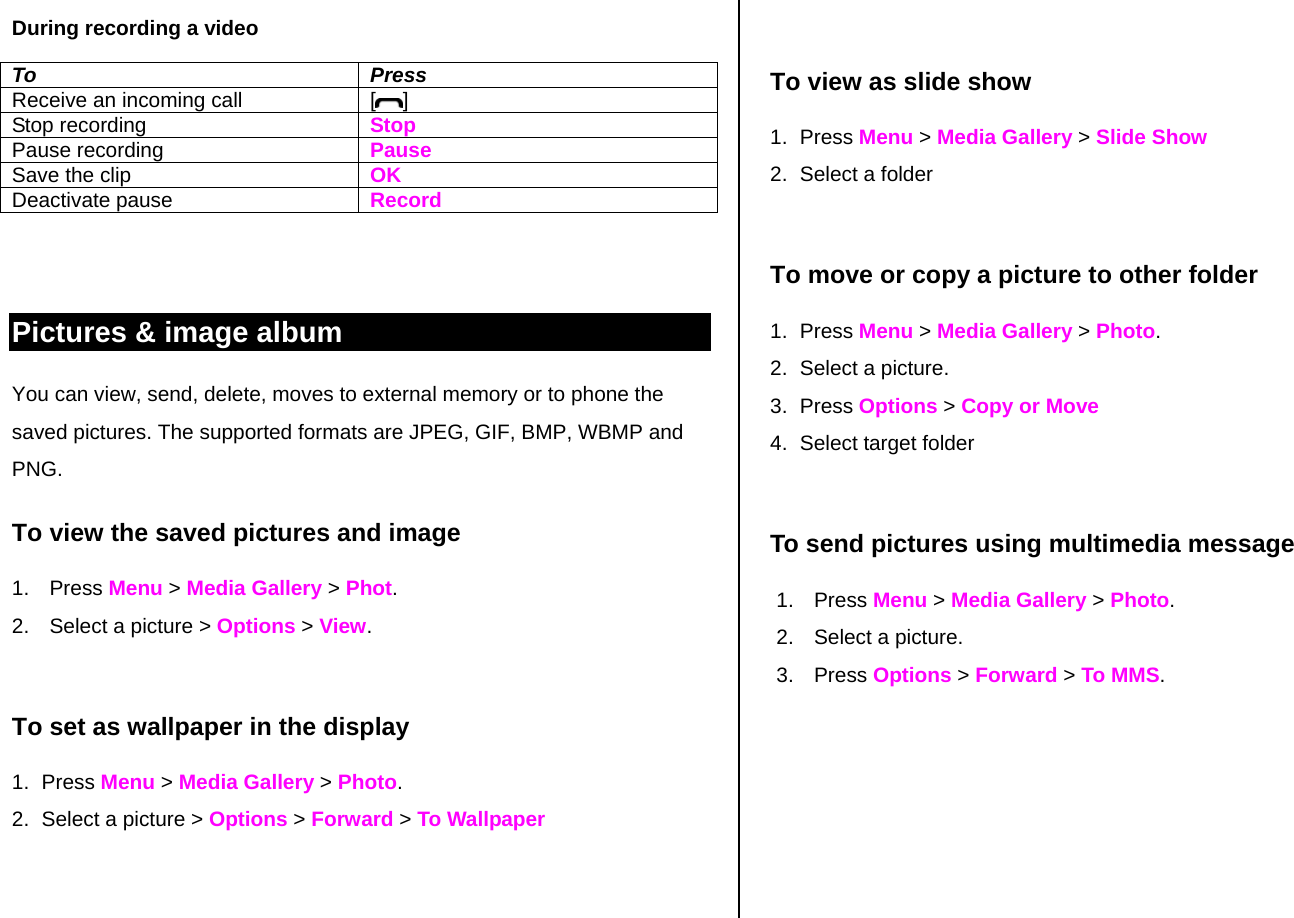

During recording a video To Press Receive an incoming call [ ] Stop recording Stop Pause recording Pause Save the clip OK Deactivate pause Record Pictures & image album You can view, send, delete, moves to external memory or to phone the saved pictures. The supported formats are JPEG, GIF, BMP, WBMP and PNG. To view the saved pictures and image 1. Press Menu > Media Gallery > Phot. 2. Select a picture > Options > View. To set as wallpaper in the display 1. Press Menu > Media Gallery > Photo. 2. Select a picture > Options > Forward > To Wallpaper To view as slide show 1. Press Menu > Media Gallery > Slide Show 2. Select a folder To move or copy a picture to other folder 1. Press Menu > Media Gallery > Photo. 2. Select a picture. 3. Press Options > Copy or Move 4. Select target folder To send pictures using multimedia message 1. Press Menu > Media Gallery > Photo. 2. Select a picture. 3. Press Options > Forward > To MMS.

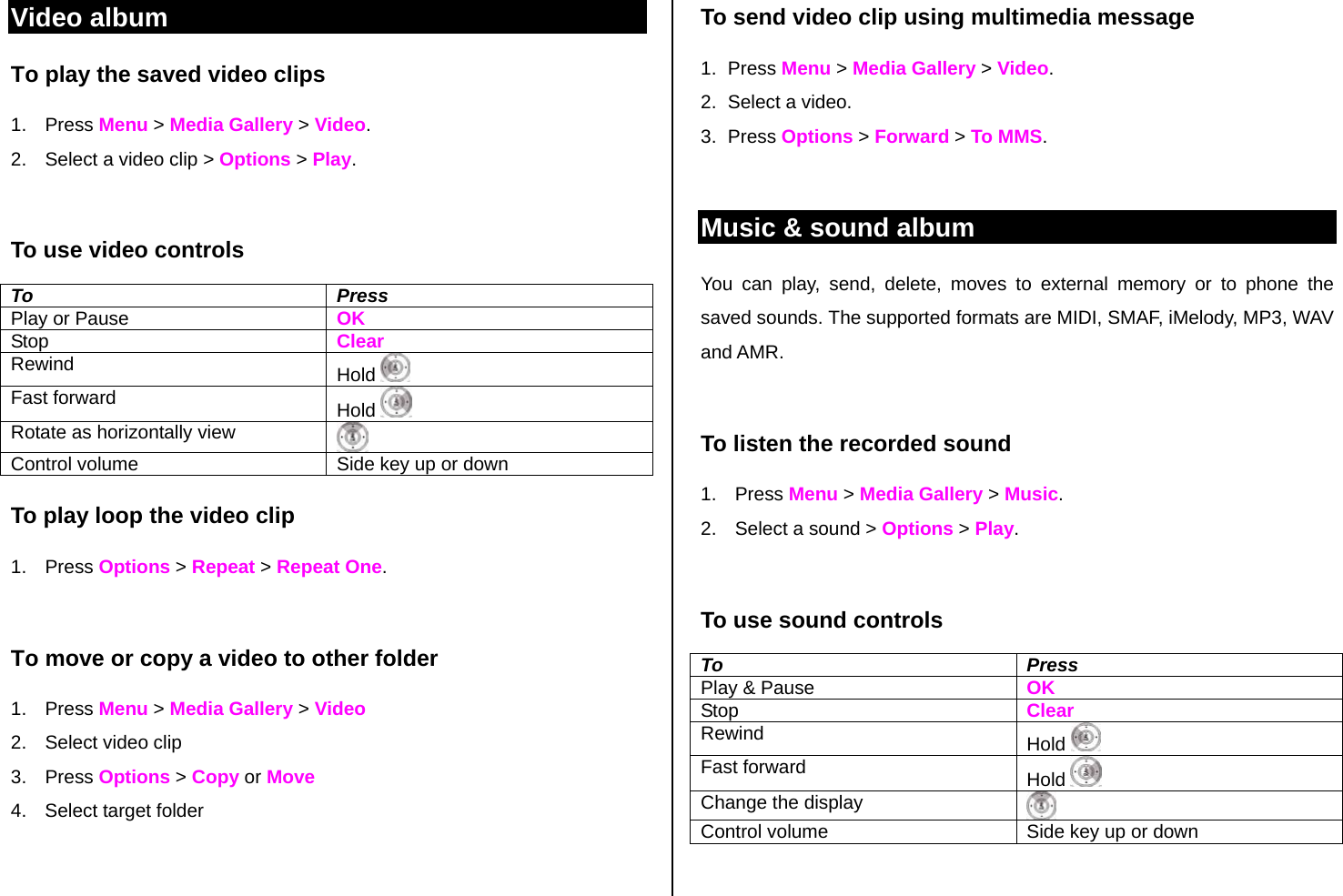

Video album To play the saved video clips 1. Press Menu > Media Gallery > Video. 2. Select a video clip > Options > Play. To use video controls To Press Play or Pause OK Stop Clear Rewind Hold Fast forward Hold Rotate as horizontally view Control volume Side key up or down To play loop the video clip 1. Press Options > Repeat > Repeat One. To move or copy a video to other folder 1. Press Menu > Media Gallery > Video 2. Select video clip 3. Press Options > Copy or Move 4. Select target folder To send video clip using multimedia message 1. Press Menu > Media Gallery > Video. 2. Select a video. 3. Press Options > Forward > To MMS. Music & sound album You can play, send, delete, moves to external memory or to phone the saved sounds. The supported formats are MIDI, SMAF, iMelody, MP3, WAV and AMR. To listen the recorded sound 1. Press Menu > Media Gallery > Music. 2. Select a sound > Options > Play. To use sound controls To Press Play & Pause OK Stop Clear Rewind Hold Fast forward Hold Change the display Control volume Side key up or down

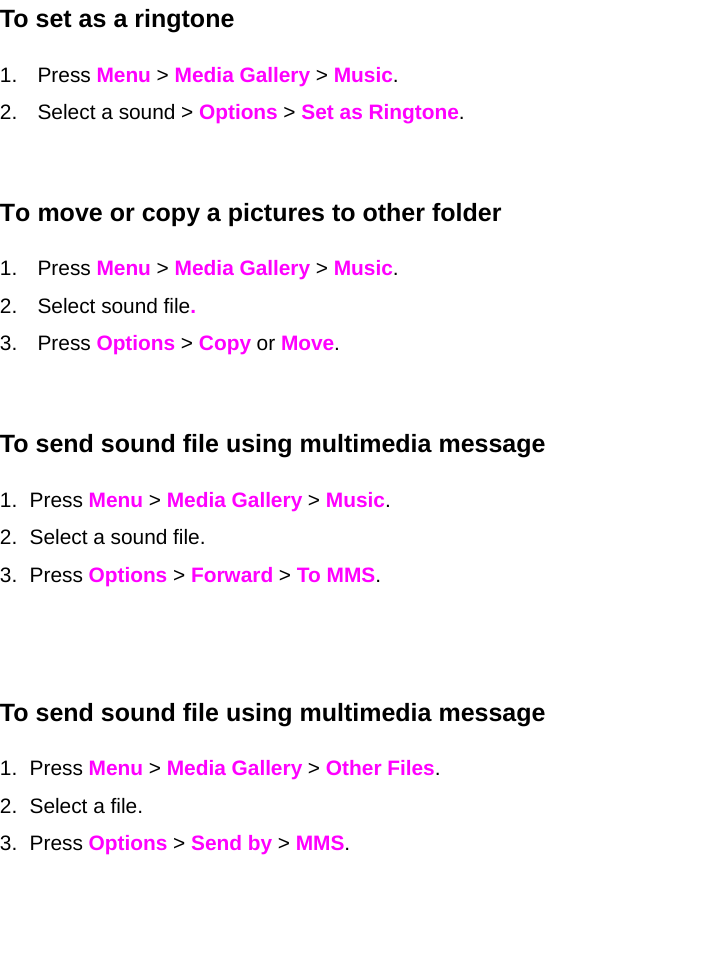

To set as a ringtone 1. Press Menu > Media Gallery > Music. 2. Select a sound > Options > Set as Ringtone. To move or copy a pictures to other folder 1. Press Menu > Media Gallery > Music. 2. Select sound file. 3. Press Options > Copy or Move. To send sound file using multimedia message 1. Press Menu > Media Gallery > Music. 2. Select a sound file. 3. Press Options > Forward > To MMS. To send sound file using multimedia message 1. Press Menu > Media Gallery > Other Files. 2. Select a file. 3. Press Options > Send by > MMS.

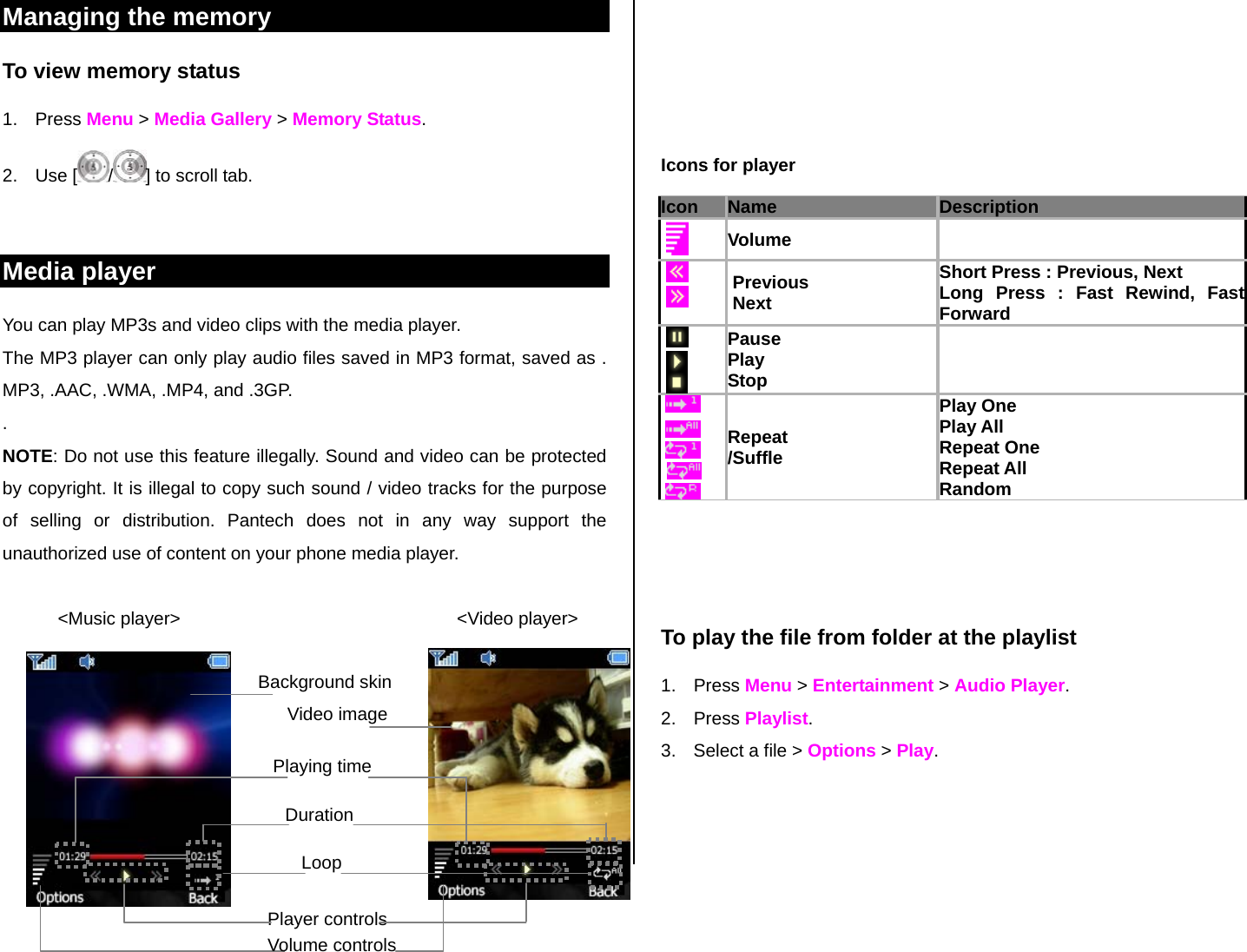

Managing the memory To view memory status 1. Press Menu > Media Gallery > Memory Status. 2. Use [ /] to scroll tab. Media player You can play MP3s and video clips with the media player. The MP3 player can only play audio files saved in MP3 format, saved as . MP3, .AAC, .WMA, .MP4, and .3GP. . NOTE: Do not use this feature illegally. Sound and video can be protected by copyright. It is illegal to copy such sound / video tracks for the purpose of selling or distribution. Pantech does not in any way support the unauthorized use of content on your phone media player. <Music player> <Video player> Icons for player Icon Name Description Volume Previous Next Short Press : Previous, Next Long Press : Fast Rewind, Fast Forward Pause Play Stop Repeat /Suffle Play One Play All Repeat One Repeat All Random To play the file from folder at the playlist 1. Press Menu > Entertainment > Audio Player. 2. Press Playlist. 3. Select a file > Options > Play. Background skin Video image Playing time Duration Loop Player controls Volume controls

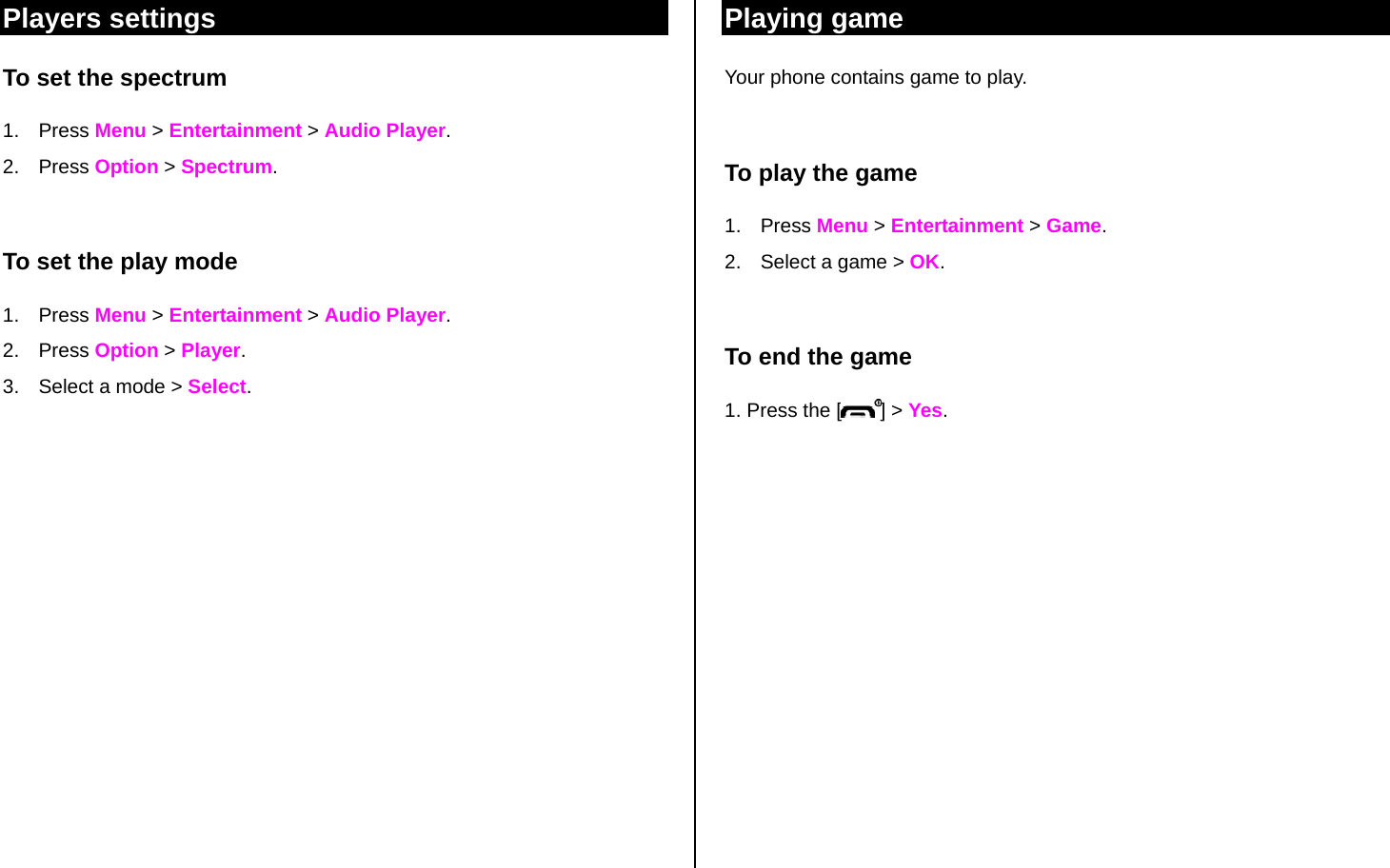

Players settings To set the spectrum 1. Press Menu > Entertainment > Audio Player. 2. Press Option > Spectrum. To set the play mode 1. Press Menu > Entertainment > Audio Player. 2. Press Option > Player. 3. Select a mode > Select. Playing game Your phone contains game to play. To play the game 1. Press Menu > Entertainment > Game. 2. Select a game > OK. To end the game 1. Press the [ ] > Yes.

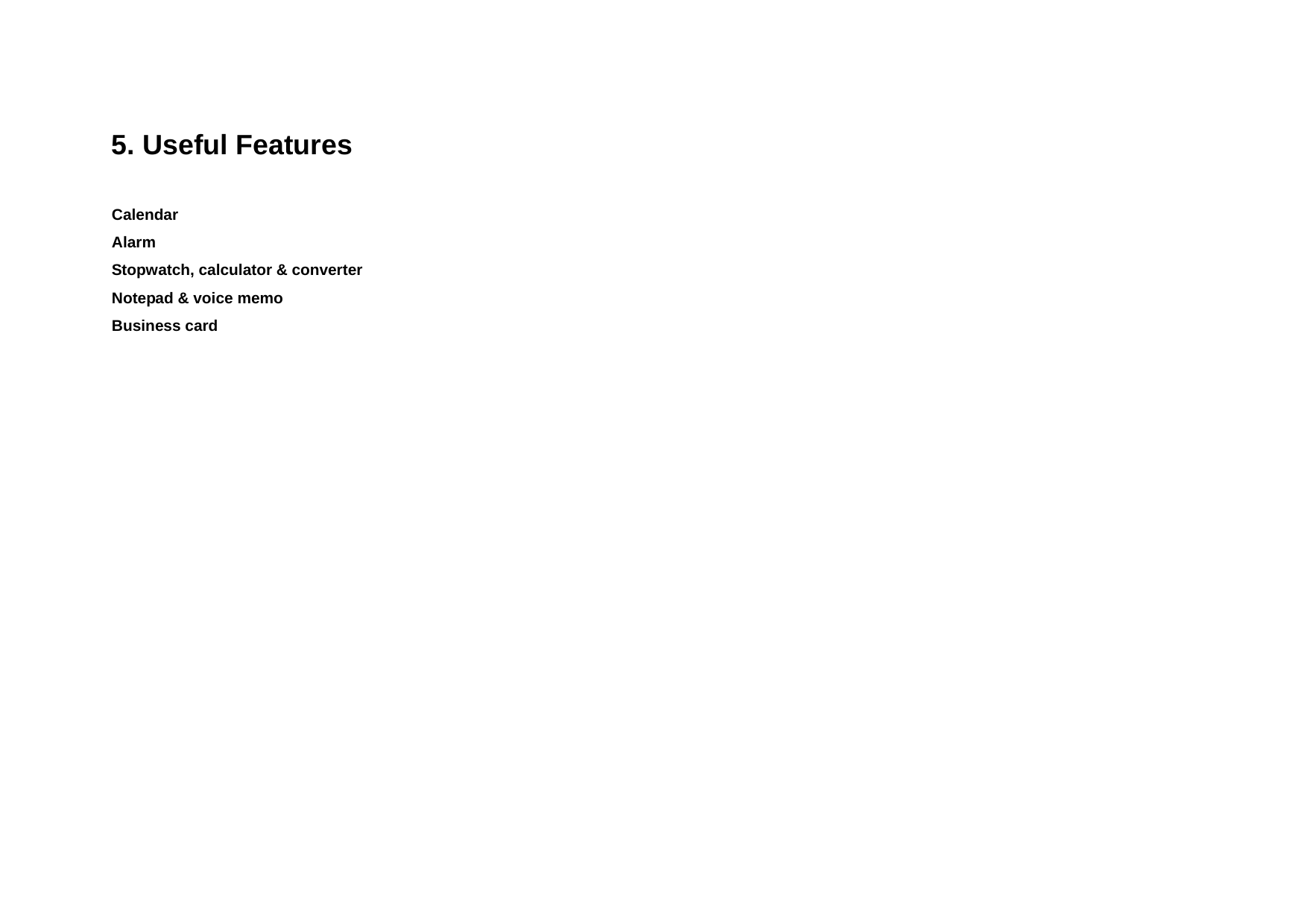

5. Useful Features Calendar Alarm Stopwatch, calculator & converter Notepad & voice memo Business card

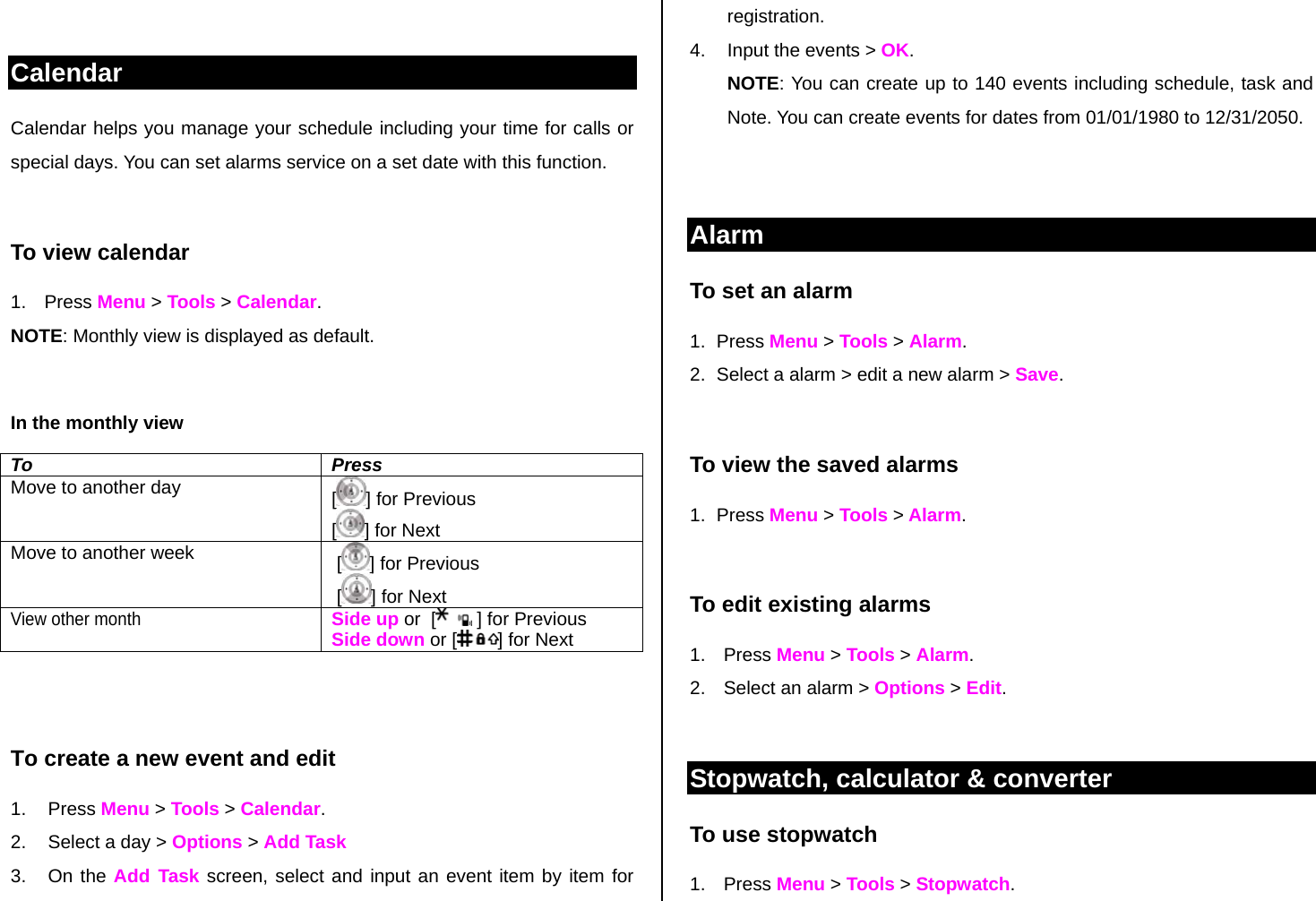

Calendar Calendar helps you manage your schedule including your time for calls or special days. You can set alarms service on a set date with this function. To view calendar 1. Press Menu > Tools > Calendar. NOTE: Monthly view is displayed as default. In the monthly view To Press Move to another day [] for Previous [] for Next Move to another week [ ] for Previous [ ] for Next View other month Side up or [ ] for Previous Side down or [ ] for Next To create a new event and edit 1. Press Menu > Tools > Calendar. 2. Select a day > Options > Add Task 3. On the Add Task screen, select and input an event item by item for registration. 4. Input the events > OK. NOTE: You can create up to 140 events including schedule, task and Note. You can create events for dates from 01/01/1980 to 12/31/2050. Alarm To set an alarm 1. Press Menu > Tools > Alarm. 2. Select a alarm > edit a new alarm > Save. To view the saved alarms 1. Press Menu > Tools > Alarm. To edit existing alarms 1. Press Menu > Tools > Alarm. 2. Select an alarm > Options > Edit. Stopwatch, calculator & converter To use stopwatch 1. Press Menu > Tools > Stopwatch.
2. Select split time or lap time. 3. Press Start. To use the calculator 1. Press Menu > Tools > Calculator. 2. Use [ / / / /OK] to calculate. 3. Use [ ] to use the decimal point. To use the converter 1. Press Menu > Tools > Unit Converter. 2. Select the current unit and the unit to be changed. 3. Enter the figure. Notepad & voice memo To use notepad 1. Press Menu > Tools > Notepad. 2. To create new memo press New or Options > New. 3. To edit memo press Options > Edit. To record voice memo 1. Press Menu > Tools > Voice Memo. 2. Press Options > Record. 3. To stop recording, press Stop. 4. To listen to the recording, press Options > Play. Business card You can send your information by sending it as multimedia message. To create your own business card 1. Press Menu > Contacts > My Business Card. 2. Press Add > edit the filed > Options >Save. To forward using multimedia message 1. Press Menu > Contacts > My Business Card. 2. Press Options > Forward > via Message. 3. Write a message. 4. Press Options > Send. To update information 1. Press Menu > Contacts > My Business Card. 2. Press Options > Edit Business Card. 3. Update information. 4. Press Options > Save.

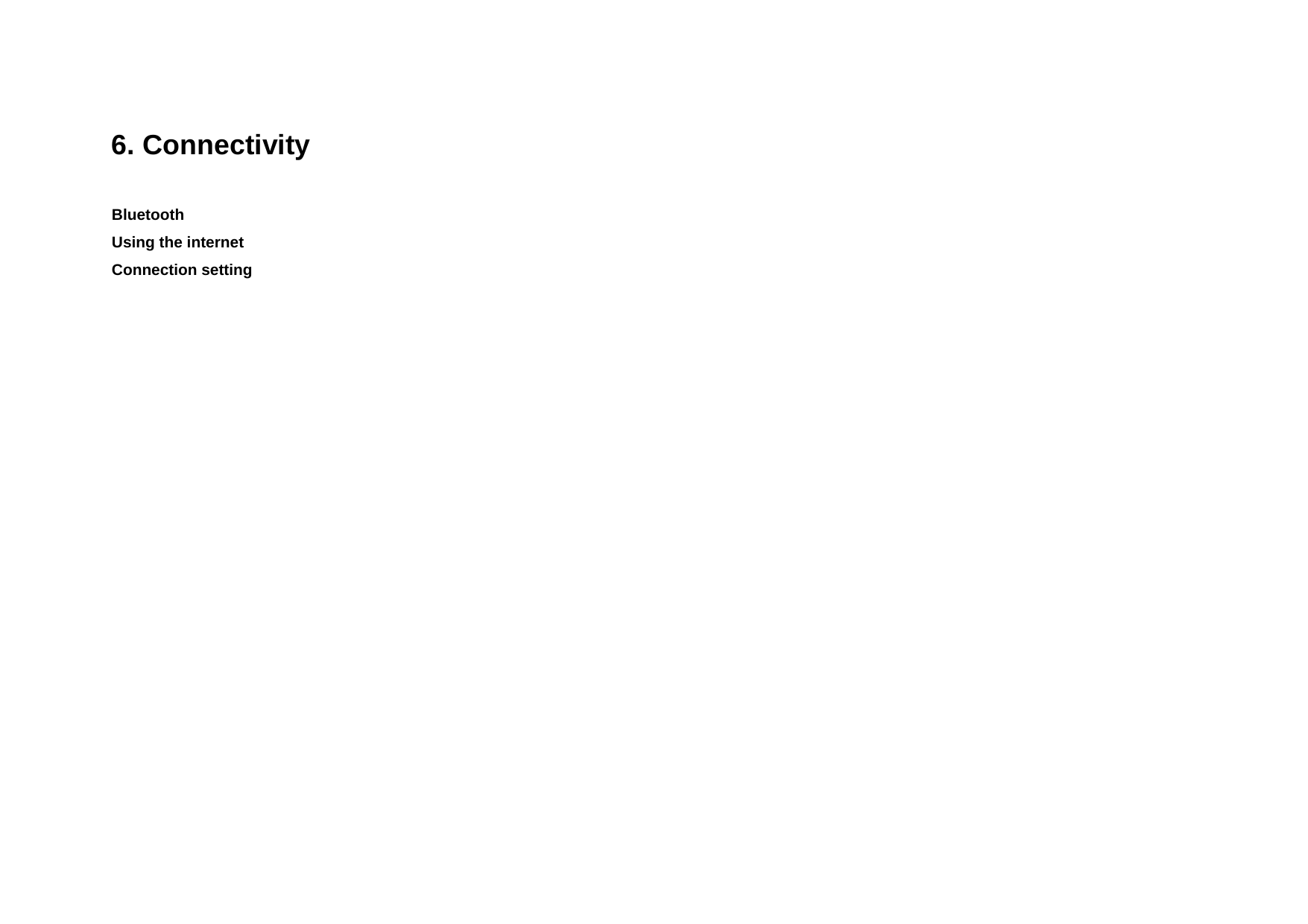

6. Connectivity Bluetooth Using the internet Connection setting
Bluetooth Bluetooth technology enables cost-free wireless connections between electronic devices within a maximum range of 33 feet (10 meters). With a Bluetooth connection can be used to send images, texts, business cards, calendar notes, or to connect to computers using Bluetooth technology. Your mobile phone supports: • Connect to PC to access internet. • Connect to Hands-Free. • Connect to electronic devices. NOTE: There may be restrictions on using Bluetooth communication in certain areas. Check with your local authorities. To activate Bluetooth 1. Press Menu > Tools > Bluetooth > Power. 2. Select On or Off. To add a device 1. Press Menu > Tools > Bluetooth > My Device 2. Select Inquiry New Device 3. The available device will list up. 4. To select the device press Bond 5. Enter password. To call using hands-free 1. Press the button once to call the last person. To receive a call using hands-free 1. Press the button once to receive the call. To send an object 1. Select the file from Menu > Media Gallery. 2. Press Options > Send > To Bluetooth. 3. The file will go to My Devices > select the device > Select. NOTE: If the other Bluetooth device requests pairing, the object is sent after pairing is completed. To receive an object When you receive the object a pop-up message will displayed if the authorization is disenable. The file will be saved as each place. For example, if you receive contacts information it will be saved in your phone’s memory. If you receive an event, it will be saved in your Calendar. To connect previously paired devices 1. Press Menu > Tools > Bluetooth > My Devices.

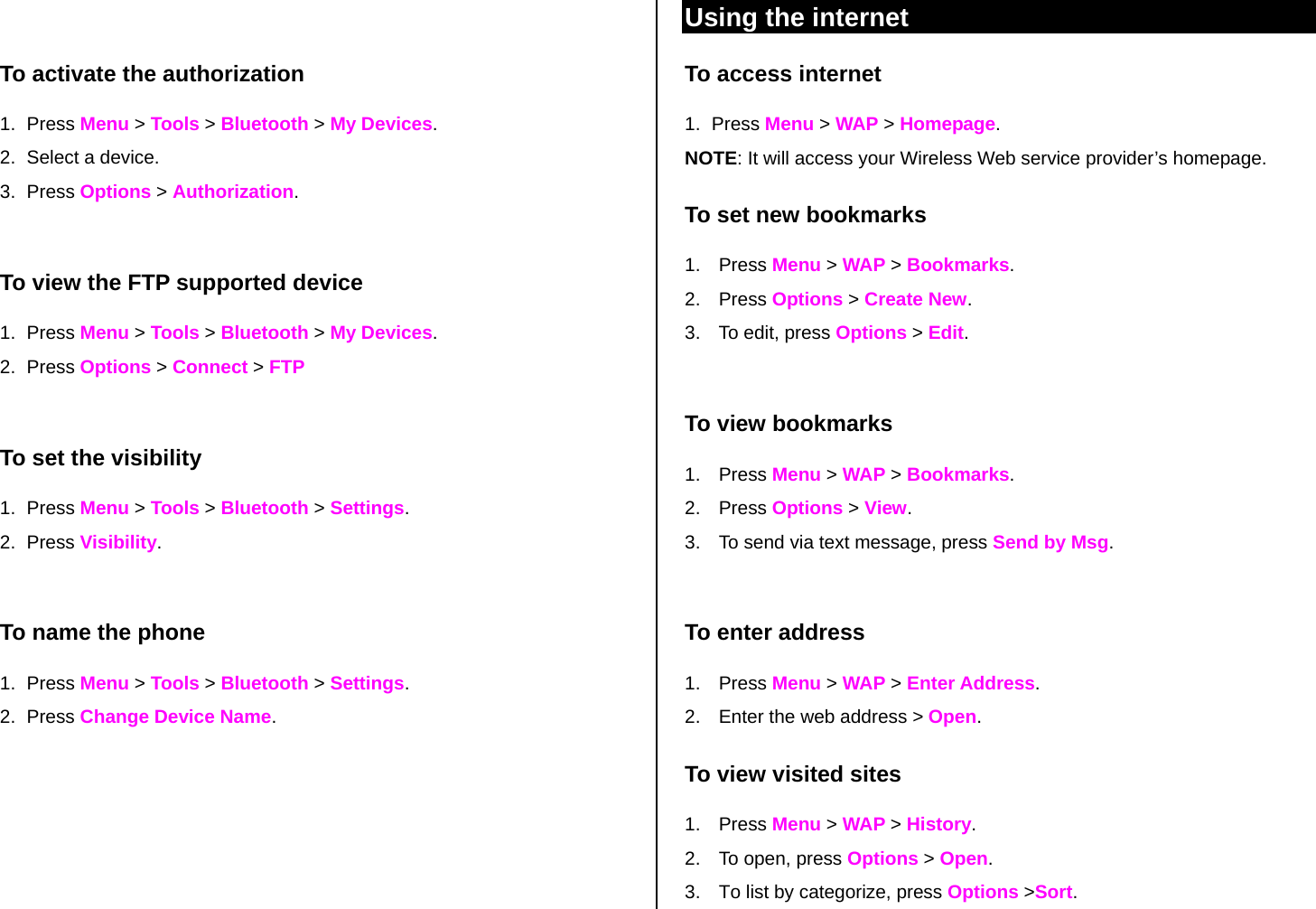

To activate the authorization 1. Press Menu > Tools > Bluetooth > My Devices. 2. Select a device. 3. Press Options > Authorization. To view the FTP supported device 1. Press Menu > Tools > Bluetooth > My Devices. 2. Press Options > Connect > FTP To set the visibility 1. Press Menu > Tools > Bluetooth > Settings. 2. Press Visibility. To name the phone 1. Press Menu > Tools > Bluetooth > Settings. 2. Press Change Device Name. Using the internet To access internet 1. Press Menu > WAP > Homepage. NOTE: It will access your Wireless Web service provider’s homepage. To set new bookmarks 1. Press Menu > WAP > Bookmarks. 2. Press Options > Create New. 3. To edit, press Options > Edit. To view bookmarks 1. Press Menu > WAP > Bookmarks. 2. Press Options > View. 3. To send via text message, press Send by Msg. To enter address 1. Press Menu > WAP > Enter Address. 2. Enter the web address > Open. To view visited sites 1. Press Menu > WAP > History. 2. To open, press Options > Open. 3. To list by categorize, press Options >Sort.

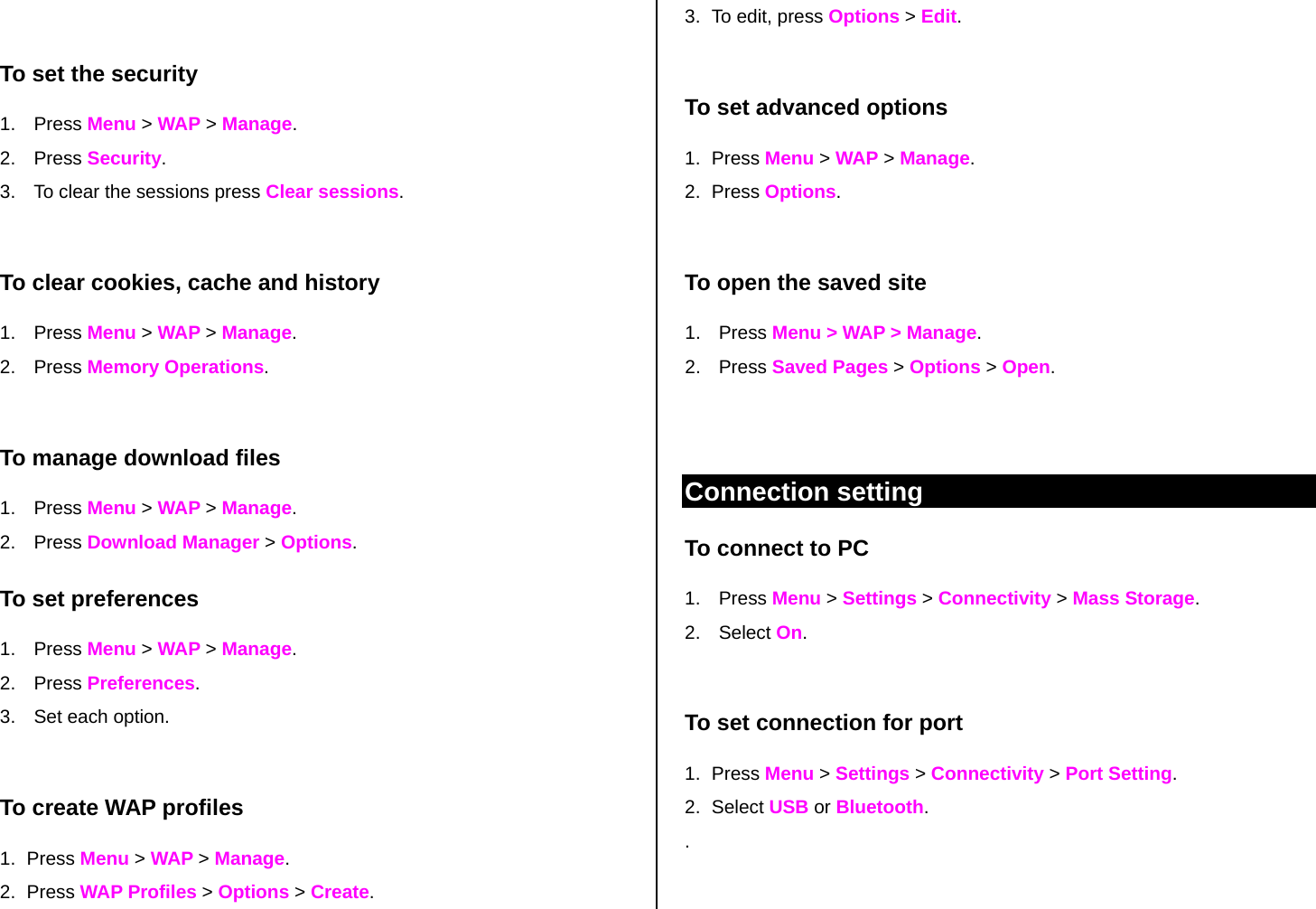

To set the security 1. Press Menu > WAP > Manage. 2. Press Security. 3. To clear the sessions press Clear sessions. To clear cookies, cache and history 1. Press Menu > WAP > Manage. 2. Press Memory Operations. To manage download files 1. Press Menu > WAP > Manage. 2. Press Download Manager > Options. To set preferences 1. Press Menu > WAP > Manage. 2. Press Preferences. 3. Set each option. To create WAP profiles 1. Press Menu > WAP > Manage. 2. Press WAP Profiles > Options > Create. 3. To edit, press Options > Edit. To set advanced options 1. Press Menu > WAP > Manage. 2. Press Options. To open the saved site 1. Press Menu > WAP > Manage. 2. Press Saved Pages > Options > Open. Connection setting To connect to PC 1. Press Menu > Settings > Connectivity > Mass Storage. 2. Select On. To set connection for port 1. Press Menu > Settings > Connectivity > Port Setting. 2. Select USB or Bluetooth. .

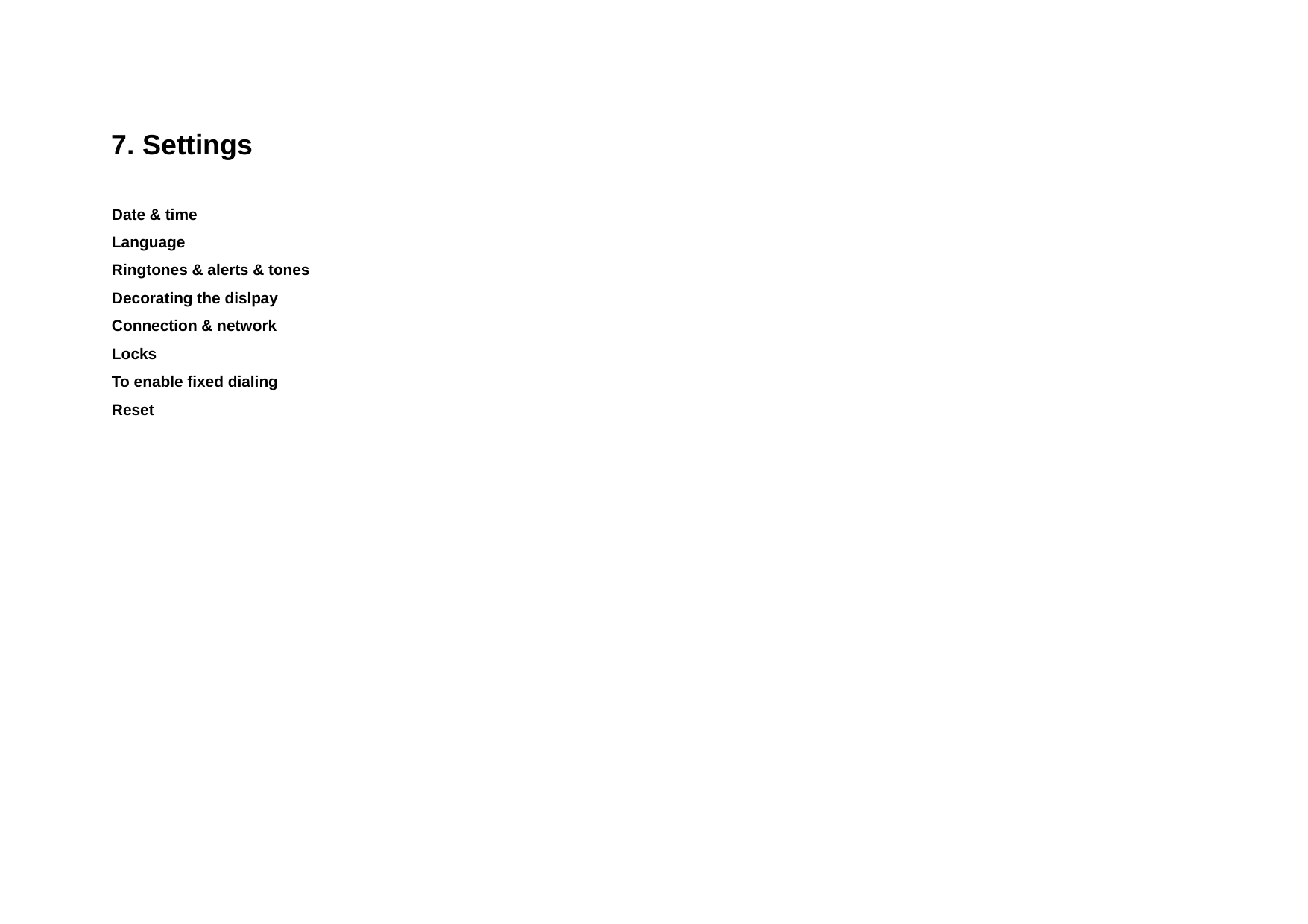

7. Settings Date & time Language Ringtones & alerts & tones Decorating the dislpay Connection & network Locks To enable fixed dialing Reset

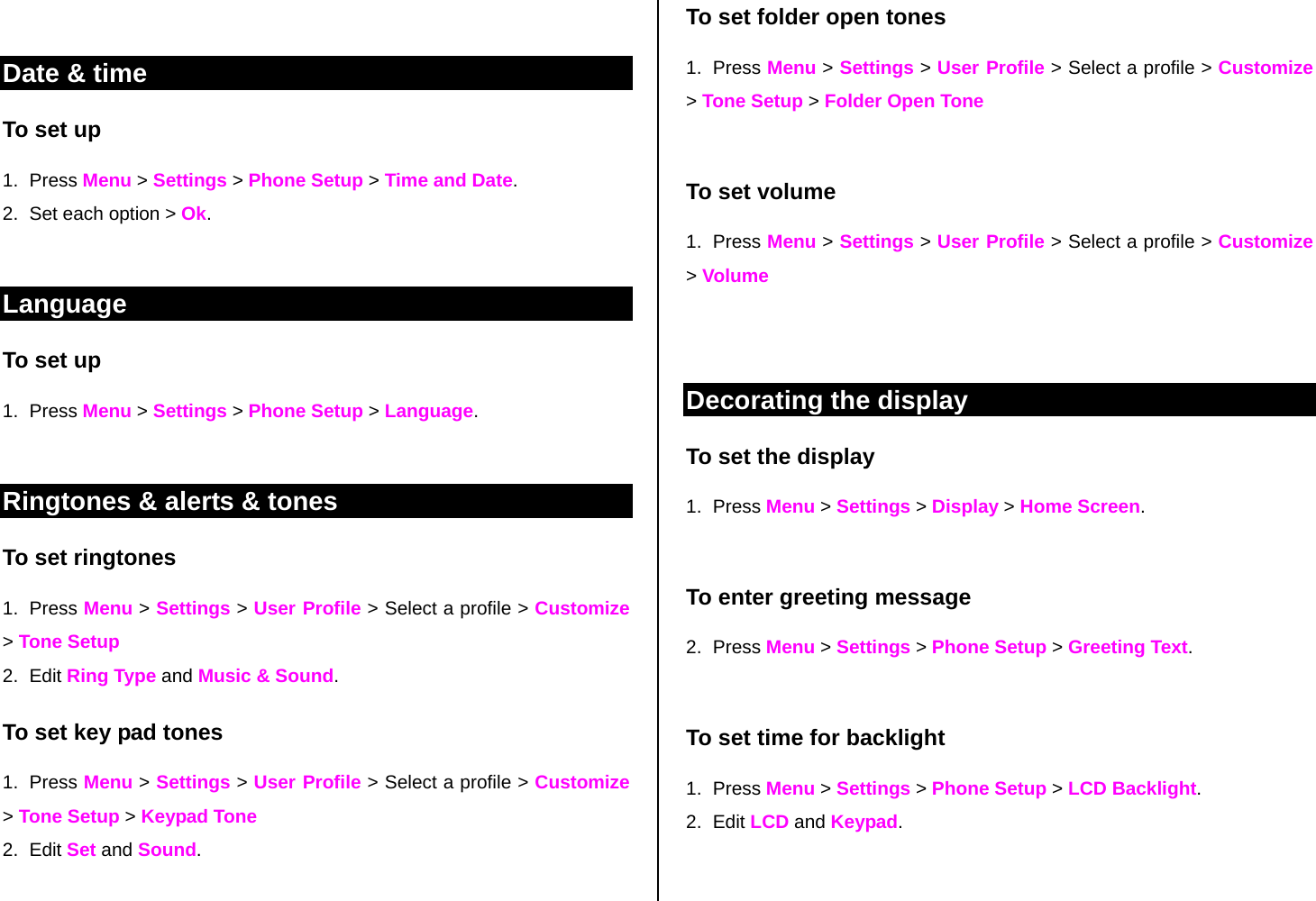

Date & time To set up 1. Press Menu > Settings > Phone Setup > Time and Date. 2. Set each option > Ok. Language To set up 1. Press Menu > Settings > Phone Setup > Language. Ringtones & alerts & tones To set ringtones 1. Press Menu > Settings > User Profile > Select a profile > Customize > Tone Setup 2. Edit Ring Type and Music & Sound. To set key pad tones 1. Press Menu > Settings > User Profile > Select a profile > Customize > Tone Setup > Keypad Tone 2. Edit Set and Sound. To set folder open tones 1. Press Menu > Settings > User Profile > Select a profile > Customize > Tone Setup > Folder Open Tone To set volume 1. Press Menu > Settings > User Profile > Select a profile > Customize > Volume Decorating the display To set the display 1. Press Menu > Settings > Display > Home Screen. To enter greeting message 2. Press Menu > Settings > Phone Setup > Greeting Text. To set time for backlight 1. Press Menu > Settings > Phone Setup > LCD Backlight. 2. Edit LCD and Keypad.

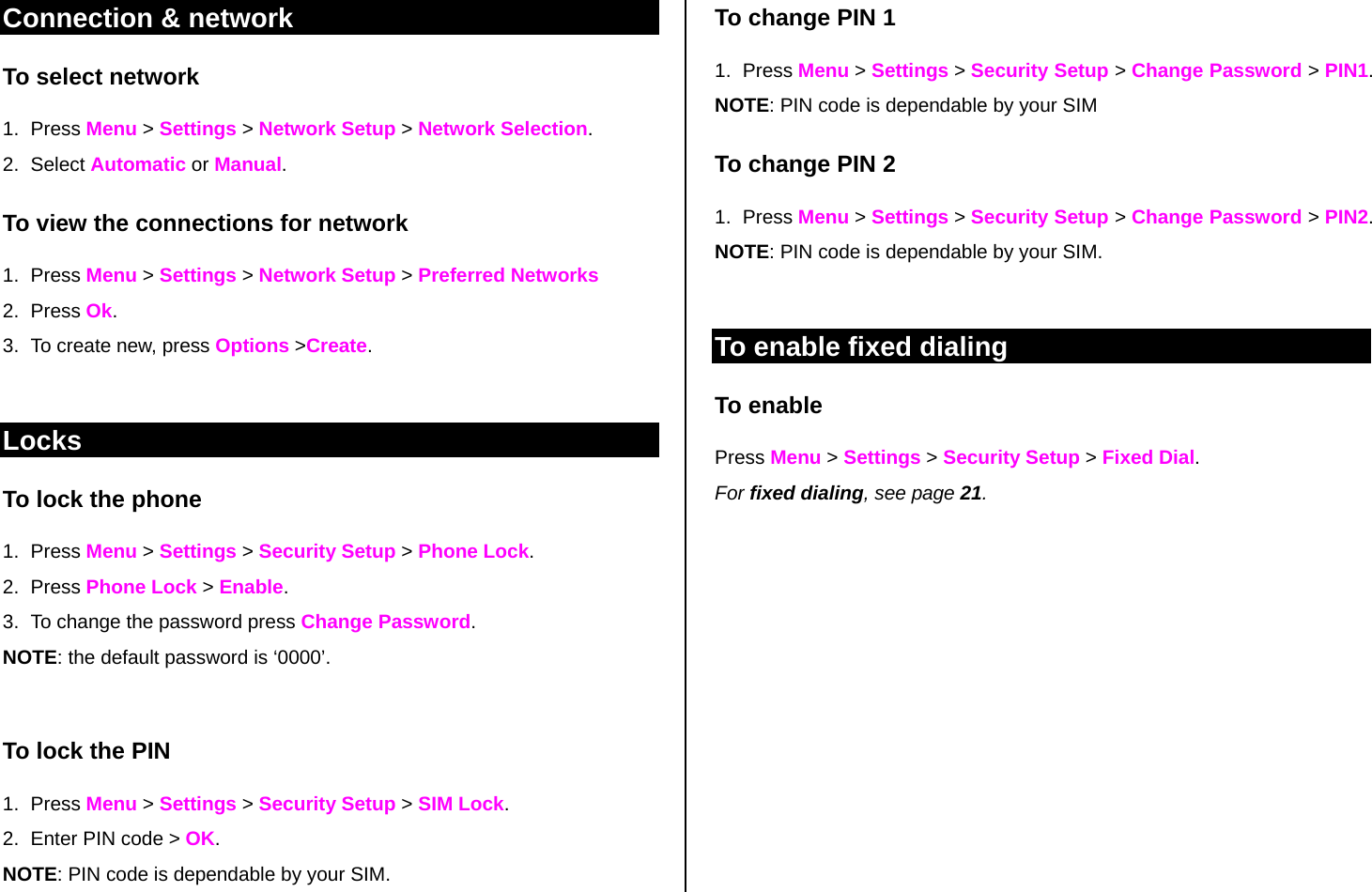

Connection & network To select network 1. Press Menu > Settings > Network Setup > Network Selection. 2. Select Automatic or Manual. To view the connections for network 1. Press Menu > Settings > Network Setup > Preferred Networks 2. Press Ok. 3. To create new, press Options >Create. Locks To lock the phone 1. Press Menu > Settings > Security Setup > Phone Lock. 2. Press Phone Lock > Enable. 3. To change the password press Change Password. NOTE: the default password is ‘0000’. To lock the PIN 1. Press Menu > Settings > Security Setup > SIM Lock. 2. Enter PIN code > OK. NOTE: PIN code is dependable by your SIM. To change PIN 1 1. Press Menu > Settings > Security Setup > Change Password > PIN1. NOTE: PIN code is dependable by your SIM To change PIN 2 1. Press Menu > Settings > Security Setup > Change Password > PIN2. NOTE: PIN code is dependable by your SIM. To enable fixed dialing To enable Press Menu > Settings > Security Setup > Fixed Dial. For fixed dialing, see page 21.

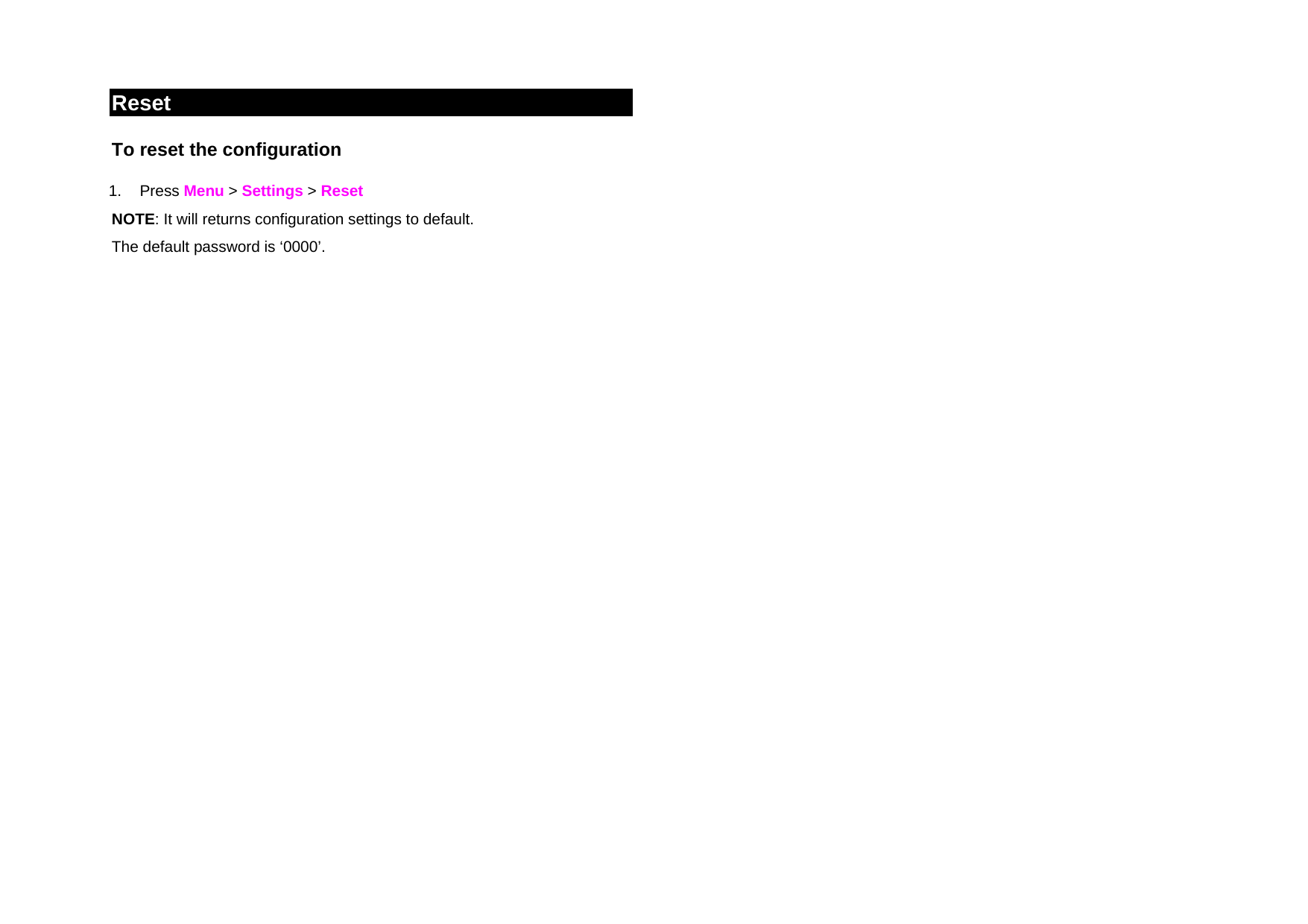

Reset To reset the configuration 1. Press Menu > Settings > Reset NOTE: It will returns configuration settings to default. The default password is ‘0000’.

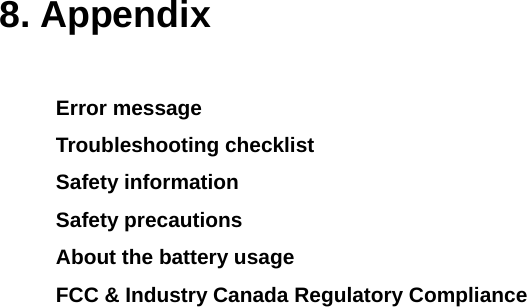

8. Appendix Error message Troubleshooting checklist Safety information Safety precautions About the battery usage FCC & Industry Canada Regulatory Compliance

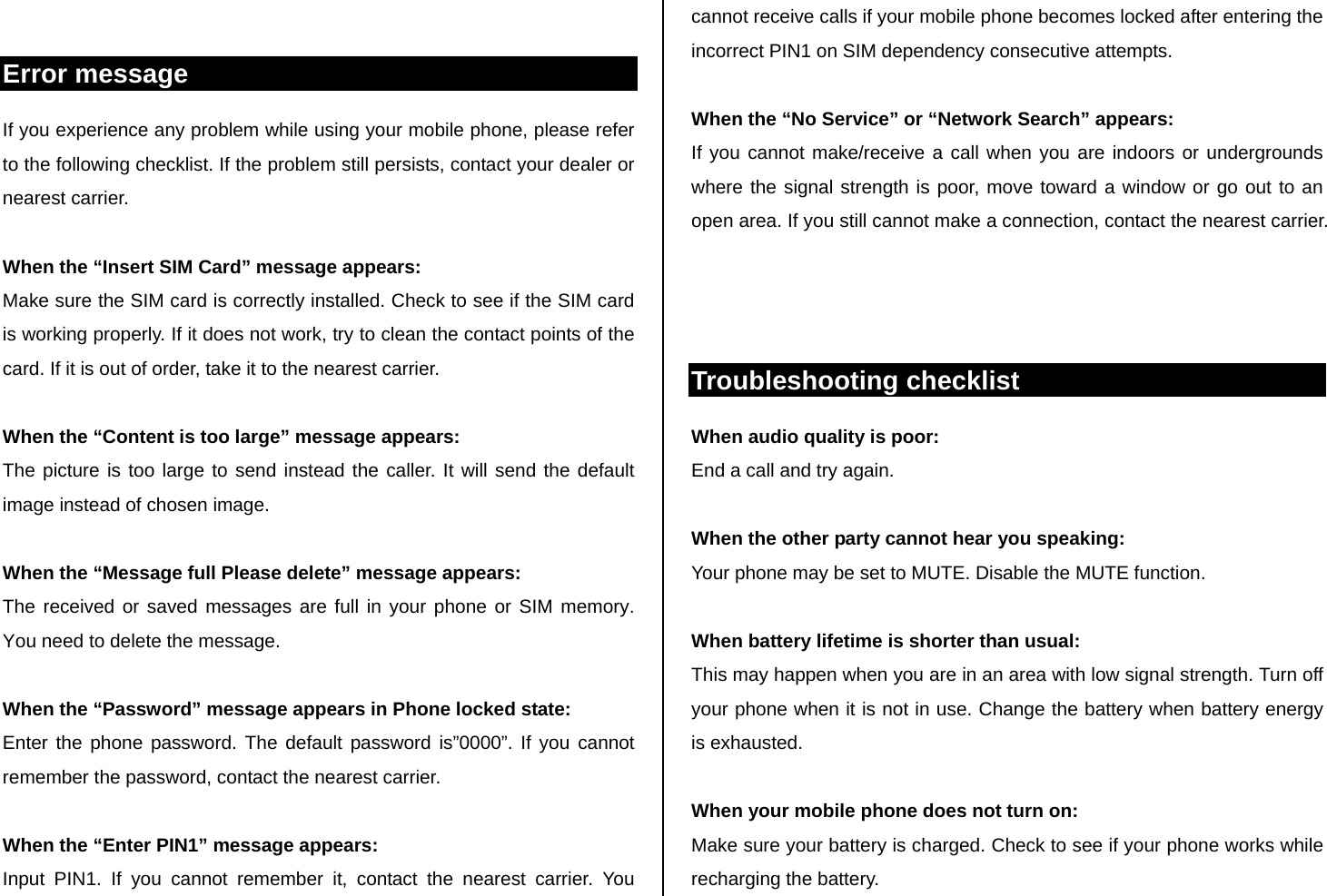

Error message If you experience any problem while using your mobile phone, please refer to the following checklist. If the problem still persists, contact your dealer or nearest carrier. When the “Insert SIM Card” message appears: Make sure the SIM card is correctly installed. Check to see if the SIM card is working properly. If it does not work, try to clean the contact points of the card. If it is out of order, take it to the nearest carrier. When the “Content is too large” message appears: The picture is too large to send instead the caller. It will send the default image instead of chosen image. When the “Message full Please delete” message appears: The received or saved messages are full in your phone or SIM memory. You need to delete the message. When the “Password” message appears in Phone locked state: Enter the phone password. The default password is”0000”. If you cannot remember the password, contact the nearest carrier. When the “Enter PIN1” message appears: Input PIN1. If you cannot remember it, contact the nearest carrier. You cannot receive calls if your mobile phone becomes locked after entering the incorrect PIN1 on SIM dependency consecutive attempts. When the “No Service” or “Network Search” appears: If you cannot make/receive a call when you are indoors or undergrounds where the signal strength is poor, move toward a window or go out to an open area. If you still cannot make a connection, contact the nearest carrier. Troubleshooting checklist When audio quality is poor: End a call and try again. When the other party cannot hear you speaking: Your phone may be set to MUTE. Disable the MUTE function. When battery lifetime is shorter than usual: This may happen when you are in an area with low signal strength. Turn off your phone when it is not in use. Change the battery when battery energy is exhausted. When your mobile phone does not turn on: Make sure your battery is charged. Check to see if your phone works while recharging the battery.

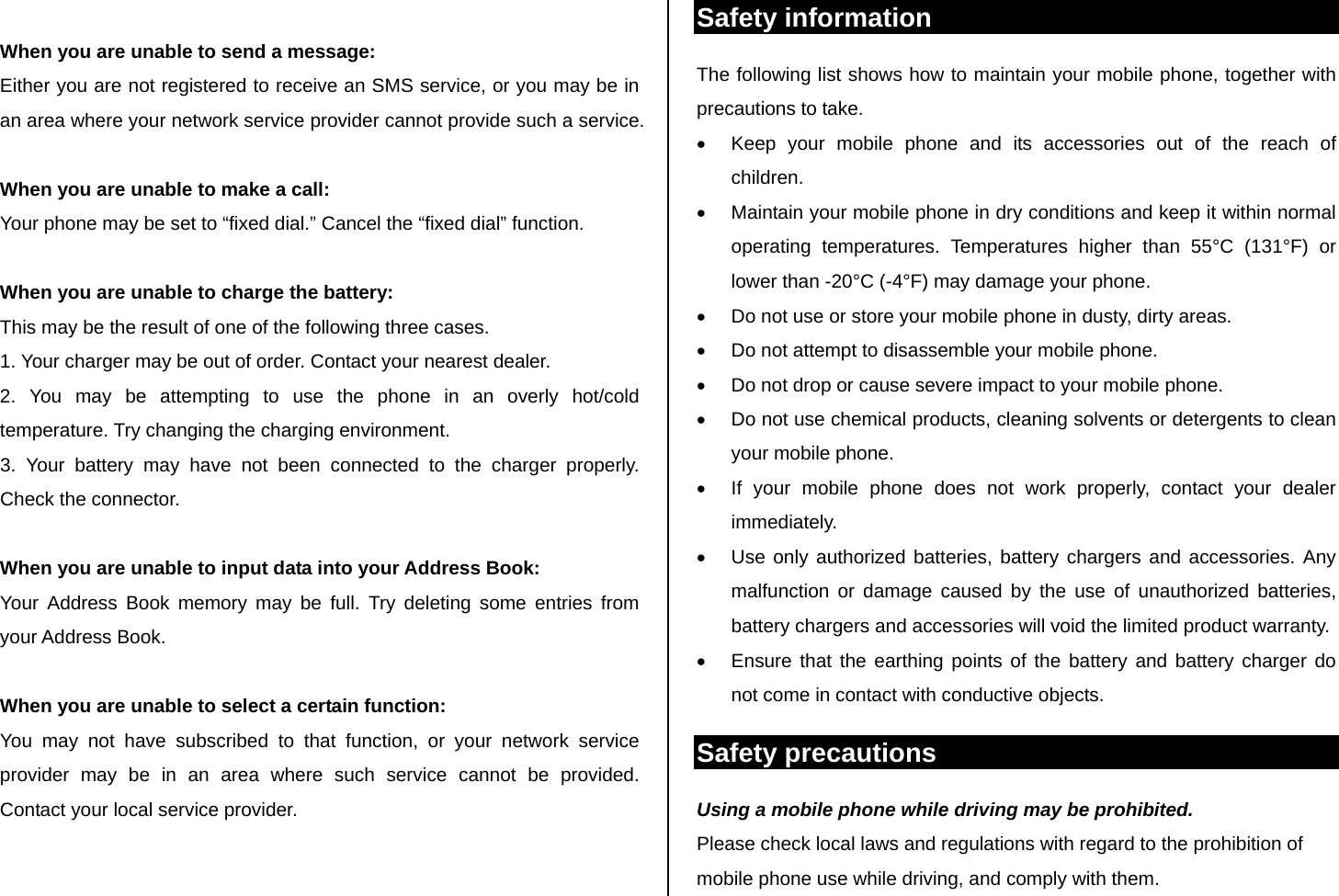

When you are unable to send a message: Either you are not registered to receive an SMS service, or you may be in an area where your network service provider cannot provide such a service. When you are unable to make a call: Your phone may be set to “fixed dial.” Cancel the “fixed dial” function. When you are unable to charge the battery: This may be the result of one of the following three cases. 1. Your charger may be out of order. Contact your nearest dealer. 2. You may be attempting to use the phone in an overly hot/cold temperature. Try changing the charging environment. 3. Your battery may have not been connected to the charger properly. Check the connector. When you are unable to input data into your Address Book: Your Address Book memory may be full. Try deleting some entries from your Address Book. When you are unable to select a certain function: You may not have subscribed to that function, or your network service provider may be in an area where such service cannot be provided. Contact your local service provider. Safety information The following list shows how to maintain your mobile phone, together with precautions to take. • Keep your mobile phone and its accessories out of the reach of children. • Maintain your mobile phone in dry conditions and keep it within normal operating temperatures. Temperatures higher than 55°C (131°F) or lower than -20°C (-4°F) may damage your phone. • Do not use or store your mobile phone in dusty, dirty areas. • Do not attempt to disassemble your mobile phone. • Do not drop or cause severe impact to your mobile phone. • Do not use chemical products, cleaning solvents or detergents to clean your mobile phone. • If your mobile phone does not work properly, contact your dealer immediately. • Use only authorized batteries, battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized batteries, battery chargers and accessories will void the limited product warranty. • Ensure that the earthing points of the battery and battery charger do not come in contact with conductive objects. Safety precautions Using a mobile phone while driving may be prohibited. Please check local laws and regulations with regard to the prohibition of mobile phone use while driving, and comply with them.

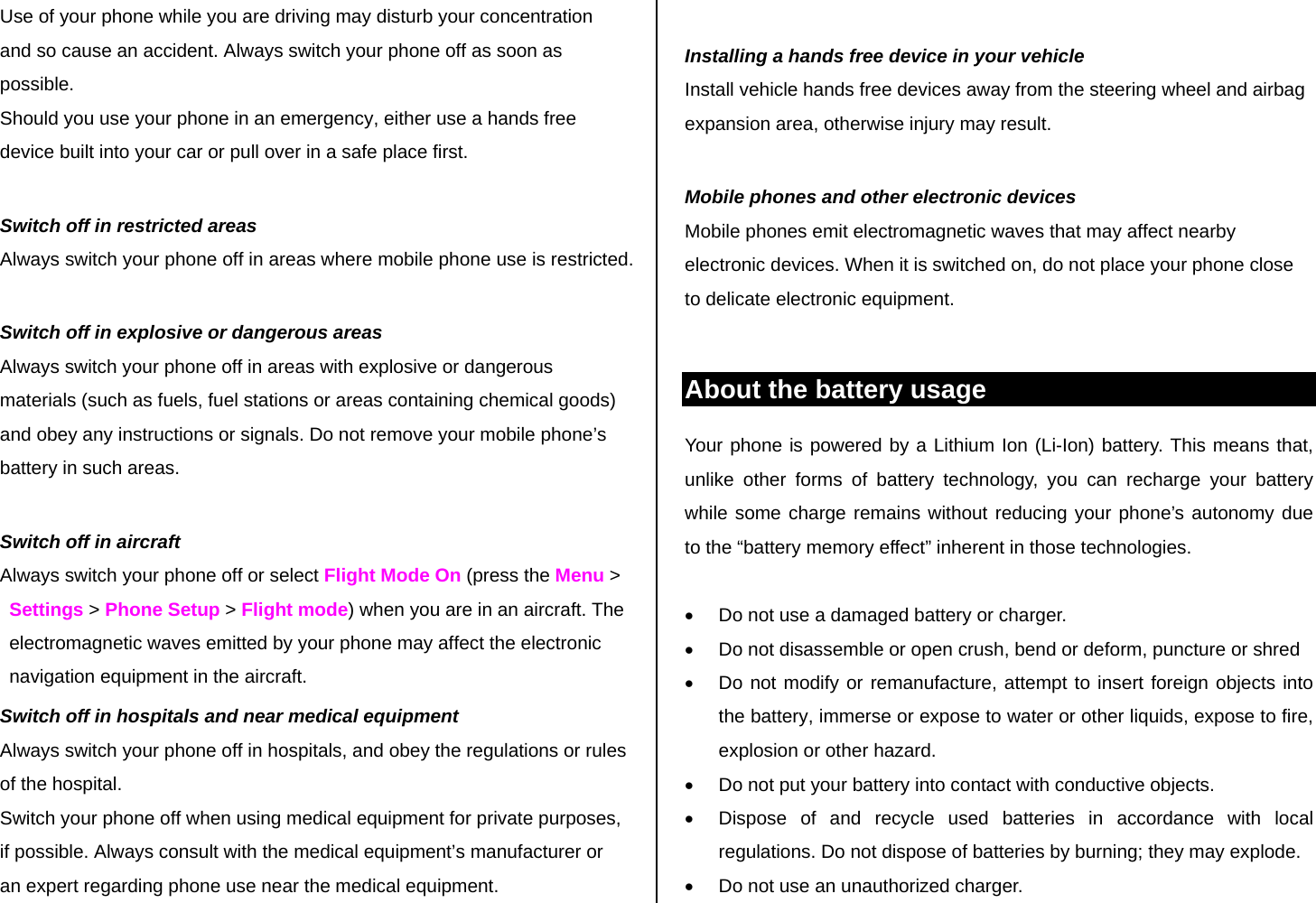

Use of your phone while you are driving may disturb your concentration and so cause an accident. Always switch your phone off as soon as possible. Should you use your phone in an emergency, either use a hands free device built into your car or pull over in a safe place first. Switch off in restricted areas Always switch your phone off in areas where mobile phone use is restricted. Switch off in explosive or dangerous areas Always switch your phone off in areas with explosive or dangerous materials (such as fuels, fuel stations or areas containing chemical goods) and obey any instructions or signals. Do not remove your mobile phone’s battery in such areas. Switch off in aircraft Always switch your phone off or select Flight Mode On (press the Menu > Settings > Phone Setup > Flight mode) when you are in an aircraft. The electromagnetic waves emitted by your phone may affect the electronic navigation equipment in the aircraft. Switch off in hospitals and near medical equipment Always switch your phone off in hospitals, and obey the regulations or rules of the hospital. Switch your phone off when using medical equipment for private purposes, if possible. Always consult with the medical equipment’s manufacturer or an expert regarding phone use near the medical equipment. Installing a hands free device in your vehicle Install vehicle hands free devices away from the steering wheel and airbag expansion area, otherwise injury may result. Mobile phones and other electronic devices Mobile phones emit electromagnetic waves that may affect nearby electronic devices. When it is switched on, do not place your phone close to delicate electronic equipment. About the battery usage Your phone is powered by a Lithium Ion (Li-Ion) battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your phone’s autonomy due to the “battery memory effect” inherent in those technologies. • Do not use a damaged battery or charger. • Do not disassemble or open crush, bend or deform, puncture or shred • Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard. • Do not put your battery into contact with conductive objects. • Dispose of and recycle used batteries in accordance with local regulations. Do not dispose of batteries by burning; they may explode. • Do not use an unauthorized charger.

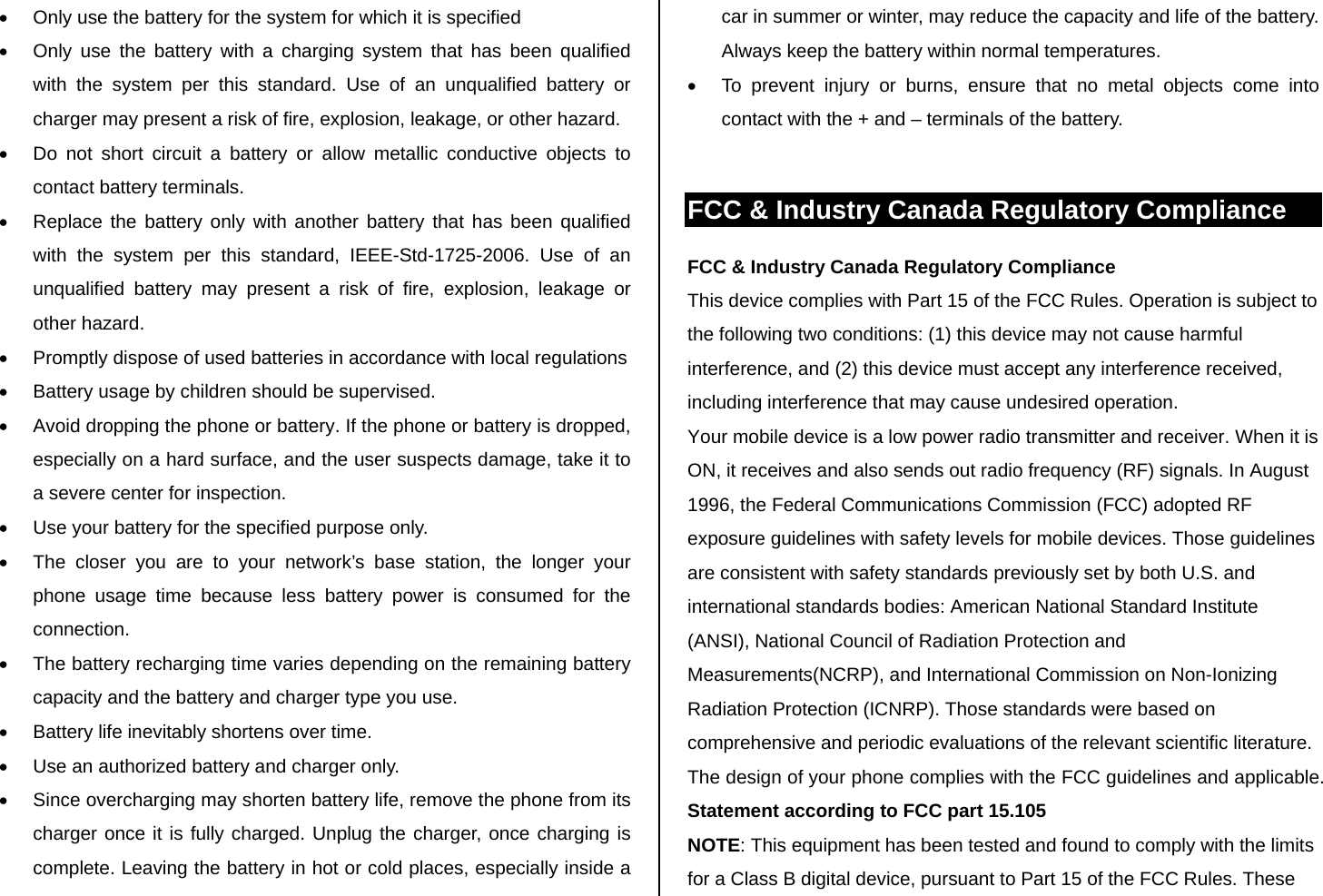

• Only use the battery for the system for which it is specified • Only use the battery with a charging system that has been qualified with the system per this standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard. • Do not short circuit a battery or allow metallic conductive objects to contact battery terminals. • Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. • Promptly dispose of used batteries in accordance with local regulations • Battery usage by children should be supervised. • Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a severe center for inspection. • Use your battery for the specified purpose only. • The closer you are to your network’s base station, the longer your phone usage time because less battery power is consumed for the connection. • The battery recharging time varies depending on the remaining battery capacity and the battery and charger type you use. • Battery life inevitably shortens over time. • Use an authorized battery and charger only. • Since overcharging may shorten battery life, remove the phone from its charger once it is fully charged. Unplug the charger, once charging is complete. Leaving the battery in hot or cold places, especially inside a car in summer or winter, may reduce the capacity and life of the battery. Always keep the battery within normal temperatures. • To prevent injury or burns, ensure that no metal objects come into contact with the + and – terminals of the battery. FCC & Industry Canada Regulatory Compliance FCC & Industry Canada Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Your mobile device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile devices. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: American National Standard Institute (ANSI), National Council of Radiation Protection and Measurements(NCRP), and International Commission on Non-Ionizing Radiation Protection (ICNRP). Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. The design of your phone complies with the FCC guidelines and applicable. Statement according to FCC part 15.105 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

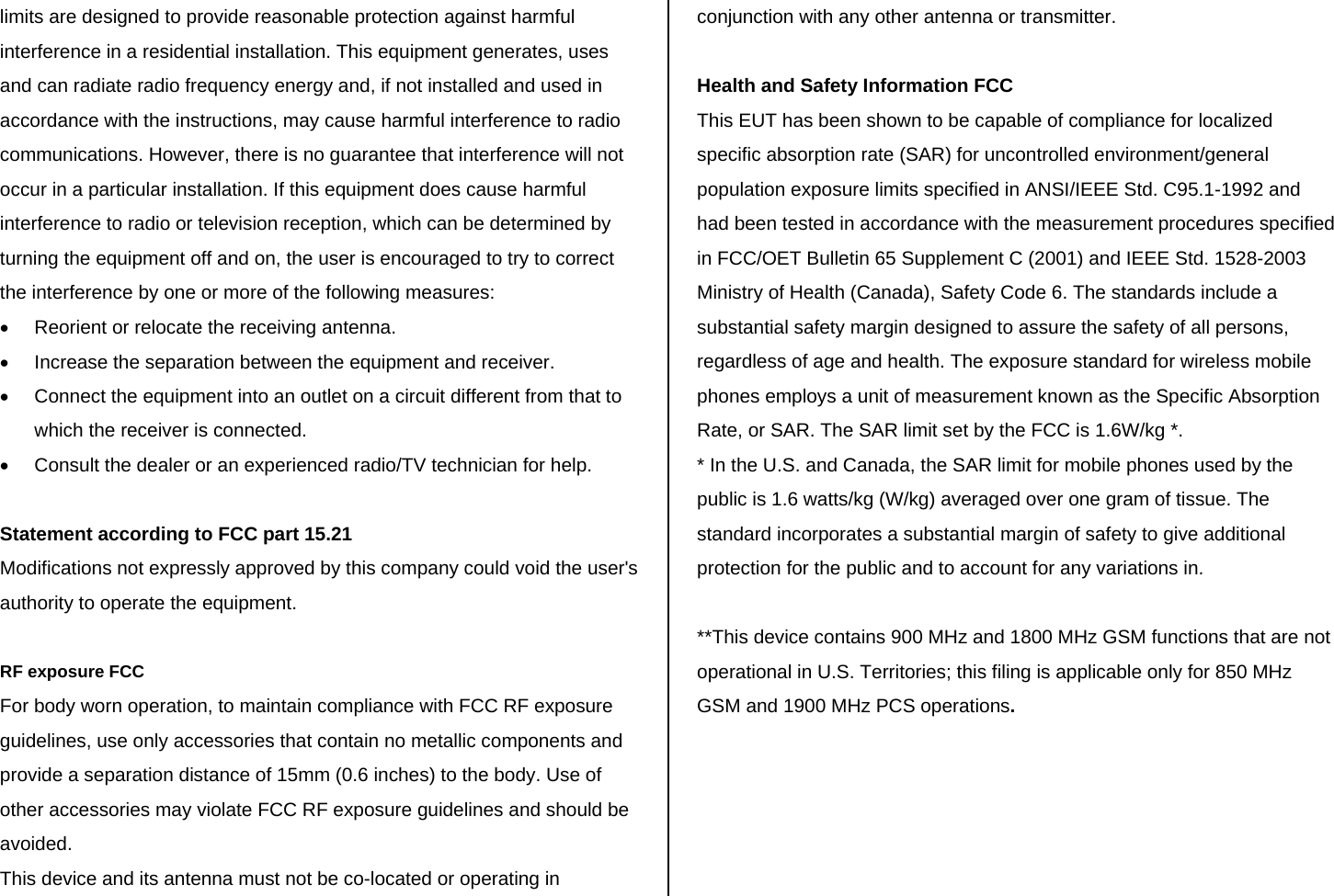

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Statement according to FCC part 15.21 Modifications not expressly approved by this company could void the user's authority to operate the equipment. RF exposure FCC For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Health and Safety Information FCC This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *. * In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in. **This device contains 900 MHz and 1800 MHz GSM functions that are not operational in U.S. Territories; this filing is applicable only for 850 MHz GSM and 1900 MHz PCS operations.
