Preface

Thank you for purchasing the PTL21. Before using your PTL21, be sure to

read the PTL21 Basic Manual (this PDF manual) to ensure correct usage.

After you have finished reading this manual, store this PDF manual and

the printed manuals in safe places so you can retrieve them whenever you

need them.

◎The Basic Manual (this PDF manual) describes basic operations of the PTL21

major functions.

For detailed descriptions on various functions, refer to PTL21 full Instruction

Manual (Japanese), which is available from the au homepage.

http://www.au.kddi.com/torisetsu/index.html

◎Downloading Manuals

You can download English version of the Basic Manual (this PDF manual),

Korean/Simplified Chinese/Traditional Chinese/Portuguese version of

the Basic Manual and the full Instruction Manual (Japanese) from the au

homepage.

http://www.au.kddi.com/torisetsu/index.html

◎Online Manual

Online manuals are also provided on the au homepage. They consist of

parts of the full Instruction Manual (Japanese) reorganized in a searchable

format.

http://www.au.kddi.com/manual/index.html

Safety Precautions

Be sure to read the Safety Precautions “安全上のご注意” in the

Instruction Manual (Japanese) to ensure proper usage of the

PTL21.

For troubleshooting, check the symptom of your PTL21 in

au お客さまサポート (au Customer Support) on the au homepage.

http://www.kddi.com/customer/service/au/trouble/kosho/index.html

Before Using PTL21

• You cannot receive or make calls in a location where the signal

cannot be received, even within the service area. Calling may not

be available in a location where the signal is weak. If you move to

a location where the signal is weak during a call, the call may be

interrupted.

• The au phone is a digital cell phone and can maintain a high call

quality until the signal weakness reaches its limit.

Therefore, once the limit has been reached, the call may be

disconnected suddenly.

• Note that the au phone uses signals which may be intercepted

by a third party. (However, the CDMA/GSM system enables highly

confidential call communications.)

• The au phone is a wireless station which is compliant with the Radio

Act, and may be subject to inspections regulated by the Radio Act.

• When you insert the au IC-Card, the product number information of

your au phone is sent to the au server for the security and operation

status notification of the au phone.

• Always be considerate of others around you when using your au

phone in public places.

• For a child’s use, read the Basic Manual and give your child

instructions on proper use.

• The PTL21 is a cell phone compatible with the international roaming

service. Each network service which is described in the Basic Manual

varies depending on the area or service. For details, refer to the supplied

Global Passport Owner’s Guide (Japanese).

Introduction

Illustrations and Screenshots in This Manual

■Note on illustrations

The illustrations in this manual may look different from the actual cell

phone in shape, color and typeface. The key illustrations are also

simplified as shown below.

■Note on screenshots

The screenshots in this manual are simplified and may look different

from the actual cell phone screens.

Introduction

Notes on Cell Phone Use

Cell Phone Etiquette

The cell phone always emits weak radio waves when power is on.

Use the cell phone in an enjoyable and safe manner without forgetting

to be considerate of others around you.

■

Use of cell phones is not allowed in some places

•

Do not use the cell phone while you are driving. Doing so is both

dangerous and prohibited by law.

•

Using a cell phone in an aircraft is prohibited by law. Set “Airplane

mode” to on and turn the cell phone power off. However, the use of

cell phones is authorized by some airline companies. Contact your

airline company for more information.

■

Radio waves from cell phones may interfere with

medical electrical equipment

•

Some people close to you in crowded places such as packed trains

may be using a cardiac pacemaker. Turn the cell phone off in such

places.

•

Abide by the rules of hospitals and other medical institutions where it

is forbidden to use or carry cell phones.

■

Be considerate of where you use the cell phone and

how loudly you talk

•

Do not make calls in theaters, museums, libraries, and other similar

places. Turn power off or turn on manner mode not to disturb others

around you by ringtones.

•

Do not use the cell phone on a street where you might interrupt the

flow of pedestrians.

•

Move to areas where you will not inconvenience others on trains or in

hotel lobbies.

•

Refrain from talking in a loud voice.

Introduction

•

Obtain the permission of other people before you take their photos

with the cell phone’s camera.

•

Do not record information with the cell phone’s camera in bookstores

and other locations where taking photos is not permitted.

Do Not Use the Cell Phone While Driving!

Turn off your cell phone while driving.

Do not use the cell phone while driving a car/motorcycle or riding a

bicycle. It may result in a traffic accident. Using a cell phone while

driving is prohibited by law. Using a cell phone while riding a bicycle

may also be punishable by law.

■

Prohibited!

•

Looking at a cell phone display

•

Talking on a cell phone while holding it

Water Resistance/ Dust Resistance

PTL21 provides waterproofness of IPX5 equivalent*

and IPX7 equivalent*

and dustproofness of IP5X equivalent*

by firmly closing the battery pack

cover and external connection jack cover (by company testing method).

*1 IPX5 (former JIS protection code 5) equivalent:

A phone keeps functioning after applying a jet flow of 12.5 L/min. from every direction from

a distance of approximately 3 m for at least 3 minutes using water nozzle of 6.3 mm inner

diameter.

*2 IPX7 (former JIS protection code 7) equivalent:

A phone keeps functioning after being slowly submerged to depth of 1 m in static tap water

at room temperature, left there for approximately 30 minutes and then taken out.

*3 IP5X (JIS protection code 5) equivalent:

A phone is protected to keep functioning safely after being placed in a chamber containing

dust particles with a diameter of 75 μm or less and left for 8 hours while the contents of the

chamber are subjected to agitation.

Checking the Contents of the Box

Check that all the contents are included.

Desktop holder microSD memory card

(2GB) (Sample)

PTL21 Warranty (Japanese) Battery pack

• Instruction Manual (Japanese)

• Safety Precautions (Japanese)

• Setting Guide (Japanese)

• Global Passport Owner’s Guide (Japanese)

• au International Call Guide (Japanese)

The following items are not included.

• AC adapter

• Stereo earphones

• USB-microUSB conversion cable

• microUSB-stereo earphones conversion

adapter

• Purchase a specified charger (sold separately).

• The cell phone illustrations in this manual may look different from

the actual product.

Introduction

Security Code and Password

You have to use each security code to operate the PTL21.

You can use the security code and other passwords described below.

Take care not to forget your security code and passwords, because

they are required for performing various operations and using

subscription services.

● Security Code

Usage

Example

① Using the Answering Service (Voice Mail) and Call Transfer

remotely from a fixed-line phone

② Making inquiries, applications, and changes while using

Customer Service Center voice guidance, and au homepage

③ Configuring “Other settings” in E-mail settings

Initial

Setting

The four-digit number you wrote on your subscription form

● Pattern/PIN/Password

Usage

Example

Setting/Canceling Screen

lock, Remote control

lock, etc.

Initial

Setting

None

● PIN code

Usage

Example

Preventing unauthorized

use of the au IC-Card by

a third party

Initial

Setting

1234

PIN Code

If the PIN code is incorrectly entered three times consecutively, the

PIN code will be locked. Use the PUK code to unlock the PIN code.

■PIN code

You can set the PTL21 to require PIN code entry every time the power is

turned on, to prevent unauthorized use of the au IC-Card by a third party.

• At the time of purchase, the PIN code is not to be required to use

the phone. You can select “Lock UIM card” and set the PIN code to

be required. It is also required when setting “Lock UIM card”.

• The initial setting of the PIN code is “1234”. You can change the

PIN code to a four- to eight- digit number by selecting “Change UIM

PIN”.

■PUK code

Enter the PUK code when the PIN code is locked.

• PUK code is an eight-digit number given at the time of purchase,

and is printed on the back side of the plastic card where your au

IC-Card is attached.

• When you enter the PUK code, set a new PIN code by selecting

“Change UIM PIN”.

• If the PUK code is incorrectly entered ten times consecutively,

contact an au shop, PiPit or the Customer Service Center.

◎ The PIN code is not initialized even after executing “Factory data reset”.

Contents

Preface ............................................................................................. ii

Safety Precautions ....................................................................... ii

Before Using PTL21 ..................................................................... ii

Introduction ..........................................................1

Illustrations and Screenshots in This Manual .................... 1

Notes on Cell Phone Use ...........................................................1

Cell Phone Etiquette .......................................................................1

Do Not Use the Cell Phone While Driving! .............................2

Water Resistance/ Dust Resistance ...........................................2

Checking the Contents of the Box ......................................... 2

Security Code and Password ................................................... 3

PIN Code ......................................................................................... 3

Contents .................................................................4

Getting Ready ....................................................... 6

Names and Functions of Parts ................................................ 6

Charging the Battery Pack ........................................................8

Turning On/Off the Power ........................................................ 9

Turning On the Power ................................................................ 9

Turning Off the Power ................................................................ 9

Sleep Mode .................................................................................... 9

Initial Setup .................................................................................. 10

Setting Google Account ..........................................................10

Switching the Display Language to English ....................... 10

Initial Setup of E-mail ...............................................................10

Setting au one-ID.......................................................................11

au IC-Card .....................................................................................11

Removing au IC-Card ...............................................................12

Inserting au IC-Card ..................................................................12

Using microSD Memory Card ................................................13

Handling Precautions ...............................................................13

Inserting microSD Memory Card .........................................14

Removing microSD Memory Card ....................................... 14

Learning the Basics .......................................... 15

Touch Panel ......................................................................15

Operating the Touch Panel .....................................................15

Operation While Using Functions ........................................ 16

Selecting an Item ....................................................................... 16

Displaying the Menu ................................................................16

Home Screen and Launcher

Menu ..............................17

Viewing Home Screen ..............................................................17

Using Status Bar .........................................................................17

Using Notification/Status Panel............................................19

Using Home Screen ..................................................................19

Switching Home Screen ..........................................................20

Using Widgets .............................................................................20

Using Launcher Menu .............................................................. 21

Displaying Launcher Menu ....................................................21

Reducing Power Consumption .................................23

Using Power Control Widget .................................................23

Closing the Applications .........................................................23

Using Simple Mode .......................................................23

Switching to Simple Mode .....................................................23

Switching to Normal Mode ....................................................23

Character Input ................................................. 24

How to Input the Characters .................................................24

Switching Character Entry Mode ......................................... 25

Switching Software Keyboards .............................................25

Entering Hiragana/Kanji/Katakana/

Alphanumeric .............................................................................25

Correcting Characters ..............................................................26

Entering Emoji/Symbol/Emoticon .......................................26

Using Voice Input .......................................................................26

Using Handwriting Input ........................................................27

Switching Input Software ....................................................... 27

Phone .................................................................... 28

Making a Call ............................................................................... 28

Answering a Call.........................................................................29

Using International Call ...........................................................29

Making an International Call (001International

Call Service)..................................................................................29

Returning a Call (Incoming Log/Outgoing

Log) ...................30

Setting the Manner Mode ......................................................30

Contacts ............................................................... 31

Saving a Contact ........................................................................31

Editing Contacts .........................................................................31

Using Contacts ............................................................................31

Contents

Mail ........................................................................ 32

Using E-mail......................................................................32

Sending E-mail ............................................................................ 32

Receiving E-mail .........................................................................32

Viewing Received E-mails .......................................................32

Changing Your E-mail Address ..............................................33

Setting Mail Filters .....................................................................33

Using C-mail ..................................................................... 35

Sending C-mail ...........................................................................35

Receiving C-mail ........................................................................35

Viewing Received C-mails .......................................................35

C-mail Safety Block .................................................................... 36

Using the Earthquake Early Warning .................................. 36

When an Earthquake Early Warning is

Received ........................................................................................37

Setting Up the Earthquake Early Warning ........................37

Setting Up C-mail ......................................................................38

Setting Receiving Filter ............................................................38

Using PC-mail...................................................................39

Setting Up PC-mail Account ..................................................39

Sending PC-mail .........................................................................39

Receiving PC-mail ......................................................................40

Viewing Received PC-mails ....................................................40

Using Gmail ......................................................................41

Sending Gmail ............................................................................41

Receiving Gmail..........................................................................41

Viewing Received Gmails ........................................................41

Internet................................................................. 42

Using Browser .................................................................. 42

Viewing Sites ...............................................................................42

Using Address Bar ......................................................................42

Using Bookmarks/History .......................................................42

Bookmarking a Web Page.......................................................42

Using Bookmarks/History .......................................................42

Multimedia .......................................................... 43

Using Camera ...................................................................43

Cautions for Using Camera.....................................................43

Taking a Photo ............................................................................44

Recording a Movie ....................................................................44

Using Gallery .................................................................... 44

Viewing Photos/Movies ...........................................................44

Applications........................................................ 45

Using Android Market ..............................................................45

Using au one Market ................................................................45

Managing Applications ...........................................................46

Settings ................................................................ 47

Viewing the Setting Menu ......................................................47

Checking Your Profile ...............................................................47

Changing the Ring Tone .......................................................... 47

Using the Remote Control Lock............................................47

Initializing PTL21 ........................................................................ 49

Wi-Fi ....................................................................... 50

Activating/Inactivating Wi-Fi .................................................50

Registering/Connecting to the Access Point ...................50

Global Function ................................................. 51

Using Global Passport ...................................................51

For Overseas Use without Anxiety ......................................51

Configuring the Overseas Settings .....................................52

Obtaining the PRL (Preferred Roaming List) .................... 52

Setting the Area .........................................................................52

Setting the Data Roaming ...................................................... 52

Setting the Time .........................................................................53

Making a Call at Your Travel Destination ...........................53

Making a Call to Another Country (Including

Japan) from Your Travel Destination ................................... 53

Making a Call within the Same Country While

Overseas ........................................................................................ 54

Receiving a Call at Your Travel Destination .......................54

Appendix/Index ................................................ 55

Troubleshooting.........................................................................55

Index ...................................................................................57

User License......................................................................59

Aplix End-User License Agreement .....................................59

About Open Source Software ...............................................59

Safety Information

CE Declaration of Conformity ................................................61

FCC Notice ....................................................................................61

Getting Ready

Names and Functions of Parts

Getting Ready

⑭ bBACK key

Returns to the previous screen.

⑮ vVolume key

⑯ Speaker

Emits ring tones, alarm tones, music, movie sounds, etc.

⑰ Camera lens

⑱ Mobile light

⑲ Infrared port

⑳ Charging terminals

Used when charging the PTL21 with the desktop holder.

󰚜 Battery pack/cover

󰚧 microSD memory card slot

󰚨 au IC-Card

󰚩 Lock slider

① External connection jack cover

② External connection jack

Use it to connect the PTL21 to the common AC adapter 03 (sold

separately), the microUSB cable 01 (sold separately), the 18pin-

microUSB conversion adapter 01 (sold separately), the microUSB stereo

earphones conversion adapter 01 (sold separately), etc.

③ Strap eyelet

④ pPower key

Turns on/off the power, and sets/disables sleep mode.

⑤ Built-in antenna

Do not cover the built-in antenna with your hand when you call,

transfer 3G data, use Wi-Fi, Bluetooth® or retrieve GPS information.

⑥ Charging indicator

Illuminates in red while charging.

⑦ Incoming indicator

Illuminates when receiving a call.

⑧ Earpiece

Emits the voice of the other party during a call.

⑨ Proximity sensor/optical sensor

The proximity sensor prevents operating the touch panel

incorrectly during a call. The light sensor detects the ambient

brightness and automatically adjusts the brightness of display.

⑩ Display

⑪ Microphone

Transmits your voice to the other party during a call. It is also used

for recording sounds.

Take care not to cover the microphone with your fingers when

making a call or recording sound.

⑫ mMENU key

Displays the option menu.

⑬ hHOME key

Use it to display the Home screen, etc.

Getting Ready

Charging the Battery Pack

The battery pack is not fully charged at the time of purchase. Charge the

battery pack when you use the PTL21 for the first time or when the battery

level becomes low.

◎The PTL21 and the battery pack may become warm while charging. This is not

a malfunction.

◎Read carefully the Safety Precautions “安全上のご注意” in the Instruction

Manual (Japanese) before using the battery pack.

◎The charging time may become longer depending on the function used

while charging.

◎When using the PTL21 with the specified charger (sold separately) connected

for charging, it may induce a repetition of small charging periods/electrical

discharges. Repeatedly charging the PTL21 may shorten the battery life.

◎If the PTL21 charging indicator flashes in red, check that the battery is correctly

installed and that the cable is connected. If the indicator keeps flashing, stop

charging and contact an au shop or the Customer Service Center.

◎The common AC adapter 01 (sold separately) is for use in Japan with

100V AC power supply. Do not use it with single-phase 200V power

supply or voltage transformers.

When charging with a specified AC adapter (sold separately), other than the

common AC adapter 01 (sold separately), outside Japan, use a plug adapter

according to your destination. Do not charge the PTL21 using a voltage

transformer.

◎After charging, make sure to close the external connection jack cover

securely, and do not pull or twist it forcefully.

■Charging with the specified AC adapter (sold separately)

directly connected to the PTL21

The specified AC adapter (sold separately) is required. (The AC

adapter appearance in the figure may differ from the actual shape of

the adapter you are using).

The following is an explanation of how to charge your PTL21 using the

common AC adapter 03 (sold separately).

◎When charging with the common AC adapter 01 (sold separately), the common

AC adapter 02 (sold separately) or an AC adapter with specifications similar

to the common AC adapter 02, use the 18pin-microUSB conversion adapter

01(sold separately) to make the connection to the PTL21.

◎When starting charging with the PTL21 turned off, it automatically turns on and

the charging screen appears. Cell phone operation cannot be performed when

only the charging screen is displayed. When charging is finished, the PTL21

automatically turns off.

◎When charging the PTL21 with the power turned off, if charging is stopped

while the battery is almost empty, a message prompting to charge the battery

may appear.

Getting Ready

Charging time: Approx. 160 min

1 Connect the microUSB plug

of the common AC adapter

03 (sold separately) to the

PTL21.

Open the external connection

jack cover, confirm the shape of

the connector and insert the plug

straight.

2 Insert the power plug of the common AC adapter 03

(sold separately) into a power outlet.

The PTL21 charging indicator illuminates in red and the battery level icon

changes to the charging icon on the display.

The charging indicator goes out when the charging is finished.

3 After the charging if finished, pull the microUSB plug of the

common AC adapter 03 (sold separately) straight out of the

PTL21.

4 Close the PTL21 external connection jack cover.

5 Pull the power plug of the common AC adapter 03

(sold separately) out of the outlet.

Turning On/Off the Power

Turning On the Power

1 Hold down p for at least 1

second.

The logo is displayed. Wait a little for the

unlock screen to appear.

Drag to the circle in the center of the

screen to unlock.

If screen lock is set, the pattern/PIN/

password entry screen is displayed.

Drag a different icon to the circle in the

center of the screen to directly activate the

corresponding application.

◎When you turn on the PTL21 for the first time, the initial setting screen is

displayed after you unlock the screen.

Turning Off the Power

1 Hold down p for at least 0.5 second.

The phone options screen is displayed.

2 [Power off] → [OK]

Sleep Mode

If no operation is made for a while, the screen is turned off temporarily

and the sleep mode is set.

You can also press p at any time to set the sleep mode.

Getting Ready

■Canceling the sleep mode

1 Press p while the sleep mode is set.

The unlock screen is displayed.

Initial Setup

When you turn on the PTL21 for the first time, or after changing the IC-Card

or performing a factory data reset, the initial setting screen is displayed

after you unlock the screen.

Setting Google Account

Set up a Google account to use the online services provided by

Google.

1 [言語変更] (Change language)

2 Select a language.

3 Tap the Android robot icon.

■If you do not have a Google account

4 [Create]

5 Enter your first name, last name and a username →

[Next]

Follow the instructions displayed on the screen to complete the

account creation and setup.

■If you already have a Google account

4 [Sign in]

5 Enter your username and password → [Sign in]

Follow the instructions displayed on the screen to complete the

account setup.

◎If you did not set up a Google account by tapping [Skip] on the initial

setting screen, you can still set up an account in “Accounts & sync” or when

activating for the first time applications requiring to have a Google account.

Switching the Display Language to English

You can switch the display language for function names and other items

to English.

A part or all the contents may not be displayed in English depending on

the application.

1 On the Home screen, [ ] → [設定] (Settings) → [言語

とキーボード] (Language & keyboard) → [言語を選択

(Select language)]

2 [English]

◎The language can also be switched by tapping [言語変更] (Change

Language) on the initial setting screen.

Initial Setup of E-mail

When performing initial setup, an e-mail address is automatically set.

You can change this e-mail address.

1 On the Home screen, [ ]

The E-mail screen is displayed.

Getting Ready

2 [OK]

When the e-mail setup is completed, your e-mail address is displayed.

Setting au one-ID

You can register a new au one-ID or one you have obtained beforehand.

Set the au one-ID in common in your PTL21 and PCs, and save the ID and

password in your PTL21. By acquiring and saving an au one-ID, you can use

a variety of services provided by au, such as “au kantan payment method”.

1 On the Home screen, [ ] → [Settings] → [au one-ID

setting]

A screen about packet communication charges is displayed.

2 [OK] → [auone-IDの設定・保存] (au one-ID setting and

saving)

Tap “auone-IDとは？” (“What is au one-ID?”) to display an

explanation in the browser.

3 Enter the security code → [OK]

The security code is the four-digit number you wrote on your

subscription form. If the security code is incorrectly entered three

times consecutively during a single day, the setting operation will be

disabled until the next day.

■When registering your phone number as a new au one-ID

4 Enter the password → [利用規約に同意して登録]

(Iaccept the terms of service and register)

■When registering a new au one-ID different from you phone number

4お好きなauone-IDを登

録したい方はこちら (To

your choice)

Follow the instructions displayed on

the screen to perform a new

registration.

The newly registered au one-ID is set

in common in the PTL21 and the PCs.

取得済みのauone-IDを

設定したい方はこちら (To

set an au one-ID you

already obtained)

Your au one-ID is set in common in the

PTL21 and the PCs. Follow the

instructions displayed on the screen

to complete the procedure.

5 [設定画面へ] (Go to setting screen) → Follow the

instructions displayed on the screen.

Set the necessary information to reissue a password.

au IC-Card

An au IC-Card records your personal

information such as phone numbers.

◎Follow the precautions below when handling the au IC-Card, otherwise it

may cause a malfunction or damage to the au IC-Card.

• Do not touch the IC (metal surface) part of the au IC-Card, or the IC-Card

terminal on the PTL21.

• Confirm the orientation before inserting the au IC-Card.

• Do not forcibly insert or remove the au IC-Card.

◎Be careful not to lose the au IC-Card after when removing it.

Removing au IC-Card

Turn off the power and remove the battery pack before removing or

Getting Ready

inserting the au IC-Card.

1 Turn off the PTL21 and remove the battery pack.

2 Pull the tab and move the tray straight out to remove

the au IC-Card.

Inserting au IC-Card

1 Pull the tab and move the tray straight out.

2 Place the au IC-Card on the tray with the IC (metal

surface) part side up and insert it securely.

Insert the au IC-Card in the tray according to the orientation of its

cutout.

Getting Ready

Using microSD Memory Card

You can set microSD memory cards (including microSDHC memory cards)

to the PTL21 to save data. You can also keep contacts and E-mail data in

microSD memory cards.

◎Some applications may not be available if a microSD memory card is not

inserted.

◎The PTL21 supports file size up to 2 GB.

◎A microSD memory card initialized on other devices may not function properly

on the PTL21. Initialize your microSD memory cards with the PTL21.

Handling Precautions

• Do not remove the microSD memory card or the battery pack, and do

not turn off the PTL21 or any other device while reading, writing, playing

back, saving or moving/copying data. It may result to damage to the

data stored in the PTL21 or the microSD memory card, or data loss.

• Do not drop or subject the PTL21 to vibration or impact with a microSD

memory card inserted. It may result to damage to stored data or data

loss.

• Do not insert objects other than microSD memory cards, such as liquid,

metals or flammable items, into the microSD memory card slot of the

PTL21. It may result in a fire, electrical shock or malfunction.

• We recommend using the included 2 GB microSD memory card

(sample) only with cell phones. Using it with other devices, or in

high-voltage or high-temperature and humidity environments may

cause damage or a malfunction to the microSD memory card or the

other devices.

• The following microSD memory cards have been confirmed for

operation based on au criteria. For operation confirmation of other

microSD memory cards, contact each microSD memory card

manufacturer.

* 4 GB or more are for microSDHC memory cards.

Manufacturer 2 GB 4 GB 8 GB 16 GB 32 GB

Toshiba ○○○○ –

Panasonic ○○○ – –

SanDisk ○○○○ –

ADTEC – – – – –

Buffalo ○ ○ –––

Sony ○––––

• ○: Confirmed operation –: Unconfirmed operation or not available

for sale (as of July 2011)

* Operation with PTL21 is confirmed for microSD memory cards available for sale as of July 2011. For

the latest information on operation confirmation, visit the au homepage or contact the Customer

Service Center.

Getting Ready

Inserting microSD Memory Card

1 Turn off the PTL21 and remove the battery pack.

2 Confirm the microSD memory card orientation and

insert it straight until it clicks.

Be sure to hear the click indicating that the memory card is locked.

Also, be careful not to remove your finger from the microSD memory

card until it locks as it may be ejected.

3 Install the battery pack and close the battery pack

cover.

◎Do not touch the terminal part of the microSD memory card.

◎Insert the microSD memory card with the correct side up and in the

appropriate orientation.

Inserting a memory card forcefully into the slot could result in failure to

remove the microSD memory card or damage.

Removing microSD Memory Card

1 Turn off the PTL21 and remove the battery pack.

2 Push the microSD memory card slowly until it clicks.

When you hear the click,

keep your finger onto the

microSD memory card and

let it come toward you.

The microSD memory card

will come out by itself. Be

careful as the card may

be ejected violently if you

remove your finger too fast

after pushing strongly.

3 Pull slowly the microSD memory card.

Pull slowly and straight.

Depending on the microSD

memory cards, the lock

may not be release and

the microSD memory may

not come out. In this case,

remove it by gently pulling

in out with your finger.

4 Install the battery pack and close the battery pack

cover.

◎Do not remove the microSD memory card forcefully. It may result to

damage or data loss.

◎The microSD memory card may be warm after a long time use. It is

normal.

Learning the Basics

Operating the Touch Panel

The display of the PTL21 is a touch panel. You can operate the PTL21 by

directly touching the items and keys displayed on the screen with you

finger.

■Tap/Double-tap

Gently touch a menu or an item

and immediately remove your

finger.

Tap quickly twice on the same

position to double-tap.

■Long-touch

Keep touching a menu or an

item.

■Slide

While gently touching the screen

with your finger, slide it to the

desired direction.

■Flick

Move (flick) quickly your finger

up, down, right or left on the

screen.

■Pinch out/Pinch in

While touching the screen with

2 of your fingers, move your

fingers apart (pinch out) or

closer (pinch in) to enlarge or

reduce the screen.

■Drag and drop

Touch gently the item you want

to move with you finger and

slide it to the desired location.

Remove your finger to drop the

item.

Learning the Basics

Touch Panel

Learning the Basics

Operation While Using Functions

Selecting an Item

Select a displayed item or icon by tapping the screen directly.

Displaying the Menu

■Option menu

The option menu is displayed by pressing m on a screen where

the menu is available.

Example: Contacts screen option menu

■Context menu

The context menu is displayed by long-touching a screen or item

where the menu is available.

Example: Contacts screen context menu

Learning the Basics

Viewing Home Screen

On the Home screen you can confirm the status and current settings of the

PTL21.

① Status bar

② Locator

③ Widgets

④ Shortcuts

⑤ Folders

⑥ Quick menu

⑦ Menu icon

Using Status Bar

The status bar is displayed on the top of the PTL21 display. The notification

indicators for a new mail or a missed call are displayed on the left side of

the status bar, while the status indicators showing the signal strength,

remaining battery and other PTL21 statuses are on the right side.

■Examples of notification indicators

Icon Description

Missed call

New e-mail message

New C-mail message

New Earthquake Early Warning

New PC-mail message

New Gmail message

(Green) Dialing/Receiving call/Calling

(Blue) Dialing/Receiving call/Calling with a Bluetooth®

headset connected

Putting a call on hold

Open network available

Schedule notification of the calendar

Ringing alarm

Playing music

Loading microSD memory card

microSD memory card unmounted

USB connecting

USB debug connecting

Home Screen and Launcher

Learning the Basics

Icon Description

Downloading/Installing data or application

Downloading/Finished downloading/Installing

Finished installing

• Thedownloadingandinstallingiconsaredisplayed

as animations.

Uploading data/Finished uploading data

• Theuploadingdataiconisdisplayedasan

animation.

Application update available

PTL21 software update available

PTL21 memory full

Error/Warning notice

Indicators collected

■Examples of status indicators

Icon Description

Time

Timer set

Alarm set

( )

Battery level (while charging)

( ) Full/ ( ) Approx. 80% remaining/ ( )

Approx. 60% remaining/ ( ) Approx. 40%

remaining/ ( ) Approx. 20% remaining/ ( )

Approx. 10% remaining/ ( ) Battery level 0

• Theiconwhilechargingisdisplayedasan

animation. (The animation is not displayed when the

battery level is below 15%)

Icon Description

Signal strength (receiving electric field)*

Level 4/ Level 3/ Level 2/ Level 1/ Level 0/

Out of service area

3G data communication status*

Sending and receiving/ Sending/ Receiving/

Waiting

CDMA 1X data communication status*

Sending and receiving/ Sending/ Receiving/

Waiting

Wi-Fi signal strength*

Level 4/ Level 3/ Level 2/ Level 1/ Level 0

In roaming

Airplane mode set

Manner mode status

Standard manner mode (Vibrator on)/ Silent

manner mode (Vibrator off)

Microphone set to off during a call

Bluetooth® connection status

Connecting/ Waiting

Data synchronizing status

Synchronizing/ Synchronization failed

GPS in use

• TheGPSpositioningindicatorisdisplayedasan

animation.

Character type

Hiragana-Kanji/ Full-width Katakana/ Half-

width Katakana/ Full-width Alphabet/ Half-width

Alphabet/ Full-width Numeric/ Half-width

Numeric/ Voice Input

* Displayed in green or blue when logged in with a Google account.

Learning the Basics

Using Notification/Status Panel

In the notification/status panel, you can check the details of

notification and status indicators and activate applications

corresponding to the indicators.

You can also easily set the manner mode, switch the Wi-Fi on/off or

perform other settings using Google Voice Search, voice commands

or the easy setting icons.

1 Slide the status bar to the

bottom.

The notification/status panel is

displayed.

① Clear

You can clear all the notifications by

tapping the key.

② Easy Setting

Tap the icons to switch each function

on/off.

Flick right or left to display the hidden

icons.

( ):

Turns the manner mode

(silent manner mode) on/off.

<Notification/

Status panel>

: Turns the Wi-Fi on/off.

: Turns the 3G data communication on/off.

: Turns the GPS on/off.

: Sets the simple mode.

: Turns the Bluetooth® on/off.

: Turns the display Auto Rotate on/off.

: Turns Auto Sync on/off.

③ Voice Search

④ Voice Command

⑤ Notifications

You can check the notification contents. Tap to activate the

corresponding applications depending on the notification content.

⑥ Close tab

Drag to the top to close the notification/status panel.

Using Home Screen

1 On the Home screen, m

2Add Shortcuts Add shortcuts.

Widgets Add widgets.

Folders Add folders.

Wallpapers XSee “Wallpaper” below.

Manage apps Display the application settings.

Wallpaper Configure... Configure live wallpapers detail

settings.

Gallery Select and set data from the

microSD memory card.

Live

wallpapers

Select and set from live

wallpapers registered beforehand

in your PTL21.

Wallpapers Select and set from wallpapers

registered beforehand in your

PTL21.

Notifications Display the notification/status panel.

Settings Display the setting menu screen.

Learning the Basics

Switching Home Screen

Slide or flick the Home screen to the left or right to switch between

Home screens.

7 Home screens are available. Shortcuts, widgets and folders can be

added and used on each Home screen.

The current displayed position can be checked with the locator on

the top of the screen.

■Using blind home

Use the blind home function to hide all icons on the Home screen.

This function is convenient when you want to see the wallpaper you

have set.

1 Pinch out the Home screen.

All the icons on the Home screen disappear.

Pinch in the Home screen to make the icons appear again.

■Using home preview screen

1 Tap the locator on the Home screen.

The home preview screen is displayed. Flick to the top, bottom, right

or left to rotate or tilt the Home screens displayed in 3D.

2 Tap a Home screen displayed in 3D.

The tapped Home screen is displayed.

Using Widgets

Widgets are simple applications that can be activated on the Home

screen.

■Adding widgets

1 On the Home screen,m→ [Add] → [Widgets]

■When adding Android widgets

2 [Android Widgets]

3 Select a widget.

■When adding Pantech widgets

2 [Pantech Widgets]

3 Select a widget.

A style and detail items selection screen is displayed depending on

the widget. Follow the instructions displayed on the screen.

■Removing widgets

1 Long-touch the widget you want to remove on the

Home screen.

The PTL21 vibrates indicating that the widget can be moved.

2 Drag the widget to at the bottom of the screen and

then drop it.

Learning the Basics

Using Launcher Menu

Installed applications are displayed as icons in the launcher menu.

Activate an application by tapping the corresponding icon.

Displaying Launcher Menu

1 On the Home screen, [ ]

The launcher menu is displayed.

Slide or flick the launcher menu screen to the

left or right to switch between launcher menu

screens.

<Launcher menu

screen>

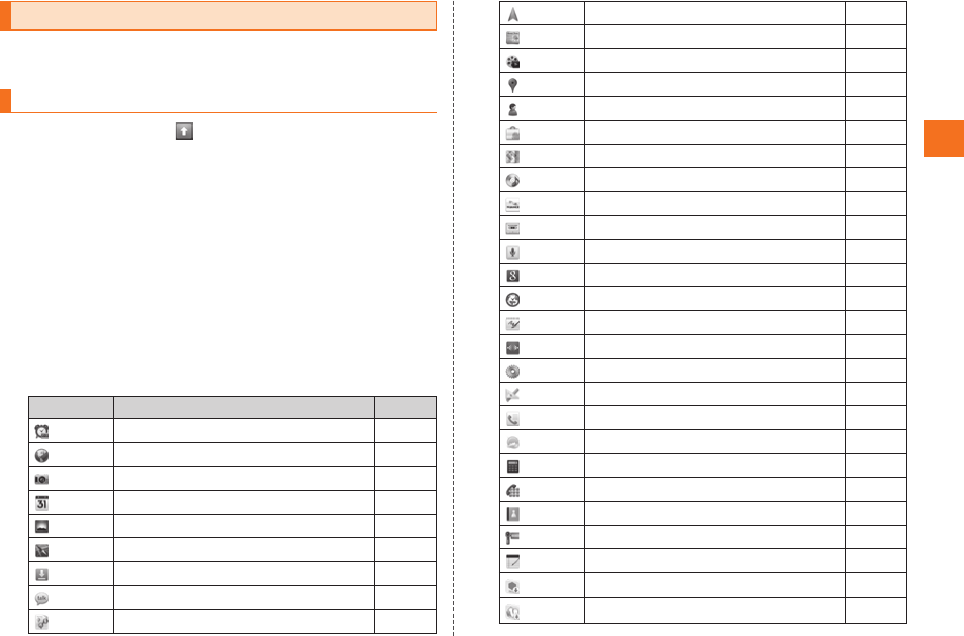

Icon Application Page

Alarm/Clock –

Web P.42

Camera P.43

Calendar –

Gallery P.44

Compass –

Downloads –

Talk –

Document Viewer –

Navigation –

News & Weather –

Video Player –

Places –

Profile –

Market P.45

Maps –

Music Player –

Voice Command –

Voice Memo –

Voice Search –

Google Search –

Clock Tools –

Sketch Pad –

IrDA –

Settings P.47

Converter –

Call log P.30

Weather –

Calculator –

Phone P.28

Contacts P.31

Camcorder P.44

Handy Memo –

GREE* –

LISMO Book Store* –

Learning the Basics

Run&Walk* –

ウェザーニュースタッチ (Weather News

Touch)*

–

かんたんメニュー (Kantan Menu)* –

ショッピング (Shopping)* –

ナビウォーク (Naviwalk)* –

ニュースEX (News EX)* –

健康記録 (Health Record)* –

au one –

au one Market P.45

auWi-Fi接続ツール (au Wi-Fi

Connection Tool)

–

C-mail P.35

E-mail P.32

Facebook –

Gmail P.41

GREE_MARKET –

jibe Address Book –

Latitude –

NHK動画on! (NHK Movies on!) –

PC-mail P.39

RSS Reader –

Skype –

YouTube –

* Shortcut applications that can be easily downloaded from the au one Market.

Download these applications to use them.

◎When using applications, packet communication charges may apply

depending on the function.

If you have not subscribed to IS NET, au.NET charges (for the used month

only) and communication charges apply.

◎Icon designs may be changed without prior notice.

Learning the Basics

A simple mode is available with your PTL21 to operate easily the functions

you often use.

Switching to Simple Mode

1 Slide the status bar to the bottom.

2 [Simple Mode] in Easy Setting → [Yes]

◎When switching to simple mode, some settings may be disabled, changed

or temporarily canceled.

Switching to Normal Mode

1 On the simple mode Home screen, [Menu]

2 [Settings] → [Normal mode] → [Yes]

◎When switching to normal mode, some settings may be disabled,

changed or temporarily canceled.

Using Power Control Widget

By using the power control widget, you can easily turn on/off the Wi-

Fi, Bluetooth®, GPS and auto sync functions, and adjust the screen

brightness. The battery will last longer if unused functions are turned

off and the screen is set to a darker brightness.

1 On the Home screen, m → [Add] → [Widgets]

2 [Android Widgets]

3 [Power Control]

The power control widget is added to the Home screen.

4 Tap the function switching icon.

Closing the Applications

The amount of memory used and battery consumption can be

reduced by closing unused applications.

1 Hold down h for at least 0.5 second.

The running applications list screen is displayed.

2 [ ] on the top right corner of the application to close.

Reducing Power Consumption Using Simple Mode

Character Input

How to Input the Characters

Tap the character entry field on the PTL21 to display a keyboard (software

keyboard) on the screen, and enter characters by tapping the keys on the

screen.

The “Android keyboard”, “DioPen KOR/CHN/PO IME”, “iWnn IME” and “LaLa

Stroke” are available on the PTL21.

The following explains how to input characters using “iWnn IME”.

① Character entry mode icons

: Hiragana-Kanji

: Full-width Katakana

: Half-width Katakana

: Full-width Alphabet

: Half-width Alphabet

: Full-width Numeric

: Half-width Numeric

: Voice Input

② Character entry area

③ Normal conversion candidates list/Prediction candidates list/

Relational prediction candidates list

Enter characters and tap [ ] to display the normal conversion

candidates list. If the word prediction function is enabled, the

prediction candidates list is displayed when characters are

entered. The relational prediction candidates list is displayed

when an entry is selected from the prediction candidates list.

You can enlarge the candidates list display area by tapping [ ].

Tap [ ] to return to the original display.

④ Back key/Undo key

: Displays the preceding character assign to the key (back

function).

: Returns the determined character to the undermined state.

⑤ Software keyboard

You can enter the characters assigned to each key.

⑥ Cursor key

Moves the cursor to the right or left and changes the range of

characters when converting characters.

⑦ Emoji, Symbol, and Emoticon key/Alphanumeric, Kana key

: Displays the list of Emoji, Symbols, and Emoticons.

: Switches conversion candidates of input characters to

alphabet and kana.

⑧ Entry mode switch key

Switches the character entry mode.

When switching the entry mode, the display changes as follows.

: Hiragana-Kanji

: Full-width Katakana

: Half-width Katakana

: Full-width Alphabet

: Half-width Alphabet

: Full-width Numeric

Character Input

: Half-width Numeric

: Voice Input

⑨ DEL key

Deletes the selected character or the character on the left of the

cursor. Long-touch to delete characters continuously.

⑩ Handwriting key/Conversion key

: Switches to handwriting entry.

: Displays the normal conversion candidates list.

⑪ OK key/Enter key

: Determines the entered characters.

: Inserts a line feed at the cursor position.

⑫ Uppercase/Lowercase characters switch key

: When entering hiragana or katakana, switches the entered

character between uppercase and lowercase, or adds

dakuten or handakuten.

: When entering alphabetic characters, switches the entered

character between uppercase and lowercase.

⑬ Shift key

: Lowercase character entry

: Uppercase character entry

: Uppercase character entry lock

◎Displayed icons and functions that can be used may differ depending on

the application or the screen.

Switching Character Entry Mode

1 On the character entry screen, long-touch the entry

mode switch key → [Input Mode]

2 Select a character type.

◎The character type is switched in order of “Hiragana-Kanji” → “Half-width

Alphabet” → “Half-width Numeric” → “Voice Input” each time you type the

input mode key.

◎Some characters cannot be used depending on the application or the

screen.

Switching Software Keyboards

“10-key” and “QWERTY” software keyboards are available.

1 On the character entry screen, long-touch the entry

mode switch key → [10-key ⇔ QWERTY]

Entering Hiragana/Kanji/Katakana/Alphanumeric

■Entering hiragana/kanji/katakana

Switch the entry mode to “Hiragana-Kanji”. When the software

keyboard is set to “10-key”, tap the assigned keys to enter

characters. When the software keyboard is set to “QWERTY”, use

romaji to enter characters.

■Entering alphabet

Switch the entry mode to “Full-width Alphabet” or “Half-width

Alphabet”. When the software keyboard is set to “10-key”, tap the

assigned keys to enter characters. When the software keyboard is set

to “QWERTY”, tap the keys directly.

Character Input

■Entering numeric

Switch the entry mode to “Full-width Numeric” or “Half-width

Numeric”. Tap the keys directly with either software keyboard. With

the software keyboard set to “QWERTY”, tap the shift key to switch

between available symbols.

■Flick input

When the software keyboard is “10-key”, you can enter a desired

character by flicking the key up, down, right or left without tapping

the key repeatedly.

By long-touching a key, the candidates that can be entered by

flicking entry are displayed. Flick the key in the direction of a desired

character to enter that character.

Example: To enter “あ”, tap [ ], and to enter “お”, flick [ ] down.

Correcting Characters

■Back function

When the software keyboard is “10-key”, tap [ ] when you tapped a

key too many times and went beyond the desired character to return

to the previous character.

Example: If “く” is displayed while you want to enter “き”, you can tap

[] to return to “き”.

◎The back function cannot be used with flick input.

■Undo function

When the software keyboard is “10-key”, tap [ ] after a character

has been determined to return it to the undetermined state.

Entering Emoji/Symbol/Emoticon

Display the Emoji/Symbol/Emoticon list and enter these characters on

the character entry screen.

Tap [ ] when there is no conversion target on the character entry

screen.

Tap the “Emoji”, “Symbol” or “Emoticon” tab on the top of the list to

switch between the corresponding lists.

: Returns to the character entry screen.

/ : Displays the previous/next page.

: Deletes the selected character or the character on the left of the

cursor.

◎Emoji can be used only with e-mail, C-mail and Handy Memo.

◎D-Emoji can be used only with e-mail.

◎Some Emoji/Symbol/Emoticon cannot be used depending on the

application or the screen.

Using Voice Input

1 On the character input screen, long-touch the entry

mode switch key → [Input Mode] → [Voice Input]

2 [Voice Input Start]

Voice input is activated.

3 Say any keyword in front of the microphone.

Characters are entered when the processing is finished.

Character Input

Using Handwriting Input

Handwriting input is possible by using the “LaLa Stroke” software

keyboard.

1 On the character input screen, [ ]

The handwriting entry screen is displayed.

① Cursor key

Moves the cursor to the right or left

and changes the range of characters

when converting characters.

② Keyboard key

Switches to the iWnn IME input.

③ Entry mode switch key

Switches the entry mode.

When switching the entry mode, the

display changes as follows.

: Hiragana-Kanji (Kanji cannot

be entered directly. Enter

hiragana then convert them to

kanji)

: Katakana

: Symbol

: Numeric

: Alphabet

<Handwriting entry

screen>

④ Conversion/Space key

Displays the normal conversion candidates list / Enters a space

⑤ DEL key

Deletes the selected character or the character on the left of the

cursor. Long-touch to delete characters continuously.

⑥ Character entry field

⑦ OK key/Enter key

Determines the entered characters / Inserts a line feed at the

cursor position.

2 Write characters in the character entry field.

Switching Input Software

1 On the character entry screen, long-touch the

character entry area → [Input Method]

2Android

keyboard

Input software used mainly to enter

alphanumeric characters. Can also be used

to write in Portuguese.

• CannotbeusedtowriteinJapanese.

DioPen KOR/

CHN/PO IME

Input software used to write in English,

Korean, Chinese (simplified and traditional),

and Portuguese.

• CannotbeusedtowriteinJapanese.

• Tap / / / to switch the input

language.

• SetChinesetoSimplifiedorTraditionalon

the Home screen [ ] → [Settings] →

[Language & keyboard] → [DioPen KOR/

CHN/PO IME] → [Language settings] →

[Chinese detail settings] → [Set Chinese

character]

iWnn IME Input software used mainly to enter hiragana,

kanji and katakana.

LaLa Stroke Input software to handwrite in Japanese and

English.

Phone

Making a Call

1 On the Home screen, [ ]

The phone number entry screen is displayed.

2 Enter a phone number.

When calling to a fixed-line phone, enter the phone number starting

with the area code even if you are in the same area.

3 [ ] → Talk → [End]

Press v during a call to adjust the sound level (other party’s

voice).

◎If you cover the screen while dialing or calling, the display is turned off to

prevent erroneous operation.

◎Dial services available from au phones

• Call with fixed-line phones all over Japan

• Call with cell phones, PHS, and car phones all over Japan

• 001 (001 international call service: Subscription is unnecessary)

• 171 (Disaster Emergency Message Dial)

• 177 (Weather forecast: The area code is necessary)

• 117 (Time signal)

• 104 (Directory assistance)

• 115 (Sending telegram)

• 110 (Emergency call to Police)★

• 119 (Emergency call to Fire and Ambulance)★

• 118 (Emergency call to Regional Coast Guard Headquarters)★

• 157 (Customer Service Center)

• Maritime telephone

* The numbers with ★ are emergency call numbers. PTL21 notifies your present location to the

emergency call destination with a signal from a base station when you call the Police, Fire and

Ambulance, or Regional Coast Guard Headquarters.

* The following NTT services are unavailable. Collect call, message service, dial Q2, 116

(NTT business information)

■Using the special number key on the phone

number entry screen

1 On the phone number entry screen, [ ]

2Add 184 Add “184 (Hide Caller ID Notification)”

Cancel 184 Cancel “184 (Hide Caller ID Notification)”

Add 186 Add “186 (Display Caller ID Notification)”

Cancel 186 Cancel “186 (Display Caller ID Notification)”

Add P Make a phone call with P (pause) dial.

Add + Add “+ (001 international access code)”

Cancel + Cancel “+ (001 international access code)”

International call Add “+ (001 international access code)” and

the country code for each country.

◎“184” and “186” cannot be added at the same time.

◎“Area Settings” is configure to something else than “Japan”, “184” and

“186” cannot be added.

Phone

Answering a Call

1 Slide to the right during an incoming call.

2 Talk → [End]

■Display when receiving a call

The following content is displayed when receiving a call.

• If the other party’s phone number is sent, the number is displayed.

• If the other party’s phone number and name are registered in

Contacts, their name and other information are displayed. If a

picture is set for the other party, it is also displayed on the screen.

• If the other party’s phone number has not been sent, the reason is

displayed as follows.

“ID Unsent”, “Pay Phone” or “Not Support”*.

* The other party is calling from a phone that does not support ID sending.

When the call was not answered

◎ is displayed on the status bar. Open the notification/status panel to

check the calling time, the phone number, and the name if registered

with the phone number. Tap the notification content to display the call log

screen.

Using International Call

◎The international access code differs depending on the country.

Making an International Call (001International

Call Service)

International call from the PTL21 can be made without any special

procedure.

Example: To call 212-123-XXXX in the USA

1 On the phone number entry screen, enter the

international access code, country code, area code

and phone number → [ ]

International

access code*1 ➡

Country

code (USA) ➡

Area

code*2➡

Phone

number

001010 1 212 123XXXX

*1 Long-touch “0” to enter “+”, and “001010” is entered automatically when calling.

*2 If the area code starts with “0”, dial it without including the “0”. (There are some

exceptions such as fixed-line phones in Italy or Moscow.)

◎International call charges are billed together with monthly charges.

◎Application can be made to disable the 001 International Call Service for

those who do not want to use it.

For more information on 001 International Call Service, dial either of the

following numbers:

From au phones (toll free): 157 (area code not required)

From fixed-line phones: 0077-7-111(toll-free)

Open from 9:00 to 20:00 everyday

Phone

Returning a Call (Incoming Log/Outgoing

Log)

Incoming Call/Outgoing Call log can be used to make phone calls.

1 On the Home screen, [ ] → [Call log]

: Incoming call

: Missed call

: Blocked call

: Outgoing call

: Incoming C-mail

: Outgoing C-mail

: If a log contains several consecutive calls with the same

number, tap it to display the details.

2 Tap the log you want to call.

The Incoming Call/Outgoing Call detail screen is displayed.

Tapping a C-mail log displays the thread detail screen.

3 [Call]

Setting the Manner Mode

Turn on the manner mode while driving or in public spaces to not

disturb others with phone and mail ringtones.

In manner mode, all sound levels are set to 0, except music, video

and other media sounds and alarm tones.

1 Hold down p for at least 0.5 second.

2 [Manner mode]

To turn off the manner mode, hold down p once more until the

option screen is displayed and tap “Manner mode”.

◎The use of cell phone while driving is dangerous and prohibited by law.

Set the manner mode while driving.

◎To set the vibrator, on the Home screen, [ ] → [Settings] → [Sound] →

[Vibrate].

Contacts

Saving a Contact

◎Using “Accounts & sync”, contacts information of a Google account saved in a

server can be synchronized with the Contacts in the PTL21.

1 On the Home screen, [ ] → [Contacts]

2 m → [New contact]

The contact edit screen is displayed.

When you register multiple accounts, the screen to select an account

is displayed. Select an account to save a contact in.

3 Select and fill each item.

4 [Done]

◎If the phone number is a fixed-line phone, enter the phone number starting

with the area code.

◎Tap [ ]/[ ] to add/delete an item.

Editing Contacts

1 On the Home screen, [ ] → [Contacts]

2 Long-touch a contact → [Edit contact]

3 Select and edit an item.

4 [Done]

Using Contacts

You can use Contacts entries to easily make phone calls and send

mail messages.

1 On the Home screen, [ ] → [Contacts]

2 Select a contact.

: Makes a call

Special numbers can also be added.

: Creates a C-mail

: Sends e-mail, PC-mail or Gmail messages

: Uses a chat

: Displays Google map

* Displayed icons may differ depending on the items registered in the contact and the

PTL21 settings.

Contacts

Mail

E-mail (XXX@ezweb.ne.jp) is a service to exchange e-mails with

other cell phones that support e-mail, and with PC. In addition to text

messages, you can also send photos and movies by e-mail.

◎You must subscribe to IS NET to use e-mails. If you did not subscribe at

the time of purchase, contact an au shop or the Customer Service Center.

◎E-mails can also be used overseas. For details, refer to the Global

Passport Owner’s Guide (Japanese)

◎The packet communication charges for sending and receiving e-mails

vary depending on the amount of data sent and received. When using

e-mails overseas, high charges may be incurred. For details, refer to the

au comprehensive catalog or au homepage.

◎Sending and receiving e-mails may take time depending on the attached

data and the area signal strength.

Sending E-mail

1 On the Home screen, [ ]

The E-mail screen is displayed.

2 [New]

3 Select the enter destination field.

4 Select/Enter a destination.

Contacts Selects from the mail addresses registered

in Contacts.

Received Record Select a mail address from the received

record.

Sent Record Select a mail address from the sent record.

Direct Input Enter a mail address directly.

My E-mail address Your e-mail address is input.

5 Select the subject entry field → Enter a subject.

6 Select the message entry field → Enter a message.

7 [Send]

8 [Yes]

Receiving E-mail

1 An e-mail message is received.

When an e-mail message is received, is displayed on the status

bar, and the e-mail ring tone sounds.

2 Slide the status bar to the bottom.

3 Select e-mail information.

4 Select the received e-mail.

Viewing Received E-mails

Sent and received e-mails, as well as e-mail saved without being sent

are saved in each mail box.

1 On the Home screen, [ ]

2 Select a folder.

3 Select an e-mail.

Mail

Using E-mail

Mail

Changing Your E-mail Address

The e-mail address is automatically set when the E-mail is initialized,

but you can change the e-mail address after the initial settings.

1 On the e-mail screen/mail box screen/folder list

screen, [Setting] → [E-mail settings]

The e-mail settings screen is displayed.

2 [Other settings] → [OK]

3 [Eメールアドレスの変更] (Change e-mail address) →

Select (Entry field) → Enter your security code

→ [送信] (Send)

4 [承諾する] (Accept)

5 Select (Entry field) → Enter the part of the

address to the left of “@” (variable part).

6 [送信] (Send) → [OK]

◎You can input up to 30-byte alphanumeric characters, including “-”, “.”,

and “_” for the part of the e-mail address that can be changed. However,

you can not use consecutive “.” or use them for the first or last character.

Also, you cannot use “0” as the first character.

◎Note that immediately after changing your e-mail address, you may be not

be able to receive e-mails for a short time.

◎If the e-mail address that you input is already being used, a message

appears requesting that you input a different e-mail address. Input a new

address.

◎It is possible to change your e-mail address three times within a single

day.

◎If the security code is incorrectly entered three times consecutively during

a single day, the changing operation will be disabled until the next day.

Setting Mail Filters

Mail filters have functions to receive and reject specific e-mail

messages and to reject messages spoofing cells phones or PHSs.

1 On the e-mail screen/mail box screen/folder list

screen, [Setting] → [E-mail settings]

The e-mail settings screen is displayed.

2 [Other settings] → [OK]

■Setting the mail filter as recommended

3 [オススメの設定はこちら] (See Recommended

Settings) → [登録] (Register)

Set the mail filter that enables to reject spoofing and auto-forwarded

mail messages, and to receive mail messages from cell phones, PHSs

or PCs.

■Setting details of the mail filter

3 [迷惑メールフィルター] (Mail Filter) → Select

(Entry field) → Enter your security code → [送信]

(Send)

4カンタン設

定 (Simple

Settings)

1 . 「携帯」「PHS」

「PC」メールを受

信 (1. Receive

Mail Messages

from Cell Phone,

PHS or PC)

Reject spoofing or auto-

forwarded mail messages,

and receive mail messages

from cell phones, PHSs or

PCs.

2.「携帯」「PHS」

メールのみを受信

(2. Receive only

Mail Messages

from Cell Phone

or PHS)

Reject mail messages from

PCs, spoofing mail messages

or auto-forwarded mail

messages, and receive mail

messages from cell phones

or PHSs.

Mail

詳細設定

(Advanced

Settings)

一括指定受信

(Collective

Receive Setting)

Receive or reject all mail

messages from the Internet

or cell phones.

なりすまし規制

(Spoof Restriction)

Reject mail messages sent

with an alleged sender

address. You can set the

following levels; 高 (High), 中

(Medium), 低 (Low).

指定拒否リスト設定

(Reject Mail

Address List

Setting)

Reject mail messages from

certain e-mail addresses,

domains or parts of

addresses to the left of “@”

that are contained in the

specified address list.

指定受信リスト設定

(Allowed Address

List Setting)

Prioritize reception of mail

messages from certain e-mail

addresses, domains or parts

of addresses to the left of “@”

that are contained in the

specified address list.

• Toblocke-mailmessages

from addresses other than

the specified ones, unmark

all items in “一括指定受信”

(Collective Receive Setting)

to set to off (to reject

receiving).

詳細設定

(Advanced

Settings)

指定受信リスト設定

（なりすまし・転送

メール許可）

(Allowed Address

List Setting

(Spoofing or

Forwarded Mail

Messages))

Avoid the mail block due to

“なりすまし規制”(Spoof

Restriction) setting, and

receive auto-forwarded mail

messages.

HTMLメール規制

(HTML Mail

Restriction)

Reject e-mail messages in

HTML format.

URLリンク規制

(URL Link

Restriction)

Reject e-mail messages that

include a URL.

拒否通知メール返

信設定 (Block Mail

Notification

Setting)

Sets whether to send a receiver

error (address unknown) mail

message to the sender of the

rejected e-mail message.

設定確認／設定解除 (Check

Settings/Release Settings)

Check the setting status of

the mail filters and release all

settings at one time.

PC設定用ワンタイムパスワード

発行 (Issue One Time

Password for PC Setting)

Issue a one time password to

set the mail filter on your PC.

The password is available

within 15 minutes after

issuance.

設定にあたって (Notes on

Setting Mail Filter)

Display the explanation for

setting mail filters.

◎If the security code is incorrectly entered three times consecutively during

a single day, the filter setting operation will be disabled until the next day.

◎Note that you cannot receive e-mail messages once rejected by mail

filters. Be careful when you set mail filters.

Mail

C-mail is a service that uses phone numbers as addresses to

exchange messages between cell phones. C-mail messages can be

sent and received also between cell phones from other companies.

◎For using C-mails overseas, refer to the Global Passport Owner’s Guide

(Japanese).

Sending C-mail

You can send a message consisting of kanji, hiragana, katakana,

alphanumeric, symbols, emoji and emoticon.

1 On the Home screen, [ ] → [C-mail]

2 [Create New]

3 Select the destination entry field → Enter a

destination.

4 Select the message entry field → Enter a message.

The maximum length of the message is 70 full-width/140 half-width

characters.

5 [Send]

◎C-mail messages of more than 51 full-width/101 half-width characters

may be divided and received in 2 C-mail messages depending on the

destination.

Receiving C-mail

1 A C-mail message is received.

When a C-mail message is received from the C-mail center, is

displayed on the status bar, and the C-mail ring tone sounds.

2 Slide the status bar to the bottom.

3 Select C-mail information.

◎Charges do not apply when receiving C-mails.

◎C-mail messages of more than 51 full-width/101 half-width characters are

divided and received in 2 C-mail messages.

◎Messages may not be displayed properly depending on the content.

Viewing Received C-mails

C-mail messages received from the other party and C-mail messages

sent to them are displayed together in the same thread. A thread list

is displayed on the C-mail screen.

1 On the Home screen, [ ] → [C-mail]

2 Select a thread.

Using C-mail

Mail

C-mail Safety Block

C-mail safety block is a function that allows you to reject C-mails that

include URLs (http://△△△, https://△△△) or phone numbers in the

C-mail message text.

◎C-mail safety block is valid by default.

◎If you change your cell phone model, the settings are transferred from

your previous model.

◎C-mail safety block rejects conventional C-mail messages (including

prepaid C-mail). This function does not apply to Answering Services, such

as message and call notices.

■Setting the C-mail safety block

You can set the C-mail safety block by sending a C-mail to a

specified phone number.

Canceling the setting Input “Cancel” in the C-mail message and

send to 09044440010.

Enabling the setting Input “Enable” in the C-mail message and

send to 09044440011.

Confirming the setting Input “Confirm” in the C-mail message and

send to 09044440012.

* Sending the C-mail for this setting is free of charge.

* A C-mail reporting that settings are complete arrives from “09044440012”.

■ When a C-mail is blocked by the C-mail safety

block

When a C-mail is blocked by the C-mail safety block, “Unable to send

to selected person.” is displayed and the C-mail is not sent.

Using the Earthquake Early Warning

The Earthquake Early Warning is a service that delivers Earthquake

Early Warning distributed by the Japan Meteorological Agency to

au cell phones in the vicinity of the earthquake center. When you

purchase your au cell phone, it is set to receive Earthquake Early

Warning by default.

When you receive an Earthquake Early Warning, secure a safe

location depending on your surroundings and remain calm.

◎When an earthquake above level 5.0 on the Japanese scale

is anticipated, the Earthquake Early Warning will immediately

provide information on where any earthquake with a seismic

intensity of 4.0 or more is expected to occur.

◎Immediately after an earthquake occurs, the earthquake (Pwaves

or initial tremors) are captured and the location, scale, and

expected seismic intensity are automatically calculated. The

system then notifies affected regions as quickly as possible some

seconds in advance before strong tremors (S waves or main

tremor) begin.

◎Regions near the epicenter may not receive the Earthquake

Early Warning before strong tremors begin.

◎This service is available within Japan only.

◎The Earthquake Early Warning is available completely free of

charge.

◎KDDI (au) cannot be held responsible for any losses or damages

incurred due to interrupted communications or system outages

resulting in non-received or delayed information, the content of

that information, or any other issues related to this service.

Mail

◎For more details about the Japan Meteorological Agency

Earthquake Early Warning, refer to the Japan Meteorological

Agency homepage.

http://www.jma.go.jp/ (for PC)

When an Earthquake Early Warning is

Received

When an Earthquake Early Warning is received, a special warning tone will

sound and the phone will vibrate along with a notice on the screen.

1 An Earthquake Early Warning is received.

When an Earthquake Early Warning is received, a warning tone

(cannot be changed) sounds and is displayed in the status bar.

2 Slide the status bar to the bottom.

3

Select the Earthquake Early Warning information.

◎Earthquake Early Warning cannot be received when in a call,

and in some cases when receiving or sending a C-mail/e-mail

or when using the browser or other applications.

◎Earthquake Early Warning cannot be received in some cases

when the power to the mobile phone is turned off, or when in

an area with poor signal quality (such as in tunnels or below

ground). In these cases, missed Earthquake Early Warning

cannot be received again.

◎This system is not the same as those that distribute Earthquake

Early Warning to TV, radio, or other forms of media and

therefore the time when such notifications are received may

vary from those other media sources.

◎In some cases you may receive information regarding a region

different from that of your current location.

◎You cannot change the Earthquake Early Warning tone or

adjust its volume.

Setting Up the Earthquake Early Warning

1 On the C-mail screen, m → [Settings]

The C-mail settings screen is displayed.

2Receive Setting Set whether or not you want to receive

Earthquake Early Warning.

[Receive] [Not Receive]

Check Ring/Vib This option allows you to hear the warning

tone that is played when an Earthquake Early

Warning is received and feel the vibration

that occurs.

Sound in

manner mode

Set the warning tone when in manner mode.

The phone vibrates regardless of the current

[Vibrate] setting.

[Noti. with ringtone & vibration] [Noti. with

only vibration]

•

When set to [Noti. with ringtone & vibration],

the warning tone will play and the phone

will vibrate, even when the phone is set to

manner mode or silent mode.

• Whensetto[Noti.withonlyvibration],the

phone will only vibrate without a warning

tone when set to manner mode or silent

mode.

Mail

Select ringtone Set the ring tone to play when a new C-mail

is received.

Vibrate Set the type of vibration when a new C-mail

is received.

Setting Receiving Filter

1 On the C-mail screen, m → [Settings] →

[Receiving filter settings]

2Specified No.

setup

Specify a particular phone number to block

incoming C-mails.

Specified No.

list

The specified number list is displayed.

• Registeraphonenumbertoblock

incoming C-mails by pressing m and

selecting the entry mode from “Quote

Contacts”, “Quote Outgoing call log”,

“Quote Incoming call log”, “Quote C-mail

log”, and “Direct input”.

• Taparegisteredphonenumber→ “Edit

No.” to edit a phone number.

• Taparegisteredphonenumber→ “Delete

No.” to delete a phone number.

• Youcanregisterupto20phonenumbers.

• If“184(HideCallerIDNotification)”or“186

(Display Caller ID Notification)” is added

before a phone number, delete “184” or

“186” before registering the phone number.

• Thesenderreceiveanormalconfirmation

even if the C-mail message is rejected by

the filter. Normal charges are applied.

Unregistered

Contacts

Block C-mails from all phone numbers that

are not registered in your Contacts.

Setting Up C-mail

1 On the C-mail screen, m → [Settings]

The C-mail settings screen is displayed.

2Delete old

messages

Sets whether to delete C-mails in a thread,

starting from the oldest, when the maximum

number of text messages set via the [Text

message limit] setting is reached.

Text message

limit

Set the maximum number of C-mails to

display in a thread.

Edit signature Set the text that you can insert at the end of

your text messages.

Signature

auto-append

Set whether to automatically insert the

signature you have set at the end of all your

text messages.

Store function Set whether to automatically store C-mail

messages that failed to be sent in the C-mail

Message Center.

Select & Store: Select whether to store

messages individually.

Automatically: Automatically store in the

C-mail Message Center.

Receiving filter

settings

Set up filters for incoming mail.

Receive Setting Settings for the Earthquake Early Warning.

Check Ring/Vib

Sound in

manner mode

Notifications Set whether to display a notification icon in

the status bar when a C-mail is received.

Mail

PC-mail can be used from your PTL21 by setting your mail account used

with au one mail or on your PC.

• A PC-mail account must be set in advance to use PC-mail.

• To use au one mail in PC-mail, au one mail must be set in advance

by acquiring an au one mail account, enabling IMAP setting (initial

setting), and setting a mail password.

* Mail messages saved in the PTL21 may be lost if au one mail POP download setting is enabled and a

POP3 server is set for the PC-mail in the PTL21.

Setting Up PC-mail Account

A mail server can be set automatically for several mail addresses,

including au one mail addresses, and settings can be configured easily.

If the mail server is not set automatically, or if you want to configure

the settings manually, select “Manual setup” and specify a user name

and a mail server.

For details about mail server setting values, contact your service

provider or your mail account administrator beforehand.

1 On the Home screen, [ ] → [PC-mail]

If no mail account is registered in PC-mail, the mail account

registration screen is displayed.

2 Select the mail address field → Enter a mail address.

3 Select the password field → Enter a password.

4 [Next]

The mail server is set automatically.

Depending on the mail address, the mail server may not be set

automatically. If the mail server is not set automatically, or if you

selected “Manual setup”, specify a user name and a mail server.

Using PC-mail 5 Select the account name entry field → Enter a

account name.

6 Select the your name entry field → Enter your name.

7 [Done]

◎When registering your second mail account, after step 1, press m →

[More] → [Accounts] → m → [Add account].

◎From the third mail account, after step 1, press m → [Add account].

◎When registering a Exchange account in PC-mail, a confirmation/setting

screen regarding security remote management is displayed during or after

the settings. Follow the instructions displayed on the screen.

◎When setting the Exchange in “Accounts & sync”, the exchange account

is set automatically in PC-mail.

Sending PC-mail

1 On the Home screen, [ ] → [PC-mail]

If multiple mail accounts are registered, the PC-mail screen is

displayed. Select a mail account.

2 [Create new message]

3 Select the destination entry field → Enter a

destination.

4 Select the subject entry field → Enter a subject.

5 Select the message entry field → Enter a message.

6 [Send]

Mail

Receiving PC-mail

1 A PC-mail message is received.

is displayed on the status bar, and the PC-mail ring tone sounds.

2 Slide the status bar to the bottom.

3 Select PC-mail information.

4 Select the received PC-mail.

Viewing Received PC-mails

Sent and received PC-mail messages, as well as PC-mail messages

saved without being sent are saved in each mail box.

1 On the Home screen, [ ] → [PC-mail]

If multiple mail accounts are registered, the PC-mail screen is

displayed. Select a mail account.

2 m→ [Mailbox]

3 Select a folder.

4 Select a PC-mail.

Mail

Receiving Gmail

1 A Gmail message is received.

When a Gmail message is received, is displayed on the status bar,

and the Gmail ring tone sounds.

2 Slide the status bar to the bottom.

3 Select Gmail information.

4 Select the received mail.

Viewing Received Gmails

Sent and received Gmail messages, as well as Gmail messages

saved without being sent are saved and managed with labels.

1 On the Home screen, [ ] → [Gmail]

When multiple Google accounts are registered and synchronized

with Gmail, the inbox of the Google account used the last time is

displayed. To change the account, m → [Accounts] → Select an

account.

2 m → [Go to labels]

3 Select a label.

4 Select a mail.

Gmail is a mail service provided by Google. You can send and receive Gmail

messages with your PTL21.

Mail data can be shared using Gmail between a PC and the PTL21

browsers.

• A Google account is required to use Gmail.

• For details about Gmail, refer to the Google homepage.

• The service content may change without prior notice.

Sending Gmail

1 On the Home screen, [ ] → [Gmail]

2 m → [Compose]

3 Select the destination entry field → Enter a

destination.

4 Select the subject entry field → Enter a subject.

5 Select the message entry field → Enter a message.

6 [ ]

Using Gmail

Internet

PC websites can be viewed with the browser. Depending on

websites, the screen size may be automatically adapted to smart

phones or the site may already be designed for smart phones.

Viewing Sites

1 On the Home screen, [ ] → [Web]

The browser basic operations are as follows

• Tap:Selects/executesalinkorakey.

• Slide:Scrollsthescreen.

• Pinchin/Pinchout:Reduce/Enlargethescreen.

Double-tap and [ ]/[ ] are also used. ([ ]/[ ] appears

when the screen is slid.)

* Some operations may not be available or may differ depending on the website.

Using Address Bar

You can enter keywords to make a search and enter URL to display

websites.

1 On the browser screen, select the address bar.

2 Enter a keyword/URL.

3 Select an item from the search candidate list / Tap

[ ] on the right of the address bar.

◎Google Voice Search can be used by tapping [ ] after step 1.

Using Bookmarks/History

Bookmarking a Web Page

1 On the browser screen, m → [More] →[Add

bookmark]

The name and the URL can be edited.

2 [OK]

Using Bookmarks/History

1 On the browser screen, m → [Bookmarks]

2 [Bookmarks] / [Most visited] / [History]

3 Select a bookmark/history.

Internet

Using Browser

Multimedia

The PTL21 has a CMOS camera with approximately 5.0 effective megapixels

for shooting photos and movies.

Taken photos and movies are saved in the microSD memory card.

They can be viewed/played back in the gallery, sent via Bluetooth® or

as mail attachment, or uploaded on a sharing site.

◎Insert a microSD memory card in the PTL21 when using the camera.

■Available photo sizes

Select a photo size matching your usage.

Resolution Memory (estimate)

5M (2560×1920) Approx. 2 MB

4M (2240×1680) Approx. 1.5 MB

3M (2048×1536) Approx. 1.2 MB

2M (1600×1200) Approx. 800 KB

1M (1280×960) Approx. 400 KB

WVGA (800×480) Approx. 300 KB

VGA (640×480) Approx. 240 KB

■Available movie sizes

Select a recording mode matching your usage.

Resolution Movie length

720P (1280×720) Approx. up to 60 min

WVGA (800×480) Approx. up to 60 min

VGA (640×480) Approx. up to 60 min

QVGA (320×240) Approx. up to 60 min

Cautions for Using Camera

• Do not position the mobile light close to your eyes. Do not look at

the mobile light directly while it is on. Do not point the mobile light

toward the eyes of others. It may harm eyesight.

• The PTL21 may be warm after displaying the photo monitor screen or

doing repeated movie recordings for a long time. In this case, touching

the PTL21 for a long time may result in a low temperature burn. The

camera may also not be used when the PTL21 temperature has risen.

• When the remaining battery is low, or when the PTL21 is used in

extremely low temperature environment, such as outside in winter, the

camera may not be used.

• If you use the PTL21 camera in a wrongful manner, you may be subject to

punishment according to laws of the national or local governments.

Multimedia

Using Camera

Multimedia

In the gallery, you can display, play back and share images and

movies saved in the microSD memory card and edit images.

Viewing Photos/Movies

1 On the Home screen, [ ] → [Gallery]

2 Select an album.

3 Select an image/movie.

When you select an image, the one image display screen is

displayed.

When you select a video, the video player is launched and the movie

is played back.

Using Gallery

Taking a Photo

1 On the Home screen, [ ] → [Camera]

2 [ ]

After the PTL21 has auto focused, the shutter sounds and the photo

preview is displayed on the screen.

The shot image data is automatically saved.

Recording a Movie

1 On the Home screen, [ ] → [Camcorder]

2 [ ]

3 [ ]/Elapsed recording time.

A video preview is displayed on the screen.

Recorded data is automatically saved.

Applications

Using Android Market

Android Market is an application distribution service managed by Google.

You can download free and fee-based applications to use them on your

PTL21.

• A Google account is required to use Android Market.

• For details, visit the Google homepage or see the Android Market

help section on the Android Market screen, m→ [Help].

• The service content may change without prior notice.

1 On the Home screen, [ ] → [Market]

When you activate Android Market for the first time, the terms of

service are displayed. Tap “Accept” after confirming the contents.

◎Some applications may not be available when a microSD memory card is

not inserted.

◎Some applications make the display keep turned on or run in the

background, weakening the battery.

◎You can uninstall an application when you do not need it anymore.

Using au one Market

au one Market is an application distribution site managed by KDDI (au)

for smart phones running Android. You can download free and fee-based

applications to use them on your PTL21.

You can search the desired applications by categories, keywords or

ranking.

• An au one-ID is required to use some functions.

1 On the Home screen, [ ] → [au one Market]

The au one Market screen is displayed.

When you activate au one Market for the first time, the terms of service

are displayed. Tap “同意” (Agree) after confirming the contents.

◎Follow the terms of service to use au one Market. Procedures for

downloading applications and making payment for fee-based applications

differ depending on the distributor.

◎Some applications may not be available when a microSD memory card is

not inserted.

Applications

Managing Applications

You can configure application general settings, delete downloaded

applications and display detailed information on each application.

1 On the Home screen, [ ] → [Settings] →

[Applications]

2Unknown

sources

Sets whether to authorize installation of

applications downloaded from unknown

sources.

Manage

applications

Downloaded Select an application to display

detailed information and perform

operations such as uninstall,

erase data, send to microSD,

erase cache and stop forcefully

depending on the application.

All

On microSD

Running

services

A list of running services is displayed. You can

select a service to stop it.

Storage use The application size, data size, cache size,

default settings and access authorization can

be checked for each application. Data, cache

and settings can also be erased.

Battery use Displays the battery use percentage for each

running component. Select a component to

display its detailed information, hints on

reducing power consumption and setting items

names.

Development USB

debugging

Set debugging mode when a

USB cable is connected.

Stay awake Prevents the PTL21 from entering

the sleep mode when recharging

with the AC or DC adapter or when

a USB cable is connected.

Allow mock

locations

Sets whether to authorize the use

of mock locations information

data.

Settings

Viewing the Setting Menu

1 On the Home screen, [ ] → [Settings]

The setting menu screen is displayed.

Checking Your Profile

You can check the phone number and e-mail address registered

automatically in your PTL21, and register additional information, such as a

phone number for your home, a Gmail address or a name.

1 On the setting menu screen, [Profile]

2Edit Edits name, phone number or mail address.

Send via IrDA Sends the profile via IrDA.

Changing the Ring Tone

1 On the setting menu screen, [Sound] → [Phone

ringtone]

2 Select a melody → [OK]

Using the Remote Control Lock

In case of loss of your PTL21, you can activate the Remote control lock by

calling your PTL21 a set number of times from a specific phone number to

lock the screen of your PTL21 in order to prevent others from using it.

You can activate the Remote control lock on your PTL21 even if you did

not set up the Remote control lock beforehand by calling the Customer

Service Center or performing the necessary procedure on the au Customer

Support site (Security Lock Service).

◎We recommend setting a pattern, PIN or password beforehand in “Set up

screen lock”.

◎If “None” is set in “Set up screen lock”, the Remote control lock is

activated with “1234” as a PIN.

■Setting up the Remote control lock

1 On the setting menu screen, [Location & Security]

2 [Remote control lock]

When the screen has been locked, the unlock screen is displayed.

Enter the set pattern, PIN, or password to unlock the screen.

If “Remote control lock” is disabled in “Select device administrators”,

“Activate device administrator?” is displayed. Tap “Activate” if you

want to configure the Remote control lock.

3 Set [Remote control lock].

After the Remote control lock has been set, “Valid Caller ID”,

“Specified period” and “Incoming call count” can be configured.

Settings

4Valid Caller ID You can register up to three phone numbers.

You can directly input a phone number or

select from Contacts or the call log. You can

also select “Payphone”.

Specified period Set the time limit in which the number of

calls set in “Incoming call count” should be

received. Set from 1 to 10 minutes.

Incoming call

count

Set the number of incoming calls until the

Remote control lock is activated. Set from 3

to 10.

◎You can tap a set Valid Caller ID and select “Change phone number”,

“Remove this phone number”, or “Remove all”.

■To activate the Remote control lock

1 Call your PTL21 from a phone registered in “Valid Caller ID”

as many times as set in “Incoming call count” within the

“Specified period”.

◎Be sure to send your phone number when calling.

◎The Remote control lock cannot be activated if your PTL21 is turned off, is

outside the service area, or if “Airplane mode” is turned on. The Remote control

lock may also fail if your PTL21 is in an area with poor signal quality.

◎The Remote control lock cannot be activated if no au IC-Card, or if a IC-Card

which is not yours is inserted in your PTL21.

◎If “Area Settings” is set to something else than “Japan”, the Remote

control lock activation is not guaranteed.

■Unlocking the Remote control lock

Unlock the screen lock with your PTL21.

◎If “Set up screen lock” is set to “None”, you can enter “1234” and tap [OK]

after sliding to unlock in order to unlock the Remote control lock.

■Activating the Remote control lock using the

Security Lock Service

You can activate the Remote control lock on your PTL21 even if you did not

set the Remote control lock beforehand by calling the Customer Service

Center or by submitting the necessary information from a PC. However,

“Remote control lock” under “Select device administrators” must be

activated to use this feature (it is disabled at the time of purchase).

The Security Lock Service is available free of charge.

■Activate the Remote control lock by calling the Customer Service

Center

From au cell phones (toll-free): 113 (area code not required)

From any other cell phone or fixed-line phone (toll-free):

0077-7-113

• Available24hoursaday.

• Followtheautomatedvoicepromptstocompletetheprocedure.

■Activate the Remote control lock through au Customer Support

(https://cs.kddi.com/)

instructions on the screen to complete the procedure.

Settings

◎You must submit an application if using the Security Lock Service for the

first time. (This can be submitted even after losing your phone.)

◎The Remote control lock cannot be activated if your PTL21 is turned off, is

outside the service area, or if “Airplane mode” is turned on. The Remote control

lock may also fail if your PTL21 is in an area with poor signal quality.

◎The Remote control lock cannot be activated if no au IC-Card, or if a IC-Card

which is not yours is inserted in your PTL21.

■Unlocking the Remote control lock activated

through au Customer Support

Even if you activated the Remote control lock using the Security Lock

Service, you can unlock your PTL21 screen after you retrieve it.

Initializing PTL21

You can reset the settings of all functions to their factory default. Note that

all data saved in the PTL21 internal memory is deleted.

1 On the setting menu screen, [Privacy]

2 [Factory data reset] → [Reset phone]

If the screen lock is set, the unlock screen is displayed. Enter the

pattern, PIN or password to unlock the screen.

3 [Erase everything]

Wi-Fi

Activating/Inactivating Wi-Fi [ Caution ]

1 On the Home screen, [ ] → [Settings] → [Wireless & In the United States, 5180 ~ 5240MHz Band is restricted to indoor-

networks] use only. Outdoor operation on this band is a strict viloation of the

2 [Wi-Fi] FCC rules and can harmful interference to commercial radar

When the Wi-Fi function is turned on, the PTL21 starts scanning for communications. For outdoor operation, channel in 5180 ~ 5240MHz

networks. If a SSID of a network to which the PTL21 has been connected band must not be used. If using automatic channel assignment, add

before is found, the connection is made to that network. channels in this band to the automatic channel exclusion list.

is displayed in the status bar when connected.

Registering/Connecting to the Access

Point

1 On the Home screen, [ ] → [Settings] → [Wireless &

networks]

2 [Wi-Fi settings]

3 Turn on [Wi-Fi]

4 Select a network SSID.

■When connecting to an open wireless network

5 [Connect]

is displayed in the status bar when connected.

■When connecting to a secure wireless network

5 Enter the password.

6 [Connect]

is displayed in the status bar when connected.

Wi-Fi

Global Function

For Overseas Use without Anxiety

The overseas network conditions are available on the au

homepage. Make sure to check the conditions before leaving

Japan.

http://www.au.kddi.com/service/kokusai/tokomae/

■When your PTL21 is stolen or lost

• If your PTL21 is lost or stolen while overseas, please contact the Customer

Service Center immediately to suspend phone service. Be aware that any

calling charges or packet communication charges incurred after theft or

loss of a phone are the responsibility of the customer.

• If the au IC-Card inserted into your PTL21 is stolen or lost, the card may

be inserted into another cell phone (including cell phones for overseas

use) by a third party. So, it is recommended to change the PIN code and

to use the lock function to protect from improper use by a third party.

■Using the PTL21 properly by knowing about calling and

communication services overseas

• Charges differ depending on the country and region.

• Discount services and packet communications flat rate do not apply

to calling charges and packet communications charges incurred

while overseas.

• Calling charges are also incurred when receiving calls overseas.

• Depending on the country and region, calling charges may be

incurred from the time you tap [ ].

Global Passport is an international roaming service to use your PTL21

overseas without any additional application. The PTL21 can connect to

GSM networks, UMTS networks and CDMA networks depending on your

destination.

• You can use GSM networks, UMTS networks and CDMA networks

worldwide without changing your phone number.

• Calling charges are billed together with your monthly charges and

do not require any special application or separate daily payment.

For more information about countries using Global Passport GSM/

UMTS or Global Passport CDMA, charges, and other service

details, visit the au homepage or contact the Customer Service

Center.

Global Function

Using Global Passport

Global Function

Configuring the Overseas Settings

To use your PTL21 overseas, you are required to change to the

telecommunications carrier's networks that you connect to at your travel

destination.

Obtain the latest PRL (Preferred Roaming List) before traveling.

Obtaining the PRL (Preferred Roaming List)

The PRL (Preferred Roaming List) contains information on roaming

areas of overseas partner providers who have signed an international

roaming contract with KDDI (au).

1 On the Home screen, [ ] → [Settings] → [Wireless &

networks] → [Mobile networks]

2 Set [Data enabled]

3 [Roaming Settings] → [PRL Settings] → [Update PRL

version]

4 [PRLダウンロード] (PRL Download) → [最新ファイルは

こちら] (Latest file)

◎Be sure to set the latest PRL before leaving Japan.

◎You may not be able to communicate with your PTL21 overseas depending on

the area if you use old PRL data. Be sure to download the latest PRL data.

◎When you download the PRL data, packet communication charges apply.

Setting the Area

You can set the area where you use your PTL21 when you arrive at

destination.

1 On the Home screen, [ ] → [Settings] → [Wireless &

networks] → [Mobile networks]

2 [Roaming Settings] → [Area Settings]

3Japan Set for use in Japan.

Overseas

(CDMA)

Set when using Global Passport CDMA

overseas (automatic setting according to

PRL).

Overseas Auto

(GSM/UMTS)

Set when using Global Passport GSM/

UMTS overseas (automatic setting

according to PRL).

Overseas Manual

(GSM/UMTS)

Set when using Global Passport GSM/

UMTS overseas while selecting the

overseas telecommunications carrier

manually.

Select a network name.

◎The country selection screen may be displayed when “Overseas (CDMA)”

is set. Select the travel country.

Setting the Data Roaming

Configure this setting to use packet communication at destination

(while roaming).

1 On the Home screen, [ ] → [Settings] → [Wireless &

networks] → [Mobile networks]

Global Function

2 Enable [Data roaming] → [OK]

◎“Area Settings” must be set to “Overseas (CDMA)”, “Overseas Auto (GSM/

UMTS)”, or “Overseas Manual (GSM/UMTS)” in advance to enable Data

roaming.

◎If you have not subscribed to IS NET, au.NET charges (525 yen for the

used month only) and communication charges apply.

Setting the Time

When “Date & Time” is set to “Automatic” (factory default setting), the

PTL21 correct the time difference by acquiring time information from the

telecommunications carrier's network it is connected to.

With GSM/UMTS roaming, “Automatic” can be disabled and the time

can be set manually using “Set date”, “Select time zone” and “Set

time”.

With CDMA roaming, manual setting is not available.

◎The time difference may not be corrected properly depending on the

telecommunications carrier's network.

◎The time needed to correct the time differ depending on the

telecommunications carrier.

◎In country using daylight saving time, check that the real time and the time

displayed on your PTL21 are the same. Daylight saving time may not be

supported depending on the telecommunications carrier.

Making a Call at Your Travel Destination

Making a Call to Another Country (Including

Japan) from Your Travel Destination

You can make a call to Japan or another country from your travel

destination.

Example: To call 212-123-XXXX in the USA from Korea

1 On the Home screen, [ ]

2 Enter the international access code of your

destination, and the country code, area code and

phone number of the recipient → [ ]

International

access

code

(Korea)*1

➡

Country

code*2

(USA) ➡

Recipient

area code*3 ➡

Recipient

phone

number

002 1 212 123XXXX

*1 Long-touch “0” to enter “+” and the international access code of your ravel

destination is automatically added when calling.

*2 If the person you are calling uses Global Passport, enter “81” (Japan) for the country

code regardless of their location.

*3 If the area code starts with “0”, dial it without including the “0”. There are some

exceptions such as fixed-line phones in Italy or Moscow.

Global Function

Making a Call within the Same Country While

Overseas

You can call to general fixed-line phones and cell phones with the

same method as when calling in Japan. There are some exceptions

such as when calling in the USA mainland, Hawaii, Saipan or Mexico

using Global Passport CDMA.

1 On the Home screen, [ ]

2 Enter the recipient area code and phone number →

[ ]

■For USA mainland, Hawaii, Saipan (when using CDMA)

2 “1” → Recipient area code and phone number →

[ ]

■For Mexico local calls (when using CDMA)

2 Enter the recipient phone number → [ ]

■For Mexico long distance calls (when using CDMA)

2 “01” → Recipient area code → Recipient phone

number → [ ]

Receiving a Call at Your Travel Destination

You can receive calls with the same method as when receiving calls

in Japan.

1 Slide to the right during an incoming call.

◎If you receive a call while overseas, the call is forwarded from Japan no matter

where the call is made from. Call charges to Japan are incurred by the caller and

receiving charges by the receiver (PTL21).

■Having calls made to your travel destination from

Japan

People calling you can use the same method as when you are in

Japan.

■Having call made to your travel destination from

countries other than Japan

The call is forwarded to Japan no matter the destination so the

country code is “81” (Japan).

Example: Someone calling your “090-1234-XXXX” PTL21 in Korea from the

USA

1 Enter the international access code of the caller's country,

Japan country code, your PTL21 phone number without the

first “0” → Call

International

access code

(USA) ➡

Japan

country

code ➡

PTL21 phone number

(without the first “0”)

011 81 901234XXXX

Appendix/Index

Troubleshooting

Trouble Detail Page

Cannot turn on by

pressing p.

Is the battery pack charged? P. 8

Is the battery pack properly installed? –

Are the contacts on the battery pack clean? –

Do you hold down p for at least 1 second? P. 9

The power is turned

off automatically.

Has the battery run out? P. 8

The power is turned

off while the wake-up

screen is displayed.

Is there enough power left in the battery pack?

* If the remaining power is low, the screen turns off soon

after wake-up screen is displayed.

P. 8

Cannot make any

phone calls.

Is your PTL21 turned on? P. 9

Is the au IC-Card inserted? P.11

Is the phone number you entered correct?

(Did you start with the area code first?)

P.28

Did you tap [ ] after entering the phone

number?

P.28

Did you set correct setting in “Area Settings”? P.52

Is your PTL21 in “Airplane mode”? –

Cannot receive any

phone calls.

Do you have sufficient signal strength? P.18

Are you outside the service area? P.18

Is your PTL21 turned on? P. 9

Is the au IC-Card inserted? P.11

Did you set correct setting in “Area Settings”? P.52

Did you set “Call Block”? –

Is your PTL21 in “Airplane mode”? –

Is the call forwarding service set? –

Trouble Detail Page

The “out of service

area” indicator is

displayed.

Are you outside the service area or in a location

with poor signal strength?

P.18

Are you covering the built-in antenna with your

fingers or hand?

P. 6

Did you set correct setting in “Area Settings”? P.52

Cannot connect with

Wi-Fi.

Is your PTL21 receiving a signal from the wireless

access point?

P.18

Did you configure your Wi-Fi settings? P.50

I cannot hear any

ring tone.

Is the volume set to “0”? –

Is your PTL21 in manner mode? P.30

Cannot charge the

battery pack.

Is the charger connected properly? P. 8

Is the battery pack properly installed? –

Are the terminals of the desktop holder or PTL21

clean? –

Cannot charge from a PC via a microUSB

cable. –

Cannot perform any

key/touch panel

operations.

Is your PTL21 turned on? P. 9

Did you unlock the screen? P. 9

Is your PTL21 in sleep mode? P. 9

“auIC Card(UIM)

error” is displayed.

Is the au IC-Card inserted? P.11

Is a card different from the au IC-Card used? P.11

A message

indicating “Please

connect charger”

appears and an

alarm sounds.

The battery pack is almost empty. P. 8

Appendix/Index

Trouble Detail Page

Battery usage time

is short.

Is the battery pack approaching the end of its

service life? –

Do you often use your PTL21 in areas with low or

no signal strength?

P.18

Using functions such as Wi-Fi, 3G data

communication, GPS, Bluetooth®, and Auto

Sync shortens the battery life. The battery will

last longer if unused functions are turned off.

Each function can be turned on/off easily using

easy setting icons.

P.19

The battery consumption can be reduced by

closing unused applications. –

The battery consumption can be reduced by

setting the screen to a darker brightness and

shortening “Screen timeout” setting.

–

I hear a beeping

sound and cannot

make any phone

calls.

Are you outside the service area or in a location

with poor signal strength?

P.18

Either the network is very busy, or the person

you are trying to call is already on the phone.

Try again later.

–

The light of the

display turns off

quickly

Is “Screen timeout” set to be long enough?

–

Cannot hear the

other person on

the line.

Is your earpiece volume turned all the way

down?

P.28

Are you covering up the earpiece with your ear?

Place the earpiece to your ear.

P. 6

Cannot operate any

key and the screen is

frozen.

If you PTL21 does not turn off by holding down p,

remove the battery pack for several seconds, then

install it again. The data being edited are lost.

–

The microSD

memory card is not

recognized

Is the microSD memory card inserted properly? P.14

Is the microSD memory card unmounted? –

Cannot operate the

camera.

Is there enough power left in the battery pack? P.43

Is the PTL21 very warm or extremely cold? P.43

For more information, visit the au homepage or contact the Customer

Service Center.

http://www.kddi.com/customer/service/au/trouble/kosho/index.

html

Appendix/Index

Index

Number

001 International Call Service .................29

AC adapter ....................................................... 8

Address bar ....................................................42

Allow mock locations .................................46

Alphabet entry .............................................25

Alphanumeric, Kana key ...........................24

Android Market ............................................45

Android robot ...............................................10

Application settings ...................................46

Area Settings .................................................52

au IC-Card ..................................................7, 11

Inserting ................................................12

Removing ..............................................12

au one-ID setting ......................................... 11

au one Market ...............................................45

Back function ................................................26

BACK key ...........................................................7

Battery pack..................................................... 7

Charging .................................................. 8

Battery use .....................................................46

Bookmarks .....................................................42

Browser ...........................................................42

Built-in antenna .............................................7

Call log .............................................................30

Camera ............................................................43

Record movie .......................................44

Take photo ............................................44

Camera lens ..................................................... 7

Cell phone-PC common setting .............11

Changing the ring tone .............................47

Character entry mode icons ....................24

Character input ............................................24

Charging ........................................................... 8

Charging indicator ........................................ 7

Charging terminals ....................................... 7

C-mail ...............................................................35

C-mail safety block .............................36

Create new message .........................35

Receive ...................................................35

Receiving filter .....................................38

Send ........................................................35

Settings ..................................................38

Thread ....................................................35

Contacts ..........................................................31

Context menu ...............................................16

Conversion key .............................................25

Cursor key ......................................................24

Data roaming ................................................52

Development ................................................46

Display ...............................................................7

Displaying images .......................................44

Displaying the menu ..................................16

Double-tap ....................................................15

Drag and drop ..............................................15

Dust resistance ............................................... 2

Earpiece ............................................................7

Earthquake Early Warning ........................36

Editing Contact ............................................31

E-mail ...............................................................32

Changing e-mail address.................33

Create new message .........................32

Initial setup ...........................................10

Mail filters ..............................................33

Receive ...................................................32

Recommended Settings ..................33

Send ........................................................32

Emoji ................................................................26

Emoticon ........................................................26

Enter key .........................................................25

Entry mode switch key ..............................24

External connection jack ............................ 7

Factory data reset ........................................49

Flick ...................................................................15

Flick input .......................................................26

Gallery .............................................................44

Global Passport ............................................51

Gmail ................................................................41

Create new message .........................41

Label........................................................41

Receive ...................................................41

Send ........................................................41

Handwriting input ......................................27

HOME key .........................................................7

Home screen .................................................17

Included items ................................................2

Incoming call log .........................................30

Incoming indicator .......................................7

Infrared port .................................................... 7

Initializing .......................................................49

Initial setup ....................................................10

International call ..........................................29

Item selection ...............................................16

Launcher menu ............................................21

Lock slider ........................................................7

Long-touch ....................................................15

Mail filters .......................................................33

Manner mode ...............................................30

Market .............................................................45

MENU key ......................................................... 7

Microphone ..................................................... 7

Appendix/Index

microSD memory card...............................13

Inserting ................................................14

Removing ..............................................14

microSD memory card slot ........................ 7

Mobile light ..................................................... 7

Movie sizes .....................................................43

Name and functions of parts .................... 6

Network SSID ................................................50

Normal conversion......................................24

Normal mode ................................................23

Notification indicators ...............................17

Notification/status panel ..........................19

Numeric entry ...............................................26

Optical sensor ................................................. 7

Option menu .................................................16

Outgoing call log .........................................30

PC-mail ............................................................39

Create new message .........................39

Receive ...................................................40

Send ........................................................39

Setting up account ............................39

Phone

Answering a call ..................................29

Making a call ........................................28

Making/Receiving calls at your

travel location .................................53

Photo sizes .....................................................43

Pinch out/Pinch in .......................................15

PIN code ............................................................3

Power key ......................................................... 7

PRL ....................................................................52

Proximity sensor ............................................7

PUK code ..........................................................3

Receiver.............................................................7

Recording movies........................................44

Remote control lock ...................................47

Roaming settings ........................................52

Running services .........................................46

Search web ....................................................42

Security code .................................................. 3

Security Lock Service .................................48

Simple mode .................................................23

Sleep mode ......................................................9

Slide ..................................................................15

Speaker .............................................................7

Special number key ....................................28

Spoof Restriction .........................................34

Status bar .......................................................17

Status indicators ..........................................18

Stay awake .....................................................46

Storage use ....................................................46

Strap eyelet ......................................................7

Switching character entry mode ...........25

Switching Home screen ............................20

Switching input software .........................27

Switching software keyboards ...............25

Symbol ............................................................26

Taking photos ...............................................44

Tap ....................................................................15

Thread..............................................................35

Touch panel ................................................... 15

Troubleshooting ..........................................55

Turning on/off the power ...........................9

Undo function ..............................................26

Unknown sources ........................................46

Uppercase/Lowercase characters

switch key ..................................................25

USB debugging ............................................46

Valid Caller ID ................................................48

Viewing photos/movies ............................44

Voice Input .....................................................26

Volume key ...................................................... 7

Wallpaper .......................................................19

Water resistance .............................................2

Web ..................................................................42

Widgets ...........................................................20

Appendix/Index

Aplix End-User License Agreement

About Software

This mobile telephone contains software of third parties other than the company.

Each customer using the telephone is granted a non-transferable and non-exclusive

license to use the installed software solely in conjunction with the use of this mobile

telephone. The consent in relation to use rights shall not be construed as the sale of

the software to the customer. The customer shall not reproduce, modify, distribute,

make available to the public, copy, alter or reverse engineer a part or the whole of

the software, and shall not decompile the source code. Each third party holding

rights of ownership in the software has exclusive ownership of the software, is the

holder of all rights, title and interest, and enjoys all benets in relation thereto.

User rights in the software installed in the mobile telephone are granted to the

customer on an “as is” basis. Notwithstanding any express or implied statements,

no warranty is given in relation to adaptation to a specic purpose, meeting the

demands of the customer, non infringement of the intellectual property rights of a

third party in relation to all software. Also, no warranty is given regarding proper

operation in case of continuous use of the software. Some jurisdictions do not allow

the exclusion of implied warranties, so the above exclusion may not apply or may

be limited.

About Open Source Software

This product includes the following open source software based on Android

software developed by Google Inc..

See detailed information in relation to this product on the following website.

http://opensource.pantech.com/

It is prohibited to perform or participate in the modication, translation,

adaptation, reverse engineering, decompiling, de-assembly of the software

installed in this product, or a part thereof.

This product shall not be taken out of Japan except when permitted by law or

regulation. (The U.S. Export Administration Regulations currently prohibit export

of this device to the following countries-Cuba, Iran, North Korea, Sudan and

Syria. (As of August 2011)).

microSD and microSDHC are trademarks of SD Association.

This product includes Flash® Lite™ of Adobe Systems Incorporated.

Adobe, Adobe Acrobat, Flash, FlashLite and Macromedia are trademarks or

registered trademarks of Adobe Systems Incorporated in the United States and

other countries.

The Bluetooth® word trademark and the logo are registered trademarks of

Bluetooth SIG, Inc. Pantech has received a license to use these trademarks.

Wi-Fi® is a registered trademark of Wi-Fi Alliance®.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an ocial DivX Certied® device that plays

DivX video. Visit divx.com for more information and software tools to convert your

les into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be

registered in order to play purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device

setup menu. Go to vod.divx.com for more information on how to complete your

registration.

User License

Appendix/Index

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

All other trademarks remain the property of their respective owners.

iWnn of OMRON SOFTWARE Co, Ltd. is used for conversion methods for

Japanese language, and for phrase prediction methods for English.

InnoPath, the InnoPath Logo, and iMDM are registered trademarks of Innopath

Software, Inc.

All other trademarks are properties of their respective owners.

MAVEN is a trademark of Emersys, Inc.

Overwritten handwritten script recognition uses the LaLa Stroke of Toshiba Inc.

LaLa Stroke is a trademark of Toshiba Inc.

Microsoft®, Windows®, Windows Vista®, Microsoft® Excel®, Windows Media®,

Exchange® are trademarks or registered trademarks of Microsoft Corporation

America in the United States and other countries.

Microsoft® Word, Microsoft® Oce are trade names of Microsoft Corporation

America.

“Google”, “Google” logo, “Android”, “Android” logo, “Android market”, “Android

market” logo, “Gmail”, “Google Apps”, “Google calendar”, “Google Checkout”,

“Google Earth”, “Google Latitude”, “Google Maps”, “Google talk”, “Google

News”, “Picasa”, and “YouTube” are trademarks or registered trademarks of

Google Inc.

“Twitter” is a registered trademark of Twitter, Inc.

Skype, associated trademarks and logos and the “S” symbol are trademarks of

Skype Limited.

“jibe” is a social service related application produced by Jibe Mobile K.K.

“Jibe Mobile” is a registered trademark of Jibe Mobile K.K.

reserved.

emblend is a trademark of Aplix Corporation in Japan and other countries.

This product is granted an AVC Portfolio License for the personal and non-

commercial use of a consumer to (i) encode video in compliance with the AVC

Standard (“AVC Video”) and/or (ii) decode an AVC Video (limited to an AVC Video

that was encoded by a consumer engaged in a personal and non-commercial

activity and/or was obtained from a video provider licensed to provide AVC

Video). No license is granted or shall be implied for any other use. Additional

information may be obtained from MPEG LA, LLC. See http://www.mpegla.com

This product is granted a VC-1 Patent Portfolio License for the personal and non-

commercial use of a consumer to (i) encode video in compliance with the VC-1

Standard (“VC-1 Video”) and/or (ii) decode a VC-1 Video (limited to a VC-1 Video

that was encoded by a consumer engaged in a personal and non-commercial

activity and/or was obtained from a video provider licensed to provide VC-1

Video). No license is granted or shall be implied for any other use. Additional

information may be obtained from MPEG LA, LLC. See http://www.mpegla.com

Other company and product names are the trademarks or trade names of the

respective companies.

Safety Information

CE Declaration of Conformity

In some countries/regions, such as France, there are restrictions on

the use of Wi-Fi. If you intend to use Wi-Fi on the handset abroad,

check the local laws and regulations beforehand.

■Operation Temperature

0 - 45 °C (without adaptor), 0 - 45 °C (with adaptor)

■Battery

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT

TYPE.

DISPOSE OF USED BATTERY ACCORDING TO THE INSTRUCTIONS.

■Sound pressure- CAUTION

Excessive sound pressure from earphones can cause hearing loss.

■AC Adapter

The mains plug is used as the disconnect device, the disconnect device

shall remain readily operable.

Any AC adapter used with this handset must be suitably approved with

a 5Vdc SELV output which meets limited power source requirements as

specified in EN/IEC 60950-1 clause 2.5.

■USB

“The USB port has to be connected to USB interfaces USB 2.0 versions or

higher.”

FCC Notice

■SAFETY INFORMATION FOR FIXED WIRELESS

TERMINALS

POTENTIALLY EXPLOSIVE ATMOSPHERES

Turn your phone OFF when in any area with a potentially explosive

atmosphere and obey all signs and instructions. Sparks in such areas could

cauls e an explosion or fire resulting in bodily injury or even death.

INTERFERENCE TO MEDICAL DIVICES

Certain electronic equipment may be shielded against RF signal from you

wireless phone. (pacemakers, Hearing Aids, and so on) Turn your phone

OFF in health c are

facilities when any regulations posted in these areas instruct you to do

so. RF signals may affect improperly installed or inadequately shielded

electronic system in motor vehicles.

EXPOSURE TO RF ENERGY

Use only the supplied or an approved replacement antenna. Do not touch

the antenna unnecessarily when the phone is in use. Do not move the

antenna close to, or couching any exposed part of the body when making

a call.

SAFETY INFORMATION FOR RF EXPOSURE

■Body worm operation

This device was tested for typical body-worn operations with the back of

the phone kept 1 cm. from the body. To maintain compliance requirements,

use only belt-clips, holsters or similar accessories that maintain a 1

cm separation distance between the user’s Body and the back of the

phone, including the antenna. The use of belt-clips, holsters and similar

accessories should not contain metallic components in its assembly. The

use of accessories that do not satisfy these requirements may not comply

with FCC RF exposure requirements, and should be avoided.

For more information about RF exposure, please visit the FCC website at

www.fcc.gov.

SAR INFORMATION

THIS MODEL PHONE MEETS THE GOVERNMENT’S

REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your wireless phone is a radio transmitter and receiver. It is designed

and manufactured not to exceed the emission limits for exposure

to radiofrequency (RF) energy set by the Federal Communications

Commission of the U.S. Government. These limits are part of

comprehensive guidelines and establish permitted levels of RF energy

for the general population. The guidelines are based on standards that

were developed by independent scientific organizations through periodic

and thorough evaluation of scientific studies. The standards include a

substantial safety margin designed to assure the safety of all persons,

regardless of age and health. The exposure standard for wireless mobile

phones employs a unit of measurement known as the Specific Absorption

Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *

Tests for SAR are conducted with the phone transmitting at its highest

certified power level in all tested frequency bands. Although the SAR is

determined at the highest certified power level, the actual SAR level of

the phone while operating can be well below the maximum value. This is

because the phone is designed to operate at multiple power levels so as

to use only the power required to reach the network. In general, the closer

you are to a wireless base station antenna, the lower the power output.

Before a phone model is available for sale to the public, it must be tested

and certified to the FCC that it does not exceed the limit established by

the government adopted requirement for safe exposure. The tests are

performed in positions and locations (e.g., at the ear and worn on the body)

as required by the FCC for each model. The highest SAR value for this

model phone when tested for use at the ear is 0.388 W/Kg and when worn

on the body , as described in this user guide, is 1.02 W/Kg . (Body-worn

measurements differ among phone models, depending upon available

accessories and FCC requirements). While there may be differences

between the SAR levels of various phones and at various positions, they all

meet the government requirement for safe exposure. The FCC has granted

an Equipment Authorization for this model phone with all reported SAR

levels evaluated as in compliance with the FCC RF exposure guidelines.

SAR information on this model phone is on file with the FCC and can be

found under the Display Grant section of http://www.fcc.gov/ oet/fccid after

searching on FCC ID: JYCCDMAPTL21

Additional information on Specific Absorption Rates (SAR) can be found on

the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at

http://www.wow-com.com. * In the United States and Canada, the SAR

limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged

over one gram of tissue. The standard incorporates a sub-stantial margin

of safety to give additional protection for the public and to account for any

variations in measurements.

U.S.FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

■INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the

limits for a Class B digital device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

Interference in a residential installation This equipment generates, uses,

and can radiate radio frequency energy and, if Not installed and used in

accordance with the instructions, may cause harmful Interference to radio

communications. However, there is no guarantee that interference will

not occur in a particular Installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet of a circuit different from that to

which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for assistance.

Changes or modification not expressly approved by the party responsible

for Compliance could void the user’s authority to operate the equipment.

Connecting of peripherals requires the use of grounded shielded signal

cables.

FCC Compliance Information

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

Cell phone and PHS operators collect and

recycle unused telephones, batteries and battery

chargers at stores bearing the logo

regardless of brand and manufacturer to protect

the environment and reuse valuable resources.

For inquiries, call: Customer Service Center

For general information and charges (toll free)

From fixed-line phones:

157 area code not required

In case above numbers are not available,

August 2011 Edition

Sales: KDDI CORPORATION·OKINAWA CELLULAR TELEPHONE COMPANY

Manufactured by: Pantech Co., Ltd.

PRESSING ZERO WILL CONNECT YOU TO AN OPERATOR

AFTER CALLING 157 ON YOUR au CELLPHONE.

For loss, theft or damage and operation

information (toll free)

0077-7-111

0120-977-033 (except Okinawa)

0120-977-699 (Okinawa)

From au cell phones:

From fixed-line phones:

113 area code not required

0077-7-113

From au cell phones:

Pantech Co CDMAPTL21 GSM/WCDMA/CDMA Phone with Bluetooth/WLAN/NFC User Manual

Pantech Co Ltd GSM/WCDMA/CDMA Phone with Bluetooth/WLAN/NFC

user manual

Navigation menu

Namespaces

Views

Navigation
