Users Manual

Contents 1

GETTING STARTED .................................... 03

Phone overview ............................................04

Manu overview .............................................06

Charging the battery ...................................07

Turn on/off the phone .................................08

Display icons .................................................08

Entering text .................................................08

Activating your Virgin Mobile account ......10

Finding your phone’s serial number ...........10

Programming your phone ...........................10

MY ACCOUNT ........................................... 11

My account ...................................................12

Checking your account balance ..................12

Top-Up your account ....................................12

For more information ..................................13

CALLS & CONTACTS .................................15

Making, receiving & ending a call ..............16

Caller identification .....................................17

Call waiting function ...................................17

Speaker phone .............................................17

Vibrate on/off mode ....................................17

Making an emergency call ..........................17

Options during a call ...................................17

Call setting ....................................................18

Checking all calls ..........................................19

Speed dialing ................................................20

Using contacts ..............................................20

Voice commands (AVR) ................................21

Using your headset ......................................23

MESSAGING .............................................. 25

Messaging .....................................................26

Received message .........................................26

Voicemail ....................................................... 26

Sent message ................................................27

Creating and send new message ................28

Message templates .......................................28

Create and send new multimedia

message .........................................................28

Create and send new email message .........29

Create and send new instant message .......29

Virgin alerts ..................................................29

Erase messages .............................................30

Message setting ............................................30

MULTIMEDIA ............................................31

Camera ..........................................................32

Pictures and image album ...........................33

Music and sound album ...............................34

Themes album ..............................................34

Other files .....................................................34

Playing game ................................................35

USEFUL FEATURES .................................... 37

Calendar ........................................................38

Alarm clock ...................................................38

Calculator, Tip calculator, Stopwatch &

World clock ...................................................38

Voice memo ..................................................39

SETTINGS .................................................. 41

Ringtones, Alerts & Tones ............................42

Decorate the display ....................................43

Call options ...................................................44

Security ..........................................................44

Msg settings ..................................................44

Game settings ...............................................45

Bluetooth ......................................................45

To set other options .....................................45

Phone info ....................................................45

CONNECTIVITY .........................................47

Bluetooth ......................................................48

Using the internet ........................................50

VirginXL ........................................................51

My stuff .........................................................51

APPENDIX ................................................. 53

About the battery usage .............................54

Error message ...............................................55

Troubleshooting checklist ............................55

12 Month limited warranty .........................56

Safety information for wireless handheld

phone ............................................................58

Safety information for FCC RF exposure ....61

SAR information ...........................................62

FCC Hearing-Aid Compatibility (HAC)

regulations for wireless devices ..................63

FDA consumer update .................................64

Avoid potential hearing loss .......................69

CTIA user information requirements ..........70

Index ..............................................................71

2 Contents

CHAPTER 1

GETTING

STARTED

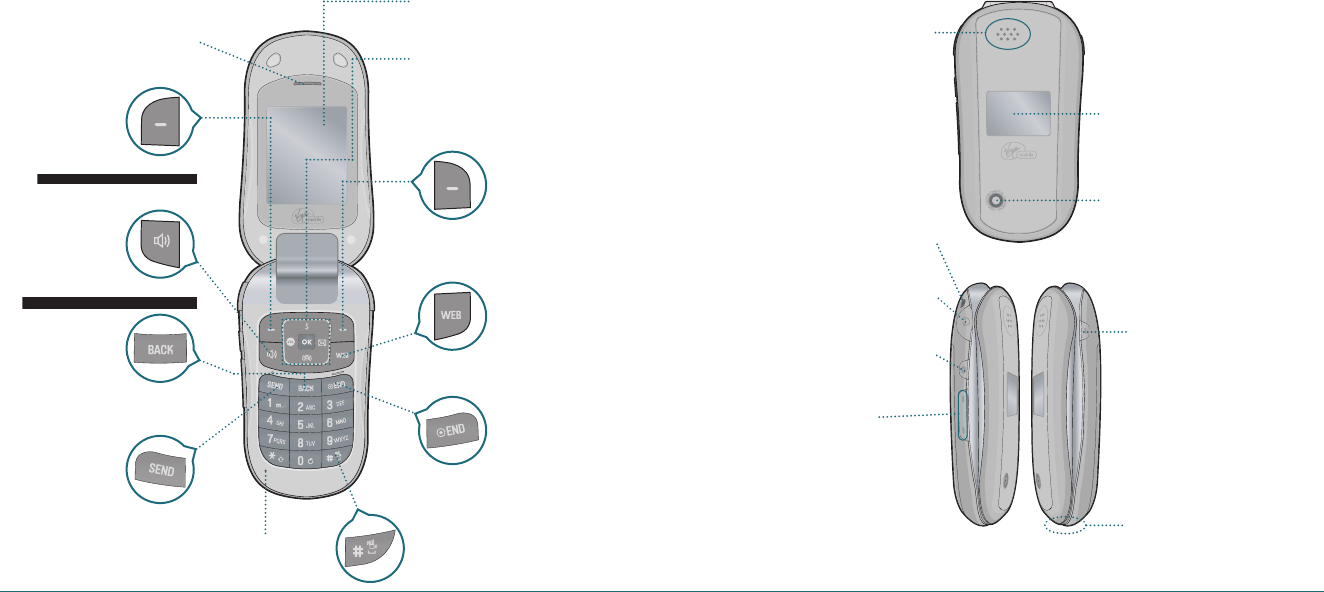

Phone overview

Menu overview

Charging the battery

Turn on/off the phone

Display icons

Entering text

Activating your Virgin Mobile account

Finding your phone’s serial number

Programming your phone

CHAPTER 1 GETTING STARTED

Getting Started 5

Left soft key

Perform the functions shown at the

Left bottom of the display.

Microphone

Allows the other caller to hear you

clearly when you are speaking to them.

Camera key

Press for quick access to

camera function.

Headset jeck

Plug in the Headset Interface

Connector.

Side volume key

•

Adjusts the earpiece volume.

When phone is closed:

•

Press and hold Up to turn the

backlight on.

•

Press and hold Down to turn the

melody off when receiving an

incoming call.

•

Press and hold to reject the

incoming call.

AVR key

Press to enable VoiceSignal

PHONE OVERVIEW

Open view of your phone

4 Getting Started

Speaker key

Press to turn Speaker Phone On or Off.

SEND key

Press to make or receive a call.

Earpiece

The earpiece allows you to hear

the other caller.

END key/Power on and off key

Press to end a call or to return to idle mode.

Press and hold to turn phone On/Off.

WEB key

To access

Serf the Web

menu.

Right soft key

Perform the functions shown at the

Right bottom of the display.

Vibrate mode key

Press and hold to turn Vibrate

mode On/Off.

Navigation and shortcuts keys

Scroll through the menu options.

Left

: Access

Serf the Web

: Access

VirginXL

Right

: Access

Send Text Msg

Down

: Access

Recent Calls

Internal display

To display the phone's main menu, features,

modes, etc.

Speaker

Music, Ringtones, and

Sounds are played

through the speaker.

External display

To display the phone's status and see

who's calling without opening the

phone.

Camera lens

To the built-in camera lens lets you

take pictures.

Closed view of your phone

Strap hole

Accessory eyelet (for optional straps

and lanyards).

Travel charger jeck

Plug in the Travel Charger

Interface Connector.

Back key

Press to clear a digit from the display or

to return to the previous page.

MANU OVERVIEW

6 Getting Started Getting Started 7

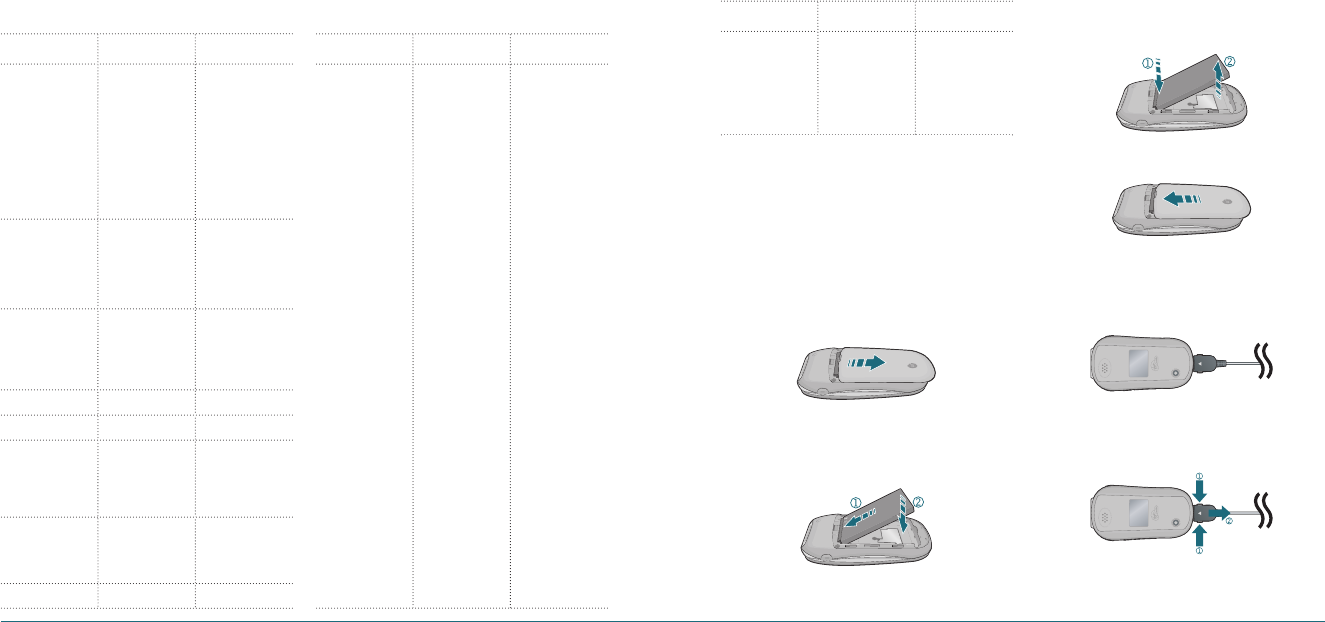

CHARGING THE BATTERY

About your battery

Your phone uses a Li-Ion battery. Make sure to use

an authorized battery and charger only. For more

details, please ask your nearest dealer.

To install/remove your battery

Remove the battery cover from the unit.

Slide the battery into the slot located at the

bottom of the unit and press until you hear

the “click”.

To remove the battery, push down on the top

of the battery and slide it out.

Slide the battery cover back into the unit.

To charge your battery

To charge open the protective cover on the

bottom and connect the charger adapter.

To remove the adapter connection press the

adapter’s side buttons(1) and pull.

MAIN MENU 2ND DEPTH 3RD DEPTH

9. Tools&Settings 1. Tools

2. Display

3. Sounds

4. Call options

5. Security

6. Msg settings

7. Game settings

1. Calendar

2. Alarm clock

3. Tip calculator

4. Calculator

5. World clock

6. Stopwatch

7. Voice command

8. Voice memo

1. Graphics

2. Menu style

3. Greeting banner

4. Contrast

5. Backlight

6. Themes

1. My ringtones

2. Msg tones

3. Service alerts

4. Volume

5. Power tone

6. Key tone

1. Call reminder

2. Call answer

3. Auto answer

1. Lock phone

2. Change lock code

3. Special numbers

4. Erase contacts

5. Erase downloads

6. Reset phone

1. Msg tones

2. Reminder

3. Text entry

4. Auto text

5. Save to sent

6. Signature

7. Groups

8. Auto erase

1. Volume

2. Backlight

3. Messaging

MAIN MENU 2ND DEPTH 3RD DEPTH

1. Messaging

2. Contacts

3. Recent Calls

4. My Account

5. VirginXL

6. My Stuff

7. Pictures

8. Surf the Web

1. Send text msg

2. Send pic msg

3. Send email msg

4. Send IM

5. Inbox

6. Virgin Alerts

7. Voicemail

8. Sent

9. Saved

10. Msg settings

11. Erase msgs

1. Find name

2. Add new

3. Groups

4. Speed dial

5. My phone

number

1. Missed calls

2. Received calls

3. Outgoing calls

4. All calls

5. Call timers

1. My ringtones

2. My graphics

3. My games

4. My themes

5. My other stuff

1. Take a picture

2. My pictures

3. Send pic msg

4. Help

MAIN MENU 2ND DEPTH 3RD DEPTH

9. Tools &

Settings

8. Bluetooth

9. Others

10. Phone info

1. Language

2. Airplane mode

3. TTY mode

4. Location

1. My phone number

2. Version info

TURN ON/OFF THE PHONE

To turn on

Press and hold [

To turn off

Press and hold [

DISPLAY ICONS

Display indicators

Icon Name

Signal strength or Airplane

Calling/No Service/Emergency/

Speaker/Data*

Ring type (Ringtone/Vibrate_Ring/

Silent/Vibrate)

Text, Voice, Picture, WAP, Multi,

Email, IM (Instant Message)

Alarm/Schedule

Bluetooth (On/Connected/Pairing)

TTY/GPS (Location)/Lock Mode

Battery (Strength/Charging)

* Network dependent

ENTERING TEXT

The input mode (Alpha editor) will automatically

be activated when necessary to enter letters and

numbers. As shown below, there are 4 available

modes ; Standard input mode (Abc), Input mode

(T9Abc), Numeric mode (123) and Symbols. The

input mode indicator appears on the upper right

of the display when letters and numbers are

entered. To select the desired input mode among

the 5 modes below, press

Options

and then select

input mode.

Useful keys

Key Function

Press to accept a word and add

a space.

In T9Abc Mode, press to view

the next matching word if the

highlighted word is not the word

you intended.

Press to delete a character to the

left of the cursor.

Confirm the letters and numbers

you entered.

Press to select a letter case of the

standard text input or text input

mode. and

indicate the standard text input.

and

indicate the predictive text input.

8 Getting Started Getting Started 9

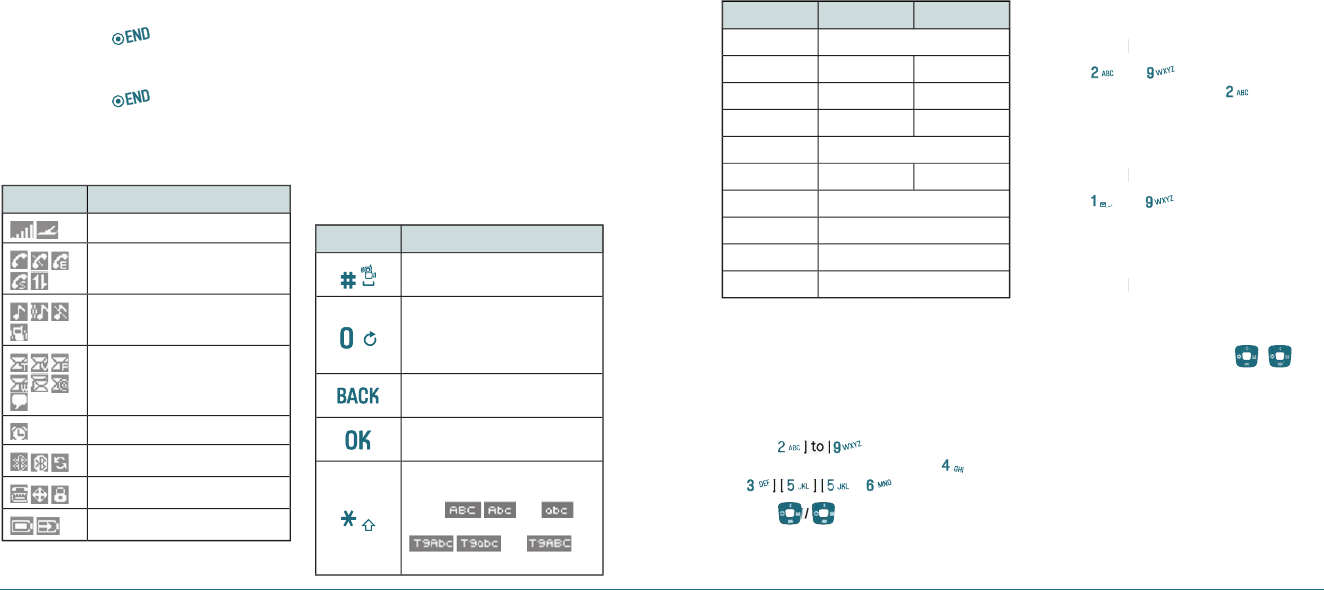

To enter text using the keypad

Key English Spanish

1 Key . @ ? ! - , & : ’ / 1

2 Key a b c 2 a á b c 2

3 Key d e f 3 d e é f 3

4 Key g h i 4 g h i í 4

5 Key j k l 5

6 Key m n o 6 m n ñ o ó 6

7 Key p q r s 7

8 Key t u v 8

9 Key w x y z 9

0 Key 0

Predictive mode (T9Abc)

T9 mode automatically compares your keystrokes with an

internal dictionary to determine the correct word. The

most commonly used word will appear first. To use T9Abc

mode, press Options

T9Abc.

Press

Options

> change the mode

Options > change the mode Options

T9Abc

Press [

] to input text.

For example, to write ‘hello’ press [

]

[

] [

Press [

] key to search for the word.

Multi-tap input mode

Press the key labeled with the target letter once for the

first letter; press it twice for the second letter, and so on.

Press

Options

> change the mode

Options > change the mode Options

Abc

Press [

] to [

] to input text repeatedly.

To write the letter “C”, press [

] 3 times.

Numeric mode

You can input numbers in this mode.

Press

Options

> change the mode

Options > change the mode Options

123

Press [

] to [

] to input numbers.

Symbol mode

Allows you to enter symbols.

Press

Options

> change the mode

Options > change the mode Options

Symbols

Press the number for the symbol, and the

symbol appears in the text input screen.

To display more symbols, press [

H �

ACTIVATING YOUR VIRGIN MOBILE

ACCOUNT

Before you can start talking, messaging, or

downloading, you need to activate service with

Virgin Mobile. You need your phone’s serial

number to activate your Virgin Mobile account.

To activate your account online go to

www.virgin‐

mobileusa.com

and click on Activate. Or call Virgin

Mobile at

1‐888‐322‐1122

H �

FINDING YOUR PHONE’S SERIAL

NUMBER

To activate your Virgin Mobile account, you need your

phone’s serial number.

In standby mode, select

Tools&Settings

Phone info

My phone number

The serial number is under the letters MEID. It

has 18 digits.

H �

PROGRAMMING YOUR PHONE

Once your account is active, you’ll receive your Virgin

Mobile phone number. When you are ready, follow these

steps to program it into your phone:

Turn on your phone and wait for it to power

up.

Dial

##VIRGIN#

(that’s #-#-8-4-7-4-4-6-#)

##VIRGIN# (that’s #-#-8-4-7-4-4-6-#)##VIRGIN#

You are now in the Programming menu. Scroll

down to

Activate Phone

Select

Your screen will say, “Do you want to activate

your phone ?” >

Yes

Your phone will connect to the network, and

then the screen will say “Hi. Press Start to

continue the activation process”. Scroll down

Start

Start > Start

Your phone will say “We’re getting your phone

number for you,” then your phone will display

your new Virgin Mobile phone number. Write

it down.

Scroll down to

Finish

to complete the

OK to complete the OK

activation process. Your phone will turn off and

back on by itself.

That's it:

It might take a couple of hours to get you set up on our

network, but we’ll send a text message to your phone to

let you know you can start talking. Also, it may take up

to 4 hours for VirginXL, voicemail, and Top-Up features to

come online. But it will be worth the wait. Enjoy!

10 Getting Started

CHAPTER 2

MY ACCOUNT

My account

Checking your account balance

Top-Up your account

For more information

CHAPTER 2 MY ACCOUNT

MY ACCOUNT

You can manage your Virgin Mobile account

directly from your phone. The basic tasks are

summarized in this chapter. For more information

about your account, go to

www.virginmobileusa.

com

CHECKING YOUR ACCOUNT BALANCE

You can check your Virgin Mobile account status

two ways: In standby mode, press [

] key or in

standby mode, select

My Account

. Your

account information appears with Top-Up

information relative to your selected plan. When

your account is low or empty, you receive a

notification to Top-Up.

TOP-UP YOUR ACCOUNT

Top-Up is how you add money to your Virgin

Mobile account. You can Top-Up your Virgin

Mobile account right from your phone. First, buy

a Top-Up card at the thousands of retailers that

carry them or register your debit card, credit card,

or PayPal account at

www.virginmobileusa.com

When your balance is low, you can Top-Up your

account from your phone.

Note:

Additional charges may apply for multiple balance checks

in one day. Visit www.virginmobileusa.com for more

details.

Top-Up with a Top-Up Card

In standby mode, press

My Account

Scroll down to the

Top‐Up

link and press

key.

Enter your Account Pin (vKey) and press

key.

OK key.OK

Scroll down to select

and press

key.

OK key.OK

Enter your Top-Up card’s PIN number and press

key.

OK key.OK

Scroll down to select

Top‐Up Now

and press

Top‐Up Now and press Top‐Up Now

key.

OK key.OK

You are now topped up. Press [

]

to exit.

Top-Up with a Debit Card, Credit Card, or

PayPal Account

Before you can Top-Up from your phone with a debit card,

credit card, or PayPal account, you need to register the

card or PayPal account at www.virginmobileusa.com.

In standby mode, press

My Account

Scroll down to the

Top‐Up

link and press

key.

Enter your Account Pin (vKey) and press

key.

OK key.OK

Scroll down to select

and press

key.

OK key.OK

Scroll down and select

Credit Card

Credit Card or Credit Card

PayPal

Enter the amount you want to Top-Up and

press

key. You can

OK key. You can OK

Top‐Up

in amounts of

$20, $30, $50, or $90.

Scroll down to select

Top‐Up Now

and press

Top‐Up Now and press Top‐Up Now

12 My Account My Account 13

key.

OK key.OK

At the confirmation screen, select

Yes

You are now topped up. Press [

]

to exit.

Note:

You can also Top-Up at www.virginmobileusa.com.

FOR MORE INFORMATION

For more information about your Virgin Mobile

account or Virgin Mobile service, visit

www.virgin‐

mobileusa.com

14 My Account

CHAPTER 3

CALLS &

CONTACTS

Making, receiving & ending a call

Caller identification

Call waiting function

Speaker phone

Vibrate on/off mode

Making an emergency call

Options during call

Call setting

Checking all calls

Speed dialing

Using contacts

Voice commands (AVR)

Using your headset

CHAPTER 3 CALLS & CONTACTS

Calls & Contacts 17

MAKING, RECEIVING & ENDING A CALL

To make a call

Enter the area code and phone number.

Press [

] key.

To answer a call

Press [

To end a call

Press [

Once the call is completed, a call summary is

displayed.

To reject a call

Press [

] or

Ignore

To make a call using call list

Your phone logs up to 270 outgoing, received and missed

call numbers.

In standby mode, press [

] to display the

Recent Calls

list.

Recent Calls list.Recent Calls

Select a number.

Press [

] to dial the selected number.

Note:

•

To redial the last number in the Recent Calls list, press

[

•

After 270 received, outgoing or missed calls, the oldest

call will automatically be erased from the history.

To make a call using contacts

In standby mode, press

Contacts

to access the

contacts list. Select the desired phone number

and press [

To make a call during a call

Enter the phone number or look it up in

Contacts

Press [

] to dial the second call. The first

call is automatically put on hold.

To adjusting the call volume

In standby mode, press

Side volume

key up or

down to adjust the earpiece volume.

To insert a Time/Hard Pause feature

Insert a pause after a phone number and then enter

another group of numbers. The second set of numbers is

dialed automatically after the pause.

Enter a phone number and then press

Options

Select either

Hard Pause (“P”)

or a

Time Pause

(“T”)

To switch between two calls

Press [

To reply to a missed call**

Press

View

to display the list of missed calls.

View to display the list of missed calls.View

Select a number to call by pressing the [

] key.

Press [

16 Calls & Contacts

To answer a second call**

Press [

]. The first call is automatically put

on hold.

Press [

] to end the second call.

The call on hold is automatically reconnected.

CALLER IDENTIFICATION

Identifies caller by displaying their phone number.

If the caller’s name and number are already stored in your

contact list, name will appear. The caller ID is stored in the

Recent Calls Menu.

CALL WAITING FUNCTION

Notifies you of an incoming call when you are already on

a call by sounding a beep tone and displaying the caller’s

phone number.

To answer another call while on the phone,

press [

]. This places the first call on hold. To

switch back to the first caller, press [

] again.

SPEAKER PHONE

The Speaker Phone feature lets you hear audio through

the speaker and talk without holding the phone.

To activate the Speaker Phone in idle mode or

while on a call, press [

VIBRATE ON/OFF MODE

In standby mode, press and hold

to turn

vibrate mode On/Off.

MAKING AN EMERGENCY CALL

The 911 feature automatically places the phone in

Emergency Call Mode when you dial the preprogrammed

emergency number, 911.

To making an call 911 in lock mode

Enter “911” and then press [

The phone maintains the Emergency Mode for

5 minutes.

To making an call 911 using any available

system

Enter “911” and then press [

The phone will stay in Emergency Mode for

5 minutes. While the phone is in Emergency

Mode for 5 minutes, the phone can receive an

incoming call from any available system or you

can make outgoing calls even in the Emergency

Callback Mode.

OPTIONS DURING A CALL

Microphone off and on

To switch your phone’s microphone off

Press

Mute

To switch your phone’s microphone back on

Press

Unmute

18 Calls & Contacts Calls & Contacts 19

To talk on speaker

Press

Speaker

To put a call on hold and return**

To put a call on hold

Press [

To return to a held call

Press [

] again.

To save a number in contacts list during a

call

Press

Options

Options > Options

Save

To search a number in contact list during a

call

Press

Options

Options > Options

Contacts

Contacts > Contacts

Contact List

Select a number > [

To search for a name or group in contact list

Enter the first letters of the name for Name

Search. The entries are displayed starting with

the first entry matching your input.

To find a name manually in contact list

Press the [

] key.

To view the details of highlighted entry in

contact list

Press

For contacts, see page 20.

To search a number in recent calls during

a call

Press

Options

Options > Options

Recent Calls

To read a message during a call

Press

Options

Options > Options

Messaging

Inbox

> select a

Inbox > select a Inbox

message.

To write a text message during a call

Press

Options

Options > Options

Messaging

Send Text Msg

For creating message, see page 28.

Note:

During the call, you can only send text messages.

Multimedia messages cannot be sent, but can be saved.

CALL SETTING

To set call reminder

In standby mode, press

Tools&Settings

Call options

Call reminder

Select

Every 2 Minutes

Every 10 Minutes

Off

Select

To set auto answer

In standby mode, press

Tools&Settings

Call options

Auto answer

Select

5 Seconds

10 Seconds

20 Seconds

Off

Select

To answer with any key press

In standby mode, press

Tools&Settings

Call options

Call answer

Select

Flip open + any Key

Flip open + any Key > Flip open + any Key

Select

Note:

You can answer with any key except [ ] and Reject.

CHECKING ALL CALLS

You can view information about all Recent Calls. For more

options for all, missed, received and outgoing calls press

Options

To view all calls

In standby mode, press

Recent Calls

All calls

Select the call list and press

to view the

OK to view the OK

details.

To view missed calls

In standby mode, press

Recent Calls

Missed calls

Select the missed call and press

to view the

OK to view the OK

details.

To view received calls

In standby mode, press

Recent Calls

Received calls

Select the received call and press

to view

OK to view OK

the details.

To view outgoing calls

In standby mode, press

Recent Calls

Outgoing calls

Select the outgoing call and press

to view

OK to view OK

the details.

To send a message with recent call list

Press

Options

Select

Send text msg

Send pic msg

Write the message

Send

To delete call logs

Press

Options

Erase

Yes

Note:

If no logs exist, the message “No Call exist” appears.

To view total call time

In standby mode, press

Recent Calls

Call timers

Select

Last call

Last call or Last call

Recent calls

Recent calls > Recent calls

Select

Displays usage time of last call or recent calls

Done

20 Calls & Contacts Calls & Contacts 21

SPEED DIALING

You can dial quickly using speed dialing. Nineteen

numbers from 2 to 10 can be saved.

To set speed dial

In standby mode, press

Contacts

Speed dial

Select an empty entry

Assign

Select a person > Select phone number >

Done

To update speed dial

Select a number and press

Reassign

Yes

Select a person > Select phone number >

Done

To remove from speed dial

Select a number and press

Erase

Yes

USING CONTACTS

You can save names, phone numbers, and up to 500

contacts in the phone.

To add a contact

In standby mode, press

Contacts

Add

new

To edit a new contact >

Save

To view contact list

In standby mode, press

Contacts

Find

name

To search for a phone number

In standby mode, press

Contacts

Find

name

Input a name.

Press

to view the details.

OK to view the details.OK

To call from contact list

In standby mode, press

Contacts

Find

name

Select a contact > [

To forward contact details

In standby mode, press

Contacts

Find

name

Select a contact >

Send msg

You can send the information via

Send text msg

Send pic msg

Write the message >

Send

To delete a contact

In standby mode, press

Contacts

Find

name

Select a contact >

Options

Options > Options

Erase

To make groups

In standby mode, press

Contacts

Groups

Select an empty entry >

Edit

To edit a group options >

Save

To send a group message

In standby mode, press

Contacts

Groups

Select an existing group and press

Options

Options > Options

Send text msg

Send pic msg

Write the message >

Send

To add member in group

In standby mode, press

Contacts

Groups

Select an existing group and press

Options

Options > Options

Add member

Select wish to add member

Select

To erase a group

In standby mode, press

Contacts

Groups

Select an existing group and press

Options

Options > Options

Erase

Yes

To view your phone number

In standby mode, press

Contacts

phone number

VOICE COMMANDS (AVR)

Your phone is equipped with an AVR (Advanced Voice

Recognition) feature. This feature allows you to make calls

or use the phone’s functions by simply using your voice.

All you have to do is talk into the phone, and the phone

will recognize your voice and complete tasks by itself.

To using AVR (Advanced Voice Recognition)

In standby mode, press

Tools&Settings

Tools

Voice command

. Or, in standby mode,

press the

Side AVR

Key.

The phone displays the Command menu and

prompts you to say the name of the command

you want to use. To complete your task, simply

follow the voice prompts. You can say the

name of the command after you hear a beep.

Call <Name or #>

Say

Call <Name>

. Your phone will ask you to

confirm the name you said. Say Yes if it was

repeated correctly. That phone number will

be dialed. If there is more than one number

saved for that contact, you will be asked to

confirm which number to dial.

Send text <Name or #>

Say

Send Text <Name>

(Examples: - Send Text Tom Smith)

Follow instructions for sending a new message

on page 26.

22 Calls & Contacts

Send picture <Name or #>

Say

Send Picture <Name>

(Examples: - Send Picture Tom Smith)

Follow instructions for sending a new message

on page 26.

Lookup <Name>

Say

Lookup <Name>

(Examples: - Lookup Tom Jones)

The View Contact page will be displayed for

that contact name.

Go to <Menu>

Say

Go To

followed immediately by one of

the items: (Recent Calls, Contacts, Messaging,

Virgin XL, Surf the Web, My Stuff, Pictures,

Tools&Settings)

Check <Item>

Say

Check

followed immediately by one

Check followed immediately by one Check

of the items: (Status, Voicemail, Messages,

Missed Calls, Time, Signal Strength, Network,

Battery, My Phone Number, Volume)

Tutorial

Press

Tutorial

. Tutorial will provide you with

additional information on using Advanced

Voice Recognition (AVR).

To set AVR settings

To set AVR confirmation

Press

Settings

Settings > Settings

Confirmation

You can control whether the system asks you

to confirm a name or number.

Select

Automatic

Always Confirm

Never

Confirm

To set AVR adaptation

Press

Settings

Settings > Settings

Adaptation

Adapt Voice

Adaptation will take a couple of minutes to

complete. Always use adapt voice feature in

a quiet room.

Press

Start

To set AVR modes

Press

Settings

Settings > Settings

Modes

Use modes to set the level of audio assis-

tance.

Select

Expert Mode

Prompt Mode

Readout

Mode

To set AVR speakerphone

Press

Settings

Settings > Settings

Speakerphone

You can control the speakerphone behavior

when voice recognition is started.

Select

Automatic

Always On

Always Off

To set AVR about

Press

Settings

Settings > Settings

About

The VoiceSignal version appears.

USING YOUR HEADSET

You can send or receive a call using your headset. When

you connect your headset to the jack the button on the

headset works as follows.

While in standby mode

Press the button once to list recent calls.

Press the button twice to redial the last call.

While the phone is closed

Press the button once to receive a call.

Press the button once to end the call.

Calls & Contacts 23

24 Calls & Contacts

CHAPTER 4

MESSAGING

Messaging

Receive message

Voicemail

Sent message

Creating and send new message

Message templates

Create and send new multimedia message

Create and send new email message

Create and send new instant message

Virgin alerts

Erase messages

Messaging setting

CHAPTER 4 MESSAGING

Messaging 27

MESSAGING

You can send, receive and save text messages and

multimedia messages. Your phone supports unified

messaging system. Unified messaging is the handling of

voice, fax, and regular text messages as objects in a single

mailbox. You can attach objects to message as multimedia

message.

To delete message in each mailbox

Select a message >

Options

Erase

Yes

To reply the message

Select a message >

Select

View

RECEIVED MESSAGE

To view new received message

Press

View

or press

View or press View

To read message using inbox

In standby mode, press

Messaging

Inbox

Inbox > Inbox

Select a received message >

To save new numbers from received

message

Select the new number of the received

message.

Press

Options

Options > Options

Save Contact

Select

New entry

New entry or New entry

Existing entry

Edit contacts list >

Save

To launch email address from the received

message

Open the message with email address is in.

Select the email address in the message.

Press

Options

Options > Options

Launch URL

To save the object in the received

multimedia message

Open the multimedia message.

Select the object >

Options

Save attached

Note:

It will be saved in one of the categories in My Stuff.

For My Stuff, see page 33.

To listen to receive voice message

In standby mode, press

Messaging

Voicemail

It will automatically call the voice-mail center.

VOICEMAIL

New voicemail alerts are sent via an SMS text message.

These messages indicate how many new and urgent

voicemails are in your voicemail box. Open the text

message to view the number of new voice messages in

your voicemail. If a caller leaves a callback number, this

number will also be sent via an SMS text message. Displays

the number of voice mails and accesses them by pressing

and holding the [ ]

To setup your voicemail

Before your phone can receive voicemail messages, you

must set up a 4-10 digit passcode and record a personal

26 Messaging

voicemail greeting. When you have set up your voicemail,

all unanswered calls to your phone are automatically

transferred to voicemail, even if your phone is in use or

turned off.

In standby mode, press

Messaging

Voicemail

or press and hold

Voicemail or press and holdVoicemail

[

Follow the system prompts to setup your

password and record a greeting.

To access your voicemail box

In standby mode, press

Messaging

Voicemail

or press and hold

Voicemail or press and holdVoicemail

[

Follow the system prompts to enter your

password and retrieve your messages.

SENT MESSAGE

To resend a sent message

In standby mode, press

Messaging

Sent

Select a sent message >

View

View > View

Send

To edit a sent message

In standby mode, press

Messaging

Sent

Select a sent message >

View

View > View

Options

Options > Options

Edit

To edit a message >

Send

To call with a sent message

In standby mode, press

Messaging

Sent

Select a sent message >

View

Options

Call

[

]

To forward message to other recipient

number

In standby mode, press

Messaging

Sent

Select a sent message >

View

View > View

Options

Options > Options

Forward

Enter phone number >

Done

Send

To save sent message

In standby mode, press

Messaging

Sent

Select a sent message >

View

Options

Save

msg.

Note:

It will be saved in Saved folder.

To save new numbers from sent message

In standby mode, press

Messaging

Sent

Select a sent message >

View

View > View

Options

Options > Options

Save

Contact

Select

New entry

New entry or New entry

Existing entry

Edit contacts list >

Save

28 Messaging Messaging 29

CREATING AND SEND NEW MESSAGE

To send new text message

In standby mode, press

Messaging

Send text msg

Enter phone number or press

Options

Contacts

Find the recipient and check the box by

pressing

Mark

Mark > Mark

Done

Write the message >

Send

To view sent message press

Messaging

Sent

Note:

All successful or failed messages will be saved in Sent.

To find all sent messages

In standby mode, press

Messaging

Sent

MESSAGE TEMPLATES

When you often use same phrases you can save the

message as a template message.

To save the message as a template

In standby mode, press

Messaging

Msg settings

Msg settings > Msg settings

Auto text

Auto text > Auto text

Options

Options > Options

New

Write a message >

Save

To edit the saved template message

In standby mode, press

Messaging

Msg settings

Msg settings > Msg settings

Auto text

Select the message.

Press

Options

Options > Options

Edit

Edit a message >

Save

H �

CREATE AND SEND NEW

MULTIMEDIA MESSAGE

You can add picture, sound and other file to text message.

When you add the object it will change to multimedia

message. If message exceeds 300Kb an error message will

pop up.

To send new multimedia message

In standby mode, press

Messaging

Send pic msg

Enter phone number or press

Options

Contacts

Find the recipient and check the box by

pressing

Mark

Mark > Mark

Done

Write the

Subject

Text


Audio

Send

To view sent message press

Messaging

Sent

Note:

All successful or failed messages will be saved in Sent.

To add saved picture in the message

Press Navigation Key down to select under


window.

Press

Pictures

Select a saved image >

Select

To add new picture in the message

Press Navigation Key down to select under


window.

Press

Pictures

Camera

Take the picture.

To add saved sound in the message

Press Navigation Key down to select under

Audio

window.

Press

Audio

Select a saved sound >

Select

To add new sound in the message

Press Navigation Key down to select under

Audio

window.

Press

Audio

Record

Record the sound.

H �

CREATE AND SEND NEW EMAIL

MESSAGE

You can send and receive email messages from your

phone. Check Virgin Mobile’s web site at www.virginmobi‐

leusa.com for availability and pricing.

To send new email message

In standby mode, press

Messaging

Send email msg

To launch mobile email

In standby mode, press

My Stuff

My other stuff

Mobile Email

H �

CREATE AND SEND NEW INSTANT

MESSAGE

You can send and receive instant messages (IMs) from your

phone. Check Virgin Mobile’s Web site at www.virginmobi‐

leusa.com for availability and pricing.

To send new instant message

In standby mode, press

Messaging

Send IM

To launch instant message

In standby mode, press

My Stuff

My other stuff

Mobile IM

Scroll through items and highlight to select

one.

To end instant message

In standby mode, press

My Stuff

My other stuff

Mobile IM

Press [

H �

VIRGIN ALERTS

To review the Virgin Alerts you’ve received

In standby mode, press

Messaging

Virgin Alerts

Go to

30 Messaging

H �

ERASE MESSAGES

To erase old messages to free up memory in your phone.

To erase all messages in each folders

In standby mode, press

Messaging

Erase msgs

Select

Inbox

Inbox,Inbox

Sent

Sent, Sent

Saved

All

Yes

H �

MESSAGE SETTING

Before you can send or receive messages using your

phone, you must configure their settings first.

This information is normally pre-configured in the phone

by your service provider.

To set message tones

In standby mode, press

Messaging

Msg settings

Msg tones

Select

My ringtones

My ringtones or My ringtones

Vibrate Mode

•

My ringtone:

Select desired ringtone >

Assign

Note:

To play ringtone, press Play.

•

Vibrate Mode:

Select

Off

Off > Off

Select

To set reminder message

In standby mode, press

Messaging

Msg settings

Reminder

Select

Off

Off > Off

Select

To set text entry mode

In standby mode, press

Messaging

Msg settings

Text entry

Select

Alpha

Select

To set save to sent message

In standby mode, press

Messaging

Msg settings

Save to sent

Select

Auto

Off

Off or Off

User confirmation

Select

To set signature message

In standby mode, press

Messaging

Msg settings

Signature

Check

Use signature

> Enter your signature in

the text field >

Done

To create and edit the message group

In standby mode, press

Messaging

Msg settings

Groups

For instructions on how to create a group, see

page 20.

To set auto erase message

In standby mode, press

Messaging

Msg settings

Auto erase

Select

Yes

Yes or Yes

Select

CHAPTER 5

MULTIMEDIA

Camera

Pictures and image album

Music and sound album

Themes album

Other files

Playing game

CHAPTER 5 MULTIMEDIA

Multimedia 33

CAMERA

You can take pictures using built-in camera.

The photos can be saved and sent using

multimedia message.

To set camera settings

In standby mode, press

Pictures

Take

a picture

Press

Options

before you take a picture.

Options before you take a picture.Options

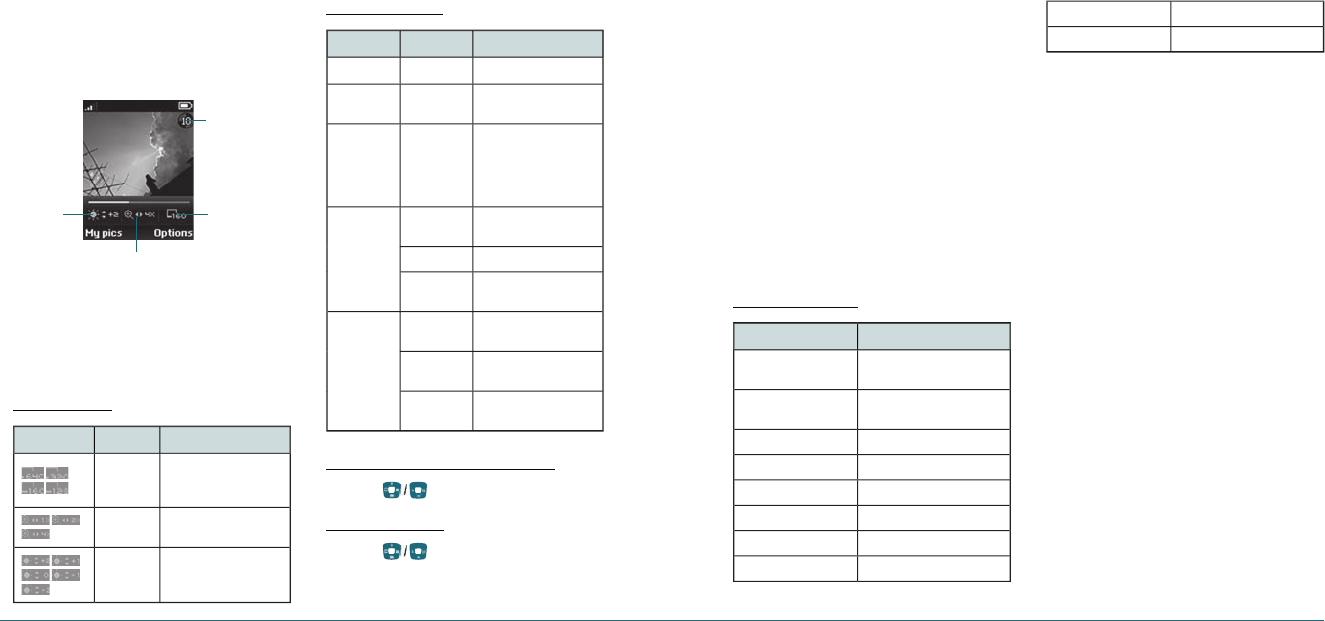

Icons for camera

Icon Menu Options

Resolution

Display photo resolution

640x480, 320x240,

160x120, 128x96

Zoom 1x, 2x, 4x

Brightness +2, +1 0 -1, -2

Settings for camera

Menu Sub Menu Options

Self portrait

Self timer Off, 5 Seconds,

10 Seconds, 15 Seconds

Fun frames

None, I love you, Clown,

Mona Lisa, I miss you,

Punch, Happy bus,

Frame, Happy birthday,

Monkey, Rabbit


controls

White

balance

Auto, Sunny, Cloudy,

Tungsten, Fluorescent

Contrast Level -2 ~ +2

Color effect Normal, Gray, Sepia,

Negative

Settings

Resolution 640x480, 320x240,

160x120, 128x96


Quality High, Medium, Low

Shutter

sound

Off, Default, Say

“Cheese”, “Ready! 123”

To increase or decrease the brightness

Press [

To zoom in and out

Press [

Brightness

Zoom

File Size

Self timer

32 Multimedia

To take a picture

In standby mode, press

Pictures

Take

a picture

Focus on the object >

Note:

Your picture will be saved automatically to My Stuff > My

graphics > My pictures or Menu > Pictures > My pictures.

To view the taken picture

In standby mode, press

Pictures

pictures

Select the picture >

View

To use options >

Options

After taking pictures

Functions Process

Set a photo for a

specific contact Options > Assign > Caller ID

Set as screensaver Options > Assign >

Screensaver

Set as standby screen Options > Assign > Wallpaper

To upload web site Options > Upload to web

Delete the picture Options > Erase

Take a new picture Options > Take Pic

Rename the picture Options > Rename

Lock/Unlock the picture Options > Lock/Unlock

View the information Options > File Info

Delete all pictures Options > Erase All

To send pictures using multimedia message

In standby mode, press

Pictures

Send

pic msg

Select a picture.

Write the message, press

Send

PICTURES AND IMAGE ALBUM

You can view, assign, delete the saved pictures.

The supported formats are JPEG, GIF, BMP, WBMP

and PNG.

To view the downloaded or saved image

and pictures

In standby mode, press

My Stuff

graphics

My pictures

Select the picture >

View

To set as wallpaper in the display

In standby mode, press

My Stuff

graphics

Wallpaper

Select a picture >

Assign

Select

Caller ID

Wallpaper

Screensaver

Select

34 Multimedia Multimedia 35

To set as screensaver in the display

In standby mode, press

My Stuff

graphics

Screensaver

Select a picture >

Assign

Select

Caller ID

Wallpaper

Screensaver

Select

MUSIC AND SOUND ALBUM

You can play, delete to phone the saved sounds.

The supported formats are MIDI, SMAF, iMelody, MP3,

WAV and AMR.

To listen the recorded sound

In standby mode, press

My Stuff

ringtones

Select a sound >

Options

Play

To set as a ringtone

In standby mode, press

My Stuff

ringtones

Select a sound >

Assign

Select

Contact

Contact, Contact

Group

All contacts

All callers

Select

THEMES ALBUM

To set as the theme

In standby mode, press

My Stuff

themes

Select an image >

Select

OTHER FILES

You can manage files in unsupported formats saved on

your phone. It also lists files received via Bluetooth from

other devices.

To view the list of the files

In standby mode, press

My Stuff

other stuff

other stuff.other stuff

To save the event to the calendar

In standby mode, press

My Stuff

other stuff

other stuff.other stuff

Select the .vcs file (V-Calendar) >

Options

Save to calendar

. You can check the event in

the calendar.

For calendar, see page 38.

To save the contact to the contacts

In standby mode, press

My Stuff

other stuff

other stuff.other stuff

Select the .vcs file (V-Calendar) >

Options

Save to contact

. You can check the address in

the contacts.

For contacts, see page 20.

To send sound file using multimedia

message

In standby mode, press

My Stuff

other stuff

other stuff.other stuff

Select a file >

Options

Send by

MMS

PLAYING GAME

Your phone contains game to play.

To play the game

In standby mode, press

My Stuff

games

Select a game

Run

To end the game

Press [

] >

Yes

To set the game options

To set the game volume

In standby mode, press

Tools&Settings

Game settings

Volume

Select

Silent

Silent orSilent

Level 1 ~ Level 5

Select

To set the game backlight

In standby mode, press

Tools&Settings

Game settings

Backlight

Select

Disabled

Disabled, Disabled

5 Seconds

10 Seconds

Seconds

Always On

Select

To display a receive messaging during a

playing game

In standby mode, press

Tools&Settings

Game settings

Messaging

Select

Icon & Message

Icon only

Select

36 Multimedia

CHAPTER 6

USEFUL

FEATURES

Calendar

Alarm

Calculator, Tip calculator, Stopwatch & World Clock

Voice memo

CHAPTER 6 USEFUL FEATURES

CALENDAR

Calendar helps you manage your schedule including your

time for calls or special days. You can set alarm service on

a set date with this function.

To view calendar

In standby mode, press

Tools&Settings

Tools

Calendar

Note:

Monthly view is displayed as default.

In the monthly view

To Press

Move to another day

[

]

for Previous

for Next

Move to another week for Previous

[

]

for Next

To create a new event

In standby mode, press

Tools&Settings

Tools

Calendar

Select a day

New

On the

Edit schedule

screen, select and input an

event item by item for registration >

Save

To edit a event

In standby mode, press

Tools&Settings

Tools

Calendar

Select a saved event

Edit

On the

Edit schedule

screen, select and edit an

event item by item for registration >

Save

To erase a saved event

In standby mode, press

Tools&Settings

Tools

Calendar

Select a saved event

Erase

Yes

ALARM CLOCK

To set an alarm

In standby mode, press

Tools&Settings

Tools

Alarm clock

Select location >

Select

> Edit a new alarm >

Select > Edit a new alarm > Select

Save

To view the saved alarms

In standby mode, press

Tools&Settings

Tools

Alarm clock

To edit existing alarms

In standby mode, press

Tools&Settings

Tools

Alarm clock

Select an existing alarm >

Select

> Edit an alarm

Select > Edit an alarm Select

Save

H �

CALCULATOR, TIP CALCULATOR,

STOPWATCH & WORLD CLOCK

To use the calculator

Use the Calculator for basic mathematical equations.

38 Useful Features Useful Features 39

In standby mode, press

Menu Tools&Settings

Tools

Calculator

Enter the first number and use [

Enter the second number and press

OK to OK

calculate.

Use [

] to use the decimal point, [

] to

use the change positive or negative.

To use tip calculator

The Tip Calculator helps you calculate how much tip to

include with a bill.

In standby mode, press

Tools&Settings

Tools

Tip calculator

Enter the amount of your bill and move the

next field

Tip(%)

Enter the percentage amount to tip and move

the next field

Split

Enter the amount of split number. The new bill

amount is shown.

To use the stopwatch

The Stopwatch counts the time your spend for an activity.

In standby mode, press

Tools&Settings

Tools

Stopwatch

Press

Start

to start stopwatch.

Start to start stopwatch.Start

Press

Cont

to save Lap time (Max eight Lap

Cont to save Lap time (Max eight Lap Cont

time).

Press

Stop

to stop stopwatch.

Press

Reset

to reset stopwatch.

Reset to reset stopwatch.Reset

To use world clock

In standby mode, press

Tools&Settings

Tools

World clock

Use [

] to select different

cities.

To set daylight saving, press

DST

DST.DST

Edit a DST item by item for registration >

Save

VOICE MEMO

To record voice memo

In standby mode, press

Tools&Settings

Tools

Voice memo

New

To stop recording, press

Save

To listen to the recording voice memo

In standby mode, press

Tools&Settings

Tools

Voice memo

Select recorded voice memo >

To send voice memo using multimedia

message

In standby mode, press

Tools&Settings

Tools

Voice memo

Select a voice memo >

Options

Send Message

Write the message

Send

40 Useful Features

CHAPTER 7

SETTINGS

Ringtones, Alerts & Tones

Decorating the display

Call options

Security

Msg settings

Game settings

Bluetooth

To set other options

Phone info

CHAPTER 7 SETTINGS

To rename saved voice memo

In standby mode, press

Tools&Settings

Tools

Voice memo

Select a voice memo >

Options

Rename

Edit name >

Save

To erase saved voice memo

In standby mode, press

Tools&Settings

Tools

Voice memo

Select a voice memo >

Options

Erase

Yes

Settings 43

RINGTONES, ALERTS & TONES

To set my ringtones

In standby mode, press

Tools&Settings

Sounds

My ringtones

Select ringtones

Assign

Note:

To play/stop sound, press Play or Stop.

To set msg tones

To set my ringtone

In standby mode, press

Tools&Settings

Sounds

Msg tones

ringtones

Select ringtone >

Assign

Note:

To play/stop sound, press Play or Stop.

To set vibrate mode

In standby mode, press

Tools&Settings

Sounds

Msg tones

Vibrate Mode

Select

Off

Off > Off

Select

To set service alerts

In standby mode, press

Tools&Settings

Sounds

Service alerts

Select

Minute beep

Call connect

Call connect > Call connect

Off

Select

To set volume

To set the ringer volume

In standby mode, press

Tools&Settings

Sounds

Volume

Ringer

volume

Select

Silent All

Vibrate

Low

Low, Low

Medium

High

High + Vibrate

Select

To set the voice call volume

In standby mode, press

Tools&Settings

Sounds

Volume

Voice

call

Select

Level 1

Level 5

Select

To set the speakerphone volume

In standby mode, press

Tools&Settings

Sounds

Volume

Speakerphone

Select

Level 1 ~ Level 5

Select

To set power tone on/off

In standby mode, press

Tools&Settings

Sounds

Power tone

Select

Power On Tone

Power Off Tone

Off

Off > Off

Select

To set key tone

In standby mode, press

Tools&Settings

Sounds

Key tone

42 Settings

Select

Silent

Silent,Silent

Level 1

Level 5

Level 5 > Level 5

Select

DECORATE THE DISPLAY

To set the graphics

To set the wallpaper

In standby mode, press

Tools&Settings

Display

Graphics

Wallpaper

Select

Main screen

External screen

Select wallpaper image >

Select

To set the screensaver timeout

In standby mode, press

Tools&Settings

Display

Graphics

Screensaver

Timeout setting

Select

5 Seconds

10 Seconds

20 Seconds

Seconds

Off

Select

To set the screensaver image

In standby mode, press

Tools&Settings

Display

Graphics

Screensaver

Select screensaver image

Select

To set the main screen clock format

In standby mode, press

Tools&Settings

Display

Graphics

Clock

format

Main screen

Select

Digital

Analog

Digital+Analog

Off

Select

To set the external screen clock format

In standby mode, press

Tools&Settings

Display

Graphics

Clock

Format

External screen

Select

Digital

Analog

Off

Select

To view the menu style

In standby mode, press

Tools&Settings

Display

Menu style

Select

Grid view

List view

List view > List view

Select

To enter greeting message

In standby mode, press

Tools&Settings

Display

Greeting banner

Edit greeting banner message, and press

Navigation Key down, select

Font

color, and

Font color, and Font

then press Navigation Key down, select

Outline

color >

Save

To set contrast display

In standby mode, press

Tools&Settings

Display

Contarst

Select

Highest

Highest,Highest

High

Medium

Low

Lowest

Select

To set time for backlight

In standby mode, press

Tools&Settings

Display

Backlight

44 Settings Settings 45

Select

Display

Display or Display

Keypad

Keypad > Keypad

Disabled

Disabled,Disabled

5 Seconds

10 Seconds

30 Seconds

Always On

Select

To set background image

In standby mode, press

Tools&Settings

Display

Themes

Select background image

Select

CALL OPTIONS

In standby mode, press

Tools&Settings

Call options

For Call options, see page 18.

SECURITY

To access security menus

In standby mode, press

Tools&Settings

Security

Enter your password.

Note:

The default password is ‘0000’.

To lock your phone

Press

Lock phone

Select

Lock now

Lock now, Lock now

Lock on power on

Unlock

Select

To change the password

Press

Change lock code

Enter

New code

and enter again

Confirm

code

Save

To set special numbers

Press

Special numbers

Select an entry number. (Special #1, Special

#2, Special #3) >

Assign

Enter your desired phone number.

Save

To erase special numbers

Press

Special numbers

Select an existing special number.

Erase

Yes

To erase all contact lists

Press

Erase contacts

Yes

To erase all downloaded contents

Press

Erase downloads

Yes

To reset your phone

Press

Reset phone

Yes

MSG SETTINGS

In standby mode, press

Tools&Settings

Msg settings

For Msg settings, see page 30.

GAME SETTINGS

In standby mode, press

Tools&Settings

Game settings

For Game settings, see page 35.

BLUETOOTH

In standby mode, press

Tools&Settings

Bluetooth

For Bluetooth, see page 48.

TO SET OTHER OPTIONS

Language

In standby mode, press

Tools&Settings

Others

Language

Select

English

Español

Select

Airplane mode

In standby mode, press

Tools&Settings

Others

Airplane mode

Select

Off

Off > Off

Select

TTY mode

In standby mode, press

Tools&Settings

Others

TTY mode

Select

Enable TTY

Enable TTY or Enable TTY

Disable TTY

Disable TTY > Disable TTY

Select

Location

In standby mode, press

Tools&Settings

Others

Location

Select

911 only

911 only or 911 only

Location on

Select

PHONE INFO

My phone number

In standby mode, press

Tools&Settings

Phone info

My phone number

Version info

In standby mode, press

Tools&Settings

Phone info

Version info

46 Settings

CHAPTER 8

CONNECTIVITY

Bluetooth

Using the internet

VirginXL

My stuff

CHAPTER 8 CONNECTIVITY

BLUETOOTH

Bluetooth technology connectivity enables wire-

less connections between electronic devices. If

connected with a Bluetooth Handsfree device, you

can use your phone more freely. With DUN, you

can also use the phone as a wireless modem. It can

also be used to connect wirelessly to products that

use Bluetooth wireless technology, such as comput-

ers. You can synchronize your phone and your PC

using Bluetooth connectivity. Since devices with

Bluetooth connectivity communicate using radio

waves, your phone and the other device do not

need to be in direct line-of-sight. The two devices

only need to be within 10 meters (30 feet) of each

other. The connection can be subject to interfer-

ence from obstructions such as walls or other

electronic devices. This device is compliant with

Bluetooth specification 1.1, supporting the follow-

ing profiles: HSP V1.1 (headset profile), HFP V1.0

(handsfree car kit profile), DUN V1.1 (dial-upnet-

working), GAP (general access profile) and SPP

V1.1 (serial port profile). To ensure interoperability

between other devices supporting Bluetooth tech-

nology, use UTStarcom approved enhancements

for this model. Check with the manufacturers of

other devices to determine their compatibility

with this phone. There may be restrictions on

using Bluetooth technology in some locations.

Check with your local authorities or Verizon. If

you want more information on this function, visit

the Bluetooth Technology organization Web site:

https://www.bluetooth.org/

To access the Bluetooth menu

In standby mode, press

Tools&Settings

Bluetooth

To activate Bluetooth

The Power feature allows you to turn the Bluetooth

function on and off.

In standby mode, press

Tools&Settings

Bluetooth

Press

Off

Off.Off

To add a device

Pairing is the process that allows the handset to locate,

establish and register 1-to-1 connection with the target

device.

In standby mode, press

Tools&Settings

Bluetooth

New Device

Note:

If Bluetooth is set to off, “Turn Bluetooth power on?” will

appear. Press Yes > OK.

Instructions (Place device you are connecting

to in discoverable mode) will be displayed.

Highlight the device and press

The handset will prompt you for the passkey.

Consult the Bluetooth accessory instructions

for the appropriate passkey (typically “0000”

- 4 zeroes).

Enter the passkey and press

48 Connectivity Connectivity 49

Note:

The default PIN code may differ depending on Bluetooth

devices. Please refer to the user guide of the Bluetooth

device that you wish to use.

Once pairing is successful, select

Yes

and press

to connect with the device.

Once paired, you will see the device listed in

the “New Device” menu.

To set the discovery mode

In standby mode, press

Tools&Settings

Bluetooth

Options

Discovery Mode

Select

Off

Off > Off

Select

To name the phone

In standby mode, press

Tools&Settings

Bluetooth

Options

My Phone Name

To set the supported profiles

In standby mode, press

Tools&Settings

Bluetooth

Options

Supported Profiles

Select

Headset

Headset,Headset

Handsfree

Contacts access

Select

To removing a device from the paired list

In standby mode, press

Tools&Settings

Bluetooth

Select device

Options

Remove

Device

To renaming the paired device

In standby mode, press

Tools&Settings

Bluetooth

Select device

Options

Rename Device

To reviewing information about the paired

device

In standby mode, press

Tools&Settings

Bluetooth

Select device

Options

Device

Info

To call using hands-free

Press the button once to call the last person.

To receive a call using hands-free

Press the button once to receive the call.

USING THE INTERNET

To access internet

In standby mode, press

Surf the Web

Note:

It will access your Wireless Web service provider’s

homepage.

To view visited sites

In standby mode, press

Surf the Web

History

To open, press

Options

Options > Options

Open

To list by category, press

Options

Sort

To set new bookmarks

In standby mode, press

Surf the Web

Mark Page

Press

Options

Options > Options

Create New

To edit, press

Save

To view bookmarks

In standby mode, press

Surf the Web

Mark Page

Press

Options

Options > Options

View

To send via text message, press

Send by Msg

To search web site

In standby mode, press

Surf the Web

To refresh the current page

In standby mode, press

Surf the Web

Reload

To show the image on the current page

In standby mode, press

Surf the Web

Show Link

To access the web site directly by entering

the address

In standby mode, press

Surf the Web

Goto Page

Enter the web address >

To go to the homepage

In standby mode, press

Surf the Web

Home

To send messages using the WAP server

In standby mode, press

Surf the Web

Send Link

To set enable/disable download objects

In standby mode, press

Surf the Web

Settings

Downloads

To restart web browser

In standby mode, press

Surf the Web

Settings

Restart Browser

50 Connectivity Connectivity 51

To clear cache memory

In standby mode, press

Surf the Web

Settings

Clear

Check Clear Cache

Clear

To clear saved history

In standby mode, press

Surf the Web

Settings

Clear

Check Clear History

Clear

To clear saved cookies

In standby mode, press

Surf the Web

Settings

Clear

Check Clear Cookies

Clear

To clear autofill

In standby mode, press

Surf the Web

Settings

Clear

Check Autofill

Clear

VirginXL

To access VirginXL

In standby mode, press

VirginXL

With VirginXL, you can access music, entertain-

ment, and information services from your phone.

Download games, ringtones, wallpaper, screen

savers, and other content; surf the web; and

more. Check Virgin Mobile’s Web site at

www.

virginmobileusa.com

for availability and pricing,

or check directly from your phone using VirginXL.

Charges apply.

Note:

You cannot receive incoming calls during a VirginXL ses-

sion. All incoming calls are automatically sent to your

voicemail.

Note:

A scroll bar on the right side of the screen indicates that

there is more text. Scroll down to go to the next screen of

text. Press the CLR key to move back one screen.

Ending a VirginXL session

Press [

]

MY STUFF

To access my ringtones

In standby mode, press

My Stuff

ringtones

Get more ringtones

To access my graphics

In standby mode, press

My Stuff

graphics

Get more graphics

Select

To access my games

In standby mode, press

My Stuff

games

Get more games

To download other stuff

In standby mode, press

My Stuff

other stuff

Get more stuff

52 Connectivity

CHAPTER 9

APPENDIX

About the battery usage

Error message

Troubleshooting checklist

12 Month limited warranty

Safety information for wireless handheld phone

Safety information for FCC RF exposure

SAR information

FCC hearing-aid compatibility (HAC) regulations for wireless devices

FDA consumer update

Avoid potential hearing loss

CTIA user information requirements

Index

CHAPTER 9 APPENDIX

Appendix 55

H �

ABOUT THE BATTERY USAGE

Your phone is powered by a Lithium Ion (Li-Ion)

battery. This means that, unlike other forms of

battery technology, you can recharge your battery

while some charge remains without reducing your

phone’s autonomy due to the “battery memory

effect” inherent in those technologies.

• Do not use a damaged battery or charger.

• Do not disassemble or open crush, bend or

deform, puncture or shred

• Do not modify or remanufacture, attempt to

insert foreign objects into the battery, immerse

or expose to water or other liquids, expose to

fire, explosion or other hazard.

• Do not put your battery into contact with con-

ductive objects.

• Dispose of and recycle used batteries in accor-

dance with local regulations. Do not dispose of

batteries by burning; they may explode.

• Do not use an unauthorized charger.

• Only use the battery for the system for which

it is specified

• Only use the battery with a charging system

that has been qualified with the system per

this standard. Use of an unqualified battery or

charger may present a risk of fire, explosion,

leakage, or other hazard.

• Do not short circuit a battery or allow metallic

conductive objects to contact battery terminals.

• Replace the battery only with another battery

that has been qualified with the system per

this standard, IEEE-Std-1725-2006. Use of an

unqualified battery may present a risk of fire,

explosion, leakage or other hazard.

• Promptly dispose of used batteries in accor-

dance with local regulations.

• Battery usage by children should be supervised.

• Avoid dropping the phone or battery. If the

phone or battery is dropped, especially on a

hard surface, and the user suspects damage,

take it to a severe center for inspection.

• Use your battery for the specified purpose only.

• The closer you are to your network’s base

station, the longer your phone usage time

because less battery power is consumed for the

connection.

• The battery recharging time varies depending

on the remaining battery capacity and the bat-

tery and charger type you use.

• Battery life inevitably shortens over time.

• Use an authorized battery and charger only.

• Since overcharging may shorten battery life,

remove the phone from its charger once it is

fully charged. Unplug the charger, once charg-

ing is complete. Leaving the battery in hot or

cold places, especially inside a car in summer or

winter, may reduce the capacity and life of the

battery. Always keep the battery within normal

temperatures.

To prevent injury or burns, ensure that no metal

54 Appendix

objects come into contact with the + and – termi-

nals of the battery.

H �

ERROR MESSAGE

If you experience any problem while using your

mobile phone, please refer to the following check-

list. If the problem still persists, contact your dealer

or nearest carrier.

When the “Content is too large” message appears:

The picture is too large to send instead the caller.

It will send the default image instead of chosen

image.

When the “Message full Please delete” message

appears:

The received or saved messages are full in your

phone memory. You need to delete the message.

When the “Password” message appears in Phone

locked state:

Enter the phone password. The default password

is”0000”. If you cannot remember the password,

contact the nearest carrier.

When the “No Service” or “Network Search”

appears:

If you cannot make/receive a call when you are

indoors or undergrounds where the signal strength

is poor, move toward a window or go out to an

open area. If you still cannot make a connection,

contact the nearest carrier.

H �

TROUBLESHOOTING CHECKLIST

When audio quality is poor:

End a call and try again.

When the other party cannot hear you speaking:

Your phone may be set to MUTE. Disable the

MUTE function.

When battery lifetime is shorter than usual:

This may happen when you are in an area with

low signal strength. Turn off your phone when

it is not in use. Change the battery when battery

energy is exhausted.

When your mobile phone does not turn on:

Make sure your battery is charged. Check to see if

your phone works while recharging the battery.

When you are unable to send a message:

Either you are not registered to receive an SMS ser-

vice, or you may be in an area where your network

service provider cannot provide such a service.

When you are unable to make a call:

Your phone may be set to “fixed dial.” Cancel the

“fixed dial” function.

When you are unable to charge the battery:

This may be the result of one of the following

three cases.

1. Your charger may be out of order. Contact your

nearest dealer.

56 Appendix Appendix 57

2. You may be attempting to use the phone in an

overly hot/cold temperature. Try changing the

charging environment.

3. Your battery may have not been connected to

the charger properly. Check the connector.

When you are unable to input data into your

Contacts:

Your Contacts memory may be full. Try deleting

some entries from your Contacts.

When you are unable to select a certain function:

You may not have subscribed to that function, or

your network service provider may be in an area

where such service cannot be provided. Contact

your local service provider.

12 MONTH LIMITED WARRANTY

UTStarcom Personal Communications (the

Company) warrants to the original retail purchaser

of this UTStarcom handheld portable cellular

telephone, that should this product or any part

thereof during normal consumer usage and condi-

tions, be proven defective in material or workman-

ship that results in product failure within the first

twelve (12) month period from the date of pur-

chase, such defect(s) will be repaired or replaced

(with new or rebuilt parts) at the Company’s

option, without charge for parts or labor directly

related to the defect(s).

The antenna, keypad, display, rechargeable bat-

tery and battery charger, if included, are similarly

warranted for twelve (12) months from date of

purchase.

This Warranty extends only to consumers who pur-

chase the product in the United States or Canada

and it is not transferable or assign-able.

This Warranty does not apply to:

(a) Product subjected to abnormal use or condi-

tions, accident, mishandling, neglect, unau-

thorized alteration, misuse, improper installa-

tion or repair or improper storage;

(b) Product whose mechanical serial number or

electronic serial number has been removed,

altered or defaced.

excessive temperatures or extreme environmen-

tal conditions;

(d) Damage resulting from connection to, or use of

any accessory or other product not approved or

authorized by the Company;

(e) Defects in appearance, cosmetic, decorative or

structural items such as framing and non-opera-

tive parts;

(f) Product damaged from external causes such as

fire, flooding, dirt, sand, weather conditions,

battery leakage, blown fuse, theft or improper

usage of any electrical source.

The Company disclaims liability for removal or

reinstallation of the product, for geographic

coverage, for inadequate signal reception by the

antenna or for communications range or operation

of the cellular system as a whole.

When sending your wireless device to UTStarcom

Personal Communications for repair or service,

please note that any personal data or software

stored on the device may be inadvertently erased

or altered. Therefore, we strongly recommend

you make a back up copy of all data and software

contained on your device before submitting it

for repair or service. This includes all contact lists,

downloads (i.e. third-party software applications,

ringtones, games and graphics) and any other data

added to your device. In addition, if your wireless

device utilizes a SIM or Multimedia card, please

remove the card before submitting the device and

store for later use when your device is returned,

UTStarcom Personal Communications is not respon-

sible for and does not guarantee restoration of

any third-party software, personal information

or memory data contained in, stored on, or inte-

grated with any wire-less device, whether under

warranty or not, returned to UTStarcom Personal

Communications for repair or service.

To obtain repairs or replacement within the terms

of this Warranty, the product should be delivered

with proof of Warranty coverage (e.g. dated bill

of sale), the consumer’s return address, daytime

phone number and/or fax number and complete

description of the problem, transportation pre-

paid, to the Company at the address shown below

or to the place of purchase for repair or replace-

ment processing. In addition, for reference to an

authorized Warranty station in your area, you may

telephone in the United States (800) 229-1235,

and in Canada (800) 465-9672 (in Ontario call 416-

695-3060).

THE EXTENT OF THE COMPANY’S LIABILITY UNDER

THIS WARRANTY IS LIMITED TO THE REPAIR OR

REPLACEMENT PROVIDED ABOVE AND, IN NO

EVENT, SHALL THE COMPANY’S LAIBILITY EXCEED

THE PURCHASE PRICE PAID BY PURCHASER FOR

THE PRODUCT.

ANY IMPLIED WARRANTIES, INCLUDING ANY

IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, SHALL BE

LIMITED TO THE DURATION OF THIS WRITTEN

WARRANTY. ANY ACTION FOR BREACH OF

ANY WARRANTY MUST BE BROUGHT WITHIN A

PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL

PURCHASE. IN NO CASE SHALL THE COMPANY

BE LIABLE FOR AN SPECIAL CONSEQUENTIAL OR

INCIDENTAL DAMAGES FOR BREACH OF THIS OR

ANY OTHER WARRANTY, EXPRESS OR IMPLIED,

WHATSOEVER.

THE COMPANY SHALL NOT BE LIABLE FOR THE

DELAY IN RENDERING SERVICE UNDER THIS

WARRANTY OR LOSS OF USE DURING THE TIME

THE PRODUCT IS BEING REPAIRED OR REPLACED.

No person or representative is authorized to

assume for the Company any liability other than

expressed herein in connection with the sale of

this product.

Some states or provinces do not allow limitations

on how long an implied warranty lasts or the

exclusion or limitation of incidental or consequen-

tial damage so the above limitation or exclusions

may not apply to you. This Warranty gives you

58 Appendix Appendix 59

specific legal rights, and you may also have other

rights, which vary from state to state or province

to province.

IN USA: UTStarcom Personal Communications

555 Wireless Blvd.

Hauppauge, NY 11788

(800) 229-1235

IN CANADA: UTStarcom Canada Company

5535 Eglinton Avenue West

Suite# 234 Toronto, ON M9C 5K5

(800) 465-9672

H �

SAFETY INFORMATION FOR WIRELESS

HANDHELD PHONE

Read This Information Before Using Your

Handheld Portable Cellular Telephone

Exposure to radio frequency signals

Your wireless handheld portable telephone is a

low power radio transmitter and receiver. When

it is ON, it receives and also sends out radio fre-

quency (RF) signals.

In August 1996, the Federal Communications

Commissions (FCC) adopted RF exposure guidelines

with safety levels for handheld wireless phones.

Those guidelines are consistent with the safety

standards previously set by both U.S. and interna-

tional standards bodies:

ANSI C95.1 (1992) *

NCRP Report 86 (1986) *

ICNIRP (1996) *

Those standards were based on comprehensive

and periodic evaluations of the relevant scientific

literature. For example, over 120 scientists, engi-

neers, and physicians from universities, govern-

ment health agencies, and industry reviewed the

available body of research to develop the ANSI

Standard (C951).

The design of your phone complies with the FCC

guidelines (and those standards).

1* : American National Standards Institute.

2* : National Council on Radiation protection and measure-

ments.

3* : International Commission on Nonionizing Radiation

Protection.

Antenna safety

Use only the supplied or an approved replacement

antenna. Unauthorized antennas, modifications, or

attachments could impair call quality, damage the

phone, or result in violation of FCC regulations.

Please contact your local dealer for replacement

antenna.

Do not use the phone with a damaged antenna. If

a damaged antenna comes into contact with the

skin, a minor burn may result. Please contact your

local dealer for replacement antenna.

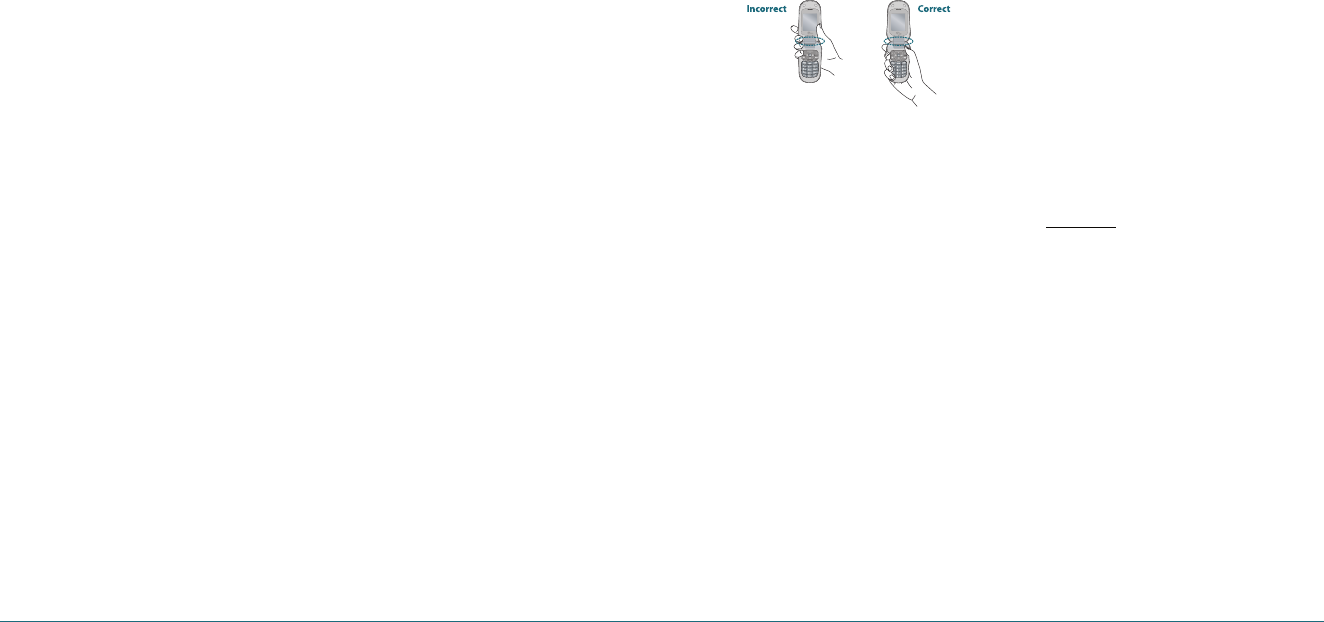

Hold your phone

Your phone is equipped with an intenna. For

optimal call quality, hold the phone by the gripped

edges on the side and avoid touching the top and

bottom of the phone.

Driving safety

Talking on the phone while driving is extremely

dangerous and is illegal in some states. Remember,

safety comes first. Check the laws and regulations

on the use of phones in the areas where you drive.

Always obey them.

Also, if using your phone while driving, please:

• Give full attention to driving. Driving safely is

your first responsibility.

• Use hands-free operation, if available.

• Pull off the road and park before making

or answering a call, if driving conditions so

require.

If you must use the phone while driving, please

use one-touch, speed dialing, and auto answer

modes.

An airbag inflates with great force. DO NOT place

objects, including both installed or portable wire-

less equipment, in the area over the airbag or in

the air bag deployment area. If in-vehicle wireless

equipment is improperly installed and the air bag

inflates, serious injury could result.

WARNING:

Failure to follow these instructions may lead to serious

personal injury and possible property damage.

Electronic devices

Your wireless handheld portable telephone is a

low power radio transmitter and receiver. When

it is ON, it receives and also sends out radio fre-

quency (RF) signals.

Most modern electronic equipment is shielded

from RF energy. However, certain electronic equip-

ment may not be shielded against the RF signals

from your wireless phone. Therefore, use of your

phone must be restricted in certain situations.

Pacemakers

The Health Industry Manufacturers Association

recommends that a minimum separation of six

(6”) inches be maintained between a handheld

wireless phone and a pacemaker to avoid

potential interference with the pacemaker.

These recommendations are consistent with the

independent research by and recommendations

of Wireless Technology Research. Persons with

pacemakers :

• ALWAYS keep the phone more than six inches

from your pacemaker when the phone is

turned on.

• Do not carry the phone in a breast pocket.

• Use the ear opposite the pacemaker to mini-

mize the potential for interference.

• If you have any reason to suspect that inter-

ference is taking place, turn your phone OFF

immediately.

60 Appendix Appendix 61

Hearing aids

Some digital wireless phones may interfere with

some hearing aids. In the event of such interfer-

ence, you may want to consult your service pro-

vider (or call the customer service line to discuss

alternatives).

Other medical devices

If you use any other personal medical device,

consult the manufacturer of your device to

determine if they are adequately shielded from

external RF energy. Your physician may be able

to assist you in obtaining this information.

Turn your phone OFF in healthcare facilities

when any regulations posted in these areas

instruct you to do so. Hospitals or healthcare

facilities may be using equipment that could be

sensitive to external RF energy.

Vehicles

RF signals may affect improperly installed or

inadequately shielded electronic systems in

motor vehicles. Check with the manufacturer or

its representative regarding your vehicle. You

should also consult the manufacturer of any

equipment that has been added to your vehicle.

Posted facilities

Turn your phone OFF where posted notices so

require.

Other safety guidelines

Aircraft

FCC regulations prohibit using your phone while

in the air. Turn your phone OFF before board-

ing an aircraft. Always request and obtain prior

consent and approval of an authorized airline

representative before using your phone aboard

an aircraft. Always follow the instructions

of the airline representative whenever using

your phone aboard an aircraft, to prevent any

possible interference with airborne electronic

equipment.

Blasting areas

To avoid interfering with blasting operations,

turn your phone OFF when in a “blasting area”

or in areas posted: “Turn off two-way radio.”

Obey all signs and instructions.

Potentially explosive atmospheres

Turn your phone OFF when in any area with a

potentially explosive atmosphere and obey all

signs and instructions. Sparks in such areas could

cause an explosion or fire resulting in bodily

injury or even death.

Areas with a potentially explosive atmosphere

are often, but not always, clearly marked. They

include fueling areas such as gas stations; below

deck on boats; fuel or chemical transfer or stor-

age facilities; vehicles using liquefied petroleum

gas (such as propane or butane); areas where the

air contains chemicals or particles, such as grain,

dust, or metal powders; and any other area

where you would normally be advised to turn

off your vehicle’s engine.

Precautions

Your Handheld Portable Telephone is a high qual-

ity piece of equipment. Before operating, read all

instructions and cautionary markings on (1) AC/DC

Travel Adaptor (2) Battery and (3) Product Using

Battery.

Failure to follow the directions below could result

in serious bodily injury and/or property damage

due to battery liquid leakage, fire or rupture.

• DO NOT use this equipment in an extreme

environment where high temperature or high

humidity exists.

• DO NOT abuse the equipment. Avoid strik-

ing, shaking or shocking. When not using, lay

down the unit to avoid possible damage due

to instability.

• DO NOT expose this equipment to rain or

spilled beverages.

• DO NOT use unauthorized accessories.

• DO NOT disassemble the phone or its acces-

sories. If service or repair is required, return

unit to an authorized UTStarcom cellular service

center. If unit is disassembled, the risk of electric

shock or fire may result.

• DO NOT short-circuit the battery terminals with

metal items etc.

WARNING:

•

This product contains a chemical known to the State of

California to cause cancer.

•

This product contains a chemical known to the State of

California to cause birth defects or other reproductive

harm.

H �

SAFETY INFORMATION FOR FCC RF

EXPOSURE

WARNING! Read this Information before Using

Cautions

In August 1996 the Federal Communications

Commission (FCC) of the United States with its

action in Report and Order FCC 96-326 adopted an

updated safety standard for human exposure to

radio frequency electromagnetic energy emitted

by FCC regulated transmitters. Those guidelines are

consistent with the safety standard previously set

by both U.S. and international standards bodies.

The design of this phone complies with the FCC

guidelines and these international standards.

Body-Worn operation

This device was tested for typical body-worn

operations with the back of the phone kept 2.2

cm. from the body with a beltclip that contains

metallic components. To maintain compliance with

FCC RF exposure requirements, use only belt-clips,

holsters or similar accessories with which this device

was tested.

62 Appendix Appendix 63

The use of accessories that do not satisfy

these requirements may not comply with FCC RF

exposure requirements, and should be avoided.

Note:

For more information about RF exposure, please visit the

FCC website at www.fcc.gov.

H �

SAR INFORMATION

This Model Phone meets the Government’s

Requirements for Exposure to Radio Waves.

Your wireless phone is a radio transmitter and

receiver. It is designed and manufactured not

to exceed the emission limits for exposure to

radiofrequency (RF) energy set by the Federal

Communications Commission of the U.S.

Government. These limits are part of comprehen-

sive guidelines and establish permitted levels of RF

energy for the general population. The guidelines

are based on standards that were developed by

independent scientific organizations through peri-

odic and thorough evaluation of scientific studies.

The standards include a substantial safety margin

designed to assure the safety of all persons,

regardless of age and health.

The exposure standard for wireless mobile phones

employs a unit of measurement known as the

Specific Absorption Rate, or SAR. The SAR limit

set by the FCC is 1.6 W/kg. * Tests for SAR are con-

ducted with the phone transmitting at its highest

certified power level in all tested frequency bands.

Although the SAR is determined at the highest

certified power level, the actual SAR level of the

phone while operating can be well below the max-

imum value. This is because the phone is designed

to operate at multiple power levels so as to use

only the power required to reach the network. In

general, the closer you are to a wireless base sta-

tion antenna, the lower the power output.

Before a phone model is available for sale to the

public, it must be tested and certified to the FCC

that it does not exceed the limit established by

the government adopted requirement for safe

exposure. The tests are performed in positions and

locations (e.g., at the ear and worn on the body)

as required by the FCC for each model. The highest

SAR value for this model phone when tested for

use at the ear is 1.37 W/Kg and when worn on the

body, as described in this user guide, is 0.422 W/Kg.

(Body-worn measurements differ among phone

models, depending upon available accessories and

FCC requirements). While there may be differences

between the SAR levels of various phones and at

various positions, they all meet the government

requirement for safe exposure.

The SAR testing for Body-worn operation was

performed with a belt clip that provided a 22mm

separation. The User’s Manual indicates that any

holsters/clips used with this device should contain

no metallic components.

The FCC has granted an Equipment Authorization

for this model phone with all reported SAR levels

evaluated as in compliance with the FCC RF expo-

sure guidelines. SAR information on this model

phone is on file with the FCC and can be found

under the Display Grant section of http://www.fcc.

gov/oet/ea after searching on PP4X1

Additional information on Specific Absorption

Rates (SAR) can be found on the Cellular

Telecommunications Industry Association (CTIA)

web-site at

http://www.ctia.org

* In the United States and Canada, the SAR limit

for mobile phones used by the public is 1.6 watts/

kg (W/kg) averaged over one gram of tissue. The

standard incorporates a substantial margin of safe-

ty to give additional protection for the public and

to account for any variations in measurements.

H �

FCC HEARING-AID COMPATIBILITY

(HAC) REGULATIONS FOR WIRELESS

DEVICES

On July 10, 2003, the U.S. Federal Communications

Commission (FCC) Report and Order in WT Docket

01-309 modified the exception of wireless phones

under the Hearing Aid Compatibility Act of 1988

(HAC Act) to require digital wireless phones be

compatible with hearing-aids. The intent of the

HAC Act is to ensure reasonable access to telecom-

munications services for persons with hearing

disabilities.

While some wireless phones are used near some

hearing devices (hearing aids and cochlear

implants), users may detect a buzzing, humming,

or whining noise. Some hearing devices are more

immune than others to this interference noise, and

phones also vary in the amount of interference

they generate.

The wireless telephone industry has developed a

rating system for wireless phones, to assist hearing

device users find phones that may be compatible

with their hearing devices. Not all phones have

been rated. Phones that are rated have the rating

on their box or a label located on the box.

The ratings are not guarantees. Results will vary

depending on the user’s hearing device and hear-

ing loss. If your hearing device hap-pens to be

vulnerable to interference, you may not be able

to use a rated phone successfully. Trying out the

phone with your hearing device is the best way to

evaluate it for your personal needs.

M-Ratings:

Phones rated M3 or M4 meet FCC

requirements and are likely to

generate less interference to

hearing devices than phones that

are not labeled. M4 is the better

higher of the two ratings.

Hearing devices may also be rated. Your hearing

device manufacturer or hearing health profes-

sional may help you find this rating. Higher ratings

mean that the hearing device is relatively immune

to interference noise.

The hearing aid and wireless phone rating values

are then added together. A sum of 5 is considered

acceptable for normal use. A sum of 6 is consid-

ered for best use.

In the above example, if a hearing aid meets the

M2 level rating and the wireless phone meets the

M3 level rating, the sum of the two values equal

M5. This should provide the hearing aid user with

64 Appendix Appendix 65

“normal usage” while using their hearing aid with

the particular wireless phone. “Normal usage” in

this context is defined as a signal quality that is

acceptable for normal operation.

The M mark is intended to be synonymous

with the U mark. The T mark is intended to

be synonymous with the UT mark. The M and

T marks are recommended by the Alliance for

Telecommunications Industries Solutions (ATIS). The

U and UT marks are referenced in Section 20.19 of

the FCC Rules. The HAC rating and measure-ment

procedure are described in the American National

Standards Institute (ANSI) C63.19 standard.

For information about hearing aids and digital

wireless phone

• Fcc Hearing Aid Compatibility and Volume

Control

http://www.fcc.gov/cgb/dro/hearing.

html

• Gallaudet University, RERC

http://tap.gallaudet.

edu/voice

• Self Help for Hard of Hearing People Inc.

[SHHH]

http://www.hearingloss.org

• The Hearing Aid Compatibility FCC Order

http://hraunfoss.fcc.gov/edocs_public/attach‐

match/FCC‐03‐168A1.pdf

H �

FDA CONSUMER UPDATE

U.S. Food and Drug

Administration - Center for

Devices and Radiological Health Consumer

Update on Wireless Phones

1. Do wireless phones pose a health hazard?

The available scientific evidence does not show

that any health problems are associated with

using wireless phones. There is no proof, however,

that wireless phones are absolutely safe. Wireless

phones emit low levels of radiofrequency energy

(RF) in the microwave range while being used.

They also emit very low levels of RF when in the

stand-by mode. Whereas high levels of RF can pro-

duce health effects (by heating tissue), exposure to

low level RF that does not produce heating effects

causes no known adverse health effects. Many

studies of low level RF exposures have not found

any biological effects. Some studies have suggest-

ed that some biological effects may occur, but such

findings have not been con-firmed by additional

research. In some cases, other researchers have had

difficulty in reproducing those studies, or in deter-

mining the reasons for inconsistent results.

2. What is FDA’s role concerning the safety of

wireless phones?

Under the law, FDA does not review the safety

of radiation-emitting consumer products such

as wireless phones before they can be sold, as it

does with new drugs or medical devices. However,

the agency has authority to take action if wireless

phones are shown to emit radiofrequency energy

(RF) at a level that is hazardous to the user. In

such a case, FDA could require the manufacturers

of wireless phones to notify users of the health

hazard and to repair, replace or recall the phones

so that the hazard no longer exists. Although the

existing scientific data do not justify FDA regula-

tory actions, FDA has urged the wireless phone

industry to take a number of steps, including the

following:

• Support needed research into possible biologi-

cal effects of RF of the type emitted by wireless

phones;

• Design wireless phones in a way that minimizes

any RF exposure to the user that is not neces-

sary for device function; and

• Cooperate in providing users of wireless phones

with the best possible information on possible

effects of wireless phone use on human health.

FDA belongs to an interagency working group of

the federal agencies that have responsibility for

different aspects of RF safety to ensure coordi-

nated efforts at the federal level. The following

agencies belong to this working group:

• National Institute for Occupational Safety and

Health

• Environmental Protection Agency

• Federal Communications Commission

• Occupational Safety and Health Administration

• National Telecommunications and Information

Administration

The National Institutes of Health participates in

some inter-agency working group activities, as

well. FDA shares regulatory responsibilities for

wireless phones with the Federal Communications

Commission (FCC). All phones that are sold in the

United States must comply with FCC safety guide-

lines that limit RF exposure. FCC relies on FDA and

other health agencies for safety questions about

wireless phones. FCC also regulates the base sta-

tions that the wireless phone networks rely upon.

While these base stations operate at higher power

than do the wireless phones themselves, the RF

exposures that people get from these base stations

are typically thousands of times lower than those

they can get from wireless phones. Base stations

are thus not the subject of the safety questions

discussed in this document.

3. What kinds of phones are the subject of this

update?

The term “wireless phone” refers here to hand-

held wireless phones with built-in antennas, often

called “cell,” “mobile,” or “PCS” phones. These

types of wireless phones can expose the user to

measurable radiofrequency energy (RF) because

of the short distance between the phone and

the user’s head. These RF exposures are limited

by Federal Communications Commission safety

guidelines that were developed with the advice of

FDA and other federal health and safety agencies.

When the phone is located at greater distances

from the user, the exposure to RF is drastically

lower because a person’s RF exposure decreases

rapidly with increasing distance from the source.

The so-called “cordless phones,” which have a

base unit connected to the telephone wiring in a

house, typically operate at far lower power levels,

and thus produce RF exposures far below the FCC

safety limits.

66 Appendix Appendix 67

4. What are the results of the research done

already?

The research done thus far has produced conflict-

ing results, and many studies have suffered from

flaws in their research methods. Animal experi-

ments investigating the effects of radiofrequency

energy (RF) exposures characteristic of wireless

phones have yielded conflicting results that often

cannot be repeated in other laboratories. A few

animal studies, however, have suggested that

low levels of RF could accelerate the develop-

ment of cancer in laboratory animals. However,

many of the studies that showed increased tumor

development used animals that had been geneti-

cally engineered or treated with cancer-causing

chemicals so as to be predisposed to develop can-

cer in the absence of RF exposure. Other studies

exposed the animals to RF for up to 22 hours per

day. These conditions are not similar to the condi-

tions under which people use wireless phones, so

we don’t know with certainty what the results of

such studies mean for human health. Three large

epidemiology studies have been published since

December 2000. Between them, the studies investi-

gated any possible association between the use of

wireless phones and primary brain cancer, glioma,

meningioma, or acoustic neuroma, tumors of the

brain or salivary gland, leukemia, or other cancers.

None of the studies demonstrated the existence

of any harmful health effects from wireless phone

RF exposures. However, none of the studies can

answer questions about long-term exposures, since

the average period of phone use in these studies

was around three years.

5. What research is needed to decide whether RF

exposure from wireless phones poses a health

risk?

A combination of laboratory studies and epide-

miological studies of people actually using wireless

phones would provide some of the data that are

needed. Lifetime animal exposure studies could

be completed in a few years. However, very large

numbers of animals would be needed to provide

reliable proof of a cancer promoting effect if one

exists. Epidemiological studies can provide data

that is directly applicable to human populations,

but 10 or more years’ follow-up may be needed to

provide answers about some health effects, such

as cancer. This is because the interval between

the time of exposure to a cancer-causing agent

and the time tumors develop - if they do -may be

many, many years. The interpretation of epidemio-

logical studies is hampered by difficulties in mea-

suring actual RF exposure during day-to-day use

of wire-less phones. Many factors affect this mea-

surement, such as the angle at which the phone is

held, or which model of phone is used.

6. What is FDA doing to find out more about the

possible health effects of wireless phone RF?

FDA is working with the U.S. National Toxicology

Program and with groups of investigators around

the world to ensure that high priority animal stud-

ies are conducted to address important questions

about the effects of exposure to radiofrequency

energy (RF). FDA has been a leading participant

in the World Health Organization International

Electromagnetic Fields (EMF) Project since its incep-

tion in 1996. An influential result of this work has

been the development of a detailed agenda of

research needs that has driven the establishment

of new research programs around the world.

The Project has also helped develop a series of

public information documents on EMF issues. FDA

and the Cellular Telecommunications & Internet

Association (CTIA) have a formal Cooperative

Research and Development Agreement (CRADA)

to do research on wireless phone safety. FDA pro-

vides the scientific oversight, obtaining input from

experts in government, industry, and academic

organizations. CTIA-funded research is conducted

through contracts to independent investigators.

The initial research will include both labora-tory

studies and studies of wireless phone users. The

CRADA will also include a broad assessment of

additional research needs in the context of the lat-

est research developments around the world.

7. How can I find out how much radiofrequency

energy exposure I can get by using my wireless

phone?

All phones sold in the United States must comply

with Federal Communications Commission (FCC)

guidelines that limit radiofrequency energy (RF)

exposures. FCC established these guidelines in con-

sultation with FDA and the other federal health

and safety agencies. The FCC limit for RF expo-

sure from wireless telephones is set at a Specific

Absorption Rate (SAR) of 1.6 watts per kilogram

(1.6 W/kg). The FCC limit is consistent with the

safety standards developed by the Institute of

Electrical and Electronic Engineering (IEEE) and

the National Council on Radiation Protection and

Measurement. The exposure limit takes into con-

sideration the body’s ability to remove heat from

the tissues that absorb energy from the wireless

phone and is set well below levels known to have

effects. Manufacturers of wireless phones must

report the RF exposure level for each model of

phone to the FCC. The FCC website (http://www.

fcc.gov/oet/rfsafety) gives directions for locating

the FCC identification number on your phone so

you can find your phone’s RF exposure level in the

online listing.

8. What has FDA done to measure the radiofre-

quency energy coming from wireless phones?

The Institute of Electrical and Electronic Engineers

(IEEE) is developing a technical standard for mea-

suring the radiofrequency energy (RF) exposure

from wireless phones and other wireless handsets

with the participation and leadership of FDA scien-

tists and engineers. The standard, “Recommended

Practice for Determining the Spatial-Peak Specific

Absorption Rate (SAR) in the Human Body Due to

Wireless Communications Devices: Experimental

Techniques,” sets forth the first consistent test

methodology for measuring the rate at which RF

is deposited in the heads of wireless phone users.

The test method uses a tissue-simulating model of

the human head. Standardized SAR test methodol-

ogy is expected to greatly improve the consistency

of measurements made at different laboratories

68 Appendix Appendix 69

on the same phone. SAR is the measurement of

the amount of energy absorbed in tissue, either

by the whole body or a small part of the body. It

is measured in watts/kg (or milliwatts/g) of matter.

This measurement is used to determine whether a

wireless phone complies with safety guidelines.

9. What steps can I take to reduce my exposure to

radiofrequency energy from my wireless phone?

If there is a risk from these products—and at this

point we do not know that there is—it is prob-

ably very small. But if you are concerned about

avoiding even potential risks, you can take a few

simple steps to mini-mize your exposure to radio-

frequency energy (RF). Since time is a key factor

in how much exposure a person receives, reducing

the amount of time spent using a wireless phone

will reduce RF exposure.

• If you must conduct extended conversations by

wireless phone every day, you could place more

distance between your body and the source of

the RF, since the exposure level drops off dra-

matically with distance. For example, you could

use a headset and carry the wireless phone

away from your body or use a wireless phone

connected to a remote antenna. Again, the

scientific data do not demonstrate that wireless

phones are harmful. But if you are concerned

about the RF exposure from these products, you

can use measures like those described above to

reduce your RF exposure from wireless phone

use.

10. What about children using wireless phones?

The scientific evidence does not show a danger to

users of wireless phones, including children and

teenagers. If you want to take steps to lower expo-

sure to radiofrequency energy (RF), the measures

described above would apply to children and teen-

agers using wireless phones. Reducing the time

of wireless phone use and increasing the distance

between the user and the RF source will reduce RF

exposure. Some groups sponsored by other nation-

al governments have advised that children be

discouraged from using wireless phones at all. For

example, the government in the United Kingdom

distributed leaflets containing such a recom-

mendation in December 2000. They noted that no

evidence exists that using a wireless phone causes

brain tumors or other ill effects. Their recommen-

dation to limit wireless phone use by children was

strictly precautionary; it was not based on scientific

evidence that any health hazard exists.

11. What about wireless phone interference with

medical equipment?

Radiofrequency energy (RF) from wireless phones

can interact with some electronic devices. For this

reason, FDA helped develop a detailed test meth-

od to measure electromagnetic interference (EMI)

of implanted cardiac pacemakers and defibrillators

from wireless telephones. This test method is now

part of a standard sponsored by the Association

for the Advancement of Medical instrumentation

(AAMI). The final draft, a joint effort by FDA,

medical device manufacturers, and many other

groups, was completed in late 2000. This standard

will allow manufacturers to ensure that cardiac

pacemakers and defibrillators are safe from wire-

less phone EMI. FDA has tested hearing aids for

interference from handheld wireless phones and

helped develop a voluntary standard sponsored by

the Institute of Electrical and Electronic Engineers

(IEEE). This standard specifies test methods and

performance requirements for hearing aids and

wireless phones so that that no interference occurs

when a person uses a “compatible” phone and a

“compatible” hearing aid at the same time. This

standard was approved by the IEEE in 2000. FDA

continues to monitor the use of wireless phones

for possible interactions with other medical devic-

es. Should harmful interference be found to occur,

FDA will conduct testing to assess the interference

and work to resolve the problem.

12. Where can I find additional information?

For additional information, please refer to the fol-

lowing resources:

• FDA web page on wireless phones

(http://www.fda.gov/cellphones/)

• Federal Communications Commission (FCC) RF

Safety Program

(http://www.fcc.gov/oet/rfsafety)

• International Commission on Non-Ionizing

Radiation Protection (http://www.icnirp.de)

• World Health Organization (WHO) International

EMF Project (http://www.who.int/peh-emf/en/)

• National Radiological Protection Board (UK)

(http://www.hpa.org.uk/radiation/)

H �

AVOID POTENTIAL HEARING LOSS.

Prolonged exposure to loud sounds (including

music) is the most common cause of prevent-

able hearing loss. Some scientific research sug-

gests that using portable audio devices, such as

portable music players and cellular telephones,

at high volume settings for long durations may

lead to permanent noise-induced hearing loss.

This includes the use of headphones (including

headsets, earbuds and Bluetooth

This includes the use of headphones (including

or other wire-

less devices). Exposure to very loud sound has also

been associated in some studies with tinnitus (a

ringing in the ear), hypersensitivity to sound and

distorted hearing. Individual susceptibility to noise-

induced hearing loss and other potential hearing

problems varies.

The amount of sound produced by a portable

audio device varies depending on the nature of

the sound, the device, the device set-tings and the

headphones. You should follow some common-

sense recommendations when using any portable

audio device:

• Set the volume in a quiet environment and

select the lowest volume at which you can hear

adequately.

• When using headphones, turn the volume

down if you cannot hear the people speaking

near you or if the person sitting next to you can

hear what you are listening to.

• Do not turn the volume up to block out noisy

70 Appendix Appendix 71

surroundings. If you choose to listen to your

portable device in a noisy environment, use

noise-cancelling headphones to block out back-

ground environ-mental noise.

• Limit the amount of time you listen. As the vol-

ume increases, less time is required before your

hearing could be affected.

• Avoid using headphones after exposure to

extremely loud noises, such as rock concerts,

that might cause temporary hearing loss.

Temporary hearing loss might cause unsafe

volumes to sound normal.

• Do not listen at any volume that causes you

discomfort. If you experience ringing in your

ears, hear muffled speech or experience any

temporary hearing difficulty after listening to

your portable audio device, discontinue use and

consult your doctor.

You can obtain additional information on this

subject from the following sources:

American Academy of Audiology

11730 Plaza American Drive, Suite 300

Reston, VA 20190

Phone: 800-AAA-2336, 703-790-8466

Fax: 703-790-8631

Email: info@audiology.org

Internet: www.audiology.org

National Institute on Deafness and Other

Communication Disorders

National Institutes of Health

31 Center Drive, MSC 2320

Bethesda, MD USA 20892-2320

Email: nidcdinfo@nidcd.nih.gov

Internet: http://www.nidcd.nih.gov/health/hearing

National Institute for Occupational Safety and

Health

Hubert H. Humphrey Bldg.

200 Independence Ave., SW

Washington, DC 20201

Voice: 1-800-35-NIOSH (1-800-356-4674)

Internet: http://www.cdc.gov/niosh/topics/noise/

default.html

H �

CTIA USER INFORMATION

REQUIREMENTS

• Do not disassemble or open crush, bend or

deform, puncture or shred

• Do not modify or remanufacture, attempt to

insert foreign objects into the battery, immerse

or expose to water or other liquids, expose to

fire, explosion or other hazard.

• Only use the battery for the system for which

it is specified

• Only use the battery with a charging system

that has been qualified with the system per

this standard. Use of an unqualified battery or

charger may present a risk of fire, explosion,

leakage, or other hazard.

• Do not short circuit a battery or allow metallic

conductive objects to contact battery terminals.

• Replace the battery only with another battery

that has been qualified with the system per

this standard, IEEE-Std-1725-2006. Use of an

unqualified battery may present a risk of fire,

explosion, leak-age or other hazard.

• Promptly dispose of used batteries in accor-

dance with local regulations

• Battery usage by children should be supervised.

• Avoid dropping the phone or battery. If the

phone or battery is dropped, especially on a

hard surface, and the user suspects dam-age,

take it to a severe center for inspection.

• Improper battery use may result in a fire, explo-

sion or other hazard.

H �

INDEX

GETTING STARTED

Activating your Virgin mobile account 10

Charging the battery 07

Install/remove your battery 07

Display icons 08

Entering text 08

Enter text using the keypad 09

Finding your phone’s serial number 10

Manu overview 06

Phone overview 04

Programming your phone 10

Turn on/off the phone 08

MY ACCOUNT

Checking your account balance 12

For more information 13

My account 12

Top-Up your account 12

PayPal Account 12

Top-Up with a Debit Card, Credit Card, or

Top-Up with a Top-Up Card 12

CALLS & CONTACTS

Call setting 18

Set auto answer 18

Set call reminder 18

Caller identification 17

Call waiting function 17

Checking all calls 18

Send a message with recent call list 18

View total call time 19

Making an emergency call 17

Making, receiving & ending a call 16

Adjusting the call volume 16

Answer a call 16

End a call 16

Insert a Time/Hard Pause feature 16

Make a call 16

Make a call during a call 16

Make a call using call list 16

Make a call using contacts 16

Reject a call 16

Reply to a missed call 16

Options during a call 17

Read a message 18

72 Appendix Appendix 73

Search a number in contact list 18

Search a number in recent calls 18

Save a number in contacts list 18

Talk on speaker phone 18

Write a text message 18

Speaker phone 17

Speed dialing 20

Using contacts 20

Add a contact 20

Make groups 20

Search for a phone number 20

Send a group message 21

View contact list 20

Using your headset 23

Vibrate on/off mode 17

Voice commands (AVR) 21

MESSAGING

Create and send new email message 29

Create and send new instant message 29

Create and send new multimedia message 28

Creating and send new message 28

Erase messages 30

Messaging 26

Delete message in each mailbox 26

Reply the message 26

Message setting 30

Message templates 28

Received message 26

Read message using inbox 26

Launch e-mail address from the received

message 26

Listen to receive voice message 26

Multimedia message 26

Save new numbers from received message 26

Save the object in the received

View new received message 26

Sent message 27

Virgin alerts 29

Voicemail 26

Setup your voicemail 26

MULTIMEDIA

Camera 32

Send pictures using multimedia message 33

Set camera settings 32

Take a picture 33

View the taken picture 33

Music and sound album 34

Listen the recorded sound 34

Set as a ringtone 34

Other files 34

Pictures and image album 33

Set as screensaver in the display 34

Set as wallpaper in the display 33

View the downloaded or saved image

and pictures 33

Playing game 35

Set the game options 35

Themes album 34

Set as the theme 34

USEFUL FEATURES

Alarm clock 38

Calculator 38

Calendar 38

Stopwatch 39

Tip calculator 39

Voice memo 39

Send voice memo using multimedia

message 39

World clock 39

SETTINGS

Alerts 42

Bluetooth 45

Call options 44

Decorate the display 43

Game settings 45

Msg settings 44

Phone info 45

Ringtones 42

Security 44

Tones 42

To set other options 45

CONNECTIVITY

Bluetooth 48

Activate Bluetooth 48

Add a device 48

Call using hands-free 49

Receive a call using hands-free 49

Set Incoming security 49

Set the discovery mode 49

Set the supported profiles 49

My Stuff 51

Using the internet 50

Access internet 50

VirginXL 51

Access VirginXL 51

APPENDIX

12 Month limited warranty 56

About the battery usage 54

Avoid potential hearing loss 69

CTIA user information requirements 70

Error message 55

FCC Hearing-Aid Compatibility (HAC) regulations

for wireless devices 63

FDA consumer update 64

Index 71

Safety information for wireless handheld phone

Safety information for FCC RF exposure 61

SAR information 62

Troubleshooting checklist 55

74 Appendix

U.S.A.

U.S.FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

Interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy

and, if Not installed and used in accordance with the instructions, may cause harmful Interference to radio

communications. However, there is no guarantee that interference will not occur in a particular Installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

*- Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.　

*- Connect the equipment into an outlet of a circuit different from that to which the receiver is

connected.

*- Consult the dealer or an experienced radio/TV technician for assistance.

Changes or modification not expressly approved by the party responsible for Compliance could void the user’s

authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal

cables.

FCC Compliance Information

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

Pantech X1 Single-Band CDMA PCS Phone with Bluetooth User Manual CDM8074 X1 080227 indd

Pantech Co., Ltd. Single-Band CDMA PCS Phone with Bluetooth CDM8074 X1 080227 indd

Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
