Paxton Access 333210 Compact Proximity Reader P38 User Manual INSTRUCTION PROXIMITY P series compact reader

Paxton Access Ltd Compact Proximity Reader P38 INSTRUCTION PROXIMITY P series compact reader

Contents

Installation manual

24/11/2011
Technical Support
Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
01273 811011 support@paxton.co.uk
Suitability
Mounted on metal surface
Wet environments
Security-sensitive doors
Readers mounted together
between readers
300 mm
Quickstart guide
This supplement is a brief guide to installing a P series compact system. Further information is available for
download at: http://www.paxton.co.uk/ or call the communications team on: 01273 811011.
Ins-30003 PROXIMITY P series compact reader
Exit button
(push to make)
Electric release
12V DC power
supply
12V DC release current rating must be less than 1A.
P75 Screw connector option
The unit should be mounted in conjunction with
an electrical backbox to achieve the required
clearance for the connector.
If an adaptor plate (310-750) is tted, the
mountings on the backbox can also be used.
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/
+12V
+12V
0V
0V
0V
Exit
Paxton
Indoor use only
+12V DC
0V
Lock 12V
Lock 0V
Exit input
Exit 0V
Enrolment Card - must be presented when the system is rst powered on
BEEP!
BEEP!
2 3 4
1. At installation, present this card to the
reader to validate the tokens in this pack
2. To re-validate a user token present this
enrolment card to the reader followed by the
user token
Paxton Access
FUNCTION CARD
enrolment card
More info: http://paxton.info/74
1. At installation, present this card to the
reader to validate the tokens in this pack
2. To re-validate a user token present this
enrolment card to the reader followed by the
user token
Paxton Access
FUNCTION CARD
enrolment card
More info: http://paxton.info/74
1
1. At installation, present this card to the
reader to validate the tokens in this pack
2. To re-validate a user token present this
enrolment card to the reader followed by the
user token
FUNCTION CARD
enrolment card
1. At installation, present this card to the
reader to validate the tokens in this pack
2. To re-validate a user token present this
enrolment card to the reader followed by the
user token
FUNCTION CARD
enrolment card
More info: http://paxton.info/74

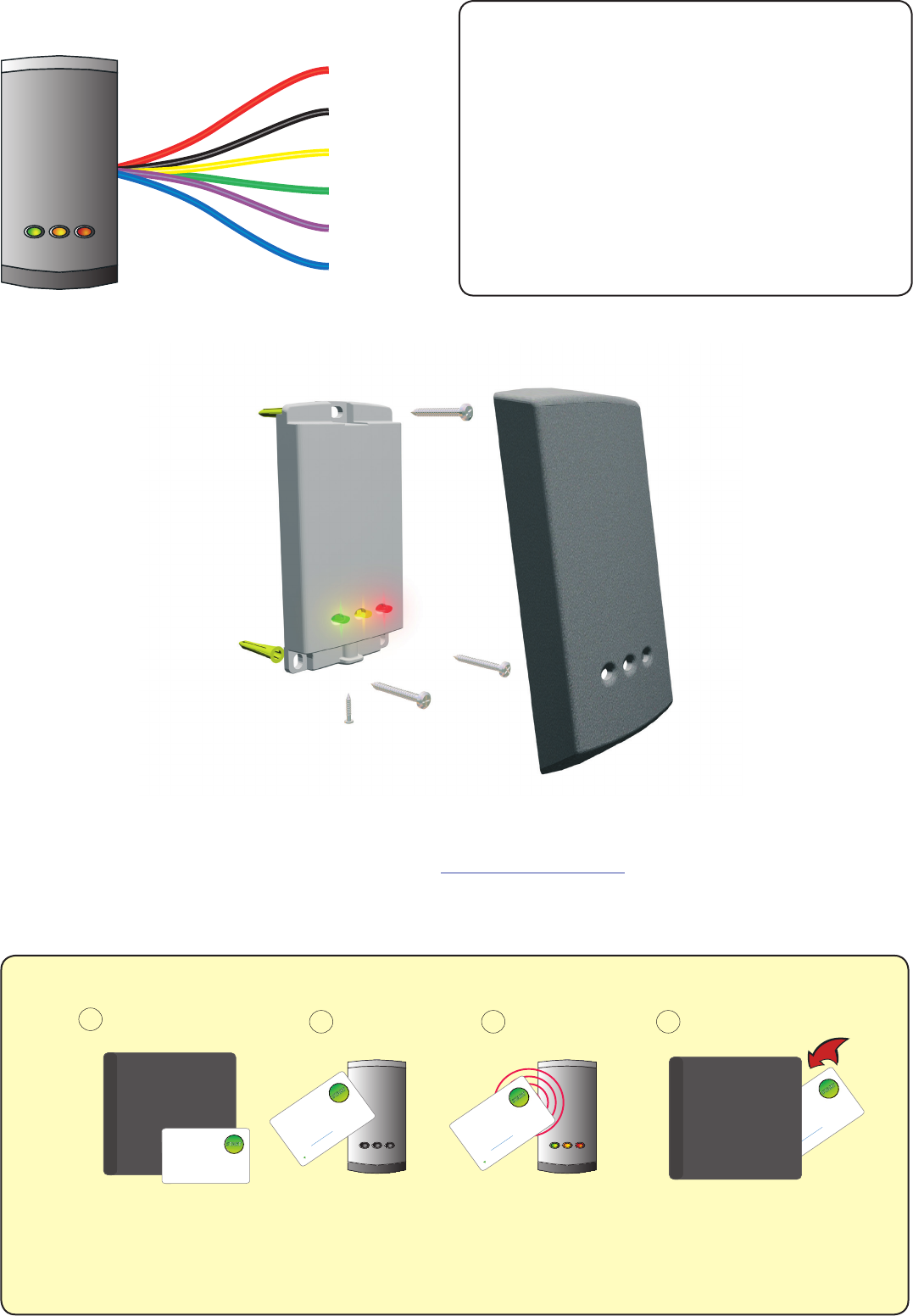

1. Take the enrolment card from the new pack of user cards.
2. Present the enrolment card to the reader.
3. The reader beeps and the LED's light up as the enrolment card is acknowledged.
4. All cards in the pack are now valid. The enrolment card can now be returned to it's pack.
Reset - Use one method
Reader covers
Additional covers are available in black, white, grey, blue and silver. Registered installers can order these free
of charge by logging onto the secure installer extranet: http://paxton.info/1035 or if you are not a registered
installer please call us on: 01273 811011 for more information.
Fitting
Wiring
1. Power down the unit.
2. Press and hold the exit button.
3. Power up the unit. It will give several quick beeps.
4. Wait for a further beep and then release and press
the exit button twice more.
5. The reader will beep 3 times to conrm the reset.
OR
1. Present Enrolment card.
2. Present Door open time card twice.
3. Present Enrolment card.
4. Present Door open time card twice.
5. WAIT FOR 5 SECONDS!
Issuing tokens
1. Across each double page there are pairs of cards - a user card and a corresponding shadow card.
2. Write the name of the user on the shadow card.
3. Take the user card from the opposite pouch and issue to the user.
4. Keep the card pack containing the shadow cards in a safe place.
12
3
4
User cards
Shadow cards
Bar a user
1. When a card is lost or stolen it is important to bar the card from your system to avoid unauthorized access.
2. To bar a card or token take it's corresponding shadow card from the card pack.
3. Present the shadow card to the reader. This will remove the lost card or token from your system.
4. A barred card can re-validated by presenting the enrolment card followed by the user card to the reader.
1 2 3 4
Fail open release card - Compact systems are fail closed as default
THIS CARD CAN ONLY BE USED WITH A FAIL OPEN LOCK.
1. Take the fail open release function card from the starter pack.
2. Present/swipe the card through the reader. The reader will beep for about a second.
3. The reader is now set to fail open mode. This allows safe operation of the door in case of re: The lock will
release when the power is cut.
4. To revert to fail closed mode, swipe the card again and the reader will beep once.
1 2 34
BEEP!
BEEP!
This card is used with systems where a fail open
electric release is used for the safe operation in the
event of a fire. Present the card to the reader to
drive a fail open release or a maglock. Present the
card again to revert to the fail closed operation
Paxton Access
FUNCTION CARD
fail open release
This card is used with systems where a fail open
electric release is used for the safe operation in the
event of a fire. Present the card to the reader to
drive a fail open release or a maglock. Present the
card again to revert to the fail closed operation
Paxton Access
FUNCTION CARD
fail open release
This card is used with systems where a fail open
electric release is used for the safe operation in the
event of a fire. Present the card to the reader to
drive a fail open release or a maglock. Present the
card again to revert to the fail closed operation
FUNCTION CARD
fail open release
1. Power down the unit.
2. Press and hold the exit button.
3. Power up the unit. It will give several quick beeps.
4. Wait for a further beep and then release and press
the exit button twice more.
5. The reader will beep 3 times to conrm the reset.
OR
1. Present Enrolment card.
2. Present Door open time card twice.
3. Present Enrolment card.
4. Present Door open time card twice.
5. WAIT FOR 5 SECONDS!
11V DC 14V DC
100mA
1A
-20 °C +55 °C
IPX7
110,000
1 100
1 sec 60 secs
1 2
1 3
P38 60 mm 40 mm 25 mm
P50 80 mm 50 mm 35 mm
P75 100 mm 60 mm 40 mm
P38 38 mm 78 mm 13 mm
P50 50 mm 100 mm 15 mm
P75 75 mm 143 mm 16 mm
Voltage
Specications
Operating temperature
Electrical
Environment
Dimensions
Min Max
Width Height Depth
Current
Outdoor use
Features
Door open time
Number of Card Packs
Time zones (with additional time clock)
Silent operation
Can be used with fail OPEN locks
Can be used with fail CLOSED locks
Exit button input
Waterproof - Fixed cable
Number of Users
Access levels (Colour Zones)
Door open time (seconds)
1. Take the silent operation function card from the starter pack.
2. Present the card to the reader. The reader will beep.
3. The reader is now in silent operation mode.
4. Present the card again to disable silent operation mode. The reader will beep twice.
Silent operation
1. Take the 'door open time' card from the starter pack.
2. Present the card to the reader. The reader will start beeping.
3. Wait for the required period you wish the door to remain open.
4. Present the card again at the end of the period to set the open time. The beeping will stop.
1 2 3 4
BEEP!
BEEP!
BEEP!
Paxton Access
FUNCTION CARD
silent operation
Present this card to silence the beeping noises
made by the reader. Present this card again to
re-enable the beeping noises
Paxton Access
FUNCTION CARD
silent operation
Present this card to silence the beeping noises
made by the reader. Present this card again to
re-enable the beeping noises
FUNCTION CARD
silent operation
Present this card to silence the beeping noises
made by the reader. Present this card again to
re-enable the beeping noises
1 2 3 4
BEEP!
BEEP!
Paxton Access
FUNCTION CARD
door open time card
The period that the door is unlocked for when a
valid token is presented is set as follows:
1. Present this card
2. Wait for the required period
3. Present this card again, the beeping will stop
Paxton Access
FUNCTION CARD
door open time card
The period that the door is unlocked for when a
valid token is presented is set as follows:
1. Present this card
2. Wait for the required period
3. Present this card again, the beeping will stop
FUNCTION CARD
door open time card
The period that the door is unlocked for when a
valid token is presented is set as follows:
1. Present this card
2. Wait for the required period
3. Present this card again, the beeping will stop
Switchable current
Min
Min
Max
Max
Read Range KeyfobToken Watchprox
Yes
Yes
Yes
Yes
Waterproof - P75 - Screw connection Indoor use
