Paxton Access Ltd Net2 PaxLock – 72mm Euro lock case INSTRUCTION Net2 PaxLock
User Manual
PAGE 1
02/23/2012
Parts list
Tools List
Power Drill
Drill bits 3/8", 5/8"
Philips screwdriver
Small at blade terminal screwdriver
Pencil
4mm Allen key (supplied)
Technical Support
Technical help is available: Monday - Friday from 02:00 AM - 8:00 PM (EST)
1.800.672.7298 supportUS@paxton-access.com
Ins-30168-US Net2 PaxLock
Documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/
Net2Air Site Surveyor (690-200-US).
This access control unit uses wireless
communication. It is recommended that a
Net2Air site surveyor is used to determine the
best position for the bridge and control units.
This wireless unit requires a Net2Air bridge
to communicate with the server PC.
Paxton
123
45 6
7
89
AA
AA
-
-
+
+
1) Front Lock Assembly
2) Rear Lock Assembly
3) Door Handle x 2
4) Mounting screw (1 1/4") x 2
5) Mounting screw ( 1 1/2") x 2
6) Mounting screw ( 1 3/4" ) x 2
7) 8 mm Spindle
8) AA battery x 4
9) 4 mm Allen Key
This unit requires Net2 v4.23 or later software.
Call Technical Support if you require advice.
PAGE 2
The lock (not supplied) must rst be tted to the door.
Slide the spindle through the lock to allow the template
to locate over it. Ensure that the template is square to
the door edge by using the top and bottom ruler scales.
Mark the 2 x 3/8" and 1 x 5/8" holes. Remove the
template and repeat the procedure for marking out the
other side of the door.

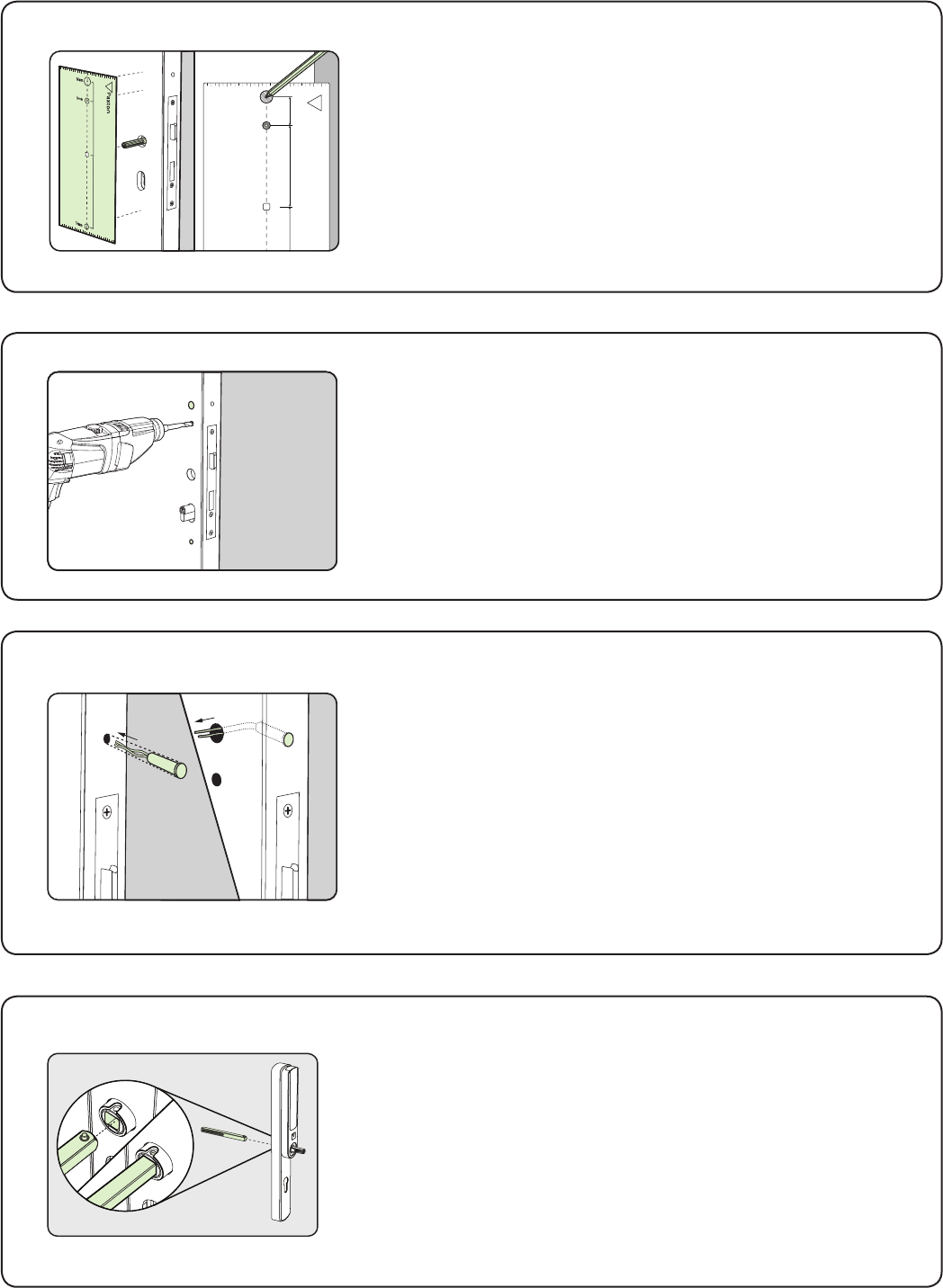

Installing the hardware
Step 1 - Marking out
Step 2 - Drilling
Drill the 2 x 3/8" holes for the mounting screws and
1 x 5/8" hole for the wiring harness.
To ensure accuracy you should drill these holes from
both sides of the door towards the centre. This also
avoids the risk of damaging the door face when the
drill breaks through.
Step 3 - Contact switch (optional)
If a contact switch is to be tted, an additional hole is
required in the edge of the door.
Drill a hole of the required size to receive the switch
assembly. This should intersect the 5/8" hole drilled
previously to take the wiring harness.
Feed the door contact wires through the door to exit on
the inside.
Ø 16
37
105
Ø 10
Paxton
70
60
50
40
30
10
5
5
15
15
0
20
25
25
35
35
45
55
65
75
45
55
65
75
10
20
30
40
60
70
50
The spindle is locked into the front lock assembly by
means of a spring loaded pin.
Ensure that the spindle pin and the hole in the square
drive are in alignment before depressing the pin and
sliding the bar into the assembly. The pin will then latch
into the hole securing the spindle in place.
Step 4 - Attach the Spindle
PAGE 3

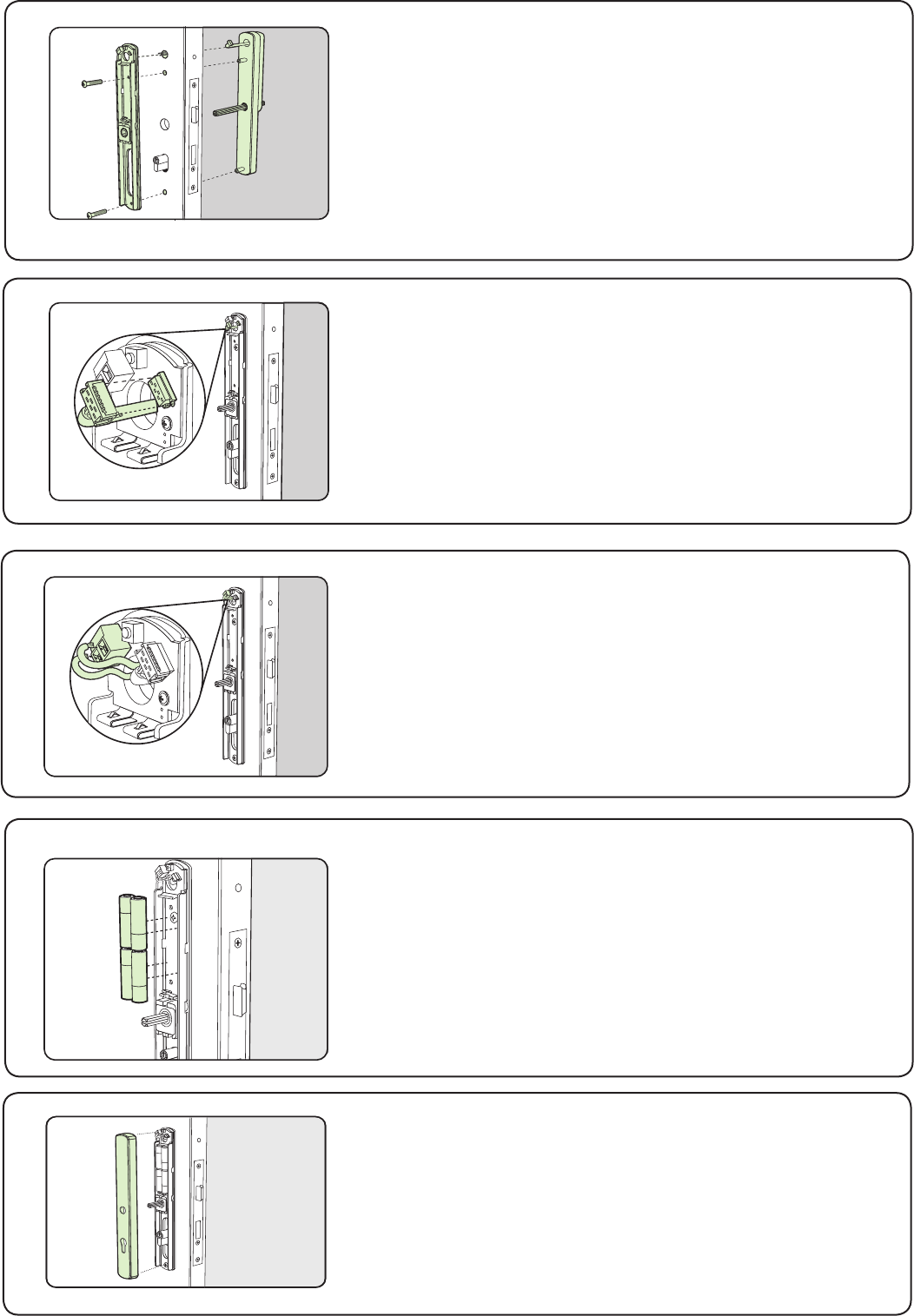

Step 9 - Fitting the rear cover
Present the front lock assembly to the door passing
the wiring harness through the 5/8" hole.
Present the rear lock assembly to the door and join
the two parts together with the two mounting screws.
Step 5 - Mounting on the door
Step 6 - Wiring
Plug the wiring harness into the socket in the rear
lock assembly.
Locate the top of the cover over the housing and push
ush to the door.
Clip in the 4 x AA batteries with reference to the label
displayed below the holder assembly.
Step 8 - Fitting the batteries
Where a contact swich is tted, connect the wires to
the terminal block provided on the pcb.
Step 7 - Wiring (contact switch option)
Mounting screws are provided in three lengths.
Short - Door width 1 1/4" to 1 3/4"
Med - Door width 1 1/2" to 2"
Long - Door width 1 3/4" to 2 1/4"
PAGE 4
The current specication for compatible PC hardware, network and operating systems is available on our
website at the following link: http://paxton.info/720
Net2 has NO PaxLock detection function. It is recognised that there could be security issues if the
wireless units were detectable from outside the site. During installation, a PaxLock unit binds to a Net2Air
bridge which will then only talk to registered units.
Devices cannot be added to the system if commissioning mode is disabled.
An entry is then made on the Doors screen and a special icon is used to denote the wireless connection.
A PaxLock must bind to a Net2Air bridge before it will enrol itself onto the Net2 system. The term 'bind' is
used to denote the xed relationship between a wireless unit and its bridge.
1. Create a user record in the database and assign a Net2 token to the user. (This record can be deleted after
the installation is complete.)
2. You must now wake up the PaxLock by using the front push button.
3. Present the user token to the PaxLock.
4. The Red and Green LED's will ash alternately while the unit congures.
The PaxLock transmits the number and waits for a response from Net2. If more than one bridge replies, the
unit checks the signal strength and selects the strongest bridge to communicate with. The Net2 software
conrms that the token number is in the database and registers the PaxLock/bridge binding. The LED's will
go out when the process has nished.
The software must be in commissioning mode which is the default setting. If this has been turned off it must
be enabled in the Server Conguration Utility.
Enrolling a PaxLock
The Net2 software should be loaded on the controlling PC with at least one Net2Air bridge installed.
Full documentation is supplied with the Net2Air bridge unit and also from the website as follows:
XAN1051 - Installing Net2 software < http://paxton.info/1520 >
XIns-40084-US Net2Air USB bridge < http://paxton.info/1453 >
XIns-40085-US Net2Air Ethernet bridge < http://paxton.info/1192 >
Software installation
Download the latest version of Net2 software at: http://paxton.info/1438 before commissioning this product.
Step 10 - Fitting the handles
Fit the two handles and secure with the grub screws provided.
Check the mechanical operation of the lock and that the
handles operate freely.
Some of the Net2 features (e.g. Fire alarm integration, Anti-passback) are not available on this product as
wireless communication is not suitable for data critical applications.
PAGE 5
Presenting a valid user token to the unit will cause the LED to briey ash Green and the door will unlock.
The presentation of a barred or unknown user token is indicted by a Red LED display.
The external handle is only engaged once access has been granted. The inside handle is always engaged.
Normal Operation - LED Indications
Software conguration
Reader: Local settings for the reader.
Output: Congures the lock for timed release or toggle mode.
Alarm: Enables/Disables the door alarm functions.
(requires contact switch)
Events: Shows the events for this control unit only.
Access Rights: Lists users who have access through this door.
Door name: Name the Door.
Door open time: Set the door open time.
Unlock the Door during: Holds the door unlocked during this
timezone. - Set to 'At No Time' for normal user operation.
Red ash
Red and Green ash together
A valid user card has been presented and the handle is engaged
An invalid user card has been presented - No access granted
LED indications
Green ash
The unit is conguring - Please wait.
The access control unit connects to the Net2 software running on the PC using Paxton Net2Air proprietary
wireless technology. A Net2Air bridge enables communication from the Net2 software to the Paxton wireless
products.
Radio signals do not always behave as you might expect. For example, a cell phone that displays a full signal on
one part of the site will lose signal completely only a few feet away. These problems can be addressed by using
the Net2 site surveyor kit (690-200-US)
See also: XAN1095 - Net2 nano - How does it work? < http://paxton.info/974 >
X AN1096 - How to plan a Net2 nano installation < http://paxton.info/975 >
X Ins-30096-US - Net2Air site surveyor < http://paxton.info/1193 >
Net2Air wireless communication
Radio frequency
The unit is set to channel 11 (2.405 GHz). This product should not be installed within 10 feet of any other radio
(LAN/Wi-Fi) equipment to reduce the possibility of interference.
Red and Green ash alternately
The unit is not bound to a bridge.
PAGE 6
Battery replacement
1. Remove the inside handle from the door by removing the securing grub screw.
2. Remove the cover by holding the bottom edge and pulling it towards you. The cover will lift off at the top when
the bottom edge is clear of the housing.
3. Remove and replace batteries.
4. Ret the cover and handle.
Recovery from a at battery
Should the battery pack become discharged, the latch will no longer function.
This could be in the locked or unlocked state.
Holding a PP3 9V battery up to the contacts on the bottom of the unit will allow
the circuitry to operate normally.
A valid user card can then be used to open the door to access the batteries. +ve-ve
The PaxLock is a standalone unit and stays asleep while there is no user activity. The Net2 server cannot wake
up the unit. If the PIR is activated or the front button is pressed, it powers up the reader circuits in readiness
for a token read. Should nothing occur within 3 seconds, the unit will go back to sleep.
If a token is read, then the PaxLock moves into full operation. The token number is checked against the stored
database and access is granted or denied as per a standard Net2 control unit.
The PaxLock now sends this data via its Net2Air bridge connection to the Net2 server software. If any updates
need to be sent to the unit, including changes to the user data, these are transmitted back. The unit will then
go back to sleep waiting for further activity.
After 1 hour of inactivity, the PaxLock will send a heartbeat to the Net2 PC which responds with any updates.
This keeps the PaxLock updated even when there is no activity at the door and maximises battery life.
Sleep mode
As the battery voltage falls the unit will update the Net2 server with its battery condition. This voltage level is
displayed as a colored battery icon alongside the door in the Doors screen. When the batteries approach the
end of their life an Event is sent to Net2.
Using Net2 Trigger and Actions, an email or text message can be sent to a staff member or engineer to
schedule a battery change.
Low battery warning
During the 1 hour sleep period, any changes made at the PC will not be received. If an immediate
update is required, the unit must be woken up by pressing the front button or presenting a user card.
Where a door is held unlocked by software, it will still receive updates every hour. To force an
immediate update, the unit must by activated by pressing the front button. A card can then be
presented to initiate the update request.
Where the lock has a key override, this will always be available to unlock the door and gain entry.
Low Power mode is available as a global setting in the Net2 server conguration utility or on individual Doors
screens. It is very useful for units that require low activity but have a high rate of passing trafc (e.g. corridor).
In low power mode the PaxLock must be woken up by pressing the front button. This ensures that incidental
handle or PIR activity does not cause an unnecessary drain on battery power or communications activity.
If woken, the PaxLock will initiate a transmission if it has been asleep for more than 1 hour. It will always initiate
an update every six hours.
Low power mode
PAGE 7
PaxLock reset
The PaxLock holds address information for the bridge that it is bound to. This will cause
problems if the unit is to be used on another system.
The unit requires a hardware reset to clear its bridge information. This is achieved as follows:
1. Remove the inside handle from the door by loosening the securing grub screw.
2. Remove the cover by holding the bottom edge and pulling it towards you. The cover will lift
off at the top when the bottom edge is clear of the housing.
3. Locate the red reset button at the top of the unit.
4. Hold the button down and wake up the unit by pressing the front push button.
The unit will give a beep when the reset has started. You can now release the reset button.
5. The Red and Green LED's will both ash until the process has nished.
6. Ret the cover and handle.
7. You can now enrol the unit.
10,000
250
64
10
100
65 ft
3,584
1 inch 1/4 inch
4 x AA
0 °C (-32 °F) +55 °C (+131 °F)
IPX4
6V DC
1 1/2 inch 13 inch 1 3/8 inch
6 1/4 inch 13 inch 4 inch
Operating temperature - Battery limits
Environment
Dimensions
Features
External use
Min
Width Height
Max
Depth
Min Max
Access Levels
Time Zones
Door open time
ACU's per Net2Air bridge - Recommended
Events stored in ACU with no server connection
Number of Cards
Specications
Yes
Net2Air bridge (data lines) per system
Net2Air wireless range to ACU
The declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596
Low
Reader/Keypad module (Required space on Door)
Total outside dimensions (includes handle clearance)
Battery Type
Typical Battery Life
Vandal resistance
Read Range Keyfob
Token
This product is not suitable for retail sale. All warranties are invalid if this product is not installed by a trained technician.
Use site surveyor
Voltage
2 years or 30,000 ops 3 years or 60,000 ops Max = Low power mode
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
FCC Compliance
1 sec 60 secs
