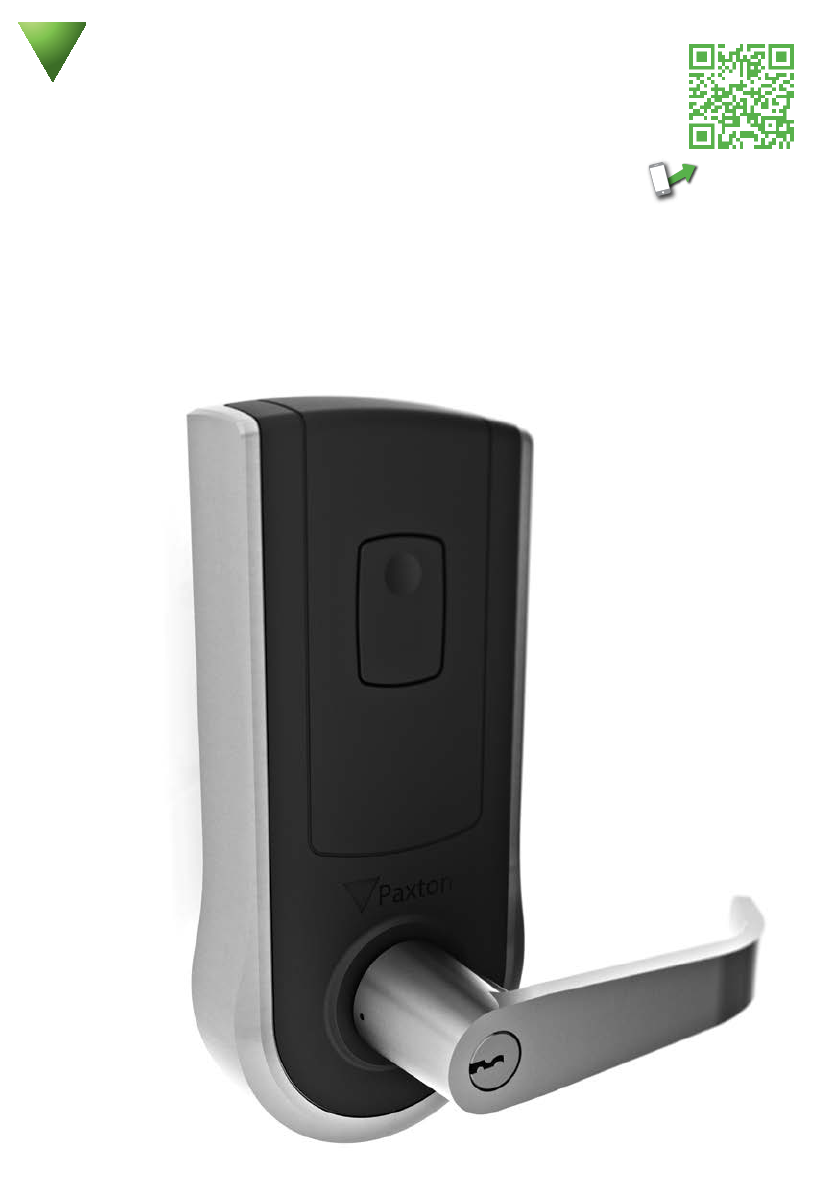

Paxton Access 921130 Paxlock US User Manual

Paxton Access Ltd Paxlock US

User Manual

Paxton
ins-40213-US
Paxlock US
1
x 2 x 2
X 3
1
2*
3
4
5
6
8
910
15
16
17 18
19*
7
20 21
22
11
12
13
14
?
?
?
?
?
?
?
?
?
?
?
?
?
?
Tools List
What’s in the box
1) Front handle
2) Lock Cylinder *
3) Paxlock front housing
4) Motor adjustment plate
5) Motor
6) 2-3/8” Latch
7) Latch screws x 2
8) Motor backplate
9) Backplate/Rose assembly
10) Paxlock rear housing
11) 4 x AA Alkaline batteries
12) Rear battery cover
13) Rear handle cover
14) Rear Handle
15) Small mounting screws x 2
16) Long mounting screws x 3
17) Battery cover key
18) Handle removal pin
19) Keys x 2 *
20) Handle washers x 2
21) Strike plate
22) Strike plate screws x 2
Knife
Adhesive tape
Pencil
Tape measure
* Not for SFIC
Power Drill
Drill bits (1”, 5/16”, 5/8”, 1/8”)
Crosshead screwdriver
Chisel 1”
2
1
2
2-3/8” (60mm) backset
5/16” (8mm)
5/16” (8mm)
5/16” (8mm) 5/16” (8mm)
2-1/8” (54mm)
5/16” (8mm)
5/8” (16mm)
3
1” (25mm) Width
3-1/4” (82mm) Depth
x 2 x 2
X 3
1
2*
3
4
5
6
8
910
15
16
17 18
19*
7
20 21
22
11
12
13
14

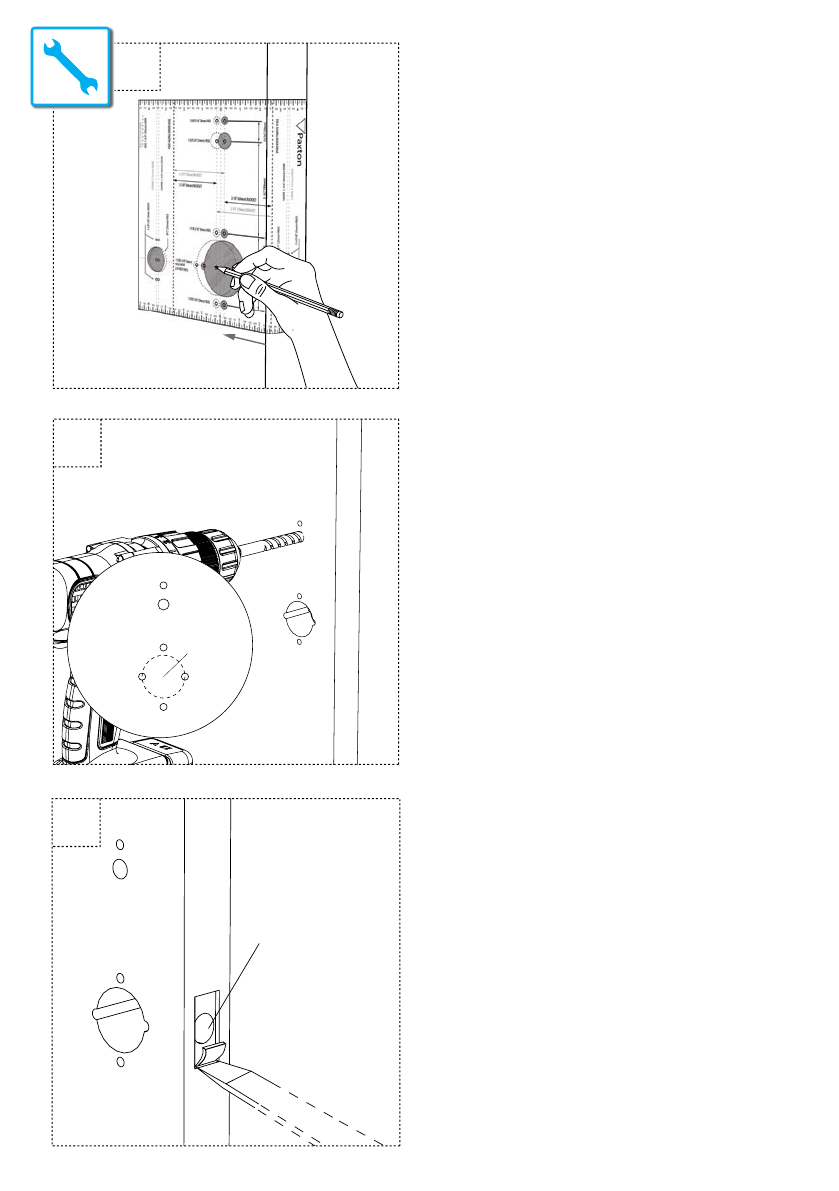

Step 1: Marking out
Tape template to door, mark holes then remove
template for drilling.
Step 2: Drilling
To ensure accuracy you should drill holes from
both sides of the door towards the center. This
avoids the risk of damaging the door face when
the drill breaks through.
Make sure to include pilot holes either side of
the central hole to ensure ush tting of the
motor plates.
Step 3: Marking out and chiseling for latch
To install the latch; drill a 1” (25mm) hole, slide in
the latch, then draw around the faceplate.
Remove the latch and score the outline with
a knife to avoid splitting the wood when
chiselling.
3
4
6
5
Step 6: Inserting the motor
Pass the motor through the central hole within
the door, making sure to pass the motor lead
through the hole rst.

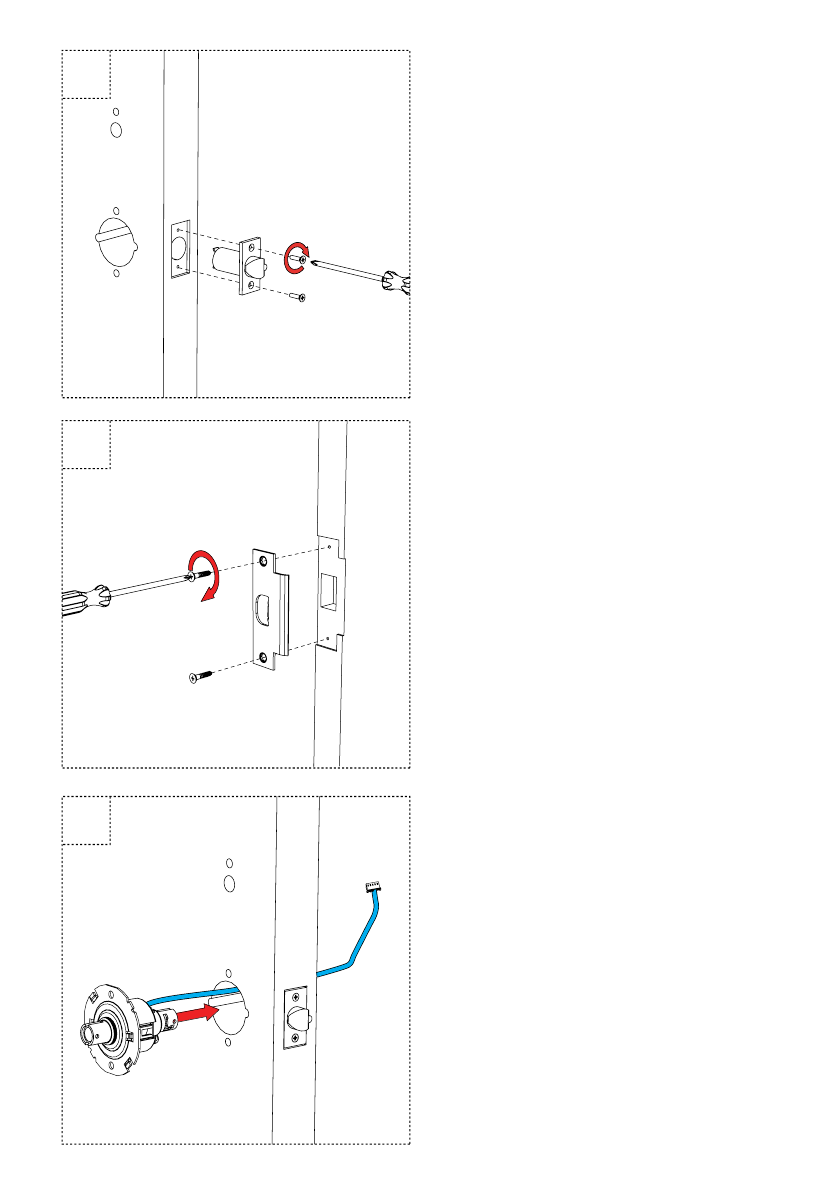

Step 5: Fitting the strike plate
Close the door to mark the horizontal line of the
strike plate.
Measure one half of door thickness from door
stop to mark vertical center line of the strike.
Drill 1” (25.4mm) hole, 1/2” (12.7mm) deep at
intersection of horizontal and vertical center
lines.
Cut out jamb 3/32” (2.4mm) deep or until the
strike is ush with jamb. Tighten the strike plate
screws securely.
Step 4: Fitting the door latch
Attach the latch using the screws provided.
4
8
9
7
- 1-3/4” (45mm)
- 2” (50mm)

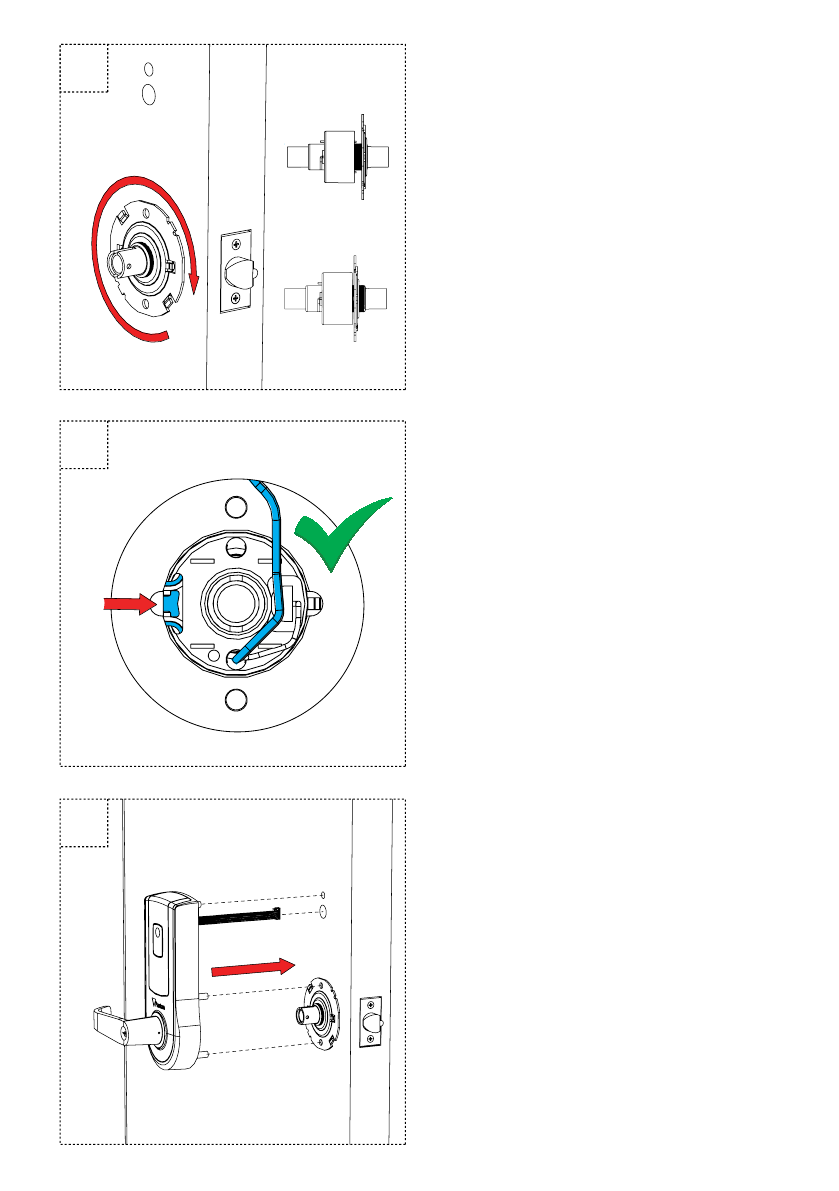

Step 8: Ensuring the latch engages
Make sure the tail of the latch is engaging with
the motor retractor correctly as illustrated.
Step 7: Rotating the motor adjustment plate
To ensure that the motor adjustment plate is at
the correct distance, rotate until it sits ush with
the door and the motor has engaged properly.
Please refer to the diagram for the correct
position of the plate for each door thickness.
Step 9: Fitting the front housing
Line up front housing and ensure the body is
ush to the door.
*PaxLock US is set up for RH doors by default –
please see page 8 for LH operation.
5
13
14
15
10
11
12

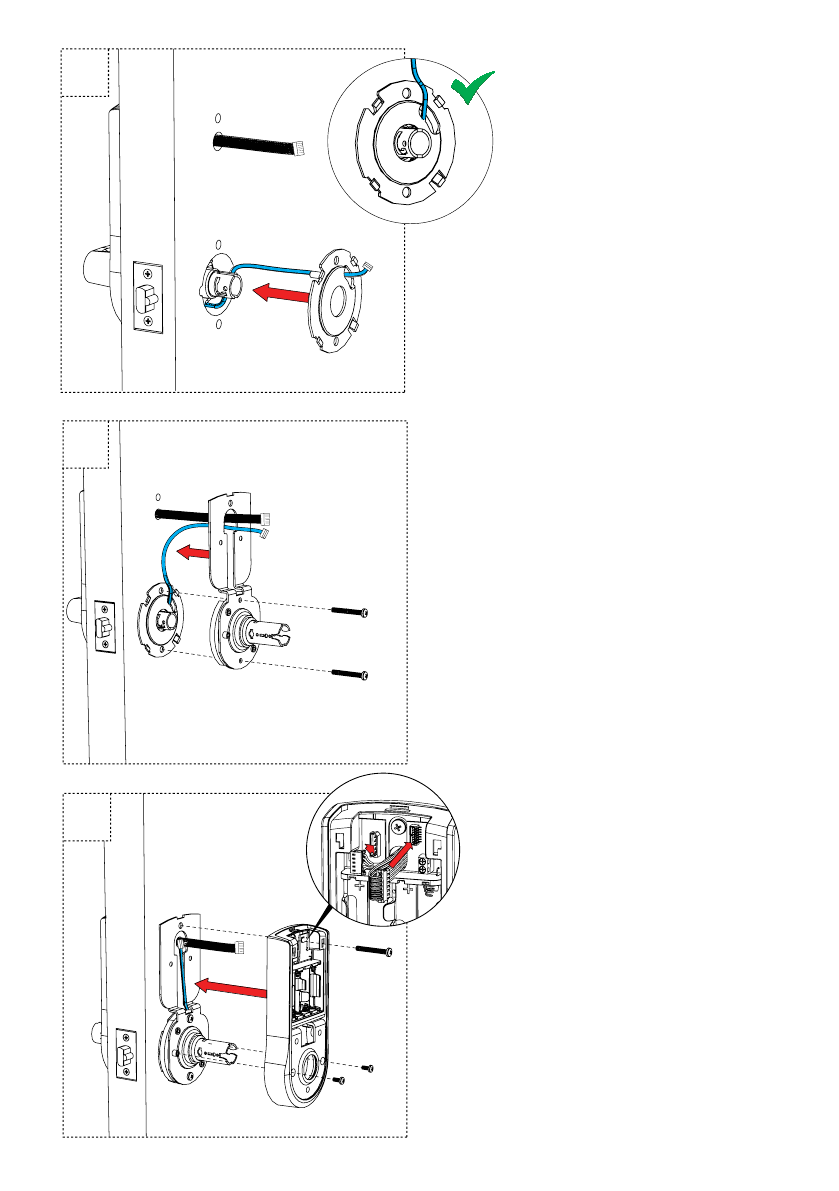

Step 10: Fitting the rear backplate
assembly
Feed the motor cable through the
hole in the motor back plate.
Step 11: Fitting the rear housing and motor
wiring
Feed both the cables through the rear housing
cutout and t the lower long mounting screws.
Step 12: Fitting the rear lock assembly and
wiring
Fit top, long mounting screws and 2 lower short
screws.
6
13
14
15
10
11
12

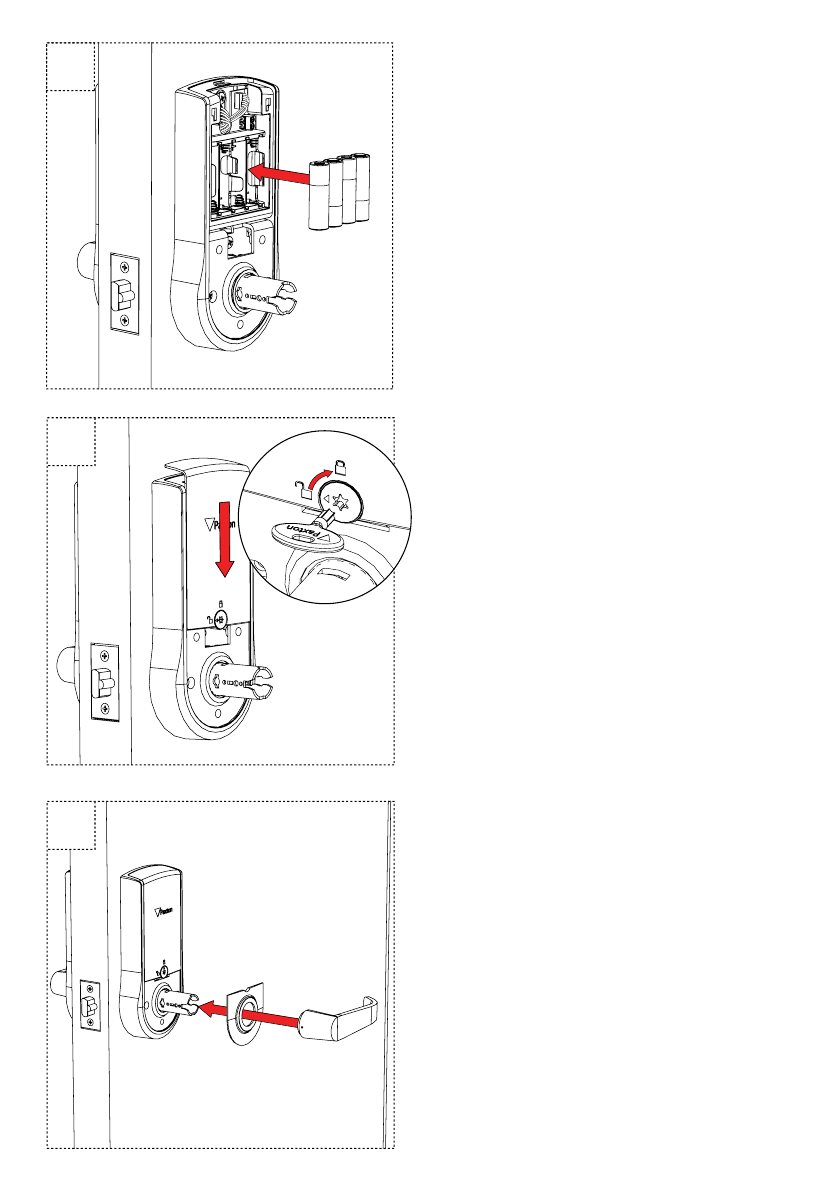

Step 10: Fitting the batteries
Step 11: Securing the rear cover
Step 12: Fitting the cover plate and handle
7

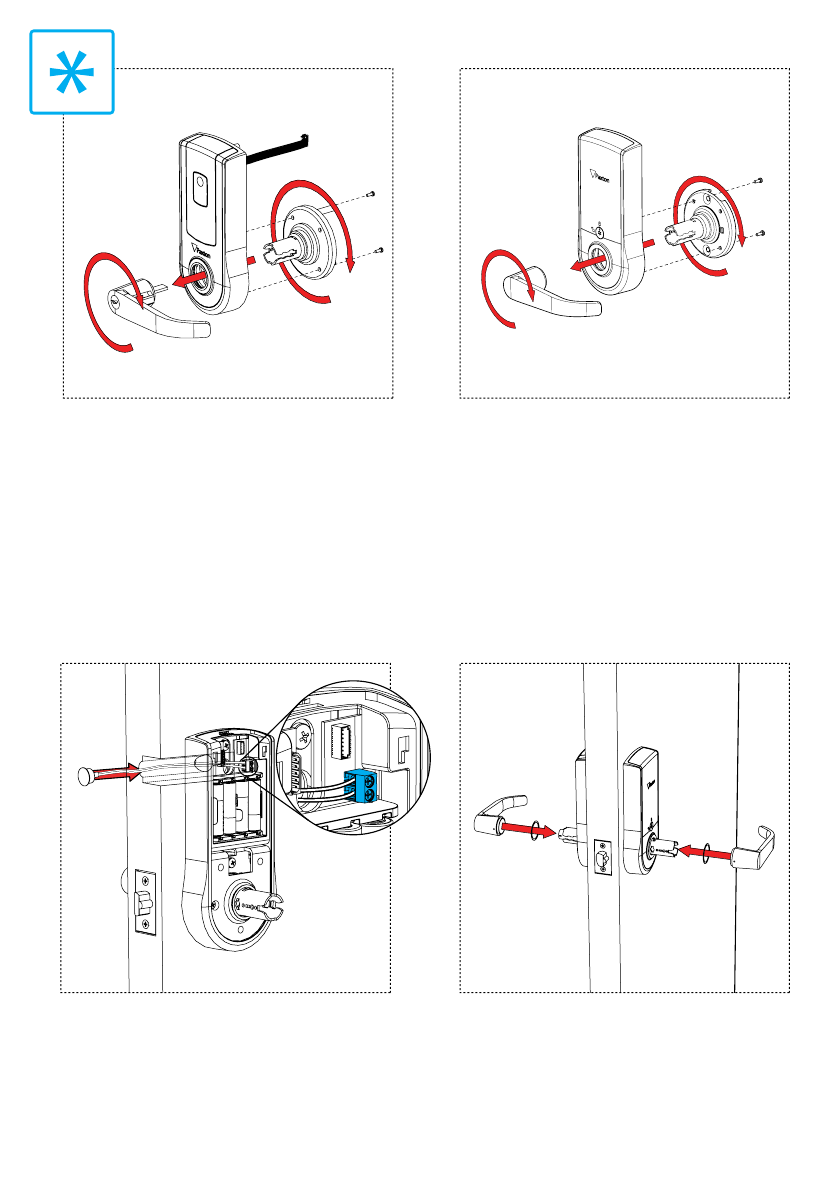

Optional step: Contact switch Optional step: Inserting the handle washers
Handle feel can be tightened with the use of
the included washers.
Optional step: Handle orientation for LH door
To congure for LH door operation, remove the front and rear handles using the handle removal
pin. Unscrew the 4 screws securing the rose to the front/rear housings, rotate 180 degrees and
screw back together.
Ret the handles, and push home until the axle engagement clicks.
8
≤ 200
x1
x1
≤ 1000
Net2 Pro/Net2 Lite: http://paxton.info/1438
Software installation
0 m
3m
15m
20m
30m
50ft
65ft
100ft
10ft
0 ft

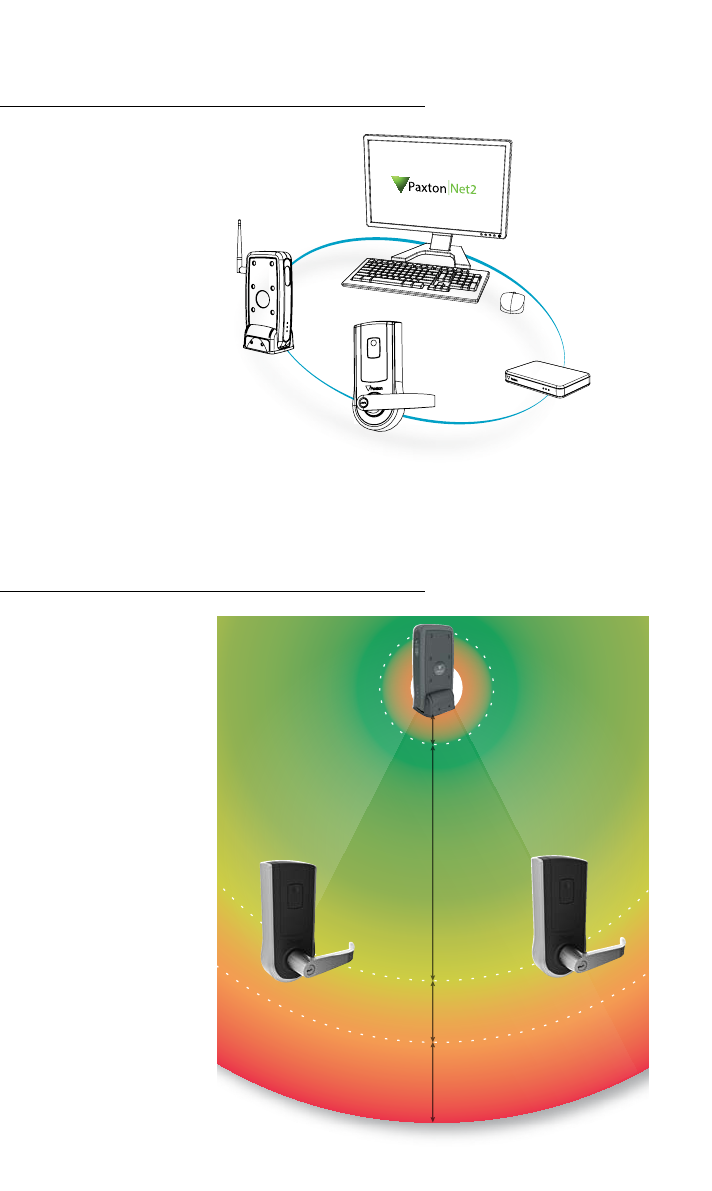

Wireless Signal Range
9
1
2
4
56
3
Enrolling a PaxLock
1
4
2
3
21
43
10
1
4
2
3
21
43

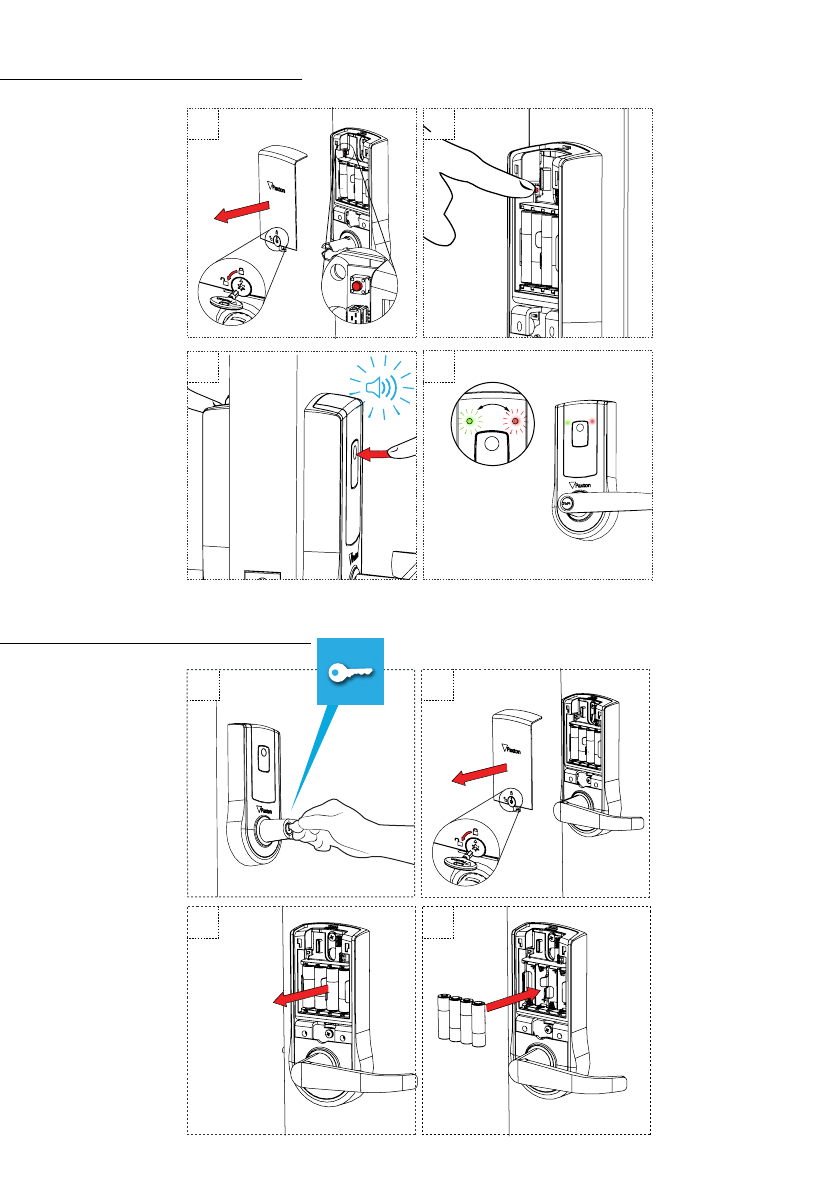

PaxLock reset
Battery replacement
11
10,000
250
64
10
200
50 ft
3,584
0 °C (-32 °F)
IPX4
6” 81/2” 3”
Min
Width Height
MaxTyp
Depth
Min Max
Specications
No
No
20,000 operations 30,000 operations
+55 °C (+131°F)
4 x AA Alkaline
Environment
Battery type
Typical Battery life
Operating temperature
External Use
Moisture resistance
Vandal resistance
Dimensions
Total outside dimensions (includes handle clearance)
Features
Maximum number of users/tokens
Access Levels
Time zones
Door unlock time
Recommended number of Paxlock’s per Net2Air bridge
Net2Air bridge per system
Net2Air wireless range
Events stored
1 sec 60 secs
UL has only evaluated the Operating temperature specication
12
+44 (0)1273 811011
paxton.support
support@paxton.co.uk
+44 (0)1273 811011
paxton.support
support@paxton.co.uk
+1(800) 672-7298
usapaxton.support
supportUS@paxton-access.com
+1(800) 672-7298
usapaxton.support
supportUS@paxton-access.com
+49 (0) 251 2080 6900
paxton.gmbh.support
support@paxton-gmbh.de
+31 (0)76 3333 999
paxton.benelux.support
support@paxton-benelux.com
+31 (0)76 3333 999
paxton.benelux.support
support@paxton-benelux.com
+31 (0)76 3333 999
paxton.benelux.support
support@paxton-benelux.com
+33 (0)157 329356
support@paxtonaccess.fr
+27 (0) 272 14276691
support@paxtonaccess.co.za
+44 (0)1273 811011
paxton.support
paxton.support
paxton.support
support@paxton.co.uk
13
The declaration of conformity is available on request. Contact details are provided at:
http://paxton.info/596
These products are not suitable for retail sale. All warranties are invalid if these products are not installed
by a competent person.
North America:-
Product Compliance and limitations
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
The Paxlock US has been designed and complies with the safety requirements for portable (<20cm) RF exposure in ac-
cordance with FCC rule part 2.1093 and KDB 447498 D01 as demonstrated in the RF exposure analysis. Installers must
ensure that this device must not be co-located or operated in conjunction with any other antenna or transmitter except
in accordance with FCC multi-transmitter product procedures.
FCC Compliance
IC Compliance
To comply as a UL listed installation, the following conditions must apply:-
• Server based functions (Antipassback, Time and Attendance, etc) have not been evaluated by UL and cannot be
used for UL 294 installations.
• Where an equivalent cable / wire is used it must be ‘ UL Listed ‘All interconnecting devices must be UL Listed.
• The use of Wiegand readers and the conguration software has not been evaluated by ‘UL’
• Door contact connections are limited to a maximum of 30m.
• IP rating not veried by UL.
• Indoor use only
UL listed to the following standards: ANSI/UL 10C compliant (20 min re doors), CAN/ULC S104 compliant (20 min re
doors), UL 294 compliant, CSA C22.2 NO. 205-12 compliant
Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), local codes, and the authorities
having jurisdiction.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
The Paxlock US has been designed and complies with the safety requirements for RF exposure in accordance with RSS-
102 as demonstrated in the RF exposure analysis.
14
1.0.0
Made in the UK
© Paxton Ltd 22/10/2014
