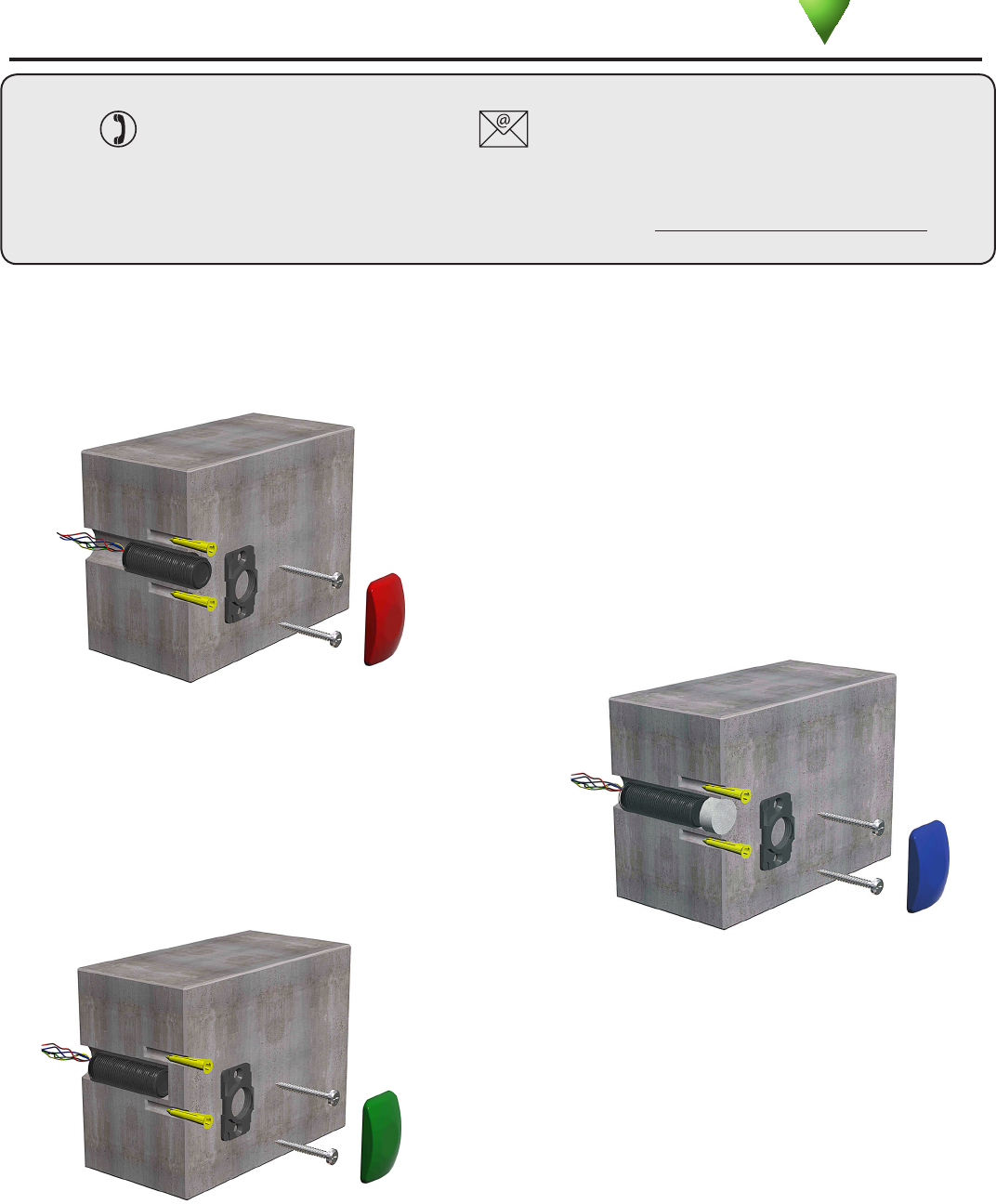

Fitting
Open hole - medium vandal resistance
Blind hole - very high vandal resistance
Cement plug - high vandal resistance
Paxton
Cable extensions
Readers can be extended using Belden CR9540 10-core overall screened cable to a maximum of 100 yards.

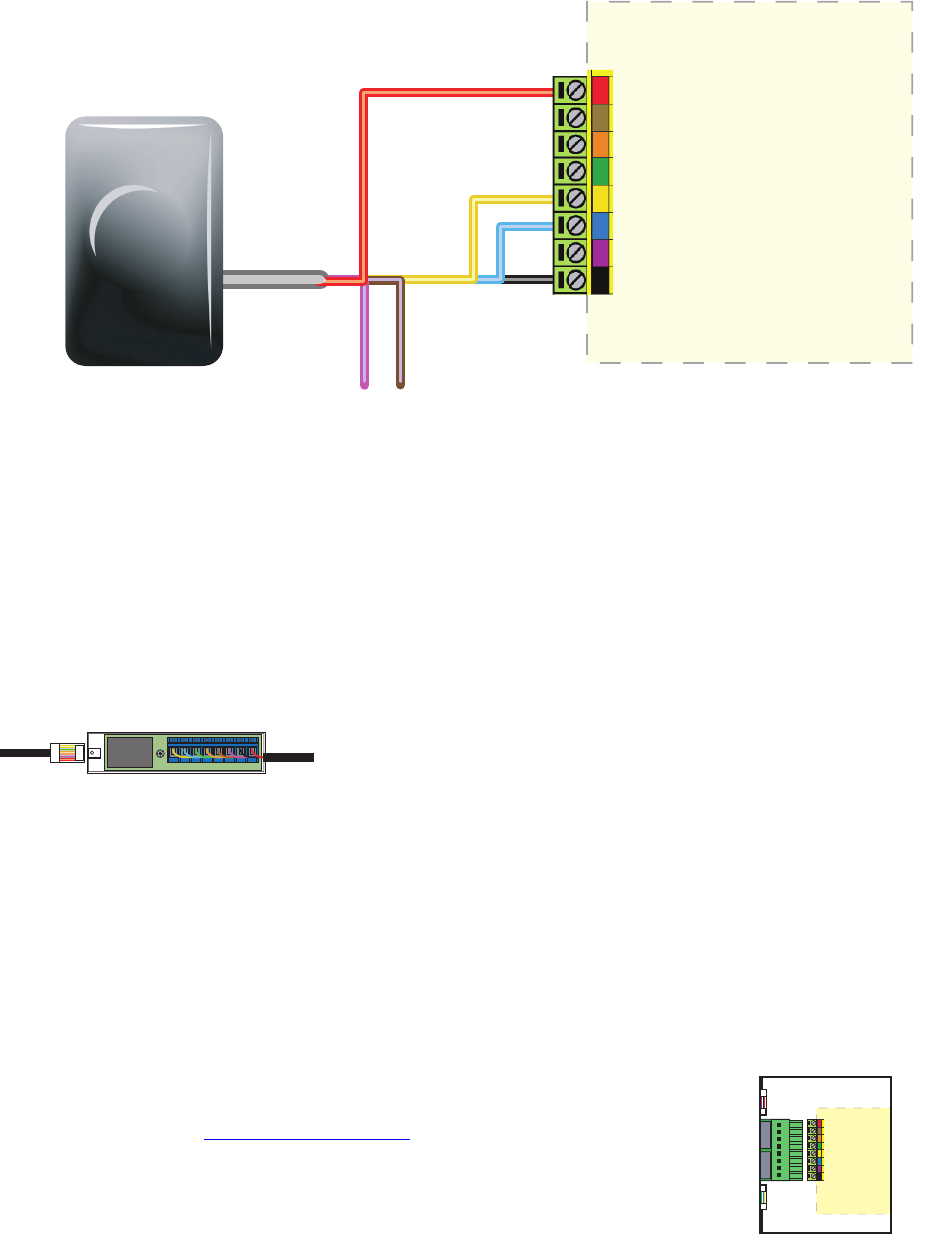

Wiring
The reader port module is designed to convert the
standard reader ports on Switch2 and Net2 controllers
to accept one or two RJ45 connections. Pull off the
screw terminal block from the reader port and simply
replace it with this module.
This module can be used to provide a
connection point for the reader RJ45 plug.
The terminals on the module are then wired
color for color to the controller.
Alternatively, the reader can be wired directly
into the screw terminals of the control unit by
rst cutting off the RJ45 plug and stripping
back the wires in the cable.
Reader Port Module (325-030-US)
This module may be purchased separately to speed up
the installing and replacement of readers.
Connection modules
Further information on how to purchase Installer Tools is available at:
http://paxton.info/841
Reader junction box (325-020-US)
Connection to a control unit
reader port
1 - Readers/Keypads not working.
Q- Software settings - Conrm that the settings of the reader or keypad are correct.
Q- Connections - Check the wiring and integrity of the connectors. If possible, test this reader on the other port.
Q- Cable - Belden 9540 should be used to extend the reader cable (100yds maximum). Twisted pair alarm cable
Q should not be used. To conrm that an extended reader cable is not at fault, wire the reader directly to the port.
Q- Supply voltage - Conrm that the voltage is within specication. (see table)
Q- User token - Conrm that the user token used for testing is OK by presenting it to a known working reader.
Q- Interference - Conrm whether the reader works when tested ‘in hand’ and not mounted on the wall.
Q Ensure PROXIMITY readers are not mounted back to back or that there is no interference from other RF devices.
2 - Readers / Keypads - Extending cable.
QOnly Belden CR9538 / 9540 can be used for cable extensions. CR9538 8 core for up to 25yds, CR9540 10 core for
Q25-100yds (maximum extension). With CR9540, the two additional cores should be used to double up the power.
3 - Net2. What to do if a user has no access - Check the reader LEDs when a card is shown.
Q- No LEDs - the reader has no power.
Q- No change in display - try the card on a known working reader. If there is still no response, replace the card.
Q- Green LED ashing when a card is presented; check relay 1 LED to check for activity and also the lock wiring.
Q- Red LED is ashing when a card is presented; check the validity of the user at the PC.
Q Check user’s access level and ensure they should have access by clicking on Current Validity.
Q Check the ‘Valid Until’ date and conrm this has not expired.
Q- Reinstate the ACU from the doors screen. Select the ACU’s you wish to reinstate and then click OK.
4 - Switch2 - Adding an additional card pack.
QYou need to be in possession of the original enrolment card. Present the original enrolment card to the reader and
Qthe Amber LED will ash, Green & Red LEDs will be off, then present the Enrolment card from the new card pack;
Qthe reader will beep and all LEDS will be lit. The additional cards will now be valid. Repeat this with each reader
Qand with any additional card packs. Any valid enrolment card can be used to add further packs. This is the same
Qfor enrolling function card packs onto a system.
5 - Switch2 - How to reset the controller.
Q1. Disconnect the power and remove the wires from the Green and Mauve terminals
Q2. Insert a wire link between the Green and Mauve terminals
Q3. Reconnect the power (the unit will bleep 4 times)
Q4. Disconnect the power and remove the link wire, reconnect the Green and Mauve wires
Q5. Reconnect the power (the unit will bleep 3 times per second). The unit is ready to be enrolled.
Here is the list of topics about this product that receive the most technical support inquiries.
We list them here to help you speed up the installation and trouble shooting process.
Technical Help
Readers mounted together between
readers
12 inches
Mounted on metal surface
Suitability
Security sensitive doors
Wet environments
-20 °C (-4 °F) +55 °C (+131 °F)
IPX7
5 yards
8V DC 14V DC
100 mA
125 kHz
600 µs
3/4 inch 2 3/8 inch
3 inch 1 1/2 inch
Voltage
Clock and data bit period
Carrier frequency
Specications
Operating temperatures - all items
Electrical
Environment
Dimensions
Min Max
Current
Cable length
Read Range Token Keyfob Hands Free Token
Waterproof
Min Max
This product is not suitable for retail sale. All warranties are invalid if this product is not installed by a competent person.
Outdoor Use
Diameter Depth
Not Compatible
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
