Upgrade and Update Procedure
www.schneider-electric.com
EIO000000006404
Quantum CPU Operating
System
Upgrade and Update procedure
03/2014 eng
Edition V1.0
Upgrade and Update Procedure
2/52
Purpose
Subject of this
Chapter
This user’s guide explains how to upgrade Quantum PLC’s Operating System
but also the firmware of Ethernet modules
Upgrade a PLC from Concept to Unity, taking care of the PV of the
140CPU43212 U and A, coated or not ( see annexe 1)
Update a PLC from Unity to Unity,
Restore Concept IEC / LL984 on a Unity processor, taking care of the
PV of the 140CPU43212 U and A, coated or not ( see annexe 1).
Update Quantum embedded Ethernet modules.
Upgrade Remote I/O Head and Drop:
o S908 network based
o For Ethernet IO network
Note: Examples and screen shots are provided in this documentation using
OSLoader version 3.0. However, other versions, ranging from 2.0 to latest
versions, may be used. The procedures described hereafter match all versions
from 2.0, and the operating modes are the same for all versions. Please refer
to chapter "Preparing a Quantum update" for more information.
Upgrade and Update Procedure
3/52
Summary
1. Preparing a Quantum update ................................................................................................... 4
2. Upgrading a Quantum PLC from Concept to Unity .............................................................. 7
3. Updating a Quantum PLC from Unity to Unity ................................................................... 23
4. Restoring a Quantum PLC from Unity to Concept .............................................................. 33
5. Upgrading a Quantum Hot Standby PLC ............................................................................. 48
Special Intermediate OS, for 140CPU43212U/A PV>= 16. ...................................................... 52
Preparing a Quantum update
4/52
1. Preparing a Quantum update
Object of this
Chapter
This chapter describes how to prepare a Quantum PLC in order to update or
upgrade PLC’s Operating System and / or Ethernet modules.
Prerequisites
This update requires a PC with Unity Pro installed and the binary file
containing the OS firmware to download.
Software
The following softwares are required:
Unity Version 2.0 mini must be installed on the PC (note that it is not
necessary to launch Unity for an OS upgrade).
The eCD “Unity OS firmware” is provided on www.schneider-
electric.com and contains all the OS for Quantum, Premium and M340
PLC’s.
The OS loader (provided with Unity Pro ). This tool allows the user to
download PLC’s Operating System and Ethernet modules firmware.
Preparing a Quantum update
5/52
Connecting the
PC to the PLC
for an OS
update or
upgrade
The Quantum CPU OS can only be downloaded by a direct connection
between the PC and the CPU by the MODBUS or MODBUS+ ports. Note
that MODBUS+ is faster and takes significantly less time to download a
binary. The CPU USB port doesn’t allow downloading an OS.
Important: Using Modbus or Modbus Plus, only address 1 is allowed for
downloading. Ensure that no other device on the network is using
address 1 .
Several possibilities can be proposed to connect the PC to the PLC depending
on the mix processor/protocol:
For Quantum CPU 140CPU 311 10, 140CPU 434 12U and
140CPU 534 14 BU:
• Using the RS232 COM port 1 of the PC by connecting the cable 990
NAA 263 20 (3.7 m) or 990 NAA 263 50 (15 m) to the MODBUS 9 pin
sub-D of the Quantum PLC. The protocol used in this case is MODBUS.
• Using the cables 990NAD21110 (2.4m) or 990NAD21130 (6m)
connected to the MODBUS+ 9 pin sub-D of the Quantum PLC. The
protocol used in this case is MODBUS+.
For Quantum CPU 140 CPU 6x1y0 (65150, 65160, 65160S, 65260,
67160,67261, 67160S):
• Using the adapter 110XCA20300 connected to the RS232 9 pin sub-D
connector of the PC (COM port) and to the RJ45 Modbus port of the PLC
via a cable 110 XCA28201 (1m) , 110 XCA28202 (3m) or 110XCA28203
(6m). The protocol used in this case is MODBUS.
• Using the cables 990NAD21810 (2.4m) or 990NAD21830 (6m). The
protocol used in this case is MODBUS+.
• Using the Modbus Plus Device TSXCUSBMBP
Have a look on Appendix 7 for Modbus Plus USB converter drivers
installation in your PC.
In any case the right communication driver must be first installed on the PC.
Note: The most examples given in this document are using the Modbus
protocol.
Preparing a Quantum update
6/52
Connecting the
PC to the
Ethernet
module or PLC
coprocessor to
update the
Ethernet
firmware
Although Ethernet allows a remote access via the network and then the
upload / download procedure, we strongly recommend installing the
processor with the embedded Ethernet module in a system consisting of only
the CPU, Power Supply and Rack. Once done,
Configure the PLC system with an empty program containing only the IP
address configuration. Note that the Ethernet module must be on the same
logical Ethernet network than the PC with the OS loader (for that both IP
address, Subnet mask and default gateway must be compatible).
Ensure the only devices connected to the Ethernet network are the PC
running the OS loader and the CPU , NOE or CRP module,
The CPU must be in Stop mode and the NOE and CRP modules must
have no TCP traffic.
The physical connection between the PC running the OS loader and the CPU
or Ethernet communications modules can be performed:
by connecting directly a “crossed” Ethernet cable between the PC and the
Ethernet Communication module
by connecting the PC and the CPU or Ethernet Communication module
with two “non crossed” Ethernet cables via a Hub.
In these 2 cases, FTP protocol is used and only the Ethernet Coprocessor
firmware of the CPU can be updated by this way.
Upgrading a Quantum PLC from Concept to Unity
7/52
2. Upgrading a Quantum PLC from Concept to Unity
Object of this
Chapter
This chapter describes how to upgrade a Quantum PLC from Concept to
Unity. The screens shots given below show how to upgrade a
140 CPU 434 12A (Concept) to 140 CPU 434 12U (Unity). The procedure is
similar for an upgrade of 140 CPU 534 14A/B (Concept) to
140 CPU 534 14U/BU (Unity).
Important
Upgrading a PLC from Concept to Unity requires to perform three main
phases:
Phase 1 - Upgrade the PLC to Unity with an intermediate OS
Phase 2 - Power OFF then ON the PLC
Phase 3 - Update the Operating System with the appropriate file
Those phases are mandatory and cannot be by-passed.
Each phase is described in the following procedure.
Upgrading a Quantum PLC from Concept to Unity
8/52
Connecting the
PC to the PLC
Refer to chapter “Prepare a Quantum Update / Connecting the PC to the PLC
for an OS update or upgrade.”
Launching the
OS loader
The OS loader (provided with Unity) allows the user to download the
Operating System to the PLC. To open it click on Start/Program/Schneider-
Electric/Unity-PRO/OS loader.
Once done, the following screen appears:
Upgrading a Quantum PLC from Concept to Unity
9/52
Select the
communica-
tion protocol
From the main screen of the OS loader, click on the button. The
following screen appears, the list of communication ways depends of the
drivers installed:
To download the Operating System into the PLC select the right
communication protocol (MODBUS01 or MBPLUS01, in accordance with
established physical link) and click on the button.
Upgrading a Quantum PLC from Concept to Unity
10/52
Select the
Target Device
On the Device Type field, select Processor.
Get the
Concept
version
(Optional)
Knowing which Concept version is installed on the processor could be useful
if for any reason a restore function from Unity to Concept is needed. For that
proceed as follows:
1 Select the PLC
2 Click on the button to connect the PC to PLC.
3 Click on the button to get info from the PLC.
Upgrading a Quantum PLC from Concept to Unity
11/52
4
The following screen gives to the user some information regarding
the PLC status:
Not configured, Started, stopped
Processor type (in this example: 140CPUx341x)
The Hardware identification (for Schneider internal use only)
The OS version (in this example the OS version is 1.35)
5 Note this version number to avoid compatibility issues between the
application program and the OS if Concept has to be restored.
6 Press the button to return back to the OS update process.
Upgrading a Quantum PLC from Concept to Unity
12/52
Select the
Download
Function
From the screen described above in the section “Select the Target Device”
press the button. A new screen is proposed: select “Download
OS to device”.
Upgrading a Quantum PLC from Concept to Unity
13/52
Select the file to
download
Click on the button in order to select the file to download into the
PLC. In this example we will update the OS from 140CPU43412A to
140CPU43412U. For that select the folder:
Quantum\Processor_modules\Concept to_Unity (in your case, select the
binary according to your processor).
For an upgrade from Concept to Unity two binary files can be selected:
Concept_to_Unity_43412U.bin (allows to “format” the processor for
Unity)
140CPU43412U_V320.bin is the OS that will finally be download in the
processor.
In our example we have to “format” the processor (remember, we still are in
the Phase 1) then select and validate “Concept_to_Unity_43412U.bin”.
Once done click on the button.
Upgrading a Quantum PLC from Concept to Unity
Download the
intermediate
OS
Once the previous screen
Click the
the file, the processor and the download are now displayed
Note:
If the system detects a discrepancy on the hardware or on the OS
version, the download will not be possible. This is indicated by a red cross
and the
Solve this issue and continue. When the hardware and OS are compatible
clicking
OS file.
Upgrading a Quantum PLC from Concept to Unity
Once the previous screen
is
validated a warning is displayed
Click the
button. Two screens that give information regarding
the file, the processor and the download are now displayed
If the system detects a discrepancy on the hardware or on the OS
version, the download will not be possible. This is indicated by a red cross
button becomes unavailable.
Solve this issue and continue. When the hardware and OS are compatible
on the
button launches the download of the intermediate
14/52
validated a warning is displayed
:
button. Two screens that give information regarding
the file, the processor and the download are now displayed
:
If the system detects a discrepancy on the hardware or on the OS
version, the download will not be possible. This is indicated by a red cross
Solve this issue and continue. When the hardware and OS are compatible
,
button launches the download of the intermediate
Upgrading a Quantum PLC from Concept to Unity
15/52
Upgrading a Quantum PLC from Concept to Unity
16/52
Download the
intermediate
OS file (cnt’d)

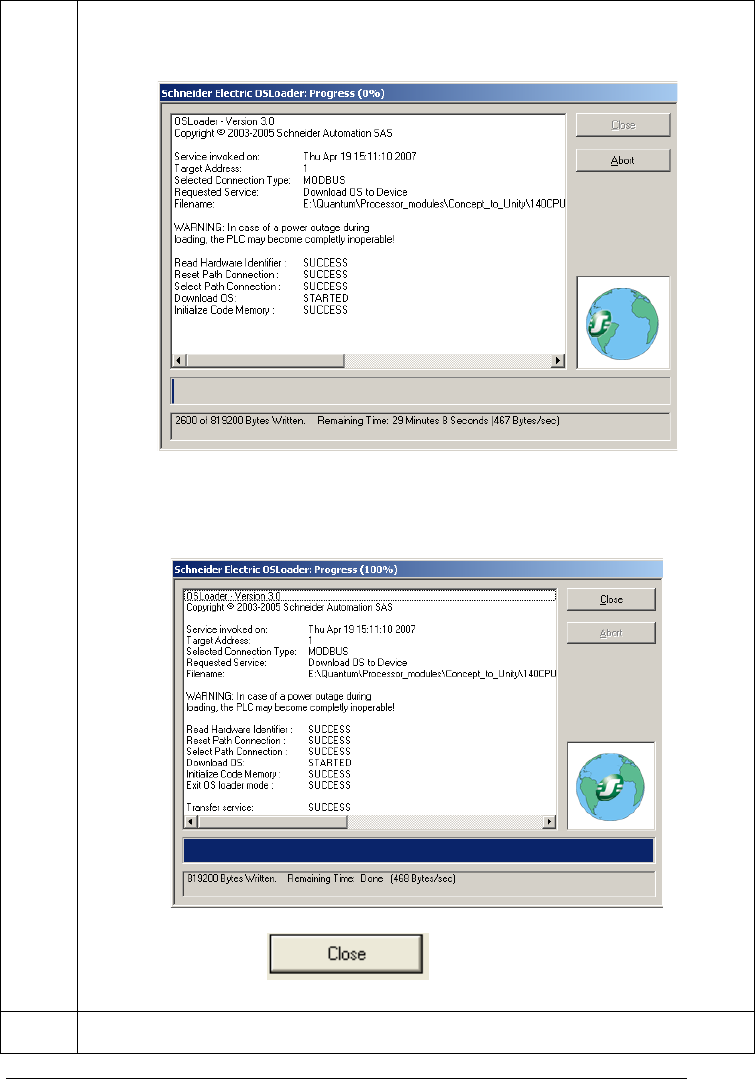

During the download the remaining time is displayed:
Once the download has successfully completed, the screen below is
displayed. Click twice on the button and go to the Phase 2
(Power OFF then ON or reset the PLC).
Note:
During intermediate download of OS, CPU LEDs do not change state,
Ready LED remains steady and RUN LED keeps blinking.
Upgrading a Quantum PLC from Concept to Unity
17/52
CAUTION
EQUIPMENT DAMAGE
During the download:
•
Do not power OFF the PLC
•
Do not power OFF the PC
•
Do not disconnect the cable
•
Do not shut down OS loader
Any loss of communication during the update procedure can cause severe
damage to the CPU or NOE module.
Failure to follow these instructions can result in injury or equipment
damage.
Reset the PLC
Once the download of the intermediate binary file has completed, the PLC
has to be initialized. This task can be performed by one of the two following
actions:
Reset the PLC by pushing on the Restart button located on the CPU (for
more information, refer to the PLC technical documentation.
Power OFF then ON the PLC.
Once the PLC has restarted, If steady Run light and no connection with OS
loader, Reset the PLC. If State of PLC is steady Ready and blinking Run
light, Proceed for phase 3: download the final Unity OS file.
Presentation
The final binary file “140CPU43412U.bin” (For the selected CPU in our
example) has to be downloaded.
For that, follow the same procedure as the one described in the Phase 1.
Upgrading a Quantum PLC from Concept to Unity
18/52
Download
procedure
As all the necessary actions to download the final Unity OS have been
already fully described in the Phase 1, they are shortly reminded here after:
1
Open the OS loader (the PC should be still connected to the PLC).
2
Select the Protocol – Refer to Phase 1.
3
Select the target device and click on the button. The next
screen appears after few seconds.
4
Click on the button and select (in our example) the file
140CPU43412U_Vxyz.bin located on the CD OS. Then validate this
screen.
Upgrading a Quantum PLC from Concept to Unity
19/52
5
Select the operation to perform (Download OS to device) and press
on the button.
Upgrading a Quantum PLC from Concept to Unity
20/52
Download
procedure
(cnt’d)
6
At this stage, and if no functional Operating System is present in the
PLC the screen may display “???” in the field “OS Version” and an
error message. Click to validate this message.
Then click on the button.
7
Click on and validate the warning message displayed on
the screen to launch the download of the final OS file.
Upgrading a Quantum PLC from Concept to Unity
21/52
8
During the download (duration may vary according to the protocol)
the remaining time is displayed:
Once the download has successfully completed, the screen below is
displayed:
Click twice on the button to exit from the OS
loader tool.
9
Reset or power OFF then ON the PLC.
Upgrading a Quantum PLC from Concept to Unity
22/52
CAUTION
EQUIPMENT DAMAGE
During the download:
•
Do not power OFF the PLC
•
Do not power OFF the PC
•
Do not disconnect the cable
•
Do not shut down OS loader
Any loss of communication during the update procedure can cause severe
damage to the CPU or NOE module.
Failure to follow these instructions can result in injury or equipment
damage.
Checking
version (not
mandatory)
If needed, you can check the new CPU version. For that
Open the OS loader tool
Select the protocol
Click on
Click on
In our example, the CPU has been upgraded to 140CPU43412U
and the OS
version is 2.60.
Updating a Quantum PLC from Unity to Unity
23/52
3. Updating a Quantum PLC from Unity to Unity
Object of this
Chapter
This chapter describes how to update a Quantum PLC from Unity version
higher than V2.0 to a more recent one. Note that the update from Unity V1.0
to V2 and above is not covered by this document.
The screens shots given below show how to update a 140CPU65150
processor.
Note:
This procedure can be adopted for all Quantum platforms (High End
and Legacy platforms).
Connecting the
PC to the PLC
Refer to chapter “Prepare a Quantum Update / Connecting the PC to the PLC
for an OS update or upgrade.”
Launching the
OS loader
The OS loader (provided with Unity) allows the user to download the
Operating System to the PLC. To open it click on
Start/Program/Schneider-
Electric/Unity-PRO/OS loader.
Once done, the following screen appears:
Updating a Quantum PLC from Unity to Unity
24/52
Select the
Communica-
tion protocol
From the main screen of the OS loader, click on the button. The
following screen appears:
To download the Operating System into the PLC select the right
communication protocol (MODBUS01 or MBPLUS01) for Quantum CPU, in
accordance with established physical link) and click on the
button.
Updating a Quantum PLC from Unity to Unity
25/52
Select the
Target Device
On the Device Type field, select Processor.
Get the Unity
version
(optional
)
Before the update, knowing which Unity version is already installed on the
processor may be useful if for any reason a restore function is needed. For
that proceed as follows:
1
Select the PLC
2
Click on the button to connect the PC to PLC.
3
Click on the button to get info from the PLC.
Updating a Quantum PLC from Unity to Unity
26/52
4
The following screen gives the user some information regarding the
PLC status
Started, stopped, Not Configured
Processor type (in this example:
140CPU65150
The Hardware identification (for Schneider internal use only)
The OS version (in this example the OS version is 2.6)
5
Note this version number to avoid compatibility issues between the
application program and the OS if the previous version has to be
restored.
6
Press the button to return back to the OS update process.
Updating a Quantum PLC from Unity to Unity
27/52
Select the
Download
Function
From the screen described above in the section “Select the Target Device”
press the button. A new screen is proposed: select “Download
OS to device”.
Click on the button in order to select the file to download into the
PLC. In this example we will update the 140CPU65150 OS from version 1.0
to version 2.6. For that select the folders:
Quantum\Processor_modules\Unity_upgrade (in your case, select the folder
according to your processor type):
Finally, by browsing the successive sub-directories (PLC_OS) select the
binary file “140CPU65150_Vxyz.bin.
Updating a Quantum PLC from Unity to Unity
28/52
Select the file to
download
Once done click on the button.
Updating a Quantum PLC from Unity to Unity
29/52
Download the
OS file
Once the previous screen is validated, two screens display the current OS
version, the processor and the OS file to download:
Note:
If the system detects a discrepancy on the hardware or on the OS
version, the download will not be possible. This is indicated by a red cross
and the button becomes unavailable.
Solve this issue and continue. When the hardware and OS are compatible,
click on the button and validate the warning message displayed
on the screen to launch the download of the OS file.
Updating a Quantum PLC from Unity to Unity
30/52
Download the
OS file (cnt’d)
During the download (the duration depends on the protocol used, roughly 60
minutes with Modbus) the remaining time is displayed:
Once the download has successfully completed, the screen below is
displayed:
Click twice on the button.
Updating a Quantum PLC from Unity to Unity
31/52
CAUTION
EQUIPMENT DAMAGE
During the download:
•
Do not power OFF the PLC
•
Do not power OFF the PC
•
Do not disconnect the cable
•
Do not shut down OS loader
Any loss of communication during the update procedure can cause severe
damage to the CPU or NOE module.
Failure to follow these instructions can result in injury or equipment
damage.
Reset the PLC
Once the download of the OS file has completed, the PLC has to be
initialized. This task can be performed by one of the two following actions:
Reset the PLC by pushing on the Reset button located on the CPU
(for
more information, refer to the PLC technical documentation).
Power OFF then ON the PLC.
Updating a Quantum PLC from Unity to Unity
32/52
Checking
version
(optional)
If needed, you can check the new CPU version. For that
Open the OS loader tool
Select the protocol
Click on
Click on
In our example the CPU has been updated to the version 2.60.
Restoring a Quantum PLC from Unity to Concept
33/52
4. Restoring a Quantum PLC from Unity to Concept
Object of this
Chapter
This chapter describes how to restore a Quantum PLC from Unity to Concept.
The screen shots given below show how to restore a 140CPU43412U (Unity)
to 140CPU43412A (Concept).
Important
Restoring a PLC from Unity to Concept requires to perform three main
phases:
Phase 1 – Restore the PLC to Concept with an intermediate OS.
Phase 2 - Power OFF then ON the PLC.
Phase 3 – Restore the Operating System with the appropriate file.
Those phases are mandatory and cannot be by-passed.
Each phase is described in the following procedure.
Connecting the
PC to the PLC
Refer to chapter “Prepare a Quantum Update / Connecting the PC to the PLC
for an OS update or upgrade.”
Restoring a Quantum PLC from Unity to Concept
34/52
Launching the
OS loader
The OS loader (provided with Unity) allows the user to download the
Operating System to the PLC. To open it click on
Start/Program/Schneider-
Electric/Unity-PRO/OS loader.
Once done, the following screen appears:
The next steps are fully described later in this document.
Restoring a Quantum PLC from Unity to Concept
35/52
Select the
Communica-
tion protocol
From the main screen of the OS loader, click on the button. The
following screen appears:
To download the Operating System into the PLC select the right
communication protocol (in accordance with established physical link) and
click on the button.
Restoring a Quantum PLC from Unity to Concept
36/52
Select the
Target Device
On the Device Type field, select Processor and the other needed parameters
(Modbus address….). Then connect to the selected PLC (Node).
Restoring a Quantum PLC from Unity to Concept
37/52
Select the
Download
Function
From the screen described above press the button. A new screen
is proposed: select “Download OS to device”.
Restoring a Quantum PLC from Unity to Concept
38/52
Select the file to
be downloaded
Click on the button in order to select the file to download into the
PLC. In this example we will restore the OS from 140CPU43412U to
140CPU43412A. For that select the following folders:
Quantum\Processor_modules\Unity_to_Concept.
To restore the OS from Unity to Concept, two binary files can be selected:
Unity_to_Concept_43412A.bin (allows to “format” the processor to
Concept)
q5rv135E.bin is the OS that will finally be downloaded in the processor
In our example we have to “format” the processor (remember, we still are in
the Phase 1) then select and Validate “Unity_to_Concept_43412A.bin”.
Once done click on the button.
Restoring a Quantum PLC from Unity to Concept
39/52
Download the
intermediate
OS
Once the previous screen is validated a warning is displayed:
Click the button. Two screens that give information regarding
the file, the processor and the download are now displayed:
Note:
If the system detects a discrepancy on the hardware or on the OS
version, the download will not be possible. This is indicated by a red cross
and the button becomes unavailable.
Solve this issue and continue. When the hardware - OS are compatible, click
on the to launch the download of the intermediate OS file.
Restoring a Quantum PLC from Unity to Concept
40/52
Restoring a Quantum PLC from Unity to Concept
41/52
Download the
intermediate
OS file (cnt’d)
During the download the remaining time is displayed:
Once the download has successfully completed, the screen below is
displayed. Click twice on the button and go to the Phase 2
(Power OFF then ON or reset the PLC).
Note:
During intermediate download of OS, CPU LEDs do not change state,
Ready LED remains steady and RUN LED keeps blinking.
Restoring a Quantum PLC from Unity to Concept
42/52
CAUTION
EQUIPMENT DAMAGE
During the download:
•
Do not power OFF the PLC
•
Do not power OFF the PC
•
Do not disconnect the cable
•
Do not shut down OS loader
Any loss of communication during the update procedure can cause severe
damage to the CPU or NOE module.
Failure to follow these instructions can result in injury or equipment
damage.
Reset the PLC
Once the download of the intermediate binary file has completed, the PLC
has to be initialized. This task can be performed by one of the two following
actions:
Reset the PLC by pushing on the Restart button located on the CPU (for
more information, refer to the PLC technical documentation).
Power OFF then ON the PLC.
Once the PLC has restarted, go to Phase 3: download the final Concept OS.
Presentation
The final binary file “q5rv135E.bin ” (140CPU34312 in our example) has to
be downloaded.
For that, follow the same procedure as the one described in the Phase 1.
Restoring a Quantum PLC from Unity to Concept
43/52
Download
procedure
As all the necessary actions to download the final Concept OS have been
already fully described in the Phase 1, they are shortly reminded here after:
1
Open the OS loader (the PC should be still connected to the PLC).
2
Select the Communication Protocol – Refer to Phase 1.
3
Select the target device and click on the button. The next
screen appears after few seconds.
4
Click on the button and select (in our example) the file
q5rv135E.bin located on the CD OS. Then validate this screen.
Restoring a Quantum PLC from Unity to Concept
44/52
5
Select the operation to perform (Download OS to device) and press
on the button.
Download
procedure
(cnt’d)
6
Then click on the button.
Restoring a Quantum PLC from Unity to Concept
45/52
7
Click on and validate the warning message displayed on
the screen to download the final OS file.
Restoring a Quantum PLC from Unity to Concept
46/52
8
During the download (duration may vary according to the protocol)
the remaining time is displayed:
Once the download has successfully completed, the screen below is
displayed:
Click twice on the button to exit the OS loader tool.
9
Reset or power OFF then ON the PLC.
Restoring a Quantum PLC from Unity to Concept
47/52
CAUTION
EQUIPMENT DAMAGE
During the download:
•
Do not power OFF the PLC
•
Do not power OFF the PC
•
Do not disconnect the cable
•
Do not shut down OS loader
Any loss of communication during the update procedure can cause severe
damage to the CPU or NOE module.
Failure to follow these instructions can result in injury or equipment
damage.
Checking
version
(optional)
If needed, you can check the new CPU version. For that
Open the OS loader tool
Select the communication protocol
Click on
Click on
In our example, the CPU has been restored to 140CPU43412A, version 1.60.
Upgrading a Quantum Hot Standby PLC
48/52
5. Upgrading a Quantum Hot Standby PLC
Object of this
Chapter
This chapter describes how to upgrade a Quantum Hot Stand By PLCs (CPU
67160 , CPU 67261, CPU 67260 ). This Upgrade can be managed by one of
the two communications methods available in the OS loader:
Modbus
Modbus Plus
Important
: the procedure below only gives, step by step, the procedure to
follow. The upgrade procedure itself is described in the chapter 3 of this
document.
Compatibility
issues
Important
: To upgrade a Modicon Quantum Hot Standby with Unity OS
loader without shutting down the process, the current application program
must be executable by the new OS. Observe this requirement when installing
minor revisions targeted for bug fixes or minor enhancements. When a major
function enhancement needs to be made, maintaining this compatibility may
not be possible. In this case, to perform an OS upgrade requires a system shut
down.
Connecting
Hot Standby
without S908
RIO drop.
The error A and error B leds of the RIO Head (CRP) indicate the
communication status between RIO Head and RIO Drop. When using CRP
module with firmware version lower than 2.00, the led ‘fault’ is on but this
has no impact on communication between the two RIO heads.
To have the error leds not returning a detected error, it is mandatory to:
•
update the CRP module with a firmware 2.00 or higher (on both
Primary and Standby side).
•
update the Quantum Hot Standby processor with a firmware 2.70 or
higher (on both Primary and Standby side).
•
install Unity Pro V4.1 or higher. Select the HotStandby processor
V2.70 in the Unity Pro application and take the processor into account
through a ‘Rebuild All’. Make the full download in both PLCs.
•
CPU 67261 is compatible with Unity Pro V5.0 or higher with a
firmware 2.80 or higher.
Ethernet RIO
At the moment only Head communication module 140CRP31200 is
concerned by this procedure.
Important
:
•
The both CRPs must have the same SoftwareVersion .
•
Begin the update by CPUs then CRP modules.
Upgrading a Quantum Hot Standby PLC
49/52
Upgrading PLC
while the
process is
running
The Executive Upgrade feature allows upgrading the OS of the Standby
controller while the Primary controller continues to control the process.
However, during the upgrade, the system can no longer be considered as
redundant. That is, there is no Standby available to assume control if the
Primary should fail before the Standby upgrade is complete.
Upgrading the
OS without
stopping
Under normal operating conditions, both controllers in a redundant system
must have the same versions of firmware. In fact, there are checks done by
the controllers to detect if there is a mismatch in firmware.
Normally, when a mismatch exists, performing a switchover would not be
possible because the Secondary controller would not be allowed to be
Standby.
However, to allow an OS Upgrade without stopping the application, it is
possible to set the “upgrade without stopping” command in Command
Register system word %SW60 (bit %SW60.4 - Details on the Modicon
Quantum Hot Standby with Unity command register can be found in
Understanding the Unity Command Register, p. 113).
Note:
Enabling OS upgrade without stopping the application disable the
checking between the Primary and Standby configuration. Disable the
“upgrade without stopping” bit as soon as the OS upgrade is finished.
OS upgrade is possible only with compatible firmware.
Upgrading a Quantum Hot Standby PLC
50/52
Upgrade
procedure
Important:
Using Modbus or Modbus Plus, only address 1 is allowed for
downloading. Ensure that no other device on the network is using address 1.
1.
Connect to the Primary (through Modbus, Modbus Plus or USB).
2.
Access the Command Register system bit %SW60.4 and set this bit to 1.
3.
Disconnect the PC from the Primary CPU.
4.
Depending on the communication media chosen for the upgrade
procedure, note the Modbus or Modbus Plus address of the Standby CPU
using the keyboard functions (in “PLC Communications /
Communications Serial Port” for Modbus or in “PLC Communications /
Communications Modbus Plus” for Modbus Plus).
5.
Stop the Standby CPU with the keyboard functions.
Note:
The standby CPU goes to STOP Offline mode; the Primary
operates without a Standby.
6.
Disconnect all the communication links (Hot Standby fiber optic cable,
Ethernet cables, Modbus Plus cables …) from the Standby rack and
remove the CRP module from the Standby rack.
7.
Switch off the power of the Standby rack.
8.
When using an application in the PCMCIA card:
8.1.
Remove the PCMCIA card from the Standby CPU.
8.2.
Remove the PCMCIA batteries to empty the card content.
Upgrading a Quantum Hot Standby PLC
51/52
9.
Power on the Standby CPU.
10.
If not set to 1, change the Modbus or Modbus Plus address of the Standby
CPU to 1 with the keyboard functions (in “PLC Communications /
Communications Serial Port” for Modbus or in “PLC Communications /
Communications Modbus Plus” for Modbus Plus).
11.
Coprocessor Upgrade Step
: please see
“Error! Reference source not
found.”.
Don’t forget to power cycle the CPU at the end of the procedure.
12.
CPU OS Upgrade Step
: please see
“3. Updating a Quantum PLC from
Unity to Unity”
12.1.
Connect the PC to the Standby CPU using Modbus or Modbus Plus.
12.2.
Open the OSLoader tool.
12.3.
Select the Modbus or Modbus Plus communication option.
12.4.
Connect to the Standby using address 1.
12.5.
Download the OS to the Standby.
13.
Disconnect the PC from the Standby CPU.
14.
Switch off the power of the Standby CPU.
15.
When using an Application in the PCMCIA :
15.1.
Insert the PCMCIA batteries.
15.2.
Insert the PCMCIA card in the Standby CPU.
16.
Power on the Standby CPU.
Note:
the CPU must be in “No Conf” state.
17.
Check the Copro and OS versions in the LCD Screen.
18.
Reconnect all the communication cables (CRP module, Ethernet
cables, …) but not the Hot Standby fiber optic cable.
19.
At last, reconnect the fiber optic cable to both CPUs.
20.
Check the application program is automatically transferred to the Standby
CPU ("Transfer ..." on screen for a short time and then "Run Standby
CPU"). If not, perform the transfer with the keyboard.
Note:
Ensure that the Modbus or Modbus Plus address is the same as the
address noted in Step 4.
21.
Put in RUN mode.
Note:
Ensure Primary CPU is in Run Primary Mode and Standby CPU is
in RUN Standby Mode.
22.
Perform a switchover by stopping the Primary CPU with the keyboard.
Note:
Ensure Standby CPU becomes Primary CPU on the LCD screen.
23.
Repeat Steps 4 through 21 on the new Standby.
24.
Connect to the new Primary CPU with the PC and Unity Pro (through
Modbus, Modbus Plus or USB).
25.
Access Command Register system bit %SW60.4; set bit to 0.
26.
Disconnect the PC and ensure Primary CPU is in RUN Primary Mode and
Standby CPU is in RUN Standby Mode.
Annexe 1
52/52
Special Intermediate OS, for 140CPU43212U/A PV>= 16.
Du to an hardware Id incompatibility between 140CPU43412U with PV >= 16 and the
ones produced before this PV ( PV< 16) , we have generated a new Intermediate OS,
allowing the hardware Id compatibility.
Previous Quantum 140CPU43412U’s had a hardware ID of 0008 0008 but newer (
PV>=16) 140CPU43412U’s have a hardware ID of 0008 000C.
By this way the user will get the capacity to make the change either from Unity to
Concept or from Concept to Unity if this new hardware is used.
Intermediate OS are :
•
Unity_to_Concept_43412A_pvget16.bin
•
Concept_to_Unity_43412U_pvget16.bin
to be found in “Shopping kiosk” or in Schneider electric web site.
Note that the “final” Unity firmware is to be adapted to the PV too, so after the use of
special pvget 16 Intermediate OS , a dedicated firmware is to be download .
Firmware to download are:
•
140CPU43412U_V320_pvget16.bin

Navigation menu
