Table of Contents
CATEGORY / NAME SERIES PAGE
Residential Heaters
Linear Convector Heater NEW! LC 2
Linear Proportional Convector Heater NEW! LPC 4

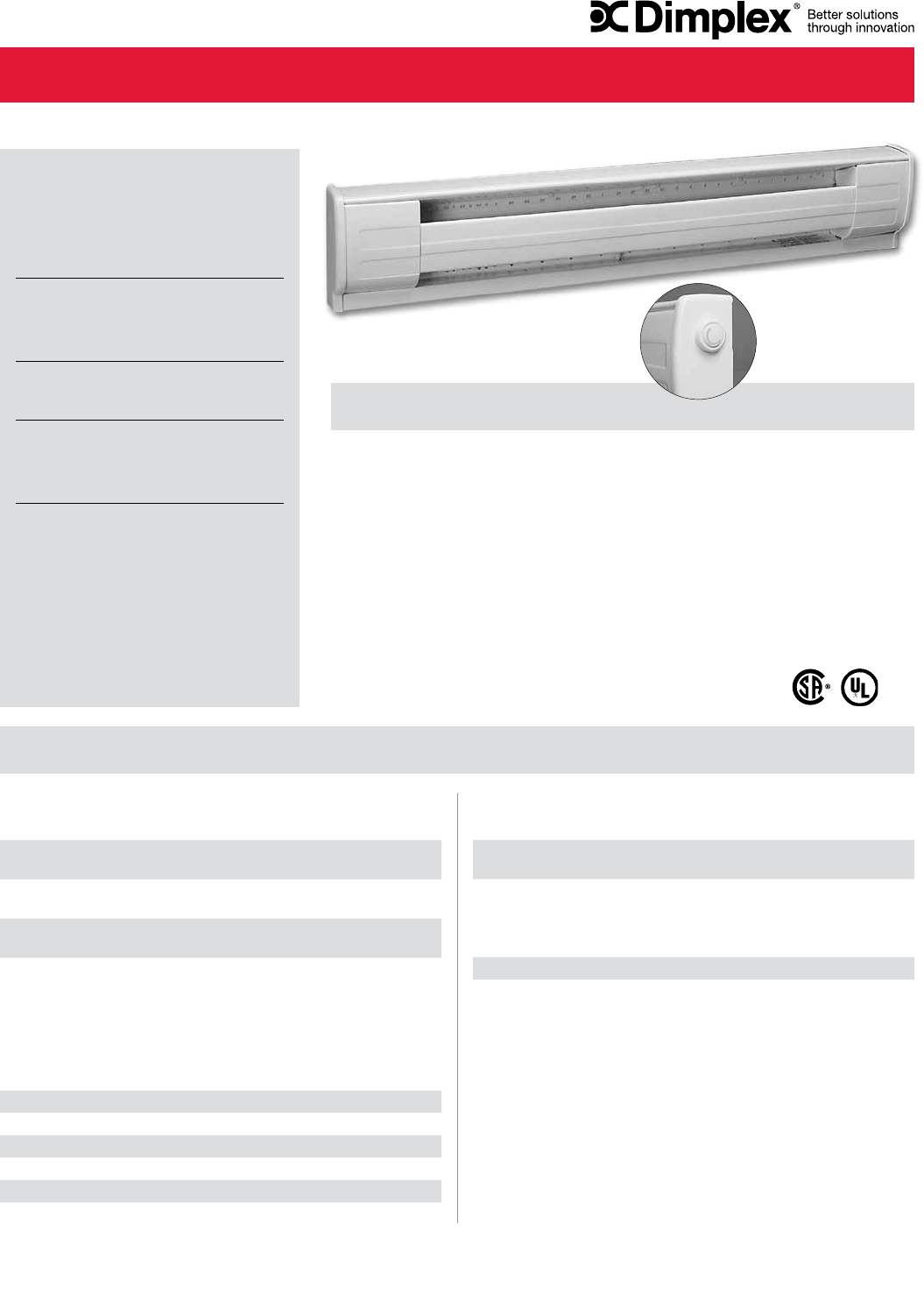

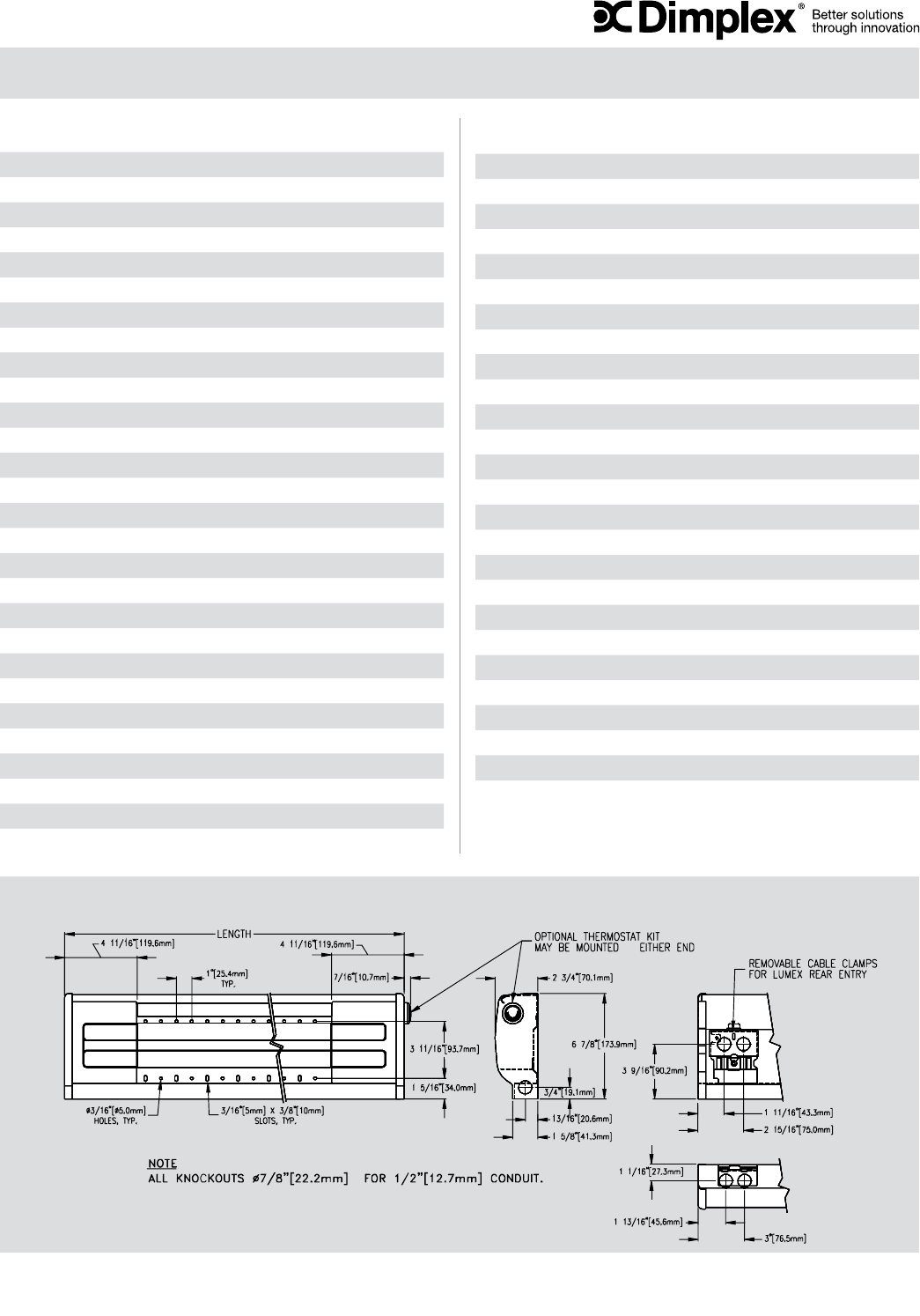

Baseboard Heater BN 6

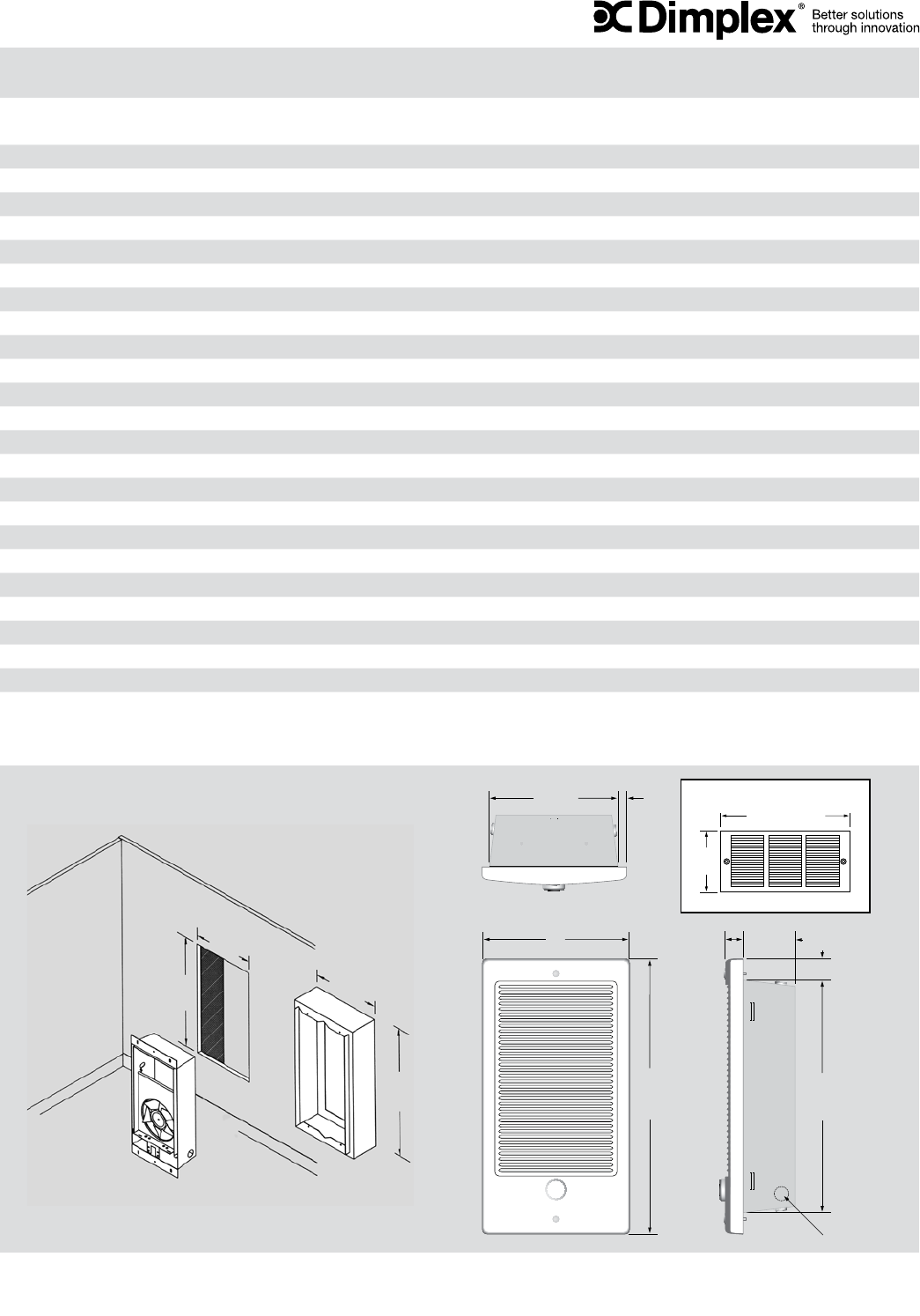

Fan Forced Wall Insert Heater TWH / RDH 8
Deluxe Wall Mounted Fan Heater EF 10

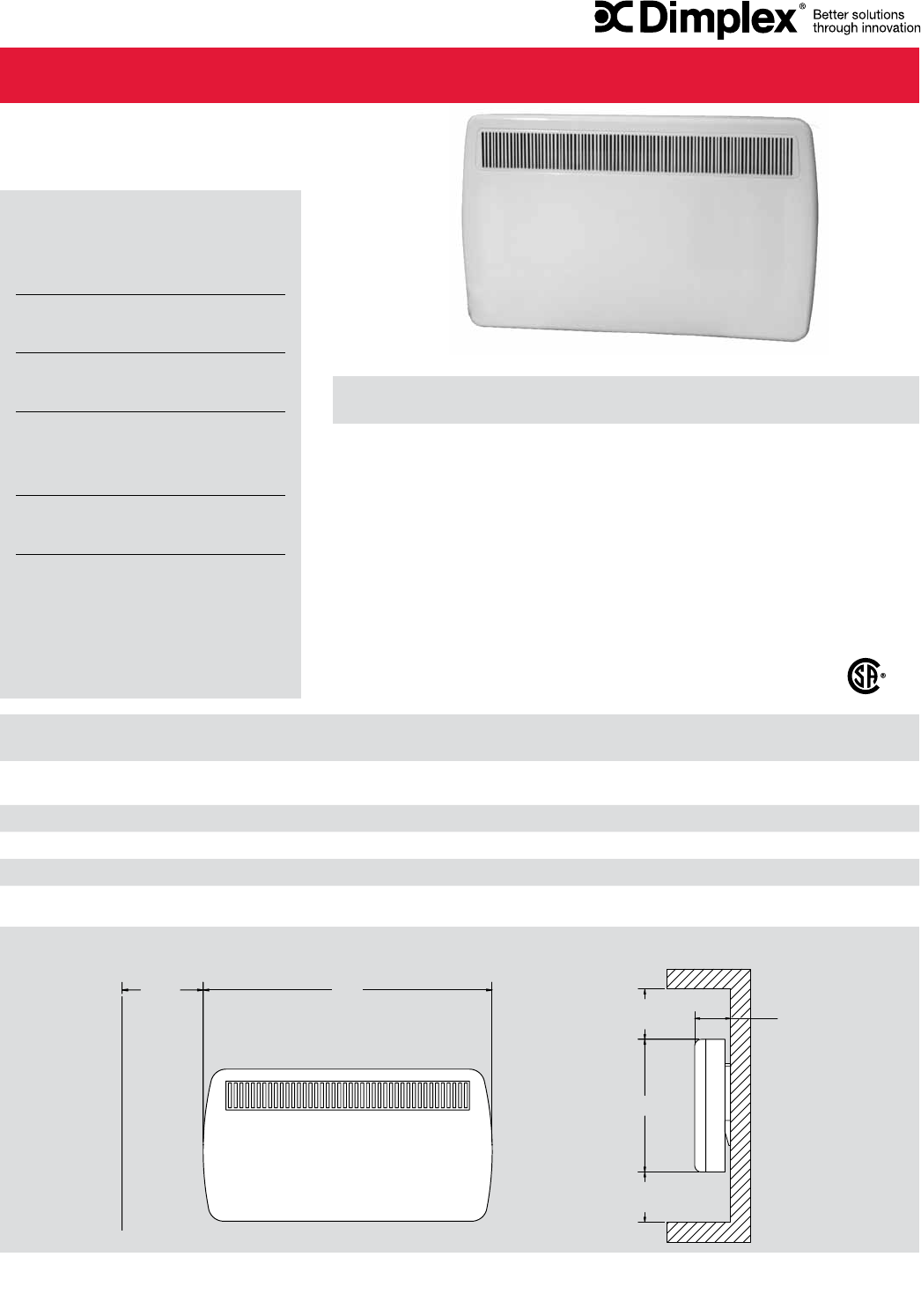

Panel Convection Heater PLX 11

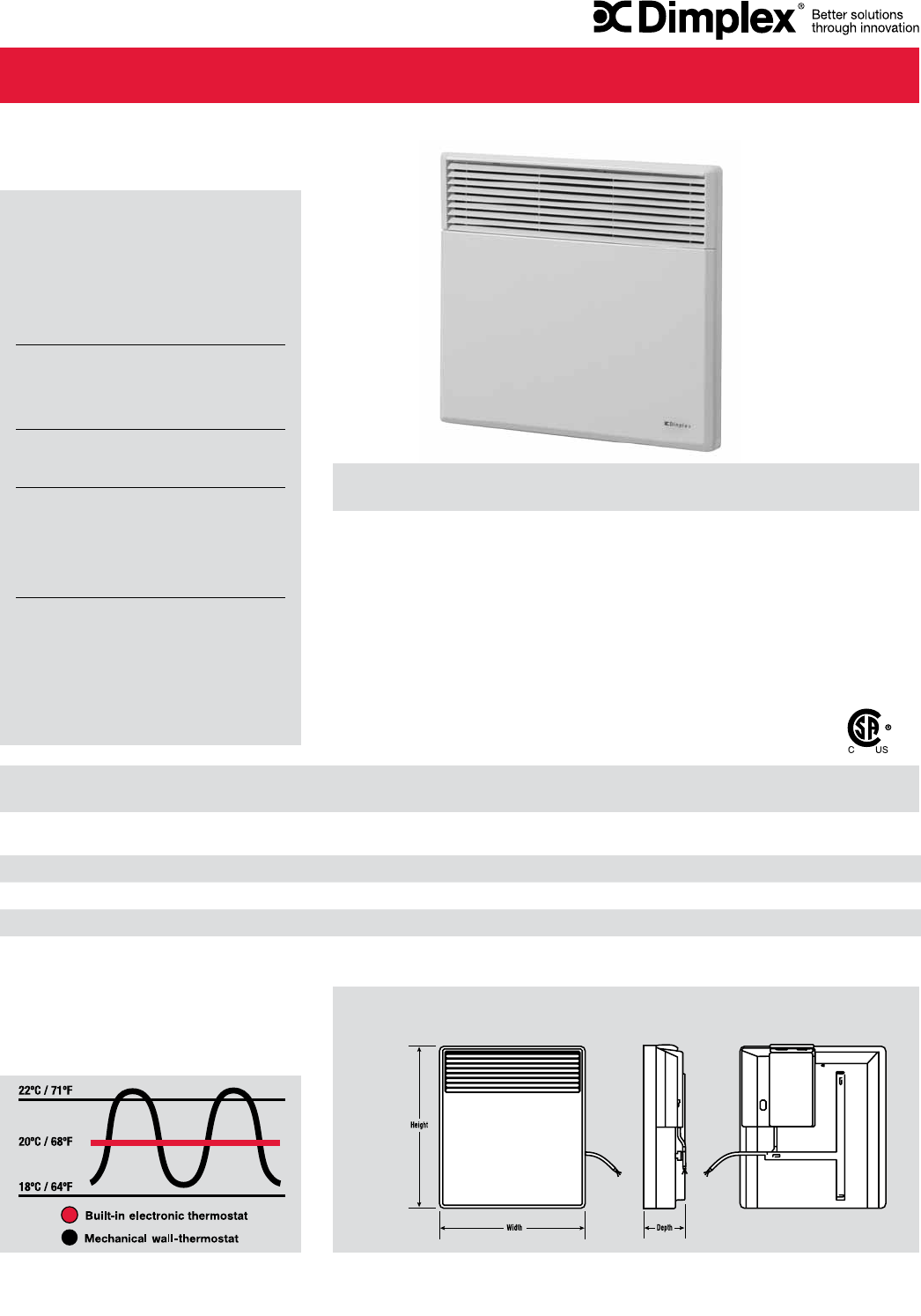

Deluxe Electronic Panel Convection Heater DEC 12
Onyx Glass Panel Heater NEW! DGP 13

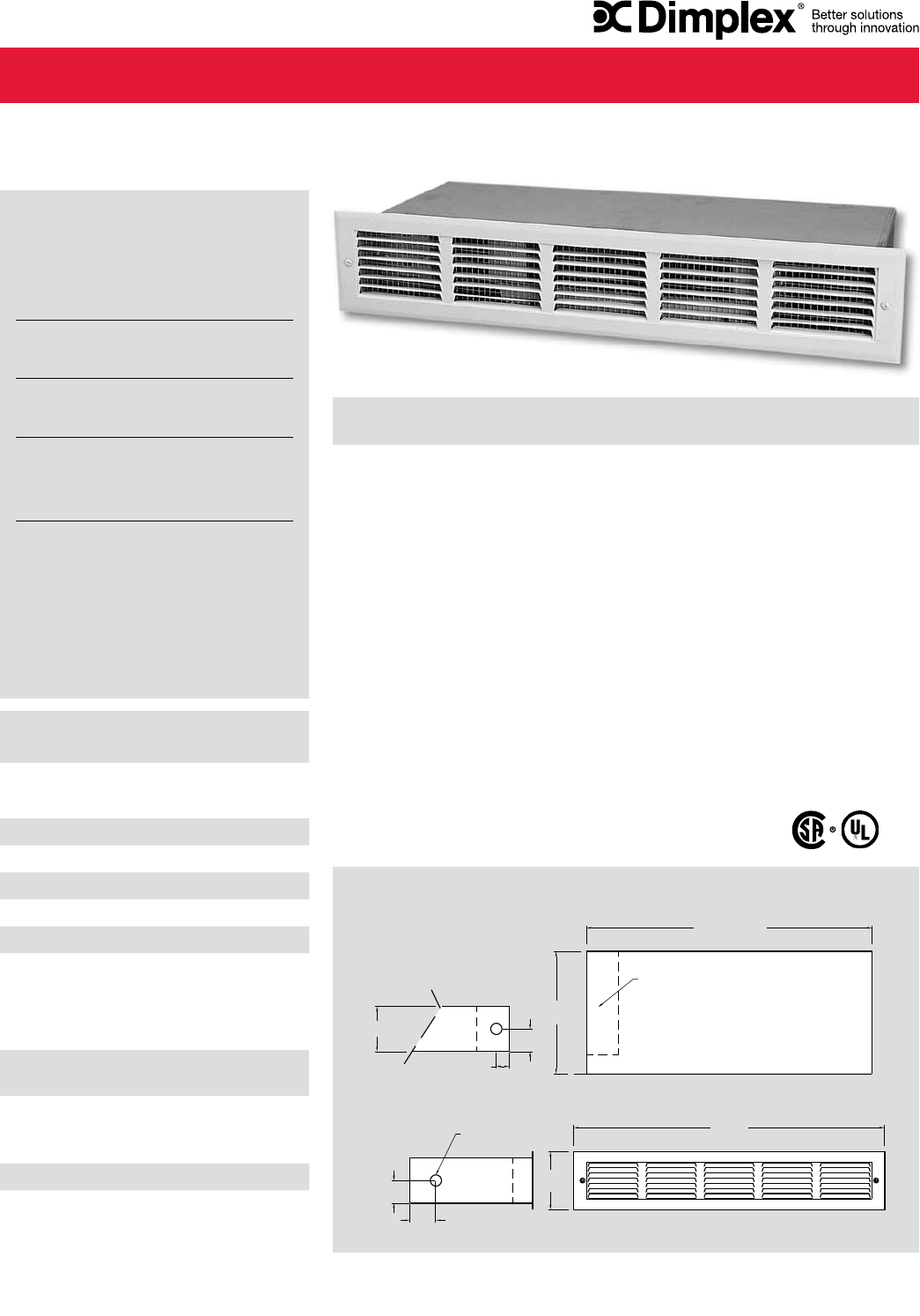

Kick Space Heater CKHA 14

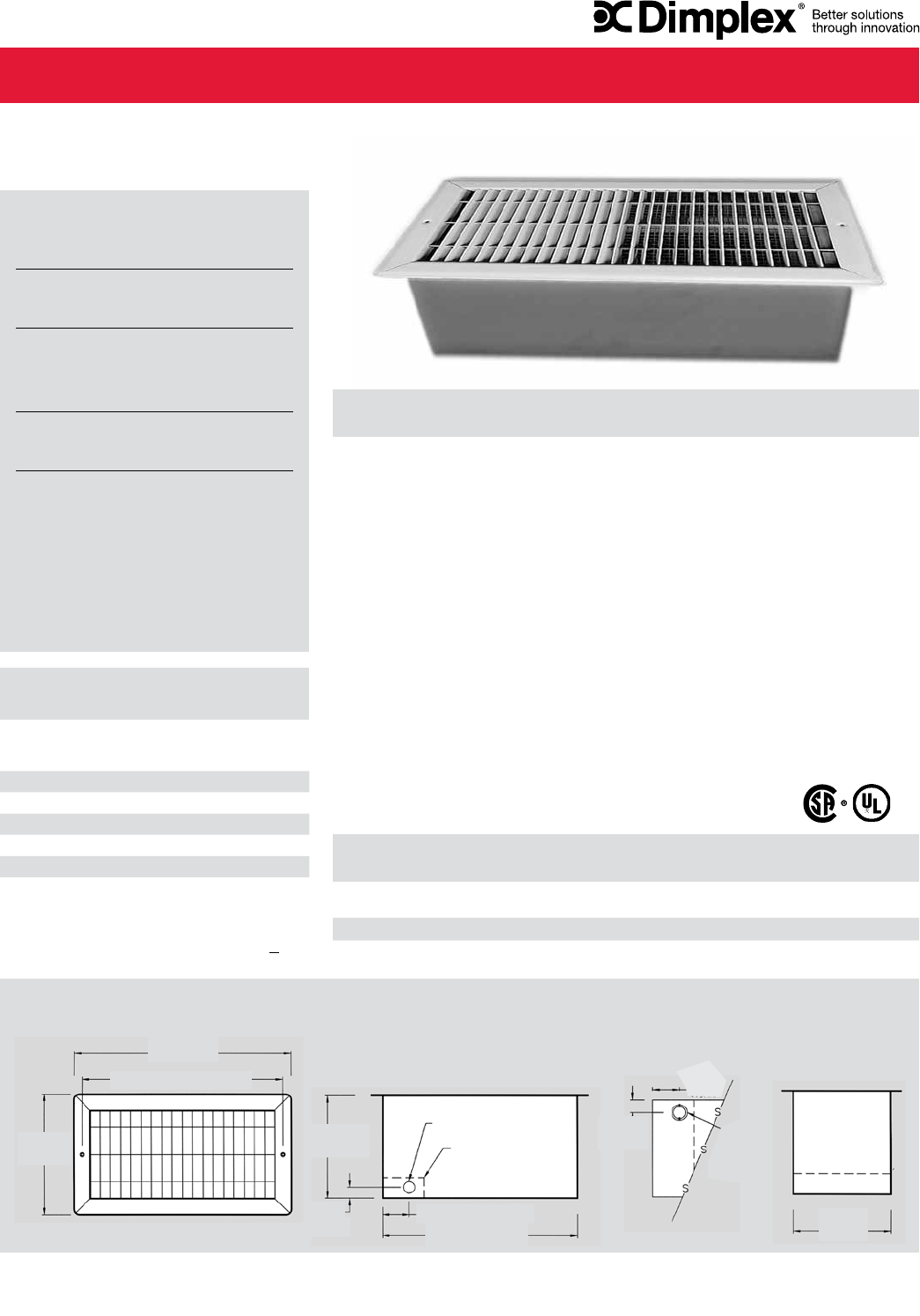

Floor Drop-In Heater FFIH 15
Ceramic Indoor / Outdoor Radiant Heater CXD 16
Downflow Heater AC 17

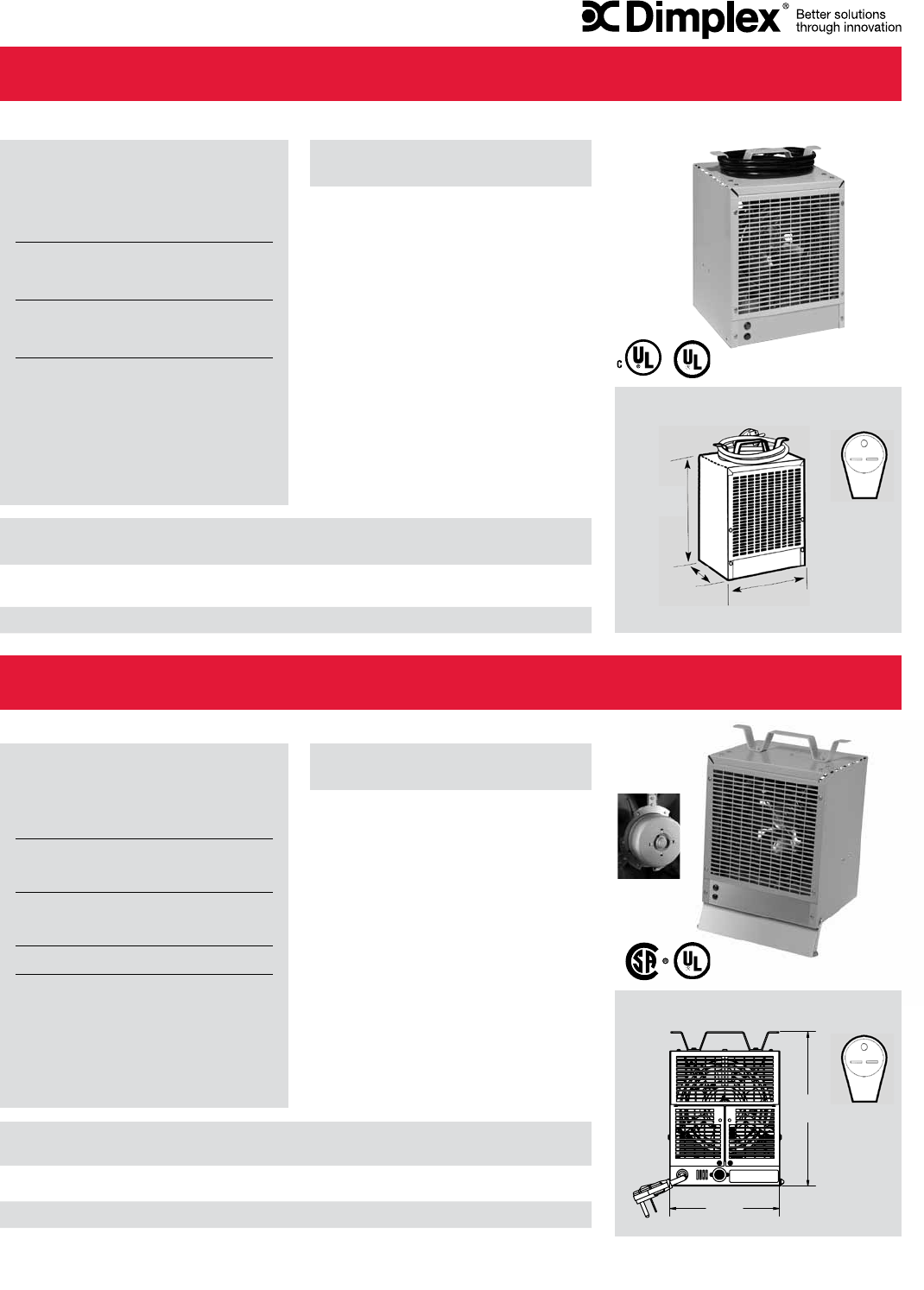

Portable Construction Heater DCH 18
Enclosed Motor Construction Heater EMC 18
Garage / Workshop Heater DGWH 19
Commercial Heaters

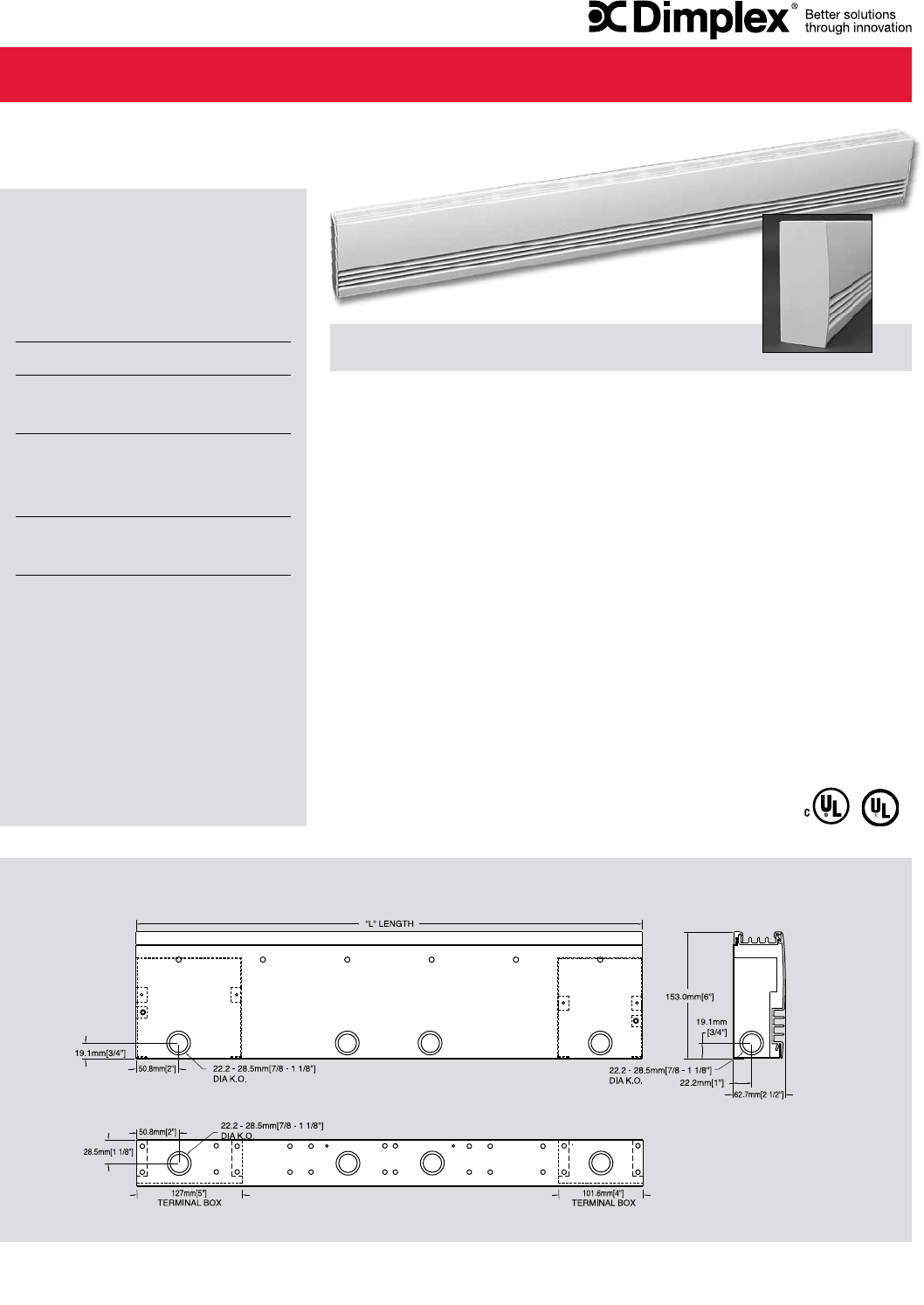

Architectural Draft Barrier Heater (Small) AF6 20

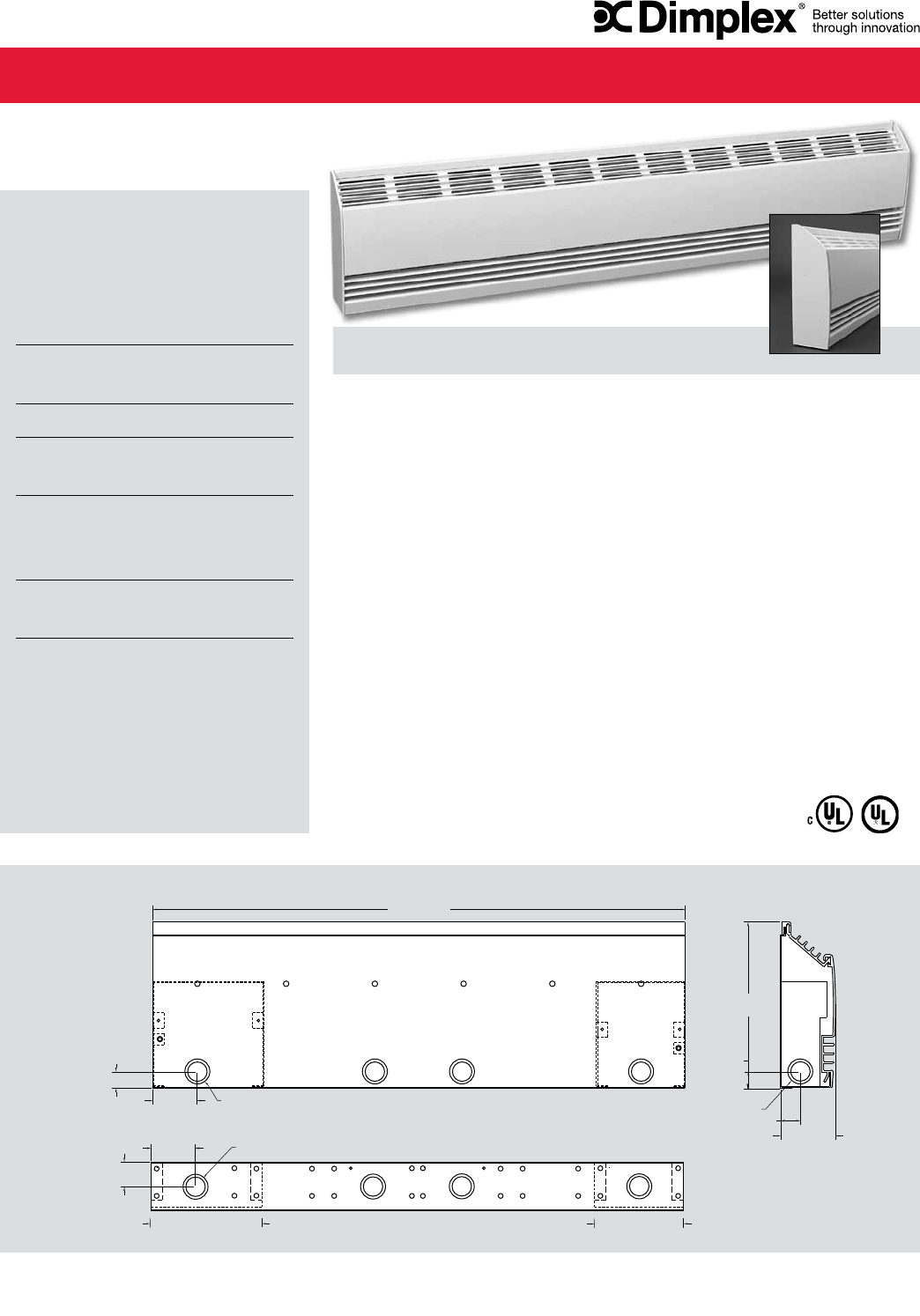

Architectural Slope Top Heater (Small) AS8 22

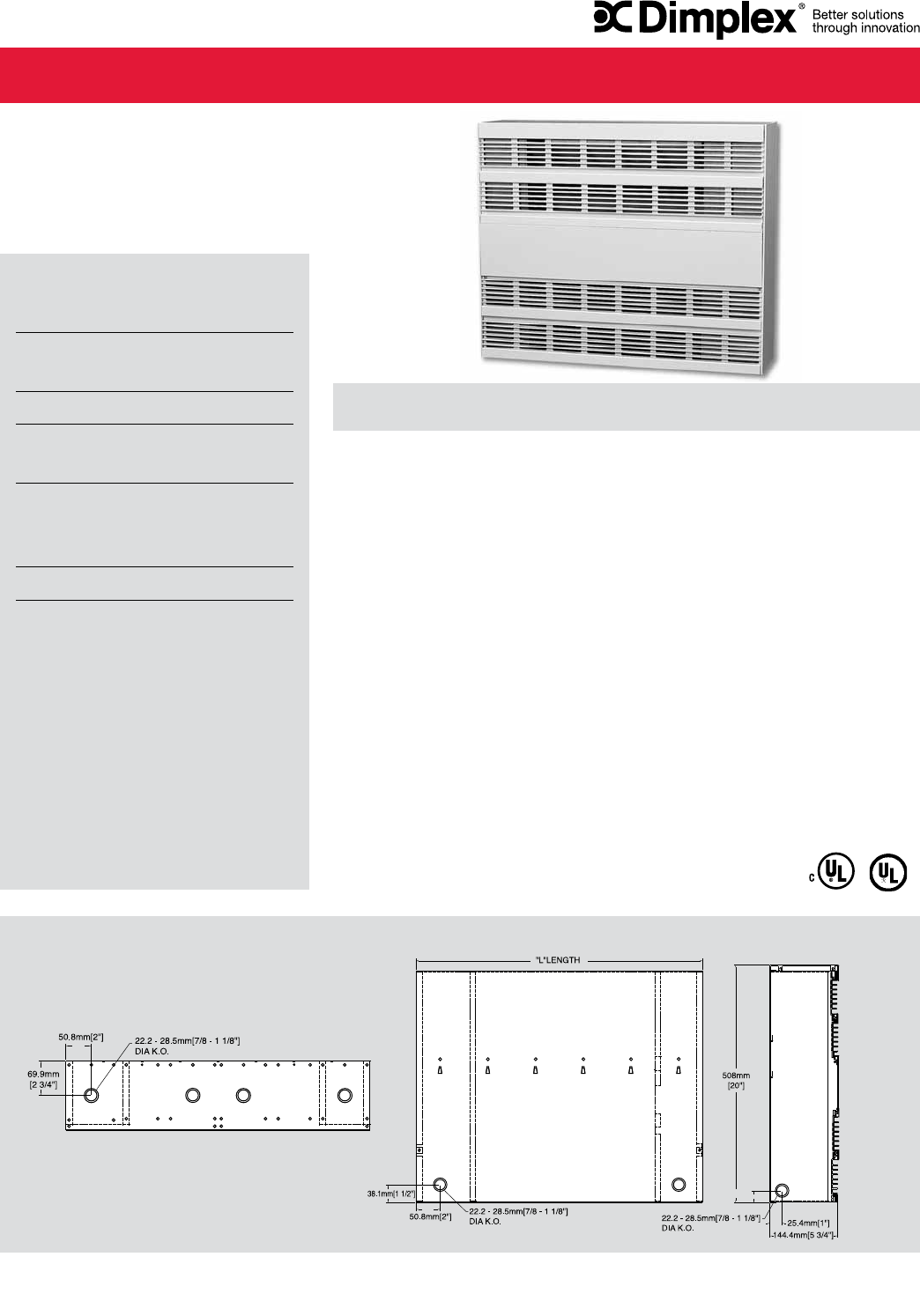

Architectural Convection Heater (Medium) AF12 24
Architectural Slope Top Heater (Medium) AS12 26
Architectural Convection Heater (Large) AF20 28
Cabinet Console Heater CH 30

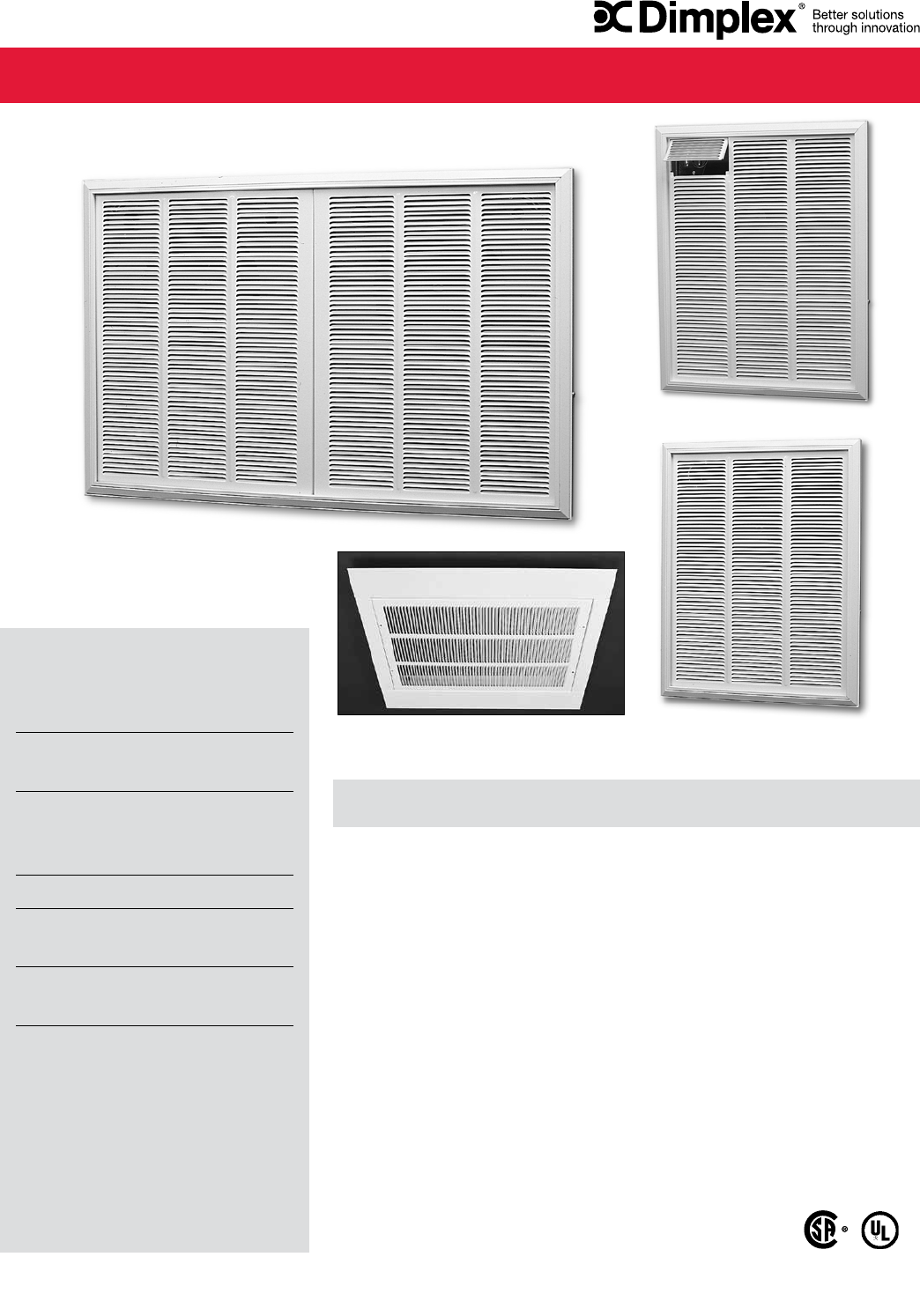

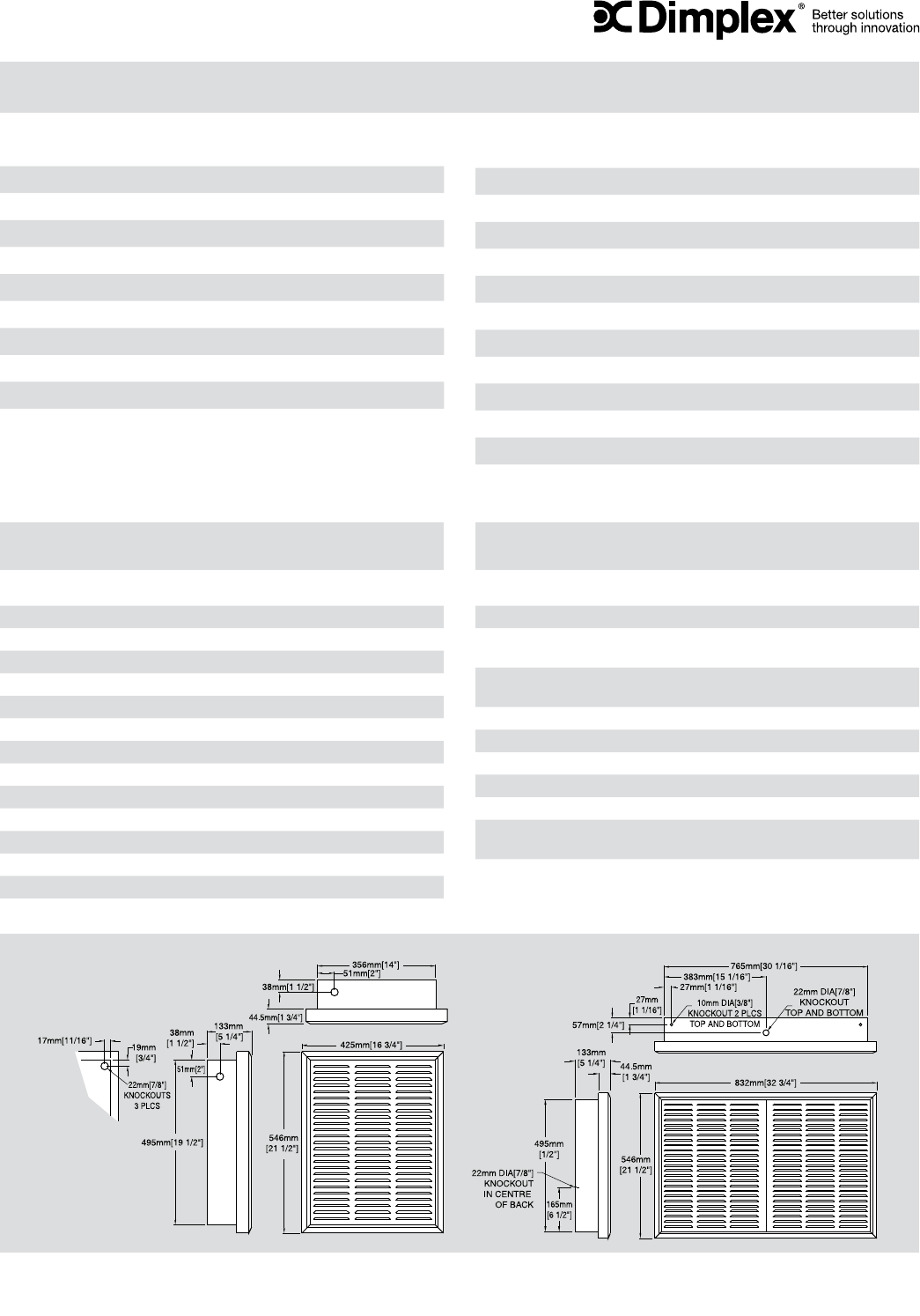

Commercial Fan-Forced Heater RFI / RFV / RFF 32
Commercial Fan-Forced Heater EWA 34

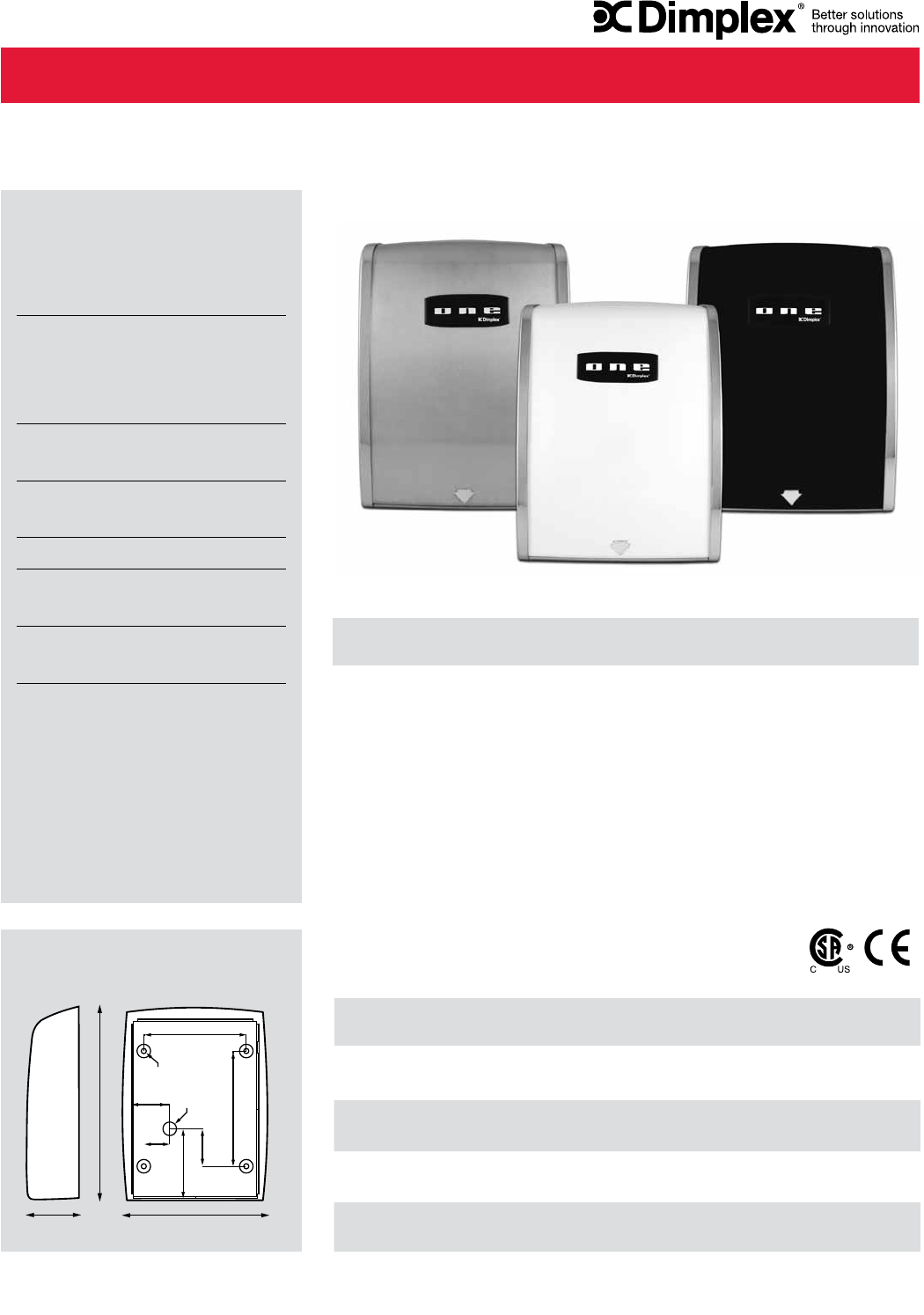

Commercial Hand Dryer NEW! BLAST / ONE 36
Industrial Heaters

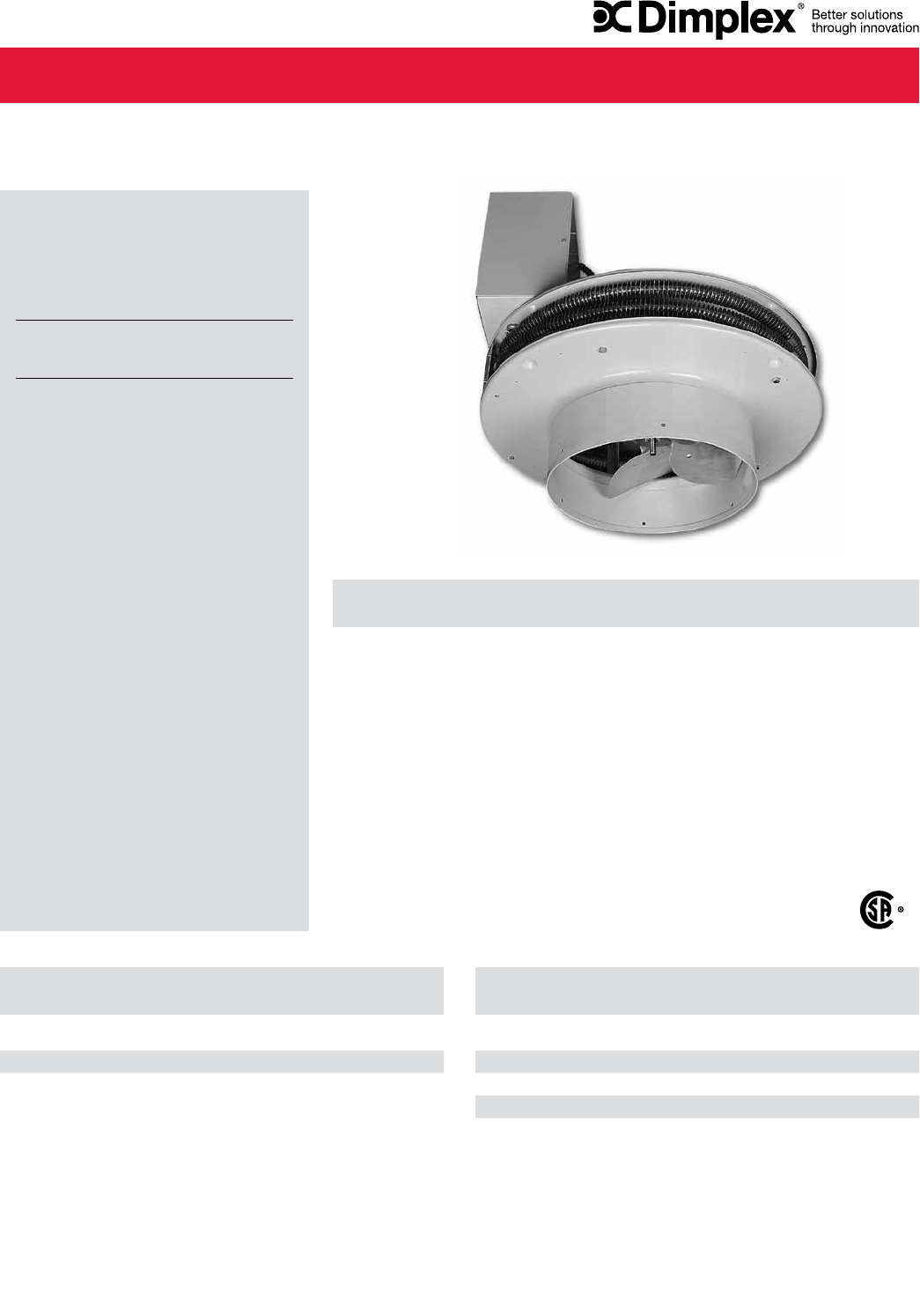

Vertical Unit Heater VUB 38
Hose Down Heater NEW! DX-234 40
Explosion Proof Heater NEW! DX-233 42
Industrial Unit Heater EU 44
Compact Unit Heater CUH 46

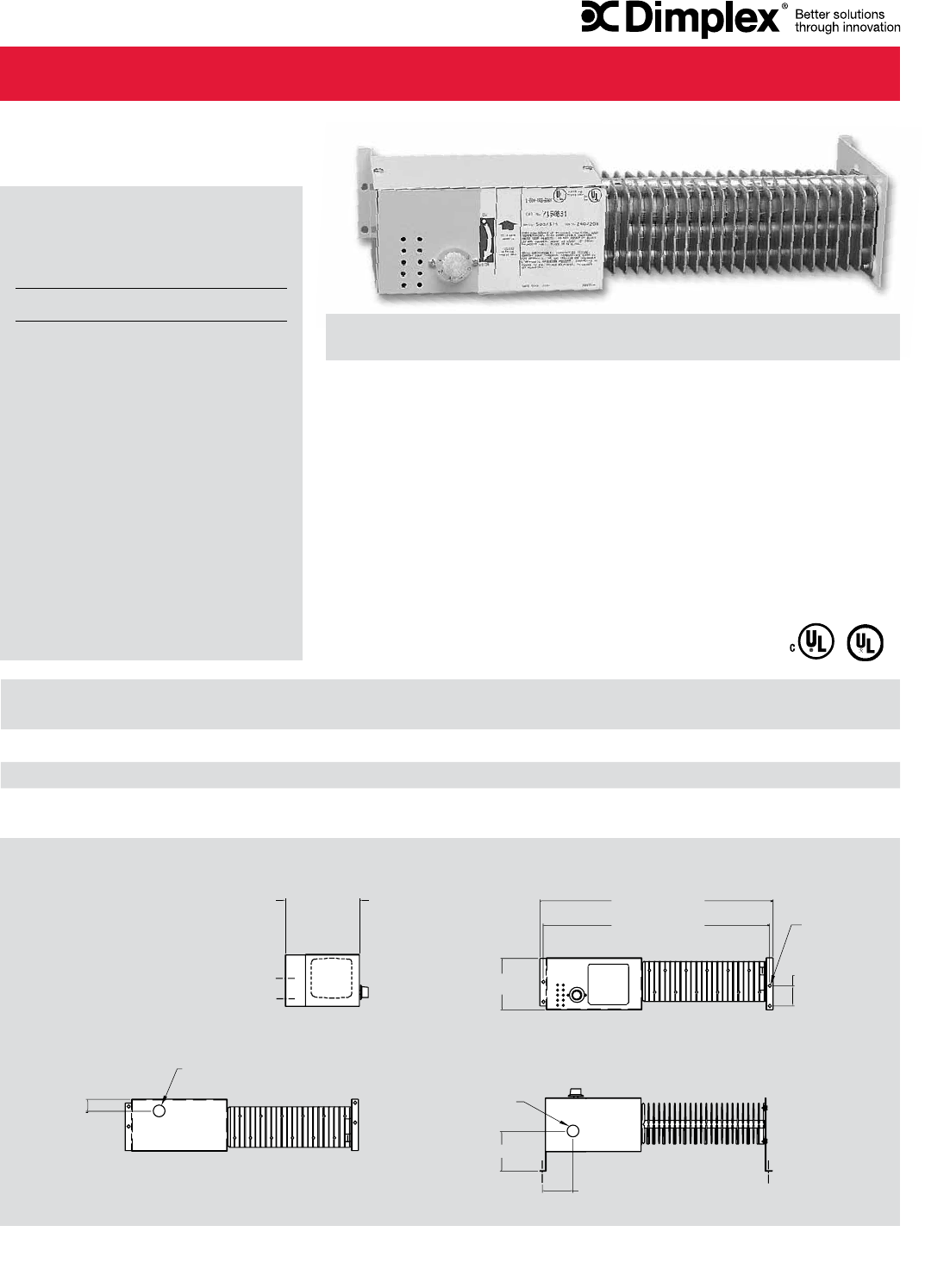

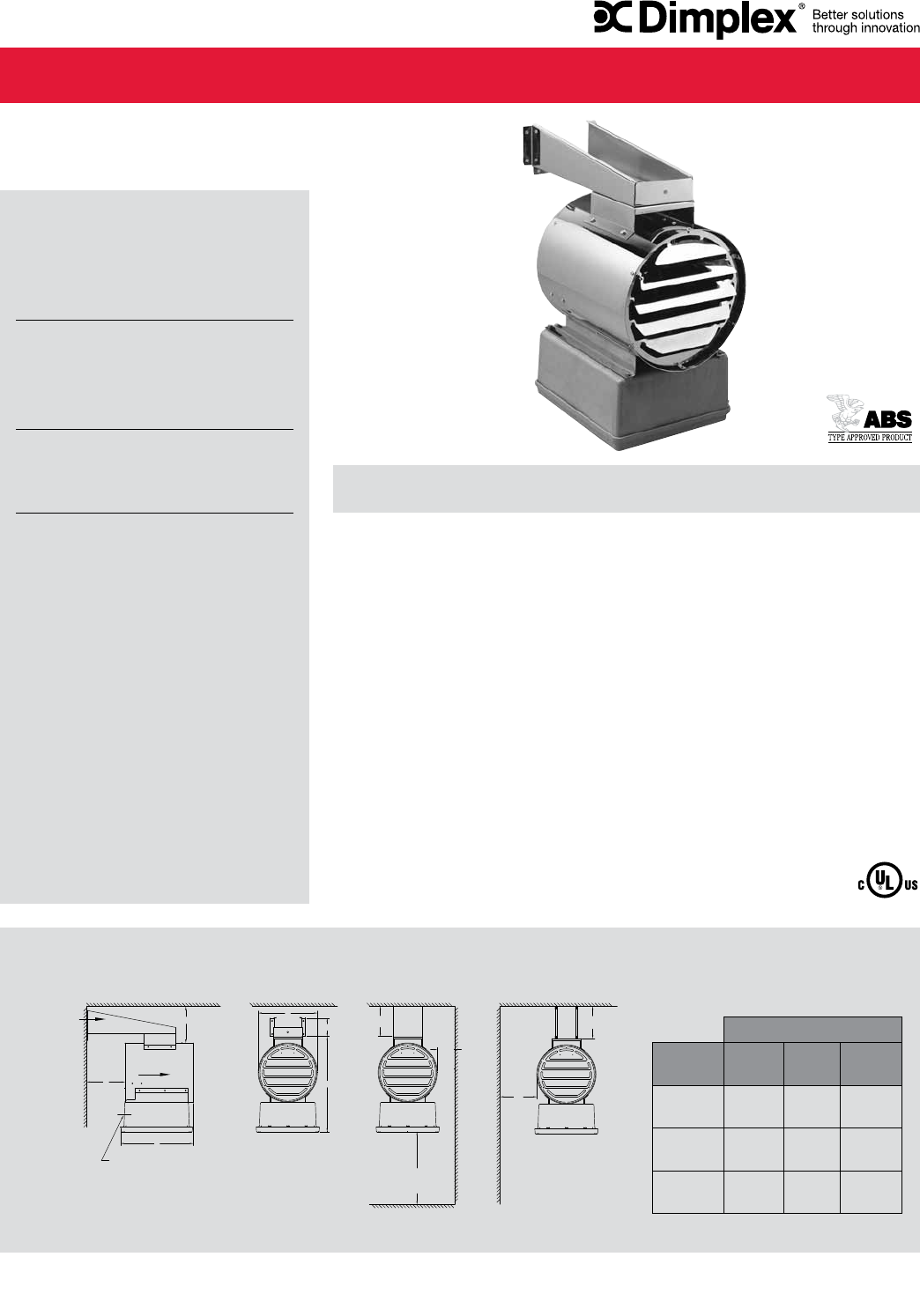

Pump House Heater 7150 47
Hazardous Location Convection Heater FPEP / CEP 48

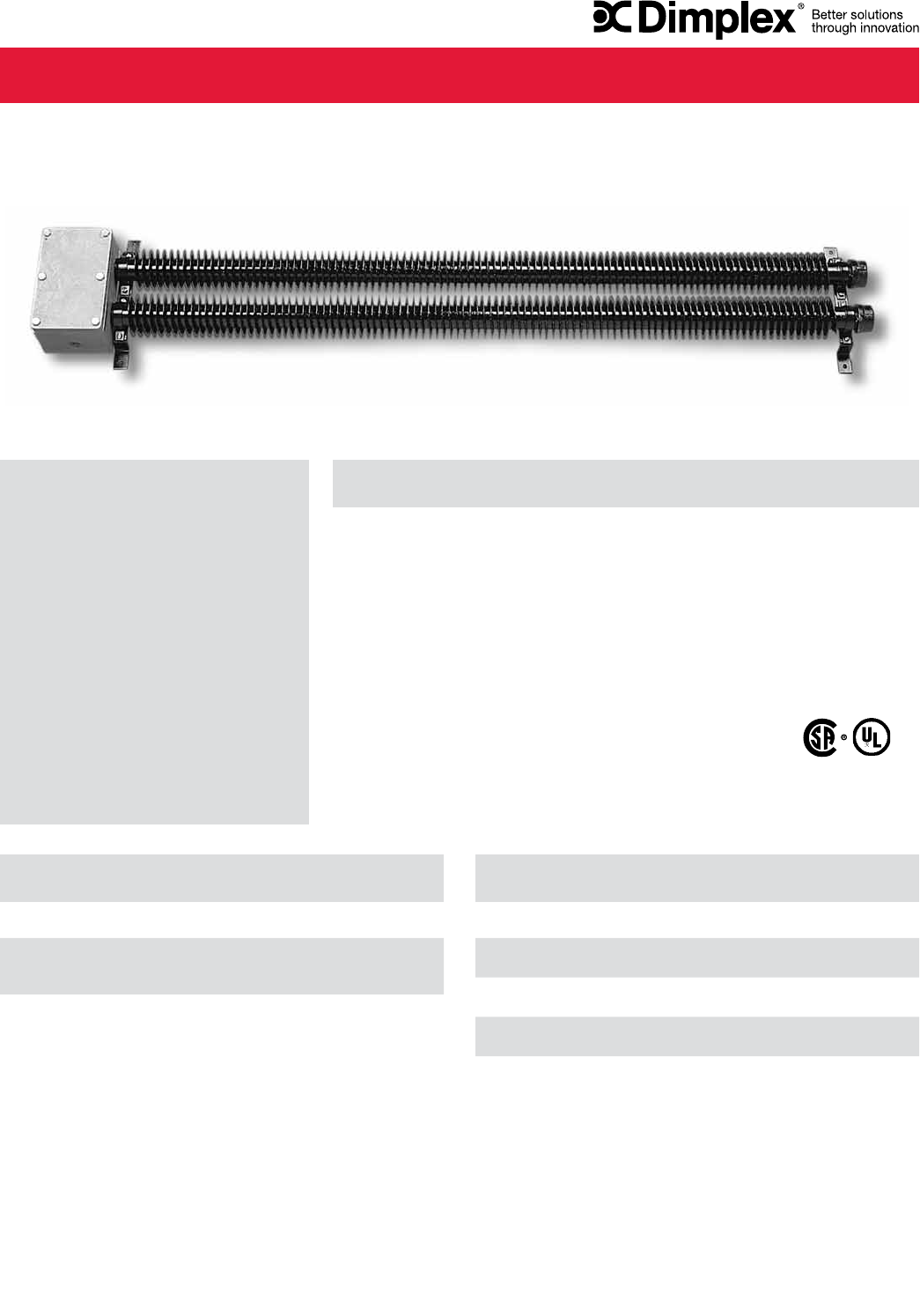

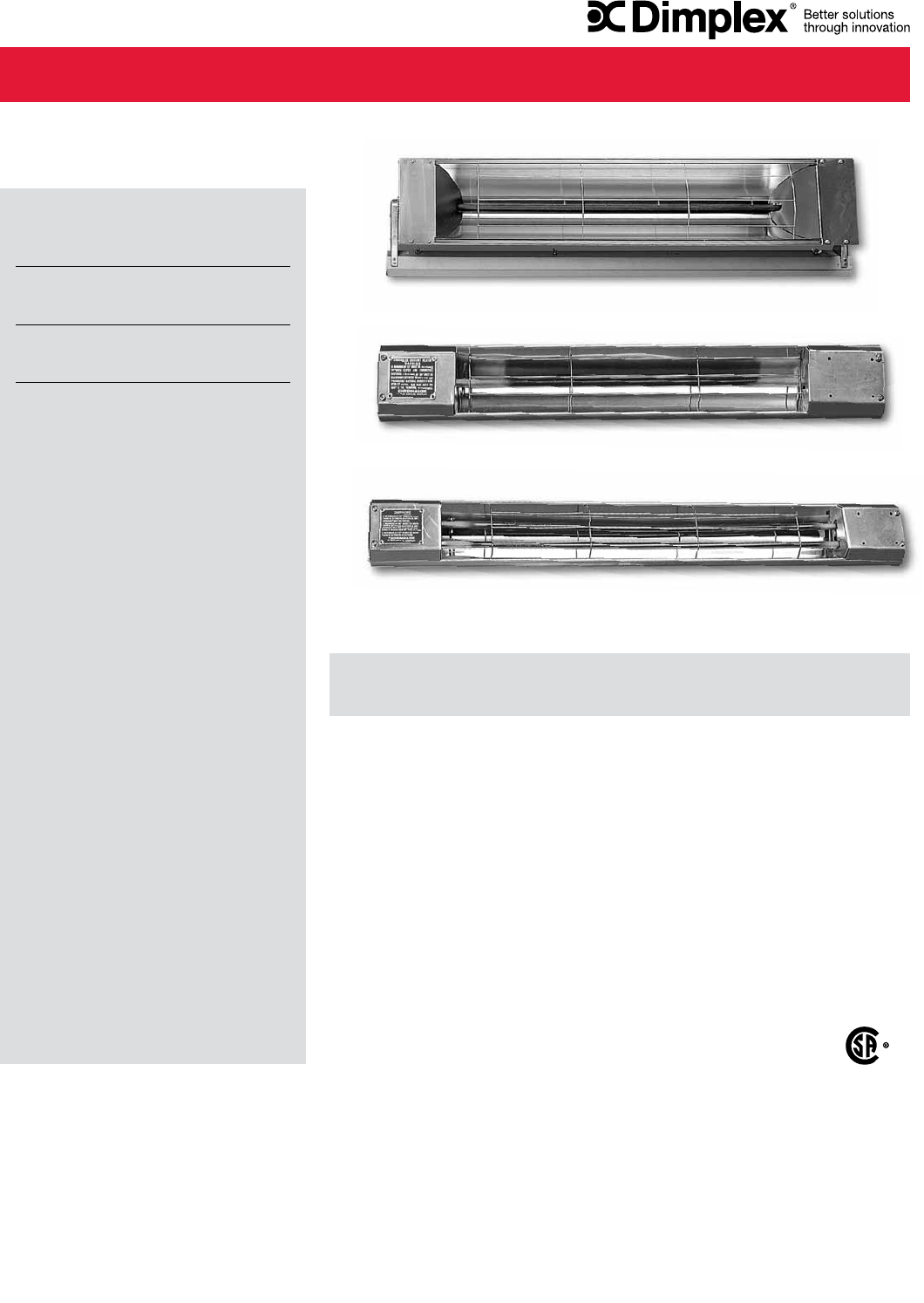

Radiant Heater CRT / KR / KRR 50
Controls
Line Voltage Thermostat TS / TD / ETS / ETD 52
Low Voltage Thermostat T8 / CCTHV 52

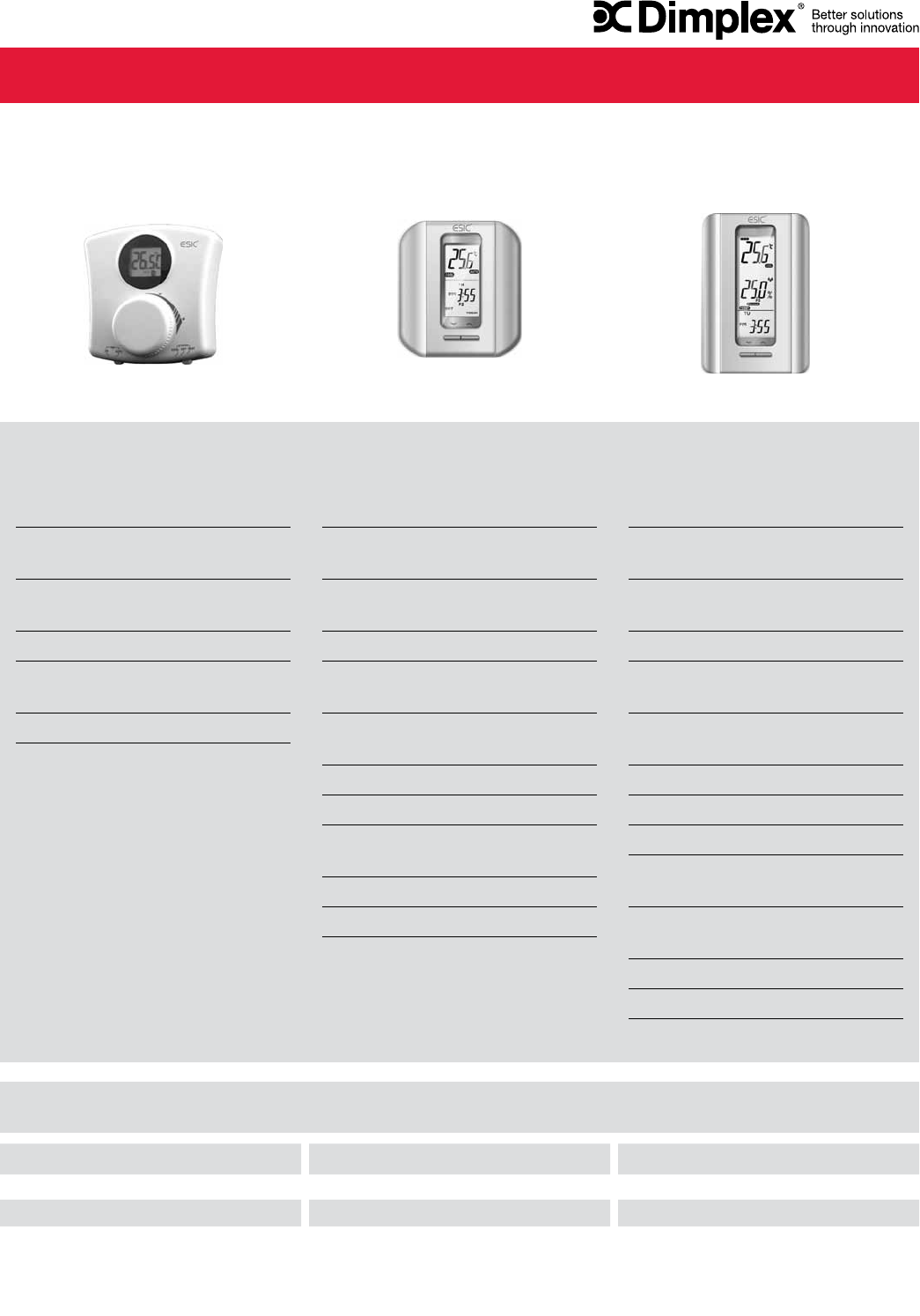

Digital Electronic Line Voltage Thermostats NEW! HTC 53
Digital Electronic Low Voltage Thermostats NEW! THC 54
Relay Kits & Transformers LVR / AT72D 55
TRIAC Relays NEW! CCT / CCTHV 55
Dimplex Story
Mission Statement 56
Warranty 56
2 | RESIDENTIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
Specifications
Revolutionary design provides a sleek, compact heater profile, while improving heater performance,
reducing energy consumption, and improving comfort.
Features
•Faster heating of the room than
a conventional baseboard due
to rapid vertical laminar air flow,
directing heat to the ceiling,
speeding dispersal of warm air
into the center of the room
•Improved performance and
reduced length through use
of top heat discharge and
new fin design
•Superior shark-fin blade design
on a steel tubular element for
improved heat transfer and
longer life
•Discreet styling, reduced
length and added versatility of
placement provide more options
when designing a room
•May be used with wall, or top
mounted built-in thermostat
(not included)
•Full length automatic overheat
reset for safety
Applications
•All residential applications,
commercial offices, lobbies,
washrooms
Top mounted thermostat can be
installed on either side of LC (optional)

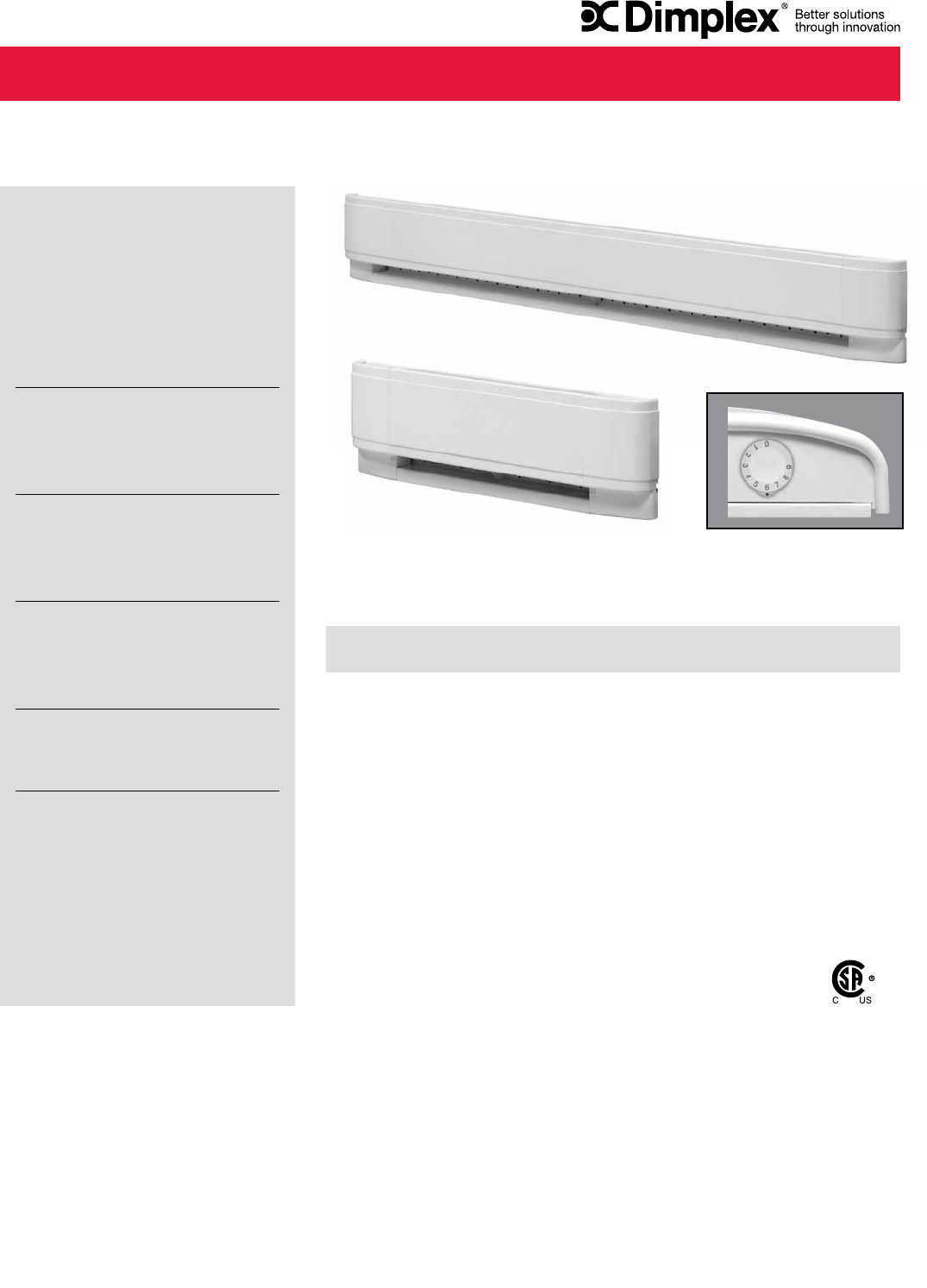

LC Series
Linear Convector Heater
Voltage 120, 208, 240, 347V
Wattage Sizes ranging from 500W to 2500W
Colour White or Almond
Finish Specially-formulated epoxy / polyester powder coating is environmentally
friendly, and resists fading and abrasion.
Construction Robust, 20 gauge steel construction.
Heating Element A nickel chromium element is totally enclosed within a steel sheath,
providing superior life expectancy and resistance to rust. Shark-fin shaped
aluminum fins are firmly staked in an upright position to provide directional
wicking for top discharge heat transfer.
Installation Easily removed front caps, knock-outs on both sides of the convector, and
pre-stamped mounting holes make installation easy.
Warranty Ten year element warranty.
One year warranty on complete unit.
CSA certified for use in Canada and the U.S.
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com RESIDENTIAL HEATERS | 3
Ordering Guide
Control Options (field installed)
Dimensions
LC Series
Cat. No.
Watts
Volts
BTU
Length
(mm/in.)
Weight
(kg/lbs.)
LC2005W11 500 120 1706 508/20 1.7/3.75
LC2005W21 500 208 1706 508/20 1.7/3.75
LC2005W31 500/375 240/208 1706/1280 508/20 1.7/3.75
LC2005W51 500 347 1706 508/20 1.7/3.75
LC2507W11 750 120 2559 635/25 2/4.40
LC2507W21 750 208 2559 635/25 2/4.40
LC2507W31 750/563 240/208 2559/1919 635/25 2/4.40
LC2507W51 750 347 2559 635/25 2/4.40
LC3010W11 1000 120 3412 762/30 2.3/5.00
LC3010W21 1000 208 3412 762/30 2.3/5.00
LC3010W31 1000/750 240/208 3412/2559 762/30 2.3/5.00
LC3010W51 1000 347 3412 762/30 2.3/5.00
LC3512W11 1250 120 4265 889/35 2.9/6.40
LC3512W21 1250 208 4265 889/35 2.9/6.40
Cat. No.
Watts
Volts
BTU
Length
(mm/in.)
Weight
(kg/lbs.)
LC3512W31 1250/938 240/208 4265/3199 889/35 2.9/6.40
LC3512W51 1250 347 4265 889/35 2.9/6.40
LC4015W11 1500 120 5118 1016/40 3.2/7.50
LC4015W21 1500 208 5118 1016/40 3.2/7.50
LC4015W31 1500/1125 240/208 5118/3839 1016/40 3.2/7.50
LC4015W51 1500 347 5118 1016/40 3.2/7.50
LC5020W21 2000 208 6824 1270/50 3.7/8.20
LC5020W31 2000/1500 240/208 6824/5120 1270/50 3.7/8.20
LC5020W51 2000 347 6824 1270/50 3.7/8.20
LC6025W21 2500 208 8530 1524/60 4.4/9.70
LC6025W31 2500/1875 240/208 8530/6398 1524/60 4.4/9.70
LC6025W51 2500 347 8530 1524/60 4.4/9.70
Note: 1) Standard colour is White.
2) To order Almond omit “W” in Cat. No.
Thermostat Kits
Cat. No. Description Rating
DTK-SP Single pole built-in
thermostat kit (adjustable)
120-240V, 17A
347V, 14A
DTK-DP Double pole built-in
thermostat (adjustable)
120-240V, 17A
347V, 11A
DTKT-SP Single pole built-in
tamperproof thermostat kit
120-240V, 17A
347V, 11A
DTKT-DP Double pole built-in tamperproof
thermostat kit
120-240V, 25A
347V, 11A
Note: Each adjustable kit contains white and almond control knobs and hardware
Relays - Mechanical
Cat. No. Description Rating
BLLVC11 Low voltage relay & transformer kit 120V, 22A
BLLVC21 Low voltage relay & transformer kit 208V, 22A
BLLVC31 Low voltage relay & transformer kit 240V, 22A
BLLVC51 Low voltage relay & transformer kit 347V, 17A
BLLVD Low voltage relay less
transformer kit
120/208/240, 22A
347V, 17A
BUS2 Disconnect switch, double pole 277V, 25A
Relays - TRIAC
CCT-06-1-S Without transformer 600V, 6A
CCT-15-1-S Without transformer 347V, 15A
CCT-15-1-S-T Comes with transformer 347V, 15A
CCT-15-1-S-T240 Comes with transformer 208/240V, 15A
169.0 mm
6 5/8"
89.5 mm
3 1/2"
89.5 mm
3 1/2"
"A"
39.4 mm
1 9/16"
59.8 mm
2 3/8"
29.2 mm
1 1/8"
64.3 mm
2 1/2"
32.5 mm
1 1/4"
SLOT
2.5 mm
R1/8"
X 10
5.0 mm
3/16"
108.8 mm
4 5/16"
25.4 mm
1"
43.4 mm
1 11/16"
29.2 mm
1 1/8"
NOTE: ALL KNOCK OUTS ARE 7/8" FOR 1/2" CONDUIT“A” – see Length in Ordering Guide
INCLUDED HIT-LOCK
CONNECTORS IN
BOTH ENDS

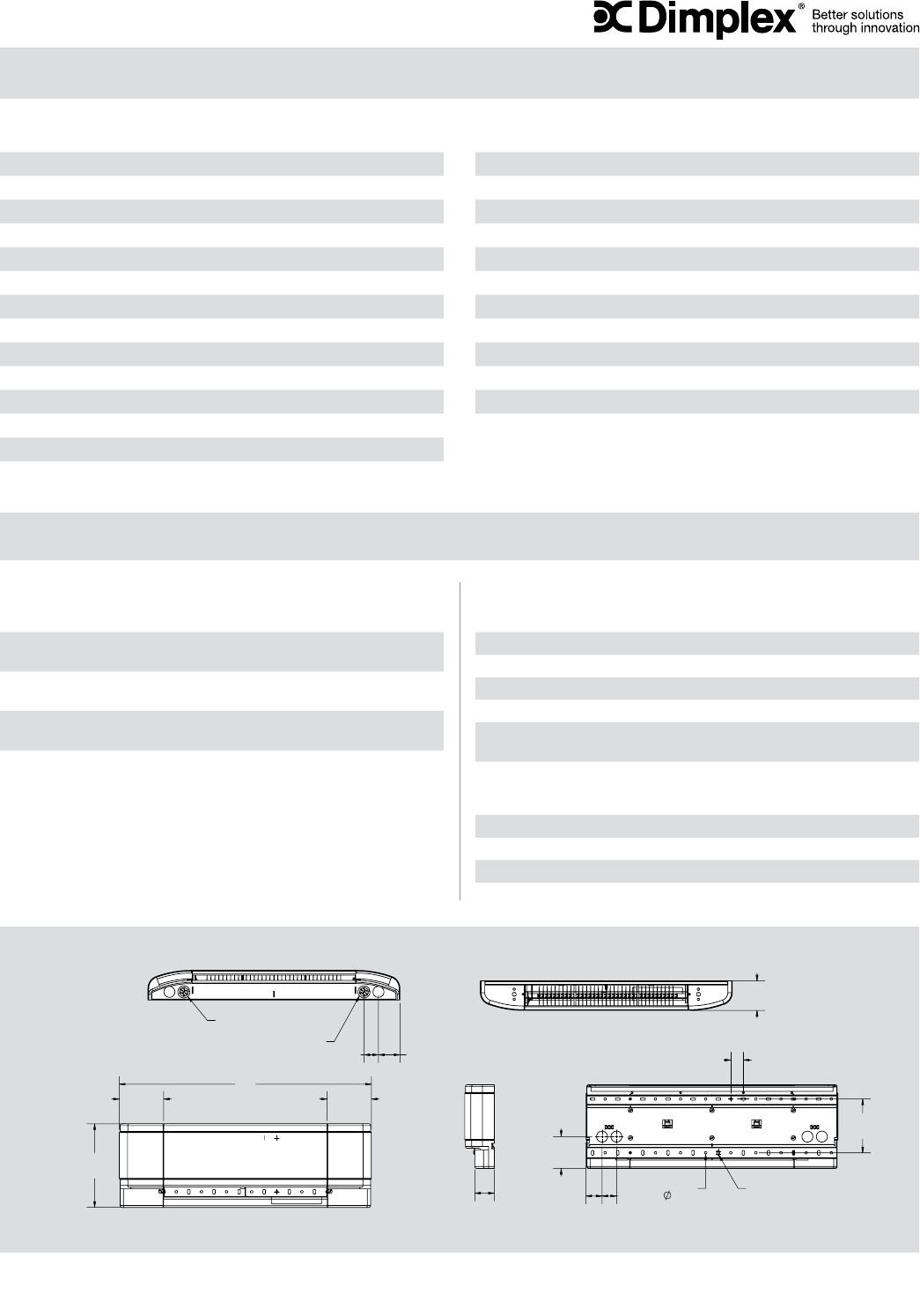

FRONT VIEW SIDE VIEW
BOTTOM VIEW TOP VIEW
BACK VIEW
4 | RESIDENTIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
Voltage 120, 208, 240, 347V
Wattage Sizes ranging from 500W to 2500W
Colour White or Almond
Finish Specially-formulated epoxy / polyester powder coating is environmentally
friendly and resists fading and abrasion.
Construction Robust, 20 gauge steel construction.
Heating Element A nickel chromium element is totally enclosed within a steel sheath,
providing superior life expectancy and resistance to rust. Shark-fin shaped
aluminum fins are firmly staked in an upright position to provide directional
wicking for top discharge heat transfer.
Controls & Wiring Supplied with an installed electronic proportioning thermostat for CSA-
C828 compliant control; an RF transceiver for remote heat control and
whole-home temperature syncing. Wall mounted remote control for user
convenience (optional accessory).
Installation Easily removed front caps, knock-outs on both sides of the convector; and
pre-stamped mounting holes make installation easy.
Warranty Ten year element warranty.
One year warranty on complete unit.
One year warranty on wall mounted remote control.
CSA certified for use in Canada and the U.S.
Specifications
Revolutionary heater with a built-in electronic thermostat with heat proportioning for improved performance
and reduced energy consumption.
Features
•New electronic proportioning
thermostat, with CSA-C828
compliant control (+/-0.5ºC/1ºF),
RF transceiver for on-board
temperature control and
heater-to-heater telegraphing
•Faster heating of the room than
a conventional baseboard due
to rapid vertical laminar air flow,
directing heat to the ceiling,
speeding dispersal of warm air
into the center of the room
•Improved performance and
reduced length through use
of top heat discharge and
new fin design
•Superior shark-fin blade design
on a steel tubular element for
improved heat transfer and
longer life
•Discreet styling, reduced
length and added versatility of
placement provide more options
when designing a room
•Full length automatic overheat
reset for safety
•Optional wall mounted remote
control for multi-heater
temperature regulation
Applications
•All residential applications,
commercial offices, lobbies,
washrooms
LPC Series
Linear Proportional Convector Heater
Wall mounted
remote control
(optional; wall plate
not included)
Onboard thermostat
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com RESIDENTIAL HEATERS | 5
Ordering Guide
Dimensions
LPC Series
Cat. No.
Watts
Volts
BTU
Length
(mm/in.)
Weight
(kg/lbs.)
PC2005W11 500 120 1706 508/20 1.8/4.00
PC2005W21 500 208 1706 508/20 1.8/4.00
PC2005W31 500/375 240/208 1706/1280 508/20 1.8/4.00
PC2005W51 500 347 1706 508/20 1.8/4.00
PC2507W11 750 120 2559 635/25 2.1/4.65
PC2507W21 750 208 2559 635/25 2.1/4.65
PC2507W31 750/563 240/208 2559/1919 635/25 2.1/4.65
PC2507W51 750 347 2559 635/25 2.1/4.65
PC3010W11 1000 120 3412 762/30 2.4/5.25
PC3010W21 1000 208 3412 762/30 2.4/5.25
PC3010W31 1000/750 240/208 3412/2559 762/30 2.4/5.25
PC3010W51 1000 347 3412 762/30 2.4/5.25
PC3512W11 1250 120 4265 889/35 3.0/6.65
PC3512W21 1250 208 4265 889/35 3.0/6.65
Cat. No.
Watts
Volts
BTU
Length
(mm/in.)
Weight
(kg/lbs.)
PC3512W31 1250/938 240/208 4265/3199 889/35 3.0/6.65
PC3512W51 1250 347 4265 889/35 3.0/6.65
PC4015W11 1500 120 5118 1016/40 3.5/7.75
PC4015W21 1500 208 5118 1016/40 3.5/7.75
PC4015W31 1500/1125 240/208 5118/3839 1016/40 3.5/7.75
PC4015W51 1500 347 5118 1016/40 3.5/7.75
PC5020W21 2000 208 6824 1270/50 3.8/8.45
PC5020W31 2000/1500 240/208 6824/5120 1270/50 3.8/8.45
PC5020W51 2000 347 6824 1270/50 3.8/8.45
PC6025W21 2500 208 8530 1524/60 4.5/9.95
PC6025W31 2500/1875 240/208 8530/6398 1524/60 4.5/9.95
PC6025W51 2500 347 8530 1524/60 4.5/9.95
Note: Standard colour is White.
Consult factory to order Almond.
Accessories
Cat. No. Description
BUS2 Disconnect switch, double pole, 277V/25A
DPCRWS White wall mounted remote control with RF set point
(wall plate not included)
MPDPCRWS White wall mounted remote control with RF set point – bulk
(wall plate not included)
169.0 mm
6 5/8"
89.5 mm
3 1/2"
89.5 mm
3 1/2"
"A"
39.4 mm
1 9/16"
59.8 mm
2 3/8"
29.2 mm
1 1/8"
64.3 mm
2 1/2"
32.5 mm
1 1/4"
SLOT
2.5 mm
R1/8"
X 10
5.0 mm
3/16"
108.8 mm
4 5/16"
25.4 mm
1"
43.4 mm
1 11/16"
29.2 mm
1 1/8"
NOTE: ALL KNOCK OUTS ARE 7/8" FOR 1/2" CONDUIT“A” – see Length in Ordering Guide
INCLUDED HIT-LOCK
CONNECTORS IN
BOTH ENDS
(optional; wall plate not included)
FRONT VIEW SIDE VIEW
TOP VIEW
BOTTOM VIEW
BACK VIEW
6 | RESIDENTIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
Voltage 120, 208, 240, 277, 347, 600V
Wattage Sizes ranging from 300W to 2500W
Colour White or Almond
Finish Specially-formulated epoxy / polyester powder coating is environmentally
friendly and resists fading and abrasion.
Heating Element A nickel chromium element is totally enclosed within a stainless steel
sheath providing superior life expectancy and resistance to rust. Aluminum
fins are firmly staked to the surface to provide excellent heat transfer.
Installation Large rear entry left and right junction boxes provide ease of installation.
Warranty Ten year element warranty.
One year warranty on complete unit.
CSA certified and UL approved.
Specifications
Slim contoured design is the perfect complement to both contemporary and traditional décors.
Features
•Exclusive contoured design
with safe rounded endcaps
and attractive styling
•May be used with wall, or
unique side mounted built-in
thermostat (not included)
•Superior finned tubular element
design for safety and long life
•Large rear-entry junction boxes
on both sides for quick and easy
installation
•Full-length automatic reset
overheat protection for safety
Applications
•All residential applications,
commercial offices, washrooms,
lobbies
Unique side mount optional
thermostat may be installed
from the rear without removing
front panel.
Thermostat Kits
Cat. No. Description Rating
DTK-SP Single pole built-in
thermostat kit (adjustable)
120-240V, 17A,
347V, 14A, 600V, 10A
DTK-DP Double pole built-in
thermostat (adjustable)
120-240V, 17A,
347V, 11A, 600V, 10A
DTKT-SP Single pole built-in
tamperproof thermostat kit
120-240V, 17A,
347V, 11A
DTKT-DP Double pole built-in tamperproof
thermostat kit
120-240V, 25A,
347V, 11A, 600V, 10A
Note: Each adjustable kit contains white and almond control knobs and hardware
Relays
Cat. No. Description Rating
BLLVC11 Low voltage relay & transformer kit 120V, 22A
BLLVC21 Low voltage relay & transformer kit 208V, 22A
BLLVC31 Low voltage relay & transformer kit 240V, 22A
BLLVC41 Low voltage relay & transformer kit 277V, 22A
BLLVC51 Low voltage relay & transformer kit 347V, 17A
BLLVC81 Low voltage relay & transformer kit 600V, 10A
Relays
Cat. No. Description Rating
BLLVD Low voltage relay less
transformer kit
120/208/240, 22A,
347V, 17A, 600V, 10A
BUS2 Disconnect switch, double pole 277V, 25A
Inside Corners
Cat. No. Description
BNIC Almond
BNICW White
Note: Inside corners are used when continuous installation of baseboard cabinetry
inside 90 degree corners is designed.
Control Options (field installed)
Baseboard Heater
BN Series
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com RESIDENTIAL HEATERS | 7
Cat. No.
Watts
BTU
Volts
Length
(mm/in.)
Weight
(kg/lbs.)
BN2203W11 300 1024 120 560/22 1/8 2.3/5
BN2203W21 300 1024 208 560/22 1/8 2.3/5
BN2203W31 300/225 1024/768 240/208 560/22 1/8 2.3/5
BN2203W41 300 1024 277 560/22 1/8 2.3/5
BN2805W11 500 1706 120 700/27 5/8 2.7/6
BN2805W21 500 1706 208 700/27 5/8 2.7/6
BN2805W31 500/375 1706/1280 240/208 700/27 5/8 2.7/6
BN2805W41 500/375 1706/1280 277/240 700/27 5/8 2.7/6
BN2805W51 500 1706 347 700/27 5/8 2.7/6
BN3907W11 750 2559 120 980/38 5/8 4.1/9
BN3907W21 750 2559 208 980/38 5/8 4.1/9
BN3907W31 750/563 2559/1919 240/208 980/38 5/8 4.1/9
BN3907W41 750/563 2559/1919 277/240 980/38 5/8 4.1/9
BN3907W51 750 2559 347 980/38 5/8 4.1/9
BN3907W81 750 2559 600 980/38 5/8 4.1/9
BN4810W11 1000 3412 120 1210/47 5/8 4.5/10
BN4810W21 1000 3412 208 1210/47 5/8 4.5/10
BN4810W31 1000/750 3412/2559 240/208 1210/47 5/8 4.5/10
BN4810W41 1000/750 3412/2559 277/240 1210/47 5/8 4.5/10
BN4810W51 1000 3412 347 1210/47 5/8 4.5/10
BN4810W81 1000 3412 600 1210/47 5/8 4.5/10
BN5712W11 1250 4265 120 1440/56 11/16 5.4/12
BN5712W21 1250 4265 208 1440/56 11/16 5.4/12
BN5712W31 1250/938 4265/3199 240/208 1440/56 11/16 5.4/12
BN5712W41 1250/938 4265/3199 277/240 1440/56 11/16 5.4/12
BN5712W51 1250 4265 347 1440/56 11/16 5.4/12
BN5712W81 1250 4265 600 1440/56 11/16 5.4/12
BN6615W11 1500 5118 120 1670/65 3/4 5.9/13
Cat. No.
Watts
BTU
Volts
Length
(mm/In.)
Weight
(kg/lbs.)
BN6615W21 1500 5118 208 1670/65 3/4 5.9/13
BN6615W31 1500/1125 5118/3839 240/208 1670/65 3/4 5.9/13
BN6615W41 1500/1125 5118/3839 277/240 1670/65 3/4 5.9/13
BN6615W51 1500 5118 347 1670/65 3/4 5.9/13
BN6615W81 1500 5118 600 1670/65 3/4 5.9/13
BN7517W21 1750 5971 208 1900/74 3/4 7.3/16
BN7517W31 1750/1313 5971/4478 240/208 1900/74 3/4 7.3/16
BN7517W41 1750/1313 5971/4478 277/240 1900/74 3/4 7.3/16
BN7517W51 1750 5971 347 1900/74 3/4 7.3/16
BN7517W81 1750 5971 600 1900/74 3/4 7.3/16
BN8420W21 2000 6824 208 2130/83 7/8 7.7/17
BN8420W31 2000/1500 6824/5120 240/208 2130/83 7/8 7.7/17
BN8420W41 2000/1500 6824/5120 277/240 2130/83 7/8 7.7/17
BN8420W51 2000 6824 347 2130/83 7/8 7.7/17
BN8420W81 2000 6824 600 2130/83 7/8 7.7/17
BN9322W21 2250 7677 208 2360/92 7/8 8.6/19
BN9322W31 2250/1688 7677/5758 240/208 2360/92 7/8 8.6/19
BN9322W41 2250/1688 7677/5758 277/240 2360/92 7/8 8.6/19
BN9322W51 2250 7677 347 2360/92 7/8 8.6/19
BN9322W81 2250 7677 600 2360/92 7/8 8.6/19
BN10225W21 2500 8530 208 2590/102 9.1/20
BN10225W31 2500/1875 8530/6398 240/208 2590/102 9.1/20
BN10225W41 2500/1875 8530/6398 277/240 2590/102 9.1/20
BN10225W51 2500 8530 347 2590/102 9.1/20
BN10225W81 2500 8530 600 2590/102 9.1/20
Note: 1) Standard colour is White.
2) To order Almond omit “W” in Cat. No.
Ordering Guide

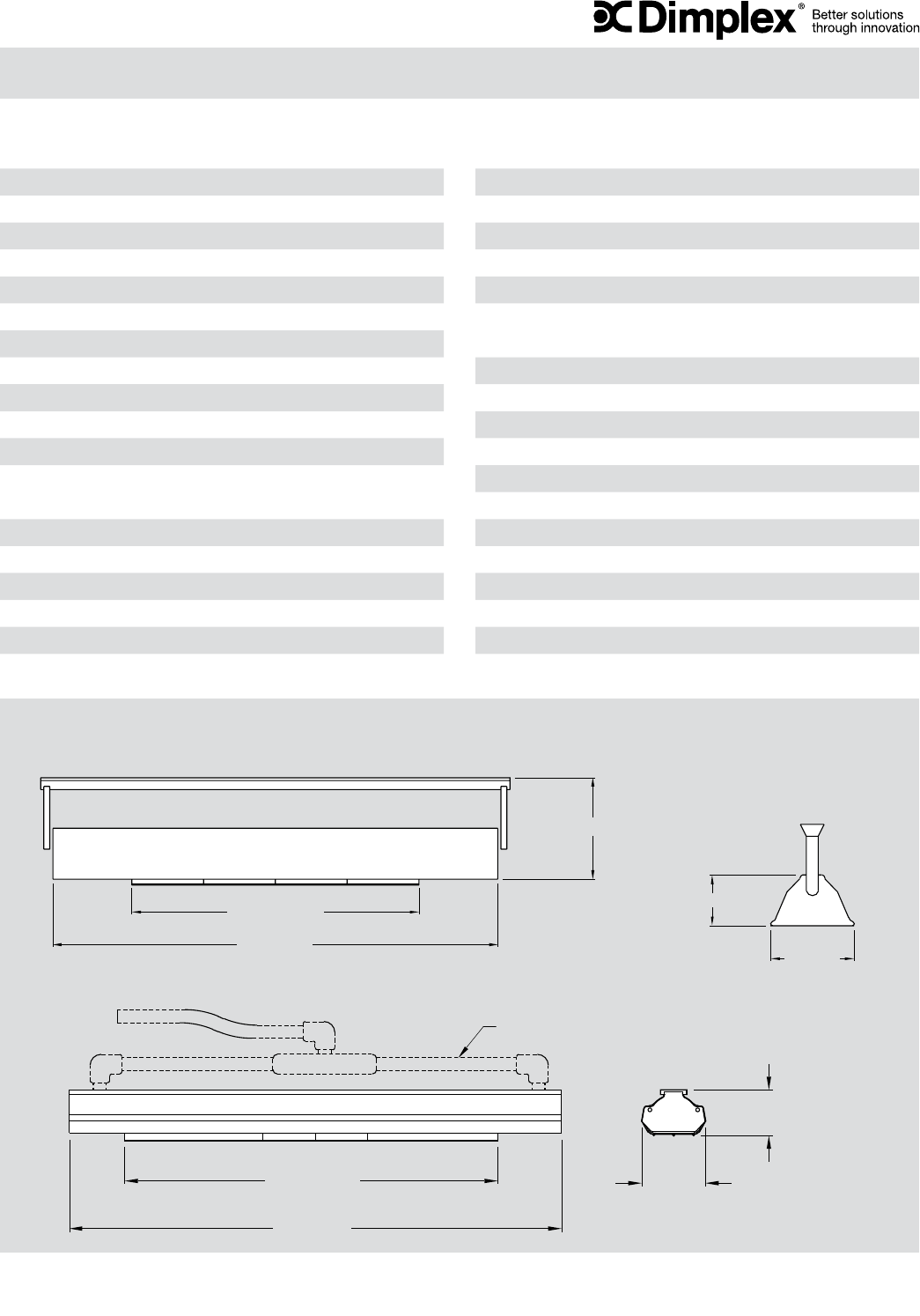

Dimensions
TO
FRONT VIEW SIDE VIEW REAR VIEW
BOTTOM VIEW
BN Series
8 | RESIDENTIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com

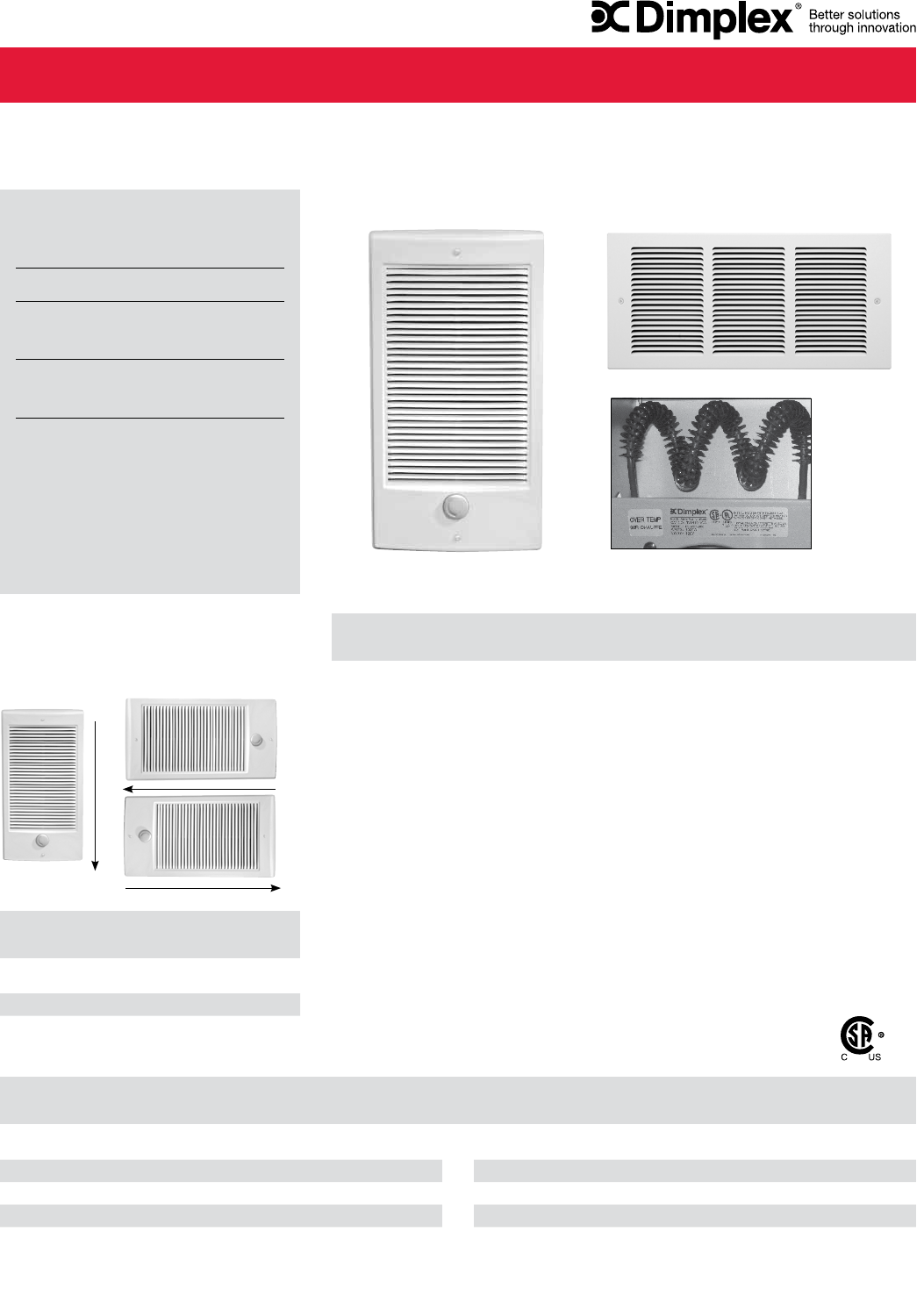

Compact multi-purpose unit ideal for use where space is limited. Instant heat to replace cold air where exterior
doors are prevalent.
Features
•Fully louvered grille
•Register style grille available
•Superior finned tubular element
design for safety and long life
•Automatic reset thermal cutout
for maximum safety
•Recessed mounting in spaces
as shallow as 3"
Applications
•Hallways, kitchens, basements,
bathrooms and workshops
Enclosed
Steel
Sheathed
Element
Design
Multi-Directional Grille Register Style Grille
Multi-Directional Grille
can be mounted in any
configuration Voltage 120, 208, 240V
Wattage Sizes ranging from 500W to 2000W
Colour White or Almond
Airflow 45 CFM – fan blades engineered for quiet operation
Finish Specially formulated polyester powder coating process is applied to the
front panel which resists fading and abrasion.
Construction The front panel is constructed of 22 gauge steel and the housing is
complete with knockouts for field wiring.
Heating Element A nickel chromium element is totally enclosed within a steel element
sheath and spiral steel fins are firmly brazed to the surface to provide
excellent heat transfer.
Controls & Wiring A thermostat control (either wall or built-in) is required to operate this unit.
Optional built-in thermostat is positioned below the element for superior
temperature control. The unit has a large wiring compartment which
makes power connections quick and easy.
Warranty 10 year element warranty.
Two year warranty on complete unit.
CSA certified for use in Canada and the U.S.
Specifications
Cat. No. Description Rating
TWHT1 Single pole thermostat kit 22A, 120/240V
TWHT2 Double pole thermostat kit 22A, 120/240V
*Cannot be used with register style grilles.
Accessories (field installed)
Control Options (field installed)*
Cat. No. Description Dimensions
TWHSBA Surface mount box (almond) 9 7/8" w x 17 1/8"h x 3 3/8" d
TWHSBW Surface mount box (white) 9 7/8" w x 17 1/8" h x 3 3/8" d
TWHRA Register style grille (almond) 17" w x 9" h x 15/16" d
TWHRW Register style grille (white) 17" w x 9" h x 15/16" d
Cat. No. Description
TWHC Separate wall can
TWHA Multi-grille (almond)
TWHW Multi-grille (white)
TWH Series
Fan Forced Wall Insert Heater
NOTE: Model shown with optional onboard thermostat.
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com RESIDENTIAL HEATERS | 9
Ordering Guide – TWH Multi-Wattage Models
Cat. No. Colour Voltage Watts BTU Phase CFM
Weight
(kg/lbs.)
TWH0731B†None 240/208 750/562 2559/1919 148 3.6/8
TWH1031B†None 240/208 1000/750 3412/2559 148 3.6/8
TWH1531B†None 240/208 1500/1125 5118/3838 148 3.6/8
TWH2031B†None 240/208 2000/1500 6824/5118 148 3.6/8
TWH1011CA Almond 120 1000 3412 148 3.6/8
TWH1511CA Almond 120 1500 5118 148 3.6/8
TWH0731CA Almond 240/208 750/562 2559/1919 148 3.6/8
TWH1031CA Almond 240/208 1000/750 3412/2559 148 3.6/8
TWH1531CA Almond 240/208 1500/1125 5118/3838 148 3.6/8
TWH2031CA Almond 240/208 2000/1500 6824/5118 148 3.6/8
TWH0511CW White 120 500 1706 148 3.6/8
TWH0711CW White 120 750 2559 148 3.6/8
TWH1011CW White 120 1000 3412 148 3.6/8
TWH1511CW White 120 1500 5118 148 3.6/8
TWH0531CW White 240/208 500/375 1706/1280 148 3.6/8
TWH0731CW White 240/208 750/562 2559/1919 148 3.6/8
TWH1031CW White 240/208 1000/750 3412/2559 148 3.6/8
TWH1531CW White 240/208 1500/1125 5118/3838 148 3.6/8
TWH2031CW White 240/208 2000/1500 6824/5118 148 3.6/8
RDH1507TCA†Almond 240 750/1500 2559/5118 148 3.6/8
RDH2010TCA†Almond 240 1000/2000 3412/6824 148 3.6/8
RDH1507TCW†White 240 750/1500 2559/5118 148 3.6/8
RDH2010TCW†White 240 1000/2000 3412/6824 148 3.6/8
† Bulk Packaged Models (Interior only – less front grille and recess mount box) – available in United States only.
RDH Dual Element Models – C/W Built-in Thermostat & Multi-Directional Front Grille – available in United States only.
HEATER
WALL
OPENING
435mm
(17 1/8")
219mm
(8 5/8")
Minimum Depth of Opening – 86mm (3 3/8")
251mm
(9 7/8")
362mm
(14 1/4")
SURFACE
BOX
REGISTER STYLE GRILLE
3/4” K.O. (both sides)
14mm
(9/16")
228mm
(9")
228mm
(9")
29mm
(1 1/8")
83mm
(3 1/4")
35mm (1 3/8")
427mm
(17")362mm
(14 1/4")
427mm (17")
203mm
(8")
Dimensions
TWH Series
10 | RESIDENTIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
EF Series
Deluxe Wall Mounted Fan Heater
Ordering Guide
Cat. No. Watts BTU Volts
Dimensions
(W x H x D)
Weight
(kg/lbs.)
EF12 1000/2000
750/1500
3412/6824
2559/5118
240
208
300mm x 405mm x 120mm
(12" x 16" x 4.75")
4 / 8.8

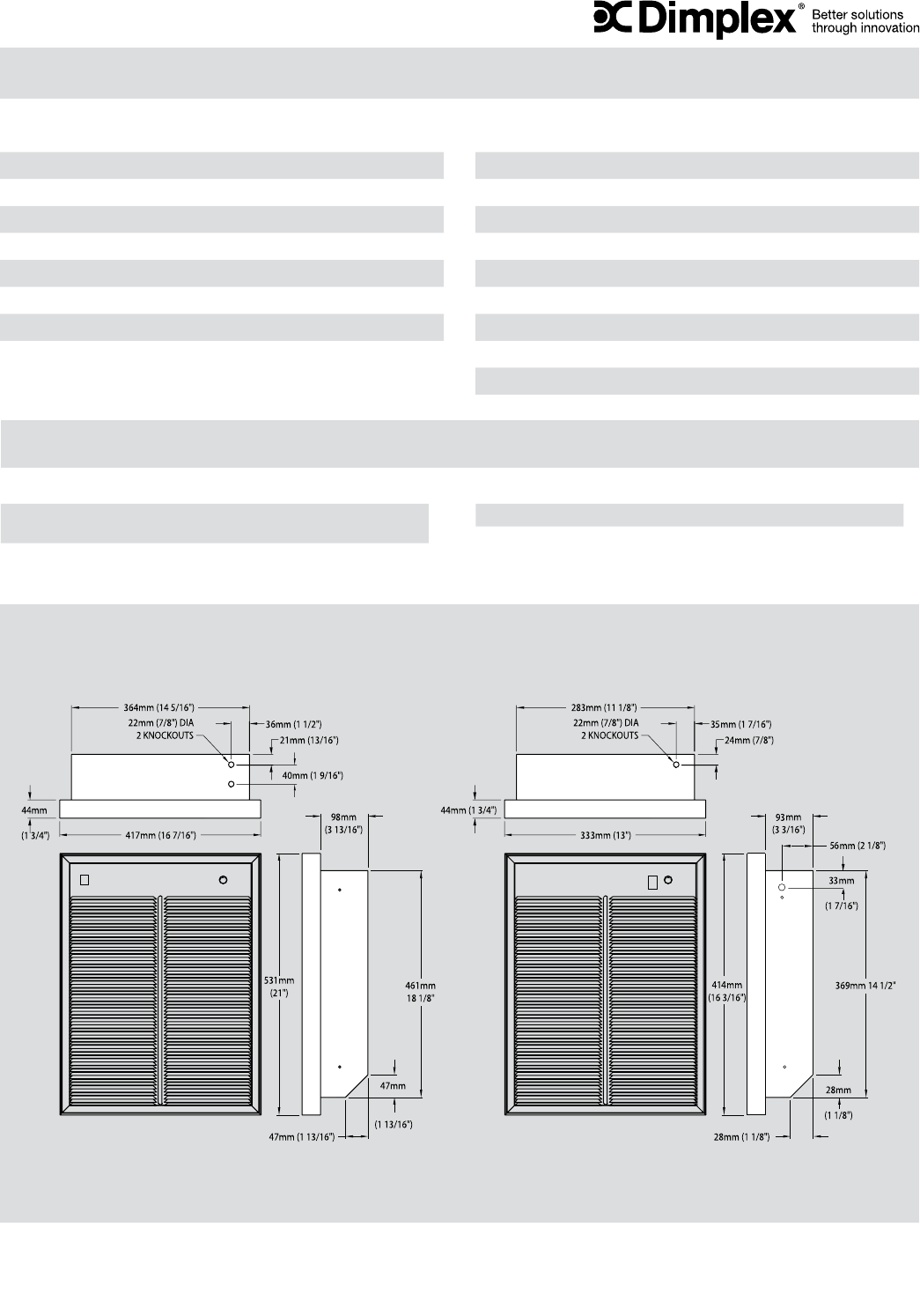

Dimensions
Voltage 240/208 volts
Wattage 1000/750 W (2000/1500 W with timer)
Colour White
Finish Powder coat finish for easy cleaning
Construction Attractively designed front cover is constructed of tough, durable 20 gauge
galvanized steel.
Fan Long lasting, quiet performance is guaranteed by the heavy duty fan motor
and molded plastic centrifugal impeller fan. The two speed fan combined
with a 60 minute timer provide increased heat when timer is activated.
Warranty Two year limited warranty on complete unit.
CSA/NRTL certified for use in Canada and the U.S.
Specifications
Premium residential wall heater enables dual heat output where rapid heat-up is required.
Features
•Built-in thermostat, 60 minute
timer boosts output to 2000W
•Splash-proof construction
•Quiet performance
•Automatic reset high limit
protection
•Easy-mount wall bracket
•Frost protection settings
(at 5ºC/41ºF unit will
automatically turn on)
•Surface mount application
Applications
•Kitchen, bathrooms, hallways
& foyers
120mm
(4 3/4")
405mm
(16")
300mm
(12")
FRONT VIEW SIDE VIEW BACK VIEW
190mm
(7 1/2")
300mm
(12")
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com RESIDENTIAL HEATERS | 11
Ordering Guide
Cat. No. Volts Watts A B C
Weight
(kg/lbs.)
PLX075NN 240/208 750/562 620mm/24.4" 430mm/16.9" 108mm/4.3" 6.2/13.6
PLX100NN 240/208 1000/750 620mm/24.4" 430mm/16.9" 108mm/4.3" 6.2/13.6
PLX150NN 240/208 1500/1125 690mm/27.1" 430mm/16.9" 108mm/4.3" 6.6/14.5
PLX200NN 240/208 2000/1500 860mm/33.9" 430mm/16.9" 108mm/4.3" 8.0/17.6
Dimensions FRONT VIEW SIDE VIEW CLOSED
5.9"
150mm
MIN
B
NN002XLP0050201016 0002 7.02
]725[
9.33
]068[
1.53
]298[
NN051XLP00402010160051 1.41
]753[
1.72
]886[
1.53
]298[
NN001XLP00202010160001 3.11
]782[
4.42
]026[
8.52
]556[
NN570XLP0010201016 057 3.11
]782[
4.42
]026[
8.52
]556[
STTAWSTLOVLEDOM.ON TRAP A
]mm[
B
]mm[
X
]mm[
Y
]mm[
Z
]mm[
042 2.81
]264[
3.5
]531[
B
NN002XLP0050201016 0002 7.02
]725[
9.33
]068[
1.53
]298[
NN051XLP00402010160051 1.41
]753[
1.72
]886[
1.53
]298[
NN001XLP00202010160001 3.11
]782[
4.42
]026[
8.52
]556[
NN570XLP0010201016 057 3.11
]782[
4.42
]026[
8.52
]556[
STTAWSTLOVLEDOM.ON TRAP A
]mm[
B
]mm[
X
]mm[
Y
]mm[
Z
]mm[
042 2.81
]264[
3.5
]531[
(A)
5.9" (150mm)
MIN
16.9" (430mm)
5.9" (150mm)
MIN
(B)
4.3" (108mm)
(C)
Wattage 750, 1000, 1500 & 2000W
Colour White
Finish Polyester powder coated finish on body and grille.
Construction Attractive European designed front cover is constructed of durable 20
gauge steel. Includes cable and faceplate cover. The hinged wall mount-
ing frame detaches from unit back for easy installation and incorporates
“tilt forward” feature for wall cleaning (for use with remote wall mounted
thermostat – suggest TS521W).
Heating Element Finned, steel sheathed element for durability and efficient heat transfer.
Warranty Two year limited warranty on complete unit.
10 year element warranty.
CSA certified.
Specifications
Attractive, clean design with appliance-quality
finish in pristine white to blend with any décor.
Features
•Silent, convection heating;
no moving parts
•Moves warm air quickly
and evenly without a fan
•High performance in a
compact design
•Designed for use with
electronic or conventional
wall thermostats
•Automatic reset high limit
protection
•Ideal for retro-fits
Applications
•Family rooms, living rooms,
bedrooms, home offices
PLX Series
Panel Convection Heater
Available in Canada only
12 | RESIDENTIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
Wattage 750, 1000, 1500 & 2000W
Colour White
Finish Polyester powder coated finish on body and grille.
Construction Modern designed front cover is constructed of strong, durable 20 gauge
steel. Unit features detachable wall mount brackets which allow for quick
installation. Includes built-in electronic thermostat.
Heating Element Finned, steel sheathed element for durability and efficient heat transfer.
Warranty Two year limited warranty on complete unit.
10 year element warranty.
CSA certified for use in Canada and the U.S.
Specifications
Features
•Extremely sensitive electronic
thermostat accurate to within
0.5º C (1º F); helps to maintain
even room temperature
•Sophisticated built-in
electronic controls – help
reduce operating costs
•Smooth, sleek panel design –
fits virtually any room’s décor
•Detachable wall-mount brackets,
power supply wire and junction
box covers – ensure quick and
easy installation
•Surface mount application only
Applications
•Home office, bedroom,
media room
Ordering Guide
Cat. No. Volts Watts
Dimensions
(W x H x D)
Weight
(kg/lbs.)
DEC750H 240/208 750/562 359mm x 400mm x 110mm (14.1" x 15.7" x 4.3") 4.5/10.0
DEC1000H 240/208 1000/750 448mm x 400mm x 110mm (17.6" x 15.7" x 4.3") 6.1/13.4
DEC1500H 240/208 1500/1125 600mm x 400mm x 110mm (23.6" x 15.7" x 4.3") 6.6/14.6
DEC2000H 240/208 2000/1500 838mm x 400mm x 110mm (33" x 15.7" x 4.3") 7.3/16.0
FRONT VIEW SIDE VIEW BACK VIEW
Electronic convection heaters provide quiet, even heat, with no moving parts; utilizing natural airflow to
distribute heat evenly throughout rooms.
DimensionsElectronic thermostat
provides steady even heat
and more comfort.
DEC Series
Deluxe Electronic Panel Convection Heater
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com RESIDENTIAL HEATERS | 13

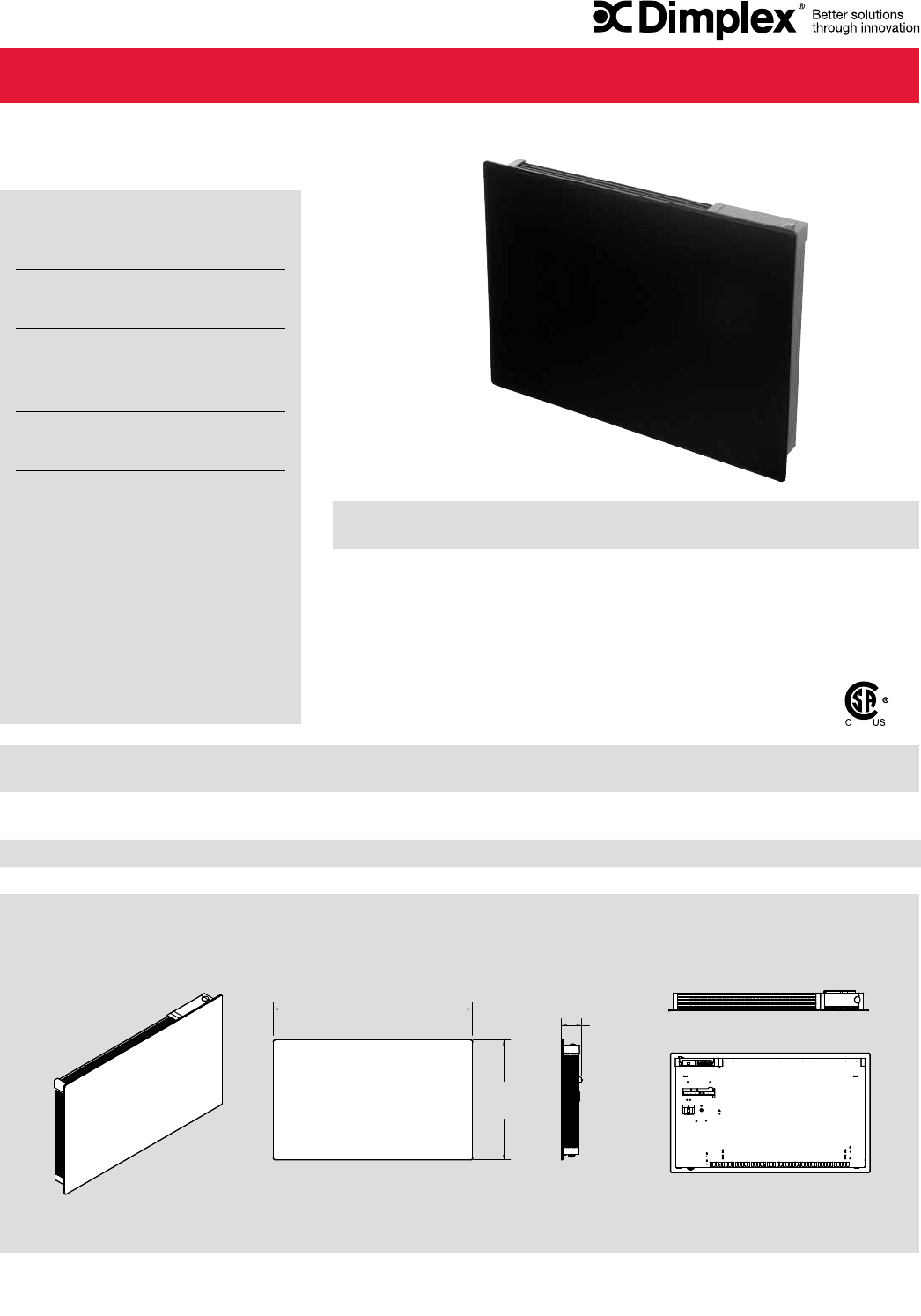

DGP Series
Onyx Glass Panel Heater
Wattage 1500W
Colour Black
Finish Glass front panel with appliance quality finished cabinet.
Construction Flat glass front panel, steel case and plastic electronics junction box.
Heating Element Finned, steel sheathed element for durability and efficient heat transfer.
Warranty Two year warranty on complete unit.
CSA certified for use in Canada and the U.S.
Specifications
Features
•1500W output
•Convected heat for rapid
warm up
•Electronic thermostat control
provides room temperature
stability to +/- 0.3ºC/0.5ºF
•Soft touch On/Off switch
and neon indicator
•Detachable hinged wall
mounting frame
•Completely silent operation
Applications
•Family rooms, living rooms,
bedrooms, home offices and
kitchens.
Ordering Guide
Cat. No. Volts Watts
Dimensions
(W x H x D)
Weight
(kg/lbs.)
DGP1500-B 240/208 1500/1125 770mm x 565mm x 107mm (30.8" x 22.6" x 4.25") 16.4/36.2
The hottest look in heat. Attractive, clean design with appliance-quality finish and sleek, contemporary black glass
front panel.
Dimensions
770mm
(30.8")
FRONT VIEW SIDE VIEW TOP VIEW
BACK VIEW
107mm
(4.25")
565mm
(22.6")
14 | RESIDENTIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
CKHA Series
Kick Space Heater
Voltage 120, 240/208V
Wattage Five outputs ranging from 450W to 1800W
Colour Black or White
Airflow 80 CFM
Finish Specially formulated polyester powder coating process is applied to the
front panel which resists fading and abrasion.
Construction The enclosure is constructed of 20 gauge steel. Horizontal mount only.
Heating Element The Kick Space heater has four totally enclosed nickel chromium
resistance elements with steel sheaths. The elements are complete
with spiral steel fins that are brazed to the steel sheath to provide
excellent heat transfer.
Controls & Wiring The Kick Space heater is factory wired for 240/208V @ 900/675W and is
field convertible for 240/208V @ 1800/1350W, 120V @ 450, 900, 1350,
or 1800W configuration. The unit is controllable from a line voltage wall
thermostat or field installed built-in tamperproof single or double pole
thermostat kit.
Warranty One year warranty on complete unit.
CSA certified and UL approved.
Dimensions
562mm[22 1/8"]
WIRING
JUNCTION BOX
241mm
[9 1/2"]
45mm
[1 3/4"]
25mm[1"]
22mm[7/8"] DIA. K.O.
2 PLACES
114mm
[4 1/2"]
613mm
[24 1/8"]
45mm
[1 3/4"]
51mm
[2"]
89mm[3 1/2"]
S
S
LEFT SIDE BACK VIEW
TOP VIEW
LEFT SIDE FRONT VIEW
Ordering Guide
Cat. No. Watts BTU Volts
Weight
(kg/lbs.)
CKHA20D31 450 1535 120 6.4/14
900 3071 120
1350 4606 120
1800 6142 120
900/675 3071/2303 240/208
1800/1350 6142/4606 240/208
Note: Standard colour is Black – To order White add “W”
at end of Cat. No. Factory wired at 240/208V for
900/675W
Specifications
Low-profile fan-forced heater that provides comfort in places where space is limited (i.e. under-counter, stair riser etc.).
Features
•Single model offers flexible
wattage output with voltage
selection
•Makes an economical floor
warmer
•Superior finned tubular
element design
•Automatic primary and
secondary reset thermal
cutout for safety
•Pilot light will activate if unit
trips on high limit
Applications
•Kitchen or bathroom
under-cabinet, stair riser
Control Options (field installed)
Tamperproof Thermostat Kits
Cat. No. Description
CKHATD13 Single pole thermostat
CKHATD23 Double pole thermostat
Note: Thermostats are adjustable by slotted screw
adjustment through front grille only
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com RESIDENTIAL HEATERS | 15
FFIH Series
Floor Drop-In Heater
Dimensions
Ordering Guide
Cat. No. Watts BTU Volts
Weight
(kg/lbs.)
FFIH15A31A-KIT 375 1280 120 7.3/16
750 2559 120
1125 3839 120
1500 5118 120
750/563 2559/1918 240/208
1500/1125 5118/3839 240/208
Note: Factory wired at 240/208V for 1500/1125W.
Standard colour is Almond – To order White replace
“A” with “W” in Cat. No. Example: FFIH15A31W-KIT
Designed for fan-forced comfort where floor mounting is desired.
Features
•Compact design
•Superior finned tubular
element design
•Manual and automatic
reset thermal cutout provides
protection against overheating
•Safety screen keeps foreign
objects out
•Quick release interior for easier
cleaning
Applications
•Hallways, entryways, solariums,
& staircase landings
Voltage 120, 240/208V
Wattage Five outputs ranging from 375W to 1500W
Colour Almond
Airflow 80 CFM
Finish Specially formulated polyester powder coating process is applied to the
front panel which resists fading and abrasion.
Construction The housing is constructed of 18 gauge satin coat steel complete with
knockouts to accommodate field wiring. The louvered grille is constructed
of 14 gauge steel with 9 gauge trim.
Heating Element A nickel chromium element is totally enclosed within a steel sheath and
spiral steel fins are brazed to the element to provide excellent heat transfer.
Controls & Wiring An external thermostat control (not included) is required to operate this
unit. The unit is factory wired for 240/208V @ 1500/1125W operation and
can be field wired to 120V @ 375W, 750W, 1125W or 1500W; 240/208V @
750/563W.
Warranty One year warranty on complete unit.
CSA certified and UL approved.
Specifications
Cat. No. Description
FFIHAG FFIH Grille Kit (Almond)
FFIHWG FFIH Grille Kit (White)
Accessories (field installed)
TOP VIEW
FRONT VIEW
49mm (1-15/16")
22mm (7/8") DIA.
KNOCKOUT
OUTLINE OF
WIRING
JUNCTION BOX
359mm (14-1/8")
21mm
191mm
(7-1/2")
224mm
(8-13/16
"
)
END VIEW
181mm
(7-1/8")
402mm
(15-13/16")
372mm
(14-5/8")
(13/16
"
)
BOTTOM VIEW
24mm
(15/16")
(1-15/16
"
)
49mm
7/8
"
/1-1/8
"
KNOCKOUT
22/29MM
DIA.
16 | RESIDENTIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
CXD Series
Ceramic Indoor / Outdoor Radiant Heater
Voltage 240V
Wattage 2000W
Colour Black
Finish Powder-coated steel, finished in high temperature matte black.
Heating Element Two 1000W ceramic elements.
Warranty One year warranty on complete unit.
UL approved for use in Canada and the U.S.
Dimensions
Ordering Guide
Cat. No. Watts Volts
Weight
(kg/lbs.)
CXD2000H-NA
2000 240 6/13.2
FTELLN-1-KIT
Replacement element
Specifications
Perfect where durable, focused heat is required. The radiant heater warms
objects rather than air, making it a perfect all-season “people-heater”.
Features
•Two durable, ceramic elements
for long lasting, radiant heat
•Powder-coated steel, finished in
high temperature matte black
•Drip shield for outdoor use
•Spectular quality reflector,
electrochemically brightened
aluminum
•Fitted element guard
•45º angle mounting bracket
included
•No distracting visible light output
•No glass lens to clean
Applications
•Patios, balconies, sunrooms,
decks, garages, workshops.
Intensity Height Throw Spread
High 5.9' 5.9' 4.3'
High 6.6' 6.6' 4.6'
Medium 7.5' 7.2' 5.2'
Low 8.2' 7.9' 5.9'
Low 8.9' 8.2' 6.2'
All figures are for 45º mounting angle
Warming Area
FRONT VIEW
735mm
(28.9")
260mm
(10.2")
260mm
(10.2")
248mm
(9.8")
SIDE VIEW
TOP VIEW
248mm
(9.8")
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com RESIDENTIAL HEATERS | 17
AC Series
Downflow Heater
Dimensions
811
402
flfi
flfififlfl
flflflfi fi
fiflflfiflflfi fi
flfl fifl
.strap lla no segde prahs oN
fi
fl
fifi
flflfl
fifi
fi
flflfl
fl
flfl
flflflfiflfl
fl
flfififl
flflflflfl
fi
flfifififlfl
flflfifl
fi
fl
flfiflfifl
fiflflfifl
fiflfl
fl
flflfiflflfifi
flfifl
fl
fl
fiflflfiflfi
90
2010
80 30
002
0030011016 7877.027509
0020011016 2949.324506
0010011016 2949.324506
.ON TRAP desU erehW
ylnO ecnerefeR
A MID
]mm[
B MID
]mm[
C MID
]mm[
TOP VIEW
811
402
flfi
flfififlfl
flflflfi fi
fiflflfiflflfi fi
flfl fifl
.strap lla no segde prahs oN
fi
fl
fifi
flflfl
fifi
fi
flflfl
fl
flfl
flflflfiflfl
fl
flfififl
flflflflfl
fi
flfifififlfl
flflfifl
fi
fl
flfiflfifl
fiflflfifl
fiflfl
fl
flflfiflflfifi
flfifl
fl
fl
fiflflfiflfi
90
2010
80 30
002
0030011016 7877.027509
0020011016 2949.324506
0010011016 2949.324506
.ON TRAP desU erehW
ylnO ecnerefeR
A MID
]mm[
B MID
]mm[
C MID
]mm[
FRONT VIEW
118mm
(4.7
"
)
215mm
(8.6
"
)
Ideal for that “Warm Welcome” above single and double doorways, and for drive-through windows.
Features
•Clean, space efficient design
•Integral control switches
•Choice of full-heat, half-heat
or air only
•Adjustable airflow direction
•Easy multi-function installation
brackets
•Quiet operation
Applications
•Hallways, entryways,
drive-through windows,
public washrooms & garages
Colour White
Construction Pressed steel case with ABS endcaps.
Heating Element Wire stitched element for instant response.
Controls All models feature on-board controls. AC3N can be externally controlled.
Warranty One year warranty on complete unit.
CSA certified and UL approved.
Specifications
Ordering Guide
Cat. No. Watts Volts CFM
Dimensions
(W x H x D)
Weight
(kg/lbs.)
AC3N 3000/2250 240/208 125 610mm x 215mm x 118mm
(24.4" x 8.6" x 4.7")
5.1/11.3
AC45N 4500/3375 240/208 200 610mm x 215mm x 118mm
(24.4" x 8.6" x 4.7")
5.2/11.5
AC6N 6000/4500 240/208 260 913mm x 215mm x 118mm
(36.5" x 8.6" x 4.7")
7.2/16.0
18 | RESIDENTIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
DCH / EMC Series
Portable Construction Heater
Enclosed Motor Construction Heater
Features
•160 CFM delivers powerful
heat output
•Thermal overheat protection
for safety
•6 foot cord with plug store
around handle
•Stainless steel tubular element
Applications
•Portable heat for workshops,
garages, construction sites
Heavy duty construction provides maximum durability for work site conditions where temporary heat is required.
Voltage 240V
Wattage 4800W
Colour Almond
Finish Hybrid polyester epoxy powder
coat paint.
Fan /
Motor
Fan is propeller type, accurately
balanced and correctly pitched to
optimize performance.
Control Single pole thermostat is built-in
with temperature range of 7-25ºC
(45-77ºF)
Warranty One year warranty on complete unit.
CUL and UL approved.
Specifications
Ordering Guide
Cat. No. Watts BTU Volts CFM Weight (kg/lbs.)
DCH4831A
4800 16377 240 160 4.4/9.7
279mm
(11")
184mm
(7-1/4")232mm (9-1/8")
3 Prong
Polarized Plug
30 Amp
Dimensions
Features
•160 CFM delivers powerful
heat output
•Thermal overheat protection
for safety
•6 foot cord with plug stores
around handle
•Stainless steel tubular element
•Footstand for angled positioning
Applications
•Portable heat for workshops,
garages, construction sites
The enclosed motor design protects the motor from debris, extending the motor life.
Voltage 240V
Wattage 4800W
Colour Yellow
Finish Hybrid polyester epoxy powder
coat paint.
Fan /
Motor
Fan is propeller type
accurately balanced and correctly
pitched to optimize performance.
Control Single pole thermostat is built-in
with temperature range of 7-25ºC
(45-77ºF)
Warranty One year warranty on complete unit.
CSA certified and UL approved.
Specifications
Ordering Guide
Cat. No. Watts BTU Volts CFM Weight (kg/lbs.)
EMC4240
4800 16377 240 160 4.4/9.7
3 Prong
Polarized Plug
30 Amp
Dimensions
229mm
(9")
323mm
(12.7")
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com RESIDENTIAL HEATERS | 19

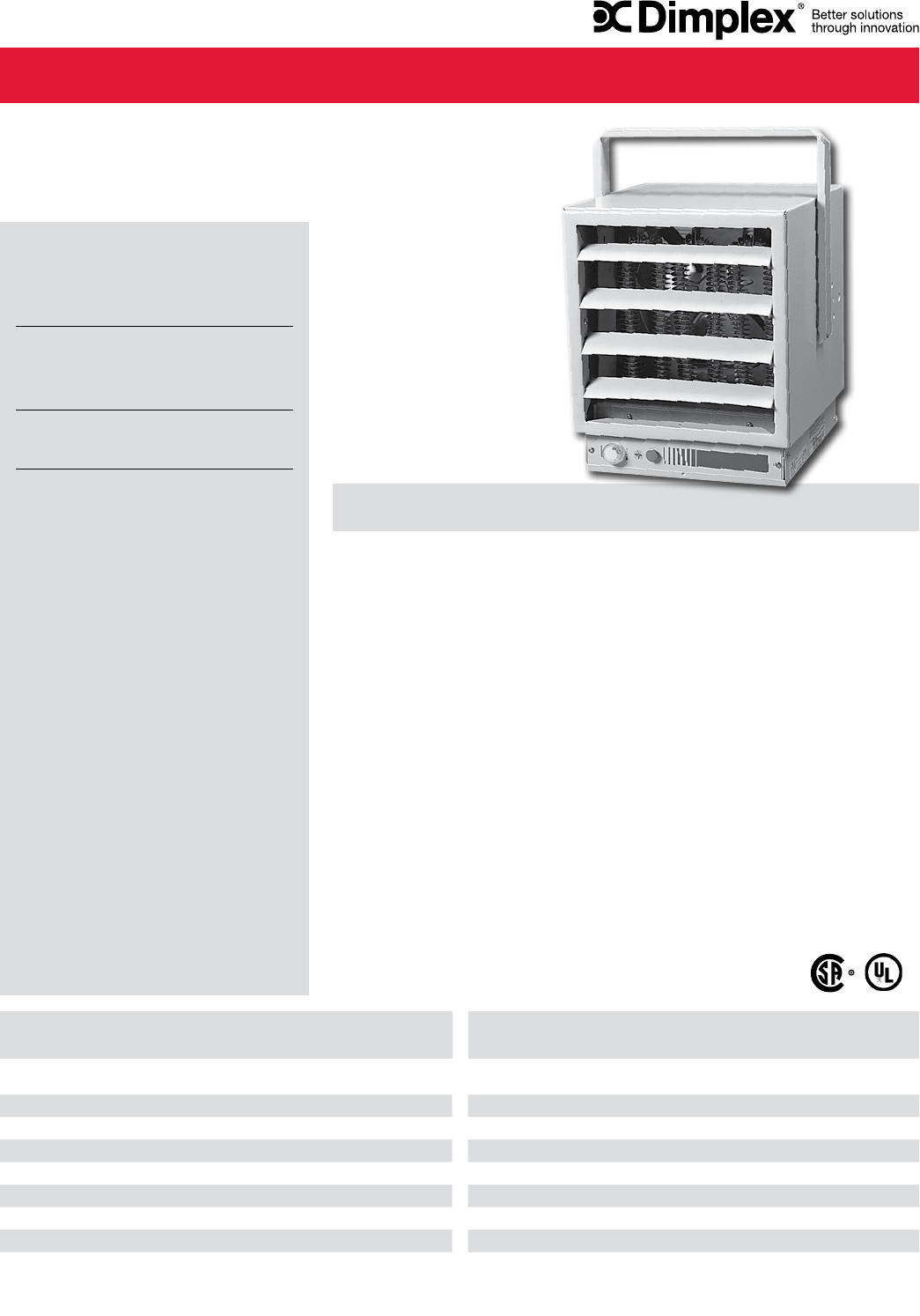

Dimensions
Tough, rugged, high performance – heats quickly.
Features
•Powerful fan and 4000 watt
stainless steel heater element
•Versatile mounting bracket at-
taches to wall or ceiling – heater
swivels to direct heat
•Automatic temperature control
helps maintain consistent tem-
perature from 7-25ºC (45-77ºF)
•Powder-coated epoxy finish
is long lasting and corrosion
resistant
•Fan delay uses residual heat for
economical performance
•Includes 6 foot cord with NEMA
standard plug (6-20P)
Applications
•Portable heat for workshops,
garages, construction sites
Voltage 240V
Wattage 4000W
Colour Almond
Fan / Motor Fan is propeller type, accurately balanced and correctly pitched to optimize
performance.
Control
Double pole thermostat is built-in with temperature range of 7-25ºC (45-77ºF)
Warranty One year warranty on complete unit.
CUL and UL approved.
Specifications
Ordering Guide
Cat. No. Watts BTU Volts CFM Weight (kg/lbs.)
DGWH4031
4000 13,648 240
160 4.5/10
DGWH Series
Garage/Workshop Heater
181 mm
(7 1/4")
225 mm
(9")
275 mm
(11")
313 mm
(12 1/2")
31 mm
(1 1/4")
350 mm
(14")
350 mm
(14")
FRONT/SIDE VIEW
20 | COMMERCIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
AF6 Series
Architectural Draft Barrier Heater
Dimensions
Voltage 120, 208, 240, 277, 347, 600V – 1 phase
Wattage Nine sizes ranging from 500W to 2500W
Colour Standard: White or Almond.
Clear or Bronze 40 Aluminum available – consult factory.
Finish Painted finish is hybrid polyester epoxy powder coat process. Clear and
Bronze 40 are anodized aluminum finishes.
Construction Front and top are constructed of extruded aluminum equivalent in strength
to 14 gauge steel, with punched air intake and exhaust vents. Cabinet back
and bottom are fabricated from satin coat steel with multiple knockouts for
convenient power connection. Endcaps are field removable for continuous
heater installation.
Heating Element Stainless steel sheath encloses a nickel chromium element compacted in
a mineral insulation. Aluminum fins are brazed to the surface and provide
superior heat transfer.
Controls & Wiring (Optional): Built-in tamperproof thermostat, or adjustable thermostat con-
trols may be mounted in either the left or right hand terminal box. Built-in
low voltage controls, if specified, are located in the right hand terminal
box. Built-in disconnect switches, if specified, are located in the right hand
terminal box. Power connection can be made at either end of the heater.
Warranty One year warranty on complete unit.
CUL and UL approved.
Specifications
Architecturally pleasing, maintenance free solution to
reducing window drafts in commercial buildings.
Features
•Advanced architectural,
low profile styling measures
6"h x 2 1/2"w for an unobtrusive
appearance
•Full length thermal protection
•Floating element suspension
eliminates expansion noise
•Non-corrosive, stainless steel
tubular element with aluminum
fins
•Built-in wireway for continuous
installation
•Choice of air intake on front
or bottom
Applications
•Commercial, institutional,
residential – offices, lobbies,
meeting rooms & hallways
BACK VIEW SIDE VIEW
BOTTOM VIEW (Front Inlet Version Shown)
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com COMMERCIAL HEATERS | 21
AF6 Series
Code Voltage Phase
11 120 1
21 208 1
31 240 1
41 277 1
51 347 1
81 600 1
Voltage Selection
Code Colour Finish
02 White Painted
68 Almond Painted
07 Bronze Anodized
10 Clear Anodized
Finish Selection
Code Description
WPedestal and finished painted black
SFinished painted black
Note: Add “S” or “W” to the end of the Cat. No.
Cabinet Features
Cat. No. Description
A1 Built-in SP tamperproof thermostat 120 - 600V
A2 Built-in DP tamperproof thermostat 120 - 600V
A4 Built-in 24V low voltage relay 120 - 600V
A5 Built-in 24V low voltage relay and transformer 120 - 600V
A8 Built-in disconnect switch, rated 277V/20A
B1 Built-in SP tamperproof thermostat and disconnect
B2 Built-in DP tamperproof thermostat and disconnect
D1 Built-in low voltage relay and disconnect
D2 Built-in low voltage relay / transformer and disconnect
F1 Built-in SP adjustable thermostat 120 - 600V (side mounted)
F2 Built-in DP adjustable thermostat 120 - 600V (side mounted)
F3 Built-in SP adjustable thermostat and disconnect
F4 Built-in DP adjustable thermostat and disconnect
Control Options (factory installed)
Cat. No. Description
ALF6IC90 Inside 90 degree corner
ALF6OC90 Outside 90 degree corner
Filler Sections Consult factory for available sizes
* Note: Specify “Finish Selection” code (see chart above)
when ordering accessories
Accessories* (field installed)
Cat. No. Description
ALPKS2 Pedestal kit for units up to
4' length (2 pedestals included)
ALPKS3 Pedestal kit for units above
4' length (3 pedestals included)
* Note: Specify “Finish Selection” code
(see chart above) when ordering accessories
Pedestal Options*
Series Inlet
F=Front
B=Bottom
Length
(ft)
Watts Voltage
Selection
Finish
Selection
Control
Options
Cabinet
Features
AF6 F 2 05 11 02 A1 S
Catalog Number Options
Order logic example
Ordering Guide
Cat. No. Watts BTU Available Voltages Phase
Length
(mm/in.)
Weight
(kg/lbs.)
AF6F205 500 1706 120, 208, 240, 277, 347 1616 / 24 5/16 3.9 / 8.5
AF6F307 750 2559 120, 208, 240, 277, 347, 600 1921 / 36 5/16 5.2 / 11.5
AF6F410 1000 3412 120, 208, 240, 277, 347, 600 11223 / 48 5/16 6.6 / 14.6
AF6F512 1250 4265 120, 208, 240, 277, 347, 600 11530 / 60 5/16 8.3 / 18.2
AF6F615 1500 5118 120, 208, 240, 277, 347, 600 11835 / 72 5/16 10 / 22
AF6F717 1750 5971 208, 240, 277, 347, 600 12140 / 84 5/16 11.9 / 26
AF6F820 2000 6824 208, 240, 277, 347, 600 12445 / 96 5/16 13.8 / 30.5
AF6F922 2250 7677 208, 240, 277, 347, 600 12750 / 108 5/16 16 / 35
AF6F025 2500 8530 208, 240, 277, 347, 600 13054 / 120 5/16 18.3 / 40
1. Specify desired voltage, finish and control option from tables
2. For bottom inlet version replace “F” in Cat. No. with “B”
3. Endcaps are included with heaters
4. Consult factory for custom finish requirements
Product Order Logic:
22 | COMMERCIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
AS8 Series
Architectural Slope Top Heater
Dimensions
"L" LENGTH
50.8mm[2"]
22.2 - 28.5mm[7/8 - 1 1/8"]
DIA K.O. 22.2 - 28.5mm[7/8 - 1 1/8"]
DIA K.O.
22.2 - 28.5mm[7/8 - 1 1/8"]
DIA K.O.
28.5mm[1 1/8"]
50.8mm[2"]
62.7mm
[2 1/2"]
22.2mm[1"]
190.8mm[7 1/2"]
19.1mm[3/4"]
19.1mm[3/4"]
127mm[5"]
TERMINAL BOX
101.6mm[4"]
TERMINAL BOX
"L" LENGTH
50.8mm[2"]
22.2 - 28.5mm[7/8 - 1 1/8"]
DIA K.O. 22.2 - 28.5mm[7/8 - 1 1/8"]
DIA K.O.
22.2 - 28.5mm[7/8 - 1 1/8"]
DIA K.O.
28.5mm[1 1/8"]
50.8mm[2"]
62.7mm
[2 1/2"]
22.2mm[1"]
190.8mm[7 1/2"]
19.1mm[3/4"]
19.1mm[3/4"]
127mm[5"]
TERMINAL BOX
101.6mm[4"]
TERMINAL BOX
(Shown without endcap,
front inlet version)
Voltage 120, 208, 240, 277, 347, 600V – 1 phase
Wattage Nine sizes ranging from 500W to 2500W
Colour Standard: White or Almond.
Clear or Bronze 40 Aluminum available – consult factory.
Finish Painted finish is hybrid polyester epoxy powder coat process. Clear and
Bronze 40 are anodized aluminum finishes.
Construction Front and top are constructed of extruded aluminum equivalent in strength
to 14 gauge steel, with punched air intake and exhaust vents. Cabinet back
and bottom are fabricated from satin coat steel with multiple knockouts for
convenient power connection. Endcaps are field removable for continuous
heater installation.
Heating Element Stainless steel sheath encloses a nickel chromium element compacted in
a mineral insulation. Aluminum fins are brazed to the surface and provide
superior heat transfer.
Controls & Wiring (Optional): Built-in tamperproof thermostat, or adjustable thermostat con-
trols may be mounted in either the left or right hand terminal box. Built-in
low voltage controls, if specified, are located in the right hand terminal
box. Built-in disconnect switches, if specified, are located in the right hand
terminal box. Power connection can be made at either end of the heater.
Warranty One year warranty on complete unit.
CUL and UL approved.
Specifications
Smooth architectural lines and maintenance free construction
make it the ideal choice for public areas.
Features
•Advanced architectural,
low profile styling measures
8"h x 2 1/2"w for an unobtrusive
appearance
•Slope top design prevents
blockage
•Full length thermal protection
•Floating element suspension
eliminates expansion noise
•Non-corrosive, stainless steel
tubular element with aluminum
fins
•Built-in wireway for continuous
installation
•Choice of air intake on front
or bottom
Applications
•Commercial, institutional,
residential – offices, lobbies,
meeting rooms & hallways
BACK VIEW SIDE VIEW
BOTTOM VIEW (Front Inlet Version Shown)
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com COMMERCIAL HEATERS | 23
AS8 Series
Series Inlet
F=Front
B=Bottom
Length
(ft)
Watts Voltage
Selection
Finish
Selection
Control
Options
Cabinet
Features
AS8 F 2 05 11 02 A1 S
Catalog Number Options
Order logic example
Ordering Guide
Cat. No. Watts BTU Available Voltages Phase
Length
(mm/in.)
Weight
(kg/lbs.)
AS8F205 500 1706 120, 208, 240, 277, 347 1616 / 24 5/16 3.9 / 8.5
AS8F307 750 2559 120, 208, 240, 277, 347, 600 1921 / 36 5/16 5.2 / 11.5
AS8F410 1000 3412 120, 208, 240, 277, 347, 600 11223 / 48 5/16 6.6 / 14.6
AS8F512 1250 4265 120, 208, 240, 277, 347, 600 11530 / 60 5/16 8.3 / 18.2
AS8F615 1500 5118 120, 208, 240, 277, 347, 600 11835 / 72 5/16 10.0 / 22.0
AS8F717 1750 5971 208, 240, 277, 347, 600 12140 / 84 5/16 11.9 / 26.0
AS8F820 2000 6824 208, 240, 277, 347, 600 12445 / 96 5/16 13.8 / 30.5
AS8F922 2250 7677 208, 240, 277, 347, 600 12750 / 108 5/16 16.0 / 35.0
AS8F025 2500 8530 208, 240, 277, 347, 600 13054 / 120 5/16 18.3 / 40.0
1. Specify desired voltage, finish and control option from tables
2. For bottom inlet version replace “F” in Cat. No. with “B”
3. Endcaps are included with heaters
4. Consult factory for custom finish requirements
Code Colour Finish
02 White Painted
68 Almond Painted
07 Bronze Anodized
10 Clear Anodized
Finish Selection
Code Description
WPedestal and finished painted black
SFinished painted black
Note: Add “S” or “W” to the end of the Cat. No.
Cabinet Features
Cat. No. Description
A1 Built-in SP tamperproof thermostat 120 - 600V
A2 Built-in DP tamperproof thermostat 120 - 600V
A4 Built-in 24V low voltage relay 120 - 600V
A5 Built-in 24V low voltage relay and transformer 120 - 600V
A8 Built-in disconnect switch, rated 277V/20A
B1 Built-in SP tamperproof thermostat and disconnect
B2 Built-in DP tamperproof thermostat and disconnect
D1 Built-in low voltage relay and disconnect
D2 Built-in low voltage relay / transformer and disconnect
F1 Built-in SP adjustable thermostat 120 - 600V (side mounted)
F2 Built-in DP adjustable thermostat 120 - 600V (side mounted)
F3 Built-in SP adjustable thermostat and disconnect
F4 Built-in DP adjustable thermostat and disconnect
Control Options (factory installed)
Cat. No. Description
ALS8IC90 Inside 90 degree corner
ALS8OC90 Outside 90 degree corner
Filler Sections Consult factory for available sizes
* Note: Specify “Finish Selection” code (see chart above)
when ordering accessories
Accessories* (field installed)
Cat. No. Description
ALPKS2 Pedestal kit for units up to
4' length (2 pedestals included)
ALPKS3 Pedestal kit for units above
4' length (3 pedestals included)
* Note: Specify “Finish Selection” code
(see chart above) when ordering accessories
Pedestal Options*
Product Order Logic:
Code Voltage Phase
11 120 1
21 208 1
31 240 1
41 277 1
51 347 1
81 600 1
Voltage Selection
24 | COMMERCIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com

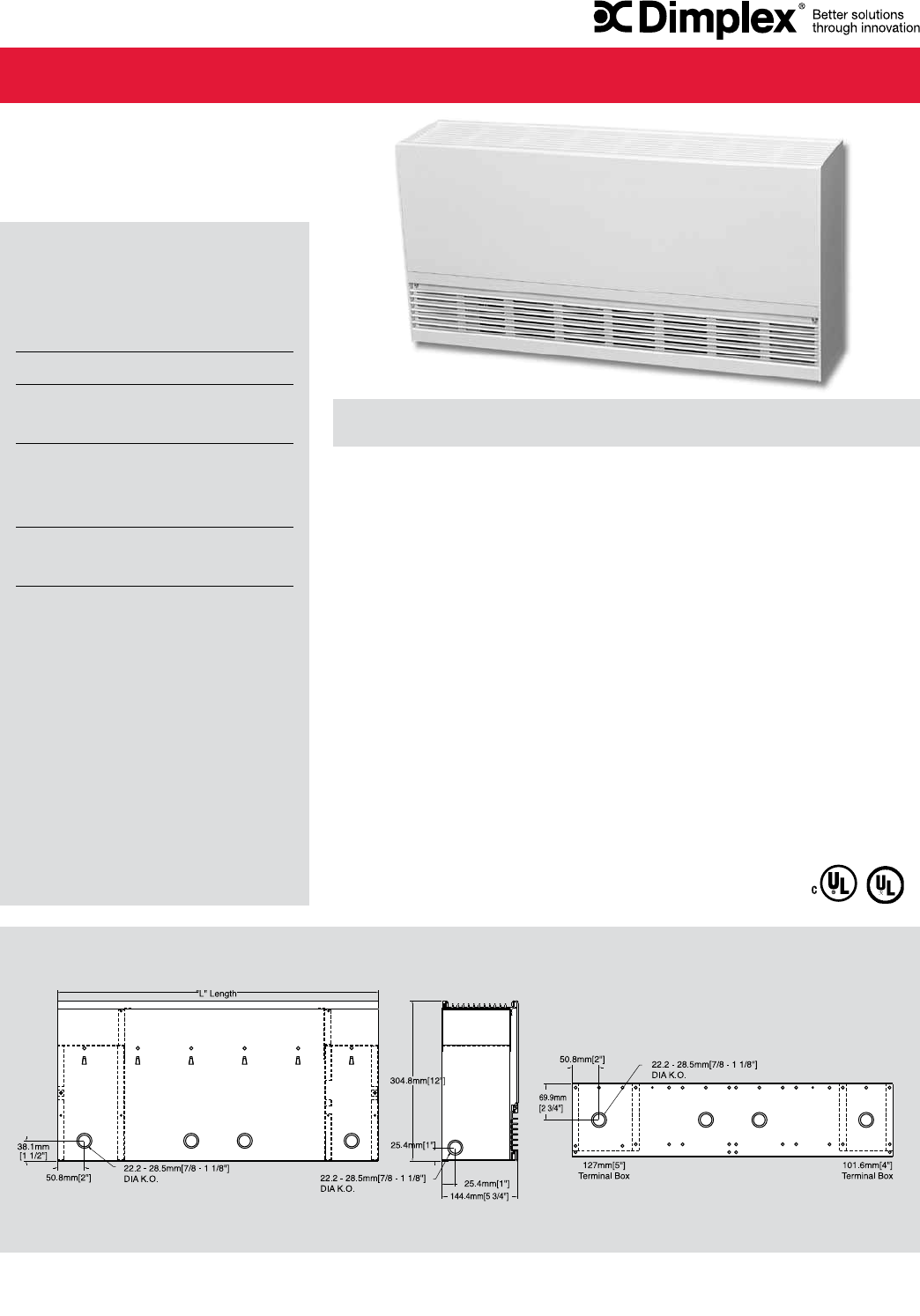

AF12 Series
Architectural Convection Heater
Dimensions
Voltage 208, 240, 277, 347, 480, 600V – 1/3 phase
Wattage Nine sizes ranging from 1125W to 6000W
Colour Standard: White or Almond.
Clear or Bronze 40 Aluminum available – consult factory.
Finish Painted finish is hybrid polyester epoxy powder coat process. Clear and
Bronze 40 are anodized aluminum finishes.
Construction Front and top are constructed of extruded aluminum equivalent in strength
to 14 gauge steel, with punched air intake and exhaust vents. Cabinet back
and bottom are fabricated from satin coat steel with multiple knockouts for
convenient power connection. Endcaps are field removable for continuous
heater installation.
Heating Element Stainless steel sheath encloses a nickel chromium element compacted in
a mineral insulation. Aluminum fins are brazed to the surface and provide
superior heat transfer.
Controls & Wiring (Optional): Built-in tamperproof thermostat, or adjustable thermostat con-
trols may be mounted in either the left or right hand terminal box. Built-in
low voltage controls, if specified, are located in the right hand terminal
box. Built-in disconnect switches, if specified, are located in the right hand
terminal box. Power connection can be made at either end of the heater.
Warranty One year warranty on complete unit.
CUL and UL approved.
Specifications
Heavy duty design and maintenance
free construction combined with a high
BTU output for quiet convection operation.
Features
•Advanced architectural styling
with an unobtrusive profile that
measures 12"h x 5 3/4"w
•Full length thermal protection
•Floating element suspension
eliminates expansion noise
•Non-corrosive, stainless steel
tubular element with aluminum
fins
•Built-in wireway for continuous
installation
•Choice of air intake on front
or bottom
Applications
•Commercial, institutional,
classrooms, meeting rooms,
auditoriums, churches &
hospitals
BACK VIEW SIDE VIEW
(Less End Cap)
BOTTOM VIEW
(Front Inlet Version Shown)
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com COMMERCIAL HEATERS | 25
AF12 Series
Series Inlet
F=Front
B=Bottom
Length
(ft)
Watts Voltage
Selection
Finish
Selection
Control
Options
Cabinet
Features
AF12 F 2 15 21 02 A9 S
Catalog Number Options
Order logic example
Ordering Guide
Cat. No. Watts BTU
Available Voltages Length
(mm/in.)
Weight
(kg/lbs.)
1 Phase 3 Phase
Standard Density 750 Watts per foot
AF12F215 1500 5118 208, 240, 277, 347, 600 208, 480, 600 617 / 24 5/16 10.5 / 23
AF12F430 3000 10236 208, 240, 277, 347, 600 208, 480, 600 1227 / 48 5/16 16.0 / 35
AF12F645 4500 15354 208, 240, 277, 347, 600 208, 480, 600 1836 / 72 5/16 21.6 / 48
AF12F860 6000 20472 208, 240, 277, 347, 600 208, 480, 600 2446 / 96 5/16 27.0 / 60
Low Density 562 Watts per foot
AF12F211 1125 3838 208, 240, 277, 347, 600 208 617 / 24 5/16 10.5 / 23
AF12F316 1687 5756 208, 240, 277, 347, 600 208, 480, 600 922 / 36 5/16 13.3 / 29
AF12F422 2250 7677 208, 240, 277, 347, 600 208, 480, 600 1227 / 48 5/16 16.0 / 35
AF12F633 3375 11515 208, 240, 277,347, 600 208, 480, 600 1836 / 72 5/16 21.6 / 48
AF12F845 4500 15354 208, 240, 277, 347, 600 208, 480, 600 2446 / 96 5/16 27.0 / 60
1. Specify desired voltage, finish and control option from tables
2. For bottom inlet version replace “F” in Cat. No. with “B”
3. Endcaps are included with heaters
4. Consult factory for custom finish requirements
Code Voltage Phase
21 208 1
23 208 3
31 240 1
41 277 1
51 347 1
73 480 3
81 600 1
83 600 3
Voltage Selection
Code Colour Finish
02 White Painted
68 Almond Painted
07 Bronze Anodized
10 Clear Anodized
Finish Selection
Code Description
WPedestal and finished painted back
SFinished painted back
Note: Add “S” or “W” to the end of the Cat. No.
Cabinet Features
Cat. No. Description
A3 Built-in SP tamperproof hydraulic thermostat for 3 phase 208 - 600V
A4 Built-in 24V low voltage relay for 1 phase 208 - 600V
A5 Built-in 24V low voltage relay and transformer for 1 phase 208 - 600V
A6 Built-in 24V contactor less transformer for 3 phase 208 - 600V
A7 Built-in 24V contactor and transformer for 3 phase 208 - 600V
A8 Built-in disconnect switch, rated 600V/50A
A9 Built-in DP tamperproof hydraulic thermostat 208 - 600V
B3 Built-in SP tamperproof thermostat and disconnect
B9 Built-in DP tamperproof thermostat and disconnect
Control Options (factory installed)
Cat. No. Description
ALF12IC90 Inside 90 degree corner
ALF12OC90 Outside 90 degree corner
Filler Sections Consult factory for available sizes
* Note: Specify “Finish Selection” code (see chart above)
when ordering accessories
Accessories* (field installed)
Cat. No. Description
ALPKM2 Pedestal kit for units up to
4' length (2 pedestals included)
ALPKM3 Pedestal kit for units above
4' length (3 pedestals included)
* Note: Specify “Finish Selection” code
(see chart above) when ordering accessories
Pedestal Options*
Product Order Logic:
26 | COMMERCIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
AS12 Series
Architectural Slope Top Heater
Voltage 208, 240, 277, 347, 480, 600V – 1/3 phase
Wattage Nine sizes ranging from 1125W to 6000W
Colour Standard: White or Almond.
Clear or Bronze 40 Aluminum available – consult factory.
Finish Painted finish is hybrid polyester epoxy powder coat process. Clear and
Bronze 40 are anodized aluminum finishes.
Construction Front and top are constructed of extruded aluminum equivalent in strength
to 14 gauge steel, with punched air intake and exhaust vents. Cabinet back
and bottom are fabricated from satin coat steel with multiple knockouts for
convenient power connection. Endcaps are field removable for continuous
heater installation.
Heating Element Stainless steel sheath encloses a nickel chromium element compacted in
a mineral insulation. Aluminum fins are brazed to the surface and provide
superior heat transfer.
Controls & Wiring (Optional): Built-in tamperproof thermostat, or adjustable thermostat con-
trols may be mounted in either the left or right hand terminal box. Built-in
low voltage controls, if specified, are located in the right hand terminal
box. Built-in disconnect switches, if specified, are located in the right hand
terminal box. Power connection can be made at either end of the heater.
Warranty One year warranty on complete unit.
CUL and UL approved.
Specifications
Heavy duty slope top design and
higher heat output are ideal for
larger public areas.
Features
•Advanced architectural slope top
design prevents blockage
•Profile measures 12"h x 5 3/4"w
for an unobtrusive appearance
•Full length thermal protection
•Floating element suspension
eliminates expansion noise
•Non-corrosive, stainless steel
tubular element with aluminum
fins
•Built-in wireway for continuous
installation
•Choice of air intake on front
or bottom
Applications
•Commercial, institutional,
schools, public offices, banks
and sports facilities
Dimensions
BACK VIEW SIDE VIEW
(Less End Cap)
BOTTOM VIEW
(Front Inlet Version Shown)
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com COMMERCIAL HEATERS | 27
AS12 Series
Series Inlet
F=Front
B=Bottom
Length
(ft)
Watts Voltage
Selection
Finish
Selection
Control
Options
Cabinet
Features
AS12 F 2 15 21 02 A9 S
Catalog Number Options
Order logic example
Ordering Guide
Cat. No. Watts BTU
Available Voltages Length
(mm/in.)
Weight
(kg/lbs.)
1 Phase 3 Phase
Standard Density 750 Watts per foot
AS12F215 1500 5118 208, 240, 277, 347, 600 208, 480, 600 617 / 24 5/16 10.5 / 23
AS12F430 3000 10236 208, 240, 277, 347, 600 208, 480, 600 1227 / 48 5/16 16.0 / 35
AS12F645 4500 15354 208, 240, 277, 347, 600 208, 480, 600 1836 / 72 5/16 21.6 / 48
AS12F860 6000 20472 208, 240, 277, 347, 600 208, 480, 600 2446 / 96 5/16 27.0 / 60
Low Density 562 Watts per foot
AS12F211 1125 3838 208, 240, 277, 347, 600 208 617 / 24 5/16 10.5 / 23
AS12F316 1687 5756 208, 240, 277, 347, 600 208, 480, 600 922 / 36 5/16 13.3 / 29
AS12F422 2250 7677 208, 240, 277, 347, 600 208, 480, 600 1227 / 48 5/16 16.0 / 35
AS12F633 3375 11515 208, 240, 277, 347, 600 208, 480, 600 1836 / 72 5/16 21.6 / 48
AS12F845 4500 15354 208, 240, 277, 347, 600 208, 480, 600 2446 / 96 5/16 27.0 / 60
1. Specify desired voltage, finish and control option from tables
2. For bottom inlet version replace “F” in Cat. No. with “B”
3. Endcaps are included with heaters
4. Consult factory for custom finish requirements
Code Voltage Phase
21 208 1
23 208 3
31 240 1
41 277 1
51 347 1
73 480 3
81 600 1
83 600 3
Voltage Selection
Code Colour Finish
02 White Painted
68 Almond Painted
07 Bronze Anodized
10 Clear Anodized
Finish Selection
Code Description
WPedestal and finished painted back
SFinished painted back
Note: Add “S” or “W” to the end of the Cat. No.
Cabinet Features
Cat. No. Description
A3 Built-in SP tamperproof hydraulic thermostat for 3 phase 208 - 600V
A4 Built-in 24V low voltage relay for 1 phase 208 - 600V
A5 Built-in 24V low voltage relay and transformer for 1 phase 208 - 600V
A6 Built-in 24V contactor less transformer for 3 phase 208 - 600V
A7 Built-in 24V contactor and transformer for 3 phase 208 - 600V
A8 Built-in disconnect switch, rated 600V/50A
A9 Built-in DP tamperproof hydraulic thermostat 208 - 600V
B3 Built-in SP tamperproof thermostat and disconnect
B9 Built-in DP tamperproof thermostat and disconnect
Control Options (factory installed)
Cat. No. Description
ALS12IC90 Inside 90 degree corner
ALS12OC90 Outside 90 degree corner
Filler Sections Consult factory for available sizes
* Note: Specify “Finish Selection” code (see chart above)
when ordering accessories
Accessories* (field installed)
Cat. No. Description
ALPKM2 Pedestal kit for units up to
4' length (2 pedestals included)
ALPKM3 Pedestal kit for units above
4' length (3 pedestals included)
* Note: Specify “Finish Selection” code
(see chart above) when ordering accessories
Pedestal Options*
Product Order Logic:
28 | COMMERCIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
AF20 Series
Architectural Convection Heater
Dimensions
25.4mm[1"]
25.4mm[1"]
SIDE VIEW
(Less Endcap)
BACK VIEW
BOTTOM VIEW
Voltage 208, 240, 277, 347, 480, 600V – 1/3 phase
Wattage Eight sizes ranging from 1500W to 6000W
Colour Standard: White or Almond.
Clear or Bronze 40 Aluminum available – consult factory.
Finish Painted finish is hybrid polyester epoxy powder coat process. Clear and
Bronze 40 are anodized aluminum finishes.
Construction Front and top are constructed of extruded aluminum equivalent in strength
to 14 gauge steel, with punched air intake and exhaust vents. Cabinet back
and bottom are fabricated from satin coat steel with multiple knockouts for
convenient power connection. Endcaps are field removable for continuous
heater installation.
Heating Element Stainless steel sheath encloses a nickel chromium element compacted in
a mineral insulation. Aluminum fins are brazed to the surface and provide
superior heat transfer.
Controls & Wiring (Optional): Built-in tamperproof thermostat, or adjustable thermostat con-
trols may be mounted in either the left or right hand terminal box. Built-in
low voltage controls, if specified, are located in the right hand terminal
box. Built-in disconnect switches, if specified, are located in the right hand
terminal box. Power connection can be made at either end of the heater.
Warranty One year warranty on complete unit.
CUL and UL approved.
Specifications
Heavy duty architectural design and high
heat output are perfect for large commercial
spaces where quiet natural convection
performance is required.
Features
•Advanced architectural styling
•Profile measures 20"h x 5 3/4"w
for an unobtrusive appearance
•Full length thermal protection
•Floating element suspension
eliminates expansion noise
•Non-corrosive, stainless steel
tubular element with aluminum
fins
•Front air intake, front air exhaust
•May be partially or fully recessed
Applications
•Commercial, institutional,
meeting rooms, schools,
churches, auditoriums, hospitals
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com COMMERCIAL HEATERS | 29
AF20 Series
Series Length
(ft)
Watts Voltage
Selection
Finish
Selection
Control
Options
AF20 2 20 21 02 A9
Order logic example
Catalog Number Options
Ordering Guide
Cat. No. Watts BTU
Available Voltages Length
(mm/in.)
Weight
(kg/lbs.)
1 Phase 3 Phase
Standard Density 1000 Watts per foot
AF20220 2000 6824 208, 240, 277, 347, 600 208, 480 617 / 24 1/3 17.7 / 39
AF20330 3000 10236 208, 240, 277, 347, 600 208, 480, 600 922 / 36 5/16 24.0 / 53
AF20440 4000 13648 208, 240, 277, 347, 600 208, 480, 600 1227 / 48 5/16 29.3 / 64.5
AF20550 5000 17060 208, 240, 277, 347, 600 208, 480, 600 1532 / 60 5/16 35.0 / 77.3
AF20660 6000 20472 208, 240, 277, 347, 600 208, 480, 600 1836 / 72 5/16 41.0 / 90
Low Density 750 Watts per foot
AF20215 1500 5118 208, 240, 277, 347, 600 208, 480, 600 617 / 24 1/3 17.7 / 39
AF20430 3000 10236 208, 240, 277, 347, 600 208, 480, 600 1227 / 48 5/16 29.3 / 64.5
AF20645 4500 15354 208, 240, 277, 347, 600 208, 480, 600 1836 / 72 5/16 41.0 / 90
1. Specify desired voltage, finish and control option from tables
2. For bottom inlet version replace “F” in Cat. No. with “B”
3. Endcaps are included with heaters
4. Consult factory for custom finish requirements
Code Voltage Phase
21 208 1
23 208 3
31 240 1
41 277 1
51 347 1
73 480 3
81 600 1
83 600 3
Voltage Selection
Code Colour Finish
02 White Painted
68 Almond Painted
07 Bronze Anodized
10 Clear Anodized
Finish Selection
Cat. No. Description
A3 Built-in SP tamperproof hydraulic thermostat for 3 phase 208 - 600V
A4 Built-in 24V low voltage relay for 1 phase 208 - 600V
A5 Built-in 24V low voltage relay and transformer for 1 phase 208 - 600V
A6 Built-in 24V contactor less transformer for 3 phase 208 - 600V
A7 Built-in 24V contactor and transformer for 3 phase 208 - 600V
A8 Built-in disconnect switch, rated 600V/50A
A9 Built-in DP tamperproof hydraulic thermostat 208 - 600V
B3 Built-in SP tamperproof thermostat and disconnect
B9 Built-in DP tamperproof thermostat and disconnect
Control Options (factory installed)
Cat. No. Description
ALTB Trim Bar for recess mounting
* Note: Must add length required
Example – A L T B 2 0 2 = 2 foot long, white finish
Accessories* (field installed)
Length in feet Finish Selection (Colour)
Product Order Logic:

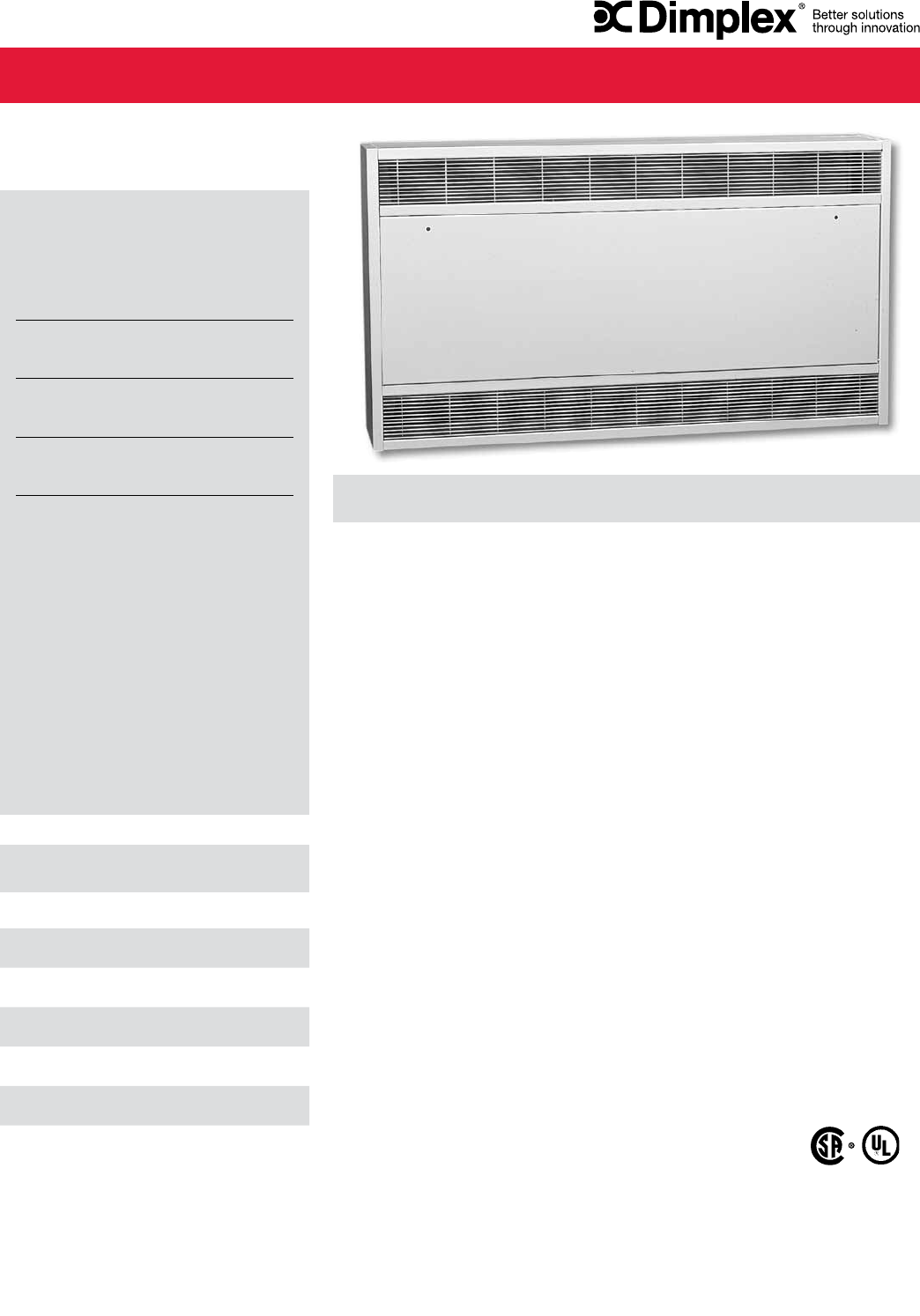

CH Series
Cabinet Console Heater
30 | COMMERCIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
Voltage 208, 240, 277, 347, 480, 600V – 1/3 Phase
Wattage Ten sizes ranging from 2 to 18 kW
Airflow 32" unit – 250/200 CFM, 45" unit – 500/400 CFM and
65" unit – 750/600 CFM
Colour White and Almond
Finish Polyester powder coat finish.
Construction All panels are fabricated with 16 gauge steel. Cabinet grilles can be field
relocated and are shipped standard as front inlet / front outlet.
Heating Element Spiral fins provide maximum heating surface and maximum heat transfer
at a safe temperature level. Overheat protection is provided by means of a
linear type thermal limit switch.
Controls The heater is available with a choice of control combinations to provide
flexibility of operation in various applications. All controls have a two-
position rotary switch for HIGH & LOW heat and blower output. Specify one
of the following controls when ordering:
3: This option is automatically controlled by its own built-in thermostat
with a range of 7º to 32ºC (45º to 90ºF). A 3 push button (“OFF, HEAT and
FAN”) is also featured.
R: This option provides a built-in relay for use with a remote control. 240V
or 208V is provided from unit itself to the control.
T: This option has provisions for an external 24 volt room thermostat, with
24 volt power provided internally.
Fan & Motor All motors are resilient mounted and have built-in automatic reset thermal
overload protection. Motors have plug-in electrical connection for ease
of service. Motor and blowers are mounted as a single assembly with
direct-drive connection on a rigid heavy-gauge frame to prevent vibration.
The blow-through design assures quiet operation and provides maximum
cooling for the blower motor.
Warranty One year warranty on complete unit.
CSA certified and UL approved.
Specifications
Provides rapid, even fan-forced heat on
demand in a variety of airflow options.
Features
•Architectural style bar grilles can
be field relocated for top/bottom
inlet/outlet arrangements
•Direct drive blower wheel
connection
•Thermal limit switch for safety
shut-off
•Time delay relay utilizes residual
heat before shut-off
•Flexible mounting options
Applications
•Reception areas, lobbies,
corridors, entranceways,
stairways and offices
Cat. No. Description
PWF32 Permanent washable filter
for 812mm/32" cabinets
PWF45 Permanent washable filter
for 1143mm/45" cabinets
PWF65 Permanent washable filter
for 1651mm/65" cabinets
TF32 Trim frame for recess mounting
of 812mm/32" cabinets
TF45 Trim frame for recess mounting
of 1143mm/45" cabinets
TF65 Trim frame for recess mounting
of 1651mm/65" cabinets
Note: Trim frames are Almond – To order White
add “W” at end of Catalogue No.
Accessories
CH Series
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com COMMERCIAL HEATERS | 31

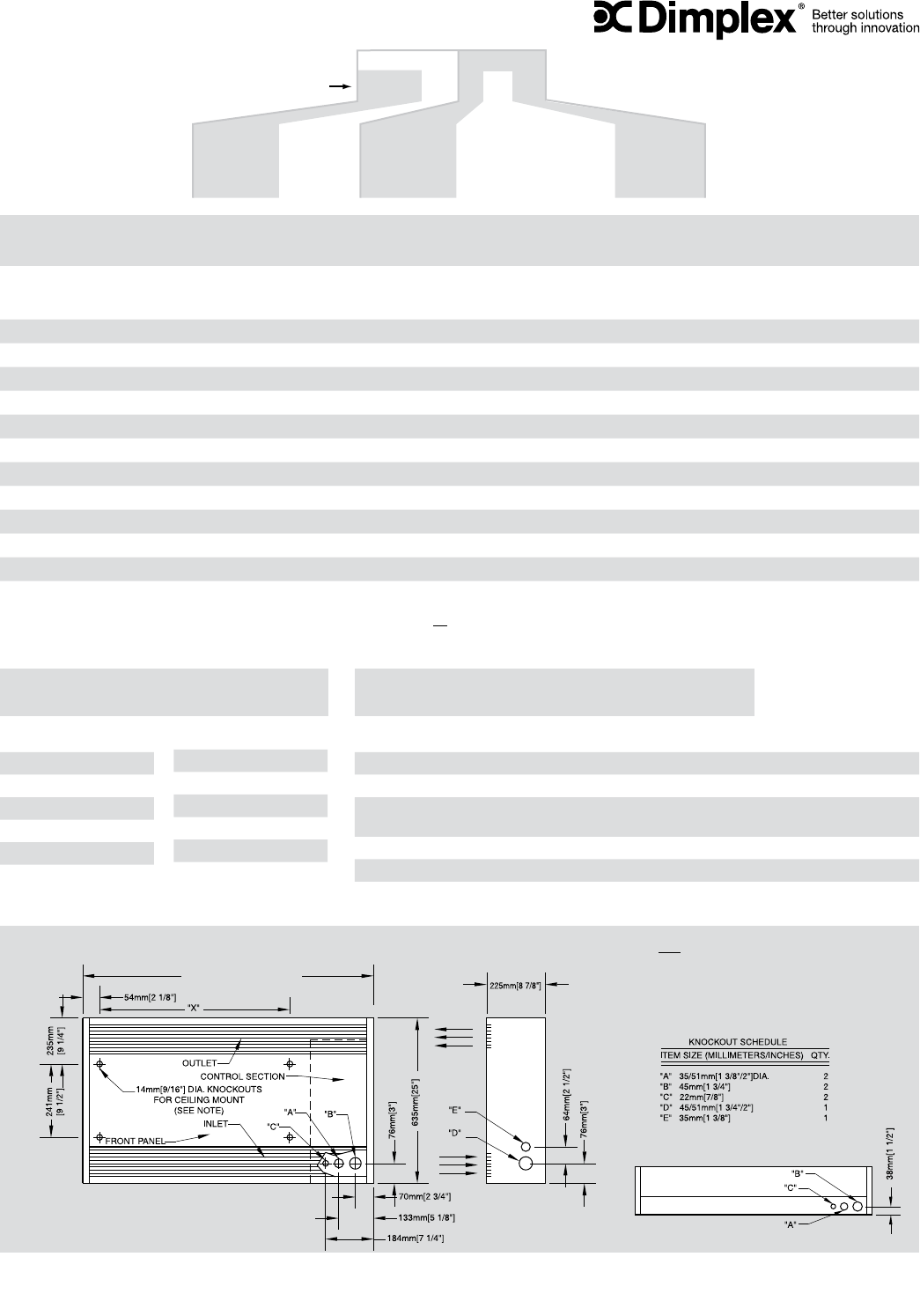

Product Order Logic:
Dimensions "L"
813, 1143, 1651
(32", 45", 65")
NOTE CEILING MOUNTING HOLES ARE SHOWN
AS VIEWED FROM FRONT OF HEATER
UNIT "X"
32" 15" (381mm)
45" 29" (737mm)
65" 49" (1245mm)
Series Watts Voltage
Selection
Colour
Options
Control
Options
CH3D 04 A 3 W
Order logic example
Catalog Number Options
Ordering Guide
Cat. No. Watts BTU Available Voltages CFM
Length
(mm/in.)
Weight
(kg/lbs.)
CH3D02 2000 6840 A,B,C,D,E,F,G,H,I,J 250 / 200 812.8 / 32 50.0 / 110
CH3D03 3000 10260 A,B,C,D,E,F,G,H,I,J 250 / 200 812.8 / 32 50.0 / 110
CH3D04 4000 13700 A,B,C,D,E,F,G,H,I,J 250 / 200 812.8 / 32 50.0 / 110
CH3D05 5000 17100 A,B,C,D,E,F,G,H,I,J 250 / 200 812.8 / 32 50.0 / 110
CH3D06 6000 20500 A,B,C,D,E,F,G,H,I,J 250 / 200 812.8 / 32 50.0 / 110
CH4D04 4000 13700 A,B,C,D,E,F,G,H,I,J 500 / 400 1143 / 45 67.4 / 145
CH4D06 6000 20500 A,B,C,D,E,F,G,H,I,J 500 / 400 1143 / 45 67.4 / 145
CH4D08 8000 27300 A,B,C,D,E,F,G,H,I,J 500 / 400 1143 / 45 67.4 / 145
CH4D10 10000 34120 A,B,C,D,E,F,G,H,I,J 500 / 400 1143 / 45 67.4 / 145
CH4D12 12000 41000 D,E, F, G,H,J 500 / 400 1143 / 45 67.4 / 145
CH6D15 15000 51180 D,F,J 750 / 600 1651 / 65 112.0 / 240
CH6D18 18000 61416 D,F,J 750 / 600 1651 / 65 112.0 / 240
1. Specify desired voltage and control option at time of ordering – example: CH4D04A3
2. Standard colour is Almond – To order White add “W” at end of Cat. No.
3. Consult factory for custom finish requirements
4. Must be specified with at least one control option. Multiple control options available.
Code Voltage Phase
A208 1
B240 1
C277 1
D208 3
E240 3
Code Voltage Phase
F480 3
G480 1
H347 1
I600 1
J600 3
Voltage Selection
Code Description
3Built-in single pole thermostat, high/low control switch for heat/fan, on/off control switch
CDuct transition collar for connection to ducting
RProvision for remote wired control (not included), high/low control switch for heat/fan. Control
circuits are 240V on all units except 208V which has control voltage the same as supply voltage.
SDisconnect switch for positive power interruption
TBuilt-in voltage relay kit for remote 24V thermostat (not included), high/low control switch for heat/fan
XHigh speed motor for ceiling mount applications
Control Options (factory installed)
FRONT VIEW R.H. VIEW
BOTTOM VIEW
32 | COMMERCIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
RFI / RFV / RFF Series
Commercial Fan-Forced Heater
Voltage 208, 240, 277, 347, 600V
Wattage Nine sizes ranging from 1125W to 8000W
Colour Almond or White
Finish Polyester epoxy powder coat painted finish.
Construction The front panel is constructed of 20 gauge steel. The recess box is
designed for recessing into either frame or masonry walls or ceilings and
contains knockouts for wiring connections.
Heating Element The RFI/RFV/RFF wall heater has a nickel chromium resistance wire
heating element within a steel sheath. Spiral steel fins are firmly brazed
to the surface to provide excellent heat transfer.
Motor & Fan The fan motor is totally enclosed and factory lubricated complete with a
black anodized 5 blade mixed flow aluminum fan. The fan delay is a
bi-metallic snap action type.
Controls & Wiring 208V, 240V and 277V units have a standard double pole built-in thermostat
with provision for a remote wall stat if required. 347V and 600V units have
a built-in thermostat. Use low voltage relay kits and suitable wall mount
thermostat for remote temperature control.
Warranty One year warranty on complete unit.
CSA certified and UL approved.
Specifications
Features
•Quick response, high output
fan-forced heater
•Automatic fan delay utilizes
residual heat when unit cycles off
•All models offer recessed or
surface mounting, ceiling
or wall
•50/60 cycle rating
•Exclusive aesthetically pleasing
front panel trim
•Includes built-in double pole
thermostat
•Access door can be locked for
tamperproof applications
Applications
•Vestibules, entranceways,
stairwells, kiosks
RFF Series
Available in Canada only
RFITF T-bar Ceiling Mount Trim (white only)
RFI Series
RFV Series
Available in Canada only
Solutions for maintaining comfort in areas subject to cold drafts,
such as vestibules, stairwells, etc.
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com COMMERCIAL HEATERS | 33
RFI / RFV / RFF Series
Dimensions
SIDE VIEW
TOP VIEW
RFF
Ordering Guide
Cat. No.
Watts
BTU
Volts Phase CFM
Weight
(kg/lbs.)
RFI815D31-KIT 1500/1125 5118/3840 240/208 1160 12.7/28
RFI820D31-KIT 2000/1500 6824/5118 240/208 1160 12.7/28
RFI820D41-KIT 2000 6824 277 1160 12.7/28
RFI830D31-KIT 3000/2250 10236/7680 240/208 1160 12.7/28
RFI830D41-KIT 3000 10236 277 1160 12.7/28
RFI840D21-KIT 4000 13648 208 1160 12.7/28
RFI840D31-KIT 4000/3000 13648/10236 240/208 1160 12.7/28
RFI840D41-KIT 4000 13648 277 1160 12.7/28
RFI848D31-KIT 4800/3600 16378/12283 240/208 1160 12.7/28
Note: 1) Standard colour is Almond.
2) To order White add “W” to Cat. No. before “KIT” (Example RFI815D31W-KIT)
Cat. No.
Watts
BTU
Volts Phase CFM
Weight
(kg/lbs.)
RFV831551-KIT†3000/1500 10236/5118 347 1160 16.0/34
RFV831581-KIT†3000/1500 10236/5118 600 1160 16.0/34
RFV842051-KIT†4000/2000 13684/6824 347 1160 16.0/34
RFV842081-KIT†4000/2000 13684/6824 600 1160 16.0/34
RFF86021-KIT†6000 20472 208 1320 30/65
RFF86031-KIT†6000 20472 240 1320 30/65
RFF86051-KIT†6000 20472 347 1320 36/80
RFF86081-KIT†6000 20472 600 1320 36/80
RFF88021-KIT†8000 27296 208 1320 30/65
RFF88031-KIT†8000 27296 240 1320 30/65
RFF88051-KIT†8000 27296 347 1320 36/80
RFF88081-KIT†8000 27296 600 1320 36/80
† RFV / RFF models – available in Canada only
Cat. No. Description
RFFLVC21 208V low volt relay w/24V transformer kit for RFF
RFFLVC31 240V low volt relay w/24V transformer kit for RFF
RFFLVC41 277V 22A low volt relay w/ 24V transformer kit for RFI
RFFLVC51 347V low volt relay w/24V transformer kit for RFF
RFFLVC81 600V low volt relay w/24V transformer kit for RFF
RFFLVD 208-600V low volt relay kit only for RFF series
RFLVC21 208V 22A low volt relay w/ 24V transformer kit for RFI
RFLVC31 240V 22A low volt relay w/ 24V transformer kit for RFI
RFLVC41 240V low volt relay and transformer kit for RFI
RFLVD 208-240V low volt relay kit only for RFI series
RFVLVC51 347V low volt relay w/ 24V transformer kit for RFV series
RFVLVC81 600V low volt relay w/ 24V transformer kit for RFV series
RFVLVD 347-600V low volt relay kit only for RFV series
Control Accessory Kits (field installed)
Cat. No. Description
RFAD Disconnect switch rated for 277V
RFFP8CA Surface mount box for RFF series (almond)
32.8" x 21.5" x 3.8" (832mm x 546mm x 97mm)
RFFP8CW Surface mount box for RFF series (white)
32.8" x 21.5" x 3.8" (832mm x 546mm x 97mm)
RFIBGA Tamperproof bar grille (almond)
RFIBGW Tamperproof bar grille (white)
RFIFPA RFI Front panel kit (almond)
RFIFPW RFI Front panel kit (white)
RFITF T-Bar ceiling frame for RFI/RFV series (white only)
RFP8DA Surface mount box for RFI/RFV series (almond)
16.8" x 21.5" x 3.8" (425mm x 546mm x 97mm)
RFP8DW Surface mount box for RFI/RFV series (white)
16.8" x 21.5" x 3.8" (425mm x 546mm x 97mm)
Accessories (field installed)
BACK VIEW SIDE VIEW
RFI/RFV
TOP VIEW
34 | COMMERCIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
EWA Series
Commercial Fan-Forced Heater
Voltage 120, 208, 240, 277V
Wattage Five sizes ranging from 1000W to 4000W
Airflow 50 CFM – 1000, 1500, 2000W. 100 CFM – 3000, 4000W
Colour Almond
Finish Polyester epoxy powder coat finish.
Construction Units are fan type and utilize the “Down Flow” principle of heated air
delivery. Designed for recessed mounting within standard 16" stud centers
and wall thickness. Rugged 20 gauge steel construction.
Heating Grid The cast aluminum heating grid contains a nickel chromium resistance
wire which is insulated in magnesium oxide and sheathed in a protec-
tive tubular stainless steel sheath. The entire tube is completely cast into
an aluminum molded form, deeply embedded and completely safe. The
finned design increases the heat radiating surface of the grid, giving wider
distribution of heat at a safer, lower temperature than the heating element
of any other wall heater.
Controls A precision snap action hydraulic thermostat is included for positive tem-
perature control when the rocker switch is in the ON position. The hydraulic
capillary sensing element is located in the room inlet air stream to provide
accurate temperature. The thermostat ranges from 4ºC/40ºF (low) to
38ºC/100ºF (high).
Warranty One year warranty on complete unit.
CSA certified and UL approved.
Specifications
Features
•Built-in DPST thermostat with
on/off rocker switches for easier
control
•Terminal block provided for con-
nection to optional remote line
voltage thermostat
•Fan size and pitch are matched
to the motor for smooth, quiet
operation
•Exclusive rust free cast
aluminum heating grid provides
superior performance and stores
energy longer by acting as a
heat bank
•Operates at a lower temperature
than any other heating element
on the market
Applications
•Offices, reception rooms,
entranceways, stairways
Engineered for outstanding performance and dependable service.
Exclusive Cast
Aluminum
Element Design
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com COMMERCIAL HEATERS | 35
EWA Series
Dimensions
Cat. No. Description
8754 Surface mounting box for 1000, 1500 & 2000W units.
13.25" x 16.5" x 4.1" (337mm x 418mm x 103mm)
8753 Surface mounting box for 3000 & 4000W units.
16.5" x 21.25" x 4.1" (418mm x 540mm x 103mm)
Cat. No. Description
TGKSB Tamperproof grille kit for 1000, 1500 & 2000W units
TGKLB Tamperproof grille kit for 3000 & 4000W units
Accessories (field installed)
Ordering Guide
Cat. No. Watts BTU Volts Phase CFM
Weight
(kg/lbs.)
EWA10C11 1000 3412 120 150 8.2/18
EWA10C21 1000 3412 208 150 8.2/18
EWA10C31 1000 3412 240 150 8.2/18
EWA10C41 1000 3412 277 150 8.2/18
EWA15C11 1500 5118 120 150 8.2/18
EWA15C21 1500 5118 208 150 8.2/18
EWA15C31 1500 5118 240 150 8.2/18
EWA15C41 1500 5118 277 150 8.2/18
Cat. No. Watts BTU Volts Phase CFM
Weight
(kg/lbs.)
EWA20C21 2000 6824 208 150 8.2/18
EWA20C31 2000 6824 240 150 8.2/18
EWA20C41 2000 6824 277 150 8.2/18
EWA30C21 3000 10236 208 1100 13.6/30
EWA30C31 3000 10236 240 1100 13.6/30
EWA30C41 3000 10236 277 1100 13.6/30
EWA40C21 4000 13648 208 1100 13.6/30
EWA40C31 4000 13648 240 1100 13.6/30
EWA40C41 4000 13648 277 1100 13.6/30
1000 - 2000 W
3000 - 4000 W
TOP VIEW TOP VIEW
SIDE VIEWSIDE VIEW
36 | COMMERCIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com

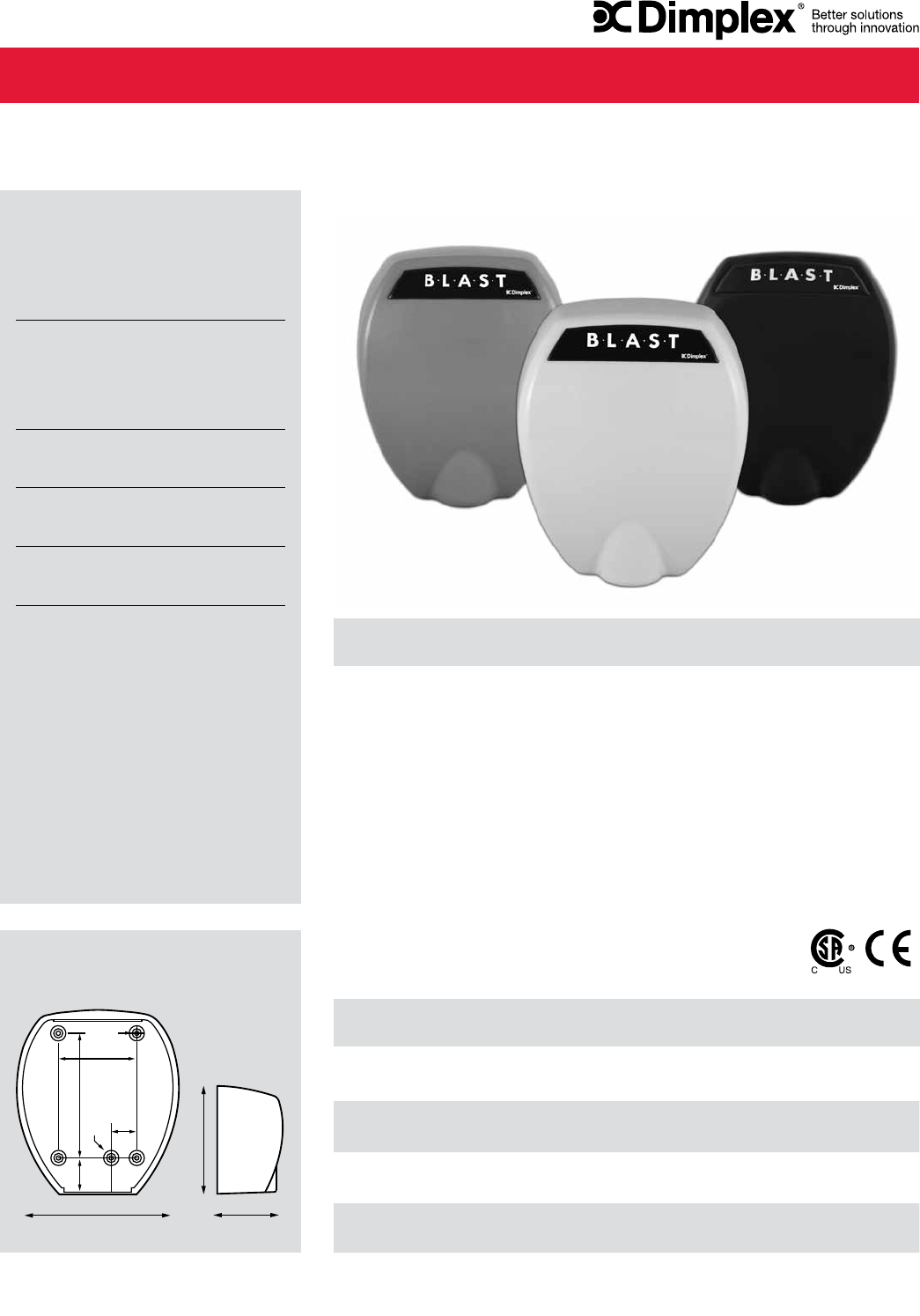

Commercial Hand Dryer
BLAST Series
Cast iron construction for compact, modern design with unsurpassed drying speed and long lasting durability.
Environmentally friendly, using less than 1/6 of the energy of conventional hand dryers.
Voltage Universal 115-230*VAC (*50/60Hz)
Wattage 1450W at 6.3A (230VAC)
Colour White, Black and Gray
Finish Porcelain enamel.
Heating Element 725W resistance coil.
Construction Material Cast iron.
Controls & Wiring Automatic resetting thermostat with cutout when airflow is restricted.
Infrared sensor cutout two seconds after hand removal, and 60
seconds after initiating drying.
Installation Removable predrilled baseplate for easy mounting.
Warranty 10 years parts and labor.
CSA certified for use in Canada and the U.S.
CE approved for use where applicable.
Specifications
Features
•Automatic infrared actuated
sensor, for power conservation
and maximum hygiene
•Robust, tamperproof design
and construction for greater
product durability and longevity
in application
•High velocity (275 CFM) airflow
for ultra high speed hand drying
•Automatic voltage switching for
ease of installation
•Contributes to LEED and BOMA
building certification
•Designed for easy installation
Applications
•Washrooms and clean up areas,
commercial facilities, factories,
restaurants and hospitals
Dimensions
Ordering Guide
Cat. No. Colour Watts
Volts
Hz
Air Velocity
LFM
Air Volume
CFM
Noise
dB
Dimensions (W x H x D)
(mm/in.)
Weight
(kg/lbs.)
DC20001WH White 1450 115-230,
50-60
19,000 275 78 244 x 277 x 168
(9.625 x 10.75 x 6.625)
11/24
DC20002BK Black 1450 115-230,
50-60
19,000 275 78 244 x 277 x 168
(9.625 x 10.75 x 6.625)
11/24
DC20003GR Gray 1450 115-230,
50-60
19,000 275 78 244 x 277 x 168
(9.625 x 10.75 x 6.625)
11/24
6-5/8˝ - 168mm
10-3/4˝ - 277mm
9-5/8˝ - 244mm
4-5/8˝ - 117mm
1-1/2˝
38mm
7/8˝ - 22mm
KNOCKOUT
7-3/8˝ - 187mm
2˝ - 50mm
(4)1/4˝
6mm
HOLES
4˝ - 100mm
13-3/4˝ - 349mm
10-3/8˝ - 263mm
6-7/8˝ - 175mm
2-5/8˝
67mm
1-3/4˝
44mm
7/8˝ - 22mm
KNOCKOUT
4-3/4˝ - 121mm
7-3/4˝ - 197mm
2-1/2˝ - 64mm
(4)1/4˝ - 6mm
DIA. HOLES
BACK VIEW
SIDE VIEW
Commercial Hand Dryer
ONE Series
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com COMMERCIAL HEATERS | 37
Top quality construction combines elegance with high performance. Ultra-quiet, quick drying and low cost of ownership.
Features
•Automatic infrared actuated
sensor, for power conservation
and maximum hygiene
•Robust, tamperproof design
and construction for greater
product durability and longevity
in application
•Quietest hand dryer in the
industry at 55dB
•High velocity (150 CFM) airflow
for faster hand drying
•Modular design for easy repair
•Automatic voltage switching for
ease of installation
•Contributes to LEED and BOMA
building certification
•Designed for easy installation
Applications
•Washrooms and clean up areas,
commercial facilities, factories,
restaurants and hospitals
Dimensions
Ordering Guide
Voltage Universal 115-230*VAC (*50/60Hz)
Wattage 1450W at 6.3A (230VAC)
Colour White, Black and Stainless
Finish Chrome, scratch-resistant porcelain, brushed stainless steel.
Heating Element 1380W resistance coil.
Construction Material Cast zinc and steel.
Controls & Wiring Automatic resetting thermostat with cutout when airflow is restricted.
Infrared sensor cutout two seconds after hand removal, and
60 seconds after initiating drying.
Installation Removable predrilled baseplate for easy mounting.
Warranty 10 years parts and labor.
CSA certified for use in Canada and the U.S.
CE approved for use where applicable.
Cat. No. Colour
Wattage
Watts
Volts
Hz
Air Volume
CFM
Noise
dB
Dimensions (W x H x D)
(mm/in.)
Weight
(kg/lbs.)
D20001WH White 1450 115-230,
50-60
150 55 263 x 349 x 100
(10.375 x 13.75 x 4)
9/20
D20002BK Black 1450 115-230,
50-60
150 55 263 x 349 x 100
(10.375 x 13.75 x 4)
9/20
D20003SS Stainless 1450 115-230,
50-60
150 55 263 x 349 x 100
(10.375 x 13.75 x 4)
9/20
6-5/8˝ - 168mm
10-3/4˝ - 277mm
9-5/8˝ - 244mm
4-5/8˝ - 117mm
1-1/2˝
38mm
7/8˝ - 22mm
KNOCKOUT
7-3/8˝ - 187mm
2˝ - 50mm
(4)1/4˝
6mm
HOLES
4˝ - 100mm
13-3/4˝ - 349mm
10-3/8˝ - 263mm
6-7/8˝ - 175mm
2-5/8˝
67mm
1-3/4˝
44mm
7/8˝ - 22mm
KNOCKOUT
4-3/4˝ - 121mm
7-3/4˝ - 197mm
2-1/2˝ - 64mm
(4)1/4˝ - 6mm
DIA. HOLES
Specifications
SIDE VIEW BACK VIEW
38 | INDUSTRIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
VUB Series
Vertical Unit Heater
Features
•Specially formed concentric
finned elements yield maximum
heat transfer
•Fan only operation circulates
ceiling level heat
•Choice of diffusers for various
airflow options
Applications
•High bay buildings, shipping
areas, warehouses, garages,
shopping center entrances
Voltage 208, 240, 600V
Wattage Nine sizes ranging from 5 to 50kW
Colour Almond
Finish Cabinet is coated with a hybrid polyester epoxy powder coat paint.
Fan & Motor The motor is a heavy duty permanently lubricated ball bearing type
mounted on resilient base to absorb vibration. The fan is a propeller type,
accurately balanced and correctly pitched for each individual unit.
Controls 240V contactor with transformer (if required) included.
Heating Element The heating element has a totally enclosed nickel chromium resistance
element within steel sheathing, brazed with spiral steel fins for maximum
heat transfer.
Warranty One year warranty on unit.
CSA approved.
Specifications
Directs large volumes of warm air downward which makes this product the ideal choice for high bay heating
applications. Also suitable as entryway air curtain heating in areas subject to high heat loss.
Cat. No. Description
TS521W Single pole remote mount wall thermostat
Control Options (field installed)
Cat. No. Description
VUBCD1E Single cone diffuser for 5–25kW units
VUBH31E Three cone diffuser for 5–25kW units
VUBCD2E Single cone diffuser for 30–50kW units
VUBH32E Three cone diffuser for 30–50kW units
Accessories (field installed)
Available in Canada only
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com INDUSTRIAL HEATERS | 39
VUB Series
203mm
(8”)
Dimensions
SINGLE CONE DIFFUSER THREE CONE DIFFUSER
A
B B
A
SIDE VIEW TOP VIEW
Ordering Guide
Cat. No. kW BTU Volts Phase CFM Weight (kg/lbs.)
VUB105E23 517060 208 3940 29.5/65
VUB105E31 517060 240 1940 29.5/65
VUB105E83 517060 600 3940 29.5/65
VUB108E23 7.5 25590 208 3940 29.5/65
VUB108E31 7.5 25590 240 1940 29.5/65
VUB108E83 7.5 25590 600 3940 29.5/65
VUB110E23 10 34120 208 3940 29.5/65
VUB110E31 10 34120 240 1940 29.5/65
VUB110E83 10 34120 600 3940 29.5/65
VUB115E23 15 51180 208 3960 29.5/65
VUB115E83 15 51180 600 3960 29.5/65
VUB120E83 20 68240 600 3960 29.5/65
VUB125E83 25 85300 600 3960 29.5/65
VUB230E83 30 102300 600 31730 38.6/85
VUB240E83 40 136500 600 31730 38.6/85
VUB250E83 50 170600 600 31730 38.6/85
Cone Diffuser Dimensions
Series A B
VUBCD1E 327mm
(12.875")
355mm
(14")
VUBCD2E 327mm
(12.875")
457mm
(18")
VUBH31E 190mm
(7.5")
536mm
(21.125")
VUBH32E 219mm
(8.625")
644mm
(25.375")
Series KW
Dimensions
A B C
VUB-1E 5-25 368mm (14.5") 114mm (4.5") 222mm (8.75")
VUB-2E 30-50 470mm (18.5") 210mm (8.25") 318mm (12.5")
CONE
DIFFUSER KITS
40 | INDUSTRIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
DX-234 Series
Hose Down Heater
Dimensions
The perfect solution for heating people and equipment in
moist and corrosive, non-hazardous environments.
Features
•All the necessary safety and
temperature controls are built-in
to a single package
•Components and motor are
factory-wired to a single terminal
block for field wiring; reducing
installation time and errors
•Heater, fan motor and controls
are all connected at the same
branch circuit
•Stainless steel construction,
epoxy-coated aluminum fan
blade, and nonmetallic NEMA 4X
terminal enclosure
Applications
•Food processing plants,
marine and offshore, wastewater
treatment plants, dairies, cement
plants, car washes, power
generating stations, coal
handling areas, swimming pools
Voltage 120 to 600VAC
Wattage 2kW to 47kW
Colour / Finish Stainless Steel; Matte Plastic
Heating Element Type 316 stainless steel finned tubular
Construction 16 gauge corrosion resistant stainless steel housing and NEMA 4X control
enclosure. Adjustable stainless steel louvers, can be rotated 90º to direct
airflow up, down, left or right.
Discharge Horizontal
Airflow / CFM 700 to 2400
Controls & Wiring Automatic reset overtemperature cutout, fan delay relay, controlling
contactor, transformer for 24V control circuit, terminal block for field wiring
and separate motor contactor.
Mounting Comes with stainless steel swivel mounting bracket for wall or ceiling
installation.
Warranty One year from date of installation (repair only).
UL approved for use in Canada and the U.S.
Specifications
M
WALL
X
AIRFLOW
8" Min BH
Y
Z
CEILING
8"
Min
8" Min
3/8-16 THREADED
RODS; 4 PLC'S
(NOT SUPPLIED
WITH HEATER)
CEILING
Swivel Bracket
(Wall Mounting')
WALL
Installation with Four
Optional Ceiling
Threaded Rods
FLOOR
WALL
Conduit Opening
for Field Wiring
BL
6 Foot Min
(Any Mounting)
8"
Min
Standard Wall and Ceiling
Installation with
Swivel Mounting Bracket
Overall Heater Dimensions
KW
Frame
Size
2-7.5 7.6-12 12.1-47
‘X’ mm
(In.)
394
(15.5)
394
(15.5)
660
(26)
‘Y’ mm
(In.)
550
(21.5)
550
(21.5)
711
(28)
‘Z’ mm
(In.)
330
(13)
330
(13)
510
(20)
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com INDUSTRIAL HEATERS | 41
DX-234 Series
Control Options (factory installed)
Code Description
DPower Disconnect Switch
L“Heater on” Pilot Light
MSecondary Manual Reset Overtemperature Cutout. This option is not available if option Code S or V are also specified.
SThree-Position Selector Switch (heater-standby-fan). This option is not available if option Code M or V are also specified.
TBuilt-in Thermostat 10 to 32ºC / 50 to 90ºF
V120V Control Circuit, fused secondary and grounded. This option is not available if option Code S or M are also specified. Nor can both K and L be specified.
X2-Stage Control
1004328 Washdown / corrosion resistant wall-mounted thermostat for non-hazardous locations 4 to 38ºC / 40 to 100ºF
Ordering Guide
Cat. No.
kW
Volts
Phase
Amps CFM
Temp Rise
(ºC/ºF)
Weight
(kg/lbs.)
DX-234-U11R-0020B
2 120 1 21 700 5/9 25/56
DX-234-U11R-0020C
2 208 1 12 700 5/9 25/56
DX-234-U11R-0020J
2 240 1 11 700 5/9 25/56
DX-234-U11R-0020N
2 277 1 10 700 5/9 25/56
DX-234-U11N-0030B
3 120 1 29 700 8/14 25/56
DX-234-U11N-0030C
3 208 1 17 700 8/14 25/56
DX-234-U11N-0030D
3 208 3 11 700 8/14 25/56
DX-234-U11N-0030J
3 240 1 15 700 8/14 25/56
DX-234-U11N-0030K
3 240 3 10 700 8/14 25/56
DX-234-U11N-0030N
3 277 1 13 700 8/14 25/56
DX-234-U11N-0030T
3 480 1 8 700 8/14 25/56
DX-234-U11N-0030U
3 480 3 5 700 8/14 25/56
DX-234-U11N-0030Z
3 600 3 4 700 8/14 25/56
DX-234-U11R-0050C
5 208 1 27 700 13/24 25/56
DX-234-U11N-0050D
5 208 3 16 700 13/24 25/56
DX-234-U11R-0050J
5 240 1 23 700 13/24 25/56
DX-234-U11N-0050K
5 240 3 15 700 13/24 25/56
DX-234-U11R-0050N
5 277 1 20 700 13/24 25/56
DX-234-U11R-0050T
5 480 1 12 700 13/24 25/56
DX-234-U11N-0050U
5 480 3 8 700 13/24 25/56
DX-234-U11N-0050Z
5 600 3 6 700 13/24 25/56
DX-234-U11N-0080C
7.5 208 1 39 700 19/35 25/56
DX-234-U11N-0080D
7.5 208 3 23 700 19/35 25/56
DX-234-U11N-0080J
7.5 240 1 34 700 19/35 25/56
DX-234-U11N-0080K
7.5 240 3 21 700 19/35 25/56
DX-234-U11N-0080N
7.5 277 1 29 700 19/35 25/56
DX-234-U11N-0080T
7.5 480 1 17 700 19/35 25/56
DX-234-U11N-0080U
7.5 480 3 11 700 19/35 25/56
DX-234-U11N-0080Z
7.5 600 3 9 700 19/35 25/56
DX-234-U11N-0090C
9 208 1 46 1450 11/20 25/56
DX-234-U11N-0090D
9 208 3 28 1450 11/20 25/56
DX-234-U11N-0090J
9 240 1 40 1450 11/20 25/56
DX-234-U11N-0090K
9 240 3 24 1450 11/20 25/56
DX-234-U11N-0090N
9 277 1 35 1450 11/20 25/56
DX-234-U11N-0090T
9 480 1 20 1450 11/20 25/56
Cat. No.
kW
Volts
Phase
Amps CFM
Temp Rise
(ºC/ºF)
Weight
(kg/lbs.)
DX-234-U11N-0090U
9 480 3 12 1450 11/20 25/56
DX-234-U11N-0090Z
9 600 3 10 1450 11/20 25/56
DX-234-U11N-0100D
10 208 3 30 1450 12/22 25/56
DX-234-U11N-0100J
10 240 1 44 1450 12/22 25/56
DX-234-U11N-0100K
10 240 3 27 1450 12/22 25/56
DX-234-U11N-0100N
10 277 1 39 1450 12/22 25/56
DX-234-U11N-0100T
10 480 1 22 1450 12/22 25/56
DX-234-U11N-0100U
10 480 3 14 1450 12/22 25/56
DX-234-U11N-0100Z
10 600 3 11 1450 12/22 25/56
DX-234-U11N-0120D
12 208 3 36 1450 14/26 25/56
DX-234-U11N-0120K
12 240 3 32 1450 14/26 25/56
DX-234-U11N-0120N
12 277 1 46 1450 14/26 25/56
DX-234-U11N-0120T
12 480 1 27 1450 14/26 25/56
DX-234-U11N-0120U
12 480 3 16 1450 14/26 25/56
DX-234-U11N-0120Z
12 600 3 13 1450 14/26 25/56
DX-234-U11L-0130D
12.5
208 3 37 2400 9/17 52/115
DX-234-U11L-0130K
12.5
240 3 33 2400 9/17 52/115
DX-234-U11L-0130U
12.5
480 3 17 2400 9/17 52/115
DX-234-U11L-0130Z
12.5
600 314 2400 9/17 52/115
DX-234-U11L-0150D
15 208 344 2400 12/21 52/115
DX-234-U11L-0150K
15 240 339 2400 12/21 52/115
DX-234-U11L-0150U
15 480 320 2400 12/21 52/115
DX-234-U11L-0150Z
15 600 316 2400 12/21 52/115
DX-234-U11L-0200U
20 480 326 2400 16/28 52/115
DX-234-U11L-0200Z
20 600 321 2400 16/28 52/115
DX-234-U11A-0250U
25 480 332 2400 19/35 52/115
DX-234-U11A-0250Z
25 600 326 2400 19/35 52/115
DX-234-U11A-0300U
30 480 338 2400 23/42 52/115
DX-234-U11A-0300Z
30 600 331 2400 23/42 52/115
DX-234-U11A-0350U
35 480 344 2400 27/48 52/115
DX-234-U11A-0350Z
35 600 335 2400 27/48 52/115
DX-234-U11A-0390U
38.4
480 348 2400 30/54 52/115
DX-234-U11A-0390Z
38.4
600 338 2400 30/54 52/115
DX-234-U11A-0470Z
47 600 347 2400 36/64 52/115
Overall Heater Dimensions
KW
Frame
Size
2-7.5 7.6-12 12.1-47
‘X’ mm
(In.)
394
(15.5)
394
(15.5)
660
(26)
‘Y’ mm
(In.)
550
(21.5)
550
(21.5)
711
(28)
‘Z’ mm
(In.)
330
(13)
330
(13)
510
(20)
42 | INDUSTRIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com

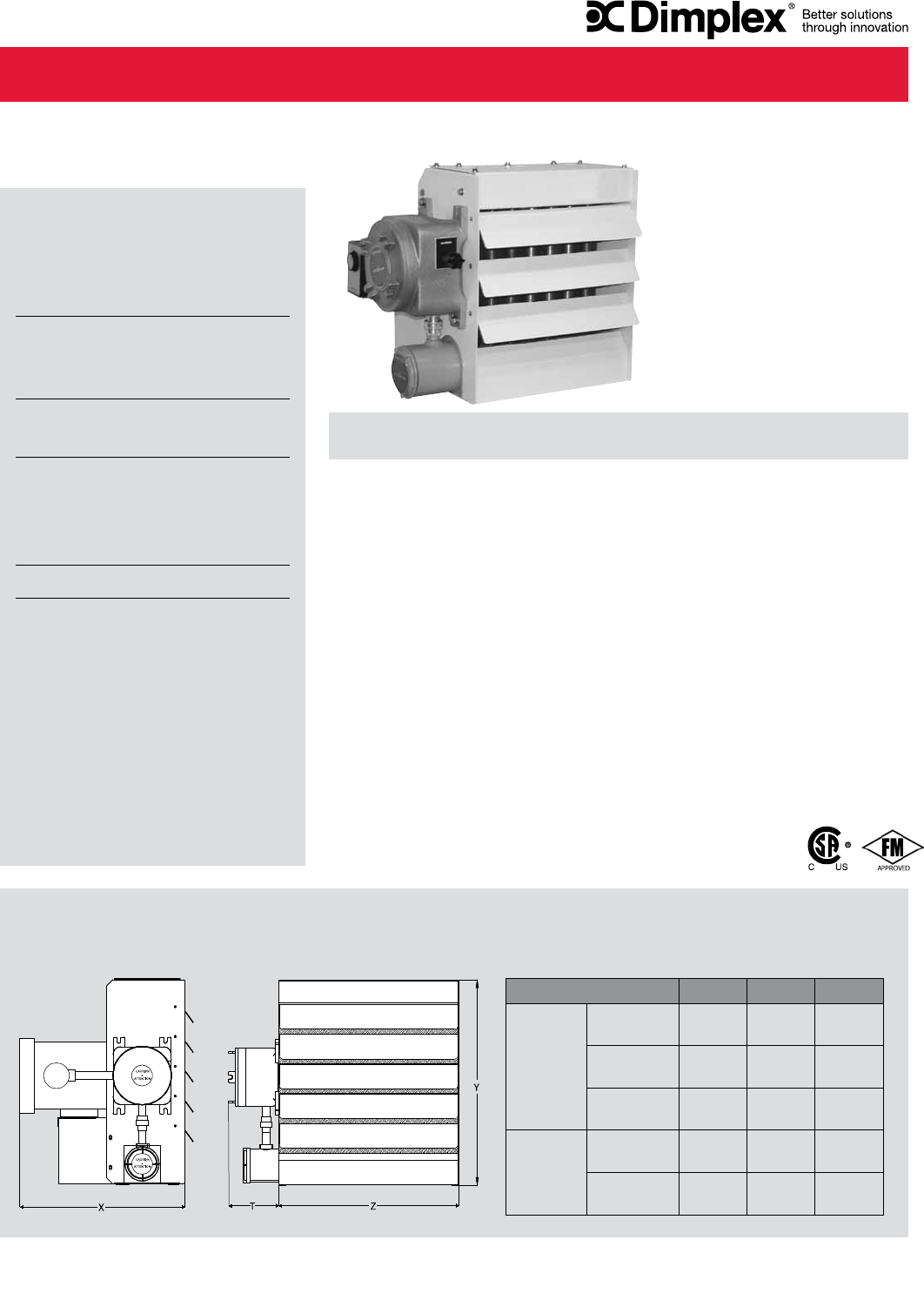

DX-233 Series
Explosion Proof Heater
Dimensions
Features
•Industry’s lowest ignition
temperature code rating:
T3C, 160ºC/320ºF
•Dual over-temperature
protection: automatic and manual
reset cutout for additional safety
•Nontoxic Propylene Glycol
heat transfer fluid
•Low 70 PSIG relief valve setting,
assures initial escaping vapor
temperature remains below
160ºC/320ºF ignition point
•Modular design
•Built for use in dry non-corrosive
areas
Applications
•Aircraft hangers/service areas,
coal mines/preparation plants,
gasoline fueling/storage areas,
paint spraying/storage areas,
utility plants
Voltage 208 (1 & 3 Ph), 240 (1 & 3 Ph), 480 (3 Ph), 600V (3 Ph); 60Hz
Wattage Three sizes ranging from 3 to 30kW.
Colour Almond
Finish Baked on polyester powder-coated cabinet; epoxy covered motor;
NEMA 7, 9 cast aluminum control circuit enclosure. Also available in 316
stainless steel or Heresite® construction. Contact factory for information.
Construction Heavy 14 gauge steel cabinet; aluminum fan blade.
Heating Element Welded steel heat exchanger with painted steel headers, steel tubes and
spiral wound aluminum fins.
Heat Exchanger The advanced design allows lower operating temperatures from sealed
liquid-to-air heat exchanger with steel tubes, and integral aluminum fins.
The pressure relief device provides excess pressure protection.
Controls & Wiring 24VAC transformer; contactor; with automatic and manual reset
over temperature thermal cutouts. Adjustable covers.
Installation Easy access to motor and fan; motors are prewired to control enclosure.
Warranty One year from date of installation.
CSA certified and FM approved for use in Canada and the U.S.
Specifications
Heavy duty heaters, designed for safety, durability and reliability.
FRONT VIEW
SIDE VIEW
Frame Size Size 1 Size 2 Size 3
Overall
Heater
Dimensions
‘X’ mm
(In.)
464
(18.3)
464
(18.3)
508
(20)
‘Y’ mm
(In.)
492
(19.4)
594
(23.4)
695
(27.4)
‘Z’ mm
(In.)
408
(16.1)
513
(20.2)
614
(24.2)
Weight Net kg
(Lbs.)
50
(110)
68
(150)
86
(190)
Shipping kg
(Lbs.)
59
(130)
77
(169)
98
(216)
Class I, Divisions 1 and 2, Groups C and D
Class II, Divisions 1 and 2, Groups E, F and G
Class I, Zones 1 and 2, Group IIB
Temperature Code T3C, 320º F (160º C)
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com INDUSTRIAL HEATERS | 43
DX-233 Series
Cat. No. Description
DX-1022451 Ceiling mounting kit for frame size 1, 2, 3
DX-1022454 Wall mounting kit for frame size 1, 2, 3
DX-1022457 Pole mounting kit for frame size 1, 2, 3
DX-1007002 Remote wall thermostat for use with DX-233 series heaters
Control Options (factory installed)
Control Options (field installed)
Mounting Hardware (field installed)
Ordering Guide
Cat. No.
kW
Volts
Phase
Amps Size
Temp Rise
(ºC/ºF)
Weight
(kg/lbs.)
DX-233-CA-0036C
3 208 1 17 1 8/15 50/110
DX-233-CA-0036D
3 208 3 10 1 8/15 50/110
DX-233-CA-0036J
3 240 1 15 1 8/15 50/110
DX-233-CA-0036K
3 240 3 9 1 8/15 50/110
DX-233-CA-0036U
3 480 3 5 1 8/15 50/110
DX-233-CA-0036Z
3 600 3 4 1 8/15 50/110
DX-233-CA-0056C
5 208 1 26 1 13/25 50/110
DX-233-CA-0056D
5 208 3 16 1 13/25 50/110
DX-233-CA-0056J
5 240 1 23 1 13/25 50/110
DX-233-CA-0056K
5 240 3 14 1 13/25 50/110
DX-233-CA-0056U
5 480 3 7 1 13/25 50/110
DX-233-CA-0056Z
5 600 3 6 1 13/25 50/110
DX-233-CA-0086C
7.5 208 1 38 1 16/28 50/110
DX-233-CA-0086D
7.5 208 3 23 1 16/28 50/110
DX-233-CA-0086J
7.5 240 1 34 1 16/28 50/110
DX-233-CA-0086K
7.5 240 3 20 1 16/28 50/110
DX-233-CA-0086U
7.5 480 3 10 1 16/28 50/110
DX-233-CA-0086Z
7.5 600 3 9 1 16/28 50/110
Cat. No.
kW
Volts
Phase
Amps CFM
Temp Rise
(ºC/ºF)
Weight
(kg/lbs.)
DX-233-CA-0106D
10 208 3 30 1 21/38 50/110
DX-233-CA-0106J
10 240 1 44 1 21/38 50/110
DX-233-CA-0106K
10 240 3 26 1 21/38 50/110
DX-233-CA-0106U
10 480 3 13 1 21/38 50/110
DX-233-CA-0106Z
10 600 3 11 1 21/38 50/110
DX-233-CB-0156D
15 208 3 44 2 15/27 68/150
DX-233-CB-0156K
15 240 3 38 2 15/27 68/150
DX-233-CB-0156U
15 480 3 19 2 15/27 68/150
DX-233-CB-0156Z
15 600 3 16 2 15/27 68/150
DX-233-CB-0206U
20 480 3 25 2 19/35 68/150
DX-233-CB-0206Z
20 600 3 21 2 19/35 68/150
DX-233-CC-0256U
25 480 3 31 3 14/26 86/190
DX-233-CC-0256Z
25 600 3 25 3 14/26 86/190
DX-233-CC-0306U
30 480 3 37 3 13/25 86/190
DX-233-CC-0306Z
30 600 3 30 3 13/25 86/190
Code Description
DPower Disconnect Switch
K“Warning” Pilot Light
L“Heater On” Pilot Light
MSecondary Manual Reset Overtemperature Cutout. This option is not available if option Code S or V are also specified.
STwo-Position Selector Switch (auto-fan). This option is not available if option Code M or V are also specified.
TBuilt-in Thermostat 10 to 32ºC / 50 to 90ºF
V120V Control Circuit, fused secondary and grounded. This option is not available if option Code S or M are also specified. Nor can both K and L be specified.
Code Description
HLS-1 Hazardous location SPDT remote mount adjustable thermostat with bi-metal sensor, rated 347V – 25A
44 | INDUSTRIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
EU Series
Industrial Unit Heater
Extensive selection of models ranging from 3 to 50kW –
each with spiral finned elements and sealed ball-bearing
motors for long service life.
Cat. No. Description
EUAF2 Summer fan switch
EUAR11 24V low voltage relay/transformer kit for 120V unit heaters
EUAR21 24V low voltage relay/transformer kit for 208V unit heaters
EUAR31 24V low voltage relay/transformer kit for all other voltages
EUAR41 24V low voltage relay/transformer kit for 277V unit heaters
EUARCR 24V low voltage relay less transformer, suitable for all units
EUAT Single pole thermostat kit for 15-50kW unit heaters
Control Options (field installed)
Cat. No. Description
EUD20J3 Power disconnect 3 phase, 20A/600V
EUD30Y2 Power disconnect 2 phase, 30A/277V
EUD30J3 Power disconnect 3 phase, 30A/600V
EUD55J3 Power disconnect 3 phase, 55A/600V
EUD55J6 Power disconnect 6 phase, 55A/600V
EUHWB Wall hanger bracket for EUH series (3-12kW)
EULSWB Wall hanger bracket for EUL/EUS series (15-50kW)
Accessories (field installed)
Voltage 120, 208, 240, 277, 347, 480, 600V - 1/3 Phase
Wattage Three cabinet sizes are available. The EUH series is 3-12kW, the EUL is
15-30kW and the EUS is 40-50kW.
Colour Almond
Finish Hybrid polyester epoxy powder coat paint finish.
Construction The cabinet is constructed of 18 gauge die formed steel. The units have
individual adjustable 20 gauge convex profile air directing louvers. The
louvers are friction fastened to a single piece 20 gauge frame to prevent
movement, once adjusted to the desired position.
Heating Element The heating element has a metal tubular sheath fused with spiral steel
fins. The heating element contains a high quality nickel chromium wire,
encased in solidly packed magnesium oxide insulation.
Motor & Fan The fan size and pitch is matched to the power and speed of the unit,
to optimize CFM, airflow, temperature rise, and quietness. The motor is
heavy duty, continuous operation, totally enclosed, thermally protected with
permanently lubricated ball bearings.
Controls A jumper is provided to disable built-in thermostats when remote thermo-
stats are required. Summer fan control and low voltage control options are
field installed.
Warranty One year warranty on complete unit.
CSA certified and UL approved.
Specifications
Features
•Built-in adjustable thermostat on
models up to and including 12kW
•Ceiling hanger bracket included,
optional wall bracket available
(allows swivel movement)
•Five-way adjustable louvers to
direct airflow
•EU models up to and including
12kW are UL and CSA approved
for vertical and horizontal
mounting
Applications
•Shipping / receiving areas,
warehouse storage areas
and garages.
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com INDUSTRIAL HEATERS | 45
EU Series
EUL/EUS
MOUNTING
BRACKET
EUH
MOUNTING
BRACKET
9/16" Dia.
Mounting Holes
1/2" Swivel Bolt
EUH 318mm 356mm 203mm 279mm
12 1/2”
14” 8” 11”
EUL 514mm 533mm 533mm 654mm
20 1/2” 21” 21” 25 3/4”
EUS 635mm 654mm 443mm 533mm
25”
25 3/4” 17 1/2” 21”
EUH 330mm 495mm 330mm 165mm 318mm 299mm 64mm 330mm
13” 19 1/2” 13” 6 1/2” 12 1/2” 11 3/4” 2 1/2” 13”
EUL 502mm 699mm 419mm 257mm 410mm 462mm 118mm 500mm
19 3/4” 27 1/2” 16 1/2” 10 1/8” 16 1/8” 18 1/4” 4 5/8” 19 3/4”
EUS 578mm 745mm 645mm 391mm 633mm 499mm 130mm 533mm
22 3/4” 29 1/16” 25 3/8” 15 3/8” 25” 19 3/4” 5 1/8” 21”
Ordering Guide
Cat. No.
kW
BTU
Volts Phase CFM
Weight
(kg/lbs.)
EUH03B11T 310236 120 1350 16.0/36
EUH03B21T 310236 208 1350 16.0/36
EUH03B24CT 310236 208 1/3 350 16.0/36
EUH03B31T 3/2.3 10236/7677 240/208 1350 16.0/36
EUH03B34CT 3/2.3 10236/7677 240/208 1/3 350 16.0/36
EUH03B41CT 310236 277 1350 18.0/40
EUH03B51CT 310236 347 1350 18.0/40
EUH03B73CT 310236 480 3350 18.0/40
EUH03B81CT 310236 600 1350 18.0/40
EUH03B83CT 310236 600 3350 18.0/40
EUH05B21T 517060 208 1350 16.0/36
EUH05B24CT 517060 208 1/3 350 16.0/36
EUH05B31T 5/3.8 17060/12795 240/208 1350 16.0/36
EUH05B34CT 5/3.8 17060/12795 240/208 1/3 350 16.0/36
EUH05B41T 517060 277 1350 18.0/40
EUH05B51CT 517060 347 1350 18.0/40
EUH05B74CT 517060 480 1/3 350 18.0/40
EUH05B84CT 517060 600 1/3 350 18.0/40
EUH08B24CT 7.5 25590 208 1/3 600 21.0/46
EUH08B34CT 7.5/5.6 25590/19193 240/208 1/3 600 21.0/46
EUH08B74CT 7.5 25590 480 1/3 600 22.0/50
EUH08B84CT 7.5 25590 600 1/3 600 22.0/50
EUH10B24CT 10 34120 208 1/3 600 21.0/46
EUH10B34CT 10/7.5 34120/25590 240/208 1/3 600 21.0/46
Cat. No.
kW
BTU
Volts Phase CFM
Weight
(kg/lbs.)
EUH10B74CT 10 34120 480 1/3 600 22.0/50
EUH10B84CT 10 34120 600 1/3 600 22.0/50
EUH12B74CT 12 40944 480 1/3 600 22.0/50
EUH12B84CT 12 40944 600 1/3 600 22.0/50
EUL15B23C 15 51180 208 3990 45.0/100
EUL15B73C 15 51180 480 31200 48.6/108
EUL15B83C 15 51180 600 31200 48.6/108
EUL20B23C 20 68240 208 3990 45.0/100
EUL20B73C 20 68240 480 31200 48.6/108
EUL20B83C 20 68240 600 31200 48.6/108
EUL25B73C 25 85300 480 31200 48.6/108
EUL25B83C 25 85300 600 31200 48.6/108
EUL30B73C 30 120360 480 31600 58.1/129
EUL30B83C 30 120360 600 31600 58.1/129
EUS40B73C 40 136480 480 31950 72.0/160
EUS40B83C 40 136480 600 31950 72.0/160
EUS50B73C 50 170600 480 31950 72.0/160
EUS50B83C 50 170600 600 31950 72.0/160
Note: T = Built-in thermostat, C = Built-in contactor, CT = Built-in thermostat and contactor
Units rated 20kW and higher are suitable for 2 stage operation.
Built-in single pole thermostat controls are standard up to and including 12kW models. Units showing
1/3 phase are field convertible to desired phase. 208V units have 208V control voltage, 240V control
on all others, except for EUS units which have 120V control. Transformers are
provided where necessary.
Dimensions SIDE VIEW FRONT VIEW
46 | INDUSTRIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
CUH Series
Compact Unit Heater
Dimensions
Voltage 240/208 volts
Wattage 5000/3750 W
Colour Almond
Finish Powder coated epoxy finish
Construction Heavy duty steel cabinet. Must be hardwired for operation.
Warranty One year warranty on complete unit.
CUL and UL approved.
Specifications
Loaded with features, this powerful unit heats
quickly and offers great value.
Features
•Powerful 5000W (240V) heat
output
•Safe, durable stainless steel
sheathed element
•Adjustable louvers direct warm
air where needed
•Built-in single-pole bulb
thermostat for accurate
temperature control
•Fan delay utilizes residual heat
•Ceiling and wall-mount swivel
bracket included
Applications
•Shipping/receiving areas,
warehouse storage areas,
garages
Ordering Guide
Cat. No. Watts BTU Volts Dimensions (W x H x D) Weight (kg/lbs.)
CUH05B31T 5000/3750 17,060 / 12,795 240/208 279mm x 229 mm x 229mm
(11" x 9" x 9")
4.5/10
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com INDUSTRIAL HEATERS | 47
7150 Series
Pump House Heater
Dimensions
Ordering Guide
Cat. No. Watts BTU Volts Weight (kg/lbs.)
7150B11 500 1706 120 2.3/5
7150B31 500/375 1706/1279 240/208 2.3/5
139.7mm[5 1/2"]
22.2mm[7/8"] Dia. KO
76.2mm[3"]
57.2mm[2 1/4"]
22.2mm[7/8"]
22.2mm[7/8"] Dia. KO
441.3mm[17 3/8"]
38.1mm[1 1/2"]
428.6mm[16 7/8"]
96.8mm[3 13/16"]
6.4mm[1/4"] DIA
4 HOLES
TOP VIEW
FRONT VIEW
BACK VIEW
SIDE VIEW
This natural convection heater provides efficient freeze protection in specialty applications.
Features
•Cast aluminum grid element for
lower surface temperatures
•Steel corrosion resistant housing
•Built-in adjustable thermostat
control to prevent pump house
freeze-up
Applications
•Boiler rooms, garage, grease pits,
residential / farm pump house
systems, equipment buildings
Voltage 120, 240/208V
Wattage 500/375W
Colour Almond
Finish Painted with a hybrid polyester epoxy coating.
Construction The heater wiring and control enclosure are of heavy gauge, corrosion
treated formed steel.
Heating Element Exclusive cast aluminum heating grid in which the resistance wire is
completely cast into the aluminum molded form, deeply embedded and
fully enclosed. Design achieves a wider distribution of heat at a safer lower
surface temperature.
Control Built-in adjustable bi-metallic thermostat. (7º to 25ºC / 45º to 77ºF).
Warranty One year on complete unit.
CUL and UL approved.
Specifications
48 | INDUSTRIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
FPEP / CEP Series
Hazardous Location Convection Heater
Cat. No. Description
AR-0464-EP-1 Hazardous location DPST remote mount adjustable thermostat
with external sensor, rated 240V – 25A
AR-0464-EP-2 Tamperproof version of AR-0464-EP-1, cover must be removed
to adjust
HLS-1 Hazardous location SPDT remote mount adjustable thermostat
with bi-metal sensor, rated 347V – 25A
Control Options (field installed)
Applications
•Paint rooms, chemical storage,
mines and dusty environments,
sewage pumping stations, oil
refineries
Voltage 120, 208, 240, 347, 480, 600V – 1/3 Phase
Wattage 200, 400, 500, 750, 1000, 1500, 3000W
Finish Polyester powder coated paint.
Construction Each heater is constructed of heavy duty schedule 40 finned steel pipe
specially coated with a polyester powder finish for rust protection. The
terminal enclosure is cast alloy and has two 3/4" electrical connections.
Heating Element Totally enclosed nickel chromium resistance element with incoloy sheath-
ing. The entire element assembly is sealed within a schedule 40 finned
steel pipe.
Warranty One year on complete unit.
CSA certified and UL approved.
Warning To prevent ignition of hazardous atmospheres, heater should not be
installed where vapors or gases having ignition temperatures less than
320ºF for CEP15 and 504ºF for CEP30 are present.
Specifications
Provides both durability and maximum safety in hazardous environments.
Cat. No. Description
FPEP, CEP15
models
Class I, Groups C&D Div 1, 2
Class II, Groups E, F&G Div 1, 2
Temp code T3C (320ºF)
CEP30 models Class I, Group D Div 1, 2
Temp code T2B (504ºF)
Classifications
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com INDUSTRIAL HEATERS | 49

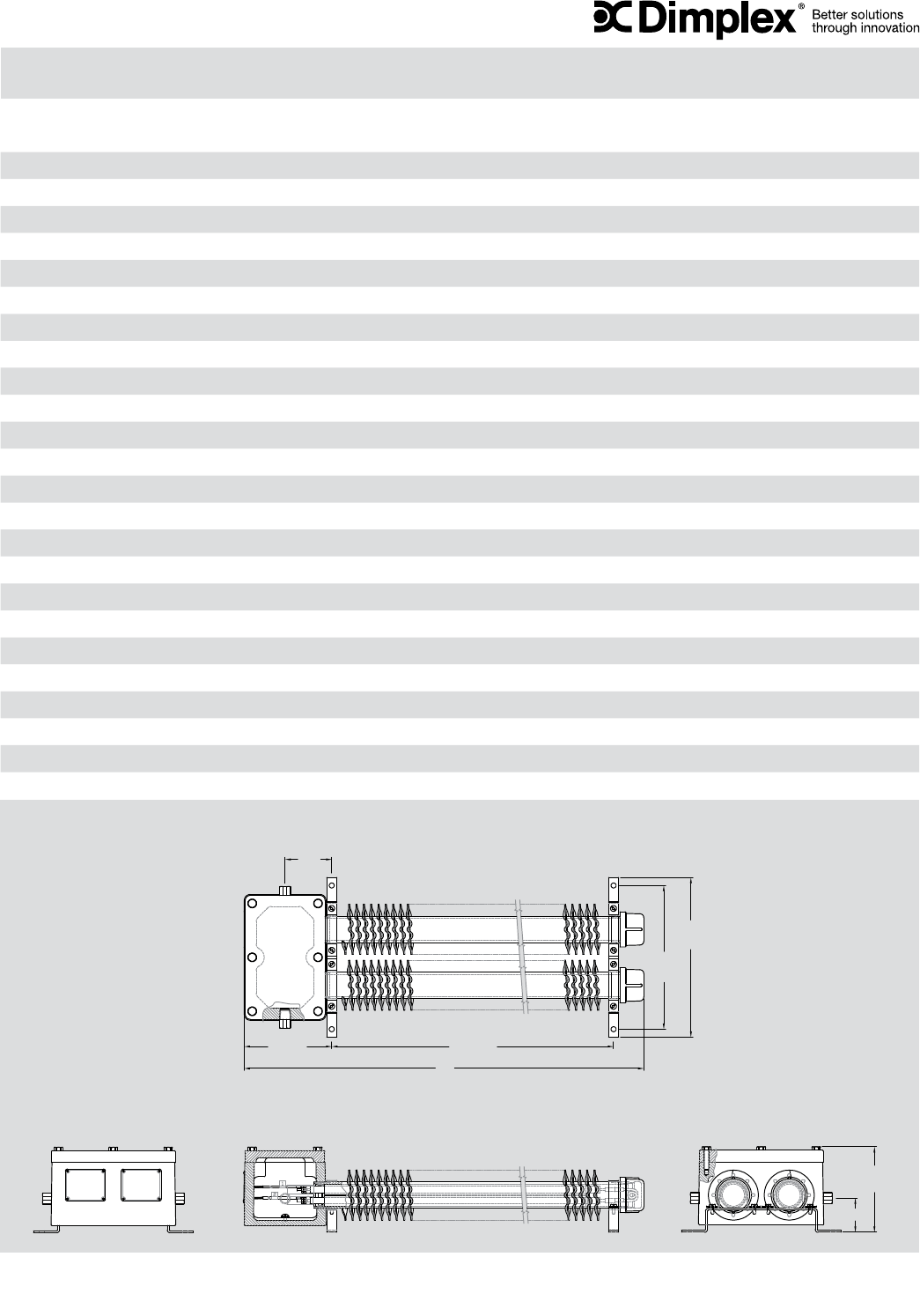

FPEP / CEP Series
Dimensions
Ordering Guide
Cat. No. Description
Watts
BTU
Volts Phase Amps
Length
(mm/in)
Weight
(kg/lbs.)
CEP15C11 Explosion proof convection heater 1500 5118 120 112.5 1499 / 59 29.94/66
CEP15C21 Explosion proof convection heater 1500 5118 208 17.2 1499 / 59 29.94/66
CEP15C31 Explosion proof convection heater 1500 5118 240 16.3 1499 / 59 29.94/66
CEP15C51 Explosion proof convection heater 1500 5118 347 14.3 1499 / 59 29.94/66
CEP15C71 Explosion proof convection heater 1500 5118 480 13.1 1499 / 59 29.94/66
CEP30C24 Explosion proof convection heater 3000 10236 208 1/3 14.4 1372 / 54 61.2/135
CEP30C34 Explosion proof convection heater 3000 10236 240 1/3 12.5 1372 / 54 61.2/135
CEP30C51 Explosion proof convection heater 3000 10236 347 18.65 1372 / 54 61.2/135
CEP30C74 Explosion proof convection heater 3000 10236 480 1/3 6.3 1372 / 54 61.2/135
CEP30C84 Explosion proof convection heater 3000 10236 600 1/3 5.0 1372 / 54 61.2/135
FPEP200211 Explosion proof convection heater 200 682 120 11.7 550 / 21 5/8 6.35 /14
FPEP400211 Explosion proof convection heater 400 1365 120 13.3 876 / 34 1/2 8.62/19
FPEP400221 Explosion proof convection heater 400 1365 208 11.9 876 / 34 1/2 8.62/19
FPEP400231 Explosion proof convection heater 400 1365 240 11.7 876 / 34 1/2 8.62/19
FPEP500211 Explosion proof convection heater 500 1706 120 14.2 1020 / 40 1/8 10.89/24
FPEP500221 Explosion proof convection heater 500 1706 208 12.4 1020 / 40 1/8 10.89/24
FPEP500231 Explosion proof convection heater 500 1706 240 12.1 1020 / 40 1/8 10.89/24
FPEP750211 Explosion proof convection heater 750 2559 120 16.3 1470 / 57 7/8 15.4/34
FPEP750221 Explosion proof convection heater 750 2559 208 13.6 1470 / 57 7/8 15.4/34
FPEP750231 Explosion proof convection heater 750 2559 240 13.1 1470 / 57 7/8 15.4/34
FPEP1000211 Explosion proof convection heater 1000 3412 120 18.3 1876 / 73 7/8 18.6/41
FPEP1000221 Explosion proof convection heater 1000 3412 208 14.8 1876 / 73 7/8 18.6/41
FPEP1000231 Explosion proof convection heater 1000 3412 240 14.2 1876 / 73 7/8 18.6/41
END VIEW END VIEWSIDE VIEW
A
139mm
(5.48")
76mm
(3")
130mm
(5.125")
229mm
(9")
254mm
(10")
136mm
(5.36")
55mm
(2.14")
TOP VIEW
“A” – See length in Ordering Guide
50 | INDUSTRIAL HEATERS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
CRT / KR / KRR Series
Radiant Heater
Available in Canada only
KRR - WIDE BEAM
KR - WIDE BEAM
CRT - NARROW BEAM
Features
•Extremely rapid warm up
•Provides effective heat even in
cold ambient temperatures
•Incoloy elements offer impact,
vibration and splash resistance
•Units can be mounted in any
position
Applications
•Shipping / receiving areas,
factories, arenas, bus shelters
& terminals, indoor swimming
pools
Voltage CRT units 120, 208, 240, 600V
KR units 120, 208, 240V
KRR units 208, 240, 600V
Wattage CRT units have four sizes ranging from 1000 - 4000W
KR units have five sizes ranging from 1100 - 3600W
KRR units have four sizes ranging from 1800 - 5000W
Construction Extruded aluminum housing. There is a choice of 2 angle reflectors,
CRT - 55° angle and KR/KRR - 75° angle.
Heating Element Totally enclosed nickel chromium resistance element with incoloy sheath-
ing. The CRT unit offers a narrow beam when you need a unit for high
mounting heights. Confines heat spread to a 55° angle. The KR (single ele-
ment)/KRR (double element, high intensity) provides wide beam coverage.
The heat spreads over a 75° angle and requires mounting closer to the
object than the narrow beam.
Warranty One year warranty on complete unit.
CSA certified.
Specifications
Enables spot heating of specific areas
without having to heat the entire building.
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com INDUSTRIAL HEATERS | 51
CRT / KR / KRR Series
Dimensions
KR / KRR Series
Heating Length
Total Length
93.4mm (3 11/16")
67.1mm (2 5/8")
KRR MOUNTING BRACKET
Heating Length
Total Length
TOP VIEW
216mm (8 1/2")
108mm (4 1/4")
178mm (7")
END VIEW
Heating Length
Total Length
TOP VIEW
216mm (8 1/2")
108mm (4 1/4")
178mm (7")
END VIEW
SIDE VIEW
TOP VIEW
END VIEW
CRT Series
Specifications
Cat. No.
Watts
BTU
Volts /
Phase
Total Length
(mm/in)
Heating
Length
(mm/in)
Weight
(kg/lbs.)
CRT351011 1000 3412 120/1 946/37.3 610/24 6.3/14
CRT351021 1000 3412 208/1 946/37.3 610/24 6.3/14
CRT351031 1000 3412 240/1 946/37.3 610/24 6.3/14
CRT482021 2000 6824 208/1 1276/50.3 940/37 8.1/18
CRT482031 2000 6824 240/1 1276/50.3 940/37 8.1/18
CRT482081 2000 6824 600/1 1276/50.3 940/37 8.1/18
CRT653021 3000 10236 208/1 1711/67.4 1372/54 10.4/23
CRT653031 3000 10236 240/1 1711/67.4 1372/54 10.4/23
CRT653081 3000 10236 600/1 1711/67.4 1372/54 10.4/23
CRT844021 4000 13648 208/1 2194/86.4 1854/73 13.1/29
CRT844031 4000 13648 240/1 2194/86.4 1854/73 13.1/29
CRT844081 4000 13648 600/1 2194/86.4 1854/73 13.1/29
KR3113C111 1100 3753 120/1 772/30.4 546/21.5 3.2/7
KR3113C121 1100 3753 208/1 772/30.4 546/21.5 3.2/7
KR3113C131 1100 3753 240/1 772/30.4 546/21.5 3.2/7
KR4183C121 1800 6142 208/1 1178/46.4 953/37.5 4.5/10
KR4183C131 1800 6142 240/1 1178/46.4 953/37.5 4.5/10
Cat. No. Watts BTU
Volts /
Phase
Total Length
(mm/in)
Heating
Length
(mm/in)
Weight
(kg/lbs.)
KR5253C121 2500 7677 208/1 1553/61.1 1295/51.1 5.4/12
KR5253C131 2500 7677 240/1 1553/61.1 1295/51.1 5.4/12
KR6303C121 3000 10236 208/1 1867/73.5 1603/63.1 7.7/17
KR6303C131 3000 10236 240/1 1867/73.5 1603/63.1 7.7/17
KR7363C121 3600 12283 208/1 2712/85.5 1902/74.9 7.7/17
KR7363C131 3600 12283 240/1 2712/85.5 1902/74.9 7.7/17
KRR3184C121 1800 6142 208/1 772/30.4 546/21.5 6.3/14
KRR3184C131 1800 6142 240/1 772/30.4 546/21.5 6.3/14
KRR3184C181 1800 6142 600/1 772/30.4 546/21.5 6.3/14
KRR4304C121 3000 10236 208/1 1178/46.4 953/37.5 7.2/16
KRR4304C131 3000 10236 240/1 1178/46.4 953/37.5 7.2/16
KRR4304C181 3000 10236 600/1 1178/46.4 953/37.5 7.2/16
KRR5424C121 4200 14330 208/1 1550/61 1370/53 7.7/17
KRR5424C131 4200 14330 240/1 1550/61 1370/53 7.7/17
KRR5424C181 4200 14330 600/1 1550/61 1370/53 7.7/17
KRR6504C131 5000 17060 240/1 1867/73.5 1603/63.1 9.9/22
KRR6504C181 5000 17060 600/1 1867/73.5 1603/63.1 9.9/22
Note: Consult factory for other wattage and voltage requirements.
52 | CONTROLS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
Controls
Thermostats
Low Voltage
T822K 1034* /
T822K 1018**
*Celsius scale for Canada
** Fahrenheit scale
for United States
Line Voltage
TS/TD
CSA/UL approved
ETS/ETD
cCSAuS approved
Ordering Guide (field installed)
Cat. No.
Rating
Switch Colour
Non-Inductive Inductive
Line Voltage Bimetal
TS521W 5000W/277V Max. 1/3HP/240V SPST White
TD522W 5000W/277V Max. 1/3HP/240V DPST White
Accessories (field installed)
Cat. No. Description
F290143 Universal plastic thermostat guard with
locking key.
Fits all units on this page.
162mm (L) x 89mm (W) x 82.8mm (D) Cat. No. Rating Switch Colour
Low Voltage
T822K1018 30V AC Max, 1.5A, Fahrenheit Bi-metal White
T822K1034 30V AC Max, 1.5A, Celsius Bi-metal White
CCTHV100 30V AC, 0.5A TRIAC White
CCTHV100B 30V AC, 0.5A, LCD Display, celsius and fahrenheit TRIAC White
Cat. No.
Amps
Min / Max
Rating
Switch Colour
@240V
Min / Max
@120V
Min / Max Inductive
Line Voltage Electronic
ETS610W1 1.25/7.4A 300/1750W 150/875W 1/3HP/240V SP White
ETS610A1 1.25/7.4A 300/1750W 150/875W 1/3HP/240V SP Almond
ETD620W1 1.25/7.4A 300/1750W 150/875W 1/3HP/240V DP White
ETD620A1 1.25/7.4A 300/1750W 150/875W 1/3HP/240V DP Almond
ETS610W2 5.0/16.0A 1200/3840W 600/1920W 1/3HP/240V SP White
ETS610A2 5.0/16.0A 1200/3840W 600/1920W 1/3HP/240V SP Almond
ETD620W2 5.0/16.0A 1200/3840W 600/1920W 1/3HP/240V DP White
ETD620A2 5.0/16.0A 1200/3840W 600/1920W 1/3HP/240V DP Almond
Features
LINE VOLTAGE
Bimetal (TS/TD):
•For use with linear and panel
convection, electric baseboard
and fan-forced heaters
•Designed for superior ventilation
across bimetal for optimum
accuracy
Electronic (ETS/ETD):
•Works with both convection
and fan-forced heaters
•Electronic sensing for accurate
temperature control
•Cycle-to-cycle accuracy
of 0.1ºC / 0.2ºF
LOW VOLTAGE
T822 Series:
•Traditional styling
•Adjustable anticipator setting
•Temperature range:
10-30ºC / 50-86ºF
•For use with 24V control systems
CCTHV -
No Display
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com CONTROLS | 53

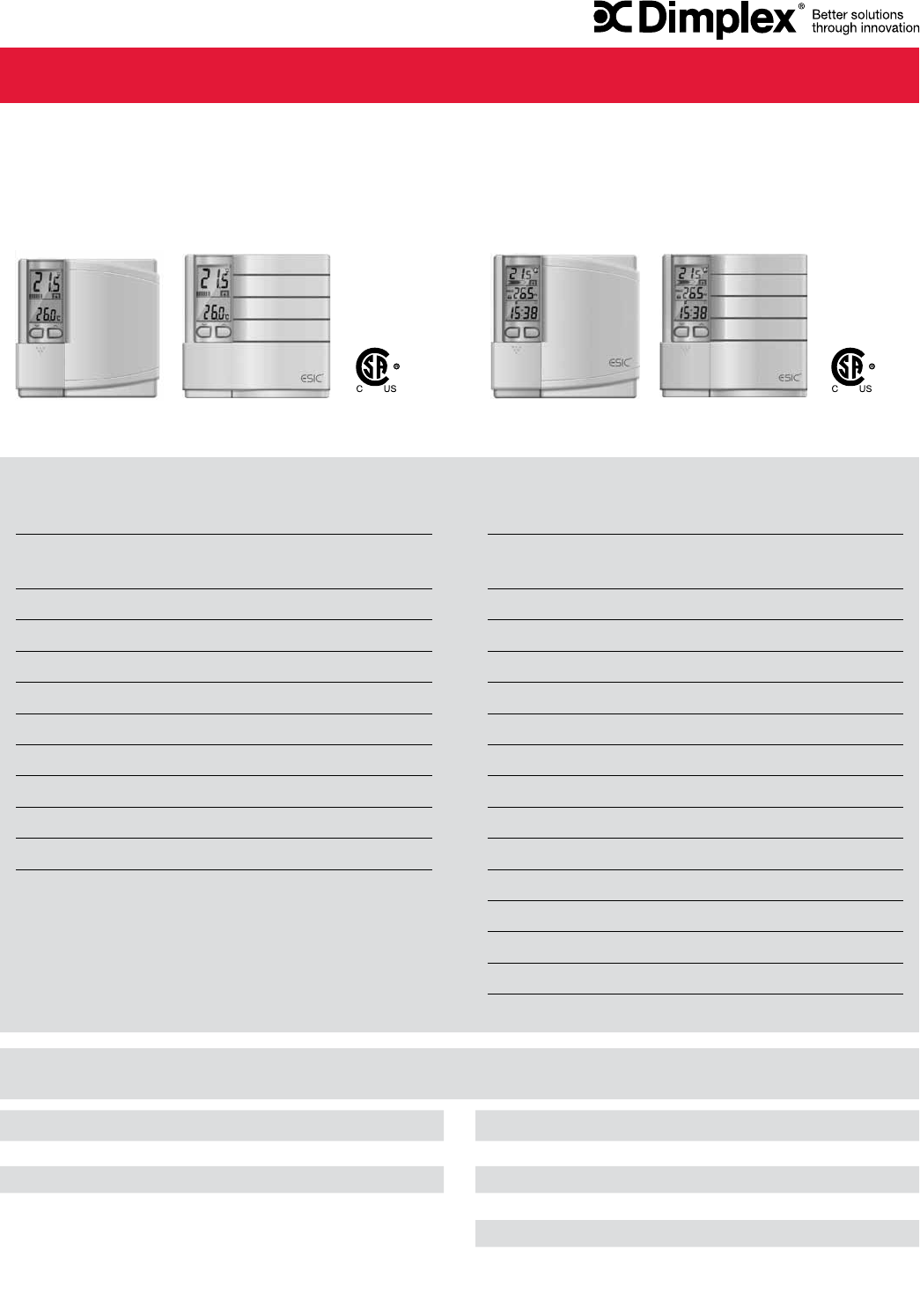

Controls
Digital Electronic Line Voltage Thermostats
Line Voltage Thermostats
Easy-to-use line voltage thermostats for use with linear and panel convectors, electric baseboards,
fan-forced heaters, and radiant ceilings.
HTC525 HTC521 HTC625 / HTC625E HTC621
Non-Programmable Model Features
•40 Amp TRIAC silent switching
•Manual, precise temperature control
set in +/- 0.5°C (0.9°F)
•Cycle rates for proportional heating
•Built-in surge protection
•Temperature display in Celsius or Fahrenheit
•Setting range from +5°C to + 35°C (41°F to 95°F)
•Heating power level display
•Memory backup for settings
•Fast, easy 2-wire installation
•3 year warranty
•CSA certified for use in Canada and the U.S.
•CSA C828 compliant
Programmable Model Features
•40 Amp TRIAC silent switching
•Manual, precise temperature control
set in +/- 0.5°C (0.9°F)
•Cycle rates for proportional heating
•Built-in surge protection
•Temperature display in Celsius or Fahrenheit
•Setting range from +5°C to + 35°C (41°F to 95°F)
•Heating power level display
•Memory backup for settings
•Fast, easy 2-wire installation
•7 day, 28 event programmable heat control
•Backlit display
•Pre-comfort recovery systems
•Usage monitor (HTC625E only)
•6 year warranty
•CSA certified for use in Canada and the U.S.
•CSA C828 compliant
Ordering Guide
Non-Programmable
Cat. No. Description
HTC521 3,600W / 240V Digital Non-Programmable
HTC525 4,000W / 240V Digital Non-Programmable
Programmable
Cat. No. Description
HTC621 3,600W / 240V 7 Day Programmable
HTC625 4,000W / 240V 7 Day Programmable
HTC625E 4,000W / 240V 7 Day Programmable with Energy Tracker
54 | CONTROLS TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com
Controls
Digital Electronic Low Voltage Thermostats
Low Voltage Thermostats
Easy-to-use low voltage thermostats with easy to read backlit display for use with central heating / cooling systems.
Basic Model
Cat. No. Description
THC400 Digital Non-Programmable
THC400P Single Program Thermostat
Advanced Programmable Model
Cat. No. Description
THC401 5+2 Day Programmable
THC401A 5+1+1 Day Programmable
Premium Programmable Model
Cat. No. Description
THC403A 5+1+1 Day Programmable
THC403W 7 Day Programmable
Ordering Guide
Basic Model
Features
•24 VAC and millivolt compatible
•Temperature display in Celsius or
Fahrenheit
•Setting range from +5°C to
+ 35°C (41°F to 95°F)
•Uses 2 x AA batteries (not included)
•Heat-Off-Cool and Fan On-Auto
switch
•R, W, Y, G Terminals
•2 year warranty
Advanced Programmable
Model Features
•24 VAC and millivolt compatible
•Temperature display in Celsius or
Fahrenheit
•Setting range from +5°C to
+ 35°C (41°F to 95°F)
•Uses 2 x AA batteries (not included)
•Precise temperature control set in
+/- 0.5°C (0.9°F)
•Built-in light sensor activates back-
light when room is dark
•Usage monitor
•Separate heat/cool program
•Built-in battery backup for clock
and settings
•Pre-comfort recovery system
•Low battery audible alarm
•4 year warranty
Premium Programmable
Model Features
•24 VAC and millivolt compatible
•Temperature display in Celsius or
Fahrenheit
•Setting range from +5°C to
+ 35°C (41°F to 95°F)
•Uses 2 x AA batteries (not included)
•Precise temperature control set in
+/- 0.5°C (0.9°F)
•Built-in light sensor activates
backlight when room is dark
•Usage monitor
•Separate heat/cool program
•Pre-comfort recovery system
•Humidity display and humidifier
control
•Built-in battery backup for clock
and settings
•Filter change indicator
•RC, RH, W, Y, G, H1, H2 Terminals
•4 year warranty
THC400 / TCH400P THC401 THC403W
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com CONTROLS | 55
Controls
Relay Kits & Transformers
TRIAC Electronic Relays
Voltages 48-600VAC
Amps 15, 25, 30 Amps
Heat Sink Type MS-19921 (10–15A)
Type MS15170 (25–30A)
Power Module 10–40A, built-in
Input Signal 3–32Vdc, 24VAC, 6mA per pole at 3Vdc
Modulating Control Yes
Zero-crossing Yes
Construction Epoxy thermally protected for humidity protection, overheating, and protec-
tion in contaminated environments.
Installation Fast adjustment and installation. Must be mounted in well ventilated areas.
All TRIACs are mounted on aluminum heat sinks.
Warranty Two year warranty.
CSA certified.
Specifications
Ordering Guide
Cat. No. Amps Volts Phase
Frequency
Dimensions (W x H x D)
mm (in.)
CCT-15-1-C1 15 48-347VAC 160Hz 101.6 x 120.6 x 66.7
(4 x 4.8 x 2.6)
CCT-15-1-C2-T347
with Transformer
15 48-347VAC 160Hz 119 x 119 x 68.2
(4.7 x 4.7 x 2.7)
CCT-25-1-C1 25 48-347VAC 160Hz 101.6 x 120.6 x 68.2
(4 x 4.8 x 2.7)
CCT-25-1-C2-T347
with Transformer
25 48-347VAC 160Hz 119 x 119 x 68.2
(4.7 x 4.7 x 2.7)
CCT-30-1-C2 30 48-600VAC 160Hz 119 x 119 x 66.6
(4.7 x 4.7 x 2.6)
Note: All dimensions are without enclosures.
C1 enclosures: 102mm x 102mm (4" x 4")
C2 enclosures: 120mm x 120mm (4.7" x 4.7")
TRIAC SSR (Solid State Relay) controllers are recommended for use with proportional temperature controllers where
long-life, reliable ON/OFF control is required for a resistive load.
Features
•No distracting clicking when
engaged
•Suitable for controlling all
processes that have either long
or short-timed cycles
•Keeps temperature closer to
desired set point for maximum
comfort
•Zero-crossing operation and
silent arcless switching
•Cycles once per second; very
fast and quiet
•Life expectations higher than
1 billion operations
•Does not create RFI and will
not effect sensitive electronic
equipment
Applications
•Resistive load heaters, lighting
controls, electronic boilers and
humidifiers, ovens, furnaces,
IC processing equipment and
temperature controls
Cat. No. Description
120VLVR Low Voltage Relay with 24V Transformer Kit – 120V
208VLVR Low Voltage Relay with 24V Transformer Kit – 208V
240VLVR Low Voltage Relay with 24V Transformer Kit – 240V
347VLVR Low Voltage Relay with 24V Transformer Kit – 347V
600VLVR Low Voltage Relay with 24V Transformer Kit – 600V
Cat. No. Description
24VLVR 600/120V, 10/22A Low Voltage Relay less Transformer
24A01G3 Single Relay, 1-6000W @240V with Transformer
24A06G1 Double Relay, 2-6000W @240V with Transformer
Ordering Guide
TO ORDER PLEASE CALL 1-877-362-1101 OR FAX 1-800-668-6665 www.dimplexheating.com 56
The Dimplex Story
Our commitment is to offer the world’s best engineered
and best built electric heating products, with the finest
support available. Over the years our commitment to
product innovation has fostered outstanding in-house
research, development and design excellence. On-going
product development and sourcing of new products that
are essential for the marketplace are a large part of the
reason for Dimplex’s success.
World expertise
•Member of the Glen Dimplex Group of companies of
Dublin, Ireland – the world’s largest manufacturer
of built-in electric heating products for residential,
commercial and industrial heating applications.
•Over 8,500 employees worldwide
•Global sales of over $2.0 billion
•Dimplex North America Limited headquartered in
200,000 square foot manufacturing and distribution
facility in Cambridge, Ontario
•Multiple warehouses located throughout the United
States to ensure fast delivery
Committed to in-house research
and design excellence
•Renowned for on-going product design and expertise in
technological development
•Continuously invests in product and manufacturing
innovation
At Dimplex we are committed to quality, innovation
and the satisfaction of both you and your customer.
Limited Warranty: DIMPLEX® products are tested and inspected prior to shipment and are guaranteed to be free from defects to the purchaser of each new product for a period specified on the applicable
Residential, Commercial and Industrial Electric Heating Products catalog page. Any part, which proves to be defective in material or workmanship under normal use within the warranty period, will be replaced or
repaired without charge. The Company will not be responsible for any expenses incurred for installation, removal from service, or transportation costs. Any such defect should be brought to the attention of the
Company’s office where the product was purchased and is authorized to repair or replace within the terms of the warranty. The warranty will not apply if, in the judgement of the Company, damage or failure has
resulted from accident, alteration, misuse, abuse, incorrect installation, or operation on an incorrect power source. The foregoing is in lieu of all other warranties expressed, implied or statutory, and neither assumes,
nor authorizes any person to assume for it any other obligation, or liability in connection with said product. Since the paint finish can be damaged through use, no warranty applies to the paint finish, except from
manufacturing defects which become apparent within 30 days from the date of installation. DIMPLEX® EXTENDED ELEMENT WARRANTY: All DIMPLEX® BN, LC, LPC, TWH, PLX, DEC, BLAST and ONE elements
are warranted, subject to the above conditions, to be free from defect in material and workmanship for ten years.
Specifications, finishes and dimensions are subject to change and should be taken as a guide only.
Printed in Canada 07/11 LI-944
www.dimplexheating.com
