1
A PART OF
CATALOG
INNERDUCT & CUSTOM ARMOR PRODUCT CATALOG
CPID • Protect-N-Duct™ Innerduct • Single & Dual Wall Kortech® • HDPE Solid Wall • Accessories
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
2
Eastern Wire + Conduit™ products
provide high quality cable protection
to a vast array of fiber optic and
telecommunication industries,
including health care, education
and manufacturing.
Eastern products are made in the
USA from global sourced raw materials.
We have brought together innovation
and engineering in our quality
controlled factories to manufacture
outstanding protective raceways.
Recently, we have introduced several
new products such as Armor-Duct™,
Armor-FP™, Cable-N-Conduit (CIC),
Toneable Duct and Multi-Duct to our
product line.
Eastern Wire + Conduit™ pioneered the
development of specialty protection
identification products and services,
especially with regards to optical
fiber and UTP copper cables.
Due to our dedication to Engineering,
Product Innovation, Quality and
Customer Service Support – we
have earned your trust. Your partner
in raceway protection – Eastern
Wire + Conduit.
Solutions That Work
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
3
Catalog Content and Table of Contents 2
Table of Contents 3
Protect-N-Duct™ – Specifications
Plenum Innerduct & Fittings 4 - 6
Riser Innerduct & Fittings 7 - 9
Multi-Purpose Innerduct 10-11
HDPE SOLID WALL – Specifications
HDPE Solid Wall & Fittings 12 - 14
SDR 11 15
SDR 13.5 16
SDR 15.5 17
SDR 17 18
Schedule 40 19
Schedule 80 20
KORTECH® – Specifications
Single Wall KORTECH® & Fittings 21-22
Dual Wall KORTECH® & Fittings 23-24
Specialty Products & Services

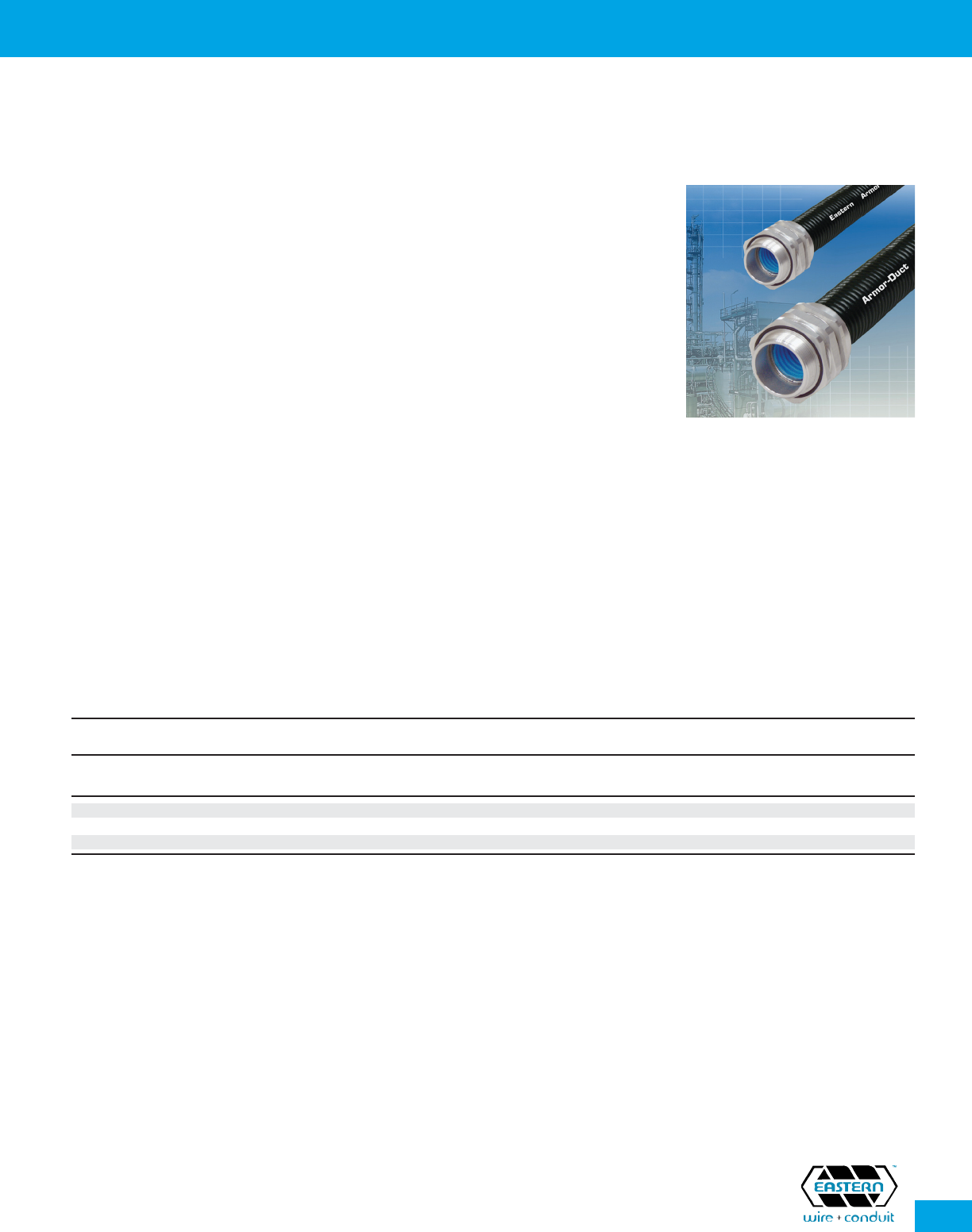

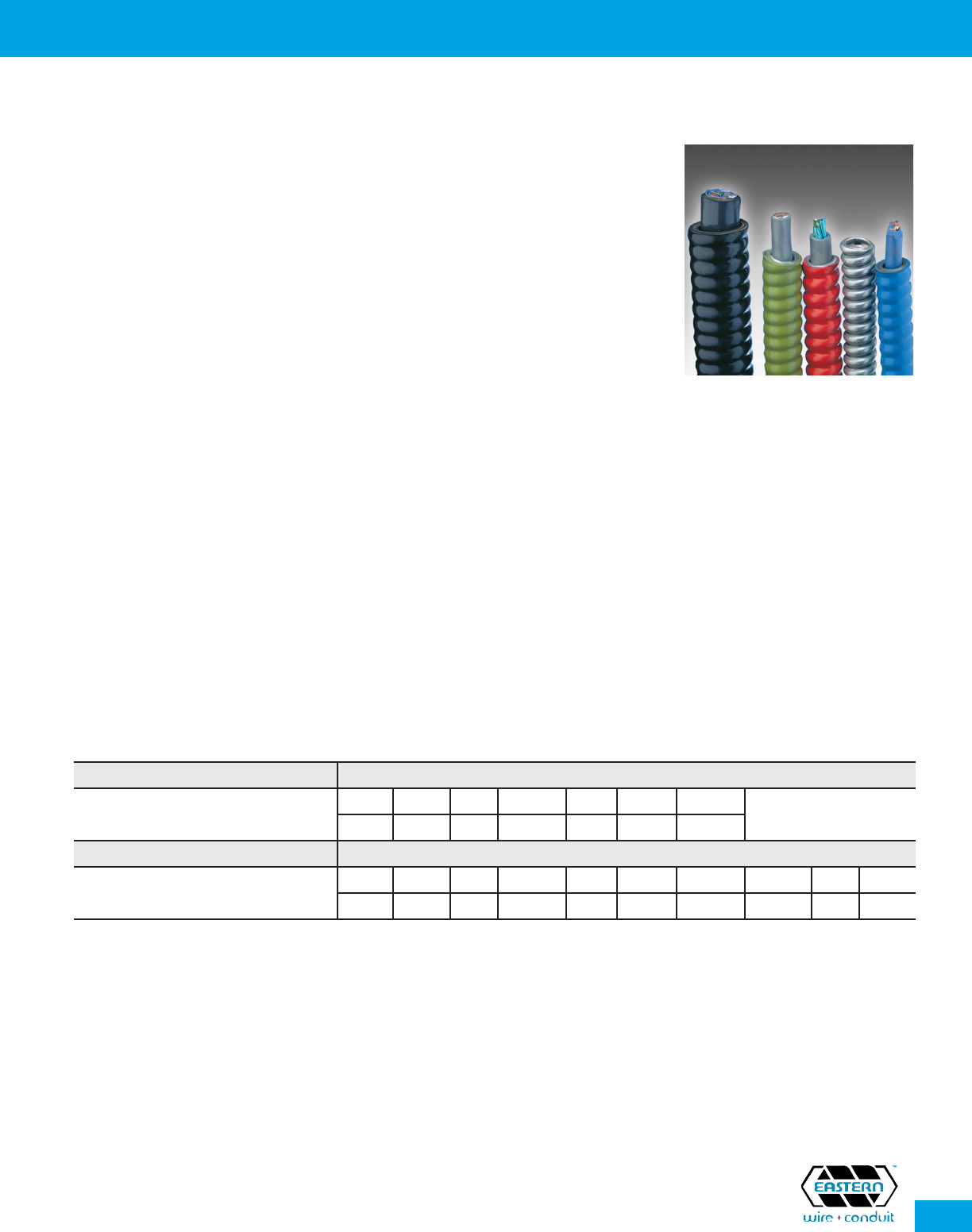

Armor-Duct™ 25
Low Smoke - Zero Halogen 26
CPID 27 - 28
Bundling & Special Packaging 29
Handling and Installation 30
Disclaimer 31
Warranty 31
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
4
Description
• Corrugated exible plenum innerduct rated FT6,
with standard pull tape
• Extremely lightweight, allowing easier handling
and less expensive installation equipment
Application
• Corrugated exible innerduct ETL listed &
CSA certied for applications in Optical Fiber/
Communication Cable Raceway systems
Colors
• Available in orange, white, yellow and blue
Markings
• Eastern Wire + Conduit
• Protect-N-Duct Plenum
• Optical Fiber/Communication Raceway
• FT 6
• ETL logo
• Date of Manufacture
• Sequential length markings
Dimensions

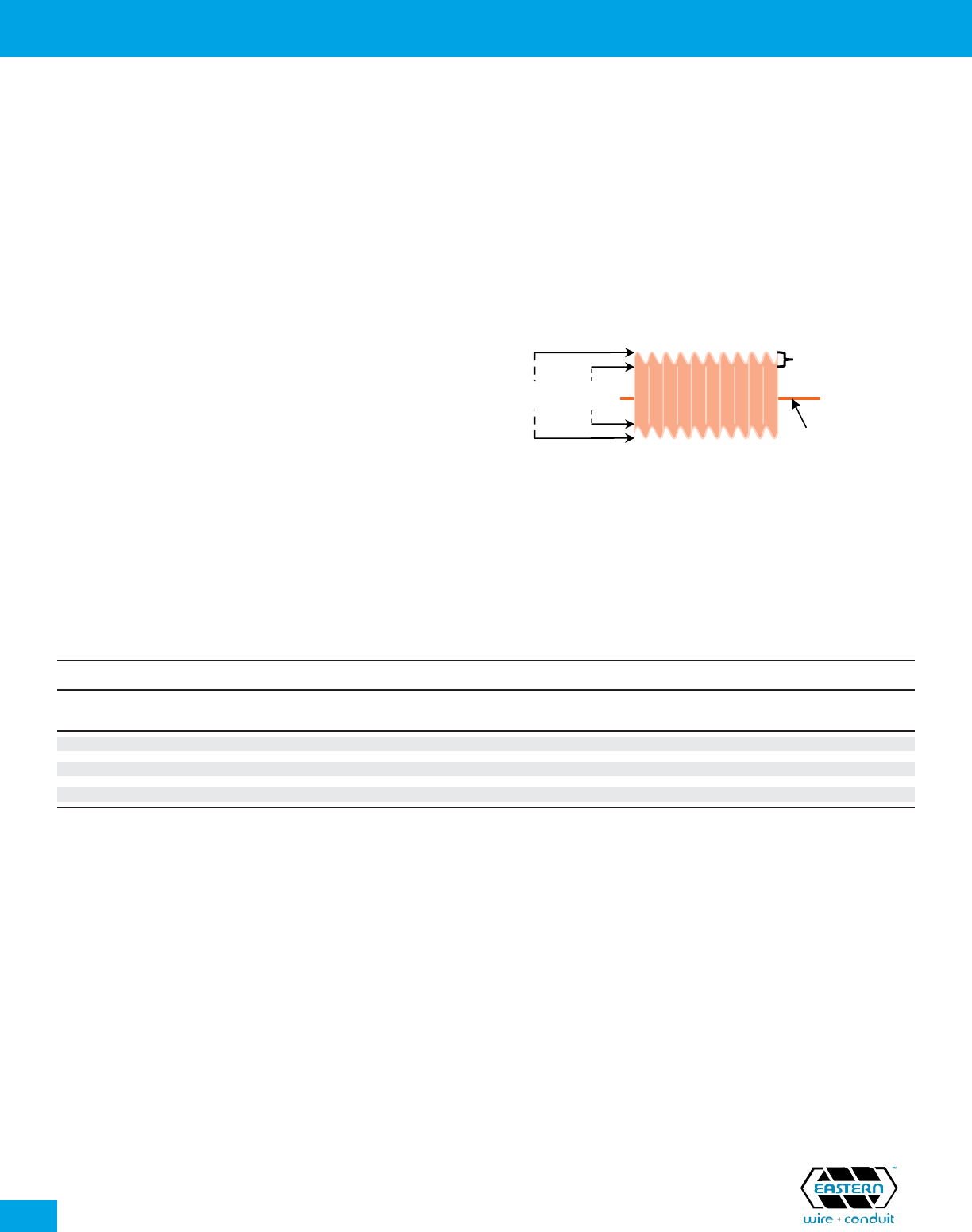

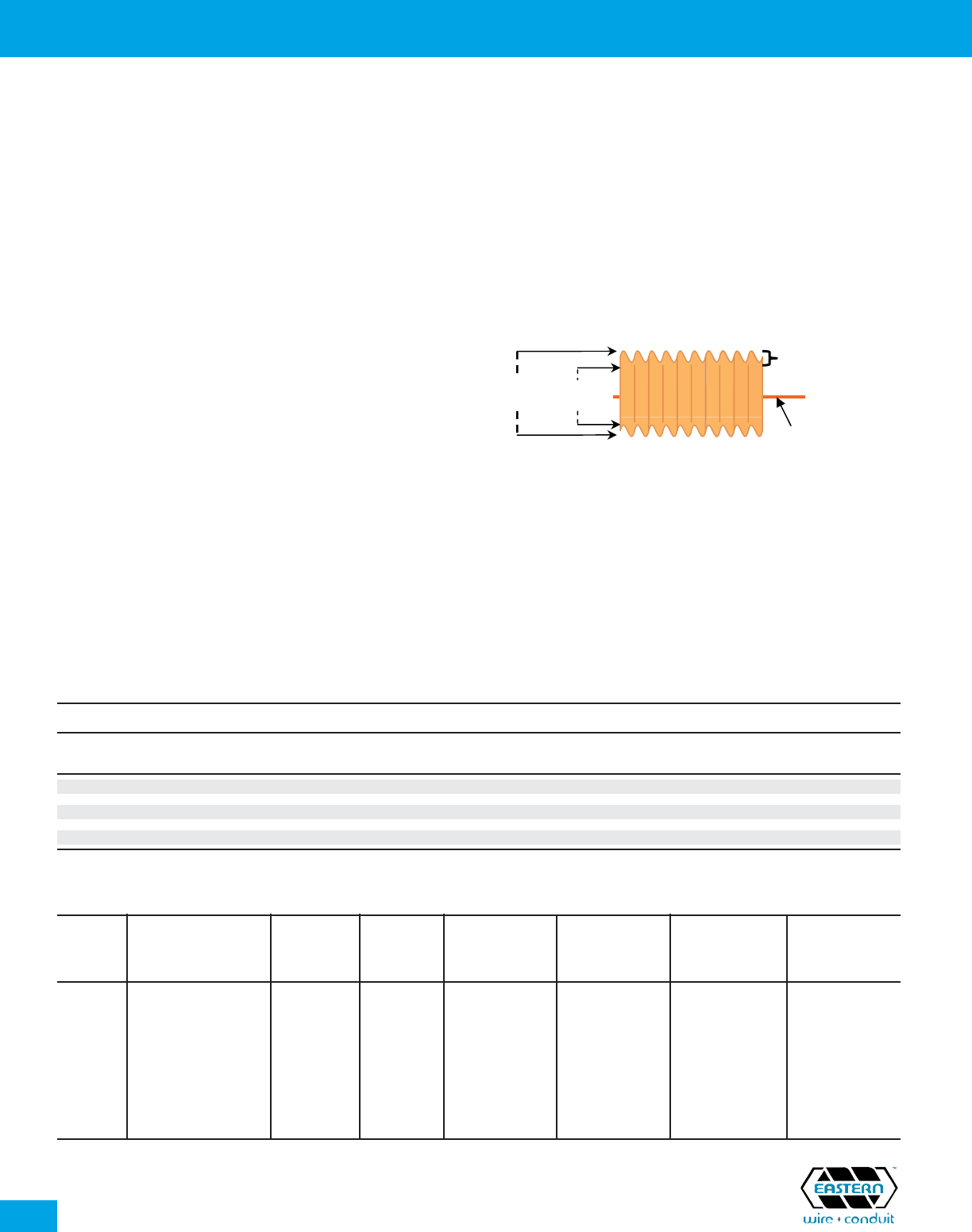

INNERDUCT – PLENUM
Trade
Inside Diameter (I.D.) Outside Diameter (O.D.)
Size in (mm) in. (mm)
3/4” 0.774 - 0.834 (19.66 - 21.18) 1.020 - 1.060 (25.91 - 26.92)
1” 0.999 - 1.059 (25.40 - 26.90) 1.285 - 1.325 (32.64 - 33.65)
1 1/4” 1.328 - 1.392 (33.73 - 35.36) 1.628 - 1.672 (41.35 - 42.47)
1 1/2” 1.558 - 1.622 (39.57 - 41.20) 1.868 - 1.912 (47.45 - 48.56)
2” 2.015 - 2.079 (51.18 - 52.81) 2.323 - 2.387 (59.00 - 60.63)

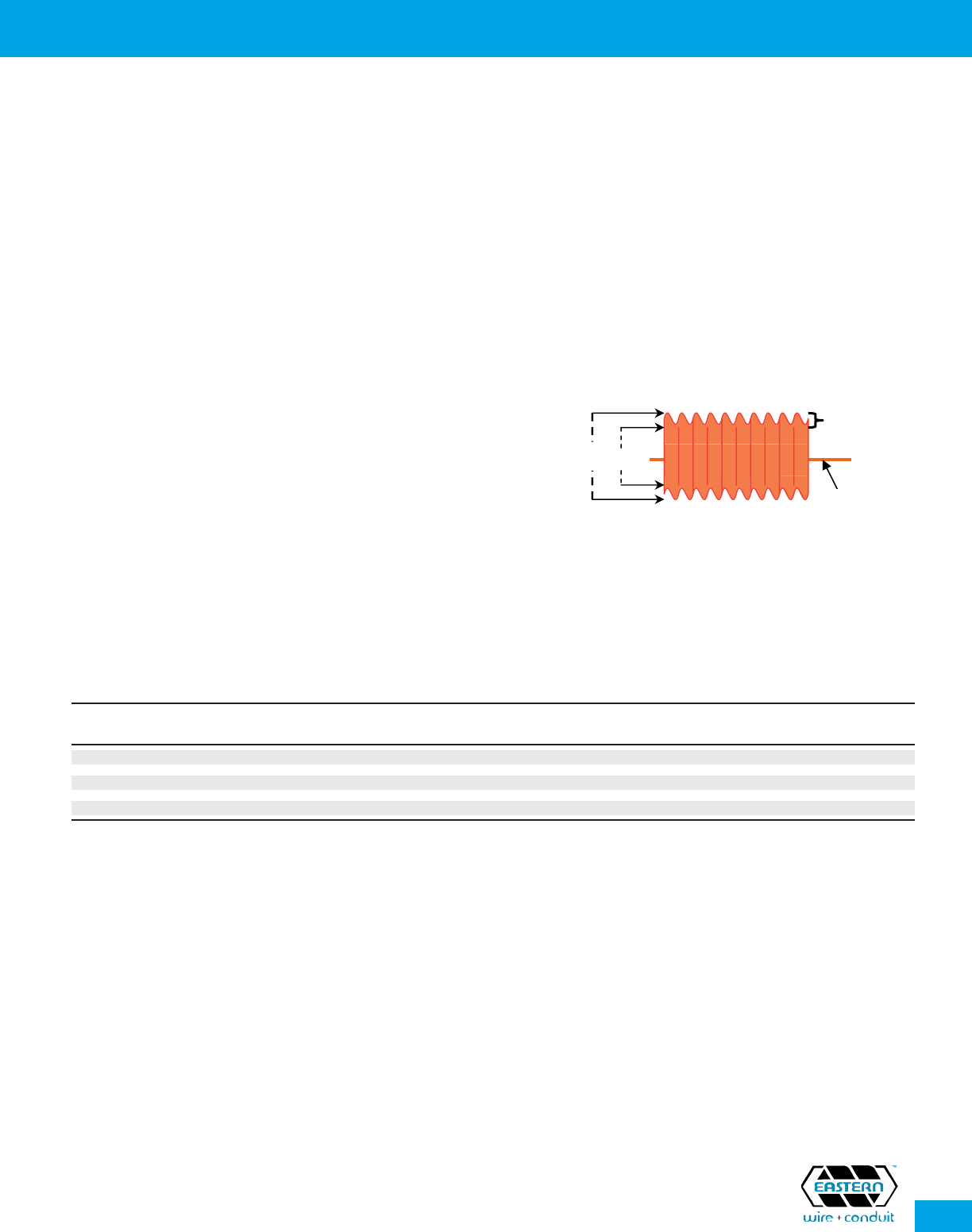

O.D.
Corrugated
Wall
I.D.
Pull
Tape/Rope
Protect-N-Duct™ – Plenum
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
5

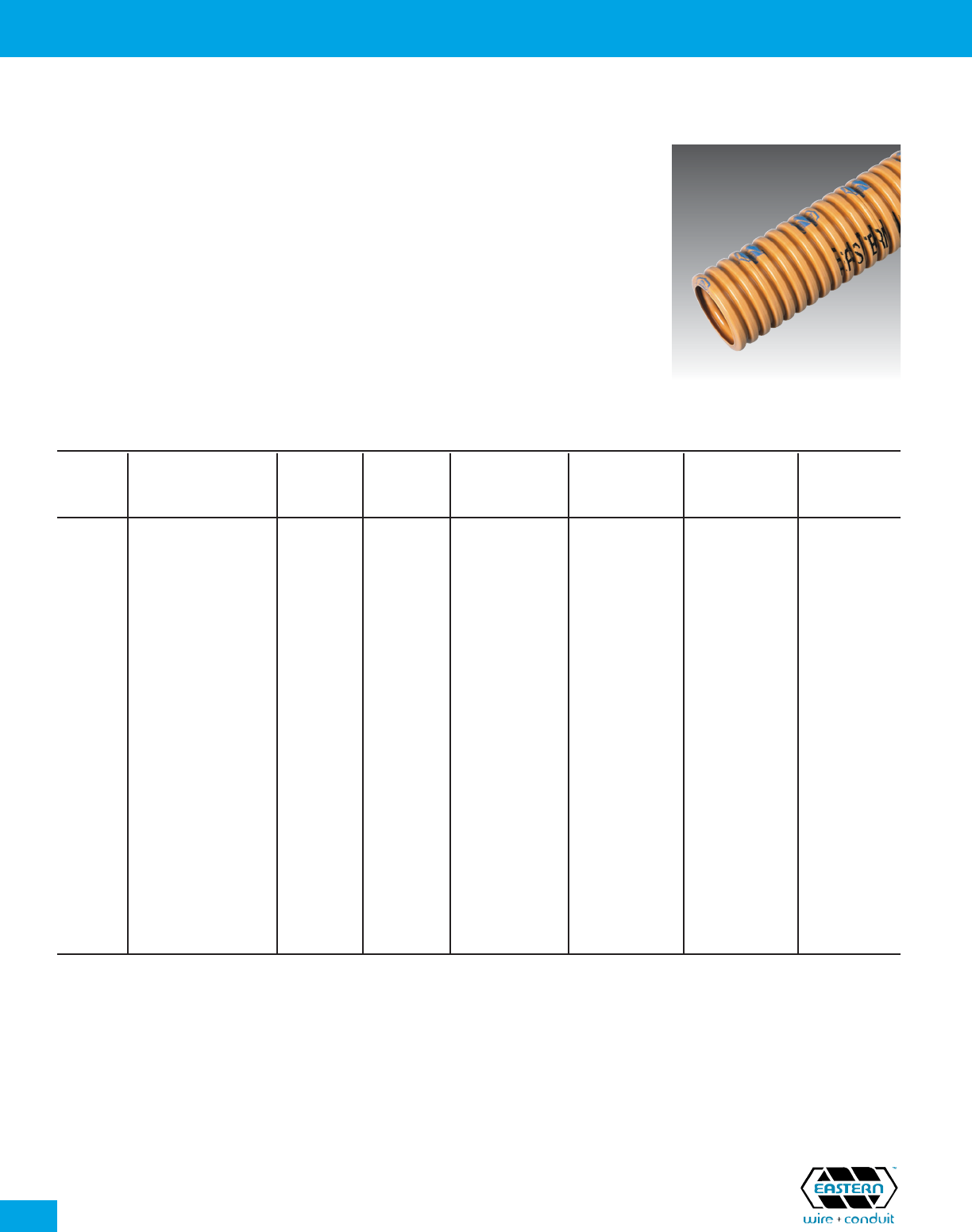

Protect-N-Duct™ – Plenum
Specication Description
• An extremely lightweight non-metallic corrugated exible innerduct
• For use as Raceway for Optical Fiber and Communication Cables
in Plenum applications
Reference & Ratings
• Plenum – FT6 rated
• ETL Listed to UL 2024 (Signaling, Optical Fiber and Communications,
Raceways and Cable Routing Assemblies)
• CSA Certied to CSA C22.2 No. 262-04
(Optical ber and communication cable raceway systems)
INNERDUCT – PLENUM – REELS
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Pull Tape Put-Up Average I.D. Average O.D. Weight Weight
Size (Inches) (Inches) (lbs/foot) (lbs/Full Reel)
3/4” PDPU0750F1000R 200# 1000 0.804 1.040 0.090 170
3/4” PDPU0750F5000R 200# 5000 0.804 1.040 0.090 570
1” PDPU1000F0500R 900# 500 1.029 1.305 0.110 125
1” PDPU1000F1000R 900# 1000 1.029 1.305 0.110 175
1” PDPU1000F2000R 900# 2000 1.029 1.305 0.110 300
1” PDPU1000F2500R 900# 2500 1.029 1.305 0.110 365
1” PDPU1000F3000R 900# 3000 1.029 1.305 0.110 440
1” PDPU1000F5000R 900# 5000 1.029 1.305 0.110 700
1” PDPU1000F8000R 900# 8000 1.029 1.305 0.110 1050
1 1/4” PDPU1250F0500R 900# 500 1.360 1.650 0.175 153
1 1/4” PDPU1250F1000R 900# 1000 1.360 1.650 0.175 255
1 1/4” PDPU1250F1500R 900# 1500 1.360 1.650 0.175 353
1 1/4” PDPU1250F2000R 900# 2000 1.360 1.650 0.175 460
1 1/4” PDPU1250F3200R 900# 3200 1.360 1.650 0.175 685
1 1/4” PDPU1250F4000R 900# 4000 1.360 1.650 0.175 840
1 1/4” PDPU1250F5000R 900# 5000 1.360 1.650 0.175 1015
1 1/2” PDPU1500F0700R 900# 700 1.590 1.890 0.215 231
1 1/2” PDPU1500F1000R 900# 1000 1.590 1.890 0.215 300
1 1/2” PDPU1500F2000R 900# 2000 1.590 1.890 0.215 550
1 1/2” PDPU1500F2500R 900# 2500 1.590 1.890 0.215 656
1 1/2” PDPU1500F4000R 900# 4000 1.590 1.890 0.215 1010
2” PDPU2000F0500R 900# 500 2.047 2.355 0.240 220
2” PDPU2000F0700R 900# 700 2.047 2.355 0.240 268
2” PDPU2000F1000R 900# 1000 2.047 2.355 0.240 350
2” PDPU2000F2000R 900# 2000 2.047 2.355 0.240 630
• Plenum Innerduct is standard Orange or White.
• Special Colors and Put ups are available on request.
• Split Plenum Innerduct is available on request.
• Products in Bold are stock items.
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
6
INNERDUCT – PLENUM – COILS
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Pull Tape Put-Up Average I.D. Average O.D. Weight Weight
Size (Inches) (Inches) (lbs/foot) (lbs/Full Reel)
3/4” PDPU0750F0250C 200# 250 0.804 1.040 0.090 23
3/4” PDPU0750F0500C 200# 500 0.804 1.040 0.090 45
1” PDPU1000F0250C 900# 250 1.029 1.305 0.110 28
1 1/4” PDPU1250F0200C 900# 200 1.360 1.650 0.175 35
1 1/2” PDPU1500F0150C 900# 150 1.590 1.890 0.215 32
1 1/2” PDPU1500F0350C 900# 350 1.590 1.890 0.215 75
2” PDPU2000F0100C 900# 100 2.047 2.355 0.240 24
2” PDPU2000F0250C 900# 250 2.047 2.355 0.240 60
• Specialty Coils are available on request.
INNERDUCT – PLENUM – SNAP COUPLING FITTINGS
Trade Size Part Number Carton Qty
3/4” PFCSP0750 50
1” PFCSP1000 50
1 1/4” PFCSP1250 50
1 1/2” PFCSP1500 40
2” PFCSP2000 15
INNERDUCT – PLENUM – SNAP THREADED TA FITTINGS
Trade Size Part Number Carton Qty
3/4” PFTTP0750 50
1” PFTTP1000 50
1 1/4” PFTTP1250 50
1 1/2” PFTTP1500 50
2” PFTTP2000 25
.
Protect-N-Duct™ – Plenum
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
7
Description
• Corrugated exible riser innerduct rated FT4, with
standard pull rope or tape. Lightweight, allowing
easier handling and less expensive
installation equipment.
Application
• Corrugated exible innerduct UL listed & CSA
certied listed for applications in Optical Fiber/
Communication Cable Raceway systems.
Suitable for use for use as Raceway for Optical
and Communication Cables in vertical runs in a
shaft or between oors.
Colors
• Available in white, orange, yellow, blue, green,
red, and gray.
Markings
• Eastern Wire + Conduit
• Protect-N-Duct Riser
• Optical Fiber/Communication Raceway
• FT 4
• CSA & UL logo
• Date of Manufacture
• Sequential length markings
Dimensions

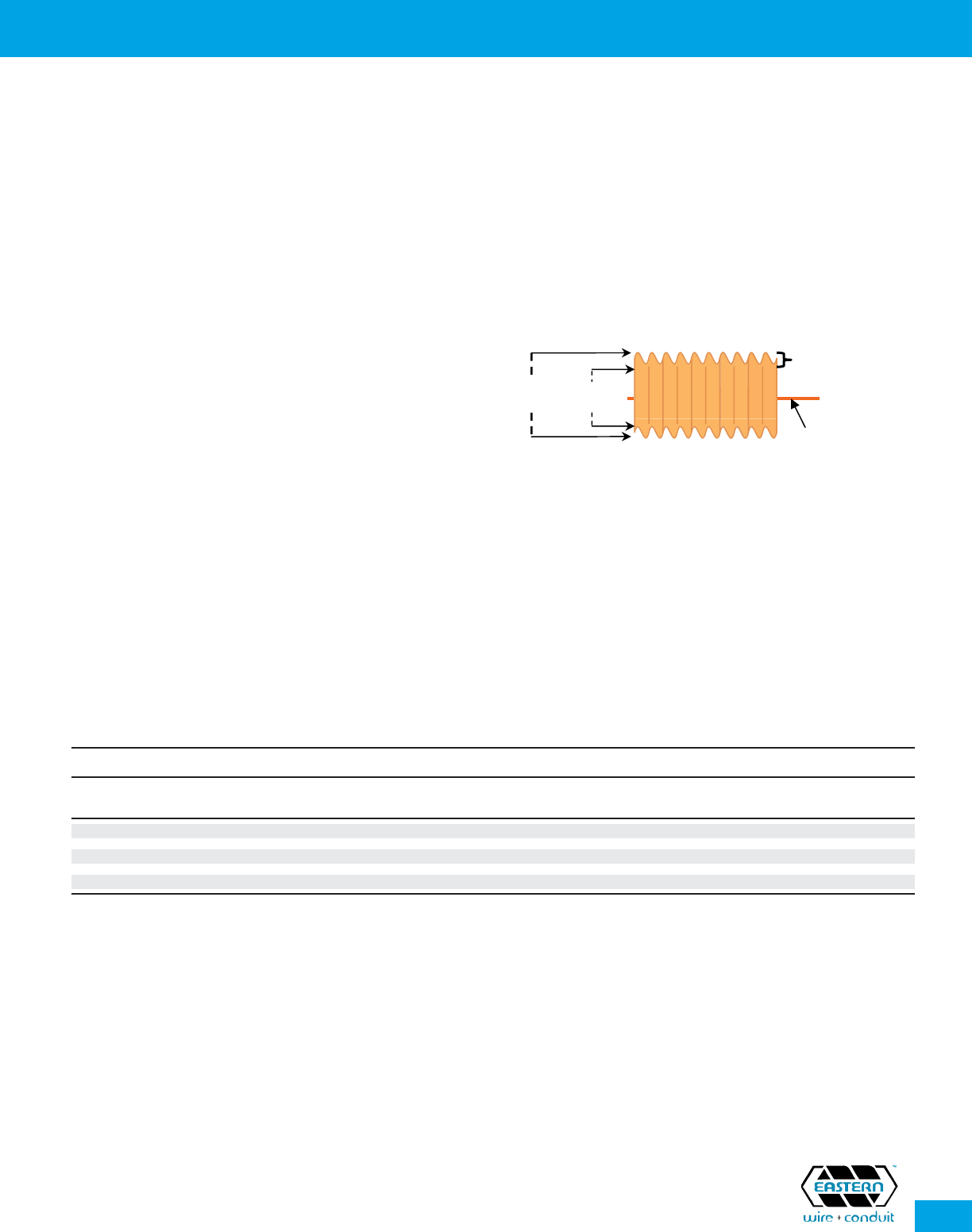

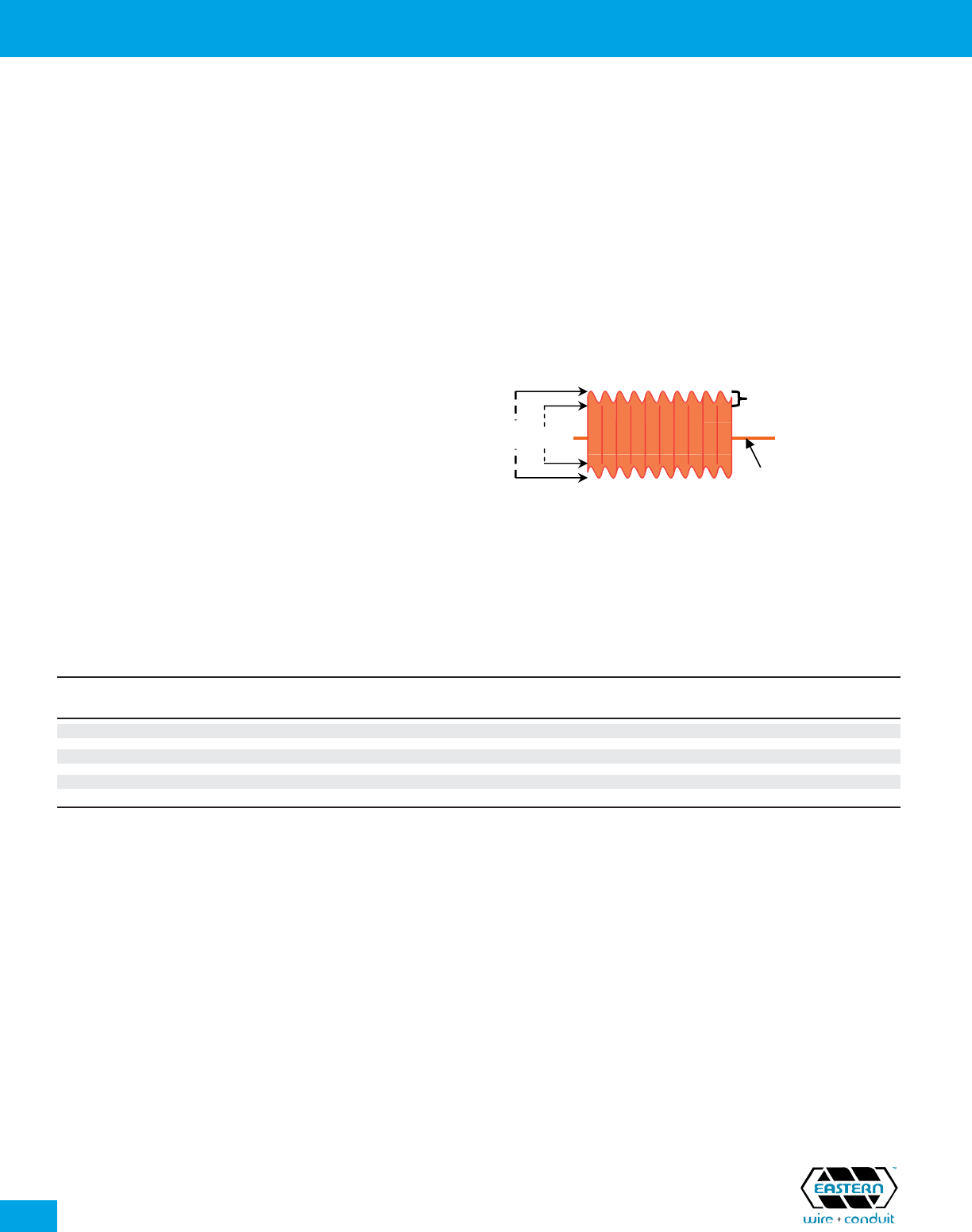

INNERDUCT – RISER
Trade
Inside Diameter (I.D.) Outside Diameter (O.D.)
Size in (mm) in. (mm)
3/4” 0.774 - 0.834 (19.66 - 21.18) 1.020 - 1.060 (25.91 - 26.92)
1” 0.999 - 1.059 (25.40 - 26.90) 1.285 - 1.325 (32.64 - 33.65)
1 1/4” 1.328 - 1.392 (33.73 - 35.36) 1.628 - 1.672 (41.35 - 42.47)
1 1/2” 1.558 - 1.622 (39.57 - 41.20) 1.868 - 1.912 (47.45 - 48.56)
2” 2.015 - 2.079 (51.18 - 52.81) 2.323 - 2.387 (59.00 - 60.63)

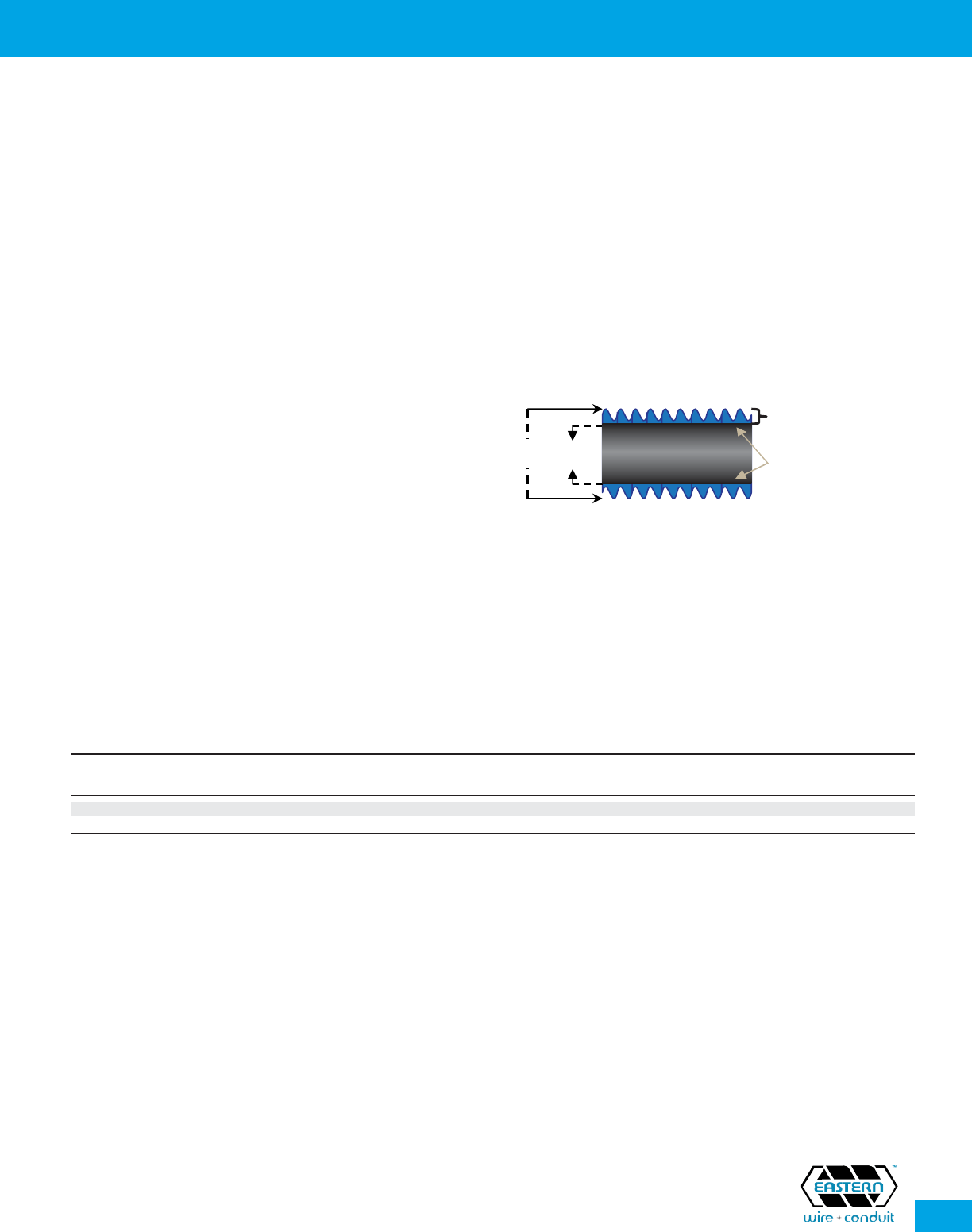

Corrugated
PVC Wall
O.D. I.D.
Pull
Tape/Rope
Corrugated
PVC Wall
O.D. I.D.
Pull
Tape/Rope
Protect-N-Duct™ – Riser
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
8

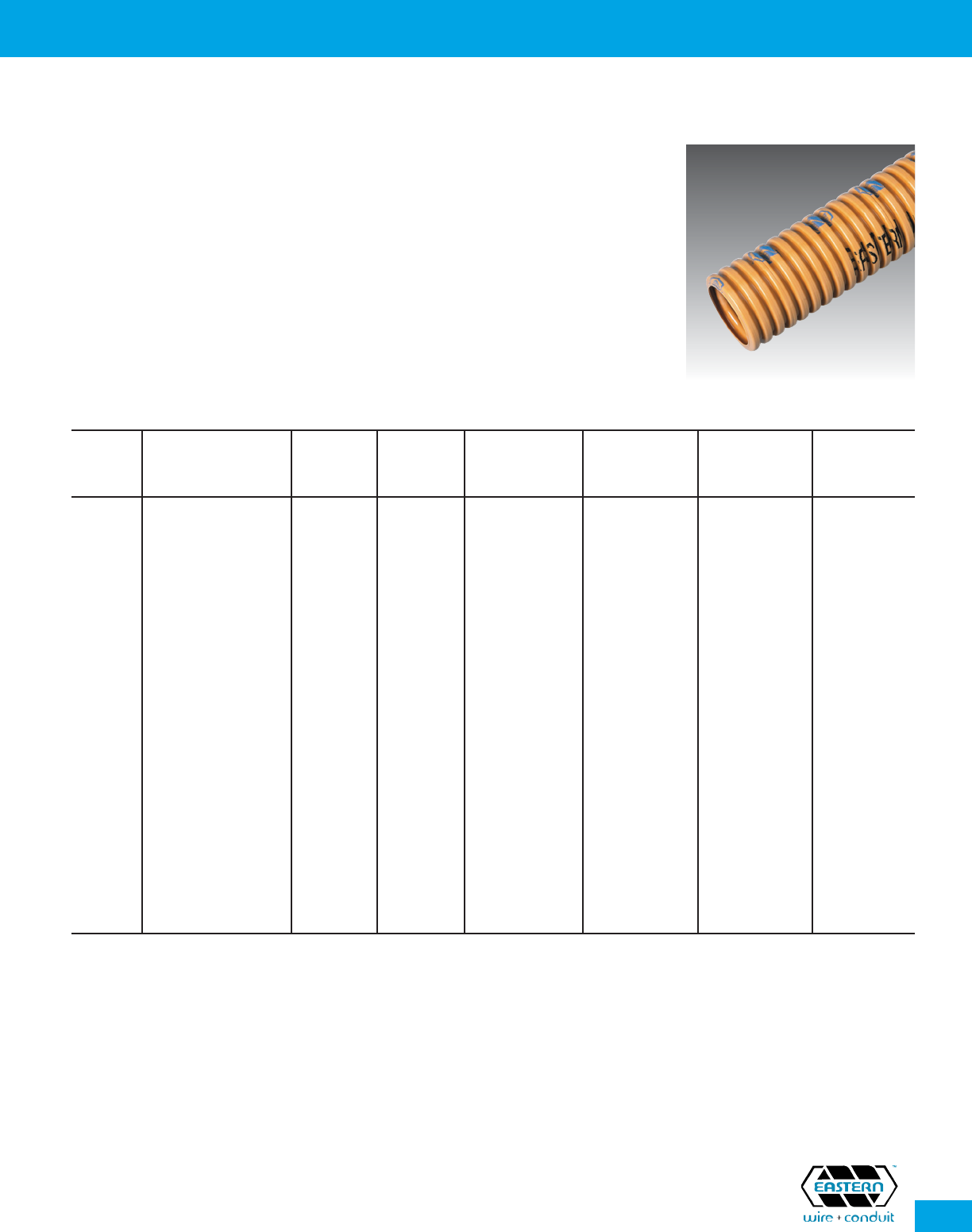

Protect-N-Duct™ – Riser
Specication Description
• A strong and lightweight non-metallic corrugated exible innerduct
• For use as Raceway for Optical Fiber and Communication Cables in
vertical shaft runs or between oors
Reference & Ratings
• Riser – FT4 rated
• UL Listed to 2024 (Signaling, Optical Fiber and Communications,
Raceways and Cable Routing Assemblies)
• CSA Certied to CSA C22.2 No. 262-04
(Optical Fiber and Communication Cable Raceway systems)
INNERDUCT – RISER – REELS
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Pull Tape Put-Up Average I.D. Average O.D. Weight Weight
Size (Inches) (Inches) (lbs/foot) (lbs/Full Reel)
3/4” PDRU0750F1000R 200# 1000 0.804 1.040 0.090 170
3/4” PDRU0750F500R 200# 500 1.029 1.305 0.110 125
1” PDRU1000F1000R 900# 1000 1.029 1.305 0.110 175
1” PDRU1000F2000R 900# 2000 1.029 1.305 0.110 300
1” PDRU1000F2500R 900# 2500 1.029 1.305 0.110 365
1” PDRU1000F3000R 900# 3000 1.029 1.305 0.110 440
1” PDRU1000F5000R 900# 5000 1.029 1.305 0.110 700
1” PDRU1000F8000R 900# 8000 1.029 1.305 0.110 1050
1 1/4” PDRU1250F0500R 900# 500 1.360 1.650 0.175 153
1 1/4” PDRU1250F1000R 900# 1000 1.360 1.650 0.175 255
1 1/4” PDRU1250F1500R 900# 1500 1.360 1.650 0.175 353
1 1/4” PDRU1250F2000R 900# 2000 1.360 1.650 0.175 460
1 1/4” PDRU1250F3200R 900# 3200 1.360 1.650 0.175 685
1 1/4” PDRU1250F4000R 900# 4000 1.360 1.650 0.175 840
1 1/4” PDRU1250F5000R 900# 5000 1.360 1.650 0.175 1015
1 1/2” PDRU1500F0700R 900# 700 1.590 1.890 0.230 245
1 1/2” PDRU1500F1000R 900# 1000 1.590 1.890 0.230 320
1 1/2” PDRU1500F2000R 900# 2000 1.590 1.890 0.230 590
1 1/2” PDRU1500F2500R 900# 2500 1.590 1.890 0.230 706
1 1/2” PDRU1500F4000R 900# 4000 1.590 1.890 0.230 1090
2” PDRU2000F0500R 900# 500 2.047 2.355 0.260 235
2” PDRU2000F0700R 900# 700 2.047 2.355 0.260 289
2” PDRU2000F1000R 900# 1000 2.047 2.355 0.260 380
2” PDRU2000F2000R 900# 2000 2.047 2.355 0.260 690
• Riser Innerduct is standard Orange.
• Special Colors and Put ups are available on request.
• For halogen free products contact your Sales Agent or customer service.
• Products in Bold are stock items.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
9
INNERDUCT – RISER – COILS
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Pull Tape Put-Up Average I.D. Average O.D. Weight Weight
Size (Inches) (Inches) (lbs/foot) (lbs/Full Reel)
3/4” PDRU0750F0250C 200# 250 0.804 1.040 0.090 23
3/4” PDRU0750F0500C 200# 500 0.804 1.040 0.090 45
1” PDRU1000F0250C 900# 250 1.029 1.305 0.110 28
1 1/4” PDRU1250F0200C 900# 200 1.360 1.650 0.175 35
1 1/2” PDRU1500F0150C 900# 150 1.590 1.890 0.230 35
1 1/2” PDRU1500F0350C 900# 350 1.590 1.890 0.230 81
2” PDRU2000F0100C 900# 100 2.047 2.355 0.260 26
2” PDRU2000F0250C 900# 250 2.047 2.355 0.260 65
• Specialty Coils are available on request.
INNERDUCT – RISER – SNAP COUPLING FITTINGS
Trade Size Part Number Carton Qty
3/4” PFCSR0750 50
1” PFCSR1000 50
1 1/4” PFCSR1250 50
1 1/2” PFCSR1500 40
2” PFCSR2000 15
INNERDUCT – RISER – SNAP THREADED TA FITTINGS
Trade Size Part Number Carton Qty
3/4” PFTTR0750 50
1” PFTTR1000 50
1 1/4” PFTTR1250 50
1 1/2” PFTTR1500 50
2” PFTTR2000 25
.
Protect-N-Duct™ – Riser
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
10
INNERDUCT – MULTI-PURPOSE – COILS
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Pull Tape Put-Up Average I.D. Average O.D. Weight Weight
Size (Inches) (Inches) (lbs/foot) (lbs/Full Reel)
3/4” PDGU0750F0250C 200# 250 0.804 1.040 0.090 23
3/4” PDGU0750F0500C 200# 500 0.804 1.040 0.090 45
1” PDGU1000F0250C 900# 250 1.029 1.305 0.110 28
1 1/4” PDGU1250F0200C 900# 200 1.360 1.650 0.175 35
1 1/2” PDGU1500F0150C 900# 150 1.590 1.890 0.230 35
1 1/2” PDGU1500F0350C 900# 350 1.590 1.890 0.230 81
2” PDGU2000F0100C 900# 100 2.047 2.355 0.260 26
2” PDGU2000F0250C 900# 250 2.047 2.355 0.260 65
• Specialty Coils are available on request.
Description
• Corrugated exible multi-purpose innerduct, with
standard pull rope or tape. Lightweight, allowing
easier handling and less expensive
installation equipment.
Application
• Corrugated exible innerduct UL listed &
CSA certied for applications in Optical Fiber/
Communication Cable Raceway systems.
Suitable for use for use as Raceway for Optical
and Communication Cables in vertical runs in a
shaft or between oors.
Colors
• Available in gray.
Markings
• Eastern Wire + Conduit
• Protect-N-Duct Multi-Purpose
• Optical Fiber/Communication Raceway
• CSA & UL logo
• Date of Manufacture
• Sequential length markings
Dimensions
INNERDUCT – RISER
Trade
Inside Diameter (I.D.) Outside Diameter (O.D.)
Size in (mm) in. (mm)
3/4” 0.774 - 0.834 (19.66 - 21.18) 1.020 - 1.060 (25.91 - 26.92)
1” 0.999 - 1.059 (25.40 - 26.90) 1.285 - 1.325 (32.64 - 33.65)
1 1/4” 1.328 - 1.392 (33.73 - 35.36) 1.628 - 1.672 (41.35 - 42.47)
1 1/2” 1.558 - 1.622 (39.57 - 41.20) 1.868 - 1.912 (47.45 - 48.56)
2” 2.015 - 2.079 (51.18 - 52.81) 2.323 - 2.387 (59.00 - 60.63)
Corrugated
PVC Wall
O.D. I.D.
Pull
Tape/Rope
Corrugated
PVC Wall
O.D. I.D.
Pull
Tape/Rope
Protect-N-Duct™ – Multi-Purpose
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
11
Protect-N-Duct™ – Multi-Purpose
Specication Description
• A strong and lightweight non-metallic corrugated exible innerduct
• For use as Raceway for Optical Fiber and Communication Cables in
vertical shaft runs or between oors
Reference & Ratings
• UL Listed to 2024 (Signaling, Optical Fiber and Communications,
Raceways and Cable Routing Assemblies)
• CSA Certied to CSA C22.2 No. 262-04
(Optical Fiber and Communication Cable Raceway systems)
INNERDUCT – MULTI-PURPOSE – REELS
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Pull Tape Put-Up Average I.D. Average O.D. Weight Weight
Size (Inches) (Inches) (lbs/foot) (lbs/Full Reel)
3/4” PDGU0750F1000R 200# 1000 0.804 1.040 0.090 170
3/4” PDGU0750F500R 200# 500 1.029 1.305 0.110 125
1” PDGU1000F1000R 900# 1000 1.029 1.305 0.110 175
1” PDGU1000F2000R 900# 2000 1.029 1.305 0.110 300
1” PDGU1000F2500R 900# 2500 1.029 1.305 0.110 365
1” PDGU1000F3000R 900# 3000 1.029 1.305 0.110 440
1” PDGU1000F5000R 900# 5000 1.029 1.305 0.110 700
1” PDGU1000F8000R 900# 8000 1.029 1.305 0.110 1050
1 1/4” PDGU1250F0500R 900# 500 1.360 1.650 0.175 153
1 1/4” PDGU1250F1000R 900# 1000 1.360 1.650 0.175 255
1 1/4” PDGU1250F1500R 900# 1500 1.360 1.650 0.175 353
1 1/4” PDGU1250F2000R 900# 2000 1.360 1.650 0.175 460
1 1/4” PDGU1250F3200R 900# 3200 1.360 1.650 0.175 685
1 1/4” PDGU1250F4000R 900# 4000 1.360 1.650 0.175 840
1 1/4” PDGU1250F5000R 900# 5000 1.360 1.650 0.175 1015
1 1/2” PDGU1500F0700R 900# 700 1.590 1.890 0.230 245
1 1/2” PDGU1500F1000R 900# 1000 1.590 1.890 0.230 320
1 1/2” PDGU1500F2000R 900# 2000 1.590 1.890 0.230 590
1 1/2” PDGU1500F2500R 900# 2500 1.590 1.890 0.230 706
1 1/2” PDGU1500F4000R 900# 4000 1.590 1.890 0.230 1090
2” PDGU2000F0500R 900# 500 2.047 2.355 0.260 235
2” PDGU2000F0700R 900# 700 2.047 2.355 0.260 289
2” PDGU2000F1000R 900# 1000 2.047 2.355 0.260 380
2” PDGU2000F2000R 900# 2000 2.047 2.355 0.260 690
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
12
Specication Description
• Smooth solid wall
• Can be trenched or bi-directional drilled
• Eliminates need for bends and elbows
• Large master reels requiring less joints for improved system integrity
• Available in SCH 40 & SCH 80, SDR 17, 15.5, 13.5, 11 & 9
• Available with a ribbed inner wall or an inner wall with a friction
reducing additive
• Available with Pull Tape
HIGH DENSITY POLYETHYLENE PIPE – SDR 9
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Average O.D. Average I.D. Wall Weight
Size (Inches) (Inches) (Inches) (lbs/foot)
1” PDVN1000 1.315 1.003 0.146 0.235
1 1/4” PDVN1250 1.660 1.270 0.184 0.372
1 1/2” PDVN1500 1.900 1.452 0.211 0.488
2” PDVN2000 2.375 1.816 0.264 0.762
2 1/2” PDVN2500 2.875 2.198 0.319 1.117
3” PDVN3000 3.500 2.676 0.389 1.655
4” PDVN4000 4.500 3.440 0.500 2.737
Dimensional Specifications conform to ASTM D3035 and F2160 for O.D. controlled pipe
Available with 200#, 400#, 900#, 1250# or 1800# Pull Tape
HIGH DENSITY POLYETHYLENE PIPE – SDR 11
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Average O.D. Average I.D. Wall Weight
Size (Inches) (Inches) (Inches) (lbs/foot)
1/2” PDXN0500 0.840 0.667 0.076 0.085
3/4” PDXN0750 1.050 0.839 0.095 0.130
1” PDXN1000 1.315 1.051 0.120 0.200
1 1/4” PDXN1250 1.660 1.338 0.151 0.314
1 1/2” PDXN1500 1.900 1.534 0.173 0.409
2” PDXN2000 2.375 1.917 0.216 0.639
2 1/2” PDXN2500 2.875 2.321 0.261 0.936
3” PDXN3000 3.500 2.825 0.318 1.387
4” PDXN4000 4.500 3.633 0.409 2.293
5” PDXN5000 5.562 4.490 0.506 3.505
Dimensional Specifications conform to ASTM D3035 and F2160 for O.D. controlled pipe
Available with 200#, 400#, 900#, 1250# or 1800# Pull Tape
HDPE Solid Wall
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
13
HDPE Solid Wall
HIGH DENSITY POLYETHYLENE PIPE – SDR 13.5
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Average O.D. Average I.D. Wall Weight
Size (Inches) (Inches) (Inches) (lbs/foot)
1/2” PDYN0500 0.840 0.696 0.062 0.072
3/4” PDYN0750 1.050 0.874 0.078 0.110
1” PDYN1000 1.315 1.100 0.097 0.169
1 1/4” PDYN1250 1.660 1.394 0.123 0.264
1 1/2” PDYN1500 1.900 1.599 0.141 0.343
2” PDYN2000 2.375 2.002 0.176 0.531
2 1/2” PDYN2500 2.875 2.424 0.213 0.778
3” PDYN3000 3.500 2.951 0.259 1.153
4” PDYN4000 4.500 3.794 0.333 1.906
5” PDYN5000 5.562 4.689 0.412 2.912
Dimensional Specifications conform to ASTM D3035 and F2160 for O.D. controlled pipe. Available with 200#, 400#, 900#, 1250# or 1800# Pull
Tape.
HIGH DENSITY POLYETHYLENE PIPE – SDR 15.5
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Average O.D. Average I.D. Wall Weight
Size (Inches) (Inches) (Inches) (lbs/foot)
3/4” PDZN0750 1.050 0.895 0.068 0.098
1” PDZN1000 1.315 1.147 0.084 0.151
1 1/4” PDZN1250 1.660 1.426 0.107 0.235
1 1/2” PDZN1500 1.900 1.635 0.123 0.305
2” PDZN2000 2.375 2.049 0.153 0.469
3” PDZN3000 3.500 3.021 0.226 1.105
4” PDZN4000 4.500 3.885 0.290 1.678
5” PDZN5000 5.562 4.801 0.359 2.563
Dimensional Specifications conform to ASTM D3035 and F2160 for O.D. controlled pipe. Available with 200#, 400#, 900#, 1250# or 1800# Pull
Tape.
HIGH DENSITY POLYETHYLENE PIPE – SDR 17
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Average O.D. Average I.D. Wall Weight
Size (Inches) (Inches) (Inches) (lbs/foot)
3/4” PDUN0750 1.050 0.906 0.062 0.092
1” PDUN1000 1.315 1.140 0.077 0.139
1 1/4” PDUN1250 1.660 1.445 0.098 0.217
1 1/2” PDUN1500 1.900 1.656 0.112 0.282
2” PDUN2000 2.375 2.095 0.140 0.433
Dimensional Specifications conform to ASTM D3035 and F2160 for O.D. controlled pipe. Available with 200#, 400#, 900#, 1250# or 1800# Pull
Tape
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
14
HIGH DENSITY POLYETHYLENE PIPE – Schedule 40
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Average O.D. Average I.D. Wall Weight
Size (Inches) (Inches) (Inches) (lbs/foot)
3/4” PDAN0750 1.050 0.804 0.113 0.148
1” PDAN1000 1.315 1.029 0.133 0.218
1 1/4” PDAN1250 1.660 1.360 0.140 0.295
1 1/2” PDAN1500 1.900 1.590 0.145 0.352
2” PDAN2000 2.375 2.047 0.154 0.472
2 1/2” PDAN2500 2.875 2.445 0.203 0.774
3” PDAN3000 3.500 3.042 0.216 0.974
4” PDAN4000 4.500 3.896 0.285 1.649
5” PDAN5000 5.562 5.046 0.258 1.904
Dimensional Specifications conform to ASTM D3035 and F2160 for O.D. controlled pipe. Available with 200#, 400#, 900#, 1250# or 1800# Pull
Tape.
HIGH DENSITY POLYETHYLENE PIPE – Schedule 80
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Average O.D. Average I.D. Wall Weight
Size (Inches) (Inches) (Inches) (lbs/foot)
3/4” PDBN0750 1.050 0.722 0.164 0.189
1” PDBN1000 1.315 0.937 0.189 0.277
1 1/4” PDBN1250 1.660 1.255 0.191 0.384
1 1/2” PDBN1500 1.900 1.476 0.200 0.465
2” PDBN2000 2.375 1.913 0.218 0.644
2 1/2” PDBN2500 2.875 2.290 0.276 0.983
3” PDBN3000 3.500 2.864 0.300 1.316
4” PDBN4000 4.500 3.786 0.337 1.950
5” PDBN5000 5.562 4.812 0.375 2.621
6” PDBN6000 6.625 5.507 0.476 3.876
Dimensional Specifications conform to ASTM D3035 and F2160 for O.D. controlled pipe. Available with 200#, 400#, 900#, 1250# or 1800# Pull
Tape.
HDPE Solid Wall
COMPRESSION COUPLING FITTINGS
Trade Size Part Number Carton Qty
1/2” PFCHC0500 As required
3/4” PFCHC0750 As required
1” PFCHC1000 As required
1 1/4” PFCHC1250 As required
1 1/2” PFCHC1500 As required
2” PFCHC2000 As required
3” PFCHC3000 As required
COMPRESSION PLUG
Trade Size Part Number Carton Qty
1/2” PFPHC0500 As required
3/4” PFPHC0750 As required
1” PFPHC1000 As required
1 1/4” PFPHC1250 As required
1 1/2” PFPHC1500 As required
2” PFPHC2000 As required
3” PFPHC3000 As required
.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
15
Description
• A multi-purpose smooth solid wall continuous
length conduit.
Material
• High density polyethylene (HDPE) resin.
Certication
• Under Eastern’s Quality Assurance System.
Colors
• Available in a variety of colors.
Markings
• Eastern Wire + Conduit
• HDPE SDR 11
• Date of Manufacture
• Sequential length markings (May be altered
upon request)
Durability
• HDPE provides a conduit of high tensile and
compression strength.
Availability
• HDPE SDR 11 conduit is available in 4
inner-wall forms:
• SMOOTH
• RIBBED
• ENHANCED smooth
• ENHANCED ribbed – available in sizes 1” – 2”
Additives
• UV stabilization additive
• Friction reducing additive in PE compound
Dimensions
• Dimensions for this product as per ASTM D 3035.
Nominal Size
Outside Diameter (O.D.) Wall Thickness
in (mm) in (mm) in. (mm)
1/2 (16) 0.836 - 0.844 (21.24 - 21.44) 0.076 - 0.096 (1.93 - 2.44)
3/4 (21) 1.046 - 1.054 (26.60 - 26.80) 0.095 - 0.115 (2.41 - 2.92)
1 (27) 1.310 - 1.320 (33.27 - 33.53) 0.120 - 0.140 (3.05 - 3.56)
1 1/4” (35) 1.655 - 1.665 (42.07 - 42.33) 0.151 - 0.171 (3.84 - 4.35)
1 1/2” (41) 1.894 - 1.906 (48.15 - 48.45) 0.173 - 0.194 (4.39 - 4.92)
2 (53) 2.369 - 2.381 (60.15 - 60.45) 0.216 - 0.242 (5.49 - 6.15)
3 (78) 3.492 - 3.508 (88.70 - 89.10) 0.318 - 0.356 (8.08 - 9.05)
4 (103) 4.491 - 4.509 (114.07 - 114.53) 0.409 - 0.458 (10.39 - 11.63)
*Some conduit ovality may occur.
HDPE – Solid Wall SDR 11 Specifications
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
16
Description
• A multi-purpose smooth solid wall continuous
length conduit.
Material
• High density polyethylene (HDPE) resin.
Certication
• Under Eastern’s Quality Assurance System.
Colors
• Available in a variety of colors.
Markings
• Eastern Wire + Conduit
• HDPE SDR 13.5
• Date of Manufacture
• Sequential length markings (May be altered
upon request)
Durability
• HDPE provides a conduit of high tensile and
compression strength.
Availability
• HDPE SDR 11 conduit is available in 4
inner-wall forms:
• SMOOTH
• RIBBED
• ENHANCED smooth
• ENHANCED ribbed – available in sizes 1” – 2”
Additives
• UV stabilization additive
• Friction reducing additive in PE compound
Dimensions
• Dimensions for this product as per ASTM D 3035.
Trade
Inside Diameter (I.D.) Outside Diameter (O.D.)
Size in (mm) in. (mm)
1/2 (16) 0.836 - 0.844 (21.24 - 21.44) 0.076 - 0.096 (1.93 - 2.44)
3/4 (21) 1.046 - 1.054 (26.60 - 26.80) 0.078 - 0.098 (1.98 - 2.49)
1 (27) 1.310 - 1.320 (33.27 - 33.53) 0.097 - 0.117 (2.46 - 2.97)
1 1/4” (35) 1.655 - 1.665 (42.07 - 42.33) 0.123 - 0.143 (3.12 - 3.63)
1 1/2” (41) 1.894 - 1.906 (48.15 - 48.45) 0.141 - 0.161 (3.58 - 4.09)
2 (53) 2.369 - 2.381 (60.15 - 60.45) 0.176 - 0.197 (4.47 - 5.00)
3 (78) 3.492 - 3.508 (88.70 - 89.10) 0.259 - 0.290 (6.58 - 7.37)
4 (103) 4.491 - 4.509 (114.07 - 114.53) 0.333 - 0.373 (8.46 - 9.48)
*Some conduit ovality may occur.
HDPE – Solid Wall SDR 13.5 Specifications
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
17
HDPE – Solid Wall SDR 15.5 Specifications
Description
• A multi-purpose smooth solid wall continuous
length conduit.
Material
• High density polyethylene (HDPE) resin.
Certication
• Under Eastern’s Quality Assurance System.
Colors
• Available in a variety of colors.
Markings
• Eastern Wire + Conduit
• HDPE SDR 15.5
• Date of Manufacture
• Sequential length markings (May be altered
upon request)
Durability
• HDPE provides a conduit of high tensile and
compression strength.
Availability
• HDPE SDR 15.5 conduit is available in 4
inner-wall forms:
• SMOOTH
• RIBBED
• ENHANCED smooth
• ENHANCED ribbed – available in sizes 1” – 2”
Additives
• UV stabilization additive
• Friction reducing additive in PE compound
Dimensions
• Dimensions for this product as per ASTM D 3035.
Nominal Size
Outside Diameter (O.D.) Wall Thickness
in (mm) in (mm) in. (mm)
3/4 (21) 1.046 - 1.054 (26.60 - 26.80) 0.068 - 0.088 (1.73 - 2.24)
1 (27) 1.310 - 1.320 (33.27 - 33.53) 0.084 - 0.104 (2.13 - 2.64)
1 1/4” (35) 1.655 - 1.665 (42.07 - 42.33) 0.107 - 0.127 (2.72 - 3.23)
1 1/2” (41) 1.894 - 1.906 (48.15 - 48.45) 0.123 - 0.143 (3.12 - 3.63)
2 (53) 2.369 - 2.381 (60.15 - 60.45) 0.153 - 0.173 (3.89 - 4.40)
3 (78) 3.492 - 3.508 (88.70 - 89.10) 0.226 - 0.253 (5.74 - 6.43)
4 (103) 4.491 - 4.509 (114.07 - 114.53) 0.290 - 0.325 (7.37 - 8.26)
*Some conduit ovality may occur.
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
18
HDPE – Solid Wall SDR 17 Specifications
Description
• A multi-purpose smooth solid wall continuous
length conduit.
Material
• High density polyethylene (HDPE) resin.
Certication
• Under Eastern’s Quality Assurance System.
Colors
• Available in a variety of colors.
Markings
• Eastern Wire + Conduit
• HDPE SDR 17
• Date of Manufacture
• Sequential length markings (May be altered
upon request)
Durability
• HDPE provides a conduit of high tensile and
compression strength.
Availability
• HDPE SDR 17 conduit is available in 4
inner-wall forms:
• SMOOTH
• RIBBED
• ENHANCED smooth
• ENHANCED ribbed – available in sizes 1” – 2”
Additives
• UV stabilization additive
• Friction reducing additive in PE compound
Dimensions
• Dimensions for this product as per ASTM D 3035.
Nominal Size
Outside Diameter (O.D.) Wall Thickness
in (mm) in (mm) in. (mm)
3/4 (21) 1.046 - 1.054 (26.60 - 26.80) 0.062 - 0.082 (1.57 - 2.08)
1 (27) 1.310 - 1.320 (33.27 - 33.53) 0.077 - 0.097 (1.96 - 2.47)
1 1/4” (35) 1.655 - 1.665 (42.07 - 42.33) 0.098 - 0.118 (2.49 - 3.00)
1 1/2” (41) 1.894 - 1.906 (48.15 - 48.45) 0.112 - 0.132 (2.84 - 3.35)
2 (53) 2.369 - 2.381 (60.15 - 60.45) 0.140 - 0.160 (3.56 - 4.07)
3 (78) 3.492 - 3.508 (88.70 - 89.10) 0.206 - 0.231 (5.23 - 5.87)
4 (103) 4.491 - 4.509 (114.07 - 114.53) 0.265 - 0.297 (6.73 - 7.54)
*Some conduit ovality may occur.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
19
HDPE – Solid Wall SCH 40 Specifications
Description
• A multi-purpose smooth solid wall continuous
length conduit.
Material
• High density polyethylene (HDPE) resin.
Certication
• Under Eastern’s Quality Assurance System.
Colors
• Available in a variety of colors.
Markings
• Eastern Wire + Conduit
• HDPE SDR Schedule 40
• Date of Manufacture
• Sequential length markings (May be altered
upon request)
Durability
• HDPE provides a conduit of high tensile and
compression strength.
Availability
• HDPE Schedule 40 conduit is available in 4
inner-wall forms:
• SMOOTH
• RIBBED
• ENHANCED smooth
• ENHANCED ribbed – available in sizes 1” – 2”
Additives
• UV stabilization additive
• Friction reducing additive in PE compound
Dimensions
• Dimensions for this product as per ASTM F 2160.
Nominal Size
Outside Diameter (O.D.) Wall Thickness
in (mm) in (mm) in. (mm)
3/4 (21) 1.046 - 1.054 (26.60 - 26.80) 0.113 - 0.133 (2.80 - 3.38)
1 (27) 1.310 - 1.320 (33.27 - 33.53) 0.133 - 0.153 (3.38 - 3.89)
1 1/4” (35) 1.655 - 1.665 (42.07 - 42.33) 0.140 - 0.160 (3.56 - 4.06)
1 1/2” (41) 1.894 - 1.906 (48.15 - 48.45) 0.145 - 0.165 (3.68 - 4.20)
2 (53) 2.369 - 2.381 (60.15 - 60.45) 0.154 - 0.174 (3.91 - 4.42)
3 (78) 3.492 - 3.508 (88.70 - 89.10) 0.216 - 0.242 (5.49 - 6.15)
4 (103) 4.491 - 4.509 (114.07 - 114.53) 0.237 - 0.265 (6.02 - 6.73)
5 (129) 5.553 -5.573 (141.05 - 141.55) 0.258 - 0.289 (6.55 - 7.34)
*Some conduit ovality may occur.
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
20
HDPE – Solid Wall SCH 80 Specifications
Description
• A multi-purpose smooth solid wall continuous
length conduit.
Material
• High density polyethylene (HDPE) resin.
Certication
• Under Eastern’s Quality Assurance System.
Colors
• Available in a variety of colors.
Markings
• Eastern Wire + Conduit
• HDPE Schedule 80
• Date of Manufacture
• Sequential length markings (May be altered
upon request)
Durability
• HDPE provides a conduit of high tensile and
compression strength.
Availability
• HDPE Schedule 80 conduit is available in 4
inner-wall forms:
• SMOOTH
• RIBBED
• ENHANCED smooth
• ENHANCED ribbed – available in sizes 1” – 2”
Additives
• UV stabilization additive
• Friction reducing additive in PE compound
Dimensions
• Dimensions for this product as per ASTM F 2160.
Nominal Size
Outside Diameter (O.D.) Wall Thickness
in (mm) in (mm) in. (mm)
3/4 (21) 1.046 - 1.054 (26.60 - 26.80) 0.154 - 0.174 (3.91 - 4.42)
1 (27) 1.310 - 1.320 (33.27 - 33.53) 0.179 - 0.200 (4.55 - 5.08)
1 1/4” (35) 1.655 - 1.665 (42.07 - 42.33) 0.191 - 0.214 (4.85 - 5.44)
1 1/2” (41) 1.894 - 1.906 (48.15 - 48.45) 0.200 - 0.224 (5.08 - 5.69)
2 (53) 2.369 - 2.381 (60.15 - 60.45) 0.218 - 0.244 (5.54 - 6.20)
3 (78) 3.492 - 3.508 (88.70 - 89.10) 0.300 - 0.336 (7.62 - 8.53)
4 (103) 4.491 - 4.509 (114.07 - 114.53) 0.337 - 0.377 (8.56 - 9.58)
*Some conduit ovality may occur.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
21
Description
• A corrugated continuous length conduit with pull rope.
Material
• High density polyethylene (HDPE) resin.
Certication
• Under Eastern’s Quality Assurance System.
Colors
• Available in black, blue, green, gray, orange, purple,
red and yellow.
Markings
• Eastern Wire + Conduit
• Trade Size
• Single Wall Kortech
• HDPE
• Date of Manufacture
• Sequential length markings
Additives
• UV stabilization additive
INNERDUCT – Single Wall Kortech™
Trade
Inside Diameter (I.D.) Outside Diameter (O.D.)
Size in (mm) in. (mm)
3/4” (21) 0.774 - 0.834 (19.66 - 21.18) 1.020 - 1.060 (25.91 - 26.92)
1” (27) 0.999 - 1.059 (25.40 - 26.90) 1.285 - 1.325 (32.64 - 33.65)
1 1/4” (35) 1.328 - 1.392 (33.73 - 35.36) 1.628 - 1.672 (41.35 - 42.47)
1 1/2” (41) 1.558 - 1.622 (39.57 - 41.20) 1.868 - 1.912 (47.45 - 48.56)
2” (53) 2.015 - 2.079 (51.18 - 52.81) 2.323 - 2.387 (59.00 - 60.63)
O.D.
Corrugated
Wall
I.D.
Pull
Tape/Rope
Kortech® – Single Wall
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
22
Kortech® – Single Wall
Specication Description
• HDPE (High Density Polyethylene)
• General purpose outdoor applications
• Light weight with outstanding exibility
• Easy to handle
• Less wear on installation equipment
KORTECH – SINGLE WALL REELS & COILS
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade
Part Number Pull Tape Put-Up Average I.D. Average O.D. Weight Weight
Size (Inches) (Inches) (lbs/foot) (lbs/Full Reel)
REELS
3/4” PDCN0750F1000R 200# 1000 0.804 1.040 0.110 175
3/4” PDCN0750F5000R 200# 5000 0.804 1.040 0.110 585
1” PDCN1000F0500R 400# 500 1.029 1.305 0.140 140
1” PDCN1000F1000R 400# 1000 1.029 1.305 0.140 205
1” PDCN1000F2000R 400# 2000 1.029 1.305 0.140 360
1” PDCN1000F2500R 400# 2500 1.029 1.305 0.140 440
1” PDCN1000F3000R 400# 3000 1.029 1.305 0.140 530
1” PDCN1000F5000R 400# 5000 1.029 1.305 0.140 850
1” PDCN1000F8000R 400# 8000 1.029 1.305 0.140 1290
1 1/4” PDCN1250F0500R 400# 500 1.360 1.650 0.175 153
1 1/4” PDCN1250F1000R 400# 1000 1.360 1.650 0.175 255
1 1/4” PDCN1250F1500R 400# 1500 1.360 1.650 0.175 353
1 1/4” PDCN1250F2000R 400# 2000 1.360 1.650 0.175 460
1 1/4” PDCN1250F3200R 400# 3200 1.360 1.650 0.175 685
1 1/4” PDCN1250F4000R 400# 4000 1.360 1.650 0.175 840
1 1/4” PDCN1250F5000R 400# 5000 1.360 1.650 0.175 1015
1 1/2” PDCN1500F0700R 400# 700 1.590 1.890 0.230 245
1 1/2” PDCN1500F1000R 400# 1000 1.590 1.890 0.230 320
1 1/2” PDCN1500F2000R 400# 2000 1.590 1.890 0.230 590
1 1/2” PDCN1500F2500R 400# 2500 1.590 1.890 0.230 706
1 1/2” PDCN1500F4000R 400# 4000 1.590 1.890 0.230 1090
2” PDCN2000F0500R 400# 500 2.047 2.355 0.260 235
2” PDCN2000F0700R 400# 700 2.047 2.355 0.260 289
2” PDCN2000F1000R 400# 1000 2.047 2.355 0.260 380
2” PDCN2000F2000R 400# 2000 2.047 2.355 0.260 690
3” PDCN3000F2000R 900# 1000 3.009 3.590 0.430 530
COILS
3/4” PDCN0750F0250C 200# 250 0.804 1.040 0.110 23
3/4” PDCN0750F0500C 200# 500 0.804 1.040 0.110 45
1” PDCN1000F0250C 400# 250 1.029 1.305 0.140 28
1 1/4” PDCN1250F0200C 400# 200 1.360 1.650 0.175 35
1 1/2” PDCN1500F0150C 400# 150 1.590 1.890 0.230 35
1 1/2” PDCN1500F0350C 400# 350 1.590 1.890 0.230 81
2” PDCN2000F0100C 400# 100 2.047 2.355 0.260 26
2” PDCN2000F0250C 400# 250 2.047 2.355 0.260 65
3” PDCN3000F0200C 900# 200 3.009 3.590 0.430 86
• Specialty Coils are available on request.
• Products in Bold are stock items.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
23
Description
• A continuous length conduit with a corrugated exterior
and smooth interior. Dual Wall Kortech™ is half the
weight of conventional HDPE, solid wall pipe. This
allows for easier handling and less expensive instal-
lation equipment. Also, DW Kortech® has limited
“memory” when unreeled, allowing for easier
eld installation.
Applications
• DWK™ is specically designed by Eastern Wire
+ Conduit for use by Utilities, Service Providers,
and Municipalities for the construction of
Underground systems.
Material
• High density polyethylene (HDPE) resin.
Certication
• Under Eastern’s Quality Assurance System.
Colors
• Inner wall is black, outer wall available in
a variety of colors.
Markings
• Eastern Wire + Conduit
• Trade Size
• Dual Wall Kortech
• HDPE
• Date of Manufacture
• Sequential markings in requested units
(Markings may be altered upon request)
Additives
• UV stabilization additive
O.D.
Corrugated
Outer Wall
Smooth
Inner Wall
I.D.
O.D.
Corrugated
Outer Wall
Smooth
Inner Wall
I.D.
INNERDUCT – Dual Wall Kortech™
Trade
Inside Diameter (I.D.) Outside Diameter (O.D.)
Size in (mm) in. (mm)
2” (53) 2.04 (51.82) 2.52 (64.00)
3” (78) 3.00 (76.20) 3.60 (91.44)
• Product coming soon.
Kortech® – Dual Wall
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
24

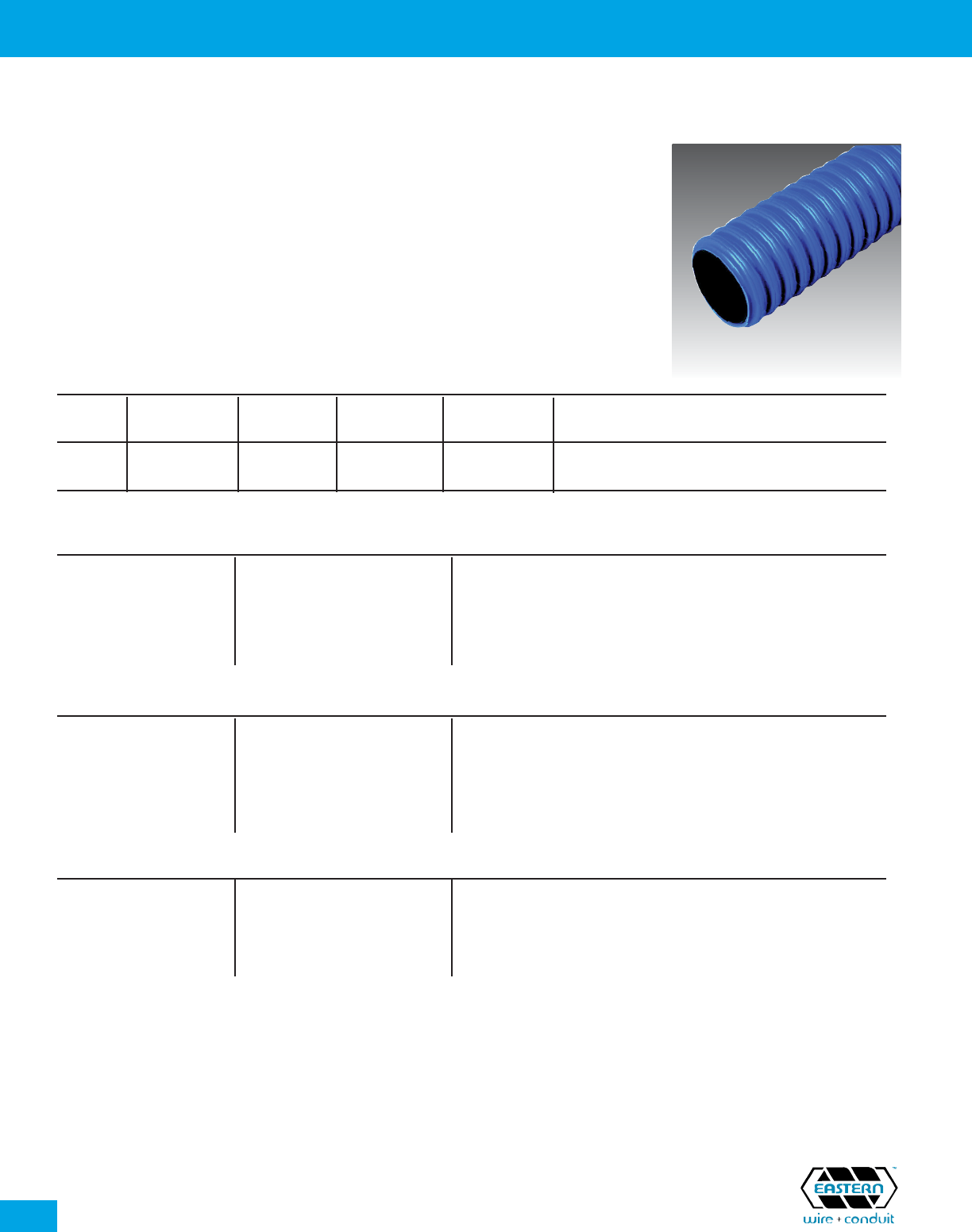

Kortech® – Dual Wall
Specication Description
• HDPE (High Density Polyethylene)
• Superior Corrugated Flexible Exterior
• Ribbed inner wall for reduced coefcient of friction
• Provides excellent stiffness, half the weight of conventional HDPE
• Light weight, easy to handle, and less wear on installation equipment
• Limited “memory” when unreeled
KORTECH – DUAL WALL REELS
Product Codes, Trade Sizes, Specications, Packaging & Weights
Trade Part Number O.D. I.D Wall Weight
Size (Inches) (Inches) (inches) (lbs/foot)
2” PDDN2000 2.520 2.036 0.480 0.340
3” PDDN3000 3.605 3.007 0.590 0.450
• Specialty Coils are available on request.
SWK – SNAP COUPLING FITTINGS
Trade Size Part Number Carton Qty
3/4” PFCSC0750 50
1” PFCSC1000 50
1 1/4” PFCSC1250 50
1 1/2” PFCSC1500 40
2” PFCSC2000 15
SWK – SNAP THREADED TA FITTINGS
Trade Size Part Number Carton Qty
3/4” PFTHC0750 50
1” PFTHC1000 50
1 1/4” PFTHC1250 50
1 1/2” PFTHC1500 50
2” PFTHC2000 25
COMPRESSION PLUG
Trade Size Part Number Carton Qty
3/4” PFPHC0750 As required
1” PFPHC1000 As required
1 1/4” PFPHC1250 As required
1 1/2” PFPHC1500 As required
2” PFPHC2000 As required
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
25
Eastern’s Armor-Duct™ — Specialty Raceway
Specifications & Features
Description (Specialty Raceway)
• Interlocking Armor with Corrugated liner and an outer PE jacket with
-76°C brittleness temperature to provide exibility and superior long
term protection of the cables.
• Excellent product for applications under heavy trafc area and heavy
load such as highway crossing, driveways, industrial oors. etc.
• Directional boreable for ease of installation.
Certication
• For further details on Armor-Duct™, contact us or contact your local
Armor-Duct™ distributor.
Features
• Armor-Duct™ is designed to provide superior protection for direct
burial applications with the exibility of interlocking armor product.
• Protected over the Galvanized Steel Interlocking armor is a PE
jacket with a brittleness temperature of -76°C to prevent moisture
penetration to the armor and the cables.
• Corrugated HDPE liner to minimize pulling friction and protect
the cables.
• Designed for under heavy trafc and heavy load areas.
• Resists crushing, impact, rodents, sunlight, and moisture.
Dimensions
SPECIALTY RACEWAY
Nominal I.D. Nominal O.D. Fittings
(inches) (inches) (Appleton Stainless Steel)
Armor-Duct™ 1000 0.75 1.30 TMC125SS
Armor-Duct™ 1250 1.30 1.90 TMC200SS
Armor-Duct™ 1500 1.70 2.30 TMC250SS
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
26

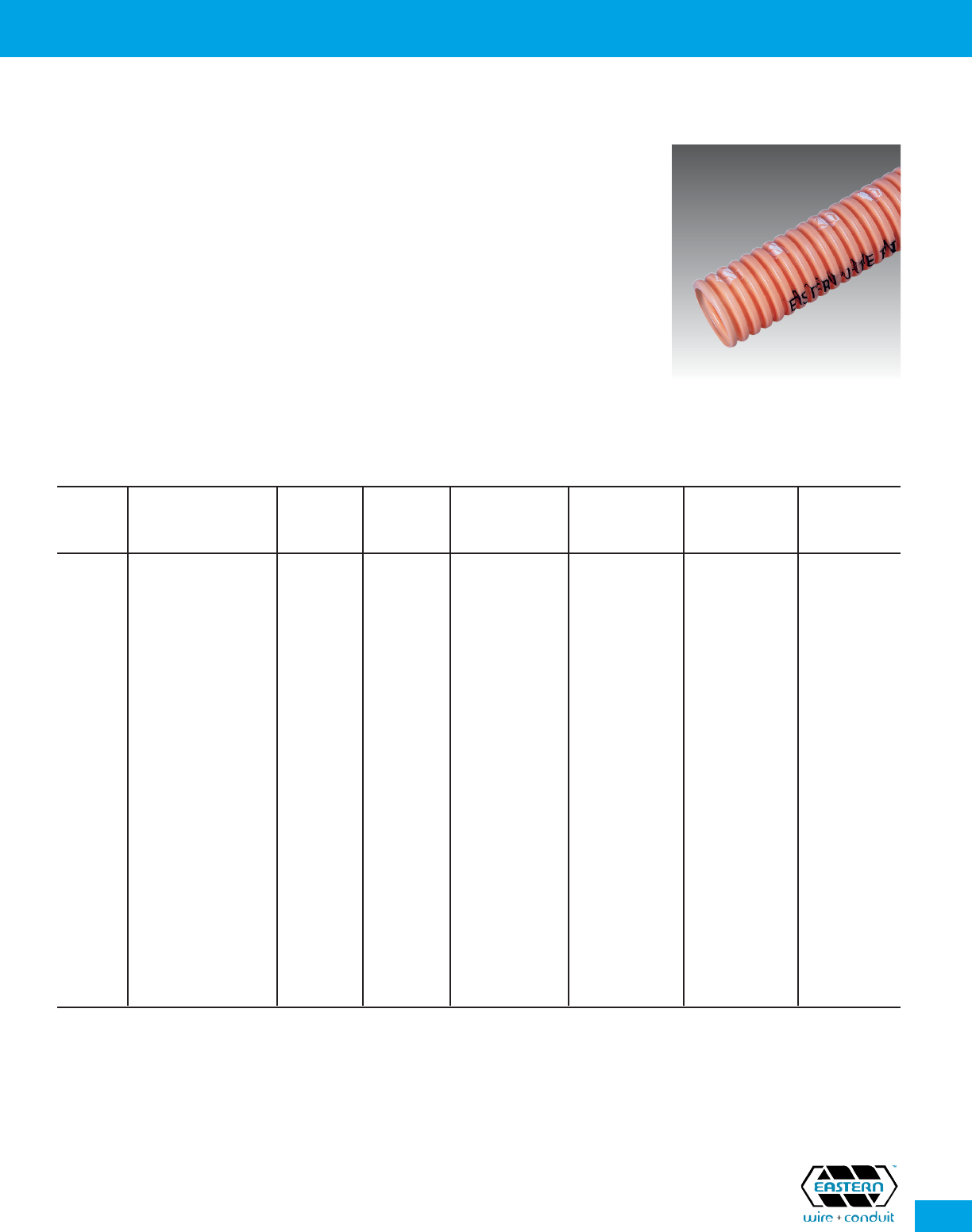

Protect-N-Duct – Low-Smoke - Zero Halogen (LSZH)
Description
• Corrugated exible LSZH innerduct FT4 Riser
rated, with standard pull tape. Extremely
lightweight, allowing easier handling and less
expensive installation equipment.
Application
• Corrugated exible innerduct UL listed for
applications in optical ber/communication
cable raceway systems. Suitable for use in
vertical runs in a shaft or between oors and
in tunnels.
Certication
• UL Listed to 2024 (Optical Fiber Cable
Raceways - FT4)
• In accordance with (NEC) as dened in Articles
725, 770, 800 and 820.
Colors
• Available in natural color and others.
Markings
• Eastern Wire + Conduit
• Product-N-Duct LZSH Riser
• Optical Fiber/Communication Raceway
• FT 4/Riser
• UL logo
• Date of Manufacture
• Sequential length markings
Dimensions
Trade
Inside Diameter (I.D.) Outside Diameter (O.D.)
Size in (mm) in. (mm)
1/2” 0.574 - 0.630 (14.58 - 16.00) 0.812 - 0.848 (20.63 - 21.54)
3/4” 0.774 - 0.834 (19.66 - 21.18) 1.020 - 1.060 (25.91 - 26.92)
1” 0.999 - 1.059 (25.40 - 26.90) 1.285 - 1.325 (32.64 - 33.65)
1 1/4” 1.328 - 1.392 (33.73 - 35.36) 1.628 - 1.672 (41.35 - 42.47)
1 1/2” 1.558 - 1.622 (39.57 - 41.20) 1.868 - 1.912 (47.45 - 48.56)
2” 2.015 - 2.079 (51.18 - 52.81) 2.326 - 2.387 (59.00 - 60.63)
O.D.
Corrugated
Wall
I.D.
Pull
Tape/Rope
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
27
Eastern’s CPID — Cable Protection & Identification
Description (Specialty Services)
• CPID refers to Eastern’s process of adding a protective interlock
armor to customer supplied core (wire, cable or bre). As an option,
an outer jacket of specially formulated PVC can be added to provide
further protection.
• CPID can often eliminate the costly and time consuming process of
installing cable into conventional conduit raceways.
Certication
Eastern has CSA approval to armor and jacket for an extensive range of
applications, including:
• Data cables: including ber optics.
• Fire alarm and Signal Cables (CSA C22.2 No. 208 M 1986).
• Metal clad (UL Standard 1569, CSA-NRTL, CSA-C22-174 M 1984,
CSA-C22.2 No. 239-M9).
• Control & Instrumental Cables.
• Communications Cables CSA-C22.2 No. 214-94, UL-444,
CSA - C/US.
Features
• CPID can be combined to provide further cost savings in the
installation of cables.
• Eastern offers sequential footage or meter markings.
• Custom printing on all CPID jacket types.
• Types created to suit your specic cabling requirements.
• Small minimum quantities
• Short lead-time
Available CPID Constructions
Armoring Material EITHER STEEL OR ALUMINUM
Available Armor Colors
AQUA BLACK BLUE ORANGE RED WHITE YELLOW
X X X X X X X
Available Jacketing Materials RISER RATED (FT4) AND PLENUM RATED (FT6)
Available Jacket Colors
AQUA BLACK BLUE BROWN GRAY GREEN ORANGE PURPLE RED WHITE
X X X X X X X X X X
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
28
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
29

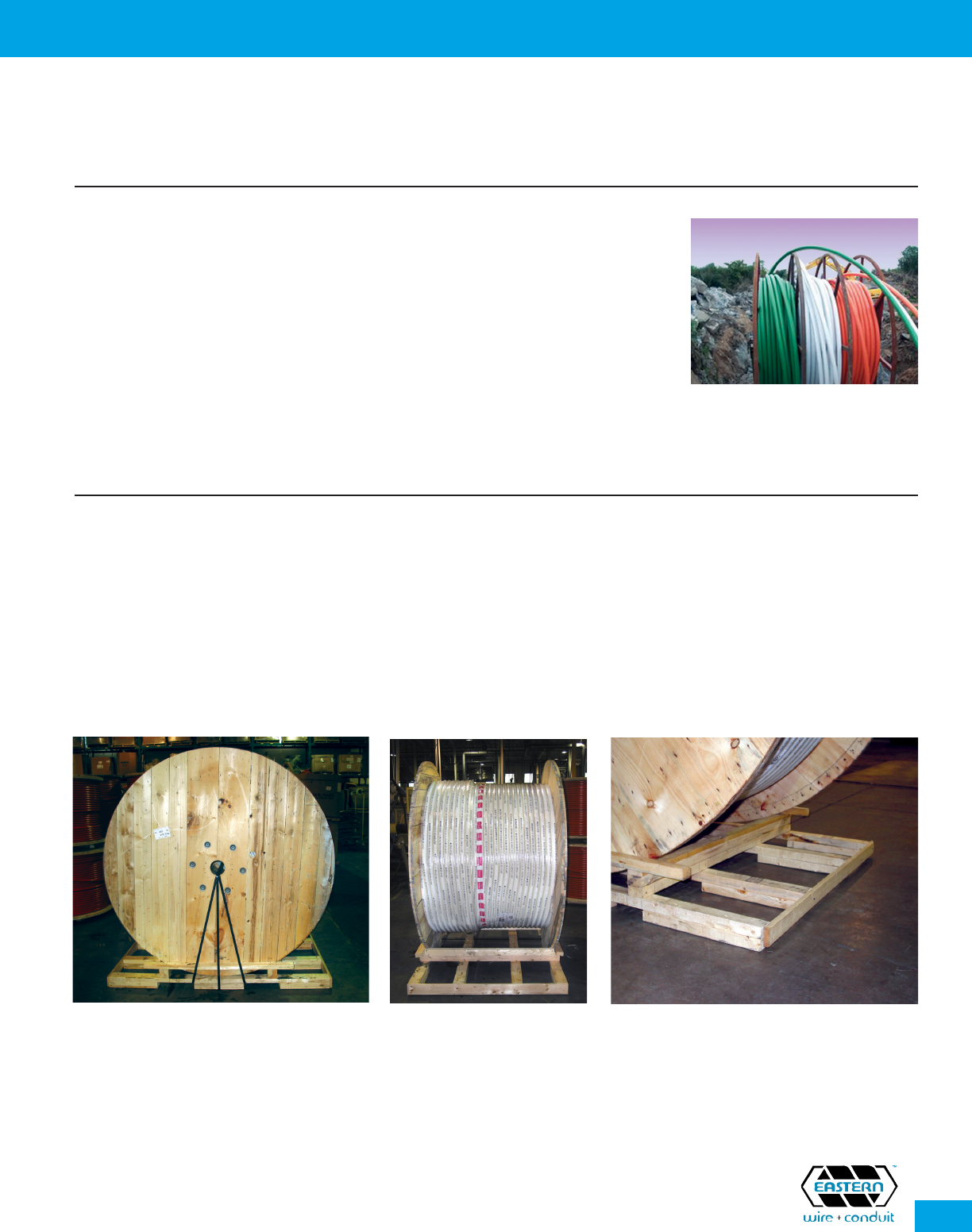

Bundling & Special Packaging
We want to ensure that your Eastern Wire +
Conduit product is received in the same high
quality condition that it left our plant.
For this reason, all of our large reels are
braced on skids to allow safe handling
avoiding damage.
We realize that these reels can travel great
distances and be shuttled from carrier to carrier.
We take the extra packaging steps in an effort to
protect your product by securing the reel to the
pallet and leaving a sufficient space between the
product and the end of the reels flange.
HIGH DENSITY POLYETHYLENE PIPE –
BUNDLING & SEGMENTING
• Segmented(chambered)reelsareavailableinanycolorand
any put up on request.
• Alsoavailablearebundledreels-twoormorecolorsplaced
together on a reel to enable pulling as a bundle of colors.
• AvailableinanySDRorScheduleaswellasSingleWall
Kortech® (SWK) and Dual Wall Kortech® (DWK).
SPECIAL PACKAGING
FOR LARGE WOODEN REELS
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
30
Handling & Installation
RECEIVING
When receiving shipments of these products at the job site, the contractor or purchaser should exercise
established precautions. Each shipment should be inspected and inventoried with care upon arrival.
The product was inspected and loaded with care at our factory using methods acceptable to the carrier.
It is the carrier’s responsibility to deliver the shipment in good condition, and it is the receiver’s responsibility
to ensure that there is no loss or damage.
UNLOADING
The means by which these products are unloaded in the field is the decision and the responsibility of the
receiver. The following recommendations should be followed:
1. Remove restraints from the reels. These may be straps, ropes or chains with padding.
2. Using a forklift (or front end loader equipped with forks), remove the reels one at a time from the truck.
3. During the removal and handling, ensure that the reels do not make impact with other objects, especially in cold weather.
4. Place reels on level ground.
5. Do not unload reels by hand. Care should be taken to ensure reels are not dropped or damaged.
STORAGE
The following procedures are recommended to prevent damage to your product:
1. Store on original reels.
2. Do not stack large reels.
3. When small reels are stacked, ensure that the weight of upper reel does not cause deformation to the lower reel.
4. Protect interior and sealing surfaces from dirt and foreign matter.
5. If you anticipate storing outside under intense sunlight for over one year, we advise you cover it with canvas or
other opaque material, being sure to leave adequate air circulation.
6. Protect-N-Duct Plenum and Riser should Never be stored outdoors.
HANDLING
The following procedures are recommended:
1. When using mechanical equipment, exercise care to prevent damage to pipe.
2. Lower carefully from trucks and into trenches. Do not drop.
3. In freezing temperatures, use caution to prevent impact damage. Handling methods considered acceptable for warm weather
are unacceptable during very cold weather. As the temperature approaches and drops below freezing, the flexibility and
impact resistance of HDPE is reduced. Extra care should be used.
4. Extreme care should be used if Protect-N-Duct™ is handled or installed in temperatures below 0°C (32°F).
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
31
DISCLAIMER
The application information, references & ratings provided in sections of this catalog are
not intended to provide all relevant information for the use and installation of our products.
Please consult the NEC®/CEC® and any applicable local codes before installation.
If you have any questions about the proper use of our products, please call
Customer Services at 1-877-583-9085.
WARRANTY
We guarantee the right to replace or, at our option, to repair any material which we find,
in our sole discretion, to be defective in material or workmanship, provided that a claim, and
proof thereof, is made to us within thirty (30) days after purchaser’s receipt thereof.
Our obligation, with respect to material found by us to be defective, shall be limited to
replacement or repair. In no event shall we be liable for transportation to or from our factory,
installation, adjustments, or any expenses or damages for loss of use, and the foregoing shall be
the purchaser’s sole remedy hereunder.
NO OTHER WARRANTY OR GUARANTEE OF ANY KIND IS MADE, EXPRESSED, OR IMPLIED,
STATUTORY, BY OPERATION OF LAW, OR OTHERWISE INCLUDING MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
Disclaimer & Warranty
www.easternwire.com
Disclaimer and Standard Warranty on inside back cover.
Eastern Wire + Conduit™ Innerduct & Custom Armor Product Catalog
32
960 Flaherty Drive
New Bedford, MA 02745
TOLL-FREE / 877-865-1776
FAX / 508-998-1447
www.easternwire.com
©2012 Atkore International, Inc. All rights reserved. EWC-L-1002-1211
®

Navigation menu
