NEC Reference . . . . . . . . . . . . . . . . . . . . . . G2-G3

Specifications . . . . . . . . . . . . . . . . . . . . . . . . G4-G5

Outlet Boxes. . . . . . . . . . . . . . . . . . . . . . . . G6-G24

Switch and Handy Boxes . . . . . . . . . . . . . G25-G41

Miscellaneous Products . . . . . . . . . . . . . . G42-G43

Rings & Covers . . . . . . . . . . . . . . . . . . . . G44-G57

Multi-Gang Covers . . . . . . . . . . . . . . . . . . . . . . G58

Nonmetallic Boxes . . . . . . . . . . . . . . . . . . G59-G62

Cross-Reference Charts . . . . . . . . . . . . . . G63-G72

G

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G1

NATIONAL ELECTRICAL CODE®REFERENCE

Article 314 of the National Electrical Code• covers the installation and use of boxes. The Article includes table references that guide the electrician in

the selection of proper size boxes necessary to safely accommodate electrical service requirements. The box capacity table is reproduced in part

from the N.E. Code as a quick reference and guide. The N.E. Code should be consulted for complete details.

314.16 Number of Conductors in Outlet, Device, and Junction Boxes, and Conduit Bodies. Boxes shall be of sufficient size to provide free space

for all conductors enclosed in the box.

The provisions of this section shall not apply to terminal housings supplied with motors. (See Section 430-12.A)

Boxes and conduit bodies containing conductors, size No. 4 or larger, shall also comply with provisions of Section 314.28(A).

(a) Standard Boxes. The maximum number of conductors permitted in standard boxes shall be as listed in Table 314.16(A). See Section 370.28 where

boxes or conduit bodies are used as junction or pull boxes.

Table 314.16(A) Metal Boxes

Minimum

Box Trade Size Volume Maximum Number of Conductors*

mm in. cm3in.318 16 14 12 10 8 6

100 x 32 (4 x 1b) round/octagonal 205 12.5 8 7 6 5 5 5 2

100 x 38 (4 x 1d) round/octagonal 254 15.5 10 8 7 6 6 5 3

100 x 54 (4 x 2a) round/octagonal 353 21.5 14 12 10 9 8 7 4

100 x 32 (4 x 1b) square 295 18.0 12 10 9 8 7 6 3

100 x 38 (4 x 1d) square 344 21.0 14 12 10 9 8 7 4

100 x 54 (4 x 2a) square 497 30.3 20 17 15 13 12 10 6

120 x 32 (4Lx 1b) square 418 25.5 17 14 12 11 10 8 5

120 x 38 (4Lx 1d) square 484 29.5 19 16 14 13 11 9 5

120 x 54 (4Lx 2a) square 689 42.0 28 24 21 18 16 14 8

75 x 50 x 38 (3 x 2 x 1d) device 123 7.5 5 4 3 3 3 2 1

75 x 50 x 50 (3 x 2 x 2) device 164 10.0 6 5 5 4 4 3 2

75 x 50 x 57 (3 x 2 x 2a) device 172 10.5 7 6 5 4 4 3 2

75 x 50 x 65 (3 x 2 x 2d) device 205 12.5 8 7 6 5 5 4 2

75 x 50 x 70 (3 x 2 x 2f) device 230 14.0 9 8 7 6 5 4 2

75 x 50 x 90 (3 x 2 x 3d) device 295 18.0 12 10 9 8 7 6 3

100 x 54 x 38 (4 x 2ax 1d) device 169 10.3 6 5 5 4 4 3 2

100 x 54 x 48 (4 x 2ax 1g) device 213 13.0 8 7 6 5 5 4 2

100 x 54 x 54 (4 x 2ax 2a) device 238 14.5 9 8 7 6 5 4 2

95 x 50 x 65 (3fx 2 x 2d) masonry box/gang 230 14.0 9 8 7 6 5 4 2

95 x 50 x 90 (3fx 2 x 3a) masonry box/gang 344 21.0 14 12 10 9 8 7 2

min. 44.5 depth FS — single cover/gang (1f) 221 13.5 9 7 6 6 5 4 2

min. 60.3 depth FD — single cover/gang (2c) 295 18.0 12 10 9 8 7 6 3

min. 44.5 depth FS — multiple cover/gang (1f) 295 18.0 12 10 9 8 7 6 3

min. 60.3 depth FD — multiple cover/gang (2c) 395 24.0 16 13 12 10 9 8 4

*Where no volume allowances are required by 314.16(B)(2) through 314.16(B)(5).

(1) Table 314.16(A) shall apply where no fittings or devices, such as fixture studs, cable clamps, hickeys, switches, or receptacles, are contained in

the box and where no equipment grounding conductors are part of the wiring within the box. Where one or more of these types of fittings, such as

fixture studs, cable clamps, or hickeys are contained in the box, the number of conductors shown in the table shall be reduced by one for each type

of fitting; an additional deduction of two conductors shall be made for each mounting yoke or strap containing one or more devices or equipment; and

a further deduction of one conductor shall be made for one or more equipment grounding conductors entering the box. Where a second set of

equipment grounding conductors, as permitted by Section 250-74, Exception No. 4, is present in the box, then an additional deduction of one

conductor shall be made. A conductor running through the box shall be counted as one conductor, and each conductor originating outside of the box

and terminating inside the box is counted as one conductor. Conductors, no part of which leaves the box, shall not be counted. The volume of a

wiring enclosure (box) shall be the total volume of the assembled sections, and, where used, the space provided by plaster rings, domed covers,

extension rings, etc., that are marked with their volume in cubic inches, or are made from boxes the dimensions of which are listed in Table 314-16 (a).

Exception: Where an equipment grounding conductor or not over four fixture wires smaller than No. 14, or both, enter a box from a fixture canopy

and terminate within that box, it shall be permitted to omit these conductors from the calculations. Where branch-circuit conductors enter a fixture

canopy and terminate within that canopy, it shall be permitted to count these conductors as not leaving the box.

G2 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G2

(2) For combinations of conductor sizes shown in Table 314-16(a), the maximum number of conductors permitted shall be computed using the

volume per conductor listed in Table 314-16(b), with the deductions provided for in Section 314-16(a)(1). For fixture studs, cable clamps, or hickeys,

these deductions shall be based on the largest conductor entering the box; for each yoke or strap containing one or more devices or equipment, the

deduction shall be based on the largest conductor connected to device(s) or equipment supported by that yoke or strap; and for equipment

grounding conductors, the deductions shall be based on the largest equipment grounding conductor entering the box. The maximum number and

size of conductors listed in Table 314-16(a) shall not be exceeded.

(b) Other Boxes. Boxes 100 cubic inches (1640 cm3) or less other than those described in Table 314-16(a) and nonmetallic boxes shall be durably

and legibly marked by the manufacturer with their cubic inch capacity. The maximum number of conductors permitted shall be computed using the

volume per conductor listed in Table 314-16(b), with the deductions provided for in Section 314-16(a)(1). For fixture studs, cable clamps, or hickeys,

these deductions shall be based on the largest conductor entering the box; for each yoke or strap containing one or more devices or equipment, the

deduction shall be based on the largest conductor connected to device(s) or equipment supported by that yoke or strap; and for equipment

grounding conductors, the deductions shall be based on the largest equipment grounding conductor entering the box. Boxes described in Table 314-

16(a) that have a larger cubic inch capacity than is designated in the table shall be permitted to have their cubic inch capacity marked as required by

this section, and the maximum number of conductors permitted shall be computed using the volume per conductor listed in Table 314-16(b).

(c) Conduit Bodies. Conduit Bodies enclosing No. 6 conductors or smaller other than short radius conduit bodies as described in Section 370-5

shall have a cross-sectional area not less than twice the cross-sectional area of the largest conduit or tubing to which it is attached. The maximum

number of conductors permitted shall be the maximum number permitted by Table 1 of Chapter 9 for the conduit to which it is attached.

Conduit bodies shall not contain splices, taps, or devices unless they are durably and legibly marked by the manufacturer with their cubic inch

capacity. The maximum number of conductors permitted shall be computed using the provisions of Section 314-16(b) for other than standard boxes.

Conduit bodies shall be supported in a rigid and secure manner.

Table 314.16(B) Volume Allowance Required per Conductor

Size of Conductor Free Space Within Box for Each Conductor

(AWG) cm3in.3

18 24.6 1.50

16 28.7 1.75

14 32.8 2.00

12 36.9 2.25

10 41.0 2.50

8 49.2 3.00

6 81.9 5.00

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G3

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G3

Specifications

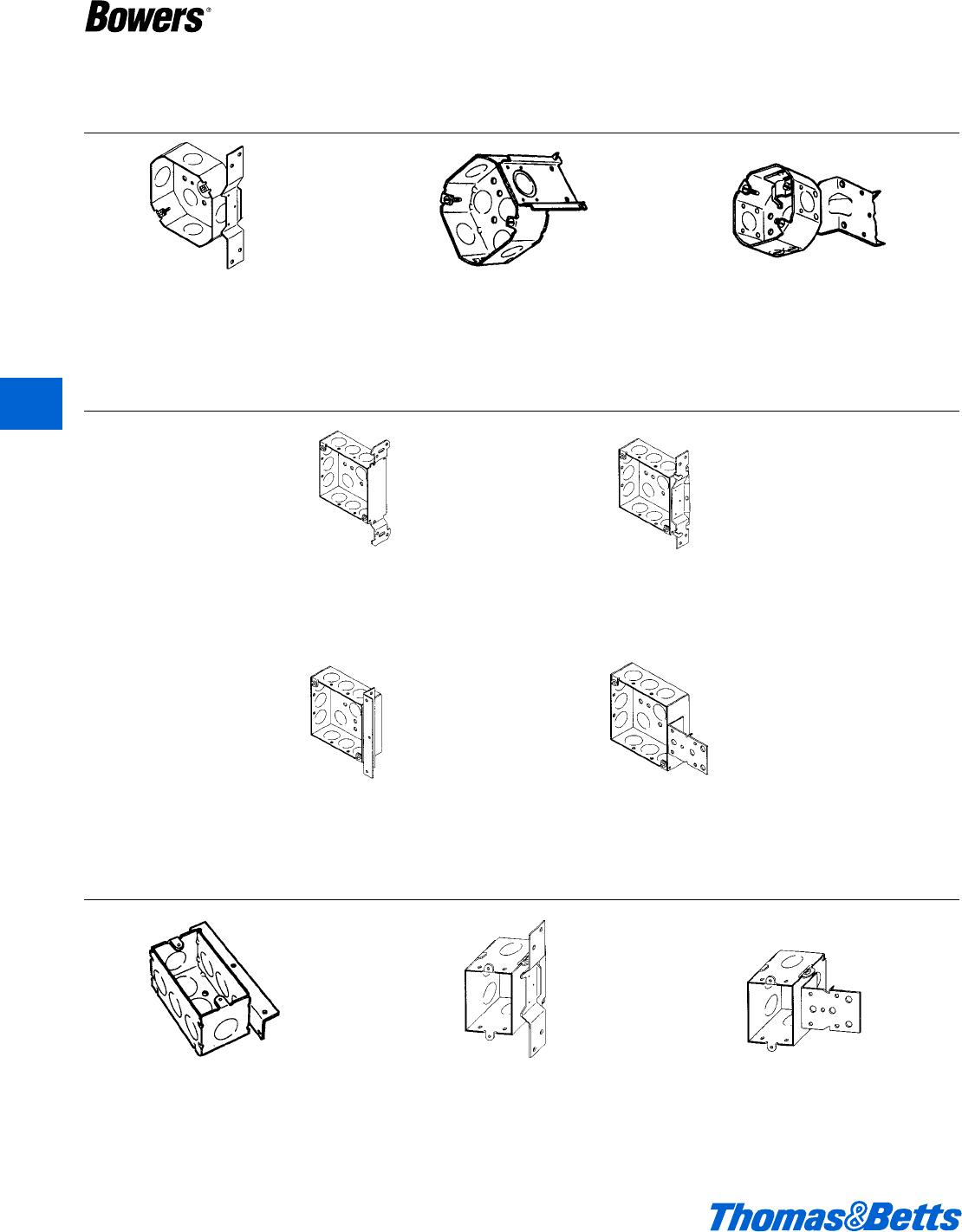

Octagonal Outlet Box Brackets

“B” Bracket

Set d" from the face of box

“U” Bracket

For use where box need not be

centered between studs.

Positioning spurs included.

“H” Bracket

Furnished with positioning spurs for

mounting to ceiling joist.

Switch and Handy Box Brackets

“AB” Angle Bracket

Positioning box off the face of studs.

10/32 Tapped hole provided for grounding screw on all boxes.

“FB” Flat Bracket

Furnished with positioning spur. Set

l" from the face of box.

“LB” Lateral Bracket

Furnished with positioning spur. Set

l" from the face of box.

Square Outlet Box Brackets

“FB” Flat Bracket

Position stabilizer provides

3 point support.

“FBH” Flat Bracket

With hooks to position box on stud.

“AB” Flat Bracket

Positioning box off the face of studs.

“LB” Lateral Bracket

Locates box flush with the face of the stud.

G4 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G4

Cable Clamps

Industry Standard Specifications

Steel Products

*Underwriters Laboratory Inc. File Number

E-2969 Metallic Outlet Box (QCIT)

E-5476 Outlet Bushings & Fittings (QCRV)

E-19851 Grounding & Bonding Equipment (KDER)

Federal Specifications

A-A5924 (formerly W-J-800)

ANSI/NEMA Standard

OS-1 – 1998

UL LISTED PER STANDARD 514A AND B, METALLIC BOXES AND FITTINGS, GROUNDING AND BONDING EQUIPMENT AND OUTLET BUSHINGS AND FITTINGS.

CONFORM TO UBC (UNIFORM BUILDING CODE) SECTION 4304(f) FOR USE IN FIRE RATED WALLS AND PARTITIONS WITH BOXES HAVING MAXIMUM OF 16

SQUARE INCHES AND NOT MORE THAN 100 SQUARE INCHES OF OPENING FOR ANY 100 SQUARE FEET OF WALL OR PARTITION. OUTLET BOXES ON OPPOSITE

SIDES OF WALL MUST BE SEPARATED BY A HORIZONTAL DISTANCE OF AT LEAST 24 INCHES.

Nonmetallic Products

*Underwriters Laboratory Inc. File Number

E-11461 Nonmetallic Outlet Box (QCMZ)

R-9140 Outlet Boxes and Fittings

Classified for Fire Resistance (CEYY)

ANSI/NEMA Standard

OS-2 – 1998

ICBO Fire Rating Wall & Ceiling

Report #3626 – 2 Hour

UL LISTED PER STANDARD 514C NONMETALLIC OUTLET BOXES, FLUSH DEVICE BOXES AND COVERS, UL CONTROL NO. 271 K UL CLASSIFIED FOR FIRE

RESISTANCE PER STANDARD FIRE TESTS OF BUILDING CONSTRUCTION AND MATERIALS UL 263, UL CONTROL NO. 764 Y. THIS STANDARD IS ALSO KNOWN

AS ANSI AZ 1 ASTM E119 AND NFPA 251 RATED FOR 2 HOURS OR LESS IN FIRE-RESISTANT WALLS CONSISTING OF BEARING OR NON-BEARING WOOD OR

NON-BEARING STEEL STUDS AND GYPSUM. ANY LISTED PLASTIC OR STEEL FACE PLATE MAY BE USED.

*For Underwriters Laboratory Inc., (UL) and Canadian Standards Association (C.S.A.) listing marks, see Bowers products & carton labels.

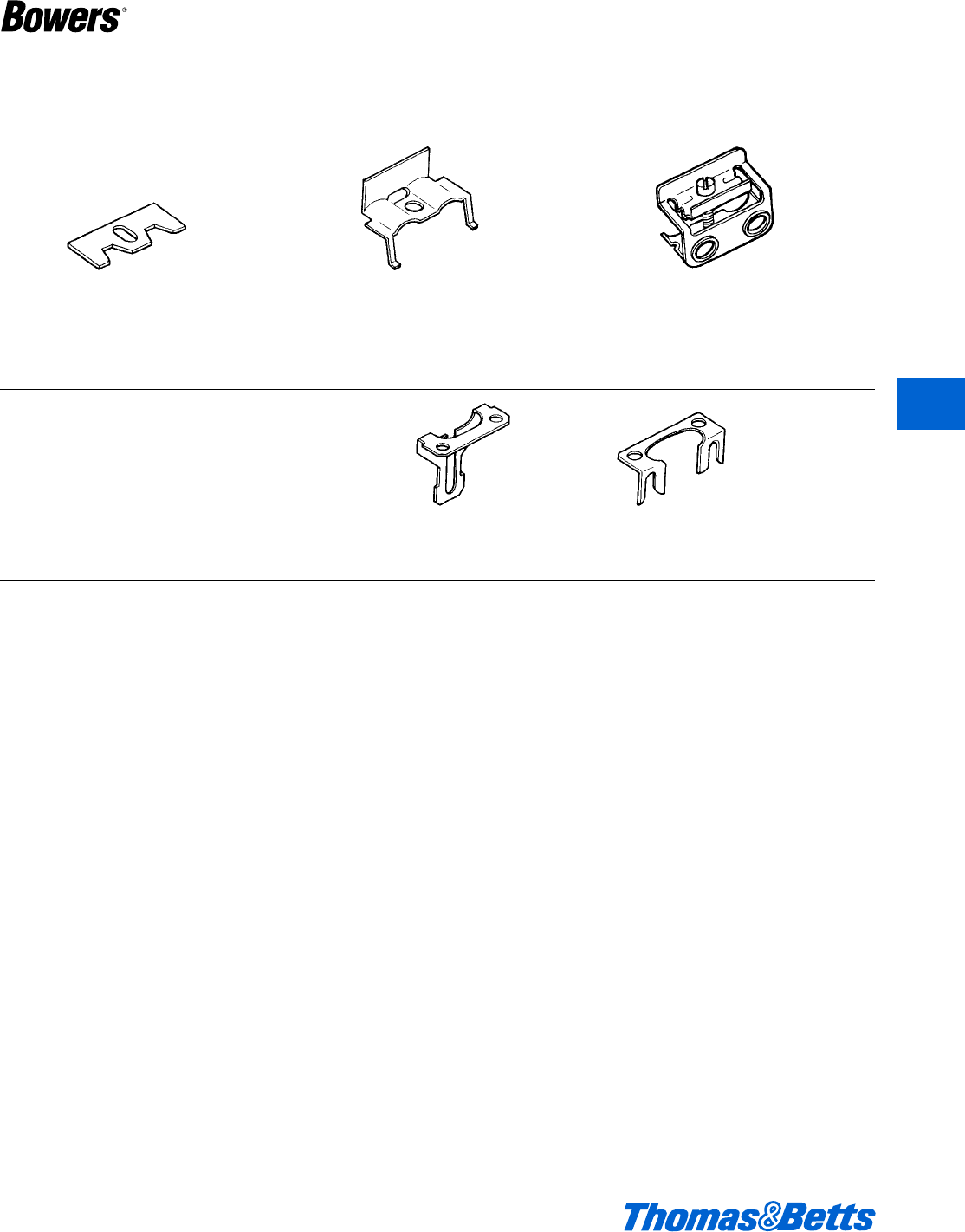

Plaster Ears

“L” Clamp

Used with pancake boxes.

One-screw ear Two-screw ear

Plaster ears are included on many switch

boxes. They are set forward h" in the “old

work” position. Two-screw ears are supplied

on shallow boxes and one-screw ears on

52-Loom Boxes.

“LC” Loom Clamp

For nonmetallic sheathed cable. Leg

holds clamp off the box for easy

cable insertion.

“MXN” Clamp

For use with MC (metal clad) and AC (armored)

cable–steel and aluminum #10 to #14 conductors.

Also may be used with nonmetallic sheathed cable

#10 to #14.

Specifications

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G5

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G5

Outlet Boxes

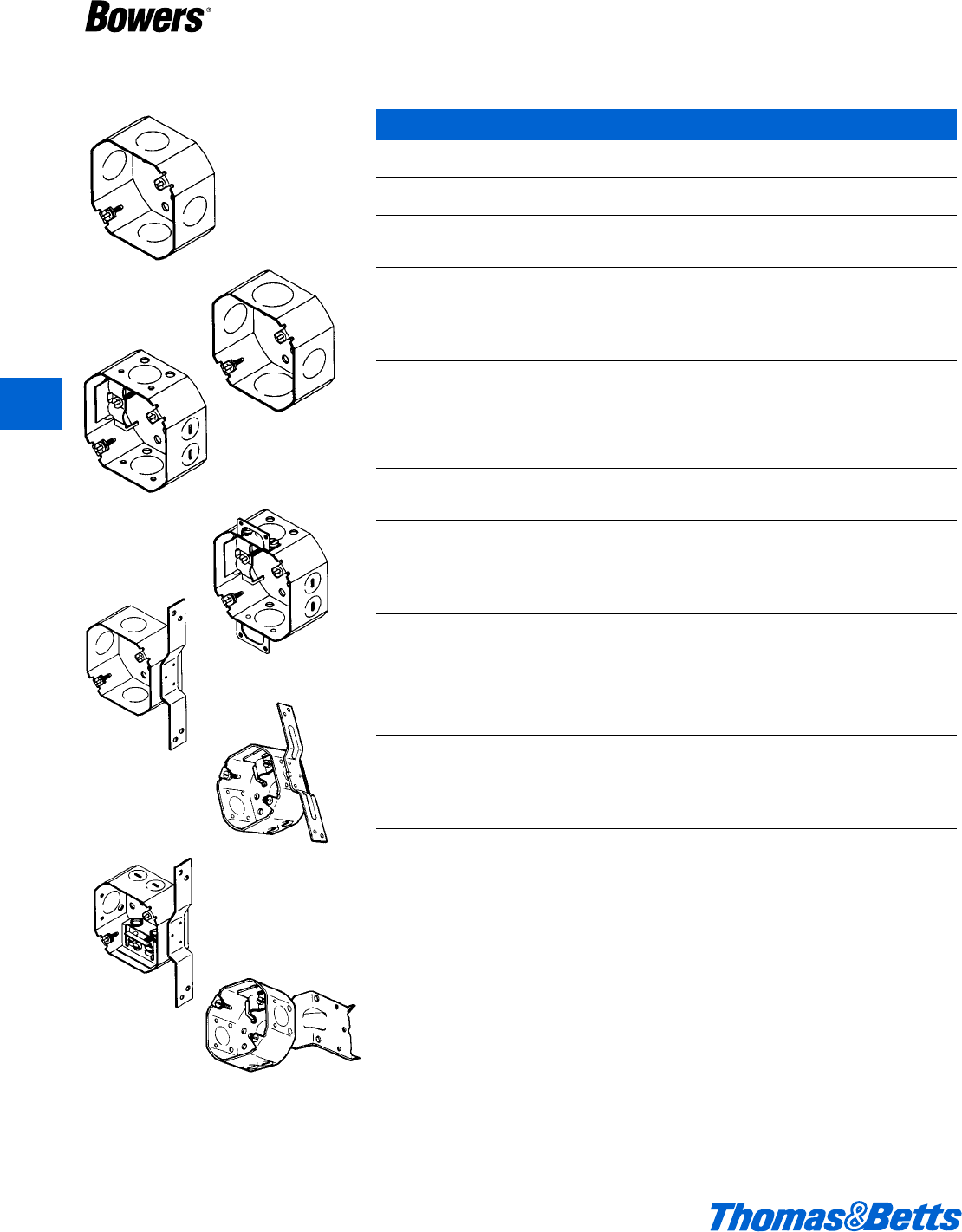

Drawn 3" Octagonal Outlet Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

3-O-1/2 One d" K.O. in each of four sides, with one d" 11.8 50 22

K.O. in bottom.*

3-O-SPL One d" K.O. in each of two opposite sides, one 11.8 50 22

f" K.O. in other two sides and one d" K.O.

in bottom.*

3-O-LC For Nonmetallic Sheathed Cable 11.8 50 25

Two Loom K.O.'s in each of two opposite sides,

two d" K.O.’s in the other two sides and one

d" K.O. in bottom. Two Loom clamps for use on

nonmetallic sheathed cable with 10/32 deep

slotted screws assembled.*

3-O-LCE For Nonmetallic Sheathed Cable 11.8 50 26

Two Loom K.O.’s in each of two opposite sides,

two d" K.P.’s in other two sides, and one d" K.O.

in bottom. Two ears, one on each of two opposite

sides. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled.*

3-O-B-1/2 One d" K.O. in each of three sides, flat bracket

on fourth side, with one d" K.O. in bottom.

Flat bracket offset d" from face.* 11.8 50 27

3-O-LCB For Nonmetallic Sheathed Cable 11.8 50 29

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in side opposite bracket and one d" K.O.

in bottom. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. Flat bracket offset d" from face.*

3-O-B-MXN For Metal Clad Cable 11.8 50 30

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in side opposite bracket and one d" K.O.

in bottom. Two MXN clamps for MC, AC/BX, and

nonmetallic sheathed cable (NM) included with 10/32

deep slotted screws. Clamps are UL listed for use

with cable sizes 14/2 through 10/3 with ground. Flat

bracket offset d" from face.*

3-O-LCH For Nonmetallic Sheathed Cable 11.8 50 31

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides, and one d" K.O. in

bottom. Two Loom champs for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. Hanger bracket for overhead work.*

*Uses Bowers 3" octagonal extension rings and 300 series rings and covers.

3-O-1/2

3-O-SPL

3-O-LC

3-O-B-1/2

3-O-B-MXN

3-O-LCH

3-O-LCE

3-O-LCB

G6 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G6

Outlet Boxes

Drawn 3" Octagonal Extension Rings–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

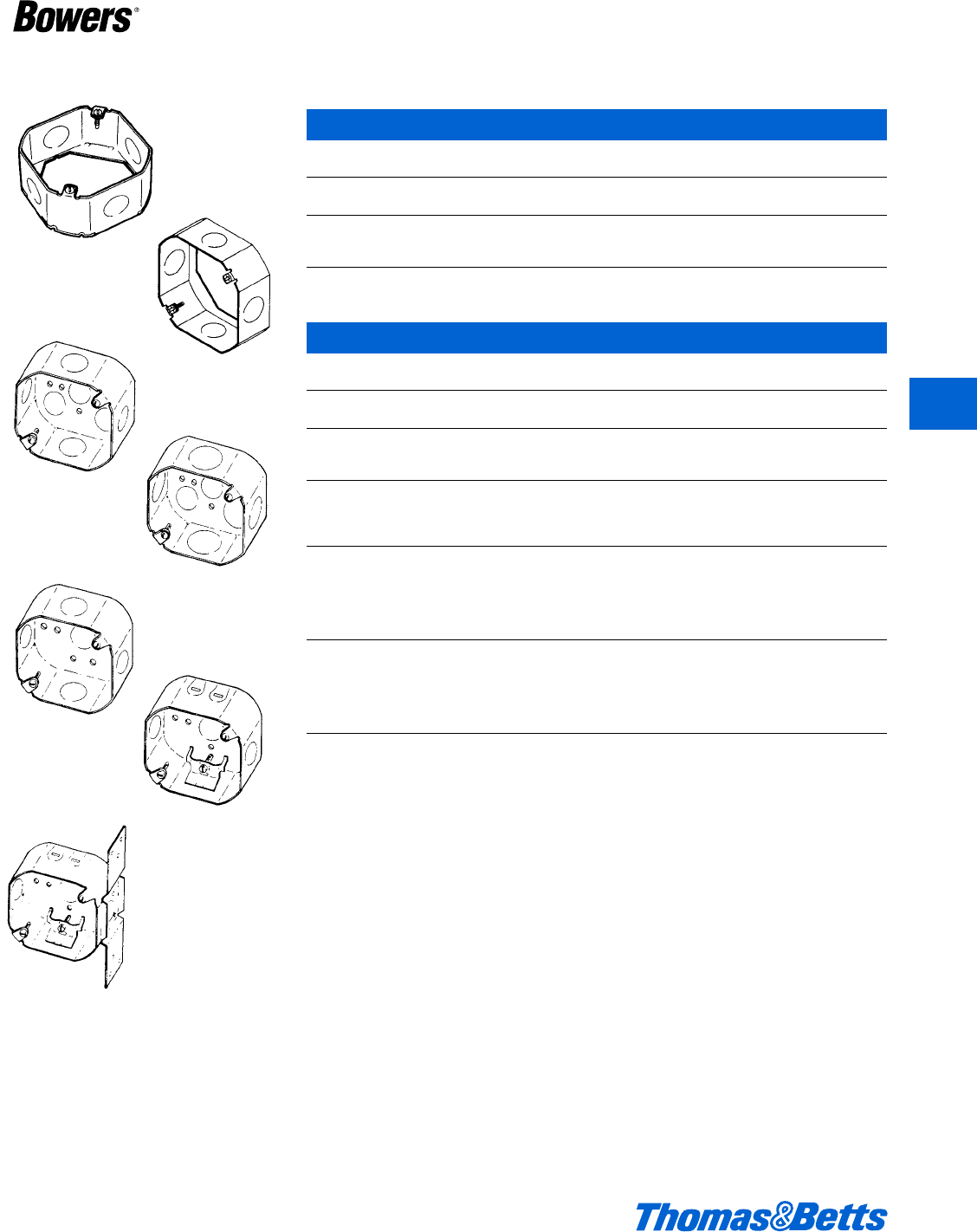

3-O-EXT-1/2 Extension Ring 11.8 50 19

1d" Deep – 3d" Octagon

Four d" K.O.’s, one in each of four sides.*

For use with Bowers 3" octagonal outlet boxes and 300 series rings and covers.

Welded 4" Octagonal Outlet Boxes – 11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-OW-1/2 One d" K.O. in each of four sides, with five 15.5 50 28

d" K.O.’s in bottom.*

4-OW-3/4 One f" K.O. in each of four sides. Three d" K.O.’s 15.5 50 28

in a line on the bottom and two f" K.O.’s on opposite

ends in the bottom.*

4-OW-SPL One d" K.O. in each of two opposite sides, one f" 15.5 50 28

K.O.’s in other two sides. Three d" K.O.’s in a line

on the bottom and two f" K.O.’s on opposite ends

in the bottom.*

4-OW-LC For Nonmetallic Sheathed Cable 15.5 50 30

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides, and one d" K.O. on

bottom. Two loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled.*

4-OW-LCE For Nonmetallic Sheathed Cable 15.5 50 34

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides, and one d" K.O. in

bottom. Two ears, one on each of two opposite sides.

Two Loom clamps for use on nonmetallic sheathed

cable with 10/32 deep slotted screws assembled.*

4-OW-MXN For Metal Clad Cable 15.5 50 32

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides, and one d" K.O. in

bottom. Two MXN clamps for MC, AC/BX and

nonmetallic sheathed cable (NM) included with 10/32

deep slotted screws. Clamps are UL listed for use

with cable sizes 14/2 through 10/3 with ground.*

*Uses Bowers 4" octagonal extension rings and 500 series rings and covers.

3-O-EXT-1/2

4-OW-1/2

4-OW-3/4

4-OW-SPL

4-OW-LCE

4-OW-LC

4-OW-MXN

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G7

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G7

Outlet Boxes

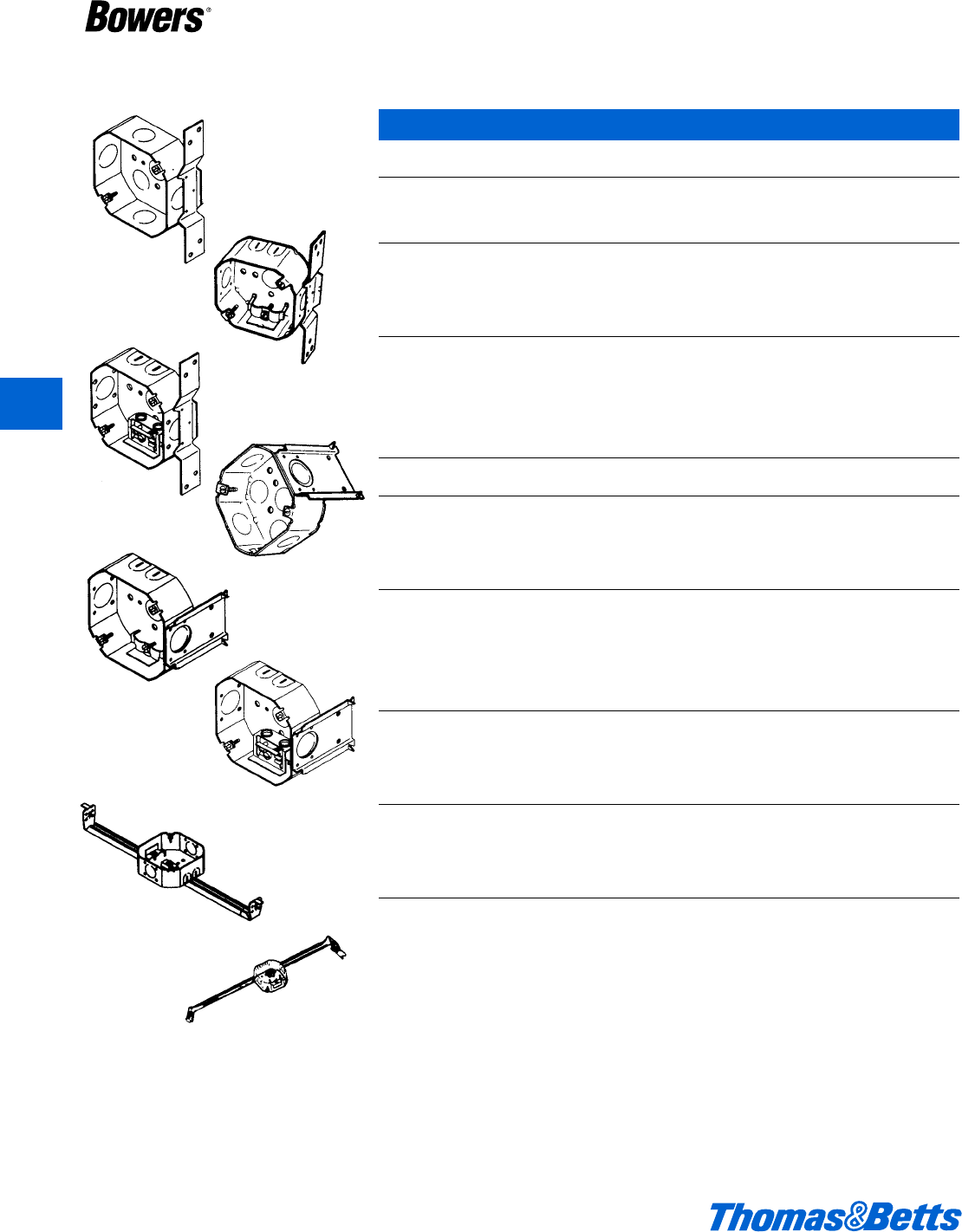

Welded 4" Octagonal Outlet Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-OW-B-1/2 One d" K.O. in each of three sides, bracket on the 15.5 50 34

other. Five d" K.O.’s in bottom. Knockouts pressed

to inside of box for easy removal. Flat bracket offset

d" from face.*

4-OW-LCB For Nonmetallic Sheathed Cable 15.5 50 36

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in side opposite bracket, and one d" K.O.

in bottom. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. Flat bracket offset d" from face.*

4-OW-FB-MXN For Metal Clad Cable 15.5 50 35

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in side opposite bracket, and one d" K.O.

in bottom. Two MXN clamps for MC, AC/BX and

nonmetallic sheathed cable (NM) included with 10/32

deep slotted screws. Clamps are UL listed for use

with cable sizes 14/2 through 10/3 with ground. Flat

bracket offset d" from face.*

4-OW-U-1/2 One d" K.O. in each of four sides with five d" 15.5 50 34

K.O.’s in bottom. “U” bracket for overhead work.*

4-OW-ULC For Nonmetallic Sheathed Cable 15.5 50 37

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides, and one d" K.O. in

bottom Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. “U” bracket for overhead work.*

4-OW-U-MXN For Metal Clad Cable 15.5 50 37

Two Loom K.O.’s in each of two opposite sides, d"

K.O. in other two sides, and one d" K.O. in bottom.

Two MXN clamps for MC, AC/BX and nonmetallic

sheathed cable (MN) included with 10/32 deep

slotted screws. Clamps are UL listed for use with

cable sizes 14/2 through 10/3 with ground.

“U” bracket for overhead work.*

4-OW-LC-BHC For Nonmetallic Sheathed Cable 15.5 25 22

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides. Box mounted with clip to

adjustable hanger. Two Loom clamps for use on

nonmetallic-sheathed cable with 10/32 deep slotted

screws assembled.

4-OW-LC-BHS For Nonmetallic Sheathed Cable 15.5 25 23

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides. Box mounted with stud

to adjustable hanger. Two Loom clamps for use on

nonmetallic-sheathed cable with 10/32 deep slotted

screws assembled.*

**Uses Bowers 4" octagonal extension rings and 500 series rings and covers.

4OW-B-1/2

4-OW-LCB

4-OW-FB-MXN

4-OW-U-1/2

4-OW-ULC

4-OW-U-MXN

4-OW-LC-BHC

4-OW-LC-BHS

G8 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G8

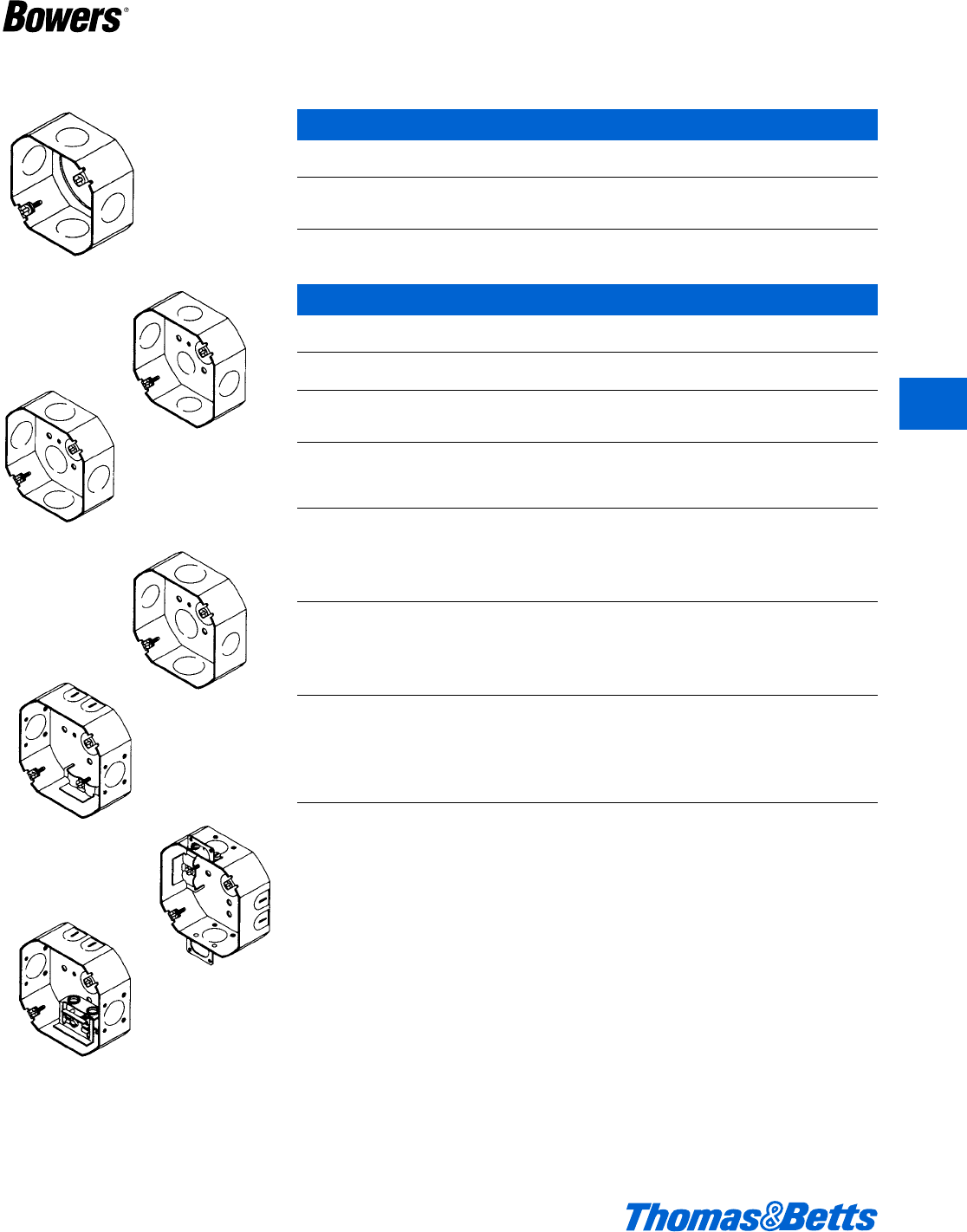

Outlet Boxes

Welded 4" Octagonal Extension Rings–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-OW-EXT-1/2 Extension Ring 15.5 50 21

Four d" K.O.’s one in each of four sides.*

4-OW-EXT-SPL Extension Ring 15.5 50 21

One d" K.O. in each of two opposite sides and one

f" K.O. in other two sides.*

*Uses Bowers 4" octagonal outlet boxes and 500 series rings and covers.

Drawn 4" Octagonal Outlet Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-O-1/2 One d" K.O. in each of four sides, with five d" 15.5 50 28

K.O.’s in bottom.*

4-O-3/4 One f" K.O. in each of four sides, with three d" 15.5 50 28

K.O.’s in a line on the bottom and two f" K.O.’s

on opposite ends in the bottom.*

4-O-SPL One d" K.O. in each of two opposite sides, f" 15.5 50 28

K.O.’s in other two sides with three d" K.O.’s in a

line on the bottom and two f" K.O.’s on opposite

ends in the bottom.*

4-O-LC For Nonmetallic Sheathed Cable 15.5 50 30

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides, and one d" K.O. in

bottom. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled.*

4-O-LCB For Nonmetallic Sheathed Cable 15.5 50 36

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in side opposite bracket, and one d" K.O.

in bottom. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. Flat bracket offset d" from face.*

*Uses Bowers 4" octagonal extension rings and 500 series rings and covers.

4-OW-EXT-1/2

4-OW-EXT-SPL

4-O-1/2

4-O-3/4

4-O-SPL

4-O-LC

4-O-LCB

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G9

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G9

Outlet Boxes

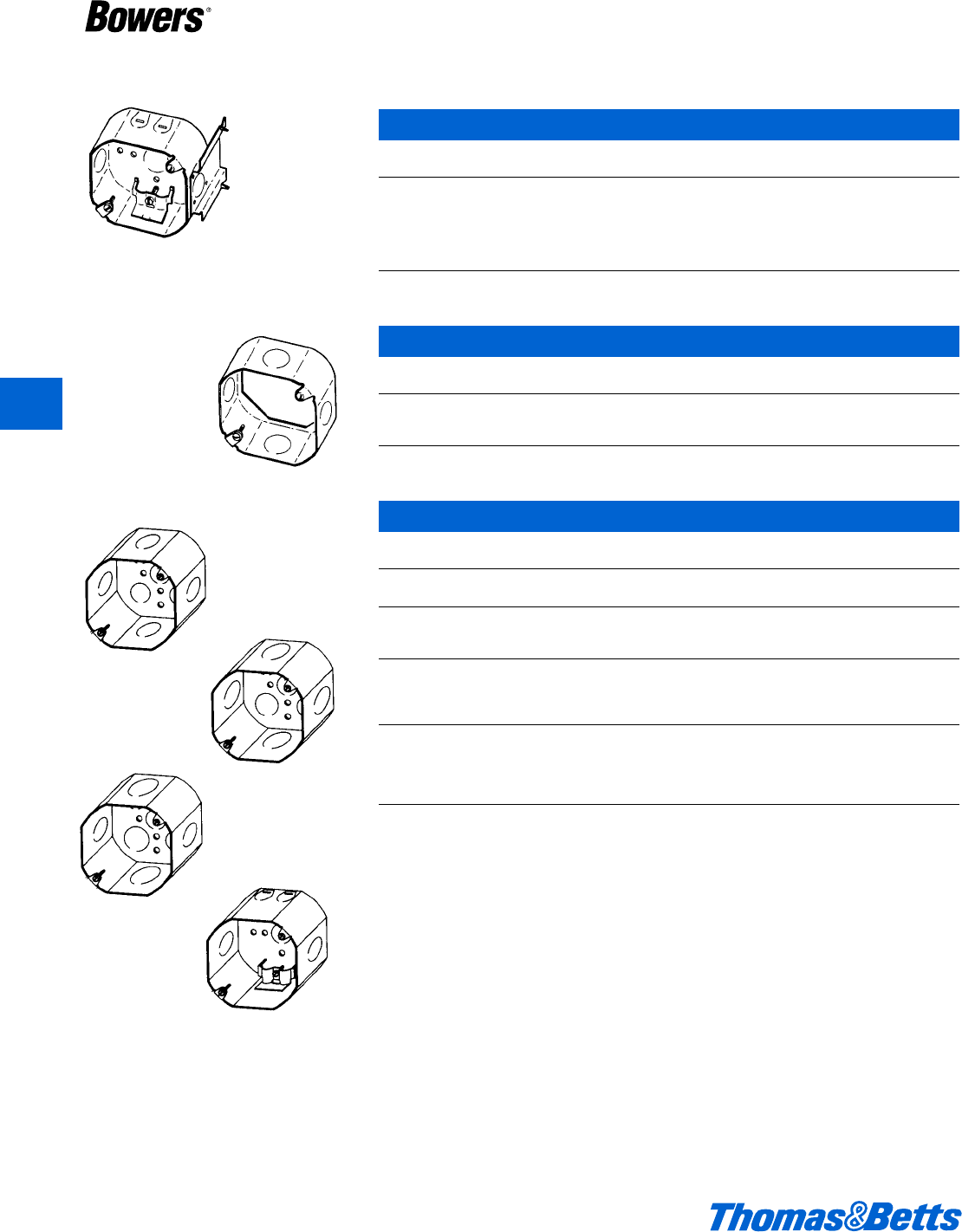

Drawn 4" Octagonal Outlet Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-O-ULC For Nonmetallic Sheathed Cable 15.5 50 37

Two Loom K.O.’s in each of two opposite sides, d"

K.O.’s in other two sides, and one d" K.O. in bottom.

Two Loom clamps for use on nonmetallic sheathed

cable with 10/32 deep slotted screws assembled.

“U” bracket for overhead work.*

*Uses Bowers 4" octagonal extension rings and 500 series rings and covers.

Drawn 4" Octagonal Extension Rings–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-O-EXT-SPL Extension Ring 15.5 50 21

One d" K.O. in each of two opposite sides and one

f" K.O. in other two sides.*

*Uses Bowers 4" octagonal outlet boxes and 500 series rings and covers.

Drawn 4" Octagonal Outlet Boxes–21⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-OD-1/2 One d" K.O. in each of four sides with five d" 21.5 25 16

K.O.’s in bottom.*

4-OD-3/4 One f" K.O. in each of four sides, three d" K.O.’s 21.5 25 16

in a line on the bottom and two f" K.O.’s on

opposite ends in the bottom.*

4-OD-SPL One d" K.O. in each of two opposite sides, two f" 21.5 25 16

K.O.’s in other two sides with three d" K.O.’s in a

line on the bottom and two f" K.O.’s on opposite

ends in the bottom.*

4-OD-LC For Nonmetallic Sheathed Cable 21.5 25 18

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. other two sides, and one d" K.O. in bottom.

Two Loom clamps for use on nonmetallic sheathed

cable with 10/32 deep slotted screws assembled.*

*Uses Bowers 4" octagonal extension rings and 500 series rings and covers.

4-O-ULC

4-O-EXT-SPL

4-OD-1/2

4-OD-3/4

4-OD-SPL

4-OD-LC

G10 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G10

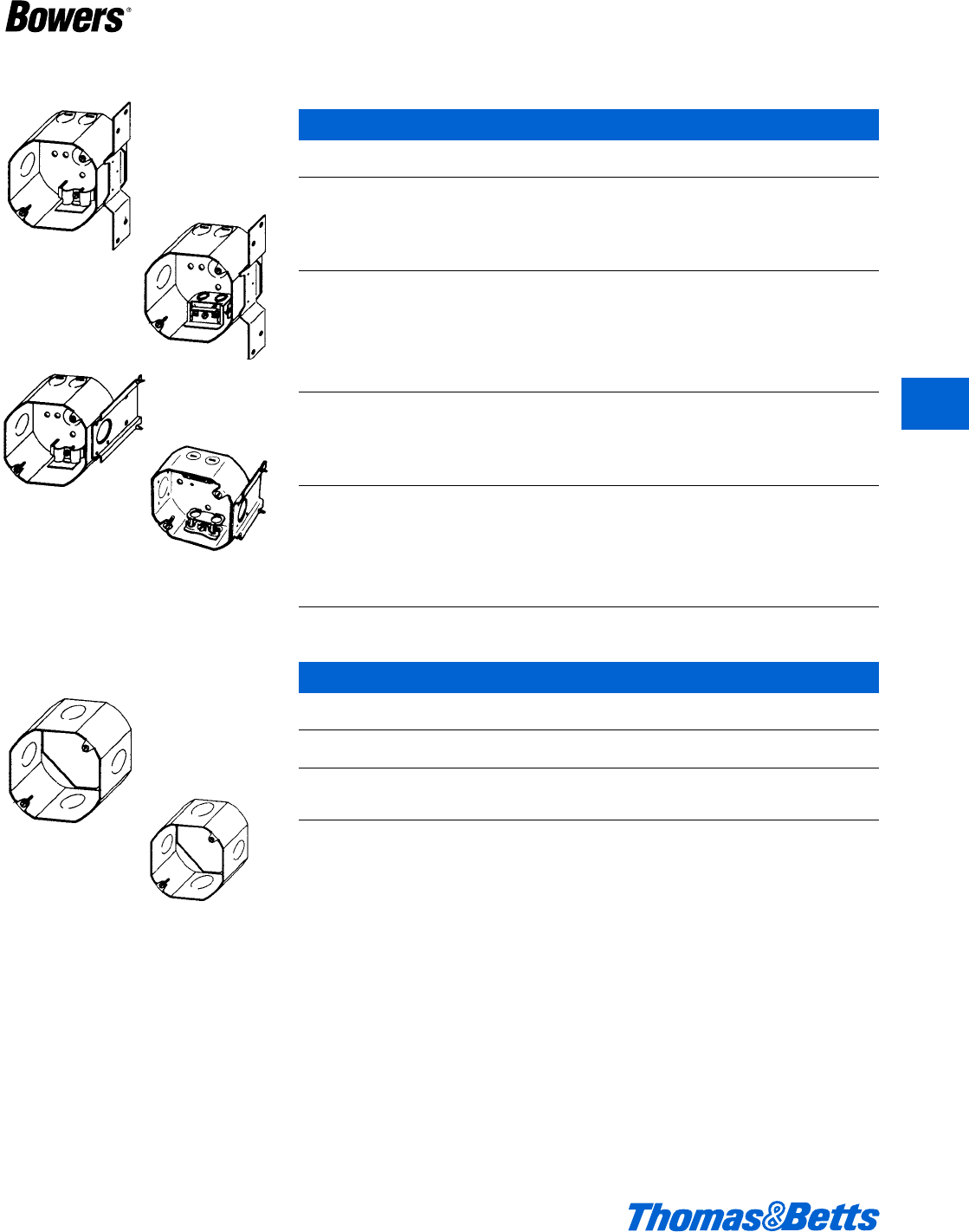

Outlet Boxes

Drawn 4" Octagonal Outlet Boxes–21⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-OD-LCB For Nonmetallic Sheathed Cable 21.5 25 21

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in side opposite bracket, and one d" K.O.

in bottom. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. Flat bracket offset d" from face.*

4-OD-FB-MXN For Metal Clad Cable 21.5 25 21

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in side opposite bracket, and one d" K.O.

in bottom. Two MXN clamps for MC, AC/BX, and

nonmetallic sheathed cable (NM) included with 10/32

deep slotted screws. Clamps are UL listed for use

with cable sizes 14/2 through 10/3 with ground.

Flat bracket offset d" from face.*

4-OD-ULC For Nonmetallic Sheathed Cable 21.5 25 21

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides, and one d" K.O. in

bottom. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. “U” bracket for overhead work.*

4-U-MXN For Metal Clad Cable 21.5 25 21

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides, and one d" K.O. in

bottom. Two MXN clamps for MC, AC/BX, and

nonmetallic sheathed cable (NM) included with

10/32 deep slotted screws. Clamps are UL listed

for use with cable sizes 14/2 through 10/3 with

ground. “U” bracket for overhead work.*

*Uses Bowers 4" octagonal extension rings and 500 series rings and covers.

Drawn 4" Octagonal Extension Rings–21⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-OD-EXT-1/2 Extension Ring 21.5 25 13

One d" K.O. in each of four sides.*

4-OD-EXT-SPL Extension Ring 21.5 25 13

One d" K.O. in each of two opposite sides and

one f" K.O. in other two sides.*

*Uses Bowers 4" octagonal outlet boxes and 500 series rings and covers.

4-OD-LCB

4-OD-FB-MXN

4-OD-ULC

4-OD-U-MXN

4-OD-EXT-1/2

4-OD-EXT-SPL

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G11

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G11

Outlet Boxes

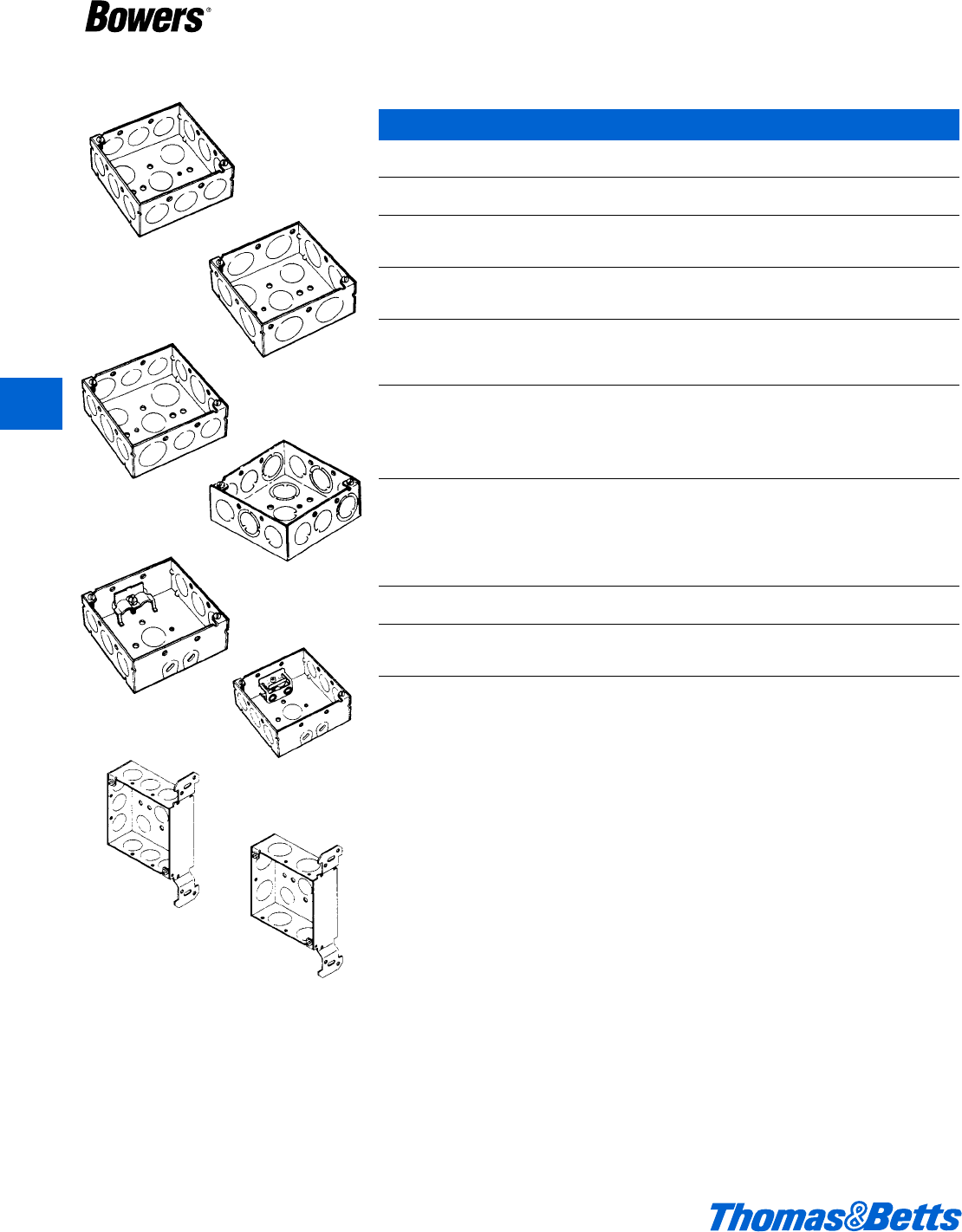

Welded 4" Square Outlet Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-SW-1/2 Three d" K.O.’s in each side and five d" K.O.’s 21.0 50 37

in bottom.*

4-SW-3/4 Two f" K.O.’S in each side. Three d" K.O.’s in a 21.0 50 37

line in bottom with two f" K.O.’s at opposite ends

in bottom.*

4-SW-SPL Two d" K.O.’s and one f" K.O. in each side. 21.0 50 37

Three d" K.O.’s in a line in bottom with two f"

K.O.’s at opposite ends in bottom.*

4-SW-EKO One eccentric d" and f" K.O. and two d" K.O.’s 21.0 50 37

in each side and three d" K.O.’s in a line in bottom

with two eccentric d" and f" K.O.’s at opposite

ends in bottom.*

4-SW-LC For Nonmetallic Sheathed Cable 21.0 50 39

Two Loom K.O.’s in each of two opposite sides, three

d" K.O.’s in other two sides and one d" K.O. in

bottom, Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled.*

4-SW-MXN For Metal Clad Cable 21.0 50 41

Two Loom K.O.’s in each of two opposite sides, three

d" K.O.’s in other two sides, and one d" K.O. in

bottom. Two MXN clamps for MC, AC/BX, and

nonmetallic sheathed cable (NM) included with

10/32 deep slotted screws. Clamps are UL listed for

use with cable sizes 14/2 through 10/3 with ground.*

4-SW-FB-1/2 Three d" K.O.’s in each of three sides with flat 21.0 25 21

bracket on fourth side. Five d" K.O.’s in bottom.*

4-SW-FB-3/4 Two f" K.O.’s in each of three sides with flat bracket 21.0 25 21

on fourth side. Three d" K.O.’s in a line in bottom

with two f" K.O.’s at opposite ends in bottom.*

*Uses Bowers 4" square extension rings and 400 series rings and covers.

4-SW-1/2

4-SW-3/4

4-SW-SPL

4-SW-EKO

4-SW-LC

4-SW-MXN

4-SW-FB-1/2

4-SW-FB-3/4

G12 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G12

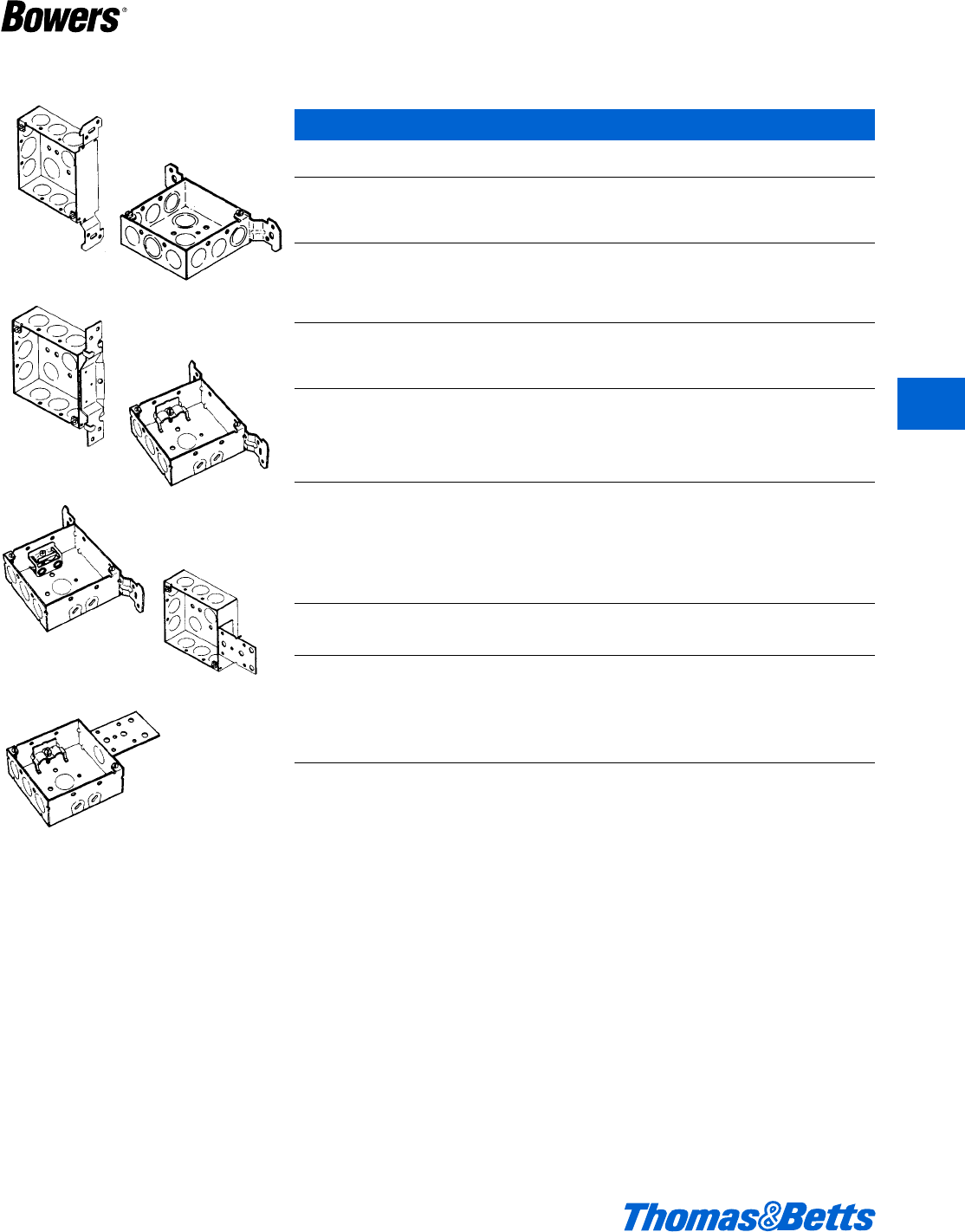

Outlet Boxes

Welded 4" Square Outlet Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-SW-FB-SPL Two d" K.O.’s and one f" K.O. in each of 21.0 25 21

three sides with flat bracket on fourth side.

Three d" K.O.’s in a line in bottom with two

f" K.O.’s at opposite ends in bottom.*

4-SW-FB-EKO One eccentric d" and f" K.O. and two d" 21.0 25 21

K.O.’s in each of three sides with flat bracket on

fourth side. Three d" K.O.’s in a line in bottom

with two eccentric d" and f" K.O.’s at opposite

ends in bottom.*

4-SW-FBH-1/2 Three d" K.O.’s in three sides with hook bracket 21.0 25 22

welded on fourth side and five d" K.O.’s in bottom.

Hook bracket flush with face with hooks set 1/16"

above top of box.*

4-SW-FBC For Nonmetallic Sheathed Cable 21.0 25 22

Two Loom K.O.’s in each of two opposite sides,

three d" K.O.’s in side opposite flat bracket, and

one d" K.O. in bottom. Two Loom clamps for use

on nonmetallic sheathed cable with 10/32 deep

slotted screws assembled.*

4-SW-FB-MXN For Metal Clad Cable 21.0 25 22

Two Loom K.O.’s in each of two opposite sides,

three d" K.O.’s in side opposite flat bracket, and

one d" K.O. in bottom. Two MXN clamps for MC,

AC/BX, and nonmetallic sheathed cable (NM)

included with 10/32 deep slotted screws. Clamps

are UL listed for use with cable sizes 14/2

through 10/3 with ground.*

4-SW-LB-1/2 Three d" K.O.’s in each of three sides, lateral 21.0 50 42

bracket on other side set flush with top of box,

and five d" K.O.’s in bottom.*

4-SW-LBC For Nonmetallic Sheathed Cable 21.0 50 42

Two Loom K.O.’s in each of two opposite sides,

three d" K.O.’s in side opposite lateral bracket,

and one d" K.O. in bottom. Lateral bracket set

flush with top of box. Two Loom clamps for use on

nonmetallic sheathed cable with 10/32 deep

slotted screws assembled.*

*Uses Bowers 4" square extension rings and 400 series rings and covers.

4-SW-FB-SPL

4-SW-FB-EKO

4-SW-FBH-1/2

4-SW-FBC

4-SW-FB-MXN

4-SW-LB-1/2

4-SW-LBC

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G13

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G13

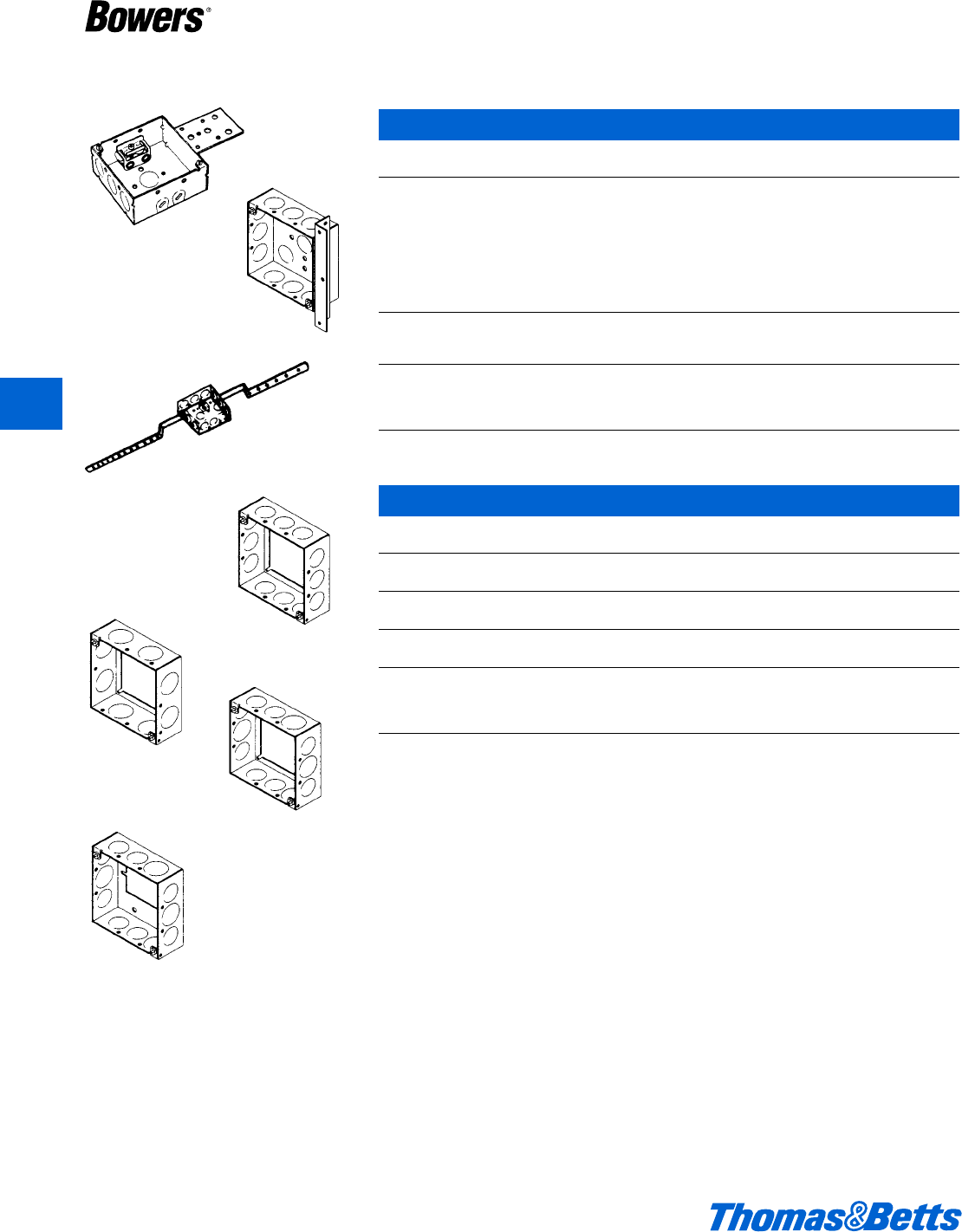

Outlet Boxes

Welded 4" Square Outlet Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-SW-LB-MXN For Metal Clad Cable 21.0 50 45

Two Loom K.O.’s in each of two opposite sides.

Three d" K.O.’s in side opposite lateral bracket,

and one d" K.O. in bottom. Lateral bracket set

flush with top of box. Two MXN clamps for MC,

AC/B, and nonmetallic sheathed cable (NM)

included with 10/32 deep slotted screws. Clamps

are UL listed for use with cable sizes 14/2 through

10/3 with ground.*

4-SW-AB-1/2 Three K.O.’s in each of three sides, angle bracket 21.0 50 45

on other side, and five d" K.O.’s in bottom. Angle

bracket offset l" from top of box.*

4-SW-1/2-2BC Three d" K.O.’s in each side and four d" K.O.’s 21.0 25 31

in bottom. Mounted with clip on 2-BC bar hanger.

Hanger offset correct depth to set box flush with

ceiling joist.*

*Uses Bowers 4" square extension rings and 400 series rings and covers.

Welded 4" Square Extension Rings–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-SW-EXT-1/2 Extension Ring 21.0 50 27

Three d" K.O.’s in each side.*

4-SW-EXT-3/4 Extension Ring 21.0 50 27

Two f" K.O.’s in each side.*

4-SW-EXT-SPL Extension Ring 21.0 50 27

Two d" K.O.’s and one f" K.O. in each side.*

4-SW-EA-SPL Extension Ring 21.0 50 32

Two d" K.O.’s and one f" K.O. in each side.

Bottom apertured to gang to any switch or

handy box.*

*Uses Bowers 4" square outlet boxes and 400 series rings and covers.

4-SW-LB-MXN

4-SW-AB-1/2

4-SW-1/2-2BC

4-SW-EXT-1/2

4-SW-EXT-3/4

4-SW-EXT-SPL

4-SW-EA-SPL

G14 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G14

Outlet Boxes

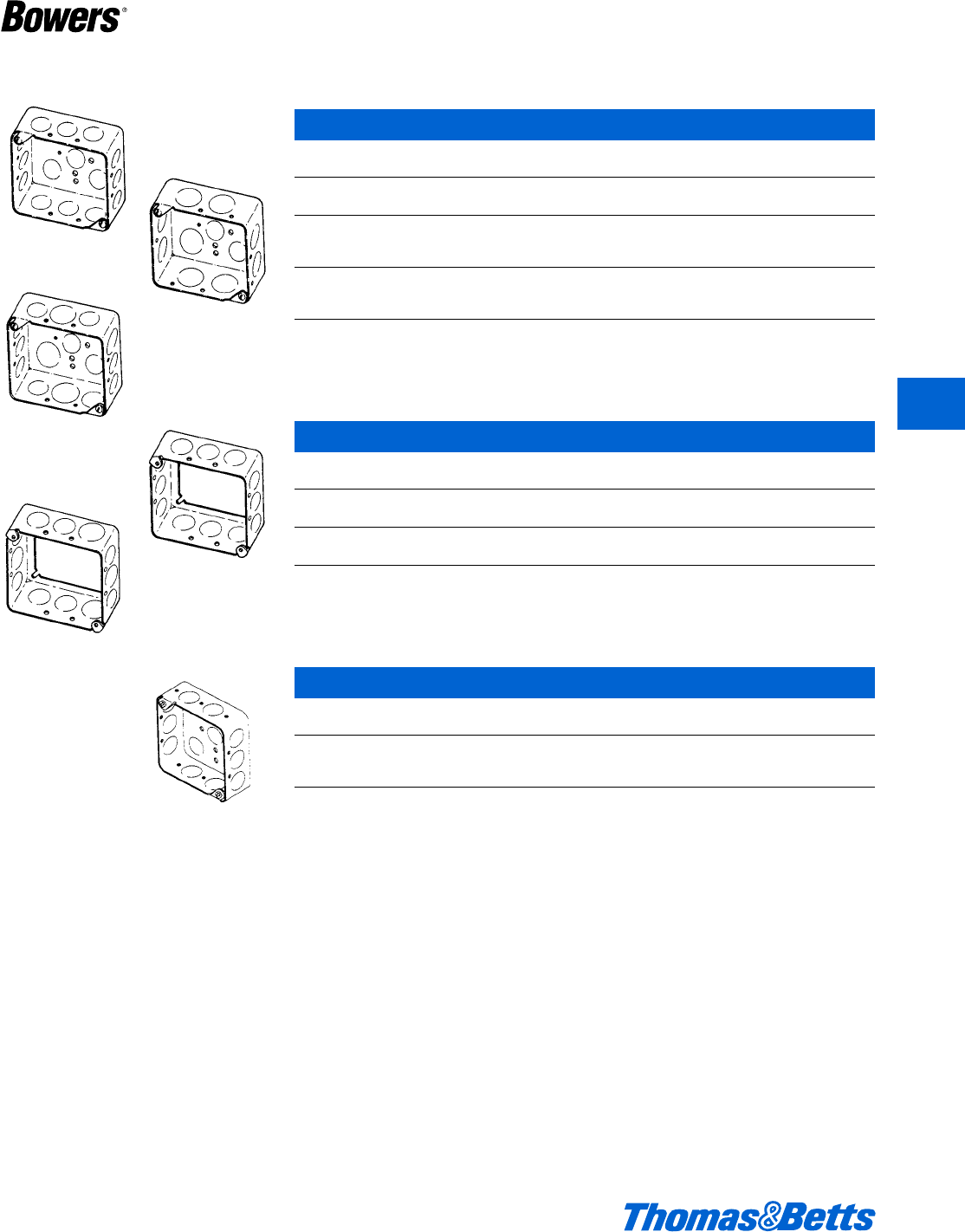

Drawn 4" Square Outlet Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-S-1/2 Three d" K.O.’s in each side and five d" 21.0 50 37

K.O.’s in bottom.*

4-S-3/4 Two f" K.O.’s in each side. Three d" K.O.’s 21.0 50 37

in a line in bottom with two f" K.O.’s at opposite

ends in bottom.*

4-S-SPL Two d" K.O.’s and one f" K.O. in each side, 21.0 50 37

and three d" K.O.’s in a line in bottom with two

f" K.O.’s at opposite ends in bottom.*

*Uses Bowers 4" square extension rings and 400 series rings and covers.

Drawn 4" Square Extension Rings–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-S-EXT-1/2 Extension Ring 21.0 50 27

Three d" K.O.’s in each side.*

4-S-EXT-SPL Extension Ring 21.0 50 27

Two d" K.O.’s and one f" K.O. in each side.*

*Uses Bowers 4" square outlet boxes and 400 series rings and covers.

Drawn 4" Square Outlet Boxes–11⁄4" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-SS-1/2 Three d" K.O.’s in each of two opposite sides, 18.0 50 31

two d" K.O.’s in other two sides, and five d"

K.O.’s in bottom.*

*Uses Bowers 4" square extension rings and 400 series rings and covers

4-S-1/2

4-S-3/4

4-S-SPL

4-S-EXT-1/2

4-S-EXT-SPL

4-SS-1/2

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G15

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G15

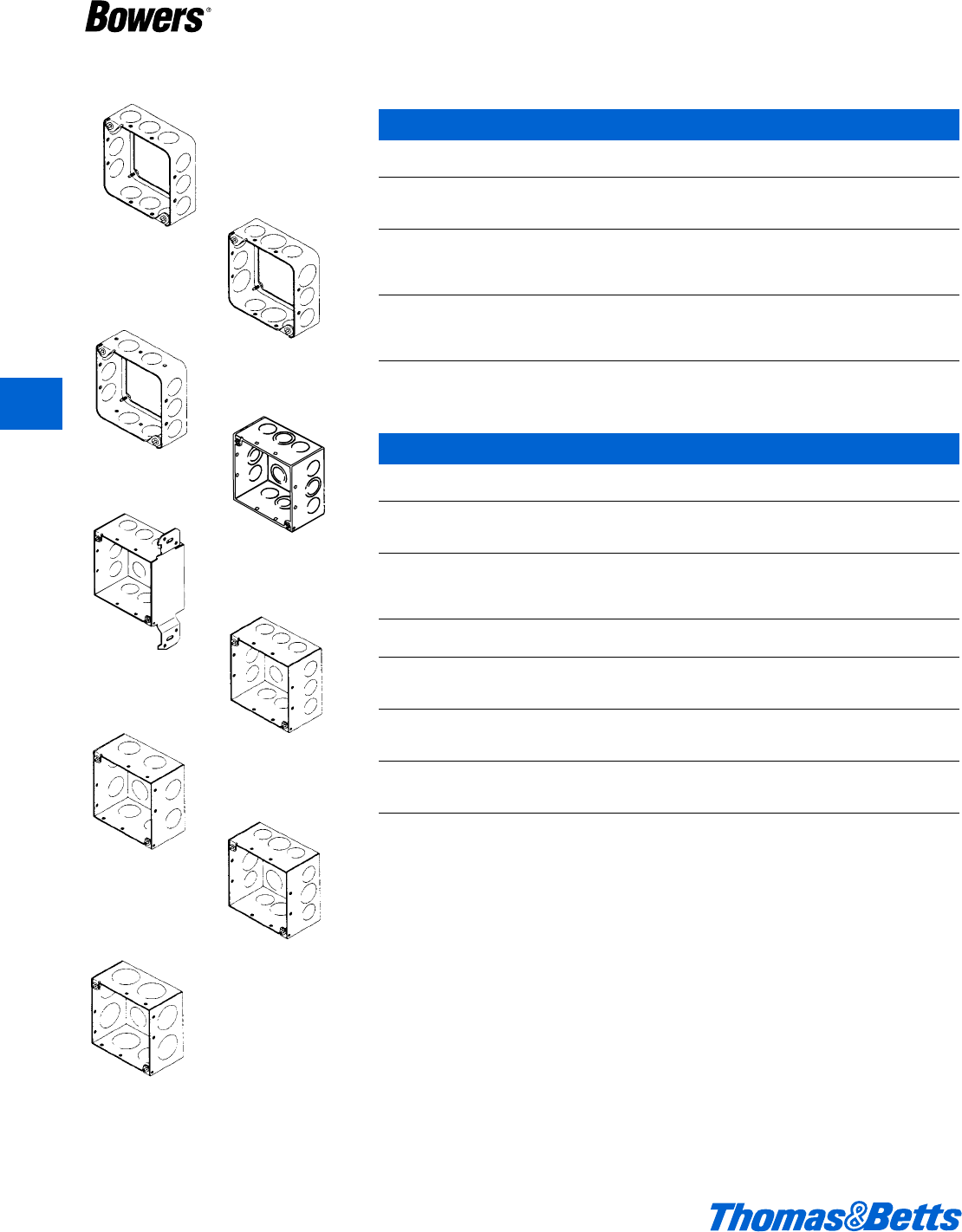

Outlet Boxes

Drawn 4" Square Wall Rings–11⁄2" Deep & 11⁄4" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-S-WR-1/2 Wall Ring 21.0 50 25

Three d" K.O.’s in each side. Four 8/32 screws

furnished (two in top and two in bottom).*

4-S-WR-SPL Wall Ring 21.0 50 25

Two d" K.O.’s and one f" K.O. in each side.

Four 8/32 screws furnished (two in top and two

in bottom).*

4-SS-WR-1/2 Wall Ring 18.0 50 21

Three d" K.O.’s in each of two opposite sides,

two d" K.O.’s in other two sides. Four 8/32 screws

furnished (two in top and two in bottom).**

**For use with two Bowers 403-O rings for back to back devices in 2" partitions.

**For use with two Bowers 403-O rings for back to back devices in 1f" partitions.

Welded 4" Square Outlet Boxes –21⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-SDW-EKO One d" and f" eccentric K.O.’s and two 30.3 25 24

d" K.O.’s on each side, two d" and f"

eccentrics and 3-d" K.O.’s on the bottom.

4-SDW-FB-EKO One d" and f" eccentric K.O.’s and two 30.3 25 24

d" K.O.’s on three sides, two d" and f"

eccentrics and 3-d" K.O.’s on the bottom

with flat bracket.

4-SDW-1/2 Three d" K.O.’s in each side and five d" 30.3 25 24

K.O.’s in bottom.*

4-SDW-3/4 Two f" K.O.’s in each side, and three d" 30.3 25 24

K.O.’s in a line in bottom with two f" K.O.’s at

opposite ends in bottom.*

4-SDW-SPL Two d" K.O.’s and one f" K.O. in each side 30.3 25 24

and three d" K.O.’s in a line in bottom with two

f" K.O.’s at opposite ends in bottom.*

4-SDW-1 Two 1" K.O.’s in each side and three d" K.O.’s 30.3 25 24

in a line in bottom with two f" K.O.’s at opposite

ends in bottom.*

*Uses Bowers 4" square extension rings and 400 series rings and covers.

4-S-WR-1/2

4-S-WR-SPL

4-SS-WR-1/2

4-SDW-EKO

4-SDW-FB-EKO

4-SDW-1/2

4-SDW-3/4

4-SDW-SPL

4-SDW-1

G16 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G16

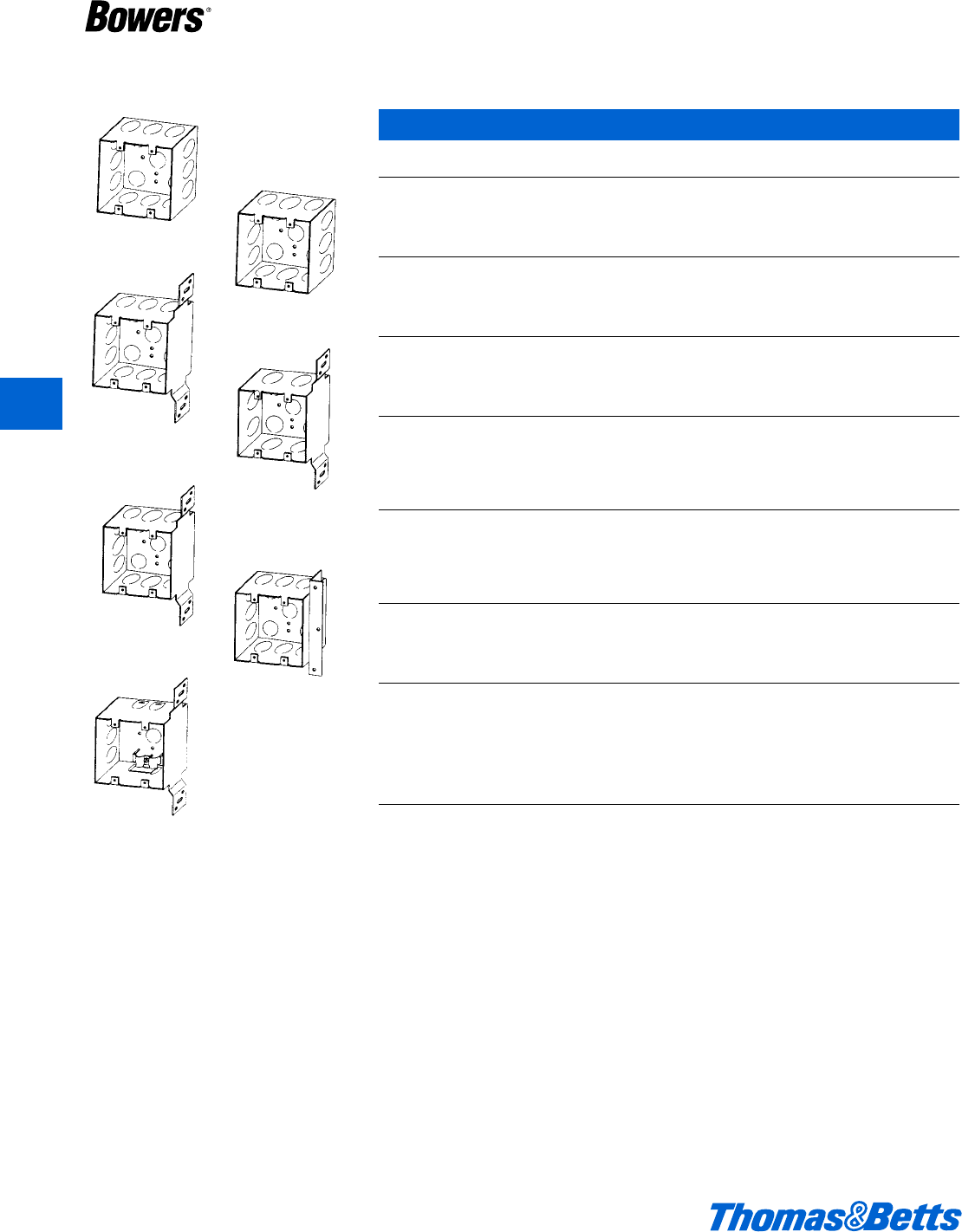

Outlet Boxes

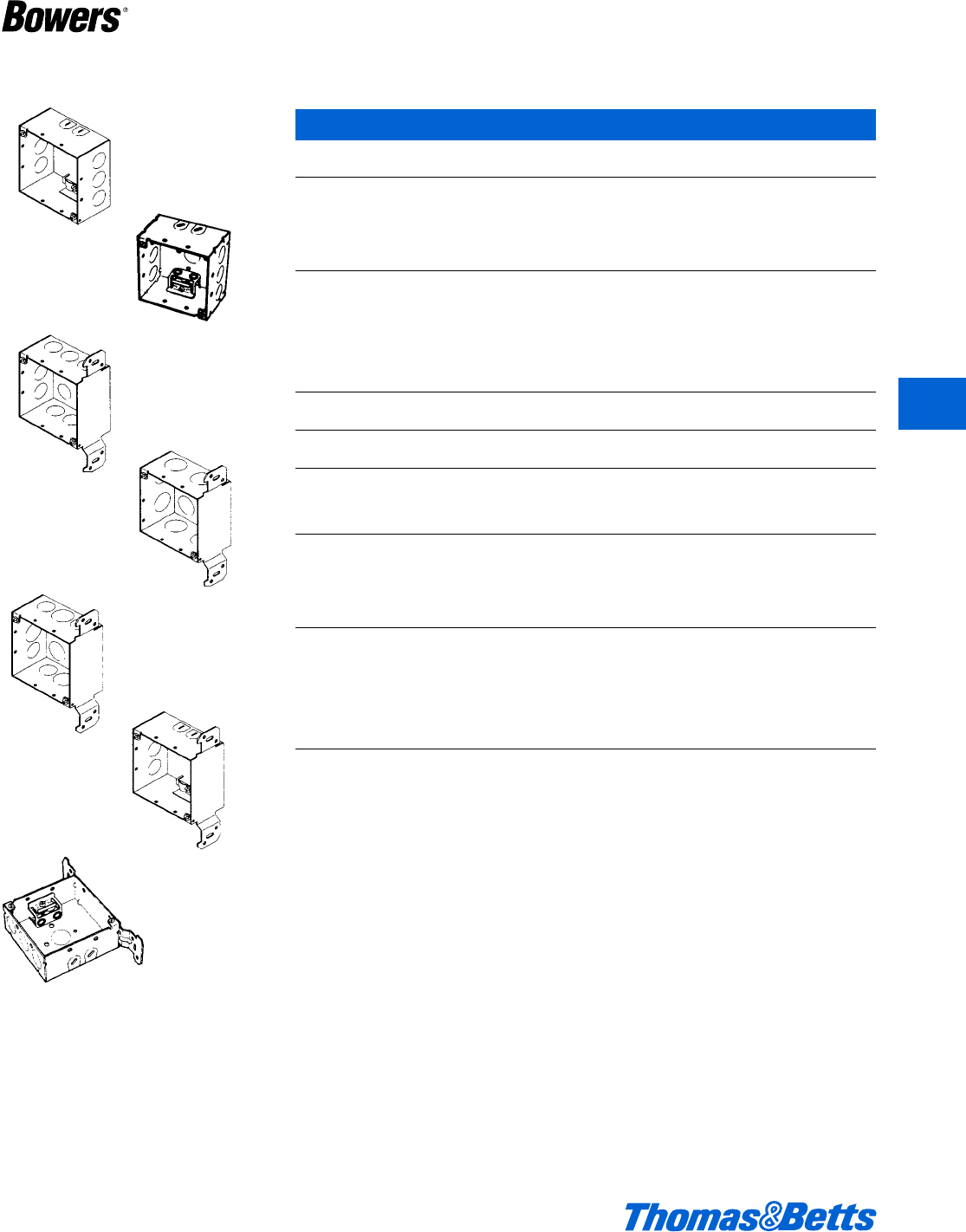

Welded 4" Square Outlet Boxes–21/8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-SDW-LC For Nonmetallic Sheathed Cable 30.3 25 24

Two Loom K.O.’s in each of two opposite sides,

three d" K.O.’s in other two sides, and one d"

K.O. in bottom. Two Loom clamps for use on

nonmetallic sheathed cable with 10/32 deep

slotted screws assembled.*

4-SDW-MXN For Metal Clad Cable 30.3 25 25

Two Loom K.O.’s in each of two opposite sides,

three d" K.O.’s in other two sides, and one d"

K.O. in bottom. Two MXN clamps for MC, AC/BX,

and nonmetallic sheathed cable (NM) included

with 10/32 deep slotted screws. Clamps are UL

listed for use with cable sizes 14/2 through 10/3

with ground.*

4-SDW-FB-1/2 Three d" K.O.’s in each of three sides, flat bracket 30.3 25 26

on other side, and five d" K.O.’s in bottom.*

4-SDW-FB-3/4 Two f" K.O.’s in each of three sides, flat bracket 30.3 25 26

on other side, and five d" K.O.’s in bottom.*

4-SDW-FB-SPL Two d" K.O.’s and one f" K.O. in each of three 30.3 25 26

sides, flat bracket on other side, and three d"

K.O.’s in a line in bottom with two f" K.O.’s at

opposite ends in bottom.*

4-SDW-FBC For Nonmetallic Sheathed Cable 30.3 25 26

Two Loom K.O.’s in each of two opposite sides,

three d" K.O.’s in side opposite flat bracket, and

one d" K.O. in bottom. Two Loom clamps for use

on nonmetallic sheathed cable with 10/32 deep

slotted screws assembled.*

4-SDW-FB-MXN For Metal Clad Cable 30.3 25 27

Two Loom K.O.’s in each of two opposite sides,

three d" K.O.’s in side opposite flat bracket, and

one d" K.O. in bottom. Two MXN clamps for MC,

AC/BX, and nonmetallic sheathed cable (NM)

included with 10/32 deep slotted screws. Clamps

are UL listed for use with cable sizes 14/2 through

10/3 with ground.*

*Uses Bowers 4" square extension rings and 400 series rings and covers.

4-SDW-LC

4-SDW-MXN

4-SDW-FB-1/2

4-SDW-FB-3/4

4-SDW-FB-SPL

4-SDW-FBC

4-SDW-FB-MXN

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G17

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G17

Outlet Boxes

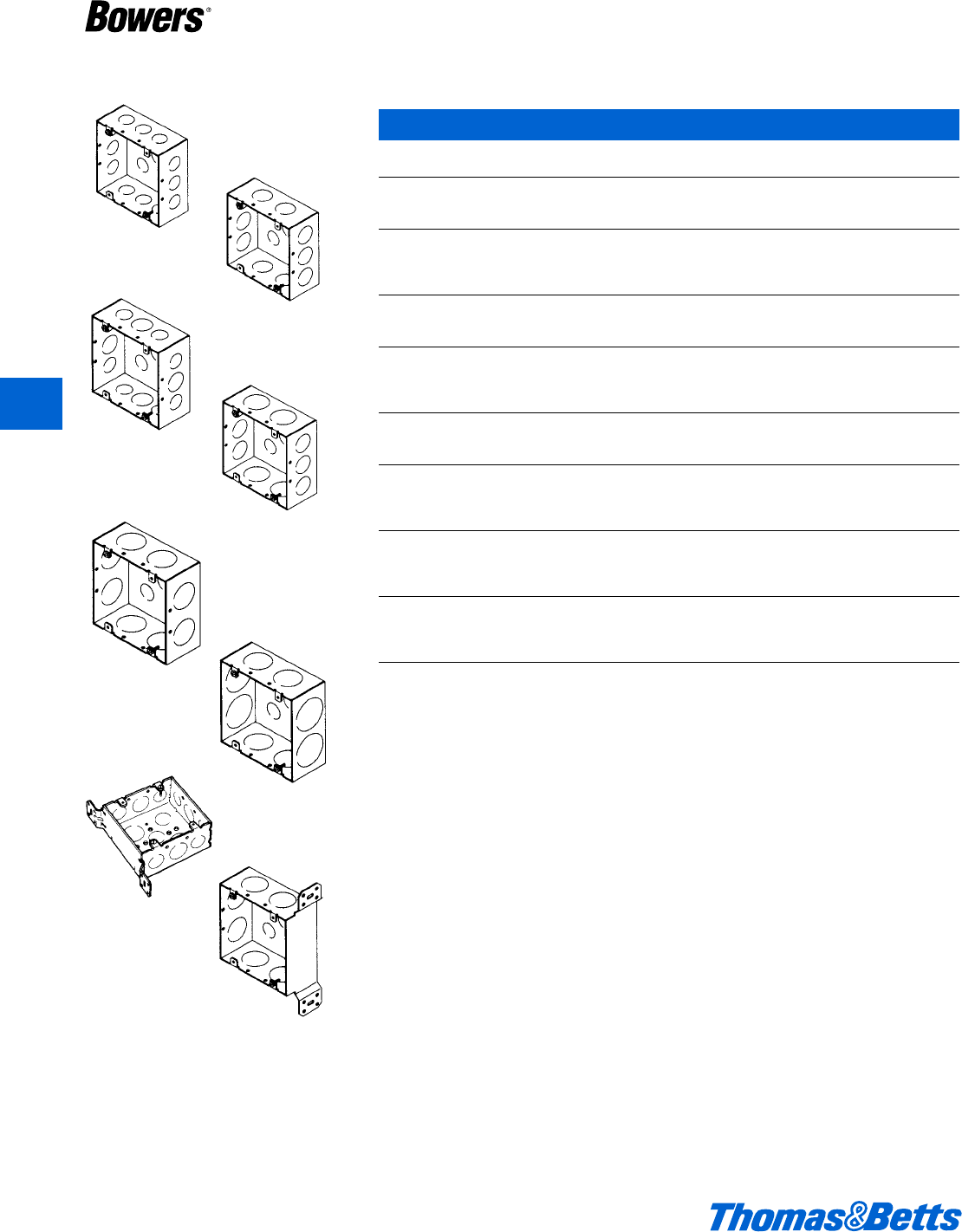

Welded 411⁄16" Square Outlet Boxes–21/8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

5-SDW-1/2 Three d" K.O.’s in each side, and three d" K.O.’s 42.0 25 29

in a line in bottom with two f" K.O.’s at opposite

ends in bottom. Four tapped ears.*

5-SDW-3/4 Two f" K.O.’s in each of two opposite sides, three 42.0 25 29

d" K.O.’s in other two sides, and three d" K.O.’s

in a line in bottom with two f" K.O.’s at opposite

ends in bottom. Four tapped ears.*

5-SDW-SPL Two d" K.O.’s and one f" K.O. in each side, three 42.0 25 29

d" K.O.’s in a line in bottom with two f" K.O.’s at

opposite ends in bottom. Four tapped ears.*

5-SDW-3/4-1 Two 1" K.O.’s in each of two opposite sides, three 42.0 25 29

f" K.O.’s in other two sides. Three d" K.O.’s in

a line in bottom and two f" K.O.’s at opposite

ends in bottom. Four tapped ears.*

5-SDW-1 Two 1" K.O.’s in each side, and three d" K.O.’s in 42.0 25 29

a line in bottom with two f" K.O.’s at opposite

ends in bottom. Four tapped ears.*

5-SDW-1-1/4 Two 1b" K.O.’s in each of two opposite sides, 42.0 25 29

two 1" K.O.’s in other two sides, and three d"

K.O.’s in a line in bottom with two f" K.O.’s at

opposite ends in bottom. Four tapped ears.*

5-SDW-FB-SPL Two d" K.O.’s and one f" K.O. in each of three 42.0 25 31

sides, flat bracket on other side, and three d"

K.O.’s in a line in bottom with two f" K.O.’s at

opposite ends in bottom. Four tapped ears.*

5-SDW-FB-1 Two 1" K.O.’s in each of three sides, flat bracket on 42.0 25 31

other side, and three d" K.O.’s in a line in bottom

with two f" K.O.’s at opposite ends in bottom.

Four tapped ears.*

*Uses Bowers 4L" square extension rings and 600 series rings and covers.

5-SDW-1/2

5-SDW-3/4

5-SDW-SPL

5-SDW-3/4-1

5-SDW-1

5-SDW-1-1/4

5-SDW-FB-SPL

5-SDW-FB-1

G18 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G18

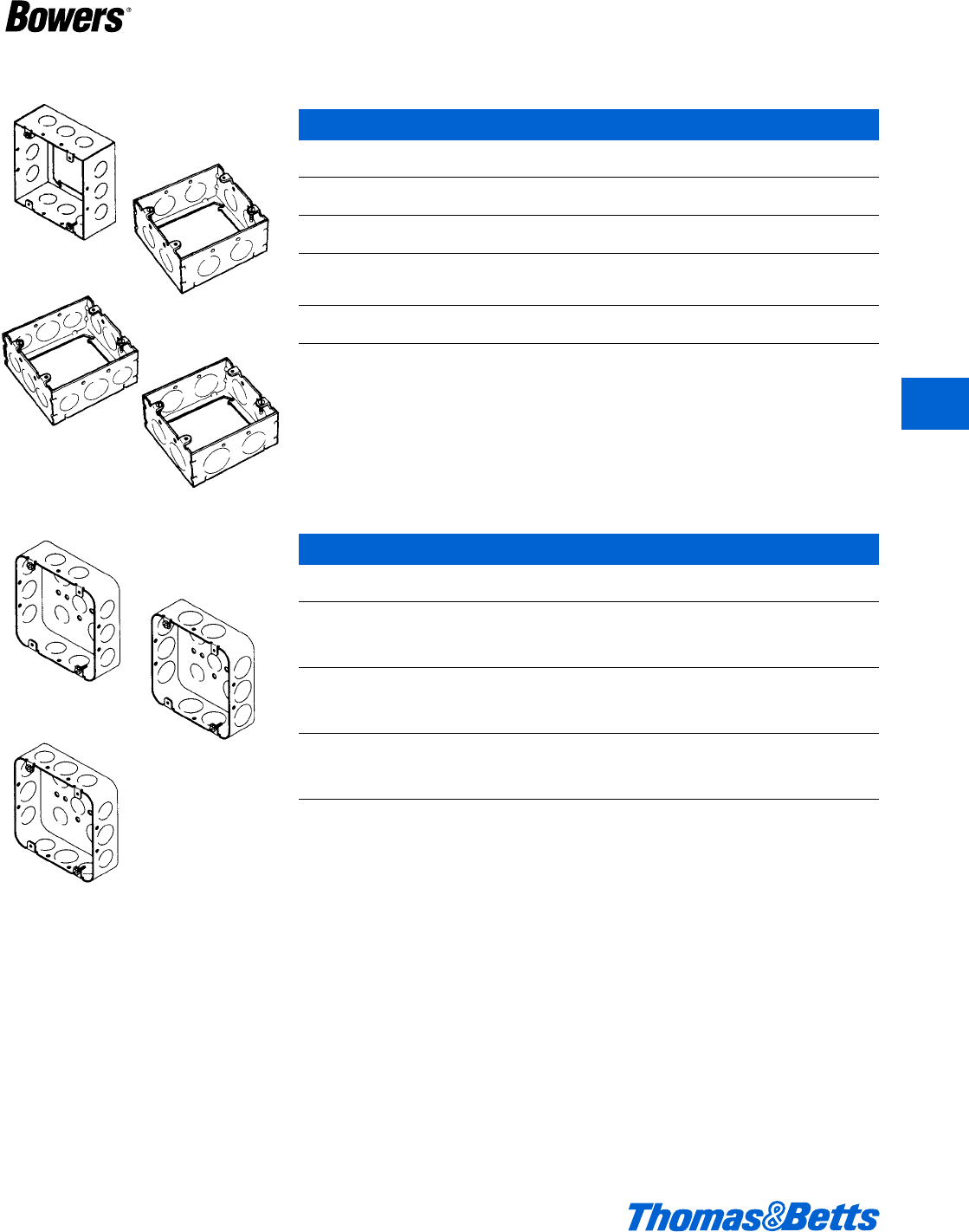

Outlet Boxes

Welded 411⁄16" Square Extension Rings–21/8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

5-SDW-EXT-1/2 Extension Ring 42.0 25 22

Three d" K.O.’s in each side. Four tapped ears.*

5-SDW-EXT-3/4 Extension Ring 42.0 25 22

Two f" K.O.’s in each side. Four tapped ears.*

5-SDW-EXT-SPL Extension Ring 42.0 25 22

Two d" K.O.’s and one f" K.O. in each side.

Four tapped ears.*

5-SDW-EXT-1 Extension Ring 42.0 25 22

Two 1" K.O.’s in each side. Four tapped ears.*

*Uses Bowers 4L" square outlet boxes and 600 series rings and covers.

Drawn 411⁄16" Square Outlet Boxes–11/2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

5-SS-1/2 Three d" K.O.’s in each of two opposite sides, 29.5 25 22

two d" K.O.’s in other two sides, and three d"

K.O.’s in a line in bottom with two f" K.O.’s at

opposite ends in bottom. Four tapped ears.*

5-SS-3/4 Three f" K.O.’s in each of two opposite sides, 29.5 25 22

two f" K.O.’s in other two sides, and three d"

K.O.’s in a line in bottom with two f" K.O.’s at

opposite ends in bottom. Four tapped ears.*

5-SS-SPL Twod" K.O.’s and one f" K.O. in each side, 29.5 25 22

three d" K.O.’s in a line in bottom with two f"

K.O.’s at opposite ends in bottom. Four tapped

ears.*

*Uses Bowers 4L" square extension rings and 600 series rings and covers.

5-SDW-EXT-1/2

5-SDW-EXT-3/4

5-SDW-EXT-SPL

5-SDW-EXT-1

5-SS-1/2

5-SS-3/4

5-SS-SPL

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G19

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G19

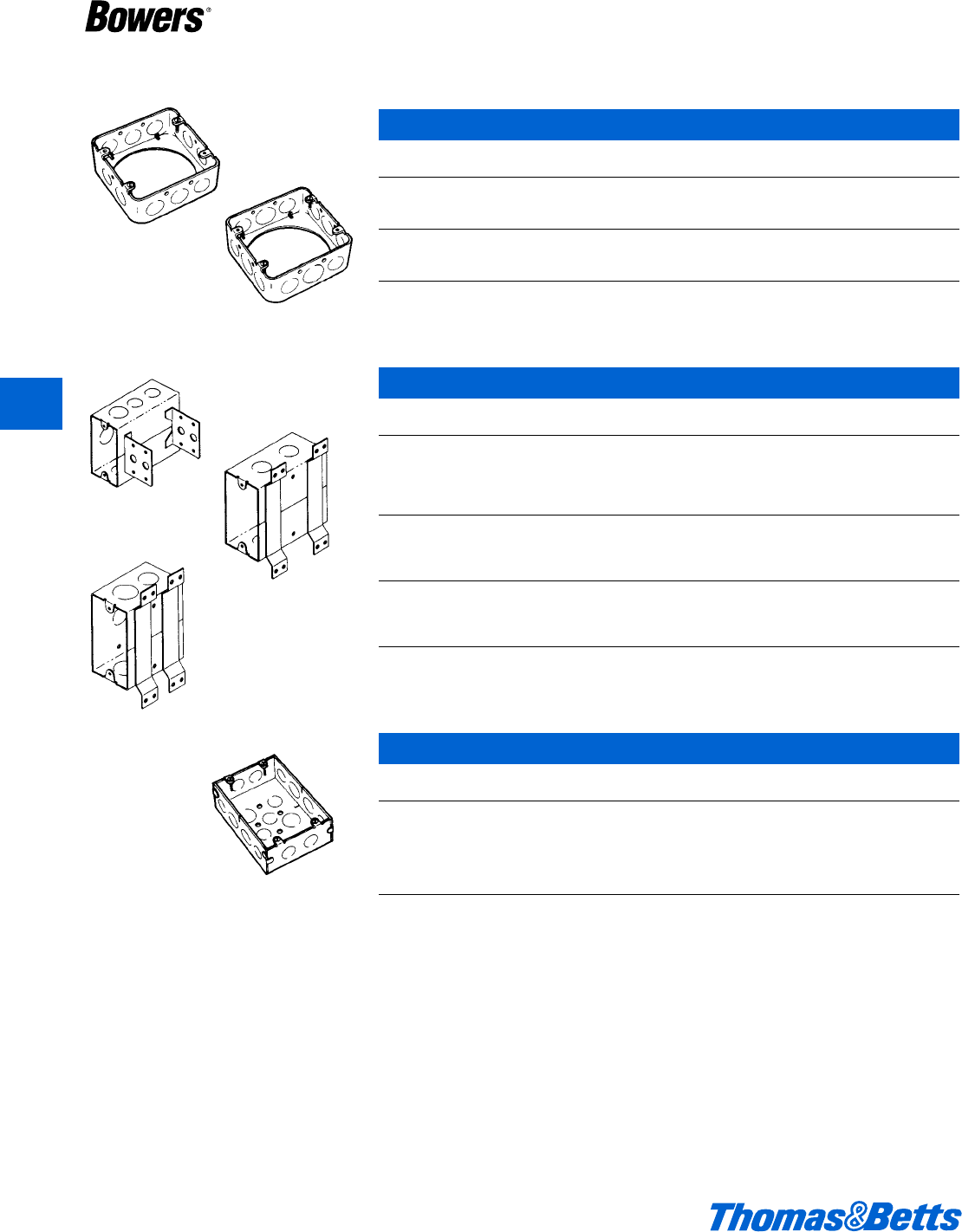

Outlet Boxes

Drawn 411⁄16" Square Extension Rings–11/2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

5-SS-EXT-1/2 Extension Ring 29.5 25 16

Three d" K.O.’s in each of two opposite sides, two

d" K.O.’s in two other sides. Four tapped ears.*

5-SS-EXT-SPL Extension Ring 29.5 25 16

Two d" K.O.’s and one f" K.O. in each side.

Four tapped ears.*

*Uses Bowers 4L" square outlet boxes and 600 series rings and covers.

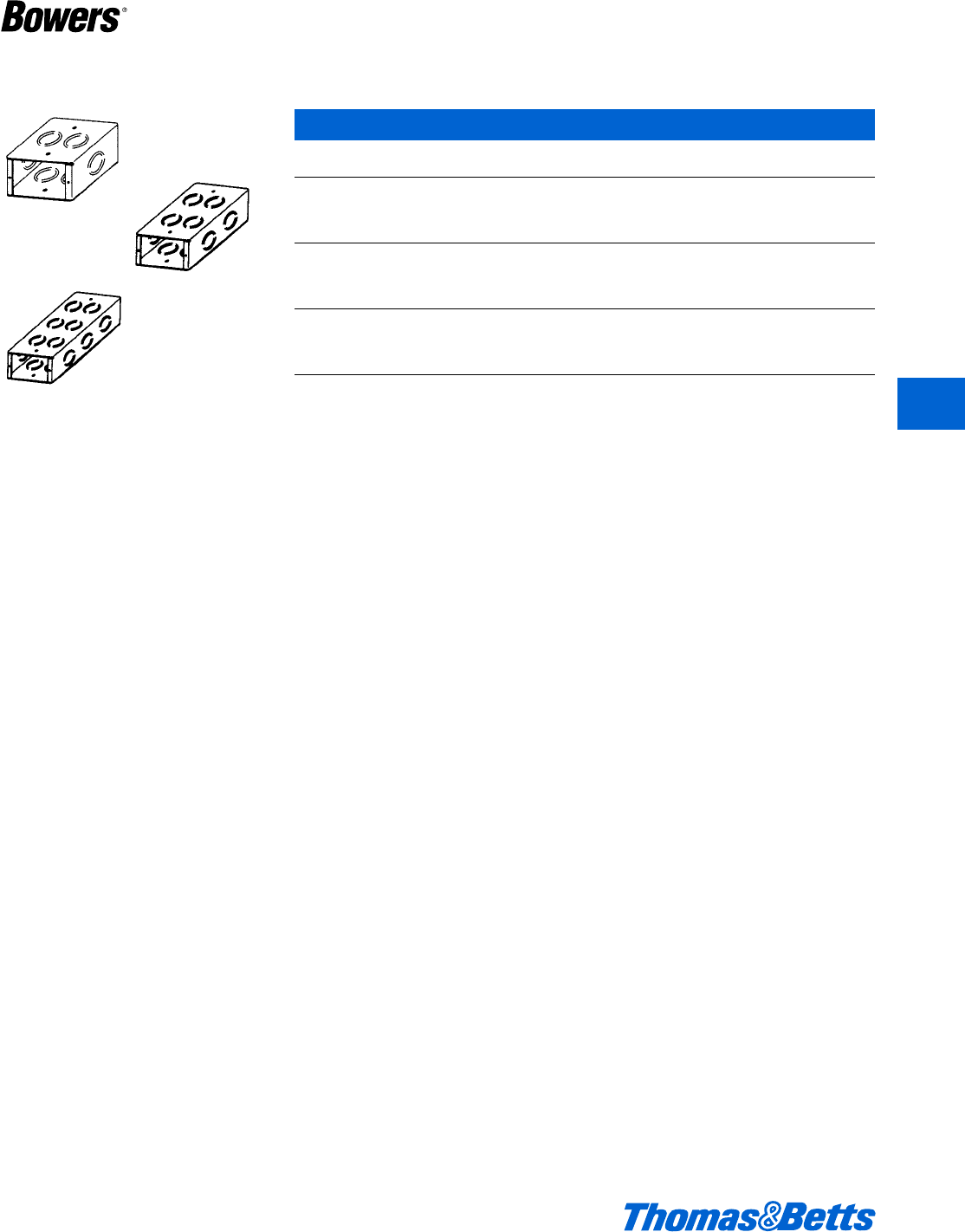

Welded Thru Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4-D 5" Deep–4" Long–2a" Wide 37.5 25 34

Two d" K.O.’s and one f" K.O. on both top and

bottom sides, one d" K. O. and one f" K.O. on

side opposite double bracket. Double bracket for

mounting on 4" studding.*

4-DW Dry Wall Thru-Box 33.0 25 29

4j" Deep–4" Long–2a" Wide

Two d" K.O.’s on both top and bottom sides, one

d" K.O. on side opposite two flat brackets.*

4-DWS 3j" Deep–4" Long–2a" Wide 25.5 25 24

One d" K.O. and one f" K.O. on both top and

bottom sides, and one d" K.O. on side opposite

two flat brackets.*

*Uses Bowers and 100 series covers.

Multi-Gang Boxes and Partitions

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

702-SPL 1m" Deep–4l" Long–6g" Wide 52.0 5 7

A Two Gang Box

Two d" K.O.’s and two f" K.O.’s in each side,

two d" K.O.’s in each end, and three d" K.O.’s

in a line in bottom with two f" K.O.’s at opposite

ends in bottom. Furnished with four 8/32 screws.*

*For use with either Bowers 802 and SB-2, 803 and SB-3, or just GB-2 rings and covers.

5-SS-EXT-1/2

5-SS-EXT-SPL

4-D

4-DW

4-DWS

702-SPL

G20 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G20

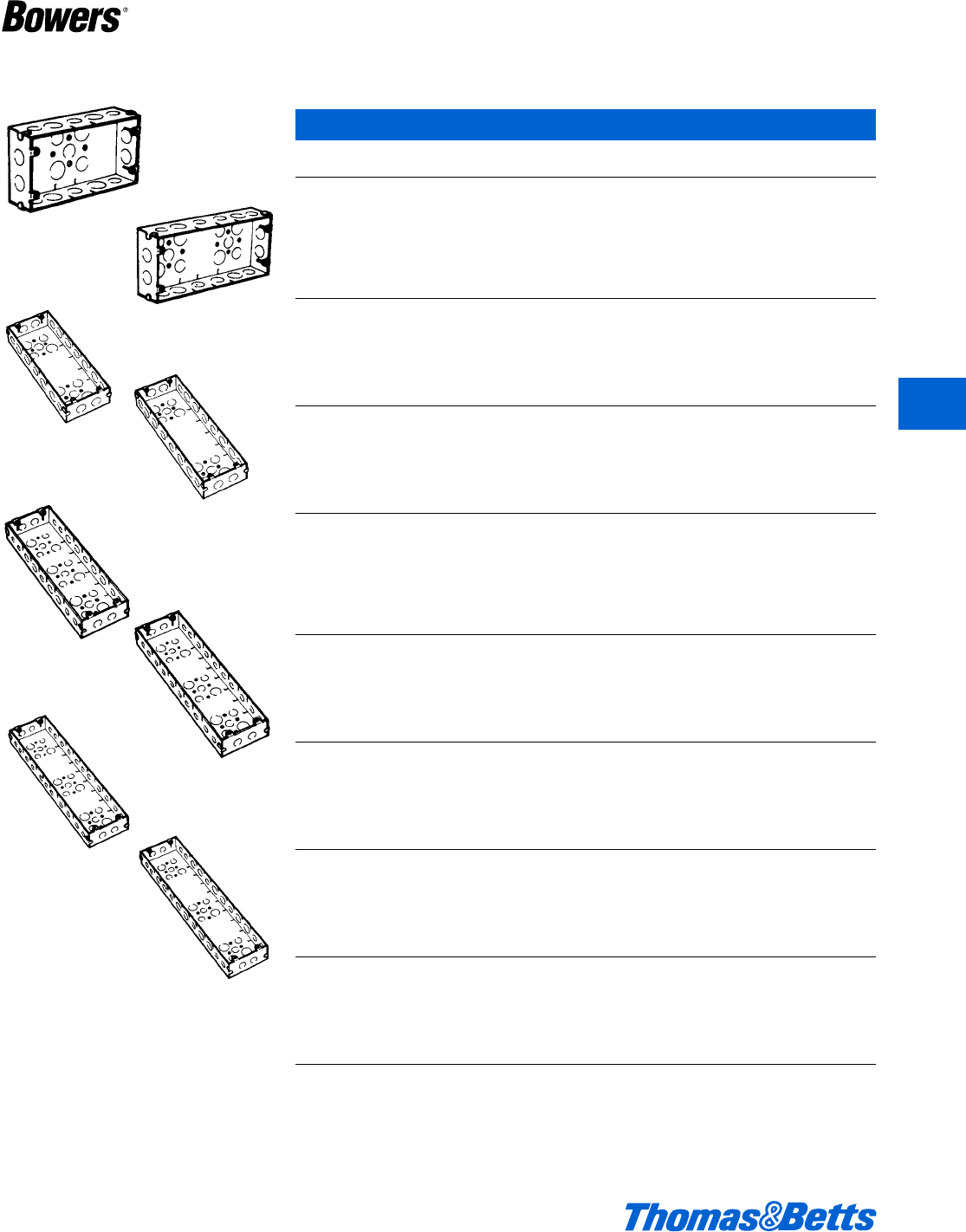

Outlet Boxes

Multi-Gang Boxes and Partitions

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

703-SPL A Three Gang Box 65.0 5 8

1m" Deep–4l" Long–8f" Wide

Three d" K.O.’s and two f" K.O.’s in each side, two

d" K.O.’s in each end, and three d" K.O.’s in a line

in bottom with two f" K.O.’s at opposite ends in

bottom. Furnished with four 8/32 screws.

For use with either Bowers 803 and SB-3, 804 and

SB-4, or just GB-3 rings and covers.

704-SPL A Four Gang Box 79.0 5 10

1m" Deep–4l" Long–10l" Wide

Four d" K.O.’s and two f" K.O.’s in each side, two

d" K.O.’s in each end, and six d" K.O.’s with four

f" K.O.’s in bottom. Furnished with four 8/32 screws.

For use with either Bowers 804 and SB-4, 805 and

SB-5, or just GB-4 rings and covers.

705-SPL A Five Gang Box 94.3 1 2

1m" Deep–4l" Long–12n" Wide

Three d" K.O.’s and four f" K.O.’s in each side, two

d" K.O.’s in each end, and six d" K.O.’s with four

f" K.O.’s in bottom. Furnished with four 8/32 screws.

For use with either Bowers 805 and SB-5, 806 and

SB-6, or just GB-5 rings and covers.

706-SPL A Six Gang Box 110.8 1 2

1m" Deep–4l" Long–14a" Wide

Four d" K.O.’s and four f" K.O.’s in each side, two

d" K.O.’s in each end, and six d" K.O.’s with four

f" K.O.’s in bottom. Furnished with four 8/32 screws.

Requires 806. 807, or GB-6 Cover.

For use with either Bowers 806 and SB-6, 807 and

SB-7, or just GB-6 rings and covers.

707-SPL A Seven Gang Box 126.5 1 3

1m" Deep–4l" Long–15n" Wide

Five d" K.O.’s and four f" K.O.’s in each side, two

d" K.O.’s in each end, and nine d" K.O.’s with six

f" K.O.’s in bottom. Furnished with four 8/32 screws.

For use with either Bowers 807 and SB-7, 808 and

SB-8, or just GB-7 rings and covers.

708-SPL An Eight Gang Box 141.3 1 3

1m" Deep–4l" Long–17f" Wide

Six d" K.O.’s and four f" K.O.’s in each side, two d"

K.O.’s in each end, and nine d" K.O.’s with six f"

K.O.’s in bottom. Furnished with four 8/32 screws.

For use with either Bowers 808 and SB-8, 809 and

SB-9, or just GB-8 rings and covers.

709-SPL A Nine Gang Box 155.8 1 4

1m" Deep–4l" Long–19l" Wide

Six d" and five f" K.O.’s in each side and two d"

K.O.’s in each end, and nine d" K.O.’s with six f"

K.O.’s in bottom. Furnished with four 8/32 screws.

For use with either Bowers 809 and SB-9, 810 and

SB-10, or just GB-9 rings and covers.

710-SPL A Ten Gang Box 170.5 1 5

1m" Deep–4l" Long–21c" Wide

Six d" K.O.’s and six f" K.O.’s in each side, two d"

K.O.’s in each end and nine d" K.O.’s with six f"

K.O.’s in bottom. Furnished with four 8/32 screws.

For use with either Bowers 810 and SB-10, or just GB-10

rings and covers.

703-SPL

704-SPL

705-SPL

706-SPL

707-SPL

708-SPL

709-SPL

710-SPL

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G21

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G21

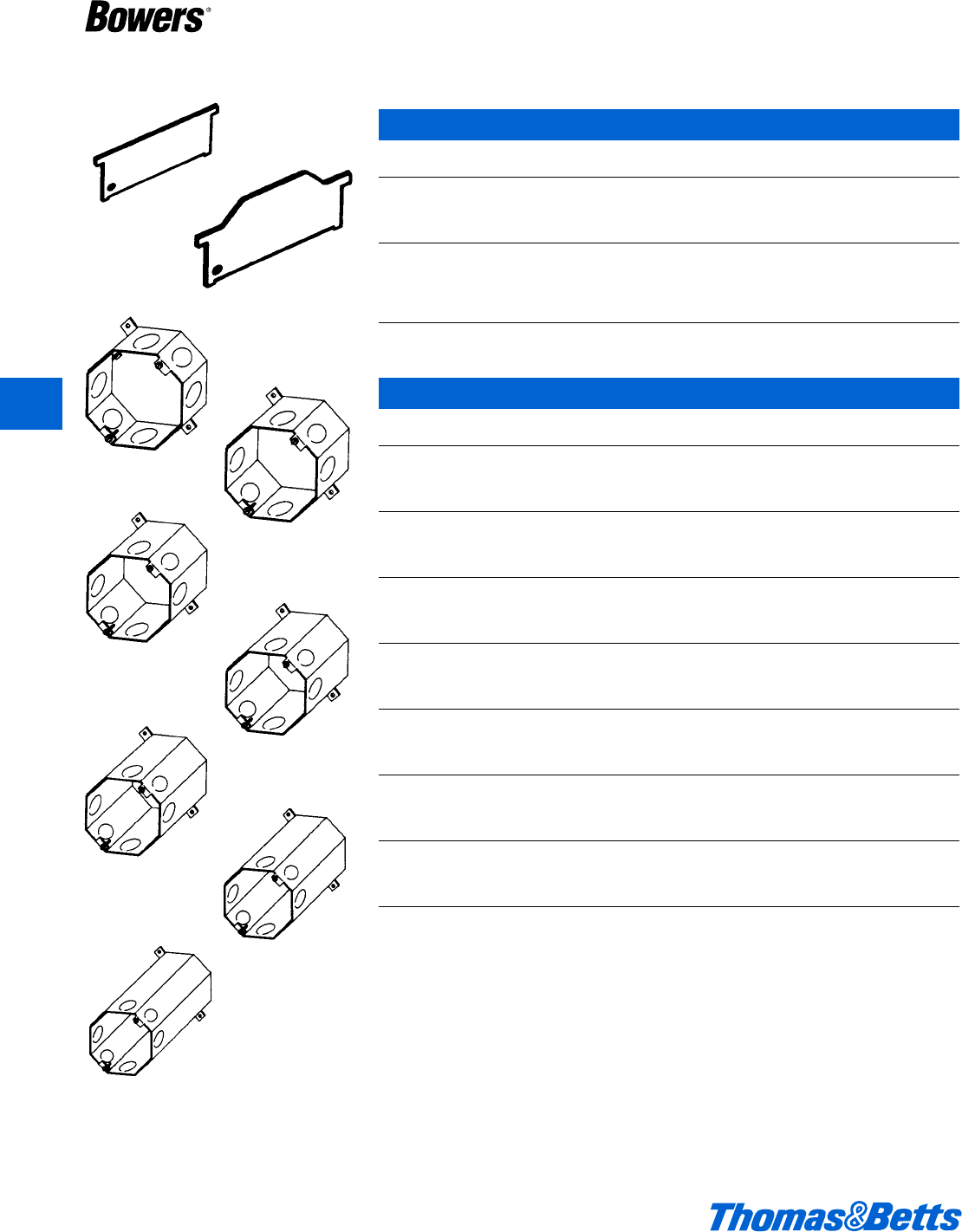

Outlet Boxes

Multi-Gang Boxes and Partitions

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

LVP Multi-Gang Partition –254

1n" Deep–4l" Wide

A low voltage partition for use in Bowers “700

series” gang boxes when switch rings are used.*

LVPH Multi-Gang Partition –255

2d" Deep–4d" Wide

A low voltage partition for use in Bowers “700

series” gang boxes when f" raised switch rings

(Bowers 800 Series) are used.*

*For use with Bowers 700 series boxes.

Concrete Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

900 2" Deep–4" Octagon 24.3 25 14

One d" K.O. in each of four alternating sides and

one f" K.O. in each of the four remaining sides.

Furnished with four 8/32 x d" screws.*

901-BW 2d" Deep–4" Octagon 30.3 25 1

One d" K.O. in each of four alternating sides and

one f" K.O. in each of the four remaining sides.

Furnished with four 8/32 x d" screws.*

902 3" Deep–4" Octagon 36.8 25 20

One d" K.O. in each of four alternating sides and

one f" K.O. in each of the four remaining sides.

Furnished with four 8/32 x d" screws.*

903 3d" Deep–4" Octagon 42.8 25 24

One d" K.O. in each of four alternating sides and

one f" K.O. in each of the four remaining sides.

Furnished with four 8/32 x d" screws.*

904 4" Deep–4" Octagon 48.8 25 27

One d" K.O. in each of four alternating sides and

one f" K.O. in each of the four remaining sides.

Furnished with four 8/32 x d" screws.*

905 5" Deep–4" Octagon 61.8 25 34

One d" K.O. in each of four alternating sides and

one f" K.O. in each of the four remaining sides.

Furnished with four 8/32 x d" screws.*

906-BW 6" Deep–4" Octagon 73.3 25 42

One d" K.O. in each of four alternating sides and

one f" K.O. in each of the four remaining sides.

Furnished with four 8/32 x d" screws.*

*For use with Bowers 910 or 911 covers.

LVP

LVPH

900

901-BW

902

903

904

905

906-BW

G22 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G22

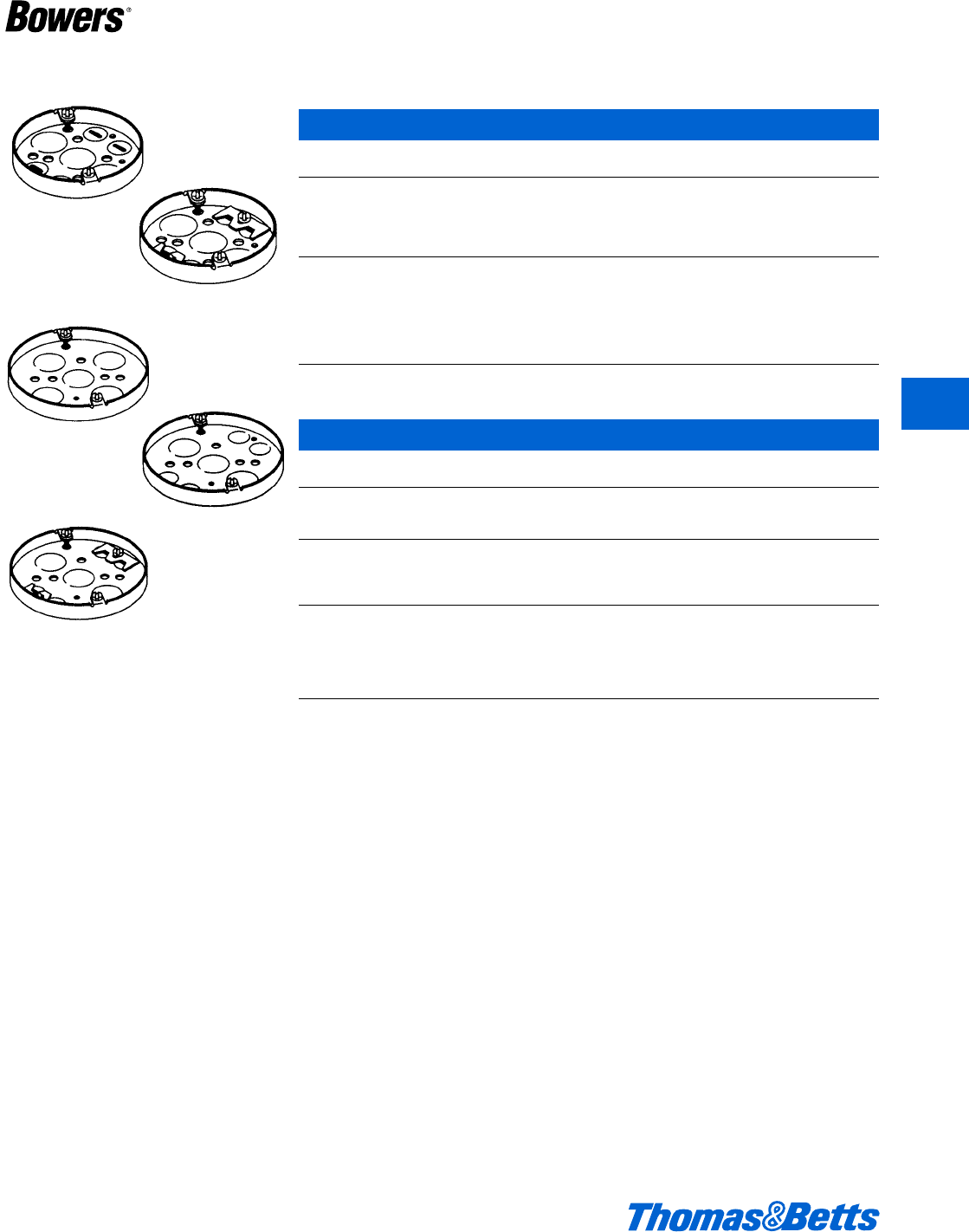

31⁄4" Pancake Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

210-L For Nonmetallic Sheathed Cable 4.0 100 25

3b" Diameter–d" Deep

Three d" K.O.’s in a line with four Loom K.O.’s at

opposite ends in bottom. Furnished with two

8/32 x d" screws.*

210-LC For Nonmetallic Sheathed Cable 4.0 100 29

3b" Diameter–d" Deep

Three d" K.O.’s in a line with four Loom K.O.’s at

opposite ends in bottom. One Loom clamp for use

on nonmetallic sheathed cable with 10/32 deep

slotted screw assembled. Furnished with two

8/32 x d" screws in ears.*

*Uses Bowers 300 series covers.

4" Pancake Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

410 4" Diameter–d" Deep 5.8 50 17

Five d" K.O.’s in bottom. Furnished with two

8/32 x d" screws.*

410-L 4" Diameter–d" Deep 5.8 50 18

Three d" K.O.’s in a line and four Loom K.O.’s at

opposite ends in bottom. Furnished with two

8/32 x d" screws.*

410-LC For Nonmetallic Sheathed Cable 5.8 50 20

4" Diameter–d" Deep

Three d" K.O.’s in a line and four Loom K.O.’s at

opposite ends in bottom. Furnished with two Loom

clamps for nonmetallic cable with 10/32 deep slotted

screws and two 8/32 x d" screws in ears.*

*Uses Bowers 500 series covers.

Outlet Boxes

210-L

210-LC

410

410-L

410-LC

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G23

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:42 PM Page G23

Outlet Boxes

G24 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

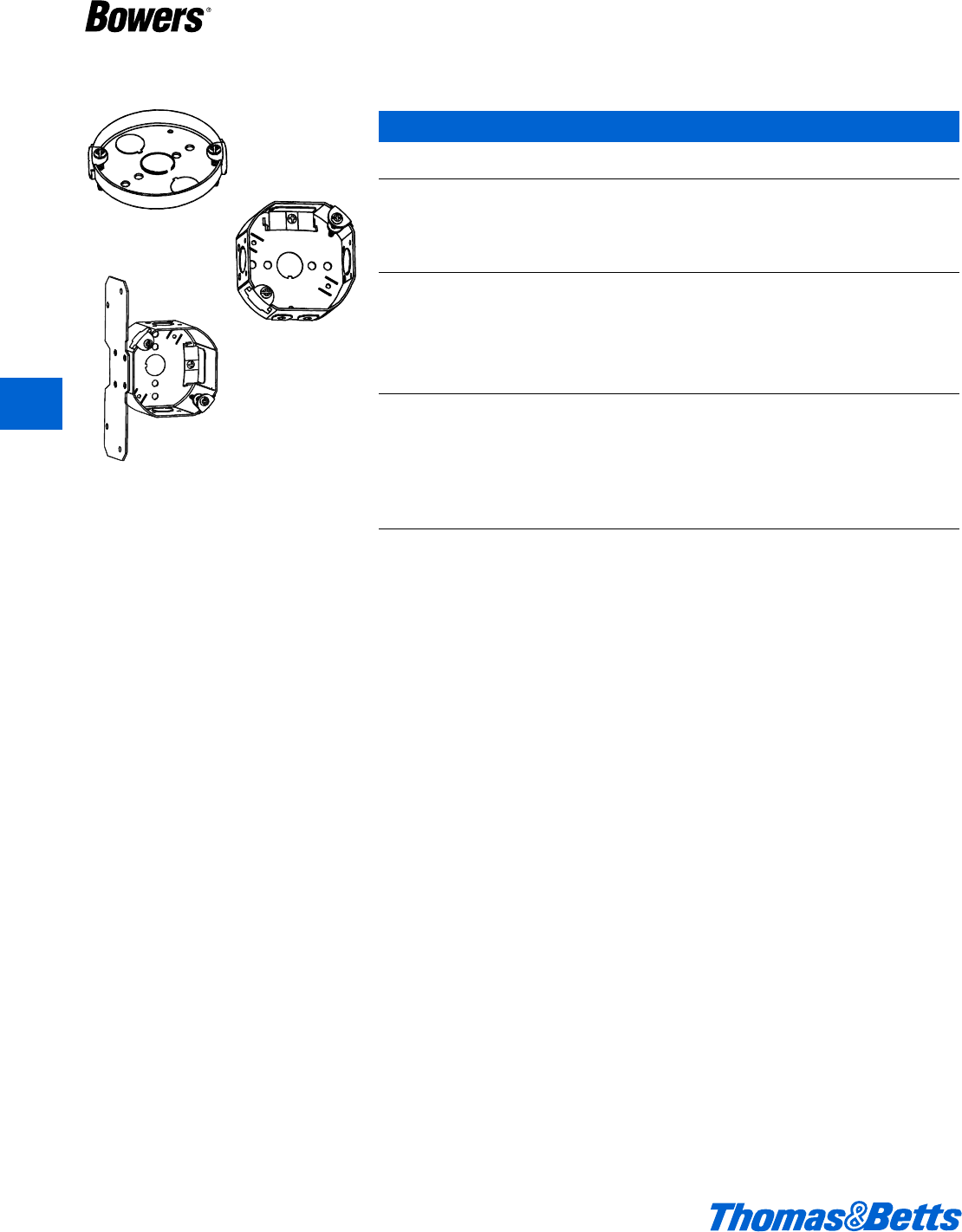

Fan Support Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

410-LCF (RM) For Nonmetallic Sheathed Cable 6.0 50 20

4" Diameter–d" Deep–Ceiling Fan Support

Two d" K.O.’s in bottom. Furnished with necessary

screws for mounting. Includes two 10/32 screws

in ears. Includes NM Loom clamp connector.

Rated for maximum 35 lbs.*

4-O-LCF (RM) For Nonmetallic Sheathed Cable 15.8 50 42

1d" Deep–4" Octagon–Ceiling Fan Support

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in other two sides, and one d" K.O. in

bottom. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. Box mounting screws supplied.

UL Listed to hold maximum 35 lbs.*

4-O-LCFB (RM) For Nonmetallic Sheathed Cable 22.0 50 63

2a" Deep–4" Octagon–Ceiling Fan Support

Two Loom K.O.’s in each of two opposite sides, one

d" K.O. in side opposite bracket, and one d" K.O.

in bottom. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. Bracket offset d" from face. Box

mounting screws supplied. UL Listed to hold

maximum 35 lbs.*

*For paddle fan support.

410-LCF (RM)

4-O-LFC (RM)

4-O-LCFB (RM)

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G24

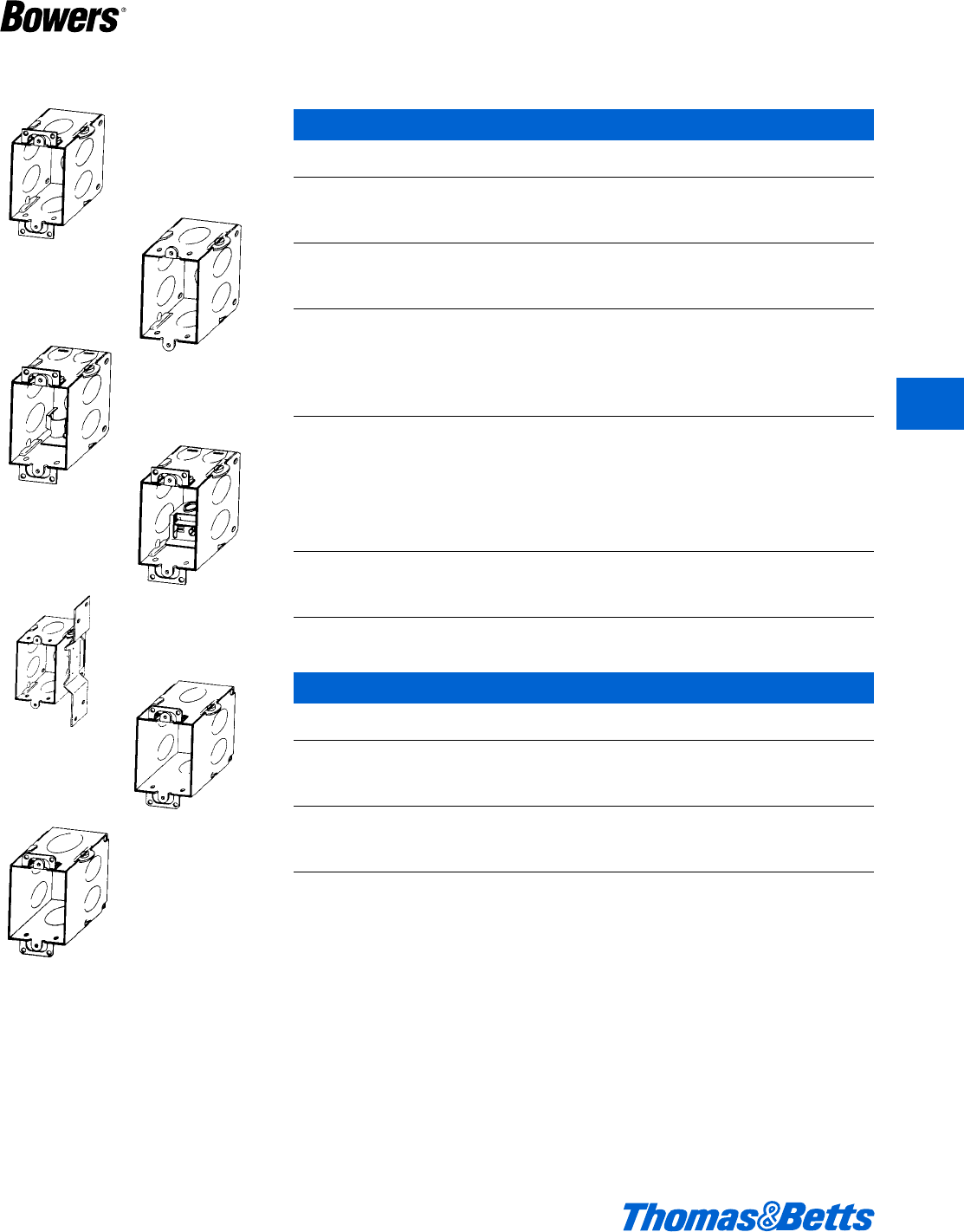

Switch and Handy Boxes

Gangable Switch Boxes–2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

51 2" Deep–3" Long–2" Wide 10.0 50 25

Two d" K.O.’s in each of two sides, one d" K.O.

in each end, and two d" K.O.’s in bottom. Two nail

holes in sides. Furnished with plaster ears.*

51-NE 2" Deep–3" Long–2" Wide 10.0 50 23

Two d" K.O.’s in each of two sides, one d" K.O.

in each end, and two d" K.O.’s in bottom. Two nail

holes in sides.*

51-LC For Nonmetallic Cable 10.0 50 27

2" Deep–3" Long–2" Wide

Two d" K.O.’s in each of two sides, two Loom K.O.’s

in each end, and one d" K.O. in bottom. Furnished

with plaster ears. One Loom clamp for use on

nonmetallic sheathed cable with 10/32 deep slotted

screw assembled. Two nail holes in sides.*

51-MXN For Metal Clad Cable 10.0 50 28

2" Deep–3" Long–2" Wide

Two d" K.O.’s in each of two sides, two Loom K.O.’s

in each end, one d" K.O. in bottom. Furnished with

plaster ears. One MXN clamp for MC, AC/BX, and

nonmetallic sheathed cable (NM) included with 10/32

deep slotted screw. Clamp is UL listed for use with

cable sizes 14/2 through 10/3 with ground. Two nail

holes in sides.*

51-FB 2" Deep–3" Long–2" Wide 10.0 50 28

Two d" K.O.’s in one side, flat bracket on other

side, one d" K.O. in each end, and two d" K.O.’s

in bottom. Bracket offset l" from face.*

*Uses Bowers 100 series covers.

Gangable Switch Boxes–21⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

52 2d" Deep–3" Long–2" Wide 12.5 50 28

Two d" K.O.’s in each of two sides, one d" K.O.

in each end, and two d" K.O.’s in bottom.

Furnished with plaster ears. Four nail holes in sides.*

52-3/4-BW 2d" Deep–3" Long–2" Wide 12.5 50 30

Two d" K.O.’s in each of two sides, one f" K.O.

in each end, and two d" K.O.’s in bottom.

Furnished with plaster ears. Four nail holes in sides.*

*Uses Bowers 100 series covers.

51

51-NE

51-LC

51-MXN

51-FB

52

52-3/4-BW

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G25

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G25

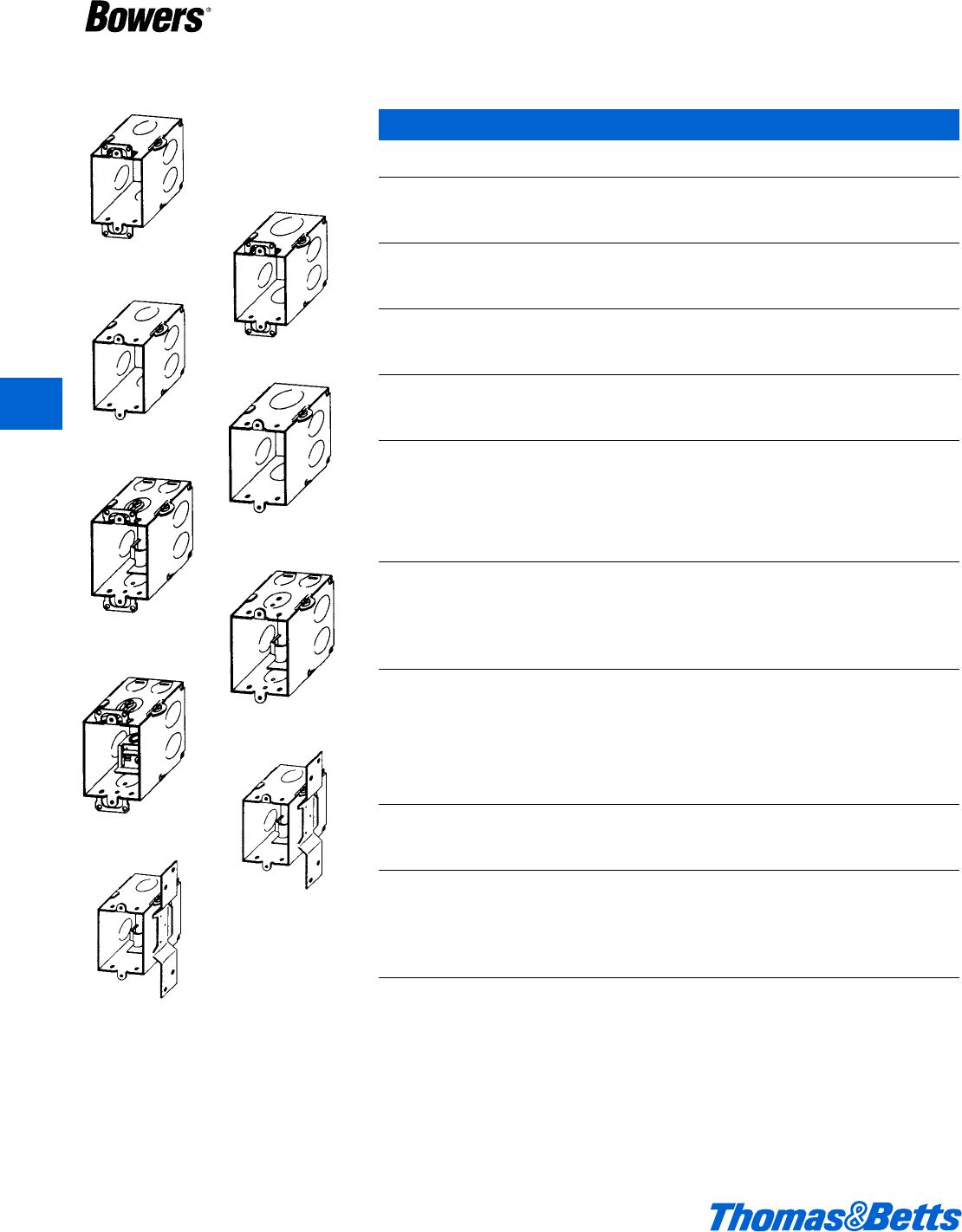

Switch and Handy Boxes

Gangable Switch Boxes–21⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

52-NE 2d" Deep–3" Long–2" Wide 12.5 50 27

Two d" K.O.’s in each of two sides, one d"

K.O. in each end, and two d" K.O.’s in bottom.

Four nail holes in sides.*

52-NE-3/4 2d" Deep–3" Long–2" Wide 12.5 50 28

Two d" K.O.’s in each of two sides, one f" K.O.

in each end, and two d" K.O.’s in bottom.

Four nail holes in sides.*

52-LC For Nonmetallic Cable 12.5 50 31

2d" Deep–3" Long–2" Wide

Two d" K.O.’s in each side, two loom K.O.’s and

one d" K.O. in each end, and one d" K.O. in

bottom. One Loom clamp for use on nonmetallic

sheathed cable with 10/32 deep slotted screw

assembled. Furnished with plaster ears. Four nail

holes in sides.*

52-LCNE For Nonmetallic Cable 12.5 50 30

2d" Deep–3" Long–2" Wide

Two d" K.O.’s in each side, two Loom K.O.’s and

one d" K.O. in each end. One d" K.O. in bottom.

One Loom clamp for use on nonmetallic sheathed

cable with 10/32 deep slotted screw assembled.

Four nail holes in sides.*

52-MXN Metal Clad Cable 12.5 50 31

2d" Deep–3" Long–2" Wide

Two d" K.O.’s in each side, two Loom K.O.’s and

one d" K.O. in each end, and one d" K.O. in

bottom. Furnished with plaster ears. One MXN

clamp for MC, AC/BX, and nonmetallic sheathed

cable (NM) included with 10/32 deep slotted

screw. Clamp is UL listed for use with cable

sizes 14/2 through 10/3 with ground. Four nail

holes in side.*

52-FB 2d" Deep–3" Long–2" Wide 12.5 50 32

Two d" K.O.’s in one side, flat bracket on other

side, one d" K.O. in each end, and two d"

K.O.’s in bottom. Flat bracket offset l"

from face.*

52-FB-3/4 2d" Deep–3" Long–2" Wide 12.5 50 32

Two d" K.O.’s in one side, flat bracket on other

side, one K.O. in each end, and two f"

K.O.’s in bottom. Flat bracket offset l"

from face.*

52-FB-W/O-SPUR 2d" Deep–3" Long–2" Wide

Two d" K.O.’s in one side, flat bracket without

spur on other side, one d" K.O. in each end,

and two d" K.O.’s in bottom. Flat bracket

offset l" from face.*

52-FBC For Nonmetallic Cable 12.5 50 35

2d" Deep–3" Long–2" Wide

Two d" K.O.’s in one side, flat bracket on other

side, two Loom K.O.’s and one d" K.O. in each

end, and one d" K.O. in bottom. One Loom clamp

for use on nonmetallic sheathed cable with 10/32

deep slotted screw assembled. Flat bracket offset

l" from face.*

*Uses Bowers 100 series covers.

52.NE

52-NE-3/4

52-LC

52-LCNE

52-MXN

52-FB

52-FB-3/4

52-FB-WO-SPUR

52-FBC

G26 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G26

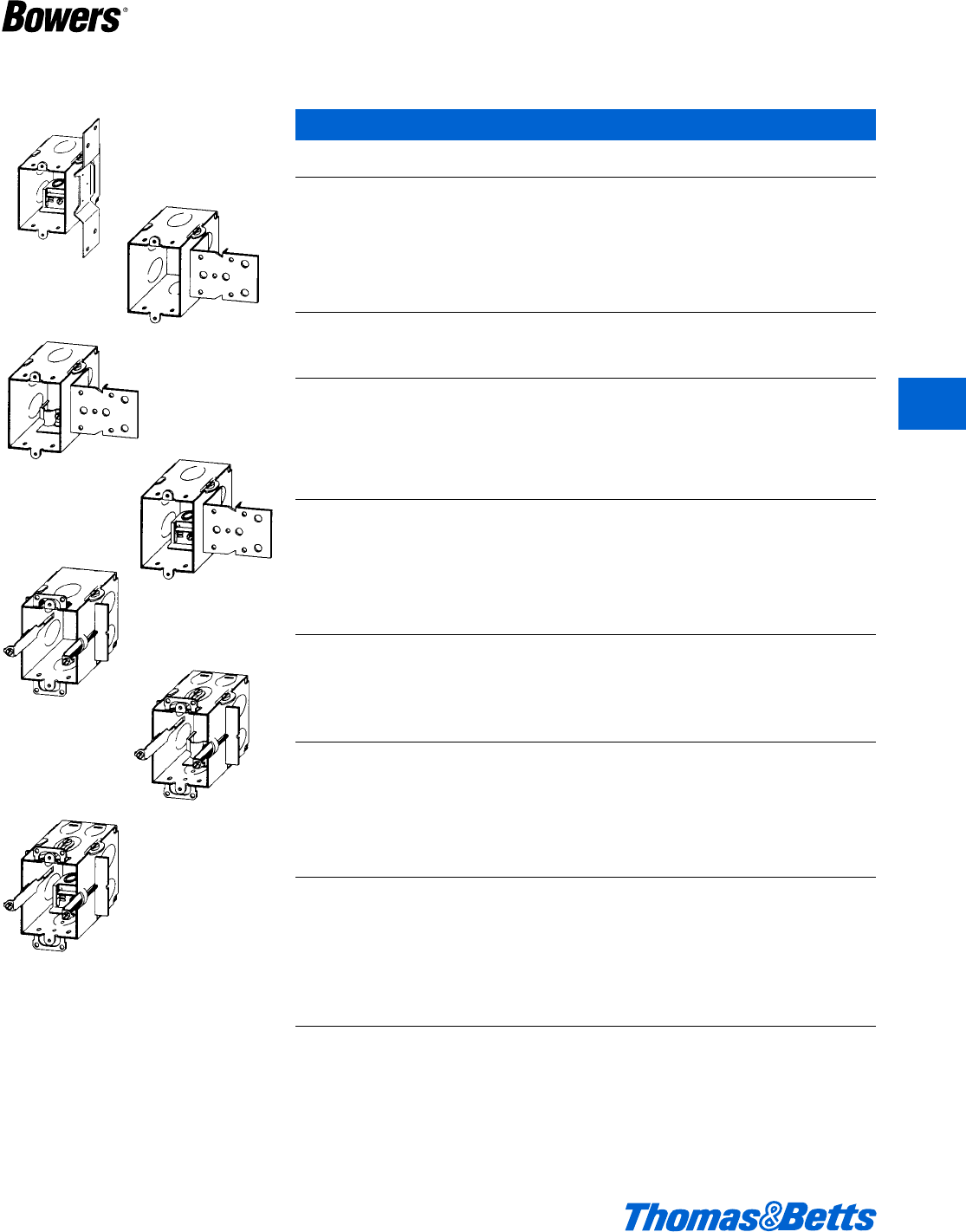

Switch and Handy Boxes

Gangable Switch Boxes–21⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

52-FB-MXN For Metal Clad Cable 12.5 50 36

2d" Deep–3" Long–2" Wide

Two d" K.O.’s in one side, flat bracket on other

side, two Loom K.O.’s and one d" K.O. in each

end, and one d" K.O. in bottom. One MXN clamp

for MC, AC/BX, and nonmetallic sheathed cable (NM)

included with 10/32 deep slotted screw. Clamp is

UL listed for use with cable sizes 14/2 through 10/3

with ground. Flat bracket offset l" from face.*

52-LB 2d" Deep–3" Long–2" Wide 12.5 50 32

Two d" K.O.’s in one side, lateral bracket on other

side, one d" K.O. in each end, and two d" K.O.’s

in bottom. Lateral bracket offset l" from face.*

52-LBC For Nonmetallic Cable 12.5 50 39

2d" Deep–3" Long–2" Wide

Two d" K.O.’s in one side, lateral bracket on other

side, two Loom K.O.’s & one d" K.O. in each end,

and one d" K.O. in bottom. One Loom clamp for use

on nonmetallic sheathed cable with 10/32 deep

slotted screw assembled. Flat bracket offset l"

from face.*

52-LB-MXN For Metal Clad Cable 12.5 50 38

2d" Deep–3" Long–2" Wide

Two d" K.O.’s in one side, lateral bracket on other

side, two Loom K.O.’s and one d" K.O. in each

end, one d" K.O. in bottom. One MXN clamp

for MC, AC/BX, and nonmetallic sheathed cable (NM)

included with 10/32 deep slotted screw. Clamp is

UL listed for use with cable sizes 14/2 through 10/3

with ground. Flat bracket offset l" from face.*

52-OW Old Work Box 12.5 50 31

2d" Deep–3" Long–2" Wide

One d" K.O. in each end, two d" K.O.’s in bottom,

two d" K.O.’s and one side cleat in each side.

Furnished with plaster ears. Each cleat is actuated

by a 2" full threaded screw used to tighten cleat

snuggly against plaster board.*

52-OWC Old Work Box for Nonmetallic Cable 12.5 50 34

2d" Deep–3" Long–2" Wide

Two Loom K.O.’s and one d" K.O. in each end, one

d" K.O. in bottom, two d" K.O.’s and one side

cleat in each side. Furnished with plaster ears. One

Loom clamp for use on nonmetallic sheathed cable

with 10/32 deep slotted screw assembled. Each cleat

is actuated by a 2" full threaded screw used to tighten

cleat snuggly against plaster board.*

52-OW-MXN Old Work Box for Metal Clad Cable 12.5 50 35

2d" Deep–3" Long–2" Wide

Two Loom K.O.’s and one d" K.O. in each end, one

d" K.O. in bottom, two d" K.O.’s and one side cleat

in each side. Each cleat is actuated by a 2" full

threaded screw used to tighten cleat snuggly against

plaster board. One MXN clamp for MC, AC/BX, and

nonmetallic sheathed cable (NM) included with 10/32

deep slotted screw. Clamp is UL listed for use with

cable sizes 14/2 through 10/3 with ground.*

*Uses Bowers 100 series covers.

52-FB-MXN

52-LB

52-LBC

52-LB-MXN

52-OW

52-OWC

52-OW-MXN

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G27

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G27

Switch and Handy Boxes

Gangable Switch Boxes–23⁄4" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

53 2f" Deep–3" Long–2" Wide 14.0 50 31

Two d" K.O.’s in each side, one d" K.O. in each

end, and two d" K.O.’s in bottom. Furnished with

plaster ears. Four nail holes in sides*.

53-3/4-BW 2f" Deep–3" Long–2" Wide 14.0 50 31

Two d" K.O.’s in each side, one f" K.O. in each

end, and two d" K.O.’s in bottom. Furnished with

plaster ears. Four nail holes in sides.*

53-NE 2f" Deep–3" Long–2" Wide 14.0 50 31

Two d" K.O.’s in each side, one d" K.O. in each

end, and two d" K.O.’s in bottom. Four nail

holes in sides.*

53-NE-3/4 2f" Deep–3" Long–2" Wide 14.0 50 30

Two d" K.O.’s in each side, one f" K.O. in each

end, and two d" K.O.’s in bottom. Four nail

holes in sides.*

53-LC For Nonmetallic Cable 14.0 50 33

2f" Deep–3" Long–2" Wide

Two d" K.O.’s in each side, two Loom K.O.’s and

one d" K.O. in each end, and one d" K.O. in

bottom. Furnished with plaster ears. Four nail holes

in sides. One Loom clamp for use on nonmetallic

sheathed cable with 10/32 deep slotted screw

assembled.*

53-LCNE For Nonmetallic Cable 14.0 50 32

2f" Deep–3" Long–2" Wide

Two d" K.O.’s in each side, two Loom K.O.’s and

one d" K.O. in each end, and one d" K.O. in

bottom. One Loom clamp for use on nonmetallic

sheathed cable with 10/32 deep slotted screw

assembled. Four nail holes in sides.*

53-MXN For Metal Clad Cable 14.0 50 34

2f" Deep–3" Long–2" Wide

Two d" K.O.’s in each side. Two Loom K.O.’s and

one d" K.O. in each end, and one d" K.O. in

bottom. One MXN clamp for MC, AC/BX, and

nonmetallic sheathed cable (NM) included with

10/32 deep slotted screw. Clamp is UL listed for

use with cable sizes 14/2 through 10/3 with ground.

Furnished with plaster ears. Four nail holes in sides.*

53-FB 2f" Deep–3" Long–2" Wide 14.0 50 36

Two d" K.O.’s in one side, flat bracket on other side,

one d" K.O. in each end, and two d" K.O.’s in

bottom. Flat bracket offset l" from face.*

53-FBC For Nonmetallic Cable 14.0 50 37

2f" Deep–3" Long–2" Wide

Two d" K.O.’s in one side, flat bracket on other side,

two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. Flat offset l" from face.

One Loom clamp for use on nonmetallic sheathed

cable with 10/32 deep slotted screw assembled.*

*Uses Bowers 100 series covers.

53

53-3/4-BW

53-NE

53-NE-3/4

53-LC

53-LCNE

53-MXN

53-FB

53-FBC

G28 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G28

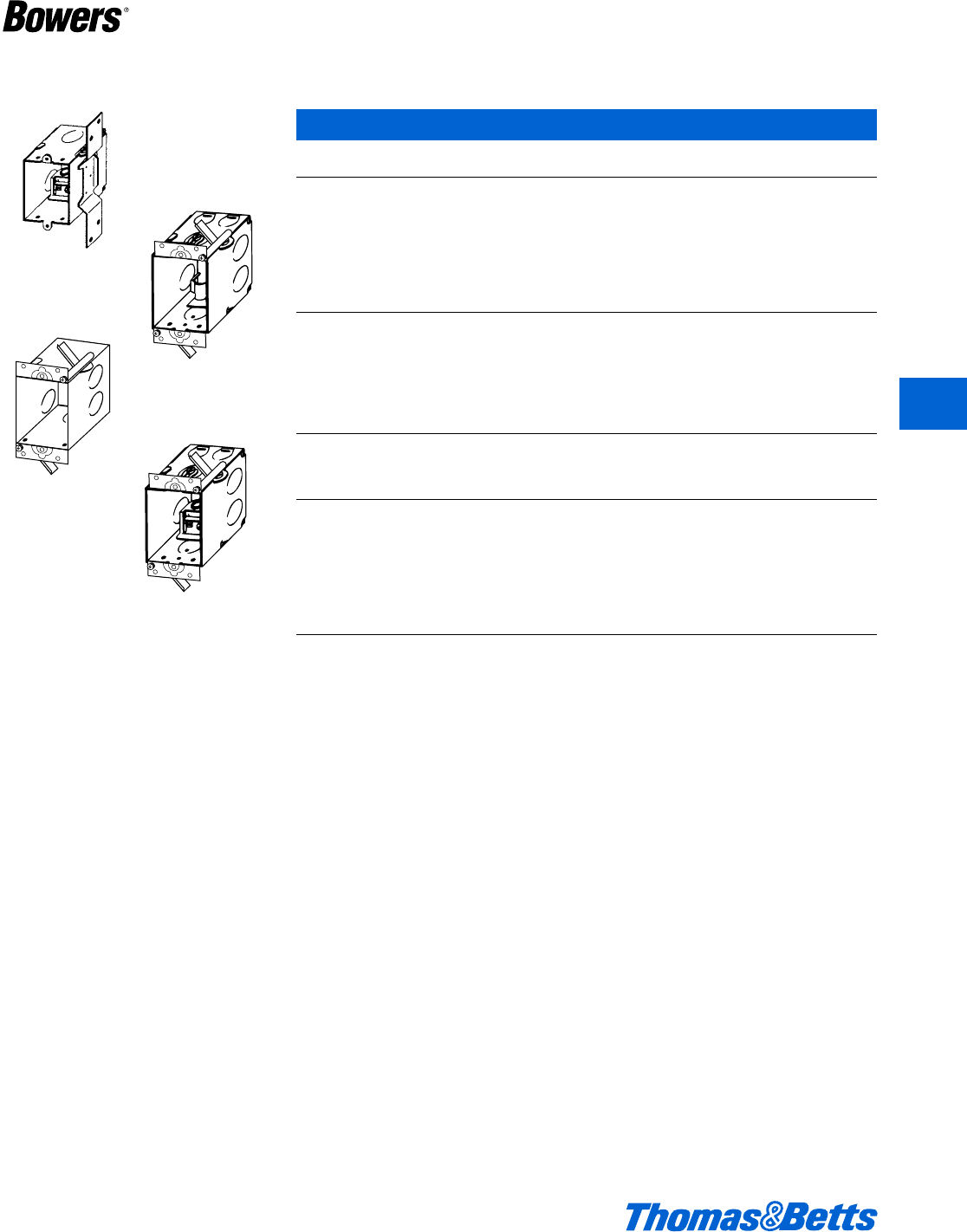

Switch and Handy Boxes

Gangable Switch Boxes–23⁄4" Deep (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

53-FB-MXN For Metal Clad Cable 14.0 50 38

2f" Deep–3" Long–2" Wide

Two d" K.O.’s in one side, flat bracket on other side,

two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. One MXN clamp for MC,

AC/BX, and nonmetallic sheathed cable (NM)

included with 10/32 deep slotted screw. Clamp is

U.L listed for use with cable sizes 14/2 through

10/3 with ground.*

53-OWEC For Nonmetallic Cable 14.0 50 33

2f" Deep–3" Long–2" Wide

Two d" K.O.’s in each side, two Loom K.O.’s and

one d" K.O. in each end, and one d" K.O. in

bottom. Furnished with plaster ears. One Loom

clamp for use on nonmetallic sheathed cable with

10/32 deep slotted screw assembled. With old

work swing brackets.*

53-OWE 2f" Deep–3" Long–2" Wide 14.0 50 31

Two d" K.O.’s in each side, one d" K.O. in each

end, and two d" K.O.’s in bottom. Furnished with

plaster ears. With old work swing brackets.*

53-OWE-MXN For Metal Clad Cable 14.0 50 34

2f" Deep–3" Long–2" Wide

Two d" K.O.’s in each side. Two Loom K.O.’s and

one d" K.O. in each end, and one d" K.O. in

bottom. One MXN clamp for MC, AC/BX, and

nonmetallic sheathed cable (NM) included with

10/32 deep slotted screw. Clamp is UL listed for

use with cable sizes 14/2 through 10/3 with ground.

Furnished with plaster ears. With old work swing brackets.*

*Uses Bowers 100 series covers.

53-FB-MXN

53-OWEC

53-OWE

53-OWE-MXN

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G29

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G29

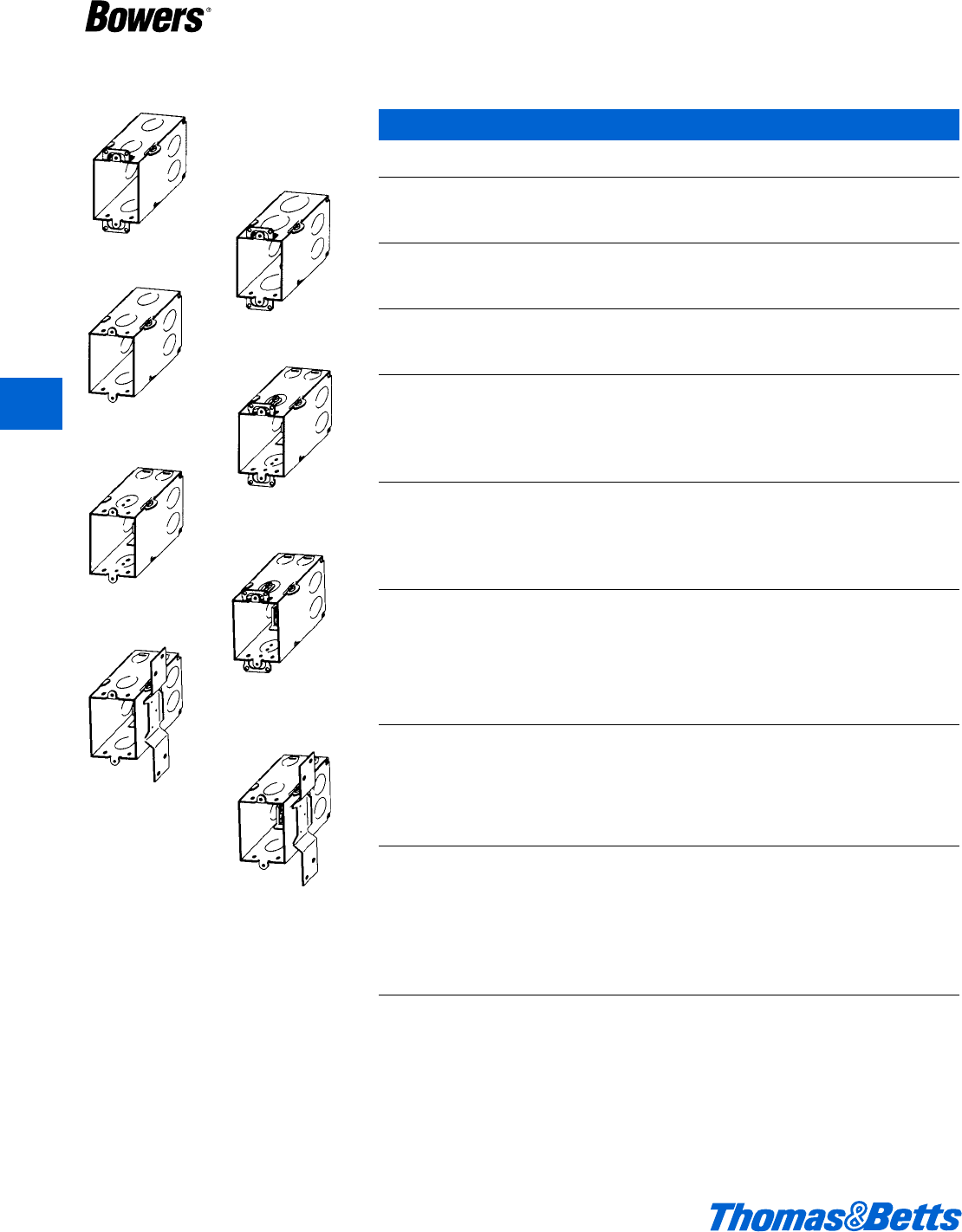

Switch and Handy Boxes

Gangable Switch Boxes–31⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

54-1/2 3d" Deep–3" Long–2" Wide 18.0 50 38

Two d" K.O.’s in each side, two d" K.O.’s in each

end, and two d" K.O.’s in bottom. Furnished with

plaster ears. Four nail holes in sides.*

54-3/4 3d" Deep–3" Long–2" Wide 18.0 50 38

Two d" K.O.’s in each side, two f" K.O.’s in each

end, and two f" K.O.’s in bottom. Furnished with

plaster ears. Four nail holes in sides.*

54-NE 3d" Deep–3" Long–2" Wide 18.0 50 36

Two d" K.O.’s in each side, two d" K.O.’s in each

end, and two d" K.O.’s in bottom. Four nail holes

in sides.*

54-LC For Nonmetallic Cable 18.0 50 40

3d" Deep–3" Long–2" Wide

Two d" K.O.’s in each side, two Loom K.O.’s and one

d" K.O. in each end, and one d" K.O. in bottom.

Two Loom clamps for use on nonmetallic sheathed

cable with 10/32 deep slotted screws assembled.

Furnished with plaster ears. Four nails holes in sides.*

54-LCNE For Nonmetallic Cable 18.0 50 40

3d" Deep–3" Long–2" Wide

Two d" K.O.’s in each side, two Loom K.O.’s and one

d" K.O. in each end, and one d" K.O. in bottom.

Two Loom clamps for use on nonmetallic sheathed

cable with 10/32 deep slotted screws assembled.

Four nails holes in sides.*

54-MXN For Metal Clad Cable 18.0 50 41

3d" Deep–3" Long–2" Wide

Two d" K.O.’s in each side, two Loom K.O.’s and one

d" K.O. in each end, and one d" K.O. in bottom.

Furnished with plaster ears. Four nail holes in sides.

Two MXN clamps for MC, AC/BX, and nonmetallic

sheathed cable (NM) included with 10/32 deep slotted

screws. Clamps are UL listed for use with cable sizes

14/2 through 10/3 with ground.*

54-FBC For Nonmetallic Cable 18.0 50 44

3d" Deep–3" Long–2" Wide

Two d" K.O.’s in one side, flat bracket and two d"

K.O.’s in other side, two Loom K.O.’s and one d" K.O.

in each end, and one d" K.O. in bottom. Two Loom

clamps for use on nonmetallic sheathed cable with

10/32 deep slotted screws assembled. Flat bracket

offset l" from face.*

54-FB-MXN For Metal Cable 18.0 50 45

3d" Deep–3" Long–2" Wide

Two d" K.O.’s in one side, flat bracket and two d"

K.O.’s in other side, two Loom K.O.’s and one d" K.O.

in each end, and one d" K.O. in bottom. Two MXN

clamps for MC, AC/BX, and nonmetallic sheathed

cable (NM) included with 10/32 deep slotted screws.

Clamps are UL listed for use with cable sizes 14/2

through 10/3 with ground. Flat bracket offset l"

from face.*

*Uses Bowers 100 series covers.

54-1/2

54-3/4

54-NE

54-LC

54-LCNE

54-MXN

54-FBC

54-FB-MXN

G30 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G30

Switch and Handy Boxes

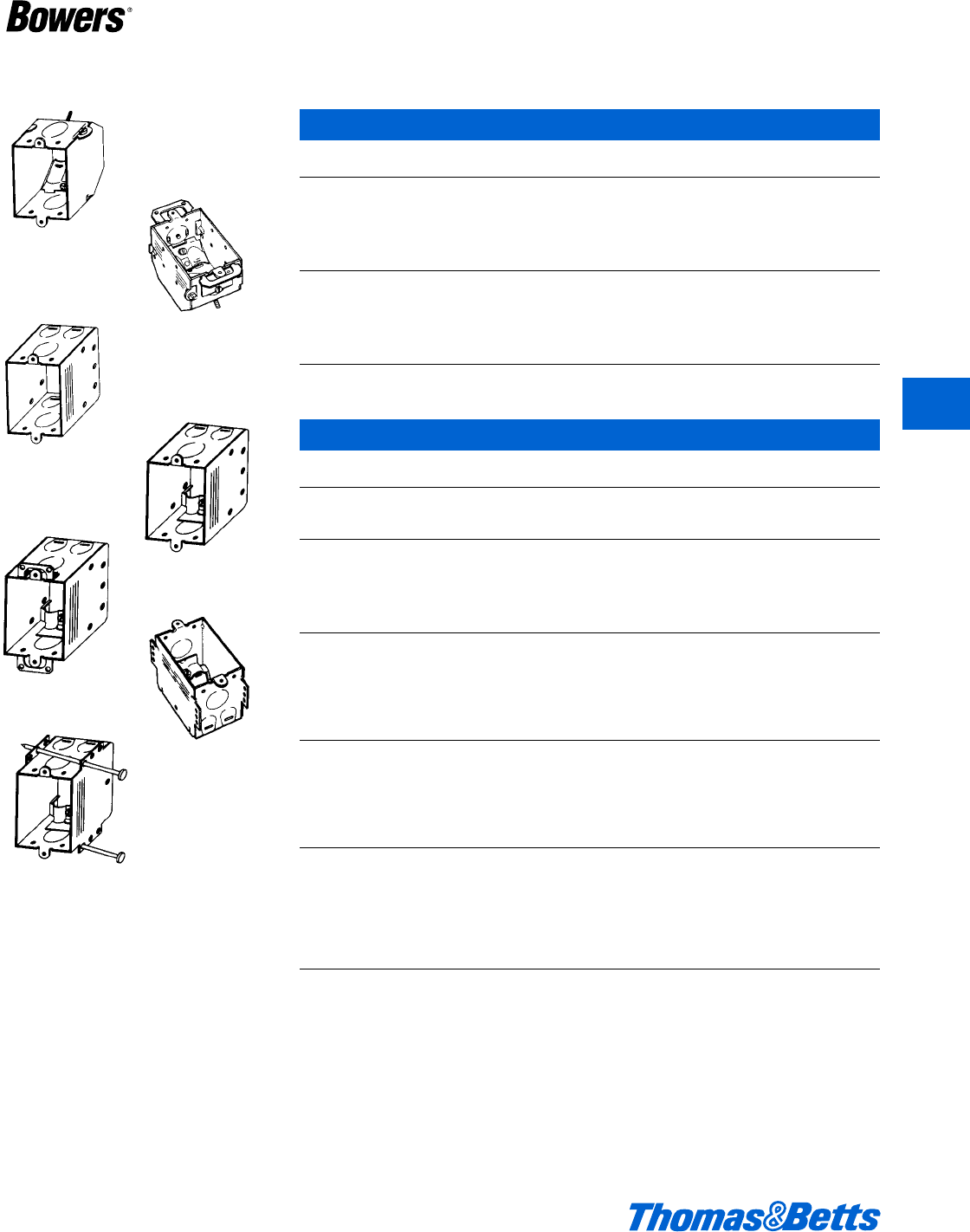

Gangable Switch Boxes Beveled Corners–21⁄4" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

230-CC For Nonmetallic Cable 10.5 50 25

2b" Deep–3" Long–2" Wide

Two Loom K.O.’s in each end, and one d" K.O. in

bottom. One Loom clamp for use on nonmetallic

sheathed cable with 10/32 deep slotted screw

assembled.*

230-LCC For Nonmetallic Cable 10.5 50 28

2b" Deep–3" Long–2" Wide

Two Loom K.O.’s in each end, and one d" K.O. in

bottom. One Loom clamp for use on nonmetallic

sheathed cable with 10/32 deep slotted screw

assembled.*

*Uses Bowers 100 series covers.

Welded Non-Gangable Switch Boxes–21⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

72 2d" Deep–3" Long–2" Wide 12.5 50 28

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. Four nail holes included.*

72-C For Nonmetallic Cable 12.5 50 30

2d" Deep–3" Long–2" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. Four nail holes included. One

Loom clamp for use on nonmetallic sheathed cable

with 10/32 deep slotted screw assembled.*

72-CE For Nonmetallic Cable 12.5 50 32

2d" Deep–3" Long–2" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. One Loom clamp for use on

nonmetallic sheathed cable with 10/32 deep slotted

screw assembled. Furnished with ears. Four nail

holes included.*

72-OC For Nonmetallic Cable 12.5 50 33

2d" Deep–3" Long–2" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. One Loom clamp for use on

nonmetallic sheathed cable with 10/32 deep slotted

screw assembled. Four nail holes included. Provisions

for external nails included.*

72-ONCS For Nonmetallic Cable 12.5 50 34

2d" Deep–3" Long–2" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. Furnished with ears. One

Loom clamp for use on nonmetallic sheathed cable

with 10/32 deep slotted screw assembled. Four nail

holes included. Two 16-penny nails swaged at an

angle in box.*

*Uses Bowers 100 series covers.

230-CC

230-LCC

72

72-C

72-CE

72-OC

72-ONCS

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G31

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G31

Switch and Handy Boxes

Welded Non-Gangable Switch Boxes–21⁄2" Deep (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

72-OWE 2d" Deep–3" Long–2" Wide 12.5 50 28

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. With old work swing brackets.*

72-ONS-MXN For Metal Clad Cable 12.5 50 34

2d" Deep–3" Long–2" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. One MXN clamp for MC,

AC/BX, and nonmetallic sheathed cable (NM)

included with 10/32 deep slotted screw. Clamp is

UL listed for use with cable sizes 14/2 through

10/3 with ground. Four nail holes included. Two

16-penny nails swaged at an angle in box.*

72-FB-MXN For Metal Clad Cable 12.5 50 34

2d" Deep–3" Long–2" Wide

Two Loom K.O.’s and one d" K.O. in each end, one

d" K.O. in bottom, and flat bracket on one side

offset l" from face. Two MXN clamps for MC,

AC/BX, and nonmetallic sheathed cable (NM)

included with 10/32 deep slotted screws. Clamps are

UL listed for use with cable sizes 14/2 through

10/3 with ground. Four nail holes included.*

*Uses Bowers 100 series covers.

72-ONS-MXN

72-OWE

72-FB-MXN

Welded Non-Gangable Switch Boxes–213⁄16" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

73-C For Nonmetallic Cable 15.8 50 34

2m" Deep–3" Long–2!" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. One Loom clamp for use on

nonmetallic sheathed cable with 10/32 deep slotted

screw assembled. Four nail holes included.*

*Uses Bowers 100 series covers.

73-C

G32 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G32

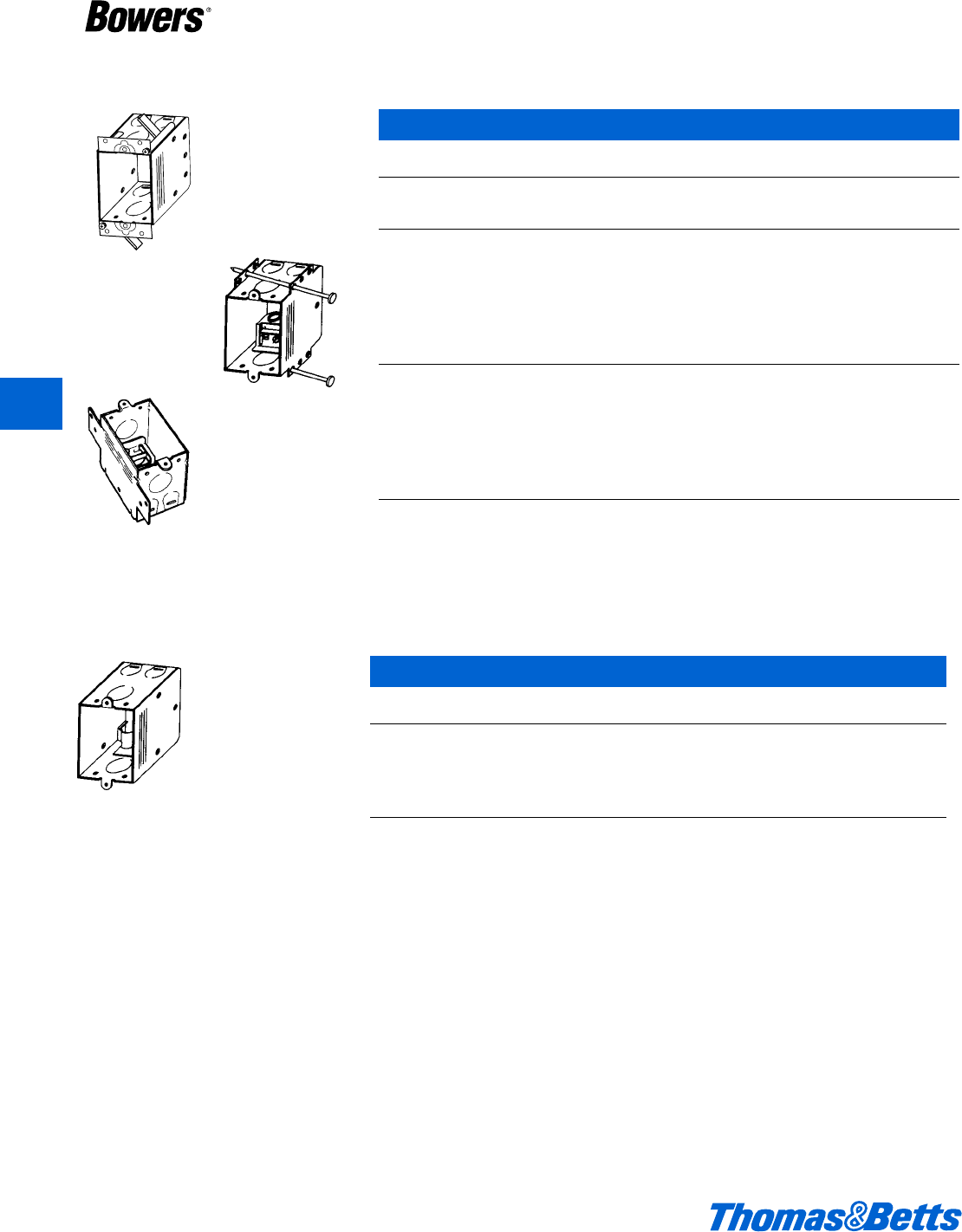

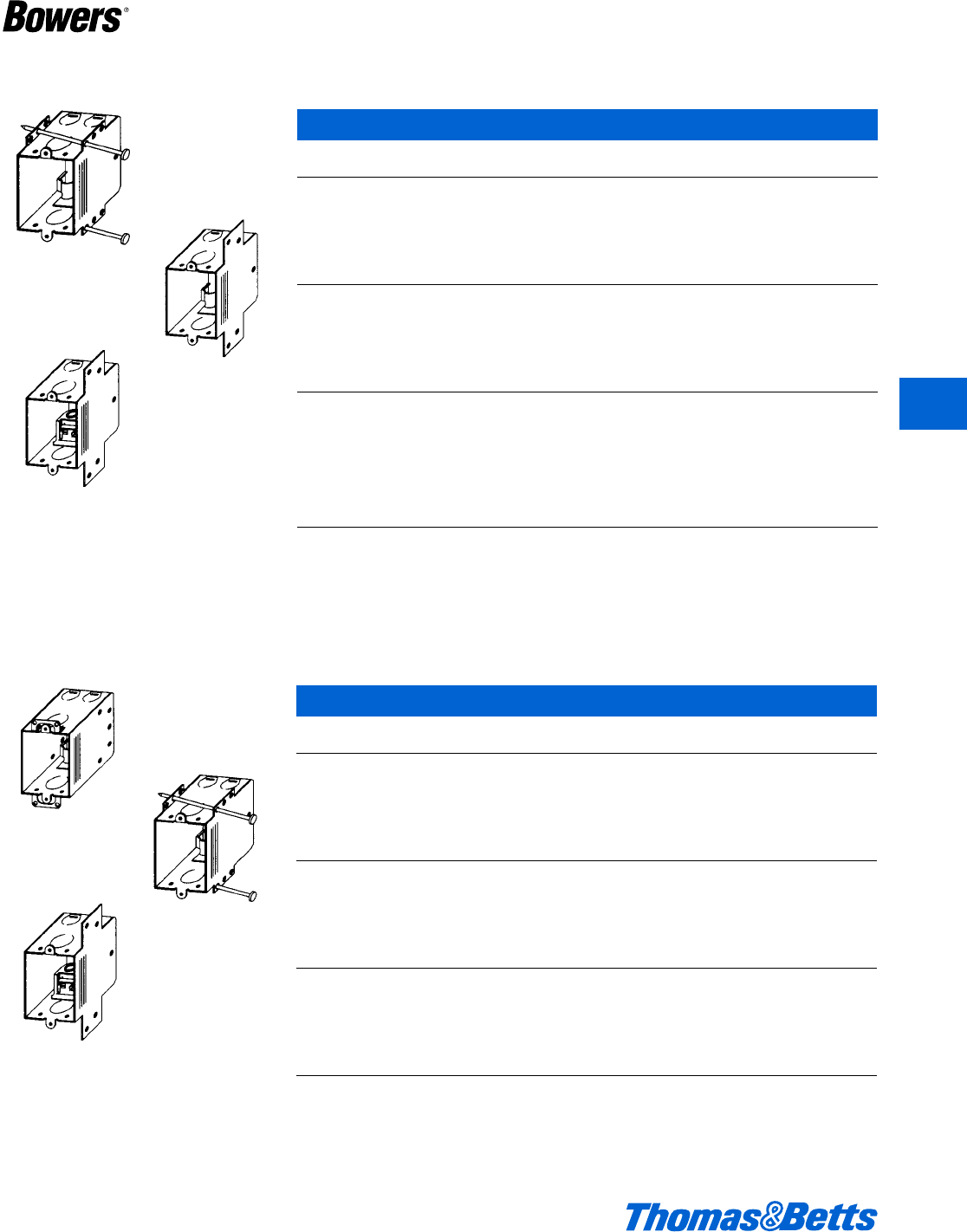

Welded Non-Gangable Switch Boxes–3" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

74-CE For Nonmetallic Cable 18 50 40

3a" Deep–3" Long–2b" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. One Loom clamp for use on

nonmetallic sheathed cable with 10/32 deep slotted

screw assembled. Furnished with ears. Four nail

holes included.*

74-ONCS For Nonmetallic Cable 18 50 41

3a" Deep–3" Long–2b" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. One Loom clamp for use on

nonmetallic sheathed cable with 10/32 deep slotted

screw assembled. Two 16-penny nails swaged at an

angle in box.*

74-FBC For Nonmetallic Cable 18 50 42

3a" Deep–3" Long–2b" Wide

Two Loom K.O.’s and one d" K.O. in each end, one

d" K.O. in bottom and flat bracket on one side offset

l" from face. One Loom clamp for use on nonmetallic

sheathed cable with 10/32 deep slotted screw

assembled. Four nail holes included.*

*Uses Bowers 100 series covers.

Switch and Handy Boxes

74-CE

74-ONCS

74-FBC

Welded Non-Gangable Switch Boxes–213⁄16" Deep (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

73-ONCS For Nonmetallic Cable 15.8 50 37

2m" Deep–3" Long–2!" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. One Loom clamp for use on

nonmetallic sheathed cable with 10/32 deep slotted

screw assembled. Two 16-penny nails swaged at an

angle in box.*

73-FBC For Nonmetallic Cable 15.8 50 36

2m" Deep–3" Long–2!" Wide

Two Loom K.O.’s and one d" K.O. in each end, one

d" K.O. in bottom, and flat bracket on one side offset

l" from face. One Loom clamp for use on nonmetallic

sheathed cable with 10/32 deep slotted screw

assembled. Four nail holes included.*

73-FB-MXN For Metal Clad Cable 15.8 50 37

2m" Deep–3" Long–2!" Wide

Two Loom K.O.’s and one d" K.O. in each end, one

d" K.O. in bottom, and flat bracket on one side offset

l" from face. One MXN clamp for MC, AC/BX, and

nonmetallic sheathed cable (NM) included with 10/32

deep slotted screw. Clamp is UL listed for use with

cable sizes 14/2 through 10/3 with ground. Four nail

holes included.*

*Uses Bowers 100 series covers.

73-ONCS

73-FBC

73-FB-MXN

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G33

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G33

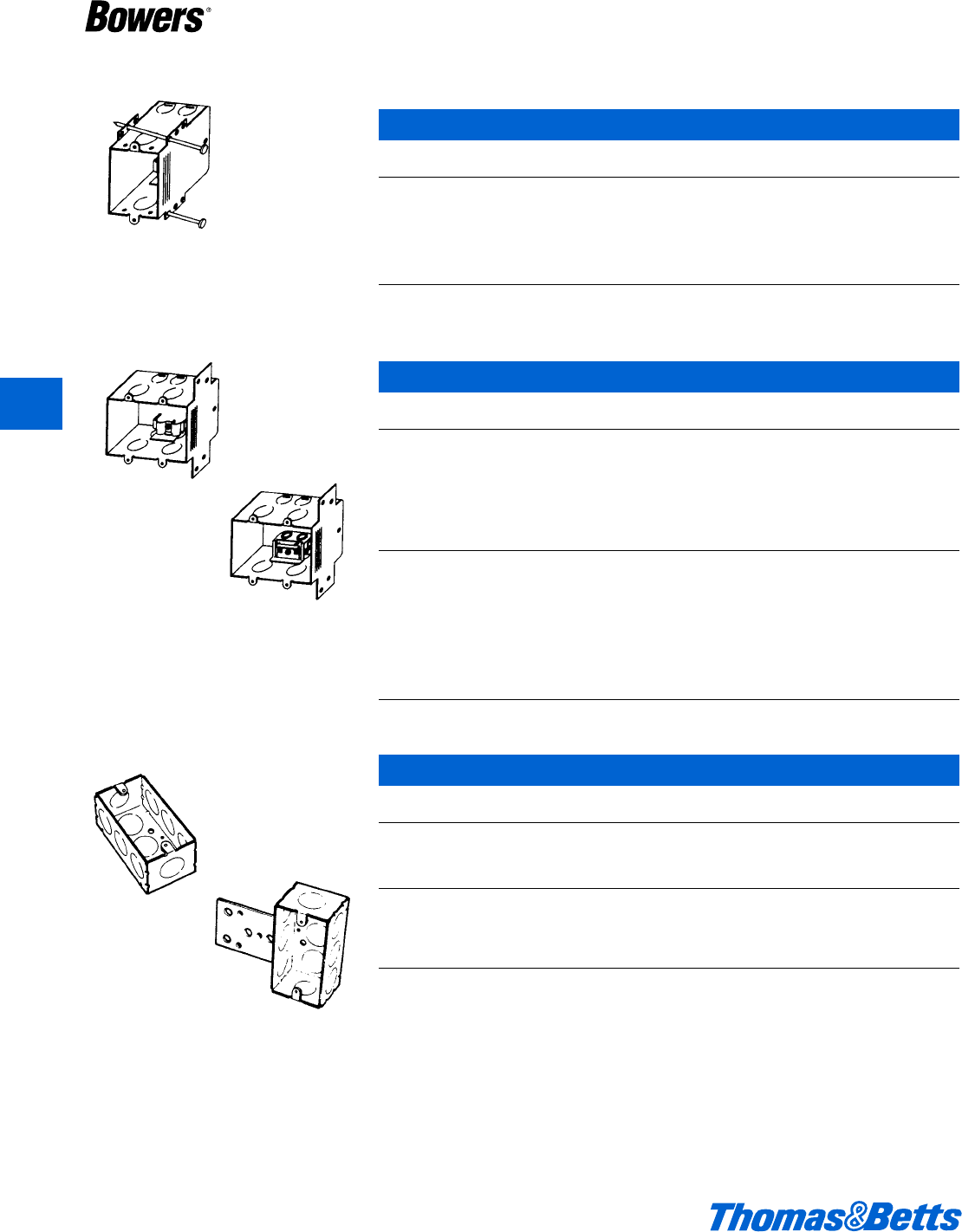

Switch and Handy Boxes

Welded Multi-Gangable Switch Boxes–21⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

271-FBC For Nonmetallic Cable 25.0 25 25

A Two Gang Box

2d" Deep–3" Long–4" Wide

A two gang box. Two Loom K.O.’s and two d" K.O.’s

in each end, flat bracket on one side, and one d" K.O.

in bottom. Two Loom clamps for use on nonmetallic

sheathed cable with 10/32 deep slotted screws

assembled. Flat bracket offset l" from face.*

271-FB-MXN For Metal Clad Cable 25.0 25 25

A Two Gang Box

2d" Deep–3" Long–4" Wide

Two Loom K.O.’s and two d" K.O.’s in each end, 25.0 25 27

flat bracket on one side, and one d" K.O. in bottom.

Two MX clamps for MC, AC/BX, and nonmetallic

sheathed cable (NM) included with 10/32 deep slotted

screws. Clamps are UL listed for use with cable

sizes 14/2 through 10/3 with ground. Flat bracket

offset l" from face.*

*Uses Bowers SB-2 covers.

Welded Handy Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

102-W-1/2 1d" Deep–4" Long–2a" Wide 10.3 50 24

Three d" K.O.’s in each side, one d" K.O. in each

end, and three d" K.O.’s in bottom. Four mounting

holes in bottom.*

102-W-LB-1/4 1d" Deep–4" Long–2a" Wide 10.3 50 30

Three d" K.O.’s in one side, lateral bracket on other

side, one d" K.O. in each end, and three d" K.O.’s

in bottom. Furnished with four mounting holes in bottom.

Bracket offset 1/4" from face.*

*Uses Bowers 100 series covers.

271-FBC

271-FB-MXN

102-W-1/2

102-W-LB-1/4

Welded Non-Gangable Switch Boxes–313⁄32" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

75-ONCS For Nonmetallic Cable 20.0 50 45

3u" Deep–3" Long–2b" Wide

Two Loom K.O.’s and one d" K.O. in each end, and

one d" K.O. in bottom. Two Loom clamps for use on

nonmetallic sheathed cable with 10/32 deep slotted

screws assembled. Four nail holes included. Two

16-penny nails swaged at angle in box.*

*Uses Bowers 100 series covers.

75-ONCS

G34 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G34

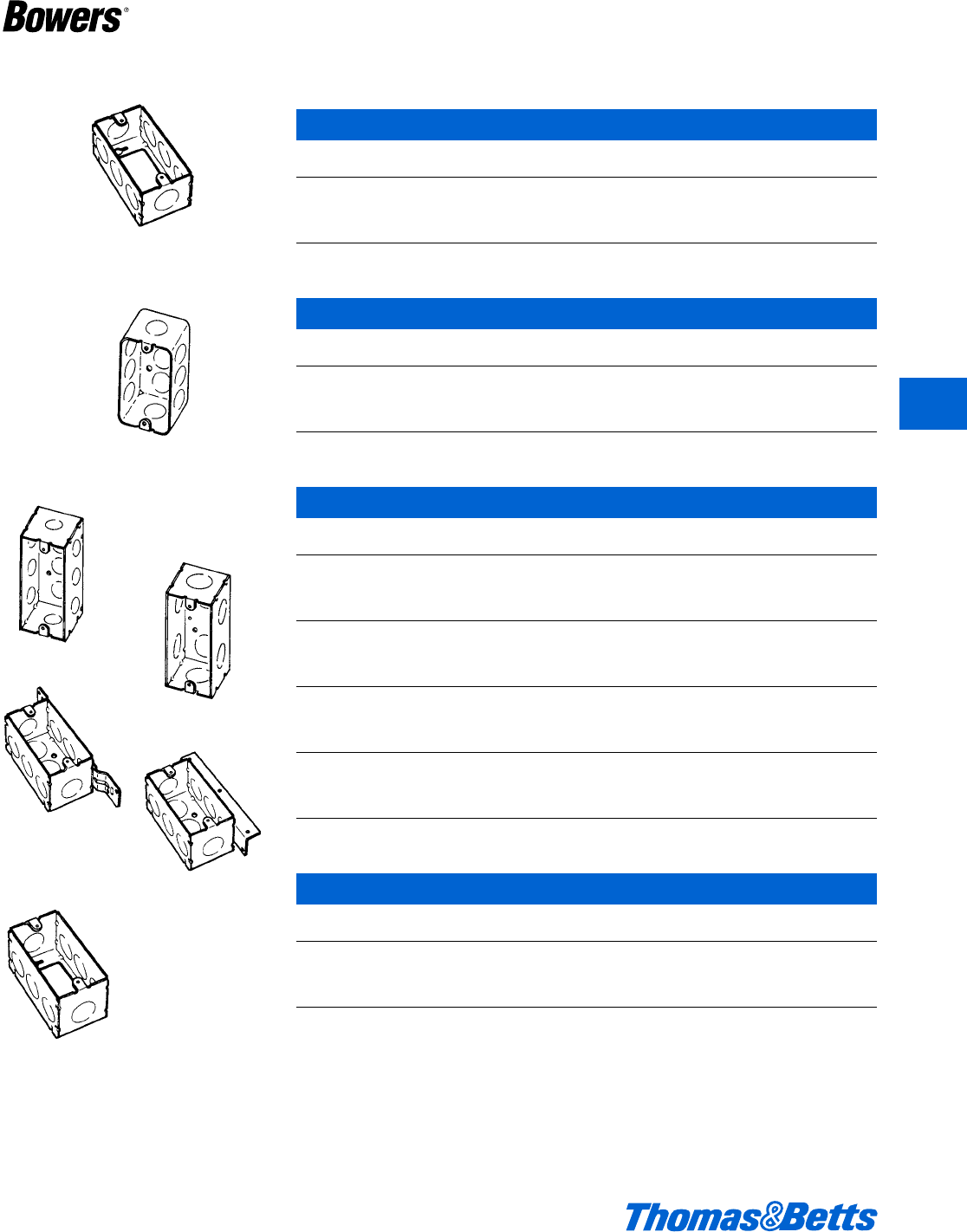

Switch and Handy Boxes

Welded Handy Boxes Extension Ring–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

102-W-EXT-1/2 Extension Ring 10.3 50 20

1d" Deep–4" Long–2a" Wide

Three d" K.O.’s in each side and one d" K.O.

in each end.*

*Uses Bowers 100 series covers.

Drawn Handy Boxes–11⁄2" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

102-1/2 1d" Deep–4" Long–2a" Wide 10.3 50 24

Three d" K.O.’s in each side, one d" K.O. in each

end, and three d" K.O.’s in bottom. Four mounting

holes in bottom.*

*Uses Bowers 100 series covers.

Welded Handy Boxes–17⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

103-W-1/2 1g" Deep–4" Long–2a" Wide 13.0 50 28

Three d" K.O.’s in each side, one d" K.O. in each

end, and three d" K.O.’s in bottom. Four mounting

holes in bottom.*

103-W-3/4 1g" Deep–4" Long–2a" Wide 13.0 50 28

Two f" K.O.’s in each side, one f" K.O. in each

end, and two f" K.O.’s in bottom. Four mounting

holes in bottom.*

103-W-FB-1/2 1g" Deep–4" Long–2a" Wide 13.0 50 32

Three d" K.O.’s in one side, flat bracket on other

side, one d" K.O. in each end, and three d"

K.O.’s in bottom. Bracket offset l" from face.*

103-W-AB 1g" Deep–4" Long–2a" Wide 13.0 50 36

Three d" K.O.’s in one side, angle bracket on other

side, one d" K.O. in each end, and three d"

K.O.’s in bottom. Bracket offset l" from face.*

*Uses Bowers 100 series covers.

Welded Handy Boxes Extension Ring–17⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

103-W-EXT-1/2 Extension Ring 10.3 50 24

1g" Deep–4" Long–2a" Wide

Three d" K.O.’s in each side and one d" K.O.

in each end.*

*Uses Bowers 100 series covers.

102-W-EXT-1/2

102-1/2

103-W-1/2

103-W-3/4

103-W-FB-1/2

103-W-AB

103-W-EXT-1/2

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G35

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G35

Switch and Handy Boxes

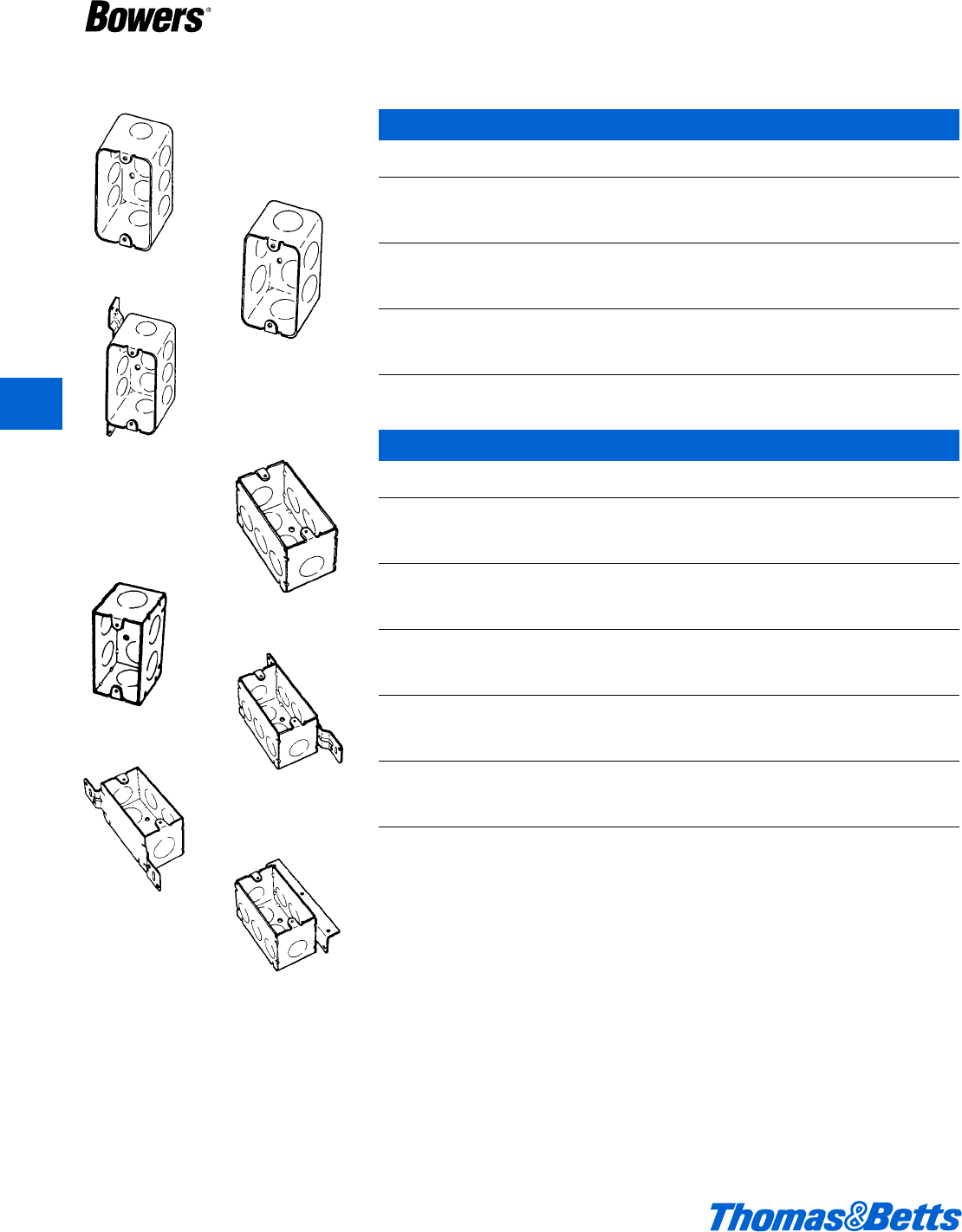

Drawn Handy Boxes–17⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

103-1/2-BW 1g" Deep–4" Long–2a" Wide 13.0 50 28

Three d" K.O.’s in each side, one d" K.O. in

each end, and three d" K.O.’s in bottom. Four

mounting holes in bottom.*

103-3/4 1g" Deep–4" Long–2a" Wide 13.0 50 28

Two f" K.O.’s in each side, one f" K.O. in each

end, and two f" K.O.’s in bottom. Four mounting

holes in bottom.*

103-FB-1/2 1g" Deep–4" Long–2a" Wide 13.0 50 32

Three d" K.O.’S in each side with flat bracket on

other side, one d" K.O. in each end, and three

d" K.O.’s in bottom. Bracket offset l" from face.*

*Uses Bowers 100 series covers.

Welded Handy Boxes–21⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

104-W-1/2 2a" Deep–4" Long–2a" Wide 14.5 50 31

Three d" K.O.’s in each side, one d" K.O. in each

end, and three d" K.O.’s in bottom. Four mounting

holes in bottom.*

104-W-3/4 2a" Deep–4" Long–2a" Wide 14.5 50 31

Two f" K.O.’s in each side, one f" K.O. in each

end, and two f" K.O.’s in bottom. Four mounting

holes in bottom.*

104-W-FB-1/2 2a" Deep–4" Long–2a" Wide 14.5 50 33

Three d" K.O.’s in one side, flat bracket on other

side, one d" K.O. in each end, and three d" K.O.’s

in bottom. Flat bracket offset l" from face.*

104-W-FB-3/4 2a" Deep–4" Long–2a" Wide 14.5 50 34

Two f" K.O.’s in one side, flat bracket on other

side, one f" K.O. in each end, and two f" K.O.’s

in bottom. Flat bracket offset l" from face.*

104-W-AB 2a" Deep–4" Long–2a" Wide 14.5 50 39

Three d" K.O.’s in one side, angle bracket on other

side, one d" K.O. in each end, and three d" K.O.’s

in bottom. Bracket offset l" from face.*

*Uses Bowers 100 series covers.

103-1/2-BW

103-3/4

103-FB-1/2

104-W-1/2

104-W-3/4

104-W-FB-1/2

104-W-FB-3/4

104-W-AB

G36 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G36

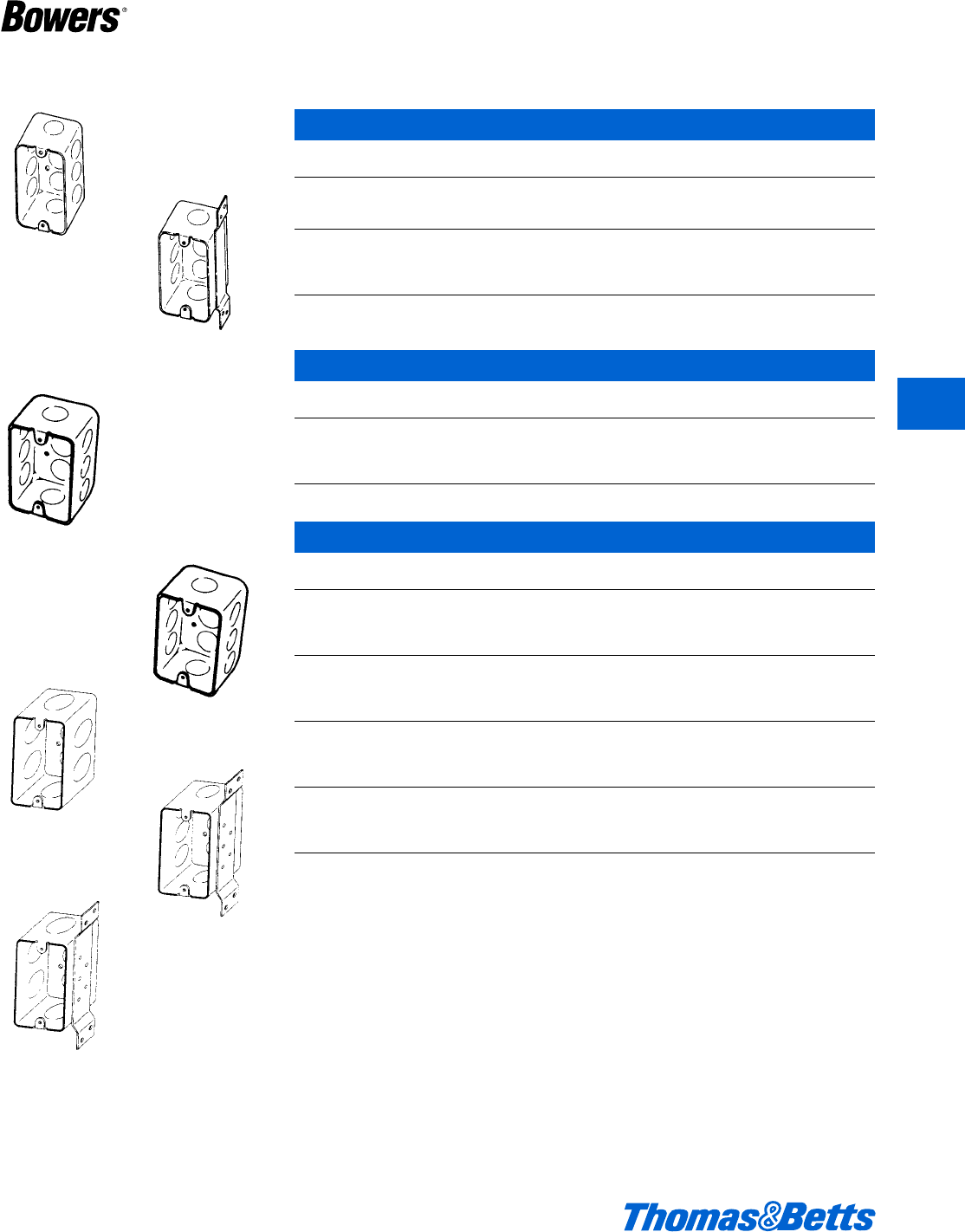

Switch and Handy Boxes

Drawn Handy Boxes–21⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

104-1/2 2a" Deep–4" Long–2a" Wide 14.5 50 31

Three d" K.O.’s in each side, one d" K.O. in each

end, and three d" K.O.’s in bottom.*

104-FB-1/2 2a" Deep–4" Long–2a" Wide 14.5 50 33

Three d" K.O.’s in one side, flat bracket on other

side, one d" K.O. in each end, and three d"

K.O.’s in bottom. Bracket offset l" from face.*

*Uses Bowers 100 series covers.

Drawn Handy Boxes–17⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

105-1/2 1g" Deep–4" Long–2c" Wide 15.8 50 28

Three d" K.O.’s in each side, one d" K.O. in each

end, and three d" K.O.’s in bottom. Two mounting

holes in bottom.

Drawn Handy Boxes–23/16" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

106-1/2-BW 2i" Deep–4a" Long–2c" Wide 18.0 50 33

Three d" K.O.’s in each side, one d" K.O. in each

end, and three d" K.O.’s in bottom. Furnished with

two mounting holes in bottom.

106-3/4 2i" Deep–4a" Long–2c" Wide 18.0 50 33

Two f" K.O.’s in each side, one f" K.O. in each

end, and three d" K.O.’s in bottom. Two mounting

holes in bottom.

106-FB-1/2 2i" Deep–4a" Long–2c" Wide 18.0 50 37

Three d" K.O.’s in one side, flat bracket on other

side, one d" K.O. in each end, and three d" K.O.’s

in bottom. Flat bracket offset l" from face.

106-FB-3/4 2i" Deep–4a" Long–2c" Wide 18.0 50 37

Two f" K.O.’s in each side, flat bracket on other

side, one f" K.O. in each end, and three d" K.O.’s

in bottom. Flat bracket offset l" from face.

104-1/2

104-FB-1/2

105-1/2

106-1/2-BW

106-3/4

106-FB-1/2

106-FB-3/4

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G37

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G37

Switch and Handy Boxes

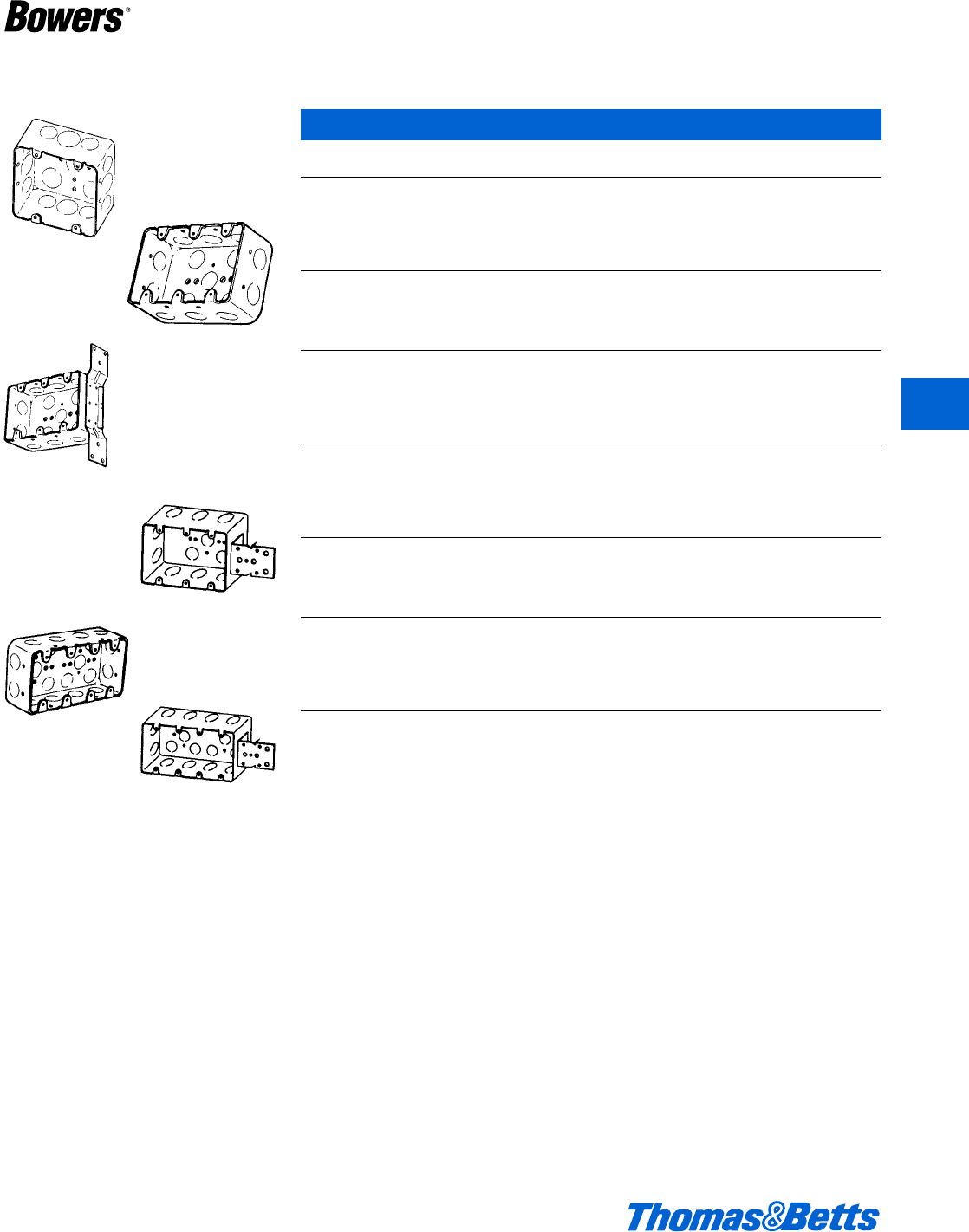

Welded Multi-Gang Handy Boxes–21⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

132-W-1/2 A Two Gang Box 30.3 25 22

2a" Deep–4" Square

Three d" K.O.’s in each of four sides, and three

d" K.O.’s in a line in bottom with two f" K.O.’s at

opposite ends in bottom.*

132-W-SPL A Two Gang Box 30.3 25 22

2a" Deep–4" Square

Two d" K.O.’s and one f" K.O. in each of four

sides, and three d" K.O.’s in a line in bottom with

two f" K.O.’s at opposite ends in bottom.*

132-W-FB-1/2 A Two Gang Box 30.3 25 25

2a" Deep–4" Square

Three d" K.O.’s in each of three sides, flat bracket

on fourth side, and five d" K.O.’s in bottom. Flat

bracket offset l" from face.*

132-W-FB-3/4 A Two Gang Box 30.3 25 25

2a" Deep–4" Square

Two f" K.O.’s in each of three sides, flat bracket on

fourth side, and three d" K.O.’s in a line with two

f" K.O.’s at opposite ends in bottom. Flat bracket

offset l" from face.*

132-W-FB-SPL A Two Gang Box 30.3 25 25

2a" Deep–4" Square

Two d" K.O.’s and one f" K.O. in each of three

sides, flat bracket on fourth side, and three d"

K.O.’s in a line with two f" K.O.’s at opposite ends

in bottom. Flat bracket offset l" from face.*

132-W-AB-1/2 A Two Gang Box 30.3 25 25

2a" Deep–4" Square

Three d" K.O.’s in each of three sides, angle bracket

on fourth side, and five d" K.O.’s in bottom. Bracket

offset l" from face.*

132-W-FBC For Nonmetallic Cable 30.3 25 26

A Two Gang Box

2a" Deep–4" Square

Two Loom K.O.’s in each of two opposite sides, two

d" K.O.’s in side opposite flat bracket, and one d"

K.O. in bottom. Two Loom clamps for use on

nonmetallic sheathed cable with 10/32 deep slotted

screws assembled. Flat bracket offset l" from face.*

*Uses Bowers SB-2 covers.

132-W-1/2

132-W-SPL

132-W-FB-1/2

132-W-FB-3/4

132-W-FB-SPL

132-W-AB-1/2

132-W-FBC

G38 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G38

Switch and Handy Boxes

Drawn Multi-Gang Handy Boxes–21⁄8" Deep

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

132-SPL A Two Gang Box 30.3 25 21

2a" Deep–4" Square

Two d" K.O.’s and one f" K.O. in each of four

sides, and three d" K.O.’s in a line in bottom with

two f" K.O.’s at opposite ends in bottom.

Uses Bowers SB-2 cover.

133-BW A Three Gang Box 44.3 25 28

2a" Deep–4" Long–5f" Square

Three d" K.O.’s in each side, two d" K.O.’s in each

end and five d" K.O.’s in bottom.

Uses Bowers SB-3 cover.

133-FB-1/2 A Three Gang Box 44.3 20 26

2a" Deep–4" Long–5f" Square

Three d" K.O.’s in each side, two d" K.O.’s in end

opposite flat bracket and five d" K.O.’s in bottom.

Bracket offset l" from face.

Uses Bowers SB-3 cover.

133-B A Three Gang Box 44.3 20 25

2a" Deep–4" Long–5f" Square

Three d" K.O.’s in each side, two d" K.O.’s in end

opposite lateral bracket, and five d" K.O.’s in

bottom. Bracket offset l" from face.

Uses Bowers SB-3 cover.

134-BW A Four Gang Box 58.0 20 28

2a" Deep–4" Long–7d" Square

Four d" K.O.’s in each side, two d" K.O.’s in each

end, and ten d" K.O.’s in bottom.

Uses Bowers SB-4 cover.

134-B A Four Gang Box 58.0 20 30

2a" Deep–4" Long–7d" Square

Four d" K.O.’s in each side, two d" K.O.’s in end

opposite lateral bracket and ten d" K.O.’s in

bottom. Bracket offset l" from face.

Uses Bowers SB-4 cover.

133-B

134-BW

134-B

132-SPL

133-BW

133-FB-1/2

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G39

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G39

Switch and Handy Boxes

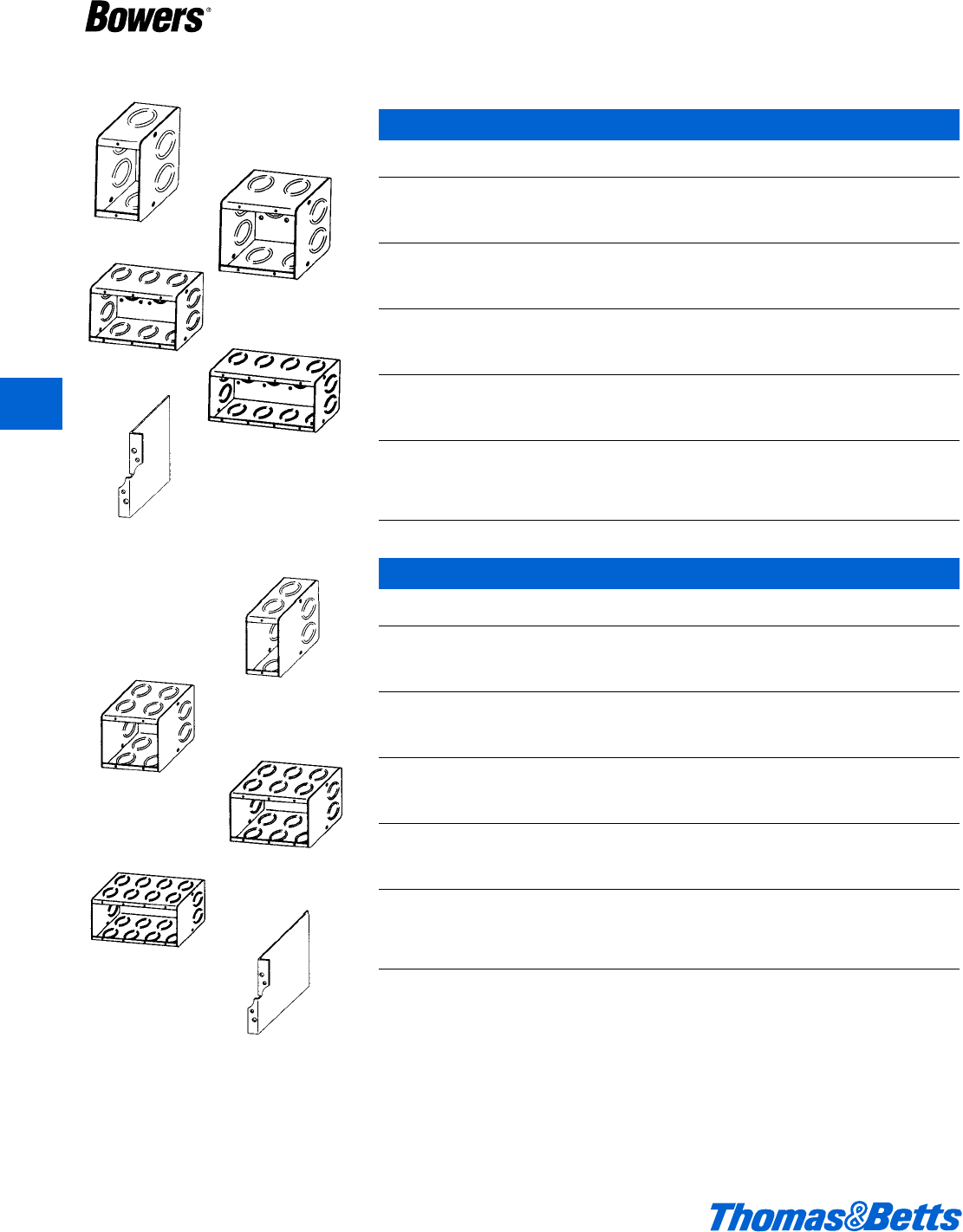

Shallow Masonry Boxes–21⁄2" Deep & Partitions

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

1-MBS 2d" Deep–3f" Long–1g" Wide 16.5 10 7

A one gang masonry box. Six d" and two f" concentric

K.O.’s. Two in each side and one in each end.

Uses Bowers 100 cover.

2-MBS 2d" Deep–3f" Long–3f" Wide 33.0 10 10

A one gang masonry box. Eight d" and two f"

concentric K.O.’s. Two in each side and one in each end.

Uses Bowers SB-2 cover.

3-MBS 2d" Deep–3f" Long–5d" Wide 49.0 5 7

A three gang masonry box. Ten d" and f" concentric

K.O.’s. Three in each side and two in each end.

Uses Bowers SB-3 cover.

4-MBS 2d" Deep–3f" Long–7c" Wide 67.0 5 8

A four gang masonry box. Twelve d" and f" concentric

K.O.’s Four in each side and two in each end.

Uses Bowers SB-4 cover.

MBPS Masonry Box Partition –508

2d" Deep–3f" Wide

A low voltage partition drilled and tapped for mounting.

Furnished with two 8/32 screws.

For use with 2-MBS, 3-MBS, or 4-MBS boxes.

Masonry Boxes–31⁄2" Deep & Partitions

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

1-MB 3d" Deep–3f" Long–1g" Wide 23.3 10 9

A one gang masonry box. Eight d" and f" concentric

K.O.’s. Two in each side and two in each end.

Uses Bowers 100 series covers.

2-MB 3d" Deep–3f" Long–3f" Wide 46.8 10 12

A two gang masonry box. Twelve d" and f" concentric

K.O.’s. Four in each of two sides and two in each end.

Uses Bowers SB-2 cover.

3-MB 3d" Deep–3f" Long–5d" Wide 69.5 5 8

A three gang box. Sixteen d" and f" concentric K.O.’s.

Six in each of two sides and two in each end.

Uses Bowers SB-3 cover.

4-MB 3d" Deep–3f" Long–7c" Wide 92.0 5 10

A four gang masonry box. Twelve d" and f" concentric

K.O.’s Eight in each of two sides and two in each end.

Uses Bowers SB-4 cover.

MBP Masonry Box Partition –508

3d" Deep–3f" Wide

A low voltage partition drilled and tapped for mounting.

Furnished with two 8/32 screws.

For use with 2-MB, 3-MB, or 4-MB boxes.

1-MB

2-MB

3-MB

4-MB

MBP

MBPS

3-MBS

4-MBS

2-MBS

1-MBS

G40 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G40

Switch and Handy Boxes

Masonry Thru Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

MBT-4 Thru Box 24.0 25 18

3d" Deep–3f" Long–2" Wide

A thru masonry box. Six d" and f" concentric K.O.’s.

Two in each side and one in each end.*

MBT-6 Thru Box 38.0 25 30

5d" Deep–3f" Long–2" Wide

A thru masonry box. Twelve d" and f" concentric

K.O.’s. Four in each side and two in each end.*

MBT-8 Thru Box 52.3 25 41

7d" Deep–3f" Long–2" Wide

A thru masonry box. Eighteen d" and f" concentric

K.O.’s. Six in each side and three in each end.*

*Uses Bowers 100 series covers.

MBT-4

MBT-6

MBT-8

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G41

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G41

Miscellaneous Products

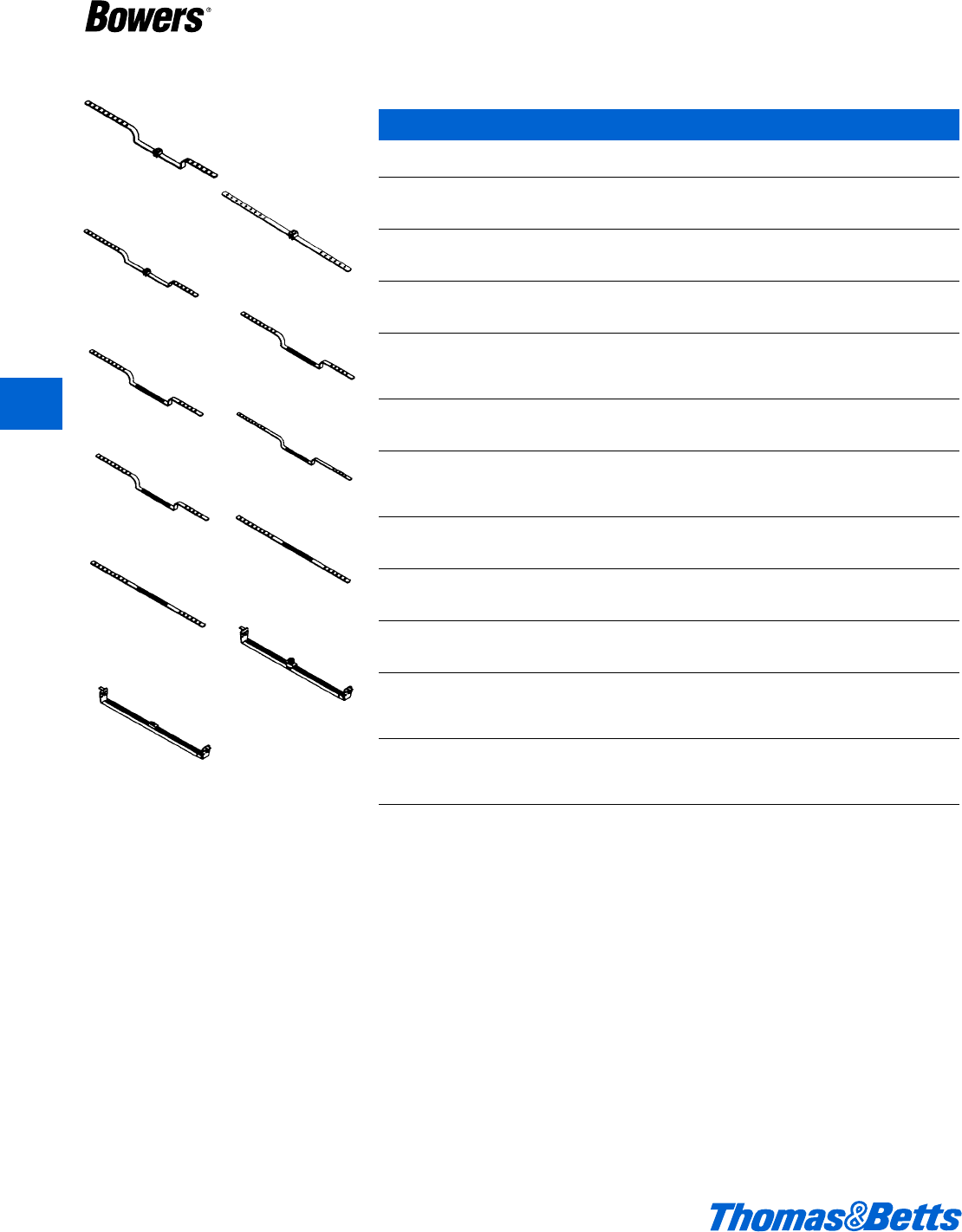

Bar Hangers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

2-BC 21" Long –5024

Deep offset bar hanger. Offset 1-d" for mounting boxes

with plaster ring. Furnished with clip.

12-BC 20" Long –5023

Straight bar hanger for mounting pancake boxes.

Furnished with clip.

20-BC 22" Long –5025

Shallow offset bar hanger. Offset 1" for mounting 1-d"

deep boxes without rings. Furnished with clips.

44-B 22" Long –5023

Deep offset bar hanger. Offset 1-d" for mounting 1-d"

deep boxes with plaster ring to bring cover flush with plaster.

Furnished with stovebolt.

44-BD 22" Long –5026

Extra deep offset bar hanger. Offset 2-a" for mounting

2-a" deep box. Furnished with stovebolt.

44-BL 26" Long –5028

Deep offset bar hanger. Offset 1-d" for mounting 1-d"

deep boxes with plaster ring to bring cover flush with plaster.

Furnished with stovebolt.

440-B 21" Long –5021

Shallow offset bar hanger. Offset 1" for mounting 1-d" deep

boxes without rings. Furnished with stovebolt.

14-B 20" Long –5018

Straight bar hanger for mounting ceiling boxes. Furnished

with stovebolt.

14-BL 24" Long –5022

Straight bar hanger for mounting ceiling boxes. Furnished

with stovebolt.

BH-S Adjustable –259

A bar hanger adjustable for joist spacing from 16" on center

to 24" on center. Minimum adjustment 13-f". Offset 1".

Furnished with stud for box attachment.

BH-C Adjustable –258

A bar hanger adjustable for joist spacing from 16" on center

to 24" on center. Minimum adjustment 13-f". Offset 1".

Furnished with clip for box attachment.

2-BC

12-BC

20-BC

44-B

44-BD

44-BL

440-B

14-B

14-BL

BH-S

BH--C

G42 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G42

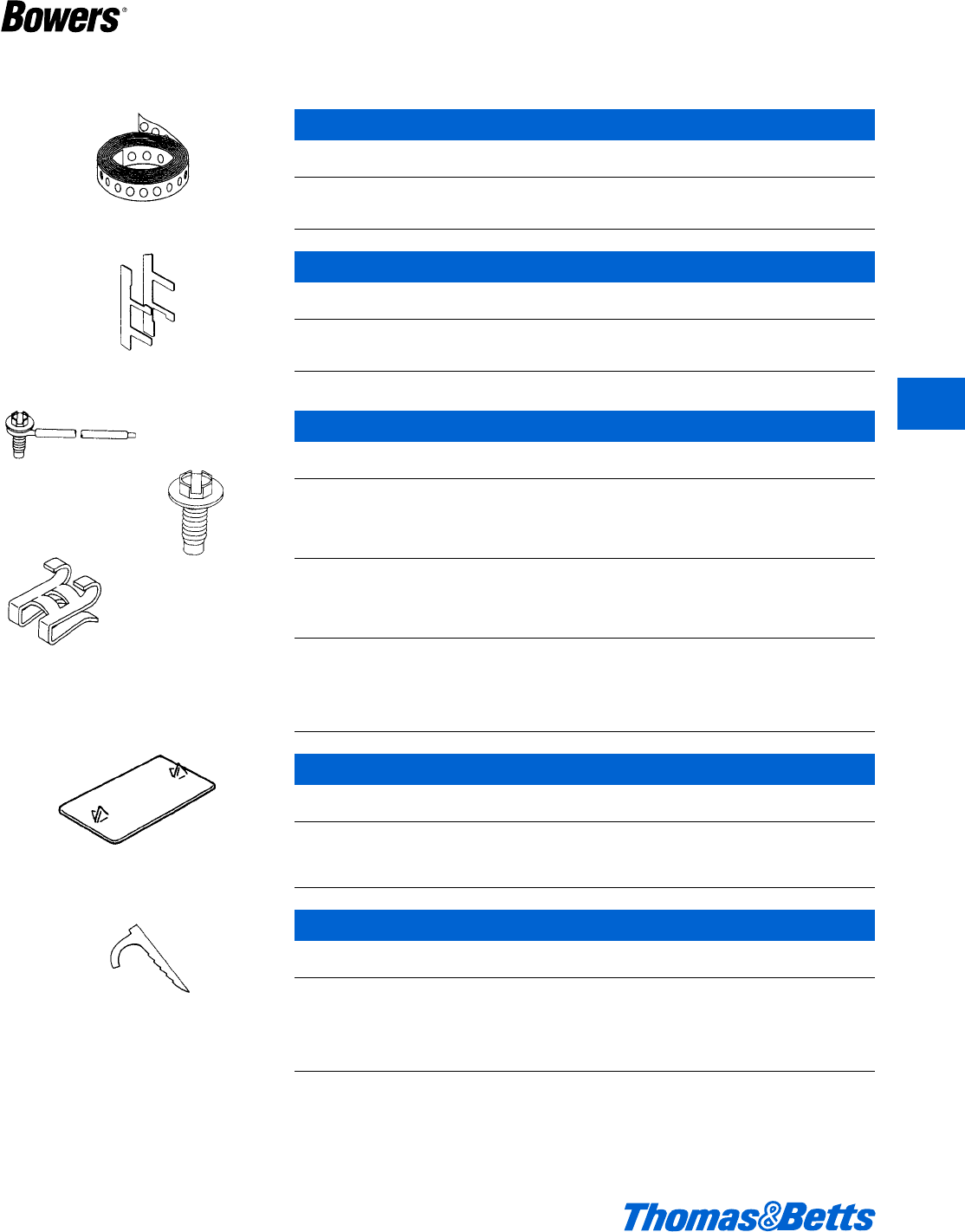

Miscellaneous Products

Plumbers Perforated Tape

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

PT-26 10' Coils–f" Wide –5026

Manufactured from 26 gauge galvanized steel. Made

for 3/16" bolts. Packed 50 coils per carton (500').

Switch Box Supports

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

BH-200 Dual supports for mounting switch boxes in drywall, – 100 26

paneling, etc. where there exists no means of

attaching box to stud.

100 sets per package. 5 packages per carton.

Grounding Devices

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

12-IPT-7-1/2 Insulated Pigtail – 500 11

7d" Length

With ground screw and #12 green wire. Prices for

switch and outlet boxes with factory installed

grounding devices available upon request.

GS-GND-SCR Grounding Screw – 1000 5

t" xc"

Green hex head. 100 per box. Prices for switch and

outlet boxes with factory installed grounding devices

available upon request.

GC-GNO-CLIP Grounding Clip – 1000 4

To provide grounding of switch and outlet boxes using

nonmetallic sheathed cables #14 and #12 with

grounding wire. 50 per box. Prices for switch and

outlet boxes with factory installed grounding

devices available upon request.

Notch Plate

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

NP-3008 Notch Plate – 500 30

h" Thick

To protect nonmetallic cable from nail and

screw penetration.

Pipe Nailers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

PN-1-1/2 d" – 1000 25

PN-2-3/4 f" – 1000 29

PN-3-1 1" – 1000 36

PN-11-1/2-EMT d" EMT – 1000 22

PN-12-3/4-EMT f" EMT – 1000 24

PN-13-1-EMT 1" EMT – 1000 26

PT-26

BH-200

12-IPT-7-1/2

GS-SND-SCR

GC-GNO-CLIP

NP-3008

PN-1

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G43

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G43

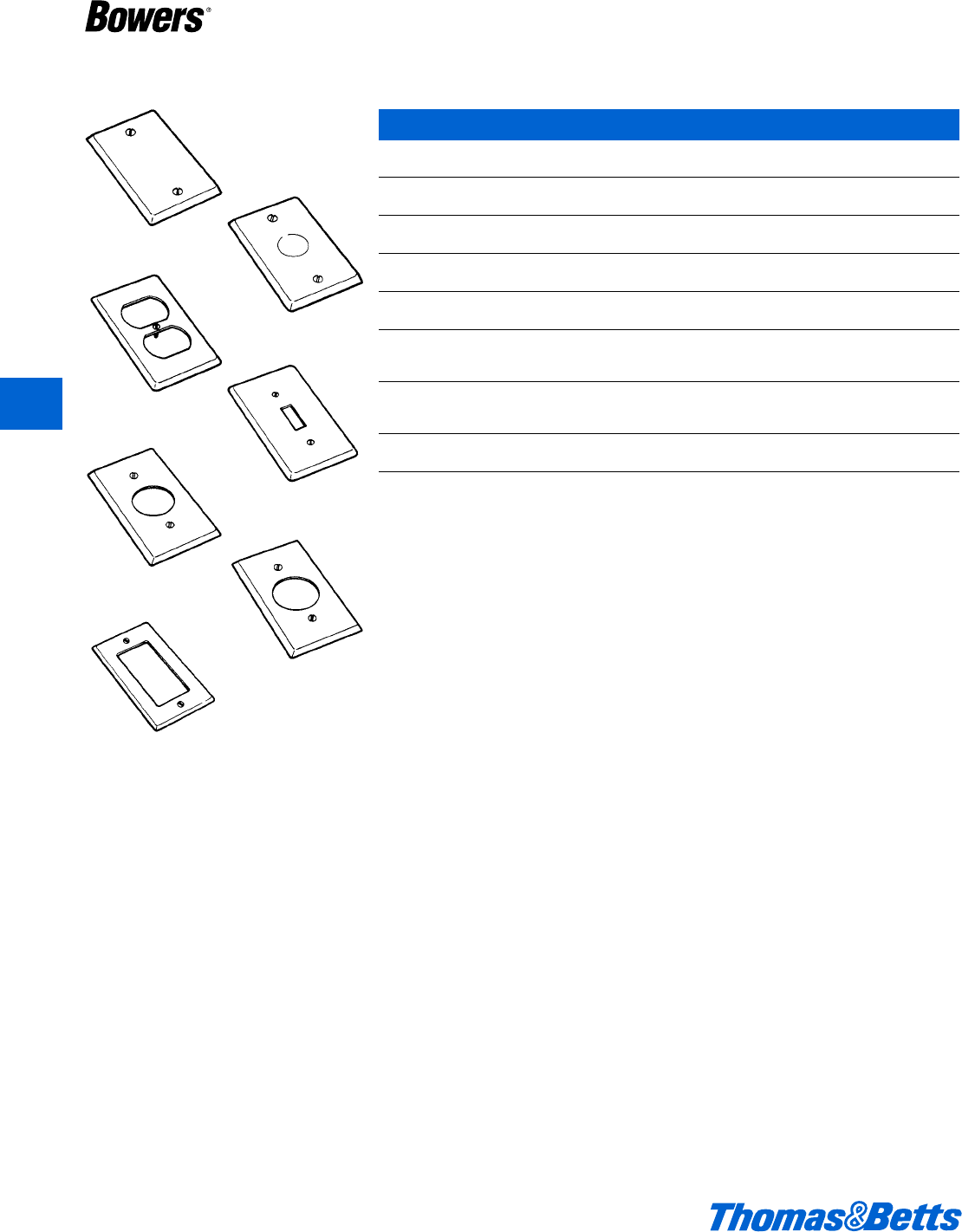

Rings and Covers

Handy Box Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

100-BW a" Raised–4b" Long–2b" Wide –254

Surface blank. Screws swaged in place*

100-K a" Raised–4b" Long–2b" Wide –254

One d" K.O. in center. Screws swaged in place.*

100-DR a" Raised–4b" Long–2b" Wide –253

For duplex receptacle. Screw swaged in place.*

100-TS a" Raised–4b" Long–2b" Wide –253

For one toggle switch. Screws swaged in place.*

100-SR a" Raised–4b" Long–2b" Wide –253

For single receptacle. Opening 1.4" diameter.

Screws swaged in place.*

100-TL a" Raised–4b" Long–2b" Wide –253

For four wire twist lock receptacle. Opening 1.594"

diameter. Screws swaged in place.*

100-GFI a" Raised–4b" Long–2b" Wide –252

For GFI receptacle. Screws swaged in place.*

*Fits any Bowers single gang handy or switch box.

100-BW

100-K

100-DR

100-TS

100-SR

100-GFI

100-TL

G44 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G44

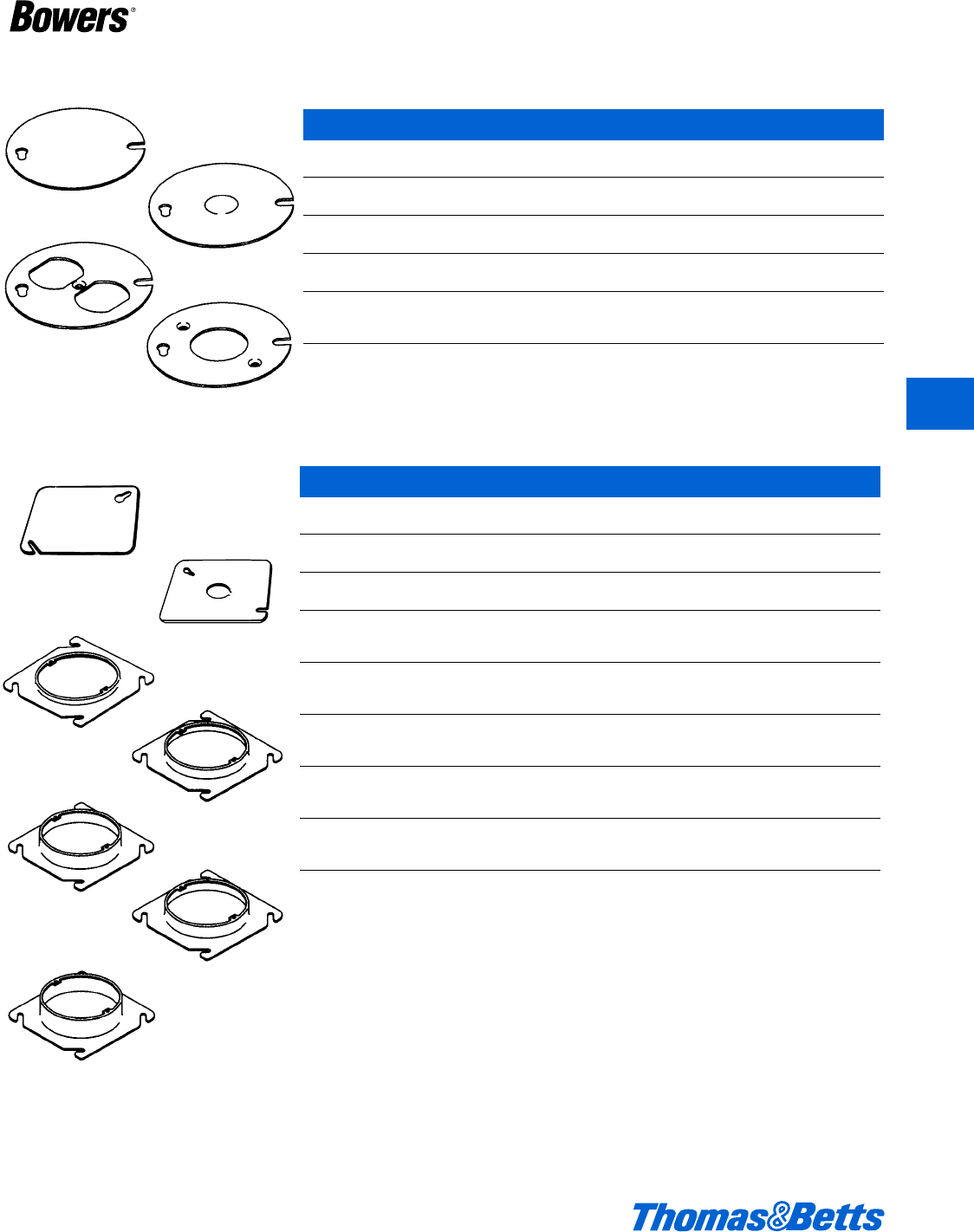

Rings and Covers

3" Octagonal Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

300-BW Flat–3d" Diameter –509

Surface blank.*

300-K Flat–3d" Diameter –5010

One d" K.O. in center.*

300-DR Flat–3d" Diameter –253

For duplex receptacle in center. Screw hole countersunk.*

300-SR Flat–3d" Diameter –254

For single receptacle in center. Opening 1.4" in diameter.

Screw holes countersunk.*

*Fits any Bowers 3" octagonal outlet box or extension ring.

300-BW

4" Square Rings and Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

400-BW Flat–4" Square –5015

Surface blank.*

400-K Flat–4" Square –5015

One d" K.O. in center.*

401-CS b" Raised–4" Square 1.0 25 6

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

401-C d" Raised–4" Square 2.8 50 13

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

401-CA f" Raised–4" Square 4.3 25 8

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

401-CC e" Raised–4" Square 3.8 25 7

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

401-CB 1" Raised–4" Square 6.3 25 9

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

*Fits any Bowers 4" square outlet box or extension ring.

400-BW

400-K

401-C

401-CS

401-CC

401-CB

401-CA

300-K

300-DR

300-SR

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G45

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G45

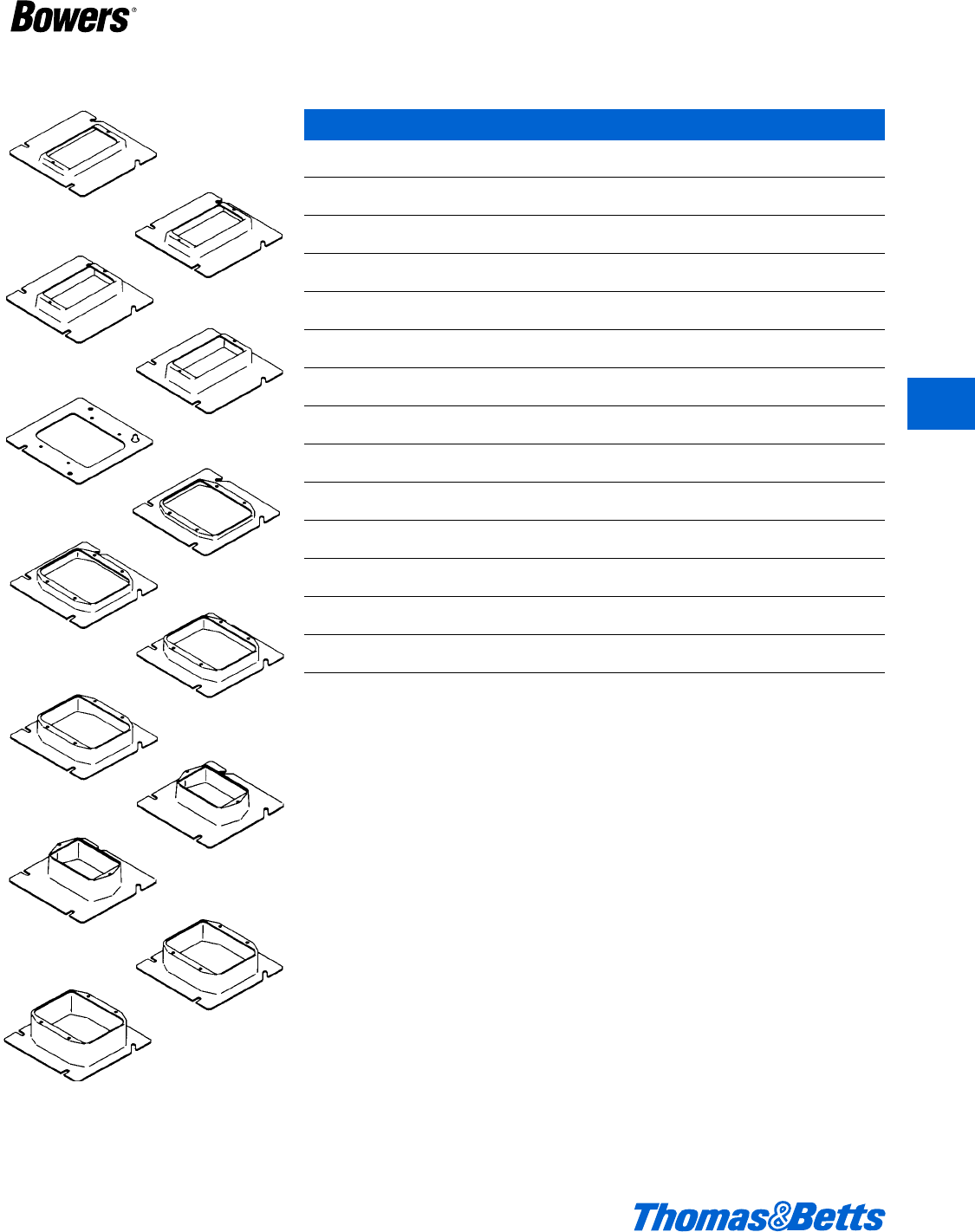

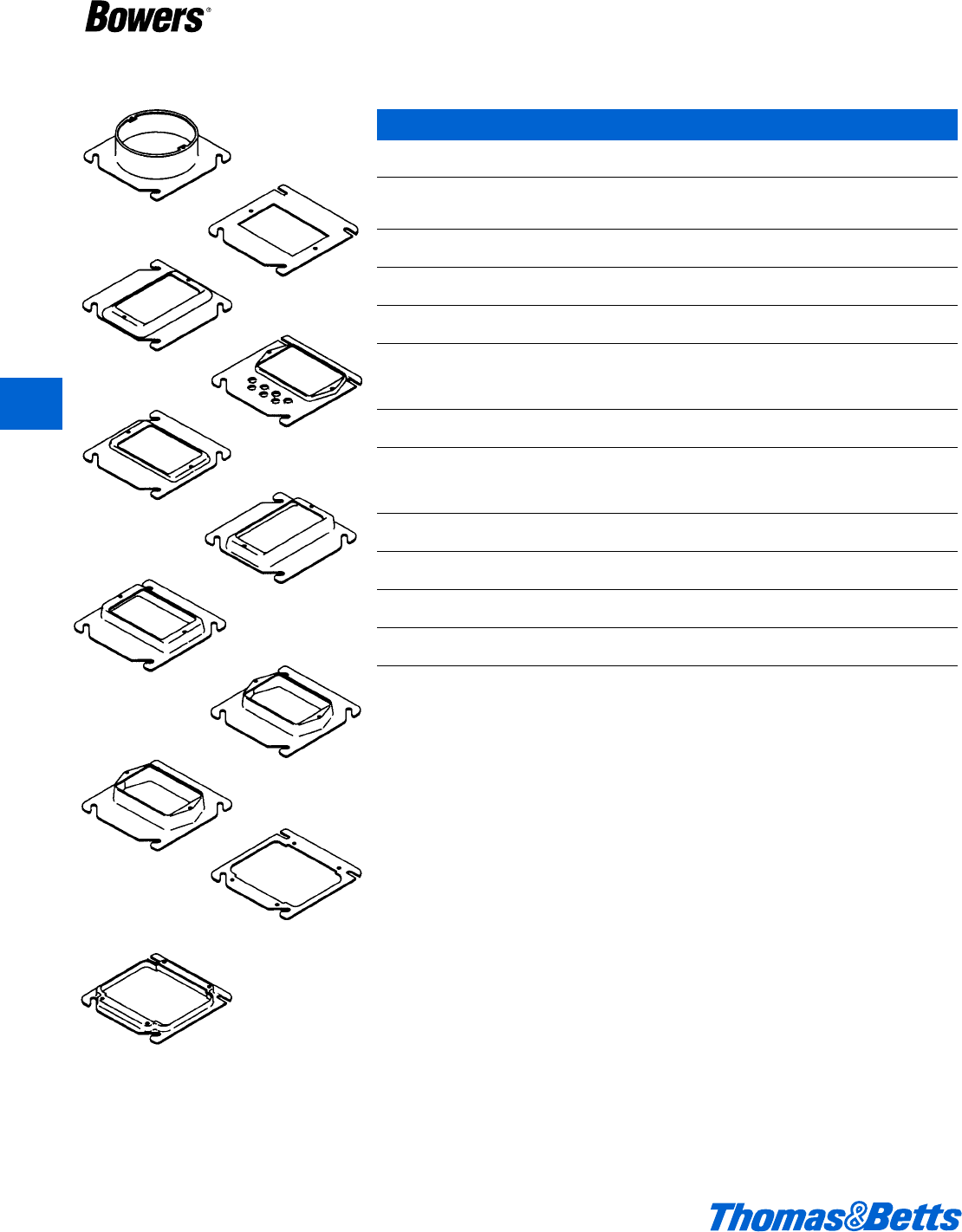

Rings and Covers

4" Square Rings and Covers (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

401-CD 1b" Raised–4" Square 8.0 25 10

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

403-F Flat–4" Square –257

For single switch or receptacle.*

403-B b" Raised–4" Square 1.8 50 11

For single switch or receptacle.*

403-O b" Raised–4" Square 1.0 25 7

Offset for single device at one side. Other side is blank.*

403-ST Steel Tile Ring 1.0 50 11

b" Raised–4" Square

For single switch or receptacle. Ears tapped 8/32–2-23/32"

on centers.*

403-BW d" Raised–4" Square 4.0 50 13

For single switch or receptacle.*

403-T Steel Tile Ring 3.5 50 14

d" Raised–4" Square

For single switch or receptacle. Ears tapped 8/32–2-23/32"

on centers.*

403-C e" Raised–4" Square 3.8 50 14

For single switch or receptacle.*

403-A f" Raised–4" Square 5.3 25 8

For single switch or receptacle.*

404-F Flat–4" Square –253

For two switches or receptacles.*

404-B b" Raised–4" Square 2.5 50 8

For two switches or receptacles.*

*Fits any Bowers 4" square outlet box or extension ring.

401-CD

403-F

403-B

403-O

403-ST

403-BW

403-T

403-C

403-A

404-B

404-F

G46 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G46

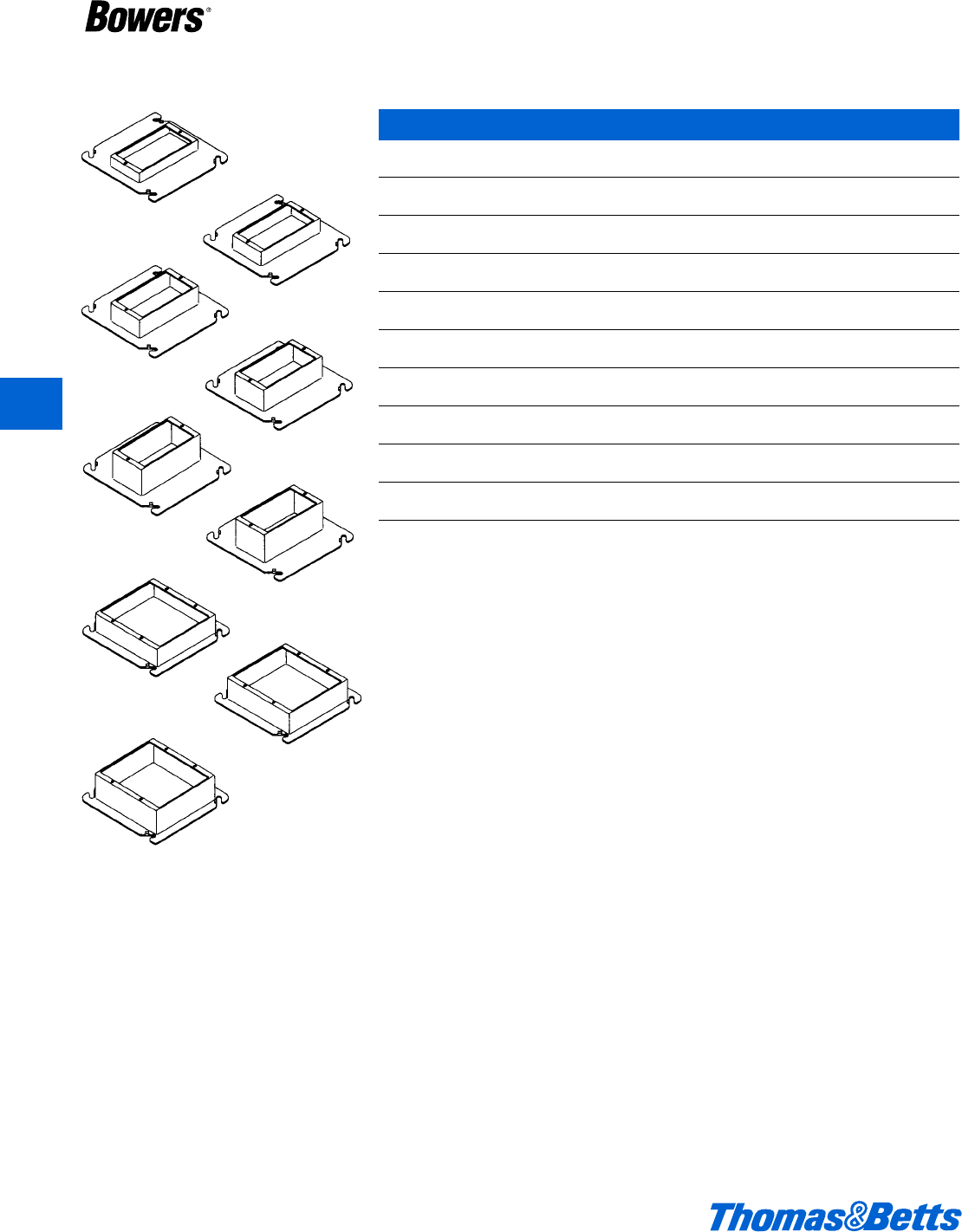

Rings and Covers

4" Square Rings and Covers (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

404-BW d" Raised–4" Square 5.8 50 11

For two switches or receptacles.*

404-C e" Raised–4" Square 7.8 25 5

For two switches or receptacles.*

404-A f" Raised–4" Square 9.3 25 7

For two switches or receptacles.*

405-B g" Raised–4" Square 5.0 25 8

For single switch or receptacle.*

405-A 1" Raised–4" Square 6.5 25 9

For single switch or receptacle.*

405-BW-R 1b" Raised–4" Square 8.3 25 10

For single switch or receptacle.*

406-A 1" Raised–4" Square 11.8 25 8

For two switches or receptacles.*

406-BW 1b" Raised–4" Square 14.8 25 10

For two switches or receptacles.*

*Fits any Bowers 4" square outlet box or extension ring.

404-BW

404-C

404-A

405-B

405-A

405-BW-R

406-A

406-BW

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G47

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G47

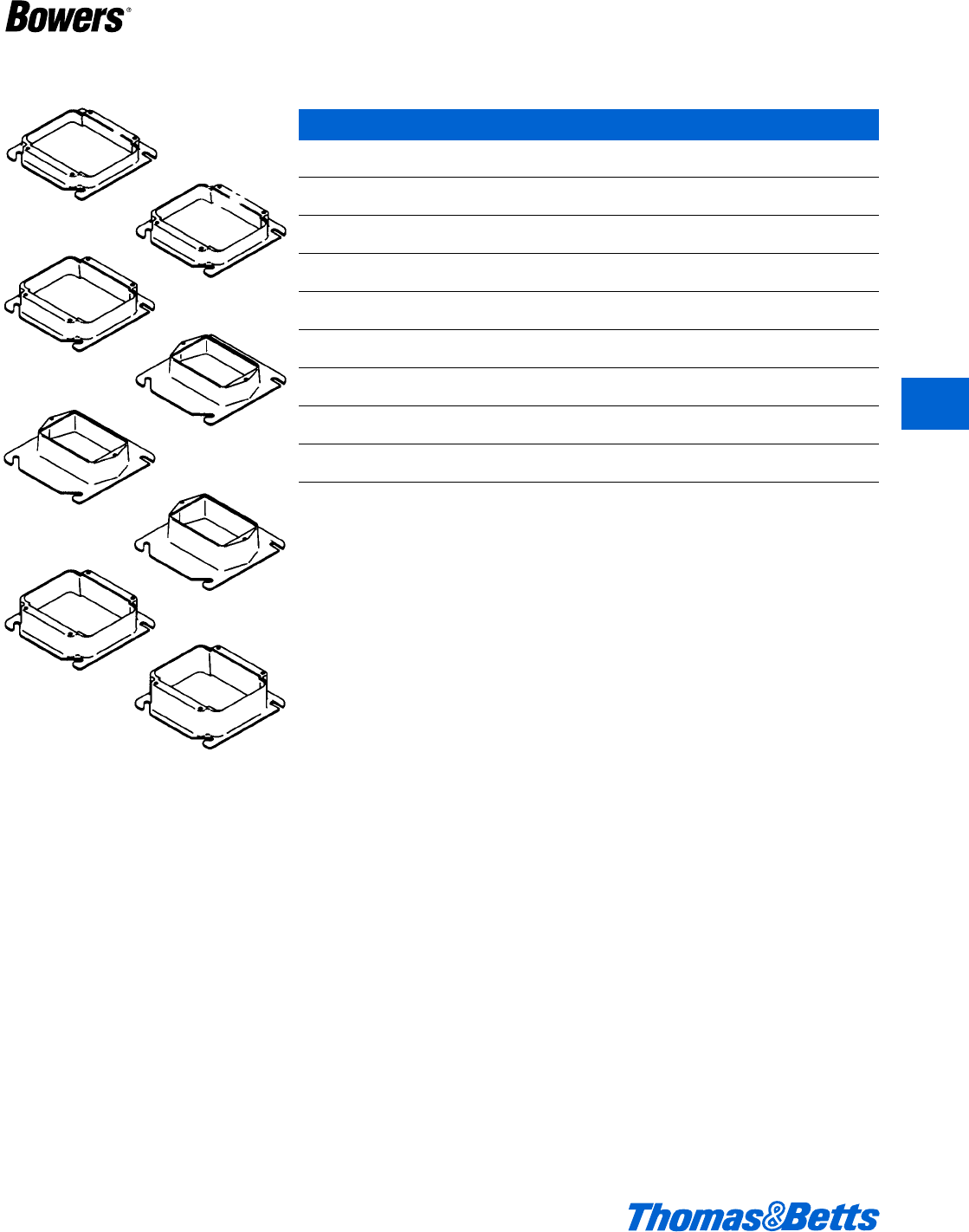

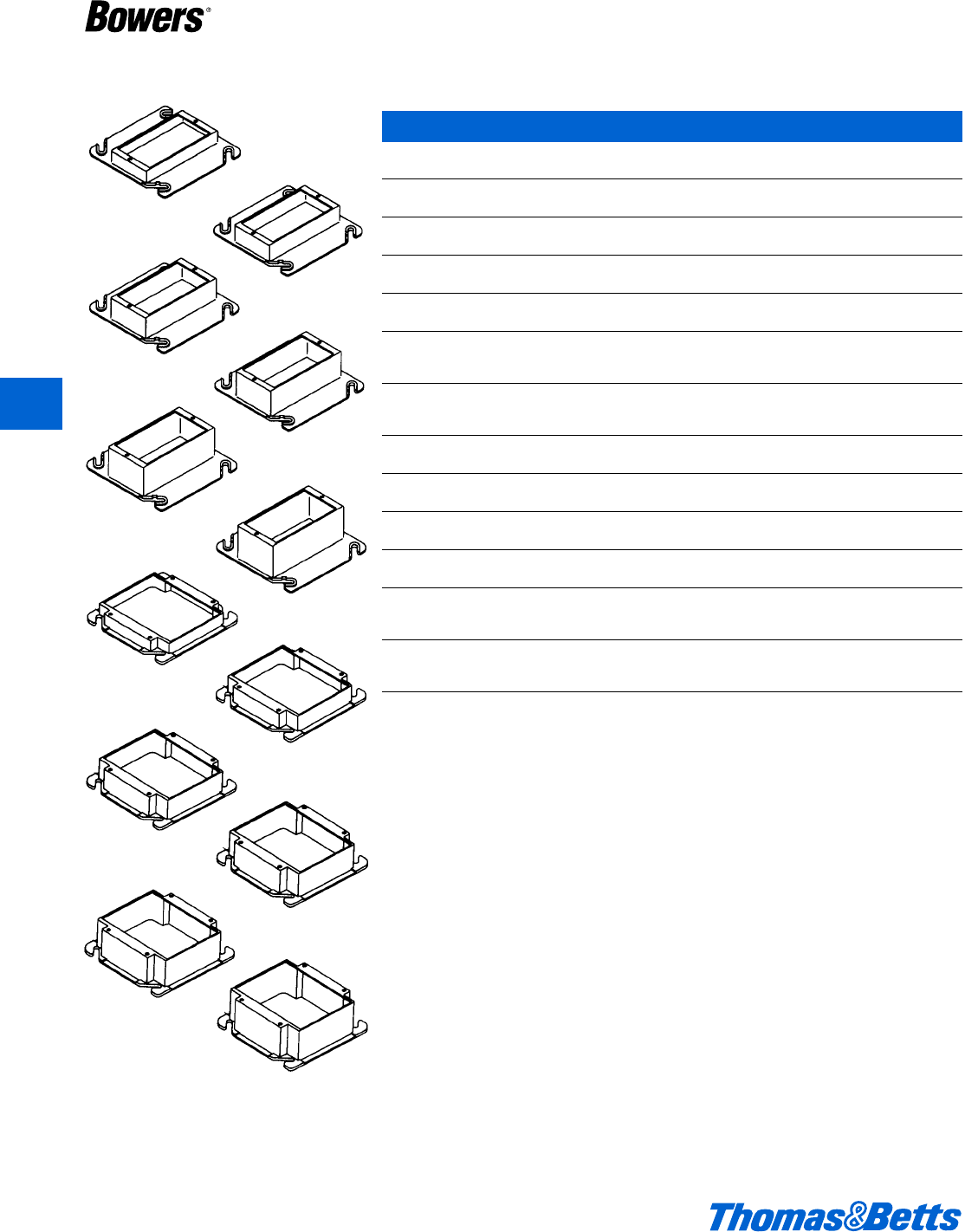

Rings and Covers

4" Square Tile Rings–Steel

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

407-A d" Raised–4" Square 4.0 10 2

For single switch or receptacle.*

407-B f" Raised–4" Square 5.5 10 2

For single switch or receptacle.*

407-C 1" Raised–4" Square 7.8 10 3

For single switch or receptacle.*

407-D 1b" Raised–4" Square 9.0 10 3

For single switch or receptacle.*

407-F Steel Tile Ring 11.5 10 4

d" Raised–4" Square

For single switch or receptacle.*

407-G Steel Tile Ring 14.8 10 4

2" Raised–4" Square

For single switch or receptacle.*

408-A d" Raised–4" Square 5.8 10 2

For two switches or receptacles.*

408-B f" Raised–4" Square 9.3 10 2

For two switches or receptacles.*

408-C 1" Raised–4" Square 12.0 10 3

For two switches or receptacles.*

408-D 1b" Raised–4" Square 14.8 10 3

For two switches or receptacles.*

408-F Steel Tile Ring 17.5 10 3

1d" Raised–4" Square

For two switches or receptacles.*

408-G Steel Tile Ring 23.0 10 4

2" Raised–4" Square

For two switches or receptacles.*

*Fits any Bowers 4" square outlet box or extension ring.

407-A

407-B

407-C

407-D

407-F

407-G

408-A

408-B

408-C

408-D

408-G

408-F

G48 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G48

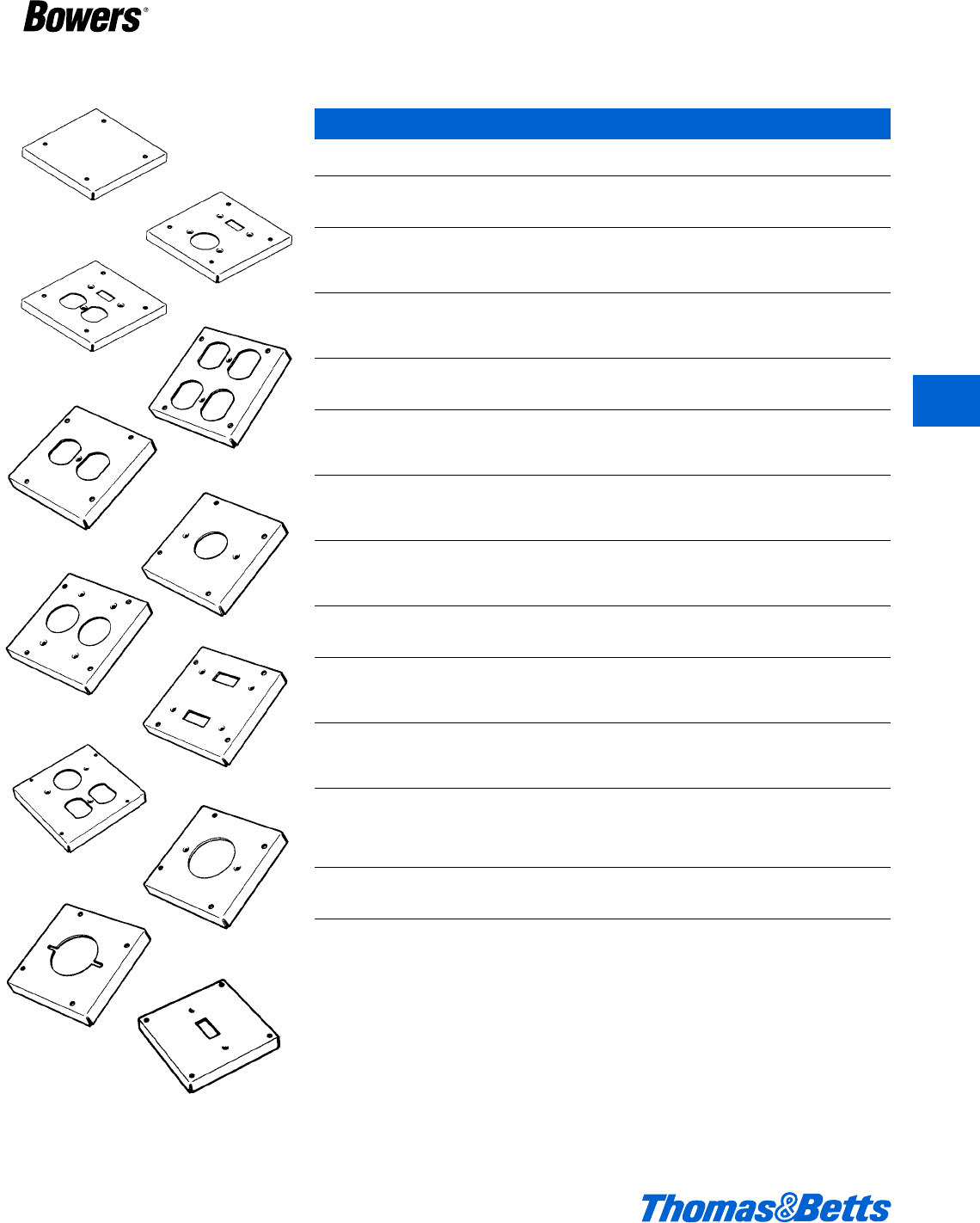

Rings and Covers

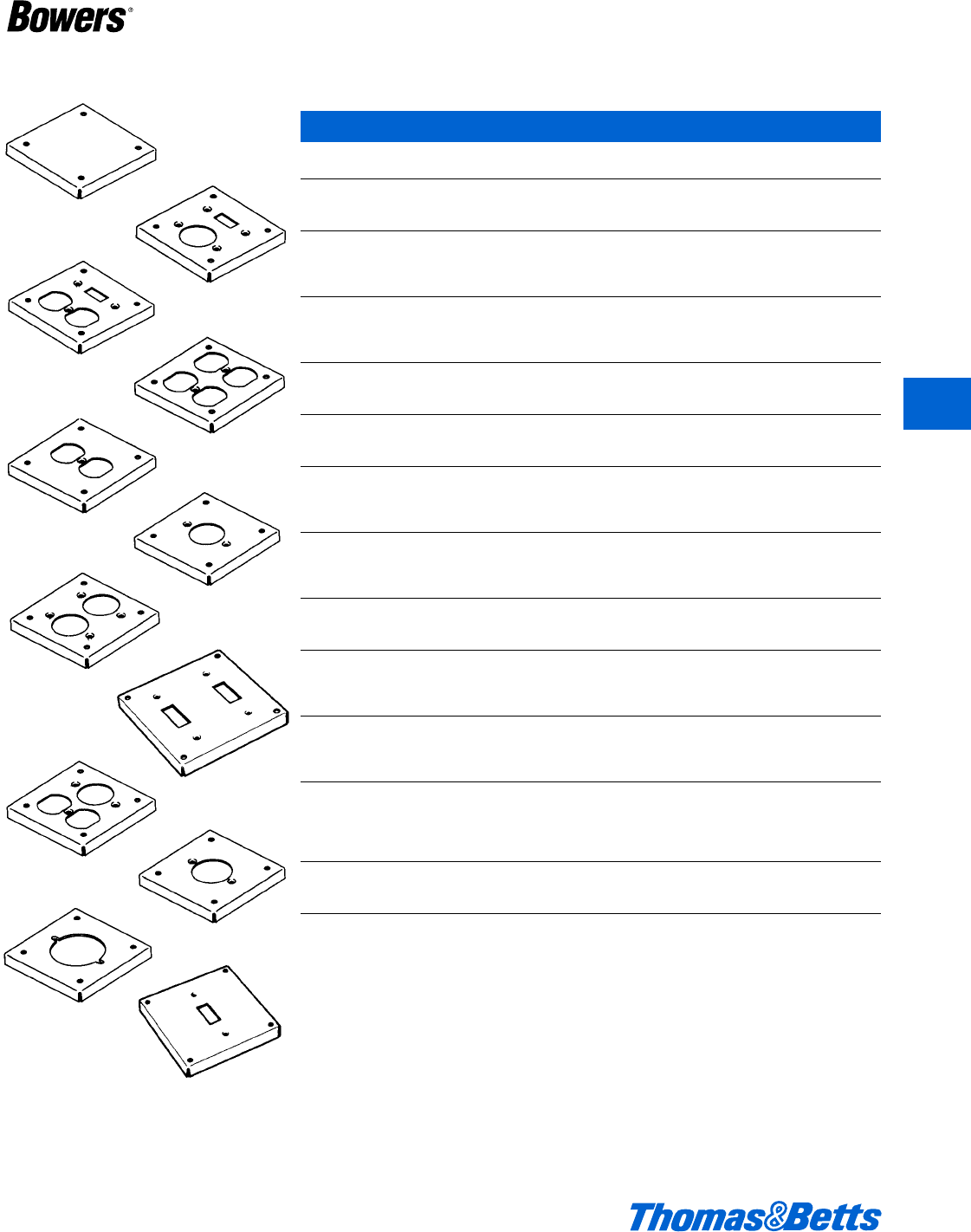

4" Square Industrial Device Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

449-BW d" Raised–4" Square 6.5 25 11

Surface blank. Each cover individually packaged with

the necessary screws for mounting.*

450 d" Raised–4" Square 6.5 25 9

For one toggle switch and one single receptacle.

Opening 1.4" diameter. Each cover individually packaged

with the necessary screws for mounting.*

451-NEC d" Raised–4" Square 6.5 25 10

For one toggle switch and one duplex receptacle. Each

cover individually packaged with the necessary screws

for mounting.*

452-NEC d" Raised–4" Square 6.5 25 9

For two duplex receptacles. Each cover individually

packaged with the necessary mounting screws.*

453-NEC d" Raised–4" Square 6.5 25 10

For one duplex receptacle in center. Each cover individually

packaged with the necessary mounting screws.*

454 d" Raised–4" Square 6.5 25 10

For one single receptacle in center. Opening 1.4" diameter.

Each cover individually packaged with the necessary

mounting screws.*

455 d" Raised–4" Square 6.5 25 10

For two single receptacles. Openings 1.4" diameter. Each

cover individually packaged with the necessary mounting

screws.*

456 d" Raised–4" Square 6.5 25 11

For two toggle switches. Each cover individually packaged

with the necessary mounting screws.*

457-NEC d" Raised–4" Square 6.5 25 9

For one duplex and one single receptacle. Opening 1.4"

diameter. Each cover individually packaged with the

necessary mounting screws.*

458 d" Raised–4" Square 6.5 25 10

For one four wire twist lock receptacle in center. Opening

1.594" diameter. Each cover individually packaged with

the necessary mounting screws.*

459 d" Raised–4" Square 6.5 25 9

Opening to accommodate one Bryant 9303, Hubbell 9350,

Arrow 9344, or P & S 3853 receptacle in center. Opening

2.138" diameter. Each cover individually packaged with

the necessary mounting screws.*

460-BW d" Raised–4" Square 6.5 25 11

For one toggle switch in center. Each cover individually

packaged with the necessary mounting screws.*

*Fits any Bowers 4" square outlet box or extension ring.

449-BW

450

451-NEC

452-NEC

453-NEC

454

455

456

457-NEC

458

460-BW

459

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G49

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G49

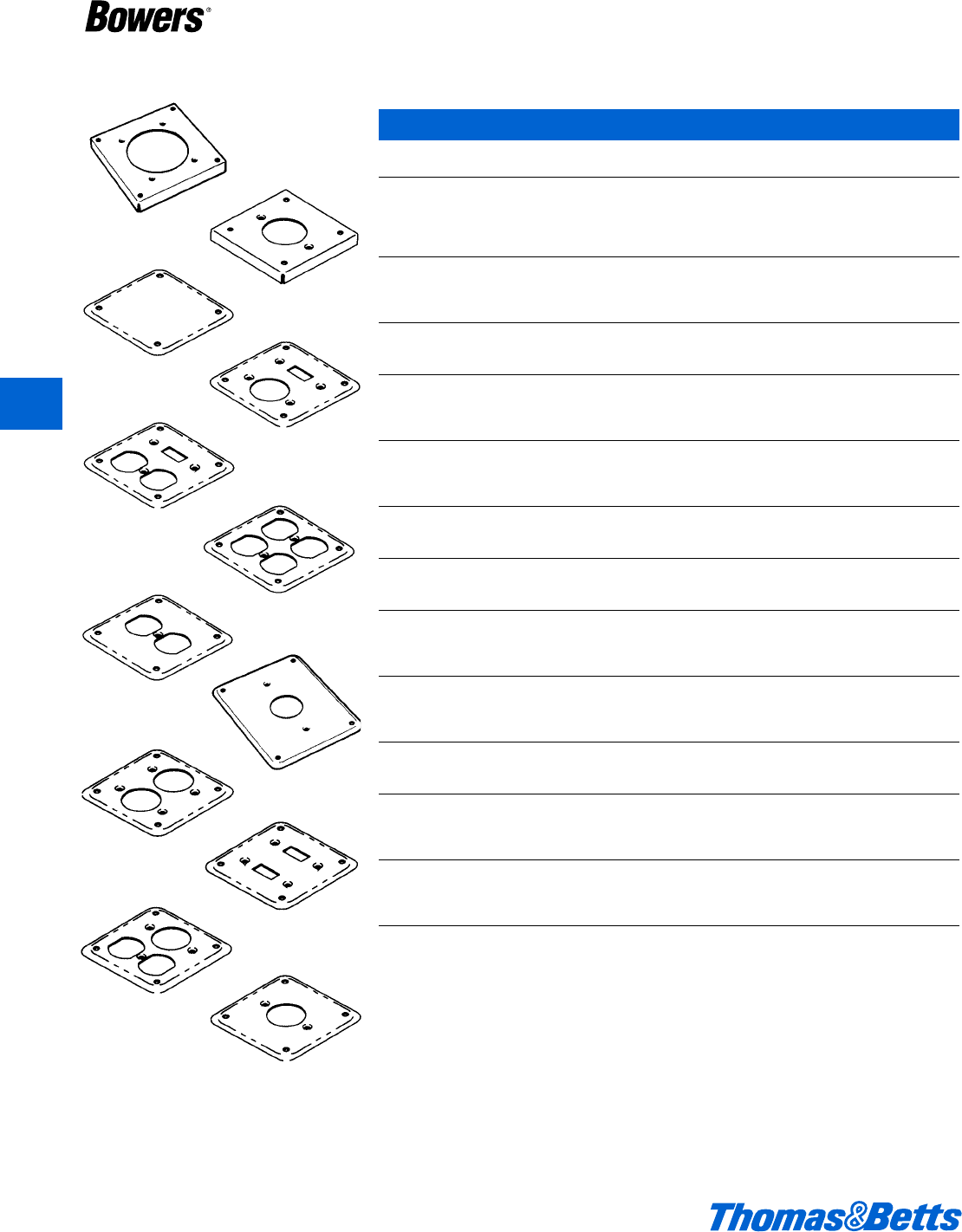

Rings and Covers

4" Square Industrial Device Covers (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

464 d" Raised–4" Square 6.5 25 11

Opening to accommodate one Bryant 7301, Hubbell 7301,

or Arrow 4515 receptacle in center. Opening 2.45" diameter.

Each cover individually packaged with the necessary

mounting screws.*

465 d" Raised–4" Square 6.5 25 10

Opening to accommodate Hubbell 3330 receptacle in

center. Opening 1.740" diameter. Each cover individually

packaged with the necessary mounting screws.*

469 a" Raised–4" Square –256

Surface blank. Each cover individually packaged with the

necessary mounting screws.*

470-BW a" Raised–4" Square –255

For one toggle switch and one single receptacle. Opening

1.4" diameter. Each cover individually packaged with the

necessary mounting screws.*

471-NEC a" Raised–4" Square –255

For one toggle switch and one duplex receptacle. Each

cover individually packaged with the necessary mounting

screws.*

472-NEC a" Raised–4" Square –254

For two duplex receptacles. Each cover individually

packaged with the necessary mounting screws.*

473-NEC a" Raised–4" Square –255

For one duplex receptacle in center. Each cover individually

packaged with the necessary mounting screws.*

474-BW a" Raised–4" Square –256

For one single receptacle in center. Opening 1.4" diameter.

Each cover individually packaged with the necessary

mounting screws.*

475 a" Raised–4" Square –256

For two single receptacles. Openings 1.4" diameter. Each

cover individually packaged with the necessary mounting

screws.*

476 a" Raised–4" Square –256

For two toggle switches. Each cover individually packaged

with the necessary mounting screws.*

477-NEC a" Raised–4" Square –255

For one duplex and one single receptacle. Opening 1.4"

diameter. Each cover individually packaged with the

necessary mounting screws.*

478 a" Raised–4" Square –255

For one four-wire twist lock receptacle in center. Opening

1.594" diameter. Each cover individually packaged with

the necessary mounting screws.*

*Fits any Bowers 4" square outlet box or extension ring.

464

465

469

470-BW

471-NEC

472-NEC

473-NEC

474-BW

475

476

478

477-NEC

G50 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G50

Rings and Covers

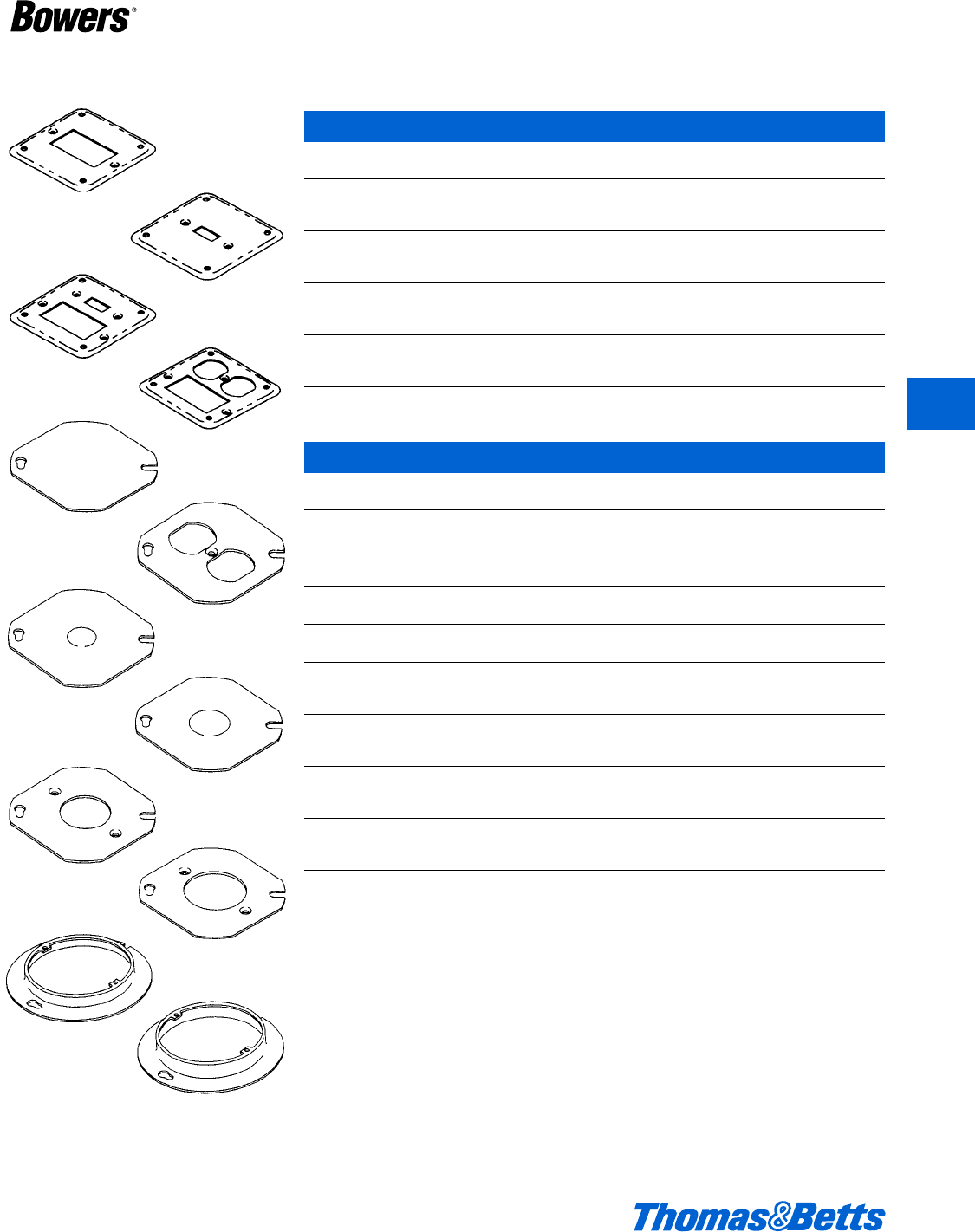

4" Square Industrial Device Covers (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

479-GFI a" Raised–4" Square –253

For one GFI receptacle in center. Each cover individually

packaged with the necessary mounting screws.*

480-BW a" Raised–4" Square –256

For one toggle switch in center. Each cover individually

packaged with the necessary mounting screws.*

481-BW a" Raised–4" Square –252

For one GFI receptacle and one toggle switch. Each cover

individually packaged with the necessary mounting screws.*

482-NEC a" Raised–4" Square –252

For one GFI and one duplex receptacle. Each cover

individually packaged with the necessary mounting screws.*

*Fits any Bowers 4" square outlet box or extension ring.

4" Octagonal Rings and Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

500-BW-C Flat–4" Octagonal –5013

Surface blank.*

500-DR Flat–4" Octagonal –5011

For duplex receptacle. Screw hole countersunk.*

500-K Flat–4" Octagonal –5013

One d" K.O. in center.*

500-K-3/4 Flat–4" Octagonal –5013

One f" K.O. in center.*

500-SR Flat–4" Octagonal –256

For single receptacle in center. Screw holes countersunk.

Opening 1.4" diameter.*

500-TL Flat–4" Octagonal –255

Four-wire twistlock in center. Screw holes countersunk.

Opening 1.594" diameter.*

501-C-BW d" Raised–4" Diameter 3.0 50 10

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

501-CC e" Raised–4" Diameter 4.0 25 6

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

*Fits any Bowers 4" octagonal outlet box or extension ring.

479-GFI

480-BW

481-BW

482-NEC

500-BW-C

500-DR

500-K

500-K-3/4

500-SR

500-TL

501-CC

501-C-BW

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G51

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G51

Rings and Covers

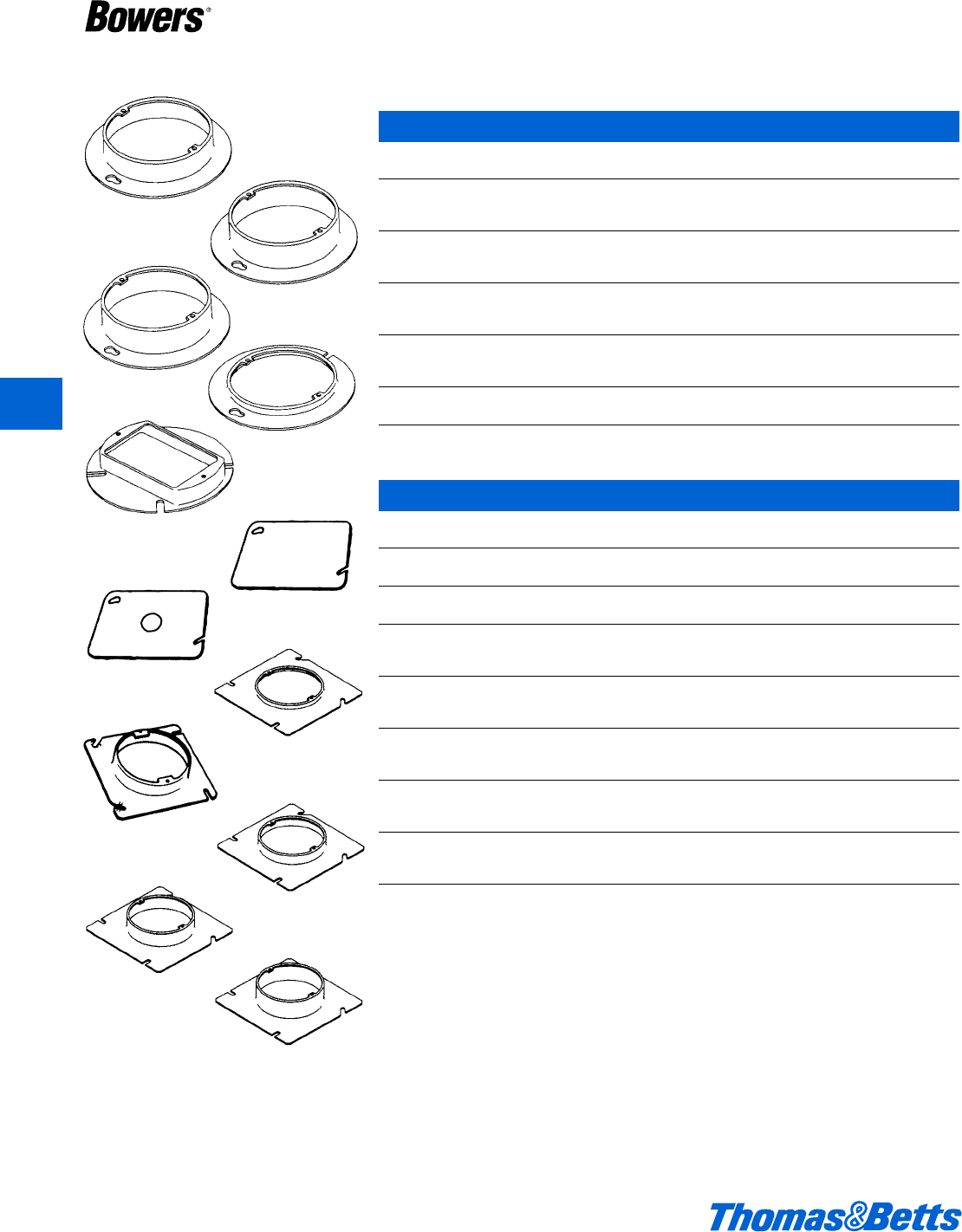

4" Octagonal Rings and Covers (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

501-CA f" Raised–4" Diameter 4.5 25 8

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

501-CB 1" Raised–4" Diameter 5.8 25 8

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

501-CD 1b" Raised–4" Diameter 8.3 25 9

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

501-CS b" Raised–4" Diameter 1.5 25 5

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

503-BW d" Raised–4" Diameter 2.5 25 6

For single switch or receptacle.*

*Fits any Bowers 4" octagonal outlet box or extension ring.

411⁄16" Square Rings and Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

600-BW Flat–4L" Square –2511

Surface blank.*

600-K Flat–4L" Square –2511

One d" K.O. in center.*

601-C d" Raised–4L" Square 3.0 25 9

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

601-CC e" Raised–4L" Square 3.5 25 12

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

601-CA f" Raised–4L" Square 5.0 25 10

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

601-CB 1" Raised–4L" Square 6.8 25 12

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

601-CD 1b" Raised–4L" Square 8.8 25 12

Open plaster ring with ears. Ears tapped 8/32–2-23/32"

on centers. Special screw lock feature in slots.*

*Fits any Bowers 4L" square outlet box or extension ring.

501-CA

501-CB

501-CD

501-CS

503-BW

600-BW

600-K

601-C

601-CC

601-CA

601-CD

601-CB

G52 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G52

Rings and Covers

411⁄16" Square Rings and Covers (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

603-B b" Raised–4L" Square 2.0 25 8

For single switch or receptacle.*

603-A d" Raised–4L" Square 3.3 25 9

For single switch or receptacle.*

603-C e" Raised–4L" Square 4.5 25 10

For single switch or receptacle.*

603-BW f" Raised–4L" Square 5.0 25 10

For single switch or receptacle.*

604-F Flat–4L" Square –255

For two switches or receptacles.*

604-B b" Raised–4L" Square 2.8 25 6

For two switches or receptacles.*

604-A d" Raised–4L" Square 5.5 25 10

For two switches or receptacles.*

604-C e" Raised–4L" Square 6.8 25 8

For two switches or receptacles.*

604-BW f" Raised–4L" Square 8.5 25 9

For two switches or receptacles.*

605-BW 1" Raised–4L" Square 6.3 10 5

For single switch or receptacle.*

605-A 1b" Raised–4L" Square 8.0 10 5

For single switch or receptacle.*

606-BW 1" Raised–4L" Square 11.3 10 4

For two switches or receptacles.*

606-A 1b" Raised–4L" Square 13.5 10 5

For two switches or receptacles.*

*Fits any Bowers 4L" square outlet box or extension ring.

603-B

603-A

603-C

603-BW

604-F

604-B

604-A

604-C

604-BW

605-BW

606-BW

605-A

606-A

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G53

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G53

Rings and Covers

411⁄16" Square Tile Rings

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

607-A d" Raised–4L" Square 3.8 10 2

For single switch or receptacle.*

607-B f" Raised–4L" Square 5.8 10 3

For single switch or receptacle.*

607-C 1" Raised–4L" Square 6.8 10 3

For single switch or receptacle.*

607-D 1b" Raised–4L" Square 9.5 10 3

For single switch or receptacle.*

607-F 1d" Raised–4L" Square 11.3 10 3

For single switch or receptacle.*

607-G 2" Raised–4L" Square 15.0 10 4

For single switch or receptacle.*

608-C 2" Raised–4L" Square 12.5 10 3

For two switches or receptacles.*

608-F 1d" Raised–4L" Square 18.8 10 4

For two switches or receptacles.*

608-G 2" Raised–4L" Square 24.5 10 4

For two switches or receptacles.*

*Fits any Bowers 4L" square outlet box or extension ring.

607-A

607-B

607-C

607-D

607-F

607-G

608-C

608-F

608-G

G54 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G54

Rings and Covers

411⁄16" Square Industrial Device Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

649 d" Raised–4L" Square 7.5 10 6

Surface blank. Each cover individually packaged with

the necessary screws for mounting.*

650-BW d" Raised–4L" Square 7.5 10 6

For one toggle switch and one single receptacle.

Opening 1.4" diameter. Each cover individually

packaged with the necessary screws for mounting.*

651-NEC d" Raised–4L" Square 7.5 10 5

For one toggle switch and one duplex receptacle.

Each cover individually packaged with the necessary

screws for mounting.*

652-NEC d" Raised–4L" Square 7.5 10 5

For two duplex receptacles. Each cover individually

packaged with the necessary screws for mounting.*

653-NEC d" Raised–4L" Square 7.5 10 5

For one duplex receptacle in center. Each cover

individually packaged with the necessary screws

for mounting.*

654 d" Raised–4L" Square 7.5 10 6

For one single receptacle in center. Opening 1.4"

diameter. Each cover individually packaged with the

necessary screws for mounting.*

655 d" Raised–4L" Square 7.5 10 5

For two single receptacles. Opening 1.4" diameter. Each

cover individually packaged with the necessary screws

for mounting.*

656 d" Raised–4L" Square 7.5 10 6

For two toggle switches. Each cover individually

packaged with the necessary screws for mounting.*

657-NEC d" Raised–4L" Square 7.5 10 5

For one duplex and one single receptacle. Opening

1.4" diameter. Each cover individually packaged with the

necessary screws for mounting.*

658 d" Raised–4L" Square 7.5 10 6

For one four-wire twist lock receptacle in center.

Opening 1.594" diameter. Each cover individually

packaged with the necessary screws for mounting.*

659 d" Raised–4L" Square 7.5 10 6

Opening to accommodate one Bryant 9303, Hubbell 9350,

Arrow 9344, or P & S 3853 receptacle in center. Opening

2.138" diameter. Each cover individually packaged with

the necessary screws for mounting.*

660 d" Raised–4L" Square 7.5 10 6

For one toggle switch. Each cover individually

packaged with the necessary screws for mounting.*

*Fits any Bowers 4L" square outlet box or extension ring.

649

650-BW

651-NEC

652-NEC

653-NEC

654

655

656

657

658

660

659

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G55

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G55

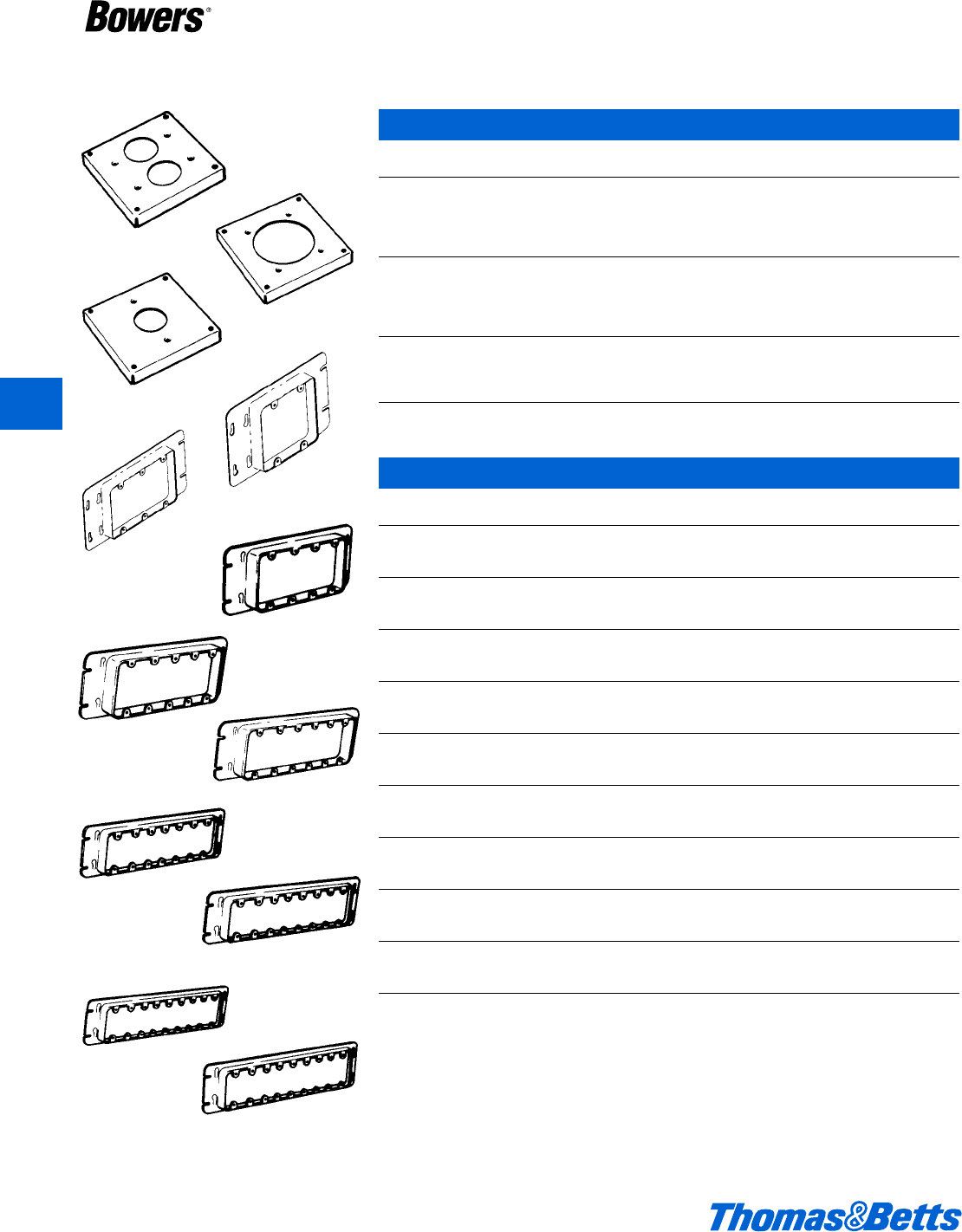

Rings and Covers

411⁄16" Square Industrial Device Covers (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

663-BW d" Raised–4L" Square 7.5 10 5

For two three-wire twist lock receptacles. L"

spacing between 1.4" diameter openings. Each cover

individually packaged with the necessary screws

for mounting.*

664-BW d" Raised–4L" Square 7.5 10 5

Opening to accommodate one Bryant 7301, Hubbell 7301,

or Arrow 4515 receptacle in center. Opening 2.45"

diameter. Each cover individually packaged with the

necessary screws for mounting.*

665-BW d" Raised–4L" Square 7.5 10 5

Opening to accommodate Hubbell 3330 receptacle in

center. Opening 1.75" diameter. Each cover individually

packaged with the necessary screws for mounting.*

*Fits any Bowers 4L" square outlet box or extension ring.

Multi-Gang Rings

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

802 f" Raised–4l" Long–6g" Wide 9.3 5 3

A two gang switch ring.

Fits Bowers 702 outlet boxes and uses GB-2 covers.

803 f" Raised–4l" Long–8f" Wide 14.3 5 4

A three gang switch ring.

Fits Bowers 702 or 703 outlet boxes and uses GB-3 covers.

804 f" Raised–4l" Long–10l" Wide 21.3 5 4

A four gang switch ring.

Fits Bowers 703 or 704 outlet boxes and uses GB-4 covers.

805 f" Raised–4l" Long–12j" Wide 25.8 5 4

A five gang switch ring.

Fits Bowers 704 or 705 outlet boxes and uses GB-5 covers.

806 f" Raised–4l" Long–14a" Wide 31.0 1 1

A six gang switch ring.

Fits Bowers 705 or 706 outlet boxes and uses GB-6 covers.

807 f" Raised–4l" Long–15n" Wide 36.3 1 2

A seven gang switch ring.

Fits Bowers 706 or 707 outlet boxes and uses GB-7 covers.

808 f" Raised–4l" Long–17f" Wide 41.0 1 2

An eight gang switch ring.

Fits Bowers 707 or 708 outlet boxes and uses GB-8 covers.

809 f" Raised–4l" Long–19l" Wide 46.5 1 2

A nine gang switch ring.

Fits Bowers 708 or 709 outlet boxes and uses GB-9 covers.

810 f" Raised–4l" Long–21c" Wide 51.5 1 2

A ten gang switch ring.

Fits Bowers 709 or 710 outlet boxes and uses GB-10 covers.

663-BW

664-BW

665-BW

802

803

804

805

806

807

808

810

809

G56 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G56

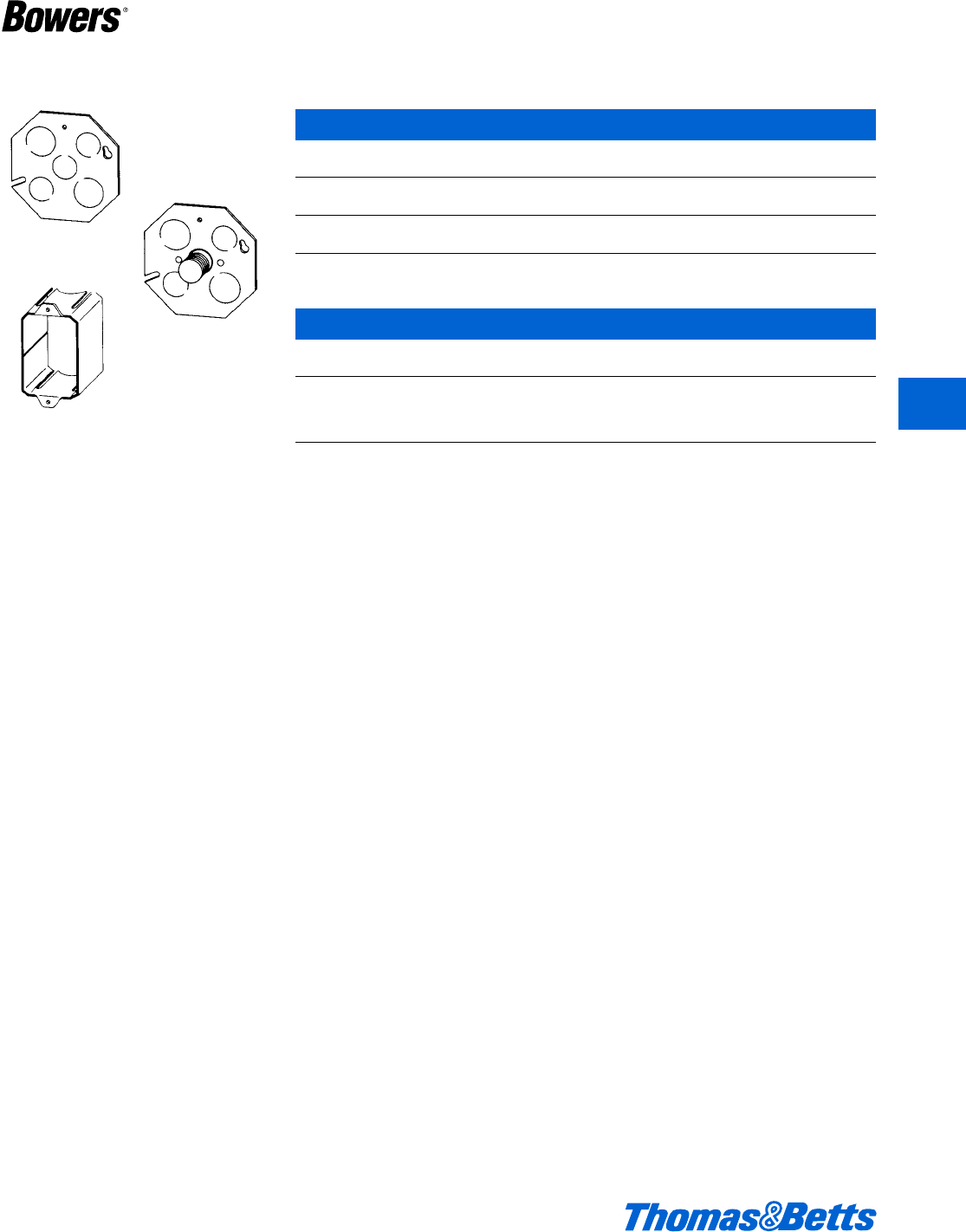

Rings and Covers

Concrete Box Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

910 Flat–4" Octagon –257

Three d" K.O.’s and two f" K.O.’s without fixture stud.*

911 Flat–4" Octagon –258

Two d" K.O.’s and two f" K.O.’s with c" fixture stud.*

Fits any Bowers concrete box.

Switch Box Extension Ring

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

220-EXT Switch Box Extension Ring –253

Extends a set-in box flush with the wall surface. Ring

extends box from b" to 1". Slotted on both ends to fit

around screws in plaster ears. Not UL listed.

Fits any Bowers single switch box.

910

911

220-EXT

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G57

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G57

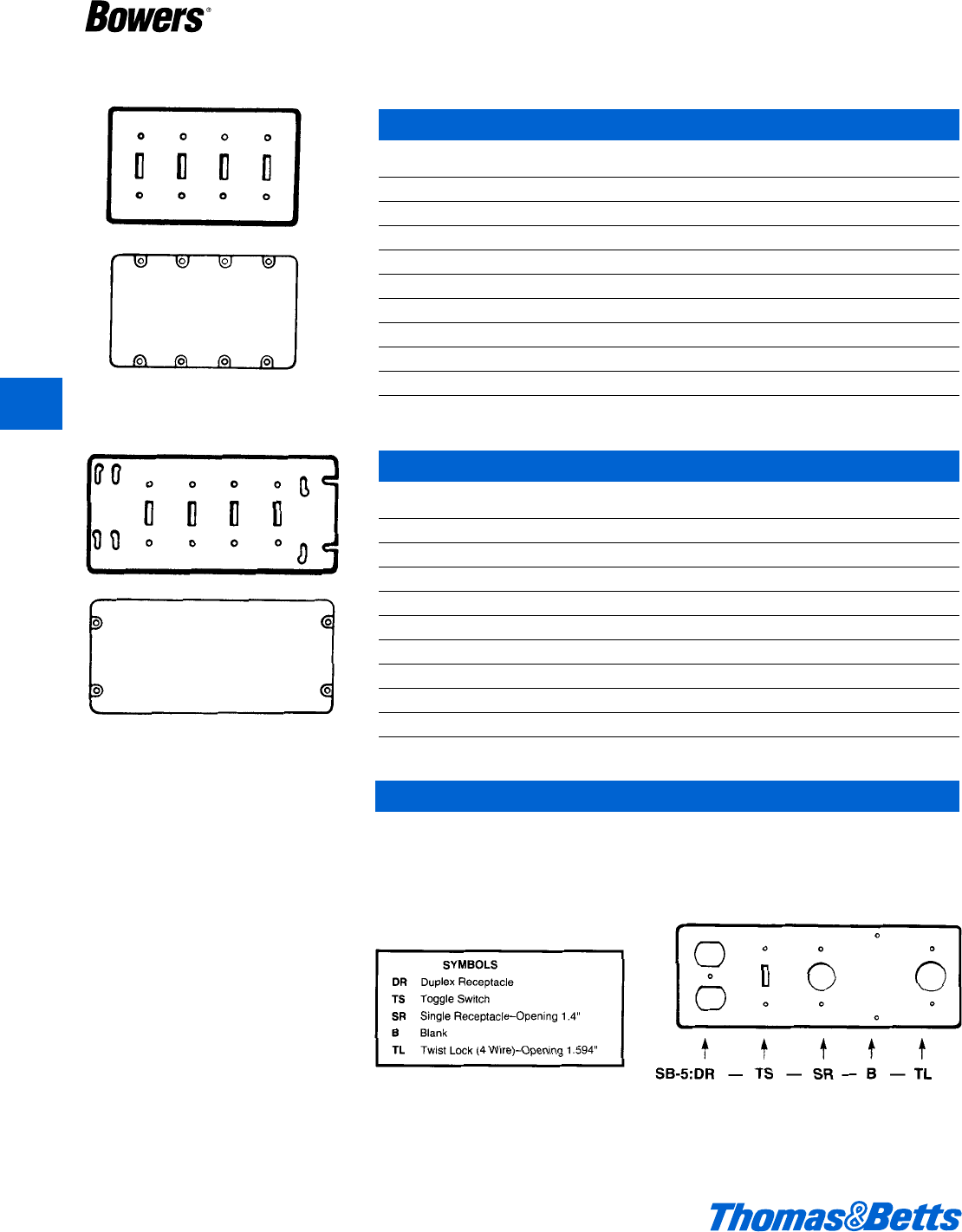

Multi-Gang Covers – SB Series

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

SB-2 Two gang cover – 1 .30

SB-3 Three gang cover – 1 .44

SB-4 Four gang cover – 1 .58

SB-5 Five gang cover – 1 .72

SB-6 Six gang cover – 1 .86

SB-7 Seven gang cover – 1 1.00

SB-8 Eight gang cover – 1 1.14

SB-9 Nine gang cover – 1 1.28

SB-10 Ten gang cover – 1 1.42

Fits Bowers 132, 133, and 134 series handy boxes (both welded and drawn) and 800 series multi-gang rings.

Multi-Gang Covers – GB Series

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

GB-2 Two gang cover – 1 .30

GB-3 Three gang cover – 1 .44

GB-4 Four gang cover – 1 .58

GB-5 Five gang cover – 1 .72

GB-6 Six gang cover – 1 .86

GB-7 Seven gang cover – 1 1.00

GB-8 Eight gang cover – 1 1.14

GB-9 Nine gang cover – 1 1.28

GB-10 Ten gang cover – 1 1.42

Fits Bowers 700 series multi-gang boxes.

Typical

Mounting Arrangement

Typical

Mounting Arrangement

Multi-Gang Covers

How To Order.

1. Indicate style of cover “GB” or “SB”

2. Use symbols for each opening

3. Separate each symbol with a dash (–)

4. Allow 4 to 6 weeks for shipment.

Example:

G58 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G58

Nonmetallic Boxes

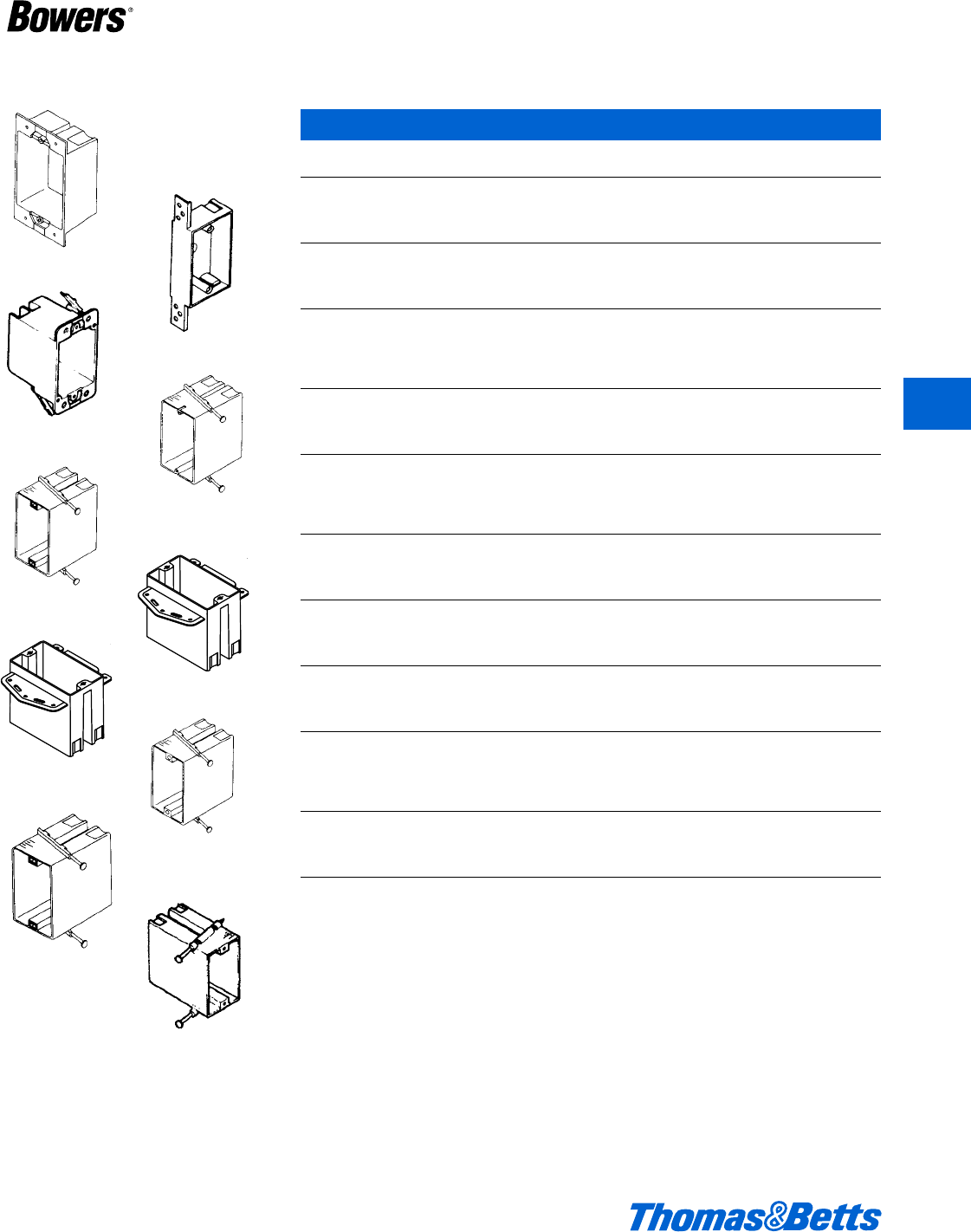

Nonmetallic Single Gang Switch Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

108-E 1c" Deep–3c" Long–2b" Wide 8.0 50 5

One Layback K.O. in each end. Furnished with plaster

ears and tapped device holes.

Wire Capacity: 4#14; 3#12; 3#10.

108-FB 1a" Deep–4" Long–2j" Wide 8.0 50 5

One Layback K.O. in each end. Flat bracket on one side.

Furnished with tapped device holes.

Wire Capacity: 4#14; 3#12; 3#10.

114-OW 2z" Deep–3c" Long–2b" Wide 14.0 50 12

Old work box with swing clamp which adjusts to

wallboard from a" to f" thick. Furnished with four

POSI-WEDGE®clamps.

Wire Capacity: 7#14; 6#12; 5#10.

118-N 2g" Deep–3f" Long–2b" Wide 18.0 100 25

Two Layback K.O.’s in each end. Furnished with

No-Distort angled captive nail supports.

Wire Capacity: 9#14; 8#12; 7#10.

118-NP 2g" Deep–3f" Long–2b" Wide 18.0 100 25

Two Layback K.O.’s in each end furnished with

POSI-SET®device mounting clips. Furnished with

No-Distort angled captive nail supports.

Wire Capacity: 9#14; 8#12; 7#10.

118-LB 2g" Deep–3f" Long–2b" Wide 18.0 100 17

Single Gang Box with threaded screw cavity–18.0 cu. in.

Capacity. Designed with lateral brackets and side

supports for steel stud.

118-LBP 2g" Deep–3f" Long–2b" Wide 18.0 100 18

Single Gang Box with POSI-SET®device mounting clips

–18.0 cu. in. Capacity. Designed with lateral brackets

and side supports for steel stud.

120-N 3i" Deep–3f" Long–2b" Wide 20.3 100 25

Two Layback K.O.’s in each end. Furnished with No-Distort

angled captive nail supports.

Wire Capacity: 10#14; 9#12; 8#10.

120-NP 3i" Deep–3f" Long–2b" Wide 20.3 100 25

Two Layback K.O.’s in each end furnished with

POSI-SET®device mounting clips. Furnished with

No-Distort angled captive nail supports.

Wire Capacity: 10#14; 9#12; 8#10.

122-N 3e" Deep–3f" Long–2b" Wide 22.5 100 20

Two Layback K.O.’s in each end. Furnished with

No-Distort angled captive nail supports.

Wire Capacity: 11#14; 10#12; 9#10.

108-E

108-FB

114-OW

118-N

118-NP

118-LB

118-LBP

120-N

120-NP

120-N

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G59

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G59

234-N

234-NP

234-LB

234-LBP

345-N

Nonmetallic Boxes

Nonmetallic Single Gang Switch Boxes (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

120-LB Single Gang Box with threaded screw cavity– 20.3 100 17

20.3 cu. in. Capacity. Designed with lateral brackets

and side supports for steel stud.

120-LBP Single Gang Box with POSI-SET®device mounting clips. 20.3– 100 18

20.3 cu. in. Capacity. Designed with lateral brackets

and side supports for steel stud.

122-LB Single Gang Box with threaded screw cavity– 22.5 100 21

22.5 cu. in. Capacity. Designed with lateral brackets

and side supports for steel stud.

122-LBP Single Gang Box with POSI-SET®device mounting clips. 22.5 100 21

22.5 cu. in. Capacity. Designed with lateral brackets

and side supports for steel stud.

Nonmetallic Multi-Gang Switch Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

234-N 3p" Deep–4" Wide–3f" High 34.0 50 17

Two gang nail-on switch box. Furnished with eight

POSI-WEDGE®cable clamps and two nails.

Wire Capacity: 17#14; 15#12; 13#10.

234-NP 3p" Deep–4" Wide–3f" High 34.0 50 17

Two gang nail-on switch box. Furnished with eight

POSI-WEDGE®cable clamps, POSI-SET®device

mounting clips, and two nails.

Wire Capacity: 17#14; 15#12; 13#10.

234-LB 3p" Deep–4" Wide–3f" High 34.0 50 19

Two gang switch box with lateral brackets offset c" from

face. Furnished with eight POSI-WEDGE®cable clamps.

Wire Capacity: 17#14; 15#12; 13#10.

234-LBP 3p" Deep–4" Wide–3f" High 34.0 50 19

Two gang switch box with lateral brackets offset c" from

face. Furnished with eight POSI-WEDGE®cable clamps,

POSI-SET®device mounting clips.

Wire Capacity: 17#14; 15#12; 13#10.

345-N 2f" Deep–5m" Wide–3f" High 45.0 20 10

Three gang nail-on switch box. Furnished with twelve

POSI-WEDGE®cable clamps and two nails.

Wire Capacity: 22#14; 20#12; 18#10.

345-LB 2f" Deep–5m" Wide–3f" High 45.0 25 17

Three gang switch box with lateral brackets offset c"

from face. Furnished with twelve POSI-WEDGE®

cable clamps.

Wire Capacity: 22#14; 20#12; 18#10.

120-LB

120-LBP

122-LB

122-LBP

G60 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G60

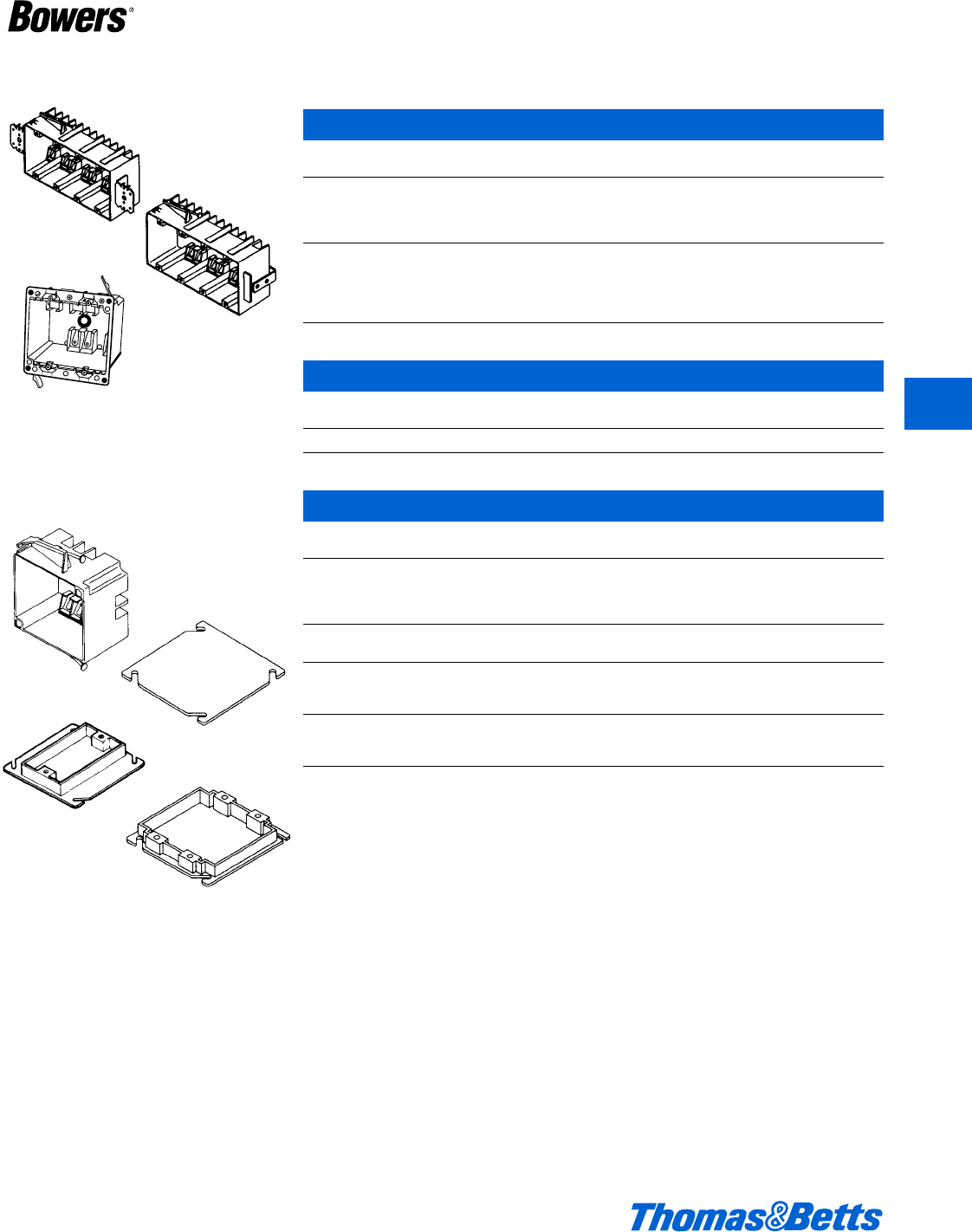

Nonmetallic Boxes

Nonmetallic Multi-Gang Switch Boxes (Continued)

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

460-LB 2f" Deep–7l" Wide–3f" High 60.0 8 6

Four gang switch box with lateral brackets offset c" from

face. Furnished with sixteen POSI-WEDGE®cable clamps.

Wire Capacity: 30#14; 26#12; 24#10.

460-SB 2f" Deep–7l" Wide–3f" High 60.0 10 10

Four gang switch box with stabilizing brackets. Furnished

with sixteen POSI-WEDGE®cable clamps and two nails.

Back support slide bracket.

Wire Capacity: 30#14; 26#12; 24#10.

Nonmetallic Two Gang Old Work Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

232-OW Bowers®Two Gang Old Work Box – 50 26

Nonmetallic 4" Square Outlet Boxes and Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4S-32-N 4" Square–2l" Deep 32.0 50 17

4" square outlet box. Angled captive nails and

eight POSI-WEDGE®cable clamps.

Wire Capacity: 16#14; 14#12; 12#10.

4S-B Flat–4" Square –5010

Flat blank cover for 4S-32N box.

4S-1G 4" Square–d" Raised 3.5 50 9

Single gang switch ring for 4S-32N box.

Wire Capacity: 1#14; 1#12; 1#10.

4S-2G 4" Square–d" Raised 5.4 50 8

Two gang switch ring for 4S-32N box.

Wire Capacity: 2#14; 2#12; 2#10.

460-LB

460-SB

232-OW

4S-32-N

4S-B

4S-1G

4S-2G

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G61

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G61

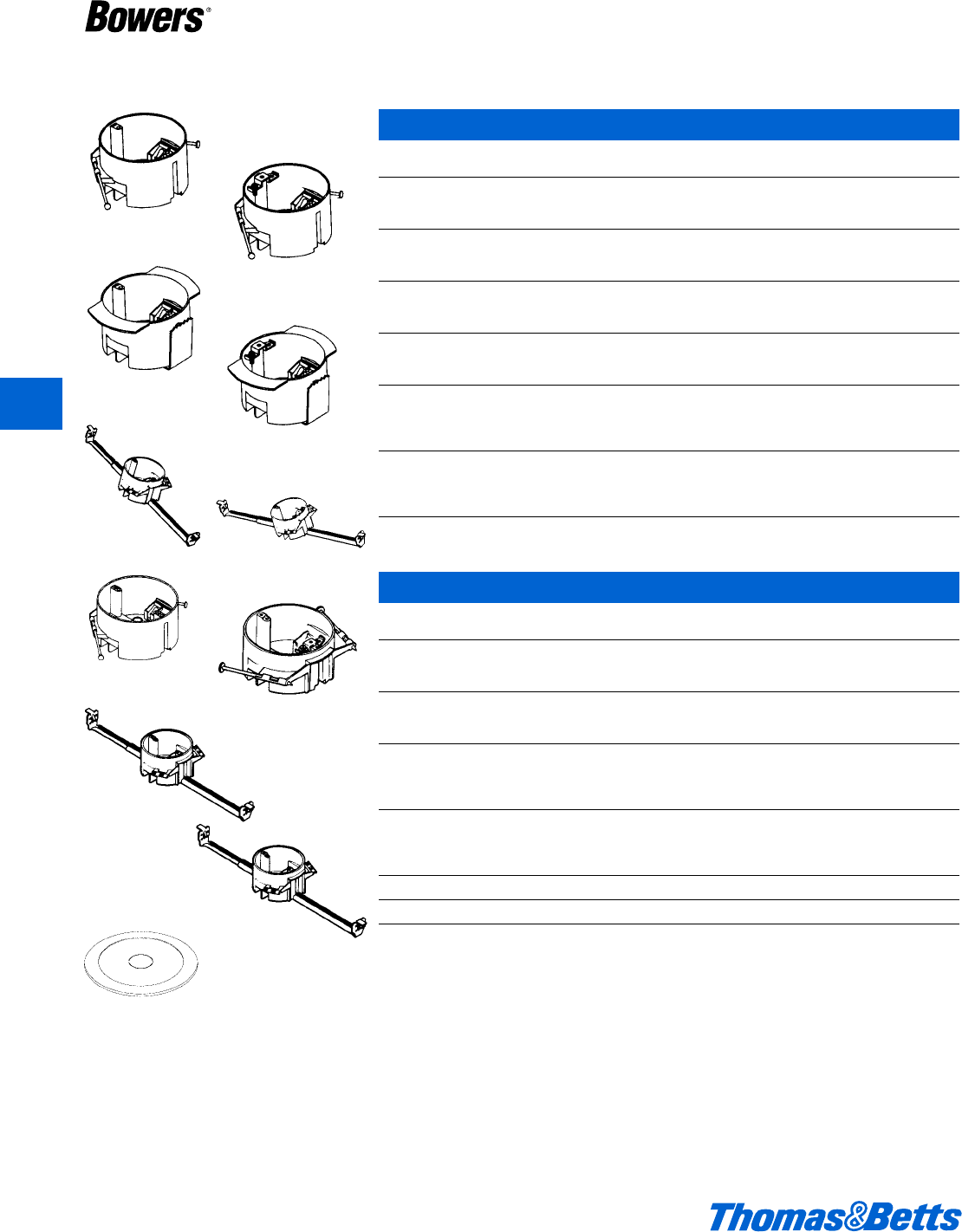

Nonmetallic Boxes

Nonmetallic 31⁄2" Diameter Ceiling Boxes

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

3R-16-N 3d" Diameter–2b" Deep 16.0 50 9

Angled captive nails and four POSI-WEDGE®

cable clamps.*

3R-16-NGP 3d" Diameter–2b" Deep 16.0 50 9

Angled captive nails and four POSI-WEDGE®

cable clamps with ground plate.*

3R-16-OW 3d" Diameter–2b" Deep 16.0 50 15

Old work ceiling box. Furnished with four

POSI-WEDGE®cable clamps.*

3R-16-OWGP 3d" Diameter–2b" Deep 16.0 50 15

Old work ceiling box. Furnished with four

POSI-WEDGE®cable clamps and ground plate.*

3R-16-BH 3d" Diameter–2b" Deep 16.0 25 13

Furnished with four POSI-WEDGE®cable clamps

and fully adjustable 16"-24" hanger. Hanger secured

to box with one screw.*

3R-16-BHGP 3d" Diameter–2b" Deep 16.0 25 13

Furnished with four POSI-WEDGE®cable clamps,

ground plate, and fully adjustable 16"-24" hanger.

Hanger secured to box with one screw.*

*Wire Capacity: 8-#14; 7-#12, 6-#10.

Nonmetallic 4" Diameter Ceiling Boxes and Covers

Cat. Cu. In. Std. Wt./Lbs.

No. Specifications Capacity Pkg. Per Pkg.

4R-20-N 4" Diameter–2h" Deep 20.3 50 10

Angled captive nails and four POSI-WEDGE®

cable clamps.*

4R-20-NGP 4" Diameter–2h" Deep 20.3 50 10

Angled captive nails and four POSI-WEDGE®

cable clamps*, and ground plates.

4R-20-BH 4" Diameter–2h" Deep 20.3 25 14

Furnished with four POSI-WEDGE®cable clamps

and fully adjustable 16"-24" hanger. Hanger secured

to box with one screw.*

4R-20-BHGP 4" Diameter–2h" Deep 20.3 25 14

Furnished with four POSI-WEDGE®cable clamps

and ground plates and fully adjustable 16"-24"

hanger. Hanger secured to box with one screw.*

4R-B 4" Round Cover – 50 5

4R-K 4" Round Cover with d" K.O. – 50 5

*Wire Capacity: 10-#14; 9-#12, 8-#10.

3R-16-N

3R-16-NGP

3R-16-OW

3R-16-OWGP

3R-16-BH

3R-16-BHGP

4R-20-N

4R-20-NGP

4R-20-BH

4R-20-BHGP

4R-B/4R-K

G62 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:43 PM Page G62

Cross-Reference Charts

1-MB 695 GW-135G M1-350 690 G40

1-MBS 690 GW-125G M1-250 682 G40

2-MB 696 GW-235G M2-350 691 G40

2-MBS 691 GW-225G M2-250 683 G40

3-MB 697 GW-335G M3-350 692 G40

3-MBS 692 GW-325G M3-250 684 G40

3-O-1/2 110 24151-1/2 30-1/2 256 G6

3-O-SPL G6

3-O-LC 112 24151-N 560-L 262 G6

3-O-LCE 560-LXE 264 G6

3-O-EXT-1/2 111 25151-1/2 30E-1/2 258 G7

3-O-B-1/2 G6

3-O-LCB 119 24151-NV 560-LVB G6

3-O-B-MXN G6

3-O-LCH G6

4-D G20

4-DW 607 CTDW G20

4-DWS G20

4-MB 698 GW-435G M4-350 693 G40

4-MBS 693 GW-425G M4-250 685 G40

4-O-1/2 125 54151-1/2 40-1/2 274 G9

4-O-3/4 126 54151-3/4 40-3/4 276 G9

4-O-SPL 127 54151-1/2&3/4 40SPL 278 G9

4-O-EXT-SPL 130 55151-1/2&3/4 40E-SPL 286 G10

4-O-LCB 164 54151-NV 561LVB 304 G9

4-O-LC 145, 146 54151-N 561N 300 G9

4-O-ULC 160 54151-NL 561LJB 302 G10

4-OW-1/2 G7

4-OW-3/4 G7

4-OW-SPL G7

4-OW-LC G7

4-OW-LCE 150 54151-NE 561-LXE 306 G7

4-O-LCF 296-1 G24

4-O-LCFB 294 G24

4-OW-MXN 153 G7

4-OW-B-1/2 161 54151-V-1/2 40-VB-1/2 282 G8

4-OW-LCB G8

4-OW-FB-MXN 155 G8

4-OW-U-1/2 158 54151-L-1/2 280 G8

4-OW-ULC 302 G8

4-OW-U-MXN 157 G8

4-OW-EXT-1/2 128 55151-1/2 284 G9

4-OW-EXT-SPL G9

4-OW-LC-BHC 329 SX-18-561-L 378 G8

4-OW-LC-BHS 326, 338 SX-115-561-L 374 G8

4-OD-1/2 165 54171-1/2 40-D-1/2 288 G10

4-OD-3/4 166 54171-3/4 40-D-3/4 290 G10

4-OD-SPL 167 54171-1/2&3/4 40-D-SPL 292 G10

4-OD-LC 175 54171-N 561-L 316 G10

4-OD-EXT-1/2 40-E-1/2 G11

4-OD-EXT-SPL 40-E-SPL G11

4-OD-LCB 177 54171-NV 561-LVB 320 G11

Steel-Correlative Table

BOWERS RACO STEEL CITY APPLETON THEPITT PAGE NO.

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G63

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G63

Cross-Reference Charts

4-OD-ULC 176 54171-NL 561-LDJB 318 G11

4-OD-FB-MXN 170 G11

4-S-1/2 190 52151-1/2 4S1/2-DR 410 G15

4-S-3/4 191 52151-3/4 4S3/4-DR 412 G15

4-S-SPL 192 52151-1/2&3/4 4S-SPL-DR 414 G15

4-S-EXT-1/2 201 53151-1/2 4SE-1/2 424 G15

4-S-EXT-SPL 203 53151-1/2&3/4 4SES 428 G15

4-SW-1/2 52151-1/2-W 4-S-1/2 411 G12

4-SW-3/4 181 52151-3/4-W 4-S-3/4 412 G12

4-SW-SPL 52151-1/2&3/4-W 4-S-SPL 415 G12

4-SW-LC 211 52151-N 4SR 444 G12

4-SW-MXN G12

4-SW-FB-1/2 197, 198 52151-CV-1/2 4SVB-1/2 407, 419 G12

4SVB-1/2-PL

4-SW-FB-3/4 199 52151-CV-3/4 G12

4-SW-FB-SPL 194, 196 52151-CV-1/2&3/4 4SVB-SPL-PL 421, 427 G13

4-SW-FBH-1/2 197 52151-V-1/2 413 G13

4-SW-FBC 220, 223 52151-CVN 448 G13

4-SW-FB-MXN G13

4-SW-LB-1/2 193 52151-B-1/2 4SB-1/2 416 G13

4-SW-LBC 225 52151-BN 4SRB 446 G13

4-SW-LB-MXN G14

4-SW-AB-1/2 4SAB-1/2 G14

4-SW-1/2-2BC G14

4-SW-EA-SPL 187 53151-1/2&3/4-UB 422 G14

4-SW-EXT-1/2 G14

4-SW-EXT-3/4 202 53151-3/4 4SE-3/4 426 G14

4-S-WR-1/2 204 X-1-1/2-1/2 G16

4-S-WR-SPL X-1-1/2-1/2-3/4 G16

4-SS-WR-1/2 186 4SLES G16

4-SS-1/2 185 52141-1/2 4SL-1/2 408 G15

4-SDW-1/2 230 52171-1/2 4SD-1/2 430 G16

4-SDW-3/4 231 52171-3/4 4SD-3/4 432 G16

4-SDW-SPL 232 52171-1/2&3/4 4SD-SDL 434 G16

4-SDW-1 233 52171-1 4SD-1 436 G16

4-SDW-LC 242 52171-N 4SRD 450 G17

4-SDW-FB-1/2 234 52171-CV-1/2 420 G17

4-SDW-FB-3/4 G17

4-SDW-FB-SPL 235 52171-CV-1/2&3/4 4SD-VB-SPL-PL 451 G17

4-SDW-FBC 240 52171-VN 4SRD-VB-PL 452 G17

4-SDW-MXN G17

4-SDW-FB-MXN G17

5-SDW-1/2 255 72171-1/2 4SJD-1/2 552 G18

5-SDW-3/4 256 72171-3/4 4SJD-3/4 554 G18

5-SDW-SPL 257 72171-1/2&3/4 4SJD-SPL 556 G18

5-SDW-3/4-1 265 72171-3/4-1 4SJD-3/4&1 558 G18

5-SDW-1 258 72171-1 4SJD-1 560 G18

5-SDW-1-1/4 259 72171-1-1/4 4SJD-1-1/2 562 G18

5-SDW-FB-1 561 G18

5-SDW-FB-SPL 72171-CV-3/4-1 4SJD-SPL-VB 557 G18

5-SDW-EXT-1/2 262 73171-1/2 G19

5-SDW-EXT-3/4 262 73171-3/4 G19

Steel-Correlative Table

BOWERS RACO STEEL CITY APPLETON THEPITT PAGE NO.

G64 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G64

Cross-Reference Charts

5-SDW-EXT-SPL 262 73171-1/2&3/4 4SJDE-1/2&3/4 564 G19

5-SDW-EXT-1 263 73171-1 4SJDE-1 566 G19

5-SS-1/2 245 72151-1/2 4SJ-1/2 544 G19

5-SS-3/4 246 72151-3/4 4SJ-3/4 546 G19

5-SS-SPL 247 72151-1/2&3/4 4SJ-SPL 548 G19

5-SS-EXT-1/2 250 73151-1/2 G20

5-SS-EXT-SPL 250 73151-1/2&3/4 550 G20

12-BC G42

14-B G42

14-BL G42

20-BC G42

44-B G42

44-BD G42

44-BL G42

51 420 111 130 G25

51-NE 421 111LE 126 G25

51-LC 445 SWB-25 383 116 G25

51-MXN 440 171-F 120 G25

51-FB 424 CLV 132 G25

52 500 CDOW 222 218 G25

52-3/4-BW 503 225 G25

52-FB-W/O-SPUR CDV 222VB-PL G26

52-FB-3/4 G26

52-NE 501 CDLE 222-LE 214 G26

52-NE-3/4 G26

52-LC 519 LXWOW 384 162 G26

52-LCNE 528 LXWLE 384-LE 158 G26

52-MXN G26

52-FB 504 222 G26

52-FBC 449, 531 LXWV 384-VB-PL 170 G26

52-FB-MXN G27

52-LB 502 804-S 222-NL 220 G27

52-LBC 529 164 G27

52-LB-MXN G27

52-OW 425 CDOW-TG 163 G27

52-OWC 539 LXWOWC 384-OW G27

52-OW-MXN G27

53 560 CW-1/2 333 676 G28

53-3/4-BW 565 CW-3/4 335 678 G28

53-NE 561 CWLE-1/2 333-LE 672 G28

53-NE-3/4 566 CWLE-3/4 674 G28

53-LC 567 CWN 389 662 G28

53-LCNE 568 CWNLE 660 G28

53-MXN G28

53-FB 562 CWV 333-VB 680 G28

53-FBC 564 CWNV 389-VB 664 G28

53-FB-MXN G29

54-3/4 591 CY-3/4 336 254 G30

54-NE 592 CYLE-1/2 333-DLE 248 G30

54-LC 601 CXW 384-D 238 G30

54-LCNE 602 384-DLE 236 G30

54-MXN G30

Steel-Correlative Table

BOWERS RACO STEEL CITY APPLETON THEPITT PAGE NO.

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G65

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G65

Cross-Reference Charts

54-FBC 605 CXWV 384-D-VBPL 242 G30

54-FB-MXN G30

72 G31

72-C 596 384-LES G31

72-CE G31

72-OC 556 A-254 385-LES 206 G31

72-ONCS 555 A-257 385-LESN 210 G31

72-ONS-MXN G32

72-FB-MXN 551 G32

73-C 396 CWN G32

73-ONCS 355 16KLESN G33

73-FBC 341 CWNV 110 G33

73-FB-MXN G33

74-CE CXWOW G33

74-ONCS G33

74-FBC CXWV G33

75-ONCS G34

100-BW 860 58-C-1 2540 608 G44

100-DR 864 58-C-7 2510 616 G44

100-K 861 58-C-6 2555 614 G44

100-SR 863 58-C-5 2539 612 G44

100-TL 868 58-C-4 2538 610 G44

100-TS 865 58-C-30 2594 618 G44

100-GFI G44

102-1/2 58351-1/2 4SSLS1/2 588 G35

102-W-1/2 650 G34

102-W-LB-1/4 655 58351-B-1/4 591 G34

102-W-EXT-1/2 653 4SSLE1/2 592 G35

103-1/2-BW 660 58361-1/2 4CS1/2 594 G36

103-3/4 663 58361-3/4 4CS3/4 596 G36

103-FB-1/2 662 58361-V-1/2 598 G36

103-W-1/2 G35

103-W-3/4 4CS3/4 596 G35

103-W-AB 661 4CSX1/2PL G35

103-W-EXT-1/2 665 59361-1/2 600, 602 G35

103-W-FB-1/2 4CSVB1/2 G35

104-1/2 58371-1/2 4SSL1/2-DR 604 G37

104-FB-1/2 58371-V-1/2 605 G37

104-W-1/2 670 4SSL1/2 G36

104-W-3/4 674 58371-3/4 4SSL3/4 606 G36

104-W-AB 671 58371-T-1/2 4SSLX1/2-PL G36

104-W-FB-1/2 678 4SSLBV1/2 G36

104-W-FB-3/4 G36

105-1/2 68361-1/2 180-1/2 G37

106-1/2-BW 68371-1/2 181-1/2 G37

106-3/4 G37

106-FB-1/2 G37

106-FB-3/4 G37

132-SPL 683 2G4D-1/2&3/4 395 G39

132-W-SPL G38

132-W-1/2 680 G38

132-W-SPL 132AP-SPL G38

Steel-Correlative Table

BOWERS RACO STEEL CITY APPLETON THEPITT PAGE NO.

G66 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G66

Cross-Reference Charts

132-W-AB-1/2 G38

132-W-FB-1/2 681 G38

132-W-FB-3/4 685 G38

132-W-FB-SPL 2G4DV-1/2&3/4 132APFB-SPL 391 G38

132-W-FBC LXWV-9 G38

133-B G39

133-FB-1/2 G39

134-B G39

210-L G23

210-LC 292 36115-C 510-LC 266 G23

230-CC 473 LCLE 388-LE G31

230-LCC 471 LCOW 388 G31

271-FBC 543 LXWV-2G 384-VB-PL2G G34

271-FB-MXN G34

300-BW 24-C-1 8301-A 270 G45

300-DR G45

300-K 703 24-C-6 8320 272 G45

300-SR G45

400-BW 752 52-C-1 8465 472 G45

400-K 753 52-C-6 8474 478 G45

401-C 767 52-C-3-1/2 8461-A 476 G45

401-CA 759 52-C-3-3/4 8461-B 475 G45

401-CB 757 52-C-3-1 8461-C 479 G45

401-CC 756 52-C-3 8461 477 G45

401-CD 758 52-C-3-1-1/4 8461-D G46

401-CS G45

403-BW 772 52-C-13 8468 484 G46

403-A 773 52-C-14 486 G46

403-B 771 52-C-62 8468-WB 482 G46

403-C 768 52-C-14-5/8 8468-C 489 G46

403-F 787 52-C-O 8468-F 480 G46

403-O 755 52-C-10 G46

403-ST 771 8468-B G46

403-T 772 8468-A G46

404-BW 778 52-C-17 8470-A 498 G47

404-A 779 52-C-18 8470 500 G47

404-B 777 52-C-20 8470-B 496 G46

404-C 769 52-C-18-5/8 8470-C 499 G47

404-F 791 52-C-OO 8470-F 494 G46

405-BW-R 775 52-C-16 8466 490 G47

405-A 774 52-C-15 8466-A 488 G47

405-B G47

406-BW 781 52-C-21 8469 G47

406-A 780 52-C-19 8469-A 502 G47

407-A 782 52-C-49-1/2 846-50 520 G48

407-B 783 52-C-49-3/4 846-75 522 G48

407-C 784 52-C-49-1 846-100 524 G48

407-D 790 52-C-49-1-1/4 846-125 526 G48

407-F 785 52-C-50-1-1/2 846-150 528 G48

407-G 786 52-C-51-2 846-200 530 G48

408-A 792 52-C-1/2 847-50 532 G48

408-B 793 52-C-52-3/4 847-75 534 G48

Steel-Correlative Table

BOWERS RACO STEEL CITY APPLETON THEPITT PAGE NO.

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G67

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G67

Cross-Reference Charts

408-C 794 52-C-52-1 847-100 536 G48

408-D 797 52-C-52 1-1/4 847-125 538 G48

408-F 795 52-C-53 1-1/2 847-150 540 G48

408-G 796 52-C-52-2 847-200 542 G48

410 4CL 269 G23

410-L 293 56111 G23

410-LC 295 G23

410-LCF 295 G24

440-B G42

449-BW 8360 503 G49

450 805 RS-1 8368 504 G49

451-NEC 806 RS-2 8375 506 G49

452-NEC 807 RS-8 8371 510 G49

453-NEC 802 RS-12 8365 516 G49

454 801 RS-11 8363 514 G49

455 804 RS-10 8364 G49

8369 49

456 803 RS-5 8367 508 G49

457-NEC RS-3 G49

458 812 RS-4 8379 507 G49

459 810 8377 518 G49

460-BW 800 RS-9 8361 512 G49

464 813 RS-14 8378 G50

465 811 RS-15 519 G50

469 G50

470-BW G50

471-NEC G50

472-NEC G50

473-NEC G50

474-BW G50

475 G50

476 G50

477-NEC G50

478 G50

479-GFI G51

480-BW G51

481-BW G51

482-NEC G51

500-BW-C 722 54-C-1 8403 322 G51

500-DR 731 5402-LR 8420-LR 336 G51

500-K 724 54-C-6 8413 328 G51

500-K-3/4 G51

500-SR 730 5401-LR 8419-LR 334 G51

500-TL G51

501-C-BW 737 54-C-3-1/2 8409-A 332 G51

501-CA 734 331 G52

501-CB 732 54-C-3-1 331 G52

501-CC 727 54-C-3 8409 326 G51

501-CD 733 54-C-3-1-1/4 G52

501-CS G52

503-BW 728 54-C-14 8434 G52

600-BW 832 72-C-1 8487 568 G52

600-K 833 72-C-6 8487-K 572 G52

Steel-Correlative Table

BOWERS RACO STEEL CITY APPLETON THEPITT PAGE NO.

G68 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G68

Cross-Reference Charts

601-C 829 72-C-3-1/2 8488-A G52

601-CA 830 72-C-3-3/4 G52

601-CB 831 72-C-3-1 G52

601-CC 835 72-C-3 570 G52

601-CD 834 G52

603-BW 838 72-C-14 8485 578 G53

603-A 837 72-C-13 8485-A 576 G53

603-B 836 72-C-62 574 G53

603-C 843 72-C-14-5/8 G53

604-BW 840 72-C-18 8486 586 G53

604-A 841 72-C-17 8486-A 584 G53

604-B 817 8486-B G53

604-C 818 72-C-18-5/8 8486-C G53

604-F G53

605-BW 839 72-C-15 580 G53

605-A 842 72-C-16 582 G53

606-BW 819 72-C-19 G53

606-A 820 72-C-21 G53

607-A 894 72-C-49-1/2 G54

607-B 895 72-C-49-3/4 G54

607-C 896 72-C-49-1 G54

607-D 897 72-C-49-1-1/4 G54

607-F 898 72-C-5-1-1/2 G54

607-G 899 72-C-52-2 G54

608-C 883 72-C-52-1 G54

608-F 885 72-C-53-1-1/2 G54

608-G 886 72-C-54-2 G54

649 8495 G55

650-BW G55

651-NEC 876 RSL-2 8493 G55

652-NEC 877 RSL-8 8492 728 G55

653-NEC 872 RSL-12 8491 722 G55

654 871 RSL-11 8494 724 G55

655 G55

656 873 RSL-5 8490 726 G55

657-NEC G55

658 8496 730 G55

659 878 RSL-4 8498 732 G55

660 870 RSL-9 8489 720 G55

663-BW G56

664-BW 888 RSL-14 8499 734 G56

665-BW 879 RSL-15 8497 736 G56

702-SPL 951 2-G-1/2-3/4 2G-5075 629 G20

703-SPL 952 3-G-1/2-3/4 3G-5075 630 G21

704-SPL 953 4-G-1/2-3/4 4G-5075 631 G21

705-SPL 954 5-G-1/2-3/4 5G-5075 640 G21

706-SPL 955 6-G-1/2-3/4 6G-5075 641 G21

707-SPL 956 7G-5075 G21

708-SPL 957 8G-5075 G21

709-SPL 958 G21

710-SPL G21

802 821 2GC 2GC-75 657 G56

803 822 3GC 3GC-75 653 G56

Steel-Correlative Table

BOWERS RACO STEEL CITY APPLETON THEPITT PAGE NO.

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G69

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G69

Cross-Reference Charts

804 823 4GC 4GC-75 655 G56

805 824 5GC 5GC-75 661 G56

806 825 6GC 6GC-75 667 G56

807 826 7GC-75 G56

808 827 8GC-75 G56

809 828 G56

810 G56

900 270 54531-1/2-3/4 OCR-2 620 G22

901-BW 271 54541-1/2-3/4 OCR-2-1/2 622 G22

902 272 54551-1/2-3/4 OCR-3 628 G22

903 273 54561-1/2-3/4 OCR-3-1/2 636 G22

904 274 54571-1/2-3/4 OCR-4 644 G22

906-BW 276 54591-1/2-3/4 G22

905 275 54581-1/2-3/4 G22

910 890 CBP OCP 648 G57

911 891 CBP-3/8 OCP-3/8 650 G57

BH-C 922 6011-P, SX18, SX26 352 G42

6011-DW,

6011-AP,

6011-DW

BH-S 920 6010-P, SX115, SX160 350 G42

6010-DW,

6010-AW,

6010-ADW

BH-200 977 820-D 896 708 G43

GB-2 844 2-GCS 802 G58

GB-3 845 3-GCS 803 G58

GB-4 846 4-GCS 804 G58

GB-5 847 5-GCS 805 G58

GB-6 848 6-GCS 806 G58

GB-7 849 G58

GB-8 850 G58

GB-9 851 G58

GB-10 G58

LVP SGP LVP-1 G22

LVPH 974 DGP LVP-1 G22

MBP 971 LVP-250 G40

MBPS 971 LVP-350 G40

MBT-4 633 CBTW-4 MW1-350 G41

MBT-6 634 CBTW-6 MW1-550 G41

MBT-8 635 CBTW-8 MW1-750 G41

NP-3008 2710, 2709 CP-1 P-300 G43

PT-26 14813 G43

SB-2 G58

SB-3 G58

SB-4 G58

SB-5 G58

SB-6 G58

SB-7 G58

SB-8 G58

SB-9 G58

SB-10 G58

Steel-Correlative Table

BOWERS RACO STEEL CITY APPLETON THEPITT PAGE NO.

G70 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G70

Cross-Reference Charts

© 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com G71

G

Bowers®

Nonmetallic-Correlative Table

CHALENGER/

BOWERS CARLON RACO ALLIED SLATER UNION PAGE NO.

3R-16-BH 7305 9336-UBK C1-18-HAC N-321-C-94/95 G62

3R-16-BHGP 7906 9336-UBGK C1-18-HGAC N-321-GC-94/95 G62

3R-16-N B-518A 7118 9336-NK C1-18-RAC N-321-C G62

3R-16-NGP B-518P 7918 9336-NGK C1-18-RGAC N-321-GC G62

3R-16-OW B-518R 7121 9338-ESK C1-18-WAC 3080-9 G62

3R-16-OWGP 7921 9338-ESGK C1-18-WGAC 3080-9-40 G62

4R-20-N B-520A 7824 9351-NK S1-20-RAC N-423-C-V G62

4R-20-NGP B-520P 7823 9351-NGK S1-20-RGAC N-423-GC-V G62

4R-20-BH B-620H 7338 9350-UBK S1-20-HAC N-423-C-94-V/95V G62

4R-20-BHGP B-620HG 7938 9350-UBGK S1-20-HGAC N-423-GC-94-V/95V G62

4S-1G A-410 7772 9345 RC-1 4SP1-214 G61

4S-32N B-432A 7234 9343-NC2 S44-35-RAC 4S-1310-C G61

4S-B A-400 9344 4SPB G61

4S-2G A-420 7778 9346 RC-2 4SP2-312 G61

108-E 9307-E 7090 G59

108-FB G59

114-OW B-114R 7887 9331-EW S1-18-W E14-4 G59

118-LB B-118B 1096-Z2 SB18 G59

118-LBP S1-18-S50 SB18FS G59

118-N B-118A 7302 1096-N P1-18-R SN-18 G59

118-NP B-118F 7301 1096-NT S1-18-R SN18FS G59

120-N B-120A 7820 1098-N SN-21 G59

120-NP B-120F S1-22-R SN21FS G59

122-N 1099-N RN-23 G59

234-LB B-232B 7534 2300-2Z2 S2-35-S50AC 2002-738 G60

234-LBP B-232BF 7734 S2-35-S25AC SB2-236-FS G60

234-N B-232A 7835 2300-NK SN236 G60

234-NP B-232F 7836 2300-NCZ S2-35-RAC SN236-FS G60

345-LB 7642 3300-2Z2 S3-54-S25AC 7073-202 G60

345-N B-344A 7846 3300-NK S3-54-RAC SN357 G60

460-LB 4300-2Z2 S4-73-S50AC 2004-238 G61

460-SB B-455A 7644 4300-Z2BK 7074-BH G61

MST- SST G62

CRIMPING

TOOL

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G71

Notes

G72 © 2003 Thomas & Betts Corporation. Specifications are subject to change without notice. www.tnb.com

G

Bowers®

412034.G01 BOWERS 5/7 5/7/03 4:44 PM Page G72
