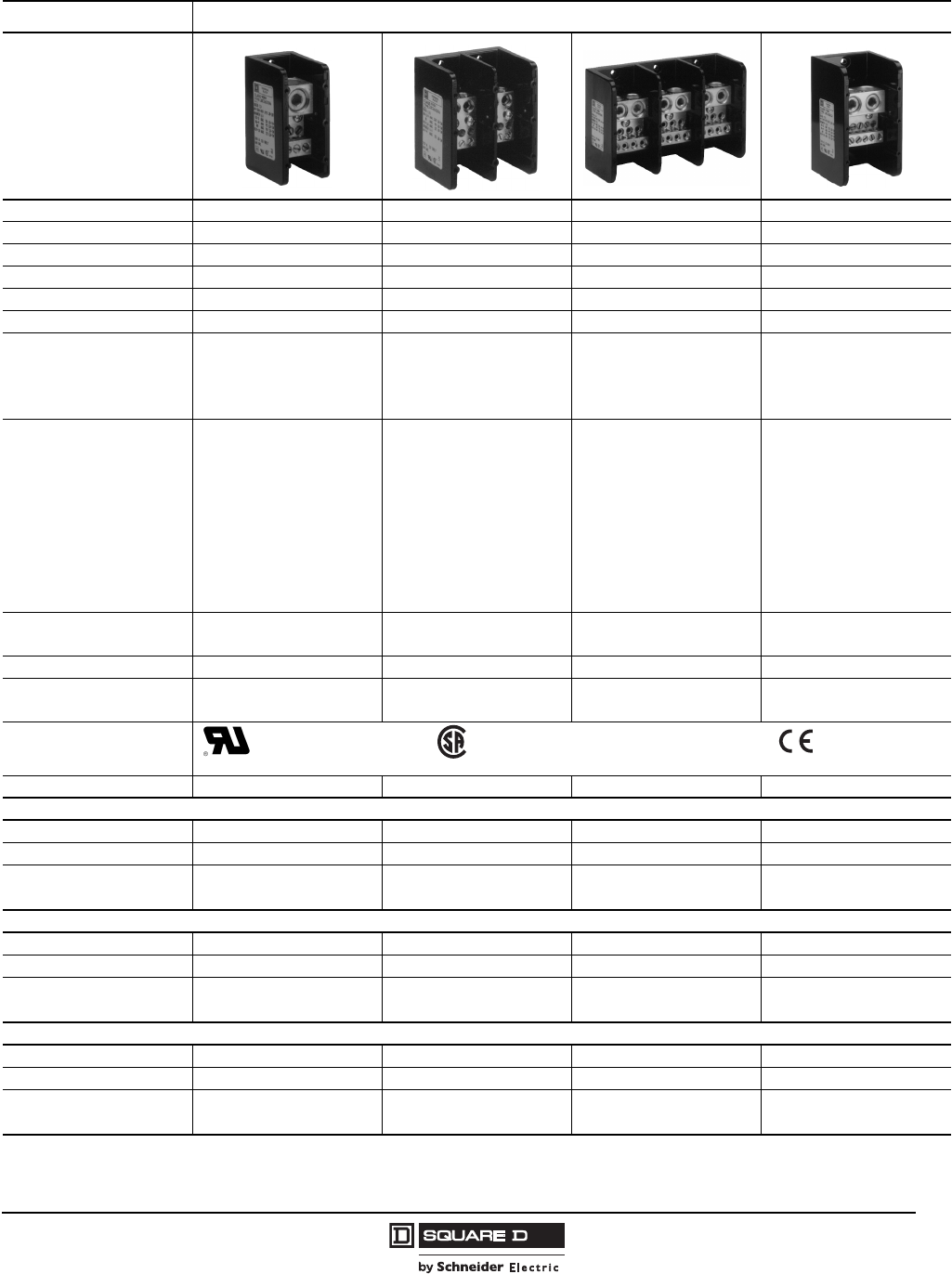

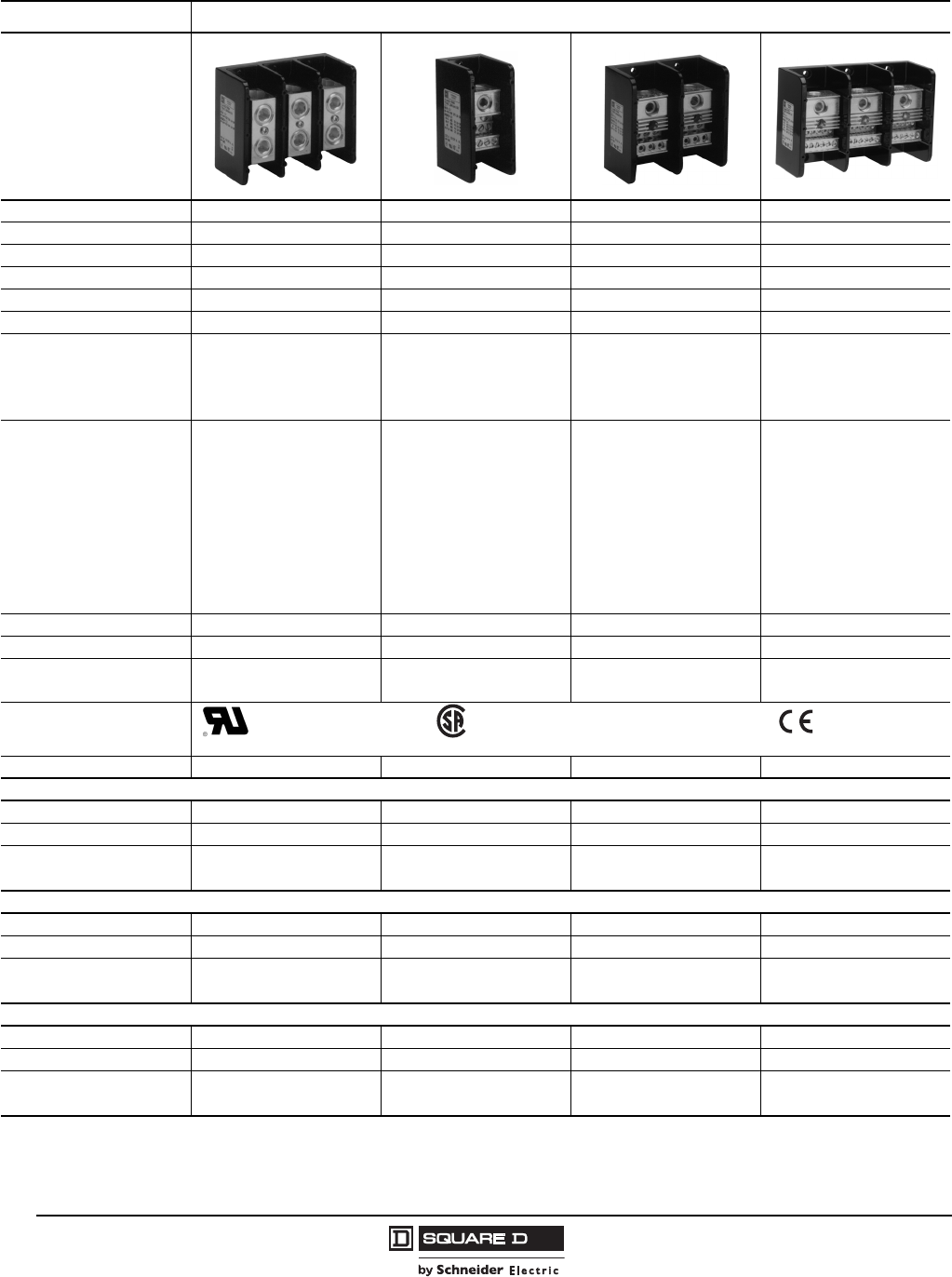

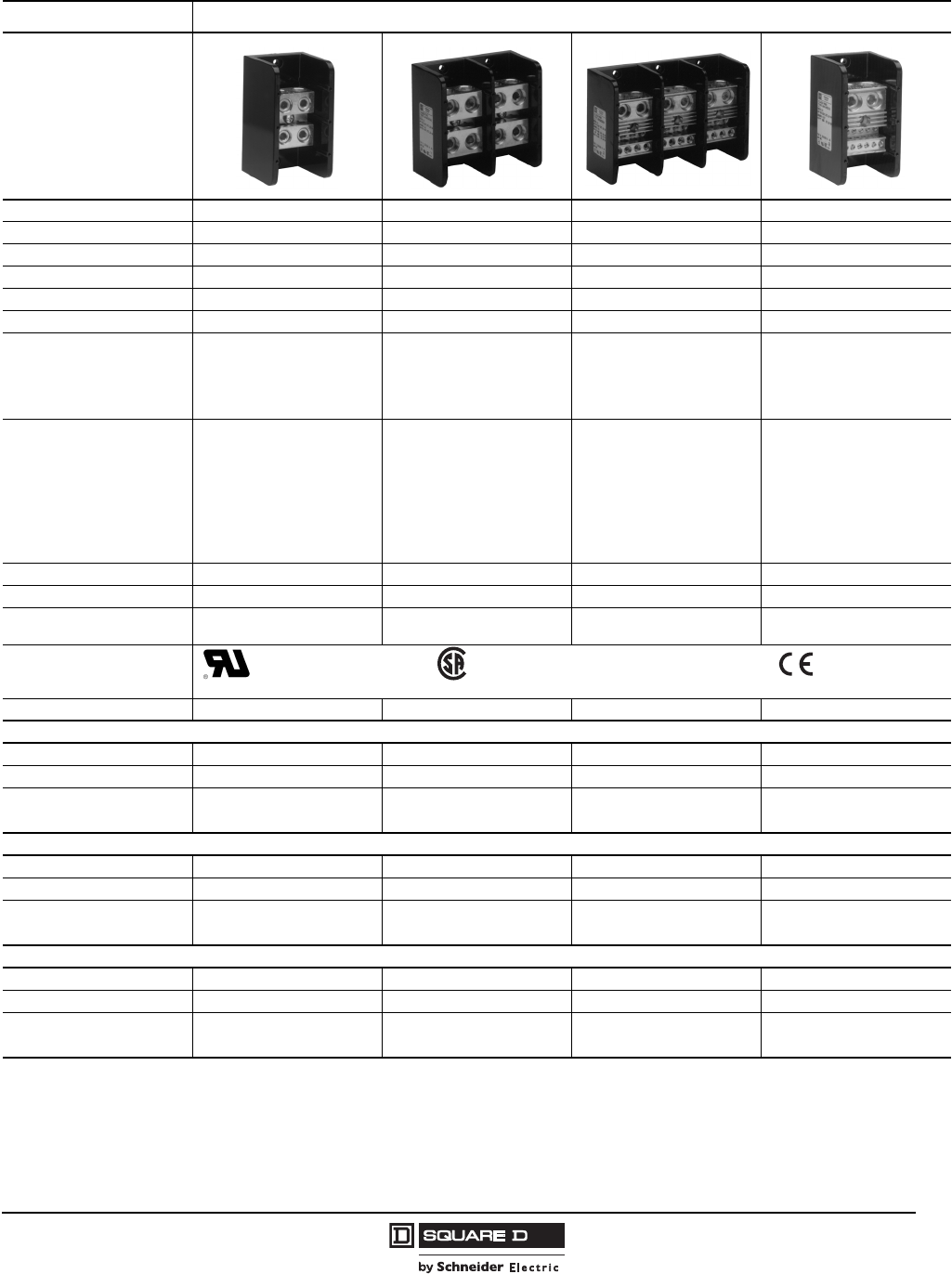

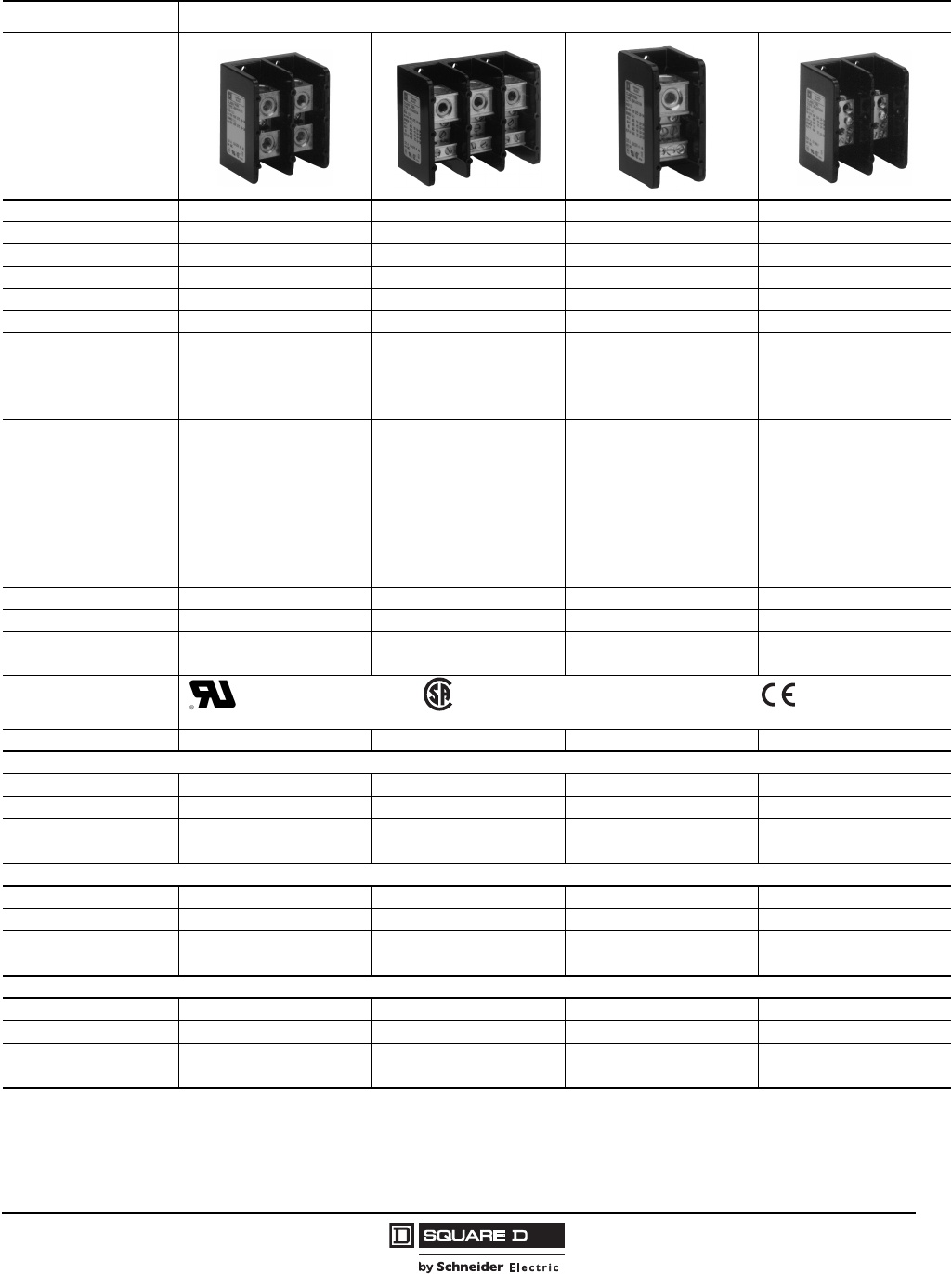

Terminal Blocks

9080LBA Power Distribution Blocks Copper or Aluminum Wire

6

04/2009

Class 9080 Miniature Standard

Maximum Voltage Rating 600 600 600 600

Service Class C CC C

Amperage Rating - CU Wire 115 amp. 115 amp. 175 amp. 175 amp.

Amperage Rating - AL Wire 90 amp. 90 amp. 135 amp. 135 amp.

SCCR with Circuit Breakers See page 27 See page 27 N/A See page 28

SCCR with Fuses See page 29 See page 29 See page 29 See page 29

Wire Range

Lugs suitable for use with

75° C Conductors.

Main

(1) #14-2 AWG

Branch

(1) #14-2 AWG

Main

(1) #14-2 AWG

Branch

(4) #18-10 AWG

Main

(1) #14-2/0 AWG

Branch

(1) #14-2/0 AWG

Main

(1) #14-2/0 AWG

Branch

(4) #14-4 AWG

Tightening Torque

Main

#3-#2 / 50 lbf-in / (5.6 N-m)

#6-#4 / 45 lbf-in / (5.1 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

Branch

#3-#2 / 50 lbf-in / (5.6 N-m)

#6-#4 / 45 lbf-in / (5.1 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

Main

#3-#2 / 50 lbf-in / (5.6 N-m)

#6-#4 / 45 lbf-in / (5.1 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

Branch

#18-#10 / 7 lbf-in / (0.8 N-m)

Main

#6-2/0 / 120 lbf-in / (13.5 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

Branch

#6-2/0 / 120 lbf-in / (13.5 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

Main

#6-2/0 / 120 lbf-in / (13.5 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

Branch

#14-#4 / 35 lbf-in / (4.0 N-m)

Lug Material Tin Plated High Conductive

AL

Tin Plated High

Conductive AL

Tin Plated High

Conductive AL

Tin Plated High

Conductive AL

Base Material High Impact Thermoplastic High Impact Thermoplastic General Purpose Phenolic General Purpose Phenolic

Temperature Rating -40 to 257° F

-40 to 125° C

-40 to 257° F

-40 to 125° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

Certifications File E60616 Guide XCFR2 File 70361 / Class 6228-01 RoHS Compliant Marked

Flammability Rating UL94V-0 UL94V-0 UL94V-0 UL94V-0

One Pole Blocks

Block Catalog Number 9080LBA161101 9080LBA161104 9080LBA162101 9080LBA162104

Clear Plastic Covers N/A N/A 9080LB21 9080LB21

Block Dimensions

(D x H x W)

1.53 x 2.29 x 0.76 in.

38.8 x 58.2 x 19.3 mm

1.53 x 2.29 x 0.83 in.

38.8 x 58.2 x 21.08 mm

(including dovetail)

1.78 x 2.88 x 1.13 in.

45.2 x 73.2 x 28.7 mm

1.78 x 2.88 x 1.13 in.

45.2 x 73.2 x 28.7 mm

Two Pole Blocks

Block Catalog Number N/A 9080LBA261104 9080LBA262101 9080LBA262104

Clear Plastic covers N/A N/A 9080LB22 9080LB22

Block Dimensions

(D x H x W) N/A

1.53 x 2.29 x 1.46 in.

38.8 x 58.2 x 37.08 mm

(including dovetail)

1.78 x 2.88 x 1.94 in.

45.2 x 73.2 x 49.3 mm

1.78 x 2.88 x 1.94 in.

45.2 x 73.2 x 49.3 mm

Three Pole Blocks

Block Catalog Number 9080LBA361101 9080LBA361104 9080LBA362101 9080LBA362104

Clear Plastic covers N/A N/A 9080LB23 9080LB23

Block Dimensions

(D x H x W)

1.53 x 2.29 x 2.03 in.

38.8 x 58.2 x 51.6 mm

1.53 x 2.29 x 2.1 in.

38.8 x 58.2 x 53.34 mm

(including dovetail)

1.78 x 2.88 x 2.75 in.

45.2 x 73.2 x 69.9 mm

1.78 x 2.88 x 2.75 in.

45.2 x 73.2 x 69.9 mm

¨

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Terminal Blocks

9080LBA Power Distribution Blocks Copper or Aluminum Wire

7

04/2009

© 1993 - 2009 Schneider Electric

All Rights Reserved

Class 9080 Standard

Maximum Voltage Rating 600 600 600 600

Service Class CCCC

Amperage Rating-CU Wire 310 amp. 335 amp. 335 amp. 350 amp.

Amperage Rating-AL Wire 250 amp. 270 amp. 270 amp. 270 amp.

SCCR w/Circuit Breakers N/A See page 27 See page 28 See page 28

SCCR with Fuses N/A See page 29 See page 29 See page 29

Wire Range

Lugs suitable for use

with

75° C Conductors.

MAIN

(1) #6 - 350 MCM

BRANCH

(1) #6 - 350 MCM

MAIN

(1) #6 - 400 MCM

BRANCH

(4) #14 - #2 AWG

MAIN

(1) #6 - 500 MCM

BRANCH

(6) #14 - #2 AWG

MAIN

(2) #14 - 2/0 AWG

BRANCH

(6) #14 - #4AWG

Tightening Torque

MAIN

#6-350 MCM / 275 lbf-in /

(31.0 N-m)

BRANCH

#6-350 MCM / 275 lbf-in /

(31.0 N-m)

MAIN

#6-400 MCM / 275 lbf-in / (31.0

N-m)

BRANCH

#3-#2 / 50 lbf-in / (5.6 N-m)

#6-#4 / 45 lbf-in / (5.1 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

MAIN

#6-400 MCM / 275 lbf-in / (31.0

N-m)

BRANCH

#3-#2 / 50 lbf-in / (5.6 N-m)

#6-#4 / 45 lbf-in / (5.1 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

MAIN

#6-2/0 / 120 lbf-in / (13.5 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

BRANCH

#14-#4 / 35 lbf-in / (4.0 N-m)

Lug Material Tin Plated High Conductive AL Tin Plated High Conductive AL Tin Plated High Conductive AL Tin Plated High Conductive AL

Base Material General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic

Temperature Rating -40 to 302°F

-40 to 150°C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

Certifications File E60616 Guide XCFR2 File 70361 / Class 6228-01 RoHS Compliant Marked

Flammability Rating UL94V-0 UL94V-0 UL94V-0 UL94V-0

One Pole Blocks

Block Catalog Number 9080LBA163101 9080LBA163104 9080LBA163106 9080LBA163206

Clear Plastic Covers 9080LB31 9080LB31 9080LB31 9080LB31

Block Dimensions

(D) x (H) x (W)

2.61 x 4.00 x 1.94 in.

66.3 x 101.6 x 49.3 mm

2.61 x 4.00 x 1.94 in.

66.3 x 101.6 x 49.3 mm

2.61 x 4.00 x 1.94 in.

66.3 x 101.6 x 49.3 mm

2.61 x 4.00 x 1.94 in.

66.3 x 101.6 x 49.3 mm

Two Pole Blocks

Block Catalog Number 9080LBA263101 9080LBA263104 9080LBA263106 9080LBA263206

Clear Plastic covers 9080LB32 9080LB32 9080LB32 9080LB32

Block Dimensions

((Dx H x W)

2.61 x 4.00 x 3.47 in.

66.3 x 101.6 x 88.1 mm

2.61 x 4.00 x 3.47 in.

66.3 x 101.6 x 88.1 mm

2.61 x 4.00 x 3.47 in.

66.3 x 101.6 x 88.1 mm

2.61 x 4.00 x 3.47 in.

66.3 x 101.6 x 88.1 mm

Three Pole Blocks

Block Catalog Number 9080LBA363101 9080LBA363104 9080LBA363106 9080LBA363206

Clear Plastic covers 9080LB33 9080LB33 9080LB33 9080LB33

Block Dimensions

(D x H x W)

2.61 x 4.00 x 5.00 in.

66.3 x 101.6 x 27.0 mm

2.61 x 4.00 x 5.00 in.

66.3 x 101.6 x 127.0 mm

2.61 x 4.00 x 5.00 in.

66.3 x 101.6 x 127.0 mm

2.61 x 4.00 x 5.00 in.

66.3 x 101.6 x 127.0 mm

¨

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

© 1993 - 2009 Schneider Electric

All Rights Reserved

Terminal Blocks

9080LBA Power Distribution Blocks Copper or Aluminum Wire

8

04/2009

Class 9080 Standard

Maximum Voltage Rating 600 600 600 600

Service Class CCCC

Amperage Rating-CU Wire 420 amp. 335 amp. 380 amp. 380 amp.

Amperage Rating-AL Wire 340 amp. 270 amp. 310 amp. 310 amp.

SCCR w/Circuit Breakers N/A See page 27 See page 27 See page 27

SCCR with Fuses See page 29 See page 29 See page 29 See page 29

Wire Range

Lugs suitable for use with

75° C Conductors.

MAIN

(1) #4-600 MCM

BRANCH

(1) #4-600 MCM

MAIN

(1) #6-400 MCM

BRANCH

(8) #14-2 AWG

MAIN

(1) #4-500 MCM

BRANCH

(6) #14-2/0 AWG

MAIN

(1) #4-500 MCM

BRANCH

(12) #14-2 AWG

Tightening Torque

MAIN

#4-600 MCM

500 lbf-in (56.5 N-m)

BRANCH

#4-600 MCM

500 lbf-in (56.5 N-m)

MAIN

#6-400 MCM

275 lbf-in (31.0 N-m)

BRANCH

#3-#2 50 lbf-in (5.6 N-m)

#6-#4 45 lbf-in (5.1 N-m)

#8 40 lbf-in (4.5 N-m)

#14-#10 35 lbf-in (4.0 N-m)

MAIN

#4-500 MCM

375 lbf-in (42.3 N-m)

BRANCH

#6-2/0 120 lbf-in (13.5 N-m)

#8 40 lbf-in (4.5 N-m)

#14-#10 35 lbf-in (4.0 N-m)

MAIN

#4-500 MCM

375 lbf-in (42.3 N-m)

BRANCH

#3-#2 50 lbf-in (5.6 N-m)

#6-#4 45 lbf-in (5.1 N-m)

#8 40 lbf-in (4.5 N-m)

#14-#10 35 lbf-in (4.0 N-m)

Lug Material Tin Plated High Conductive AL Tin Plated High Conductive AL Tin Plated High Conductive AL Tin Plated High Conductive AL

Base Material General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic

Temperature Rating -40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

Certifications File E60616 Guide XCFR2 File 70361 / Class 6228-01 RoHS Compliant Marked

Flammability Rating UL94V-0 UL94V-0 UL94V-0 UL94V-0

One Pole Blocks

Block Catalog Number 9080LBA164101 9080LBA164108 9080LBA165106 9080LBA165112

Clear Plastic covers 9080LB41 9080LB41 9080LB51 9080LB51

Block Dimensions

(D x H x W)

2.90 x 4.75 x 2.29 in.

80.3 x 120.7 x 57.2 mm

2.90 x 4.75 x 2.29 in.

80.3 x 120.7 x 57.2 mm

3.12 x 5.50 x 3.17 in.

79.2 x 139.7 x 80.5 mm

3.12 x 5.50 x 3.17 in.

79.2 x 139.7 x 80.5 mm

Two Pole Blocks

Block Catalog Number N/A 9080LBA264108 9080LBA265106 9080LBA265112

Clear Plastic covers N/A 9080LB42 9080LB52 9080LB52

Block Dimensions

(D x H x W) N/A 2.90 x 4.75 x 4.17 in.

80.3 x 120.7 x 104.6 mm

3.12 x 5.50 x 5.85 in.

79.2 x 139.7 x 149.4 mm

3.12 x 5.50 x 5.85 in.

79.2 x 139.7 x 149.4 mm

Three Pole Blocks

Block Catalog Number 9080LBA364101 9080LBA364108 9080LBA365106 9080LBA365112

Clear Plastic covers 9080LB43 9080LB43 9080LB53 9080LB53

Block Dimensions

(D x H x W)

2.90 x 4.75 x 6.05 in.

80.3 x 120.7 x 152.4 mm

2.90 x 4.75 x 6.05 in.

80.3 x 120.7 x 152.4 mm

3.12 x 5.50 x 8.54 in.

79.2 x 139.7 x 216.9 mm

3.12 x 5.50 x 8.54 in.

79.2 x 139.7 x 216.9 mm

¨

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Terminal Blocks

9080LBA Power Distribution Blocks Copper or Aluminum Wire

9

04/2009

© 1993 - 2009 Schneider Electric

All Rights Reserved

Class 9080 Standard

Maximum Voltage Rating 600 600 600 600

Service Class CCCC

Amperage Rating-CU Wire 620 amp. 760 amp. 760 amp. 760 amp.

Amperage Rating-AL Wire 500 amp. 620 amp. 620 amp. 620 amp.

SCCR w/Circuit Breakers N/AN/AN/AN/A

SCCR with Fuses See page 29 See page 29 See page 29 See page 30

Wire Range

Lugs suitable for use with

75° C Conductors.

MAIN

(2) #6 - 350 MCM

BRANCH

(2) #6 - 350 MCM

MAIN

(2) #4 - 500 MCM

BRANCH

(2) #4 - 500 MCM

MAIN

(2) #4 - 500 MCM

BRANCH

(8) #14 - 2/0 AWG

MAIN

(2) #4 - 500 MCM

BRANCH

(12) #14-4 AWG

Tightening Torque

MAIN

#6-350 MCM / 275 lbf-in / (31.0

N-m)

BRANCH

#6-350 MCM / 275 lbf-in / (31.0

N-m)

MAIN

#4-500 MCM / 375 lbf-in / (42.3

N-m)

BRANCH

#4-500 MCM / 375 lbf-in / (42.3

N-m)

MAIN

#4-500 MCM / 375 lbf-in / (42.3

N-m)

BRANCH

#6-2/0 / 120 lbf-in / (13.5 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#14-#10 / 35 lbf-in / (4.0 N-m)

MAIN

#4-500 MCM / 375 lbf-in / (42.3

N-m)

BRANCH

#14-#4 / 35 lbf-in / (4.0 N-m)

Lug Material Tin Plated High Conductive AL Tin Plated High Conductive AL Tin Plated High Conductive AL Tin Plated High Conductive AL

Base Material General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic

Temperature Rating -40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

Certifications File E60616 Guide XCFR2 File 70361 / Class 6228-01 RoHS Compliant Marked

Flammability Rating UL94V-0 UL94V-0 UL94V-0 UL94V-0

One Pole Blocks

Block Catalog Number 9080LBA165202 9080LBA1652021 9080LBA165208 9080LBA165212

Clear Plastic covers 9080LB51 9080LB51 9080LB51 9080LB51

Block Dimensions

(D) x (H) x (W)

3.12 x 5.50 x 3.17 in.

79.2 x 139.7 x 80.5 mm

3.12 x 5.50 x 3.17 in.

79.2 x 139.7 x 80.5 mm

3.12 x 5.50 x 3.17 in.

79.2 x 139.7 x 80.5 mm

3 .12 x 5.50 x 3.17 in.

79.2 x 139.7 x 80.5 mm

Two Pole Blocks

Block Catalog Number 9080LBA265202 9080LBA2652021 9080LBA265208 9080LBA265212

Clear Plastic covers 9080LB52 9080LB52 9080LB52 9080LB52

Block Dimensions

(D) x (H) x (W)

3.12 x 5.50 x 5.85 in.

79.2 x 139.7 x 149.4 mm

3.12 x 5.50 x 5.85 in.

79.2 x 139.7 x 149.4 mm

3.12 x 5.50 x 5.85 in.

79.2 x 139.7 x 149.4 mm

3.12 x 5.50 x 5.85 in.

79.2 x 139.7 x 149.4 mm

Three Pole Blocks

Block Catalog Number 9080LBA365202 9080LBA3652021 9080LBA365208 9080LBA365212

Clear Plastic covers 9080LB53 9080LB53 9080LB53 9080LB53

Block Dimensions

(D) x (H) x (W)

3.12 x 5.50 x 8.54 in.

79.2 x 139.7 x 216.9 mm

3.12 x 5.50 x 8.54 in.

79.2 x 139.7 x 216.9 mm

3.12 x 5.50 x 8.54 in.

79.2 x 139.7 x 216.9 mm

3.12 x 5.50 x 8.54 in.

79.2 x 139.7 x 216.9 mm

¨

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

© 1993 - 2009 Schneider Electric

All Rights Reserved

Terminal Blocks

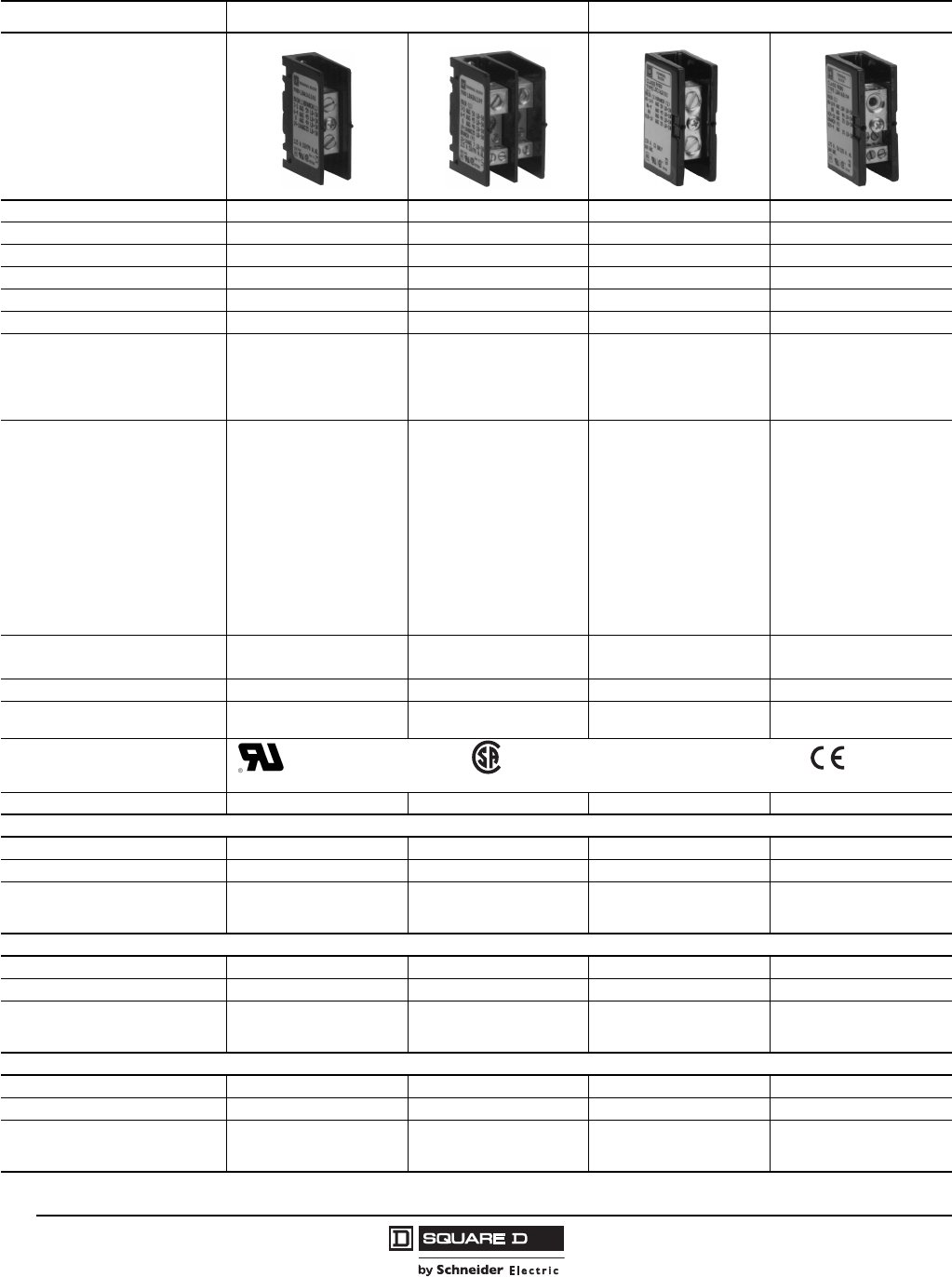

9080LBA and 9080LBC Power Distribution Blocks Copper or Aluminum/Only Copper Wire

10

04/2009

Class 9080 Standard

Maximum Voltage Rating 600 600 600 600

Service Class CCCC

Amperage Rating-CU Wire 175 A 150 A 175 A 255 A

Amperage Rating-AL Wire 135 A N/A N/A N/A

SCCR w/Circuit Breakers See page 27 See page 28 See page 28 N/A

SCCR with Fuses See page 29 N/A See page 30 N/A

Wire Range

Lugs suitable for use with 75° C

Conductors.

MAIN - (1) #14-2/0 AWG

BRANCH - (6) #14-#4 AWG

MAIN - (1) #18-1/0 AWG

BRANCH - (1) #18-1/0 AWG

MAIN - (1) #14-2/0 AWG

BRANCH - (4) #14-#4 AWG

MAIN - (1) #6-250 MCM

BRANCH - (1) #6-250 MCM

Tightening Torque

MAIN:

#6-2/0 / 120 lbf-in / (13.5 N-m)

#8 / 40 lbf-in (4.5 N-m)

#14-#10 / 35 lbf-in (4.0 N-m)

BRANCH

#14-#4 / 35 lbf-in / (4.0 N-m)

MAIN

#3-1/0 / 50 lbf-in /(5.6 N-m)

#6-#4 / 45 lbf-in / (5.1 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#18-#10 / 35 lbf-in / (4.0 N-m)

BRANCH

#3-1/0 / 50 lbf-in / (5.6 N-m)

#6-#4 / 45 lbf-in / (5.1 N-m)

#8 / 40 lbf-in / (4.5 N-m)

#18-#10 / 35 lbf-in / (4.0 N-m)

MAIN

#6-2/0 120 lbf-in (13.5 N-m)

#8 40 lbf-in (4.5 N-m)

#14-#10 35 lbf-in (4.0 N-m)

BRANCH

#14-#4 35 lbf-in (4.0 N-m)

MAIN

#6-250 MCM /

375 lbf-in (42.3 N-m)

BRANCH

#6-250 MCM /

375 lbf-in (42.3 N-m)

Lug Material Tin Plated High Conductive AL Tin Plated High Conductive CU Tin Plated High Conductive CU Tin Plated High Conductive CU

Base Material General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic

Temperature Rating -40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

Certifications File E60616 Guide XCFR2 File 70361 / Class 6228-01 RoHS Compliant Marked

Flammability Rating UL94V-0 UL94V-0 UL94V-0 UL94V-0

One Pole Blocks

Block Catalog Number N/A 9080LBC162101 9080LBC162104 9080LBC163101

Clear Plastic covers N/A 9080LB21 9080LB21 9080LB31

Block Dimensions

(D) x (H) x (W) N/A 1.78 x 2.88 x 1.13 in.

45.2 x 73.2 x 28.7 mm

1.78 x 2.88 x 1.13 in.

45.2 x 73.2 x 28.7 mm

2.61 x 4.00 x 1.94 in.

66.3 x 101.6 x 49.3 mm

Two Pole Blocks

Block Catalog Number N/A N/A 9080LBC262104 N/A

Clear Plastic covers N/A N/A 9080LB22 N/A

Block Dimensions

(D) x (H) x (W) N/A N/A 1.78 x 2.88 x 1.94 in.

45.2 x 73.2 x 49.3 mm N/A

Three Pole Blocks

Block Catalog Number 9080LBA362106 9080LBC362101 9080LBC362104 9080LBC363101

Clear Plastic covers 9080LB23 9080LB23 9080LB23 9080LB33

Block Dimensions

(D) x (H) x (W)

2.10 x 2.90 x 5.38 in.

53.3 x 73.7 x 136.7 mm

1.78 x 2.88 x 2.75 in.

45.2 x 73.2 x 69.9 mm

1.78 x 2.88 x 2.75 in.

45.2 x 73.2 x 69.9 mm

2.61 x 4.00 x 5.00 in.

66.3 x 101.6 x 127.0 mm

DIN 3 (35 mm) Track Adapter

9080FBDIN3 N/A N/A N/A

¨

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Terminal Blocks

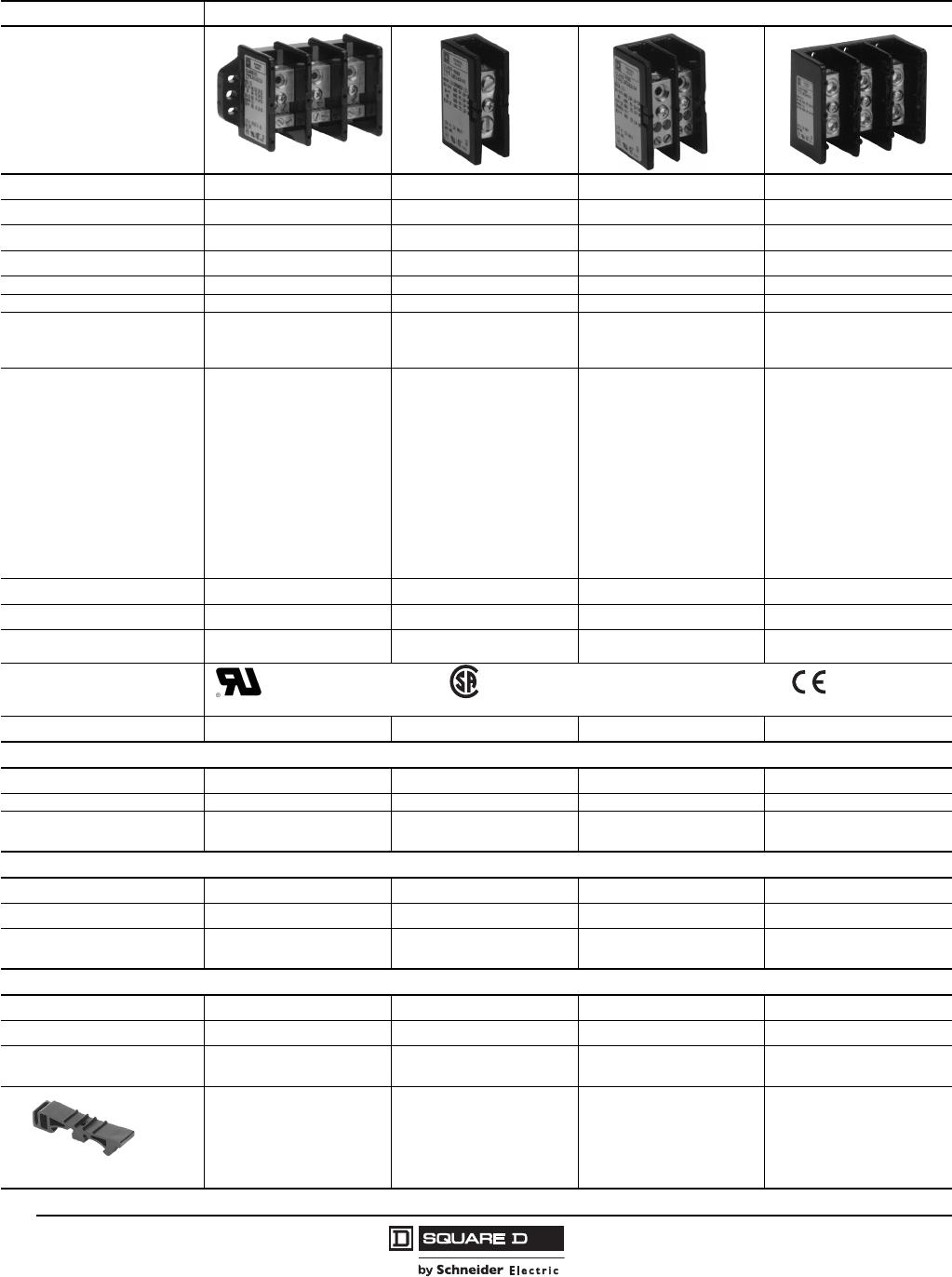

9080LBC Power Distribution Blocks Copper Wire Only

11

04/2009

© 1993 - 2009 Schneider Electric

All Rights Reserved

Class 9080 Standard

Maximum Voltage Rating 600 600 600 600

Service Class CCCC

Amperage Rating-CU Wire 380 amp. 350 amp. 760 amp. 760 amp.

Amperage Rating-AL Wire N/AN/AN/AN/A

SCCR w/Circuit Breakers N/A See page 28 N/A N/A

SCCR with Fuses See page 30 See page 30 See page 30 See page 30

Wire Range

Lugs suitable for use with

75° C Conductors.

MAIN

(1) #4 - 500 MCM

BRANCH

(6) #14-2 AWG

MAIN

(2) #14 - 2/0 AWG

BRANCH

(6) #14 - #4 AWG

MAIN

(2) #4 - 500 MCM

BRANCH

(8) #14 - 2/0 AWG

MAIN

(2) #4 - 500 MCM

BRANCH

(12) #14-2 AWG

Tightening Torque

MAIN

#4-500 MCM -

375 lbf-in (42.3 N-m)

BRANCH

#3-#2 50 lbf-in (5.6 N-m)

#6-#4 45 lbf-in (5.1 N-m)

#8 40 lbf-in (4.5 N-m)

#14-#10 35 lbf-in (4.0 N-m)

MAIN

#6-2/0 120 lbf-in (13.5 N-m)

#8 40 lbf-in (4.5 N-m)

#14-#10 35 lbf-in (4.0 N-m)

BRANCH

#14-#4 35 lbf-in (4.0 N-m)

MAIN

#4-500 MCM -

375 lbf-in (42.3 N-m)

BRANCH

#6-2/0 120 lbf-in (13.5 N-m)

#8 40 lbf-in (4.5 N-m)

#14-#10 35 lbf-in (4.0 N-m)

MAIN

#4-500 MCM -

375 lbf-in (42.3 N-m)

BRANCH

#3-#2 50 lbf-in (5.6 N-m)

#6-#4 45 lbf-in (5.1 N-m)

#8 40 lbf-in (4.5 N-m)

#14-#10 35 lbf-in (4.0 N-m)

Lug Material Tin Plated High

Conductive CU

Tin Plated High

Conductive CU

Tin Plated High

Conductive CU

Tin Plated High

Conductive CU

Base Material General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic General Purpose Phenolic

Temperature Rating -40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

-40 to 302° F

-40 to 150° C

Certifications File E60616 Guide XCFR2 File 70361 / Class 6228-01 RoHS Compliant Marked

Flammability Rating UL94V-0 UL94V-0 UL94V-0 UL94V-0

One Pole Blocks

Block Catalog Number 9080LBC163106 9080LBC163206 9080LBC165208 9080LBC165212

Clear Plastic covers 9080LB31 9080LB31 9080LB51 9080LB51

Block Dimensions

(D) x (H) x (W)

2.61 x 4.00 x 1.94 in.

66.3 x 101.6 x 49.3 mm

2.61 x 4.00 x 1.94 in.

66.3 x 101.6 x 49.3 mm

3.12 x 5.50 x 3.17 in.

79.2 x 139.7 x 80.5 mm

3.12 x 5.50 x 3.17 in.

79.2 x 139.7 x 80.5 mm

Two Pole Blocks

Block Catalog Number 9080LBC263106 9080LBC263206 N/A N/A

Clear Plastic covers 9080LB32 9080LB32 N/A N/A

Block Dimensions

(D) x (H) x (W)

2.61 x 4.00 x 3.47 in.

66.3 x 101.6 x 88.1 mm

2.61 x 4.00 x 3.47 in.

66.3 x 101.6 x 88.1 mm N/A N/A

Three Pole Blocks

Block Catalog Number 9080LBC363106 9080LBC363206 9080LBC365208 9080LBC365212

Clear Plastic covers 9080LB33 9080LB33 9080LB53 9080LB53

Block Dimensions

(D) x (H) x (W)

2.61 x 4.00 x 5.00 in.

66.3 x 101.6 x 127.0 mm

2.61 x 4.00 x 5.00 in.

66.3 x 101.6 x 127.0 mm

3.12 x 5.50 x 8.54 in.

79.2 x 139.7 x 216.9 mm

3.12 x 5.50 x 8.54 in.

79.2 x 139.7 x 216.9 mm

¨

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

© 1993 - 2009 Schneider Electric

All Rights Reserved

Terminal Blocks

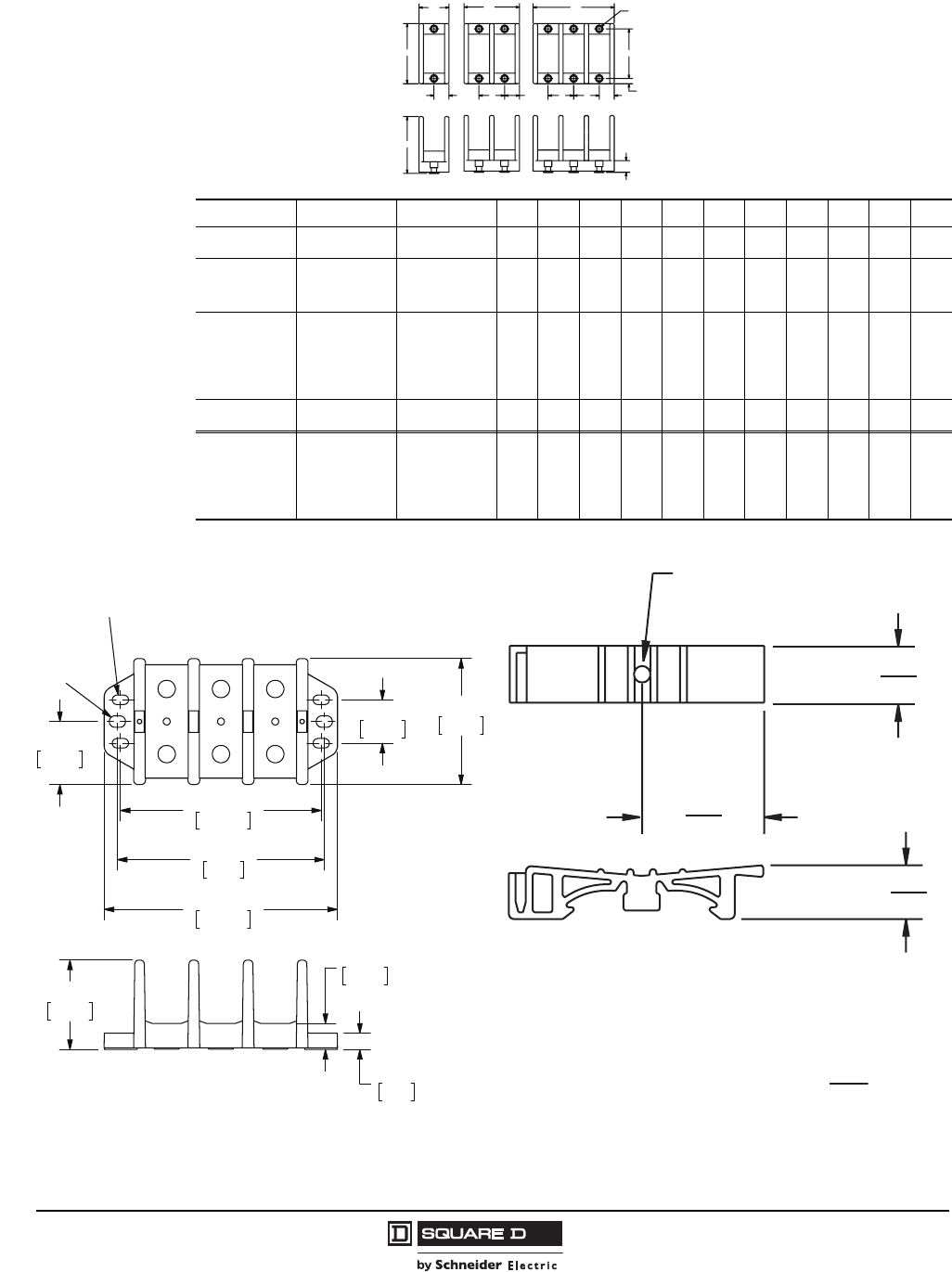

9080LBA and 9080LBC Power Distribution Block Approximate Dimensions

20

04/2009

9080LBA/9080LBC9080LBa/LBC

LBA362106

1 Pole 2 Pole 3 Pole A1 A2 A3 B C D E F G H J

LBA161101

LBA161104

N/A

LBA261104

LBA361101

LBA361104 0.76 1.40 2.03 2.29 1.53 0.38 0.64 0.19 1.93 0.32 0.201

LAB162101

LBA162104

LBC162101

LBC162104

LBA262101

LBA262104

N/A

LBC262104

LBA362101

LBA362104

LBC362101

LBC362104

1.13 1.94 2.75 2.88 1.78 0.56 0.81 0.31 2.25 0.24 0.205

LBA163101

LBA163104

LBA163106

LBA163206

LBC163101

LBC163106

LBC163206

LBA263101

LBA263104

LBA263106

LBA263206

N/A

LBC263106

LBC263206

LBA363101

LBA363104

LBA363106

LBA363206

LBC363101

LBC363106

LBC363206

1.94 3.47 5.00 4.00 2.61 0.97 1.53 0.31 3.38 0.40 0.203

LBA164101

LBA164108

N/A

LBA264108

LBA364101

LBA364108 2.28 4.16 6.04 4.75 2.92 1.14 1.88 0.31 4.13 0.51 0.200

3.17 5.85 8.54 5.50 3.12 1.58 2.69 0.38 4.75 0.50 0.265

LBA165202

LBA1652021

LBA165106

LBA165112

LBA165212

LBC165208

LBC165212

LBA265202

LBA2652021

LBA265106

LBA265112

LBA265212

N/A

N/A

LBA365202

LBA3652021

LBA365106

LBA365112

LBA365212

LBC365208

LBC365212

EE

D

G

A3

F

J

-

Mounting Hole Dia.

H

E

D

A2

D

B

A1

C

USE A #8 SELF TAPPING SCREW

FOR MOUNTING COMPONENT

.50

13

.50

13

1.07

27

DIN Rail Adapter

Dimensions: [mm]

in.

5.37

136.4

1.00

25.4

2.90

73.7

1.45

36.8

4.63

117.5

4.77

121

.265 x .375

[6.7 x 9.5]

SLOT

.218 x .375

[5.5 x 9.5]

SLOT

.38

9.5

.60

15.2

2.06

52.3

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Terminal Blocks

UL Short Circuit Current Ratings

27

04/2009

© 1993 - 2009 Schneider Electric

All Rights Reserved

Table 3: 9080LBA and 9080LBC Power Distribution Blocks Short Circuit Current Ratings with Circuit Breakers

Cat No. Suitable Conductors MCM / AWG

CU

Overcurrent Protection Circuit Breaker

Required

Line Load Mfr. Type Max A SCCR, RMS

Sym A Volts Max

9080LBA161101

9080LBA361101

2-6 2 -6 Square D

JDL36250 250 18 kA

480

JGL36250 250 35 kA

JJL36250 250 65 kA

JLL36250 250 65 kA

8-10 8-10 Square D

HDL36100 100 18 kA

HGL36100 100 35 kA

HJL36100 100 65 kA

HLL36100 100 65 kA

9080LBA161104

9080LBA261104

9080LBA361104

8- 10 (4) 14 Square D

JDL36250 250 18 kA

480

JGL36250 250 35 kA

JJL36250 250 65 kA

JLL36250 250 65 kA

HDL36100 100 18 kA

HGL36100 100 35 kA

HJL36100 100 65 kA

HLL36100 100 65 kA

9080LBA362106 2/0 -6 (6) 4- 10 Square D

JDL36250 250 18 kA

480

JGL36250 250 35 kA

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

9080LBA165106

9080LBA265106

9080LBA365106

2/0 -4 6) 8 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

9080LBA165112

9080LBA265112

9080LBA365112

2/0 -4 12) 2 -8 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

9080LBA164108

9080LBA264108

9080LBA364108

2/0 -6 6) 2 - 10 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

9080LBA163104

9080LBA263104

9080LBA363104

2/0 -4 4) 2 -8 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

© 1993 - 2009 Schneider Electric

All Rights Reserved

Terminal Blocks

UL Short Circuit Current Ratings

28

04/2009

9080LBA163206

9080LBA263206

9080LBA363206

2) 1/0 -8 6) 4- 10 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

9080LBC163206

9080LBC263206

9080LBC363206

2) 2/0 -2 6) 4-8 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36175 175 18 kA

2) 4-6 6) 10-12 Square D

JGL36175 175 35 kA

JJL36175 175 65 kA

JLL36175 175 65 kA

JDL36250 250 18 kA

9080LBC162101

9080LBC362101 1/0 -8 1/0 -8 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

9080LBA163106

9080LBA263106

9080LBA363106

2/0 -6 6) 2 - 10 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

9080LBA162104

9080LBA262104

9080LBA362104

2/0 - 10 4) 4- 10 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

9080LBC162104

9080LBC262104

9080LBC362104

2/0 -8 4) 4-8 Square D

JGL36250 250 35 kA

480

JJL36250 250 65 kA

JLL36250 250 65 kA

JDL36250 250 18 kA

Table 3: 9080LBA and 9080LBC Power Distribution Blocks Short Circuit Current Ratings with Circuit Breakers

(continued)

Cat No. Suitable Conductors MCM / AWG

CU

Overcurrent Protection Circuit Breaker

Required

Line Load Mfr. Type Max A SCCR, RMS

Sym A Volts Max

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Terminal Blocks

UL Short Circuit Current Ratings

29

04/2009

© 1993 - 2009 Schneider Electric

All Rights Reserved

Table 4: 9080LBA and 9080LBC Power Distribution Blocks Short Circuit Current Ratings with Fuses

Catalog Number Suitable Conductors

MCM / AWG CU Fuse Type / Amperage

1 Pole 2 Pole 3 Pole Line Load J T RK1 RK5 G CC SCCR Volts

Max

9080LBA161101 N/A 9080LBA361101 2-6 2-6 200 200 200 100 60 30 100 kA 600

8-10 8-10 100 100 100 – 60 30 100 kA 600

9080LBA161104 9080LBA261104 9080LBA361104 2-6 10-14 200 200 200 100 60 30 200 kA 600

8-10 10-14 100 100 100 30 60 30 100 kA 600

9080LBA162101 9080LBA262101 9080LBA362101 2/0-6 2/0-6 300 300 200 100 60 30 65 kA 600

9080LBA162104 9080LBA262104 9080LBA362104 2/0-6 4-14 200 200 200 100 60 30 100 kA 600

N/A N/A 9080LBA362106 2/0-6 4-14 ––––60–100 kA600

200 200 200 100 – 30 200 kA 600

9080LBA163101 9080LBA263101 9080LBA363101 N/A

9080LBA163104 9080LBA263104 9080LBA363104 400-3/0 2-8 400 400 400 100 60 30 100 kA 600

2/0-6 2-14 200 200 200 100 60 30 100 kA 600

9080LBA163106 9080LBA263106 9080LBA363106

400-3/0 2-8 400 400 400 200 – 30 200 kA 600

600 – – – 60 – 100 kA 600

2/0-6 2-14 200 200 200 100 – 30 200 kA 600

– – – – 60 – 100 kA 600

9080LBA163206 9080LBA263206 9080LBA363206 (2)2/0-2 4-8 400 400 400 100 60 30 100 kA 600

(2)4-6 10-14 300 300 200 100 60 30 100 kA 600

9080LBA164101 N/A 9080LBA364101 600-2 600-2 600 600 – – – – 50 kA 600

400 400 400 200 60 30 100 kA 600

9080LBA164108 9080LBA264108 9080LBA364108 400-3/0 2-8 400 400 400 200 60 30 100 kA 600

2/0-6 2-14 200 200 200 100 60 30 100 kA 600

9080LBA165202 9080LBA265202 9080LBA365202 (2)350-4 (2)350-4 450 450 400 200 60 30 100 kA 600

600600––––50 kA600

9080LBA1652021 9080LBA2652021 9080LBA3652021 (2)500-4 (2)500-4 600 600 400 200 60 30 100 kA 600

9080LBA165106 9080LBA265106 9080LBA365106 500-3/0 2/0-6 400 400 400 100 60 30 100 kA 600

2/0-4 8-14 200 200 200 100 60 30 100 kA 600

9080LBA165112 9080LBA265112 9080LBA365112 500-3/0 2-8 400 400 400 200 60 30 100 kA 600

2/0-4 2-14 200 200 200 100 60 30 100 kA 600

9080LBA165208 9080LBA265208 9080LBA365208

(2)500-250 2/0-4 600 600 400 200 60 30 100 kA 600

(2)4/0-4 2/0-10 600 600 – – – – 50 kA 600

400 400 400 200 60 30 100 kA 600

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

© 1993 - 2009 Schneider Electric

All Rights Reserved

Terminal Blocks

UL Short Circuit Current Ratings

30

04/2009

9080LBA165212 9080LBA265212 9080LBA365212

(2)500-250 4-8 600 600 600 N/A N/A N/A 50 kA 600

400 400 400 200 60 30 100 kA 600

(2)4/0-4 4-14 600 600 N/A N/A N/A N/A 50 kA 600

400 400 400 200 60 30 100 kA 600

9080LBC162101 N/A 9080LBC362101 N/A

9080LBC162104 9080LBC262104 9080LBC362104 2/0-6 4-14 200 200 200 100 60 30 100 kA 600

9080LBC163101 N/A 9080LBC363101 N/A

9080LBC163106 9080LBC263106 9080LBC363106 500-3/0 2-8 400 400 400 200 60 30 100 kA 600

2/0-4 2-14 200 200 200 100 60 30 100 kA 600

9080LBC163206 9080LBC263206 9080LBC363206 (2)2/0-2 4-8 400 400 400 100 60 30 100 kA 600

(2)4-6 10-14 200 200 200 100 60 30 100 kA 600

9080LBC165208 N/A 9080LBC365208

(2)500-250 2/0-4 600 600 400 200 60 30 100 kA 600

(2)4/0-4 2/0-6 600 600 N/A N/A N/A N/A 50 kA 600

400 400 400 200 60 30 100 kA 600

9080LBC165212 N/A 9080LBC365212

(2)500-250 2-8 600 600 600 – – – 50 kA 600

400 400 400 200 60 30 100 kA 600

(2)4/0-4 2-14 600600––––50 kA600

400 400 400 200 60 30 100 kA 600

Table 4: 9080LBA and 9080LBC Power Distribution Blocks Short Circuit Current Ratings with Fuses (continued)

Catalog Number Suitable Conductors

MCM / AWG CU Fuse Type / Amperage

1 Pole 2 Pole 3 Pole Line Load J T RK1 RK5 G CC SCCR Volts

Max

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
