MULTI-SCENE PRESET LIGHTING CONTROL SYSTEM
RESIDENTIAL APPLICATIONS
SMALL COMMERCIAL APPLICATIONS
GRAFIK
3000 SERIESGRAFIK
3000 SERIES
NEW
FEATURING THE
CONTROLS ALL MODERN LIGHT SOURCES WITHOUT INTERFACES
®
ANY LIGHT SOURCE.
ONE LIGHTING CONTROL.
CONTENTS
GRAFIK
3000 SERIES
®

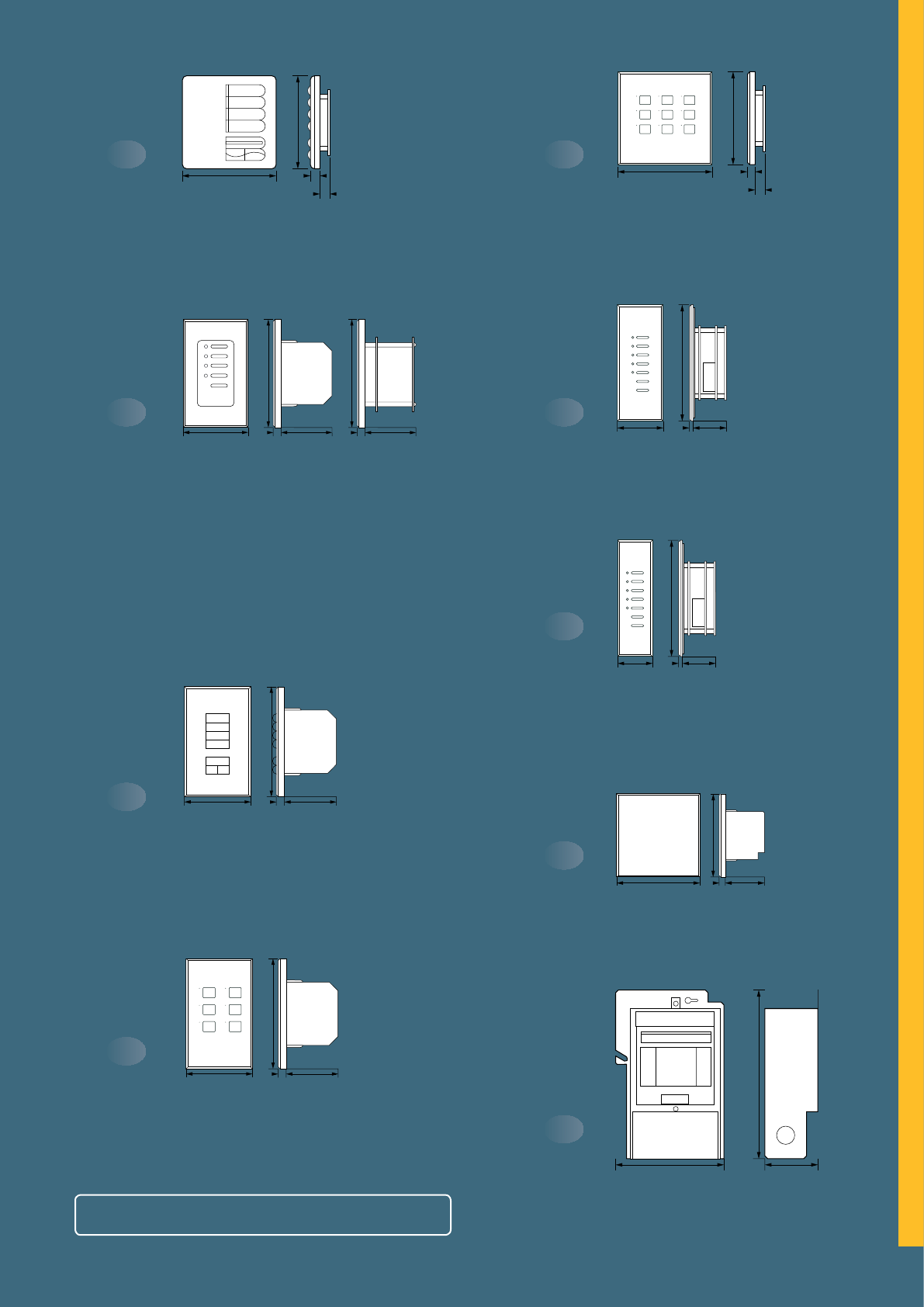

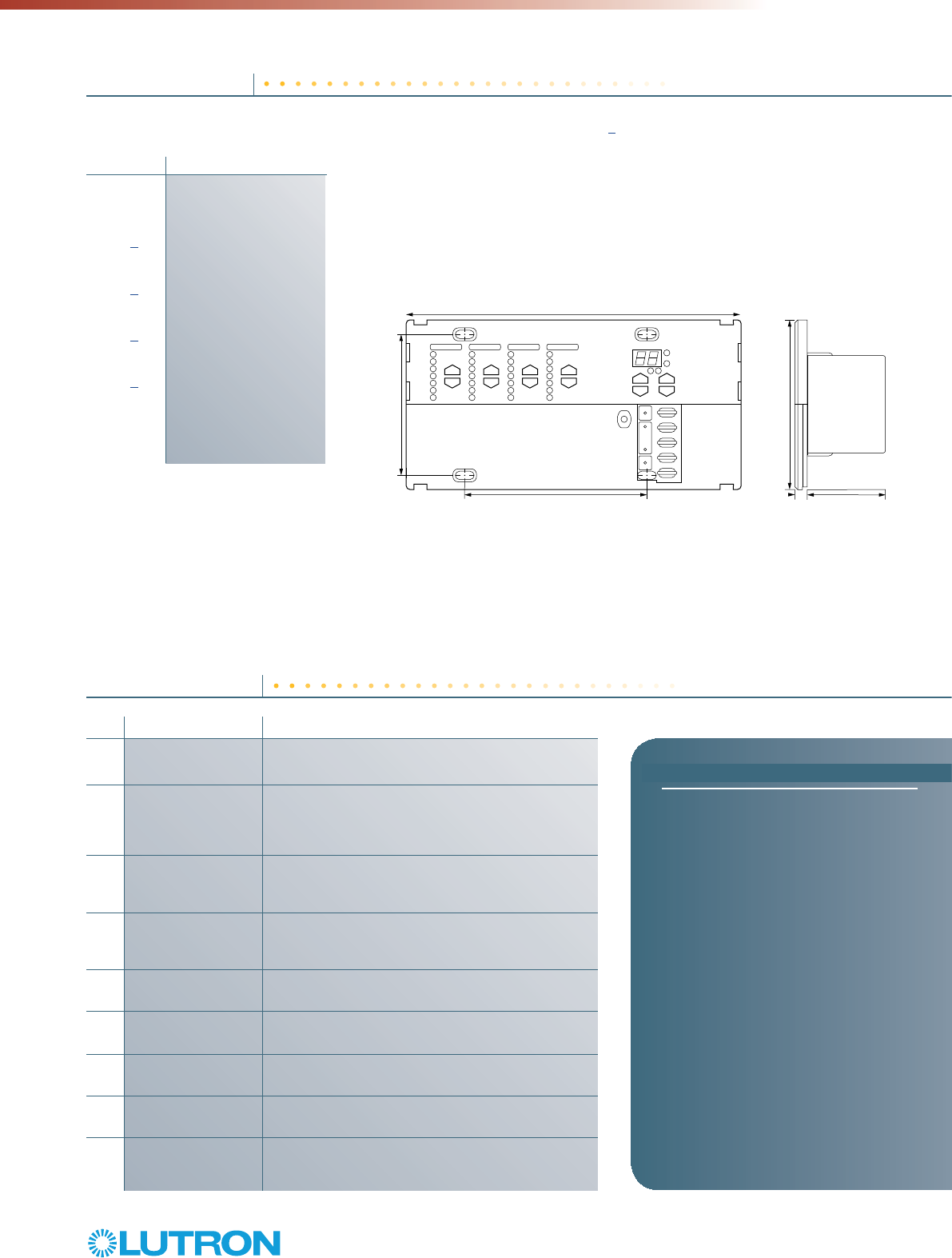

17-18 Dimensions and Mounting
Specifications
19-20
13-16
11-12 Expand The Possibilities
Accessory Controls
How To Order Colours,
Finishes and Engraving
Fold out
3-4
5-6
7-8
Features/Applications
GRAFIK Integrale/
The Only Lighting Control
Scenes/Zones
9-10 Model Numbers/Wiring Diagrams
1-2 New Features
1
GRAFIK 3000 SERIES
HAS A POWERFUL
NEW ADDITION…
GRAFIK INTEGRALETM
SET UP AND RECALL
Create lighting scenes for common
activities all at the touch of a button.
SMOOTH TRANSITIONS
Fade between lighting scenes--
from instantly to one hour.
EXPAND THE SYSTEM
Accessory controls allow one-touch
control from any location.
INTEGRATION
Integrates easily with touchscreens
and other AV equipment.
RTISS™ TECHNOLOGY INCLUDED
Compensates for incoming line voltage variations,
frequency shifts, harmonics, and line noise.
ONE CONTROL
Just one model provides control of
all modern light sources.
RELIABILITY
Control is able to withstand short between load
hot and either neutral or earth without damage.
GRAFIK 3000® SERIES
MULTI-SCENE PRESET LIGHTING CONTROL SYSTEM
®
GRAFIK EYE
GRAFIK INTEGRALE
NEW FEATURES
ALL THE FEATURES
OF THE GRAFIK EYE
® MODELS...
PLUS...
2
3
EASE OF PROGRAMMING
Simply adjust zone buttons
to set lights to match any
activity and save as a preset
scene. Recall exact scenes from
the same unit or matching
accessory wallstation.
EASE OF INSTALLATION
One unit controls Electronic
Low Volt; Magnetic Low Voltage;
Incandescent/Tungsten; 0-10V,
DSI, and DALI Fluorescent loads;
neon; and non-dim lighting loads.
SOURCES
NO I NT E R FAC E
NEEDED FOR ANY
LIGHT SOURCE
®
THE ONLY LIGHTING CONTROL…
YOU’LL EVER NEED TO SPECIFY

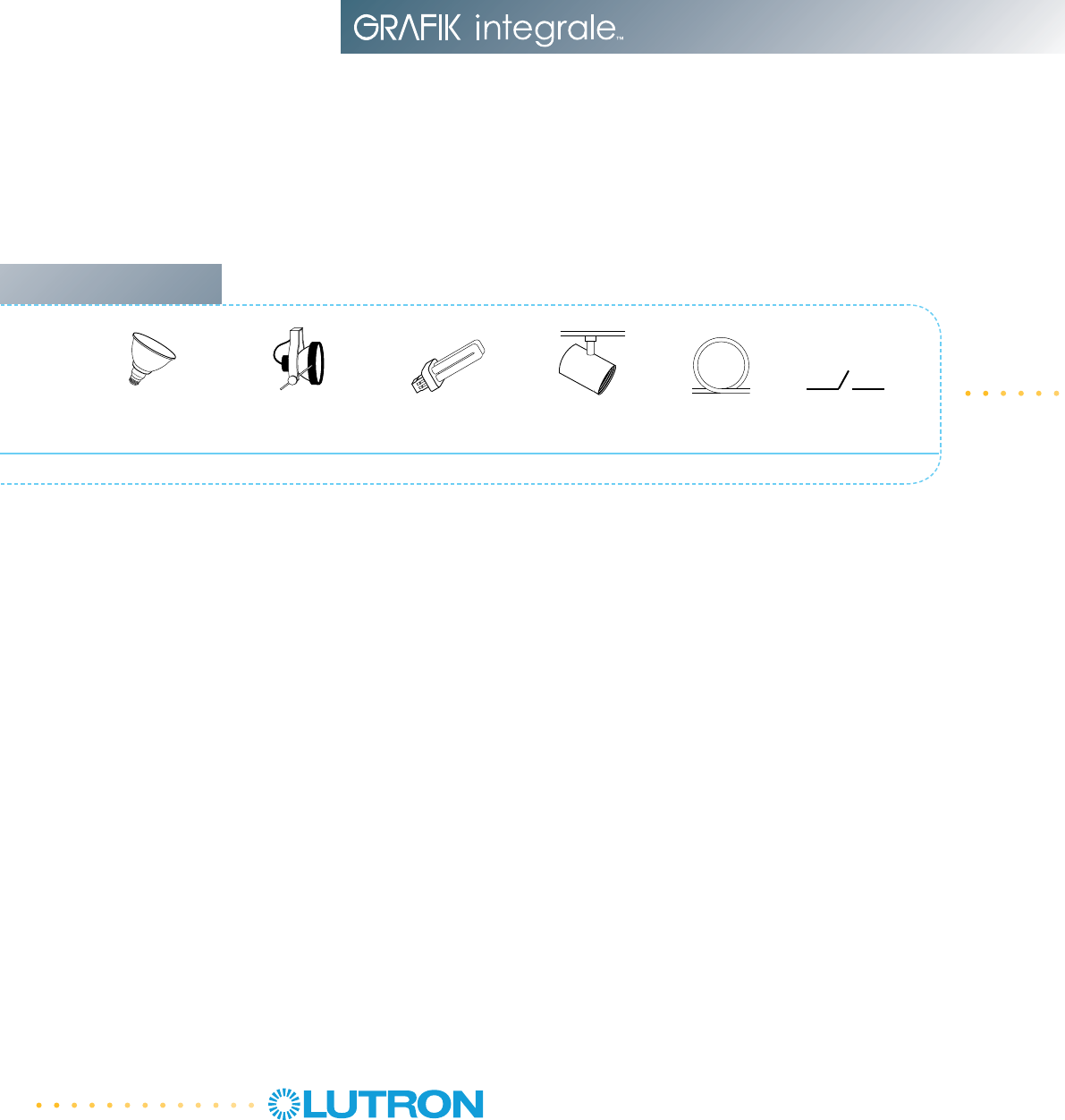

CONTROL ANY LIGHT SOURCE
Incandescent/
Tungsten
Electronic
Low Voltage
Magnetic
Low Voltage
Fluorescent Neon Non-Dim
1
INCREASE POWER
Increase individual zone
capacities in larger spaces with
Lutron Power Boosters.
POWER BOOSTERS
GXI-3104-SN pictured.
Zone Intensity
Buttons
ADD FLEXIBILITY
Includes built-in Infrared Receiver
for use with optional wireless
Remote Control to select scenes
from anywhere in a room.
WIRELESS REMOTE CONTROL
CREATE THE PERFECT ENVIRONMENT
Lutron offers stylish accessory
controls to enhance the beauty of
any space and to control lighting
from more than one location.
CHOOSE AN ACCESSORY STYLE
Built-in Infrared
Receiver
Fade Time
Buttons
All Off
Scene Select
Buttons
Master
Raise/Lower
Buttons
Choice of
Translucent or
Opaque cover
Choice of colours or
metallic/metal finishes
GRAFIK 3000® SERIES
MULTI-SCENE PRESET LIGHTING CONTROL SYSTEM
4
- One stylish control
replaces multiple
switches and dimmers
- Eliminate the guesswork
of setting separate switches
and dimmers every time
- Slowly fade between lighting
scenes — eyes have time
to comfortably adjust
- Add accessory
wallstations to recall
preset scenes from
additional locations
- Add interfaces for
integration with AV systems
and other equipment
FEATURES
5
HOME CINEMA
The movie cannot
begin until the
lights dim.
LOUNGES
Entertain guests,
spend time with
family, or watch TV.
DINING ROOM
Create the right
lighting for
intimate dining,
family occasions,
cocktail parties.
CONFERENCE
ROOM
Instantly transform
a room for a general
meeting, set up,
AV presentation,
or video conference.
CAFÉ
Create the perfect
ambience for lunch
meetings, cocktail
hour, elegant dinners
and clean-up.
EXECUTIVE
OFFICE
Create dynamic
work spaces, reduce
computer screen glare,
and add infrared
remote dimming.
THE
GRAFIK 3000®
DIFFERENCE
®
APPLICATIONS
6
GRAFIK 3000® SERIES
MULTI-SCENE PRESET LIGHTING CONTROL SYSTEM
LIGHTING ZONE LEVELS
COVE CEILING ACCENT ART COVE CEILING ACCENT ART
RESIDENTIAL
APPLICATIONS
CREATE A MOOD . . .
AT THE TOUCH OF A BUTTON
ENTERTAIN SCENE MOVIE SCENE
ZONES
SCENES
With GRAFIK Eye® and GRAFIK IntegraleTM, each zone in a space is set
at the appropriate level for the activity and saved together as one scene,
retrievable later at the touch of a button.
A ZONE is a light or group of lights controlled by the same switch or dimmer.
A SCENE is a programmed lighting environment designed to enhance a particular activity.
7

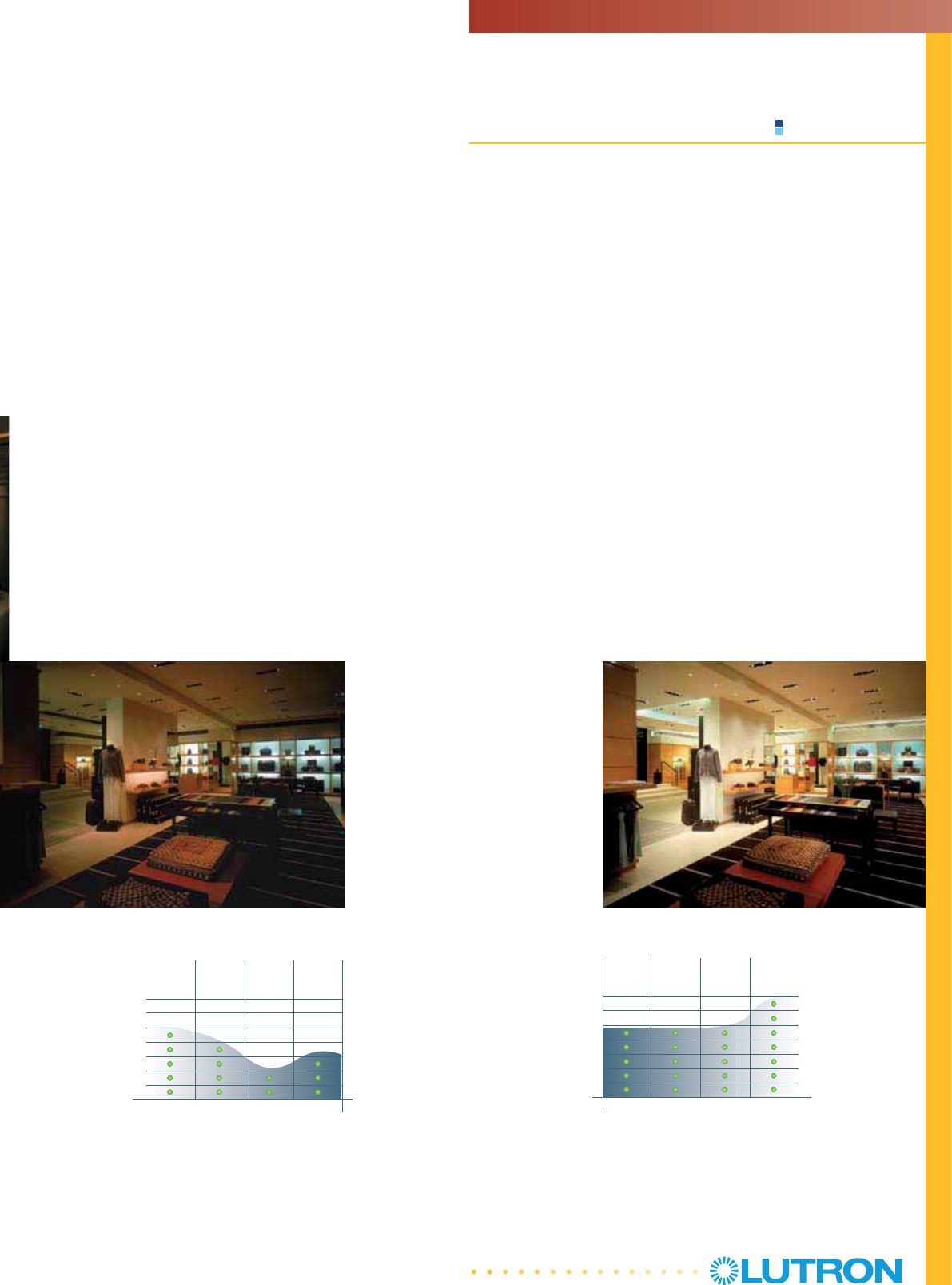

COMMERCIAL
APPLICATIONS
LIGHTING ZONE LEVELS
ACCENT SEATING DISPLAY CEILING ACCENT SEATING DISPLAY CEILING
SPECIAL EVENT SCENE ALL-ON SCENE
®
SET THE SCENE
The secret to great lighting
is being able to control it.
Match your activity or mood to
your visual environment. Set the
lights as you need them and the
setting is automatically saved
as one of your custom scenes.
Retrieve it later at the touch of a
button; no individual switches or
dimmers to adjust again and again.
8
GRAFIK 3000® SERIES
MULTI-SCENE PRESET LIGHTING CONTROL SYSTEM
Offer the precision of setting light levels
in 1% increments and can be programmed at the Control Unit
or from a PC or laptop with Lutron’s LiaisonTM Software
GRAFIK EYE
3500 MODELS
GRAFIK Eye®/GRAFIK
IntegraleTM Control Units
have both a maximum
power capacity limit per zone and a
maximum power capacity limit per unit.
Each zone cannot exceed the total Watts/
VA listed below, and each unit
cannot exceed the total Watts/ VA
outlined in the chart below. However, the
maximum unit capacity can be allocated
among each individual zone in the unit.
For example, on a 4-zone unit at 230V
with a maximum zone capacity of 800W
and a maximum unit capacity of 2300W,
some zones will not reach the individual
zone maximum because the total unit
maximum cannot exceed 2300W. Check
total unit maximums before ordering
Model Nos.
MODEL NUMBERS
GRAFIK 3000® SERIES
Link up to 8 Control Units for up to 32 zones of control (Grafik Integrale)
and 48 zones of control (Grafik Eye)
16 programmable scenes plus Off per Control Unit, 128 scenes plus Off per system
Maximum of 16 accessory Wallstations per system
Individual Zone Maximums Voltage Zone Capacity
230V 3.5A/800W/VA†
120V 6.7A/800W/VA
GRAFIK Integrale-
Available Model
For All Sources
GXI-3104- 4 200mm 2300 –
X 95mm
MODEL NO. NO. OF WALLBOX 230V 120V
**
ZONES SIZE* (-CE)
GRAFIK Eye -
Available Models For
Incandescent Only
GRX-3102- 2 200mm 1600 1200
GRX-3502- X 95mm
GRX-3103- 3 200mm 2300 1500
GRX-3503- X 95mm
GRX-3104- 4 200mm 2300 2000
GRX-3504- X 95mm
GRX-3106- 6 200mm 2300 2000
GRX-3506- X 95mm
* Mount in Lutron multiple gang wallbox, 70mm (2.75") deep minimum,
89mm (3.5") deep recommended. Supplied with product.
** For 120V applications, Control Unit dimensions
are: 2 zone unit– 123mm (4.9375") x 46mm (1.8125")
3 zone unit– 168mm (6.6875") x 92mm (3.625")
4 zone unit– 208mm (8.3125") x 138mm (5.4375")
† 20 Ballast Maximum for fluorescent loads
MAXIMUM WATTS
SYSTEM CAPABILITIES
9
GRAFIK 3000® SERIES

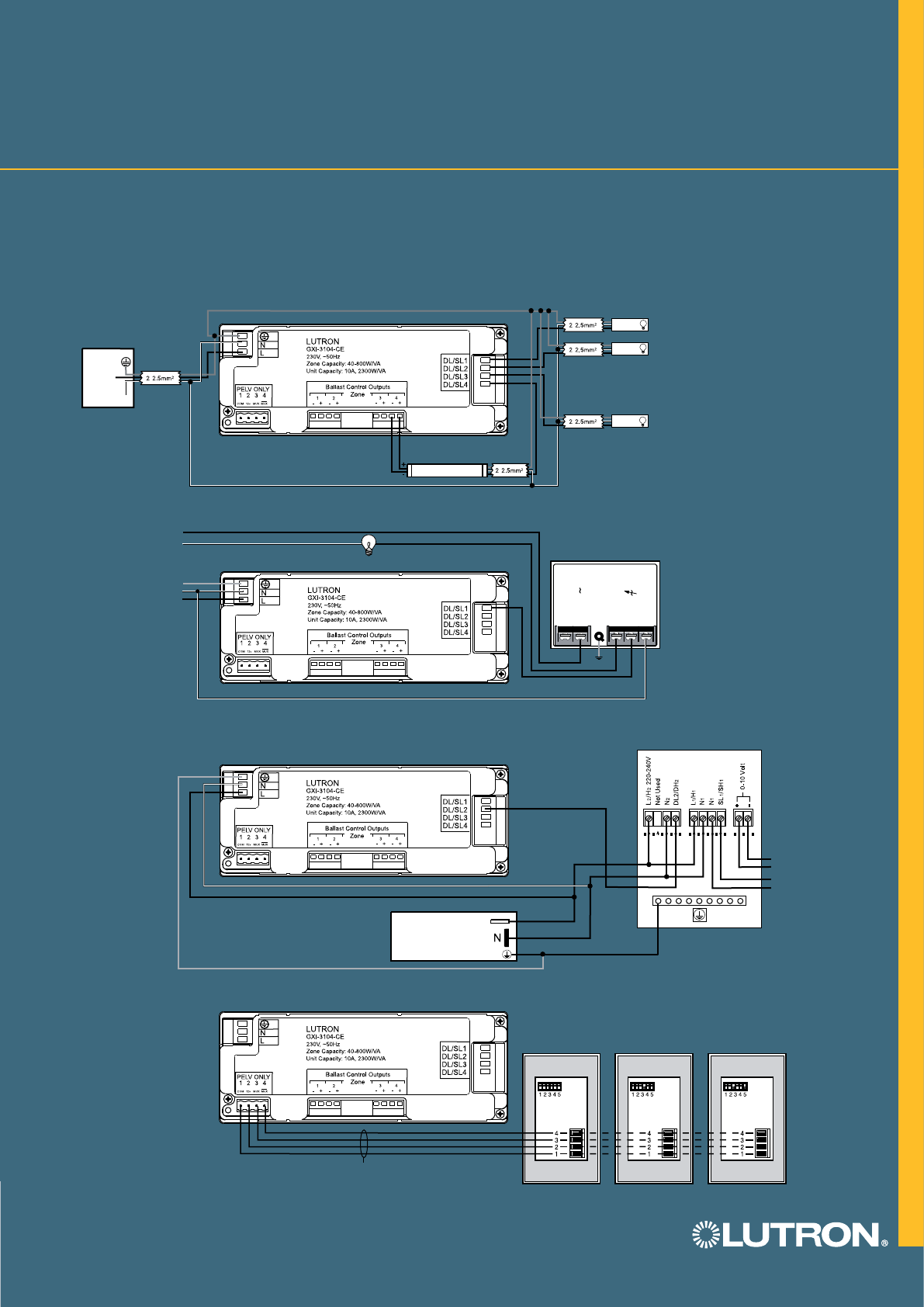

WIRING DIAGRAMS
Lutron Cable GRX-CBL-346S or Twisted Pair
LOAD 1
LOAD 2
LOAD 3
Rear View of GRAFIK Integrale Control Unit (GXI-3104 shown)
Rear View of GRAFIK Integrale Control Unit (GXI-3104 shown)
Rear View of GRAFIK Integrale Control Unit (GXI-3104 shown)
Rear View of GRAFIK Integrale Control Unit (GXI-3104 shown)
Distribution Panel
Hot/Live
Neutral
Rear View of PB/ELVI
Do Not Use
Hot/Live
Earth/Ground
Zone Out
Zone In
Neutral N
GRX-TVI(0-10V) BOOSTER WIRING
POWER BOOSTER AND INTERFACE WIRING
CONTROL UNIT WIRING
SYSTEM WIRING
Distribution Panel
GRX-TVI
Hot/Live
Neutral
10
Accessory Control
(Maximum of 16) Accessory Control
(Maximum of 16) Accessory Control
(Maximum of 16)

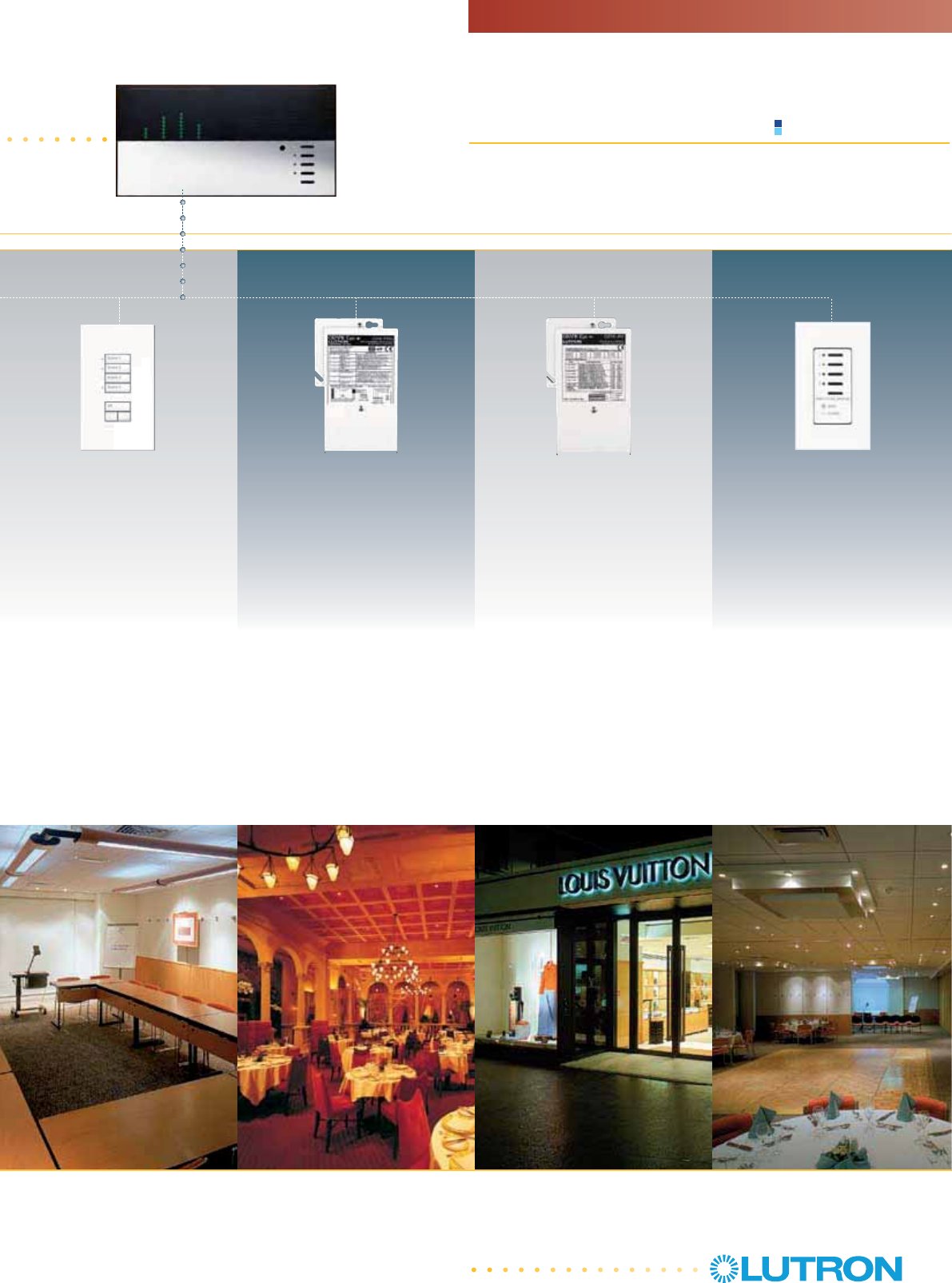

EXPAND THE POSSIBILITIES
OF YOUR SYSTEM

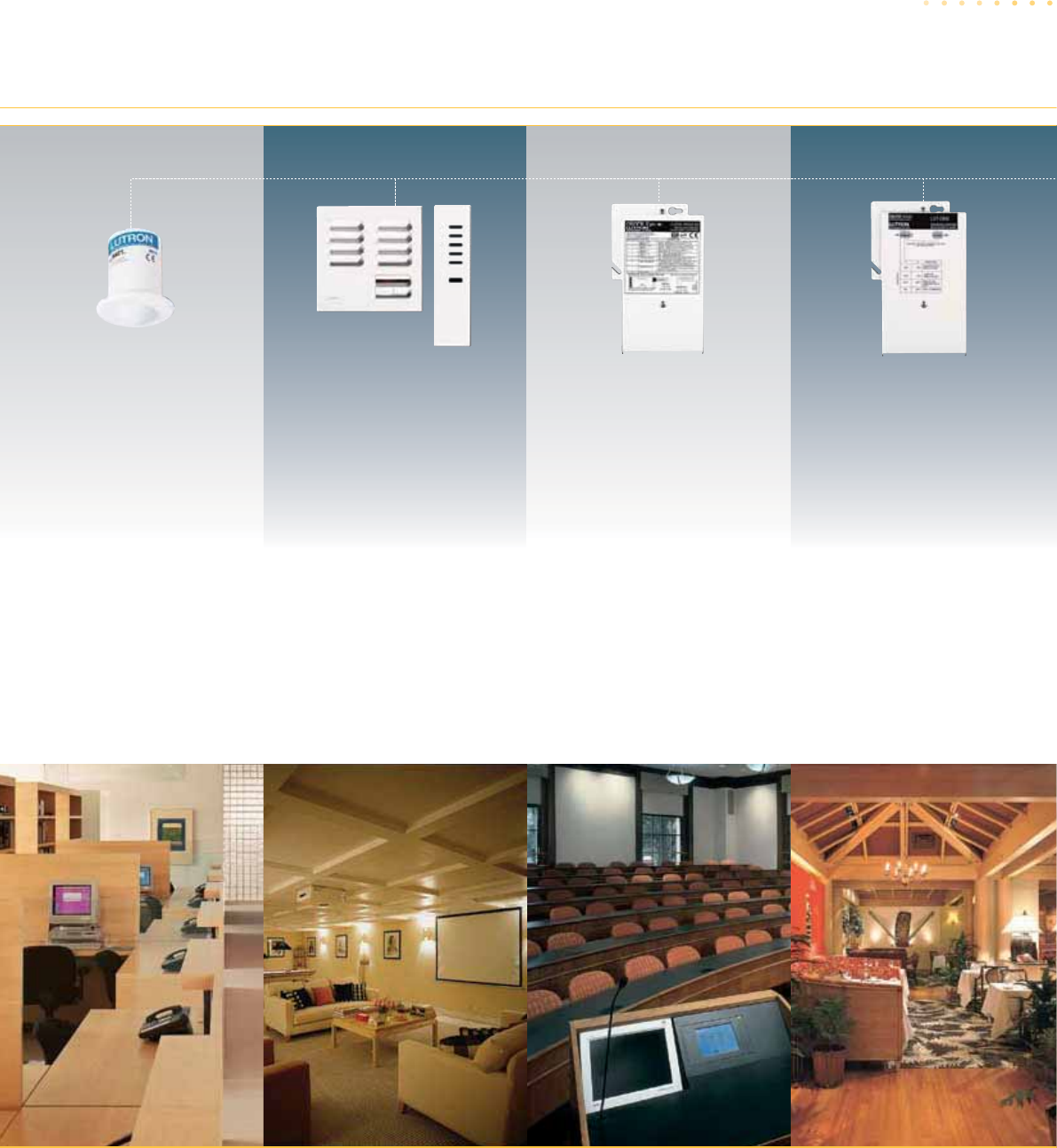

WIRELESS CONTROL
Add control flexibility
in a space from an Infrared
Wireless Remote Control.
Ideal for lecture halls,
conference rooms,
and home cinemas.
TOUCHSCREEN/
CENTRALIZED CONTROL
Integrate GRAFIK 3000 Series
with user-supplied PC or
digital AV equipment for
seamless one-touch control.
Select preset light scenes,
dim or brighten lights,
monitor system status,
and receive button feedback.
Ideal for conference rooms,
home cinemas and video
conferencing rooms.
DMX INTEGRATION
Control DMX, fiber
optic, and LED fixtures
when these fixtures
are incorporated in
an architectural
lighting plan.
DAYLIGHT CONTROL/
ENERGY SAVINGS
Select preset scenes
automatically in response
to ambient daylight to
achieve optimal light
levels and energy savings.
Best suited for areas with
large windows or skylights,
such as atriums, perimeter
office spaces, malls,
and classrooms.

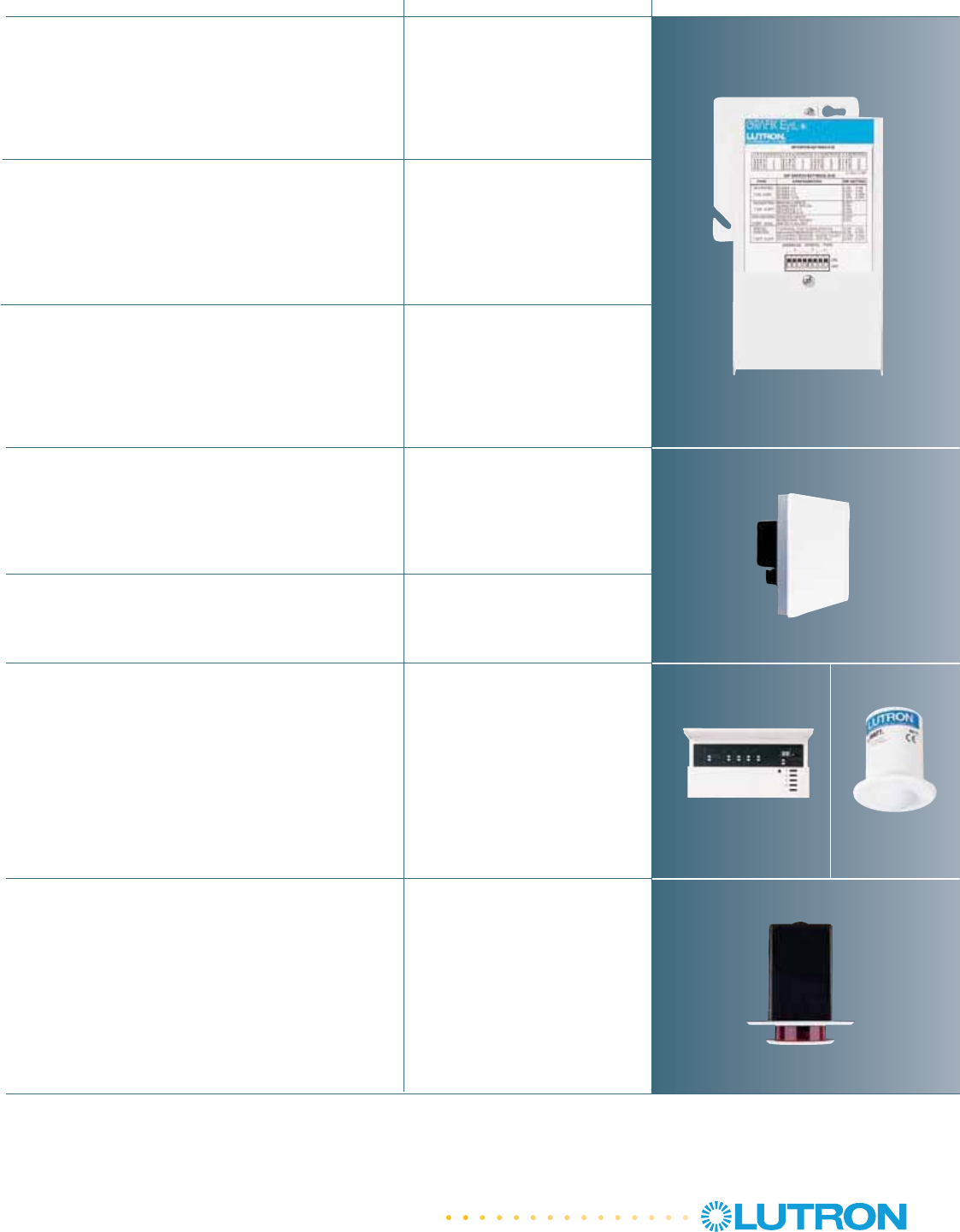

RS232 InterfaceInfrared Remote Control DMX512 InterfaceCeiling-Mounted Photosensor
11

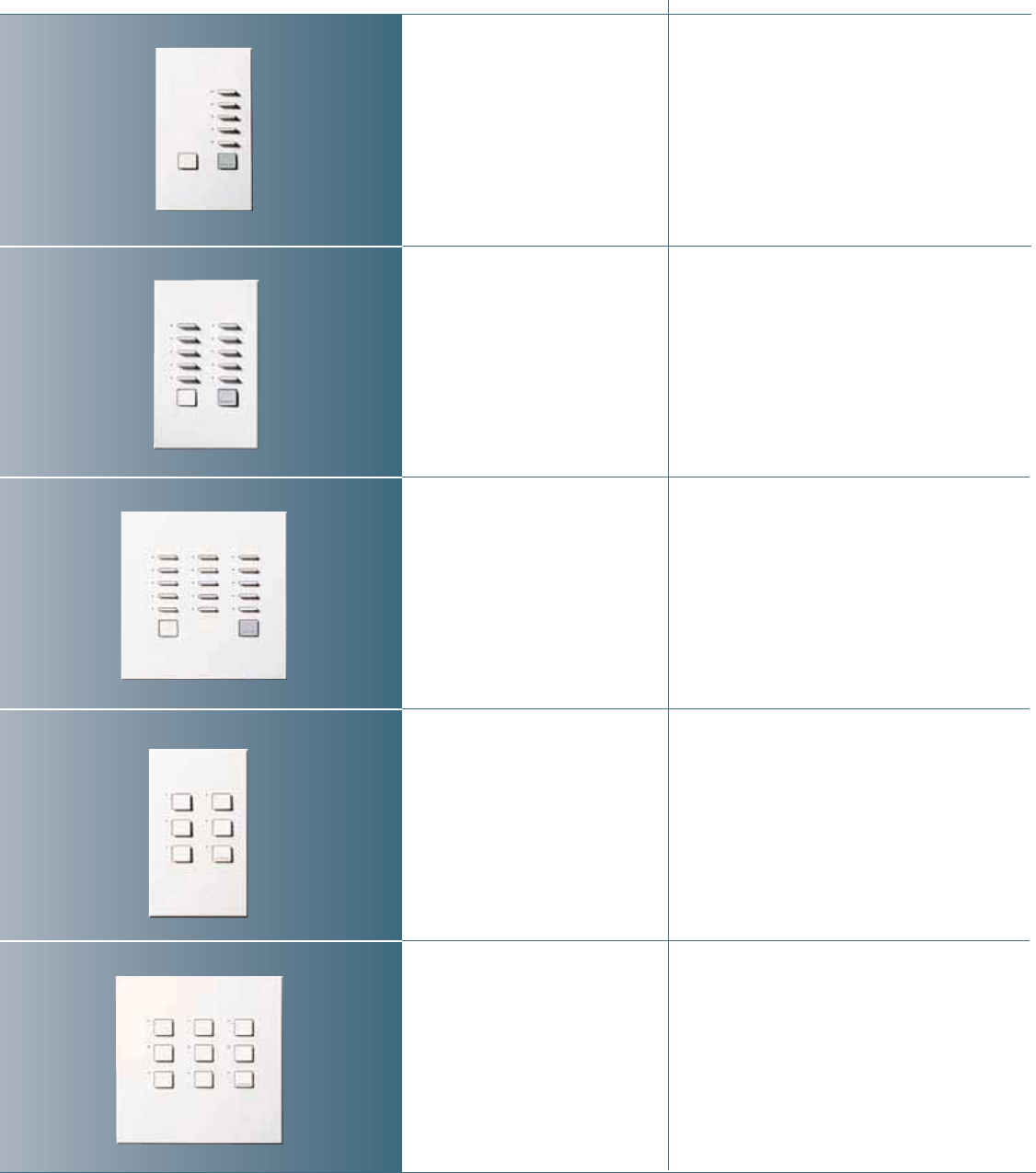

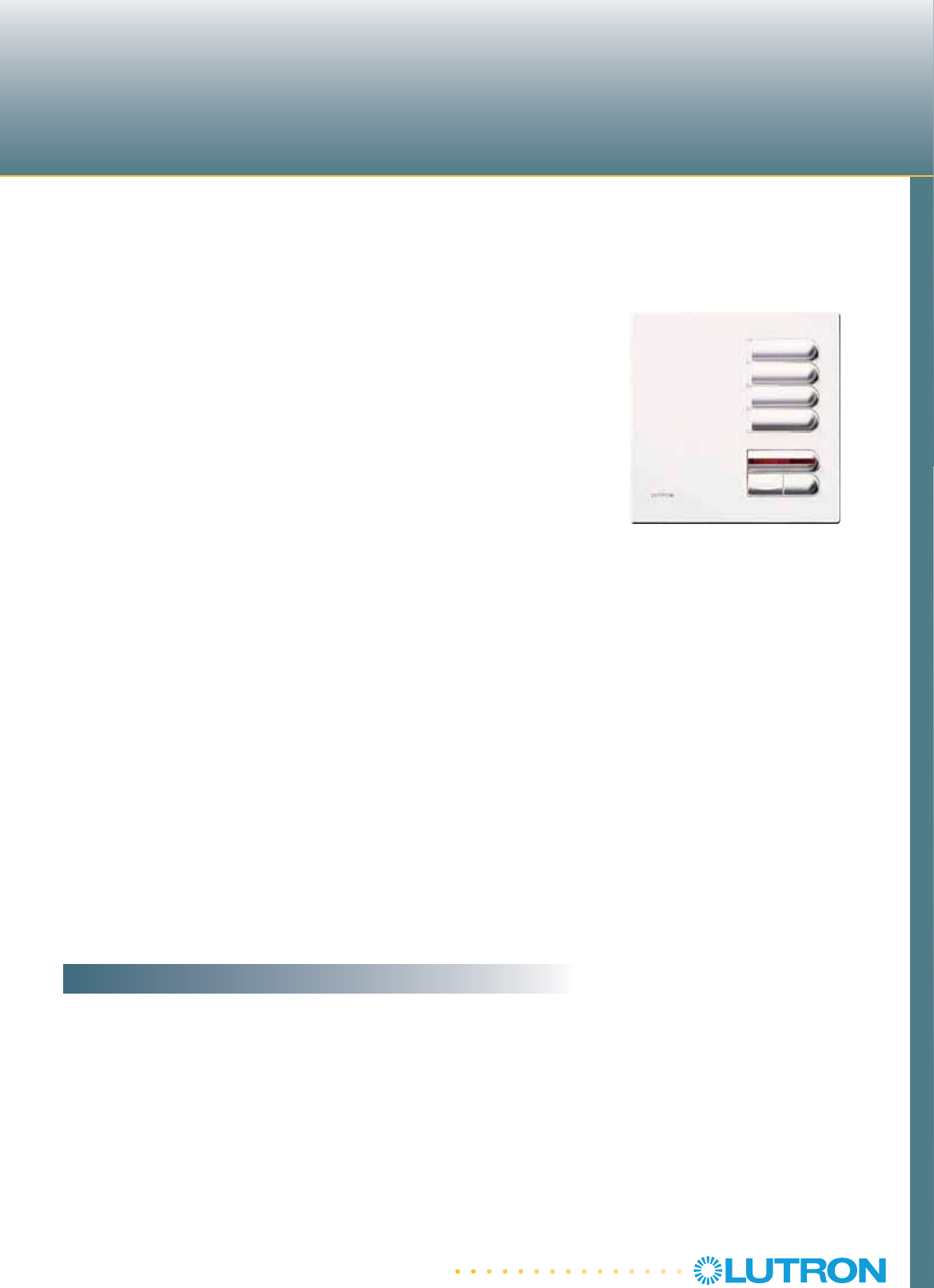

BACK LIT, ENGRAVED
WALLSTATIONS
Large buttons and a
variety of engraving
options—including backlit
characters—in Lutron’s
seeTouch™ series of
controls offers easy-to-use
functionality and additional
control points in a space.
Ideal for darkened rooms
such as AV presentation
rooms and home cinemas.
TIME SCHEDULING
Turn lights on and off
automatically based on
a user-defined schedule.
Base events on time-of-
day or on sunrise and
sunset. Ideal for office
spaces, restaurants,
retail spaces, and hotels.
SEQUENCING
Create dynamic lighting
effects by continuously
cycling preset lighting
scenes automatically.
Ideal for retail displays,
store front windows,
landscape lighting,
artwork lighting, and
museum exhibit lighting.
PARTITIONING
Adapt lighting controls
to coordinate with the status
of moveable partition walls.
Operate controls in each
“room” independently when
walls are closed or together
when walls are open. Ideal
for hotels, convention
centers, ballrooms, and
meeting rooms.
seeTouch™ Wallstation AV Interface Partition ControlPRG Interface
®12
GRAFIK 3000® SERIES
MULTI-SCENE PRESET LIGHTING CONTROL SYSTEM

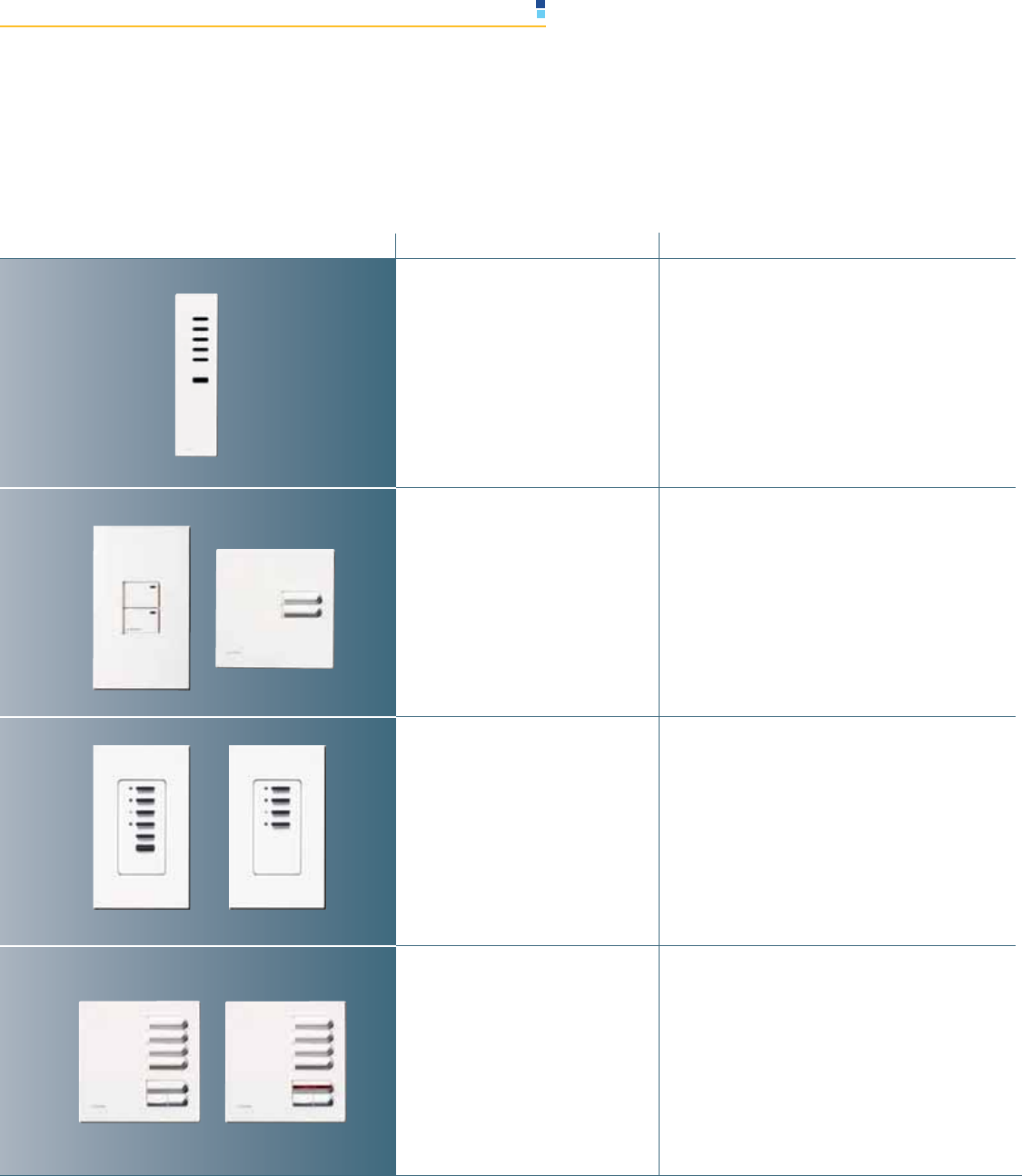

ACCESSORY CONTROLS
FUNCTIONS
*All GRAFIK Eye/GRAFIK Integrale Control Units are equipped with an IR Receiver for use with Lutron GRX-IT and GRX-8IT handheld remote controls. The IR frequency for all Control Units is 40KHz.
Any other device continuously operating in the frequency range from 30KHz to 50KHz may cause either no response or unwanted scene changes on the Control Unit.
13
DESCRIPTION

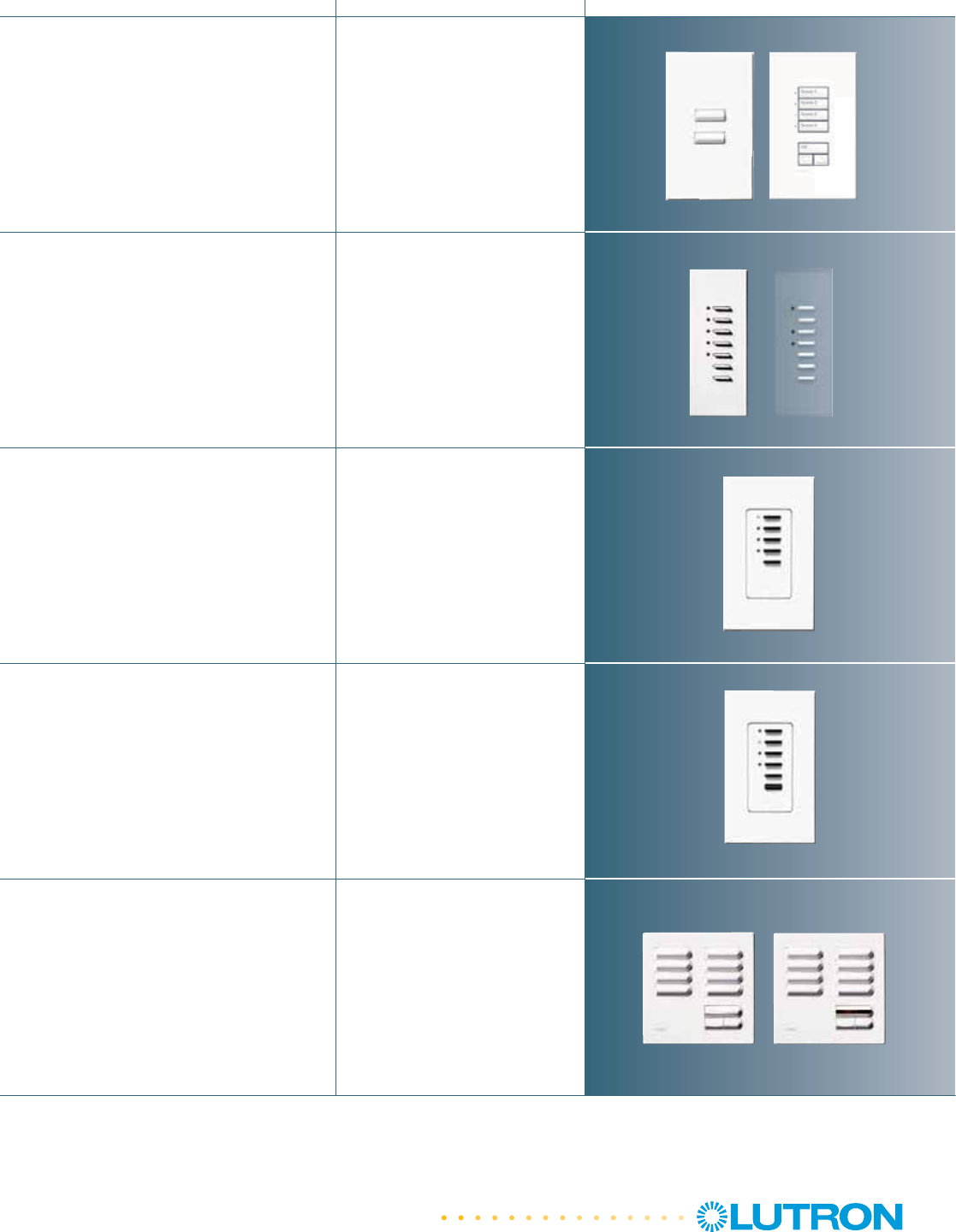

GRX-IT, GRX-8IT*
Handheld Infrared Wireless
Remote Control Transmitters
NTGRX-2B-SL
Two-Button Entrance Control
EGRX-2B-SL
European-style Two-Button
Entrance Control
NTGRX-4S, NTGRX-4S-IR,
NTGRX-4B
Scene Selection Control with
and without Infrared Receiver;
Four-Button Control
EGRX-4S, EGRX-4S-IR
European-style Scene Selection
Control with and without
Infrared Receiver
Controls 4 (or 8) scenes plus master
raise/lower and Off. Recalls scenes or
fine tunes light levels. Turns lights
on or off. Note: Not included in 16
accessory maximum.
Turns lights (scene 1) On or Off.
Selects 2 scenes (either 1/Off, 9/10 or
13/14), partition opened/closed,
panic station, sequencing, or raise/lower.
Activates 4 scenes; master raise/lower
and Off. Recalls or fine tunes light levels.
Activates scenes 1-4, 5-8, 9-12, or 13-16;
operates one or more GRAFIK Eye/GRAFIK
Integrale Control Units. Scenes can be
activated via infrared transmitter (on
NTGRX-4S-IR only).
Activates 4 scenes; master raise/lower
and Off (-4S and -4S-IR only).
Recalls or fine tunes light levels.
Activates scenes 1-4, 5-8, 9-12, or 13-16;
operates one or more GRAFIK Eye/GRAFIK
Integrale Control Units. Scenes can be
activated via infrared transmitter
(on EGRX-4S-IR only).
GRAFIK 3000® SERIES
MULTI-SCENE PRESET LIGHTING CONTROL SYSTEM
DESCRIPTION
FUNCTIONS
®14
GRX-4S-DW
Architrave™ Door Jamb
Control, Wide
NTGRX-4M, NTGRX-4PS
Master Control;
Partition Control
NTGRX-SI4S-IR
Infrared Receiver/Scene
Control/Switch Interface
EGRX-8S-, EGRX-8S-IR
European-style, 8-Scene
Selection Control, with
and without Infrared Receiver
Activates scenes 1-4;
master raise/lower and Off. Recalls or fine
tunes light levels. Ideal for door jambs.
Operates one or more GRAFIK Eye/GRAFIK
Integrale Control Units.
For Architrave with clear finish option,
order GRX-4S-DW-ACR-WH.
NTGRX-4M activates scene 1 or Off for
up to eight GRAFIK Eye/GRAFIK Integrale
Control Units, and all On or all Off.
NTGRX-4PS provides 4 buttons to operate
selected GRAFIK Eye/GRAFIK Integrale
Control Units independently, or in
combination to reflect partition status.
Provides access to scenes 1-4
or 5-8 based on external contact closure
(example: to control partitioned spaces).
Recalls preset light levels for eight scenes
(1-8, 5-12, 9-16, or 13-4) plus Off;
fine-tuning of light levels with master
raise/lower buttons; operates one
or more GRAFIK Eye/GRAFIK Integrale
Control Units; scenes can be
activated via infrared transmitter
(on EGRX-8S-IR only).
Wallstations with large, rounded buttons
and easy-to-read backlit engraving
option; IR models available; available
in one- to seven-button
configurations.
SG-2B-WH-_ , SG-4SN-WH-_
seeTouch™ Scene Selection
Controls
CLEAR
15
DESCRIPTION FUNCTIONS
Recalls preset light levels
for 6 scenes (1-6 or 9-14)
plus Off with fine-tuning
of light levels or 8 scenes
(1-8 or 9-16) plus Off;
amber status LEDs standard.
GRX-LB9
9-Button Scene Selection
Control with Large Buttons
Recalls preset light levels
for 3 scenes (1-3 or 9-11)
plus Off with fine-tuning
of light levels or 5 scenes
(1-5 or 9-13) plus Off; amber
status LEDs standard.
GRX-LB6
6-Button Scene Selection
Control with Large Buttons
Recalls preset light levels
for scenes 1-14 plus Off
with fine-tuning or scenes 1-15
plus Off with Full On (Scene 16);
amber status LEDs standard.
GRX-KP-15
15-Button Scene Selection
Control with Slim Buttons
Recalls preset light levels
for 9 scenes (1-9 or 6-14) plus Off
with fine-tuning or 10 scenes
(1-10 or 6-15) plus
Off with Full On (Scene 16);
amber status LEDs standard.
GRX-KP-10
10-Button Scene Selection
Control with Slim Buttons
GRX-KP5
5-Button Scene Selection
Control with Slim Buttons
Recalls preset light levels
for 4 scenes (1-4 or 6-9)
plus Off with fine-tuning or
5 scenes (1-5 or 6-10)
plus Off with Full On (Scene 16);
amber status LEDs standard.
Note: GRAFIK Eye/GRAFIK Integrale Specification Submittal Sheets are available for downloading/printing on Lutron’s website, www.lutron.com.
16
DESCRIPTION
FUNCTIONS
®
MW-PS
GRX-CIR
Ceiling Mounted Infrared
Receiver
Provides remote infrared wireless control to
GRAFIK Eye/GRAFIK Integrale Control Units.
Functions with handheld transmitters and
operates one or more GRAFIK Eye/
GRAFIK Integrale Control Units.
GRX-DACPI
Automatic Daylight Control
MW-PS
Photo Sensor
Permits GRAFIK Eye/GRAFIK Integrale Controls
to automatically select preset lighting scenes in
response to available daylight (measured by MW-PS
photo sensor – ordered separately) for optimum
light levels and energy savings.
GRX-ELVI
Electronic Low Voltage
Power Booster
Increases single zone load capacity for electronic
low voltage sources. 1000W per zone @230V for
CE and 1000W @120V.
NGRX-PB
Power Booster
Increases single zone load capacity for incandescent,
magnetic low voltage, neon/cold cathode sources.
1200W per zone flush mount (with face plate),
1840W surface mount (without face plate) @230V
for CE; 1920W @120V.
Two-way interface between GRAFIK Eye/GRAFIK
Integrale Controls and contact-closure devices
(A/V systems, timeclocks, security systems,
occupant sensors, etc.)
GRX-AV
Contact Closure Interface
GRX-PRG
Programmer Interface
GRX-RS232
RS232 Interface
For use with GRX-3500. Integrates GRAFIK Eye/
GRAFIK Integrale Controls with user-supplied PC or
digital A/V equipment. Features built-in astronomic
timeclock — 4 schedules/60 events per schedule.
Integrates GRAFIK Eye/GRAFIK Integrale Controls
with user-supplied PC or digital A/V equipment.
(1) Mounts in U.S. single-gang
wallbox 70mm (2.75")
deep minimum, 89mm (3.5")
deep recommended
(Lutron Part No. SB-1G).
(2) Lutron supplies backbox
(Part No. 241-399).
(3) Mounts on U.S. 102 x
102mm (4"x4")
junction box
(Lutron Part No. 241-496).
(4) Mounts in U.S. two-gang
wallbox; 70mm (2.75")
deep minimum, 89mm (3.5")
deep recommended.
(Two each of Lutron
Part No. SB-1G).
MOUNTING NOTES:
Main Control Unit
GXI-3104–Mounts in U.S. four-gang wallbox
(200mm X 95mm) 70mm (2.75") deep
minimum, 89mm (3.5") deep recommended.
GRX-3000–Mounts in U.S. 4-gang wallbox
(200mm X 95mm), 70mm (2.75") deep
minimum, 89mm (3.5") deep recommended.
MODEL NO. A B
GXI-3104 208mm 138mm
(8.3125") (5.4375")
GRX-3 02† 208mm 138mm
(8.3125") (5.4375")
GRX-3 03† 208mm 138mm
(8.3125") (5.4375")
GRX-3 04 208mm 138mm
(8.3125") (5.4375")
GRX-3 06 208mm 138mm
(8.3125") (5.4375")
GRX-DACPI 208mm 138mm
(8.3125") (5.4375")
FIG. MODEL NO. A B C D
1 EGRX-4S-IR,-4S, 86mm 86mm 13mm 10mm
-2B-SL,-8S-IR, -8S (3.38") (3.38") (.5") (.375")
2 NTGRX-2B-SL 70mm 116mm 8mm 29mm
NTGRX-4S, -4B, -4SIR (2.75") (4.5625") (.3125") (1.13")
NTGRX-4M
NTGRX-4PS
3 seeTouch™ 70mm 116mm 7.6mm 36mm
Wallstations (2.75") (4.5625") (.30") (1.39")
4 GRX-LB6 70mm 114mm 9mm 29mm
GRX-KP5 (2.75") (4.50") (0.35") (1.16")
GRX-KP10
5 GRX-KP15 114mm 114mm 9mm 29mm
GRX-LB9 (4.50") (4.50") (0.35") (1.16")
6 GRX-4S-DW 44mm 114mm 6mm 35mm
(1.75") (4.5") (.25") (1.375")
7 GRX-4S-DN 38mm 131mm 3mm 31mm
(1.50") (5.16") (0.13") (1.19")
8 NGRX-PB 116mm 116mm 17mm 48mm
GRX-FDBI/ELVI (4.5625") (4.5625") (.6875") (1.875")
9 GRX-AV, GRX-RS232, 127mm 197mm 64mm
GRX-PRG (5") (7.75") (2.5") —
*For faceplate width size add 16mm (5/8") to dimension A.
CONTROL UNIT
For a specific Model No. in the Grafik Eye (GRX) Series, place a 1 or 5 in the blank space, i.e. GRX-3104.
ACCESSORIES
DIMENSIONS AND
† For 120V applications, Control Unit dimensions
are: 2 zone unit– 123mm (4.9375") x 46mm (1.8125")
3 zone unit– 168mm (6.6875") x 92mm (3.625")
4 zone unit– 208mm (8.3125") x 138mm (5.4375")
®
Shown without faceplate*
B
85mm
(3 5/16")
8mm
(5/16")
A
50mm
(2")
Shown with faceplate
116mm
(4 9/16")
Automatic Daylight Control (GRX-DACPI)
Mount in Lutron-supplied wallbox.
Spacing Requirements
If multiple GRAFIK Eye/GRAFIK Integrale Control Units and/or
Power Boosters are mounted one above the other, a space of
12cm (4.5") minimum must be allowed between the faceplates.
If mounted in an electrical enclosure, consult Lutron.
17
Architrave Door Jamb Control–Wide (GRX-4S-DW)
Mounts directly in door jamb. (2)
Power Booster (NGRX-PB, NGRX-ELVI)
Mount in U.S. wallbox. (4)
AD
C
B
CD
A
B
C
D
A
B
European-style Wallstation (EGRX-4S-IR shown)
Mount in single-gang UK/German wallbox.
Single-gang Scene Selection Control (NTGRX-4S shown)
Mount in U.S. wallbox. (1)
seeTouch (SG-4SN-WH-_ shown)
Mount in U.S. wallbox. (1)
Single-gang Scene Selection Control
with Large or Slim Buttons (GRX-LB6 shown)
Mount in U.S. wallbox. (1)
2-gang Scene Selection Control
with Large or Slim Buttons (GRX-LB9 shown)
Mount in U.S. wallbox. (4)
AC
BB
DCD
A
B
CD
A
B
C
D
FIG. 6
FIG. 4
FIG. 5
FIG. 2
FIG. 3
FIG. 1
FIG. 8
AC
B
D
Architrave Door Jamb Control–Narrow (GRX-4S-DN)
Mounts directly in door jamb. (2)
AD
C
B
FIG. 7
AC
B
Interface Control (GRX-AV, -PRG, -RS232)
Mounts on 102mm (4") -square utility box. (3)
FIG. 9
SEE INSTRUCTION SHEETS FOR DETAILS
18
MOUNTING
LUTRON Quality Systems Registered to ISO 9001 • Safety standards listed above apply to one or more products in the GRAFIK 3000® product line.
SPECIFICATIONS
GRAFIK 3000® SERIES
GENERAL SPECIFICATIONS
• The entire lighting control system shall be CE, U.L., or CSA marked
as appropriate. Manufacturer shall maintain ISO 9001 certification.
Dimming system shall be covered by a minimum one-year warranty
from time of purchase.
• Manufacturer shall be capable of providing on-site service support as required.
• Premium Temperature Margins: Panels operate at a minimum of 20 degrees
Celsius below the power conducting component temperature rating.
Electronic components live twice as long for every 10 degrees Celsius
below the rating at which they operate both increasing semiconductor
reliability and ensuring the system’s design life span.
KEY PERFORMANCE FEATURES FOR SYSTEM COMPONENTS
19
BE
IV
GR
BR
BL
SB
BB
QB
QZ
BC
SC
SN
BN
CLA
BLA
BRA
WH
Due to printing limitations, colour swatches may not be exact.
BRIGHT
BRASS
SATIN
BRASS
BLACK
BROWN
GRAY
IVORY
BEIGE
WHITE
CLEAR
ANODIZED
ALUMINUM
BRIGHT
NICKEL
SATIN
NICKEL
SATIN
CHROME
BRIGHT
CHROME
ANTIQUE
BRONZE
ANTIQUE
BRASS
BRASS
ANODIZED
ALUMINUM
BLACK
ANODIZED
ALUMINUM
Choice of translucent
or opaque cover.
Your company
name or
logo here.
Choice of six distinct
colours and three
metallic/metal finishes.
Engrave scene
name beneath each
button, i.e. Room
Setup, General
Meeting, A/V
Presentation, etc.

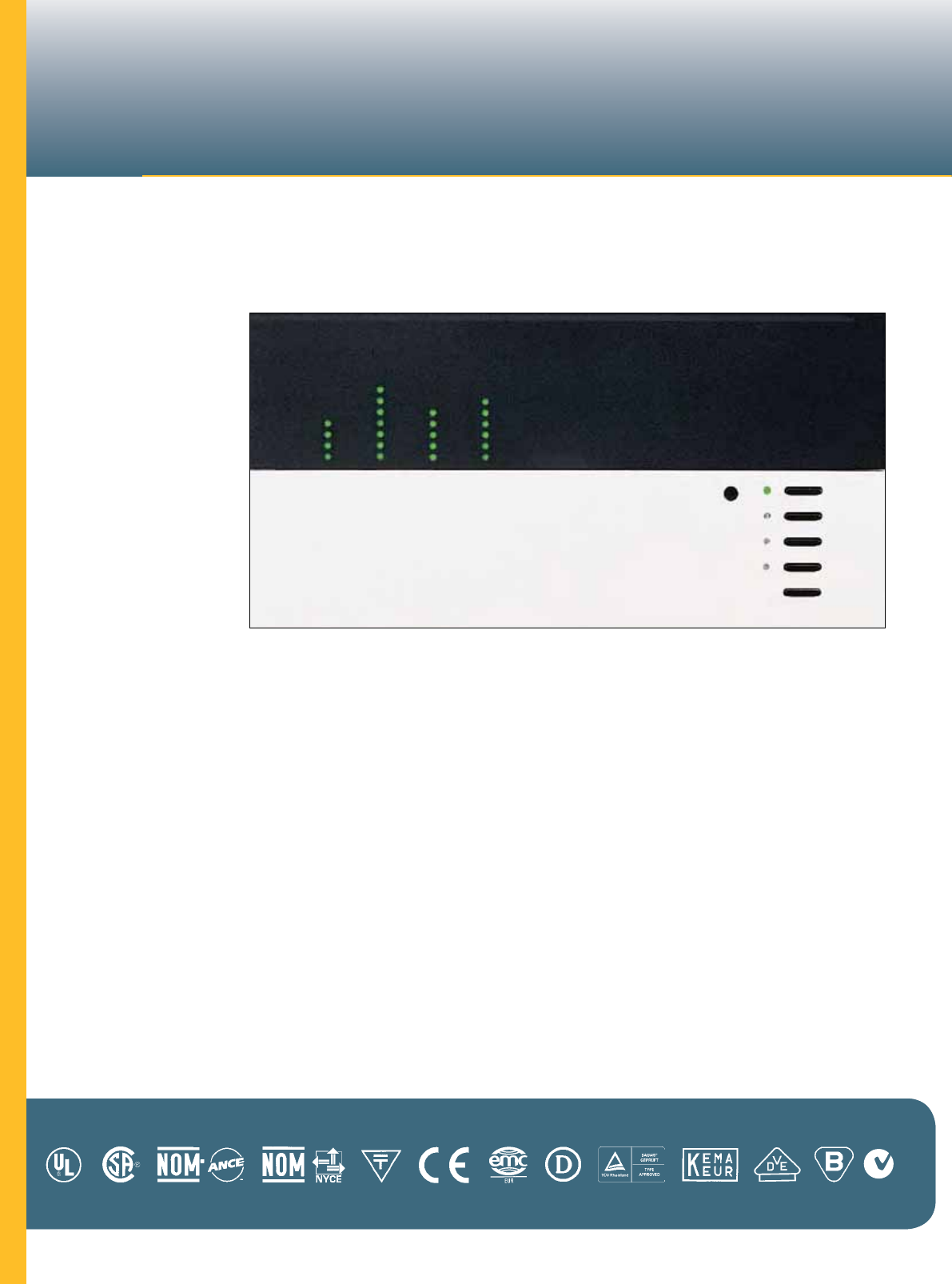

* Example: Model GRX-3104-T-BC shown above
Engraving is available in
the following typestyles:
HELVETICA BOLD
ROMAN BLOCK
GOTHIC
Engraving is available in
the following colours:
White, Beige, Black, Brown, Gray
When ordering a GRAFIK Eye® or Grafik Integrale™
Control Unit, add the appropriate code suffix
to all model numbers for colour choice and
global power requirements.
The Control Unit Cover can be specified as
either (T) for Translucent Black or (A) for
Opaque to match the colour of the Control
Unit base. (Note: When specifying the cover
as Opaque, the LEDs cannot be viewed
through the front cover.)
All 230V GRAFIK Eye/GRAFIK Integrale
model numbers require that the code CE
be added as the suffix.
For example, when ordering a four-zone
GRAFIK Integrale Control Unit with a Satin
Nickel finish and a translucent cover in 230V,
order GXI-3104-T-CE-SN.
When ordering a GRAFIK Eye 120V 6-zone
Control Unit with a Opaque Cover (A) to match
a White base (WH), the model number would
be GRX-3104-A-WH.
Consult your Lutron
representative for help in
ordering custom finishes
and engraving options.
HOW TO ORDER
COLOURS, FINISHES AND ENGRAVING
SERVICE AND SUPPORT
Lighting control application engineers are available 24 hours/7 days a week to assist you.
For help with application, layout, or installation, call the Lutron office near you.
Lutron’s STAR Program provides the assurance that every Lutron product and system is backed by Lutron’s
commitment to quality, service and performance. Ask about Lutron’s 8-year Replacement Parts Program.
www.lutron.com/europe
© 01/2012 Lutron Electronics Co., Inc. l P/N 367-270/EA
save
energy
with
LutronTM
INTERNATIONAL OFFICES
Brazil: São Paulo
TEL: +55 11 4327 3800
China: Beijing
TEL: +86 10 5877 1818
China: Hong Kong
TEL: +852 2104 7733
China: Shanghai
TEL: +86 21 6288 1473
France: Paris
TEL: +33 1 56 59 16 64
EUROPEAN
HEADQUARTERS
Lutron EA Ltd.
6 Sovereign Close
London, E1W 3JF
UK
FREEPHONE: 0800 282 107
TEL: +44 (0)20 7702 0657
FAX: +44 (0)20 7480 6899
lutronlondon@lutron.com
ASIAN
HEADQUARTERS
Lutron GL Ltd.
#07-03 Tower Fifteen
15 Hoe Chiang Road
Singapore 089316
TEL: +65 6220 4666
FAX: +65 6220 4333
lutronsea@lutron.com
WORLDWIDE
HEADQUARTERS
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299
USA
Toll-free: 1 888 LUTRON1
TEL: +1 610 282 3800
FAX: +1 610 282 1243
intsales@lutron.com
Japan: Minato-ku
TEL: +81 3 5575 8411
Spain: Barcelona
TEL: +34 93 496 57 42
Spain: Madrid
TEL: +34 91 567 84 79
UAE: Dubai
TEL: +971 4 299 1224
Germany: Berlin
TEL: +49 (0)30 971045-90
India: Bangalore
TEL: +91 80 4030 0485
India: Mumbai
TEL: +91 22 4070 0867
India: Delhi
TEL: +91 124 471 1900
Italy: Milan
FREEPHONE: 800 979 208

Navigation menu
