Terminals

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Termination Solutions

Success

Depends on the

Crimp.

A proper crimp is the key element

of an overall wire termination

assembly that unfortunately is all

too often overlooked.

Proper terminal selection,application and crimping are critical factors to

the safety,performance and reliability of an electrical connection.When

selected and installed properly,the function of a terminal is transparent

in the overall operation of a product;however,when selected or installed

improperly,it can result in rework,recalls and downtime,which could

result in loss of productivity and profitability.

To produce a high-quality crimp you can rely upon to resist failure, you

need the right terminal,right tool and right technique.

The purpose of the Technical Reference Guide is to give you the

necessary tools to:

•Select the right terminal for a specific application

•Select the right tool for the terminal and the application

•Produce a high-quality crimp

Terminals

Crimping Guidelines for PANDUIT®PAN-TERM®

Terminals,Disconnects,Splices and Wire Joints

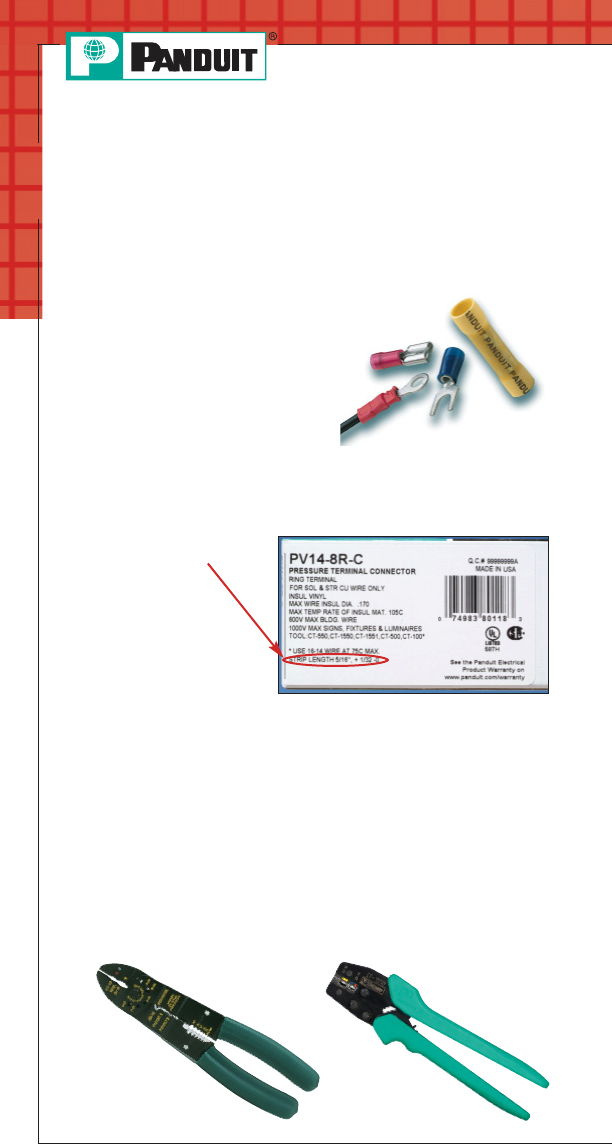

1. Select the proper

PANDUIT

terminal for the application and

wire size used

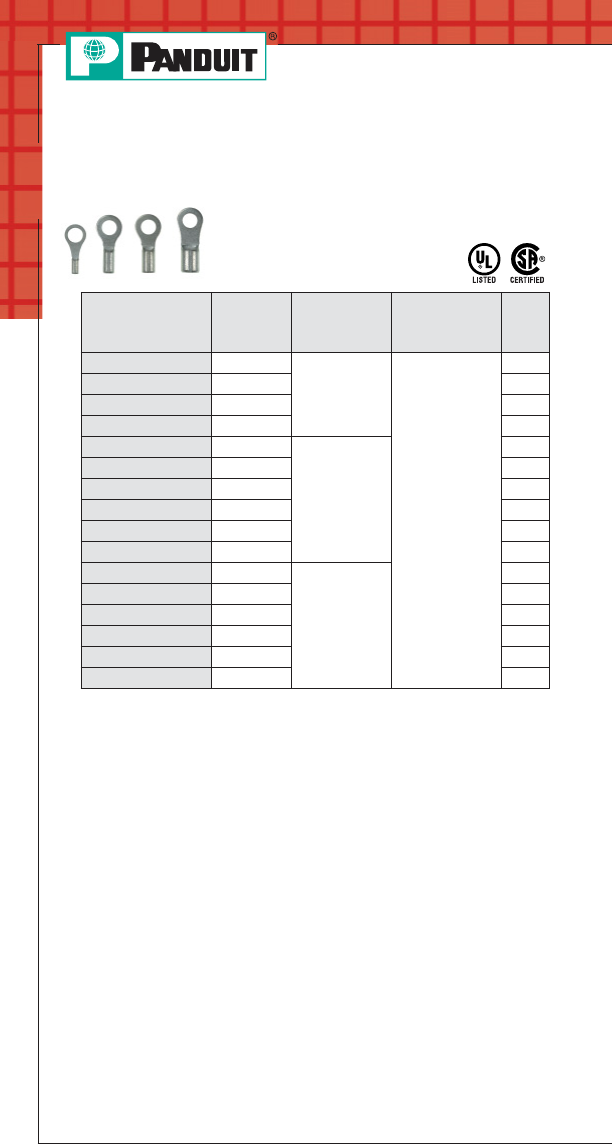

• Ring terminals are used

for high vibration and

grounding applications

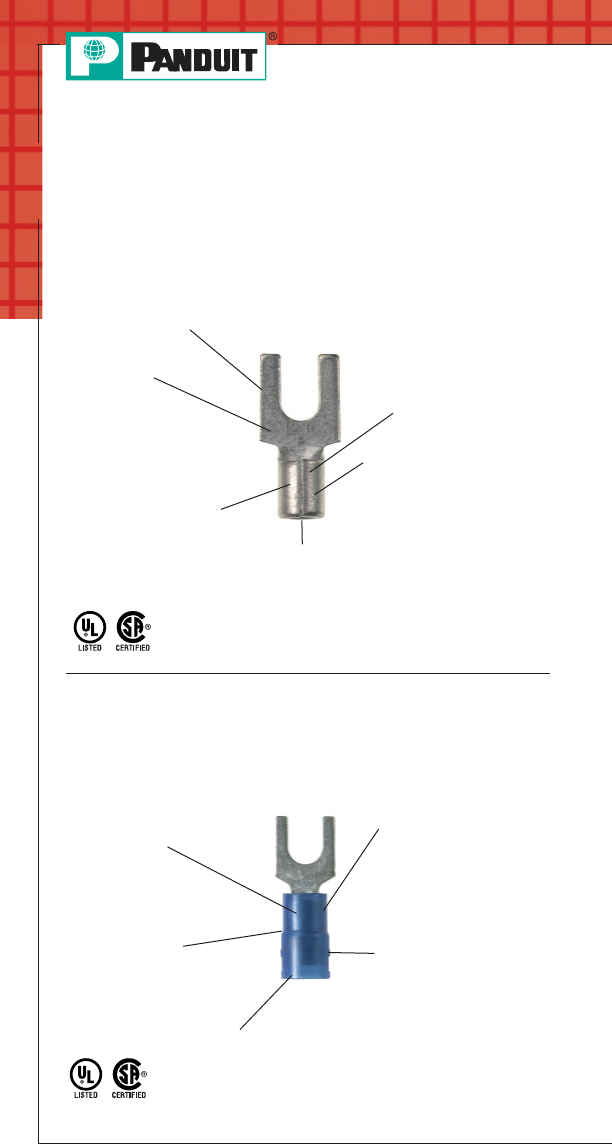

• Fork terminals are used for static

(non-vibration) applications

• Disconnects are used for

applications that require quick

connection of wires without the use of tools

• Splices and wire joints are used to join wires together

•

PANDUIT

product

packaging label

• Packaging

instructions

included with the

PANDUIT

product

• Or if no packaging

instructions are

available, plan your strip length so that 1/32 of an inch of

wire can be seen protruding through the tongue end of

the terminal barrel

2. Strip wire to the proper length as specified on:

• Use crimping tools that provide a UL Listed and/or CSA

Certified electrical termination, to assure a safe and

reliable connection

•

PANDUIT

terminals are UL Listed and CSA Certified when

crimped with

PANDUIT

plier type crimping tool or with the

preferred

ONTOUR

RIMP

™Controlled Cycle Crimping Tool

specified on the packaging label

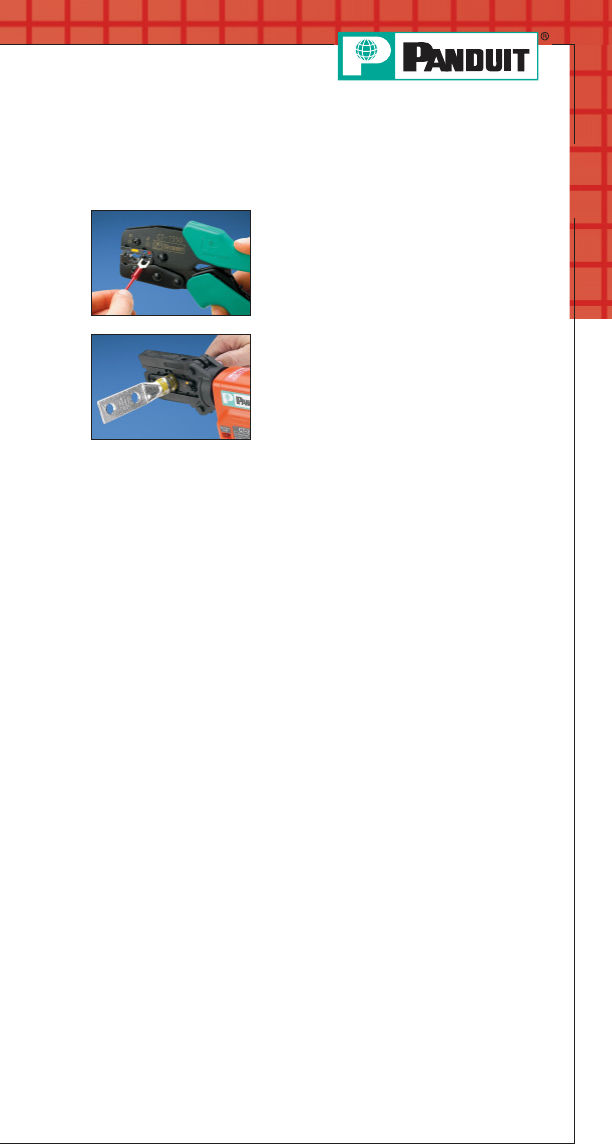

3. Select the proper crimp tool to be used

Plier Type

Crimping Tool

ONTOUR

RIMP

™

Controlled Cycle

Crimping Tool

Terminals

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Crimping Guidelines for PANDUIT®PAN-TERM®

Terminals,Disconnects,Splices and Wire Joints

(continued)

Insulated Terminals and Disconnects

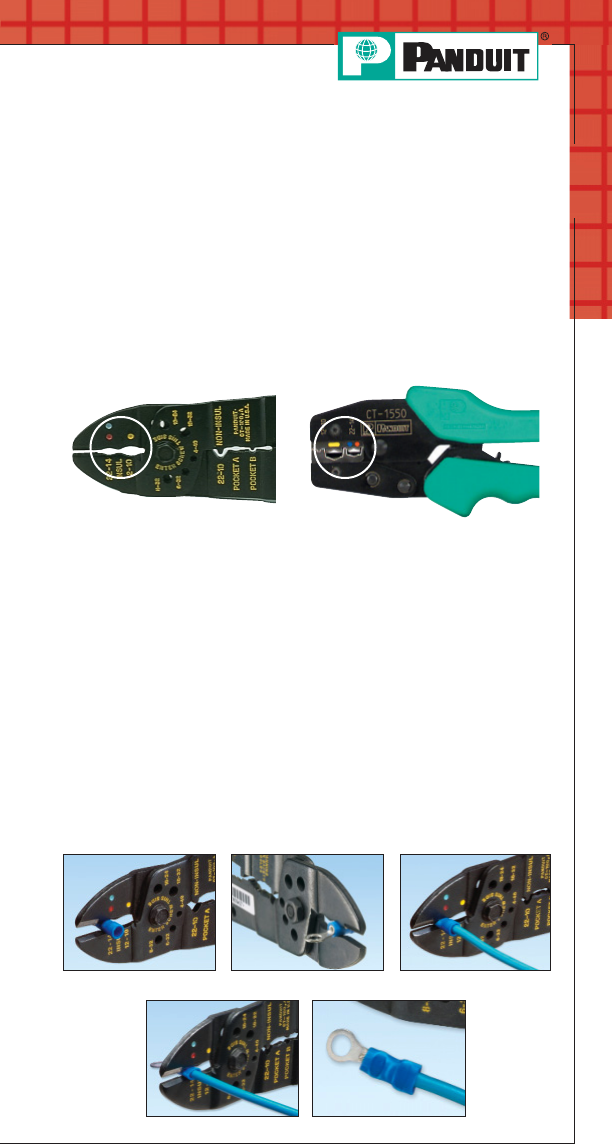

4. Select the proper crimp pocket for the terminals and wire

size you are using

•

PANDUIT

crimping tools simplify this process with color

coded crimp pockets. The yellow, blue and red pockets

are specifically designed for the industry standard barrel

sizes, each with a specific color code.

A. Locate terminal in appropriate size color-coded crimp die pocket

with tool centered on insulation sleeve.

(See Note 1 page A6)

B. Rotate terminal so tongue is level with crimp die.

C.Insert properly stripped wire into terminal until a minimum of

1/32" of wire extends beyond the terminal barrel.

D. Squeeze tool handles firmly to perform the electrical crimp.

(See Note 2 page A6)

E. Provide second crimp on the flared portion of the insulation

housing to close the insulation as shown. Caution: when using

plier type crimping tools, do not squeeze as firmly as you did

for the electrical crimp.

(See Note 3 page A6)

Step A Step B

Complete Crimp

Steps C & D

Step E

5. Perform the electrical crimp

For the plier type tool

Terminals

Crimping Guidelines for PANDUIT®PAN-TERM®

Terminals,Disconnects,Splices and Wire Joints

(continued)

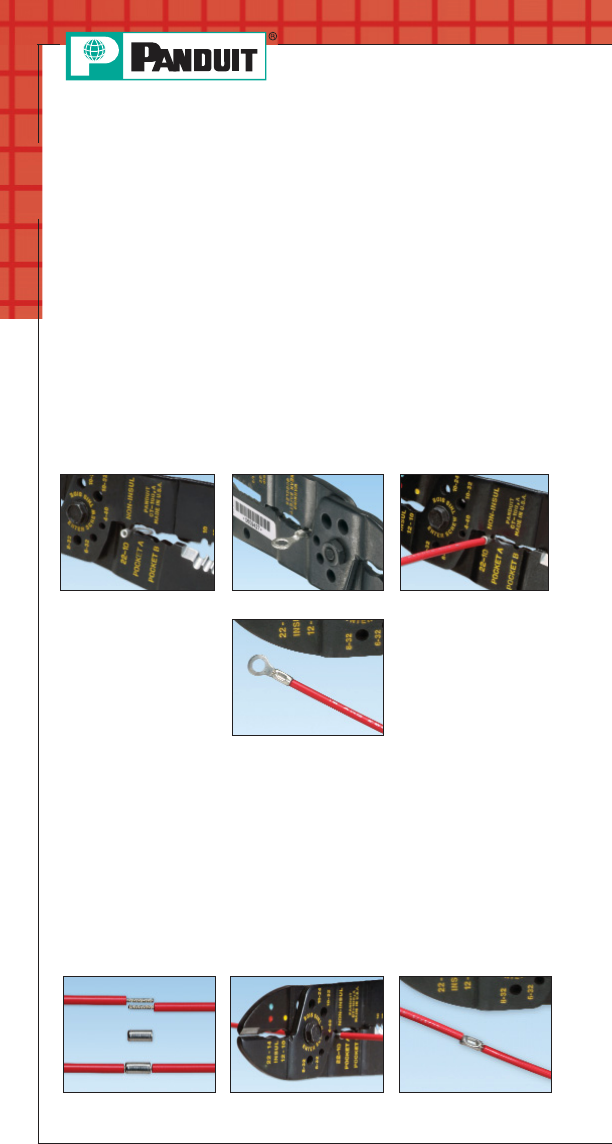

Non-Insulated Terminals and Disconnects

Insulated and Non-Insulated Parallel Splices

A. Locate terminal in appropriate wire gauge crimp die pocket

with indenter centered on barrel seam.

B. Rotate terminal so tongue is level with crimp die.

C.Insert properly stripped wire (based on recommendations on

package label) into terminal until a minimum of 1/32" of wire

extends beyond the terminal barrel.

D. Squeeze tool handles firmly to perform the electrical crimp.

(See Note 2 page A6)

Step A Step B Steps C & D

Complete Crimp

A. Locate parallel splice in appropriate wire gauge crimping die

pocket and position tool on the center of the splice.

B. Insert properly stripped wire (based on recommendations

on package label) into each end of the parallel splice.

C.Squeeze tool handles firmly.

(See Note 2 page A6)

D. An insulation crimp is not required on an insulated

parallel splice.

Steps A & B Steps C & D Complete Crimp

Terminals

For service and technical support, call 800-777-3300

or visit www.panduit.com.

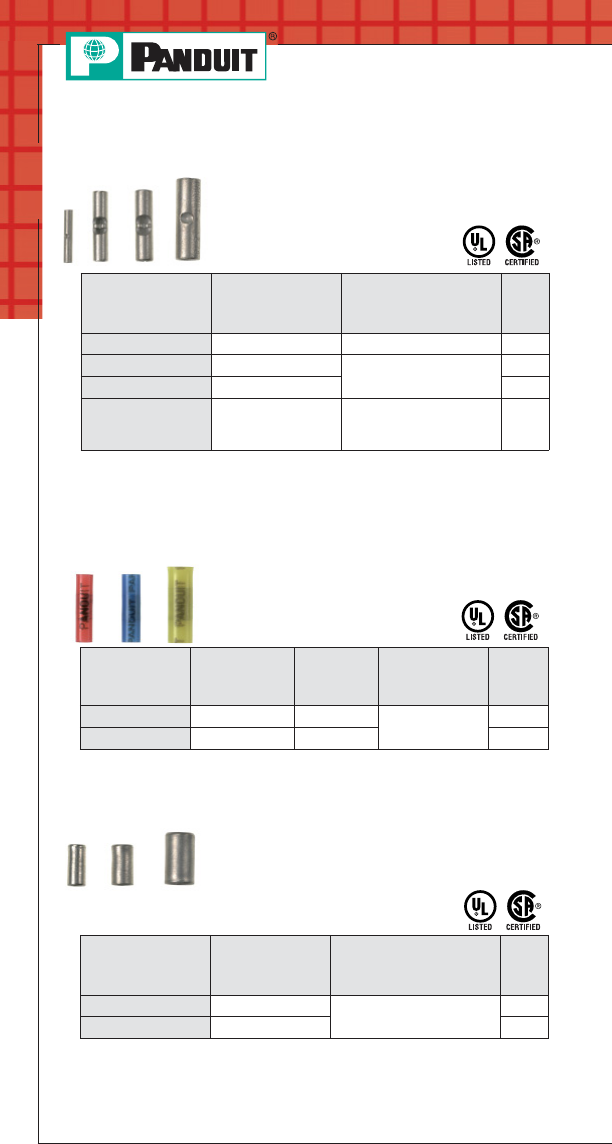

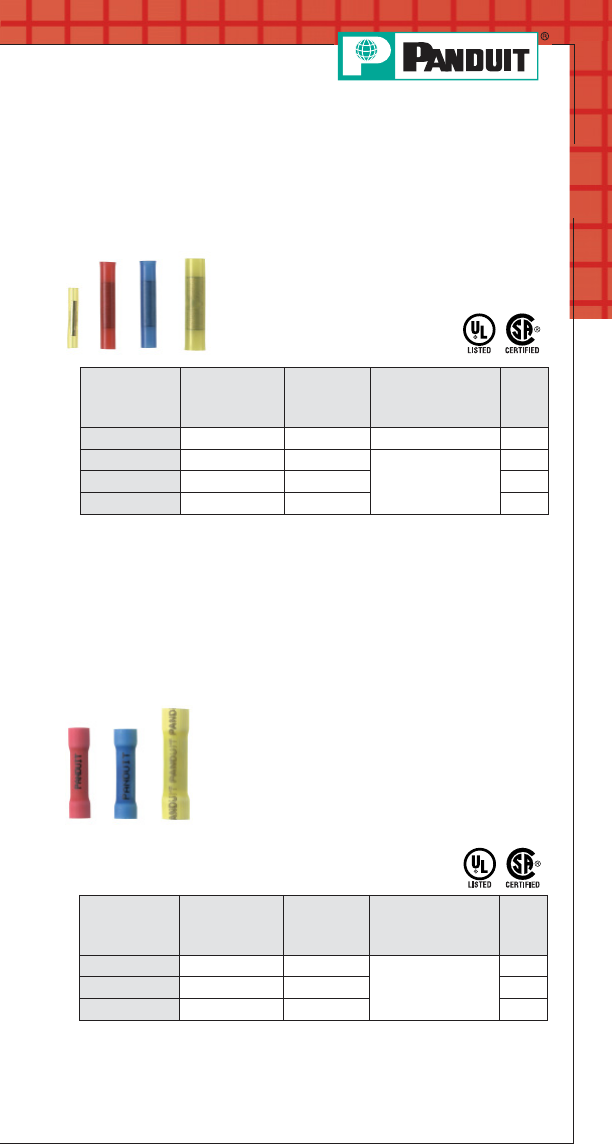

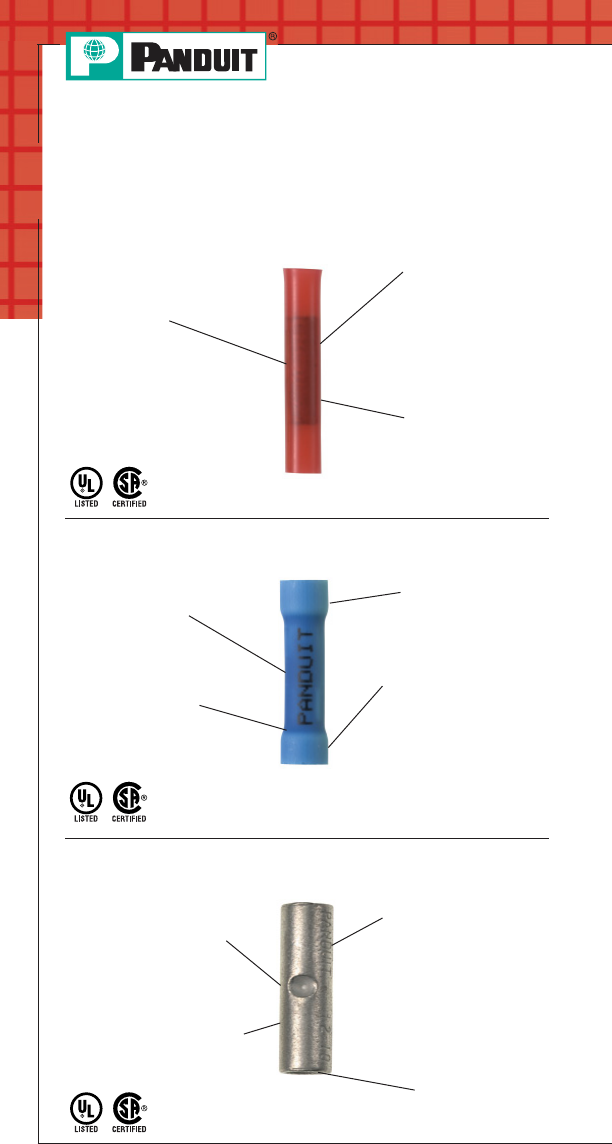

Insulated and Non-Insulated Butt Splices

Crimping Guidelines for PANDUIT®PAN-TERM®

Terminals,Disconnects,Splices and Wire Joints

(continued)

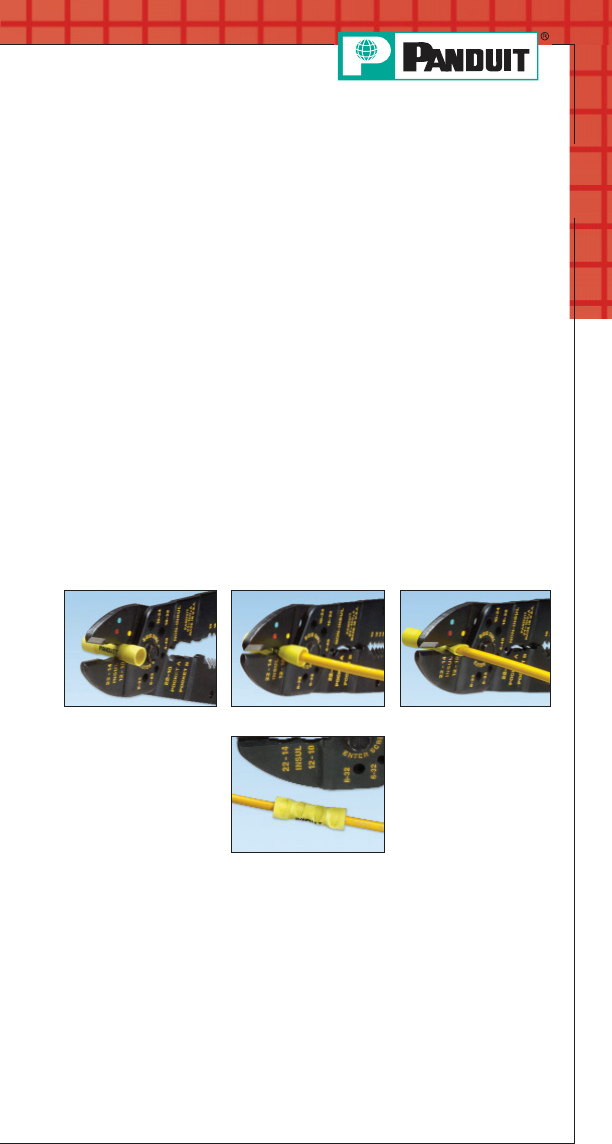

A. Locate butt splice in appropriate color-coded crimp die pocket

and position crimp halfway between the wire stop (center

of splice) and the end of the insulation crimp area.

(See

Note 4 page A6)

B. Insert properly stripped wire (based on recommendations on

package label) into one end of butt splice.

C.Squeeze tool handles firmly to perform the electrical crimp.

(See Note 2 page A6)

D. Provide second crimp on the flared portion of the insulation

housing to close the insulation. Caution: When using plier

type crimping tools, do not squeeze as firmly as you did for

the electrical crimp.

(See Note 3 page A6)

E. Repeat steps one to four for opposite end of butt splice.

Steps A & B Steps C

Complete Crimp

Step D & E

Terminals

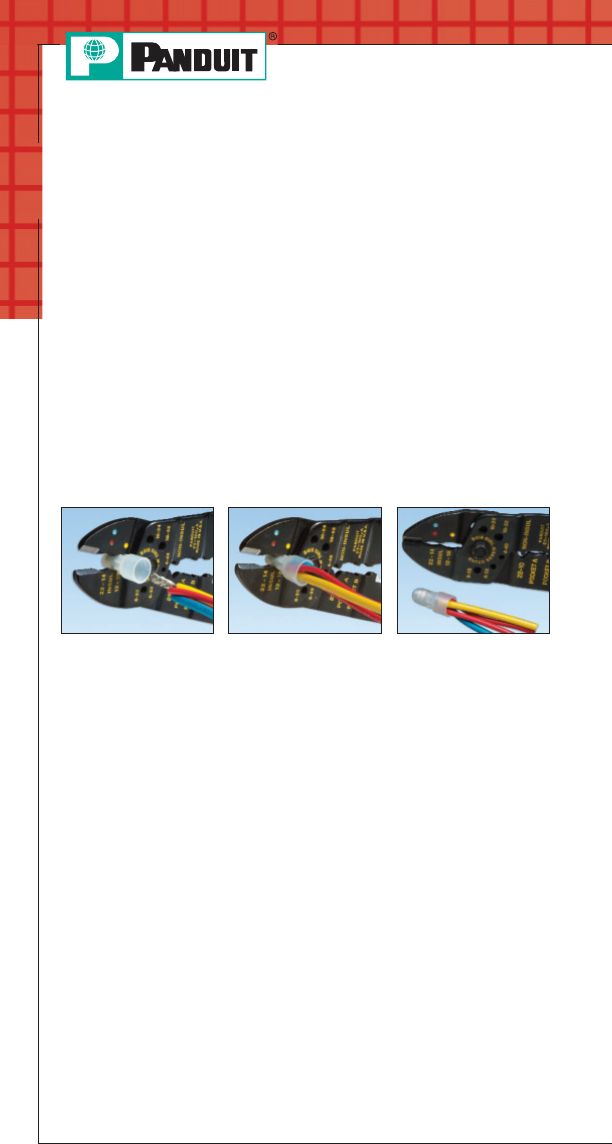

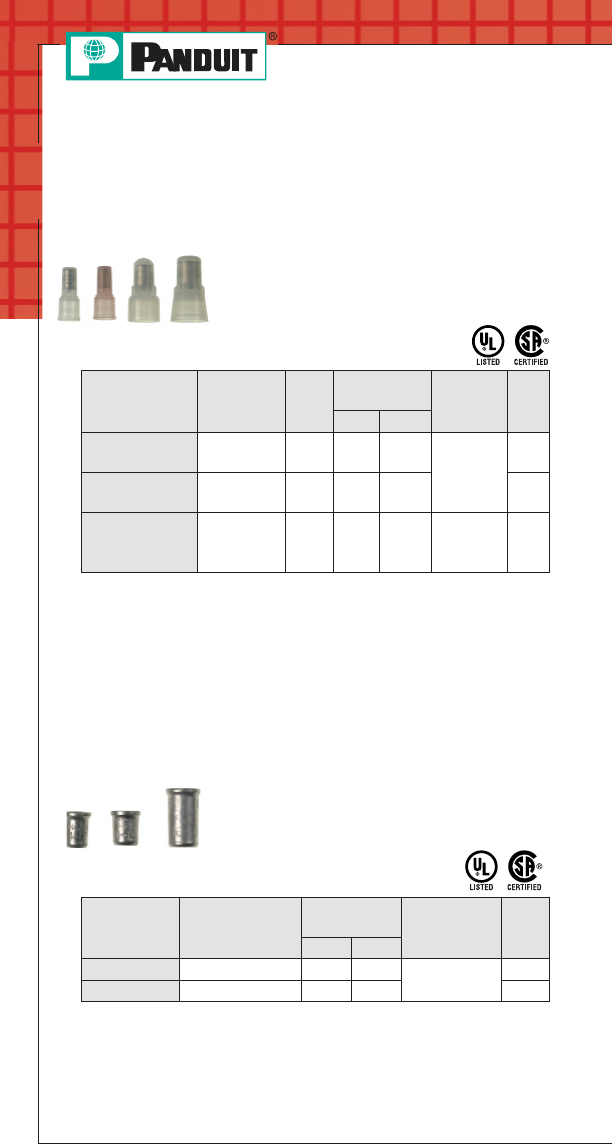

Insulated and Non-Insulated Wire Joints

NOTES for Crimping with the preferred Hand Operated

Controlled Cycle Crimping Tools:

A. Properly strip wires per manufacturer’s recommendations

on product package label.

B. Twist stripped wire ends together, and insert wires into

wire joint.

C.Locate wire joint in appropriate wire gauge crimp die pocket

and position crimp in the center of the metal insert.

D. Squeeze tool handles firmly to perform the electrical crimp.

(See Note 2 below)

Note: an insulation crimp is not required on an insulated

wire joint.

Steps 1 & 2 Steps 3 & 4 Complete Crimp

PANDUIT

controlled cycle crimping tools properly locate rings, forks,

and barrel insulated disconnects, pins, and blades. No further

positioning is required.

2. When using the preferred controlled cycle tool, once a crimp has been

started, the ratchet device of controlled cycle tools will not release until

the crimp is complete, independent of operator expertise.

3. Controlled cycle tools provide the electrical crimp and the insulation

closure in a single cycle of the tool.

4. When using controlled cycle tooling, insulated butt splices must be

inserted from the back of the tool to ensure that the electrical and

insulation closure crimp pockets are properly aligned with the splice.

Crimping Guidelines for PANDUIT®PAN-TERM®

Terminals,Disconnects,Splices and Wire Joints

(continued)

Terminals

For service and technical support, call 800-777-3300

or visit www.panduit.com.

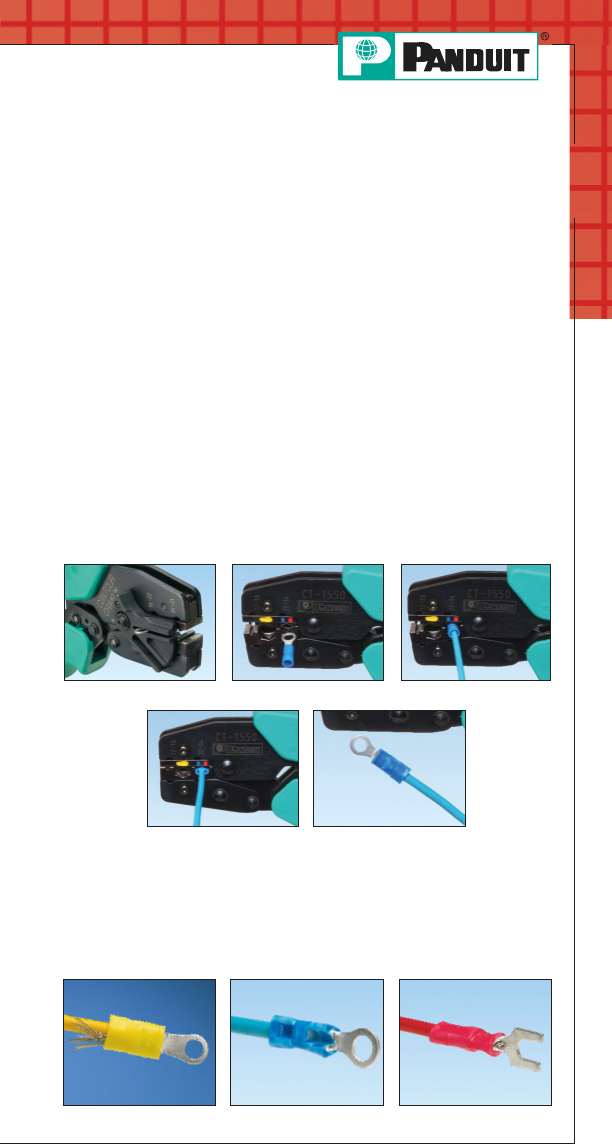

Bent Back Strands Over Crimp Rotated Crimp

Crimping Guidelines for PANDUIT®PAN-TERM®

Terminals,Disconnects,Splices and Wire Joints

(continued)

A. Make sure the terminal barrel is centered correctly in the

right die pocket by using the product locator on the backside

of the tool.

B. Determine the correct die pocket to use based on the color

code of the terminal.

C.Squeeze the handles of the tool until one click is heard; this

click indicates the terminal is now held in place securely to

insert the wire.

D. Insert the wire and complete cycle to perform the electrical

and insulation crimp simultaneously.

E. Crimp complete.

Note: If your crimp looks like any of the examples shown below,

cut off the terminal and recrimp. These crimps would

provide a poor connection!

5. Perform the electrical crimp

using the preferred controlled cycle tool

6. Inspect the crimp

Step A Step B

Complete Crimp

Step C

Step D

Terminal Series

Std.

Wire

Range

(AWG)

Wire

Strip

Length

(In.)

[+1/32;-0]

Plier Tools Controlled Cycle Hand Tools

Crimp Heads

for Pneumatic

CT-600 Tool

Butt Splices

BS – Non-Insulated Butt Splices 26-22 1/4 X X

22-18 9/32 XXXX X X

16-14 9/32 XXXX X X

12-10 9/32 XXXX XX X

BSH – Heat Shrink 22-18 5/16 X

16-14 5/16 X

12-10 5/16 X

BSN – Nylon Insulated 26-22 1/4 X X X

22-18 9/32 X X X X X X

16-14 9/32 X X X X X X X X

12-10 9/32 X X X X X X X

BSV – Vinyl Insulated 22-18 5/16 X X X X X X X X

16-14 5/16 X X X X X X X X X

12-10 5/16 X X X X X X X

Disconnects

D, DR – Non-Insulated, Sleeve Barrel

(Includes Right Angle) 22-18 9/32 XXXX X

16-14 9/32 XXXX X X

12-10 9/32 XXXX XX X

Terminals

PANDUIT Installation Tooling for Terminals,

Disconnects and Splices

CT-100

CT-160

CT-200

CT-260

CT-300-1

CT-310

CT-400

CT-460

CT-1014

CT-1015

CT-1525

CT-1550

CT-1551

CT-1570

CT-1701

CT-500CH

CT-520CH

CT-550CH

CT-570CH

CT-720 Mechanical

Terminals

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Installation Tooling for Terminals,

Disconnects and Splices (continued)

D-M – Non-Insulated Male Blade

Adapters 22-18 9/32 XXXX X X

16-14 9/32 XXXX X X

D-M – Non-Insulated Male 12-10 9/32 X X X X X X

D-MB, DR-B – Non-Insulated Right

Angle Female & Non-Insulated Male

Butted Seam

22-18 9/32 X XXX

16-14 9/32 X XXX

DNF – Nylon, Funnel Entry, Barrel

Insulated (not .110/.111) 22-18 9/32 X X X X

16-14 9/32 X X X X X X X X

DNF-110, DNF-111 – Nylon, Funnel

Entry Barrel Insulated .110/.111 Tab Size 22-18 7/32 X X X X

16-14 9/32 X X X

DNF-FI – Nylon, Fully Insulated 22-18 9/32 X X X X X X X X

16-14 9/32 X X X X X X X

12-10 3/8 X X X X X X X

DPF-FI – Premium Nylon, Fully Insulated 12-10 3/8 X X X X X X X

DNF-FIB, DNF-FIM, DNF-FIMB,

DPF-FIB, DPF-FIMB, DNF-LPB,

DPF-LPB – Nylon & Premium Grade

Nylon, Fully Insulated, Funnel Entry,

Male/Female Couplers (not .110/.111)

22-18 9/32 X X X

16-14 9/32 X X X

12-10 3/8 X

DMF-FIB, DPF-FIB – Nylon Premium

Grade Nylon, Fully Insulated, Funnel

Entry, .110/.111 Tab Size 22-18 7/32 XXX

DNF-FIBX – Nylon, Expanded Wire

Entry, Fully Insulated 22-18 9/32 X

16-14 9/32 X

DNF-M – Nylon Insulated, Funnel

Entry, Barrel Insulated, Male 22-18 9/32 X XX XX XX

16-14 9/32 X X X X X X X

12-10 9/32 X X X X X

Terminal Series

Std.

Wire

Range

(AWG)

Wire

Strip

Length

(In.)

+1/32;-0]

Plier Tools Controlled Cycle Hand Tools

Crimp Heads

for Pneumatic

CT-600 Tool

DNFR-B – Nylon Pre-Insulated,

Right Angle 22-18 9/32 X X

16-14 9/32 X X

DNFR-FIB – Nylon Butted Seam,

Right Angle 22-18 11/32 X

16-14 11/32 X

DNG-FB – Supra Grip Nylon Fully

Insulated (Except DNG14-187FB &

DNG14-188FB)

22-18 1/4 X

16-14 1/4 X

DNG-FL – Disco-Lok Nylon, Fully

Insulated 22-18 1/4 X

16-14 1/4 X

DNH – Heat Shrink 22-18 5/16 X

16-14 5/16 X

12-10 5/16 X

DV – Vinyl Barrel Insulated Sleeve 12-10 9/32 X X X X

DV-B – Vinyl Insulated, Butted Seam 22-18 1/4 X X X

16-14 1/4 X X X

DV-M – Non-Insulated Male Blade

Adapters 22-18 9/32 X X X X X X X X

16-14 9/32 X X X X X X X X X

DV-M – Non-Insulated Male

Disconnects 12-10 9/32 X X X

Terminals

A10

CT-100

CT-160

CT-200

CT-260

CT-300-1

CT-310

CT-400

CT-460

CT-1014

CT-1015

CT-1525

CT-1550

CT-1551

CT-1570

CT-1701

CT-500CH

CT-520CH

CT-550CH

CT-570CH

CT-720 Mechanical

PANDUIT Installation Tooling for Terminals,

Disconnects and Splices (continued)

Terminals

A11

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Installation Tooling for Terminals,

Disconnects and Splices (continued)

DV-MB – Vinyl Insulated Butted Seam

Male Disconnects 22-18 9/32 X X XXX

16-14 9/32 X X X XXX

DV-P – Vinyl Insulated Piggyback

Disconnects 22-18 1/4 X X X X X X X

16-14 1/4 X X X X X X X

DVF – Vinyl Funnel Entry Barrel

Insulated Female Disconnect 22-18 9/32 X X X X

16-14 9/32 X X X X

Wire Joints

J – Non-Insulated J214-312,

J318-412,

J216-410

18-12 1/2 X X

16-10 3/4 X

JN – Nylon Insulated JN224-318,

JN218-216,

JN418-212,

JN314-212

24-16 7/16 X X X X X X X X

22-14 7/16 X X X X X X X

18-12 1/2 X X X X X X

14-12 5/8 X

Terminals

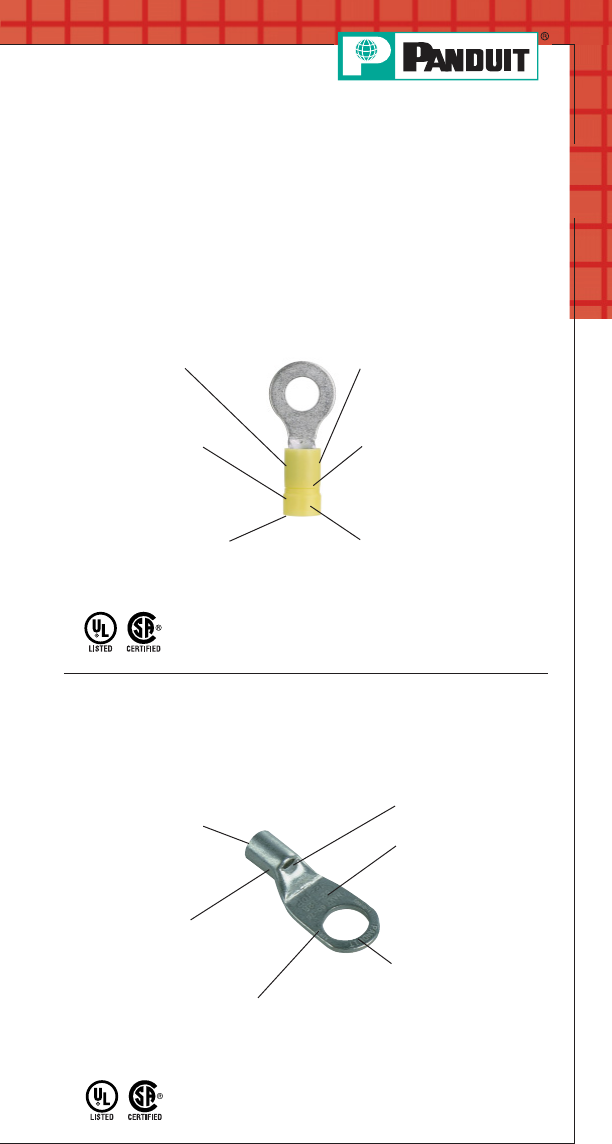

P-HDR – Non-Insulated Heavy

Duty Rings 16-12 9/32 XXXX XX X

P-P – Non-Insulated Pin Terminals 22-18 9/32 XXXX X X

16-14 9/32 XXXX X X

12-10 9/32 XXXX XX X

P-R – Non-Insulated Large Ring

Terminals 83/8 X

67/16 X

41/2 X

21/2 X

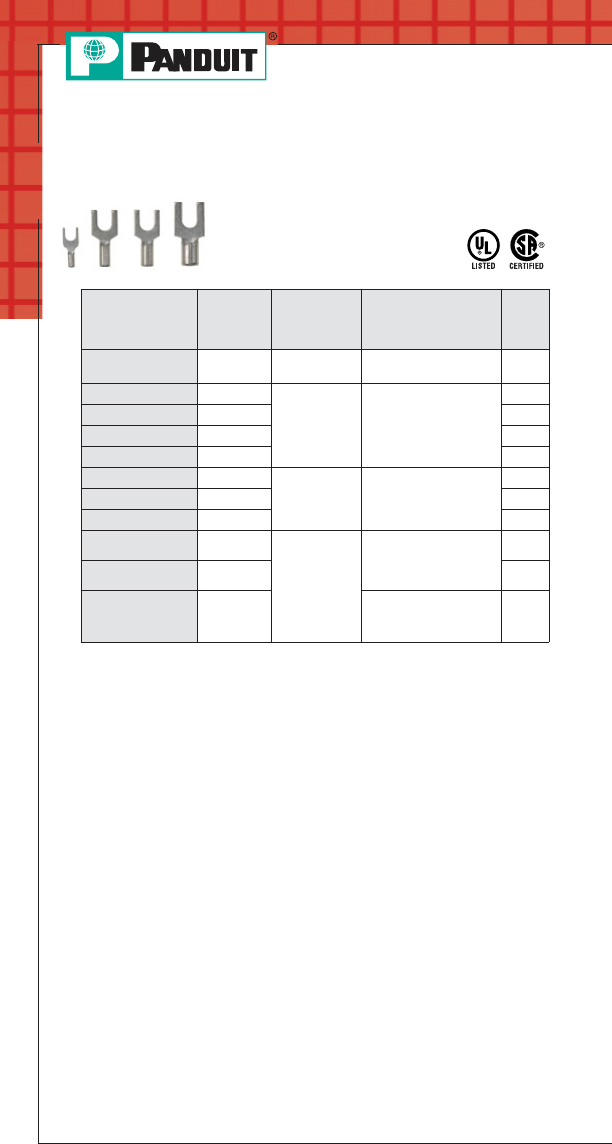

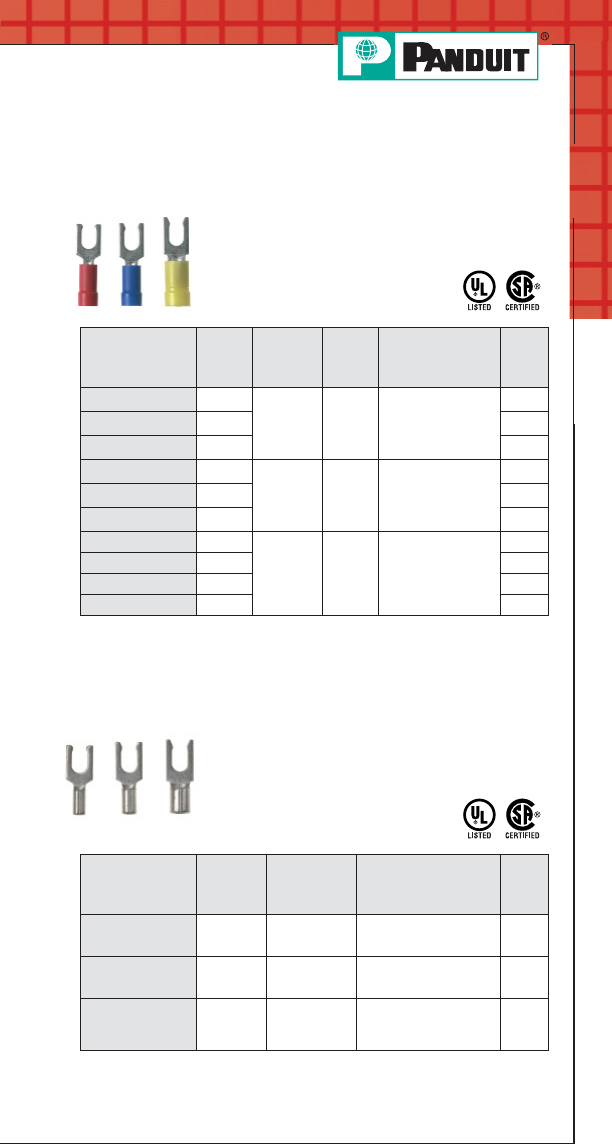

P-R, P-R, P-LF, P-SLF, P-FF –

Non-Insulated Rings, Forks, Locking

Forks, Short Locking Forks, Flanged

Forks

22-26 3/16 X X X

22-18 7/32 XXXX X X

16-14 7/32 XXXX X X

12-10 9/32 XXXX XX X

Terminal Series

Std.

Wire

Range

(AWG)

Wire

Strip

Length

(In.)

[+1/32;-0]

Plier Tools Controlled Cycle Hand Tools

Crimp Heads

for Pneumatic

CT-600 Tool

P-RHT6 – High Temperature Rings 22-18 9/32 XXXX X X

16-14 9/32 XXXX X X

12-10 9/32 XXXX XX X

PH – Heat Shrink Terminals 22-18 5/16 X

16-14 5/16 X

12-10 5/16 X

PK-R – KYNAR* Rings 22-18 7/32 X X X X X

16-14 7/32 X X X X X

12-10 9/32 X X X X

PN-R, PN-RX, PN-F, PN-LF, PN-FF,

PNF-R, PNF-F, PNF-LF – Nylon &

Nylon Funnel Entry Forks, Locking

Forks, Flanged Forks (Includes

Expanded Insulated)

26-22 3/16 X X X

22-18 7/32 X X X X X X

16-14 7/32 X X X X X X X

12-10 9/32 X X X X X

PN-HDR, PN-HDRX – Nylon Insulated

Heavy Duty & Nylon Expanded

Insulated Heavy Duty Rings 16-12 9/32 X X X X

PN-SLF, PNF-SLF – Nylon Insulated

Short Locking Forks 22-18 7/32 X X X X

16-14 7/32 X X X X X

12-10 9/32 X X X X

Terminals

A12

PANDUIT Installation Tooling for Terminals,

Disconnects and Splices (continued)

CT-100

CT-160

CT-200

CT-260

CT-300-1

CT-310

CT-400

CT-460

CT-1014

CT-1015

CT-1525

CT-1550

CT-1551

CT-1570

CT-1701

CT-500CH

CT-520CH

CT-550CH

CT-570CH

CT-720 Mechanical

Terminals

A13

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Installation Tooling for Terminals,

Disconnects and Splices (continued)

*KYNAR is a registered trademark of Atofina Chemicals, Inc.

‡Use Die CD-700P-8-2

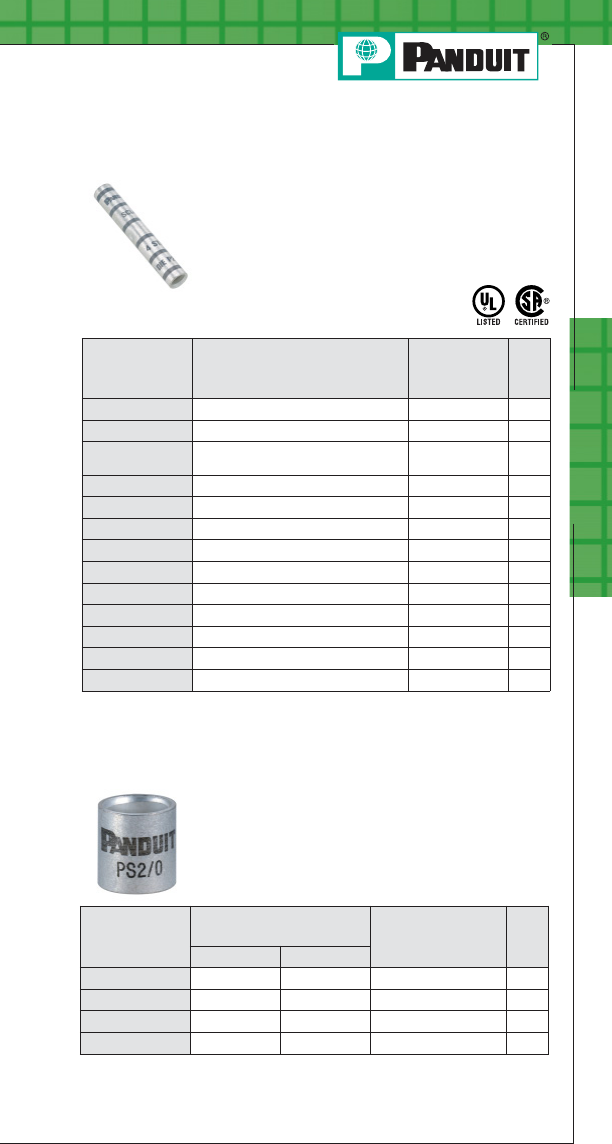

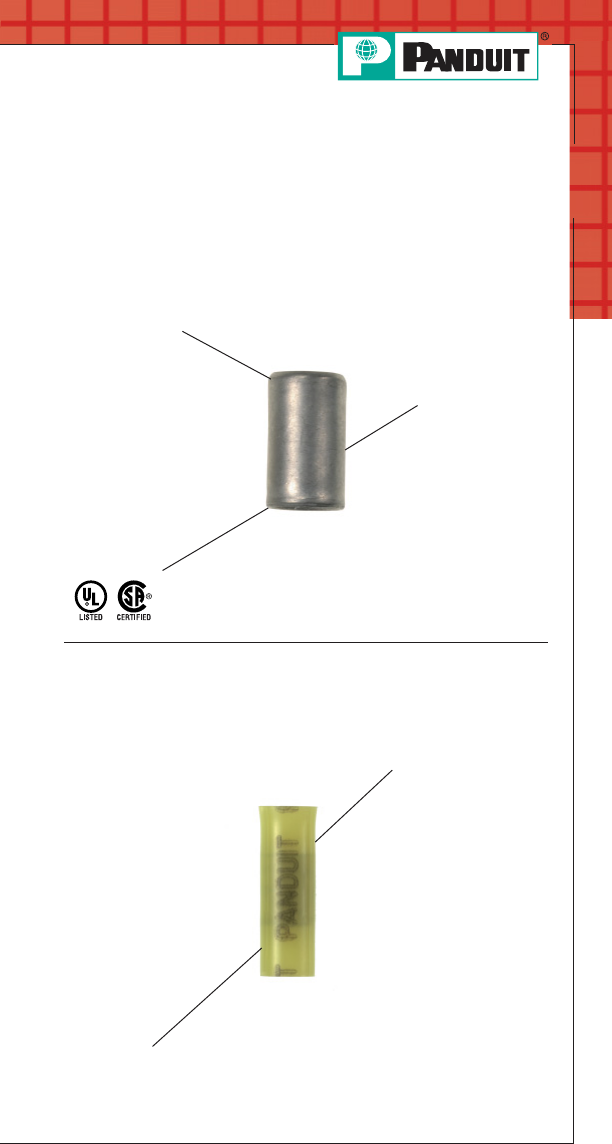

PS – Non-Insulated Parallel Splices 22-18 5/16 X X X

20-16 5/16 X X X

14-12 7/16 X X X

PSN – Nylon Insulated Parallel

Splices 22-18 5/16 X

20-16 5/16 X X X X

14-12 7/16 X

PV-HDR, PV-HDRX – Vinyl Insulated

Heavy Duty Rings 16-12 5/16 X X X X

PV-LF, PV-LFX – Vinyl Insulated

Locking Forks (includes Expanded

Insulation)

22-18 5/16 X X X X X X X

16-14 5/16 X X X X X X X

12-10 5/16 X X X X X X

PV-P – Vinyl Insulated Pin Terminals 22-18 5/16 X X X X X X X

16-14 5/16 X X X X X X X

12-10 5/16 X X X X X X

PV-R, PV-F, PV-FF, PV-RX,

PV-FX – Vinyl Insulated Rings & Forks

(includes Expanded Insulation)

26-22 3/16 X X X

22-18 5/16 X X X X X X X X

16-14 5/16 X X X X X X X X X

12-10 5/16 X X X X X X X

PV-R, PV-RX – Vinyl Insulated Large

Ring Terminals 83/8 X‡

67/16 X‡

41/2 X‡

21/2 X‡

PV-SLF – Vinyl Insulated Short

Locking Forks 22-18 5/16 X X X X X

16-14 5/16 X X X X X X

12-10 5/16 X X X X

A14

Tooling CT-1700 CT-720

CT-930,

CT-930CH,

CT-920,

CT-920CH,

CT-2920,

CT-940CH

CT-980,

CT-980CH,

CT-2950,

CT-2980 CT-2001

PANDUIT

Part Number

PANDUIT

®Die Part Number

Die Index Number

(Number of Crimps)

S8-10R-Q

P21

(2)

CD-720-1

P21

(1)

CD-920-8

P21

(1) —CD-2001-8

P21

(1)

S8-14R-Q

S8-56R-Q

S8-38R-Q

S6-10R-E

P24

(2)

CD-720-1

P24

(1)

CD-920-6

P24

(1) —CD-2001-6

P24

(1)

S6-14R-E

S6-56R-E

S6-38R-E

S4-10R-E

P29

(2)

CD-720-1

P29

(1)

CD-920-4

P28

(1)

STD

(1)

CD-2001-4

P29

(1)

S4-14R-E

S4-56R-E

S4-38R-E

S2-10R-X

P37

(3)

CD-720-2

P37

(1)

CD-920-1

P37

(1)

STD

(1)

CD-2001-1

P37

(1)

S2-14R-X

S2-56R-X

S2-38R-X

S2-12R-X

S1/0-14R-X

—CD-720-2

P42

(1)

CD-920-1/0

P42

(1)

STD

(1)

CD-2001-1/0

P42

(1)

S1/0-56R-X

S1/0-38R-X

S1/0-12R-X

S2/0-14R-X

—CD-720-2

P45

(2)

CD-920-2/0

P45

(1)

STD

(1)

CD-2001-2/0

P45

(2)

S2/0-56R-X

S2/0-38R-X

S2/0-76R-X

S2/0-12R-X

S3/0-14R-5

—CD-720-2

P50

(2)

CD-920-3/0

P50

(1)

STD

(1)

CD-2001-3/0

P50

(2)

S3/0-56R-5

S3/0-38R-5

S3/0-76R-5

S3/0-12R-5

S4/0-38R-5

—CD-720-3

P54

(2)

CD-920-4/0

P54

(1)

STD

(1)

CD-2001-4/0

P54

(2)

S4/0-76R-5

S4/012R-5

S250-56R-5

—CD-720-3

P62

(2)

CD-920-250

P62

(1)

STD

(1)

CD-2001-250

P62

(2)

S250-38R-5

S250-76R-5

S250-12R-5

Terminals

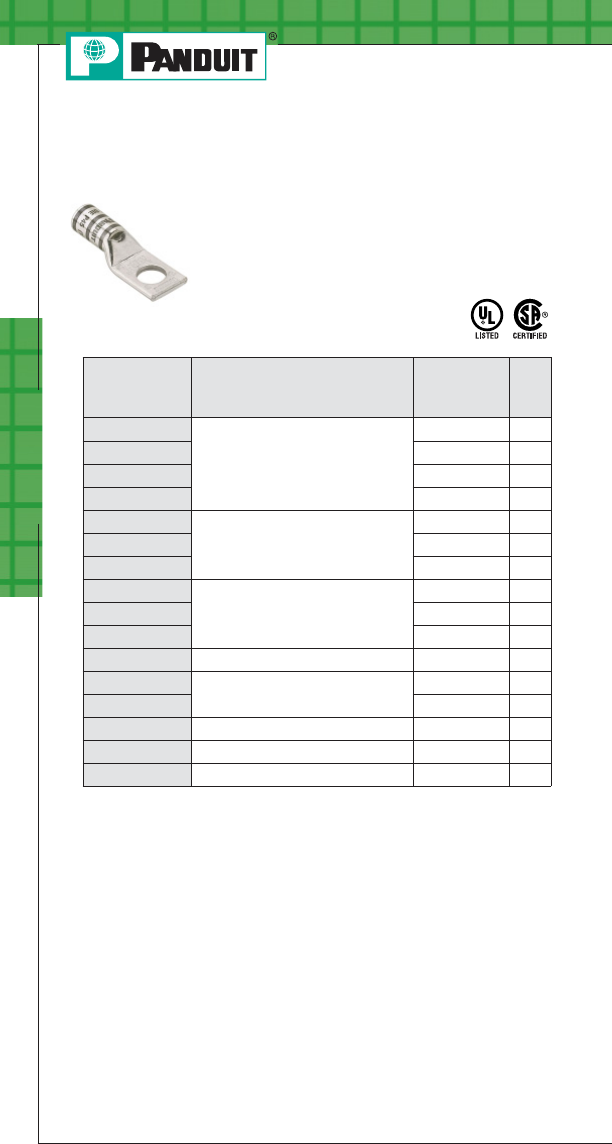

PANDUIT Installation Tooling for Tubular

Ring Terminals

Terminals

A15

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Controlled Cycle

Hand Tools

PANDUIT

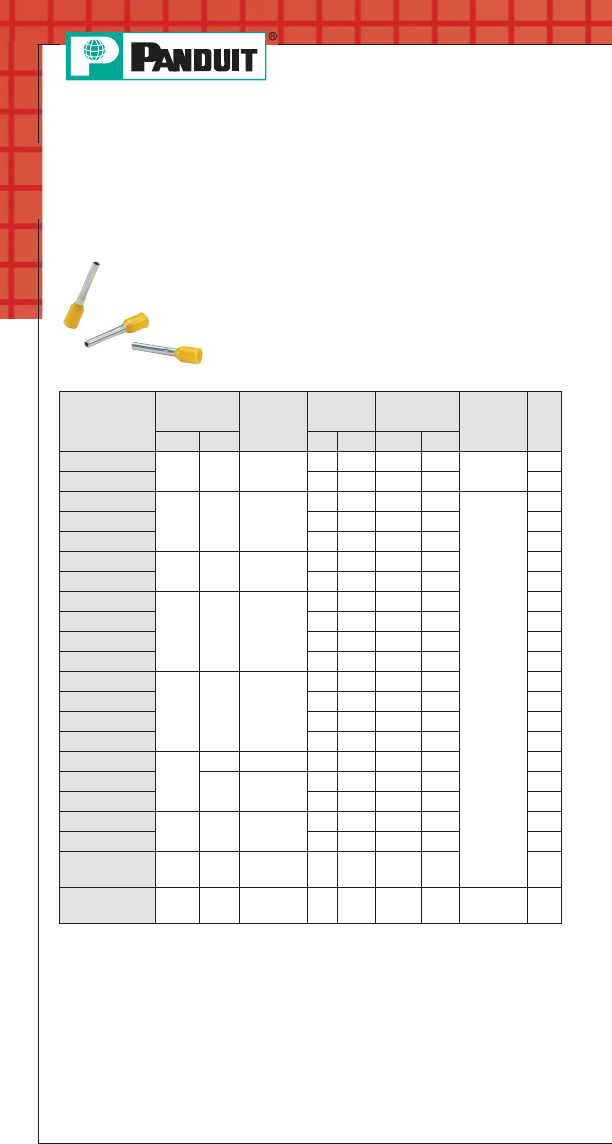

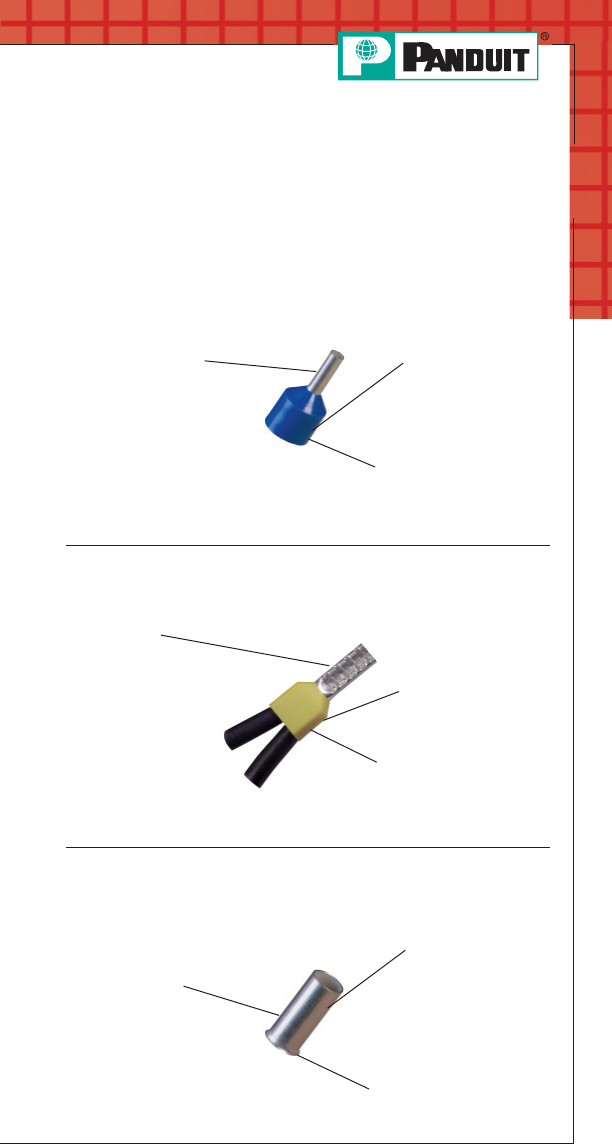

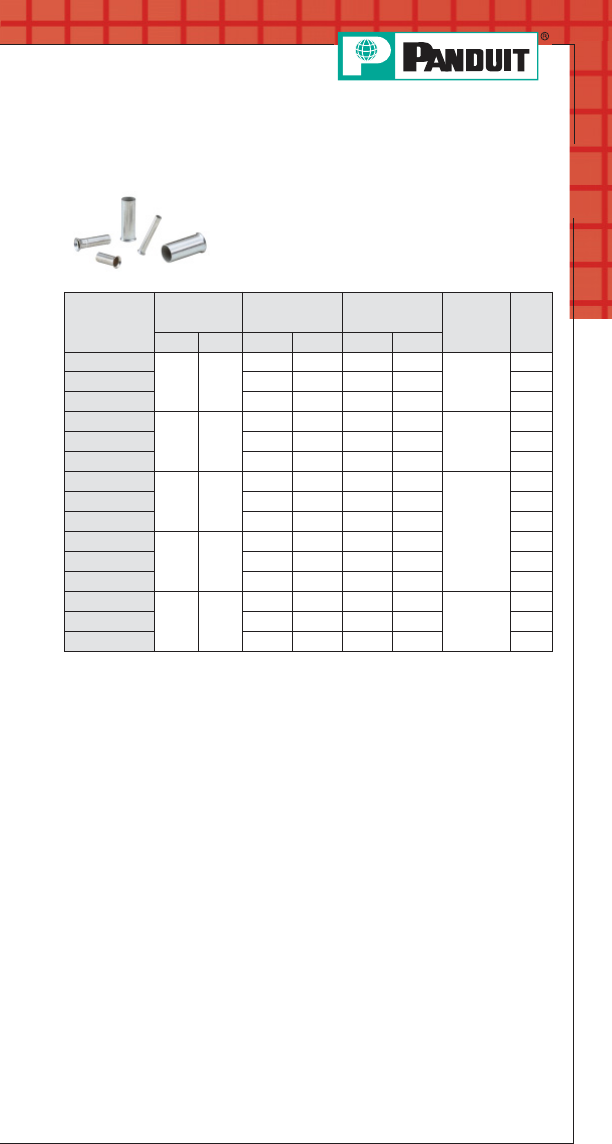

Ferrule

Series Ferrule

Description

Wire

Range

(AWG)

Wire

Range

(mm²)

Wire

Strip

Length

F Non-Insulated

Ferrules 24-18 .25-1.00

Varies

X X

16-14 1.50-2.00 X X

12-10 4.00-6.00 X X

8-6 10.0-16.0 X X

4-2 25.0-35.0 X

1 50.0 X

FSD, FSF Insulated

Single Wire

Ferrules (DIN

or French

color code)

26-18 .41-1.00 X X

16-14 1.50-2.00 X X

12-10 4.00-6.00 X X

8-6 10.0-16.0 X X

4-2 25.0-35.0 X

1 50.0 X

FTD Insulated

Twin Wire

Ferrules

22-18 .50-1.00 X X

16-14 1.50-2.00 X X

12-10 4.00-6.00 X X

CT-1002

CT-1003

CT-1004

CT-1005

CT-1006

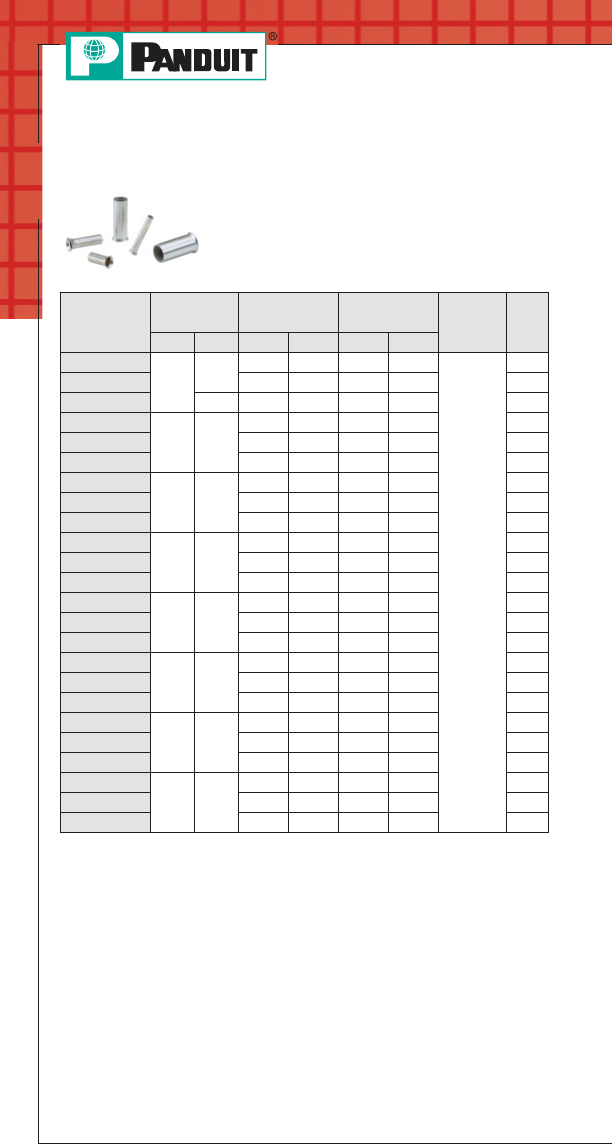

PANDUIT Installation Tooling for Ferrules

Terminals

A16

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

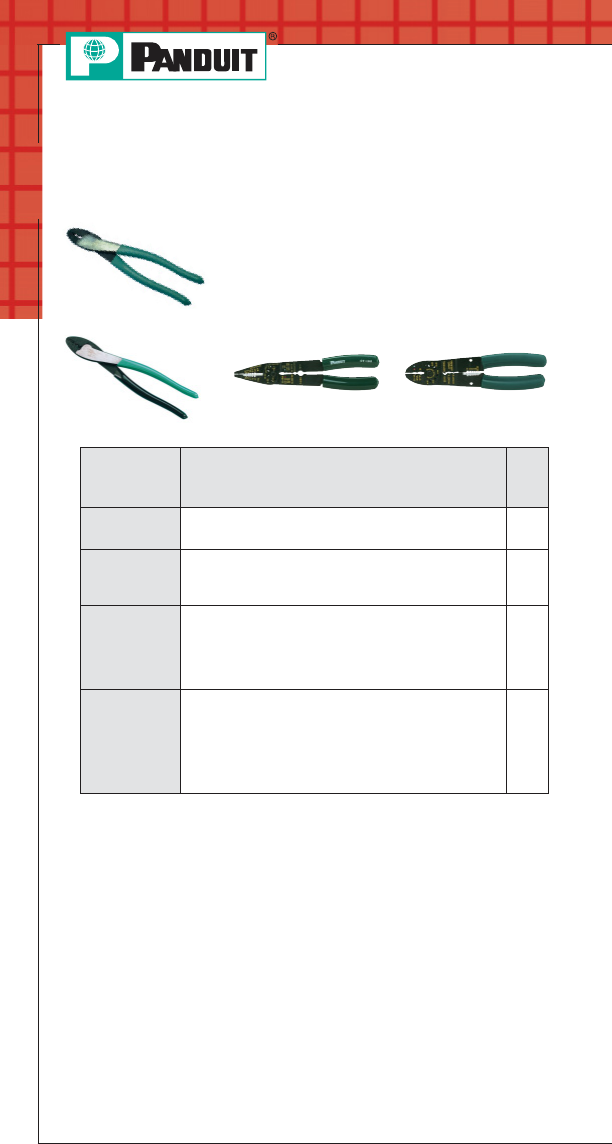

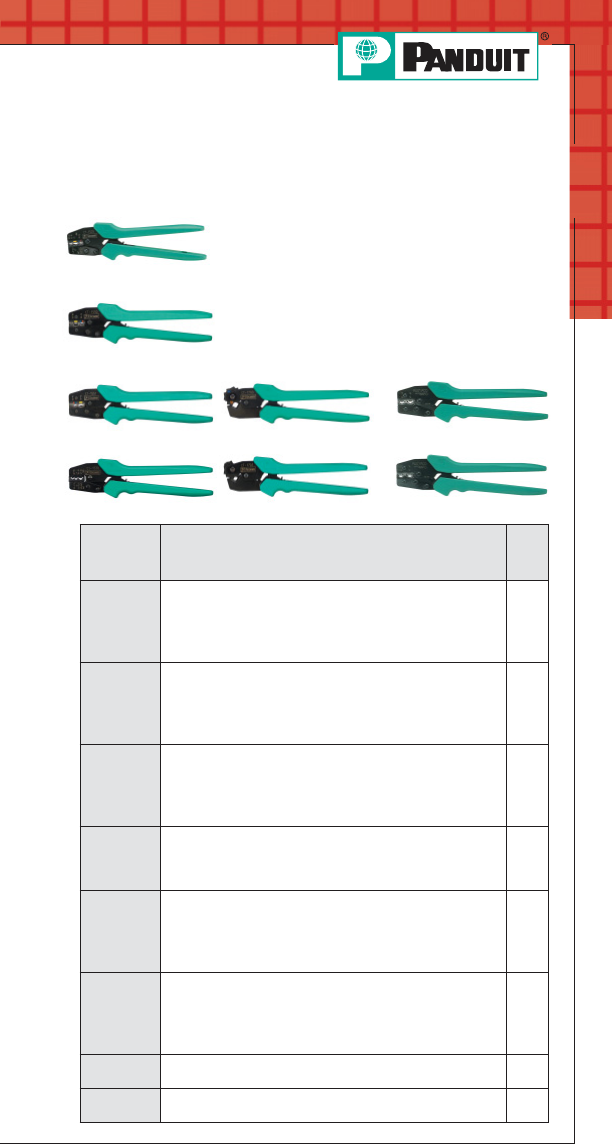

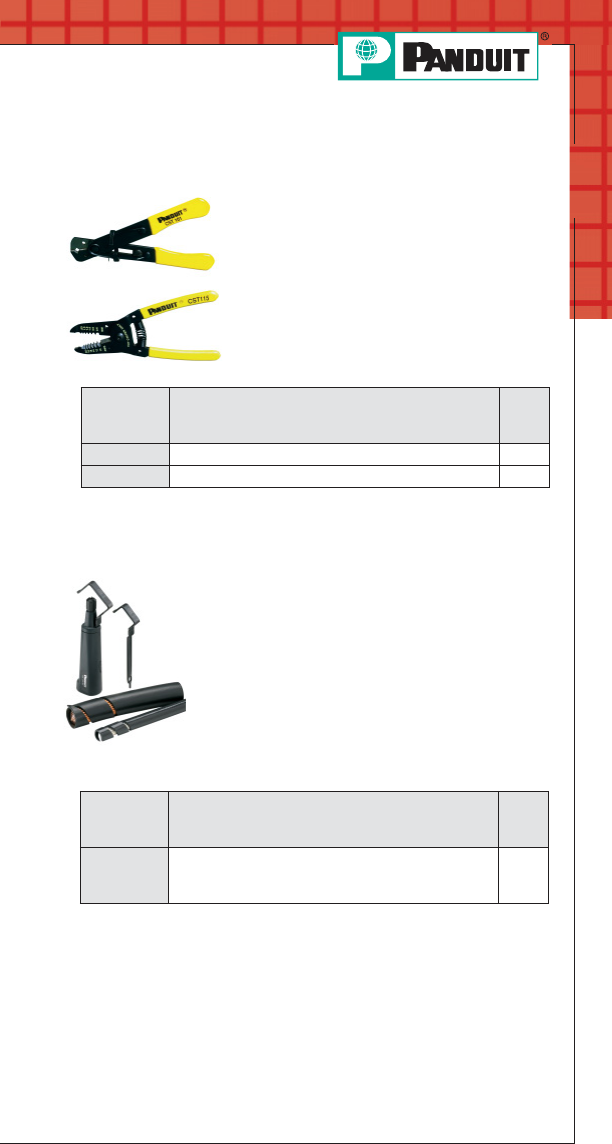

Hand Operated Plier Type Tools

• Installer controlled crimp

• General purpose

• Plier type crimp for #22 thru #10 insulated

and non-insulated terminal products

CT-260

CT-200 CT-160 CT-100

Termination Tooling

Part Number Part Description

Std.

Pkg.

Qty.

CT-260 Crimps insulated and non-insulated terminals.

Forged steel tool. Cuts wire. 1

CT-200 Crimps most

PANDUIT

#18 – #10 AWG

non-insulated terminals, disconnects and splices.

Forged steel tool. Cuts wire.

CT-160 Crimps most

PANDUIT

#26 – #10 AWG insulated

and non-insulated terminals, disconnects and

splices. Cuts three U.S. and three Metric

screw sizes. Cuts and strips wire. Has insulation

closure pocket.

CT-100 Crimps most

PANDUIT

#26 – #10 AWG insulated

and non-insulated terminals, disconnects and

splices. Cuts #4, #6, #8 and #10 screw sizes. Cuts

and strips wire. Excellent all-around application

tool of heat treated finished steel with comfortable

cushioned plastic grip handles.

Terminals

A17

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

CONTOUR CRIMP

™Controlled Cycle Tools

• Specifically designed for the installation of

-T

ERM

®terminals, disconnects and splices

• Controlled cycle mechanism assures high

quality, consistent terminations

• Ergonomic tool design assures operator

comfort, safety, and performance

• Polypropylene handles provide chemical

resistance and a cushioned, non-slip grip

• Multi-position locator facilitates a high quality

repeatable crimp

CT-1525

CT-1550

CT-1551

CT-1570

CT- 1700

CT-1701

CT-1014

CT-1015

Part

Number Part Description

Std.

Pkg.

Qty.

CT-1525 Crimps

PANDUIT

#26 – #22 AWG insulated

terminals and splices, #22 – #10 AWG fully

insulated disconnects and insulated parallel splices.

Crimps

PANDUIT

#22 – #14 AWG barrel

insulated disconnects.

CT-1550 Crimps most

-T

ERM

®#22 – #10 AWG nylon and

vinyl insulated terminals, splices and disconnects.

The CT-1550 has the red/blue pocket closest to the

pivot which provides a reduced crimp effort for those

who make red/blue terminations.

CT-1551 Crimps most

-T

ERM

®#22 – #10 AWG nylon and

vinyl insulated terminals, splices and disconnects.

The CT-1551 has the yellow pocket closest to the

pivot which provides a reduced crimp effort for those

who make yellow terminations.

CT-1570 Crimps most

-T

ERM

®#22 – #10 AWG and

.5 – 6.0mm non-insulated terminals and disconnects.

Crimps

PANDUIT

#22 – #10 AWG and .5 – 6.0mm

non-insulated splices, and #10 AWG compression lugs.

CT-1700 Crimps

PANDUIT

#8 – #2 AWG non-insulated tubular

terminals (S series), #8 – #1 AWG copper lugs and

splices, #6 – #4 AWG aluminum lugs and splices and

CTAPF copper taps for #14 – #3 AWG. Includes five

position, color coded rotating die.

CT-1701 Crimps

PANDUIT

#10 – #2 AWG non-insulated large

gauge ring terminal (P series). Crimps #8 – #1 AWG

copper lugs and splices, and #6 – #4 AWG aluminum

lugs and splices, and #14 – #3 AWG CTAPF copper

taps. Includes 5 position rotating die.

CT-1014 Crimps

PANDUIT

#22 – #14 AWG loose piece

ISCO

-L

™disconnects. 1

CT-1015 Crimps

PANDUIT

#22 – #14 AWG loose piece

UPRA

-G

RIP

™disconnects. 1

Terminals

A18

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

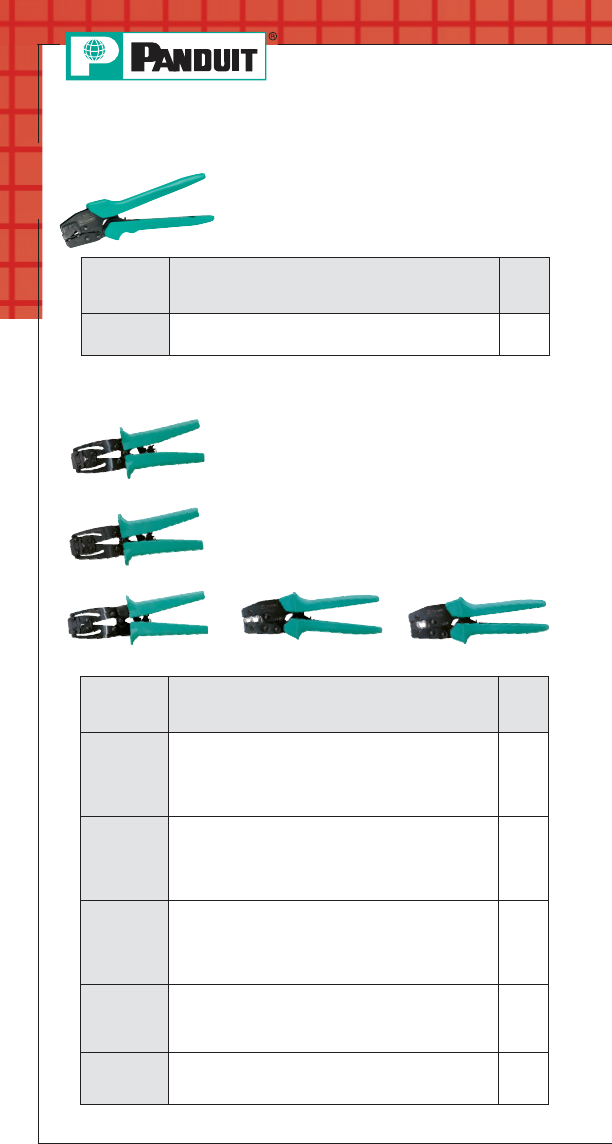

Controlled Cycle Crimping Tools

Ferrule End Sleeve Crimping Tools

• Speciality crimping tools for fully

insulated right angle disconnects and

heat shrink insulated terminals,

disconnects, and splices.

Part

Number Part Description

Std.

Pkg.

Qty.

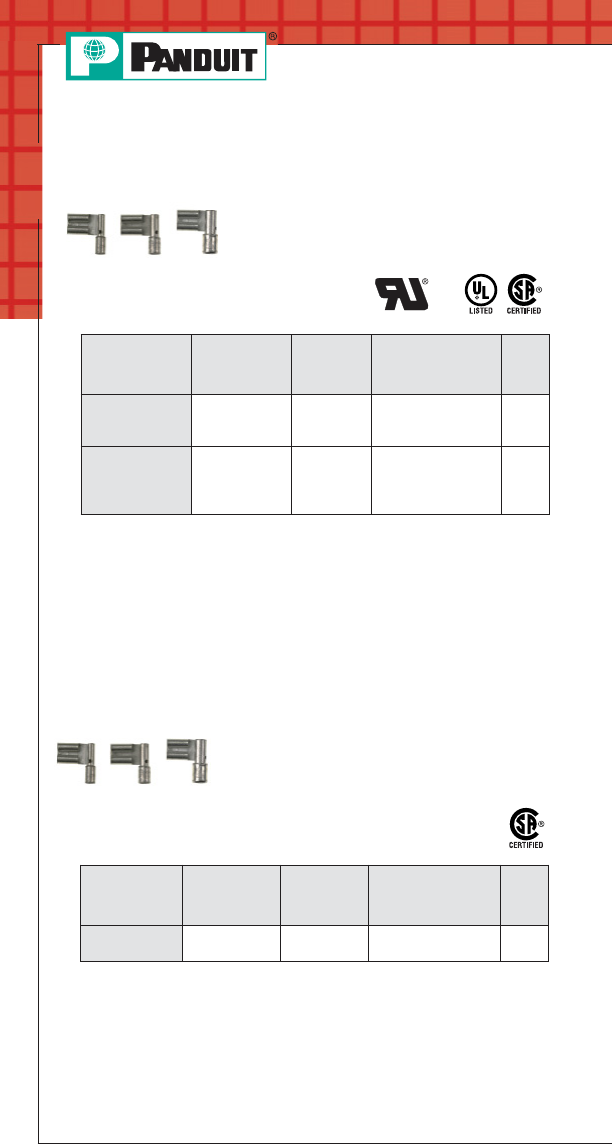

CT-300-1 Crimps

PANDUIT

#22 – #14 AWG fully insulated

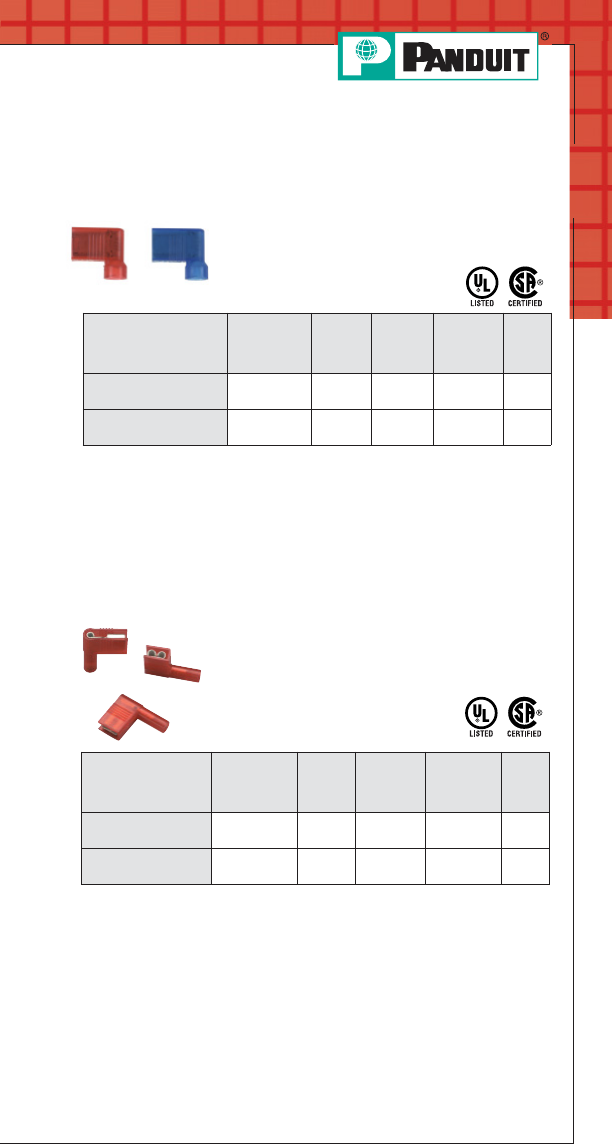

right angle disconnects. (DNFR-FIB series). 1

Part

Number Part Description

Std.

Pkg.

Qty.

CT-1002 Crimps

PANDUIT

#26 – #10 AWG single vinyl

insulated ferrules (DIN). #26 – #10 AWG single

wire insulated ferrules (French).

#22 – #12 AWG vinyl insulated dual-wire ferrules

(DIN). #24 – #10 AWG non-insulated ferrules.

CT-1003 Crimps

PANDUIT

#22 – #8 AWG single wire

insulated ferrules (DIN). #22 – #8 AWG single wire

vinyl insulated ferrules (French). #22 – #10 AWG

vinyl insulated dual-wire (DIN) ferrules. #22 – #10

AWG non-insulated ferrules.

CT-1004 Crimps

PANDUIT

#8 – #6 AWG single wire vinyl

insulated ferrule (DIN). #8 – #6 AWG single wire

vinyl insulated ferrules (French).

#10 AWG vinyl insulated dual-wire (DIN) ferrule.

#8 – #6 AWG non-insulated ferrules.

CT-1005 Crimps

PANDUIT

#4 – #2 AWG single wire vinyl

insulated ferrule (DIN). #4 – #2 AWG single wire

vinyl insulated ferrules (French).

#4 – #2 AWG non-insulated ferrules.

CT-1006 Crimps

PANDUIT

#1 AWG single wire vinyl

insulated ferrule (DIN) and (French). #1 AWG

non-insulated ferrules.

• Specifically designed for the installation of

-T

ERM

®ferrules

• Controlled cycle mechanism assures high

quality, consistent terminations

• Ergonomic tool design assures operator

comfort, safety and performance

• Multi-position locator facilitates a high

quality repeatable crimp

CT-1002

CT-1003

CT-1004 CT-1005 CT-1006

Terminals

A19

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Cable Stripping Tools for Small

Cable Sizes

• Strips and cuts 10 – 20 AWG wire

• Lightweight and durable for comfortable

long use

• Rust resistant coating included to improve

durability of tool

Cable Stripping Tool for Large Cable Sizes

• Cutting blade provides circular, spiral and

in-line insulation cutting

• Cutting blade easily adjusts to proper

height to cut insulation without nicking

conductor strands

• Unique blade profile for long life, low friction

stripping of difficult insulations like rubber

and silicon

• Ergonomic shape for safe comfortable use

• Compact design

CST101

CST115

Part

Number Part Description

Std.

Pkg.

Qty.

CST101 V notch wire stripper. 1

CST115 Plier nose wire stripper. 1

Item Part Description

Std.

Pkg.

Qty.

CST114-157 Cable stripping tool for stripping insulation from

cables 3/16" to 1 9/16" diameter. Includes

replacement cutting blade. Warranty: 90 days

Terminals

A20

Features and Benefits – PAN-TERM®Terminals

Non-Insulated Terminals

Type P

Maximum recommended

operating temperature 150°C (302°F)

Extended barrel length

assures a good quality

crimp and makes

crimping easier

Product

markings

provide easy

identification of

wire size

Brazed seam

assures crimp reliability

Internally beveled

barrel for quick easy

wire insertion

Internal barrel serrations

assure good wire

contact and maximum

tensile strength

UL and CSA rated up to 2000V per UL486A.

Nickel plated terminals rated up to 343°C (650°F)

maximum operating temperature.

All

PANDUIT

Terminals feature high quality materials made with

electrolytic copper for high conductivity and are tin plated for

corrosion resistance.

Nylon Insulated Terminals With

Insulation Grip Sleeve

Type PN or PNF

UL and CSA rated up to 600V per UL486.

Flammability – UL94V-2/HB.

Proprietary blend of UL94V-2 and UL94HB

flammability rated materials.

Internal barrel

serrations assure

good wire contact

and maximum

tensile strength

Maximum

insulation

temperature

105°C (221°F)

Color coded

insulation identifies

wire range

Funnel entry for

faster insertion and

lower installed cost

Insulation grip sleeve

provides a superior

insulation crimp for high

vibration and high strain

relief applications

Terminals

A21

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Features and Benefits – PAN-TERM®Terminals

(continued)

Vinyl Insulated Terminals With

Insulation Support

Type PV

Funnel entry for faster

insertion and lower

installed cost

Brazed seam assures

crimp reliability

Internal barrel

serrations assure

good wire contact

and maximum

tensile strength

Insulation crimp

provides insulation

support to protect

electrical crimp

Color coded insulation

identifies wire range

Maximum insulation

temperature 105°C (221°F)

UL and CSA rated up to 600V per UL486.

Flammability – UL94V-0.

Non-Insulated Seamless Tubular Terminals

Type S

UL and CSA rated up to 2000V per UL486A.

Internally beveled

barrel for quick

easy wire insertion

Maximum recommended

operating temperature

150°C (302°F)

Double thickness

provides a strong

ring tongue

Product markings

provide easy

identification of

wire sizes

Inspection hole allows

visual inspection for

proper wire insertion

Seamless tubular

barrel provides

consistent, high

performance,

quality crimps

Terminals

A22

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Ring Terminal, Vinyl Insulated –

Funnel Entry

• Insulation support helps to prevent wire

damage in bending applications to provide

a reliable connection

• Brazed seam protects terminal barrel

from splitting during the

crimp process

**To order in bulk, replace -C or -CY in the part number with -M or -MY for

a bulk package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

◆For a complete line of terminal products, see the

PANDUIT

Electrical

Solutions Catalog, SAC-ELCB03 at www.panduit.com

Part Number Stud

Size Wire Range Color

Code Tool

Std.

Pkg.

Qty.**

PV18-4R-CY #4

22 – 18

AWG Red

CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

100

PV18-6R-CY #6 100

PV18-8R-CY #8 100

PV18-10R-CY #10 100

PV18-14R-CY 1/4" 100

PV18-56R-CY 5/16" 100

PV18-38R-CY 3/8" 100

PV14-4R-C #4

16 – 14

AWG Blue

CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

100

PV14-6RN-C #6 100

PV14-6R-C #6 100

PV14-8R-C #8 100

PV14-10R-C #10 100

PV14-14R-C 1/4" 100

PV14-56R-C 5/16" 100

PV14-38R-L 3/8" 50

PV10-6R-L #6

12 – 10

AWG Yellow

CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

PV10-8R-L #8 50

PV10-10R-L #10 50

PV10-14R-L 1/4" 50

PV10-56R-L 5/16" 50

PV10-38R-L 3/8" 50

A23

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

Multiple Stud Terminal, Vinyl Insulated –

Funnel Entry

• Insulation support helps to prevent wire

damage in bending applications for a

reliable connection

• Brazed seam protects terminal barrel

from splitting during the

crimp process

**To order in bulk, replace -C or -CY in the part number with -M or -MY for

a bulk package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

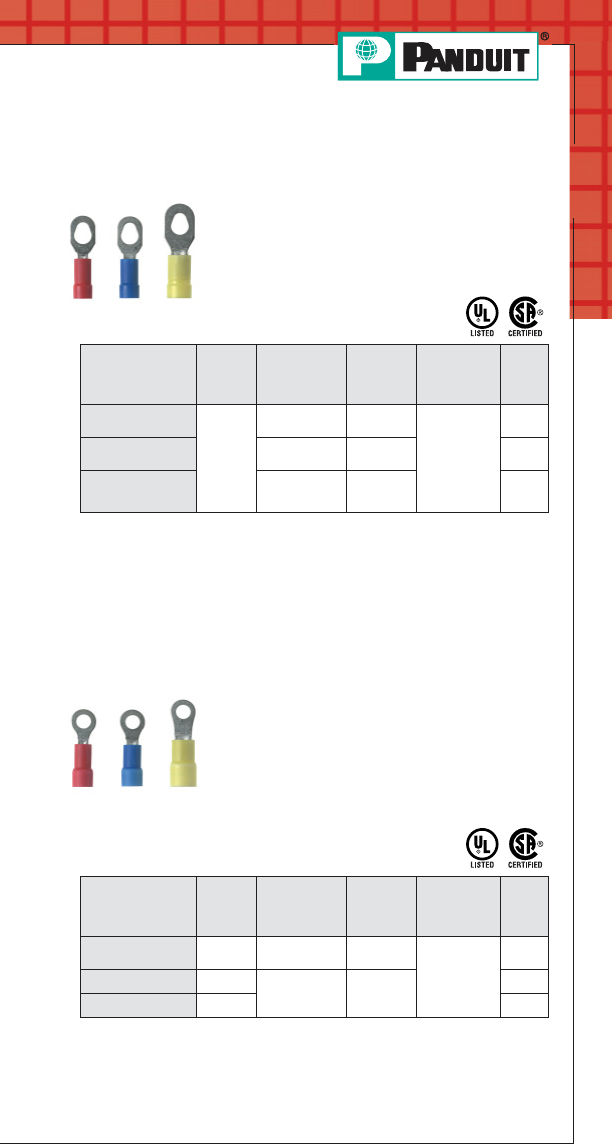

Ring Terminal, Vinyl Expanded Insulation

• Insulation support helps to prevent wire

damage in bending applications

• Brazed seam protects terminal barrel from

splitting during the crimp process

• Expanded funnel entry designed to

accommodate wire with a larger than

standard outside diameter insulation

Part Number Stud

Size Wire

Range Color

Code Tool

Std.

Pkg.

Qty.**

PV14-10RX-C #10 16 – 14

AWG Blue CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

100

PV10-10RX-L #10 12 – 10

AWG Yellow 50

PV10-14RX-L 1/4" 50

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

Part Number Stud

Size Wire Range Color

Code Tool

Std.

Pkg.

Qty.**

PV18-610R-CY

#6, #8,

#10

22 – 18

AWG Red

CT-100,

CT-600‡,

CT-1550‡,

CT-1551‡

100

PV14-610R-C 16 – 14

AWG Blue 100

PV10-610R-L 12 – 10

AWG Yellow 50

A24

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

Ring Terminal, Non-Insulated

• Brazed seam protects terminal barrel from

splitting during the crimp process

• Barrel of terminal internally beveled to

provide quick and easy

wire insertion

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

Part Number Stud

Size Wire

Range Tool

Std.

Pkg.

Qty.**

P18-6R-C #6

22 – 18 AWG

CT-100‡,

CT-200‡,

CT-600‡,

CT-1570‡

100

P18-8R-C #8 100

P18-10R-C #10 100

P18-14R-C 1/4" 100

P14-6R-C #6

16 – 14 AWG

100

P14-8R-C #8 100

P14-10R-C #10 100

P14-14R-C 1/4" 100

P14-56R-C 5/16" 100

P14-38R-C 3/8" 100

P10-6R-L #6

12 – 10 AWG

P10-8R-L #8 50

P10-10R-L #10 50

P10-14R-L 1/4" 50

P10-56R-L 5/16" 50

P10-38R-L 3/8" 50

◆For a complete line of terminal products, see the

PANDUIT

Electrical

Solutions Catalog, SA-ELCB03 at www.panduit.com

A25

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

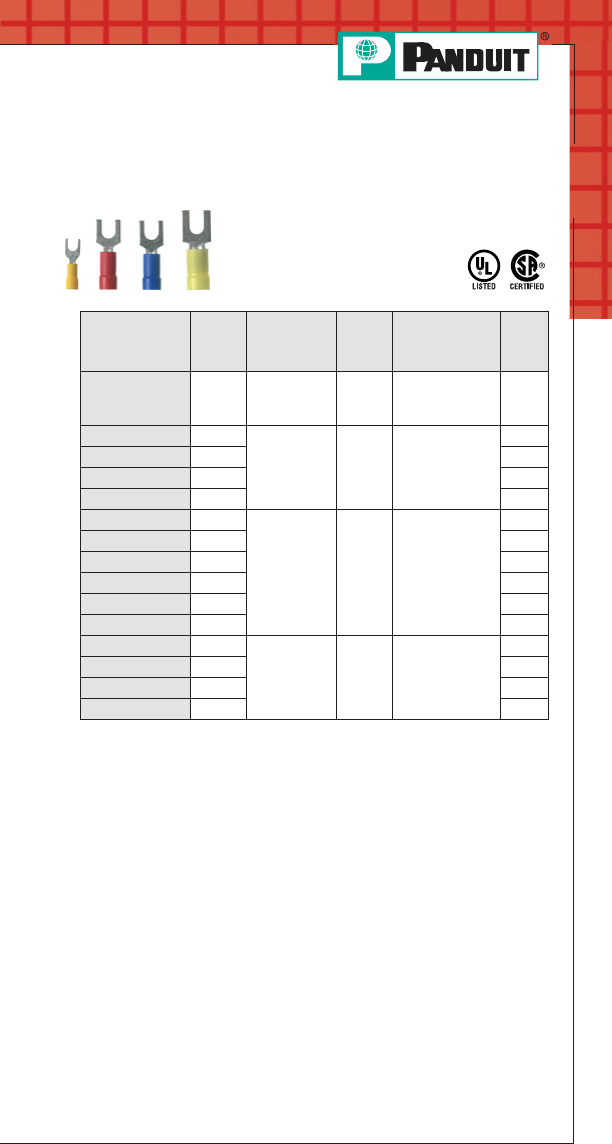

Fork Terminal, Vinyl Insulated –

Funnel Entry

• Insulation support helps to prevent wire

damage in bending applications

• Brazed seam protects terminal

barrel from splitting during the

crimp process

*Not UL Listed or CSA Certified.

**To order in bulk, replace -C or -CY in the part number with -M or -MY

for a bulk package of 1000 and replace -L with -D for a bulk package

of 500.

‡UL and CSA approved tooling/product combinations.

Part Number Stud

Size Wire Range Color

Code Tool

Std.

Pkg.

Qty.**

PV22-6F-C* #6 26 – 22

AWG Yellow CT-100,

CT-600,

CT-1525

100

PV18-6FN-CY #6

22 – 18

AWG Red

CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

100

PV18-6F-CY #6 100

PV18-8F-CY #8 100

PV18-10F-CY #10 100

PV14-6FN-C #6

16 – 14

AWG Blue

CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

100

PV14-6F-C #6 100

PV14-8F-C #8 100

PV14-10FN-C #10 100

PV14-10F-C #10 100

PV14-14F-C 1/4" 100

PV10-6F-L #6

12 – 10

AWG Yellow

CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

PV10-8F-L #8 50

PV10-10F-L #10 50

PV10-14F-L 1/4" 50

A26

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

*Not UL Listed or CSA Certified.

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

Fork Terminal, Non-Insulated

• Brazed seam protects terminal barrel from

splitting during the crimp process

• Barrel of terminal internally

beveled to provide quick and

easy wire insertion

Part Number Stud

Size Wire

Range Tool

Std.

Pkg.

Qty.**

P22-4F-C* #4 26 – 22

AWG CT-100, CT-200 100

P18-6FN-C #6

22 – 18

AWG CT-100‡, CT-200‡,

CT-600‡, CT-1570‡

100

P18-6F-C #6 100

P18-8F-C #8 100

P18-10F-C #10 100

P14-6F-C #6 16 – 14

AWG CT-100‡, CT-200‡,

CT-600‡, CT-1570‡

100

P14-8F-C #8 100

P14-10F-C #10 100

P10-6F-L #6

12 – 10

AWG

CT-100‡, CT-200‡,

CT-600‡, CT-1570‡,

CT-1701‡

P10-8F-L #8 50

P10-10F-L #10 CT-100‡, CT-200‡,

CT-600‡, CT-1570‡,

CT-1701‡

◆For a complete line of terminal products, see the

PANDUIT

Electrical

Solutions Catalog, SA-ELCB03 at www.panduit.com

A27

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

Locking Fork Terminal, Vinyl Insulated –

Funnel Entry

• Insulation support helps to prevent wire

damage in bending applications

• Brazed seam protects terminal

barrel from splitting during the

crimp process

**To order in bulk, replace -C or -CY in the part number with -M or -MY

for a bulk package of 1000 and replace -L with -D for a bulk package

of 500.

‡UL and CSA approved tooling/product combinations.

Locking Fork Terminal, Non-Insulated

• Brazed seam protects terminal barrel from

splitting during the crimp process

• Barrel of terminal internally

beveled to provide quick and

easy wire insertion

Part Number Stud

Size Wire

Range Tool

Std.

Pkg.

Qty.**

P18-6LF-C #6 22 – 18

AWG CT-100‡, CT-200‡,

CT-600‡, CT-1570‡ 100

P14-6LF-C #6 16 – 14

AWG CT-100‡, CT-200‡,

CT-600‡, CT-1570‡ 100

P10-10LF-L #10 12 – 10

AWG CT-100‡, CT-200‡,

CT-600‡, CT-1570‡,

CT-1701‡

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

Part Number Stud

Size Wire

Range Color

Code Tool

Std.

Pkg.

Qty.

PV18-6LF-CY #6

22 – 18

AWG Red

CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

100

PV18-8LF-CY #8 100

PV18-10LF-CY #10 100

PV14-6LF-C #6

16 – 14

AWG Blue

CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

100

PV14-8LF-C #8 100

PV14-10LF-C #10 100

PV10-6LF-L #6

12 – 10

AWG Yellow

CT-100‡,

CT-600‡,

CT-1550‡,

CT-1551‡

PV10-8LF-L #8 50

PV10-10LF-L #10 50

PV10-14LF-L 1/4" 50

A28

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

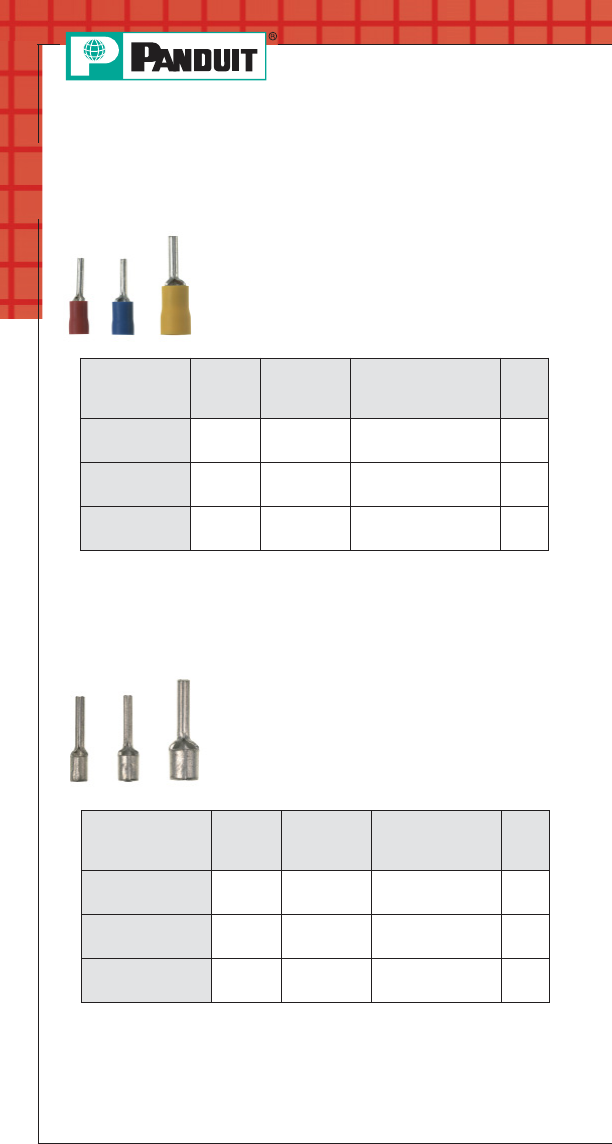

Pin Terminal, Vinyl Insulated –

Funnel Entry • Insulation support helps to prevent wire

damage in bending applications for a

reliable connection

• Brazed seam protects terminal barrel from

splitting during the crimp process

• Solid pin designed to prevent damage to

the wire from over tightening, resulting in a

reliable electrical connection

**To order in bulk, replace -C or -CY in the part number with -M or -MY

for a bulk package of 1000 and replace -L with -D for a bulk package

of 500.

Pin Terminal, Non-Insulated

• Brazed seam protects terminal barrel from

splitting during the crimp process

• Barrel of terminal internally beveled to

provide quick and easy wire insertion

• Solid pin designed to prevent damage to

the wire from over tightening, resulting in a

reliable electrical connection

Part Number Stud

Size Wire

Range Tool

Std.

Pkg.

Qty.**

P18-P47-C — 22 – 18

AWG CT-100, CT-200,

CT-260, CT-1570 100

P14-P47-C — 16 – 14

AWG CT-100, CT-200,

CT-260, CT-1570 100

P10-P55-L — 12 – 10

AWG CT-100, CT-200,

CT-260, CT-1570 50

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

◆For a complete line of terminal products, see the

PANDUIT

Electrical

Solutions Catalog, SA-ELCB03 at www.panduit.com

Part Number Stud Size Wire Range Tool

Std.

Pkg.

Qty.

PV18-P47-CY — 22 – 18

AWG CT-100, CT-260,

CT-1550, CT-1551 100

PV14-P47-C — 16 – 14

AWG CT-100, CT-260,

CT-1550, CT-1551 100

PV10-P55-L — 12 – 10

AWG CT-100, CT-260,

CT-1550, CT-1551 50

A29

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

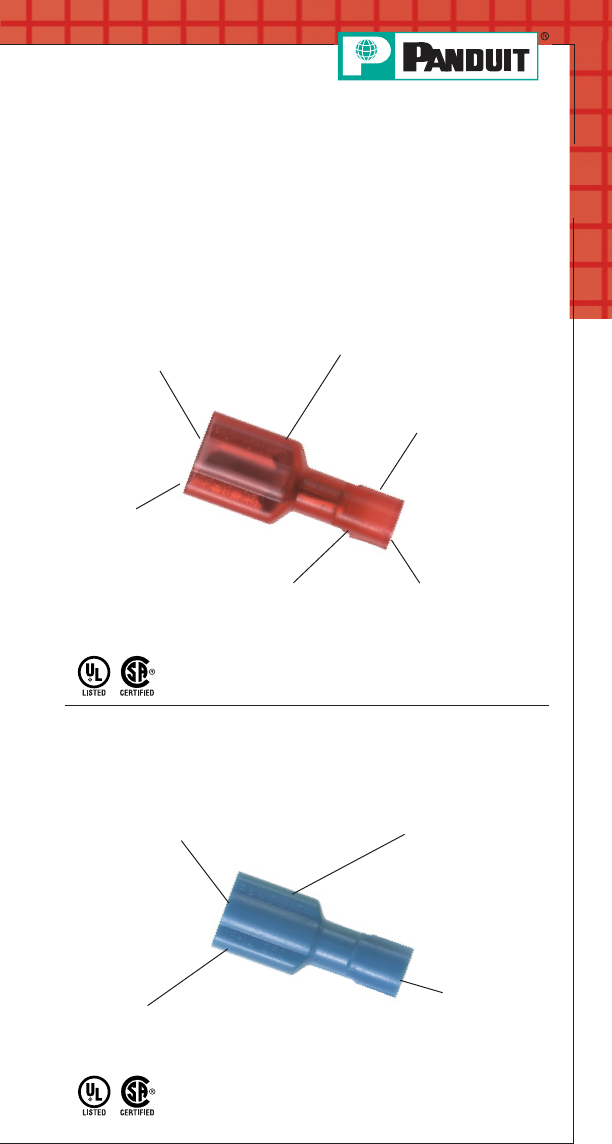

Features and Benefits – PAN-TERM®Disconnects

-T

ERM

®disconnects are fabricated from brass and are

electro-tin plated for a long, corrosion resistant operating life.

Nylon Fully Insulated

Female Receptacles and Male Tabs

Type DNF-FIB

Maximum

insulation

temperature

105°C (221°F)

Insulation support

restricts excessive wire

movement to minimize

stress on crimp joint

UL and CSA rated up to 600V per UL310.

Funnel entry for

faster wire insertion

and lower installed cost

Expanded wire entry

(on select sizes)

accommodates

large insulation or

multiple wires

Available in tab

sizes to

accommodate

.110", .187", .205"

or .250" tabs

Fully insulated

design provides

protection from

electrical shorts

DISCO-GRIP

™Premium Nylon Fully Insulated

Female Receptacles and Male Tabs

Type DNF and DPF

Maximum

insulation

temperature

105°C (221°F)

UL and CSA rated up to 600V per UL310.

Male products available .250" width in standard

and oversized housing configurations.

Funnel entry

for faster

wire insertion

and lower

installed cost

Available in tab

sizes to

accommodate

.250" tabs

Fully insulated

design provides

protection from

electrical shorts

A30

Terminals

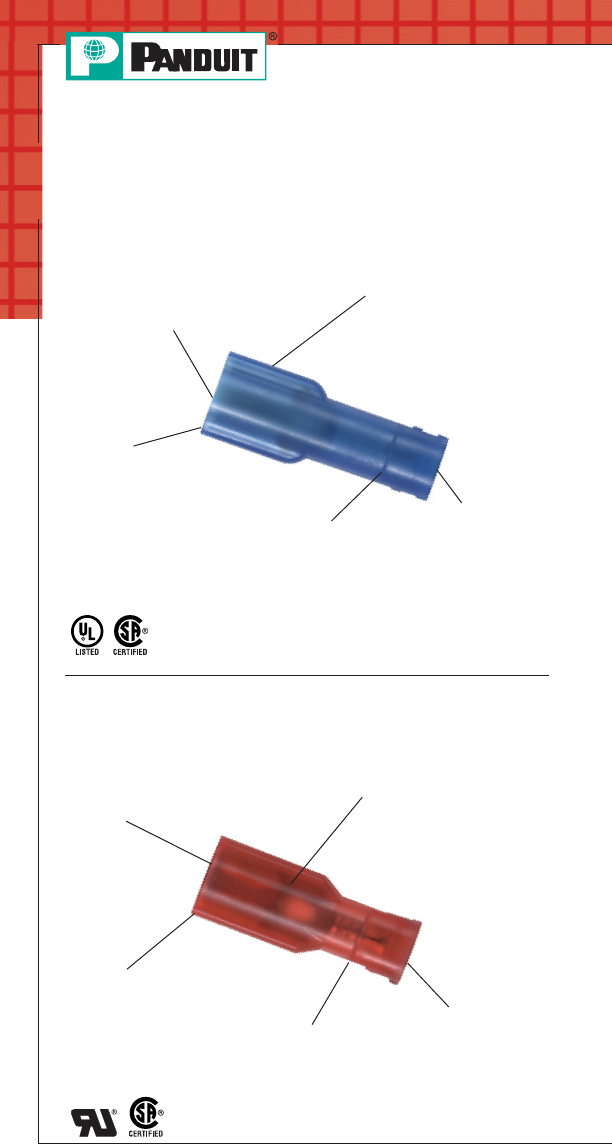

SUPRA-GRIP

™Nylon Fully

Insulated Female Disconnects

Type DNG-FB

Maximum

insulation

temperature

105°C (221°F)

Fully integrated metal

insulation grip for high

vibration, high strain

relief, and double

crimp requirements

Funnel entry

for faster

wire insertion

and lower

installed cost

Available in tab sizes

to accommodate

.187" or .250" tabs

Fully insulated

design provides

protection from

electrical shorts

UL and CSA rated up to 600V per UL310.

DISCO-LOK

™Nylon Fully Insulated

Locking Female Disconnects

Type DNG-FL

Maximum

insulation

temperature

105°C (221°F)

Insulation grip sleeve

provides a superior insulation

crimp for high vibration and

high strain relief applications

UL and CSA rated up to 300V.

Funnel entry for

faster wire insertion

and lower installed cost

Available in tab sizes

to accommodate

250" tabs

Unique locking mechanism

allows for low insertion forces

(mating) and positive locking

for secure connections

Features and Benefits – PAN-TERM®Disconnects

(continued)

A31

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

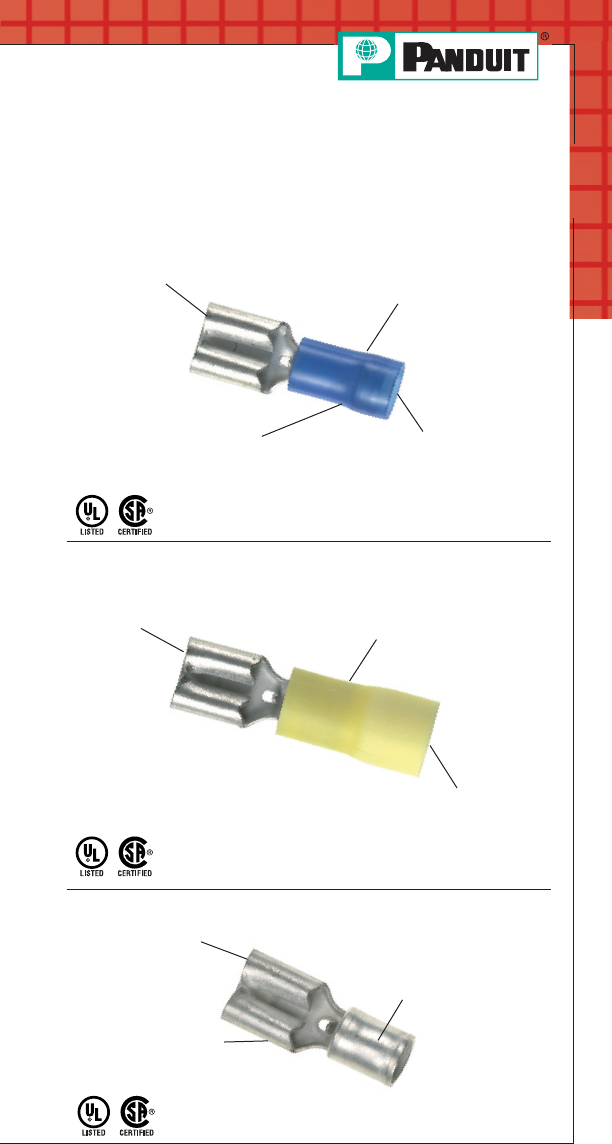

Nylon Barrel Insulated

Female Receptacles and Male Tabs

Type DNF

Insulation grip sleeve provides

a superior insulation crimp for

high vibration and high strain

relief applications

Funnel entry

for faster

wire insertion

and lower

installed cost

Available in tab

sizes to

accommodate

.110", .187",

.205" or

.250" tabs

UL and CSA rated up to 300V.

Male products available .250" width.

Maximum insulation

temperature 105°C (221°F)

Vinyl Barrel Insulated

Female Receptacles and Male Tabs

Type DV and DVF

Insulation support to

protect electrical crimp

Available in

tab sizes to

accommodate

.187", .205"

or .250" tabs

UL and CSA rated up to 600V.

Male products available .250" width.

Flammability – UL94V-0.

Maximum insulation

temperature 105°C (221°F)

Non-Insulated Female Receptacles and Male Tabs

Type D

Male products available .250" width.

Available in tab sizes

to accommodate

.187" or .250" tabs

Sleeved barrel assures

crimp reliability

Maximum recommended

operating temperature

150°C (302°F)

Features and Benefits – PAN-TERM®Disconnects

(continued)

A32

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

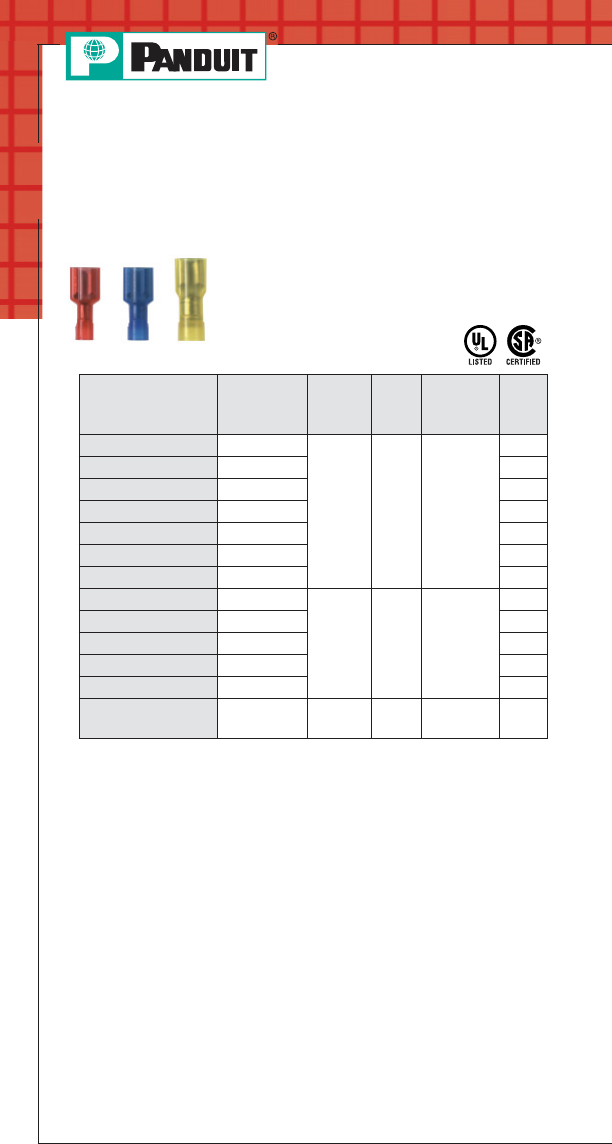

Female Disconnect Nylon Fully

Pre-Insulated –Funnel Entry

• Insulation support helps to prevent wire

damage in bending applications

• Internal wire stop assures proper length of

insertion into terminal barrel

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

Part Number

Tab

Size

(In.) Wire

Range Color

Code Tool

Std.

Pkg.

Qty.**

DNF18-110FIB-C .110 x .032

22 – 18

AWG Red CT-100,

CT-600,

CT-1525‡

100

DNF18-111FIB-C .110 x .020 100

DNF18-187FIB-C .187 x .032 100

DNF18-188FIB-C .187 x .020 100

DNF18-205FIB-C .205 x .032 100

DNF18-206FIB-C .205 x .020 100

DNF18-250FIB-C .250 x .032 100

DNF14-187FIB-C .187 x .032

16 – 14

AWG Blue CT-100,

CT-600,

CT-1525‡

100

DNF14-188FIB-C .187 x .020 100

DNF14-205FIB-C .205 x .032 100

DNF14-206FIB-C .205 x .020 100

DNF14-250FIB-C .250 x .032 100

DNF10-250FIB-L .250 x .032 12 – 10

AWG Yellow CT-1525‡ 50

PAN-TERM®Disconnects

◆For a complete line of terminal products, see the

PANDUIT

Electrical

Solutions Catalog, SA-ELCB03 at www.panduit.com

A33

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

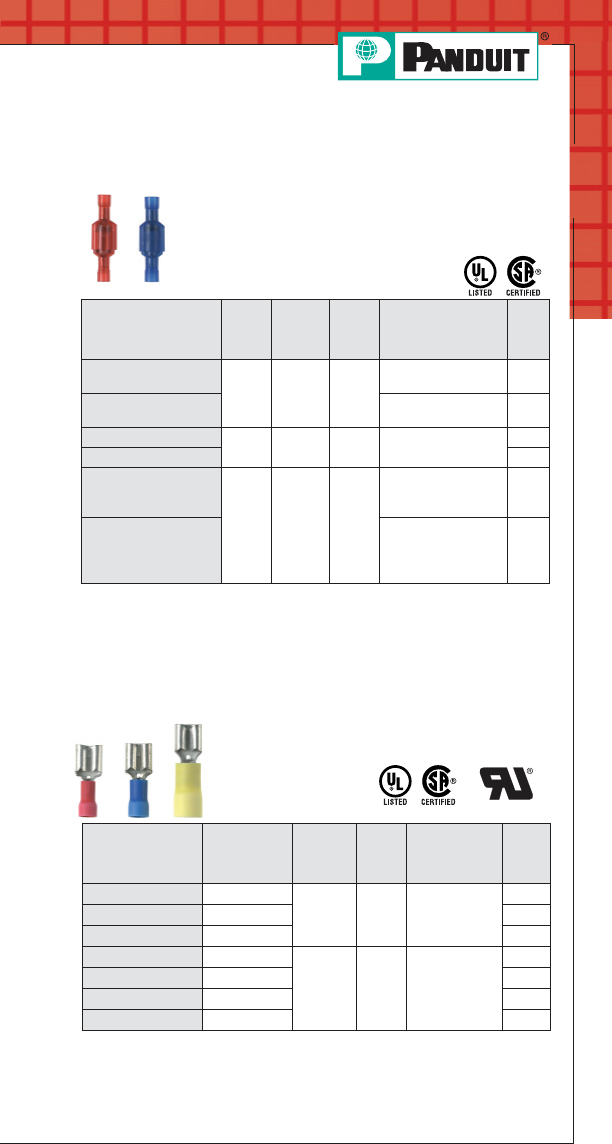

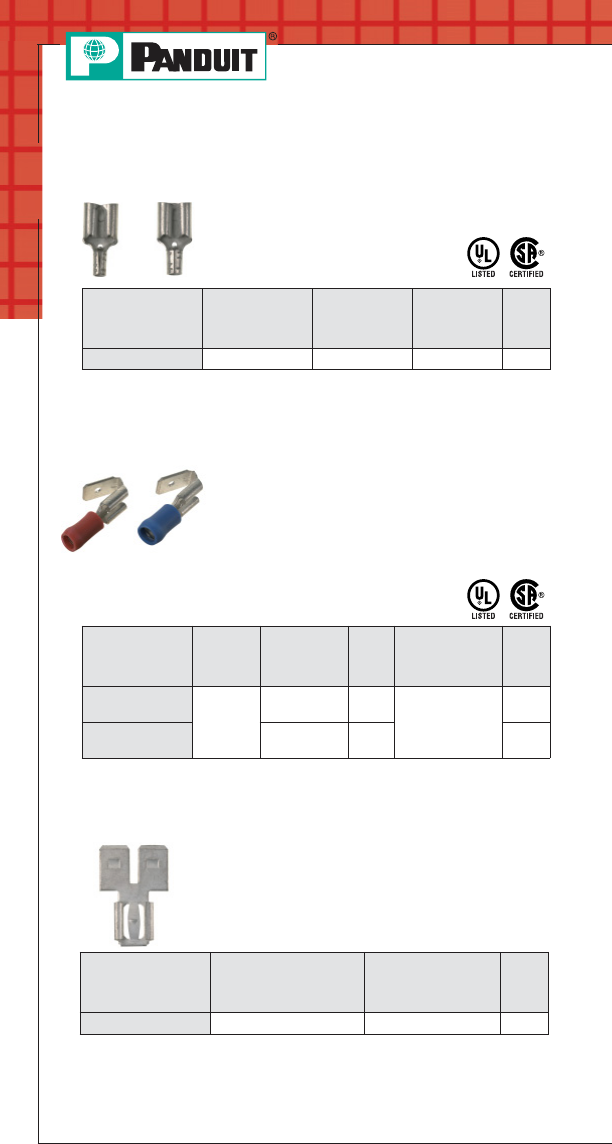

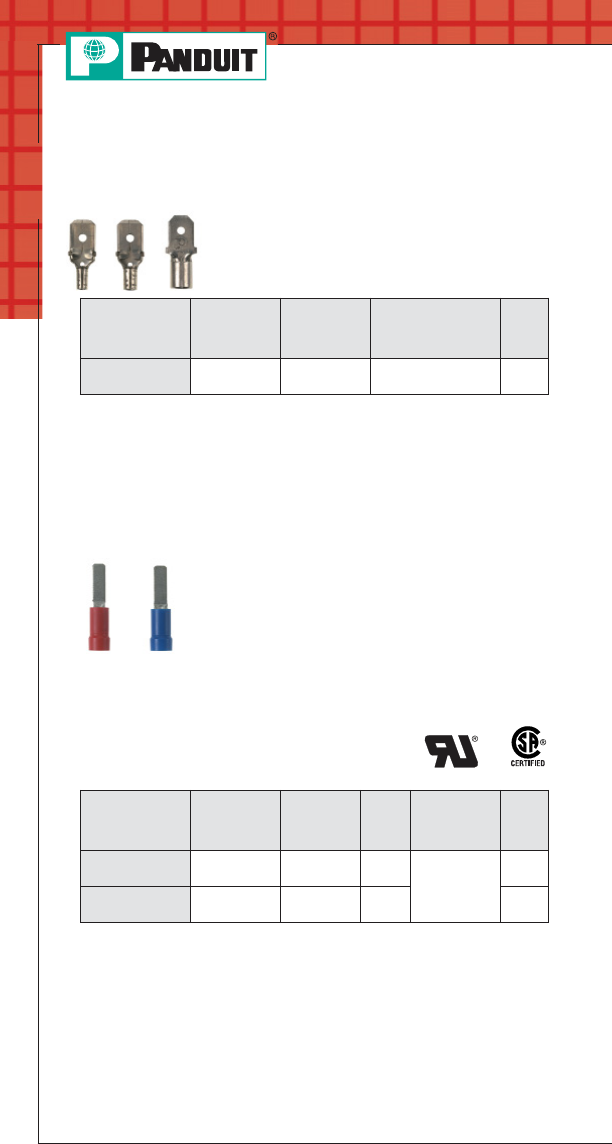

Male/Female Coupler, Nylon Fully

Pre-Insulated –Funnel Entry

• Insulation support helps to prevent wire

damage in bending applications

• Internal wire stop assures proper

length of insertion into

terminal barrel

*UL Listed only.

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

Female Disconnect, Vinyl Barrel

Insulated –Butted Seam

• Insulation support helps to prevent wire

damage in bending applications

*UL Recognized and CSA approved.

**To order in bulk, replace -C or -CY in the part number with -M or -MY for

a bulk package of 1000.

^CSA approved tooling/product combinations.

‡UL and CSA approved tooling/product combinations.

Part Number

Tab

Size

(In.) Wire

Range Color

Code Tool

Std.

Pkg.

Qty.**

DNF18-250FIM-C

.250 x

.032 22 – 18

AWG Red

CT-100‡, CT-600,

CT-1525‡ 100

DNF18-250FIB-C CT-100, CT-600,

CT-1525‡ 100

DNF14-250FIM-C .250 x

.032 16 – 14

AWG Blue CT-600,

CT-1525‡

100

DNF14-250FIMB-L 50

DNF10-250FIMB-L*

.250 x

.032 12 – 10

AWG Yellow

CT-600‡,

CT-1550‡,

CT-1551‡

DNF10-250FI-L CT-100‡, CT-460‡,

CT-550‡, CT-600‡,

CT-1550‡,

CT-1551‡

*Recognized

Part Number

Tab

Size

(In.) Wire

Range Color

Code Tool

Std.

Pkg.

Qty.**

DV18-187B-CY .187 x .032 22 – 18

AWG Red CT-1525‡

100

DV18-188B-CY .187 x .020 100

DV18-250B-CY .250 x .032 100

DV14-187B-C* .187 x .032

16 – 14

AWG Blue CT-1525^

100

DV14-188B-C* .187 x .020 100

DV14-205B-C* .205 x .032 100

DV14-250B-C* .250 x .032 100

A34

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

Female Disconnect, Non-Insulated –

Butted Seam

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000.

Piggyback Disconnect, Vinyl Insulated

• Metal insulation grip sleeve crimps to wire

insulation providing protection to the crimp

joint during high vibration applications

• Combination of female disconnect and male

tab allows versatility in points of connection

• Multiple connection points allow additional

circuits to be added to existing

equipment without

expensive rework

**To order in bulk, replace -C or -CY in the part number with -M or -MY

for a bulk package of 1000.

Disconnect Adapter, Non-Insulated

• Converts one male tab to two male tabs,

allowing two female disconnects to be

connected to the same circuit

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000.

Part Number

Tab

Size

(In.) Wire

Range Tool

Std

Pkg.

Qty.**

D14-250B-C .250 x .032 16 – 14 AWG CT-100 100

Part Number

Tab

Size

(In.) Wire

Range

Std.

Pkg.

Qty.**

D-250A-C .250 x .032 — 100

◆For a complete line of terminal products, see the

PANDUIT

Electrical

Solutions Catalog, SA-ELCB03 at www.panduit.com

• Non-insulated barrel can be used to

provide an economical termination when

insulation is not required

Part Number

Tab

Size

(In.) Wire Range Color

Code Tool

Std.

Pkg.

Qty.**

DV18-250P-CY

.250 x

.032

22 – 18

AWG Red CT-100,

CT-260,

CT-1550,

CT-1551

100

DV14-250P-C 16 – 14

AWG Blue 100

A35

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

Right Angle Female Disconnect, Nylon

Fully Insulated –Funnel Entry

• Insulation support helps to prevent wire

damage in bending applications

• Right angle design allows low

profile routing of wire in limited

application space

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000.

Part Number

Tab

Size

(In.) Wire

Range Color

Code Tool

Std.

Pkg.

Qty.**

DNFR18-250FIB-C .250 x .032 22 – 18

AWG Red CT-300-1 100

DNFR14-250FIB-C .250 x .032 16 – 14

AWG Blue CT-300-1 100

Right Angle Female Disconnect, Nylon

Insulated –Funnel Entry

• Insulation support helps to prevent wire

damage in bending applications

• Right angle design allows low profile

routing of wire in limited

application space

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000.

‡UL and CSA approved tooling/product combinations.

Part Number

Tab

Size

(In.) Wire

Range Color

Code Tool

Std.

Pkg.

Qty.**

DNFR18-250B-C .250 x .032 22 – 18

AWG Red CT-1525‡ 100

DNFR14-250B-C .250 x .032 16 – 14

AWG Blue CT-1525‡ 100

A36

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

Right Angle Female Disconnect,

Non-Insulated –Metal Sleeve

• Sleeved barrel helps to facilitate high

mechanical and electrical performance

when crimping in any orientation

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

Right Angle Female Disconnect

Non-Insulated

• Serrated barrel helps to facilitate high

mechanical and electrical performance

when crimping in any orientation

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000.

*Recognized

Part Number

Tab

Size

(In.) Wire

Range Tool

Std.

Pkg.

Qty.**

DR14-250-C* .250 x .032 16 – 14

AWG CT-100‡, CT-200‡,

CT-600‡,

CT-1570‡

100

DR10-250-L .250 x .032 12 – 10

AWG CT-100‡, CT-200‡,

CT-600‡,

CT-1570‡,

CT-1701‡

Part Number

Tab

Size

(In.) Wire

Range Tool

Std.

Pkg.

Qty.**

DR14-250B-C .250 x .032 16 – 14

AWG CT-100, CT-200 100

◆For a complete line of terminal products, see the

PANDUIT

Electrical

Solutions Catalog, SA-ELCB03 at www.panduit.com

A37

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

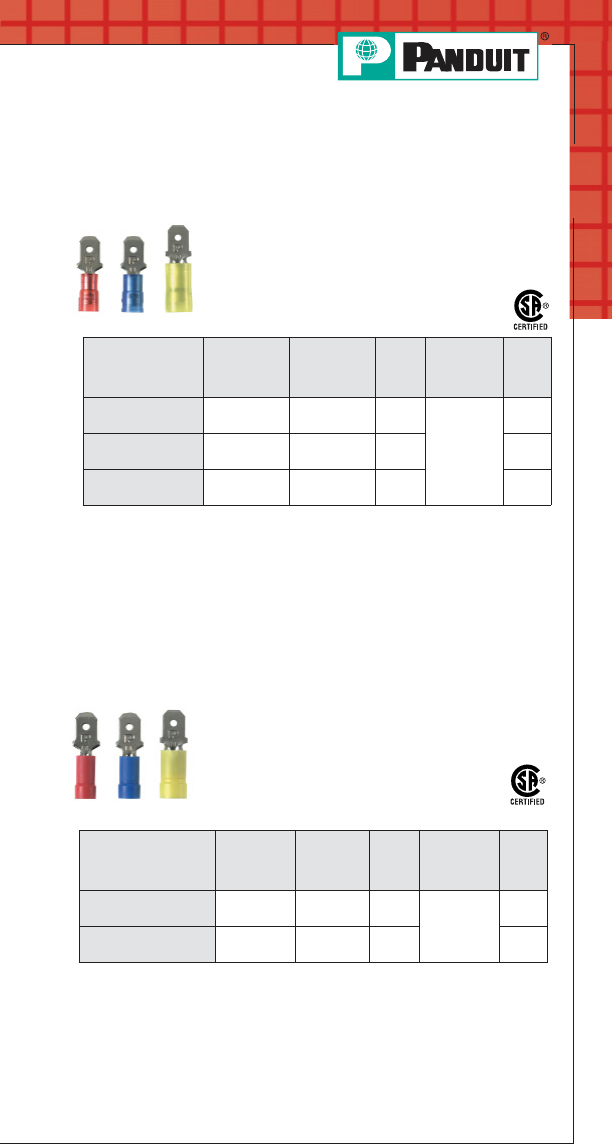

Male Disconnect, Nylon Barrel

Insulated –Funnel Entry

• Metal insulation grip sleeve crimps to wire

insulation providing protection to the crimp

joint during high vibration applications

*Not CSA Certified.

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

Part Number

Tab

Size

(In.) Wire

Range Color

Code Tool

Std.

Pkg.

Qty.**

DNF18-250M-C .250 x .032 22 – 18

AWG Red

CT-1550,

CT-1551

100

DNF14-250M-C .250 x .032 16 – 14

AWG Blue 100

DNF10-250M-L* .250 x .032 12 – 10

AWG Yellow 50

Male Disconnect, Vinyl Barrel

Insulated –Funnel Entry

**To order in bulk, replace -C or -CY in the part number with -M or -MY for

a bulk package of 1000.

• Butted seam offers an economical solution

for less demanding applications

Part Number Tab Size

(In.) Wire

Range Color

Code Tool

Std

Pkg.

Qty.**

DV18-250MB-CY .250 x

.032 22 – 18

AWG Red

CT-1550,

CT-1551

100

DV14-250MB-C .250 x

.032 16 – 14

AWG Blue 100

A38

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

Male Disconnect, Non-Insulated –

Butted Seam

Part Number

Tab

Size

(In.) Wire

Range Tool

Std.

Pkg.

Qty.**

D14-250MB-C .250 x .032 16 – 14

AWG CT-100 100

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000.

Male Blade Adapter, Vinyl Insulated –

Funnel Entry

• Brazed seam protects terminal barrel from

splitting during the crimp process

• Flat blade design to prevent damage to

the wire from over tightening, resulting in a

reliable electrical connection

• Designed specifically for blade-type

terminal blocks

• Insulation support helps to prevent

wire damage in

bending applications

**To order in bulk, replace -C or -CY in the part number with -M or -MY for

a bulk package of 1000.

‡UL and CSA approved tooling/product combinations.

*Recognized

◆For a complete line of terminal products, see the

PANDUIT

Electrical

Solutions Catalog, SA-ELCB03 at www.panduit.com

• Butted seam offers an economical

solution for less demanding applications

Part Number Tab Size

(In.) Wire

Range Color

Code Tool

Std.

Pkg.

Qty.

DV18-145M-CY .145 x .032 22 – 18

AWG Red CT-600,

CT-1550‡,

CT-1551‡

100

DV14-145M-C .145 x .032 16 – 14

AWG Blue 100

A39

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

Features and Benefits – PAN-TERM®Splices

Non-Insulated Parallel Splices

Type PS

Nylon Parallel Splices

Type PSN

Maximum

recommended

operating

temperature

150°C (302°F)

Seamless

tubular barrel

provides

consistent high

performance

quality crimps

UL and CSA rated up to 300V.

Only one crimp

needed to

complete splice

Only one

crimp needed

to complete

splice

Maximum insulation

temperature 105°C

(221°F)

A40

Terminals

Features and Benefits – PAN-TERM®Splices

(continued)

Internal wire

stops assure

proper insertion

length

Maximum insulation

temperature 105°C

(221°F)

Brazed seam

assures crimp

reliability

UL and CSA rated up to 600V.

Maximum insulation

temperature 105°C

(221°F)

Internal wire

stops assure

proper

insertion

length

Expanded

wire entry

accommodates

larger insulation

UL and CSA rated up to 600V.

Flammability – UL94V-0.

Metric versions available.

Brazed seam

assures crimp

reliability

Nylon Butt Splices

Type BSN

Vinyl Butt Splices

Type BSV

Non-Insulated Butt Splices

Type BS

Internally beveled

barrel for quick easy

wire insertion

Internal wire stops

assure proper

insertion length

UL and CSA rated up to 600V.

Metric versions available.

Brazed seam

assures crimp

reliability

Maximum recommended

operating temperature

150°C (302°F)

A41

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

Butt Splice, Nylon Insulated

• Brazed seam protects terminal barrel from

splitting during the crimp process

• Internal wire stop assures proper length of

insertion into terminal barrel

*Not UL Listed.

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

Part Number Wire

Range Color

Code Tool

Std.

Pkg.

Qty.**

BSN22-C*26 – 22 AWG Yellow CT-100, CT-1525 100

BSN18-C 22 – 18 AWG Red CT-100, CT-600,

CT-1550, CT-1551

100

BSN14-C 16 – 14 AWG Blue 100

BSN10-L 12 – 10 AWG Yellow 50

PAN-TERM®Splices

Butt Splice, Vinyl Insulated

• Expanded funnel entry designed to

accommodate wire with a larger than

standard outside diameter insulation

• Insulation support helps to prevent wire

damage in bending applications

• Internal wire stop assures proper length of

insertion into terminal barrel

**To order in bulk, replace -C or -CY in the part number with -M or -MY

for a bulk package of 1000 and replace -L with -D for a bulk package

of 500.

Part Number Wire Range Color Code Tool

Std.

Pkg.

Qty.

BSV18X-CY 22 – 18 AWG Red CT-100, CT-600,

CT-1550, CT-1551

100

BSV14X-C 16 – 14 AWG Blue 100

BSV10X-L 12 – 10 AWG Yellow 50

A42

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

Butt Splice, Non-Insulated

• Brazed seam protects terminal barrel from

splitting during the crimp process

• Internal wire stop assures

proper length of insertion into

terminal barrel

*Not UL Listed.

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

‡UL and CSA approved tooling/product combinations.

Part Number Wire

Range Tool

Std.

Pkg.

Qty.**

BS22-C* 26 – 22 AWG CT-100 100

BS18-C 22 – 18 AWG CT-100, CT-200,

CT-600, CT-1570

100

BS14-C 16 – 14 AWG 100

BS10-L 12 – 10 AWG CT-100, CT-200,

CT-600, CT-1570,

CT-1701‡

Parallel Splice, Nylon Insulated

• Parallel design results in only one crimp

required to combine two wires

Parallel Splice, Non-Insulated

• Parallel design results in only one crimp

required to combine two wires

• Non-insulated barrel can be used to provide

an economical termination

when insulation is not required

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000.

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000 and replace -L with -D for a bulk package of 500.

Part Number Wire

Range Tool

Std.

Pkg.

Qty.**

PS16-C 20 – 16 AWG CT-100, CT-200 100

PS12-L 14 – 12 AWG 50

◆For a complete line of terminal products, see the

PANDUIT

Electrical

Solutions Catalog, SA-ELCB03 at www.panduit.com

Part Number Wire

Range Color

Code Tool

Std.

Pkg.

Qty.**

PSN18-C 22 – 18 AWG Red CT-100,

CT-1525

100

PSN16-C 20 – 16 AWG Blue 100

A43

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

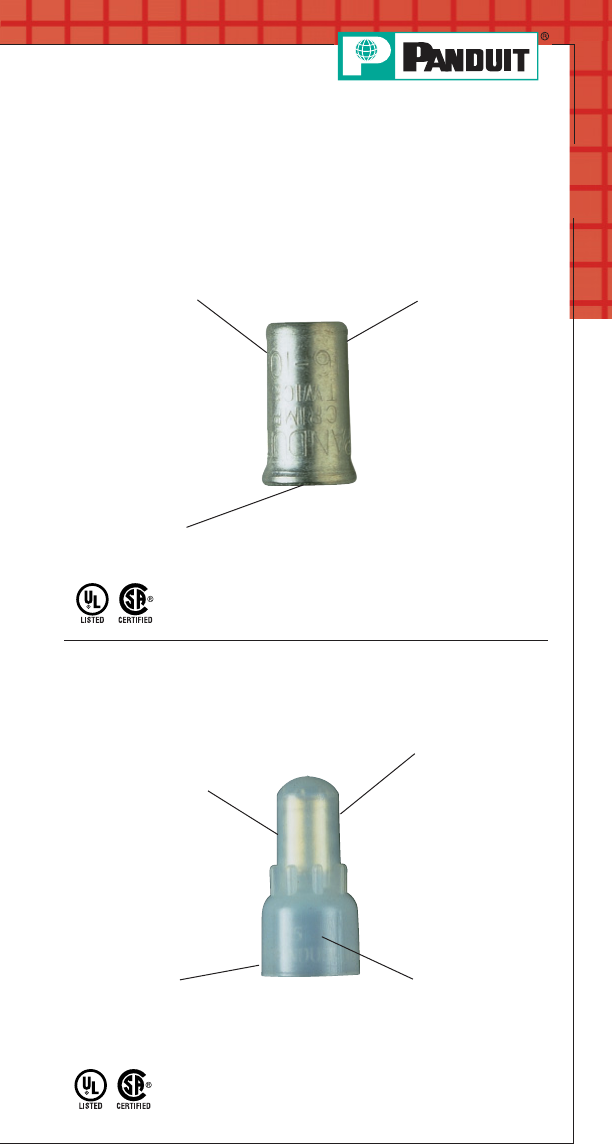

Features and Benefits – PAN-TERM®Wire Joints

Non-Insulated Wire Joints

Type J

Nylon Wire Joints

Type JN

Internally

beveled barrel

for quick easy

wire insertion

UL and CSA rated up to 600V.

Maximum

recommended

operating

temperature

150°C (302°F)

Only one crimp

needed to

complete splice

Maximum insulation

temperature 105°C

(221°F)

Deep skirt to

accommodate

multiple variations of

wire combinations

Only one

crimp needed

to complete

splice

UL and CSA rated up to 600V

Metric versions available

Fully insulated

housing protects

crimp joint

A44

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

Wire Joint, Nylon Insulated

• Large barrel designed to accommodate

multiple combinations of wires (up to seven

wires) with just one crimp

• Fully pre-insulated housing designed to

protect crimp joint and reduce

the potential for shorting

and shocks

**To order in bulk, replace -C in the part number with -M for a bulk

package of 1000, with exception of JN418-212-C, replace -C with -D

for bulk package of 500.

‡UL and CSA approved tooling/product combinations.

Wire Joint, Non-Insulated

• Large barrel designed to accommodate

multiple combinations of wires (up to seven

wires) with just one crimp

• Non-insulated barrel can be used to provide

an economical termination

when insulation is not required

**To order in bulk, replace -T in the part number with -2M for a bulk

package of 2000.

‡UL and CSA approved tooling/product combinations.

PAN-TERM®Wire Joints

Part Number Min/Max Wire

Range

CMA Range

Tool

Std.

Pkg.

Qty.**

Min. Max.

J214-312-T (2) #14 – (3) #12 5760 19590 CT-100‡,

CT-200‡

200

J318-412-T (3) #18 – (4) #12 4860 27330 200

Part Number Min/Max

Wire Range Color

Code

CMA Range

Tool

Std.

Pkg.

Qty.**

Min. Max.

JN224-318-C (2) #24 –

(2) #16 Red 808 5160

CT-1550‡,

CT-1551‡

100

JN218-216-C (2) #22 –

(2) #16 Clear 1284 5160 100

JN418-212-C (4) #18 –

(2) #12 Clear 6480 14750 CT-100‡,

CT-1550‡,

CT-1551‡

100

A45

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

Features and Benefits – PAN-TERM®Ferrules

Insulated Ferrules – Single Wire

Type FSF and FSD

Non-Insulated Ferrules

Type F

Insulated Ferrules – Twin Wire

Type FTD

Seamless tubular

barrel provides

consistent

quality crimps

Maximum insulation

temperature 89°C

(192°F)

Color coded

polypropylene identifies

wire range.

(DIN codes available)

Maximum insulation

temperature 89°C

(192°F)

Oversized

seamless

tubular barrel

provides

consistent, high

performance

quality crimps

for two wire

applications Color coded

polypropylene identifies

wire range. (German and

French codes available)

Maximum operating

temperature 89°C

(192°F)

Seamless tubular barrel

provides consistent

quality crimps

Flared barrel

for quick easy wire insertion

PANDUIT

Ferrules are available for wiring applications from

#26 AWG to #1 AWG. Offerings include insulated and non-insulated

ferrules, in single-wire or double-wire configurations. Insulated

ferrules are color coded to DIN standards.

A46

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

Part Number

Wire Size Color

Code

Length Wire Strip

Length

Tool

Std.

Pkg.

Qty.

AWG mm² In. mm In. mm

FSD74-6-D 24

AWG .34 Turquoise .24 6.0 3/8 9.5 CT-1002 500

FSD74-8-D .31 8.0 15/32 11.9 500

FSD75-6-D 22

AWG .50 White

.24 6.0 3/8 9.5

CT-1002,

CT-1003

500

FSD75-8-D .31 8.0 15/32 11.9 500

FSD75-10-D .39 10.0 17/32 13.5 500

FSD76-6-D 20

AWG .75 Gray .24 6.0 3/8 9.5 500

FSD76-8-D .31 8.0 15/32 11.9 500

FSD77-6-D

AWG 1.00 Red

.24 6.0 3/8 9.5 500

FSD77-8-D .31 8.0 15/32 11.9 500

FSD77-10-D .39 10.0 17/32 13.5 500

FSD77-12-D .47 12.0 5/8 15.9 500

FSD78-6-D

AWG 1.50 Black

.24 6.0 3/8 9.5 500

FSD78-8-D .31 8.0 15/32 11.9 500

FSD78-10-D .39 10.0 17/32 13.5 500

FSD78-12-D .47 12.0 5/8 15.9 500

FSD79-8-D 14

AWG

2.08 Yellow .31 8.0 15/32 11.9 500

FSD80-8-D 2.50 Blue .31 8.0 15/32 11.9 500

FSD80-12-D .47 12.0 5/8 15.9 500

FSD81-10-D 12

AWG 4.00 Gray .39 10.0 17/32 13.5 500

FSD81-12-C .47 12.0 5/8 15.9 100

FSD82-12-C 10

AWG 6.00 Yellow .47 12.0 5/8 15.9 100

FSD83-12-C 8

AWG 10.0 Red .47 12.0 5/8 15.9 CT-1003,

CT-1004 100

• Molded housing allows easy insertion

of wire

• Seamless barrel contains wire strands

preventing fraying or bending, resulting in

high quality, reliable connections

Insulated Ferrules –Single Wire DIN

End Sleeve

PAN-TERM®Ferrules

A47

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

• Oversized seamless tubular provides

consistent, high performance quality crimps

for two wire applications

• Molded housing allows easy insertion

of wire

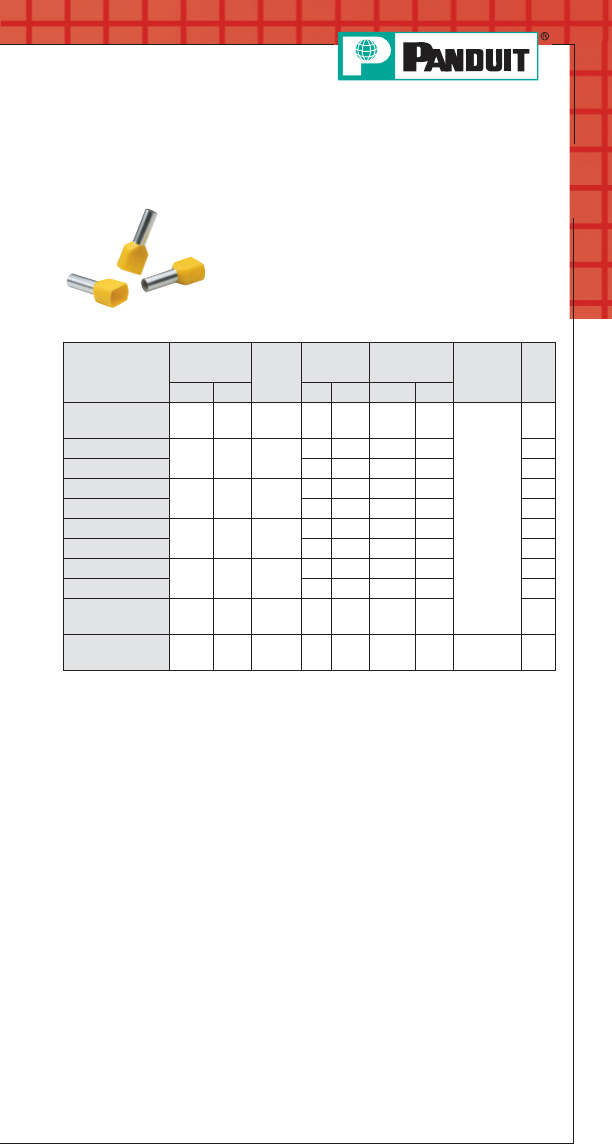

Insulated Ferrules –Twin Wire DIN

End Sleeve

Part Number

Wire Size Color

Code

Length Wire Strip

Length

Tool

Std.

Pkg.

Qty.

AWG mm² In. mm In. mm

FTD75-8-D 22

AWG .50 White .31 8.0 7/16 11.2

CT-1002,

CT-1003

500

FTD76-8-D 20

AWG .75 Gray .31 8.0 7/16 11.2 500

FTD76-10-D .39 10.0 9/16 14.0 500

FTD77-8-D 18

AWG 1.00 Red .31 8.0 7/16 11.2 500

FTD77-10-D .39 10.0 9/16 14.0 500

FTD78-8-D 16

AWG 1.50 Black .31 8.0 7/16 11.2 500

FTD78-12-D .47 12.0 21/32 16.8 500

FTD80-10-TL 14

AWG 2.50 Blue .39 10.0 9/16 14.0 250

FTD80-13-TL .51 13.0 23/32 16.2 250

FTD81-12-C 12

AWG 4.00 Gray .47 12.0 21/32 16.8 100

FTD82-14-C 10

AWG 6.00 Yellow .55 14.0 25/32 19.6 CT-1003,

CT-1004 100

A48

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

• Flared barrel allows easy insertion of wire

• Non-insulated barrel can be used to provide

an economical termination when insulation

is not required

Ferrules, Non-Insulated

Part

Number

Wire Size Length Wire Strip

Length

Tool

Std.

Pkg.

Qty.

In. mm² In. mm In. mm

F73-5-M 24

AWG

.25 .20 5.0 7/32 5.0

CT-1002,

CT-1003

1000

F73-7-M .28 7.0 9/32 7.0 1000

F74-5-M .34 .20 5.0 7/32 5.0 1000

F75-6-M 22

AWG .50

.24 6.0 1/4 6.0 1000

F75-8-M .31 8.0 5/16 8.0 1000

F75-10-M .39 10.0 13/32 10.0 1000

F76-6-M 20

AWG .75

.24 6.0 1/4 6.0 1000

F76-8-M .31 8.0 5/16 8.0 1000

F76-10-M .39 10.0 13/32 10.0 1000

F77-6-M 18

AWG 1.0

.24 6.0 1/4 6.0 1000

F77-7-M .28 7.0 9/32 7.0 1000

F77-8-M .31 8.0 5/16 8.0 1000

F78-7-M 16

AWG 1.5

.28 7.0 9/32 7.0 1000

F78-8-M .31 8.0 5/16 8.0 1000

F78-10-M .39 10.0 13/32 10.0 1000

F80-7-M 14

AWG 2.5

.28 7.0 9/32 7.0 1000

F80-8-M .31 8.0 5/16 8.0 1000

F80-10-M .39 10.0 13/32 10.0 1000

F81-9-M 12

AWG 4.0

.35 9.0 11/32 8.0 1000

F81-10-M .39 10.0 13/32 10.0 1000

F81-12-M .47 12.0 15/32 12.0 1000

F82-10-M 10

AWG 6.0

.39 10.0 13/32 10.0 1000

F82-12-M .47 12.0 15/32 12.0 1000

F82-15-M .59 15.0 19/32 15.0 1000

A49

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

• Flared barrel allows easy insertion of wire

• Non-insulated barrel can be used to provide

an economical termination when insulation

is not required

Ferrules, Non-Insulated (continued)

Part

Number

Wire Size Length Wire Strip

Length

Tool

Std.

Pkg.

Qty.

In. mm² In. mm In. mm

F83-12-D 8

AWG 10.0

.47 12.0 15/32 12.0 CT-1003,

CT-1004

500

F83-15-D .59 15.0 19/32 15.0 500

F83-18-D .71 18.0 23/32 18.0 500

F84-12-TL 6

AWG 16.0

.47 12.0 15/32 12.0

CT-1004

250

F84-15-TL .59 15.0 19/32 15.0 250

F84-18-TL .71 18.0 23/32 18.0 250

F85-12-C 4

AWG 25.0

.47 12.0 15/32 12.0

CT-1005

100

F85-15-C .59 15.0 19/32 15.0 100

F85-18-C .71 18.0 23/32 18.0 100

F86-18-C 2

AWG 35.0

.71 18.0 23/32 18.0 100

F86-20-C .79 20.0 25/32 20.0 100

F86-25-C .98 25.0 31/32 25.0 100

F87-18-C 1

AWG 50.0

.71 18.0 23/32 18.0

CT-1006

100

F87-22-C .87 22.0 7/8 22.0 100

F87-25-C .98 25.0 31/32 25.0 100

A50

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

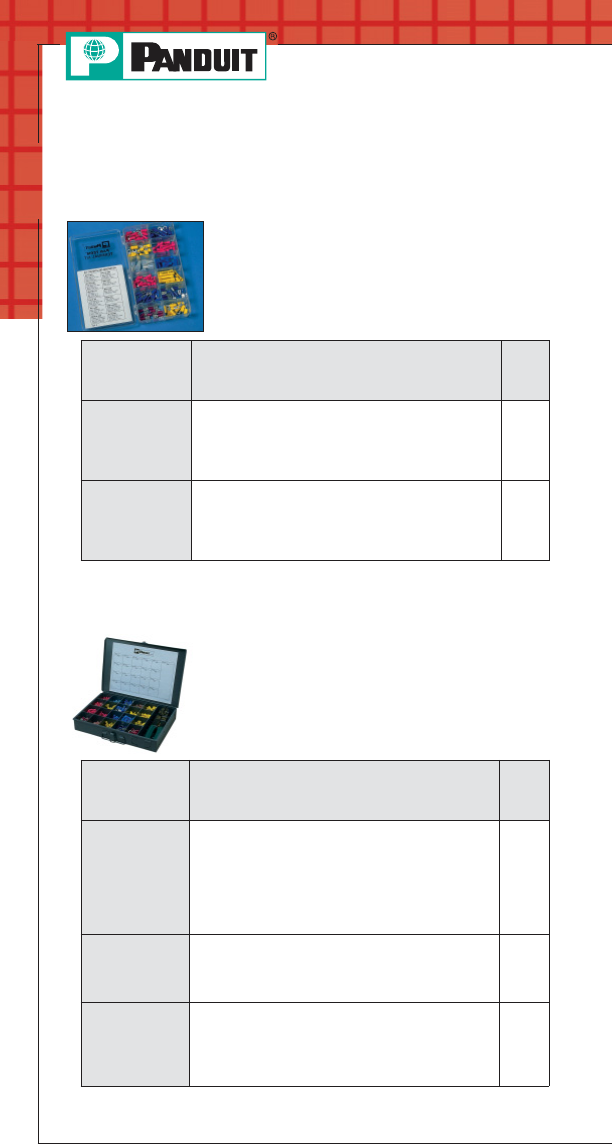

Plastic Box Terminal Kits

• Ideal for maintenance and

construction wiring

• Rugged plastic construction

• Kit has hanging tab for easy storage

Part Number Part Description

Std.

Pkg.

Qty.

KP-1075 Terminal kit without crimping tool. Includes the

following: (20) PV18-8R; PV18-6F; PV14-8F;

PV14-10R; (10) PV10-8R; PV10-10R;

DNF14-250; DNF-18-250; BSV18X; BSV14X;

BSV10X; (5) JN418-212.

KP-1165 Includes the following: (18) PV18-8R;

PV14-10R; P18-6F; P14-8F; (10) PV10-8R;

PV10-10R; BSV18X; BSV14X; BSV10X;

DV18-250B; DV14-188B; (5) JN418-212;

(1) CT-160 Tool; KP-1000 Box.

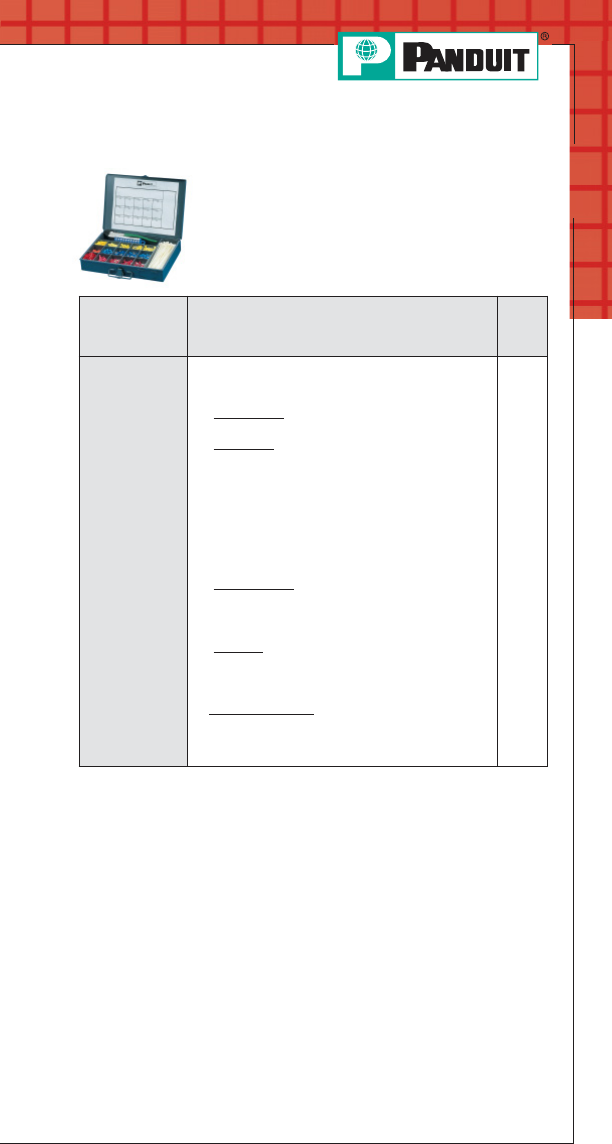

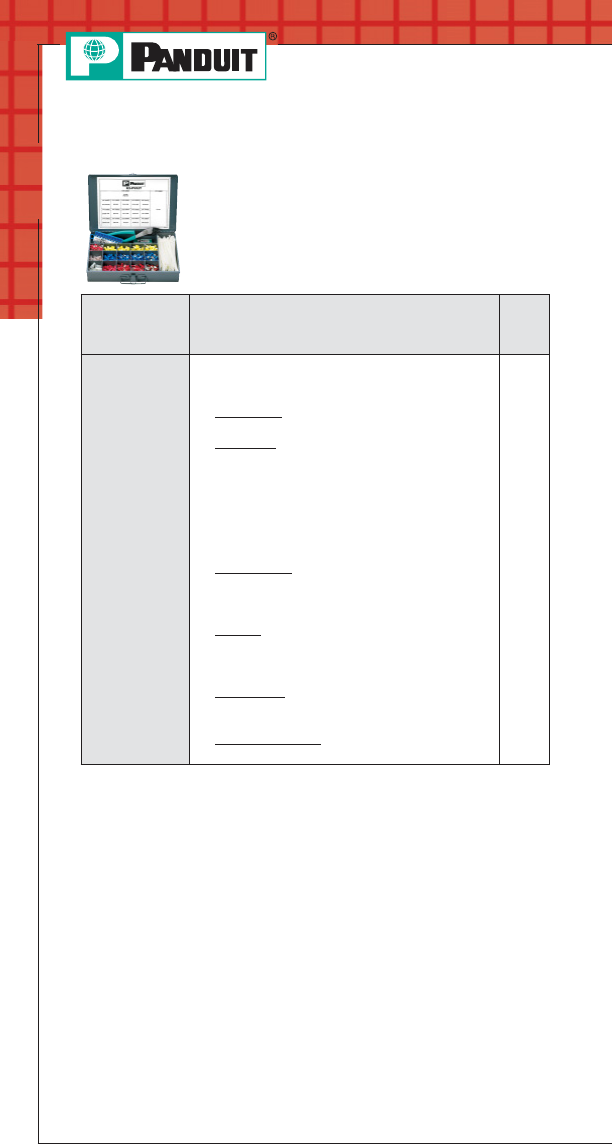

Steel Kit Boxes

• Terminal kit in rugged steel case that can

be used stand-alone or fits into two, four or

six drawer slide racks

Part Number Part Description

Std.

Pkg.

Qty.

K-1000 Empty steel box, 20 terminal compartments and

1 tool compartment, measures

13 21/64" wide x 9 21/64" deep x 2" high

• Latch prevents accidental opening

• Handle for portability or as drawer pull when

used in rack

• Drop-in label area on front

K-1102 Includes the following: (100) PV18-6LF;

PV18-8LF; PV14-8LF; PV14-10LF; BSV18X;

BSV14X; (50) PV10-10LF; BSV10X;

(1) CT-100 Tool; K-1000 Box.

K-1104 Includes the following: (50) PN18-10R;

PN14-6R; PN14-10R; PN18-6F; PN14-6F;

PN14-10F; (25) PN10-10R; PN10-56R;

PN10-10F; BSN14; BSN10; JN418-212;

(1) CT-100 Tool; K-1000 Box.

Terminal Kits

A51

Prime items appear in BOLD.

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Terminals

Industrial Maintenance Kits

• Steel kits have individual compartments for

storage of terminals

• Convenient carrying handle

• Once top is closed, terminals remain in

their compartments

Part Number Part Description

Std.

Pkg.

Qty.

K1-PNKIT Kit contains:

(1) K-1001 steel kit box

(1) CT-260 installation tool

Cable Ties

(100) PLT2S cable ties

Terminals

(100) PN14-610R multi-stud terminals

(100) PN18-610R multi-stud terminals

(100) PN18-6LF locking fork terminals

(100) PN14-8LF locking fork terminals

(50) PN10-10LF locking fork terminals

(100) PN18-8F fork terminals

(100) PN14-10R ring terminals

(50) PN10-10R ring terminals

Disconnects

(100) DNF18-250 disconnects

(100) DNF14-250 disconnects

(50) DV10-250 disconnects

Splices

(50) BSN18 butt splices

(50) BSN14 butt splices

(25) BSN10 butt splices

Marking System

(1) PMD-0-9 marking dispenser and tape

(100) MP150 marker tags

(1) PX-0 marker

A52

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Terminals

Industrial Maintenance Kits (continued)

• Steel kits have individual compartments for

storage of terminals

• Convenient carrying handle

• Once top is closed, terminals remain in

their compartments

Part Number Part Description

Std.

Pkg.

Qty.

K2-PVKIT Kit contains:

(1) K-1001 steel kit box

(1) CT-260 installation tool

Cable Ties

(100) PLT2S cable ties

Terminals

(100) PV18-8F fork terminals

(100) PV18-6LF locking fork terminals

(100) PV14-8LF locking fork terminals

(50) PV10-10LF locking fork terminals

(100) PV18-610R multi-stud terminals

(100) PV14-10R ring terminals

(50) PV10-10R ring terminals

Disconnects

(100) DV18-250B disconnects

(100) DV14-250B disconnects

(50) DV10-250 disconnects

Splices

(50) BSV18X butt splices

(50) BSV14X butt splices

(25) BSV10X butt splices

Wire Joints

(30) JN224-318

(15) JN314-412

Marking System

(1) PMD-0-9 marking dispenser and tape

Power Connectors

For service and technical support, call 800-777-3300

or visit www.panduit.com.

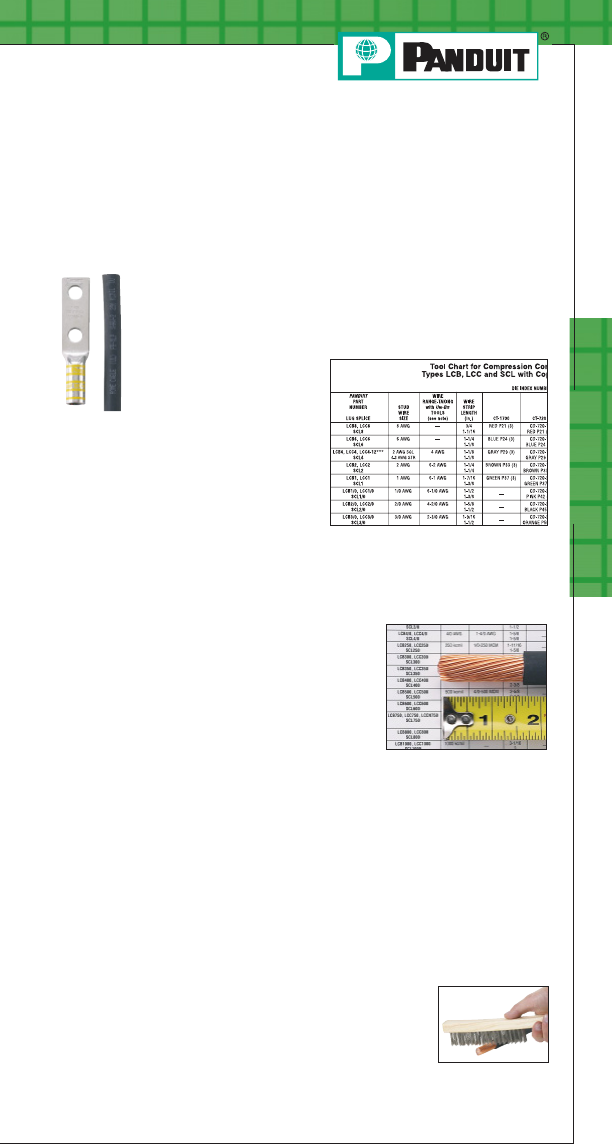

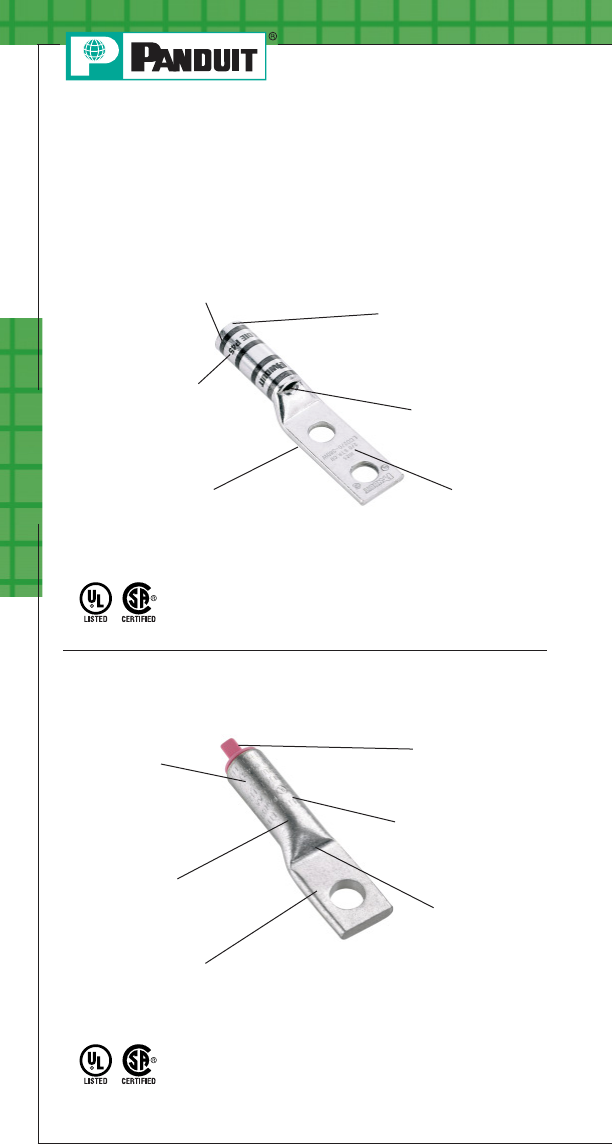

Crimping Guidelines for PANDUIT®PAN-LUG™

Compression Lugs and Splices

1. Select the proper

PANDUIT

compression connector for the

conductor type and size being used.

•

PANDUIT

compression connectors are identified with

the proper conductor size and conductor type marked

on the tongue or barrel of the connector

• The proper conductor

size and type to be used

with each connector can

also be found in the

installation instructions

included with

PANDUIT

product packaging and

in the tool charts*

2. Strip the conductor to the proper strip length.

As specified:

• On the

PANDUIT

product packaging label or

• On the installation instructions

included with

PANDUIT

product packaging or

• In the tool charts*

Make sure the conductor is not stripped too long, which

would result in exposed wire between the barrel of the

connector and the cable insulation.

Make sure the conductor is not stripped too short,

which would result in a less than complete contact area

with the connector when the conductor is inserted in

the barrel.

Do not nick or cut strands of conductor during

crimping, which would result in a less than premium

conductor termination.

Make sure conductor strands are free

from corrosion.

*See condensed tool charts on pages B4-B27; for complete tool charts

refer to pages D2.148-D2.186 of the Electrical Solutions Catalog,

SA-ELCB03, at www.panduit.com.

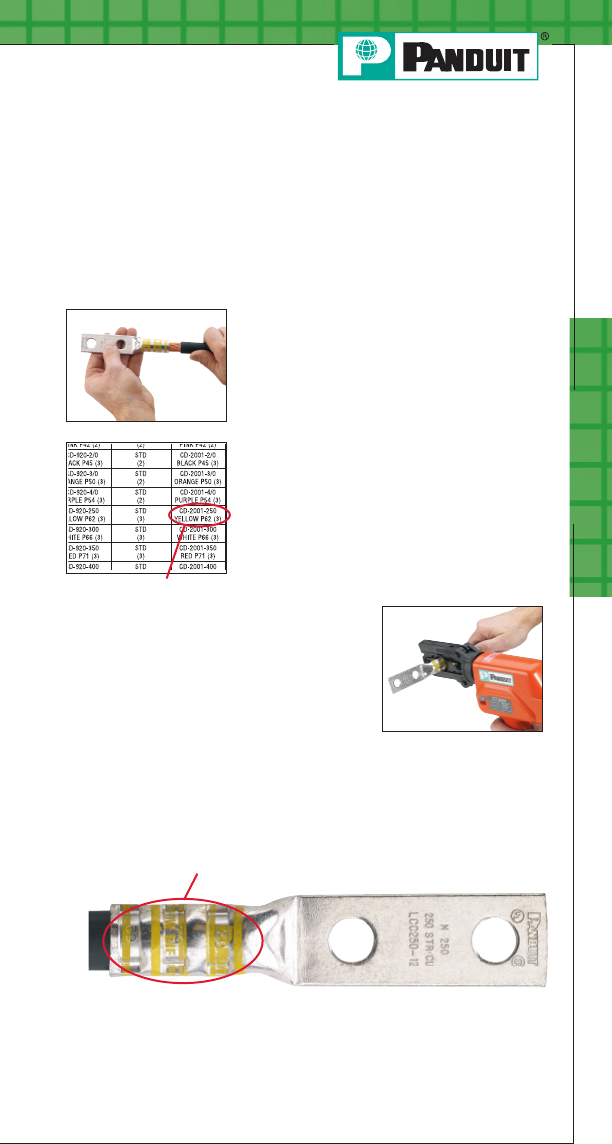

Power Connectors

*See condensed tool charts on pages B4-B27; for complete tool charts

refer to pages D2.148-D2.186 of the Electrical Solutions Catalog,

SA-ELCB03, at www.panduit.com.

3. Select the proper crimping die and crimping tool to be used

with the connector.

Use crimping tools and dies that provide a UL Listed and/or

CSA Certified electrical termination, to assure a safe and

reliable connection.

Many

PANDUIT

compression connectors are UL Listed and

CSA Certified when crimped with

PANDUIT

and specified

competitor crimping tools and dies. These tools and dies are

listed in the tool charts*.

PANDUIT

crimping tools and dies to

be used with each connector are also listed on the installation

instructions included with

PANDUIT

product packaging.

PANDUIT

compression connectors are color

coded and marked with

PANDUIT

and specified

competitor die index numbers. Select the proper

crimping die to be used by matching the color code

and die index number marked on the connector to

the same markings on the crimping die.

Crimping Guidelines for PANDUIT®PAN-LUG™

Compression Lugs and Splices (continued)

Power Connectors

For service and technical support, call 800-777-3300

or visit www.panduit.com.

*See condensed tool charts on pages B4-B27; for complete tool charts

refer to pages D2.148-D2.186 of the Electrical Solutions Catalog,

SA-ELCB03, at www.panduit.com.

4. Crimp the connector.

Insert the conductor into the barrel of the connector. The

conductor should stop against the end of the barrel of the

lug, or wire stop in the butt splice, upon

complete insertion of the conductor

in the barrel. Some lugs are offered

with inspection windows that provide

visual inspection of the complete

conductor insertion.

Review the installation instructions

included with the

PANDUIT

product

packaging or the tool charts* for the

proper number of crimps to be placed

in the connector. Make the first crimp in

the barrel nearest the tongue of the lug,

or wire stop in a butt splice, and make

successive crimps in the barrel working

towards the conductor entry at the

end of the barrel. Use the color coded

or knurled band markings on the

barrel of the connector to evenly

space the placement of the crimps in

the barrel.

When properly crimped, the die index number engraved in the

crimping die will be embossed into the barrel of the connector.

The crimp should be placed in the connector so the die index

number can be easily read when the connector is installed.

Crimping Guidelines for PANDUIT®PAN-LUG™

Compression Lugs and Splices (continued)

Identify

Die index number must be visible

Power Connectors

PANDUIT Installation Tooling and Die Selection

Note: See page B27 for note references.

CT-1570 CT-1701➀CT-1700➀CT-720

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCA10 #14 – #10

AWG STR,

#12 – #10

AWG SOL

12 – 10 P10 — —

LCB10

LCD10

LCC10

LCAS8

#8 AWG — — Red P21 CD-720-1

Red P21

LCA8

LCAN8

LCB8

LCBN8

LCD8

LCDN8

LCC8

LCCN8

SCSS8

SCS8

SCL8

LCAS6

#6 AWG — — Blue P24 CD-720-1

Blue P24

LCA6

LCAN6

LCB6

LCBN6

LCD6

LCDN6

LCC6

LCCN6

SCSS6

SCS6

SCL6

LCAS4 #4 AWG

STR

— — Gray P29 CD-720-1

Gray P29

SCSS4

LCA4

#4 – #3

AWG STR,

#2 AWG

SOL

LCAN4

LCB4

LCBN4

LCD4

LCDN4

LCC4

LCCN4

SCS4

SCL4

CT-920, CT-920CH,

CT-930, CT-930CH,

CT-2930, CT-930LPCH,

➅

CT-2931, CT-2940,

➂

CT-2920, CT940CH➂

-D

™

CT-980, CT-2980, CT980CH,

CT-2981, CT980LPCH,

➅

CT-2950➄

Extended Wire Range➉CT-2001,

CT-2002

Die Part Number / Color Code & Die

Index Number

———

CD-920-8

Red P21 —CD-2001-8

Red P21

CD-920-6

Blue P24 —CD-2001-6

Blue P24

CD-920-4

Gray P29 #4 AWG STR CD-2001-4

Gray P29

Power Connectors

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Installation Tooling and Die Selection

(continued)

Note: See page B27 for note references.

Power Connectors

PANDUIT Installation Tooling and Die Selection

(continued)

CT-1570 CT-1701➀CT-1700➀CT-720

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCAS2

#2 AWG — — Brown P33 CD-720-1

Brown P33

LCA2

LCAN2➈

LCB2

LCBN2

LCD2

LCDN2

LCC2

LCCN2

SCSS2

SCS2

SCL2

LCAS1

#1 AWG — — Green P37 CD-720-2

Green P37

LCA1

LCAN1

LCB1

LCBN1

LCD1

LCDN1

LCC1

LCCN1

SCSS1

SCS1

SCL1

LCAS1/0

1/0 AWG — — — CD-720-2

Pink P42

LCA1/0

LCAN1/0

LCB1/0

LCBN1/0

LCD1/0

LCDN1/0

LCC1/0

LCCN1/0

SCSS1/0

SCS1/0

SCL1/0

Note: See page B27 for note references.

Power Connectors

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Installation Tooling and Die Selection

(continued)

CT-920, CT-920CH,

CT-930, CT-930CH,

CT-2930, CT-930LPCH➅,

CT-2931, CT-2940,➂

CT-2920, CT940CH➂

-D

™

CT-980, CT-2980, CT-980CH,

CT-2981, C-T980LPCH,➅

CT-2950➄

Extended Wire Range➉CT-2001,

CT-2002

Die Part Number / Color Code & Die

Index Number

CD-920-2

Brown P33 #6 – #2 AWG CD-2001-2

Brown P33

CD-920-1

Green P37 #6 – #1 AWG CD-2001-1

Green P37

CD-920-1/0

Pink P42 #6 – 1/0 AWG CD-2001-1/0

Pink P42

Note: See page B27 for note references.

Power Connectors

PANDUIT Installation Tooling and Die Selection

(continued)

CT-1570 CT-1701 CT-1700 CT-720

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCAS2/0

2/0 AWG — — — CD-720-2

Black P45

LCA2/0

LCAN2/0

LCB2/0

LCBN2/0

LCD2/0

LCDN2/0

LCC2/0

LCCN2/0

SCSS2/0

SCS2/0

SCL2/0

LCAS3/0

3/0 AWG — — — CD-720-2

Orange

P50

LCA3/0

LCAN3/0

LCB3/0

LCBN3/0

LCD3/0

LCDN3/0

LCC3/0

LCCN3/0

SCSS3/0

SCS3/0

SCL3/0

LCAS4/0

4/0 AWG — — — CD-720-3

Purple

P54

LCA4/0

LCAN4/0

LCB4/0

LCBN4/0

LCD4/0

LCDN4/0

LCC4/0

LCCN4/0

SCSS4/0

SCS4/0

SCL4/0

Power Connectors

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Installation Tooling and Die Selection

(continued)

CT-920, CT-920CH,

CT-930, CT-930CH,

CT-2930, CT-930LPCH,➅

CT-2931, CT-2940,➂

CT-2920, CT940CH➂

-D

™

CT-980, CT-2980, CT-980CH,

CT-2981, CT-980LPCH,➅

CT-2950➄

Extended Wire Range➉CT-2001,

CT-2002

Die Part Number / Color Code & Die

Index Number

CD-920-2/0

Black P45 #4 – 2/0 AWG CD-2001-2/0

Black P45

CD-920-3/0

Orange P50 #2 – 3/0 AWG CD-2001-3/0

Orange P50

CD-920-4/0

Purple P54 #1 – 4/0 AWG CD-2001-4/0

Purple P54

Note: See page B27 for note references.

Power Connectors

B10

PANDUIT Installation Tooling and Die Selection

(continued)

CT-1570 CT-1701 CT-1700 CT-720

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCAS250

250 kcmil — — — CD-720-3

Yellow P62

LCA250

LCAN250

LCB250

LCBN250

LCD250

LCDN250

LCC250

LCCN250

SCSS250

SCS250

SCL250

LCA300

300 kcmil — — — CD-720-4

White P66

LCAN300

LCB300

LCBN300

LCD300

LCDN300

LCC300

LCCN300

SCS300

SCL300

LCA350

350 kcmil — — — CD-720-5

Red P71

LCAN350

LCB350

LCBN350

LCD350

LCDN350

LCC350

LCCN350

SCS350

SCL350

Power Connectors

B11

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Installation Tooling and Die Selection

(continued)

CT-920, CT-920CH,

CT-930, CT-930CH,

CT-2930, CT-930LPCH,➅

CT-2931, CT-2940,➂

CT-2920, CT940CH➂

-D

™

CT-980, CT-2980, CT-980CH,

CT-2981, CT-980LPCH,➅

CT-2950➄

Extended Wire Range➉CT-2001,

CT-2002

Die Part Number / Color Code & Die

Index Number

CD-920-250

Yellow P62 1/0 AWG – 250 kcmil CD-2001-250

Yellow P62

CD-920-300

White P66 2/0 AWG – 300 kcmil CD-2001-300

White P66

CD-920-350

Red P71 3/0 AWG – 350 kcmil CD-2001-350

Red P71

Note: See page B27 for note references.

Power Connectors

B12

PANDUIT Installation Tooling and Die Selection

(continued)

CT-1570 CT-1701 CT-1700 CT-720

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCA400

400 kcmil — — — CD-720-6

Blue P76

LCAN400

LCB400

LCBN400

LCD400

LCDN400

LCC400

LCCN400

SCS400

SCL400

LCA500

500 kcmil — — — CD-720-7

Brown P87

LCAN500

LCB500

LCBN500

LCD500

LCDN500

LCC500

LCCN500

SCS500

SCL500

LCA600

600 kcmil — — — —

LCAN600

LCB600

LCBN600

LCD600

LCDN600

LCC600

LCCN600

SCS600

SCL600

Power Connectors

B13

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Installation Tooling and Die Selection

(continued)

CT-920, CT-920CH,

CT-930, CT-930CH,

CT-2930, CT-930LPCH,➅

CT-2931, CT-2940,➂

CT-2920, CT940CH➂

-D

™

CT-980, CT-2980, CT-980CH,

CT-2981, CT-980LPCH,➅

CT-2950➄

Extended Wire Range➉CT-2001,

CT-2002

Die Part Number / Color Code & Die

Index Number

CD-920-400

Blue P76 4/0 AWG – 400 kcmil CD-2001-400

Blue P76

CD-920-500

Brown P87 4/0 AWG – 500 kcmil CD-2001-500

Brown P87

CD-920-600

Green P94 250 – 600 kcmil —

Note: See page B27 for note references.

Power Connectors

B14

PANDUIT Installation Tooling and Die Selection

(continued)

CT-1570 CT-1701 CT-1700 CT-720

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCA750

750 kcmil — — — —

LCAN750

LCB750

LCBN750

LCD750

LCDN750

LCC750

LCCN750

SCS750

SCL750

LCB800

800 kcmil — — — —

LCBN800

LCC800

LCCN800

LCB1000

1000 kcmil — — — —

LCBN1000

LCD1000

LCC1000

LCCN1000

SCS1000

SCL1000

Power Connectors

B15

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Installation Tooling and Die Selection

(continued)

CT-920, CT-920CH,

CT-930, CT-930CH,

CT-2930, CT-930LPCH,➅

CT-2931, CT-2940,➂

CT-2920, CT940CH➂

-D

™

CT-980, CT-2980, CT-980CH,

CT-2981, CT-980LPCH,➅

CT-2950➄

Extended Wire Range➈CT-2001,

CT-2002

Die Part Number / Color Code & Die

Index Number

CD-920-750

CD-940-750➃

Black P106 500 – 750 kcmil —

CD-940-800➃

Orange P107 ——

CD-940-1000➃

White P125 ——

Note: See page B27 for note references.

11 11

Power Connectors

B16

Installation Tooling and Die Selection

Cross Reference

Thomas & Betts

TBM20S,

TBM25S TBM5 TBM8 TBM12,

13642M

TBM15,

TBM15I,

TBM15BSCR

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCAS8

#8 AWG Red

21 Red

LCA8

LCAN8

LCB8

LCBN8

LCD8

LCDN8

LCC8

LCCN8

SCSS8

SCS8

SCL8

LCAS6

#6 AWG Blue

24 Blue

LCA6

LCAN6

LCB6

LCBN6

LCD6

LCDN6

LCC6

LCCN6

SCSS6

SCS6

SCL6

LCAS4 #4 AWG

STR

Gray

29 Gray

SCSS4

LCA4

#4 – #3

AWG

STR,

#2 AWG

SOL

LCAN4

LCB4

LCBN4

LCD4

LCDN4

LCC4

LCCN4

SCS4

SCL4

Power Connectors

B17

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Installation Tooling and Die Selection

Cross Reference (continued)

Note: See page B27 for note references.

Thomas & Betts Burndy

TBM8-750M-1,

TBM8-750,

TBM8-750BSCR,

TMB750BSCR➇

TBM14M,

TBM14BSCR,

BPLT14BSCR,

13100A

Y2MR,

Y1MRTC,

Y1MR MY29

Y35,

Y35BH,

Y39,

Y39BH,

Y750,

Y750-2,

Y750BH,

Y750BH-2,

Y750HS,

PAT750,

BAT750,

BAT35 Y45,➆

Y46➆

Y644M,

Y644HS,

Y644MBH,

PAT644,

BAT644

Die Part Number / Color Code & Die

Index Number

STD Red

21 Red

49 #8 U8CRT

Red

U8CRT

Red

49 —

STD Blue

24 Blue

7#6 U5CRT

Blue

U5CRT

Blue

7STD

STD Gray

29 Gray

8#4 U4CRT

Gray

U4CRT

Gray

8STD

Power Connectors

B18

Installation Tooling and Die Selection

Cross Reference (continued)

Thomas & Betts

TBM20S,

TBM25S TBM5 TBM8 TBM12,

13642M

TBM15,

TBM15I,

TBM15BSCR

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCAS2

#2 AWG Brown

33 Brown

SCSS2

LCA2

LCAN2➁

LCB2

LCBN2

LCD2

LCDN2

LCC2

LCCN2

SCS2

SCL2

LCAS1

#1 AWG — Green

37 Green

LCA1

LCAN1

LCB1

LCBN1

LCD1

LCDN1

LCC1

LCCN1

SCSS1

SCS1

SCL1

LCAS1/0

1/0

AWG —Pink

42 Pink

42H➁

LCA1/0

LCAN1/0

LCB1/0

LCBN1/0

LCD1/0

LCDN1/0

LCC1/0

LCCN1/0

SCSS1/0

SCS1/0

SCL1/0

Note: See page B27 for note references.

Power Connectors

B19

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Installation Tooling and Die Selection

Cross Reference (continued)

Thomas & Betts Burndy

TBM8-750M-1,

TBM8-750,

TBM8-750BSCR,

TMB750BSCR➇

TBM14M,

TBM14BSCR,

BPLT14BSCR,

13100A

Y2MR,

Y1MRTC,

Y1MR MY29

Y35,

Y35BH,

Y39,

Y39BH,

Y750,

Y750-2,

Y750BH,

Y750BH-2,

Y750HS,

PAT750,

BAT750,

BAT35 Y45,➆

Y46➆

Y644M,

Y644HS,

Y644MBH,

PAT644,

BAT644

Die Part Number / Color Code & Die

Index Number

STD Brown

33 Brown

10 #2

U2CRT

Brown

U2CRT

Brown

STD

U2CRT

Brown

(SOL)/

Brown

(STR)

U2CRT

Brown

(SOL)/

Brown

(STR)

STD Green

37 —#1

U1CRT

Green

U1CRT

Green

11 STD

STD Pink

42H➁—1/0

U25RT

Pink

U25RT

Pink

12 STD

Note: See page B27 for note references.

Power Connectors

B20

Installation Tooling and Die Selection

Cross Reference (continued)

Thomas & Betts

TBM20S,

TBM25S TBM5 TBM8 TBM12,

13642M

TBM15,

TBM15I,

TBM15BSCR

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCAS2/0

2/0

AWG —Black

45 Black

LCA2/0

LCAN2/0

LCB2/0

LCBN2/0

LCD2/0

LCDN2/0

LCC2/0

LCCN2/0

SCSS2/0

SCS2/0

SCL2/0

LCAS3/0

3/0

AWG —Orange

50 Orange

LCA3/0

LCAN3/0

LCB3/0

LCBN3/0

LCD3/0

LCDN3/0

LCC3/0

LCCN3/0

SCSS3/0

SCS3/0

SCL3/0

LCAS4/0

4/0

AWG —Purple

54 Purple

54H➁

LCA4/0

LCAN4/0

LCB4/0

LCBN4/0

LCD4/0

LCDN4/0

LCC4/0

LCCN4/0

SCSS4/0

SCS4/0

SCL4/0

Note: See page B27 for note references.

Power Connectors

B21

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Installation Tooling and Die Selection

Cross Reference (continued)

Thomas & Betts Burndy

TBM8-750M-1,

TBM8-750,

TBM8-750BSCR,

TMB750BSCR➇

TBM14M,

TBM14BSCR,

BPLT14BSCR,

13100A

Y2MR,

Y1MRTC,

Y1MR MY29

Y35,

Y35BH,

Y39,

Y39BH,

Y750,

Y750-2,

Y750BH,

Y750BH-2,

Y750HS,

PAT750,

BAT750,

BAT35 Y45,➆

Y46➆

Y644M,

Y644HS,

Y644MBH,

PAT644,

BAT644

Die Part Number / Color Code & Die

Index Number

STD Black

45 —2/0

U26RT

Black

U26RT

Black

13 STD

STD Orange

50 —3/0

U27RT

Orange

U27RT

Orange

14 STD

STD Purple

54H➁—4/0

U28RT

Purple

U28RT

Purple

15 STD

Note: See page B27 for note references.

Power Connectors

B22

Installation Tooling and Die Selection

Cross Reference (continued)

Note: See page B27 for note references.

Thomas & Betts

TBM20S,

TBM25S TBM5 TBM8 TBM12,

13642M

TBM15,

TBM15I,

TBM15BSCR

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCAS250

250

kcmil —Yellow

62 Yellow

LCA250

LCAN250

LCB250

LCBN250

LCD250

LCDN250

LCC250

LCCN250

SCSS250

SCS250

SCL250

LCA300

300

kcmil ——

White

66 White

66H➁White

LCAN300

LCB300

LCBN300

LCD300

LCDN300

LCC300

LCCN300

SCS300

SCL300

LCA350

350

kcmil ——

Red

71 Red

71H➁Red

71H➁

LCAN350

LCB350

LCBN350

LCD350

LCDN350

LCC350

LCCN350

SCS350

SCL350

Power Connectors

B23

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Installation Tooling and Die Selection

Cross Reference (continued)

Thomas & Betts Burndy

TBM8-750M-1,

TBM8-750,

TBM8-750BSCR,

TMB750BSCR➇

TBM14M,

TBM14BSCR,

BPLT14BSCR,

13100A

Y2MR,

Y1MRTC,

Y1MR MY29

Y35,

Y35BH,

Y39,

Y39BH,

Y750,

Y750-2,

Y750BH,

Y750BH-2,

Y750HS,

PAT750,

BAT750,

BAT35 Y45,➆

Y46➆

Y644M,

Y644HS,

Y644MBH,

PAT644,

BAT644

Die Part Number / Color Code & Die

Index Number

STD Yellow

62 — 250 U29RT

Yellow

U29RT

Yellow

16 STD

STD White

66 ——

U30RT

White

U30RT

White

17 STD

STD Red

71H➁——

U31RT

Red

U31RT

Red

18 STD

Note: See page B27 for note references.

Power Connectors

B24

Installation Tooling and Die Selection

Cross Reference (continued)

Note: See page B27 for note references.

Thomas & Betts

TBM20S,

TBM25S TBM5 TBM8 TBM12,

13642M

TBM15,

TBM15I,

TBM15BSCR

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCA400

400

kcmil ——

Blue

76 Blue

76H➁Blue

76H➁

LCAN400

LCB400

LCBN400

LCD400

LCDN400

LCC400

LCCN400

SCS400

SCL400

LCA500

500

kcmil ——

Brown

87 Brown

87H➁Brown

87H➁

LCAN500

LCB500

LCBN500

LCD500

LCDN500

LCC500

LCCN500

SCS500

SCL500

LCA600

600

kcmil ———

Green

94H➁Green

94H➁

LCAN600

LCB600

LCBN600

LCD600

LCDN600

LCC600

LCCN600

SCS600

SCL600

Power Connectors

B25

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Installation Tooling and Die Selection

Cross Reference (continued)

Thomas & Betts Burndy

TBM8-750M-1,

TBM8-750,

TBM8-750BSCR,

TMB750BSCR➇

TBM14M,

TBM14BSCR,

BPLT14BSCR,

13100A

Y2MR,

Y1MRTC,

Y1MR MY29

Y35,

Y35BH,

Y39,

Y39BH,

Y750,

Y750-2,

Y750BH,

Y750BH-2,

Y750HS,

PAT750,

BAT750,

BAT35 Y45,➆

Y46 ➆

Y644M,

Y644HS,

Y644MBH,

PAT644,

BAT644

Die Part Number / Color Code & Die

Index Number

STD Blue 76 — — U32RT

Blue

U32RT

Blue

19 STD

STD Brown

87H➁——

U34RT

Brown

U34RT

Brown

20 STD

STD Green

94H➁——

U36RT

Green

U36RT

Green

22 STD

Note: See page B27 for note references.

Power Connectors

B26

Installation Tooling and Die Selection

Cross Reference (continued)

Note: See page B27 for note references.

Thomas & Betts

TBM20S,

TBM25S TBM5 TBM8 TBM12,

13642M

TBM15,

TBM15I,

TBM15BSCR

PANDUIT

Connector

Type

Std.

Wire

Size Die Part Number / Color Code & Die

Index Number

LCA750

750

kcmil ———

Black

106H➁

Black

106H➁

LCAN750

LCB750

LCBN750

LCD750

LCDN750

LCC750

LCCN750

SCS750

SCL750

LCB1000

1000

kcmil ———

Yellow

125H➁

Yellow

125H➁

LCBN1000

LCD1000

LCC1000

LCCN1000

SCS1000

SCL1000

Power Connectors

B27

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Installation Tooling and Die Selection

Cross Reference (continued)

Thomas & Betts Burndy

TBM8-750M-1,

TBM8-750,

TBM8-750BSCR,

TMB750BSCR➇

TBM14M,

TBM14BSCR,

BPLT14BSCR,

13100A

Y2MR,

Y1MRTC,

Y1MR MY29

Y35,

Y35BH,

Y39,

Y39BH,

Y750,

Y750-2,

Y750BH,

Y750BH-2,

Y750HS,

PAT750,

BAT750,

BAT35 Y45,➆

Y46➆

Y644M,

Y644HS,

Y644MBH,

PAT644,

BAT644

Die Part Number / Color Code & Die

Index Number

STD Black

106H➁——

U39RT

Black

U39RT

Black

24 STD

— 125H➁—— —

S44RT

White

27 —

➀The CT-1700 and CT-1701 crimp die pockets are integrated into the tool frame.

➁Half width dies.

➂CD-920 dies can be used with CT-940CH and CT-2940 tools with

CD-940-DA adapter.

➃CD-940 dies to be used exclusively with CT-940CH and CT-2940 tools.

➄Maximum size: 500 kcmil lugs and 250 kcmil splices.

➅Maximum size: 250 kcmil lugs and splices.

➆Requires U die adapter.

➇Minimum size: #4 AWG lugs and splices.

➈LCAN2 lugs for use with #2 AWG and #3 AWG wire.

➉Extended wire range when crimped with these

PANDUIT

-D

™Dieless

Crimping Tools, except LCAS parts.

Maximum splice size for CT-920, CT920CH and CT-2920 tools is 400 kcmil.

Power Connectors

B28

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

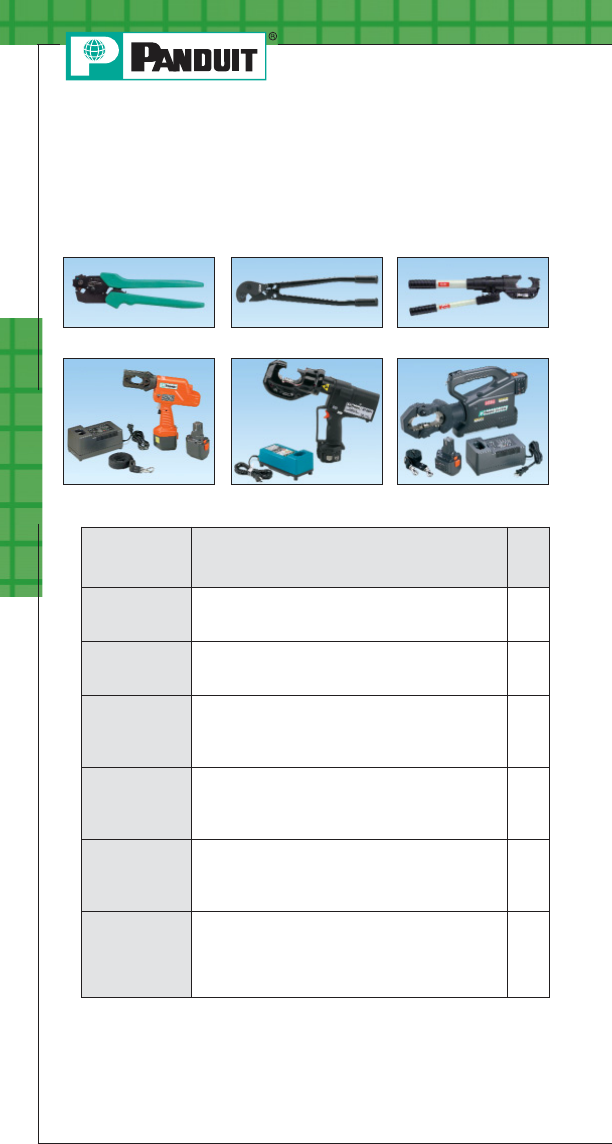

Compression Connector Crimping Tools

CT-1700 CT-930CT-720

CT-2001 CT-2931 CT-2940

Part Number Description

Std.

Pkg.

Qty.

CT-1700 Ergonomic, Hand Tool; Includes 5 position

color coded rotating die; Installs #8 - #1 AWG

-L

™Compression Connectors.

CT-720 Die Type, Manual, Crimping Tool; Installs

#8 AWG - 500 kcmil

-L

™

Compression Connectors.

CT-930 Die Type, Manual Hydraulic, 14 Ton, Crimping

Tool; Includes tool case with die storage;

Installs #14 AWG - 750 kcmil

-L

™

Compression Connectors.

CT-2001 Die Type, Battery Powered Hydraulic, 6 Ton,

Crimping Tool; Includes two batteries, charger,

shoulder strap, tool case; Installs #14 AWG -

500 kcmil

-L

™Compression Connectors.

CT-2931 Die Type, Battery Powered Hydraulic, 12 Ton,

Crimping Tool; Includes two batteries, charger,

tool case; Installs #14 AWG - 750 kcmil

-L

™Compression Connectors.

CT-2940 Die Type, Battery Powered Hydraulic, 15 Ton,

Crimping Tool; Includes two batteries,

charger, shoulder strap, tool case; Installs

#14 AWG - 1,000 kcmil

-L

™

Compression Connectors.

Manual & Battery Powered Die Type

Crimping Tools

Power Connectors

B29

For service and technical support, call 800-777-3300

or visit www.panduit.com.

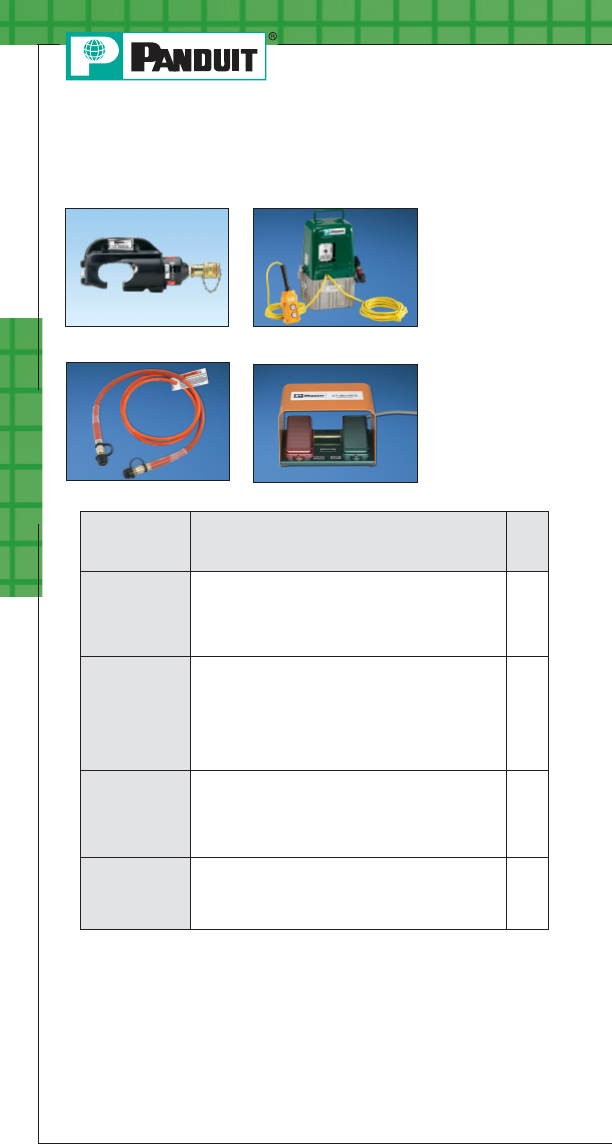

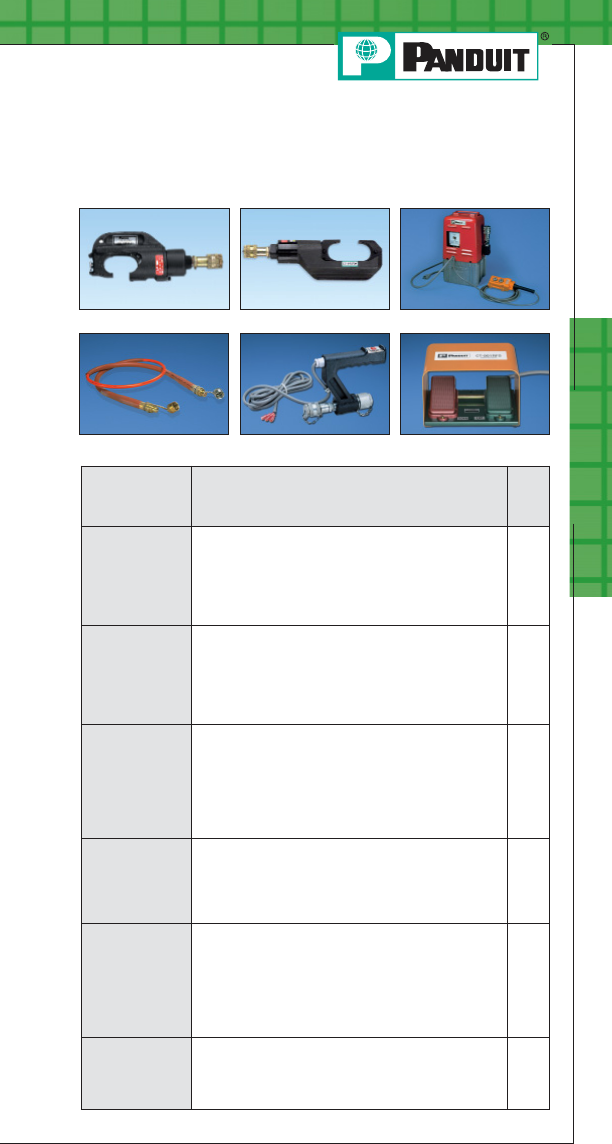

Die Type, High Pressure Remote Hydraulic,

Crimp Heads & Hydraulic Pump

CT-930CH CT-901HPCT-940CH

CT-900HPH CT-901RCH

Prime items appear in BOLD.

CT-901RFS

Part Number Description

Std.

Pkg.

Qty.

CT-930CH Die Type, Remote Hydraulic, 14 Ton, Crimp

Head; Used with 10,000 PSI hydraulic systems;

Includes tool case and female Parker type

quick-connect fitting assembled to tool;

Installs #14 AWG - 750 kcmil

-L

™

Compression Connectors.

CT-940CH Die Type, Remote Hydraulic, 15 Ton, Crimp

Head; Used with 10,000 PSI hydraulic systems;

Includes tool case and female Parker type

quick-connect fitting assembled to tool;

Installs #10 AWG - 1000 kcmil

-L

™

Compression Connectors.

CT-901HP Hydraulic Pump; Develops 10,000 PSI output;

Includes on/off pendant switch on 10' electric

cord, 3 prong A/C plug on 10' electric cord, female

Parker type quick-connect fitting assembled to

pump; Compatible with CT-900HPH hydraulic

hose, CT-930CH, CT-940CH and CT-980CH

crimp heads sold separately.

CT-900HPH Electrically Non-Conductive 10' Hose; Includes

two male Parker type quick-connect fittings;

Compatible with CT-901HP hydraulic pump and

CT-930CH, CT-940CH and CT-980CH crimp

heads, sold separately.

CT-901RCH Remote Control Handle; Incorporates plastic

carrying handle with on/off activation switch for

one hand operation; Used with remote hydraulic

crimp heads CT-930CH, CT-940CH and

CT-980CH; Includes 10' three wire control

cable that can be directly connected to the

CT-901HP pump.

CT-901RFS Dual Electrical Foot Switch; Allows “hands-free”

operation of CT-901HP or CT-8250HP electric

hydraulic pumps used with

PANDUIT

remote

hydraulic crimp heads; Includes 10' electric cord.

Power Connectors

B30

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Die Type, Low Pressure Remote

Hydraulic, Crimp Head & Hydraulic Pump

CT-930LPCH

CT-900LPHPH

CT-8250HP

CT-901RFS

Part Number Description

Std.

Pkg.

Qty.

CT-930LPCH Die Type, Remote Hydraulic, 10.5 Ton,

Crimp Head; Includes tool case and male

Parker type quick-connect fitting assembled to

tool; Installs #8 AWG – 250 kcmil

-L

™

Compression Connectors.

CT-8250HP Hydraulic Pump; Develops 7,500 PSI output;

Includes on/off pendant switch on 10' electric

cord, 3 prong A/C plug on 10' electric cord, male

Parker type quick-connect fitting assembled to

pump; Compatible with CT-900LPHPH hydraulic

hose, CT-930LPCH and CT-980LPCH crimp

heads sold separately.

CT-900LPHPH Electrically Non-Conductive 10' Hose; Includes

two female Parker type quick-connect fittings;

Compatible with CT-901LPHPH hydraulic pump

and CT-930LPCH and CT-980LPCH

crimp heads.

CT-901RFS Dual Electrical Foot Switch; Allows “hands-free”

operation of CT-901HP or CT-8250HP electric

hydraulic pumps used with

PANDUIT

remote

hydraulic crimp heads; Includes 10' electric cord.

Prime items appear in BOLD.

Power Connectors

B31

For service and technical support, call 800-777-3300

or visit www.panduit.com.

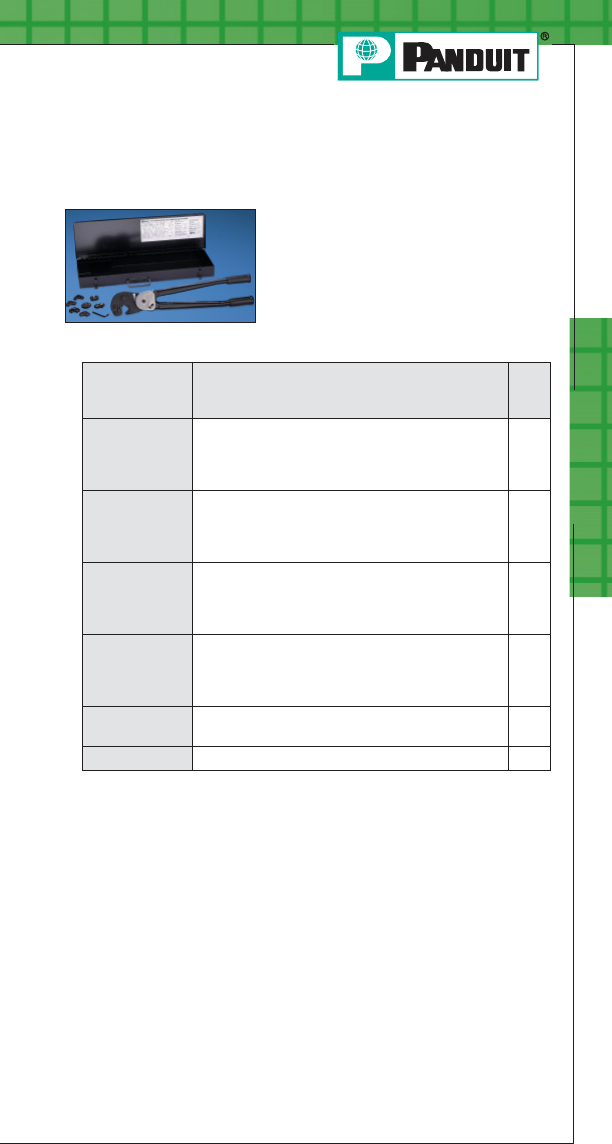

Die Type, Manual, Crimping Tool and

Die Kits

Part Number Part Description

Std.

Pkg.

Qty.

CT-720-7 Tool kit for installing #8 AWG – 500 kcmil

-L

™Compression Connectors; Includes

seven dies (CD-720-1 through CD-720-7) and

carrying/storage case (C-720).

CT-720-7CC Controlled cycle tool kit for installing #8 AWG –

500 kcmil

-L

™Compression Connectors;

Includes seven dies (CD-720-1 through

CD-720-7) and carrying/storage case (C-720).

CT-720-3 Tool kit for installing #8 AWG – 250 kcmil

-L

™Compression Connectors; Includes

three dies (CD-720-1 through CD-720-3) and

carrying/storage case (C-720).

CT-720-3CC Controlled cycle tool kit for installing #8 AWG –

250 kcmil

-L

™Compression Connectors;

I2ncludes three dies (CD-720-1 through

CD-720-3) and carrying/storage case (C-720).

CC-720 Optional controlled cycle mechanism only. Total

weight of tool with CC-720 is 8.25 lbs. 1

C-720 Steel carrying case for CT-720 crimping tool. 1

• Available with or without controlled

cycle feature to meet

specific applications

• Kits available with three or full set of

seven dies for crimping partial or full

range of connector sizes

Power Connectors

B32

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

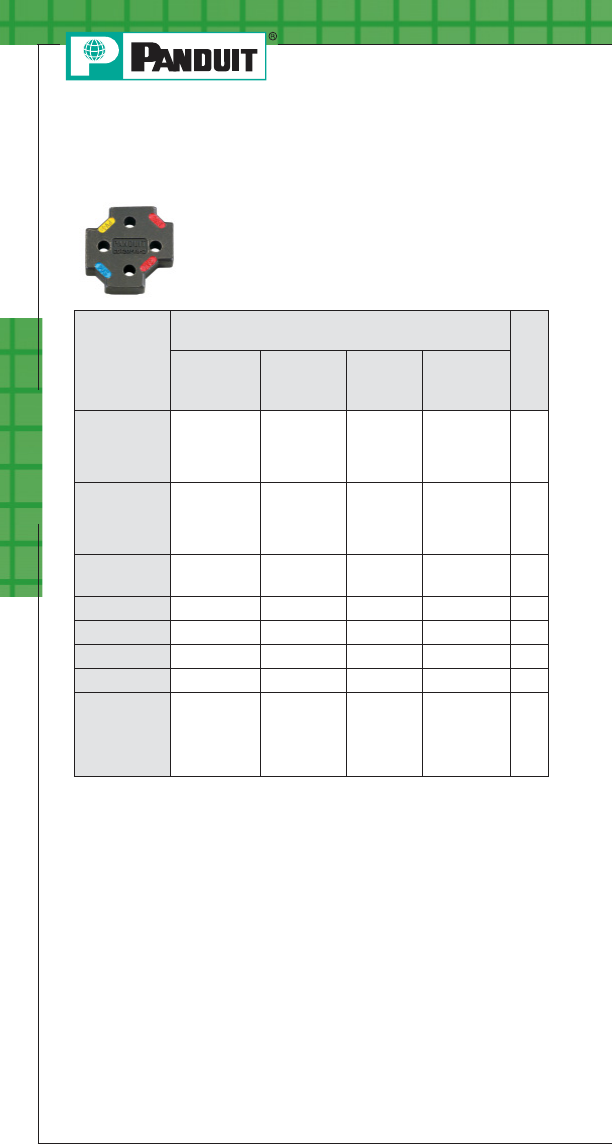

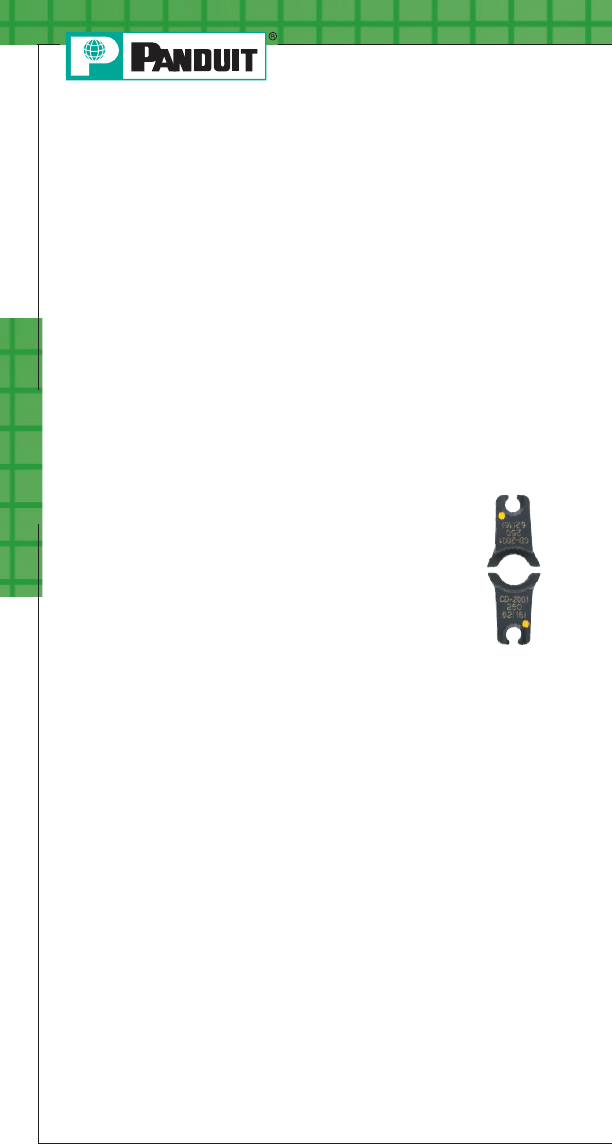

CD-720 Crimping Dies

Compression dies for crimping tool:

CT-720

Part Number

Used to Install

PANDUIT

Compression

Lug & Splice Sizes

Std.

Pkg.

Qty.

Copper

Conductor

Size

Copper

Die Color

& Die No.

Aluminum

Conductor

Size

Aluminum

Die Color

& Die No.

CD-720-1 #8 – #2

AWG Red P21,

Blue P24,

Gray P29,

Brown P33

#6 AWG Gray P29 1

CD-720-2 #1 – 3/0

AWG Green P37,

Pink P42,

Black P45,

Orange P50

#4 – 1/0

AWG Green P37,

Pink P42,

Gold P45,

Tan P50

CD-720-3 4/0 AWG –

250 kcmil Purple P54,

Yellow P62 2/0 – 3/0

AWG Olive P54,

Ruby P62 1

CD-720-4 300 kcmil White P66 4/0 AWG White P66 1

CD-720-5 350 kcmil Red P71 250 kcmil Red P71 1

CD-720-6 400 kcmil Blue P76 300 kcmil Blue P76 1

CD-720-7 500 kcmil Brown P87 350 kcmil Brown P87 1

CD-720PV8-2 #8 – #2

AWG, vinyl

insulated

-T

ERM

Terminals

Red, Blue,

Yellow ——1

Prime items appear in BOLD.

Power Connectors

B33

For service and technical support, call 800-777-3300

or visit www.panduit.com.

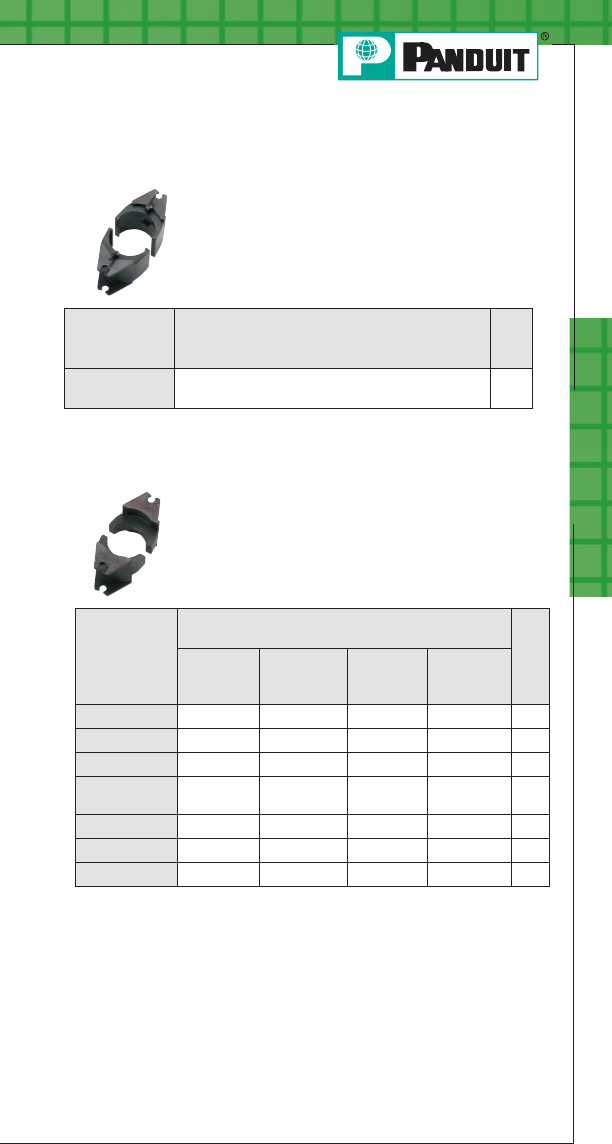

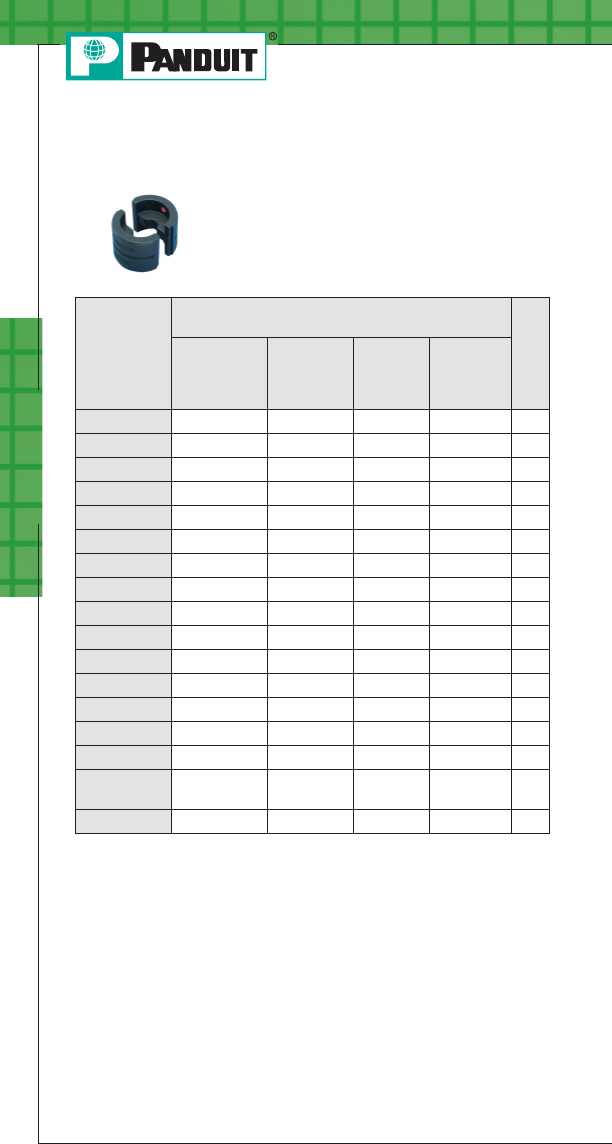

CD-2001 Crimping Dies

Compression dies for crimping tools:

CT-2001 and CT-2002

Part Number

Used to Install

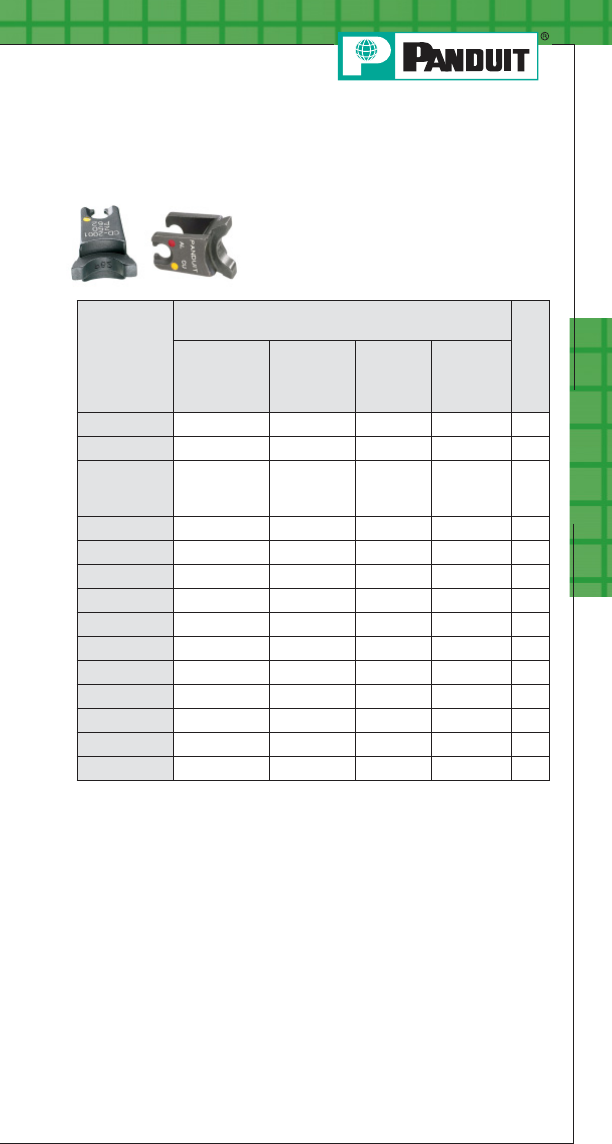

PANDUIT

Compression Lug &

Splice Sizes

Std.

Pkg.

Qty.

Copper Code

Conductor

Size

Copper

Die Color &

Die No.

Aluminum

Code

Conductor

Size

Aluminum

Die Color

& Die No.

CD-2001-8 #8 AWG Red P21 — — 1

CD-2001-6 #6 AWG Blue P24 — — 1

CD-2001-4 #4 AWG STR

#3 AWG STR

#2 AWG SOL

Gray P29 #6 AWG Gray P29 1

CD-2001-2 #2 AWG Brown P33 — — 1

CD-2001-1 #1 AWG Green P37 #4 AWG Green P37 1

CD-2001-1/0 1/0 AWG Pink P42 #2 AWG Pink P42 1

CD-2001-2/0 2/0 AWG Black P45 #1 AWG Gold P45 1

CD-2001-3/0 3/0 AWG Orange P50 1/0 AWG Tan P50 1

CD-2001-4/0 4/0 AWG Purple P54 2/0 AWG Olive P54 1

CD-2001-250 250 kcmil Yellow P62 3/0 AWG Ruby P62 1

CD-2001-300 300 kcmil White P66 4/0 AWG White P66 1

CD-2001-350 350 kcmil Red P71 250 kcmil Red P71 1

CD-2001-400 400 kcmil Blue P76 300 kcmil Blue P76 1

CD-2001-500 500 kcmil Brown P87 — — 1

Power Connectors

B34

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

CD-920 Crimping Dies

Compression dies for crimping tools:

CT-930, CT-2931, CT-2930, CT-2940*,

CT-930CH, CT-940CH* and CT-930LPCH

Part Number

Used to Install

PANDUIT

Compression

Lug & Splice Sizes

Std.

Pkg.

Qty.

Copper

Code

Conductor

Size

Copper

Die Color

& Die No.

Aluminum

Code

Conductor

Size

Aluminum

Die Color

& Die No.

CD-920-8 #8 AWG Red P21 — — 1

CD-920-6 #6 AWG Blue P24 — — 1

CD-920-4 #4 AWG Gray P29 #6 AWG Gray P29 1

CD-920-2 #2 AWG Brown P33 — — 1

CD-920-1 #1 AWG Green P37 #4 AWG Green P37 1

CD-920-1/0 1/0 AWG Pink P42 #2 AWG Pink P42 1

CD-920-2/0 2/0 AWG Black P45 #1 AWG Gold P45 1

CD-920-3/0 3/0 AWG Orange P50 1/0 AWG Tan P50 1

CD-920-4/0 4/0 AWG Purple P54 2/0 AWG Olive P54 1

CD-920-250 250 kcmil Yellow P62 3/0 AWG Ruby P62 1

CD-920-300 300 kcmil White P66 4/0 AWG White P66 1

CD-920-350 350 kcmil Red P71 250 kcmil Red P71 1

CD-920-400 400 kcmil Blue P76 300 kcmil Blue P76 1

CD-920-500 500 kcmil Brown P87 350 kcmil Brown P87 1

CD-920-600 600 kcmil Green P94 400 kcmil Green P94 1

CD-920-500A 500 kcmil flex,

600 kcmil flex Pink P99 500 kcmil Pink P99 1

CD-920-750 750 kcmil Black P106 600 kcmil Black P106 1

*Requires CD-940-DA die adapter.

Prime items appear in BOLD.

Power Connectors

B35

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Die Adapter

CD-940 Crimping Dies

Compression dies for crimping tools:

CT-2940 and CT-940CH

Die adapter for crimping tools:

CT-2940 and CT-940CH

Part Number

Used to Install

PANDUIT

Compression

Lug & Splice Sizes

Std.

Pkg.

Qty.

Copper

Conductor

Size

Copper

Die Color

& Die No.

Aluminum

Conductor

Size

Aluminum

Die Color &

Die No.

CD-940-750 750 kcmil Black P106 — — 1

CD-940-800 800 kcmil Orange P107 — — 1

CD-940-1000 1000 kcmil White P125 — — 1

CD-940-750X 777.7 kcmil

flex Yellow P115 — — 1

CD-940-750A — — 750 kcmil Red P125 1

CD-940-800A — — 800 kcmil Gray P140 1

CD-940-1000A — — 1000 kcmil Brown P161 1

Part Number Part Description

Std.

Pkg.

Qty.

CD-940-DA Die Adapter for use with

PANDUIT

CD-920,

CDM-920 and CD-930 crimping dies. 1

Power Connectors

B36

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

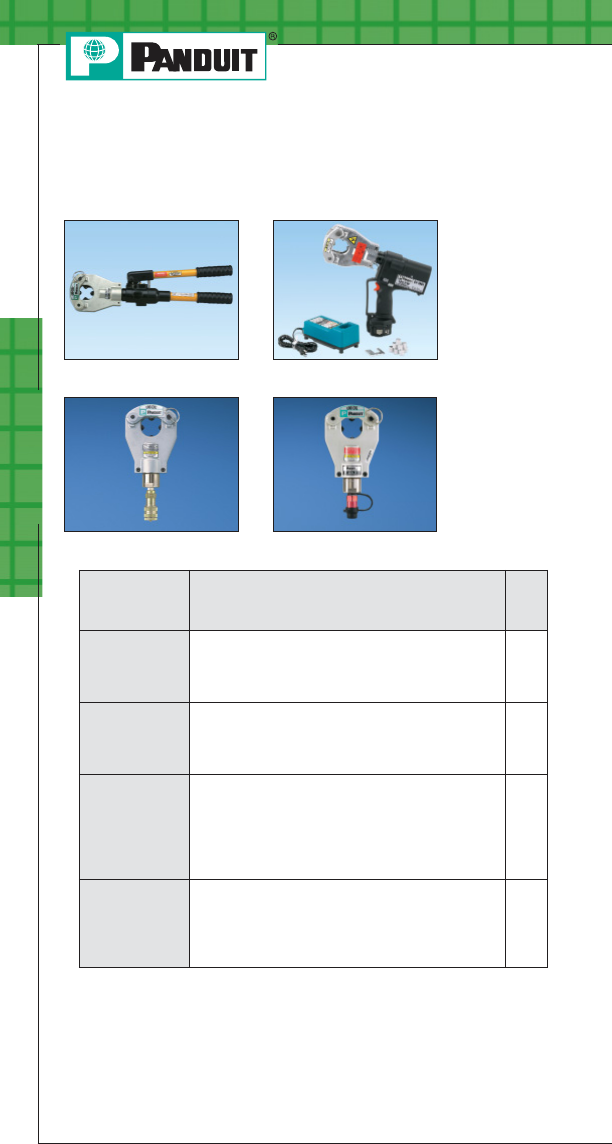

UNI-DIE

™Dieless, Crimping Tools and

Crimp Heads

CT-980 CT-2981

CT-980CH CT-980LPCH

Part Number Description

Std.

Pkg.

Qty.

CT-980

-D

™Dieless, Manual Hydraulic, 6.2 Ton,

Crimping Tool; Includes tool case;

Installs #4 AWG - 750 kcmil

-L

™

Compression Connectors.

CT-2981

-D

™Dieless, Battery Powered Hydraulic,

6.2 Ton, Crimping Tool; Includes two batteries,

charger, tool case; Installs #4 AWG - 750 kcmil

-L

™Compression Connectors.

CT-980CH

-D

™Dieless, Remote Hydraulic, 6.2 Ton,

Crimp Head used with 10,000 PSI hydraulic

system; Includes tool case and female Parker

type quick-connect fitting assembled to tool;

Installs #4 AWG - 750 kcmil

-L

™

Compression Connectors.▲

CT-980LPCH

-D

™Dieless, Remote Hydraulic, 4.7 Ton,

Crimp Head; Includes tool case and male Parker

type quick-connect fitting assembled to tool;

Installs #4 AWG - 250 kcmil

-L

™

Compression Connectors.■

▲CT-980CH to be used with CT-901HP and CT-900HPH. See page B29

for more information.

■CT-980LPCH to be used with CT-8250HP, CT-900LPHPH and

CT-901RFS. See page B30 for more information.

Prime items appear in BOLD.

Power Connectors

B37

For service and technical support, call 800-777-3300

or visit www.panduit.com.

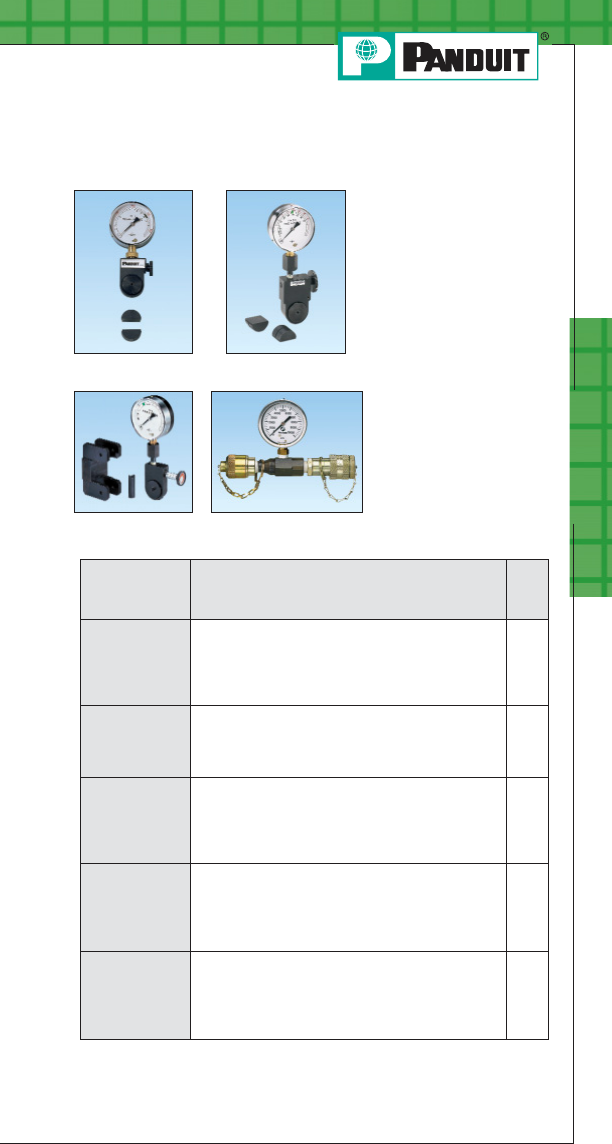

Pressure Gauges

CG-920 CG-940

CG-980 PG-1

Part Number Description

Std.

Pkg.

Qty.

CG-920 Compression Gauge; Used to measure crimping

force generated by

PANDUIT

crimping tools:

CT-930, CT-930CH, CT-930LPCH, CT-2930

and CT-2931; Includes blank die set and

storage case.

CG-940 Compression Gauge; Used to measure output

force generated by

PANDUIT

crimping tools:

CT-940CH and CT-2940; Includes blank die set

and storage case.

CG-980 Compression Gauge; Used to insure proper

compression force for

-D

™Dieless

Crimping Tools: CT-980, CT-980CH, CT-2980

and CT-2981; Includes fixture for mounting

gauge in crimping tool and storage case.

PG-1 In-Line Pressure Gauge; Provides visual

verification of hydraulic output pressure when

used with CT-930LPCH and CT-980LPCH crimp

heads, CT-8250HP pump and CT-900LPHPH

hose; Includes storage case.

PG-1SC In-Line Pressure Gauge provides visual

identification of hydraulic output pressure

when used with

PANDUIT

CT-8250HP pump

and CT-900LPHPH hose; Includes steel

storage case.

Power Connectors

B38

Features and Benefits – PAN-LUG™

Compression Connectors

Copper Lugs

Bolded features are unique to

PANDUIT

Aluminum Lugs

Color coded bands for

proper die selection

and crimp placement

Inspection windows

available to

assure complete

conductor insertion

Part number, stud

size and conductor

size marked on part

for easy identification

Easy-to-read, color

coded die index numbers

for

PANDUIT

and

specified competitor

crimping dies

for selection

Internally beveled barrel

end for easy conductor

insertion (types LCCF and

LCAF available with flared

entry for flex conductor)

Made from seamless,

high conductivity copper

tubing and electro tin

plated and burnished to

inhibit corrosion

Factory pre-filled

with oxide inhibitor

to prevent oxidation

Part number and

conductor size

marked on part for

easy identification

Easy-to-read

die index numbers

for

PANDUIT

and

specified competitor

crimping dies

for selection

Color coded

end plugs

for proper

die selection

Crimping areas

marked on part

for proper

crimp placement

Made from seamless

wrought aluminum and

electro tin plated to

inhibit corrosion

Power Connectors

B39

For service and technical support, call 800-777-3300

or visit www.panduit.com.

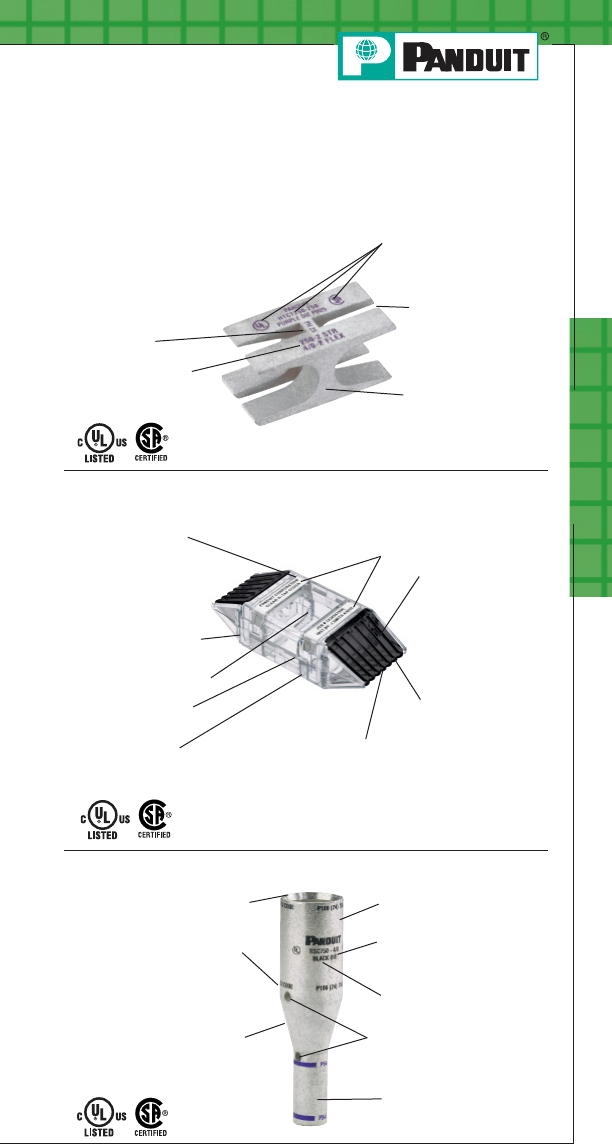

Features and Benefits – PAN-LUG™

Compression Connectors (continued)

Copper HTAPs

Part number and agency

listings marked on part

for easy identification

Conductor sizes for

each tap pocket

marked on part Made from high

conductivity copper

and electro tin plated

to inhibit corrosion

Slotted design to

reduce installation

time when used

with

PANDUIT

cable

ties (included)

Easy-to-read,

color coded

die index number

for

PANDUIT

crimping dies,

legible after crimping,

for selection

Clear Covers for Copper HTAPs

*Labels shown printed with

PANDUIT

LS7 Printer.

Retainer clips to hold labels inside

cover*. Retainer clips have a write-

on surface for manual marking

Optically clear to allow

360° inspections

Made from high

impact strength

self-extinguishing

plastic with UL94V-0

flammability rating

and minimum

oxygen index of 28

Built-in flanges

retain HTAP in cover

Easy to assemble

snap-on design

Flexible fingers closely conform to

conductor preventing foreign objects

from entering cover

Corresponding

PANDUIT

HTAP

part number,

voltage rating and

temperature rating

molded into

cover half for

easy identification

Low profile

design minimizes

space requirements

Molded in flash

barriers protect against

electrical flash over

Copper In-Line Reducing Splices

Internally beveled barrel end

for easy conductor insertion

Color coded for proper

die selection

Inspection windows

to assure complete

conductor insertion

Crimping areas marked

on each barrel for proper

crimp placement

Compact size provides

low profile installation

Easy-to-read, color coded

die index numbers for

PANDUIT

and specified

competitor crimping dies

for selection

Made from seamless, high

conductivity copper tubing

and electro tin plated and

burnished to inhibit corrosion

Part number and conductor

size and type marked on

part for easy identification

Power Connectors

B40

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

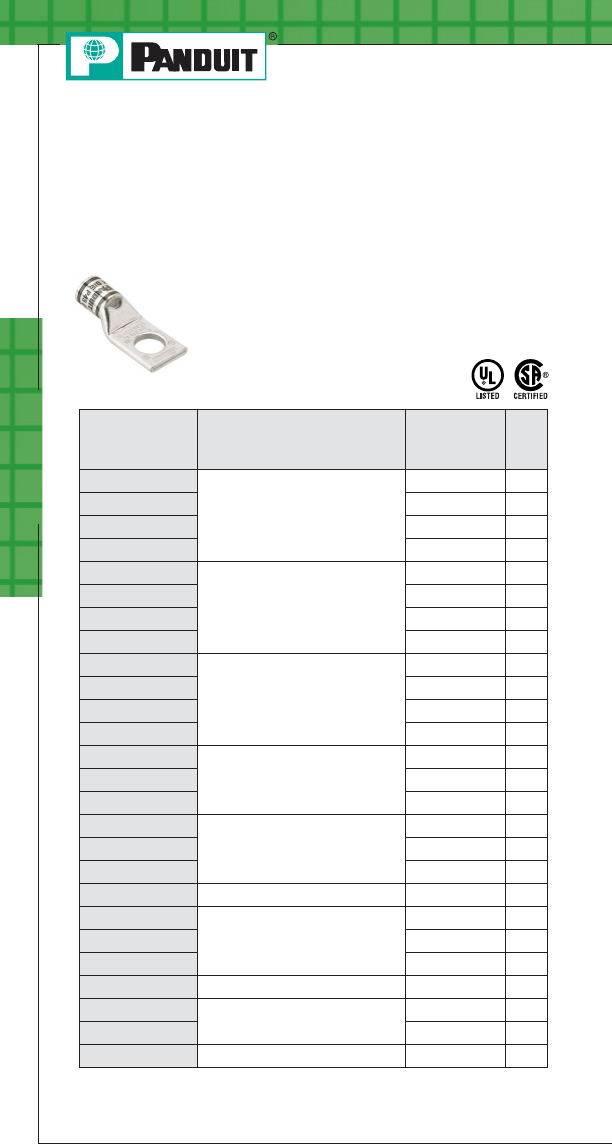

Code Conductor, One-Hole, Short Barrel

with Window Lug

Part Number Copper Conductor Size

Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

LCAS8-10-L

#8 AWG

#10 50

LCAS8-14-L 1/4 50

LCAS8-56-L 5/16 50

LCAS8-38-L 3/8 50

LCAS6-10-L

#6 AWG

#10 50

LCAS6-14-L 1/4 50

LCAS6-56-L 5/16 50

LCAS6-38-L 3/8 50

LCAS4-10-L

#4 AWG

#10 50

LCAS4-14-L 1/4 50

LCAS4-56-L 5/16 50

LCAS4-38-L 3/8 50

LCAS2-14-Q

#2 AWG

1/4 25

LCAS2-56-Q 5/16 25

LCAS2-38-Q 3/8 25

LCAS1-14-E

#1 AWG

1/4 20

LCAS1-56-E 5/16 20

LCAS1-38-E 3/8 20

LCAS1/0-38-X 1/0 AWG 3/8 10

LCAS2/0-14-X

2/0 AWG

1/4 10

LCAS2/0-38-X 3/8 10

LCAS2/0-12-X 1/2 10

LCAS3/0-38-X 3/0 AWG 3/8 10

LCAS4/0-38-X 4/0 AWG 3/8 10

LCAS4/0-12-X 1/2 10

LCAS250-12-X 250 kcmil 1/2 10

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

Type LCAS

• For use with stranded copper conductors

•UL Listed and CSA Certified when crimped

with

PANDUIT

and specified competitor

crimping tools and dies

• Tested by Telcordia – meets

NEBS Level 3

PAN-LUG™Copper Compression Connectors

Prime items appear in BOLD.

Power Connectors

B41

For service and technical support, call 800-777-3300

or visit www.panduit.com.

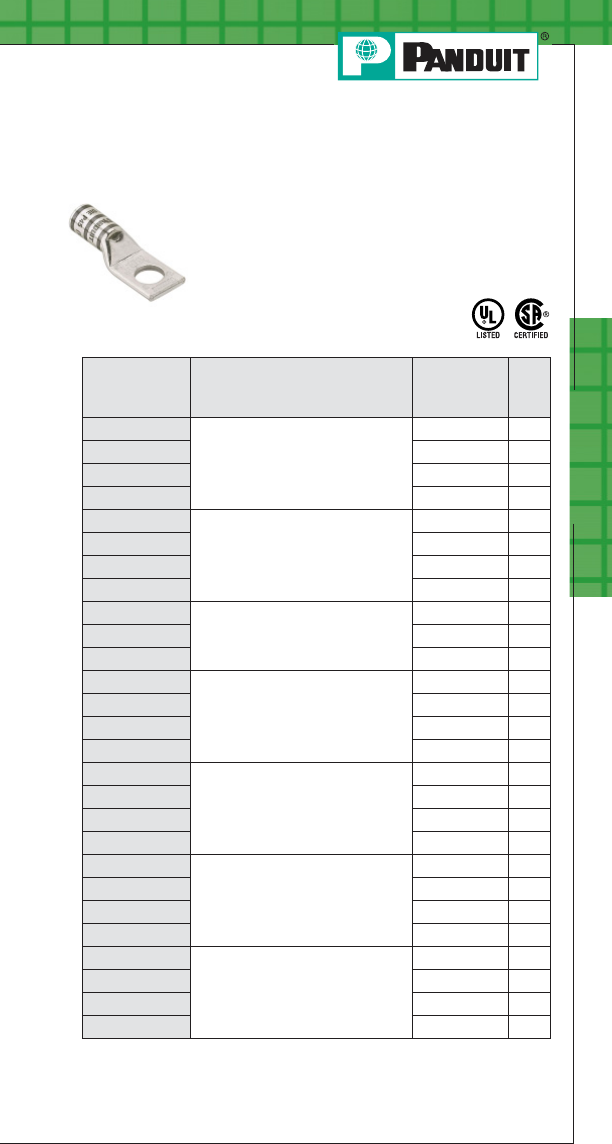

Code Conductor, One-Hole, Standard

Barrel with Window Lug

Part Number Copper Conductor Size

Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

LCA8-10-L

#8 AWG

#10 50

LCA8-14-L 1/4 50

LCA8-56-L 5/16 50

LCA8-38-L 3/8 50

LCA6-10-L

#6 AWG

#10 50

LCA6-14-L 1/4 50

LCA6-56-L 5/16 50

LCA6-38-L 3/8 50

LCA4-14-L

#4 – #3 AWG STR, #2 AWG SOL

1/4 50

LCA4-56-L 5/16 50

LCA4-38-L 3/8 50

LCA2-14-Q

#2 AWG

1/4 25

LCA2-56-Q 5/16 25

LCA2-38-Q 3/8 25

LCA2-12-Q 1/2 25

LCA1-14-E

#1 AWG

1/4 20

LCA1-56-E 5/16 20

LCA1-38-E 3/8 20

LCA1-12-E 1/2 20

LCA1/0-14-X

1/0 AWG

1/4 10

LCA1/0-56-X 5/16 10

LCA1/0-38-X 3/8 10

LCA1/0-12-X 1/2 10

LCA2/0-14-X

2/0 AWG

1/4 10

LCA2/0-56-X 5/16 10

LCA2/0-38-X 3/8 10

LCA2/0-12-X 1/2 10

Type LCA

• For use with stranded copper conductors

•UL Listed and CSA Certified when crimped

with

PANDUIT

and specified competitor

crimping tools and dies

• Tested by Telcordia – meets

NEBS Level 3

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

continued on page B42

LCA3/0-14-X

3/0 AWG

1/4 10

LCA3/0-56-X 5/16 10

LCA3/0-38-X 3/8 10

LCA3/0-12-X 1/2 10

LCA4/0-56-X

4/0 AWG

5/16 10

LCA4/0-38-X 3/8 10

LCA4/0-12-X 1/2 10

LCA250-56-X

250 kcmil

5/16 10

LCA250-38-X 3/8 10

LCA250-12-X 1/2 10

LCA300-12-X 300 kcmil 1/2 10

LCA350-38-X 350 kcmil 3/8 10

LCA350-12-X 1/2 10

LCA400-12-6 400 kcmil 1/2 6

LCA500-12-6 500 kcmil 1/2 6

LCA600-12-6 600 kcmil 1/2 6

Power Connectors

B42

Order number of pieces required, in multiples of Standard Package Quantity.

Prime items appear in BOLD.

Code Conductor, One-Hole, Standard

Barrel with Window Lug (continued)

Part Number Copper Conductor Size

Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

Type LCA

• For use with stranded copper conductors

•UL Listed and CSA Certified when crimped

with

PANDUIT

and specified competitor

crimping tools and dies

• Tested by Telcordia – meets

NEBS Level 3

Prime items appear in BOLD.

Power Connectors

B43

For service and technical support, call 800-777-3300

or visit www.panduit.com.

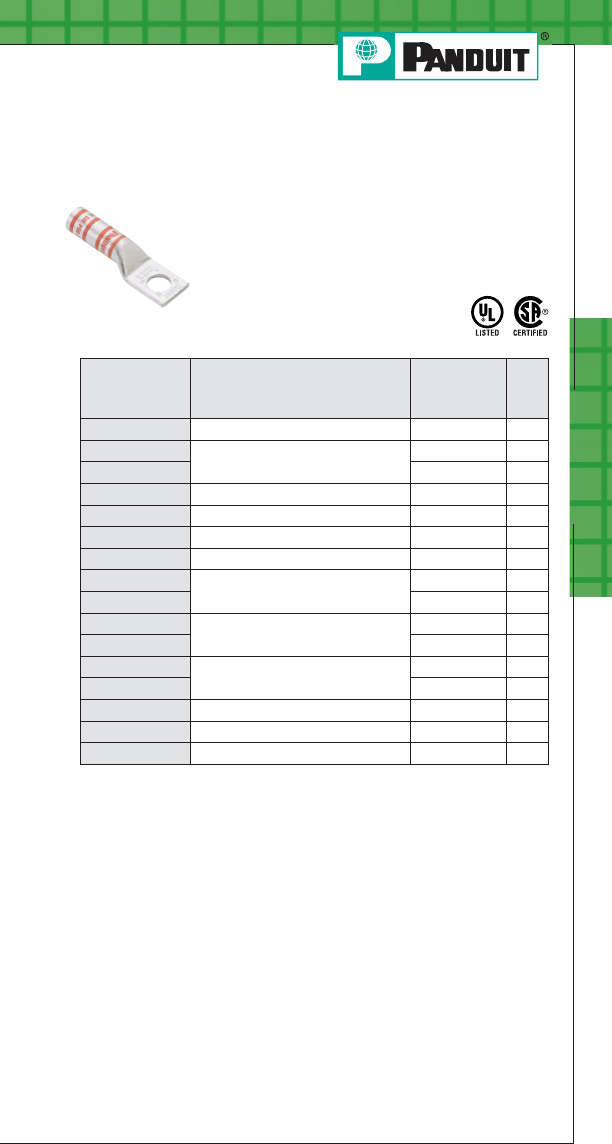

Code Conductor, One-Hole, Long

Barrel Lug

• For use with stranded copper conductors

•UL Listed and CSA Certified when crimped

with

PANDUIT

and specified competitor

crimping tools and dies

• Tested by Telcordia – meets NEBS

Level 3

Part Number Copper Conductor Size

Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

LCB8-14-L #8 AWG 1/4 50

LCB6-14-L #6 AWG 1/4 50

LCB6-38-L 3/8 50

LCB4-14-L #4 – 3 AWG STR, #2 AWG SOL 1/4 50

LCB2-56-Q #2 AWG 5/16 25

LCB1-56-E #1 AWG 5/16 20

LCB1/0-38-X 1/0 AWG 3/8 10

LCB2/0-38-X 2/0 AWG 3/8 10

LCB2/0-12-X 1/2 10

LCB3/0-38-X 3/0 AWG 3/8 10

LCB3/0-12-X 1/2 10

LCB4/0-38-X 4/0 AWG 3/8 10

LCB4/0-12-X 1/2 10

LCB250-12-X 250 kcmil 1/2 10

LCB350-12-X 350 kcmil 1/2 10

LCB500-12-6 500 kcmil 1/2 6

Type LCB

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

Power Connectors

B44

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Type LCD

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

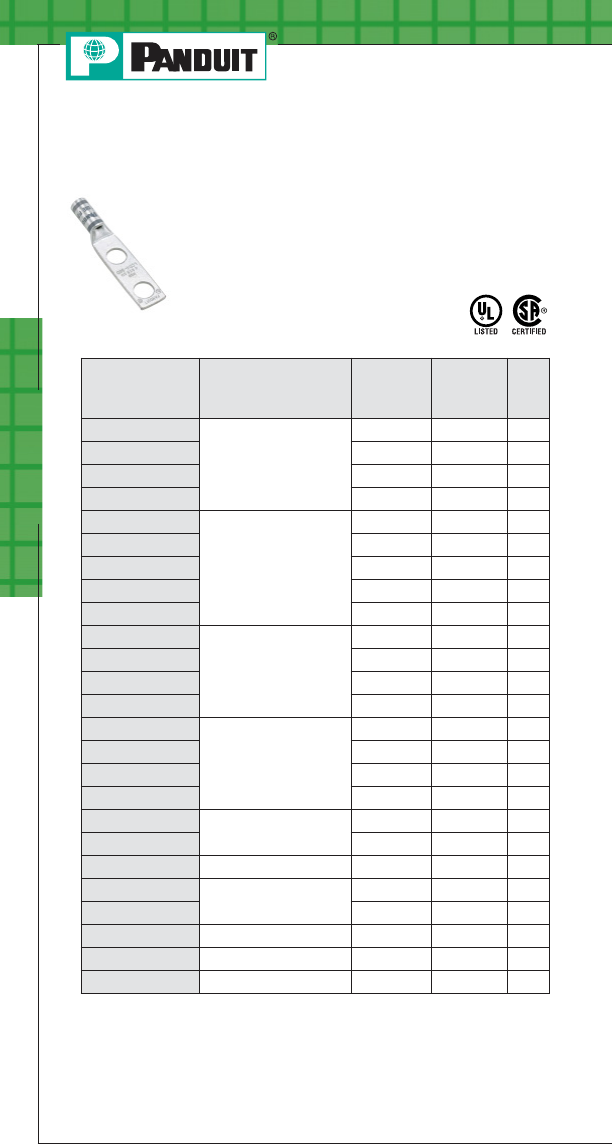

Code Conductor, Two-Hole, Standard

Barrel with Window Lug

• For use with stranded copper conductors

•UL Listed and CSA Certified when crimped

with

PANDUIT

and specified competitor

crimping tools and dies

• Tested by Telcordia – meets

NEBS Level 3

Part Number Copper Conductor

Size

Stud Hole

Size

(In.)

Stud Hole

Spacing

(In.)

Std.

Pkg.

Qty.

LCD8-10A-L

#8 AWG

#10 .63 50

LCD8-14A-L 1/4 .63 50

LCD8-14B-L 1/4 .75 50

LCD8-14D-L 1/4 1.00 50

LCD6-10A-L

#6 AWG

#10 .63 50

LCD6-14A-L 1/4 .63 50

LCD6-14B-L 1/4 .75 50

LCD6-14D-L 1/4 1.00 50

LCD6-38D-L 3/8 1.00 50

LCD4-14A-L

#4 – #3 AWG STR,

#2 AWG SOL

1/4 .63 50

LCD4-14B-L 1/4 .75 50

LCD4-14D-L 1/4 1.00 50

LCD4-38D-L 3/8 1.00 50

LCD2-14A-Q

#2 AWG

1/4 .63 25

LCD2-14B-Q 1/4 .75 25

LCD2-14D-Q 1/4 1.00 25

LCD2-38D-Q 3/8 1.00 25

LCD1-14A-E #1 AWG 1/4 .63 20

LCD1-38D-E 3/8 1.00 20

LCD1/0-38D-X 1/0 AWG 3/8 1.00 10

LCD2/0-14B-X 2/0 AWG 1/4 .75 10

LCD2/0-38D-X 3/8 1.00 10

LCD3/0-38D-X 3/0 AWG 3/8 1.00 10

LCD4/0-38D-X 4/0 AWG 3/8 1.00 10

LCD250-38D-X 250 kcmil 3/8 1.00 10

Prime items appear in BOLD.

Power Connectors

B45

For service and technical support, call 800-777-3300

or visit www.panduit.com.

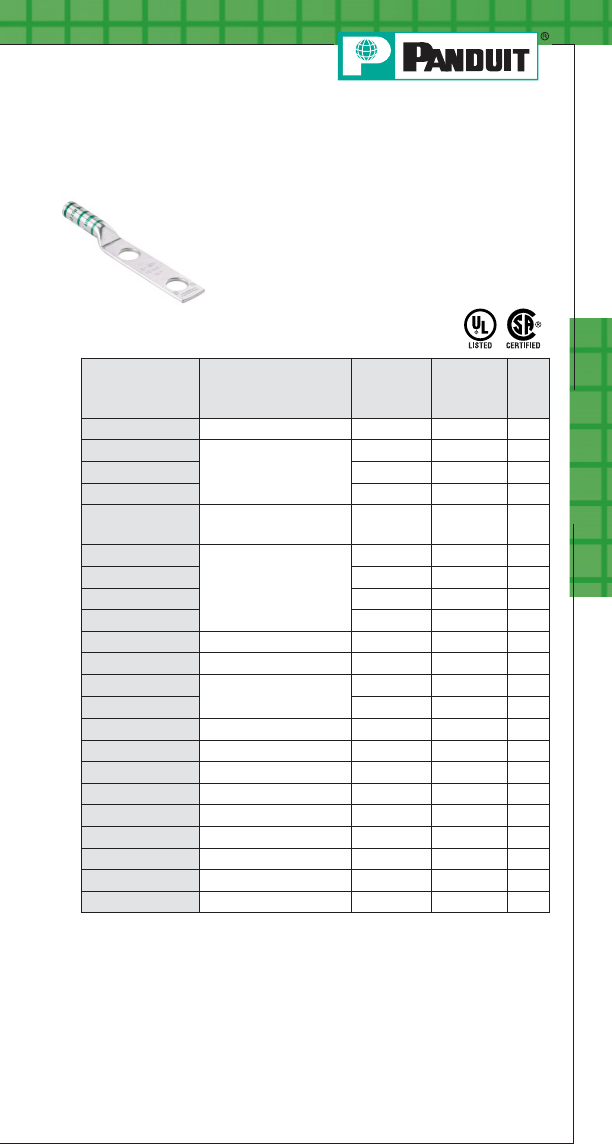

Code Conductor, Two-Hole, Long

Barrel Lug

• For use with stranded copper conductors

•UL Listed and CSA Certified when

crimped with

PANDUIT

and specified

competitor crimping tools and dies

• Tested by Telcordia – meets

NEBS Level 3

Type LCC

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

◆NEMA hole sizes and spacing.

Part Number Copper Conductor

Size

Stud Hole

Size

(In.)

Stud Hole

Spacing

(In.)

Std.

Pkg.

Qty.

LCC8-14A-L #8 AWG 1/4 .63 50

LCC6-14A-L

#6 AWG

1/4 .63 50

LCC6-14B-L 1/4 .75 50

LCC6-38D-L 3/8 1.00 50

LCC4-14A-L #4 – #3 AWG STR,

#2 AWG SOL 1/4 .63 50

LCC2-56B-Q

#2 AWG

5/16 .75 25

LCC2-38D-Q 3/8 1.00 25

LCC2-38-Q 3/8 1.75 25

LCC2-12-Q 1/2 1.75 25

LCC1-14A-E #1 AWG 1/4 .63 20

LCC1/0-12-X 1/0 AWG 1/2 1.75 10

LCC2/0-38D-X 2/0 AWG 3/8 1.00 10

LCC2/0-12-X 1/2 1.75 10

LCC3/0-12-X 3/0 AWG 1/2 1.75 10

LCC4/0-12-X◆4/0 AWG 1/2 1.75 10

LCC250-12-X◆250 kcmil 1/2 1.75 10

LCC300-12-X◆300 kcmil 1/2 1.75 10

LCC350-12-X◆350 kcmil 1/2 1.75 10

LCC400-12-6◆400 kcmil 1/2 1.75 6

LCC500-12-6◆500 kcmil 1/2 1.75 6

LCC600-12-6◆600 kcmil 1/2 1.75 6

LCC750-12-6◆750 kcmil 1/2 1.75 6

Power Connectors

B46

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Type SCS

For complete tool and die information, see the Electrical Solutions

Catalog, SA-ELCB03, at www.panduit.com.

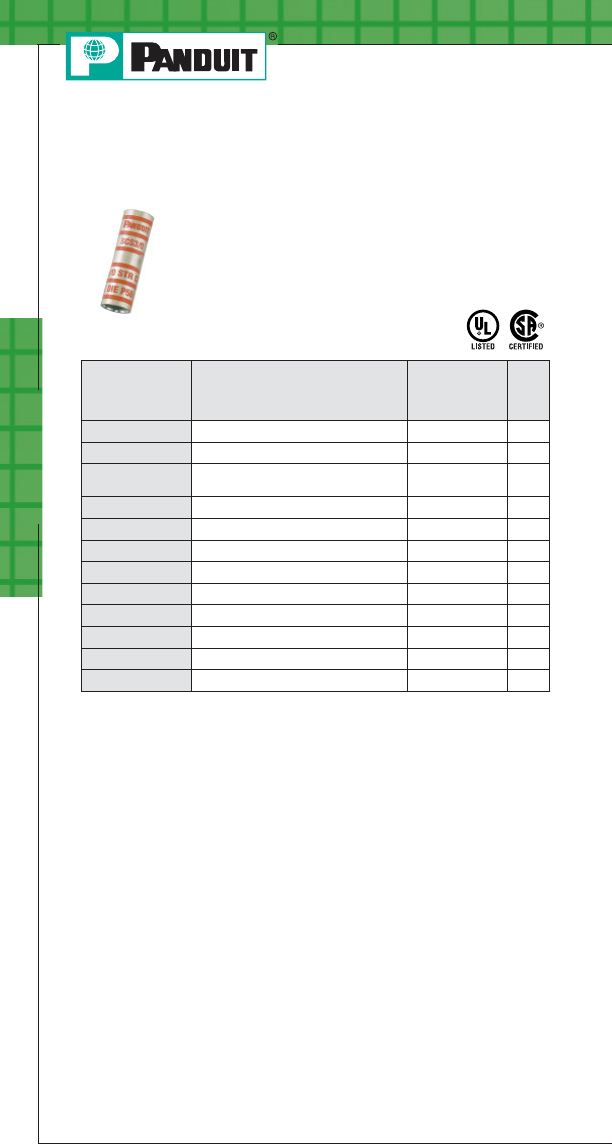

Code Conductor, Standard Barrel,

Butt Splice

• For use with stranded copper conductors

•UL Listed and CSA Certified when

crimped with

PANDUIT

and specified

competitor crimping tools and dies

• Tested by Telcordia – meets

NEBS Level 3

Part Number Copper Conductor Size Length

(In.)

Std.

Pkg.

Qty.

SCS8-L #8 AWG 1.50 50

SCS6-L #6 AWG 1.75 50

SCS4-L #4 – #3 AWG STR,

#2 AWG SOL 1.75 50

SCS2-Q #2 AWG 1.87 25

SCS1-E #1 AWG 1.87 20

SCS1/0-X 1/0 AWG 1.87 10

SCS2/0-X 2/0 AWG 2.00 10

SCS3/0-X 3/0 AWG 2.12 10

SCS4/0-X 4/0 AWG 2.12 10

SCS250-X 250 kcmil 2.25 10

SCS350-X 350 kcmil 2.37 10

SCS500-6 500 kcmil 2.87 6

Prime items appear in BOLD.

Power Connectors

B47

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Code Conductor, Long Barrel, Butt Splice

• For use with stranded copper conductors

•UL Listed and CSA Certified when

crimped with

PANDUIT

and specified

competitor crimping tools and dies

• Tested by Telcordia – meets

NEBS Level 3

Part Number Copper Conductor Size Length

(In.)

Std.

Pkg.

Qty.

SCL8-L #8 AWG 2.25 50

SCL6-L #6 AWG 2.38 50

SCL4-L #4 – #3 AWG STR,

#2 AWG SOL 2.38 50

SCL2-Q #2 AWG 2.62 25

SCL1-E #1 AWG 2.87 20

SCL1/0-X 1/0 AWG 2.87 10

SCL2/0-X 2/0 AWG 3.13 10

SCL3/0-X 3/0 AWG 3.12 10

SCL4/0-X 4/0 AWG 3.37 10

SCL250-X 250 kcmil 3.38 10

SCL350-X 350 kcmil 4.12 10

SCL500-6 500 kcmil 4.62 6

SCL600-6 600 kcmil 5.50 6

Type SCL

Type PS

Code Conductor, Parallel Splice

• For use with stranded copper conductors

Part Number

Circular MIL Range Length

(In.)

Std.

Pkg.

Qty.

Min. Max.

PS8-L 19,000 25,000 .40 50

PS6-L 25,000 40,000 .44 50

PS2-Q 65,000 100,000 .64 25

PS4/0-X 240,000 280,000 .77 10

For complete tool and die information, see the Electrical Solutions

Catalog, SA-ELCB03, at www.panduit.com.

For complete tool and die information, see the Electrical Solutions

Catalog, SA-ELCB03, at www.panduit.com.

Power Connectors

B48

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

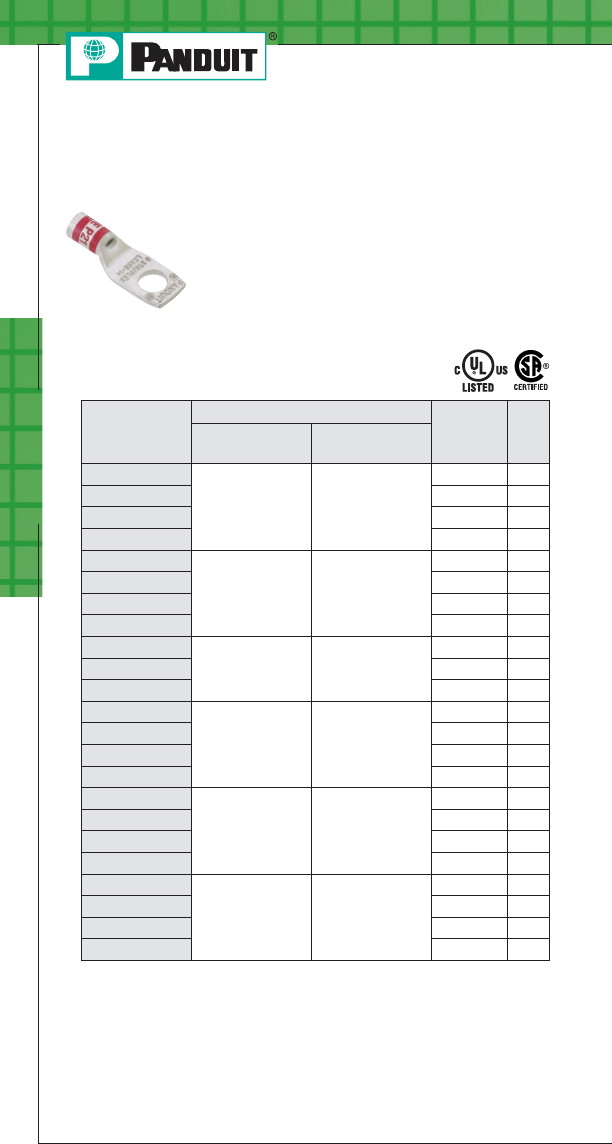

Type LCAX

Flex Conductor, One-Hole, Standard

Barrel with Window Lug

• For use with flexible and extra-flexible

copper conductors

• For use with code stranded copper conductors

up to 4/0 AWG

•UL Listed and CSA Certified when crimped

with

PANDUIT

and specified competitor

crimping tools and dies

Part Number

Flex Conductor Size Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

Class

G, H, I, K, M Locomotive

LCAX8-10-L

#8 AWG #8 AWG

#10 50

LCAX8-14-L 1/4 50

LCAX8-56-L 5/16 50

LCAX8-38-L 3/8 50

LCAX6-10-L

#6 AWG #6 AWG

#10 50

LCAX6-14-L 1/4 50

LCAX6-56-L 5/16 50

LCAX6-38-L 3/8 50

LCAX4-14-L

#4 AWG #5, #4, #3 AWG

1/4 50

LCAX4-56-L 5/16 50

LCAX4-38-L 3/8 50

LCAX2-14-E

#2 AWG #2 AWG

1/4 20

LCAX2-56-E 5/16 20

LCAX2-38-E 3/8 20

LCAX2-12-E 1/2 20

LCAX1-14-X

#1 AWG #1 AWG

1/4 10

LCAX1-56-X 5/16 10

LCAX1-38-X 3/8 10

LCAX1-12-X 1/2 10

LCAX1/0-14-X

1/0 AWG 1/0 AWG

1/4 10

LCAX1/0-56-X 5/16 10

LCAX1/0-38-X 3/8 10

LCAX1/0-12-X 1/2 10

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com

Prime items appear in BOLD.

Power Connectors

B49

For service and technical support, call 800-777-3300

or visit www.panduit.com.

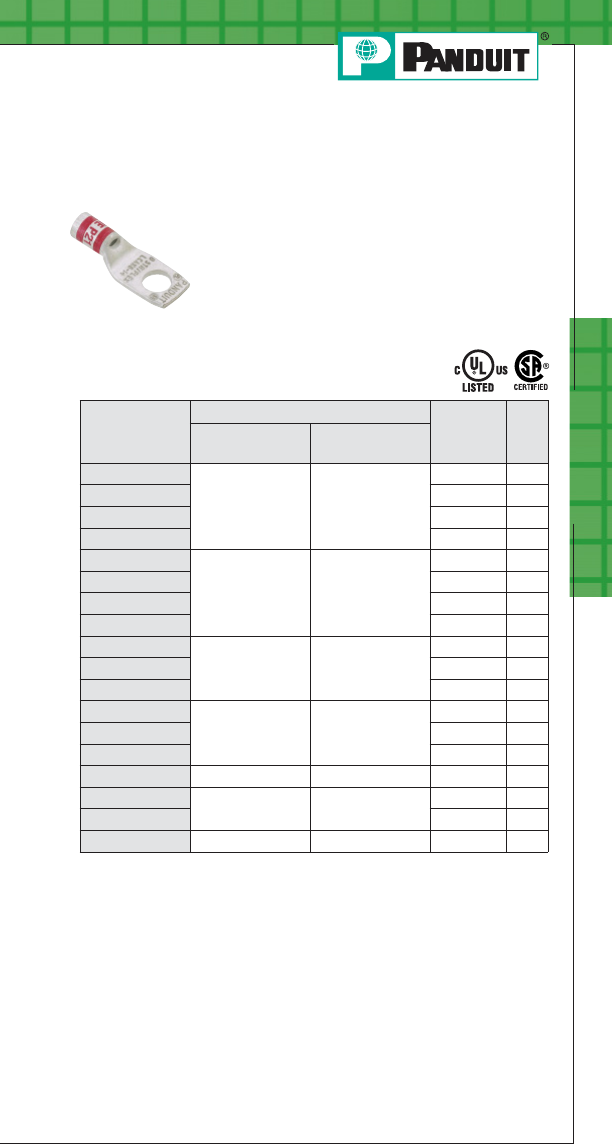

LCAX2/0-14-X

2/0 AWG 2/0 AWG

1/4 10

LCAX2/0-56-X 5/16 10

LCAX2/0-38-X 3/8 10

LCAX2/0-12-X 1/2 10

LCAX3/0-14-X

3/0 AWG 3/0 AWG

1/4 10

LCAX3/0-56-X 5/16 10

LCAX3/0-38-X 3/8 10

LCAX3/0-12-X 1/2 10

LCAX4/0-56-X

4/0 AWG 4/0 AWG

5/16 10

LCAX4/0-38-X 3/8 10

LCAX4/0-12-X 1/2 10

LCAX250-56-X

250 kcmil 262.6 kcmil

5/16 10

LCAX250-38-X 3/8 10

LCAX250-12-X 1/2 10

LCAX300-12-6 300 kcmil 313.1 kcmil 1/2 6

LCAX350-38-6 350 kcmil 373.7 kcmil 3/8 6

LCAX350-12-6 1/2 6

LCAX500-12-6 500 kcmil 535.3 kcmil 1/2 6

Part Number

Flex Conductor Size Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

Class

G, H, I, K, M Locomotive

Flex Conductor, One-Hole, Standard

Barrel with Window Lug (continued)

Type LCAX

• For use with flexible and extra-flexible

copper conductors

• For use with code stranded copper conductors

up to 4/0 AWG

•UL Listed and CSA Certified when crimped

with

PANDUIT

and specified competitor

crimping tools and dies

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

Power Connectors

B50

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

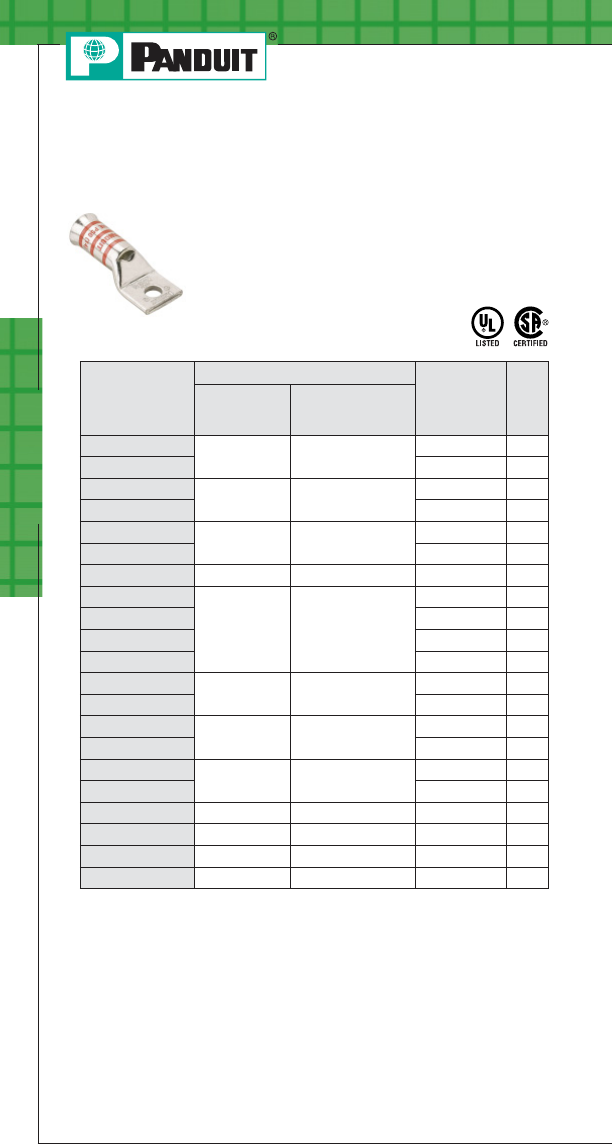

Flex Conductor, One-Hole, Standard

Barrel with Window, Flared Lug

• For use with flexible and extra-flexible

copper conductors

• Tested by Telcordia – meets NEBS Level 3

Type LCAF

Part Number

Flex Conductor Size

Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

Class K & M Locomotive

LCAF6-14-L #6 AWG #6 AWG 1/4 50

LCAF6-38-L 3/8 50

LCAF4-14-L #4 AWG #4 AWG 1/4 50

LCAF4-38-L 3/8 50

LCAF2-14-E #2 AWG #2 AWG 1/4 20

LCAF2-38-E 3/8 20

LCAF1-38-X #1 AWG #1 AWG 3/8 10

LCAF1/0-14-X

1/0 AWG 1/0 AWG

1/4 10

LCAF1/0-56-X 5/16 10

LCAF1/0-38-X 3/8 10

LCAF1/0-12-X 1/2 10

LCAF2/0-38-X 2/0 AWG 2/0 AWG 3/8 10

LCAF2/0-12-X 1/2 10

LCAF3/0-38-X 3/0 AWG 3/0 AWG 3/8 10

LCAF3/0-12-X 1/2 10

LCAF4/0-38-X 4/0 AWG 4/0 AWG 3/8 10

LCAF4/0-12-X 1/2 10

LCAF250-12-X 250 kcmil 262.6 kcmil 1/2 10

LCAF350-12-6 350 kcmil 373.7 kcmil 1/2 6

LCAF400-12-6 400 kcmil 444.4 kcmil 1/2 6

LCAF600-12-6 —646.4 kcmil 1/2 6

Prime items appear in BOLD.

Power Connectors

B51

For service and technical support, call 800-777-3300

or visit www.panduit.com.

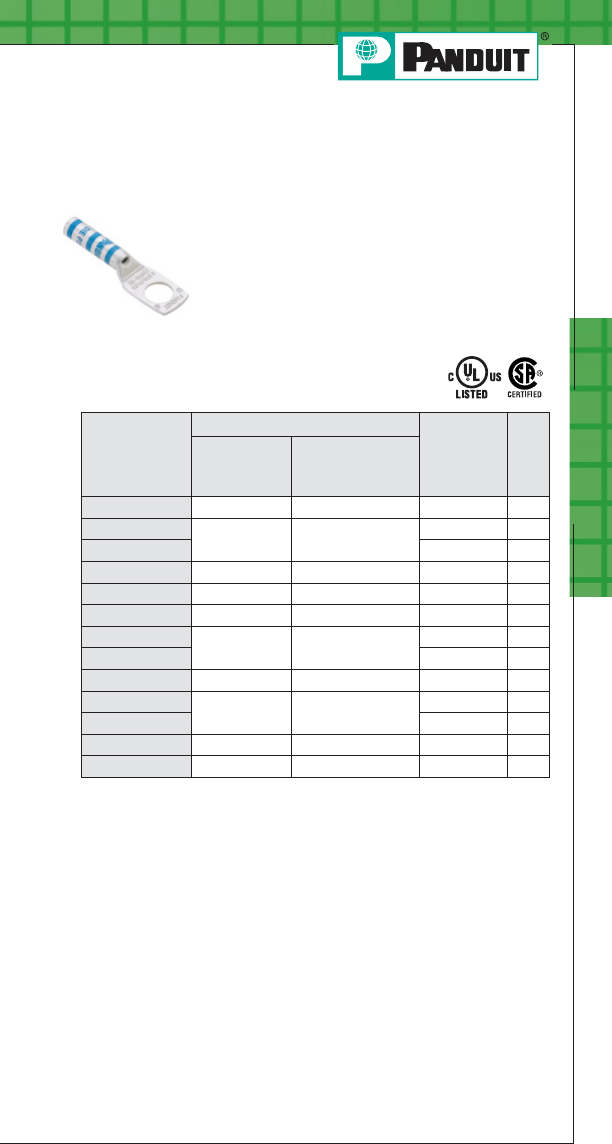

Flex Conductor, One-Hole, Long Barrel

with Window Lug

• For use with flexible and extra-flexible

copper conductors

• For use with code stranded copper conductors

up to 4/0 AWG

•UL Listed and CSA Certified when crimped

with

PANDUIT

and specified competitor

crimping tools and dies

Part Number

Flex Conductor Size

Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

Class

G, H, I, K, M Locomotive

LCBX8-14-L #8 AWG #8 AWG 1/4 50

LCBX6-14-L #6 AWG #6 AWG 1/4 50

LCBX6-38-L 3/8 50

LCBX4-14-L #4 AWG #5, #4, #3 AWG 1/4 50

LCBX1-56-X #1 AWG #1 AWG 5/16 10

LCBX1/0-38-X 1/0 AWG 1/0 AWG 3/8 10

LCBX2/0-38-X 2/0 AWG 2/0 AWG 3/8 10

LCBX2/0-12-X 1/2 10

LCBX3/0-38-X 3/0 AWG 3/0 AWG 3/8 10

LCBX4/0-38-X 4/0 AWG 4/0 AWG 3/8 10

LCBX4/0-12-X 1/2 10

LCBX350-12-6 350 kcmil 373.7 kcmil 1/2 6

LCBX500-12-6 500 kcmil 535.3 kcmil 1/2 6

Type LCBX

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

Power Connectors

B52

Prime items appear in BOLD.

Order number of pieces required, in multiples of Standard Package Quantity.

Type LCDX

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

◆NEMA hole sizes and spacing.

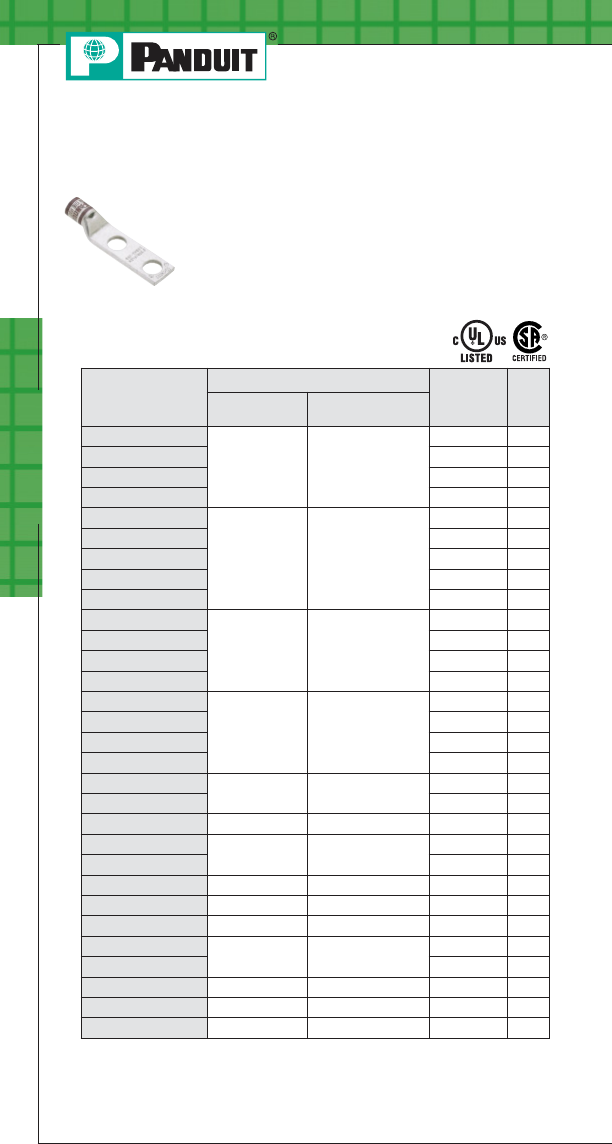

Flex Conductor, Two-Hole, Standard

Barrel with Window Lug

• For use with flexible and extra-flexible

copper conductors

• For use with code stranded copper conductors

up to 4/0 AWG

•UL Listed and CSA Certified when crimped

with

PANDUIT

and specified

competitor crimping tools

and dies

Part Number

Flex Conductor Size Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

Class

G, H, I, K, M Locomotive

LCDX8-10A-L

#8 AWG #8 AWG

#10 50

LCDX8-14A-L 1/4 50

LCDX8-14B-L 1/4 50

LCDX8-14D-L 1/4 50

LCDX6-10A-L

#6 AWG #6 AWG

#10 50

LCDX6-14A-L 1/4 50

LCDX6-14B-L 1/4 50

LCDX6-14D-L 1/4 50

LCDX6-38D-L 3/8 50

LCDX4-14A-L

#4 AWG #5, #4, #3 AWG

1/4 50

LCDX4-14B-L 1/4 50

LCDX4-14D-L 1/4 50

LCDX4-38D-L 3/8 50

LCDX2-14A-E

#2 AWG #2 AWG

1/4 20

LCDX2-14B-E 1/4 20

LCDX2-14D-E 1/4 20

LCDX2-38D-E 3/8 20

LCDX1-14A-X #1 AWG #1 AWG 1/4 10

LCDX1-38D-X 3/8 10

LCDX1/0-38D-X 1/0 AWG 1/0 AWG 3/8 10

LCDX2/0-14B-X 2/0 AWG 2/0 AWG 1/4 10

LCDX2/0-38D-X 3/8 10

LCDX3/0-38D-X 3/0 AWG 3/0 AWG 3/8 10

LCDX3/0-12-X◆3/0 AWG 3/0 AWG 1/2 10

LCDX4/0-38D-X 4/0 AWG 4/0 AWG 3/8 10

LCDX250-38D-X 250 kcmil 262.6 kcmil 3/8 10

LCDX250-12-X◆1/2 10

LCDX300-12-6◆300 kcmil 313.1 kcmil 1/2 6

LCDX600-12-6◆600 kcmil —1/2 6

LCDX750-12-3◆—777.7 kcmil 1/2 3

Prime items appear in BOLD.

Power Connectors

B53

For service and technical support, call 800-777-3300

or visit www.panduit.com.

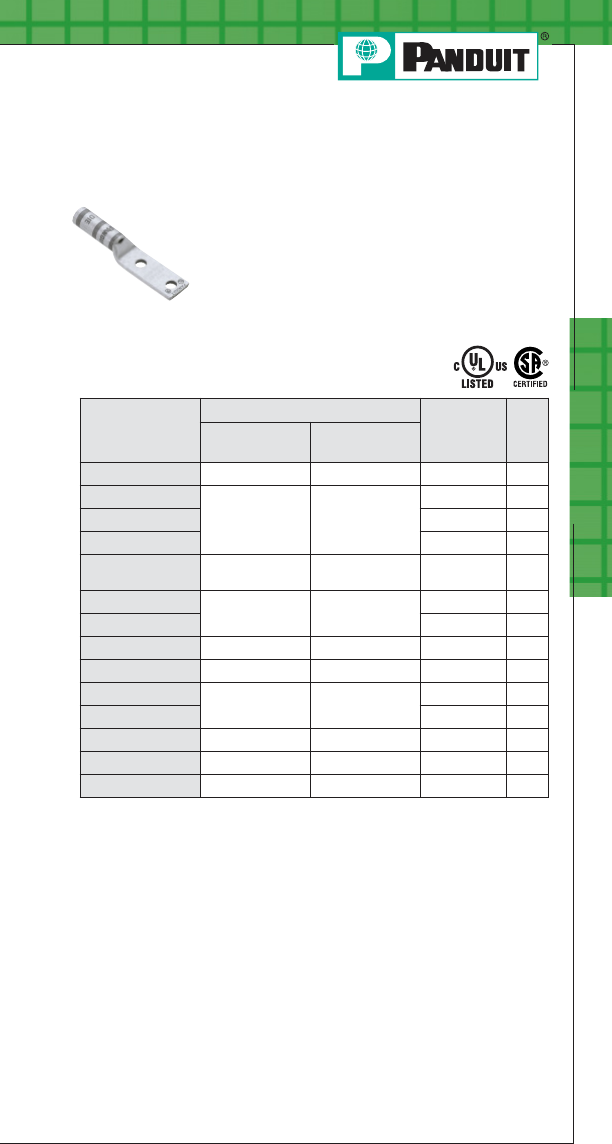

Flex Conductor, Two-Hole, Long Barrel

with Window Lug

• For use with flexible and extra-flexible

copper conductors

• For use with code stranded copper

conductors up to 4/0 AWG

•UL Listed and CSA Certified when

crimped with

PANDUIT

and specified

competitor crimping tools

and dies

Type LCCX

For 45° and 90° bent lugs available as standard parts and complete tool

and die information, see the Electrical Solutions Catalog, SA-ELCB03, at

www.panduit.com.

◆NEMA hole sizes and spacing.

Part Number

Flex Conductor Size Stud Hole

Size

(In.)

Std.

Pkg.

Qty.

Class

G, H, I, K, M Locomotive

LCCX8-14A-L #8 AWG #8 AWG 1/4 50

LCCX6-14A-L

#6 AWG #6 AWG

1/4 50

LCCX6-14B-L 1/4 50

LCCX6-38D-L 3/8 50

LCCX4-14A-L #4 AWG #5, #4, #3

AWG 1/4 50

LCCX2-38D-E #2 AWG #2 AWG 3/8 20

LCCX2-12-E 1/2 20

LCCX1-14A-X #1 AWG #1 AWG 1/4 10

LCCX1/0-12-X 1/0 AWG 1/0 AWG 1/2 10

LCCX2/0-38D-X 2/0 AWG 2/0 AWG 3/8 10

LCCX2/0-12-X 1/2 10

LCCX4/0-12-X◆◆4/0 AWG 4/0 AWG 1/2 10

LCCX350-12-6◆◆350 kcmil 373.7 kcmil 1/2 6

LCCX500-12-6◆◆500 kcmil 535.3 kcmil 1/2 6

Technical Information

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Technical Specification and

Selection Information

PANDUIT TerminalApprovals

Logo

(Symbol) Agency Spec/Approval Requirement Applicable

Products

Underwriters

Laboratories,

Inc.

#E52164 – UL486A

Minimum Tensile

Strength (Pull out

force for the crimp

terminal) and test

current for Max.

50°C Rise (Amps)

All Ring and

Fork

Terminals

#E78522 – UL310

Minimum Tensile

Strength (Pull out

force for the crimp

terminal) and

continuous test

current for Max.

30°C Rise (Amps)

(for .187", .205",

.250" tab widths)

and (.110"

tab width)

All

Disconnects

#E52164 – UL486C

Minimum Tensile

Strength (Pull out

force for the crimp

terminal) and test

current for Max.

50°C Rise (Amps)

All Splices

Canadian

Standards

Association

#LR31212 – C22.2 No. 65 Minimum Tensile

Strength (Pull out

force for the crimp

terminal) and test

current for Max.

50°C Rise (Amps)

All Ring and

Fork

Terminals

#LR31212 – C22.2 No. 153 All

Disconnects

Technical Information

Applicable

-T

ERM

®products meet or exceed

the following test specifications:

• UL486A (Terminals)

• UL486C (Splices)

• UL310 (Blade Adapters)

• CSA C22.2 No. 65 (all designs)

UL and CSA approved products are shown with

the applicable logos in the product section.

UL file #E52164, CSA File #LR31212

Applicable

-T

ERM

®products meet or exceed

the following test specifications:

• UL310 (Disconnects)

• CSA C22.2 No. 153 (all designs)

UL and CSA Listed products are shown with

the applicable logos in the product section.

UL file #E78522 and CSA file #LR31212.

*Pull-out force of the crimped disconnect.

Performance Requirements

Wire Size (AWG)

#26 #24 #22 #20 #18 #16 #14 #12 #10

UL 486A (TERMINALS), UL310 (MALE BLADE ADAPTERS)

Test Current for Max. 50°C

Rise (Amps) 3.57 9 121718303550

Min. Tensile Strength* (Lbs.) 3 5 8 13 20 30 50 70 80

UL 486C (SPLICES)

Test Current for Max. 50°C

Rise (Amps) 5.57 9 121718303550

Min. Tensile Strength* (Lbs.) 3 5 8 10 10 15 25 35 40

*Pull-out force of the crimped terminal

Wire Size (AWG)

#22 #20 #18 #16 *#14 #12 #10

UL310 (DISCONNECTS)

Continuous Test Current for Max.

30°C Rise (amps)

(for 187", 205", 250" tab widths) 3 4 7 10 15 20 24

Continuous Test Current for Max.

30°C Rise (amps)

(for .110", tab width) 2345 Not

Applicable

Min. Tensile Strength* (Lbs.) 8 13 20 30 50 70 80

Logo

(Symbol) Agency Spec/Approval Applicable Products

Underwriters

Laboratories,

Inc.

UL 486A

Wire Connectors &

Soldering Lugs

for use in US & Canada

CLRCVR, HTCT, CTAPF, CTAP,

LCAX, LCBX, LCCX, LCDX, LCAN,

LCDN, RSC, LCEX

Underwriters

Laboratories,

Inc.

UL 486A

Wire Connectors &

Soldering Lugs

for use in US

Copper & aluminum compression

connectors (except: PS, SCT,

HTAP, TAPC, SAR); Copper &

aluminum split bolts; Copper &

aluminum mechanical lugs &

splices (except: PNLC,

LAM2A1000, LAM3B, LAM3D,

LAM4D, PCSB750, LAM2LB800)

Underwriters

Laboratories,

Inc.

UL 467

Grounding & Bonding

Equipment

for use in US & Canada

SP1, SP2, SPF1, SPF2, GPL,

GMS, GM

Underwriters

Laboratories,

Inc.

UL 467

Grounding & Bonding

Equipment

for use in US

CTAP, KP, WB, GC

Underwriters

Laboratories,

Inc.

UL 486A

Wire Connectors &

Soldering Lugs

for use in US

LCA-00, LCD-00, LCC-00

Canadian

Standards

Association

C22.2 No. 65-03

Wire Connectors

Copper & aluminum compression

connectors (except: PS, SCT,

HTAP, TAPC, SAR, CTAP, BPC);

Copper & aluminum split bolts

(except: SBCL, VT, VTA);

Copper & aluminum mechanical

lugs & splices (except: ML, ML-T,

HL, HLB, HLA-90, PNL-2, HL-2,

HL-2N, HHL-2N, H2L-2N, P2NLT,

PNLC, HC, LAM2A1000, LAM2B,

LAM2SB600, LAM2SB750,

LAM3B, LAM3D, LAM4D,

PCSB750)

Canadian

Standards

Association

C22.2 No. 41-M1987

(R1999) Grounding

& Bonding Equipment

WB, KP

American

Bureau

of Shipping

ABS Rules

Steel Vessel Rules

1-1-4/7.7, 4-8-3/9.19,

4-8-4/21.27

Copper compression connectors

LCA, LCAF, LCAS, LCAX, LCB,

LCC, LCD, S-R,

LCDX, SCS, SCSF

NEBS

Level 3

Telcordia

Technologies,

Inc.

Network Equipment –

Building Systems

Copper compression connectors

LCAS, LCA, LCD, LCB, LCC,

LCAF, LCCF, SCSS,

SCS, SCL, SCSF

Technical Information

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PANDUIT Power & Grounding Connector Approvals

Technical Information

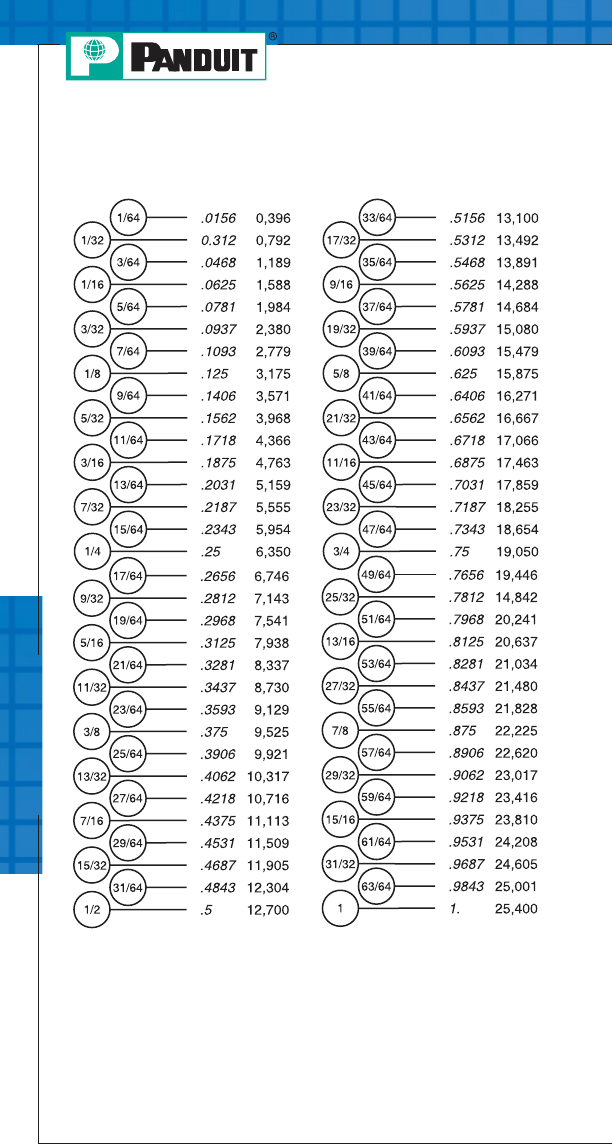

Equivalent Tables

Fractional Inches/Decimal Inches/Millimeters

Technical Information

For service and technical support, call 800-777-3300

or visit www.panduit.com.

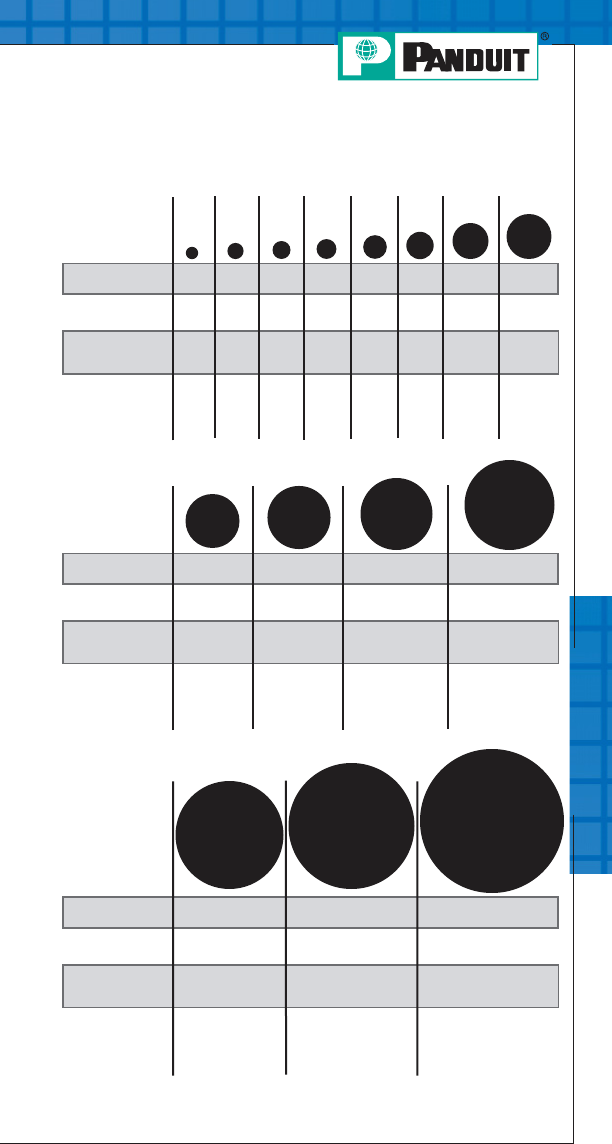

Stud Size Chart (Inches)

*Terminal Stud.

**Power Connector Stud.

Standard Stud Size

Stud Size Decimal

Equivalent

Terminal Hole

Diameter

Stud Size

Designation in

PANDUIT

Part Number

3/4" 7/8" 1"

.750" .875" 1.00"

.810" .906" 1.031"

34 78 1

#2 #4 #5 #6 #8 #10 1/4" 5/16"

.086" .112" .127" .138" .164" .190" .250" .312"

.090" .118" .130" .147" .173" .204" .270" .343"

24 5 6 810 14 56

Standard Stud Size

Stud Size Decimal

Equivalent

Terminal Hole

Diameter

Stud Size

Designation in

PANDUIT

Part Number

3/8" 7/16" 1/2" 5/8"

.375" .438" .500" .625"

.392"* .456" .531" .656"

.406"**

38 76 12 58

Standard Stud Size

Stud Size Decimal

Equivalent

Terminal Hole

Diameter

Stud Size

Designation in

PANDUIT

Part Number

Technical Information

Common Conductor Sizes and Strandings

Reference Chart

*Strandings required for UL and CSA Certification testing.

Conductor

Individual Strands Overall Conductor Size

No.

Diameter Diameter Area

AWG Metric

mm2mm In. mm In. Circ.

MILS

0.05 25 .05 .002 .25 .010 97

0.06 41 .05 .002 .36 .014 159

10 .13 .005 .53 .021 250

1 .41 .016 .41 .016 256

7 .16 .006 .48 .019 278

19 .10 .004 .51 .020 304

41 .08 .003 .58 .023 384

10 .16 .006 .58 .023 397

1 .51 .020 .51 .020 400

7 .20 .008 .61 .024 448

19 .13 .005 .61 .024 475

0.25

65 .07 .003 .65 .026 484

128 .05 .002 .65 .026 496

32 .10 .004 .65 .026 496

14 .16 .006 .65 .026 556

1 .64 .025 .64 .025 625

16 .16 .006 .76 .030 635

26 .13 .005 .76 .030 650

7 .25 .010 .76 .030 700

19 .16 .006 .79 .031 754

0.38

48 .10 .004 .80 .031 744

194 .05 .002 .80 .031 752

100 .07 .003 .80 .031 760

7 .27 .011 .80 .031 791

12 .21 .008 .80 .031 820

21 .16 .006 .80 .031 833

0.5

7 .30 .012 .90 .035 977

16 .20 .008 .90 .035 992

1 .80 .031 .80 .031 992

*10 .25 .010 .89 .035 1000

1 .81 .032 .81 .032 1024

41 .13 .005 .91 .036 1025

26 .16 .006 91 .036 1032

*7 .32 .013 .97 .038 1111

19 .20 .008 .94 .037 1216

0.75

7 .37 .015 1.10 .043 1485

24 .20 .008 1.20 .047 1488

1 1.00 .039 1.00 .039 1550

*16 .25 .010 1.19 .047 1600

1 1.02 .040 1.02 .040 1600

65 .13 .005 1.19 .047 1625

41 .16 .006 1.19 .047 1627

*7 .40 .016 1.22 .048 1770

19 .25 .010 1.24 .049 1900

Technical Information

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Common Conductor Sizes and Strandings

Reference Chart (continued)

Conductor

Individual Strands Overall Conductor Size

No.

Diameter Diameter Area

AWG Metric

mm2mm In. mm In. Circ.

MILS

1.0

19 0.25 .010 1.30 .051 1841

1 1.13 .044 1.13 .044 1979

32 .20 .008 1.30 .051 1984

7 .43 .017 1.30 .051 2006

19 .29 .011 1.47 .058 2426

65 .16 .006 1.50 .059 2580

*26 .25 .010 1.50 .059 2600

1 1.30 .051 1.30 .051 2601

105 .13 .005 1.50 .059 2625

*7 .51 .020 1.52 .060 2828

1.5

30 .25 .010 1.70 .067 2906

21 .30 .012 1.60 .063 2930

189 .10 .004 1.90 .075 2930

7 .52 .020 1.60 .063 2934

1 1.38 .054 1.38 .054 2952

45 .16 .006 1.85 .073 3786

19 .38 .014 1.85 .073 3831

1 1.63 .064 1.63 .064 4096

*41 .25 .010 1.85 .073 4100

*7 .64 .025 1.85 .073 4481

2.5

50 .25 .010 2.20 .087 4844

7 .67 .026 2.10 .083 4871

35 .30 .012 2.20 .087 4883

315 .10 .004 2.20 .087 4883

1 1.78 .070 1.78 .070 4911

19 .45 .018 2.36 .093 6088

*65 .25 .010 2.41 .095 6500

165 .16 .006 2.41 .095 6549

1 2.06 .081 2.06 .081 6561

*7 .81 .032 2.44 .096 7168

4.0

56 .30 .012 3.10 .122 7812

1 2.26 .089 2.26 .089 7917

511 .10 .004 3.00 .118 7921

19 .52 .020 2.70 .106 7963

37 .40 .016 2.92 .115 9354

49 .36 .014 2.95 .116 9880

*7 .98 .039 2.95 .116 10376

1 2.59 .102 2.59 .102 10404

*105 .25 .010 2.95 .116 10500

6.0

84 .30 .012 3.50 .138 11718

756 .10 .004 3.70 .146 11718

1 2.76 .109 2.76 .109 11807

7 1.05 .041 3.20 .126 11962

19 .64 .025 3.30 .130 12063

*Strandings required for UL and CSA Certification testing.

Technical Information

Common Conductor Sizes and Strandings

Reference Chart (continued)

Conductor

Individual Strands Overall Conductor Size

No.

Diameter Diameter Area

AWG Metric

mm2mm In. mm In. Circ.

MILS

67 0.107 0.042 3.21 0.126 11840

1 2.77 0.109 2.77 0.109 11840

97 1.1 0.0432 3.3 0.13 13000

1 2.91 0.1144 2.91 0.114 13090

81 3.26 0.1285 3.25 0.128 16510

7 1.23 0.0486 3.7 0.146 16510

10 7 1.37 0.054 4.12 0.162 19740

1 3.58 0.141 3.58 0.141 19740

77 1.38 0.0545 4.15 0.164 20520

1 3.67 0.1443 3.67 0.144 20520

67 1.55 0.0612 4.66 0.184 26240

1 4.11 0.162 4.11 0.162 26240

16 7 1.73 0.008 5.13 0.204 31580

5 7 1.75 0.0688 5.24 0.206 33090

4 7 1.96 0.0772 5.88 0.232 41740

25 7 2.16 0.085 6.48 0.255 49340

19 1.32 0.052 6.6 0.26 49340

3 7 2.2 0.0867 6.61 0.26 52620

2 7 2.47 0.0974 7.42 0.292 66300

35 7 2.54 0.1 7.62 300 69070

19 1.55 0.001 7.75 0.305 69070

1 19 1.5 0.0064 8.43 0.332 83690

50 19 1.85 0.073 9.27 0.365 98680

1/0 19 1.59 0.0745 9.46 0.373 10500

2/0 19 2.13 0.0837 10.6 0.419 133100

70 19 2.18 0.086 10.9 0.43 138100

3/0 19 2.59 0.094 11.9 0.47 167800

36 1.71 0.0673 12 0.471 167800

95 19 2.57 0.101 12.8 0.505 187500

37 1.83 0.072 12.5 0.504 187500

4/0 19 2.89 0.1055 13.4 0.528 211600

Technical Information

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Common Conductor Sizes and Strandings

Reference Chart (continued)

Conductor

Individual Strands Overall Conductor Size

No.

Diameter Diameter Area

AWG Metric

mm2mm In. mm In. Circ.

MILS

120 37 2.06 0.081 14.4 0.567 237.8

kcmil

250

kcmil 37 2.07 0.0822 14.6 0.575 250

kcmil

300

kcmil 150 37 2.29 0.09 16 0.63 300

kcmil

350

kcmil 37 2.47 0.0973 17.3 0.681 350

kcmil

185 37 2.54 0.1 17.8 0.7 365.1

kcmil

400

kcmil 37 2.64 0.104 18.5 0.728 400

kcmil

240

37 2.9 0.114 20.3 0.798 473.6

kcmil

61 2.26 0.089 20.3 0.801 473.6

kcmil

500

kcmil

37 2.95 0.1162 20.7 0.813 500

kcmil

61 2.3 0.0905 20.7 0.814 500

kcmil

300

kcmil 61 2.51 0.099 22.6 0.891 592.1

kcmil

600

kcmil 61 2.52 0.0992 22.7 0.893 600

kcmil

700

kcmil 61 2.72 0.1071 24.5 0.964 700

kcmil

750

kcmil

61 2.82 0.1109 25.4 0.998 750

kcmil

91 2.31 0.0908 25.4 0.998 750

kcmil

400 61 2.9 0.114 26.1 1.026 798.4

kcmil

800

kcmil

61 2.91 0.1145 26.2 1.031 800

kcmil

91 2.38 0.0938 26.2 1.032 800

kcmil

1000

kcmil

500 61 3.25 0.128 28.3 1.152 986.8

kcmil

91 2.66 0.1048 29.3 1.153 1000

kcmil

625 91 2.97 0.117 32.7 1.287 1233.7

kcmil

Index

For service and technical support, call 800-777-3300

or visit www.panduit.com.

BS10-L...........................A42

BS14-C..........................A42

BS18-C..........................A42

BS22-C..........................A42

BSN10-L........................A41

BSN14-C .......................A41

BSN18-C .......................A41

BSN22-C .......................A41

BSV10X-L......................A41

BSV14X-C .....................A41

BSV18X-CY...................A41

C-720.............................B31

CC-720 ..........................B31

CD-2001-1.....................B33

CD-2001-1/0..................B33

CD-2001-2.....................B33

CD-2001-2/0..................B33

CD-2001-250.................B33

CD-2001-3/0..................B33

CD-2001-300.................B33

CD-2001-350.................B33

CD-2001-4.....................B33

CD-2001-4/0..................B33

CD-2001-400.................B33

CD-2001-500.................B33

CD-2001-6.....................B33

CD-2001-8.....................B33

CD-720-1.......................B32

CD-720-2.......................B32

CD-720-3.......................B32

CD-720-4.......................B32

CD-720-5.......................B32

CD-720-6.......................B32

CD-720-7.......................B32

CD-720PV8-2 ................B32

CD-920-1.......................B34

CD-920-1/0....................B34

CD-920-2.......................B34

CD-920-2/0....................B34

CD-920-250...................B34

CD-920-3/0....................B34

CD-920-300...................B34

CD-920-350...................B34

CD-920-4.......................B34

CD-920-4/0....................B34

CD-920-400...................B34

CD-920-500...................B34

CD-920-500A.................B34

CD-920-6.......................B34

CD-920-600...................B34

CD-920-750...................B34

CD-920-8.......................B34

CD-940-1000.................B35

CD-940-1000A...............B35

CD-940-750...................B35

CD-940-750A.................B35

CD-940-750X.................B35

CD-940-800...................B35

CD-940-800A.................B35

CD-940-DA ....................B35

CG-920..........................B37

CG-940..........................B37

CG-980..........................B37

CST101 .........................A19

CST114-157 ..................A19

CST115 .........................A19

CT-100 ...........................A16

CT-1002 .........................A18

Part Number Index

PANDUIT

Part

Number Page

No.

PANDUIT

Part

Number Page

No.

CT-1003 .........................A18

CT-1004 .........................A18

CT-1005 .........................A18

CT-1006 .........................A18

CT-1014 .........................A17

CT-1015 .........................A17

CT-1525 .........................A17

CT-1550 .........................A17

CT-1551 .........................A17

CT-1570 .........................A17

CT-160 ...........................A16

CT-1700.................A17, B28

CT-1701 .........................A17

CT-200 ...........................A16

CT-2001 .........................B28

CT-260 ...........................A16

CT-2931 .........................B28

CT-2940 .........................B28

CT-2981 .........................B36

CT-300-1........................A18

CT-720 ...........................B28

CT-720-3........................B31

CT-720-3CC...................B31

CT-720-7........................B31

CT-720-7CC...................B31

CT-8250HP ....................B30

CT-900HPH....................B29

CT-900LPHPH ...............B30

CT-901HP ......................B29

CT-901RCH ...................B29

CT-901RFS ...........B29, B30

CT-930 ...........................B28

CT-930CH......................B29

CT-930LPCH..................B30

CT-940CH......................B29

CT-980 ...........................B36

CT-980CH......................B36

CT-980LPCH..................B36

D14-250B-C...................A34

D14-250MB-C................A38

D-250A-C.......................A34

DNF10-250FI-L..............A33

DNF10-250FIB-L ...........A32

DNF10-250FIMB-L ........A33

DNF10-250M-L..............A37

DNF14-187FIB-C...........A32

DNF14-188FIB-C...........A32

DNF14-205FIB-C...........A32

DNF14-206FIB-C...........A32

DNF14-250FIB-C...........A32

DNF14-250FIM-C..........A33

DNF14-250FIMB-L ........A33

DNF14-250M-C .............A37

DNF18-110FIB-C...........A32

DNF18-111FIB-C...........A32

DNF18-187FIB-C...........A32

DNF18-188FIB-C...........A32

DNF18-205FIB-C...........A32

DNF18-206FIB-C...........A32

DNF18-250FIB-C...........A32

DNF18-250FIB-C...........A33

DNF18-250FIM-C..........A33

DNF18-250M-C .............A37

DNFR14-250B-C ...........A35

DNFR14-250FIB-C........A35

DNFR18-250B-C ...........A35

DNFR18-250FIB-C........A35

DR10-250-L...................A36

DR14-250B-C................A36

Index

Part Number Index

PANDUIT

Part

Number Page

No.

PANDUIT

Part

Number Page

No.

DR14-250-C ..................A36

DV14-145M-C................A38

DV14-187B-C ................A33

DV14-188B-C ................A33

DV14-205B-C ................A33

DV14-250B-C ................A33

DV14-250MB-C .............A37

DV14-250P-C ................A34

DV18-145M-CY .............A38

DV18-187B-CY ..............A33

DV18-188B-CY ..............A33

DV18-250B-C ................A33

DV18-250MB-C .............A37

DV18-250P-CY ..............A34

F73-5-M.........................A48

F73-7-M.........................A48

F74-5-M.........................A48

F75-10-M.......................A48

F75-6-M.........................A48

F75-8-M.........................A48

F76-10-M.......................A48

F76-6-M.........................A48

F76-8-M.........................A48

F77-6-M.........................A48

F77-7-M.........................A48

F77-8-M.........................A48

F78-10-M.......................A48

F78-7-M.........................A48

F78-8-M.........................A48

F80-10-M.......................A48

F80-7-M.........................A48

F80-8-M.........................A48

F81-10-M.......................A48

F81-12-M.......................A48

F81-9-M.........................A48

F82-10-M.......................A48

F82-12-M.......................A48

F82-15-M.......................A48

F83-12-D .......................A49

F83-15-D .......................A49

F83-18-D .......................A49

F84-12-TL......................A49

F84-15-TL......................A49

F84-18-TL......................A49

F85-12-C .......................A49

F85-15-C .......................A49

F85-18-C .......................A49

F86-18-C .......................A49

F86-20-C .......................A49

F86-25-C .......................A49

F87-18-C .......................A49

F87-22-C .......................A49

F87-25-C .......................A49

FSD74-6-D ....................A46

FSD74-8-D ....................A46

FSD75-10-D ..................A46

FSD75-6-D ....................A46

FSD75-8-D ....................A46

FSD76-6-D ....................A46

FSD76-8-D ....................A46

FSD77-10-D ..................A46

FSD77-12-D ..................A46

FSD77-6-D ....................A46

FSD77-8-D ....................A46

FSD78-10-D ..................A46

FSD78-12-D ..................A46

FSD78-6-D ....................A46

FSD78-8-D ....................A46

FSD79-8-D ....................A46

Index

For service and technical support, call 800-777-3300

or visit www.panduit.com.

Part Number Index

PANDUIT

Part

Number Page

No.

PANDUIT

Part

Number Page

No.

Index

FSD80-12-D ..................A46

FSD80-8-D ....................A46

FSD81-10-D ..................A46

FSD81-12-C ..................A46

FSD82-12-C ..................A46

FSD83-12-C ..................A46

FTD75-8-D.....................A47

FTD76-10-D...................A47

FTD76-8-D.....................A47

FTD77-10-D...................A47

FTD77-8-D.....................A47

FTD78-12-D...................A47

FTD78-8-D.....................A47

FTD80-10-TL.................A47

FTD80-13-TL.................A47

FTD81-12-C...................A47

FTD82-14-C...................A47

J214-312-T ....................A44

J318-412-T ....................A44

JN218-216-C .................A44

JN224-318-C .................A44

JN418-212-C .................A44

K-1000...........................A50

K-1102...........................A50

K-1104...........................A50

K1-PNKIT ......................A51

K2-PVKIT.......................A52

KP-1075.........................A50

KP-1165.........................A40

LCA1-12-E.....................B41

LCA1-14-E.....................B41

LCA1-38-E.....................B41

LCA1-56-E.....................B41

LCA1/0-12-X..................B41

LCA1/0-14-X..................B41

LCA1/0-38-X..................B41

LCA1/0-56-X..................B41

LCA2-12-Q ....................B41

LCA2-14-Q ....................B41

LCA2-38-Q ....................B41

LCA2-56-Q ....................B41

LCA2/0-12-X..................B41

LCA2/0-14-X..................B41

LCA2/0-38-X..................B41

LCA2/0-56-X..................B41

LCA250-12-X.................B42

LCA250-38-X.................B42

LCA250-56-X.................B42

LCA3/0-12-X..................B42

LCA3/0-14-X..................B42

LCA3/0-38-X..................B42

LCA3/0-56-X..................B42

LCA300-12-X.................B42

LCA350-12-X.................B42

LCA350-38-X.................B42

LCA4-14-L .....................B41

LCA4-38-L .....................B41

LCA4-56-L .....................B41

LCA4/0-12-X..................B42

LCA4/0-38-X..................B42

LCA4/0-56-X..................B42

LCA400-12-6 .................B42

LCA500-12-6 .................B42

LCA6-10-L .....................B41

Part Number Index

PANDUIT

Part

Number Page

No.

PANDUIT

Part

Number Page

No.

Index

For service and technical support, call 800-777-3300

or visit www.panduit.com.

LCA6-14-L .....................B41

LCA6-38-L .....................B41

LCA6-56-L .....................B41

LCA600-12-6 .................B42

LCA8-10-L .....................B41

LCA8-14-L .....................B41

LCA8-38-L .....................B41

LCA8-56-L .....................B41

LCAF1-38-X...................B50

LCAF1/0-12-X................B50

LCAF1/0-14-X................B50

LCAF1/0-38-X................B50

LCAF1/0-56-X................B50

LCAF2-14-E...................B50

LCAF2-38-E...................B50

LCAF2/0-12-X................B50

LCAF2/0-38-X................B50

LCAF250-12-X...............B50

LCAF3/0-12-X................B50

LCAF3/0-38-X................B50

LCAF350-12-6...............B50

LCAF4-14-L...................B50

LCAF4-38-L...................B50

LCAF4/0-12-X................B50

LCAF4/0-38-X................B50

LCAF400-12-6...............B50

LCAF6-14-L...................B50

LCAF6-38-L...................B50

LCAF600-12-6...............B50

LCAS1-14-E ..................B40

LCAS1-38-E ..................B40

LCAS1-56-E ..................B40

LCAS1/0-38-X ...............B40

LCAS2-14-Q..................B40

LCAS2-38-Q..................B40

LCAS2-56-Q..................B40

LCAS2/0-12-X ...............B40

LCAS2/0-14-X ...............B40

LCAS2/0-38-X ...............B40

LCAS250-12-X ..............B40

LCAS3/0-38-X ...............B40

LCAS4-10-L...................B40

LCAS4-14-L...................B40

LCAS4-38-L...................B40

LCAS4-56-L...................B40

LCAS4/0-12-X ...............B40

LCAS4/0-38-X ...............B40

LCAS6-10-L...................B40

LCAS6-14-L...................B40

LCAS6-38-L...................B40

LCAS6-56-L...................B40

LCAS8-10-L...................B40

LCAS8-14-L...................B40

LCAS8-38-L...................B40

LCAS8-56-L...................B40

LCAX1-12-X ..................B48

LCAX1-14-X ..................B48

LCAX1-38-X ..................B48

LCAX1-56-X ..................B48

LCAX1/0-12-X ...............B48

LCAX1/0-14-X ...............B48

LCAX1/0-38-X ...............B48

LCAX1/0-56-X ...............B48

LCAX2-12-E ..................B48

LCAX2-14-E ..................B48

LCAX2-38-E ..................B48

LCAX2-56-E ..................B48

LCAX2/0-12-X ...............B49

LCAX2/0-14-X ...............B49

LCAX2/0-38-X ...............B49

LCAX2/0-56-X ...............B49

LCAX250-12-X ..............B49

Part Number Index

PANDUIT

Part

Number Page

No.

PANDUIT

Part

Number Page

No.

Index

LCAX250-38-X ..............B49

LCAX250-56-X ..............B49

LCAX3/0-12-X ...............B49

LCAX3/0-14-X ...............B49

LCAX3/0-38-X ...............B49

LCAX3/0-56-X ...............B49

LCAX300-12-6...............B49

LCAX350-12-6...............B49

LCAX350-38-6...............B49

LCAX4-14-L...................B48

LCAX4-38-L...................B48

LCAX4-56-L...................B48

LCAX4/0-12-X ...............B49

LCAX4/0-38-X ...............B49

LCAX4/0-56-X ...............B49

LCAX500-12-6...............B49

LCAX6-10-L...................B48

LCAX6-14-L...................B48

LCAX6-38-L...................B48

LCAX6-56-L...................B48

LCAX8-10-L...................B48

LCAX8-14-L...................B48

LCAX8-38-L...................B48

LCAX8-56-L...................B48

LCB1-56-E.....................B43

LCB1/0-38-X..................B43

LCB2-56-Q ....................B43

LCB2/0-12-X..................B43

LCB2/0-38-X..................B43

LCB250-12-X.................B43

LCB3/0-12-X..................B43

LCB3/0-38-X .................B43

LCB350-12-X.................B43

LCB4-14-L .....................B43

LCB4/0-12-X..................B43

LCB4/0-38-X..................B43

LCB500-12-6 .................B43

LCB6-14-L .....................B43

LCB6-38-L .....................B43

LCB8-14-L .....................B43

LCBX1-56-X ..................B51

LCBX1/0-38-X ...............B51

LCBX2/0-12-X ...............B51

LCBX2/0-38-X ...............B51

LCBX3/0-38-X ...............B51

LCBX350-12-6...............B51

LCBX4-14-L...................B51

LCBX4/0-12-X ...............B51

LCBX4/0-38-X ...............B51

LCBX500-12-6...............B51

LCBX6-14-L...................B51

LCBX6-38-L...................B51

LCBX8-14-L...................B51

LCC1-14A-E ..................B45

LCC1/0-12-X..................B45

LCC2-12-Q ....................B45

LCC2-38-Q ....................B45

LCC2-38D-Q..................B45

LCC2-56B-Q..................B45

LCC2/0-12-X..................B45

LCC2/0-38D-X...............B45

LCC250-12-X.................B45

LCC3/0-12-X..................B45

LCC300-12-X.................B45

LCC350-12-X.................B45

LCC4-14A-L...................B45

LCC4/0-12-X..................B45

LCC400-12-6.................B45

LCC500-12-6.................B45

LCC6-14A-L...................B45

LCC6-14B-L...................B45

LCC6-38D-L ..................B45

Part Number Index

PANDUIT

Part

Number Page

No.

PANDUIT

Part

Number Page

No.

Index

For service and technical support, call 800-777-3300

or visit www.panduit.com.

LCC600-12-6.................B45

LCC750-12-6.................B45

LCC8-14A-L...................B45

LCCX1-14A-X................B53

LCCX1/0-12-X ...............B53

LCCX2-12-E ..................B53

LCCX2-38D-E................B53

LCCX2/0-12-X ...............B53

LCCX2/0-38D-X.............B53

LCCX350-12-6...............B53

LCCX4-14A-L ................B53

LCCX4/0-12-X ...............B53

LCCX500-12-6...............B53

LCCX6-14A-L ................B53

LCCX6-14B-L ................B53

LCCX6-38D-L................B53

LCCX8-14A-L ................B53

LCD1-14A-E ..................B44

LCD1-38D-E..................B44

LCD1/0-38D-X...............B44

LCD2-14A-Q..................B44

LCD2-14B-Q..................B44

LCD2-14D-Q..................B44

LCD2-38D-Q..................B44

LCD2/0-14B-X ...............B44

LCD2/0-38D-X...............B44

LCD250-38D-X . . . . . . .B44

LCD3/0-38D-X...............B44

LCD4-14A-L...................B44

LCD4-14B-L...................B44

LCD4-14D-L ..................B44

LCD4-38D-L ..................B44

LCD4/0-38D-X...............B44

LCD6-10A-L...................B44

LCD6-14A-L...................B44

LCD6-14B-L...................B44

LCD6-14D-L ..................B44

LCD6-38D-L ..................B44

LCD8-10A-L...................B44

LCD8-14A-L...................B44

LCD8-14B-L...................B44

LCD8-14D-L ..................B44

LCDX1-14A-X................B52

LCDX1-38D-X................B52

LCDX1/0-38D-X.............B52

LCDX2-14A-E................B52

LCDX2-14B-E................B52

LCDX2-14D-E................B52

LCDX2-38D-E................B52

LCDX2/0-14B-X.............B52

LCDX2/0-38D-X.............B52

LCDX250-12-X ..............B52

LCDX250-38D-X............B52

LCDX3/0-12-X ...............B52

LCDX3/0-38D-X.............B52

LCDX300-12-6 . . . . . . .B52

LCDX4-14A-L ................B52

LCDX4-14B-L ................B52

LCDX4-14D-L................B52

LCDX4-38D-L................B52

LCDX4/0-38D-X.............B52

LCDX6-10A-L ................B52

LCDX6-14A-L ................B52

LCDX6-14B-L ................B52

LCDX6-14D-L................B52

LCDX6-38D-L................B52

LCDX600-12-6...............B52

LCDX750-12-3...............B52

LCDX8-10A-L ................B52

LCDX8-14A-L ................B52

LCDX8-14B-L ................B52

LCDX8-14D-L................B52

Part Number Index

PANDUIT

Part

Number Page

No.

PANDUIT

Part

Number Page

No.

Index

D8Order number of pieces required, in multiples of Standard Package Quantity.

P10-10F-L......................A26

P10-10LF-L....................A27

P10-10R-L .....................A24

P10-14R-L .....................A24

P10-38R-L .....................A24

P10-6F-L........................A26

P10-6R-L .......................A24

P10-8F-L........................A26

P10-8R-L .......................A24

P10-56R-L .....................A24

P10-P55-L .....................A28

P14-10F-C.....................A26

P14-10R-C.....................A24

P14-14R-C.....................A24

P14-38R-C.....................A24

P14-56R-C.....................A24

P14-6F-C.......................A26

P14-6LF-C.....................A27

P14-6R-C.......................A24

P14-8F-C.......................A26

P14-8R-C.......................A24

P14-P47-C.....................A28

P18-10F-C.....................A26

P18-10R-C.....................A24

P18-14R-C.....................A24

P18-6F-C.......................A26

P18-6FN-C ....................A26

P18-6LF-C.....................A27

P18-6R-C.......................A24

P18-8F-C.......................A26

P18-8R-C.......................A24

P18-P47-C.....................A28

P22-4F-C.......................A26

PG-1 ..............................B37

PG-1SC .........................B37

PS12-L...........................A42

PS16-C..........................A42

PS2-Q............................B47

PS4/0-X .........................B47

PS6-L.............................B47

PS8-L.............................B47

PSN16-C .......................A42

PSN18-C .......................A42

PV10-10F-L ...................A25

PV10-10LF-L .................A27

PV10-10R-L...................A22

PV10-10RX-L ................A23

PV10-14F-L ...................A25

PV10-14LF-L .................A27

PV10-14R-L...................A22

PV10-14RX-L ................A23

PV10-38R-L...................A22

PV10-56R-L...................A22

PV10-610R-L.................A23

PV10-6F-L .....................A25

PV10-6LF-L ...................A27

PV10-6R-L.....................A22

PV10-8F-L .....................A25

PV10-8LF-L ...................A27

PV10-8R-L.....................A22

PV10-P55-L...................A28

PV14-10F-C...................A25

PV14-10LF-C.................A27

PV14-10FN-C................A25

PV14-10R-C ..................A22

PV14-10RX-C................A23

PV14-14F-C...................A25

PV14-14R-C ..................A22

PV14-38R-L...................A22

PV14-4R-C ....................A22

Part Number Index

PANDUIT

Part

Number Page

No.

PANDUIT

Part

Number Page

No.

Index

For service and technical support, call 800-777-3300

or visit www.panduit.com.

PV14-56R-C ..................A22

PV14-610R-C ................A23

PV14-6F-C.....................A25

PV14-6FN-C..................A25

PV14-6LF-C...................A27

PV14-6R-C ....................A22

PV14-6RN-C..................A22

PV14-8F-C.....................A25

PV14-8LF-C...................A27

PV14-8R-C ....................A22

PV14-P47-C ..................A28

PV18-10F-CY ................A25

PV18-10LF-CY ..............A27

PV18-10R-CY................A22

PV18-14R-CY................A22

PV18-38R-CY................A22

PV18-4R-CY..................A22

PV18-56R-CY................A22

PV18-610R-CY..............A23

PV18-6F-CY ..................A25

PV18-6FN-CY................A25

PV18-6LF-CY ................A27

PV18-6R-CY..................A22

PV18-8F-CY ..................A25

PV18-8LF-CY ................A27

PV18-8R-CY..................A22

PV18-P47-CY................A28

PV22-6F-C.....................A25

SCL1-E..........................B47

SCL1/0-X.......................B47

SCL2-Q..........................B47

SCL2/0-X.......................B47

SCL250-X......................B47

SCL3/0-X.......................B47

SCL350-X......................B47

SCL4-L ..........................B47

SCL4/0-X.......................B47

SCL500-6 ......................B47

SCL6-L ..........................B47

SCL600-6 ......................B47

SCL8-L ..........................B47

SCS1-E..........................B46

SCS1/0-X.......................B46

SCS2-Q .........................B46

SCS2/0-X.......................B46

SCS250-X......................B46

SCS3/0-X.......................B46

SCS350-X......................B46

SCS4-L..........................B46

SCS4/0-X.......................B46

SCS500-6......................B46

SCS6-L..........................B46

SCS8-L..........................B46

Part Number Index

PANDUIT

Part

Number Page

No.

PANDUIT

Part

Number Page

No.

PANDUIT

is a global leader in cabling and communication

products, delivering end-to-end solutions in support

of demanding electrical and networking requirements.

Cable

Modules

Work Area

Outlet Solutions

Surface Raceway

Zone Cabling

Patch Panels,

Copper Patch Cords

& Punchdowns

Fiber Connectors,

Enclosures & Patch Cords

Fiber Routing Systems

Racks &

Cable Management

Grounding & Bonding

Wireless Solutions

Managed System

Solutions

Industrial

Labeling & Administration

Wiring Duct

Cable Ties & Accessories

Network Connectivity

SA-NCCB34

Cable Ties

Cable Accessories

Stainless Steel

Wiring Duct

Surface Raceway

Abrasion Protection

Cable Management

Terminals

Power and Grounding

Connectors

Labeling System

Labels

Pre-Printed &

Write-On Markers

Lockout/Tagout and

Safety Solutions

Electrical Solutions

SA-ELCB03

PANDUIT

Catalogs

109385 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
