Note:
At the time of printing, new wattages of SYLVANIA Incandescent A19, Medium Screw
Base, 120 Volt and 130 Volt lamps with Soft White, Inside Frost and Clear fi nishes have
been developed to meet new State of California standards effective January 1, 2008
but are not yet listed in this catalog. For more information on the legislation and these
new lamps, please visit www.sylvania.com. Click on State Product Regulations.
Certain photography
Lamp and Ballast Catalog
www.sylvania.com
Lamp and Ballast Catalog
L&B_Cover_Lot A.indd 1L&B_Cover_Lot A.indd 1 1/3/08 6:37:52 AM1/3/08 6:37:52 AM
Information in this catalog is subject to change at any time without prior notice.
A Lighting Industry Leader
With over 14,000 employees, OSRAM SYLVANIA is one of the leading
lighting systems companies in North America. We are the North
American business unit of OSRAM GmbH, one of the world’s
largest lighting manufacturers. OSRAM SYLVANIA is a member
of the SIEMENS worldwide family of companies, which employs
over 440,000 people in over 190 countries.
Meeting Customer Expectations
OSRAM SYLVANIA makes ongoing investments in new and aggressive
business practices. With the Total Cycle Time program, we have
turned time into a strategic business ally. Our SAP program unites
the entire organization with a sophisticated information system that
helps serve our customers faster and more effi
ciently. Our ISO 9000,
ISO 14001 and QS 9000 certifi cations show our achievements in de-
livering the highest quality lighting products.
Lighting the World
OSRAM SYLVANIA, together with OSRAM GmbH, is the largest supplier
of electronic lighting systems in the world. As leaders in fl uorescent,
halogen and metal halide technologies, the companies hold numer-
ous international lighting patents and have an extensive engineering
and manufacturing network. OSRAM GmbH and OSRAM SYLVANIA lit-
erally bring light to the world.
Lamp Disposal Labeling
For all mercury-containing lamps manufactured after November 30,
2003, OSRAM SYLVANIA has incorporated the symbol “Hg” into the
lamp etch, except for products where size or thermal constraints
prevent etching in this manner. This action is part of the National
Electrical Manufacturers Association (NEMA) lamp labeling initiative,
the purpose of which is to guide users of lighting products—via in-
ternet or telephone—to appropriate contacts regarding disposal of
spent mercury-containing lamps (fl uorescent, compact fl uorescent,
and most HID).
Disposal labels appear on the inner-most packages of mercury-con-
taining lamps, the outer cartons, or both. For Display-Optic and some
other specialized lamp types, labeling is included in the stuffer. This
labeling format complies with the requirements of existing states’
legislation and has been designed to be universally applicable to all
US States.
LAMP CONTAINS MERCURY
Manage in Accordance with Disposal Laws
See: www.lamprecycle.org or 1-866-666-6850
Hg
8THSINCHES
1_____
T2 _____ 1/4
3_____
T4 _____ 1/2
T5 _____
T6 _____ 3/4
7_____
T8 ➤_____ 1
9_____
B10 ➤_____
11 _____
T12 ➤_____
13 _____
PAR14 _____
15 _____
MR16 ➤_____ 2
G16 1/2 _____
A17 ➤_____
ET18 _____
A19 ➤_____
PAR20 ➤_____
A21 _____
22 _____
23 _____
________________ 3
G25 ➤_____
26 _____
27 _____
BT28 _____
29 _____
PAR30 ➤_____
31 _____
________________ 4
33 _____
34 _____
35 _____
36 _____
BT37 _____
PAR38 ➤_____
39 _____
R40, G40 ➤_____ 5
41 _____
42 _____
43 _____
44 _____
45 _____
PAR46 ➤_____
47 _____
________________ 6
49 _____
50 _____
51 _____
PAR52 ➤_____
53 _____
54 _____
55 _____
BT56/PAR56 _____ 7
57 _____
58 _____
59 _____
60 _____
61 _____
62 _____
63 _____
PAR64 ➤_____ 8
65 _____
66 _____
67 _____
68 _____
69 _____
70 _____
71 _____
________________ 9
73 _____
74 _____
75 _____
76 _____
77 _____
78 _____
79 _____
OSRAM SYLVANIA
SEE THE WORLD IN A NEW LIGHT
For more than 100 years, OSRAM SYLVANIA has been a leader
in the development of innovative lighting. This catalog provides
specifi cations on over 3000 SYLVANIA and OSRAM branded
products for a variety of lighting applications, each one designed
and manufactured to the highest possible standards.
i
L&B_Cover_Lot A.indd 2L&B_Cover_Lot A.indd 2 1/3/08 6:38:02 AM1/3/08 6:38:02 AM
Information in this catalog is subject to change at any time without prior notice.
A Lighting Industry Leader
With over 14,000 employees, OSRAM SYLVANIA is one of the leading
lighting systems companies in North America. We are the North
American business unit of OSRAM GmbH, one of the world’s
largest lighting manufacturers. OSRAM SYLVANIA is a member
of the SIEMENS worldwide family of companies, which employs
over 440,000 people in over 190 countries.
Meeting Customer Expectations
OSRAM SYLVANIA makes ongoing investments in new and aggressive
business practices. With the Total Cycle Time program, we have
turned time into a strategic business ally. Our SAP program unites
the entire organization with a sophisticated information system that
helps serve our customers faster and more effi
ciently. Our ISO 9000,
ISO 14001 and QS 9000 certifi cations show our achievements in de-
livering the highest quality lighting products.
Lighting the World
OSRAM SYLVANIA, together with OSRAM GmbH, is the largest supplier
of electronic lighting systems in the world. As leaders in fl uorescent,
halogen and metal halide technologies, the companies hold numer-
ous international lighting patents and have an extensive engineering
and manufacturing network. OSRAM GmbH and OSRAM SYLVANIA lit-
erally bring light to the world.
Lamp Disposal Labeling
For all mercury-containing lamps manufactured after November 30,
2003, OSRAM SYLVANIA has incorporated the symbol “Hg” into the
lamp etch, except for products where size or thermal constraints
prevent etching in this manner. This action is part of the National
Electrical Manufacturers Association (NEMA) lamp labeling initiative,
the purpose of which is to guide users of lighting products—via in-
ternet or telephone—to appropriate contacts regarding disposal of
spent mercury-containing lamps (fl uorescent, compact fl uorescent,
and most HID).
Disposal labels appear on the inner-most packages of mercury-con-
taining lamps, the outer cartons, or both. For Display-Optic and some
other specialized lamp types, labeling is included in the stuffer. This
labeling format complies with the requirements of existing states’
legislation and has been designed to be universally applicable to all
US States.
LAMP CONTAINS MERCURY
Manage in Accordance with Disposal Laws
See: www.lamprecycle.org or 1-866-666-6850
Hg
8THSINCHES
1_____
T2 _____ 1/4
3_____
T4 _____ 1/2
T5 _____
T6 _____ 3/4
7_____
T8 ➤_____ 1
9_____
B10 ➤_____
11 _____
T12 ➤_____
13 _____
PAR14 _____
15 _____
MR16 ➤_____ 2
G16 1/2 _____
A17 ➤_____
ET18 _____
A19 ➤_____
PAR20 ➤_____
A21 _____
22 _____
23 _____
________________ 3
G25 ➤_____
26 _____
27 _____
BT28 _____
29 _____
PAR30 ➤_____
31 _____
________________ 4
33 _____
34 _____
35 _____
36 _____
BT37 _____
PAR38 ➤_____
39 _____
R40, G40 ➤_____ 5
41 _____
42 _____
43 _____
44 _____
45 _____
PAR46 ➤_____
47 _____
________________ 6
49 _____
50 _____
51 _____
PAR52 ➤_____
53 _____
54 _____
55 _____
BT56/PAR56 _____ 7
57 _____
58 _____
59 _____
60 _____
61 _____
62 _____
63 _____
PAR64 ➤_____ 8
65 _____
66 _____
67 _____
68 _____
69 _____
70 _____
71 _____
________________ 9
73 _____
74 _____
75 _____
76 _____
77 _____
78 _____
79 _____
OSRAM SYLVANIA
SEE THE WORLD IN A NEW LIGHT
For more than 100 years, OSRAM SYLVANIA has been a leader
in the development of innovative lighting. This catalog provides
specifi cations on over 3000 SYLVANIA and OSRAM branded
products for a variety of lighting applications, each one designed
and manufactured to the highest possible standards.
i
L&B_Cover_Lot A.indd 2L&B_Cover_Lot A.indd 2 1/3/08 6:38:02 AM1/3/08 6:38:02 AM
Sustainability III
SYLVANIA ECOLOGIC® IV
Lamp Recycling V
Energy and the Cost of Lighting VI
IESNA Progress Report VII
Glossary of Terms IX–XII
Incandescent Lamps 1
Tungsten Halogen Lamps 41
Miniature Lamps 72
High Intensity Discharge (HID) Lamps 75
Compact Fluorescent Lamps 107
Fluorescent Lamps 129
Ballasts and LED Power Supplies 171
Display/Optic Lamps 207
LED Systems 297
Consumer Luminaires 314
LED Retrofi t Lamps 315
Warranties 316
Index 322
Table of Contents
ii
The data and suggested applications contained in this catalog, as well as any additional information our
representatives may be able to furnish, are for general information only and are not intended and should not be
taken as representations or warranties as to the suitability of a lamp for any particular application or use in any
particular equipment, nor are our representatives authorized to make any such representations or give any such
warranties. Applications and conditions of use are many and varied and beyond our control. We do not have the
same degree of knowledge that the purchaser has with respect to the design of his equipment and the conditions
of its use. Therefore, it is up to the purchaser to make his own determination as to the suitability of a lamp for his
intended application or use and to assume responsibility for that determination.
OSRAM SYLVANIA claims to supply the best possible products at all times. For this reason, OSRAM SYLVANIA
reserves the right to make changes in its products when it believes such changes will improve its products.
The specifi cations and information shown in this catalog are believed to be accurate. Although OSRAM SYLVANIA
believes this information to be correct, no warranty is made or implied as to the accuracy of this information and
OSRAM SYLVANIA does not accept or assume responsibility of liability for errors, changes, omissions, or for harm
resulting therefrom.
In accordance with our established policy to consistently improve our products, the specifi cations
contained herein are subject to change without notice.
The OSRAM SYLVANIA Test and Measurement Laboratory is a participant in the Energy Effi cient Lighting (EEL)
Program of the National Voluntary Laboratory Accreditation Program (NVLAP-NIST) and is accredited for testing
of lighting products according to the guidelines for the EEL Program. OSRAM SYLVANIA lamp and ballast
measurements are conducted under laboratory conditions utilizing American National Standards Institute (ANSI),
Canadian Standards Association (CSA), Commission Internationale de l’Eclairage (CIE), and Illuminating Engineering
Society of North America (IESNA) standards and practices. The OSRAM SYLVANIA Electronic Component and
Systems Development Group participate in the Underwriters Laboratories Inc. Client Test Data Program. Ballast
designs are tested for conformance to Underwriters Laboratory (UL) safety standards using practices audited,
assessed and approved by UL. Actual lamp and ballast performance may vary depending on application and
environment (i.e. ambient temperature, input voltage, ballast type, etc.)
OSRAM SYLVANIA designs and manufactures lamps and ballasts to meet American National Standard Institutes
(ANSI) and/or IEC (International Electrotechnical Commission) standards of construction and performance through
Total Quality Manufacturing (TQM) practices where applicable. In addition, ballasts are designed and manufactured
to meet Underwriters Laboratory (UL) and Canadian Standards Association (CSA) safety standards as necessary.
Ratings may change as a result of changes made to remain compliant with modifi ed or updated standards. OSRAM
SYLVANIA will release new or updated technical bulletins when appropriate. All product data presented in this
catalog supersedes all data published before 10/1/07.
Many OSRAM SYLVANIA products listed in this catalog qualify under the North American Free Trade Agreement
(NAFTA) as manufactured in Canada, the United States of America or Mexico.
Important Notice
Luminance Contrast
The relationship between
the luminances of an object and its immediate
background.
Luminance Ratio
The ratio between the
luminances of any two areas in the visual field.
Lux (lx)
A unit of illuminance equal to 1 lumen
per square meter.
Maximum Case Temperature
All OSRAM
SYLVANIA electronic ballasts have a maximum
allowable case temperature of 70°C and 90°C
for magnetic fluorescent ballasts. Applications
in which the case temperature exceeds this
maximum void all warranties.
Maximum Overall Length (MOL)
The total
length of a lamp, from top of bulb to bottom
of base.
Mean Lumens
Lumen output of a light source
after the source has been used. Mean lumen
values for fluorescent and HID lamps are typically
measured at 40% of their rated lives. Most high
pressure sodium and mercury lamps are meas-
ured at 50% of their rated lives. All measurements
are made on ANSI reference ballasts. Mean
lumens are not typically measured for incandes-
cent and tungsten halogen lamps.
Mean Spherical Candela (MSCD)
The average
value of the luminous intensity of a light source
in all directions. To convert MSCD to Lumens,
multiply by 4π(12.57).
Mean Time Between Failures (MTBF)
A calculation of ballast life based on thermal
conditions, component values, and circuit
characteristics used to develop relative predic-
tions of ballast life. OSRAM SYLVANIA uses
methodology that typically provides a 1:10 actual
life prediction based on MTBF calculations.
NAED
A five-digit number used to identify a spe-
cific OSRAM SYLVANIA lamp. This NAED number
in this catalog is labeled Product Number and
should be used when ordering OSRAM SYLVANIA
products. NAED is the abbreviation for National
Association of Electrical Distributors.
Nanometer (nm)
A unit of length equal to 10-9
meters; commonly used as a unit of wavelength.
Nominal Watts
Wattage used to describe a
lamp. Also see Power and Watt.
OFR
Abbreviation for “ozone free” technology.
Lamps with the designation OFR do not generate
ozone during operation.

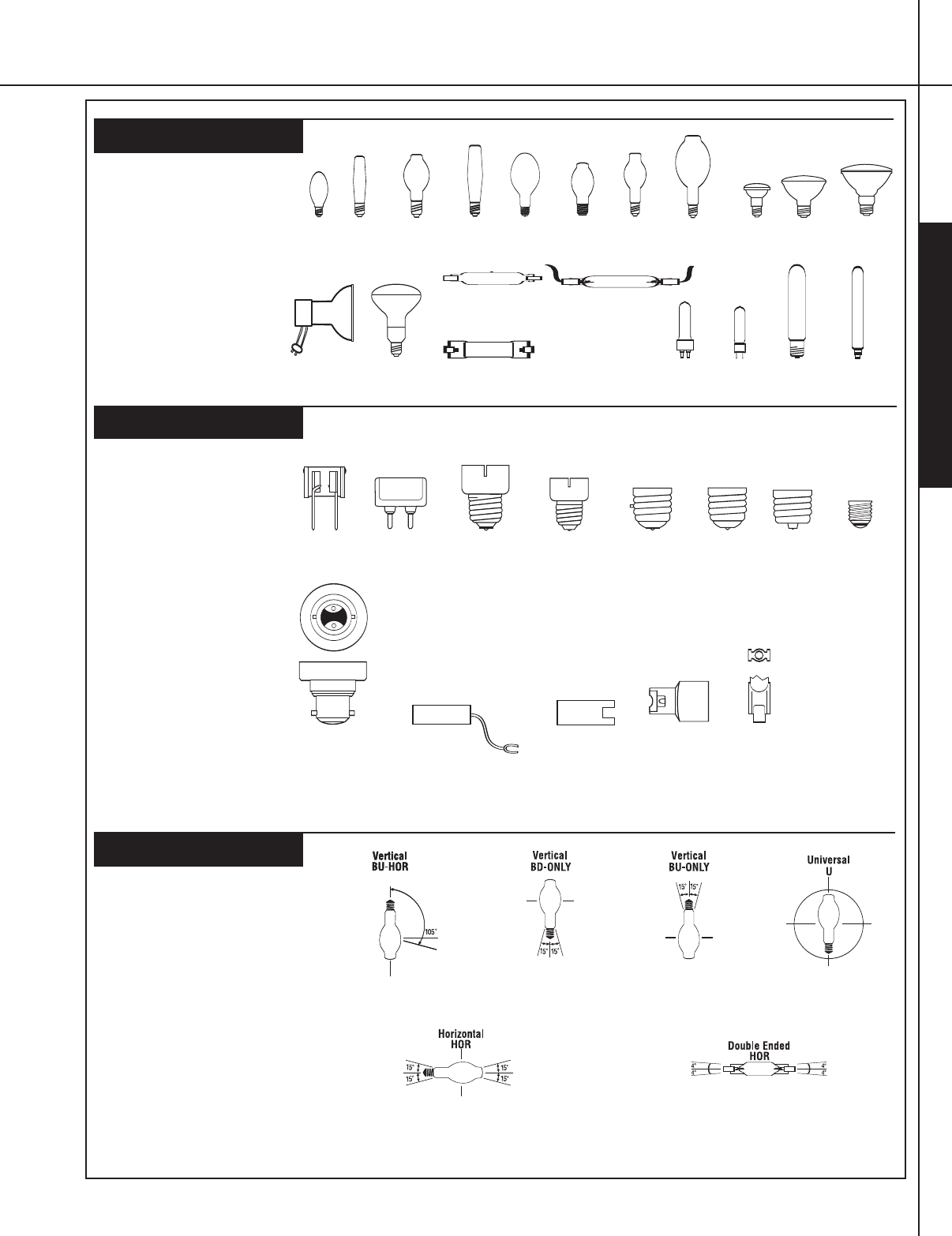

Operating Position
Some lamps are specified/
designed to be operated in certain positions, i.e.,
horizontal or base up.
Ordering Abbreviation
Provides a shorthand
description of the lamp, using a unique code
which can be used when ordering a lamp if the
Product Number is not known. An example would
be: CF15EL/R30/830/MED, which translates to a
15-watt Soft White DULUX®EL reflector electronic
self-ballasted compact fluorescent lamp with an
R30 reflector, 82CRI, 3000K color temperature
and a medium screw base.

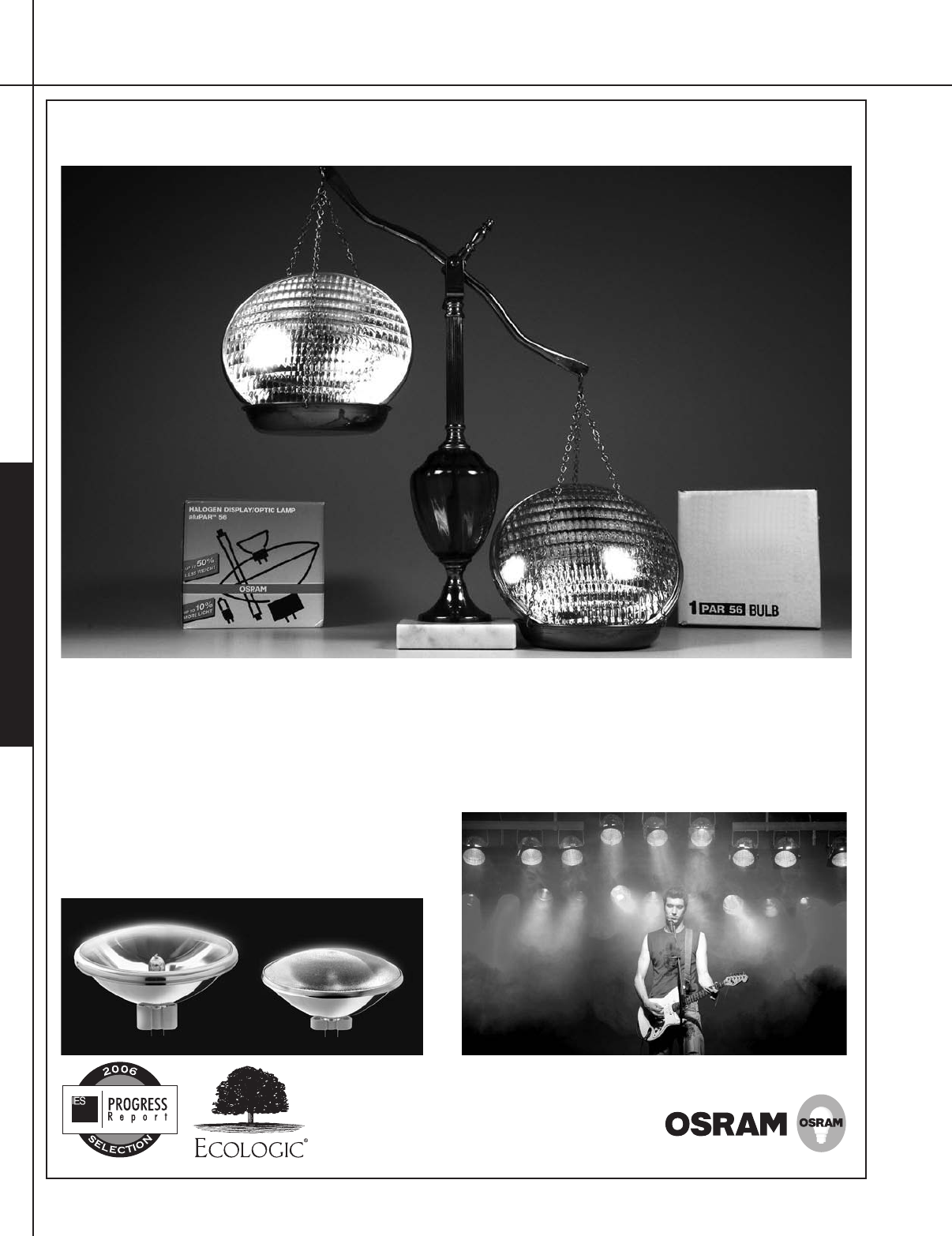

PAR Lamps
Pressed aluminized reflector lamp,
with the outer bulb formed from two pressed glass
parts that are fused or sealed together. PAR lamps
may be incandescent, halogen, or HID types.
Parallel vs. Series
Wiring configurations for bal-
lasts. Ballasts with parallel lamp circuitry have the
benefit of companion lamps remaining lit, even if
one of the lamps operated by the ballast should
fail. Systems with series lamp wiring (magnetic
ballasts and many rapid start electronic types)
result in all lamps operated on the ballast going
out if one should fail.
Photo-Optic Specialty Lamps
Photo-Optic
specialty lamps employ a variety of technologies
to meet the very precise levels of performance
required by the entertainment industry, science,
medical and other high-tech fields.
Power
The rate at which energy is taken from
an electrical system or dissipated by a load,
expressed in watts (W); power that is generated by
a utility is typically expressed in volt-amperes (VA).
Power Factor
A measure of the effectiveness
with which an electrical device converts volt-
amperes to watts; devices with power factors
(>0.90) are “high power factor” devices.
Preheat
A class of fluorescents requiring a starter,
which allows the lamp and filaments to be properly
heated before allowing the ballast to supply the
correct current flow.
Product Number
(See NAED.)
Programmed Rapid Start (PS)
A method of
starting fluorescent lamps where cathode heat is
applied prior to lamp ignition, then removed or
reduced once the lamp has ignited. PROStart®
ballasts maximize the number of lamp starting
cycles while maintaining energy efficiency. This is
the preferred mode of lamp starting for applica-
tions with occupancy sensors and several on/off
cycles per day. Additionally, the lamps will strike
reliably in cold conditions down to 0°F.
Rapid Start (RS)
Rapid start ballasts apply
a low filament voltage to preheat the cathodes.
Simultaneously, a starting voltage (lower than that
used in instant start) is also applied to strike the
arc. When the cathodes are hot enough, the lamp
will strike. The filament voltage continues to be
applied throughout the operation of the lamp.
Rapid start ballasts appear to have a slight turn on
delay compared to instant start. They will typically
not be able to start lamps reliably under 50°F.
Reference Ballast
A ballast specially construct-
ed to have certain prescribed characteristics for
use in testing electric-discharge lamps and other
ballasts. Reference ballasts are typically defined by
ANSI.
Reflector
A device used to redirect the light by
the process of reflection. Photo-Optic reflector
lamps utilize ellipsoidal (converging light rays) or
parabolic (collimating light rays) reflectors. Dichroic
coated reflectors are designed to reflect visible light
and pass through unwanted infrared wavelengths.
Resistance (R)
A measure of resistance to flow
of current, expressed in ohms
(Ω)
.
Safety
Ballasts should be installed and operated
in compliance with the National Electric Code
(NEC), Underwriters Laboratories Inc. (UL) require-
ments, and all applicable codes and regulations.
Since it is possible to come in contact with poten-
tially hazardous voltages, only qualified personnel
should perform ballast installation. All installation,
inspection, and maintenance of lighting fixtures
should be done with the power to the fixture
turned off.
Shielding
A general term to include all devices
used to block, diffuse or redirect light rays, includ-
ing baffles, louvers, shades, diffusers and lenses.
Single-Ended
Lamps having a single lamp base
or point of electrical connection.
Spectral Power Distribution (SPD)
A curve illustrating the distribution of radiant power
produced by the lamp, at each wavelength across
the spectrum.
Spotlight
A luminaire using halogen/incandescent
or a high intensity discharge (HID) lamp that pro-
duces a narrow beam angle designed to illuminate
a specifically defined area. It can also be called a
reflector lamp.
TCLP Test (Toxicity Characteristic Leaching
Procedure)
Federal EPA regulations (RCRA of
1990) have defined a TCLP test to determine
whether wastes are to be treated as hazardous
or non-hazardous.
Total Harmonic Distortion (THD)
A measure
of the distortion of an electrical wave form.
Excessive THD (defined by ANSI as greater than
32%) may cause adverse effects to the electrical
system. <20% THD ballasts are fine for most
applications. However, in buildings with neutral
problems caused by high THD loads such as
computers, printers, DC supplies, etc., the <10%
THD products can help reduce the overall % of
Total Harmonic Distortion.
Transient Protection
OSRAM SYLVANIA bal-
lasts meet ANSI 62.41 Category A. This helps
ensure immunity to electrical disturbances such as
power line transients, and temporary line voltage
dropouts, surges and sags.
Trigger Start
A circuit used to eliminate the
starter and start the preheat lamp almost instantly.
In this circuit each electrode is connected to a
separate winding in the ballast so that the elec-
trode is continuously heated.
Tungsten Halogen Cycle
A regenerative cycle
of tungsten and halogen atoms, which, when incor-
porated into the design of halogen light sources,
prevents blackening of the lamp envelope during life.
Voltage (V)
A measure of electrical potential,
expressed in volts (V). Voltage is the “force” that
pushes electrical current through a conductor.
Watt (W)
A unit of electrical power equal to 1
joule per second. Lamps are rated in watts to indi-
cate power consumption. Also see Nominal watts.
Wavelength
(
(
λ
λ
)
)
Distance between two succes-
sive points of a periodic wave; the wavelengths of
light are typically expressed in nanometers (nm),
or billionths of a meter.
Working Distance
(See Focal Distance.)
xi
Sustainability is everybody’s business.
When we can do more with less, everyone wins.
Businesses need to fi nd ways to grow without
adding to our environmental footprint — and the
good news is, we’re making steady progress.
Advanced technologies are helping us to be
more effi cient. We’re using less energy and
fewer resources, and generating less waste.
At a personal, corporate or national level, lighting
plays an important role in any sustainability strategy.
Whether you’re interested in lowering your energy
consumption, avoiding unnecessary maintenance,
identifying options for lamp and ballast recycling,
or fi nding products with
fewer hazardous materials,
OSRAM SYLVANIA can help.
Global Care:
Global Care represents our commitment to
corporate responsibility. This initiative is designed
to drive positive results to the triple bottom line
addressing social, economic and environmental
needs. Furthermore, we are dedicated to meeting
our customers’ lighting needs with a sustainable
approach to product design, development,
manufacturing and distribution.
We integrate environmental responsibility into
every area of our company. As a result, we are
using fewer natural resources, saving energy
for our customers, reducing
power plant emissions, and
recycling lamps and other
materials to avoid millions of
pounds of waste in landfi lls.
Meeting our needs today without compromising the resources future generations will need — touches everything we
do as a company. It’s all about reducing environmental impact, a commitment that goes beyond our products to include
how the products are manufactured, how they are used and how they are distributed and disposed. It even extends to
the design of “greener” buildings.
Sustainability in Action
™
iii
Our lamps designated as ECOLOGIC pass the U.S. EPA’s
Toxic Characteristic Leaching Procedure (TCLP) test for
hazardous waste determination. Products meeting the TCLP
test may be declared “universal waste” in many states,
easing the administrative, storage and transportation
burdens for these products. (Check your state and local
governments for the most accurate regulations.)
ECOLOGIC lamps have little or no lead in their glass or
bases, and little or no mercury in the HID and fl uorescent
lamp types. Many of these products also offer additional
“green” features such as energy effi ciency and long life, and
are packaged using recycled and/or recyclable materials.
With more than 800 products meeting our strict ECOLOGIC
guidelines and bearing the distinct “ECO®” designation,
we offer more environmentally preferable lamp types than
any other manufacturer.
In 2006, the ECOLOGIC program celebrated its 10-year
anniversary. In those 10 years, we’ve avoided the use of
over 580 tons of lead from our soldering production, and
we’ve reduced the amount of mercury used in many of
our lamps by up to 92%.
ECOLOGIC® products are the industry’s
most comprehensive line of environmen-
tally preferable lighting solutions.
iv
THIS PROGRAM IS CURRENTLY AVAILABLE ONLY IN THE U.S.A.
v
1%
Recycling
86%
Energy
10%
Labor
3%
Material
According to the U.S. Department of Energy, we consume about one-quarter of our electricity for lighting,
at a cost of more than $37 billion annually. Lighting accounts for the single largest portion of electric bills
for commercial users, as much as 30% — and it can be a prime opportunity for reducing energy costs.
Energy and the Cost of Lighting
Saving energy, saving money
Energy costs represent your biggest and best opportunity
for savings. Even seemingly minor energy effi ciency improve-
ments can have a major positive impact on operating ex-
penses — long-term savings that can quickly repay the
minimal capital investment.
For example, here are some things you can do right now:
Upgrade to SYLVANIA Energy Saving lighting products to
signifi cantly reduce total energy usage and operating costs.
Replace traditional T12 fl uorescent systems with
SYLVANIA OCTRON® T8 fl uorescent lamps and SYLVANIA
QUICKTRONIC® electronic ballasts for up to 50% energy
savings.* You’ll also get the added assurance of QUICK
60+®, the industry’s fi rst and most comprehensive lighting
system warranty.
Implement a lighting maintenance and retrofi t strategy to
maintain safety, security, aesthetics and productivity, as well
as to reduce labor costs. Our own SYLVANIA Lighting Ser-
vices can help.
Install dimmers and lighting control systems to save addi-
tional energy and add lighting design fl exibility.
OCTRON T8 fl uorescent lamps—savings the world
can live with
In 1981, OSRAM SYLVANIA invented the OCTRON T8
fl uorescent lamp, ushering in a new era of energy effi ciency in
lighting. Since we introduced the SYLVANIA OCTRON family,
we’ve saved our customers more than $27 billion in electricity
costs*. We’ve avoided 4 tons of airborne mercury discharged
from power plants**, and saved enough electricity to run the
Las Vegas Strip for 156 years!
Rebates and tax benefi ts
As a way to reduce overall electricity demand, many utilities
offer rebates to commercial customers who upgrade the
effi ciency of their lighting systems. Check with your local
utility or ESCO to learn more about these additional savings
opportunities. In addition, the Federal Energy Policy Act
of 2005 (EPAct 2005) offers tax benefi ts for energy-effi ciency
upgrades in commercial buildings undertaken in 2006
and 2007. (For more information, please visit
www.sylvania.com/EPACT).
* Based on $.10/kWh
** U.S. Department of Energy emissions conversion calculations
•
•
•
•
Advances in lighting technology have improved the energy
effi ciency of lighting by 30-60%, improvements that reduce
environmental impacts while increasing the bottom line.
Energy-effi cient lighting requires less energy, which lowers
electricity demand. With less demand, power plants burn
less fossil fuel, reducing emissions of mercury and other air
pollutants. So everybody profi ts.
Energy-effi cient systems
An important direction in lighting technology is the move to-
ward systems. OSRAM SYLVANIA started the trend with THE
SYSTEM SOLUTION,
®
a family of optimally balanced energy-
saving lamps and electronic ballast combinations. By bringing
lamp and ballast development under an integrated system
concept, we have been able to design innovative SYLVANIA
lighting systems that optimize energy savings without sacrifi c-
ing other elements of performance.
OSRAM SYLVANIA has the competitive advantage, with
years of experience in designing, developing and supporting
integrated systems — both in ballasts and lamps. Our global
network of design and manufacturing brings ballast and lamp
knowledge together to produce innovative, cost-effective,
energy saving systems.
Where does the cost of the average lighting
system come from?
Materials — the initial investment in fi xtures,
lamps, wires and ballasts
Labor — the cost to install the lighting and maintain it
day-to-day
Electricity — the energy consumed to illuminate
the lamps
Recycling — removing and disposing of spent lamps
in a way that does not negatively impact the environment
•
•
•
•
Figure 1
Cost of Maintaining the Average
Lighting System
As Figure 1 shows, the material
cost of a lighting system: bulbs,
ballasts and wiring, is small in
relation to the cost of the energy
to light it.
vi
SYLVANIA Products and the IESNA
Progress Report
A Proud Legacy of Achievement
Each year, The Progress Committee of the Illuminating Engi-
neering Society of North America (IESNA) solicits the lighting
industry for product submissions which, if accepted by the
committee, are featured in the committee’s Progress Report,
which is published in the IESNA’s publication “Lighting Design &
Application”. The mandate of the Progress Committee is “to
keep in touch with developments in the art and science of light-
ing throughout the world and prepare a yearly review of
achievements for the Illuminating Engineering Society of North
America.” Submissions are organized into one of seven catego-
ries: light source, accessory, luminaire, research, application,
publication and design tool. They are evaluated for their design,
engineering characteristics, installation features and overall
uniqueness. The 30-member committee of industry experts
votes on up to 200 product submissions annually.
Over the years many SYLVANIA and OSRAM branded prod-
ucts have been accepted for the Progress Report. An itemized
list of these products and their signifi cant features, are listed in
the tables that follow.
2007 Progress Report
OSRAM SYLVANIA submissions accepted by the
IESNA Progress Report Signifi cance to the Lighting Industry
OPTOTRONIC® 3W/350 mA LED Power Supply Smallest constant current power supply – lower than 5W for max
power fl exibility.
OPTOTRONIC 96W/24V LED Power Supply Only 96w power supply that contains fi ttings and junction boxes.
IP66 rated. Universal voltage.
OPTOTRONIC 240W/24V LED Power Supply Only 240W power supply that contains fi ttings and junction boxes.
IP66 rated. Universal voltage. 3 independently switchable channels.
QUICKTRONIC® QHE2x59/UNV-ISL-SC Ballasts First high effi ciency, low ballast factor, universal input voltage,
instant start ballast for 8 foot T8 lamps.
QUICKTRONIC QHE2x59/UNV-ISH-SC Ballasts First high effi ciency, high ballast factor, universal input voltage,
instant start ballast for 8 foot T8 lamps
QUICKTRONIC QHE2x86WT8HO/UNV-PSN-HT Ballasts First high effi ciency, normal ballast factor, universal input voltage,
programmed start ballast for 8 foot T8/HO lamps
QUICKTRONIC QHE 3 & 4 32T8/347V ISH HT Ballasts First high effi ciency, 347V, high ballast factor, instant start ballasts for
4 foot T8 lamps
QUICKTRONIC QHE 3 & 4 32W T8 480V Ballasts First high effi ciency, 480V, high ballast factor, instant start ballasts for
4 foot T8 lamps
QUICKTRONIC QHE 2x40DL UNV ISN SC Ballasts First high effi ciency, 2-lamp universal voltage ballasts for DULUX L
SUPERSAVER 40W and 28W lamps
QUICKTRONIC QHE 2,3,4 32T8 UNV PSH – HT Ballasts First high effi ciency, programmed start, 90°C rated ballasts for T8 lamps
QUICKTRONIC QHE 1,2,3,4 x32T8 UNV Type CC and Anti-Striation
Control Ballasts
First high effi ciency T8 ballasts that operate more lamp types than
any other type CC ballast. -20°F starting temperature
QUICKTRONIC QTP2x54T5HO UNV PS80 SC Ballasts First high effi ciency T5HO ballast with 0.80 ballast factor for
20% energy savings
QUICKTRONIC QS2X54T5HO UNVPS80SC Ballasts First high effi ciency T5HO ballast with 0.80 ballast factor for
20% energy savings with bi level switching
QUICKTRONIC POWERSENSE T5 Dimming Ballasts First high effi ciency dimming ballasts for T5 lamps – dual control
(0-10V & line voltage), universal voltage
QUICKTRONIC Helios 0-10V T8 Dimming Ballasts First high effi ciency dimming ballasts for T8 lamps with up to 1.2 ballast
factor, auto start & restart technology 277V
METALARC® POWERBALL® 250W Ceramic Metal Halide Lamps Smallest 250W single-ended ceramic metal halide in the industry.
20, 39, 70W METALARC POWERBALL Ceramic lamps with secure-fi t
G8.5 base design Industry’s fi rst formed press G8.5 base low wattage CMH lamp.
OCTRON® SKYWHITE T8 Fluorescent Lamps Industry’s fi rst 8000K T8 lamp
PENTRON® PREMIER ECOLOGIC® T8 Fluorescent Lamps Industry’s highest lumen 28W lamps.
vii
2006 Progress Report
2005 Progress Report
OSRAM SYLVANIA submissions accepted by the IESNA Progress Report Signifi cance to the Lighting Industry
20W METALARC® POWERBALL® Ceramic Metal Halide PAR 30 Lamp Highest lamp life for 20W PAR 30 CMH.
39W METALARC POWERBALL Ceramic Metal Halide PAR 20 or PAR 30 Lamp Highest CRI PAR 20 or PAR30 CMH – 5% improvement.
750W SUPER METALARC® Pulse Start First base down 750w MH Pulse Start lamp.
54W PENTRON® HO Primary Colors T5 Fluorescent Lamps First T5 HO single phosphor lamps.
aluPAR™ – Lighter, brighter, cooler PAR 56 Stage & Entertainment Lamp First lightweight, aluminum refl ector PAR 56. Lamp can be disassembled for
recycling. Up to 50% lighter and 10% brighter.
QUICKTRONIC® QHE High Effi ciency Family of 347V 4 – Lamp T8 Ballasts First high effi ciency T8 Instant Start low ballast factor ballast for 347V systems.
QUICKTRONIC QHE High effi ciency Family of 347V T8 Instant Start Ballasts First high effi ciency T8 Instant start normal ballast factor ballast for 347V systems.
QUICKTRONIC QHE 3X40DL UNV IS T5 Ballasts First high effi ciency universal voltage ballast that can operate 3 DL40W or
3 DL40/28W SS lamps.
OCTRON® FBO29/800XP/SS/ECO 29W T8 Fluorescent Lamp First 29W 1-5/8" leg U-bent lamp.

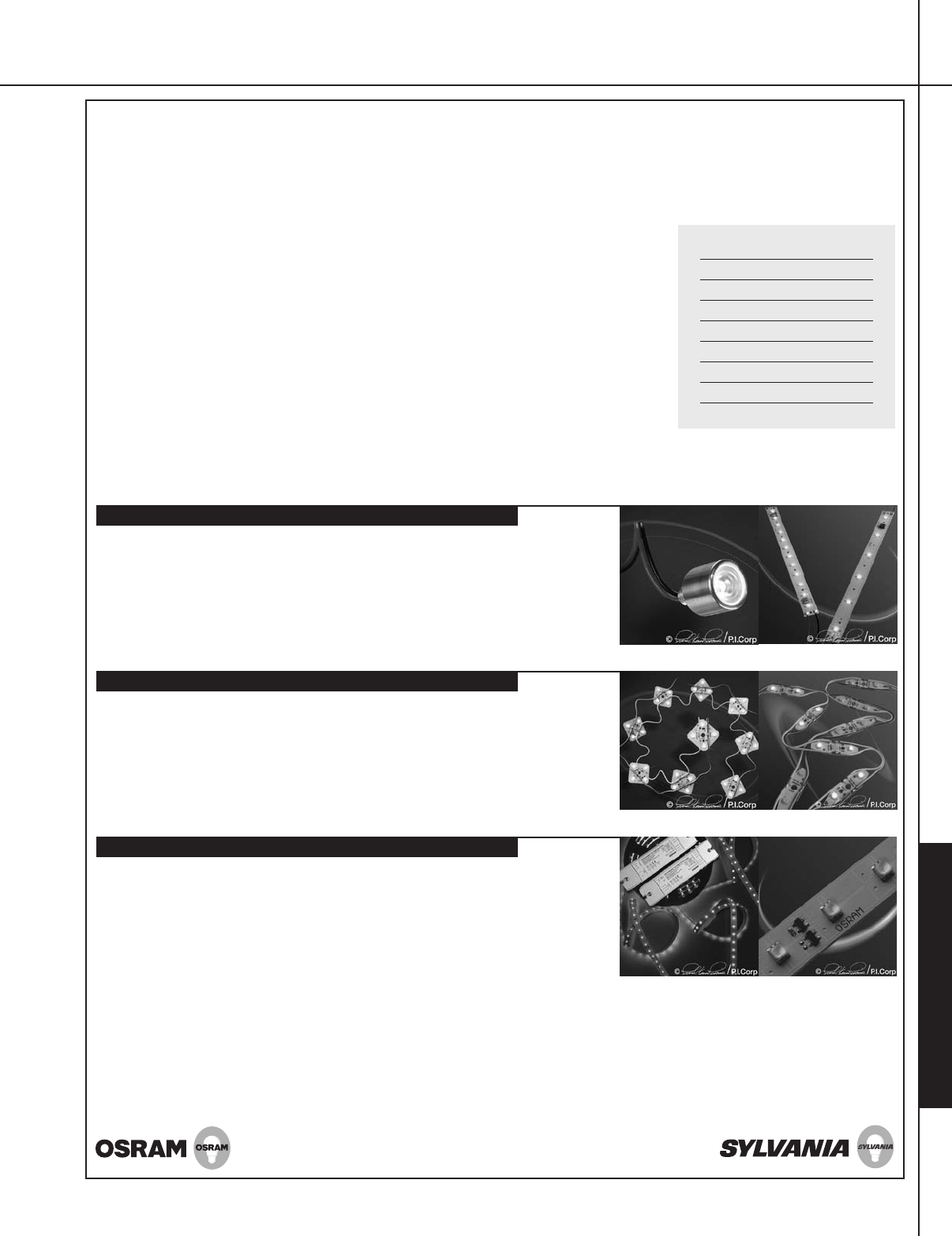

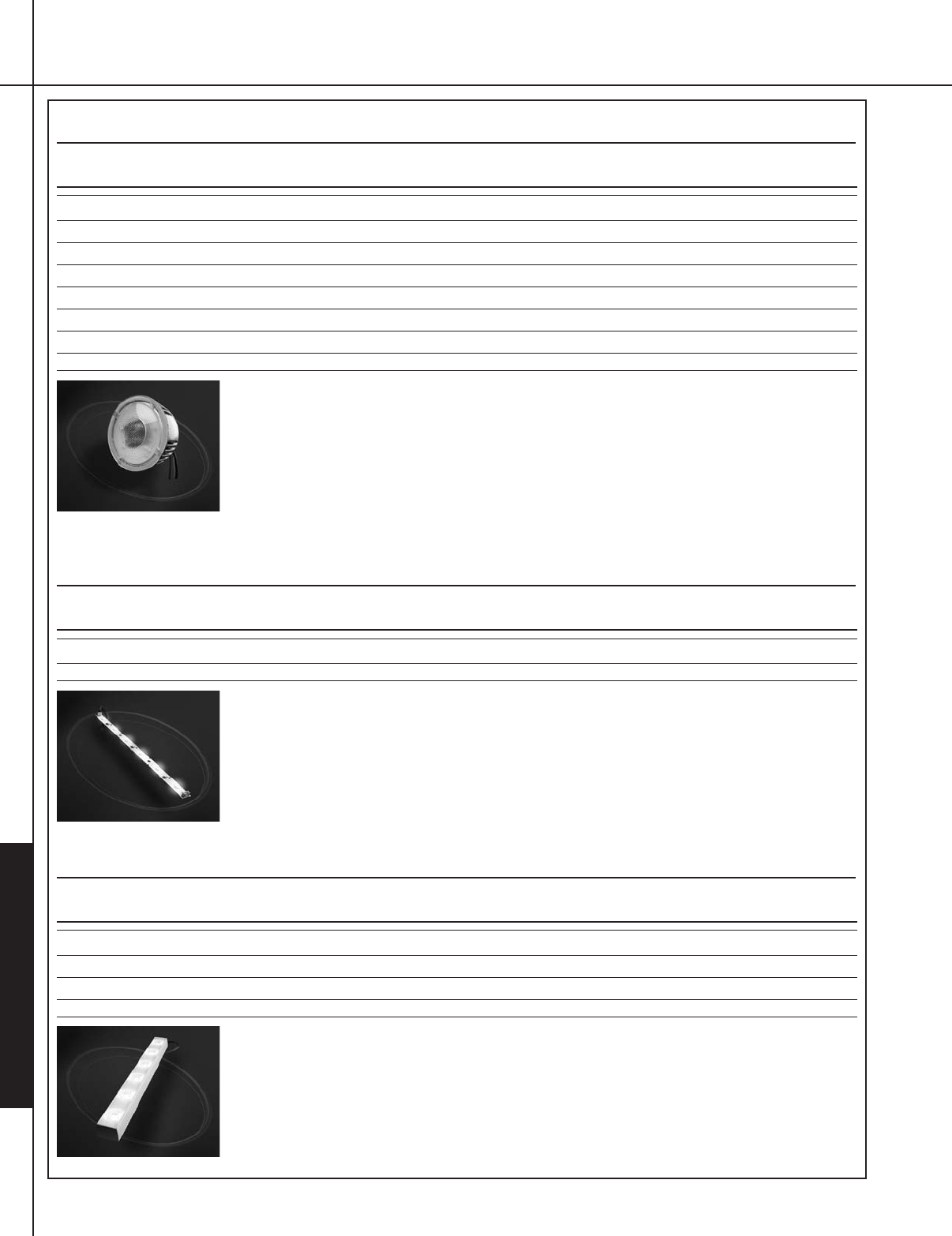

DRAGONstick Expansion of DRAGON product family, includes heatsinks and available in 3300K.
DRAGONpuck Warm White Expanded DRAGONpuck product family – 3300K version.
DRAGONtape Warm White Expanded DRAGONtape product family – 3300K version.

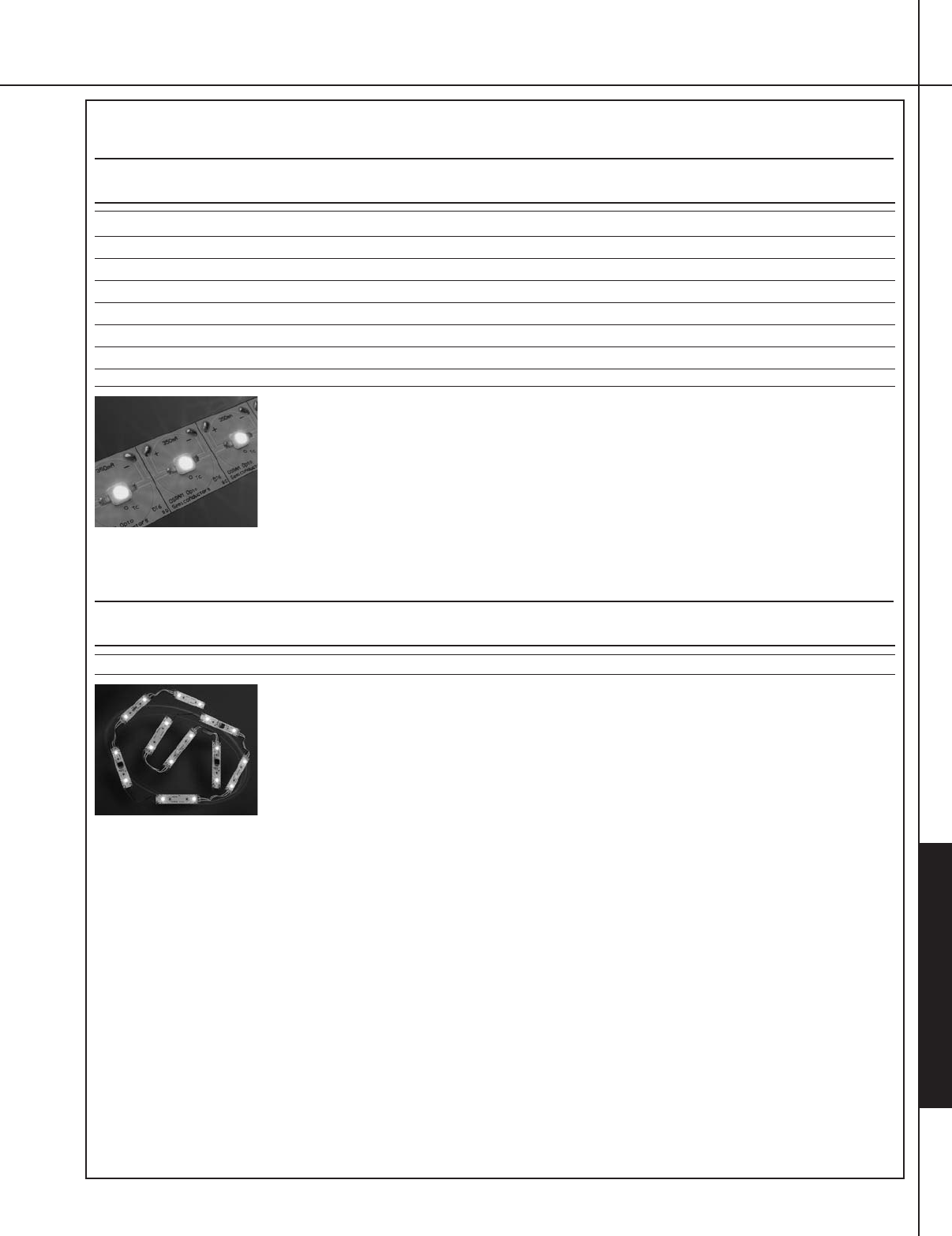

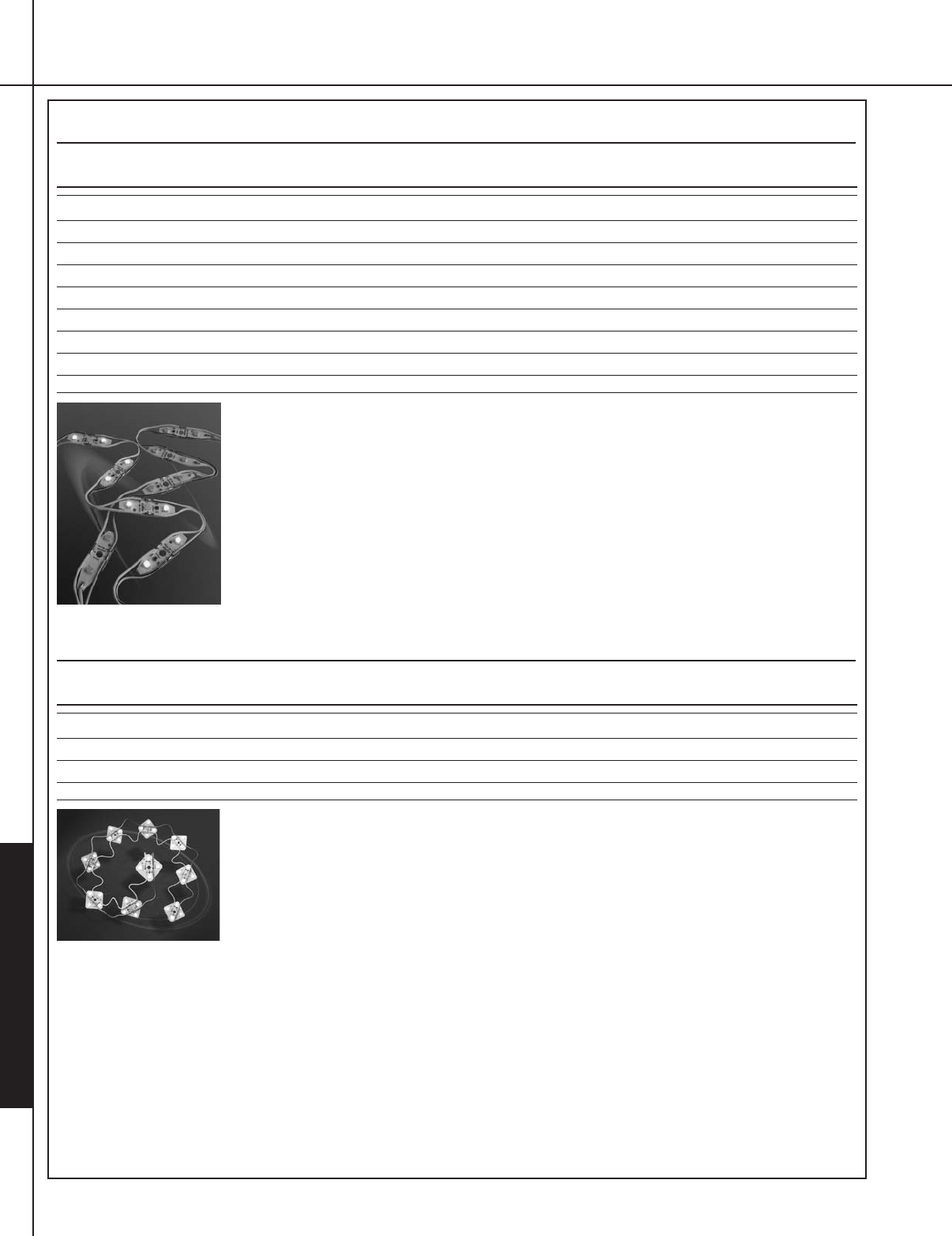

HF2 Linear LED module First integrated LED strip with heat sink and optics. Increases accessibility of
LED to non LED manufacturers.
HF2 Eye LED module First integrated LED point source with heat sink and optics. Increases accessibility
of LED to non LED manufacturers. IP65 rated.
HF2X LED Module Smallest 6 LED array with high luminance LEDs with optics.
OStar® Lighting LED component Smallest 6 LED array with high luminance LEDs.
OSRAM SYLVANIA submissions accepted by the IESNA Progress Report Signifi cance to the Lighting Industry
MINISTAR® Lamp Smallest low voltage bi-pin halogen refl ector lamp.
70W METALARC® POWERBALL® PLUS Ceramic Metal Halide Lamps
(3000K, 95 CRI) Highest CRI of 3000K CMH lamps.
320W METALARC POWERBALL Ceramic Metal Halide Lamp HIghest initial LPW (117LPW) for a 320W CMH lamp.
70W METALARC POWERBALL PAR30 Ceramic Metal Halide Lamp First CMH lamp with neodymium glass.

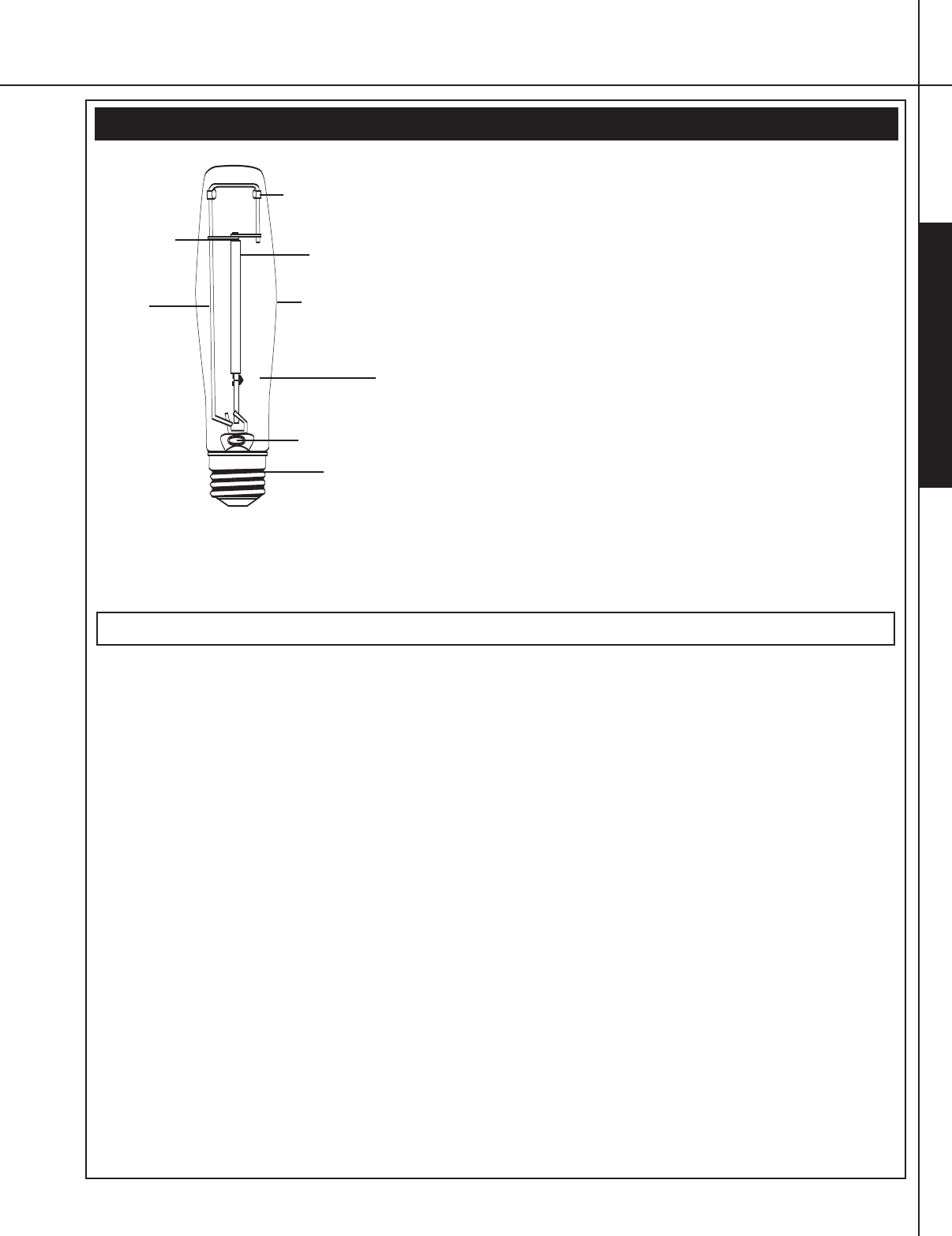

70 and 100W LUMALUX® PLUS High Pressure Sodium Lamps First non-cycling medium based HPS lamp.
39W METALARC POWERBALL Ceramic Metal Halide Lamp Longest life 4000K 39W CMH lamp (12,000 hrs)
920W SUPER METALARC® Metal Halide Lamp First 920W metal halide lamp direct retrofi t for 1000W.
PENTRON® Constant HO ECOLOGIC® T5 Fluorescent Lamp First T5 HO lamp with amalgam technology.
ICETRON® Refl ector ECOLOGIC Inductively Coupled Electrodeless
Fluorescent Lamp First induction lamp with an internal refl ector.
OCTRON® FBO29/800XP/SS/ECO 29Watt T8 Fluorescent Lamp First 29W 1-5/8" leg u-bent lamp.
OPTOTRONIC® Constant Current Dimmable LED Power Supply for DRAGONtape
and DRAGONpuck First LED driver for DRAGONtape and DRAGONpuck module.
OPTOTRONIC Dimmable LED power supply for DRAGONtape and DRAGONpuck First dimmable LED driver for DRAGONtape and DRAGONpuck.

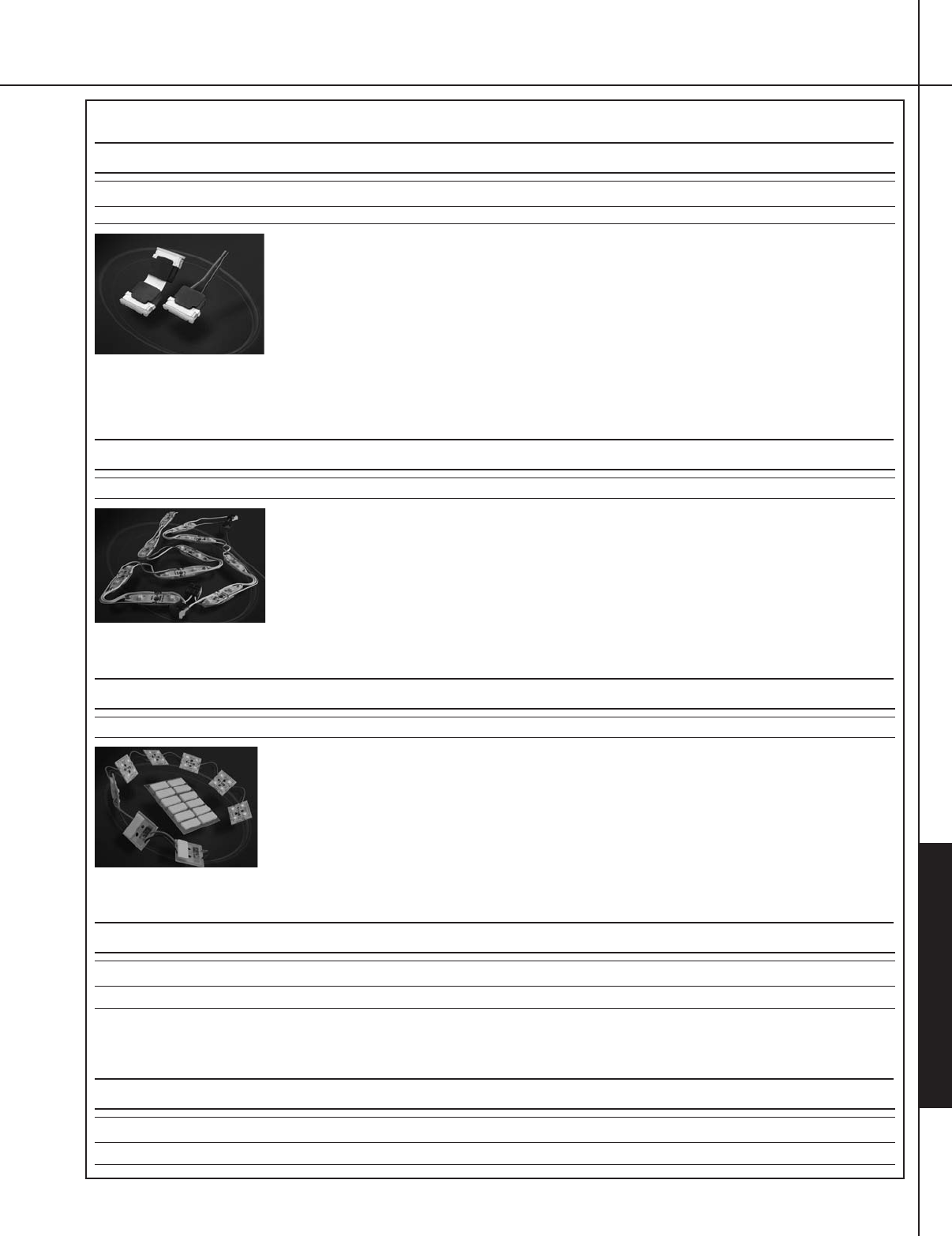

DRAGONpuck LED Module First high brightness LED with integrated optics.

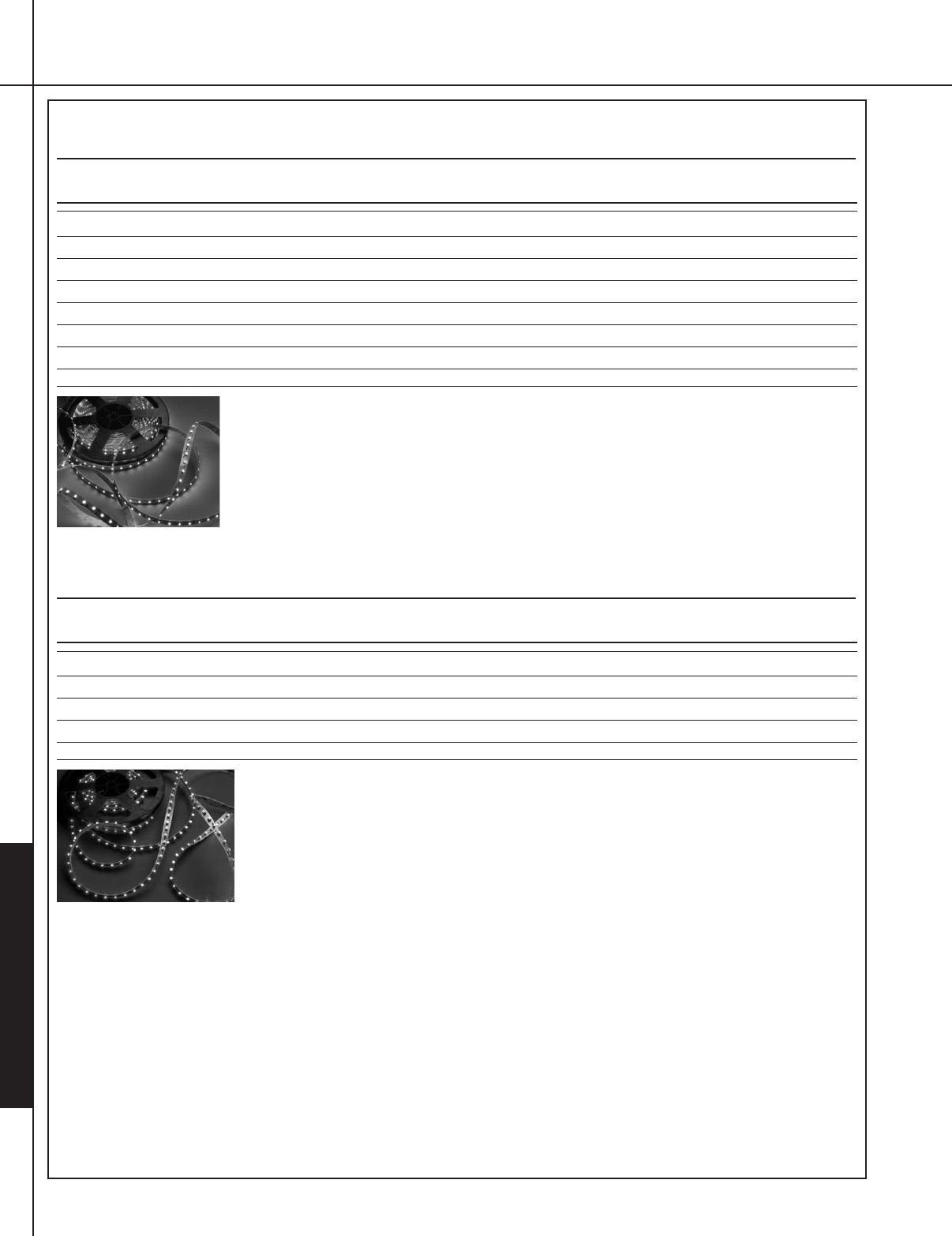

DRAGONtape LED Module Modular, high brightness confi gurable LED strip.
OPTOTRONIC LED power supply, 24V, 75W First 75W universal voltage LED power supply.
OPTOTRONIC OTO50/120-277/10E LED Power Supply First 50W universal voltage LED power supply.
viii
Ampere
A unit expressing the rate of flow of
electric current.
ANSI (American National Standards
Institute)
The organization that develops
voluntary guidelines and produces performance
standards for the electrical and other industries.
Audible Noise (Sound)
All fluorescent lamp
ballasts produce some noise. Most OSRAM
SYLVANIA brand ballasts are sound rated A (up
to 75% quieter than magnetic types) and are
acceptable for most applications. Care should
be taken when mounting the ballast to reduce
vibration.
Average Rated Life
An average rating, in hours,
indicating when 50% of a large group of lamps
have failed, when operated at nominal lamp volt-
age and current; manufacturers use 3 hours per
start for fluorescent lamps and 10 hours per start
for HID lamps when performing lamp life testing
procedures; every lamp type has a unique mortali-
ty curve that depicts its average rated life. For
Photo-Optic specialty lamps, average rated life
refers to the operating period after which on statis-
tical average, 50% of the lamps will perform within
their specified values.
Ballast
A device used with an electric discharge
lamp to obtain the necessary circuit conditions
(voltage, current and waveform) for starting and
operating; all fluorescent and HID light sources
require a ballast for proper operation. Dimming
ballasts are special ballasts which, when used
together with a dimmer, will vary the light output of
a lamp. OSRAM Photo-Optic discharge lamps are
either designed for AC operation (sine wave and/or
square wave with recommended operational fre-
quencies below 1KHz) or DC operation (current
regulated or power regulated). Please see OSRAM
lamp specifications for correct ballast or electronic
control gear selection.
Ballast Basics
Ballasts have two primary func-
tions: 1) start the lamp and 2) control operation
of the lamp once it has started. High frequency
electronic ballasts operate lamps more efficiently
and eliminate the hum and visible flicker normally
associated with standard magnetic ballasts.
Electronic ballasts also typically have better power
quality than magnetic ballasts.
Ballast Efficacy Factor (BEF)
Ballast factor (as
a whole number) divided by input power (watts).
Used to measure the level of efficiency of similar
ballast models. For example, the OSRAM SYLVA-
NIA QT2X32IS which has a ballast factor of 0.90
and input watts of 59 (BEF= 90/59 = 1.53), is
more efficient than electronic ballasts with ballast
factor of 0.875 and input watts of 62 (BEF=1.41).
Ballast Factor (BF)
The measured ability of a
particular ballast to produce light from the lamp(s)
it powers; ballast factor is derived by dividing the
lumen output of a particular lamp/ballast combina-
tion by the lumen output of the same lamp(s) on a
reference ballast.
Ballast Fusing
(See Fusing.)
Ballast Life
OSRAM SYLVANIA ballasts are
designed to have an average life expectancy of
60,000 hours. To maximize life, ambient temperature
should be kept as low as possible. It is also impor-
tant to maintain effective dissipation of heat using the
lighting fixture as a heatsink for the ballast enclosure.
Ballast Losses
Power consumed by a
ballast that dissipates as heat instead of being
converted into light. Electronic ballasts operate
more efficiently than magnetic or hybrid ballasts. A
typical ballast loss for a standard two lamp energy
saving magnetic ballast is 12 watts, where an
electronic equivalent would only be 7 watts.
Ballast Types
There are three types of lighting
ballasts: 1) Magnetic: an inefficient device that
uses a core and coil assembly transformer to
perform the minimum functions required to start
and operate the lamp; 2) Hybrid or “low frequency
electronic”: essentially a magnetic ballast with a
few electronic components that switch off voltage
to the lamp coil once the lamp has started. A mini-
mal increase in efficiency is obtained via more
expensive magnetic core material and the absence
of power to the lamp coils during operation; 3) High
frequency electronic: a ballast that operates lamps
at frequencies above 20,000 Hz. Maximum efficien-
cy is obtained through the use of electronic circuitry
and optimum lamp operating characteristics.

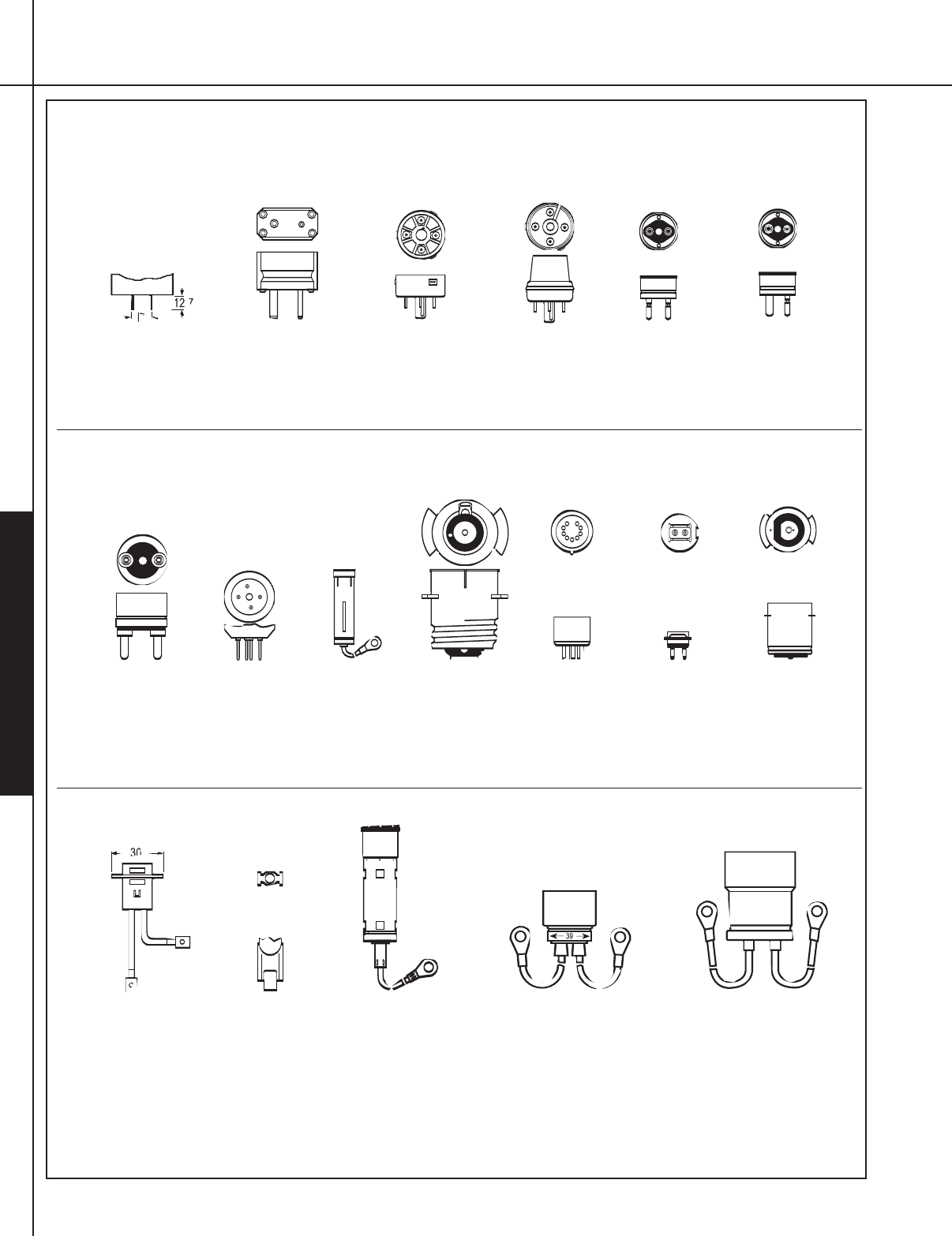

Base
The lamp base mechanically holds the lamp
in place in the application. The lamp base directly
or indirectly (via a cable or lead-in wires) conducts
electricity from the circuit to the lamp and can be
designed to dissipate heat. Lamp bases should be
operated within specified temperature ranges.
Beam Angle
The angle between the two direc-
tions for which the intensity (candlepower) is 50%
of the maximum intensity as measured in a plane
through the nominal beam centerline (center beam
candlepower).
Beam Spread
In any plane, the angle between
the two directions in the plane in which the candle-
power is equal to a stated percent of the maxi-
mum candlepower in the beam.
Black Body (Planckian radiator)
An ideal
thermal radiator whose SPD curve is defined by its
temperature in Kelvin and whose color coordinates
lie exactly on the Planckian curve.
Brightness
(See Luminance.)
Bulb
Hard, soft or quartz glass enclosure, which
can contain a vacuum, elemental inert gas or
metal and a means of light generation (filament or
electrodes).
Candela (cd)
The unit of measure indicating the
luminous intensity (candlepower) of a light source
in a specific direction; any given light source will
have many different intensities, depending upon
the direction considered.
Candlepower Distribution
A curve that repre-
sents the variation in luminous intensity (expressed
in candelas) in a plane through the light center of a
lamp or luminaire; each lamp or lamp/luminaire
combination has a unique set of candlepower dis-
tributions that indicate how light will be spread.
Center Beam Candlepower (CBCP)
The
intensity of light produced at the center of a
reflector lamp beam, expressed in candelas.
Chromaticity
The aspect of color that includes
consideration of its dominant wavelength and purity.
Color Rendering Index (CRI)
The Color
Rendering Index (CRI) measures the effect a light
source has on the perceived color of objects and
surfaces. High CRI light makes virtually all colors
look natural and vibrant. Low CRI causes some
colors to appear washed out or even to take on a
completely different hue.
Color Temperature (CT)
Color temperature,
which is measured in Kelvin, indicates whether a
lamp has a warm, midrange or cool color appear-
ance. “Warm” light sources have a low color tem-
perature (2000-3000K) and feature more light in
the red/orange/yellow range. Light with a higher
color temperature (>5000K) features more blue light
and is referred to as “cool.”

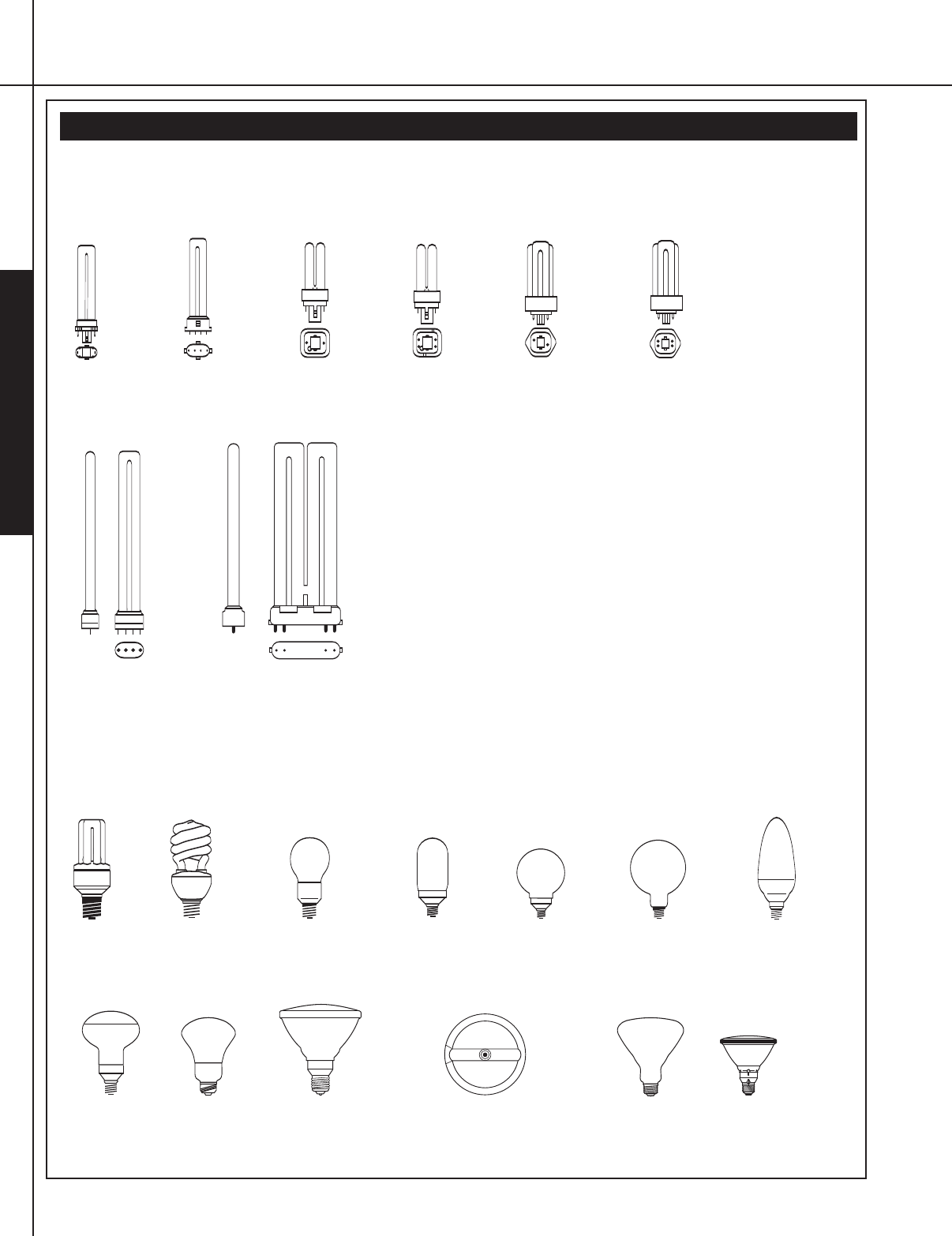

Compact Fluorescent Lamps
Compact
fluorescent lamps employ small diameter tubes that
are bent so they begin and end in a single base.
This allows them to be produced in a wide variety
of configurations, greatly extending the applica-
tions for fluorescent lighting.
Correlated Color Temperature (CCT)
A specification of the color appearance of a
lamp, relating its color to that of a reference
source, black body radiator, heated to a particu-
lar temperature, measured in degrees Kelvin (K);
CCT generally measures the “warmth” or “cool-
ness” of light source appearance.
Current
A measure of the rate of flow of
electricity, expressed in amperes (A).
Description
(See Ordering Abbreviation.)
Design Amperes
The approximate current
which the lamp will draw at design volts.
Directional Lighting
Illumination on the work-
plane or on an object predominantly from a single
direction.
Double-Ended
Lamps that have two bases
opposite one another for series electrical connec-
tion, mechanical mounting and heat dissipation.
Efficacy
The rate at which a lamp is able to con-
vert power (watts) into light (lumens), expressed in
lumens per watt (LPW or lm/W). See also LPW
Performance.
Electronic Control Systems
(See Ballast.)
EMI/RFI
Electronic Ballasts contain circuits that
limit electrical noise conducted onto the power line
or radiated through the air, otherwise referred to as
EMI/RFI. OSRAM SYLVANIA ballasts comply with
FCC 47 CFR Part 18, non-consumer limits for
commercial applications. Ballasts for residential
application must meet consumer limits. OSRAM
SYLVANIA has a complete line of magnetic bal-
lasts for residential use.
Product Catalog Glossary of Terms
ix
Energy
A measure of work done by an electrical
system over a given period of time, often
expressed in kilowatt-hours (kWh).
Filament
A tungsten wire purposely positioned
inside a lamp bulb, that when heated electrically
generates radiation in the visible, infrared and ultra-
violet ranges. Tungsten material is most often
used, as it has great tensile strength, is very
durable, and can be heated very near its melting
point without evaporating rapidly. Lamp filaments
are offered in a variety of designs optimized for
specific applications.
Fixture
(See Luminaire.)
Floodlight
A reflector lamp with a relatively wide
beam pattern. Also a luminaire consisting of lamp
and reflector at fixed distance providing a wide
field of illumination.
Fluorescent Lamp
A low pressure mercury
vapor discharge light source. The electric discharge
generates ultra-violet (UV) energy, which is absorbed
by a phosphor and converted to visible light.
Focal Distance
The distance between a lamp
(light producing element) and the focal point of
the reflector surrounding it. Lamp alignment can
be adjusted to influence both illumination and
color quality. Sometimes referred to as “working
distance”.
Footcandle (fc)
A unit of illuminance equal to
1 lumen per square foot.
Frequency
The number of times per second that
an alternating current system reverses from posi-
tive to negative and back to positive, expressed in
cycles per second or hertz (Hz).
Fusing
All QUICKTRONIC®ballasts contain
inherent electrical protection. Although there is
no need to externally fuse the ballast, should
code or regulation require one, 3 amp slow blow
fuses are recommended.
Glow to Arc Transition
In order to achieve full
rated lamp life, a ballast should start a lamp so
that the time from when the lamp begins to glow
to the time the lamp arc strikes should be as short
as possible. OSRAM SYLVANIA instant start bal-
lasts typically accomplish this task within 50 msec.
Grounding
The ballast case and fixture must
always be grounded. The grounding helps assure
safety, proper lamp starting, and acceptable EMI/RFI
performance. Install ballast in accordance with nation-
al and local electric codes.
Halogen Lamps
High pressure tungsten
filament lamps containing halogen gases. The
halogen gases allow the filaments to operate at
higher efficacies than incandescent lamps.
Halogen lamps also provide brighter, whiter light
with better color characteristics, longer service
life and improved energy efficiency.
Harmonic
An electrical frequency that is an
integer multiple of the fundamental frequency; for
example, if 60 Hz is the fundamental frequency,
then 120 Hz is the second harmonic and 180 Hz
is the third harmonic. Some electronic devices,
such as ballasts or power supplies, can cause
harmonic distortion, directly affecting power quality.
Hertz (Hz)
A unit of frequency equal to one cycle
per second; see frequency.

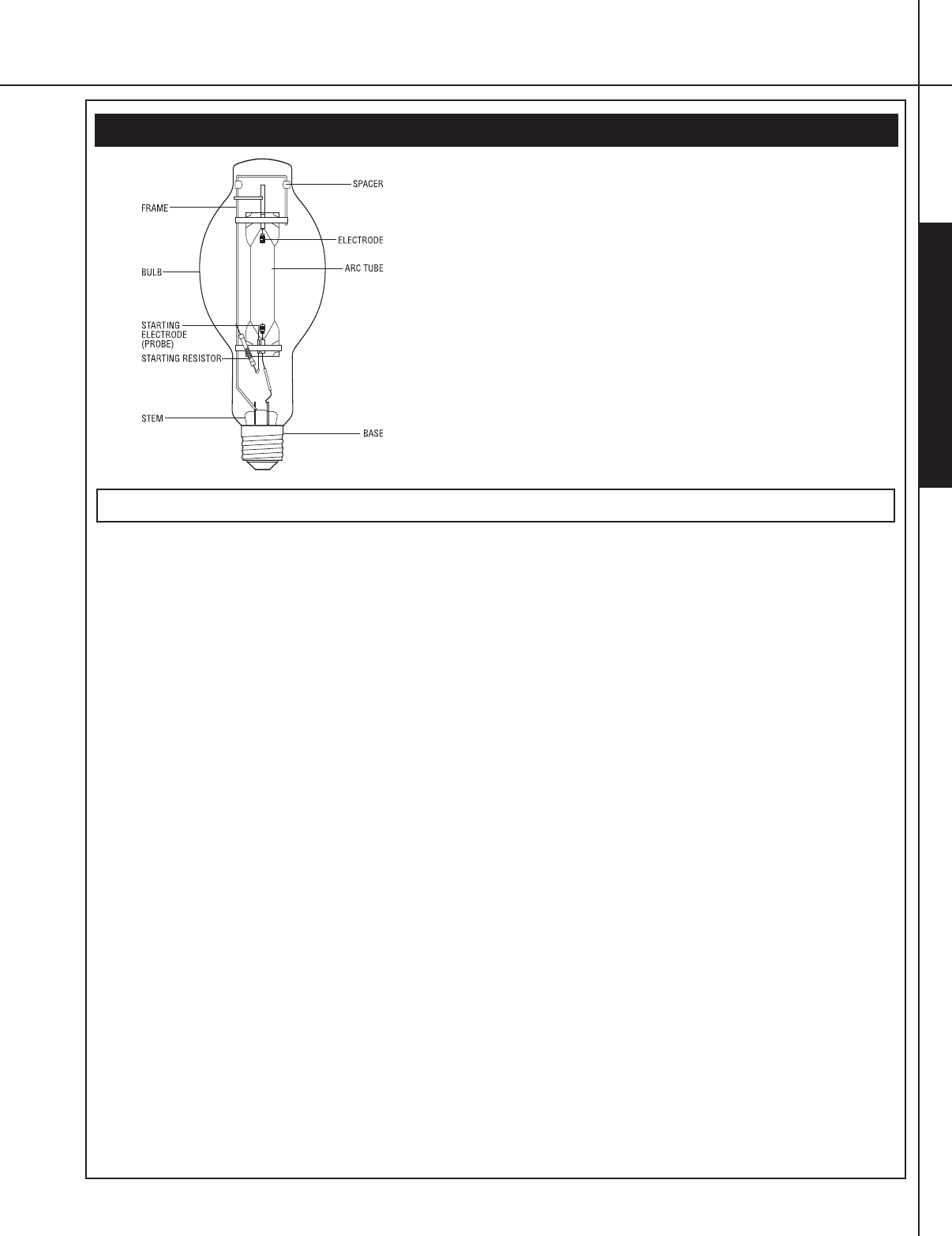

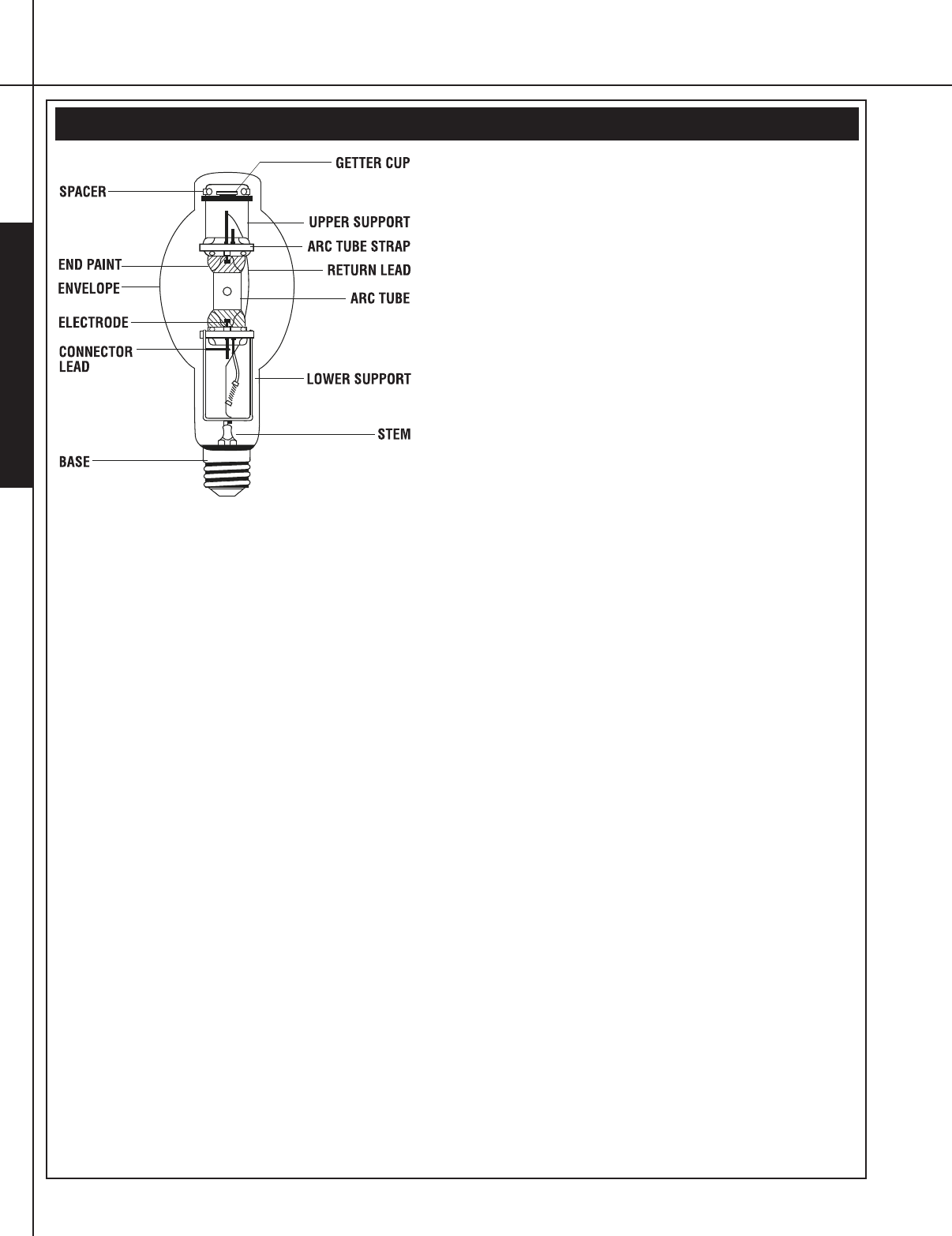

High-Intensity Discharge (HID) Lamps
Lamps in which an arc passing between two elec-
trodes in a pressurized tube causes various metallic
additives to vaporize and release large amounts of
light. All HID lamps offer outstanding energy effi-
ciency and service life. Metal halide lamps also
offer good to excellent color rendering index (CRI).
Hot Ignition
The restarting of a previously
operating lamp shortly after turn-off. Hot ignition
is a high performance feature in many OSRAM
SYLVANIA discharge lamp types.
Illuminance
Light arriving at a surface, expressed
in lumens per unit area; 1 lumen per square foot
equals 1 footcandle, while 1 lumen per square
meter equals 1 lux.
Incandescent Lamp
A light source using
the principle of incandescence. When an electric
current passes through a filament wire (usually tung-
sten), the heated wire glows. Filaments of standard
incandescent lamps are enclosed in a vacuum or
gas-filled bulb. They provide low initial cost, good
color rendition and excellent optical control.
Instant Start (IS)
Instant start ballasts apply high
voltage across the lamp with no preheating of the
cathode. This is the most energy efficient starting
method for fluorescent lamp ballasting. IS ballasts
use 1.5 to 2 watts less per lamp than rapid start
ballast. Other IS ballast benefits typically include
parallel lamp circuitry, longer remote wiring dis-
tance, easier installation due to less complicated
wiring, and capability to start lamps at 0 degrees
(versus 50 degrees F for rapid start).
K-Factor
A measurement that quantifies the
effect of non-linear equipment, such as lighting
ballasts, on an electrical system. Lighting systems
should be designed so that the transformer rating
is sufficient for the ballast used (typically K-factor
<4). All OSRAM SYLVANIA ballasts meet this
specification.
Lamp
Manufactured light source, synonymous
with light bulb; the three broad categories of
electric lamps are incandescent, fluorescent
and high-intensity discharge.
Lamp Current Crest Factor (LCCF)
The ratio
of peak lamp current to the RMS (average) lamp
current. Lamp manufacturers require a LCCF of
less than 1.70 in order to achieve full lamp life.
Lamp Disposal
When disposing of spent lamps,
always consult federal, state, local and/or provincial
hazardous waste disposal rules and regulations to
ensure proper disposal.
Lamp Flicker
Cyclic variation in output of a light
source. High frequency electronic ballasts provide
a minimal level of lamp flicker. Lamp flicker from
magnetic ballasts may cause eye fatigue for some
people.
Lamp Fuse
Wire or device designed to protect a
lamp from over-voltage or over-current conditions.
OSRAM requires that all Photo-Optic lamps be
fused in their applications to prevent lamp over-
powering. Certain lamps contain their own internal
fuse. Please ensure lamps in your specific applica-
tion are fused with respect to their power source.
Lamp Lumen Depreciation Factor (LLDF)
The multiplier to be used in illumination calcula-
tions to relate the initial rated output of light
sources to the anticipated minimum rated output
based on the relamping program to be used.
(See Lumen Depreciation and Mean Lumens.)
Lens
A glass or plastic element used in luminaires
to change the direction and control the distribution
of light rays.
Light
Radiant energy that is capable of producing
a visual sensation.
Light Center Length (LCL)
The distance from
a specified reference point on a lamp base
to its light center.
Light Loss Factor (LLF)
A factor used in
calculating illuminance after a given period of time
and under given conditions. It takes into account
temperature and voltage variations, dirt accumula-
tion on luminaire and room surfaces, lamp depre-
ciation, maintenance procedures and atmosphere
conditions. Formerly called maintenance factor.
Low Temperature Starting
QUICKTRONIC®
instant start and programmed rapid start electron-
ic ballasts have the capability to start fluorescent
lamps at temperatures down to 0°F providing the
following conditions are met: 1. The ballast is
operated at rated nominal line voltage; 2. Ballast
cannot be tandem/remote wired for low tempera-
ture starting applications. Please note, starting
time may increase at 0°F ambient temperatures.
Enclosed fixtures are recommended as fluores-
cent lamps have reduced light output at cooler
ambient temperatures. (See specifications for
each model’s starting temperature rating.)
LPW Performance
Lumens Per Watt. The
number of lumens produced by a light source for
each watt of electrical power supplied to the light
source. Also see Efficacy.
Lumen Depreciation
The decrease in lumen
output of a light source over time; every lamp type
has a unique lumen depreciation curve (sometimes
called a lumen maintenance curve) depicting the
pattern of decreasing light output. See Lamp Lumen
Depreciation Factor, LLDF and Mean Lumens.
Lumen Maintenance
(See Lumen Depreciation.)
Lumens (lm)
A unit of luminous flux; overall light
output; quantity of light, expressed in lumens. For
example, a dinner candle provides about 12
lumens and a 60-watt soft white incandescent
lamp provides about 840 lumens.
Luminaire
A light fixture; the complete lighting
unit, including lamp, reflector, ballast, socket,
wiring, diffuser and housing.
Luminaire Efficiency
The ratio of luminous flux
(lumens) emitted by a luminaire to that emitted by
the lamp or lamps used therein.
Luminance (L)
Light reflected in a particular
direction; the photometric quantity most closely
associated with brightness perception, measured
in units of luminous intensity (candelas) per unit
area (square feet or square meters).
x
For more complete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
1
I
N
C
A
N
D
E
S
C
E
N
T
INCANDESCENT LIGHTING
The incandescent lamp consists of a wire filament on a suitable mount enclosed in a glass bulb containing a gas or a vacuum.
When the lamp is connected to an electrical circuit, the current passing through the wire must overcome the filament’s
resistance, and the power consumed heats the filament to incandescence (causes it to glow).
Incandescent bulbs are still the standard choice when the quality of light really counts. The different shapes, coatings and features provide
avariety of options for many lighting applications. With warm color temperatures and superior color rendering, nothing sets the mood like
incandescent lighting.
THE BEST QUALITY OF LIGHT FOR:
Atmospher
Atmosphere
e
Romance
Romance
W
War
armth
mth
Beauty
Beauty
Comfor
Comfort
t
Elegance
Elegance
SYLVANIA uses the highest quality components designed to offer superior performance on every lamp.
QUALITY LIGHT
QUALITY CONSTRUCTION
Variety of coatings and
finishes
High performance
base cement
Double coil
and filament support
Fused Lead wires
Lead-free solder
010_INC_drop.qxd 12/4/07 8:19 AM Page 1
For more complete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
2
I
N
C
A
N
D
E
S
C
E
N
T
Double Life
Daylight®
Rough Service
Safeline®
Specialty
LAMP CATEGORIES
SYLVANIA offers a wide assortment of premium lighting products that add value through superior performance, long life, beautiful light
and rugged durability.
Our long-life line of premium light bulbs
Long Life without compromising brightness and light quality
•Lasts up to twice the life of a regular light bulb with almost the
same light output
•Available in many different shapes and sizes
Our most pleasing light
Unique coating that simulates natural light
•Delivers whiter, more natural light
•Enhances color performance, vivid colors
Our toughest line of light bulbs
Able to withstand knocks and bumps
•Extra support
•Most durable construction
Our safest light bulbs
Shatter resistant, weather resistant
• Safely contains glass in case of breakage
• Provides weather protection
•Provides weather and moisture resistance making bulbs ideal
for indoor and outdoor applications.
Our complete assortment of specialized light bulbs
Diverse line of light bulbs for specific uses
•SPOT-GRO®•Heat Lamps
•Night Lights • Colored Lamps
•Appliance Lamps •Street lighting
Perfect for hard to reach applications
Ideal for applications where lamp may
be subject to vibration
The best choice to bring morenatural light indoors
High quality lamps for multiple applications
Appropriate when safety comes first
010_INC_drop.qxd 12/4/07 8:19 AM Page 2
For more complete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
3
I
N
C
A
N
D
E
S
C
E
N
T
Finishes
Wor SW - Soft White
DAY - Daylight®
Y-Yellow
B - Blue
R - Red
G - Green
A - Amber
IC - Iridescent clear
FL - Flood
SP - Spot
IF - Inside frost
AIC - Amber iridescent clear

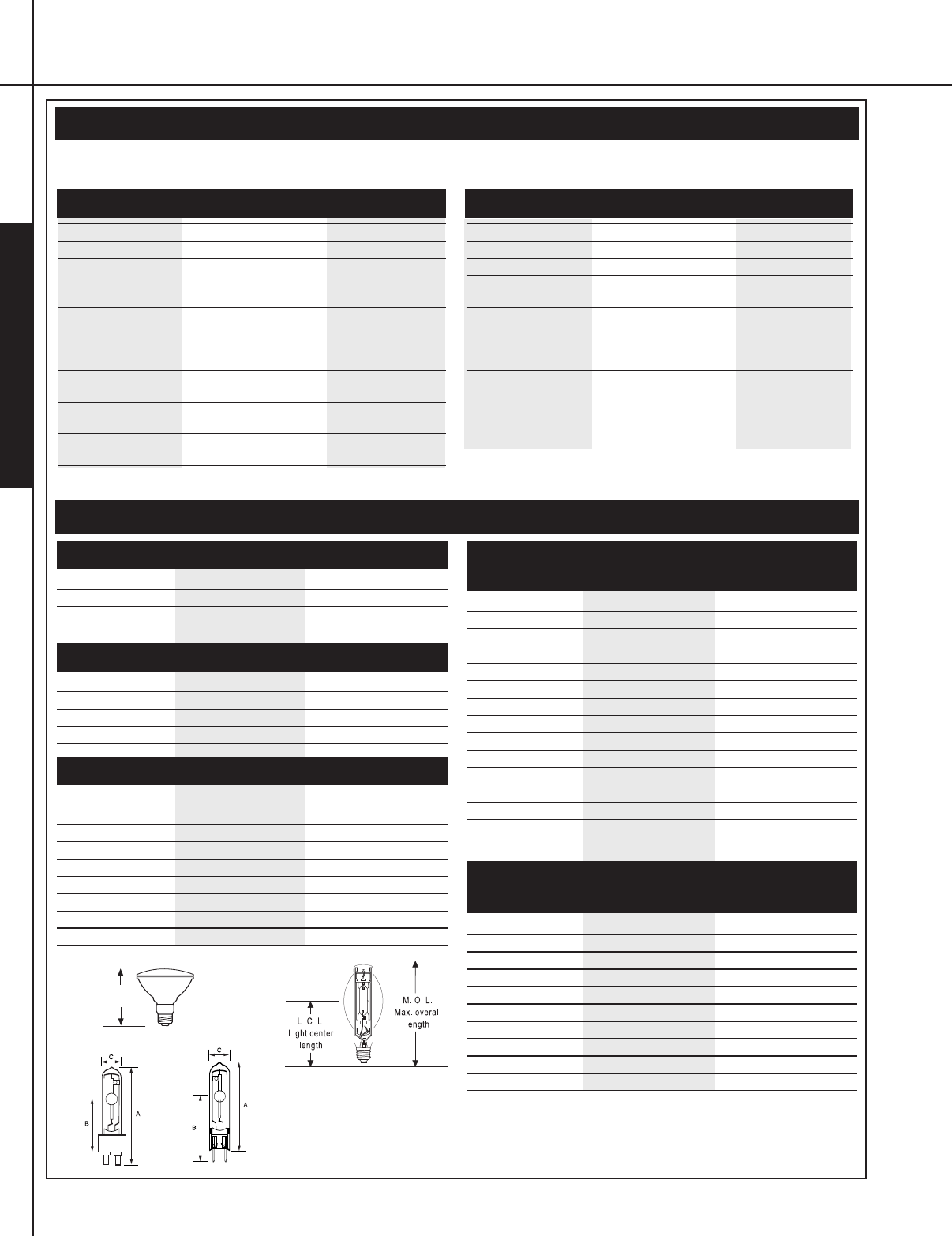

BULB IDENTIFICATION
Light Center Length (L.C.L.) is the distance
from the center of the light source to the fol-
lowing point for the base used: Screw
bases...bottom base contact; Bayonet cande-
labra and medium bayonet...top of base pins.
BASE IDENTIFICATION
Typical bases are shown. One lead-in wire is
soldered to the center contact and the other
soldered or welded to the upper rim of the
base shell. Base shells are typically made of
brass or aluminum. ANSI designations are in
parentheses.
FILAMENT IDENTIFICATION
AFILAMENT designation consists of a prefix
letter to indicate whether the wire is straight or
coiled, and a number to indicate the arrange-
ment of the filament on the supports. Prefix
letters include: C (coiled) --wire is wound into
ahelical coil or it may be deeply fluted; CC
(coiled coil)--wire is wound into a helical coil
and this coiled wire again wound into a helical
coil.
ADDITIONAL INFORMATION
Lamps Listed 115-125 volts (design voltage
120), 120-130 volts (design voltage 125),
125-130 volts (design voltage 130) and 230-
250 volts (design voltage 240) are intended
for use on circuits normally varying within
these voltage limits.
Bulb size - Max. Diameter (Divide by 8)
A-21 - 21⁄8 = 2 5⁄8” Dia.
G-40 - 40⁄8 = 5” Dia.
T-12 - 12⁄8 = 1 1⁄2” Dia.
PS-30 - 30⁄8 = 3 3⁄4” Dia.
C-2R
C-8
CC-8
C-11V C-5
C-2V
CC-2V
C-9
CC-9
C-11
CC-11
C-7A
CC-7A
C-6
CC-6
Candelabra
cand. (E12) Intermediate
Inter. (E17)
Mogul End Prong
Ext. Mogul
End Prong GX16d
Medium (E26) &
Medium Brass
(E26)
Double Contact
Bayonet D.C.
Bay (BA15D)
3Contact
Medium
3 C Med (E26D)
Medium Skirted
Med. Skirt
(E26/50x39)
Mogul Screw S14s Med Side Pr. Screw Terminal
G53
3Contact Mogul
010_INC_drop.qxd 12/4/07 8:19 AM Page 3
For more complete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
4
I
N
C
A
N
D
E
S
C
E
N
T
INCANDESCENT LAMP SHAPES
Abulb designation consists of a letter(s) to indicate the shape and
afigure(s) to indicate the approximate major diameter in eighths of
in inch. For example, an F-15 bulb is a flame-shape, 15/8 of an
inch or 1-7/8 inches in diameter.
B10 Cand C7 DC BayF15 Med C7 Cand C15 MedB10 Blunt Tip B10 Crystal
A15 Med A19 Med A21 Med A21 3C Med A23 Med
A17 Med
B13 Cand CA G16.5 Cand G16.5 Med G25 Med G30 Med
S11 DC Bay S11 InterS11 Cand S11 Med S14 Med
T6 Cand
ER30 Med
P25 Med PS25 3C
Mog PS25 Med PS30 Med PS35 Mog
ER40 Med
BR30 Med BR40 Med
R14 Inter R14 Med K19 Med R20 Med
R40 Med
R40 Med Skrt
PAR56 Mog
End Pr
PAR56 Scrw TrmPAR46 Med
Sid Pr PAR64 Scrw Trm PAR64 Ex Mog
End Pr
PAR46 Scrw TrmPAR38 Med
Skrt PAR38 Med
Sid Pr PAR46 Mog
End Pr
R40 Mog
T7 Cand T7 DC Bay T7 Inter T8 Cand T8 DC Bay
T6.5 DC Bay
T6.5 Inter
LINESTRA 2-base
T8 Inter T10 Med
S 19 MedS6 DC BayS6 Cand
G40 Med
R16 Med
010_INC_drop.qxd 12/4/07 8:19 AM Page 4
For more complete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
5
I
N
C
A
N
D
E
S
C
E
N
T
HOW TO READ PRODUCT INFORMATION - INCANDESCENT
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
Bulb Describes the shape of the envelope followed by the lamp’s major diameter given in eighths of an inch.
See page 4: Incandescent Lamps.
Base See page 3: Base Identification.
Symbols & All symbols and footnotes that apply to a specific product will appear in this space. The explanations of the symbols and foot
Footnotes notes are at the end of the incandescent section.
Ordering Atext description of the lamp. See below for several examples and explanations of some of the codes.
Abbreviation
Class & The class is either B (vacuum) or C (gas filled). The filament designation describes the shape and mount structure of the filament.
Filament See page 3: Filament Identification.
Lumens, This column may contain data for any of these values. Lumen values are followed by the designation ‘lm’. Beam angles are
Beam Angle, indicated by either a ‘°’ or the designation ‘V x H’ for non-symmetric beams. CBCP values are followed by the designation ‘cd’.
CBCP
HOW TO READ ORDERING ABBREVIATIONS
INCANDESCENT BRAND NAME GUIDE
NOTE: These tables areintended only as a guide and may represent another lamp company’s closest competitive type rather than an identical
match. Individual manufacturers’ performance values should be consulted. Environmental conditions, ballast type, and other auxillaryequip-
ment may affect lamp performance.
INCANDESCENT
SYLVANIA GE* PHILIPS**
Bug-Light Bug-Lite Bug-A-Way
Double Life Long Life Dura-Max
Double Life Soft White Long Life Soft White Dura-Max Soft White
Daylight®Reveal Natural
elogic™ - -
Energy Saver Soft White Soft White Miser Econ-O-Watt
EXCEL-LINE®Extended Service Extended Service
LINESTRA®Lumiline
RHINO COAT®SAFELINE®COV-R-GUARD Silicone Coated
Rough Service Rough Service
Rough Service XL Survivor
Soft Pink Soft Pink Softone Pastels
Spot-GRO®House Garden - Plant Light Agro-Lite
SUPERSAVER®Watt-Miser Econo-o-Watt
SUPERSAVER EXCEL-LINE Watt-Miser Plus Extended Service
SUPERSAVER PAR Watt-Miser PAR Econo-o-PAR
*Trademark and or registered trademark of General Electric Company. **Trademark and or registered trademark of Philips.
40B10C/CRYSTAL/DL/BL/2PK
40 Nominal lamp wattage
BBulb shape
10 Bulb size in 8th's of an inch
CCandelabra base
CRYSTAL Crystal texture on bulb glass
DL Double Life Lamp
BL Blister pack
2PK 2lamps per package
60A/DL/SW/2PK/RP
60 Nominal lamp wattage
ABulb shape
DL Double life lamp
SW Soft white
2PK 2lamps per package
RP Retail pack
65BR30/DL/FL/RP
65 Nominal lamp wattage
BR Bulb shape
30 Bulb size in 8th's of an inch
DL Double life lamp
FL Flood beam pattern
RP Retail pack
010_INC_drop.qxd 12/4/07 8:19 AM Page 5
For more complete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
6
I
N
C
A
N
D
E
S
C
E
N
T
NOTES:
010_INC_drop.qxd 12/4/07 8:19 AM Page 6

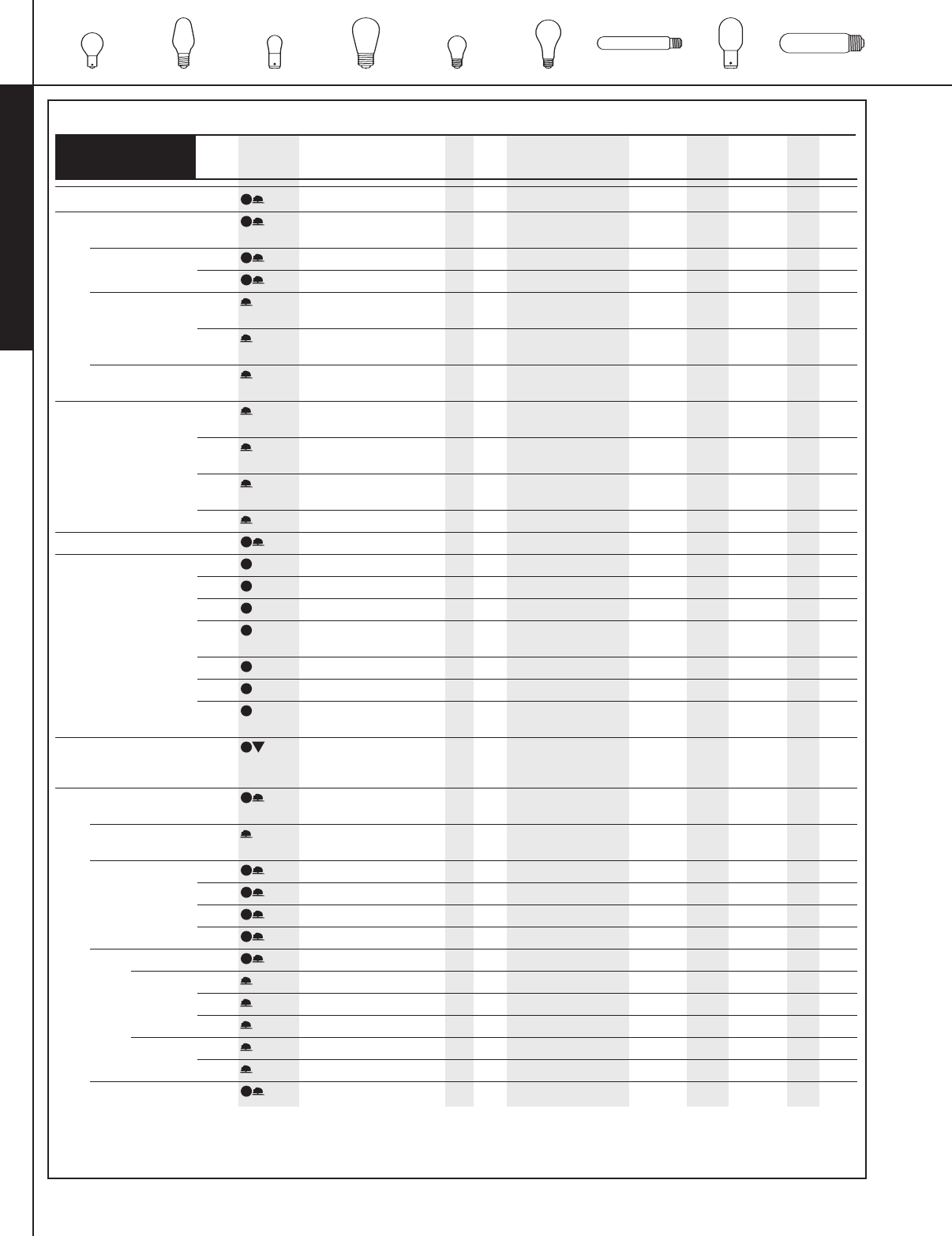

A17 G16.5 A21 A15 A19 B10 G25 R20 BR30, BR40
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
7
I
N
C
A
N
D
E
S
C
E
N
T
ELOGIC™ LAMPS
Small Bulb. Big Difference
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
38 A17 Med 10825 38A17/W/ELOGIC/4/48/RP 120 48 Soft White C, CC-8 2250 410 2.88 3.75
57 A17 Med 11721 57A17/W/ELOGIC/4/48/RP 120 48 Soft White C, CC-8 1500 740 2.88 3.75
71 A17 Med 10826 71A17/W/ELOGIC/4/48/RP 120 48 Soft White C, CC-8 1125 1020 2.88 3.75
95 A17 Med 12953 95A17/W/ELOGIC/4/48/RP 120 48 Soft White C, CC-8 1125 1500 2.88 3.75
DAYLIGHT®LAMPS
White & Natural
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
25 G16.5 Candelabra 10221 25G16.5C/DAY/2PK/BL 120 12 Daylight Globe C, C-7A 1500 3.00
30 A21 3 CONTACT 19395 30/100/DAYLIGHT/1/12 120 12 Daylight 3-Way C, CC-8 1200 220lm 3.38 5.31
70 Med 700lm
100 920lm
40 A15 Med 10181 40A15/DAY/FAN/BL/2/24 120 24 Daylight Fan C, C-9 1000 340 2.38 3.50
A19 Med 10897 40A/DAY/4/160/RP 120 160 Daylight C, CC-8 1500 350 3.13 4.44
10864 40A/DAY/RP/4/48 120 48 Daylight C, CC-8 1500 350 3.13 4.44
11100 40A/DAY/RP/2/24 120 24 Daylight C, CC-8 1500 350 3.13 4.44
10829 99,136 40A/DAY/RP/4/48 130 48 Daylight C, CC-8 1500 350 3.13 4.44
@120 _volts, approximate 33 watts, 270 lumens, 3750 hours.
B10 Candelabra 13751 40B10C/DAY/2PK/BL 120 12 Daylight Decor Bent Tip C, C-7A 1500 3.88
Med 15354 40B10/DAY/2PK/BL 120 12 Daylight Decor Bent Tip C, C-7A 1000 3.88
G16.5 Candelabra 10367 40G16.5C/DAY/2PK/BL 120 12 Daylight Globe C, C-7A 1500 3.00
G25 Med 15350 40G25/CL/DAY/1/6 120 6Daylight Clear Globe C, C-9 1500 4.44
13966 40G25/DAY/1/6 120 6Daylight Globe C, C-9 1500 4.44
45 R20 Med 15677 2,46,68,155 45R20/DAY/1/6/RP 120 6 Daylight Reflector C, C-9 2000 3.94
50 A21 3 CONTACT 18110 50/150/DAY/1/12 120 12 Daylight 3-way C, CC-8 1200 460lm 3.38 5.31
100 Med 1170lm
150 1630lm
50 R20 Med 15231 2,46,68,107, 50R20/DAY/1/6/RP 120 6Daylight Reflector C, C-9 2000 3.94
155
60 A15 Med 10162 60A15/DAY/FAN/BL/2/24 120 24 Daylight Fan C, C-9 1000 340 2.38 3.50
A19 Med 11509 60A/DAY/4/160/RP 120 160 Daylight C, CC-8 1000 640 3.13 4.44
11463 60A/DAY/RP/4/48 120 48 Daylight C, CC-8 1000 640 3.13 4.44
11101 60A/DAY/RP/2/24 120 24 Daylight C, CC-8 1000 640 3.13 4.44
11602 101,136 60A/DAY/RP/4/48 130 48 Daylight C, CC-8 1000 640 3.13 4.44
@120 _volts, approximate 53 watts, 490 lumens, 2500 hours.
B10 Candelabra 13750 60B10C/DAY/2PK/BL 120 12 Daylight Decor Bent Tip C, C-7A 1500 3.88
G25 Med 15351 60G25/CL/DAY/1/6 120 6 Daylight Clear Globe C, C-9 1500 4.44
13967 60G25/DAY/1/6 120 6 Daylight Globe C, C-9 1500 4.44
65 BR30 Med 15223 2,46,57, 65BR30/DAY/1/6/RP 120 6Daylight Reflector C, CC-6 2000 5.38
155
BR40 Med 15487 46,57,155 65BR40/FL/DAY/1/6/RP 120 6 Daylight Reflector C, CC-6 2000 6.50
75 A19 Med 10863 75A/DAY/4/160/RP 120 160 Daylight C, CC-8 750 850 3.13 4.44
10865 75A/DAY/RP/4/48 120 48 Daylight C, CC-8 750 850 3.13 4.44
010_INC_F.qxd 11/29/07 7:57 AM Page 7
A19 BR40 C7 Candelabra B10 G25 A21 A15
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
8
I
N
C
A
N
D
E
S
C
E
N
T
DAYLIGHT®LAMPS
White & Natural
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
75 A19 Med 11102 75A/DAY/RP/2/24 120 24 Daylight C, CC-8 750 850 3.13 4.44
10776 102,136 75A/DAY/RP/4/48 130 48 Daylight C, CC-8 750 850 3.13 4.44
@120 _volts, approximate 66 watts, 650 lumens, 1875 hours.
BR40 Med 15349 46,57,107, 75BR40/FL/DAY/1/6/RP 120 6 Daylight Reflector C, CC-6 2000 6.50
155 Flood
100 A19 Med 12948 100A/DAY/4/160/RP 120 160 Daylight C, CC-8 750 1270 3.13 4.44
12587 100A/DAY/RP/4/48 120 48 Daylight C, CC-8 750 1270 3.13 4.44
12952 100A/DAY/RP/2/24 120 24 Daylight C, CC-8 750 1270 3.13 4.44
12538 103,136 100A/DAY/RP/4/48 130 48 Daylight C, CC-8 750 1270 3.13 4.44
@120 _volts, approximate 88 watts, 970 lumens, 1875 hours.
DOUBLE LIFE LAMPS
Lasts 2X longer than ordinary Soft White lamps
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
4 C7 Candelabra 13523 4C7/DL/BL/4PK 120 48 Double Life Night Light B, C-9 6000 14 2.13
15 B10 Candelabra 13315 15B10C/DL/BL 120 12 Clear Double Life Décor C, C-7A 3000 3.88
Bent Tip
25 B10 Candelabra 13306 25B10C/DL/BL/4PK 120 24 Clear Double Life Decor C, C-7A 3000 3.88
Bent Tip
13316 25B10C/DL/BL 120 12 Clear Double Life Décor C, C-7A 3000 3.88
Bent Tip
13743 25B10C/CRYSTAL/DL/BL/2PK 120 12 Double Life Crystal C, C-7A 3000 3.88
Bent Tip
13308 25B10C/DLF/BL/4PK 120 24 Frosted Double Life C, C-7A 3000 3.88
Décor Bent Tip
13317 25B10C/DLF/BL 120 12 Frosted Double Life C, C-2V 3000 3.88
Decor Bent Tip
Med 13331 94 25B10/DL/BL/4PK 120 24 Clear Double Life Décor C, C-7A 3000 3.81
Bent Tip
13318 94 25B10/DL/BL 120 12 Clear Double Life Décor C, C-7A 3000 3.81
Bent Tip
G25 Med 14105 25G25/DL/RP/48 120 48 Clear Double Life Globe C, C-9 3000 4.44
14145 25G25/DL/RP 120 6 Clear Double Life Globe C, C-9 3000 4.44
14103 25G25/DL/SW/RP/48 120 48 Soft White Double Life C, C-9 3000 4.44
Globe
14146 25G25/DL/SW/RP 120 6 Soft White Double Life C, C-9 3000 4.44
Globe
30 A21 3CONTACT 19345 118 30/100A21/DL/SW/1/48 120 48 Soft White Double Life C, CC-8 2400 270lm 3.38 5.31
70 Med 3-Way 860lm
100 1130lm
19380 30/100A21/DL/SW/RP 120 12 Soft White Double Life C, CC-8 2400 270lm 3.38 5.31
3-way 860lm
1130lm
32 B10 Candelabra 13737 32B10C/CRYSTAL/DL/BL/2PK 120 12 Double Life Crystal C, C-7A 4000 3.88
Bent Tip
40 A15 Med 10023 40A15/CL/DL/FAN/BL/2/24 120 24 Clear Double Life C, C-9 2000 350 2.38 3.50
Ceiling Fan Light
010_INC_F.qxd 11/29/07 7:57 AM Page 8
A15 A19 B10 B13 G25 R20 A21
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
9
I
N
C
A
N
D
E
S
C
E
N
T
DOUBLE LIFE LAMPS
Lasts 2X longer than ordinary Soft White lamps
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
40 A15 Med 10046 40A15/CL/DL/FAN 120 24 Clear Double Life Fan C, C-9 2000 350 2.38 3.50
Light
10133 40A15/CL/DL/BL 120 12 Clear Double Life C, C-9 2000 350 2.38 3.50
Appliance
11664 40A15/DL/SW/BL/2/24 120 24 Soft White Double Life C, C-9 2000 310 2.38 3.50
Fan
A19 Med 11646 40A/CL/DL/2PK/RP 120 24 Clear Double Life C, CC-8 3000 385 3.13 4.44
10939 40A/DL/SW/4PK/RP 120 48 Soft White Double Life C, CC-8 3000 390 3.13 4.44
11645 40A/DL/SW/2PK/RP 120 24 Soft White Double Life C, CC-8 3000 390 3.13 4.44
B10 Candelabra 13328 40B10C/DL/BL/4PK 120 24 Clear Double Life Decor C, C-7A 3000 3.88
Bent Tip
13319 40B10C/DL/BL/2PK 120 12 Clear Double Life Décor C, C-7A 3000 3.88
Bent Tip
13714 40B10C/CRYSTAL/DL/BL/4/24 120 24 Double Life Crystal C, C-7A 3000 3.88
Bent Tip
13741 40B10C/CRYSTAL/DL/BL/2PK 120 12 Double Life Crystal C, C-7A 3000 3.88
Bent Tip
13309 40B10C/DL/F/BL/4PK 120 24 Frosted Double Life C, C-7A 3000 3.88
Décor Bent Tip
13320 40B10C/DL/F/BL/2PK 120 12 Frosted Double Life C, C-7A 3000 3.88
Décor Bent Tip
Med 13321 94 40B10/DL/BL/2PK 120 12 Clear Double Life Décor C, C-7A 3000 3.81
Bent Tip
13723 94 40B10/CRYSTAL/DL/BL/4PK 120 24 Double Life Crystal C, C-7A 3000 3.81
Bent Tip
13740 94 40B10/CRYSTAL/DL/BL/2PK 120 12 Double Life Crystal C, C-7A 3000 3.81
Bent Tip
13322 94 40B10/DL/F/BL/2PK 120 12 Frosted Double Life C, C-7A 3000 3.81
Décor Bent Tip
B13 Med 13366 40B13/DL/FAN/2/60/BL 120 60 Clear Double Life C, C-9 3000 455 4.63
Ceiling Fan
13369 40B13/DL/FAN/BL/2PK 120 12 Clear Double Life C, C-9 3000 455 4.63
Ceiling Fan
G25 Med 14174 40G25/DL/1/48 120 48 Clear Double Life Globe C, C-9 3000 4.44
14147 40G25/DL/RP 120 6 Clear Double Life Globe C, C-9 3000 4.44
14148 40G25/DL/SW/RP 120 6 Soft White Double Life C, C-9 3000 4.44
Globe
45 R20 Med Brass 15698 2,46,68,155 45R20/DL/RP 120 6 Double Life Reflector C, C-9 4000 260 3.94
Flood
50 A21 3CONTACT 18168 50150A21DL/SW/1/48 120 48 Soft White Double Life C, CC-8 2400 540lm 3.38 5.31
100 Med 3-way 1400lm
150 1940lm
18044 50/150A21/DL/SW/RP 120 12 Soft White Double Life C, CC-8 2400 540lm 3.38 5.31
3-way 1400lm
1940lm
50 R20 Med Brass 15346 2,46,68,107,155 50R20/DL/1/48 120 48 Double Life Reflector C, C-9 4000 290 3.94
Flood
14943 2,46,68,107,155 50R20/DL/RP 120 6Double Life Reflector C, C-9 4000 290 3.94
Flood
010_INC_F.qxd 11/29/07 7:57 AM Page 9
A15 A19 B10 B13 G25 BR30, BR40
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
10
I
N
C
A
N
D
E
S
C
E
N
T
DOUBLE LIFE LAMPS
Lasts 2X longer than ordinary Soft White lamps
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
60 A15 Med 10024 60A15/CL/DL/FAN/BL/2/24 120 24 Clear Double Life Fan C, C-9 2000 530 2.38 3.50
Light
10048 60A15/CL/DL/FAN/RP 120 24 Clear Double Life Fan C, C-9 2000 530 2.38 3.50
Light
10868 60A15/DL/SW/BL/2/24 120 24 Soft White Double Life C, C-9 2000 510 2.38 3.50
Fan Light
A19 Med 11260 60A/CL/DL/RP 120 24 Clear Double Life C, CC-8 2000 790 3.13 4.44
11204 60A/DL/SW/4PK/RP 120 48 Soft White Double Life C, CC-8 2000 770 3.13 4.44
11227 60A/DL/SW/2PK/RP 120 24 Soft White Double Life C, CC-8 2000 770 3.13 4.44
B10 Candelabra 13705 60B10C/DL/BL/4PK 120 24 Clear Double Life Decor C, C-7A 3000 3.88
Bent Tip
13777 60B10C/DL/BL/2PK 120 12 Clear Double Life Décor C, C-7A 3000 3.88
Bent Tip
13749 60B10C/CRYSTAL/DL/BL/4/24 120 24 Double Life Crystal C, C-7A 3000 3.88
Bent Tip
13754 60B10C/DL/F/BL/4PK 120 24 Frosted Double Life C, C-7A 3000 3.88
Décor Bent Tip
13778 60B10C/DL/F/BL/2PK 120 12 Frosted Double Life C, C-7A 3000 3.88
Décor Bent Tip
Med 13323 60B10/DL/BL/2PK 120 12 Clear Double Life Décor C, C-7A 3000 3.81
Bent Tip
13324 60B10/DL/F/BL/2PK 120 12 Frosted Double Life C, C-7A 3000 3.81
Décor Bent Tip
B13 Med 13370 60B13/DL/FAN/BL/2PK 120 12 Clear Double Life Fan C, C-9 3000 650 4.63
Lamp
G25 Med 14106 60G25/DL/RP/48 120 48 Clear Double Life Globe C, C-9 3000 4.44
14149 60G25/DL/RP 120 6 Clear Double Life Globe C, C-9 3000 4.44
14104 60G25/DL/SW/RP/48 120 48 Soft White Double Life C, C-9 3000 4.44
Globe
14150 60G25/DL/SW/RP 120 6 Soft White Double Life C, C-9 3000 4.44
Globe
65 BR30 Med Brass 15266 65BR30/DL/2/24 120 24 Double Life Reflector C, CC-6 4000 510 5.38
Flood
15177 2,46,57,155 65BR30/DL/FL/RP 120 6 Double Life Reflector C, CC-6 4000 510 5.38
Flood
BR40 Med Brass 15332 46,57,155 65BR/DL/FL/RP 120 6 Double Life Reflector C, CC-6 4000 510 6.50
Flood
75 A19 Med 11175 75A/CL/DL/RP 120 24 Clear Double Life C, CC-8 1500 1085 3.13 4.44
11331 75A/W/DL/SW/4PK/RP 120 48 Soft White Double Life C, CC-8 1500 1055 3.13 4.44
11337 75A/DL/SW/2PK/RP 120 24 Soft White Double Life C, CC-8 1500 1055 3.13 4.44
BR40 Med Brass 15213 46,57,107,155 75BR40/DL/FL/1/24 120 24 Double Life Reflector C, CC-6 4000 610 6.50
Flood
15144 46,57,107,155 75BR/DL/FL/RP 120 6Double Life Reflector C, CC-6 4000 610 6.50
Flood
100 A19 Med 11176 108 100A/CL/DL/RP 120 24 Clear Double Life C, CC-8 1500 1550 3.13 4.44
11660 100A/CL/DL/PLUS/2PK/RP 120 24 Clear Double Life C, CC-8 1500 1590 3.13 4.44
16868 100A/DL/SW/PLUS/4PK/RP/160 120 160 Soft White Double Life C, CC-8 1500 1560 3.13 4.44
16864 100A/DL/SW/PLUS/4PK/RP 120 48 Soft White Double Life C, CC-8 1500 1560 3.13 4.44
010_INC_F.qxd 11/29/07 7:57 AM Page 10
A19 BR40 S6 C7 Candelabra S14 S11
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
11
I
N
C
A
N
D
E
S
C
E
N
T
DOUBLE LIFE LAMPS
Lasts 2X longer than ordinary Soft White lamps
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
100 A19 Med 11332 108 100A/DL/SW/4PK/RP 120 48 Soft White Double Life C, CC-8 1500 1530 3.13 4.44
12480 100A/DL/SW/PLUS/2PK/RP 120 24 Soft White Double Life C, CC-8 1500 1560 3.13 4.44
12805 108 100A/DL/SW/2PK/RP 120 24 Soft White Double Life C, CC-8 1500 1530 3.13 4.44
120 BR40 Med Brass 14915 2,46,57,107, 120BR/DL/FL/RP 120 6 Double Life Reflector C, CC-6 4000 960 6.50
155 Flood
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
3 S6 Candelabra 16757 3S6/5 120 240 Clear Indicator B, C-7A 3000 10 1.44 1.88
16759 138 3S6/5 130 240 Clear Indicator B, C-7A 3000 12 1.44 1.88
4 C7 Candelabra 13523 4C7/DL/BL/4PK 120 48 Double Life Night Light B, C-9 6000 14 2.13
13549 4C7/BL/4PK 120 48 Clear Night Light B, C-9 3000 16 2.13
13542 4C7/BL/2PK 120 24 Clear Night Light B, C-9 3000 16 2.13
13553 4C7/W/BL/4PK 120 48 White Night Light B, C-7 3000 16 2.13
13538 4C7/W/BL/2PK 120 24 White Night Light B, C-9 3000 16 2.13
13556 4C7/BLUE/2PK 120 24 Blue Nightlight B, C-7A 3000 2.13
13557 4C7/PINK/2PK 120 24 Pink Nightlight B, C-7A 3000 2.13
6S6 Candelabra 16927 6S6/CL12V 12 120 Clear Indicator B, C-2R 1500 47 1.44 1.88
16929 6S6/CL24V 24 120 Clear Indicator B, C-7A 1500 48 1.44 1.88
16930 6S6/CL30V 30 120 Clear Casino B, C-7A 1500 46 1.44 1.88
16960 6S6/CL 120 120 Clear Indicator B, C-7A 1500 41 1.44 1.88
16938 6S6/CL 130 120 Clear Indicator B, C-7A 1500 37 1.44 1.88
16942 6S6/CL145V 145 120 Clear Indicator B, C-7A 1500 33 1.44 1.88
16943 6S6/CL155V 155 120 Clear Indicator B, C-7A 1500 36 1.44 1.88
DC Bayonet 16782 6S6DC 120 120 Clear Indicator B, C-9 1500 41 1.44 1.81
16784 6S6DC 130 120 Clear Indicator B, C-9 1500 37 1.44 1.81
16790 6S6DC145V 145 120 Clear Indicator B, C-9 1500 37 1.44 1.72
S14 Med Brass 17314 6S14 120 120 Clear B, C-9 1500 40 2.50 3.50
7 C7 Candelabra 13608 7C7 120 120 Clear Night Light B, C-9 3000 43 2.13
13545 7C7/BL/4PK 120 48 Clear Night Light B, C-9 3000 43 2.13
13543 7C7/BL/2PK 120 24 Clear Night Light B, C-9 3000 43 2.13
13609 7C7 130 120 Clear Night Light B, C-9 3000 42 2.13
13623 7C7/CW 120 120 White Night Light B, C-9 3000 33 2.13
13544 7C7/W/BL/4PK 120 48 White Night Light B, C-9 3000 33 2.13
13540 7C7/W/BL/2PK 120 24 White Night Light B, C-9 3000 33 2.13
7.5 S11 Med 19353 7.5S 120 120 Clear B, C-9 1400 47 1.56 2.25
19355 7.5S 130 120 Clear B, C-9 1400 45 1.56 2.25
19420 7.5S/CW 120 120 Ceramic White B, C-9 1400 32 2.25
19433 7.5S/CW/BL 120 12 Ceramic White Utility B, C-9 1400 32 2.25
Light
19421 7.5S/CW/BL/1/6 120 6 Ceramic White Utility B, C-9 1400 32 2.25
Light
010_INC_F.qxd 11/29/07 7:57 AM Page 11
S11 C7 Candelabra S6 S14 A15 A21 T6 T7 T10
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
12
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
7.5 S11 Med 19423 7.5S/CR 120 120 Ceramic Red B, C-9 1400 2.25
10 C7 Candelabra 13636 110C7/CL 120 240 Clear Pilot Light B, C-7A 38 2.13
Vibration Resistant
S6 Candelabra 16726 10S6 120 240 Clear Indicator B, C-7A 1500 71 1.44 1.88
16717 138 10S6230V 230 240 Clear Indicator B, CC-7A 1500 65 1.44 1.88
S11 Intermediate 16917 10S11N/CL 120 120 Clear Vibration B, C-7A 1500 74 1.63 2.31
Resistant
16919 10S11N/CL 130 120 Clear Vibration B, C-7A 1500 74 1.63 2.31
Resistant
S14 Med Brass 17406 10S14 120 120 Clear Vibration B, C-9 1500 76 2.50 3.50
Resistant
11 S14 Med Brass 17448 11S14 120 120 Clear Vibration B, C-9 3000 74 2.50 3.50
Resistant
17450 11S14 130 120 Clear Vibration B, C-9 3000 72 2.50 3.50
Resistant
17453 11S14/IF 130 120 Inside Frost Vibration B, C-9 3000 68 2.50 3.50
Resistant
17487 11S14/TR 130 120 Transparent Red B, C-9 3000 2.50 3.50
12 S6 Candelabra 16718 12S6/250V 250 240 Clear Indicator B, CC-7A 1500 61 1.44 1.88
15 A15 Med 10015 15A15/W/RP 120 24 White Utility Light C, C-9 2500 65 2.38 3.50
10018 15A15/CL 120 120 Clear Utility Light B, C-9 2500 105 2.38 3.50
10028 15A15/CL/RP 120 24 Clear Utility Light B, C-9 2500 105 2.38 3.50
10019 15A15/CL 130 120 Clear Utility Light B, C-9 2500 105 2.38 3.50
@120 _volts, approximate 13 watts, 80 lumens, 6250 hours.
10037 15A15 120 120 Inside Frost B, C-9 2500 100 2.38 3.50
10031 15A15/RP 120 24 Inside Frost B, C-9 2500 100 2.38 3.50
10038 15A15 130 120 Inside Frost B, C-9 2500 100 2.38 3.50
@120 _volts, approximate 13 watts, 76 lumens, 6250 hours.
15 A21 3 CONTACT 18009 15/150A/SECURITYLIGHT 120 12 Soft White Security C, CC-8 1200 800m 3.38 5.31
135 Med 3-way 2070lm
150 2150lm
15 S11 Med 17079 15S11/102/IF 120 120 Inside Frost B, C-7A 400 138 1.56 2.25
Refrigerator
S14 Med Brass 17240 15S14/CL 130 120 Clear Vibration B, C-9 3000 106 2.50 3.50
Resistant Sign
T6 Candelabra 18037 15T6 120 60 Clear Tubular B, C-7A 2000 111 3.06
18038 15T6 130 60 Clear Tubular B, C-7A 2000 105 3.06
18078 15T6/145V 145 60 Clear Tubular B, C-7A 2000 112 3.06
18036 15T6/BL 145 12 Clear Tubular B, C-7A 2000 112 3.06
T7 Candelabra 18185 15T7C 120 60 Clear B, C-7A 1000 111 1.50 2.25
DC Bayonet 18208 111 15T7DC 120 60 Clear B, C-7A 1000 111 1.31 2.25
18200 111 15T7DC/BL 120 12 Clear Carded B, C-7A 1000 111 1.31 2.25
18201 111 15T7DC/BL/1/6 120 6 Clear Carded B, C-7A 1000 111 1.31 2.25
Intermediate 18173 111 15T7N 120 60 Clear B, C-7A 1000 115 1.56 2.25
18174 15T7N/BL 120 12 Clear B, C-7A 1000 115 1.56 2.25
T10 Med 18501 138 15T10/CL 120 60 Clear Tubular B, C-8 2500 112 5.63
010_INC_F.qxd 11/29/07 7:57 AM Page 12
T6.5 A19 R14 Inter R14 T8 T10
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
13
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
20 T6.5 DC Bayonet 18144 120T6.5DC/IF 120 60 Inside Frost Exit Lamp B, C-8 10000 92 5.56
Intermediate 18143 120T6.5/IF 120 60 Inside Frost Exit Lamp B, C-8 10000 92 5.50
25 A19 Med 11090 25A/RS 120 120 Inside Frost Rough B, C-17 1000 210 2.50 3.94
Service
11092 25A/RS 130 120 Inside Frost Rough B, C-17 1000 210 2.50 3.94
Service
10562 25A/W/RP 120 24 Soft White C, C-9 2500 160 2.50 3.94
10644 25A 120 120 Standard Frost B, C-9 2500 190 2.50 3.94
10634 25A/RP 120 24 Standard Frost B, C-9 2500 190 2.50 3.94
10645 136,146 25A 130 120 Standard Frost B, C-9 2500 180 2.50 3.94
@120 _volts, approximate 22 watts, 130 lumens, 6250 hours
11285 25A 230 120 Standard Frost B, C-17 1000 205 2.50 3.94
11289 25A 277 120 Standard Frost B, C-17 1000 187 2.50 3.94
Med Brass 10693 25A/CL 120 120 Clear B, C-9 2500 190 2.50 3.94
10683 25A/CL/RP 120 24 Clear B, C-9 2500 190 2.50 3.94
10694 136,146 25A/CL 130 120 Clear B, C-9 2500 180 2.50 3.94
@120 _volts, approximate 22 watts, 130 lumens, 6250 hours
11710 25A19/TB/RP 125 6 Transparent Blue B, C-9 3000 2.50 3.94
11714 25A19/TG/RP 125 6 Transparent Green B, C-9 3000 2.50 3.94
11711 25A19/TO/RP 125 6 Transparent Orange B, C-9 3000 2.50 3.94
11712 25A19/TR/RP 125 6 Transparent Red B, C-9 3000 2.50 3.94
11713 25A19/TY/RP 125 6 Transparent Yellow B, C-9 3000 2.50 3.94
10449 25A 12 120 StandardFrost B, C-6 1000 385 2.50 3.94
R14 Intermediate 14793 25R14N 120 60 Reflector Mini Flood B, CC-2V 1500 132 2.56
14784 25R14N/RP 120 6 Reflector Mini Flood B, CC-2V 1500 132 2.56
Med 14818 25R14/RP 120 6 Reflector Mini Flood C, CC-2V 1500 132 2.25
T6.5 DC Bayonet 18129 25T6.5/DC 120 60 Clear Scale Illuminator B, C-8 1000 242 5.56
18106 25T6.5/DC 130 60 Clear Scale Illuminator B, C-8 1000 242 5.56
18117 25T6.5/DC/IF 120 60 Inside Frost Scale B, C-8 1000 225 5.56
Illuminator
Intermediate 18125 25T6.5 120 60 Clear B, C-8 1000 242 5.50
18496 25T6.5/CL/BL/10PK 120 10 Clear B, C-8 1000 242 5.50
18495 25T6.5/BL/6PK 120 6Clear B, C-8 1000 242 5.50
18128 25T6.5 130 60 Clear B, C-8 1000 242 5.50
18113 25T6.5/IF 120 60 Inside Frost B, C-8 1000 225 5.50
18111 25T6.5/IF 130 60 Inside Frost B, C-8 1000 225 5.50
T8 Candelabra 18289 111 25T8C 120 60 Clear Home Appliance B, C-7A 1000 230 1.50 2.63
DC Bayonet 18310 111 25T8DC 120 60 Clear Home Appliance B, C-7A 1000 230 1.31 2.63
18321 111 25T8DC/BL 120 12 Clear Home Appliance B, C-7A 1000 230 1.31 2.63
18316 111 25T8DC 130 60 Clear Home Appliance B, C-7A 1000 215 1.31 2.63
Intermediate 18359 111 25T8N 120 60 Clear Home Appliance B, C-7A 1000 230 1.31 2.63
18365 111 25T8N/BL 120 12 Clear Home Appliance B, C-7A 1000 230 1.31 2.63
18360 111 25T8N/BL/1/6 120 6 Clear Home Appliance B, C-7A 1000 230 1.31 2.63
T10 Med 18510 25T10 120 60 Clear B, C-8 1000 232 5.63
010_INC_F.qxd 11/29/07 7:57 AM Page 13
T10 A15 A21 R20 S11 A19
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
14
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
25 T10 Med 18491 25T10/CL/BL/6PK 120 6 Clear B, C-8 1000 232 5.63
18512 25T10 130 60 Clear B, C-8 1000 232 5.63
18503 25T10/IF 120 60 Inside Frost B, C-8 1000 230 5.63
18492 25T10/IF/BL/6PK 120 6 Inside Frost B, C-8 1000 230 5.63
18505 25T10/IF 130 60 Inside Frost B, C-8 1000 230 5.63
30 A15 Med Brass 10122 77 30A15 130 120 Inside Frost C, C-9 2000 200 2.38 3.50
@120 _volts, approximate 26 watts, 150 lumens, 5000 hours.
30 A21 3 CONTACT 19395 30/100/DAYLIGHT/1/12 120 12 Daylight 3-Way C, CC-8 1200 220lm 3.38 5.31
70 Med 700lm
100 920lm
19345 118 30/100A21/DL/SW/1/48 120 48 Soft White Double Life C, CC-8 2400 270lm 3.38 5.31
3-Way 860lm
1130lm
19380 30/100A21/DL/SW/RP 120 12 Soft White Double Life C, CC-8 2400 270lm 3.38 5.31
3-way 860lm
1130lm
18029 118 30/100A/W/DIYPACK 120 48 Soft White 3-way C, CC-8 1200 300lm 3.38 5.31
945lm
1245lm
19385 118 30/100A21/W/RP 120 12 Soft White 3-way C, CC-8 1200 300lm 3.38 5.31
945lm
1245lm
30 R20 Med Brass 14794 68,118 30R20 120 60 Reflector Flood C, C-9 2000 140 3.94
40˚
14836 68,118 30R20/RP 120 6 Reflector Flood C, C-9 2000 140 3.94
40˚
14802 136,147 30R20 130 60 Reflector Flood C, C-9 2000 140 3.94
40˚
@120 _volts, approximate 26 watts, 100 lumens, 5000 hours
S11 DC Bayonet 10765 30S11/DC/75V 75 120 Clear Train Marker C, C-7A 500 284 1.50 2.38
32 A19 Med Brass 10983 79 32A19/49 130 120 Clear Street Lighting C, C-9 3000 258 2.88 4.25
Group Replacement
@120 _volts, approximate 28 watts, 200 lumens, 7500 hours.
34 A19 Med 11391 40A/34/W/ES/4PK 120 48 Soft White Energy Saver C, CC-8 1500 375 3.13 4.44
11058 40A/34/SS 120 48 StandardFrost C, CC-8 1500 375 3.13 4.44
SuperSaver
11379 136,150 40A/34/SS 130 48 StandardFrost C, CC-8 1500 380 3.13 4.44
SuperSaver
@120 _volts, approximate 30 watts, 290 lumens, 3750 hours
Med Brass 11383 40A/34/SS/XL 120 48 Standard Frost C, CC-8 2500 310 3.13 4.44
SuperSaver XL
11387 136,149 40A/34/SS/XL 130 48 Standard Frost C, CC-8 2500 310 3.13 4.44
SuperSaver XL
@120 _volts, approximate 30 watts, 240 lumens, 6250 hours
40 A15 Candelabra 11534 40A15C/SW/FAN/2/12/BL 120 12 Soft White Ceiling Fan C, C-9 1000 300 1.94 3.38
Light
10029 40A15C/CL/FAN/2/12/BL 120 12 Clear Ceiling Fan C, C-9 1000 330 1.94 3.38
Med 10181 40A15/DAY/FAN/BL/2/24 120 24 Daylight Fan C, C-9 1000 340 2.38 3.50
11664 40A15/DL/SW/FAN/BL/2/24 120 24 Soft White Double Life C, C-9 2000 310 2.38 3.50
Fan
10061 40A15/CL/DL/APPL/2/12/BL 120 12 Clear Double Life C, C-9 2000 350 2.38 3.50
Appliance
010_INC_F.qxd 11/29/07 7:57 AM Page 14
A15 A19 K19 R14 Inter
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
15
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
40 A15 Med 10023 40A15/CL/DL/FAN/BL/2/24 120 24 Clear Double Life C, C-9 2000 350 2.38 3.50
Ceiling Fan Light
10046 40A15/CL/DL/FAN 120 24 Clear Double Life Fan C, C-9 2000 350 2.38 3.50
Light
10034 40A15/CL/DL/FAN/2/12/BL 120 12 Clear Double Life Fan C, C-9 2000 350 2.38 3.50
Light
10133 40A15/CL/DL/BL 120 12 Clear Double Life C, C-9 2000 350 2.38 3.50
Appliance
10082 40A15/SL 120 120 Safeline Appliance C, C-9 1000 420 2.38 3.50
11111 40A15/SW/FAN/BL/2/24 120 24 Soft White Ceiling Fan C, C-9 1000 405 2.38 3.50
Light
11533 40A15/SW/FAN/2/12/BL 120 12 Soft White Ceiling Fan C, C-9 1000 405 2.38 3.50
10042 40A15/CL/FAN 120 24 Clear Ceiling Fan Light C, C-9 1000 430 2.38 3.50
10022 40A15/CL/FAN/BL/2/24 120 24 Clear Ceiling Fan Light C, C-9 1000 430 2.38 3.50
10036 40A15/CL/FAN/2/12/BL 120 12 Clear Ceiling Fan Light C, C-9 1000 420 2.38 3.50
10141 40A15/2PK/RP 120 24 Clear Appliance C, C-9 1000 430 2.38 3.50
10169 40A15/CL/BL/2/24 120 24 Clear Appliance C, C-9 1000 430 2.38 3.50
10066 40A15/CL/APPL/2/12/BL 120 12 Clear Appliance C, C-9 1000 420 2.38 3.50
10129 40A15/CL/BL 120 12 Clear Appliance C, C-9 1000 430 2.38 3.50
10119 40A15 120 120 Inside Frost Appliance C, C-9 1000 420 2.38 3.50
10117 40A15/IF/BL 120 12 Inside Frost Appliance C, C-9 1000 420 2.38 3.50
Med Brass 10365 40A15/1 250 120 Inside Frost Appliance B, C-9 1000 330 2.50 3.50
10370 40A15/NEO 250 120 Neodymium Doped B, C-9 1000 320 2.50 3.50
Appliance Lamp
A19 Med 10897 40A/DAY/4/160/RP 120 160 Daylight C, CC-8 1500 350 3.13 4.44
10864 40A/DAY/RP/4/48 120 48 Daylight C, CC-8 1500 350 3.13 4.44
11100 40A/DAY/RP/2/24 120 24 Daylight C, CC-8 1500 350 3.13 4.44
10829 99,136 40A/DAY/RP/4/48 130 48 Daylight C, CC-8 1500 350 3.13 4.44
@120 _volts, approximate 33 watts, 270 lumens, 3750 hours.
10939 40A/DL/SW/4PK/RP 120 48 Soft White Double Life C, CC-8 3000 390 3.13 4.44
11645 40A/DL/SW/2PK/RP 120 24 Soft White Double Life C, CC-8 3000 390 3.13 4.44
11646 40AC/DL/2PK/RP 120 24 Clear Double Life C, CC-8 3000 385 3.13 4.44
10996 40A/W/4/RP 120 48 Soft White C, CC-8 1500 465 3.13 4.44
10977 40A/W/RP 120 24 Soft White C, CC-8 1500 465 3.13 4.44
11223 40A/CL/RP 120 24 Clear C, CC-8 1500 480 3.13 4.44
11036 136,153 40A/CL 130 120 Clear C, CC-8 1500 460 3.13 4.44
@120 _volts, approximate 35 watts, 350 lumens, 3750 hours
11060 40A/4/RP 120 48 Standard Frost C, CC-8 1500 470 3.13 4.44
11010 40A/RP 120 24 Standard Frost C, CC-8 1500 470 3.13 4.44
11059 136,153 40A 130 48 Standard Frost C, CC-8 1500 460 3.13 4.44
@120 _volts, approximate 35 watts, 350 lumens, 3750 hours
11011 136,153 40A/CVP 130 24 Standard Frost C, CC-8 1500 460 3.13 4.44
@120 _volts, approximate 35 watts, 350 lumens, 3750 hours
K19 Med 10471 40K19/DR 120 24 Inside Frost C, CC-6 1150 385 4.13
Directional Reflector
R14 Intermediate 14820 40R14N/RP 120 6 Reflector Mini Flood C, CC-2V 1500 2.56
010_INC_F.qxd 11/29/07 7:57 AM Page 15
R14 R16 S11 T6.5 T8 T10 A21 BR30 R20 A19
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
16
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
40 R14 Med 14819 40R14/RP 120 6 Reflector Mini Flood C, C-9 1500 185 2.25
R16 Med 14821 40R16/FL/RP 120 6 Reflector Mini Flood C, C-9 1500 3.88
S11 Intermediate 13595 40S11N 120 120 Clear Hi Intensity C, C-7A 500 440 1.63 2.31
13607 40S11N/BL 120 12 Clear Hi Intensity C, C-7A 500 440 1.63 2.31
13644 40S11N/BL/2/12 120 12 Clear Hi Intensity C, C-7A 500 440 1.63 2.31
13640 40S11N/NEO/BULK 120 6000 Neodymium doped Hi C, C-7A 500 1.63 2.31
Intensity
T6.5 Intermediate 18096 130 40T6.5/2 120 60 Clear Appliance C, C-8 1000 365 5.50
18497 40T6.5/CL/BL/10PK 120 10 Clear Appliance C, C-8 1000 365 5.50
18152 40T6.5/CL/BL/6PK 120 6 Clear Appliance C, C-8 1000 365 5.50
T8 Intermediate 18358 40T8N/NEODYMIUM 120 6000 Neodymium Doped B, C-7A 1000 300 1.31 2.63
Appliance
T10 Med 18650 40T10 120 60 Clear B, C-8 1000 420 5.63
18493 40T10/CL/BL/6PK 120 6 Clear B, C-8 1000 420 5.63
18652 40T10 130 60 Clear B, C-8 1000 420 5.63
18494 40T10/IF/BL/6PK 120 6 Inside Frost B, C-8 1000 415 5.63
18669 40T10/IF 130 60 Inside Frost B, C-8 1000 415 5.63
45 A21 3 CONTACT 18048 45/140A21/W/ES/RP 120 12 Soft White 3-way Energy C, CC-8 1200 540lm 3.38 5.31
95 Med Saver 1300lm
140 1840lm
45 BR30 Med 15103 2,46,57, 45BR30/FL/RP 120 6 Reflector Flood C, CC-6 2000 350lm 5.38
155 170 cd
60˚
R20 Med 15677 2,46,68,155 45R20/DAY/1/6/RP 120 6Daylight Reflector C, C-9 2000 215lm 3.94
360 cd
45˚
15697 2,46,68,155 45R20 120 60 Reflector Flood C, C-9 2000 295lm 3.94
490 cd
45˚
14997 2,46,68,155 45R20/RP/2/12 120 12 Reflector Flood C, C-9 2000 295lm 3.94
490 cd
45˚
15670 2,46,68,155 45R20/RP 120 6 Reflector Flood C, C-9 2000 295lm 3.94
490 cd
45˚
15699 2,46,68,105, 45R20 130 60 Reflector Flood C, C-9 2000 490 cd 3.94
136,155 45˚
@120 _volts, approximate 40 watts, 220 lumens, 5000 hours.
15676 2,46,68,105, 45R20/CVP 130 6 Reflector Flood C, C-9 2000 490 cd 3.94
136,155 45˚
@120 _volts, approximate 40 watts, 220 lumens, 5000 hours.
Med Brass 15698 2,46,68,155 45R20/DL/RP 120 6 Double Life Reflector C, C-9 4000 260 3.94
Flood 430 cd
45˚
50 A19 Med 11096 50A/RS/4/144/RP 120 144 Inside Frost Rough C1000 510
Service
14070 50A/RS/2/RP 120 24 Inside Frost Rough C 1000 510
Service
11393 50A/RS 250 120 Inside Frost Rough C, C-22 1000 450 2.50 4.44
Service
010_INC_F.qxd 11/29/07 7:57 AM Page 16
A19 A21 ER30 R20
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
17
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
50 A19 Med 11397 50A 250 120 Inside Frost B, CC-7A 1000 490 2.50 4.44
11428 50A 277 120 Inside Frost B, CC-7A 1000 475 2.50 4.44
Med Brass 11118 116 50A/RS/SL 120 120 Safeline Rough Service C, C-9 1000 490 2.50 3.94
11068 133 50A19/RS 75 120 Inside Frost Rough C, C-9 1000 505 2.50 3.94
Service Train
50 A21 3 CONTACT 18110 50/150/DAY/1/12 120 12 Daylight 3-way C, CC-8 1200 460lm 3.38 5.31
100 Med 1170lm
150 1630lm
18168 50/150A21DL/SW/1/48 120 48 Soft White Double Life C, CC-8 2400 540lm 3.38 5.31
3-way 1400lm
1940lm
18044 50/150A21/DL/SW/RP 120 12 Soft White Double Life C, CC-8 2400 540lm 3.38 5.31
3-way 1400lm
1940lm
18457 50/150A21/W/2/48 120 48 Soft White 3-Way C, CC-8 1200 640lm 3.38 5.31
1570lm
2210lm
18028 50/150A/W/DIYPACK 120 48 Soft White 3-way C, CC-8 1200 640lm 3.38 5.31
1570lm
2210lm
18458 50/150A21/W/2PK/12 120 12 Soft White 3-Way C, CC-8 1200 640lm 3.38 5.31
1570lm
2210lm
18060 50/150A21/W/RP 120 12 Soft White 3-way C, CC-8 1200 640lm 3.38 5.31
1570lm
2210lm
18726 50/150A21/SPK/RP 120 12 Soft Pink 3-way C, CC-8 1200 3.38 5.31
19404 50/250A21/W/RP 120 12 Soft White Reading C, CC-8 1200 640lm 3.38 5.31
Light 3-way 3300lm
3940lm
50 A21 Med Brass 11572 50A21 12 24 Inside Frost RV-Marine C, C-6 1000 865 3.88 4.94
11567 50A21/RP 12 12 Inside Frost RV-Marine C, C-6 1000 865 3.88 4.94
11603 50A21 34 12 Inside Frost Train C, C-9 1000 800 3.44 4.94
ER30 Med 15102 2,155 50ER30 120 24 Elliptical Reflector C, CC-6 2000 350lm 6.38
Flood 800 cd
30˚
15110 2,155 50ER30/RP 120 6Elliptical Reflector C, CC-6 2000 350lm 6.38
Flood 800 cd
30˚
15107 2,136,155,159 50ER30 130 24 Elliptical Reflector C, CC-6 2000 320lm 6.38
Flood 730 cd
30˚
@120 _volts, approximate 44 watts, 240 lumens, 5000 hours
R20 Med 15231 2,46,68,107, 50R20/DAY/1/6/RP 120 6 Daylight Reflector C, C-9 2000 240lm 3.94
155 400 cd
45˚
14831 2,46,68,107, 50R20 120 60 Reflector Flood C, C-9 2000 330lm 3.94
155 550 cd
45˚
14914 2,46,68,107, 50R20/2PK 120 48 Reflector Flood C, C-9 2000 330lm 3.94
155 550 cd
45˚
14998 107 50R20/RP/2/12 120 12 Reflector Flood C, C-9 2000 330lm 3.94
550 cd
45˚
010_INC_F.qxd 11/29/07 7:57 AM Page 17
R20 A19 A15
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
18
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
50 R20 Med 14833 2,46,68,107, 50R20/RP 120 6 Reflector Flood C, C-9 2000 330lm 3.94
155 550 cd
45˚
14832 2,46,68,107, 50R20 130 60 Reflector Flood C, C-9 2000 330lm 3.94
136,155,158 550 cd
45˚
@120 _volts, approximate 44 watts, 250 lumens, 5000 hours
14844 2,46,68,107, 50R20/CVP 130 6 Reflector Flood C, C-9 2000 330lm 3.94
136,155,158 550 cd
45˚
@120 _volts, approximate 44 watts, 250 lumens, 5000 hours
14846 2,46,68,136, 50R20/PINK 130 60 Pink Reflector C, C-9 2000 420lm 3.94
155
Med Brass 15346 2,46,68,107,155 50R20/DL/1/48 120 48 Double Life Reflector C, C-9 4000 290lm 3.94
Flood 480 cd
45˚
14943 2,46,68,107,155 50R20/DL/RP 120 6 Double Life Reflector C, C-9 4000 290lm 3.94
Flood 480 cd
45˚
14834 2,46,68,155 50R20/PINK 120 60 Pink Reflector C, C-9 2000 3.94
14842 2,46,68,155 50R20/GRO 120 6 Spot-GRO Reflector C, C-9 2000 3.94
52 A19 Med 11392 60A/52/W/ES/4PK 120 48 Soft White Energy Saver C, CC-8 1000 715 3.13 4.44
10893 104,136 60A/52/CL/SS 130 48 Clear SuperSaver C, CC-8 1000 740 3.13 4.44
@120 _volts, approximate 46 watts, 560 lumens, 2500 hours.
11376 60A/52/SS 120 48 Standard Frost C, CC-8 1000 750 3.13 4.44
SuperSaver
11380 136,164 60A/52/SS 130 48 StandardFrost C, CC-8 1000 710 3.13 4.44
SuperSaver
@120 _volts, approximate 46 watts, 540 lumens, 2500 hours
Med Brass 11384 60A/52/SS/XL 120 48 Standard SuperSaver XL C, CC-8 2500 620 3.13 4.44
11388 136,163 60A/52/SS/XL 130 48 Standard SuperSaver XL C, CC-8 2500 610 3.13 4.44
@120 _volts, approximate 46 watts, 460 lumens, 6250 hours
58 A19 Med Brass 11149 58A19/62 120 120 Clear Street Lighting C, C-9 3000 630 2.88 4.25
Group Replacement
60 A15 Candelabra 10777 60A15C/SW/FAN/2/12/BL 120 12 Soft White Ceiling Fan C, C-9 1000 510 1.94 3.38
Light
10894 60A15C/CL/FAN/2/12/BL 120 12 Clear Ceiling Fan Light C, C-9 1000 560 1.94 3.38
Med 10162 60A15/DAY/FAN/BL/2/24 120 24 Daylight Fan C, C-9 1000 340 2.38 3.50
10868 60A15/DL/SW/BL/2/24 120 24 Soft White Double Life C, C-9 2000 510 2.38 3.50
Fan Light
10885 60A15/SW/FAN/2/12/BL 120 12 Soft White Double Life C, C-9 1000 680 2.38 3.50
Fan Light
10048 60A15/CL/DL/FAN/RP 120 24 Clear Double Life Fan C, C-9 2000 530 2.38 3.50
Light
10024 60A15/CL/DL/FAN/BL/2/24 120 24 Clear Double Life Fan C, C-9 2000 530 2.38 3.50
Light
10040 60A15/CL/DL/FAN/2/12/BL 120 12 Clear Double Life Fan C, C-9 2000 530 2.38 3.50
Light
11005 60A15/SW/FAN/2PK 120 24 Soft White Ceiling Fan C, C-9 1000 680 2.38 3.50
10842 60A15/SW/FAN/BL/2/24 120 24 Soft White Ceiling Fan C, C-9 1000 680 2.38 3.50
10841 60A15/CL/FAN/BL/2/24 120 24 Clear Ceiling Fan Light C, C-9 1000 700 2.38 3.50
010_INC_F.qxd 11/29/07 7:57 AM Page 18
A15 A19
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
19
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
60 A15 Med 11007 60A15/CL/FAN/RP 120 24 Clear Ceiling Fan Light C, C-9 1000 700 2.38 3.50
10884 60A15CL/FAN/2/12/BL 120 12 Clear Ceiling Fan Light C, C-9 1000 700 2.38 3.50
Med Brass 10886 60A15/GARAGE/2/12/BL 120 12 Clear Garage Light C, C-9 1000 690 2.38 3.50
11008 60A15/GARAGE/RP 120 24 Inside Frost Garage C, C-9 1000 690 2.38 3.50
Door
A19 Med 11509 60A/DAY/4/160/RP 120 160 Daylight C, CC-8 1000 640 3.13 4.44
11463 60A/DAY/RP/4/48 120 48 Daylight C, CC-8 1000 640 3.13 4.44
11101 60A/DAY/RP/2/24 120 24 Daylight C, CC-8 1000 640 3.13 4.44
11602 101,136 60A/DAY/RP/4/48 130 48 Daylight C, CC-8 1000 640 3.13 4.44
@120 _volts, approximate 53 watts, 490 lumens, 2500 hours.
11204 60A/DL/SW/4PK/RP 120 48 Soft White Double Life C, CC-8 2000 770 3.13 4.44
11227 60A/DL/SW/2PK/RP 120 24 Soft White Double Life C, CC-8 2000 770 3.13 4.44
11260 60A/CL/DL/RP 120 24 Clear Double Life C, CC-8 2000 790 3.13 4.44
10503 60A/RS/SL/RP 120 12 Safeline Rough Service C, C-9 1000 555 3.13 4.44
Inside Frost
13000 60A/RS/2/RP 120 24 Inside Frost Rough C, C-9 1000 555 2.88 4.44
Service
12977 60A/RS/RP/1 120 12 Inside Frost Rough C, C-9 1000 555 2.88 4.44
Service
12420 136,168 60A/RS/2/RP 130 24 Inside Frost Rough C, C-9 1000 555 2.88 4.44
Service
@120 _volts, approximate 53 watts, 420 lumens, 2500 hours
11205 60A/W/4/RP 120 48 Soft White C, CC-8 1000 850 3.13 4.44
11208 60A/W/RP 120 24 Soft White C, CC-8 1000 850 3.13 4.44
10553 60A/CL 120 120 Clear C, CC-8 1000 880 3.13 4.44
11224 60A/CL/RP 120 24 Clear C, CC-8 1000 880 3.13 4.44
10555 136,170 60A/CL 130 120 Clear C, CC-8 1000 855 3.13 4.44
@120 _volts, approximate 53 watts, 650 lumens, 2500 hours
10558 170 60A/CL/CVP 130 24 Clear C, CC-8 1000 855 3.13 4.44
@120 _volts, approximate 53 watts, 650 lumens, 2500 hours
11180 60A/4/RP 120 48 Standard Frost C, CC-8 1000 870 3.13 4.44
11214 60A/RP 120 24 Standard Frost C, CC-8 1000 870 3.13 4.44
11373 136,170 60A 130 48 Standard Frost C, CC-8 1000 855 3.13 4.44
@120 _volts, approximate 53 watts, 650 lumens, 2500 hours
10489 136,170 60A/CVP 130 24 StandardFrost C, CC-8 1000 855 3.13 4.44
@120 _volts, approximate 53 watts, 650 lumens, 2500 hours
11715 60A/BLACKLIGHT/RP 120 6 Blacklight C, CC-8 1000 3.13 4.44
10390 60A/Y/RP 120 24 Yellow Bug Light C, CC-8 1000 3.13 4.44
10386 60A/Y/RP 130 24 Yellow Bug Light C, CC-8 1000 3.13 4.44
10576 60A/SPK 120 24 Soft Pink C, CC-8 1000 3.13 4.44
12280 60A/GRO 120 6 Spot-GRO C, C-9 1000 3.13 4.44
Med Brass 13021 60A/RS/XL 120 24 Inside Frost Rough C, C-9 5000 450 2.88 4.44
Service XL
12455 80 60A/RS/XL 130 24 Inside Frost Rough C, C-9 5000 450 2.88 4.44
Service XL
@120 _volts, approximate 53 watts, 340 lumens, 12500 hours.
10640 60A 24 120 Inside Frost Dental C, C-9 1000 1010 3.13 4.44
Spot
010_INC_F.qxd 11/29/07 7:57 AM Page 19
C15 K19 T10 BR30
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
20
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
60 C15 Med Brass 14200 60C15/FAN/2PK 120 12 Clear Ceiling Fan Light C, C-9 4000 528 4.50
K19 Med 10483 60K19/DR 120 24 Inside Frost C, CC-6 1150 630 4.13
Directional Reflector
T10 Med 18710 60T10/64 120 60 Clear C, C-8 1000 655 5.63
18712 60T1064BL 120 6 Clear C, C-8 1000 655 5.63
18711 60T10/CF 120 60 Inside Frost Showcase C, C-8 1000 630 5.63
S14s 19675 LN60 125-130V 125 25 Opal White LINESTRA B, C-8 1000 460 19.69
1605
65 BR30 Med 15223 2,46,57, 65BR30/DAY/1/6/RP 120 6 Daylight Reflector C, CC-6 2000 420lm 5.38
155 250 cd
60˚
15167 2,46,57, 65BR30/FL/SL/RP 130 6 Reflector Safeline C, CC-6 2000 620lm 5.38
155 Flood 370 cd
60˚
@120 _volts, approximate 57 watts, 470 lumens, 5000 hours.
15148 2,46,57, 65BR30/TRAY 120 48 Reflector Flood C, CC-6 2000 620lm 5.38
155 370 cd
60˚
15165 2,46,57, 65BR30/FL 120 24 Reflector Flood C, CC-6 2000 620lm 5.38
155 370 cd
60˚
15246 2,46,57, 65BR30/2/24/RP 120 24 Reflector Flood C, CC-6 2000 620lm 5.38
155 370 cd
60˚
15160 2,46,57, 65BR30/FL/RP 120 6Reflector Flood C, CC-6 2000 620lm 5.38
155 370 cd
60˚
15149 2,46,57, 65BR30/SP/RP 120 6Reflector Spot C, CC-6 2000 620lm 5.38
155 580 cd
30˚
13129 2,46,57, 65BR30/FL 130 24 Reflector Flood C, CC-6 2000 620lm 5.38
155 370 cd
60˚
@120 _volts, approximate 57 watts, 470 lumens, 5000 hours.
15172 2,46,57, 65BR30/FL/CVP 130 6 Reflector Flood C, CC-6 2000 620lm 5.38
155 370 cd
60˚
@120 _volts, approximate 57 watts, 470 lumens, 5000 hours.
15150 2,46,57, 65BR30/A/RP 120 6Amber Reflector Flood C, CC-6 2000 5.38
155
15151 2,46,57, 65BR30/B/RP 120 6 Blue Reflector Flood C, CC-6 2000 5.38
155
15152 2,46,57, 65BR30/G/RP 120 6Green Reflector Flood C, CC-6 2000 5.38
155
15153 2,46,57, 65BR30/PK/RP 120 6Pink Reflector Flood C, CC-6 2000 5.38
155
15161 2,46,57, 65BR30/R/RP 120 6 Red Reflector Flood C, CC-6 2000 5.38
155
15154 2,46,57, 65BR30/Y/RP 120 6 Yellow Reflector Flood C, CC-6 2000 5.38
155
15156 2,46,57, 65BR30/GRO/RP 120 6 Spot-GRO Reflector C, CC-6 2000 5.38
155
Med Brass 15266 65BR30/DL/2/24 120 24 Double Life Reflector C, CC-6 4000 510lm 5.38
Flood 300 cd
60˚
010_INC_F.qxd 11/29/07 7:57 AM Page 20
BR30, BR40 PAR38 A19
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
21
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
65 BR30 Med Brass 15177 2,46,57,155 65BR30/DL/FL/RP 120 6 Double Life Reflector C, CC-6 4000 510lm 5.38
Flood 300 cd
60˚
BR40 Med 15360 46,57,155 65BR/FL/24 120 24 Reflector Flood C, CC-6 2000 580lm 6.50
390 cd
60˚
15678 46,57,155 65BR/FL/RP 120 6 Reflector Flood C, CC-6 2000 580lm 6.50
390 cd
60˚
15679 46,57,106, 65BR/CVP 130 6 Reflector Flood C, CC-6 2000 540lm 6.50
136,155 390 cd
60˚
@120 _volts, approximate 57 watts, 410 lumens, 5000 hours.
Med Brass 15332 46,57,155 65BR/DL/FL/RP 120 6 Double Life Reflector C, CC-6 4000 510lm 6.50
Flood 335 cd
60˚
PAR38 Med Skt 13804 65PAR/SP 120 15 Spot Super Saver C, CC-6 1750 715lm 5.31
5500 cd
12˚
13802 65PAR/FL 120 15 Flood Super Saver C, CC-6 1750 715lm 5.31
1700 cd
30˚
13805 65PAR/FL 130 15 Flood Super Saver C, CC-6 1750 715lm 5.31
136,173 1700 cd
30˚
@120 _volts, approximate 57 watts, 540 lumens, 4375 hours
67 A19 Med 11394 75A/67/W/ES/4PK 120 48 Soft White Energy Saver C, CC-8 750 1040 3.13 4.44
11377 75A/67/SS 120 48 StandardFrost C, CC-8 750 1050 3.13 4.44
SuperSaver
11381 136,175 75A/67/SS 130 48 Standard Frost C, CC-8 750 1020 3.13 4.44
SuperSaver
@120 _volts, approximate 59 watts, 780 lumens, 1875 hours
Med Brass 11385 108 75A/67/SSXL 120 48 Standard Frost C, CC-8 2500 880 3.13 4.44
SuperSaver XL
11389 108,136,174 75A/67/SSXL 130 48 Standard Frost C, CC-8 2500 860 3.13 4.44
SuperSaver XL
@120 _volts, approximate 59 watts, 660 lumens, 6250 hours
75 A19 Med 10863 75A/DAY/4/160/RP 120 160 Daylight C, CC-8 750 850 3.13 4.44
10865 75A/DAY/RP/4/48 120 48 Daylight C, CC-8 750 850 3.13 4.44
11102 75A/DAY/RP/2/24 120 24 Daylight C, CC-8 750 850 3.13 4.44
10776 102,136 75A/DAY/RP/4/48 130 48 Daylight C, CC-8 750 850 3.13 4.44
@120 _volts, approximate 66 watts, 650 lumens, 1875 hours.
11331 75A/W/DL/SW/4PK/RP 120 48 Soft White Double Life C, CC-8 1500 1055 3.13 4.44
11337 75A/DL/SW/2PK/RP 120 24 Soft White Double Life C, CC-8 1500 1055 3.13 4.44
11175 75A/CL/DL/RP 120 24 Clear Double Life C, CC-8 1500 1085 3.13 4.44
13001 75A/RS/2/RP 120 24 Inside Frost Rough C, C-9 1000 818 2.88 4.44
Service
12579 75A/RS/RP/1 120 12 Inside Frost Rough C, C-9 1000 818 2.88 4.44
Service
12586 136,179 75A/RS/RP/1 130 24 Inside Frost Rough C, C-9 1000 818 2.88 4.44
Service
@120 _volts, approximate 66 watts, 620 lumens, 2500 hours
010_INC_F.qxd 11/29/07 7:57 AM Page 21
A19 A21 BR38 BR40 ER30
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
22
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
75 A19 Med 10970 75A/W/4/RP 120 48 Soft White C, CC-8 750 1170 3.13 4.44
10967 75A/W/RP 120 24 Soft White C, CC-8 750 1170 3.13 4.44
12500 75A/CL 120 120 Clear C, CC-8 750 1200 3.13 4.44
11225 75A/CL/RP 120 24 Clear C, CC-8 750 1200 3.13 4.44
12502 136,183 75A/CL 130 120 Clear C, CC-8 750 1190 3.13 4.44
@120 _volts, approximate 66 watts, 910 lumens, 1875 hours
12525 75A/4/RP 120 48 Standard Frost C, CC-8 750 1190 3.13 4.44
12521 75A/RP 120 24 Standard Frost C, CC-8 750 1190 3.13 4.44
11374 136,183 75A 130 48 Standard Frost C, CC-8 750 1190 3.13 4.44
@120 _volts, approximate 66 watts, 910 lumens, 1875 hours
12510 183 75A/CVP 130 24 Standard Frost C, CC-8 750 1190 3.13 4.44
@120 _volts, approximate 66 watts, 910 lumens, 1875 hours
Med Brass 13022 75A/RS/XL 120 24 Inside Frost Rough C, C-9 5000 650 2.88 4.44
Service XL
12528 81 75A/RS/XL 130 24 Inside Frost Rough C, C-9 5000 700 2.88 4.44
Service XL
@120 _volts, approximate 66 watts, 500 lumens, 12500 hours.
A21 Med 12554 116 75A21/RS/SL/RP 120 12 Safeline Rough Service C, C-9 1000 800 3.13 4.44
Inside Frost
Med Brass 11566 75A21 12 24 Inside Frost RV-Marine C, C-6 1000 1420 3.88 5.31
BR38 Med 15620 2,155 75/OPAR/BUG/RP 120 6 Outdoor Bug Light C, CC-6 2000 5.31
Med Brass 15607 2,107,119, 75/OPAR/FL 120 12 Outdoor Reflector C, CC-6 2000 650lm 5.31
155 Economy Flood 45˚
BR40 Med 15349 46,57,107, 75BR40/FL/DAY/1/6/RP 120 6 Daylight Reflector C, CC-6 2000 680lm 6.50
155 Flood 310 cd
60˚
15126 46,57,107, 75BR/FL 120 24 Reflector Flood C, CC-6 2000 680lm 6.50
155 460 cd
60˚
15128 46,57,107, 75BR/FL/RP 120 6Reflector Flood C, CC-6 2000 680lm 6.50
155 460 cd
60˚
15125 46,57,107, 75BR/FL 130 24 Reflector Flood C, CC-6 2000 680lm 6.50
136,155,184 460 cd
60˚
@120 _volts, approximate 66 watts, 520 lumens, 5000 hours
Med Brass 15213 46,57,107,155 75BR40/DL/FL/1/24 120 24 Double Life Reflector C, CC-6 4000 610lm 6.50
Flood 400 cd
60˚
15144 46,57,107,155 75BR/DL/FL/RP 120 6 Double Life Reflector C, CC-6 4000 610lm 6.50
Flood 400 cd
60˚
ER30 Med 15100 2,46,57,107, 75ER30 120 24 Elliptical Reflector C, CC-6 2000 580lm 6.38
155 Flood 1500 cd
30˚
15109 2,46,57,107, 75ER30/RP 120 6 Elliptical Reflector C, CC-6 2000 580lm 6.38
155 Flood 1500 cd
30˚
15101 2,46,57,107, 75ER30 130 24 Elliptical Reflector C, CC-6 2000 580lm 6.38
136,155,178 Flood 1500 cd
30˚
@120 _volts, approximate 66 watts, 425 lumens, 4125 hours
010_INC_F.qxd 11/29/07 7:57 AM Page 22
K19 PAR38 Side Prong R20 A19
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
23
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
75 K19 Med 12583 75K19/DR 120 24 Inside Frost C, CC-6 1150 855lm 4.13
Directional Reflector
PAR38 Med Side 13850 75PAR/3FL 120 12 Compact Flood C, CC-6 2000 1040lm 4.31
Prong 1800 cd
30˚
R20 Med 14840 68,107,118 75R20/RP 120 6 Reflector Flood C, CC-9 2000 500lm 3.94
500 cd
45˚
R30 Med 15146 75R30/BLACKLIGHT/RP 120 6 Blacklight C, CC-6 1000 6.50
90 A19 Med 11396 100A/90/W/ES/4PK 120 48 Soft White Energy Saver C, CC-8 750 1450 3.13 4.44
11378 100A/90/SS 120 48 Standard Frost C, CC-8 750 1480 3.13 4.44
SuperSaver
11382 136,189 100A/90/SS 130 48 Standard Frost C, CC-8 750 1480 3.13 4.44
SuperSaver
@120 _volts, approximate 79 watts, 1130 lumens, 1875 hours
Med Brass 11386 108 100A/90/SSXL 120 48 Standard Frost C, CC-8 2500 1220 3.13 4.44
SuperSaver XL
11390 108,136,186 100A/90/SSXL 130 48 Standard Frost C, CC-8 2500 1230 3.13 4.44
SuperSaver XL
@120 _volts, approximate 79 watts, 940 lumens, 6250 hours
100 A19 Med 12948 100A/DAY/4/160/RP 120 160 Daylight C, CC-8 750 1270 3.13 4.44
12587 100A/DAY/RP/4/48 120 48 Daylight C, CC-8 750 1270 3.13 4.44
12952 100A/DAY/RP/2/24 120 24 Daylight C, CC-8 750 1270 3.13 4.44
12538 103,136 100A/DAY/RP/4/48 130 48 Daylight C, CC-8 750 1270 3.13 4.44
@120 _volts, approximate 88 watts, 970 lumens, 1875 hours.
16868 100A/DL/SW/PLUS/4PK/RP/160 120 160 Soft White Double Life C, CC-8 1500 1560 3.13 4.44
16864 100A/DL/SW/PLUS/4PK/RP 120 48 Soft White Double Life C, CC-8 1500 1560 3.13 4.44
11332 108 100A/DL/SW/4PK/RP 120 48 Soft White Double Life C, CC-8 1500 1530 3.13 4.44
12480 100A/DL/SW/PLUS/2PK/RP 120 24 Soft White Double Life C, CC-8 1500 1560 3.13 4.44
12805 108 100A/DL/SW/2PK/RP 120 24 Soft White Double Life C, CC-8 1500 1530 3.13 4.44
11660 100A/CL/DL/PLUS/2PK/RP 120 24 Clear Double Life C, CC-8 1500 1590 3.13 4.44
11176 108 100A/CL/DL/RP 120 24 Clear Double Life C, CC-8 1500 1550 3.13 4.44
13002 100A/RS/2/RP 120 24 Inside Frost Rough C, C-9 1000 1260 2.88 4.44
Service
12997 100A/RS/RP/1 120 12 Inside Frost Rough C, C-9 1000 1260 2.88 4.44
Service
12998 136,190 100A/RS/2/RP 130 24 Inside Frost Rough C, C-9 1000 1260 2.88 4.44
Service
@120 _volts, approximate 88 watts, 960 lumens, 2500 hours
12770 100A/W/4/RP 120 48 Soft White C, CC-8 750 1690 3.13 4.44
12752 100A/W/RP 120 24 Soft White C, CC-8 750 1690 3.13 4.44
12529 100A/CL 120 120 Clear C, CC-8 750 1720 3.13 4.44
11226 100A/CL/RP 120 24 Clear C, CC-8 750 1720 3.13 4.44
12531 136,193 100A/CL 130 120 Clear C, CC-8 750 1700 3.13 4.44
@120 _volts, approximate 88 watts, 1290 lumens, 1875 hours
12750 100A/4/RP 120 48 Standard Frost C, CC-8 750 1710 3.13 4.44
12735 100A/RP 120 24 Standard Frost C, CC-8 750 1710 3.13 4.44
11375 136,193 100A 130 48 Standard Frost C, CC-8 750 1700 3.13 4.44
@120 _volts, approximate 88 watts, 1290 lumens, 1875 hours
010_INC_F.qxd 11/29/07 7:58 AM Page 23
A19 A21 A23 BR38 BR40 K19
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
24
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
100 A19 Med 12709 136,193 100A/CVP 130 24 Standard Frost C, CC-8 750 1700 3.13 4.44
@120 _volts, approximate 88 watts, 1290 lumens, 1875 hours
12530 100A/LHT 120 120 Standard Frost Left C, CC-8 750 1710 3.13 4.44
Hand Thread
12763 100A/Y/RP 120 24 Yellow Bug Light C, CC-8 1000 3.13 4.44
12766 100A/SPK/RP 120 24 Soft Pink C, CC-8 1000 3.13 4.44
Med Brass 13023 100A/RS/XL 120 24 Inside Frost Rough C, C-9 5000 840 2.88 4.44
Service XL
12559 82,136 100A/RS/XL 130 24 Inside Frost Rough C, C-9 5000 1040 2.88 4.44
Service XL
@120 _volts, approximate 88 watts, 765 lumens, 12500 hours.
A21 Med 13218 83 100A21/VS 130 48 Inside Frost Vibration C, C-9 1000 1340 3.88 5.31
Service
@120 _volts, approximate 88 watts, 1020 lumens, 2500 hours.
12866 100A21 120 48 Standard Frost C, CC-8 750 1675 3.88 5.31
12883 136,192 100A21 130 48 Standard Frost C, CC-8 750 1650 3.88 5.31
@120 _volts, approximate 88 watts, 1260 lumens, 1875 hours
13404 100A21 230 24 StandardFrost C, C-9 1000 1260 3.88 5.31
13406 100A21 250 24 Standard Frost C, C-9 1000 1230 3.88 5.31
13397 100A21 277 24 StandardFrost C, C-7A 1000 1042 3.88 5.31
12909 100A21/LHT 120 48 Standard Frost Left C, CC-8 750 1675 3.88 5.31
Hand Thread
Med Brass 12834 116 100A21/SL 120 48 Safeline Rhinocoat C, CC-8 750 1675 3.88 5.31
(Shatter Protected)
12992 116 100A21/RS/SL/RP 120 12 Safeline Rough Service C, C-9 1000 1260 3.13 4.44
12906 108 100A21/99/XL 120 48 Standard Frost Excel C, CC-8 2500 1400 3.88 5.31
12946 108,136,191 100A21/99/XL 130 48 Standard Frost Excel C, CC-8 2500 1440 3.88 5.31
@120 _volts, approximate 88 watts, 1100 lumens, 6250 hours
A23 Med 12859 100A23 34 12 Inside Frost C, C-9 1000 1800 4.38 6.06
Med Brass 13280 108 100A23/20 120 24 Clear Oven C, C-9 750 1390 4.38 6.06
BR38 Med Brass 15626 2,46,57, 100/OPAR/FL/B/RP 120 6 Blue Reflector Flood C, CC-6 2000 5.31
155
15627 2,46,57, 100/OPAR/FL/G/RP 120 6 Green Reflector Flood C, CC-6 2000 5.31
155
15623 2,46,57, 100/OPAR/FL/R/RP 120 6 Red Reflector Flood C, CC-6 2000 5.31
155
15622 2,46,57, 100/OPAR/FL/Y/RP 120 6 Yellow Reflector Flood C, CC-6 2000 5.31
155
BR40 Med 14851 57,107,155 100BR/FL 120 24 Reflector Flood C, CC-6 2000 935lm 6.50
900 cd
60˚
14871 57,107,155 100BR/FL/RP 120 6Reflector Flood C, CC-6 2000 935lm 6.50
900 cd
60˚
14847 57,107,136, 100BR/FL 130 24 Reflector Flood C, CC-6 2000 935lm 6.50
155,194 900 cd
60˚
@120 _volts, approximate 88 watts, 710 lumens, 5000 hours
K19 Med 12298 100K19/DR 120 24 Inside Frost C, CC-6 1150 1235 4.13
Directional Reflector
010_INC_F.qxd 11/29/07 7:58 AM Page 24
PAR38 PS25 A23 BR40 ER40 A19 A21
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
25
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
100 PAR38 Med Skt 13849 24,46,155 100PAR38/HEAT/RED 120 15 Hard Glass PAR Heat C 5000
Lamp with Red Lens
100 PS25 3 CONTACT 14374 100/300PS25/RP 120 12 Inside Frost 3-way C, CC-8 1200 1385lm 4.25 6.75
200 Med 100/300W 3540lm
300 4925lm
105 A23 Med Brass 13364 57,108 K105A23/CL 125 24 Clear Krypton Filled ST C, C-9 12000 1120 4.38 6.06
Ltg
120 BR40 Med 15074 2,46,57, 120BR40/FL/SL 130 24 RHINOCOAT Safeline C, CC-6 2000 1150lm 6.50
107,155 Flood 1000 cd
60˚
@120 _volts, approximate 105 watts, 850 lumens, 5000 hours
14903 2,46,57, 120BR/FL 120 24 Reflector Flood C, CC-6 2000 1150lm 6.50
107,155 1000 cd
60˚
14896 2,46,57, 120BR/FL/RP 120 6 Reflector Flood C, CC-6 2000 1150lm 6.50
107,155 1000 cd
60˚
14899 2,107,136, 120BR/FL 130 24 Reflector Flood C, CC-6 2000 1150lm 6.50
155,196 1000 cd
60˚
@120 _volts, approximate 105 watts, 850 lumens, 5000 hours
14888 2,46,57, 120BR/FL/CVP 130 6 Reflector Flood C, CC-6 2000 1150lm 6.50
107,136,155,196 1000 cd
60˚
@120 _volts, approximate 105 watts, 850 lumens, 5000 hours
14911 2,46,57, 120BR/SP 120 24 Reflector Spot C, CC-6 2000 1150lm 6.50
107,155 3300 cd
25˚
14897 2,46,57, 120BR/SP/RP 120 6Reflector Spot C, CC-6 2000 1150lm 6.50
107,155 3300 cd
25˚
14909 2,46,57, 120BR/SP 130 24 Reflector Spot C, CC-6 2000 1150lm 6.50
107,136,155,196 3300 cd
25˚
@120 _volts, approximate 105 watts, 850 lumens, 5000 hours
14898 2,46,57, 120BR/GRO 120 6 Spot-GRO Reflector C, CC-6 2000 6.50
155
Med Brass 14915 2,46,57,107, 120BR/DL/FL/RP 120 6 Double Life Reflector C, CC-6 4000 960lm 6.50
155 Flood 835 cd
60˚
ER40 Med 15166 2,46,57,107, 120ER40 120 24 Elliptical Reflector C, CC-6 2000 1370lm 7.38
155 Flood 2350 cd
30˚
125 BR40 Med 15451 57,155 125BR40/HEAT/24PK 120 24 Reflector Infrared Heat C, C-9 4000 6.50
Lamp
14952 57,155 125BR40/1/RP 120 6Reflector Infrared C, CC-6 5000 6.50
Brooder Bulb
135 A19 Med Brass 12831 3,108,136 150A/135/SS/XL 130 120 Standard Frost C, CC-8 2500 2050 3.13 4.44
SuperSaver XL
@120 _volts, approximate 119 watts, 1560 lumens, 6250 hours
A21 Med 12820 150A21/135/SS 120 48 StandardFrost C, CC-8 750 2450 3.88 5.50
SuperSaver
12863 4,136 150A21/135/SS 130 48 Standard Frost C, CC-8 750 2450 3.88 5.50
SuperSaver
@120 _volts, approximate 119 watts, 1870 lumens, 1875 hours
010_INC_F.qxd 11/29/07 7:58 AM Page 25
A21 A23 BR38 PAR38 PAR38 Side Prong PAR46 PS25 T10
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
26
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
150 A21 Med 13101 150A21/W/RP 120 12 Soft White C, CC-8 750 2640 3.88 5.31
13125 150A21/CL/RP 120 12 Clear Utility Light C, CC-8 750 2780 3.88 5.31
13148 12,136 150A21/CL 130 48 Clear C, CC-8 750 2730 3.88 5.31
@120 _volts, approximate 132 watts, 2030 lumens, 1875 hours
13141 150A21 120 48 Standard Frost C, CC-8 750 2740 3.88 5.31
13165 150A21/IF/RP 120 12 Standard Frost Utility C, CC-8 750 2740 3.88 5.31
Light
13153 12,136 150A21 130 48 Standard Frost C, CC-8 750 2670 3.88 5.31
@120 _volts, approximate 132 watts, 2030 lumens, 1875 hours
Med Brass 13177 108 150A21/99/XL 120 48 Standard Frost Excel C, CC-8 2500 2225 3.88 5.31
13178 10,108,136 150A21/99/XL 130 48 Standard Frost Excel C, CC-8 2500 2225 3.88 5.31
@120 _volts, approximate 132 watts, 1690 lumens, 6250 hours
A23 Med 15241 150A23/RS 120 48 Inside Frost Rough C, C-17 1000 2090 4.38 6.06
Service
15243 7,136 150A23/RS 130 48 Inside Frost Rough C, C-17 1000 2090 4.38 6.06
Service
@120 _volts, approximate 132 watts, 1590 lumens, 2500 hours
13041 150A23 120 48 Inside Frost C, CC-8 750 2810 4.63 6.06
BR38 Med Brass 15608 2,107, 150/OPAR/FL 120 12 Outdoor Reflector C, CC-6 2000 1350lm 5.31
119,155 Economy Flood 45˚
PAR38 Med Skt 13921 8,119 150PAR/SP 130 15 Spot C, CC-6 750 2175lm 5.31
18000 cd
12˚
@120 _volts, approximate 132 watts, 1660 lumens, 1875 hours
13922 8,119 150PAR/FL 130 15 Flood C, CC-6 750 2175lm 5.31
4500 cd
30˚
@120 _volts, approximate 132 watts, 1660 lumens, 1875 hours
Med Side 13853 188 150PAR/3FL 120 12 Compact Flood C, CC-6 2000 2175lm 4.31
Prong 4000 cd
30˚
PAR46 Med Side 15375 57,117,188 150PAR46/3NSP 125- 125 12 Narrow Spot C, CC-2V 2000 1500lm 4.00
Prong 17500 cd
8x12 VH
Screw Term 15190 57,188 150PAR46 130 12 Clear Mine Headlamp C, C-13 1000 1250lm 3.75
8x15 VH
PS25 Med 15276 108 150PS25/IF 120 60 Inside Frost C, C-9 1000 2340 5.25 6.94
15282 9,108,136 150PS25 130 60 Inside Frost C, C-9 750 2330 5.25 6.94
@120 _volts, approximate 132 watts, 1770 lumens, 1875 hours
Med Brass 15293 116 150PS25/SL 120 60 Safeline Rhinocoat C, C-9 1000 2200 5.25 6.94
(Shatter Protected)
15300 116 150PS25/RS/SL 120 60 Safeline Rough Service C, C-17 1000 2145 4.38 5.94
15431 5,108,136 150PS25/99/XL 130 60 Inside Frost Excel-Line C, C-9 2500 1870 5.25 6.94
@120 _volts, approximate 132 watts, 1420 lumens, 6250 hours
T10 S14s 19690 LN150 125-130 125 16 Opal White LINESTRA B, C-8 1000 930 39.38
1604
175 PAR38 Med Skt 13836 24,46,155 175W/PAR38/HEAT 120 15 Hard Glass PAR Heat C, CC-6 5000 5.31
Lamp
13840 24,46,155 175 PAR38/HEAT/RED 120 15 HardGlass PAR Heat C5000
Lamp with Red Lens
200 A21 Med 13103 200A21/W/1RP 120 12 Soft White C, CC-8 750 3650 3.88 5.31
010_INC_F.qxd 11/29/07 7:58 AM Page 26
A21 A23 PAR46 PAR56 PS25 PS30 BR38 BR40
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
27
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
200 A21 Med 13107 200A21 120 24 Soft White Recessed C, CC-8 750 3650 3.88 5.31
Ceiling
15476 200A21/CL/RP 120 12 Clear Utility Light C, CC-8 750 3880 3.88 5.31
15491 21,136 200A21/CL 130 48 Clear C, CC-8 750 3880 3.88 5.31
@120 _volts, approximate 176 watts, 2860 lumens, 1875 hours
15499 200A21/RP 120 12 Standard Frost Utility C, CC-8 750 3850 3.88 5.31
Light
15543 21,136 200A21 130 48 Standard Frost C, CC-8 750 3760 3.88 5.31
@120 _volts, approximate 176 watts, 2860 lumens, 1875 hours
Med Brass 15555 22,136 200A21/99/XL 125 48 Standard Frost Excel C, CC-8 2500 2910 3.88 5.31
@120 _volts, approximate 176 watts, 2220 lumens, 6750 hours
A23 Med 15458 15,136 200A23/RS 130 48 Inside Frost Rough C, C-17 1000 2920 4.38 5.88
Service
@120 _volts, approximate 176 watts, 2220 lumens, 2500 hours
15505 200A23 120 48 Inside Frost C, CC-8 750 3930 4.63 6.06
PAR46 Med Side 15191 57,117, 200PAR46/3NSP 120 12 Narrow Spot C, CC-13 2000 2270lm 4.00
Prong 188 31000 cd
8x12 VH
15194 57,117, 200PAR46/3MFL 120 12 Med Flood C, CC-13 2000 2270lm 4.00
188 11500 cd
15x25 VH
15196 57,117, 200PAR46/3MFL 125- 125 12 Med Flood C, CC-13 2000 2270lm 4.00
188 11500 cd
15x25 VH
PAR56 Mog End 15007 57,117,188 200PAR56/MFL 120 12 Med Flood Clear C, CC-13 2000 2270lm 5.00
Prong 15000 cd
15x20 VH
Screw Term14968 200PAR56 30 12 Locomotive Headlamp C, CC-8 500 3700lm 4.50
27000 cd
9x9 VH
PS25 Med 15600 20,136 200PS25 130 60 Inside Frost C, CC-6 750 3700 5.25 6.94
@120 _volts, approximate 176 watts, 2820 lumens, 1875 hours
Med Brass 15818 17,136 200PS25/99/XL 130 60 Inside Frost Excel-Line C, CC-6 2500 3000 5.25 6.94
@120 _volts, approximate 176 watts, 2360 lumens, 6250 hours
PS30 Med 15675 16,136 200PS/23 130 60 Inside Frost Rough C, C-9 1000 3080 6.00 8.06
Service
@120 _volts, approximate 176 watts, 2350 lumens, 2500 hours
15653 18,136 200PS/IF 130 60 Inside Frost C, C-9 750 3560 6.00 8.06
@120 _volts, approximate 176 watts, 2710 lumens, 1875 hours
15820 200/CL 277 60 Clear C, C-9 1000 2360 6.00 8.06
Med Brass 15687 116 200PS/23/SL 120 60 Safeline Rough Service C, C-9 1000 3080 6.00 8.06
15648 116 200PS/SL 120 60 Safeline C, C-9 1000 3080 6.00 8.06
15725 14,136 200PS/CL/99/XL 130 60 Clear Excel-Line C, C-9 2500 2875 6.00 8.06
@120 _volts, approximate 176 watts, 2190 lumens, 6250 hours
202 PS25 Med Brass 15581 57 202PS25/CL 125 60 Clear Street Lighting C, C-9 6000 2750 5.25 6.94
Group Replacement
250 BR38 Med Brass 14661 25,46,136 250K/BR38/FL 125 12 Reflector Flood Krypton C, CC-6 4000 3100 5.81
@120 _volts, approximate 220 watts, 2360 lumens, 10000 hours
BR40 Med 14665 24,46,57,155 250BR40 120 12 Reflector IR Heat Lamp C, CC-6 5000 6.50
Clear
14664 24,46,57,155 250BR40/1 120 6Reflector IR Heat Lamp C, CC-6 5000 6.50
Clear
010_INC_F.qxd 11/29/07 7:58 AM Page 27
R40 BR40 PAR56 PS30 PS35
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
28
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
250 R40 Med 14663 24,46,57,155 250R40/10 120 6 Red Bowl IR Heat Lamp C, C-6 5000 6.88
Reflector Hard Glass
300 BR40 Med Brass 14779 2,46,57,155 300BR/FL 120 24 Reflector Flood C, CC-2V 2000 3030lm 6.50
2900 cd
60˚
PAR56 Mog End 14947 117,188 300PAR56/NSP 120 12 Narrow Spot C, CC-13 2000 3840lm 5.00
Prong 68000 cd
8x10 VH
14944 117,188 300PAR56/NSP 130 12 Narrow Spot C, CC-13 2000 3840lm 5.00
68000 cd
8x10 VH
14950 117,188 300PAR56/MFL 120 12 Med Flood C, CC-13 2000 3840lm 5.00
24000 cd
11x25 VH
14946 117,188 300PAR56/MFL 130 12 Med Flood C, CC-13 2000 3840lm 5.00
24000 cd
11x25 VH
14953 117,188 300PAR56/WFL 120 12 Wide Flood C, CC-13 2000 3840lm 5.00
11000 cd
20x35 VH
14945 117,188 300PAR56/WFL 130 12 Wide Flood C, CC-13 2000 3840lm 5.00
11000 cd
20x35 VH
Screw Term14967 25A/PAR56/WFL 12 12 Swimming Pool C, C-6 1000 6000lm 4.50
15x40 VH
PS30 Med 15742 300M/CL 120 60 Clear Utility Light C, C-9 750 5870 6.00 8.06
15740 300M/CL/RP 120 12 Clear Utility Light C, C-9 750 5870 6.00 8.06
15744 29,136 300M/CL 130 60 Clear Utility Light C, C-9 750 5820 6.00 8.06
@120 _volts, approximate 264 watts, 4390 lumens, 1875 hours
15737 300M/IF 120 60 Inside Frost Utility C, C-9 750 5860 6.00 8.06
Light
15735 300M/IF/RP 120 12 Inside Frost Utility C, C-9 750 5860 6.00 8.06
Light
15739 29,136 300M/IF 130 60 Inside Frost Utility C, C-9 750 5760 6.00 8.06
Light
@120 _volts, approximate 264 watts, 4390 lumens, 1875 hours
15738 29 300M/IF/CVP/6 130 6Inside Frost Utility C, C-9 750 5760 6.00 8.06
Light
@120 _volts, approximate 264 watts, 4390 lumens, 1875 hours
Med Brass 15761 27,136 300M/IF/99/XL 130 60 Inside Frost Excel-Line C, C-9 2500 4990 6.00 8.06
@120 _volts, approximate 264 watts, 3800 lumens, 6250 hours
PS35 Mogul 15904 300PS35/CL/99/XL 120 24 Clear Excel-Line C, C-9 2500 5190 7.00 9.38
15930 300PS35/99IF/XL 130 24 Inside Frost Excel-Line C, C-9 2500 5070 7.00 9.38
15915 300PS35/CL 120 24 Clear Utility Light C, C-9 1000 5700 7.00 9.38
15917 300PS35/CL 130 24 Clear Utility Light C, C-9 1000 5250 7.00 9.38
15918 300PS35/IF 120 24 Inside Frost Utility C, C-9 1000 5700 7.00 9.38
Light
15920 300PS35/IF 130 24 Inside Frost Utility C, C-9 1000 5250 7.00 9.38
Light
16068 300PS35/CL 277 24 Clear C, C-7A 1000 4220 7.00 9.38
375 R40 Med Skirted 14747 24,46 375R40/1 120 24 Reflector IR Heat Lamp C, C-11 5000 7.63
Clear
010_INC_F.qxd 11/29/07 7:58 AM Page 28
PAR64 PS35 CA8, CA10, CA5 B10 F10 G16.5
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
29
I
N
C
A
N
D
E
S
C
E
N
T
GENERAL PURPOSE LAMPS
34 Avg Lumens
|
Product Symbols & Pkg Class & Rated Beam Angle LCL MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) CBCP (in) (in)
|
500 PAR64 Ext Mog End 14938 57,117,188 500PAR64/NSP 120 6 Narrow Spot C, CC-13 2000 6500lm 6.00
Pr 110000 cd
7x12 VH
14932 57,117,188 500PAR64/MFL 120 6 Med Flood C, CC-13 2000 6500lm 6.00
37000 cd
11x25 VH
14935 57,117,188 500PAR64/WFL 120 6 Wide Flood C, CC-13 2000 6500lm 6.00
13000 cd
20x40 VH
PS35 Mogul 16032 500PS35/CL 120 24 Clear C, CC-8 1000 10000 7.00 9.38
16034 500PS35/CL 130 24 Clear C, CC-8 1000 10000 7.00 9.38
16040 500PS35/IF 130 24 Inside Frost C, CC-8 1000 10000 7.00 9.38
DECORATIVE LAMPS
1Avg
|
Product Symbols & Pkg Class & Rated MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) (in)
|
3 CA8 Candelabra 11688 3CA8C/CL/FL/BL/1/6 120 6 Clear Flicker B 1500 3.50
CA10 Med 11689 3CA10/CL/FL/BL/1/6 120 6Clear Flicker B1500 3.50
7.5 CA5 Candelabra 11687 7.5CA5C/CL/BL/3/18 120 18 Clear Décor Bent Tip B, C-11V 3000 3.06
15 B10 Candelabra 13315 15B10C/DL/BL 120 12 Clear Double Life Décor C, C-7A 3000 3.88
Bent Tip
13657 15B10C/BAGPK 120 200 Clear Décor Bent Tip C, C-7A 1500 3.88
13448 15B10C/BL/2PK 120 12 Clear Décor Bent Tip C, C-7A 1500 3.88
13675 15B10C/T/BL/2PK 120 12 Clear Décor Blunt Tip C, C-7A 1500 3.63
Med 13433 94 15B10/BL/2PK 120 12 Clear Décor Bent Tip C, C-7A 1500 3.81
13715 94 15B10/T/BL/2PK 120 12 Clear Décor Blunt Tip C, C-7A 1500 3.56
F10 Candelabra 13435 15FC/AIC/BL/2PK 120 12 Amber Flame Shape B, C-7A 1500 3.06
Iridescent
13434 15FC/IC/BL/2PK 120 12 Clear Iridescent Flame B, C-7A 1500 3.06
Shape
13436 15FC/W/BL/2PK 120 12 White Flame Shape B, C-7A 1500 3.06
G16.5 Candelabra 13709 15G16.5C/4M 120 24 Clear Globe B, C-7A 4000 3.00
13616 15G16.5C 120 24 Clear Globe B, C-7A 1500 3.00
13617 15G16.5C/W 120 24 White Globe B, C-7A 1500 3.00
25 B10 Candelabra 13306 25B10C/DL/BL/4PK 120 24 Clear Double Life Décor C, C-7A 3000 3.88
Bent Tip
13316 25B10C/DL/BL 120 12 Clear Double Life Décor C, C-7A 3000 3.88
Bent Tip
13570 25B10C/BAGPK 120 200 Clear Décor Bent Tip C, C-7A 1500 3.88
13452 25B10C/BL/2PK 120 12 Clear Décor Bent Tip C, C-7A 1500 3.88
13678 25B10C/T/BL/2PK 120 12 Clear Décor Blunt Tip C, C-7A 1500 3.63
13743 25B10C/CRYSTAL/DL/BL/2PK 120 12 Double Life Crystal C, C-7A 3000 3.88
Bent Tip
13308 25B10C/DL/F/BL/4PK 120 24 Frosted Double Life C, C-7A 3000 3.88
Décor Bent Tip
13317 25B10C/DL/F/BL 120 12 Frosted Double Life C, C-2V 3000 3.88
Décor Bent Tip
010_INC_F.qxd 11/29/07 7:58 AM Page 29
B10 C11 F15 G16.5 G25 G40
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
30
I
N
C
A
N
D
E
S
C
E
N
T
DECORATIVE LAMPS
1Avg
|
Product Symbols & Pkg Class & Rated MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) (in)
|
25 B10 Candelabra 13453 25B10C/F/BL/2PK 120 12 Frosted Décor Bent Tip C, C-7A 1500 3.88
Med 13331 94 25B10/DL/BL/4PK 120 24 Clear Double Life Décor C, C-7A 3000 3.81
Bent Tip
13318 94 25B10/DL/BL 120 12 Clear Double Life Décor C, C-7A 3000 3.81
Bent Tip
13654 94 25B10/BL/4PK 120 24 Clear Décor Bent Tip C, C-7A 1500 3.81
13438 94 25B10/BL/2PK 120 12 Clear Décor Bent Tip C, C-7A 1500 3.81
13717 94 25B10/T/BL/2PK 120 12 Clear Décor Blunt Tip C, C-7A 1500 3.56
13439 94 25B10/F/BL/2PK 120 12 Frosted Décor Bent Tip C, C-7A 1500 3.81
C11 Candelabra 11690 25C11C/AM/SG/BL/1/6 120 6 Spun-Glo Amber Fiber C, C-7A 1500 4.25
Wrapped
F15 Med 13823 25F/AIC/BL/2PK 120 12 Amber Flame Shape C, C-7A 1500 4.50
Iridescent
13806 25F/CL 120 24 Clear Flame Shape C, C-7A 1500 4.50
13862 25F/CL/BL/2PK 120 12 Clear Flame Shape C, C-7A 1500 4.50
13821 25F/IC/BL/2PK 120 12 Iridescent Flame Shape C, C-7A 1500 4.50
13820 25F/W/BL/2PK 120 12 Soft White Flame Shape C, C-7A 1500 4.50
G16.5 Candelabra 10221 25G16.5C/DAY/2PK/BL 120 12 Daylight Globe B, C-7A 1500 3.00
13704 25G16.5C/4M 120 24 Clear Globe B, C-7A 4000 3.00
13618 25G16.5C 120 24 Clear Globe B, C-7A 1500 3.00
13625 25G16.5C/BL 120 12 Clear Globe B, C-7A 1500 3.00
13622 25G16.5C/W/BL 120 12 White Globe B, C-7A 1500 3.00
Med 10298 25G16.5/BL 120 12 Clear Globe C, C-7A 1500 3.00
10297 25G16.5/W/BL 120 12 White Globe C, C-7A 1500 3.00
G25 Med 14105 25G25/DL/RP/48 120 48 Clear Double Life Globe C, C-9 3000 4.44
14145 25G25/DL/RP 120 6 Clear Double Life Globe C, C-9 3000 4.44
14276 25G25/4M 120 24 Clear Globe C, C-9 4000 4.44
14210 25G25/3PK/RP 120 24 Clear Globe C, C-9 1500 4.44
14264 25G25 120 24 Clear Globe C, C-9 1500 4.44
14282 25G25/RP 120 6 Clear Globe C, C-9 1500 4.44
14103 25G25/DL/SW/RP/48 120 48 Soft White Double Life C, C-9 3000 4.44
Globe
14146 25G25/DL/SW/RP 120 6Soft White Double Life C, C-9 3000 4.44
Globe
14277 25G25/W/4M 120 24 Soft White Globe C, C-9 4000 4.44
14211 25G25/W/3PK/RP 120 24 Soft White Globe C, C-9 1500 4.44
14265 25G25/W 120 24 Soft White Globe C, C-9 1500 4.44
14286 25G25/W/RP 120 6 Soft White Globe C, C-9 1500 4.44
G40 Med 14685 25G40 120 6 Clear Globe C, C-9 2500 6.94
32 B10 Candelabra 13737 32B10C/CRYSTAL/DL/BL/2PK 120 12 Double Life Crystal C, C-7A 4000 3.88
Bent Tip
40 B10 Candelabra 13751 40B10C/DAY/2PK/BL 120 12 Daylight Décor Bent Tip C, C-7A 1500 3.88
13328 40B10C/DL/BL/4PK 120 24 Clear Double Life Décor C, C-7A 3000 3.88
Bent Tip
13319 40B10C/DL/BL/2PK 120 12 Clear Double Life Décor C, C-7A 3000 3.88
Bent Tip
010_INC_F.qxd 11/29/07 7:58 AM Page 30
B10 B13 C15 F15 G16.5
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
31
I
N
C
A
N
D
E
S
C
E
N
T
DECORATIVE LAMPS
1Avg
|
Product Symbols & Pkg Class & Rated MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) (in)
|
40 B10 Candelabra 13571 40B10C/BAGPK 120 200 Clear Décor Bent Tip C, C-7A 1500 3.88
13648 40B10C/BL/4PK 120 24 Clear Décor Bent Tip C, C-7A 1500 3.88
13456 40B10C/BL/2PK 120 12 Clear Décor Bent Tip C, C-7A 1500 3.88
13681 40B10C/T/BL/2PK 120 12 Clear Décor Blunt Tip C, C-7A 1500 3.63
13714 40B10C/CRYSTAL/DL/BL/4/24 120 24 Double Life Crystal C, C-7A 3000 3.88
Bent Tip
13741 40B10C/CRYSTAL/DL/BL/2PK 120 12 Double Life Crystal C, C-7A 3000 3.88
Bent Tip
13309 40B10C/DL/F/BL/4PK 120 24 Frosted Double Life C, C-7A 3000 3.88
Décor Bent Tip
13320 40B10C/DL/F/BL/2PK 120 12 Frosted Double Life C, C-7A 3000 3.88
Décor Bent Tip
13457 40B10C/F/BL/2PK 120 12 Frosted Décor Bent Tip C, C-7A 1500 3.88
13682 40B10C/F/T/BL/2PK 120 12 Frosted Décor Blunt Tip C, C-7A 1500 3.63
Med 15354 40B10/DAY/2PK/BL 120 12 Daylight Décor Bent Tip C, C-7A 1000 3.88
13321 94 40B10/DL/BL/2PK 120 12 Clear Double Life Décor C, C-7A 3000 3.81
Bent Tip
13651 94 40B10/BL/4PK 120 24 Clear Décor Bent Tip C, C-7A 1500 3.81
13440 94 40B10/BL/2PK 120 12 Clear Décor Bent Tip C, C-7A 1500 3.81
13719 94 40B10/T/BL/2PK 120 12 Clear Décor Blunt Tip C, C-7A 1500 3.56
13723 94 40B10/CRYSTAL/DL/BL/4PK 120 24 Double Life Crystal C, C-7A 3000 3.81
Bent Tip
13740 94 40B10/CRYSTAL/DL/BL/2PK 120 12 Double Life Crystal C, C-7A 3000 3.81
Bent Tip
13322 94 40B10/DLF/BL/2PK 120 12 Frosted Double Life C, C-2V 3000 3.81
Décor Bent Tip
13441 94 40B10/F/BL/2PK 120 12 Frosted Décor Bent Tip C, C-7A 1500 3.81
13720 94 40B10/F/T/BL/2PK 120 12 Frosted Décor Blunt Tip C, C-7A 1500 3.56
B13 Candelabra 13357 40B13C/CL/FAN/2/12/BL 120 12 Clear Ceiling Fan Light C, C-9 1500 4.00
Med 13366 40B13/DL/FAN/2/60/BL 120 60 Clear Double Life C, C-9 3000 4.63
Ceiling Fan
13369 40B13/DL/FAN/BL/2PK 120 12 Clear Double Life C, C-9 3000 4.63
Ceiling Fan
13367 40B13/FAN/BL/2PK 120 12 Clear Fan Lamp C, C-9 1500 4.63
13786 40B13/CRYSTAL/FAN/4/72 120 72 Crystal Fan Lamp C, C-9 1500 4.63
13785 40B13/CRYSTAL/FAN/BL/2PK 120 12 Crystal Fan Lamp C, C-9 1500 4.63
C15 Med 11691 40C15C/AM/SG/BL/1/6 120 6Spun Glo Amber Fiber C, C-9 1500 4.06
Wrap
F15 Med 13986 40F/AIC/BL/2PK 120 12 Amber Flame Shape C, C-7A 1500 4.50
Iridescent
13974 40F/CL 120 24 Clear Flame Shape C, C-7A 1500 4.50
13985 40F/IC/BL/2PK 120 12 Iridescent Flame Shape C, C-7A 1500 4.50
13984 40F/W/BL/2PK 120 12 White Flame Shape C, C-7A 1500 4.50
G16.5 Candelabra 10367 40G16.5C/DAY/2PK/BL 120 12 Daylight Globe C, C-7A 1500 3.00
13702 40G16.5C 120 24 Clear Globe C, C-7A 1500 3.00
13346 40G16.5C/4PK/BL 120 24 Clear Globe C, C-7A 1500 3.00
010_INC_F.qxd 11/29/07 7:58 AM Page 31
G16.5 G25 G30 G40 A19 B10
For morecomplete product information visit www.sylvania.com Symbols/Footnotes on page 35-39
32
I
N
C
A
N
D
E
S
C
E
N
T
DECORATIVE LAMPS
1Avg
|
Product Symbols & Pkg Class & Rated MOL
|
Watts Bulb Base Number Footnotes Ordering Abbreviation Volts Qty Description Filament Life(hrs) (in)
|
40 G16.5 Candelabra 13666 40G16.5C/BL 120 12 Clear Globe C, C-7A 1500 3.00
13667 40G16.5C/W/BL 120 12 White Globe C, C-7A 1500 3.00
Med 10352 40G16.5/4PK/BL 120 24 Clear Globe C, C-7A 1500 3.00
10300 40G16.5/BL 120 12 Clear Globe C, C-7A 1500 3.00
10299 40G16.5/W/BL 120 12 White Globe C, C-7A 1500 3.00
G25 Med 15350 40G25/CL/DAY/1/6 120 6 Daylight Clear Globe C, C-9 1500 4.44
