7.20 Low Voltage Products & Systems
1SXU000023C0202 Rev. A ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage
7
Pilot Devices
Modular Range
Components, 22mm

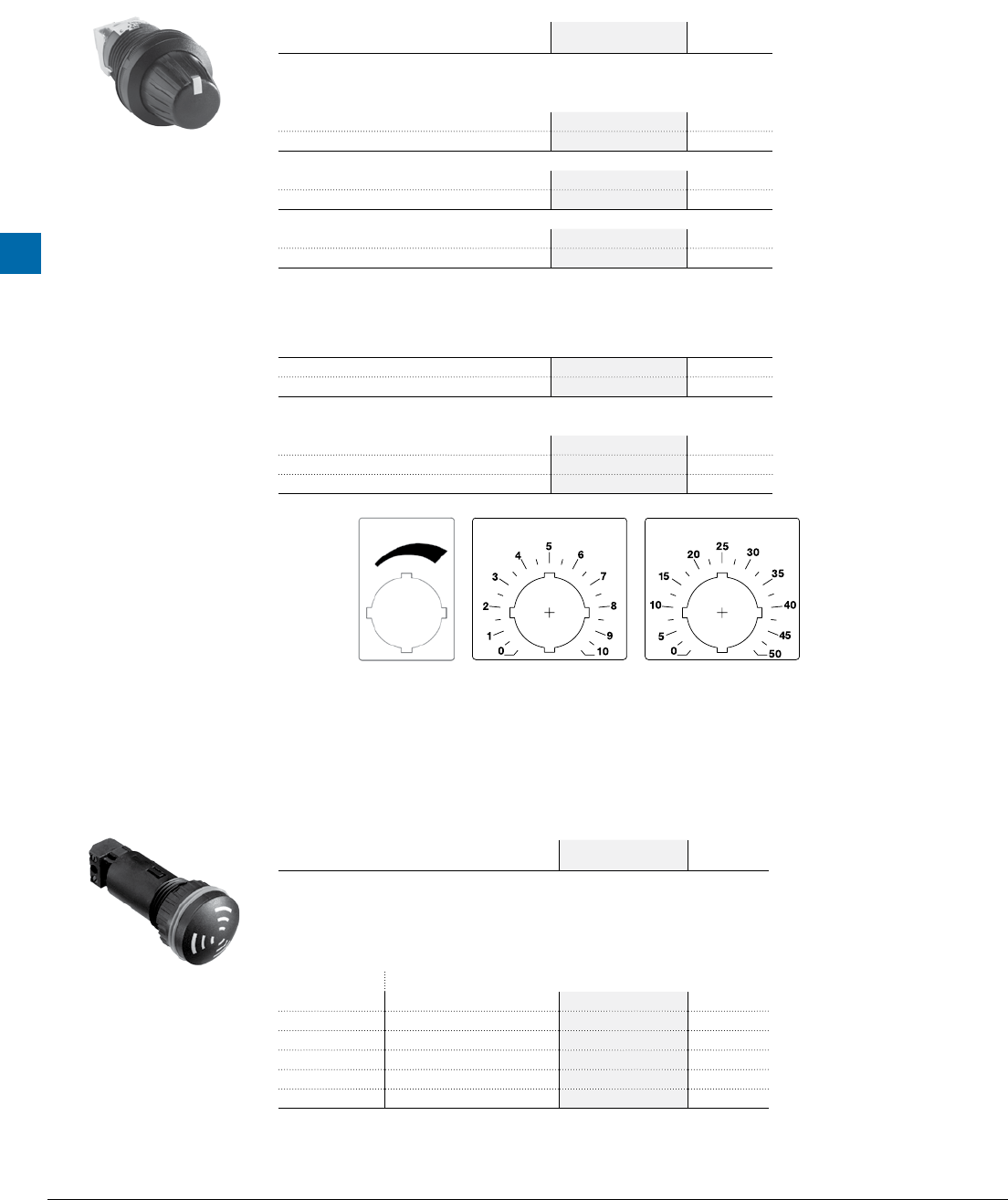

Potentiometers
Operator: Potentiometer
Description Catalog number Weight
oz.
Complete Potentiometers
Black knob with integrated position indication and marking in white
With resistor 5 kohm
Black plastic bezel MT-105B 1.4
Chrome metal bezel MT-305B 1.7
With resistor 10 kohm
Black plastic bezel MT-110B 1.4
Chrome metal bezel MT-310B 1.7
With resistor 50 kohm
Black plastic bezel MT-150B 1.4
Chrome metal bezel MT-350B 1.7
Knob without Resistor
Black knob with integrated position indication and marking in white.
For shaft diameter 6 -6.35 mm.
Min. shaft length 20 mm.
Black plastic bezel KT-100B 1.2
Chrome metal bezel KT-300B 1.5
Legend plates aluminum
Symbol: see g. (29.6 x 44.5 mm) SK 615 562-87 0.071
Scale: 0-10 (48.5 x 44.5 mm) SK 615 562-88 0.071
Scale: 0-50 (48.5 x 44.5 mm) 1SFA611830R1252 0.071
Potentiometer
Operator: Buzzer
Description Catalog number Weight
oz.
Buzzers
Black. Frequency: Approx. 2400 Hz.
Loudness: Min 80 dB (A)/10 cm
Rated Current: < 8 mA.
Service Life:>5000 h
Suitable for both 50 and 60 Hz networks
Supply voltage Tone Catalog number
24 V AC/DC Continuous KB1-4010 0.020
115 V AC/DC Continuous KB1-4030 0.020
230 V AC Continuous KB1-4040 0.020
24 V AC/DC Pulsating KB1-4110 0.020
115 V AC/DC Pulsating KB1-4130 0.020
230 V AC Pulsating KB1-4140 0.020
Buzzer
Legend
plates
Buzzers
Resistor data
Element Catalog No. Cermet
Power rating 2 W
Mechanical angle 280°
Terminals Screw terminated
Insulation voltage 900 V
Operating
temperature -1 – +70 °C
7.36 Low Voltage Products & Systems
1SXU000023C0202 Rev. A ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage
7
Pilot Devices
Modular Range
Components, 22mm
Technical data
Standards and approvals
IEC / EN 60947-1 Low-Voltage Switchgear and Controlgear
- Part 1: General rules
IEC / EN 60947-5-1 Low-Voltage Switchgear and Controlgear - Part
5-1: Control circuit devices and switching ele-
ments - Electromechanical control circuit devices
IEC / EN 60947-5-5 Low-Voltage Switchgear and Controlgear - Part
5-5: Control circuit devices and switching ele-
ments - Electrical Emergency Stop device with
mechanical latching function
IEC / EN 60073 Basic and safety principles for man-machine
interface, marking and identication - Coding
principles for indicators and actuators
IEC / EN 60529 Degrees of Protection provided by enclosures (IP
code)
EN 50013 Low-Voltage Switchgear and Controlgear for
industrial use - Terminal marking and distinctive
number for particular control switches
DIN 40050-9 Road vehicles; Degrees of Protection (IP-code);
protection against foreign objects; water and
contact; electrical equipment
UL 508 Industrial Control Equipment
CSA C22.2 No 14 Industrial Control Equipment
Environmental data
Degrees of protection
Operators IEC/EN DIN UL/CSA
Pushbutton: MP *IP66 Catalog number 1, 3R, 4, 4X,
12, 13
Double pushbutton:
MPD *
IP66 Catalog number 1, 3R, 4, 4X,
12, 13
Mushroom pushbutton:
MPM *
IP66 Catalog number 1, 3R, 4, 4X,
12, 13
Emergency Stop:
MPMT/P *
IP66 Catalog number 1, 3R, 4, 4X,
12, 13
Selector Switch:
M2SS/M3SS *
IP66 Catalog number 1, 3R, 4, 4X,
12, 13
Key-operated Selector
Switch: M2SSK/M3SSK *
IP66 Catalog number 1, 3R, 4, 4X, 12
Toggle Switch:
MTS2/MTS3 *
IP66 Catalog number 1, 3R, 4, 4X,
12, 13
Extreme Duty
pushbutton: KP6
- Catalog number 1, 3R, 4, 4X
Reset pushbutton: KPR * IP 66 Catalog number 1, 3R, 4, 4X,
12, 13
Joystick: MJS IP66, 67, 69K Catalog number 1, 4X (indoor),
12, 13
Pilot lights: ML IP66 Catalog number 1, 3R, 4, 4X,
12, 13
Buzzer: KB IP65 Catalog number 4X
Potentiometer: KT * IP66 Catalog number 1, 3R, 4, 4X,
12, 13
Contact block and
Transformer block
IP20 -
Plastic Enclosures IP66 Catalog number 1, 3R, 4, 4X,
12, 13
Metallic Enclosures IP66, 67, 69K -
Temperature
Ambient temperature during operation -25 to +70 °C
Storage temperature -40 to +85 °C
*) With Chrome plastic bezel IP66 Catalog number 1, 12, 13
Please note that specied degree of protection is for operator mounted on panel. If other
items are mounted in between, please make sure that they are correctly sealed.
Technical Data
Terminals
Plus-minus Pozidriv No.2 screw with DIN-washer.
Connectable Area min. 1 x 0.5 mm2 /AWG 20
max. 2 x 2.5 mm2/2 x AWG14
Tightening Torque
Operators Locking Nut Min. 2 Nm / Max. 2.3 Nm
Cable Terminals 0.9 Nm
Material
No ozone depleting substances in the products.
All front of panel plastic components are made of polycarbonate
PC Polycarbonate High impact strength, good outdoor resistance.
Chemical resistance (see table below)
PSU Polysulphone Can withstand high temperatures, acids, basic
solutions, alkaline compounds, oils, alcohols.
PA Polyamide Can withstand high temperatures, aliphatic,
aromatic and chlorinated hydro carbons,
esters, ketone-aldehydes, alcohols and basic
solutions.
PBT Can withstand high temperature, aliphatic and
aromatic hydrocarbons, acids, basic solutions,
alcohols, grease and oils
Zinc Good corrosion resistance in inland-, sea and
industrial atmosphere.
light-alloy Good corrosion resistance in inland-, sea and
industrial atmosphere.
Chemical Resistance for Polycarbonate
Chemical Class Effects
Acids No signicant effect under most typical condi-
tions of concentration and temperature
Alcohols and Alkalis Generally compatible at low concentration and
room temperature. Higher concentrations and
elevated temperatures can result in etching
and attack evidenced by decomposition.
Aliphatic Hydrocarbons Generally compatible
Amines Surface crystallization and chemical attack.
Avoid.
Aromatic Hydrocarbons Partial solvents and severe stress cracking
agents (i.e., xylene, toulene). Avoid.
Detergents and Cleaners Mild soap solutions are generally compatible.
Strong alkaline materials should be avoided.
Esters Cause severe crystallization. Partial solvents.
Avoid.
Greases and Oils Pure petroleum Catalog numbers generally
compatible. Many additives used with them
are not.
Halogenated
Hydrocarbons
Solvents. Avoid.
Ketones Cause severe crystallization and stress crack-
ing. Partial solvents. Avoid.
Silicone Oil and Greases Generally compatible up to 85 oC.
Approvals
The pushbuttons, selector switches and pilot lights are approved by:
- National approval agencies: UL, CSA and China Compulsory Product
Certication
For detail information please contact ABB
Low Voltage Products & Systems 7.37
ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage 1SXU000023C0202 Rev. A
7
Pilot Devices
Modular Range
Components, 22mm

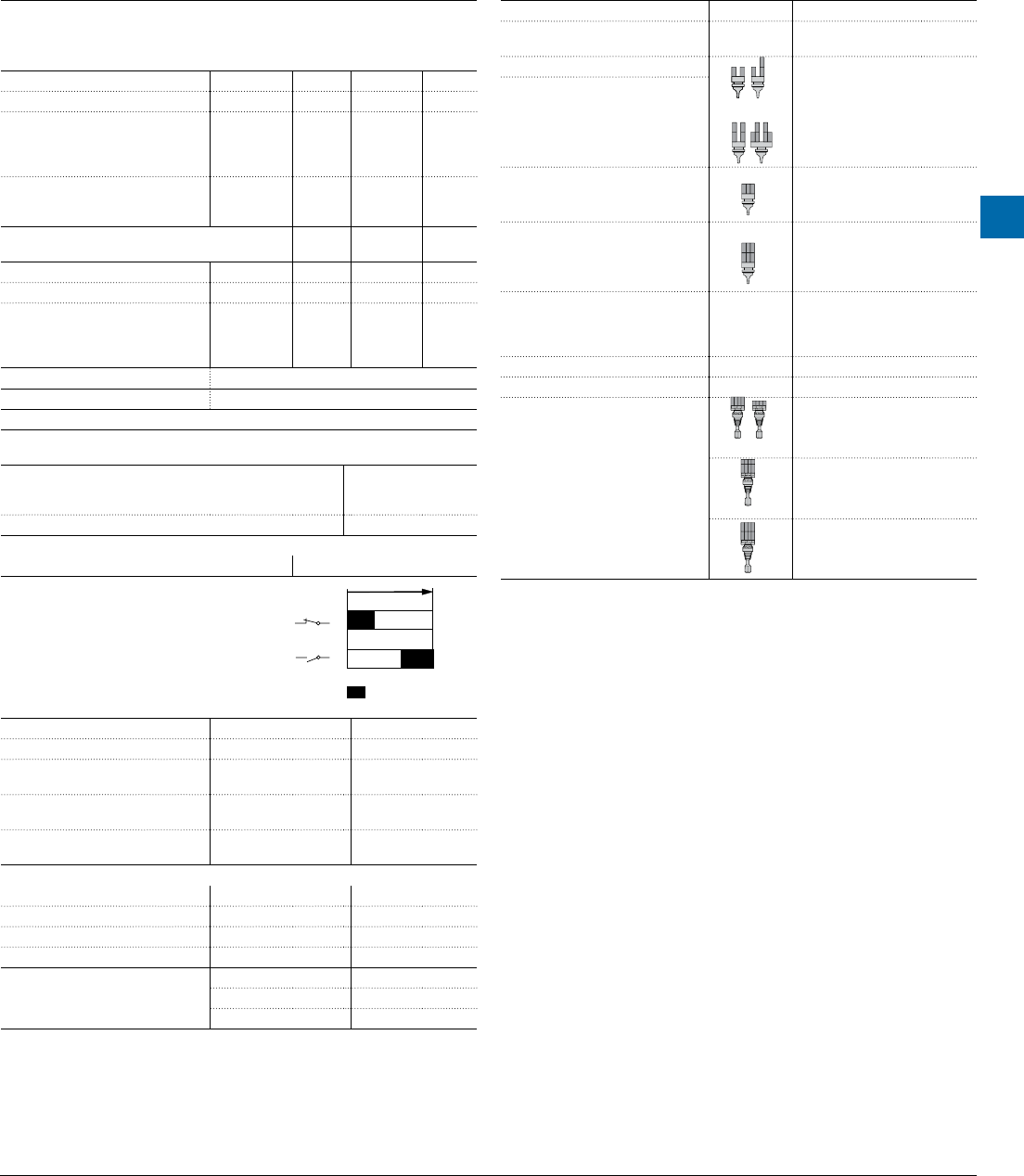

Electrical data
Standard contact blocks
Self cleaning silver contacts, NC contact with positive opening. At voltages
and currents below 24 V and 5.6 mA we recommend our Micro Switch
blocks.
Ratings as per IEC 60947-5-1
Rated Insulation Voltage, Ui690 V
Rated Thermal Current, Ith 10 A
Rated Operational Current, Ie
Utilization category AC 15,
at: 120 V
at: 230 V
at: 400 V
at: 690 V
8 A
6 A
4 A
2 A
Rated Operational Current, Ie
utilisation category DC 13,
at: 24 V
at:125 V
at: 250 V
5 A
1.1 A
0.55 A
Ratings as per UL, CSA, NEMA A 6 0 0
AC
Q 6 0 0
DC
Rated Insulation Voltage 600 V 600 V
Rated Thermal Current 10 A 2.5 A
Rated Operational Current at: 120 V
at: 240 V
at: 480 V
at: 600 V
6 A
3 A
1.5 A
1.2 A
at: 125 V
at: 250 V
at: 480 V
at: 600 V
0.55 A
0.27 A
0.10 A
0.10 A
Contact resistance < 25 mΩ
Compulsory function test at: 5V, 16 mA
Max. number of contact blocks per operator
The Contact blocks can be stacked in max two levels on the 3- block holder.
Only one level is accepted on the 5-block holder.
pushbutton, Toggle Switch, Mushroom pushbutton,
Double pushbutton, Selector Switch, Key-operated
Selector Switch and Emergency Stop Operator
6
Joystick 8
Short circuit protection
Max. fuse at 1 kA gG 16A
Diagram for make-and-break contact
NC
NO
= Closed contact
-1 -2
-3 -4
NC
NO
-1 -2
-3 -4
Modular pushbutton
Compact pushbutton Compact emergency stop pushbutton
Make-and-break contact
= Closed contact
Micro Switch block / Ratings as per IEC 60947-5-1
Rated Insulation Voltage, Ui125 V
Rated Thermal Current, Ith 3 A
Rated Operational Current, Ie
utilisation category AC 14,
at: 125 V 0.5 A
Rated Operational Current, Ie
utilization category DC 13,
at: 24 V 0.3 A
Rated Operational Current, Ie
utilization category DC 12,
at: 24 V 0.1 A
Minimum Switching Capacity
Standard Contact blocks 24 V DC 5.6 mA
Gold plated Contact blocks 5 V DC 12 mA
12 V DC 1 mA
Micro Switch blocks 3 V DC 1 mA
Ratings as per UL 508 125 V AC 3 A
60 V DC 0.2 A
48 V DC 0.1 A
Mechanical data
Mechanical life
Standard Contact blocks 10 million operations
pushbuttons, Momentary Mush-
room pushbutton
2 million operations
Selector Switches
Present standard
(no operation of center contact)
500 000 operations
With operation of center contact 250 000 operations
150 000 operations
Maintained Mushroom
pushbutton, Key-operated
Selector Switch and Double
pushbutton
500 000 operations
Emergency Stop 100 000 operations
Toggle Switch 1 million operations
Joystick 500 000 operations
400 000 operations
300 000 operations
500 000
Mechanical life, selector switch
250 000
250 000
150 000
With operating
of center contact
Present standard
(no operating of
center contact)
Technical data
7.38 Low Voltage Products & Systems
1SXU000023C0202 Rev. A ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage
7
Pilot Devices
Modular Range
Components, 22mm
Technical data
Lamp block ratings as per IEC 60 947-5-1
Rated Insulation Voltage 230 V
Base BA 9s
Permissible power, up to 2 W
Transformer block
Suitable for Filament bulb 6 or 24 V AC, 1.2 W and LED 24 V.
Rated Power 1.5 W
Rated Insulation Voltage acc. to IEC
70 °C (DT)
Class E
LED bulbs
Service Life for LED bulbs means number of service hours until the brightness
has been reduced down 50 %. Service Life 50 000 h
Color of white LED x=0.31 Y=0.32 means the position of color in
the ICI Chromaticity Diagram
Voltage Tolerance on LED
bulbs
-30 to +10 % voltage is acceptable without
affecting the Service Life
Voltage Peaks on LED bulbs Voltage Peaks up to 1000 V Current Peaks up
to 500 mA during a few msec
Glowing light All integrated LED bulbs have a function built in
to cut leakage currents.
