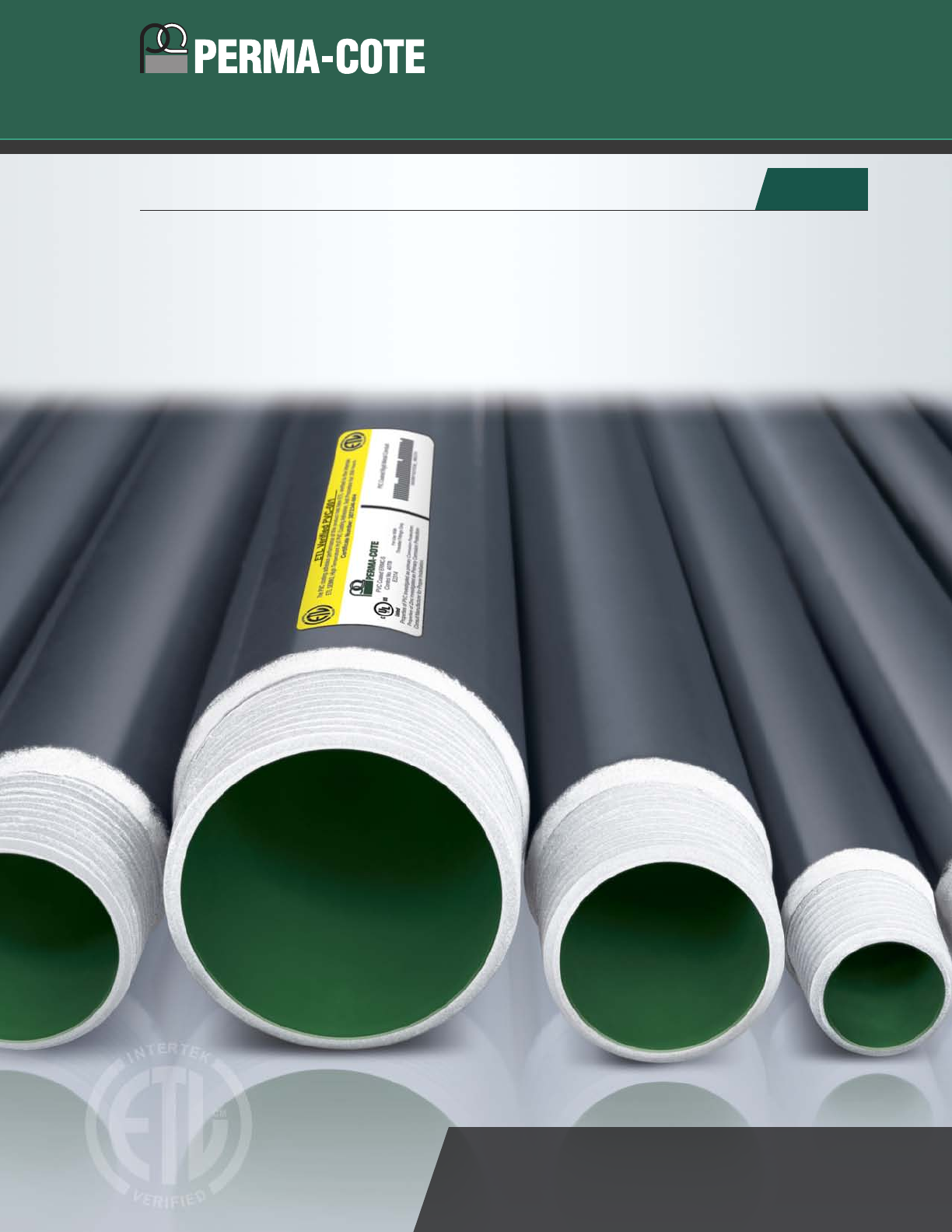

PVC Coated Rigid Metal Conduit
PRODUCT CATALOG
& BUYER’S GUIDE
PM-112
GO FOR THE GREEN!
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Table of Contents
3
Introduction
Performance Matters! ..........................................4-15
Corrosion Protection ................................................16
Conduit

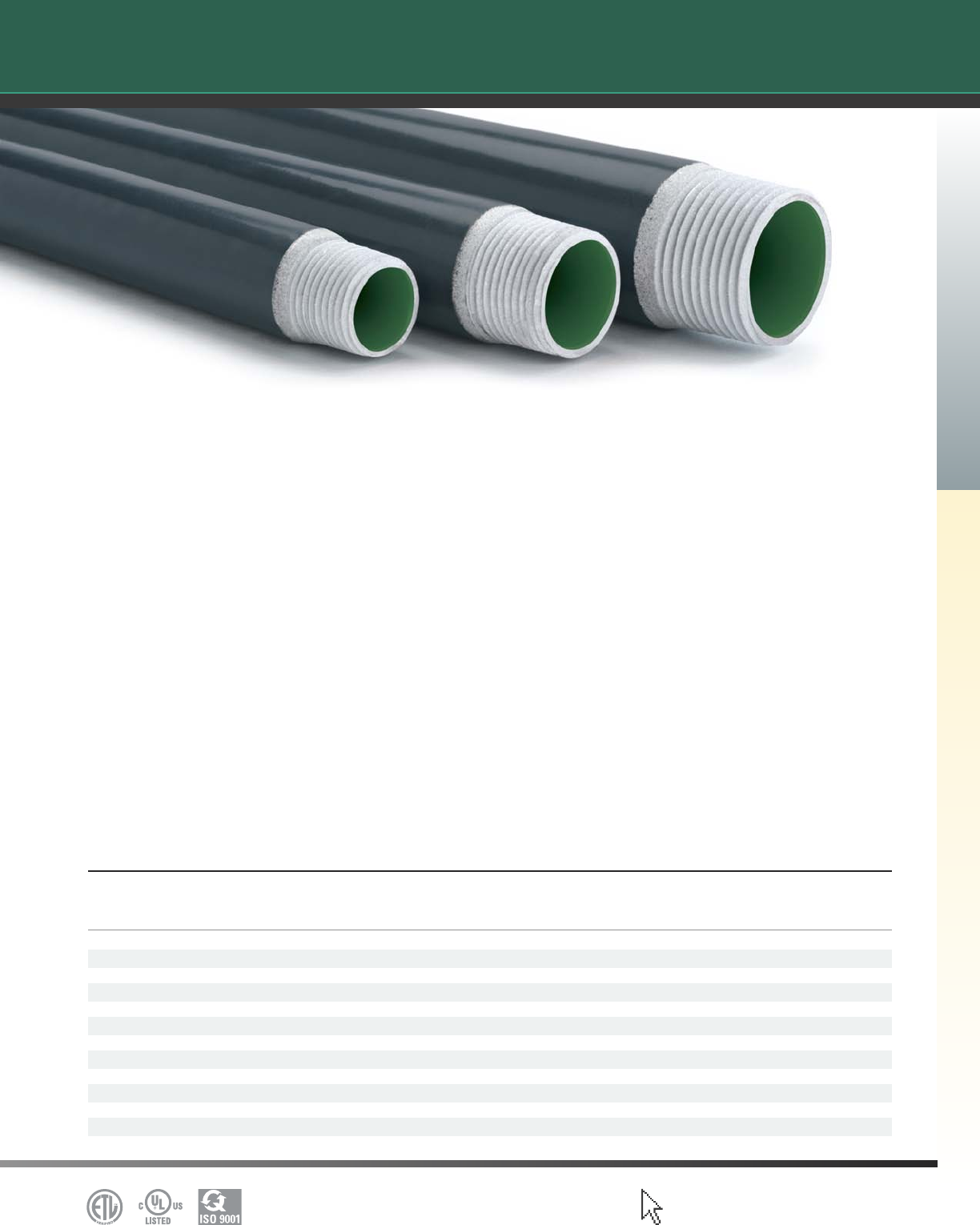

PVC Coated Conduit ................................................17

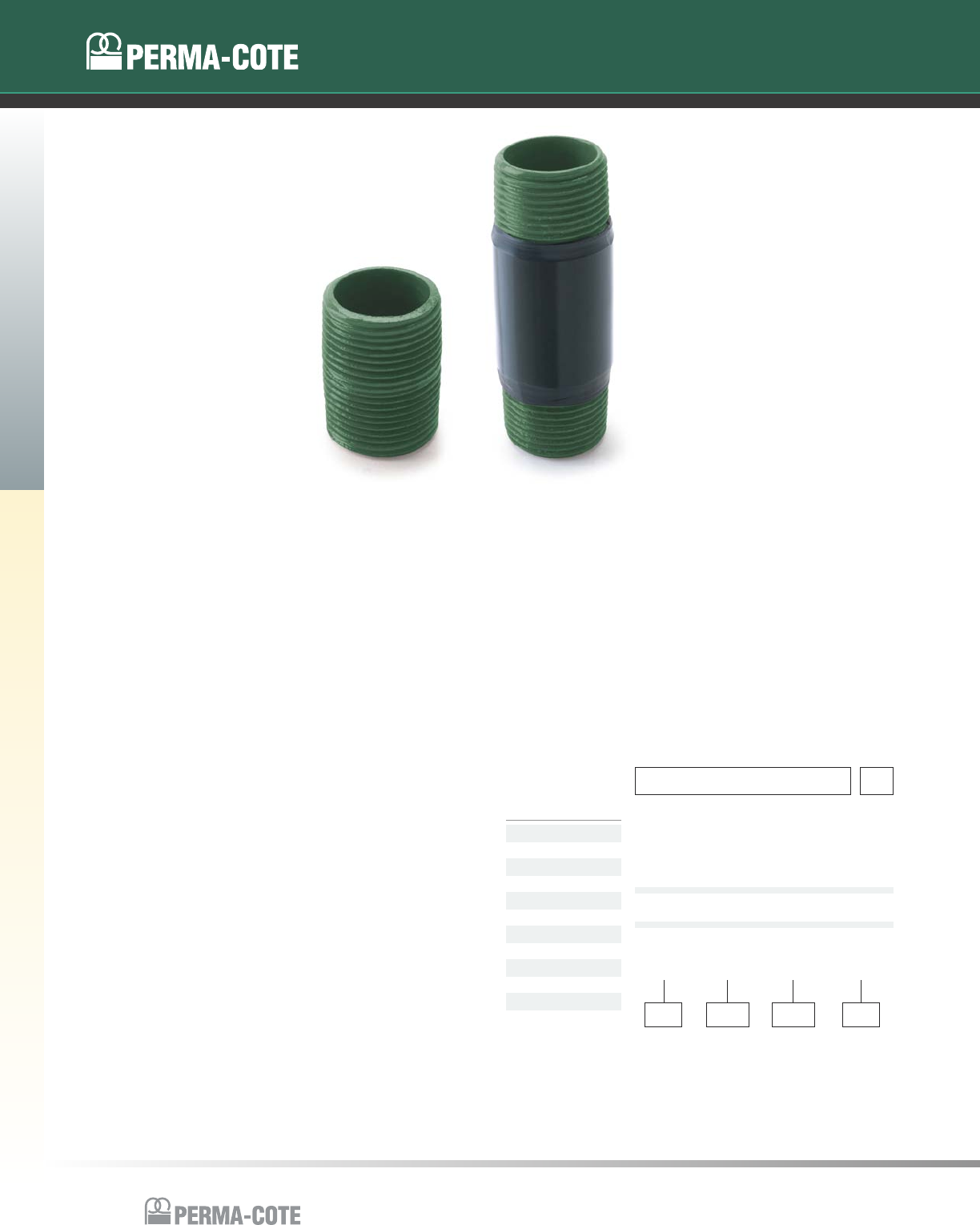

PVC Coated Nipples ................................................18

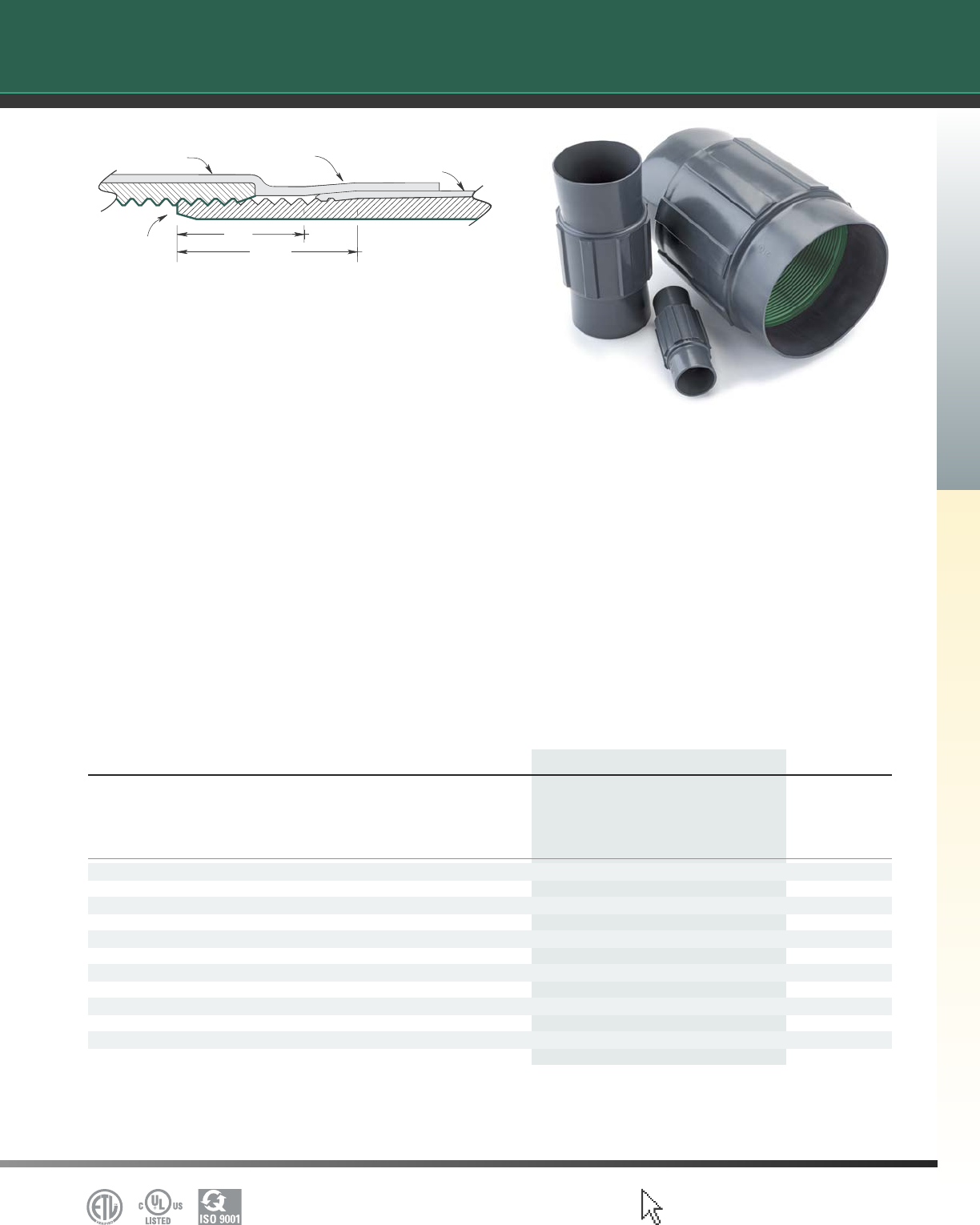

PVC Coated Couplings ............................................19

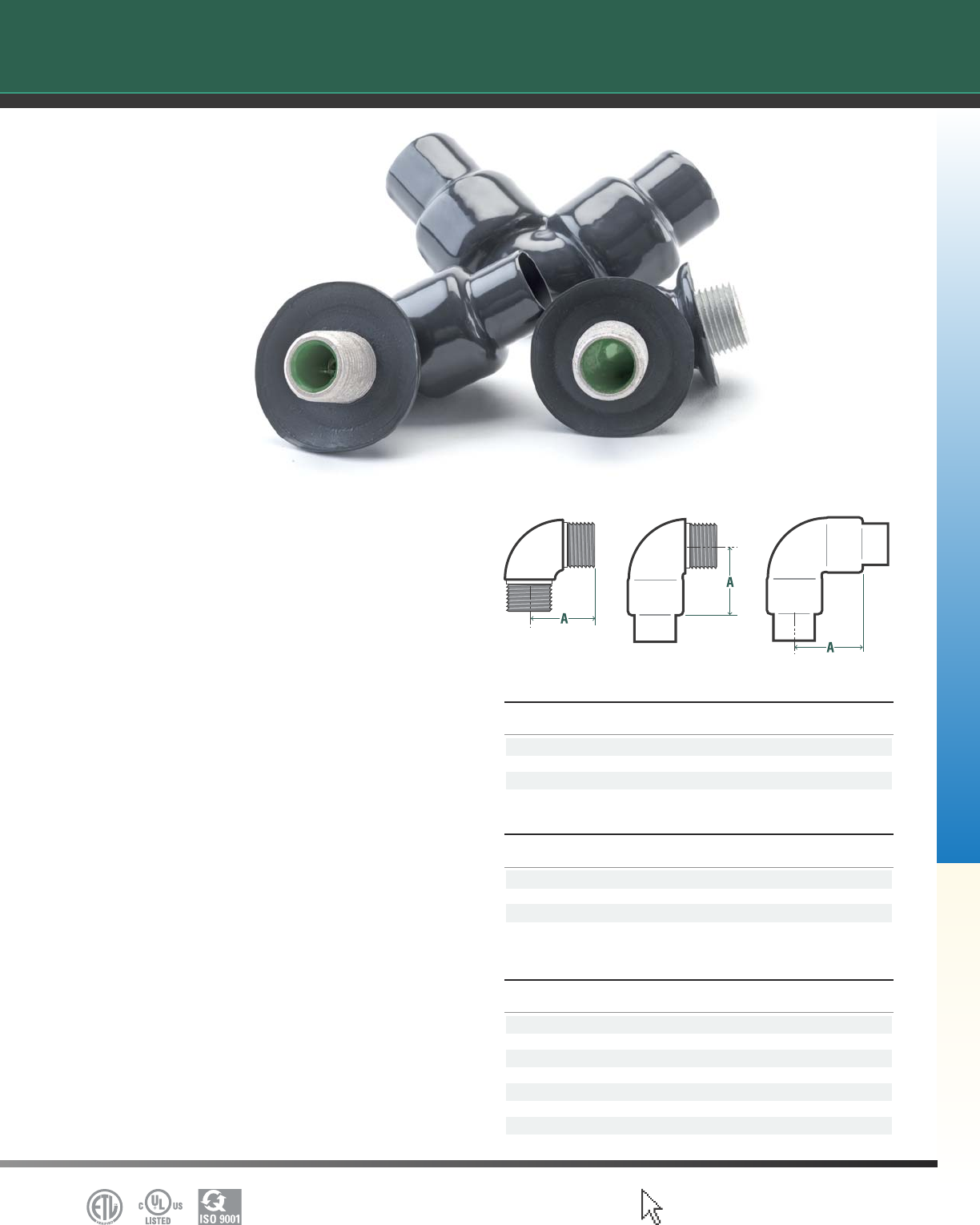

Elbows

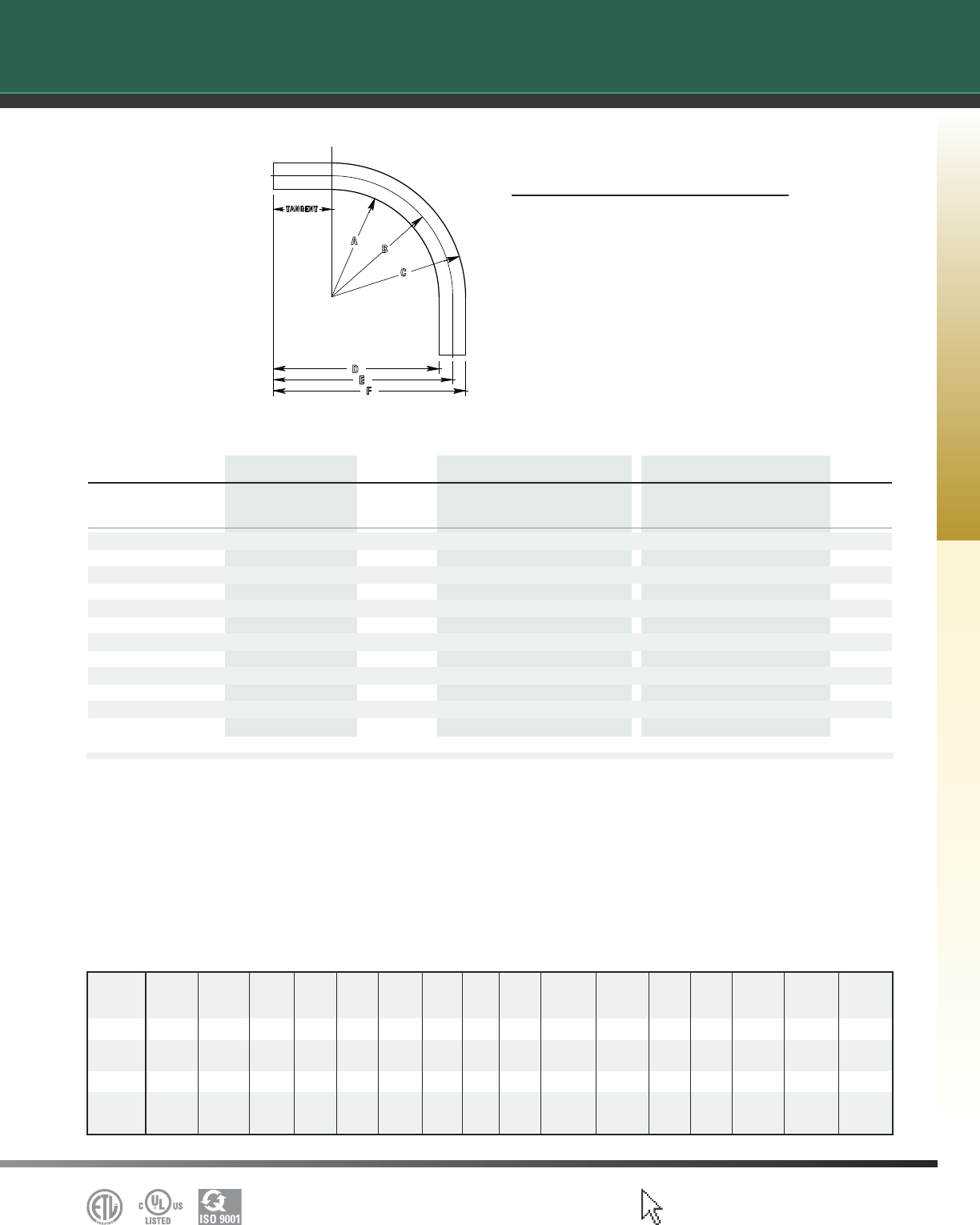

PVC Coated Elbows............................................20-21
Conduit Boxes

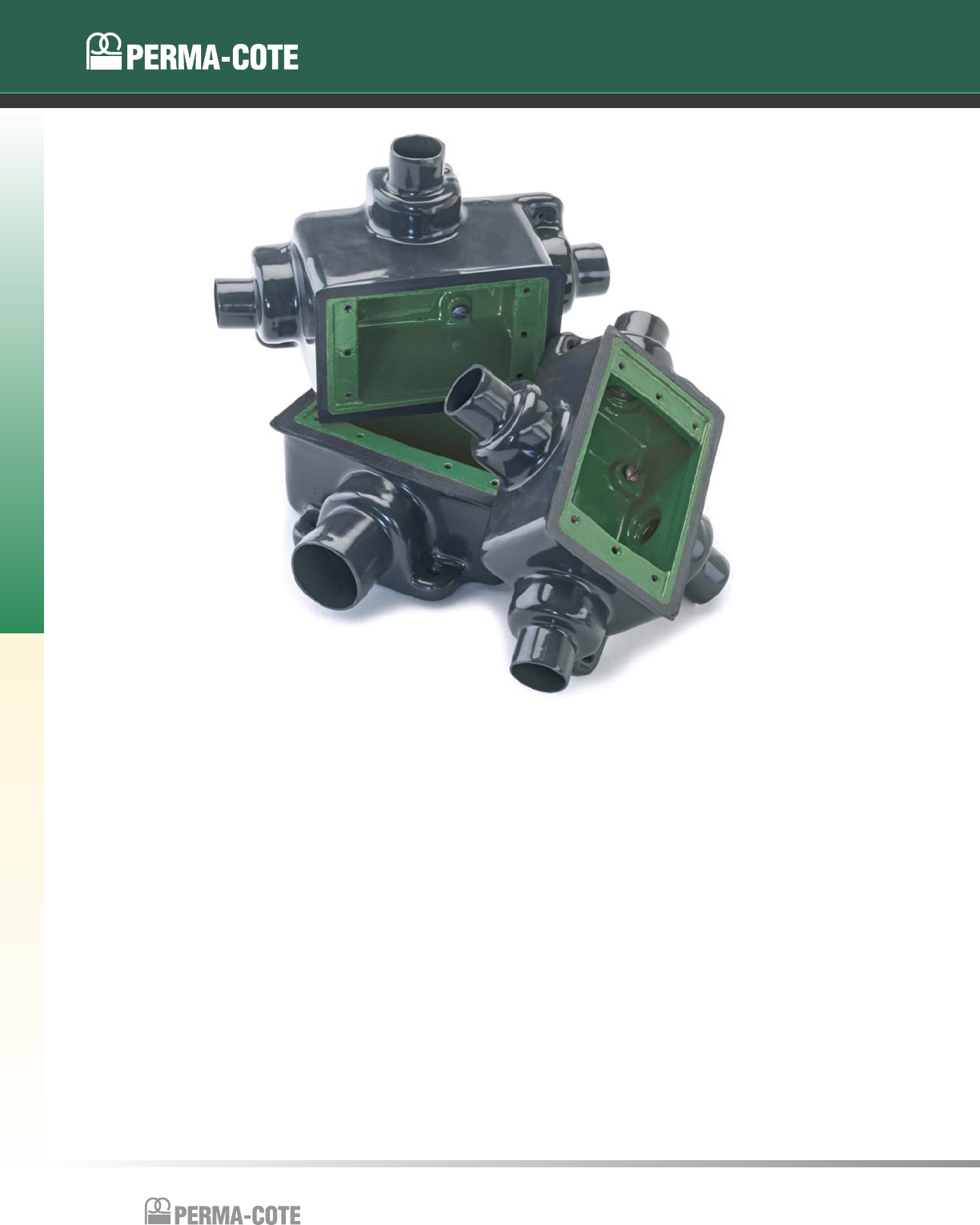

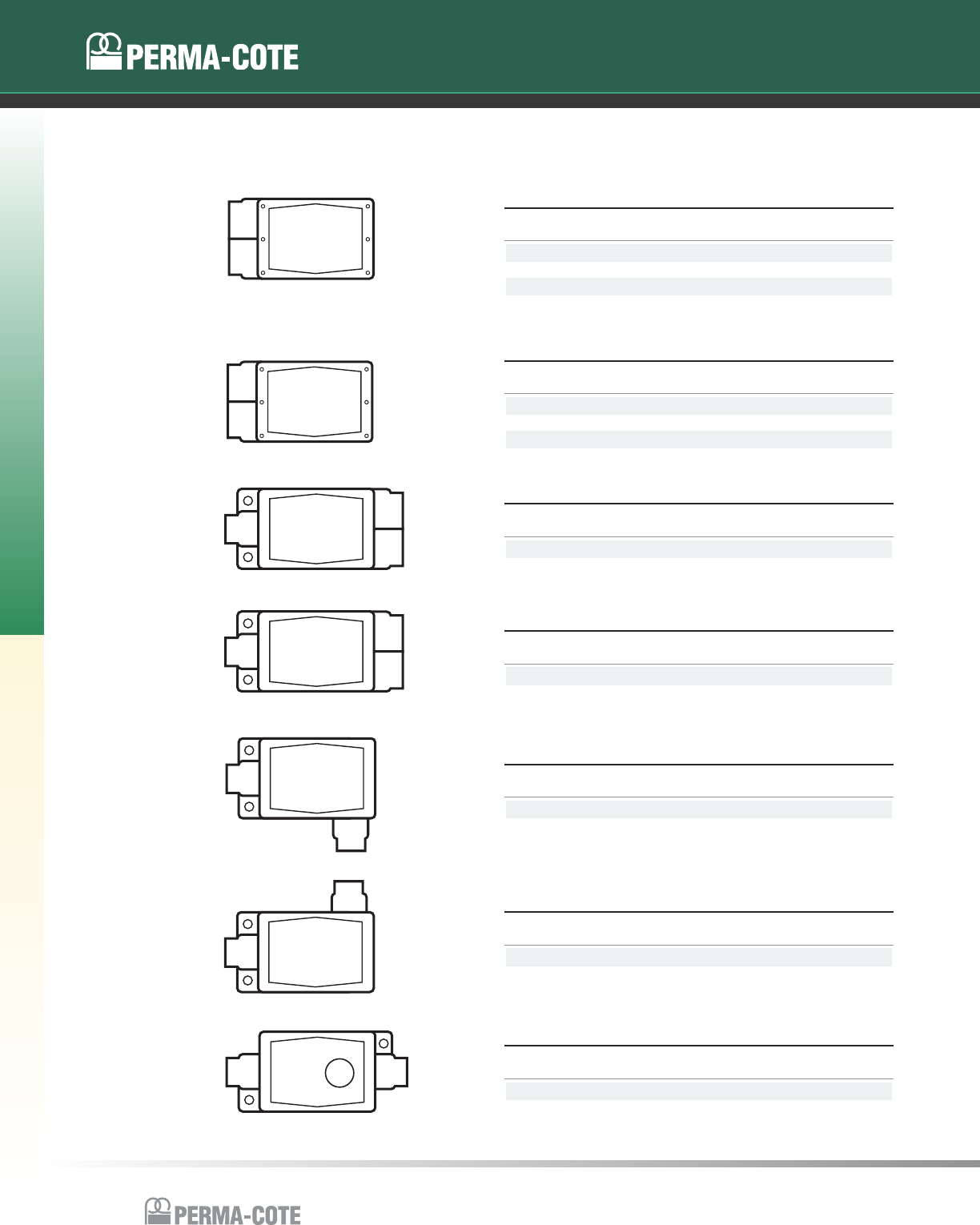

Cast Device Boxes and Covers ..........................22-27
General Service Fittings

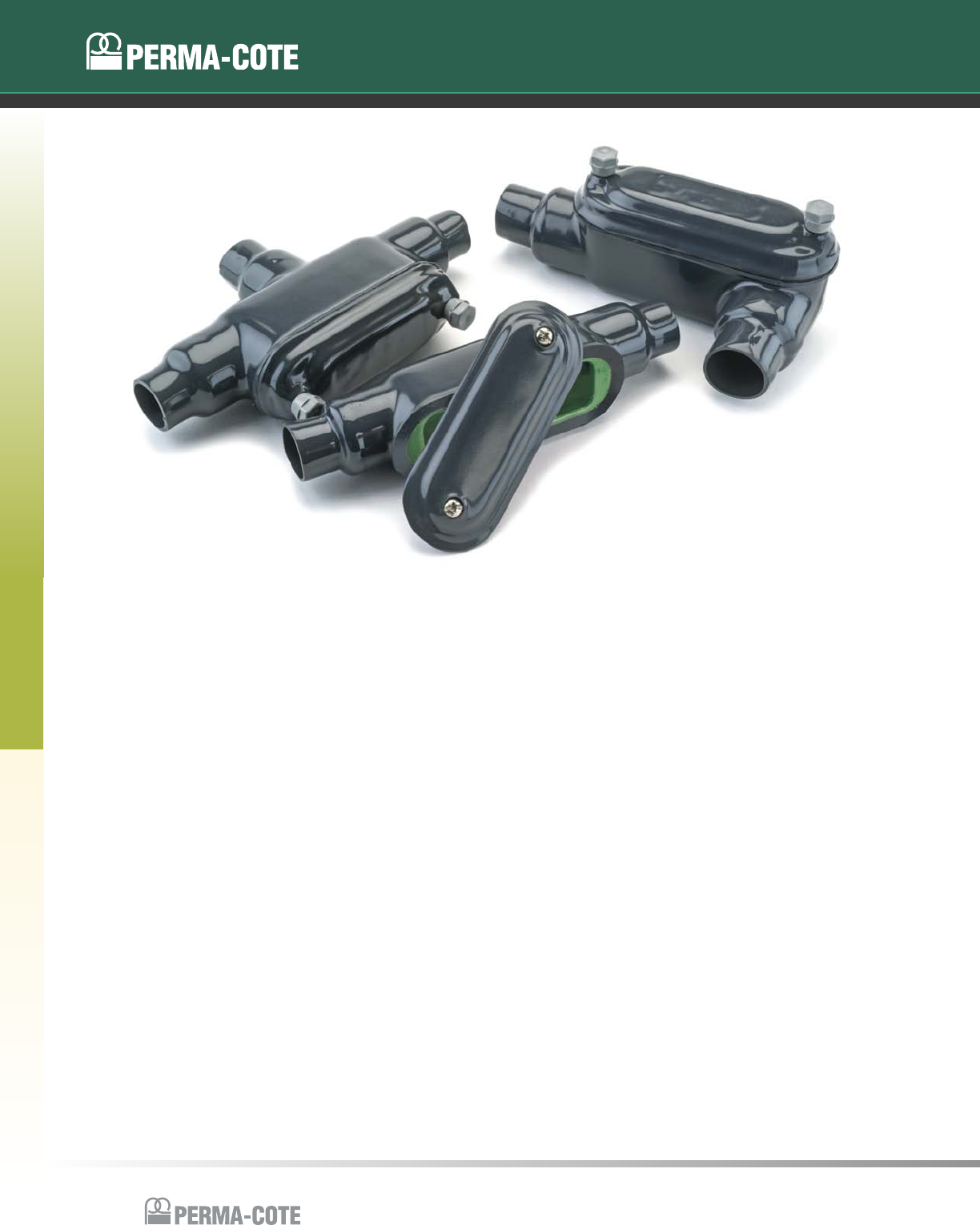

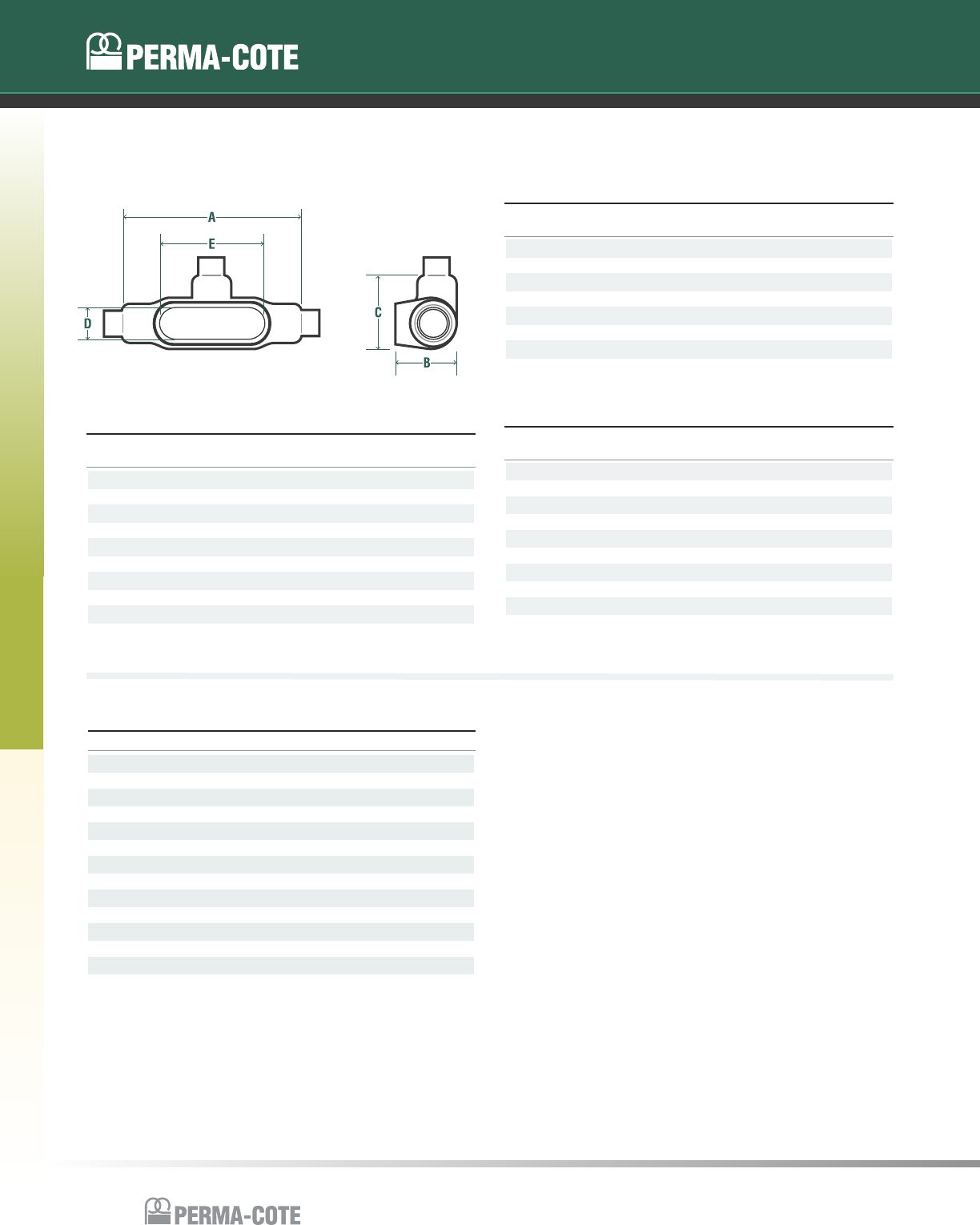

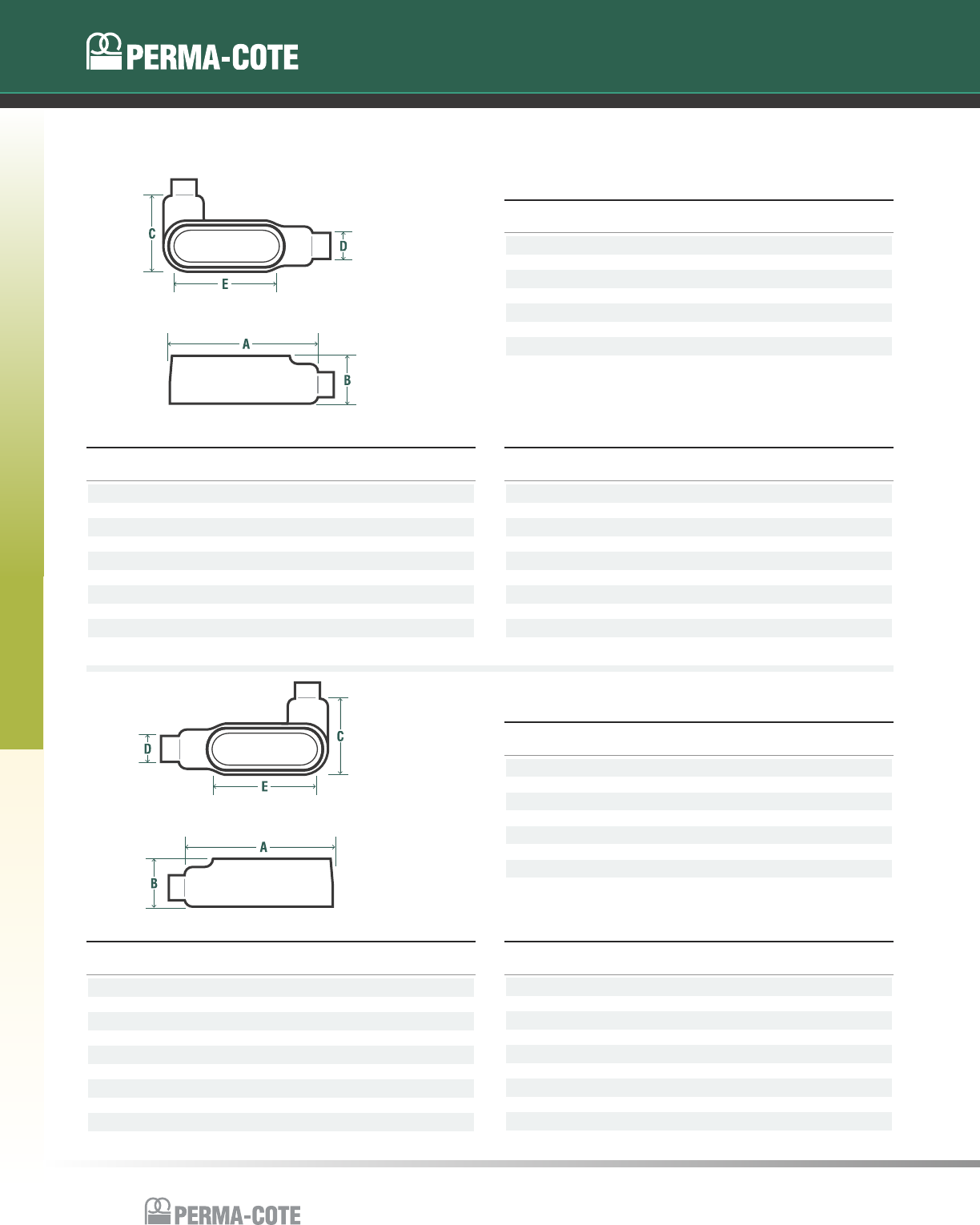

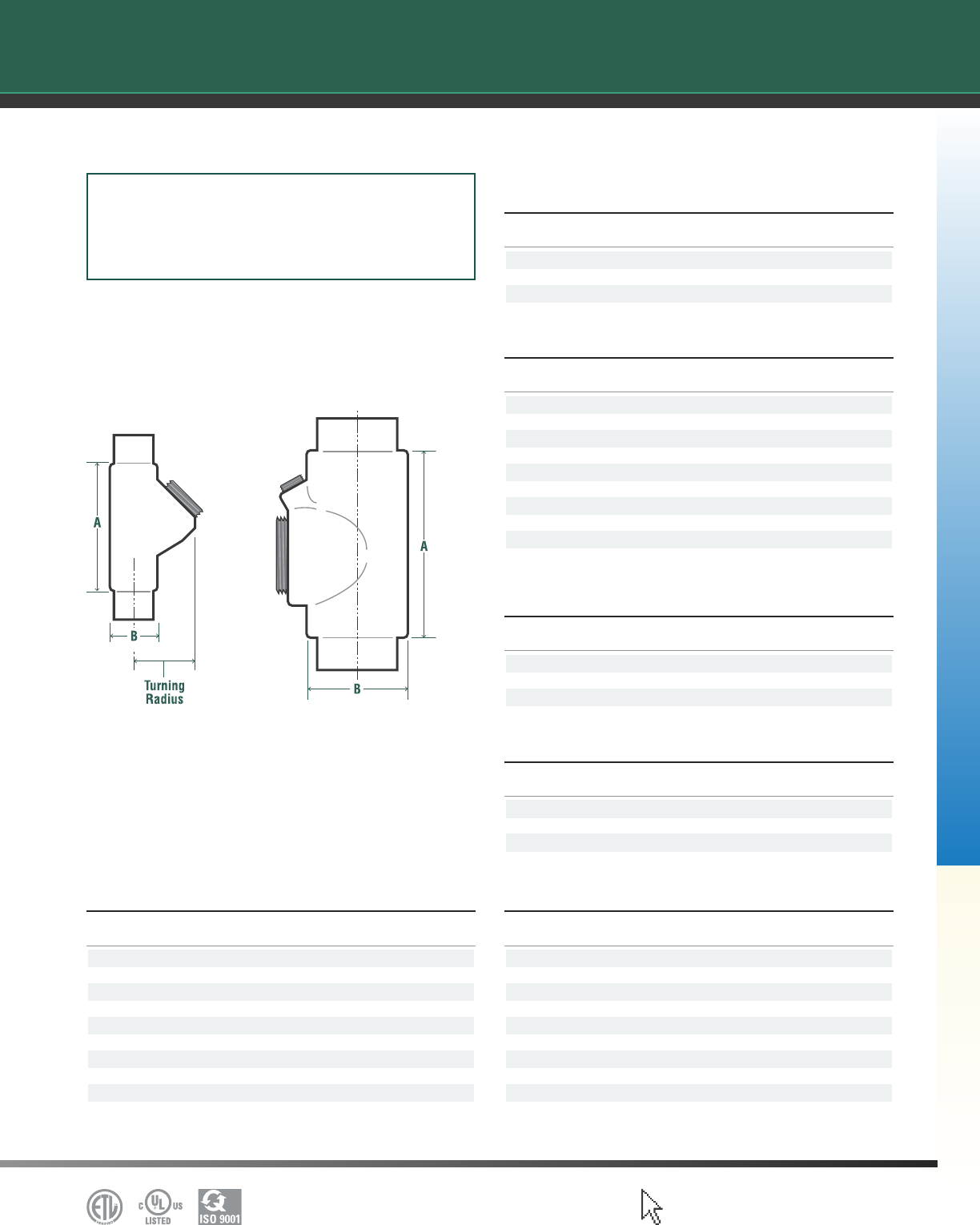

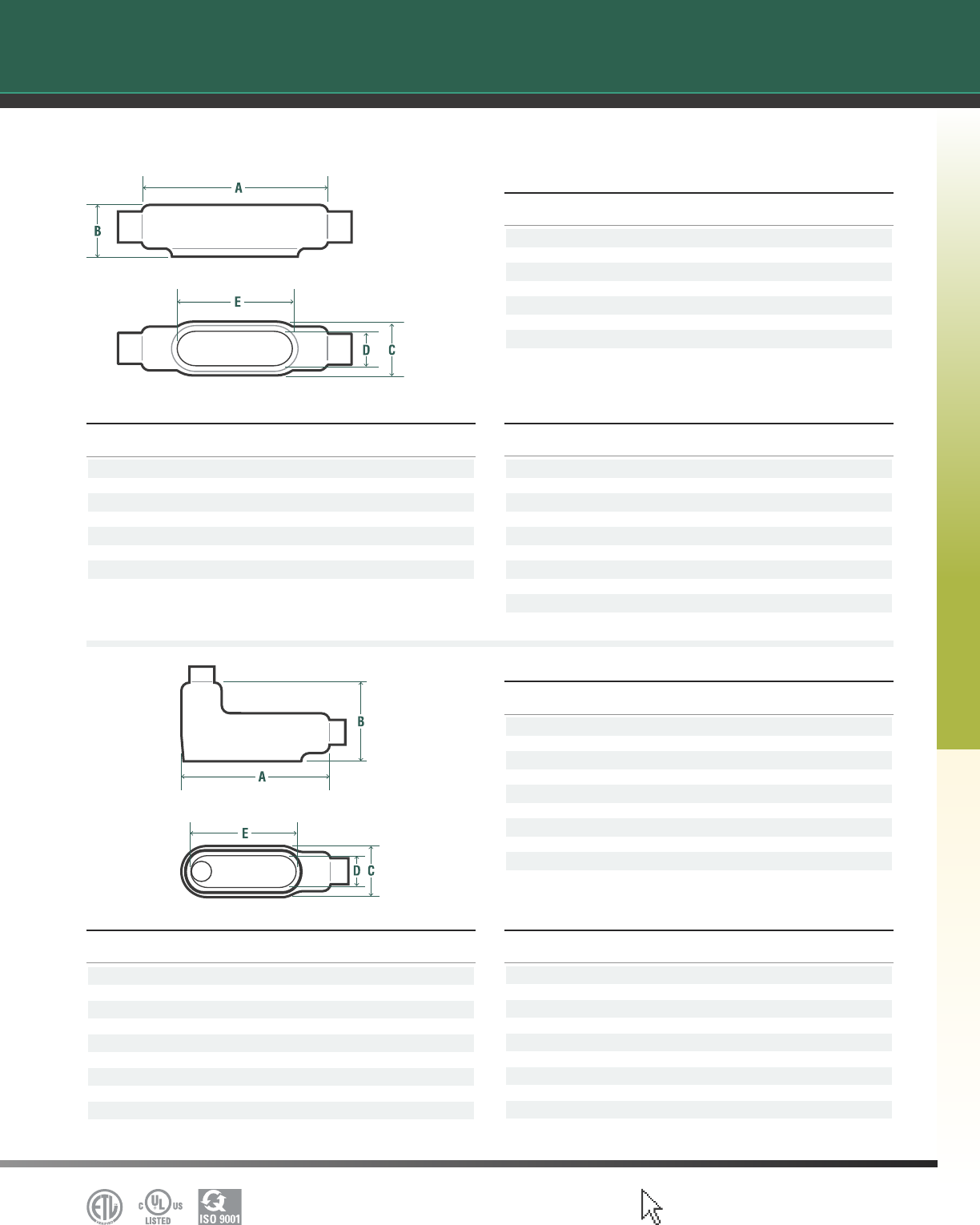

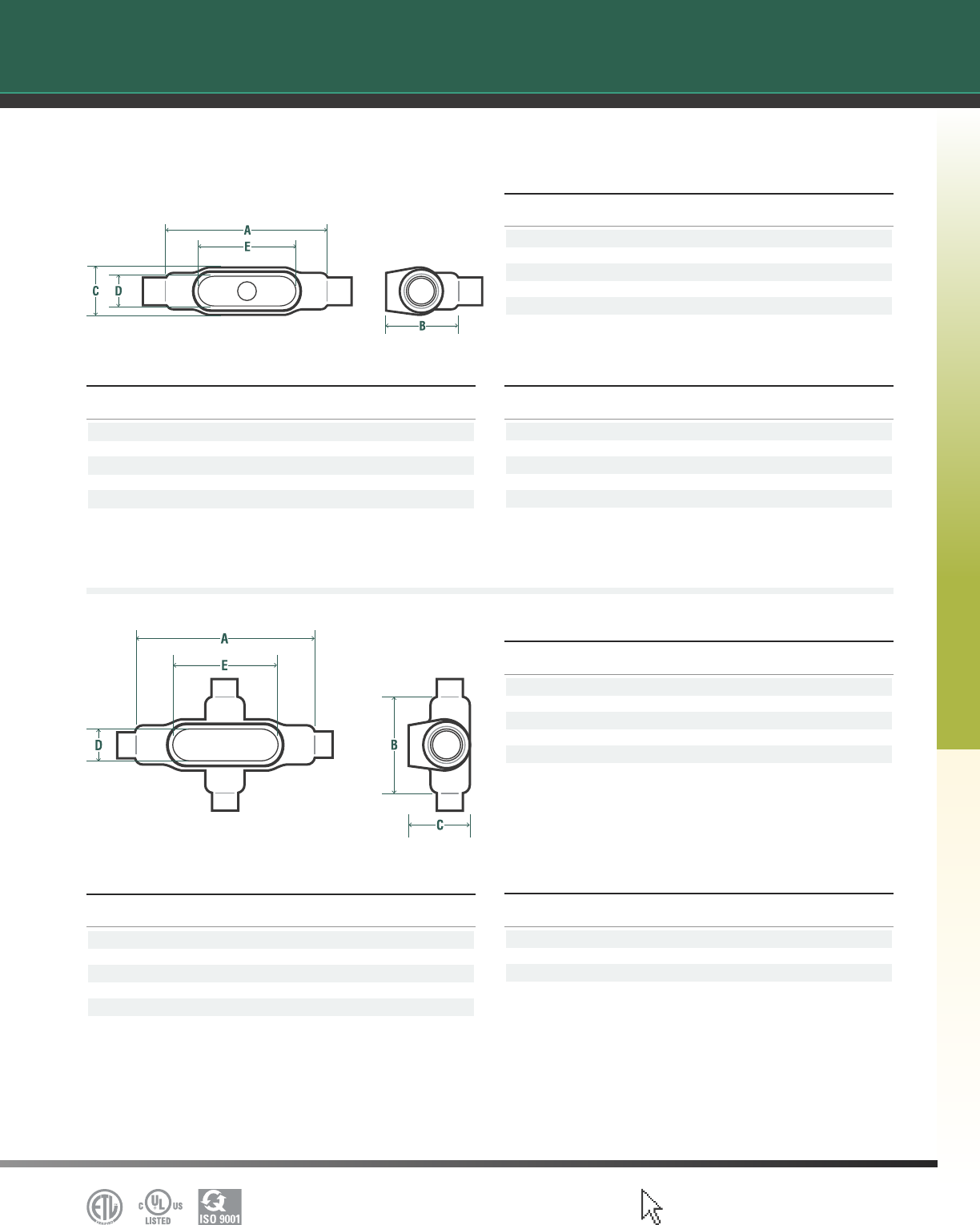

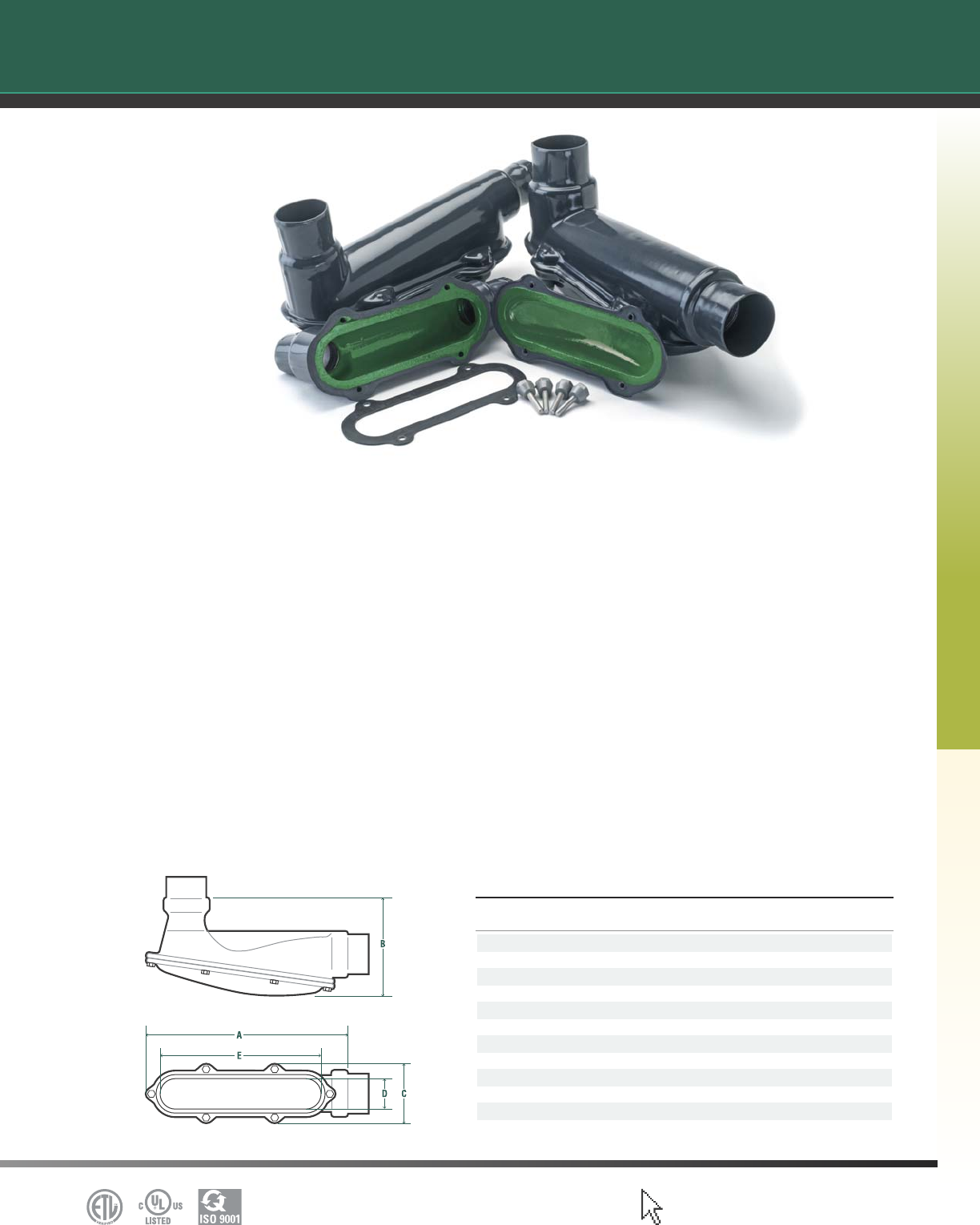

Conduit Bodies and Covers
(Form 7 & Form 8) ............................................28-32
Encapsulated Screws ..............................................32
Pulling Elbows ........................................................33
Mogul Style Conduit Bodies and Covers ............34-35
Knockout Hubs ..................................................36-37

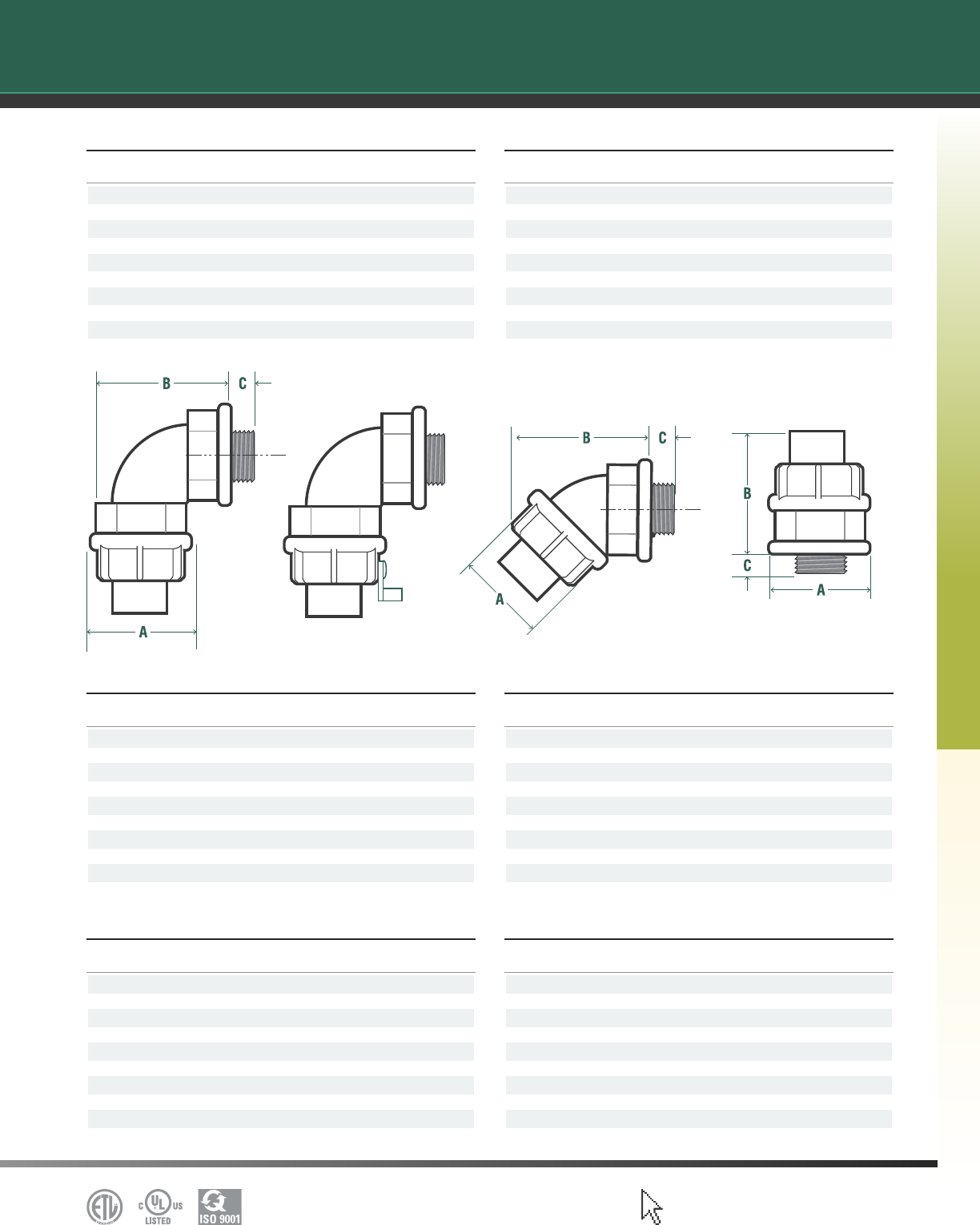

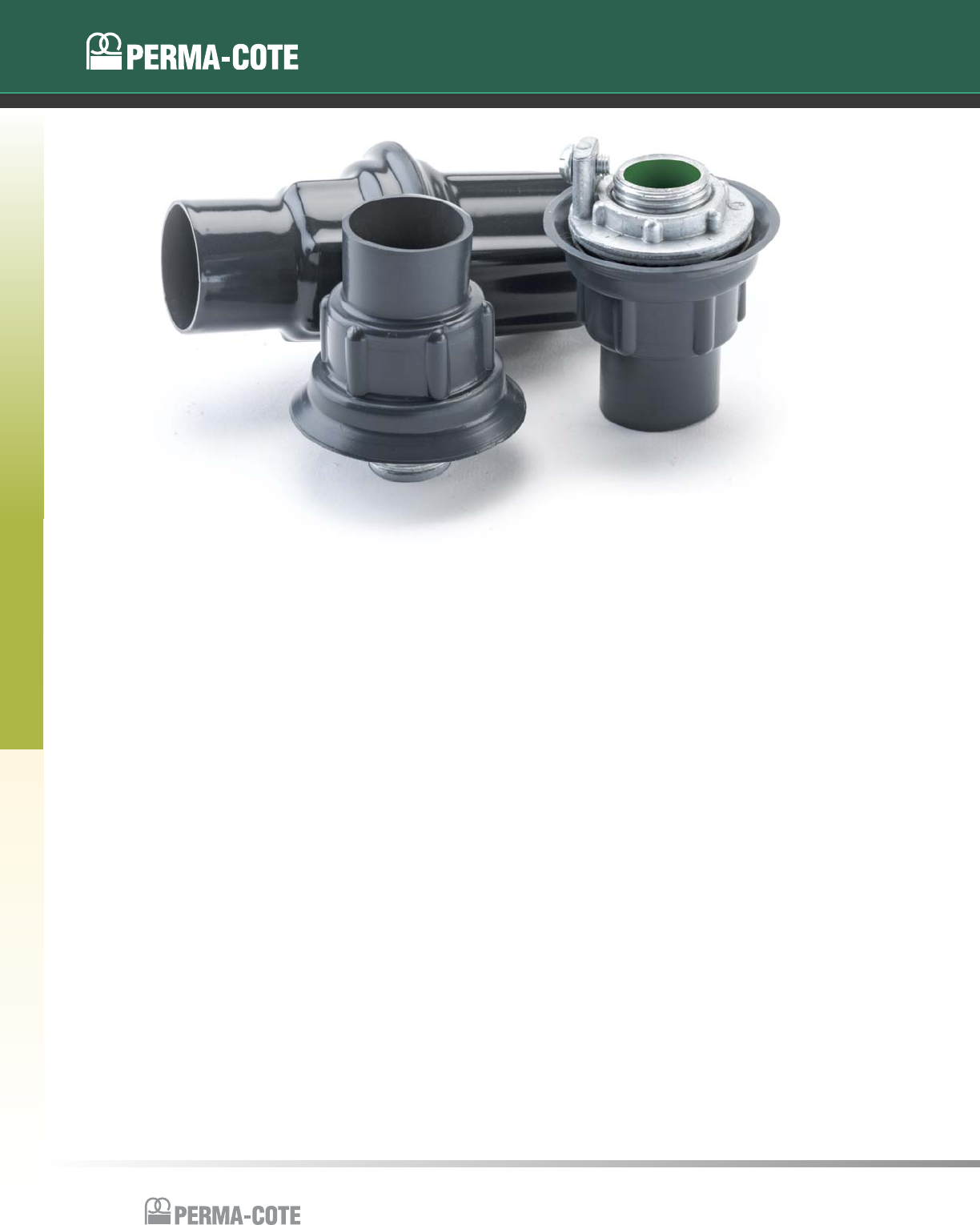

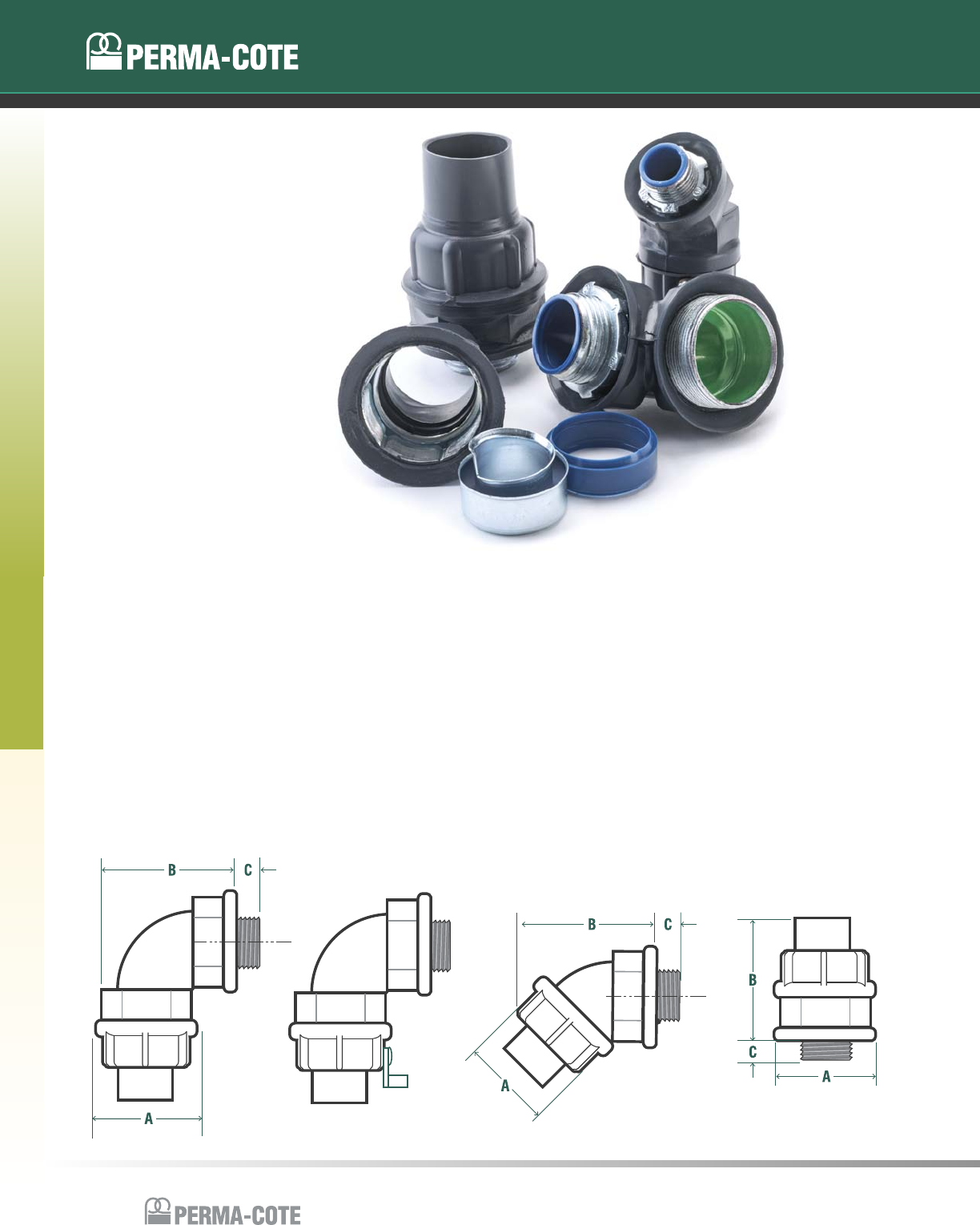

Liquid Tight Connectors ......................................38-39
TECK Series Cable Fittings..................................40-41
Grounding Bushings ................................................42
Split Couplings ........................................................42
Reducing Couplings ................................................43
Reducing Bushings ..................................................43
Plugs ......................................................................43
AX Type Conduit Expansion Joints ............................44
Hazardous Location Fittings
Conduit Unions UNF & UNY Unions ........................45
Service Entrance Elbows..........................................46
Malleable Elbows ....................................................47

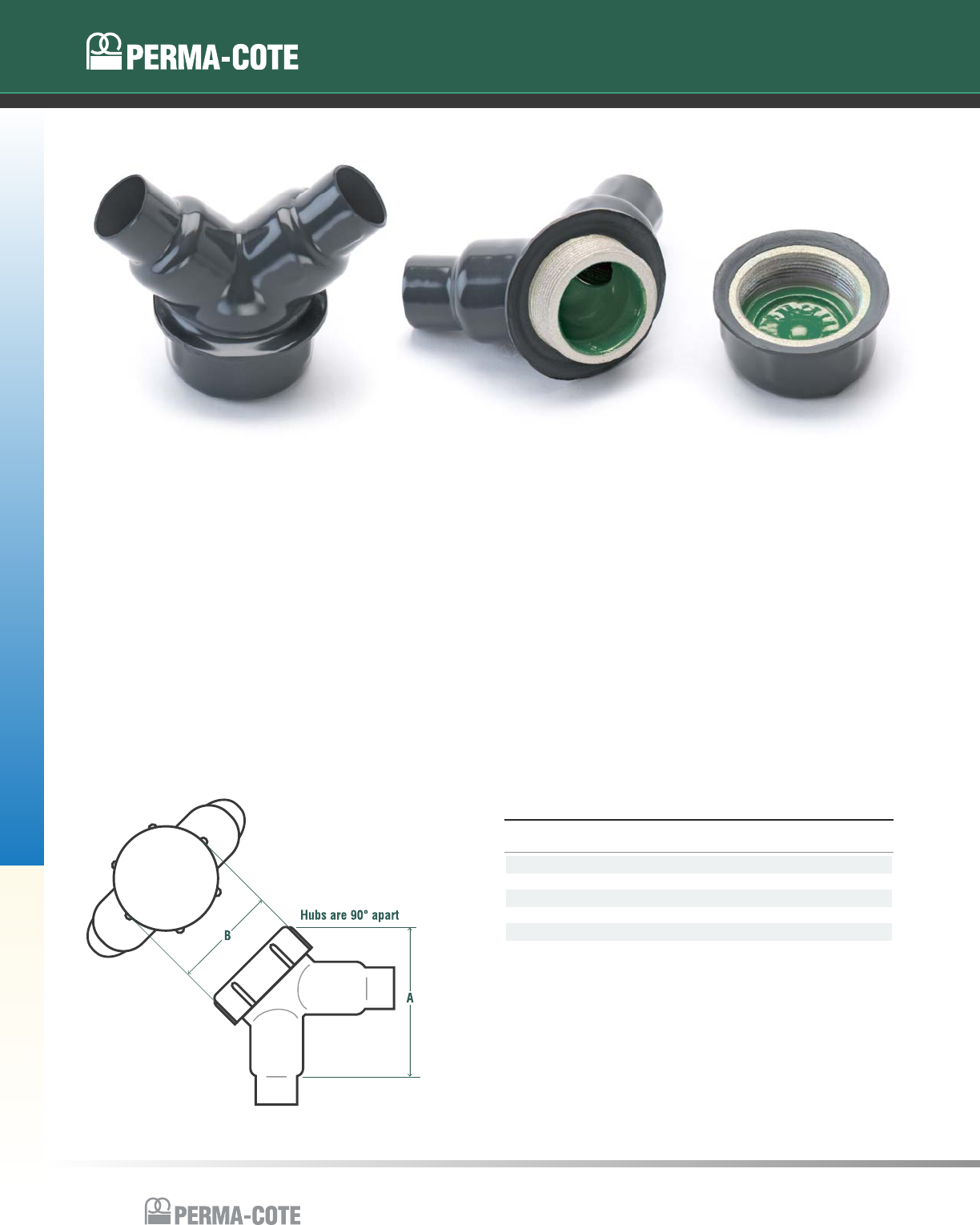

GUA Style Conduit Outlet Boxes ........................48-49
Sealing Fittings ..................................................50-53
OE Series Conduit Outlet Boxes ..............................54
Support Products

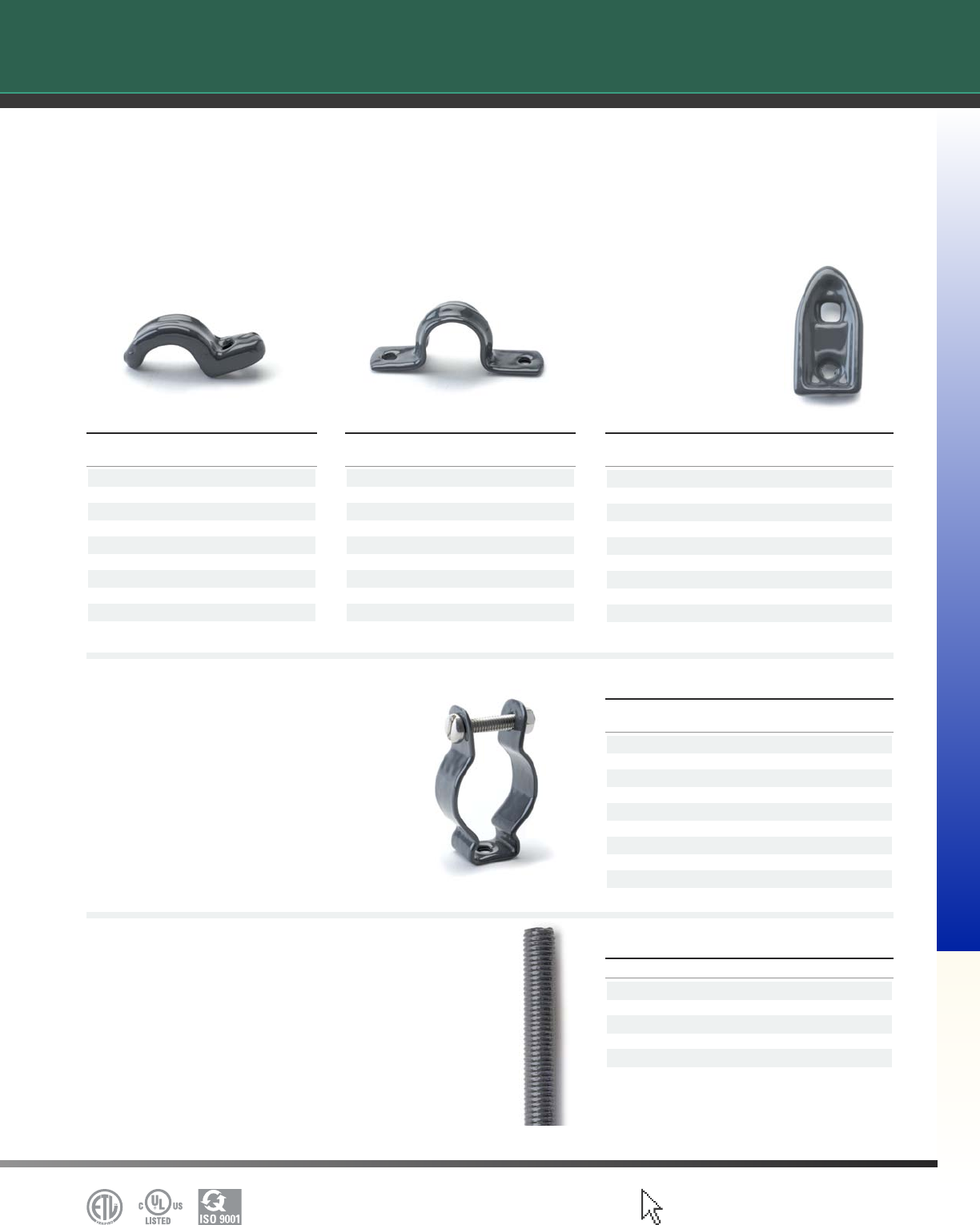

PVC Coated Pipe Straps ..........................................55
PVC Coated Clamp Hangers ....................................55
PVC Coated Clamp Back Spacer..............................55
PVC Coated Thread Rods ........................................55

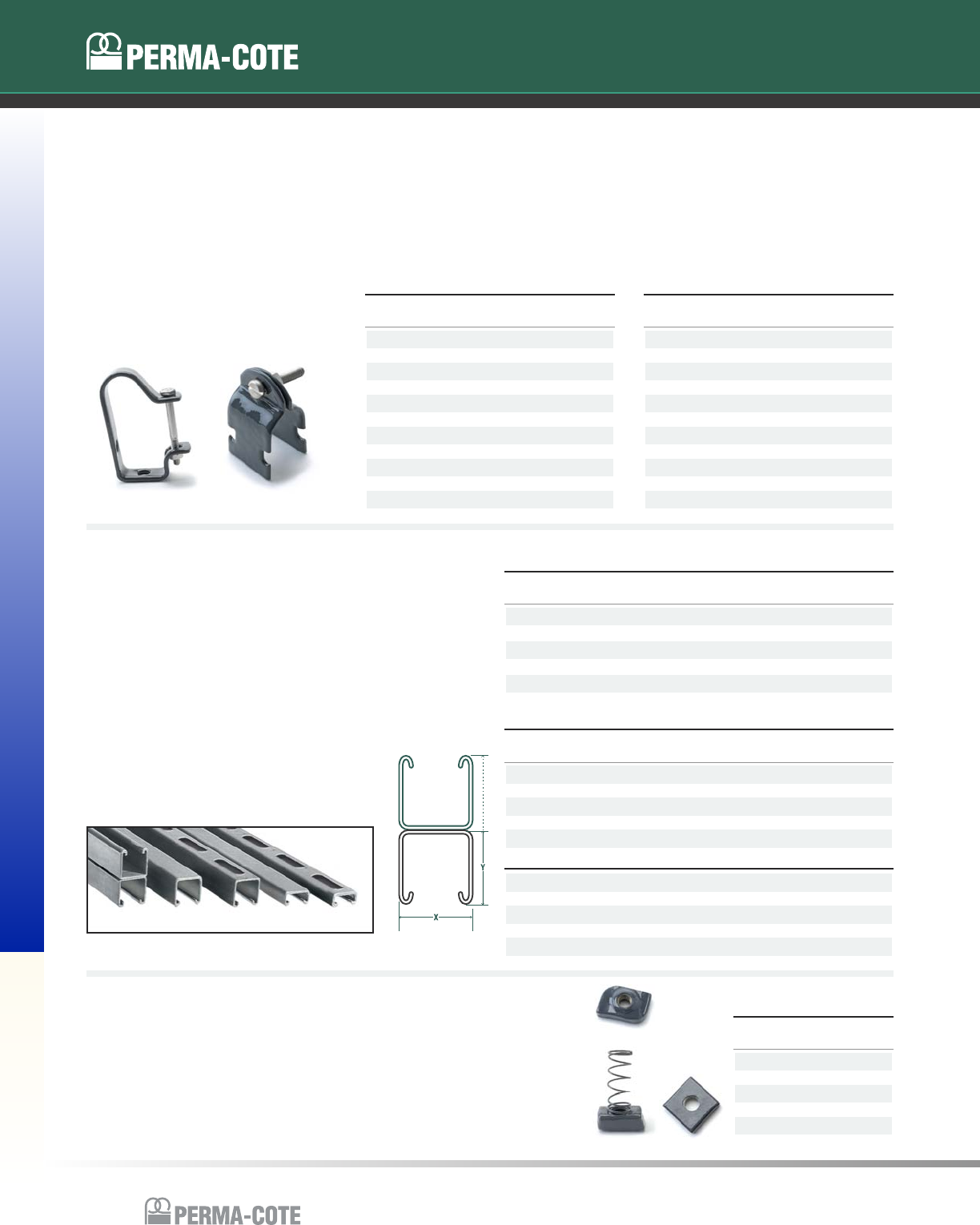

PVC Coated Strut Straps & J Hangers ......................56
PVC Coated Struts ..................................................56
PVC Coated Strut Nuts ............................................56

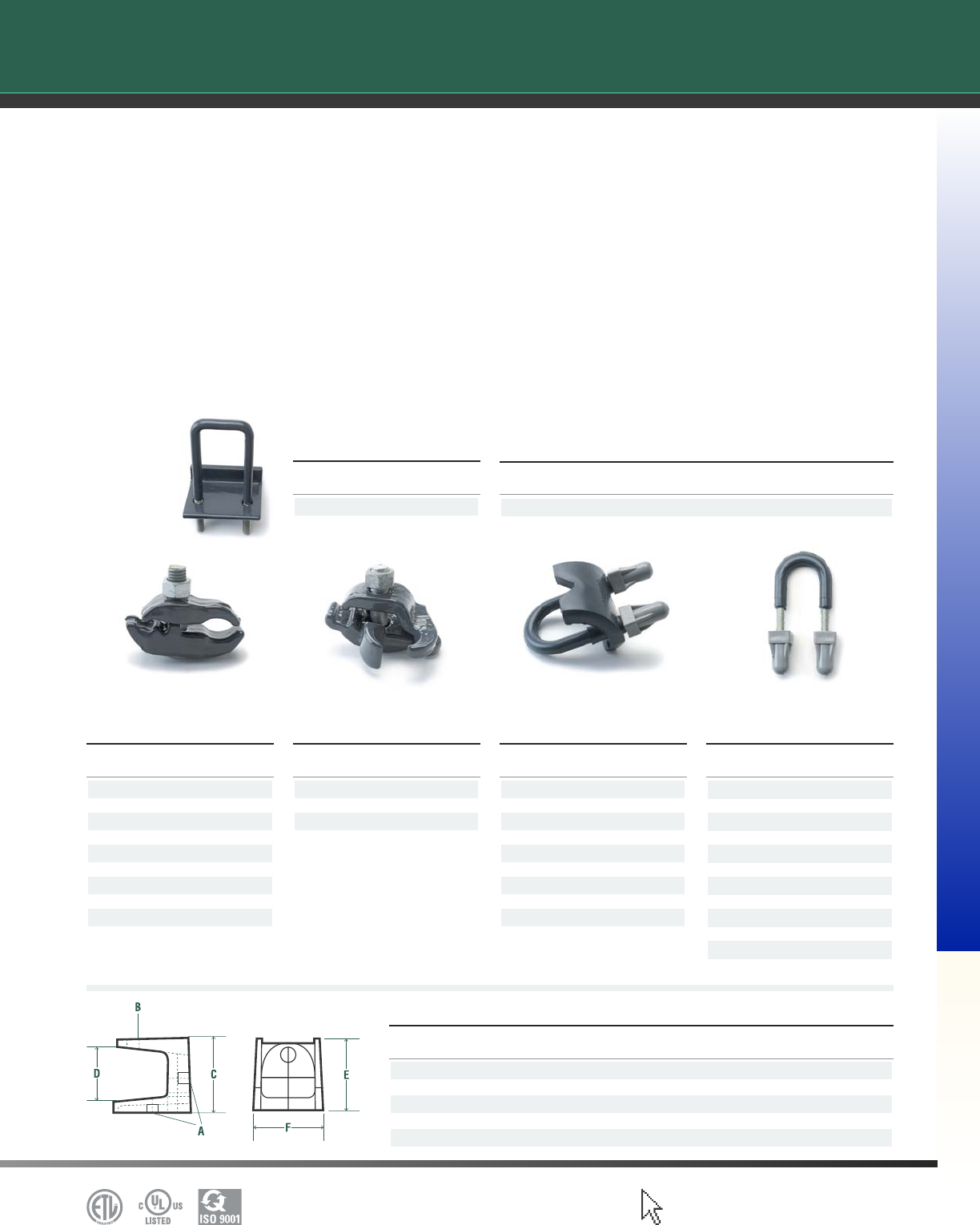

PVC Coated Beam Clamps ......................................57

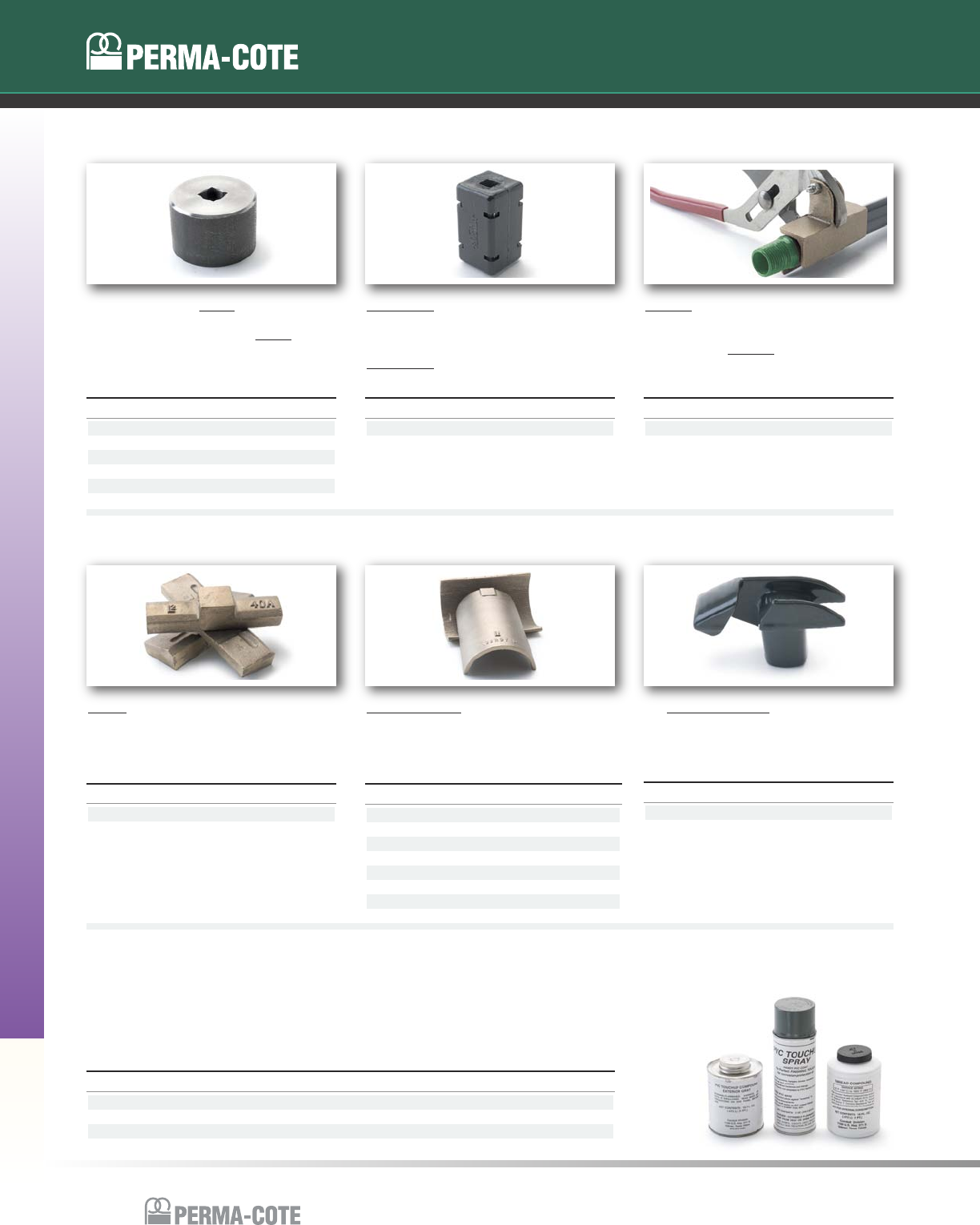

Installation Tools
Spin-It ....................................................................58
Plasti-Socket ..........................................................58
Z-Wrench ................................................................58
JAWS 3....................................................................58
Half Shell Clamps....................................................58
Hickey ....................................................................58
Touch Up Compounds..............................................58

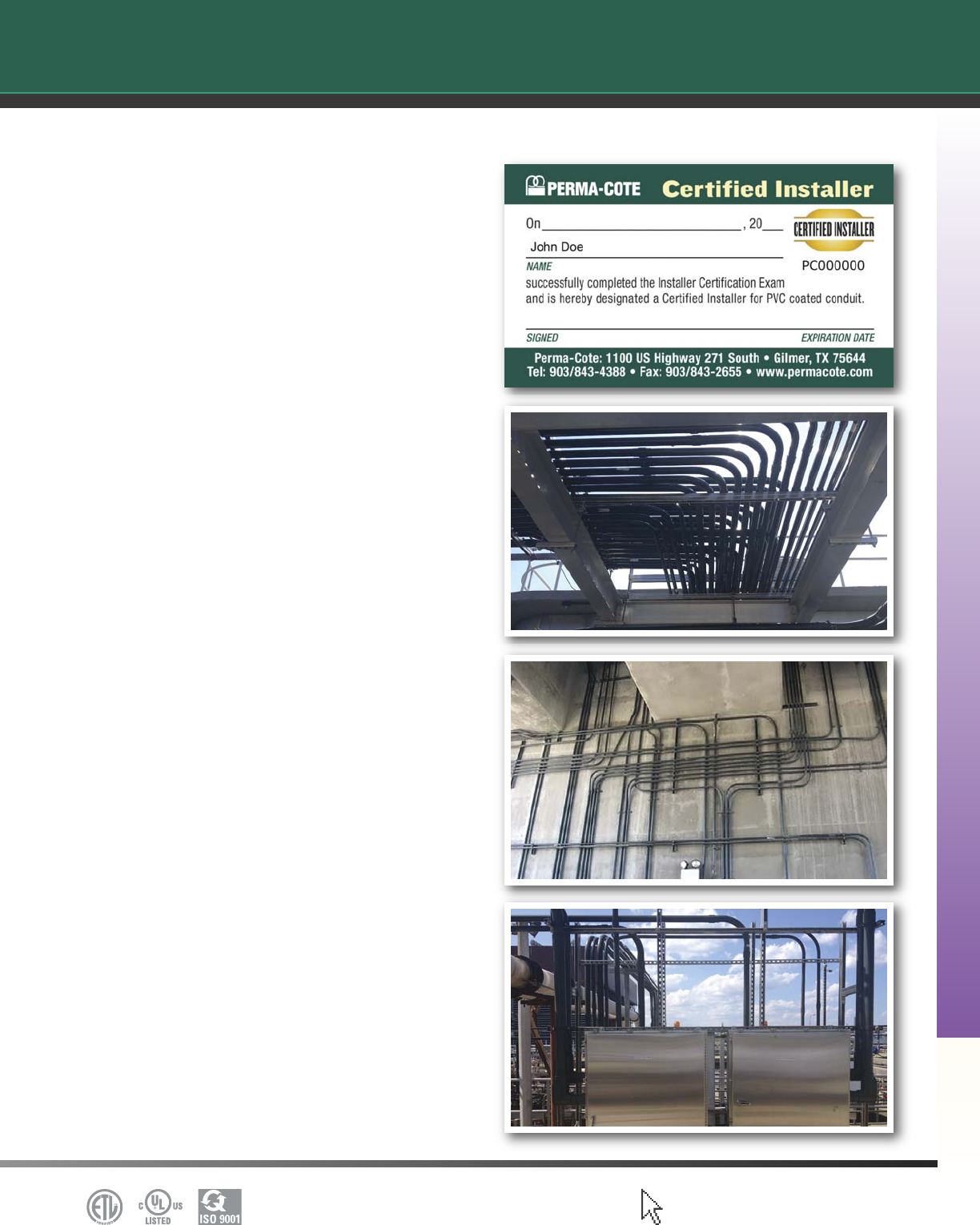

Installer Certication................................................59
Technical Information
Urethane Interior Coating
Chemical Resistance Chart ......................................60
PVC Exterior Coating
Chemical Resistance Chart ......................................61
Perma-Cote
Performance Standards/Descriptions ......................62
Table of Contents
Unless subject to another written agreement between the parties, the terms of which will be deemed to supersede this agreement, Robroy Industries-Texas, LLC retains all exclusive right, power and authority as to purchaser or any
subsequent purchaser to grant any right in and to any trademarks appearing on the goods or used in connection with any services supplied by Robroy Industries-Texas, LLC to purchaser (hereafter, “trademarks”). By purchasing any
goods or services from Robroy Industries-Texas, LLC, purchaser does not acquire any independent right to use any trademarks appearing on the goods or used in connection with any services. Robroy Industries-Texas, LLC reserves
the right, subject to reasonable notice, to request an audit and/or written verication to ensure that purchaser is not misusing any trademarks. Without rst obtaining the prior written authorization from Robroy Industries-Texas, LLC,
Purchaser cannot remove any trademarks from any goods or services supplied pursuant to this agreement, nor can purchaser add the trademarks to any other goods or use any trademarks in connection with any services not
supplied by Robroy Industries-Texas, LLC.
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644

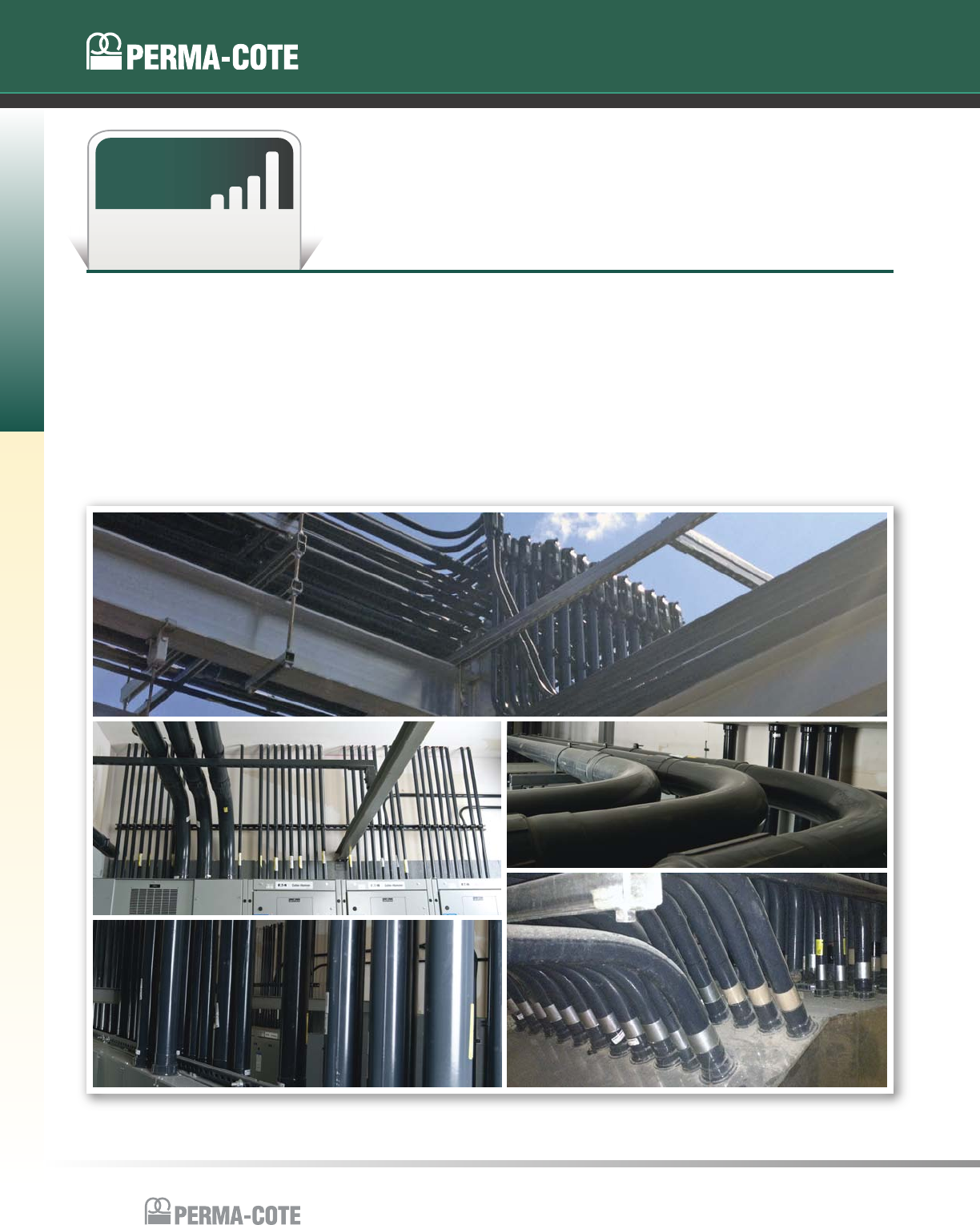

Overview
Product Performance
4
Perma-Cote ensures premium corrosion
protection without a premium price.
You deserve the corrosion protection you pay for.
ETL PVC-001 Veried Perma-Cote has been
independently proven to provide ten or more times
the protective product service life when compared
to other brands --- and at no added cost.
Ten times the proven protection from the high cost
of corrosion damage.
AT NO ADDED COST.
Ten times the proven protection against huge risks
from premature product or system failures caused
by subpar conduit quality.
AT NO ADDED COST.
PERFORMANCE MATTERS!
Seven reasons why you should trust the proven value
of Perma-Cote PVC-coated galvanized rigid conduit.
Reason One
1
Reason One:
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Overview
Why Adhesion is Critical
5
PERFORMANCE MATTERS!
Perma-Cote works because its coating adheres.
Not all brands can make that claim.
Reason
Two
2
When the PVC coating on galvanized rigid conduit
adheres --- the product will successfully protect the
steel substrate from corrosion damage.
When the PVC coating doesn’t adhere properly the
product will fail. It’s as simple as that.
All coatings are permeable, but those that have a
strong adhesive bond will not allow the substrate
to be exposed to the environmental elements.

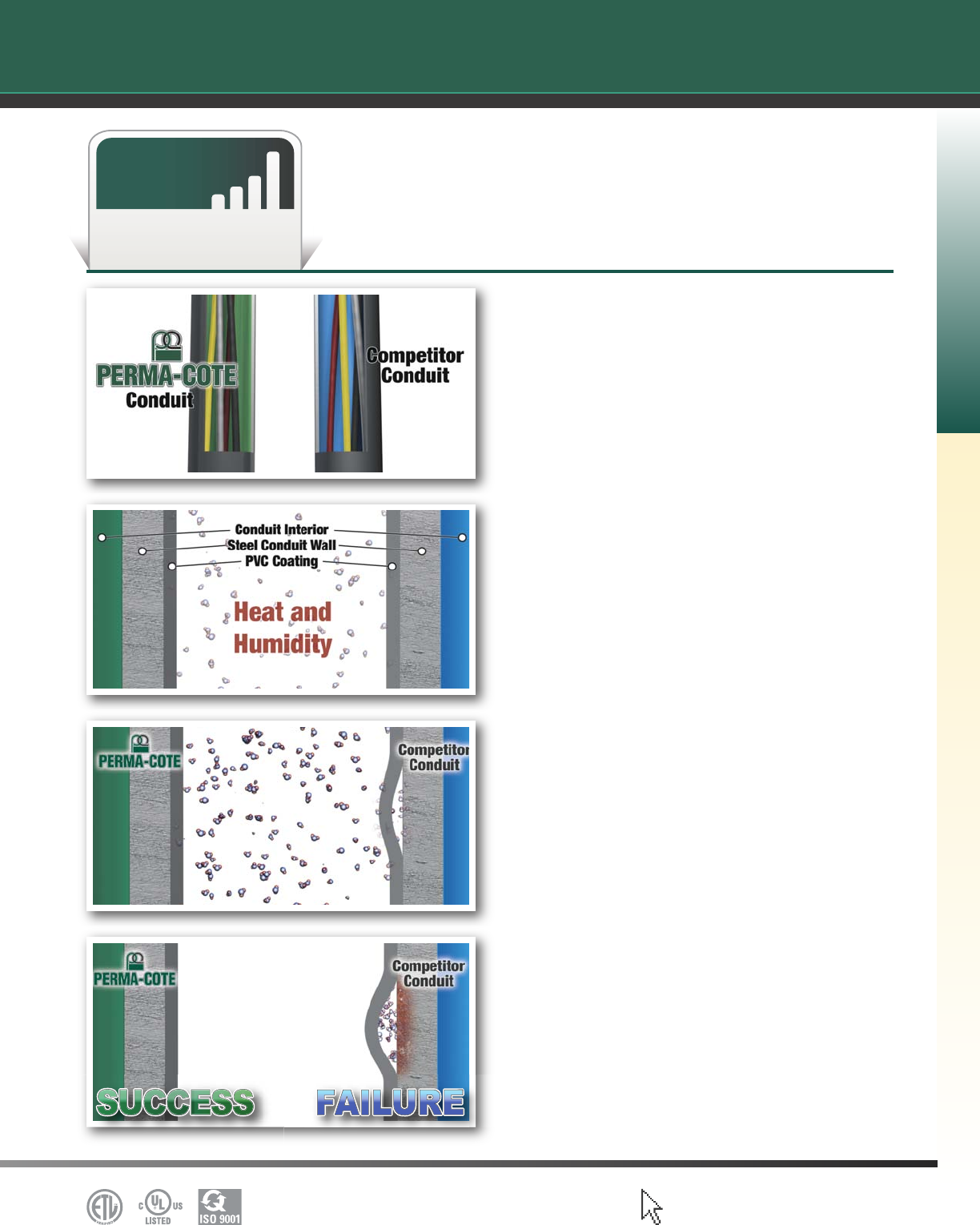

This graphic illustrates the tendency of the
competitive coating to lose adhesion. The result
is that moisture penetrates, creates voids or
pockets, and puts the metal substrate in direct
contact with corrosive elements.
This pocket actually accelerates corrosion because
it traps the contaminates between the coating and
substrate. The life span of coated conduit
becomes limited and failure is only a matter of
time. Don't allow this to happen to your conduit.
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Overview
Why Adhesion is Critical
6

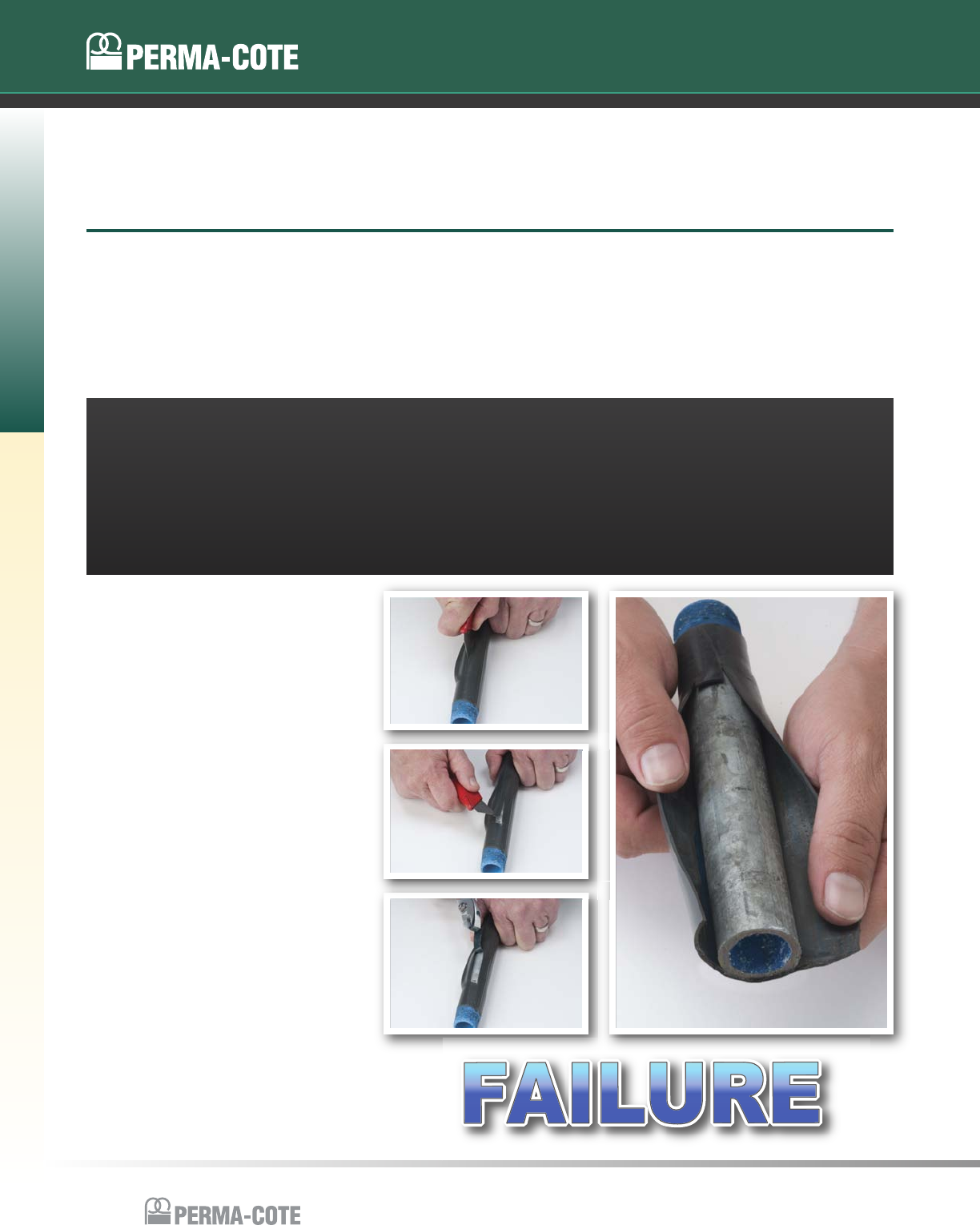

When cuts are made in
the PVC of the
competitor’s sample ---
and the tab of coating is
then pulled with pliers ---
the adhesive bonding
fails entirely and
separates completely
from the steel substrate
it is supposed to
protect.
Although there’s a clear distinction between
success and failure, not all manufacturers have
achieved a consistent level of reliable bonding.
Perma-Cote has.
Need proof? Seeing is believing.
In side-by-side performance comparisons these
two conduit samples were exposed for the same
number of test hours in boiling water.
Why boiling water?
Because the single most important measure of
product success is whether or not the PVC
coating will adhere to the steel substrate of the
conduit, thereby protecting it from corrosion.
ASTM-accepted accelerated tests in environments
such as the boiling water clearly differentiate
which coatings perform best. Perma-Cote has
been proven reliable even in such extreme
environments, so imagine how well it will perform
in diverse on-the-job applications.
PERFORMANCE MATTERS!
Perma-Cote works because its coating adheres.
Not all brands can make that claim.
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Overview
Why Adhesion is Critical
7

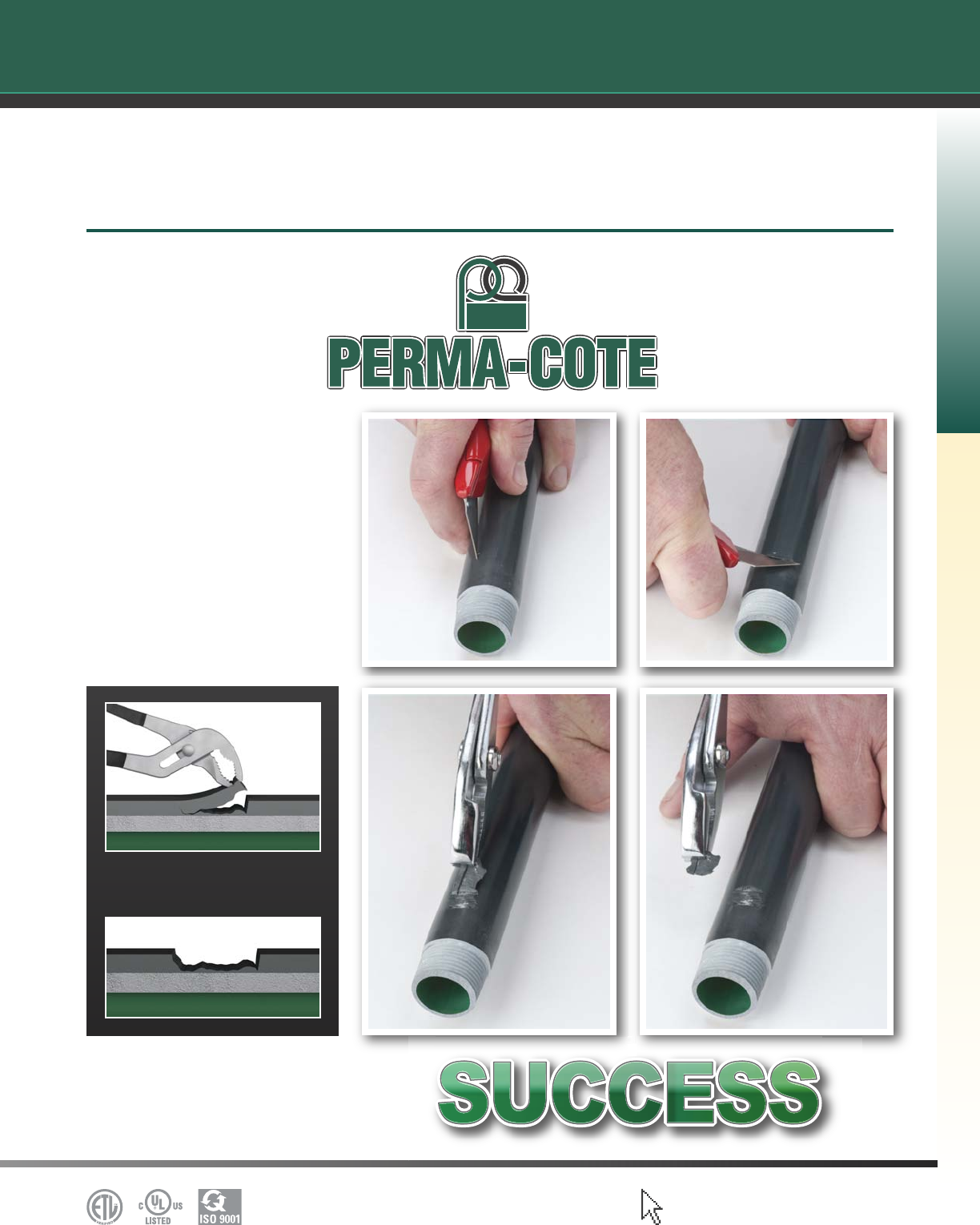

When the same
procedure is applied to
Perma-Cote (right), the
PVC breaks away from
itself and does not
expose the substrate
--- thereby preserving
the all-important bond
that ghts corrosion.
PERFORMANCE MATTERS!
Perma-Cote works because its coating adheres.
Not all brands can make that claim.
SUCCESS:
Adhesive Bond is Stronger
than the PVC Coating
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Overview
ETL-Verication
8
All major brands of PVC-coated galvanized rigid conduit meet exactly the same standards established in
UL, and are authorized to carry an identical UL listing label for PVC- coated galvanized rigid conduit.
However --- not all brands are ETL PVC-001 Veried.
Perma-Cote is. Others are not.
PERFORMANCE MATTERS!
Perma-Cote is both UL6 listed and
ETL PVC-001 Veried. Others are not.
Reason Three
3
Why is this of critical importance?
UL6 is an important standard that addresses
safety for rigid metal conduit. It is not,
however, a performance standard.
ETL PVC-001 Veried is an internationally
recognized listing based on performance
evaluations and on predicting service life.
It is on the basis of independent, objective
product comparisons by ETL that Perma-Cote has been proven to provide ten or more times the protective
service life of brands that are not authorized to carry the ETL PVC-001 label.
Here are some additional facts that you should know:
•ETL PVC-001 validates the coating performance of PVC-coated galvanized rigid conduit based on
ASTM D870 and ASTM D1151/ASTM D2247 --- the accepted ASTM tests for predicting product service
life. These tests are not intended to replicate a specic environment. Rather, they are designed to predict
the service life of a coating under the two most common conditions that affect adhesive bonds: heat and
humidity.
•Perma-Cote re-earns its ETL PVC-001 label on a quarterly basis by repeatedly and successfully passing
the stringent performance tests required for verication.
•ETL verication is an “open standard”. Testing is open to any manufacturer who believes that the quality
of its protective coating can consistently meet ETL verication requirements. If you do not see an ETL
label on a brand of PVC-coated galvanized rigid conduit, you have every right to ask “why not?”
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Overview
Product Performance | ETL-Verication
9
Specifying ETL PVC-001 Veried Perma-Cote protects you, and those to whom you are
responsible, from the enormous risk of premature PVC-coated galvanized rigid conduit failure.
PERFORMANCE MATTERS!
Risk of premature PVC-coated galvanized rigid
conduit failure.
Reason Four
4
ETL quantied the adhesion performance of the
two products in the same heat and humidity
test at 150˚F and 95% relative humidity.
Perma-Cote testing was stopped after 90 days
with zero adhesion loss.
The competitor’s coating began to delaminate
after 9 days and had complete delamination at
approximately 20 days.
In the hot water immersion test, the competitor’s
coating adhesion failed almost immediately.
Perma-Cote coating was tested for 200 hours
with zero failure.
To review the vital reasons why:
•All major PVC-coated conduit brands comply with
standards as established by UL6.
•There exists only one denitive difference
between brands of PVC-coated galvanized rigid
conduit: ETL PVC-001 Verication of product
performance and predictability of service life.
Therefore, if reliability of product service life is
important to engineering design, avoidance of
costly or catastrophic product or system failure, it
should be assumed in the specication process
that only PVC-coated galvanized conduit carrying
the ETL verication label will meet the standards
established by all relevant ASTM tests, including
those predicting product service life.

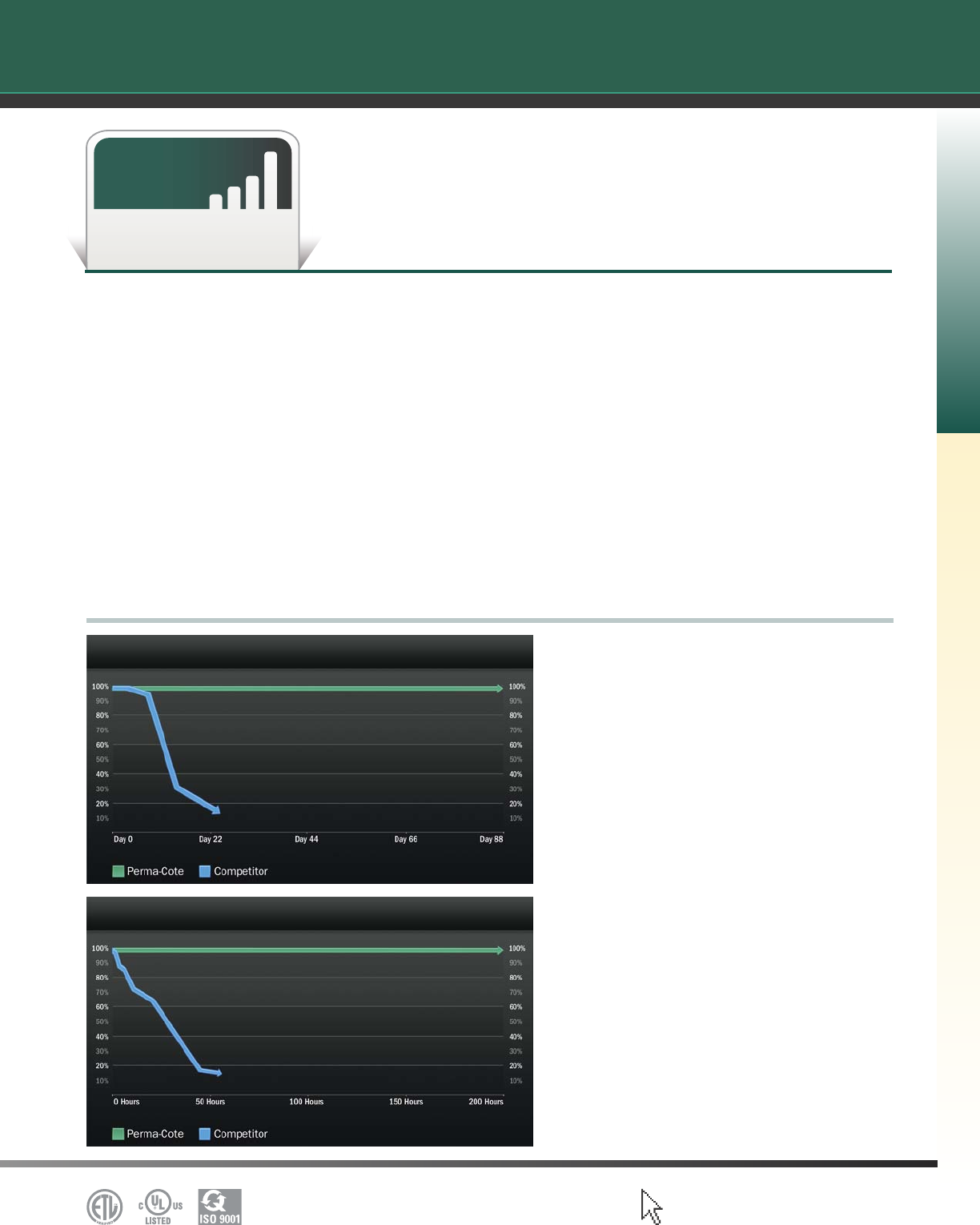

PVC External Coating Adhesion – Perma-Cote vs. Competitor
COMPARISON BY DAYS OF HEAT/HUMIDITY EXPOSURE
PVC External Coating Adhesion – Perma-Cote vs. Competitor
COMPARISON BY HOURS OF HOT WATER IMMERSION
The risk of premature product failure can have an enormous impact on costs including downtime, safety,
legal and environmental.
That fact needs to be addressed in job specications by written mandates requiring ETL PVC-001
Verication.
Heat/Humidity Exposure - 90 Days ASTM 1151/2247
Hot Water Immersion - 200 Hours ASTM D870
Graphic representation of ETL test
results of Perma-Cote compared to
competitor.
COMPETITOR FAILURE
COMPETITOR FAILURE
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Overview
Manufacturing Performance!
10
Not all PVC-coated galvanized rigid
conduit is created equal.
Perma-Cote has maintained and
evolved its position of technological
leadership in many key ways:
Unmatched bonding
adhesion for unmatched
conduit protection.
Perma-Cote thoroughly understands
and conforms to the voluntary,
non-regulated guidelines of the
NEMA RN-1 standard. This is
especially true with regard to how we
prepare the zinc surface of conduit to
enable a degree of coating adhesion
not achieved by other manufacturers.
In accomplishing this we remove surface oxidation and, through a special technology called AEP
(Adhesion Enhancement Process), we rough the outer surface of the zinc without harming or eroding it.
In that way, not only do we comply with NEMA RN-1, but we exceed it. Our hot dipped galvanized conduit
and ttings outperform the competition because we have prepared the surface of our products for
maximum bonding reliability.
PERFORMANCE MATTERS!
Unsurpassed manufacturing explains why
Perma-Cote has “No Equal.”
Reason Five
5
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Overview
Manufacturing Performance!
11

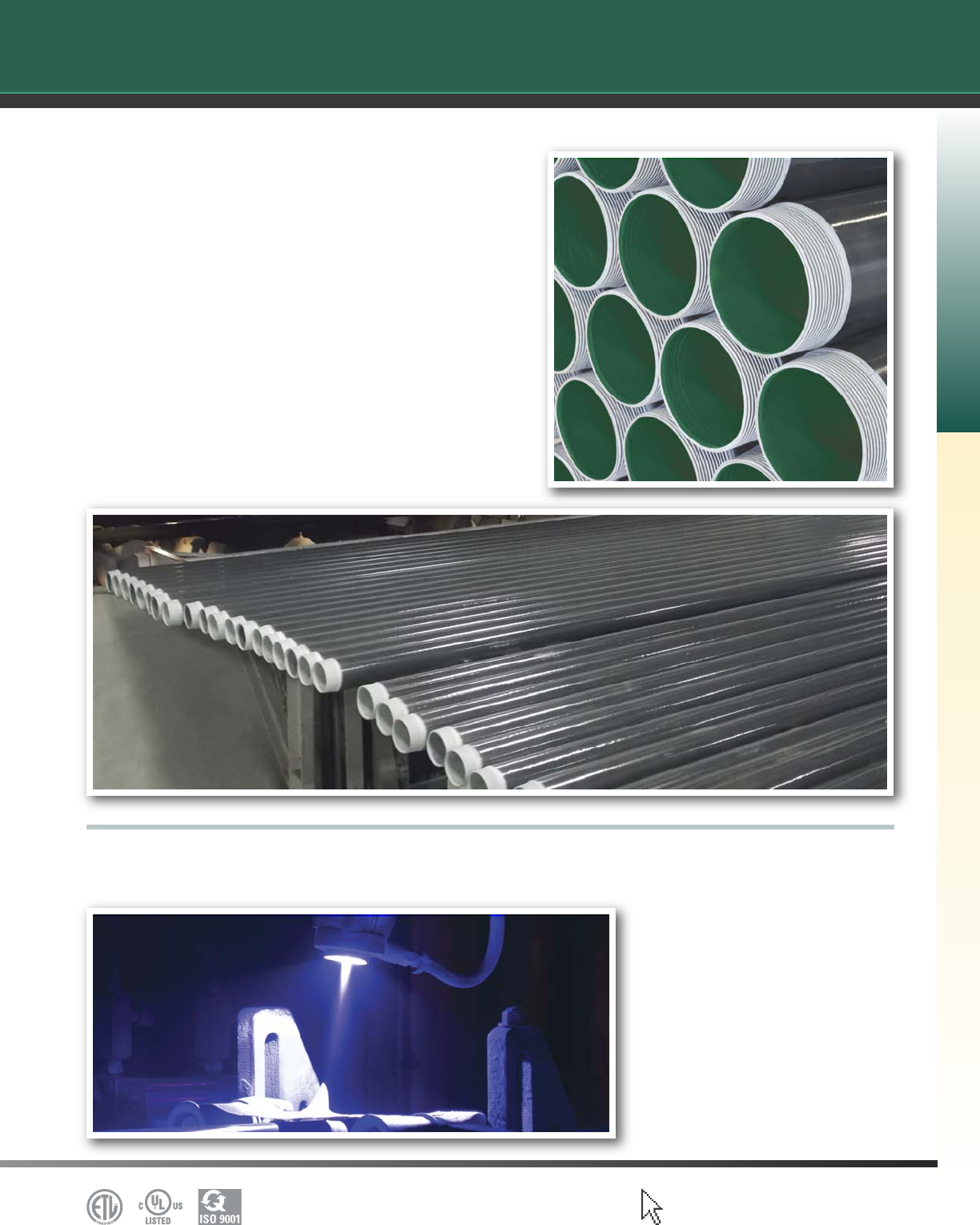

Nothing can touch our threads!

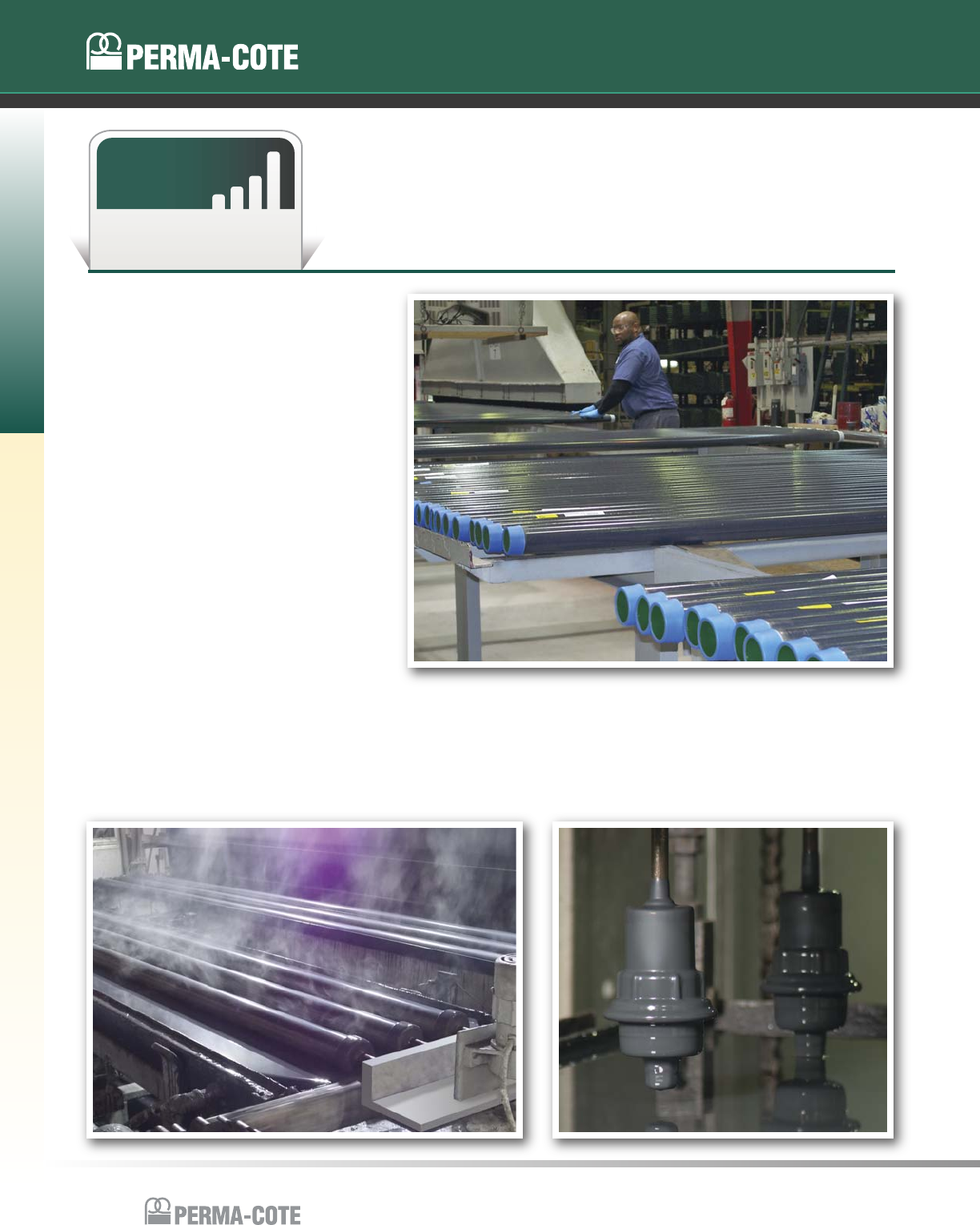

Our multimillion dollar ProTECH™ system provides our
conduit threads with unsurpassed corrosion protection.
After PVC coating of the conduit, the automated process
begins with a trimming operation to remove excess PVC
from the conduit ends.
Next is mechanical surface preparation of the previously
chemically cleaned conduit threads. This is critical
because surface preparation is the key to any good bond.
Then, the clean pipe threads are hot-galvanized using
specially designed equipment, including 3-axis robotic
arms.
Through the nal manufacturing process nothing touches
the zinc coating of our threads!
Our manufacturing process is open to our customers.
Come see for yourself and compare to what our competitors don’t do.
Perma-Cote
“No Equal”
PERFORMANCE MATTERS!
Perma-Cote provides you value-added differentiators.
Reason Six
6

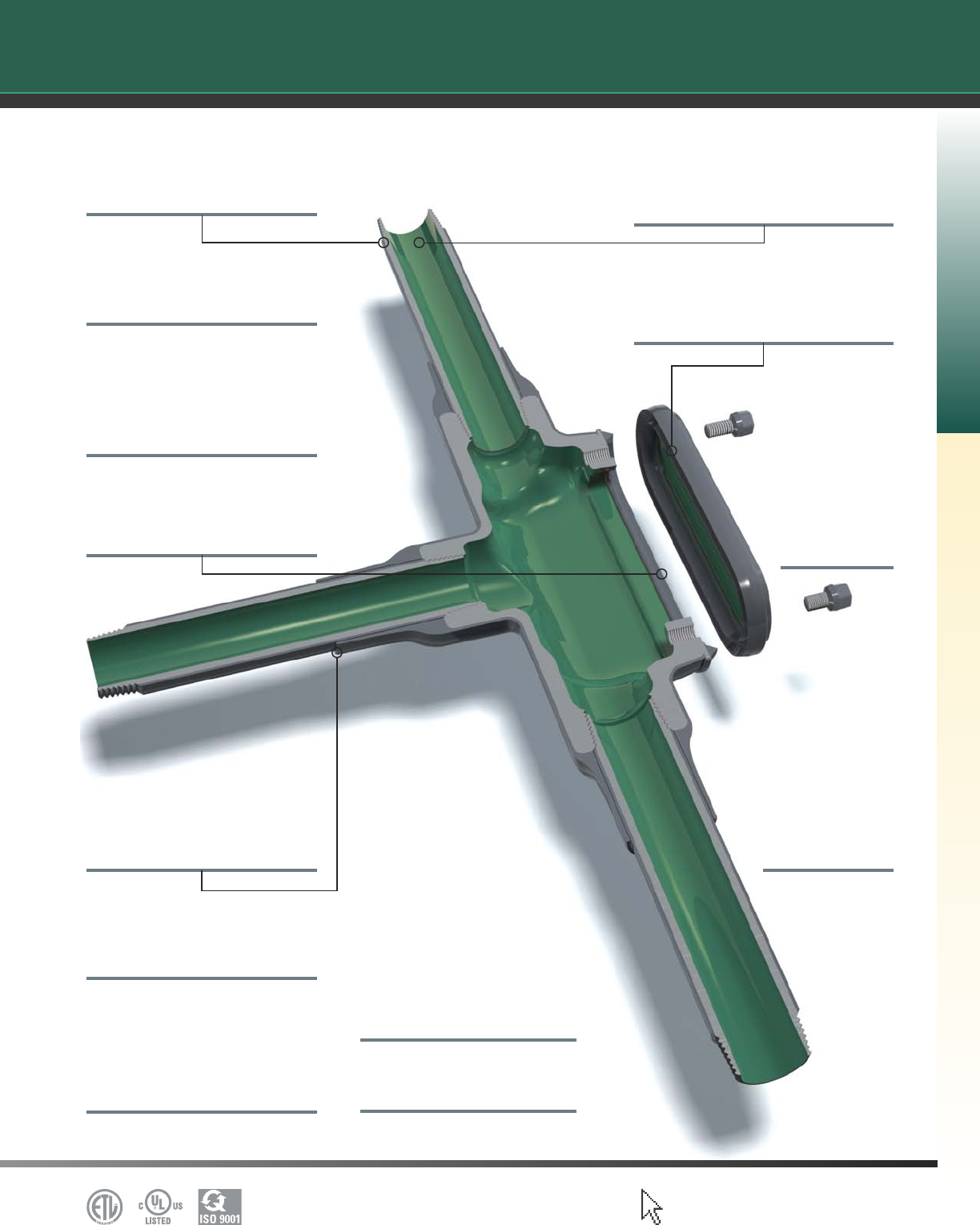

Perma-Cote is not simply a product --- it is a key link in a system
designed to beat the high cost of corrosion damage. The following
graphic illustrates how the benecial differentiators of Perma-Cote
provide added value in making the system work.

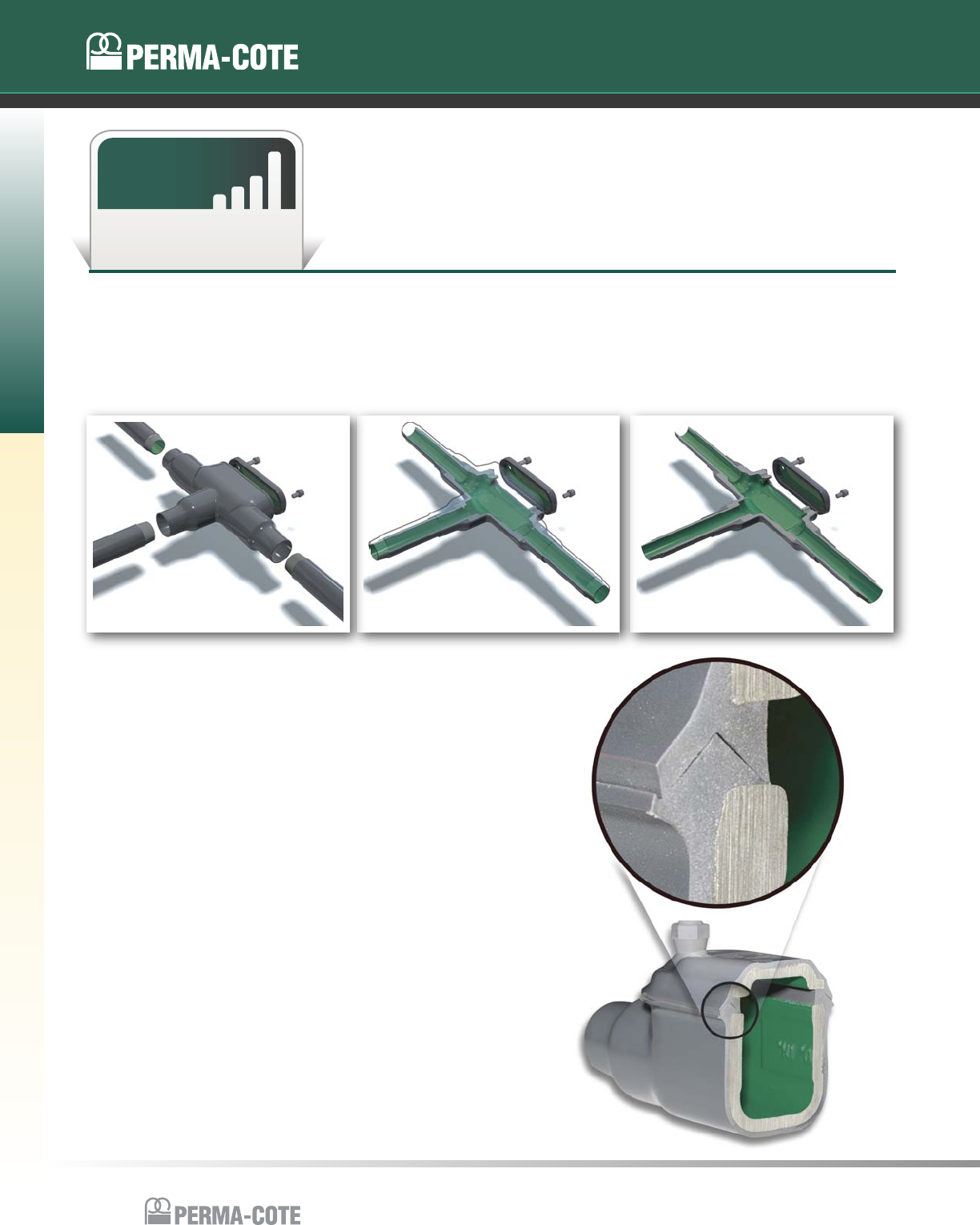

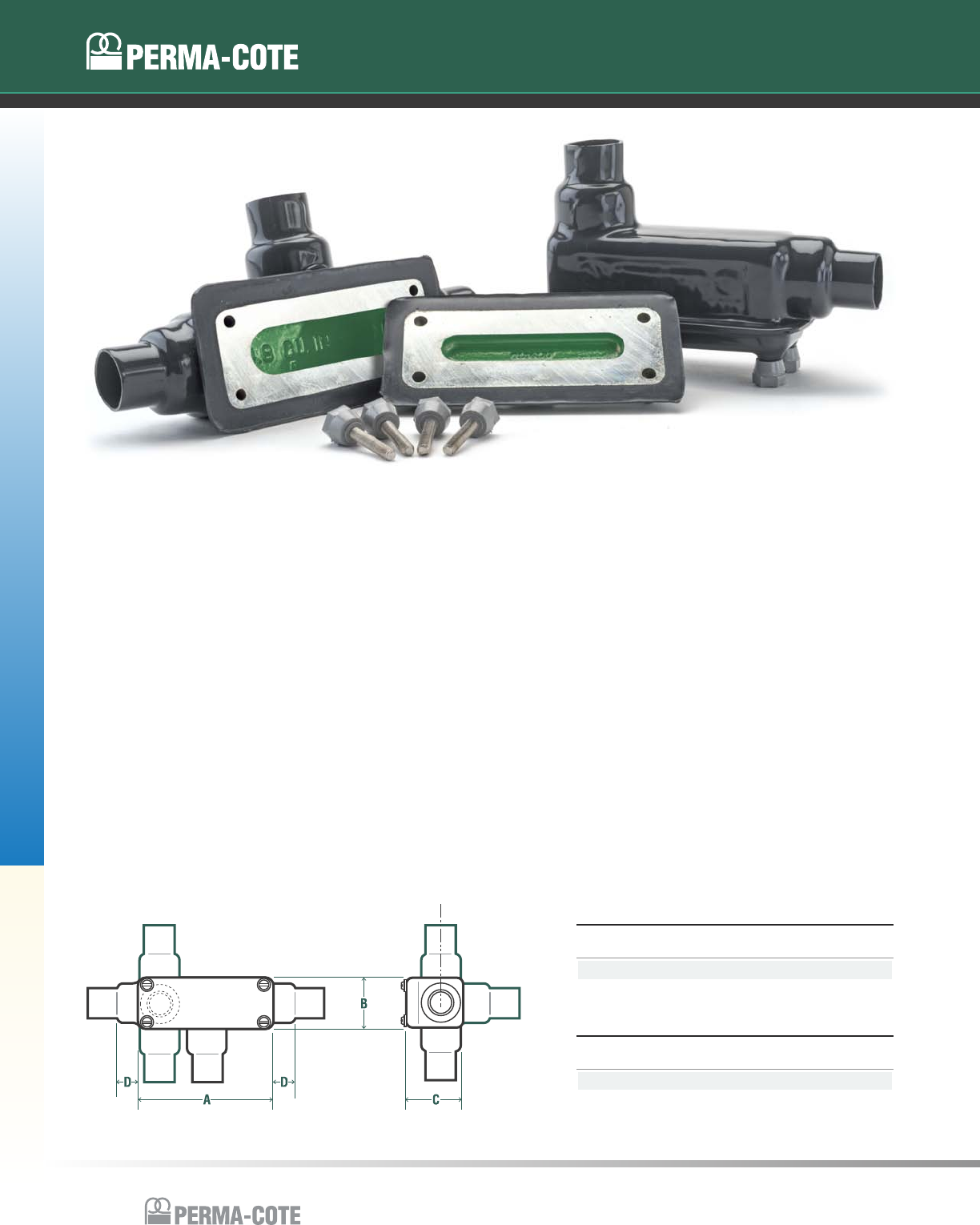

OUR UNIQUE V-SEAL

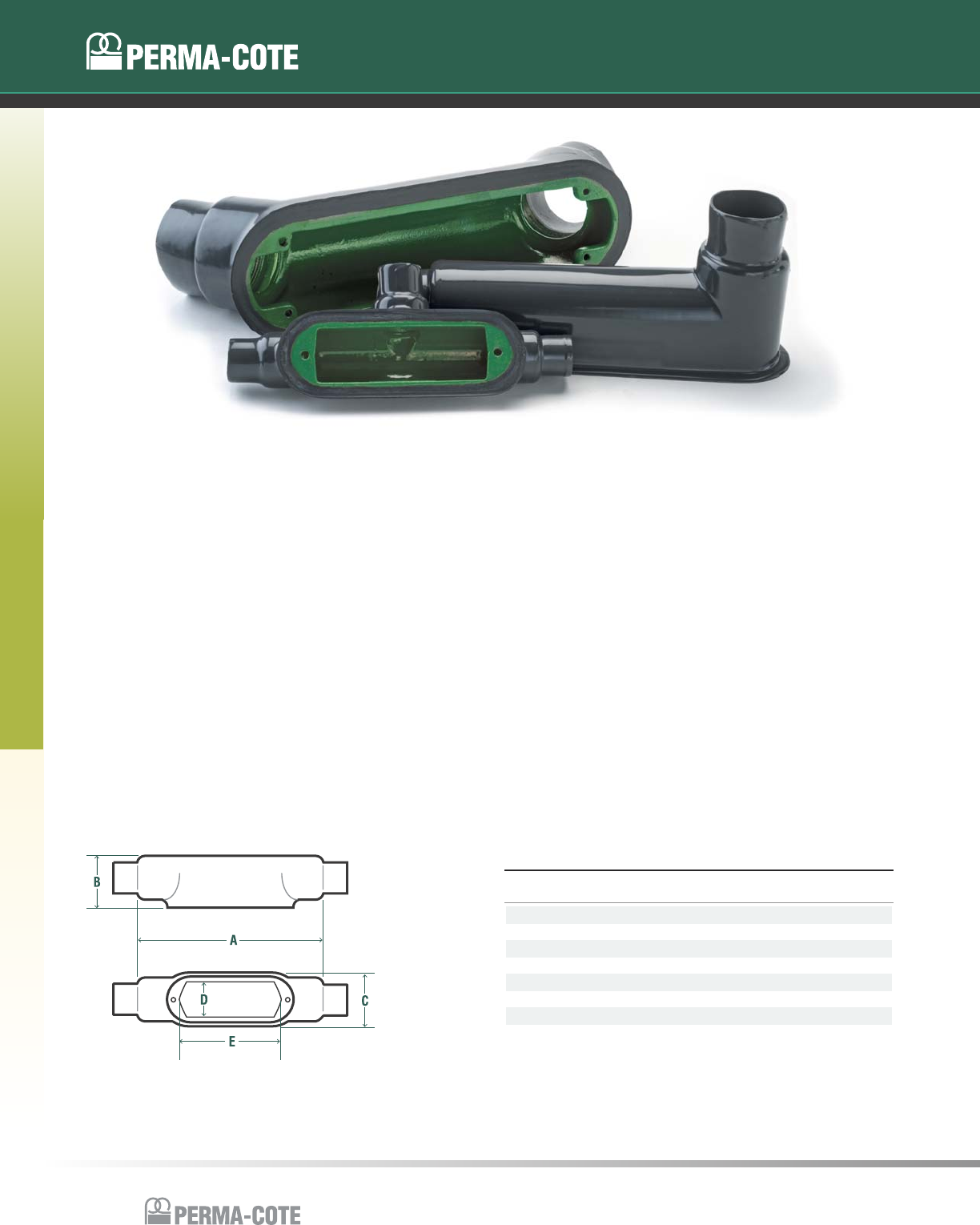

Our V-Seal® gasket --- with special interlocking “V” groove
---- is the most effective way of preventing corrosion
damage by sealing PVC coated Form 8 Conduit Bodies,
sizes 1/2" to 2".
WANT MORE GOOD NEWS?
You won’t have to pay more for the best available
protection than you would for a standard tting. It’s all
part of the unequaled value provided to you through
Perma-Cote.
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Overview
Value-Added Benets
12
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Overview
Value-Added Benets
13
Chemical resistance…
…to a wide range of corrosive
chemicals, preventing exposure of
the metal to damaging
environments.
Polyurethane coatings…
…specially formulated to protect the
interior of our conduit from corrosion and
chemicals while also allowing optimum
durability and friction-reduced ease of
wire-pulls.
UV stabilized PVC formulation…
…developed exclusively for us to
dramatically reduce UV degradation
in outdoor applications.

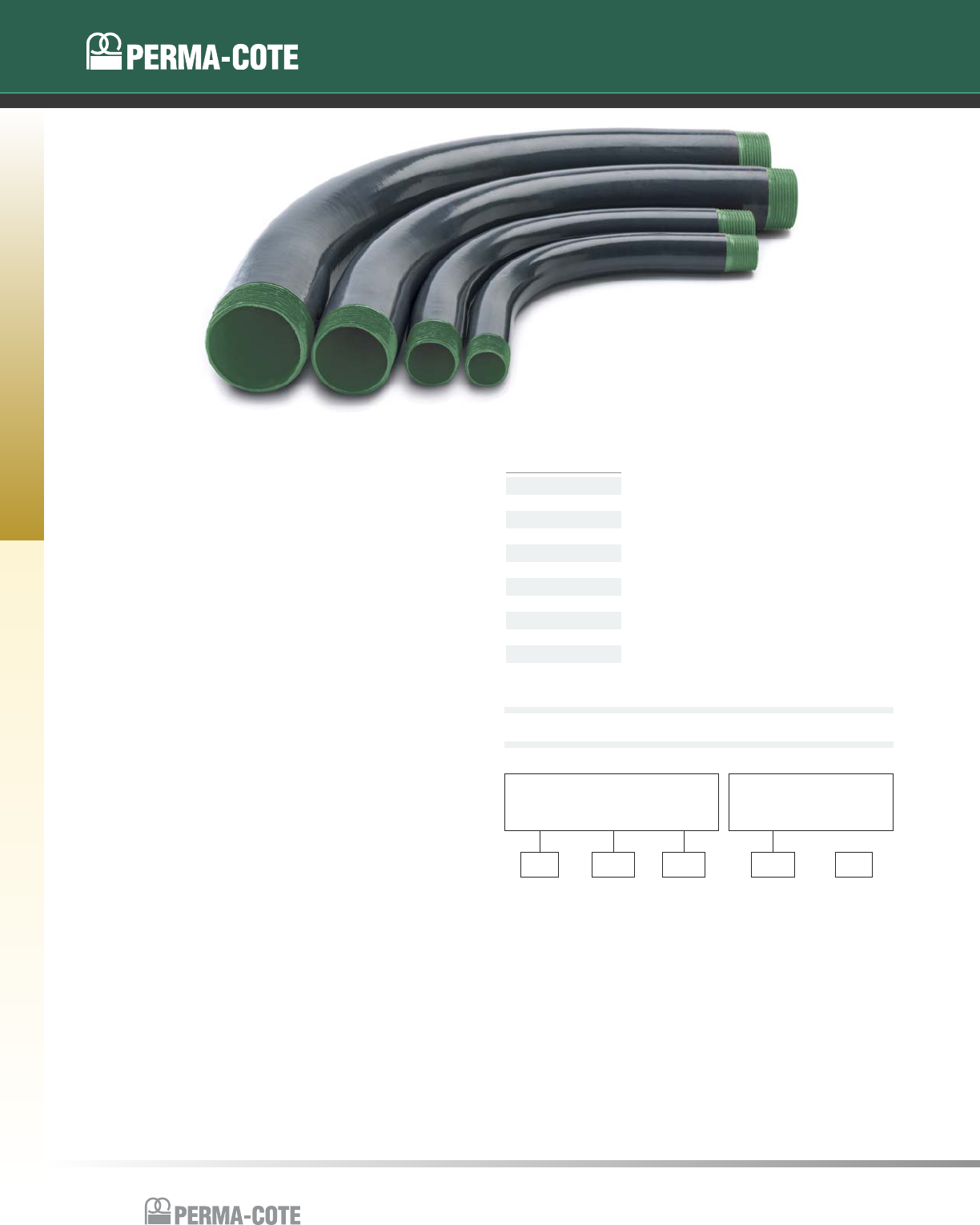

Comprehensive line of factory
nipples and elbows
(standard and special radius)…
…ready for quick shipment and
designed to provide lower labor
costs via faster installation.
Clamps designed for PVC-coated
conduit…
…includes coated pipe straps,
clamps and clamp back spacers
that are specially designed to t
Perma-Cote for ease of installation.
V-SEAL® Form 8 ttings…
…patented, u
nique interlocking
V-groove covers effectively seal out
corrosive environments.
Molded ribbed couplings…
…allow for easier installation of
the conduit system by providing
enhanced gripping.
PVC sealing sleeves…
…sized to t tightly over the coated
conduit when assembled, thereby
keeping corrosive elements from the
threaded joints.
PVC gasket seals…
…keep corrosives from getting into the
conduit system through joints and
openings, protecting the interior of the
system from corrosion.
Installation tools…
…readily available to
accommodate faster,
easier, damage-free
installation.
Five year Perma-Cote warranty…
…for peace of mind.
Encapsulated
stainless steel
Form 8 condulet
cover screws…
…for maximum
corrosion
protection by way
of a seal around
each screw
opening.
Installer Certication…
Proper installation is essential
to ensure the highest possible
performance and provide
maximum life for a conduit
system. Only installers who are
able to present authorized
credentials of having passed our
instruction and examination are
ofcially certied to install Perma-
Cote’s top quality products.
Installer certication is free of
charge and available at the job
site, contractor’s shop, factory, or
wherever it is convenient to you!
Contact Perma-Cote at
903.843.4388.
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Overview
Myths and Truths
14
PERFORMANCE MATTERS!
Just look for the combined ETL PVC-001 and UL
label and you’ll know you’re protected!
Reason Seven
7
Use Perma-Cote and you will benet from objective, independently-proven anti-corrosion
performance. Just look for the combined ETL PVC-001 and UL label and you’ll know
you’re protected!
There are myths about PVC-coated galvanized rigid conduit.
There are truths about PVC-coated galvanized rigid conduit.
Here’s how you can separate fact from ction.
All PVC-coated galvanized
rigid conduit is the same. As
long as it’s UL-listed that’s
all that matters.
All PVC-coated galvanized
rigid conduit is NOT created
equal.
All major brands of PVC-coated galvanized
rigid conduit do in fact carry the UL6 listing.
That’s great. It’s important to know, however,
that this is a safety-related listing. It is NOT
a performance or service life listing. In fact,
UL6 does not differentiate between the
performance of coatings. It considers zinc
and PVC as equal alternatives and does not
suggest the appropriateness of a specic
coating for a specic environment.
The truth is: Perma-Cote also carries the ETL
PVC-001 verication label demonstrating
that in performance, the reliable, protective
service life of Perma-Cote is at least ten
times longer than other brands. ETL is a
regulated standard that is re-tested every
quarter to verify performance. Ongoing
compliance assures a consistent quality in
the manufacturing of our product.
Perma-Cote gives you the peace of mind
made possible by carrying BOTH the UL and
ETL labels --- at no added cost to you.
ETL testing evaluates the
performance of PVC-coated
galvanized rigid conduit in
boiling water. That isn’t
relevant because no one
boils conduit in real
applications.
The testing methods chosen
by ETL are nationally
recognized ASTM accelerated
life cycle test methods to
evaluate the effectiveness of a coating
under the two most common environmental
conditions of heat and humidity. These are
not application tests. They are accelerated
tests to compare two or more products in
the same environment at the same time.
In hot water immersion other brands’
coating began to fail within the rst hour and
completely after 50. Perma-Cote’s coating
maintained its integrity for 200 hours. In the
humidity test, the other coatings began
delaminating after 9 days. Perma-Cote’s
coating showed no adhesion loss even after
90 days.
These were exact comparisons.
The superior PVC coating is clear.
Perma-Cote.
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Overview
Myths and Truths
15
Not all PVC-coated galvanized rigid conduit is created equal.
If product performance and service life are important to you… look for the ETL
PVC-001 Verication label.
If your PVC-coated galvanized rigid conduit doesn’t carry an ETL PVC-001 label you risk premature
product failure and the consequences of costs related to downtime as well as safety, legal and
environmental issues.
Perma-Cote... “No Equal”
Perma-Cote paid for ETL
testing so the results are
marketing hype.
The rst part is true.
Perma-Cote paid for ETL
testing.
Just like every manufacturer
pays for product testing or UL testing and
listings.
As to marketing hype:
--- ETL is one of the foremost recognized
testing and evaluation services in the
world. Its results and verications are
internationally accepted as objective
standards for diverse industries. Even our
competitor accepts the importance of ETL
because many of the other products
manufactured by its parent company carry
the ETL label.
--- Our competition is welcome at any time to
submit their PVC-coated galvanized rigid
conduit for similar evaluation. ETL PVC-
001 is an open standard. We have to
assume that the only reason others do
not have an ETL label is because their
product does not meet the minimum
thresholds for service life requirements.

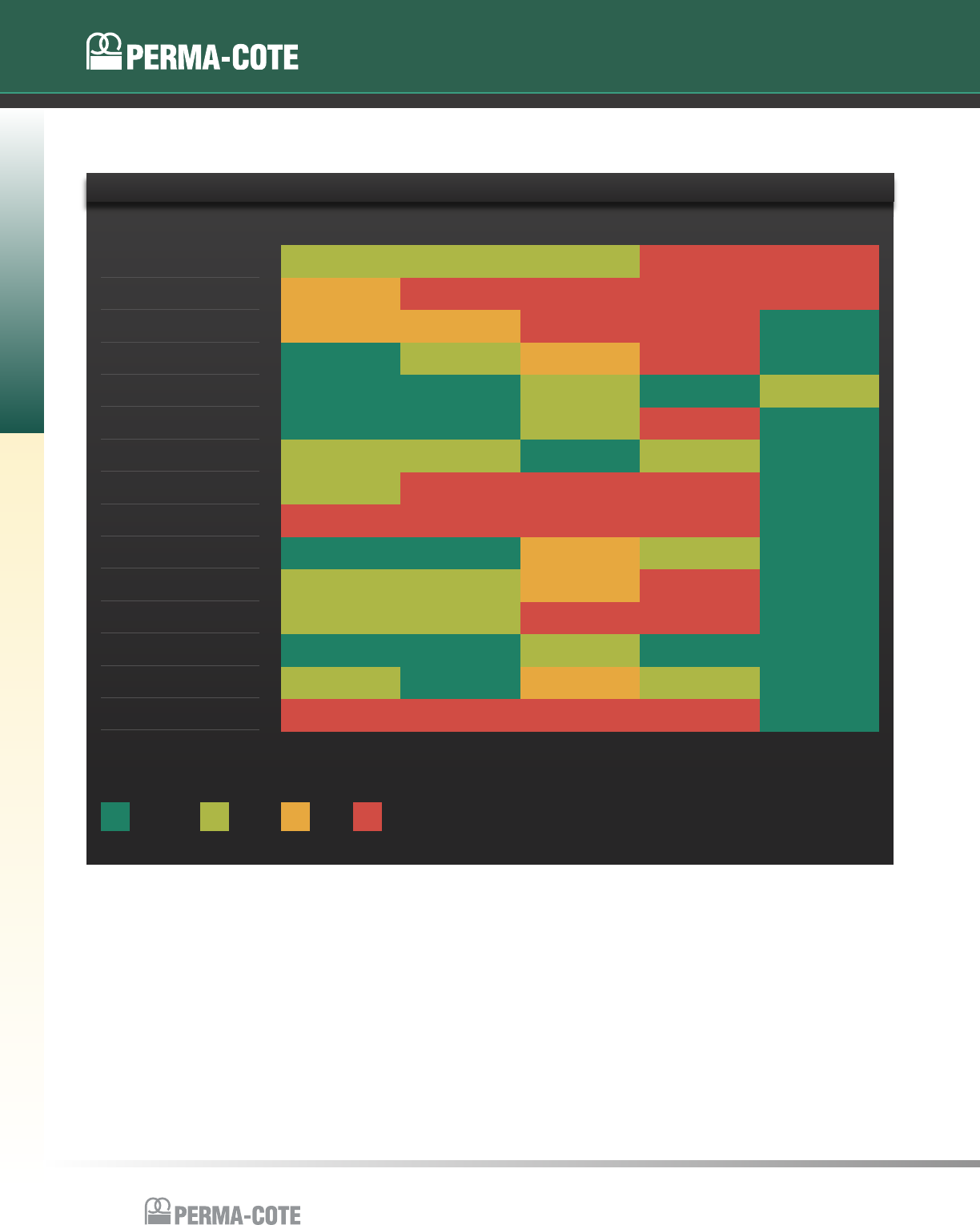

CHEMICAL RESISTANCE PERFORMANCE RATING
316
STAINLESS STEEL
304
STAINLESS STEEL ALUMINUM
CAST
IRON
PVC
COATED
Harsh Chemicals
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Overview
Corrosion Protection
16
Chemical Resistance
Performance Rating Key
Corrosion and Harsh Environment Protection
The chart above will guide you in the selection of
the best anti-corrosion products for your specic
applications. There is a direct correlation between
every corrosive environment and products installed
to protect against the high cost of corrosion
damage. Consequently, product performance and
product life cycles are critical to successful
protection. In that regard not all PVC-coated
galvanized rigid conduit is created equal.
All such conduit is authorized to carry an identical
UL listing label related to safety, but only some
manufacturers, such as Perma-Cote have earned
the right to carry the ETL-Veried PVC-001 label
based on independent product performance tests
proving that ETL-Veried PVC-coated galvanized
rigid conduit provides reliable protection against
corrosion 10 or more times longer than brands
that have not been ETL-Veried.
BBBDD
CDDDD
C C D D A
A B C D A
AABAB
A A B D A
B B A B A
B D D D A
D D D D A
A A C B A
B B C D A
B B D D A
A A B A A
B A C B A
D D D D A
Acetic Acid (20%)
Chlorine, Anhydrous Liquid
Chorine Water
Citric Acid
Diethylene Glycol
Fruit Juice
Hydrogen Peroxide (30%)
Phosphoric Acid (Crude)
Phosphoric Acid (>40%)
Sodium Carbonate
Sodium Chloride
Sodium Hydroxide (50%)
Sodium Metasilicate
Sodium Silicate
Sulfuric Acid (10-75%)
A B C D
Excellent Good Fair Not Recommended
PVC Coated Conduit
Description:
PVC coated galvanized rigid conduit with green urethane interior coating protects conductors from
mechanical damage and corrosive attack. Electrical continuity is maintained across assembled joints.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■PROTECH threads – A clear urethane coating
over hot galvanized threads
■12 trade sizes from 1/2" through 6"
■Shipped in 10' lengths with coupling
■Plastic thread protector caps are color coded
for quick identication of conduit size
■One “no charge” coupling is included with each
10' length of conduit
Thread Protector Cap Colors:
Black - for 1/2" sizes, 1/2", 1-1/2", 2-1/2", 3-1/2"
Red - for 1/4" sizes, 3/4", 1-1/4"
Blue - for even sizes, 1", 2", 3", 4", 5", 6"
Standards:
Steel and Aluminum
■UL 6 (E2314); UL 6A (E98405)
■CSA C22.2 No. 45
■Both PVC and zinc coatings have been
investigated as primary protection against
corrosion. Restricted for use with threaded
ttings only.
Coated Conduit Technical Data
COATED CONDUIT
OUTSIDE INTERNAL
METRIC PIPE WALL DIAMETER INSIDE TRAVERSE
SIZE SIZE THICKNESS WITH COATING DIAMETER AREA NOMINAL ALUMINUM
DESIGNATORS INCHES CATALOG NUMBER INCHES INCHES INCHES SQ. INCHES WEIGHT CATALOG #
16 1/2" 050-CON .104" .920" 0.632" 0.314" 85 050-CON-A
21 3/4" 075-CON .107" 1.130" 0.836" 0.549" 112 075-CON-A
27 1" 100-CON .126" 1.395" 1.063" 0.887" 164 100-CON-A
35 1-1/4" 125-CON .133" 1.740" 1.394" 1.526" 217 125-CON-A
41 1-1/2" 150-CON .138" 1.980" 1.624" 2.071" 268 150-CON-A
53 2" 200-CON .146" 2.455" 2.083" 3.408" 358 200-CON-A
63 2-1/2" 250-CON .193" 2.955" 2.489" 4.866" 546 250-CON-A
78 3" 300-CON .205" 3.580" 3.090" 7.499" 708 300-CON-A
91 3-1/2" 350-CON .215" 4.080" 3.570" 10.010" 851 350-CON-A
103 4" 400-CON .225" 4.580" 4.050" 12.882" 1009 400-CON-A
129 5" 500-CON .245" 5.643" 5.073" 20.212" 1337 500-CON-A
155 6" 600-CON .266" 6.705" 6.093" 29.158" 1993 600-CON-A
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Conduit
PVC Coated Conduit
17
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Conduit
Nipples
18
Nipples
Description:
Perma-Cote factory threaded nipples save you time and money in the eld. Electrical continuity is
maintained across assembled joints.
*The exteriors of certain short nipples are coated with urethane in lieu of PVC. This is dictated by the manufacturing
process as well as assembly considerations.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■12 trade sizes from 1/2" through 6"
■11 standard lengths in available:
Close, 2" to 12"
■Made to order lengths available – Call for quote
■Plastic thread protector caps are color coded
for quick identication of conduit size.
Thread Protector Cap Colors:
Black - for 1/2" sizes, 1/2", 1-1/2", 2-1/2", 3-1/2"
Red - for 1/4" sizes, 3/4", 1-1/4"
Blue - for even sizes, 1", 2", 3", 4", 5", 6"
Standards:
Steel and Aluminum
■UL 6 (E2314); UL 6A (E98405)
■CSA C22.2 No. 45
■Both PVC and zinc coatings have been
investigated as primary protection against
corrosion. Restricted for use with threaded
ttings only.
Simple Steps To Ordering
To order the Perma-Cote coated nipples follow this
simple formula to create your Perma-Cote catalog
number.
Use the Conversion Chart to convert trade sizes to
trade code.
NIP - CODE X LENGTH -A
The catalog number for a
Perma-Cote coated steel,
1/2" nipple with a length of 10":
NIP-050X10
TRY IT!
This number can then be looked up in the listing of
pricing to determine price and availability.
Call 903.843.4388 for custom orders,
customer service, and more information
on Perma-Cote.
NIP A- -X
Enter “NIP”
Standard
Nipple Prex
Enter Trade
Size Code
Enter Desired
Nipple Length
For Aluminum
Add
‘-A’ sufx
TRADE TRADE SIZE
SIZE CODE
1/2" 050
3/4" 075
1" 100
1-1/4" 125
1-1/2" 150
2" 200
2-1/2" 250
3" 300
3-1/2" 350
4" 400
5" 500
6" 600
Conversion Chart
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Conduit
PVC Coated Couplings
19
PVC Coated Couplings
Description:
PVC coated rigid metal conduit couplings with green urethane interior coating connects coated conduit
sections.
Electrical continuity is maintained across assembled joints. PVC sleeves on couplings seal off
on conduit PVC coating when assembled to prevent corrosive liquids and vapors from attacking threaded
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating over
galvanized threads
■12 trade sizes from 1/2" through 6"
■Sealing sleeves on both ends
■Molded external ribs on 1/2" – 4"
to prevent tool damage during assembly
■Couplings are straight tapped
Standards:
Steel and Aluminum
■UL 6 (E2314); UL 6A (E98405)
■CSA C22.2 No. 45
All female pipe openings are provided with a PVC sleeve sized
to t tightly over the PVC coated conduit when assembled. This
prevents corrosives from contacting threaded joints.
Couplings are straight tapped.
Tolerance, thread length =± 1 thread.
Plus or minus 1 turn is the maximum variation permitted from the gauging face of the working thread gauges.
This is equivalent to plus or minus 1 and 1-1/2 turns from the basic dimensions, since the variation of plus or minus 1/2 turn from basic dimension is permitted in working gauges.
PVC Coating
on Coupling PVC Sleeve PVC Coating
on Conduit
L2
E0L4
See “Thread and Coupling
Technical Data” for reference.
COUPLING THREADS
TOTAL PITCH
OUTSIDE LENGTH AT END
DIAMETER OF THREADS OF THREAD
METRIC PIPE NOMINAL WITH THREADS EFFECTIVE TO VANISH 3/4 IN.
SIZE SIZE STEEL WEIGHT PER 100 RIBS PER LENGTH POINT TAPER ALUMINUM
DESIGNATORS INCHES CATALOG # (POUNDS) INCHES INCH L2 L4 E0 CATALOG #
16 1/2" CPL-050 19 1.344" 14 .5337" .7815" .7584" CPL-050-A
21 3/4" CPL-075 32 1.531" 14 .5457" .7935" .9677" CPL-075-A
27 1" CPL-100 40 1.781" 11-1/2 .6828" .9845" 1.2136" CPL-100-A
35 1-1/4" CPL-125 50 2.156" 11-1/2 .7068" 1.0085" 1.5571" CPL-125-A
41 1-1/2" CPL-150 69 2.469" 11-1/2 .7235" 1.0252" 1.7961" CPL-150-A
53 2" CPL-200 93 2.969" 11-1/2 .7565" 1.0582" 2.2690" CPL-200-A
63 2-1/2" CPL-250 123 3.594" 8 1.1375" 1.5712" 2.7195" CPL-250-A
78 3" CPL-300 217 4.250" 8 1.2000" 1.6337" 3.3406" CPL-300-A
91 3-1/2" CPL-350 422 4.875" 8 1.2500" 1.6837" 3.8375" CPL-350-A
103 4" CPL-400 391 5.250" 8 1.3000" 1.7337" 4.3344" CPL-400-A
129 5" CPL-500 550 6.080" 8 1.4063" 1.8400" 5.3907" CPL-500-A
155 6" CPL-600 884 7.280" 8 1.5125" 1.9462" 6.4461" CPL-600-A
Thread and Coupling Technical Data
PVC Coated Elbows
Description:
Perma-Cote factory bent standard radius elbows
are available and ready to ship. Factory bent
elbows are more accurate, quicker to install, and
more economical, because they save eld bending
time and do not waste materials. Electrical
continuity is maintained across assembled joints.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■12 trade sizes from 1/2" through 6"
■
Available in standard sizes 90˚, 60˚, 45˚, 30˚ bends
■Plastic thread protector caps are color coded
for quick identication of conduit size.
Thread Protector Cap Colors:
Black - for 1/2" sizes, 1/2", 1-1/2", 2-1/2", 3-1/2"
Red - for 1/4" sizes, 3/4", 1-1/4"
Blue - for even sizes, 1", 2", 3", 4", 5", 6"
Standards:
Steel and Aluminum
■UL 6 (E2314); UL 6A (E98405)
■CSA C22.2 No. 45
■Both PVC and zinc coatings have been
investigated as primary protection against
corrosion. Restricted for use with threaded
ttings only.
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Elbows
PVC Coated Elbows
20
Simple Steps
To Ordering
To order the Perma-Cote coated
elbows follow this simple formula
to create your Perma-Cote catalog
number.
Use the Conversion Chart to
convert trade sizes to trade code.
The catalog number for a
Perma-Cote coated steel,
1/2" elbow with a 45° bend:
EL-050X45
TRY IT!
This number can then be looked up in the listing of
pricing to determine price and availability.
Call 903.843.4388 for custom orders,
customer service, and more information
on Perma-Cote.
EL A- -X
Enter “EL”
Standard
Elbow Prex
Enter Trade
Size Code
Enter the
Degree of
Bend
For Aluminum
Add
‘-A’ sufx
X
For Large
Radius Elbows
Enter Radius
REQUIRED OPTIONAL
TRADE TRADE SIZE
SIZE CODE
1/2" 050
3/4" 075
1" 100
1-1/4" 125
1-1/2" 150
2" 200
2-1/2" 250
3" 300
3-1/2" 350
4" 400
5" 500
6" 600
Conversion Chart
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Elbows
PVC Coated Elbows
21
DIAMETERS RADII OFFSET
METRIC NOMINAL NIPPLE (STANDARD)
SIZE SIZE EXTERNAL INTERNAL LENGTHS A B C D E F TANGENT
DESIGNATORS INCHES INCHES INCHES INCHES INCHES INCHES INCHES INCHES INCHES INCHES INCHES
16 1/2" 0.920" 0.632" 11-1/4" 3.79" 4.25" 4.71" 6.040" 6.500" 6.960" 2.250"
21 3/4" 1.130" 0.836" 12-1/2" 3.94" 4.50" 5.07" 6.685" 7.250" 7.815" 2.750"
27 1" 1.395" 1.063" 14-3/4" 5.05" 5.75" 6.45" 7.928" 8.625" 9.323" 2.875"
35 1-1/4" 1.740" 1.394" 17-3/4" 6.38" 7.25" 8.12" 9.567" 10.437" 11.307" 3.187"
41 1-1/2" 1.980" 1.624" 19-3/4" 7.26" 8.25" 9.24" 10.635" 11.625" 12.615" 3.375"
53 2" 2.455" 2.083" 22-1/2" 8.27" 9.50" 10.73" 12.086" 13.313" 14.541" 3.813"
63 2-1/2" 2.955" 2.489" 28" 9.02" 10.50" 11.98" 14.776" 16.253" 17.731" 5.753"
78 3" 3.580" 3.080" 32" 11.21" 13.00" 14.79" 17.000" 18.790" 20.580" 5.790"
91 3-1/2" 4.080" 3.570" 39-1/2" 12.96" 15.00" 17.04" 20.920" 22.960" 25.000" 7.960"
103 4" 4.580" 4.050" 39-1/2" 13.71" 16.00" 18.29" 20.890" 23.180" 25.470" 7.180"
129 5" 5.643" 5.073" 59-1/2" 21.18" 24.00" 26.82" 32.079" 34.900" 37.722" 10.900"
155 6" 6.705" 6.093" 76" 26.65" 30.00" 33.35" 41.088" 44.440" 47.793" 14.440"
Standard Radius Elbows
Special Radius Elbows
Perma-Cote factory bent elbows are also available in larger than standard radii to accommodate your
special needs. Simply follow the four steps for standard radius elbows on the previous page, then
continue with Steps 5 and 6 for large radius elbows. Refer to the table below to determine which radius
is available for the size of conduit you need.
To use the Long or Special Radius Elbow table, nd the elbow radius required in the rst row. Then look
down the column to determine which conduit sizes are available in that radius. Use this information in
Steps 5 and 6 on the previous page to build a catalog number.
DIAGRAM LEGEND
A = Radius at inside of bend.
B = Radius at center line of bend.
C = Radius at outside of bend.
D = Offset at inside of bend.
E = Offset at center of bend.
F = Offset at outside of bend.
TANGENT
D
E
F
AB
C
Dimensions
Radius
B
in
Inches 12" 15" 18" 18" 24" 24" 30" 30" 36" 36" 36" 42" 42" 48" 48" 48"
E
Offset 1'5-1/2" 1'9-1/4" 2'1/4" 2'3" 2'8" 2'10" 3'4" 3'5" 3'11" 3'11-1/4" 4'3-1/4" 4'5" 4'6" 5'1/4" 5'1-1/4" 5'3-1/4"
Nipple
Length 2'6" 3'0" 3'5" 3'10" 4'6" 4'9" 5'6" 5'9" 6'7" 6'7" 7'3" 7'4" 7'6" 8'4" 8'6" 8'10"
Tangent 5-1/2" 6-1/4" 6-1/4" 9" 8" 10" 10" 11" 11" 11-1/4" 15-1/4" 11" 12" 12-1/4" 13-1/4" 15-1/4"
Available 1" 1-1/2" 3/4" 2-1/2" 2" 4" 3/4" 1-1/2"
Pipe & 2" 1" to to to to to to 5" 6" 4" 5" to 5" 6"
Sizes 2" 3" 2" 5" 3" 5" 4" 4"
Cast Device Boxes
Description:
Perma-Cote device boxes and covers are available in several congurations and may be used in coated
conduit systems to accommodate wiring devices, to serve as pull boxes for conductors, or to allow for
splices and taps in conductors. Covers are available separately. Electrical continuity of the conduit system
is maintained across assembled joints.
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■3 trade sizes from 1/2" through 1"
■Available in Standard (FS) and Deep (FD) Styles
■Internal grounding screw is standard
■Sealing sleeves on all conduit openings
Standards:
Steel and Aluminum
■UL 514A, 514D (E231035)
■CSA C22.2 No. 18, CSA C22.2 No. 42
Features:
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Conduit Boxes
Cast Device Boxes & Covers
22
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Conduit Boxes
Cast Device Boxes – Single Gang
23

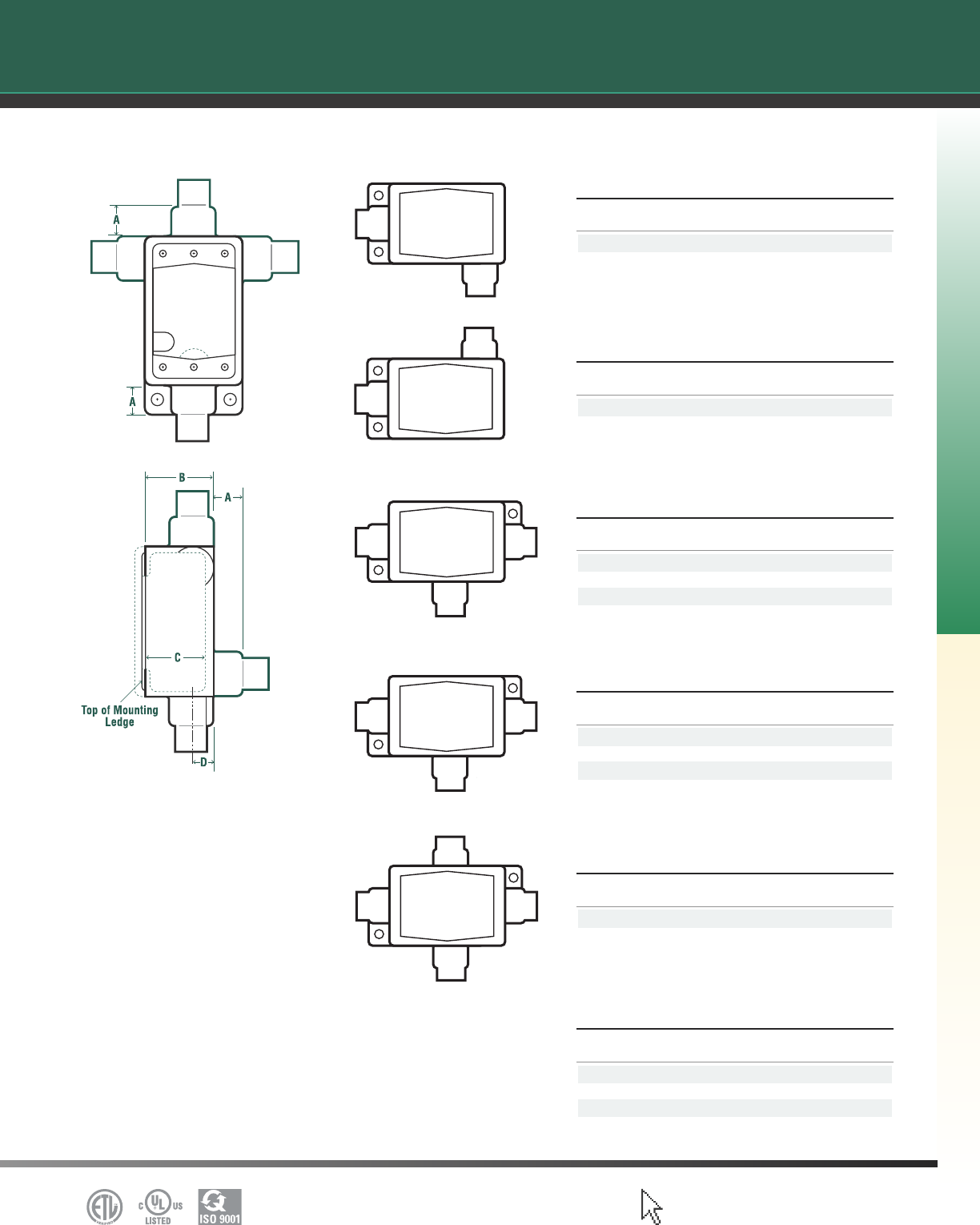

All congurations offered in both ‘FS’ or ‘FD’ box depths. FS prex: Shallow conguration, FD prex: Deep conguration

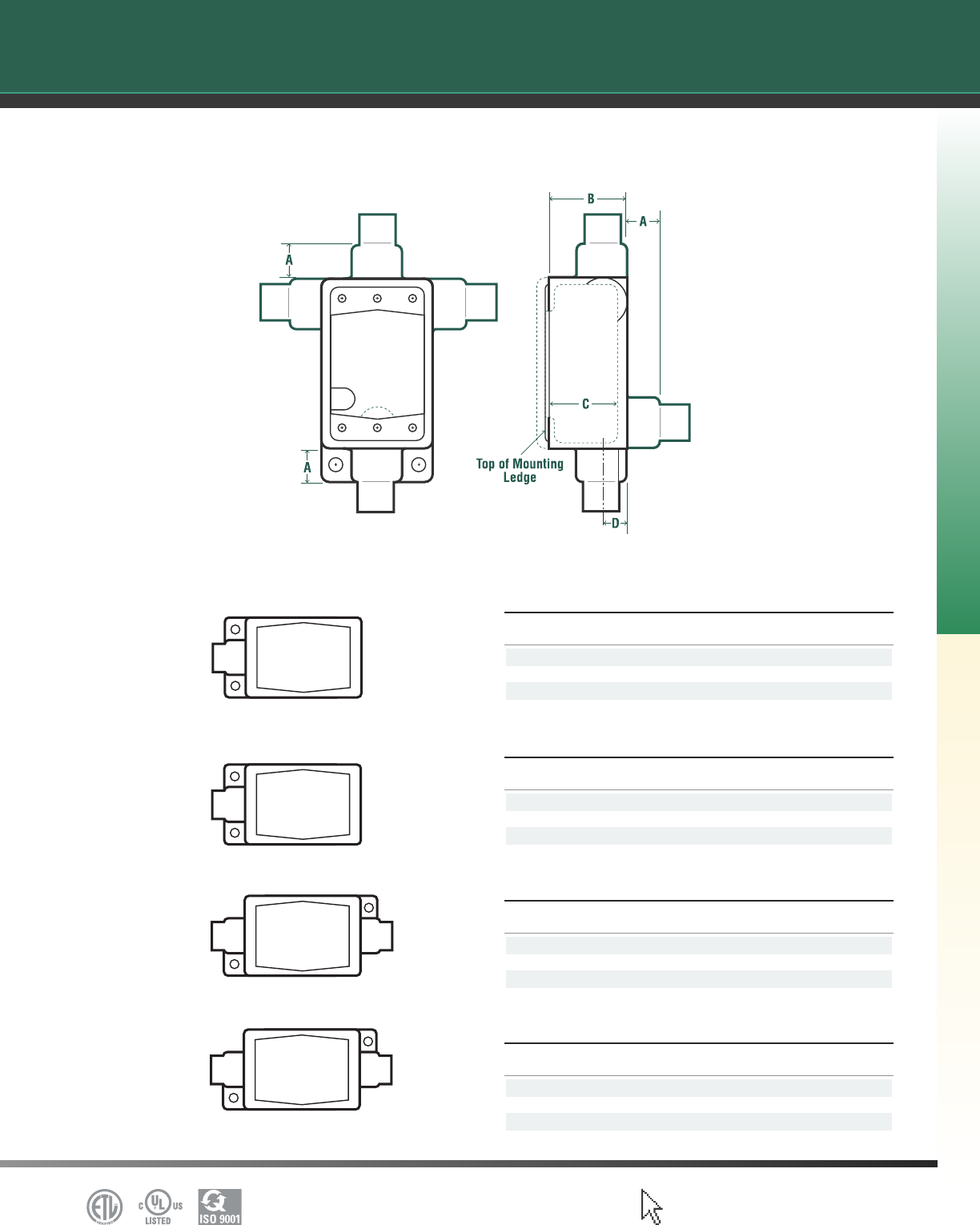

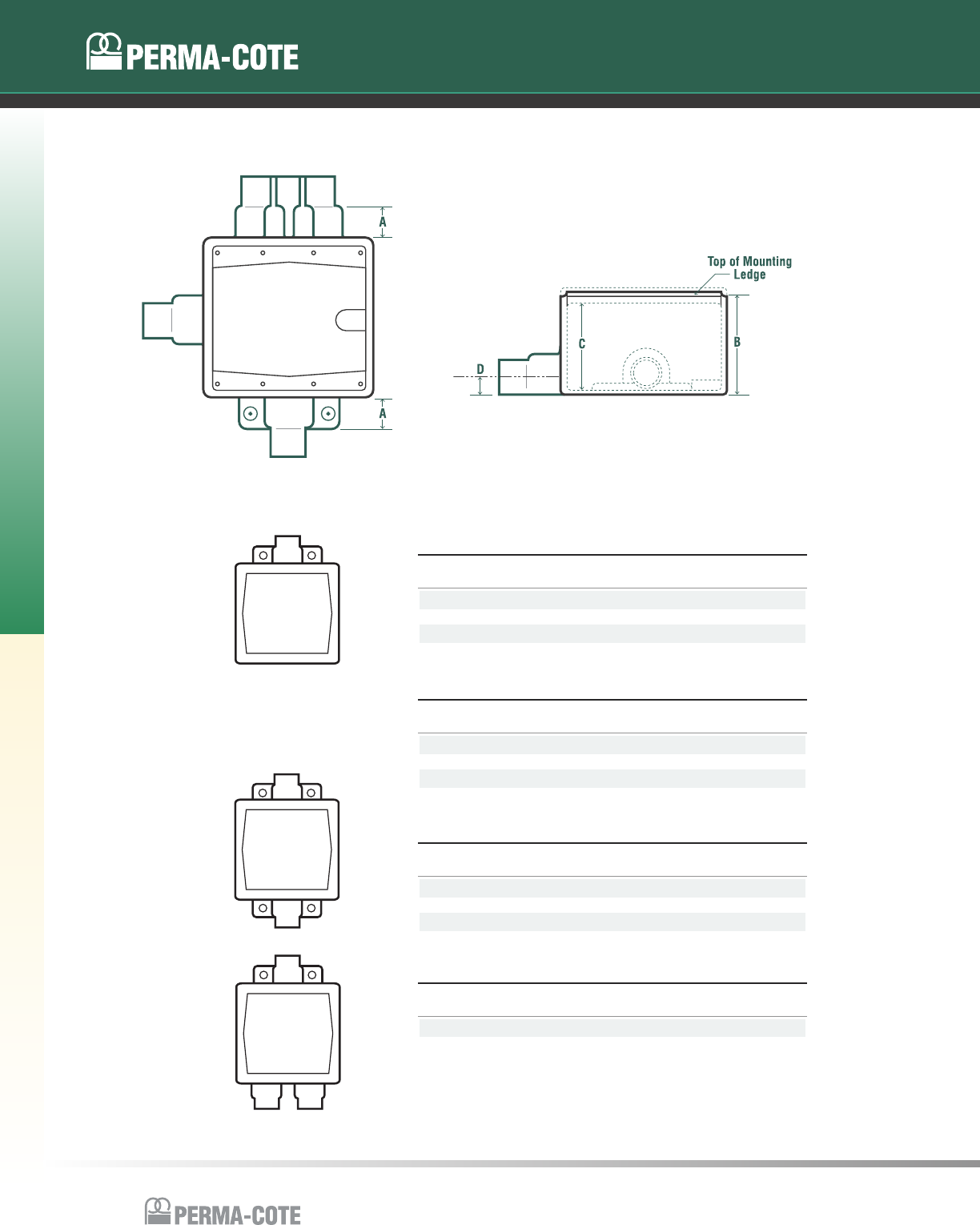

Single Gang FS/FD Series – Technical Data
FS SERIES
(SHALLOW BOX) – SINGLE GANG DEAD END
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D CATALOG #
1/2" FS-1-50 3.2 0.88 1.92 1.69 0.67 FS-1-50-A*
3/4" FS-1-75 3.3 0.75 1.92 1.69 0.79 FS-1-75-A*
1" FS-1-100 3.5 1.00 1.92 1.69 0.92 FS-1-100-A*
FSC SERIES
(SHALLOW BOX) – SINGLE GANG THROUGH FEED
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D CATALOG #
1/2" FSC-1-50 2.2 0.88 1.92 1.69 0.67 FSC-1-50-A*
3/4" FSC-1-75 2.4 0.88 1.92 1.69 0.79 FSC-1-75-A*
1" FSC-1-100 2.7 1.00 1.92 1.69 0.92 FSC-1-100-A*
FD SERIES
(DEEP BOX) – SINGLE GANG DEAD END
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D CATALOG #
1/2" FD-1-50 2.7 0.88 2.69 2.5 0.67 FD-1-50-A*
3/4" FD-1-75 2.8 0.75 2.69 2.5 0.79 FD-1-75-A*
1" FD-1-100 3.1 1.00 2.69 2.5 0.92 FD-1-100-A*
* Available in copper free aluminum
FDC SERIES
(DEEP BOX) – SINGLE GANG THROUGH FEED
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D CATALOG #
1/2" FDC-1-50 2.7 0.88 2.69 2.5 0.67 FDC-1-50-A*
3/4" FDC-1-75 2.8 0.88 2.69 2.5 0.79 FDC-1-75-A*
1" FDC-1-100 3.1 1.00 2.69 2.5 0.92 FDC-1-100-A*
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Conduit Boxes
Cast Device Boxes – Single Gang
24
Single Gang FS/FD Series – Technical Data
FSS SERIES
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D CATALOG #
1/2" FSS1 3.2 0.88 1.92 1.69 0.67 FSS1-A*
3/4" FSS2 3.3 0.88 1.92 1.69 0.79 FSS2-A*
1" FSS3 3.5 1.00 1.92 1.69 0.92 –
FDD SERIES
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D CATALOG #
1/2" FDD-1-50 2.7 0.88 2.69 2.5 0.67 –
3/4" FDD-1-75 2.8 0.88 2.69 2.5 0.79 FDD-1-75-A*
1" FDD-1-100 3.1 1.00 2.69 2.5 0.92 –
FDCC SERIES
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D CATALOG #
1/2" FDCC-1-50 2.7 0.88 2.69 2.5 0.67 FDCC-1-50-A*
3/4" FDCC-1-75 2.8 0.88 2.69 2.5 0.79 FDCC-1-75-A*
FDL SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FDL-1-50 3.1 0.88 2.69 2.5 0.67
3/4" FDL-1-75 3.3 0.88 2.69 2.5 0.79
FDR SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FDR-1-50 3.2 0.88 2.69 2.5 0.67
3/4" FDR-1-75 3.3 0.88 2.69 2.5 0.79
FSCC SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FSCC-1-50 2.0 0.88 1.92 1.69 0.67
3/4" FSCC-1-75 2.2 0.88 1.92 1.69 0.79
FSCA SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FSCA-1-50 2.5 0.88 1.92 1.69 0.67
3/4" FSCA-1-75 3.5 0.88 1.92 1.69 0.79
* Available in copper free aluminum
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Conduit Boxes
Cast Device Boxes – Single Gang
25
Single Gang FS/FD Series – Technical Data (continued)
FSL SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FSL-1-50 2.5 0.88 1.92 1.69 0.67
3/4" FSL-1-75 2.7 0.88 1.92 1.69 0.79
FSR SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FSR-1-50 2.0 0.88 1.92 1.69 0.67
3/4" FSR-1-75 2.2 0.88 1.92 1.69 0.79
FDCT SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FDCT-1-50 3.1 0.88 2.69 2.5 0.67
3/4" FDCT-1-75 3.4 0.88 2.69 2.5 0.79
1" FDCT-1-100 3.9 1.00 2.69 2.5 0.92
FSCT SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FSCT-1-50 2.2 0.88 1.92 1.69 0.67
3/4" FSCT-1-75 2.5 0.88 1.92 1.69 0.79
1" FSCT-1-100 2.8 1.00 1.92 1.69 0.92
FSX SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FSX1 2.5 0.88 1.92 1.69 0.67
3/4" FSX2 2.7 0.88 1.92 1.69 0.79
FDX SERIES
PIPE NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FDX1 2.5 0.88 2.69 2.5 0.67
3/4" FDX2 2.7 0.88 2.69 2.5 0.79
1" FDX3 2.5 1.00 2.69 2.5 0.67
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Conduit Boxes
Cast Device Boxes – Two Gang
26
Two Gang FS/FD Series – Technical Data
All congurations offered in both ‘FS’ or ‘FD’ box depths. FS prex: Shallow conguration, FD prex: Deep conguration
FS/FD
(Two Gang)
FS SERIES
(SHALLOW BOX) – TWO GANG DEAD END
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D CATALOG #
1/2" FS-2-50 3.3 0.88 1.92 1.69 0.67 FS-2-50-A*
3/4" FS-2-75 3.4 0.88 1.92 1.69 0.79 FS-2-75-A*
1" FS-2-100 3.6 1.00 1.92 1.69 0.92 –
FSC SERIES
(SHALLOW BOX) – TWO GANG THROUGH FEED
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" FSC-2-50 3.3 0.88 1.92 1.69 0.67
3/4" FSC-2-75 3.6 0.88 1.92 1.69 0.79
1" FSC-2-100 4.0 1.00 1.92 1.69 0.92
FSD SERIES
PIPE NOMINAL 2 BOTTOM
SIZE CATALOG # WEIGHT A B C D HUBS
3/4" FSD-2-75 2.5 0.88 2.69 1.69 0.79 1/2"
FD SERIES
(DEEP BOX) – TWO GANG
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D CATALOG #
1/2" FD12 3.3 0.88 2.69 2.5 0.67 –
3/4" FD22 3.3 0.88 2.69 2.5 0.79 FD22-A*
1" FD32 3.6 1.00 2.69 2.5 0.92 –
* Available in copper free aluminum
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Conduit Boxes
Cast Device Box Covers
27
S21232 S232
S1002 S322
S32212 S212 S612
S322G
DS100G DS21
DS35
DS21GDS100
DS32G DS128 DS23
DS23G DS32
FERROUS COVERS - ONE GANG
NOMINAL
CATALOG # DESCRIPTION WEIGHT
DS32 GENERAL USE SNAP ON OR TOGGLE (S) 0.4
DS23G DUPLEX CONVENIENCE RECEPTACLE (S,F) 0.4
DS35 PLUG RECEPTACLE 1 5/8" DIAMETER (S) 0.4
DS21 3P 2W GROUNDING ROUND FLUSH RECEPTACLES (S) 0.3
DS21G 3P 2W GROUNDING ROUND FLUSH RECEPTACLES (S,F) 0.3
DS23 DUPLEX CONVENIENCE RECEPTACLE (S) 0.3
DS32G SQUARE HANDLE SNAP OR TOGGLE (S, F) 0.4
FERROUS COVERS - TWO GANG
NOMINAL
CATALOG # DESCRIPTION WEIGHT
S1002 BLANK COVER SHEET STEEL (S) 1.0
S1002G BLANK COVER IRON ALLOY (S,F) 1.0
S21232 ROUND RECEPTACLE + DUPLEX CONVENIENCE 1.2
S232 DUPLEX CONVENIENCE (S) 1.2
S322 SNAP SWITCH (S) 1.0
S32212 ROUND RECEPTACLE + SNAP SWITCH (S) 1.2
S212 TWO ROUND RECEPTACLES (S) 2.0
S612 20 AMP, 250 VOLT RECEPTACLE (S) 1.2
S322G SNAP SWITCHES IRON ALLOY (S,F) 1.2
ALUMINUM COVERS - ONE GANG
NOMINAL
CATALOG # DESCRIPTION WEIGHT
DS23SA DUPLEX CONVENIENCE RECEPTACLE (S) 0.1
DS100 BLANK COVER (S) 0.1
DS128 SNAP SWITCH 0.5
DS100G BLANK COVER CAST (S,F) 0.3
WLRD1 SPRING DOOR DUPLEX COVER 1 3/8" (F) 0.4
WLRS1 SPRING DOOR SINGLE COVER 1 3/8" (F) 0.3
WLRS2 SPRING DOOR SINGLE COVER 1 1/2" (F) 0.3
WLGF-FS SPRING DOOR COVER FOR GFCI (S) - Horizontal 0.5
WLGF-FSV SPRING DOOR COVER FOR GFCI (S) - Vertical 0.5
WLGF SPRING DOOR COVER FOR GFCI (F) - Horizontal 0.5
WLRS1 WLRD1
FS/FD SINGLE GANG COVER CONFIGURATIONS FS/FD 2 GANG COVER CONFIGURATIONS
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
General Service Fittings
Conduit Bodies and Covers
28
Conduit Bodies and Covers for General Service Locations
Description:
Perma-Cote conduit bodies with covers are offered in Form 8 and Form 7 styles, each with numerous
congurations to provide a complete coated conduit system. May be used to make 90˚ bends, for pull
outlets, to provide for taps or splices, to act as a mounting outlet for wiring devices or lighting xtures,
etc. Form 8 style ttings 1/2" – 2" have an integral V-Seal gasket for superior corrosion protection.
Electrical continuity of the conduit system is maintained across assembled joints.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■10 trade sizes from 1/2" through 4"
■Sealing sleeves on all conduit openings
■Form 7 style cover uses retained stainless
screw and wedge clip design
■Form 8 style cover uses plastic encapsulated
stainless steel screws with retainers built into
covers for trade sizes 1/2" through 2"
■Integral V-Seal gasket on Form 8 style, sizes
1/2" through 2"
Standards:
Steel and Aluminum
■UL 514A, 514D (E231035)
■CSA C22.2 No. 18, CSA C22.2 No. 42
Note: Form 7 ttings are not available with
encapsulated screws.
All cover screws are stainless steel.
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
General Service Fittings
Conduit Bodies and Covers
29

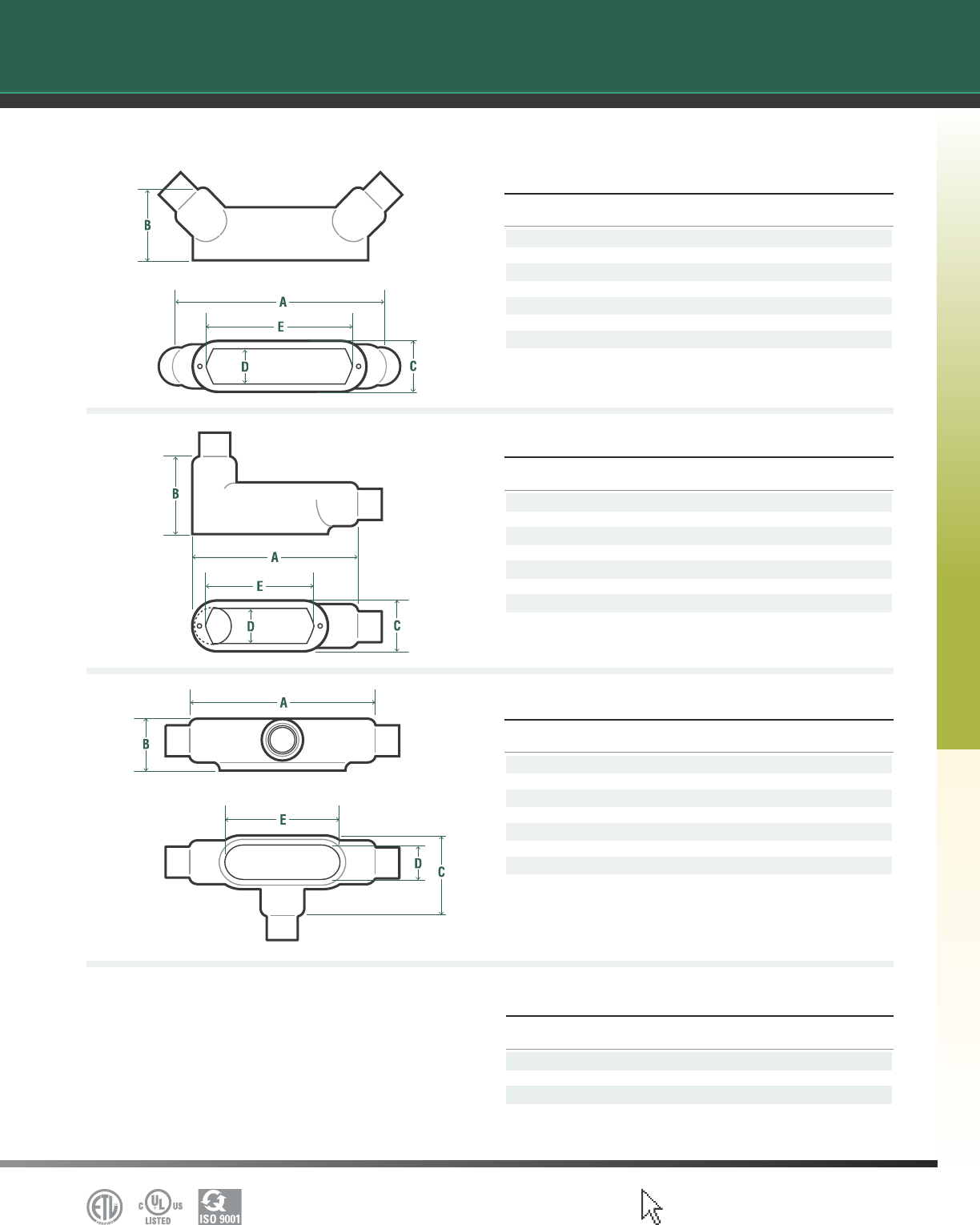

C FORM 8
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D E
1/2" C50 2.0 5.69 1.48 1.46 1.00 3.31
3/4" C75 2.3 6.28 1.73 1.27 1.19 3.94
1" C100 2.8 7.31 1.98 1.83 1.38 4.56
1-1/4" C125 4.5 8.50 2.42 2.27 1.75 5.31
1-1/2" C150 6.5 10.38 2.82 2.83 2.13 6.50
2" C200 10.3 12.25 3.60 3.83 3.00 8.56
2-1/2" C250 18.0 15.63 4.48 5.08 4.25 10.88
3" C300 20.5 15.63 4.85 5.08 4.25 10.88
C FORM 7
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1/2" C17 1.0 5.38 1.42 1.46 0.94 3.19 C17-A
3/4" C27 1.4 6.00 1.67 1.64 1.13 3.81 C27-A
1" C37 2.2 7.00 1.92 1.83 1.38 4.50 C37-A
1-1/4" C47 2.7 7.44 2.35 2.27 1.75 5.00 C47-A
1-1/2" C57 4.0 8.19 2.60 2.52 1.94 5.44 C57-A
2" C67 5.5 9.19 3.17 3.08 2.44 6.38 C67-A
2-1/2" C77 10.0 12.00 3.67 4.33 3.56 8.38 C77-A
3" C87 11.8 11.75 4.42 4.33 3.56 8.38 C87-A
LB FORM 8
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D E
1/2" LB50 1.5 4.98 2.22 1.46 1.00 3.31
3/4" LB75 2.0 5.60 2.44 1.64 1.19 3.94
1" LB100 2.9 6.51 2.81 1.83 1.38 4.56
1-1/4" LB125 4.1 7.57 3.34 2.27 1.75 5.31
1-1/2" LB150 6.5 9.17 4.03 2.83 2.13 6.50
2" LB200 8.2 11.04 4.81 3.83 3.00 8.56
2-1/2" LB250 18.2 13.98 6.13 5.08 4.25 10.88
3" LB300 21.2 13.98 6.50 5.08 4.25 10.88
3-1/2" LB350 31.2 16.92 7.56 6.33 5.44 13.44
4" LB400 32.0 16.92 7.81 6.33 5.44 13.44
LB FORM 7
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1/2" LB17 1.1 4.60 2.25 1.46 0.94 3.19 LB17-A
3/4" LB27 1.7 5.24 2.50 1.64 1.13 3.81 LB27-A
1" LB37 2.2 6.04 2.88 1.83 1.38 4.50 LB37-A
1-1/4" LB47 3.1 6.54 3.31 2.27 1.75 5.00 LB47-A
1-1/2" LB57 3.8 7.17 3.69 2.52 1.94 5.44 LB57-A
2" LB67 5.2 8.17 4.25 3.08 2.44 6.38 LB67-A
2-1/2" LB777 10.0 10.54 5.13 4.33 3.56 8.38 LB777-A
3" LB87 13.0 10.54 5.88 4.33 3.56 8.38 LB87-A
3-1/2" LB97 19.0 12.73 6.56 5.33 4.50 10.25 LB97-A
4" LB107 18.5 12.73 7.06 5.33 4.50 10.25 LB107-A
LB MARK 9
PIPE NOMINAL ALUMINUM
SIZE WEIGHT A B C D E CATALOG #
1/2" 1.5 4.63 2.13 1.46 1.19 3.31 LB50-A
3/4" 2.0 5.29 2.41 1.64 1.38 3.94 LB75-A
1" 2.9 6.13 2.84 1.83 1.50 4.56 LB100-A
1-1/4" 4.1 7.07 3.47 2.27 1.94 5.31 LB125-A
1-1/2" 6.5 7.79 3.75 2.58 2.25 6.00 LB150-A
2" 8.2 10.07 4.47 3.27 2.88 8.06 LB200-A
2-1/2" 18.2 13.98 6.13 5.08 4.25 10.88 LB250-A
3" 21.2 13.98 6.50 5.08 4.25 10.88 LB300-A
3-1/2" 31.2 16.92 7.56 6.33 5.44 13.44 LB350-A
4" 32.0 16.92 7.81 6.33 5.44 13.44 LB400-A
Conduit Bodies Technical Data
C MARK 9
PIPE NOMINAL ALUMINUM
SIZE WEIGHT A B C D E CATALOG #
1/2" 2.0 5.00 1.42 1.46 1.19 3.31 C50-A
3/4" 2.3 5.69 1.67 1.64 1.38 3.94 C75-A
1" 2.8 6.59 1.92 1.83 1.50 4.56 C100-A
1-1/4" 4.5 7.50 2.54 2.27 1.94 5.31 C125-A
1-1/2" 6.5 8.25 2.79 2.58 2.25 6.00 C150-A
2" 10.3 10.50 3.48 3.27 2.88 8.06 C200-A
2-1/2" 18.0 15.63 4.48 5.08 4.25 10.88 C250-A
3" 20.5 15.63 4.85 5.08 4.25 10.88 C300-A
3-1/2" 10.0 18.75 5.73 6.33 5.44 13.44 C350
4" 12.0 18.75 5.98 6.33 5.44 13.44 C400
General Service Fittings
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Conduit Bodies and Covers
30
LR FORM 8
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D E
1/2" LR50 1.4 4.98 1.48 2.20 1.00 3.31
3/4" LR75 2.1 5.60 1.73 2.35 1.19 3.94
1" LR100 2.6 6.51 1.98 2.67 1.38 4.56
1-1/4" LR125 4.5 7.61 2.42 3.20 1.75 5.31
1-1/2" LR150 6.2 9.17 2.82 4.04 2.13 6.50
2" LR200 10.7 11.04 3.60 5.04 3.00 8.56
2-1/2" LR250 17.7 13.98 4.48 6.73 4.25 10.88
3" LR300 18.0 13.98 4.85 6.73 4.25 10.88
LR FORM 7
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1/2" LR17 1.2 4.60 1.42 2.29 0.94 3.19 LR17-A
3/4" LR27 1.6 5.23 1.67 2.48 1.13 3.81 LR27-A
1" LR37 2.1 6.04 1.92 2.79 1.38 4.50 LR37-A
1-1/4" LR47 3.0 6.54 2.35 3.23 1.75 5.00 LR47-A
1-1/2" LR57 4.1 7.17 2.60 3.60 1.94 5.44 LR57-A
2" LR67 5.7 8.17 3.17 4.17 2.44 6.38 LR67-A
2-1/2" LR77 10.0 10.54 3.67 5.79 3.56 8.38 LR77-A
3" LR87 12.7 10.54 4.42 5.79 3.56 8.38 LR87-A
3-1/2" LR97 19.0 12.73 4.92 6.98 4.50 10.25 LR97-A
4" LR107 19.0 12.73 5.42 6.98 4.50 10.25 LR107-A
Conduit Bodies Technical Data
LR MARK 9
PIPE NOMINAL ALUMINUM
SIZE WEIGHT A B C D E CATALOG #
1/2" 1.4 4.63 1.42 2.17 1.19 3.31 LR50-A
3/4" 2.1 5.29 1.67 2.42 1.38 3.94 LR75-A
1" 2.6 6.13 1.92 2.67 1.50 4.56 LR100-A
1-1/4" 4.5 7.07 2.54 3.13 1.94 5.31 LR125-A
1-1/2" 6.2 7.79 2.79 3.48 2.25 6.00 LR150-A
2" 10.7 10.07 3.48 4.17 2.88 8.06 LR200-A
2-1/2" 17.7 13.98 4.48 6.73 4.25 10.88 LR250-A
3" 18.0 13.98 4.85 6.73 4.25 10.88 LR300-A
3-1/2" 21.0 16.92 5.73 8.17 5.44 13.44 LR350
4" 24.0 16.92 5.98 8.17 5.44 13.44 LR400
LL FORM 8
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D E
1/2" LL50 1.4 4.98 1.48 2.20 1.00 3.31
3/4" LL75 2.1 5.60 1.73 2.35 1.19 3.94
1" LL100 2.6 6.51 1.98 2.67 1.38 4.56
1-1/4" LL125 4.2 7.61 2.42 3.20 1.75 5.31
1-1/2" LL150 6.2 9.17 2.82 4.04 2.13 6.50
2" LL200 10.5 11.04 3.60 5.04 3.00 8.56
2-1/2" LL250 19.0 13.98 4.48 6.73 4.25 10.88
3" LL300 21.5 13.98 4.85 6.73 4.25 10.88
LL MARK 9
PIPE NOMINAL ALUMINUM
SIZE WEIGHT A B C D E CATALOG #
1/2" 1.4 4.63 1.42 2.17 1.19 3.31 LL50-A
3/4" 2.1 5.29 1.67 2.42 1.38 3.94 LL75-A
1" 2.6 6.13 1.92 2.67 1.50 4.56 LL100-A
1-1/4" 4.2 7.07 2.54 3.13 1.94 5.31 LL125-A
1-1/2" 6.2 7.79 2.79 3.48 2.25 6.00 LL150-A
2" 10.5 10.07 3.48 4.17 2.88 8.06 LL200-A
2-1/2" 19.0 13.98 4.48 6.73 4.25 10.88 LL250-A
3" 21.5 13.98 4.85 6.73 4.25 10.88 LL300-A
3-1/2" 21.5 16.92 5.73 8.17 5.44 13.44 LL350
4" 24.5 16.92 5.98 8.17 5.44 13.44 LL400
LL FORM 7
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1/2" LL17 1.2 4.60 1.42 2.29 0.94 3.19 LL17-A
3/4" LL27 1.6 5.23 1.67 2.48 1.13 3.81 LL27-A
1" LL37 2.1 6.04 1.92 2.79 1.38 4.50 LL37-A
1-1/4" LL47 3.0 6.54 2.35 3.23 1.75 5.00 LL47-A
1-1/2" LL57 4.1 7.17 2.60 3.60 1.94 5.44 LL57-A
2" LL67 5.7 8.17 3.17 4.17 2.44 6.38 LL67-A
2-1/2" LL77 10.0 10.54 3.67 5.79 3.56 8.38 LL77-A
3" LL87 12.7 10.54 4.42 5.79 3.56 8.38 LL87-A
3-1/2" LL97 19.0 12.73 4.92 6.98 4.50 10.25 LL97-A
4" LL107 19.0 12.73 5.42 6.98 4.50 10.25 LL107-A
General Service Fittings
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Conduit Bodies and Covers
31
TB FORM 8
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D E
1/2" TB50 2.0 5.69 2.53 1.46 1.00 3.31
3/4" TB75 2.3 6.28 2.75 1.64 1.19 3.94
1" TB100 3.1 7.31 3.13 1.83 1.38 4.56
1-1/4" TB125 5.2 8.50 3.34 2.27 1.75 5.31
1-1/2" TB150 7.0 10.38 4.03 2.83 2.13 6.50
2" TB200 11.0 12.25 4.81 3.83 3.00 8.56
TB FORM 7
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1/2" TB17 1.6 5.63 2.63 1.64 0.94 3.19 TB17-A
3/4" TB27 2.1 6.25 2.88 1.83 1.13 3.81 TB27-A
1" TB37 2.7 7.25 3.25 2.08 1.38 4.50 TB37-A
1-1/4" TB47 3.7 7.44 3.31 2.27 1.75 5.00 TB47-A
1-1/2" TB57 4.7 8.19 5.00 2.52 1.94 5.44 TB57-A
2" TB67 7.0 9.19 6.13 3.08 2.44 6.38 TB67-A
TB MARK 9
PIPE NOMINAL ALUMINUM
SIZE WEIGHT A B C D E CATALOG #
1/2" 2.0 5.00 2.13 1.46 1.19 3.31 TB50-A
3/4" 2.3 5.69 2.41 1.64 1.38 3.94 TB75-A
1" 3.1 6.59 2.84 1.83 1.50 4.56 TB100-A
1-1/4" 5.2 7.50 3.47 2.27 1.94 5.31 TB49
1-1/2" 7.0 8.34 3.88 2.58 2.16 5.88 TB59
2" 11.0 10.63 4.59 3.30 2.81 8.09 TB69
X FORM 8
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D E
1/2" X50 2.0 5.69 2.91 1.79 1.00 3.31
3/4" X75 2.6 6.28 3.06 2.04 1.19 3.94
1" X100 3.1 7.31 3.50 2.29 1.38 4.56
1-1/4" X125 5.2 8.50 4.13 2.67 1.75 5.31
1-1/2" X150 7.5 10.38 5.25 2.51 2.13 6.50
2" X200 11.7 12.25 6.25 3.60 3.00 8.56
X FORM 7
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1/2" X17 1.7 5.63 3.31 1.79 0.94 3.19 X17-A
3/4" X27 2.4 6.25 3.50 2.04 1.13 3.81 X27-A
1" X37 2.7 7.25 4.00 2.29 1.38 4.50 X37-A
1-1/4" X47 3.6 7.44 4.13 2.35 1.75 5.00 X47-A
1-1/2" X57 5.0 8.19 4.63 2.60 1.94 5.44 X57-A
2" X67 7.5 9.19 5.19 3.17 2.44 6.38 X67-A
X MARK 9
PIPE NOMINAL ALUMINUM
SIZE WEIGHT A B C D E CATALOG #
1/2" 2.0 5.69 2.91 1.79 1.00 3.31 X50-A
3/4" 2.6 6.28 3.06 2.04 1.19 3.94 X75-A
1" 3.1 7.31 3.50 2.29 1.38 4.56 X100-A
General Service Fittings
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Conduit Bodies and Covers
32
T FORM 8
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D E
1/2" T50 1.8 5.69 1.79 2.20 1.00 3.31
3/4" T75 2.5 6.28 2.04 2.35 1.19 3.94
1" T100 3.3 7.31 2.29 2.67 1.38 4.56
1-1/4" T125 4.9 8.50 2.67 3.20 1.75 5.31
1-1/2" T150 7.5 10.38 2.82 4.04 2.13 6.50
2" T200 11.7 12.25 3.60 5.04 3.00 8.56
2-1/2" T250 19.8 15.63 4.48 6.73 4.25 10.88
3" T300 23.5 15.63 4.85 6.73 4.25 10.88
T FORM 7
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1/2" T17 1.5 5.63 1.79 2.48 0.94 3.19 T17-A
3/4" T27 2.1 6.25 2.04 2.67 1.13 3.81 T27-A
1" T37 2.9 7.25 2.29 3.04 1.38 4.50 T37-A
1-1/4" T47 3.6 7.44 2.35 3.23 1.75 5.00 T47-A
1-1/2" T57 4.5 8.19 2.60 3.60 1.94 5.44 T57-A
2" T67 6.5 9.19 3.17 4.17 2.44 6.38 T67-A
2-1/2" T77 10.7 12.00 3.67 5.79 3.56 8.38 T77-A
3" T87 15.4 12.06 4.42 5.79 3.56 8.38 T87-A
3-1/2" T97 19.0 14.31 4.92 6.98 4.50 10.25 T97-A
4" T107 21.0 14.31 5.42 6.98 4.50 10.25 T107-A
Conduit Bodies Technical Data
REPLACEMENT SCREW KITS
CATALOG # DESCRIPTION
SCREW-KIT-1 1/2" and 3/4" FORM 8 ENCAP SCREWS
SCREW-KIT-2 1" and 1-1/4" FORM 8 ENCAP SCREWS
SCREW-KIT-3 1-1/2" FORM 8 ENCAP SCREWS
SCREW-KIT-4 2" FORM 8 ENCAP SCREWS
SCREW-KIT-5 2-1/2" and 3" FORM 8 ENCAP SCREWS
SCREW-KIT-6 3-1/2" and 4" FORM 8 ENCAP SCREWS
SCREW-KIT-7 1/2" OE ENCAP SCREWS
SCREW-KIT-8 3/4" OE ENCAP SCREWS
SCREW-KIT-9 1-1/4" LBD ENCAP SCREWS
SCREW-KIT-10 1-1/2" LBD ENCAP SCREWS
SCREW-KIT-11 2" LBD ENCAP SCREWS
SCREW-KIT-12 2-1/2" and 3" LBD ENCAP SCREWS
SCREW-KIT-13 2-1/2" and 3" MARK 9 ENCAP SCREWS
SCREW-KIT-14 3-1/2" and 4" MARK 9 ENCAP SCREWS
T MARK 9
PIPE NOMINAL ALUMINUM
SIZE WEIGHT A B C D E CATALOG #
1/2" 1.8 5.00 1.42 2.17 1.19 3.31 T50-A
3/4" 2.5 5.69 1.92 2.42 1.38 3.31 T75-A
1" 3.3 6.59 1.92 2.67 1.50 4.56 T100-A
1-1/4" 4.9 7.50 2.54 3.13 1.94 5.31 T125-A
1-1/2" 7.5 8.25 2.79 3.48 2.25 6.00 T150-A
2" 11.7 10.50 3.48 4.17 2.88 8.06 T200-A
2-1/2" 19.8 15.63 4.48 6.73 4.25 10.88 T250-A
3" 23.5 15.63 4.85 6.73 4.25 10.88 T300-A
3-1/2" 21.0 18.75 5.73 8.17 5.44 13.44 T350
4" 24.0 18.75 5.98 8.17 5.44 13.44 T400
General Service Fittings
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Pulling Elbows
33
Pulling Elbows Technical Data
PULLING ELBOWS LBD
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1/2" LBD-1100 1.2 5.00 2.35 1.39 1.00 3.34 LBD-1100-A
3/4" LBD-2200 2.0 6.25 2.67 1.64 1.25 4.53 LBD-2200-A
1" LBD-3300 2.5 6.25 2.98 1.89 1.50 4.34 LBD-3300-A
1-1/4" LBD-4400 6.0 8.63 4.29 3.58 1.81 7.19 LBD-4400-A
1-1/2" LBD-5500 11.5 12.44 5.48 4.71 2.63 10.88 LBD-5500-A
2" LBD-6600 18.0 12.44 5.48 4.71 2.63 10.88 LBD-6600-A
2-1/2" LBD-7700 22.0 19.69 9.60 5.71 3.00 15.75 LBD-7700-A
3" LBD-8800 35.0 19.69 9.60 5.71 3.00 15.75 LBD-8800-A
3-1/2" LBD-9900 60.0 20.88 10.92 7.83 4.75 19.89 –
3-1/2" – – 27.81 11.92 7.21 4.00 24.00 LBD-9900-A
4" LBD-10900 70.0 20.88 10.92 7.83 4.75 19.89 –
4" – – 27.81 11.92 7.21 4.00 24.00 LBD-10900-A
Pulling Elbows
Description:
Perma-Cote LBD conduit bodies are used at 90˚ bends in conduit runs to allow straight pulls at bends, to
serve as pull outlets for stiff conductors, to allow for service entrance into buildings, or to
allow conductor entrance into motors. Electrical continuity of the conduit system is maintained across
assembled joints.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■10 trade sizes from 1/2" through 4"
■Sealing sleeves on all conduit openings
■Molded-in seal between body and cover
■Domed covers allow gentle bends of conductors
■Shipped with covers
■Angled covers allow straight pulling in either
direction
Standards:
Steel Fittings Only
■UL 514B (E200413)
Conduit Bodies – Mogul Technical Data
Mogul Style Conduit Bodies
Description:
Perma-Cote mogul style conduit bodies are offered in numerous congurations to provide a complete
coated conduit system. Mogul BG Covers are sold separately. Mogul style tting bodies have long
openings and may be used to make bends in conduit runs, for pull outlets for stiff conductors, to provide
additional room for taps or splices, etc.. Electrical continuity of the conduit system is maintained across
assembled joints.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■8 trade sizes from 1" through 4"
■Sealing sleeves on all conduit openings
■Molded-in seal between bodies and covers
■Large cover openings provide ample room
Standards:
Steel and Aluminum
■UL 514A, 514D (E231035)
■CSA C22.2 No. 18, CSA C22.2 No. 42
BC
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1" C8X-100G 3.2 9.56 1.92 2.27 1.88 6 C8X-100-A
1-1/4" C8X-125G 4.2 9.56 2.35 2.27 1.88 6 C8X-125-A
1-1/2" C8X-150G 6.0 13.75 2.60 3.08 2.63 10 C8X-150-A
2" C8X-200G 7.0 13.75 3.17 3.08 2.63 10 C8X-200-A
2-1/2" C8X-250G 13.8 18.38 3.67 4.33 3.81 15 C8X-250-A
3" C8X-300G 17.5 18.38 4.42 4.33 3.81 15 C8X-300-A
3-1/2" C8X-350G 25.0 23.75 4.92 5.33 4.75 20 C8X-350-A
4" C8X-400G 28.0 23.75 5.42 5.33 4.75 20 C8X-400-A
(cover sold separately)
General Service Fittings
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Conduit Bodies and Covers
34
General Service Fittings
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Conduit Bodies and Covers
35
Conduit Bodies – Mogul Technical Data
BUB
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1" UB6X-100G 3.2 9.19 2.69 2.27 1.88 6 UB6X-100-A
1-1/4" UB6X-125G 4.0 9.31 3.19 2.27 1.88 6 UB6X-125-A
1-1/2" UB6X-150G 5.9 13.50 3.5 3.08 2.63 10 UB6X-150-A
2" UB6X-200G 7.8 13.50 4.13 3.08 2.63 10 UB6X-200-A
2-1/2" UB6X-250G 12.5 17.75 4.81 4.33 3.81 15 UB6X-250-A
3" UB6X-300G 17.0 17.88 5.63 4.33 3.81 15 UB6X-300-A
3-1/2" UB6X-350G 25.0 23.38 6.38 5.33 4.75 20 UB6X-350-A
4" UB6X-400G 28.0 23.25 6.81 5.33 4.75 20 UB6X-400-A
(cover sold separately)
BLB
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1" LB6X-100G 3.2 8.63 2.84 2.27 1.88 6 LB6X-100-A
1-1/4" LB6X-125G 4.2 8.63 3.28 2.27 1.88 6 LB6X-125-A
1-1/2" LB6X-150G 6.0 12.73 3.63 3.08 2.63 10 LB6X-150-A
2" LB6X-200G 7.0 12.73 4.19 3.08 2.63 10 LB6X-200-A
2-1/2" LB6X-250G 13.8 16.95 5.09 4.33 3.81 15 LB6X-250-A
3" LB6X-300G 17.5 16.95 5.84 4.33 3.81 15 LB6X-300-A
3-1/2" LB6X-350G 25.0 22.17 6.50 5.33 4.75 20 LB6X-350-A
4" LB6X-400G 28.0 22.17 7.00 5.33 4.75 20 LB6X-400-A
(cover sold separately)
BT
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT A B C D E CATALOG #
1" T8X-100G 3.2 9.56 1.92 3.24 1.88 6 T8X-100-A
1-1/4" T8X-125G 3.6 9.56 2.35 3.24 1.88 6 T8X-125-A
1-1/2" T8X-150G 7.5 13.75 2.60 4.14 2.63 10 T8X-150-A
2" T8X-200G 9.0 13.75 3.17 4.14 2.63 10 T8X-200-A
2-1/2" T8X-250G 15.0 18.38 3.67 5.67 3.81 15 T8X-250-A
3" T8X-300G 19.0 18.38 4.42 5.80 3.81 15 T8X-300-A
3-1/2" T8X-350G 29.0 23.75 4.92 6.96 4.75 20 T8X-350-A
4" T8X-400G 32.0 23.75 5.42 6.96 4.75 20 T8X-400-A
(cover sold separately)
BG COVERS
(body sold separately)
FERROUS NOMINAL ALUMINUM
CATALOG # DESCRIPTION WEIGHT CATALOG #
BG48 1 - 1 1/4 BG COVER MOGUL 2.5 BG48-A
BG68 1 1/2 - 2 BG COVER MOGUL 3.2 BG68-A
BG88 2 1/2 - 3 BG COVER MOGUL 6.4 BG88-A
BG98 3 1/2 - 4 BG COVER MOGUL 9.8 BG98-A
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
General Service Fittings
Knockout Hubs
36
Knockout Hubs
Description:
Perma-Cote ST style knockout hubs are used to terminate conduit runs through the wall of a sheet metal
electrical enclosure. They are available with or without grounding lug. STTB style hubs are “Through-
Bulkhead” ttings used to pass conduit runs through rewalls or bulkheads up to 1/8" thick. STTTB style
hubs perform the same function for unlimited wall thicknesses, (furnished without nipples).
Features:
■40 mil gray PVC exterior coating
■ST available in 12 trade sizes from 1/2"
through 6"
■STTB available in 10 trade sizes from 1/2"
through 4"
■STTTB available in 6 trade sizes from 1/2"
through 2"
■Sealing sleeves on conduit side of hub
■Molded PVC gasket seals ush with enclosure
wall
■O-ring gasket provides additional seal
Standards:
Steel Only: ST, STG
■UL 514B (E200413)
■NEC/CEC:
Class I, Division 2
Class II, Division 1 & 2
Class III, Division 1 & 2
NOTE:
■All Screw-tight Hubs are listed for NEMA and UL type
enclosures 2, 3, 3R, 4, 4X, 11 and 12
■Grounding and Bonding Hubs are listed for NEMA
Enclosures 2, 3, 3R, 4 and 12
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
General Service Fittings
Knockout Hubs
37
* Unlimited wall thickness – determined by nipple used.

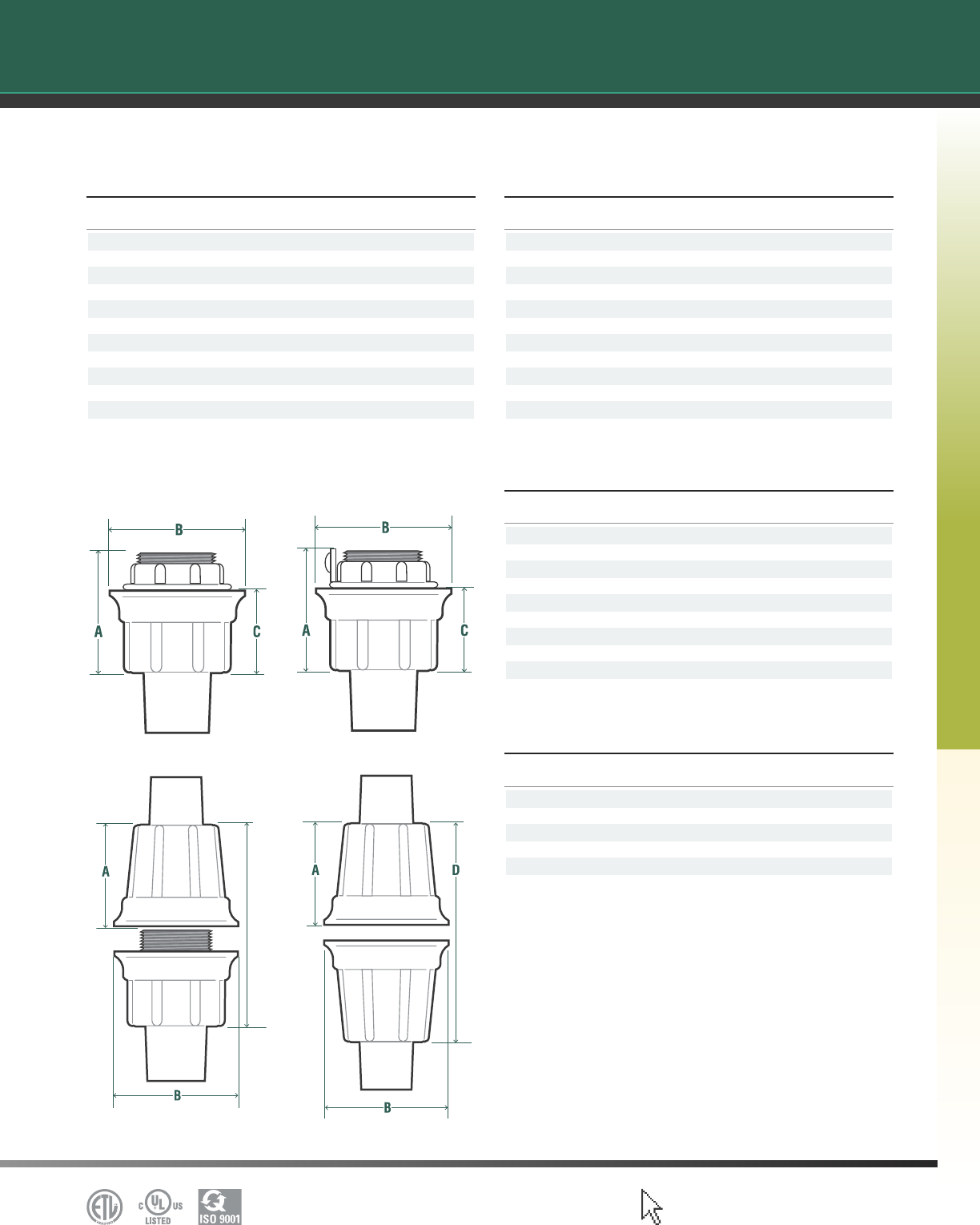

Knockout Hubs Technical Data
ST
PIPE NOMINAL MAX ALUMINUM
SIZE CATALOG # WEIGHT A B C WALL THICK CATALOG #
1/2" ST-1 0.2 1.34 2.00 0.81 0.19 STA-1
3/4" ST-2 0.3 1.47 2.25 0.91 0.19 STA-2
1" ST-3 0.4 1.66 2.50 1.03 0.25 STA-3
1-1/4" ST-4 0.4 1.69 3.25 1.03 0.25 STA-4
1-1/2" ST-5 0.6 1.69 3.50 1.03 0.25 STA-5
2" ST-6 1.2 1.75 4.25 1.09 0.25 STA-6
2-1/2" ST-7 1.5 2.22 4.75 1.28 0.25 STA-7
3" ST-8 2.1 2.31 5.25 1.38 0.25 STA-8
3-1/2" ST-9 3.0 2.38 5.50 1.44 0.25 STA-9
4" ST-10 3.5 2.44 6.25 1.50 0.25 STA-10
5" ST-11 5.4 2.94 7.50 2.00 0.25 STA-11
6" ST-12 6.9 3 8.50 2.00 0.31 STA-12
STTB
PIPE NOMINAL MAX ALUMINUM
SIZE CATALOG # WEIGHT A B WALL THICK CATALOG #
1/2" STTB-1 0.5 1.34 2.00 0.19 STTBA-1
3/4" STTB-2 0.5 1.47 2.25 0.19 STTBA-2
1" STTB-3 0.7 1.66 2.50 0.25 STTBA-3
1-1/4" STTB-4 1.0 1.69 3.25 0.25 STTBA-4
1-1/2" STTB-5 1.2 1.69 3.50 0.25 STTBA-5
2" STTB-6 1.7 1.75 4.25 0.25 STTBA-6
2-1/2" STTB-7 2.5 2.22 4.75 0.25 STTBA-7
3" STTB-8 3.0 2.31 5.25 0.25 STTBA-8
3-1/2" STTB-9 4.2 2.38 5.50 0.25 STTBA-9
4" STTB-10 5.9 2.44 6.25 0.25 STTBA-10
STTTB
PIPE NOMINAL MAX ALUMINUM
SIZE CATALOG # WEIGHT A B WALL THICK CATALOG #
1/2" STTTB-1 1.0 1.34 2.00 * STTTBA-1
3/4" STTTB-2 1.0 1.47 2.25 * STTTBA-2
1" STTTB-3 1.4 1.66 2.50 * STTTBA-3
1-1/4" STTTB-4 2.0 1.69 3.25 * STTTBA-4
1-1/2" STTTB-5 2.4 1.69 3.50 * STTTBA-5
2" STTTB-6 3.4 1.75 4.25 * STTTBA-6
STG
PIPE NOMINAL MAX ALUMINUM
SIZE CATALOG # WEIGHT A B C WALL THICK CATALOG #
1/2" STG-1 0.2 1.34 2.00 0.81 0.19 STAG-1
3/4" STG-2 0.3 1.47 2.25 0.91 0.19 STAG-2
1" STG-3 0.4 1.66 2.50 1.03 0.25 STAG-3
1-1/4" STG-4 0.4 1.69 3.25 1.03 0.25 STAG-4
1-1/2" STG-5 0.6 1.69 3.50 1.03 0.25 STAG-5
2" STG-6 1.2 1.75 4.25 1.09 0.25 STAG-6
2-1/2" STG-7 1.5 2.22 4.75 1.28 0.25 STAG-7
3" STG-8 2.1 2.31 5.25 1.38 0.25 STAG-8
3-1/2" STG-9 3.0 2.38 5.50 1.44 0.25 STAG-9
4" STG-10 3.5 2.44 6.25 1.50 0.25 STAG-10
5" STG-11 5.4 2.94 7.50 2.00 0.25 STAG-11
6" STG-12 6.9 3.00 8.50 2.00 0.31 STAG-12
ST STG
STTB STTTB
KNOCKOUT HUB CONFIGURATIONS
General Service Fittings
90˚ 90˚ with
Ground
Liquid Tight Connectors
Description:
Perma-Cote liquid tight connectors are used with liquid tight conduit to wire motors, transformers,
processing equipment, pumps, etc. The exible conduit and the PVC coated connector work together to
seal out water and other corrosive liquids, protecting the conductors from damage.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■13 trade sizes from 3/8" through 6"
■Sealing sleeves on all conduit openings
■Available in straight, 45° or 90° body
congurations
■Available with an external grounding lug
Standards:
Steel Fittings Only
■UL 514B (E200413), UL 467 (E217890)
LIQUID TIGHT CONNECTORS CONFIGURATIONS
45˚
Straight
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Liquid Tight Connectors
38
General Service Fittings
STRAIGHT CONNECTOR
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # A B C WEIGHT CATALOG #
3/8" 4Q38T 1.24 1.5 0.56 0.2 4Q38T-A
1/2" 4Q50T 1.46 1.56 0.56 0.2 4Q50T-A
3/4" 4Q75T 1.74 1.63 0.56 0.3 4Q75T-A
1" 4Q100T 1.96 2.06 0.75 0.4 4Q100T-A
1-1/4" 4Q125T 2.36 2.50 0.81 0.8 4Q125T-A
1-1/2" 4Q150T 2.80 2.69 0.81 0.9 4Q150T-A
2" 4Q200T 3.33 3.06 0.88 1.7 4Q200T-A
2-1/2" 4Q250T 3.83 4.13 1.00 3.0 4Q250T-A
3" 4Q300T 4.58 4.25 1.00 4.2 4Q300T-A
4" 4Q350T 5.58 4.50 1.13 6.2 4Q350T-A
45° CONNECTOR
PIPE FERROUS NOMINAL
SIZE CATALOG # A B C WEIGHT
3/8" 4Q438T 1.24 1.56 0.56 0.3
1/2" 4Q450T 1.46 1.88 0.56 0.3
3/4" 4Q475T 1.74 2.13 0.56 0.4
1" 4Q4100T 1.96 2.25 0.75 0.5
1-1/4" 4Q4125T 2.36 2.75 0.81 1.5
1-1/2" 4Q4150T 2.80 3.38 0.81 1.2
2" 4Q4200T 3.33 3.88 0.88 2.0
2-1/2" 4Q4250T 3.83 4.25 1.00 3.0
3" 4Q4300T 4.58 4.25 1.00 4.2
4" 4Q4400T 5.58 4.63 1.13 6.2
45° CONNECTOR WITH GROUND
PIPE FERROUS GROUND NOMINAL
SIZE CATALOG # A B C WIRE WEIGHT
3/8" 4Q438LT 1.24 1.56 0.56 14-8 0.3
1/2" 4Q450LT 1.46 1.88 0.56 14-8 0.3
3/4" 4Q475LT 1.74 2.13 0.56 14-4 0.4
1" 4Q4100LT 1.96 2.25 0.75 14-4 0.5
1-1/4" 4Q4125LT 2.33 2.75 0.81 4/2/2000 1.5
1-1/2" 4Q4150LT 3.33 3.38 0.81 4/2/2000 1.2
2" 4Q4200LT 3.89 3.88 0.88 4/2/2000 2.0
2-1/2" 4Q4250LT 4.52 4.25 1.00 2/4/2000 3.0
3" 4Q4300LT 5.27 4.25 1.00 2/4/2000 4.2
4" 4Q4400LT 6.21 4.63 1.13 2/4/2000 6.2
STRAIGHT CONNECTOR WITH GROUND
PIPE FERROUS GROUND NOMINAL ALUMINUM
SIZE CATALOG # A B C WIRE WEIGHT CATALOG #
3/8" 4Q38LT 1.24 1.5 0.56 14-8 0.2 4Q38LT-A
1/2" 4Q50LT 1.46 1.56 0.56 14-8 0.2 4Q50LT-A
3/4" 4Q75LT 1.74 1.63 0.56 14-4 0.3 4Q75LT-A
1" 4Q100LT 1.96 2.06 0.75 14-4 0.4 4Q100LT-A
1-1/4" 4Q125LT 2.33 2.5 0.81 8/1/2000 0.8 4Q125LT-A
1-1/2" 4Q150LT 3.33 2.69 0.81 4/2/2000 0.9 4Q150LT-A
2" 4Q200LT 3.89 3.06 0.88 4/2/2000 1.7 4Q200LT-A
2-1/2" 4Q250LT 4.52 4.13 1.00 2/4/2000 3.0 4Q250LT-A
3" 4Q300LT 5.27 4.25 1.00 2/4/2000 4.2 4Q300LT-A
4" 4Q350LT 6.21 4.50 1.13 2/4/2000 6.2 4Q350LT-A
90° CONNECTOR
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # A B C WEIGHT CATALOG #
3/8" 4Q938T 1.24 1.38 0.56 0.3 4Q938T-A
1/2" 4Q950T 1.46 1.56 0.56 0.3 4Q950T-A
3/4" 4Q975T 1.74 1.75 0.56 0.4 4Q975T-A
1" 4Q9100T 1.96 2.19 0.75 0.6 4Q9100T-A
1-1/4" 4Q9125T 2.36 2.75 0.81 1.0 4Q9125T-A
1-1/2" 4Q9150T 2.80 2.94 0.81 1.7 4Q9150T-A
2" 4Q9200T 3.33 3.44 0.88 2.7 4Q9200T-A
2-1/2" 4Q9250T 3.83 8.88 1.00 3.8 –
3" 4Q9300T 4.58 10.25 1.00 4.2 –
4" 4Q9400T 5.58 12.63 1.13 6.2 –
90° CONNECTOR WITH GROUND
PIPE FERROUS GROUND NOMINAL ALUMINUM
SIZE CATALOG # A B C WIRE WEIGHT CATALOG #
3/8" 4Q938LT 1.24 1.25 0.56 14-8 0.3 4Q938LT-A
1/2" 4Q950LT 1.46 1.44 0.56 14-8 0.3 4Q950LT-A
3/4" 4Q975LT 1.74 1.81 0.75 14-4 0.4 4Q975LT-A
1" 4Q9100LT 1.96 2.06 0.75 14-4 0.6 4Q9100LT-A
1-1/4" 4Q9125LT 2.33 2.50 0.81 8/1/2000 1.0 4Q9125LT-A
1-1/2" 4Q9150LT 3.33 2.94 0.81 4/2/2000 1.7 4Q9150LT-A
2" 4Q9200LT 3.89 3.44 0.88 4/2/2000 2.7 4Q9200LT-A
2-1/2" 4Q9250LT 4.52 8.88 1.00 2/4/2000 3.8 –
3" 4Q9300LT 5.27 10.25 1.00 2/4/2000 4.2 –
4" 4Q9400LT 6.21 12.63 1.13 2/4/2000 6.2 –
90˚ 90˚ with
Ground
45˚
Straight
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Liquid Tight Connectors
39
General Service Fittings
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
TECK Series Cable Fittings
40

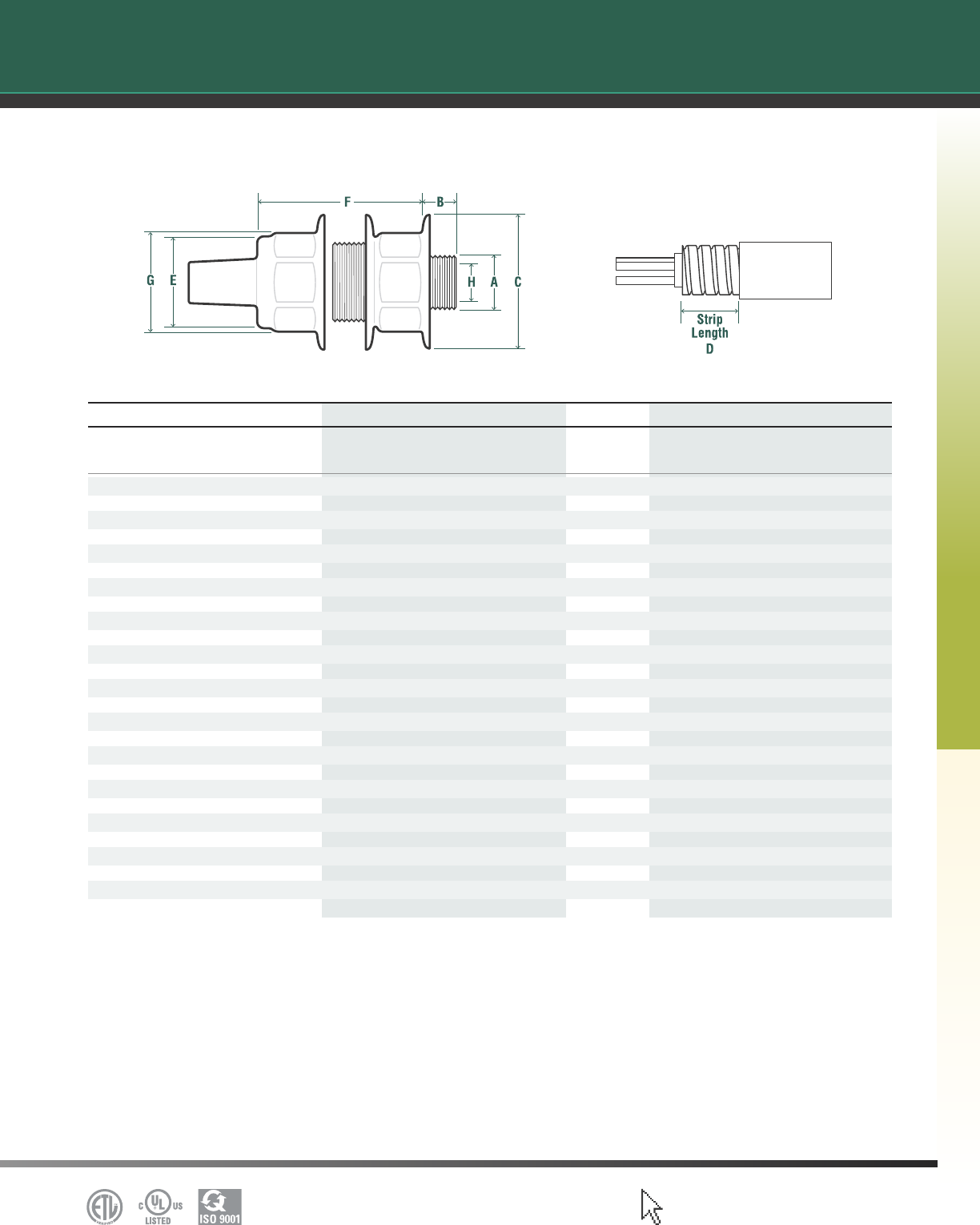

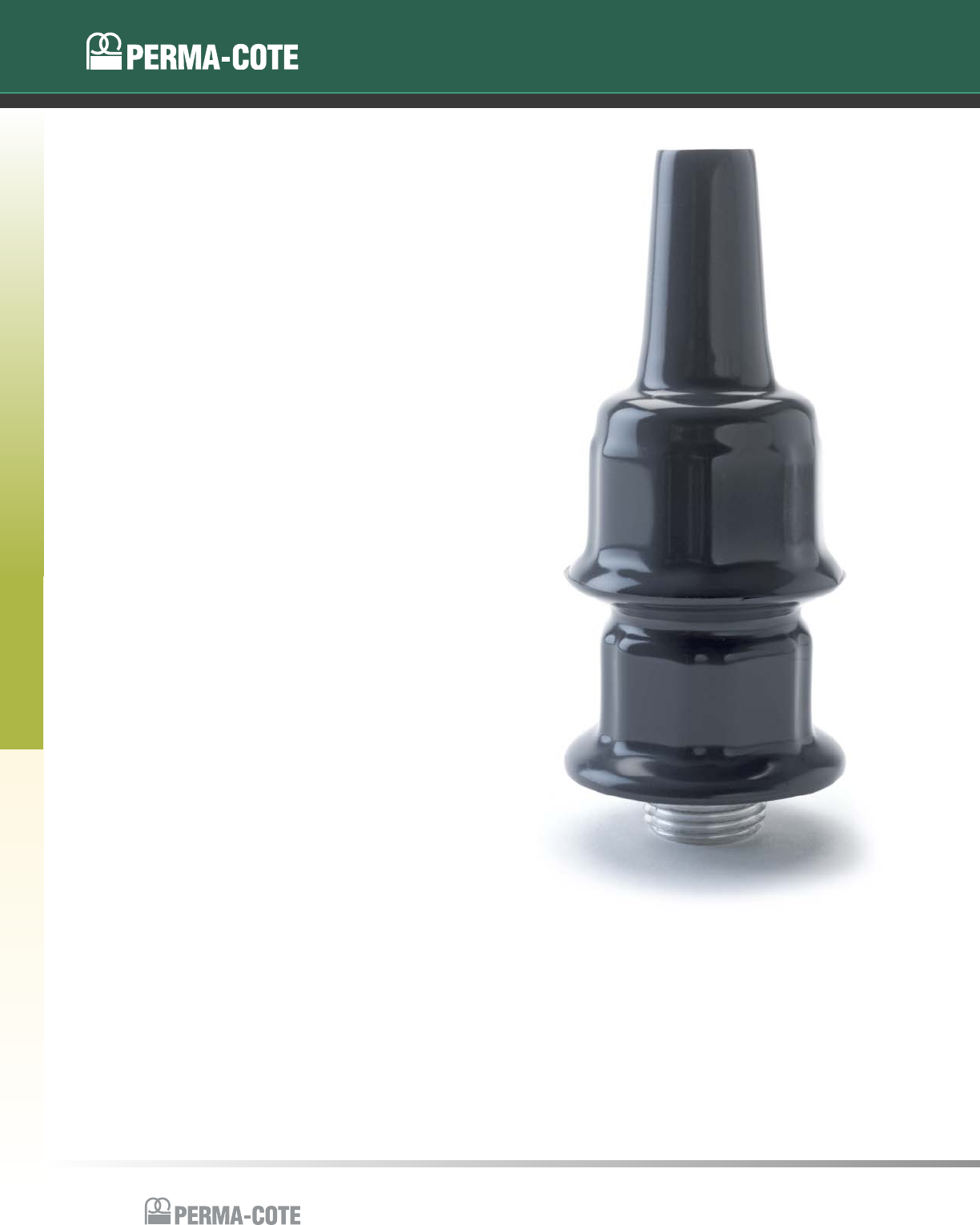

TECK Series
Armored Cable Fittings
Description:
Perma-Cote TECK Series cable ttings are
designed for use with jacketed TECK cable with
aluminum or steel armor. TECK series cable ttings
are installed to provide a means for passing TECK
type cable into an enclosure, panel board, or other
equipment, to form a mechanical watertight and
dust tight termination, and to provide ground
continuity between the cable armour and metal
enclosures.
Features:
■40 mil gray PVC exterior coating with cable
sleeve and sealing gland
■Standard material is aluminum
■Stainless steel copper-plated spring provides
grounding continuity of cable armour (TECK
cable only)
■Watertight seal on outer sheath of cable
■Standard neoprene seal suitable for use in
operating temperatures -25° to 60°C
■An integral o-ring seal on entry threads
■Available with NPT threads
Gland Type:
■Armoured
Cable Type:
■TECK Armoured
Standards:
■CSA Certied Class II, Div. 1 & 2, Groups E, F,
G; Class III – CSA File LR13046
■Type 4 and IP56
■Wet locations
General Service Fittings
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
TECK Series Cable Fittings
41
TECK Series – Technical Data
TECK SERIES
CABLE ACCEPTANCE HEXAGON DIMENSIONS
PVC COATED ENTRY THREAD THREAD GLAND
ALUMINUM SIZE A LENGTH B ARMOR RANGE H OUTER SHEATH E LENGTH F ACROSS ACROSS SEALING STRIP
CATALOG # NPT SIZE NPT MIN MAX MIN MAX (LESS ENTRY) FLATS CORNERS G GLAND C LENGTH D
TECK050-1 1/2" 0.630 0.415 0.570 0.525 0.650 2.300 1.250 1.350 1.925 1-1/4"
TECK050-2 1/2" 0.630 0.490 0.680 0.600 0.760 2.300 1.375 1.500 1.925 1-1/4"
TECK050-3 1/2" 0.630 0.615 0.805 0.725 0.885 2.300 1.500 1.600 1.925 1-1/4"
TECK050-4 1/2" 0.630 0.715 0.905 0.825 0.985 2.300 1.500 1.600 1.925 1-1/4"
TECK075-5 3/4" 0.630 0.770 0.985 0.880 1.065 2.500 2.000 2.125 2.000 1-1/4"
TECK075-6 3/4" 0.630 0.915 1.125 1.025 1.205 2.500 2.000 2.125 2.000 1-1/4"
TECK100-7 1" 0.750 1.077 1.295 1.187 1.375 2.625 2.250 2.400 2.370 1-1/4"
TECK125-8 1-1/4' 0.800 1.240 1.545 1.350 1.625 3.500 3.000 3.125 2.370 1-3/4"
TECK125-9 1-1/4' 0.800 1.390 1.545 1.500 1.625 3.400 3.000 3.125 2.370 1-3/4"
TECK125-10 1-1/4' 0.800 1.490 1.795 1.600 1.875 3.500 3.000 3.125 2.870 1-3/4"
TECK150-11 1-1/2" 0.800 1.590 1.885 1.700 1.965 3.800 3.750 3.600 3.250 1-3/4"
TECK150-12 1-1/2" 0.800 1.790 2.107 1.900 2.187 3.900 3.500 3.750 3.250 1-3/4"
TECK200-13 2" 0.825 1.790 2.107 1.900 2.187 4.000 3.750 4.000 3.750 1-3/4"
TECK200-14 2" 0.825 1.990 2.280 2.100 2.375 4.000 3.750 4.000 3.750 1-3/4"
TECK200-15 2" 0.875 2.190 2.485 2.300 2.565 4.000 4.125 4.400 3.750 1-3/4"
TECK200-16 2" 0.875 2.390 2.656 2.500 2.750 4.000 4.125 4.400 3.750 1-3/4"
TECK250-17 2-1/2" 1.300 2.240 2.560 2.380 2.640 5.000 4.500 4.750 4.500 2-1/2"
TECK250-18 2-1/2" 1.300 2.440 2.750 2.580 2.840 5.000 4.500 4.750 4.500 2-1/2"
TECK300-19 3" 1.400 2.640 2.970 2.790 3.060 5.000 4.600 4.900 5.000 2-1/2"
TECK300-20 3" 1.400 2.870 3.190 3.000 3.270 5.000 4.900 5.250 5.000 2-1/2"
TECK300-21 3" 1.400 3.042 3.390 3.210 3.480 5.000 5.000 5.250 5.000 2-1/2"
TECK350-22 3-1/2" 1.400 3.270 3.590 3.420 3.690 5.000 5.600 5.900 5.500 2-1/2"
TECK350-23 3-1/2" 1.400 3.440 3.770 3.610 3.870 5.000 5.500 5.900 5.500 2-1/2"
TECK400-24 4" 1.400 3.600 3.930 3.810 4.030 5.000 6.125 6.500 6.100 2-1/2"
TECK400-25 4" 1.400 3.755 4.065 3.965 4.185 5.000 6.125 6.500 6.100 2-1/2"
TECK400-26 4" 1.400 3.910 4.220 4.120 4.340 5.000 6.125 6.500 6.100 2-1/2"
General Service Fittings
Split Couplings
Description:
Perma-Cote split couplings are used to connect
two pieces of conduit where the conduit can’t be
turned because of limited clearance between runs
or a wall or other obstruction.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■12 trade sizes from 1/2" through 6"
■Sealing sleeves on all conduit openings SPLIT COUPLINGS
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT
1/2" SSP-50 0.2
3/4" SSP-75 0.3
1" SSP-100 0.4
1-1/4" SSP-125 0.6
1-1/2" SSP-150 0.7
2" SSP-200 1.0
2-1/2" SSP-250 2.3
3" SSP-300 3.0
3-1/2" SSP-350 3.8
4" SSP-400 4.1
5" SSP-500 6.0
6" SSP-600 8.6
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644

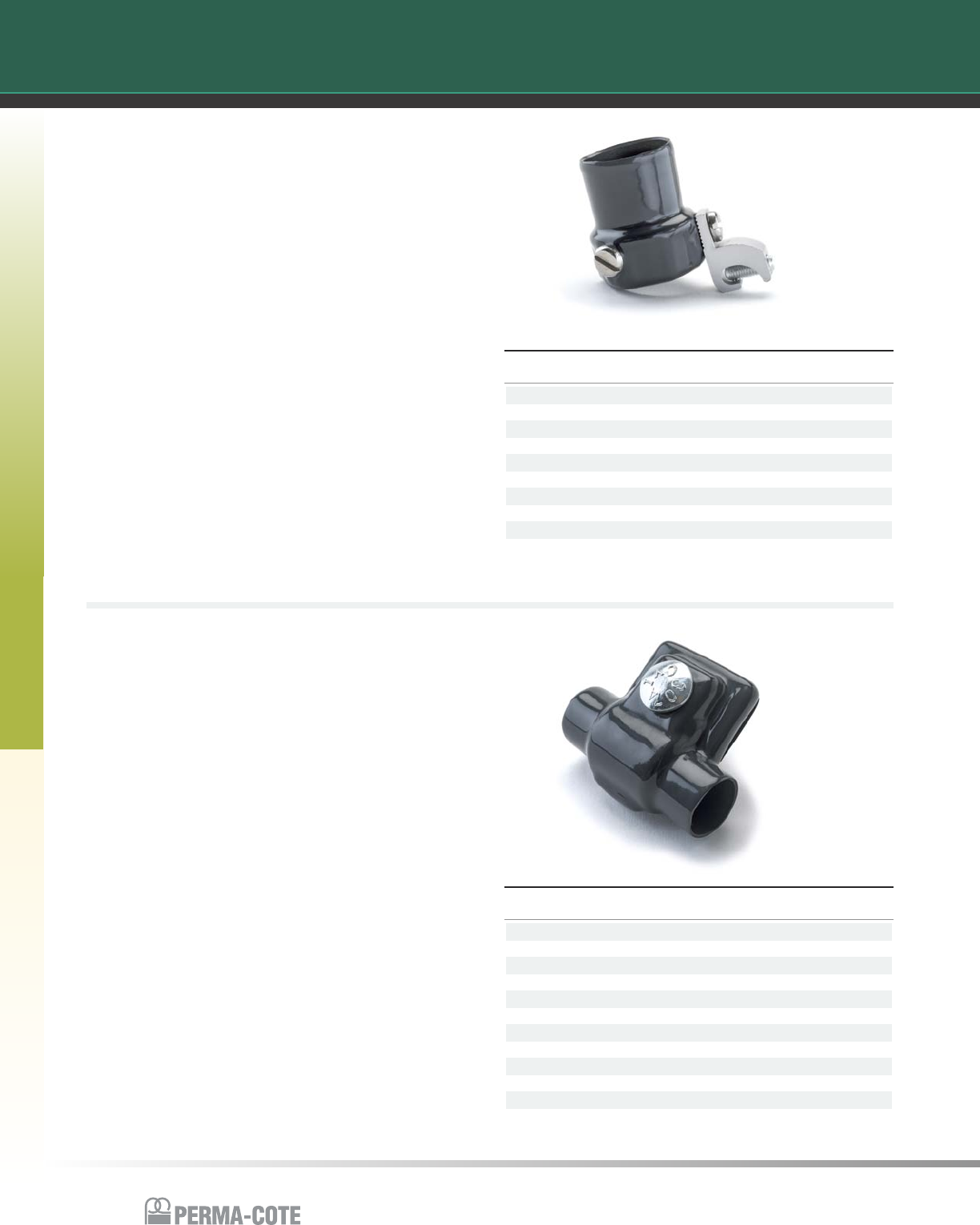

Grounding Bushings and Split Couplings
42
Grounding Bushings
Description:
Perma-Cote grounding bushings are used
on threaded PVC-coated rigid conduit to
provide a means of grounding conduit
through an insulated bushing.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■10 trade sizes from 1/2" through 4"
■Aluminum lug for copper or aluminum
grounding conductor
GROUNDING BUSHINGS
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT
1/2" GLL1 0.1
3/4" GLL2 0.1
1" GLL3 0.1
1-1/4" GLL4 0.2
1-1/2" GLL5 0.2
2" GLL6 0.3
2-1/2" GLL7 0.5
3" GLL8 0.7
3-1/2" GLL9 1.0
4" GLL10 1.1
General Service Fittings
REDUCING COUPLINGS
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT CATALOG #
3/4" – 1/2" * REC-0705 0.2 REC-0705-A
1" – 1/2" * REC-1005 0.7 REC-1005-A
1" – 3/4" REC-1007 0.5 REC-1007-A
1-1/4" – 3/4" REC-1207 1.0 REC-1207-A
1-1/4" – 1" REC-1210 0.8 REC-1210-A
1-1/2" – 3/4" REC-1507 1.4 REC-1507-A
1-1/2" – 1" REC-1510 1.2 REC-1510-A
1-1/2" – 1-1/4" REC-1512 1.3 REC-1512-A
2" – 3/4" REC-2007 1.5 REC-2007-A
2" – 1" REC-2010 2.3 REC-2010-A
2" – 1-1/4" REC-2012 2.6 REC-2012-A
2" – 1-1/2" REC-2015 2.8 REC-2015-A
2-1/2" – 1-1/2" REC-2515 3.2 –
3" – 2" REC-3020 3.7 REC-3020-A
3-1/2" – 2-1/2" REC-97 4.6 –
4" – 3" REC-4030 5.9 –
5" – 4" REC-5040 7.4 –
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Reducing Bushings, Reducing Couplings, and Plugs
43
REDUCING BUSHINGS
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT CATALOG #
3/4" – 1/2" * RE21 0.2 RE21SA
1" – 1/2" * RE31 0.7 RE31SA
1" – 3/4" * RE32 0.5 RE32SA
1-1/4" – 1/2" * RE41 0.8 RE41SA
1-1/4" – 3/4" * RE42 0.8 RE42SA
1-1/4" – 1" * RE43 0.8 RE43SA
1-1/2" – 1/2" * RE51 0.9 RE51SA
1-1/2" – 3/4" * RE52 0.9 RE52SA
1-1/2" – 1" * RE53 0.9 RE53SA
1 1/2 – 1-1/4 * RE54 0.9 RE54SA
2" – 1/2" * RE61 1.1 RE61SA
2" – 3/4" * RE62 1.1 RE62SA
2" – 1" * RE63 1.2 RE63SA
2" – 1-1/4" * RE64 1.3 RE64SA
2" – 1-1/2" * RE65 1.6 RE65SA
2-1/2" – 1" * RE73 1.6 RE73SA
2 1/2" – 1-1/4" * RE74 1.6 RE74SA
2-1/2" – 1-1/2" * RE75 1.6 RE75SA
2-1/2" – 2" * RE76 1.7 RE76SA
3" – 1" * RE83 1.7 RE83SA
3" – 1-1/4" * RE84 2.3 RE84SA
3" – 1-1/2" * RE85 2.4 RE85SA
3" – 2" * RE86 2.5 RE86SA
3" – 2-1/2" * RE87 4.0 RE87SA
3-1/2" – 2" * RE96 4.6 RE96SA
3-1/2" – 2-1/2" * RE97 4.7 RE97SA
3-1/2" – 3" * RE98 4.8 RE98SA
4" – 2" * RE106 5.0 RE106SA
4" – 2-1/2" * RE107 5.2 RE107SA
4" – 3" * RE108 6.0 RE108SA
4" – 3-1/2" * RE109 6.1 RE109SA
5" – 4" RE01210 7.4 RE01210SA
6" – 5" RE01412 8.0 RE01412SA
RE = Reducers
RE style reducers reduce conduit hubs to a
smaller size. They are provided with an integral
bushing to prevent conductor damage and full,
clean cut threads for ease of assembly. All RE
reducers are coated inside and out with green
polyurethane for corrosion protection.
REC = Reducing Couplings
Perma-Cote reducing couplings are used to
connect two pieces of conduit of different size.
PLG = Plugs
PLG style plugs are used to close unused conduit
hubs. They are available with either recessed
square drive sockets or raised square drive heads.
All PLG plugs are coated with polyurethane on
non-threaded surfaces for corrosion protection.
SQUARE HEAD PLUGS
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT
1/2" * PLG15 0.5
3/4" * PLG25 0.6
1" * PLG35 0.2
1-1/4" †PLG45 0.3
1-1/2" †PLG55 0.3
2" †PLG65 0.4
2-1/2" PLG75 0.4
3" PLG85 0.5
3-1/2" PLG95 0.5
4" PLG105 0.6
RECESSED PLUGS
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT
1/2" * PLG1 0.2
3/4" * PLG2 0.2
1" * PLG3 0.3
1-1/4" † PLG4 0.3
1-1/2" † PLG5 0.3
2" † PLG6 0.3
2-1/2" † PLG7 0.3
3" † PLG8 0.4
3-1/2" † PLG9 0.4
4" † PLG10 0.5
Reducing Bushings, Reducing Couplings, and Plugs
Standards:
■NEC/CEC:
Class I, Division 1 & 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
All REC, RE, and PLGs meet Class I, Division
1 & 2, Groups C, D. REs & PLGs meet the above
standards only when used in conjunction with
hazardous location ttings.
*Suitable for Groups A & B. †Suitable for Group B.
General Service Fittings
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Conduit Expansion Joints
44

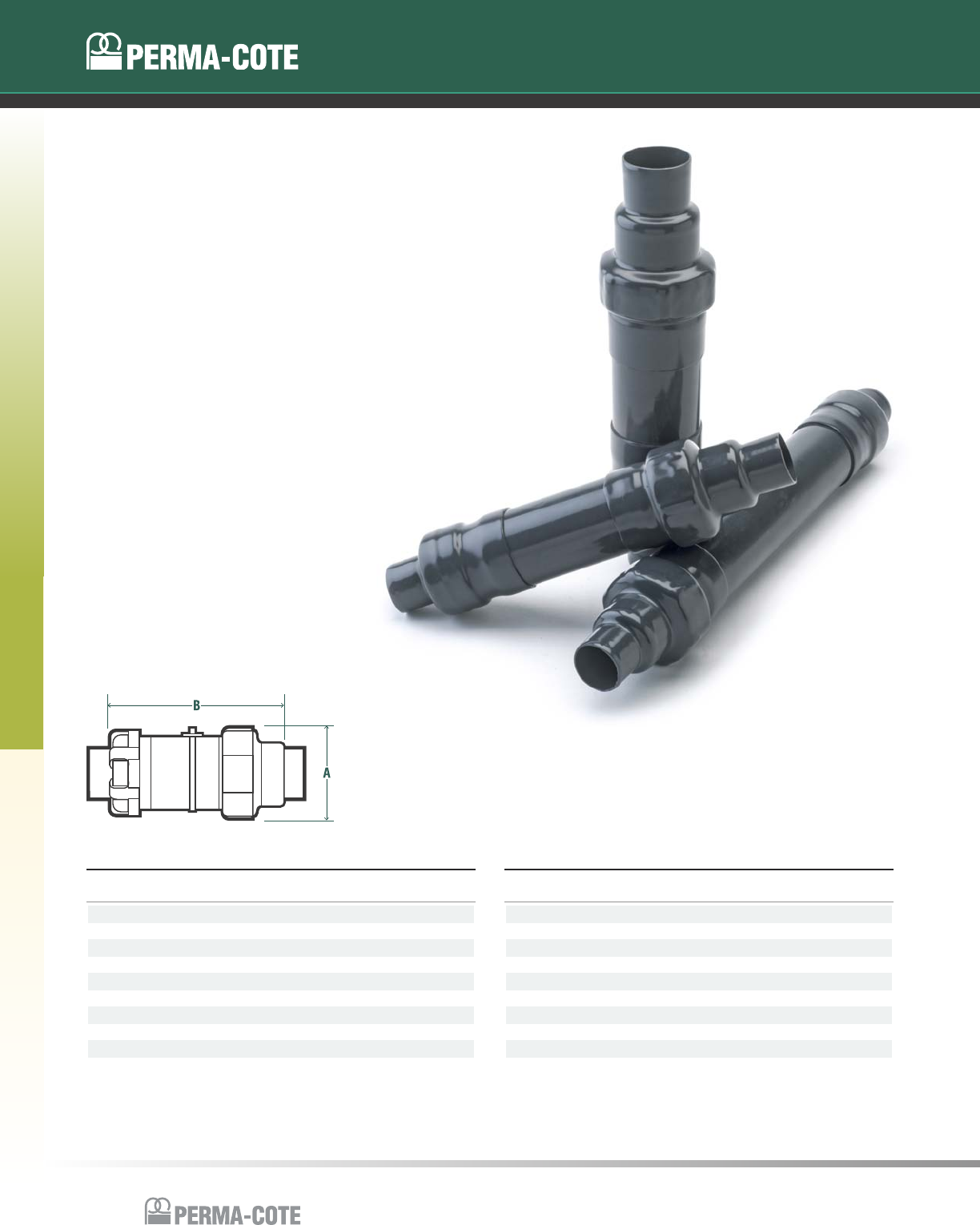

Conduit Expansion Joints
Description:
Perma-Cote AX type expansion joints are used to
connect two lengths of conduit subject to
longitudinal movement, including that caused in
long runs by thermal expansion and contraction.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■10 trade sizes from 1/2" through 4"
■Sealing sleeves on all conduit openings
■Available with either 4" or 8" maximum
movement
■Internally Grounded
Standards:
■NEC Article 250-77
■NEC Article 300-7 (b)
■NEMA FB1
Expansion Joints Technical Data
4" TRAVEL AX SERIES
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # A B WEIGHT CATALOG #
1/2" AX50 1.83 6.75 1.5 AX50-A
3/4" AX75 2.20 6.75 2.9 AX75-A
1" AX100 2.51 7.25 3.6 AX100-A
1-1/4" AX125 3.27 7.56 3.8 AX125-A
1-1/2" AX150 3.76 7.87 6.2 AX150-A
2" AX200 4.83 8.25 7.3 AX200-A
2-1/2" AX250 4.95 9.31 9.8 –
3" AX300 5.45 10.00 13.6 AX300-A
3-1/2" AX350 6.70 9.81 16.1 AX350-A
4" AX400 6.70 9.81 22.5 AX400-A
8" TRAVEL AX SERIES
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # A B WEIGHT CATALOG #
1/2" AX850 1.83 10.75 1.9 AX850-A
3/4" AX875 2.20 10.75 3.0 AX875-A
1" AX8100 2.51 11.25 3.3 AX8100-A
1-1/4" AX8125 3.27 11.56 4.7 AX8125-A
1-1/2" AX8150 3.76 11.87 7.3 AX8150-A
2" AX8200 4.83 12.25 10.7 AX8200-A
2-1/2" AX8250 4.95 13.31 14.4 AX8250-A
3" AX8300 5.45 14.00 15.9 AX8300-A
3-1/2" AX8350 6.70 13.81 23.8 AX8350-A
4" AX8400 6.70 13.81 25.7 AX8400-A
Hazardous Location Fittings
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Conduit Unions
45
UNYUNF

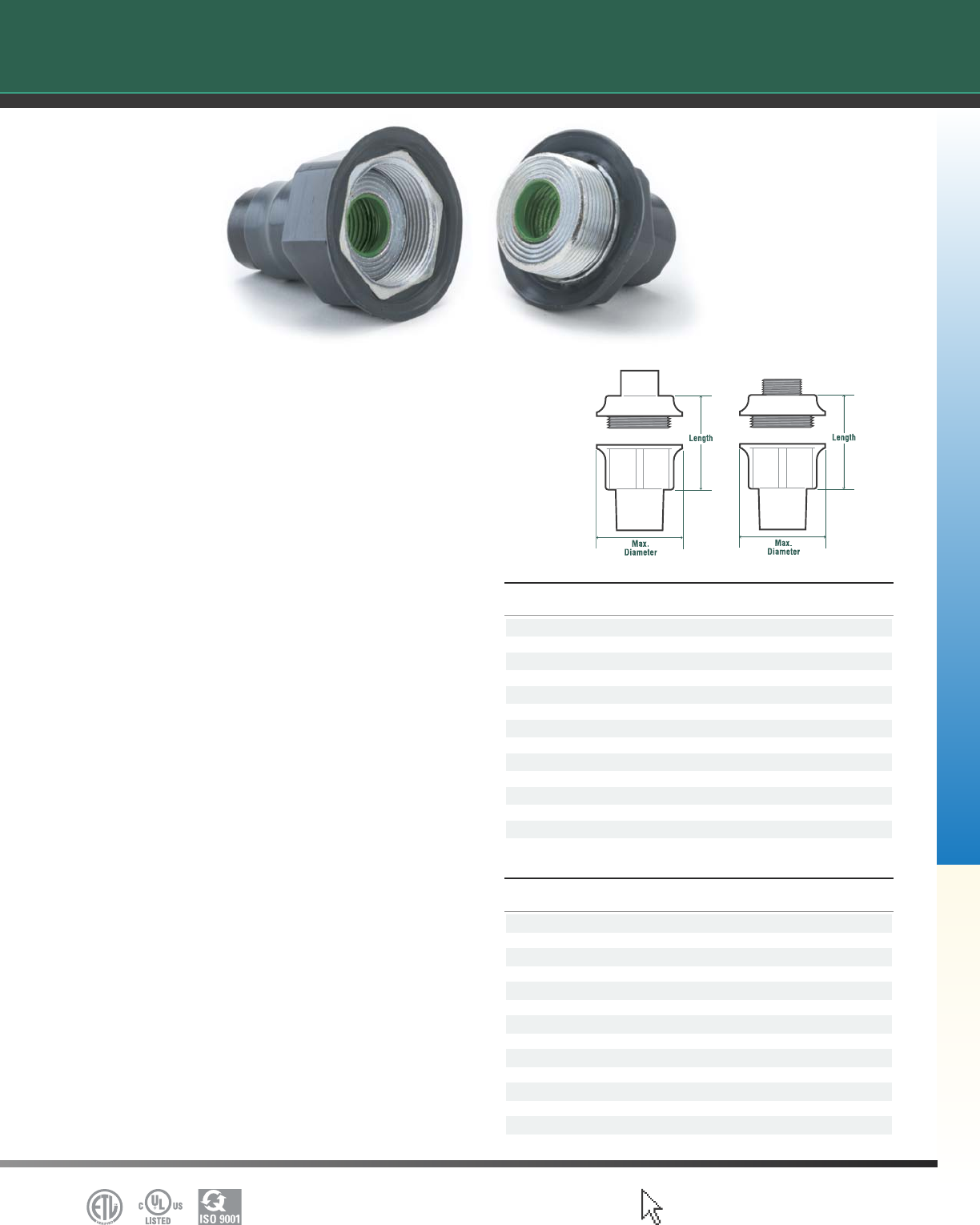

Conduit Unions
Description:
Perma-Cote UNF unions are used to connect
conduit to conduit or to allow for future changes to
the conduit system. Female threads are provided
at each end. Perma-Cote UNY unions are used to
connect conduit to a conduit tting, junction box,
or device enclosure. One end is a male thread
and the other is female.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■13 trade sizes from 1/2" through 6"
■Sealing sleeves on all conduit openings
■Molded PVC gasket seals tting
Standards:
■NEC/CEC:
■UNF/UNY 1/2" through 1"
Class I, Division 1 & 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
■UNF/UNY 905, 1005
Class I, Division 1 & 2, Groups B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
■UNF, UNY - all sizes
Class I, Division 1 & 2, Groups C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
UNF
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT LENGTH MAX DIA. CATALOG #
1/2" UNF50 0.3 1.81 2.00 UNF-50-A
3/4" UNF75 0.5 1.75 2.25 UNF-75-A
3/4" – 1/2" UNF75-50 0.6 1.75 2.25 –
1" UNF100 0.7 2.00 2.75 UNF-100-A
1-1/4" UNF125 1.5 2.25 3.00 UNF-125-A
1-1/2" UNF150 2.3 2.63 3.50 UNF-150-A
2" UNF200 3.6 2.56 4.50 UNF-200-A
2-1/2" UNF250 5.0 3.19 4.75 UNF-250-A
3" UNF300 6.5 3.44 5.50 UNF-300-A
3-1/2" UNF350 8.2 4.13 6.50 UNF-350-A
4" UNF400 10.0 4.13 7.00 UNF-400-A
5" UNF500 12.5 3.81 9.00 –
6" UNF600 14.8 3.81 10.25 –
UNY
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # WEIGHT LENGTH MAX DIA. CATALOG #
1/2" UNY50 0.4 2.38 2.00 UNY-50-A
3/4" UNY75 0.7 2.44 2.25 UNY-75-A
3/4" – 1/2" UNY75-50 0.8 2.44 2.25 –
1" UNY100 1.3 2.75 2.75 UNY-100-A
1-1/4" UNY125 2.6 3.19 3.00 UNY-125-A
1-1/2" UNY150 3.9 3.56 3.50 UNY-150-A
2" UNY200 4.2 3.75 4.50 UNY-200-A
2-1/2" UNY250 5.5 4.63 4.75 UNY-250-A
3" UNY300 7.5 5.00 5.50 UNY-300-A
3-1/2" UNY350 8.4 5.50 6.50 UNY-350-A
4" UNY400 10.5 5.63 7.00 UNY-400-A
5" UNY500 12.0 5.25 9.00 –
6" UNY600 14.9 5.38 10.25 –
Conduit Union Technical Data
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Hazardous Location Fittings
Service Entrance Elbows
46
LBY Series Service Entrance Elbows for Hazardous Locations
Description:
Perma-Cote LBY type elbows are used as service entrance elbows between service entrance and vertical
weatherhead conduit runs, to change direction of a conduit run 90˚ when space is limited, and for pull
outlets. They may be used for general service or hazardous locations.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■5 trade sizes from 1/2" through 1-1/2"
■Sealing sleeves on all conduit openings
■Molded PVC gasket seals tting cover to body
Standards:
Series LBY-50 through LBY-150
■NEC/CEC
Class I, Division 1 & 2, Groups C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
LBY Series Technical Data
LBY SERIES – FOR HAZARDOUS LOCATIONS
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # A B WEIGHT CATALOG #
1/2" LBY-50 2.81 2.08 1.0 LBY-50-A
3/4" LBY-75 3.19 2.33 1.2 LBY-75-A
1" LBY-100 3.25 2.58 1.7 LBY-100-A
1-1/4" LBY-125 3.78 3.02 2.5 LBY-125-A
1-1/2" LBY-150 4.5 3.46 2.7 LBY-150-A
MALLEABLE ELBOWS – 90˚ MALE-MALE
PIPE FERROUS NOMINAL
SIZE CATALOG # A WEIGHT
1/2" EL-195 1.44 0.3
3/4" EL-295 1.63 0.5
1" EL-395 1.88 0.7
MALLEABLE ELBOWS – 90˚ FEMALE-FEMALE
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # A WEIGHT CATALOG #
1/2" EL-950 1.53 0.7 EL-950-A
3/4" EL-975 1.75 0.9 EL-975-A
1" EL-9100 2.00 1.2 EL-9100-A
1-1/4" EL-9125 2.25 2.4 EL-9125-A
1-1/2" EL-9150 4.00 3.0 EL-9150-A
2" EL-9200 5.00 6.0 EL-9200-A
2-1/2" EL-9250 6.44 7.9 –
MALLEABLE ELBOWS – 90˚ MALE-FEMALE
PIPE FERROUS NOMINAL ALUMINUM
SIZE CATALOG # A WEIGHT CATALOG #
1/2" 8-50 1.53 0.3 8-50-A
3/4" 8-75 1.63 0.5 8-75-A
1" 8-100 1.88 1.2 8-100-A
1-1/4" 8-125 2.13 2.8 –
Malleable Elbows
Description:
Perma-Cote EL style malleable elbows are used in
a conduit run to change direction 90˚ or to
terminate at a tting or box. They are available
with male threads only, female threads only, or
male and female threads.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■Various congurations in 10 trade sizes from
1/2" through 4"
■Sealing sleeves on all conduit openings
Standards:
■NEC/CEC:
1/2", 3/4", 1"
Class I, Division 1 & 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
■All sizes
Class I, Division 1 & 2, Groups C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Malleable Elbows Technical Data
90˚ Male 90˚ Male & Female 90˚ Female
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Hazardous Location Fittings
Malleable Elbows
47
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Hazardous Location Fittings
GUA Series Outlet Boxes
48
Variables referenced to
the technical data charts
GUANGUAM GUAT
GUAX
GUAW
GUA GUAB GUAC GUAD GUAL
GUA Series Conduit Outlet
Boxes for Hazardous Locations
Description:
Perma-Cote GUA series conduit outlet boxes are
installed in hazardous location conduit systems to
serve as pull and splice boxes, to change the
direction of a conduit run, to connect runs of
conduit, or to provide access to conductors. They
are provided with covers as standard. Inquire
about special covers to allow use to mount lighting
xtures or as sealing ttings. Electrical continuity
of the conduit system is maintained across
assembled joints.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■Trade sizes from 1/2" through 2" in various
styles and congurations
■Sealing sleeves on all conduit openings
■Neoprene O-ring is standard
■Molded-in PVC seal preserves venting
characteristics of tting but seals out
corrosives
■Standard material is a cast iron alloy body with
a copper-free aluminum cover. Consult Factory
for availability of cast iron covers
■Internal green grounding screw is standard
Standards:
Steel and Aluminum
■UL 514A, 514D (E231035)
■CSA C22.2 No. 18, CSA C22.2 No. 42
■NEC/CEC:
Class I, Division 1 & 2, Groups C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
■ANSI Standard C-33.27
■NEMA/EEMAC 3,4
GUA SERIES DIMENSIONS
GUA SERIES CONFIGURATIONS
Cover Conduit Body
PVC Coating
An integral PVC gasket on GUA type ttings preserves the
venting characteristics of the uncoated tting but prevents
corrosive liquids from entering from the outside.
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Hazardous Location Fittings
GUA Series Outlet Boxes
49
GUAB
PIPE FERROUS COVER NOMINAL ALUMINUM PRODUCT DIMENSIONS
SIZE CATALOG # OPENING WEIGHT CATALOG # A B C D
1/2" GUAB14 2" 2 GUAB14-A 2.58 2.29 2.19 0.67
1/2" GUALB50 3" 3.2 GUALB50-A 3.58 2.04 1.88 0.67
3/4" GUAB24 2" 2.2 – 2.58 2.54 2.44 0.79
3/4" GUALB75 3" 3.3 GUALB75-A 3.58 2.04 1.88 0.79
1" GUALB100 3" 3.8 GUALB100-A 3.58 2.35 2.19 0.92
1-1/4" GUALB125 3-5/8" 5.0 GUALB125-A 4.33 2.73 2.75 1.13
1-1/2" GUALB150 5" 8.1 GUALB150-A 5.83 3.85 3.75 1.32
2" GUALB200 5" 9.1 GUALB200-A 5.83 4.10 4.00 1.60
GUAC
PIPE FERROUS COVER NOMINAL ALUMINUM PRODUCT DIMENSIONS
SIZE CATALOG # OPENING WEIGHT CATALOG # A B C D
1/2" GUAC14 2" 3.5 GUAC14-A 2.58 2.29 2.19 0.67
1/2" GUAC50 3" 2.0 GUAC50-A 3.58 2.04 1.88 0.67
3/4" GUAC24 2" 3.5 GUAC24-A 2.58 2.04 2.00 0.79
3/4" GUAC75 3" 2.0 GUAC75-A 3.58 2.04 1.88 0.79
1" GUAC100 3" 3.9 GUAC100-A 3.58 2.35 2.19 0.92
1-1/4" GUAC125 3-5/8" 5.2 GUAC125-A 4.33 2.73 2.75 1.13
1-1/4" GUAC49 5" 9.5 – 5.83 3.85 3.75 1.20
1-1/2" GUAC150 5" 11 GUAC150-A 5.83 3.85 3.75 1.32
2" GUAC200 5" 11 GUAC200-A 5.83 4.10 4.00 1.60
GUAM
PIPE FERROUS COVER NOMINAL ALUMINUM PRODUCT DIMENSIONS
SIZE CATALOG # OPENING WEIGHT CATALOG # A B C D
1/2" GUAM14 2" 2.0 GUAM14-A 2.58 1.85 1.75 0.67
3/4" GUAM24 2" 2.2 – 2.58 2.04 2.00 0.79
1/2" GUAM16 3" 3.2 – 3.58 2.04 1.88 0.67
3/4" GUAM26 3" 3.3 – 3.58 2.04 1.88 0.79
1" GUAM36 3" 3.8 – 3.58 2.35 2.19 0.92
1-1/4" GUAM47 3-5/8" 5.0 – 4.33 2.73 2.75 1.13
2 " GUAM69 5" 9.1 – 5.83 4.10 4.00 1.60
GUA
PIPE FERROUS COVER ALUMINUM PRODUCT DIMENSIONS
SIZE CATALOG # OPENING CATALOG # A B C D
1/2" GUA14 2" – 2.58 1.85 1.75 0.67
1/2" GUA16 3" – 3.58 2.04 1.88 0.67
3/4" GUA24 2" – 2.58 2.04 2 0.79
3/4" GUA26 3" GUA26-A 3.58 2.04 1.88 0.79
1" GUA36 3" – 3.58 2.35 2.19 0.92
1-1/4" GUA47 3-5/8" – 4.33 2.73 2.75 1.13
1-1/2" GUA59 5" – 5.83 3.85 3.75 1.32
GUAL
PIPE FERROUS COVER NOMINAL ALUMINUM PRODUCT DIMENSIONS
SIZE CATALOG # OPENING WEIGHT CATALOG # A B C D
1/2" GUAL14 2" 2.0 GUAL14-A 2.58 1.85 1.75 0.67
1/2" GUAL50 3" 2.1 GUAL50-A 3.58 2.04 1.88 0.67
3/4" GUAL24 2" 3.2 GUAL24-A 2.58 2.04 2.00 0.79
3/4" GUAL75 3" 2.5 GUAL75-A 3.58 2.04 1.88 0.79
1" GUAL100 3" 3.7 GUAL100-A 3.58 2.35 2.19 0.92
1-1/4" GUAL125 3-5/8" 5.2 GUAL125-A 4.33 2.73 2.75 1.13
1-1/4" GUAL49 5" 8.5 GUAL49-A 5.83 3.85 3.75 1.20
1-1/2" GUAL150 5" 11.2 GUAL150-A 5.83 3.85 3.75 1.32
2" GUAL200 5" 12.5 GUAL200-A 5.83 4.10 4.00 1.60
GUAT
PIPE FERROUS COVER NOMINAL ALUMINUM PRODUCT DIMENSIONS
SIZE CATALOG # OPENING WEIGHT CATALOG # A B C D
1/2" GUAT14 2" 2.0 GUAT14-A 2.58 2.29 2.19 0.67
1/2" GUAT50 3" 2.8 GUAT50-A 3.58 2.04 1.88 0.67
3/4" GUAT24 2" 2.2 GUAT24-A 2.58 2.04 2.00 0.79
3/4" GUAT75 3" 3.5 GUAT75-A 3.58 2.04 1.88 0.79
1" GUAT100 3" 3.2 GUAT100-A 3.58 2.35 2.19 0.92
1-1/4" GUAT125 3-5/8" 5.7 GUAT125-A 4.33 2.73 2.75 1.13
1-1/2" GUAT150 5" 9.1 GUAT150-A 5.83 3.85 3.75 1.32
2" GUAT200 5" 10.0 GUAT200-A 5.83 4.10 4.00 1.60
GUAX
PIPE FERROUS COVER NOMINAL ALUMINUM PRODUCT DIMENSIONS
SIZE CATALOG # OPENING WEIGHT CATALOG # A B C D
1/2" GUAX14 2" 2.0 – 2.58 1.85 1.75 0.67
1/2" GUAX50 3" 3.8 GUAX50-A 3.58 2.04 1.88 0.67
3/4" GUAX24 2" 2.5 GUAX24-A 2.58 2.04 2.00 0.79
3/4" GUAX75 3" 2.8 GUAX75-A 3.58 2.04 1.88 0.79
1" GUAX100 3" 4.2 GUAX100-A 3.58 2.35 2.19 0.92
1-1/4" GUAX125 3-5/8" 4.8 GUAX125-A 4.33 2.73 2.75 1.13
1-1/2" GUAX150 5" 11.7 GUAX150-A 5.83 3.85 3.75 1.32
2" GUAX200 5" 12.5 GUAX200-A 5.83 4.10 4.00 1.60
GUAD
PIPE COVER NOMINAL ALUMINUM PRODUCT DIMENSIONS
SIZE CATALOG # OPENING WEIGHT CATALOG # A B C D
1/2" GUAD14 2" 2.0 – 2.58 1.85 1.75 0.67
1/2" GUAD16 3" 3.2 – 3.58 2.04 1.88 0.67
3/4" GUAD24 2" 3.5 – 2.58 2.04 2.00 0.79
3/4" GUAD26 3" 3.8 GUAD26-A 3.58 2.04 1.88 0.79
1" GUAD36 3" 3.8 GUAD36-A 3.58 2.35 2.19 0.92
1-1/4" GUAD49 5" 10.9 – 5.83 3.85 3.75 1.13
GUAW
PIPE COVER NOMINAL ALUMINUM PRODUCT DIMENSIONS
SIZE CATALOG # OPENING WEIGHT CATALOG # A B C D
1/2" GUAW14 2" 2 – 2.58 1.85 1.75 0.67
1/2" GUAW16 3" 2 – 3.58 2.04 1.88 0.67
3/4" GUAW24 2" 3 – 2.58 2.04 2.00 0.79
3/4" GUAW26 3" 3 GUAW26-A 3.58 2.04 1.88 0.79
GUAN
PIPE COVER NOMINAL PRODUCT DIMENSIONS
SIZE CATALOG # OPENING WEIGHT A B C D
1/2" GUAN14 2" 2.0 2.58 2.17 2.06 0.67
1/2" GUAN16 3" 3.8 3.58 2.04 1.88 0.67
3/4" GUAN24 2" 2.5 2.58 2.35 2.25 0.79
3/4" GUAN26 3" 3.5 3.58 2.04 1.88 0.79
1" GUAN36 3" 3.0 3.58 2.35 2.38 0.92
1-1/4" GUAN47 3-5/8" 5.2 4.33 2.73 2.75 1.13
1-1/2" GUAN59 5" 9.5 5.83 4.10 4.00 1.32
2" GUAN69 5" 12.0 5.83 4.10 4.00 1.60
GUA Series – Technical Data
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Hazardous Location Fittings
Sealing Fittings
50

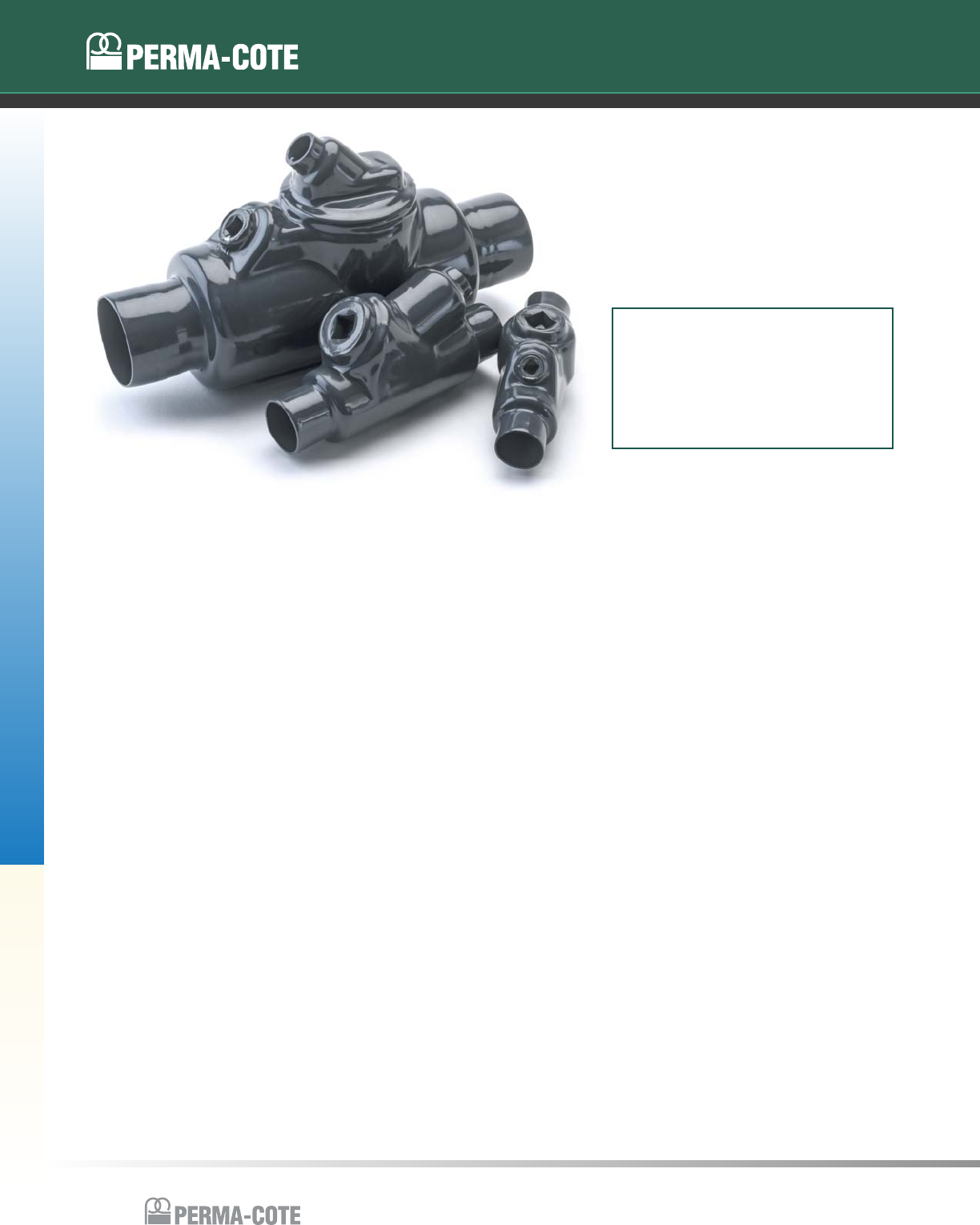

Sealing Fittings
Description:
Perma-Cote Sealing Fittings are used in conduit runs to stop gasses, vapors or ames from migrating
from one part of the conduit system to another. This limits the spread of any potential explosion,
enhancing safety. The PVC and urethane coatings of the ttings protects them from corrosive
atmospheres so they can continue to function in hazardous locations. These ttings are available in
several different congurations and with optional breathers and drains to accommodate installation in a
variety of locations and positions. The EYD, EYDM, EYDEF and EZD styles of ttings are for installation in
vertical conduit runs. The EYA, EYS, EYAM and EYSEF style ttings are for installation in either vertical or
horizontal runs. The EZS and EYDM style tting may be used in any angle of conduit run.
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■10 trade sizes from 1/2" through 4"
■Sealing sleeves on all conduit openings
■EYDEF and EYSEF seals have 40% wire ll
capacity
■EYD, EYDM and EZD ttings include a drain for
condensate
■EZD ttings may be used at any conduit angle
and include drain
■NEC/CEC:
EY 50-100, EYA 50-100, EYM 50-100,
EYAM 50-100
■Class I, Division 1 & 2, Groups A, B, C, D
■Class II, Division 1, Groups E, F, G
■Class II, Division 2, Groups F, G
■Class III
EYS 41-61, EYSEF 50-300, EYDEF 50-300
■Class I, Division 1 & 2, Groups B, C, D
■Class II, Division 1, Groups E, F, G
■Class II, Division 2, Groups F, G
■Class III
EYA 125-400, EYAM 125-400, EZS 50-300, EZDM
50-300, EYD 50-400, EYDM 50-400, EZD 50-200
■Class I, Division 1 & 2, Groups C, D
■Class II, Division 1, Groups F, G
■Class II, Division 2, Groups F, G
■Class III
EYSEF 350-400
■Class I, Division 1 & 2, Groups C, D
■Class II, Division 1, Groups E, F, G
■Class II, Division 2, Groups F, G
■Class III
These Perma-Cote sealing ttings
should be used with a suitable
system of sealing compound, such as
Chico A, Chico X or Chico A-P from
Crouse-Hinds. Follow the installation
instructions included with the sealing
compound.
Standards:
Features:
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Hazardous Location Fittings
Sealing Fittings
51
Sealing Fittings continued on following pages…
These Perma-Cote sealing ttings should be used
with a suitable system of sealing compound, such as
Chico A, Chico X or Chico A-P from Crouse-Hinds.
Follow the installation instructions included with the
sealing compound.
EY - FEMALE HUBS
FOR SEALING IN VERTICAL POSITIONS ONLY
PIPE FERROUS NOMINAL TURNING ALUMINUM
SIZE CATALOG # WEIGHT A B RADIUS CATALOG #
1/2" EY-50 1.0 3.28 1.33 1.63 EY-50-A
3/4" EY-75 1.5 3.75 1.58 1.91 EY-75-A
1" EY-100 2.1 4.31 1.83 2.38 EY-100-A
EYA - FEMALE HUBS
FOR SEALING IN VERTICAL OR HORIZONTAL POSITIONS
PIPE FERROUS NOMINAL TURNING ALUMINUM
SIZE CATALOG # WEIGHT A B RADIUS CATALOG #
1/2" EYA-50 1.3 3.69 1.33 1.16 EYA-50-A
3/4" EYA-75 1.1 3.69 1.58 1.25 EYA-75-A
1" EYA-100 2.2 4.31 1.83 1.38 EYA-100-A
1-1/4" EYA-125 2.7 5.06 2.27 1.72 EYA-125-A
1-1/2" EYA-150 3.7 5.50 2.52 2.06 EYA-150-A
2" EYA-200 4.7 6.25 3.08 2.31 EYA-200-A
2-1/2" EYA-250 10.0 7.50 3.58 2.69 EYA-250-A
3" EYA-300 11.2 8.50 4.33 3.31 EYA-300-A
3-1/2" EYA-350 14.5 9.19 4.83 3.44 EYA-350-A
4" EYA-400 16.0 9.75 5.33 3.69 EYA-400-A
EYM - MALE/FEMALE HUBS
FOR SEALING IN VERTICAL POSITIONS ONLY
PIPE FERROUS NOMINAL TURNING ALUMINUM
SIZE CATALOG # WEIGHT A B RADIUS CATALOG #
1/2" EYM-50 1.5 3.28 1.33 1.63 EYM-50-A
3/4" EYM-75 1.5 3.75 1.58 1.91 EYM-75-A
1" EYM-100 2.3 4.31 1.83 2.38 EYM-100-A
Sealing Fittings Technical Data
EYS - FEMALE HUBS
FOR SEALING IN VERTICAL OR HORIZONTAL POSITIONS
PIPE FERROUS NOMINAL TURNING ALUMINUM
SIZE CATALOG # WEIGHT A B RADIUS CATALOG #
1-1/4" EYS41 3.0 5.06 2.27 1.72 EYS41-A
1-1/2" EYS51 3.8 5.50 2.52 2.06 EYS51-A
2" EYS61 5.5 6.25 3.08 2.31 EYS61-A
EYAM - MALE/FEMALE HUBS FOR SEALING IN VERTICAL
OR HORIZONTAL POSITIONS
PIPE FERROUS NOMINAL TURNING ALUMINUM
SIZE CATALOG # WEIGHT A B RADIUS CATALOG #
1/2" EYAM-50 1.5 3.69 1.33 1.16 EYAM-50-A
3/4" EYAM-75 1.2 3.69 1.58 1.25 EYAM-75-A
1" EYAM-100 2.6 4.31 1.83 1.38 EYAM-100-A
1-1/4" EYAM-125 2.8 5.06 2.27 1.72 EYAM-125-A
1-1/2" EYAM-150 3.7 5.5 2.52 2.06 EYAM-150-A
2" EYAM-200 5.6 6.25 3.08 2.31 EYAM-200-A
2-1/2" EYAM-250 13.2 7.5 3.58 2.69 EYAM-250-A
3" EYAM-300 11.2 8.5 4.33 3.31 EYAM-300-A
3-1/2" EYAM-350 14.5 9.19 4.83 3.44 EYAM-350-A
4" EYAM-400 1.5 9.75 5.33 3.69 EYAM-400-A
EYSEF - EXPANDED FILL FEMALE HUBS FOR SEALING IN
VERTICAL OR HORIZONTAL POSITIONS
PIPE FERROUS NOMINAL TURNING ALUMINUM
SIZE CATALOG # WEIGHT A B RADIUS CATALOG #
1/2" EYSEF-50 1.5 3.69 1.58 1.25 EYSEF-50-A
3/4" EYSEF-75 2.1 4.31 1.83 1.38 EYSEF-75-A
1" EYSEF-100 2.7 5.06 2.27 1.72 EYSEF-100-A
1-1/4" EYSEF-125 3.7 6.25 3.08 2.31 EYSEF-125-A
1-1/2" EYSEF-150 4.7 6.25 3.08 2.31 EYSEF-150-A
2" EYSEF-200 6.7 8.50 4.33 3.31 EYSEF-200-A
2-1/2" EYSEF-250 7.7 9.19 4.83 3.44 EYSEF-250-A
3" EYSEF-300 8.7 9.75 5.33 3.69 EYSEF-300-A
3-1/2" EYSEF-350 9.7 11.06 6.58 4.59 EYSEF-350-A
4" EYSEF-400 10.7 11.06 6.58 4.59 EYSEF-400-A
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Hazardous Location Fittings
Sealing Fittings
52

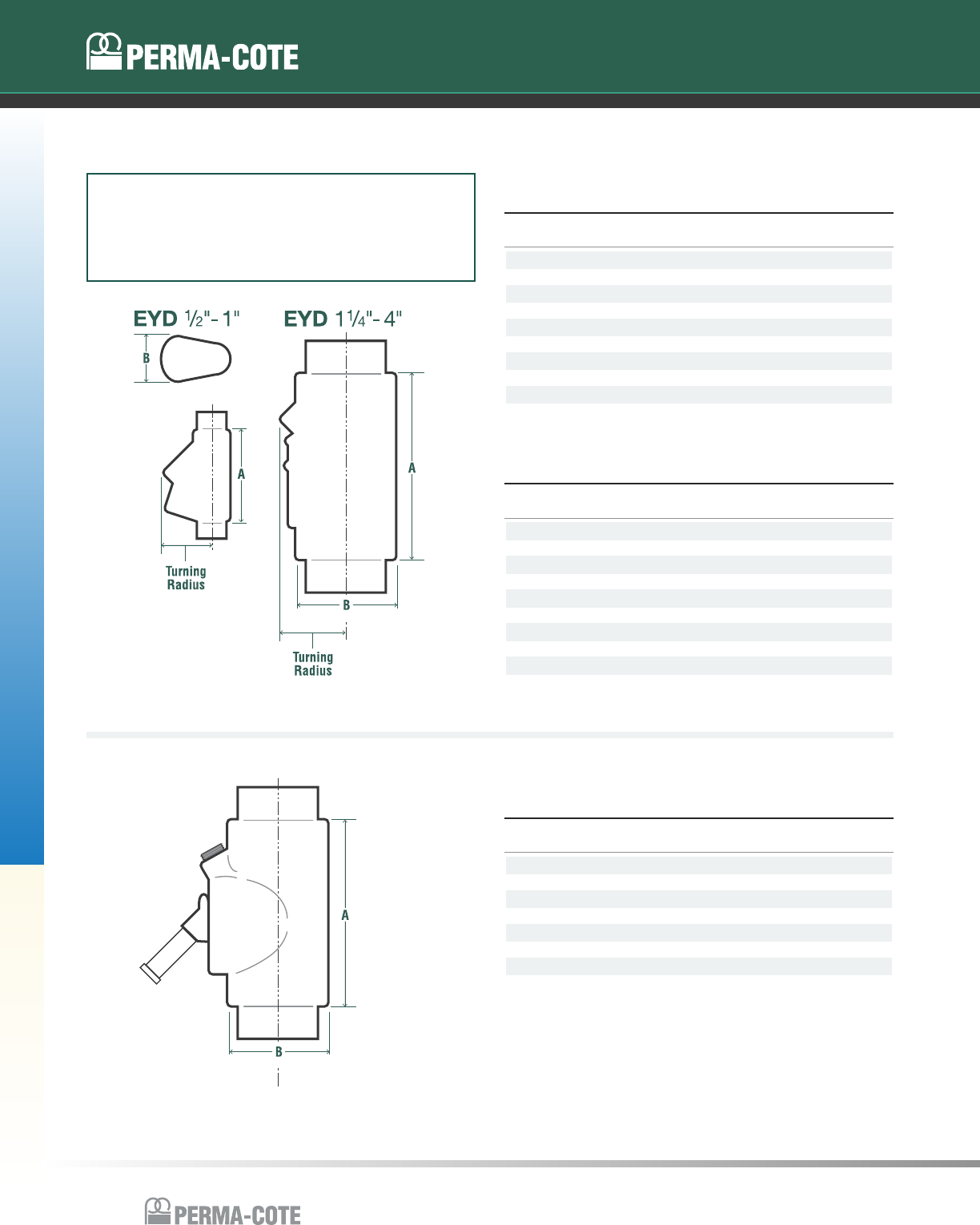

EYD - FEMALE HUBS WITH DRAIN.
FOR SEALING IN VERTICAL POSITIONS ONLY.
PIPE FERROUS NOMINAL TURNING ALUMINUM
SIZE CATALOG # WEIGHT A B RADIUS CATALOG #
1/2" EYD-50 1.4 3.28 1.33 1.63 EYD-50-A
3/4" EYD-75 1.7 3.69 1.58 1.91 EYD-75-A
1" EYD-100 2.3 4.31 2.27 2.38 EYD-100-A
1-1/4" EYD-125 2.5 5.06 2.27 1.84 EYD-125-A
1-1/2" EYD-150 4.0 5.50 2.52 2.06 EYD-150-A
2" EYD-200 4.7 6.25 3.08 2.31 EYD-200-A
2-1/2" EYD-250 9.0 7.50 3.58 2.69 EYD-250-A
3" EYD-300 10.2 8.50 4.33 3.31 EYD-300-A
3-1/2" EYD-350 10.5 9.19 4.83 3.44 EYD-350-A
4" EYD-400 4.0 9.75 5.33 3.50 EYD-400-A
EYDM - MALE/FEMALE HUBS WITH DRAIN.
FOR SEALING IN VERTICAL POSITIONS ONLY
PIPE FERROUS NOMINAL TURNING ALUMINUM
SIZE CATALOG # WEIGHT A B RADIUS CATALOG #
1/2" EYDM-50 2.7 3.28 1.33 1.63 EYDM-50-A
3/4" EYDM-75 2.8 3.69 1.58 1.91 EYDM-75-A
1" EYDM-100 2.9 4.31 2.27 2.38 EYDM-100-A
1-1/4" EYDM-125 2.6 5.06 2.27 1.84 EYDM-125-A
1-1/2" EYDM-150 3.7 5.5 2.52 2.06 EYDM-150-A
2" EYDM-200 5.2 6.25 3.08 2.31 EYDM-200-A
2-1/2" EYDM-250 9.5 7.5 3.58 2.69 EYDM-250-A
3" EYDM-300 11.3 8.5 4.33 3.31 EYDM-300-A
3-1/2" EYDM-350 12.5 9.19 4.83 3.44 EYDM-350-A
4" EYDM-400 16.7 9.75 5.33 3.5 EYDM-400-A
Sealing Fittings Technical Data
EYDEF - EXPANDED FILL FEMALE HUBS WITH DRAIN.
FOR SEALING IN VERTICAL POSITIONS ONLY.
PIPE FERROUS NOMINAL TURNING ALUMINUM
SIZE CATALOG # WEIGHT A B RADIUS CATALOG #
1/2" EYDEF-50 1.7 3.69 1.83 1.91 EYDEF-50-A
3/4" EYDEF-75 2.3 4.31 2.27 2.38 EYDEF-75-A
1" EYDEF-100 2.5 5.06 2.27 1.84 EYDEF-100-A
1-1/4" EYDEF-125 4.0 6.25 3.08 2.31 EYDEF-125-A
1-1/2" EYDEF-150 4.7 6.25 3.08 2.31 EYDEF-150-A
2" EYDEF-200 9.0 8.50 4.33 3.31 EYDEF-200-A
2-1/2" EYDEF-250 10.2 9.19 4.83 3.44 EYDEF-250-A
3" EYDEF-300 10.5 9.75 5.33 3.50 EYDEF-300-A
These Perma-Cote sealing ttings should be used
with a suitable system of sealing compound, such as
Chico A, Chico X or Chico A-P from Crouse-Hinds.
Follow the installation instructions included with the
sealing compound.
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Hazardous Location Fittings
Sealing Fittings
53
These Perma-Cote sealing ttings should be used
with a suitable system of sealing compound, such as
Chico A, Chico X or Chico A-P from Crouse-Hinds.
Follow the installation instructions included with the
sealing compound.
EZS - FEMALE HUBS.
FOR SEALING IN ANY POSITION.
PIPE FERROUS NOMINAL TURNING
SIZE CATALOG # WEIGHT A B C RADIUS
1/2" EZS-50 2.0 4.19 3.71 2.58 1.88
3/4" EZS-75 2.3 4.19 3.71 2.58 1.88
1" EZS-100 2.7 4.94 4.05 3.08 2.13
1-1/4" EZS-125 3.5 5.06 4.49 3.08 2.31
1-1/2" EZS-150 4.0 5.19 4.64 3.33 2.34
2" EZS-200 8.2 7.06 5.49 5.27 3.28
2-1/2" EZS-250 8.5 7.94 5.92 5.27 3.38
3" EZS-300 9.0 8.63 6.58 5.96 3.88
EZDM - MALE/FEMALE HUBS WITH DRAIN.
FOR SEALING IN ANY POSITION.
PIPE FERROUS NOMINAL TURNING
SIZE CATALOG # WEIGHT A B C RADIUS
1/2" EZDM-50 2.0 4.19 3.71 2.58 1.88
3/4" EZDM-75 2.4 4.19 3.71 2.58 1.88
1" EZDM-100 3.0 4.94 4.05 3.08 2.13
1-1/4" EZDM-125 4.0 5.06 4.49 3.08 2.31
1-1/2" EZDM-150 4.6 5.19 4.64 3.33 2.34
2" EZDM-200 6.9 7.06 5.49 5.27 3.28
2-1/2" EZDM-250 9.2 7.94 5.92 5.27 3.38
3" EZDM-300 8.7 8.63 6.58 5.96 3.88
Sealing Fittings Technical Data
EZD - FEMALE HUBS.
WITH DRAIN AND INSPECTION COVER.
PIPE FERROUS TURNING
SIZE CATALOG # A B C RADIUS
1/2" EZD-50 4.19 3.08 3.46 2.06
3/4" EZD-75 4.19 3.08 3.71 2.19
1" EZD-100 4.94 3.58 3.96 2.44
1-1/4" EZD-125 4.94 3.58 4.39 2.63
1-1/2" EZD-150 5.19 3.58 4.64 2.69
2" EZD-200 7.13 5.64 5.33 3.69
OE Series Conduit Outlet Boxes for Hazardous Locations
Description:
Perma-Cote OE Series Conduit Outlet Boxes are installed in hazardous location conduit
systems to serve as pulling and splicing ttings, to connect runs of conduit, to change the direction of
a conduit run, or to provide access to conductors. They are provided with covers. Electrical continuity of
the conduit system is maintained across assembled joints.
Features:
■40 mil gray PVC exterior coating
■2 mil green urethane interior coating
■Available in 1/2" or 3/4" trade sizes
■Molded in PVC cover to body gasket seals
corrosives out
■Sealing sleeves on all conduit openings
■Compact design saves space
■Encapsulated stainless steel cover screws
Standards:
■NEC/CEC:
Class I, Division 1 & 2, Groups C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
OE Series – Technical Data
OELB OUTLET BOXES
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" OELB50 2.2 4.14 1.64 1.89 0.69
3/4" OELB75 3.0 4.39 1.96 2.14 0.69
OET OUTLET BOXES
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT A B C D
1/2" OET50 2.2 4.14 1.64 1.89 0.69
3/4" OET75 3.0 4.39 1.96 2.14 0.69
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Hazardous Location Fittings
OE Series Outlet Boxes
54
CONDUIT PIPE STRAP
1 HOLE
PIPE FERROUS NOMINAL WT.
SIZE CATALOG # FOR 100
1/2" 14-50G 11
3/4" 14-75G 14
1" 14-100G 12
1-1/4" 14-125G 25
1-1/2" 14-150G 36
2" 14-200G 71
2-1/2" 14-250G 111
3" 14-300G 134
3-1/2" 14-350G 166
4" 14-400G 256
CONDUIT PIPE STRAP
2 HOLE
PIPE FERROUS NOMINAL WT.
SIZE CATALOG # FOR 100
1/2" HS-901 2.0
3/4" HS-902 3.0
1" HS-903 4.0
1-1/4" HS-904 4.5
1-1/2" HS-905 5.0
2" HS-906 10.0
2-1/2" HS-907 13.0
3" HS-908 17.0
3-1/2" HS-909 20.0
4" HS-910 25.0
CONDUIT CLAMP BACK SPACER
PIPE FERROUS NOMINAL WT.
SIZE CATALOG # EACH
1/2" 141-G 0.1
3/4" 142-G 0.1
1" 143-G 0.1
1-1/4" 144-G 0.2
1-1/2" 145-G 0.2
2" 146-G 0.3
2-1/2" 147-G 1.0
3" 148-G 1.7
4" 150-G 2.0
CONDUIT HANGER
PIPE NOMINAL
SIZE CATALOG # WEIGHT
1/2" H0WBS 0.1
3/4" H1WBS 0.1
1" H2WBS 0.1
1-1/4" H3WBS 0.1
1-1/2" H4WBS 0.2
2" H5WBS 0.3
2-1/2" H6WBS 0.4
3" H7WBS 0.5
3-1/2" H8WBS 0.6
4" H9WBS 0.7
Pipe Straps
Perma-Cote PVC coated pipe straps are used to securely mount
conduit to a wall or other structure for support. They are
available in two styles: a one-hole malleable iron strap or a
two-hole stamped steel strap. Mounting hardware not provided.
Features:
■20 mil gray PVC exterior coating
■10 trade sizes from 1/2" through 4"
Clamp Back Spacers
Perma-Cote PVC coated clamp back
spacers are used with malleable or
stamped pipe straps to provide a
mounting stand-off for a conduit from
a wall or other structure.
Features:
■20 mil gray PVC
exterior coating
■
10 trade sizes from
1/2" through 4"
Conduit Clamp Hangers
Perma-Cote PVC coated conduit clamp
hangers are used with threaded rod to
securely suspend conduit runs
supported from above. They are
provided with stainless steel hardware.
Features:
■20 mil gray PVC exterior coating
■10 trade sizes from 1/2" through 4"
THREAD RODS
SIZE CATALOG #
3/8" X 3' ATR-375X36
3/8" X 6' ATR-375X72
3/8" X 10' ATR-375X120
1/2" X 3' ATR-050X36
1/2" X 6' ATR-050X72
1/2" X 10' ATR-050X120
Thread Rods
Perma-Cote PVC coated all thread rod is used
with coated conduit hangers and coated strut to
securely suspend conduit runs supported from
above. It is provided in 3/8" and 1/2" sizes and
three standard lengths, 3', 6' and 10'.
Features:
■20 mil gray PVC exterior coating
■2 trade sizes and 3 standard lengths
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Support Products
Support Products
55
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Support Products
Support Products
56
N225-WO
N225 N2500
P1001 P1000 SH1000 P3300 SH3300
Strut StrapsJ Hanger
PVC COATED J HANGERS
FERROUS WEIGHT FOR STD
SIZE CATALOG # 100 PCS PACK
1/2" B3690-1/2 18 25
3/4" B3690-3/4 21 25
1" B3690-1 22 25
1-1/4" B3690-1-1/4 25 25
1-1/2" B3690-1-1/2 27 25
2" B3690-2 29 25
2-1/2" B3690-2-1/2 64 25
3" B3690-3 72 25
3-1/2" B3690-3-1/2 84 25
4" B3690-4 138 10
5" B3690-5 162 10
PVC COATED STRUT STRAPS
FERROUS GAUGE WEIGHT FOR STD
SIZE CATALOG # METAL 100 PCS PACK
1/2" B2008 14 13.0 100
3/4" B2009 14 15.0 100
1" B2010 14 17.0 100
1-1/4" B2011 12 19.5 100
1-1/2" B2012 12 28.0 100
2" B2013 12 31.0 50
2-1/2" B2014 12 36.0 50
3" B2015 12 42.0 50
3-1/2" B2016 11 56.0 25
4" B2017 11 64.0 25
5" B2019 10 76.0 25
PVC Coated Strut Straps and J Hangers
Perma-Cote PVC coated strut straps & J hangers are used with coated strut to support conduit
installations in a variety of congurations. Strut straps may be used in either vertical or horizontal
positions to support conduit. Both are provided with stainless steel hardware. Conduit spacing may be
as close together as allowed by the couplings. J hangers may be used with hanger rods or other means
of support to securely fasten conduit runs.
Features:
■20 mil gray PVC
exterior coating
■Available in 11 trade sizes
PVC Coated Ferrous Struts
Perma-Cote PVC coated strut is a versatile system
of structural elements that can be used to build
supports for a variety of applications. When
combined with coated conduit hangers and other
accessories, coated strut is a versatile and
economical way to provide reliable support for
conduit runs and other electrical and mechanical
installations.
Features:
■20 mil gray PVC exterior coating
■2 trade sizes and 3 standard styles
PVC COATED STRUT
FERROUS NOMINAL WT. STRUT
CATALOG # DESCRIPTION PER 100 FT. X Y THICKNESS
P1000-10 Channel 200 1.67 1.67 12 ga.
SH1000-10 Channel Slotted 185 1.67 1.67 12 ga.
P1001-10 Channel Back to Back 380 1.67 3.29 12 ga.
P3300-10 Channel Shallow 135 1.67 0.92 12 ga.
SH3300-10 Channel Shallow Slotted 130 1.67 0.92 12 ga.
PVC COATED STRUT CUT-TO-LENGTH
FERROUS LENGTH STRUT
CATALOG # DESCRIPTION X Y IN FT. THICKNESS
P1000-1 1-5/8 CHANNEL 1.67 1.67 1 12 ga.
P1000-1-1/2 1-5/8 CHANNEL 1.67 1.67 1-1/2 12 ga.
P1000-2 1-5/8 CHANNEL 1.67 1.67 2 12 ga.
P1000-2-1/2 1-5/8 CHANNEL 1.67 1.67 2-1/2 12 ga.
P1000-3 1-5/8 CHANNEL 1.67 1.67 3 12 ga.
CHANNELS WITH SLOTTED HOLES
SH1000-1 1-5/8 CHANNEL 1.67 1.67 1 12 ga.
SH1000-1-1/2 1-5/8 CHANNEL 1.67 1.67 1-1/2 12 ga.
SH1000-2 1-5/8 CHANNEL 1.67 1.67 2 12 ga.
SH1000-2-1/2 1-5/8 CHANNEL 1.67 1.67 2-1/2 12 ga.
SH1000-3 1-5/8 CHANNEL 1.67 1.67 3 12 ga.
PVC Coated Strut Nuts
Perma-Cote PVC coated strut nuts are
used to assemble strut components
and to secure coated all thread rod in
a section of strut. These are available
with or without a spring to aid in
placement and assembly.
COATED STRUT NUT
PIPE FERROUS
SIZE CATALOG #
3/8" N228-WO
1/2" N225-WO
3/8" N228
1/2" N225
3/8" N2500-375
1/2" N2500-050
Features:
■20 mil gray PVC
exterior coating
■10 trade sizes from
1/2" through 4"
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Support Products
Support Products
57
PBB911 PBB914
Beam Clamps and U-Bolts
Perma-Cote PVC coated beam clamps are used to securely support
conduit runs by attaching them to beams, angles, trusses and other
structural members. They are available in the following styles:
Window Clamp – To attach strut at a 90° angle to a beam or structural member.
Parallel – to attach the conduit run parallel to a beam or structural member.
Edge – to attach the conduit run at a 90˚ angle to a thin beam or structural
member.
Right Angle – to attach the conduit run at a 90˚ angle to a beam or
structural member.
U-Bolt – To attach the conduit run to a structural member or support.
Hanger Rod Beam Clamp – to attach a single all thread rod to a beam or
structural member.
Features:
■
20 mil minimum gray PVC exterior
coating on all types of beam clamps
■
Right angle clamps supplied with
plastic encapsulated screws
■
All clamps specically sized to t PVC
coated conduit
■
Right angle and parallel clamps available
in 10 trade sizes 1/2" through 4"
■
Edge clamps available in 3 trade
sizes 1/2" through 1"
■
Hanger rod beam clamps available
with 5 different jaw openings 15/16"
through 2-1/8"
PARALLEL
CONDUIT CLAMP
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT
1/2" UPC-50 46.8
3/4" UPC-75 63.0
1" UPC-100 67.0
1-1/4" UPC-125 100.0
1-1/2" UPC-150 130.0
2" UPC-200 158.0
2-1/2" UPC-250 175.0
3" UPC-300 200.0
3-1/2" UPC-350 250.0
4" UPC-400 275.0
EDGE STYLE
CONDUIT CLAMP
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT
1/2" UEC-50 74.0
3/4" UEC-75 90.0
1" UEC-100 100.0
RIGHT ANGLE
CONDUIT CLAMP
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT
1/2" RA-50 49.0
3/4" RA-75 53.0
1" RA-100 61.0
1-1/4" RA-125 65.0
1-1/2" RA-150 92.0
2" RA-200 100.0
2-1/2" RA-250 125.0
3" RA-300 150.0
3-1/2" RA-350 175.0
4" RA-400 198.0
CONDUIT U-BOLT
PIPE FERROUS NOMINAL
SIZE CATALOG # WEIGHT
1/2" U-050-PVC 17.0
3/4" U-075-PVC 18.0
1" U-100-PVC 20.0
1-1/4" U-125-PVC 20.0
1-1/2" U-150-PVC 31.0
2" U-200-PVC 34.0
2-1/2" U-250-PVC 39.0
3" U-300-PVC 44.0
3-1/2" U-350-PVC 45.0
4" U-400-PVC 49.0
5" U-500-PVC 100.0
6" U-600-PVC 130.0
U-Bolt
Parallel Beam Clamp Right Angle Beam Clamp
Edge Beam Clamp
BEAM CLAMPS
PIPE FERROUS NOMINAL MAXIMUM
SIZE CATALOG # A B C D E F WEIGHT LOAD
1" IS-500 1/4–20 5/16–1-1/8 1-3/8 7/8 1-1/4 1-1/8 25 500
1-1/4" IS-501 5/16–18 3/8–16 1-3/4 7/8 1-5/8 1-1/2 50 800
1-1/2" IS-502 3/8–16 1/2–13 2-1/16 7/8 2 2 90 2000
2" IS-503 1/2–13 1/2–13 2-5/8 1 1-1/4 1-1/8 195 2000
2-1/2" IS-508 1/2–13 1/2–13 2-1/4 7/8 2-1/2 2-5/8 25 4000
STRUT WINDOW
BEAM CLAMPS
FERROUS NOMINAL
CATALOG # WEIGHT
B441-22 0.9
B441-22A 0.9
PVC COATED NUTS
FERROUS
CATALOG # DESCRIPTION
NUT-KIT-1 5/16" ENC NUTS-RA, UBLT 1/2" to 1-1/4"
NUT-KIT-2 3/8" ENC NUTS-RA, UBLT 1-1/2" to 6"
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Installation Tools
Installation Tools
58
Spin-It Plasti-Socket Z-Wrench
With the Perma-Cote Spin-It, Perma-Cote can
be tightened much faster than with
conventional tools. Because the Spin-It never
touches the coating, damage to the conduit is
eliminated.
Plasti-Socket is a ber-glass encapsulated 3/8"
drive socket for use with the square berglass
encapsulated U bolt and beam clamp nuts used
in the Perma-Cote conduit support system. The
Plasti-Socket helps avoid coating damage from
metal sockets, pliers or wrenches.
Z-Wrench features extra wide jaws which spread
the clamping force, enabling the tool to grip without
marring the surface of the conduit. The “V” shaped
upper jaw allows Z-Wrench to accommodate a
wide range of conduit sizes. Shallow grooves in the
upper and lower jaws provide an excellent grip.
JAWS 3 Half Shell Clamps Hickey
JAWS 3 are a set of aluminum-nickel-bronze vise
jaws designed to replace the regular jaws in a
RIGID #23 or #40-A pipe vise. They completely
protect the exterior coating from damage caused
by the vise jaws when cutting or threading.
Half Shell Clamps are designed to cover a large
surface area when clamping conduit, especially
in a chain vise. This allows for a strong grip
without damaging the exterior coating.
The Perma-Cote Hickey is a special
bending tool with a 40 mil PVC coating which
reduces the possibility of damage during
conduit bending.
Touch Up Compounds
Perma-Cote Touchup Compounds are available to repair minor damage to the interior urethane or exterior PVC factory coatings.
The exterior PVC touchup compound is gray and available in a 12 oz. aerosol can, and a pint can with brush-top applicator.
The approved thread compound touchup compound is available in a pint can with a brush-top applicator.
See the installation section of the buyers’ guide for more information on using the Perma-Cote touchup compounds.
PERMA-COTE TOUCH UP COMPOUNDS
CATALOG # DESCRIPTION SIZE
TC-1700 Exterior Spray Type (Gray) 12 oz.
TC-1600 Exterior Non-Spray with Brush-Top (Gray) 1 pt.
THREAD-COMPOUND Approved Conductive Compound-Brush-Top Pint 1 pt.
CATALOG # DESCRIPTION
SPIN-IT-3/4 3/4" SPIN-IT
SPIN-IT-1 1" SPIN-IT
SPIN-IT-1-1/4 1-1/4" SPIN-IT
SPIN-IT-1-1/2 1-1/2" SPIN-IT
SPIN-IT-2 2" SPIN-IT
CATALOG # DESCRIPTION
HLF-SHL-CLP2 2" HALF-SHELL CONDUIT CLAMP
HLF-SHL-CLP2-1/2 2-1/2" HALF-SHELL CONDUIT CLAMP
HLF-SHL-CLP3 3" HALF-SHELL CONDUIT CLAMP
HLF-SHL-CLP3-1/2 3-1/2" HALF-SHELL CONDUIT CLAMP
HLF-SHL-CLP4 4" HALF-SHELL CONDUIT CLAMP
HLF-SHL-CLP5 5" HALF-SHELL CONDUIT CLAMP
HLF-SHL-CLP6 6" HALF-SHELL CONDUIT CLAMP
CATALOG # DESCRIPTION
PLASTISOCKET-3/8 3/8" Plasti-Socket
CATALOG # DESCRIPTION
JAWS3-#23 JAWS3 #23 PIPE VISE
JAWS3-#40-A JAWS3 #40-A TRIPOD PIPE VISE
CATALOG # DESCRIPTION
JPZ1 1/2" – 1-1/4" Z-Wrench
JPZ2 1-1/2" – 2-1/2" Z-Wrench
CATALOG # DESCRIPTION
HICKEY 1/2" & 3/4" Conduit Bender
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Installation
Installer Certication
59
Perma-Cote is a system providing the best
available exterior and interior protection against
corrosion. Proper installation is essential to
ensure the best possible service life for a conduit
system. To ensure the best possible PVC coated
conduit installation it is recommended that
installers are certied.
Qualied installation provides these benets:
Everyone benets!
• The End User…
…receives optimum installation quality and best
possible service life.
• The Professional…
… benets because of obvious concern for
providing only the best to the end-user.
• The Contractor…
… achieves more cost-effective installation.
Perma-Cote Installer Certication is based upon
training that includes classroom and hands-on
instruction encompassing:
• Proper installation techniques and tools.
• Hands-on instruction for clamping, cutting,
threading, bending, and assembly of PVC coated
conduit.
• Interactive discussion of techniques and
troubleshooting.
Only installers who are able to present the
authorized, unexpired credentials of having passed
our instruction and examination are ofcially
certied to install Perma-Cote's top quality
products.
Installer certication is free of charge and available
at the job site, contractor's shop, factory, or
wherever it is convenient to you! For more
information about Installer Certication, contact
Perma-Cote at 903.843.4388.
Installer Certication
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Technical Information
Technical Information
60
RECOMMENDED
EXPOSURE
SOLUTIONS CONC. TEMP. FUMES SPLASH IMMERSION
Acetic Acid 10% 75˚ F YES YES NO
Acid Copper Plating Sol. Any 75˚ F YES YES NO
Alkaline Cleaners Any 75˚ F YES YES NO
Aluminum Chloride Sat’d 75˚ F YES YES NO
Aluminum Sulfate Sat’d 75˚ F YES YES NO
Alums Sat’d 75˚ F YES YES NO
Ammonium Chloride Sat’d 75˚ F YES YES NO
Ammonium Hydroxide 28% 75˚ F YES YES NO
Ammonium Hydroxide 10% 75˚ F YES YES NO
Ammonium Sulfate Sat’d 75˚ F YES YES NO
Ammonium Thiocyanate Sat’d 75˚ F YES YES NO
Amyl Alcohol Sat’d 75˚ F YES YES YES
Arsenic Acids Any 75˚ F YES YES NO
Barium Sulfide Sat’d 75˚ F YES YES NO
Black Liquor Sat’d 75˚ F YES YES NO
Benzoic Acid Sat’d 75˚ F YES YES NO
Brass Plating Solution Sat’d 75˚ F YES YES NO
Bromine Water Sat’d 75˚ F YES YES NO
Butyl Alcohol Any 75˚ F YES YES NO
Cadmium Plating Sol. Any 75˚ F YES YES NO
Cadmium Bisulfate Any 75˚ F YES YES NO
Calcium Chloride Sat’d 75˚ F YES YES NO
Calcium Hypochlorite Sat’d 75˚ F YES YES NO
Carbonic Acid Sat’d 75˚ F YES YES NO
Casein Any 75˚ F YES YES NO
Castor Oil Any 75˚ F YES YES YES
Caustic Soda 35% 75˚ F YES YES NO
Caustic Soda 10% 75˚ F YES YES NO
Caustic Potash 35% 75˚ F YES YES NO
Caustic Potash 10% 75˚ F YES YES NO
Chlorine Water Sat’d 75˚ F YES YES NO
Chromium Plating Sol. Any 75˚ F YES YES NO
Citric Acid Sat’d 75˚ F YES YES NO
Copper Chloride Sat’d 75˚ F YES YES NO
Copper Cyanide Plating Sol. Any 75˚ F YES YES NO
Copper Sulfate Sat'd 75˚ F YES YES NO
Coconut Oil Sat’d 75˚ F YES YES YES
Cottonseed Oil Sat’d 75˚ F YES YES YES
Disodium Phosphate Sat’d 75˚ F YES YES NO
Ethyl Alcohol Any 75˚ F YES YES NO
Ethylene Glycol Any 75˚ F YES YES YES
Ferrous Sulfate Sat’d 75˚ F YES YES NO
Fluoboric Acid Any 75˚ F YES YES NO
Formaldehyde 37% 75˚ F YES YES NO
Formic Acid 85% 75˚ F YES YES NO
Gallic Acid Sat’d 75˚ F YES YES NO
Glucose Any 75˚ F YES YES YES
Glycerine Any 75˚ F YES YES YES
Gold Plating Solution Any 75˚ F YES YES NO
Hydrochloric Acid 10% 75˚ F YES YES NO
Hydrochloric Acid 21.5% 75˚ F YES YES NO
Hydrochloric Acid 37.5% 75˚ F YES YES NO
Hydrofluoric Acid 4% 75˚ F YES YES NO
Hydrofluoric Acid 10% 75˚ F YES YES NO
Hydrofluoric Acid 48% 75˚ F YES YES NO
Hydrogen Peroxide 30% 75˚ F YES YES NO
Hydroquinone Any 75˚ F YES YES NO
Indium Plating Solution Any 75˚ F YES YES NO
Lactic Acid Any 75˚ F YES YES NO
Lead Plating Solution Any 75˚ F YES YES NO
RECOMMENDED
EXPOSURE
SOLUTIONS CONC. TEMP. FUMES SPLASH IMMERSION
Malic Acid Any 75˚ F YES YES NO
Methyl Alcohol Any 75˚ F YES YES NO
Mineral Oils Any 75˚ F YES YES YES
Nickel Acetate Sat’d 75˚ F YES YES NO
Nickel Plating Solution Any 75˚ F YES YES NO
Nickel Salts Sat’d 75˚ F YES YES NO
Nitric Acid 35% 75˚ F YES YES NO
Nitric Acid 40% 75˚ F YES YES NO
Nitric Acid 60% 75˚ F YES YES NO
Nitric/Hydrofluoric Acid 15%/4% 75˚ F YES YES NO
Nitric Acid/
Sodium Dichromate Water 16%/13%/71% 75˚ F YES YES NO
Oleic Acid Any 75˚ F YES YES NO
Oxalic Acid Any 75˚ F YES YES NO
Phenol Sat’d 75˚ F YES YES NO
Phosphoric Acid 75% 75˚ F YES YES NO
Phosphoric Acid 85% 75˚ F YES YES NO
Potassium Acid Sulfate Sat’d 75˚ F YES YES NO
Potassium Antimonate Sat’d 75˚ F YES YES NO
Potassium Bisulfite Sat’d 75˚ F YES YES NO
Potassium Chloride Sat’d 75˚ F YES YES NO
Potassium Cuprocyanide Sat’d 75˚ F YES YES NO
Potassium Cyanide Sat’d 75˚ F YES YES NO
Potassium Dichromate Sat’d 75˚ F YES YES NO
Potassium Hypochlorate Sat’d 75˚ F YES YES NO
Potassium Sulfide Sat’d 75˚ F YES YES NO
Potassium Thiosulfate Sat’d 75˚ F YES YES NO
Propyl Alcohol Sat’d 75˚ F YES YES NO
Rhodium Plating Solution Sat’d 75˚ F YES YES NO
Silver Plating Solution Sat’d 75˚ F YES YES NO
Soaps Any 75˚ F YES YES NO
Sodium Acid Sulfate Sat’d 75˚ F YES YES NO
Sodium Antimonate Sat’d 75˚ F YES YES NO
Sodium Bicarbonate Sat’d 75˚ F YES YES NO
Sodium Bisulfite Sat’d 75˚ F YES YES NO
Sodium Chloride Sat’d 75˚ F YES YES NO
Sodium Cyanide Sat’d 75˚ F YES YES NO
Sodium Dichromate Sat’d 75˚ F YES YES NO
Sodium Hydroxide 10% 75˚ F YES YES NO
Sodium Hydroxide 35% 75˚ F YES YES NO
Sodium Hydroxide 73% 75˚ F YES YES NO
Sodium Hypochlorite Sat’d 75˚ F YES YES NO
Sodium Hypochlorite 15% 75˚ F YES YES NO
Sodium Sulfide Sat’d 75˚ F YES YES NO
Sodium Thiosulfate Sat’d 75˚ F YES YES NO
Sulfuric Acid 15% 75˚ F YES YES NO
Sulfuric Acid 50% 75˚ F YES YES NO
Sulfuric Acid 70% 75˚ F YES YES NO
Sulfuric Acid 98% 75˚ F YES YES NO
Sulfurous Acid 2% 75˚ F YES YES NO
Sulfurous Acid 4% 75˚ F YES YES NO
Tannic Acid Sat’d 75˚ F YES YES NO
Tartaric Acid Sat’d 75˚ F YES YES NO
Tin Chloride Sat’d 75˚ F YES YES NO
Tin Plating Solution Sat’d 75˚ F YES YES NO
Triethanolamine Sat’d 75˚ F YES YES NO
Trisodium Phosphate Sat’d 75˚ F YES YES NO
White Liquor Sat’d 75˚ F YES YES NO
Zinc Plating Solution Sat’d 75˚ F YES YES NO
Zinc Sulfate Sat’d 75˚ F YES YES NO
Urethane Interior Coating Chemical Resistance Chart
Visit www.permacote.com
For more information
Contact us:
customerservice@permacote.com
Technical Information
Technical Information
61
RECOMMENDED
EXPOSURE
SOLUTIONS CONC. TEMP. FUMES SPLASH IMMERSION
Acetic Acid 10% 120 NO NO NO
Acid Copper Plating Sol. 160 YES YES YES
Alkaline Cleaners 160 YES YES YES
Aluminum Chloride Sat’d 160 YES YES YES
Aluminum Sulfate Sat’d 160 YES YES YES
Alums Sat’d 160 YES YES YES
Ammonium Chloride Sat’d 160 YES YES YES
Ammonium Hydroxide 28% 120 YES YES YES
Ammonium Hydroxide 10% 120 YES YES YES
Ammonium Sulfate Sat’d 160 YES YES YES
Ammonium Thiocyanate Sat’d 160 YES YES YES
Amyl Alcohol Any 90 YES YES YES
Arsenic Acids Any 150 YES YES YES
Barium Sulfide Sat’d 160 YES YES YES
Black Liquor Sat’d 90 YES YES YES
Benzoic Acid Sat’d 160 YES YES YES
Brass Plating Solution Any 160 YES YES YES
Bromine Water Sat’d 120 YES YES YES
Butyl Alcohol Any 90 YES YES YES
Cadmium Plating Sol. Any 150 YES YES YES
Cadmium Bisulfate Any 150 YES YES YES
Calcium Chloride Sat’d 160 YES YES YES
Calcium Hypochlorite Sat’d 120 YES YES YES
Carbonic Acid Sat’d 160 YES YES YES
Casein Any 90 YES YES YES
Castor Oil Any 90 YES YES YES
Caustic Soda 35% 120 YES YES YES
Caustic Soda 10% 150 YES YES YES
Caustic Potash 35% 120 YES YES YES
Caustic Potash 10% 150 YES YES YES
Chlorine Water Sat’d 90 YES YES YES
Chromium Plating Sol. Any 150 YES YES YES
Citric Acid Sat’d 160 YES YES YES
Copper Chloride Sat’d 160 YES YES YES
Copper Cyanide Plating Sol. Any 160 YES YES YES
(High Speed) Any 180 YES YES YES
(with Alkali Cyanides) Sat’d 160 YES YES YES
Copper Sulfate Sat’d 160 YES YES YES
Coconut Oil Sat’d 90 YES YES YES
Cottonseed Oil Sat’d 90 YES YES YES
Disodium Phosphate Sat’d 160 YES YES YES
Ethyl Alcohol Any 90 YES YES YES
Ethylene Glycol Any 90 YES YES NO
Ferric Chloride 45% 120 YES YES YES
Ferrous Sulfate Sat’d 150 YES YES YES
Fluoboric Acid Any 150 YES YES YES
Formaldehyde 37% 120 YES YES YES
Formic Acid 85% 100 NO NO NO
Gallic Acid Sat’d 150 YES NO NO
Glucose Any 150 YES YES YES
Glycerine Any 90 YES YES YES
Gold Plating Solution Any 150 YES YES YES
Hydrochloric Acid 10% 120 YES YES YES
Hydrochloric Acid 21.5% 120 YES YES YES
Hydrochloric Acid 37.5% 120 YES YES NO
Hydrochloric Acid 37.5% 90 YES YES NO
Hydrofluoric Acid 4% 140 YES YES NO
Hydrofluoric Acid 10% 120 YES YES NO
Hydrofluoric Acid 48% 120 YES YES NO
Hydrogen Peroxide 30% 120 YES YES YES
Hydrogen Sulfide Sat’d 120 YES YES YES
Hydroquinone Any 90 YES YES YES
Indium Plating Solution Any 150 YES YES YES
RECOMMENDED
EXPOSURE
SOLUTIONS CONC. TEMP. FUMES SPLASH IMMERSION
Lactic Acid 50% 120 YES YES YES
Lactic Acid Any 90 YES YES YES
Lead Plating Solution Any 150 YES YES YES
Malic Acid Any 90 YES YES YES
Methyl Alcohol Any 90 YES YES YES
Mineral Oils Any 90 YES YES YES
Nickel Acetate Sat’d 160 YES YES YES
Nickel Plating Solution 160 YES YES YES
Nickel Salts Sat’d 160 YES YES YES
Nitric Acid 35% 120 YES YES NO
Nitric Acid 40% 90 YES YES NO
Nitric Acid 60% 120 YES YES NO
Nitric/Hydrofluoric Acid 15%/4% 140 YES YES YES
Nitric Acid/Sodium
Dichromate Water 16%/13%/71% 130 YES YES YES
Oleic Acid Any 90 YES YES YES
Oxalic Acid 90 YES YES YES
Phenol Sat’d 120 NO NO NO
Phosphoric Acid 75% 150 YES YES YES
Phosphoric Acid 85% 120 YES YES YES
Potassium Acid Sulfate Sat’d 150 YES YES YES
Potassium Antimonate Sat’d 150 YES YES YES
Potassium Bisulfite Sat’d 90 YES YES YES
Potassium Chloride Sat’d 160 YES YES YES
Potassium Cuprocyanide Sat’d 150 YES YES YES
Potassium Cyanide Sat’d 160 YES YES YES
Potassium Dichromate Sat’d 160 YES YES YES
Potassium Hypochlorate Sat’d 90 YES YES NO
Potassium Sulfide Sat’d 150 YES YES YES
Potassium Thiosulfate Sat’d 150 YES YES YES
Propyl Alcohol Sat’d 150 YES YES YES
Rhodium Plating Solution Sat’d 150 YES YES YES
Silver Plating Solution Sat’d 150 YES YES YES
Soaps Any 90 YES YES YES
Sodium Acid Sulfate Sat’d 160 YES YES YES
Sodium Antimonate Sat’d 150 YES YES YES
Sodium Bicarbonate Sat’d 160 YES YES YES
Sodium Bisulfite Sat’d 90 YES YES YES
Sodium Chloride Sat’d 160 YES YES YES
Sodium Cyanide Sat’d 160 YES YES YES
Sodium Dichromate Sat’d 160 YES YES YES
Sodium Hydroxide 10% 150 YES YES NO
Sodium Hydroxide 35% 120 YES YES NO
Sodium Hydroxide 73% 160 NO NO NO
Sodium Hypochlorite Sat’d 90 YES YES NO
Sodium Hypochlorite 15% 120 YES YES NO
Sodium Sulfide Sat’d 150 YES YES YES
Sodium Thiosulfate Sat’d 150 YES YES YES
Sulfuric Acid 15% 120 YES YES YES
Sulfuric Acid 50% 120 YES YES YES
Sulfuric Acid 70% 90 YES YES NO
Sulfuric Acid 98% 100 YES NO NO
Sulfurous Acid 2% 120 YES YES NO
Sulfurous Acid 6% 120 YES YES NO
Tannic Acid Sat’d 90 YES YES YES
Tartaric Acid Sat’d 90 YES YES YES
Tin Chloride Sat’d 150 YES YES YES
Tin Plating Solution Sat’d 150 YES YES YES
Triethanolamine Sat’d 150 YES YES YES
Trisodium Phosphate Sat’d 150 YES YES YES
White Liquor Sat’d 90 YES YES YES
Zinc Plating Solution 160 YES YES YES
Zinc Sulfate Sat’d 160 YES YES YES
PVC Exterior Coating Chemical Resistance Chart
Phone: 903.843.4388
Fax: 903.843.2516
1100 US Highway 271 South
Gilmer, Texas 75644
Technical Information
Technical Information
62
Perma-Cote Performance Standards/Descriptions
Exterior PVC and interior urethane coating performance shall be
conrmed by the characteristics and tests listed below. Test samples
shall be selected at random.
FLAMMABILITY
The PVC coating will burn if subjected to sustained ame or heat above
400°F, however, it will self extinguish upon removal of the heat source
or ame.
TOXICITY
Prolonged exposure to heat greater than 200°F or exposure to re may
cause the PVC coating to release harmful emissions which could pose
a potential health hazard. Therefore, PVC use is not recommended in
areas exposed to sustained temperatures above 200°F. If exposed to
re, particularly in closed areas, users should be aware and observe
proper caution.
BOIL TEST
Acceptable conduit coating bonds shall be conrmed if there is no
disbondment after a minimum average of 200 hours in boiling water or
exposure to steam vapor at one atmos phere. The periodic increments
between bond tests shall not exceed 5 hours for the rst 25 hours,
then it may be lengthened by mutual consent. The RN1 Bond Test and
the Standard Method for Measuring Adhesion by Tape Test shall be
utilized.
Exterior Adhesion
A 6" length of conduit test specimen shall be placed in boiling water.
The specimen shall be periodically removed, cooled to ambient
temperature and immediately tested according to the bond test (RN1).
When the PVC coating separates from the substrate, the boil time to
failure in hours shall be recorded. ASTM D870 describes this test
method for accelerated testing of coating adhesive bonds.
Interior Adhesion
A 6" conduit test specimen shall be cut in half longitudinally and placed
in boiling water or directly above boiling water with the urethane surface
facing down. The specimen shall be periodically removed, cooled to
ambient temperature and tested in accordance with the Standard
Method of Adhesion by Tape Test (ASTM D3359). When the coating
disbonds, the time to failure in hours shall be recorded.
HEAT/HUMIDITY TEST
Acceptable conduit coating bonds shall be conrmed by a minimum
average of 30 days in the Heat and Humidity Test. The periodic
increment between bond tests shall not exceed 5 days for the rst 30
days, then may be lengthened by mutual consent. The RN1 Bond Test
and the Standard Method for Measuring Adhesion by Tape Test shall be
utilized.
Exterior Adhesion
Conduit specimens shall be placed in a heat and humidity environment
where the temperature is maintained at 150°F (66°C) and 95% relative
humidity. The specimens shall be periodically removed and a bond test
(RN1) performed. When the PVC coating separates from the substrate,
the exposure time to failure in days shall be recorded. ASTM D1151,
D1735, D2247 AND D4585 are the basis for this accelerated method
of evaluating adhesive bonding.
Interior Adhesion
The conditions for interior adhesion testing of conduit specimens are
the same as those for external adhesion. ASTM D3359 is used to
determine adhesive failure.
ETL-VERIFIED PVC-001:
The PVC coating adhesion performance of this product has been ETL
veried to the Intertek ETL SEMKO High Temperature H2O PVC Coating
Adhesion Test Procedure for 200 hours.
CHEMICAL RESISTANCE TEST
No trace of the internal coating shall be visible on a white cloth
following six wipes over the coating which has been wetted with acetone
(ASTM D1308).
POLYURETHANE
The supplier shall conrm that the internal coating which meets the
above condition is a polyurethane.
Perma-Cote has used the American Society for Testing and Materials
(ASTM) standards to provide comparable and consistent test data. A
list of ASTM standards referenced in the Perma-Cote Coated Conduit
Specication appears below.
ASTM B1117
Standard Practice for Operating Salt Spray (Fog) Apparatus
ASTM D149
Test Methods for Dielectric Breakdown Voltage and Dielectric Strength
of Solid Electrical Insulating Materials at Commercial Power
Frequencies
ASTM D638
Test Method for Tensile Properties of Plastics
ASTM D746
Test Method for Brittleness Temperature of Plastics and Elastomers
by Impact
ASTM D870
Method for Water Immersion Test of Organic Coatings on Steel
ASTM D1151
Test Method for Effect of Moisture and Temperature on Adhesive
Bonds
ASTM D1654
Standard Test Method for Evaluation of Painted or Coated Specimens
Subjected to Corrosive Environments
ASTM D1735
Method for Water Fog Testing of Organic Coatings
ASTM D2240
Test Method for Rubber Property-Durometer Hardness
ASTM D2247
Method of Testing Coated Metal Specimens at 100% Relative
Humidity
ASTM D2444
Standard Test Method for Determination of the Impact Resistance of
Thermoplastic Pipe and Fittings by Means of a Tup (Falling Weight)
ASTM D3359
Method for Measuring Adhesion by Tape Test
ASTM D4585
Testing Water Resistance of Coatings Using Controlled Condensation
ASTM D1308
Effect of Chemicals on Clear and Pigmented Organic Finishes
ASTM G153
Standard Practice for Operating Enclosed Carbon Arc Light Apparatus
for Exposure of Non-Metallic Materials
ASTM G155
Standard Practice for Operating Xenon Arc Light Apparatus for
Exposure of Non-Metallic Materials
Executive Offices:
1100 US Highway 271 South
Gilmer, Texas 75644
Phone: 903.843.4388
Fax: 903.843.2516
Sales Department Fax: 903.843.2516
©2014 Robroy Industries Electrical Products Division
Effective Date: 10/14
Order Item: 5PM-112
Price: $5.00
PM-112
Perma-Cote PVC-coated galvanized rigid conduit and fittings provide unequaled corrosion protection. Manufactured in the U.S.A.,
ISO 9001-certified Perma-Cote complies with all standards mandated by UL6, NEMA RN-1 and ANSI C80.1. Plus --- Perma-Cote
is ETL-Verified for product performance and reliable longevity ten or more times longer than brands that are not ETL-Verified. Look
for the combined ETL/UL label to be sure you are receiving the protection you've paid for!
