Selection and application guide

For use in Kansas, Iowa, Missouri and Illinois

Meter mounting equipment

www.landisandgyr.com

Contents

Service Rating Positions Terminals Page

Introduction and General Information - - - 3-7

Residential, 1 Phase, 3 Wire 135A 1 4 & 5 8

Residential, 1 Phase, 3 Wire 200A 1 4 & 5 9

Residential, 1 Phase, 3 Wire, Horizontal Gang 100/150A 2-4 4 10

Residential, 1 Phase, 3 Wire, Horizontal Gang 200A 2-6 4 11

Commercial/Industrial, 1 and 3 Phase, 3 Wire 200A 1 5 & 7 12

Commercial/Industrial, 1 Phase, 3 Wire, Polyphase, 3 or 4 Wire 200A 1 4, 5 & 7 13

Commercial, 1 Phase, 3 Wire, Polyphase, 4 Wire 320A 1 4, 5 & 7 14

Residential, 1 Phase, 3 Wire, Multi-Position, Lever Bypass 200A 2-6 4, 5 & 7 15

Commercial/Industrial, Type PTS Transformer Rated 20A 1 - 16

Residential, 1 Phase, 3 wire, Type K4 400/480A 1 4 17

Residential/Commercial/Industrial, Polyphase, 3 or 4 Wire 400/480A 1 7 18

Residential, Type AP Pedestal, 1 Phase, 3 Wire 200/320A 1 4 & 5 19

Residential/Commercial/Industrial Pedestal Type HQ 200/400A 1 5 20

Residential, Meter Mains 100/200A 1 4 & 5 21

Residential, Meter Mains 200/400A 1 4 & 5 22

Circuit Breakers - - - 23

Air Conditioning Disconnects - - - 24

Spa Panels - - - 25

Lugs - - - 26, 27

Socket Accessories - - - 28

Repair Parts, Terms & Conditions and Device Applications - - - 29

HQ-7 Block Assembly - The Standard for

Quality

The Standard for Quality

For more than 50 years, Landis & Gyr has been manufacturing high quality meter

mounting devices. From our proprietary K-Base to our heavy duty HQ lever bypass

socket, Landis & Gyr is known throughout the industry for innovation and quality.

Landis & Gyr meter sockets are built for safety, ease of installation, and long term

quality. That's why we use stainless steel hardware, polyester powder coat paint

for long lasting protection, and Type G-90 galvanized steel or 3003 grade aluminum

for all of our enclosures. It's also why we use an all-copper current path in our

commercial sockets. All of this adds up to why utilities, OEM's, and contractors

recognize Landis & Gyr across the country as the leader in design, quality, and

workmanship. Quality is the reason many utilities and electricians specify

Landis & Gyr.

Landis & Gyr- the standard for quality and design.

Latches:

All swing latches are stainless steel

Block Material:

AS/AT, CQ, HQ, K-4 and K-7 - Glass

reinforced polyester

Terminals:

AS/AT - Tin-plated aluminum

extrusions 6061-T6

CQ, HQ, - Tin-plated copper

General Information

Materials:

16 gauge, galvanized steel, G-90

14 gauge, galvanized steel, G-90

14 gauge, aluminum

12 gauge, aluminum

Enclosures:

NEMA 3R

Finish:

Steel - Light gray, baked on powder

polyester

Aluminum - Mill finish

Standards:

Products cataloged herein meet or

exceed the following standards:

UL 486B, UL 414, NEMA 250,

ANSI C12.7 Florida Meter Group

requirements

Voltage:

All devices are rated at 600V AC

Type K-4 rated at 300V AC

Meter Socket Terminology

Maximum and Continuous Ampacity

UL and NEMA standards allow most electrical devices to be

tested at one amp level ("continuous"), then allowed 125%

rating as "maximum". For example, a "400 Amp" socket may

either mean 400 Amps continuous (K-4) or 400A Max, 320A

continuous which is also made by most competitors.

Wire Sizes - Ampacity

Connectors accept a fairly wide variety of wire sizes. On the AT

socket, a 350 MCM connector accepts conductors from #6 up

to 350 MCM. The NEC specifies the ampacity of each wire size

and type, also taking into account how the wire is installed in

conduit.

Lay-in & Stud Terminals

Lay-in terminals are fixed and may not be modified in the field

to accept other wire sizes or parallel conductors. Stud

terminals accept either lugs (see Product Schedule 497) or

compression fittings (not available from Landis & Gyr).

Common uses for studs include where the field wiring may be

either single or parallel. Terminals may be mixed on the line

and load sides, e.g. stud on the line and lay-in on the load

side.

Ringless/Ring Style

Ring-type is an older, vanishing concept requiring a sealing

ring. Landis & Gyr recently added tooling to build this type of

socket for the few remaining utilities that require them. In

ringless design, the seal is made not on a sealing ring but

using the cover and "swing latch" as the point of sealing.

Overhead/Underground

Sockets for UG service are usually wider in order to provide

space for the conductors to loop around the block to the top

connectors. Since more material is required in the enclosure,

UG sockets are more expensive than OH sockets. Quite

popular are combination units (OH/UG) which may be used in

either service, and require a cover plate if used with UG feed.

Hubs and Cover Plates

Top of socket with hub opening has a flanged lip to keep out

moisture. This requires a hub or cover plate to close. There

are two sizes of openings: "small" for conduit hubs with sizes

of 1", 1-1/4", 1-1/2", 2", and 2-1/2"; and "large" for conduit

hubs with sizes 3", 3-1/2", and 4". See Product Schedule 499.

Landis & Gyr hub openings conform to ANSI C12.7 specs and

are interchangeable with other socket manufacturers, but are

not interchangeable with panel board style hubs.

Bypass Types

A self-contained meter completes the circuit between the

utility and the customer. In order to change the meter, the

circuit must be broken, turning off the power to the customer.

This is not acceptable in commercial establishments, or in

many other types of services. A bypass allows a parallel path

for the current flow, un-metered, while the meter is pulled.

Types are:

a) Lever-operated jaw release, also known as jaw clamping

lever bypass (Landis & Gyr type HQ). The best, because

the meter cannot accidentally be pulled unless the bypass

is engaged. Pulling the meter would also be a major safety

hazard if there is a 480V installation and/or a large load in

place, as the meter would then act as a switch, and cause

arc.

b) Lever-operated non-jaw release (Landis & Gyr type CQ).

Lever bypasses the meter, but the meter may be removed

with the bypass open.

c) Horn bypass (option on residential sockets). Tangs on line

and load connectors allow for jumper leads to be fitted

over them before the meter is pulled.

d) Manual bypass (K-4, K-5, K-7) uses separate "links", which

are clamped onto special studs before the meter is

removed. K-7 also uses a "rotating link" type bypass.

e) Other types not made by Landis & Gyr include: slide links,

screw type, and automatic circuit closers.

Q & A Product Sheets

Q. How can I find a missing “lug” for a (Catalog No.____________________) meter socket?

A. If the socket is a residential type, the customer usually needs the nut/screw assembly that clamps the wire into place in a

lay-in style connector. There are different types of nut/screws. You will need to determine the catalog number of the device,

and if it is to be used on the line side, load side or neutral. With a commercial device, the customer may look for a ground

lug or mechanical lug for a stud type meter socket. In these cases the customer should contact a technical support person,

or refer to the specification sheet for the correct lug.

The customer may mistake the number, that is stamped on the part, (e.g. “6T0350”) as the catalog number. This

is actually the wire size that is stamped into the nut/screw assembly for a HQ style device. “6 TO 350” refers to the wire

size range of the connector.

Q. How can I find a replacement insulator, block, or porcelain/ceramic insulator?

A. First, determine the catalog number of the device. After the device has been identified you can then inquire if it is “left hand

or right hand”, and if it is used on a side wired device or a multi-position gang socket. On standard residential sockets, the

right and left hand blocks are identical, and are mounted in a mirror image of each other.

Q. What size hub can I use on a RX or HD hub opening?

A. A RX style hub opening will accept a 1” to 2-1/2” hub. A HD style hub opening will accept a 3” to 4” hub.

Q. How can I permanently close the meter opening of my meter socket without a meter in place?

A. A round black plastic disk (Catalog No. H39968) is available. It is located between the meter socket block assembly and the

meter socket cover. The cover holds the disk into place. This is used on residential and most commercial sockets that have

embossed meter openings in the socket cover.

Q. What do I use to close the meter opening, and also permanently jumper the meter socket so that the end user

still gets power, although unmetered?

A. For all devices with jaws, use jumper (Catalog No. H36479). Two jumpers are needed for a single phase device and three for a

three phase device.

Q. What if I need an isolated neutral?

A. Some applications require the neutral connection to be isolated or insulated. Isolated neutral kits are available for CQ and HQ

(Catalog No.H64685-1) and K-7 devices (Catalog No.H69685-1).

Q. What if I need a 5th Jaw or 5th Terminal?

A. Residential sockets (type UAXXXX) use two different types of field installable 5th terminals. Catalog No. H659-0121 for a

grounded 5th terminal is most commonly used. Use Catalog No. H659-0120 when the 5th terminal does not need to be

grounded. The 5th terminal for a HQ device (Catalog No. H35815-2) is in the form of a polycarbonate, safety shield with the

5th terminal located in the 9 o’clock position.

Q. What lugs should I use for a particular meter socket?

A. Lugs are included on most residential devices. A limited number of residential devices are available with stud connections.

Commercial devices (HQ, CQ, K Base) have either the lug as an integral part of the socket (200amp HQ only) or have 3/8" or

1/2" stud connections. The catalog page for each commercial device with stud connections includes a list of recommended

lugs. Lugs with an opening size of 13/32" are for 3/8" studs and lugs with an opening of 9/16" are for ½" studs. Lugs should

be chosen based on the size and number of conductors being pulled to the socket. Some lugs are for specific types of sockets

(K Base or HQ). Please refer to the accessories page for more details.

Q & A Product Sheets

Q. What is the voltage rating for Landis & Gyr meter sockets?

A. All meter sockets manufactured by Landis & Gyr are rated for up to 600 volts, with the exception of type K-4, which is rated

at 300 volts.

Q. What material is used for the Landis & Gyr meter socket enclosures?

A. Landis & Gyr uses type G-90 galvanized steel and aluminum for its enclosures. Pedestals used in Chicago use G-210 steel.

Q. What type of finish is applied to the enclosures?

A. Landis & Gyr has a high quality reputation for its gray, baked on polyester powder coat, which is long lasting and withstands

salt spray testing. Aluminum enclosures are normally supplied unpainted, but can be supplied with the same polyester

coating as used on steel.

Q. What rating do Landis & Gyr meter socket enclosures carry?

A. Landis & Gyr enclosures have a NEMA type 3R rating.

Q. Are Landis & Gyr meter sockets UL listed?

A. Landis & Gyr offers all of its product lines with the UL listing. On occasion, we supply special devices that are not UL listed,

to utilities that do not require the UL label.

Q. What label information can be found on the inside of the meter socket?

A. Every Landis & Gyr meter socket has a white information label, approximately 2-1/2” x 4” in size. It is located on the

upper left hand inside wall of the enclosure. This label contains the following information: Catalog Number, Socket Type

(UAT4, HQ-7U etc.), Number of Terminals (jaws), Continuous/Maximum Amperage, Voltage Rating, Service (single phase or

three phase), Short Circuit Withstand Rating, Other UL Information, Included lay-in connector sizes or recommended lugs if

stud type, Conduit Hub Kit Options and Accessories, where the device is manufactured and the date it was manufactured.

Q. How do I find the production date code for a Landis & Gyr meter socket?

A. The date code is printed towards the center of the bottom of the interior label. The date code will specify the month and year

the socket was manufactured.

Q. What is the difference between 320 Amp sockets with 3/8" studs and those with 1/2" studs?

A. Landis & Gyr was the pioneer of class 320 metering. Originally it was believed that a socket with heavy duty connectors and

jaw assemblies were needed to withstand this "high" amperage. Landis & Gyr introduced the HQ-D type block which features

heavy plated copper connectors and 1/2" studs for mounting mechanical lugs. After receiving requests for a lighter-duty

socket Landis & Gyr introduced the HQ-S type block. This block features the same heavy-duty connectors, but has 3/8" studs

for mounting the mechanical lugs. Check with your local utility to see which block style is preferred.

Q. What is an anti-inversion clip?

A. The anti-inversion clip (Catalog No. H59676) is a specially formed wire that is inserted into the upper right hand jaw of a 320A

meter socket. The purpose of the clip is to disallow a 200A meter to be inserted into the 320A meter socket. Class 320

meters are built with a narrow blade that will fit into a jaw that has the anti-inversion clip installed. The anti-inversion clip

also restricts a class 320 meter from being inserted upside down.

Q & A Product Sheets

Q. What type of information can I find in the Landis & Gyr catalog?

A. Landis & Gyr publishes two types of catalogs. Our general catalog has Product Schedules containing detailed information for

each type of product Landis & Gyr manufactures. Product Schedule #400 outlines the complete product offering and guides

the user to the correct Product Schedule based on criteria such as: electrical service, form of meter being used, number of

terminals (jaws), amperage, etc. Special accessories schedules near the back of the catalog show bypasses, tools, hubs and

cover plates, 5th terminal kits, isolated neutral kits and ring-type socket sealing rings.

Landis & Gyr also publishes special catalogs for NEMRA trade territories, based on utility requirements. These catalogs are

provided for the Contractor and Industrial (C & I) distribution market by authorized Landis & Gyr manufacturer representative

organizations. These catalogs show only the products that pertain to the specific service territory. The C & I catalogs also

include special accessories and lug information on the back pages. For detailed product information, customers can be

referred to the corresponding Product Schedule in the general catalog.

Q. What is K-base?

A. K-base is the term used for a special way of metering continuous amperages of 400A or higher. Before the introduction of

K-base metering, which was pioneered by Landis & Gyr, all loads over 320A had to use transformer rated metering. The

K-base concept employs a meter with internal transformers to accept loads of up to 600A maximum and a meter-mounting

device with heavy-duty bussing that holds the meter in place with the use of bolts. K-base meters and mounting devices

are available for single phase, network and three phase applications. The K-base concept is continually growing as new

utilities approve its usage each year.

Q. Which socket do I choose for a 400 Amp application?

A. There are 3 ways of metering a 400A application. Some utilities prefer a 320A meter socket, some prefer a 400A

K base, still others prefer to use current transformers. Your local utility could use one or a combination of any of these

methods. Please contact your local utility prior to purchasing a socket to ensure you have the right device for your

application.

Q. What is the difference between an RX hub and a HD hub?

A. The RX hub is a small base ANSI compliant hub. The size ranges from 3/4” to 2-1/2”. The HD hub is a large base ANSI

compliant hub. The size ranges from 3” to 4”. An HD size opening may be reduced to an RX size using an accessory

adaptor plate.

135A Continuous, Meter Mounting Equipment, Residential 

4 & 5 Terminal for 1 Phase, 3 Wire

All units include a quad neutral.

5th terminal for field installation: H659-0121.

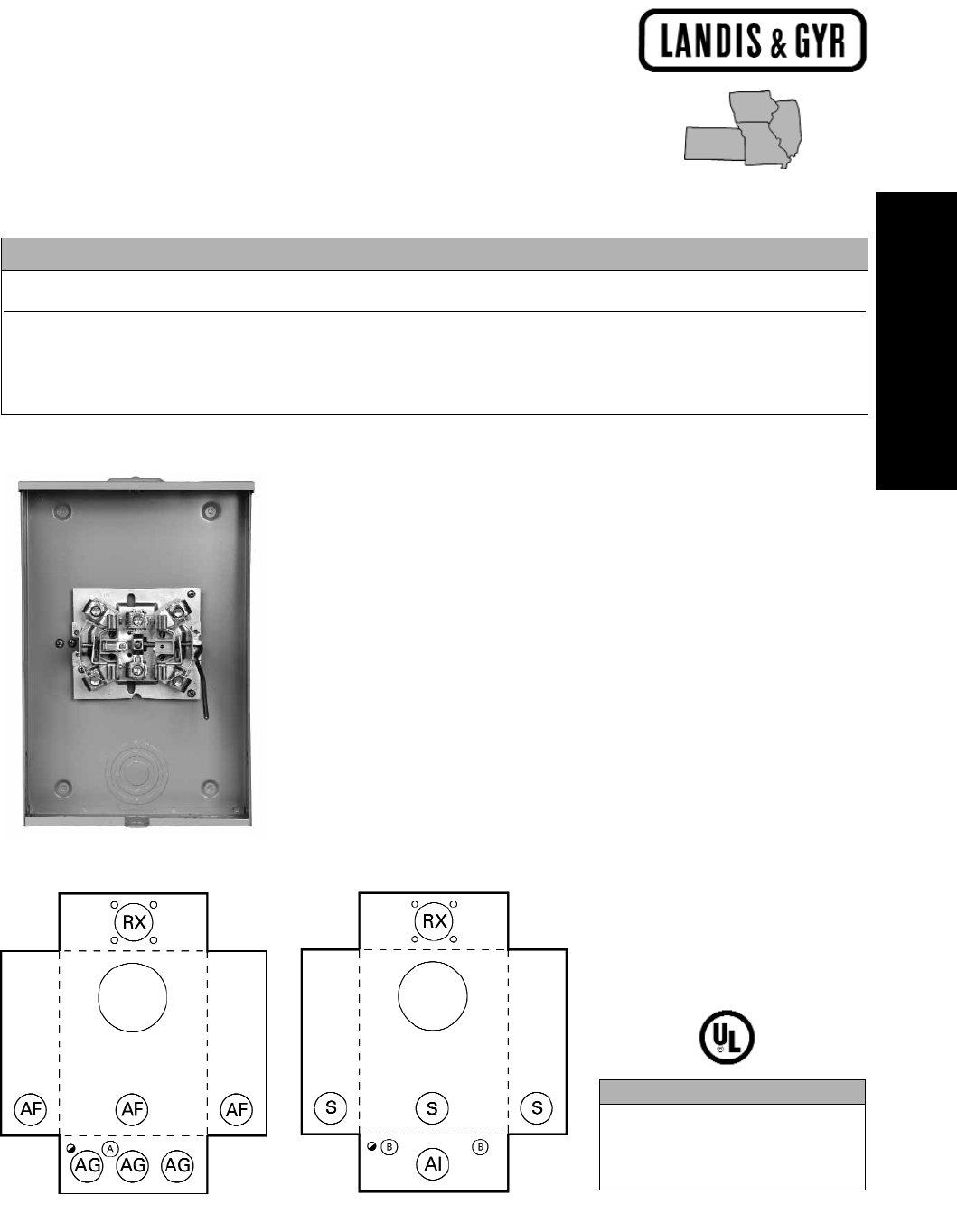

UAT111-0G

KNOCKOUTS (inches):

䊎: 1/4

L: 1/2, 3/4, 1, 1-1/4, 1-1/2

N: 3/4, 1, 1-1/4, 1-1/2, 2

R: 1, 1-1/4, 1-1/2, 2

RX: 쏗2.750 HUB 0P

Cont. Amp Connectors Dimensions (inches) Hub Enclosure Catalog

Rating Service Line Load W H D Opening Bypass Material Number

Approved for Ameren, Mid American Energy Co., Midwest Power (Two Rivers Serv.Cen.)

135 OH/UG #14-2/0 #14-2/0 8.0 11.7 3.6 RX Opening None Steel UAT111-0G

Approved for Alliant Energy (Interstate P&L)

135 OH/UG #14-2/0 #14-2/0 8.0 11.7 3.6 RX Opening None Steel UAT111-0P

Approved for Ameren, Mid American Energy Co., Xcel Energy

135 OH/UG #14-2/0 #14-2/0 8.0 11.7 3.6 RX Opening None Steel UAT111-0PQG

Approved for Ameren

135 OH/UG #14-2/0 #14-2/0 8.0 11.7 3.6 RX Opening None Steel UAT111-BPQG

Approved for Ameren. Mid American Energy Co., Xcel Energy

135 OH/UG #14-2/0 #14-2/0 8.0 11.7 3.6 RX Opening None Steel UAT111-XMBL

UAT1X1

Residential

135 Amp - 4 & 5 Jaw - Ringless

UAT317-0G

All units include a ground lug. 5th terminal installed, barrel lock KO.

5th terminal for field installation: H659-0121.

200A Meter Mounting Equipment, Residential

4 & 5 Terminal for 1 Phase, 3 Wire

KNOCKOUTS (inches):

䊎: 1/4

A: 1/2

S: 1, 1-1/4, 1-1/2, 2, 2-1/2

AB: 1/4, 1/2, 7/8

AC: 1/4, 1/2

AD: 1-1/4, 1-1/2, 2, 2-1/2, 3

RX: 쏗2.750 HUB 0P

UAT417-XG

UAT3X7 UAT4X7

Residential

200 Amp - 4 & 5 Jaw - Ringless

Cont. Amp ConnectorsDimensions (inches) Hub Enclosure Catalog

Rating Service Line & Load W H D Opening Bypass Material Number

Approved for Ameren, Mid American Energy Co., Midwest Power (Two Rivers Serv. Cen.)

200 OH #6-350 KCMIL 8.0 14.0 4.5 RX Opening None Steel UAT317-0G

Approved for Aliant Energy (Interstate P&L)

200 OH #6-350 KCMIL 8.0 14.0 4.5 RX Opening Horn Steel UAT317-0P

200 OH/UG #6-350 KCMIL 11.0 14.0 4.5 Cover Plate Horn Steel UAT417-XP

Approved for Commonwealth Edison (Excelon)

200 OH #6-350 KCMIL 8.0 14.0 4.5 RX Opening Horn Steel UAT317-0PCH

200 OH/UG #6-350 KCMIL 11.0 14.0 4.5 RX Opening Horn Steel UAT417-0PZ

Approved for Ameren, Mid American Energy Co.

200 OH #6-350 KCMIL 8.0 14.0 4.5 RX Opening Horn Steel UAT317-0PQG

Approved for Ameren

200 OH #6-350 KCMIL 8.0 14.0 4.5 2” Hub Installed None Steel UAT317-DG

Approved for Ameren, Xcel Energy

200 OH/UG #6-350 KCMIL 11.0 14.0 4.5 RX Opening None Steel UAT417-0G

200 OH/UG #6-350 KCMIL 11.0 14.0 4.5 RX Opening Horn Steel UAT417-0PQG

Approved for Ameren, Mid American Energy Co.

200 OH/UG #6-350 KCMIL 11.0 14.0 4.5 Blank Top None Steel UAT417-PG

200 OH/UG #6-350 KCMIL 11.0 14.0 4.5 Blank Top Horn Steel UAT417-PPQG

200 OH/UG #6-350 KCMIL Steel UAT417-XVZ

Approved for Kansas City Power and Light, Mid American Energy Co., Midwest Power (Two Rivers Serv. Cen., Xcel Energy

200 OH/UG #6-350 KCMIL 11.0 14.0 4.5 Cover Plate Horn Steel UAT417-XG

Approved for Ameren, Commonwealth Edision (Excelon), Mid American Energy Co.

200 OH/UG #6-350 KCMIL 11.0 14.0 4.5 Cover Plate Horn Steel UAT417-XPQG

All units are equipped with a ground lug.

All sockets are suitable for either overhead or underground feed.

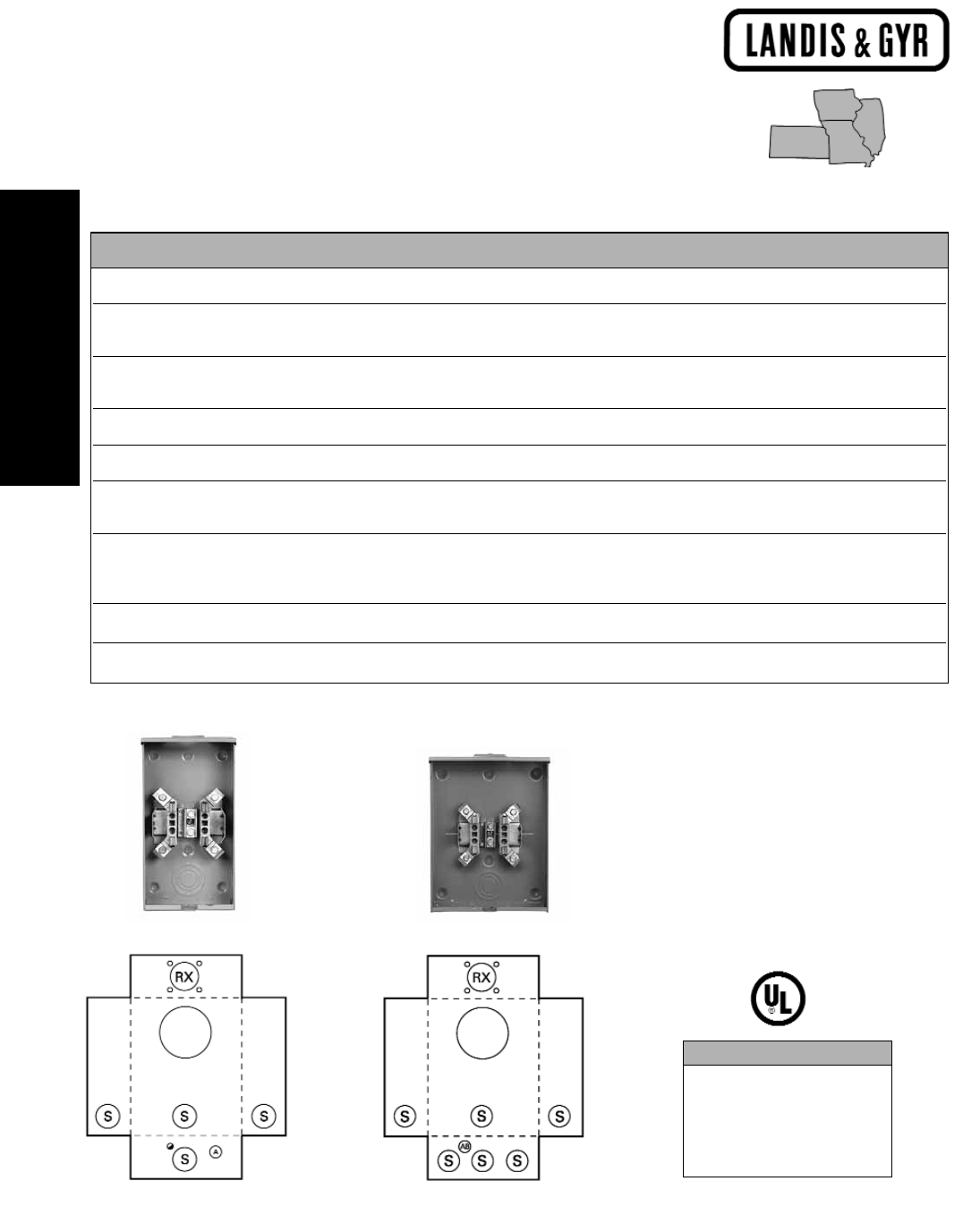

100A/150A Position Meter Mounting Equipment, Horizontal Gang, Residential 

4 Terminal for 1 Phase, 3 Wire

KNOCKOUTS (inches):

S: 1, 1-1/4, 1-1/2, 2, 2-1/2

AC: 1/4, 1/2

RX: 쏗2.750 HUB 0P

No. Cont. Amp Connectors Connectors Dimensions (inches) Hub Enclosure Catalog

Pos. Rating Service Line Load W H D Opening Bypass Material Number

Approved for Ameren, Midwest Power (Two Rivers Serc. Cen.)

2 100 OH/UG #6-350 KCMIL #14-2/0 24.0 12.0 4.5 RX Opening None Steel UA2311-0G

2 150 OH/UG #6-350 KCMIL #6-350 KCMIL 24.0 12.0 4.5 RX Opening None Steel UA2313-0G

3 150 OH/UG #6-350 KCMIL #6-350 KCMIL 32.0 12.0 4.5 RX Opening None Steel UA3313-0G

4 150 OH/UG #6-350 KCMIL #6-350 KCMIL 40.0 12.0 4.5 RX Opening None Steel UA4313-0G

Approved for Alliant Energy (Interstate P&L)

2 100 OH/UG #6-350 KCMIL #14-2/0 24.0 12.0 4.5 RX Opening Horn Steel UA2311-0P

3 100 OH/UG #6-350 KCMIL #14-2/0 32.0 12.0 4.5 RX Opening Horn Steel UA3311-0P

4 100 OH/UG #6-350 KCMIL #14-2/0 40.0 12.0 4.5 RX Opening Horn Steel UA4311-0P

Approved for Commonwealth Edison (Excelon)

2 100 OH/UG #6-350 KCMIL #14-2/0 24.0 12.0 4.5 RX Opening Horn Steel UA2311-0PCH

3 100 OH/UG #6-350 KCMIL #14-2/0 32.0 12.0 4.5 RX Opening Horn Steel UA3311-0PCH

4 100 OH/UG #6-350 KCMIL #14-2/0 40.0 12.0 4.5 RX Opening Horn Steel UA4311-0PCH

Approved for Alliant Energy (Interstate P&L), Ameren

2 100 OH/UG #6-350 KCMIL #14-2/0 24.0 12.0 4.5 RX Opening Horn Steel UA2311-0PQG

Approved for Kansas City Power and Light

2 100 OH/UG #6-350 KCMIL #14-2/0 24.0 12.0 4.5 RX Cl. Plate Horn Steel UA2311-XBBU

3 100 OH/UG #6-350 KCMIL #14-2/0 32.0 12.0 4.5 RX Cl. Plate Horn Steel UA3311-XBBU

4 100 OH/UG #6-350 KCMIL #14-2/0 40.0 12.0 4.5 RX Cl. Plate Horn Steel UA4311-XBBU

Approved for Alliant Energy (Interstate P&L), Ameren, Midwest Power (Two Rivers Serv. Cen.)

3 100 OH/UG #6-350 KCMIL #14-2/0 32.0 12.0 4.5 RX Opening Horn Steel UA3311-OPQG

4 100 OH/UG #6-350 KCMIL #14-2/0 40.0 12.0 4.5 RX Opening Horn Steel UA4311-OPQG

UA2311/2313 UA3311/3313 UA4311/4313

Residential

100/150 Amp - 4 Jaw - Horizontal Gang

5th Terminal Kit for field installation: H659-0121.

Sockets with “QG” suffix are equipped with 2 ground lugs.

UA2311-0PQG with H659-0121 installed

KNOCKOUTS (inches):

X: 1-1/4, 1-1/2, 2, 2-1/2

AC: 1/4, 1/2

AD: 1-1/4, 1-1/2, 2, 2-1/2, 3

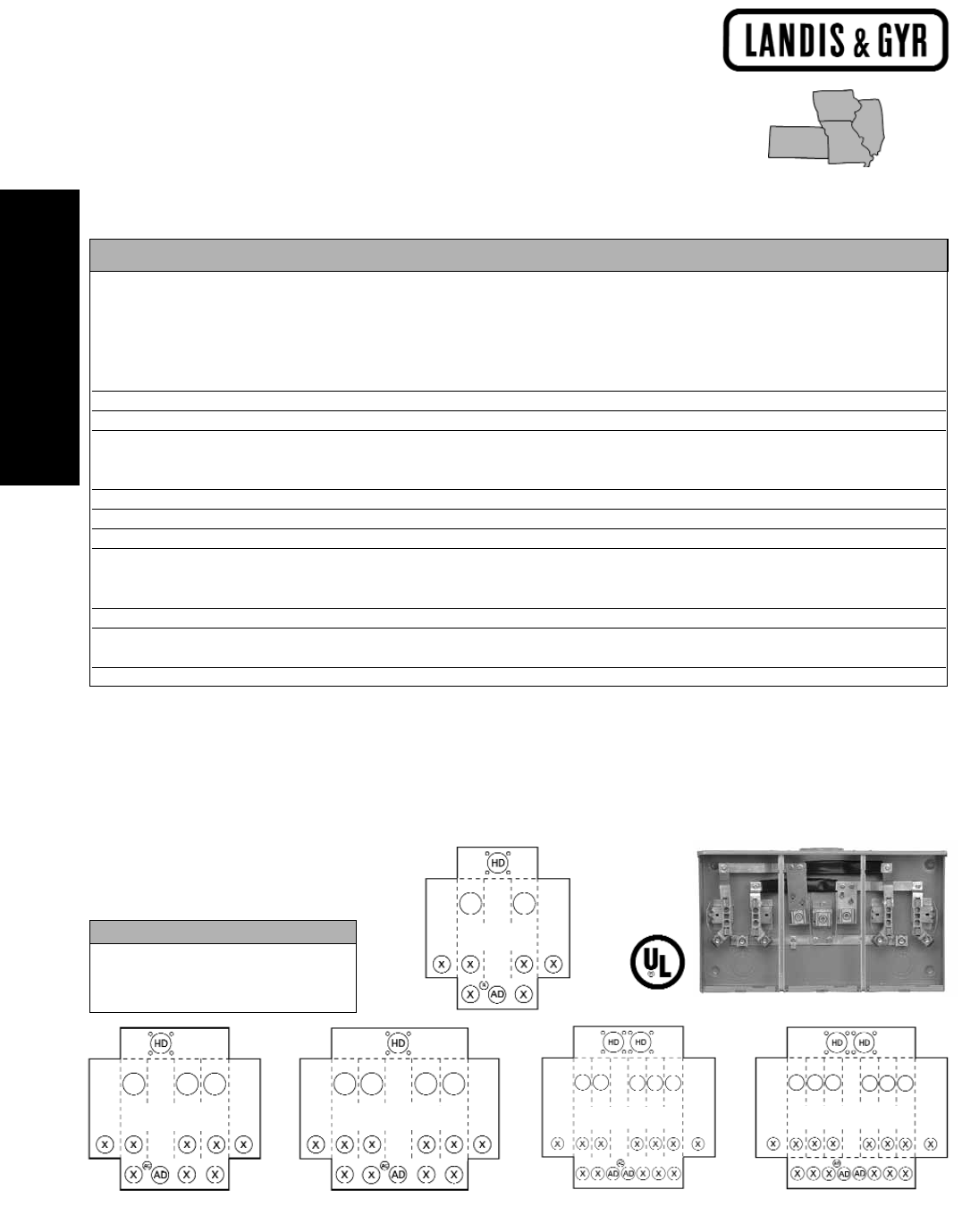

HD: 쏗4.281 HUB 0P UA2717-YG

No. Cont. Amps Connectors Connectors Dimensions (inches) Hub Enclosure Catalog

Pos. Rating Service Line Load W H D Opening Bypass Material Number

Approved for Mid American Energy Co., Midwest Power (Two Rivers Serv. Cen.)

2 200 OH/UG #6-350 KCMIL #6-350 KCMIL 24.0 14.5 5.1 HD Opening None Steel UA2716-YG

Approved for Kansas City Power and Light

2 200 OH/UG #6-350 KCMIL #6-350 KCMIL 24.0 14.5 5.1 HD Cover Pl. Horn Steel UA2716-ZBBU

Approved for Ameren, Midwest Power (Two Rivers Serv. Cen.), Alliant Energy (Interstate P&L)

2 200 OH/UG 1/0-600 KCMIL #6-350 KCMIL 24.0 14.5 5.1 HD Opening None Steel UA2717-YG

4 200 OH/UG (2)1/0-600 KCMIL #6-350 KCMIL 43.0 14.5 5.1 HD Opening Horn Steel UA4719-YPQG

5 200 OH/UG (2)1/0-600 KCMIL #6-350 KCMIL 51.0 14.5 5.1 (2) HD Openings Horn Steel UA5719-KPQG

6 200 OH/UG (2)1/0-600 KCMIL #6-350 KCMIL 59.0 14.5 5.1 (2) HD Openings Horn Steel UA6719-KPQG

Approved for Commonwealth Edison (Excelon)

2 200 OH/UG 1/0-600 KCMIL #6-350 KCMIL 24.0 14.5 5.1 HD Opening Horn Steel UA2717-YPCH

3 200 OH/UG 1/0-600 KCMIL #6-350 KCMIL 32.0 14.5 5.1 HD Opening Horn Steel UA3717-YPCH

4 200 OH/UG (2)1/0-600 KCMIL #6-350 KCMIL 43.0 14.5 5.1 HD Opening Horn Steel UA4719-YPCH

5 200 OH/UG (2)1/0-600 KCMIL #6-350 KCMIL 51.0 14.5 5.1 (2) HD Openings Horn Steel UA5719-KPCH

6 200 OH/UG (2)1/0-600 KCMIL #6-350 KCMIL 59.0 14.5 5.1 (2) HD Openings Horn Steel UA6719-KPCH

Approved for Alliant Energy (Interstate P&L), Ameren

2 200 OH/UG 1/0-600 KCMIL #6-350 KCMIL 24.0 14.5 5.1 HD Opening Horn Steel UA2717-YPQG

3 200 OH/UG 1/0-600 KCMIL #6-350 KCMIL 32.0 14.5 5.1 HD Opening Horn Steel UA3717-YPQG

Approved for Midwest Power (Two Rivers Serv. Cen.)

3 200 OH/UG 1/0-600 KCMIL #6-350 KCMIL 32.0 14.5 5.1 HD Opening None Steel UA3717-YG

4 200 OH/UG (2)1/0-600 KCMIL #6-350 KCMIL 43.0 14.5 5.1 HD Opening None Steel UA4719-YG

All units are equipped with a ground lugs.

All sockets are suitable for either overhead or underground feed.

5th Terminal Kit for field installation: H659-0121.

Sockets with “QG” suffix have 2 ground lugs.

200A/Position Meter Mounting Equipment, Horizontal Gang, Residential 

4 & 5 Terminal for 1 Phase, 3 Wire

UA2717

UA3717 UA4719 UA5719 UA6719

Residential

200 Amp - 4 & 5 Jaw - Horizontal Gang

Type CQ bypass mechanism is lever-operated, non-jaw clamping.

Disconnect sleeves should not be used with these devices.

Cont. Amp Connectors Dimensions (in) Hub No. of Enclosure Catalog

Rating Service Line & Load W H D Opening Term. Material Number

Approved for Xcel Energy

200 OH #6-350 KCMIL 10.0 17.5 5.2 RX Opening 5 Steel 40205-01

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 5 Steel 40605-025

Approved for Kansas City Power and Light

200 OH #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 7 Steel 40607-025

Approved for Alliant Energy (Interstate P&L)

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 7 Steel 40607-02BU

40605-025

KNOCKOUTS (inches):

䊎: 1/4

B: 1/2, 3/4

S: 1, 1-1/4, 1-1/2, 2, 2-1/2

AI: 1, 1-1/4, 1-1/2, 2, 2-1/2, 3

RX: 쏗2.750 HUB 0P

4060X 4020X

Commercial/Industrial

200 Amp - 5 Jaw - Type CQ

200A Meter Mounting Equipment, Type CQ, Commercial/Industrial 

5 and 7 Terminal for 1 Phase and 3 Phase, 3 Wire

5 terminal devices are not for use with 3 phase, 4 wire service.

Type CQ-5 devices have 5th terminal in the 9 o’clock position.

Units are not suitable for use with disconnect sleeves.

Bypass mechanism is lever-operated, jaw pressure release with 100% bypass capacity.

Devices have 5th terminal in the 6 o’clock position and are not for use with 3 phase 4 wire service.

Neutral can be isolated by removing the ground strap.

Sockets with “QG” suffix are supplied with 2 ground lugs.

Devices have 5th Terminal in the 9 o’clock position and are not for use with 3 phase, 4 wire service.

Cont. Amp Connectors Dimensions (in.) Hub No. of Enclosure Catalog

Rating Service Line W H D Opening Term. Material Number

Approved for Mid American Energy Co., Midwest Power (Two Rivers Serv. Cen.)

200 OH #6-350 KCMIL 10.0 17.5 5.2 RX Opening 5 Steel 40005-01 

Approved for Ameren, Mid American Energy Co., Midwest Power (Two Rivers Serv. Cen.)

200 OH #6-350 KCMIL 10.0 17.5 5.2 RX Opening 5 Steel 40005-01QG 

200 OH #6-350 KCMIL 10.0 17.5 5.2 RX Opening 7 Steel 40007-01QG 

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 5 Steel 40405-02QG 

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 7 Steel 40407-02QG 

Approved for Alliant Energy (Interstate P&L), Mid American Energy Co., Midwest Power (Two Rivers Serv. Cen.), Xcel Energy

200 OH #6-350 KCMIL 10.0 17.5 5.2 RX Opening 7 Steel 40007-01

Approved for Xcel Energy

200 OH/UG #6-350 KCMIL 10.0 17.0 5.2 RX Cl. Plate 4 Steel 40404-025

Approved for Ameren, Mid American Energy Co.

200 OH/UG #6-350 KCMIL 10.0 17.0 5.2 RX Cl. Plate 4 Steel 40404-02QG 

Approved for Mid American Energy Co., Midwest Power (Two Rivers Serv. Cen.), Xcel Energy

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 5 Steel 40405-025 

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 7 Steel 40407-025

Approved for Commonwealth Edison (Excelon)

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 5 Steel 40405-02CH

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 7 Steel 40407-02CH

Approved for Xcel Energy

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 5 Steel 40405-02CO 

200 OH/UG 3/8”-24 Stud 12.8 19.1 5.2 RX Cl Plate 4 Steel 42504-025

200 OH/UG 3/8”-24 Stud 13.0 19.0 5.2 RX Cl Plate 5 Steel 42505-025

Approved for Alliant Energy (Interstate P&L)

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Opening 7 Steel 40407-01NU

200 UG (PED) #6-350 KCMIL 10.9 56.0 6.0 Blank Top 7 Steel 40407P-9WI

Approved for Adams Electric Coop

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 7 Steel 40407-0250

Approved for Ameren

200 OH #6-350 KCMIL 10.0 17.5 5.2 RX Opening 4 Steel 40804-01QG 

200 OH #6-350 KCMIL 10.0 17.5 5.2 RX Cl. Plate 5 Steel 41005-01F

200 OH/UG #6-350 KCMIL 13.0 19.0 5.2 RX Cl. Plate 5 Steel 9804-8592 

200 OH/UG #6-350 KCMIL 20.0 34.0 6.2 HD Cl. Plate 7 Steel 9804-9109

9804-9142

KNOCKOUTS (inches):

䊎: 1/4

A: 1/2

B: 1/2, 3/4

S: 1, 1-1/4, 1-1/2, 2, 2-1/2

AC: 1/4, 1/2

AF: 1, 1-1/2, 2, 2-1/2, 3

AG: 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3

AI: 1, 1-1/4, 1-1/2, 2, 2-1/2, 3

EE: 2, 2-1/2, 3

RX: 쏗2.750 HUB 0P

40407-025

404/414 410/400 9804/9142

Commercial/Industrial

200 Amp - 4, 5 & 7 Jaw - Type HQ

200A Meter Mounting Equipment, Type HQ, Commercial/Industrial 

4, 5 & 7 Terminal for 1 Phase, 3 Wire, Polyphase, 3 or 4 Wire, Wye or Delta

Residential

135 Amp - 4 Jaw - Ringless

44707-02FL 47707-01FL 48104-02

Cont. Amp Connectors Connectors Dimensions (in.) Hub No. of Enclosure Catalog

Rating Service Line Load W H D Opening Term. Material Number

Approved for Ameren

320 OH/UG 3/8-24 Stud 3/8-24 Stud 13.0 28.0 5.0 HD Cl. Plate 4 Steel 47604-02QG

320 OH/UG (SW) 3/8-24 Stud 3/8-24 Stud 16.0 31.0 5.0 HD Cl. Plate 4 Steel 48104-82WI

Approved for Commonwealth Edison

320 UG (PED) 3/8-24 Stud (2) #4-350 KCMIL 12.7 56.0 5.0 Blank Top 4 Steel 47604P-9CH

320 OH/UG (SW) 3/8-24 Stud 3/8-24 Stud 16.0 31.0 6.0 HD Cl. Plate 4 Steel 48104-02CH

Approved for Alliant Energy (Interstate P&L)

320 UG (PED) (2) #4-350KC (2) #4-350KC 12.7 56.0 5.0 Blank Top 4 Steel 47604P-9WI

320 OH/UG 3/0-800 KCMIL 1/2-20 Stud 20.0 34.0 6.0 HD Cl. Plate 7 Steel 44707-02PP

Approved for Kansas City Power and Light, Mid American Energy Co.

320 OH/UG (SW) 3/8-24 Stud 3/8-24 Stud 16.0 31.0 5.0 HD Cl. Plate 4 Steel 48104-02

320 OH/UG 1/2-20 Stud 1/2-20 Stud 20.0 34.0 6.0 HD Cl. Plate 7 Steel 44707-02

All units have a lever operated, jaw pressure release bypass mechanism rated at 100%.

Disconnect sleeves should not be used with these devices.

Some devices do not include lugs, order separately.

KNOCKOUTS (inches):

A: 1/2

B: 1/2, 3/4

Z: 1-1/2, 2, 2-1/2

EE: 2, 2-1/2, 3

GG: 2-1/2, 3, 3-1/2

HH: 2-1/2, 3, 3-1/2, 4

AC: 1/4, 1/2

AE: 1/4, 1/2, 3/4, 1, 1-1/4

AG: 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3

HD: 쏗4.281 HUB 0P

Includes anti-inversion clip H59676.

5 jaw devices are not for use with 3 phase, 4 wire service.

Overhead use only for TNP.

44707 4770X 48104 476/485

Commercial

320 Amp - 4, 5 & 7 Jaw - Type HQ

320A Continuous/400A Maximum, Meter Mounting Equipment, Type HQ,

Commercial  4, 5 & 7 Terminal for 1 Phase, 3 Wire & Polyphase, 4 Wire

200A Multi-Position, Lever Bypass, Meter Mounting Equipment, Residential /Commercial

4, 5 and 7 Terminal for 1 Phase, 3 Wire

No. of Cont. Overall Connectors Dimensions (in.) Hub No.of Catalog

Pos. Amp Ampacity Service Bypass Line Load W H D Opening Term. Number

200 A/Pos, 1 Phase, 3 Wire, Horizontal Multi-Position Metering, Lever Bypass, Heavy Duty

2 200 250 OH/UG Lever 1/0-500 kcmil #6-350 kcmil 32.8 23.2 6.0 Large Cl. Plate 4 404042-01

2 200 250 OH/UG Lever 1/0-500 kcmil #6-350 kcmil 32.8 23.2 6.0 Large Cl. Plate 5 404052-023NU

3 200 250 OH/UG Lever 1/0-500 kcmil #6-350 kcmil 43.9 23.2 6.0 Large Cl. Plate 5 404053-023NU

4 200 300 OH/UG Lever (2) 1/0-500 kcmil #6-350 kcmil 61.0 23.2 6.0 (2) Lg. Cl. Plates 5 404054-223NU

5 200 300 OH/UG Lever (2) 1/0-500 kcmil #6-350 kcmil 72.1 23.2 6.0 (2) Lg. Cl. Plates 5 404055-223NU

6 200 410 OH/UG Lever (2) 1/0-500 kcmil #6-350 kcmil 83.2 23.2 6.0 (2) Lg. Cl. Plates 5 404056-223NU

200A/Pos, 3 Phase, 4 Wire, Horizontal Multi-Position Metering, Lever Bypass, Heavy Duty

2 200 250 OH/UG Lever 1/0-500 kcmil #6-350 kcmil 32.8 23.2 6.0 Large Cl. Plate 7 404072-023NU

3 200 250 OH/UG Lever 1/0-500 kcmil #6-350 kcmil 43.8 23.2 6.0 Large Cl. Plate 7 404073-023NU

4 200 300 OH/UG Lever (2) 1/0-500 kcmil #6-350 kcmil 61.0 23.2 6.0 (2) Lge Cl. Plates 7 404074-223NU

5 200 300 OH/UG Lever (2) 1/0-500 kcmil #6-350 kcmil 72.1 23.2 6.0 (2) Lge Cl. Plates 7 404075-223NU

6 200 410 OH/UG Lever (2) 1/0-500 kcmil #6-350 kcmil 83.2 23.2 6.0 (2) Lge Cl. Plates 7 404076-223NU

Hubs: Please see accessories on page 23.

Connectors: Extruded aluminum connectors are tin plated and removable. Please see page 21 - 22 for alternate connectors.

5th Terminal: 5 Terminal sockets have 5th jaw in the 9:00 position.

404052-023NU 404073-023NU

KNOCKOUTS (inches):

B: 1/2, 3/4

X: 2, 2-1/2, 3, 3-1/2

AC: 1/4, 1/2

AD: 1-1/4, 1-1/2, 2, 2-1/2, 3

HD: 쏗4.281 HUB 0P

4040X2 4040X3 4040X4

4040X5 4040X6

Residential / Commercial

200A - 4, 5 & 7 Jaw - Multi-Position - Lever Bypass

Common Features

쐍20A continuous rated

쐍Ground lug available

쐍Steel or aluminum construction

쐍Split or solid cover construction

쐍OH and UG capabilities

쐍600V rated

쐍Spacing for multiple test switch configurations

쐍Customized test switch and wiring

Catalog Numbers Cont.

Socket Ringless - Solid Cover Ringless - Split Cover Ring Type - Split Cover Dimensions (in.) Amp Hub Terminal Wire Range

Type Aluminum Steel Aluminum Steel Aluminum Steel L W D Rating Opening Current Potential

PTS6: 6 Jaw 9837-8200 9837-8201 9837-8202 9837-8203 9837-8204 9837-8205 20.0 12.0 4.5 20 RX Cl. Plate #4-14 #8-14

9837-8210 9837-8211 9837-8212 9837-8213 9837-8214 9837-8215 20.0 12.0 4.5 20 1" Hub Inst. #4-14 #8-14

9837-8220 9837-8221 9837-8222 9837-8223 9837-8224 9837-8225 20.0 12.0 4.5 20 1.25" Hub Inst. #4-14 #8-14

9837-8230 9837-8231 9837-8232 9837-8233 9837-8234 9837-8235 20.0 12.0 4.5 20 1.50" Hub Inst. #4-14 #8-14

9837-8240 9837-8241 9837-8242 9837-8243 9837-8244 9837-8245 20.0 12.0 4.5 20 Blank Top #4-14 #8-14

PTS8: 8 Jaw 9837-8400 9837-8401 9837-8402 9837-8403 9837-8404 9837-8405 20.0 12.0 4.5 20 RX Cl. Plate #4-14 #8-14

9837-8410 9837-8411 9837-8412 9837-8413 9837-8414 9837-8415 20.0 12.0 4.5 20 1" Hub Inst. #4-14 #8-14

9837-8420 9837-8421 9837-8422 9837-8423 9837-8424 9837-8425 20.0 12.0 4.5 20 1.25" Hub Inst . #4-14 #8-14

9837-8430 9837-8431 9837-8432 9837-8433 9837-8434 9837-8435 20.0 12.0 4.5 20 1.50" Hub Inst. #4-14 #8-14

9837-8440 9837-8441 9837-8442 9837-8443 9837-8444 9837-8445 20.0 12.0 4.5 20 Blank Top #4-14 #8-14

PTS13: 13 Jaw 9837-8500 9837-8501 9837-8502 9837-8503 9837-8504 9837-8505 20.0 12.0 4.5 20 RX Cl. Plate #4-14 #8-14

9837-8510 9837-8511 9837-8512 9837-8513 9837-8514 9837-8515 20.0 12.0 4.5 20 1" Hub Inst. #4-14 #8-14

9837-8520 9837-8521 9837-8522 9837-8523 9837-8524 9837-8525 20.0 12.0 4.5 20 1.25" Hub Inst #4-14 #8-14

9837-8530 9837-8531 9837-8532 9837-8533 9837-8534 9837-8535 20.0 12.0 4.5 20 1.50" Hub Inst. #4-14 #8-14

9837-8540 9837-8541 9837-8542 9837-8543 9837-8544 9837-8545 20.0 12.0 4.5 20 Blank Top #4-14 #8-14

KNOCKOUTS (inches):

B: 1/2, 3/4

Q: 1, 1-1/4, 1-1/2

AC: 1/4, 1/2

RX: 쏗2.750 HUB 0P

Consult the factory for other available options such as, but not limited to alternate

enclosure and hasp material, kearnaloxed terminals, enclosures with special KO

configurations, pre-wired units, test switch specifications and special labeling.

Capacity: 20 amperes, 600 volts a.c.

Application: Transformer-rated applications. Available with or without test switch and pre-wiring.

Enclosures: 14-gauge .063 aluminum or 16-gauge galvannealed steel suitable for indoor or outdoor installation.

Terminals: Set screw type .

Hubs: Interchangeable 1”, 1-1/4”, 1-1/2”

Finish: Aluminum unpainted unless specified. Steel enclosures have gray polyester powder coat finish.

Test Switchs: Standard 6 and 10 pole, 480-volt rated switches are available from stock. Special switches available upon request.

GENERAL INFORMATION:

Commercial/Industrial

PTS Transformer-Rated

Type PTS Transformer-Rated Meter Mounting Equipment with Test Switch Provision

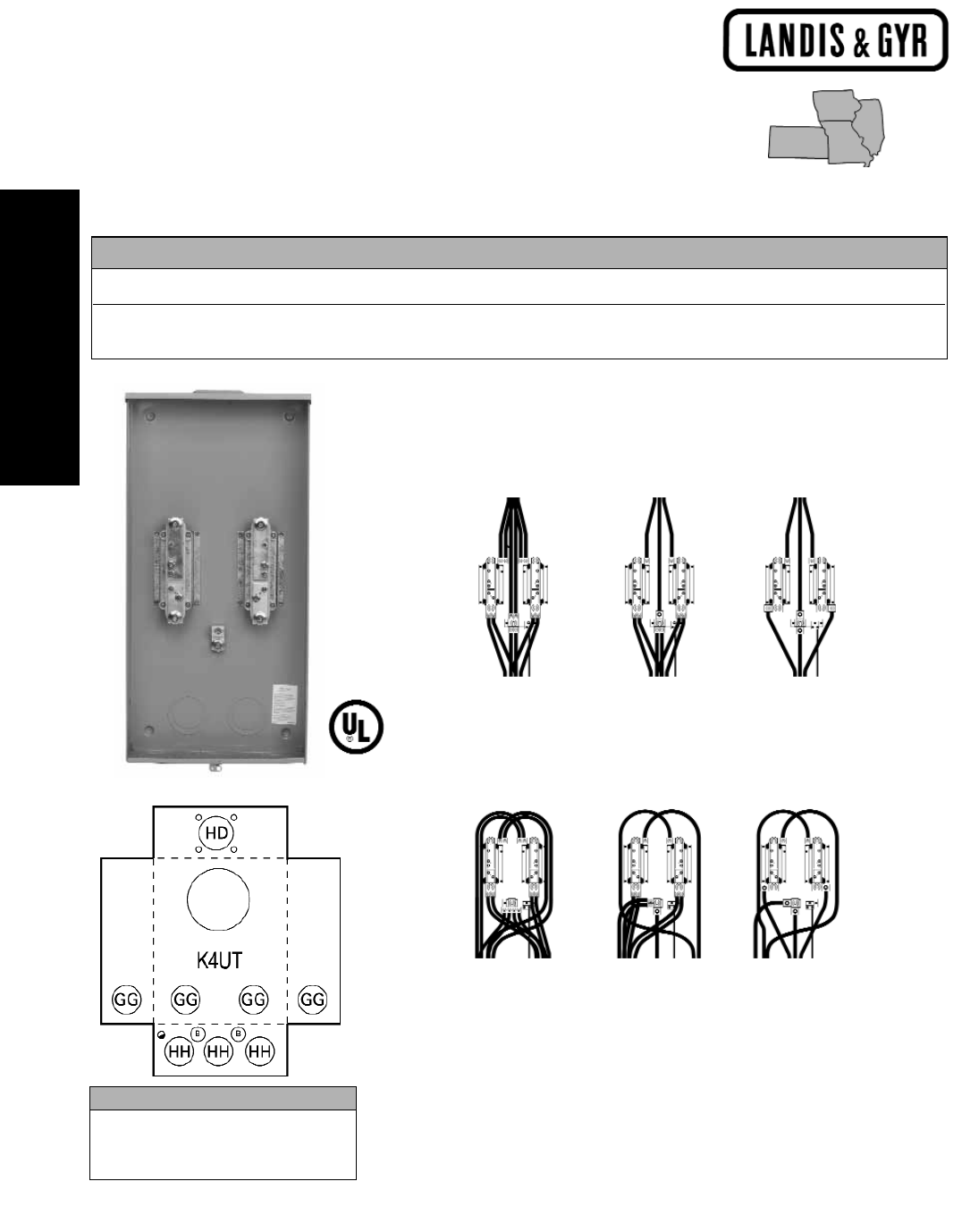

Residential

400/480 Amp - 4 Jaw - Ringless

400A/480A Meter Mounting Equipment, Type K4, Residential 

4 Terminal for 1 Phase, 3 Wire

Optional Manual Bypass H56495 available, normally for utility use only - 2 required.

Cont./Max Connectors Connectors Dimensions (in.) Hub No. of Enclosure Catalog

Amp Rating Service Line Load W H D Opening Terms Material Number

Approved for Ameren

400 OH/UG 1/2-20 Stud 1/2-20 Stud 18.0 36.0 6.0 HD Cl. Plate 4 Steel 9810-8523

480 OH/UG 1/2-20 Stud 1/2-20 Stud 20.3 43.0 6.2 (2) HD Cl. Plates 5 Steel 9817-9404

Approved for Kansas City Power and Light

480 OH/UG 1/2-20 Stud 1/2-20 Stud 18.0 36.0 6.0 HD Cl. Plate 7 Steel 9817-9564

9810-8502

KNOCKOUTS (inches):

B: 1/2, 3/4

GG: 2-1/2, 3, 3-1/2

HH: 2-1/2, 3, 3-1/2, 4

HD: 쏗4.281 HUB 0P

Residential Type K-4

Overhead

Parallel Conductor

2 - H58853

2 - H56425

1 - H56732

Overhead

Single Conductor Line

Parallel Conductor Load

2 - H58852

2 - H56425

1 - H56476

1 - H56732

Overhead

Single Conductor

4 - H58852

2 - H56476

Underground

Parallel Conductor

2 - H58853

2 - H56732

1 - H56426

Underground

Single Conductor Line

Parallel Conductor Load

2 - H58852

2 - H56425

1 - H56476

1 - H56732

Underground

4 - H58852

2 - H56476

Residential

135 Amp - 4 Jaw - Ringless

Cont./Max Connectors Connectors Dimensions (in.) Hub No. of Enclosure Catalog

Amp Rating Service Line Load W H D Opening Terms Material Number

Approved for Ameren

480 OH/UG 1/2-20 Stud 1/2-20 Stud 20.0 43.0 6.2 (2) HD Cl. Plates 7 Steel 9817-9504

Approved for Kansas City Power and Light

480 OH/UG 1/2-20 Stud 1/2-20 Stud 20.0 43.0 6.2 (2) HD Cl. Plates 7 Steel 9817-9564

All units are UL listed.

Optional Manual Bypass H58888 available, normally for utility use only (3 required).

9817-9504

KNOCKOUTS (inches):

B: 1/2, 3/4

HH: 2-1/2, 3, 3-1/2, 4

HD: 쏗4.281 HUB 0P

Residential/Commercial/Industrial

400/480 Amp - 7 Jaw - Ringless

Residential Type K-7

Overhead

Single Conductor

8 - H56476

Overhead

Single and Triple Load Feed

4 - H56476

4 - H68752-1

Overhead

Parallel Conductor

8 - H56732

Underground

Single Conductor

3 - H58852

5 - H56476

Underground

Single Conductor Line

Triple Conductor Load

3 - H58852

1 - H56476

4 - H67852-1

Underground

Parallel Conductor

3 - H58853

5 - H56732

400A/480A Meter Mounting Equipment, Type K-7, Residential/Commercial/Industrial 

7 Terminal & 7 Terminal Side-Wired, Polyphase, 3 or 4 Wire, Wye or Delta

Residential

100/200 Amp - 4 & 5 Jaw - Ringless

100A/200A Meter Mounting Equipment, Type AP, Pedestal, Meter Main, Residential,

Horn Bypass  

4 & 5 Terminal for 1 Phase, 3 Wire

Connectors Connectors Dimensions (inches) Catalog

Rating Service Line Load W H D Main Breaker Bypass Number

Approved for Commonwealth Edison

100/200 UG 4/0 #6-350 kcmil 8.0 64.5 4.5 None Horn UAP317-PPCH

100/200 UG 4/0 see breaker rating 8.0 64.5 4.5 200A provision Horn UAPB317-PPCH 

100/200 UG 4/0 #4-1/0 8.0 64.5 4.5 100A inst. Horn UAPC311-PPCH 

100/200 UG 4/0 #2-1/0 8.0 64.5 4.5 125A inst. Horn UAPC318-PPCH 

100/200 UG 4/0 4/0AL, 2/0 CU 8.0 64.5 4.5 150A inst. Horn UAPC314-PPCH 

100/200 UG 4/0 300 KCMIL AL, 4/0 CU 8.0 64.5 4.5 200A inst. Horn UAPC317-PPCH 

Pedestals are U.L. listed and CECHA approved.

5th terminal kit for field installation: S659-0121.

Build to order. Please contact sales representative for lead time.

KNOCKOUTS (inches):

A: 1/2

R: 1, 1-1/4, 1-1/2, 2

VV: 2

UAP317-PPCH

UAPB317-PPCH

(for use with main breaker)

Circuit

Amps Breaker

100 L2100, Q2100

125 L2125, Q2125

150 LN2150, QN2150B

200 LN2200, QN2200B

Breaker Table Catalog

Item Number

Bottom plate for free 5007714

standing installation

Extension Kit 5007718

Accessories

UAPB317-PPCH has a provision for a 100-200 amp circuit breaker.

See breaker table for details.

Breaker factory installed. See breaker table for replacement circuit breakers

200A/320A Continuous, Pedestal Type, Meter Mounting Equipment, Type HQ,

320A Meter Main, Residential/Commercial/Industrial 

4, 5 & 7 Terminal for 1 Phase, 3 Wire

Connectors Connectors Dimensions (in.) Catalog

Rating Type Service Line Load W H D Main Breaker Bypass Number

Approved for Commonwealth Edison

200 HQ-5P UG #6-350 kcmil #6-350 kcmil 11 56 6 none Lever 40405P-9CH 

200 HQ-7P UG #6-350 kcmil #6-350 kcmil 11 56 6 none Lever 40407P-9CH

320 HQ-4SP UG (2)#6-350 kcmil (2)#6-350 kcmil 13 56 5 none Lever 47604P-9CH

320 HQ-4SPB UG (2)#6-350 kcmil see breaker rating 13 56 5 (2)200A breakers Lever 47604PB-9CH 

Pedestals are U.L. listed and CECHA approved.

Bypass mechanism is lever-operated, jaw pressure release with 100% bypass capacity.

These devices are not rated for use with disconnect sleeves.

HQ-5 for 3 wire service only. Includes center phase disconnect. 5th terminal in 9 o’clock position.

(2) Siemens type QJ breakers, factory installed.

Available 2004.

47604P-9CH

KNOCKOUTS (inches):

S: 1, 1-1/4, 1-1/2, 2, 2-1/2

47604PB-9CH

Catalog

Item Number

Extension kit for 200 Amp 5007720

Extension kit for 320 Amp 5007719

Accessories

40407P-9CH

Residential/Commercial/Industrial

200/320 Amp - 4, 5 & 7 Jaw - Type HQ

Residential

100/200 Amp - Meter Mains

UAB317-0PCH

Connectors Dimensions (in.) Hub Main No. Cover Catalog

Rating Service Line Load W H D Opening Breaker Term.Bypass Style Number

125 OH/UG #6-250 KCMIL #2-1/0 CU, 2/0 AL 18.5 17.0 5.1 RX Cl. Plate 125A inst. 5 Horn Ringless LGMM0202B1125RJBX 

150 OH/UG #6-250 KCMIL #1-300 KCMIL 18.5 17.0 5.1 RX Cl. Plate 150A inst. 5 Horn Ringless LGMM0202B1150RJBX 

200 OH/UG #6-250 KCMIL #1-300 KCMIL 18.5 17.0 5.1 RX Cl. Plate 200A inst. 5 Horn Ringless LGMM0202B1200RJBX 

100 OH #14-2/0 #6-350 KCMIL 8.0 28.5 4.5 RX Opening 125A Prov. 4 Horn Ringless UAB111-0PCH 

200 OH #6-350 KCMIL see breaker rating 8.0 28.5 4.5 RX Opening 200A inst. 4 Horn Ringless UAB317-0PCH 

200 OH/UG #6-350 KCMIL see breaker rating 11.6 28.0 5.2 RX Cl. Plate 150-200A Prov. 4 None Ringless UAB417-XPG

200 UG -SW #6-350 KCMIL see breaker rating 13.1 25.1 5.2 Blank Top 150-200A Prov. 4 None Ringless UAB877-PG

150 OH/UG #6-250 KCMIL #1-300 KCMIL 16.0 17.0 5.1 RX Cl. Plate 150A inst. 4 None Ring LGMM0202B1150

200 OH/UG #6-250 KCMIL #1-300 KCMIL 16.0 17.0 5.1 RX Cl. Plate 200A inst. 4 None Ring LGMM0202B1200

Circuit

Amps Breaker

100 Q2100

125 Q2125

150 QN2150

200 QN2200

UAB317

200 QJ22B200

Breaker Table

KNOCKOUTS (inches):

䊊⯗ 5/16 on UAB4,

5/16,1/2 on UAB8

䊎: 1/4

A: 1/2

C: 1/2, 3/4, 1

S: 1, 1-1/4, 1-1/2, 2, 2-1/2

Z: 1-1/2, 2, 2-1/2

DD: 1-1/4, 1-1/2, 2, 2-1/2, 3

RX: 쏗2.750 HUB 0P

LGMM0202B1200

100A/200A Meter Mounting Equipment, Meter Main, Residential 

4 & 5 Terminal for 1 Phase, 3 Wire

All units are UL listed.

5th terminal factory installed

5th terminal for field installation: H659-0121.

UAB1/UAB3

UAB417-XPG UAB877-PG

UAB111-0PCH has a provision for a 125 amp max.

circuit breaker. See breaker table for details.

Breaker factory installed.

See breaker table for replacement circuit breakers.

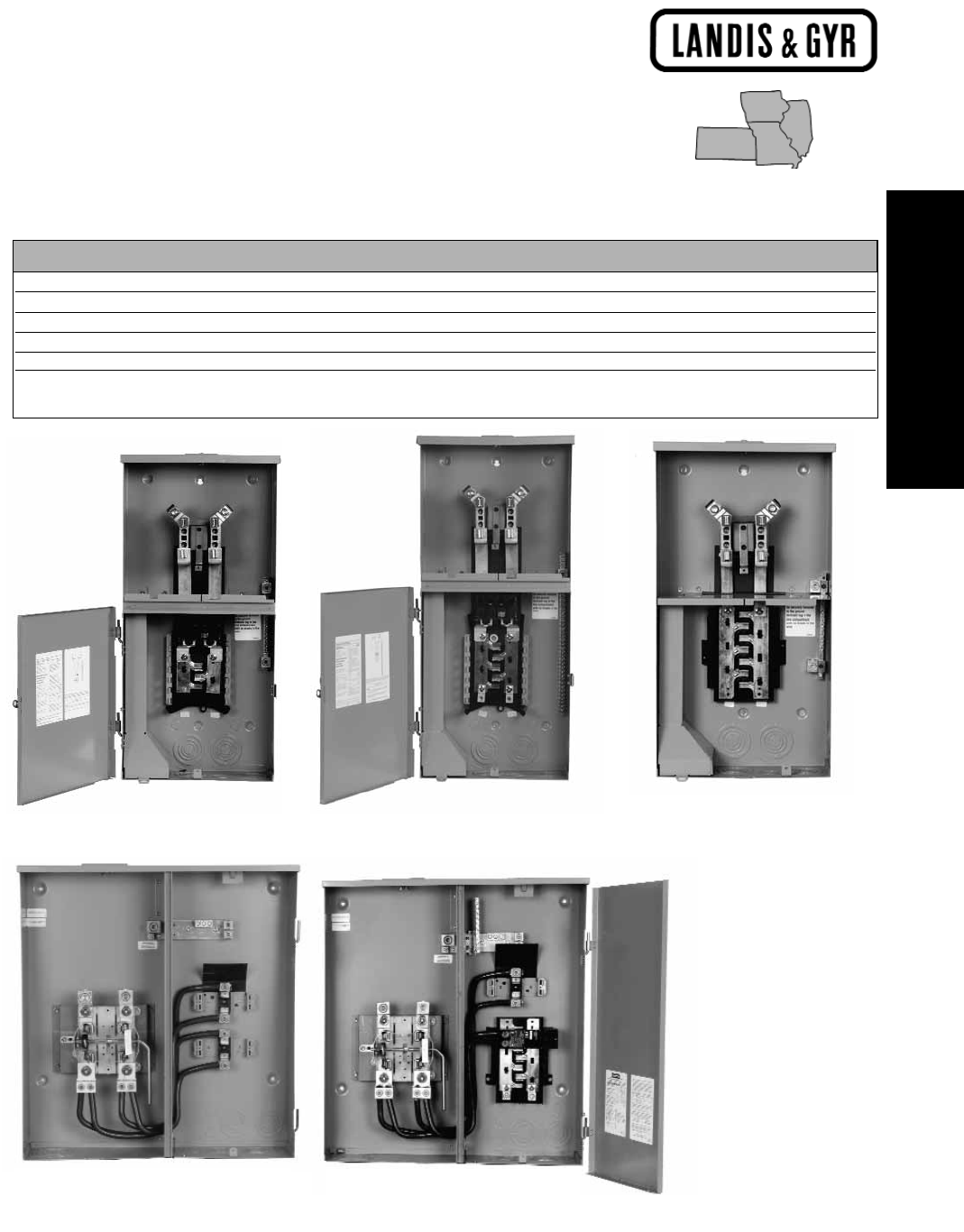

Residential

135 Amp - 4 Jaw - Ringless

Dimensions (in.) Hub Main No. Cover Catalog

Rating Service W H D Opening Breaker Term. Bypass Style Number

200 OH/UG 30.0 14.0 5.0 RX Cl. Plate 200A inst. 4 None Ringless LG0408B1200RT

200 OH/UG 32.0 14.0 5.0 RX Cl. Plate 200A inst 4 None Ringless LG0816B1200RCT

200 OH/UG 27.0 14.0 5.0 RX Cl. Plate None 4 None Ringless LG0606L1200R

200 OH/UG 27.0 14.0 5.0 RX Cl. Plate None 4 None Ringless LG0606L1200RA*

400 OH 29.0 27.0 6.0 HD Cl. Plate None 4 Lever Ringless LG0404L1400RLM

400 OH 29.0 27.0 6.0 HD Cl. Plate 200A inst. 4 Lever Ringless LG0816B1400RLT

space for one

more 200A main

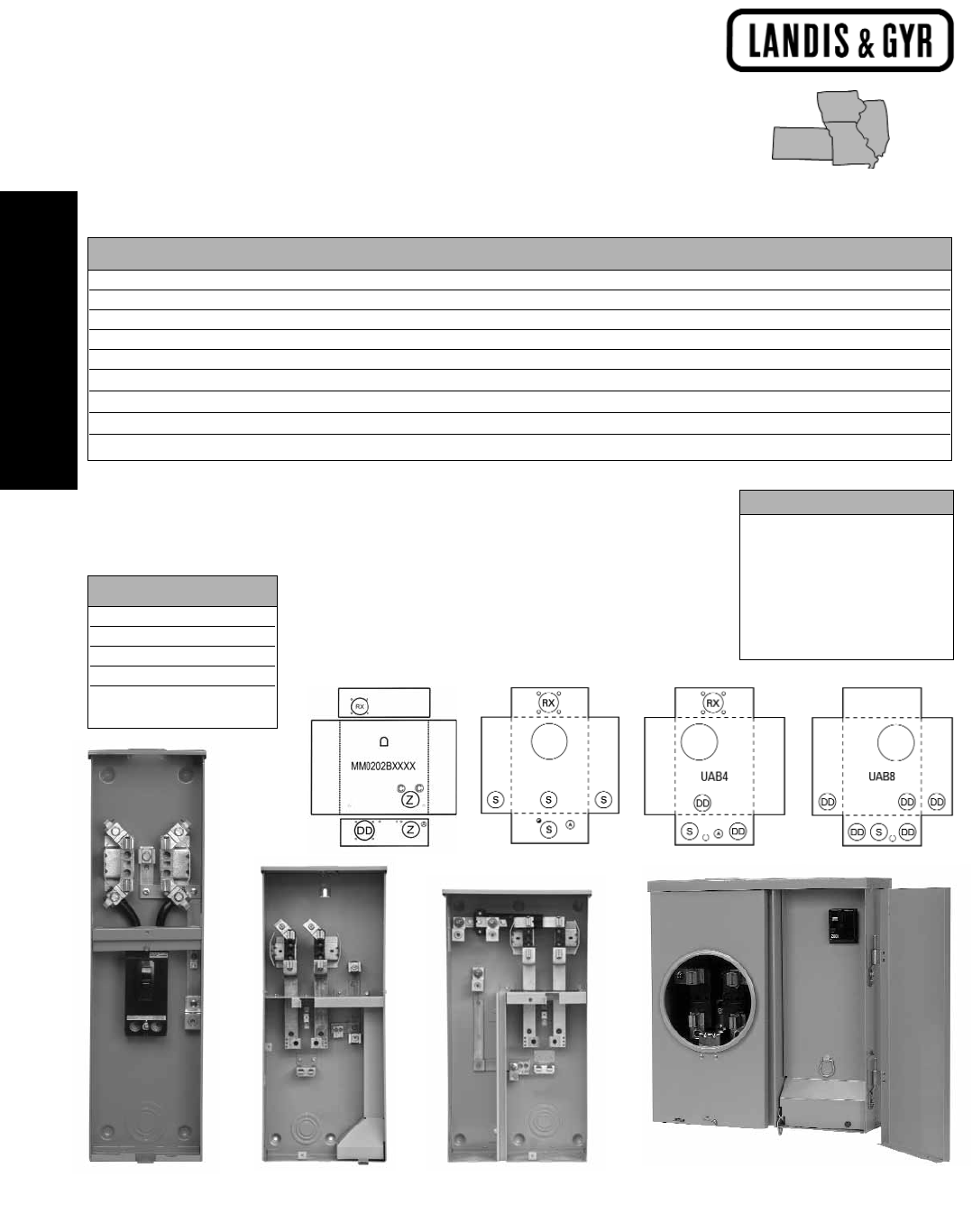

200A/400A Meter Mounting Equipment, Meter Main, Residential 

4 & 5 Terminal for 1 Phase, 3 Wire

LG0408B1200RT

4 space, 8 circuit feed thru lugs LG0816B1200RCT

8 space, 16 circuit feed thru lugs

Residential

200/400 Amp - Meter Mains

* Aluminum enclosure.

LG0404L1400RLM

Accepts 2 main breakers 60-200A each LG0816B1400RLT

8 space, 10 circuit feed thru lugs

LG0606L1200R

12 space, 6 circuit

LG0606L1200RA

2 or 4 pole breakers only

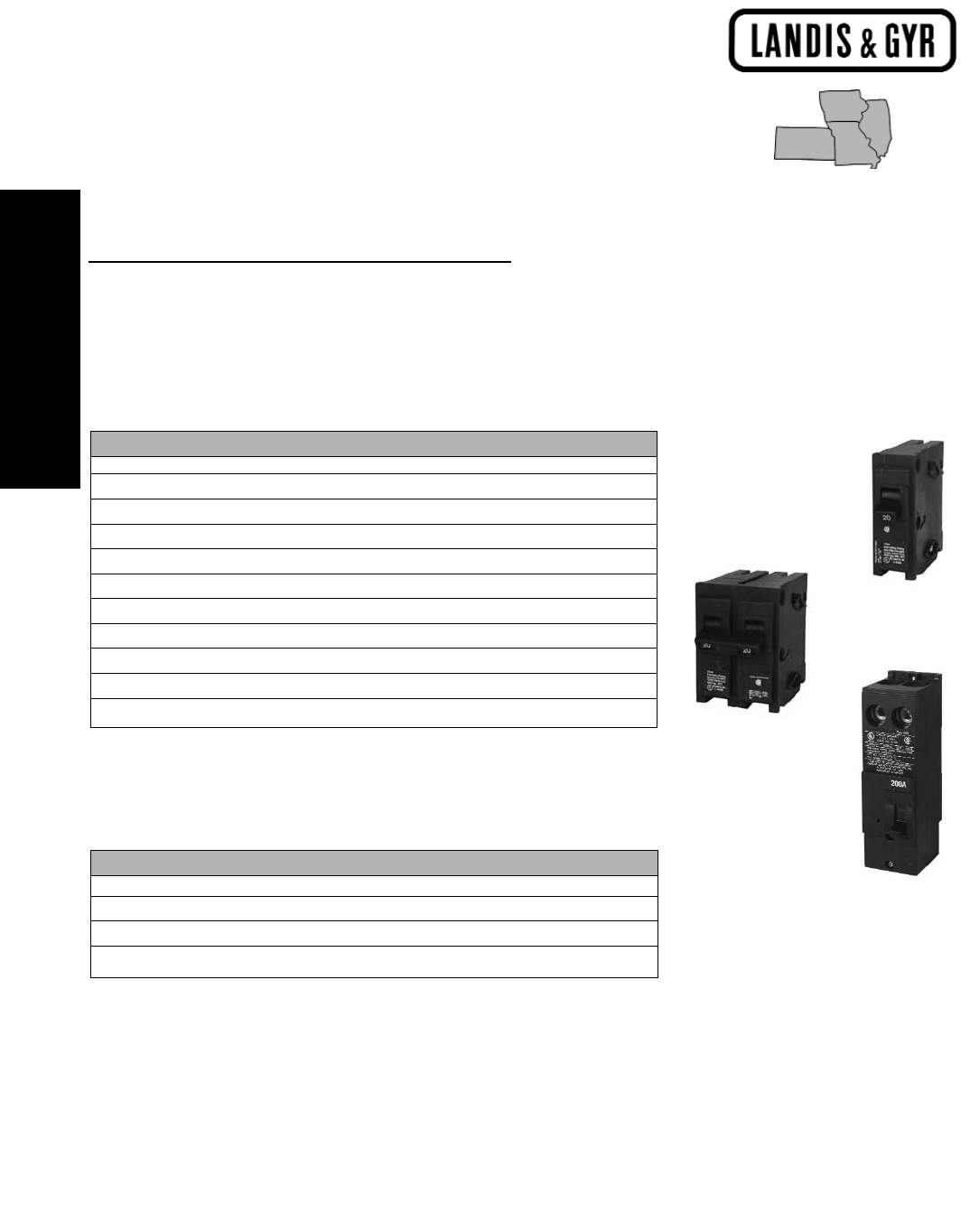

Circuit Breakers

Description Amps Catalog No.

1-Pole 120V 15 L115

1-Pole 120V 20 L120

2-Pole 120/240V 20 L220

2-Pole 120/240V 30 L230

2-Pole 120/240V 40 L240

2-Pole 120/240V 50 L250

2-Pole 120/240V 60 L260

2-Pole 120/240V 100 L2100

2-Pole 120/240V 125 L2125

4-Pole 120/240V 150 LN2150R

4-Pole 120/240V 200 LN2200R

Accessories Catalog No.

Single Pole Padlocking Device ECPLD1

Double Pole Padlocking Device ECPLD2

4-Pole Padlocking Device ECPQLN3

Handle Blocking Device (1 & 2 Pole) ECQL1

Features

쐽Plug in

쐽UL listed for use with Landis & Gyr branded meter

combinations

쐽1” Frame

Circuit Breakers

Single Pole

Double Pole

4-Pole

Residential

135 Amp - 4 Jaw - Ringless

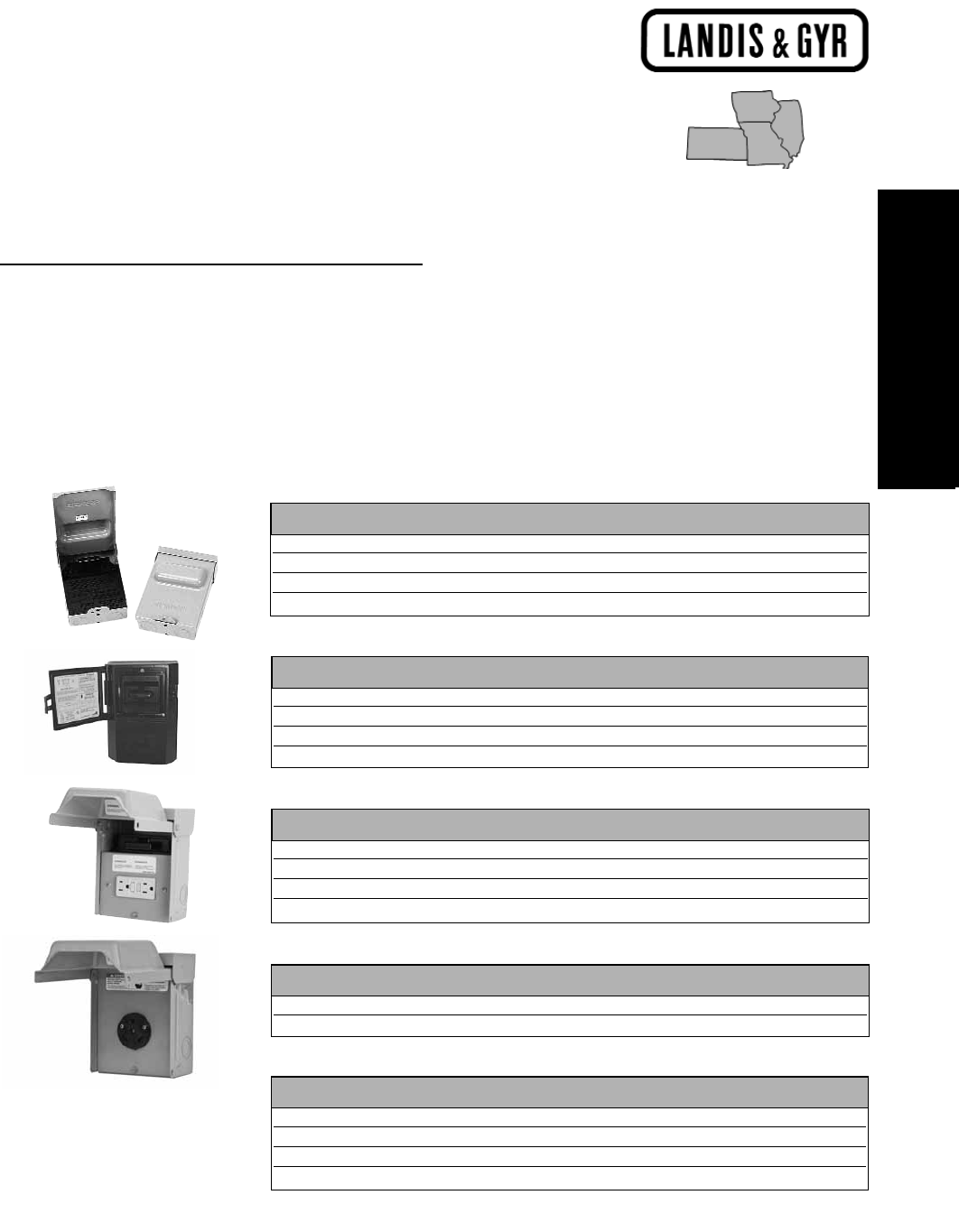

A C Disconnects

Fused and Non-Fused

Features

Flexibility

쐽30-60 amperes

쐽240 volts A.C.

쐽Padlock provisions

쐽Horsepower rated

쐽10,000 A.I.C.

쐽New models available with internal GFCI receptacle

쐽Removable Door

쐽Ample Wiring Space

Rugged Durability

쐽Noryl약thermoplastic and powder coated G90 steel

enclosures are corrosion resistant and extremely durable

giving long maintenance free service

쐽Copper conductors

쐽Raised mounting embosses

Ampere Disconnect Catalog Horse Power Dimensions (inches)

Rating Type No. Rating H W D

30 Fused Pullout LF2030 3 7.3 5.0 2..1

60 Fused Pullout LF2060 10 8.0 5.0 2.1

60 Non-Fused Pullout LN2060 10 7.3 5.0 2.1

60 Non-Automatic Switch LNAS2060 10 7.3 5.0 2.1

Steel AC Disconnects

Air Conditioning Disconnects and Enclosed Receptacles

Fused햲햲and Non-Fused

Ampere Disconnect Catalog Horse Power Dimensions (inches)

Rating Type No. Rating H W D

30 Fused Pullout LF2030PL 3 8.0 5.3 3.1

60 Fused Pullout LF2060PL 10 8.0 5.3 3.1

60 Non-Fused Pullout LN2060PL 10 7.3 5.0 2.1

60 Non-Fused Pullout LN2060PLX 10 8.0 6.0 5.8

Plastic AC Disconnects

Ampere Disconnect Catalog Horse Power Dimensions (inches)

Rating Type No. Rating H W D

30 Fused Pullout LF2030GFCI 3 9.0 6.1 5.1

60 Fused Pullout LF2060GFCI 10 9.0 6.1 5.1

60 Non-Fused Pullout LN2060GFCI 10 7.1 5.8 5.1

60 Non-Automatic Switch LNAS2060GFCI 10 7.1 5.8 5.1

Steel AC Disconnects with 15 Amp GFCI Receptacle

Copper Aluminum

Connector Solid Stranded Solid Stranded

Line #14-8 #14-3 #12-8 #12-3

Load #14-8 #14-3 #12-8 #12-3

Neutral #12-8 #12-2 #12-8 #12-2

Equip. Grnd. #12-8 #12-2 #12-8 #12-2

Wire Range Table

Ampere Disconnect Catalog Receptacle Dimensions (inches)

Rating Type No. Type H W D

60 N/A LGP1S 14-50R 7.1 5.8 5.2

30 N/A LGP3S TT30R 7.1 5.8 5.2

Enclosed Receptacles

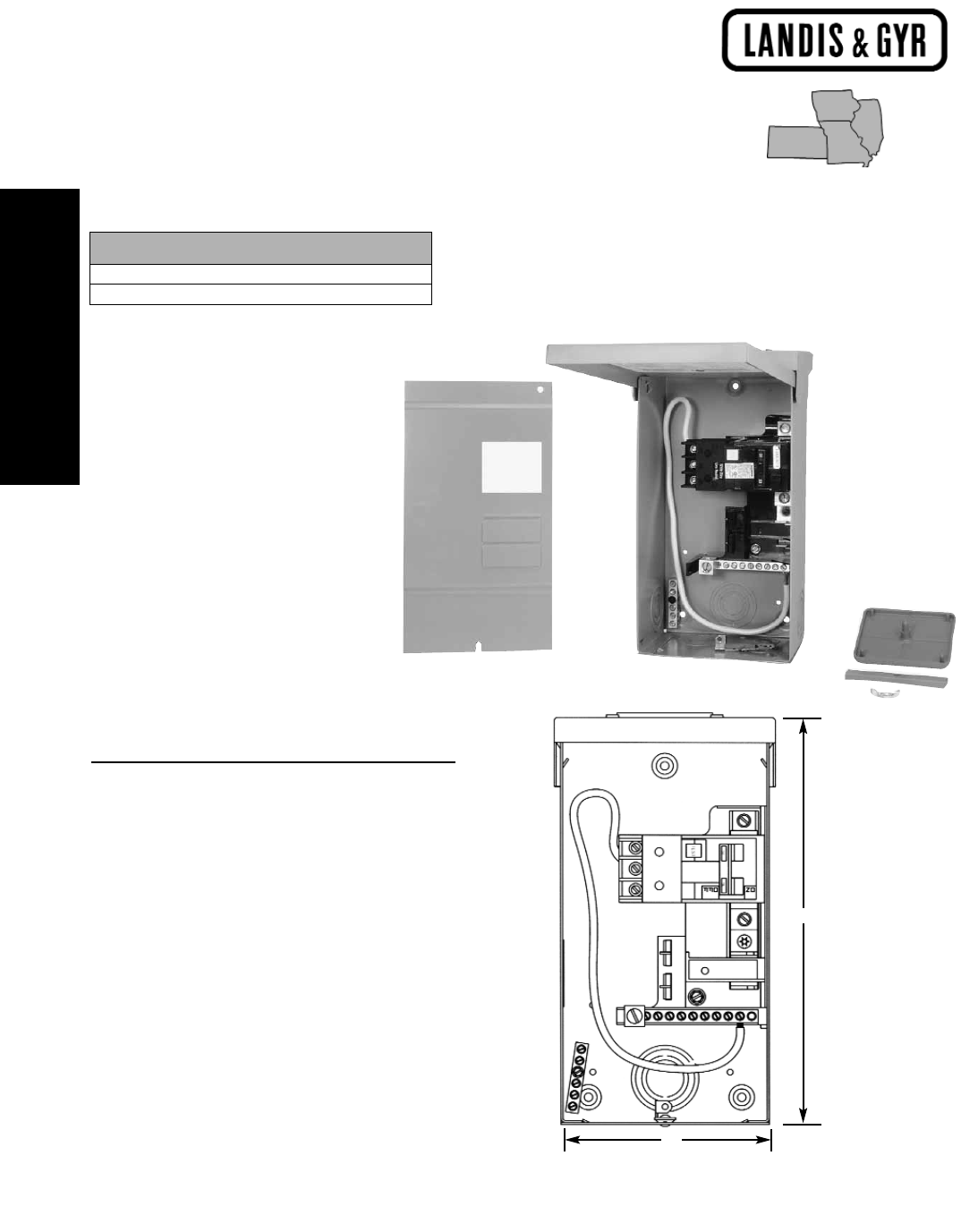

Spa Panel

50 Amp and 60 Amp

12-1/4”

6”

Features and Benefits

쐽UL Listed

쐽Factory installed, 2-pole 50A or 60A

GFCI breaker for 240V ground fault protection

쐽NEMA Type 3R outdoor enclosure

쐽2 extra spaces (4 circuits maximum) for additional

circuit breakers

쐽125 Amp rated interior

쐽Factory installed 5 position

ground bar

쐽Closure plate included

쐽Compact enclosure size

쐽Convenient standard package of 1

쐽Uses reliable Siemens circuit breakers

Spa Panel

For use as Spa/Hot Tub service disconnect

2-Pole Dimensions (inches) Catalog

GFCI Breaker H W D Number

50A 12.3 6.0 4.5 LGSPA50

60A 12.3 6.0 4.5 LGSPA60

Dead Front Enclosure

Hub Cover Plate

included

Residential

135 Amp - 4 Jaw - Ringless

Connector Lugs

3/8”

Stud 3/8”

Stud 1/2”

Stud

1/2”

Stud

3/8”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

1/2”

Stud

3/8”

Stud

3/8”

Stud

H55890

#6-350 KCMIL H55890-1

#6-350 KCMIL H56734

#6-250 KCMIL H37892

#4-500 KCMIL

H56476

#3/0-800 KCMIL H60162

(1) #4-600 KCMIL H61300

(2) 1/0-250 KCMIL

H57606-K

#6-350 KCMIL

H58022

(2) #6-250 KCMIL

H56732-M

(2) #4-500 KCMIL

H56425

(2) #6-350 KCMIL

H56732

(2) #4-350 KCMIL H56732-1

(2) #4-350 KCMIL H56732-2

(2) #4-350 KCMIL

H68752-1

(3) #6-250 KCMIL H56426

(4) #6-350 KCMIL H56477

3/0-800 KCMIL

H56425-M

(2) #4-500 KCMIL H58852

3/0-800 KCMIL H56733

3/0-800 KCMIL

H56427-M

(2) #4-500 KCMIL H58853

(2) #6-350 KCMIL H59299-1

H56427

(2) #6-350 KCMIL

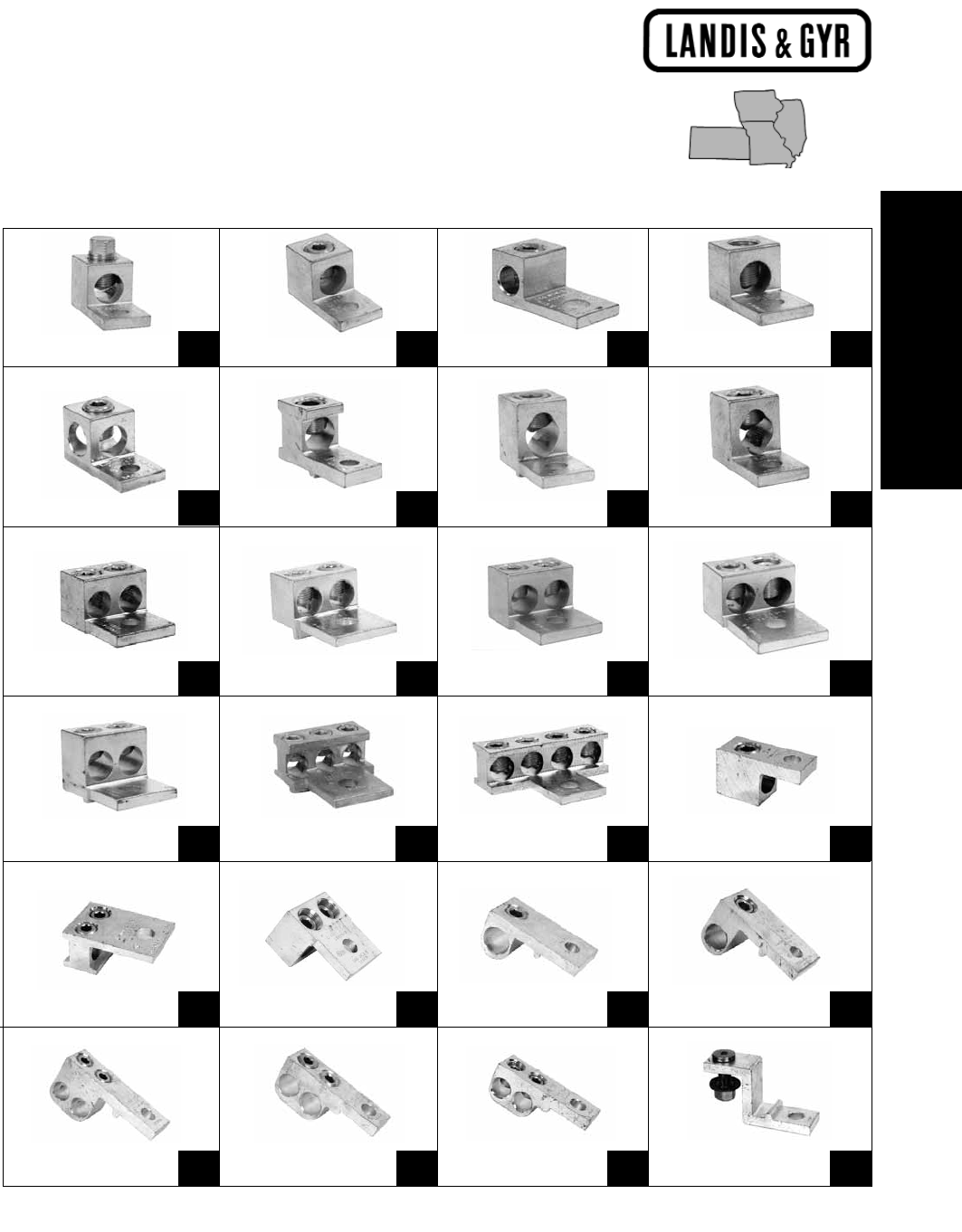

Connector Lugs

Anti-Rotation Stud Pressure Dimensions* (inches) Landis & Gyr

Device Type Feature Conductor Size Opening Screw Head L W H Catalog Number

No #6-350 MCM 13/32” 9/16” Hex 2-1/4 1-1/8 1-1/4 H55890

HQ-4S No #6-350 MCM 13/32” 5/16” Allen 2-1/4 1-1/8 1-1/4 H55890-1

HQ-5 S No #6-350 MCM 13/32” 3/8” Allen 2-1/4 1-1/8 1-1/4 H57606-K

HQ-7S No (2) #6-250 MCM 13/32” 5/16” Allen 2-3/16 1-5/8 1-3/16 H58022

HQ-4D No #4-500 MCM 9/16” 3/8” Allen 2-13/16 1-1/2 1-9/16 H37892

HQ-5DM Yes (1) #4-600 MCM 9/16” 1/2” Allen 2-13/16 1-3/8 1-13/16 H60162

HQ-7D or

HQ-7DF No (2) #1/0-250 MCM 9/16” 1/2” Allen 2-13/16 1-3/8 1-13/16 H61300

K-4,5,7 No (2) #6-350 MCM 9/16” 5/16” Allen 2-7/8 1-57/64 1-1/4 H56425

K-4,5,7 No (2) #4-500 MCM 9/16” 3/8” Allen 2-13/16 2-1/16 1-9/16 H56425-M

K-4 No (4) #6-350 MCM 9/16” 5/16” Allen 2-7/8 3-15/16 1-1/4 H56426

K-4,5,7 Yes (2) #6-350 MCM 9/16” 5/16” Allen 4-15/16 1-1/8 2-1/16 H56427

K-4,5,7 Yes (2) #2-500 MCM 9/16” 3/8” Allen 4-1/4 1-1/8 1-13/16 H56427-M

K-5,7 Yes #3/0-800 MCM 9/16” 1/2” Allen 3-1/4 1-5/16 1-13/16 H56476

K-4,5,7 Yes #3/0-800 MCM 9/16” 1/2” Allen 3-1/4 1-5/16 1-13/16 H56477

K-5,7 No (2) #4-500 MCM 9/16” 3/8” Allen 2-13/16 2-5/32 1-9/16 H56490

K-5,7 Yes (2) #4-350 MCM 9/16” 5/16” Allen 2-7/8 1-59/64 1-1/4 H56732

K-5,7 No (2) #4-350 MCM 9/16” 5/16” Allen 2-7/8 1-59/64 1-1/4 H56732-1

K-5,7 Yes (2) #4-500 MCM 9/16” 3/8” Allen 2-13/16 2-5/32 1-13/16 H56732-M

K-4,5,7 Yes #3/0-800 MCM 9/16” 1/2” Allen 4-3/16 1-3/4 2-3/8 H56733

K-4,5,7 (Grd.) No #6-250 MCM 9/16” 5/16” Allen 2-9/16 1-9/32 1-3/16 H56734

K-4,5,7 Yes #3/0-800 MCM 9/16” 1/2” Allen 3-15/16 1-3/4 1-13/16 H58852

K-4,5,7 Yes (2) #6-350 MCM 9/16” 5/16” Allen 3-15/16 1-1/8 1-1/2 H58853

K-4,5,7 Yes (3) #6-250 MCM 9/16” 5/16” Allen 2-7/8 2-31/64 1-7/16 H68752-1

K-4 extender Yes 1/2-20 x 1-7/8” Stud 9/16” None 4-1/4 1-1/4 2-3/8 H59299-1

Connector Lugs

Lug Extender

Pressure type lugs for Landis & Gyr’s stud type meter mounting devices are made of 6061-T6 aluminum to provide high strength

and high conductivity. All lugs are tin-plated to ensure low contact resistance and to reduce corrosion.

Allen or hex head pressure screws are furnished to provide excellent conductor spread for maximum binding action with the lug.

All Landis & Gyr lugs are listed with Underwriters Laboratories.

Pressure Lug Connectors For Meter Mounting Devices

Lug Extender

Dimensions (inches) Landis & Gyr

Device Type Stud Opening Stud Size W H D Catalog Number

K-4 9/16” 1/2-20 x 1-7/8” 4-1/4 1-1/4 2-3/8 H59299-1**

* Dimensions do not include height of pressure screw with conductor installed.

**Includes nut and washer assembly and washer.

Residential

135 Amp - 4 Jaw - Ringless

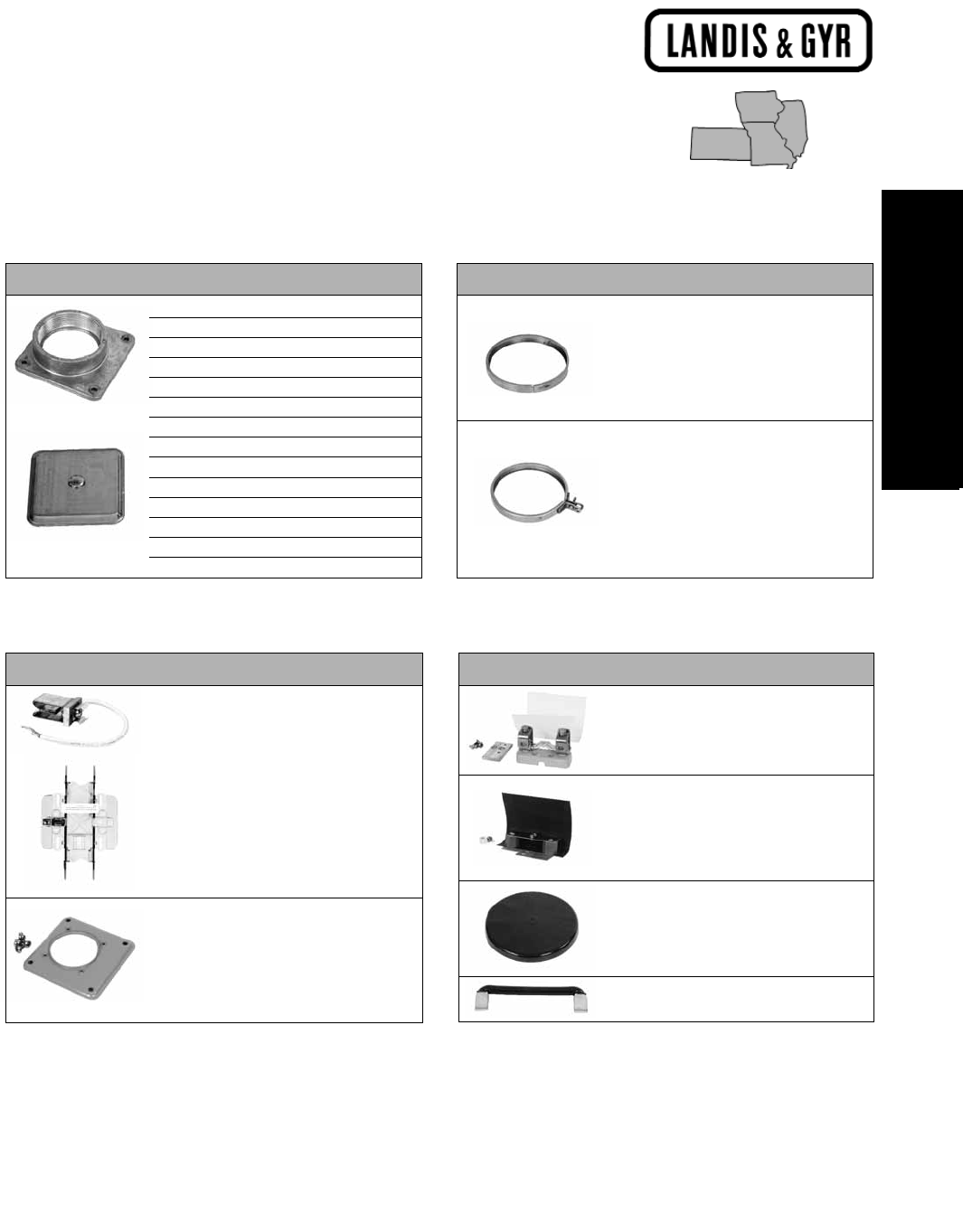

Accessories

Removable Hub Kits

Catalog

Conduit Size (inches) Number

RX Type Hubs Small

1H38596-2

1-1/4 H38597-2

1-1/2 H38598-2

2H38599-2

2-1/2 H38600-2

Cover Plate - Steel H38595-1

Cover Plate - Aluminum H38595-2

HD Type Hubs Large

3H56856-2

3-1/2 H56857-2

4H56858-2

Cover Plate - Steel H56933

Cover Plate - Aluminum H56933-1

Accessories

Catalog

Description Number

Insulated 5th Terminal Kit - H659-0120

Type AS, AT only

Grounded 5th Terminal Kit - H659-0121

Type AS, AT only

HQ 5th Terminal Kit - w/lead H35815-3

HQ 5th Terminal Kit - 9:00 H35815-2

Large to Small Adaptor - H9747-1113

Steel

Large to Small Adaptor - H9747-1112

Aluminum

Catalog

Description Number

HQ Isolated Neutral Kit H64685-1*

*Includes Neutral and Isolation Block

Neutral Isolation Kit for HQ H64690-1*

*Isolates Existing Neutral

Black Plastic Meter H39968

Opening Cover

Clear Plastic Meter H659-0162

Opening Cover (with plug-in feet)

Insulated Jumper H36479*

* For up to 200A sockets only.

Removable Hub

Cover Plate

Sealing Rings

Catalog

Description Number

Stainless Steel H54602

Snap Type

Stainless Steel 9738-8001*

Screw Type

*Requires 9738-8003 Locking Clip

Terms of Sale and

Device Applications

Repair Parts

Terms Of Sale

Transportation Charges: Prices listed are F.O.B. factory with freight prepaid and allowed on all shipments of orders of $1,000 net

or more for single shipments to one location.

Minimum Billing: $400 net plus transportation charges.

Cancellation: Orders accepted by the factory can be cancelled only with the factory’s consent and upon payment to the seller of

reasonable charges incurred by the seller which will indemnify the seller against loss.

Returns: Goods may not be returned to Landis & Gyr without written authorization from the factory. A minimum 20% restocking

charge will be applicable on all returned goods. Credit will be given only for current production items in unopened cartons. All

transportation charges paid by Landis & Gyr will be deducted from such credit.

Terms: Standard/Stock Products:

2% 10th net 25th for invoices dated the 1st through the 15th of the month.

2% 25th net 10th for invoices dated the 16th through the 31st of the month.

Catalog Block Connector Neutral

Number Assembly Screw Assembly Screw Assembly

UAT111-0G 5005800H 1012013 (Screw Only) 1012013 (Screw Only)

UAT314-0G 5015830-2 200007-1 200009-1

UAT417-XG 5015830-2 200007-1 200009-1

All 200A (Load Side Only) 200008-1 200009-1

Gang Sockets

Repair Parts

Electrical Service Meter Socket Standard Socket

Service Type Form Type Catalog Number

2S 4 jaw 100A UAT111

1-Phase Self-contained, 3 wire 2S 4 jaw 200A UAT317, UAT417,HQ-4

2SE 4 jaw 320A HQ-4ST, HQ-4D

Self-contained, bolt-in 2K K-4 400/480A K-4, K-4UT

Transformer-rated, 2 wire 3S 6 jaw 20A HQ-6T, HQ-6TS, PTS-6

Transformer-rated, 3 wire 4S 6 jaw 20A HQ-6T, HQ-6TS

12S 5 jaw 100A HQ-5

Self-contained 12S 5 jaw 200A HQ-5

12SE 5 jaw 320A HQ-5ST, HQ-5D

Self-contained, bolt-in 12K K-5 480/600A K-5

Transformer-rated 5S 8 jaw 20A HQ-8T, HQ-8TS, PTS-8

Self-contained 14S 7 jaw 100/200/320A CQ-7, HQ-7

15S

14K

Self-contained, bolt-in 15K K-7 480/600A K-7, K-7T

16K

Transformer-rated 8S 13 jaw 20A HQ-13T, HQ-13TS, PTS-13

3-Phase

3-Wire

Wye

or Delta

Meter Mounting Device Applications

3-Phase

4-Wire

Notes:

www.landisandgyr.com

Subject to change without prior notice

Order No.: RPSA-LG027-1009

Printed in USA

Landis & Gyr Meter Mounting Devices

Siemens Industry, Inc.

Building Technologies Division

5400 Triangle Parkway

Norcross, GA 30092

The information provided in this brochure contains merely

general descriptions or characteristics of performance

which in case of actual use do not always apply as described

or which may change as a result of further development

of the products. An obligation to provide the respective

characteristics shall only exist if expressly agreed in the

terms of contract.

All product designations may be trademarks or product

names of Siemens AG or supplier companies whose use by

third parties for their own purposes could violate the rights

of the owners.

Product Detail Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
