BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Overhead Distribution and Transmission

Wedge Tap Connectors

THE WEJTAP™

SYSTEM

FOR ELECTRIC UTILITY

DISTRIBUTION AND

TRANSMISSION

CONNECTIONS

J-1

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Overhead Distribution and Transmission

Wedge Tap Connectors

TABLE OF CONTENTS

J-2

WEJTAP™ Connection System

WEJTAP™ and Test Data

WEJTAP™ Ordering Information

WEJTAP™ Cover

WEJTAP™ Connector Selection

Chart (by Diameter)

WEJTAP™ Copper WEJTAP™

WEJTAP™ STIRRUP™ and

Power Boosters

WEJTAP™ STIRRUP™

Selection Chart

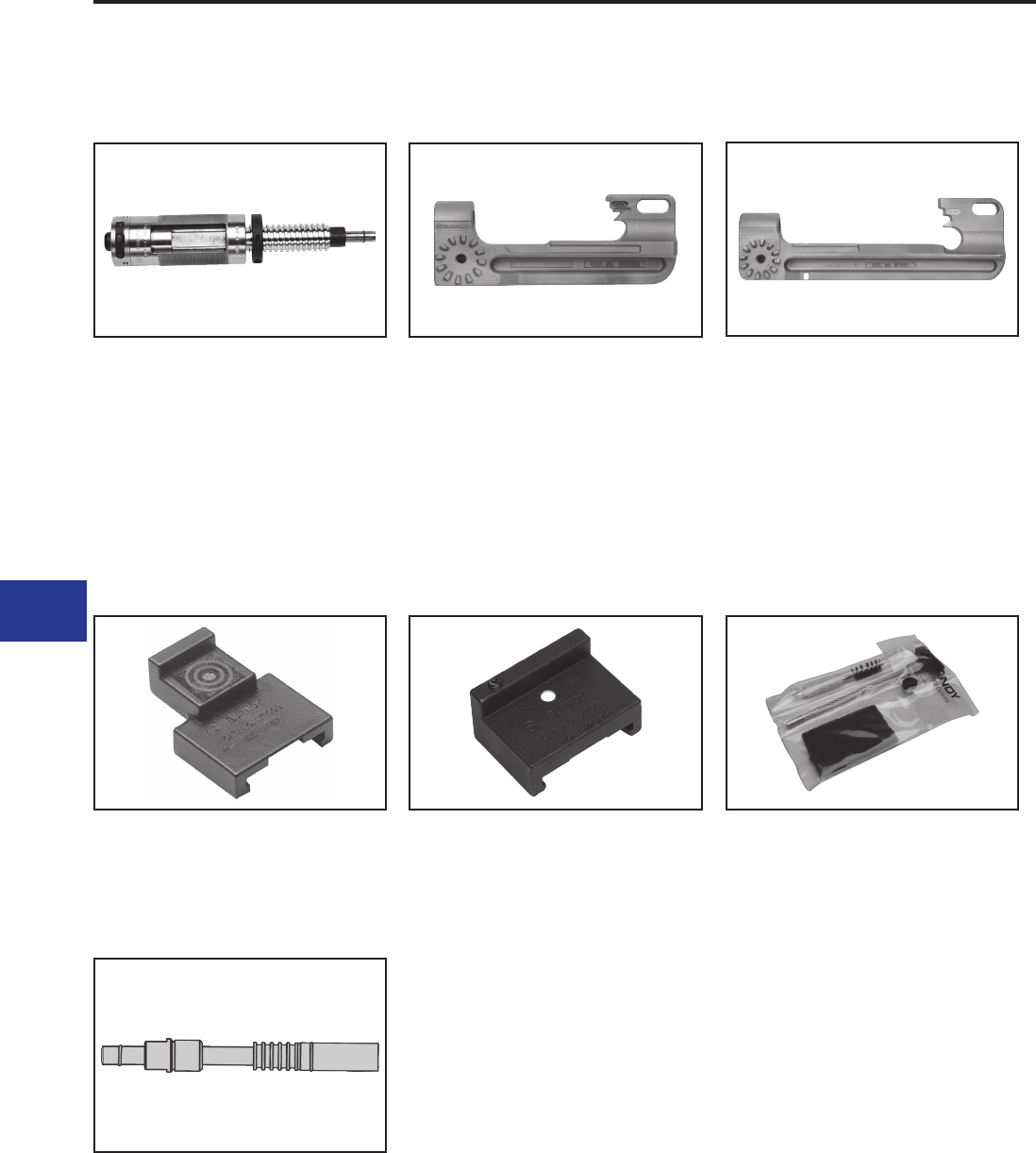

WEJTAP™ Installation Tools

Installation Tool Accessories

WEJTAP™ POWERLUG™

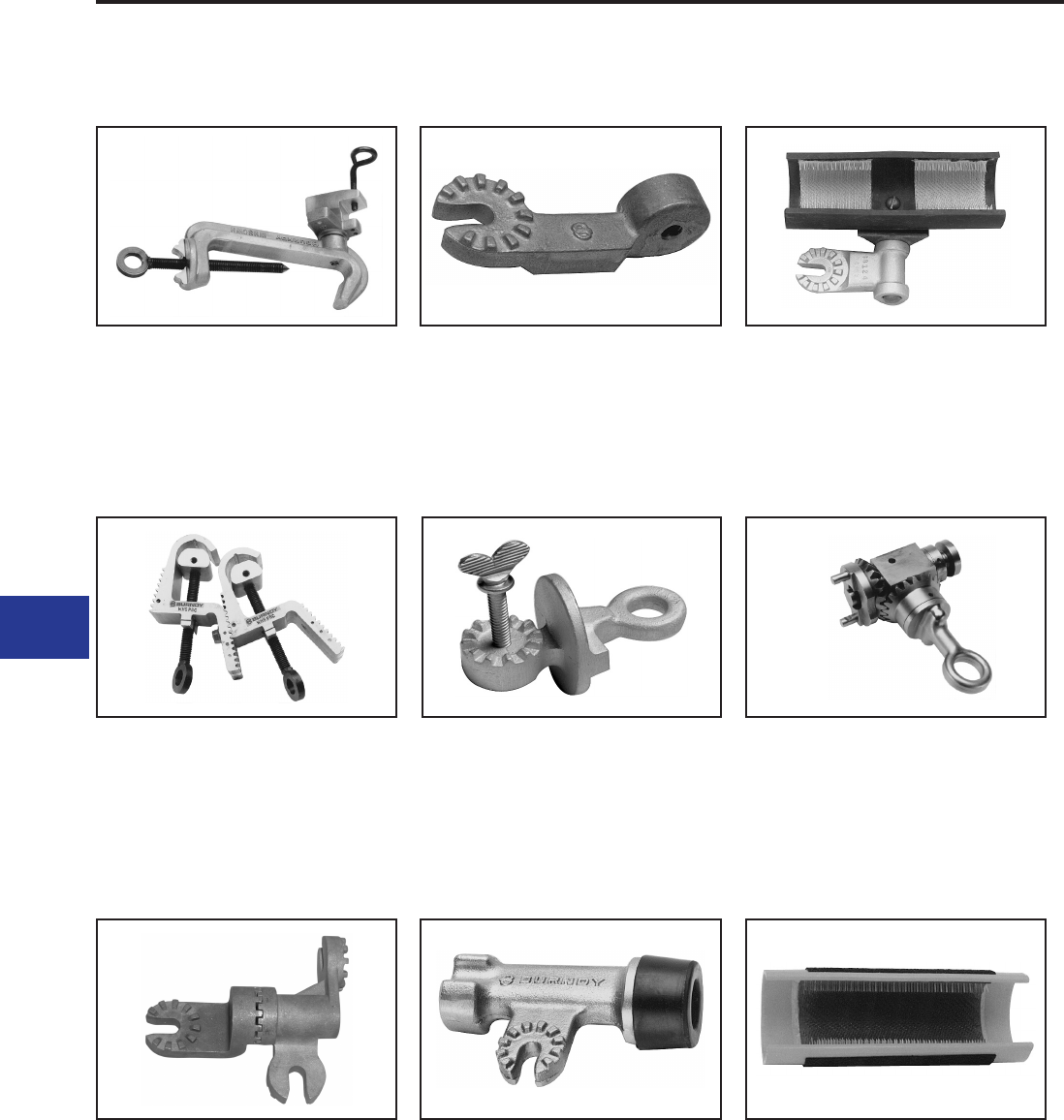

WEJTAP™ Hotstick Accessories

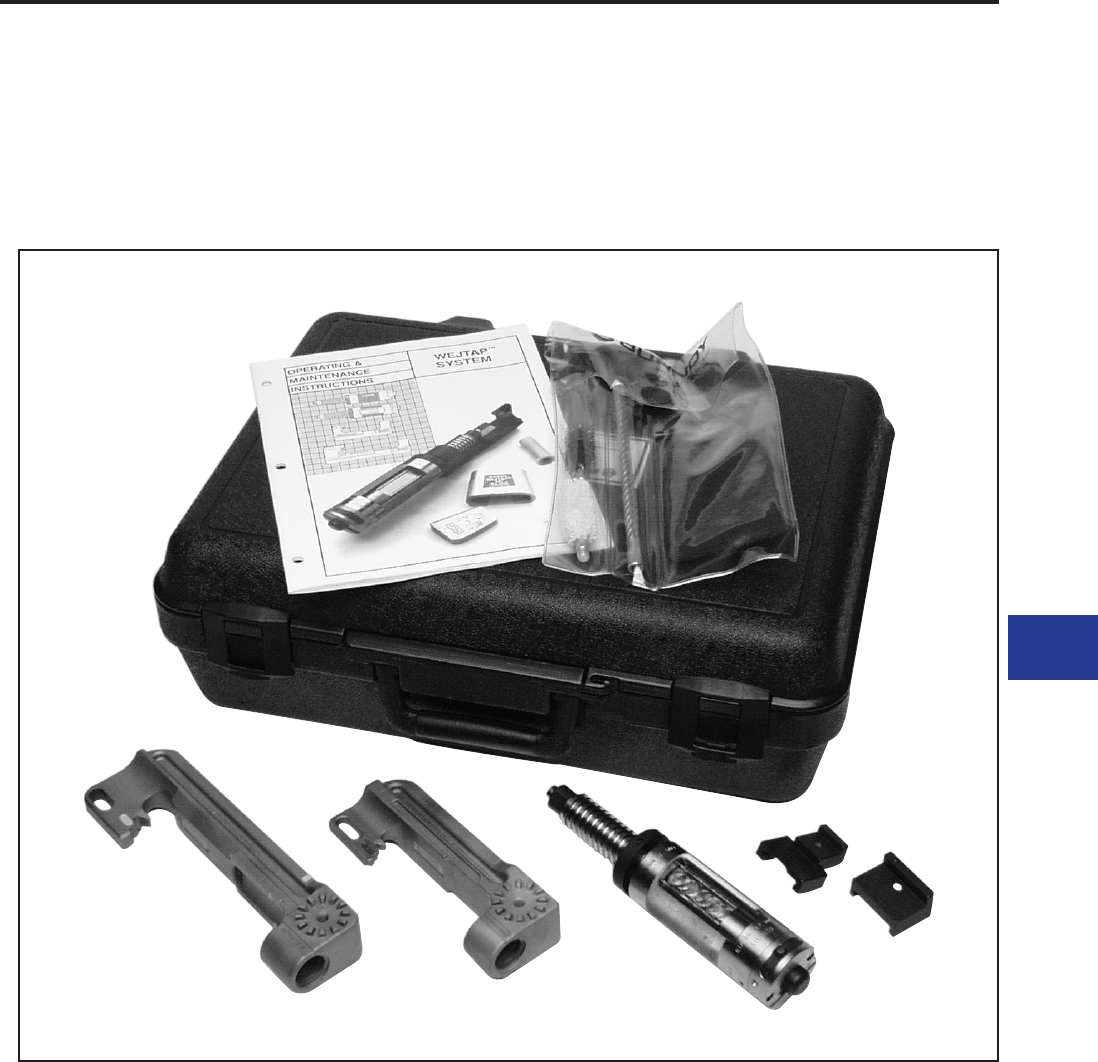

WEJTAP™ Kit Ordering

Instructions

WEJTAP™ In-Line Disconnect

J-3

J-4

J-5

J-5

J-6 - J-8

J-9, J-10

J-11

J-11

J-12

J-12

J-13

J-14

J-15

J-16

WEJTAP™ Booster Function Video

:55 Seconds

Closing the Breech Video

:22 Seconds

Removal of Booster Video

:27 Seconds

Connector Installation Video

2 min. 19 Seconds

Connector Removal Video

1 min. 57 Seconds

Slow Motion Installation Video

:18 Seconds

WEJTAP™ Tool Cleaning Video

2 min. 50 Sec.

Tightening of Tool Video

:26 Seconds

NEW

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Overhead Distribution and Transmission

Wedge Tap Connectors

BURNDY WEJTAP™

CONNECTION SYSTEM

BURNDY®, a leading manufacturer of quality

electrical connectors for over 70 years, introduces

the WEJTAP™ SYSTEM, a system that adds

further dimension to the existing BURNDY® group

of proven, reliable connection systems.

WEJTAP™ COMPONENTS are designed to

provide a reliable system connection. The system

consists of WEJTAP™ connectors, installation

tools (including a variety of hotline and lineman

accessories) and a unique power-booster.

WEJTAP™ CONNECTORS use an aluminum

alloy wedge that is power-driven between the run

and the tap cables locking them into a “C” shaped

tempered aluminum alloy spring-body. The spring-

body maintains consistent pressure throughout

the life of the connection to ensure reliability

during severe electrical and climatic conditions.

The wedge’s wiping action combined with factory

installed PENTX 1530 provides superior contact

integrity. The wedge is automatically locked onto

the spring-body by a skiving action produced

by a lance at the forward end of the WEJTAP™

installation tool.

The WEJTAP™ TOOL is a one-piece assembly

that consists of a head and power unit. Two

color-coded interchangeable heads accept

all WEJTAP™ connectors and STIRRUP™.

The design of the tool recognizes the need for

simplicity and speed of operation as well as

outstanding safety features such as automatic

gas release vented away from the operator, fast

simple breech loading and fast advance when

engaging the connector assembly. No loose

parts to drop or misplace and a booster ejection

system that provides further safety to the operator.

Fewer simplied hotline devices and handy

lineman accessories complete an outstanding tool

package.

• Large conductor chamfer on ends of wedge

◊ Instant hand or visual identication of

large run grooves. Ensures correct

wedge orientation.

• Color-coded WEJTAP™ connector and booster

packaged together

◊ Easy selection by installer.

• Factory coated grooves with PENTX 1530

◊ Maintains low contact resistance,

assists in protection against climatic

conditions and is compatible with

common insulations.

• One-piece tool

◊ No project delays due to dropped or

lost parts.

• Fewer and improved hotstick accessories

◊ Simplies hotline installation and saves

time.

• Contained booster ejection system

◊ Safe for operator guards against the

booster being ejected in direction of

the installer.

Features and Benets

• Automatic gas release vented away from

operator

◊ Eliminates manual gas venting and

improves safety.

• Simplied loading

◊ Speeds installation — no threads — just

depress safety bar, twist and pull

open — load — push and twist to close

prior to applying connector.

• Acme-type threads

◊ Provides smooth, fast engagement of

tool and connector — saves installer’s

time.

The WEJTAP™ POWER-BOOSTER Patented

is a self-contained device that provides the force

necessary to drive the wedge into direct contact

with the conductors. The booster is activated only

when properly positioned in the tool assembly.

A power cell in the booster is recessed to guard

against premature discharge. The tool/booster

system is designed to activate and deactivate

the booster automatically should the operator

decide to remove the tool from a connector prior

to completing the installation. The deactivated

booster may be safely removed from the tool.

J-3

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Overhead Distribution and Transmission

Wedge Tap Connectors

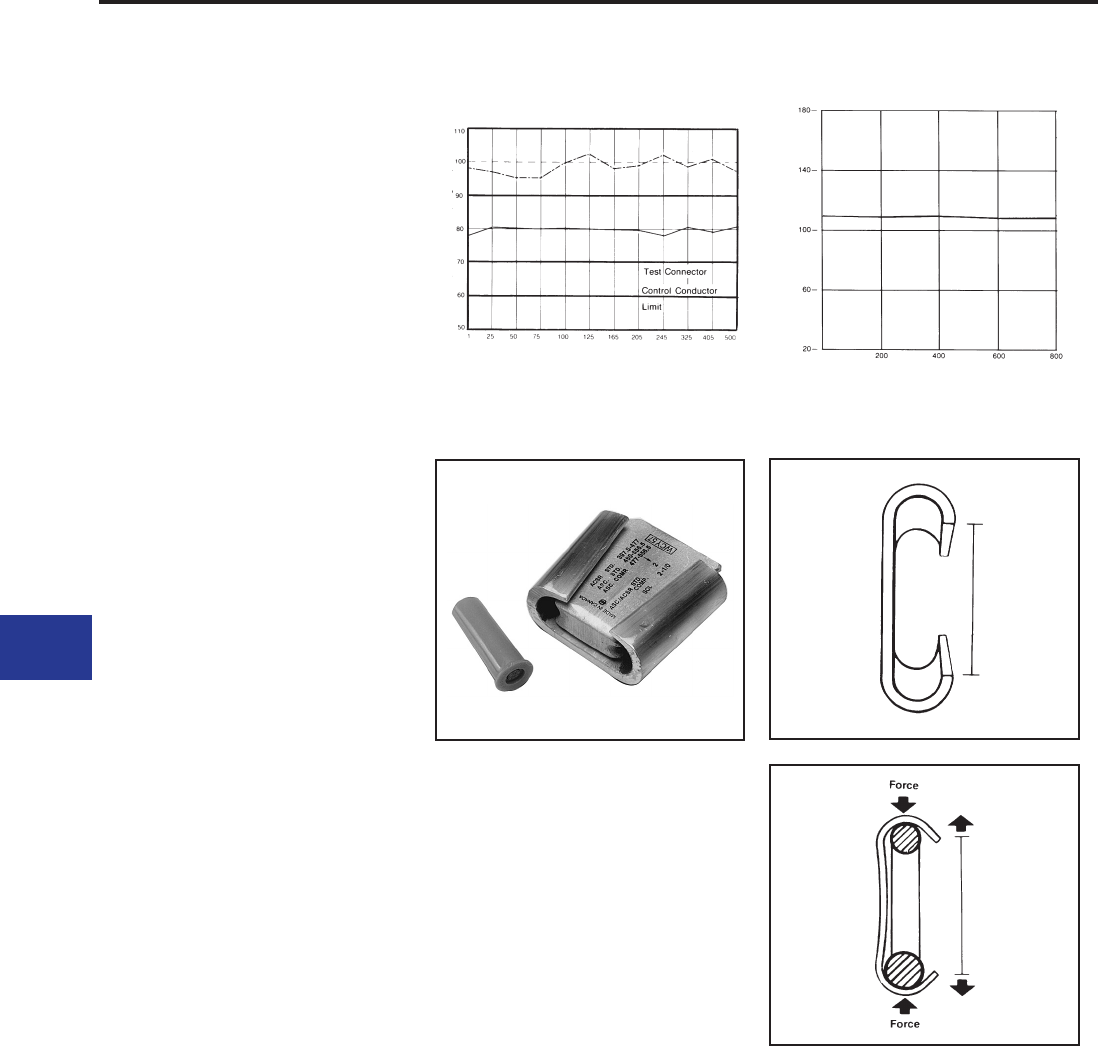

WEJTAP™ AND

TEST DATA

WEJTAP™ connectors have been subjected to

extensive tests simulating the most severe service

and weather conditions. In addition. the WEJTAP™

system meets or exceeds the industry standards of

ANSI C119.4 Class 3, NEMA CC3 1973 Class AA,

500 Heat Cycles.

As with all BURNDY

®

connectors, the WEJTAP™

has been designed to operate cooler than the

attached conductors. The WEJTAP™ connectors

have also been subjected to the ASTM B117-73 Salt

Spray Test. The results are shown to the right.

WEJTAP™

C-member bodies are color-coded and the

wedges are marked with nominal conductor run

and tap ranges. WEJTAP™ connector packages

are labeled with a variety of common conductors

with their nominal ranges.

■ WEJTAP™ connector wedges are

marked with nominal ACSR, Aluminum

and Copper concentric standard

conductors.

■ Red WEJTAP™ connector range

Run 8-1/0 Tap 8-2

■ Blue WEJTAP™ connector range

Run 2-300 Tap 6-300

■ Yellow WEJTAP™ connector range

Run 266.8-1590 Tap 6-1590

All WEJTAP™ wedges contain a clearly dened

chamfer on the large end of the run conductor

groove to identify the “large run” groove. Installers

will appreciate the convenience of visual or hand

identication for correct wedge positioning.

WEJTAP™ wedges are driven between the

run and tap conductors and activate the spring

characteristics of the “C” shaped body. This

action maintains contact pressure even when the

connection is subjected to severe climatic and

electrical conditions.

RUS Accepted

ANSI C119.4 - 1986 Heat Cycle Test

Average Temperature Rise vs. Current Cycles

ASTM Salt Spray Test

Average % Relative Resistance vs.

Hours of Salt Spray Exposure

Temperature Rise (Deg. C.)

Detailed test report packages are available upon

request. Hours

Relative Resistance (Percent)

J-4

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Overhead Distribution and Transmission

Wedge Tap Connectors

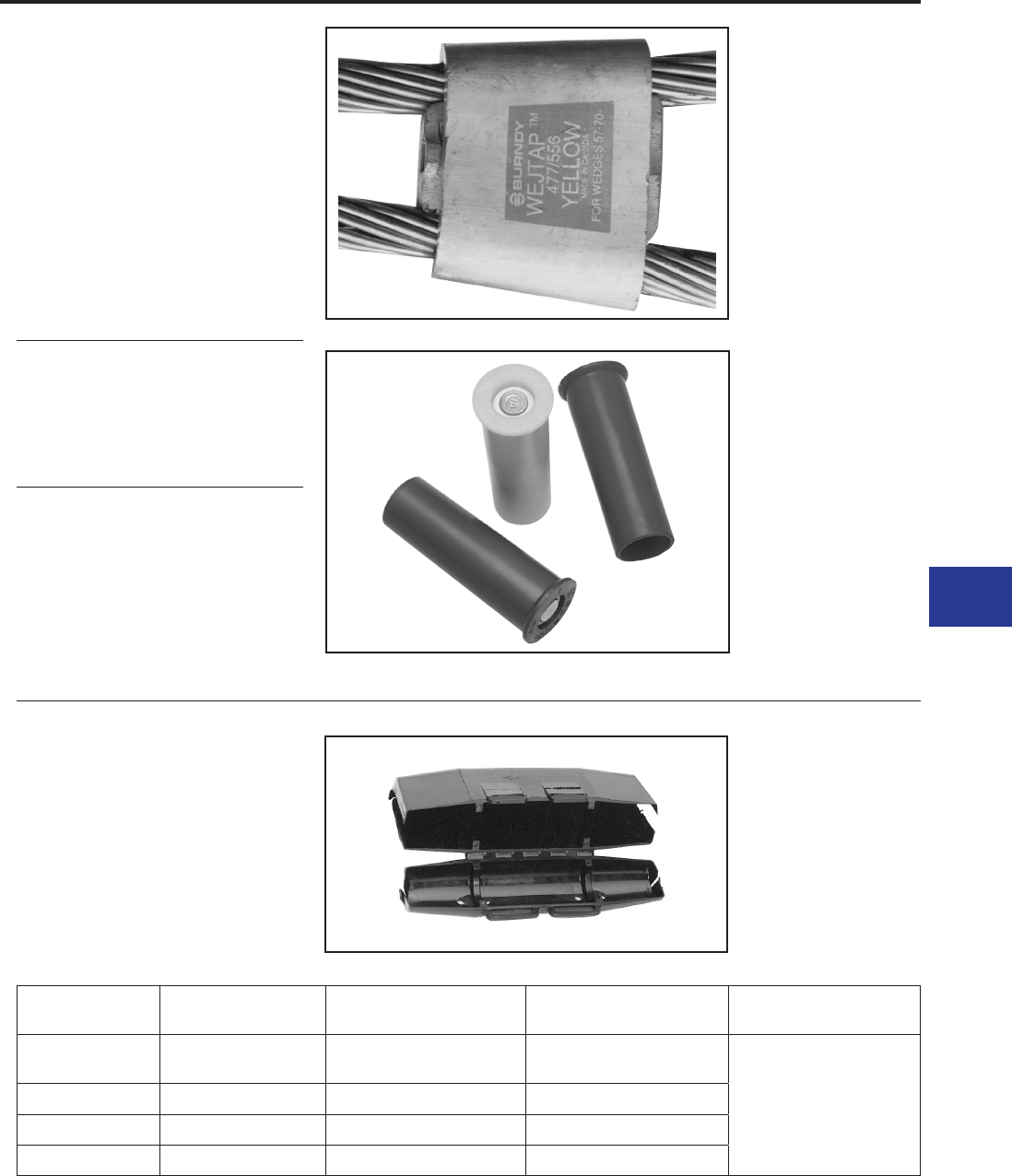

WEJTAP™ COVER

WEJTAP™ Covers are installed on WEJTAP™

connectors to prevent them from coming in contact

with other taps or exposed ground points. The

covers are rugged snap-on devices available in

four sizes to cover all connector sizes.

Cover

Catalog Number

WEJTAPTM

Size

Nominal Conductor

Range Run

Nominal Conductor

Range Tap

Cover

Color

WCCR Small Old

Style Red 8-1/0 8-2

Black

Weather

Rated

WCCB Red & Blue 2-300 6-300

WCCSY Small (Yellow) 300-556.50 6-556.50

WCCLY Large (Yellow) 556.50-1033.50 556.5-1033.50

The BURNDY® WEJTAP™ System has a wide

variety of connectors available for many different

conductor ranges.

Color coded boosters and connectors ensure

proper matching during installation.

The BURNDY® Power Booster is designed and

engineered for the highest reliability and safety.

Proven rimre design means misres are almost

nonexistent. Close manufacturing component

tolerances provide maximum resistance to

moisture or submersion.

ORDERING INFORMATION

■ Power boosters may be ordered

separately in boxes of 25.

Red boosters Cat. # WPBRN Box 25

Blue boosters Cat. # WPBBN Box 25

Yellow boosters Cat. # WPBYN Box 25

Select appropriate connector; match with equal

number of color coded boosters (see below).

WPB—Red, Blue, Yellow Boosters

For information about conductors which

are not listed, and for further ordering

information, please contact BURNDY® at

1-800-346-4175.

J-5

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Overhead Distribution and Transmission

Wedge Tap Connectors

BURNDY WEJTAP™

SELECTION CHART

By Diameter

Catalog

Number

Sum of Diameters Run Tap

Max Min Max Min Max Min

Installed with red booster

WCR29 0.723 0.584 0.398 0.257 0.398 0.257

WCR30 0.649 0.516 0.398 0.257 0.325 0.206

WCR31 0.602 0.464 0.398 0.257 0.258 0.162

WCR32 0.530 0.410 0.326 0.204 0.258 0.162

WCR33 0.459 0.331 0.258 0.169 0.230 0.162

WCR34 0.324 0.256 0.162 0.128 0.162 0.128

WCR35 0.560 0.452 0.398 0.257 0.162 0.128

WCR36 0.487 0.387 0.398 0.257 0.162 0.128

WCR37 0.416 0.297 0.258 0.169 0.162 0.128

Installed with blue booster

WCB10 0.795 0.621 0.482 0.316 0.437 0.257

WCB11 0.901 0.763 0.568 0.364 0.457 0.257

WCB12 0.707 0.526 0.568 0.364 0.204 0.162

WCB13 0.761 0.600 0.568 0.364 0.258 0.204

WCB14 0.839 0.690 0.568 0.364 0.398 0.257

WCB15 0.769 0.622 0.568 0.364 0.204 0.162

WCB16 0.823 0.664 0.568 0.364 0.258 0.204

WCB17 0.963 0.804 0.568 0.364 0.464 0.257

WCB18 1.011 0.867 0.568 0.364 0.572 0.364

WCB19 1.068 0.938 0.568 0.364 0.572 0.379

WCB20 1.130 0.975 0.568 0.364 0.572 0.386

WCB21 0.846 0.711 0.650 0.532 0.204 0.162

WCB22 0.900 0.765 0.650 0.532 0.258 0.204

WCB23 0.972 0.818 0.650 0.532 0.330 0.257

WCB24 1.052 0.897 0.650 0.532 0.500 0.324

WCB25 1.104 0.963 0.650 0.532 0.562 0.364

WCB26 1.163 1.015 0.650 0.532 0.562 0.409

WCB27 1.221 1.080 0.650 0.532 0.575 0.460

WCB28 1.284 1.141 0.650 0.532 0.650 0.525

WCB40 0.888 0.762 0.684 0.603 0.204 0.162

WCB41 0.942 0.794 0.684 0.600 0.258 0.204

WCB42 1.011 0.857 0.684 0.600 0.333 0.257

WCB43 1.094 0.936 0.684 0.600 0.500 0.324

WCB44 1.146 1.009 0.684 0.600 0.562 0.364

WCB45 1.204 1.057 0.684 0.600 0.562 0.409

WCB46 1.284 1.119 0.684 0.600 0.592 0.460

WCB47 1.368 1.188 0.684 0.600 0.684 0.600

Installed with yellow booster

WCY48 0.932 0.765 0.750 0.537 0.204 0.162

WCY49 1.012 0.807 0.750 0.537 0.271 0.203

WCY50 1.069 0.860 0.750 0.537 0.355 0.257

WCY51 1.141 0.927 0.750 0.537 0.557 0.324

J-6

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Overhead Distribution and Transmission

Wedge Tap Connectors

BURNDY WEJTAP™

SELECTION CHART

By Diameter

Catalog

Number

Sum of Diameters Run Tap

Max Min Max Min Max Min

Installed with yellow booster

WCY52 1.190 1.001 0.750 0.537 0.588 0.364

WCY53 1.236 1.012 0.750 0.537 0.619 0.409

WCY54 1.302 1.063 0.750 0.537 0.630 0.46

WCY55 1.370 1.140 0.750 0.537 0.714 0.499

WCY56 1.456 1.245 0.750 0.537 0.750 0.524

WCY57 1.190 0.979 0.893 0.666 0.326 0.257

WCY58 1.087 0.931 0.893 0.666 0.258 0.198

WCY59 1.061 0.891 0.893 0.666 0.199 0.162

WCY60 1.854 1.686 0.950 0.722 0.950 0.722

WCY61 1.741 1.524 0.940 0.683 0.940 0.666

WCY62 1.594 1.379 0.940 0.683 0.750 0.573

WCY63 1.500 1.297 0.940 0.683 0.750 0.481

WCY64 1.421 1.216 0.940 0.683 0.650 0.436

WCY65 1.360 1.147 0.940 0.683 0.562 0.382

WCY66 1.305 1.097 0.940 0.683 0.562 0.336

WCY67 1.270 1.054 0.940 0.683 0.450 0.315

WCY68 1.253 1.115 0.940 0.683 0.326 0.257

WCY69 1.187 1.059 0.940 0.683 0.262 0.204

WCY70 1.130 1.013 0.940 0.683 0.204 0.162

WCY71 2.216 2.074 1.133 0.907 1.156 0.947

WCY72 2.133 1.999 1.133 0.907 1.142 0.927

WCY73 2.098 1.946 1.133 0.907 1.142 0.907

WCY74 2.035 1.891 1.133 0.907 1.142 0.858

WCY75 1.969 1.822 1.133 0.889 0.927 0.763

WCY76 1.901 1.741 1.133 0.889 0.900 0.700

WCY77 1.829 1.677 1.133 0.889 0.750 0.575

WCY78 1.750 1.599 1.133 0.889 0.729 0.525

WCY79 1.670 1.526 1.133 0.889 0.722 0.364

WCY80 1.610 1.466 1.133 0.889 0.608 0.364

WCY81 1.555 1.411 1.133 0.889 0.608 0.364

WCY82 1.506 1.362 1.133 0.889 0.436 0.324

WCY83 1.440 1.288 1.133 0.889 0.398 0.257

WCY84 1.369 1.221 1.133 0.889 0.333 0.203

WCY85 1.306 1.158 1.133 0.889 0.258 0.162

WCY86 2.496 2.332 1.250 0.893 1.250 1.000

WCY87 2.418 2.251 1.250 0.893 1.250 0.856

WCY88 2.354 2.194 1.250 0.893 1.211 0.971

WCY89 2.297 2.137 1.250 0.893 1.200 0.923

WCY90 2.238 2.083 1.250 0.893 1.159 0.868

WCY91 2.173 2.013 1.250 0.893 1.130 0.856

WCY92 2.104 1.950 1.250 0.893 0.904 0.720

WCY93 2.029 1.869 1.250 0.893 0.900 0.700

WCY94 1.967 1.831 1.250 0.893 0.750 0.588

WCY95 1.888 1.728 1.250 0.893 0.722 0.525

WCY96 1.811 1.648 1.250 0.893 0.609 0.364

WCY97 1.748 1.591 1.250 0.893 0.598 0.385

WCY98 1.695 1.533 1.250 0.893 0.598 0.364

WCY99 1.644 1.489 1.250 0.893 0.398 0.324

J-7

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Overhead Distribution and Transmission

Wedge Tap Connectors

BURNDY WEJTAP™

SELECTION CHART

By Diameter

Catalog

Number

Sum of Diameters Run Tap

Max Min Max Min Max Min

Installed with yellow booster

WCY100 1.572 1.400 1.250 0.893 0.351 0.257

WCY101 1.503 1.343 1.250 0.893 0.261 0.204

WCY102 1.454 1.284 1.250 0.893 0.198 0.162

WCY103 2.604 2.484 1.302 1.242 1.302 1.242

WCY104 2.567 2.407 1.302 1.242 1.265 1.165

WCY105 2.489 2.329 1.302 1.242 1.187 1.087

WCY106 2.418 2.258 1.302 1.242 1.116 1.016

WCY107 2.373 2.213 1.302 1.242 1.071 0.971

WCY108 2.318 2.158 1.302 1.242 1.016 0.916

WCY109 2.255 2.095 1.302 1.242 0.953 0.853

WCY110 2.179 2.019 1.302 1.242 0.877 0.777

WCY111 2.102 1.942 1.302 1.242 0.800 0.700

WCY112 2.044 1.884 1.302 1.242 0.742 0.642

WCY113 1.961 1.801 1.302 1.242 0.659 0.559

WCY114 1.940 1.740 1.350 1.242 0.590 0.498

WCY115 1.863 1.663 1.350 1.242 0.513 0.421

WCY116 1.812 1.612 1.350 1.242 0.462 0.370

WCY117 1.762 1.562 1.350 1.242 0.412 0.320

WCY118 1.703 1.503 1.350 1.242 0.353 0.261

WCY119 1.631 1.431 1.350 1.242 0.281 0.189

WCY120 1.580 1.380 1.350 1.242 0.230 0.138

WCY121 2.844 2.642 1.422 1.314 1.422 1.328

WCY122 2.764 2.562 1.422 1.314 1.342 1.248

WCY123 2.680 2.479 1.422 1.314 1.258 1.164

WCY124 2.596 2.394 1.422 1.314 1.174 1.080

WCY125 2.535 2.333 1.422 1.314 1.113 1.019

WCY126 2.481 2.279 1.422 1.314 1.059 0.965

WCY127 2.426 2.224 1.422 1.314 1.004 0.910

WCY128 2.376 2.174 1.422 1.314 0.954 0.860

WCY129 2.286 2.084 1.422 1.314 0.864 0.770

WCY130 2.216 2.014 1.422 1.314 0.794 0.700

WCY131 2.152 1.950 1.422 1.314 0.730 0.636

WCY132 2.070 1.868 1.422 1.314 0.648 0.554

WCY133 1.990 1.786 1.422 1.314 0.568 0.472

WCY134 1.931 1.729 1.422 1.314 0.509 0.415

WCY135 1.876 1.674 1.422 1.314 0.454 0.360

WCY136 1.831 1.629 1.422 1.314 0.409 0.315

WCY137 1.771 1.569 1.422 1.314 0.349 0.255

WCY138 1.706 1.504 1.422 1.314 0.284 0.190

WCY139 1.664 1.462 1.422 1.314 0.242 0.148

WCY140 3.045 2.090 1.533 1.471 1.547 1.471

WCY145 2.596 2.534 1.533 1.032 1.094 1.032

J-8

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Overhead Distribution and Transmission

Wedge Tap Connectors

WEJTAP™

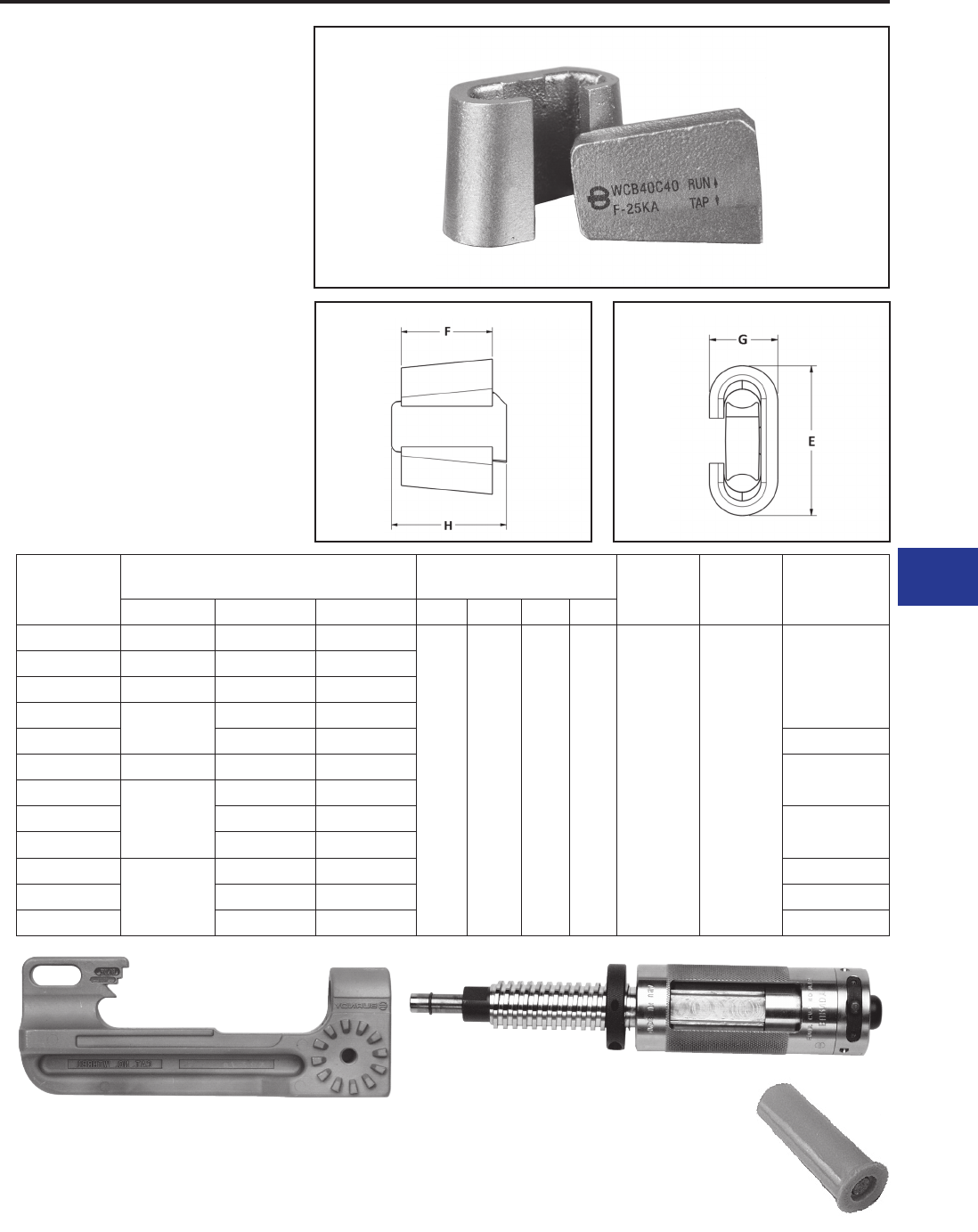

COPPER WEJTAPTM

CONNECTION SYSTEM

The BURNDY® Copper WEJTAP™ powder

actuated copper connectors are designed for

overhead copper to copper tap applications.

Features include:

• Newly expanded range taking

capabilities

• New larger size connector for #6 - #2

applications

• Uses standard BURNDY® WEJTAP™ tooling

without the need for installation platforms

• Meets latest ANSI C119.4 (2011)

including optional fault current test annex

• Prelled with PENETROX™ E to

improve the performance over the life of the

connection

Catalog

Number

Copper Conductor Dia.

Accommodated (in) Dimensions Tooling

Installation

Booster

Color

Fault Current

Rating (KA)

Run Range Tap Range Sum Range E F G H

WCB4C4 0.162 - 0.258 0.162 - 0.232 0.324 - 0.464

2.40 1.63 1.02 2.05 WTHRB-1S Blue

12.50

WCB2C2 0.258 - 0.368 0.162 - 0.292 0.452 - 0.600

WCB10C2 0.292 - 0.376 0.162 - 0.292 0.524 - 0.665

WCB20C2 0.300 - 0.430 0.162 - 0.292 0.576 - 0.734

WCB20C20 0.300 - 0.414 0.710 - 0.844 25.00

WCB30C2 0.360 - 0.516 0.162 - 0.292 0.622 - 0.775 12.50

WCB40C2

0.375 - 0.538

0.162 - 0.292 0.680 - 0.822

WCB40C20 0.330 - 0.464 0.814 - 0.952 25.00

WCB40C40 0.375 - 0.538 0.936 - 1.072

WCB250C2

0.435 - 0.574

0.162 - 0.292 0.730 - 0.875 12.50

WCB250C20 0.293 - 0.430 0.875 - 1.033 25.00

WCB250C250 0.431 - 0.574 1.033 - 1.150 38.00

J-9

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Overhead Distribution and Transmission

Wedge Tap Connectors

BURNDY Catalog Number:

WCB4C4

BURNDY Catalog Number:

WCB40C2

BURNDY Catalog Number:

WCB2C2

BURNDY Catalog Number:

WCB40C20

BURNDY Catalog Number:

WCB10C2

BURNDY Catalog Number:

WCB40C40

BURNDY Catalog Number:

WCB20C2

BURNDY Catalog Number:

WCB250C2

BURNDY Catalog Number:

WCB20C20

BURNDY Catalog Number:

WCB250C20

BURNDY Catalog Number:

WCB30C2

BURNDY Catalog Number:

WCB250C250

RUN TAP

#6 CU SOL

#6 CU STR

#4 CU SOL

#4 CU STR

#2 CU SOL

#6 CU SOL

#6 CU SOL - #6 CU STR

#6 CU SOL - #4 CU SOL

#4 CU STR - #6 CU SOL

#6 CU SOL - #6 CU STR

RUN TAP

4/0 CU STR #6 CU SOL - #2 CU STR

RUN TAP

#2 CU SOL

#2 CU STR

1/0 CU STR

#4 CU SOL - #2 CU SOL

#6 CU SOL - #2 CU STR

#6 CU SOL - #4 CU STR

RUN TAP

3/0 CU STR

4/0 CU STR

1/0 CU STR - 3/0 CU STR

1/0 CU STR - 2/0 CU STR

RUN TAP

#2 CU STR

1/0 CU SOL

1/0 CU STR

#4 CCS* - #2 CU STR

#6 CU SOL - #2 CU STR

#6 CU SOL - #2 CU STR

RUN TAP

4/0 CU STR 4/0 CU SOL - 4/0 CU STR

RUN TAP

1/0 CU STR

2/0 CU STR

#2 CU SOL - #2 CU STR

#6 CU SOL - #2 CU STR

RUN TAP

250 CU STR #6 CU SOL - #2 CU STR

RUN TAP

1/0 CU STR

2/0 CU STR

1/0 CU STR

1/0 CU STR - 2/0 CU STR

RUN TAP

250 CU STR 1/0 CU STR - 2/0 CU STR

RUN TAP

4/0 CU SOL #6 CU SOL - #2 CU STR

RUN TAP

250 CU STR 4/0 CU SOL - 250 CU STR

* Copper Clad Steel

J-10

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Overhead Distribution and Transmission

Wedge Tap Connectors

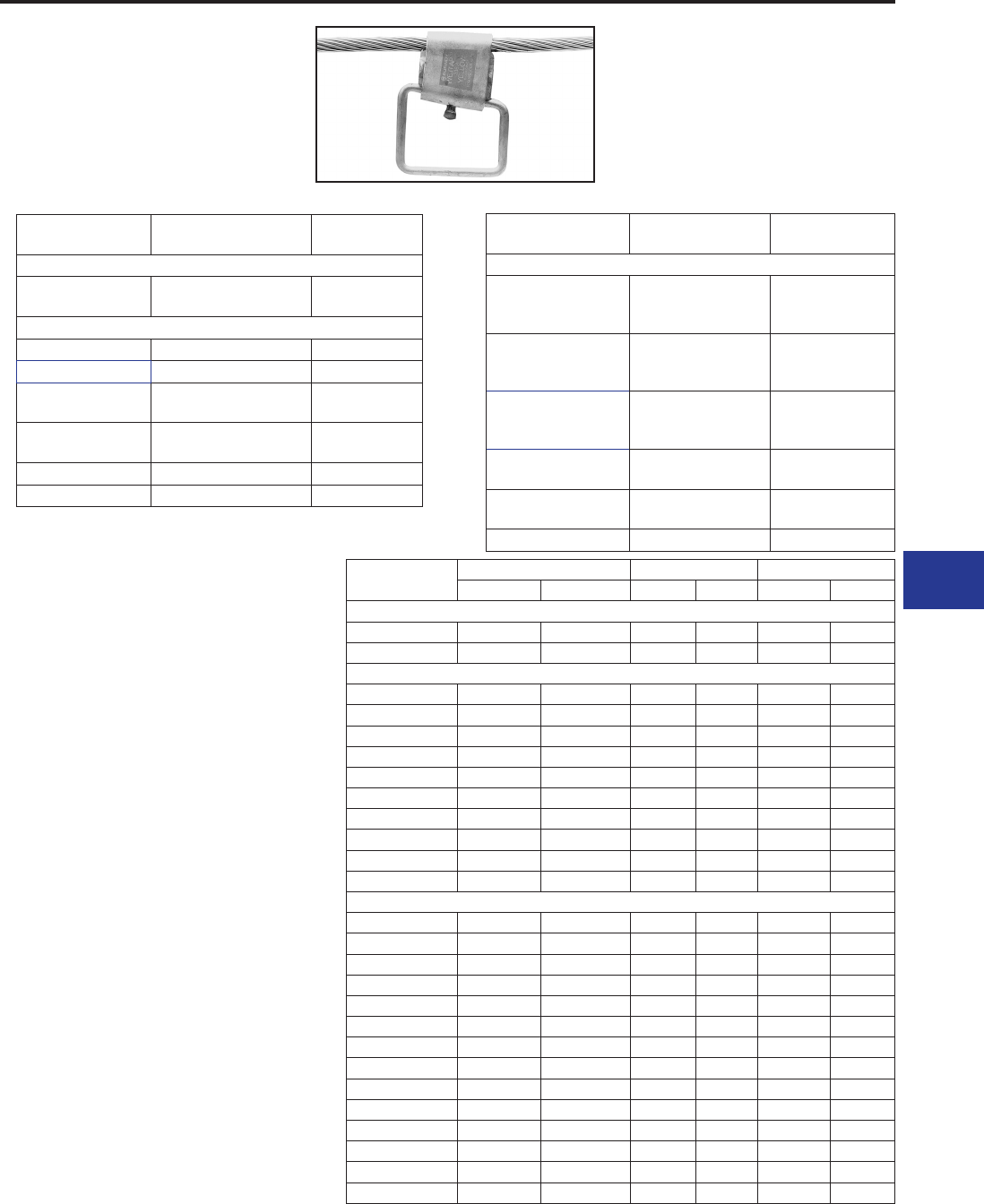

WEJTAP™

STIRRUP™ AND

POWER BOOSTERS

(Large) Run Conductor position is identied on all

wedges via a distinct chamfer.

Catalog

Number

Sum of Diameters Run Tap

Max. Min. Max. Min. Max. Min.

Small stirrups

WSS1 0.454 0.412 0.204 0.162 0.250 0.250

WSS2 0.575 0.456 0.325 0.206 0.250 0.250

Medium sized stirrups

WSM1 0.697 0.575 0.447 0.325 0.250 0.250

WSM10 0.887 0.784 0.563 0.460 0.324 0.324

WSM2 0.752 0.615 0.502 0.365 0.250 0.250

WSM3 0.813 0.660 0.563 0.410 0.250 0.250

WSM4 0.938 0.835 0.563 0.460 0.375 0.375

WSM5 0.892 0.787 0.642 0.537 0.250 0.250

WSM6 0.968 0.861 0.642 0.537 0.324 0.324

WSM7 1.008 0.898 0.684 0.574 0.324 0.324

WSM8 0.934 0.824 0.684 0.574 0.250 0.250

WSM9 0.771 0.649 0.447 0.325 0.324 0.324

Large stirrups

WSL1 1.050 0.927 0.726 0.603 0.324 0.324

WSL10 1.479 1.389 1.019 0.929 0.460 0.460

WSL11 1.394 1.304 1.019 0.929 0.375 0.375

WSL12 1.515 1.399 1.140 1.024 0.375 0.375

WSL13 1.600 1.484 1.140 1.024 0.460 0.460

WSL14 1.708 1.606 1.248 1.146 0.460 0.460

WSL2 0.976 0.853 0.726 0.603 0.250 0.250

WSL3 1.186 1.063 0.726 0.603 0.460 0.460

WSL4 1.186 1.046 0.862 0.722 0.324 0.324

WSL5 1.237 1.097 0.862 0.722 0.375 0.375

WSL6 1.322 1.182 0.862 0.722 0.460 0.460

WSL7 1.251 1.170 0.927 0.846 0.324 0.324

WSL8 1.302 1.221 0.927 0.846 0.375 0.375

WSL9 1.387 1.306 0.927 0.846 0.460 0.460

Catalog

Number

Nominal Cable

Range

Bail

Size

Small Red Cable Range 6-2

WSS1

WSS2

6

5, 4, 2 2

Medium Blue Cable Range 1-300

* WSM1 2, 1, 1/0, 2/0 2

WSM2 2/0, 3/0 2

WSM3

WSM4 3/0 - 4/0 2

2/0

WSM5

WSM6 266.8 2

1/0

WSM7 350 1/0

WSM11 266.8 - 336.4 4/0

Catalog

Number

Nominal Cable

Range

Bail

Size

Large Yellow Cable Range 300-1033.5

WSL1

WSL2

WSL3

336.4

1/0

2/0

4/0

WSL4

WSL5

WSL6

397.5 - 477

1/0

2/0

4/0

WSL7

WSL8

WSL9

556.5

1/0

2/0

4/0

WSL10

WSL11 636 4/0

2/0

WSL12

WSL13 795 2/0

4/0

WSL14 1033.5 4/0

QIK Selector - for common ACSR, Aluminum and Copper Conductors

BURNDY WEJTAP™

STIRRUP™

SELECTION CHART

By Diameter

* WSM1 now accepts #2 conductor

J-11

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Overhead Distribution and Transmission

Wedge Tap Connectors

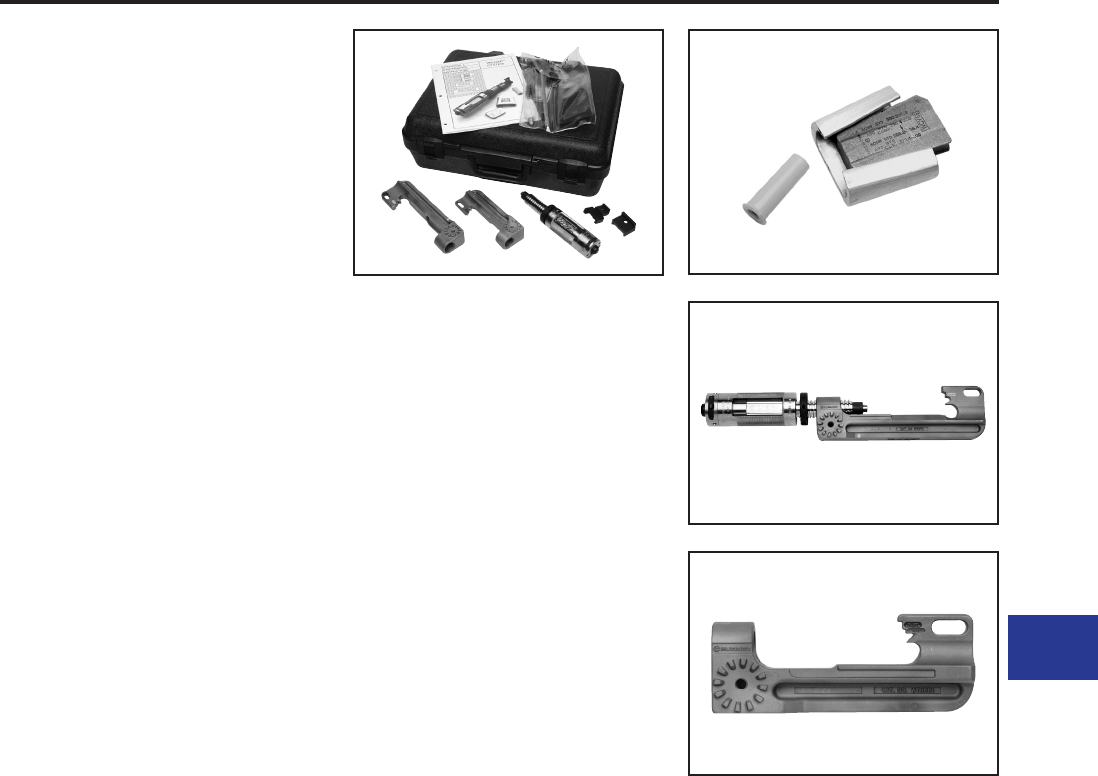

WEJTAP™

INSTALLATION

TOOLS

Type WTB Type WTHRB1S Type WTHY1S

The WEJTAP™ patented tool body is a one-piece

assembly basic drive mechanism used to install

WEJTAP™ and STIRRUP™ connectors ranging

from #8 AWG through 1590 kcmil ACSR.

WEJTAP™ removal clip for red type II and medium

(blue coded) tap connectors used with type

WTHRB tool head.

WEJTAP™ removal clip for large (yellow coded)

tap connectors used with type WTHY tool head.

WEJTAP™ tool cleaning/maintenance kit for use

with type WTB tool body.

WEJTAP™ ram replacement assembly.

WEJTAP™ tool head operating platform for small

and medium range (red/blue coded) connectors.

WEJTAP™ tool head operating platform

for medium and large range (yellow coded)

connectors.

WEJTAP™

INSTALLATION TOOL

ACCESSORIES

Type WTOCBR Type WTOCY Type WTCK

Type WTBASY1

J-12

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Overhead Distribution and Transmission

Wedge Tap Connectors

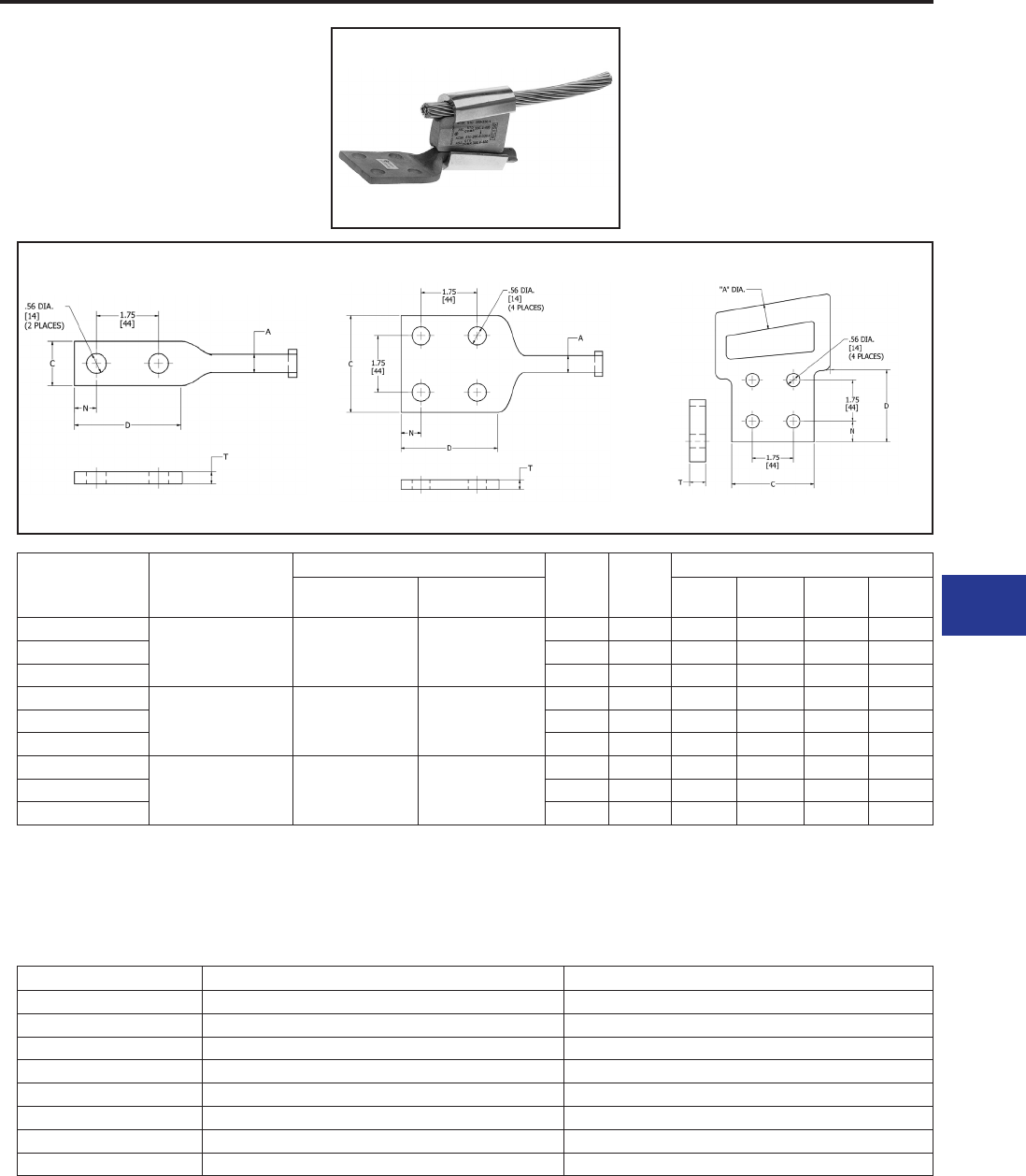

WEJTAP™

POWERLUG™

WEJTAP™ POWERLUG™ terminals are made of

cast aluminum alloy for termination of ACSR and

Aluminum conductors.

2 Hole POWERLUG™ 4 Hole POWERLUG™ 4 Hole Flag

Catalog

Number

Tap Groove

for Connector

Selection

Standard Conductor Figure

No.

Holes

in Pad

Dimension

ACSR ASC/AAC C D N T

WCAB30R-2N 4/0 Standard

ACSR

(.563 in OD)

6 Str. - 266.8 6 Str. - 300

1 2 1-1/4 3 5/8 0.34

WCAB30R-4N 2 4 3 3 5/8 0.30

WCBB30R-4N 3 4 3 3 5/8 0.30

WCAY39R-2N 336.4 Standard ACSR

(.721 in OD) 266.8 - 556.5 336.4 - 636

1 2 1-3/4 3 5/8 0.34

WCAY39R-4N 2 4 3 3 5/8 0.30

WCBY39R-4N 3 4 3 3 5/8 0.30

WCAY49R-2N 795 Standard ACSR

(1.108 in OD) 605 - 1033.5 715.5 - 1113

1 2 1-3/4 3-1/2 7/8 0.69

WCAY49R-4N 2 4 3-1/2 3-1/2 7/8 0.69

WCBY49R-4N 3 4 3-1/2 3-1/2 7/8 0.69

NOTE: The recommended connector and booster are ordered separately.

Catalog number is for the POWERLUG™ only. Use the Tap Groove

Connector diameter, along with the application run conductor diameter, to

choose the correct WEJTAPTM connector.

* Electrically, the three smaller conductors are the likely taps, however,

during installation, they are located in the larger run groove due to their

larger aggregate sum.

Connector *Run Groove *Tap Groove

WCY 64 PB Three - 1/0 ACSR (6/1) Diameter = 0.398 One - 4/0 ACSR (6/1) Diameter = 0.563

WCY 65 PB Three - 1/0 ACSR (6/1) Diameter = 0.398 One - 3/0 ACSR (6/1) Diameter = 0.502

WCY 63 PB Three - 2/0 ACSR (6/1) Diameter = 0.447 One - 4/0 ACSR (6/1) Diameter = 0.563

WCB 11 PB Three - #4 stranded Diameter = 0.232 One - 1/0 ACSR (6/1) Diameter = 0.398

WCY 54 PB Three - 1/0 stranded Diameter = 0.368 One - 4/0 stranded Diameter = 0.522

WCY 53 PB Three - 1/0 stranded Diameter = 0.368 One - 3/0 stranded Diameter = 0.464

WCY 64 PB Three - 2/0 stranded Diameter = 0.414 One - 4/0 stranded Diameter = 0.522

WCB 11 PB Three - #4 stranded Diameter = 0.232 One - 1/0 stranded Diameter = 0.368

MULTIPLE CONDUCTOR TAP APPLICATION

c

Fig. 1 Fig. 2 Fig. 3

J-13

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Overhead Distribution and Transmission

Wedge Tap Connectors

WEJTAP™ HOTSTICK

ACCESSORIES

Type WHSCWH

Type WHSPBC

Type WHSSADP

Type WHSWHADP

Type WCHAWAS

Type WHSTA

Type WHSWB

Type WHSGB

Type WHHWB

WEJTAP™ hotstick connector clamp used to

hold the tap connector spring-body and wedge

for installation on energized lines with the shotgun

hotstick.

WEJTAP™ hotstick dual cable clamp used to hold

run and tap conductors in position during hotline

installation. Universal for all applications from #8-

1272 ACSR.

WEJTAP™ hotstick spring loaded 90 degree

adapter, used to attach tool to universal hot-stick

for hotline installations.

WEJTAP™ hotstick angle wedge holder adapter

attaches wedge clamp to universal hotstick for

hotline installation.

WEJTAP™ hotstick angle wedge holder adapter

attaches wedge clamp to universal hotstick for

hotline installation with shotgun stick.

WEJTAP™ hotstick tool (actuator) hammer

attaches to the universal hotstick for striking the

tool actuator button to complete the installation.

WEJTAP™ hotstick wirebrush attaches to

the universal hotstick for cleaning the contact

surface of the line conductor.

WEJTAP™ hotstick breech drive. Geared

shotgun hotstick adapter easily latches to

the breech end of WEJTAP™ installation tool

without disassembly for use on energized lines.

WEJTAP™ hand-held wire brush for cleaning

surface contact areas on non-energized

conductors.

J-14

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Overhead Distribution and Transmission

Wedge Tap Connectors

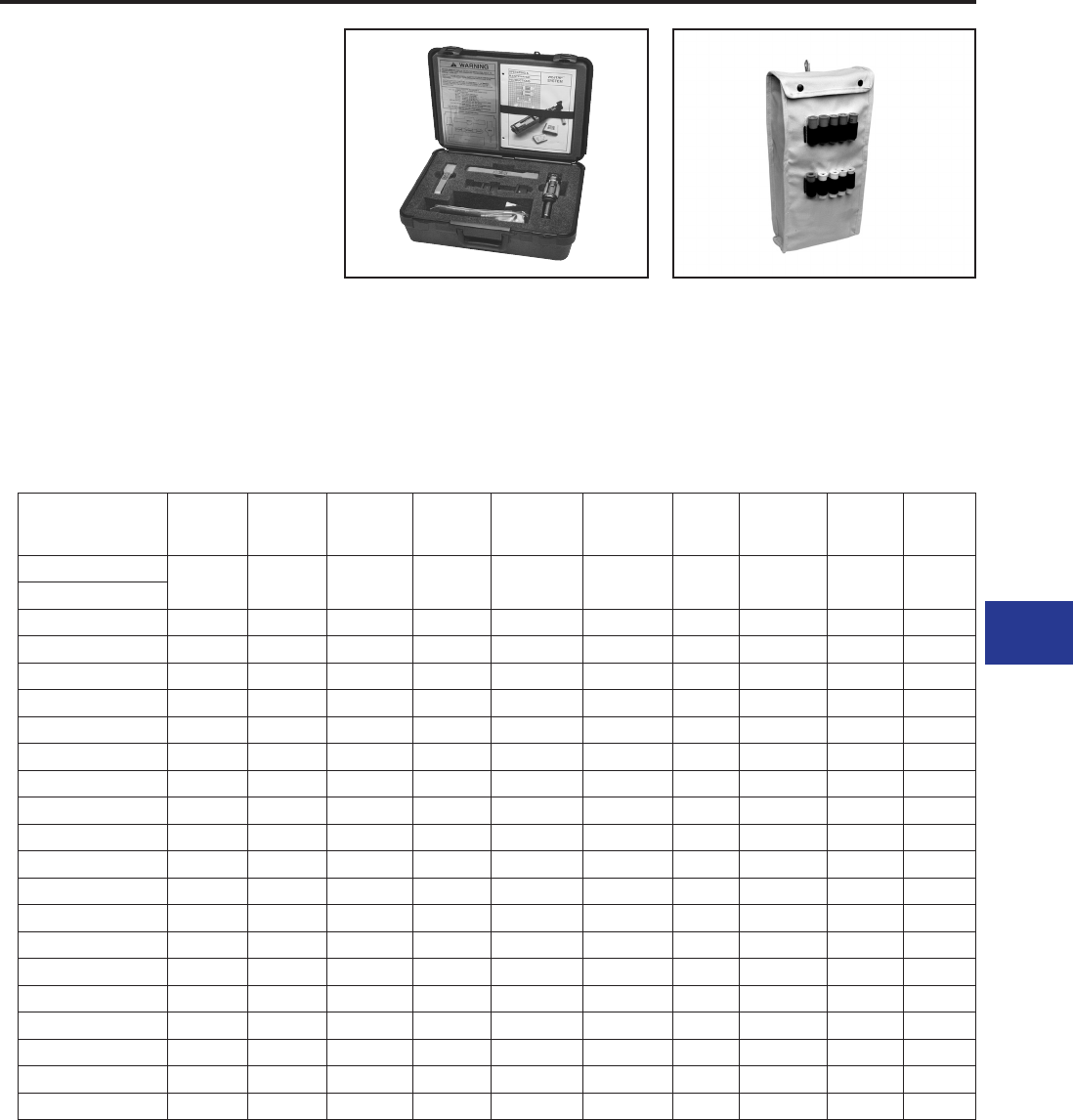

WEJTAP™ KIT

ORDERING

INSTRUCTIONS

Type WTCC

(Carrying Case Only)

Type WABAG

WEJTAP™ plastic carrying case. Designed

for rugged use in all weather conditions. It

accommodates WEJTAP™ installation tool,

removal clips, and cleaning kit.

WEJTAP™ accessories bag is designed for

use in carrying installation tool(s), removal clips,

and cleaning kit. Hotstick accessories may

be accommodated as well. Holders for power

boosters are conveniently located on

the outside of the bag.

*Non-Hot

Stick

Power Unit

Hot

Stick

Power Unit

Self-

Firing

Tool

Large

Frame

(Yellows)

Large

Frame

Take Off Clip

Small

Frame

(Red, Blue)

Cleaning

Kit

Small

Frame

Take Off Clip

Molded

Carrying

Case

Canvas

Style

Tool Bag

Component WTBNHS WTB WTBGBW WTHY-1S WTOCY WTHRB-1S WTCK WTOCBR WTCC WABAG

Kit Catalog No.

WT2B2RBYWABAG 2 1 1 1 1 1 1

WT2BRBYWABAG 2 1 1 1 1

WTRBYK 1 1 1 1 1 1 1

WTRBYKNHS 1 1 1 1 1 1 1

WTYK 1 1 1 1

WTYKNHS 1 1 1 1

WTRBK 1 1 1 1 1

WTRBKNHS 1 1 1 1 1

WT2BRBYK 2 1 1 1 1 1 1

WT2B2RBYK 2 1 1 2 1 1 1

WTY 1 1 1

WTRB 1 1 1

WTYWABAG 1 1 1 1 1

WTYKNHSBAG 1 1 1 1 1

WTRBWABAG 1 1 1 1 1

WTRBKNHSBAG 1 1 1 1 1

WTBGBWRBYK 1 1 1 1 1 1 1

WTRBYWABAG 1 1 1 1 1 1 1

WTRBYKNHSGAB 1 1 1 1 1 1 1

* Non-Hotstick power units do not contain features allowing activation with Hotsticks.

They are not upgradeable.

Contact your BURNDY® rep resentative for a WEJTAP™ demonstration

or contact the factory at 1-800-346-4175

J-15

BURNDY®

Blue highlighted items are industry standard and most frequently ordered.

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Overhead Distribution and Transmission

Wedge Tap Connectors

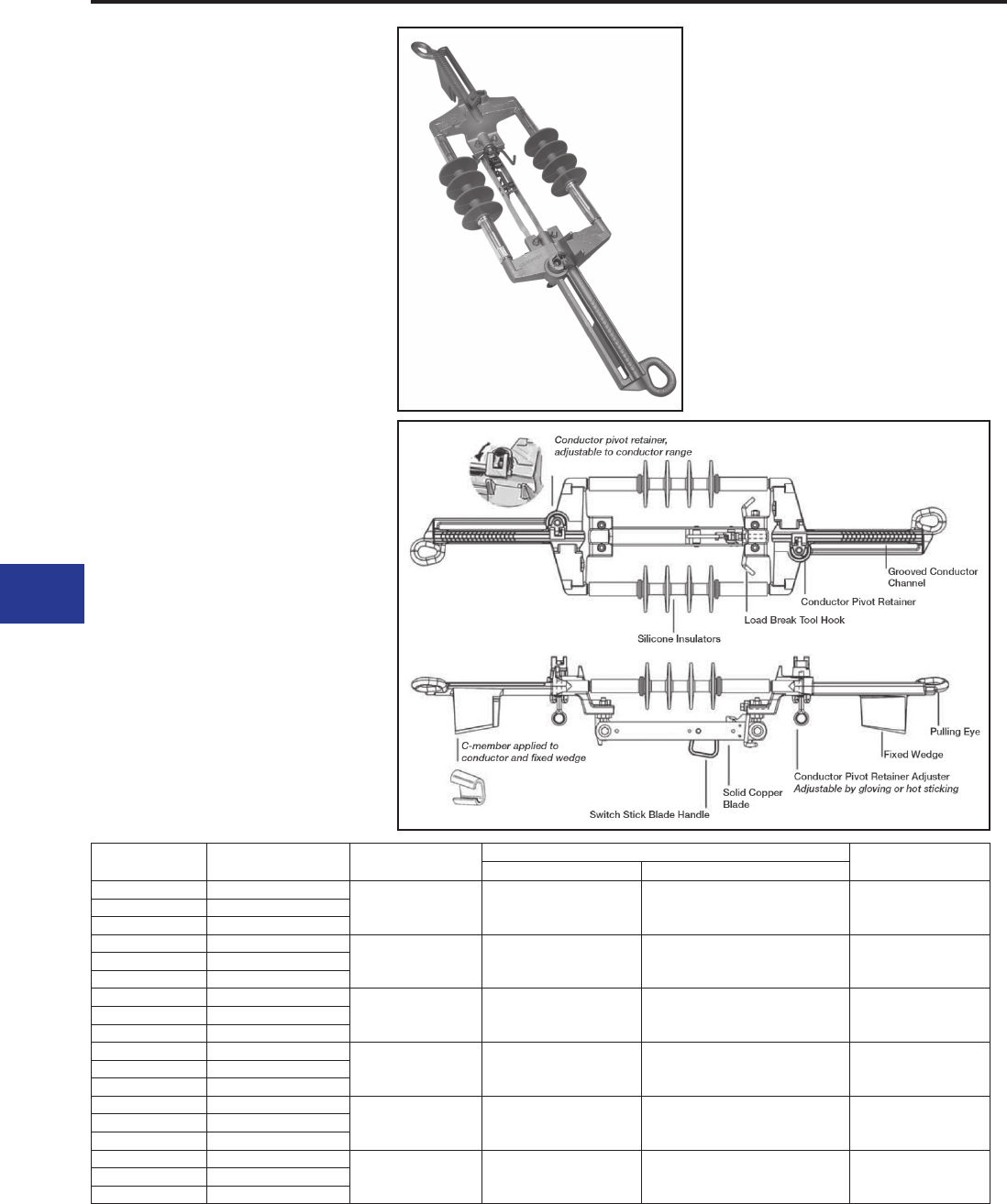

WEJTAP™ In-Line Disconnect

The BURNDY® In-Line Disconnect utilizes proven

WEJTAP™ Technology in combination with

industry standard components to provide reliable

performance of switch applications.

Catalog

Number

KV/BIL

Ratings

Conductor

Dia. Range

Common Conductors Replacement

Tap

ACSR AAC

WAD1015 15 kV/110 kV BIL

0.368″ - 0.502″ 1/0 (6/1), 2/0 (6/1),

3/0 (6/1) 1/0, 2/0, 3/0 WADRT 1WAD1029 29 kV/150 kV BIL

WAD1035 35 kV/200 kV BIL

WAD4015 15 kV/110 kV BIL

0.522″ - 0.609″ 4/0 (6/1),

266.8 (18/1)

4/0, 250,

266.8 (7 Str. , 19 Str.),

336 compact

WADRT 1WAD4029 29 kV/150 kV BIL

WAD4035 35 kV/200 kV BIL

WAD336-15 15 kV/110 kV BIL

0.642″ - 0.723″ 266.8 (26/7),

336.4 (18/1, 26/7)

336, 350, 397.5,

477 compact WADRT 2WAD477-15 29 kV/150 kV BIL

WAD556-15 35 kV/200 kV BIL

WAD336-29 15 kV/110 kV BIL

0.741″ - 0.814″

336.4 (30/7),

397.5 (All Str.),

477 (18/1)

477 (19 Str. , 37 Str.),

500 (19 Str. , 37 Str.),

556 compact

WADRT 1WAD336-35 29 kV/150 kV BIL

WAD477-29 35 kV/200 kV BIL

WAD477-35 15 kV/110 kV BIL

0.846″ - 0.883″ 477 (24/7, 26/7, 30/7),

556 (18/1) 556 (19 Str. , 37 Str.) WADRT 2WAD556-29 29 kV/150 kV BIL

WAD556-35 35 kV/200 kV BIL

WAD795-15 * 15 kV/110 kV BIL

0.953″ - 1.040″ 556 (30/7),

795 (36/1) 795 (37 Str. , 61 Str.) WADRT 3WAD795-29 * 29 kV/150 kV BIL

WAD795-35 * 35 kV/200 kV BIL

Voltage:

Current:

Short Circuit:

Strength:

Insulators:

Meets Industry

Standards:

15 kV (110 kV BIL),

29 kV (150 kV BIL),

35 kV (200 kV BIL)

900 Ampere RMS

Momentary Current 40,000

Ampere RMS, Asymmetrical

Three Second Current 25,000

Ampere RMS, Symmetrical

Body 10,000 lbs.

Pulling Eye 6,000 lbs.

Silicone

ANSI C119.4, C37.32

IEEE C37.30, C37.34

CSA C83.71

ASTM B117 Salt Fog

Product Specications

1. Utilizes WEJTAP™ connectors for

securing the switch to the distribution

line in tension applications.

2. Utilizes industry recognized and

proven GST&D Products, LTD. blade

components along with dual Advance

Rubber Products, Inc., Insulators

attached to a BURNDY® designed yoke

plate assembly.

3. WEJTAP™ In-Line Disconnect

designed for use in gloving and hot

stick applications in conjunction with an

industry standard load break tool.

4. Dual insulators minimize the switch

movement during opening and closing

of the blade.

5. Installation steps are minimized. The

switch can be snapped directly on the

line and secured with our conductor

pivot retainer, designed into the switch

frame.

6. WEJTAP™ tooling is used to secure

the “C Member” to the built-in wedge

feature of the frame. Providing reliable

mechanical and electrical performance.

7. The blade is positioned on the switch

to simplify cutting the conductor during

installation.

8. In-Line Disconnect is removable and

reuseable.

9. Other conductor sizes available. Please

contact factory.

J-16

* Contact Factory
