Splicing Accessories
HV-BRAID Ground Braid ............................. 262
HVS-MESH Shielding Mesh........................... 262
JGK-MS Jacketed Cable Ground Kits (5-35 kV) ........... 262
Cable Preparation Kit ................................ 263
HVS-GC Grounding Clamps........................... 263
HVS-LR Lead Sheath Repair Kits ...................... 264
Termination Accessories
BRKT-SS Cable Mounting Brackets..................... 265
EAKT-1520 Mounting Kits ............................ 265
MOD-S Skirts ...................................... 266
Conduit/Cable Sealing
RDSS Sealing System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Blank Duct Plug .................................... 268

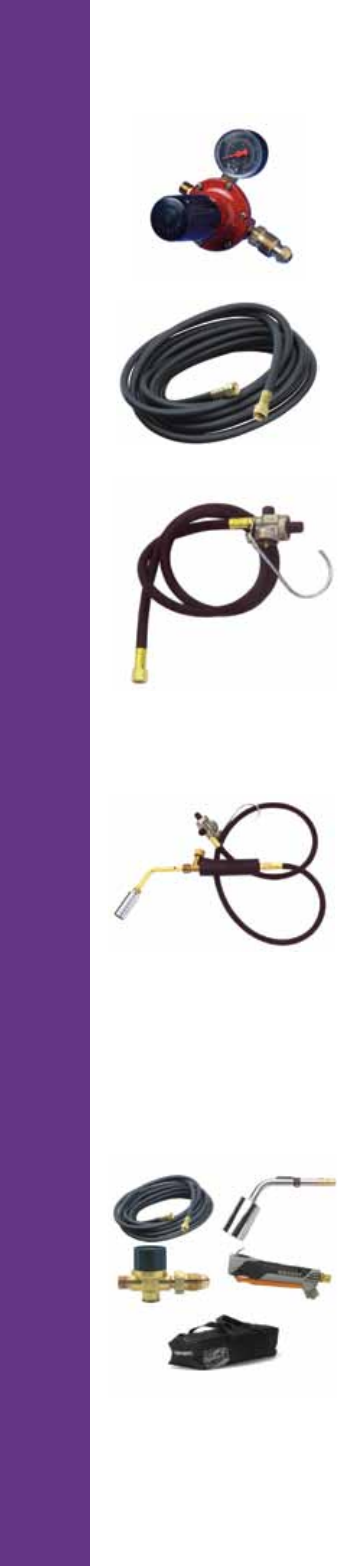

Torches & Heat Guns
Torches........................................... 269
Torch Accessories................................... 270
Torch Kits ......................................... 270
Heat Guns ........................................ 271

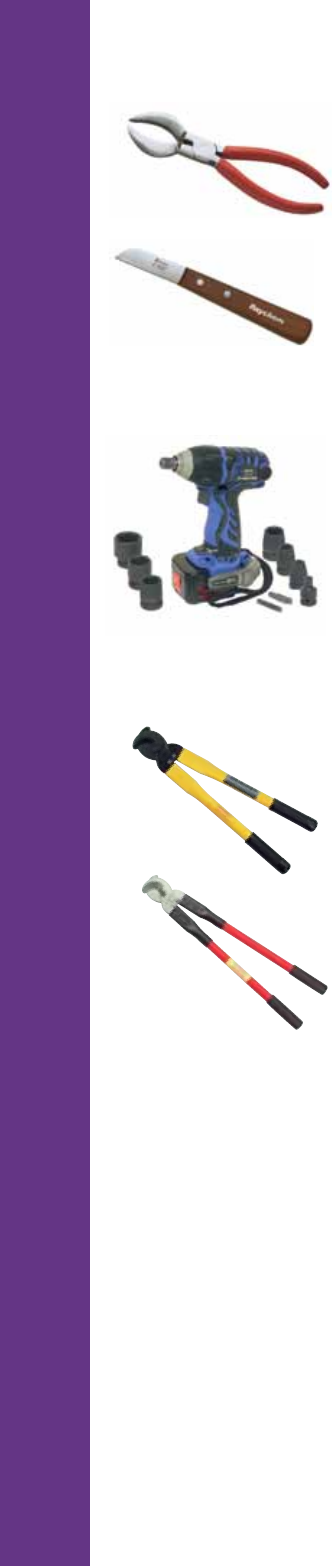

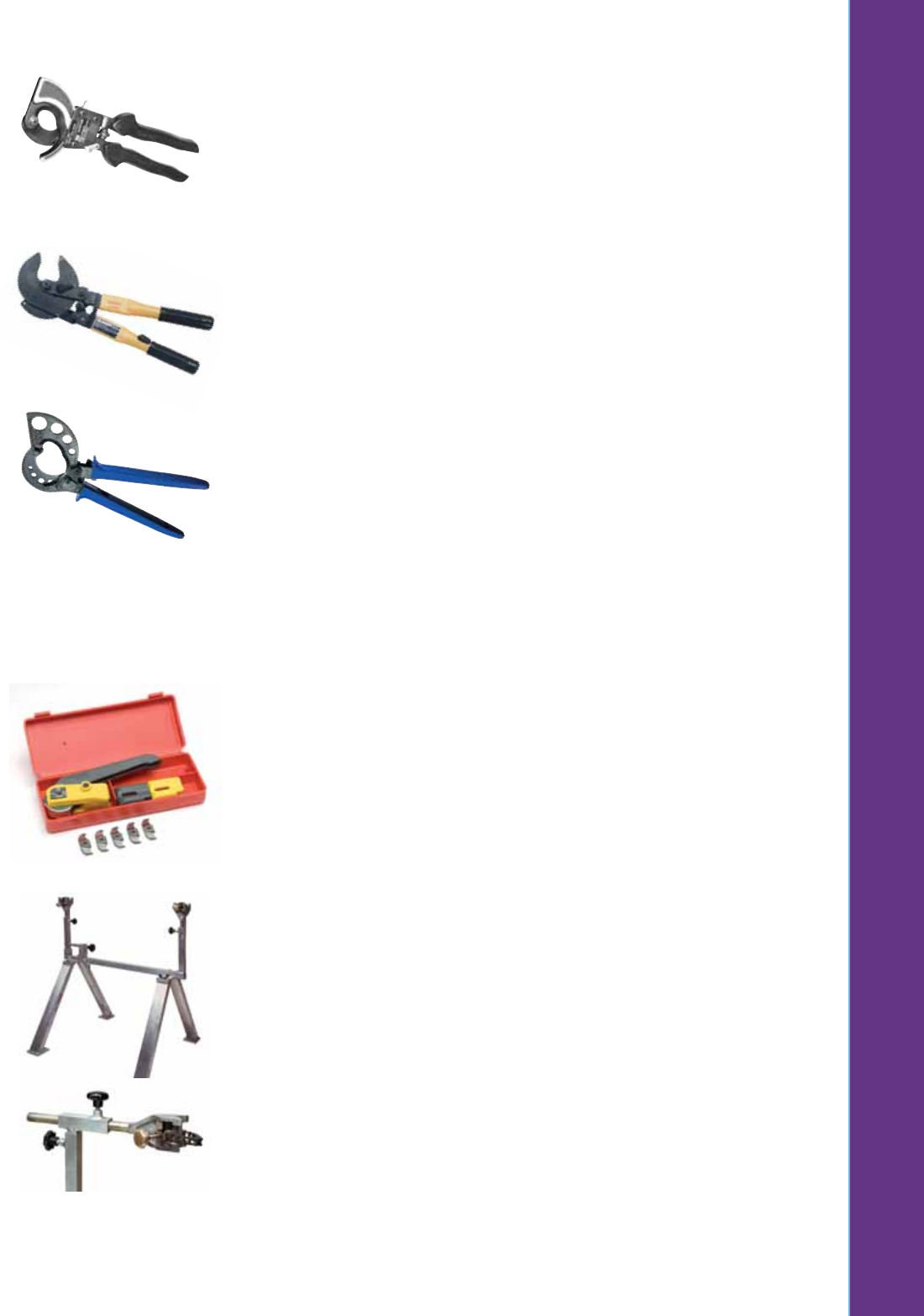

Tools
Splicing Tools ...................................... 272
Impact Wrench ..................................... 272
Wire Cutters ....................................... 272
Cable Cutters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Cable Vise ........................................ 273
Stripping Tools ..................................... 274
Tool Sets.......................................... 274
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 261 261
Splicing Accessories

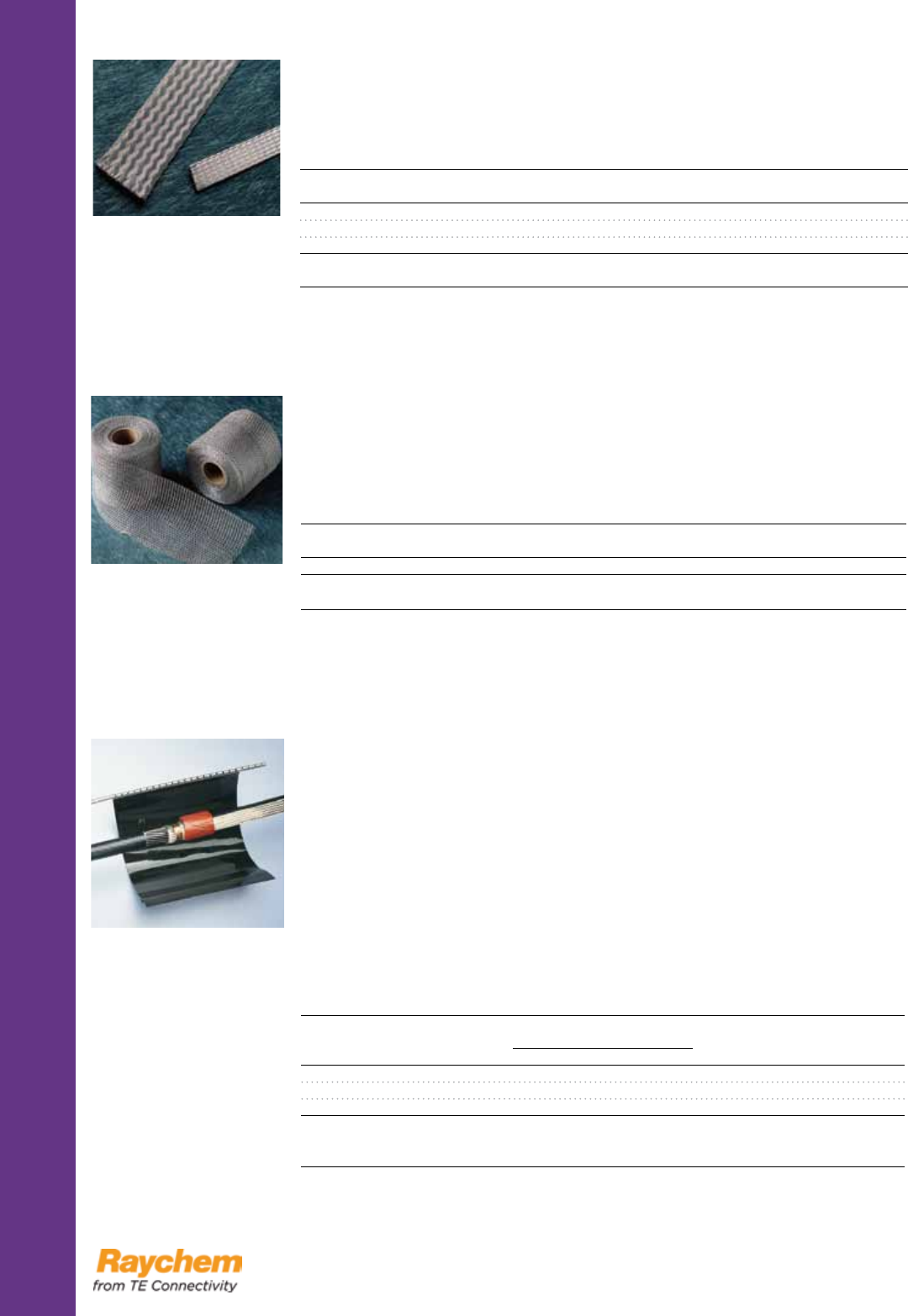

HV-BRAID
Ground Braid
Raychem HV-Braid is tinned copper braid, solder-blocked for use with HVS and HVT kits.
Selection Information: dimensions in inches (millimeters)
Braid Size Length of Std. Pack
Catalog Number (AWG) Moisture-Blocked Braid (pcs/box)
HV-BRAID-8-1520 #8 60 (1524) 3
HV-BRAID-6-1520 #6 60 (1524) 3
HV-BRAID-4-1520 #4 60 (1524) 3
Ordering Information
Order shielding mesh based on braid size.
C_HV_Braid
HVS-MESH
Shielding Mesh
Raychem HVS-MESH is used in conjunction with high-voltage ground braids to provide shield
continuity when splicing shielded power cables.
Selection Information: dimensions inches/feet (milimeters/meters)
Std. Pack
Catalog Number Width Length (Rolls/Box)
HVS-MESH-2-5000 2 (51) 16 (4.8) 4
Ordering Information
1. Order shielding mesh based on cable diameter and length of cable to be covered.
2. To apply shielding mesh, half-lap around cable.
C_HVS_Mesh
JGK-MS
The Raychem JGK-MS kit addresses the RUS recommendation to externally ground the jacketed
cable neutrals at least four times per mile to limit shield standing voltage, to avoid accidental shock,
and to provide multiple parallel return paths for line-to-ground faults.
• Heat-shrinkableJGK-MSkitsprovidecompleteenvironmentalsealingwithawraparound,
adhesive-lined rejacketing sleeve.
• Eachkitcontainsaconstant-forcegroundclamp,asolder-blockedgroundbraidforexternal
grounding, and a sealant to encapsulate and seal the ground connector.
• KitsareRUSacceptedandhavebeentestedtomeetthe10kA/10cyclesor15kA/15cyclefault
current test requirements.
• Wraparoundrejacketingsleevehasbeenwater-sealtestedtotheapplicablesectionsof
ANSI C 119.1.
Selection Information: dimensions in inches (millimeters)
Nominal Use Range (AWG/kcmil)
Catalog Number 15 kV 25 kV 35 kV Fault Current
JGK-MS-1 #4-4/0 #1-1/0  10kA,10cycles
JGK-MS-2 250-1000 1/0-750 1/0-500 15kA,15cycles
JGK-MS-3 1000-2000 750-1750 500-1500 15 kA, 15 cycles
Ordering Information
1. Standardpackage:3kits/box
2. Related test report: EDR-5242
C_JGK_MS
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 262
262
ACCESSORIES & TOOLS
Splicing Accessories

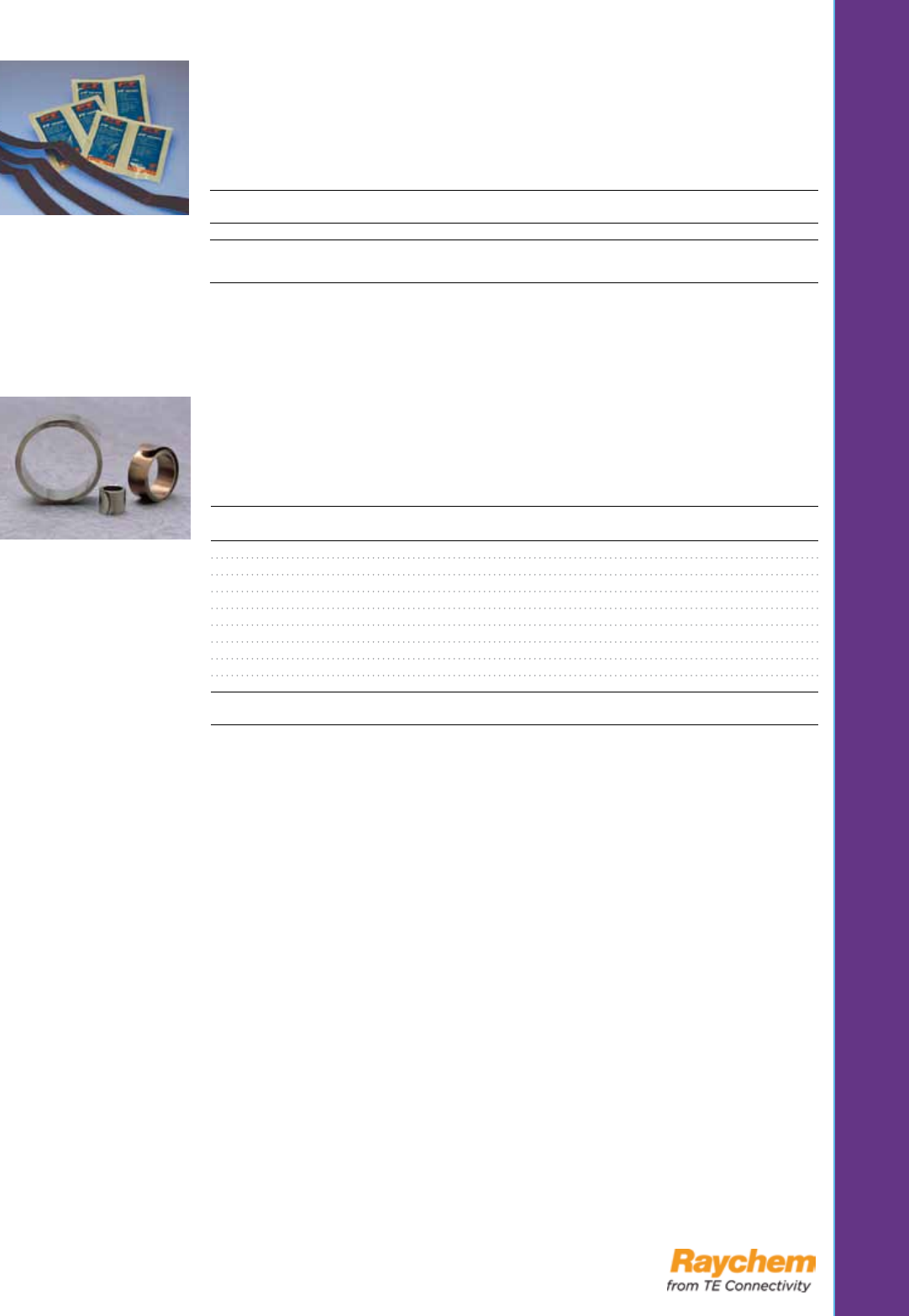

Cable Preparation Kit
P63
•RaychemP63cablepreparationkitscanbeusedwithallTEConnectivitycableaccessories
•UseP63kitstocleanandabradecableinsulation
Selection Information
Catalog Number Std. Pack (kits/box)
P63 12
Ordering Information
1. One kit contains six solvent wipes, six dry wipes and three strips of abrasive paper.
2. For splices, the number of prep kits vary depending upon size of cable and type of splice. For
terminations,oneprepkitwillcleanthreephases(one3/Cterminationorthree1/Cterminations).
3. Solvent wipes contain PT Technologies type PF cleaner.
C_P63
HVS-GC
Grounding Clamps
Raychem HVS-GC are used for securing ground brades when splicing or terminating power cables.
Selection Information: dimensions in inches (millimeters)
Catalog Number Use Range Std. Pack (Pcs./Box)
HVS-GC-0.5 0.5-1.0 (13-25) 100
HVS-GC-1.0 1.0-2.0 (25-51) 100
HVS-GC-1.5 1.5-3.0 (38-76) 50
EPPA-034-A 0.5-0.8 (12-20)
EPPA- 034-E 0.7-1.1 (17-29)
EPPA-034-F 1.2-1.5 (30-39)
EPPA-034-G 1.6-2.4 (40-60)
EPPA-034-H 2.0-3.0 (50-75)
EPPA-034-L 2.3-3.3 (57-85)
Ordering Information
1. Order ground clamps based on cable diameter.
2. Confirm size with use range.
C_HVS_SG
RAYCHEM cable accessories ALR photocontrols AMP connectors 263 263
Splicing Accessories
HVS-LR
The Raychem HVS-LR series kit offers a simple method of repairing lead sheath damage on paper-
insulated, lead-covered (PILC) cables.
• CombinesthestrengthanddurabilityofTEConnectivity’sRaychemMBSMwraparoundsleeve
with an effective oil-resistant sealing mastic.
• Testedtoandmeetthefollowingload-cyclingandpressuretestrequirementsindicatedinthe
chart below
Product Performance
Test Result
Current cycling at 110°C conductor temperature for 90 cycles
(5 hours on, 3 hours off) Pass
Applied pressure 15 psi
Maximum continuous conductor temperature 110°C
Selection Information: dimensions in inches (millimeters)
Application use
Catalog Number Nominal Sleeve Length Range (Min.–Max.)
HVS-LR-75/15-600 24(600) 0.65-2.65(17-67)
HVS-LR-75/15-1200 48(1200) 0.65-2.65(17-67)
HVS-LR-160/42-600 24(600) 1.80-5.70(46-144)
HVS-LR-160/42-1200 48(1200) 1.80-5.70(46-144)
HVS-LR-200/50-600 24(600) 2.15-7.10(55-180)
HVS-LR-200/50-1200 48(1200) 2.15-7.10(55-180)
Ordering Information
1. Be sure to look at both the cable jacket diameter and the lead sheath diameter when selecting
the HVS-LR kit.
2.Standardpackage:3kits/box
3. Related test report: EDR-5243
C_HVS_LR
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 264
264
ACCESSORIES & TOOLS
BRKT-SS
Cable Mounting Brackets
Raychem BRKT-SS cable mounting brackets are versatile and may be used outdoors. The brackets
are constructed of stainless steel and include all hardware.
• Suitableforuseonalltypesofcables
• Forusewithterminationsorotherapplicationswherecablemountsareneeded
• Includesamountingbracketandrubberpad
Selection Information: dimensions in inches (millimeters)
Catalog Number Cable Range O.D. Range
BRKT-1-SS 0.80-1.25 (20-32)
BRKT-2-SS 1.10-1.50 (28-38)
BRKT-3-SS 1.45-1.95 (37-50)
BRKT-4-SS 1.80-2.40 (46-61)
Ordering Information
1. Standardpackage:1bracket/box
2. Order brackets based on cable diameter, confirm size with
use range.
3. Related test report: NCTR-99-065
C_BRKT_SS
Rubber
pad
.5" bolt
hole
Mounting
bracket
2"
Termination Accessories
EAKT-1520
Mounting Kits
TE Connectivity Raychem offers a mounting bracket and support insulators for poletop mounting
of TE high voltage terminations. The EAKT-1520 series mounting kits provide a galvanized steel
bracket, three insulators for mounting outdoor terminations, and installation instructions.
The bracket is dip galvanized to meet outdoor requirements (BS 729). The insulators are lightweight
andshatterproof.TheycombineastrongandflexiblepolymericcorewithTE’sprovenhigh-voltage,
nontracking material.
• UsedwithTE’sRaychemhigh-voltageoutdoorterminationkits(15–35kV).
• IncludesagalvanizedsteelT-bracket,threeinsulatorsforpoletopmounting,and
installation instructions.
Front
Selection Information: dimensions in inches (millimeters)
Voltage Min. Mechanical Torque
Catalog Class Insulator Dimensions No. of Creepage Capabilities M12
Number (kV) P L A B Skirts Length Cantilever (ft. lb)
EAKT 1521 15 12.5 (310) 7.6 (195) 2.6 (65) 1.4 (35) 5 15.4 (390) 184 37
EAKT 1523 25 17.0 (430) 12.0 (305) 2.6 (65) 1.4 (35) 9 26.0 (660) 184 37
EAKT 1524 35 22.0 (560) 15.0 (380) 2.6 (65) 1.4 (35) 11 43.3 (1100) 516 37
Ordering Information
1. Standardpackage:1kit/box.
2. Related test reports: UVR-8150, UVR-8166
PA L
B
C_EAKT-1520
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 265 265

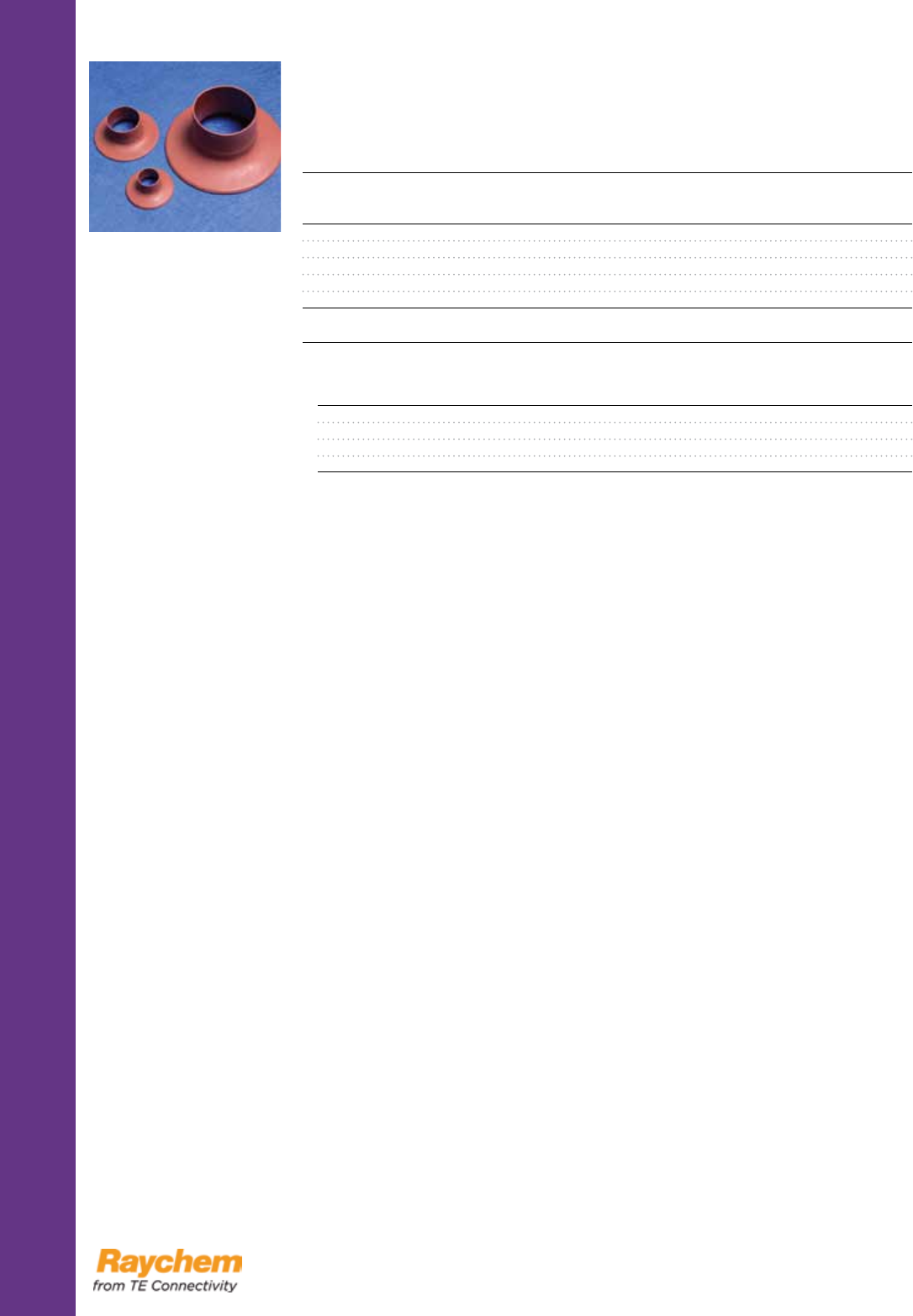

MOD-S Skirts
MOD-SSkirtsareusedwithTE’sRaychemhighvoltageterminationkitsforoutdoorapplications.
Selection Information: dimensions in inches (millimeters)
Cable Insulation Diameter Std. Pack
Catalog Number (Min.–Max.) (Skirts/Box)
MOD-S1-314-Skirts 0.35-0.55 (9-14) 6
MOD-S2-325-Skirts 0.60-1.25 (15-32) 6
MOD-S3-336-Skirts 0.85-1.75 (22-44) 6
MOD-S4-346-Skirts 1.15-2.45 (29-62) 6
MOD-S5-357-Skirts 2.00-3.30 (50-84) 6
Ordering Information
1. TE outdoor termination kits (-S) include appropriate number of skirts for the particular voltage.
2. See the table below for the number of skirts needed at each voltage.
Voltage HVT Number of Skirts HVT-Z Number of Skirts
5-8 kV 1 0
15 kV 2 1
25 kV 3 4
35 kV 4 4
C_MOD_S_Skirts
Termination Accessories
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 266
266

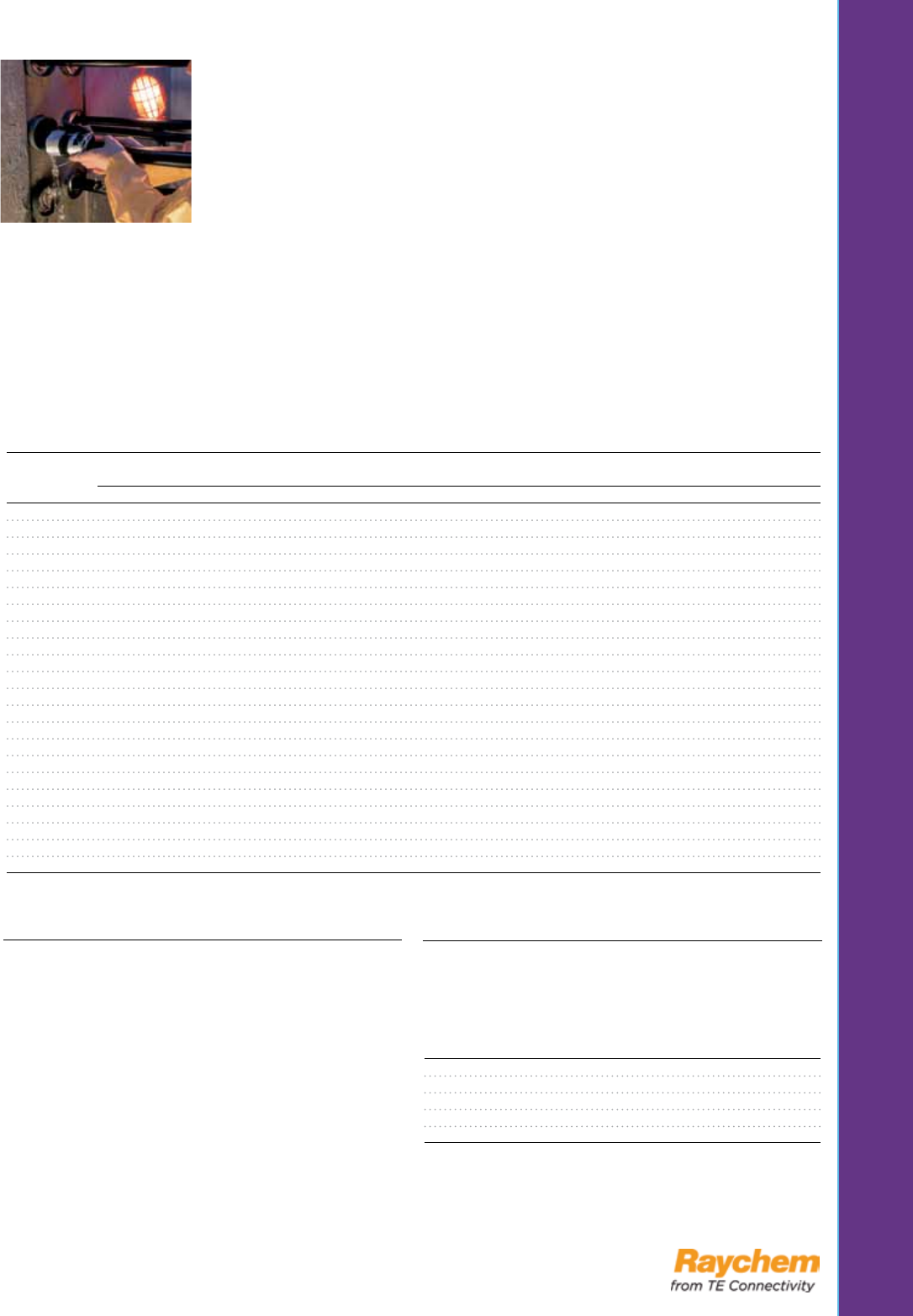

Conduit & Cable Sealing
RDSS Sealing System
Duct Sealing System
TE’SRaychemRDSSductsealingsystemhasbeendesignedforuseinconjunctionwithplastic,
concrete, or steel ducts to provide a watertight duct seal. The RDSS duct sealing system seals cable
ducts and helps to prevent flooding in cable vaults, access manholes, substation basements, and
customer feeds. It can be installed while the water is flowing—see photograph.
Provides Watertight Seal
The RDSS sealing system consists of an inflatable, sealed bladder of flexible, metallic laminate
material, which has pre-installed, high-temperature sealant strips on both sides. The bladder is first
inflated to 45 psi (three-bar) internal pressure, and then presses the sealant against the duct wall and
onto the substrate. The bag uses a self-sealing gel material to seal the filling hole when the filling tube
is removed.
Seals Multiple Cable Ducts
For applications with three or more cables, an RDSS-CLIP is inserted between the cables. The
RDSS-CLIP is a high-temperature mastic mounted on an installation stick. It seals the area between
the cables when used in conjunction with the RDSS inflatable bladder. Acceptable to use on medium
voltage cables including unjacketed concentric neutral.
Selection Information: dimensions in inches (millimeters)
Duct Inner Number of Cables in Duct / Maximum Cable Bundle Diameter
Diameter 0, 1, or 2 Cables 3 or 4 Cables 5, 6, or 7 Cables
1.25 (32) RDSS-45 0.5 (13) RDSS-45, 1 RDSS-CLIP-45 0.3 (8) RDSS-45, 2 RDSS-CLIP-45 0.1 (3 )
1.50 (38) RDSS-45 1.0 (25) RDSS-45, 1 RDSS-CLIP-45 0.8 (20) RDSS-45, 2 RDSS-CLIP-45 0.6 (15)
1.75 (45) RDSS-45 1.3 (32) RDSS-45, 1 RDSS-CLIP-45 1.05 (27) RDSS-45, 2 RDSS-CLIP-45 0.9 (22)
2.00 (50) RDSS-60 1.2 (30) RDSS-60, 1 RDSS-CLIP-75 1.0 (25) RDSS-60, 2 RDSS-CLIP-75 0.8 (20)
2.25 (57) RDSS-60 1.6 (41) RDSS-75, 1 RDSS-CLIP-75 1.4 (36) RDSS-75, 2 RDSS-CLIP-75 1.2 (31)
2.50 (64) RDSS-75 1.5 (38) RDSS-75, 1 RDSS-CLIP-75 1.3 (33) RDSS-75, 2 RDSS-CLIP-75 1.1 (28)
2.75 (70) RDSS-75 1.8 (46) RDSS-75, 1 RDSS-CLIP-75 1.6 (41) RDSS-75, 2 RDSS-CLIP-75 1.4 (36)
3.00 (75) RDSS-75 2.2 (56) RDSS-75, 1 RDSS-CLIP-75 2.0 (50) RDSS-75, 2 RDSS-CLIP-75 1.8 (46)
3.25 (83) RDSS-100 2.2 (56) RDSS-100, 1 RDSS-CLIP-100 2.0 (50) RDSS-100, 2 RDSS-CLIP-100 1.8 (46)
3.50 (89) RDSS-100 2.6 (66) RDSS-100, 1 RDSS-CLIP-100 2.4 (61) RDSS-100, 2 RDSS-CLIP-100 2.2 (56)
3.75 (95) RDSS-100 2.9 (74) RDSS-100, 1 RDSS-CLIP-100 2.7 (69) RDSS-100, 2 RDSS-CLIP-100 2.5 (64)
4.00 (100) RDSS-100 3.2 (80) RDSS-100, 1 RDSS-CLIP-100 3.0 (75) RDSS-100, 2 RDSS-CLIP-100 2.8 (70)
4.25 (108) RDSS-100 3.5 (89) RDSS-100, 1 RDSS-CLIP-100 3.3 (85) RDSS-100, 2 RDSS-CLIP-100 3.1 (79)
4.50 (114) RDSS-100 3.5 (89) RDSS-100, 1 RDSS-CLIP-100 3.3 (85) RDSS-100, 2 RDSS-CLIP-100 3.1 (79)
4.75 (121) RDSS-125 3.8 (97) RDSS-125, 1 RDSS-CLIP-125 3.6 (92) RDSS-125, 2 RDSS-CLIP-125 3.4 (87)
5.00 (125) RDSS-125 4.1 (104) RDSS-125, 1 RDSS-CLIP-125 3.9 (98) RDSS-125, 2 RDSS-CLIP-125 3.7 (93)
5.25 (133) RDSS-150† 4.3 (109) RDSS-150†, 1 RDSS-CLIP-150 4.1 (104) RDSS-150†, 2 RDSS-CLIP-150 3.9 (98)
5.50 (140) RDSS-150† 4.7 (120) RDSS-150†, 1 RDSS-CLIP-150 4.5 (114) RDSS-150†, 2 RDSS-CLIP-150 4.3 (109)
5.75 (146) RDSS-150† 4.9 (124) RDSS-150†, 1 RDSS-CLIP-150 4.7 (119) RDSS-150†, 2 RDSS-CLIP-150 4.5 (114)
6.00 (150) RDSS-150† 5.1 (129) RDSS-150†, 1 RDSS-CLIP-150 4.9 (124) RDSS-150†, 2 RDSS-CLIP-150 4.7 (120)
6.25 (159) RDSS-150† 5.4 (138) RDSS-150†, 1 RDSS-CLIP-150 5.2 (133) RDSS-150†, 2 RDSS-CLIP-150 5.0 (125)
6.50-8.00 (165-210) Ducts in this range require the use of RDSS-AD-210 adapter. Contact your TE representative for application information.
†See Ordering information.
Ordering Information
1. Inductswherethecable/cablebundleislessthan2.4”(60mm)
indiameter,anRDSS-AT/AP-150devicemustbeusedin
conjunction with the RDSS-150.
2. Standardpackage:RDSS=10kits/boxor3kits/box
RDSS-CLIP=5clips/box
 RDSS-TOOLS=1each/box,CO2cartridges=10each/box,
 RDSS-AT/AP-150=1each/box
3. Related test report: EDR-5253
4. S-1278 sealant, used in RDSS-CLIPS, is available separately.
5. For proper inflation do not exceed the maximum cable bundle
diameter (MCBD). To determine MCBD, use a diameter tape
or contact your TE representative for assistance.
C_RDSS
RDSS Sealing Clip
RDSS duct sealing clips are to be used if the duct is occupied by
more than two cables. The maximum number of cables sealed with
one RDSS-CLIP is four. If more cables are to be sealed, one extra
clip is needed for every three additional cables. Check with your TE
representative for applications with more than seven cables.
Catalog Number Kit Used With
RDSS-CLIP-45 RDSS-45
RDSS-CLIP-75 RDSS-75 and RDSS-60
RDSS-CLIP-100 RDSS-100
RDSS-CLIP-125 RDSS-125
RDSS-CLIP-150 RDSS-150
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 267 267
Conduit & Cable Sealing

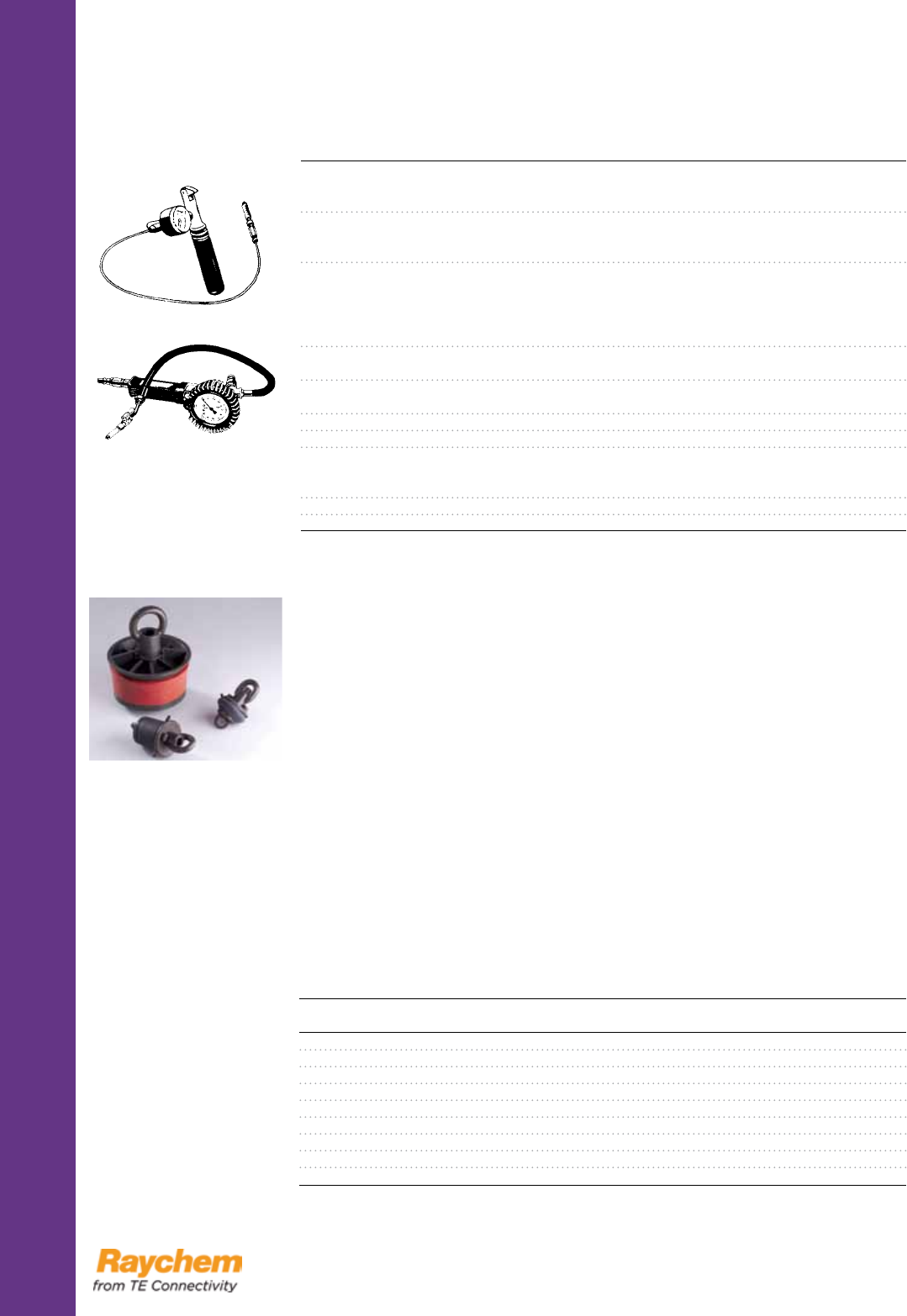

RDSS-IT-16
RDSS-IG-SR-AS
Catalog Number Description Std. Pack
RDSS-IT-16 InflationtooldesignedwithanON/OFFswitchandan 1tool/box
automatic pressure-monitoring system. The required CO2
gas cylinders (E7512-0160) must be ordered separately.
E7512-0160 16-grCO2gascylindersfortheRDSS-IT-16tool. 10cylinders/
Each gas cylinder inflates approximately four box
RDSS-100 duct seals.
RDSS-IG-SR-AS Inflationtooldesignedforusewithcustomer’sown 1tool/box
source of nitrogen or compressed air. Features a
pressure gauge, automatic shutoff, VGF valve
connection, and two alternate connections for
plastic or rubber hoses.
E7512-0220 Tubesnapassembly. 1each/box
Spare part for RDSS-IT-16 inflation tool.
E7512-0240 Sparepressuregaugeassemblyfor 1each/box
RDSS-IT-16 inflation tool.
E7512-0260 Spare delivery pipe for RDSS-IT-16 inflation tool. 1 each box
S-1278-3x61x7620 RDSSsealantroll. 125-ftroll/box
RDSS-AT/AP-150 ForusewiththeRDSS-150induct5.25"orlarger 1each/box
withcable/cablebundleslessthan2.4"(60mm)
in diameter.
RDSS-AD-210 Adapterforducts6.5-8.0"(165-210mm)diameter 4each/box
E4540-1250 RDSS-LUBEforinstallationofRDSS. 25each/box
RDSS Installation Tools
RDSS duct seals can be installed with a variety of inflation tools having the capability of inflating
RDSS to 45±3 psi (3 bar) of pressure. The tools TE Connectivity offers are summarized in the
table below. The tool will only accept 16-gr CO2 gas cylinders (listed below).
ACCESSORIES & TOOLS
C_BlankDuct
ACCESSORIES & TOOLS
Blank Duct Plug
Duct Plug | Sealing Ducts
TE’sRaychemBlankDuctPlugseffectivelysealemptyconduitstoreducethecostofcable
placement and maintenance in new underground construction projects and routine work. Plugs are
removable and reusable providing a more economical sealing solution. These plugs prevent the flow
of water and the costly sedimentation of duct banks and conduit systems while confining problems of
dangerous vapors to their source.
Manufactured from high-impact plastic components, combined with durable elastic gaskets, blank
plugs are corrosion proof and effective for long-term or temporary sealing.
Each blank plug is equipped with a rope tie mechanism that provides the benefit of securing a pull
ropetoplug’sbackcompressionplateandtheallowanceofstoringexcessslackropebehindthe
plug within the conduit system for future use.
•Allplasticconstruction
•Corrosionproof
•Waterandgastight
•EasyInstallationandremoval
•Fullyremovableandreusable
Selection Information: dimensions in inches (millimeters)
Catalog Number Plug Diameter Duct ID STD Pack
RBDP-BLA-10D104U 1.00 0.96-1.16 (24.4-29.5) 12
RBDP-BLA-12D148U 1.25 1.14-1.48 (29.0-37.6) 12
RBDP-BLA-15D183U 1.50 1.49-1.83 (37.8-46.5) 12
RBDP-BLA-20D236U 2.00 1.83-2.36 (46.5-59.9) 12
RBDP-BLA-30D346U 3.00 2.99-3.46 (75.9-87.9) 12
RBDP-BLA-40D402U 4.00 3.94-4.17 (100.0-105.9) 8
RBDP-BLA-50D535U 5.00 5.00-5.35 (127.0-135.9) 8
RBDP-BLA-60D637U 6.00 5.82-6.37 (147.8-161.8) 8
RBDP-BLA-80D816U 8.00 7.83-8.27 (198.9-210.1) 8
RAYCHEM cable accessories ALR photocontrols AMP connectors 268
268

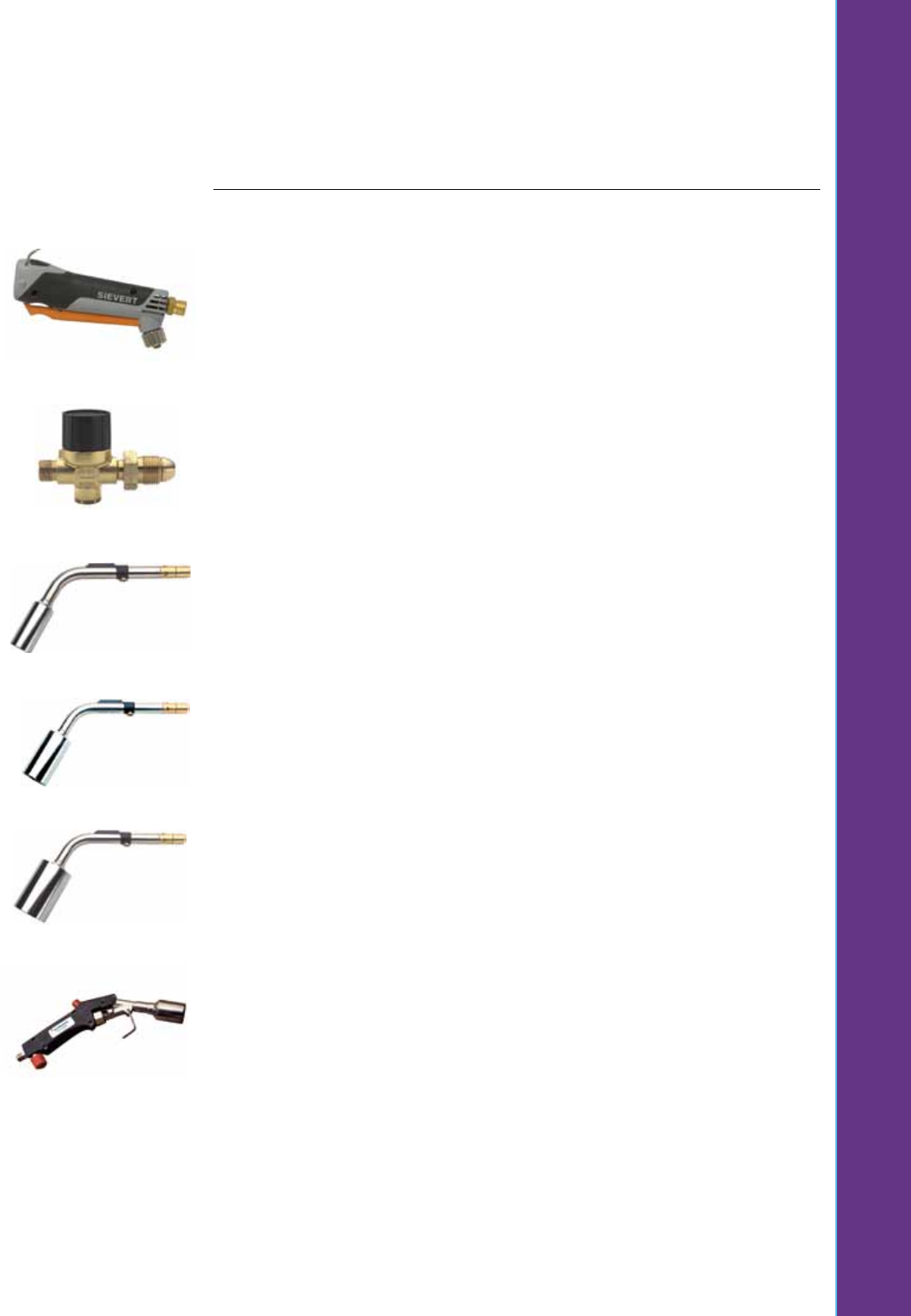

Torches & Accessories
Torches
These clean-burning, efficient, heat-shrinking torches are recommended for shrinking high voltage
products through low voltage products
Selection information
Primus-Sievert Siever-Matic Torch Materials
FH-3366-97-PS-HANDLE
• Siever-MaticSautoignite,autoshut-offtorchhandle
• Ergonomicdesignensurescomfortableoperation
• Adjustableoutput
• Piezoignition
FH-AD-3061-23-PS-REGULATOR
• WorkswithtorchhandleFH-3366-97-PS-HANDLEabove
• Adjustablefrom14-57psi
• FittingPOL,UNF9/16inchLH
• RequirestorchhoseAD-1432orAD-1434
FH-AD-3347-91-PS-BURN-1
• WorkswithtorchhandleFH-3366-97-PS-HANDLEabove
• Recommendedespeciallyforlowvoltageandgeneralpurposeproducts
• Tipdiameter1.0inch20,000BTU/hour
FH-AD-3341-91-PS-BURN1.5
• WorkswithtorchhandleFH-3366-97-PS-HANDLEabove
•Recommendedespeciallyforlowvoltageproductsandhighvoltageterminationsandsplices
• Tipdiameter1.5inch40,000BTU/hour
FH-AD-3348-91-PS-BURN-2
• WorkswithtorchhandleFH-3366-97-PS-HANDLEabove
• RecommendedespeciallyforRaysulateproducts
• Tipdiameter2.0inch90,000BTU/hour
Bullfinch Torch Materials
FH-2629-TORCH ASSY
• Built-iningnitorrecommendedforallproducts
• Generalpurpose,heavy-dutypropanetorchwithcomfortablegrip
•Providesacleanburningflameforshrinkinghighvoltageproductsorthick-walllowvoltageproducts.
• Output:Approximately30,000BTU/Hour
FH-2629-ELECTRODE
•ReplacementignitorforFH-2629torch
C_Torches
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 269 269
Torch Accessories
AD-1358-LPG-REGW/GAGE
• Propanetankregulatorwithgauge(0–30psi)
• Can also be used with Primus-Sievert or BullFinch products
AD-1432-ACD10FT-LPG-HOSE
• 10-footLPGhose
AD-1434-ACD30FT-LPG-HOSE
• 30-footLPGhose
AD-1460-ACD-HEAT-SHLDGPA
• 12x40padwovenofheat-resistantfabricwithcornergrommets
• Protectsadjacentcomponentsfromtorchheatduringinstallationofheat-shrinkableproducts
in confined areas
AD-1563-ADAPTER
• Valvetostandardhose
• ForusewithFH-2618A-1propanetorchifdisposablecylindersarenotused
AD-3015-04
• AdaptsSiever-MaticSFH-2649-PS-KITorFH2629forusewithdisposable14.1oz
propane cylinders
• Includes4-foothoseandregulatorpresetat28psi
Torch Kits
FH-2618A-1
• Light,portablepropanetorchforinstallinglowvoltageproductsandsmaller,conductor-sized,
high-voltage (up to 15 kV) accessories
• Includeshose,handleassembly,andregulatorfordisposablepropanecylinder
• Operatesfromdisposable14.1oz.propanecylinders
• Output:Approximately20,000BTU/hour
• Handle and torch head not available separately
• RegulatorandhoseassemblyisproductAD-3015-04
FH-2629-Kit
•   I ncludes (AD-1432) 10 foot hose, (AD-1358) adjustable regulator, and (FH-2629-TORCH-ASSY)
torch handle and tip
FH-2640-PS-KIT
• Primus-Sieverttorchkitforusewithdisposablepropanebottles
• Includes(FH-3366-97-PS-HANDLE,FH-AD-3341-91-PS-BURN1.5,&AD-3015-04)
FH-2649-PS-KIT
• Seiver-MaticSautoignite,autoshut-offtorchsystem
• RecommendedespeciallyforRaysulateproductsandcanbeusedwithallproducts
• Includesergonomichandle,30foothose,adjustableregulator,andlargeburner(3348-91);allin
a canvas carrying bag
• Output:Approximately90,000BTU/hour
• Smallerburnerandadapterfordisposablebottlesavailable. Includes:
FH-3366-97-PS-HANDLE, FH-AD-3348-91-PS-BURN-2, FH-AD-3061-13-PS-REGULAT,
AD-1434-ACD30FT-LPG-HOSE, and a carrying bag
C_Torch_Accessories
C_Torch_Kits
Torches & Accessories
MEDIUM / HIGH VOLTAGE CABLE ACCESSORIES
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 270
270
ACCESSORIES & TOOLS
Torches & Accessories
CUS Listed

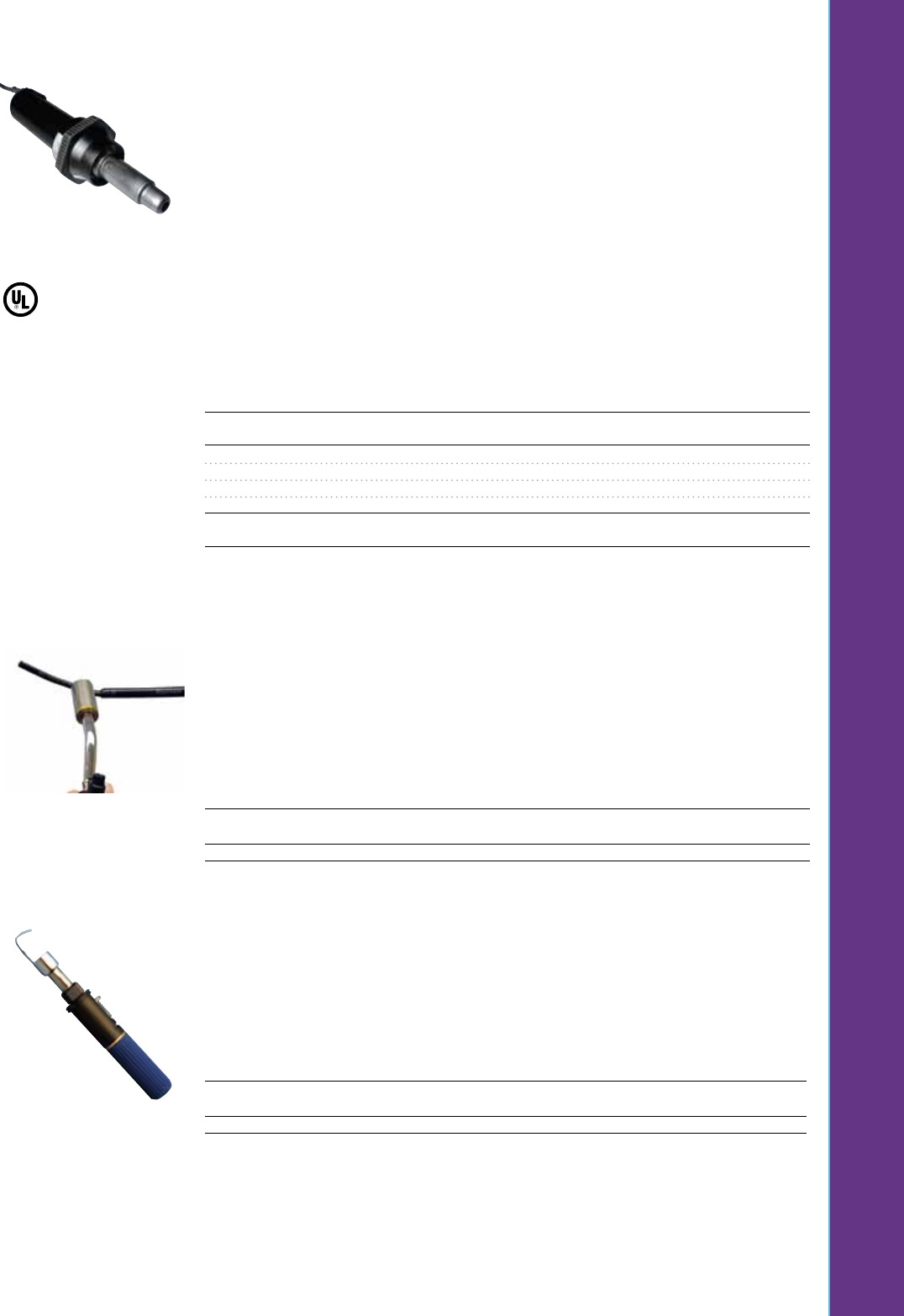

Heat Gun 16C6
Heat Guns
These hot-air heat guns are ideal for shrinking small low voltage products and identification marking
sleeves. Heat guns are not recommended for shrinking high voltage products or thick-wall low
voltage products.
FH-PS-2001
Primus-Sievertmodelwithincreasedairflowallowsfastershrinking.120V,1750watt,80°F–
1100°F, Variable air flow: 21 cfm max., double insulated LED read out. This heat gun can be used
for shrinking thick-wall low voltage products.
HG-501A 115 Volts 462047
500°F–750°Fhot-airgunidealforshrinkingShrinkMarkorTMSmarkingproducts,andthin-wall
tubing. Includes stand. Reflector must beordered separately.
HG-751A-C 120 Volts 926935
750°F–1000°Fhot-airgunforshrinkinglowvoltageandmarkingproducts.Includesstand.
Reflector must be ordered separately.
Heat Gun Accessories
Catalog Number Description
TG-12Reflector Useontubingupto3/4inchindiameter.
TG-13 Reflector Use on tubing up to 2 inches in diameter.
TG-23Reflector Useontubingandcablebreakoutsupto13/4inchesindiameter.
TG-24Reflector Useontubingandcablebreakoutsupto31/4inchesindiameter.
Ordering Information
Standardpackage:1each/box.
Glow Torch
• Lightweight,portable,andergonomicdesign
• Providesawide-flametorchoutputforinstantcontrolledheating
• AutomaticPiezoElectronicsIgnitionSystem
• Attachesdirectlyto1lbor2lbdisposablepropanebottles
• Installsthinwall,dualwallandadhesivelinedheat-shrinktubingandsleeves
Selection Information:
Catalog Number Description Std. Pack
CPGI-GLOW-TORCH Wide-Flame Torch 10
C_Heat_Guns
C_Glow_Torch
Glow Gun
• Lightweight,portable,andergonomicdesign
• Providesawide-flametorchoutputforinstantcontrolledheating
• AutomaticPiezoElectronicsIgnitionSystem
• Attachesdirectlyto1lbor2lbdisposablepropanebottles
• Installsthinwall,dualwallandadhesivelinedheat-shrinktubingandsleeves
Selection Information:
Catalog Number Description Std. Pack
CPGI-GLOW-GUN Flameless heat gun 10
C_Glow_Gun
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 271 271
Tools
Splicing Tools
EXRM-1004-US - Insulation Removal Tool
• Description–handtoolformakingringcutsoncablejacketsandEPRinsulation.
• Length=7.5inches
• Ringcutrange-.50-2.00inches
EXRM-0607 - Cable Splice Knife
• Specialpurposeshortblade
• Comfortablefull-sizehandle
• Finestcutterysteel,toughandcarefullytemperedtoholditsedge
Impact Wrench
IT-1000-033-US - Cordless Impact Wrench
• EasyandquickinstallationofmechanicalShearBoltconnectors
• Powerfuldesign,classleadingtorque-1,460in-lbs
• Includesbatterychargertwo12voltNI-Mltbatteriescarryingcase,sockets1/2"hexagonalsocket
sizes10,13,17,19,22,27,1/4"hexagonaladapter
CA7478-000 - Battery for Cordless Impact Wrench
CA7476-000 - Charger for Battery
Wire Cutters
605744-1 - 350 MCM Cutter
• Suitableforcopperandaluminumupto350MCM
• Steelhandles
• NotforsteelorACSRcable
605742-1 - 500 MCM Cutter
• Suitableforcopperandaluminumupto500MCM
• 21inchesoveralllength
• Fiberglasshandles
• NotforsteelorACSRcable
C_Splicing_Tools
C_WireCutters
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 272
272
C_CableCutters
C_CableVise
Tools
Cable Cutters
1490489-1
• Suitableforcopperoraluminum,solidorstrandedto350MCM
• Ratchetmechanismkeepshandleforcelow
• Handleslocktogetherforsafety/storage
• Compactdesignforeasyfitintotightplaces
• Quick-releaseleverforeasytake-up
• Idealforcuttingcableupto2/0
• AlsocutscoaxcableuptoRG-9
607453-2 1
• Greatforcopperandaluminumcableupto1.5”diameter
• Lightweighttubularsteelhandleswithvinylhandgrips
• Fixedandmovingblademadefromhighgradealloysteel
• Fastadvancebuttontominimizerequiredmotion
• Combineslightweightandratchetedmechanicaladvantageinitscircularcuttingmotion
• Weight3.27Lb[1.49Kg]
• NotforsteelorACSRcable
169415-1
• Solidandstrandedcopperandaluminiumcables
• SolidCu185mm²
• SolidAl240mm²
• StrandedCu/AlØ25
• HiFlexCuØ32
734045-1
• Solidandstrandedcopperandaluminiumcables
• SolidCu185mm²
• SolidAl185mm²
• StrandedCu/AlØ52
• HiFlexCuØ52
1-1579002-8
• Solidandstrandedcopperandaluminiumcables(noASCR)
• SolidCu480mm²
• SolidAl480mm²
• StrandedCu/AlØ54
KMS-K-INT
• CableSheathcutter
Cable Vise
IT 1000-002
The IT-1000-002 cable vice is for fast and easy installation of joints and the repair of cables. An
adaptor is included which enables the cable vice to be used for the installation of terminations. Suitable
for field installation and for workshop use. When fixed to a work bench, the upper part with the clamps
can be used without the legs. Cable vice for the installation of joints and the repair of cables.
Cable Vise Adaptor and Clamp (comes with Cable Vise)
Adaptor and clamp for the installation of termations
ACCESSORIES & TOOLS
RAYCHEM cable accessories ALR photocontrols AMP connectors 273 273
Tools
Tool Sets
IT-1000-006 - Assortment of Tools
• 1xPipeWrench,size9.84"(250mm)
• 1xSidecutter,size6.30"(160mm)
• 1xPincers,size7.08"(180mm)
• 1xCombinationPliers,size7.08"(180mm)
• 1xScissors,size7.87"(200mm)
IT-1000-019 - Installation tool for mechanical connectors
This tool avoids the cable cores being over bend during installation of mechanical connectors
Application diameter range: .59"-2.36" (15-60 mm). Length of handle: 8.07" (205 mm)
734587-1 - Cable Tie Gun
• Forcableties3.3-4.8mm
• Thicknessupto1.6mm
• Automaticcut-off
• Adjustabletensionsetting
Stripping Tools
IT-1000-030-2 - Screen Removal Tool
• ScreenRemovalToolIT-1000-030-2forbondedscreensonroundconductorsofMVCables
includes: 1 spare blade, silicone grease and allen key delivered in a roburst polypropylene box.
• Suitableforoneandthreecorecables.
• Applicationrangeoverinsulation.39”-1.97”(10-50mm),Minscreencutback.39”(10mm),variable
cutting thickness
IT-1000-030-2-BLADE - SIML 0-711744-1
• CableJacket/leadremovaltool
SIMIL 0711744-1
Cablejacket/leadremovaltoolPG2,cablediameter.83”-1.37”(21-33mm)
SIML 0-711745-1
CableJacket/leadremovaltool-PG3CableDiameter1.02”-2.04”(26-52mm)
SIML 0-711746-1
CableJacket/leadremovaltool-PG3CableDiameter1.85”-2.95”(47-75mm)
SIML 0-0711748-1
StripinsulationofMVcablesofdiameterbetween.55”-1.57”(14-40mm)
SIML 0-0711749-1
StripinsulationofMVcablesofdiameterbetween1.50”-2.36”(38-60mm)
LHM 1R 30/45 - 0-0716541-1
Tostripnon-bondedsemiconductivescreenofMVcablesofdiameterbetween.55”-1.57”(14-40mm)
ACCESSORIES & TOOLS
C_StrippingTools
C_ToolSets
RAYCHEM cable accessories ALR photocontrols AMP connectors 274
274

Navigation menu
