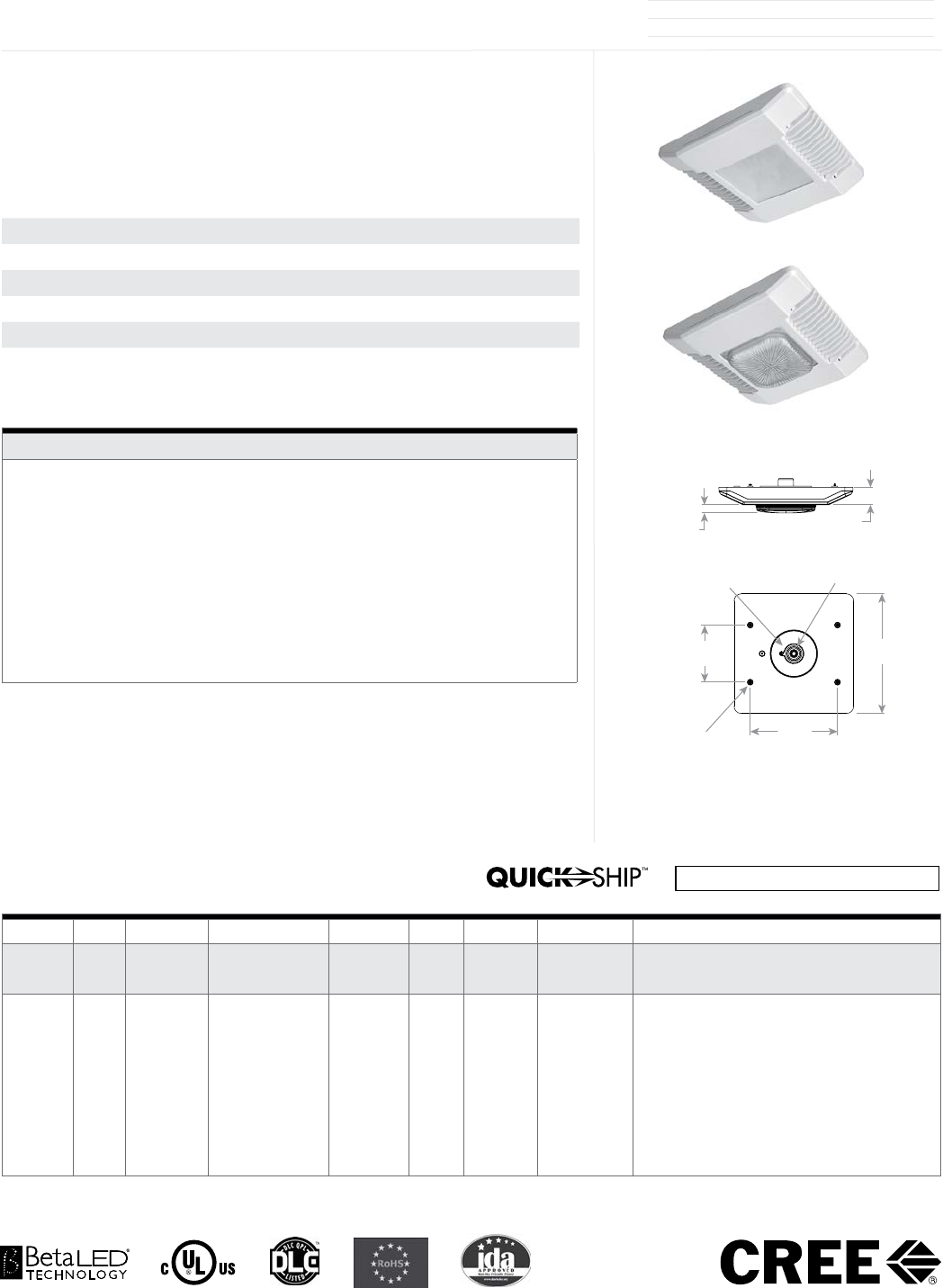

Ordering Information
Example: CPY250 A DM D A-UL SV
CPY Series
CPY250™ LED Canopy/Soft Luminaire
CPY250 A
Product Version Mounting Optic Input Power
Designator – Voltage Color
Options Options
CPY250 A DM
Direct
HC
Hook & Cord
PD
Pendant
D
0.91" (23mm) Drop Lens
F
Flat Lens
A
82W
B
122W
C
43W
–
US
*
Canada
UL
Universal
120-277V
UH
Universal
347-480V*
SV
Silver
BK
Black
BZ
Bronze
PB
Platinum Bronze
WH
White
40K 4000K Color Temperature
- Color temperature per luminaire
DIM 0-10V Dimming
- Available with Input Power Designator B only
- Control by others
- Refer to Dimming spec sheet for details
- Can't exceed wattage of specied Input Power Designator
ML Multi-Level
- Available with Input Power Designator B only
- Refer to ML spec sheet for details
- High: 100%, Low: 30%
PML Programmable Multi-Level
- Available with Input Power Designator B only
- Refer to PML spec sheet for details
† See www.cree.com/lighting/products/warranty for warranty terms
* Available with A & B Input Power Designators only. For input power for 347-480V, refer to Electrical Data table below
Product Description
The CPY250™ LED Canopy/Soft Luminaire has an extremely thin prole constructed of rugged cast
aluminum. It can be surface mounted easily from below the canopy deck and also has the ability to
be pendant mounted or hook & cord mounted. Direct imaging of the LEDs is eliminated with a highly
efcient patterned flat or 0.91" (23mm) drop glass lens.
Applications: Petroleum canopies, CNG fueling stations, low-medium bay general lighting, softs
Accessories
Field-Installed
Direct Mount Luminaires
Canopy Upgrade Kits
XA-BXCCMW – for use with Jet-Phillips
XA-BXCCNW – for use with Elsco Franciscan
XA-BXCCPW – for use with LSI Dakota or Masters
XA-BXCCQW – for use with Whiteway Riviera or Rig-A-Lite
XA-BXCCRW – for use with Elsco Merrit
XA-BXCCSW – for use with LSI Richmond or Whiteway Civic
Direct Mount Junction Box/Stem Kit
XA-BXCCJBOX – 6.0" (152mm) H x 3/4" (19mm) NPT Stem
- Watertight
- Rated for feed through 8 (4 in, 4 out) #12 AWC conductors
Direct Mount Beauty Plates
XA-BXCCBPW – Plate Only
XA-BXCCBPB12W – Plate w/ 12" (305mm) Backer
XA-BXCCBPB16W – Plate w/ 16" (406mm) Backer
Pendant Mount Luminaires
Fitting
XA-PSFTG – Pendant Fitting
Pendant Mount Kits
XA-PS22KIT – 22" (559mm)
XA-PS12KIT – 12" (305mm)
XA-PS18KIT – 18" (457mm)
- Pendant height from ceiling surface to bottom of xture;
mounting accessories or surface boxes will add to overall height
Made in the U.S.A. of U.S. and imported parts
CRI: Minimum 70 CRI
C C T: 4000K (+/- 300K), 5700K (+/- 500K) Standard
Limited Warranty†: 10 years on luminaire/10 years on Colorfast DeltaGuard® nish
IP66 Rated (Direct Mount only)
Class I, Division II Hazardous Location for select models
Performance Summary
Drop Lens
Flat Lens
DM Mount
Gasket to Seal
up to 4.25" (108mm)
Canopy Cutout
3/4" (19mm) NPT
Conduit Entry
Mounts with (4)
Supplied Self-Sealing
Sheet Metal Screws
0.91"
(23mm)
Drop Lens
15.0"
(382mm)
7.2"
(183mm)
11.0"
(279mm)
2.0"
(50mm)
Flat Glass Lens
For full list of Cree Quick Ship products visit www.cree.com/lighting/quickship
Click below to select Quick Ship products
CPY250-A-DM-F-A-UL-WH
CPY250-A-DM-D-A-UL-WH
T (800) 236-6800 F (262) 504-5415
US: www.cree.com/lighting T (800) 473-1234 F (800) 890-7507
Canada: www.cree.com/canada
Product Specications
CONSTRUCTION & MATERIALS
• Slim, low prole design
• Easy mounting and servicing from below the deck
• Luminaire housing is constructed of rugged cast aluminum with integral heat sink
specically designed for LED
• Direct mount is suitable for use in single or double skin canopies with a minimum
4.0" (102mm) wide panels and a minimum 22 gauge, 0.030" (0.7mm) canopy
thickness
• Direct mount luminaire mounts directly to the canopy deck with the drilling of a
single 2.0" (51mm) to 4.0" (102mm) round hole, is secured in place with self-
sealing screws that provide water-tight seal and includes 3/4” (19mm) conduit
entry for direct wire feed
• Hook and cord mount includes a 3' (0.91m) cord out of the xture and is intended to
hang from the single hook
• Pendant mount includes J-Box for customer wiring and is intended to be mounted
by 3/4 IP pendant (by others)
• Exclusive Colorfast DeltaGuard® nish features an E-Coat epoxy primer with
an ultra-durable powder topcoat, providing excellent resistance to corrosion,
ultraviolet degradation and abrasion. Silver, bronze, black, white, and platinum
bronze are available
• Weight: 12.5 lbs. (5.7kg)
ELECTRICAL SYSTEM
• Input Voltage: 120-277V or 347-480V (A and B Input Power Designators only),
50/60Hz, Class 1 drivers
• Power Factor: > 0.9 at full load
• Total Harmonic Distortion: < 20% at full load
• Integral 6kV surge suppression protection standard
• To address inrush current, slow blow fuse or type C/D breaker should be used
• Operating Temperature Range: A Input Power Designator: -40˚C - +40˚C (direct
mount to plywood), -40˚C - +45˚C (direct mount to sheet metal/suspended); B
Input Power Designator: -40˚C - +35˚C (plywood), -40˚C - +40˚C (sheet metal/
suspended); C Input Power Designator: -40˚C - +45˚C (plywood), -40˚C - +50˚C
(sheet metal/suspended)
WARNING: Exceeding maximum operating temperature may result in thermal
foldback
REGULATORY & VOLUNTARY QUALIFICATIONS
• cULus listed
• Suitable for wet locations when ordered with DM mount
• Suitable for damp locations when ordered with HC & PD mounts
• Enclosure rated IP66 per IEC 60529 when ordered with DM mount
• Consult factory for CE Certied products
• 6kV surge suppression protection tested in accordance with IEEE / ANSI C62.41.2
• DLC qualied when ordered with A & B input power designators. Please refer to
http://www.designlights.org/QPL for most current information
• Luminaire and nish endurance tested to withstand 5,000 hours of elevated
ambient salt fog conditions as dened in ASTM Standard B 117
• Meets Buy American requirements within ARRA
• Dark Sky Friendly, IDA Approved. Please refer to http://www.darksky.org/ for most
current information
• RoHS compliant when ordered with DM mount
• Class I, Division II Hazardous Location rated when ordered with the following SKUs:
CPY250 A DM D B-UL WH, CPY250 A DM F B-UL WH, CPY250 A DM D B-UH WH
and CPY250 A DM F B-UH WH. Consult factory for additional details
1 Lumen maintence values at 25˚C (77˚F) are calculated per TM-21 based on LM-80 data and in-situ luminaire testing
2 In accordance with IESNA TM-21-11, Projected Values represent interpolated value based on time durations that are within six times
(6X) the IESNA LM-80-08 total test duration (in hours) for the device under testing ((DUT) i.e. the packaged LED chip)
3 In accordance with IESNA TM-21-11, Calculated Values represent time durations that exceed six times (6X) the IESNA LM-80-08 total
test duration (in hours) for the device under testing ((DUT) i.e. the packaged LED chip)
Electrical Data*
Input Power
Designator
System
Watts
120-277V
System
Watts
347-480V
Total Current
120V 208V 240V 277V 347V 480V
A 82 84 0.69 0.40 0.35 0.32 0.24 0.18
B 122 137 1.04 0.60 0.52 0.46 0.40 0.29
C 43 N/A 0.35 0.21 0.19 0.17 N/A N/A
CPY Series
* Electrical data at 25˚C (77˚F)
Recommended Cree® Outdoor Luminaire Lumen Maintenance Factors (LMF)1
Ambient Input
Power Designator
Initial
LMF
25K hr
Projected2
LMF
50K hr
Projected2
LMF
75K hr
Calculated3
LMF
100K hr
Calculated3
LMF
5˚C
(41˚F)
A
1.05 1.00 1.00 0.99 0.98B
C
10˚C
(50˚F)
A
1.04 0.99 0.99 0.98 0.97B
C
15˚C
(59˚F)
A
1.02 0.97 0.97 0.96 0.95B
C
20˚C
(68˚F)
A
1.01 0.96 0.96 0.95 0.94B
C
25˚C
(77˚F)
A
1.00 0.95 0.95 0.94 0.93B
C
30˚C
(86˚F)
A
1.00 0.95 0.95 0.94 0.93B
C
T (800) 236-6800 F (262) 504-5415
US: www.cree.com/lighting T (800) 473-1234 F (800) 890-7507
Canada: www.cree.com/canada
© 2014 Cree, Inc. and/or one of its subsidiaries. All rights reserved. For informational purposes only. Content is subject to change.
See www.cree.com/patents for patents that cover these products. Cree®, the Cree logo, and Colorfast DeltaGuard® are registered
trademarks, and CPY250™ and the Quick Ship logo are trademarks of Cree, Inc. The UL logo is a registered trademark of UL LLC. The
DesignLights Consortium logo and the DLC QPL Listed logo are registered trademarks of Northeast Energy Efciency Partnerships, Inc.

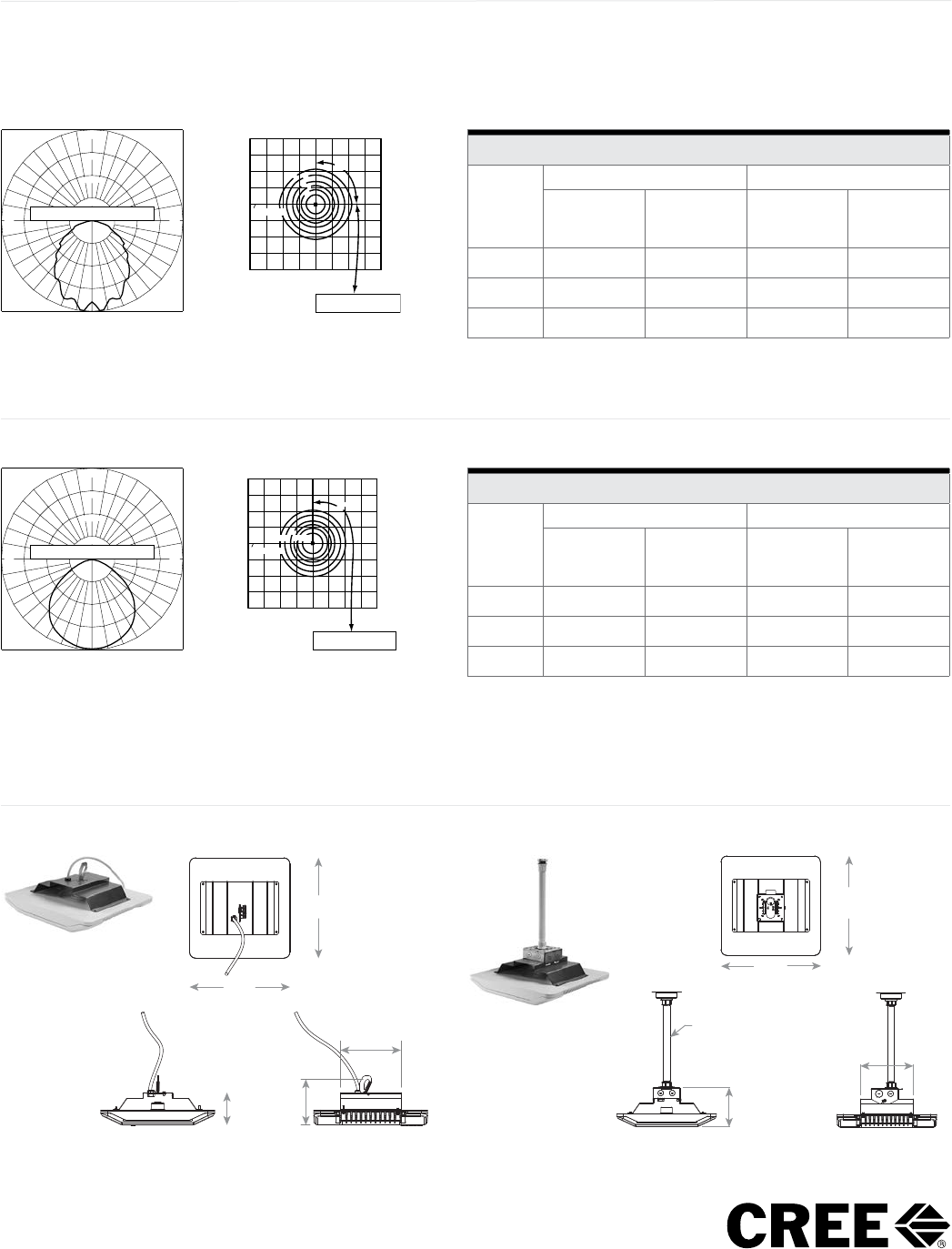

Photometry
All published luminaire photometric testing performed to IESNA LM-79-08 standards by a NVLAP certied laboratory. To obtain an IES le specic to your project
consult: http://www.cree.com/lighting.
CPY Series
PD Mount
15.0"
(382mm)
15.0"
(382mm)
Pendant Not
Included
8.0"
(203mm)
5.9"
(149mm)
HC Mount
15.0"
(382mm)
15.0"
(382mm)
4.3"
(109mm)
6.0"
(153mm)
8.0"
(203mm)
* Initial delivered lumens at 25˚C (77˚F). Actual production yield may vary between -4 and +10% of initial delivered lumens
** For more information on the IES BUG (Backlight-Uplight-Glare) Rating visit:
www.iesna.org/PDF/Erratas/TM-15-11BugRatingsAddendum.pdf. Valid with no tilt
DROP LENS
CESTL Test Report #: 2013-0111
CPY250 A ** D A-UL
Initial Delivered Lumens: 8,356
120˚120˚
90˚ 90˚
60˚60˚
30˚ 30˚
150˚ 150˚
864
2593
3457
Candlepower Trace: Vertical plane through
horizontal angle of maximum candlepower.
1728
CPY250 A ** D A-UL
Mounting Height: 15' (4.6m)
Initial Delivered Lumens: 8,000
Initial FC at grade
5
2
1
.5
.2.1
CURB LINE
0m6.118.312.2
18.3
18.3
0m
0'
6.1
20'
6.1
20'
60'
24.4
80'
24.4
80'
12.2
40'
12.2
40'
60'
40'
18.3
60' 20'
12.2
40'
6.1
20'
0' 60'
24.4
80'
24.4
80'
Position of vertical plane
of maximum candlepower.
90˚
Drop Lens Distribution
Input
Power
Designator
4000K 5700K
Initial
Delivered
Lumens*
BUG
Ratings**
Per TM-15-11
Initial
Delivered
Lumens*
BUG
Ratings**
Per TM-15-11
A 7,600 B3 U2 G1 8,000 B3 U2 G1
B 12,400 B3 U2 G2 13,000 B3 U2 G2
C 4,400 B2 U2 G1 4,620 B2 U2 G1
* Initial delivered lumens at 25˚C (77˚F). Actual production yield may vary between -4 and +10% of initial delivered lumens
** For more information on the IES BUG (Backlight-Uplight-Glare) Rating visit:
www.iesna.org/PDF/Erratas/TM-15-11BugRatingsAddendum.pdf. Valid with no tilt
FLAT LENS
ITL Test Report #: 76866
CPY250 A ** F A-UL
Initial Delivered Lumens: 8,821
120˚120˚
90˚ 90˚
60˚60˚
30˚ 30˚
150˚ 150˚
843
2530
3373
Candlepower Trace: Vertical plane through
horizontal angle of maximum candlepower.
1687
CPY250 A ** D A-UL
Mounting Height: 15' (4.6m)
Initial Delivered Lumens: 8,000
Initial FC at grade
52
1
.5
.2.1
CURB LINE
0m6.118.312.2
18.3
18.3
0m0'
6.1
20'
6.1
20'
60'
24.4
80'
24.4
80'
12.2
40'
12.2
40'
60'
40'
18.3
60' 20'
12.2
40'
6.1
20'
0' 60'
24.4
80'
24.4
80'
Position of vertical plane
of maximum candlepower.
0˚
Flat Lens Distribution
Input
Power
Designator
4000K 5700K
Initial
Delivered
Lumens*
BUG
Ratings**
Per TM-15-11
Initial
Delivered
Lumens*
BUG
Ratings**
Per TM-15-11
A 7,600 B3 U0 G1 8,000 B3 U0 G1
B 12,400 B3 U0 G1 13,000 B3 U0 G1
C 4,400 B2 U0 G1 4,620 B2 U0 G1
