Strut Systems

Channels, Hardware, Fittings, Mechanical & Electrical Accessories,

Special Materials (Aluminum, Stainless Steel, Fiberglass),

Mini Channel, Concrete Inserts, Slotted Angle, Kwik-Wire™,

Dura-Blok™ Supports

SS-12

INTRODUCTION

Cooper B-Line, Inc. is a leading manufacturer and fabricator of steel

and aluminum products which are used in support of equipment for

industrial, commercial, utility, and OEM installations. Cooper B-Line

is proud of the exacting standards of research, design, engineering,

and manufacturing that go into each and every product that

comprise our metal framing product line. Our customers have

access to the most complete support systems offered in the

industry, including metal framing, cable tray, pipe hangers, slotted

angle, and fasteners.

Many of Cooper B-Line’s products are listed by the Underwriter’s

Laboratories, Inc. All Cooper B-Line products are manufactured to

meet or exceed MFMA and other industry standards set for their

design and manufacture.

The majority of Cooper B-Line products are produced in four

modern plants consisting of approximately 900,000 square feet.

These facilities are located in Highland, Illinois; Troy, Illinois; Reno,

Nevada; and Sherman, Texas. Regional sales and distribution

centers are located throughout the United States stocking standard

Cooper B-Line products for quick service and delivery.

This catalog is designed to be helpful to engineers and contractors

in the application and selection of strut products for construction

and maintenance.

If a unique application requires a special product not included in this

catalog. Cooper B-Line engineering personnel are ready to furnish

design consultation and realistic cost estimates. In addition, sales

representatives with engineering know-how are located throughout

the United States and abroad for your convenience.

Cooper B-Line, Inc.

509 West Monroe Street

Highland, Illinois 62249-0326

Phone: 800-851-7415

www.cooperbline.com

SYSTEMS THAT MAKE SENSE

“B

B-

-V

“B

B-

-V

Questions, Comments, Suggestions?

with Cooper B-Line ”

Voice Of the Customer...Actively Listening

bvocal@cooperindustries.com

877-351-9450

“B

B-

-V

Table of Contents

Dura-Blok™ Rooftop Supports

Info. & Specifications . . . . . . . . . . . . . . . 152

Base Support . . . . . . . . . . . . . . . . . . . . . . . 153

Base Support - Channel . . . . . . . . 153-154

Base Support - Pipe/Tubing Riser . . . 154

Base Support Riser - Channel . . . . . . 155

Base Support Riser - Pipe Roller . . . 155

Base Support - ‘H’ Stand . . . . . . . 156-157

Base Support - Pipe Roller . . . . . . . . . 158

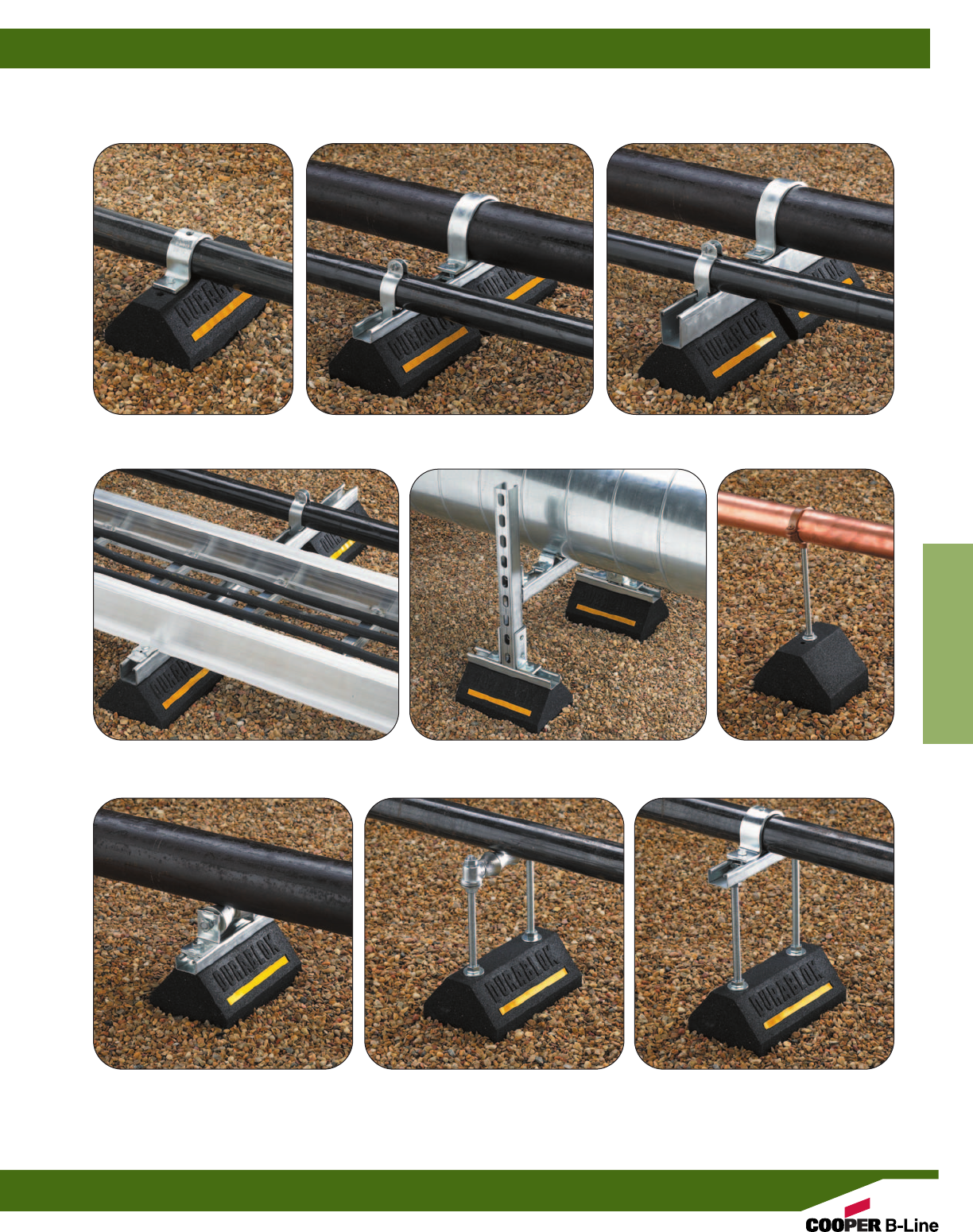

Application Photos . . . . . . . . . . . . . . . . . . 159

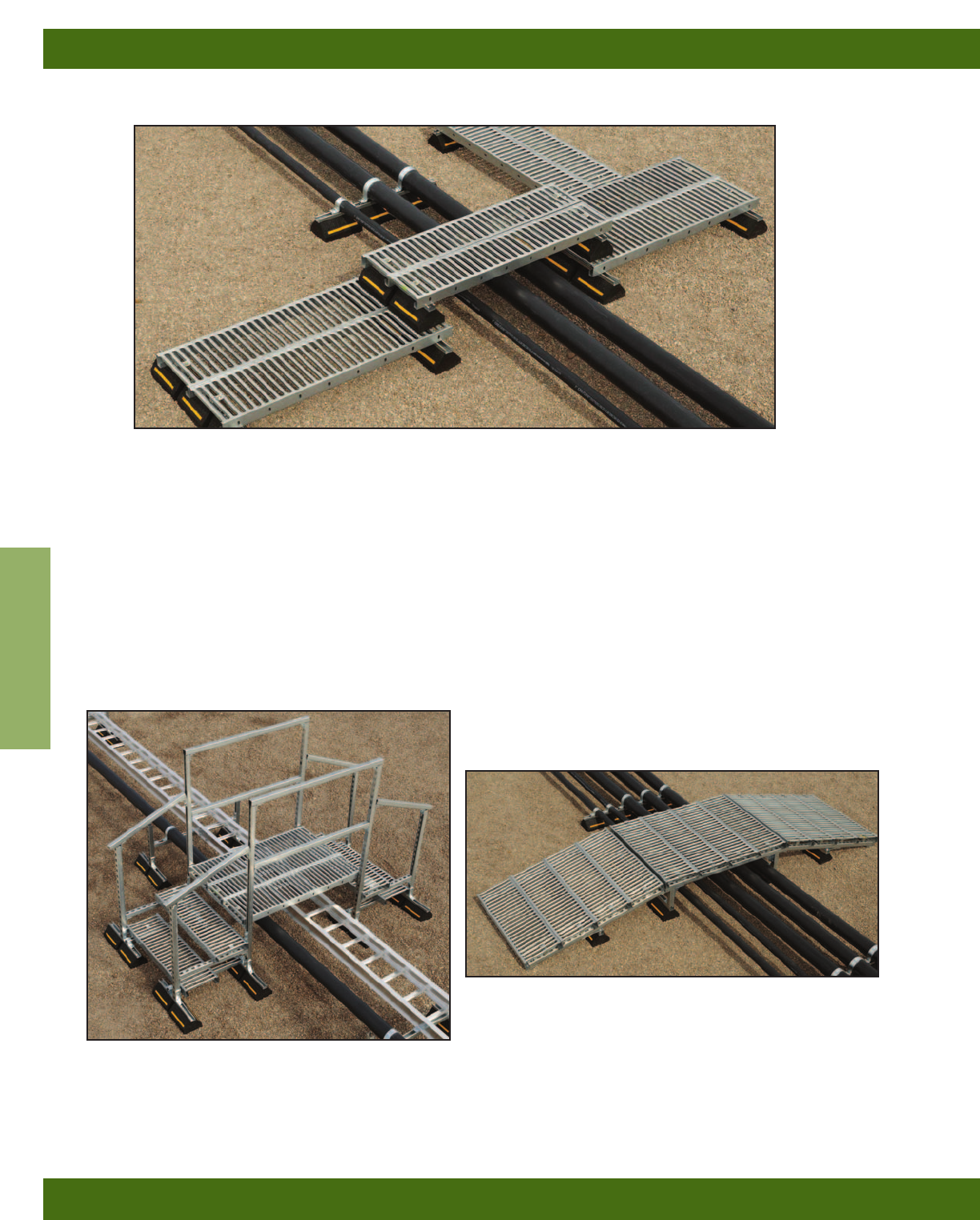

Roof-Top Walkway Photos . . . . . . . . . . 160

Solar Application Photos . . . . . . . . . . . . 161

Electrical Accessories

Info. & Specifications . . . . . . . . . . . . . . . 162

Selection Chart . . . . . . . . . . . . . . . . . . . . . 163

Fluorescent Fixture Hangers . . . 164-166

Electrical Accessories . . . . . . . . . . 167-168

Junction Boxes . . . . . . . . . . . . . . . . . . . . . 169

Strut Joiners . . . . . . . . . . . . . . . . . . . 170-171

Electrical Hardware . . . . . . . . . . . . . . . . . 172

Porcelain Clamps . . . . . . . . . . . . . . 173-174

Maple Clamps . . . . . . . . . . . . . . . . . 174-175

Aluminum & Stainless Steel Materials

Info. & Specifications . . . . . . . . . . . . . . . 176

Aluminum . . . . . . . . . . . . . . . . . . . . . . 177-179

Stainless Steel . . . . . . . . . . . . . . . . . 180-181

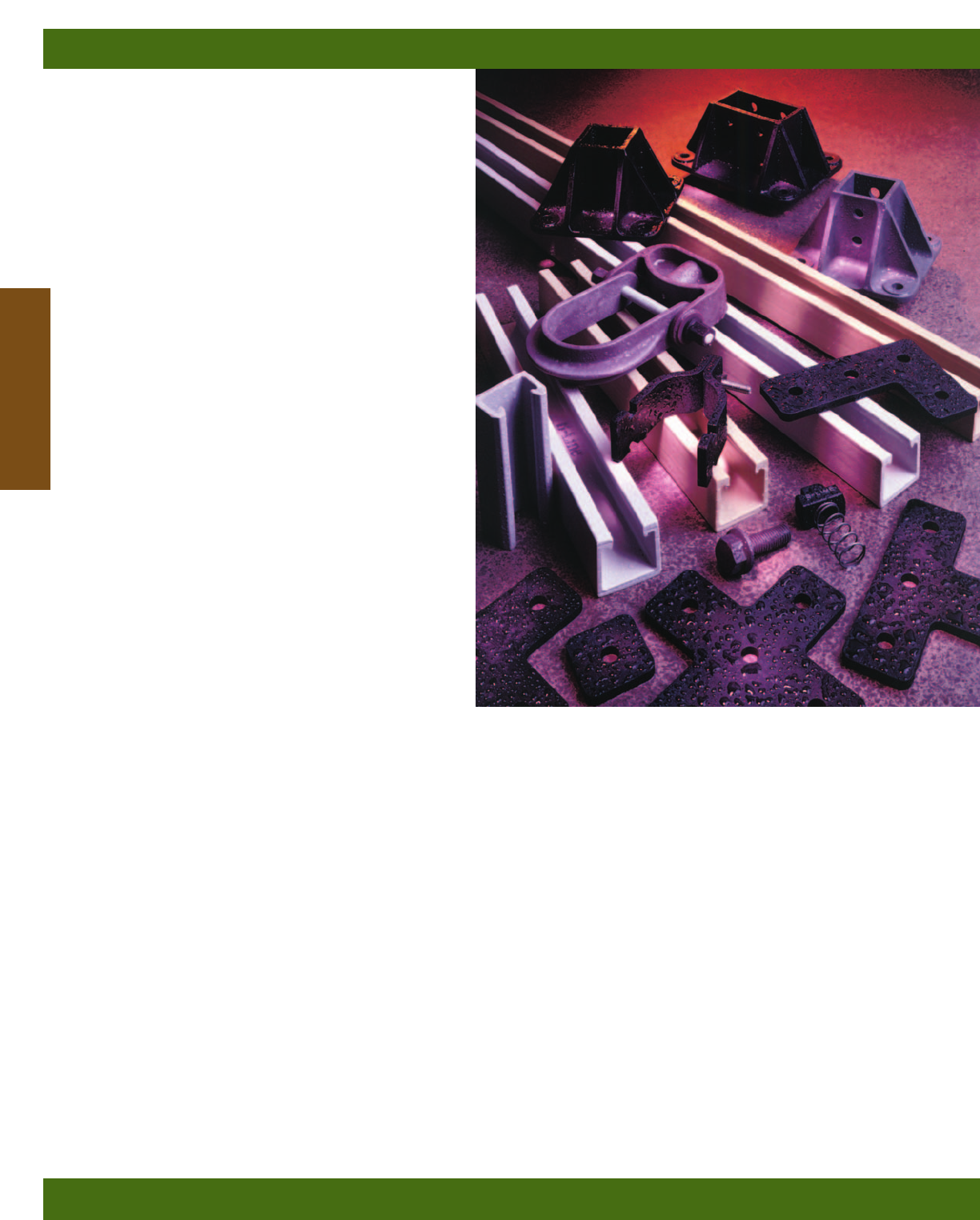

Fiberglass Materials

Info. & Specifications . . . . . . . . . . . 182-183

Channels . . . . . . . . . . . . . . . . . . . . . . 184-188

Hardware . . . . . . . . . . . . . . . . . . . . . . 188-190

Fittings . . . . . . . . . . . . . . . . . . . . . . . . 191-199

Mini Channel & Fittings

Info. & Specifications . . . . . . . . . . . . . . . 200

Mini Channels . . . . . . . . . . . . . . . . . 201-202

Mini Channel Nuts . . . . . . . . . . . . . . . . . . 203

Mini Fittings . . . . . . . . . . . . . . . . . . . . 203-211

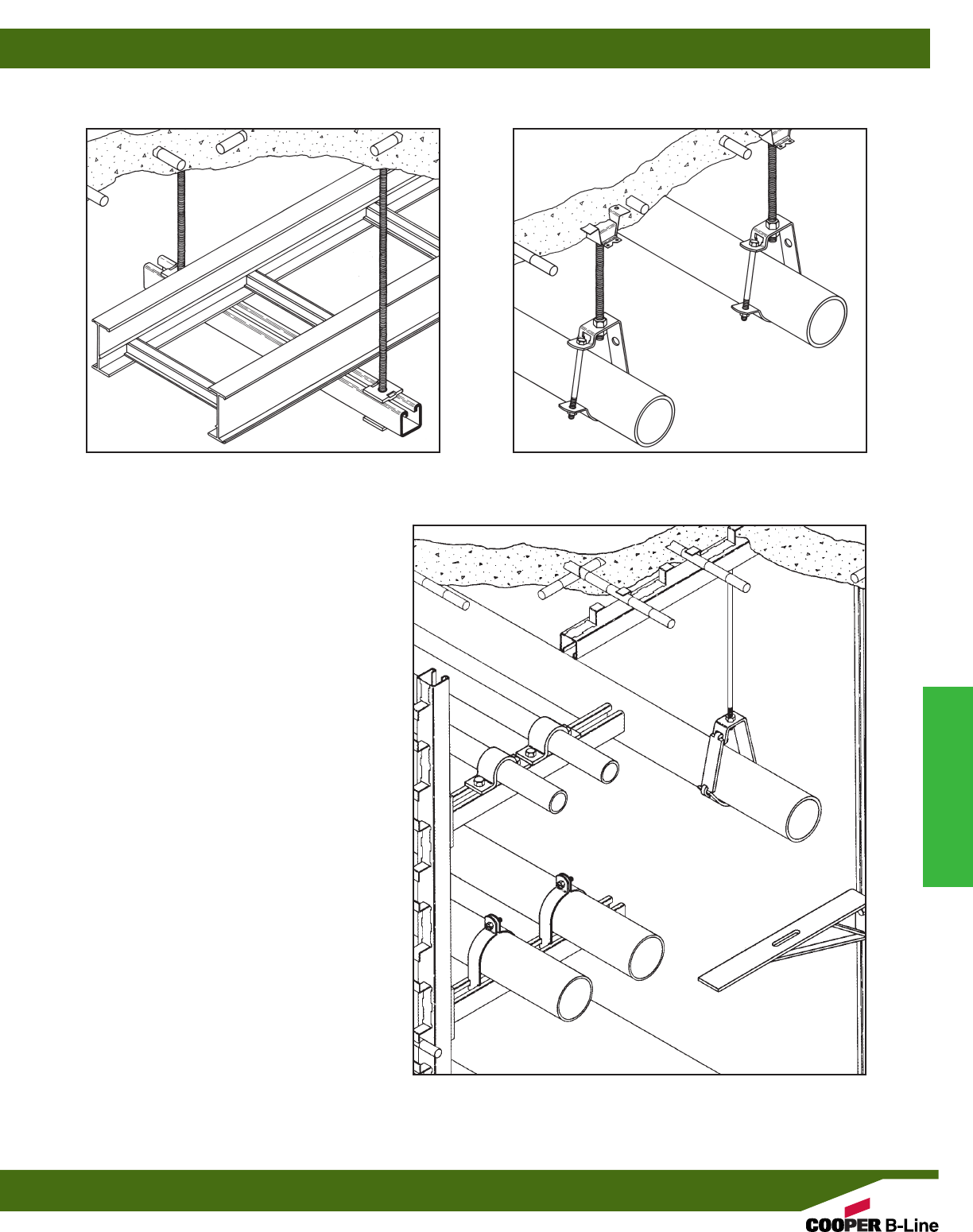

Concrete Inserts

Info. & Specifications . . . . . . . . . . . 212-213

Continuous Inserts . . . . . . . . . . . . . 214-216

Spot Inserts . . . . . . . . . . . . . . . . . . . . . . . . 217

Insert Accessories . . . . . . . . . . . . . . . . . . 218

Anchors . . . . . . . . . . . . . . . . . . . . . . . 219-221

Slotted Angle

Info. & Specifications . . . . . . . . . . . . . . . 222

Slotted Angle

Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223

Loading Charts . . . . . . . . . . . . . . 224-226

Slotted Angle Fittings . . . . . . . . . . . . . . . 227

Reference Data . . . . . . . . . . . . . . . . . . 228-237

Tolco to Cooper B-Line Cross . . . 238-240

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241-248

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Technical Data

Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Finishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Welding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Design of Strut Systems . . . . . . . . . . 10-12

Recommended Specification . . . . . . . . . 13

Channel & Combinations

Info. & Specifications . . . . . . . . . . . . . . . . 14

Selection Chart . . . . . . . . . . . . . . . . . . . . . . 15

B11 Channel . . . . . . . . . . . . . . . . . . . . . 16-17

B12 Channel . . . . . . . . . . . . . . . . . . . . . 18-19

B22 Channel . . . . . . . . . . . . . . . . . . . . . 20-23

B24 Channel . . . . . . . . . . . . . . . . . . . . . 24-25

B26 Channel . . . . . . . . . . . . . . . . . . . . . 26-27

B32 Channel . . . . . . . . . . . . . . . . . . . . . 28-29

B42 Channel . . . . . . . . . . . . . . . . . . . . . 30-31

B52 Channel . . . . . . . . . . . . . . . . . . . . . 32-33

B54 Channel . . . . . . . . . . . . . . . . . . . . . 34-35

B56 Channel . . . . . . . . . . . . . . . . . . . . . 36-37

Telescoping Channel . . . . . . . . . . . . . 38-39

Channel Hole Patterns . . . . . . . . . . . 40-42

Channel Nuts & Hardware

Info. & Specifications . . . . . . . . . . . . . . . . 44

Channel Nuts

Selection Charts . . . . . . . . . . . . . . . . 45-49

Slip & Pull-out Load Charts . . . . . 50-51

Other Hardware . . . . . . . . . . . . . . . . . . 52-58

KwikWire™ & Accessories . . . . . . . . 59-70

Strut Fittings

Info. & Specifications . . . . . . . . . . . . . . . . 72

Flat Plate Fittings . . . . . . . . . . . . . . . . . 73-75

90°Angle Fittings . . . . . . . . . . . . . . . . . 76-81

Angular Fittings . . . . . . . . . . . . . . . . . . . 82-84

Braces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Clevis Fittings . . . . . . . . . . . . . . . . . . . . . . . 86

U-Fittings . . . . . . . . . . . . . . . . . . . . . . . . . 87-90

Z-Fittings . . . . . . . . . . . . . . . . . . . . . . . . . 91-93

Wing Fittings . . . . . . . . . . . . . . . . . . . . . 94-96

Post Bases . . . . . . . . . . . . . . . . . . . . . . . 97-98

Brackets . . . . . . . . . . . . . . . . . . . . . . . . 99-105

Miscellaneous Fittings . . . . . . . . . . 106-111

Beam Clamps & Accessories

Info. & Specifications . . . . . . . . . . . . . . . 112

Beam Clamps & Accessories . . . 113-125

Pipe/Conduit Clamps & Hangers

Info. & Specifications . . . . . . . . . . . . . . . 126

Pipe Clamps . . . . . . . . . . . . . . . . . . . 127-133

Vibra Clamps . . . . . . . . . . . . . . . . . . 134-135

Armafix™Clamps & Accessories . . . . 136

Vibra Cushions . . . . . . . . . . . . . . . . . . . . . 137

Pipe Clamps . . . . . . . . . . . . . . . . . . . 138-142

Pipe Hangers . . . . . . . . . . . . . . . . . . 143-144

Pipe Brackets . . . . . . . . . . . . . . . . . . . . . . 145

Pipe Block . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Pipe Rollers . . . . . . . . . . . . . . . . . . . . 147-151

For additional information on Tolco™ brand part numbers beginning with Fig.,

visit www.tolco.com or www.cooperbline.com

Cooper B-Line’s metal framing support system is designed with many time-saving features. They are

fully adjustable and reusable, with a complete line of channels, fittings and accessories for multi-

purpose applications.

• No Welding

• No Drilling

• Use Your Imagination

Cooper B-Line’s metal framing installs quickly. There is

no need for special tools. All you need is a wrench

and hacksaw. Channels and parts can be taken

apart for reuse as quickly as they were assembled,

yet they provide the strength of welded construction.

Eliminating welding and drilling produces substantial

savings in time and labor.

1. Tite-Grip channel nut may be

inserted anywhere along continuous

slot. Designed for easy insertion and

self-alignment.

2. A 90° turn aligns channel nut grooves

with inturned lips of the channel.

3. Position fitting over channel nut and

insert bolt to start any connection.

4. With the twist of a wrench, channel

nut locks its teeth firmly against

inturned lips.

Introduction

Cooper B-Line’s Metal Framing system provides

an economical solution for electrical, mechanical

and industrial supports with an unlimited variety of

applications in the construction industry.

Metal Framing Electrical Applications

• Lighting Fixture Supports

• Raceway Systems

• Trapeze Hangers

• Pipe & Conduit Supports

• Cable Tray Supports

• Beam Adjustments

Metal Framing Mechanical Applications

• Piping Racks

• Tunnel Pipe Stanchions

• Concrete Inserts

• Beam Attachments

• Pipe Risers

Metal Framing Industrial Applications

• Racks and Shelving

• Partitions

• Production Line Supports

• Trolley Systems

• Wall Framing

Introduction

MATERIALS

Carbon Steel

Channels made from high-quality carbon

steel are continuously roll formed to

precise dimensions. By cold working the

steel mechanical properties are increased,

allowing lightweight structures to carry the

required load. Corrosion resistance of

carbon steel varies widely with coating

and alloy. See “Finishes” for more detailed

information.

Stainless Steel

Stainless steel channel is available in AISI

Type 304 or 316 material. Both are

non-magnetic and belong to the austenitic

stainless steels group, based on alloy

content and crystallographic structure.

Like carbon steel, stainless steel exhibits

increased strength when cold worked by

roll-forming.

Several conditions make the use of

stainless steel ideal. These include

reducing long term maintenance costs,

high ambient temperatures, appearance,

and stable structural properties such as

yield strength, and high creep strength.

Type 304 resists most organic chemicals,

dyestuffs and a wide variety of inorganic

chemicals at elevated or cryogenic

temperatures. Type 316 contains slightly

more nickel and adds molybdenum to give

it better corrosion resistance in chloride

and sulfuric acid environments. More

specific information concerning the

differences between types 304 and 316 is

available from Cooper B-Line.

Aluminum

Cooper B-Line’s standard aluminum

channel is extruded from aluminum alloy

6063-T6. Strut fittings are made from

aluminum alloy 5052-H32.

The high strength to weight ratio of

channel made of aluminum greatly

reduces the overall cost of installation

through ease of handling and field cutting.

Aluminum owes its excellent corrosion

resistance to its ability to form an

aluminum oxide film that immediately

reforms when scratched or cut. In most

outdoor applications, aluminum has

excellent resistance to “weathering”. The

resistance to chemicals, indoor or

outdoor, can best be determined by tests

conducted by the user with exposure to

the specific conditions for which it is

intended. The corrosion resistance of

aluminum to some commonly known

chemicals is shown in the Corrosion

Chart. For further information, contact

Cooper B-Line Systems, Inc. or the

Aluminum Association.

Fiberglass

Cooper B-Line offers two fire retardant

(FR) resins for strut systems, polyester

and vinyl ester. Both resins are ideal for

corrosive environments or nonconductive

applications with moderate strength

requirements. Some common types of

environments where Vinyl Ester Resins

are recommended, that Poly Esters are

not, are paper mills, most any metal

plating operation and any condition with

concentrated levels of Chlorine, [ Cl- ].

Please consult our fiberglass corrosion

resistance charts on pg. 173 for specific

chemical recommendation data.

Unlike other base materials depicted in

this catalog, fiberglass exhibits unique

physical property changes when operating

in elevated temperature conditions, that

are a fraction of increase compared to

steel or aluminum. This being true,

Cooper B-Line advises against using

fiberglass in temperatures greater than

200° F.

Please refer to the "Corrosion Resistance

Guide" below for specific applications.

Cooper B-Line Fiberglass Strut systems

are manufactured from glass fiber-

reinforced plastic shapes that meet ASTM

E-84, Class 1 Flame Rating and self-

extinguishing requirements of ASTM

D-635. A surface veil is applied during

pultrusion to insure a resin-rich surface

and ultraviolet resistance.

While polyester is sufficient for most uses,

vinyl ester is suitable for a broader range

of environments.

B-Line B22 SS6 87401A6

Cooper B-Line Steel Strut is stamped with:

Traceable to the steel’s origin

Material/Finish

B-Line part number designation

Company Name

Technical Data

FINISHES

Zinc Coatings

Zinc protects steel in two ways. First it

protects the steel as a coating and

second as a sacrificial anode to repair

bare areas such as cut edges, scratches,

and gouges. The corrosion protection of

zinc is directly related to its thickness and

the environment. This means a .2 mil

coating will last twice as long as a .1 mil

coating in the same environment.

Galvanizing also protects cut and drilled edges.

Electrogalvanized Zinc

Electrogalvanized Zinc (also known as

zinc plated or electroplated) is the process

by which a coating of zinc is deposited on

the steel by electrolysis from a bath of

zinc salts.

A rating of SC3, Cooper B-Line’s

standard, provides a minimum zinc

coating thickness of .5 mils (excluding

hardware, which is SC1 = .2 mils).

When exposed to air and moisture, zinc

forms a tough, adherent, protective film

consisting of a mixture of zinc oxides,

hydroxides, and carbonates. This film is in

itself a barrier coating which slows

subsequent corrosive attack on the zinc.

This coating is usually recommended for

indoor use in relatively dry areas, as it

provides ninety-six hours protection in salt

spray testing per ASTM B117.

Chromium/ Zinc

Chromium/ Zinc is a corrosion resistant

composition, which was developed to

protect fasteners and small bulk items for

automotive use. The coating applications

have since been extended to larger parts

and other markets.

Chromium/Zinc composition is an

aqueous coating dispersion containing

chromium, proprietary organics, and zinc

flake.

This finish provides 500 hours protection

in salt spray testing per ASTM B117.

Pre-Galvanized Zinc

(Mill galvanized, hot dip mill galvanized or

continuous hot dip galvanized) Pre-

galvanized steel is produced by coating

coils of sheet steel with zinc by

continuously rolling the material through

molten zinc at the mills. This is also

known as mill galvanized or hot dip mill

galvanized. These coils are then slit to

size and fabricated by roll forming,

shearing, punching, or forming to produce

Cooper B-Line pre-galvanized strut

products.

The G90 specification calls for a coating

of .90 ounces of zinc per square foot of

steel. This results in a coating of .45

ounces per square foot on each side of

the sheet. This is important when

comparing this finish to hot dip galvanized

after fabrication.

During fabrication, cut edges and welded

areas are not normally zinc coated;

however, the zinc near the uncoated

metal becomes a sacrificial anode to

protect the bare areas after a short period

of time.

Hot Dip Galvanized After

Fabrication (Hot dip galvanized or

batch hot dip galvanized)

Hot dip galvanized strut products are

fabricated from steel and then completely

immersed in a bath of molten zinc. A

metallic bond occurs resulting in a zinc

coating that completely coats all surfaces,

including edges and welds.

Another advantage of this method is

coating thickness. Strut products that are

hot dip galvanized after fabrication have a

minimum thickness of 1.50 ounces per

square foot on each side, or a total 3.0

ounces per square foot of steel, according

to ASTM A123.

The zinc thickness is controlled by the

amount of time each part is immersed in

the molten zinc bath as well as the speed

at which it is removed. The term "double

dipping" refers to parts too large to fit into

the galvanizing kettle and, therefore, must

be dipped one end at a time. It does not

refer to extra coating thickness.

The layer of zinc which bonds to steel

provides a dual protection against

corrosion. It protects first as an overall

barrier coating. If this coating happens to

be scratched or gouged, zinc's secondary

defense is called upon to protect the steel

by galvanic action.

Hot-Dip Galvanized After Fabrication is

recommended for prolonged outdoor

exposure and will usually protect steel for

20 years or more in most atmospheric

environments and in many industrial

environments. For best results, a zinc

rich paint (available from Cooper B-Line)

should be applied to field cuts. The

zinc rich paint will provide immediate

protection for these areas and eliminate

the short time period for galvanic action to

“heal” the damaged coating.

Anticipated Life of Zinc Coatings In Various Atmospheric Environments

Hot Dip Galvanized

Pre-Galvanized

= Zinc Coating 1.50 Oz./Ft.2(.0026” Thick)

= Zinc Coating 0.45 Oz./Ft.2(.00075” Thick)

Rural Tropical

Marine

Temperature

Marine

Highly

Industrial

Life

Years

Suburban

Environment

Urban

ZnFe

ZnO

Technical Data

Dura-Green™and Dura-Copper™

Epoxy Coatings

Dura-Green and Dura-Copper epoxy

coatings are water borne epoxy coatings

applied to Cooper B-Line products by a

precisely controlled cathodic electro-

deposition process. This process is

accomplished using a conveyor to

transport channel and fittings through

several cleaning, phosphatizing and

application stages prior to being baked

(See diagram below).

This custom-designed paint system is

used for painting all channels, channel

combinations, slotted angle, and fittings.

Samples are selected on a routine basis

for Salt Spray (fog) testing to verify the

quality of the finish. These tests are per-

formed in accordance with ASTM B117

and evaluated and related according to

ASTM D1654 (Tables 1 & 2).

The Dura-Green and Dura-Copper Epoxy

coatings have been tested and listed by

Underwriters Laboratories in accordance

with “Standard for Surface Metal Raceway

and Fittings, UL5” and “Standard for Pipe

Hanger Equipment for Fire Protection

Service, UL203”.

Due to Dura-Green’s organically based

composition, it seats itself into porous

surfaces more completely and efficiently

than zinc coatings. As these porous

caverns are filled along the material

profile, the outer finished surface

demonstrates an increased smooth

uniform plane which produces

considerably less off-gasing when tested.

Cooper B-Line’s Dura-Green channel

meets or exceeds 100 level clean room

standards. This was confirmed by testing

the channel in accordance with Boeing

(PCL) Standards, which are more strin-

gent and complete than ASTM E595-93.

Dura-Green was found to be a superior

finish, due in part to its proven application

process.

PVC Coating

Another of the corrosion resistant coatings

offered by Cooper B-Line is PVC

(polyvinyl chloride), applied over steel or

aluminum channel and fittings. The PVC

coating process begins by cleaning the

product thoroughly. A bonding coat is

applied to the part and then preheated to

a temperature above the melting point of

the coating powder. The product is then

passed through a fluidized bed of vinyl

plastic powder where the powder

particles melt, adhere and flow out to

form a smooth continuous coating. The

thickness is controlled by the base metal

temperature and the immersion time in

the bed. It is then post-heated to complete

the fusion of the outer surfaces.

The standard coating thickness of

Cooper B-Line’s PVC coated products is

15 mils (.380 mm), plus or minus 5 mils

(.125 mm). Since the chemistry, not the

thickness of vinyl plastic PVC determines

longevity, a coating of 10 to 20 mils (.250

to .500 mm) is more than adequate. If the

corrosive conditions are such that the

plasticizers are leeched out, a thicker

coating will do little to extend the life of a

coated product.

For certain environments, a plastisol

dipped PVC coating is available on

request.

PVC coating depends totally on the

concept of encapsulation attached to the

base metal by a bonding agent. If any

hole or discontinuity occurs, the corrosive

action can undercut the base metal to a

point where all that remains is the PVC.

In the event of field cuts or any other

damage to the coating, a liquid PVC

patch, available from Cooper B-Line, must

be applied to maintain the integrity of the

coating. After the installation is complete,

a thorough inspection should be per-

formed to assure the absence of voids,

pinholes, or cuts.

˛Unscribed Scribed 1/8” (3.2) Creepage

Type of Finish 5% Failure (1) from Scribe (1)

B-Line Dura-Green Epoxy 1000 Hours 312 Hours

Mill Galv. (Pre-Galv.) G90 192 Hours 288 Hours

Perma-Green 438 Hours 231 Hours

Zinc Chromate 36 Hours 96 Hours

Industry Green (Range) 10 to 36 Hours 4 to 30 Hours

SALT SPRAY TEST RESULTS

DURA-GREEN™/DURA-COPPER™EPOXY COATING PROCESS

TANK 1 TANK 2 TANK 3 TANK 4 TANK 5 TANK 6 TANK 7 TANK 8 BAKE OVEN

The channel A rinse is A phosphatized The material A pre-deionized The electro- The first post The final rinse The curing

and parts are applied to sealer is applied moves through rinse prepares coating tank rinse removes insures a process takes 20

thoroughly remove to insure clear water rinse the metal for the applies a any unelectri- smooth, minutes at a

cleaned and insoluble salts corrosion to remove excess cathodic electro- uniform coat cally attracted nonblemish baking temperature

phosphatized. and unreacted resistanceand phosphates. coating. of epoxy paint solids. surface. of 375° F (199° C).

phosphates. paint adhesion. to the entire

surface.

(1) All salt spray (fog) tests conducted in accordance with ASTM B117 and evaluated and

rated according to ASTM D1654 Tables 1 & 2. Tests are performed and certified by an

independent testing laboratory.

Technical Data

WELDING

The welding procedures used in the

fabrication of Cooper B-Line steel

products are in accordance with American

Welding Society Standards. To achieve

the highest quality in our manufacturing

processes, our welders follow standards

set by AWS Code.

Spot Welding

Spot welded back-to-back channel is

manufactured using a modern DC

powered resistance welder controlled by

a microprocessor. This produces a series

of spot welds with speed and consistency.

Consistency is one of the most important

advantages in specifying B-Line back-to-

back channel. Variables such as weld

sequence, speed and duration are

carefully controlled and monitored by a

sophisticated electronic control system.

Astatistical quality control program,

combining destructive and non-destructive

testing, is used by Cooper B-Line to

ensure high quality welds.

MIG Welding

MIG welded, more properly called gas

metal arc welded (GMAW) combination

channels and fittings, are produced when

physical dimensions or certain

combinations require a weld process

other than automatic spot welding. The

same quality control requirements are

imposed on MIG welded and spot-welded

products.

Quality Assurance

Cooper B-Line’s Quality Assurance

Program has been developed and

implemented for compliance with

ISO9001:2008. Cooper B-Line also

complies with various industry standards

and specifications. Cooper B-Line has

extensive experience in suppling metal

framing components for the nuclear

power generating industry, and upon

request can provide products in

compliance with 10CFR50 Appendix B,

NQA-1 and 10CFR21. For more

information on our quality capability

please visit www.cooperbline.com/nuclear.

MIG Weld

Spot Weld

Technical Data

CORROSION

All metal surfaces are affected by

corrosion. Depending on the physical

properties of the metal and the

environment to which it is exposed,

chemical or electromechanical corrosion

may occur.

Atmospheric Corrosion

Atmospheric corrosion occurs when metal

is exposed to airborne liquids, solids or

gases. Some sources of atmospheric

corrosion are moisture, salt, dirt and

sulphuric acid. This form of corrosion is

typically more severe outdoors, especially

near marine environments.

Chemical Corrosion

Chemical corrosion takes place when

metal comes in direct contact with a

corrosive solution. Some factors which

affect the severity of chemical corrosion

include: chemical concentration level,

duration of contact, frequency of washing,

and operating temperature.

Storage Corrosion

Wet storage stain (white rust) is caused

by the entrapment of moisture between

surfaces of closely packed and poorly

ventilated material for an extended period.

Wet storage stain is usually superficial,

having no affect on the properties of the

metal.

Light staining normally disappears with

weathering. Medium to heavy buildup

should be removed in order to allow the

formation of normal protective film. Proper

handling and storage will help to assure

stain-free material. If product arrives wet,

it should be unpacked and dried before

storage. Dry material should be stored in

a well ventilated “low moisture”

environment to avoid condensation

formation. Outdoor storage is

undesirable, and should be avoided

whenever possible.

Galvanic Corrosion

Galvanic corrosion occurs when two or

more dissimilar metals are in contact in

the presence of an electrolyte (ie.

moisture). An electrolytic cell is created

and the metals form an anode or a

cathode depending on their relative

position on the Galvanic Series Table.

The anodic material will be the one to

corrode. Anodic or cathodic characteristics

of two dissimilar metals will depend on the

type of each material. For example: If

zinc and steel are in contact, the zinc acts

as the anode and will corrode; the steel

acts as the cathode, and will be protected.

If steel and copper are in contact, the

steel is now the anode and will corrode.

The rate at which galvanic corrosion

occurs depends on several factors:

1. The relative position on the Galvanic

Series Table - the further apart materials

are in the Galvanic Series Table, the

greater the potential for corrosion of the

anodic material.

2. The amount and concentration of

electrolyte present - an indoor, dry

environment will have little or no galvanic

corrosion compared to a wet atmosphere.

GALVANIC SERIES IN SEA WATER

Metals in descending order of activity in the presence of an electrolyte.

3. The relative size of the materials - a

small amount of anodic material in contact

with a large cathodic material will result in

greater corrosion. Likewise, a large

anode in contact with a small cathode will

decrease the rate of attack.

Magnesium

Magnesium Alloys

Zinc

Beryllium

Aluminum - Zinc Alloys (7000 series)

Aluminum - Magnesium Alloys (5000 series)

Aluminum (1000 series)

Aluminum - Magnesium Alloys (3000 series)

Aluminum - Magnesium - Silicon Alloys (6000 series)

Cadmium

Aluminum - Copper Alloys (2000 series)

Cast Iron, Wrought Iron, Mild Steel

Austenitic Nickel Cast Iron

Type 410 Stainless Steel (active)

Type 316 Stainless Steel (active)

Type 304 Stainless Steel (active)

Naval Brass, Yellow Brass, Red Brass

Tin

Copper

Lead-Tin Solders

Admiralty Brass, Aluminum Brass

Manganese Bronze

Silicon Bronze

Tin Bronze

Type 410 Stainless Steel (passive)

Nickel - Silver

Copper Nickel Alloys

Lead

Nickel - Aluminum Bronze

Silver Solder

Nickel 200

Silver

Type 316 Stainless Steel (passive)

Type 304 Stainless Steel (passive)

Incoloy 825

Hastelloy B

Titanium

Hastelloy C

Platinum

Graphite

More Anodic

Anodic End

Cathodic End

Technical Data

Type 304 Type 316 Zinc

Chemical Aluminum Dura-Green PVC Stainless Stainless Coated Steel

Acetic Acid 10% R NR R R R NR

Acetic Acid 2% R F R R R NR

Acetone R R NR R R R

Ammonium Hydroxide-Conc. R R R R R –

Ammonium Hydroxide 10% F R R R R –

Ammonium Hydroxide 2% RRRRR–

Benzene R R NR R R –

Bromine Water NR R R NR NR –

Butanol (Butyl Alcohol) R R R R R R

Carbon Disulfide R R NR R R –

Carbon Tetrachloride F R F R R –

Chlorine Water R R R NR F R

Cutting Oil – R – – – –

Diethanolamine R R NR – – NR

Ethanol R R R R R R

Ethyl Acetate R R NR – – R

Ethylene Dichloride F R NR – – R

Formaldehyde 20% R R R R R R

Gasoline R R R R R R

Glycerine R R R R R R

Household Detergent 10% FRRRR–

Hydrochloric Acid 40% NR NR R NR NR NR

Hydrochloric Acid 10% NR F – NR NR NR

Hydrochloric Acid 2% NR F – NR NR NR

Hydrogen Peroxide 30% R NR R R R –

Hydrogen Peroxide 3% R R – R R –

Hydrogen Sulfide (Gas) R R R F R –

JP-4 Jet Fuel R R R R R –

Lactic Acid 85% FRRNR– –

Latex R R – R R NR

Linseed Oil Fatty Acid R F R R R –

Methanol R R R R R R

Methyl Ethyl Ketone R R NR –– R

Methyl Isobutyl Ketone RRNR––R

Mineral Spirits R R – – – –

Motor Oil-10W R R R R R R

Naphtha, VM&P R R R R R R

Nitric Acid 2% FNRRRR –

Perchloroethylene R R – – – NR

Petroleum Ether – R – R R R

Phenol 10% R R NR RRR

Phosphoric Acid 2% F NR R R R NR

Potassium Hydroxide 50% NR R R R R –

Potassium Hydroxide 10% NR R R R R –

Potassium Hydroxide 2% NR RRR R –

Sodium Chloride 25% F R R R R F

Sodium Hydroxide 50% NR RRR R NR

Sodium Hydroxide 10% NR R R R R F

Sodium Hydroxide 2% NR R R – – –

Sodium Hypochlorite-C1. 10% F R R – – –

Sodium Hypochlorite-C1. 6% FRRNR R–

Sulfuric Acid 2% F NR R NR R NR

Tall Oil Fatty Acid (Syfate 94) R R R – – –

Tannic Acid 50% FRRR R –

Water-Deionized R R R R R F

Water-Sea FFRRRF

Water-Tap R R R F F R

Xyol R R NR – – –

Fiberglass corrosion chart on page 183.

The corrosion data given in this table is for general comparison only.

The presence of contaminates and the effect of temperature in chemical environments can greatly affect the corrosion of any material.

B-Line strongly suggests that field service tests or simulated laboratory tests using actual environmental conditions be conducted in order

to determine the proper materials and finishes to be selected.

R=Recommended

F=May be used under some conditions

NR=Not Recommended

–Information not available

Technical Data

DESIGN OF

STRUT SYSTEMS

Beams

Beams are usually defined as horizontal

members which are subjected to vertical

loads such as shelves, platforms or

supports for pipes, conduits or cable

trays. The following is a brief overview of

common beam configurations:

Simple Beam

An example of a simple beam is a length

of channel placed across two cylinders.

When a load is applied, the channel will

support the load because of its stiffness.

The cylinders serve to support the

channel, but do not interfere with its

natural tendency to flex or bend. Simple

beam analysis is used almost universally

for beam comparisons, even though it is

seldom practical in field installations.

A cable tray or conduit trapeze hanger

closely resembles a simple beam.

Fixed Beam

This type of fixed support restricts the

movement of the ends of the channel

when a load is applied. Because of this,

the stiffness of the channel at the ends

and center is employed to resist the load.

The result is a load capability which is

greater than that of an identical simple

beam.

The fixed beam can be approximated by

bolting or welding a length of channel to

rigid supports.

Cantilever Beam

Cantilever beams are often viewed as

variations of a fixed beam, but they have

special characteristics of their own. One

end of the channel is firmly attached to a

rigid support while the other end remains

completely free.

Ashelf bracket is an example of a

cantilever beam.

Continuous Beam

This beam configuration is commonly

used in lighting installations. The

continuous beam possesses traits of

both the simple and fixed beams. When

equal loads are applied to all spans

simultaneously, the counter-balancing

effect of the loads on both sides of a

support restricts the movement of the

channel at the support, similar to that of

the fixed beam. The end spans behave

substantially like simple beams.

Continuous beam installations can

typically support 20% more load than a

simple beam of the same span with

approximately half the deflection.

Therefore, simple beam data should be

used for a general comparison only. An

example of this configuration is found in a

long run of channel when installed across

several supports to form a number of

spans.

Deflection

Deflection, commonly referred to as “sag”,

is inherent in applying a load to a beam

and cannot be avoided. Any and all

beams will deflect when loaded. The

amount of deflection will vary depending

upon the material and the stiffness or

moment of inertia. The deflection

equations in this section show that

increasing the stiffness can be increased

by a variety of methods. Increasing the

depth of the channel is the most direct

method.

The material used affects deflection in a

manner which is significantly different

from the way in which it affects load

capacity. The deflection under load is

inversely proportional to a material

property known as the “modulus of

elasticity” designated by “E”.

The modulus of elasticity is dependent

upon the basic composition of the material

and is not necessarily related to the

material’s strength.

Point Load

Technical Data

Safety Factor

The design loads given for strut beam

loads are based on a simple beam

condition using allowable stress of 25,000

psi. This allowable stress results in a

safety factor of 1.68. This is based upon a

virgin steel minimum yield strength of

33,000 psi cold worked during rolling to

an average yield stress of 42,000 psi.

Aluminum typically has an elastic modulus

which is 1/3that of steel even though they

may have identical strength. As a result,

the deflection of aluminum channel will

be three times that of steel channel under

equal loading. In areas where structures

will be subject to general viewing,

deflection can produce a displeasing

effect. To the untrained eye, a sagging

channel may appear to be a result of

poor design or excessive loading. This is

not usually the case. Many properly

designed channel installations will show

a noticeable deflection at their designed

loads. In areas where cosmetics are not

important, deflection should not be a

factor. Designing an entire installation

based on minimal deflection could result

in an over designed structure. This

translates into increased material and

installation cost. Where cosmetics are

important, it may be necessary to limit the

deflection to an aesthetically pleasing

amount. This “acceptable deflection”

amount is typically given as a fraction

of the span. 1/240 span deflection is

typically the limit where the amount of

deflection appears negligible. For

example, a beam span of 240” would be

allowed 1” (240/240) of deflection at the

mid point. A120” span would only be

allowed 1/2” (120/240) of deflection. The

maximum load for the channel must be

limited in order to remain under these

deflection requirements. The allowable

load resulting in 1/240 span deflection is

posted in the beam load chart for each

channel size.

For even more stringent deflection

requirements, an allowable load is listed

in the beam load charts which results in

1/360 span deflection. This amount of

deflection is sometimes used for beams in

finished ceilings that are to be plastered.

Twisting & Lateral Bracing

Loading of strut on long spans can cause

torsional stress, resulting in the tendency

of the strut to twist or bend laterally. This

phenomenon reduces the allowable beam

loads as shown in the beam loading

charts. It is recommended that long spans

be supported in a manner to prevent

twisting (fixed ends), and that the channel

have adequate lateral bracing. Many

typical strut applications provide this

support and bracing inherently. Piping,

tubing, cable trays, or conduits mounted

to the strut with straps and clamps

prevent twisting or lateral movement. If

no such lateral support exists, contact the

factory for loading recommendations.

Columns

Columns are vertical members which

carry loads in compression. One common

example of a channel column is the

vertical members of a storage rack.

In theory, a column will carry a load equal

to its cross sectional area multiplied by

the ultimate compressive stress of the

material of which the column is made. In

reality, there are many factors affecting

the load capacity of a column, such as the

tendency to buckle or twist laterally

(torsional-flexural buckling), the type of

connection at the top or bottom, the

eccentricity of the load application, and

material imperfections. Several of these

failure modes have been considered in

the allowable column load tables shown in

the “Channel” section of this catalog.

Cooper B-Line strongly recommends that

the engineer perform a detailed study of

the many variable conditions before the

selection process begins.

Design Factors to be Considered

The loading capacity of channel depends

primarily on the material, its cross-

sectional design, and the beam or column

loading configuration. It should be noted

that if two lengths of channel have

identical designs and configurations, the

one made of the stronger base material

will support a larger load. Therefore, any

comparison of channel should begin by

determining whether the materials are

approximately equal in strength.

The column loading chart for each

channel lists the allowable load for each

channel in compression. This load varies

depending on the support condition or “K-

factor”.

Several “K-factors” are listed, which

correspond to the following support

conditions:

K = .8 pinned top - fixed bottom

K = .65 fixed top - fixed bottom

K = 1.0 pinned top - pinned bottom

K = 1.2 free top - fixed bottom

There are a number of physical properties

which are important to the complete

design of a channel member; the “section

modulus” designated as “Sx” or “Sy”,

“moment of inertia” designated by “Ix” or

“Iy”, and the “radius of gyration” which is

given as “rx” or “ry”.

Every structural material has its own

maximum or ultimate stress, which is

usually expressed in “pounds per square

inch” (pascals). Any load which causes a

member to fail is referred to as its

“ultimate” load. In order to prevent

channel from being accidentally loaded up

to or beyond its ultimate load, a safety

factor is included into the design. The

ultimate load is divided by the safety

factor to obtain the “recommended” or

“allowable” working load.

When evaluating channel under various

beam conditions, it is often more

convenient to compare in terms of the

ultimate or recommended “bending

moment”. Simple equations show the

stress is directly proportional to the

bending moment.

Therefore, comparing bending moments

can save time in repeated calculations.

The chart containing Formulas on

Common Beam Loadings (following page)

shows how to calculate the bending

moment for various configurations and

load conditions. It should be noted that

the bending moment is usually not

constant, but varies along the length of

the span. However, the channel must be

designed for a single point, which is the

point of maximum bending moment.

For information regarding dynamic or

seismic design, contact Cooper B-Line’s

Home Office.

GENERAL INFORMATION

Torque

The torque values given throughout the

catalog are to be used as a guide only.

The relationship between the applied

torque or torque wrench reading and the

actual tension created in the bolt may be

substantially different. For example, a dry

non-lubricated bolt with a heavy plating

may rate 50% as efficient as a bolt which

is lubricated with a mixture of heavy oil

and graphite. Other important factors

affecting torque-tension relationships

include friction under the bolt head or nut,

hole tolerances, and torque wrench

tolerances. Accuracy of many commercial

torque wrenches may vary as much as

plus or minus 25%.

Charts and Tables

Charts and tables in this section are

compiled from information published by

nationally recognized organizations and

are intended for use as a guide only.

Cooper B-Line recommends that users of

this information determine the validity of

such information as applied to their own

application.

Technical Data

LOAD AND SUPPORT CONDITION Load Deflection

Factor Factor

Simple Beam - Uniform Load 1.00 1.00

Simple Beam - Concentrated Load at Center .50 .80

Simple Beam - Two Equal Concentrated Loads at 1/4Points 1.00 1.10

Beam Fixed at Both Ends - Uniform Load 1.50 .30

Beam Fixed at Both Ends - Concentrated Load at Center 1.00 .40

Cantilever Beam - Uniform Load .25 2.40

Cantilever Beam - Concentrated Load at End .12 3.20

Continuous Beam - Two Equal Spans - Uniform Load on One Span 1.30 .92

Continuous Beam - Two Equal Spans - Concentrated Load on Both Spans 1.00 .42

Continuous Beam - Two Equal Spans - Concentrated Load at Center of One Span .62 .71

Continuous Beam - Two Equal Spans - Concentrated Load at Center of Both Spans .67 .48

Span

The data shown in the beam load charts for appropriate channels on page(s) 16 thru 37 is for simply supported, single span beams

with a uniformly distributed load. For other loading and/or support conditions, use the appropriate factor from the chart below.

EXAMPLES:

PROBLEM: PROBLEM:

Calculate the maximum allowable load and corresponding Calculate the maximum allowable load and corresponding

deflection of a simply supported B22 beam with a concentrated deflection of a cantilever B52 beam with a uniformly distributed

load at midspan as shown. load.

SOLUTION: SOLUTION:

From beam load chart for B22 (page 22), maximum allowable From beam load chart for B52 (page 33), maximum allowable

Load is A and the corresponding deflection is B. load is A and the corresponding deflection is B.

Multiplying by the appropriate factors shown in the chart above. Multiplying by the appropriate factors shown in chart above.

LOAD = Ax load factor = _______ LOAD = A x load factor = _______

DEFLECTION = B x deflection factor = DEFLECTION = B x deflection factor = _______

96”

Technical Data

Brackets [ ] indicate alternative

specifications which may be substituted by

the project engineer.

PART 1 - GENERAL

1.01 WORK INCLUDED

A. Continuous slot, bolted framing channels

and all associated fittings and hardware.

B. Trapeze type supports for cable tray,

conduit, pipe and other similar systems.

C. Use of bolted metal framing as a surface

metal raceway.

1.02 REFERENCES

A. ASTM A108 - Specification for Steel

Bars, Carbon, Cold Finished, Structural

Quality.

B. ASTM A123 - Specification for Zinc

(hot-dip galvanized) Coatings on Products

Fabricated from Rolled, Pressed, and

Forged Steel Shapes, Plates, Bars and

Strips.

C. ASTM A1011, 33,000 PSI min. yield -

Specification for Steel, Sheet and Strip,

Carbon, Hot-Rolled, Structural Quality.

D. ASTM B633 - Specification for

Electrodeposited Coatings of Zinc on Iron

and Steel.

E. ASTM A653 33,000 PSI min. yield G90

- Specification for Steel Sheet, Zinc Coated

(Galvanized) by the Hot-Dip Process,

Structural Quality.

F. ASTM A1018 - Standard Specification

for Steel, Sheet and Strip, Heavy-Thickness

Coils, Carbon, Hot-Rolled, Structural

Quality.

G. MFMA - Metal Framing Standards

Publication, MFMA-4.

1.03 QUALITY ASSURANCE

A. Manufacturers : Firms regularly engaged

in the manufacture of bolted metal framing

of the types required, whose products have

been in satisfactory use in similar service

for not less than 5 years.

B. A material heat code number shall be

stamped on all strut and fittings. This is

required to maintain traceability of the

product to the material test reports to the

ASTM standard.

C. For stainless steel items, the part

number shall contain a material designator

(EXAMPLE: B-Line B22SS6for type 316 or

B22SS4for type 304), or a separate stamp

shall be included to reference the type of

material used.

D. MFMA Compliance: comply with the

latest revision of MFMA Standard

Publication Number MFMA-4, “Metal

Framing”.

E. NEC Compliance: Comply with the

latest revision NFPA 70 - Article 352

“Surface Metal Raceways and Surface

Nonmetallic Raceways”.

.UL Compliance: Comply with UL

“Standard for Surface Metal Raceway and

Fittings”.

1.04 SUBMITTALS

A. Submit drawings of strut and

accessories including clamps, brackets,

hanger rods and fittings.

B. Submit manufacturer’s product data on

strut channels including, but not limited to,

types, materials, finishes, gauge thickness

and hole patterns. For each different strut

cross section, submit cross sectional

properties including Section Modulus (Sx)

and Moment of Inertia (Ix).

1.05 DELIVERY, STORAGE AND

HANDLING

A. Deliver strut systems and components

carefully to avoid breakage, denting, and

scoring finishes. Do not install damaged

equipment.

B. Store strut systems and components in

original cartons and in clean dry space;

protect from weather and construction

traffic.

PART 2 - PRODUCTS

2.01 ACCEPTABLE MANUFACTURERS

A. Manufacturer: Subject to compliance

with these specifications, strut systems to

be installed shall be as manufactured by

Cooper B-Line Systems, Inc. [or engineer

approved equal.]

2.02 STRUT CHANNELS AND

COMPONENTS

A. General: Strut shall be 15/8” wide in

varying heights and welded combinations

as required to meet load capacities and

designs indicated on the drawings.

B. Material and Finish: Material and finish

specifications for each strut type are as

follows:

1. Aluminum: Strut shall be manufactured

of extruded aluminum alloy 6063-T6. All

fittings and hardware shall be zinc plated

according to ASTM B633. For outdoor use,

all fittings and hardware shall be stainless

steel Type 316 [Type 304] or chromium

zinc, ASTM F1136 Gr. 3.

2. Epoxy Painted: Strut shall be made from

steel meeting the minimum mechanical

properties of ASTM A1011 33,000 PSI min

yield, then painted with water born epoxy

applied by a cathodic electro-deposition

process. Fittings shall be manufactured

from steel meeting the minimum

requirements of ASTM A1018 33,000 PSI

min. yield. The fittings shall have the same

epoxy finish as the strut. Threaded

hardware shall be zinc plated in accordance

with ASTM B633 Service Class 1 (SC1).

Service Class 1 is not an acceptable

coating for fittings or components other than

threaded hardware.

3. Pre-Galvanized Steel: Strut shall be

made from structural quality steel meeting

the minimum mechanical properties of

ASTM A653 33,000 PSI min. yield, mill

galvanized coating designation G90.

Fittings shall be manufactured from steel

meeting the minimum requirements of

ASTM A1018 33,000 PSI min. yield and

zinc plated in accordance with ASTM B633

service class 3 (SC3). Threaded hardware

shall be zinc plated in accordance with

ASTM B633 Service Class 1 (SC1). Service

Class 1 is not an acceptable coating for

fittings or components other than threaded

hardware.

4. Hot-Dip Galvanized Steel: Strut shall be

made from structural quality steel meeting

the minimum mechanical properties of

ASTM A1011 33,000 PSI min. yield and

shall be hot-dip galvanized after fabrication

in accordance with ASTM A123. Fittings

shall be manufactured from steel meeting

the minimum requirements of ASTM A1018

33,000 PSI min. yield, and hot-dip

galvanized after fabrication in accordance

with ASTM A123. All hardware shall be

stainless steel Type 316 [Type 304] or

chromium zinc ASTM F1136 Gr. 3. All hot-

dip galvanized after fabrication products

must be returned to point of manufacture

after coating for inspection and removal of

all sharp burrs.

5. Stainless Steel: All strut, fittings and

hardware shall be made of AISI Type 316

[Type 304] stainless steel as indicated.

Channels must be identified as required in

previous section 1.03 Quality Assurance.

PART 3 - EXECUTION

3.01 INSTALLATION

A. Install strut as indicated; in accordance

with equipment manufacturer’s

recommendations, and with recognized

industry practices.

B. All nuts and bolts shall be tightened to

the following values.

RECOMMENDED BOLTED METAL FRAMING SPECIFICATION

Bolt Size Torque (ft-lbs)

1/4-20 6

5/16-18 11

3/8-16 19

1/2-13 50

Technical Data

Channel

Cooper B-Line’s metal framing channel is cold formed

on our modern rolling mills from 12 Ga. (2.6mm),

14 Ga. (1.9mm), and 16 Ga. (1.5mm) low carbon steel

strips. A continuous slot with inturned lips provides

the ability to make attachments at any point.

Lengths & Tolerances

All channels excluding ‘SH’ style

±1/8” (3.2mm) on 10’ (3.05m) and

±3/16” (4.76mm) on 20’ (6.09m)

All ‘SH’ channels only

±1/4” (6.35mm) on 10’ (3.05m) and

±1/2” (12.70mm) on 20’ (6.09m)

Custom lengths are available upon request.

Slots

Cooper B-Line’s slotted series of channels offer full

flexibility. A variety of pre-punched slot patterns

eliminate the need for precise field measuring for

hole locations. Slots offer wide adjustments in the

alignment and bolt sizing.

Holes

A variety of pre-punched 9/16” (14.3 mm) diameter hole

patterns are available in Cooper B-Line channels.

These hole patterns provide an economical

alternative to costly field drilling required for many

applications.

Knockouts

When used with series B217-20 Closure Strips,

Cooper B-Line’s knockout channels can be used to

provide an economical U.L. listed surface raceway.

Channels are furnished with 7/8” (22.2 mm) knockouts

on 6” (152 mm) centers, allowing for perfect fixture

alignment on spans up to 20’ (6.09 m).

Materials & Finishes (Unless otherwise noted)

Steel: Plain & Pre-galvanized

12 Ga. (2.6), 14 Ga. (1.9) and 16 Ga. (1.5)

Note: Aminimum order may apply on special material and finishes.

Design Load (Steel & Stainless Steel)

The design loads given for strut beam loads are based on a simple beam condition using an allowable stress of

25,000 psi. This allowable stress results in a safety factor of 1.68. This is based upon virgin steel minimum yield

strength of 33,000 psi cold worked during rolling to an average yield stress of 42,000 psi.

For aluminum channel loading multiple steel loading by a factor of 0.38.

Welding

Weld spacing is maintained between 21/2inches (63.5 mm) and 4 inches (101.6 mm) on center. Through high

quality control testing of welded channels and continuous monitoring of welding equipment, Cooper B-Line

provides the most consistent combination channels available today.

Metric

Metric dimensions are shown in parentheses. Unless noted, all metric dimensions are in millimeters.

Finish

Code Finish Specification

PLN Plain ASTM A1011, 33,000 PSI

min. yield

GRN Dura-Green

GLV Pre-Galvanized ASTM A653 33,000 PSI

min. yield

HDG Hot-Dipped Galvanized ASTM A123

YZN Yellow Zinc Chromate ASTM B633 SC3 Type II

SS4 Stainless Steel Type 304 ASTM A240

SS6 Stainless Steel Type 316 ASTM A240

AL Aluminum Aluminum 6063-T6

Channel & Combinations

Metal Framing Channels

Material & Thickness * Channel Hole Pattern **

Channel

Dimensions Stainless SH S H17/8TH KO6

Steel

Channel Height Width

Type Steel Alum. Type Type

304 316

12 3 4

B11 31/4”(82.5) 15/8”(41.3) 12 Ga. .105 – – 1 1 1 –1

B12 27/16”(61.9) 15/8”(41.3) 12 Ga. .105 – – 1 2 1 1 2 –12

B22 15/8”(41.3) 15/8”(41.3) 12 Ga. .105 12 Ga. 12 Ga. 1 2 3 4 1 3 1 2 3 1 1 2

B24 15/8”(41.3) 15/8”(41.3) 14 Ga. .080 14 Ga. 14 Ga. 1 2 3 4 1 1 2 3 –12

B26 15/8”(41.3) 15/8”(41.3) 16 Ga. – – – 1 1 1 –1

B32 13/8”(34.9) 15/8”(41.3) 12 Ga. – 12 Ga. – 1 3 1 1 3 –1

B42 1” (25.4) 15/8”(41.3) 12 Ga. – 12 Ga. – 1 3 1 1 3 –1

B52 13/16”(20.6) 15/8”(41.3) 12 Ga. – 12 Ga. – 1 1 1 –1

B54 13/16”(20.6) 15/8”(41.3) 14 Ga. .080 14 Ga. 14 Ga. 123 4 1 1 2 3 4 –12

B56 13/16”(20.6) 15/8”(41.3) 16 Ga. – – – 1 1 1 –1

B62 13/16”(20.6) 13/16”(20.6) 18 Ga. – – – – – – – –

B72 13/32”(10.3) 13/16”(20.6) 18 Ga. – – – – – – – –

SELECTION CHART

for Channels, Materials and Hole Patterns

The selection has been prepared to provide a reference for available channel, materials and hole patterns. Material types

available for various hole patterns are defined by numbers 1 thru 4.

Some stainless steel channels with hole patterns are available on special order only.

*Metric equivalent for thicknesses shown in chart. **1- Steel

12 Ga. = 2.6 mm 18 Ga. = 1.2 mm 2 - Aluminum

14 Ga. = 1.9 mm .105 = 2.6 mm 3- Type 304 Stainless Steel

16 Ga. = 1.5 mm .080 = 2.0 mm 4 - Type 316 Stainless Steel

Properties may vary due to commercial tolerances of the material.

Channel Part Numbering

Example:

B22 SH - 120 SS4

Channel Type Hole Patterns Length Material/Finish

B11 SH (pg. 40) 120 GRN

B12 S (pg. 40) 240 GLV

B22 † H178 (pg. 40) HDG

B24 † TH (pg. 41) YZN

B26 K06 (pg. 41) SS4

B32 SHA (pg. 41) SS6

B42 S58 (pg. 42) AL

B52 † M (pg. 42)

B54 † H25 (pg. 43)

B56 H112 † (pg. 42)

B62 * Leave blank for no hole pattern

B72

9/16” x 11/8”

slots on

2” centers

13/32” x 3”

slots

9/16”

diameter

holes

9/16”

diameter

on 17/8”

centers

7/8”

diameter

knockouts

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

Channel

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B11 3.059 (4.55) .900 (5.81) 1.1203 (46.63) .6472 (10.61) 1.116 (2.83) .4357 (18.14) .5362 (8.79) .696 (1.77)

B11A 6.119 (9.11) 1.800 (11.61) 6.3931 (266.10) 1.9671 (32.24) 1.885 (4.79) .8714 (36.27) 1.0725 (17.58) .696 (1.77)

X - X Axis Y - Y Axis

B11

• Thickness: 12 Gauge (2.6 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized,

Hot-Dipped Galvanized, Aluminum

• Weight: 3.05 Lbs./Ft. (4.54 kg/m)

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

31/4”

(82.5)

13/16”

(20.6)

1.5190

(38.6)

3/8”

(9.5)

3/8”

(9.5)

9/32”

(7.1)

7/8”

(22.2)

SECTION PROPERTIES

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B11 Channel, Combinations & Load Data

BEAM LOADING

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

24 (609) B11 5130 (22819) .029 (.73) 5130 (22819) 5130 (22819)

B11A 5130* (22819) .005 (.13) 5130* (22819) 5130* (22819)

36 (914) B11 3488 (15515) .065 (1.65) 3488 (15515) 3488 (15515)

B11A 5130* (22819) .017 (.43) 5130* (22819) 5130* (22819)

48 (1219) B11 2616 (11636) .117 (2.97) 2616 (11636) 2616 (11636)

B11A 5130* (22819) .040 (1.01) 5130* (22819) 5130* (22819)

60 (1524) B11 2093 (9310) .183 (4.65) 2093 (9310) 1908 (8487)

B11A 5130* (22819) .079 (2.00) 5130* (22819) 5130* (22819)

72 (1829) B11 1744 (7757) .263 (6.68) 1744 (7757) 1325 (5894)

B11A 5130* (22819) .136 (3.45) 5130* (22819) 5130* (22819)

84 (2133) B11 1495 (6650) .358 (9.09) 1460 (6494) 974 (4332)

B11A 4552 (20248) .191 (4.85) 4552 (20248) 4552 (20248)

96 (2438) B11 1308 (5818) .468 (11.89) 1118 (4973) 745 (3314)

B11A 3983 (17717) .250 (6.35) 3983 (17717) 3983 (17717)

108 (2743) B11 1163 (5173) .592 (15.03) 884 (3932) 589 (2620)

B11A 3541 (15751) .317 (8.05) 3541 (15751) 3353 (14915)

120 (3048) B11 1046 (4653) .731 (18.57) 716 (3185) 477 (2122)

B11A 3187 (14176) .391 (9.93) 3187 (14176) 2716 (12081)

144 (3657) B11 872 (3879) 1.053 (26.74) 497 (2211) 331 (1472)

B11A 2656 (11814) .563 (14.30) 2656 (11814) 1886 (8389)

168 (4267) B11 747 (3323) 1.433 (36.40) 365 (1623) 243 (1081)

B11A 2276 (10124) .766 (19.45) 2078 (9243) 1386 (6165)

192 (4877) B11 654 (2909) 1.871 (47.52) 280 (1245) 186 (827)

B11A 1992 (8861) 1.001 (25.42) 1591 (7077) 1061 (4719)

216 (5486) B11 581 (2584) 2.368 (60.15) 221 (983) 147 (654)

B11A 1770 (7873) 1.267 (32.18) 1257 (5591) 838 (3727)

240 (6096) B11 523 (2326) 2.924 (74.27) 179 (796) 119 (529)

B11A 1593 (7086) 1.564 (39.72) 1018 (4528) 679 (3020)

COLUMN LOADING

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Reference page 14 for general fitting and standard finish specifications.

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. NLbs. NLbs. N Lbs. N Lbs. N

24 (609) B11 8190 (36431) 4477 (19914) 8446 (37569) 7783 (34620) 7311 (32521)

B11A 17701 (78738) 8267 (36773) 17778 (79080) 17572 (78164) 17416 (77470)

36 (914) B11 7311 (32521) 4183 (18607) 7838 (34865) 6503 (28927) 5612 (24963)

B11A 17416 (77470) 8189 (36426) 17590 (78244) 17127 (76184) 16774 (74614)

48 (1219) B11 6214 (27641) 3783 (16827) 7053 (31373) 4988 (22188) 3816 (16974)

B11A 17016 (75691) 8079 (35937) 17327 (77074) 16503 (73409) 15876 (70620)

60 (1524) B11 4988 (22188) 3279 (14586) 6140 (27312) 3595 (15991) 2790 (12410)

B11A 16503 (73409) 7727 (34371) 16988 (75566) 15701 (69841) 14721 (65478)

72 (1829) B11 3816 (16974) 2444 (10871) 5146 (22890) 2790 (12410) 2213 (9844)

B11A 15876 (70620) 6160 (27401) 16574 (73724) 14721 (65482) 13310 (59206)

84 (2133) B11 3063 (13625) 1897 (8438) 4133 (18384) 2291 (10191) 1846 (8211)

B11A 15135 (67324) 4961 (22067) 16084 (71545) 13563 (60331) 11642 (51786)

96 (2438) B11 2564 (11405) 1532 (6814) 3398 (15115) 1953 (8687) 1591 (7077)

B11A 14279 (63516) 4045 (7993) 15520 (69036) 12226 (54384) 9717 (43223)

108 (2743) B11 2213 (9844) 1273 (5662) 2886 (12837) 1708 (7597) 1401 (6232)

B11A 13310 (59206) 3337 (14844) 14880 (66189) 10712 (47649) 7725 (34362)

120 (3048) B11 1953 (8687) 1081 (4808) 2514 (11183) 1522 (6770) 1251** (5565)

B11A 12226 (54384) 2784 (12384) 14164 (63004) 9019 (40118) 6257** (27832)

144 (3657) B11 1591 (7077) 816 (3630) 2011(8945) 1251** (5565) 1026** (4564)

B11A 9717 (43223) 1990 (8852) 12508 (55638) 6257** (27832) 4345** (19327)

168 (4267) B11 1347 (5992) 642 (2856) 1687 (7504) 1058** (4706) 859** (3821)

B11A 7183 (31951) 1464 (6512) 10550 (46929) 4597** (20448) 3192** (14199)

192 (4877) B11 1167** (5191) 519 (2308) 1459 (6490) 910** (4048) ––

B11A 5499** (24461) 1121 (4986) 8330 (37053) 3520** (15658) ––

216 (5486) B11 1026** (4564) 429 (1908) 1285** (5716) ––––

B11A 4345** (19327) 885 (3936) 6582** (29278) ––––

240 (6096) B11 910** (4048) 360 (1601) 1148** (5106) ––––

B11A 3520** (15658) 717 (3189) 5331** (23713) ––––

Channel & Combinations

B11 Beam & Column Loading Data

31/4”

(82.5)

61/2”

(165.1)

31/4”

(82.5)

15/8”

(41.3)

31/4”

(82.5)

1.5190

(38.6)

15/8”

(41.3)

13/16”

(20.6)

B11A

Wt. 6.10 Lbs./Ft. (9.08 kg/m)

B11B

Wt. 6.10 Lbs./Ft. (9.08 kg/m)

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B12 2.484 (3.70) .731 (4.71) .5349 (22.26) .4061 (6.65) .856 (2.17) .3377 (14.06) .4156 (6.81) .680 (1.73)

B12A 4.969 (7.40) 1.462 (9.43) 2.9036 (120.86) 1.1915 (19.52) 1.409 (3.58) .6756 (28.12) .8315 (13.63) .680 (1.73)

X - X Axis Y - Y Axis

B12

• Thickness: 12 Gauge (2.6 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized,

Hot-Dipped Galvanized, Aluminum

• Weight: 2.47 Lbs./Ft. (3.67 kg/m)

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

27/16”

(61.9)

27/16”

(61.9)

47/8”

(123.8)

31/4”

(82.5)

15/8”

(41.3)

27/16”

(61.9)

1.1199

(28.4)

15/8”

(41.3)

13/16”

(20.6)

13/16”

(20.6)

1.1197

(28.4)

3/8”

(9.5)

3/8”

(9.5)

9/32”

(7.1)

SECTION PROPERTIES

B12A

Wt. 4.94 Lbs./Ft. (7.35 kg/m)

B12B

Wt. 4.94 Lbs./Ft. (7.35 kg/m)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B12 Channel & Combinations

7/8”

(22.2)

BEAM LOADING

COLUMN LOADING

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B12 3880 (17259) .009 (.23) 3880 (17259) 3880 (17259)

B12A 3880* (17259) .001 (.02) 3880* (17259) 3880* (17259)

24 (609) B12 3273 (14559) .038 (.96) 3273 (14559) 3273 (14559)

B12A 3880* (17259) .008 (.20) 3880* (17259) 3880* (17259)

36 (914) B12 2182 (9706) .086 (2.18) 2182 (9706) 2182 (9706)

B12A 3880* (17259) .028 (.71) 3880* (17259) 3880* (17259)

48 (1219) B12 1636 (7277) .153 (3.88) 1636 (7277) 1421 (6321)

B12A 3880* (17259) .067 (1.70) 3880* (17259) 3880* (17259)

60 (1524) B12 1309 (5823) .240 (6.09) 1309 (5823) 909 (4043)

B12A 3847* (17112) .130 (3.30) 3847* (17112) 3847* (17112)

72 (1829) B12 1091 (4853) .345 (8.76) 947 (4212) 632 (2811)

B12A 3206 (14261) .188 (4.77) 3206 (14261) 3206 (14261)

84 (2133) B12 935 (4159) .470 (11.94) 696 (3096) 464 (2064)

B12A 2748 (12224) .255 (6.48) 2748 (12224) 2509 (11160)

96 (2438) B12 818 (3638) .614 (15.59) 533 (2371) 355 (1579)

B12A 2404 (10693) .334 (8.48) 2404 (10693) 1921 (8545)

108 (2743) B12 727 (3234) .777 (19.73) 421 (1873) 281 (1250)

B12A 2137 (9506) .422 (10.72) 2137 (9506) 1518 (6752)

120 (3048) B12 655 (2913) .959 (24.36) 341 (1517) 227 (1010)

B12A 1924 (8558) .521 (13.23) 1844 (8202) 1229 (5467)

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

12 (305) B12 10140 (45105) 4752 (21138) 10247 (45581) 9965 (44326) 9756 (43397)

B12A 20820 (92612) 8023 (35688) 20854 (92763) 20763 (92358) 20694 (92051)

24 (609) B12 9244 (41119) 4514 (20079) 9639 (42876) 8629 (38384) 7933 (35288)

B12A 20519 (91273) 7956 (35390) 20655 (91878) 20293 (90268) 20017 (89040)

36 (914) B12 7933 (35288) 4137 (18402) 8711(35748) 6786 (30185) 5572 (24785)

B12A 20017 (89040) 7844 (34892) 20324 (90405) 19509 (86780) 18889 (84022)

48 (1219) B12 6386 (28406) 3638 (16182) 7562 (33637) 4785 (21285) 3717 (16534)

B12A 19315 (85917) 7688 (34198) 19861 (88346) 18412 (81900) 17309 (76994)

60 (1524) B12 4785 (21285) 2963 (13180) 6285 (27957) 3523 (15671) 2806 (12482)

B12A 18412 (81900) 6941 (30875) 19265 (85695) 17002 (75628) 15278 (67960)

72 (1829) B12 3717 (16534) 2197 (9773) 4964 (22081) 2806 (12482) 2271 (10102)

B12A 17309 (76994) 5334 (23727) 18536 (82452) 15278 (67960) 12795 (56915)

84 (2133) B12 3052 (13576) 1717 (7637) 3994 (17766) 2345 (10431) 1913 (8509)

B12A 16005 (71194) 4176 (18576) 17675 (78622) 13240 (58894) 9884 (43966)

96 (2438) B12 2600 (11565) 1391 (6187) 3350 (14901) 2019 (8981) 1650 (7339)

B12A 14500 (64499) 3328 (14803) 16682 (74205) 10889 (48436) 7567 (33659)

108 (2743) B12 2271 (10102) 1155 (5137) 2893 (12869) 1773 (7886) 1446 (6432)

B12A 12795 (56915) 2692 (11974) 15556 (69196) 8610 (38299) 5979 (26596)

120 (3048) B12 2019 (8981) 977 (4346) 2553 (11356) 1577 (7015) 1279** (5689)

B12A 10889 (48436) 2202 (9795) 14298 (63600) 6974 (31022) 4843** (21543)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B12 Beam & Column Loading Data

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B22 1.910 (2.84) .562 (3.62) .1912 (7.96) .2125 (3.48) .583 (1.48) .2399 (9.99) .2953 (4.84) .653 (1.66)

B22A 3.820 (5.69) 1.124 (7.25) .9732 (40.51) .5989 (9.81) .931 (2.36) .4798 (19.97) .5905 (9.68) .653 (1.66)

B22X 6.649 (9.89) 1.956 (12.62) 4.1484 (172.67) 1.7019 (27.89) 1.456 (3.70) 1.1023 (45.88) 1.2027 (19.71) .751 (1.91)

X - X Axis Y - Y Axis

B22

• Thickness: 12 Gauge (2.6 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized,

Hot-Dipped Galvanized, Stainless Steel Type 304 or 316, Aluminum

• Weight: 1.90 Lbs./Ft. (2.83 kg/m)

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

31/4”

(82.5)

13/16”

(20.6)

13/16”

(20.6)

15/8”

(41.3)

.7252

(18.4)

3/8”

(9.5)

3/8”

(9.5)

9/32”

(7.1)

7/8”

(22.2)

SECTION PROPERTIES

B22A

Wt. 3.80 Lbs./Ft. (5.65 kg/m)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B22 Channel

B22A3

Wt. 5.70 Lbs./Ft. (8.48 kg/m)

B22B3

Wt. 5.70 Lbs./Ft. (8.48 kg/m)

B22D

Wt. 3.80 Lbs./Ft. (5.65 kg/m)

B22LPL

Wt. 2.90 Lbs./Ft. (4.31 kg/m)

B22PL

Wt. 3.35 Lbs./Ft. (4.98 kg/m) B22X

Wt. 6.70 Lbs./Ft. (9.97 kg/m)

B22D3

Wt. 5.70 Lbs./Ft. (8.48 kg/m)

B22E

Wt. 3.80 Lbs./Ft. (5.65 kg/m)

B22E3

Wt. 5.70 Lbs./Ft. (8.48 kg/m)

B22C

Wt. 3.80 Lbs./Ft. (5.65 kg/m)

B22C3

Wt. 5.70 Lbs./Ft. (8.48 kg/m)

B22A4

Wt. 7.60 Lbs./Ft. (11.31 kg/m)

B22AD3

Wt. 5.70 Lbs./Ft. (8.48 kg/m)

B22B

Wt. 3.80 Lbs./Ft. (5.65 kg/m)

31/4”

(82.5)

31/4”

(82.5)

15/8”

(41.3)

213/16”

(71.4)

4”

(101.6)

1.835

(46.6)

15/8”

(41.3)

15/8”

(41.3) 15/8”

(41.3)

15/8”

(41.3) 15/8”

(41.3)

47/8”

(123.8)

31/4”

(82.5)

31/4”

(82.5)

47/8”

(123.8) 31/4”

(82.5)

47/8”

(123.8)

31/4”

(82.5)

31/4”

(82.5)

31/4”

(82.5)

15/8”

(41.3)

31/4”

(82.5) 31/4”

(82.5)

31/4”

(82.5)

31/4”

(82.5)

1.3833

(35.1)

1.3540

(34.4) 15/8”

(41.3)

.725

(18.4)

15/8”

(41.3)

15/8”

(41.3)

.769

(19.5)

1.795

(45.6)

.105

(2.6) 2”

(50.8)

.918

(23.3)

4”

(101.6)

7/16”

(11.1)

.105

(2.6)

1.730

(43.9)

1.730

(43.9)

47/8”

(123.8)

.104

(2.6)

1.168

(29.7)

1.231

(31.3)

27/16”

(61.9)

.842

(21.4)

.769

(19.5) 13/16”

(20.6)

1.9249

(48.9)

15/8”

(41.3)

27/16”

(61.9) 1.5813

(40.2)

2.467

(62.7)

15/8”

(41.3)

13/16”

(20.6) .8416

(21.4)

27/16”

(61.9)

15/8”

(41.3)

15/8”

(41.3)

1.3250

(33.7)

YYYY

XXX

YYY

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B22 Combinations

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305)

B22 2610 (11610) .014 (.35) 2610 (11610) 2610 (11610)

B22A 2610* (11610) .002 (.05) 2610* (11610) 2610* (11610)

B22X 5790* (25755) .001 (.02) 5790* (25755) 5790* (25755)

18 (457)

B22 2269 (10093) .031 (.79) 2269 (10093) 2269 (10093)

B22A 2610* (11610) .007 (.18) 2610* (11610) 2610* (11610)

B22X 5790* (25755) .003 (.07) 5790* (25755) 5790* (25755)

24 (609)

B22 1702 (7571) .056 (1.42) 1702 (7571) 1702 (7571)

B22A 2610* (11610) .017 (.43) 2610* (11610) 2610* (11610)

B22X 5790* (25755) .008 (.20) 5790* (25755) 5790* (25755)

30 (762)

B22 1361 (6054) .087 (2.21) 1361 (6054) 1294 (5756)

B22A 2610* (11610) .033 (.84) 2610* (11610) 2610* (11610)

B22X 5790* (25755) .017 (.73) 5790* (25755) 5790* (25755)

36 (914)

B22 1135 (5049) .126 (3.20) 1135 (5049) 899 (3999)

B22A 2610* (11610) .057 (1.45) 2610* (11610) 2610* (11610)

B22X 5790* (25755) .029 (.73) 5790* (25755) 5790* (25755)

42 (1067)

B22 972 (4323) .172 (4.37) 972 (4323) 660 (2936)

B22A 2610* (11610) .091 (2.31) 2610* (11610) 2610* (11610)

B22X 5790* (25755) .046 (1.17) 5790* (25755) 5790* (25755)

48 (1219)

B22 851 (3785) .224 (5.69) 758 (3372) 505 (2246)

B22A 2405 (10698) .125 (3.17) 2405 (10698) 2405 (10698)

B22X 5790* (25755) .068 (1.73) 5790* (25755) 5790* (25755)

54 (1371)

B22 756 (3363) .284 (7.21) 599 (2664) 399 (1775)

B22A 2138 (9510) .158 (4.01) 2138 (9510) 2024 (9003)

B22X 5790* (25755) .097 (2.46) 5790* (25755) 5790* (25755)

60 (1524)

B22 681 (3029) .351 (8.91) 485 (2157) 323 (1437)

B22A 1924 (8558) .195 (4.95) 1924 (8558) 1640 (7295)

B22X 5645 (25110) .130 (3.30) 5645 (25110) 5645 (25110)

66 (1676)

B22 619 (2753) .424 (10.77) 401 (1784) 267 (1187)

B22A 1749 (7780) .236 (5.99) 1749 (7780) 1355 (6027)

B22X 5132 (22828) .158 (4.01) 5132 (22828) 5132 (22828)

72 (1829)

B22 567 (2522) .505 (12.83) 337 (1499) 225 (1001)

B22A 1603 (7130) .281 (7.14) 1603 (7130) 1139 (5066)

B22X 4704 (20924) .188 (4.77) 4704 (20924) 4704 (20924)

78 (1981)

B22 524 (2331) .593 (15.06) 287 (1276) 191 (849)

B22A 1480 (6583) .330 (8.38) 1455 (6472) 970 (4315)

B22X 4342 (19314) .220 (5.59) 4342 (19314) 4270 (18994)

84 (2133)

B22 486 (2162) .687 (17.45) 248 (1103) 165 (734)

B22A 1374 (6112) .383 (9.73) 1255 (5582) 837 (3723)

B22X 4032 (17935) .255 (6.48) 4032 (17935) 3682 (16378)

90 (2286)

B22 454 (2019) .789 (20.04) 216 (961) 144 (640)

B22A 1283 (5707) .440 (11.17) 1093 (4862) 729 (3243)

B22X 3763 (16738) .293 (7.44) 3763 (16738) 3207 (14265)

96 (2438)

B22 425 (1890) .898 (22.81) 190 (845) 126 (560)

B22A 1202 (5347) .500 (12.70) 961 (4275) 640 (2847)

B22X 3528 (15693) .334 (8.48) 3528 (15693) 2819 (12539)

102 (2591)

B22 400 (1779) 1.013 (25.73) 168 (747) 112 (498)

B22A 1132 (5035) .565 (14.35) 851 (3785) 567 (2522)

B22X 3320 (14768) .377 (9.57) 3320 (14768) 2497 (11107)

108 (2743)

B22 378 (1681) 1.136 (28.85) 150 (667) 100 (445)

B22A 1069 (4755) .633 (16.08) 759 (3376) 506 (2251)

B22X 3136 (13949) .422 (10.72) 3136 (13949) 2227 (9906)

114 (2895)

B22 358 (1592) 1.266 (32.15) 134 (596) 90 (400)

B22A 1013 (4506) .706 (17.93) 681 (3029) 454 (2019)

B22X 2971 (13215) .471 (11.96) 2971 (13215) 1999 (8892)

120 (3048)

B22 340 (1512) 1.403 (35.63) 121 (538) 81 (360)

B22A 962 (4279) .782 (19.86) 615 (2735) 410 (1824)

B22X 2822 (12553) .521 (13.23) 2706 (12037) 1804 (8024)

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B22 Beam Loading Data

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

12 (305)

B22 10454 (46502) 4276 (19120) 10598 (47142) 10222 (45470) 9950 (44260)

B22A 21625 (96193) 7002 (31146) 21677 (96424) 21539 (95810) 21433 (95339)

B22X 46948 (208835) 18975 (84405) 47061 (209338) 46761 (208003) 46531 (206980)

18 (457)

B22 9950 (44260) 4153 (18473) 10253 (45607) 9481 (42173) 8955 (39834)

B22A 21433 (95339) 6959 (30955) 21551 (95863) 21239 (94476) 21001 (93417)

B22X 46531 (206980) 18859 (83899) 46787 (208119) 46110 (205107) 45593 (202808)

24 (609)

B22 9311 (41417) 3993 (17762) 9801 (43597) 8582 (38174) 7801 (34700)

B22A 21164 (94142) 6898 (30684) 21373 (95072) 20819 (92607) 20397 (90730)

B22X 45947 (204382) 18693 (84440) 46401 (206402) 45198 (201051) 44282 (196976)

30 (762)

B22 8582 (38174) 3802 (16912) 9268 (41226) 7601 (33811) 6595 (29336)

B22A 20819 (92607) 6821 (30341) 21145 (94057) 20279 (90205) 19619 (87269)

B22X 45198 (201051) 18485 (82225) 45906 (204200) 44026 (195837) 42593 (189463)

36 (914)

B22 7801 (34700) 3589 (15964) 8676 (38593) 6595 (28336) 5392 (23985)

B22A 20397 (90730) 6728 (29927) 20866 (92816) 19619 (87269) 18669 (83044)

B22X 44282 (196976) 18233 (81104) 45300 (201504) 42593 (189463) 40530 (180286)

42 (1067)

B22 6998 (31128) 3360 (14946) 8048 (35799) 5595 (24888) 4444 (19768)

B22A 19898 (88511) 6620 (29447) 20537 (91353) 18840 (83804) 17546 (78048)

B22X 43198 (192154) 17940 (79801) 44586 (198328) 40901 (181937) 38092 (169441)

48 (1219)

B22 6193 (27548) 3118 (13869) 7401 (32921) 4718 (20987) 3791 (16863)

B22A 19322 (85948) 6496 (28895) 20157 (89663) 17940 (79801) 16251 (72288)

B22X 41948 (186594) 17604 (78306) 43761 (194568) 38948 (173254) 35281 (156938)

54 (1371)

B22 5392 (23985) 2864 (12740) 6746 (30008) 4090 (18193) 3310 (14723)

B22A 18669 (83044) 6263 (27859) 19276 (87745) 16920 (75264) 14782 (65753)

B22X 40530 (180286) 16973 (75499) 42825 (190495) 36733 (163396) 32092 (142752)

60 (1524)

B22 4718 (20987) 2631 (11703) 6093 (27103) 3616 (16085) 2936 (13060)

B22A 17940 (79801) 5340 (23753) 19244 (85601) 15781 (70197) 13141 (58454)

B22X 38948 (173249) 14471 (64370) 41779 (185842) 34260 (152396) 28529 (126903)

66 (1676)

B22 4202 (18691) 2434 (10827) 5441 (24203) 3242 (14421) 2634 (11716)

B22A 17134 (76216) 4587 (20404) 18712 (83235) 14521 (64592) 11328 (50389)

B22X 37198 (165465) 12431 (55296) 40624 (180704) 31525 (140230) 24593 (109395)

72 (1829)

B22 3791 (16863) 2264 (10071) 4869 (21658) 2936 (13060) 2381 (10591)

B22A 16251 (72288) 3968 (17650) 18129 (80642) 13141 (58454) 9524 (42365)

B22X 35281 (156938) 10753 (47832) 39358 (175073) 28529 (126903) 20676 (91971)

78 (1981)

B22 3456 (15373) 2116 (9412) 4412 (19625) 2680 (11921) 2166 (9635)

B22A 15291 (68018) 3456 (15373) 17496 (77826) 11642 (51786) 8115 (36097)

B22X 33197 (147667) 9366 (41662) 37984 (168961) 25275 (112429) 17617 (78364)

84 (2133)

B22 3176 (14127) 1984 (8825) 4037 (17957) 2461 (10947) 1980 (8807)

B22A 14255 (63409) 3028 (13469) 16812 (74783) 10076 (44820) 6998 (31128)

B22X 30947 (137659) 8206 (36502) 36499 (162355) 21875 (97305) 15192 (67577)

90 (2286)

B22 2936 (13060) 1867 (8305) 3724 (16565) 2270 (10097) 1816 (8078)

B22A 13141 (58454) 2667 (11863) 16077 (71514) 8778 (39046) 6096 (27116)

B22X 28529 (126903) 7227 (32147) 34903 (155256) 19057 (84770) 13234 (58868)

96 (2438)

B22 2728 (16583) 1761 (7833) 3456 (15373) 2101 (9346) 1671 (7433)

B22A 11951 (53160) 2359 (10493) 15291 (68018) 7715 (34318) 5357 (23829)

B22X 25945 (115409) 6393 (28437) 33197 (147667) 16749 (74503) 11630 (51733)

102 (2591)

B22 2545 (11321) 1664 (7402) 3225 (14345) 1951 (8678) 1542** (6343)

B22A 10678 (47498) 2093 (9310) 14455 (64299) 6834 (30399) 4746 (21111)

B22X 23182 (103118) 5672 (25230) 31382 (139594) 14836 (65994) 10303 (45830)

108 (2743)

B22 2381 (10591) 1575 (7006) 3022 (13442) 1816 (8078) 1426** (68599)

B22A 9524 (42365) 1867 (8305) 13568 (60353) 6096 (27116) 4233 (18829)

B22X 20676 (91971) 5059 (22503) 29456 (131027) 13234 (58868) 9190 (40879)

114 (2895)

B22 2234 (9937) 1494 (6645) 2842 (12642) 1694 (7535) 1322** (5880)

B22A 8548 (38023) 1675 (7451) 12630 (56181) 5471 (24336) 3799** (16899)

B22X 18558 (82550) 4539 (20190) 27420 (121970) 11877 (52831) 8247 (36684)

120 (3048)

B22 2101 (9346) 1418 (6307) 2680 (11921) 1583** (7041) 1228** (5462)

B22A 7715 (34318) 1512 (6726) 11642 (51786) 4937 (21961) 3429** (15253)

B22X 16749 (74503) 4097 (18224) 25275 (112429) 10718 (47676) 7444 (33112)

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B22 Column Loading Data

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B24 1.442 (2.15) .424 (2.74) .1494 (6.22) .1670 (2.74) .594 (1.51) .1857 (7.73) .2286 (3.75) .662 (1.68)

B24A 2.884 (4.29) .848 (5.47) .7514 (31.28) .4624 (7.58) .941 (2.39) .3713 (15.45) .4570 (7.49) .662 (1.68)

X - X Axis Y - Y Axis

B24

• Thickness: 14 Gauge (1.9 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized,

Hot-Dipped Galvanized, Stainless Steel Type 304 or 316, Aluminum

• Weight: 1.40 Lbs./Ft. (2.08 kg/m)

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

15/8”

(41.3)

13/16”

(20.6)

.7304

(18.6)

3/8”

(9.5)

3/8”

(9.5)

9/32”

(7.1)

7/8”

(22.2)

SECTION PROPERTIES

B24A

Wt. 2.80 Lbs./Ft. (4.16 kg/m)

B24B

Wt. 2.80 Lbs./Ft. (4.16 kg/m)

B24C

Wt. 2.80 Lbs./Ft. (4.16 kg/m)

31/4”

(82.5)

31/4”

(82.5)

31/4”

(82.5)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

13/16”

(20.6)

13/16”

(20.6)

.730

(18.6)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B24 Channel & Combinations

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B24 1750 (7784) .014 (.35) 1750 (7784) 1750 (7784)

B24A 1750* (7784) .002 (.05) 1750* (7784) 1750* (7784)

24 (609) B24 1379 (6134) .057 (1.45) 1379 (6134) 1379 (6134)

B24A 1750* (7784) .014 (.35) 1750* (7784) 1750* (7784)

36 (914) B24 919 (4088) .128 (3.25) 919 (4088) 720 (3203)

B24A 1750* (7784) .048 (1.22) 1750* (7784) 1750* (7784)

48 (1219) B24 689 (3065) .227 (5.76) 607 (2700) 405 (1801)

B24A 1750* (7784) .115 (2.92) 1750* (7784) 1750* (7784)

60 (1524) B24 551 (2451) .355 (9.02) 389 (1730) 259 (1152)

B24A 1518 (6752) .195 (4.95) 1518 (6752) 1294 (5756)

72 (1829) B24 460 (2046) .511 (12.98) 270 (1201) 180 (800)

B24A 1265 (5627) .281 (7.14) 1265 (5627) 898 (3994)

84 (2133) B24 394 (1752) .695 (17.65) 198 (881) 132 (587)

B24A 1084 (4822) .383 (9.73) 990 (4404) 660 (2936)

96 (2438) B24 345 (1534) .908 (23.06) 152 (676) 101 (449)

B24A 949 (4221) .500 (12.70) 758 (3372) 505 (2246)

108 (2743) B24 306 (1361) 1.149 (29.18) 120 (534) 80 (356)

B24A 843 (3750) .633 (16.08) 599 (2664) 399 (1775)

120 (3048) B24 276 (1228) 1.419 (36.04) 97 (431) 65 (289)

B24A 759 (3376) .782 (19.86) 485 (2157) 323 (1437)

BEAM LOADING

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

12 (305) B24 6441 (28651) 3077 (13687) 6509 (28953) 6330 (28157) 6198 (27570)

B24A 13212 (58770) 4988 (22188) 13237 (58881) 13171 (58587) 13121 (58365)

24 (609) B24 5874 (26129) 2896 (12882) 6124 (27241) 5483 (24389) 5038 (22410)

B24A 12993 (57796) 4924 (21903) 13092 (58236) 12828 (57062) 12627 (56167)

36 (914) B24 5038 (22410) 2619 (11650) 5535 (24621) 4302 (19136) 3516 (15640)

B24A 12627 (56167) 4819 (21436) 12851 (57164) 12256 (54517) 11804 (52507)

48 (1219) B24 4043 (17984) 2272 (10106) 4800 (21351) 3008 (13380) 2324 (10337)

B24A 12115 (53890) 4675 (20795) 12512 (55656) 11456 (50959) 10651 (47378)

60 (1524) B24 3008 (13380) 1873 (8331) 3978 (17695) 2200 (9786) 1740 (7740)

B24A 11456 (50959) 4020 (17882) 12078 (53725) 10427 (46381) 9169 (40786)

72 (1829) B24 2324 (10337) 1562 (6948) 3123 (13892) 1740 (7740) 1397 (6214)

B24A 10651 (47378) 3048 (13558) 11546 (51359) 9169 (40786) 7358 (32730)

84 (2133) B24 1898 (8443) 1340 (5960) 2502 (11129) 1444 (6423) 1168 (5195)

B24A 9700 (43148) 2362 (10506) 10918 (48565) 7683 (34175) 5464 (24305)

96 (2438) B24 1608 (7153) 1175 (5226) 2089 (9292) 1236 (5498) 1000 (4448)

B24A 8602 (38263) 1866 (8300) 10194 (45345) 6024 (26796) 4184 (18611)

108 (2743) B24 1397 (6214) 1046 (4653) 1796 (7989) 1078 (4795) 870** (3870)

B24A 7358 (32730) 1498 (6663) 9373 (41693) 4760 (21173) 3306 (14706)

120 (3048) B24 1236 (5498) 942 (4190) 1578 (7019) 953** (4239) 764** (3398)

B24A 6024 (26796) 1216 (5409) 8455 (37610) 3856 (17152) 2677** (11908)

COLUMN LOADING

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B24 Beam & Column Loading Data

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B26 1.234 (1.84) .363 (2.34) .1337 (5.57) .1581 (2.59) .607 (1.54) .1564 (6.51) .1925 (3.15) .656 (1.67)

B26A 2.467 (3.67) .726 (4.68) .7086 (29.49) .4361 (7.15) .988 (2.51) .3128 (13.02) .3850 (6.31) .656 (1.67)

X - X Axis Y - Y Axis

B26

• Thickness: 16 Gauge (1.5 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized

• Weight: 1.12 Lbs./Ft. (1.66 kg/m)

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

15/8”

(41.3)

.7745

(19.7)

13/16”

(20.6)

3/8”

(9.5)

27/64”

(10.7)

27/64”

(10.7)

3/8”

(9.5)

9/32”

(7.1)

7/8”

(22.2)

SECTION PROPERTIES

B26A

Wt. 2.24 Lbs./Ft. (3.33 kg/m)

B26B

Wt. 2.24 Lbs./Ft. (3.33 kg/m)

B26C

Wt. 2.24 Lbs./Ft. (3.33 kg/m)

31/4”

(82.5) 31/4”

(82.5)

31/4”

(82.5)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

13/16”

(20.6)

13/16”

(20.6)

.774

(19.7)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B26 Channel & Combinations

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B26 1220 (5427) .014 (.35) 1220 (5427) 1220 (5427)

B26A 1220* (5427) .001 (.02) 1220* (5427) 1220* (5427)

24 (609) B26 1163 (5173) .057 (1.45) 1163 (5173) 1163 (5173)

B26A 1220* (5427) .012 (.30) 1220* (5427) 1220* (5427)

36 (914) B26 775 (3447) .128 (3.25) 775 (3447) 603 (2682)

B26A 1220* (5427) .040 (1.01) 1220* (5427) 1220* (5427)

48 (1219) B26 581 (2584) .228 (5.79) 509 (2264) 339 (1508)

B26A 1220* (5427) .096 (2.44) 1220* (5427) 1220* (5427)

60 (1524) B26 465 (2068) .357 (9.07) 326 (1450) 217 (965)

B26A 1220* (5427) .188 (4.77) 1220* (5427) 1076 (4786)

72 (1829) B26 388 (1726) .514 (13.05) 226 (1450) 151 (965)

B26A 1052 (4679) .281 (7.14) 1052 (4679) 747 (3323)

84 (2133) B26 332 (1477) .699 (17.75) 166 (738) 111 (494)

B26A 902 (4012) .383 (9.73) 824 (3665) 549 (2442)

96 (2438) B26 291 (1294) .913 (23.19) 127 (565) 85 (378)

B26A 789 (3509) .500 (12.70) 631 (2807) 420 (1868)

108 (2743) B26 258 (1147) 1.156 (29.36) 101 (449) 67 (298)

B26A 702 (3122) .633 (16.08) 498 (2215) 332 (1477)

120 (3048) B26 233 (1036) 1.427 (36.24) 81 (360) 54 (240)

B26A 631 (2807) .782 (19.86) 404 (1797) 269 (1196)

BEAM LOADING

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

12 (305) B26 4002 (17802) 2216 (9857) 4032 (17935) 3952 (17579) 3891 (17308)

B26A 8151 (36257) 3630 (16147) 8163 (36311) 8133 (36177) 8109 (36070)

24 (609) B26 3740 (16636) 2109 (9381) 3857 (17157) 3554 (15809) 3336 (14838)

B26A 8051 (35812) 3591 (15973) 8096 (36013) 7975 (35474) 7883 (35065)

36 (914) B26 3336 (14839) 1941 (8634) 3579 (15920) 2962 (13175) 2546 (11325)

B26A 7883 (35065) 3528 (15693) 7986 (35523) 7713 (34309) 7505 (33384)

48 (1219) B26 2828 (12579) 1725 (7613) 3217 (14310) 2251 (10013) 1705 (7584)

B26A 7648 (34020) 3441 (15306) 7831 (34834) 7346 (32676) 6977 (31035)

60 (1524) B26 2251 (10013) 1469 (6534) 2793 (12424) 1603 (7130) 1233 (5484)

B26A 7346 (32676) 3066 (13638) 7631 (33944) 6874 (30577) 6298 (28015)

72 (1829) B26 1705 (7584) 1203 (5351) 2326 (10346) 1233 (5484) 967 (4301)

B26A 6977 (31035) 2385 (10609) 7388 (32863) 6298 (28015) 5467 (24318)

84 (2133) B26 1358 (6040) 1011 (4497) 1851 (8233) 1003 (4461) 797 (3545)

B26A 6541 (29096) 1884 (8380) 7100 (31582) 5616 (24981) 4486 (19955)

96 (2438) B26 1129 (5022) 871 (3874) 1513 (6730) 847 (3767) 680 (3025)

B26A 6038 (26858) 1512 (6726) 6767 (30101) 4830 (21485) 3463 (15404)

108 (2743) B26 967 (4301) 766 (3407) 1277 (5680) 734 (3265) 592** (2633)

B26A 5467 (24318) 1231 (5476) 6391 (28428) 3940 (17526) 2736 (12170)

120 (3048) B26 847 (3767) 684 (3042) 1105 (4915) 648 (2882) 523** (2326)

B26A 4830 (21485) 1015 (4515) 5970 (26556) 3192 (14199) 2216** (9857)

COLUMN LOADING

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B26 Beam & Column Loading Data

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B32 1.733 (2.58) .510 (3.29) .1252 (5.21) .1626 (2.67) .496 (1.26) .2098 (8.73) .2582 (4.23) .642 (1.63)

B32A 3.467 (5.16) 1.020 (6.58) .6238 (25.96) .4537 (7.43) .782 (1.99) .4195 (17.46) .5163 (8.46) .642 (1.63)

X - X Axis Y - Y Axis

B32

• Thickness: 12 Gauge (2.6 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized,

Hot-Dipped Galvanized, Stainless Steel Type 304

• Weight: 1.70 Lbs./Ft. (2.53 kg/m)

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

13/8”

(34.9)

13/16”

(20.6)

3/8”

(9.5)

.6052

(15.4)

9/32”

(7.1)

3/8”

(9.5) 7/8”

(22.2)

SECTION PROPERTIES

B32A

Wt. 3.40 Lbs./Ft. (5.06 kg/m)

B32B

Wt. 3.40 Lbs./Ft. (5.06 kg/m)

B32C

Wt. 3.40 Lbs./Ft. (5.06 kg/m)

23/4”

(69.8)

31/4”

(82.5)

31/4”

(82.5)

13/8”

(34.9)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3) 13/8”

(34.9)

13/8”

(34.9)

13/16”

(20.6)

.687

(17.4)

.605

(15.4)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B32 Channel & Combinations

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B32 2210 (9830) .016 (.40) 2210 (9830) 2210 (9830)

B32A 2210* (9830) .003 (.07) 2210* (9830) 2210* (9830)

24 (609) B32 1299 (5778) .065 (1.65) 1299 (5778) 1299 (5778)

B32A 2210* (9830) .022 (.56) 2210* (9830) 2210* (9830)

36 (914) B32 866 (3852) .147 (3.73) 866 (3852) 587 (2611)

B32A 2210* (9830) .076 (1.93) 2210* (9830) 2210* (9830)

48 (1219) B32 649 (2887) .262 (6.65) 495 (2202) 330 (1468)

B32A 1817 (8082) .148 (3.76) 1817 (8082) 1638 (7286)

60 (1524) B32 520 (2313) .410 (10.41) 317 (1410) 211 (938)

B32A 1454 (6468) .231 (5.87) 1454 (6468) 1048 (4662)

72 (1829) B32 433 (1926) .590 (14.98) 220 (978) 147 (654)

B32A 1211 (5387) .333 (8.46) 1092 (4857) 728 (3238)

84 (2133) B32 371 (1650) .803 (20.39) 162 (720) 108 (480)

B32A 1038 (4617) .453 (11.50) 802 (3567) 535 (2380)

96 (2438) B32 325 (1445) 1.049 (26.64) 124 (551) 83 (369)

B32A 909 (4043) .591 (15.01) 614 (2731) 410 (1824)

108 (2743) B32 289 (1285) 1.327 (33.70) 98 (436) 65 (289)

B32A 808 (3594) .749 (19.02) 485 (2157) 324 (1441)

120 (3048) B32 260 (1156) 1.639 (41.63) 79 (351) 53 (236)

B32A 727 (3234) .924 (23.47) 393 (1748) 262 (1165)

BEAM LOADING

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

12 (305) B32 10278 (45719) 4036 (17953) 10432 (46404) 10035 (44638) 9753 (43383)

B32A 21320 (94836) 6557 (29167) 21378 (95094) 21224 (94409) 21106 (93884)

24 (609) B32 9104 (40496) 3732 (16601) 9600 (42702) 8387 (37307) 7640 (33984)

B32A 20806 (92550) 6431 (28606) 21039 (93586) 20421 (90837) 19950 (88742)

36 (914) B32 7640 (33984) 3323 (14781) 8479 (37716) 6520 (29002) 5425 (24131)

B32A 19950 (88742) 6228 (27703) 20474 (91073) 19083 (84885) 18023 (80170)

48 (1219) B32 6151 (27361) 2877 (12797) 7265 (32316) 4778 (21253) 3870 (17214)

B32A 18751 (83408) 5954 (26485) 19682 (87550) 17210 (76554) 15326 (68173)

60 (1524) B32 4778 (21253) 2435 (10831) 6060 (26956) 3693 (16427) 2994 (13318)

B32A 17210 (76554) 4692 (20871) 18665 (83026) 14801 (65838) 11858 (52747)

72 (1829) B32 3870 (17214) 2089 (9292) 4923 (21898) 2994 (13318) 2403 (10689)

B32A 15326 (68173) 3448 (15337) 17421 (77492) 11858 (52747) 8316 (36991)

84 (2133) B32 3243 (14425) 1817 (8082) 4114 (18300) 2489 (11071) 1807** (8038)

B32A 13100 (58272) 2609 (11605) 15951 (70953) 8798 (39135) 6110 (27178)

96 (2438) B32 2774 (12339) 1594 (7090) 3531 (15706) 1993 (8865) 1384** (6156)

B32A 10525 (46817) 2014 (8959) 14256 (63414) 6736 (29963) 4678 (20809)

108 (2743) B32 2403 (10689) 1407 (6258) 3083 (13714) 1574** (7001) 1093** (4862)

B32A 8316 (36991) 1592 (7081) 12334 (54864) 5322 (23673) 3696** (16440)

120 (3048) B32 1993 (8865) 1221 (5431) 2723 (12112) 1275** (5671) 886** (3941)

B32A 6736 (29963) 1289 (5734) 10203 (45385) 4311 (19176) 2994** (13318)

COLUMN LOADING

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B32 Beam & Column Loading Data

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B42 1.468 (2.18) .432 (2.79) .0554 (2.31) .0968 (1.59) .358 (.91) .1645 (6.85) .2025 (3.32) .617 (1.57)

B42A 2.936 (4.37) .864 (5.57) .2689 (11.19) .2689 (4.41) .558 (1.42) .3292 (13.70) .4052 (6.64) .617 (1.57)

X - X Axis Y - Y Axis

B42

• Thickness: 12 Gauge (2.6 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized,

Hot-Dipped Galvanized, Stainless Steel Type 304

• Weight: 1.44 Lbs./Ft. (2.14 kg/m)

Note: Also available in 14 gauge (1.9mm) material as B44

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

1”

(25.4)

13/16”

(20.6)

3/8”

(9.5)

.4226

(10.7)

9/32”

(7.1)

3/8”

(9.5) 7/8”

(22.2)

SECTION PROPERTIES

B42A

Wt. 2.88 Lbs./Ft. (4.28 kg/m)

B42B

Wt. 2.88 Lbs./Ft. (4.28 kg/m)

2”

(50.8)

31/4”

(82.5)

1”

(25.4)

15/8”

(41.3)

1”

(25.4)

13/16”

(20.6)

.428

(10.9)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

15/8”

(41.3)

B42 Channel & Combinations

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B42 1538 (6841) .022 (.56) 1538 (6841) 1538 (6841)

B42A 1590* (7072) .005 (.13) 1590* (7072) 1590* (7072)

24 (609) B42 769 (3420) .088 (2.23) 769 (3420) 582 (2589)

B42A 1590* (7072) .038 (.96) 1590* (7072) 1590* (7072)

36 (914) B42 513 (2282) .198 (5.03) 388 (1726) 259 (1152)

B42A 1428 (6352) .114 (2.89) 1428 (6352) 1248 (5551)

48 (1219) B42 384 (1708) .352 (8.94) 218 (970) 145 (645)

B42A 1071 (4764) .203 (5.15) 1053 (4684) 702 (3122)

60 (1524) B42 308 (1370) .550 (13.97) 140 (623) 93 (413)

B42A 857 (3812) .318 (8.08) 674 (2998) 449 (1997)

72 (1829) B42 256 (1139) .792 (20.11) 97 (431) 65 (289)

B42A 714 (3176) .457 (11.61) 468 (2082) 312 (1388)

84 (2133) B42 220 (978) 1.079 (27.40) 71 (316) 48 (213)

B42A 612 (2722) .623 (15.82) 344 (1530) 229 (1018)

96 (2438) B42 192 (854) 1.409 (35.79) 55 (244) 36 (160)

B42A 535 (2380) .813 (20.65) 263 (1170) 176 (783)

108 (2743) B42 171 (760) 1.783 (45.29) 43 (191) 29 (129)

B42A 476 (2117) 1.029 (26.13) 208 (925) 139 (618)

120 (3048) B42 154 (685) 2.202 (55.93) 35 (155) 23 (102)

B42A 428 (1904) 1.271 (32.28) 168 (747) 112 (498)

BEAM LOADING

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

12 (305) B42 9138 (40648) 3493 (15537) 9283 (41293) 8916 (39660) 8670 (38566)

B42A 21094 (93831) 5834 (25951) 21304 (94765) 20793 (92492) 20469 (91050)

24 (609) B42 8137 (36195) 3145 (13989) 8540 (37988) 7589 (33757) 7050 (31360)

B42A 19757 (87883) 5585 (24843) 20299 (90294) 18964 (84356) 18094 (80486)

36 (914) B42 7050 (31360) 2722 (12108) 7657 (34060) 5925 (26356) 4335 (19283)

B42A 18094 (80486) 5237 (23295) 19067 (84814) 16654 (74080) 15057 (66977)

48 (1219) B42 5405 (24042) 2227 (9906) 6786 (30185) 3512 (15622) 2439 (10849)

B42A 16139 (71790) 4818 (21431) 17632 (78431) 13906 (61857) 11387 (50652)

60 (1524) B42 3512 (15622) 1718 (7642) 5272 (23451) 2247 (9995) 1561** (6943)

B42A 13906 (61857) 4352 (19358) 16008 (71207) 10710 (47640) 7531 (33499)

72 (1829) B42 2439 (10849) 1351 (6009) 3694 (16432) 1561** (6943) 1084** (4822)

B42A 11387 (50652) 3856 (17152) 14200 (64165) 7531 (33499) 5230 (23264)

84 (2133) B42 1792 (7971) 1087 (4835) 2714 (12072) 1147** (5102) 796** (3541)

B42A 8645 (38455) 3332 (14821) 12206 (54295) 5533 (24612) 3842 (17090)

96 (2438) B42 1372** (6103) 891 (3963) 2078 (9243) 878** (3905) ––

B42A 6619 (29443) 2873 (12780) 10012 (44535) 4236 (18842) 2942** (13086)

108 (2743) B42 1084** (4822) 743 (3305) 1642 (7304) ––––

B42A 5230 (23264) 2495 (11098) 7922 (35239) 3347 (14888) 2324** (10337)

120 (3048) B42 878** (3905) 628 (2793) 1330** (5916) ––––

B42A 4236 (18842) 2182 (9706) 6417 (28544) 2711** (12059) 1883** (8376)

COLUMN LOADING

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B42 Beam & Column Loading Data

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B52 1.313 (1.95) .386 (2.49) .0320 (1.33) .0673 (1.10) .288 (.73) .1404 (5.84) .1728 (2.83) .603 (1.53)

B52A 2.627 (3.91) .773 (4.99) .1517 (6.31) .1868 (3.06) .443 (1.13) .2809 (11.69) .3457 (5.67) .603 (1.53)

X - X Axis Y - Y Axis

B52

• Thickness: 12 Gauge (2.6 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized,

Hot-Dipped Galvanized

• Weight: 1.27 Lbs./Ft. (1.89 kg/m)

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

13/16”

(20.6)

13/16”

(20.6)

3/8”

(9.5)

.3366

(8.5)

9/32”

(7.1)

3/8”

(9.5) 7/8”

(22.2)

SECTION PROPERTIES

B52A

Wt. 2.54 Lbs./Ft. (3.78 kg/m)

B52B4

Wt. 5.08 Lbs./Ft. (7.56 kg/m)

B52B3

Wt. 3.81 Lbs./Ft. (5.67 kg/m)

31/4”

(82.5)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

15/8”

(41.3)

13/16”

(20.6)

27/16”

(41.3)

1.241

(31.5)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B52 Channel & Combinations

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B52 1079 (4799) .026 (.66) 1079 (4799) 1079 (4799)

B52A 1270* (5649) .006 (.15) 1270* (5649) 1270* (5649)

24 (609) B52 539 (2397) .106 (2.69) 506 (2251) 337 (1499)

B52A 1270* (5649) .052 (1.32) 1270* (5649) 1270* (5649)

36 (914) B52 360 (1601) .240 (6.09) 225 (1001) 150 (667)

B52A 1013 (4506) .141 (3.58) 1013 (4506) 719 (3198)

48 (1219) B52 270 (1201) .427 (10.84) 126 (560) 84 (373)

B52A 759 (3376) .250 (6.35) 607 (2700) 404 (1797)

60 (1524) B52 216 (961) .667 (16.94) 81 (360) 54 (240)

B52A 608 (2704) .391 (9.93) 388 (1726) 259 (1152)

72 (1829) B52 180 (800) .960 (24.38) 56 (249) 37 (164)

B52A 506 (2251) .563 (14.30) 270 (1201) 180 (800)

84 (2133) B52 154 (685) 1.307 (33.20) 41 (182) 28 (124)

B52A 434 (1930) .766 (19.45) 198 (881) 132 (587)

96 (2438) B52 135 (600) 1.707 (43.36) 32 (142) 21 (93)

B52A 380 (1690) 1.001 (25.42) 152 (676) 101 (449)

108 (2743) B52 120 (534) 2.160 (54.86) 25 (111) 17 (75)

B52A 338 (1503) 1.267 (32.18) 120 (534) 80 (356)

120 (3048) B52 108 (480) 2.667 (67.74) 20 (89) 13 (58)

B52A 304 (1352) 1.564 (39.72) 97 (431) 65 (289)

BEAM LOADING

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. NLbs. N Lbs. N Lbs. N Lbs. N

12 (305) B52 8407 (37396) 3162 (14065) 8543 (38001) 8205 (36497) 7989 (35537)

B52A 19160 (85228) 5290 (23531) 19425 (86407) 18777 (83524) 18363 (81682)

24 (609) B52 7519 (33446) 2755 (12255) 7879 (35047) 6521 (29007) 5397 (24007)

B52A 17444 (77595) 4955 (22041) 18144 (80708) 16412 (73004) 15275 (67946)

36 (914) B52 5397 (24007) 2152 (9572) 6653 (29594) 3616 (16085) 2511 (11169)

B52A 15275 (67946) 4496 (19999) 16547 (73605) 13376 (59499) 11243 (50011)

48 (1219) B52 3178 (14136) 1560 (6939) 4785 (21285) 2034 (9047) 1412** (6281)

B52A 12692 (56457) 3963 (17628) 14667 (65242) 9683 (43072) 6780 (30159)

60 (1524) B52 2034 (9047) 1159 (5155) 3081 (13705) 1302** (5791) 904** (4021)

B52A 9683 (43072) 3383 (15048) 12516 (55674) 6248 (27792) 4339 (19301)

72 (1829) B52 1412** (6281) 891 (3963) 2139 (9515) 904** (4021) ––

B52A 6780 (30159) 2799 (12450) 10084 (44856) 4339 (19301) 3013 (13402)

84 (2133) B52 1038** (4617) 704 (3131) 1572 (6992) 664** (2953) ––

B52A 4981 (22156) 2337 (10395) 7545 (33562) 3188 (14181) 2214** (9848)

96 (2438) B52 794** (3532) 570 (2535) 1203** (5351) ––––

B52A 3814 (16965) 1973 (8776) 5777 (25697) 2441** (10858) 1695** (7540)

108 (2743) B52 --470 (2090) 951** (4230) ––––

B52A 3013 (13402) 1684 (7491) 4564 (20301) 1928** (8576) 1339** (5956)

120 (3048) B52 --394 (1752) 770** (3425) ––––

B52A 2441** (10858) 1452 (6459) 3697 (16445) 1562** (6948) ––

COLUMN LOADING

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B52 Beam & Column Loading Data

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B54 1.016 (1.51) .299 (1.93) .0263 (1.09) .0560 (.92) .297 (.75) .1106 (4.60) .1361 (2.23) .608 (1.55)

B54A 2.032 (3.02) .598 (3.86) .1226 (5.10) .1510 (2.47) .453 (1.15) .2212 (9.12) .2722 (4.46) .608 (1.55)

X - X Axis Y - Y Axis

B54

• Thickness: 14 Gauge (1.9 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized,

Hot-Dipped Galvanized, Stainless Steel Type 304 or 316, Aluminum

• Weight: .97 Lbs./Ft. (1.44 kg/m)

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

13/16”

(20.6)

13/16”

(20.6)

3/8”

(9.5)

.3422

(8.7)

9/32”

(7.1)

3/8”

(9.5) 7/8”

(22.2)

SECTION PROPERTIES

B54A

Wt. 1.94 Lbs./Ft. (2.89 kg/m)

B54B4

Wt. 3.88 Lbs./Ft. (5.77 kg/m)

B54B3

Wt. 2.91 Lbs./Ft. (4.33 kg/m)

31/4”

(82.5)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

13/16”

(20.6) 13/16”

(20.6)

13/16”

(20.6)

15/8”

(41.3)

13/16”

(20.6)

27/16”

(41.3)

1.241

(31.5)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B54 Channel & Combinations

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B54 870 (3870) .027 (.68) 870 (3870) 870 (3870)

B54A 870* (3870) .005 (.13) 870* (3870) 870* (3870)

24 (609) B54 465 (2068) .108 (2.74) 430 (1913) 287 (1276)

B54A 870* (3870) .043 (1.09) 870* (3870) 870* (3870)

36 (914) B54 310 (1379) .243 (6.17) 191 (849) 127 (565)

B54A 832 (3701) .141 (3.58) 832 (3701) 591 (2629)

48 (1219) B54 233 (1036) .432 (10.97) 108 (480) 72 (320)

B54A 624 (2775) .250 (6.35) 499 (2219) 332 (1477)

60 (1524) B54 186 (827) .676 (17.17) 69 (307) 46 (204)

B54A 499 (2219) .391 (9.93) 319 (1419) 213 (947)

72 (1829) B54 155 (689) .973 (24.71) 48 (213) 32 (142)

B54A 416 (1850) .563 (14.30) 222 (987) 148 (658)

84 (2133) B54 133 (591) 1.324 (33.63) 35 (155) 23 (102)

B54A 357 (1588) .766 (19.45) 163 (725) 109 (485)

96 (2438) B54 116 (516) 1.730 (43.94) 27 (120) 18 (80)

B54A 312 (1388) 1.001 (25.42) 125 (556) 83 (369)

108 (2743) B54 103 (458) 2.189 (55.60) 21 (93) 14 (62)

B54A 277 (1232) 1.267 (32.18) 98 (436) 66 (293)

120 (3048) B54 93 (413) 2.703 (68.65) 17 (75) 11 (49)

B54A 250 (1112) 1.564 (39.72) 80 (356) 53 (236)

BEAM LOADING

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

12 (305) B54 6186 (27516) 2586 (11503) 6284 (27952) 6032 (26831) 5857 (26053)

B54A 12763 (56772) 4060 (18060) 12835 (57093) 12645 (56248) 12501 (55607)

24 (609) B54 5464 (24305) 2254 (10026) 5763 (25635) 4968 (22099) 4300 (19127)

B54A 12135 (53979) 3857 (17157) 12420 (55247) 11663 (51879) 11087 (49317)

36 (914) B54 4300 (19127) 1816 (8078) 5043 (22432) 3076 (13683) 2136 (9501)

B54A 11087 (49317) 3549 (15787) 11728 (52169) 10026 (44598) 8729 (38828)

48 (1219) B54 2703 (12023) 1341 (5965) 3920 (17437) 1730 (7695) 1201 (5342)

B54A 9620 (42792) 3169 (14096) 10759 (47858) 7734 (34402) 5571 (24781)

60 (1524) B54 1730 (7695) 995 (4426) 2621 (11659) 1107** (4924) 769** (3420)

B54A 7734 (34402) 2745 (12210) 9514 (42320) 5134 (22837) 3566 (15862)

72 (1829) B54 1201 (5342) 763 (3394) 1820 (8096) 769** (3420) 534** (2375)

B54A 5571 (24781) 2291 (10191) 7992 (35550) 3566 (15862) 2476 (11014)

84 (2133) B54 883** (3928) 603 (2682) 1337 (5947) 565** (2513) ––

B54A 4093 (18206) 1913 (8509) 6200 (27579) 2620 (11654) 1819** (8091)

96 (2438) B54 676** (3007) 487 (2166) 1024** (4555) ––––

B54A 3134 (13941) 1616 (7188) 4747 (21116) 2006** (8923) 1393** (6196)

108 (2743) B54 534** (2375) 401 (1784) 809** (3598) ––––

B54A 2476 (11014) 1380 (6138) 3751 (16685) 1585** (7050) 1100** (4893)

120 (3048) B54 ––336 (1494) 655** (2913) ––––

B54A 2006** (8923) 1190 (5293) 3038 (13513) 1284** (5711) ––

COLUMN LOADING

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B54 Beam & Column Loading Data

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B56 .894 (1.33) .263 (1.70) .0241 (1.00) .0546 (.89) .303 (.77) .0966 (4.02) .1189 (1.95) .606 (1.54)

B56A 1.789 (2.66) .526 (3.39) .1205 (5.02) .1484 (2.43) .479 (1.22) .1931 (8.04) .2377 (3.89) .606 (1.54)

X - X Axis Y - Y Axis

B56

• Thickness: 16 Gauge (1.5 mm)

• Standard lengths: 10’ (3.05 m) & 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green, Pre-Galvanized,

Hot-Dipped Galvanized

• Weight: .85 Lbs./Ft. (1.26 kg/m)

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

15/8”

(41.3)

13/16”

(20.6)

27/64”

(10.7) 13/16”

(20.6)

3/8”

(9.5)

.3706

(9.4)

9/32”

(7.1)

3/8”

(9.5)

7/8”

(22.2)

SECTION PROPERTIES

B56A

Wt. 1.70 Lbs./Ft. (2.53 kg/m)

B56B3

Wt. 2.55 Lbs./Ft. (3.79 kg/m)

B56B4

Wt. 3.40 Lbs./Ft. (5.06 kg/m)

15/8”

(41.3)

27/16”

(61.9)

31/4”

(82.5)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3) 15/8”

(41.3)

13/16”

(20.6)

13/16”

(20.6) 13/16”

(20.6)

1.207

(30.7)

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B56 Channel & Combinations

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B56 610 (2713) .027 (.68) 610 (2713) 610 (2713)

B56A 610* (2713) .004 (.10) 610* (2713) 610* (2713)

24 (609) B56 405 (1801) .109 (2.77) 372 (1655) 248 (1103)

B56A 610* (2713) .035 (.89) 610* (2713) 610* (2713)

36 (914) B56 270 (1201) .245 (6.22) 165 (734) 110 (489)

B56A 610* (2713) .121 (3.07) 610* (2713) 502 (2233)

48 (1219) B56 202 (898) .435 (11.05) 93 (413) 62 (276)

B56A 530 (2357) .250 (6.35) 423 (1881) 282 (1699)

60 (1524) B56 162 (720) .680 (17.27) 59 (262) 40 (178)

B56A 424 (1886) .391 (9.93) 271 (1205) 181 (805)

72 (1829) B56 135 (600) .980 (24.89) 41 (182) 28 (124)

B56A 353 (1570) .563 (14.30) 188 (836) 125 (556)

84 (2133) B56 116 (516) 1.334 (33.88) 30 (133) 20 (89)

B56A 303 (1348) .766 (19.45) 138 (614) 92 (409)

96 (2438) B56 101 (449) 1.742 (44.24) 23 (102) 15 (67)

B56A 265 (1179) 1.001 (25.42) 106 (471) 71 (316)

108 (2743) B56 90 (400) 2.205 (56.01) 18 (80) 12 (53)

B56A 236 (1050) 1.267 (32.18) 84 (373) 56 (249)

120 (3048) B56 81 (360) 2.722 (69.14) 15 (67) 10 (44)

B56A 212 (943) 1.564 (39.72) 68 (302) 45 (200)

BEAM LOADING

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. NLbs. NLbs. NLbs. N Lbs. N

12 (305) B56 4968 (22099) 2182 (9706) 5044 (22437) 4845 (21551) 4702 (20915)

B56A 10237 (45536) 3365 (14968) 10291 (45776) 10148 (45140) 10039 (44655)

24 (609) B56 4367 (19425) 1903 (8465) 4624 (20568) 3985 (17726) 3572 (15889)

B56A 9762 (43423) 3202 (14243) 9977 (44380) 9405 (41835) 8969 (39896)

36 (914) B56 3572 (15889) 1557 (6926) 4034 (17944) 2658 (11823) 1845 (8207)

B56A 8969 (39896) 2955 (13144) 9454 (42053) 8167 (36328) 7186 (31965)

48 (1219) B56 2335 (10386) 1164 (5178) 3290 (14634) 1495 (6650) 1038 (4617)

B56A 7860 (34963) 2649 (11783) 8722 (38797) 6434 (28620) 4731 (21044)

60 (1524) B56 1495 (6650) 862 (3834) 2264 (10071) 957 (4257) 664** (2953)

B56A 6434 (28620) 2307 (10262) 7780 (34607) 4360 (19394) 3028 (13469)

72 (1829) B56 1038 (4617) 661 (2940) 1572 (6992) 664** (2953) 461** (2050)

B56A 4731 (21044) 1937 (8616) 6629 (29487) 3028 (13469) 2103 (9354)

84 (2133) B56 763** (3394) 522 (2322) 1155 (5137) 488** (2171) ––

B56A 3476 (15462) 1619 (7201) 5269 (23437) 2224 (9893) 1545** (6872)

96 (2438) B56 584** (2598) 422 (1877) 884** (3932) ––––

B56A 2661 (11837) 1368 (6085) 4031 (17931) 1703** (7575) 1183** (5262)

108 (2743) B56 461** (2050) 348 (1548) 699** (3109) ––––

B56A 2103 (9354) 1169 (5200) 3185 (14167) 1346** (5987) 934** (4154)

120 (3048) B56 ––291 (1294) 566** (2417) ––––

B56A 1703** (7575) 1008 (4484) 2580 (11476) 1090** (4848) ––

COLUMN LOADING

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate lateral

bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load capacity at

mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

B56 Beam & Column Loading Data

BTS22TH

TELESCOPING STRUT

Fits over all 15/8” x 15/8” channels 9/16” holes on 17/8” centers 12 gauge material thickness

Section Properties X-X Axis Y-Y Axis

Channel Weight Area CxIxSxrxCyIySyry

lbs./ft. In2In In4In3In In In4In3In

BTS22TH 1.934 0.4578 1.0009 0.2525 0.2523 0.7426 0.9375 0.2757 0.2941 0.7761

17/8”X

17/8”

7/8”

15/8”

7/8”

17/8”XX

17/8”

B22TH

THREE HOLE STRUT

9/16” holes on 17/8” centers 12 gauge material thickness

Section Properties X-X Axis Y-Y Axis

Channel Weight Area CxIxSxrxCyIySyry

lbs./ft. In2In In4In3In In In4In3In

B22TH 1.760 0.3863 0.8245 0.1596 0.1936 0.6400 0.8125 0.1719 0.2116 0.6642

COMBINATION OF BTS22TH & B22TH

Section Properties X-X Axis Y-Y Axis

Channel Weight Area CxIxSxrxCyIySyry

Combination lbs./ft. In2In In4In3In In In4In3In

BTS22TH/B22TH

3.597 0.8474 0.9773 0.4126 0.4222 0.6978 0.9375 0.4476 0.4774 0.7268

7/8”

Section properties are based on nominal metal thickness, and overall dimensions.

Resistance to slip*

3600 lbs.

1/2” bolt

& nut

Slip Load Data

*With a safety factor of 3

Resistance to slip*

700 lbs.

1/4” thick 2-hole

fitting with (2)

1/2” bolts &

channel nuts.

Typical of many

standard fittings.

BTS22TH

• Can be secured at any point of system

• Order BTS22TH & B22TH separately

• Thickness: 12 Gauge (1.5 mm)

• Standard lengths: 10’ (3.05 m)

• Standard finishes: Dura-Green, Yellow Zinc Dichromate,

Hot-Dipped Galvanized

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

Telescoping Channel

Beam Load Data x-x Axis

Beam Allowable Resulting Allowable Load

Span Load Deflection @ Deflection=

in lbs* in 1/240 Span

12 4203 0.012 4203

24 2099 0.050 2099

36 1396 0.112 1396

48 1044 0.200 1044

60 831 0.312 664

72 689 0.450 456

84 587 0.612 330

96 510 0.799 248

108 450 1.012 190

120 401 1.249 149

Beam Load Data x-x Axis

Beam Allowable Resulting Allowable Load

Span Load Deflection @ Deflection=

in lbs* in 1/240 Span

12 7033 0.013 7033

24 3511 0.051 3511

36 2335 0.115 2335

48 1745 0.205 1705

60 1389 0.320 1082

72 1151 0.460 742

84 980 0.627 536

96 851 0.819 401

108 749 1.036 307

120 668 1.279 239

BTS22TH

BTS22TH & B22TH

TELESCOPING MEMBERS OF EQUAL LENGTH

*Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) with adequate lateral bracing (see page 11 for

further explanation). To determine concentrated load capacity at mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8.

Beam Load Data x-x Axis

Beam Allowable Resulting Allowable Load

Span Load Deflection @ Deflection=

in lbs* in 1/240 Span

12 2225 0.015 3225

24 1610 0.061 1610

36 1071 0.136 1071

48 800 0.243 658

60 637 0.379 417

72 528 0.546 286

84 449 0.743 206

96 390 0.970 153

108 344 1.228 116

120 306 1.516 90

B22TH

Beam

Span

Beam

Span

Beam

Span

B22TH

BTS22TH

BTS22TH & B22TH

BEAM LOADING DATA

Reference page 14 for general fitting and standard finish specifications.

Channel & Combinations

Telescoping Channel

Reference page 14 for general fitting and standard finish specifications.

Height H Weight

Part No. Thickness In. mm Lbs./Ft. kg/m

B11SH 12 Ga. (2.6) 31/4”(82.5) 2.97 (4.42)

B12SH 12 Ga. (2.6) 27/16”(61.9) 2.39 (3.55)

B22SH 12 Ga. (2.6) 15/8”(41.3) 1.82 (2.71)

B24SH 14 Ga. (1.9) 15/8”(41.3) 1.34 (1.99)

B26SH 16 Ga. (1.5) 15/8”(41.3) 1.07 (1.59)

B32SH 12 Ga. (2.6) 13/8”(34.9) 1.62 (2.41)

B42SH 12 Ga. (2.6) 1” (25.4) 1.36 (2.02)

B52SH 12 Ga. (2.6) 13/16”(20.6) 1.19 (1.77)

B54SH 14 Ga. (1.9) 13/16”(20.6) .91 (1.35)

B56SH 16 Ga. (1.5) 13/16”(20.6) .80 (1.19)

B11SH THRU B56SH

SH TYPE CHANNEL

• For beam loads use 90% of Channel Loading Chart

2” (50.8)

Typ. 9/16” x 11/8” Slots

(14.3) (28.6)

Height H Weight

Part No. Thickness In. mm Lbs./Ft. kg/m

B11S 12 Ga. (2.6) 31/4”(82.5) 2.94 (4.37)

B12S 12 Ga. (2.6) 27/16”(61.9) 2.36 (3.51)

B22S 12 Ga. (2.6) 15/8”(41.3) 1.79 (2.66)

B24S 14 Ga. (1.9) 15/8”(41.3) 1.32 (1.96)

B26S 16 Ga. (1.5) 15/8”(41.3) 1.06 (1.58)

B32S 12 Ga. (2.6) 13/8”(34.9) 1.59 (2.36)

B42S 12 Ga. (2.6) 1” (25.4) 1.33 (1.98)

B52S 12 Ga. (2.6) 13/16”(20.6) 1.16 (1.72)

B54S 14 Ga. (1.9) 13/16”(20.6) .89 (1.32)

B56S 16 Ga. (1.5) 13/16”(20.6) .79 (1.17)

B11S THRU B56S

S TYPE CHANNEL

• For beam loads use 90% of Channel Loading Chart

4” (101.6)

Typ.

13/32”x 3” Slots

(10.3) (76.2)

Height H Weight

Part No. Thickness In. mm Lbs./Ft. kg/m

B11H17/8 12 Ga. (2.6) 31/4”(82.5) 3.00 (4.46)

B12H17/8 12 Ga. (2.6) 27/16”(61.9) 2.42 (3.60)

B22H17/8 12 Ga. (2.6) 15/8”(41.3) 1.85 (2.75)

B24H17/8 14 Ga. (1.9) 15/8”(41.3) 1.36 (2.02)

B26H17/8 16 Ga. (1.5) 15/8”(41.3) 1.09 (1.62)

B32H17/8 12 Ga. (2.6) 13/8”(34.9) 1.65 (2.45)

B42H17/8 12 Ga. (2.6) 1” (25.4) 1.39 (2.07)

B52H17/8 12 Ga. (2.6) 13/16”(20.6) 1.22 (1.81)

B54H17/8 14 Ga. (1.9) 13/16”(20.6) .93 (1.38)

B56H17/8 16 Ga. (1.5) 13/16”(20.6) .82 (1.22)

B11H17/8 THRU B56H17/8

H17/8 TYPE CHANNEL

• For beam loads use 90% of Channel Loading Chart

9/16”Dia. Holes

(14.3)

17/8” (47.6)

Typ.

Channel & Combinations

Channel Hole Patterns

Reference page 14 for general fitting and standard finish specifications.

Height H Weight

Part No. Thickness In. mm Lbs./Ft. kg/m

B22TH 12 Ga. (2.6) 15/8”(41.3) 1.76 (2.62)

B22TH

(TH TYPE CHANNEL)

• For beam loads use 90% of Channel Loading Chart

Height H Weight

Part No. Thickness In. mm Lbs./Ft. kg/m

B11KO6 12 Ga. (2.6) 31/4”(82.5) 3.05 (4.54)

B12KO6 12 Ga. (2.6) 27/16”(61.9) 2.47 (3.67)

B22KO6 12 Ga. (2.6) 15/8”(41.3) 1.90 (2.83)

B24KO6 14 Ga. (1.9) 15/8”(41.3) 1.40 (2.08)

B26KO6 16 Ga. (1.5) 15/8”(41.3) 1.12 (1.66)

B32KO6 12 Ga. (2.6) 13/8”(34.9) 1.70 (2.53)

B42KO6 12 Ga. (2.6) 1” (25.4) 1.44 (2.14)

B52KO6 12 Ga. (2.6) 13/16”(20.6) 1.27 (1.89)

B54KO6 14 Ga. (1.9) 13/16”(20.6) .97 (1.44)

B56KO6 16 Ga. (1.5) 13/16”(20.6) .85 (1.26)

17/8” Typ.

(47.6)

13/16”

(20.6)

15/16”

(23.8)

9/16”Dia. Holes

(14.3)

6” Typ.

(152.4)

3” Typ.

(76.2)

7/8”Dia. K.O.

(22.2)

B11KO6 THRU B56KO6

(KO6 TYPE KNOCKOUT CHANNEL)

• For beam loads use 90% of Channel Loading Chart

B22SHA

(BACK TO BACK SH TYPE CHANNEL)

• For beam loads use 90% of Channel Loading Chart

2” Typ.

(50.8)

Height H Weight

Part No. Thickness In. mm Lbs./Ft. kg/m

B22SHA 12 Ga. (2.6) 31/4”(82.5) 3.64 (5.42)

B52SHA 12 Ga. (2.6) 15/8”(41.3) 2.38 (1.77)

B54SHA 14 Ga. (1.9) 15/8”(41.3) 1.82 (1.35)

9/16” x 11/8” Slots

(14.3) (28.6)

Channel & Combinations

Channel Hole Patterns

Reference page 14 for general fitting and standard finish specifications.

B22M THRU B54M

M (MARINE RUNG) TYPE CHANNEL

• For beam loads use 90% of Channel Loading Chart

1”

(25.4)

1/2”

(38.1)

6” (152.4)

B11S58 THRU B56S58

S58 TYPE CHANNEL

• For beam loads use 90% of Channel Loading Chart

11/16” x 25/8”

(17.5) x (66.7)

Slots

1/4” x 11/16”

(6.3) x (17.5)

Slots

11/16”

(101.6)

13/8” (34.9)

Typ.

Height H Weight

Part No. Thickness In. mm Lbs./Ft. kg/m

B11S58 12 Ga. (2.6) 31/4”(82.5) 2.94 (4.37)

B12S58 12 Ga. (2.6) 27/16”(61.9) 2.36 (3.51)

B22S58 12 Ga. (2.6) 15/8”(41.3) 1.79 (2.66)

B24S58 14 Ga. (1.9) 15/8”(41.3) 1.32 (1.96)

B26S58 16 Ga. (1.5) 15/8”(41.3) 1.06 (1.58)

B32S58 12 Ga. (2.6) 13/8”(34.9) 1.59 (2.36)

B42S58 12 Ga. (2.6) 1” (25.4) 1.33 (1.98)

B52S58 12 Ga. (2.6) 13/16”(20.6) 1.16 (1.72)

B54S58 14 Ga. (1.9) 13/16”(20.6) .89 (1.32)

B56S58 16 Ga. (1.5) 13/16”(20.6) .79 (1.17)

1/2”

(38.1)

Height H Weight

Part No. Thickness In. mm Lbs./Ft. kg/m

B22M 12 Ga. (2.6) 15/8”(41.3) 1.79 (2.66)

B24M 14 Ga. (1.9) 15/8”(41.3) 1.32 (1.96)

B32M 12 Ga. (2.6) 13/8”(34.9) 1.59 (2.36)

B42M 12 Ga. (2.6) 1” (25.4) 1.33 (1.98)

B44M 14 Ga. (1.9) 1” (25.4) 0.98 (1.46)

B52M 12 Ga. (2.6) 13/16”(20.6) 1.16 (1.72)

B54M 14 Ga. (1.9) 13/16”(20.6) .89 (1.32)

Channel & Combinations

Channel Hole Patterns

Height H Weight

Part No. Thickness In. mm Lbs./Ft. kg/m

B22H25 12 Ga. (2.6) 15/8”(41.3) 1.85 (2.75)

B24H25 14 Ga. (1.9) 15/8”(41.3) 1.36 (2.02)

B26H25 16 Ga. (1.5) 15/8”(41.3) 1.09 (1.62)

B32H25 12 Ga. (2.6) 13/8”(34.9) 1.65 (2.45)

B42H25 12 Ga. (2.6) 1” (25.4) 1.39 (2.07)

B52H25 12 Ga. (2.6) 13/16”(20.6) 1.22 (1.81)

B54H25 14 Ga. (1.9) 13/16”(20.6) .93 (1.38)

B56H25 16 Ga. (1.5) 13/16”(20.6) .82 (1.22)

B22H25 THRU B56H25

H25 TYPE CHANNEL

• For beam loads use 90% of Channel Loading Chart

9/32”Dia. Holes

(7.1)

1”

(25.4)

2”

(50.8)

Channel & Combinations

Channel & Combinations - Notes

Channel Nuts

Cooper B-Line’s channel nut is one of the main

components of our metal framing system. It is

designed to provide essential gripping power and

ease during installation. Channel nuts are press

formed, machined and hardened from steel which

meets the requirements of ASTM A108 or

ASTM A36 for our larger sizes.

Bolts, Screws, and Nuts

All bolts, screws and nuts meet the physical and

chemical requirements of ASTM A307, SAE J429

or ASTM A563, and have unified inch screw

threads (coarse, UNC). ISO metric threads are

also available on special request.

Recommended Torque

Materials & Finishes*

*Unless otherwise noted.

Note: Channel nuts are not available in HDG or Aluminum

Metric

Metric dimensions are shown in parentheses. Unless noted, all metric dimensions are in millimeters.

Bolt Size 1/4”-20 5/16”-18 3/8”-16 1/2”-13

Foot/Lbs. 6 11 19 50

Nm 8 15 26 68

Bolt Size M6x1 M8 x1.25 M10 x 1.5 M12x1.75

NM 12 17 36 62

Foot/Lbs. 9 13 27 46

Finish

Code Finish Specification

PLN Plain ASTM A108/A307 Gr. A,

ASTM A563, SAE J429

ZN Electro-Plated Zinc ASTM B633 SC1 Type III

CZ Chromium Zinc ASTM F1136 Gr. 3

HDG Hot-Dipped Galvanized ASTM A153

SS4 Stainless Steel Type 304 ASTM F593

SS6 Stainless Steel Type 316 MPIF 35/ASTM F593

AL Aluminum ASTM F468 S4

Channel Nuts & Hardware

METRIC CHANNEL NUTS

Numbering Example: BMS 6 M

Nut Metric Suffix

Type Thread Size

BMS = Spring Nut 3 = M3.5 S = Short Spring

BMS-D = Spring Nut (1/2” thick) 4 = M4 M = Medium Spring

BMT = Twirl Nut 5 = M5 L = Long Spring

BMT-D = Twirl Nut (1/2” thick) 6 = M6 * = Twirl Nuts and nuts

BMM = Spring Nut (Mini channel) 8 = M8 without springs have

10 = M10 blank suffix

12 = M12

Reference page 44 for general fitting and standard finish specifications.

STANDARD CHANNEL NUTS

Numbering Example: N 7 25 (*) WO

Nut Type Channel Type Thread Size Stud Length Suffix

N = Standard Nut 7 = Tall Channels 21 = #8-32 * = Specify Length WO = Without Spring

TN = Twirl Nut B11 22 = #10-24 of stud below ** = Twirl Nuts or nuts

SN = Stud Nut B12 27 = #10-32 for Stud Nut or with springs have

STN = Stud Twirl Nut 2 = Medium Channels 24 = 1/4-20 Twirl Stud Nuts blank suffix

NW = Combo Nut B22 23 = 5/16-18 3/4= 3/4”

Washer B24 28 = 3/8-16 1 = 1”

B26 26 = 7/16-14 11/4= 11/4”

B32 25 = 1/2-13 11/2= 11/2”

5 = Short Channels 55 = 5/8-11

B42 75 = 5/8-11

B52 78 = 7/8-9

B54

B56

SPRING NUT TWIRL-NUT™ COMBO NUT WASHER

NUT WITHOUT SPRING

STUD NUT WITH SPRING STUD NUT WITHOUT SPRING TWIRL STUD NUT

Channel Nuts & Hardware

Reference page 44 for general fitting and standard finish specifications.

Note: See page 50 for resistance to

slip & page 51 for pull-out strength.

Part No. Thread Size Fits Channel Sizes Nut Thickness Wt./C

Lbs. kg

N221WO #8-32 All sizes except B62 & B72 1/4”(6.3) 7.0 (3.17)

N227WO #10-32 All sizes except B62 & B72 1/4”(6.3) 7.0 (3.17)

N222WO #10-24 All sizes except B62 & B72 1/4”(6.3) 7.0 (3.17)

N224WO 1/4-20 All sizes except B62 & B72 1/4”(6.3) 6.7 (3.04)

N223WO 5/16-18 All sizes except B62 & B72 1/4”(6.3) 6.7 (3.04)

N228WO 3/8-16 All sizes except B62 & B72 3/8”(9.5) 9.3 (4.22)

N226WO 7/16-14 All sizes except B62 & B72 3/8”(9.5) 8.8 (3.99)

N225WO 1/2-13 B11, B12, B22, B24, B26, B32 1/2”(12.7) 11.6 (5.26)

N525WO 1/2-13 B42, B52, B54, B56 3/8”(9.5) 8.8 (3.99)

N255WO 5/8-11 B11, B12, B22, B24, B26, B32 1/2”(12.7) 16.4 (7.44)

N555WO 5/8-11 B42, B52, B54, B56 3/8”(9.5) 10.2 (4.62)

N275WO 3/4-10 B11, B12, B22, B24, B26, B32 1/2”(12.7) 14.5 (6.58)

N575WO 3/4-10 B42, B52, B54, B56 3/8”(9.5) 8.8 (3.99)

N278WO 7/8-9 B11, B12, B22, B24, B26, B32 1/2”(12.7) 12.5 (5.67)

Metric Threads

BMS-6 M6 x 1 All sizes except B62 & B72 1/4”(6.3) 6.9 (3.13)

BMS-8 M8 x 1.25 All sizes except B62 & B72 1/4”(6.3) 6.7 (3.04)

BMS-10 M10 x 1.5 All sizes except B62 & B72 3/8”(9.5) 9.6 (4.35)

BMS-12 M12 x 1.75 All sizes except B62 & B72 3/8”(9.5) 9.2 (4.17)

BMS-D-12 M12 x 1.75 B11, B12, B22, B24, B26, B32 1/2”(12.7) 12.2 (5.53)

NUT WITHOUT SPRING

Channel Nuts & Hardware

Note: For mini channel nut information see page 203.

Channel Nuts

Reference page 44 for general fitting and standard finish specifications.

Part No. Thread Size Fits Channel Sizes Nut Thickness Wt./C

Lbs. kg

N721 #8-32 B11 & B12 1/4”(6.3) 7.0 (3.17)

N221 #8-32 B22, B24, B26, B32 1/4”(6.3) 7.0 (3.17)

N521 #8-32 B42, B52, B54, B56 1/4”(6.3) 7.0 (3.17)

N727 #10-32 B11 & B12 1/4”(6.3) 7.0 (3.17)

N227 #10-32 B22, B24, B26, B32 1/4”(6.3) 7.0 (3.17)

N527 #10-32 B42, B52, B54, B56 1/4”(6.3) 7.0 (3.17)

N722 #10-24 B11 & B12 1/4”(6.3) 7.0 (3.17)

N222 #10-24 B22, B24, B26, B32 1/4”(6.3) 7.0 (3.17)

N522 #10-24 B42, B52, B54, B56 1/4”(6.3) 7.0 (3.17)

N724 1/4-20 B11 & B12 1/4”(6.3) 6.7 (3.04)

N224 1/4-20 B22, B24, B26, B32 1/4”(6.3) 6.7 (3.04)

N524 1/4-20 B42, B52, B54, B56 1/4”(6.3) 6.7 (3.04)

N723 5/16-18 B11 & B12 1/4”(6.3) 6.7 (3.04)

N223 5/16-18 B22, B24, B26, B32 1/4”(6.3) 6.7 (3.04)

N523 5/16-18 B42, B52, B54, B56 1/4”(6.3) 6.7 (3.04)

N728 3/8-16 B11 & B12 3/8”(9.5) 9.3 (4.22)

N228 3/8-16 B22, B24, B26, B32 3/8”(9.5) 9.3 (4.22)

N528 3/8-16 B42, B52, B54, B56 3/8”(9.5) 9.3 (4.22)

N726 7/16-14 B11 & B12 3/8”(9.5) 8.8 (3.99)

N226 7/16-14 B22, B24, B26, B32 3/8”(9.5) 8.8 (3.99)

N526 7/16-14 B42, B52, B54, B56 3/8”(9.5) 8.8 (3.99)

N725 1/2-13 B11 & B12 1/2”(12.7) 11.6 (5.26)

N225 1/2-13 B22, B24, B26, B32 1/2”(12.7) 11.6 (5.26)

N525 1/2-13 B42, B52, B54, B56 3/8”(9.5) 8.8 (3.99)

N755 5/8-11 B11 & B12 1/2”(12.7) 16.4 (7.44)

N255 5/8-11 B22, B24, B26, B32 1/2”(12.7) 16.4 (7.44)

N555 5/8-11 B42, B52, B54, B56 3/8”(9.5) 10.2 (4.62)

N775 3/4-10 B11 & B12 1/2”(12.7) 14.5 (6.58)

N275 3/4-10 B22, B24, B26, B32 1/2”(12.7) 14.5 (6.58)

N575 3/4-10 B42, B52, B54, B56 3/8”(9.5) 8.8 (3.99)

N778 7/8-9 B11 & B12 1/2”(12.7) 12.5 (5.67)

N278 7/8-9 B22, B24, B26, B32 1/2”(12.7) 12.5 (5.67)

Metric Threads

BMS-6L M6 x 1 B11 & B12 1/4”(6.3) 6.9 (3.13)

BMS-6M M6 x 1 B22, B24, B26, B32 1/4”(6.3) 6.9 (3.13)

BMS-6S M6 x 1 B42, B52, B54, B56 1/4”(6.3) 6.9 (3.13)

BMS-8L M8 x 1.25 B11 & B12 1/4”(6.3) 6.7 (3.04)

BMS-8M M8 x 1.25 B22, B24, B26, B32 1/4”(6.3) 6.7 (3.04)

BMS-8S M8 x 1.25 B42, B52, B54, B56 1/4”(6.3) 6.7 (3.04)

BMS-10L M10 x 1.5 B11 & B12 3/8”(9.5) 9.6 (4.35)

BMS-10M M10 x 1.5 B22, B24, B26, B32 3/8”(9.5) 9.6 (4.35)

BMS-10S M10 x 1.5 B42, B52, B54, B56 3/8”(9.5) 9.6 (4.35)

BMS-12M M12 x 1.75 B22, B24, B26, B32 3/8”(9.5) 9.2 (4.17)

BMS-12S M12 x 1.75 B42, B52, B54, B56 3/8”(9.5) 9.2 (4.17)

BMS-D-12L M12 x 1.75 B11 & B12 1/2”(12.7) 12.2 (5.53)

BMS-D-12M M12 x 1.75 B22, B24, B26, B32 1/2”(12.7) 12.2 (5.53)

SPRING NUT

700

Series

200

Series

500

Series

Channel Nuts & Hardware

Note: See page 50 for resistance to

slip & page 51 for pull-out strength.

Note: For mini channel nut information see page 203.

Channel Nuts

Reference page 44 for general fitting and standard finish specifications.

*Note: Add stud length in inches (3/4, 1, 11/4, 11/2)

Part No. Thread Size Fits Channel Sizes Nut Thickness Wt./C

Lbs. kg

STN224-* 1/4-20 All sizes except B62 & B72 1/4”(6.3) 8.1 (3.66)

STN228-* 3/8-16 All sizes except B62 & B72 3/8”(9.5) 12.9 (5.85)

STN225-* 1/2-13 B11, B12, B22, B24, B26, B32 1/2”(12.7) 18.2 (8.23)

STN525-* 1/2-13 B42, B52, B54, B56 3/8”(9.5) 15.4 (6.96)

TWIRL STUD NUT

Part No. Thread Size Fits Channel Sizes Nut Thickness Wt./C

Lbs. kg

TN221 #8-32 All sizes except B62 & B72 1/4”(6.3) 7.0 (3.17)

TN227 #10-32 All sizes except B62 & B72 1/4”(6.3) 7.0 (3.17)

TN222 #10-24 All sizes except B62 & B72 1/4”(6.3) 7.0 (3.17)

TN224 1/4-20 All sizes except B62 & B72 1/4”(6.3) 6.7 (3.04)

TN223 5/16-18 All sizes except B62 & B72 1/4”(6.3) 6.7 (3.04)

TN228 3/8-16 All sizes except B62 & B72 3/8”(9.5) 9.3 (4.22)

TN226 7/16-14 All sizes except B62 & B72 3/8”(9.5) 8.8 (3.99)

TN225 1/2-13 B11, B12, B22, B24, B26, B32 1/2”(12.7) 11.6 (5.26)

TN525 1/2-13 B42, B52, B54, B56 3/8”(9.5) 8.8 (3.99)

TN255 5/8-11 B11, B12, B22, B24, B26, B32 1/2”(12.7) 11.0 (4.99)

BMT-6 M6 x 1 All sizes except B62 & B72 1/4”(6.3) 6.9 (3.13)

BMT-8 M8 x 1.25 All sizes except B62 & B72 1/4”(6.3) 6.7 (3.04)

BMT-10 M10 x 1.5 All sizes except B62 & B72 3/8”(9.5) 9.6 (4.35)

BMT-12 M12 x 1.75 All sizes except B62 & B72 3/8”(9.5) 9.2 (4.17)

BMT-D-12 M12 x 1.75 B11, B12, B22, B24, B26, B32 1/2”(12.7) 12.2 (5.53)

Metric

Threads

TWIRL-NUT™Patented

Channel Nuts & Hardware

Note: See page 50 for resistance to

slip & page 51 for pull-out strength.

Note: See page 50 for resistance to

slip & page 51 for pull-out strength.

Channel Nuts

*Note: Add stud length in inches (3/4, 1, 11/4, 11/2)

Part No. Thread Size Fits Channel Sizes Nut Thickness Wt./C

Lbs. kg

SN224-*WO 1/4-20 All sizes except B62 & B72 1/4”(6.3) 8.1 (3.66)

SN228-*WO 3/8-16 All sizes except B62 & B72 3/8”(9.5) 12.9 (5.85)

SN225-*WO 1/2-13 B11, B12, B22, B24, B26, B32 1/2”(12.7) 18.2 (8.23)

SN525-*WO 1/2-13 B42, B52, B54, B56 3/8”(9.5) 15.4 (6.96)

STUD NUT WITHOUT SPRING

Note: See page 50 for resistance to

slip& page 51 for pull-out strength.

*Note: Add stud length in inches (3/4, 1, 11/4, 11/2)

Reference page 44 for general fitting and standard finish specifications.

Part No. Thread Size Fits Channel Sizes Nut Thickness Wt./C

Lbs. kg

SN724-* 1/4-20 B11 & B12 1/4”(6.3) 8.1 (3.66)

SN224-* 1/4-20 B22, B24, B26, B32 1/4”(6.3) 8.1 (3.66)

SN524-* 1/4-20 B42, B52, B54, B56 1/4”(6.3) 8.1 (3.66)

SN728-* 3/8-16 B11 & B12 3/8”(9.5) 12.9 (5.85)

SN228-* 3/8-16 B22, B24, B26, B32 3/8”(9.5) 12.9 (5.85)

SN528-* 3/8-16 B42, B52, B54, B56 3/8”(9.5) 12.9 (5.85)

SN725-* 1/2-13 B11 & B12 1/2”(12.7) 18.2 (8.23)

SN225-* 1/2-13 B22, B24, B26, B32 1/2”(12.7) 18.2 (8.23)

SN525-* 1/2-13 B42, B52, B54, B56 3/8”(9.5) 15.4 (6.96)

STUD NUT WITH SPRING

Part No. Thread Size Fits Channel Sizes Nut Thickness Wt./C

Lbs. kg

NW524 1/4-20 All Channel Sizes 1/4”(6.3) 11.9 (5.40)

NW528 3/8-16 All Channel Sizes 3/8”(9.5) 13.8 (6.26)

NW525 1/2-13 All Channel Sizes 3/8”(9.5) 13.1 (5.94)

NWM6 M6 All Channel Sizes 1/4”(6.3) 16.6 (7.50)

NWM8 M8 All Channel Sizes 3/8”(9.5) 15.4 (7.00)

NWM10 M10 All Channel Sizes 1/4”(6.3) 18.9 (8.57)

NWM12 M12 All Channel Sizes 3/8”(9.5) 17.7 (8.00)

COMBO NUT WASHER

700

Series

200

Series

500

Series

Channel Nuts & Hardware

Note: See page 50 for resistance to

slip & page 51 for pull-out strength.

• Finish: Electrodeposited zinc ASTM B633 SC1

• Available in 316 stainless steel - add SS6 to part number

• To lock combo nut washer in place a nex nut (sold separately) is required

Note: See page 50 for resistance to slip

& page 51 for pull-out strength.

Channel Nuts

Patent Number

7,604,444

Resistance to Slip

Thread Nut Part

Size Numbers 12 ga. Channel 14 ga. Channel 16 ga. Channel

Lbs. N Lbs. N Lbs. N

#8-32 N221, N221WO,N521, N721, TN221 50 220 50 220 50 220

#10-24 N222, N222WO, N522, N722, TN222 100 440 100 440 100 440

#10-32 N227, N227WO, N527, N727, TN227 100 440 100 440 100 440

NW524*, N224, N224WO, N524, N724,

1/4”-20 TN224, STN224, SN224WO, SN224, 300 1330 300 1330 300 1330

SN524, SN724

5/16”-18 N223, N223WO, N523, N723, TN223 450 2000 450 2000 450 2000

NW528*, N228, N228WO, N528, N728

3/8”-16 TN228, STN228, SN228WO, SN228, 800 3560 600 2670 600 2670

SN528, SN728

7/16”-14 N226, N226WO, N526, N726, TN226 1000 4450 800 3560 800 3560

N225, N225WO, N725, TN225, 1500 6670 1000 4450 1000 4450

STN225, SN225WO, SN225, SN725

1/2”-13 NW525*, N525, N525WO, TN525, 1500 6670 1000 4450 1000 4450

STN525, SN525WO, SN525

5/8”-11 N255, N255WO, N755, TN255 1500 6670 1000 4450 1000 4450

N555, N555WO 1500 6670 1000 4450 1000 4450

3/4”-10 N275, N275WO, N775 1500 6670 1000 4450 1000 4450

N575, N575WO 1500 6670 1000 4450 1000 4450

7/8”-9 N278, N278WO, N778 1500 6670 1000 4450 1000 4450

M6 x 1 BMS-6, BMS-6L, BMS-6M, 300 1330 300 1330 300 1330

BMS-6S, BMT-6

M8 x 1.25 BMS-8, BMS-8L, BMS-8M, 450 2000 450 2000 450 2000

BMS-8S, BMT-8

M10 x 1.50 BMS-10, BMS-10L, BMS-10M, 800 3560 600 2760 600 2760

BMS-10S, BMT-20

BMS-D-12, BMS-D-12L, 1500 6670 1000 4450 1000 4450

M12 x 1.75 BMS-D-12M, BMT

-D-12

BMS-12, BMS-12M, BMS-12S, BMT

-12 1500 6670 1000 4450 1000 4450

RESISTANCE TO SLIP

• With Safety Factor of 3

Resistance to Slip

of Channel Nut

Reference page 44 for general fitting and standard finish specifications.

Channel Nuts & Hardware

Note: For mini channel nut information see page 203.

* Combo Nut Washer (see page 49)

Metric Threads

Channel Nuts

PULL-OUT STRENGTH

• With Safety Factor of 3

• Maximum pullout strength for B11 & B12 channels is limited to 1500 lbs. (6670 N).

Reference page 44 for general fitting and standard finish specifications.

Channel Nuts & Hardware

Note: For mini channel nut

information see page 203.

Pull-Out Strength

Thread Nut Part

Size Numbers 12 ga. Channel 14 ga. Channel 16 ga. Channel

Lbs. N Lbs. N Lbs. N

#8-32 N221, N221WO,N521, N721, TN221 200 890 200 890 200 890

#10-24 N222, N222WO, N522, N722, TN222 250 1110 250 1110 250 1110

#10-32 N227, N227WO, N527, N727, TN227 250 1110 250 1110 250 1110

NW524*, N224,N224WO, N524, N724,

1/4”-20 TN224, STN224, SN224WO, SN224, 450 2000 450 2000 450 2000

SN524, SN724

5/16”-18 N223, N223WO, N523, N723, TN223 750 3330 750 3330 750 3330

NW528*, N228, N228WO, N528, N728

3/8”-16 TN228, STN228, SN228WO, SN228, 1100 4890 1000 4450 1000 4450

SN528, SN728

7/16”-14 N226, N226WO, N526, N726, TN226 1500 6670 1200 5340 1000 4450

N225, N225WO, N725, TN225, 2000 8900 1400 6230 1000 4450

STN225, SN225WO, SN225, SN725

1/2”-13 NW525*, N525, N525WO, TN525, 1500 6670 1400 6230 1000 4450

STN525, SN525WO, SN525

5/8”-11 N255, N255WO, N755, TN255 2000 8900 1400 6230 1000 4450

N555, N555WO 1500 6670 1400 6230 1000 4450

3/4”-10 N275, N275WO, N775 2000 8900 1400 6230 1000 4450

N575, N575WO 1500 6670 1400 6230 1000 4450

7/8”-9 N278, N278WO, N778 1500 6670 1400 6230 1000 4450

M6 x 1 BMS-6, BMS-6L, BMS-6M, 450 2000 450 2000 450 2000

BMS-6S, BMT-6

M8 x 1.25 BMS-8, BMS-8L, BMS-8M, 750 3330 750 3330 750 3330

BMS-8S, BMT-8

M10 x 1.50 BMS-10, BMS-10L, BMS-10M, 1100 4890 1000 4450 1000 4450

BMS-10S, BMT-20

BMS-D-12, BMS-D-12L, 2000 8900 1400 6230 1000 4450

M12 x 1.75 BMS-D-12M, BMT-D-12

BMS-12, BMS-12M, BMS-12S, BMT-12 1500 6670 1400 6230 1000 4450

* Combo Nut Washer (see page 49)

Metric Threads

Pull-Out Strength of

Channel Nut

Channel Nuts

B501 SERIES

U-BOLT

• Designed for use with Rigid Conduit or Iron Pipe

• Dimension “C” is dependent on the type of pipe

or conduit supported and is a reference only

Design Load Wt./C

Part No. A B CD

Lbs. kN Lbs. kg

B501-1/215/16”(23.8) 13/4”(44.4) 11/2”(38.1) 5/16”-18 600 (2.67) 12 (5.4)

B501-3/411/8”(28.6) 13/4”(44.4) 15/8”(41.3) 5/16”-18 600 (2.67) 13 (5.9)

B501-1 13/8”(29.9) 17/8”(47.6) 15/8”(41.3) 5/16”-18 900 (4.00) 14 (6.3)

B501-11/4123/32”(43.6) 13/4”(44.4) 115/32”(37.3) 5/16”-18 900 (4.00) 15 (6.8)

B501-11/22” (50.8) 13/4”(44.4) 17/16”(36.5) 5/16”-18 900 (4.00) 16 (7.2)

B501-2 27/16”(61.9) 21/16”(52.4) 17/8”(47.6) 3/8”-16 1200 (5.34) 27 (12.2)

B501-21/2215/16”(74.6) 21/16”(52.4) 113/16”(46.0) 3/8”-16 1200 (5.34) 32 (14.5)

B501-3 39/16”(90.5) 2” (50.8) 13/4”(44.4) 3/8”-16 1800 (8.00) 36 (16.3)

B501-31/243/32”(94.6) 2” (50.8) 123/32”(43.6) 3/8”-16 1800 (8.00) 38 (17.2)

B501-4 419/32”(116.7) 21/4”(57.1) 121/32”(50.0) 3/8”-16 1800 (8.00) 42 (19.0)

B501-5 521/32”(143.6) 21/4”(57.1) 2” (50.8) 1/2”-13 2400 (10.70) 92 (41.7)

B501-6 63/4”(171.4) 25/8”(66.7) 23/8”(60.3) 5/8”-11 2400 (10.70) 176 (79.8)

B501-8 83/4”(222.2) 25/8”(66.7) 23/8”(60.3) 5/8”-112400 (10.70) 191 (86.6)

Thread

Size

Hex Nuts

Included

B500 SERIES

SQUARE U-BOLT

• Includes:

1 pc. U-Bolt only

2 pcs. 3/8”-16 Hex Nuts

• Additional sizes available

• Standard finish: ZN, SS4

Channel Wt./C

Part No. A Size Lbs. kg

B500-3-3/833/8”(85.7) 15/8” x 15/8”25(11.3)

B500-5 5” (127.0) 31/4” x 15/8”33 (14.9)

21/2”

(63.5)

121/32”

(42.1)

3/8”-16

Threads

Reference page 44 for general fitting and standard finish specifications.

13/8”

(34.9)

3”

(76.2)

2”

(50.8) 1/2”

(12.7)

Channel Nuts & Hardware

Hardware

DCN 3/8

DOUBLE CONVEYOR NUT

• Recommended torque - 19 ft./Lbs.

• Allowable slip loading - 700 Lbs.(3.11kN)

• Safety Factor of 3

• Material: ASTM 1011SS Gr. 33

• Finish: Electrodeposited zinc ASTM B633 SC1

• Strut ordered separately

Wt./C

Part No. Lbs. kg

1/4” x 1/2” HHCS 1.3 (.59)

1/4” x 3/4” HHCS 1.4 (.63)

1/4” x 1” HHCS 1.7 (.77)

1/4” x 11/4” HHCS 2.1 (.95)

1/4” x 11/2” HHCS 2.4 (1.09)

5/16” x 1” HHCS 2.8 (1.27)

5/16” x 11/4” HHCS 3.2 (1.45)

5/16” x 11/2” HHCS 3.8 (1.72)

3/8” x 3/4” HHCS 3.4 (1.54)

3/8” x 1” HHCS 4.1 (1.86)

3/8” x 11/4” HHCS 4.7 (2.13)

3/8” x 11/2” HHCS 5.2 (2.36)

3/8” x 13/4” HHCS 5.9 (2.67)

3/8” x 2” HHCS 7.0 (3.17)

3/8” x 21/4” HHCS 7.8 (3.54)

3/8” x 21/2” HHCS 8.5 (3.85)

1/2” x 7/8” HHCS 8.0 (3.63)

1/2” x 1” HHCS 8.4 (3.81)

1/2” x 11/4” HHCS 9.2 (4.17)

1/2” x 11/2” HHCS 10.1 (4.58)

1/2” x 13/4” HHCS 12.0 (5.44)

1/2” x 2” HHCS 13.2 (5.99)

1/2” x 21/2” HHCS 16.0 (7.26)

Wt./C

Part No. Lbs. kg

1/4” x 3/4” SHHMS 1.2 (.54)

1/4” x 1” SHHMS 1.5 (.68)

1/4” x 11/4” SHHMS 1.8 (.80)

1/4” x 11/2” SHHMS 2.0 (.91)

5/16” x 1” SHHMS 2.6 (1.18)

5/16” x 11/4” SHHMS 3.1 (1.40)

5/16” x 11/2” SHHMS 3.4 (1.54)

3/8” x 11/4” SHHMS 4.6 (2.08)

3/8” x 11/2” SHHMS 5.3 (2.40)

Wt./C

Part No. Lbs. kg

1/4” x 1/2” SRHMS .9 (.41)

1/4” x 3/4” SRHMS 1.2 (.54)

1/4” x 1” SRHMS 1.5 (.68)

1/4” x 11/4” SRHMS 1.7 (.77)

1/4” x 11/2” SRHMS 1.9 (.86)

5/16” x 1” SRHMS 2.5 (1.13)

5/16” x 11/4” SRHMS 2.9 (1.31)

5/16” x 11/2” SRHMS 3.3 (1.49)

3/8” x 1” SRHMS 4.0 (1.81)

3/8” x 11/4” SRHMS 4.5 (2.04)

3/8” x 11/2” SRHMS 5.1 (2.31)

3/8” x 2” SRHMS 6.3 (2.86)

3/8” x 21/4” SRHMS 7.1 (3.22)

3/8” x 21/2” SRHMS 7.7 (3.49)

Wt./C

Part No. Lbs. kg

1/4” x 1/2” SFHMS 1.1 (.50)

1/4” x 5/8” SFHMS 1.2 (.54)

1/4” x 3/4” SFHMS 1.4 (.63)

5/16” x 1” SFHMS 2.8 (1.27)

3/8” x 11/2” SFHMS 5.6 (2.54)

3/8” x 2” SFHMS 6.7 (3.04)

3/8” x 21/4” SFHMS 7.3 (3.31)

3/8” x 21/2” SFHMS 7.9 (3.58)

1/2” x 1” SFHMS 5.9 (2.67)

1/2” x 11/4” SFHMS 7.0 (3.17)

1/2” x 11/2” SFHMS 8.3 (3.76)

1/2” x 21/2” SFHMS 13.8 (6.26)

HHCS

HEX HEAD CAP SCREWS

• Standard finish: Zinc-Plated,

Stainless Steel

SFHMS

SLOTTED FLAT HEAD MACHINE SCREWS

• Standard finish: Zinc-Plated

SRHMS

SLOTTED ROUND HEAD MACHINE SCREWS

• Standard finish: Zinc-Plated

SHHMS

SLOTTED (COMBINATION RECESS)

HEX HEAD MACHINE SCREWS

• Standard finish: Zinc-Plated, Stainless Steel

Reference page 44 for general fitting and standard finish specifications.

CNPSS

SQUARE HEAD CONE POINT SET SCREWS

• Standard finish: ZN

Wt./C

Part No. Lbs. kg

3/8” x 11/2” CNPSS 4.7 (2.13)

3/8” x 2” CNPSS 6.0 (2.72)

1/2” x 11/2” CNPSS 9.2 (4.17)

1/2” x 2” CNPSS 11.4 (5.17)

1/2” x 21/2” CNPSS 13.7 (6.21)

5/8” x 2” CNPSS 19.0 (8.62)

5/8” x 21/2” CNPSS 22.6 (10.25)

Channel Nuts & Hardware

Hardware

Reference page 44 for general fitting and standard finish specifications.

B446A

SWIVEL HANGER

(FEMALE ONLY)

• Design Load:

(3/8)-610 Lbs. (2.71 kN)

(1/2)-1130 Lbs. (5.02 kN)

(5/8)-1810 Lbs. (8.05 kN)

(3/4)-2710 Lbs. (12.05 kN)

• Safety Factor of 3

• Standard finish: ZN

B446B

SWIVEL HANGER

(MALE ONLY)

• Design Load:

(3/8)-610 Lbs. (2.71 kN)

(1/2)-1130 Lbs. (5.02 kN)

(5/8)-1810 Lbs. (8.05 kN)

(3/4)-2710 Lbs. (12.05 kN)

• Safety Factor of 3

• Standard finish: ZN

B446C

SWIVEL HANGER

(FEMALE-FEMALE)

• Design Load:

(3/8)-610 Lbs. (2.71 kN)

(1/2)-1130 Lbs. (5.02 kN)

(5/8)-1810 Lbs. (8.05 kN)

(3/4)-2710 Lbs. (12.05 kN)

• Safety Factor of 3

• Standard finish: ZN

Wt./C

Part No. A B Lbs. kg

B446-3/83/8”-16 HN 3/8”-16 HHCS 28 (12.7)

B446-1/21/2”-13 HN 1/2”-13 HHCS 36 (16.3)

B446-5/85/8”-11 HN 5/8”-11 HHCS 78 (35.4)

B446-3/43/4”-10 HN 3/4”-10 HHCS 112 (50.8)

23/4”

(69.8)

1”

(25.4)

Wt./C

Part No. A R Lbs. kg

B446A-3/83/8”-16 HN 9/32”(7.1) 13 (5.9)

B446A-1/21/2”-13 HN 3/8”(9.5) 15 (6.8)

B446A-5/85/8”-11 HN 15/32”(11.9) 34 (15.4)

B446A-3/43/4”-10 HN 9/16”(14.3) 45 (20.4)

Wt./C

Part No. B R Lbs. kg

B446B-3/83/8”-16 HHCS 9/32”(7.1) 16 (7.2)

B446B-1/21/2”-13 HHCS 3/8”(9.5) 20 (9.1)

B446B-5/85/8”-11 HHCS 15/32”(11.9) 42 (19.0)

B446B-3/43/4”-10 HHCS 9/16”(14.3) 60 (27.2)

13/4”

(44.4)

AR13/4”

(44.4)

Wt./C

Part No. A Lbs. kg

B446C-3/83/8”-16 HN 26 (11.8)

B446C-1/21/2”-13 HN 31 (14.0)

B446C-5/85/8”-11 HN 68 (30.8)

B446C-3/43/4”-10 HN 90 (40.8)

23/4”

(69.8)

B446

SWIVEL HANGER

(FEMALE-MALE)

• Design Load:

(3/8)-610 Lbs. (2.71 kN)

(1/2)-1130 Lbs. (5.02 kN)

(5/8)-1810 Lbs. (8.05 kN)

(3/4)-2710 Lbs. (12.05 kN)

• Safety Factor of 3

• Standard finish: ZN

Channel Nuts & Hardware

Hardware

Channel Nuts & Hardware

Hardware

Reference page 44 for general fitting and standard finish specifications.

HEX NUTS

• Standard finish: Zinc-Plated,

Stainless Steel

Wt./C

Part No. Lbs. kg

1/4” HN .7 (.32)

5/16” HN 1.0 (.45)

3/8” HN 1.5 (.68)

1/2” HN 3.6 (1.63)

5/8” HN 7.2 (3.26)

3/4” HN 11.1 (5.03)

7/8” HN 17.9 (8.12)

1” HN 27.2 (12.34)

Wt./C

Part No. Lbs. kg

MSQN 1/4”.6 (.27)

MSQN 5/16”1.2 (.54)

MSQN 3/8”1.8 (.81)

MSQN

MACHINE SQUARE NUT

• For use with B755 Beam Clamp

• Standard finish: Zinc-Plated

Wt./C

Part No. Lbs. kg

1/2” SQN 5.7 (2.58)

5/8” SQN 10.1 (4.58)

SQN

SQUARE NUTS

• Standard finish: Zinc-Plated

B617

SHOULDER BOLT

• Standard finish: ZN

• Wt./C 6 Lbs. (2.7 kg)

3/8”-16 Thread Size

2”

(50.8)

Fig. 75

SWIVEL ATTACHMENT

• Standard finish: ZN

• Sized for 3/8”-16 threaded rods

• UL Listed to support up to 4” Pipe per NFPA 13

• Wt./C 13 Lbs. (5.9 kg)

Reference page 44 for general fitting and standard finish specifications.

Channel Nuts & Hardware

Hardware

Wt./C

Part No. Lbs. kg

1/4” LW .3 (.13)

5/16” LW .4 (.18)

3/8” LW .6 (.27)

1/2” LW 1.3 (.59)

5/8” LW 2.4 (1.09)

3/4” LW 3.8 (1.72)

7/8” LW 5.9 (2.67)

1” LW 8.8 (3.99)

O.D. Outside Dia. Wt./C

Part No. in. mm Lbs. kg

1/4” FW 47/64”(18.7) .7 (.32)

5/16” FW 7/8”(22.2) 1.4 (.63)

3/8” FW 1” (25.4) 1.7 (.77)

1/2” FW 13/8”(34.9) 3.9 (1.77)

5/8” FW 115/32”(37.3) 6.4 (2.90)

3/4” FW 2” (50.8) 10.9 (4.94)

7/8” FW 21/4”(57.1) 13.4 (6.08)

1” FW 21/2”(63.5) 18.8 (8.53)

Wt./C

Part No. Lbs. kg

1/4” x 11/4” FFW 2.2 (1.00)

1/4” x 11/2” FFW 3.1 (1.40)

3/8” x 11/4” FFW 2.0 (.91)

3/8” x 11/2” FFW 3.0 (1.36)

1/2” x 2” FFW 5.4 (2.45)

LOCK WASHERS

• Standard finish: Zinc-Plated,

Stainless Steel

FLAT WASHERS

• Standard finish: Zinc-Plated,

Stainless Steel

FFW

FLAT FENDER WASHERS

• Standard finish: Zinc-Plated

O.D.

Part No. Thread Size Loading Wt./C

Lbs. kN Lbs. kg

SLWN1/4 1/4-20 240 (1.07) 14.4 (6.5)

SLWN3/8 3/8-16 730 (3.24) 15.4 (7.0)

SLWN1/2 1/2-13 1350 (6.00) 18.8 (8.5)

SLWN5/8 5/8-11 2100 (9.33) 25.4 (11.5)

SLWNM6 M6 200 (0.90) 14.1 (6.4)

SLWNM8 M8 380 (1.70) 16.3 (7.4)

SLWNM10 M10 584 (2.60) 17.2 (7.8)

SLWNM12 M12 840 (3.70) 18.9 (8.6)

Buzznut™

• Can be installed at any desired position on the ATR, eliminating

the need to thread hex nuts up along ATR.

• Loading Safety Factor of 3.

• Torque: 6 ft./lbs (8 Nm)

• Available in Zinc Plated or 316 stainless steel.

SC228

HANGER ROD

STIFFENER

• For 3/8” thru 5/8” ATR

• Strut ordered separately

• Standard finish: ZN

• Wt./C 21 Lbs. (9.5 kg)

11/2”

(63.5)

3/8”-16

Threads

SC228B

SC228BS

N228WO

SC-UB

HANGER ROD STIFFENER

• For 3/4” thru 7/8” ATR

• Strut ordered separately

• Includes: (1) B3188-11/2WO U-Bolt

(2) 3/8”-16 Hex Nuts

(1) 2-Hole Plate

• Standard finish: ZN

• Wt./C 50 Lbs. (22.7 kg)

Fig. 98

ROD STIFFENER

• For 3/8” thru 7/8” ATR

• Use with 12 ga. strut only, ordered separately

• Secres channel to hanger rod for vertical seismic bracing

• Standard finish: ZN

• Wt./C 11 Lbs. (5.0 kg)

Fig. 98B

ROD STIFFENER w/BREAK-OFF BOLT HEAD

• For 3/8” thru 7/8” ATR

• Use with 12 ga. strut only, ordered separately

• Secres channel to hanger rod for vertical seismic bracing

• Uses a snap-off bolt head

• Standard finish: ZN

• Wt./C 13 Lbs. (5.9 kg)

B3188-11/2” WO U-Bolt

3/8”-16 Hex Nuts

2-Hole Plate

1/4” (6mm) x 15/8” (41mm) x 31/2” (89mm)

Stiffner Channel All Threaded Rod (ATR)

Channel Nuts & Hardware

Hardware

Reference page 44 for general fitting and standard finish specifications.

Part No. Threads

Recommended Load

Wt./C Ft. (3048.0 cm)

& Size Per Inch Lbs. kN Lbs. kg

ATR 1/4”20 240 (1.07) 12 (5.44)

ATR 5/16”18 400 (1.78) 19 (8.62)

ATR 3/8”16 730 (3.24) 29 (13.15)

ATR 1/2”13 1350 (6.00) 53 (24.04)

ATR 5/8”11 2160 (9.60) 89 (40.37)

ATR 3/4”10 3230 (14.37) 123 (55.79)

ATR 7/8”9 4480 (19.93) 170 (77.11)

ATR 1” 8 5900 (26.24) 225 (102.06)

ATR

ALL THREADED ROD

• Available in 36” (91.4 cm), 72” (182.9 cm), 120” (304.8 cm), 144” (365.7 cm) lengths

• Safety Factor of 5 on recommended load

• Standard finish: Zinc-Plated, Stainless Steel Type 304

B655 ROD COUPLING

B656 REDUCER ROD COUPLING

• Load rating for each coupler meets

All Threaded Rod value

• Standard finish: Zinc-Plated, Stainless Steel Type 304

BHR SERIES

HOT RODS FOR TRAPEZE HANGERS

• 12” length of threaded rod completely assembled with rod

coupling, locking hex nuts, square washer, and channel nut.

• Standard finish: Zinc-Plated

Recommended

Part No. Size Load Length Wt./C

Lbs. kN Lbs. kg

B655-1/41/4”-20 240 (1.07) 7/8”(22.2) 1.9 (.86)

B655-5/16 5/16”-18 380 (1.69) 7/8”(22.2) 1.8 (.81)

B655-3/83/8”-16 730 (3.24) 11/8”(28.6) 3.6 (1.63)

B655-1/21/2”-13 1350 (6.00) 13/4”(44.4) 11.3 (5.12)

B655-5/85/8”-11 1810 (8.05) 21/8”(54.0) 17.6 (7.98)

B655-3/43/4”-10 2710 (12.05) 21/4”(57.1) 28.1 (12.74)

B655-7/87/8”-9 3770 (16.77) 21/2”(63.5) 57.2 (25.94)

B655-1 1”-8 4960 (22.06) 23/4”(69.8) 73.7 (33.43)

Recommended

Part No. Size

Load

Length

Wt./C

Lbs. kN Lbs. kg

B656-3/8x 1/4

3/8”-16 & 1/4”-20 240 (1.07) 1” (25.4) 3.7 (1.68)

B656-1/2x 3/8

1/2”-13 & 3/8”-16 730 (3.24) 11/4”(31.7) 6.6 (2.99)

B656-5/8x 1/2

5/8”-11 & 1/2”-13 1350 (6.00) 11/4”(31.7) 11.6 (5.26)

B656-3/4x 5/8

3/4”-10 & 5/8”-11 1810 (8.05) 11/2”(38.1) 20.6 (9.34)

B656-7/8x 3/4

7/8”-9 & 3/4”-10 2710 (12.05) 13/4”(44.4) 39.4 (17.87)

Recommended

Part No.

Rod

Size

Load Wt./C

Lbs. kN Lbs. kg

BHR1225ZN 1/4”-20 240 (1.07) 41 (18.6)

BHR1238ZN 3/8”-16 730 (3.24) 63 (28.6)

BHR1250ZN 1/2”-13 1350 (6.00) 98 (44.4)

BHR1262ZN 5/8”-11 1500 (6.67) 148 (67.1)

Channel Nuts & Hardware

(BHR1225, BHR1238, and BHR1250 use combo nut washers instead of square washers and channel nuts)

Note: Based on use with 12 ga. channel.

Hardware

Channel Nuts & Hardware

KwikWire™ Hardware

(1) Wire Rope Construction Type 7 x 7

(2) Wire Rope Construction Type 7 x 19

Clamps

Wire Rope

(Uncoated Galvanized Wire)

7 x 7

7 x 19

See table below for KwikWire™

Clamp Working Loads

KwikWire™ Clamp

Working Loads*

Clamp Wire Lbs.

Part No. Rope Safety

Dia. Factor 5

BKC100 1/16” 0-75

BKC100 3/32”25-150

BKC200 1/8” 25-250

BKC200 3/16” 50-640

*Working loads shown

are for hanging

vertically.

For suspending at

15°, 30°, 45° or 60°

angles from vertical, use

the following percentage

of the working loads from

the chart:

15° = 96%

30° = 86%

45° = 70%

60° = 50%

Instructions for installing the wire rope in the clamp - No tools are required.

To adjust, remove tension

and pull wire rope slightly

to disengage teeth, slide

adjustment pin in

direction shown by arrow

to release wire rope.

Loop wire rope

through/around

support

Pass wire rope back

through KwikWire™

Clamp

Push wire rope through

clamp leaving 2” to 3”

tail, then apply tension

on wire rope

Pass the wire rope

through the KwikWire™

Clamp

123

For Use With Wire Box

Part No.

Rope Diameters Qty.

BKC100 1/16” & 3/32” 100

BKC200 1/8” & 3/16”50

Part No.

Rope

Dia.

Working Load Spool

in. mm Lbs. kg

BKW063 (1) 1/16”(1.6) 96 (43.5) 500 ft.

BKW094 (1) 3/32”(2.3) 184 (83.4) 500 ft.

BKW125 (1) 1/8”(3.2) 340 (154.2) 500 ft.

BKW188 (2) 3/16”(4.8) 840 (381.0) 250 ft.

Channel Nuts & Hardware

KwikWire™ Hardware

• Wire rope cutter for cutting all wire rope sizes

** Danger: Never use cutters on energized circuits,

wire, or cable.

Cable Cutter

KwikPak™ makes handling KwikWire™ a breeze!

•KwikPaks include KwikWire clamps and a spool of wire rope.

•KwikPaks are shipped in a specially designed dispenser box to ease field cutting of wire.

Wire Rope & Clamps KwikPak

KwikWire™ System Recommendations:

•Do not exceed the safe working load of the products

• KwikWire™ Clamp load ratings are guaranteed only when used in combination with Cooper supplied wire rope

• Do not use for overhead lifting or hoisting

• Do not use if cable or components are visibly distorted or worn. Remove damaged cable end prior to inserting

in KwikWire™ Clamp

•Do not paint cable near working area of KwikWire™ Clamp

•Do not apply lubricant

•Keep product clean and free of dirt

•Do not use clamp on coated wire rope

•Do not use in chlorinated or caustic atmospheres

•For use in dry locations

• Cooper’s BKCC tool is recommended for cutting wire rope to prevent fraying

For Use With Wire Box

Part No.

Rope Diameters Qty.

BKP10063 BKC100 (100 pcs.) 1

1/16”ØWire Rope (500 ft.)

BKP10094 BKC100 (100 pcs.) 1

3/32”ØWire Rope (500 ft.)

BKP20125 BKC200 (50 pcs.) 1

1/8”ØWire Rope (500 ft.)

BKP20188 BKC200 (50 pcs.) 1

3/16”ØWire Rope (250 ft.)

Box

Part No.

Qty.

BKCC 1

Channel Nuts & Hardware

KwikWire™ Hardware

KwikWire™ Hanger installation

Hanger

• KwikWire hanger combines the

versatility of a bolt with an

adjustable wire rope solution.

• Can be quickly installed in

existing anchors or metal

brackets with a nut.

• ARS, ARC, and ARW anchors

are ideal for use with KwikWire

Hangers.

• Ideal for supporting light

fixtures, wire basket cable

tray, HVAC ducts, and

sign/banner supports.

• Allows for tool-less adjustment

of wire rope.

Screw KwikWire Hanger

into installed hanger

support (ARS anchor

pictured)

Push cable wire up

through the bottom of

KwikWire Hanger

Continue pushing

through until 1/4”

minimum is extending

out the side of the

KwikWire Hanger

To adjust up -

pull or push more cable

wire through KwikWire

Hanger

To adjust down - push up

on bottom of KwikWire

Hanger and allow cable

wire to feed down

When hanging the cable

wire is complete, cut off

any excess cable wire if

desired

1 2 3

4 5 6

Part No.

Thread Wire Rope

Dia.

Loading* SF5

Size in. mm Lbs. kg

BKF100-4 1/4”-20 1/16” (1.6) 45 (20.4)

3/32” (2.3) 90 (40.8)

BKF100-6 3/8”-16 1/16” (1.6) 45 (20.4)

3/32” (2.3) 90 (40.8)

Channel Nuts & Hardware

KwikWire™ Hardware

KwikWire Accessory Numbering System

Product Assembly Leg Leg Wire Rope Straight Assembly

Line Configuration Termination Length Diameter Length or Kit

Blank =

Single Leg

Y = 2 Legs

3 - 3 Legs

A = Angle

Bracket w/Pin

H = Hook

L = Loop

T = Toggle

W = Fuse Cut

B25 = Bolt w/ 1/4”-20 Thread

B38 = Bolt w/ 3/8”-16 Thread

BM6 = Bolt w/ M6 Thread

BM8 = Bolt w/ M8 Thread

BM10 = Bolt w/ M10 Thread

Blank = See

Straight Length

18 = 18” Leg

30 = 30” Leg

063 = 1/16”

094 = 3/32”

Blank =

Loop w/

Plastic Tube

18 = 18”

30 = 30”

40 = 40”

80 = 80”

120 = 120”

180 = 180”

240 = 240”

360 = 360”

Blank =

Assembly

Only

K = Kit

(Assembly &

BKC100 Clamp)

BK =

KwikWire

Examples BKYT18-094-120K

BK Y T 18 -094 -120 K

Cooper B-Line KwikWire Accessory

2 legs - toggle leg termination - 18” legs - 3/32” diameter wire - 120” straight length - kit with clamp

BKL-063-120K

BK L -063 -120 K

Cooper B-Line KwikWire Accessory

single leg - looped leg termination - 1/16” diameter wire - 120” straight length - kit with clamp

Custom assemblies are available as shown by the red dot on pages 63 - 70.

Lead time on custom assemblies is 2 to 3 weeks depending on quantities.

KwikWire Accessory Features

•Reduces on the job installation time

•Can be installed quickly without drilling into existing structure

•Increases versatility in the field

•KwikWire accessory system reduces inventory and shipping costs

•No more sawing, filing, or fixing nuts

•Designed for use with cable tray, lighting, and HVAC

•Eliminates the need for all threaded rod

•Cost effective solution for jack chain

•“Y” style accessories require 50% less drilling

Channel Nuts & Hardware

KwikWire™ Hardware

•Available as a wire rope with loop termination only or as a ready-to-use kit with a BKC100 clamp.

•Available in lengths of 40”, 80”, 120”, 180”, 240”, and 360”.

= Stock item, lead time 2 - 3 working days = Non-stock item, lead time 10 - 15 working days

New

Loop Termination

New

Loop Termination Kits

Box Quantity - 20

5 bags containing 4 pieces per bag

Box Quantity - 20

5 bags containing 4 pieces per bag

Wire Rope Dia. Length

Part No. in. mm in. mm

BKL-063-40 1/16”(1.6) 40” (1016)

BKL-063-80 1/16”(1.6) 80” (2032)

BKL-063-120 1/16”(1.6) 120” (3048)

BKL-063-180 1/16”(1.6) 180” (4572)

BKL-063-240 1/16”(1.6) 240” (6096)

BKL-063-360 1/16”(1.6) 360” (9144)

BKL-094-40 3/32”(2.3) 40” (1016)

BKL-094-80 3/32”(2.3) 80” (2032)

BKL-094-120 3/32”(2.3) 120” (3048)

BKL-094-180 3/32”(2.3) 180” (4572)

BKL-094-240 3/32”(2.3) 240” (6096)

BKL-094-360 3/32”(2.3) 360” (9144)

Wire Rope Dia. Length

Part No. in. mm in. mm

BKL-063-40K 1/16”(1.6) 40” (1016)

BKL-063-80K 1/16”(1.6) 80” (2032)

BKL-063-120K 1/16”(1.6) 120” (3048)

BKL-063-180K 1/16”(1.6) 180” (4572)

BKL-063-240K 1/16”(1.6) 240” (6096)

BKL-063-360K 1/16”(1.6) 360” (9144)

BKL-094-40K 3/32”(2.3) 40” (1016)

BKL-094-80K 3/32”(2.3) 80” (2032)

BKL-094-120K 3/32”(2.3) 120” (3048)

BKL-094-180K 3/32”(2.3) 180” (4572)

BKL-094-240K 3/32”(2.3) 240” (6096)

BKL-094-360K 3/32”(2.3) 360” (9144)

Channel Nuts & Hardware

KwikWire™ Hardware

•Hook designed to accept up to 3/8” diameter wire.

•Available as a wire rope with hook termination only or as a ready-to-use kit with a

BKC100 clamp.

•Available in lengths of 40”, 80”, 120”, 180”, 240”, and 360”.

•Available in single, double (Y), and triple (3) leg styles

= Stock item, lead time 2 - 3 working days = Non-stock item, lead time 10 - 15 working days

New

Single Style Hook Termination

New

Single Style Hook Termination Kits

New

‘Y’ Style Hook Termination With Loop

Triple (3) leg style

Box Quantity - 20

5 bags containing 4 pieces per bag

Box Quantity - 20

5 bags containing 4 pieces per bag

Box Quantity - 10

5 bags containing 2 pieces per bag

Wire Rope Dia. Length

Part No. in. mm in. mm

BKH-094-40 3/32”(2.3) 40” (1016)

BKH-094-80 3/32”(2.3) 80” (2032)

BKH-094-120 3/32”(2.3) 120” (3048)

BKH-094-180 3/32”(2.3) 180” (4572)

BKH-094-240 3/32”(2.3) 240” (6096)

BKH-094-360 3/32”(2.3) 360” (9144)

Wire Rope Dia. Length

Part No. in. mm in. mm

BKH-094-40K 3/32”(2.3) 40” (1016)

BKH-094-80K 3/32”(2.3) 80” (2032)

BKH-094-120K 3/32”(2.3) 120” (3048)

BKH-094-180K 3/32”(2.3) 180” (4572)

BKH-094-240K 3/32”(2.3) 240” (6096)

BKH-094-360K 3/32”(2.3) 360” (9144)

Wire Rope Dia. Length

Part No. in. mm in. mm

BKYH18-094 3/32”(2.3) 18” (457)

BKYH30-094 3/32”(2.3) 30” (762)

Channel Nuts & Hardware

KwikWire™ Hardware

•Hook designed to accept up to 3/8” diameter wire.

•Available as a wire rope with loop termination only or as a ready-to-use kit with a BKC100 clamp.

•Available in lengths of 40”, 80”, 120”, 180”, 240”, and 360”.

= Stock item, lead time 2 - 3 working days = Non-stock item, lead time 10 - 15 working days

New

‘Y’ Style Hook Termination

New

‘Y’ Style Hook Termination Kits

Box Quantity - 10

5 bags containing 2 pieces per bag

Box Quantity - 10

5 bags containing 2 pieces per bag

Leg Length Wire Rope Dia. Length

Part No. in. mm in. mm in. mm

BKYH18-094-40 18” (457) 3/32”(2.3) 40” (1016)

BKYH18-094-80 18” (457) 3/32”(2.3) 80” (2032)

BKYH18-094-120 18” (457) 3/32”(2.3) 120” (3048)

BKYH18-094-180 18” (457) 3/32”(2.3) 180” (4572)

BKYH18-094-240 18” (457) 3/32”(2.3) 240” (6096)

BKYH18-094-360 18” (457) 3/32”(2.3) 360” (9144)

BKYH30-094-40 30” (762) 3/32”(2.3) 40” (1016)

BKYH30-094-80 30” (762) 3/32”(2.3) 80” (2032)

BKYH30-094-120 30” (762) 3/32”(2.3) 120” (3048)

BKYH30-094-180 30” (762) 3/32”(2.3) 180” (4572)

BKYH30-094-240 30” (762) 3/32”(2.3) 240” (6096)

BKYH30-094-360 30” (762) 3/32”(2.3) 360” (9144)

Leg Length Wire Rope Dia. Length

Part No. in. mm in. mm in. mm

BKYH18-094-40K 18” (457) 3/32”(2.3) 40” (1016)

BKYH18-094-80K 18” (457) 3/32”(2.3) 80” (2032)

BKYH18-094-120K 18” (457) 3/32”(2.3) 120” (3048)

BKYH18-094-180K 18” (457) 3/32”(2.3) 180” (4572)

BKYH18-094-240K 18” (457) 3/32”(2.3) 240” (6096)

BKYH18-094-360K 18” (457) 3/32”(2.3) 360” (9144)

BKYH30-094-40K 30” (762) 3/32”(2.3) 40” (1016)

BKYH30-094-80K 30” (762) 3/32”(2.3) 80” (2032)

BKYH30-094-120K 30” (762) 3/32”(2.3) 120” (3048)

BKYH30-094-180K 30” (762) 3/32”(2.3) 180” (4572)

BKYH30-094-240K 30” (762) 3/32”(2.3) 240” (6096)

BKYH30-094-360K 30” (762) 3/32”(2.3) 360” (9144)

Channel Nuts & Hardware

KwikWire™ Hardware

Single Style Toggle Termination

•Available as a wire rope with toggle termination only or as a ready-to-use kit with a

BKC100 clamp.

•Available in lengths of 40”, 80”, 120”, 180”, 240”, and 360”.

•Available in single, double (Y), and triple (3) leg styles

•All triple (3) leg styles are non-stock, consult Cooper B-Line for lead times

= Stock item, lead time 2 - 3 working days = Non-stock item, lead time 10 - 15 working days

New

Single Style Toggle Termination Kits

New

‘Y’ Style Toggle Termination With Loop

Triple (3) leg style

Box Quantity - 20

5 bags containing 4 pieces per bag

Box Quantity - 20

5 bags containing 4 pieces per bag

Box Quantity - 10

5 bags containing 2 pieces per bag

Wire Rope Dia. Length

Part No. in. mm in. mm

BKT-063-40 1/16”(1.6) 40” (1016)

BKT-063-80 1/16”(1.6) 80” (2032)

BKT

-063-120 1/16”(1.6) 120” (3048)

BKT-063-180 1/16”(1.6) 180” (4572)

BKT-063-240 1/16”(1.6) 240” (6096)

BKT-063-360 1/16”(1.6) 360” (9144)

Wire Rope Dia. Length

Part No. in. mm in. mm

BKT-063-40K 1/16”(1.6) 40” (1016)

BKT-063-80K 1/16”(1.6) 80” (2032)

BKT-063-120K 1/16”(1.6) 120” (3048)

BKT-063-180K 1/16”(1.6) 180” (4572)

BKT-063-240K 1/16”(1.6) 240” (6096)

BKT-063-360K 1/16”(1.6) 360” (9144)

Wire Rope Dia. Length

Part No. in. mm in. mm

BKYT12-063 1/16”(1.6) 12” (305)

BKYT18-063 1/16”(1.6) 18” (457)

BKYT30-063 1/16”(1.6) 30” (762)

Channel Nuts & Hardware

KwikWire™ Hardware

•Available as a wire rope with loop termination only or as a ready-to-use kit with a BKC100 clamp.

•Available in lengths of 40”, 80”, 120”, 180”, 240”, and 360”.

= Stock item, lead time 2 - 3 working days = Non-stock item, lead time 10 - 15 working days

New

‘Y’ Style Toggle Termination

New

‘Y’ Style Toggle Termination Kits

Box Quantity - 10

5 bags containing 2 pieces per bag

Box Quantity - 10

5 bags containing 2 pieces per bag

Leg Length Wire Rope Dia. Length

Part No. in. mm in. mm in. mm

BKYT12-063-40K 12” (305) 1/16”(1.6) 40” (1016)

BKYT12-063-80K 12” (305) 1/16”(1.6) 80” (2032)

BKYT12-063-120K 12” (305) 1/16”(1.6) 120” (3048)

BKYT12-063-180K 12” (305) 1/16”(1.6) 180” (4572)

BKYT12-063-240K 12” (305) 1/16”(1.6) 240” (6096)

BKYT12-063-360K 12” (305) 1/16”(1.6) 360” (9144)

BKYT18-063-40K 18” (457) 1/16”(1.6) 40” (1016)

BKYT18-063-80K 18” (457) 1/16”(1.6) 80” (2032)

BKYT18-063-120K 18” (457) 1/16”(1.6) 120” (3048)

BKYT18-063-180K 18” (457) 1/16”(1.6) 180” (4572)

BKYT18-063-240K 18” (457) 1/16”(1.6) 240” (6096)

BKYT18-063-360K 18” (457) 1/16”(1.6) 360” (9144)

BKYT30-063-40K 30” (762) 1/16”(1.6) 40” (1016)

BKYT30-063-80K 30” (762) 1/16”(1.6) 80” (2032)

BKYT30-063-120K 30” (762) 1/16”(1.6) 120” (3048)

BKYT30-063-180K 30” (762) 1/16”(1.6) 180” (4572)

BKYT30-063-240K 30” (762) 1/16”(1.6) 240” (6096)

BKYT30-063-360K 30” (762) 1/16”(1.6) 360” (9144)

Leg Length Wire Rope Dia. Length

Part No. in. mm in. mm in. mm

BKYT12-063-40 12” (305) 1/16”(1.6) 40” (1016)

BKYT12-063-80 12” (305) 1/16”(1.6) 80” (2032)

BKYT12-063-120 12” (305) 1/16”(1.6) 120” (3048)

BKYT12-063-180 12” (305) 1/16”(1.6) 180” (4572)

BKYT12-063-240 12” (305) 1/16”(1.6) 240” (6096)

BKYT12-063-360 12” (305) 1/16”(1.6) 360” (9144)

BKYT18-063-40 18” (457) 1/16”(1.6) 40” (1016)

BKYT18-063-80 18” (457) 1/16”(1.6) 80” (2032)

BKYT18-063-120 18” (457) 1/16”(1.6) 120” (3048)

BKYT18-063-180 18” (457) 1/16”(1.6) 180” (4572)

BKYT18-063-240 18” (457) 1/16”(1.6) 240” (6096)

BKYT18-063-360 18” (457) 1/16”(1.6) 360” (9144)

BKYT30-063-40 30” (762) 1/16”(1.6) 40” (1016)

BKYT30-063-80 30” (762) 1/16”(1.6) 80” (2032)

BKYT30-063-120 30” (762) 1/16”(1.6) 120” (3048)

BKYT30-063-180 30” (762) 1/16”(1.6) 180” (4572)

BKYT30-063-240 30” (762) 1/16”(1.6) 240” (6096)

BKYT30-063-360 30” (762) 1/16”(1.6) 360” (9144)

Channel Nuts & Hardware

KwikWire™ Hardware

New

Bolt Termination

•Ideal for use with ARS, ARC, ADI, ACPW, or ACPD anchors.

•Available as a wire rope with bolt termination only or as a ready-to-use kit with a BKC100 clamp.

•Available in lengths of 40”, 80”, 120”, 180”, 240”, and 360”.

•Available in single, double (Y), and triple leg (3) styles

•All (Y) and triple (3) styles are non-stock, consult Cooper B-Line for lead times

= Stock item, lead time 2 - 3 working days = Non-stock item, lead time 10 - 15 working days

Triple (3) leg styleDouble (Y) leg style

Box Quantity - 20

5 bags containing 4 pieces per bag

Thread Wire Rope Dia. Length

Part No. Size in. mm in. mm

BKB25-063-40 1/4”-20 1/16”(1.6) 40” (1016)

BKB25-063-80 1/4”-20 1/16”(1.6) 80” (2032)

BKB25-063-120 1/4”-20 1/16”(1.6) 120” (3048)

BKB25-063-180 1/4”-20 1/16”(1.6) 180” (4572)

BKB25-063-240 1/4”-20 1/16”(1.6) 240” (6096)

BKB25-063-360 1/4”-20 1/16”(1.6) 360” (9144)

BKB38-094-40 3/8”-16 3/32”(2.3) 40” (1016)

BKB38-094-80 3/8”-16 3/32”(2.3) 80” (2032)

BKB38-094-120 3/8”-16 3/32”(2.3) 120” (3048)

BKB38-094-180 3/8”-16 3/32”(2.3) 180” (4572)

BKB38-094-240 3/8”-16 3/32”(2.3) 240” (6096)

BKB38-094-360 3/8”-16 3/32”(2.3) 360” (9144)

Channel Nuts & Hardware

KwikWire™ Hardware

Bolt Termination Kits

•Ideal for use with ARS, ARC, ADI, ACPW, or ACPD anchors.

•Available as a wire rope with bolt termination only or as a ready-to-use kit with a BKC100 clamp.

•Available in lengths of 40”, 80”, 120”, 180”, 240”, and 360”.

•Available in single, double (Y), and triple (3) styles

•All double (Y) and triple (3) styles are non-stock, consult Cooper B-Line for lead times

= Stock item, lead time 2 - 3 working days = Non-stock item, lead time 10 - 15 working days

Double (Y) leg style

New

Triple (3) leg style

Box Quantity - 20

5 bags containing 4 pieces per bag

Thread Wire Rope Dia. Length

Part No. Size in. mm in. mm

BKB25-063-40K 1/4”-20 1/16”(1.6) 40” (1016)

BKB25-063-80K 1/4”-20 1/16”(1.6) 80” (2032)

BKB25-063-120K 1/4”-20 1/16”(1.6) 120” (3048)

BKB25-063-180K 1/4”-20 1/16”(1.6) 180” (4572)

BKB25-063-240K 1/4”-20 1/16”(1.6) 240” (6096)

BKB25-063-360K 1/4”-20 1/16”(1.6) 360” (9144)

BKB38-094-40K 3/8”-16 3/32”(2.3) 40” (1016)

BKB38-094-80K 3/8”-16 3/32”(2.3) 80” (2032)

BKB38-094-120K 3/8”-16 3/32”(2.3) 120” (3048)

BKB38-094-180K 3/8”-16 3/32”(2.3) 180” (4572)

BKB38-094-240K 3/8”-16 3/32”(2.3) 240” (6096)

BKB38-094-360K 3/8”-16 3/32”(2.3) 360” (9144)

Channel Nuts & Hardware

KwikWire™ Hardware

Angle Bracket Termination

•Available as a wire rope with angle bracket termination only or as a ready-to-use kit with a BKC100 clamp.

•Available in lengths of 40”, 80”, 120”, 180”, 240”, and 360”.

= Stock item, lead time 2 - 3 working days = Non-stock item, lead time 10 - 15 working days

New

Angle Bracket Termination Kits

Box Quantity - 20

5 bags containing 4 pieces per bag

Box Quantity - 20

5 bags containing 4 pieces per bag

Wire Rope Dia. Length

Part No. in. mm in. mm

BKA-063-40 1/16”(1.6) 40” (1016)

BKA-063-80 1/16”(1.6) 80” (2032)

BKA-063-120 1/16”(1.6) 120” (3048)

BKA-063-180 1/16”(1.6) 180” (4572)

BKA-063-240 1/16”(1.6) 240” (6096)

BKA-063-360 1/16”(1.6) 360” (9144)

Wire Rope Dia. Length

Part No. in. mm in. mm

BKA-063-40K 1/16”(1.6) 40” (1016)

BKA-063-80K 1/16”(1.6) 80” (2032)

BKA-063-120K 1/16”(1.6) 120” (3048)

BKA-063-180K 1/16”(1.6) 180” (4572)

BKA-063-240K 1/16”(1.6) 240” (6096)

BKA-063-360K 1/16”(1.6) 360” (9144)

Channel Nuts & Hardware

Hardware - Notes

This section offers a full selection of fittings and

accessories to complete Cooper B-Line’s metal

framing system. Fittings are made from hot

rolled, pickled and oiled plate or strip steel in

accordance with ASTM A1018 33,000 PSI min.

yield, unless noted.

Dimensions

The following dimensions apply to all fittings

except as noted:

Materials & Finishes

(Unless otherwise noted)

Note: Aminimum order may apply on special

material and finishes.

Load Data

The load data published includes safety factor of 2.5 when used with 12 ga. (2.6) channel

(safety factor = ratio of ultimate load to the design load).

Use 1/2”-13 x 7/8” hex head cap screws and 1/2”-13 (N225 or TN225) channel nuts for the rated results.

Recommended Bolt Torque

See chart on page 112 for setscrew torque.

Hardware

Nuts and bolts are not included with the fittings and must be ordered separately, unless noted.

Pre-Assembled Fittings

Some fittings are available with hex head cap screws and channel nuts pre-assembled.

These fittings and finishes will be flagged using the following symbol.

Metric

Metric dimensions are shown in parentheses.

Unless noted, all metric dimensions are in millimeters.

Bolt Size 1/4”-20 5/16”-18 3/8”-16 1/2”-13

Foot/Lbs. 6 11 19 50

Nm 8 15 26 68

Finish

Code Finish Specification

PLN Plain ASTM A1018

33,000 PSI min. yield

ZN Electro-Plated Zinc ASTM B633 SC3 Type III

or ASTM A653

GRN Dura-Green

HDG Hot-Dipped Galvanized ASTM A123

SS4 Stainless Steel Type 304 ASTM A240

SS6 Stainless Steel Type 316 ASTM A240

AL Aluminum ASTM B209

Hole Size – 9/16”

(14.3 mm) diameter

Thickness – 1/4” (6.3 mm)

Width –

15/8” (41.3 mm)

Strut Fittings

Fittings

Hole Spacing – 17/8”

(47.6 mm) on center

Hole Spacing –

13/16” (20.6 mm)

from end

PA ZN

GRN

Part Wt./C

No. A (A) Bolt Size Lbs. kg

B200 3/8”(9.5) 5/16”(7.9) 18 (8.1)

B201 7/16”(11.1) 3/8”(9.5) 18 (8.1)

B202 9/16”(14.2) 1/2”(12.7) 17 (7.7)

B202-1 11/16”(17.4) 5/8”(15.9) 16 (7.2)

B202-2 13/16”(20.6) 3/4”(19.0) 15 (6.8)

Part Wt./C

No. A (A) Bolt Size Lbs. kg

B200D 3/8”(9.5) 5/16”(7.9) 18 (8.1)

B201D 7/16”(11.1) 3/8”(9.5) 18 (8.1)

B202D 9/16”(14.2) 1/2”(12.7) 17 (7.7)

B202-1D 11/16”(17.4) 5/8”(15.9) 16 (7.2)

B202-2D 13/16”(20.6) 3/4”(19.0) 15 (6.8)

15/8”

(41.3)

31/2”

(88.9)

31/4”

(82.5)

21/2”

(63.5)

53/8”

(136.5)

15/16”

(33.3)

45/8”

(117.5)

15/8”

(41.3)

47/8”

(123.8)

71/4”

(184.1)

91/8”

(231.8)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

Hole Size A

B200D-B202-2D

•

Standard finishes: ZN,

GRN, HDG, SS4, SS6, AL

B200-B202-2

•

Standard finishes: ZN,

GRN, HDG, SS4, SS6, AL

B129

TWO HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 37 Lbs. (16.8 kg)

B340

TWO HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 34 Lbs. (15.4 kg)

B557

THREE HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 50 Lbs. (22.7 kg)

B341

FOUR HOLE SPLICE PLATE

• Standard finishes: ZN, GRN, HDG

• Wt./C 76 Lbs. (34.5 kg)

B342

FIVE HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 96 Lbs. (43.5 kg)

B528

TWO HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 50 Lbs. (22.7 kg)

B141

THREE HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 55 Lbs. (24.9 kg)

NO TWIST SQUARE WASHER

SQUARE WASHER

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Flat Plate Fittings

PA ZN

GRN

PA ZN

GRN

Preassembled fitting.

B504

FOUR HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 73 Lbs. (33.1 kg)

B139

THREE HOLE SWIVEL PLATE

• Standard finishes: ZN, GRN

• Wt./C 69 Lbs. (31.3 kg)

B138

TWO HOLE SWIVEL PLATE

• Standard finishes: ZN, GRN

• Wt./C 48 Lbs. (21.8 kg)

B140

THREE HOLE CORNER PLATE

• Standard finishes: ZN, GRN, HDG,

SS4

• Wt./C 56 Lbs. (25.4 kg)

B143

FOUR HOLE CORNER PLATE

• Standard finishes: ZN, GRN, HDG,

SS4

• Wt./C 75 Lbs. (34.0 kg)

B133

FOUR HOLE TEE PLATE

• Standard finishes: ZN, GRN, HDG,

SS4, AL

• Wt./C 75 Lbs. (34.0 kg)

45/8”

(117.5)

31/2”

(88.9)

53/8”

(136.5)

53/8”

(136.5)

31/2”

(88.9)

31/2

(88.9)

31/2”

(88.9)

53/8”

(136.5)

31/2”

(88.9)

31/2”

(88.9)

53/8”

(136.5)

31/2”

(88.9)

53/8”

(136.5)

61/2”

(165.1) 31/2”

(88.9)

15/8”

(41.3) 31/4”

(82.5)

3”

(76.2)

17/8”

(47.6)

3”

(76.2)

B142

FOUR HOLE CORNER

GUSSET PLATE

• Standard finishes: ZN, GRN, HDG

• Wt./C 102 Lbs. (46.2 kg)

B135

THREE HOLE CORNER

GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 70 Lbs. (31.7 kg)

B132

FIVE HOLE CROSS PLATE

• Standard finishes: ZN, GRN, HDG

• Wt./C 100 Lbs. (45.3 kg)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Flat Plate Fittings

PA PAPA ZN

GRN

PA ZN

GRN PA ZN

GRN

PA Preassembled fitting.

B337

THREE HOLE TEE

GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 70 Lbs. (31.7 kg)

B556

FIVE HOLE CORNER

GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 145 Lbs. (65.8 kg)

B137

FOUR HOLE CORNER

GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 273 Lbs. (123.8 kg)

B432

FOUR HOLE TEE GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 100 Lbs. (45.3 kg)

B136

FOUR HOLE TEE GUSSET PLATE

• Standard finishes: ZN, GRN, HDG

• Wt./C 100 Lbs. (45.3 kg)

B532

FIVE HOLE TEE GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 143 Lbs. (64.8 kg)

B339

SIX HOLE TEE GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 149 Lbs. (67.6 kg)

B568

SIX HOLE CROSS GUSSET

PLATE

• Standard finishes: ZN, GRN

• Wt./C 166 Lbs. (75.3 kg)

B334

SEVEN HOLE CROSS

GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 232 Lbs. (105.2 kg)

75/8”

(193.7)

75/8”

(193.7)

53/8”

(136.5) 53/8”

(136.5)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

53/8”

(136.5)

91/8”

(231.8) 91/8”

(231.8)

53/8”

(136.5)

31/2”

(88.9) 31/2”

(88.9)

53/8”

(136.5)

53/8”

(136.5)

53/8”

(136.5)

25/16”

(58.7)

1”

(25.4)

1”

(25.4)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Flat Plate Fittings

513/16”

(147.6)

B420-778

ONE HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 107 Lbs. (48.5 kg)

B420-578

ONE HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 85 Lbs. (38.5 kg)

B420-378

ONE HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 60 Lbs. (27.2 kg)

B420-978

ONE HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 129 Lbs. (58.5 kg)

B101

TWO HOLE CORNER ANGLE

•

Standard finishes: ZN, GRN, HDG,

SS4, AL

• Wt./C 37 Lbs. (16.8 kg)

B230

TWO HOLE CORNER ANGLE

• Standard finishes: ZN, GRN, HDG,

SS4, AL

• Wt./C 37 Lbs. (16.8 kg)

B231

TWO HOLE “NO-TWIST”

CORNER ANGLE

• Standard finishes: ZN, GRN, HDG

• Wt./C 41 Lbs. (18.6 kg)

B359

TWO HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 48 Lbs. (21.8 kg)

B360

TWO HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 53 Lbs. (24.0 kg)

37/8”

(98.4)

57/8”

(149.2)

77/8”

(200.0)

17/8”

(47.6)

17/8”

(47.6)

97/8”

(250.8)

25/16”

(58.7)

21/4”

(57.1)

21/4”

(57.1) 17/8”

(47.6)

17/8”

(47.6)

31/2”

(88.9)

3”

(76.2)

15/8”

(41.3)

21/16”

(52.4)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

90° Angle Fittings

PA ZN

GRN

PA ZN

GRN

PA Preassembled fitting.

B103

THREE HOLE CORNER ANGLE

• Standard finishes:

ZN, GRN, HDG, SS4

• Wt./C 56 Lbs. (25.4 kg)

B102

THREE HOLE CORNER ANGLE

• Standard finishes:

ZN, GRN, HDG, SS4

• Wt./C 56 Lbs. (25.4 kg)

B361

TWO HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 60 Lbs. (27.2 kg)

B232

THREE HOLE CORNER ANGLE

• Standard finishes:

ZN, GRN, HDG, SS4

• Wt./C 56 Lbs. (25.4 kg)

B374

THREE HOLE CORNER ANGLE

• Standard finishes: ZN, GRN, HDG

• Wt./C 56 Lbs. (25.4 kg)

B529

THREE HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 78 Lbs. (35.4 kg)

B104

FOUR HOLE CORNER ANGLE

• Standard finishes: ZN, GRN, HDG,

SS4, SS6, AL

• Wt./C 78 Lbs. (35.4 kg)

B115

FOUR HOLE CORNER ANGLE

• Standard finishes: ZN, GRN, HDG,

SS4, AL

• Wt./C 76 Lbs. (34.5 kg)

B558

FOUR HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 73 Lbs. (33.1 kg)

17/8”

(47.6)

17/8”

(47.6)

21/16”

(52.4)

315/16”

(100.0)

31/2”

(88.9)

41/8”

(104.8)

315/16”

(100.0)

33/4”

(95.2)

15/8”

(41.3)

21/4”

(57.1)

31/4”

(82.5)

15/8”

(41.3)

33/4”

(95.2) 21/2”

(63.5)

15/16”

(33.3)

15/16”

(33.3)

47/8”

(123.8)

3”

(76.2)

21/4”

(57.1)

15/8”

(41.3)

31/2”

(88.9)

41/8”

(104.8)

4”

(101.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

90° Angle Fittings

GRN

PA ZN

GRN PA ZN

GRN

PA Preassembled fitting.

B236R

THREE HOLE (RIGHT HAND)

OFFSET BENT ANGLE

• Standard finishes: ZN, GRN

• Wt./C 65 Lbs. (29.5 kg)

B236L

THREE HOLE (LEFT HAND)

OFFSET BENT ANGLE

• Standard finishes: ZN, GRN

• Wt./C 65 Lbs. (29.5 kg)

B235R

THREE HOLE (RIGHT HAND)

OFFSET BENT ANGLE

• 15/8” (41.3) from center to center of

the holes that are shown with bolt

heads

• Standard finishes: ZN, GRN

• Wt./C 53 Lbs. (24.0 kg)

B235L

THREE HOLE (LEFT HAND)

OFFSET BENT ANGLE

• 15/8” (41.3) from center to center of

the holes that are shown with bolt

heads

• Standard finishes: ZN, GRN

• Wt./C 53 Lbs. (24.0 kg)

B237

THREE HOLE OFFSET BENT TEE

• Standard finishes: ZN, GRN

• Wt./C 71 Lbs. (32.2 kg)

B357

FOUR HOLE OFFSET BENT TEE

• Standard finishes: ZN, GRN

• Wt./C 77 Lbs. (34.9 kg)

B238L

FOUR HOLE (LEFT HAND)

OFFSET BENT TEE

• Standard finishes: ZN, GRN

• Wt./C 76 Lbs. (34.5 kg)

B238R

FOUR HOLE (RIGHT HAND)

OFFSET BENT TEE

• Standard finishes: ZN, GRN

• Wt./C 76 Lbs. (34.5 kg)

B239

FIVE HOLE OFFSET BENT TEE

• Standard finishes: ZN, GRN

• Wt./C 96 Lbs. (43.5 kg)

31/4”

(82.5)

31/4”

(82.5) 31/2”

(88.9)

21/16”

(52.4)

21/16”

(52.4)

21/16”

(52.4)

17/8”

(47.6)

17/8”

(47.6) 17/8”

(47.6)

31/2”

(88.9)

21/16”

(52.4)

21/16”

(52.4)

21/16”

(52.4) 21/16”

(52.4)

53/8”

(136.5)

33/4”

(95.2) 33/4”

(95.2)

17/8”

(47.6)

47/8”

(123.8)

53/8”

(136.5)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

21/16”

(52.4)

2”

(50.8)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

90° Angle Fittings

B234R

FOUR HOLE (RIGHT HAND)

CORNER GUSSET

• Standard finishes: ZN, GRN, HDG

• Wt./C 100 Lbs. (45.3 kg)

B234L

FOUR HOLE (LEFT HAND)

CORNER GUSSET

• Standard finishes: ZN, GRN, HDG

• Wt./C 100 Lbs. (45.3 kg)

B844W

UNIVERSAL SHELF BRACKET-

WELDED

• Standard finishes: ZN, GRN

• Wt./C 134 Lbs. (60.8 kg)

B888W

UNIVERSAL SHELF BRACKET-

WELDED

• Standard finishes: ZN, GRN

• Wt./C 197 Lbs. (89.4 kg)

B844

UNIVERSAL SHELF BRACKET

• Standard finishes:

ZN, GRN, HDG, SS4

• Wt./C 132 Lbs. (59.9 kg)

B134R

FOUR HOLE (RIGHT HAND)

CORNER GUSSET

• Standard finishes: ZN, GRN

• Wt./C 100 Lbs. (45.3 kg)

B134L

FOUR HOLE (LEFT HAND)

CORNER GUSSET

• Standard finishes: ZN, GRN

• Wt./C 100 Lbs. (45.3 kg)

B125

THREE HOLE GUSSETTED

SHELF ANGLE

• Standard finishes: ZN, GRN

• Wt./C 67 Lbs. (30.4 kg)

B118

FOUR HOLE GUSSETTED

SHELF ANGLE

• Standard finishes: ZN, GRN, HDG

• Wt./C 102 Lbs. (46.2 kg)

4”

(101.6)

4”

(101.6)

4”

(101.6)

4”

(101.6)

17/8”

(47.6)

17/8”

(47.6)

15/8”

(41.3)

43/16”

(106.3)

31/2”

(88.9) 15/8”

(41.3)

17/8”

(47.6)

17/8”

(47.6)

31/2”

(88.9)

31/2”

(88.9)

315/16”

(100.0)

315/16”

(100.0)

43/16”

(106.3)

31/2”

(88.9)

31/2”

(88.9)

15/8”

(41.3)

15/8”

(41.3)

25/16”

(58.7)

41/8”

(104.8)

31/2”

(88.9)

Welded

Corner

513/16”

(147.6)

53/8”

(136.5)

17/8”

(47.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

90° Angle Fittings

B127

FIVE HOLE GUSSETTED THREE

WAY SHELF ANGLE

• Standard finishes: ZN, GRN

• Wt./C 135 Lbs. (61.2 kg)

B126

FOUR HOLE GUSSETTED THREE

WAY SHELF ANGLE

• Standard finishes: ZN, GRN

• Wt./C 101 Lbs. (45.8 kg)

B533

FIVE HOLE GUSSETTED

SHELF ANGLE

• Standard finishes: ZN, GRN

• Wt./C 141 Lbs. (63.9 kg)

B503R

SIX HOLE (RIGHT HAND)

GUSSETTED CORNER

CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 229 Lbs. (103.9 kg)

B503L

SIX HOLE (LEFT HAND)

GUSSETTED CORNER

CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 229 Lbs. (103.9 kg)

B663

SEVEN HOLE GUSSETTED

CORNER CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 289 Lbs. (131.1 kg)

B371

TWO HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 41 Lbs. (18.6 kg)

B372

TWO HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 38 Lbs. (17.2 kg)

41/8”

(104.8)

53/8”

(136.5)

15/8”

(41.3) 31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

43/16”

(106.3)

21/4”

(57.1)

53/8”

(136.5)

53/8”

(136.5)

53/8”

(136.5)

43/16”

(106.3)

43/16”

(106.3)

15/8”

(41.3)

15/8”

(41.3)

53/8”

(136.5)

15/8”

(41.3)

25/8”

(66.7) 25/8”

(66.7)

15/8”

(41.3)

2”

(50.8)

9/16”

(14.3) 9/16”

(14.3)

43/16”

(106.3)

33/4”

(95.2)

33/4”

(95.2)

9/16” x 11/2” Slot

(14.3) (38.1) 9/16” x 11/2” Slot

(14.3) (38.1)

B485

FOUR HOLE GUSSETTED

SHELF ANGLE

• Standard finishes: ZN, GRN

• Wt./C 148 Lbs. (67.1 kg)

315/16”

(100.0)

53/8”

(136.5)

17/8”

(47.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

90° Angle Fittings

B104SH

THREE HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 68 Lbs. (30.8 kg)

B371-2

THREE HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 61 Lbs. (27.6 kg)

B496-1

TWO HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN, HDG

• Wt./C 58 Lbs. (26.3 kg)

B461

TWO HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 87 Lbs. (39.4 kg)

B112

FOUR HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 180 Lbs. (81.6 kg)

B113

FOUR HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 256 Lbs. (116.1 kg)

B109S

TWO HOLE TAPPED

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 33 Lbs. (14.9 kg)

B521

TWO HOLE BUS DUCT ANGLE

• Standard finishes: ZN, GRN

• Wt./C 37 Lbs. (16.8 kg)

17/8”

(47.6)

31/2”

(88.9)

1/2”

(12.7)

21/4”

(57.1)

31/2”

(88.9)

33/4”

(95.2)

33/4”

(95.2)

17/8”

(47.6)

85/8”

(219.1)

6”

(152.4)

65/8”

(168.3)

4”

(101.6)

23/8”

(60.3)

15/16”

(33.3)

37/8”

(98.4)

25/8”

(66.7)

41/8”

(104.8)

31/2”

(88.9)

13/32”

(10.3)

47/8”

(123.8)

9/16” x 29/16” Slot

(14.3) (65.1)

9/16” x 11/2” Slot

(14.3) (38.1)

9/16” x 11/2” Slot -(2)

(14.3) (38.1)

9/16” x 11/2” Slot -(2)

(14.3) (38.1)

9/16” x 29/16” Slot

(14.3) (65.1) 9/16” x 29/16” Slot

(14.3) (65.1)

17/8”

(47.6)

15/8”

(41.3)

17/8”

(47.6)

2”

(50.8)

1/2”

(12.7)

5/16”-18 Tapped

B496

TWO HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 85 Lbs. (38.5 kg)

67/8”

(174.6)

23/8”

(60.3)

9/16” x 29/16” Slot

(14.3) (65.1)

17/8”

(47.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

90° Angle Fittings

B154

TWO HOLE OPEN ANGLE

• Standard finishes: ZN, GRN, SS4

• Wt./C 58 Lbs. (26.3 kg)

B147-B152

TWO HOLE OPEN ANGLE

• Standard finishes: ZN, GRN

B162-B165

TWO HOLE OPEN ANGLE

• Standard finishes: ZN, GRN

B322-B332

TWO HOLE OPEN SHORT ANGLE

• Standard finishes: ZN, GRN

B243-B253

FOUR HOLE OPEN ANGLE

• Standard finishes: ZN, GRN

23/8”

(60.3)

31/4”

(82.5)

11/16”

(27.0)

3”

(76.2)

25/16”

(58.7)

11/16”

(27.0)

11/16”

(27.0)

13/4”

(44.4)

15/8”

(41.3)

11/16”

(27.0)

21/16”

(52.4)

311/16”

(93.6)

31/2”

(88.9)

11/16”

(27.0)

Part A Wt./C

No. Lbs. kg

B147 821/2°

B148 75°

B149 671/2°63 (28.6)

B150 60°

B151 521/2°

B152 371/2°

Part A Wt./C

No. Lbs. kg

B322 71/2°

B323 15°

B324 221/2°

B325 30°

B326 371/2°

B327 45°

35 (15.9)

B328 521/2°

B329 60°

B330 671/2°

B331 75°

B332 821/2°

Part A Wt./C

No. Lbs. kg

B243 71/2°

B244 15°

B245 221/2°

B246 30°

B247 371/2°

B248 45° 77 (34.9)

B249 521/2°

B250 60°

B251 671/2°

B252 75°

B253 821/2°

Part A Wt./C

No. Lbs. kg

B162 30°

B163 221/2°

59 (26.7)

B164 15°

B165 71/2°

11/16”

(27.0)

35/16”

(84.1)

45°

B488

TWO HOLE LEG CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 100 Lbs. (45.3 kg)

B522

THREE HOLE 95°

OPEN ANGLE FITTING

• Standard finishes: ZN, GRN

• Wt./C 54 Lbs. (24.5 kg)

35/8”

(92.1)

17/8”

(47.6)

31/4”

(82.5)

5°5°

5°

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Angular Fittings

B155

TWO HOLE CLOSED ANGLE

• Standard finishes: ZN, GRN, HDG, SS4

• Wt./C 63 Lbs. (28.6 kg)

B156 - B161

TWO HOLE CLOSED ANGLE

• Standard finishes: ZN, GRN

B363 - B369

FOUR HOLE CLOSED ANGLE

• Standard finishes: ZN, GRN

B335

FOUR HOLE

ADJUSTABLE HINGE

• Standard finishes: ZN, GRN

• Wt./C 110 Lbs. (49.9 kg)

B335-2 SERIES

THREE HOLE ADJUSTABLE HINGE

• OSHPD approved for Seismic Zone 4

• Standard finishes: ZN, GRN

33/16”

(80.9)

21/2”

(63.5)

31/2”

(88.9)

21/2”

(63.5)

43/8”

(111.1)

411/16”

(119.1)

411/16”

(119.1)

B335V

TWO HOLE HALF HINGE

• Standard finishes: ZN, GRN

411/16”

(119.1)

Hole Size

This Hole Only

213/16”

(71.4)

411/16”

(119.1)

5”

(127.0)

13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

45°

213/16”

(71.4)

213/16”

(71.4)

Part No. Hole Size Wt./C

& Size H Lbs. kg

B335-2-3/87/16” (11.1) 96 (43.2)

B335-2-1/29/16”(14.3) 94

(42.3)

B335-2-5/811/16”(17.4) 92 (41.4)

B335-2-3/413/16”(20.6) 90 (40.5)

Part No. Hole Size Wt./C

& Size H Lbs. kg

B335V-1/29/16”(14.3) 53

(24.1)

B335V-5/811/16”(17.4) 54 (24.5)

B335V-3/413/16”(20.6) 55 (24.9)

B335-1

TWO HOLE ADJUSTABLE HINGE

• Standard finishes: ZN, GRN

• Wt./C 78 Lbs. (35.4 kg)

Part A Wt./C

No. Lbs. kg

B156 821/2°

B157 75°

B158 671/2°56 (25.4)

B159 60°

B160 521/2°

B161 371/2°

Part A Wt./C

No. Lbs. kg

B363 821/2°

B364 75°

B365 671/2°

B366 60°

95 (43.1)

B367 521/2°

B368 45°

B369 371/2°

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Angular Fittings

PA ZN

GRN

PA Preassembled fitting.

B634

SINGLE CHANNEL ADJUSTABLE BRACE

• Standard finishes: ZN, GRN

• Wt./C 306 Lbs. (138.8 kg)

B635

DOUBLE CHANNEL ADJUSTABLE BRACE

• Standard finishes: ZN, GRN

• Wt./C 518 Lbs. (234.9 kg)

B633

ADJUSTABLE SEISMIC HINGE FITTING

• B633-1/2thru B633-7/8- OSHPD approved for Seismic Zone 4.

• Use 1/2” Bolt & Channel Nut on two hole side of

Connector Fitting (Torque to 50 ft.-lbs.)

• Allows for swivel in two planes.

• Standard finish: ZN

Part No. Hole Size Wt./C

& Size ABH

Lbs. kg

B633-1/231/2”(82.5) 15/8”(41.3) 9/16”(14.3) 92 (41.4)

B633-5/831/2”(82.5) 15/8”(41.3) 11/16”(17.4) 97 (43.6)

B633-3/431/2”(82.5) 15/8”(41.3) 13/16”(20.6) 95 (42.7)

B633-7/839/16”(90.5) 2” (50.8) 15/16”(23.8) 107 (48.5)

B633-1 39/16”(90.5) 2” (50.8) 11/16”(27.0) 120 (54.0)

B633-11/839/16”(90.5) 2” (50.8) 13/16”(30.2) 104 (47.2)

B633-11/437/8”(98.4) 21/4”(57.1) 15/16”(33.3) 114 (51.7)

33/4”

(95.2)

15/8”

(41.3)

B129

ATR

Bracket

Transverse

Load (TL)

Longitudinal

Load (LL)

Key

13/16”

(20.6)

15/8”

(41.3)

17/8”

(47.6)

53/8”

(136.5)

33/4”

(95.2)

30°

MIN.

13/16”

(20.6)

15/8”

(41.3)

17/8”

(47.6)

53/8”

(136.5)

33/4”

(95.2)

B650 SERIES

SEISMIC RETROFIT BRACKET

• OSHPD approved for Seismic Zone 4.

• Available for 3/8”, 1/2”, 5/8”, and 3/4” threaded rods.

• Allows installer to easily brace existing trapeze supports.

• Includes: Bracket, B129 plate, & key. Hardware sold separately.

• Standard finish: ZN, GRN

Part No. For TL LL Wt./C

& Size Rod Size Lbs. kN Lbs. kN Lbs. kg

B650-3/83/8” 1100 (4.89) 1100 (4.89) 92 (41.4)

B650-1/21/2”1500 (6.67) 1500 (6.67) 97 (43.6)

B650-5/85/8” 1500 (6.67) 1500 (6.67) 95 (42.7)

B650-3/43/4”1500 (6.67) 1500 (6.67) 107 (48.5)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Angular Fittings

B631 - TWO HOLE 45° TUBING KNEE BRACE

• 1” (25.4) Square steel tubing

• Material: ASTM A513

• Standard finishes: ZN, GRN

• Design load determined by testing using a B335 hinged corner connection.

• Load ratings are for brace members only. Do not exceed allowable beam

or column loads for strut channels.

• Safety Factor of 3

B632 - TWO HOLE STRAIGHT TUBING BRACE

• 1” (25.4) Square steel tubing

• Material: ASTM A513

• Standard finishes: ZN, GRN

15/8”

(41.3)

13/4”

(44.4)

13/4”

(44.4)

45°

15/8”

(41.3)

Part Design Load Wt./C

No. A (A) Lbs. kN Lbs. kg

B631-18 18” (457.2) 1500 (6.67) 145 (65.8)

B631-24 24” (609.6) 1500 (6.67) 186 (84.4)

B631-30 30” (762.0) 1500 (6.67) 225 (102.0)

B631-36 36” (914.4) 1500 (6.67) 266 (120.6)

B631-42 42” (1066.8) 1230 (5.47) 307 (139.2)

B631-48 48” (1219.2) 940 (4.18) 348 (157.8)

B631-54 54” (1371.6) 740 (3.29) 389 (176.4)

B631-60 60” (1524.0) 600 (2.67) 430 (195.0)

B631-72 72” (1828.8) 420 (1.87) 508 (230.4)

B631-84 84” (2133.6) 310 (1.38) 589 (267.2)

B631-96 96” (2438.4) 240 (1.07) 669 (303.5)

PartWt./C

No. A (A) Lbs. kg

B632-18 18” (457.2) 133 (60.3)

B632-24 24” (609.6) 174 (78.9)

B632-30 30” (762.0) 215 (97.5)

B632-36 36” (914.4) 256 (116.1)

B632-42 42” (1066.8) 295 (133.8)

B632-48 48” (1219.2) 335 (151.9)

B632-54 54” (1371.6) 380 (172.3)

B632-60 60” (1524.0) 420 (190.5)

B632-72 72” (1828.8) 500 (226.8)

B632-84 84” (2133.6) 585 (265.3)

B632-96 96” (2438.4) 670 (303.9)

B261 - TWO HOLE 45° KNEE BRACE

• Standard finishes: ZN, GRN

• Design load determined by testing using a B335 hinged corner connection.

• Load ratings are for brace members only. Do not exceed allowable beam

or column loads for strut channels.

• Safety Factor of 3

Part Design Load Wt./C

No. A (A) B (B) Lbs. kN Lbs. kg

B261-8 8” (203.2) 73/8”(187.3) 1500 (6.67) 119 (54.0)

B261-12 12” (304.8) 101/8”(257.2) 1020 (4.54) 165 (74.8)

B261-16 165/8”(422.3) 133/8”(339.7) 530 (2.36) 218 (98.9)

B261-18 18” (457.2) 147/16”(366.7) 450 (2.00) 234 (106.1)

B261-24 24” (609.6) 1811/16”(474.7) 250 (1.11) 303 (137.4)

B261-36 36” (914.4) 273/16”(690.6) 110 (.49) 441 (200.0)

Design Load

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Braces

B167

FOUR HOLE SPLICE

CLEVIS FOR B52

• Standard finishes: ZN, GRN

• Wt./C 178 Lbs. (80.7 kg)

B168

THREE HOLE SPLICE

CLEVIS FOR B52

• Standard finishes: ZN, GRN

• Wt./C 126 Lbs. (57.1 kg)

B169

TWO HOLE SPLICE

CLEVIS FOR B52

• Standard finishes: ZN, GRN

• Wt./C 84 Lbs. (38.1 kg)

B170

TWO HOLE SPLICE

CLEVIS FOR B22 OR B52A

• Standard finishes: ZN, GRN

• Wt./C 123 Lbs. (55.8 kg)

B171

THREE HOLE SPLICE

CLEVIS FOR B22 OR B52A

• Standard finishes: ZN, GRN

• Wt./C 195 Lbs. (88.4 kg)

B172

FOUR HOLE SPLICE

CLEVIS FOR B22 OR B52A

• Standard finishes: ZN, GRN

• Wt./C 266 Lbs. (120.6 kg)

B172-12

FOUR HOLE SPLICE

CLEVIS FOR B12

• Standard finishes: ZN, GRN

• Wt./C 326 Lbs. (147.8 kg)

B172-22A

FOUR HOLE SPLICE

CLEVIS FOR B11 OR B22A

• Standard finishes: ZN, GRN

• Wt./C 406 Lbs. (184.1 kg)

B450

U-WASHER

• Material: ASTM A1011 HSLAS Gr. 50

• Standard finishes: ZN, GRN

31/2”

(88.9)

31/2”

(88.9)

1/4”

(6.3)

1/4”

(6.3)

1/4”

(6.3) 1/4”

(6.3)

1/4”

(6.3) 1/4”

(6.3)

1/4”

(6.3) 1/4”

(6.3)

53/8”

(136.5)

53/8”

(136.5)

Part No. Hole Size Wt./C

& Size HLbs. kg

B450-1/45/16” (7.9) 14 (6.3)

B450-3/87/16”(11.1) 14 (6.3)

B450-1/29/16”(14.3) 13 (5.8)

B450-5/811/16”(17.4) 13 (5.8)

B450-3/413/16”(20.6) 13 (5.8)

71/4”

(184.1)

71/4”

(184.1)

71/4”

(184.1) 71/4”

(184.1)

15/8”

(41.3)

11 Gauge (3.1)

Hole Size

15/32”

(11.9)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Clevis Fittings

PA ZN

GRN

PA Preassembled fitting.

PA GRN

B116-42

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 75 Lbs. (34.0 kg)

B116-52

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 70 Lbs. (31.7 kg)

B527

THREE HOLE OFFSET PLATE

CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 54 Lbs. (24.5 kg)

B116-32

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 84 Lbs. (38.1 kg)

B116-32A

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 116 Lbs. (52.6 kg)

B116-12

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 108 Lbs. (49.0 kg)

B107

FIVE HOLE U-SUPPORT

• Standard finishes: ZN, GRN, HDG

• Wt./C 85 Lbs. (38.5 kg)

B107-22A

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 126 Lbs. (57.1 kg)

B588

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 157 Lbs. (71.2 kg)

1/2”

(12.7)

55/16”

(134.9)

57/16”

(138.1)

57/16”

(138.1) 57/16”

(138.1)

57/16”

(138.1)

57/16”

(138.1) 57/16”

(138.1)

1”

(25.4)

13/16”

(20.6)

27/16”

(61.9)

13/8”

(34.9)

31/4”

(82.5)

47/8”

(123.8)

15/8”

(41.3)

23/4”

(69.8)

57/16”

(138.1)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

‘U’ Fittings

PA ZN

GRN

PA Preassembled fitting.

B596

THREE HOLE SWIVEL CLEVIS

• Standard finishes: ZN, GRN

• Wt./C 53 Lbs. (24.0 kg)

B107S

FIVE HOLE U-SUPPORT

• Material: 7 Gauge (4.5)

ASTM A1011 33,000 PSI min. yield

• Standard finishes: ZN, GRN

• Wt./C 51 Lbs. (23.1 kg)

B412

THREE HOLE

OFFSET U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 89 Lbs. (40.3 kg)

B578

THREE HOLE LIGHT-WEIGHT

U-SUPPORT

• Material: 10 Gauge (3.4)

ASTM A1011 HSLAS Gr. 50

• Standard finishes: ZN, GRN

• Wt./C 18 Lbs. (8.1 kg)

B594

FIVE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 106 Lbs. (48.1 kg)

B266

SIX HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 105 Lbs. (47.6 kg)

B425

SIX HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 167 Lbs. (75.7 kg)

B581

EIGHT HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 201 Lbs. (91.2 kg)

B519

EIGHT HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 266 Lbs. (102.5 kg)

57/16”

(138.1)

17/8”

(47.6)

33/4”

(95.2)

13/16”

(20.6)

13/4”

(44.4)

13/8”

(34.9)

9/16” (14.3) Dia.

7/16” (11.1) Dia.

4 Holes

9/32” (7.1)

Dia. 3 Holes 35/16”

(84.1)

111/16”

(42.8)

311/16”

(93.6)

71/16”

(179.4)

17/8”

(47.6)

121/32”

(42.1)

15/8”

(41.3)

71/32”

(178.6)

15/8”

(41.3)

31/2”

(88.9)

31/2”

(88.9) 31/2”

(88.9)

71/16”

(179.4)

57/16”

(138.1)

513/32”

(137.3)

111/16”

(42.9)

3/4”

(19.0)

13/32”

(10.3)

35/16”

(84.1)

1”

(25.4) 21/4”

(57.1)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

‘U’ Fittings

B451

SLOTTED THREE HOLE U-SUPPORT WITH

GUSSET FOR B22

• Consists of B333-1, 2, or 3 with

gusset plate welded on back.

• Material: ASTM A1011 HSLAS Gr. 50

• Standard finishes: ZN, GRN

B333

SLOTTED THREE HOLE

U-SUPPORT FOR B22

• Standard finishes: ZN, GRN

B408

TWO HOLE BUS DUCT CLEVIS

• Standard finishes: ZN, GRN

B358

TWO HOLE CLEVIS

• Standard finishes: ZN, GRN

B173

FOUR HOLE CLEVIS

• Standard finishes: ZN, GRN

• Wt./C 71 Lbs. (32.2 kg)

B595

THREE HOLE CLEVIS

• Standard finishes: ZN, GRN

• Wt./C 75 Lbs. (34.0 kg)

B405

THREE HOLE

SUSPENSION CLEVIS

• Standard finishes: ZN, GRN

• Wt./C 75 Lbs. (34.0 kg)

17/8”

(47.6)

17/8”

(47.6)

13/16”

(20.6) 13/16”

(20.6)

1/2”

(12.7)

13/16”

(20.6)

17/8”

(47.6)

17/8”

(47.6)

121/32”

(42.0)

121/32”

(42.0)

129/32”

(48.4)

35/16”

(84.1)

35/16”

(84.1)

37/16”

(87.3)

17/8”

(47.6)

Part

Wt./C

No.

A (A) B (B) C (C) Lbs. kg

B333-1 71/2”(190.5) 15/16”(33.3) 27/8”(73.0) 103 (46.7)

B333-2 81/2”(215.9) 115/16”(49.2) 33/8”(85.7) 115 (52.1)

B333-3 103/8”(263.5) 27/8”(73.0) 45/16”(109.5) 135 (61.2)

Part Wt./C

No. A (A) Lbs. kg

B451-1 71/2”(190.5) 137 (62.1)

B451-2 81/2”(215.9) 156 (70.7)

B451-3 103/8”(263.5) 172 (78.0)

Part Wt./C

No. A (A) Lbs. kg

B408-1 213/32”(61.1) 58 (26.3)

B408-2 325/32”(96.0) 76 (34.5)

B408-3 43/4”(762.0) 88 (39.9)

Part Wt./C

No. A (A) Lbs. kg

B358-4 4” (101.6) 89 (40.3)

B358-5 5” (127.0) 93 (42.2)

B358-6 6” (152.4) 106 (48.1)

B358-7 7” (177.8) 118 (53.5)

B358-8 8” (203.2) 132 (59.9)

9/16” x 11/2” Slots-(2)

(14.3) (38.1)

9/16” x 11/2” Slots-(2)

(14.3) (38.1) 15/8”

(41.3)

9/16” (14.3) DIA.

2 HOLES

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

‘U’ Fittings

B415

TWO HOLE BUS DUCT

CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 56 Lbs. (25.4 kg)

B398-1

THREE HOLE CUP SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 73 Lbs. (33.1 kg)

B400

THREE STUD

RING CONNECTION

• 1/2”-13 stud protrudes 1” (25.4mm)

• Standard finishes: ZN

• Wt./C 85 Lbs. (38.5 kg)

B400-1

ONE STUD

RING CONNECTION

• 1/2”-13 stud protrudes 1” (25.4mm)

• Standard finishes: ZN

• Wt./C 53 Lbs. (24.0 kg)

B400-2

ONE STUD

RING CONNECTION

• 1/2”-13 stud protrudes 1” (25.4mm)

• Standard finishes: ZN

• Wt./C 40 Lbs. (18.1 kg)

B400-3

TWO STUD

RING CONNECTION

• 1/2”-13 stud protrudes 1” (25.4mm)

• Standard finishes: ZN

• Wt./C 59 Lbs. (26.7 kg)

B400-4

TWO STUD

RING CONNECTION

• 1/2”-13 stud protrudes 1” (25.4mm)

• Standard finishes: ZN

• Wt./C 59 Lbs. (26.7 kg)

B536

TAPPED U-SUPPORT

• Standard finishes: ZN

• Wt./C 87 Lbs. (39.4 kg)

111/16”

(42.9)

111/16”

(42.9)

1/2”

(12.7)

23/32”

(53.2)

11/16”

(27.0)

15/8”

(41.3)

17/8”

(47.6)

17/8”

(47.6)

59/16”

(141.3)

325/32”

(96.0)

11/16”

(27.0)

17/8”

(47.6)

15/8”

(41.3)

111/16”

(42.9)

23/16”

(55.6)

111/16”

(42.9)

111/16”

(42.9)

111/16”

(42.9)

111/16”

(42.9)

111/16”

(42.9)

111/16”

(42.9)

Tapped 5/16”-18

(2) Holes

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

‘U’ Fittings

B106-42

TWO HOLE

Z-SUPPORT FOR B42

• Standard finishes: ZN, GRN

• Wt./C 44 Lbs. (20.0 kg)

B106-52

TWO HOLE

Z-SUPPORT FOR B52

• Standard finishes: ZN, GRN

• Wt./C 40 Lbs. (18.1 kg)

B526

TWO HOLE

OFFSET Z-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 38 Lbs. (17.2 kg)

B106-32

TWO HOLE

Z-SUPPORT FOR B32

• Standard finishes: ZN, GRN

• Wt./C 51 Lbs. (23.1 kg)

B106-12

TWO HOLE

Z-SUPPORT FOR B12

• Standard finishes: ZN, GRN

• Wt./C 63 Lbs. (28.6 kg)

B105

THREE HOLE

Z-SUPPORT FOR B22

• Standard finishes: ZN, GRN, HDG

• Wt./C 51 Lbs. (23.1 kg)

B110

THREE HOLE

Z-SUPPORT FOR B11

• Standard finishes: ZN, GRN

• Wt./C 70 Lbs. (31.7 kg)

B586

TWO HOLE

Z-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 90 Lbs. (40.8 kg)

B108

TWO HOLE

OFFSET Z-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 55 Lbs. (24.9 kg)

1/4”

(6.3)

15/8”

(41.3)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9) 31/2”

(88.9)

31/2”

(88.9)

47/8”

(123.8)

31/2”

(88.9)

31/2”

(88.9)

13/16”

(20.6)

1”

(25.4)

15/8”

(41.3)

13/8”

(34.9)

21/8”

(54.0)

15/8”

(41.3)

15/8”

(41.3)

27/16”

(61.9)

315/32”

(88.1) 31/2”

(88.9)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

‘Z’ Fittings

B407

TWO HOLE Z-SUPPORT

• Standard finishes: ZN, GRN

B387

TWO HOLE Z-BUS DUCT CONNECTION

• Standard finishes: ZN, GRN

B534

TAPPED Z-SUPPORT

• Standard finishes: ZN

• Wt./C 51 Lbs. (23.1 kg)

B535

TAPPED Z-SUPPORT

• Standard finishes: ZN

• Wt./C 50 Lbs. (22.7 kg)

B111

THREE HOLE SHEATH

CORNER CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 68 Lbs. (30.8 kg)

B538

TAPPED CORNER CONNECTION

• Standard finishes: ZN

• Wt./C 71 Lbs. (32.2 kg)

B539

TAPPED CORNER CONNECTION

• Standard finishes: ZN

• Wt./C 68 Lbs. (30.8 kg)

15/8”

(41.3)

1/2”

(12.7)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3) 15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

17/8”

(47.6)

17/8”

(47.6)

15/8”

(41.3) 15/8”

(41.3)

15/8”

(41.3)

31/2”

(88.9) 31/2”

(88.9)

15/8”

(41.3)

Wt./C

Part No. A (A) Lbs. kg

B387 43/4”(120.6) 89 (40.3)

B387-1 325/32”(96.0) 78 (35.4)

B387-2 213/32”(61.1) 62 (28.1)

Wt./C

Part No. A (A) Lbs. kg

B407-4 4” (101.6) 77 (34.9)

B407-5 5” (127.0) 95 (43.1)

B407-6 6” (152.4) 98 (44.4)

B407-7 7” (177.8) 105 (47.6)

B407-8 8” (203.2) 120 (54.4)

B407-95/895/8”(244.5) 138 (62.6)

31/2”

(88.9)

5/16”-18

Tapped Hole

5/16”-18

Tapped

Holes (2)

5/16”-18 Tapped

Holes (4)

5/16”-18 Tapped

Holes (2)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

‘Z’ Fittings

B410-22

CHANNEL HANGER

BRACKET FOR B22

• Material: 11 Gauge (3.0)

ASTM A1011 HSLAS Gr. 50

• Standard finishes: ZN, GRN

• Wt./C 9 Lbs. (4.1 kg)

B410-32

CHANNEL HANGER

BRACKET FOR B32

• Material: 11 Gauge (3.0)

ASTM A1011 HSLAS Gr. 50

• Standard finishes: ZN, GRN

• Wt./C 8.3 Lbs. (3.7 kg)

B410-52

CHANNEL HANGER

BRACKET FOR B52

• Material: 11 Gauge (3.0)

ASTM A1011 HSLAS Gr. 50

• Standard finishes: ZN, GRN

• Wt./C 6.7 Lbs. (3.0 kg)

B410-12

CHANNEL HANGER

BRACKET FOR B12

• Material: 11 Gauge (3.0)

ASTM A1011 HSLAS Gr. 50

• Standard finishes: ZN, GRN

• Wt./C 11.2 Lbs. (5.1 kg)

B410-11

CHANNEL HANGER

BRACKET FOR B11

• Material: 11 Gauge (3.0)

ASTM A1011 HSLAS Gr. 50

• Standard finishes: ZN, GRN

• Wt./C 13.4 Lbs. (6.1 kg)

B580

FIVE HOLE

GUSSETTED Z-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 100 Lbs. (45.3 kg)

B515

ADJUSTABLE OFFSET

GUSSETTED Z-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 93 Lbs. (42.2 kg)

B428

EIGHT HOLE GUSSETTED

CORNER CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 203 Lbs. (92.1 kg)

13/8”

(34.9)

15/8”

(41.3)

15/8”

(41.3)

13/16”

(20.6) 13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

27/16”

(61.9)

37/8”

(98.4)

15/32”

(11.9) 31/2”

(88.9)

17/8”

(47.6)

17/8”

(47.6)

31/4”

(82.5)

31/2”

(88.9) 31/2”

(88.9)

9/32” (7.1)

Dia. Hole

9/32” (7.1)

Dia. Hole

9/32” (7.1)

Dia. Hole

9/32” (7.1)

Dia. Hole

9/32” (7.1)

Dia. Hole

13/16”

(20.6)

9/16” x 29/16” Slots

(14.3) (65.1)

31/2”

(88.9)

53/4”

(146.0)

53/4”

(146.0)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

‘Z’ Fittings

B270R

FOUR HOLE SINGLE CORNER

CONNECTION (RIGHT HAND)

• Standard finishes: ZN, GRN

• Wt./C 77 Lbs. (34.9 kg)

B267L

THREE HOLE SINGLE CORNER

CONNECTION (LEFT HAND)

• Standard finishes: ZN, GRN

• Wt./C 54 Lbs. (24.5 kg)

B267R

THREE HOLE SINGLE CORNER

CONNECTION (RIGHT HAND)

• Standard finishes: ZN, GRN

• Wt./C 54 Lbs. (24.5 kg)

B270L

FOUR HOLE SINGLE CORNER

CONNECTION (LEFT HAND)

• Standard finishes: ZN, GRN

• Wt./C 77 Lbs. (34.9 kg)

B268R

FIVE HOLE SINGLE CORNER

CONNECTION (RIGHT HAND)

• Standard finishes: ZN, GRN

• Wt./C 100 Lbs. (45.3 kg)

B268L

FIVE HOLE SINGLE CORNER

CONNECTION (LEFT HAND)

• Standard finishes: ZN, GRN

• Wt./C 100 Lbs. (45.3 kg)

B269R

SIX HOLE SINGLE CORNER

CONNECTION (RIGHT HAND)

• Standard finishes: ZN, GRN

• Wt./C 120 Lbs. (54.4 kg)

B269L

SIX HOLE SINGLE CORNER

CONNECTION (LEFT HAND)

• Standard finishes: ZN, GRN

• Wt./C 120 Lbs. (54.4 kg)

B119

FOUR HOLE DOUBLE

CORNER CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 71 Lbs. (32.2 kg)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9) 31/2”

(88.9)

21/16”

(52.4)

21/16”

(52.4)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3) 15/8”

(41.3)

31/2”

(88.9)

31/2”

(88.9)

315/16”

(100.0)

315/16”

(100.0)

31/2”

(88.9)

21/16”

(52.4)

53/8”

(136.5)

53/8”

(136.5)

315/16”

(100.0) 315/16”

(100.0)

313/16”

(96.8)

21/16”

(52.4)

111/16”

(42.8)

15/8”

(41.3)

313/16”

(96.8)

21/16”

(52.4)

111/16”

(42.8)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Wing Fittings

B271

FIVE HOLE DOUBLE

WING CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 95 Lbs. (43.1 kg)

B121

EIGHT HOLE DOUBLE

CORNER CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 152 Lbs. (68.9 kg)

B120

SIX HOLE DOUBLE

CORNER CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 110 Lbs. (49.9 kg)

B272

EIGHT HOLE DOUBLE

WING CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 156 Lbs. (70.7 kg)

B273

TEN HOLE DOUBLE

WING CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 185 Lbs. (83.9 kg)

B122

SIX HOLE TRIPLE

WING CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 110 Lbs. (49.9 kg)

B123

TWELVE HOLE TRIPLE

WING CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 234 Lbs. (106.1 kg)

B276

FOURTEEN HOLE DOUBLE CORNER

GUSSETTED CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 196 Lbs. (88.9 kg)

B124

NINE HOLE TRIPLE

WING CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 177 Lbs. (80.3 kg)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

93/16”

(233.4)

93/16”

(233.4)

31/2”

(88.9)

315/16”

(100.0)

315/16”

(100.0)

315/16”

(100.0)

315/16”

(100.0)

315/16”

(100.0)

53/8”

(136.5)

57/16”

(138.1)

21/16”

(52.4)

57/16”

(138.1)

57/16”

(138.1)

15/8”

(41.3)

21/16”

(52.4)

111/16”

(42.8)

111/16”

(42.8)

111/16”

(42.8)

111/16”

(42.8)

111/16”

(42.8)

315/16”

(100.0)

111/16”

(42.8)

15/8”

(41.3)

57/16”

(138.1)

4”

(101.6)

4”

(101.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Wing Fittings

B495

TEN HOLE DOUBLE WING

GUSSETTED CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 240 Lbs. (108.8 kg)

B274R

EIGHT HOLE SINGLE CORNER

GUSSETTED CONNECTION

(RIGHT HAND)

• Standard finishes: ZN, GRN

• Wt./C 176 Lbs. (79.8 kg)

B274L

EIGHT HOLE SINGLE CORNER

GUSSETTED CONNECTION

(LEFT HAND)

• Standard finishes: ZN, GRN

• Wt./C 176 Lbs. (79.8 kg)

B277

TWELVE HOLE TRIPLE WING

GUSSETTED CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 285 Lbs. (129.3 kg)

B362

EIGHT HOLE DOUBLE CORNER

GUSSETTED CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 226 Lbs. (102.5 kg)

B571

EIGHT HOLE WING

CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 201 Lbs. (91.2 kg)

B346L

EIGHT HOLE DOUBLE CORNER GUSSETTED

CONNECTION (LEFT HAND)

• Standard finishes: ZN, GRN

• Wt./C 242 Lbs. (109.8 kg)

B346R

EIGHT HOLE DOUBLE CORNER GUSSETTED

CONNECTION (RIGHT HAND)

• Standard finishes: ZN, GRN

• Wt./C 242 Lbs. (109.8 kg)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9) 31/2”

(88.9)

511/16”

(144.5) 521/32”

(143.7)

315/16”

(100.0) 315/16”

(100.0)

111/16”

(42.8)

111/16”

(42.8)

15/8”

(41.3)

31/2”

(88.9)

53/8”

(136.5)

315/16”

(100.0)

53/8”

(136.5)

37/8”

(98.4)

93/16”

(233.4)

111/16”

(42.8)

315/16”

(100.0)

93/16”

(233.4)

111/16”

(42.8)

31/2”

(88.9)

53/8”

(136.5)

31/2”

(88.9)

4”

(101.6)

4”

(101.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Wing Fittings

B279FL

POST BASE FOR B22

• Standard finishes: ZN, GRN

• Wt./C 230 Lbs. (104.3 kg)

B279SQ

POST BASE FOR B22

• Standard finishes: ZN, GRN

• Wt./C 314 Lbs. (142.4 kg)

B279

POST BASE FOR B22

• Standard finishes: ZN, GRN

• Wt./C 314 Lbs. (142.4 kg)

B280

POST BASE FOR B22

• Standard finishes: ZN, GRN, HDG,

SS4, AL

• Wt./C 392 Lbs. (177.8 kg)

B280SQ

POST BASE FOR B22

• Standard finishes: ZN, GRN, HDG,

SS4, AL

• Wt./C 392 Lbs. (177.8 kg)

B280FL

POST BASE FOR B22

• Standard finishes: ZN, GRN, HDG, SS4

• Wt./C 312 Lbs. (141.5 kg)

B281A

POST BASE FOR B22A, B, C, ETC.

• Standard finishes: ZN, GRN

• Wt./C 330 Lbs. (149.7 kg)

B281AFL

POST BASE FOR B22A, B, C, ETC.

• Standard finishes: ZN, GRN

• Wt./C 250 Lbs. (113.4 kg)

B281ASQ

POST BASE FOR B22A, B, C, ETC.

• Standard finishes: ZN, GRN

• Wt./C 330 Lbs. (149.7 kg)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

111/16”

(42.8)

111/16”

(42.8)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

41/4”

(107.9)

41/4”

(107.9)

41/4”

(107.9) 41/4”

(107.9)

6”

(152.4)

3”

(76.2)

31/2”

(88.9) 31/2”

(88.9)

31/2”

(88.9)

15/8”

(41.3)

111/16”

(42.8)

111/16”

(42.8)

111/16”

(42.8)

35/16”

(84.1) 15/8”

(41.3)

35/16”

(84.1)

3”

(76.2)

3”

(76.2)

3/4” (19.0)

Dia .4 Holes 3/4” (19.0)

Dia .4 Holes

3/4” (19.0)

Dia .2 Holes

3/4” (19.0)

Dia .4 Holes 3/4” (19.0)

Dia .4 Holes

3/4” (19.0)

Dia .2 Holes

61/4”

(158.7)

3”

(76.2)

8”

(203.2)

8”

(203.2)

61/4”

(158.7)

61/4”

(158.7)

3”

(76.2)

3”

(76.2)

3/4” (19.0)

Dia .4 Holes

3/4” (19.0)

Dia .4 Holes

3/4” (19.0)

Dia .2 Holes

41/4”

(107.9) 41/4”

(107.9) 6”

(152.4)

6”

(152.4)

15/8”

(41.3)

35/16”

(84.1)

111/16”

(42.8)

8”

(203.2)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Post Bases

B281FL

POST BASE FOR B22A, B, C,

ETC.

• Standard finishes: ZN, GRN

• Wt./C 320 Lbs. (145.1 kg)

B281SQ

POST BASE FOR B22A, B, C,

ETC.

• Standard finishes: ZN, GRN, HDG,

SS4

• Wt./C 400 Lbs. (181.4 kg)

B281

POST BASE FOR B22A, B, C,

ETC.

• Standard finishes: ZN, GRN, HDG

• Wt./C 400 Lbs. (181.4 kg)

B281M

POST BASE FOR B22-2PL

• Standard finishes: ZN, GRN

• Wt./C 470 Lbs. (213.2 kg)

B281MSQ

POST BASE FOR B22-2PL

• Standard finishes: ZN, GRN

• Wt./C 470 Lbs. (213.2 kg)

B278

POST BASE FOR B22

• Standard finishes: ZN, GRN

• Wt./C 288 Lbs. (130.6 kg)

B570

POST BASE FOR FOUR

CHANNEL COMBINATIONS

• Standard finishes: ZN, GRN

• Wt./C 397 Lbs. (180.1 kg)

B570A

POST BASE FOR FOUR

CHANNEL COMBINATIONS

• Standard finishes: ZN, GRN

• Wt./C 550 Lbs. (249.5 kg)

B585

POST BASE FOR B22A

• Standard finishes:

ZN, GRN

• Wt./C 97 Lbs. (44.0 kg)

B300

POST BASE

• Material: Malleable Iron

• Standard finishes: ZN, GRN

• Wt./C 259 Lbs. (117.5 kg)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

5”

(127.0) 5”

(127.0)

315/32”

(87.9)

39/16”

(90.5)

31/2”

(88.9)

35/16”

(84.1)

35/16”

(84.1)

31/2”

(88.9)

15/8”

(41.3)

31/16”

(77.8)

3/4” (19.0)

Dia. 4 Holes

3/4” (19.0)

Dia. 4 Holes

3/4” (19.0)

Dia. 4 Holes

3/4” (19.0)

Dia. 4 Holes

3/4” (19.0)

Dia. 4 Holes

3/4” (19.0)

Dia. 4 Holes

7/16”

(11.1) Dia.

4 Holes

3/4” (19.0)

Dia. 2 Holes

3”

(76.2)

3”

(76.2)

3”

(76.2)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

6”

(152.4)

41/4”

(107.9) 41/4”

(107.9) 6”

(152.4)

6”

(152.4)

41/4”

(107.9) 41/4”

(107.9)

6”

(152.4)

6”

(152.4)

8”

(203.2)

61/4”

(158.7)

3”

(76.2)

31/2”

(88.9)

35/16”

(84.1)

111/16”

(42.8)

15/8”

(41.3)

3”

(76.2)

15/8”

(41.3)

1/4”

(6.3)

1/4”

(6.3)

31/2”

(88.9)

4”

(101.6)

7”

(177.8)

3/4”

(19.0)

9/16”

(14.4)

13/4”

(44.4)

21/16”

(52.4)

3/8” (9.5)

Countersunk

3/4” (19.0)

Dia.

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Post Bases

B188 BRACKET

• Uniform Loading 1080 Lbs. (4.80 kN)

• Safety Factor of 2.5

• Hole Spacing on Bracket Top 815/16”(227.0) Center

to Center

• Standard finishes: ZN, GRN

• Wt./C 241 Lbs. (109.3 kg)

B187 BRACKET

• Uniform Loading 1450 Lbs. (6.45 kN)

• Safety Factor of 2.5

• Hole Spacing on Bracket Top 55/16” (150.8) Center

to Center

• Standard finishes: ZN, GRN

• Wt./C 193 Lbs. (87.5 kg)

B189 BRACKET

• Uniform Loading 870 Lbs. (3.87 kN)

• Safety Factor of 2.5

• Hole Spacing on Bracket Top 1115/16” (303.2) Center to

Center

• Standard finishes: ZN, GRN

• Wt./C 308 Lbs. (139.7 kg)

B541 BRACKET

•Uniform Loading 1240 Lbs. (5.51 kN)

•Safety Factor of 2.5

•Hole Spacing on Bracket Top 77/16” (188.9) Center to Center

•Standard finishes: ZN, GRN

•Wt./C 201 Lbs. (91.2 kg)

B190 12” (304.8) BRACKET

• Uniform Loading 900 Lbs. (4.00 kN)

• Safety Factor of 2.5

• Standard finishes: ZN, GRN

• Wt./C 260 Lbs. (117.9 kg)

B191-18 18” (457.2) BRACKET

• Uniform Loading 600 Lbs. (2.67 kN)

• Safety Factor of 2.5

• Standard finishes: ZN, GRN

• Wt./C 377 Lbs. (171.0 kg)

21/4”

(57.1)

11/16”

(27.0)

4”

(101.6)

4”

(101.6)

4”

(101.6)

2”

(50.8)

12”

(304.8)

4”

(101.6)

9”

(228.6)

15”

(381.0)

11/16”

(27.0)

11/16”

(27.0)

11/16”

(27.0)

21/4”

(57.1)

21/4”

(57.1)

101/2”

(266.7)

71/2”

(190.5)

71/2”

(190.5)

11/16”

(27.0)

11/16”

(27.0)

12”

(304.8)

4”

(101.6)

9/16” x 3” Slot

(14.3) (76.2)

9/16” x 3” Slot

(14.3) (76.2) 2”

(50.8)

4”

(101.6)

18”

(457.2)

21/4”

(57.1)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Brackets

B192 24” (609.6) BRACKET

• Uniform Loading 820 Lbs. (3.65 kN)

• Safety Factor of 2.5

• Standard finishes: ZN, GRN

• Wt./C 576 Lbs. (261.3 kg)

B191-24 24” (609.6) BRACKET

• Uniform Loading 450 Lbs. (2.00 kN)

• Safety Factor of 2.5

• Standard finishes: ZN, GRN

• Wt./C 377 Lbs. (171.0 kg)

B290 161/2” (419.1) BRACKET

• Uniform Loading 1200 Lbs. (5.34 kN)

• Safety Factor of 2.5

• Standard finishes: ZN, GRN

• Wt./C 405 Lbs. (183.7 kg)

B289-12 121/2” (317.5) BRACKET

• Uniform Loading 1040 Lbs. (4.63 kN)

• Safety Factor of 2.5

• Standard finishes: ZN, GRN

• Wt./C 285 Lbs. (129.3 kg)

B289-14 141/2” (368.3) BRACKET

• Uniform Loading 900 Lbs. (4.00 kN)

• Safety Factor of 2.5

• Standard finishes: ZN, GRN

• Wt./C 295 Lbs. (133.8 kg)

B291 181/2” (469.9) BRACKET

• Uniform Loading 1070 Lbs. (4.76 kN)

• Safety Factor of 2.5

• Standard finishes: ZN, GRN

• Wt./C 468 Lbs. (212.3 kg)

71/2”

(190.5)

6”

(152.4)

6”

(152.4)

6”

(152.4)

24”

(609.6)

31/8”

(79.4)33/4”

(95.2)

161/2”

(419.1)

31/4”

(82.5) 121/2”

(317.5)

12”

(304.8)

6”

(152.4)

181/2”

(469.9)

4”

(101.6)

2”

(50.8)

2”

(50.8)

9/16” x 3” Slot

(14.3) (76.2)

9/16” x 3” Slot

(14.3) (76.2)

24”

(609.6)

11/16”

(27.0)

11/16”

(27.0)

13/16”

(30.1)

51/4”

(133.3)

31/8”

(79.4)

53/4”

(146.0)

13/16”

(30.1)

13/16”

(30.1)

13/16”

(30.1)

141/2”

(368.3)

13/16”

(30.1)

13/16”

(30.1)

13/16”

(30.1)

31/4”

(82.5)

31/8”

(79.4)

51/4”

(133.3)

31/8”

(79.4)

73/4”

(196.8)

53/4”

(146.0)

13/16”

(30.1)

6”

(152.4)

27/16”

(61.9)

21/2”

(63.5)

21/2”

(63.5)

21/2”

(63.5)

21/2”

(63.5)

13/16”

(30.1)

13/16”

(30.1)

13/16”

(30.1)

13/16”

(30.1)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Brackets

100

B297

DOUBLE CHANNEL

BRACKET

• Safety Factor of 2.5

• Standard finishes:

ZN, GRN, HDG

B292 201/2” (520.7) BRACKET

• Uniform Loading 600 Lbs. (2.67 kN)

• Safety Factor of 2.5

• Standard finishes: ZN, GRN, HDG, SS4

• Wt./C 490 Lbs. (222.2 kg)

B409

SINGLE CHANNEL BRACKET

• Safety Factor of 2.5

• Standard finishes: ZN, GRN, SS4

B494

BRACED

SINGLE BRACKET

• Safety Factor of 2.5

• Standard finishes:

ZN, GRN

B174SH-B186SH

L&R SLOTTED BRACKET

• Safety Factor of 2.5

• Specify L for left or R for right bracing

• Material: ASTM A1011 33,000 PSI min. yield

• Standard finishes: ZN, GRN

201/2”

(520.7)

45/8”

(117.5)

13/16”

(30.1)

13/16”

(30.1)

13/16”

(30.1)

13/16”

(20.6)

11/2”

(38.1)

4”

(101.6)

71/4”

(184.1)

31/8”

(79.4)

73/4”

(196.8)

6”

(152.4)

3/8”

(9.5)

13/16”

(20.6)

2”

(50.8)

2”

(50.8)

3”

(76.2)

2”

(50.8)

2”

(50.8)

1”

(25.4)

B42

B22

Part Uniform Load Wt./C

No. A Lbs. kN Lbs. kg

B297-12 12” (304.8) 1660 (7.37) 485 (220.0)

B297-18 18” (457.2) 1100 (4.88) 668 (303.0)

B297-24 24” (609.6) 835 (3.71) 857 (388.7)

B297-30 30” (762.0) 665 (2.95) 1040 (471.7)

B297-36 36” (914.4) 550 (2.44) 1240 (562.4)

B297-42 42” (1066.8) 465 (2.06) 1440 (653.2)

Part Uniform Load Wt./C

No. ALbs. kN Lbs. kg

B409-6 6” (152.4) 1920 (8.54) 152 (68.9)

B409-9 9” (228.6) 1280 (5.69) 195 (88.4)

B409-12 12” (304.8) 960 (4.27) 232 (105.2)

B409-14 14” (355.6) 800 (3.56) 274 (124.3)

B409-16 16” (406.4) 730 (3.25) 314 (142.4)

B409-18 18” (457.2) 640 (2.84) 347 (157.4)

B409-24 24” (609.6) 480 (2.13) 450 (204.1)

Part

Uniform Load

Wt. /C

No. LH

Lbs. kN Lbs. kg

B494-12 12” (304.8) 83/4”(222.2) 1580 (7.02) 364 (165.1)

B494-18 18” (475.2) 83/4”(222.2) 1000 (4.45) 479 (217.3)

B494-24 24” (609.6) 83/4”(222.2) 996 (4.43) 716 (324.8)

B494-30 30” (762.0) 111/4”(285.7) 924 (4.11) 927 (420.5)

B494-36 36” (914.4) 111/4”(285.7) 864 (3.84) 1095 (496.7)

B494-42 42” (1066.8) 16” (406.4) 580 (2.58) 1400 (635.0)

B494-48 48” (1219.2) 16” (406.4) 500 (2.22) 1510 (684.9)

Part Uniform Load Wt./C

No. A B Lbs. kN Lbs. kg

B174SH 24” (609.6) 67/16”(163.5) 225 (1.00) 370 (167.8)

B175SH 26” (660.4) 615/16”(176.2) 225 (1.00) 425 (192.8)

B176SH 28” (711.2) 77/16”(188.9) 225 (1.00) 480 (217.7)

B177SH 30” (762.0) 715/16”(201.6) 225 (1.00) 520 (235.9)

B178SH 12” (304.8) 37/16”(87.3) 350 (1.55) 143 (64.8)

B179SH 14” (355.6) 315/16”(100.0) 350 (1.55) 162 (73.5)

B180SH 16” (406.4) 47/16”(112.7) 250 (1.11) 204 (92.5)

B181SH 18” (457.2) 415/16”(125.4) 250 (1.11) 232 (105.2)

B182SH 20” (508.0) 57/16”(138.1) 250 (1.11) 275 (124.7)

B183SH 22” (558.8) 515/16”(150.8) 250 (1.11) 317 (143.8)

B184SH 6” (152.4) 115/16”(49.2) 225 (1.00) 58 (26.3)

B185SH 8” (203.2) 27/16”(61.9) 225 (1.00) 82 (37.2)

B186SH 10” (254.0) 215/16”(74.6) 325 (1.44) 103 (46.7)

15/8”

(41.3)

Inside Brace on

B494-24 and Larger.

Right bracket shown, left bracket

gussett on opposite side.

Mounting Hole

7/16” (11.1) Dia.

13/32” x 1” Slot

(10.3) (25.4)

9/32” (7.1)

Dia. Holes

B22A

61/4”

(158.7)

45/8”

(117.5)

21/2”

(63.5)

13/16”

(20.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Brackets

101

B198

CHANNEL CLEVIS BRACKET

• Safety Factor of 2.5

• Standard finishes:

ZN, GRN

B196

CHANNEL

CLEVIS

BRACKET

• Safety Factor of 2.5

• Standard finishes:

ZN, GRN

B198A

CHANNEL CLEVIS BRACKET

• Safety Factor of 2.5

• Standard finishes:

ZN, GRN

B293

CHANNEL BRACKET

• Safety Factor of 2.5

• Standard finishes:

ZN, GRN

B293A

CHANNEL BRACKET

• Safety Factor of 2.5

• Standard finishes:

ZN, GRN

B194 BRACKET FOR B22 & B24

• Safety Factor of 2.5

• 6300 In.-Lbs (712 N•m) applies to fitting only,

not to strength of strut arm

• Refer to page 223 for strut

loading data

• Standard finishes: ZN, GRN

• Wt./C 210 Lbs. (95.2 kg)

53/8”

(136.5)

35/8”

(92.1)

Part Uniform Load Wt./C

No. A(A) Lbs. kN Lbs. kg

B198A-6

6” (152.4) 1600 (7.12) 185 (83.9)

B198A-12

12” (304.8) 800 (3.56) 284 (128.8)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

33/4”

(95.3)

31/2”

(88.9)

11/2”

(38.1)

11/2”

(38.1)

63/8”

(161.9)

23/16”

(55.6)

13/32”

(27.8)

Part Uniform Load Wt./C

No. A (A) Lbs. kN Lbs. kg

B198-6 6” (152.4) 1600 (7.12) 185 (83.9)

B198-12 12” (304.8) 800 (3.56) 284 (128.8)

Part Uniform Load Wt./C

No. A (A) Lbs. kN Lbs. kg

B196-18 18” (457.2) 600 (2.67) 430 (195.0)

B196-24 24” (609.6) 450 (2.00) 510 (231.3)

Part Uniform Load Wt./C

No. A (A) Lbs. kN Lbs. kg

B293-6 6” (152.4) 1200 (5.34) 144 (65.3)

B293-12 12” (304.8) 600 (2.67) 252 (114.3)

B293-18 18” (457.2) 400 (1.78) 340 (154.2)

B293-24 24” (609.6) 300 (1.33) 412 (186.9)

PartUniform Load Wt./C

No. A(A) Lbs. kN Lbs. kg

B293A-6

6” (152.4) 1200 (5.34) 144 (65.3)

B293A-12

12” (304.8) 600 (2.67) 252 (114.3)

B293A-18

18” (457.2) 400 (1.78) 340 (154.2)

B293A-24

24” (609.6) 300 (1.33) 412 (186.9)

B22

13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Brackets

102

B195 BRACKET FOR B42

• Safety Factor of 2.5

• 2500 In.-Lbs (282 N•m) applies

to fitting only, not to strength

of strut arm

• Refer to page 217 for strut

loading data

• Standard finishes: ZN, GRN

• Wt./C 174 Lbs. (78.9 kg)

B370 BRACKET FOR B22A & B11

• Safety Factor of 2.5

• 13000 In.-Lbs (1469 N•m) applies

to fitting only, not to strength of

strut arm

• Refer to page 217 for strut

loading data

• Standard finishes: ZN, GRN

• Wt./C 266 Lbs. (120.6 kg)

B440

BRACKET FOR B52 & B54

• Safety Factor of 2.5

• 2000 In.-Lbs (226 N•m) applies to fitting only,

not to strength of strut arm

• Refer to page 217 for strut loading data

• Standard finishes: ZN, GRN

• Wt./C 177 Lbs. (80.3 kg)

B449-4, 8 & 12

CABLE SADDLE

BRACKET

• Safety Factor of 2.5

• Material:

11 Gauge (3.0)

ASTM A1011

HSLAS Gr. 50

• Standard finishes:

ZN, GRN

B293PL

BRACKET PLATE ONLY

• Standard finishes: ZN, GRN

• Wt./C 46 Lbs. (20.8 kg)

B449-18

18” (457.2) CABLE SADDLE BRACKET

• Safety Factor of 2.5

• Uniform Load 960 Lbs. (4.17 kN)

• Material: 11 Gauge (3.0) ASTM A1011 HSLAS Gr. 50

• Standard finishes: ZN, GRN

• Wt./C 312 Lbs. (141.5 kg)

33/4”

(95.2)

315/16”

(100.0)

33/4”

(95.2)

33/4”

(95.2)

31/2”

(88.9)

2”

(50.8)

2”

(50.8)

37/8”

(98.4)

37/8”

(98.4)

8”

(203.2)

B22 B22

B42

B52

B22

B22A

Part

Uniform Load

Wt./C

No. A B Lbs. kN Lbs. kg

B449-4

41/2”(114.3) 23/8”(60.3) 2400 (10.67) 74 (33.5)

B449-8

81/2”(215.9) 23/8”(60.3) 1270 (5.65) 124 (56.2)

B449-12

121/2”(317.5) 4” (101.6) 860 (3.82) 184 (83.4)

11/2”

(38.1)

11/4”

(31.7)

13/16”

(20.6)

4”

(101.6)

18”

(457.2)

120°

13/32”

(27.8)

21/8”

(54.0)

21/8”

(54.0)

13/16”

(20.6)

13/16”

(20.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Brackets

103

B810-W

• Specify W = 8, 12, 16

• 13/16” (20.6mm) x 1” (25.6mm) banding slots for steel band

• Standard finishes: ZN, HDG

B802D-W

• Specify W = 8, 12, 16

• Standard finishes: ZN, HDG

B852S-W-D

• Specify W = 8, 12, 16

• Specify D = 6, 8, 10, 12, 16, 18, 24

• 13/16” (20.6mm) x 1” (25.4mm) banding slots for steel band

• Standard finishes: ZN, HDG

B816

• Standard finishes: ZN, HDG

14”

(355.6)

14”

(355.6)

13/16” (20.6) Dia.

11/16” x 1” Slot

(17.4) (25.4)

9/16” x 29/16”Slot

(14.3) (65.1)

13/16” x 1” Slot

(20.6) (25.4)

13/16” x 1” Slot

(20.6) (25.4)

13/32” (10.3) Dia.

13/16” (20.6) Dia.

13/16” (20.6) Dia. 13/32” (10.3) Dia.

725/32”

(197.6)

61/2”

(165.1) 23/8”

(60.3)

21/8”

(54.0)

9/16”

(14.3)

2”

(50.8)

95/8”

(244.5)

725/32”

(197.6)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Brackets

104

B811-W

• Can be attached directly to B809 & B812

• Specify W = 8, 12, 16

• Standard finishes: ZN, HDG

B812-*

• Specify D = 6, 8, 10, 12, 16, 18, 24

• 13/16” (20.6mm) x 1” (25.4mm) banding slots for steel band

• Standard finishes: ZN, HDG

B809B-*

• Specify D = 6, 8, 10, 12, 16, 18, 24

• 13/16” (20.6mm) x 1” (25.4mm) banding slots for steel band

• Standard finishes: ZN, HDG

27/16”

(61.9) 725/32”

(197.6)

121/32”

(42.1)

13/16”

(20.6)

13/16” (20.6) Dia.

13/32” (10.3) Dia.

725/32”

(197.6)

13/16” (20.6) Dia.

13/32” (10.3) Dia.

13/16” x 1” Slot

(20.6) (25.4)

13/16” x 1” Slot

(20.6) (25.4)

Part No. D H

In. mm In. mm

B809B-6 6” (152.4) 123/4”(323.9)

B809B-8 8” (203.2) 143/4”(374.7)

B809B-10 10” (254.0) 163/4”(425.5)

B809B-12 12” (304.8) 183/4”(476.2)

B809B-16 16” (406.4) 223/4”(577.8)

B809B-18 18” (457.2) 243/4”(628.6)

B809B-24 24” (609.6) 273/4”(704.8)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Brackets

105

B514 R&L

REEL RACK SUPPORT FOR 2” (50) PIPE

• Standard finishes: ZN, GRN

• Wt./C 246 Lbs. (111.6 kg)

B214 R&L

REEL RACK SUPPORT FOR 11/4” (32)

PIPE

• Standard finishes: ZN, GRN

• Wt./C 200 Lbs. (90.7 kg)

B475

DOUBLE REEL RACK SUPPORT ON

SINGLE CHANNEL FOR 11/4” (32) PIPE

• Standard finishes: ZN, GRN

• Wt./C 326 Lbs. (147.9 kg)

B473

DOUBLE REEL RACK SUPPORT ON

SINGLE CHANNEL FOR 2” (50) PIPE

• Standard finishes: ZN, GRN

• Wt./C 351 Lbs. (159.2 kg)

B474

DOUBLE REEL RACK

CHANNEL FOR 11/4” (32) PIPE

• Standard finishes: ZN, GRN

• Wt./C 257 Lbs. (116.6 kg)

B472

DOUBLE REEL RACK SUPPORT ON

DOUBLE CHANNEL FOR 2” (50) PIPE

• Standard finishes: ZN, GRN

• Wt./C 299 Lbs. (135.6 kg)

B214R

Right Hand B514R

Right Hand

B214L

Left Hand B514L

Left Hand

3”

(76.2)

3”

(76.2)

9”

(228.6)

9”

(228.6)

53/8”

(136.5) 53/8”

(136.5)

35/8”

(92.1)

35/8”

(92.1)

53/8”

(136.5)

3”

(76.2)

3”

(76.2)

53/8”

(136.5)

53/8”

(136.5)

31/4”

(82.5)

31/4”

(82.5)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Miscellaneous Fittings

106

B438

PIPE SUPPORT BRACKET

• Standard finishes: ZN, GRN

• Material: ASTM A36

• Wt./C 132 Lbs. (59.9 kg)

B664

DOUBLE PIPE SUPPORT FOR 11/4” (32) PIPE

• Standard finishes: ZN, GRN

• Wt./C 154 Lbs. (69.8 kg)

B439

PIPE SUPPORT BRACKET

• Standard finishes: ZN, GRN

• Wt./C 88 Lbs. (39.9 kg)

B411 SERIES

LADDER RUNGS

• Standard finishes: ZN, GRN

B587-1/2, 3/4& 1

PIPE COUPLING FITTING

• Safety Factor of 2.5

• Standard finishes: ZN, GRN

B381-B385

WALL LADDER BRACKETS

• Standard finishes: ZN, GRN

41/4”

(107.9)

4”

(101.6)

3/8”

(9.5)

31/2”

(88.9)

13/4”

(44.4)

325/32”

(96.0)

35/16”

(84.1)

213/16”

(71.4)

31/2”

(88.9)

53/8”

(136.5)

1/4”

(6.3)

13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

4”

(101.6)

13/4”

(44.4)

Holes 9/16”(14.3)

Wt./C

Part No. A (A) Lbs. kg

B411-12 12” (304.8) 176 (79.8)

B411-15 15” (381.0) 202 (91.6)

B411-18 18” (457.2) 234 (106.1)

Part Wt./C

No. A (A) B (B) C (C) Lbs. kg

B381 23/8” (60.3) 6” (152.4) 75/8” (193.7) 110 (49.9)

B382 43/8” (111.1) 8” (203.2) 95/8” (244.5) 164 (74.4)

B383 63/8” (161.9) 10” (254.0) 115/8” (295.3) 200 (90.7)

B384 83/8” (212.7) 12” (304.8) 135/8” (346.1) 253 (114.7)

B385 103/8” (263.5) 14” (355.6) 155/8” (396.9) 318 (144.2)

2” I.D.

(50.8)

Design

Part For Wt./C Load

No. Pipe Size Lbs. kg Lbs. kN

B587-1/2 1/2” (15) 77 (34.9) 1000 (4.45)

B587-3/4 3/4” (20) 84 (38.1) 1400 (6.23)

B587-1 1” (25) 105 (47.6) 1900 (8.45)

211/16”

(68.2)

Design Load

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Miscellaneous Fittings

107

B350

TROLLEY BEAM JOINT SUPPORT

• Design Load 1200 Lbs. (5.34 kN)

• Use 3/8” x 3” bolts in side hole to clamp strut

together (not included)

• Standard finishes: ZN, GRN

• Wt./C 233 Lbs. (105.7 kg)

B349

TROLLEY BEAM SUPPORT

• Design Load 1200 Lbs. (5.34 kN)

• Safety Factor of 2.5

• Use 3/8” x 3” bolts in side hole to clamp strut

together (not included)

• Standard finishes: ZN, GRN

• Wt./C 107 Lbs. (48.5 kg)

B560

45° STAIR SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 220 Lbs. (99.8 kg)

B562

37-1/2° STAIR SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 206 Lbs. (93.4 kg)

315/16”

(100.0)

13/32”

(27.8)

21/32”

(16.7)

121/32”

(42.0)

315/16”

(100.0)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9) 31/2”

(88.9)

31/2”

(88.9)

33/4”

(95.2)

33/4”

(95.2)

45° 371/2°

7/16”(11.1) Dia.

2 Holes

7/16”(11.1) Dia.

6 Holes

9/16”(14.3) Dia.

1 Hole

9/16”(14.3) Dia.

1 Hole

21/8”

(54.0)

15/8”

(41.3)

17/8”

(47.6) 17/8”

(47.6)

121/32”

(42.0)

11/32”

(26.2)

21/8”

(54.0)

11/32”

(26.2)

87/8”

(225.4)

87/8”

(225.4)

11/16”

(27.0) 11/16”

(27.0)

13/16”

(20.6)

13/16”

(20.6)

B613

COLUMN SUPPORT FOR B22

• Design Load 800 Lbs. (3.56 kN) Slip

with Safety Factor of 3

• Use with B22 and B24 Channel

• Setscrews to be torqued to 19 ft./Lbs

• Sold in pairs

• Standard finishes: ZN, GRN, HDG

• Wt./C 100 Lbs. (45.3 kg)

B613A

COLUMN SUPPORT FOR B52

• Design Load 800 Lbs. (3.56 kN) Slip

with Safety Factor of 3

• Use with B52 and B54 Channel

• Setscrews to be torqued to 19 ft./Lbs

• Sold in pairs

• Standard finishes: ZN, GRN, HDG

• Wt./C 100 Lbs. (45.3 kg)

15/8”

(41.3) 15/8”

(41.3)

31/2”

(88.9)

31/2”

(88.9)

3/8” x 2” Cone

Point

Setscrews

3/8” x 2” Cone

Point

Setscrews

B614

COLUMN SUPPORT FOR B22

• Quick installation (one bolt to tighten)

• Design Load 800 Lbs. (3.56 kN) Slip

with Safety Factor of 3

• Use with B22 and B24 Channel

• Sold in pairs

• Standard finish: ZN

• Wt./C 50 Lbs. (22.6 kg)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Miscellaneous Fittings

108

B376

FOUR BEARING TROLLEY

ASSEMBLY

• Safety Factor of 2.5

• Stainless steel ball bearings

• Not for continuous cycling

applications

• Standard finishes: ZN

• Wt./C 110 Lbs. (49.9 kg)

B377

TWO BEARING TROLLEY ASSEMBLY

• Safety Factor of 2.5

• Stainless steel ball bearings

• Not for continuous cycling

applications

• Standard finishes: ZN

• Wt./C 48 Lbs. (21.8 kg)

B477

TWO BEARING LIGHT DUTY

TROLLEY ASSEMBLY

• Design Load 50 Lbs. (.22 kN)

• Safety Factor of 2.5

• Stainless steel ball bearings

• Not for continuous cycling applications

• Material:12 Gauge (2.6) ASTM A1011

33,000 PSI min. yield

• Standard finishes: ZN

• Wt./C 30 Lbs. (13.6 kg)

B477P

WITH PLASTIC

BEARINGS

• Design Load

10 Lbs. (.045 kN)

B477H

TWO BEARING LIGHT DUTY

TROLLEY ASSEMBLY WITH EYE HOOK

• Design Load 50 Lbs. (.22 kN)

• Safety Factor of 2.5

• Stainless steel ball bearings

• Not for continuous cycling applications

• Material:12 Gauge (2.6) ASTM A1011

33,000 PSI min. yield

• Standard finishes: ZN

• Wt./C 36 Lbs. (16.3 kg)

B477HP

WITH PLASTIC

BEARINGS

• Design Load

10 Lbs. (.045 kN)

B478H

FOUR BEARING LIGHT DUTY

TROLLEY ASSEMBLY WITH EYE HOOK

• Design Load 100 Lbs. (.44 kN)

• Safety Factor of 2.5

• Stainless steel ball bearings

• Not for continuous cycling applications

• Material:12 Gauge (2.6) ASTM A1011

33,000 PSI min. yield

• Standard finishes: ZN

• Wt./C 72 Lbs. (32.6 kg)

B478HP

WITH PLASTIC

BEARINGS

• Design Load

20 Lbs. (.090 kN)

B478

FOUR BEARING LIGHT DUTY

TROLLEY ASSEMBLY

• Design Load 100 Lbs. (.44 kN)

• Safety Factor of 2.5

• Stainless steel ball bearings

• Not for continuous cycling applications

• Material:12 Gauge (2.6) ASTM A1011

33,000 PSI min. yield

• Standard finishes: ZN

• Wt./C 68 Lbs. (30.8 kg)

B478P

WITH PLASTIC

BEARINGS

• Design Load

20 Lbs. (.090 kN)

13/16”

(20.6)

13/16”

(20.6)

5/8”

(15.9)

33/8”

(85.7)

33/8”

(85.7)

35/16”

(84.1) 15/16”

(33.3)

15/16”

(33.3)

11/8” (28.6)

Bearing O.D.

9/32” (7.1)

Dia. Hole

11/8” (28.6)

Bearing O.D.

31/8”

(79.4)

3”

(76.2)

2”

(50.8)

3/4”

(19.0)

3/4”

(19.0)

11/4”

(31.7)

3/4” I.D

(19.0)

3/4” I.D

(19.0)

1/4” (6.3)

EYE ROD

1/4” (6.3)

EYE ROD

Design Load in B22

Lbs. kN RPM

300 (1.33) @600

450 (2.00) @300

600 (2.67) @100

Design Load in B22

Lbs. kN RPM

150 (.67) @600

225 (1.00) @300

437 (1.94) @100

15/16”

(23.8)

11/32”

(8.7)

11/8”

(28.6)

11/4”

(31.7)

5/8”

(15.9)

11/32”

(8.7)

11/8”

(28.6)

11/4”

(31.7)

13/4”

(44.4)

315/16”

(100.0)

Design Load

Design Load Design Load

11/4”

(31.7)

9/32” x 9/16”

Slot-(2)

(7.1) (14.3)

9/32”

(7.1)

Dia. Hole

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Miscellaneous Fittings

109

B203-B206 & B220-B223

CHANNEL END CAPS TYPE X

• Material: ASTM A1011 CS Type B

• Standard finishes: ZN, GRN, HDG, SS4, AL

B283-B286

CHANNEL END CAPS

• Material: ASTM A1011 33,000 PSI min. yield

• Standard finishes: ZN, GRN

B287 & B288

CHANNEL END CAPS

• Material: ASTM A1011 33,000 PSI min. yield

• Standard finishes: ZN, GRN

B3322, B3332, B3342, B3352

ANCHOR END CAPS TYPE Y

• Material: ASTM A1011 33,000 PSI min. yield

• Standard finishes: ZN

119/32”

(40.5)

119/32”

(40.5) 25/8”

(66.7)

113/16”

(46.0)

Part Wt./C

No. Use With A (A) Lbs. kg

B203 B42 1.015 (25.8) 6(2.7)

B204 B54 .827 (21.0) 5(2.2)

B205 B22 1.640 (41.6) 10 (4.5)

B206 B32 1.390 (35.3) 8(3.6)

B220 B52 .827 (21.0) 4(1.8)

B221 B12 2.452 (62.3) 15 (6.8)

B222 B11 3.265 (82.9) 20 (9.1)

B223 B24 1.640 (41.6) 10 (4.5)

Part Wt./C

No. Use With A (A) B (B) Lbs. kg

B283 B52 119/32”(40.5) 25/32”(19.8) 6(2.7)

B284 B54 & B56 119/32”(40.5) 25/32”(19.8) 6(2.7)

B285 B22 119/32”(40.5) 119/32”(40.5) 13 (5.9)

B286 B24 & B26 119/32”(40.5) 119/32”(40.5) 14 (6.3)

Part Wt./C

No. Use With A (A) B (B) Lbs. kg

B3322 B22I 1.270 (32.2) 13/16”(30.2) 15 (6.8)

B3332 B32I 1.000 (25.4) 13/16”(30.2) 15 (6.8)

B3342 B42I .645 (16.4) 11/4”(31.8) 15 (6.8)

B3352 B52I .460 (11.7) 15/16”(33.3) 15 (6.8)

Part Wt./C

No. Use With Lbs. kg

B287 B22 13 (5.9)

B288 B24 14 (6.3)

3/8” (9.5)

Dia. Hole

B822

PLASTIC END CAP

FOR B22 & B24

• Material: Soft White PVC

• Wt./C 3 Lbs. (1.3 kg)

• Available in colors: White (W),

Yellow (Y), Black (BLK), Gray (GRY),

Green (GRN)

B822A

PLASTIC END CAP

FOR B22A & B11

• Material: Soft White PVC

• Wt./C 5 Lbs. (2.2 kg)

• Available in colors: White (W),

Yellow (Y), Black (BLK), Gray (GRY),

Green (GRN)

B852

PLASTIC END CAP

FOR B52

• Material: Soft White PVC

• Wt./C 2.5 Lbs. (1.1 kg)

• Available in colors: White (W),

Yellow (Y), Black (BLK), Gray (GRY),

Green (GRN)

11/4”

(31.7)

11/4”

(31.7)

11/4”

(31.7)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Miscellaneous Fittings

110

B823

PROFILE END CAPS

• Material: PVC

• Available in colors: White (W),

Yellow (Y), Black (BLK), Gray (GRY),

Green (GRN)

B825

PLASTIC END CAPS

• Material: Polyurethane

• Available in colors: Gray (GRY), Green (GRN)

Approx. 3/4” deep

(19.0)

Fits Wt./C

Part No. Channel Sizes Lbs. kg

B823-22A B22A, B24A, B26A 6.9 (3.1)

B823-22 B22, B24, B26 4.1 (1.8)

B823-42 B42 3.8 (1.7)

B823-52 B52, B54, B56 3.5 (1.6)

Fits Wt./C

Part No. Channel Sizes Lbs. kg

B825-22 B22 & B24 2.0 (0.9)

B825-52 B52 & B54 1.0 (0.4)

Strut Fittings

Reference page 72 for general fitting and standard finish specifications.

Miscellaneous Fittings

111

Cooper B-Line’s beam attachments and pipe

supports offered in this section are designed to

provide supports without drilling or welding . A

complete selection of beam clamps, pipe clamps,

rollers, supports and accessories are designed

for use with Cooper B-Line channels and offer

many installation advantages.

Materials & Finishes (Unless otherwise

noted)

Pipe clamps, pipe hangers, beam clamps,

brackets, and rollers are made from low carbon

steel strips, plates or rod unless noted.

Note: A minimum order may apply on special

material and finishes.

Load Data

The load data published includes a safety factor

of 5.0 unless noted (safety factor = ratio of ultimate

load to the design load).

Recommended Torque For Setscrews

(unless noted)

See chart on page 72 for bolt torque.

Metric

Metric dimensions are shown in parentheses. Unless noted, all metric dimensions are in millimeters.

Setscrew Size 1/4”-20 3/8”-16 1/2”-13

Foot/Lbs. 4511

Nm 5715

Setscrew Size 5/8”-11 3/4”-10

Foot/Lbs. 21 34

Nm 28 46

Beam Clamps

112

Finish

Code Finish Specification

PLN Plain ASTM A1018 Gr. 33

ASTM A1011 SS Grade 33

ZN Electro-Plated Zinc ASTM B633 SC3 Type III

or ASTM A653

GRN Dura-Green

– Malleable Iron ASTM A47 Gr. 32510

HDG Hot-Dipped Galvanized ASTM A123

CZ Chromium Zinc ASTM F1136

SS4 Stainless Steel Type 304 ASTM A240

SS6 Stainless Steel Type 316 ASTM A240

AL Aluminum ASTM B209

B3362 THRU B3365

RETAINING STRAP

• *When ordering specify L (Length) as a

suffix to the part number

• Material: 14 Gauge (1.9)

• Standard finishes: GALV, SS4

B3036L

C-CLAMP WITH LOCKNUT

• Safety Factor of 5

• When Retaining Strap is required, order B3363 or B3364 separately

• Setscrew and locknut included

• Material: Malleable iron

• Standard finishes: ZN, PLN

Part Number Rod

With Size B C D E Design Load Wt./C

Locknut A Lbs. kg Lbs. kg

B351L-3/8*3/8”-16 23/8”(60.3) 23/8”(60.3) 3/4”(19.0) 13/8”(34.9) 230 (1.03) 41 (18.6)

B351L-1/2*1/2”-13 23/8”(60.3) 23/8”(60.3) 3/4”(19.0) 13/8”(34.9) 380 (1.71) 41 (18.6)

B351L-5/8*5/8”11 23/8”(60.3) 21/4”(57.1) 3/4”(19.0) 13/8”(34.9) 550 (2.47) 60 (27.2)

B351L-3/4*3/4”-10 23/8”(60.3) 31/4”(82.5) 3/4”(19.0) 13/8”(34.9) 630 (2.83) 71 (32.2)

B351L-7/87/8”-9 3” (76.2) 31/4”(82.5) 1” (25.4) 17/8”(47.6) 1200 (5.34) 184 (83.4)

Wt./C for Length L of

Part No. 6” (152.4) 8” (203.2) 10” (254.0) 12” (304.8) A B For Use With

Lbs. kg Lbs. kg Lbs. kg Lbs. kg

B3362* 17 (7.7) 24 (10.9) 31 (14.0) 38 (17.2) 11/4”(31.7) 7/16”(11.1) B351-3/8& 1/2

B3363* 16 (7.2) 23 (10.4) 30 (13.6) 37 (16.8) 11/4”(31.7) 5/8”(15.9) B351-5/8& 3/4B3036-3/8& 1/2

B3364* 16 (7.2) 23 (10.4) 30 (13.6) 37 (16.8) 11/4”(31.7) 11/16”(17.4) B3036-5/8& 3/4

B3365* 21 (9.5) 29 (13.1) 37 (16.8) 46 (20.8) 11/2”(38.1) 3/4”(19.0) B351-7/8

Part Number Rod

With Size B C Design Load Wt./C

Locknut A Lbs. kg Lbs. kg

B3036L-3/83/8”-16 13/4”(44.4) 13/4”(44.4) 300 (0.89) 29 (13.1)

B3036L-1/21/2”-13 13/4”(44.4) 13/4”(44.4) 380 (1.69) 28 (12.7)

B3036L-5/85/8”-112” (50.8) 17/8”(47.6) 530 (2.36) 55 (24.9)

B3036L-3/43/4”-10 2” (50.8) 2” (50.8) 530 (2.36) 72 (32.6)

Rod Size

3/8Thru 3/4

Sizes Only

B351L

STEEL C-CLAMP WITH LOCKNUT

• Safety Factor of 5

• Setscrew and locknut included

• When Retaining Strap is required, order B3362, B3363

or B3365 separately

• Standard finishes: ZN, SS4, PLN

ROD SIZE

3/4”

(19.0)

3/4” (19.0)

Max.

Flange

Thickness

*See note above.

Max. Flange

Thickness

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

113

Throat

Opening

Rod Size

B3033

REVERSIBLE WIDE JAW WEDGE C-CLAMP

(MALLEABLE IRON)

•Safety Factor of 5

•Setscrew and locknut included

•Material: Malleable iron

•Standard finishes: ZN, PLN

B3034

WEDGE C-CLAMP

• Safety Factor of 5 Note:

• 3/4” (19.0) Max. Flange Thickness 3/8”& 1/2” Sizes

• Setscrew and locknut included Are Reversible

• Material: Malleable iron Style

• Standard finishes: ZN, PLN

Throat Openings

11/4” (31.7) For

3/8& 1/2 Sizes

15/16” (33.3) For

5/8& 3/4 Sizes

3/4” (19.0) Max.

Flange Thickness

Rod Size

Rod

Design Load

Wt./C UL Max.

Part No. Size ABCD

Lbs. kN Lbs. kg Pipe Size

B3033-3/83/8”-16 21/4”(57.1) 2” (50.8) 11/8”(28.6) 500 (2.22) 46 (20.8) 4” (100)

B3033-1/21/2”-13 25/16”(58.7) 23/16”(55.5) 11/4”(31.7) 810 (3.60) 64 (29.0) 8” (200)

B3033-5/85/8”-11 25/8”(66.7) 21/2”(63.5) 13/8”(34.9) 1000 (4.48) 116 (52.6) 8” (200)

B3033-3/43/4”-10 211/16”(68.3) 21/2”(63.5) 17/16”(36.5) 1400 (6.22) 140 (63.5) 10” (250)

3/8&1/2

Sizes Only

Rod

Design Load

Wt./C UL Max.

Part No. Size ABCD

Lbs. kN Lbs. kg Pipe Size

B3034-3/8*

3/8”-16 15/8”(41.3) 2” (50.8) 7/8”(22.2) 560 (2.49) 54 (24.5) 4” (100)

B3034-1/2*

1/2”-13 113/16”(46.0) 23/16”(55.5) 13/16”(30.2) 810 (3.60) 51 (23.1) 8” (200)

B3034-5/8

5/8”-11 13/4”(44.5) 21/8”(54.0) 11/8”(28.6) 1000 (4.48) 70 (31.7) -- --

B3034-3/4

3/4”-10 2” (50.8) 21/4”(57.2 11/8”(28.6) 1500 (6.67) 98 (44.4) -- --

Fig. 65XT

REVERSIBLE C-TYPE BEAM CLAMP

• Safety Factor of 5

• 3/4” (19.0) Max. Flange Thickness

• Setscrew and locknut included

• Maximum Pipe Size 4” (100)

• Design Load 610 Lbs. (2.71kN)

• Material: Steel

• Standard finishes: ZN, PLN

3/4” (19.0) Max.

Flange Thickness

Rod Size

3/8”-16

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

114

11/16”

(27.0)

15/8”

(41.3)

11/2”

(38.1)

7/8”

(22.2)

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

115

B3037Z

Z-PURLIN C-CLAMP

• Design Load 500 Lbs. (2.22 kN)

• Safety Factor of 5

• Designed for attaching a 3/8”-16 hanger rod

to the bottom flange of a Z-purlin

• Setscrew and locknut included

• Material: Malleable iron

• Standard finishes: ZN, PLN

3”

(76.2)

313/32”

(86.5)

Bottom Hanger

Rod Threads

3/8”-16

Fig. 69 (Formally B-Line B3367)

RETAINING STRAP

• Specify ‘L’ lengths required

• Minimum recommended return on strap is 1” (25.4)

• Material: Pre-Galvanized Steel

• Standard finishes: GALV

Hole Dia. For Use Wt./C**

Part No. D With Lbs. kg

69-3/8-L 7/16”(30.1) B3033-3/8& B3034-3/823.9 (10.8)

65XT-3/8

69-1/2-L 9/16”(30.1) B3033-1/2& B3034-1/223.6 (10.7)

69-5/8-L 11/16”(50.8) B3033-5/823.2 (10.5)

69-3/4-L 13/16”(63.5) B3033-3/422.7 (10.3)

11/4”

(31.7)

** Wt./C based on 6” (152.4) length. For each additional inch in strap length add 4.2 Lbs (1.9 kg) to Wt./C.

Fig. 69R

RETROFIT RETAINING STRAP

• Specify ‘L’ lengths required

• Minimum recommended return on strap is 1” (25.4)

• Material: Pre-Galvanized Steel

• Standard finishes: GALV

Slot For Use Wt./C**

Part No. Width With Lbs. kg

69R-3/8-L 7/16”(30.1) B3033-3/8& B3034-3/822.9 (10.4)

65XT-3/8

69R-1/2-L 9/16”(30.1) B3033-1/2& B3034-1/222.6 (10.2)

11/4”

(31.7)

** Wt./C based on 6” (152.4) length. For each additional inch in strap length add 4.2 Lbs (1.9 kg) to Wt./C.

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

116

B210A

BEAM CLAMP

• Design Load

300 Lbs. (1.33 kN)

• Safety Factor of 5

• 3/4” (19.0) Max. Flange Thickness

• 3/8”-16 Setscrew included

• Standard finish: ZN

• Wt./C 60 Lbs. (27.2 kg)

B210

BEAM CLAMP

• Design Load

800 Lbs. (3.56 kN)

• Safety Factor of 5

• 5/8” (15.9) Max. Flange Thickness

• 1/2”-13 Setscrew included

• Standard finish: ZN

• Wt./C 100 Lbs. (45.3 kg)

11/2”

(38.1)

11/2”

(38.1)

1/2”

(12.7)

1/4”

(6.3)

3/8”

(9.5)

3/4”

(19.0)

5/8” (15.9)

Max. Flange

Thickness

3/4” (19.0)

Max. Flange

Thickness

2”

(50.8)

2”

(50.8)

3/8”-16

TAP

Bottom

Plate

Only

1/2”-13

TAP

Bottom

Plate

Only

BC442

LIGHT DUTY BEAM CLAMP

• Design Load 75 Lbs. (.33 kN)

• Safety Factor of 5

• 11/16” (17.5) Max. Flange Thickness

• Setscrew included

• Holes tapped 1/4”-20 (Bottom & Back)

• Material: 13 Gauge (2.3)

• Standard finish: ZN

• Wt./C 13 Lbs. (3.9 kg)

B444

SERIES ROD SUPPORT

• Safety Factor of 5

• Max. Flange Thickness

3/4” (19.0) for 1/4& 5/16 sizes

1” (25.4) for 3/8& 1/2sizes

• Setscrew included

• Material: Malleable iron

• Standard finish: ZN

Available in HDG with CZ Hardware

Thread Set Design Load Wt./C

Part No. Size A Screw C D Lbs. kN Lbs. kg

B444-1/41/4”-20 1/4”-20 13/8”(34.9) 13/16”(30.1) 150 (.66) 24 (10.9)

B444-5/16 5/16”-18 1/4”-20 13/8”(34.9) 13/16”(30.1) 150 (.66) 23 (10.4)

B444-3/83/8”-16 1/2”-13 17/8”(47.6) 2” (50.8) 350 (7.12) 65 (29.5)

B444-1/21/2”-13 5/8”-11 23/8”(60.3) 21/2”(63.5) 1000 (4.45) 132 (59.9)

13/16”

(20.6)

11/16”

(17.5)

13/4”

(44.5)

(Bottom &

Back)

B312 SERIES

RETAINING STRAP FOR USE WITH

B303 THRU B309 AND B321 SERIES

• 3/4” (19.0) Max. Flange Thickness

• For thicker beams, step up one flange width size

• Material: 14 Gauge (1.9)

• Standard finishes: GALV, HDG

B321 SERIES BEAM CLAMPS

• Safety Factor of 5

• 111/16” (42.8) Max. Flange Thickness

• Setscrew included

• When Retaining Strap is required, order B312 separately

• Recommended Setscrew Torque: 1/2”-13 350 in-lbs. (39.5 N•m)

5/8”-11 700 in-lbs. (79.0 N•m)

• Minimum flange thickness: B321-1 thru B321-3 1/4” (6.3)

B321-4 and B321-5 3/8” (9.5)

• Standard finishes: ZN, HDG

B303 THRU B309 BEAM CLAMPS

• Safety Factor of 5

• Max. Flange Thickness 1/16” (1.6) thru 7/8” (22.2)

• Setscrew included

• When Retaining Strap is required, order B312 separately

• Recommended Setscrew Torque: 3/8”-16 150 in-lbs. (16.9 N•m)

1/2”-13 350 in-lbs. (39.5 N•m)

• Standard finishes: ZN, HDG

Rod Set

Design Load

Wt./C

Part No. Size A Screw C T Lbs. kN Lbs. kg

B303 1/4”-20 3/8”-16 25/16”(58.7) 11 Ga. (3.0) 400 (1.78) 72 (32.6)

B304 5/16”-18 3/8”-16 25/16”(58.7) 11 Ga. (3.0) 600 (2.67) 72 (32.6)

B305 3/8”-16 3/8”-16 25/16”(58.7) 11 Ga. (3.0) 600 (2.67) 72 (32.6)

B306 3/8”-16 1/2”-13 27/16”(61.9) 7 Ga. (4.5) 1100 (4.89) 97 (44.0)

B307 1/2”-13 1/2”-13 27/16”(61.9) 7 Ga. (4.5) 1100 (4.89) 97 (44.0)

B308 1/2”-13 1/2”-13 29/16”(65.1) 1/4”(6.3) 1500 (6.67) 133 (60.3)

B309 5/8”-11 1/2”-13 29/16”(65.1) 1/4”(6.3) 1500 (6.67) 133 (60.3)

11/8”

(28.6)

21/2”

(63.5)

Rod Design Load Wt./C

Part No. Size A Setscrew C T Lbs. kN Lbs. kg

B321-1 3/8”-16 1/2”-13 39/16”(92.1) 1/4”(6.3) 1300 (5.78) 187 (84.8)

B321-2 1/2”-13 1/2”-13 39/16”(92.1) 1/4”(6.3) 1400 (6.23) 186 (84.3)

B321-3 5/8”-11 1/2”-13 39/16”(92.1) 1/4”(6.3) 1600 (7.12) 185 (83.9)

B321-4 5/8”-11 5/8”-11 323/32”(94.4) 5/16”(7.9) 1800 (8.00) 239 (108.4)

B321-5 3/4”-10 5/8”-11 323/32”(94.4) 5/16”(7.9) 2000 (8.89) 238 (107.9)

For Flange Wt./C

Part No. Width A Lbs. kg

B312-6 6” (152.4) 9” (228.6) 22 (10.0)

B312-9 9” (228.6) 12” (304.8) 30 (13.6)

B312-12 12” (304.8) 15” (381.0) 40 (18.1)

B312-15 15” (381.0) 18” (457.2) 49 (22.2)

15/8”

(41.3)

31/4”

(82.5)

11/4”

(31.7)

13/4”

(44.4)

1/4”

(6.3)

1/2”

(12.7)

Max. Flange

Thickness

111/16” (42.8)

Max. Flange

Thickness

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

117

B751

BEAM CLAMP

• Safety Factor of 5

• 3/4” (19.0) Max. Flange Thickness

• Setscrew and Locknut included

• Maximum ATR Size 1/2”

• Use B753 Swivel Nut (not included)

• Material: 12 Gauge (2.6)

• Standard finish: ZN, HDG

• Wt./C 42 Lbs. (19.0 kg)

B752

BEAM CLAMP SWIVEL

• Design Load 500 Lbs. (2.22 kN)

• Safety Factor of 5

• Material: 12 Gauge (2.6)

• Use B753 Swivel Nut (not included)

• Includes:

1 pc. B752 Swivel Body

1 pc. 5/16”-18 x 13/4” HHCS

1 pc. 5/16”-18 Hex Nut

• Standard finish: ZN

• Wt./C 30 Lbs. (13.6 kg)

B753

SWIVEL NUT

• Provides a full swivel

of 15° in any direction

Specify rod size

• Standard finish: ZN

B701 SERIES

J-HOOK

• 1/4” (6.3) Diameter J-Hook available upon request

Part Number changes to B751-J_-1/4and a 1/4-20

Machine Square Nut (MSQN) is used

• Standard finish: ZN

B751-J_-3/8

BEAM CLAMP ASSEMBLY

• Includes:

1 pc. B751 Beam Clamp

1 pc. B701 Type J-Hook only

1 pc. SA203-158 Clip

1 pc. 3/8”-16 Hex Nut

• 1/4” (6.3) Diameter J-Hook available upon request

Part Number changes to B751-J_-1/4and a 1/4-20

Machine Square Nut (MSQN) is used

• Use B753 Swivel Nut (not included)

• Standard finishes: ZN

Design Load 300 Lbs. (1.33 kN)

B751 Clamp (Not

Included)

Thread Length

Wt./C

Part No. A TL Lbs. kg

B701-J4-3/883/4”(222.2) 51/2”(139.7) 26 (11.8)

B701-J6-3/8113/4”(298.4) 61/2”(165.1) 34 (15.4)

B701-J9-3/8143/4”(374.6) 61/2”(165.1) 41 (18.6)

B701-J12-3/8173/4”(450.8) 61/2”(165.1) 48 (21.8)

Wt./C

Part No. For Flange Width Lbs. kg

B751-J4-3/83”-6” (76.2-152.4) 70 (31.7)

B751-J6-3/85”-9” (127.0-228.6) 78 (35.4)

B751-J9-3/88”-12” (203.2-304.8) 83 (37.6)

B751-J12-3/811”-15” (279.4-381.0) 88 (39.9)

For Wt./C

Part No. Rod Size Lbs. kg

B753-3/83/8”-16 4.0 (1.8)

B753-1/21/2”-13 3.4 (1.5)

3”

(76.2)

2”

(50.8)

1”

(25.4)

Overall

Height

31/4”

(82.5)

B701-J_-3/8J-Hook

B751 Clamp

ATL

B701-J_-3/8J-Hook Only

SA203-158 Clip

3/8”-16 Hex Nut

For Rod Sizes

1/4” (6.3) to 1/2” (12.7)

Design Load 500 Lbs. (2.22 kN)

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

118

B755-3/8-J_

BEAM CLAMP ASSEMBLY

• Includes:

1 pc. B755-3/8Beam Clamp

1 pc. B705 Type J-Hook only

1 pc. B705 Clip

1 pc. 1/4”-20 Square Nut

• Standard finish: ZN

B702

CLEAT

• To eliminate the swiveling of the rod

when required, use the B702 Cleat

and a locking nut. This can be used

with the B751 Beam Clamp, B752

Swivel or B756 Swing Connector.

• Material: 12 Gauge (2.6)

• Standard finish: ZN

• Wt./C 6 Lbs. (2.7 kg)

B705 SERIES

J-HOOK

• Use with B755-3/8

• Standard finish: ZN

B756-3/8

SWING CONNECTOR

• Design Load 150 Lbs. (0.66 kN)

• Safety Factor of 5

• Material: 12 Gauge (2.6)

• Includes:

1 pc. B756-3/8Swing

Connector Body

1 pc. 5/16”-18 x 11/4” SHHMS

1 pc. 5/16”-18 Square Nut

• Use B753 Swivel Nut (not included)

• Standard finish: ZN

• Wt./C 15 Lbs. (6.8 kg)

Wt./C

Part No. For Flange Width Lbs. kg

B755-3/8-J4 4”-6” (101.6-152.4) 47 (21.3)

B755-3/8-J6 6”-10” (152.4-254.0) 51 (23.1)

B755-3/8-J10 10”-12” (254.0-304.8) 53 (24.0)

B755-3/8-J12 12”-14” (304.8-355.6) 55 (24.9)

Thread Length Wt./C

Part No. ATL Lbs. kg

B705-J4 73/8”(187.3) 3” (76.2) 17 (7.7)

B705-J6 113/8”(288.9) 41/2”(114.3) 21 (9.5)

B705-J10 133/8”(339.7) 41/2”(114.3) 23 (10.4)

B705-J12 153/8”(390.5) 41/2”(114.3) 25 (11.3)

Design Load

300 Lbs. (1.33 kN)

Design Load

150 Lbs. (0.66 kN)

3/8” (9.5) Hole

For Swing

Connector

3/8”-16 ROD

21/2”

(60.3)

1”

(25.4)

7/8”

(22.2)

B755 Clamp (Not Included)

Overall

Height

17/8”

(47.6)

B705 Clip

B755 Clamp

B705-J_

J-Hook Only

B705-J_

J-Hook Only

17/32”

(30.9)

1”

(25.4)

13/32” (10.3)

Dia. Hole

1/4”-20

Machine Nut

B755

3/8BEAM CLAMP

• Safety Factor of 5

• 5/8” (15.9) Max. Flange Thickness

• For 3/8”-16 Hanger Rod only.

• Material: 12 Gauge (2.6)

• Includes:

1 pc. B755 Beam Clamp

1 pc. 3/8” x 2” Square Head

Set Screw

2 pcs. 3/8” Square Nut

• Standard finish: ZN

• Wt./C 30 Lbs. (13.6 kg)

3/8”-16 Square

Machine Nuts

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

119

Wt./C

Part No. For Flange Width Lbs. kg

B750-J4 3”-6” (76.2-152.4) 109 (49.4)

B750-J6 5”-9” (127.0-228.6) 124 (56.2)

B750-J9 8”-12” (203.2-304.8) 135 (61.2)

B750-J12 11”-15” (279.4-381.0) 147 (66.7)

Thread Length

Wt./C

Part No. A TL Lbs. kg

B700-J4 81/2”(215.9) 63/4”(171.4) 44 (19.9)

B700-J6 111/2”(292.1) 93/4”(247.6) 53 (24.0)

B700-J9 141/2”(368.3) 123/4”(323.8) 63 (28.6)

B700-J12 171/2”(444.5) 153/4”(400.0) 78 (35.4)

B750 SERIES

BEAM CLAMP

• Safety Factor of 5

• Design Load 500 Lbs. (2.22 kN)

• Recommended Torque:

J-Hook Nut 125 in-lbs. (14.1 N•m)

• Maximum Flange Thickness 5/8” (15.9)

• Standard finish: ZN

B700 SERIES

J-HOOK

• Includes:

1 pc. J-Bolt

1 pc. Hex Nut

• Maximum Flange Thickness 5/8” (15.9)

• Standard finish: ZN

15/8”

(41.3)

127/32”

(46.8)

1/2”-13 Rod

& Hex

Nut Sold

Separately

1/2”-13

Threads

B500 SERIES

SQUARE U-BOLT

• Includes:

1 pc. U-Bolt only

2 pcs. 3/8”-16 Hex Nuts

• Additional sizes available

• Standard finish: ZN, SS4

21/2”

(63.5)

121/32”

(42.1)

3/8”-16

Threads

Channel Wt./C

Part No. A Size Lbs. kg

B500-3-3/833/8”(85.7) 15/8” x 15/8”25(11.3)

B500-5 5” (127.0) 31/4” x 15/8”33 (14.9)

7 Ga

(4.6)

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

120

B441-22

BEAM CLAMP

• Design Load 1200 Lbs. (5.34 kN)

when used in pairs

• Safety Factor of 5

• 3/4” (19.0) Max. Flange Thickness

• For use with 13/16” (20.6) to 15/8” (41.3)

high channel

• Recommended Torque:

150 in-lbs. (16.9 N•m)

• Sold in pieces

• Other flange thickness variations

are available, contact B-Line

Engineering for sizes

• Standard finishes: ZN, HDG, SS4

• Wt./C 87 Lbs. (39.4 kg)

B441-22A

BEAM CLAMP

• Design Load 1200 Lbs. (5.34 kN)

when used in pairs

• Safety Factor of 5

• 3/4” (19.0) Max. Flange Thickness

• For use with 15/8” (41.3) to 31/4” (82.5)

high channel

• Recommended Torque:

150 in-lbs. (16.9 N•m)

• Sold in pieces

• Other flange thickness variations

are available, contact B-Line

Engineering for sizes

• Standard finishes: ZN, HDG, SS4

• Wt./C 93 Lbs. (42.2 kg)

B441Z-22

BEAM CLAMP

• Design Load 1200 Lbs. (5.34 kN)

when used in series

• Safety Factor of 5

• Sold in pieces

• For use with 13/16” (20.6) to 15/8” (41.3)

high channel

• Recommended Torque:

150 in-lbs. (16.9 N•m)

• Standard finishes: ZN

• Wt./C 95 Lbs. (43.1 kg)

23/8”

(60.3)

23/8”

(60.3)

1”

(25.4)

1”

(25.4)

3”

(76.2)

3”

(76.2)

33/8”

(85.7)

5”

(127.0)

1/4”

(6.3)

1/4”

(6.3)

1”

(25.4)

45/8”

(117.5)

23/4”

(69.9)

1/4”

(6.3)

3”

(76.2)

B441Z-22A

BEAM CLAMP

• Design Load 1200 Lbs. (5.34 kN)

when used in series

• Safety Factor of 5

• Sold in pieces

• For use with 15/8” (41.3) to 31/4” (82.5)

high channel

• Recommended Torque:

150 in-lbs. (16.9 N•m)

• Standard finishes: ZN

• Wt./C 101 Lbs. (45.8 kg)

1”

(25.4)

45/8”

(117.5)

43/8”

(111.1)

1/4”

(6.3)

3”

(76.2)

B314

BEAM CLAMP

• Design Load 900 Lbs. (4.00 kN)

when used in pairs

• Safety Factor of 5

• 5/8” (15.9) Max. Flange Thickness

• For use with channel 15/8” (41.3)

in height

• Setscrew included

• Sold in pieces.

• Standard finishes: ZN, GRN, HDG, SS4

• Wt./C 105 Lbs. (47.6 kg)

13/4”

(44.4)

13/4”

(44.4)

1/4”

(6.3)

37/16”

(87.3)

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

121

B212-1/4

I-BEAM CLAMP

• Design Load 600 Lbs. (2.67 kN)

when used in pairs

• Safety Factor of 5

• 7/8” (22.2) Max. Flange Thickness

• 3/8”-16 Setscrew included

• Sold in pieces

• Standard finish: ZN

• Wt./C 41 Lbs. (18.6 kg)

B212-3/8

I-BEAM CLAMP

• Design Load 1000 Lbs. (4.45 kN)

when used in pairs

• Safety Factor of 5

• 11/8” (28.6) Max. Flange Thickness

• 1/2”-13 Setscrew included

• Sold in pieces

• Standard finishes: ZN, HDG

• Wt./C 62 Lbs. (28.1 kg)

B355

BEAM CLAMP

• Design Load 1200 Lbs. (5.34 kN)

when used in pairs

• Safety Factor of 5

• 5/8” (15.9) Max. Flange Thickness

• Sold in pieces

• Order 1/2”-13 x 11/2” HHCS and

Channel Nut separately

• Standard finishes: ZN, GRN, HDG, SS4

• Wt./C 30 Lbs. (13.6 kg)

B211

ZEE BEAM CLAMP

• Design Load 600 Lbs. (2.67 kN)

when used in pairs

• Safety Factor of 5

• 1” (25.4) Max. Flange Thickness

• 1/2”-13 Setscrew included

• Sold in pieces

• Order 1/2”-13 HHCS and Channel

Nut separately

• Standard finishes: ZN, HDG

• Wt./C 66 Lbs. (29.9 kg)

11/4”

(31.7)

11/4”

(31.7)

127/32”

(46.8)

15/8”

(41.3)

5/8”

(15.9)

2”

(50.8)

2”

(50.8)

31/4”

(82.5)

3/8”

(9.5)

11/4” (31.7)

I.D. 3/8” THICK

(9.5)

1/4” Thick

(6.3)

7/8” (22.2)

I.D.

1/4”

(6.3)

11/2”

(38.1)

B213

I-BEAM CLAMP

• Design Load 900 Lbs. (4.00 kN)

when used in pairs

• Safety Factor of 5

• 7/8” (22.2) Max. Flange Thickness

• 1/2”-13 Setscrew included

• Sold in pieces

• Order 1/2”-13 x 21/4” HHCS and

Channel Nut separately

• Material: Malleable iron

• Standard finishes: ZN, GRN

• Wt./C 95 Lbs. (43.1 kg)

21/2”

(63.5)

11/2”

(38.1)

B435

BEAM CLAMP

• Design Load 900 Lbs. (4.00 kN)

when used in pairs

• Safety Factor of 5

• 21/8” (54.0) Max. Flange Thickness

• 1/2”-13 x 2” Setscrew included

• Sold in pieces

• Standard finish: ZN

• Wt./C 82 Lbs. (37.2 kg)

11/4”

(31.7)

3/8”

(9.5)

27/8”

(73.0)

2”

(50.8)

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

122

B602A THRU B602C

BEAM CLAMP WITH GUSSET ASSEMBLY

• Safety Factor of 5

• 7/8” (22.2) Max. Flange Thickness

• Includes:

1 pc. B451 Slotted Three Hole U Support with Gusset

2 pcs. B213 I-Beam Clamp

2 pcs. 1/2”-13 x 21/2” HHCS

2 pcs. 1/2”-13 Hex Nuts

• Material: Malleable iron

• Standard finishes: ZN, GRN

B318 THRU B320

BEAM CLAMP ASSEMBLY

• Safety Factor of 5

• 7/8” (22.2) Max. Flange Thickness

• Includes:

1 pc. B333 Slotted U-Support

2 pcs. B213 I-Beam Clamp

2 pcs. 1/2”-13 x 21/2” HHCS

2 pcs. 1/2”-13 Hex Nuts

• Material: Malleable iron

• Standard finishes: ZN, GRN

Design Load Wt./C

Part No. A For Flange Width B Lbs. kN Lbs. kg

B318 71/4”(184.1) 23/8”-41/2”(60.3-114.3) 1200 (5.34) 325 (147.4)

B319 81/2”(215.9) 33/4”-53/4”(95.2-146.0) 800 (3.56) 340 (154.2)

B320 103/8”(263.5) 55/8”-75/8”(142.9-193.7) 560 (2.49) 357 (161.9)

Design Load Wt./C

Part No. A For Flange Width B Lbs. kN Lbs. kg

B602A 71/4”(184.1) 23/8”-41/2”(60.3-114.3) 1200 (5.34) 365 (165.1)

B602B 81/2”(215.9) 33/4”-53/4”(95.2-146.0) 1200 (5.34) 383 (173.7)

B602C 103/8”(263.5) 55/8”-75/8”(142.9-193.7) 1200 (5.34) 408 (185.0)

15/8”

(41.3)

13/4”

(44.4)

1/4”

(6.3)

1/4”

(6.3)

B427

BEAM CLAMP

• Design Load 1100 Lbs. (4.89 kN)

when used in pairs

• Safety Factor of 5

• 21/2” (63.5) Max. Flange Thickness

without channel

• 1/2”-13 x 11/2” Setscrew included

• Sold in pieces

• Standard finish: ZN

• Wt./C 92 Lbs. (41.7 kg)

2 Holes

9/16” (14.3)

DIA.

11/2”

(38.1)

3/8”

(9.5)

27/8”

(73.0)

2”

(50.8)

10°

B405

SUSPENSION MEMBER

• Standard finishes: ZN, GRN

• Wt./C 75 Lbs. (34.0 kg)

B405A

SUSPENSION MEMBER

WITH BEAM CLAMP

• 7/8” (22.2) Max. Flange Thickness

• Includes:

1 pc. B405 Suspension Member

1 pc. B213 I-Beam Clamp

1 pc. 1/2”-13 x 21/2” HHCS

1 pc. 1/2”-13 Hex Nut

• Material: Malleable iron

• Standard finishes: ZN, GRN

• Wt./C 183 Lbs. (83.0 kg)

37/8”

(87.3) O.D.

37/16”

(87.3)

17/8”

(47.6)

O.D. 17/8”

(47.6)

111/16”

(42.9)

I.D.

111/16”

(42.9)

1/4”

(6.3)

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

123

B760-22 SERIES

BEAM CLAMP

• 1” (25.4) Max. Flange Thickness

• For use with 13/16” (20.6) to 15/8” (41.3)

high channel

• Recommended Torques:

U-Bolt Nuts 150 in-lbs. (16.9 N•m)

J-Hook Nut 60 in-lbs. (6.8 N•m)

• Includes:

1 pc. B760 Plate

1 pc. B701 Type J-Hook only

1 pc. B500-33/8” U-Bolt only

3 pcs. 3/8”-16 Hex Nuts

• Standard finish: ZN

B761-22 SERIES

BEAM CLAMP

• 1” (25.4) Max. Flange Thickness

• For use with 13/16” (20.6) to 15/8” (41.3)

high channel

• Recommended Torques:

U-Bolt Nuts 150 in-lbs. (16.9 N•m)

ATR Nuts 60 in-lbs. (6.8 N•m)

• Includes:

2 pcs. B700 Plates

2 pcs. B500-33/8” U-Bolts only

1 pc. 3/8”-16 ATR (Length)

6 pcs. 3/8”-16 Hex Nuts

• Standard finish: ZN

B761-22A SERIES

BEAM CLAMP

• 1” (25.4) Max. Flange Thickness

• For use with 15/8” (41.3) to 31/4” (82.5)

high channel

• Recommended Torques:

U-Bolt Nuts 150 in-lbs. (16.9 N•m)

ATR Nuts 60 in-lbs. (6.8 N•m)

• Includes:

2 pcs. B700 Plates

2 pcs. B500-5” U-Bolts only

1 pc. 3/8”-16 ATR (Length)

6 pcs. 3/8”-16 Hex Nuts

• Standard finish: ZN

B760-22A SERIES

BEAM CLAMP

• 1” (25.4) Max. Flange Thickness

• For use with 15/8” (41.3) to 31/4” (82.5)

high channel

• Recommended Torques:

U-Bolt Nuts 150 in-lbs. (16.9 N•m)

J-Hook Nut 60 in-lbs. (6.8 N•m)

• Includes:

1 pc. B760 Plate

1 pc. B701 Type J-Hook only

1 pc. B500-5” U-Bolt only

3 pcs. 3/8”-16 Hex Nuts

• Standard finish: ZN

Wt./C

Part No. For Flange Width Lbs. kg

B760-22-J4 4”-57/8”(101.6-149.2) 122 (55.3)

B760-22-J6 6”-87/8”(152.4-225.4) 129 (58.5)

B760-22-J9 9”-117/8”(228.6-301.6) 135 (61.2)

B760-22-J12 12”-147/8”(304.8-377.8) 141 (63.9)

Wt./C

Part No. For Flange Width Lbs. kg

B760-22A-J4 4”-57/8”(101.6-149.2) 129 (58.5)

B760-22A-J6 6”-87/8”(152.4-225.4) 136 (61.7)

B760-22A-J9 9”-117/8”(228.6-301.6) 142 (64.4)

B760-22A-J12 12”-147/8”(304.8-377.8) 148 (67.1)

33/8”

(85.7)

3”

(76.2)

3”

(76.2)

5”

(127.0)

3/8” (9.5) Dia.

J-Hook and

Hex Nut

3/8” (9.5) Dia.

J-Hook and

Hex Nut

1/4”

(6.3)

1/4”

(6.3)

ATR W

t./C

Part No. For Flange Width Length Lbs. kg

B761-22-4 4”-57/8”(101.6-149.2) 4” (101.6) 202 (91.6)

B761-22-6 6”-87/8”(152.4-225.4) 6” (152.4) 206 (93.4)

B761-22-9 9”-117/8”(228.6-301.6) 9” (228.6) 214 (97.0)

B761-22-12 12”-147/8”(304.8-377.8) 12” (304.8) 221 (100.2)

ATR

Wt./C

Part No. For Flange Width Length Lbs. kg

B761-22A-4

4”-57/8”(101.6-149.2) 4” (101.6) 216 (98.0)

B761-22A-6

6”-87/8”(152.4-225.4) 6” (152.4) 220 (99.8)

B761-22A-9

9”-117/8”(228.6-301.6) 9” (228.6) 228 (103.4)

B761-22A-12

12”-147/8”(304.8-377.8) 12” (304.8) 235 (106.6)

33/8”

(85.7)

3”

(76.2) 3/8”-16 (9.5) ATR

and Hex Nuts

3/8”-16 (9.5) ATR

and Hex Nuts

1/4”

(6.3)

1/4”

(6.3)

3”

(76.2)

5”

(127.0)

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

124

B613

COLUMN SUPPORT FOR B22

• Design Load 800 Lbs. (3.56 kN) Slip

with Safety Factor of 3

• Use with B22 and B24 Channel

• Setscrews to be torqued to 19 ft./Lbs

• Sold in pairs

• Standard finishes: ZN, GRN, HDG

• Wt./C 100 Lbs. (45.3 kg)

B613A

COLUMN SUPPORT FOR B52

• Design Load 800 Lbs. (3.56 kN) Slip

with Safety Factor of 3

• Use with B52 and B54 Channel

• Setscrews to be torqued to 19 ft./Lbs

• Sold in pairs

• Standard finishes: ZN, GRN, HDG

• Wt./C 100 Lbs. (45.3 kg)

15/8”

(41.3) 15/8”

(41.3)

31/2”

(88.9)

31/2”

(88.9)

3/8” x 2” Cone

Point

Setscrews

3/8” x 2” Cone

Point

Setscrews

B614

COLUMN SUPPORT FOR B22

• Quick installation (one bolt to tighten)

• Design Load 800 Lbs. (3.56 kN) Slip

with Safety Factor of 3

• Use with B22 and B24 Channel

• Sold in pairs

• Standard finish: ZN

• Wt./C 50 Lbs. (22.6 kg)

B422 SERIES

RIGHT ANGLE CLAMP

• Safety Factor of 5

• Material: 7 Gauge (4.5)

• Standard finishes: ZN, SS4

Design Load

Conduit Vertical Pull Wt./C

Part No. Size A Lbs. kg Lbs. kg

B422-1/21/2”(15) 23/8”(60.3) 250 (1.11) 38 (17.2)

B422-3/43/4”(20) 23/8”(60.3) 300 (1.33) 39 (17.7)

B422-1 1” (25) 27/8”(73.0) 400 (1.78) 48 (21.8)

B422-11/411/4”(32) 27/8”(73.0) 400 (1.78) 50 (22.7)

B422-11/211/2”(40) 31/4”(82.5) 500 (2.22) 59 (26.7)

B422-2 2(50) 311/16”(93.7) 600 (2.67) 75 (34.0)

B422-21/221/2”(65) 41/4”(107.9) 700 (3.11) 98 (44.4)

B422-3 3” (80) 47/8”(123.8) 800 (3.56) 111 (50.3)

B422-31/231/2”(90) 57/16”(138.1) 900 (4.00) 123 (55.8)

B422-4 4” (100) 6” (152.4) 1000 (4.45) 135 (61.2)

Design Load

Vertical Pull

U-Bolt and Hex Nuts

B107S

U-SUPPORT

• Material: 7 Gauge (4.5)

• Standard finishes: ZN, GRN

• Wt./C 51 Lbs. (23.1 kg)

B593

CLEVIS SWIVEL

• Includes:

1 pc. 3/8”-16 x 2” HHCS

1 pc. 3/8”-16 Hex Nut

• Material: 11 Gauge (3.0)

• Standard finishes: ZN, GRN

• Wt./C 31 Lbs. (14.0 kg)

• Illustration shows B107S and

B593 used together

• Design Load 900 Lbs.,

strength of assembly only

• Verify anchorage

7/16” (11.1) Dia.

4 Holes

9/16” (14.3) Dia.

13/4” O.D.

(44.4)

33/4”

(95.2)

13/8”

(34.9)

1”

(25.4)

17/16”

(36.5)

21/2”

(63.5)

11/4”

(31.7)

Beam Clamps

Reference page 112 for general fitting and standard finish specifications.

Beam Clamps

125

Cooper B-Line’s beam attachments and pipe

supports offered in this section are designed to

provide supports without drilling or welding. A

complete selection of beam clamps, pipe clamps,

rollers, supports and accessories are designed for

use with Cooper B-Line channels and offer many

installation advantages.

Materials & Finishes*

Pipe clamps, pipe hangers, beam clamps, brack-

ets, and rollers are made from low carbon steel

strips, plates or rod unless noted.

*Unless otherwise noted.

Load Data

The load data published includes a safety factor

of 5.0 unless noted (safety factor = ratio of

ultimate load to the design load).

Recommended Torque For Setscrews

(unless noted)

*See chart on page 72 for bolt torque.

Metric

Metric dimensions are shown in parentheses. Unless noted, all metric dimensions are in millimeters.

Setscrew Size

1/4”-20 3/8”-16 1/2”-13

Foot/Lbs. 4 5 11

Nm 5715

Setscrew Size

5/8”-11 3/4”-10

Foot/Lbs. 21 34

Nm 28 46

Pipe/Conduit Clamps &

Hangers

Pipe/Conduit Clamps & Hangers

126

Finish

Code Finish Specification

PLN Plain ASTM A1011

33,000 PSI min. yield

ZN Electro-Plated Zinc ASTM B633 SC3 Type III

or ASTM A653

GRN Dura-Green

DCU Dura-Copper

HDG Hot-Dipped Galvanized ASTM A123

YZN Yellow Zinc Chromate ASTM B633 SC3 Type II

SS4 Stainless Steel Type 304 ASTM A240

SS6 Stainless Steel Type 316 ASTM A240

AL Aluminum ASTM B209

B2207 THRU B2213

MULTI-GRIP PIPE CLAMPS FOR THINWALL

(EMT), I.M.C., RIGID CONDUIT OR PIPE

• Safety Factor of 5

• Add PA to suffix for pre-assembled pipe clamps

• Includes Combination Recess Hex Head Machine Screw and Square Nut

• Material: ASTM A1011 33,000 PSI min. yield

• Standard finish: ZN

Nominal Material O.D. Size Alternate For Design Load 1 Design Load 2 Design Load 3 Wt./C

Part No. Size Thickness Range Clamp No.’s Lbs. kN Lbs. kg Lbs. kg Lbs. kg

B2207 3/8”(10) 16 Ga. (1.5) .557-.706 (14.2-17.9) B2000, B2001, 400 (1.78) 50 (.22) 50 (.22) 9 (4.1)

B2026

B2208 1/2”(15) 16 Ga. (1.5) .701-.875 (17.8-22.2) B2001, B2008, 400 (1.78) 50 (.22) 50 (.22) 11 (5.0)

B2027, B2028

B2209 3/4”(20) 14 Ga. (1.9) .917-1.081 (23.2-27.4) B2002, B2009, 400 (1.78) 50 (.22) 50 (.22) 12 (5.4)

B2210 1” (25) 14 Ga. (1.9) 1.125-1.375 (28.6-34.9) B2003, B2010, 400 (1.78) 50 (.22) 50 (.22) 13 (5.9)

B2030, B2031,

B2211 11/4”(32) 14 Ga. (1.9) 1.500-1.691 (38.1-42.9) B2004, B2011, 400 (1.78) 50 (.22) 50 (.22) 15 (6.8)

B2033, B2034

B2212 11/2”(40) 12 Ga. (2.6) 1.735-1.931 (44.0-49.0) B2005, B2012, 600 (2.67) 75 (.33) 75 (.33) 23 (10.4)

B2035

B2213 2” (50) 12 Ga. (2.6) 2.192-2.400 (55.7-60.9) B2006, B2013 600 (2.67) 75 (.33) 75 (.33) 26 (11.8)

B2039

Design Load 1

Design Load 2

Design Load 3

BPC-8 THRU BPC-64

BREAK-APART CONDUIT CLAMP

• Design Load 200 Lbs. (.896 kN)

• Includes Combination Recess Hex Head Machine Screw

• Material: ASTM A1011 33,000 PSI min. yield

• Standard finish: ZN

Part No. Rigid or EMT Wt./C

Conduit Size Lbs. kg

BPC-8 1/2”(21.3) 11.2 (5.1)

BPC-12 3/4”(26.7) 12.7 (5.8)

BPC-16 1” (33.4) 14.5 (6.6)

BPC-20 11/4”(42.2) 16.5 (7.5)

BPC-24 11/2”(48.3) 18.5 (8.4)

BPC-32 2” (60.3) 21.5 (9.8)

BPC-40 21/2”(73.0) 21.5 (9.8)

BPC-48 3” (88.9) 22.0 (10.0)

BPC-56 31/2”(101.6) 23.0 (10.4)

BPC-64 4” (114.3) 27.5 (12.5)

Design Load

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

127

B2000 SERIES

PIPE AND CONDUIT CLAMPS

• Safety Factor of 5

• Add PA to suffix for pre-assembled pipe clamps

• Includes Combination Recess Hex Head Machine Screw and Square Nut

• Material: 16 Ga. (1.5), 14 Ga. (1.9), 12 Ga. (2.6) ASTM A1011 33,000 PSI

min. yield and 11 Ga. (3.0) ASTM A1011HSLA Gr. 50

• Standard finishes: ZN, HDG, SS4, SS6, AL

Note: For EMT sizes 21/2” and larger use rigid conduit sizes.

Conduit Material Design Load 1 Design Load 2 Design Load 3 Wt./C

Part No. Size Thickness Lbs. kN Lbs. kg Lbs. kg Lbs. kg

B2000 3/8”(10) 16 Ga. (1.5) 400 (1.78) 50 (.22) 50 (.22) 10 (4.5)

B2001 1/2”(15) 16 Ga. (1.5) 400 (1.78) 50 (.22) 50 (.22) 10 (4.5)

B2002 3/4”(20) 16 Ga. (1.9) 400 (1.78) 50 (.22) 50 (.22) 11 (5.0)

B2003 1” (25) 14 Ga. (1.9) 600 (2.67) 75 (.33) 75 (.33) 16 (7.2)

B2004 11/4”(32) 14 Ga. (1.9) 600 (2.67) 75 (.33) 75 (.33) 19 (8.6)

B2005 11/2”(40) 12 Ga. (2.6) 800 (3.56) 125 (.56) 125 (.56) 28 (12.7)

B2006 2” (50) 12 Ga. (2.6) 800 (3.56) 125 (.56) 125 (.56) 33 (14.9)

Conduit Material Design Load 1 Design Load 2 Design Load 3 Wt./C

Part No. Size Thickness Lbs. kN Lbs. kg Lbs. kg Lbs. kg

B2001 3/8”(10) 16 Ga. (1.5) 400 (1.78) 50 (.22) 50 (.22) 10 (4.5)

B2008 1/2”(15) 16 Ga. (1.5) 400 (1.78) 50 (.22) 50 (.22) 11 (5.0)

B2009 3/4”(20) 14 Ga. (1.9) 600 (2.67) 75 (.33) 75 (.33) 15 (6.8)

B2010 1” (25) 14 Ga. (1.9) 600 (2.67) 75 (.33) 75 (.33) 16 (7.2)

B2011 11/4”(32) 14 Ga. (1.9) 600 (2.67) 75 (.33) 75 (.33) 20 (9.1)

B2012 11/2”(40) 12 Ga. (2.6) 800 (3.56) 125 (.56) 125 (.56) 30 (13.6)

B2013 2” (50) 12 Ga. (2.6) 800 (3.56) 125 (.56) 125 (.56) 34 (15.4)

B2014 21/2”(65) 12 Ga. (2.6) 800 (3.56) 125 (.56) 125 (.56) 38 (17.2)

B2015 3” (80) 12 Ga. (2.6) 800 (3.56) 125 (.56) 125 (.56) 44 (19.9)

B2016 31/2”(90) 11 Ga. (3.0) 1000 (4.45) 200 (.89) 150 (.67) 61 (27.6)

B2017 4” (100) 11 Ga. (3.0) 1000 (4.45) 200 (.89) 150 (.67) 66 (29.9)

B2018 41/2”(115) 11 Ga. (3.0) 1000 (4.45) 200 (.89) 150 (.67) 70 (31.7)

B2019 5” (125) 11 Ga. (3.0) 1000 (4.45) 200 (.89) 150 (.67) 77 (34.9)

B2020 6” (150) 11 Ga. (3.0) 1000 (4.45) 200 (.89) 150 (.67) 100 (45.3)

B2021 7” (175) 11 Ga. (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 115 (52.1)

B2022 8” (200) 11 Ga. (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 128 (58.0)

B2130 10 (254) 11 Ga. (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 160 (72.6)

B2132 12” (305) 11 Ga. (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 185 (83.9)

THINWALL CONDUIT (EMT) CLAMPS

RIGID CONDUIT OR PIPE CLAMPS

Design Load 1

Design Load 3

Design Load 2

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

128

B2000 SERIES

PVC CLAMPS

• Safety Factor of 5

• Add PA to suffix for pre-assembled pipe clamps

• Includes Combination Recess Hex Head Machine Screw and Square Nut

• Material: 16 Ga. (1.5), 14 Ga. (1.9), 12 Ga. (2.6) ASTM A1011 33,000 PSI

min. yield and 11 Ga. (3.0) ASTM A1011HSLA Gr. 50

• Standard finishes: PVC

CLAMP SIZING CHART FOR PVC COATED

RIGID CONDUIT AND CLAMPS

Conduit Coating

Nominal .020 (.51mm) .040 (1.01mm)

Conduit Clamp Coating Clamp Coating

Size 0

.020 (.51mm)

1/2”(15) B2008 B2002 B2002 B2009

3/4”(20) B2030 B2030 B2030 B2003

1” (25) B2032 B2010 B2010 B2004

11/4”(32) B2005 B2005 B2005 B2005

11/2”(40) B2012 B2037 B2037 B2037

2” (50) B2013 B2041 B2041 B2041

21/2”(65) B2014 B2045 B2045 B2045

3” (80) B2015 B2050 B2050 B2050

31/2”(90) B2016 B2054 B2054 B2054

4” (100) B2017 B2058 B2058 B2058

5” (125) B2019 B2066 B2066 B2066

6” (150) B2020 B2115 B2115 B2115

Conduit Coating

Nominal .020 (.51mm) .040 (1.01mm)

Conduit Clamp Coating Clamp Coating

Size 0

.020 (.51mm)

3/8”(10) B2026 B2026 B2026 B2001

1/2”(15) B2027 B2027 B2027 B2008

3/4”(20) B2009 B2009 B2009 B2009

1” (25) B2003 B2031 B2031 B2031

11/4”(32) B2004 B2011 B2011 B2011

11/2”(40) B2005 B2005 B2005 B2012

2” (50) B2039 B2039 B2039 B2013

CLAMP SIZING CHART FOR PVC COATED

THINWALL (EMT) CONDUIT AND CLAMPS

Design Load 1

Design Load 3

Design Load 2

*See B2000 O.D. pipe and conduit clamp chart on pgs.

130-131 for corresponding clamp load data.

*See B2000 O.D. pipe and conduit clamp chart on pgs.

130-131 for corresponding clamp load data.

Part Tubing O.D. Size Material Design Load 1 Design Load 2 Design Load 3 Wt./C

No. Size In. (mm) Thickness Lbs. kN Lbs. kg Lbs. kg Lbs. kg

B2024DCU 1/4” .375 (9.5) 16 Ga. (1.5) 400 (1.78) 50 (.22) 50 (.22) 8(3.6)

B2025DCU 3/8” .500 (12.7) 16 Ga. (1.5) 400 (1.78) 50 (.22) 50 (.22) 9(4.1)

B2026DCU 1/2” .625 (15.9) 16 Ga. (1.5) 400 (1.78) 50 (.22) 50 (.22) 10 (4.5)

B2027DCU 5/8” .750 (19.0) 16 Ga. (1.5) 400 (1.78) 50 (.22) 50 (.22) 10 (4.5)

B2008DCU 3/4” .875 (22.2) 16 Ga. (1.5) 400 (1.78) 50 (.22) 50 (.22) 11 (5.0)

B2030DCU 1” 1.125 (28.6) 14 Ga. (1.9) 600 (2.67) 75 (.33) 75 (.33) 15 (6.8)

B2010DCU 11/4” 1.375 (34.9) 14 Ga. (1.9) 600 (2.67) 75 (.33) 75 (.33) 17 (7.7)

B2011DCU 11/2” 1.625 (41.3) 14 Ga. (1.9) 600 (2.67) 75 (.33) 75 (.33) 19 (8.6)

B2038DCU 2 2.125 (54.0) 12 Ga. (2.6) 800 (3.56) 125 (.56) 125 (.56) 32 (14.5)

B2042DCU 21/2” 2.625 (66.7) 12 Ga. (2.6) 800 (3.56) 125 (.56) 125 (.56) 35 (15.9)

B2046DCU 3 3.125 (79.4) 12 Ga. (2.6) 800 (3.56) 125 (.56) 125 (.56) 39 (17.7)

B2050DCU 31/2” 3.625 (92.1) 11 Ga. (3.0) 1000 (4.45) 200 (.89) 150 (.67) 54 (24.5)

B2054DCU 4 4.125 (104.8) 11 Ga. (3.0) 1000 (4.45) 200 (.89) 150 (.67) 61 (27.6)

B2062DCU 5 5.125 (130.2) 11 Ga. (3.0) 1000 (4.45) 200 (.89) 150 (.67) 70 (31.7)

B2110DCU 6 6.125 (155.6) 11 Ga. (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 94 (42.6)

B2126DCU 8 8.125 (206.4) 11 Ga. (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 123 (55.8)

COPPER TUBING CLAMPS

B2000 SERIES

COPPER TUBING CLAMPS

• Safety Factor of 5

• Add PA to suffix for pre-assembled pipe clamps

• Includes Combination Recess Hex Head Machine Screw and Square Nut

• Material: 16 Ga. (1.5), 14 Ga. (1.9), 12 Ga. (2.6) ASTM A1011 33,000 PSI

min. yield and 11 Ga. (3.0) ASTM A1011HSLA Gr. 50

• Standard finish: Exclusive Dura-Copper™Finish (DCU)

Design Load 1

Design Load 3

Design Load 2

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

129

B2000 SERIES

O.D. PIPE AND CONDUIT CLAMPS

• Safety Factor of 5

• Add PA to suffix for pre-assembled pipe clamps

• Other sizes available upon request

• Includes Combination Recess Hex Head Machine Screw

and Square Nut.

• Material: 16 Ga. (1.5), 14 Ga. (1.9), 12 Ga. (2.6)

ASTM A1011 33,000 PSI min. yield and 11 Ga. (3.0)

ASTM A1011HSLA Gr. 50

• Standard finishes: ZN, HDG, SS4

Part O.D. Hardware Material Design Load 1 Design Load 2 Design Load 3 Wt./C

No. Size (in.) Size

Gauge Thickness

Lbs. kN Lbs. kN Lbs. kN Lbs. kg

B2023 1/4”(6.3) 1/4”-20 16 (1.5) 120 (.54) 30 (.13) 30 (.13) 8(3.6)

B2024 3/8”(9.5) 1/4”-20 16 (1.5) 300 (1.33) 40 (.18) 40 (.18) 8(3.6)

B2025 1/2”(12.7) 1/4”-20 16 (1.5) 400 (1.78) 50 (.22) 50 (.22) 9(4.1)

B2026 5/8”(15.9) 1/4”-20 16 (1.5) 400 (1.78) 50 (.22) 50 (.22) 10 (4.5)

B2027 3/4”(19.0) 1/4”-20 16 (1.5) 400 (1.78) 50 (.22) 50 (.22) 10 (4.5)

B2008 7/8”(22.2) 1/4”-20 16 (1.5) 400 (1.78) 50 (.22) 50 (.22) 11 (5.0)

B2009 1” (25.4) 1/4”-20 14 (1.9) 500 (2.22) 75 (.33) 75 (.33) 15 (6.8)

B2030 11/8”(28.6) 1/4”-20 14 (1.9) 600 (2.67) 75 (.33) 75 (.33) 15 (6.8)

B2031 11/4”(31.7) 1/4”-20 14 (1.9) 600 (2.67) 75 (.33) 75 (.33) 16 (7.3)

B2010 13/8”(34.9) 1/4”-20 14 (1.9) 600 (2.67) 75 (.33) 75 (.33) 17 (7.7)

B2004 11/2”(38.1) 1/4”-20 14 (1.9) 600 (2.67) 75 (.33) 75 (.33) 18 (8.2)

B2011 15/8”(41.3) 1/4”-20 14 (1.9) 600 (2.67) 75 (.33) 75 (.33) 19 (8.6)

B2005 13/4”(44.4) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 29 (13.1)

B2012 17/8”(47.6) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 30 (13.6)

B2037 2(50.8) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 30 (13.6)

B2038 21/8”(54.0) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 32 (14.5)

B2039 21/4”(57.1) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 32 (14.5)

B2013 23/8”(60.3) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 34 (15.4)

B2041 21/2”(63.5) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 35 (15.9)

B2042 25/8”(66.7) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 35 (15.9)

B2043 23/4”(69.8) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 38 (17.2)

B2014 27/8”(73.0) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 38 (17.2)

B2045 3(76.2) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 38 (17.2)

B2046 31/8”(79.4) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 39 (17.7)

B2047 31/4”(82.5) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 41 (18.6)

B2048 33/8”(85.7) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 43 (19.5)

B2015 31/2”(88.9) 5/16”-18 12 (2.6) 800 (3.56) 125 (.56) 125 (.56) 44 (20.0)

B2050 35/8”(92.1) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 54 (24.5)

B2051 33/4”(95.2) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 57 (25.8)

B2052 37/8”(41.3) 5/16”-18 11 (3.0) 1000 (4.45 200 (.89) 150 (.67) 55 (25.0)

B2016 4(101.6) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 57 (25.8)

B2054 41/8”(104.8) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 61 (27.7)

B2055 41/4”(107.9) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 62 (28.1)

B2056 43/8”(111.1) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 64 (29.0)

B2017 41/2”(114.3) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 66 (29.9)

B2058 45/8”(117.5) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 66 (29.9)

O.D. CLAMPS

Design Load 1

Design Load 3

Design Load 2

O.D.

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

130

Part O.D. Hardware Material Design Load 1 Design Load 2 Design Load 3 Wt./C

No. Size (in.) Size

Gauge Thickness

Lbs. kN Lbs. kN Lbs. kN Lbs. kg

B2059 43/4”(120.6) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 68 (30.8)

B2060 47/8”(123.8) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 69 (31.3)

B2018 5(127.0) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 70 (31.8)

B2062 51/8”(130.2) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 70 (31.8)

B2063 51/4”(133.3) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 70 (31.8)

B2064 53/8”(136.5) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 77 (34.9)

B2019 51/2”(139.7) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 78 (35.4)

B2066 55/8”(142.9) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 83 (37.6)

B2067 53/4”(146.0) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 84 (38.1)

B2068 57/8”(149.2) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 85 (38.6)

B2069 6” (152.4) 5/16”-18 11 (3.0) 1000 (4.45) 200 (.89) 150 (.67) 87 (39.5)

B2110 61/8”(155.6) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 94 (42.6)

B2111 61/4”(158.7) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 96 (43.5)

B2112 63/8”(161.9) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 98 (44.4)

B2113 61/2”(165.1) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 99 (44.9)

B2020 65/8”(168.3) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 100 (45.4)

B2115 63/4”(171.4) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 102 (46.3)

B2116 67/8”(174.6) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 104 (47.2)

B2117 7” (177.8) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 106 (48.1)

B2118 71/8”(181.0) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 108 (49.0)

B2119 71/4”(184.1) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 110 (49.9)

B2120 73/8”(187.3) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 112 (50.8)

B2121 71/2”(190.5) 3/8”-16 11(3.0) 1000 (4.45) 250 (1.11) 200 (.89) 114 (51.7)

B2021 75/8”(193.7) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 115 (52.2)

B2123 73/4”(196.8) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 117 (53.1)

B2124 77/8”(200.0) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 119 (54.0)

B2125 8” (203.2) 3/8”-16 11(3.0) 1000 (4.45) 250 (1.11) 200 (.89) 121 (54.9)

B2126 81/8”(206.4) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 123 (55.8)

B2127 81/4”(209.5) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 125 (56.7)

B2128 83/8”(212.7) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 126 (57.2)

B2129 81/2”(215.9) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 128 (58.1)

B2022 85/8”(219.1) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 128 (58.1)

B2130 103/4”(273.0) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 160 (72.6)

B2132 123/4”(323.8) 3/8”-16 11 (3.0) 1000 (4.45) 250 (1.11) 200 (.89) 185 (83.9)

O.D. CLAMPS

B2000 SERIES

O.D. PIPE AND CONDUIT CLAMPS

• Safety Factor of 5

• Add PA to suffix for pre-assembled pipe clamps

• Other sizes available upon request

• Includes Combination Recess Hex Head Machine Screw and Square Nut.

• Material: 16 Ga. (1.5), 14 Ga. (1.9), 12 Ga. (2.6) ASTM A1011 33,000 PSI

min. yield and 11 Ga. (3.0) ASTM A1011HSLA Gr. 50

•Standard finishes: ZN, HDG, SS4

Design Load 1

Design Load 3

Design Load 2

O.D.

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

131

B1508 THRU B1564S

CONDUIT/STRUT CLAMPS

• Safety Factor of 3

• Clamps without saddles are not recommended

for flexible conduit or cable

• All Sizes Include:

1/4”-20 Slotted Hex Head Machine Screw

• Standard finish: ZN

B1508S THRU B1524S

B1508 THRU B1520

B1532S THRU B1564S

Use With Design Load Wt./C

Part No. EMT Rigid Conduit Thickness Lbs. kN Lbs. kg

B1508 1/2”(15) – – 16 Ga. (1.5) 200 (.89) 7.4 (3.4)

B1512 3/4”(20) 1/2”(15) 16 Ga. (1.5) 200 (.89) 8.0 (3.6)

B1516 1” (25) 3/4”(20) 14 Ga. (1.9) 300 (1.33) 11.0 (5.0)

B1520 11/4”(32) 1” (25) 14 Ga. (1.9) 300 (1.33) 12.5 (5.7)

B1508S 1/2”(15) – – 16 Ga. (1.5) 200 (.89) 8.6 (3.9)

B1512S 3/4”(20) 1/2”(15) 16 Ga. (1.5) 200 (.89) 9.2 (4.2)

B1516S 1” (25) 3/4”(20) 14 Ga. (1.9) 300 (1.33) 12.7 (5.8)

B1520S 11/4”(32) 1” (25) 14 Ga. (1.9) 300 (1.33) 14.6 (6.6)

B1524S 11/2”(40) 11/4”(32) 12 Ga. (2.6) 400 (1.78) 20.5 (9.3)

B1532S 2” (50) 11/2”(40) 12 Ga. (2.6) 400 (1.78) 21.5 (9.8)

B1534S ––2” (50) 12 Ga. (2.6) 400 (1.78) 22.7 (10.3)

B1540S 21/2”(65) 21/2”(65) 12 Ga. (2.6) 400 (1.78) 26.0 (11.9)

B1548S 3” (80) 3” (80) 12 Ga. (2.6) 400 (1.78) 30.2 (13.7)

B1556S 31/2”(90) 31/2”(90) 12 Ga. (2.6) 400 (1.78) 33.3 (15.1)

B1564S 4” (100) 4” (100) 12 Ga. (2.6) 400 (1.78) 36.6 (16.6)

Design Load

Setscrew

Thickness

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

132

B2601 THRU B2610

TWIST EAR®PIPE CLAMP

• One piece break apart, screw retainer, thread impressions

• Tighter alignment, no need to leave additional space between

clamps in order to access nut and bolt

• Easier access bolt can be tightened directly from front

• Available in 1/2”, 3/4”, 1” rigid and EMT Conduit

• Recommended Torque 30 in. - lbs.

• Safety Factor of 3

• Standard finish: ZN

No loose pieces. One piece

break apart with screw

retainer and thread impressions.

Break-apart - break in the

middle, bolt the ends together.

Allows for multiple clamps to be used in succession,

with easier access than other pipe clamps.

B-Line

B2609-3/4

3/4" STD

B-Line

B2609-3/4

3/4" STD

B-Line

B2609-3/4

3/4" STD

B-Line

B2609-3/4

3/4" STD

Use With Design Load Wt./C

Part No. EMT Rigid Conduit Thickness Lbs. kN Lbs. kg

B2601 1/2”(17.9) – – 16 Ga. 300 (1.34) 8.2 (3.7)

B2602 3/4”(23.4) – – 14 Ga. 500 (2.24) 13.5 (6.1)

B2603 1” (29.5) – – 14 Ga. 500 (2.24) 15.6 (7.1)

B2608 ––

1/2”(21.3) 16 Ga. 300 (1.34) 8.2 (3.7)

B2609 ––

3/4”(26.7) 14 Ga. 500 (2.24) 13.5 (6.1)

B2610 ––1”(33.4) 14 Ga. 500 (2.24) 15.6 (7.1)

O.D. Size Height H Width W Design Load Wt/C.

Part No. In. mm In. mm In. mm Lbs. kN Lbs. kg

BP081SS .250-.840 (6.4-21.3) 1.86 (47.2) 0.87 (22.1) 300 (1.33) 9.0 (4.1)

BP110SS .810-1.100 (20.6-28.0) 2.18 (55.4) 1.19 (30.2) 300 (1.33) 12.0 (5.4)

BP135SS .850-1.350 (21.6-34.8) 2.25 (57.2) 1.38 (35.1) 300 (1.33) 14.0 (6.3)

BP175SS 1.250-1.750 (31.8-44.4) 2.78 (70.6) 1.78 (45.2) 300 (1.33) 21.0 (9.5)

BP205SS 1.550-2.050 (39.4-52.1) 3.00 (76.2) 2.28 (57.9) 300 (1.33) 30.0 (13.6)

BP250SS 2.00-2.50 (50.8-63.5) 3.43 (87.1) 2.83 (71.9) 300 (1.33) 35.0 (15.9)

BP300SS 2.55-3.00 (64.7-76.2) 3.87 (97.8) 3.15 (80.0) 300 (1.33) 39.0 (17.7)

BP325SS 2.75-3.25 (69.9-82.8) 4.06 (103.1) 3.28 (83.3) 300 (1.33) 41.0 (18.6)

BP375SS 3.25-3.75 (82.6-95.3) 4.60 (116.8) 3.83 (97.3) 300 (1.33) 47.0 (21.3)

BP425SS 3.75-4.25 (95.3-108.0) 5.13 (130.3) 4.50 (114.3) 300 (1.33) 54.0 (24.4)

BP475SS 4.25-4.75 (108.0-120.7) 5.70 (5.70) 4.85 (123.2) 300 (1.33) 58.0 (26.3)

BP081SS THRU BP475SS

P CLAMPS

• Minimizes induction heating

• Material: Stainless Steel Type 304 Setscrew

O.D. Size

Design Load

14 Gauge

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

133

Catalog T

ubing Copper Dimensions Wt./C

Number O.D. Size Tubing Size A B C Lbs. kg

BVT025 1/4”(6.3) 1/8”(3) 1.22 (30.9) 0.19 (4.8) 0.49 (12.4) 11 (5.0)

BVT037 3/8”(9.5) 1/4”(6) 1.36 (34.5) 0.25 (6.3) 0.61 (15.5) 12 (5.4)

BVT050 1/2”(12.7) 3/8”(10) 1.49 (37.8) 0.31 (7.8) 0.74 (18.8) 14 (6.3)

BVT062 5/8”(15.9) 1/2”(15) 1.62 (41.1) 0.38 (9.6) 0.86 (21.8) 15 (6.8)

BVT075 3/4”(19.0) 5/8”(17) 1.87 (47.4) 0.50 (12.7) 1.15 (29.2) 19 (8.6)

BVT087 7/8”(22.2) 3/4”(20) 2.00 (50.8) 0.56 (14.2) 1.27 (32.2) 21 (9.5)

BVT100 1” (25.4) – – 2.25 (57.1) 0.69 (17.5) 1.52 (38.6) 22 (10.0)

BVT112 11/8”(28.6) 1” (25) 2.25 (57.1) 0.69 (17.5) 1.52 (38.6) 26 (11.8)

BVT125 11/4”(31.7) – – 2.51 (63.7) 0.81 (20.6) 1.78 (45.2) 36 (16.3)

BVT137 13/8”(34.9) 11/4”(32) 2.51 (63.7) 0.81 (20.6) 1.78 (45.2) 38 (17.2)

BVT150 11/2”(38.1) – – 2.74 (69.6) 0.88 (22.4) 1.96 (49.8) 35 (15.9)

BVT162 15/8”(41.3) 11/2”(40) 3.00 (76.2) 1.00 (25.4) 2.20 (55.9) 40 (18.1)

BVT175 13/4”(44.4) – – 3.13 (79.5) 1.06 (26.9) 2.33 (59.1) 44 (19.9)

BVT187 17/8”(47.6) – – 3.28 (83.3) 1.13 (28.7) 2.46 (62.5) 40 (18.1)

BVT200 2” (50.8) – – 3.52 (89.4) 1.25 (31.7) 2.70 (68.6) 55 (25.0)

BVT212 21/8”(54.0) 2” (50) 3.52 (89.4) 1.25 (31.7) 2.70 (68.6) 55 (25.0)

BVT225 21/4”(57.1) – – 3.64 (92.4) 1.31 (33.2) 2.83 (71.8) 54 (24.5)

BVT250 21/2”(63.5) – – 3.91 (99.3) 1.43 (36.3) 3.11(79.0) 56 (25.4)

BVT262 25/8”(66.6) 21/2”(65) 4.02 (102.1) 1.50 (38.1) 3.20 (81.3) 55 (25.0)

BVT300 3” (76.2) – – 4.42 (112.2) 1.68 (42.6) 3.61 (91.6) 67 (30.4)

BVT312 31/8”(79.4) 3” (80) 4.53 (115.0) 1.75 (44.4) 3.70 (93.9) 64 (29.0)

BVT362 35/8”(92.1) 31/2”(90) 5.05 (128.2) 2.00 (50.8) 4.23 (107.4) 76 (34.5)

BVT412 41/8”(104.8) 4” (100) 5.55 (140.9) 2.25 (57.1) 4.73 (120.1) 93 (42.2)

BVT612 61/8”(155.5) 6” (150) 7.62 (193.5) 3.25 (82.5) 6.74 (171.1) 136 (61.6)

Catalog Design Load Design Load Design Load

Number 123

Lbs. kN Lbs. kN Lbs. kN

BVT025 400 (1.78) 50 (0.22) 50 (0.22)

BVT037 400 (1.78) 50 (0.22) 50 (0.22)

BVT050 400 (1.78) 50 (0.22) 50 (0.22)

BVT062 400 (1.78) 50 (0.22) 50 (0.22)

BVT075 600 (2.67) 75 (0.33) 75 (0.33)

BVT087 600 (2.67) 75 (0.33) 75 (0.33)

BVT100 600 (2.67) 75 (0.33) 75 (0.33)

BVT112 600 (2.67) 75 (0.33) 75 (0.33)

BVT125 600 (2.67) 75 (0.33) 75 (0.33)

BVT137 600 (2.67) 75 (0.33) 75 (0.33)

BVT150 600 (2.67) 75 (0.33) 75 (0.33)

BVT162 800 (3.56) 125 (0.56) 125 (0.56)

BVT175 800 (3.56) 125 (0.56) 125 (0.56)

BVT187 800 (3.56) 125 (0.56) 125 (0.56)

BVT200 800 (3.56) 125 (0.56) 125 (0.56)

BVT212 800 (3.56) 125 (0.56) 125 (0.56)

BVT225 800 (3.56) 125 (0.56) 125 (0.56)

BVT250 800 (3.56) 125 (0.56) 125 (0.56)

BVT262 800 (3.56) 125 (0.56) 125 (0.56)

BVT300 800 (3.56) 125 (0.56) 125 (0.56)

BVT312 800 (3.56) 125 (0.56) 125 (0.56)

BVT362 1000 (4.45) 200 (0.89) 150 (0.67)

BVT412 1000 (4.45) 200 (0.89) 150 (0.67)

BVT612 1000 (4.45) 200 (0.89) 150 (0.67)

BVT SERIES VIBRACLAMPS-COPPER & O.D.

• Safety Factor of 3

• Accesses tubing sizes 1/8” (3) to 6” (150)

• Allows easy one tool installation

• Endures both high (+300°F) and low (-40°F) temperatures

• Dampens vibration and noise

• Eliminates galvanic metal to metal contact

• Resists most industrial oils and solvents

• Reduces thermal loss and gain

• Secures tubing firmly to channel (strut)

• Dielectric strength of 400 volts/mil

• Includes cushion, clamp, screw and nut

• Standard finishes: YZN, SS4

Design Load 1

Design

Load 2

Design

Load 3

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and

standard finish specifications.

VibraClamp™Pipe Clamps

134

Catalog Nominal Steel Dimensions Wt./C

Number Pipe Size O.D. Size A B C Lbs. kg

BVP025 1/4”(6.3) 0.540 (13.7) 1.61 (39.9) 0.37 (9.4) 0.87 (22.1) 15 (6.8)

BVP037 3/8”(9.5) 0.675 (17.1) 1.86 (47.2) 0.50 (12.7) 1.15 (29.2) 18 (8.2)

BVP050 1/2”(12.7) 0.875 (22.2) 1.99 (50.5) 0.56 (14.2) 1.27 (32.3) 20 (9.1)

BVP075 3/4”(19.0) 1.050 (26.7) 2.25 (57.1) 0.69 (17.5) 1.52 (38.6) 21 (9.5)

BVP100 1” (25.4) 1.312 (33.3) 2.51 (63.8) 0.81 (20.6) 1.77 (45.0) 20 (9.1)

BVP125 11/4”(31.7) 1.660 (42.2) 3.00 (76.2) 1.00 (25.4) 2.21 (56.1) 36 (16.3)

BVP150 11/2”(38.1) 1.900 (48.3) 3.21 (83.1) 1.12 (28.4) 2.41 (62.3) 40 (18.1)

BVP200 2” (50.8) 2.375 (60.3) 3.77 (95.8) 1.37 (34.8) 2.96 (75.2) 45 (20.4)

BVP250 21/2”(63.5) 2.875 (73.0) 4.28 (108.7) 1.62 (41.1) 3.46 (87.9) 54 (24.5)

BVP300 3” (76.2) 3.500 (88.9) 5.05 (128.3) 2.00 (50.8) 4.24 (107.7) 81 (36.7)

BVP350 31/2”(88.9) 4.000 (101.6) 5.55 (140.9) 2.25 (57.1) 4.74 (120.3) 87 (39.4)

BVP400 4” (101.6) 4.500 (114.3) 6.05 (153.7) 2.50 (63.5) 5.24 (133.1) 109 (49.4)

BVP500 5” (127.0) 5.563 (141.3) 6.84 (173.7) 3.00 (76.2) 6.24 (158.4) 136 (61.6)

BVP600 6” (152.4) 6.625 (168.3) 8.24 (209.3) 3.56 (90.4) 7.36 (186.9) 163 (73.8)

BVP SERIES

VIBRACLAMPS-IRON PIPE & RIGID CONDUIT

• Safety Factor of 3

• Accesses pipe sizes 1/4” (6) to 6” (150)

• Allows easy one tool installation

• Endures both high (+300°F) and low (-40°F) temperatures

• Dampens vibration and noise

• Eliminates galvanic metal to metal contact

• Resists most industrial oils and solvents

• Reduces thermal loss and gain

• Secures pipe firmly to channel (strut)

• Dielectric strength of 400 volts/mil

• Includes cushion, clamp, screw and nut

• Standard finishes: YZN, SS4

Catalog Design Load Design Load Design Load

Number 1 2 3

Lbs. kN Lbs. kN Lbs. kN

BVP025 400 (1.78) 50 (0.22) 50 (0.22)

BVP037 600 (2.67) 75 (0.33) 75 (0.33)

BVP050 600 (2.67) 75 (0.33) 75 (0.33)

BVP075 600 (2.67) 75 (0.33) 75 (0.33)

BVP100 600 (2.67) 75 (0.33) 75 (0.33)

BVP125 800 (3.56) 125 (0.56) 125 (0.56)

BVP150 800 (3.56) 125 (0.56) 125 (0.56)

BVP200 800 (3.56) 125 (0.56) 125 (0.56)

BVP250 800 (3.56) 125 (0.56) 125 (0.56)

BVP300 1000 (4.45) 200 (0.89) 150 (0.67)

BVP350 1000 (4.45) 200 (0.89) 150 (0.67)

BVP400 1000 (4.45) 200 (0.89) 150 (0.67)

BVP500 1000 (4.45) 200 (0.89) 150 (0.67)

BVP600 1000 (4.45) 200 (0.89) 150 (0.67)

Design Load 1

Design

Load 2

Design

Load 3

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

VibraClamp™Pipe Clamps

135

IPH SERIES

INSERTS - INSERTS WITH CLAMPS

• Engineered load-bearing inserts prevents insulation compression

• Innovative insulated pipe support

• Desirable “Foam-to-Foam” Bond

• Slip Data: 45 lbs. (0.20 kN) max

• Recommended Clamp Torque: 12-15 in-lbs. (1.3-1.7 Nm)

• Service Temperature Range

-58°F (-50°C) to +220°F (+105°C)

Assembly Insert Only Pipe/Copper/OD Hanger

Part No. Part No. Size Size*

IPH03812 IPH03812WO 3/8” O.D. 11/4”

IPH01212 IPH01212WO 1/2” O.D. 11/4”

IPH05812 IPH05812WO 5/8” O.D. 11/2”

IPH03412 IPH03412WO 3/4” O.D. 11/2”

IPH07812 IPH07812WO 7/8” O.D. 2”

IPH11812 IPH11812WO 3/4” IPS & 11/8” O.D. 2”

IPH13812 IPH13812WO 13/8” O.D. 21/2”

IPH15812 IPH15812WO 15/8” O.D. 21/2”

IPH11012 IPH11012WO 11/2” IPS & 17/8” O.D. 3”

IPH21812 IPH21812WO 21/8” O.D. 3”

IPH25812 IPH25812WO 25/8” O.D. 31/2”

IPH31812 IPH31812WO 31/8” O.D. 4”

IPH35812 IPH35812WO 35/8” O.D. 5”

IPH41812 IPH41812WO 41/8” O.D. 6”

IPH40012 IPH40012WO 4” IPS 6”

IPH50012 IPH50012WO 5” IPS 8”

IPH60012 IPH60012WO 6” IPS 8”

1/2” Wall Insulation Thickness

Insert Only Assembly

Insert & Clamp

IPH18230

ARMAFLEX®INSUALTION TAPE

• 30 ft. (9.14 M) roll

* Recommended pipe hanger size for insulation thickness

shown. (Order hanger separately)

Assembly Insert Only Pipe/Copper/OD Hanger

Part No. Part No. Size Size*

IPH03834 IPH03834WO 3/8” O.D. 2”

IPH01234 IPH01234WO 1/2” O.D. 2”

IPH05834 IPH05834WO 5/8” O.D. 2”

IPH03434 IPH03434WO 3/4” O.D. 2”

IPH07834 IPH07834WO 7/8” O.D. 21/2”

IPH11834 IPH11834WO 3/4” IPS & 11/8” O.D. 21/2”

IPH13834 IPH13834WO 13/8” O.D. 3”

IPH15834 IPH15834WO 15/8” O.D. 31/2”

IPH11034 IPH11034WO 11/2” IPS & 17/8” O.D. 31/2”

IPH21834 IPH21834WO 21/8” O.D. 4”

IPH25834 IPH25834WO 25/8” O.D. 5”

IPH31834 IPH31834WO 31/8” O.D. 5”

IPH35834 IPH35834WO 35/8” O.D. 6”

IPH41834 IPH41834WO 41/8” O.D. 6”

IPH40034 IPH40034WO 4” IPS 6”

IPH50034 IPH50034WO 5” IPS 8”

IPH60034 IPH60034WO 6” IPS 10”

IPH80034 IPH80034WO 8” IPS 12”

3/4” Wall Insulation Thickness

* Recommended pipe hanger size for insulation thickness

shown. (Order hanger separately)

Assembly Insert Only Pipe/Copper/OD Hanger

Part No. Part No. Size Size*

IPH05810 IPH05810WO 5/8” O.D. 21/2”

IPH03410 IPH03410WO 3/4” O.D. 21/2”

IPH07810 IPH07810WO 7/8” O.D. 3”

IPH11810 IPH11810WO 3/4” IPS & 11/8” O.D. 3”

IPH13810 IPH13810WO 13/8” O.D. 31/2”

IPH15810 IPH15810WO 15/8” O.D. 31/2”

IPH11010 IPH11010WO 11/2” IPS & 17/8” O.D. 4”

IPH21810 IPH21810WO 21/8” O.D. 4”

IPH25810 IPH25810WO 25/8” O.D. 5”

IPH31810 IPH31810WO 31/8” O.D. 5”

IPH35810 IPH35810WO 35/8” O.D. 6”

IPH41810 IPH41810WO 41/8” O.D. 6”

IPH40010 IPH40010WO 4” IPS 8”

IPH50010 IPH50010WO 5” IPS 8”

IPH60010 IPH60010WO 6” IPS 10”

IPH80010 IPH80010WO 8” IPS 12”

1” Wall Insulation Thickness

* Recommended pipe hanger size for insulation thickness

shown. (Order hanger separately)

Armaflex®is a registared trademark of Armacell.

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Armafix™ Clamps & Accessories

136

B1999

VIBRA CUSHION™

• Packaged 20 Ft. (6.09 m) per carton

• Ideal Isolation Material

• Inhibits Galvanic Corrosion

• Dampens Sound and Vibrations

• Service Temperature Range

-75°F (-60°C) to +375°F (+199°C)

• Wt./Carton 3.8 Lbs. (1.7 kg)

ISO PIPE

• Non-adhesive rubber tape

• Fuses to itself

• Water resistant

• Ideal Isolation Material

• Prevents galvanic reaction caused by

dissimilar metal contact

• Temperature Range

-140°F (-60°C) to +395°F (+200°C)

Nominal Length of Use

Size Vibra-Cushion Clamp No.

3/8”(10) 21/8”(54.0) B2002

1/2”(15) 25/8”(66.7) B2009

3/4”(20) 31/4”(82.5) B2031

1” (25) 41/8”(104.8) B2004

11/4”(32) 53/16”(131.8) B2012

11/2”(40) 515/16”(150.8) B2038

2” (50) 71/2”(190.5) B2042

21/2”(65) 9” (228.6) B2046

3” (80) 11” (279.4) B2051

31/2”(90) 121/2”(317.5) B2055

4” (100) 141/2”(368.3) B2059

5” (125) 177/16”(442.9) B2067

6” (150) 203/4”(527.0) B2116

FOR RIGID CONDUIT

OR IRON PIPE

Nominal Length of Use

Size Vibra-Cushion Clamp No.

3/8”(10) 113/16”(46.0) B2027

1/2”(15) 213/16”(58.7) B2002

3/4”(20) 27/8”(73.0) B2003

1” (25) 35/8”(92.1) B2032

11/4”(32) 43/8”(120.6) B2036

11/2”(40) 57/16”(138.1) B2012

2” (50) 67/8”(174.6) B2013

Nominal Length of Use

Size Vibra-Cushion Clamp No.

1/4”(6) 13/16”(30.2) B2026

3/8”(10) 19/16”(39.7) B2027

1/2”(15) 17/8”(47.6) B2008

5/8”(17) 25/16”(58.7) B2029

3/4”(20) 23/4”(69.8) B2030

1” (25) 31/2”(88.9) B2032

11/4”(32) 45/16”(109.5) B2011

11/2”(40) 51/8”(130.2) B2036

2” (50) 611/16”(169.9) B2013

21/2”(65) 81/4”(209.5) B2014

3” (80) 913/16”(249.2) B2048

31/2”(90) 113/8”(288.9) B2052

4” (100) 1215/16”(328.6) B2056

5” (125) 161/8”(409.6) B2064

6” (150) 191/4”(488.9) B2112

8” (200) 251/2”(647.7) B2128

FOR THINWALL (EMT)

CONDUIT

FOR COPPER TUBING

TYPE L & K

FEATURES

Vibra Cushion™is designed for use

with refrigeration lines, HVAC,

copper tubing, glass pipe and

hydraulic lines. It provides an

energy-absorption barrier between

the lines and the mounting material

and remains flexible thru its entire

service range of -75°F (-60°C) to

+375°F (+199°C).

This elastomer allows for expansion

and contraction within the mounting

system and prevents galvanic

reaction between dissimilar metals.

Part No. Thickness Ft./Roll

In. mm Ft. m

ISO .020 (0.5) 36 (11)

15/8”

(41.3)

1”

(25.4)

BVS Type -

Vibra Strip™ for 15/8"(41.3) wide

B-Line channel

• Fits securely in 15/8” wide channel

• Temperature range: -20°F to 212°F

• Ideal Isolation & Vibration Dampening

Qualities

• 45 durometer hardness

• Material: Neoprene

Max. Load

Lbs. per Wt.

Lineal In. Std. Each

Part No. Lbs.

kg/25.4 mm

Length Pkg.

Lbs. kg

BVS-12 40 (18.1) 12” (304.8) 25 .46 (.21)

BVS-120 40 (18.1) 120” (3048.0) 25 4.60 (2.08)

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Vibra Cushion™Accessories

137

B2400 SERIES

STANDARD PIPE STRAP

• Safety Factor of 5

• B2400-3/4thru B2400-8 are UL listed

• Order hardware separately

• Other sizes available upon request

• Material: Sizes - 1/2” - 11/2”, ASTM A1011 33,000 PSI min. yield;

2” - 12”, ASTM A1018 33,000 PSI min. yield;

14”-Larger, ASTM A36

• Standard finish: ZN

• Ductile Iron Sizes Available

• Meets requirements of MSS SP-58 & SP-69 Type 26

Part No. Pipe Size A B C T W

B2400-1/21/2”(15) 5/16”(7.9) 7/16”(11.1) 213/16”(71.4) 10 Ga. (3.4) 15/8”(41.3)

B2400-3/43/4”(20) 5/16”(7.9) 7/16”(11.1) 3” (76.2) 10 Ga. (3.4) 15/8”(41.3)

B2400-1 1” (25) 5/16”(7.9) 7/16”(11.1) 317/32”(89.7) 10 Ga. (3.4) 15/8”(41.3)

B2400-11/411/4”(32) 5/16”(7.9) 7/16”(11.1) 33/4”(95.2) 10 Ga. (3.4) 15/8”(41.3)

B2400-11/211/2”(40) 5/16”(7.9) 7/16”(11.1) 41/16”(103.2) 10 Ga. (3.4) 15/8”(41.3)

B2400-2 2” (50) 7/16”(11.1) 11/16”(17.4) 521/32”(143.6) 1/4”(6.3) 15/8”(41.3)

B2400-21/221/2”(65) 7/16”(11.1) 11/16”(17.4) 65/32”(156.3) 1/4”(6.3) 15/8”(41.3)

B2400-3 3” (80) 7/16”(11.1) 11/16”(17.4) 625/32”(172.2) 1/4”(6.3) 15/8”(41.3)

B2400-31/231/2”(90) 7/16”(11.1) 11/16”(17.4) 79/32”(184.9) 1/4”(6.3) 15/8”(41.3)

B2400-4 4” (100) 9/16”(14.3) 11/16”(17.4) 725/32”(197.6) 1/4”(6.3) 15/8”(41.3)

B2400-5 5” (125) 9/16”(14.3) 11/16”(17.4) 87/8”(225.4) 1/4”(6.3) 15/8”(41.3)

B2400-6 6” (150) 9/16”(14.3) 11/16”(17.4) 915/16”(252.4) 1/4”(6.3) 15/8”(41.3)

B2400-8 8” (200) 9/16”(14.3) 11/16”(17.4) 1131/32”(304.0) 1/4”(6.3) 15/8”(41.3)

B2400-10 10” (250) 9/16”(14.3) 11/16”(17.4) 14” (355.6) 1/4”(6.3) 15/8”(41.3)

B2400-12 12” (300) 9/16”(14.3) 11/16”(17.4) 16” (406.4) 1/4”(6.3) 15/8”(41.3)

B2400-14 14” (350) 15/16”(23.8) 11/2”(38.1) 203/4”(527.0) 3/8”(9.5) 13/4”(44.4)

B2400-16 16” (400) 15/16”(23.8) 11/2”(38.1) 223/4”(577.8) 3/8”(9.5) 13/4”(44.4)

B2400-18 18” (460) 15/16”(23.8) 13/4”(44.4) 27” (685.8) 1/2”(12.7) 13/4”(44.4)

B2400-20 20” (510) 15/16”(23.8) 13/4”(44.4) 29” (736.6) 1/2”(12.7) 13/4”(44.4)

B2400-24 24” (610) 15/16”(23.8) 13/4”(44.4) 33” (838.2) 1/2”(12.7) 13/4”(44.4)

Design Load

Pipe Size

Hole Size

Part No. Design Load Design Load Design Load Wt./C

123

Lbs. kN Lbs. kN Lbs. kN Lbs. kg

B2400-1/2600 (2.67) 150 (.67) 105 (.47) 23 (10.4)

B2400-3/4600 (2.67) 150 (.67) 105 (.47) 26 (11.8)

B2400-1 600 (2.67) 150 (.67) 120 (.53) 31 (14.0)

B2400-11/4600 (2.67) 150 (.67) 120 (.53) 36 (16.3)

B2400-11/2600 (2.67) 150 (.67) 120 (.53) 39 (17.7)

B2400-2 1200 (5.34) 480 (2.14) 180 (.80) 93 (42.2)

B2400-21/21200 (5.34) 480 (2.14) 180 (.80) 106 (48.1)

B2400-3 1200 (5.34) 480 (2.14) 300 (1.33) 132 (59.9)

B2400-31/21200 (5.34) 480 (2.14) 300 (1.33) 151 (68.5)

B2400-4 1500 (6.67) 600 (2.67) 450 (2.00) 160 (72.6)

B2400-5 1500 (6.67) 600 (2.67) 450 (2.00) 192 (87.1)

B2400-6 1500 (6.67) 600 (2.67) 450 (2.00) 219 (99.3)

B2400-8 2000 (8.90) 800 (3.56) 600 (2.67) 297 (134.7)

B2400-10 2000 (8.90) 800 (3.56) 600 (2.67) 465 (210.9)

B2400-12 2000 (8.90) 800 (3.56) 600 (2.67) 560 (254.0)

B2400-14 2000 (8.90) 800 (3.56) 600 (2.67) 761 (345.2)

B2400-16 2000 (8.90) 800 (3.56) 600 (2.67) 861 (390.5)

B2400-18 2000 (8.90) 800 (3.56) 600 (2.67) 1297 (588.3)

B2400-20 2000 (8.90) 800 (3.56) 600 (2.67) 1426 (646.8)

B2400-24 2000 (8.90) 800 (3.56) 600 (2.67) 1682 (762.9)

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

138

B437 SERIES TWO PIECE PIPE STRAP

• Clamp halves can turn allowing pipe to

be fastened to channel at any direction

• Order hardware separately

• Standard finish: ZN

B2417 STRUT MOUNTED PIPE GUIDE

• Copper tubing sizes available - B2417CT Series

• Standard finish: ZN

Hole Size

Wt./C

Part No. Pipe Size A T Lbs. kg

B437-1/21/2”(15) 5/16”(7.9) 10 Ga. (3.4) 22 (10.0)

B437-3/43/4”(20) 5/16”(7.9) 10 Ga. (3.4) 26 (11.8)

B437-1 1” (25) 5/16”(7.9) 10 Ga. (3.4) 30 (13.6)

B437-11/411/4”(32) 5/16”(7.9) 10 Ga. (3.4) 35 (15.9)

B437-11/211/2”(40) 5/16”(7.9) 10 Ga. (3.4) 38 (17.2)

B437-2 2” (50) 7/16”(11.1) 1/4”(6.3) 91 (41.3)

B437-21/221/2”(65) 7/16”(11.1) 1/4”(6.3) 104 (47.2)

B437-3 3” (80) 7/16”(11.1) 1/4”(6.3) 130 (58.9)

B437-31/231/2”(90) 7/16”(11.1) 1/4”(6.3) 149 (67.6)

B437-4 4” (100) 9/16”(11.1) 1/4”(6.3) 158 (71.6)

B437-5 5” (125) 9/16”(11.1) 1/4”(6.3) 190 (86.2)

B437-6 6” (150) 9/16”(11.1) 1/4”(6.3) 217 (98.4)

B437-8 8” (200) 9/16”(11.1) 1/4”(6.3) 295 (133.8)

Clearance

Minimum Includes Wt./C

Part No. Pipe Size Radial Clearance Clamp No. Lbs. kg

B2417-1/21/2"(15) 1/16"(1.6) B2009 22 (10.0)

B2417-3/43/4"(20) 1/16"(1.6) B2010 25 (11.3)

B2417-1 1" (25) 3/32"(2.3) B2034 30 (13.6)

B2417-11/411/4"(32) 3/32"(2.3) B2037 47 (21.8)

B2417-11/211/2"(40) 3/32"(2.3) B2039 51 (23.1)

B2417-2 2" (50) 1/8"(3.2) B2043 62 (28.1)

B2417-21/221/2"(65) 1/8"(3.2) B2047 69 (31.3)

B2417-3 3" (80) 5/32"(3.9) B2016 108 (49.0)

B2417-31/231/2"(90) 5/32"(3.9) B2017 118 (53.5)

B2417-4 4" (100) 5/32"(3.9) B2018 128 (58.0)

14 Gauge

(1.9)

Material Design Load Wt./C

Part No. Pipe Size A Thickness Lbs. kN Lbs. kg

B2070 3/8”(10) 111/16”(42.9) 16 Ga. (1.5) 300 (1.33) 24 (10.9)

B2071 1/2”(15) 13/4”(44.4) 16 Ga. (1.5) 300 (1.33) 26 (11.8)

B2072 3/4”(20) 17/8”(47.6) 14 Ga. (1.9) 300 (1.33) 30 (13.6)

B2073 1” (25) 2” (50.8) 14 Ga. (1.9) 400 (1.78) 33 (14.9)

B2074 11/4”(32) 23/16”(55.6) 14 Ga. (1.9) 400 (1.78) 36 (16.3)

B2075 11/2”(40) 25/16”(58.7) 12 Ga. (2.6) 500 (2.22) 50 (22.7)

B2076 2” (50) 29/16”(65.1) 12 Ga. (2.6) 500 (2.22) 55 (24.9)

B2077 21/2”(65) 27/8”(73.0) 12 Ga. (2.6) 500 (2.22) 60 (27.2)

B2078 3” (80) 33/16”(80.9) 12 Ga. (2.6) 500 (2.22) 66 (29.9)

B2079 31/2”(90) 37/16”(87.3) 11 Ga. (3.0) 500 (2.22) 85 (38.5)

B2080 4” (100) 35/8”(92.1) 11 Ga. (3.0) 500 (2.22) 95 (43.1)

B2070 THRU B2080

PARALLEL PIPE CLAMP

• Safety Factor of 2

• Designed to support pipe or rigid conduit

• Includes:

1 pr. Pipe Clamps

1 pc. Stand Off Plate

1 pc. Slotted Hex Head

Machine Screws

1 pc. Square Nut

• Standard finish: ZN

Adimension, from bottom

of channel to center of pipe.

Design Load

Pipe

Size

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

139

Part Pipe or Conduit Wt./C

Number Size Lbs. kg

B670-3/83/8”(10) 32 (14.5)

B670-1/21/2”(15) 58 (26.3)

B670-3/43/4”(20) 64 (29.0)

B670-1 1” (25) 70 (31.7)

B670-11/411/4”(32) 77 (34.9)

B670-11/211/2”(40) 93 (42.2)

B670-2 2” (50) 105 (47.6)

B670-21/221/2”(65) 143 (64.8)

B670-3 3” (80) 164 (74.4)

B670-31/231/2”(90) 190 (86.2)

B670-4 4” (100) 205 (93.0)

Part Pipe or Conduit Wt./C

Number Size Lbs. kg

B671-1/21/2”(15) 67 (30.4)

B671-3/43/4”(20) 71 (32.2)

B671-1 1” (25) 85 (38.5)

B671-11/411/4”(32) 91 (41.3)

B671-11/211/2”(40) 115 (52.1)

B671-2 2” (50) 135 (61.2)

B671-21/221/2”(65) 183 (83.0)

B671-3 3” (80) 230 (104.3)

B671 SERIES

EDGE PIPE CLAMP

• Designed to support pipe or rigid

conduit perpendicular to the edge of

a beam or angle iron

• Hardware included

• Material: Malleable Iron

• Standard finish: HDG

B670 SERIES

PARALLEL PIPE CLAMP

• Designed to support pipe or rigid

conduit parallel to the edge of a

beam or angle iron

• Hardware included

• Material: Malleable Iron

• Standard finish: HDG

B422 SERIES RIGHT ANGLE CLAMP

• Safety Factor of 5

• Material: 7 Gauge (4.5)

• Standard finishes: ZN, SS4

Design Load

Conduit Vertical Pull Wt./C

Part No. Size ALbs. kg Lbs. kg

B422-1/21/2”(15) 23/8”(60.3) 250 (1.11) 38 (17.2)

B422-3/43/4”(20) 23/8”(60.3) 300 (1.33) 39 (17.7)

B422-1 1” (25) 27/8”(73.0) 400 (1.78) 48 (21.8)

B422-11/411/4”(32) 27/8”(73.0) 400 (1.78) 50 (22.7)

B422-11/211/2”(40) 31/4”(82.5) 500 (2.22) 59 (26.7)

B422-2 2(50) 311/16”(93.7) 600 (2.67) 75 (34.0)

B422-21/221/2”(65) 41/4”(107.9) 700 (3.11) 98 (44.4)

B422-3 3” (80) 47/8”(123.8) 800 (3.56) 111 (50.3)

B422-31/231/2”(90) 57/16”(138.1) 900 (4.00) 123 (55.8)

B422-4 4” (100) 6” (152.4) 1000 (4.45) 135 (61.2)

Design Load

Vertical Pull

U-Bolt and

Hex Nuts

B3367S

RETAINING STRAP

• Available in ‘L’ lengths of 6” (152.4), 8” (203.2), 9” (228.6),

10” (254,0), 12” (304.8), 14” (355.6), 16” (406.4), 18” (457.2)

• Material: Steel

• Standard finishes: ZN, PLN

Hole Dia. For Use Wt./C**

Part No. D With Lbs. kg

B3367S-1-L 7/16”(30.1) B422-1/2& 3/433.4 (5.8)

B3367S-2-L 9/16”(30.1) B422-1, 11/4& 11/212.8 (15.1)

** Wt./C based on 6” (152.4) length. For each additional inch

in strap length add the following to the Wt./C.

For B3367S-1 add 5.7 Lbs (2.6 kg)

For B3367S-2 add 2.2 Lbs (1.0 kg)

Note: Use B3367-3/8retaining strap (page 102) for B422-2 thru 4

B3367S-1

B3367S-2

21/4”

(57.1)

12 Gauge

(2.6)

13 Gauge

(2.3)

3/4”

(19.0)

3/8” Dia.

(19.0)

3/8” x 1/2”

(9.5) (12.7)

Slots

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

140

B2084 THRU B2091

ONE HOLE O.D. TUBING CLAMP

• Material: 14 Gauge (1.9) ASTM A1011 33,000 PSI min. yield

• Standard finish: ZN

B2301 SERIES

ONE HOLE EMT STRAP

• Standard finish: ZN

B2302 SERIES

ONE HOLE RIGID CONDUIT/PIPE STRAP

• Standard finish: ZN

Part Conduit Hole Wt./C

No. Size T W Dia. Lbs. kg

B2301-1/21/2”(15) .050 (1.3) 3/4”(19.0) 9/32”(7.1) 2.4 (1.1)

B2301-3/43/4”(20) .050 (1.3) 7/8”(22.2) 9/32”(7.1) 4.2 (1.9)

B2301-1 1” (25) .050 (1.3) 1” (25.4) 9/32”(7.1) 8.3 (3.7)

B2301-11/411/4”(32) .065 (1.6) 11/4”(31.7) 9/32”(7.1) 11.0 (5.0)

B2301-11/211/2”(40) .090 (2.3) 1” (25.4) 11/32”(8.7) 14.8 (6.7)

B2301-2 2” (50) .090 (2.3) 11/4”(31.7) 13/32”(10.3) 21.6 (9.8)

Part

Conduit/Pipe

Hole Wt./C

No. Size T W Dia. Lbs. kg

B2302-1/41/4”(6) .045 (1.1) 5/8”(15.9) 13/64”(5.1) 1.4 (.6)

B2302-3/83/8”(10) .050 (1.3) 3/4”(19.0) 9/32”(7.1) 2.4 (1.1)

B2302-1/21/2”(15) .050 (1.3) 7/8”(22.2) 9/32”(7.1) 3.3 (1.5)

B2302-3/43/4”(20) .050 (1.3) 7/8”(22.2) 9/32”(7.1) 3.8 (1.7)

B2302-1 1” (25) .065 (1.6) 1” (25.4) 9/32”(7.1) 7.2 (3.2)

B2302-11/411/4”(32) .065 (1.6) 11/4”(31.7) 21/64”(8.3) 11.0 (5.0)

B2302-11/211/2”(40) 11 Ga. (3.0) 1” (25.4) .380 (9.6) 19.2 (8.7)

B2302-2 2” (50) 11 Ga. (3.0) 11/4”(31.7) .389 (9.9) 28.8 (13.0)

B2302-21/221/2”(65) 7 Ga. (4.5) 11/4”(31.7) .665 (16.9) 55.2 (25.0)

B2302-3 3” (80) 7 Ga. (4.5) 11/4”(31.7) .650 (16.5) 68.0 (30.8)

B2302-31/231/2”(90) 1/4” (6.3) 11/4”(31.7) .622 (15.8) 96.0 (43.5)

B2302-4 4” (100) 1/4” (6.3) 11/4”(31.7) .630 (16.0) 108.0 (49.0)

Wt./C

Part No. O.D. Size A Lbs. kg

B2084 1/4”(6.3) 7/8”(22.2) 4.0 (1.8)

B2085 5/16”(7.9) 29/32”(23.0) 4.2 (1.9)

B2086 3/8”(9.5) 31/32”(24.6) 5.2 (2.3)

B2087 1/2”(12.7) 11/16”(25.9) 5.8 (2.6)

B2088 5/8”(15.9) 13/32”(27.8) 7.1 (3.2)

B2089 3/4”(19.0) 15/32”(29.1) 7.7 (3.5)

B2090 7/8”(22.2) 17/32”(30.7) 8.7 (3.9)

B2091 1” (25.4) 19/32”(32.2) 10.0 (4.5)

Hole Dia.

O.D.

Size

15/8”

(41.3)

3/8”

(9.5)

9/32” (7.1)

Dia.

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

141

B3373 SERIES

RISER CLAMP

• Safety Factor of 3.5

• B3373-3/4thru B3373-8 are UL listed

• Includes Hex Head Cap Screws and Hex Nuts

• Standard finishes: ZN, PLN

BL1400 SERIES

CONDUIT HANGER

• Safety Factor of 3

• Unless noted all sizes fit both rigid (R) and thinwall (EMT) conduit

• Hardware included

• Standard finishes: ZN, SS4

Conduit Design Load Wt./C

Part No Size A B T W Lbs. kN Lbs. kg

BL1400 1/2”(15) 29/32”(23.0) 9/32”(7.1) 16 Ga. (1.5) 3/4”(19.0) 590 (2.62) 6(2.7)

BL1410 3/4”(20) 31/32”(24.6) 9/32”(7.1) 16 Ga. (1.5) 3/4”(19.0) 590 (2.62) 7(3.2)

BL1420 1” (25) 11/4”(31.7) 9/32”(7.1) 16 Ga. (1.5) 3/4”(19.0) 590 (2.62) 8(3.6)

BL1425 11/4” EMT (32) 11/4”(31.7) 9/32”(7.1) 18 Ga. (1.2) 7/8”(22.2) 590 (2.62) 10 (4.5)

BL1430 11/4” R,11/2” EMT (32) 113/32”(35.7) 9/32”(8.7) 18 Ga. (1.2) 7/8”(22.2) 590 (2.62) 10 (4.5)

BL1440 11/2” R (40) 15/8”(41.3) 11/32”(8.7) 16 Ga. (1.5) 1” (25.4) 755 (3.36) 17 (7.7)

BL1450 2” (50) 21/16”(47.6) 11/32”(8.7) 16 Ga. (1.5) 11/4”(31.7) 755 (3.36) 25 (11.3)

BL1460 21/2”(65) 21/16”(52.4) 11/32”(8.7) 16 Ga. (1.5) 11/4”(31.7) 755 (3.36) 26 (11.8)

BL1470 3” (80) 21/2”(63.5) 11/32”(8.7) 16 Ga. (1.5) 11/4”(31.7) 820 (3.65) 33 (14.9)

BL1480 31/2”(90) 23/4”(69.8) 11/32”(8.7) 16 Ga. (1.5) 11/4”(31.7) 850 (3.78) 36 (16.3)

BL1490 4” (100) 31/2”(88.9) 11/32”(8.7) 16 Ga. (1.5) 11/4”(31.7) 1410 (6.27) 40 (18.1)

Pipe Design Load Wt./C

Part No. Size A Lbs. kN Lbs. kg

B3373-1/21/2”(15) 9” (228.6) 255 (1.13) 101 (45.9)

B3373-3/43/4”(20) 91/4”(234.9) 255 (1.13) 105 (47.7)

B3373-1 1” (25) 99/16”(242.9) 255 (1.13) 109 (49.4)

B3373-11/411/4”(32) 10” (254.0) 255 (1.13) 112 (50.9)

B3373-11/211/2”(32) 101/4”(260.3) 255 (1.13) 113 (51.1)

B3373-2 2” (40) 103/4”(273.0) 255 (1.13) 165 (75.0)

B3373-21/221/2”(50) 111/4”(285.7) 390 (1.73) 180 (81.6)

B3373-3 3” (65) 1115/16”(303.2) 530 (2.36) 195 (88.4)

B3373-31/231/2”(80) 123/8”(314.3) 670 (2.98) 217 (98.5)

B3373-4 4” (90) 127/8”(327.0) 810 (3.60) 228 (103.5)

B3373-5 5” (100) 14” (355.6) 1160 (5.16) 480 (217.7)

B3373-6 6” (100) 153/16”(385.8) 1570 (6.98) 526 (238.6)

B3373-8 8” (100) 173/4”(450.8) 2500 (11.12) 957 (434.1)

Conduit Size

Design Load

Hole Size B

Pipe Size

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Clamps

142

B3690 SERIES

ADJUSTABLE J HANGER

• Safety Factor of 5

• Material:

12 Ga. (2.6) ASTM A1011 33,000 PSI min. yield

11 Ga. (3.0) ASTM A1011 HSLA Gr. 50 Class 1

7 Ga. (4.5) ASTM A1011 33,000 PSI min. yield and

1/4” (6.3) ASTM A1018 33,000 PSI min. yield

• Standard finish: ZN

Pipe or

Part No. Conduit Size A B C D E F

B3690-1/21/2”(15) 13/32”(10.3) 23/32”(53.2) 1” (25.4) 111/16”(42.5) 13/32”(10.3) 1/4”-20 x 21/4”

B3690-3/43/4”(20) 13/32”(10.3) 211/32”(59.5) 1” (25.4) 113/16”(46.2) 13/32”(10.3) 1/4”-20 x 21/2”

B3690-1 1” (25) 13/32”(10.3) 219/32”(65.9) 1” (25.4) 115/16”(49.2) 13/32”(10.3) 1/4”-20 x 23/4”

B3690-11/411/4”(32) 13/32”(10.3) 213/16”(71.4) 1” (25.4) 2” (50.4) 13/32”(10.3) 1/4”-20 x 3”

B3690-11/211/2”(40) 13/32”(10.3) 31/16”(77.8) 1” (25.4) 21/8”(53.7) 13/32”(10.3) 1/4”-20 x 31/4”

B3690-2 2” (50) 13/32”(10.3) 31/2”(88.9) 1” (25.4) 25/16”(58.7) 13/32”(10.3) 1/4”-20 x 31/2”

B3690-21/221/2”(65) 9/16”(14.3) 47/16”(112.7) 1” (25.4) 3” (76.2) 9/16”(14.3) 3/8”-16 x 41/2”

B3690-3 3” (80) 9/16”(14.3) 47/8”(123.8) 1” (25.4) 31/8”(79.4) 9/16”(14.3) 3/8”-16 x 5”

B3690-31/231/2”(90) 9/16”(14.3) 53/16”(131.8) 1” (25.4) 33/16”(81.0) 9/16”(14.3) 3/8”-16 x 51/2”

B3690-4 4” (100) 11/16”(17.5) 61/8”(155.6) 11/4”(31.8) 37/8”(98.4) 9/16”(14.3) 3/8”-16 x 61/2”

B3690-5 5” (125) 11/16”(17.5) 63/4”(171.4) 11/2”(38.1) 4” (100.8) 9/16”(14.3) 3/8”-16 x 71/2”

B3690-6 6” (150) 13/16”(20.6) 73/4”(196.8) 13/16”(30.2) 47/16”(112.7) 9/16”(14.3) 3/8”-16 x 81/2”

B3690-8 8” (200) 13/16”(20.6) 91/4”(235.0) 1” (25.4) 415/16”(125.4) 9/16”(14.3) 3/8”-16 x 101/2”

Design Load Wt./C

Part No. T W Lbs. kN Lbs. kg

B3690-1/212 Ga. (2.6) 3/4”(19.0) 400 (1.78) 20 (9.1)

B3690-3/412 Ga. (2.6) 3/4”(19.0) 400 (1.78) 23 (10.4)

B3690-1 12 Ga. (2.6) 3/4”(19.0) 400 (1.78) 24 (10.9)

B3690-11/412 Ga. (2.6) 3/4”(19.0) 400 (1.78) 27 (12.2)

B3690-11/212 Ga. (2.6) 3/4”(19.0) 400 (1.78) 29 (13.1)

B3690-2 12 Ga. (2.6) 3/4”(19.0) 400 (1.78) 32 (14.5)

B3690-21/211 Ga. (3.0) 11/4”(31.7) 800 (3.56) 71 (32.2)

B3690-3 11 Ga. (3.0) 11/4”(31.7) 800 (3.56) 77 (34.9)

B3690-31/211 Ga. (3.0) 11/4”(31.7) 800 (3.56) 84 (38.1)

B3690-4 7 Ga. (4.5) 11/4”(31.7) 800 (3.56) 139 (63.0)

B3690-5 7 Ga. (4.5) 11/4”(31.7) 800 (3.56) 166 (75.3)

B3690-6 1/4”(6.3) 11/4”(31.7) 1000 (4.45) 226 (102.5)

B3690-8 1/4”(6.3) 11/2”(38.1) 1200 (5.34) 332 (150.6)

Felt Line

B3690F-SIZE

‘D’ Rod Take-Out

Bolt Size ‘F’ And Hex

Nut Included

T x W

‘E’ Diameter. Is

For Wall Mounting

DIA.

Design Load Design Load

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Hangers

143

B394 SERIES

PIPE STRAP

• Safety Factor of 3

• Includes:

1 Pair Pipe Clamps with Hex Head Cap Screws and Hex Nuts

1 Hanger Strap

• Standard finishes: ZN

B386 SERIES

SUSPENSION ROD PIPE STRAP

• Safety Factor of 3

• Includes Hex Head Cap Screws and Hex Nuts

• Standard finishes: ZN, GRN

Design Load Wt./C

Part No. Pipe Size A B C T W Lbs. kN Lbs. kg

B386-3/43/4”(20) 7/16”(11.1) 35/16”(84.1) 23/16”(55.6) 1/8”(3.2) 1” (25.4) 730 (3.25) 46 (20.8)

B386-1 1” (25) 7/16”(11.1) 33/4”(95.2) 25/16”(58.7) 1/8”(3.2) 1” (25.4) 730 (3.25) 51 (23.1)

B386-11/411/4”(32) 7/16”(11.1) 4” (101.6) 217/32”(64.3) 1/8”(3.2) 1” (25.4) 730 (3.25) 52 (23.6)

B386-11/211/2”(40) 7/16”(11.1) 45/16”(109.5) 211/16”(68.3) 1/8”(3.2) 1” (25.4) 730 (3.25) 54 (24.5)

B386-2 2” (50) 7/16”(11.1) 51/2”(139.7) 35/16”(84.1) 1/4”(6.3) 1” (25.4) 730 (3.25) 134 (60.8)

B386-21/221/2”(65) 9/16”(14.3) 63/8”(161.9) 31/2”(88.9) 1/4”(6.3) 1” (25.4) 1350 (6.00) 157 (71.2)

B386-3 3” (80) 9/16”(14.3) 7” (177.8) 37/8”(98.4) 1/4”(6.3) 1” (25.4) 1350 (6.00) 168 (76.2)

B386-31/231/2”(90) 9/16”(14.3) 79/16”(192.1) 41/8”(104.8) 1/4”(6.3) 1” (25.4) 1350 (6.00) 197 (89.3)

B386-4 4” (100) 9/16”(14.3) 85/8”(219.1) 43/8”(111.1) 1/4”(6.3) 11/4”(31.7) 1350 (6.00) 270 (122.4)

B386-5 5” (125) 11/16”(17.4) 93/4”(247.6) 53/16”(131.8) 1/4”(6.3) 11/4”(31.7) 2160 (9.61) 308 (139.7)

B386-6 6” (150) 11/16”(17.4) 115/8”(295.3) 61/16”(154.0) 3/8”(9.5) 11/2”(38.1) 2160 (9.61) 609 (276.4)

B386-8 8” (200) 13/16”(20.6) 137/8”(352.4) 71/8”(181.0) 3/8”(9.5) 11/2”(38.1) 3230 (14.37) 713 (323.4)

Design Load Wt./C

Part No. Pipe Size ABTW

Lbs. kN Lbs. kg

B394-3/43/4”(20) 35/16”(84.1) 7/16”(11.1) 1/8”(3.2) 1” (25.4) 500 (2.22) 71 (32.2)

B394-1 1” (25) 33/4”(95.2) 7/16”(11.1) 1/8”(3.2) 1” (25.4) 500 (2.22) 76 (34.5)

B394-11/411/4”(32) 4” (101.6) 7/16”(11.1) 1/8”(3.2) 1” (25.4) 500 (2.22) 77 (34.9)

B394-11/211/2”(40) 45/16”(109.5) 7/16”(11.1) 1/8”(3.2) 1” (25.4) 800 (3.56) 79 (35.8)

B394-2 2” (50) 51/2”(139.7) 7/16”(11.1) 1/4”(6.3) 1” (25.4) 1040 (4.62) 166 (75.3)

B394-21/221/2”(65) 63/8”(161.9) 9/16”(14.3) 1/4”(6.3) 1” (25.4) 1040 (4.62) 179 (81.2)

B394-3 3” (80) 7” (177.8) 9/16”(14.3) 1/4”(6.3) 1” (25.4) 1040 (4.62) 190 (86.2)

B394-31/231/2”(90) 79/16”(192.1) 9/16”(14.3) 1/4”(6.3) 1” (25.4) 1040 (4.62) 203 (92.1)

B394-4 4” (100) 85/8”(219.1) 11/16”(17.4) 1/4”(6.3) 11/4”(31.7) 1040 (4.62) 320 (145.1)

B394-5 5” (125) 93/4”(247.6) 11/16”(17.4) 1/4”(6.3) 11/4”(31.7) 1040 (4.62) 353 (160.1)

B394-6 6” (150) 115/8”(295.3) 13/16”(20.6) 3/8”(9.5) 11/2”(38.1) 1615 (7.18) 637 (288.9)

B394-8 8” (200) 137/8”(352.4) 13/16”(20.6) 3/8”(9.5) 11/2”(38.1) 1615 (7.18) 837 (379.6)

ADia.

‘W’

Clamp

Only

‘T’

Clamp

Only

‘B’ Dia.

Pipe Size

Design Load

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Hangers

144

Design Load Wt./C

Part No. Pipe Size A B C D W Lbs. kN Lbs. kg

B591-2 2” (50) 41/2”(114.3) 41/2”(114.3) 73/16”(182.6) 31/16”(77.8) 15/8”(41.3) 1235 (5.53) 290 (131.5)

B591-21/221/2”(65) 5” (127.0) 5” (127.0) 715/16”(201.6) 39/16”(90.5) 15/8”(41.3) 1180 (5.29) 330 (149.7)

B591-3 3” (80) 51/2”(139.7) 53/4”(146.0) 83/4”(222.2) 313/16”(96.8) 15/8”(41.3) 1125 (5.04) 439 (199.1)

B591-31/231/2”(90) 6” (152.4) 63/4”(171.4) 91/2”(241.3) 49/16”(115.9) 15/8”(41.3) 1070 (4.79) 490 (222.2)

B591-4 4” (100) 61/2”(165.1) 63/4”(171.4) 101/4”(260.3) 61/16”(128.6) 15/8”(41.3) 1015 (4.55) 545 (247.2)

B591-5 5” (125) 71/2”(190.5) 8” (203.2) 121/8”(308.0) 61/16”(154.0) 15/8”(41.3) 960 (4.30) 666 (302.1)

B591-6 6” (150) 8” (203.2) 83/4”(222.2) 133/16”(335.0) 613/16”(173.0) 15/8”(41.3) 905 (4.05) 724 (328.4)

B591-8 8” (200) 9” (228.6) 101/2”(266.7) 159/16”(395.3) 89/16”(217.5) 2” (50.8) 850 (3.81) 1087 (493.0)

B591 SERIES

PIPE BRACKET SADDLE AND CLAMP

• Safety Factor of 3

• Inside brace not required on B591-2 and B591-21/2

• Includes:

1 pc. Saddle bottom

1 pc. Saddle top (clamp)

2 pcs. Hex Head Cap Screws

2 pcs. Hex Nuts

• Standard finish: ZN

113/16”

(30.1)

1/4”

(6.3)

Pipe Size

Design Load

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Brackets

145

B356

PIPE BLOCK-2” (50) TO 8” (200) PIPE

• Required hardware not included:

1 pc. 3/8”-16 x 1” Hex Head Cap Screw

1 pc. 3/8”-16 Channel Nut

• Material: 1/4” (6.3) thick 15/8” (41.3) wide

ASTM A1018 33,000 PSI min. yield

• Standard finish: ZN

• Wt./C 42 Lbs. (19.0 kg) Per Pair

31/16”

(77.8)

1”

(25.4)

Hole For 3/8”-16 HHCS

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Block

146

B218

PIPE ROLLERS-1/2” (15) TO 8” (200) PIPE

• Design Load 500 Lbs. (2.22 kN)

• Safety Factor of 5

• When used with B3160 thru B3165 Saddles

(See Pipe Hanger Catalog)

• Malleable Iron Rollers

• Sold in pairs

• Required hardware not included:

2 pcs. 1/2”-13 x 11/4” Hex Head Cap Screws

2 pcs. 1/2”-13 Channel Nuts

• Standard finish: ZN

• Wt./C 256 Lbs. (116.1 kg) Per Pair

Insulation Thickness in. (mm)

Pipe Size 0” (0.0) 1” (25.4) 11/2” (38.1) 2” (50.8) 21/2” (63.5) 3” (76.2) 4” (101.6)

1/2”(15) 71/4”(184.1) ––––––––––––

3/4”(20) 71/4”(184.1) 71/4”(184.1) 75/8”(193.7) 8” (203.2) ––––––

1” (25) 71/4”(184.1) 71/4”(184.1) 75/8”(193.7) 81/4”(209.5) ––––––

11/4”(32) 71/4”(184.1) 71/4”(184.1) 8” (203.2) 81/4”(209.5) ––––––

11/2”(40) 71/4”(184.1) 75/8”(193.7) 8” (203.2) 81/2”(215.9) 9” (228.6) – – – –

2” (50) 71/4”(184.1) 75/8”(193.7) 81/2”(215.9) 81/2”(215.9) 9” (228.6) – – ––

21/2”(65) 71/4”(184.1) 8” (203.2) 81/2”(215.9) 9” (228.6) 10” (254.0) –– ––

3” (80) 71/4”(184.1) 81/2”(215.9) 9” (228.6) 9” (228.6) 10” (254.0) 10” (254.0) – –

31/2”(90) 71/4”(184.1) 81/2”(215.9) 9” (228.6) 10” (254.0) 10” (254.0) 10” (254.0) – –

4” (100) 75/8”(193.7) 9” (228.6) 9” (228.6) 10” (254.0) 10” (254.0) 11” (279.4) ––

5” (125) 81/2”(215.9) 9” (228.6) 10” (254.0) 10” (254.0) 11” (279.4) 11” (279.4) 12” (304.8)

6” (150) 9” (228.6) 10” (254.0) 10” (254.0) 11” (279.4) 11” (279.4) 11” (279.4) 12” (304.8)

8” (200) 10” (254.0) 11” (279.4) 11” (279.4) 11” (279.4) 12” (304.8) –– ––

Insulation Thickness in. (mm)

Pipe Size 0” (0.0) 1” (25.4) 11/2” (38.1) 2” (50.8) 21/2” (63.5) 3” (76.2) 4” (101.6)

1/2”(15) 211/16”(68.3) ––––––––––––

3/4”(20) 213/16”(71.4) 37/8”(98.4) 43/8”(111.1) 47/8”(123.8) –––– ––

1” (25) 215/16”(74.6) 43/16”(106.4) 411/16”(119.1) 51/16”(128.6) ––––––

11/4”(32) 31/8”(79.4) 43/16”(106.4) 45/8”(117.5) 51/8”(130.2) ––––––

11/2”(40) 31/4”(82.5) 43/8”(111.1) 47/8”(123.8) 55/16”(134.9) 53/4”(146.0) –– ––

2” (50) 39/16”(90.5) 411/16”(119.1) 51/16”(128.6) 55/8”(142.9) 61/16”(154.0) –– ––

21/2”(65) 313/16”(96.8) 47/8”(123.8) 55/16”(134.9) 6” (152.4) 63/8”(161.9) –– ––

3” (80) 41/8”(104.8) 51/16”(128.6) 59/16”(141.3) 61/8”(155.6) 67/16”(163.5) 7” (177.8) ––

31/2”(90) 43/8”(111.1) 55/16”(134.9) 513/16”(147.6) 61/4”(158.7) 611/16”(169.9) 71/4”(184.1) ––

4” (100) 45/8”(117.5) 59/16”(141.3) 61/16”(154.0) 67/16”(163.5) 615/16”(176.2) 73/8”(187.3) ––

5” (125) 5” (127.0) 61/16”(154.0) 67/16”(163.5) 7” (177.8) 73/8”(187.3) 77/8”(200.0) 813/16”(223.8)

6” (150) 51/2”(139.7) 67/16”(163.5) 615/16”(176.2) 73/8”(187.3) 715/16”(201.6) 81/2”(215.9) 91/2”(241.3)

8” (200) 615/16”(160.3) 73/8”(187.3) 715/16”(201.6) 87/16”(214.3) 815/16”(227.0) –– ––

25/8”

(66.7)

23/8”

(60.3)

REFERENCE CHART - A DIMENSION

REFERENCE CHART - B DIMENSION

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Rollers

147

B219

PIPE ROLLER SERIES - 3/4” (20) TO 12” (300) PIPE

• Design Load 750 Lbs. (3.33 kN)

• Safety Factor of 5

• Requires field assembly

• When used with B3160 thru B3165 Saddles

(See Pipe Hanger Catalog)

• Malleable Iron Rollers

• Sold in pairs

• Required hardware not included:

2 pcs. 1/2”-13 x 11/4” Hex Head Cap Screws

2 pcs. 1/2”-13 Channel Nuts

• Reference sizing chart on page 135

• Standard finish: ZN

Wt./C PR

Part No. A Lbs. kg

B219 71/4”(184.1) 253 (114.7)

B219-1 8” (203.2) 258 (117.0)

B219-2 9” (228.6) 263 (119.3)

B219-3 10” (254.0) 269 (122.0)

B219-4 107/8”(276.2) 274 (124.8)

B219-5 115/8”(295.3) 279 (126.5)

Insulation Thickness in. (mm)

Pipe Size 0” (0.0) 1” (25.4) 11/2” (38.1) 2” (50.8) 21/2” (63.5) 3” (76.2) 4” (101.6)

1/2”(15) 211/16”(68.3) ––––– – – –––––

3/4”(20) 213/16”(71.4) 37/8”(98.4) 41/2”(114.3) 47/8”(123.8) – –––––

1” (25) 215/16”(74.6) 43/16”(106.4) 45/8”(117.5) 51/16”(128.6) ––––––

11/4”(32) 31/8”(79.4) 43/16”(106.4) 45/8”(117.5) 51/8”(130.2) ––––––

11/2”(40) 31/4”(82.5) 47/16”(112.7) 47/8”(123.8) 51/4”(133.3) 53/4”(146.0) ––––

2” (50) 39/16”(90.5) 45/8”(117.5) 53/16”(131.8) 51/2”(139.7) 61/16”(154.0) ––––

21/2”(65) 33/4”(95.2) 47/8”(123.8) 51/4”(133.3) 6” (152.4) 63/8”(161.9) ––––

3” (80) 41/8”(104.8) 51/8”(130.2) 59/16”(141.3) 61/16”(154.0) 67/16”(163.5) 615/16”(176.2) ––

31/2”(90) 41/4”(107.9) 51/4”(133.3) 513/16”(147.6) 61/4”(158.7) 611/16”(169.9) 71/16”(179.4) ––

4” (100) 49/16”(115.9) 51/2”(139.7) 61/16”(154.0) 67/16”(163.5) 615/16”(176.2) 73/8”(187.3) ––

5” (125) 51/16”(128.6) 61/16”(154.0) 67/16”(163.5) 7” (177.8) 73/8”(187.3) 77/8”(200.0) 815/16”(227.0)

6” (150) 57/16”(138.1) 67/16”(163.5) 615/16”(176.2) 73/8”(187.3) 77/8”(200.0) 815/16”(211.1) 99/16”(242.9)

8” (200) 63/8”(161.9) 77/16”(188.9) 715/16”(201.6) 83/8”(212.7) 9” (228.6) ––––

10” (250) 75/16”(185.7) 83/16”(208.0) ––– – – –––––

12” (300) 81/4”(209.5) ––– –– – – –––––

25/8”

(66.7)

23/8”

(60.3)

REFERENCE CHART - A DIMENSION

REFERENCE CHART - B DIMENSION

Reference B219 sizing chart on page 149

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Rollers

148

Insulation Thickness in. (mm)

Pipe Size 0” (0.0) 1” (25.4) 11/2” (38.1) 2” (50.8) 21/2” (63.5) 3” (76.2) 4” (101.6)

1/2” (15) B219 – – – – – –

3/4” (20) B219 B219 B219 B219-1 – – –

1” (25) B219 B219 B219-1 B219-1 – – –

11/4”(32) B219 B219 B219-1 B219-1 – – –

11/2”(40) B219 B219 B219-1 B219-2 B219-2 – –

2” (50) B219 B219-1 B219-1 B219-2 B219-2 – –

21/2” (65) B219 B219-1 B219-2 B219-2 B219-3 – –

3” (80) B219 B219-1 B219-2 B219-2 B219-3 B219-3 –

31/2” (90) B219-1 B219-2 B219-2 B219-3 B219-3 B219-4 –

4” (100) B219-1 B219-2 B219-2 B219-3 B219-3 B219-4 –

5” (125) B219-1 B219-2 B219-3 B219-3 B219-4 B219-4 B219-5

6” (150) B219-2 B219-3 B219-3 B219-4 B219-4 B219-5 B219-5

8” (200) B219-3 B219-4 B219-4 B219-5 B219-5 – –

10” (250) B219-4 B219-5 – – – – –

12” (300) B219-5 – – – – – –

B219 SIZING CHART

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Rollers

149

B379

PIPE ROLLERS-6” (150) TO 18” (450) PIPE

• Design Load 1500 Lbs. (6.67 kN)

• Safety Factor of 5

• Requires field assembly

• When used with B3160 thru B3165 Saddles

(See Pipe Hanger Catalog)

• Malleable Iron Rollers

• Sold in pairs

• Required hardware not included:

2 pcs. 1/2”-13 x 11/4” Hex Head Cap Screws

2 pcs. 1/2”-13 Channel Nuts

• Standard finish: ZN

• Wt./C 889 Lbs. (403.2 kg)

4”

(101.6)

Insulation Thickness in. (mm)

Pipe Size 0” (0.0) 1” (25.4) 11/2” (38.1) 2” (50.8) 21/2” (63.5) 3” (76.2) 4” (101.6)

6” (150) 99/16”(242.9) 103/16”(258.8) 105/8”(269.9) 11” (279.4) 113/8”(288.9) 113/4”(298.4) 121/2”(317.5)

8” (200) 101/4”(260.3) 111/16”(281.0) 113/8”(288.9) 113/4”(298.4) 123/16”(309.6) 121/2”(317.5) 131/4”(336.5)

10” (250) 11” (279.4) 113/4”(298.4) 121/8”(308.0) 121/2”(317.5) 1213/16”(325.4) 131/8”(333.4) 137/8”(352.4)

12” (300) 1111/16”(296.9) 129/16”(319.1) 127/8”(327.0) 131/4”(336.5) 139/16”(344.5) 137/8”(352.4) 145/8”(371.5)

14” (350) 121/16”(306.4) 127/8”(327.0) 133/16”(335.0) 139/16”(344.5) 137/8”(352.4) 141/4”(361.9) 147/8”(377.8)

16” (400) 123/4”(323.8) 131/2”(342.9) 137/8”(352.4) 1413/16”(360.4) 141/2”(368.3) 147/8”(377.8) 151/2”(393.7)

18” (450) 131/2”(342.9) 141/4”(361.9) 145/8”(371.5) 15” (381.0) 155/16”(388.9) 155/8”(396.9) 165/16”(414.3)

Insulation Thickness in. (mm)

Pipe Size 0” (0.0) 1” (25.4) 11/2” (38.1) 2” (50.8) 21/2” (63.5) 3” (76.2) 4” (101.6)

6” (150) 67/8”(174.6) 77/8”(200.0) 83/8”(212.7) 87/8”(225.4) 93/8”(238.1) 97/8”(250.8) 1015/16”(277.8)

8” (200) 713/16”(198.4) 87/8”(225.4) 93/8”(238.1) 97/8”(250.8) 107/16”(265.1) 1015/16”(277.8) 117/8”(301.6)

10” (250) 813/16”(223.8) 97/8”(250.8) 107/16”(265.1) 1015/16”(277.8) 113/8”(228.9) 117/8”(301.6) 1213/16”(325.4)

12” (300) 93/4”(247.6) 1015/16”(277.8) 113/8”(288.9) 117/8”(301.6) 125/16”(312.7) 1213/16”(325.4) 133/4”(349.2)

14” (350) 105/16”(261.9) 113/8”(288.9) 117/8”(301.6) 125/16”(312.7) 1213/16”(325.4) 131/4”(336.5) 141/4”(361.9)

16” (400) 115/16”(287.3) 125/16”(312.7) 1213/16”(325.4) 131/4”(336.5) 133/4”(349.2) 141/4”(361.9) 151/8”(384.2)

18” (450) 121/4”(311.1) 131/4”(336.5) 133/4”(349.2) 143/16”(360.4) 1411/16”(373.1) 151/8”(384.2) 161/16”(408.0)

REFERENCE CHART - A DIMENSION

REFERENCE CHART - B DIMENSION

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Rollers

150

B479

PIPE ROLLERS-16” (400) TO 30” (750) PIPE

• Design Load 2000 Lbs. (8.89 kN)

• Safety Factor of 5

• Requires field assembly

• When used with B3160 thru B3165 Saddles

(See Pipe Hanger Catalog)

• Malleable Iron Rollers

• Sold in pieces

• Required hardware not included:

4 pcs. 1/2”-13 x 11/4” Hex Head Cap Screws

4 pcs. 1/2”-13 Channel Nuts

• Standard finish: ZN

• Wt./C 889 Lbs. (403.2 kg)

4”

(101.6)

Insulation Thickness in. (mm)

Pipe Size 0” (0.0) 1” (25.4) 11/2” (38.1) 2” (50.8) 21/2” (63.5) 3” (76.2) 4” (101.6)

16” (400) 153/16”(385.8) 155/8”(396.9) 157/8”(403.2) 16” (406.4) 161/4”(412.7) 161/2”(419.1) 17” (431.8)

18” (450) 151/2”(393.7) 16” (406.4) 163/16”(411.2) 163/8”(415.9) 169/16”(420.7) 163/4”(425.4) 173/16”(436.6)

20” (500) 16” (406.4) 163/8”(415.9) 169/16”(420.7) 167/8”(428.6) 1615/16”(430.2) 173/16”(436.6) 171/2”(444.5)

24” (600) 1613/16”(427.0) 175/16”(439.7) 171/2”(444.5) 171/2”(444.5) 1711/16”(449.3) 177/8”(454.0) 181/8”(460.4)

30” (750) 1713/16”(452.4) 181/4”(463.5) 183/8”(466.7) 189/16”(471.5) 187/8”(476.2) 187/8”(479.4) 191/4”(488.9)

Insulation Thickness in. (mm)

Pipe Size 0” (0.0) 1” (25.4) 11/2” (38.1) 2” (50.8) 21/2” (63.5) 3” (76.2) 4” (101.6)

16” (400) 1013/16”(274.6) 1115/16”(303.2) 123/8”(314.3) 1215/16”(328.6) 133/8”(339.7) 1315/16”(354.0) 1415/16”(379.4)

18” (450) 117/8”(301.6) 1215/16”(328.6) 137/16”(341.3) 1315/16”(354.0) 147/16”(366.7) 1415/16”(379.4) 1515/16”(404.8)

20” (500) 123/16”(325.4) 1315/16”(354.0) 147/16”(366.7) 147/8”(377.8) 157/16”(392.1) 157/8”(403.2) 1615/16”(430.2)

24” (600) 1413/16”(376.2) 157/8”(403.2) 163/8”(415.9) 167/8”(428.6) 173/8”(441.3) 177/8”(454.0) 187/8”(479.4)

30” (750) 1713/16”(452.4) 187/8”(479.4) 193/8”(492.1) 197/8”(504.8) 203/8”(517.5) 205/16”(531.8) 2115/16”(557.2)

REFERENCE CHART - A DIMENSION

REFERENCE CHART - B DIMENSION

213/16”

(71.4)

Pipe/Conduit Clamps &

Hangers

Reference page 126 for general fitting and standard finish specifications.

Pipe Rollers

151

Cooper B-Line’s new line of Dura-Blok™ products

gives you a versatile and long-term solution for

all your roof top support needs. Designed with

flexibility in mind, Dura-Blok is ideal for roof top

support applications such as pipe, HVAC, duct,

conduit, cable tray, and roof walkways.

Manufactured to provide years of service in

harsh, roof top environments, Dura-Blok is

made from 100% recycled rubber, require no

supplemental rubber pads, and will not float or

blow away. 1” gaps between blocks allow water to

flow freely around longer assemblies. For added

strength, the Dura-Blok support channel is

through bolted on all sizes. For added visibility, a

reflective strip is incorporated on both sides of

each Dura-Blok.

Beyond product durability, Dura-Blok helps to

dampen vibration, are not sharp or abrasive and

require no roof penetration to maximize existing

roof life - and roof structural and environmental

integrity.

Recommended Torque (In channels)

See page 44 Channel Nuts & Hardware section

Materials & Finishes

See appropriate fitting’s pages.

Alternative finishes available upon request.

Metric

Metric dimensions are shown in parentheses.

Unless noted, all metric dimensions are in millimeters.

Dura-Blok™ Supports

Dura-Blok™ Rooftop Supports

152

Reference page 152 for general fitting and standard finish specifications.

Dura-Blok™ Rooftop Supports

153

Dura-Blok™ Supports

SUPPORT BASES ONLY

• Base only - see chart for height, width and length.

• 100% recycled rubber, UV resistant.

• Load Rating - Ultimate Uniform Load (See Chart Below)*

• Dura-Blok™ channel support is designed as an economical support for piping systems,

cable tray, HVAC equipment and many other applications. The Dura-Blok is UV

resistant and suitable for any type of roofing material or other flat surfaces. Material

effectively accepts screw fasteners for securing accessories.

* General Note: Consult roofing manufacturer or engineer for roof load capacity.

The weakest point may be the insulation board beneath the rubber membrane.

DB SERIES SUPPORT BASE WITH B44 CHANNEL

• Base with 14 ga. (1.9mm) galvanized channel 1” high (25.4mm) -

see chart for height, width and length.

• 100% recycled rubber, UV resistant.

• Load Rating - Ultimate Uniform Load (See Chart Below)*

• Dura-Blok™ DB-Series channel support is designed for superior support of

piping systems, cable tray, HVAC equipment, walkway systems and many other

applications. The Dura-Blok is UV resistant and suitable for installation on any

type of roofing material or other flat surfaces. (For pipe straps/clamps, rollers and

roller supports that can be used with these Dura-Blok supports, see page 158)

• For sloped roofs use B634 adjustable hinge fittings (see page 84).

Height x Width x Length Wt./Each Load Rating

Part No. In. (mm) Lbs. (kg) Lbs. (kN)

DB5 5” x 6” x 4.8” (127.0 x 152.4 x 121.9) 2.75 (125) 200 (0.89)

DB10 5” x 6” x 9.6” (127.0 x 152.4 x 243.8) 5.28 (2.39) 500 (2.22)

DB20 5” x 6” x 20.2” (127.0 x 152.4 x 513.1) 10.63 (4.82) 1000 (4.45)

DB30 5” x 6” x 30.8” (127.0 x 152.4 x 782.3) 15.99 (7.25) 1500 (6.67)

DB40 5” x 6” x 41.4” (127.0 x 152.4 x 1051.5) 21.34 (9.68) 2000 (8.89)

DB48 5” x 6” x 52.0” (127.0 x 152.4 x 1320.8) 26.70 (12.40) 2500 (11.12)

Height x Width x Length Wt./Each Load Rating

Part No. In. (mm) Lbs. (kg) Lbs. (kN)

DBM 4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 2.35 (1.07) 200 (0.89)

DBP 4” x 6” x 9.6” (101.6 x 152.4 x 243.8) 4.48 (2.03) 500 (2.22)

Height x Width x Length Wt./Each Load Rating

Part No. In. (mm) Lbs. (kg) Lbs. (kN)

DB610 6

” x 6” x 9.6” (163.5 x 152.4 x 243.8) 6.36 (2.88) 500 (2.22)

DB620 6

” x 6” x 20.2” (163.5 x 152.4 x 513.1) 12.90 (5.85) 1000 (4.45)

DB630 6

” x 6” x 30.8” (163.5 x 152.4 x 782.3) 19.45 (8.82) 1500 (6.67)

DB640 6

” x 6” x 41.4” (163.5 x 152.4 x 1051.5) 26.00 (11.79) 2000 (8.89)

DB648 6

” x 6” x 52.0” (163.5 x 152.4 x 1320.8) 32.55 (14.76) 2500 (11.12)

DB6 SERIES SUPPORTBASE WITH B12 CHANNEL

• Base with 12 ga. (2.6mm) galvanized channel 27/16” high (61.9mm) -

see chart for height, width and length.

• 100% recycled rubber, UV resistant.

• Load Rating - Ultimate Uniform Load (See Chart Below)*

• Dura-Blok™ DB-Series channel support is designed for superior support of piping

systems, cable tray, HVAC equipment, walkway systems and many other

applications. The Dura-Blok is UV resistant and suitable for installation on any

type of roofing material or other flat surfaces. (For pipe straps/clamps, rollers and

roller supports that can be used with these Dura-Blok supports, see page 158)

• For sloped roofs use B634 adjustable hinge fittings (see page 84).

DB20

DB10

DBP

DBM

DB30

DB610

DB620

DB630

Dura-Blok™ Rooftop Supports

154

Reference page 152 for general fitting and standard finish specifications.

Dura-Blok™ Supports

DB10 SERIES

SUPPORT BASES WITH B22 CHANNEL

•Two (2) bases bridged with 12 ga. (2.6mm) galvanized channel

15/8” high (41.3mm) - see chart for height, width and length.

• 100% recycled rubber, UV resistant.

• Load Rating: 1000 lbs. (4.45kN) (Uniform Load)*

• Dura-Blok™ DB10-Series channel support is designed for superior support of

piping systems, cable tray, HVAC equipment, walkway systems and many

other applications. The Dura-Blok is UV resistant and suitable for installation

on any type of roofing material or other flat surfaces. (For pipe straps/clamps,

rollers and roller supports that can be used with these Dura-Blok supports,

see page 158)

Height x Width x Length Wt./Each

Part No. In. (mm) Lbs. (kg)

DB10-28 5

” x 6” x 28” (142.9 x 152.4 x 711.2) 13.16 (5.97)

DB10-36 5

” x 6” x 36” (142.9 x 152.4 x 914.4) 14.36 (6.51)

DB10-42 5

” x 6” x 42” (142.9 x 152.4 x 1066.8) 15.52 (7.04)

DB10-50 5

” x 6” x 50” (142.9 x 152.4 x 1270.0) 16.45 (7.46)

DB10-60 5

” x 6” x 60” (142.9 x 152.4 x 1524.0) 17.94 (8.14)

DBM SERIES

SUPPORT BASE WITH RISER ROD & CLAMP

•Base with 3/8”-16 threaded rod and B3198H clamp -

see chart for height, width and length

• 100% recycled rubber, UV resistant.

• Load Rating” 50 lbs. (0.22kN) (Ultimate Load)*

•Dura-Blok™ DBM-Series pipe/tubing support is designed for support of

single piping systems where elevation adjustment is needed. The

Dura-Blok is UV resistant and suitable for installation on any type of

roofing material or other flat surfaces.

Clamp Block -Height x Width x Length Height** Min.-Max. Wt./Each

Part No. Part No.† In. (mm) In. (mm) Lbs. (kg)

DBM-1/2CT B3198HCT-

4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 9.69”-11.19” (246.1-284.2) 2.75 (1.25)

DBM-3/4CT B3198HCT-

4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 9.84”-11.34” (249.9-2288.0) 2.76 (1.25)

DBM-1CT B3198HCT-1 4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 9.95”-11.45” (252.7-290.8) 2.84 (1.29)

DBM-11/4CT B3198HCT-1

4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 10.13”-11.63” (257.3-295.4) 2.95 (1.34)

DBM-11/2CT B3198HCT-1

4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 10.28”-11.78” (261.1-299.2) 2.96 (1.34)

DBM-2CT B3198HCT-2 4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 10.53”-12.03” (267.4-305.5) 3.03 (1.37)

DBM-1/2B3198H-

4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 9.86”-11.36” (250.4-288.5) 2.78 (1.26)

DBM-3/4B3198H-

4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 10.06”-11.56” (255.5-293.6) 2.84 (1.29)

DBM-1 B3198H-1 4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 10.14”-11.64” (257.5-295.6) 2.86 (1.30)

DBM-11/4B3198H-1

4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 10.25”-11.75” (260.3-298.4) 2.93 (1.33)

DBM-11/2B3198H-1

4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 10.42”-11.92” (264.6-302.7) 2.99 (1.36)

DBM-2 B3198H-2 4” x 6” x 4.8” (101.6 x 152.4 x 121.9) 10.66”-12.16” (270.7-308.8) 3.10 (1.41)

* General Note: Consult roofing manufacturer or engineer for roof load capacity.

The weakest point may be the insulation board beneath the rubber membrane.

DB10-36

DB10-50

DBM-2CT DBM-1

† See Pipe Hanger Catalog for dimensions and specifications. ** From bottom of rubber block to center of pipe/tubing.

Reference page 152 for general fitting and standard finish specifications.

Dura-Blok™ Rooftop Supports

155

Dura-Blok™ Supports

Loosen hex nuts and

slide plate under the

flat washers

Retighten the hex nuts

with plate in place

DBE SERIES

SUPPORT BASE WITH ROD RISERS & CHANNEL

• Base with (2) 1/2” electro zinc all threaded rod risers - Top channel is 1” (25.4mm) tall.

See chart for adjustable height x wide x length.

• 100% recycled rubber, UV resistant.

• Load Rating” 200 lbs. (0.89kN) (To increase load capacity use load distribution plate

CLDP10)

• Dura-Blok™ DBE-Series channel support is designed as a superior support of piping

systems, cable tray, HVAC equipment and many other applications where elevation

adjustment is critical. The Dura-Blok is UV resistant and suitable for installation on

any type of roofing material or other flat surfaces. (For pipe straps/clamps, rollers

and roller supports that can be used with these Dura-Blok supports, see page 158)

* General Note: Consult roofing manufacturer or engineer for roof load capacity.

The weakest point may be the insulation board beneath the rubber membrane.

DBR SERIES

SUPPORT BASE WITH ROD RISERS & PIPE ROLL

• Base with (2) 1/2” electro zinc all threaded rod risers and a

B3114-31/2pipe roll with sockets - base is 4” (101.6mm) high x 6” (152.4mm)

wide x 9.6” (243.8mm) long. Overall height is 12” (304.8mm) from bottom of

base to contact point on roller.

• Pipe roll & sockets for up to 31/2” (90) pipe sizes.

• 100% recycled rubber, UV resistant.

• Load Rating” 200 lbs. (0.89kN) (To increase load capacity use load distribution plate

CLDP10)

• Dura-Blok™ DBR-Series support is designed to support pipe up to 31/2” (90) nominal

size where difference in elevation is required and longitudinal movement is

expected. The Dura-Blok is UV resistant and approved for installation on any type

of roofing material or other flat surfaces.

Thickness x Width x Length Wt./Each

Part No. In. (mm) Lbs. (kg)

CLDP10 11 Ga. x 1

” x 9

”(3.0 x 41.3 x 241.3) 0.53 (0.24)

Adjustable Height x Width x Length Wt./Each

Part No. In. (mm) Lbs. (kg)

DBE10-8 5

-8” x 6” x 9.6” (139.7-152.4 x 152.4 x 243.8) 5.68 (2.58)

DBE10-12 5

-12” x 6” x 9.6” (139.7-304.8 x 152.4 x 243.8) 5.72 (2.59)

DBE10-16 5

-16” x 6” x 9.6” (139.7-406.4 x 152.4 x 243.8) 5.76 (2.61)

CLDP10

LOAD DISTRIBUTION PLATE

• 11 ga. (3.0mm) steel plate with slots.

• Dimensions: 15/8” (41.3mm) wide x 91/2” (241.3mm) long.

• Dura-Blok™ CLDP10 load bearing stabilizer plate increases load ratings

for DBE Series and DBR Series by allowing the load from the threaded

rods to be distributed over the length of the base instead of the point

load where the rods attach to the base.

Adjustable Height x Width x Length Wt./Each

Part No. In. (mm) Lbs. (kg)

DBR10-12 up to 12” x 6” x 9.6” (up to 304.8 x 152.4 x 243.8) 8.20 (3.72)

Dura-Blok™ Rooftop Supports

156

Dura-Blok™ Supports

Reference page 152 for general fitting and standard finish specifications.

DB__DS SERIES

SUPPORT BASES WITH B22SH

VERTICAL & HORIZONTAL CHANNEL MEMBERS

• Product is shipped unassembled.

• Two (2) DB20 bases with 14 ga. (1.9mm) galvanized channel 1” high (25.4mm) -

Bases are 5” (127.0mm) high x 6” (152.4mm) wide x 20.2” (513.1mm) long.

Vertical & Horizontal Riser Channels (SH Style) - 15/8” (41.3mm) x 15/8” (41.3mm) x 12 ga. (2.6mm)

Fittings & Hardware - Electro-Plated Steel

• 100% recycled rubber, UV resistant.

• Ultimate Load Rating: 1000 lbs. (4.45kN) (Uniform Load)*

• Dura-Blok™ DB__DS-Series channel support with risers is designed for superior support of piping

systems, cable tray, HVAC equipment, walkway systems and many other applications. The Dura-Blok

is UV resistant and suitable for installation on any type of roofing material or other flat surfaces.

(For pipe straps/clamps, rollers and roller supports that can be used with these Dura-Blok supports,

see page 158)

* General Note: Consult roofing manufacturer or engineer for roof load capacity.

The weakest point may be the insulation board beneath the rubber membrane.

DB2318DS

DB2924DS DB5336DS

Length

(overall)

Width

(overall)

Height

(overall)

B + 4.5” (114mm)

Reference page 152 for general fitting and standard finish specifications.

Dura-Blok™ Rooftop Supports

157

Dura-Blok™ Supports

A = Adjustable height from bottom of Dura-Blok to top of horizontal channel.

B = Space between fittings that support horizontal channel.

Height (overall) = Distance from bottom of Dura-Blok to top of upright channel.

Width (overall) = Distance from outside-to-outside of Dura-Blok supports.

Length (overall) = Distance from end-to-end of Dura-Blok supports.

A Min. to Max. B

Part No. In. (mm) In. (mm)

DB2318DS 10.56” to 20.75” (268 to 527) 131/2”(343)

DB2918DS 10.56” to 26.75” (268 to 679) 131/2”(343)

DB4118DS 10.56” to 38.75” (268 to 984) 131/2”(343)

DB5318DS 10.56” to 50.75” (268 to 1289) 131/2”(343)

DB2324DS 10.56” to 20.75” (268 to 527) 191/2”(495)

DB2924DS 10.56” to 26.75” (268 to 679) 191/2”(495)

DB4124DS 10.56” to 38.75” (268 to 984) 191/2”(495)

DB5324DS 10.56” to 50.75” (268 to 1289) 191/2”(495)

DB2336DS 10.56” to 20.75” (268 to 527) 311/2”(800)

DB2936DS 10.56” to 26.75” (268 to 679) 311/2”(800)

DB4136DS 10.56” to 38.75” (268 to 984) 311/2”(800)

DB5336DS 10.56” to 50.75” (268 to 1289) 311/2”(800)

DB2348DS 10.56” to 20.75” (268 to 527) 431/2”(1105)

DB2948DS 10.56” to 26.75” (268 to 679) 431/2”(1105)

DB4148DS 10.56” to 38.75” (268 to 984) 431/2”(1105)

DB5348DS 10.56” to 50.75” (268 to 1289) 431/2”(1105)

Height (overall) Width (overall) Length (overall) Wt./Each

Part No. In. (mm) In. (mm) In. (mm) lbs. (kg)

DB2318DS 23” (584) 255/8”(651) 20.2” (513) 33.31 (15.11)

DB2918DS 29” (736) 255/8”(651) 20.2” (513) 35.00 (15.88)

DB4118DS 41” (1041) 255/8”(651) 20.2” (513) 38.40 (17.42)

DB5318DS 53” (1346) 255/8”(651) 20.2” (513) 41.80 (18.96)

DB2324DS 23” (584) 315/8”(803) 20.2” (513) 34.15 (15.49)

DB2924DS 29” (736) 315/8”(803) 20.2” (513) 35.84 (16.26)

DB4124DS 41” (1041) 315/8”(803) 20.2” (513) 39.25 (17.80)

DB5324DS 53” (1346) 315/8”(803) 20.2” (513) 42.65 (19.34)

DB2336DS 23” (584) 435/8”(1108) 20.2” (513) 35.84 (16.26)

DB2936DS 29” (736) 435/8”(1108) 20.2” (513) 37.56 (17.03)

DB4136DS 41” (1041) 435/8”(1108) 20.2” (513) 40.95 (18.57)

DB5336DS 53” (1346) 435/8”(1108) 20.2” (513) 44.34 (20.11)

DB2348DS 23” (584) 555/8”(1415) 20.2” (513) 37.55 (17.03)

DB2948DS 29” (736) 555/8”(1415) 20.2” (513) 39.25 (17.80)

DB4148DS 41” (1041) 555/8”(1415) 20.2” (513) 42.65 (19.34)

DB5348DS 53” (1346) 555/8”(1415) 20.2” (513) 46.03 (20.88)

DB__DS SERIES cont.

Dura-Blok™ Rooftop Supports

158

Reference page 152 for general fitting and standard finish specifications.

Dura-Blok™ Supports

Above rollers can be mounted on DB Series, DB6 Series, and DB10 Series units 19” (482mm) or longer.

B3126 Series

B-LINE

BVP150

1 1/2” I.P11/2” I.P.

BVT Series

B2400

Series

B218

B101

BTS

B22SH

B634

B22TH

TN Nuts HHCS

B104

B219 Series

B379 B479

B2000 Series

Compatible Components Available to make Dura-Blok bases more versatile

(See Strut Systems Catalog for other products)

B3124

Series

DBR SERIES

SUPPORT BASES WITH B42 CHANNEL & PIPE ROLLER

• Base with 14 ga. (1.9mm) galvanized channel 1” high (25.4mm) tall -

see chart for height, width and length.

• 100% recycled rubber, UV resistant.

• Load Rating: (See Chart Below)*

• Dura-Blok™ DBR-Series support is designed to support pipe where

longitudinal movement is expected. The Dura-Blok is UV resistant and

approved for installation on any type of roofing material or other flat

surfaces.

DBR4-6

DBR16-20

Roller Block & Channel -Height x Width x Length Height** Wt./Each Load Rating

Part No. Part No.† In. (mm) In. (mm) Lbs. (kg) Lbs. (kN)

DBR2-31/2B3126-2 to 31/25” x 6” x 9.6” (127.0 x 152.4 x 243.8) 7.09” (180) 5.28 (2.39) 500 (2.22)

DBR4-6 B3126-4 to 6 5” x 6” x 9.6” (127.0 x 152.4 x 243.8) 7.09” (180) 10.63 (4.82) 500 (2.22)

DBR8-10 B3126-8-10 5” x 6” x 20.2” (127.0 x 152.4 x 513.1) 8.34” (212) 15.99 (7.25) 1000 (4.45)

DBR12-14 B3126-12-14 5” x 6” x 20.2” (127.0 x 152.4 x 513.1) 9.38” (238) 21.34 (9.68) 1000 (4.45)

DBR16-20 B3126-16-20 5” x 6” x 20.2” (127.0 x 152.4 x 513.1) 9.78” (248) 26.70 (12.11) 1000 (4.45)

† See Pipe Hanger Catalog for dimensions and specifications. ** From bottom of rubber block to bottom of pipe/tubing.

Dura-Blok™ Rooftop Supports

159

Dura-Blok™ Supports

ROOFTOP APPLICATIONS

Dura-Blok™ Rooftop Supports

160

Dura-Blok™ Supports

ROOFTOP SUPPORTS IN WALKWAY APPLICATIONS

•Safety Grating is available with slip resistant Grate-Lock™, helping provide a safe

walkway for foot traffic on the roof.

•Easy to install, elevated design, creates an identifiable path for foot traffic helping prevent

wear and tear to the roof surface.

•The cross-over design offers safe passage over existing cabling, piping, cable tray or

any other interference on the rooftop.

• The self cleaning pattern allows water and dirt to easily flow through, helping make the

grating an ideal walkway in all weather conditions.

• Handrail options are available

Dura-Blok™ Rooftop Supports

161

Dura-Blok™ Supports

A complete system of top quality, time saving

products, designed for surface metal raceways,

lighting and cable supports. Innovative designs

offer many installation advantages. Cooper

B-Line’s surface raceways are U.L. listed and

meet the requirements of the National Electrical

Code, Article 352.

Surface Raceways

Cooper B-Line’s channel provides structural

support in addition to a raceway system.

For U.L. wire fill see chart on page 230-231.

Cable Supports

A full range of clamps and saddles are offered in

porcelain, thermoplastic elastomer and maple.

Cooper B-Line’s maple clamps, Insulclamp™cable

clamps and porcelain saddles are furnished

complete with steel clamps (electro-plated) and

Everdur hardware where required.

Materials & Finishes*

Steel products are made from low carbon steel

strips or plates. Porcelain saddles and clamps are

made by dry process and white glazed (porcelain

dielectric strength is 50 volts per mil). Maple

clamps are made from kiln-dried maple wood,

paraffin impregnated.

*Unless otherwise noted.

Design Load

Design load data published includes a Safety Factor of 3.0 (Safety Factor = Ratio of ultimate load to

the design load).

U.L. listed raceway channels:

B11, B11KO6 B32, B32KO6

B12, B12KO6 B42, B42KO6

B22, B22KO6 B52, B52KO6

B24, B24KO6 B54, B54KO6

B26, B26KO6 B56, B56KO6

U.L. File No. E29637

In all cases, the snap-in closure strip is required to complete raceway enclosure.

Metric

Metric dimensions are shown in parentheses. Unless noted, all metric dimensions are in millimeters.

Electrical Accessories

162

Finish

Code Finish Specification

PLN Plain ASTM A1011

33,000 PSI min. yield

ZN Electro-Plated Zinc ASTM B633 SC3 Type III

GRN Dura-Green

GALV Pre-Galvanized ASTM B653

YZN Yellow Zinc Chromate ASTM B633 SC3 Type II

Channel Channel Channel Fixture Connection Internal Internal

Number Depth Hanger Hanger Hanger End Cap End Cap Straight Splice Tee Splice

B22A 31/4”(82.5) B616-22A* B241S* B616S-22A* B205 or B285 B392-22** B766-22 (2) B768-22 (2)

B285

B11 31/4”(82.5) B616-22A* B241S* B616S-22A* B222 B392-11** B766-11 B768-11

B12 27/16”(61.9) B616-22A* B241S* B616S-22A* B221 B392-12** B766-12 B768-12

B22 15/8”(41.3) B616* B216S* B616S* B205 or B285 B392-22** B766-22 B768-22

B24 B616TG* B223 or B286

B26 15/8”(41.3) B616* – – – B392-22** – –

B32 13/8”(34.9) B616* B216S* B616S* B206 B392-32** B766-32 B768-32

B616TG*

B42 1” (25.4) B616* B215S* B616S* B203 –B766-42 B768-42

B616TG*

B52 13/16”(20.6) B616* B215S* B616S* B220 or B283 – B766-52 B768-52

B54 B616TG* B204 or B284

B56 13/16”(20.6) B616* B215S* B616S* – – B766-56 –

B616TG*

11A 233A45

*Specify Hanger Rod or Conduit Size.

**Specify Conduit Size

OTHER ITEMS SHOWN ON ILLUSTRATION

SELECTION CHART

Snap-in Closure Strip

H.I.D. Fixture Hanger Beam Clamp Conduit Connection Plate B718 Series Junction Box

Beam Clamp Beam Clamp Beam Clamp

B217-20 (6) (7) (8) (9)

(10) (11) (12) (13)

B465

B351L B755 B751

B719B447

B447A

B750

(8)

(9)

(5)

(2)

(13)

(10)

(1)

(1) (4)

(7)

(11)

(1) or

(1A) (Not Shown)

(3) or

(3A) (Not Shown)

(6)

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Electrical Accessories

163

B616-7/8

CHANNEL HANGER

• Design Load 250 Lbs. (1.11 kN)

• Safety Factor of 3

• Maximum design load 50 Lbs. (.22 kN)

when used as a fixture support

• Material: 16 Gauge (1.5)

• Standard finish: ZN

• Wt./C 25 Lbs. (11.3 kg)

B616-9/16

CHANNEL HANGER

• Design Load 250 Lbs. (1.11 kN)

• Safety Factor of 3

• Maximum design load 50 Lbs. (.22 kN)

whenused as a fixture support

• Includes:

2 pcs. 3/8” Flat Washers for use with 3/8” ATR

• Material: 16 Gauge (1.5)

• Standard finish: ZN

• Wt./C 25 Lbs. (11.3 kg)

B616S-9/16

FLUORESCENT FIXTURE

HANGER WITH STUD

• Design Load 150 Lbs. (.67 kN)

• Safety Factor of 3

• Maximum design load 50 Lbs. (.22 kN)

when used as a fixture support

• Allows more than 1/2” (12.7) space

between channel and fixture

• Includes:

2 pcs. 3/8” Flat Washers for use with 3/8” ATR

• Material:16 Gauge (1.5)

• Standard finish: ZN

• Wt./C 30 Lbs. (13.6 kg)

B616S-7/8

FLUORESCENT FIXTURE

HANGER WITH STUD

• Design Load 150 Lbs. (.67 kN)

• Safety Factor of 3

• Maximum design load 50 Lbs. (.22 kN)

when used as a fixture support

• Allows more than 1/2” (12.7) space

between channel and fixture

• Standard finish: ZN

• Wt./C 30 Lbs. (13.6 kg)

B616-22A-9/16

CHANNEL HANGER

• Design Load 250 Lbs. (1.11 kN)

• Safety Factor of 3

• Maximum design load 50 Lbs. (.22 kN)

when used as a fixture support

• Includes:

2 pcs. 3/8” Flat Washers for use with 3/8” ATR

• Material: 14 Gauge (1.9)

• Standard finish: ZN

•Wt./C 44 Lbs. (19.9 kg)

B616-22A-7/8

CHANNEL HANGER

•Design Load 250 Lbs. (1.11 kN)

•Safety Factor of 3

•Maximum design load 50 Lbs. (.22 kN)

when used as a fixture support

•Material: 14 Gauge (1.9)

•Standard finish: ZN

•Wt./C 44 Lbs. (19.9 kg)

31/8”

(79.4)

11/2”

(38.1)

9/16” (14.3) Dia. For

1/2” ATR

7/8” (22.2) Dia. For

1/2” (15) Conduit

31/8”

(79.4)

11/2”

(38.1)

31/8”

(79.4)

11/2”

(38.1)

31/8”

(79.4)

11/2”

(38.1)

51/8”

(130.2)

11/2”

(38.1)

9/16” (14.3) Dia. For

1/2” ATR

7/8” (22.2) Dia. For

1/2” (15) Conduit

11/2”

(38.1)

51/8”

(130.2)

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Fluorescent Fixture Hangers

164

B616S-22A-7/8

FLUORESCENT FIXTURE

HANGER WITH STUD

• Design Load 150 Lbs. (.67 kN)

• Safety Factor of 3

• Maximum design load 50 Lbs. (.22 kN)

when used as a fixture support

• Allows more than 1/2” (12.7) space

between channel and fixture

• Material: 14 Gauge (1.9)

• Standard finish: ZN

• Wt./C 49 Lbs. (22.2 kg)

B616S-22A-9/16

FLUORESCENT FIXTURE

HANGER WITH STUD

• Design Load 150 Lbs. (.67 kN)

• Safety Factor of 3

• Maximum design load 50 Lbs. (.22 kN)

when used as a fixture support

• Includes:

2 pcs. 3/8” Flat Washers for use with 3/8” ATR

• Allows more than 1/2” (12.7) space

between channel and fixture

• Material: 14 Gauge (1.9)

• Standard finish: ZN

• Wt./C 49 Lbs. (22.2 kg)

B616TG-9/16

FLUORESCENT FIXTURE

HANGER FOR 1/2” (15) KNOCKOUT

• Design Load 150 Lbs. (.67 kN)

• Safety Factor of 3

• Maximum design load

50 Lbs. (.22 kN) when used as a

fixture support

• Includes:

2 pcs. 3/8” Flat Washers for

use with 3/8” ATR

• Design Load 150 Lbs. (.67 kN)

• Allows more than 1/2” (12.7) space

between channel and fixture

• Material: 16 Gauge (1.5)

• Standard finish: ZN

• Wt./C 32 Lbs. (14.5 kg)

B215S

CHANNEL HANGER

• Can be used with 3/8” & 1/2” threaded rod or 3/8” & 1/2” conduit

• Design Load 250 Lbs. (1.11 kN)

• Safety Factor of 3

• For use with B42, B52, B54 & B56 Channels

• Hardware included:

One (1) 3/8” x 11/2” FFW for use with 3/8”-16 ATR

One (1) 1/2” FW for use with 1/2”-13 ATR

One (1) 5/8” FW for use with 3/8” conduit

• Material: 16 Gauge (1.5)

• Standard finish: ZN

• Wt./C 31 Lbs. (14.0 kg)

B216S

CHANNEL HANGER

• Can be used with 3/8” & 1/2” threaded rod or

3/8” & 1/2” conduit

• Design Load 250 Lbs. (1.11 kN)

• Safety Factor of 3

• For use with B22, B24, B26 & B32 Channels

• Hardware included:

One (1) 3/8” x 11/2” FFW for use with 3/8”-16 ATR

One (1) 1/2” FW for use with 1/2”-13 ATR

One (1) 5/8” FW for use with 3/8” conduit

• Material: 16 Gauge (1.5)

• Standard finish: ZN

• Wt./C 38 Lbs. (17.2 kg)

B241S

CHANNEL HANGER

• Can be used with 3/8” & 1/2” threaded rod or 3/8” & 1/2” conduit

• Design Load 250 Lbs. (1.11 kN)

• Safety Factor of 3

• For use with B11 & B12 Channels.

• Hardware included:

One (1) 3/8” x 11/2” FFW for use with 3/8”-16 ATR

One (1) 1/2” FW for use with 1/2”-13 ATR

One (1) 5/8” FW for use with 3/8” conduit

• Material: 16 Gauge (1.5)

• Standard finish: ZN

• Wt./C 47 Lbs. (21.3 kg)

51/8”

(130.2)

11/2”

(38.1)

51/8”

(130.2)

11/2”

(38.1)

31/8”

(79.4)

11/2”

(38.1)

9/16” (14.3) Dia.

For 1/2” ATR

7/8” (22.2) Dia.

23/16”

(55.6)

31/2”

(88.9)

121/32”

(42.0)

7/8” (22.2) Dia.

121/32”

(42.0)

51/16”

(128.6)

121/32”

(42.0)

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Fluorescent Fixture Hangers

165

B390BX

360° SWIVEL BOX CONNECTOR

• Design Load 250 Lbs. (1.11 kN) for Connector

Fitting only

• Safety Factor of 3

• Design Load 50 Lbs. (.22 kN) when used as

illustrated or for use as a fixture support

• Swings 15° in 360° plane

• Includes:

1 pc. 3/4” (20) to 1/2” (15) Conduit Reducer

• Fits on 4” box

• Standard finish: ZN

• Wt./C 55 Lbs. (24.9 kg)

B390S

360° SWIVEL CHANNEL CONNECTOR

• Design Load 250 Lbs. (1.11 kN)

• Safety Factor of 3

• Maximum design load 50 Lbs. (.22 kN)

when used as a fixture support

• Swings 15° in 360° plane

• Includes:

2 pcs. SN224-3/4”WO Stud Nut

2 pcs. 1/4”-20 Square Nut

1 pc. 3/4” (20) to 1/2” (15) Conduit Reducer

• Standard finish: ZN

• Wt./C 71 Lbs. (32.2 kg)

B465

H.I.D. FIXTURE HANGER

• Design Load 250 Lbs. (1.11 kN)

• Safety Factor of 3

• Swings 15° in 360° plane

• Includes:

1 pc. 3/4” (20) to 1/2” (15) Conduit Reducer

• Standard finish: ZN

• Wt./C 95 Lbs. (43.1 kg)

B436S

FLUORESCENT FIXTURE STUD NUT

• Bolt size: 1/4” x 11/4”

• Standard finish: ZN

• Wt./C 4 Lbs. (1.8 kg)

• Design Load

250 Lbs. (1.11 kN)

Safety Factor of 3

B436

FLUORESCENT FIXTURE NUT

•Standard finish: ZN

•Wt./C 2 Lbs. (.9 kg)

B460

FLUORESCENT FIXTURE HANGER

• Hanger is shipped flat and requires

field bending as shown

• Allows more than 1/2” (12.7)

space between channel and fixture

• Material: 18 Gauge (1.2)

• Standard finish: ZN

B464

FLUORESCENT

FIXTURE HANGER

• Hanger is shipped flat and

requires field bending as shown

• Allows more than 1/8” (3.2) space

between channel and fixture

• Material: 18 Gauge (1.2)

• Standard finish: ZN

33/4”

(95.2)

21/16”

(52.4)

15/8”

(41.3)

9/32” (7.1)

Square Hole

Part No. For Channel Size A Wt./C

Lbs. kg

B460-22 B22, B24, B26, B32 21/8”(57.5) 17 (7.7)

B460-12 B12 215/16”(79.5) 20 (9.1)

B460-11 B11 33/4”(101.6) 23 (10.4)

Tapped For 1/4”-20 Screw

11/4”

(31.7)

Part No. For Channel Size A Wt./C

Lbs. kg

B464-32 B32 11/2”(40.6) 17 (7.7)

B464-22 B22, B24, B26 13/4”(47.4) 18 (8.1)

B464-12 B12 29/16”(66.0) 21 (9.5)

B464-11 B11 33/8”(91.4) 24 (10.9)

1/4” x 1” Round Head

Machine Screw and

Square Nut Included

1/4” x 1” Round Head

Machine Screw and

Square Nut Included

1/4” x 3/4” Carriage Bolt and

Square Nut Included

15/8”

(41.3)

21/8”

(54.0)

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Fluorescent Fixture Hangers

166

B516S

OUTLET BOX

• Duplex cover plate included

• Receptacle not furnished

• Includes:

2 pcs. 1/4”-20 Flat Head Machine Screws

2 pcs. N224WO Channel Nuts

• Standard finish: ZN

• Wt./C 98 Lbs. (44.4 kg)

B516

SNAP-IN OUTLET BOX

• Provided with #10-32 tapped hole for grounding strap

• Duplex cover plate included

• Receptacle not furnished

• Requires ground wire installation for

use with UL listed channel raceway system

• Standard finish: GALV

• Wt./C 72 Lbs. (32.6 kg)

B203 THRU B206

B220 THRU B223

X TYPE END CAPS

• Material: 12 Gauge (2.6)

• Standard finishes: ZN, GRN, HDG, SS4

B283 THRU B286

END CAPS

• Material: 12 Gauge (2.6)

• Standard finishes: ZN, GRN

B217-20

SNAP CLOSURE STRIP FOR

ALL 15/8” (41.3) WIDE

CHANNELS

• Refer to Raceway Fill Chart

Pg. 214-215

• Material: 20 Gauge (.9)

• Standard finishes: GRN, GALV, YZN

• Standard length: 120” (3.05m)

• Wt./CFT 36 Lbs. (16.3 kg)

B217P

PLASTIC SNAP CLOSURE

STRIP FOR ALL 15/8” (41.3)

WIDE CHANNELS

• Refer to Raceway Fill Chart

Pg. 214-215

• Standard finishes: Green (GRN) or

Gray (GRY) Plastic

• Standard length: 120” (3.05m)

• Wt./CFT 9.2 Lbs. (4.2 kg)

B217-24

SNAP CLOSURE STRIP FOR ALL

15/8” (41.3) WIDE CHANNELS

• Refer to Raceway Fill Chart

Pg. 214-215

• For use with 7 or fewer conductors no

larger than #12 AWG

• Material: 24 Gauge (.6)

• Standard finishes: GRN, GALV, YZN

• Standard length: 120” (3.05m)

• Wt./CFT 28 Lbs. (12.7 kg)

17/8”

(47.6)

21/8”

(54.0)

41/16”

(103.2)

4”

(101.6)

1/2” (12.7) x 2” (25.4) Slot

B217-20

Closure Strip

1/2” (15) & 3/4” (20)

Concentric KO’S

AWt./C

Part No. Use With

Lbs. kg

B203 B42 1.015” (25.8) 6(2.7)

B204 B54 .827” (21.0) 5(2.2)

B205 B22 1.640” (41.6) 10 (4.5)

B206 B32 1.390” (35.3) 8(3.6)

B220 B52 .827” (21.0) 4(1.8)

B221 B12 2.452” (62.3) 15 (6.8)

B222 B11 3.265” (82.9) 20 (9.1)

B223 B24 1.640” (41.6) 10 (4.5)

Wt./C

Part No. Use With Lbs. kg

B283 B52 119/32”(40.5) 25/32”(19.8) 6(2.7)

B284 B54 & B56 119/32”(40.5) 25/32”(19.8) 6(2.7)

B285 B22 119/32”(40.5) 119/32”(40.5) 13 (5.9)

B286 B24 & B26 119/32”(40.5) 119/32”(40.5) 14 (6.3)

1/2” (12.7) x 2” (25.4) Slot

1/2” (15) & 3/4” (20)

Concentric KO’S

17/8”

(47.6)

15/8”

(41.3)

21/8”

(54.0)

41/16”

(103.2)

6”

(152.4)

17/16”

(36.5)

19/32”

(15.1)

1/2”

(12.7)

113/32”

(35.7)

15/32”

(11.9)

9/32”

(7.1)

17/16”

(36.5)

5/8”

(15.9)

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Electrical Accessories

167

B447A

CONDUIT CONNECTION

PLATE FOR 3/4” (20) CONDUIT

• Includes:

2 pcs. 1/4”-20 Flat Head Machine Screws

2 pcs. N224WO Channel Nuts

• Material: 16 Gauge (1.5)

• Standard finish: ZN

• Wt./C 35 Lbs. (15.9 kg)

B447

CONDUIT CONNECTION

PLATE FOR 1/2” (15) CONDUIT

• Includes:

2 pcs. 1/4”-20 Flat Head Machine Screws

2 pcs. N224WO Channel Nuts

• Material: 16 Gauge (1.5)

• Standard finish: ZN

• Wt./C 35 Lbs. (15.9 kg)

B392-32 SERIES

CONNECTION END CAP

• Includes:

1 pc. 1/4”-20 Square Nut

1 pc. B436S Fixture Stud Nut

• Material: 11 Gauge (3.0)

• Standard finish: ZN

B392-22 SERIES

CONNECTION END CAP

• Includes:

1 pc. 1/4”-20 Square Nut

1 pc. B436S Fixture Stud Nut

• Material: 11 Gauge (3.0)

• Standard finish: ZN

B392-12 SERIES

CONNECTION END CAP

• Includes:

1 pc. 1/4”-20 Square Nut

1 pc. B436S Fixture Stud Nut

• Material: 11 Gauge (3.0)

• Standard finish: ZN

B392-11 SERIES

CONNECTION END CAP

• Includes:

1 pc. 1/4”-20 Square Nut

1 pc. B436S Fixture Stud Nut

• Material: 11 Gauge (3.0)

• Standard finish: ZN

7/8” (22.2) Dia.

2 Holes

9/32” (7.1) Dia. 2 Holes

9/32” (7.1) Dia.

5/8”

(15.9)

Wt./C

Part No. A Conduit Size Lbs. kg

B392-32-1/27/8”(22.2) 1/2”(15) 20 (9.1)

B392-32-3/411/16”(27.0) 3/4”(20) 19 (8.6)

15/8”

(41.3)

13/8”

(34.9)

3/4”

(19.0)

ADia.

9/32” (7.1) Dia.

Conduit Wt./C

Part No. A Size Lbs. kg

B392-12-1/27/8”(22.2) 1/2”(15) 27 (12.2)

B392-12-3/411/16”(22.7) 3/4”(20) 26 (11.8)

B392-12-1 1” PIPE THREAD 1” (25) 23 (10.4)

15/8”

(41.3)

27/16”

(61.9)

3/4”

(19.0)

ADia.

9/32” (7.1) Dia.

13/32” (27.8) Dia. 5/8”

(15.9)

51/8”

(130.2)

Conduit Wt./C

Part No. A Size Lbs. kg

B392-22-1/27/8”(22.2) 1/2”(15) 21 (9.5)

B392-22-3/411/16”(27.0) 3/4”(20) 20 (9.1)

B392-22-1

1” PIPE THREAD

1” (25) 17 (7.7)

15/8”

(41.3)

15/8”

(41.3)

3/4”

(19.0)

A Dia.

9/32” (7.1) Dia.

Conduit Wt./C

Part No. A Size Lbs. kg

B392-11-1/27/8”(22.2) 1/2”(15) 36 (16.3)

B392-11-3/411/16”(27.0) 3/4”(20) 33 (14.9)

B392-11-1 1” PIPE THREAD 1” (25) 32 (14.5)

15/8”

(41.3)

31/4”

(82.5)

3/4”

(19.0)

A Dia.

9/32” (7.1) Dia.

51/8”

(130.2)

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Electrical Accessories

168

Wt./C

Part No. Includes Lbs. kg

B718-1 1 B718 & 1 B719 205 (93.0)

B718-2 1 B718 & 2 B719 230 (104.3)

B718-3 1 B718 & 3 B719 255 (115.6)

B718-4 1 B718 & 4 B719 280 (127.0)

CHANNEL CONNECTION KIT

• For use with B22, B24 & B26 Channels.

• Box Dimension: Standard 4” Octagon Box

• Includes:

1 pc. B392-22-3/4End Connection (See page 160)

1 pc. 3/4” (20) Insulated Chase Nipple

1 pc. 3/4” (20) Lock Nut

• Standard finish: ZN

Box Dimension:

21/2” Deep x 51/8” Square

B718

UNIVERSAL JUNCTION BOX

• Assemble B719 Hubs into B718 square knockouts

• Designed for use with B22, B24 & B26 Channel

• B718 Includes:

1 pc. Junction Box only

1 pc. Cover only

2 pcs. #10-20 Round Head Machine Screws

• Standard finish: ZN

• Wt./C 180 Lbs. (81.6 kg)

B719AL

UNIVERSAL JUNCTION BOX HUB

• B719AL Includes:

1 pc. B719AL Hub only

1 pc. B436S Fixture Stud Nut

1 pc. 1/4”-20 Square Nut

2 pcs. #10-24 Self Tapping Screws

2 pcs. Rubber Caps

• Material: Aluminum

• Wt./C 25 Lbs. (11.3 kg)

B518-1 THRU B518-4

UNIVERSAL JUNCTION BOX AND HUBS

• Channel Connection Kits as shown in the chart above

• Includes:

1 pc. Junction Box with Screws

1 pc. Box Cover

• Standard finish: ZN

B718-1 B718-2 B718-2 B718-3 B718-4

B718-1

END

B718-2

90°

B718-3

TEE

B718-4

CROSS

B718-2

THRU BOX

Channel Connection Wt./C

Part No. Kits Included Lbs. kg

B518-1 1106 (48.1)

B518-2 2137 (62.1)

B518-3 3162 (78.5)

B518-4 4 192 (87.1)

SELECTION GUIDE

B518-1

END

B518-2

90°

B518-3

TEE

B518-4

CROSS

B518-2

THRU BOX

3/4” (19.1) Conduit

Knockouts

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Junction Boxes

169

B766 SERIES

STRAIGHT STRUT JOINER

• Includes: 2 Cam Screws

• Material: 12 Gauge (2.6)

• Standard finish: ZN

B768 SERIES

TEE STRUT JOINER

• Includes: 3 Cam Screws

• Patented

• Material: 12 Gauge (2.6)

• Standard finish: ZN

B769 SERIES

CROSS STRUT JOINER

• Includes: 4 Cam Screws

• Patented

• Material: 12 Gauge (2.6)

• Standard finish: ZN

B767 SERIES

90° ELBOW STRUT JOINER

• Includes: 2 Cam Screws

• Material: 12 Gauge (2.6)

• Standard finish: ZN

41/2”

(114.3)

7/8”

(22.2)

41/2”

(114.3)

31/16”

(77.8)

25/16”

(58.7)

25/16”

(58.7)

Wt./C

Part No. For Channel Size Lbs. kg

B767-11 B11 74 (33.5)

B767-12 B12 56 (25.4)

B767-22 * B22 & B24 39 (17.7)

B767-26 B26 41 (18.6)

B767-32 B32 34 (15.4)

B767-42 B42 27 (12.2)

B767-52 B52 & B54 23 (10.4)

B767-56 B56 25 (11.3)

Wt./C

Part No. For Channel Size Lbs. kg

B766-11 B1194

(42.6)

B766-12 B12 72 (32.6)

B766-22 * B22 & B24 50 (22.7)

B766-26 B26 53 (24.0)

B766-32 B32 44 (19.9)

B766-42 B42 34 (15.4)

B766-52 B52 & B54 28 (12.7)

B766-56 B56 31 (14.0)

Wt./C

Part No. For Channel Size Lbs. kg

B768-11 B11142 (64.4)

B768-12 B12 112 (50.8)

B768-22 * B22 & B24 79 (35.8)

B768-26 B26 79 (35.8)

B768-32 B32 72 (32.6)

B768-42 B42 62 (28.1)

B768-52 B52 & B54 57 (25.8)

B768-56 B56 60 (27.2)

Wt./C

Part No. For Channel Size Lbs. kg

B769-11 B11148 (67.1)

B769-12 B12 120 (54.4)

B769-22 * B22 & B24 87 (39.4)

B769-26 B26 93 (42.2)

B769-32 B32 78 (35.4)

B769-42 B42 65 (29.5)

B769-52 B52 & B54 58 (26.3)

B769-56 B56 62 (28.1)

41/2”

(114.3)

41/2”

(114.3)

* Cast Aluminum parts

Note: Strut joiners are not for structural support. A channel support is recommended within 24” (609 mm) of each joint.

Note: B767-22

(Cast Aluminum Fitting)

does not require miter

cutting of channel as

shown in drawing.

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Strut Joiners

170

B166-46

FOUR HOLE

SPLICE CLEVIS ASSEMBLY

• Requires ground wire for use with

UL listed channel raceway system

• Includes:

1 Splice Clevis

1 pc. B466W tapped plate

4 pcs. 1/4”-20 Flat Head Machine Screws

• Material: 16 Gauge (1.5)

• Standard finishes: ZN, GRN

B166

FOUR HOLE

SPLICE CLEVIS

•Includes:

1 Splice Clevis

4 pcs. 1/4”-20 Flat Head

Machine Screws

4 pcs. N224WO Channel Nuts

•Material: 16 Gauge

Wt./C

Part No. A For Channel Size Lbs. kg

B166-11 31/4”(82.5) B11 128 (58.0)

B166-12 27/16”(61.9) B12 108 (49.0)

B166-22 15/8”(41.3) B22, B24, B26 91 (40.3)

B166-32 13/8”(34.9) B32 83 (37.6)

B166-42 1” (25.4) B42 75 (34.0)

B166-52 13/16”(20.6) B52, B54, B56 71 (32.2)

111/16”

(42.9)

71/4”

(184.1)

Wt./C

Part No. A For Channel Size Lbs. kg

B166-46-11 31/4”(82.5) B11 118 (53.5)

B166-46-12 27/16”(61.9) B12 98 (44.4)

B166-46-22 15/8”(41.3) B22, B24, B26 79 (35.8)

B166-46-32 13/8”(34.9) B32 73 (33.1)

B166-46-42 1” (25.4) B42 65 (29.5)

B166-46-52 13/16”(20.6) B52, B54, B56 61 (27.6)

71/4”

(184.1)

111/16”

(42.9)

B166CL

SPLICE CLEVIS CLIP

• Use to cover gap between strut

• Material: 18 Gauge (1.2)

• Standard finish: ZN

• Wt./C 4 Lbs. (1.8 kg)

B619

KNOCK-OUT PLATE

• Requires ground wire for use with UL

listed channel raceway system

• Includes:

2 pcs. 1/4”-20 Flat Head Machine

Screws

2 pcs. N224WO Channel Nuts

• Material: 16 Gauge (1.5)

1/2” (15) Conduit Knockouts

• Standard finish: ZN

• Wt./C 40 Lbs. (18.1 kg)

B393-1

WIRING STUD

• Requires ground wire for use with

UL listed channel raceway system

• 1/2” (15) pipe threads

• Material: Cast Aluminum

• Wt./C 6 Lbs. (2.7 kg)

B589

SPACER CLEVIS

• Can be used with B393-1 wiring stud

• Material: 12 Gauge (2.6)

• Standard finish: ZN

• Wt./C 29 Lbs. (13.1 kg)

B466W

TAPPED SPLICE PLATE

• Includes:

4 pcs. 1/4”-20 Flat Head Machine

Screws

• Material: 14 Gauge (1.9)

• Standard finish: ZN

• Wt./C 27 Lbs. (12.2 kg)

• Holes 13/16” (20.6) from ends and

17/8” (47.6) on centers

B466S

STUD SPLICE PLATE

• Includes:

4 pcs. 1/4”-20 Square Nuts

• Material: 14 Gauge (1.9)

• Standard finish: ZN

• Wt./C 34 Lbs. (15.4 kg)

• Studs 13/16” (20.6) from ends and

17/8” (47.6) on centers

125/32”

(45.2)

1”

(25.4)

B166

9/32” (7.1) Dia.

Holes

121/32”

(42.0)

61/4”

(158.7)

11/8”

(28.6)

1/2” (15) Pipe

Threads 7/8” (22.2) Dia.

1/2”

(12.7)

4”

(101.6)

2”

(50.8)

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Strut Joiners

171

B590

FIBER WIRE RETAINER

• Installation aid for retaining wires before

installing snap closure strip

• Wt./C 1 Lb. (.4 kg)

B617

SHOULDER BOLT

• Standard finish: ZN

• Wt./C 6 Lbs. (2.7 kg)

13/8”

(34.9)

11/2”

(38.1)

1/32”

(.8) 3/8”-16 Thread Size

2”

(50.8)

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Electrical Hardware

172

B446A

SWIVEL HANGER (FEMALE ONLY)

• Design Load:

(3/8)-610 Lbs. (2.71 kN)

(1/2)-1130 Lbs. (5.02 kN)

(5/8)-1810 Lbs. (8.05 kN)

(3/4)-2710 Lbs. (12.05 kN)

• Safety Factor of 3

• Standard finish: ZN

B446B

SWIVEL HANGER (MALE ONLY)

• Design Load:

(3/8)-610 Lbs. (2.71 kN)

(1/2)-1130 Lbs. (5.02 kN)

(5/8)-1810 Lbs. (8.05 kN)

(3/4)-2710 Lbs. (12.05 kN)

• Safety Factor of 3

• Standard finish: ZN

B446C

SWIVEL HANGER (FEMALE-FEMALE)

• Design Load:

(3/8)-610 Lbs. (2.71 kN)

(1/2)-1130 Lbs. (5.02 kN)

(5/8)-1810 Lbs. (8.05 kN)

(3/4)-2710 Lbs. (12.05 kN)

• Safety Factor of 3

• Standard finish: ZN

Wt./C

Part No. ABLbs. kg

B446-3/83/8”-16 HN 3/8”-16 HHCS 28 (12.7)

B446-1/21/2”-13 HN 1/2”-13 HHCS 36 (16.3)

B446-5/85/8”-11 HN 5/8”-11 HHCS 78 (35.4)

B446-3/43/4”-10 HN 3/4”-10 HHCS 112 (50.8)

23/4”

(69.8)

1”

(25.4)

Wt./C

Part No. A R Lbs. kg

B446A-3/83/8”-16 HN 9/32”(7.1) 13 (5.9)

B446A-1/21/2”-13 HN 3/8”(9.5) 15 (6.8)

B446A-5/85/8”-11 HN 15/32”(11.9) 34 (15.4)

B446A-3/43/4”-10 HN 9/16”(14.3) 45 (20.4)

Wt./C

Part No. B R Lbs. kg

B446B-3/83/8”-16 HHCS 9/32”(7.1) 16 (7.2)

B446B-1/21/2”-13 HHCS 3/8”(9.5) 20 (9.1)

B446B-5/85/8”-11 HHCS 15/32”(11.9) 42 (19.0)

B446B-3/43/4”-10 HHCS 9/16”(14.3) 60 (27.2)

13/4”

(44.4)

13/4”

(44.4)

Wt./C

Part No. A Lbs. kg

B446C-3/83/8”-16 HN 26 (11.8)

B446C-1/21/2”-13 HN 31 (14.0)

B446C-5/85/8”-11 HN 68 (30.8)

B446C-3/43/4”-10 HN 90 (40.8)

23/4”

(69.8)

B446

SWIVEL HANGER (FEMALE-MALE)

• Design Load:

(3/8)-610 Lbs. (2.71 kN)

(1/2)-1130 Lbs. (5.02 kN)

(5/8)-1810 Lbs. (8.05 kN)

(3/4)-2710 Lbs. (12.05 kN)

• Safety Factor of 3

• Standard finish: ZN

Wt./C Includes

Part No. Hole Dia. Lbs. kg A B Clamp No.

B4060 3/8”(9.5) 25 (11.3)

B4061 1/2”(12.7) 25 (11.3) 1.36” (34.5) .56” (14.2) B2030

B4062 5/8”(15.9) 25 (11.3)

B4063 3/4”(19.0) 37 (16.8)

B4064 7/8”(22.2) 37 (16.8) 1.86” (47.2) .81” (20.8) B2011

B4065 1” (25.4) 37 (16.8)

B4066 11/8”(28.6) 37 (16.8)

B4067 11/4”(31.7) 58 (26.3)

B4068 13/8”(34.9) 58 (26.3) 2.36” (59.9) 1.06” (26.9) B2038

B4069 11/2”(38.1) 58 (26.3)

B4070 15/8”(41.3) 58 (26.3)

B4071 13/4”(44.4) 76 (34.5)

B4072 17/8”(47.6) 76 (34.5) 2.86” (72.6) 1.31” (33.3) B2042

B4073 2” (50.8) 76 (34.5)

B4074 21/8”(54.0) 76 (34.5)

B4075 21/4”(57.1) 90 (40.8)

B4076 23/8”(60.3) 90 (40.8) 3.36” (85.3) 1.56” (39.6) B2046

B4077 21/2”(63.5) 90 (40.8)

B4078 25/8”(66.7) 90 (40.8)

B4079 23/4”(69.8) 109 (49.4)

B4080 27/8”(73.0) 109 (49.4) 3.86” (98.0) 1.81” (46.0) B2050

B4081 3” (76.2) 109 (49.4)

B4082 31/8”(79.4) 109 (49.4)

B4083 31/4”(82.5) 130 (58.9)

B4084 33/8”(85.7) 130 (58.9) 4.36” (110.7) 2.06” (52.3) B2054

B4085 31/2”(88.9) 130 (58.9)

B4086 35/8”(92.1) 130 (58.9)

B4087 33/4”(95.2) 160 (72.6)

B4088 37/8”(98.4) 160 (72.6) 4.86” (123.4) 2.31” (58.7) B2058

B4089 4” (101.6) 160 (72.6)

B4090 41/8”(104.8) 160 (72.6)

B4091 41/4”(107.9) 160 (72.6)

B4092 43/8”(111.1) 160 (72.6) 5.24” (133.1) 2.50” (63.5) B2018

B4093 41/2”(114.3) 160 (72.6)

B4060 THRU B4093

INSULCLAMP CABLE CLAMPS (Replaces porcelain clamps)

• Assembly includes:

1 Insulclamp & 1 pr. zinc plated Pipe Straps with Everdur (Silicon Bronze) Hardware

• The thermoplastic elastomer Insulclamp has a dielectric strength of 640 volts/mil

• The flame retardant one piece design allows for trouble free assembly

• Everdur hardware is non-ferrous and prevents magnetic induction

Hole Dia.

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Insulclamp™Clamps

173

B4094 & B4095

PORCELAIN CABLE

RACK SADDLE

• Electrical porcelain has an

dielectric strength of 50 volts/mil

• Designed for use with

B449 Brackets

B4050 & B4051

PORCELAIN CABLE

CHANNEL SADDLE

• Electrical porcelain has an

dielectric strength of

50 volts/mil

B4035A THRU B4035F

4” (101.6) BUS BAR

MAPLE CLAMPS

• Assembly Includes:

1 pr. Maple Clamps (Paraffin Impregnated)

3 pcs. 1/2” Flat Washers

3 pcs. N225WO

3 pcs. SQN-1/2”

3 pcs. ATR-1/2x L (Length)

• Required number of Separators

• 1/4” (6.3) x 2” (50.8) and 1/4” (6.3) x 6” (152.4)

Bus Bar Maple Clamps available

B4037B 1/4” (6.3) x 4” (101.6)

BUS BAR SEPARATOR

• Wt./C 9 Lbs. (4.1 kg)

Wt./C

Part No. A R Lbs. kg

B4050 3” (76.2) 13/8”(34.9) 72 (32.6)

B4051 4” (101.6) 21/8”(54.0) 100 (45.3)

Wt./C

Part No. A R Lbs. kg

B4094 27/8”(73.0) 13/8”(34.9) 67 (30.4)

B4095 37/8”(98.4) 21/8”(54.0) 106 (48.1)

No. of Bus No. of Bars Wt./C

Part No. A B C Separators Per Leg Lbs. kg

B4035A 81/2”(215.9) 1/4”(6.3) –1 416 (188.7)

B4035B 91/2”(241.3) 3/4”(19.0) 2 2 447 (202.7)

B4035C 73/8”(187.3) 101/2”(266.7) 11/4”(31.7) 4 3 479 (217.3)

B4035D 111/2”(292.1) 13/4”(44.4) 64511(231.8)

B4035E 121/2”(317.5) 21/4”(57.1) 85 542 (245.8)

B4035F 131/2”(342.9) 23/4”(69.8) 10 6 574 (260.3)

21/4”

(57.1)

3”

(76.2)

15/8”

(41.3)

47/16”

(112.7)

31/2”

(88.9)

1/4”

(6.3)

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Porcelain & Maple Clamps

174

B4000 THRU B4007

MAPLE CABLE CLAMPS

• Assembly Includes:

1 pr. Maple Clamps (Paraffin Impregnated)

1 pr. zinc plated Steel Pipe Straps with Everdur Hardware (Silicon Bronze)

• Everdur hardware is non-ferrous and prevents magnetic induction

Note: Maple cable clamps may be replaced with Insulclamps™see page 173 for sizes

B4008 THRU B4017

SQUARE MAPLE CABLE SADDLE

• Assembly Includes:

1 Maple Saddle (Paraffin Impregnated)

1 pc. 3/8”-16 Flat Head Machine Screw

1 pc. N228 Channel Nut

• Other sizes available

B4033A THRU B4033I

MAPLE CABLE CLAMPS

• Assembly Includes:

1 pr. Maple Clamps (Paraffin Impregnated)

2 pcs. 3/8”-16 Stud Bolts

2 pcs. 3/8”-16 Flat Washers

2 pcs. 3/8”-16 Square Nuts

2 pcs. N228 Channel Nuts

• Other sizes available

Clamp No. Wt./C

Part No. Specify Hole Dia. A B (included) Lbs. kg

B4000 0” to 5/8”(0.0 to 15.9) 111/32”(34.1) 2” (50.8) B2010 24 (10.9)

B4001 1/2” to 1” (12.7 to 25.4) 129/32”(48.4) 225/32”(70.6) B2012 44 (19.9)

B4002 3/4” to 11/2”(19.0 to 38.1) 23/8”(60.3) 39/32”(83.3) B2013 58 (26.3)

B4003 11/4” to 13/4”(31.7 to 44.4) 27/8”(73.0) 33/4”(95.2) B2014 66 (29.9)

B4004 11/2” to 21/4”(38.1 to 57.1) 31/2”(88.9) 43/8”(111.1) B2015 86 (39.0)

B4005 2” to 21/2”(50.8 to 63.5) 4” (101.6) 47/8”(123.8) B2016 110 (49.9)

B4006 21/4” to 3” (38.1 to 76.2) 41/2”(114.3) 53/8”(136.5) B2017 125 (56.7)

B4007 3” to 4” (76.2 to 101.6) 59/16”(141.3) 67/16”(163.5) B2019 165 (74.8)

Specify Wt./C

Part No. Hole Dia. A B Lbs. kg

B4008 0” to 1” (0.0 to 25.4) 3” (76.2) 13/4”(44.4) 35 (15.9)

B4009 1” to 11/2”(25.4 to 38.1) 31/2”(88.9) 2” (50.8) 42 (19.0)

B4010 11/2” to 2” (38.1 to 50.8) 4” (101.6) 21/4”(57.1) 53 (24.0)

B4011 2” to 21/2”(50.8 to 63.5) 41/2”(114.3) 21/2”(63.5) 62 (28.1)

B4012 21/2” to 3” (63.5 to 76.2) 5” (127.0) 23/4”(69.8) 76 (34.5)

B4013 3” to 31/2”(76.2 to 88.9) 51/2”(139.7) 3” (76.2) 85 (38.5)

B4014 31/2” to 4” (88.9 to 101.6) 6” (152.4) 31/4”(82.5) 95 (43.1)

B4015 4” to 41/2”(101.6 to 114.3) 7” (177.8) 33/4”(95.2) 105 (47.8)

B4016 41/2” to 5” (114.3 to 127.0) 71/2”(190.5) 4” (101.6) 115 (52.4)

B4017 5” to 6” (127.0 to 152.4) 9” (228.6) 5” (127.0) 126 (57.1)

15/8”

(41.3)

15/8”

(41.3)

Specify Hole Dia.

Specify Wt./C

Part No. Hole Dia. A Lbs. kg

B4033A 0” to 1” (0.0 to 25.4) 31/2”(88.9) 85 (38.5)

B4033B 1” to 11/2”(25.4 to 38.1) 4” (101.6) 95 (43.1)

B4033C 11/2to 2” (38.1 to 50.8) 41/2”(114.3) 118 (53.5)

B4033D 2” to 21/2”(50.8 to 63.5) 51/2”(127.0) 162 (73.5)

B4033E 21/2” to 3” (63.5 to 76.2) 6” (152.4) 187 (84.8)

B4033F 3” to 31/2”(76.2 to 88.9) 61/2”(165.1) 209 (94.8)

B4033G 31/2” to 4” (88.9 to 101.6) 7” (177.8) 248 (112.5)

B4033H 4” to 41/2”(101.6 to 114.3) 71/2”(190.5) 270 (122.5)

B4033I 41/2” to 5” (114.3 to 127.0) 8” (203.2) 298 (135.2)

Specify

Hole Dia.

Electrical Accessories

Reference page 162 for general fitting and standard finish specifications. U.L. Wire Fill Chart on pages 230 - 231.

Maple Clamps

175

Aluminum

Aluminum channels, fittings and accessories offer

excellent corrosion resistance and are suitable for

many indoor and outdoor applications. Aluminum’s

high strength to weight ratio greatly reduces

overall cost of installation through ease of

handling and cutting. Cooper B-Line’s channels

are extruded from aluminum alloy 6063-T6.

Closure strips are extruded from aluminum alloy

6063-T5. Fittings and accessories are made from

aluminum alloy 5052-H32.

Stainless Steel

Where corrosion problems persist and other

material and fittings are ineffective, we

recommend use of Cooper B-Line’s corrosion

resistant stainless steel channels and

accessories. Channels and fittings are available

in two types of stainless steel:

SS4-AISI Type 304

SS6-AISI Type 316

Fittings

Most fittings, as shown in this catalog, can be

supplied in aluminum or stainless steel.

Consult factory for possible minimum production

quantities and set-up charges.

Load Data

Aluminum

Channel’s approximate load data can be

determined by multiplying load data in the

steel channel section of this catalog by a

factor of 0.38.

Stainless Steel

Channel load data is the same as the data

in the steel channel section of this catalog.

Metric

Metric dimensions are shown in parentheses. Unless noted, all metric dimensions are in millimeters.

Alum. & Stainless Steel Materials

Aluminum & Stainless Steel

176

B11AL

• Thickness: .105 (2.6 mm)

• Standard Length: 10’ (3.05 m)

and 20’ (6.09 m)

• Material: Aluminum

• Weight: 1.06 Lbs./Ft. (1.58 kg/m)

B12AL

• Thickness: .105 (2.6 mm)

• Standard Length: 10’ (3.05 m)

and 20’ (6.09 m)

• Material: Aluminum

• Weight: .86 Lbs./Ft. (1.28 kg/m)

27/16”

(61.9)

15/8”

(41.3)

31/4”

(82.5)

15/8”

(41.3)

B22AAL

• Thickness: .105 (2.6 mm)

• Standard Length: 10’ (3.05 m) and 20’ (6.09 m)

• Material: Aluminum

• Weight: 1.18 Lbs./Ft. (1.75 kg/m)

15/8”

(41.3)

31/4”

(82.5)

B54AL

• Thickness: .080 (2.0 mm)

• Standard Length: 10’ (3.05 m) and 20’ (6.09 m)

• Material: Aluminum

• Weight: .37 Lbs./Ft. (0.55 kg/m)

15/8”

(41.3)

13/16”

(20.6)

B22AL

• Thickness: .105 (2.6 mm)

• Standard Length: 10’ (3.05 m)

and 20’ (6.09 m)

• Material: Aluminum

• Weight: .66 Lbs./Ft. (0.98 kg/m)

15/8”

(41.3)

15/8”

(41.3)

B24AL

• Thickness: .080 (2.0 mm)

• Standard Length: 10’ (3.05 m) and 20’ (6.09 m)

• Material: Aluminum

• Weight: .52 Lbs./Ft. (0.77 kg/m)

15/8”

(41.3)

15/8”

(41.3)

B54AAL

• Thickness: .080 (2.0 mm)

• Standard Length: 10’ (3.05 m) and 20’ (6.09 m)

• Material: Aluminum

• Weight: .57 Lbs./Ft. (0.84 kg/m)

15/8”

(41.3)

15/8”

(41.3)

B217AL

CLOSURE STRIP

• Standard Length: 10’ (304.8 cm)

• Material: Aluminum

• Weight: .15 Lbs./Ft. (0.23 kg/m)

B217P

PLASTIC CLOSURE STRIP

• Standard Length: 10’ (304.8 cm)

• Material: PVC

• Weight: .09 Lbs./Ft. (0.14 kg/m)

B217FFAL

CLOSURE STRIP

• Standard Length: 10’ (304.8 cm)

• Material: Aluminum

• Weight: .16 Lbs./Ft. (0.24 kg/m)

17/16”

(36.5)

21/2”

(63.5)

17/16”

(36.5)

5/8”

(15.9)

Alum. & Stainless Steel Materials

Reference page 176 for general fitting specifications. Other channel combinations available-see steel section for styles.

Aluminum Channel & Closure Strips

177

SH TYPE CHANNEL

• Material: Aluminum

H-17/8 TYPE CHANNEL

• Material: Aluminum

B2000 SERIES

RIGID CONDUIT CLAMPS

• Safety Factor of 5

• Machine Screw and Square Nut included

• Pipe clamp material 5052-H32

KO6 TYPE KNOCKOUT CHANNEL

• Material: Aluminum

Wt./C

Part No. Thickness H Lbs./Ft. kg/m

B12SH AL .105 (2.6) 27/16”(61.9) .83 (1.23)

B22SH AL .105 (2.6) 15/8”(41.3) .63 (.93)

B24SH AL .080 (2.0) 15/8”(41.3) .49 (.73)

B54SH AL .080 (2.0) 13/16”(20.6) .34 (.50)

Wt./C

Part No. Thickness H Lbs./Ft. kg/m

B12KO6 AL .105 (2.6) 27/16”(61.9) .86 (1.28)

B22KO6 AL .105 (2.6) 15/8”(41.3) .66 (.98)

B24KO6 AL .080 (2.0) 15/8”(41.3) .52 (.77)

B54KO6 AL .080 (2.0) 13/16”(20.6) .37 (.55)

Wt./C

Part No. Thickness H Lbs./Ft. kg/m

B12H17/8 AL .105 (2.6) 27/16”(61.9) .86 (1.28)

B22H17/8 AL .105 (2.6) 15/8”(41.3) .66 (.98)

B24H17/8 AL .080 (2.0) 15/8”(41.3) .52 (.77)

B54H17/8 AL .080 (2.0) 13/16”(20.6) .37 (.55)

Conduit or Material Design Load Wt./C

Part No. Pipe Size Thickness Lbs. kN Lbs. kg

B2001 AL 3/8”(10) .063 (1.6) 180 (.80) 4(1.8)

B2008 AL 1/2”(15) .063 (1.6) 180 (.80) 4(1.8)

B2009 AL 3/4”(20) .080 (2.0) 270 (1.20) 6(2.7)

B2010 AL 1” (25) .080 (2.0) 270 (1.20) 7(3.2)

B2011 AL 11/4”(32) .080 (2.0) 270 (1.20) 8(3.6)

B2012 AL 11/2”(40) .100 (2.5) 360 (1.60) 11 (5.0)

B2013 AL 2” (50) .100 (2.5) 360 (1.60) 12 (5.4)

B2014 AL 21/2”(65) .100 (2.5) 360 (1.60) 13 (5.9)

B2015 AL 3” (80) .100 (2.5) 360 (1.60) 16 (7.2)

B2016 AL 31/2”(90) .125 (3.2) 450 (2.00) 22 (10.0)

B2017 AL 4” (100) .125 (3.2) 450 (2.00) 24 (10.9)

B2018 AL 41/2”(115) .125 (3.2) 450 (2.00) 26 (11.8)

B2019 AL 5” (125) .125 (3.2) 450 (2.00) 27 (12.2)

B2020 AL 6” (150) .125 (3.2) 450 (2.00) 33 (14.9)

2” TYP.

(50.8)

9/16” x 11/8” Slots

(14.2) (28.6)

9/16” (14.2) Dia. Holes

6”

(152.4)

3”

(76.2)

7/8” (22.2) Dia. KO

17/8” Typ.

(47.6)

Design Load

Alum. & Stainless Steel Materials

Reference page 176 for general fitting specifications. Other channel combinations available-see steel section for styles.

Aluminum

178

Part Number

With Without Thread Wt./C

Spring Spring Size Thickness Lbs. kg

N724SS6 N224WOSS6 1/4”-20 1/4”(6.3) 6.6 (3.0)

N728SS6 N228WOSS6 3/8”-16 3/8”(9.5) 10.6 (4.8)

N725SS6 N225WOSS6 1/2”-13 3/8”(9.5) 9.7 (4.4)

Part Number

With Without Thread Wt./C

Spring Spring Size Thickness Lbs. kg

N224SS6 N224WOSS6 1/4”-20 1/4”(6.3) 6.6 (3.0)

N228SS6 N228WOSS6 3/8”-16 3/8”(9.5) 10.6 (4.8)

N225SS6 N225WOSS6 1/2”-13 3/8”(9.5) 9.7 (4.4)

Part Number

With Without Thread Wt./C

Spring Spring Size Thickness Lbs. kg

N524SS6 N224WOSS6 1/4”-20 1/4”(6.3) 6.6 (3.0)

N528SS6 N228WOSS6 3/8”-16 3/8”(9.5) 10.6 (4.8)

N525SS6 N525WOSS6 1/2”-13 3/8”(9.5) 9.7 (4.4)

NUTS FOR B12 CHANNEL

NUTS FOR B22, B24 CHANNELS

NUTS FOR B54 CHANNEL

ALUMINUM FITTINGS

Most fittings, as shown in this catalog, can be supplied in aluminum. See “Fittings” section (page 72) of this catalog.

Consult factory for possible minimum production quantities and set-up charges.

CHANNEL NUTS

B-Line recommends the use of Stainless Steel channel nuts with Aluminum channel. For channel nut pull-out strength

and slip resistance, use the channel nut information provided on pg. 50 & 51. A (.70) multiplier is to be applied to

obtain the appropriate derated values for aluminum channel.

SPRING NUT NUT WITHOUT SPRING

Alum. & Stainless Steel Materials

Reference page 176 for general fitting specifications. Other channel combinations available-see steel section for styles.

Aluminum

179

SH TYPE CHANNEL H-17/8 TYPE CHANNEL

B22SS*

• *Substitute 4 for Stainless Steel

Type 304 or 6 for Stainless Steel

Type 316

• Thickness: 12 Ga. (2.6 mm)

• Standard Length: 10’ (3.05 m)

and 20’ (6.09 m)

• Material: SS4, SS6

• Weight: 1.90 Lbs./Ft. (2.83 kg/m)

B32SS4

• Thickness: 12 Ga. (2.6 mm)

• Standard Length: 10’ (3.05 m)

and 20’ (6.09 m)

• Material: SS4

• Weight: 1.70 Lbs./Ft. (2.53 kg/m)

B42SS4

• Thickness: 12 Ga. (2.6 mm)

• Standard Length: 10’ (3.05 m)

and 20’ (6.09 m)

• Material: SS4

• Weight: 1.44 Lbs./Ft. (2.14 kg/m)

B24SS*

• *Substitute 4 for Stainless Steel

Type 304 or 6 for Stainless Steel

Type 316

• Thickness: 14 Ga. (1.9 mm)

• Standard Length: 10’ (3.05 m)

and 20’ (6.09 m)

• Material: SS4, SS6

• Weight: 1.40 Lbs./Ft. (2.08 kg/m)

B54SS*

• *Substitute 4 for Stainless Steel

Type 304 or 6 for Stainless Steel

Type 316

• Thickness: 14 Ga. (1.9 mm)

• Standard Length: 10’ (3.05 m)

and 20’ (6.09 m)

• Material: SS4, SS6

• Weight: .97 Lbs./Ft. (1.44 kg/m)

Wt./C

Part No. Thickness H Lbs./Ft. kg/m

B22SH SS4 12 Ga. (2.6) 15/8”(41.3) 1.82 (2.70)

B22SH SS6 12 Ga. (2.6) 15/8”(41.3) 1.82 (2.70)

B24SH SS4 14 Ga. (1.9) 15/8”(41.3) 1.34 (1.99)

B24SH SS6 14 Ga. (1.9) 15/8”(41.3) 1.34 (1.99)

B32SH SS4 12 Ga. (2.6) 13/8”(34.9) 1.62 (2.41)

B42SH SS4 12 Ga. (2.6) 1” (25.4) 1.36 (2.02)

B54SH SS4 14 Ga. (1.9) 13/16”(20.6) .91 (1.35)

B54SH SS6 14 Ga. (1.9) 13/16”(20.6) .91 (1.35)

Wt./C

Part No. Thickness HLbs./Ft. kg/m

B22H17/8 SS4 12 Ga. (2.6) 15/8”(41.3) 1.85 (2.75)

B24H17/8 SS4 14 Ga. (1.9) 15/8”(41.3) 1.36 (2.02)

B24H17/8 SS6 14 Ga. (1.9) 15/8”(41.3) 1.36 (2.02)

B32H17/8 SS4 12 Ga. (2.6) 13/8”(34.9) 1.65 (2.45)

B42H17/8 SS4 12 Ga. (2.6) 1” (25.4) 1.39 (2.07)

B54H17/8 SS4 14 Ga. (1.9) 13/16”(20.6) .93 (1.38)

B54H17/8 SS6 14 Ga. (1.9) 13/16”(20.6) .93 (1.38)

9/16” x 7/8” Slots

(14.2) (22.2)

2” TYP.

(50.8)

H9/16” (14.2) Dia. Holes

17/8” TYP.

(47.6)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

13/8”

(34.9) 1”

(25.4)

13/16”

(20.6)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

Alum. & Stainless Steel Materials

Reference page 176 for general fitting specifications. Other channel combinations available-see steel section for styles.

Stainless Steel

180

Part Number

With Without Thread Wt./C

Spring Spring Size Thickness Lbs. kg

N224SS6 N224WOSS6 1/4”-20 1/4”(6.3) 6.6 (3.0)

N228SS6 N228WOSS6 3/8”-16 3/8”(9.5) 10.6 (4.8)

N225SS6 N225WOSS6 1/2”-13 3/8”(9.5) 9.7 (4.4)

Part Number

With Without Thread Wt./C

Spring Spring Size Thickness Lbs. kg

N524SS6 N224WOSS6 1/4”-20 1/4”(6.3) 6.6 (3.0)

N528SS6 N228WOSS6 3/8”-16 3/8”(9.5) 10.6 (4.8)

N525SS6 N225WOSS6 1/2”-13 3/8”(9.5) 9.7 (4.4)

NUTS FOR B22, B24, B32 CHANNELS

CHANNEL NUTS

• For Channel Nuts pull-out strength and slip resistance, use the data

shown in “Channel Nuts & Hardware” section of this catalog.

Note: Reduce slip load by 50% due to hardness of material.

NUTS FOR B42, B52, B54 CHANNELS

Conduit Material Design Load Wt./C

Part No. Pipe Size Thickness Lbs. kN Lbs. kg

B2001 SS4 3/8”(10) 16 Ga. (1.5) 400 (1.78) 10 (4.5)

B2008 SS4 1/2”(15) 16 Ga. (1.5) 400 (1.78) 11 (5.0)

B2009 SS4 3/4”(20) 14 Ga. (1.9) 600 (2.67) 15 (6.8)

B2010 SS4 1” (25) 14 Ga. (1.9) 600 (2.67) 16 (7.2)

B2011 SS4 11/4”(32) 14 Ga. (1.9) 600 (2.67) 20 (9.1)

B2012 SS4 11/2”(40) 12 Ga. (2.6) 800 (3.56) 30 (13.6)

B2013 SS4 2” (50) 12 Ga. (2.6) 800 (3.56) 34 (15.4)

B2014 SS4 21/2”(65) 12 Ga. (2.6) 800 (3.56) 38 (17.2)

B2015 SS4 3” (80) 12 Ga. (2.6) 800 (3.56) 44 (19.9)

B2016 SS4 31/2”(90) 12 Ga. (2.6) 1000 (4.45) 51 (23.1)

B2017 SS4 4” (100) 12 Ga. (2.6) 1000 (4.45) 55 (24.9)

B2018 SS4 41/2”(115) 12 Ga. (2.6) 1000 (4.45) 59 (26.7)

B2019 SS4 5” (125) 12 Ga. (2.6) 1000 (4.45) 64 (29.0)

B2020 SS4 6” (150) 12 Ga. (2.6) 1000 (4.45) 80 (36.3)

STAINLESS STEEL FITTINGS

Most fittings, as shown in this catalog, can be supplied in Type 304 or Type 316 stainless steel. See “Fittings”

section (page 72) of this catalog.

Consult factory for possible minimum production quantities and set-up charges.

B2000 SERIES

PIPE AND TUBING CLAMPS

• Safety Factor of 5

• Combination Recess Hex Head Machine Screw and Square Nut included

• Material: Stainless Steel Type 304 & 316

SPRING NUT NUT WITHOUT SPRING

Design Load

Alum. & Stainless Steel Materials

Reference page 176 for general fitting specifications. Other channel combinations available-see steel section for styles.

Stainless Steel

181

Cooper B-Line offers two fire retardant (FR) resins

for strut systems, polyester and vinyl ester. Both

resins are ideal for corrosive environments.

While polyester is sufficient for most uses,

vinyl ester is suitable for a broader range of

environments.

Please refer to the "Corrosion Resistance Guide"

for specific applications, page 183.

Materials & Finishes

Cooper B-Line Fiberglass Strut systems are

manufactured from glass fiber-reinforced plastic

shapes that meet ASTM E-84, Class 1 Flame

Rating and self-extinguishing requirements of

ASTM D-635. A surface veil is applied during

pultrusion to insure a resin-rich surface and

ultraviolet resistance.

Fittings

The following dimensions apply to all fittings

except as noted on the drawings:

Hole Size–13/32” (10.3 mm) Dia.

Hole Spacing–13/16” (20.6 mm) from end and

17/8” (47.6 mm) on center.

Width–15/8” (41.3 mm)

Thickness–1/4” (6.3 mm)

Metric

Metric dimensions are shown in parentheses.

Unless noted, all metric dimensions are in

millimeters.

Fiberglass Materials

Fiberglass

182

CHANNEL RESIN INFORMATION

Cooper B-Line offers two fire retardant (FR) resins for strut systems, polyester and vinyl ester. Both resins are

ideal for corrosive environments.

While polyester is sufficient for most uses, vinyl ester is suitable for a broader range of environments.

Please refer to the "Corrosion Resistance Guide" below for specific applications.

Corrosion Resistance Guide

Chemicals 70°F (21°C) 160°F (71°C) Chemicals 70°F (21°C) 160°F (71°C)

Acetic acid 5% BFP/BFV BFP/BFV Methyl alcohol 10% BFP/BFV BFV-150° **

Acetic acid 52% BFP/BFV BFV-210° ** Naphtha BFP/BFV BFP/BFV

Aluminum potassium sulfate 5%

BFP/BFV BFP/BFV Nitric acid 5% BFP/BFV BFP/BFV

Ammonium hydroxide 10% BFP/BFV BFV-150° ** Nitric acid 20% BFV BFV-120° **

Ammonium nitrate BFP/BFV BFP/BFV Phosphoric acid 10% BFP/BFV BFP/BFV

Benzene sulfonic acid 5% BFP/BFV BFP/BFV Phosphoric acid 30% BFP/BFV BFP/BFV

Calcium chloride BFP/BFV BFP/BFV Phosphoric acid 85% BFP/BFV BFP/BFV

Carbon tetrachloride BFV BFV-100° ** Sodium bicarbonate 10% BFP/BFV BFP/BFV

Chlorine dioxide 15% BFP/BFV BFV-150° ** Sodium bisulfate BFP/BFV BFP/BFV

Chromic acid 5% BFV BFV-150° ** Sodium carbonate BFP/BFV BFV

Copper sulfate BFP/BFV BFP/BFV Sodium chloride BFP/BFV BFP/BFV

Diesel fuel BFP/BFV BFV Sodium hydroxide 1-50% BFV BFV-120° **

Ethylene glycol BFP/BFV BFP/BFV Sodium hypochlorite 5% BFP/BFV BFV-120° **

Fatty acids 100% BFP/BFV BFP/BFV Sodium nitrate BFP/BFV BFP/BFV

Ferrous sulfate BFP/BFV BFP/BFV Sodium silicate BFP/BFV BFV-210° **

Fluosilicic acid 0-20% BFV BFV Sodium sulfate BFP/BFV BFP/BFV

Gasoline BFP/BFV BFV Sulfuric acid 0-30% BFP/BFV BFP/BFV

Hydrochloric acid 1% BFP/BFV BFP/BFV Sulfuric acid 30-50% BFV BFV

Hydrochloric acid 15% BFP/BFV BFV-180° ** Sulfuric acid 50-70% BFV BFV-180° **

Hydrochloric acid 37% BFP/BFV BFV-150° ** Trisodium phosphate 25% BFP/BFV BFV-210° **

Kerosene BFP/BFV BFP/BFV Trisodium phosphate-All BFV BFV-210° **

Magnesium chloride BFP/BFV BFP/BFV Water, Distilled BFP/BFV BFP/BFV

BFP - BFP parts recommended BFV - BFV parts recommended ** - Not recommended to exceed this temperature

Information contained in this chart is based on data from raw material suppliers.

Temperatures are not the minimum nor the maximum (except where specifically stated) but represent standard test

conditions. The products may be suitable at higher temperatures but individual test data should be required to

establish suitability.

The recommendations or suggestions contained in this chart are made without guarantee or representation as to results.

We suggest that you evaluate the recommendations and suggestions in your own laboratory or actual field trial prior to use.

Flame Retardant Properties BFP BFV

Flame Resistance (FTMS 406-2023)

ign/burn, seconds 75/75 75/75

Intermittent Flame Test (HLT-15), rating 100 100

Flammability Test (ASTM D635)

Ignition none none

Burning Time 0 sec. 0 sec.

Surface Burning Characteristics (ASTM E84),

Flame spread index 25 25

UL 94 Flame Class V-0 V-0

Recommended Guideline:

Temperature Design Load Multiplier

75°F (24°C) 100%

100°F (38°C) 90%

125°F (52°C) 78%

150°F (66°C) 68%

175°F (79°C) 60%

200°F (93°C) 52%

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

183

15/8”

(41.3)

Part No. Material Description Color Weight

Lbs./ft. kg/m

BFP22* Polyester Resin Solid Back Gray .63 (.94)

BFV22* Vinyl Ester Resin Solid Back Beige .63 (.94)

BFP22H17/8*Polyester Resin Holes in Back Gray .60 (.89)

BFV22H17/8*Vinyl Ester Resin Holes in Back Beige .60 (.89)

BFP22SH* Polyester Resin Slots in Back Gray .61 (.91)

BFV22SH* Vinyl Ester Resin Slots in Back Beige .61 (.91)

BFP22H17/8

BFV22H17/8

9/16” (14.3) holes

17/8” (47.6) on centers

BFP22

BFV22

Solid Back

BFP22 THRU BFV22SH

• Channel lengths: 10 Ft. (3.05 m) and 20 Ft. (6.09 m)

• Fiberglass strut meets specification of

ASTM D-4385 Levels III and IV.

BFP22A

BFV22A

• Channel Lengths: 10 Ft. (3.05 m) and 20 Ft. (6.09 m)

• Fiberglass strut meets specification of

ASTM D-4385 Levels III and IV.

BFP22SH

BFV22SH

9/16” (14.3) x 7/8” (22.2) slots

2” (50.8) on centers

13/16”

(20.6)

15/8”

(41.3)

31/4”

(82.5)

Part No. Material Description Color Weight

Lbs./ft. kg/m

BFP22A* Polyester Resin Back To Back Gray 1.15 (1.71)

BFV22A* Vinyl Ester Resin Back To Back Beige 1.15 (1.71)

15/8”

(41.3)

* Insert -10 for 10’-0” (3.05 m) length or -20 for 20’-0” (6.09 m) length

Temperature Design Load Multiplier

75°F (24°C) 100%

100°F (38°C) 90%

125°F (52°C) 78%

150°F (66°C) 68%

175°F (79°C) 60%

200°F (93°C) 52%

Published design loads on page 185 are based on

usage at 70°F (21°C) and must be reduced for

continuous exposure to higher temperatures. Refer to

the chart below for high temperature applications.

Field Cutting Sealant Kits

• Seals exposed fibers after field cutting. •

• UV resistant •

RSK010 Pint Sealing Kit (473 cm3)

includes sealant and brush applicator

WARNING: Appropriate protective clothing and respiratory

protection device should be worn when field

cutting or grinding fiberglass.

15/8”

(41.3)

BFP22A

BFV22A

Solid Back to

Back

13/16”

(20.6)

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

184

Maximum Deflection

Beam Allowable @ Maximum Allowable Load @ Deflection =

Span Part Beam Load Allowable

No. Load Beam Load 1/240 Span 1/360 Span

in. mm Lbs. kN in. mm Lbs. kN Lbs. kN

12” (305) BFP22 1781 (7.92) 0.064 (1.62) 1392 (6.19) 928 (4.13)

BFP22A 2259 (10.05) 0.037 (.94) 2259 (10.05) 2051 (9.12)

24” (609) BFP22 890 (3.96) 0.256 (6.50) 347 (1.54) 231 (1.03)

BFP22A 1127 (5.01) 0.147 (3.73) 767 (3.41) 511 (2.27)

36” (914) BFP22 592 (2.63) 0.576 (14.63) 153 (0.68) 101 (0.45)

BFP22A 750 (3.33) 0.330 (8.38) 338 (1.50) 224 (0.99)

48” (1219) BFP22 443 (1.97) 1.024 (26.01) 85 (0.38) 55 (0.24)

BFP22A 560 (2.49) 0.587 (14.91) 188 (0.83) 123 (0.55)

60” (1524) BFP22 353 (1.57) 1.600 (40.64) 53 (0.23) 34 (0.15)

BFP22A 446 (1.98) 0.918 (23.32) 117 (0.52) 76 (0.34)

72” (1829) BFP22 293 (1.30) 2.303 (58.49) 35 (0.15) 22 (0.10)

BFP22A 370 (1.64) 1.322 (33.58) 78 (0.34) 50 (0.22)

96” (2438) BFP22 218 (0.97) 4.095 (104.01) 17 (0.07) 9(0.04)

BFP22A 273 (1.21) 2.350 (59.69) 39 (0.17) 23 (0.10)

120” (3048) BFP22 172 (0.76) 6.398 (162.51) 8(0.03) 3(0.01)

BFP22A 214 (0.95) 3.671 (93.24) 19 (0.08) 9(0.04)

BEAM LOADING DATA FOR GLASS REINFORCED POLYESTER RESIN

Maximum Deflection

Beam Allowable @ Maximum Allowable Load @ Deflection =

Span Part Beam Load Allowable

No. Load Beam Load 1/240 Span 1/360 Span

in. mm Lbs. kN in. mm Lbs. kN Lbs. kN

12” (305) BFV22 2220 (9.87) 0.071 (1.80) 1568 (6.97) 1045 (4.65)

BFV22A 6442 (28.65) 0.039 (0.99) 6442 (29.65) 5549 (24.68)

24” (609) BFV22 1109 (4.93) 0.283 (7.19) 391 (1.74) 260 (1.15)

BFV22A 3219 (14.32) 0.155 (3.94) 2079 (9.25) 1385 (6.16)

36” (914) BFV22 738 (3.28) 0.637 (16.18) 172 (0.76) 114 (0.51)

BFV22A 2144 (9.53) 0.348 (8.84) 922 (4.10) 613 (2.72)

48” (1219) BFV22 553 (2.46) 1.133 (28.78) 96 (0.43) 63 (0.28)

BFV22A 1606 (7.14) 0.619 (15.72) 516 (2.29) 342 (1.52)

60” (1524) BFV22 441 (1.96) 1.770 (44.96) 60 (0.26) 39 (0.17)

BFV22A 1283 (5.70) 0.967 (24.56) 327 (1.45) 216 (0.96)

72” (1829) BFV22 366 (1.63) 2.549 (64.74) 40 (0.18) 25 (0.11)

BFV22A 1067 (4.74) 1.393 (35.38) 224 (0.99) 147 (0.65)

96” (2438) BFV22 273 (1.21) 4.531 (115.09) 19 (0.08) 11(0.05)

BFV22A 796 (3.54) 2.477 (62.91) 121 (0.54) 78 (0.34)

120” (3048) BFV22 216 (0.96) 7.079 (179.80) 9(0.04) 7(0.02)

BFV22A 633 (2.81) 3.870 (98.30) 72 (0.32) 44 (0.19)

BEAM LOADING DATA FOR GLASS REINFORCED VINYL ESTER RESIN

Loading Information

Beam Loads:

The above charts list the total allowable uniform load for various simple spans based on a minimum safety factor of 2. If the load is

concentrated at center span, multiply the load from the above charts by 0.5 and the corresponding deflection by 0.8.

All beams should be supported in a manner to prevent rotation at supports. Long, deep beams should be tied between supports to prevent twist.

For channels with holes or slots use 90% of recommended load shown in channel loading chart.

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

185

13/16”

(20.6)

1”

(25.4)

Part No. Material Description Color Weight

Lbs./ft. kg/m

BFP42* Polyester Resin Solid Back Gray .48 (.71)

BFV42* Vinyl Ester Resin Solid Back Beige .48 (.71)

BFP42H17/8*Polyester Resin Holes in Back Gray .46 (.68)

BFV42H17/8*Vinyl Ester Resin Holes in Back Beige .46 (.68)

BFP42SH* Polyester Resin Slots in Back Gray .47 (.70)

BFV42SH* Vinyl Ester Resin Slots in Back Beige .47 (.70)

BFP42H17/8

BFV42H17/8

9/16” (14.3) holes

17/8” (47.6) on centers

BFP42

BFV42

Solid Back

BFP42 THRU BFV42SH

• Channel lengths: 10 Ft. (3.05 m) and 20 Ft. (6.09 m)

• Fiberglass strut meets specification of

ASTM D-4385 Levels III and IV.

BFP42A

BFV42A

Solid Back to Back

BFP42A

BFV42A

• Channel lengths: 10 Ft. (3.05 m) and

20 Ft. (6.09 m)

• Fiberglass strut meets specification of

ASTM D-4385 Levels III and IV.

BFP42SH

BFV42SH

9/16” (14.3) x 7/8” (22.2) slots

2” (50.8) on centers

15/8”

(41.3)

* Insert -10 for 10’-0” (3.05 m) length or -20 for 20’-0” (6.09 m) length

Temperature Design Load Multiplier

75°F (24°C) 100%

100°F (38°C) 90%

125°F (52°C) 78%

150°F (66°C) 68%

175°F (79°C) 60%

200°F (93°C) 52%

Published design loads on page 187 are based on

usage at 70°F (21°C) and must be reduced for

continuous exposure to higher temperatures. Refer to

the chart below for high temperature applications.

Field Cutting Sealant Kits

• Seals exposed fibers after field cutting. •

• UV resistant •

RSK010 Pint Sealing Kit (473 cm3)

includes sealant and brush applicator

WARNING: Appropriate protective clothing and respiratory

protection device should be worn when field

cutting or grinding fiberglass.

2”

(50.8)

1”

(25.4)

Part No. Material Description Color Weight

Lbs./ft. kg/m

BFP42A* Polyester Resin Back To Back Gray .85 (1.26)

BFV42A* Vinyl Ester Resin Back To Back Beige .85 (1.26)

13/16”

(20.6)

15/8”

(41.3)

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

186

Maximum Deflection

Beam Allowable @ Maximum Allowable Load @ Deflection =

Span Part Beam Load Allowable

No. Load Beam Load 1/240 Span 1/360 Span

in. mm Lbs. kN in. mm Lbs. kN Lbs. kN

12” (305) BFP42 841 (3.74) 0.104 (2.64) 403 (1.79) 269 (1.19)

BFP42A 2325 (10.34) 0.060 (1.52) 1948 (8.66) 1299 (5.78)

24” (609) BFP42 420 (1.87) 0.417 (10.59) 100 (0.44) 66 (0.29)

BFP42A 1161 (5.16) 0.239 (6.07) 486 (2.16) 323 (1.43)

36” (914) BFP42 279 (1.24) 0.938 (23.82) 43 (0.19) 29 (0.13)

BFP42A 773 (3.44) 0.537 (13.64) 214 (0.95) 142 (0.63)

48” (1219) BFP42 208 (0.92) 1.667 (42.34) 23 (0.10) 15 (0.06)

BFP42A 578 (2.57) 0.955 (24.26) 119 (0.53) 78 (0.34)

60” (1524) BFP42 166 (0.74) 2.604 (66.14) 14 (0.06) 8(0.03)

BFP42A 461 (2.05) 1.491 (37.87) 74 (0.33) 48 (0.21)

72” (1829) BFP42 137 (0.61) 3.750 (95.25) 8(0.03) 5(0.02)

BFP42A 383 (1.70) 2.148 (54.56) 49 (0.22) 31 (0.14)

96” (2438) BFP42 101 (0.45) 6.667 (169.34) 3(0.01) ––

BFP42A 284 (1.26) 3.818 (96.98) 24 (0.10) 14 (0.04)

120” (3048) BFP42 79 (0.35) 10.417 (264.59) ––– –

BFP42A 224 (0.99) 5.966 (151.53) 11 (0.05) 5(0.02)

BEAM LOADING DATA FOR GLASS REINFORCED POLYESTER RESIN

Maximum Deflection

Beam Allowable @ Maximum Allowable Load @ Deflection =

Span Part Beam Load Allowable

No. Load Beam Load 1/240 Span 1/360 Span

in. mm Lbs. kN in. mm Lbs. kN Lbs. kN

12” (305) BFV42 988 (4.39) 0.112 (2.84) 440 (1.96) 293 (1.30)

BFV42A 2865 (12.74) 0.063 (1.60) 2278 (10.13) 1518 (6.75)

24” (609) BFV42 493 (2.19) 0.448 (11.38) 109 (0.48) 73 (0.32)

BFV42A 1431 (6.36) 0.252 (6.40) 568 (2.52) 378 (1.68)

36” (914) BFV42 328 (1.46) 1.009 (25.63) 48 (0.21) 31 (0.14)

BFV42A 953 (4.24) 0.566 (14.37) 251 (1.11) 166 (0.74)

48” (1219) BFV42 245 (1.09) 1.793 (45.54) 26 (0.11) 16 (0.07)

BFV42A 713 (3.17) 1.006 (25.55) 139 (0.62) 92 (0.41)

60” (1524) BFV42 195 (0.87) 2.802 (71.17) 15 (0.06) 9(0.04)

BFV42A 569 (2.53) 1.572 (39.93) 87 (0.38) 57 (0.25)

72” (1829) BFV42 162 (0.72) 4.035 (102.49) 9(0.04) 5(0.02)

BFV42A 473 (2.10) 2.264 (57.50) 58 (0.26) 37 (0.16)

96” (2438) BFV42 120 (0.53) 7.173 (182.19) 3(0.01) 1(0.004)

BFV42A 351 (1.56) 4.025 (102.23) 29 (0.13) 17 (0.07)

120” (3048) BFV42 94 (0.42) 11.207 (284.66) –– ––

BFV42A 278 (1.23) 6.288 (159.71) 14 (0.06) 7(0.03)

BEAM LOADING DATA FOR GLASS REINFORCED VINYL ESTER RESIN

Loading Information

Beam Loads:

The above charts list the total allowable uniform load for various simple spans based on a minimum safety factor of 2. If the load is

concentrated at center span, multiply the load from the above charts by 0.5 and the corresponding deflection by 0.8.

All beams should be supported in a manner to prevent rotation at supports. Long, deep beams should be tied between supports to prevent twist.

For channels with holes or slots use 90% of recommended load shown in channel loading chart.

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

187

Nominal Thread Design Load Design Load Maximum

Part No. Pipe Size Size A B Torque Wt./C

in. mm Lbs. kN Lbs. kN in.-Lbs. N•m Lbs. kg

BFV501-1/21/2(15) 3/8”-16 300 (1.33) 150 (.67) 30 (3.4) 3.5 (1.59)

BFV501-3/43/4(20) 3/8”-16 300 (1.33) 150 (.67) 30 (3.4) 3.9 (1.77)

BFV501-1 1(25) 3/8”-16 300 (1.33) 150 (.67) 30 (3.4) 4.4 (1.99)

BFV501-11/411/4(32) 3/8”-16 300 (1.33) 150 (.67) 30 (3.4) 4.8 (2.18)

BFV501-11/211/2(40) 3/8”-16 300 (1.33) 150 (.67) 30 (3.4) 5.2 (2.36)

BFV501-2 2(50) 1/2”-13 600 (2.67) 200 (.89) 60 (6.8) 7.7 (3.49)

BFV501-21/221/2(65) 1/2”-13 600 (2.67) 200 (.89) 60 (6.8) 10.2 (4.63)

BFV501-3 3(80) 1/2”-13 600 (2.67) 200 (.89) 60 (6.8) 12.6 (5.71)

BFV501-31/231/2(90) 1/2”-13 600 (2.67) 200 (.89) 60 (6.8) 15.1 (6.85)

BFV501-4 4(100) 1/2”-13 600 (2.67) 200 (.89) 60 (6.8) 17.6 (7.98)

Load A

Load B

BFV501 SERIES

U-BOLTS WITH HEX NUTS

• Design Load Safety Factor of 3

• Load A: Straight down loading

• Load B: Side loading

• Inner surface of U-Bolt is flat to

provide additional contact surface area

• Material: Glass Reinforced Polyurethane

BF*22I

CONCRETE INSERTS

•Design Load 300 Lbs (1.47 kN)

• Safety Factor of 3

• Standard lengths: 6” (152),12” (305), 24” (609),

36” (914), 48” (1219), 60” (1524), 72” (1829),

84” (2133), 96” (2438), 108” (2743) and 120” (3048)

• Available Material:

*Insert P for BFP - Polyester Resin channel and tee

*Insert V for BFV - Vinyl Ester Resin channel with Polyester Resin tee

• Shipped with removable styrofoam insert

31/8”

(79.4)

Length

15/8” (41.3) x 15/8” (41.3)

Channel Size

Field Cutting Sealant Kits

• Seals exposed fibers after field cutting. •

• UV resistant •

RSK010 . . . Pint Sealing Kit (473 cm3)

includes sealant and brush applicator

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

188

BFVHHCS

HEX HEAD CAP SCREWS

• Design Load Safety Factor of 3

• Material: Glass Reinforced Polyurethane

Design Load

PartThread (in tension) Max. Torque Wt./C

No. Size Lbs. kN in.-Lbs. N•m Lbs. kg

BFVHHCS 5/16 x 1 5/16”-18 190 (.84) 30 (3.4) .4 (.18)

BFVHHCS 5/16 x 11/45/16”-18 190 (.84) 30 (3.4) .5 (.23)

BFVHHCS 5/16 x 11/25/16”-18 190 (.84) 30 (3.4) .6 (.27)

BFVHHCS 5/16 x 2 5/16”-18 190 (.84) 30 (3.4) .8 (.36)

BFVHHCS 3/8x 1 3/8”-16 300 (1.33) 45 (5.1) .9 (.41)

BFVHHCS 3/8x 11/43/8”-16 300 (1.33) 45 (5.1) 1.1 (.50)

BFVHHCS 3/8x 11/23/8”-16 300 (1.33) 45 (5.1) 1.3 (.59)

BFVHHCS 3/8x 2 3/8”-16 300 (1.33) 45 (5.1) 1.3 (.59)

BFVHHCS 3/8x 21/23/8”-16 300 (1.33) 45 (5.1) 1.5 (.68)

BFVHHCS 1/2x 1 1/2”-13 490 (2.18) 110 (12.4) 1.4 (.63)

BFVHHCS 1/2x 11/41/2”-13 490 (2.18) 110 (12.4) 1.8 (.81)

BFVHHCS 1/2x 11/21/2”-13 490 (2.18) 110 (12.4) 2.2 (1.00)

BFVHHCS 1/2x 2 1/2”-13 490 (2.18) 110 (12.4) 3.0 (1.36)

BFVHHCS 1/2x 21/21/2”-13 490 (2.18) 110 (12.4) 3.7 (1.68)

BFVHHCS 1/2x 3 1/2”-13 490 (2.18) 110 (12.4) 4.5 (2.04)

BFVHN

HEX NUTS

• 3/4” & 1” sizes are available. Contact inside

sales for details

• Material: Glass Reinforced Polyurethane

PartThread Nut Thickness Wt./C

No. Size in. mm Lbs. kg

BFVHN 5/16 5/16”-18 17/64 (6.7) .2 (.09)

BFVHN 3/83/8”-16 21/64 (8.3) .3 (.13)

BFVHN 1/21/2”-13 7/16 (11.1) .7 (.32)

BFVHN 5/85/8”-11 35/64 (13.9) 1.4 (.63)

Part No. Part No. Thread Pull-Out Slip Resistance Max. Torque Wt./C

With Spring W/O Spring Size Lbs kN Lbs. N in.-Lbs. N•m Lbs. kg

BFV-224 BFV-224WO 1/4”-20 300 (1.33) 150 (.67) 200 (22.6) 2.4 (1.09)

BFV-223 BFV-223WO 5/16”-18 300 (1.33) 150 (.67) 200 (22.6) 2.5 (1.13)

BFV-228 BFV-228WO 3/8”-16 300 (1.33) 150 (.67) 200 (22.6) 2.3 (1.04)

BFV-225 BFV-225WO 1/2”-13 300 (1.33) 150 (.67) 200 (22.6) 2.1 (0.95)

WITH

SPRING

W/O

(WITHOUT)

SPRING

CHANNEL NUTS

• Design Load Safety Factor of 3

• Overall Nut Height 5/8” (15.9)

• Maximum torque and slip resistance loads shown are

when using stainless steel bolts. When using fiberglass

hardware use Max. Torque for fiberglass bolts, and

multiply slip resistance loads by .14 for 3/8” and .60 for

1/2” thread size.

• Material: Glass Reinforced Polyurethane

• Spring Material: Zinc Plated Steel

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

189

BFVATRHN

THREADED ROD NUTS

• ATR Nut is required with 3/8”-16 and 1/2”-13 ATR to provide

additional thread engagement which is critical to ATR load

carrying capacity.

• Material: Glass Reinforced Polyurethane

BFVSL SERIES

STOP-LOCK KITS

• Material: Glass Reinforced Polyurethane

Part Thread Wt./C

No. Size Lbs. kg

BFVSL-3/83/8”-16 7.4 (3.35)

BFVSL-1/21/2”-13 11.3 (5.12)

Part Thread H Wt./C

No. Size in. mm Lbs. kg

BFVATRHN 3/8 3/8”-16 3/4(19) .8 (.36)

BFVATRHN 1/21/2”-13 7/8(22) 1.7 (.77)

BFVATR

ALL THREADED ROD

• Design Load Safety Factor of 3

• Use ATR nuts in place of hex nuts with 3/8”-16 and 1/2”-13 threaded rod

in order to obtain minimum required thread engagement of

17/32” (13.5) to obtain design load shown below.

• Material: Glass Reinforced Vinyl Ester

Design Load Max. Torque Wt./Ft.

Part Thread (in tension)

No. Size Lbs. kN in.-Lbs. N•m Lbs. kg

BFVATR 3/8x 48” 3/8”-16 425 (1.89) 45 (5.1) .08 (.04)

BFVATR 1/2x 48” 1/2”-13 750 (3.33) 110 (12.4) .13 (.06)

BFVATR 5/8x 48” 5/8”-11 950 (4.22) 230 (26.0) .21 (.09)

BFVFW

FLAT WASHERS

• Material: PVC

Part Hole

No. Size Wt./C

in. Lbs. kg

BFVFW 3/83/8.5 (.22)

BFVFW 1/21/2.5 (.22)

BFVFW 5/85/8.5 (.22)

BFVFW 3/43/4.5 (.22)

BFVFW 1 1 .5 (.22)

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

190

BFV655 SERIES

ROD COUPLINGS

• Material: Glass Reinforced Polyurethane

Part Thread Wt./C

No. Size Lbs. kg

BFV655-3/83/8”-16 7.4 (3.35)

BFV655-1/21/2”-13 11.3 (5.12)

BFV655-5/85/8”-11 16.7 (7.57)

Nominal Design Load Maximum

Part No. Pipe Size Torque

in. mm Lbs. kN in.-Lbs. N•m

BFV2008 1/2(15) 300 (1.33) 10 (1.13)

BFV2009 3/4(20) 300 (1.33) 10 (1.13)

BFV2010 1(25) 300 (1.33) 10 (1.13)

BFV2011 11/4(32) 300 (1.33) 10 (1.13)

BFV2012 11/2(40) 300 (1.33) 10 (1.13)

BFV2013 2(50) 300 (1.33) 10 (1.13)

BFV2014 21/2(65) 300 (1.33) 10 (1.13)

BFV2015 3(80) 300 (1.33) 10 (1.13)

BFV2016 31/2(90) 300 (1.33) 10 (1.13)

BFV2017 4(100) 300 (1.33) 10 (1.13)

BFV2000 SERIES

NON-METALLIC PIPE CLAMPS

• For rigid and PVC conduit.

• Standard hardware includes slotted round head machine

screw and square nut in 316 stainless steel

• Design Load Safety Factor of 3

• Material: Glass Reinforced PPO

• Not recommended for vertical installation without additional Stop-Lock

Kit. Kit includes one square washer, channel nut and hex head cap

screw. Order (Stop-Lock Kit) BFVSL-3/8for 3/8”-16 hardware or

BFVSL-1/2for 1/2”-13 hardware. Mount kit below clamp when used

in vertical strut to prevent clamp slipping.

• If non-metallic hardware is required, add N to the part number.

Example: BFV2008N

BFV100 thru BFV300

ADJUSTABLE PIPE CLAMPS

•Completely Non-Metallic

• Adjustable to U.S. & Metric Pipe Diameters

• Fits OD Sizes 3/4” (19.0) to 31/2” (88.9)

• Easy To Install

• No Special Tools Required

• Design Load Safety Factor of 3

• Material: Glass Reinforced Polyurethane

• Not recommended for vertical installation without additional

Stop-Lock Kit. Kit includes one square washer, channel nut

and hex head cap screw. Order (Stop-Lock Kit) BFVSL-3/8

for 3/8”-16 hardware or BFVSL-1/2for 1/2”-13 hardware.

Mount kit below clamp when used in vertical strut to

prevent clamp slipping.

Nominal Pipe O.D. Design Max.

Part Pipe Sizes Range Load Torque

No. in. mm in. mm Lbs. kN in.-Lbs. N•m

BFV100 1/2 - 11/2(15- 40) .75 - 1.90 (21.3 - 48.3) 135 (.60) 10 (1.13)

BFV200 11/2- 2 (40 - 51) 1.90 - 2.37 (48.3 - 60.3) 135 (.60) 36 (4.07)

BFV300 21/2 - 3(63 - 76) 2.87 - 3.50 (73.0 - 88.9) 145 (.64) 36 (4.07)

Design Load

Stop-Lock Kit

for vertical

installation

Stop-Lock Kit

for vertical

installation

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

191

BFP2400 SERIES

2-HOLE PIPE CLAMPS

• Design Load Safety Factor of 3

• Material: Glass Reinforced Polyester

BFV751 & BFV751J

BEAM CLAMP

• Design Load Safety Factor of 3

• BFV751J (clip included) must be used

when installed on tapered flange beams.

• Material: Glass Reinforced Polyurethane

• Setscrew material: Stainless Steel 316

ASTM F593 Group 2, S4

Part No. For Hanger Rod Design Load Torque

Size A Lbs. kN ft.-Lbs. N•m

BFV751-3/83/8”-16 500 (2.22) 10 (13)

BFV751J-3/83/8”-16 500 (2.22) 10 (13)

BFV751-1/21/2”-13 500 (2.22) 10 (13)

BFV751J-1/21/2”-13 500 (2.22) 10 (13)

BFV751-5/85/8”-11500 (2.22) 10 (13)

BFV751J-5/85/8”-11500 (2.22) 10 (13)

41/4”

(108.0)

11/8”

(28.6)

1”

(25.4)

1/2”-13 x 2” (50.8)

Screw

Tapped for

Hanger Rod

Size A

BFV751

(Clamp

Only)

BFV751J

(Clamp and

Retainer Clip)

BFVATR3/8”

&BFPUATRHN

(Order Separately)

3”

(76.2)

Nominal Design

Part Pipe A B Load

No. Size

in. mm in. mm in. mm Lbs. kN

BFP2400-2 2(50) 23/8(60) 51/2(140) 115 (0.51)

BFP2400-3 3(80) 31/2(89) 63/4(171) 130 (0.58)

BFP2400-4 4(100) 41/2(114) 73/4(197) 150 (0.66)

BFP2400-6 6(150) 65/8(168) 10 (254) 150 (0.66)

15/8”

(41.3) 13/32” (10.3)

Hole Dia.

Pipe

Size

Design Load

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

192

BFV3104 SERIES

CLEVIS HANGERS

• Design Load Safety Factor of 3

at 120°F (49°C).

• Insulation may be required at higher temperatures.

• Order hanger rod and nuts separately.

• Material: Glass Reinforced Polyurethane

For BFV3104-1 thru BFV3104-6

• Material: Glass Reinforced Polyester & Vinyl Ester

For BFV3104-8 thru BFV3104-12

Nominal Hanger Design

Part Pipe A B C Rod Load

No. Size Size

in. mm in. mm in. mm in. mm Lbs. kN

BFV3104-1 1(50) 11/2(38) 41/4(108) 11/4(32) 1/2”-13 670 (2.98)

BFV3104-11/211/2(65) 2(51) 51/8(130) 11/4(32) 1/2”-13 670 (2.98)

BFV3104-2 2(50) 21/2(63) 61/2(165) 11/4(32) 1/2”-13 730 (3.25)

BFV3104-21/2, 3, 4 21/2-4 (65-100) 51/8(130) 10 (254) 11/2(38) 1/2”-13 1150 (5.11)

BFV3104-6 6(150) 63/4(171) 125/16 (313) 2(51) 1/2”-13 1170 (5.20)

Nominal Hanger Design

PartPipe AB C Rod Load

No. Size Size

in. mm in. mm in. mm in. mm Lbs. kN

BF*3104-8 8(200) 91/4(235) 165/8(422) 3(76) 5/8”-11350 (1.55)

BF*3104-10 10 (250) 113/8(289) 197/8(505) 4(101) 5/8”-11 450 (2.01)

BF*3104-12 12 (300) 131/2(343) 223/8(568) 5(127) 5/8”-11 600 (2.69)

BFV3104-1 thru BFV3104-6 BFV3104-8 thru BFV3104-12

BFV755

BEAM CLAMP

• Design Load Safety Factor of 3

• Material: Glass Reinforced Polyurethane

• Setscrew material: Stainless Steel 316

ASTM F593 Group 2, S4

Part No. For Hanger Rod Design Load Torque

Size A Lbs. kN ft.-Lbs. N•m

BFV755-3/83/8”-16 400 (1.78) 10 (13)

BFV755-1/21/2”-13 400 (1.78) 10 (13)

3”

(76.2)

3/4”

(19.0)

Tapped for

Hanger Rod

Size A

25/8”

(66.7)

1/2”-13 x 2” (50.8)

Screw

*Specify P for polyester or V for Vinyl ester.

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

193

BF*494 SERIES

BRACKETS 24” (609) TO 36” (914) LONG

• Design Load Safety Factor of 3 based on uniform loading

• MH1 - From Top of Bracket to center of Mounting Hole

• MH2 - From Bottom of Bracket to center of Mounting Hole

• Material: Glass Reinforced Vinyl Ester or Polyester

Design

Part No. ABLoad

in. mm in. mm Lbs. kN

BF*494-24 28 (711) 23 (584) 750 (3.33)

BF*494-30 34 (863) 26 (660) 750 (3.33)

BF*494-36 40 (1016) 29 (736) 750 (3.33)

*Insert P for Glass Reinforced Polyester Resin or

V for Glass Reinforced Vinyl Ester Resin

BF*409 SERIES

BRACKETS 6” (152) TO 24” (609) LONG

• Design Load Safety Factor of 3 based on uniform loading

• MH1 - From Top of Bracket to center of Mounting Hole

• MH2 - From Bottom of Bracket to center of Mounting Hole

Design

Part No. ALoad

in. mm Lbs. kN

BF*409-6 10 (250) 1400 (6.22)

BF*409-9 13 (330) 1000 (4.45)

BF*409-12 16 (406) 800 (3.56)

BF*409-18 22 (559) 675 (3.00)

BF*409-24 28 (711) 450 (2.00)

*Insert P for Glass Reinforced Polyester Resin or

V for Glass Reinforced Vinyl Ester Resin

13/32" (10.3) Dia.

Mounting Holes

13/32” (10.3) Dia.

Mounting Holes

11/4”

(31.7)

11/4”

(31.7)

11/4”

(31.7)

MH1

MH2

11/4”

(31.7)

MH1

MH2

12"

(304.8)

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

194

BFV201

SQUARE WASHER FOR 3/8” BOLT

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV202

SQUARE WASHER FOR 1/2” BOLT

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV141

THREE HOLE FLAT PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV340

TWO HOLE FLAT PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV129

TWO HOLE SPLICE PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV557

THREE HOLE FLAT PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

15/8”

(41.3)

13/32” (10.3)

Diameter Hole

9/16” (14.3)

Diameter Hole

31/2”

(88.9)

31/4”

(82.5)

53/8”

(136.5)

47/8”

(123.8)

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

195

BFV341

FOUR HOLE SPLICE PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV342

FIVE HOLE FLAT PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV132

FIVE HOLE FLAT CROSS PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV140

THREE HOLE FLAT CORNER PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV143

FOUR HOLE FLAT CORNER PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV133

FOUR HOLE FLAT TEE PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

31/2”

(88.9)

31/2”

(88.9)

53/8”

(136.5)

53/8”

(136.5)

53/8”

(136.5) 53/8”

(136.5)

71/4”

(184.1)

91/8”

(231.8)

31/2”

(88.9)

31/2”

(88.9)

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

196

BFV135

THREE HOLE FLAT GUSSET CORNER PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV142

FOUR HOLE FLAT GUSSET CORNER PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV532

FIVE HOLE FLAT GUSSET TEE PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV337

THREE HOLE FLAT GUSSET TEE PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV136

FOUR HOLE FLAT GUSSET TEE PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV334

SEVEN HOLE FLAT GUSSET CROSS PLATE

• Material: Injection Molded Glass Reinforced

Polyurethane

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

31/2”

(88.9)

53/8”

(136.5)

53/8"

(136.5)

53/8”

(136.5)

53/8”

(136.5)

91/8”

(231.8)

53/8”

(136.5)

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

197

31/2”

(88.9)

31/2”

(88.9)

41/8”

(104.8)

41/8”

(104.8)

BFV101

TWO HOLE 90° CORNER ANGLE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV103

THREE HOLE 90° CORNER ANGLE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV558

FOUR HOLE 90° CORNER ANGLE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV104

FOUR HOLE 90° CORNER ANGLE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV118

FOUR HOLE 90° GUSSETTED SHELF ANGLE

• Material: Injection Molded Glass Reinforced

Polyurethane

BFV371-2G

THREE HOLE 90° GUSSETTED CORNER ANGLE

• Material: Injection Molded Glass Reinforced

Polyurethane

31/4”

(82.5)

15/8”

(41.3) 15/8”

(41.3)

4”

(101.6)

THREE HOLES

.400” Dia. (10.1)

21/4”

(57.1)

15/8”

(41.3)

15/8”

(41.3)

41/8”

(104.8)

25/16”

(58.7)

15/8”

(41.3)

15/8”

(41.3)

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

198

BFV280SQ

POST BASE FOR BF*22

• Material: Glass Reinforced Polyurethane

BFV281SQ

POST BASE FOR BF*22A

• Material: Glass Reinforced Polyurethane

BFV650

CHANNEL SPACER

• Spacer I.D. accommodates 3/8" rod or bolts.

• Material: Polyurethane

B217P

PLASTIC CLOSURE STRIP

• Available in 10 Ft. (3.05 m) lengths.

• Material: PVC

17/16”

(36.5)

5”

(127.0)

5”

(127.0)

5”

(127.0)

3”

(76.2)

3”

(76.2)

Used when attaching fittings to side walls of

channel. This channel spacer prevents wall

compression in heavy load conditions.

65/8”

(168.3)

5/8”

(15.9)

Fiberglass Materials

Reference page 182 for general fitting specifications.

Fiberglass

199

Cooper B-Line’s mini channels and fittings provide

for an economical method of supporting light load

requirements on a metal framing system.

Channel

Channels are cold formed on our modern rolling

mills from 18 Ga. (1.2 mm) low carbon steel strips

plain steel (ASTM A1008 33,000 PSI min. yield)

and pre- galvanized steel strips, (ASTM A653

33,000 PSI min. yield). A continuous slot with

inturned lips provides the ability to make

attachments at any point. Channel combinations

are made with new state of the art, high-tech

welding equipment.

Lengths

Standard lengths are 10’ (3.05 m) and 20’ (6.09 m)

for B62 series, and 10’ (3.05 m) for B72 series.

Custom lengths are available.

Fittings

Mini fittings are formed from hot rolled pickled and

oiled strip or sheet steel (ASTM A1011, HSLAS,

Grade 50, Class1). The following dimensions

apply to all fittings except as noted on the

drawings:

Hole Size–9/32” (7.14 mm) Dia.

Hole Spacing–13/32” (10.3 mm) from end and

11/16” (27.0 mm) on center.

Width–13/16” (20.6 mm)

Thickness–1/8” (3.2 mm)

Materials & Finishes*

*Unless otherwise noted.

Metric

Metric dimensions are shown in parentheses. Unless noted, all metric dimensions are in millimeters.

Mini Channel & Fittings

Finish

Code Finish Specification

PLN Plain ASTM A1011, HSLAS,

Grade 50, Class 1

ZN Electro-Plated Zinc ASTM B633 SC3 Type II

GRN Dura-Green

GLV Pre-Galvanized ASTM A653

33,000 PSI min. yield

HDG Hot-Dipped Galvanized ASTM A123

Mini Channel & Fittings

200

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B62 .420 (.62) .123 (.80) .0103 (.43) .0221 (.36) .289 (.73) .0134 (.56) .0330 (.54) .330 (.84)

B62A .839 (1.25) .247 (1.59) .0500 (2.08) .0616 (1.01) .450 (1.14) .0269 (1.12) .0663 (1.09) .330 (.84)

X - X Axis Y - Y Axis

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B62 364 (1619.1) .027 (.68) 364 (1619.1) 364 (1619.1)

B62A 420* (1868.2) .006 (.15) 420* (1868.2) 420* (1868.2)

24 (609) B62 182 (809.6) .109 (2.77) 167 (742.8) 111 (493.7)

B62A 420* (1868.2) .051 (1.29) 420* (1868.2) 420* (1868.2)

36 (914) B62 121 (538.2) .245 (6.22) 74 (329.1) 50 (222.4)

B62A 341 (1516.8) .141 (3.58) 341 (1516.8) 242 (1076.4)

48 (1219) B62 91 (404.8) .436 (11.07) 42 (186.8) 28 (124.5)

B62A 256 (1138.7) .250 (6.35) 204 (907.4) 136 (604.9)

60 (1524) B62 73 (324.7) .681 (17.30) 27 (120.1) 18 (80.0)

B62A 205 (911.9) .391 (9.93) 131 (582.7) 87 (387.0)

72 (1829) B62 61 (271.3) .981 (24.92) 19 (84.5) 12 (53.4)

B62A 170 (756.2) .563 (14.30) 91 (404.8) 61 (271.3)

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

12 (305) B62 2052 (9127.7) 820 (3647) 2161 (9612.6) 1890 (8407.1) 1715 (7628.7)

B62A 4666 (20755.4) 1449 (6445) 4710 (20951.1) 4593 (20430.7) 4503 (20030.3)

24 (609) B62 1350 (6005.1) 645 (2869) 1624 (7223.9) 1020 (4537.2) 818 (3638.6)

B62A 4275 (19016.1) 1367 (6081) 4453 (19807.9) 3982 (17712.8) 3624 (16120.3)

36 (914) B62 818 (3638.6) 471 (2095) 1053 (4684.0) 633 (2815.7) 515 (2290.8)

B62A 3624 (16120.3) 847 (3767) 4023 (17895.2) 2965 (13189.0) 2179 (9692.7)

48 (1219) B62 589 (2620.0) 369 (1641) 745 (3313.9) 456 (2028.4) 365** (1623.6)

B62A 2713 (12068.0) 504 (2242) 3421 (15217.3) 1765 (7851.1) 1225 (5449.1)

60 (1524) B62 456 (2028.4) 300 (1334) 579 (2575.5) 347** (1543.5) 271** (1205.4)

B62A 1765 (7851.1) 323 (1437) 2647 (11774.4) 1129 (5022.0) 784** (3487.4)

72 (1829) B62 365** (1623.6) 248 (1103) 470 (2090.6) 271** (1205.4) ––

B62A 1225 (5449.1) 224 (996) 1856 (8255.9) 784** (3487.4) 545** (2424.3)

• Thickness: 18 Ga. (1.2 mm)

• Standard lengths: 10’ (3.05 m)

& 20’ (6.09 m)

• Standard finishes: Plain, Dura-Green,

Pre-Galvanized

• Weight: .42 Lbs./Ft. (.62 kg/m)

SECTION PROPERTIES

BEAM LOADING

COLUMN LOADING

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate

lateral bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated load

capacity at mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

13/16”

(20.6)

13/16”

(20.6)

13/16”

(20.6)

7/16”

(11.1)

13/16”

(20.6)

.406

(10.3)

.406

(10.3)

.346

(8.8)

3/16”

(4.7) 3/32”

(2.4)

3/16”

(4.7)

15/8”

(41.3)

B62A

Wt. .84 Lbs./Ft. (1.25 kg/m)

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

B62 Channel

201

• Thickness: 18 Ga. (1.2 mm)

• Standard lengths: 10’ (3.05 m)

• Standard finishes: Plain, Dura-Green,

Pre-Galvanized

• Weight: .29 Lbs./Ft. (.43 kg/m)

SECTION PROPERTIES

BEAM LOADING

B72A

Wt. .58 Lbs./Ft. (.87 kg/m)

Areas of Moment of Section Radius of Moment of Section Radius of

Channel Weight Section Inertia (I) Modulus (S) Gyration (r) Inertia (I) Modulus (S) Gyration (r)

lbs./ft. kg/m sq. in. cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

B72 .287 (.43) .084 (.54) .0018 (.07) .0073 (.12) .146 (.37) .0077 (.32) .0190 (.31) .302 (.77)

B72A .574 (.85) .169 (1.09) .0078 (.32) .0192 (.31) .215 (.55) .0155 (.65) .0382 (.63) .303 (.77)

X - X Axis Y - Y Axis

Uniform Load @ Deflection =

Beam Span Channel Uniform Load and Deflection 1/240 Span 1/360 Span

In. mm Style Lbs. N In. mm Lbs. N Lbs. N

12 (305) B72 116 (516.0) .051 (1.29) 113 (502.6) 75 (324.7)

B72A 210* (934.1) .020 (.51) 210* (934.1) 210* (934.1)

24 (609) B72 58 (258.0) .206 (5.23) 28 (124.5) 19 (84.5)

B72A 159 (707.2) .125 (3.17) 127 (564.9) 85 (378.1)

36 (914) B72 39 (173.5) .465 (11.81) 13 (57.8) 8(35.6)

B72A 106 (471.5) .281 (7.14) 57 (253.5) 38 (169.0)

36 (1219) B72 29 (129.0) .827 (21.00) 7(31.1) 5(22.2)

B72A 80 (355.8) .500 (12.70) 32 (142.3) 21 (93.4)

60 (1524) B72 23 (102.3) 1.292 (32.81) 5(22.2) 3(13.3)

B72A 64 (284.7) .782 (19.86) 20 (88.9) 14 (62.3)

Max. Column Loading K = .80 Max. Column Loading (Loaded @ C.G.)

Unbraced Channel Loaded@ Loaded@

Height Style C.G. Slot Face K = .65 K = 1.0 K = 1.2

In. mm Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

12 (305) B72 1598 (7108) 539 (2397) 1712 (7615) 1410 (6272) 1181 (5253)

B72A 3600 (16013) 986 (4386) 3700 (16458) 3433 (15271) 3229 (14363)

24 (609) B72 701 (3118) 320 (1423) 1050 (4670) 450 (2001) 313** (1392)

B72A 2710 (12054) 802 (3567) 3113 (13847) 2043 (9088) 1421 (6321)

36 (914) B72 313** (1392) 188 (836) 473 (2104) 201** (894) ––

B72A 1421 (6321) 569 (2531) 2135 (9497) 909 (4043) 631** (2807)

36 (1219) B72 177** (787) 122 (542) 267** (1187) –– – –

B72A 799 (3554) 404 (1797) 1211 (5387) 512** (2277) 355** (1579)

60 (1524) B72 113** (502) 85 (378) 171** (760) ––––

B72A 512** (2277) 298 (1325) 775 (3447) 327** (1454) ––

COLUMN LOADING

Calculations of section properties are based on metal thicknesses as determined by the AISI Cold-Formed Steel Design Manual.

Based on simple beam condition using an allowable design stress of 25,000 psi (172 MPa) in accordance with MFMA, with adequate

lateral bracing (see page 11 for further explanation). Actual yield point of cold rolled steel is 42,000 psi. To determine concentrated

load capacity at mid span, multiply uniform load by 0.5 and corresponding deflection by 0.8. *Failure determined by weld shear.

**Where the slenderness ratio KL exceeds 200, and K = end fixity factor, L = actual length and r = radius of gyration.

13/16”

(20.6)

7/16”

(11.1)

.406

(10.3)

.160

(4.0)

3/32”

(2.4)

3/16”

(4.7)

3/16”

(4.7)

13/32”

(10.3)

13/16”

(20.6)

13/16”

(20.6)

.406

(10.3)

.406

(10.3)

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

B72 Channel

202

Part Number

B62 B72

With Without With Without Thread Wt./C

Spring Spring Spring Spring Size Thickness Lbs. kg

N621 N621WO N7221 N621WO #8-32 .150 (3.81) 1.0 (.45)

N622 N622WO N7222 N622WO #10-24 .150 (3.81) 1.0 (.45)

N627 N627WO N7227 N627WO #10-32 .150 (3.81) 1.0 (.45)

N624 N624WO N7224 N624WO 1/4-20 .150 (3.81) 1.0 (.45)

BMM-3L BMM-3 BMM-3S BMM-3 M3.5 x 0.6 .150 (3.81) 1.0 (.45)

BMM-4L BMM-4 BMM-4S BMM-4 M4 x 0.7 .150 (3.81) 1.0 (.45)

BMM-5L BMM-5 BMM-5S BMM-5 M5 x 0.8 .150 (3.81) 1.0 (.45)

BMM-6L BMM-6 BMM-6S BMM-6 M6 x 1 .150 (3.81) 1.0 (.45)

NUTS FOR B62, B72 CHANNEL

MINI FITTINGS

SPRING NUT NUT WITHOUT SPRING

B6202

SQUARE WASHER

• Standard finishes: ZN, GRN

• Wt./C 2 Lbs. (.9 kg)

B6129

TWO HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 5 Lbs. (2.2 kg)

B6340

TWO HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 5 Lbs. (2.2 kg)

13/16”

(20.6)

13/16”

(20.6)

17/8”

(47.6)

15/8”

(41.3)

9/32” (7.1)

DIA.

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

Mini Channel Nuts & Fittings

203

B6557

THREE HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 7 Lbs. (3.2 kg)

B600-62

THREE HOLE FLAT

ADAPTER PLATE

• Standard finishes: ZN, GRN

• Wt./C 19 Lbs. (8.6 kg)

B6141

THREE HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 7 Lbs. (3.2 kg)

B6341

FOUR HOLE

SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 11 Lbs. (5.0 kg)

B6138

TWO HOLE SWIVEL PLATE

• Standard finishes: ZN, GRN

• Wt./C 7 Lbs. (3.2 kg)

B6139

THREE HOLE

SWIVEL PLATE

• Standard finishes: ZN, GRN

• Wt./C 10 Lbs. (4.5 kg)

B6504

FOUR HOLE SPLICE PLATE

• Standard finishes: ZN, GRN

• Wt./C 10 Lbs. (4.5 kg)

B6140

THREE HOLE CORNER PLATE

• Standard finishes: ZN, GRN

• Wt./C 8 Lbs. (3.6 kg)

B6143

FOUR HOLE CORNER PLATE

• Standard finishes: ZN, GRN

• Wt./C 11 Lbs. (5.0 kg)

215/16”

(74.6) 15/8”

(41.3)

4”

(101.6)

13/16”

(20.6)

41/8”

(104.8)

211/16”

(68.2)

17/8”

(47.6)

27/16”

(61.9)

33/4”

(95.2)

B62

B22

13/16”

(20.6)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6)

15/8”

(41.3)

17/8”

(47.6)

215/16”

(74.6)

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

Mini Fittings

204

B6135

THREE HOLE CORNER

GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 9 Lbs. (4.1 kg)

B6132

FIVE HOLE CROSS PLATE

• Standard finishes: ZN, GRN

• Wt./C 13 Lbs. (5.9 kg)

B6133

FOUR HOLE TEE PLATE

• Standard finishes: ZN, GRN

• Wt./C 11 Lbs. (5.0 kg)

B6142

FOUR HOLE

CORNER GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 15 Lbs. (6.8 kg)

B6337

THREE HOLE

TEE GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 10 Lbs. (4.5 kg)

B6136

FOUR HOLE

TEE GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 15 Lbs. (6.8 kg)

B6532

FIVE HOLE

TEE GUSSET PLATE

• Standard finishes: ZN, GRN

• Wt./C 22 Lbs. (10.0 kg)

B6101

TWO HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 5 Lbs. (2.2 kg)

B6230

TWO HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 5 Lbs. (2.2 kg)

11/4”

(31.7)

11/8”

(28.6)

215/16”

(74.6) 215/16”

(74.6)

215/16”

(74.6)

17/8”

(47.6)

215/16”

(74.6)

17/8”

(47.6)

215/16”

(74.6)

215/16”

(74.6)

215/16”

(74.6)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6)

13/16”

(20.6)

15/16”

(23.8)

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

Mini Fittings

205

B6232

THREE HOLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 7 Lbs. (3.2 kg)

B6103

THREE HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 8 Lbs. (3.6 kg)

B6102

THREE HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 8 Lbs. (3.6 kg)

B6374

THREE HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 7 Lbs. (3.2 kg)

B6104

FOUR HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 10 Lbs. (4.5 kg)

B6558

FOUR HOLE CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 10 Lbs. (4.5 kg)

B6357

FOUR HOLE

OFFSET BENT TEE

• Standard finishes: ZN, GRN

• Wt./C 11 Lbs. (5.0 kg)

B6239

FIVE HOLE

OFFSET BENT TEE

• Standard finishes: ZN, GRN

• Wt./C 14 Lbs. (6.3 kg)

B6144R&L

FOUR HOLE SHELF BRACKET

• Standard finishes: ZN, GRN

• Wt./C 19 Lbs. (8.6 kg)

2”

(50.8)

13/16”

(20.6)

13/16”

(20.6)

23/16”

(55.5)

15/16”

(23.8)

13/16”

(20.6)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6)

25/16”

(58.7)

25/16”

(58.7)

25/16”

(58.7)

11/4”

(31.7)

11/4”

(31.7)

11/8”

(28.6)

15/8”

(41.3)

11/8”

(28.6)

11/8”

(28.6)

215/16”

(74.6)

215/16”

(74.6)

15/16”

(23.8)

(Right shown)

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

Mini Fittings

206

B6118

FOUR HOLE

GUSSETTED SHELF ANGLE

• Standard finishes: ZN, GRN

• Wt./C 15 Lbs. (6.8 kg)

B6234 R&L

FOUR HOLE CORNER GUSSET

• Standard finishes: ZN, GRN

• Wt./C 15 Lbs. (6.8 kg)

B6134R&L

FOUR HOLE CORNER GUSSET

• Standard finishes: ZN, GRN

• Wt./C 15 Lbs. (6.8 kg)

B6533

FIVE HOLE

GUSSETTED SHELF ANGLE

• Standard finishes: ZN, GRN

• Wt./C 22 Lbs. (10.0 kg)

B6126

FOUR HOLE GUSSETTED

THREE WAY SHELF ANGLE

• Standard finishes: ZN, GRN

• Wt./C 15 Lbs. (6.8 kg)

B6127

FIVE HOLE GUSSETTED THREE

WAY SHELF ANGLE

• Standard finishes: ZN, GRN

• Wt./C 18 Lbs. (8.1 kg)

B6112

FOUR HOLE ADJUSTABLE

CORNER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 32Lbs. (14.5 kg)

23/16”

(55.5)

25/16”

(58.7)

25/16”

(58.7)

17/8”

(47.6)

17/8”

(47.6)

215/16”

(74.6)

25/16”

(58.7)

25/16”

(58.7)

23/16”

(55.6)

27/16”

(61.9)

4”

(101.6)

15/16”

(23.8)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6) 17/8”

(47.6)

17/8”

(47.6)

15/16”

(23.8)

15/16”

(23.8)

13/16”

(20.6)

11/4”

(31.7)

9/32”(7.1) x 3/4”

(19.0) SLOTS

(Left shown)

B589-62

TWO HOLE 90°

ADAPTER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 11 Lbs. (5.0 kg)

117/32”

(38.9)

13/16”

(20.6)

15/8”

(41.3)

15/8”

(41.3)

B62

B22

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

Mini Fittings

207

B6154

TWO HOLE OPEN ANGLE

• Standard finishes: ZN, GRN

• Wt./C 8 Lbs. (3.6 kg)

B6147-B6152

TWO HOLE OPEN ANGLE

• Standard finishes: ZN, GRN

B6162-B6165

TWO HOLE OPEN ANGLE

• Standard finishes: ZN, GRN

B6156-B6161

TWO HOLE CLOSED ANGLE

• Standard finishes: ZN, GRN

B6155

TWO HOLE

CLOSED ANGLE

• Standard finishes: ZN, GRN

• Wt./C 8 Lbs. (3.6 kg)

B601-62

TWO HOLE 45°

ADAPTER ANGLE

• Standard finishes: ZN, GRN

• Wt./C 14 Lbs. (6.3 kg)

B6169

TWO HOLE SPLICE

CLEVIS FOR B72

• Standard finishes: ZN, GRN

• Wt./C 11 Lbs. (5.0 kg)

13/32”

(10.3)

13/16”

(30.1)

123/32”

(43.6)

13/32”

(10.3)

13/32”

(10.3)

13/32”

(10.3)

13/32”

(10.3)

15/8”

(41.3)

15/8”

(41.3)

17/8”

(47.6)

11/32”

(26.2)

17/8”

(47.6)

17/8”

(47.6)

113/64”

(30.5)

Wt./C

Part No. A B C Lbs. kg

B6147 821/2°2

1/32”(51.6) 27/32”(21.4)

B6148 75° 21/32”(51.6) 27/32”(21.4)

B6149 671/2°2”

(50.8) 7/8”(22.2) 8.0 (3.6)

B6150 60° 131/32”(50.0) 15/16”(23.8)

B6151 521/2°1

7/8”(47.6) 11/16”(27.0)

B6152 371/2°2”

(50.8) 29/32”(23.0)

45°

13/32”

(10.3)

13/32”

(10.3)

Wt./C

Part No. A Lbs. kg

B6162 30°

B6163 221/2° 8.0 (3.6)

B6164 15°

B6165 71/2°

Wt./C

Part No. A B Lbs. kg

B6156 821/2°1

9/32”(32.5)

B6157 75°1

5/16”(33.3)

B6158 671/2° 13/8”(34.9) 8.0 (3.6)

B6159 60° 113/32”(35.7)

B6160 521/2° 115/32”(37.3)

B6161 371/2° 121/32”(42.0)

13/32”

(10.3)

13/32”

(10.3)

17/8”

(47.6)

19/16”

(39.7)

45°

B62

B22

B72

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

Mini Fittings

208

B6170

TWO HOLE SPLICE

CLEVIS FOR B62

• Standard finishes: ZN, GRN

• Wt./C 17 Lbs. (7.7 kg)

B6167

FOUR HOLE SPLICE

CLEVIS FOR B72

• Standard finishes: ZN, GRN

• Wt./C 24 Lbs. (10.9 kg)

B6168

THREE HOLE SPLICE CLE-

VIS FOR B72

• Standard finishes: ZN, GRN

• Wt./C 16 Lbs. (7.2 kg)

B6171

THREE HOLE SPLICE

CLEVIS FOR B62

• Standard finishes: ZN, GRN

• Wt./C 26 Lbs. (11.8 kg)

B6172

FOUR HOLE SPLICE

CLEVIS FOR B62

• Standard finishes: ZN, GRN

• Wt./C 36 Lbs. (16.3 kg)

B7116

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 10 Lbs. (4.5 kg)

B6107

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 12 Lbs. (5.4 kg)

B6107-62A

THREE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 16 Lbs. (7.2 kg)

B6594

FIVE HOLE U-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 13 Lbs. (5.9 kg)

15/8”

(41.3)

317/32”

(89.7)

215/16”

(74.6)

4”

(101.6)

4”

(101.6)

215/16”

(74.6) 231/32”

(75.4)

231/32”

(75.4)

17/8”

(47.6)

15/16”

(23.8)

B72 B72 B62

B62 B62

13/32”

(10.3)

231/32”

(75.4)

13/16”

(20.6)

121/32”

(42.0)

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

Mini Fittings

209

B6105

TWO HOLE

Z-SUPPORT FOR B62

• Standard finishes: ZN, GRN

• Wt./C 7 Lbs. (3.2 kg)

B6526

TWO HOLE

OFFSET Z-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 5 Lbs. (2.2 kg)

B6173

FOUR HOLE CLEVIS

• Standard finishes: ZN, GRN

• Wt./C 9 Lbs. (4.1 kg)

B7105

TWO HOLE

Z-SUPPORT FOR B72

• Standard finishes: ZN, GRN

• Wt./C 7 Lbs. (3.2 kg)

B6110

TWO HOLE

Z-SUPPORT FOR B62A

• Standard finishes: ZN, GRN

• Wt./C 9 Lbs. (4.1 kg)

B6108

TWO HOLE

OFFSET Z-SUPPORT

• Standard finishes: ZN, GRN

• Wt./C 7 Lbs. (3.2 kg)

B6571

EIGHT HOLE WING CONNECTION

• Standard finishes: ZN, GRN

• Wt./C 28 Lbs. (12.7 kg)

15/16”

(23.8)

13/16”

(20.6)

17/8”

(47.6)

13/16”

(20.6)

1/8”

(3.2)

13/16”

(20.6)

13/16”

(20.6)

17/8”

(47.6)

17/8”

(47.6)

17/8”

(47.6)

13/4”

(44.4)

13/4”

(44.4)

13/4”

(44.4)

13/4”

(44.4)

229/32”

(73.8)

15/16”

(23.8)

121/32”

(42.0)

13/32”

(10.3)

13/16”

(20.6)

B598-62

TWO HOLE Z-ADAPTER PLATE

• Standard finishes: ZN, GRN

• Wt./C 28 Lbs. (12.7 kg)

13/16”

(20.6)

23/4”

(69.8)

15/8”

(41.3)

B62

B22

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

Mini Fittings

210

B6211

Z-BEAM CLAMP

• 5/16”-18 Setscrew included

• 13/16” (20.6) Max. Flange Thickness

• Material: ASTM A36

• Standard finishes: ZN, GRN

• Wt./C 13 Lbs. (5.9 kg)

B7205

END CAP FOR B72

• Material: ASTM A1008 SS Gr. 33

Type 1

• Standard finishes: ZN, GRN

• Wt./C 1 Lb. (.4 kg)

B6205

END CAP FOR B62

• Material: ASTM A1008 SS Gr. 33

Type 1

• Standard finishes: ZN, GRN

• Wt./C 3 Lbs. (1.3 kg)

B6409-6, 9

BRACKET

• Safety Factor of 2

• Uniform Design Load 40 Lbs. (.18 kN)

• Standard finishes: ZN, GRN

B2350-B2355

ONE HOLE DOUBLE

TUBING STRAP

• Material: ASTM A1008 SS

Gr. 33 Type 1

• Standard finishes: ZN, GRN

B2308-B2315

ONE HOLE TUBING STRAP

• Material: Sizes 1/4” - 1/2”, ASTM A611 Gr. C

5/8” - 1”, ASTM A1008 SS Gr. 33 Type 1

• Standard finishes: ZN, GRN

25/16”

(58.7)

17/8”

(47.6)

1/4”

(6.3)

13/16”

(20.6)

13/16”

(20.6)

13/32”

(10.3) 3/4”

(19.0)

B62

13/16”

(20.6)

13/16”

(20.6)

Wt./C

Part No. A Lbs. kg

B6409-6 6” (152.4) 28.0 (12.7)

B6409-9 9” (228.6) 35.0 (15.8)

9/32” (7.1) DIA.

9/32” (7.1) Dia.

O.D. Size O.D.Size Wt./C

Part No. A B C Lbs. kg

B2350 1/4”(6.3) 1/4”(6.3) 3/4”(19.0) 1.2 (.5)

B2351 3/8”(9.5) 3/8”(9.5) 1” (25.4) 2.0 (.9)

B2352 1/2”(12.7) 1/2”(12.7) 11/4”(31.7) 2.9 (1.3)

B2353 1/4”(6.3) 3/8”(9.5) 7/8”(22.2) 1.6 (.7)

B2354 1/4”(6.3) 1/2”(12.7) 1” (25.4) 2.1 (.9)

B2355 3/8”(9.5) 1/2”(12.7) 11/8”(28.6) 2.5 (1.1)

O.D. Size Wt./C

Part No. A B C Lbs. kg

B2308 1/4”(6.3) 11/32”(26.2) .048 (1.2) 1.2 (.5)

B2309 5/16”(7.9) 13/32”(27.8) .048 (1.2) 1.4 (.6)

B2310 3/8”(9.5) 13/16”(30.1) .048 (1.2) 1.6 (.7)

B2311 1/2”(12.7) 121/64”(33.7) .048 (1.2) 1.9 (.8)

B2312 5/8”(15.9) 125/64”(35.3) .062 (1.6) 2.7 (1.2)

B2313 3/4”(19.0) 139/64”(40.9) .075 (1.9) 4.3 (1.9)

B2314 7/8”(22.2) 151/64”(45.6) .075 (1.9) 4.9 (2.2)

B2315 1” (25.4) 21/32”(51.6) .075 (1.9) 5.2 (2.3)

Mini Channel & Fittings

Reference page 200 for general fitting specifications.

Mini Fittings

211

Continuous slot Concrete Inserts are designed to

provide a pre-set support system cast in concrete

ceilings, walls, and floors to allow flexibility of

attachment at any point along the channel. This

provides an excellent support system for pipe,

conduit, and cable trays.

Continuous Concrete Inserts, manufactured from

Cooper B-Line’s standard channels, have formed

anchors spaced on 4 inch (101.6 mm) centers. 3/16”

(4.8 mm) nail-holes are provided for securing the

inserts to the forms.

Available in lengths from 3 inches (7.62 cm) to 240

inches (609.6 cm), Concrete Inserts are shipped

complete with end caps and styrofoam filler strips

which prevent seepage of concrete into the insert.

Styrofoam is easily removed by pulling the

convenient pull-tab.

Materials & Finishes*

*Unless otherwise noted.

Spot Inserts

Cooper B-Line’s Spot Inserts provide for economical single attachment points with full flexibility of

fastener sizing, but with limited adjustment. These products are made from steel strips in accordance

with ASTM A1011, 33,000 PSI min. yield. Standard finish is electro-plated zinc (ASTM B633).

Special Concrete Inserts

Pre-stressed inserts, inserts with studs welded to the back of the channel, and other types of special

inserts are available from Cooper B-Line.

Test Data

Independent Testing Laboratory test data available upon request.

Metric

Metric dimensions are shown in parentheses. Unless noted, all metric dimensions are in millimeters.

Concrete Inserts

Continuous Concrete Inserts

212

Finish

Code Finish Specification

PLN Plain ASTM A1011

33,000 PSI min. yield

GRN Dura-Green

ZN Electro-Plated Zinc ASTM B633 SC1 Type III

GALVPre-Galvanized ASTM A653

33,000 PSI min. yield

HDG Hot-Dipped Galvanized ASTM A123

SS4 Stainless Steel Type 304 ASTM A240

SS6 Stainless Steel Type 316 ASTM A240

Continuous concrete inserts, installed in the

ceiling, can be used to support trapeze hangers,

suspended pipe racks, cable trays and single or

multiple pipe hangers.

When installed in walls, continuous concrete

inserts can be used as a support for tunnel

stanchions, equipment braces, brackets and pipe

racks.

Use spot inserts for single pipe-support or

trapeze type hangers. Spot Inserts offer full

flexibility of rod and fastener sizings.

Cooper B-Line Channel can be attached to

continuous concrete inserts in walls or ceilings.

Channel can also be attached to concrete walls

and floors with expansion anchors.

Concrete Inserts

Reference page 212 for general fitting and standard finish specifications.

Concrete Inserts

213

Length Wt./C Design Load

Part No. in. mm Lbs. kg Lbs. kN

B22-I-3 3” (76) 72 (32.6) 500 (2.22)

B22-I-4 4” (101) 88 (39.9) 800 (3.56)

B22-I-6 6” (152) 120 (54.4) 1000 (4.45)

B22-I-8 8” (203) 152 (68.9) 1200 (5.34)

Length Wt./C

Part No. in. mm Lbs. kg

B22-I-12 12” (305) 224 (101.6)

B22-I-16 16” (406) 289 (131.1)

B22-I-20 20” (508) 353 (160.1)

B22-I-24 24” (609) 420 (190.5)

B22-I-32 32” (813) 553 (250.8)

B22-I-36 36” (914) 620 (281.2)

B22-I-40 40” (1016) 686 (311.1)

B22-I-48 48” (1219) 820 (371.9)

B22-I-60 60” (1524) 1018 (461.7)

B22-I-72 72” (1829) 1218 (552.5)

B22-I-84 84” (2133) 1417 (642.7)

B22-I-96 96” (2438) 1616 (733.0)

B22-I-108 108” (2743) 1816 (823.7)

B22-I-120 120” (3048) 2016 (914.4)

B22-I-144 144” (3657) 2416 (1095.9)

B22-I-168 168” (4267) 2816 (1277.3)

B22-I-192 192” (4877) 3216 (1458.7)

B22-I-216 216” (5486) 3616 (1640.2)

B22-I-240 240” (6096) 4016 (1821.6)

B22I

CONTINUOUS CONCRETE INSERT

• Design Load for B22-I-12 thru B22-I-240

is 2,000 lbs. (8.89 kN) per foot of concrete

insert length with safety factor of 3 in

3000 psi concrete.

• Loads concentrated within the last 2

inches (50.8 mm) of concrete inserts

8” (203.2 mm) and longer should not

exceed 1,000 lbs. (4.45kN).

• Concrete insert should be secured to the

forms on 16” (406.4 mm) to 24” (609.6 mm)

intervals.

• B22-I continuous concrete inserts are

made from B22 channel. Use channel

nuts designed for use in B22 channel.

• B22-I concrete inserts are supplied with

styrofoam fillers. B3322 end caps are

furnished with inserts through 8” (203.2 mm)

long, and B205 end caps are furnished

with inserts 12” (304.8 mm) and longer.

• Material: Plain Steel ASTM A1011

33,000 PSI min. yield or Pre-Galvanized

Steel ASTM A653SS 33,000 PSI min.

yield.

• Finish: Plain, Dura-Green, Pre-Galv,

HDG

15/8”

(41.3)

15/8”

(41.3)

25/8”

(66.7)

B3322

End Cap

Styrofoam

Filler

.188 Knockouts For

Nailing Inserts To

Forms

3/4”

(19.0)

15/8”

(41.3)

11/16”

(17.4)

4”

(101.6)

11/2”

(38.1)

31/8”

(79.4)

B205 End Cap

Styrofoam

Filler

Concrete Inserts

Reference page 212 for general fitting and standard finish specifications.

Continuous Concrete Inserts

214

MATERIAL: 12 Gauge (2.6)

B22-I-3 THRU

B22-I-8

B22-I-12 THRU B22-I-240

15/8”

(41.3)

Length Wt./C Design Load

Part No. in. mm Lbs. kg Lbs. kN

B32-I-3 3” (76) 65 (29.5) 500 (2.22)

B32-I-4 4” (101) 80 (36.3) 800 (3.56)

B32-I-6 6” (152) 108 (49.0) 1000 (4.45)

B32-I-8 8” (203) 137 (62.1) 1200 (5.34)

Length Wt./C

Part No. in. mm Lbs. kg

B32-I-12 12” (305) 202 (91.6)

B32-I-16 16” (406) 262 (118.8)

B32-I-20 20” (508) 316 (143.3)

B32-I-24 24” (609) 376 (170.5)

B32-I-32 32” (813) 496 (225.0)

B32-I-36 36” (914) 556 (252.2)

B32-I-40 40” (1016) 616 (279.4)

B32-I-48 48” (1219) 736 (333.8)

B32-I-60 60” (1524) 915 (415.0)

B32-I-72 72” (1829) 1095 (496.7)

B32-I-84 84” (2133) 1274 (577.9)

B32-I-96 96” (2438) 1453 (659.0)

B32-I-108 108” (2743) 1633 (740.7)

B32-I-120 120” (3048) 1813 (822.3)

B32-I-144 144” (3657) 2173 (985.6)

B32-I-168 168” (4267) 2533 (1148.9)

B32-I-192 192” (4877) 2893 (1312.2)

B32-I-216 216” (5486) 3253 (1475.5)

B32-I-240 240” (6096) 3613 (1638.8)

B32I

CONTINUOUS CONCRETE INSERT

• Design Load for B32-I-12 thru B32-I-240

is 2,000 lbs. (8.89 kN) per foot of concrete

insert length with safety factor of 3 in

3000 psi concrete.

• Loads concentrated within the last 2

inches (50.8 mm) of concrete inserts

8” (203.2 mm) and longer should not

exceed 1,000 lbs. (4.45kN).

• Concrete insert should be secured to the

forms on 16” (406.4 mm) to 24” (609.6 mm)

intervals.

• B32-I continuous concrete inserts are

made from B32 channel. Use channel

nuts designed for use in B32 channel.

• B32-I concrete inserts are supplied with

styrofoam fillers. B3332 end caps are

furnished with inserts through 8” (203.2 mm)

long, and B206 end caps are furnished

with inserts 12” (304.8 mm) and longer.

• Material: Plain Steel ASTM A1011

33,000 PSI min. yield or Pre-Galvanized

Steel ASTM A653SS 33,000 PSI min.

yield.

• Finish: Plain, Dura-Green, Pre-Galv,

HDG

15/8”

(41.3)

25/8”

(66.7)

13/8”

(34.9)

B3332

End Cap

Styrofoam

Filler

B32-I-3 THRU

B32-I-8

B206 End Cap

B32-I-12 THRU B32-I-240

Concrete Inserts

Reference page 212 for general fitting and standard finish specifications.

Continuous Concrete Inserts

215

MATERIAL: 12 Gauge (2.6)

.188 Knockouts For

Nailing Inserts To

Forms

3/4”

(19.0)

15/8”

(41.3)

11/16”

(17.4)

4”

(101.6)

13/8”

(34.9)

11/2”

(38.1)

27/8”

(73.0)

Styrofoam

Filler

B52I

CONTINUOUS CONCRETE INSERT

• Design Load for B52-I-12 thru B52-I-240

is 1,500 lbs. (6.67 kN) per foot of concrete

insert length with safety factor of 3 in

3000 psi concrete.

• Loads concentrated within the last 2

inches (50.8 mm) of concrete inserts

8” (203.2 mm) and longer should not

exceed 750 lbs. (3.33kN).

• Concrete insert should be secured to the

forms on 16” (406.4 mm) to 24” (609.6 mm)

intervals.

• B52-I continuous concrete inserts are

made from B52 channel. Use channel

nuts designed for use in B52 channel.

• B52-I concrete inserts are supplied with

styrofoam fillers. B3352 end caps are

furnished with inserts through 8” (203.2 mm)

long, and B220 end caps are furnished

with inserts 12” (304.8 mm) and longer.

• Material: Plain Steel ASTM A1011

33,000 PSI min. yield or Pre-Galvanized

Steel ASTM A653SS 33,000 PSI min.

yield.

• Finish: Plain, Dura-Green, Pre-Galv,

HDG

Length Wt./C

Part No. in. mm Lbs. kg

B52-I-12 12” (305) 157 (71.2)

B52-I-16 16” (406) 202 (91.6)

B52-I-20 20” (508) 237 (107.5)

B52-I-24 24” (609) 282 (127.9)

B52-I-32 32” (813) 373 (169.2)

B52-I-36 36” (914) 419 (190.0)

B52-I-40 40” (1016) 464 (210.4)

B52-I-48 48” (1219) 556 (252.2)

B52-I-60 60” (1524) 692 (313.9)

B52-I-72 72” (1829) 829 (376.0

B52-I-84 84” (2133) 965 (437.7)

B52-I-96 96” (2438) 1107 (502.1)

B52-I-108 108” (2743) 1237 (561.1)

B52-I-120 120” (3048) 1374 (623.2)

B52-I-144 144” (3657) 1648 (747.5)

B52-I-168 168” (4267) 1922 (871.8)

B52-I-192 192” (4877) 2196 (996.1)

B52-I-216 216” (5486) 2470 (1120.4)

B52-I-240 240” (6096) 2744 (1244.6)

Length Wt./C Design Load

Part No. in. mm Lbs. kg Lbs. kN

B52-I-3 3” (76) 53 (24.0) 400 (1.78)

B52-I-4 4” (101) 63 (28.6) 500 (2.22)

B52-I-6 6” (152) 85 (38.5) 750 (3.33)

B52-I-8 8” (203) 106 (48.1) 1000 (4.45)

15/8”

(41.3)

13/16”

(20.6)

29/16”

(65.1)

B3352

End Cap

Styrofoam

Filler

.188 Knockouts For

Nailing Inserts To

Forms

3/4”

(19.0)

15/8”

(41.3)

11/16”

(17.4)

4”

(101.6)

13/16”

(20.6)

11/2”

(38.1)

25/16”

(58.7)

B220 End Cap

Styrofoam

Filler

B52-I-12 THRU B52-I-240

B52-I-3 THRU

B52-I-8

MATERIAL: 12 Gauge (2.6)

Concrete Inserts

Reference page 212 for general fitting and standard finish specifications.

Continuous Concrete Inserts

216

Thread Wt./C

Part No. Size Lbs. kg

N2500-1/41/4”-20 13 (5.9)

N2500-5/16 5/16”-18 13 (5.9)

N2500-3/83/8”-16 12 (5.4)

N2500-1/21/2-13 12 (5.4)

N2500-5/85/8”-11 11 (5.0)

N2500-3/43/4”-10 10 (4.5)

N2500-7/87/8”-9 9 (4.1)

Channel End Cap Design Load Maximum Wt./C

Part No. Style Part No. Lbs. kN Pipe Size Lbs. kg

B2505 B22 B3322 1200 (5.34) 10” (250) 96 (43.5)

B2506 B32 B3332 1000 (4.45) 8” (200) 88 (39.9)

B2507 B42 B3342 1000 (4.45) 8” (200) 77 (34.9)

B2508 B52 B3352 1000 (4.45) 8” (200) 69 (31.3)

Part No. Height Height Design Load Wt./C

& Size A H Lbs. kN Lbs. kN

B2501-1/427/16”(61.9) 7/8”(22.2) 250 (1.11) 16 (7.2)

B2501-3/831/16”(77.8) 17/8”(47.6) 610 (2.71) 22 (9.9)

B2501-1/241/8”(104.8) 17/8”(47.6) 880 (3.91) 26 (11.7)

N2500

INSERT SQUARE NUT

• For use in B2500 Spot Insert

• Material: Steel ASTM A36

• Standard finish: ZN

B2500

SPOT INSERT

• Design Load 600 Lbs. (2.67 kN)

• Safety Factor of 5

• Order N2500 Nuts Separately

• Material: Steel ASTM A1011

33,000 PSI min. yield

• Standard finish: ZN

• Wt./C 46 Lbs. (20.8 kg)

B2505 THRU B2508

SPOT INSERT

• Safety Factor of 5

• To support 10” (250) pipe use B2505

insert with 5/8”-11 Channel Nuts.

• To support up to and including 8”

(200) pipes use B2506, B2507 and

B2508 inserts with the desired

Channel Nuts.

• Standard finish: ZN

B2501

LIGHT DUTY SPOT INSERT

• Safety Factor of 2

• The concrete attachment problem solver for

light duty applications.

• Fast and easy applications.

• No concrete leakage problems.

• One piece unitized construction.

• Color coded cap on thread for rod size

identification and to prevent concrete seepage.

(1/4”-Yellow, 3/8”-Red, 1/2”-Blue)

B2503

HEAVY DUTY SPOT INSERT

• Designed for use where heavy loads are

required in curtain wall applications

• Design Load is 5000 Lbs. (22.2 kN) with a

Safety Factor of 3

• Loading based on two N225 channel nuts

spaced 3” (76.2 mm) on center and a

minimum of 2” (50.8 mm) from the end

of the insert

• Styrofoam end caps prevent concrete

seepage into the channel

• 12” (304.8 mm) long insert is anchored

into the concrete at a depth of

51/2” (139.7 mm)

• Material: 12 Gauge (2.6 mm) thick steel

• Standard finish: ZN

• Wt./C 42 Lbs. (19.0 kg)

19/16”

(65.0)

31/4”

(82.5)

11/2”

(38.1)

11/4”

(31.7)

11/4”

(31.7)

11/4”

(31.7)

5/16”

(7.9)

2”

(50.8)

Thread

Size

25/8”

(66.7)

51/2”

(139.7)

15/8”

(41.3)

15/8”

(41.3)

2”

(50.8)

12”

(304.8)

8”

(203.2)

51/16”

(128.6)

End Caps

Channel

Size

Styrofoam End

Caps

Material:

12 Gauge (2.6)

5/32” (4.0)

DIA. NAIL

HOLES

Design Load

Concrete Inserts

Reference page 212 for general fitting and standard finish specifications.

Spot Inserts

217

B205, B206, B220

X TYPE END CAPS

• UL listed for raceway use only

• Material: 12 Gauge (2.6)

• Standard finish: ZN

B3322, B3332, B3342, B3352

Y TYPE END CAPS

• UL listed for raceway use only

• Material: 14 Gauge (1.9)

• Standard finish: ZN

B22IFS-B52IFS

STYROFOAM FILLER STRIP

B380

JOINT SPLICE PLATE

• Used at splice points to prevent

concrete seepage in long

continuous runs of concrete

inserts.

• Material: 18 Gauge (1.2)

• Standard finish: GALV

Use Wt./C

Part No. With A Lbs. kg

B205 B22 121/32”(42.0) 10 (4.5)

B206 B32 113/32”(35.7) 8(3.6)

B220 B52 27/32”(21.4) 4(1.8)

Use Wt./C

Part No. With A Lbs. kg

B3322 B22 1.270 (32.2) 15 (6.8)

B3332 B32 1.000 (25.4) 15 (6.8)

B3342 B42 .645 (16.4) 15 (6.8)

B3352 B52 .460 (11.7) 15 (6.8)

Use Wt./C

Part No. With A Lbs. kg

B380-22 B22 15/8”(41.3) 11 (5.0)

B380-32 B32 13/8”(34.9) 10 (4.5)

B380-42 B42 1” (25.4) 9(4.1)

B380-52 B52 13/16”(20.6) 7(3.2)

A Wt./C

Part No. Ft. mm BLbs. kg

B22-IFS 4’ (1219) 17/32”(309) 10 (4.5)

B32-IFS 4’ (1219) 1” (254) 9(4.1)

B52-IFS 4’ (1219) 21/32”(167) 7(3.2)

Sleeve Wall

Part No. Diameter Thickness

BD40 All Dia. 5/16” & under

BE-5-8 6”

Schedule 80 pipe

BE-9-12 9” - 14”

Schedule 80 pipe

15/8”

(41.3)

113/16”

(46.0)

13/4”

(44.1)

25/8”

(66.7)

3/8” (9.5)

DIA.

1”

(25.4)

29/32”

(23.0)

1/16”

(1.6)

PIPE SLEEVE FASTENERS

• Allows for rigid attachment

of pipe sleeves to wall and floor

forms for concrete pouring.

• Accommodates Schedule 40,

Schedule 80, or 5/16" (8) and

smaller wall thickness.

• Simply installed with a hammer.BD40 BE-5-8 & BE-9-12

Concrete Inserts

Reference page 212 for general fitting and standard finish specifications.

Insert Accessories

218

Catalog Thread Thread Drill/Hole Load Cap. Load Cap.

Number Size Size Length Size Tension* Shear*

in. mm in. mm in. mm lbs. kN lbs. kN

AWA-37-225 3/8"-16 3/8" x 21/4"(9 x 57) 11/4"(32)

AWA-37-275 3/8"-16 3/8" x 23/4"(9 x 70) 15/8"(41)

AWA-37-300 3/8"-16 3/8" x 3" (9 x 76) 17/8"(47) 3/8”(9) 760 (3.38) 940 (4.18)

AWA-37-350 3/8"-16 3/8" x 31/2"(9 x 89) 23/8"(60)

AWA-37-375 3/8"-16 3/8" x 33/4"(9 x 95) 25/8"(66)

AWA-37-500 3/8"-16 3/8" x 5" (9 x 127) 37/8"(98)

AWA-50-275 1/2"-13 1/2" x 23/4"(13 x 70) 13/8"(35)

AWA-50-375 1/2"-13 1/2" x 33/4"(13 x 95) 23/8"(60)

AWA-50-450 1/2"-13 1/2" x 41/2"(13 x 114) 31/8"(79) 1/2”(13) 1390 (6.18) 1700 (7.56)

AWA-50-550 1/2"-13 1/2" x 51/2"(13 x 140) 41/8"(105)

AWA-50-700 1/2"-13 1/2" x 7" (13 x 178) 55/8"(143)

Catalog Rod Overall Sleeve Drill/Hole Load Cap. Load Cap.

Number Size Length Length Diameter Tension* Shear*

in. mm in. mm in. mm lbs. kN lbs. kN

ADH-25 1/4”-20 7/8”(22) 5/8”(16) 3/8”(9) 285 (1.27) 300 (1.33)

ADH-37 3/8”-16 15/16”(33) 15/16”(24) 5/8”(16) 520 (2.31) 640 (2.84)

ADH-50 1/2”-13 13/4”(44) 11/4”(32) 3/4”(19) 1005 (4.47) 1005 (44.70)

9323 1/4”-- -- -- -- -- -- -- -- -- --

9343 3/8”-- -- -- -- -- -- -- -- -- --

9353 1/2”---- -- -- -- -- -- -- -- --

Catalog Rod Shank Size Drill/Hole Load Cap. Load Cap.

Number Size & Length Size Tension* Shear*

in. mm in. mm Lbs. kN Lbs. kN

ARC-25-125 1/4”-20 1/4” x 11/4”(6 x 32) 1/4”(6) 485 (2.16) 610 (2.71)

ARC-37-150 3/8”-16 1/4” x 11/2”(6 x 38) 1/4”(6) 650 (2.89) 660 (2.93)

ARC-50-275 1/2”-13 3/8” x 23/4”(9 x 70) 1/4”(6) 1510 (6.71) 1580 (7.03)

WEDGE ANCHOR

HOLLOW BASE DROP-IN ANCHORS

RAPID ROD™HANGERS FOR CONCRETE

Note: Based on concrete compression strength of 4,000 psi using applied safety factor of 4.

Catalog Rod Shank Size Load Cap. Load Cap.

Number Size & Length Tension* In 12 Ga. Tension* In 1/4”

in. mm Lbs. kN Lbs. kN

ARS-25-100 1/4”-20 1/4” x 1” (6 x 25) 390 (1.75) 1260 (5.60)

ARS-37-100HN 3/8”-16 1/4” x 1” * (6 x 25) 512 (2.28) 1260 (5.60)

ARS-37-150 3/8”-16 1/4” x 11/2”(6 x 38) 390 (1.75) 1260 (5.60)

ARS-37-150HN 3/8”-16 1/4” x 11/2”(6 x 38) 512 (2.28) 1260 (5.60)

ARS-37-200 3/8”-16 1/4” x 2” (6 x 51) 390 (1.75) 1260 (5.60)

RAPID ROD™HANGERS FOR STEEL

Note: Loads shown for ASTM A36 beams and ASTM A572 steel purlins include a safety factor of 4.

For UL and FM listings, steel rapid rod must be installed with a retaining nut.

Concrete Inserts

Reference page 212 for general fitting and standard finish specifications.

Anchors

219

Concrete Inserts

Reference page 212 for general fitting and standard finish specifications.

Anchors

220

PLASTIC SCREW ANCHORS

• Kits contain 100 anchors, 100 screws, and 1 concrete drill bit

Catalog Screw Load Cap. Load Cap.

Number Size Tension* Shear*

Lbs. kN Lbs. kN

APC-8K #8 x 1” 110 (0.49) 70 (0.31)

APC-10K #10 x 1” 140 (0.62) 90 (0.40)

APC-12K #12 x 1” 140 (0.62) 90 (0.40)

Note: Based on concrete compression strength of 4,000 psi using

applied safety factor of 4.

Catalog Rod Insert Thread Overall Load Cap. Load Cap.

Number Size Color Length Length Tension* Shear*

in. mm in. mm lbs. kN lbs. kN

ACPW-25 1/4”-20 Brown 3/8”(9) 17/8”(47) 930 (4.13) 370 (1.64)

ACPW-37 3/8”-16 Green 5/8”(16) 17/8”(47) 1200 (5.33) 1330 (5.91)

ACPW-50 1/2”-13 Yellow 11/16”(17) 17/8”(47) 1200 (5.33) 1840 (8.18)

ACPW-62 5/8”-11 Red 15/16”(24) 17/8”(47) 1160 (5.16) 2800 (12.45)

ACPW-75 3/4”-10 Purple 11/8”(28) 17/8”(47) 1160 (5.16) 2800 (12.45)

WOOD-KNOCKER™ ANCHORS

Notes: Based on normal weight concrete with minimum compression strength of 3,000 psi.

Allowable load capacities are calculated using applied safety factor of 4.

Minimum embedment is 2” (51mm).

Wood-Knocker™ is a trademark of Powers®Fasteners

Catalog Rod Insert Thread Upper Deck Lower Deck Upper Deck Lower Deck

Number Size Color Length Tension Load* Tension Load* Shear Load* Shear Load*

in. mm lbs. kN lbs. kN lbs. kN lbs. kN

ACPD-25 1/4”-20 Brown 3/8”(9) 1112 (4.94) 830 (3.69) 625 (2.78) 625 (2.78)

ACPD-37 3/8”-16 Green 5/8”(16) 1435 (6.38) 830 (3.69) 837 (3.72) 837 (3.72)

ACPD-50 1/2”-13 Yellow 11/16”(17) 1775 (7.89) 830 (3.69) 837 (3.72) 837 (3.72)

ACPD-62 5/8”-11 Red 15/16”(24) 2200 (9.78) 990 (4.40) 837 (3.72) 837 (3.72)

ACPD-75 3/4”-10 Purple 11/8”(28) 2200 (9.78) 990 (4.40) 837 (3.72) 837 (3.72)

ACPD-87 7/8”-9 Black 15/16”(33) 2200 (9.78) 990 (4.40) 837 (3.72) 837 (3.72)

BANG-IT™ ANCHORS

Notes: Based on normal weight concrete with minimum compression strength of 3,000 psi.

Allowable load capacities are calculated using applied safety factor of 4.

Minimum insert spacing of 12” (305mm), minimun end spacing of 12” (305mm).

Minimum embedment is 2” (51mm).

Length of sleeve is 33/8” (86mm.

Bang-It™ is a trademark of Powers®Fasteners

Concrete Inserts

Reference page 212 for general fitting and standard finish specifications.

Anchors

221

1/4” CONCRETE SCREWS

Note: Based on 1” (25mm) embedment with concrete compression strength of 4,000 psi using applied safety factor of 4.

Consult factory for loading of other embedment depths.

Catalog Rod Drill/Hole Load Cap. Load Cap.

Number Size Size Tension* Shear*

in. mm in. mm lbs. kN lbs. kN

ACS-125H 1/4” x 11/4”(6 x 32) 3/16”(5) 265 (1.18) 205 (0.91)

ACS-175H 1/4” x 13/4”(6 x 44) 3/16”(5) 265 (1.18) 205 (0.91)

ACS-225H 1/4” x 21/4”(6 x 57) 3/16”(5) 265 (1.18) 205 (0.91)

ACS-275H 1/4” x 23/4”(6 x 70) 3/16”(5) 265 (1.18) 205 (0.91)

ACS-325H 1/4” x 31/4”(6 x 82) 3/16”(5) 265 (1.18) 205 (0.91)

Catalog Rod Thread Drill/Hole Load Cap. Load Cap.

Number Size Depth Size Tension* Shear*

in. mm in. mm Lbs. kN Lbs. kN

ATM-37 3/8”-16 11/16”(17) 1/2”(13) 540 (2.40) 825 (3.67)

SELF-TAPPING MACHINE SCREW ANCHOR

Note: Based on concrete compression strength of 4,000 psi in uncracked concrete using applied safety factor of 4.

Minimun concrete thickness 4” (101mm) with minimum embedment of 15/8” (41mm)

Catalog Head Thread Minimum Load Cap. Load Cap.

Number Type Depth Embedment Tension* Shear*

in. mm in. mm Lbs. kN Lbs. kN

AWS-CH Combo 3/16” x 11/4”(5 x 32) 3/4”(19) 90 (0.40) 260 (1.15)

AWS-OH Oval 3/16” x 11/4”(5 x 32) 3/4”(19) 90 (0.40) 260 (1.15)

AWS-PH Pan 3/16” x 11/4”(5 x 32) 3/4”(19) 90 (0.40) 260 (1.15)

WALL SCREWS

Note: Based on concrete compression strength of 4,000 psi. Allowable load capacities are calculated using an

applied safety factor of 4.

Catalog Anchor Size Thread Drill/Hole Minimum Load Cap. Load Cap.

Number & Length Length Diameter Embedment Tension* Shear*

in. mm in. mm in. mm in. mm lbs. kN lbs. kN

ASA-37-187HN 3/8” x 17/8”(9 x 47) 15/8”(41) 3/8”(9) 15/8”(41) 670 (2.98) 610 (2.71)

ASA-37-300HN 3/8” x 3” (9 x 76) 15/8”(41) 3/8”(9) 15/8”(41) 670 (2.98) 610 (2.71)

ASA-37-400HN 3/8” x 4” (9 x 101) 15/8”(41) 3/8”(9) 15/8”(41) 670 (2.98) 610 (2.71)

ASA-50-225HN 1/2” x 21/4”(13 x 57) 21/4”(57) 1/2”(13) 21/4”(57) 1255 (5.58) 1055 (4.69)

ASA-50-300HN 1/2” x 3” (13 x 76) 21/4”(57) 1/2”(13) 21/4”(57) 1255 (5.58) 1055 (4.69)

ASA-50-400HN 1/2” x 4” (13 x 101) 21/4”(57) 1/2”(13) 21/4”(57) 1255 (5.58) 1055 (4.69)

ASA-50-525HN 1/2” x 51/4”(13 x 133) 21/4”(57) 1/2”(13) 21/4”(57) 1255 (5.58) 1055 (4.69)

ASA-50-600HN 1/2” x 6” (13 x 152) 21/4”(57) 1/2”(13) 21/4”(57) 1255 (5.58) 1055 (4.69)

SLEEVE TYPE EXPANSION ANCHORS

Note: Based on concrete compression strength of 4,000 psi using applied safety factor of 4.

Cooper B-Line Slotted Angle is an all-purpose

framing system, roll formed from high strength

steel strips. It is designed to be used as

economical shelving, racks or electrical and

mechanical supports. The unique pattern of

horizontal and vertical slots permits full flexibility.

Three basic sizes are available for light, medium,

and heavy duty applications.

Materials & Finishes*

*Unless otherwise noted.

Lengths

Standard lengths are 10’ (3.05 m) and 12’ (3.66 m).

Slotted Angle is shipped in ten piece bundles

complete with 75 pieces of 3/8” x 3/4” (19mm) hex

head cap screws and 3/8” hex nuts.

Metric

Metric dimensions are shown in parentheses.

Unless noted, all metric dimensions are in

millimeters.

Finish

Code Finish Specification

PLN Plain ASTM A1011

33,000 PSI min. yield

ZN Electro-Plated Zinc ASTM B633 SC3

GRN Dura-Green

GALV Pre-Galvanized ASTM A653

33,000 PSI min. yield

Slotted Angle

222

SA158

• 14 Gauge (1.9)

• 15/8” x 15/8”

• Standard finishes: ZN, GRN

• Wt./Ft. .66 Lbs. (.98 kg/m)

SA276

• 14 Gauge (1.9)

• 15/8” x 23/8”

• Standard finishes: ZN, GRN

• Wt./Ft. .78 Lbs. (1.17 kg/m)

SA318

• 12 Gauge (2.6)

• 15/8” x 31/8”

• Standard finishes: ZN, GRN

• Wt./Ft. 1.32 Lbs. (1.96 kg/m)

137/64”

(40.1)

11/2”

(38.1)

11/2”

(38.1)

11/2”

(38.1)

10’ (3.05 m)

12’ (3.66 m)

13/32” (10.3) x 9/16” (14.3)

Transverse Slots

13/32” (10.3) x 9/16” (14.3)

Longitudinal Slots

10’ (3.05 m)

12’ (3.66 m)

137/64”

(40.1)

137/64”

(40.1)

137/64”

(40.1)

25/16”

(58.7)

3/4”

(19.0)

3/4”

(19.0)

3/4”

(19.0) 3/4”

(19.0)

3/4”

(19.0)

3/4”

(19.0)

13/32” (10.3) x 9/16” (14.3)

Transverse Slots

13/32” (10.3) x 9/16” (14.3)

Longitudinal Slots

13/32” (10.3) x 9/16” (14.3)

Transverse Slots

10’ (3.05 m)

12’ (3.66 m)

33/32”

(78.6)

13/32” (10.3) Holes On

3” (76.2) Centers

13/32” (10.3) x 9/16” (14.3)

Longitudinal Slots

Slotted Angle

Reference page 222 for general fitting and standard finish specifications.

Slotted Angle Sizes

223

BEAM SECTIONS

Single Piece (Up)

Z-Section

Single Piece (Level)

Broad Channel Broad Channel with

Stiffener

Z-Section with

Stiffener

Single Piece (Down) Narrow ChannelSingle Piece with

Stiffener

C D E

G H H

T-Section T-Section with

Stiffener

J-Section I-Section

J K L

Beam Span

24” (609 mm) 36” (914 mm) 48” (1219 mm) 60” (1524 mm) 72” (1829 mm) 84” (2133 mm) 96” (2438 mm)

Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

825 (3670) 525 (2335) 340 (1512) 230 (1023) 180 (800) –– – –

1100 (4893) 800 (3558) 540 (2402) 370 (1646) 250 (1112) –– – –

1300 (5782) 900 (4003) 625 (2780) 450 (2001) 330 (1468) 275 (1223) 200 (889)

1900 (8451) 1360 (6049) 1050 (4670) 825 (3670) 660 (2936) 530 (2357) 400 (1779)

2300 (10231) 1850 (8229) 1450 (6450) 1100 (4893) 950 (4226) 800 (3558) 700 (3114)

2200 (9786) 1650 (7339) 1225 (5449) 930 (4137) 700 (3114) 550 (2446) 450 (2001)

BEAM LOADING

SA158-15/8” (41.3) x 15/8” (41.3) x 14 Gauge (1.9)

Based on simple beam condition with uniform loads on parallel beams. To determine concentrated load capacity at mid-span,

multiply uniform load by 0.5.

For greater strength required in some applications, Slotted Angle may be fastened together to create combination shapes. A

number of these combinations are illustrated above. Refer to the following table for load capacities of these combinations.

Beam Sections illustrated are single sections, except J, N, and P.

Slotted Angle

Reference page 222 for general fitting and standard finish specifications.

Slotted Angle Beam Loading & Combinations

224

BEAM LOADING

SA318-15/8” (41.3) x 31/8” (79.4) x 12 Gauge (2.6)

Beam Span

24” (609 mm) 36” (914 mm) 48” (1219 mm) 60” (1524 mm) 72” (1829 mm) 84” (2133 mm) 96” (2438 mm) 108” (2743 mm) 120” (3048 mm)

Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

– – 680 (3025) 450 (2001) 340 (1512) –– –– –– – – ––

– – 830 (3692) 550 (2446) 360 (1601) 210 (934) 150 (667) –– – – ––

– – 1540 (6850) 1060 (4715) 800 (3558) 610 (2713) 480 (2135) 340 1512 250 (1112) ––

– – 1880 (8362) 1280 (5694) 970 (4315) 820 (3647) 650 (2891) 550 (2446) 420 (1868) 340 (1512)

– – 2110 (9386) 1730 (7695) 1460 (5775) 1250 (5560) 1090 (4848) 920 (4092) 820 (3647) 680 (3025)

4290 (19083) 2510 (11165) 1790 (7962) 1330 (5916) 980 (4359) 710 (3158) 550 (2446) 420 (1868) 320 (1423)

4320 (19216) 3000 (13344) 2140 (9519) 1600 (7117) 1290 (5738) 1040 (4626) 820 (3647) 640 (2847) 490 (2179)

– – 3480 (15480) 2430 (10809) 1890 (8407) 1620 (7206) 1430 (6361) 1270 (5649) 1160 (5160) 1030 (4581)

5780 (25711) 3640 (16191) 2820 (12544) 2200 (9786) 1700 (7562) 1350 (6005) 1060 (4715) 850 (3781) 680 (3025)

– – 3660 (16280) 2840 (12633) 2230 (9919) 1720 (7651) 1360 (6049) 1090 (4848) 874 (3888) 700 (3114)

– – 4910 (21841) 3830 (17036) 3000 (13344) 2550 (11343) 2190 (9741) 1880 (8362) 1640 (7295) 1430 (6361)

– – 6360 (28290) 4590 (20417) 3470 (15435) 2910 (12944) 2550 (11343) 2240 (9964) 2010 (8941) 1840 (8185)

Beam Span

24” (609 mm) 36” (914 mm) 48” (1219 mm) 60” (1524 mm) 72” (1829 mm) 84” (2133 mm) 96” (2438 mm) 108” (2743 mm) 120” (3048 mm)

Lbs. NLbs. NLbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

– – 1140 (5071) 850 (3781) 690 (3069) ––––––––––

– – 1250 (5560) 850 (3781) 600 (2669) 400 (1779) –––– –– ––

4800 (21351) 2750 (12232) 1800 (8007) 1280 (5694) 1000 (4448) 790 (3514) 610 (2713) –– ––

– – 3900 (17348) 2690 (11966) 2050 (9119) 1700 (7562) 1480 (6583) 1280 (5694) 1100 (4893) 960 (4270)

– – 4160 (18504) 3560 (15835) 3130 (13923) 2750 (12232) 2400 (10676) 2170 (9652) 1950 (8674) 1780 (7918)

8180 (36386) 5000 (22241) 3650 (16236) 2750 (12232) 2200 (9786) 1750 (7784) 1350 (6005) 1020 (4537) 700 (3114)

10600 (47151) 6050 (26912) 4440 (19750) 3330 (14812) 2670 (11877) 2120 (9430) 1660 (7384) 1210 (5382) 1000 (4448)

– – 6100 (27134) 4620 (20551) 3670 (16325) 3110 (13834) 2680 (11921) 2380 (10587) 2100 (9341) 1950 (8674)

13700 (60940) 7800 (34696) 5900 (26244) 4600 (20462) 3800 (16903) 3190 (14190) 2630 (11699) 2170 (9652) 1810 (8051)

– – 7900 (35141) 6300 (28024) 5050 (22463) 4070 (18104) 3240 (14412) 2630 (11699) 2170 (9652) 1810 (8051)

– – 10050 (44704) 8000 (35586) 6320 (28113) 5350 (23798) 4650 (20684) 4040 (17971) 3520 (15658) 3120 (13878)

– – 12700 (56492) 9550 (42480) 7540 (33539) 6540 (29091) 5730 (25488) 5030 (22374) 4520 (20106) 4000 (17793)

BEAM LOADING

SA276-15/8” (41.3) x 23/8” (60.3) x 14 Gauge (1.9)

Based on simple beam condition with uniform loads on parallel beams. To determine concentrated load capacity at mid-span,

multiply uniform load by 0.5.

Based on simple beam condition with uniform loads on parallel beams. To determine concentrated load capacity at mid-span, multiply

uniform load by 0.5.

Slotted Angle

Reference page 222 for general fitting and standard finish specifications.

Slotted Angle Beam Loading

225

COLUMN SECTIONS

Single Piece

Dual Channel

Section

T-Section

T-Channel

Section

-Channel

Section

Broad Channel

Section

Uneven T-Section

I-Section Uneven I-Section

Uneven Channel

Section

Narrow Channel

Section

N N O O

COLUMN LOADING - SA158-15/8” (41.3) x 15/8” (41.3) x 14 Gauge (1.9)

Column Loads assume no lateral support.

For greater strength required in some applications, Slotted Angle may be fastened together to create combination shapes. A

number of these combinations are illustrated above. Refer to the following table for load capacities of these combinations.

PP P Q R

Column Height

”

(914 mm) 48

”

(1219 mm) 60

”

(1524 mm) 72

”

(1829 mm)

Lbs. N Lbs. N Lbs. N Lbs. N

1450 (6450) 1150 (5115) 950 (4226) 750 (3336)

3850 (17125) 3500 (15569) 3000 (13344) 2500 (11120)

Column Height

36”(914 mm) 48”(1219 mm) 60”(1524 mm) 72”(1829 mm) 84”(2133 mm) 96”(2438 mm) 108”(2743 mm) 120”(3048 mm)

Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

2280 (10142) 1970 (8763) 1520 (6761) 1070 (4759) 660 (2936) –– –– – –

4760 (21173) 4490 (19972) 3995 (17770) 3140 (13967) 2340 (10409) 1750 (7784) –– – –

4940 (21974) 4680 (20817) 4310 (19172) 3870 (17214) 3665 (16303) 2700 (12010) 2060 (9163) 1610 (7161)

7270 (32338) 6920 (30781) 6370 (28335) 5840 (25977) 4930 (21930) 3850 (17125) 2870 (12766) 2060 (9163)

9520 (42347) 8970 (39900) 7990 (35541) 6280 (27935) 4660 (20729) 3500 (15569) ––––

9865 (43881) 9330 (41502) 8620 (38343) 7715 (34318) 6740 (29981) 5365 (23865) 4115 (18304) 3210 (14279)

COLUMN LOADING - SA276-15/8” (41.3) x 23/8” (60.3) x 14 Gauge (1.9)

Column Loads assume no lateral support.

Column Height

36”(914 mm) 48”(1219 mm) 60”(1524 mm) 72”(1829 mm) 84”(2133 mm) 96”(2438 mm) 108”(2743 mm) 120”(3048 mm)

Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N Lbs. N

3470 (15435) 2870 (12766) 1970 (8763) 1280 (5694) –––––– – –

7970 (35452) 7360 (32739) 6570 (29225) 5270 (23442) 3670 (16325) 2580 (11476) –– – –

8770 (39011) 8580 (38166) 8180 (36386) 7690 (34207) 6970 (31004) 6260 (27846) 5460 (24287) 4460 (19839)

12560 (55869) 11970 (53245) 11360 (50532) 10480 (46617) 9470 (42124) 8370 (37231) 6880 (30604) 5370 (23887)

15940 (70904) 14750 (65611) 13160 (58538) 10560 (46973) 7370 (32783) 5170 (22997) –– – –

17550 (78066) 17150 (76287) 16360 (72773) 15360 (68324) 13970 (62141) 12570 (55914) 10970 (48797) 8960 (39856)

COLUMN LOADING - SA318-15/8” (41.3) x 31/8” (79.4) x 12 Gauge (2.6)

Slotted Angle

Reference page 222 for general fitting and standard finish specifications.

Slotted Angle Column Loading & Combinations

226

SA101

CONNECTION PLATE

• Standard finishes: ZN, GRN

• Wt./C 67 Lbs. (30.4 kg)

AHHK-1/4& AHHK-3/8

AIR HANDLER HANGING KIT

• Standard finishes: ZN

• Load CapacityPer Kit: 400 Lbs. (181.4 kg)

SA102

ANGLE BRACE

• Standard finishes: ZN, GRN

• Wt./C 15 Lbs. (6.8 kg)

SA110

SLOTTED ANGLE CUTTER

• Standard finishes:

• Wt./Ea. 16 Lbs. (7.26 kg)

SA131

SLOTTED STRAP

• Hole pattern is identical to the hole

pattern in slotted angles

• Standard length: 10’ (3.05 m)

• Standard finishes: Pre-Galv. (GALV)

• Material thickness: 14 gauge (1.9)

73/8”

(187.3)

53/32”

(129.4)

29/32”

(57.9)

12 Gauge

14 Gauge

33/16”

(80.9)

33/16”

(80.9)

CLEATS: To reinforce load-bearing joints, cleats can be field made by cutting 21/4” (57.1) long segments from the widest slotted angle available.

Use SA276 for light duty cleats and SA318 for heavy duty cleats.

SPLICE PLATES: To assemble two pieces of slotted angle using a butt joint requires a 6” (152.4) splice plate for reinforcement.

4”

(101.6)

51/4”

(133.4)

51/4”

(133.4)

41/2”

(114.3)

4”

(101.6)

41/2”

(114.3)

4” (101.6)

Dia. Wheels

4” (101.6)

Dia. Wheels

SA154

RIGID CASTER

• Safety Factor of 1.5

• 300 Lbs. (136.1 kg) maximum load

capacity

• Caster material: Phenolic

• Standard finishes: ZN, GRN

• Wt./Ea. 2.0 Lbs. (.91 kg)

SA155

SWIVEL CASTER

• Safety Factor of 1.5

• 300 Lbs. (136.1 kg) maximum load

capacity

• Caster material: Phenolic

• Standard finishes: ZN, GRN

• Wt./Ea. 2.2 Lbs. (1.0 kg)

15/16”

(33.3)

Hanging rods come in 72” lengths.

Rods can be field cut for proper

height requirement.

Note 1: Flat washers are required for 1/4”-20 hanging rods only.

Item # Description Quantity

AHHK AHHK

1/43/8

1Rod Hanger Fitting 4 4

2 Lag Screw 4 4

3 Hex Head Cap Screw 4 4

4Flat Washer (For HHCS) 44

5 Hex Nuts (For HHCS) 44

6 Hex Nuts (For Hanging Rods) 16 16

7 Flat Washer (See Note 1) 16 -

8 Hanging Rods (72” Long) 44

9 SA158 (36” Long) 22

6 7

345

Slotted Angle

Reference page 222 for general fitting and standard finish specifications.

Slotted Angle Kits & Fittings

227

To Convert From To Multiply By To Convert From To Multiply By

Angle Length

degree radian (rad) 0.01745329 foot (ft) meter (m) 0.3048

radian (rad) degree 57.29578 inch (in) meter (m) 0.0254

mil meter (m) 0.0000254

Area inch (in) micrometer (µm) 25400.00

foot2square meter (m2)0.09290304 meter (m) foot (ft) 3.280840

inch2square meter (m2) 0.00064516 meter (m) inch (in) 39.37008

circular mil square meter (m2) 0.0000000005067075 meter (m) mil 39370.08

sq. centimeter (cm2) square inch (in2) 0.1550003 micrometer (µm) inch (in) 0.00003937008

square meter (m2) foot210.76391

square meter (m2) inch21550.003 Volume

square meter (m2) circular mil 1973523000.0 foot3cubic meter (m3) 0.02831685

inch3cubic meter (m3) 0.00001638706

Temperature cubic centimeter (cm2) cubic inch (in3) 0.06102374

degree Fahrenheit degree Celsius t°C=(t°F-32)/1.8 cubic meter (m3) foot335.31466

degree Celsius degree Fahrenheit t°F=1.8t°C+32 cubic meter (m3) inch361023.76

gallon (U.S. liquid) cubic meter (m3) 0.003785412

Force

pounds-force (lbf) newtons (N) 4.448222 Section Properties

section modulus S (in3) S (m3) 0.00001638706

moment of inertia I (in4)I (m4)0.0000004162314

modulus of elasticity E (psi) E (Pa) 6894.757

section modulus S (m3)S (in3)61023.74

moment of inertia I (m4) I (in4) 2402510.0

modulus of elasticity E (Pa) E (psi) 0.0001450377

METRIC CONVERSION CHART

To Convert From To Multiply By

Bending Moment or Torque

lbf • ft newton meter (N•m) 1.355818

lbf • in newton meter (N•m) 0.1129848

N•m lbf • ft 0.7375621

N•m lbf • in 8.850748

Mass

ounce (avoirdupois) kilogram (kg) 0.02834952

pound (avoirdupois) kilogram (kg) 0.4535924

ton (short, 2000 lb) kilogram (kg) 907.1847

ton (long, 2240 lb) kilogram (kg) 1016.047

kilogram (kg) ounce (avoirdupois) 35.27396

kilogram (kg) pound (avoirdupois) 2.204622

kilogram (kg) ton (short, 2000 lb) 0.001102311

kilogram (kg) ton (long, 2240 lb) 0.0009842064

Mass Per Unit Length

lb/ft kilogram per meter (kg/m) 1.488164

lb/in kilogram per meter (kg/m) 17.85797

kg/m lb/ft 0.6719689

kg/m lb/in 0.5599741

Mass Per Unit Volume

lb/ft3kilogram per cubic meter (kg/m3) 16.01846

lb/in3kilogram per cubic meter (kg/m3) 27679.9

kg/m3lb/ft30.06242797

kg/m3lb/in30.0000361273

lbs/ft3lbs/in31728.0

Mass Per Unit Area

lb/ft2kilogram per square meter (kg/m2) 4.882428

kg/m2pound per square foot (lb/ft2) 0.2048161

Pressure or Stress

lbf/in2(psi) pascal (Pa) 6894.757

kip/in2(ksi) pascal (Pa) 6894757.0

lbf/in2(psi) megapascals (MPa) 0.006894757

pascal (Pa) pound-force per square inch (psi) 0.0001450377

pascal (Pa) kip per square inch (ksi) 0.0000001450377

megapascals (MPa) lbf/in2(psi) 145.0377

Abbreviations

Defl. = Deflection

S.F. = Safety Factor

Ft. = Feet

Pre-galv. = Pre-galvanized Steel

K Factor = Deflection ÷ load in Lbs./Ft.

o.c. = On Center

PVC = Poly Vinyl Chloride

In. = Inch

psi = Pounds per Square Inch

wt./c = Weight per 100 pieces

Metric Symbols

m = meter

cm = centimeter

mm = millimeter

µm = micrometer

kg = kilogram

N = newton

kN = kilonewton

Pa = pascal

MPa = megapascal

Reference Data

228

90° Fittings

Channel

Thickness Lbs. kN Lbs. kN Lbs. kN Lbs. kN Lbs. kN Lbs. kN

12 ga. (2.6) 1500 (6.67) 1000 (4.45) 2000 (8.90) 1500 (6.67) 1500 (6.67) 1000 (4.45)

14 ga. (1.9) 1000 (4.45) 650 (2.89) 1500 (6.67) 1150 (5.12) 1000 (4.45) 650 (2.89)

16 ga. (1.5) 750 (3.34) 500 (2.22) 900 (4.00) 650 (2.89) 1000 (4.45) 500 (2.22)

90° Fittings Flat Fittings

Channel

Thickness Lbs. kN Lbs. kN Lbs. kN Lbs. kN Lbs. kN Lbs. kN

12 ga. (2.6) 2500 (11.12) 2000 (8.90) 3000 (13.34) 2500 (11.12) 1000 (4.45) 1000 (4.45)

14 ga. (1.9) 2000 (8.90) 1650 (7.34) 2000 (8.90) 1650 (7.34) 500 (3.56) 800 (3.56)

16 ga. (1.5) 1500 (6.67) 1250 (5.56) 1500 (6.67) 1250 (5.56) 600 (2.67) 600 (2.67)

DESIGN LOAD DATA (For typical channel-fitting connections when USED IN PAIRS).

Design load data includes a safety factor of 2.5 (safety factor = ratio of ultimate load to design load).

Reference Data

229

Insulation Wire Size B11 B12 B22 B24 B26 B32 B56

Type AWG. B11K06 B12K06 B22K06 B24K06 B26K06 B32K06 B56K06

14 172 127 81 81 81 67 36

FEP,12 126 92 59 59 59 49 26

FEPB 10 90 66 42 42 42 35 19

8 51 38 24 24 24 20 11

6 24 17 11 12 12 9 5

14 52 38 24 26 27 20 12

12 45 33 21 22 23 17 10

RH, RHH, 10 37 27 17 18 19 14 8

RHW 8 20 14 9 10 10 7 4

6 14 10 6 7 7 5 3

14 124 91 58 58 58 48 26

12 95 70 45 45 45 37 20

T, TW 10 69 51 33 33 33 27 14

8 36 26 17 18 19 14 8

6 21 15 9 10 11 8 5

14 178 131 84 84 84 69 37

12 130 95 61 61 61 50 27

THHN, 10 82 60 38 38 38 32 17

THWN 8 46 34 21 22 22 17 10

6 33 24 15 16 16 12 7

14 82 61 39 39 39 32 17

12 66 49 31 31 31 26 14

THW 10 52 38 24 24 24 20 11

8 29 21 13 14 15 11 6

621 15 10 10 11 8 5

14 124 91 58 58 58 48 26

12 95 70 45 45 45 37 20

XHHW 10 71 52 33 33 33 28 15

837 27 17 19 19 14 8

627 20 13 14 14 10 6

General Notes for Strut-Type Channel Raceway

UL Catagory RIUU - Cooper B-Line, Inc., Highland, IL 62249 December 11, 1998 (C) File No. E29637

FLUORESCENT AND INCANDESCENT LIGHTING

Suitable for not more than the number of wires of the sizes and types indicated in the following tables. Intended to enclose

circuits operating at potentials not exceeding 600 volts between conductors. In all cases, the B217-20 or B217P snap-in

cover is required to complete raceway closure. When using B217-24 snap-in cover, the number of wires is limited to 7 or

fewer conductors no larger than #12 AWG.

TABLE 1: MAXIMUM NUMBER OF WIRES (Adjusted per NEC Table 384.22 for 40% fill)

Use this table to determine the type and number of conductors for use with Cooper B-Line’s strut-type channel raceway

using external joiners. This table applies for all installations except for the support and supply of electric discharge type

lighting fixtures. See table 2 and 3 for further information.

B-Line’s strut-type channel raceways and fittings are manufactured and tested to comply with the UL Standard for

Safety for Strut-Type Channel Raceways and Fittings (UL 5B) in accordance with Article 384 of the 2002 National

Electrical Code, NFPA 70.

1. Support spans for strut-type channel raceway shall not exceed 10 foot intervals.

2. No conductor larger than that for which the raceway is listed shall be installed in strut-type channel raceways. No

wires under 14AWG or over 6AWG are allowed in any of Cooper B-Line’s strut-type channel raceway. See tables 1,

2 and 3 below for a listing of the approved conductors for Cooper B-Line’s strut-type channel raceways.

3. The number of conductors permitted in strut-type channel raceway shall not exceed the percentage fill using

Table 384-22 and the applicable outside diameter of specific types and sizes of wire given in the tables in

chapter 9 of the National Electrical Code. Table 384-22 lists two different percent fill areas depending on the

use of internal or external joiners. Use 40% area fill with external joiners and 25% area fill for internal joiners.

4. Items in the electrical section of the Cooper B-Line Strut Systems Catalog identified by the UL symbol provide for

electrical continuity. Other items require the use of a separate grounding wire.

5. If strut-type channel raceway is connected to another wiring system, the raceway must be field-tapped adjacent

to the wire entry point to accept a #10-32 or larger grounding screw. Aplated or stainless steel screw may be

used. A sheet metal screw is not acceptable. Drill and tap the grounding wire hole before installing wires in

raceway or move installed wires out of the way to avoid damage. After drilling and tapping, remove metal chips

and burrs before installing screw.

Reference Data

230

TABLE 2: MAXIMUM NUMBER OF WIRES

Also suitable for the number of wires in table below when installed to support and supply electric discharge type

lighting fixtures when raceway wiring is suitable for at least 70°C and clearance between fixture and raceway is at

least 1/8”. In all cases, a snap-in cover is required to complete the raceway enclosure.

TABLE 3: MAXIMUM NUMBER OF WIRES

Also suitable for the number of wires in table below when installed to support and supply electric discharge type

lighting fixtures when raceway wiring is suitable for 75°C, or wiring suitable for 60°C if a minimum clearance

between fixture and raceway is at least 1/2”. In all cases, a snap-in cover is required to complete the raceway

enclosure.

When using B217-24 snap-in cover, the number of wires is limited to 7 or fewer conductors no larger than #12 AWG.

Raceway Catalog Wires

Wire Size B11 B12 B22 B24 B26 B32 B56

B11K06 B12K06 B22K06 B24K06 B26K06 B32K06 B56K06

Type Insulation: FEP, FEPB, RH, RHH, RHW, RUH, THHN, THWN, THW, XHHW

14 13 10 10 10 10 10 6

12 13 10 10 10 10 10 6

10 13 10 8 8 8 6 –

8108 6664–

6 8 6 4443–

Raceway Catalog Wires

Wire Size B11 B12 B22 B24 B26 B32 B56

B11K06 B12K06 B22K06 B24K06 B26K06 B32K06 B56K06

Type Insulation: FEP, FEPB, RH, RHH, RHW, RUH, THHN, THWN, THW, XHHW

14 10 10 10 10 10 10 4

12 10 10 10 10 10 10 3

10 8 5 5555–

8 6 4 4444–

6 4 4 4 444–

Reference Data

231

Load and Support Condition Load Deflection

Factor Factor

Simple Beam - Uniform Load 1.00 1.00

Simple Beam - Concentrated Load at Center .50 .80

Simple Beam - Two Equal Concentrated Loads at 1/4Points 1.00 1.10

Beam Fixed at Both Ends - Uniform Load 1.50 .30

Beam Fixed at Both Ends - Concentrated Load at Center 1.00 .40

Cantilever Beam - Uniform Load .25 2.40

Cantilever Beam - Concentrated Load at End .12 3.20

Continuous Beam - Two Equal Spans - Uniform Load on One Span 1.30 .92

Continuous Beam - Two Equal Spans - Concentrated Load on Both Spans 1.00 .42

Continuous Beam - Two Equal Spans - Concentrated Load at Center of One Span .62 .71

Continuous Beam - Two Equal Spans - Concentrated Load at Center of Both Spans .67 .48

Span

The data shown in the beam load charts for appropriate channels on page(s) 17 thru 39 is for simply supported, single

span beams with a uniformly distributed load. For other loading and/or support conditions, use the appropriate factor

from the chart below.

EXAMPLES:

PROBLEM: PROBLEM:

Calculate the maximum allowable load and corresponding Calculate the maximum allowable load and corresponding

deflection of a simply supported B22 beam with a concentrated deflection of a cantilever B52 beam with a uniformly distributed

load at midspan as shown. load.

SOLUTION: SOLUTION:

From beam load chart for B22 (page 22), maximum allowable From beam load chart for B52 (page 33), maximum allowable

load is Aand the corresponding deflection is B.load is Aand the corresponding deflection is B.

Multiplying by the appropriate factors shown in the chart above. Multiplying by the appropriate factors shown in chart above.

LOAD = Ax load factor = _______ LOAD = A x load factor = _______

DEFLECTION = B x deflection factor = DEFLECTION = B x deflection factor = _______

96”

Reference Data

232

Nominal Minimum Weight Weight of Conduit

Nominal Outside Inside Per 100 Ft. (30.5m) with and Conductors

Conduit Size Diameter Diameter Couplings Attached Per 100 Ft. (30.5m)*

In. mm In. mm In. mm Lbs. kg Lbs. kg

3/8”(10) 0.675 (17.1) 0.493 (12.5) 51.5 (23.4) 65.1 (29.5)

1/2”(15) 0.840 (21.3) 0.632 (16.0) 79.0 (35.8) 101.1 (45.9)

3/4”(20) 1.050 (26.7) 0.836 (21.3) 105.0 (47.6) 145.8 (66.1)

1” (25) 1.315 (33.4) 1.063 (27.0) 153.0 (69.4) 219.3 (99.5)

11/4”(32) 1.660 (42.2) 1.394 (35.4) 201.0 (91.2) 318.3 (144.4)

11/2”(40) 1.900 (48.3) 1.624 (41.3) 249.0 (113.0) 408.8 (185.4)

2” (50) 2.375 (60.3) 2.083 (52.9) 332.0 (150.6) 593.8 (269.3)

21/2”(65) 2.875 (73.0) 2.489 (63.2) 527.0 (239.1) 901.0 (408.7)

3” (80) 3.500 (88.9) 3.090 (78.5) 682.6 (309.6) 1259.0 (571.1)

31/2”(90) 4.000 (101.6) 3.570 (90.7) 831.0 (376.9) 1604.0 (727.6)

4” (100) 4.500 (114.3) 4.050 (102.9) 972.3 (441.0) 1967.0 (892.2)

5” (125) 5.563 (141.3) 5.073 (128.9) 1313.6 (595.9) 2876.0 (1304.5)

6” (150) 6.625 (168.3) 6.093 (154.8) 1745.3 (791.7) 4003.0 (1815.7)

RIGID STEEL CONDUIT (HEAVY WALL CONDUIT)

INTERMEDIATE METAL CONDUIT (IMC)

NEC TABLE 346-12

Nominal Minimum Weight Weight of Conduit

Nominal Outside Inside Per 100 Ft. (30.5m) with and Conductors

Conduit Size Diameter Diameter Couplings Attached Per 100 Ft. (30.5m)*

In. mm In. mm In. mm Lbs. kg Lbs. kg

1/2”(15) 0.815 (20.7) .675 (17.1) 60.0 (27.2) 82.1 (37.2)

3/4”(20) 1.029 (26.1) .879 (22.3) 82.0 (37.2) 122.8 (55.7)

1” (25) 1.290 (32.7) 1.120 (28.4) 116.0 (52.6) 182.3 (82.7)

11/4”(32) 1.638 (41.6) 1.468 (37.3) 150.0 (68.0) 267.3 (121.2)

11/2”(40) 1.883 (47.7) 1.703 (43.3) 182.0 (82.5) 341.8 (155.0)

2” (50) 2.360 (59.9) 2.170 (55.1) 242.0 (109.7) 503.8 (228.5)

21/2”(65) 2.857 (72.5) 2.597 (66.0) 428.0 (194.1) 775.0 (351.5)

3” (80) 3.476 (88.3) 3.216 (81.7) 526.0 (238.6) 1069.0 (485.0)

31/2”(90) 3.971 (100.8) 3.711(94.3) 612.0 (277.6) 1346.0 (610.8)

4” (100) 4.466 (113.4) 4.206 (106.8) 682.0 (309.4) 1632.0 (740.5)

*Conduit plus weight of heaviest conductor combination as specified by the National Electrical Code.

Rigid and Intermediate Metal Conduit shall be supported at least every 10 feet (3.05 m) and within 3 feet (914 mm) of each

outlet box, junction box, cabinet, or fitting, except for straight runs of conduit connected with couplings which may be

supported in accordance with NEC Article 345 and 346, provided such supports prevent transmission of stresses to

termination where conduit is deflected between supports.

Dimensions taken from ANSI C80.1-1977.

*Conduit plus weight of heaviest conductor combination as specified by the National Electrical Code.

Conduit Size Maximum Support Span

In. mm Feet Meters

1/2-3/4(15-20) 10 (3.05)

1(25) 12 (3.66)

11/4-11/2(32-40) 14 (4.27)

2-21/2(50-65) 16 (4.88)

3-6 (80-150) 20 (6.10)

Reference Data

233

Nominal Minimum Weight Weight of Conduit

Nominal Outside Inside Per 100 Ft. (30.5m) with and Conductors

Conduit Size Diameter Diameter Couplings Attached Per 100 Ft. (30.5m)*

In. mm In. mm In. mm Lbs. kg Lbs. kg

1/2”(15) 0.840 (21.3) 0.632 (16.1) 27.4 (12.4) 49.5 (22.5)

3/4”(20) 1.050 (26.7) 0.836 (21.2) 36.4 (16.5) 77.2 (35.0)

1” (25) 1.315 (33.4) 1.063 (27.0) 53.0 (24.0) 119.3 (54.1)

11/4”(32) 1.660 (42.2) 1.394 (35.4) 69.6 (31.6) 186.9 (84.8)

11/2”(40) 1.900 (48.3) 1.624 (41.2) 82.2 (37.3) 242.0 (109.8)

2” (50) 2.375 (60.3) 2.083 (52.9) 115.7 (52.5) 377.5 (171.2)

21/2”(65) 2.875 (73.0) 2.489 (63.2) 182.5 (82.8) 556.5 (252.4)

3” (80) 3.500 (88.9) 3.090 (78.5) 238.9 (108.4) 815.2 (369.8)

31/2”(90) 4.000 (101.6) 3.570 (90.7) 287.7 (130.5) 1061.0 (481.3)

4” (100) 4.500 (114.3) 4.050 (102.9) 340.0 (154.2) 1334.0 (605.1)

5” (125) 5.563 (141.3) 5.073 (128.9) 465.4 (211.1) 2028.0 (919.9)

6” (150) 6.625 (168.3) 6.093 (154.8) 612.5 (277.8) 2870.0 (1301.8)

Weight of Conduit

Nominal Outside Inside Weight and Conductors

Conduit Size Diameter Diameter Per 100 Ft. (30.5m) Per 100 Ft. (30.5m)*

In. mm In. mm In. mm Lbs. kg Lbs. kg

3/8”(10) 0.577 (14.7) 0.493 (12.5) 23.0 (10.4) 36.6 (16.6)

1/2”(15) 0.706 (17.9) 0.622 (15.8) 28.5 (12.9) 50.6 (23.0)

3/4”(20) 0.922 (23.4) 0.824 (20.9) 43.5 (19.7) 84.3 (38.2)

1” (25) 1.163 (29.5) 1.049 (26.6) 64.0 (29.0) 130.3 (59.1)

11/4”(32) 1.510 (38.3) 1.380 (35.1) 95.0 (43.1) 212.3 (96.3)

11/2”(40) 1.740 (44.2) 1.610 (40.9) 110.0 (49.9) 269.8 (122.4)

2” (50) 2.197 (55.8) 2.067 (52.5) 140.0 (63.5) 401.8 (182.3)

21/2”(65) 2.875 (73.0) 2.731 (69.4) 205.0 (93.0) 579.0 (262.6)

3” (80) 3.500 (88.9) 3.356 (85.2) 250.0 (113.4) 826.3 (374.8)

31/2”(90) 4.000 (101.6) 3.834 (97.4) 325.0 (147.4) 1098.0 (498.0)

4” (100) 4.500 (114.3) 4.334 (110.1) 370.0 (167.8) 1364.0 (618.7)

ELECTRICAL METALLIC TUBING (EMT) — THINWALL CONDUIT

RIGID ALUMINUM CONDUIT

Dimensions taken from ANSI C80.5-1977.

*Conduit plus weight of heaviest conductor combination as specified by the National Electrical Code.

Aluminum Rigid Conduit shall be supported at least every 10 feet (3.05 m) and within 3 feet (914 mm) of each outlet box,

junction box, cabinet, or fitting, except for straight runs of conduit connected with couplings which may be supported in

accordance with NEC Table 344.30 (B)(2), provided such supports prevent transmission of stresses to termination where

conduit is deflected between supports.

Dimensions taken from ANSI C80.3-1977.

*Conduit plus weight of heaviest conductor combination as specified by the National Electrical Code.

Electrical Metallic tubing shall be supported at least every 10 feet (3.05 m) and within 3 feet (914 mm) of each outlet box,

junction box,cabinet, or fitting. See NEC Article 348.

NEC TABLE 344.30 (B)(2)

Conduit Size Maximum Support Span

In. mm Feet Meters

1/2-3/4(15-20) 10 (3.05)

1(25) 12 (3.66)

11/4-11/2(32-40) 14 (4.27)

2-21/2(50-65) 16 (4.88)

3-6 (80-150) 20 (6.10)

Reference Data

234

Weight of Pipe

Nominal Outside Inside Weight of Pipe Filled With Water

Pipe Size Diameter Diameter Per 100 Ft. (30.5m) Per 100 Ft. (30.5m)

In. mm In. mm In. mm Lbs. kg Lbs. kg

1/8”(3) .405 (10.3) .269 (6.8) 4.7 (2.1) 7.2 (3.2)

1/4”(6) .540 (13.7) .364 (9.2) 8.2 (3.7) 12.7 (5.8)

3/8”(10) .675 (17.1) .493 (12.5) 10.9 (4.9) 19.2 (8.7)

1/2”(15) .840 (21.3) .622 (15.8) 16.4 (7.4) 29.6 (13.4)

3/4”(20) 1.050 (26.7) .824 (20.9) 21.8 (9.9) 44.9 (20.4)

1” (25) 1.315 (33.4) 1.049 (26.6) 32.1 (14.6) 69.6 (31.6)

11/4”(32) 1.660 (42.2) 1.380 (35.1) 43.4 (19.7) 108.2 (49.1)

11/2”(40) 1.900 (48.3) 1.610 (40.9) 51.8 (23.5) 140.0 (63.5)

2” (50) 2.375 (60.3) 2.067 (52.5) 69.5 (31.5) 214.9 (97.5)

21/2”(65) 2.875 (73.0) 2.469 (62.7) 109.6 (49.7) 317.1 (143.8)

3” (80) 3.500 (88.9) 3.068 (77.9) 143.5 (65.1) 463.9 (210.4)

31/2”(90) 4.000 (101.6) 3.548 (90.1) 175.6 (79.7) 604.1 (274.0)

4” (100) 4.500 (114.3) 4.026 (102.3) 204.3 (92.7) 756.0 (342.9)

5” (125) 5.563 (141.3) 5.047 (128.2) 281.7 (127.8) 1148.8 (521.1)

6” (150) 6.625 (168.3) 6.065 (154.1) 360.9 (163.7) 1613.0 (731.7)

8” (200) 8.625 (219.1) 7.981 (202.7) 545.3 (247.3) 2713.5 (1230.8)

10” (250) 10.750 (273.1) 10.020 (254.5) 791.3 (358.9) 4208.9 (1909.1)

12” (300) 12.750 (323.9) 11.938 (303.2) 1035.2 (469.6) 5886.4 (2670.0)

SCHEDULE 40 PVC PLASTIC PIPE

ALL THREADED ROD (ATR)

CLAMP SIZING CHART FOR PVC COATED

RIGID CONDUIT AND CLAMPS

CLAMP SIZING CHART FOR PVC COATED

THINWALL (EMT) CONDUIT AND CLAMPS

Nominal

Size (In) Root Area Design Load (SF=5)

and Thread In.2cm2Lbs. kN

1/4-20” 0.027 (0.174) 240 (1.07)

5/16-18” 0.045 (0.290) 400 (1.78)

3/8-16” 0.068 (0.438) 730 (3.24)

1/2-13” 0.126 (0.812) 1350 (6.00)

5/8-11” 0.202 (1.303) 2160 (9.60)

3/4-10” 0.302 (1.948) 3230 (14.37)

7/8-9” 0.419 (2.703) 4480 (19.93)

1-8” 0.551 (3.561) 5900 (26.24)

11/8-7” 0.693 (4.471) 7450 (33.14)

11/4-7” 0.889 (5.735) 9500 (42.25)

11/2-6” 1.293 (8.342) 13800 (61.38)

Conduit Coating

Nominal .020 (.51mm) .040 (1.01mm)

Conduit Clamp Coating Clamp Coating

Size 0 .020 (.51mm) 0 .020 (.51mm)

1/2”(15) B2028 B2002 B2002 B2029

3/4”(20) B2030 B2030 B2030 B2003

1” (25) B2032 B2032 B2032 B2033

11/4”(32) B2005 B2005 B2005 B2005

11/2”(40) B2012 B2037 B2037 B2037

2” (50) B2013 B2041 B2041 B2041

21/2”(65) B2014 B2045 B2045 B2045

3” (80) B2015 B2050 B2050 B2050

31/2”(90) B2016 B2054 B2054 B2054

4” (100) B2017 B2058 B2058 B2058

5” (125) B2019 B2066 B2066 B2066

6” (150) B2020 B2115 B2115 B2115

Conduit Coating

Nominal .020 (.51mm) .040 (1.01mm)

Conduit Clamp Coating Clamp Coating

Size 0.020 (.51mm) 0.020 (.51mm)

3/8”(10) B2026 B2026 B2026 B2007

1/2”(15) B2027 B2027 B2027 B2008

3/4”(20) B2029 B2029 B2029 B2009

1” (25) B2003 B2031 B2031 B2031

11/4”(32) B2004 B2034 B2034 B2034

11/2”(40) B2035 B2035 B2035 B2036

2” (50) B2039 B2039 B2039 B2013

1 cubic ft. of water weighs 62.41 Lbs.

1 cubic meter of water weighs 999.972 kg.

1 gallon (U.S.) weighs 8.335 Lbs.

1 liter weighs .999 kg.

Dimensions taken from ANSI B1.1-1982 Unified Inch Screw

Threads. All threads are UNCR series.

Tabulated loads are based on an allowable tensile stress

of 12000 psi (82.7 MPa) reduced by 25% resulting in

9000 psi (62 MPa). From ANSI/MSS SP-58, Table 3.

Reference Data

235

COPPER TUBING, TYPE L

Weight of Tubing

Nominal Outside Inside Weight of Tubing Filled With Water

Tubing Size Diameter Diameter Per 100 Ft. (30.5m) Per 100 Ft. (30.5m)

In. mm In. mm In. mm Lbs. kg Lbs. kg

1/4”(6) .375 (9.5) .315 (8.0) 12.6 (5.7) 16.0 (7.2)

3/8”(10) .500 (12.7) .430 (10.9) 19.8 (9.0) 26.1 (11.8)

1/2”(15) .625 (15.9) .545 (13.8) 28.5 (12.9) 38.6 (17.5)

5/8”(17) .750 (19.1) .666 (16.9) 36.2 (16.4) 51.3 (23.3)

3/4”(20) .875 (22.2) .785 (19.9) 45.5 (20.6) 66.5 (30.2)

1” (25) 1.125 (28.6) 1.025 (26.0) 65.5 (29.7) 101.3 (45.9)

11/4”(32) 1.375 (34.9) 1.265 (32.1) 88.4 (40.1) 142.9 (64.8)

11/2”(40) 1.625 (41.3) 1.505 (38.2) 114.0 (51.7) 191.1 (86.7)

2” (50) 2.125 (54.0) 1.985 (50.4) 175.0 (79.4) 309.1 (140.2)

21/2”(65) 2.625 (66.7) 2.465 (62.6) 248.0 (112.5) 454.8 (206.3)

3” (80) 3.125 (79.4) 2.945 (74.8) 333.0 (151.0) 628.2 (285.0)

31/2”(90) 3.625 (92.1) 3.425 (87.0) 429.0 (194.6) 828.3 (375.7)

4” (100) 4.125 (104.8) 3.905 (99.2) 538.0 (244.0) 1057.1 (479.5)

5” (125) 5.125 (130.2) 4.875 (123.8) 761.0 (345.2) 1570.0 (712.1)

6” (150) 6.125 (155.6) 5.845 (148.5) 1020.0 (462.7) 2182.9 (990.2)

8” (200) 8.125 (206.4) 7.725 (196.2) 1930.0 (875.4) 3961.3 (1796.8)

10” (250) 10.125 (257.2) 9.625 (244.5) 3010.0 (1365.3) 6163.4 (2795.7)

12” (300) 12.125 (308.0) 11.565 (293.8) 4040.0 (1832.5) 8592.8 (3897.6)

Weight of Tubing

Nominal Outside Inside Weight of Tubing Filled With Water

Tubing Size Diameter Diameter Per 100 Ft. (30.5m) Per 100 Ft. (30.5m)

In. mm In. mm In. mm Lbs. kg Lbs. kg

1/4”(6) .375 (9.5) .305 (7.7) 14.5 (6.6) 17.7 (8.0)

3/8”(10) .500 (12.7) .402 (10.2) 26.9 (12.2) 32.4 (14.7)

1/2”(15) .625 (15.9) .527 (13.4) 34.4 (15.6) 43.9 (19.9)

5/8”(17) .750 (19.1) .652 (16.6) 41.8 (19.0) 56.3 (25.5)

3/4”(20) .875 (22.2) .745 (18.9) 64.1 (29.1) 83.0 (37.6)

1” (25) 1.125 (28.6) .995 (25.3) 83.9 (38.1) 117.6 (53.3)

11/4”(32) 1.375 (34.9) 1.245 (31.6) 104.0 (47.2) 156.8 (71.1)

11/2”(40) 1.625 (41.3) 1.481 (37.6) 136.0 (61.7) 210.7 (95.6)

2” (50) 2.125 (54.0) 1.959 (49.8) 206.0 (93.4) 336.6 (152.7)

21/2”(65) 2.625 (66.7) 2.435 (61.8) 293.0 (132.9) 494.8 (224.5)

3” (80) 3.125 (79.4) 2.907 (73.8) 400.0 (181.4) 687.7 (311.9)

31/2”(90) 3.625 (92.1) 3.385 (86.0) 512.0 (232.2) 902.0 (409.2)

4” (100) 4.125 (104.8) 3.857 (98.0) 651.0 (295.3) 1157.4 (525.0)

5” (125) 5.125 (130.2) 4.805 (122.0) 967.0 (438.6) 1752.9 (795.1)

6” (150) 6.125 (155.6) 5.741 (145.8) 1390.0 (630.5) 2511.9 (1139.4)

8” (200) 8.125 (206.4) 7.583 (192.6) 2590.0 (1174.8) 4547.3 (2062.6)

10” (250) 10.125 (257.2) 9.449 (240.0) 4030.0 (1828.0) 7069.2 (3206.5)

12” (300) 12.125 (308.0) 11.315 (287.4) 5780.0 (2621.8) 10138.0 (4598.5)

COPPER TUBING, TYPE K

Dimensions taken from ASTM B 88-83.

1 cubic ft. of water weighs 62.41 Lbs.

1 cubic meter of water weighs 999.972 kg.

1 gallon (U.S.) weighs 8.335 Lbs.

1 liter weighs .999 kg.

Reference Data

236

STANDARD WEIGHT SCHEDULE 40 STEEL PIPE

Nominal Weight Weight of Pipe

Nominal Outside Inside Per 100 Ft. (30.5mm) Filled With Water

Pipe Size Diameter Diameter Plain End Per 100 Ft. (30.5mm)

In. mm In. mm In. mm Lbs. kg Lbs. kg

3/8”(10) .675 (17.1) .493 (12.5) 57.0 (25.9) 65.3 (29.6)

1/2”(15) .840 (21.3) .622 (15.8) 85.0 (38.6) 98.2 (44.5)

3/4”(20) 1.050 (26.7) .824 (20.9) 113.0 (51.3) 136.1 (61.7)

1” (25) 1.315 (33.4) 1.049 (26.6) 168.0 (76.2) 205.5 (93.2)

11/4”(32) 1.660 (42.2) 1.380 (35.1) 227.0 (103.0) 291.8 (132.4)

11/2”(40) 1.900 (48.3) 1.610 (40.9) 272.0 (123.4) 360.2 (163.4)

2” (50) 2.375 (60.3) 2.067 (52.5) 365.0 (165.6) 510.4 (231.5)

21/2”(65) 2.875 (73.0) 2.469 (62.7) 579.0 (262.6) 786.5 (356.8)

3” (80) 3.500 (88.9) 3.068 (77.9) 758.0 (343.8) 1078.4 (489.2)

31/2”(90) 4.000 (101.9) 3.548 (90.1) 911.0 (413.2) 1339.5 (607.6)

4” (100) 4.500 (114.3) 4.026 (102.3) 1079.0 (489.4) 1630.7 (739.7)

5” (125) 5.563 (141.3) 5.047 (128.2) 1462.0 (663.2) 2329.1 (1056.4)

6” (150) 6.625 (168.3) 6.065 (154.1) 1897.0 (860.5) 3149.1 (1428.4)

8” (200) 8.625 (219.1) 7.981 (202.7) 2855.0 (1295.0) 5023.2 (2278.5)

10” (250) 10.750 (273.1) 10.020 (254.5) 4048.0 (1836.1) 7465.6 (3386.3)

12” (300) 12.750 (323.9) 12.000 (304.8) 4956.0 (2248.0) 9857.7 (4471.4)

14” (350) 14.000 (355.6) 13.250 (336.6) 5457.0 (2475.3) 11433.1 (5185.9)

16” (400) 16.000 (406.4) 15.250 (387.4) 6258.0 (2838.6) 14174.3 (6429.4)

18” (450) 18.000 (457.2) 17.250 (438.2) 7059.0 (3201.9) 17187.9 (7796.3)

20” (500) 20.000 (508.0) 19.250 (489.0) 7860.0 (3565.2) 20473.7 (9286.7)

24” (600) 24.000 (609.6) 23.250 (590.6) 9462.0 (4291.9) 27862.5 (12638.2)

Nominal Pipe Sizes

Length of 21/2” (65mm)

Trapeze Bar or less 3” (80mm) 31/2” (90mm) 4” (100mm) 5” (125mm) 6” (150mm) 8” (200mm) 10” (250mm)

1’-6” 11/2” x 11/2” x 3/16”1

1/2” x 11/2” x 3/16”1

1/2” x 11/2” x 3/16” 2” x 11/2” x 3/16” 2” x 11/2” x 3/16”2

1/2” x 11/2” x 3/16” 3” x 2” x 3/16” 3” x 2” x 1/4”

(0.46m) B24SH B24SH B24SH B22SH B22SH B12SH B11SH B11SH

2’-0” 11/2” x 11/2” x 3/16”2” x 11/2” x 3/16”2” x 11/2” x 3/16”2” x 11/2” x 3/16”21/2” x 11/2” x 3/16”21/2” x 11/2” x 3/16”3” x 2” x 3/16”3” x 2” x 1/4”

(0.61m) B24SH B22SH B22SH B22SH B12SH B12SH B11SH B11SH

2’-6” 2” x 11/2” x 3/16”2” x 11/2” x 3/16”2” x 11/2” x 3/16”21/2” x 11/2” x 3/16”21/2” x 11/2” x 3/16”3” x 2” x 3/16”3” x 2” x 1/4”3” x 2” x 1/4”

(0.76m) B22SH B22SH B22SH B12SH B12SH B11SH B11SH B11SH

3’-0” 2” x 11/2” x 3/16” 2” x 11/2” x 3/16”2

1/2” x 11/2” x 3/16”2

1/2” x 11/2” x 3/16” 3” x 2” x 3/16” 3” x 2” x 3/16”3

1/2” x 21/2” x 1/4”3

1/2” x 21/2” x 5/16”

(0.91m) B22SH B22SH B12SH B12SH B11SH B11SH B12SHA B12SHA

4’-0” 21/2” x 11/2” x 3/16”21/2” x 11/2” x 3/16”21/2” x 11/2” x 3/16”3” x 2” x 3/16”3” x 2” x 3/16”3” x 2” x 1/4”31/2” x 21/2” x 5/16”4” x 3” x 5/16”

(1.22m) B12SH B12SH B12SH B11SH B11SH B11SH B12SHA B12SHA

5’-0” 21/2” x 11/2” x 3/16”21/2” x 11/2” x 3/16”3” x 2” x 3/16”3” x 2” x 3/16”3” x 2” x 1/4”31/2” x 21/2” x 5/16”4” x 3” x 5/16”5” x 31/2” x 5/16”

(1.52m) B12SH B12SH B11SH B11SH B11SH B12SHA B12SHA B11SHA

6’-0” 21/2” x 11/2” x 3/16” 3” x 2” x 3/16” 3” x 2” x 3/16” 3” x 2” x 1/4”3

1/2” x 21/2” x 5/16” 4” x 3” x 5/16” 4” x 3” x 5/16” 5” x 31/2” x 5/16”

(1.83m) B12SH B11SH B11SH B11SH B12SHA B12SHA B12SHA B11SHA

7’-0” 3” x 2” x 3/16”3” x 2” x 3/16”3” x 2” x 1/4”3” x 2” x 1/4”31/2” x 21/2” x 5/16”4” x 3” x 5/16”5” x 31/2” x 5/16”6” x 4” x 1/4”

(2.13m) B11SH B11SH B11SH B11SH B12SHA B12SHA B11SHA 2-B12SHA

8’-0” 3” x 2” x 3/16”3” x 2” x 1/4”3” x 2” x 1/4”31/2” x 21/2” x 5/16”31/2” x 21/2” x 5/16”4” x 3” x 5/16”5” x 31/2” x 5/16”6” x 4” x 1/4”

(2.44m) B11SH B11SH B11SH B12SHA B12SHA B12SHA B11SHA 2-B12SHA

9’-0” 3” x 2” x 3/16” 3” x 2” x 1/4”3

1/2” x 21/2” x 5/16”3

1/2” x 21/2” x 5/16” 4” x 3” x 5/16” 5” x 31/2” x 5/16” 6” x 4” x 3/8”

(2.74m) B11SH B11SH B12SHA B12SHA B12SHA B12SHA B11SHA 2-B11SHA

10’-0” 3” x 2” x 1/4”3” x 2” x 1/4”31/2” x 21/2” x 5/16”31/2” x 21/2” x 5/16”4” x 3” x 5/16”5” x 31/2” x 5/16”6” x 4” x 1/4”6” x 4” x 3/8”

(3.05m) B11SH B11SH B12SHA B12SHA B12SHA B11SHA 2-B12SHA 2-B11SHA

Dimensions taken from ASTM A 53-82.

1 cubic ft. of water weighs 62.41 Lbs.

1 cubic meter of water weighs 999.972 kg.

1 gallon (U.S.) weighs 8.335 Lbs.

1 liter weighs .999 kg.

REFERENCE: Table 3-14.1.6 standard for the installation of Sprinkler Systems, NFPA No. 13-1985,

published by National Fire Protection Association.

TRAPEZE HANGERS USING B-LINE STRUT OR ANGLE IRON

Reference Data

237

Tolco to B-Line Cross

Tolco™to Cooper B-Line Cross Reference

238

2 STR

” . . . . . . . . . . . . . . . B2400-

2 STR

” . . . . . . . . . . . . . . . B2400-

2 STR 1” . . . . . . . . . . . . . . . . . . B2400-1

2 STR 1

” . . . . . . . . . . . . B2400-1

2 STR 1

” . . . . . . . . . . . . B2400-1

2 STR 2” . . . . . . . . . . . . . . . . . . B2400-2

2 STR 2

” . . . . . . . . . . . . B2400-2

2 STR 3” . . . . . . . . . . . . . . . . . . B2400-3

2 STR 3

” . . . . . . . . . . . . B2400-3

2 STR 4” . . . . . . . . . . . . . . . . . . B2400-4

2 STR 5” . . . . . . . . . . . . . . . . . . B2400-5

2 STR 6” . . . . . . . . . . . . . . . . . . B2400-6

2 STR 8” . . . . . . . . . . . . . . . . . . B2400-8

65XT . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/C

69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . B3367

69R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/C

75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/C

98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . SC228

98B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/C

310 . . . . . . . . . . . . . . . . . . . . . . . . . . . B2501

310N

. . . . . . . . . . . . . . . . . N2501-

310N

. . . . . . . . . . . . . . . . . N2501-

310N

. . . . . . . . . . . . . . . . . N2501-

310N

. . . . . . . . . . . . . . . . . N2501-

310N

. . . . . . . . . . . . . . . . . N2501-

310N

. . . . . . . . . . . . . . . . . N2501-

902 . . . . . . . . . . . . . . . . . . . . . . . . . . . B335V

912 . . . . . . . . . . . . . . . . . . . . . . . . . . B335-1

913 . . . . . . . . . . . . . . . . . . . . . . . . . . B335-2

914 . . . . . . . . . . . . . . . . . . . . . . . . . . . . B335

915 . . . . . . . . . . . . . . . . . . . . . . . . . . . . B634

915D . . . . . . . . . . . . . . . . . . . . . . . . . . B635

A SAFETY END CAP . . . . . . . B822

A-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B22

A-12 End Cap . . . . . . . . . . . . . . . . B205

A-12 End Spot . . . . . . . . . . . . . . B3322

A-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B24

A-14 End Cap . . . . . . . . . . . . . . . . B223

BC-09 . . . . . . . . . . . . . . . . . B312 Series

BC-10 . . . . . . . . . . . . . . . . . . . . . . . . . B751

BC-11 . . . . . . . . . . . . . . . B751-J Series

BC-12 . . . . . . . . . . . . . . B751-J Series

BC-13-

. . . . . . . . . . . . . . . . . . . . . B303

BC-13-

. . . . . . . . . . . . . . . . . . . . B304

BC-13-

. . . . . . . . . . . . . . . . . . . . . B305

BC-13-

. . . . . . . . . . . . . . . . . . . . . B307

BC-13-

. . . . . . . . . . . . . . . . . . . . . B309

BC-13-

. . . . . . . . . . . . . . . . . . . B321-5

BC-14-

. . . . . . . . . . . . . . . . . . . . . B303

BC-14-

. . . . . . . . . . . . . . . . . . . . B304

BC-14-

. . . . . . . . . . . . . . . . . . . B321-1

BC-14-

. . . . . . . . . . . . . . . . . . . B321-2

BR-22-12 . . . . . . . . . . . . . . . . . B409-12

BR-22-18 . . . . . . . . . . . . . . . . . B409-18

BR-22-24 . . . . . . . . . . . . . . . . . B409-25

C SAFETY END CAP . . . . . . B852

C-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B54

C-14 END CAP . . . . . . . . . . . . . . B204

CL-10 . . . . . . . . . . . . . . . . . . . . . . B217-20

CR ISOLATOR . . . . . . . . . . . . . . . . ISO

CUSH CLP

. . . . . . . . . . . . BVT025

CUSH CLP

. . . . . . . . . . . . BVT037

CUSH CLP

. . . . . . . . . . . . BVT050

CUSH CLP

. . . . . . . . . . . . BVT062

CUSH CLP

. . . . . . . . . . . . BVT075

CUSH CLP 1 . . . . . . . . . . . . . BVT100

CUSH CLP 1

. . . . . . . . . . BVT112

CUSH CLP 1

. . . . . . . . . . BVT125

CUSH CLP 1

. . . . . . . . . . BVT137

CUSH CLP 1

. . . . . . . . . . BVT150

CUSH CLP 1

. . . . . . . . . . BVT162

CUSH CLP 1

. . . . . . . . . . BVT175

CUSH CLP 2 . . . . . . . . . . . . . BVT200

CUSH CLP 2

. . . . . . . . . . BVT212

CUSH CLP 2

. . . . . . . . . . BVT250

CUSH CLP 2

. . . . . . . . . . BVT262

CUSH CLP 3 . . . . . . . . . . . . . BVT300

CUSH CLP 3

. . . . . . . . . . BVT312

CUSH CLP 3

. . . . . . . . . . BVT362

CUSH CLP 4 . . . . . . . . . . . . . BVT400

CUSH CLP 4

. . . . . . . . . . . . . . . . N/A

CUSH CLP 5

. . . . . . . . . . . . . . . . N/A

CUSH CLP 6

. . . . . . . . . . BVT612

CUSH CLP IPS

. . . . . . BVP025

CUSH CLP IPS

. . . . . . BVP037

CUSH CLP IPS

. . . . . . BVP050

CUSH CLP IPS

. . . . . . BVP075

CUSH CLP IPS 1 . . . . . . . . BVP100

CUSH CLP IPS 1

. . . . . BVP125

CUSH CLP IPS 1

. . . . . BVP150

CUSH CLP IPS 2 . . . . . . . . BVP200

CUSH CLP IPS 2

. . . . . BVP250

CUSH CLP IPS 3 . . . . . . . . BVP300

CUSH CLP IPS 3

. . . . . BVP350

CUSH CLP IPS 4 . . . . . . . . BVP400

CUSH CLP IPS 5 . . . . . . . . BVP500

CUSH CLP IPS 6 . . . . . . . . BVP600

CUSH STRIP . . . . . . . . . . . . . . . B1999

D-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B12

D-12 END CAP . . . . . . . . . . . . . . B221

E SAFETY END CAP . . . . B822-A

E-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B11

E-12 END CAP . . . . . . . . . . . . . . B222

EMTC-

. . . . . . . . . . . . . . . . . . . . B2001

BC-14-

. . . . . . . . . . . . . . . . . . . B321-4

BC-14-

. . . . . . . . . . . . . . . . . . . B321-5

BC-16 . . . . . . . . . . . . . . . . . . . . . . . . . B314

BC-17 . . . . . . . . . . . . . . . . . . . . . B441-22

BC-18-

. . . . . . . . . . . . . . . . . B212-

BC-18-

. . . . . . . . . . . . . . . . . B212-

BC-19 . . . . . . . . . . . . . . . . . . . . . . . . . B427

BC-20 . . . . . . . . . . . . . . . . . . . . . . . . . B355

BC-21 . . . . . . . . . . . . . . . . . . . . . . . . . B211

BC-23 . . . . . . . . . . . . . . . . . . . . . . . . . B614

BC-70 . . . . . . . . . . . . . B760-22 Series

BC-71 . . . . . . . . . . . B760-22A Series

BC-72 . . . . . . . . . . . . . B761-22 Series

BC-73 . . . . . . . . . . . B761-22A Series

BR-10-8L . . . . . . . . . . . . . . . . B185SHL

BR-10-8R . . . . . . . . . . . . . . . B185SHR

BR-10-10L . . . . . . . . . . . . . . . B186SHL

BR-10-10R . . . . . . . . . . . . . B186SHR

BR-10-12L . . . . . . . . . . . . . . . B178SHL

BR-10-12R . . . . . . . . . . . . . B178SHR

BR-10-18L . . . . . . . . . . . . . . . B181SHL

BR-10-18R . . . . . . . . . . . . . B181SHR

BR-10-20L . . . . . . . . . . . . . . . B182SHL

BR-10-20R . . . . . . . . . . . . . B182SHR

BR-11-8

. . . . . . . . . . . . . . . . . . . . B187

BR-11-10

. . . . . . . . . . . . . . . . . . . B541

BR-11-12

. . . . . . . . . . . . . . . B289-12

BR-11-14

. . . . . . . . . . . . . . . B289-14

BR-11-22 . . . . . . . . . . . . . . . . . . . . . . B292

BR-12 . . . . . . . . . . . . . . . . . . . . . . . . . B290

BR-13 . . . . . . . . . . . . . . . . . . . . . . . . . B194

BR-14 . . . . . . . . . . . . . . . . . . . . . . . . . B370

BR-15-18 . . . . . . . . . . . . . . . . . B196-18

BR-15-24 . . . . . . . . . . . . . . . . . B196-24

BR-16-6 . . . . . . . . . . . . . . . . . . . B198A-6

BR-16-12 . . . . . . . . . . . . . . . . B198A-12

BR-17-12 . . . . . . . . . . . . . . . . . B297-12

BR-17-18 . . . . . . . . . . . . . . . . . B297-18

BR-17-24 . . . . . . . . . . . . . . . . . B297-24

BR-17-30 . . . . . . . . . . . . . . . . . B297-30

BR-17-36 . . . . . . . . . . . . . . . . . B297-36

BR-18-6 . . . . . . . . . . . . . . . . . . . . B293-6

BR-18-12 . . . . . . . . . . . . . . . . . B293-12

BR-19-18 . . . . . . . . . . . . . . . . B293A-18

BR-18-24 . . . . . . . . . . . . . . . . . B293-24

BR-19-6 . . . . . . . . . . . . . . . . . . . B293A-6

BR-18-12 . . . . . . . . . . . . . . . . . B293-12

BR-19-18 . . . . . . . . . . . . . . . . B293A-18

BR-19-24 . . . . . . . . . . . . . . . . B293A-24

BR-20 . . . . . . . . . . . . . . . . . . . . . . . . . B439

BR-21 . . . . . . . . . . . . . . . . . . . . . . . . . B356

BR-22-6 . . . . . . . . . . . . . . . . . . . . B409-6

Tolco Cooper B-Line

Fig# Pt. #

Tolco Cooper B-Line

Fig# Pt. #

Tolco Cooper B-Line

Fig# Pt. #

Tolco to B-Line Cross

Tolco™to Cooper B-Line Cross Reference

239

Tolco Cooper B-Line

Fig# Pt. #

Tolco Cooper B-Line

Fig# Pt. #

Tolco Cooper B-Line

Fig# Pt. #

EMTC-3/4 . . . . . . . . . . . . . . . . . . . . B2002

EMTC-1 . . . . . . . . . . . . . . . . . . . . . B2003

EMTC-11/4 . . . . . . . . . . . . . . . . . . B2004

EMTC-11/2 . . . . . . . . . . . . . . . . . . B2005

EMTC-2 . . . . . . . . . . . . . . . . . . . . . B2006

F-09 . . . . . . . . . . . . . . . . . . . . . . . . . . . B129

F-10 . . . . . . . . . . . . . . . . . . . . . . . . . B200D

F-11 . . . . . . . . . . . . . . . . . . . . . . . . . B201D

F-12-1/2 . . . . . . . . . . . . . . . . . . . . B202-D

F-12-5/8 . . . . . . . . . . . . . . . . . . . B202-1D

F-12-3/4 . . . . . . . . . . . . . . . . . . . B202-2D

F-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . B200

F-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . B201

F-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . B202

F-16 . . . . . . . . . . . . . . . . . . . . . . . . . B202-1

F-17 . . . . . . . . . . . . . . . . . . . . . . . . . B202-2

F-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/C

F-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . B141

F-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . B342

F-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . B340

F-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . B341

F-24 . . . . . . . . . . . . . . . . . . . . . . . . . . . B504

F-25 . . . . . . . . . . . . . . . . . . . . . . . . . . . B133

F-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . B138

F-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . B139

F-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . B132

F-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . B339

F-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . B337

F-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . B136

F-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . B532

F-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . B142

F-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . B556

F-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . B135

F-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . B140

F-37 . . . . . . . . . . . . . . . . . . . . . . . . . . . B143

F-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . B334

HEX HEAD BOLTS . . . . . . . . . HHCS

L-08 . . . . . . . . . . . . . . . . . . . . . . . . . . . B231

L-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . B101

L-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . B230

L-12-3 . . . . . . . . . . . . . . . . . . . . . . . . . B359

L-12-31/2 . . . . . . . . . . . . . . . . . . . . . . B360

L-12-4 . . . . . . . . . . . . . . . . . . . . . . . . . B361

L-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . B372

L-16 . . . . . . . . . . . . . . . . . . . . . . . . . B496-1

L-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . B496

L-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . B102

L-19 . . . . . . . . . . . . . . . . . . . . . . . . . . . B232

L-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . B103

L-21 . . . . . . . . . . . . . . . . . . . . . . . . . B371-2

L-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . B104

L-23 U . . . . . . . . . . . . . . . . . . . . . . . . . B844

L-24 L . . . . . . . . . . . . . . . . . . . . . . . B503L

L-24 R . . . . . . . . . . . . . . . . . . . . . . . B503R

L-25 L . . . . . . . . . . . . . . . . . . . . . . . B503L

L-25 . . . . . . . . . . . . . . . . . . . . . . . . . B503R

L-26 L . . . . . . . . . . . . . . . . . . . . . . . B236L

L-26 R . . . . . . . . . . . . . . . . . . . . . . . B236R

L-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . B357

L-28 . . . . . . . . . . . . . . . . . . . . . . . . . . . B237

L-29 . . . . . . . . . . . . . . . . . . . . . . B240-378

L-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . B558

L-31 L . . . . . . . . . . . . . . . . . . . . . . . B235L

L-31 R . . . . . . . . . . . . . . . . . . . . . . . B235R

L-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . B126

L-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . B127

L-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . B118

L-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . B239

L-36 L . . . . . . . . . . . . . . . . . . . . . . . B234L

L-36 R . . . . . . . . . . . . . . . . . . . . . . . B234R

L-37 . . . . . . . . . . . . . . . . . . . . . . . . . . . B112

L-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . B113

L-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . B461

L-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . B533

L-41 . . . . . . . . . . . . . . . . . . . . . . . . . . . B485

L-42 L . . . . . . . . . . . . . . . . . . . . . . . B134L

L-42 R . . . . . . . . . . . . . . . . . . . . . . . B134R

L-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . B125

L-44-12 . . . . . . . . . . . . . . . . . . . B261-12

L-44-16 . . . . . . . . . . . . . . . . . . . B261-16

L-44-18 . . . . . . . . . . . . . . . . . . . B261-18

L-45-30 . . . . . . . . . . . . . . . . . . . . . . . B162

L-45-45 . . . . . . . . . . . . . . . . . . . . . . . B154

L-45-60 . . . . . . . . . . . . . . . . . . . . . . . B150

L-46-30 . . . . . . . . . . . . . . . . . . . . . . . B246

L-46-45 . . . . . . . . . . . . . . . . . . . . . . . B248

L-46-60 . . . . . . . . . . . . . . . . . . . . . . . B250

L-47-30 . . . . . . . . . . . . . . . . . . . . . . . . . N/C

L-47-45 . . . . . . . . . . . . . . . . . . . . . . . B155

L-47-60 . . . . . . . . . . . . . . . . . . . . . . . B159

L-48-30 . . . . . . . . . . . . . . . . . . . . . . . . . N/C

L-48-45 . . . . . . . . . . . . . . . . . . . . . . . B368

L-48-60 . . . . . . . . . . . . . . . . . . . . . . . B366

NUT 1/4 . . . . . . . . . . . . . . . . . . . N224WO

NUT 3/8 . . . . . . . . . . . . . . . . . . . N228WO

NUT 1/2 . . . . . . . . . . . . . . . . . . . N225WO

NUT 5/8 . . . . . . . . . . . . . . . . . . . N255WO

NUT 3/4 . . . . . . . . . . . . . . . . . . N275WO

NUT 7/8 . . . . . . . . . . . . . . . . . . . . N278WO

OD 1/4 . . . . . . . . . . . . . . . . . . . . . . . B2023

OD 3/8 . . . . . . . . . . . . . . . . . . . . . . . B2024

OD 1/2 . . . . . . . . . . . . . . . . . . . . . . . B2025

OD 5/8 . . . . . . . . . . . . . . . . . . . . . . . B2026

OD 3/4 . . . . . . . . . . . . . . . . . . . . . . . B2027

OD 7/8 . . . . . . . . . . . . . . . . . . . . . . . B2008

OD 1 . . . . . . . . . . . . . . . . . . . . . . . . . B2029

OD 11/8 . . . . . . . . . . . . . . . . . . . . . . B2030

OD 11/4 . . . . . . . . . . . . . . . . . . . . . . B2031

OD 13/8 . . . . . . . . . . . . . . . . . . . . . . B2032

OD 11/2 . . . . . . . . . . . . . . . . . . . . . . B2004

OD 15/8 . . . . . . . . . . . . . . . . . . . . . . B2011

OD 13/4 . . . . . . . . . . . . . . . . . . . . . . B2005

OD 17/8 . . . . . . . . . . . . . . . . . . . . . . B2036

OD 2 . . . . . . . . . . . . . . . . . . . . . . . . . B2037

OD 21/8 . . . . . . . . . . . . . . . . . . . . . . B2038

OD 21/4 . . . . . . . . . . . . . . . . . . . . . . B2039

OD 23/8 . . . . . . . . . . . . . . . . . . . . . . B2013

OD 21/2 . . . . . . . . . . . . . . . . . . . . . . B2041

OD 25/8 . . . . . . . . . . . . . . . . . . . . . . B2042

OD 23/4 . . . . . . . . . . . . . . . . . . . . . . B2043

OD 27/8 . . . . . . . . . . . . . . . . . . . . . . B2014

OD 3 . . . . . . . . . . . . . . . . . . . . . . . . . B2045

OD 31/8 . . . . . . . . . . . . . . . . . . . . . . B2046

OD 31/4 . . . . . . . . . . . . . . . . . . . . . . B2047

OD 33/8 . . . . . . . . . . . . . . . . . . . . . . B2048

OD 31/2 . . . . . . . . . . . . . . . . . . . . . . B2015

OD 35/8 . . . . . . . . . . . . . . . . . . . . . . B2050

OD 33/4 . . . . . . . . . . . . . . . . . . . . . . B2051

OD 37/8 . . . . . . . . . . . . . . . . . . . . . . B2052

OD 4 . . . . . . . . . . . . . . . . . . . . . . . . . B2016

OD 51/8 . . . . . . . . . . . . . . . . . . . . . . B2062

OD 51/4 . . . . . . . . . . . . . . . . . . . . . . B2063

OD 53/8 . . . . . . . . . . . . . . . . . . . . . . B2064

OD 51/2 . . . . . . . . . . . . . . . . . . . . . . B2019

OD 55/8 . . . . . . . . . . . . . . . . . . . . . . B2066

OD 53/4 . . . . . . . . . . . . . . . . . . . . . . B2067

OD 57/8 . . . . . . . . . . . . . . . . . . . . . . B2068

OD 6 . . . . . . . . . . . . . . . . . . . . . . . . . B2069

OD 61/8 . . . . . . . . . . . . . . . . . . . . . . B2110

OD 61/4 . . . . . . . . . . . . . . . . . . . . . . B2111

OD 63/8 . . . . . . . . . . . . . . . . . . . . . . B2112

OD 61/2 . . . . . . . . . . . . . . . . . . . . . . B2113

OD 65/8 . . . . . . . . . . . . . . . . . . . . . . B2020

OD 63/4 . . . . . . . . . . . . . . . . . . . . . . B2115

OD 67/8 . . . . . . . . . . . . . . . . . . . . . . B2116

OD 7 . . . . . . . . . . . . . . . . . . . . . . . . . B2117

OD 71/8 . . . . . . . . . . . . . . . . . . . . . . B2118

OD 71/4 . . . . . . . . . . . . . . . . . . . . . . B2119

OD 73/8 . . . . . . . . . . . . . . . . . . . . . . B2120

OD 71/2 . . . . . . . . . . . . . . . . . . . . . . B2121

OD 75/8 . . . . . . . . . . . . . . . . . . . . . . B2021

OD 73/4 . . . . . . . . . . . . . . . . . . . . . . B2123

OD 77/8 . . . . . . . . . . . . . . . . . . . . . . B2124

OD 8 . . . . . . . . . . . . . . . . . . . . . . . . . B2125

OD 81/8 . . . . . . . . . . . . . . . . . . . . . . B2126

Tolco to B-Line Cross

Tolco™to Cooper B-Line Cross Reference

240

Tolco Cooper B-Line

Fig# Pt. #

Tolco Cooper B-Line

Fig# Pt. #

Tolco Cooper B-Line

Fig# Pt. #

OD 81/4 . . . . . . . . . . . . . . . . . . . . . . B2127

OD 83/8 . . . . . . . . . . . . . . . . . . . . . . B2128

OD 81/2 . . . . . . . . . . . . . . . . . . . . . . B2129

OD 85/8 . . . . . . . . . . . . . . . . . . . . . . B2022

OD 83/4 . . . . . . . . . . . . . . . . . . . . . . B2133

OD 87/8 . . . . . . . . . . . . . . . . . . . . . . B2134

OD 9 . . . . . . . . . . . . . . . . . . . . . . . . . B2135

OD 91/2 . . . . . . . . . . . . . . . . . . . . . . B2139

OD 95/8 . . . . . . . . . . . . . . . . . . . . . . B2140

OD 10 . . . . . . . . . . . . . . . . . . . . . . . . B2143

OD 103/4 . . . . . . . . . . . . . . . . . . . . B2130

OD 11 . . . . . . . . . . . . . . . . . . . . . . . . B2151

OD 115/8 . . . . . . . . . . . . . . . . . . . . B2156

OD 12 . . . . . . . . . . . . . . . . . . . . . . . . B2159

OD 123/4 . . . . . . . . . . . . . . . . . . . . B2132

OD CP 3/8 . . . . . . . . . . . . . B2024DCU

OD CP 1/2 . . . . . . . . . . . . . B2025DCU

OD CP 5/8 . . . . . . . . . . . . . B2026DCU

OD CP 3/4 . . . . . . . . . . . . . B2027DCU

OD CP 7/8 . . . . . . . . . . . . . B2008DCU

OD CP 11/8 . . . . . . . . . . . B2030DCU

OD CP 13/8 . . . . . . . . . . . B2032DCU

OD CP 15/8 . . . . . . . . . . . B2011DCU

OD CP 21/8 . . . . . . . . . . . B2038DCU

OD CP 25/8 . . . . . . . . . . . B2042DCU

OD CP 31/8 . . . . . . . . . . . B2046DCU

OD CP 35/8 . . . . . . . . . . . B2050DCU

OD CP 41/8 . . . . . . . . . . . B2054DCU

OD CP 51/8 . . . . . . . . . . . B2062DCU

OD CP 61/8 . . . . . . . . . . . B2110DCU

P-09 . . . . . . . . . . . . . . . . . . . . . . . . B280FL

P-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . B279

P-10 F . . . . . . . . . . . . . . . . . . . . . . B279FL

P-10 SQ . . . . . . . . . . . . . . . . . . . B279SQ

P-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . B280

P-11 F . . . . . . . . . . . . . . . . . . . . . . B280FL

P-11 SQ . . . . . . . . . . . . . . . . . . . B280SQ

P-12 . . . . . . . . . . . . . . . . . . . . . . . . . B281A

P-12 F . . . . . . . . . . . . . . . . . . . . B281AFL

P-12 SQ . . . . . . . . . . . . . . . . . B281ASQ

P-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . B281

P-13 F . . . . . . . . . . . . . . . . . . . . . . B281FL

P-13 SQ . . . . . . . . . . . . . . . . . . . B281SQ

P-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . B585

P-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . B278

PIPE PIER . . . . . . . . . DURA-BLOKS

RIGID 3/8 . . . . . . . . . . . . . . . . . . . . B2001

RIGID 1/2 . . . . . . . . . . . . . . . . . . . . B2008

RIGID 3/4 . . . . . . . . . . . . . . . . . . . . B2009

RIGID 1 . . . . . . . . . . . . . . . . . . . . . . B2010

RIGID 11/4 . . . . . . . . . . . . . . . . . . . B2011

RIGID 11/2 . . . . . . . . . . . . . . . . . . . B2012

RIGID 2 . . . . . . . . . . . . . . . . . . . . . . B2013

RIGID 21/2 . . . . . . . . . . . . . . . . . . . B2014

RIGID 3 . . . . . . . . . . . . . . . . . . . . . . B2015

RIGID 31/2 . . . . . . . . . . . . . . . . . . . B2016

RIGID 4 . . . . . . . . . . . . . . . . . . . . . . B2017

RIGID 5 . . . . . . . . . . . . . . . . . . . . . . B2019

RIGID 6 . . . . . . . . . . . . . . . . . . . . . . B2120

RIGID 8 . . . . . . . . . . . . . . . . . . . . . . B2122

ROL-10 . . . . . . . . . . . . . . . . . . . . . . . B377

ROL-11 . . . . . . . . . . . . . . . . . . . . . . . B376

ROL-12* . . . . . . . . . . . . . . . . . . . . . . B218

ROL-13 . . . . . . . . . . . . . . . B219 Series

ROL-14 . . . . . . . . . . . . . . . . . . . . . . . B379

ROL-15 . . . . . . . . . . . . . . . . . . . . . . . B479

ROL-16 . . . . . . . . . . . . . B3126 Series

SPRA 1/4 . . . . . . . . . . . . . . . . . . . . . . N224

SPRA 3/8 . . . . . . . . . . . . . . . . . . . . . . N228

SPRA 1/2 . . . . . . . . . . . . . . . . . . . . . . N225

SPRA 5/8 . . . . . . . . . . . . . . . . . . . . . . N255

SPRA 3/4 . . . . . . . . . . . . . . . . . . . . . . N275

SPRA 7/8 . . . . . . . . . . . . . . . . . . . . . . N278

SPRC 1/4 . . . . . . . . . . . . . . . . . . . . . N524

SPRC 3/8 . . . . . . . . . . . . . . . . . . . . . N528

SPRC 1/2 . . . . . . . . . . . . . . . . . . . . . N525

SPRC 5/8 . . . . . . . . . . . . . . . . . . . . . N555

SPRC 3/4 . . . . . . . . . . . . . . . . . . . . . N575

SPRD 1/4 . . . . . . . . . . . . . . . . . . . . . . N724

SPRD 3/8 . . . . . . . . . . . . . . . . . . . . . . N728

SPRD 1/2 . . . . . . . . . . . . . . . . . . . . . . N725

SPRD 5/8 . . . . . . . . . . . . . . . . . . . . . . N755

SPRD 3/4 . . . . . . . . . . . . . . . . . . . . . . N775

SPRM 1/4 . . . . . . . . . . . . . . . . . . . SN224

SPRM 3/8 . . . . . . . . . . . . . . . . . . . SN228

SPRM 1/2 . . . . . . . . . . . . . . . . . . . SN225

SPRM 5/8 . . . . . . . . . . . . . . . . . . . SN255

SWF 3/8 . . . . . . . . . . . . . . . . . B446A-3/8

SWF 1/2 . . . . . . . . . . . . . . . . . B446A-1/2

SWF 5/8 . . . . . . . . . . . . . . . . . B446A-5/8

SWF 3/4 . . . . . . . . . . . . . . . . . B446A-3/4

SWFF 3/8 . . . . . . . . . . . . . . . B446C-3/8

SWFF 1/2 . . . . . . . . . . . . . . . B446C-1/2

SWFF 5/8 . . . . . . . . . . . . . . . B446C-5/8

SWFF 3/4 . . . . . . . . . . . . . . . B446C-3/4

SWM 3/8 . . . . . . . . . . . . . . . . B446B-3/8

SWM 1/2 . . . . . . . . . . . . . . . . B446B-1/2

SWM 5/8 . . . . . . . . . . . . . . . . B446B-5/8

SWM 3/4 . . . . . . . . . . . . . . . . B446B-3/4

SWMF 3/8 . . . . . . . . . . . . . . . . B446-3/8

SWMF 1/2 . . . . . . . . . . . . . . . . B446-1/2

SWMF 5/8 . . . . . . . . . . . . . . . . B446-5/8

SWMF 3/4 . . . . . . . . . . . . . . . . B446-3/4

TSN 1/4 . . . . . . . . . . . . . . . . . . . . . . TN224

TSN 3/8 . . . . . . . . . . . . . . . . . . . . . . TN228

TSN 1/2 . . . . . . . . . . . . . . . . . . . . . . TN225

U-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . B107

U-11 . . . . . . . . . . . . . . . . . . . . . . . B116-52

U-12 . . . . . . . . . . . . . . . . . . . . . . . B116-12

U-13-71/4 . . . . . . . . . . . . . . . . . . . B333-1

U-13-81/2 . . . . . . . . . . . . . . . . . . . B333-2

U-13-103/8 . . . . . . . . . . . . . . . . . B333-3

U-16 . . . . . . . . . . . . . . . . . . . . . B107-22A

U-18 . . . . . . . . . . . . . . . . . . . . . . . . B398-1

U-22 . . . . . . . . . . . . . . . . . . . B169, B170

U-24 . . . . . . . . . . . . . . . . . . . B167, B172

U-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . B173

U-29 . . . . . . . . . . . . . . . . . . . . . . . . B400-1

U-30 . . . . . . . . . . . . . . . . . . . . . . . . B400-3

U-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . B425

U-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . B519

U-33 . . . . . . . . . . . . . . . . . . . . . . . . . . B581

U-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . N/C

UNIV-1/2 . . . . . . . . . . . . . . . . . . . . . B2208

UNIV-3/4 . . . . . . . . . . . . . . . . . . . . . B2209

UNIV-1 . . . . . . . . . . . . . . . . . . . . . . . B2210

UNIV-11/4 . . . . . . . . . . . . . . . . . . . B2211

UNIV-11/2 . . . . . . . . . . . . . . . . . . . B2212

UNIV-2 . . . . . . . . . . . . . . . . . . . . . . . B2213

W-10 L . . . . . . . . . . . . . . . . . . . . . . B267L

W-10 R . . . . . . . . . . . . . . . . . . . . . . B267R

W-11 L . . . . . . . . . . . . . . . . . . . . . . B269L

W-11 R . . . . . . . . . . . . . . . . . . . . . . B269R

W-12 . . . . . . . . . . . . . . . . . . . . . . . . . . B119

W-13 . . . . . . . . . . . . . . . . . . . . . . . . . . B120

W-14 . . . . . . . . . . . . . . . . . . . . . . . . . . B121

W-16 . . . . . . . . . . . . . . . . . . . . . . . . . . B271

W-17 . . . . . . . . . . . . . . . . . . . . . . . . . . B272

W-18 . . . . . . . . . . . . . . . . . . . . . . . . . . B273

W-19 . . . . . . . . . . . . . . . . . . . . . . . . . . B122

W-20 . . . . . . . . . . . . . . . . . . . . . . . . . . B124

W-21 . . . . . . . . . . . . . . . . . . . . . . . . . . B123

W-22 L . . . . . . . . . . . . . . . . . . . . . . B274L

W-22 R . . . . . . . . . . . . . . . . . . . . . . B274R

W-23 . . . . . . . . . . . . . . . . . . . . . . . . . . B276

W-24 . . . . . . . . . . . . . . . . . . . . . . . . . . B495

W-25 . . . . . . . . . . . . . . . . . . . . . . . . . . B362

Z-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . B105

Z-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . B108

Z-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . B586

Z-25 . . . . . . . . . . . . . . . . . . . . . . . . . . . B515

Index

241

Index

65XT-3/8 . . . . . . . . . . 114

69 . . . . . . . . . . . . . . . . 115

69R . . . . . . . . . . . . . . . 115

75 . . . . . . . . . . . . . . . . . 55

98 . . . . . . . . . . . . . . . . . 57

98B . . . . . . . . . . . . . . . . 57

ACPD Series . . . . . 220

ACPW Series . . . . . 220

ACS Series . . . . . . . 221

ADH Series . . . . . . . 219

AHHK-1/4 . . . . . . . . 227

AHHK-3/8 . . . . . . . . 227

APC Series . . . . . . . 220

ARC Series . . . . . . . 219

ARS Series . . . . . . . 219

ASA Series . . . . . . . 221

ATM-37 . . . . . . . . . . . 221

ATR . . . . . . . . . . . . . . . 58

AWA Series . . . . . . . 219

AWS-CH . . . . . . . . . 221

AWS-OH . . . . . . . . . 221

AWS-PH . . . . . . . . . . 221

B11 . . . . . . . . . . . . . 16,17

B11A . . . . . . . . . . . 16,17

B11AL . . . . . . . . . . . . 177

B11B . . . . . . . . . . . . . . 17

B11H17/8 . . . . . . . . . . . 40

B11KO6 . . . . . . . . . . . 41

B11S . . . . . . . . . . . . . . 40

B11S58 . . . . . . . . . . . . 42

B11SH . . . . . . . . . . . . . 40

B12 . . . . . . . . . . . . . 18,19

B12A . . . . . . . . . . . 18,19

B12AL . . . . . . . . . . . . 177

B12B . . . . . . . . . . . . . . 18

B12H17/8 . . . . . . . . . . 40

B12H17/8AL . . . . . . 178

B12KO6 . . . . . . . . . . . 41

B12KO6AL . . . . . . . 178

B12S . . . . . . . . . . . . . . 40

B12S58 . . . . . . . . . . . . 42

B12SH . . . . . . . . . . . . . 40

B12SHAL . . . . . . . . . 178

B22 . . . . . . . . . . . . 20-23

B22A . . . . . . . . 20,22,23

B22A3 . . . . . . . . . . . . . 21

B22A4 . . . . . . . . . . . . . 21

B22AAL . . . . . . . . . . 177

B22AD3 . . . . . . . . . . . 21

B22AL . . . . . . . . . . . . 177

B22B . . . . . . . . . . . . . . 21

B22B3 . . . . . . . . . . . . . 21

B22C . . . . . . . . . . . . . . 21

B22C3 . . . . . . . . . . . . . 21

B22D . . . . . . . . . . . . . . 21

B22D3 . . . . . . . . . . . . . 21

B22E . . . . . . . . . . . . . . 21

B22E3 . . . . . . . . . . . . . 21

B22H17/8 . . . . . . . . . . 40

B22H17/8AL . . . . . . 178

B22H17/8SS4 . . . . . 180

B22H25 . . . . . . . . . . . . 42

B22-I Series . . . . . . 214

B22-IFS . . . . . . . . . . 218

B22KO6 . . . . . . . . . . . 41

B22KO6AL . . . . . . . 178

B22LPL . . . . . . . . . . . . 21

B22M . . . . . . . . . . . . . . 42

B22PL . . . . . . . . . . . . . 21

B22S . . . . . . . . . . . . . . 40

B22S58 . . . . . . . . . . . . 42

B22SH . . . . . . . . . . . . . 40

B22SHA . . . . . . . . . . . 41

B22SHAL . . . . . . . . . 178

B22SHSS4 . . . . . . . 180

B22SHSS6 . . . . . . . 180

B22SS4 . . . . . . . . . . 180

B22SS6 . . . . . . . . . . 180

B22TH . . . . . . 38,39,41

B22X . . . . . . . . . . . 20-23

B24 . . . . . . . . . . . . . 24,25

B24A . . . . . . . . . . . 24,25

B24AL . . . . . . . . . . . . 177

B24B . . . . . . . . . . . . . . 24

B24C . . . . . . . . . . . . . . 24

B24H17/8 . . . . . . . . . . 40

B24H17/8AL . . . . . . 178

B24H17/8SS4 . . . . . 180

B24H17/8SS6 . . . . . 180

B24H25 . . . . . . . . . . . . 42

B24KO6 . . . . . . . . . . . 41

B24KO6AL . . . . . . . 178

B24M . . . . . . . . . . . . . . 42

B24S . . . . . . . . . . . . . . 40

B24S58 . . . . . . . . . . . . 42

B24SH . . . . . . . . . . . . . 40

B24SHAL . . . . . . . . . 178

B24SHSS4 . . . . . . . 180

B24SHSS6 . . . . . . . 180

B24SS4 . . . . . . . . . . 180

B24SS6 . . . . . . . . . . 180

B26 . . . . . . . . . . . . . 26,27

B26A . . . . . . . . . . . 26,27

B26B . . . . . . . . . . . . . . 26

B26C . . . . . . . . . . . . . . 26

B26H17/8 . . . . . . . . . . 40

B26H25 . . . . . . . . . . . . 42

B26KO6 . . . . . . . . . . . 41

B26S . . . . . . . . . . . . . . 40

B26S58 . . . . . . . . . . . . 42

B26SH . . . . . . . . . . . . . 40

B32 . . . . . . . . . . . . . 28,29

B32A . . . . . . . . . . . 28,29

B32B . . . . . . . . . . . . . . 28

B32C . . . . . . . . . . . . . . 28

B32H17/8 . . . . . . . . . . 40

B32H17/8SS4 . . . . . 180

B32H25 . . . . . . . . . . . . 42

B32-I Series . . . . . . 215

B32-IFS . . . . . . . . . . 218

B32KO6 . . . . . . . . . . . 41

B32M . . . . . . . . . . . . . . 42

B32S . . . . . . . . . . . . . . 40

B32S58 . . . . . . . . . . . . 42

B32SH . . . . . . . . . . . . . 40

B32SHSS4 . . . . . . . 180

B32SS4 . . . . . . . . . . 180

B42 . . . . . . . . . . . . . 30,31

B42A . . . . . . . . . . . 30,31

B42B . . . . . . . . . . . . . . 30

B42H17/8 . . . . . . . . . . 40

B42H17/8SS4 . . . . . 180

B42H25 . . . . . . . . . . . . 42

B42KO6 . . . . . . . . . . . 41

B42M . . . . . . . . . . . . . . 42

B42S . . . . . . . . . . . . . . 40

B42S58 . . . . . . . . . . . . 42

B42SH . . . . . . . . . . . . . 40

B42SHSS4 . . . . . . . 180

B42SS4 . . . . . . . . . . 180

B44M . . . . . . . . . . . . . . 42

B52 . . . . . . . . . . . . . 32,33

B52A . . . . . . . . . . . 32,33

B52B3 . . . . . . . . . . . . . 32

B52B4 . . . . . . . . . . . . . 32

B52H17/8 . . . . . . . . . . 40

B52H25 . . . . . . . . . . . . 42

B52-I Series . . . . . . 216

B52-IFS . . . . . . . . . . 218

B52KO6 . . . . . . . . . . . 41

B52M . . . . . . . . . . . . . . 42

B52S . . . . . . . . . . . . . . 40

B52S58 . . . . . . . . . . . . 42

B52SH . . . . . . . . . . . . . 40

B54 . . . . . . . . . . . . . 34,35

B54A . . . . . . . . . . . 34,35

B54AAL . . . . . . . . . . 177

B54AL . . . . . . . . . . . . 177

B54B3 . . . . . . . . . . . . . 34

B54B4 . . . . . . . . . . . . . 34

B54H17/8 . . . . . . . . . . 40

B54H17/8AL . . . . . . 178

B54H17/8SS4 . . . . . 180

B54H17/8SS6 . . . . . 180

B54H25 . . . . . . . . . . . . 42

B54KO6 . . . . . . . . . . . 41

B54KO6AL . . . . . . . 178

B54M . . . . . . . . . . . . . . 42

B54S . . . . . . . . . . . . . . 40

B54S58 . . . . . . . . . . . . 42

B54SH . . . . . . . . . . . . . 40

B54SHAL . . . . . . . . . 178

B54SHSS4 . . . . . . . 180

B54SHSS6 . . . . . . . 180

B54SS4 . . . . . . . . . . 180

B54SS6 . . . . . . . . . . 180

B56 . . . . . . . . . . . . . 36,37

B56A . . . . . . . . . . . 36,37

B56B3 . . . . . . . . . . . . . 36

B56B4 . . . . . . . . . . . . . 36

Index

242

B56H17/8 . . . . . . . . . . 40

B56H25 . . . . . . . . . . . . 42

B56KO6 . . . . . . . . . . . 41

B56S . . . . . . . . . . . . . . 40

B56S58 . . . . . . . . . . . . 42

B56SH . . . . . . . . . . . . . 40

B62 . . . . . . . . . . . . . . 201

B62A . . . . . . . . . . . . . 201

B72 . . . . . . . . . . . . . . 202

B72A . . . . . . . . . . . . . 202

B101 . . . . . . . . . . . . . . 76

B102 . . . . . . . . . . . . . . 77

B103 . . . . . . . . . . . . . . 77

B104 . . . . . . . . . . . . . . 77

B104SH . . . . . . . . . . . 81

B105 . . . . . . . . . . . . . . 91

B106-12 . . . . . . . . . . . 91

B106-32 . . . . . . . . . . . 91

B106-42 . . . . . . . . . . . 91

B106-52 . . . . . . . . . . . 91

B107 . . . . . . . . . . . . . . 87

B107-22A . . . . . . . . . . 87

B107S . . . . . . . . . 88,125

B108 . . . . . . . . . . . . . . 91

B109S . . . . . . . . . . . . . 81

B110 . . . . . . . . . . . . . . . 91

B111 . . . . . . . . . . . . . . . 92

B112 . . . . . . . . . . . . . . . 81

B113 . . . . . . . . . . . . . . . 81

B115 . . . . . . . . . . . . . . . 77

B116-12 . . . . . . . . . . . 87

B116-32 . . . . . . . . . . . 87

B116-32A . . . . . . . . . . 87

B116-42 . . . . . . . . . . . 87

B116-52 . . . . . . . . . . . 87

B118 . . . . . . . . . . . . . . . 79

B119 . . . . . . . . . . . . . . . 94

B120 . . . . . . . . . . . . . . 95

B121 . . . . . . . . . . . . . . 95

B122 . . . . . . . . . . . . . . 95

B123 . . . . . . . . . . . . . . 95

B124 . . . . . . . . . . . . . . 95

B125 . . . . . . . . . . . . . . 79

B126 . . . . . . . . . . . . . . 80

B127 . . . . . . . . . . . . . . 80

B129 . . . . . . . . . . . . . . 73

B132 . . . . . . . . . . . . . . 74

B133 . . . . . . . . . . . . . . 74

B134L . . . . . . . . . . . . . 79

B134R . . . . . . . . . . . . . 79

B135 . . . . . . . . . . . . . . 74

B136 . . . . . . . . . . . . . . 75

B137 . . . . . . . . . . . . . . 75

B138 . . . . . . . . . . . . . . 74

B139 . . . . . . . . . . . . . . 74

B140 . . . . . . . . . . . . . . 74

B141 . . . . . . . . . . . . . . 73

B142 . . . . . . . . . . . . . . 74

B143 . . . . . . . . . . . . . . 74

B147 . . . . . . . . . . . . . . 82

B148 . . . . . . . . . . . . . . 82

B149 . . . . . . . . . . . . . . 82

B150 . . . . . . . . . . . . . . 82

B151 . . . . . . . . . . . . . . 82

B152 . . . . . . . . . . . . . . 82

B154 . . . . . . . . . . . . . . 82

B155 . . . . . . . . . . . . . . 83

B156 . . . . . . . . . . . . . . 83

B157 . . . . . . . . . . . . . . 83

B158 . . . . . . . . . . . . . . 83

B159 . . . . . . . . . . . . . . 83

B160 . . . . . . . . . . . . . . 83

B161 . . . . . . . . . . . . . . 83

B162 . . . . . . . . . . . . . . 82

B163 . . . . . . . . . . . . . . 82

B164 . . . . . . . . . . . . . . 82

B165 . . . . . . . . . . . . . . 82

B166 Series . . . . . . 171

B166-46 Series . . . 171

B166CL . . . . . . . . . . 171

B167 . . . . . . . . . . . . . . 86

B168 . . . . . . . . . . . . . . 86

B169 . . . . . . . . . . . . . . 86

B170 . . . . . . . . . . . . . . 86

B171 . . . . . . . . . . . . . . 86

B172 . . . . . . . . . . . . . . 86

B172-12 . . . . . . . . . . . 86

B172-22A . . . . . . . . . . 86

B173 . . . . . . . . . . . . . . 89

B174SHL . . . . . . . . . 101

B174SHR . . . . . . . . 101

B175SHL . . . . . . . . . 101

B175SHR . . . . . . . . 101

B176SHL . . . . . . . . . 101

B176SHR . . . . . . . . 101

B177SHL . . . . . . . . . 101

B177SHR . . . . . . . . 101

B178SHL . . . . . . . . . 101

B178SHR . . . . . . . . 101

B179SHL . . . . . . . . . 101

B179SHR . . . . . . . . 101

B180SHL . . . . . . . . . 101

B180SHR . . . . . . . . 101

B181SHL . . . . . . . . . 101

B181SHR . . . . . . . . 101

B182SHL . . . . . . . . . 101

B182SHR . . . . . . . . 101

B183SHL . . . . . . . . . 101

B183SHR . . . . . . . . 101

B184SHL . . . . . . . . . 101

B184SHR . . . . . . . . 101

B185SHL . . . . . . . . . 101

B185SHR . . . . . . . . 101

B186SHL . . . . . . . . . 101

B186SHR . . . . . . . . 101

B187 . . . . . . . . . . . . . . 99

B188 . . . . . . . . . . . . . . 99

B189 . . . . . . . . . . . . . . 99

B190 . . . . . . . . . . . . . . 99

B191-18 . . . . . . . . . . . 99

B191-24 . . . . . . . . . . 100

B192 . . . . . . . . . . . . . 100

B194 . . . . . . . . . . . . . 102

B195 . . . . . . . . . . . . . 103

B196-18 . . . . . . . . . . 102

B196-24 . . . . . . . . . . 102

B198-6 . . . . . . . . . . . 102

B198-12 . . . . . . . . . . 102

B198A-6 . . . . . . . . . . 102

B198A-12 . . . . . . . . 102

B200 . . . . . . . . . . . . . . 73

B200D . . . . . . . . . . . . . 73

B201 . . . . . . . . . . . . . . 73

B201D . . . . . . . . . . . . . 73

B202 . . . . . . . . . . . . . . 73

B202-1 . . . . . . . . . . . . 73

B202-1D . . . . . . . . . . . 73

B202-2 . . . . . . . . . . . . 73

B202-2D . . . . . . . . . . . 73

B202D . . . . . . . . . . . . . 73

B203 . . . . . . . . . 110,167

B204 . . . . . . . . . 110,167

B205 . . . . . 110,167,218

B206 . . . . . 110,167,218

B210 . . . . . . . . . . . . . 116

B210A . . . . . . . . . . . . 116

B211 . . . . . . . . . . . . . 122

B212-1/4 . . . . . . . . . . 122

B212-3/8 . . . . . . . . . . 122

B213 . . . . . . . . . . . . . 122

B214L . . . . . . . . . . . . 106

B214R . . . . . . . . . . . . 106

B215S . . . . . . . . . . . . 165

B216S . . . . . . . . . . . . 165

B217-20 . . . . . . . . . . 167

B217-24 . . . . . . . . . . 167

B217AL . . . . . . . . . . . 177

B217FFAL . . . . . . . . 177

B217P . . . 167,177,199

B218 . . . . . . . . . . . . . 147

B219 Series . . 148,149

B220 . . . . . 110,167,218

B221 . . . . . . . . . 110,167

B222 . . . . . . . . . 110,167

B223 . . . . . . . . . 110,167

B230 . . . . . . . . . . . . . . 76

B231 . . . . . . . . . . . . . . 76

B232 . . . . . . . . . . . . . . 77

B234L . . . . . . . . . . . . . 79

B234R . . . . . . . . . . . . . 79

B235L . . . . . . . . . . . . . 78

B235R . . . . . . . . . . . . . 78

B236L . . . . . . . . . . . . . 78

B236R . . . . . . . . . . . . . 78

B237 . . . . . . . . . . . . . . 78

B238L . . . . . . . . . . . . . 78

B238R . . . . . . . . . . . . . 78

B239 . . . . . . . . . . . . . . 78

B241S . . . . . . . . . . . . 165

B243 . . . . . . . . . . . . . . 82

Index

243

B244 . . . . . . . . . . . . . . 82

B245 . . . . . . . . . . . . . . 82

B246 . . . . . . . . . . . . . . 82

B247 . . . . . . . . . . . . . . 82

B248 . . . . . . . . . . . . . . 82

B249 . . . . . . . . . . . . . . 82

B250 . . . . . . . . . . . . . . 82

B251 . . . . . . . . . . . . . . 82

B252 . . . . . . . . . . . . . . 82

B253 . . . . . . . . . . . . . . 82

B261 Series . . . . . . . 85

B266 . . . . . . . . . . . . . . 88

B267L . . . . . . . . . . . . . 94

B267R . . . . . . . . . . . . . 94

B268L . . . . . . . . . . . . . 94

B268R . . . . . . . . . . . . . 94

B269L . . . . . . . . . . . . . 94

B269R . . . . . . . . . . . . . 94

B270L . . . . . . . . . . . . . 94

B270R . . . . . . . . . . . . . 94

B271 . . . . . . . . . . . . . . 95

B272 . . . . . . . . . . . . . . 95

B273 . . . . . . . . . . . . . . 95

B274L . . . . . . . . . . . . . 96

B274R . . . . . . . . . . . . . 96

B276 . . . . . . . . . . . . . . 95

B277 . . . . . . . . . . . . . . 96

B278 . . . . . . . . . . . . . . 98

B279 . . . . . . . . . . . . . . 97

B279FL . . . . . . . . . . . . 97

B279SQ . . . . . . . . . . . 97

B280 . . . . . . . . . . . . . . 97

B280FL . . . . . . . . . . . . 97

B280SQ . . . . . . . . . . . 97

B281 . . . . . . . . . . . . . . 98

B281A . . . . . . . . . . . . . 97

B281AFL . . . . . . . . . . 97

B281ASQ . . . . . . . . . . 97

B281FL . . . . . . . . . . . . 98

B281M . . . . . . . . . . . . . 98

B281MSQ . . . . . . . . . 98

B281SQ . . . . . . . . . . . 98

B283 . . . . . . . . . 110,167

B284 . . . . . . . . . 110,167

B285 . . . . . . . . . 110,167

B286 . . . . . . . . . 110,167

B287 . . . . . . . . . . . . . 110

B288 . . . . . . . . . . . . . 110

B289-12 . . . . . . . . . . 100

B289-14 . . . . . . . . . . 100

B290 . . . . . . . . . . . . . 100

B291 . . . . . . . . . . . . . 100

B292 . . . . . . . . . . . . . 101

B293 Series . . . . . . 102

B293A Series . . . . . 102

B293PL . . . . . . . . . . . 103

B297 Series . . . . . . 101

B300 . . . . . . . . . . . . . . 98

B303 . . . . . . . . . . . . . 117

B304 . . . . . . . . . . . . . 117

B305 . . . . . . . . . . . . . 117

B306 . . . . . . . . . . . . . 117

B307 . . . . . . . . . . . . . 117

B308 . . . . . . . . . . . . . 117

B309 . . . . . . . . . . . . . 117

B312 Series . . . . . . 117

B314 . . . . . . . . . . . . . 121

B318 . . . . . . . . . . . . . 123

B319 . . . . . . . . . . . . . 123

B320 . . . . . . . . . . . . . 123

B321 Series . . . . . . 117

B322 . . . . . . . . . . . . . . 82

B323 . . . . . . . . . . . . . . 82

B324 . . . . . . . . . . . . . . 82

B325 . . . . . . . . . . . . . . 82

B326 . . . . . . . . . . . . . . 82

B327 . . . . . . . . . . . . . . 82

B328 . . . . . . . . . . . . . . 82

B329 . . . . . . . . . . . . . . 82

B330 . . . . . . . . . . . . . . 82

B331 . . . . . . . . . . . . . . 82

B332 . . . . . . . . . . . . . . 82

B333-1 . . . . . . . . . . . . 89

B333-2 . . . . . . . . . . . . 89

B333-3 . . . . . . . . . . . . 89

B334 . . . . . . . . . . . . . . 75

B335 . . . . . . . . . . . . . . 83

B335-1 . . . . . . . . . . . . 83

B335-2 Series . . . . . 83

B335V Series . . . . . . 83

B337 . . . . . . . . . . . . . . 75

B339 . . . . . . . . . . . . . . 75

B340 . . . . . . . . . . . . . . 73

B341 . . . . . . . . . . . . . . 73

B342 . . . . . . . . . . . . . . 73

B346L . . . . . . . . . . . . . 95

B346R . . . . . . . . . . . . . 95

B349 . . . . . . . . . . . . . 108

B350 . . . . . . . . . . . . . 108

B351L Series . . . . . 113

B355 . . . . . . . . . . . . . 122

B356 . . . . . . . . . . . . . 146

B357 . . . . . . . . . . . . . . 78

B358 Series . . . . . . . 89

B359 . . . . . . . . . . . . . . 76

B360 . . . . . . . . . . . . . . 76

B361 . . . . . . . . . . . . . . 77

B362 . . . . . . . . . . . . . . 96

B363 . . . . . . . . . . . . . . 83

B364 . . . . . . . . . . . . . . 83

B365 . . . . . . . . . . . . . . 83

B366 . . . . . . . . . . . . . . 83

B367 . . . . . . . . . . . . . . 83

B368 . . . . . . . . . . . . . . 83

B369 . . . . . . . . . . . . . . 83

B370 . . . . . . . . . . . . . 103

B371 . . . . . . . . . . . . . . 80

B371-2 . . . . . . . . . . . . 81

B372 . . . . . . . . . . . . . . 80

B374 . . . . . . . . . . . . . . 77

B376 . . . . . . . . . . . . . 109

B377 . . . . . . . . . . . . . 109

B379 . . . . . . . . . . . . . 150

B380 Series . . . . . . 218

B381 . . . . . . . . . . . . . 107

B382 . . . . . . . . . . . . . 107

B383 . . . . . . . . . . . . . 107

B384 . . . . . . . . . . . . . 107

B385 . . . . . . . . . . . . . 107

B386 Series . . . . . . 144

B387 Series . . . . . . . 92

B390BX . . . . . . . . . . 166

B390S . . . . . . . . . . . . 166

B392-11 Series . . . 168

B392-12 Series . . . 168

B392-22 Series . . . 168

B392-32 Series . . . 168

B393-1 . . . . . . . . . . . 171

B394 Series . . . . . . 144

B398-1 . . . . . . . . . . . . 90

B400 . . . . . . . . . . . . . . 90

B400-1 . . . . . . . . . . . . 90

B400-2 . . . . . . . . . . . . 90

B400-3 . . . . . . . . . . . . 90

B400-4 . . . . . . . . . . . . 90

B405 . . . . . . . . . . 89,123

B405A . . . . . . . . . . . . 123

B407 Series . . . . . . . 92

B408 Series . . . . . . . 89

B409 Series . . . . . . 101

B410-11 . . . . . . . . . . . 93

B410-12 . . . . . . . . . . . 93

B410-22 . . . . . . . . . . . 93

B410-32 . . . . . . . . . . . 93

B410-52 . . . . . . . . . . . 93

B411 Series . . . . . . 107

B412 . . . . . . . . . . . . . . 88

B415 . . . . . . . . . . . . . . 90

B420-378 . . . . . . . . . . 76

B420-578 . . . . . . . . . . 76

B420-778 . . . . . . . . . . 76

B420-978 . . . . . . . . . . 76

B422 Series . . 125,140

B425 . . . . . . . . . . . . . . 88

B427 . . . . . . . . . . . . . 123

B428 . . . . . . . . . . . . . . 93

B432 . . . . . . . . . . . . . . 75

B435 . . . . . . . . . . . . . 122

B436 . . . . . . . . . . . . . 166

B436S . . . . . . . . . . . . 166

B437 Series . . . . . . 139

B438 . . . . . . . . . . . . . 107

B439 . . . . . . . . . . . . . 107

B440 . . . . . . . . . . . . . 103

B441-22 Series . . . 121

B441-22A Series . . 121

B441Z-22 . . . . . . . . . 121

B441Z-22A . . . . . . . 121

B444 Series . . . . . . 116

B446 Series . . . 54,172

Index

244

B446A Series . . 54,172

B446B Series . . 54,172

B446C Series . 54,172

B447 . . . . . . . . . . . . . 168

B447A . . . . . . . . . . . . 168

B449-4 . . . . . . . . . . . 103

B449-8 . . . . . . . . . . . 103

B449-12 . . . . . . . . . . 103

B449-18 . . . . . . . . . . 103

B450 Series . . . . . . . 86

B451-1 . . . . . . . . . . . . 89

B451-2 . . . . . . . . . . . . 89

B451-3 . . . . . . . . . . . . 89

B460 Series . . . . . . 166

B461 . . . . . . . . . . . . . . 81

B464 Series . . . . . . 166

B465 . . . . . . . . . . . . . 166

B466S . . . . . . . . . . . . 171

B466W . . . . . . . . . . . 171

B472 . . . . . . . . . . . . . 106

B473 . . . . . . . . . . . . . 106

B474 . . . . . . . . . . . . . 106

B475 . . . . . . . . . . . . . 106

B477 . . . . . . . . . . . . . 109

B477H . . . . . . . . . . . . 109

B477HP . . . . . . . . . . 109

B477P . . . . . . . . . . . . 109

B478 . . . . . . . . . . . . . 109

B478H . . . . . . . . . . . . 109

B478HP . . . . . . . . . . 109

B478P . . . . . . . . . . . . 109

B479 . . . . . . . . . . . . . 151

B485 . . . . . . . . . . . . . . 80

B488 . . . . . . . . . . . . . . 82

B494 Series . . . . . . 101

B495 . . . . . . . . . . . . . . 96

B496 . . . . . . . . . . . . . . 81

B496-1 . . . . . . . . . . . . 81

B500 Series . . . 52,120

B501 Series . . . . . . . 52

B503L . . . . . . . . . . . . . 80

B503R . . . . . . . . . . . . . 80

B504 . . . . . . . . . . . . . . 74

B514L . . . . . . . . . . . . 106

B514R . . . . . . . . . . . . 106

B515 . . . . . . . . . . . . . . 93

B516 . . . . . . . . . . . . . 167

B516S . . . . . . . . . . . . 167

B518 Series . . . . . . 169

B519 . . . . . . . . . . . . . . 88

B521 . . . . . . . . . . . . . . 81

B522 . . . . . . . . . . . . . . 82

B526 . . . . . . . . . . . . . . 91

B527 . . . . . . . . . . . . . . 87

B528 . . . . . . . . . . . . . . 73

B529 . . . . . . . . . . . . . . 77

B532 . . . . . . . . . . . . . . 75

B533 . . . . . . . . . . . . . . 80

B534 . . . . . . . . . . . . . . 92

B535 . . . . . . . . . . . . . . 92

B536 . . . . . . . . . . . . . . 90

B538 . . . . . . . . . . . . . . 92

B539 . . . . . . . . . . . . . . 92

B541 . . . . . . . . . . . . . . 99

B556 . . . . . . . . . . . . . . 75

B557 . . . . . . . . . . . . . . 73

B558 . . . . . . . . . . . . . . 77

B560 . . . . . . . . . . . . . 108

B562 . . . . . . . . . . . . . 108

B568 . . . . . . . . . . . . . . 75

B570 . . . . . . . . . . . . . . 98

B570A . . . . . . . . . . . . . 98

B571 . . . . . . . . . . . . . . 96

B578 . . . . . . . . . . . . . . 88

B580 . . . . . . . . . . . . . . 93

B581 . . . . . . . . . . . . . . 88

B585 . . . . . . . . . . . . . . 98

B586 . . . . . . . . . . . . . . 91

B587 Series . . . . . . 107

B588 . . . . . . . . . . . . . . 87

B589 . . . . . . . . . . . . . 171

B589-62 . . . . . . . . . . 207

B590 . . . . . . . . . . . . . 172

B591 Series . . . . . . 145

B593 . . . . . . . . . . . . . 125

B594 . . . . . . . . . . . . . . 88

B595 . . . . . . . . . . . . . . 89

B596 . . . . . . . . . . . . . . 88

B598-62 . . . . . . . . . . 210

B600-62 . . . . . . . . . . 204

B601-62 . . . . . . . . . . 208

B602-A . . . . . . . . . . . 123

B602-B . . . . . . . . . . . 123

B602-C . . . . . . . . . . . 123

B613 . . . . . . . . . 108,125

B613A . . . . . . . 108,125

B614 . . . . . . . . . 108,125

B616 Series . . . . . . 164

B616-22A Series . . 164

B616S Series . . . . . 164

B616S-22A Series 165

B616TG-9/16 . . . . . . 165

B617 . . . . . . . . . . 55,172

B619 . . . . . . . . . . . . . 171

B631 Series . . . . . . . 85

B632 Series . . . . . . . 85

B633 Series . . . . . . . 84

B634 . . . . . . . . . . . . . . 84

B635 . . . . . . . . . . . . . . 84

B650 Series . . . . . . . 84

B655 Series . . . . . . . 58

B656 Series . . . . . . . 58

B663 . . . . . . . . . . . . . . 80

B664 . . . . . . . . . . . . . 107

B670 Series . . . . . . 140

B671 Series . . . . . . 140

B700 Series . . . . . . 120

B701 Series . . . . . . 118

B702 . . . . . . . . . . . . . 119

B705 Series . . . . . . 119

B718 Series . . . . . . 169

B719AL . . . . . . . . . . . 169

B750 Series . . . . . . 120

B751 . . . . . . . . . . . . . 118

B751-J Series . . . . 118

B752 . . . . . . . . . . . . . 118

B753 Series . . . . . . 118

B755 . . . . . . . . . . . . . 119

B755-3/8-J Series . 119

B756-3/8 . . . . . . . . . . 119

B760-22 Series . . . 124

B760-22A Series . . 124

B761-22 Series . . . 124

B761-22A Series . . 124

B766 Series . . . . . . 170

B767 Series . . . . . . 170

B768 Series . . . . . . 170

B769 Series . . . . . . 170

B802D Series . . . . . 104

B809B Series . . . . . 105

B810 Series . . . . . . 104

B811 Series . . . . . . 105

B812 Series . . . . . . 105

B816 . . . . . . . . . . . . . 104

B822 . . . . . . . . . . . . . 110

B822A . . . . . . . . . . . . 110

B823-22 . . . . . . . . . . 111

B823-22A . . . . . . . . . 111

B823-42 . . . . . . . . . . 111

B823-52 . . . . . . . . . . 111

B825-22 . . . . . . . . . . 111

B825-52 . . . . . . . . . . 111

B844 . . . . . . . . . . . . . . 79

B844W . . . . . . . . . . . . 79

B852 . . . . . . . . . . . . . 110

B852S Series . . . . . 104

B888W . . . . . . . . . . . . 79

B1508 . . . . . . . . . . . . 132

B1508S . . . . . . . . . . 132

B1512 . . . . . . . . . . . . 132

B1512S . . . . . . . . . . 132

B1516 . . . . . . . . . . . . 132

B1516S . . . . . . . . . . 132

B1520 . . . . . . . . . . . . 132

B1520S . . . . . . . . . . 132

B1524S . . . . . . . . . . 132

B1532S . . . . . . . . . . 132

B1534S . . . . . . . . . . 132

B1540S . . . . . . . . . . 132

B1548S . . . . . . . . . . 132

B1556S . . . . . . . . . . 132

B1564S . . . . . . . . . . 132

B1999 . . . . . . . . . . . . 137

B2000 . . . . . . . . . . . . 128

B2001 . . . . . . . . . . . . 128

B2001AL . . . . . . . . . 178

B2001SS4 . . . . . . . . 181

B2002 . . . . . . . . . . . . 128

B2003 . . . . . . . . . . . . 128

B2004 . . . . . . . . 128,130

Index

245

B2005 . . . . . . . . 128,130

B2006 . . . . . . . . . . . . 128

B2008 . . . . . . . . 128,130

B2008AL . . . . . . . . . 178

B2008DCU . . . . . . . 129

B2008SS4 . . . . . . . . 181

B2009 . . . . . . . . . . . . 128

B2009AL . . . . . . . . . 178

B2009SS4 . . . . . . . . 181

B2010 . . . . . . . . . . . . 128

B2010AL . . . . . . . . . 178

B2010SS4 . . . . . . . . 181

B2011 . . . . . . . . 128,130

B2011AL . . . . . . . . . 178

B2011DCU . . . . . . . 129

B2011SS4 . . . . . . . . 181

B2012 . . . . . . . . . . . . 128

B2012AL . . . . . . . . . 178

B2012SS4 . . . . . . . . 181

B2013 . . . . . . . . 128,130

B2013AL . . . . . . . . . 178

B2013SS4 . . . . . . . . 181

B2014 . . . . . . . . 128,130

B2014AL . . . . . . . . . 178

B2014SS4 . . . . . . . . 181

B2015 . . . . . . . . 128,130

B2015AL . . . . . . . . . 178

B2015SS4 . . . . . . . . 181

B2016 . . . . . . . . 128,130

B2016AL . . . . . . . . . 178

B2016SS4 . . . . . . . . 181

B2017 . . . . . . . . 128,130

B2017AL . . . . . . . . . 178

B2017SS4 . . . . . . . . 181

B2018 . . . . . . . . 128,131

B2018AL . . . . . . . . . 178

B2018SS4 . . . . . . . . 181

B2019 . . . . . . . . 128,131

B2019AL . . . . . . . . . 178

B2019SS4 . . . . . . . . 181

B2020 . . . . . . . . 128,131

B2020AL . . . . . . . . . 178

B2020SS4 . . . . . . . . 181

B2021 . . . . . . . . 128,131

B2022 . . . . . . . . 128,131

B2023 . . . . . . . . . . . . 130

B2024 . . . . . . . . . . . . 130

B2024DCU . . . . . . . 129

B2025 . . . . . . . . . . . . 130

B2025DCU . . . . . . . 129

B2026 . . . . . . . . . . . . 130

B2026DCU . . . . . . . 129

B2027 . . . . . . . . . . . . 130

B2027DCU . . . . . . . 129

B2029 . . . . . . . . . . . . 130

B2030 . . . . . . . . . . . . 130

B2030DCU . . . . . . . 129

B2031 . . . . . . . . . . . . 130

B2032 . . . . . . . . . . . . 130

B2032DCU . . . . . . . 129

B2036 . . . . . . . . . . . . 130

B2037 . . . . . . . . . . . . 130

B2038 . . . . . . . . . . . . 130

B2038DCU . . . . . . . 129

B2039 . . . . . . . . . . . . 130

B2041 . . . . . . . . . . . . 130

B2042 . . . . . . . . . . . . 130

B2042DCU . . . . . . . 129

B2043 . . . . . . . . . . . . 130

B2045 . . . . . . . . . . . . 130

B2046 . . . . . . . . . . . . 130

B2046DCU . . . . . . . 129

B2047 . . . . . . . . . 130

B2048 . . . . . . . . . . . . 130

B2050 . . . . . . . . . . . . 130

B2050DCU . . . . . . . 129

B2051 . . . . . . . . . . . . 130

B2052 . . . . . . . . . . . . 130

B2054 . . . . . . . . . . . . 130

B2054DCU . . . . . . . 129

B2055 . . . . . . . . . . . . 130

B2056 . . . . . . . . . . . . 130

B2058 . . . . . . . . . . . . 130

B2059 . . . . . . . . . . . . 131

B2060 . . . . . . . . . . . . 131

B2062 . . . . . . . . . . . . 131

B2062DCU . . . . . . . 129

B2063 . . . . . . . . . . . . 131

B2064 . . . . . . . . . . . . 131

B2066 . . . . . . . . . . . . 131

B2067 . . . . . . . . . . . . 131

B2068 . . . . . . . . . . . . 131

B2069 . . . . . . . . . . . . 131

B2070 . . . . . . . . . . . . 139

B2071 . . . . . . . . . . . . 139

B2072 . . . . . . . . . . . . 139

B2073 . . . . . . . . . . . . 139

B2074 . . . . . . . . . . . . 139

B2075 . . . . . . . . . . . . 139

B2076 . . . . . . . . . . . . 139

B2077 . . . . . . . . . . . . 139

B2078 . . . . . . . . . . . . 139

B2079 . . . . . . . . . . . . 139

B2080 . . . . . . . . . . . . 139

B2084 . . . . . . . . . . . . 141

B2085 . . . . . . . . . . . . 141

B2086 . . . . . . . . . . . . 141

B2087 . . . . . . . . . . . . 141

B2088 . . . . . . . . . . . . 141

B2089 . . . . . . . . . . . . 141

B2090 . . . . . . . . . . . . 141

B2091 . . . . . . . . . . . . 141

B2110 . . . . . . . . . . . . 131

B2110DCU . . . . . . . 129

B2111 . . . . . . . . . . . . 131

B2112 . . . . . . . . . . . . 131

B2113 . . . . . . . . . . . . 131

B2115 . . . . . . . . . . . . 131

B2116 . . . . . . . . . . . . 131

B2117 . . . . . . . . . . . . 131

B2118 . . . . . . . . . . . . 131

B2119 . . . . . . . . . . . . 131

B2120 . . . . . . . . . . . . 131

B2121 . . . . . . . . . . . . 131

B2123 . . . . . . . . . . . . 131

B2124 . . . . . . . . . . . . 131

B2125 . . . . . . . . . . . . 131

B2126 . . . . . . . . . . . . 131

B2126DCU . . . . . . . 129

B2127 . . . . . . . . . . . . 131

B2128 . . . . . . . . . . . . 131

B2129 . . . . . . . . . . . . 131

B2130 . . . . . . . . 128,131

B2132 . . . . . . . . 128,131

B2207 . . . . . . . . . . . . 127

B2208 . . . . . . . . . . . . 127

B2209 . . . . . . . . . . . . 127

B2210 . . . . . . . . . . . . 127

B2211 . . . . . . . . . . . . 127

B2212 . . . . . . . . . . . . 127

B2213 . . . . . . . . . . . . 127

B2301 Series . . . . . 141

B2302 Series . . . . . 141

B2308 . . . . . . . . . . . . 211

B2309 . . . . . . . . . . . . 211

B2310 . . . . . . . . . . . . 211

B2311 . . . . . . . . . . . . 211

B2312 . . . . . . . . . . . . 211

B2313 . . . . . . . . . . . . 211

B2314 . . . . . . . . . . . . 211

B2315 . . . . . . . . . . . . 211

B2350 . . . . . . . . . . . . 211

B2351 . . . . . . . . . . . . 211

B2352 . . . . . . . . . . . . 211

B2353 . . . . . . . . . . . . 211

B2354 . . . . . . . . . . . . 211

B2355 . . . . . . . . . . . . 211

B2400 Series . . . . . 138

B2417 Series . . . . . 139

B2500 . . . . . . . . . . . . 217

B2501 Series . . . . . 217

B2503 . . . . . . . . . . . . 217

B2505 . . . . . . . . . . . . 217

B2506 . . . . . . . . . . . . 217

B2507 . . . . . . . . . . . . 217

B2508 . . . . . . . . . . . . 217

B2601 . . . . . . . . . . . . 133

B2602 . . . . . . . . . . . . 133

B2603 . . . . . . . . . . . . 133

B2608 . . . . . . . . . . . . 133

B2609 . . . . . . . . . . . . 133

B2610 . . . . . . . . . . . . 133

B3033 Series . . . . . 114

B3034 Series . . . . . 114

B3036L Series . . . . 113

B3037Z . . . . . . . . . . . 115

B3322 . . . . . . . . 110,218

B3332 . . . . . . . . 110,218

B3342 . . . . . . . . 110,218

B3352 . . . . . . . . 110,218

Index

246

B3362 Series . . . . . 113

B3363 Series . . . . . 113

B3364 Series . . . . . 113

B3365 Series . . . . . 113

B3367 Series . . . . . 115

B3367S-1 Series . 140

B3367S-2 Series . 140

B3373 Series . . . . . 142

B3690 Series . . . . . 143

B3690F Series . . . . 143

B4000 . . . . . . . . . . . . 175

B4001 . . . . . . . . . . . . 175

B4002 . . . . . . . . . . . . 175

B4003 . . . . . . . . . . . . 175

B4004 . . . . . . . . . . . . 175

B4005 . . . . . . . . . . . . 175

B4006 . . . . . . . . . . . . 175

B4007 . . . . . . . . . . . . 175

B4008 . . . . . . . . . . . . 175

B4009 . . . . . . . . . . . . 175

B4010 . . . . . . . . . . . . 175

B4011 . . . . . . . . . . . . 175

B4012 . . . . . . . . . . . . 175

B4013 . . . . . . . . . . . . 175

B4014 . . . . . . . . . . . . 175

B4015 . . . . . . . . . . . . 175

B4016 . . . . . . . . . . . . 175

B4017 . . . . . . . . . . . . 175

B4033A . . . . . . . . . . . 175

B4033B . . . . . . . . . . 175

B4033C . . . . . . . . . . 175

B4033D . . . . . . . . . . 175

B4033E . . . . . . . . . . 175

B4033F . . . . . . . . . . . 175

B4033G . . . . . . . . . . 175

B4033H . . . . . . . . . . 175

B4033I . . . . . . . . . . . 175

B4035A . . . . . . . . . . . 174

B4035B . . . . . . . . . . 174

B4035C . . . . . . . . . . 174

B4035D . . . . . . . . . . 174

B4035E . . . . . . . . . . 174

B4035F . . . . . . . . . . . 174

B4037B . . . . . . . . . . 174

B4050 . . . . . . . . . . . . 174

B4051 . . . . . . . . . . . . 174

B4060 . . . . . . . . . . . . 173

B4061 . . . . . . . . . . . . 173

B4062 . . . . . . . . . . . . 173

B4063 . . . . . . . . . . . . 173

B4064 . . . . . . . . . . . . 173

B4065 . . . . . . . . . . . . 173

B4066 . . . . . . . . . . . . 173

B4067 . . . . . . . . . . . . 173

B4068 . . . . . . . . . . . . 173

B4069 . . . . . . . . . . . . 173

B4070 . . . . . . . . . . . . 173

B4071 . . . . . . . . . 173

B4072 . . . . . . . . . . . . 173

B4073 . . . . . . . . . . . . 173

B4074 . . . . . . . . . . . . 173

B4075 . . . . . . . . . . . . 173

B4076 . . . . . . . . . . . . 173

B4077 . . . . . . . . . . . . 173

B4078 . . . . . . . . . . . . 173

B4079 . . . . . . . . . . . . 173

B4080 . . . . . . . . . . . . 173

B4081 . . . . . . . . . . . . 173

B4082 . . . . . . . . . . . . 173

B4083 . . . . . . . . . . . . 173

B4084 . . . . . . . . . . . . 173

B4085 . . . . . . . . . . . . 173

B4086 . . . . . . . . . . . . 173

B4087 . . . . . . . . . . . . 173

B4088 . . . . . . . . . . . . 173

B4089 . . . . . . . . . . . . 173

B4090 . . . . . . . . . . . . 173

B4091 . . . . . . . . . . . . 173

B4092 . . . . . . . . . . . . 173

B4093 . . . . . . . . . . . . 173

B4094 . . . . . . . . . . . . 174

B4095 . . . . . . . . . . . . 174

B6101 . . . . . . . . . . . . 205

B6102 . . . . . . . . . . . . 206

B6103 . . . . . . . . . . . . 206

B6104 . . . . . . . . . . . . 206

B6105 . . . . . . . . . . . . 210

B6107 . . . . . . . . . . . . 209

B6107-62A . . . . . . . 209

B6108 . . . . . . . . . . . . 210

B6110 . . . . . . . . . . . . 210

B6112 . . . . . . . . . . . . 207

B6118 . . . . . . . . . . . . 207

B6126 . . . . . . . . . . . . 207

B6127 . . . . . . . . . . . . 207

B6129 . . . . . . . . . . . . 203

B6132 . . . . . . . . . . . . 205

B6133 . . . . . . . . . . . . 205

B6134L . . . . . . . . . . . 207

B6134R . . . . . . . . . . 207

B6135 . . . . . . . . . . . . 205

B6136 . . . . . . . . . . . . 205

B6138 . . . . . . . . . . . . 204

B6139 . . . . . . . . . . . . 204

B6140 . . . . . . . . . . . . 204

B6141 . . . . . . . . . . . . 204

B6142 . . . . . . . . . . . . 205

B6143 . . . . . . . . . . . . 204

B6144L . . . . . . . . . . . 206

B6144R . . . . . . . . . . 206

B6147 . . . . . . . . . . . . 208

B6148 . . . . . . . . . . . . 208

B6149 . . . . . . . . . . . . 208

B6150 . . . . . . . . . . . . 208

B6151 . . . . . . . . . . . . 208

B6152 . . . . . . . . . . . . 208

B6154 . . . . . . . . . . . . 208

B6155 . . . . . . . . . . . . 208

B6156 . . . . . . . . . . . . 208

B6157 . . . . . . . . . . . . 208

B6158 . . . . . . . . . . . . 208

B6159 . . . . . . . . . . . . 208

B6160 . . . . . . . . . . . . 208

B6161 . . . . . . . . . . . . 208

B6162 . . . . . . . . . . . . 208

B6163 . . . . . . . . . . . . 208

B6164 . . . . . . . . . . . . 208

B6165 . . . . . . . . . . . . 208

B6167 . . . . . . . . . . . . 209

B6168 . . . . . . . . . . . . 209

B6169 . . . . . . . . . . . . 208

B6170 . . . . . . . . . . . . 209

B6171 . . . . . . . . . . . . 209

B6172 . . . . . . . . . . . . 209

B6173 . . . . . . . . . . . . 210

B6202 . . . . . . . . . . . . 203

B6205 . . . . . . . . . . . . 211

B6211 . . . . . . . . . . . . 211

B6230 . . . . . . . . . . . . 205

B6232 . . . . . . . . . . . . 206

B6234L . . . . . . . . . . . 207

B6234R . . . . . . . . . . 207

B6239 . . . . . . . . . . . . 206

B6337 . . . . . . . . . . . . 205

B6340 . . . . . . . . . . . . 203

B6341 . . . . . . . . . . . . 204

B6357 . . . . . . . . . . . . 206

B6374 . . . . . . . . . . . . 206

B6409 Series . . . . . 211

B6504 . . . . . . . . . . . . 204

B6526 . . . . . . . . . . . . 210

B6532 . . . . . . . . . . . . 205

B6533 . . . . . . . . . . . . 207

B6557 . . . . . . . . . . . . 204

B6558 . . . . . . . . . . . . 206

B6571 . . . . . . . . . . . . 210

B6594 . . . . . . . . . . . . 209

B7105 . . . . . . . . . . . . 210

B7116 . . . . . . . . . . . . 209

B7205 . . . . . . . . . . . . 211

BC442 . . . . . . . . . . . . 116

BD40 . . . . . . . . . . . . . 218

BE-5-8 . . . . . . . . . . . .218

BE-9-12 . . . . . . . . . . 218

BFP22 . . . . . . . 184,185

BFP22A . . . . . . 184,185

BFP22H17/8 . . . . . . 184

BFP22I . . . . . . . . . . . 188

BFP22SH . . . . . . . . 184

BFP42 . . . . . . . 186,187

BFP42A . . . . . . 186,187

BFP42H17/8 . . . . . . 186

BFP42SH . . . . . . . . 186

BFP409 Series . . . 194

BFP494 Series . . . 194

BFP2400-2 . . . . . . . 192

BFP2400-3 . . . . . . . 192

BFP2400-4 . . . . . . . 192

BFP2400-6 . . . . . . . 192

BFP3104-8 . . . . . . . 193

Index

247

BFP3104-10 . . . . . . 193

BFP3104-12 . . . . . . 193

BFV22 . . . . . . . 184,185

BFV22A . . . . . . 184,185

BFV22H17/8 . . . . . . 184

BFV22I . . . . . . . . . . . 188

BFV22SH . . . . . . . . . 184

BFV42 . . . . . . . 186,187

BFV42A . . . . . . 186,187

BFV42H17/8 . . . . . . 186

BFV42SH . . . . . . . . . 186

BFV100 . . . . . . . . . . . 191

BFV101 . . . . . . . . . . . 198

BFV103 . . . . . . . . . . . 198

BFV104 . . . . . . . . . . . 198

BFV118 . . . . . . . . . . . 198

BFV129 . . . . . . . . . . . 185

BFV132 . . . . . . . . . . . 196

BFV133 . . . . . . . . . . . 196

BFV135 . . . . . . . . . . . 197

BFV136 . . . . . . . . . . . 197

BFV140 . . . . . . . . . . . 196

BFV141 . . . . . . . . . . . 195

BFV142 . . . . . . . . . . . 197

BFV143 . . . . . . . . . . . 196

BFV200 . . . . . . . . . . . 191

BFV201 . . . . . . . . . . . 195

BFV202 . . . . . . . . . . . 195

BFV-223 . . . . . . . . . . 189

BFV-223WO . . . . . . 189

BFV-224 . . . . . . . . . . 189

BFV-224WO . . . . . . 189

BFV-225 . . . . . . . . . . 189

BFV-225WO . . . . . . 189

BFV-228 . . . . . . . . . . 189

BFV-228WO . . . . . . 189

BFV280SQ . . . . . . . 199

BFV281SQ . . . . . . . 199

BFV300 . . . . . . . . . . . 191

BFV334 . . . . . . . . . . . 197

BFV337 . . . . . . . . . . . 197

BFV340 . . . . . . . . . . . 195

BFV341 . . . . . . . . . . . 196

BFV342 . . . . . . . . . . . 196

BFV371-2G . . . . . . . 198

BFV409 Series . . . . 194

BFV494 Series . . . . 194

BFV501 Series . . . . 188

BFV532 . . . . . . . . . . . 197

BFV557 . . . . . . . . . . . 195

BFV558 . . . . . . . . . . . 198

BFV650 . . . . . . . . . . . 199

BFV655 Series . . . . 190

BFV751-1/2 . . . . . . . 192

BFV751-3/8 . . . . . . . 192

BFV751-5/8 . . . . . . . 192

BFV751J-1/2 . . . . . . 192

BFV751J-3/8 . . . . . . 192

BFV751J-5/8 . . . . . . 192

BFV755-1/2 . . . . . . . 193

BFV755-3/8 . . . . . . . 193

BFV2008 . . . . . . . . . 191

BFV2009 . . . . . . . . . 191

BFV2010 . . . . . . . . . 191

BFV2011 . . . . . . . . . 191

BFV2012 . . . . . . . . . 191

BFV2013 . . . . . . . . . 191

BFV2014 . . . . . . . . . 191

BFV2015 . . . . . . . . . 191

BFV2016 . . . . . . . . . 191

BFV2017 . . . . . . . . . 191

BFV3104 -1 thru 6 193

BFV3104-8 . . . . . . . 193

BFV3104-10 . . . . . . 193

BFV3104-12 . . . . . . 193

BFVATR Series . . . 190

BFVATRHN Series 190

BFVFW Series . . . . 190

BFVHHCS Series . 189

BFVHN Series . . . . 189

BFVSL Series . . . . . 190

BHR1225ZN . . . . . . . 58

BHR1238ZN . . . . . . . 58

BHR1250ZN . . . . . . . 58

BHR1262ZN . . . . . . . 58

BKA25-063 Series . 70

BKA25-063K Series

. 70

BKB25-063 Series . 68

BKB25-06K3 Series

. 69

BKB38-094 Series . 68

BKB38-094K Series

. 69

BKC100 . . . . . . . . . . . 59

BKC200 . . . . . . . . . . . 59

BKCC . . . . . . . . . . . . . 60

BKF100-4 . . . . . . . . . . 61

BKF100-6 . . . . . . . . . . 61

BKH-094 Series . . . 64

BKH-094K Series . . 64

BKL-063 Series . . . . 63

BKL-063K Series . . 63

BKL-094 Series . . . . 63

BKL-094K Series . . 63

BKP10063 . . . . . . . . . 60

BKP10094 . . . . . . . . . 60

BKP20125 . . . . . . . . . 60

BKP20188 . . . . . . . . . 60

BKT-063 Series . . . . 66

BKT-063K Series . . 66

BKW063 . . . . . . . . . . . 59

BKW094 . . . . . . . . . . . 59

BKW125 . . . . . . . . . . . 59

BKW188 . . . . . . . . . . . 59

BKYH18-094 . . . . . . 64

BKYH18-094 Series

. 65

BKYH18-094K Series

BKYH30-094 . . . . . . 64

BKYH30-094 Series

. 65

BKYH30-094K Series

BKYT12-063 . . . . . . . 66

BKYT12-063 Series

. 67

BKYT12-063K Series

BKYT18-063 . . . . . . . 66

BKYT18-063 Series

. 67

BKYT18-063K Series

BKYT30-063 . . . . . . . 66

BKYT30-063 Series

. 67

BKYT30-063K Series

BL1400 Series . . . . 142

BMM-3 . . . . . . . . . . . 203

BMM-3L . . . . . . . . . . 203

BMM-3S . . . . . . . . . 203

BMM-4 . . . . . . . . . . . 203

BMM-4L . . . . . . . . . . 203

BMM-4S . . . . . . . . . 203

BMM-5 . . . . . . . . . . . 203

BMM-5L . . . . . . . . . . 203

BMM-5S . . . . . . . . . 203

BMM-6 . . . . . . . . . . . 203

BMM-6L . . . . . . . . . . 203

BMM-6S . . . . . . . . . 203

BMS-6 . . . . . . . . . . . . . 46

BMS-6L . . . . . . . . . . . 47

BMS-6M . . . . . . . . . . . 47

BMS-6S . . . . . . . . . . . 47

BMS-8 . . . . . . . . . . . . . 46

BMS-8L . . . . . . . . . . . 47

BMS-8M . . . . . . . . . . . 47

BMS-8S . . . . . . . . . . . 47

BMS-10 . . . . . . . . . . . 46

BMS-10L . . . . . . . . . . 47

BMS-10M . . . . . . . . . 47

BMS-10S . . . . . . . . . . 47

BMS-12 . . . . . . . . . . . 46

BMS-12M . . . . . . . . . 47

BMS-12S . . . . . . . . . . 47

BMS-D-12 . . . . . . . . . 46

BMS-D-12L . . . . . . . . 47

BMS-D-12M . . . . . . . 47

BMT-6 . . . . . . . . . . . . . 48

BMT-8 . . . . . . . . . . . . . 48

BMT-10 . . . . . . . . . . . . 48

BMT-12 . . . . . . . . . . . . 48

BMT-D-12 . . . . . . . . . 48

BP081SS . . . . . . . . . 133

BP110SS . . . . . . . . . 133

BP135SS . . . . . . . . . 133

BP175SS . . . . . . . . . 133

BP205SS . . . . . . . . . 133

BP250SS . . . . . . . . . 133

BP300SS . . . . . . . . . 133

BP325SS . . . . . . . . . 133

BP375SS . . . . . . . . . 133

BP425SS . . . . . . . . . 133

BP475SS . . . . . . . . . 133

BPC Series . . . . . . . 127

BTS22TH . . . . . . . 38,39

BVP Series . . . . . . . 135

BVS-12 . . . . . . . . . . . 137

BVS-120 . . . . . . . . . 137

BVT Series . . . . . . . 134

Index

248

CLDP10 . . . . . . . . . . 155

CNPSS Series . . . . . 53

DB__DS Series 156,157

DB5 . . . . . . . . . . . . . . 153

DB10 . . . . . . . . . . . . . 153

DB10-28 . . . . . . . . . 154

DB10-36 . . . . . . . . . 154

DB10-42 . . . . . . . . . 154

DB10-50 . . . . . . . . . 154

DB10-60 . . . . . . . . . 154

DB20 . . . . . . . . . . . . . 153

DB30 . . . . . . . . . . . . . 153

DB40 . . . . . . . . . . . . . 153

DB48 . . . . . . . . . . . . . 153

DB610 . . . . . . . . . . . . 153

DB620 . . . . . . . . . . . . 153

DB630 . . . . . . . . . . . . 153

DB640 . . . . . . . . . . . . 153

DB648 . . . . . . . . . . . . 153

DBE10-8 . . . . . . . . . 155

DBE10-12 . . . . . . . . 155

DBE10-16 . . . . . . . . 155

DBM . . . . . . . . . . . . . 153

DBM-__ Series . . . 154

DBM-__CT Series 154

DBP . . . . . . . . . . . . . . 153

DBR10-12 . . . . . . . . 155

DBR2-31/2 . . . . . . . 158

DBR4-6 . . . . . . . . . . 158

DBR8-10 . . . . . . . . . 158

DBR12-14 . . . . . . . . 158

DBR16-20 . . . . . . . . 158

DCN 3/8 . . . . . . . . . . . . 52

FFW Series . . . . . . . . 56

FW Series . . . . . . . . . 56

HHCS Series . . . . . . 53

HN Series . . . . . . . . . . 55

IPH Series . . . . . . . . 136

IPH18230 . . . . . . . . . 136

ISO . . . . . . . . . . . . . . . 137

LW Series . . . . . . . . . 56

MSQN Series . . . . . . 55

N221 . . . . . . . . . . . . . . 47

N221WO . . . . . . . . . . . 46

N222 . . . . . . . . . . . . . . 47

N222WO . . . . . . . . . . . 46

N223 . . . . . . . . . . . . . . 47

N223WO . . . . . . . . . . . 46

N224 . . . . . . . . . . . . . . 47

N224SS6 . . . . . 179,181

N224WO . . . . . . . . . . . 46

N224WOSS6 . 178,181

N225 . . . . . . . . . . . . . . 47

N225SS6 . . . . . 179,181

N225WO . . . . . . . . . . . 46

N225WOSS6 . 179,181

N226 . . . . . . . . . . . . . . 47

N226WO . . . . . . . . . . . 46

N227 . . . . . . . . . . . . . . 47

N227WO . . . . . . . . . . . 46

N228 . . . . . . . . . . . . . . 47

N228SS6 . . . . . 179,181

N228WO . . . . . . . . . . . 46

N228WOSS6 . 179,181

N255 . . . . . . . . . . . . . . 47

N255WO . . . . . . . . . . . 46

N275 . . . . . . . . . . . . . . 47

N275WO . . . . . . . . . . . 46

N278 . . . . . . . . . . . . . . 47

N278WO . . . . . . . . . . . 46

N521 . . . . . . . . . . . . . . 47

N522 . . . . . . . . . . . . . . 47

N523 . . . . . . . . . . . . . . 47

N524 . . . . . . . . . . . . . . 47

N524SS6 . . . . . 179,181

N525 . . . . . . . . . . . . . . 47

N525SS6 . . . . . 179,181

N525WO . . . . . . . . . . . 46

N525WOSS6 . . . . . 179

N526 . . . . . . . . . . . . . . 47

N527 . . . . . . . . . . . . . . 47

N528 . . . . . . . . . . . . . . 47

N528SS6 . . . . . 179,181

N555 . . . . . . . . . . . . . . 47

N555WO . . . . . . . . . . . 46

N575 . . . . . . . . . . . . . . 47

N575WO . . . . . . . . . . . 46

N621 . . . . . . . . . . . . . 203

N621WO . . . . . . . . . 203

N622 . . . . . . . . . . . . . 203

N622WO . . . . . . . . . 203

N624 . . . . . . . . . . . . . 203

N624WO . . . . . . . . . 203

N627 . . . . . . . . . . . . . 203

N627WO . . . . . . . . . 203

N721 . . . . . . . . . . . . . . 47

N722 . . . . . . . . . . . . . . 47

N723 . . . . . . . . . . . . . . 47

N724 . . . . . . . . . . . . . . 47

N724SS6 . . . . . . . . . 179

N725 . . . . . . . . . . . . . . 47

N725SS6 . . . . . . . . . 179

N726 . . . . . . . . . . . . . . 47

N727 . . . . . . . . . . . . . . 47

N728 . . . . . . . . . . . . . . 47

N728SS6 . . . . . . . . . 179

N755 . . . . . . . . . . . . . . 47

N775 . . . . . . . . . . . . . . 47

N778 . . . . . . . . . . . . . . 47

N2500 Series . . . . . 217

N7221 . . . . . . . . . . . . 203

N7222 . . . . . . . . . . . . 203

N7224 . . . . . . . . . . . . 203

N7227 . . . . . . . . . . . . 203

NW524 . . . . . . . . . . . . 49

NW525 . . . . . . . . . . . . 49

NW528 . . . . . . . . . . . . 49

NWM6 . . . . . . . . . . . . . 49

NWM8 . . . . . . . . . . . . . 49

NWM10 . . . . . . . . . . . . 49

NWM12 . . . . . . . . . . . . 49

SA101 . . . . . . . . . . . . 227

SA102 . . . . . . . . . . . . 227

SA110 . . . . . . . . . . . . 227

SA131 . . . . . . . . . . . . 227

SA154 . . . . . . . . . . . . 227

SA155 . . . . . . . . . . . . 227

SA158 . . . . . . . 223-226

SA276 . . . . . . . 223-226

SA318 . . . . . . . 223-226

SC228 . . . . . . . . . . . . . 57

SC-UB . . . . . . . . . . . . . 57

SFHMS Series . . . . . 53

SHHMS Series . . . . . 53

SLWN1/4 . . . . . . . . . . 56

SLWN1/2 . . . . . . . . . . 56

SLWN3/8 . . . . . . . . . . 56

SLWN5/8 . . . . . . . . . . 56

SLWNM6 . . . . . . . . . . 56

SLWNM8 . . . . . . . . . . 56

SLWNM10 . . . . . . . . . 56

SLWNM12 . . . . . . . . . 56

SN224 Series . . . . . . 49

SN224WO Series . . 48

SN225 Series . . . . . . 49

SN225WO Series . . 48

SN228 Series . . . . . . 49

SN228WO Series . . 48

SN524 Series . . . . . . 49

SN525 Series . . . . . . 49

SN525WO Series . . 48

SN528 Series . . . . . . 49

SN724 Series . . . . . . 49

SN725 Series . . . . . . 49

SN728 Series . . . . . . 49

SQN Series . . . . . . . . 55

SRHMS Series . . . . . 53

STN224 Series . . . . . 48

STN225 Series . . . . . 48

STN228 Series . . . . . 48

STN525 Series . . . . . 48

TN221 . . . . . . . . . . . . . 48

TN222 . . . . . . . . . . . . . 48

TN223 . . . . . . . . . . . . . 48

TN224 . . . . . . . . . . . . . 48

TN225 . . . . . . . . . . . . . 48

TN226 . . . . . . . . . . . . . 48

TN227 . . . . . . . . . . . . . 48

TN228 . . . . . . . . . . . . . 48

TN255 . . . . . . . . . . . . . 48

TN525 . . . . . . . . . . . . . 48

Cooper B-Line reserves the right to make changes to the specifications, materials, equipment, prices, or the

availability of products at any time without prior notice. While every effort has been made to assure the

accuracy of information contained in this catalog at the time of publication, we cannot accept responsibility

for inaccuracies resulting from undetected errors or omissions.

Global Locations

Cooper B-Line’s U.S. Customer Service Service Facility - Canada: Cooper B-Line - Saudi Arabia:

Center is staffed Monday through Friday from Cooper B-Line - Canada PO Box 70160 - Al Khobar - 31952

7 a.m. to 5:00 p.m. Central Standard Time. Div. of Cooper Ind. Canada, Inc. Kingdom of Saudi Arabia

If a situation requires that you have to contact 5925 McLaughlin Road Phone: 00966 3 812 2236

us after hours, please leave a message via Mississauga, ON L5R 1B8 Fax: 00966 3 812 1291

phone or E-mail so we can give it immediate Canada Email: blineme@cooperindustries.com

attention the following business day. Phone: (800) 569-3660

Fax: (888) 753-3355 Literature Fulfillment Questions:

Service Facility - United States: Email: blinecanada@cooperindustries.com Phone: (314) 426-1800

Cooper B-Line - USA Fax: (314) 426-6022

509 West Monroe Street Service Facility - Europe: Email: cooperbline@repcographics.com

Highland, IL 62249 Cooper B-Line, Ltd. - UK

United States Walrow, Highbridge Request Literature Website:

Phone: (800) 851-7415 Somerset, TA9 4AQ http://order.repcographics.com/cooperb/

Fax: (800) 356-1438 United Kingdom

Email: blineus@cooperindustries.com Phone: + 44 (0) 1278 783371

Fax: + 44 (0) 1278 789037

Email: sales@cooperbline.co.uk

Cooper B-Line

509 West Monroe Street

Highland, IL 62249

Phone: 800-851-7415

Fax: 618-654-1917

www.cooperbline.com

Cooper US, Inc.

600 Travis, Ste. 5600

Houston, TX 77002-1001

Phone: 713-209-8400

www.cooperindustries.com

Cooper B Line Strut Systems Catalog 124255
