evr-green® Networked Charging Stations ............ O-2
Level 2 Public Use Charging Stations ................ O-5
evr-green® Non-Network Charging Stations ........ O-7
160 Electric Vehicle Charging Station ............... O-7
300 Electric Vehicle Charging Station ............... O-8
320 Electric Vehicle Charging Station ............... O-9
400 Electric Vehicle Charging Station ............ O-10
Charging Station Pre-Wire System .................. O-11

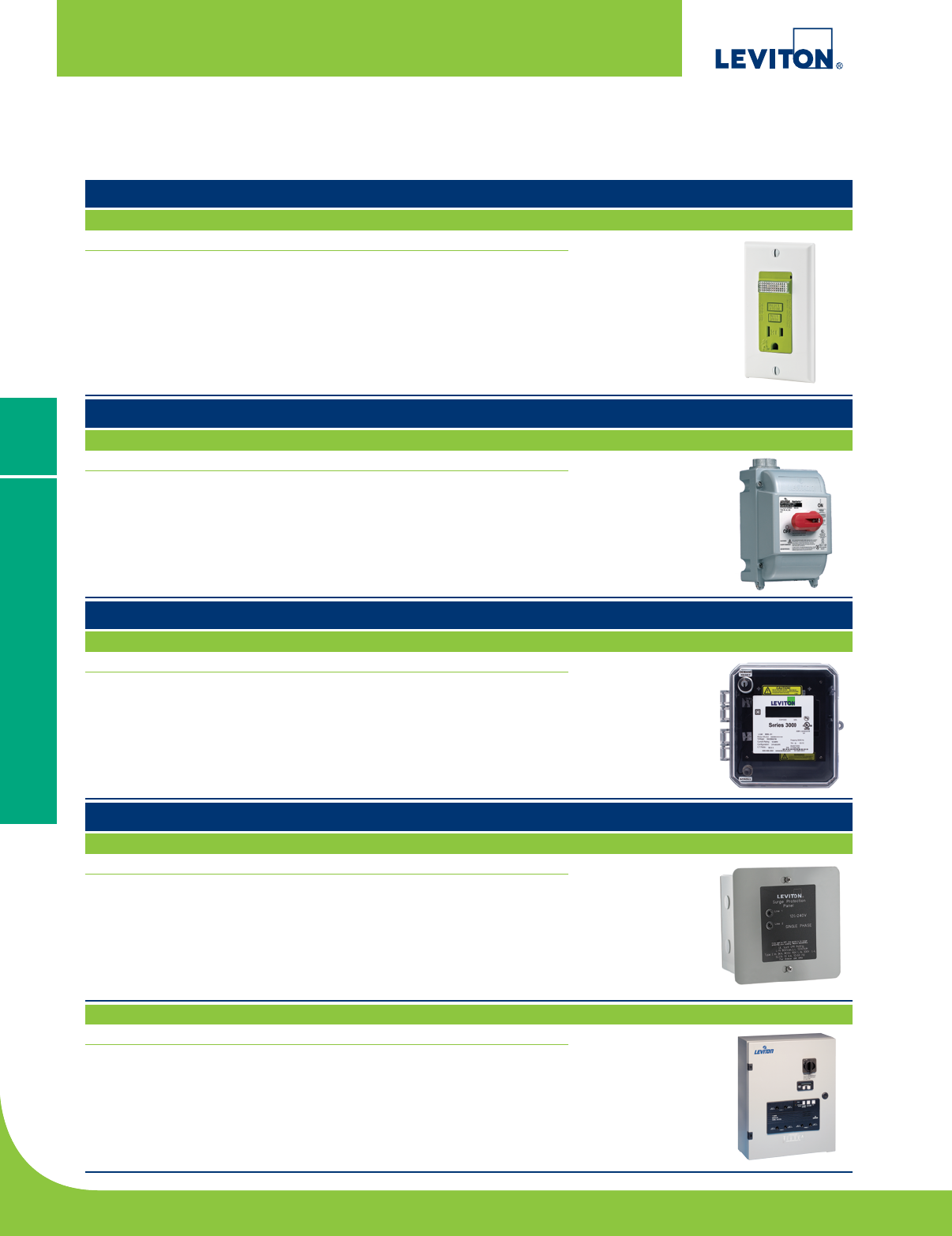

EVSE Accessories ........................................................ O-12
Electric Vehicle
Supply Equipment O
O-2 Electric Vehicle Supply Equipment Online catalog available at leviton.com
Electric Vehicle Supply Equipment
COMMERCIAL
NETWORKED CHARGING STATIONS | Network Services
OElectric Vehicle Supply Equipment
Features and Benefits
Leviton’s Evr-Green® public use charging stations offer municipalities, corporations, fleets and utilities
high-reliability, plug-in electric vehicle charging that drivers prefer. The easy-to-use stations provide multiple
power options and integrate aesthetics and ergonomics with sturdy construction — making them ideal for
commercial and outdoor public applications. Leviton ChargePoint® enabled electric vehicle charging stations include
one year of ChargePoint® network services. ChargePoint® network services provide everything needed to manage
your EV charging stations, including:
EV Driver Support, 24x7x365
Drivers call a toll-free phone number (1-888-758-4389) printed on each station so that without leaving the station
or their vehicle, EV drivers receive assistance. ChargePoint® customer support can trouble-shoot the station, start
and stop a charging session, and reboot the station remotely.
Remote Monitoring, Troubleshooting and Updating
Log-in to ChargePoint® Service Manager and see real-time operation status for every station. Service the
charging stations remotely instead of traveling to each station. Charging sessions can be started or stopped
and a station can be rebooted remotely. Need assistance? Call the ChargePoint® toll-free number where the
ChargePoint® Network Operations Center is also watching to help maximize station up-time. As new features are
added, ChargePoint® stations stay up-to-date with firmware updates delivered over the air.
Detailed Usage Reports
Station Manager includes a flexible, feature-rich reporting tool. Choose your report format: Charts, Tables, or Export
to CSV comma delimited format.
Get detailed reports: Select the level of detail you need ranging from per session to across all stations.
See station usage by time of day including each charging session’s duration, energy consumed, and payment
collected. Measure trends such as average turnover and session duration. View energy usage and Greenhouse
Gas (GhG) emissions prevented across a group of stations or all stations.
Track and report data for taxes and compliance: Track usage data for compliance with evolving policies that
may tax electricity dispensed as fuel. If you are providing EV charging for employees, you’ll have the data for
benefit reporting required by tax codes.
View charging station audit reports: Collect information about session terminations, station reboots, cord
removals, ground faults and station maintenance needs via timely alarms, and export it for further analysis.

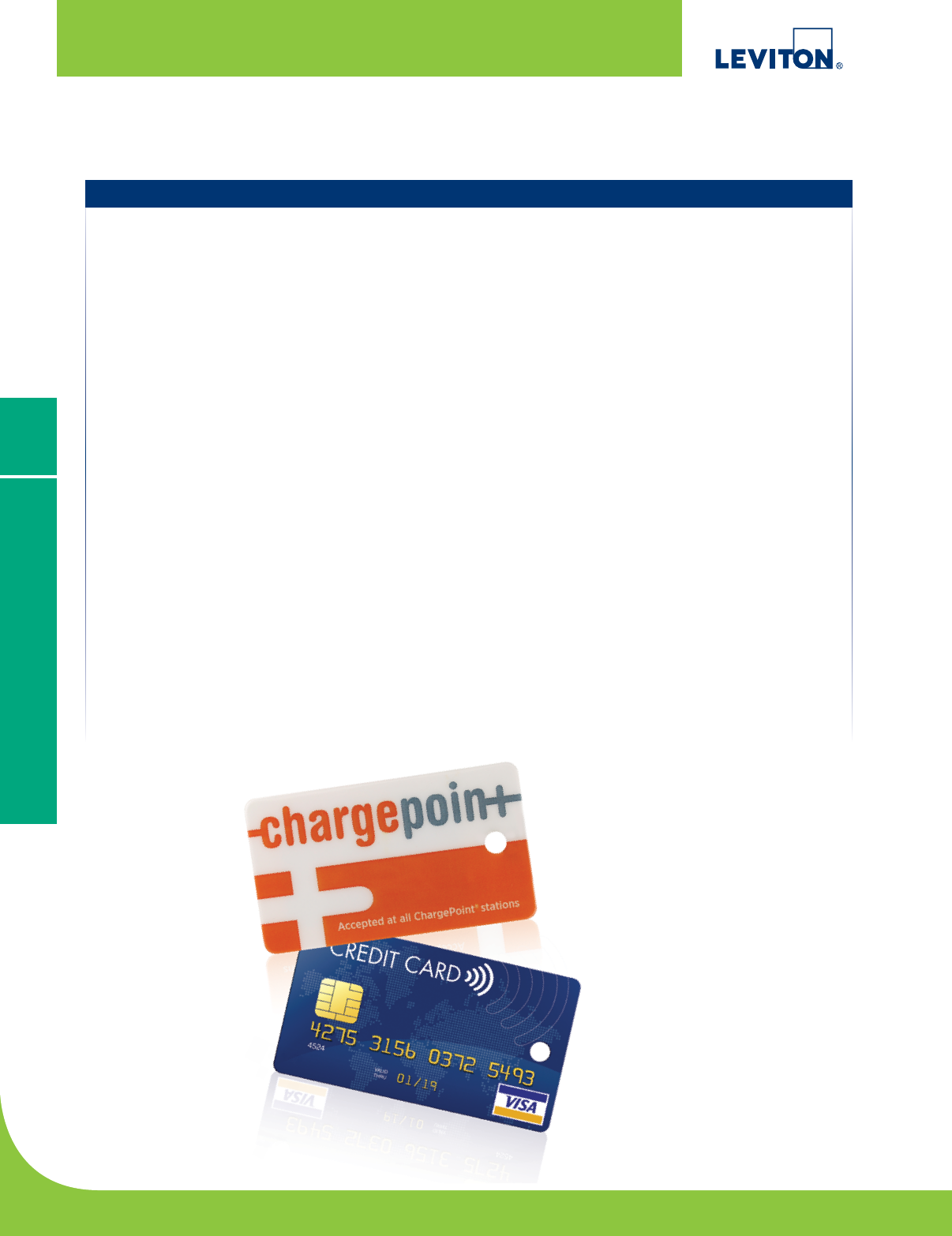

RFID Card Readers
EV Drivers “authorize” themselves on the station using a ChargePoint® RFID card, contactless RFID credit card or
by calling the toll-free number (1-888-758-4389). ChargePoint® stations include two RFID card readers: one for
ChargePoint® RFID card and the other for contactless RFID credit card. RFID readers reduce station maintenance and
increase station up-time as compared to magnetic swipe readers. When not in-use, ChargePoint® station charging
connectors are locked in-place and no power is available. To release the charging connector, the EV driver must be
authorized. The EV driver becomes authorized to use the station by:
i. Tapping a valid ChargePoint® card on the screen
ii. Tapping a valid contactless RFID credit card on the screen
iii. Calling the toll-free number (1-888-758-4389)
The authorization process applies even if you are not collecting payment on the station. And provided there is no
access restriction on the station, a contactless credit card can be used to release the charging station’s connector.
evr-green® Networked Charging Stations for
Public Applications
Network Services
Continued on next page
The Best Way to Connect with EV Drivers
For technical support call 800-824-3005 Electric Vehicle Supply Equipment O-3
Electric Vehicle Supply Equipment
COMMERCIAL
NETWORKED CHARGING STATIONS | Network Services
O
Electric Vehicle Supply Equipment
Features and Benefits
Rights Granting
ChargePoint® Network Services lets you grant rights to other individuals within your company or to personnel
who work for an external service provider. Rights Granting makes it easy for station owners to delegate activities
such as billing, usage monitoring, reporting and provisioning to multiple personnel.
Station Access Restriction using ChargePoint® Card
ChargePoint® Connections and the ChargePoint® card automate the process of giving drivers access to your stations.
Businesses can encourage drivers to charge at their stations with incentives and promotions. Employers can simplify
the process of providing and removing employee access to their charging stations.
Advertising Message Display
Use the station’s display to communicate timely, targeted offers and other text-based messages to drivers.
Station messages are managed through Station Manager. Place a different message on each station or the same
message across groups of stations and change messages as frequently as you like.
Custom Station Groups and Driver Groups
Grouping can make charging stations and drivers easier to view and manage. Organize your charging stations
and the drivers using them into any number of arbitrary groupings. Define a group of stations just for employees
and another group for public use. Set one price for one group of stations and a different price for another group.
For companies with multiple locations, organize charging stations by building, state, and region. The possibilities
are virtually endless.
Continued on next page
Continued from previous page
ChargePoint® App
O-4 Electric Vehicle Supply Equipment Online catalog available at leviton.com
OElectric Vehicle Supply Equipment
Electric Vehicle Supply Equipment
COMMERCIAL
NETWORKED CHARGING STATIONS | Network Services
Features and Benefits
Payment Collection and Processing
Using the charging station, you can automate fee collection with the PCI-compliant ChargePoint® Network.
ChargePoint® stations include two RFID readers, one for contactless RFID credit cards and the other for ChargePoint®
RFID cards. Using Station Manager’s Flex Billing application, station owners set pricing to suit their marketplace and
goals for operating the station. A flexible system, station owners can set fees for different groups of drivers time
of day, session duration, kWh, or any combination of those parameters. Before implementing kWh pricing, check
with your local utility for any restrictions.
Online Reservation System
EV drivers with ChargePoint® cards can reserve charging time on a station. Using either the ChargePoint® website
or ChargePoint® mobile apps, EV drivers can check a station’s availability and make a reservation if the station
accepts reservations. To accept reservations, Payment Collection must be enabled on the station. Stations with
the reservation feature enabled can only authorize charging sessions resulting from a reservation.

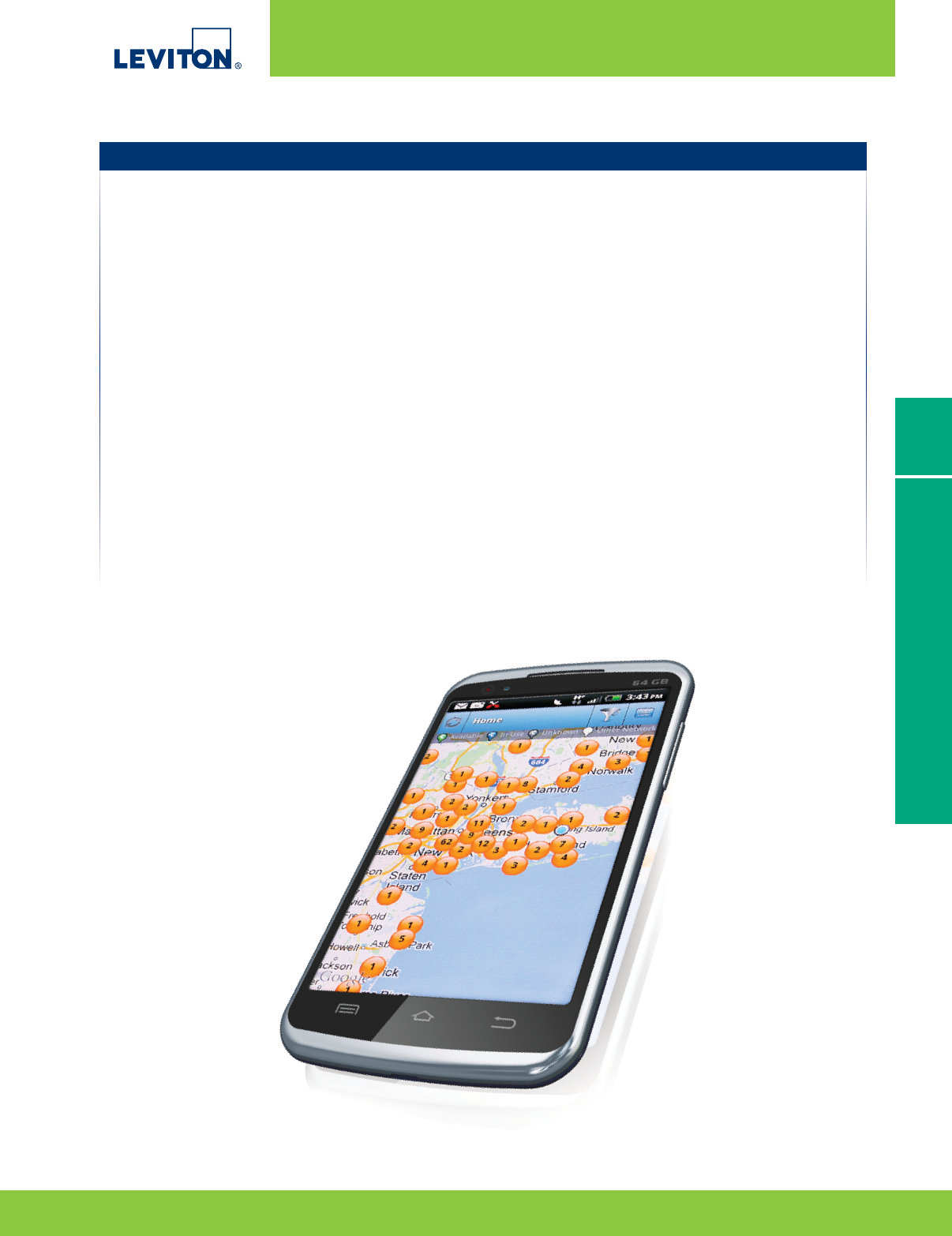

Mobile Applications for iPhone, Blackberry and Android
These free mobile apps help EV drivers quickly locate a station, view available charging ports, map stations along their
trip, receive turn-by-turn directions to a station, determine if payment is required, and make a reservation on a station.
Mobile Alert System
EV drivers using a ChargePoint® card receive texts or emails with alert messages regarding charging
station status such as: Charging Successfully, Finished Charging, Plug-Out at the Station, and Ground Fault
Interruption at Station. Alert messages include the ChargePoint® toll-free number in case assistance is needed.
Training
Video-based training is available to help station owners learn about ChargePoint® Network features and how to
use them on their stations. Training videos are located within the question/help section of ChargePoint’s Station
Manager application.
Continued from previous page
RFID Cards
evr-green® Network Charging Stations for Public Applications
For technical support call 800-824-3005 Electric Vehicle Supply Equipment O-5
O
Electric Vehicle Supply Equipment
Electric Vehicle Supply Equipment
COMMERCIAL
NETWORK CHARGING STATIONS | evr-green® Dual Port Level 2

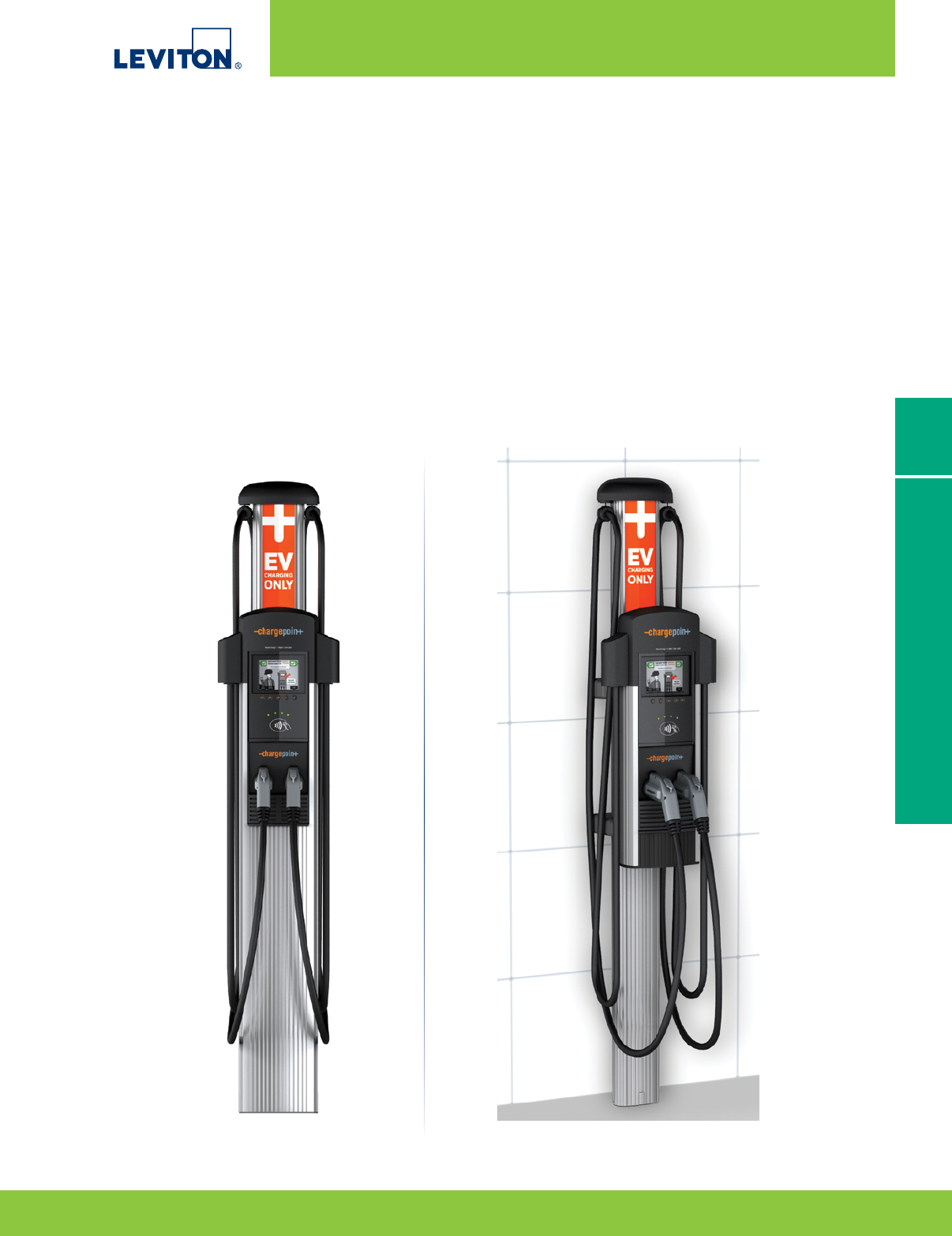

Dual Port Wall MountDual Port Bollard Mount
Level 2 Public Use Charging Stations
evr-green® 4000
Featuring ChargePoint® Network Services
Evr-Green® 4000 Level 2 Public Use Charging Stations provide corporations, municipalities and utilities industry leading
EV charging solutions. Integrating design and functionality with superior reliability and durability, Evr-Green® charging
stations are ideal for workplace, commercial and outdoor public charging. They are available in bollard and wall mount
configurations for easy installation anywhere. For applications where available power may be limited, the innovative power
sharing feature enables two charging ports to share a single circuit, allowing for sites with single-port EV stations to
upgrade to dual-port stations without requiring additional electrical services. For new installations, these stations require
half the electrical capacity and installation complexity of comparable dual-port stations. Models are available with two
standard SAE J1772™ Level 2 charging ports, each supplying up to 7.2kW (208/240V AC @ 30A). The need for drivers to
coil up the cord is eliminated with the self-retracting cord management system, ensuring that the cord is always off the
ground when not in use.
O-6 Electric Vehicle Supply Equipment Online catalog available at leviton.com
OElectric Vehicle Supply Equipment
Electric Vehicle Supply Equipment
COMMERCIAL
NETWORK CHARGING STATIONS | evr-green® Dual Port Level 2
evr-green® 4000 Level 2 Public Use Charging Stations
Evr-Green® Level 2 Public Use Charging Stations are comprised of four key components: mounting mechanism,
cable assembly, head unit and mounting cap. To order a Level 2 Public Use Charging Station, select the appropriate
mounting mechanism, cable management assembly, head unit and mounting cap. A complete system must contain
all four components.
Specifications for Level 2
Category Description
Electrical Input
Input Power — Standard 208/240V AC 60Hz single phase @ 32A x 2
AC Power Input Rating — Power Sharing 208/240 V AC 60Hz single phase @ 32A
Input Power Connections — Standard Two independent 40A branch circuits
Input Power Connections — Power Sharing One 40A branch circuit
Required Service Panel Breaker — Standard 40A dual pole (non-GFCI type) x 2
Required Service Panel Breaker — Power Sharing 40A dual pole (non-GFCI type)
Service Panel GFCI Do not provide external GFCI as it may conflict with internal GFCI (CCID)
Wiring — Standard 5-wire (L1, L1, L2, L2, Earth)
Wiring — Power Sharing 3-wire (L1, L2, Earth)
Standby Power 15W typical (standby), 20W maximum (operation)
Electrical Output
AC — Standard 7.2kW (240V AC @ 30A) x 2
AC — Power Sharing 7.2kW (240V AC @ 30A) x 1 OR 3.8kW (240V AC @ 16A) x 2
Level 2 Charging Stations
Description Cat. No.
Mounting Mechanism Bollard Mounting Body CPMBX
Wall Mounting Body CPMEX
Cable Management Assembly Retractable Cord Management Assembly CPCBX
Head Unit Each installation requires at least one gateway unit.
The gateway head contains the cellular modem for
communication with the ChargePoint® Network.
Gateway Head, Dual Port, US SIM, (2) 18ft charging cables, 1-Year Token for CPHG2
2 Level 2 Ports. Activation requires submission of Master Service Agreement.
Gateway Head, Dual Port, (2) 18ft charging cables, 1-Year Token for CPHG2-C
2 Level 2 Ports. Activation requires submission of Master Service Agreement.
CANADA only.
LAN Head, Dual Port, US and Canada, (2) 18ft charging cables, 1-Year Token for CPHD2
2 Level 2 Ports. Activation requires submission of Master Service Agreement.
CANADA only.
Mounting Cap Bollard Mount Cap CPCAP-B
Wall Mount Cap CPCAP-W
Charging Station Software The ChargePoint® Network Service includes online software
that provides station owners with real-time station monitoring,
station reporting, and billing software. To use ChargePoint®
Network Services, station owners must complete ChargePoint’s
Master Service & Subscription Agreement.
For technical support call 800-824-3005 Electric Vehicle Supply Equipment O-7
O
Electric Vehicle Supply Equipment
Electric Vehicle Supply Equipment
RESIDENTIAL
NON-NETWORK CHARGING STATIONS | evr-green® 160

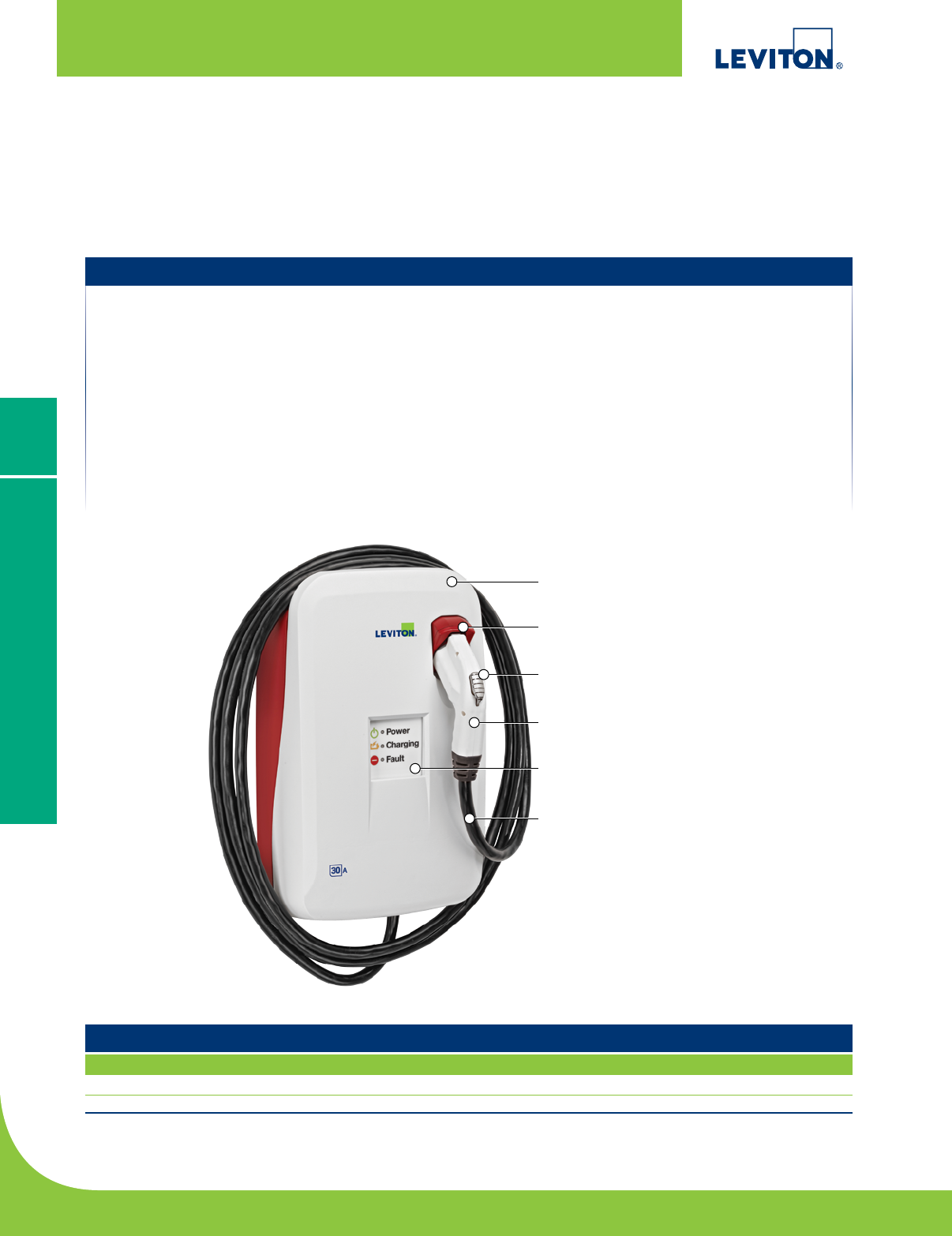

Non-Network Electric Vehicle Charging Station
evr-green® 160
Electric Vehicle Charging Station for Level 2 EV Charging: 16A, 3.8kW Output
Leviton’s Evr-Green® 160 Electric Vehicle Charging Station enables fast-charging of any SAE J1772™ compatible electric
vehicle. Our patent pending mounting system allows for a do-it-yourself “plug-in” installation.*
Evr-Green® 160 EV Level 2 Charging Station
Description Cat. No.
Evr-Green® 160 Charging Station, 3.8kW output, 18' charging cable, cord-connected (plug-in) EVB22-3PT

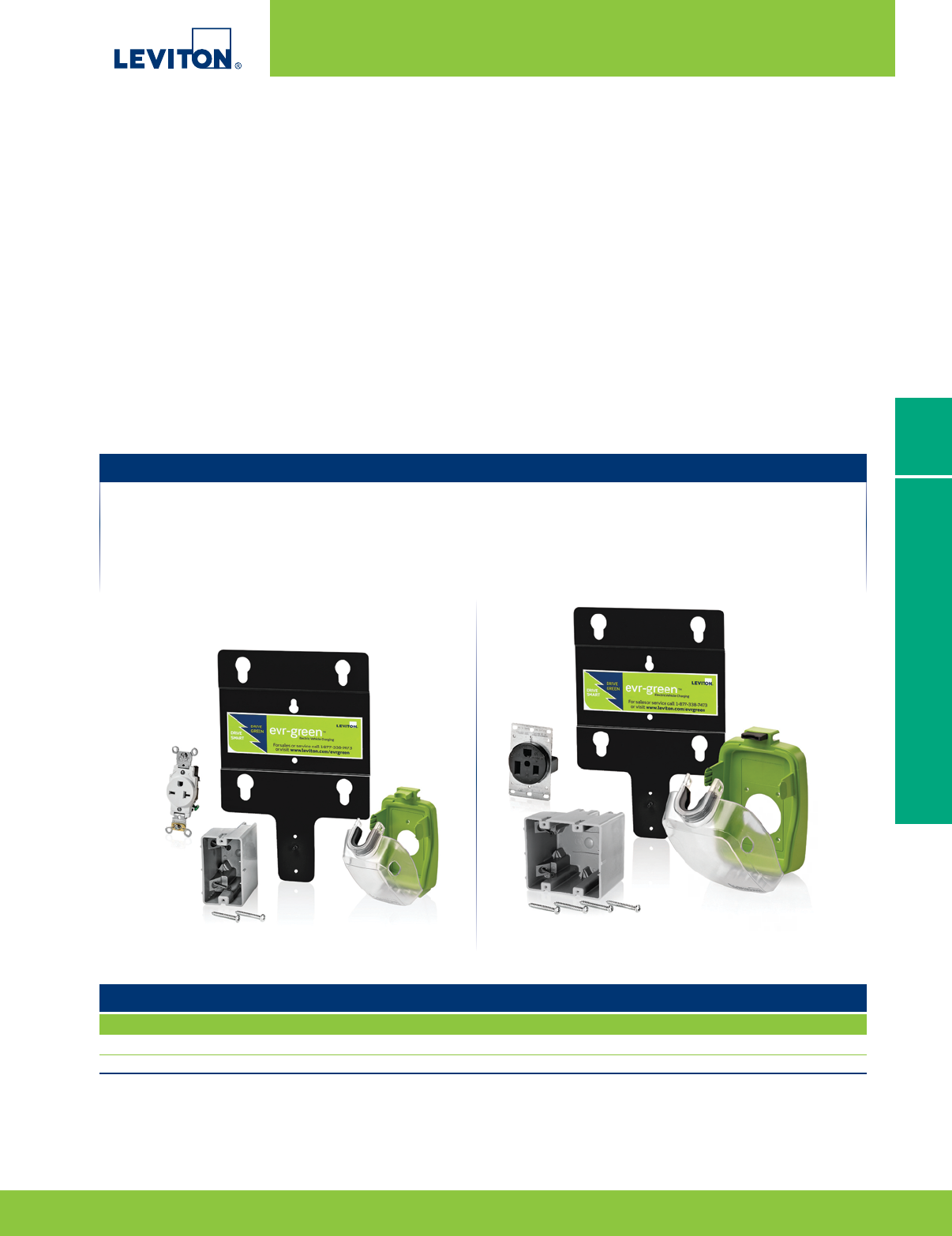

Pre-Wire Installation Kit for EVB22-3PT EVK02-M
Features and Benefits
• Compatible with all Electric Vehicle Supply Equipment (EVSE) standards and recommended practices including
SAE J1772™, NEC 625, UL 2231 and UL 2594
• Tool-less, “non-permanent” installation also makes it easier to remove and replace — or take with you in the event
you move*
• Built-in communication verifies proper connection before charging can commence
• “Auto-Reclosure” feature enables charging to restart following a minor fault, thereby reducing the chance of being
stranded with an undercharged battery
• Cord connected installation is ideal for indoor applications and capable of being converted to a “hard-wired”
installation if required
• Enclosure is rated NEMA Type 4 (hard-wired applications only)
• Cord management bracket provides easy stowage of the charge connector when not in use
• Ground monitor circuit for safety
• Backed by an industry leading limited 3-year warranty
*When used in conjunction with Leviton’s EVK02 Installation Kit

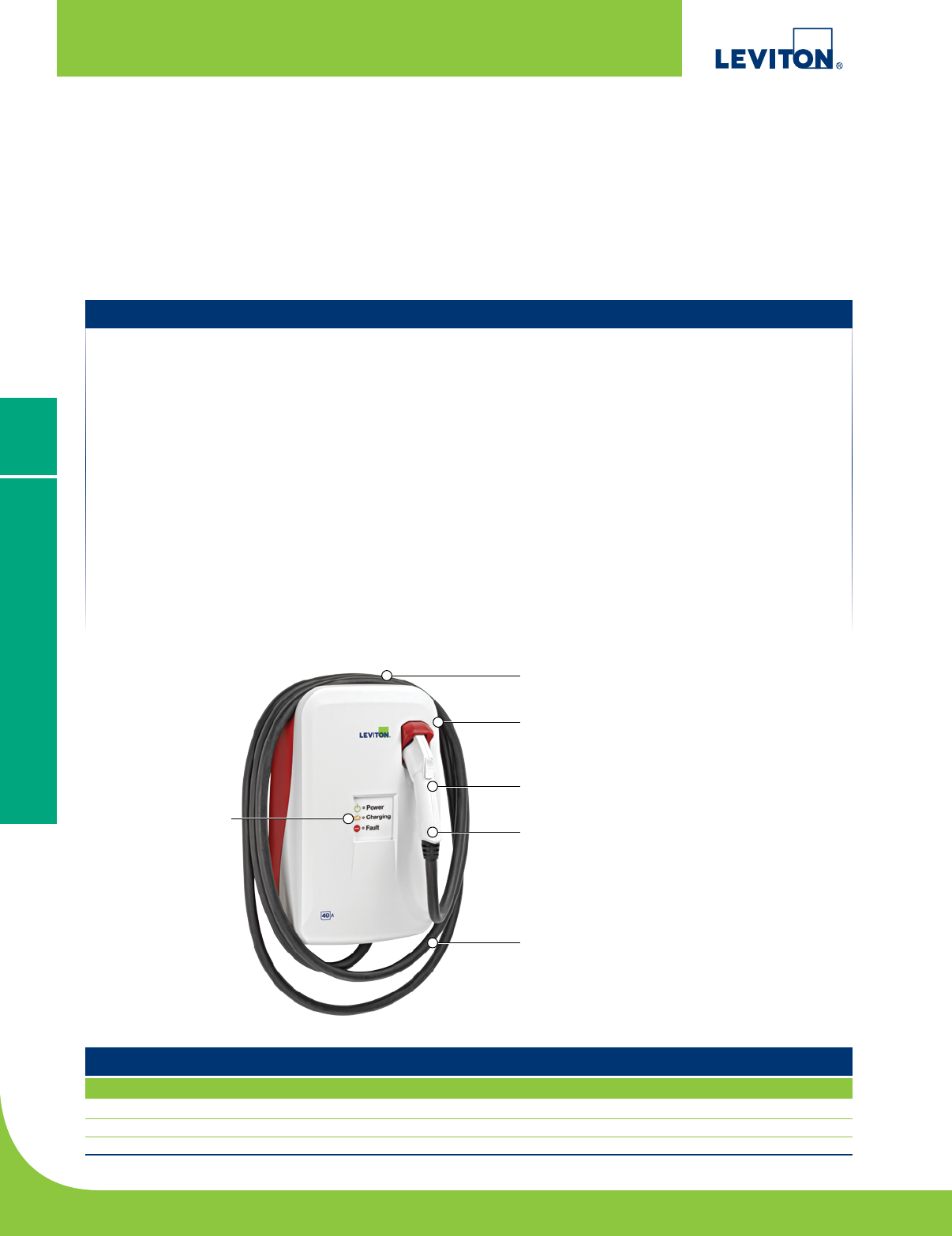

EVB22-3PT
Watertight and dust-tight enclosure
Status indicator lights alert on power,
charging status and faults
18’ charging cable length provides
flexibility in mounting location
Cable management system provides
for convenient storage
SAE J1772™ compliant charge connector
O-8 Electric Vehicle Supply Equipment Online catalog available at leviton.com
OElectric Vehicle Supply Equipment
Electric Vehicle Supply Equipment
RESIDENTIAL
NON-NETWORK CHARGING STATIONS | evr-green® 300
evr-green® 300
Electric Vehicle Charging Station for Level 2 EV Charging: 30A, 240V, 7.2kW Output
Leviton’s Evr-Green® 300 Electric Vehicle Charging Station enables fast-charging of any SAE J1772™ compatible electric
vehicle. Our patent pending mounting system allows for a do-it-yourself “plug-in” installation.*
Features and Benefits
• Compatible with all Electric Vehicle Supply Equipment
(EVSE) standards and recommended practices
including SAE J1772™, NEC 625, UL 2231 and UL 2594
• Tool-less, “non-permanent” installation also makes
it easier to remove and replace or take with you in the
event you move*
• Built-in communication verifies proper connection
before charging can commence
• “Auto-Reclosure” feature enables charging to restart
following a minor fault, thereby reducing the chance
of having an undercharged battery
• Cord connected installation is ideal for indoor
applications and capable of being converted to a
“hard-wired” installation if required
• Enclosure is rated NEMA Type 4 (hard-wired
applications only)
• Wrap-around cord management for easy storage
between uses
• Ground monitor interrupter circuit for safety
• Industry leading 3-year limited warranty
*When used in conjunction with Leviton’s EVK05 Installation Kit
Watertight and dust-tight enclosure
suitable for indoor/outdoor installations
Charge connector dock securely stows
charge connector when not in use
Charge connector lockout hole
prevents unauthorized use
SAE J1772™ compliant charge connector
Status indicator lights alert power,
charging status and faults
25' charging cable length provides
flexibility in mounting location

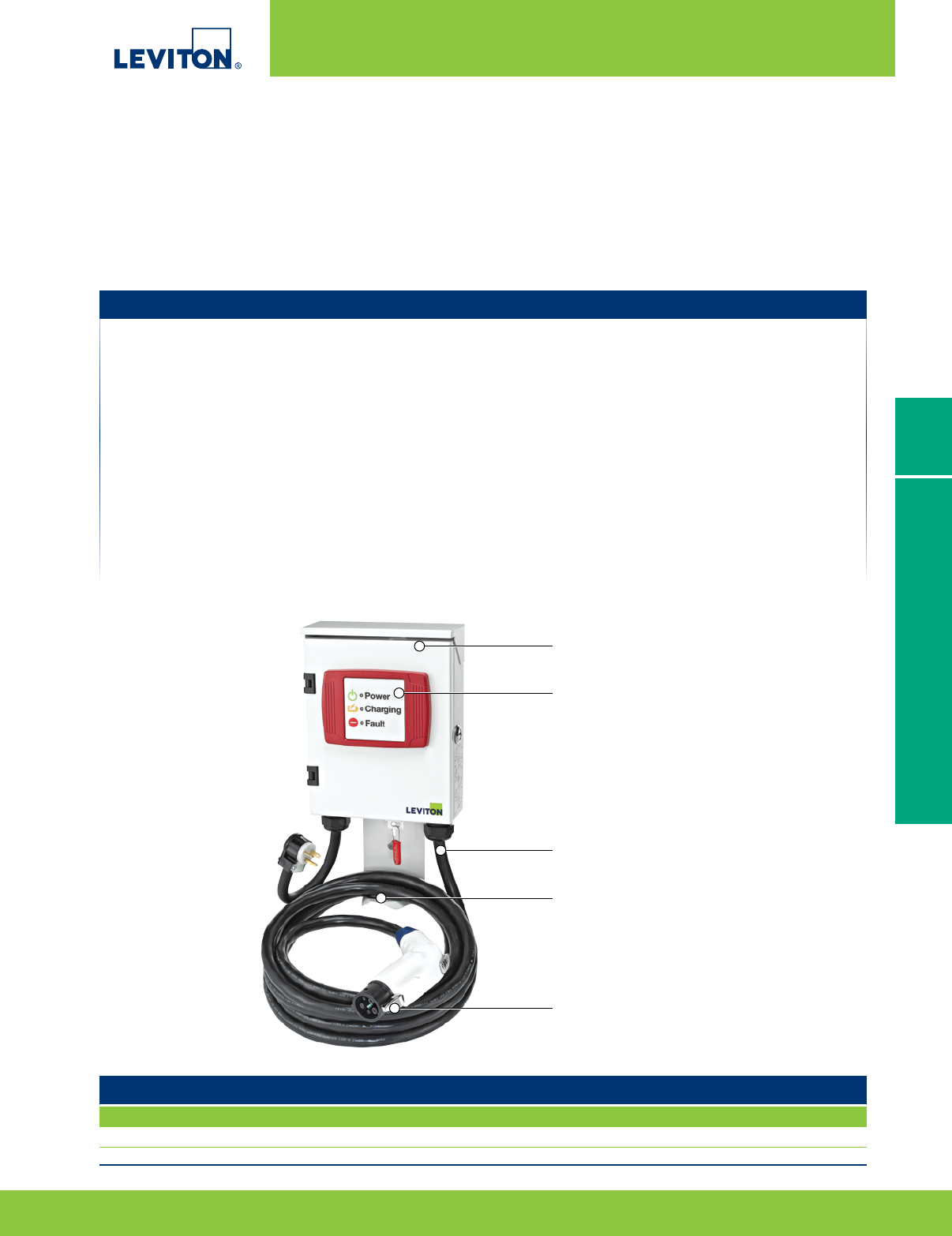

EVB30-P5T
Evr-Green® 300 EV Level 2 Charging Station
Description Cat. No.
Evr-Green® 300 Electric Vehicle Charging Station, 30 Amp, 7.2kW output, cord-connected (plug-in) EVB30-P5T
Installation kit for plug-in applications of EVB30-P5T EVK05-M
For technical support call 800-824-3005 Electric Vehicle Supply Equipment O-9
O
Electric Vehicle Supply Equipment
Electric Vehicle Supply Equipment
RESIDENTIAL
NON-NETWORK CHARGING STATIONS | evr-green® 320
evr-green® 320
Electric Vehicle Charging Station for Level 2 EV Charging: 32A, 7.7kW Output
Leviton’s Evr-Green® 320 Charging Station enables fast-charging of any SAE J1772™ compatible electric vehicle.
Features and Benefits
• Compatible with all charging station standards and recommended practices, including SAE J1772™, NEC 625,
UL 2231 and UL 2594
• Built-in communication verifies proper connection before charging can commence
• “Auto-Reclosure” feature enables charging to restart following a minor fault, thereby reducing the chance of
having an undercharged battery
• Cord connected installation is ideal for indoor applications and capable of being converted to a “hard-wired”
installation if required
• Enclosure is rated NEMA Type 4 (hard-wired applications only)
• 18' and 25' charging cable options available
• Ground monitor interrupter circuit for safety
• Backed by an industry leading limited 3-year warranty
Watertight and dust-tight enclosure
Status indicator lights alert on power,
charging status and faults
18' & 25' charging cable options provide
flexibility in mounting location
Cable management system provides for
convenient storage
Charge connector lockout hole prevents
unauthorized use
SAE J1772™ compliant charge connector

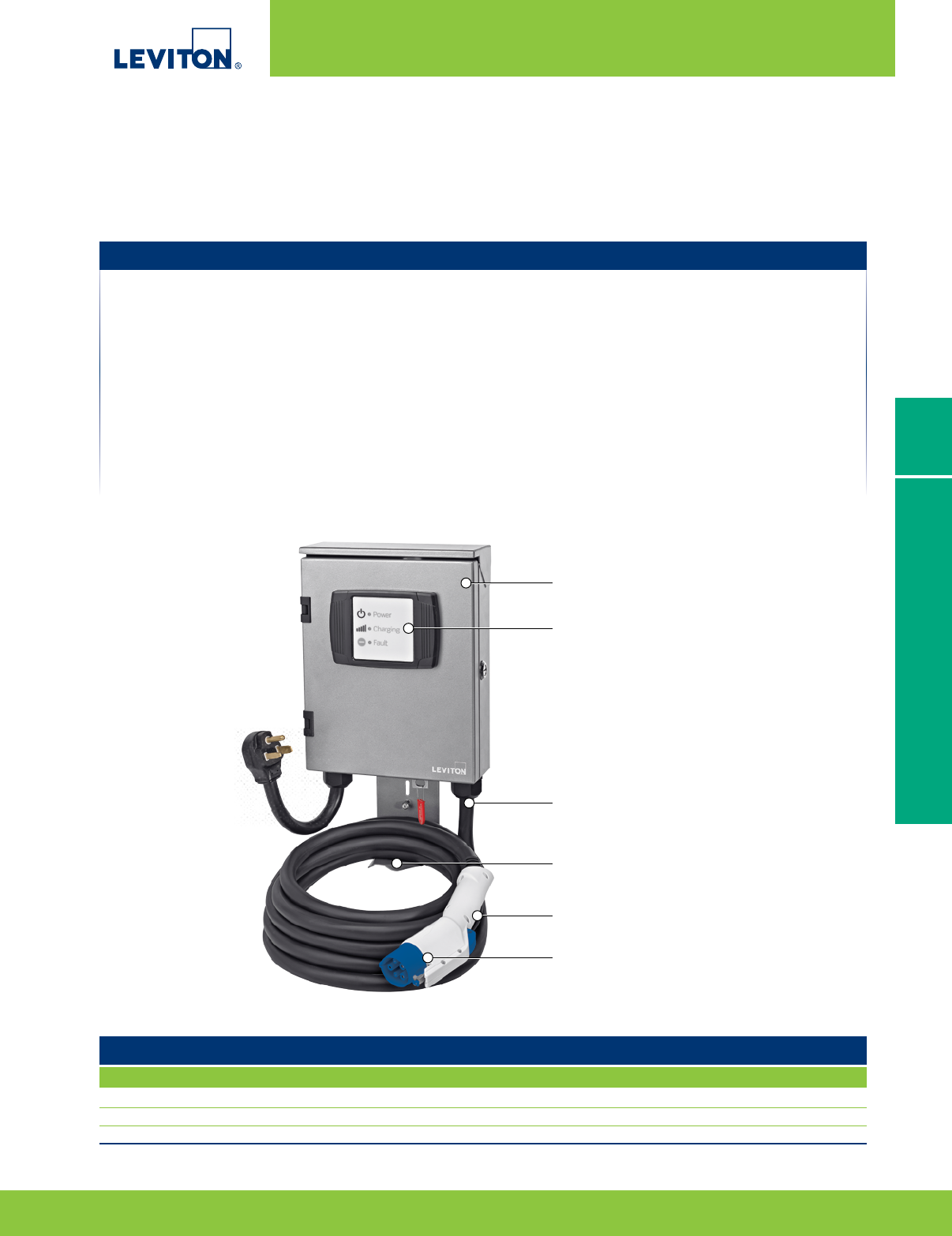

EVB32-M8L
Evr-Green® 320 EV Level 2 Charging Station
Description Cat. No.
Evr-Green® 320 Charging Station, 7.7kW output, 18' charging cable, cord-connected (plug-in) EVB32-M8L
Evr-Green® 320 Charging Station, 7.7kW output, 25' charging cable, cord-connected (plug-in) EVB32-M5L
Pre-Wire Installation Kit for EVB32 EVK05-M
O-10 Electric Vehicle Supply Equipment Online catalog available at leviton.com
OElectric Vehicle Supply Equipment
Electric Vehicle Supply Equipment
RESIDENTIAL
NON-NETWORK CHARGING STATIONS | evr-green® 400
evr-green® 400

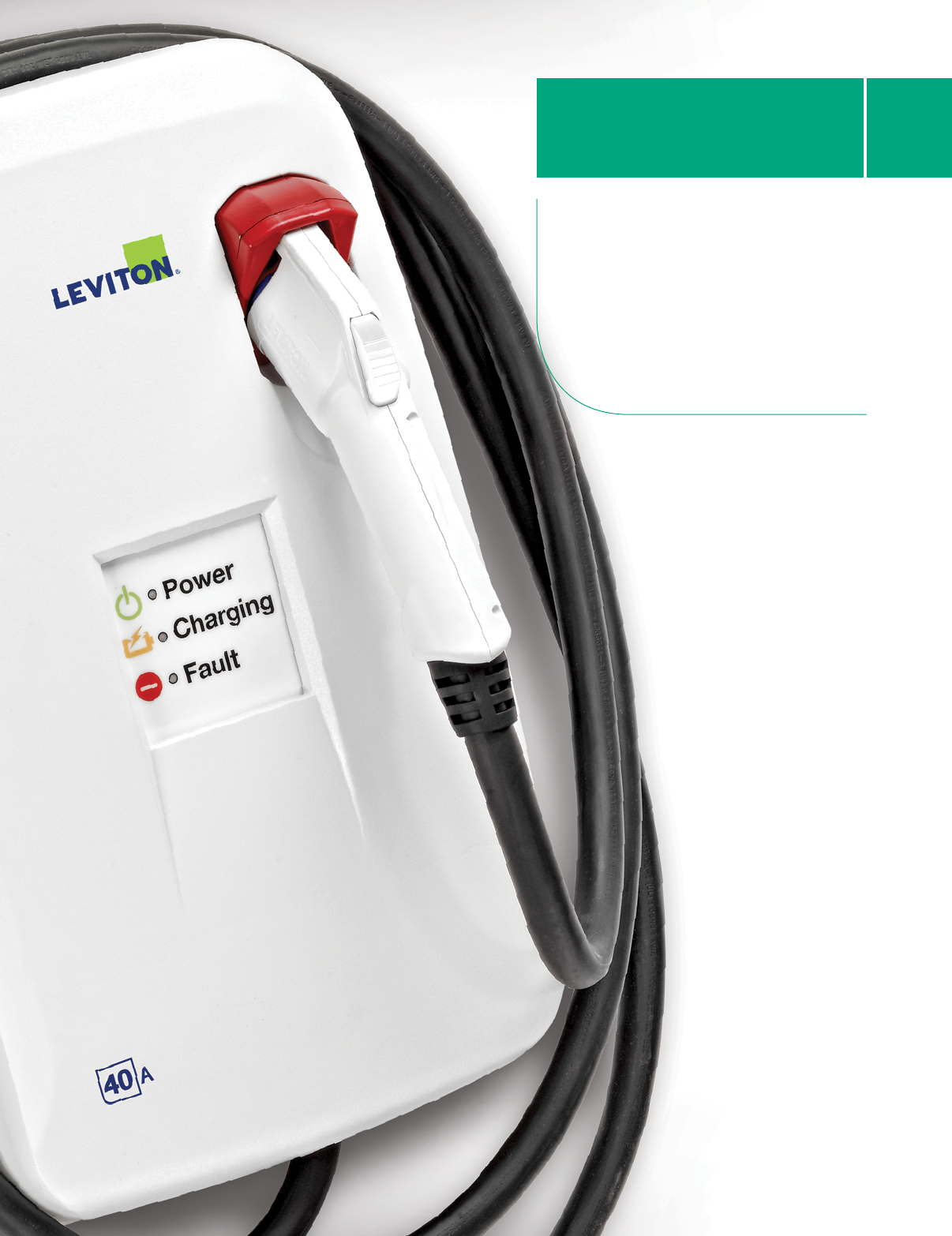

Electric Vehicle Charging Station for Level 2 EV Charging: 40A, 9.6kW Output
Leviton introduces its next generation electric vehicle charging station — designed with a durable thermoplastic cover.
Leviton’s Evr-Green® 400 Home Charging Station enables fast-charging of any SAE J1772™ compatible electric vehicle.
The 40A charging station optimizes the charge time for vehicles with onboard chargers larger than 6.6kW. The 40A
charging station includes a 25-foot charging cable, which offers flexibility in the mounting location.
Features and Benefits
• Compatible with all Electric Vehicle Supply Equipment (EVSE) standards and recommended practices including
SAE J1772™, NEC 625, UL 2231, and UL 2594
• Tool-less, “non-permanent” installation also makes it easier to remove and replace — or take with you in the event
you move*
• Built-in communication verifies proper connection with the vehicle before charging can commence
• Auto reclosure feature enables charging to restart following a minor power interruption, thereby reducing the
chance of being stranded with an uncharged battery
• Ideal for home charging or light commercial applications
• Cord connected installation is ideal for indoor applications and capable of being converted to a “hard-wired”
installation if required
• Enclosure is rated NEMA Type 4 Watertight (hard-wired applications only)
• Wrap around cord management for easy storage between uses
• Ground monitor interrupter circuit for additional safety
• Charge connector lockout hole prevents unauthorized use
• Backed by an industry leading limited 3-year warranty
*When used in conjunction with Leviton’s EVK05 Installation Kit
Evr-Green® 400 EV Level 2 Charging Station
Description Cat. No.
Evr-Green® 400 Charging Station, 9.6kW output, flush mount, cord-connected (plug-in) EVB40-P5T
Evr-Green® 400 Charging Station, 9.6kW output, surface mount, cord-connected (plug-in) EVB40-PST
Pre-Wire Installation Kit for EVB40 EVK05-M
EVB40-P5T
Cable management system provides
for convenient storage
Watertight and dust-tight enclosure
for electronic housing
Charging connector lockout hole
prevents unauthorized use
SAE J1772™ compliant
charging connector
25’ charging cable length provides
flexibility in mounting location
Status Indicator
lights alert on power,
charging status
and faults
For technical support call 800-824-3005 Electric Vehicle Supply Equipment O-11
O
Electric Vehicle Supply Equipment
Electric Vehicle Supply Equipment
RESIDENTIAL
NON-NETWORK CHARGING STATIONS | evr-green® Pre-Wire System
evr-green® Home Charging Station Pre-Wire System
Prepares Your Home for Easy, Do-It-Yourself Installation of Leviton’s Evr-Green®
Home Charging Stations
Leviton introduces our ground-breaking Evr-Green® home charging station pre-wire system. An industry first, this
revolutionary concept enables the home to be prepared before the new electric vehicle and home charging station
is purchased, ensuring fast charging from the moment the new car is home. Once the appropriate pre-wire Kit is
installed, all that is needed to begin charging is to hang the home charging station on the installed mounting bracket,
plug it in, and you’re ready to charge.
Pre-Wire System Includes:
1. Bracket
2. Mounting Hardware
3. Safety Cover
4. Receptacle
5. Mounting Template
6. Installation Instructions
7. Quick Install Guide
8. Thermoplastic Electrical Box
Features and Benefits
• Powder-coated steel mounting bracket provides for simple, do-it-yourself installation
• Patent-pending system enables you to upgrade your charging station without the need to rewire
• Reduces the need for special electrical permits
• Can be used in new construction or retrofit applications
• UL Listed components ensure safety
Home Charging Station Pre-Wire System for 16A Home Charging Station Pre-Wire System for 30A, 32A and 40A
Home Charging Station Pre-Wire System
Description For Use With Cat. No.
Leviton Installation Kit for Evr-Green® 160 16A Chargers EVK02-M
Leviton Installation Kit for Evr-Green® 300, Evr-Green® 320 and Evr-Green® 400 30A, 32A, 40A Chargers EVK05-M
O-12 Electric Vehicle Supply Equipment Online catalog available at leviton.com
OElectric Vehicle Supply Equipment
Electric Vehicle Supply Equipment
RESIDENTIAL
EVSE ACCESSORIES
Electric Vehicle Supply Equipment Accessories
Description
Evr-Green® GFCI Receptacle with Sensor Controlled Guide Light
The Leviton T7591 Tamper-Resistant GFCI Receptacle features a single receptacle
with guide light that is photo-sensor controlled, making it easier to locate the
receptacle when it is dark. It is built on Leviton’s patented SmartlockPro® GFCI
Receptacle platform, and can accommodate the repetitive insertions experienced
with plug-in vehicle charging. Meets NEC Code Requirements for use with
electric vehicle charging systems.
Evr-Green® GFCI Receptacle with Sensor Controlled Guide Light
Reference
See section D, GFCIs
and AFCIs, for details
Description
Powerswitch® Safety Disconnect Switches
Watertight and dust-tight Powerswitch® safety disconnect switches are the ideal
choice for secure protection while used in conjunction with our Evr-Green® line of
electric vehicle supply equipment. Heavy duty enclosed safety disconnect
switches cut power to the circuit for equipment servicing.
Powerswitch® Safety Disconnect Switches
Reference
See page A-30 in the
Switches & Motor
Controls section for
details
Description
Submetering
Leviton provides an integrated approach for tracking, monitoring, and verifying
electrical consumption and implementing cost and carbon footprint reduction.
With the addition of precise energy measurement and verification systems,
Leviton customers have an integrated solution for achieving their
sustainability goals.
Submetering
Reference
See page N-60 in the
Energy Management
section for details
Description
Surge Panels for non-Networked Electric Vehicle Charging Stations
Leviton’s 51120 Series panel mount surge protective devices are ideal for use
with non-networked Electric Vehicle Charging Stations. Designed for use in
homes and apartment buildings at the service entrance, electrical utility meter,
or other branch panel locations these panel mount surge protective devices come
with a standard J-Box enclosure with pre-punched standard knock-outs so they
can be easily surface mounted in typical frame construction.
Surge Protection
Reference
See page F-17 in the
Surge Protective
Devices section for
more details
Description
Surge Panels for Networked Public Use Charging Stations
Leviton’s 52120-7M3 panel mounted surge protective devices are ideal for use
with Networked Public Use Charging Stations. Designed for use in industrial,
commercial and residential environments, the 7-mode parallel-operated design
ensures continuous power even if surge protection is disabled.
Reference
See page F-10 in the
Surge Protective
Devices section for
more details

Navigation menu
