IDEAL Full-Line Catalog

You know the craft inside and out.

You’re never finished with the job

until it meets your standards.

You take pride in the way you go

about day-to-day business, and

that means only using equipment

that can hold up its end of the

bargain. We understand that kind

of pride. Every day IDEAL considers

the needs of electricians and the

result is a line of products worthy

of a professional.

The tools and instruments you use

say a lot about the quality of work

you do. You know what it takes to

succeed in today’s modern electrical

world and IDEAL fills those needs

with high-quality, innovative

solutions. We realize there’s a bond

between a professional and his

equipment that can’t be broken by

the latest gimmick. That’s why this

catalog is filled with thoughtfully

designed products you can depend

on for years.

Every IDEAL product is designed

to deliver superior performance.

That means they’re built to be

easy-to-use, they’re built to last

and, most importantly, they’re built

with your safety in mind. One day,

one job at a time, IDEAL products

are there to help you perform at

the highest level.

Wire Termination
Twist-On Wire Connectors . . . . . . . . . . . . . . . . . . .A-2
Wire Connector Accessories  . . . . . . . . . . . . . . . . .A-10
Push-In Wire Connectors . . . . . . . . . . . . . . . . . . . .A-12
Grounding Connectors  . . . . . . . . . . . . . . . . . . . . . .A-14
Crimp Terminals & Splices . . . . . . . . . . . . . . . . . . .A-16
Terminal Strips . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-23
Crimp Connectors & Insulators . . . . . . . . . . . . . . .A-27
Set-Screw Wire Connectors  . . . . . . . . . . . . . . . . .A-28
Mechanical Lugs . . . . . . . . . . . . . . . . . . . . . . . . . . .A-29

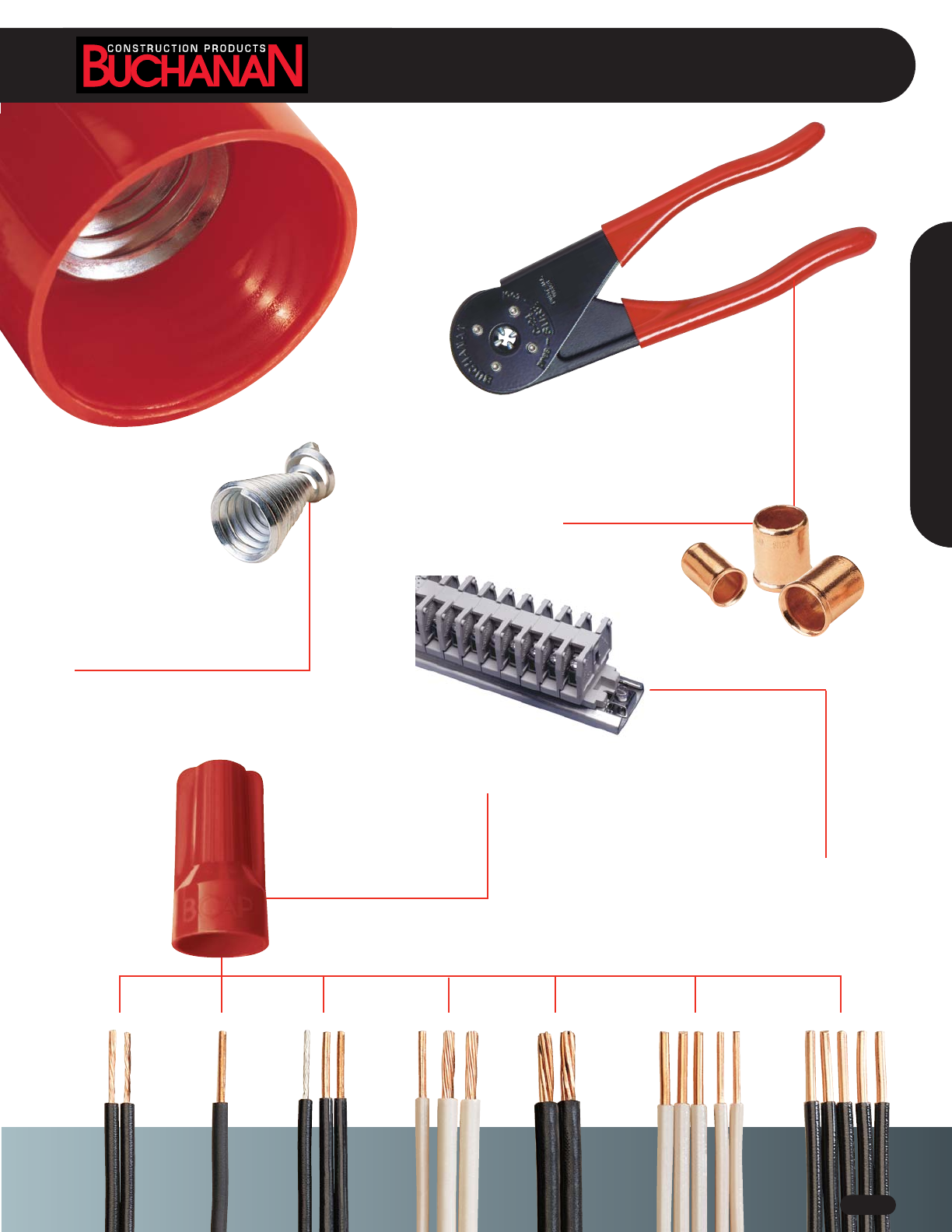

BUCHANAN Wire Connectors  . . . . . . . . . . . . . . .A-36
BUCHANAN Streetlight Kits  . . . . . . . . . . . . . . . . .A-40

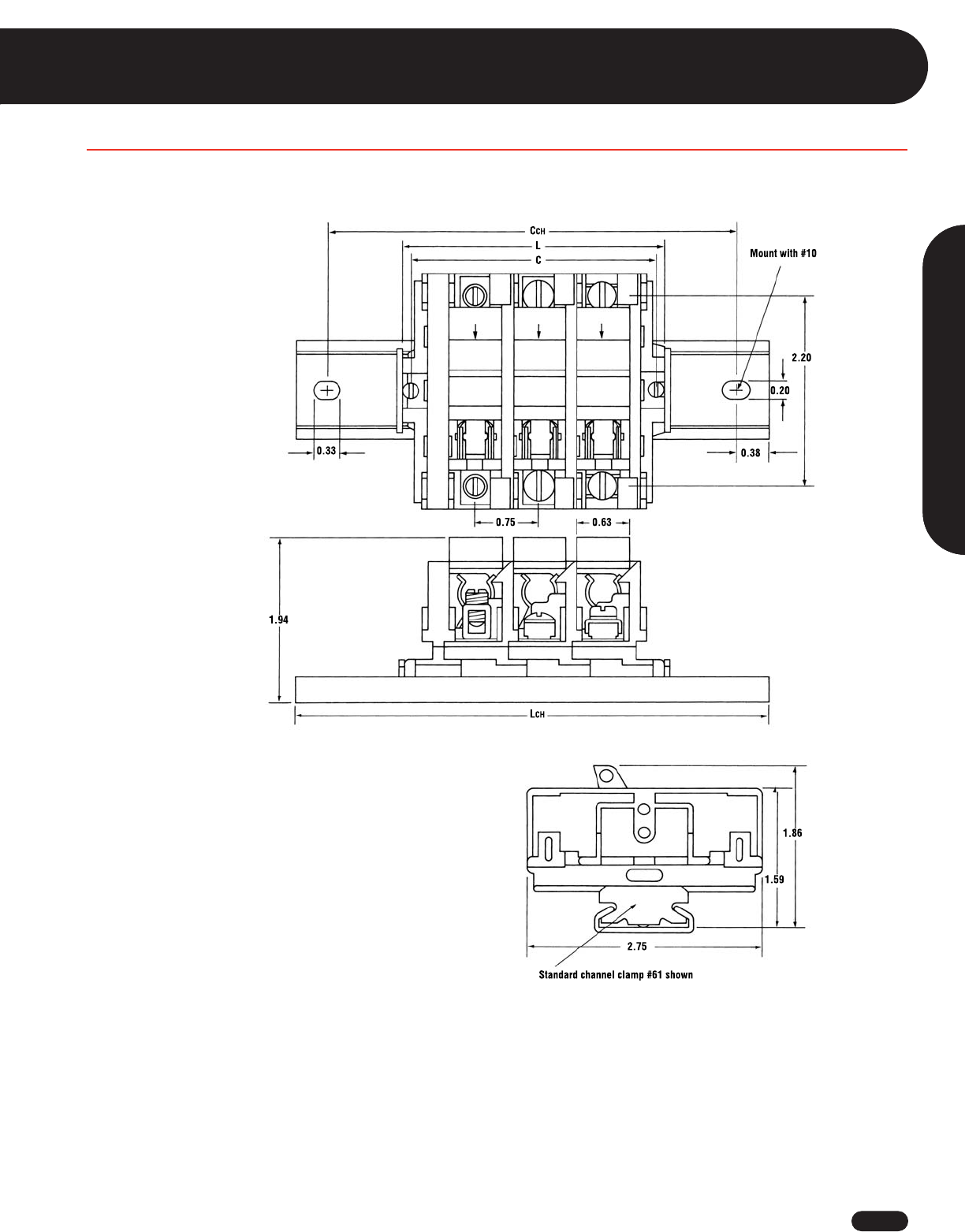

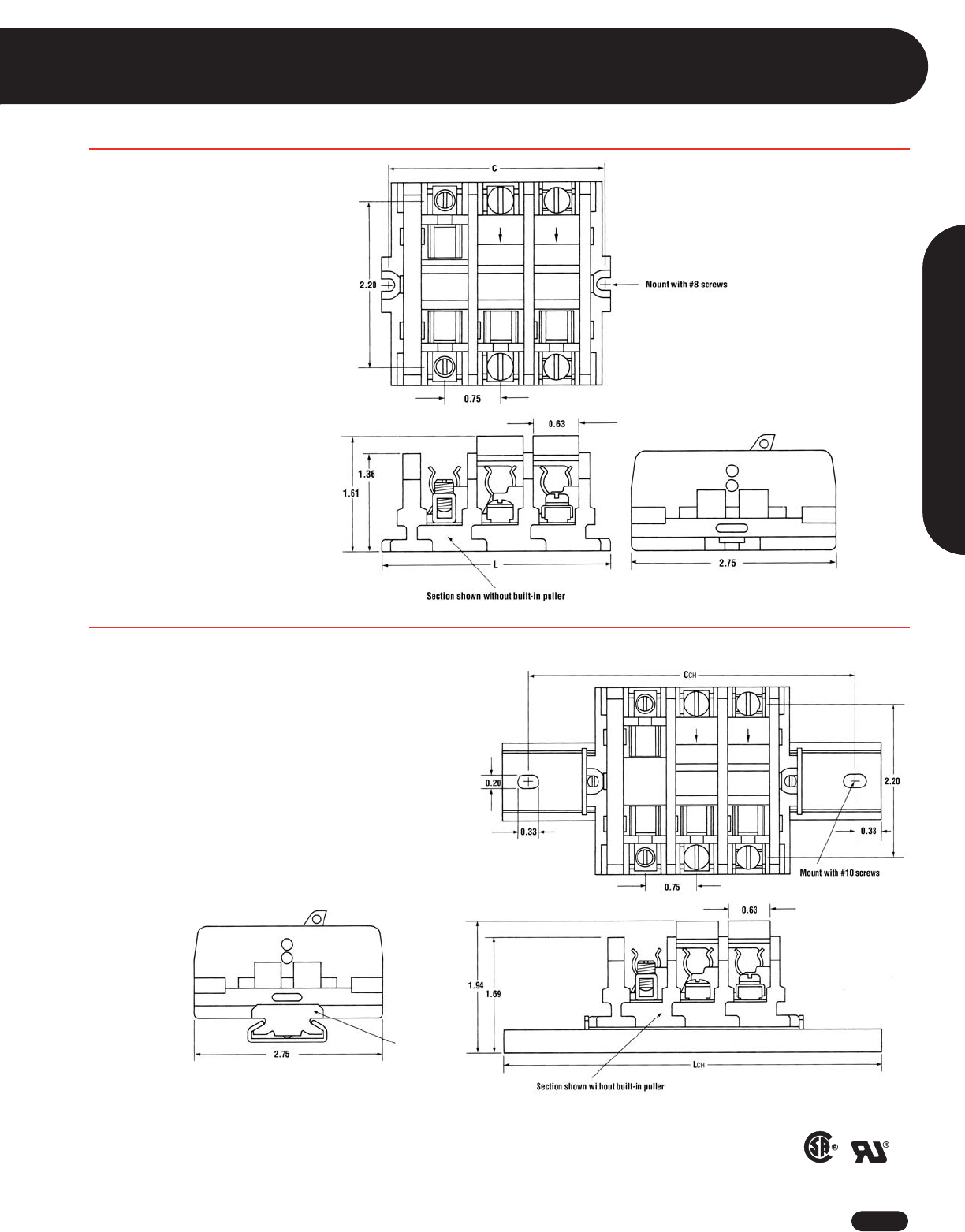

BUCHANAN Terminal Blocks  . . . . . . . . . . . . . . . .A-44

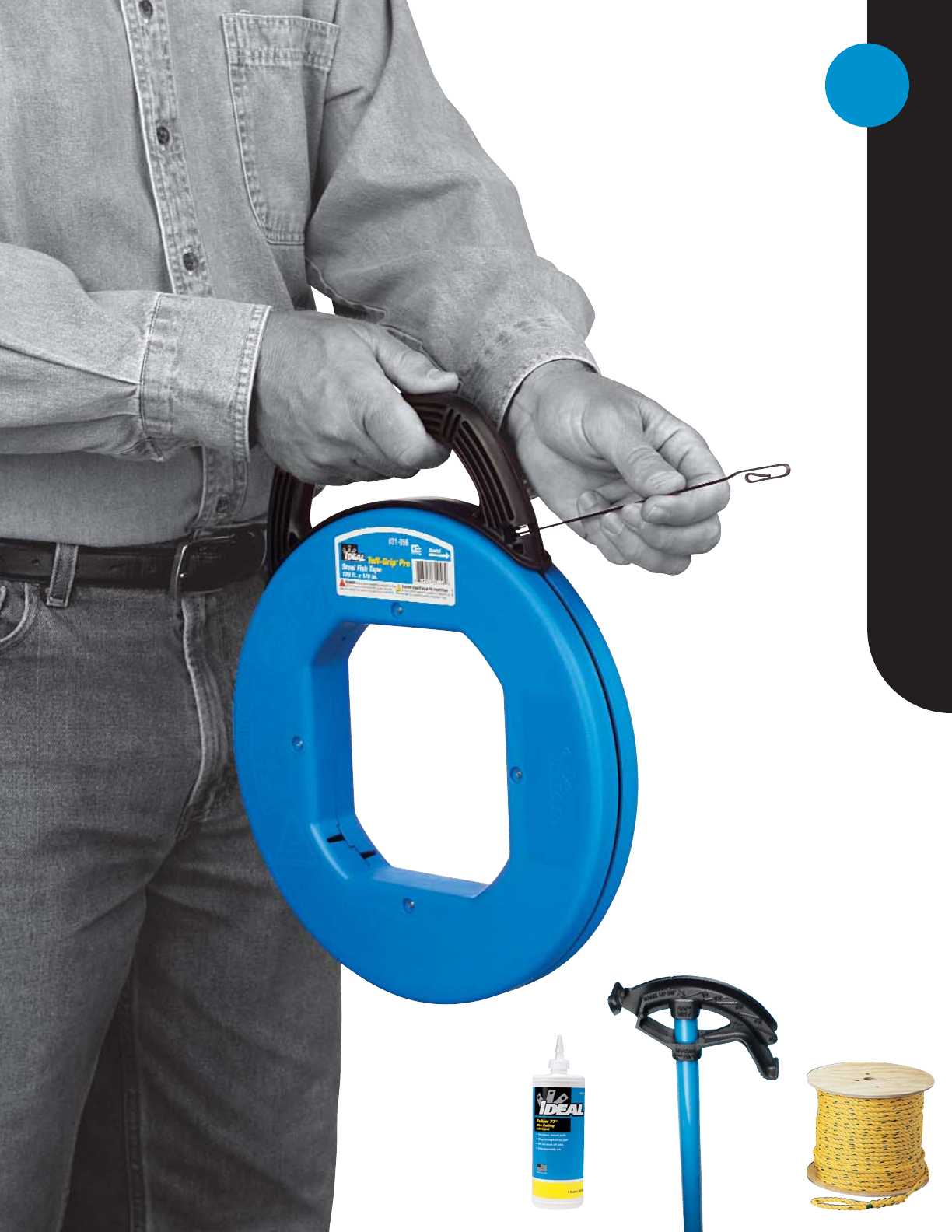

Wire Installation
Fish Tapes  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-2
Fish Tape Accessories  . . . . . . . . . . . . . . . . . . . . . .B-6
Fishing Poles  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-7
Wire Pulling Lubricants  . . . . . . . . . . . . . . . . . . . . .B-8
Wire Pulling Lubricant Accessories  . . . . . . . . . . .B-12
Conduit Benders  . . . . . . . . . . . . . . . . . . . . . . . . . . .B-13
Pulling Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-15
Tools and Totes
Wire Strippers  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2
Pliers  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-16
Screwdrivers  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-24
Cable Cutters  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-30
Crimp Tools  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-31
Miscellaneous Hand Tools . . . . . . . . . . . . . . . . . . .C-32
Tool Kits  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-34
Tool Carriers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-38
Insulated Hand Tools  . . . . . . . . . . . . . . . . . . . . . . .C-42
Cutting & Holemaking Tools   . . . . . . . . . . . . . . . . .C-46
Wire Management
Cable Ties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-2
Cable Staples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-10
Heat Shrink  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-12
Heat Guns  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-15
Wire Markers  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-16
Lockout/Tagout Products  . . . . . . . . . . . . . . . . . . . .D-19
Safety Signs  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-42
Test and Measurement
Digital Multimeters  . . . . . . . . . . . . . . . . . . . . . . . . . E-2
Clamp Meters  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-10
Ground Resistance Meters  . . . . . . . . . . . . . . . . . . E-18
Insulation & Earth Testers  . . . . . . . . . . . . . . . . . . . E-19
Power Quality Meters . . . . . . . . . . . . . . . . . . . . . . . E-20
Circuit Analyzers  . . . . . . . . . . . . . . . . . . . . . . . . . . . E-23
Circuit Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . E-24
Receptacle Testers  . . . . . . . . . . . . . . . . . . . . . . . . . E-25
Voltage/Continuity Testers  . . . . . . . . . . . . . . . . . . . E-26
Electrical Testers  . . . . . . . . . . . . . . . . . . . . . . . . . . . E-28
Specialty Testers  . . . . . . . . . . . . . . . . . . . . . . . . . . . E-30
Accessories  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-31
DataComm Equipment
Testers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-2
Hand Tools  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-10
Crimp Tools & Die Sets  . . . . . . . . . . . . . . . . . . . . . F-13
Compression Tools & Connectors  . . . . . . . . . . . . . F-15
Tool & Connector Kits . . . . . . . . . . . . . . . . . . . . . . . F-17
Fiber Optic Tools  . . . . . . . . . . . . . . . . . . . . . . . . . . . F-26
Supplies
Switches  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .G-2
Indicator Lights  . . . . . . . . . . . . . . . . . . . . . . . . . . . .G-11
Clips  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .G-12
Accessories  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .G-13
Commutator Maintenance . . . . . . . . . . . . . . . . . . .G-17
A
B
C
D
E
F
G
Table of Contents

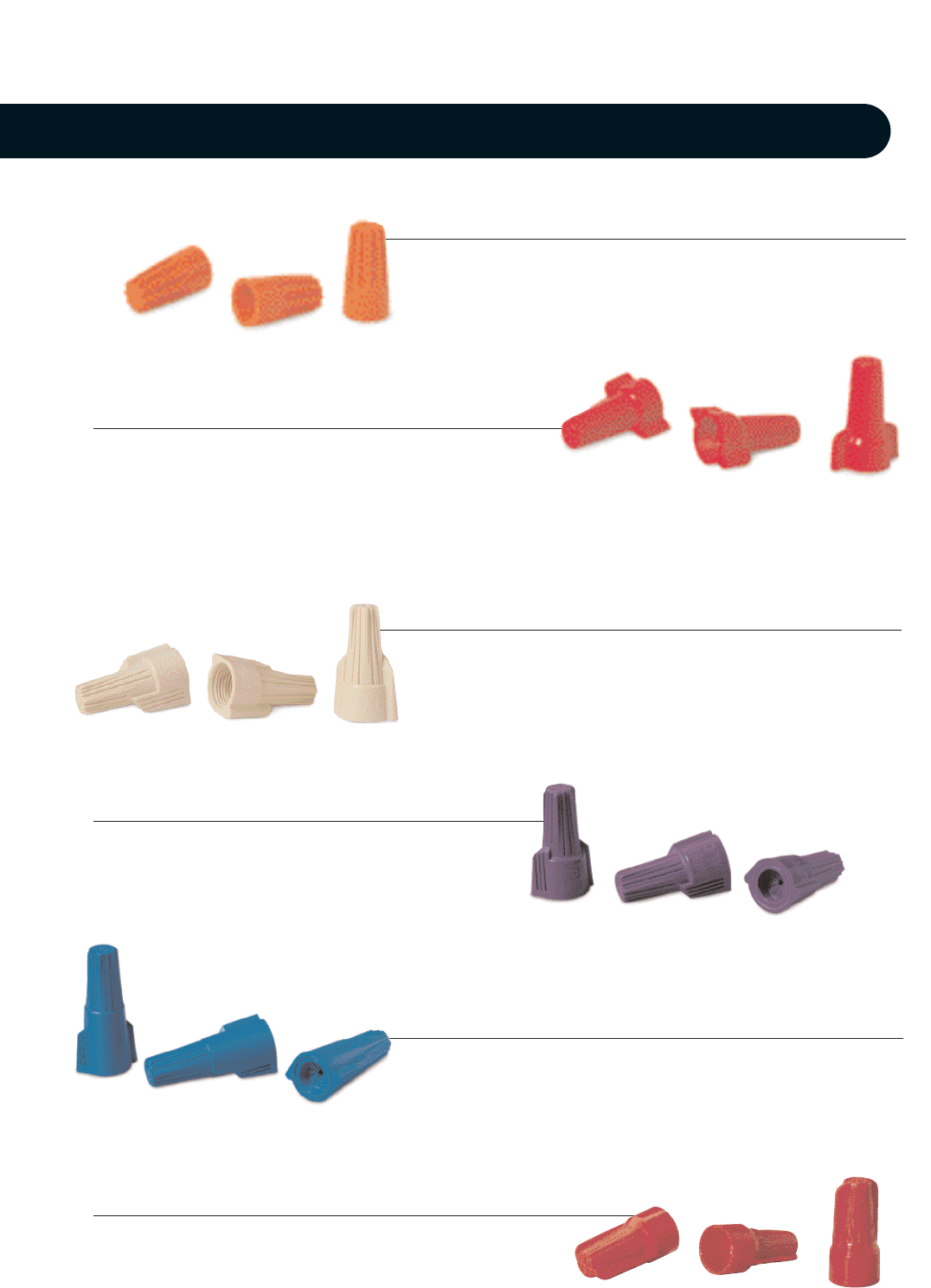

Connectors designed for every application

Twister ®Wire Connectors

The industry’s premier wire connector. Just two models accommodate the

majority of common wiring configurations from 22 through 6 AWG. The

ribbed cap provides a secure grip and swept wings offer extra leverage.

A patented square-wire spring provides safe, secure connections.

Wire-Nut®Wire Connectors

The original twist-on wire connector features a positive-grip design

for easy installation. Five color-coded models cover hundreds of wire

combinations from 22 through 8 AWG. The fixed square-wire spring

provides a secure connection that won’t relax over time.

Wing-Nut®Wire Connectors

The next step in IDEAL wire connector innovation. Three models

accommodate a wide range of circuit and fixture wiring combinations

from 18 through 6 AWG. Built-in, contoured wings provide extra leverage

on maximum wire combinations. And the live-action spring expands to

accept a broader range of wire shapes and sizes.

Twister ®DB Plus™ Wire Connectors

The smallest wet location/direct burial wire connector. Offers the

widest range of wire combinations from 20 through 12 AWG. Features

non-hardening sealant to ensure safe and moisture-free connections.

UL Listed and CSA Certified for underground and wet locations.

Twister ®Al/Cu Wire Connectors

The only aluminum-to-copper twist-on wire connector. Specially

formulated compound reduces corrosion build-up on aluminum

conductors for better conductivity and cooler connections. UL

Listed and CSA Certified for aluminum-to-copper connections.

B-CAP ®

Contoured Classic Fins™ provide a secure grip for extra torque. Three

models cover a full range of wire sizes from 22 through 6 AWG. The

square-wire spring locks onto conductor for fast, secure connections.

Compact size allows easy handling and installation.

Wire Termination

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-2

Wire-Nut®Wire Connectors

Wire Combination Wire Combination

Model Color Range Range (mm) Quantity Cat. No.

300V 300V Box of 100 30-071

71B®Gray 22 to 16 AWG ,34mm2to 1,5mm2Carton of 1,000 30-171

Min. 2 #22 – Max. 2 #16 Min. 2-,34mm2Max. 3-1,5mm2Keg of 25,000 (loose pack) 30-271

Barrel of 150,000 30-871

300V 300V Box of 100 30-072

72B®Blue 22 to 14 AWG ,34mm2to 2,5mm2Carton of 1,000 30-172

Min. 2 #22 – Max. 3 #16 Min. 2-,34mm2Max. 3-1,5mm2Keg of 10,000 (loose pack) 30-272

Barrel of 85,000 30-872

Box of 100 30-073

600V* 600V* Jar of 300 30-073J

73B®Orange 22 to 14 AWG ,34mm2to 2,5mm2Carton of 1,000 30-173

Min. 1 #18 & 1 #20 Min. 1-,75mm2w/1-,50mm2Keg of 10,000 (20 bags, 500 ea.) 30-273

Max. 4 #16 & 1 #20 Max. 4-1,5mm2w/1-,50mm2Keg of 10,000 (loose pack) 30-673

Barrel of 50,000 30-873

Box of 100 30-074

600V* 600V* Jar of 175 30-074J

74B®Yellow 18 to 12 AWG ,75mm2to 4,0mm2Carton of 1,000 30-174

Min. 2 #18 Min. 2-,75mm2Keg of 5,000 (10 bags, 500 ea.) 30-274

Max. 4 #14 & 1 #18 Max. 4-2,5mm2w/1-,75mm2Keg of 10,000 (loose pack) 30-674

Barrel of 35,000 30-874

600V* 600V* Box of 100 30-076

18 to 10 AWG ,75mm2to 6,0mm2Carton of 1,000 30-176

76B®Red Min. 2 #14 Min. 2-2,5mm2Keg of 5,000 (20 bags, 250 ea.) 30-276

Max. 2 #10 & 2 #12 Max. 2-6,0mm2w/2-4,0mm2Barrel of 15,000 30-876

*1,000V maximum in fixtures and signs

Tough, durable

thermoplastic shell

Positive-grip

design

Long, fully seated

square-wire spring

Threaded

entry

Deep skirt,

wide throat

CUS

EN 60-998-2-4

Model A B C D E

71B®11/64 1/4 21/64 11/64 37/64

4.5 6.5 8 4.5 15

72B®11/64 5/16 25/64 3/16 45/64

4.5 8 10 5 18

73B®11/64 11/32 7/16 11/32 55/64

4.5 9 11 9 22

74B®17/64 7/16 35/64 5/16 61/64

711148 24

76B®9/32 1/2 19/32 3/8 1-1/16

713151027

Dimensions Inches

( )

■

Five color-coded models cover a full

range of wire sizes from 22 - 8 AWG

■

Fixed, square-wire spring creates its

own threads — maintains a secure

positive grip that will not relax over

time

■

No pre-twisting required — positive grip

design provides fast, easy installation

■

Deep, wide skirt helps protect against flash-over and turned-back strands

for maximum dielectric protection

■

Reusable for easy circuit changes and additions

■

Tough, UL94V-2 flame-retardant shell rated at 105oC (221oF)

■

UL Listed to 486C and CSA certified to C22.2 #188; comply with Federal

Specification W-S-610E

■

Classified in accordance with IEC Publications 998-2 and 998-2-4

Wire Connectors

1-800-435-0705 for Customer Service www.idealindustries.com A-3

Wire Termination

Wire Combination Wire Combination

Model Color Range Range (mm) Quantity Cat. No.

300V 300V

22 to 16 AWG ,34mm2to 1,5mm2Carton of 1,000 30-151

71B®Black Min. 2 #22 Str Min. 2-,34mm2

Keg of 25,000 (loose pack) 30-251

Max. 2 #16 Max. 2-1,5mm2

300V 300V

22 to 14 AWG ,34mm2to 2,5mm2Carton of 1,000 30-152

72B®Black Min. 2 #22 Min. 2-,34mm2

Keg of 10,000 (loose pack) 30-252

Max. 3 #16 Max. 3-1,5mm2

600V* 600V*

22 to 14 AWG ,34mm2to 2,5mm2Carton of 1,000 30-153

73B®Black Min. 1 #18 w/1 #20 Min. 1-,75mm2w/1-,50mm2

Keg of 10,000 (loose pack) 30-253

Max. 4 #16 & 1 #20 Max. 4-1,5mm2w/1-,50mm2

600V* 600V* Box of 100 30-059

22 to 12 AWG ,34mm2to 4,0mm2Carton of 1,000 30-159

59B™ Black Min. 2 #20 Min. 2-,5mm2

Keg of 5,000 (loose pack) 30-259

Max. 3 #14 Max. 3-2,5mm2

*1,000V maximum in fixtures and signs

High Temperature Wire-Nut®Wire Connectors

All of the Wire-Nut®Wire Connector features plus:

■

Black, thermoplastic shell specially designed to withstand the

extreme heat build-up commonly found in high-wattage light

fixtures and signs. UL Listed to 150°C (302°F)

■

Four models to cover wire ranges from 22 through 12 AWG

Dimensions Inches

( )

CUS

Model A B C D E

71B®5/32 1/4 21/64 13/64 37/64

Black 4 6.5 8 5 15

72B®13/64 5/16 25/64 15/64 45/64

Black 5 8 10 6 18

73B®13/64 23/64 7/16 3/8 55/64

Black 5 9 11 9.5 22

59BTM 13/64 13/32 31/64 37/64 1-1/16

Black 5 10 12 14.5 27

Wing-Nut®Wire Connectors

■

Three color-coded models cover a full range of wire sizes

from 18 through 6 AWG

■

Specially designed contoured wings provide a

secure grip for extra leverage on maximum wire

combinations

■

Live-action spring expands to accept wire shape

and size with no pre-twisting required

■

Square-wire spring threads directly onto conductors

for fast, secure connections

■

Deep skirt helps protect against flash-over and turned-back

strands for maximum dielectric protection

■

Easily removed for repeat usage on same size or larger wire

combinations

■

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

■

UL Listed to 486C and CSA Certified to C22.2 #188; comply

with Federal Specification W-S-610E

■

Classified in accordance with IEC Publications 998-2 and

998-2-4

Tough, durable

thermoplastic shell

Live-action,

square-wire spring

Deep skirt,

wide throat

Comfortable

contoured wings

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-4

CUS

EN 60-998-2-4

Wire Combination Wire Combination

Model Color Range Range (mm) Quantity Cat. No.

Box of 100 30-451

600V* 600V* Jar of 225 30-451J

451®Yellow 18 thru 10 AWG ,75mm2to 6,0mm2Jar of 500 30-651J

Min. 2 #18 Min. 2-,75mm2Carton of 1,000 30-551

Max. 3 #12 Max. 3-4,0mm2Keg of 5,000 (10 bags, 500 ea.) 30-651

Barrel of 35,000 30-851

Box of 100 30-452

600V* 600V* Jar of 300 30-452J

452®Red 18 thru 8 AWG ,75mm2to 10,0mm2Jar of 500 30-652J

Min. 2 #18 Min. 2-,75mm2Carton of 1,000 30-552

Max. 4 #10 Max. 4-6,0mm2Keg of 5,000 (10 bags, 500 ea.) 30-652

Barrel of 25,000 30-852

600V* 600V*

454®Blue 14 thru 6 AWG 2,5mm2to 16,0mm2Box of 50 30-454

Min. 3 #12 Min. 3-4,0mm2

Keg of 2,500 (25 bags, 100 ea.) 30-654

Max. 1 #6 & 2 #8 Max. 2-16,0mm2w/1-4,0mm2

*1,000V maximum in fixtures and signs

Model A B C D E

451®15/64 11/32 11/16 5/16 1-1/64

6918826

452®21/64 15/32 15/16 5/16 1-15/64

8.5 12 24 8 31.5

454®7/16 5/8 1-3/16 13/32 1-15/32

11 16 30 10.5 37.5

92®21/64 13/32 29/32 9/32 1-5/32

8.5 10.5 23 10 30

Dimensions Inches

( )

Min

2 #18

Min

2 #18

Min

3 #12

Max

3 #12

Max

4 #10 Max

1 #6 & 2 #8

451 Yellow

452 Red

454 Blue

Wire Combinations

Model

2 #18 2 #14 3 #12 5 #12 4 #10 5 #10

Wire Connectors

1-800-435-0705 for Customer Service www.idealindustries.com A-5

Wire Termination

Greenie®Grounding Connector

■

Designed for making ground connections and bonding

non-metallic sheathed cable

■

Contoured wings for maximum leverage

■

Live-action, square-wire spring provides superior

grounding connections

■

Tough, UL 94V-2 flame-retardant shell

■

UL Listed to 467 and CSA Certified to C22.2 #188; complies

with Federal Specification W-S-610E

Wire Combination Wire Combination

Model Range Range (mm) Quantity Cat. No.

Box of 100 30-092

Jar of 150 30-092J

Carton of 1,000 30-192

Keg of 5,000 (10 bags, 500 ea.) 30-292

Greenie®Grounding Connector fully meets the intent of the

N.E.C. and specifically aids in compliance with the following:

ARTICLE 250: GROUNDING

250-146 Connecting Receptacle

Grounding Terminal to Box

250-148 Continuity and Attachment of

Equipment Grounding

Conductors to Boxes

(B) Grounding continuity

(D) Nonmetallic boxes

92®

14 thru 10 AWG

Min. 2 #14

Max. 3 #12 & 1 #14

2,5mm2to 6,0mm2

Min. 2-2,5mm2

Max. 3-4,0mm2w/1-2,5mm2

Twister®Wire Connectors

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-6

■

Exceptional wire-range capacity — three models

handle wire combinations from as small as

22 AWG to as large as 6 AWG

■

Ribbed cap provides a secure

grip and fast fingertip starts

■

Swept wings offer extra leverage

and less effort for large wire

combinations

■

Hexagonal shape

accommodates standard

nutdriver for tool installation

■

Live-action, square-wire spring

locks onto wire for safe,

secure connections

■

Deep skirt helps protect against flash-over and turned-back

strands for maximum dielectric protection

■

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

■

UL Listed to 486C and CSA Certified to C22.2 #188; comply with

Federal Specification W-S-610E

■

Classified in accordance with IEC Publications 998-2 and 998-2-4

Tough, durable

thermoplastic

shell

Live-action,

square-wire

spring

Deep,

threaded

skirt entry

Wire Combination Wire Combination

Model Color Range Range (mm) Quantity Cat. No.

600V* 600V* Box of 100 30-340

340®Lt. Blue 22 thru 10 AWG ,34mm2to 4,0mm2Bag of 500 30-640

Min. 2 #22 Min. 2-,34mm2Jar of 500 30-640J

Max. 3 #12 Max. 3-4,0mm2

Barrel of 35,000 30-840

Box of 50 30-141

Box of 100 30-341

341®Tan Jar of 400 30-441J

Jar of 750 30-341J

Carton of 1,000 30-541

Keg of 5,000 (10 bags, 500 ea.) 30-641

Barrel of 25,000 30-841

Box of 25 30-142

342®Gray Box of 50 30-342

Keg of 2,500 (10 bags, 250 ea.) 30-642

*1,000V maximum in fixtures and signs

Compact

swept wings

Model A B C D E

340®5/16 3/8 39/64 27/64 63/64

Lt. Blue 7.8 9.5 15.2 10.6 24.9

341®17/64 29/64 23/32 23/64 1-1/8

Tan 7 11.5 18 9 28.5

342®3/8 9/16 1.0 13/32 1-19/64

Gray 9.5 20 25.5 10.5 33

Combination 2#22 3#22 3#14 3 #12 3#10 2#12 w/2#8

Cir Mil Area 1,280 (.65mm2) 1,920 (.97mm2) 12,330 (6.24mm2) 19,590 (9.93mm2) 31,140 (15.78mm2) 46,080 (23mm2)

340®

341®

342®

CUS

EN 60-998-2-4

600V*

22 thru 8 AWG

Min. 3 #22

Max. 3 #10

600V*

,34mm2to 10,0mm2

Min. 3-,34mm2

Max. 3-6,0mm2

600V*

18 thru 8 AWG

Min. 3 #14

Max. 2 #8 w/2 #12

600V*

,75mm2to 10,0mm2

Min. 3-2,5mm2

Max. 2-10,0mm2w/2-4,0mm2

Dimensions Inches

( )

Wire Connectors

1-800-435-0705 for Customer Service www.idealindustries.com A-7

Model A B C D E

344 11/32 1/2 15/16 7/16 1-1/4

Red/Gray 8.8 12.7 23.5 10.7 31.8

Dimensions Inches

( )

Combination Min. 2 #18 4 #14 5 #12 Max. 4 #10

344®

Wire Termination

Wire Connector

■

SureGrip™ overmolding

provides better

grip for improved

leverage and

more torque

■

Comfortable swept

wings designed to

help reduce hand

fatigue

■

Expanding square-wire

spring provides a secure

connection every time

■

Better grip and more leverage

for faster connections with

less effort

Molded vertical

grooves provide

maximum grip

Patented swept-

wing SureGrip™

design

Exceptional wire range

and capacity

- Min. 2 #18

- Max. 4 #10

Wire Combination Wire Combination

Model Color Range Range (mm) Quantity Cat. No.

600V* 600V* Tube of 25 30-144J

22 to 8 AWG ,34mm2to 10,0mm2Jar of 250 30-244J

344 Red/Gray Min. 2 #18 Min. 2-,75mm2

Jar of 500 30-644J

Max. 4 #10 Max. 4-6,0mm2

*1,000V maximum in fixtures and signs

CUS

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-8

■

Silicone-based sealant protects against moisture

and corrosion

■

UL Listed to 486D for use in damp/wet locations

or direct burial

■

Easy to apply, pre-filled twist-on wire connectors

■

Handles wire sizes from #20 to #6 copper conductors

WeatherProof™ and UnderGround™ Wire Connectors

WeatherProof™ — suitable for interior and exterior electrical

connections exposed to rain or damp conditions.

Wire Combination Wire Combination

Model Color Range Range (mm) Quantity Cat. No.

600V* 600V* Card of 6 30-061

22 to 14 AWG ,34mm2to 4,0mm2Card of 25 30-161

61 Blue/Orange Min. 2 #20 Min. 2-,5mm2Box of 100 30-261

Max. 2 #14 Max. 2-2,5mm2Box of 1,000 30-361

600V* 600V* Card of 5 30-062

18 to 8 AWG ,75mm2to 10,0mm2Card of 20 30-162

62 Blue/Red Min. 2 #18 Min. 2-,75mm2Box of 100 30-262

Max. 3 #10 Max. 3-6,0mm2Box of 1,000 30-362

600V* 600V* Card of 3 30-063

16 to 6 AWG 1,5mm2to 16,0mm2Card of 15 30-163

63 Blue/Dr. Blue Min. 3 #14 Min. 3-2,5mm2Box of 100 30-263

Max. 2 #8 & 1 #10 Max. 2-10,0mm2w/1-6,0mm2Box of 1,000 (yellow) 30-363

CUS

WARNING:

1. One time use only. Do not reuse.

2. Wiring must comply with all applicable electrical codes.

3. For use on copper wire only. Do not use on aluminum wire.

4. Not for use in continuous submersion applications.

Model A B C D E

61 3/16 (4,8) 5/16 (7,9) 21/32 (16,7) 13/32 (10,3) 29/32 (23,0)

62 9/32 (7,1) 1/2 (12,7) 15/16 (23,8) 19/32 (15,1) 1-11/32 (34,1)

63 3/8 (9,5) 19/32 (15,1) 1-1/16 (27,0) 23/32 (18,3) 1-19/32(40,5)

60 9/32 (7,1) 17/32 (13,5) 41/64 (16,2) 55/64 (22,0) 1-21/32 (42,0)

64 9/32 (7,1) 19/32 (15,1) 29/32 (23,0) 1-1/8 (28,6) 2-1/32 (51,6)

Dimensions Inches

( )

Wire Combination Wire Combination

Model Color Range Range (mm) Quantity Cat. No.

600V* 600V* Card of 2 30-060

20 to 10 AWG ,5mm2to 6,0mm2Card of 10 30-760

60 Blue/Blue Min. 2 #20 Min. 2-,5mm2Box of 100 30-260

Max. 1 #10 & 2 #12 Max. 1-6,0mm2w/2-4,0mm2Box of 1,000 30-360

Yellow Box of 1,000 (yellow) 30-360Y

600V* 600V* Card of 2 30-064

18 to 8 AWG ,75mm to 10,0mm2Card of 10 30-764

64 Blue/Dk. Blue Min. 2 #18 Min. 2-,75mm2Box of 50 30-264

Max. 3 #10 Max. 3-6,0mm2Box of 1,000 30-364

Yellow Box of 25 (yellow) 30-164Y

*1,000V maximum in fixtures and signs

WeatherProof™ Wire Connectors

UnderGround™ Wire Connectors

UnderGround™ — suitable for use in a wide variety of

direct burial and wet location electrical connections.

Wire Connectors

1-800-435-0705 for Customer Service www.idealindustries.com A-9

Wire Termination

Twister®AI/Cu Wire Connector

■

Only aluminum-to-copper twist-on connector specifically

designed to guarantee a secure connection while

preventing aluminum corrosion

■

Specially formulated corrosion- resistant

compound cuts and penetrates corrosion

build-up on aluminum conductors for increased

conductivity and cooler connections

■

Compact, one-piece design features ribbed cap, swept

wings and hexagonal head for easy installation by hand

or with standard nutdriver

■

Live-action, square-wire spring expands and contracts with

aluminum wire

■

Deep skirt provides maximum dielectric strength

■

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

■

Complies with N.E.C. Section #110-14(b) for aluminum-to-copper

connections; UL Listed to 486C and CSA Certified to C22.2 #188;

complies with Federal Specification

W-S-610E

■

UL Listed to 467 for grounding and bonding

Ribbed cap for hand

or nutdriver

installation

Live-action,

square-wire

spring expands

and contracts

with aluminum wire

Entry cap retains

corrosion-resistant

compound

Compound cuts

corrosion build-up

on aluminum

conductors

WARNING:

1. One time use only. Do not reuse connector.

2. Do not use on aluminum to aluminum wire combinations.

3. Wiring must comply with all applicable electrical codes.

4. Contact IDEAL for complete wire combination listing.

Model A B C D E

65 17/64 13/32 13/16 35/64 1-11/32

7 10.5 21 14 34

Dimensions Inches

Model Color Wire Combinations Quantity Cat. No.

1 #10 Al solid w/1 or 2 #10 Cu solid

1 #10 Al w/1 or 2 #12 Cu Card of 2 30-065

2 #10 Al solid w/1 #12 Cu

1 #10 Al w/1 or 2 #14 Cu

2 #10 Al solid w/1 #14 Cu

2 #12 Al solid w/1 #10 Cu Card of 10 30-765

1 #12 Al solid w/1 or 2 #10 Cu

1 #12 Al stranded w/1 or 2 #10 Cu solid

1 #12 Al w/1 or 2 #12 Cu

65 Purple 2 #12 Al solid w/1 #12 Cu Card of 25 30-165

1 #12 Al w/1 or 2 #14 Cu

2 #12 Al solid w/1 #14 Cu

1 #10 Al w/1 or 2 #18 Cu

2 #10 Al solid w/1 #18 Cu Box of 100 30-265

1 #12 Al w/1 or 2 #16 Cu

2 #12 Al solid w/1 #16 Cu

1 #10 Al w/1 or 2 #16 Cu

2 #10 Al solid w/1 #16 Cu Carton of 1,000 30-365

1 #12 Al w/1 or 2 #18 Cu

2 #12 Al solid w/1 #18 Cu

600V maximum building wire; 1,000V signs or lighting fixtures Wire Connector

also listed as

grounding equipment

CUS

( )

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-10

Wire-Nut®Wire Connector Sockets

■

Speeds installation of Wire-Nut®

Wire Connectors

■

Fit any pneumatic or

electric tool

with a 1/4 in.

chuck or

drive socket

For Connector Model Cat. No.

71B®, 71B®Black, 72B®& 72B®Black 30-903

73B®& 73B®Black 30-904

59B™ 30-905

74B®, 76B®& 59B™ 30-906

Wire-Nut®Wire Connector Wrench

■

Speeds installation of Wire-Nut®

Wire Connectors

■

Excellent leverage

helps reduce fatigue

For Connector Model Cat. No.

73B®, 74B®& 76B®H-632

Wire-Nut®Wire Connector

Wrench/Screwdriver Combo

■

Speeds installation of Wire-Nut®

Wire Connectors

■

Slotted-tip screwdriver

with convenient

connector-wrench

socket in end of

insulated handle

■

Speeds installation of Twister®

Wire Connectors

■

Nickel/chrome plated to

resist rust and corrosion

■

Cushioned rubber grip

For Connector Model Cat. No.

341®35-292

342®35-295

Nutmaster®Nutdrivers

Spin-Twist®Wire Connector Socket

For Connector Model Cat. No.

Wire-Nut®, Wing-Nut®, Twister®, B-CAP®and WingTwist™ 30-902

Twist-a-Nut™

7-in-1 Screwdriver

■

Facilitate installation of

connectors

■

Universal Wire-Nut®

Wrench in handle

■

Accepts most twist-on

connectors

Description Cat. No.

7-in-1 Twist-a-Nut™ 35-908

Ratch Wrench

■

Speeds installation of

B-CAP®Wire Connectors

■

Either end accepts 1/4-in.

drive for tight-spot

wire splicing

For Connector Model Cat. No.

B1, B2 & B4 BR-5

High-Speed Wire Connector Chuck

■

Cordless screwdriver adapter

for installing B-CAP®

Wire Connectors

For Connector Model Cat. No.

B1, B2 & B4 HSC-1

For Connector Model Type Cat. No.

74B®& 76B®Mechanic – 1/4 in. x 4 in. 30-331

74B®& 76B®Electrician – 3/16 in. x 6 in. 30-333

■

Speeds installation of IDEAL

and BUCHANAN Wire

Connectors

■

For use with electric

corded or cordless

drill drivers

■

1/4 in. chuck fits

most drills or drive sockets

Patented IDEAL push-in

technology quickly

locks wires in place

Pieces pull apart

safely and easily

Thumb ridges provide

superior grip

Fits through 1/2”

knockout

3/8” strip length

indicator

Both halves pass UL 2459 &

CSA 182.3 finger probe

requirements

Wire Connectors

1-800-435-0705 for Customer Service www.idealindustries.com A-11

Wire Termination

Luminaire Disconnect

■

The first push-in disconnect to meet the new NEC and CEC code

changes for non-residential fluorescent luminaires

■

Perfect for OEM or retrofit lighting applications

■

Meets UL and CSA finger-probe safety requirements

■

Allows safe disconnect of hot and neutral ballast wiring

Wire Combination Wire Combination

Model Color Range Range (mm) Quantity Cat. No.

Card of 25 30-372

Jar of 75 30-382J

102 Orange Jar of 150 30-352J

Box of 1,000 30-102

*1,000V maximum in fixtures and signs

™

600V*

18 thru 12 AWG

600V*

,75mm2to 24,0mm2

Materials

Housings: Nylon

Contacts: Copper Alloy

Ratings

Temperature: 105°C (221°F)

Flammability: UL 94V-0

Current Interruption: 10 Cycles

Max. Current Rating

120V 3 Amps

277V 1.3 Amps

347V 1 Amps

480V 0.75 Amps

600V 0.60 Amps

Patents Pending

Wire Range

Solid 12 AWG – 18 AWG

Stranded 12 AWG – 14 AWG (19 strand or less)

Stranded 12 AWG (19 strand or less)

(Tin-Bonded) 14 AWG (19 strand or less)

16 AWG (26 strand or less)

18 AWG (16 strand or less)

Agency Approvals

UL 2459 CSA 182.3 RoHS Compliant

Physical

Strip Length: 3/8” ± 1/16”

Number of Circuits: 2 (3 circuit coming soon)

Color: Orange and White

Mating/Unmating Force: 3-8 Pounds

3 Amp

Max.

3 Amp

Max.

.82

HOLE

CLEARANCE

.137

.50

1.30

.81

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-12

Length Width Height

Model Color Ports In. mm In. mm In. mm Quantity Cat. No.

Box of 100 30-084

Jar of 300 30-084J

84 Red 2 .355 9.02 .434 11.02 .729 18.52 Box of 1,000 30-184

Box of 5,000 30-684

Box of 100 30-085

Jar of 250 30-085J

85 Orange 3 .355 9.02 .591 15.01 .729 18.52 Box of 1,000 30-185

Box of 5,000 30-685

Box of 100 30-086

Jar of 200 30-086J

86 Yellow 4 .355 9.02 .748 18.99 .729 18.52 Box of 1,000 30-186

Box of 4,000 30-686

Box of 50 30-087

Jar of 150 30-087J

87 Gray 5 .355 9.02 .907 23.03 .729 18.52 Box of 1,000 30-187

Box of 5,000 30-687

Box of 50 30-088

Jar of 100 30-088J

88 Blue 6 Stacked .607 15.42 .603 15.32 .729 18.52 Box of 1,000 30-188

Box of 5,000 30-688

Box of 50 30-090

Jar of 100 30-090J

90 Black 8 .355 9.02 1.38 35.03 .717 18.21 Box of 1,000 30-190

Box of 2,000 30-690

COPPER TO COPPER ONLY. Do not use on aluminum.

Temperature rating: 105°C (221°F) maximum

600V maximum building wire, 1000V maximum signs or lighting fixtures

CUS

In-Sure™ Push-In Wire Connectors

■

No-twist connection reduces repetitive motion fatigue

■

Low insertion force for fast and easy connections

■

Compact size makes installation easy

■

Clear shell gives visual verification of connection

■

UL Listed to 486C and CSA Certified to C22.2 #188

■

UL 467 Listed for grounding and bonding applications

■

Accepts the following copper wire sizes

- Solid

#20 - #12 solid

- Stranded

#16 - #14 (19 strand or less)

#18 (7 strand or less)

- Stranded (Tin Bonded)

#14 - #12 (19 strand or less)

#16 (26 strand or less)

#18 (16 strand or less)

Strip

Push

Connect

Installation as easy

as 1-2-3...

Wire Connectors

Wire Termination

Term-a-Nut®Pigtail Wire Connectors

Shell Color Wire Color Terminal End Quantity Cat. No.

Red White #10 fork 25 30-3170

Red White #10 fork 10 30-3370

Red Black #10 fork 25 30-3171

Red Black #10 fork 10 30-3371

Red White Stripped end 25 30-3172

Red Black Stripped end 25 30-3173

Green Green #10 fork 25 30-3180

Green Green #10 fork 10 30-3380

MultiPak* White/Black/Green #10 fork 9 30-3181

*Includes 3 red shells w/white wire, 3 red shells w/black wire,

and 3 green shells w/green wire.

■

Ultra-flexible 6-in. lead allows for easy positioning in outlet box — reduces stress on device, wires and connection

■

Wide range of wire combinations – #18 through #12 solid or stranded conductors

■

Brass adapter for strong, conductive transition from spring to lead wire

■

Brass-alloy terminals with locking tabs for fast, efficient device connection

■

UL 486A and UL 486C Listed and tested to CSA standard C22.2 #65 and C22.2 #188

■

Wire Range: Red/Green Shell – Min. 2 #18 w/1 #14, Max. 4 #12

Brass-alloy

terminal with

locking tabs

Brass

adapter

Phosphor-

bronze spring

Ultra-

flexible

lead

CUS

1-800-435-0705 for Customer Service www.idealindustries.com A-13

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-14

Term-a-Nut®Grounding Connectors Quantity Cat. No. Fig.

Term-a-Nut®Grounding Connector, 12 AWG

stranded, 6 in. tail w/#10 fork Bag of 10 30-3380 A

Term-a-Nut®Grounding Connector, 12 AWG

stranded, 6 in. tail w/#10 fork Bag of 25 30-3180 A

Term-a-Nut®Grounding Connector, 12 AWG

stranded, 6 in. tail w/#10 fork Box of 100 30-3280 A

Term-a-Nut®Grounding Connector, 12 AWG

stranded, 6 in. tail w/#10 fork Box of 250 30-3680 A

Term-a-Nut®Grounding Connector, 12 AWG

stranded w/#10 ring & ground screw Bag of 25 30-3182 B

Term-a-Nut®Grounding Connector, 12 AWG

stranded w/#10 ring & ground screw and 6 in. Bag of 10 30-3386 C

jumper w/#10 fork

Grounding Connectors

■

Term-a-Nut®grounding connectors address specific

requirements for grounding to steel outlet boxes

and wiring multiple devices

■

UL Listed to UL486C and UL467 (grounding and

bonding)

Term-a-Nut®Grounding Connector

Connects grounding conductors to a

device’s grounding screw, connects

grounding conductors to the mounting box

and bonds the device to the box.

Bonds the box to the grounding

conductors.

Fig. C

Fig. B

Combo hex head

Stranded bonding jumper

Ultra-flexible lead wire

Heavy-duty brass terminal

Heavy-duty

brass terminal

Thread-forming

grounding screw

Twist-on wire

connector

Twist-on wire

connector

Term-a-Nut®Grounding Connector

Connects multiple grounding conductors to

a device.

Fig. A

Ultra-flexible

lead wire

Heavy-duty

brass terminal Twist-on wire

connector

Fig. D

Stranded Wire Grounding Tails Quantity Cat. No. Fig.

14 AWG stranded 7-3/4 in. tail w/#10 fork &

10 ring and ground screw Bag of 25 30-3183 A

12 AWG stranded, 7-3/4 in. tail w/#10 fork &

10 ring and ground screw Bag of 25 30-3184 B

12 AWG stranded, 7-3/4 in. tail w/#10 fork &

10 ring and ground screw Bundle of 100 30-3284 B

12 AWG stranded, 2-wire tail joined w/#10 ring

and ground screw, one stripped-end tail and one Bag of 25 30-3287 C

10 fork tail

12 AWG stranded, 2-wire tail joined w/#10 ring

and ground screw and two #10 fork tails Bag of 25 30-3288 D

12 AWG stranded, 3-wire tail joined w/#10 ring

and ground screw, one stripped-end tail and two Bag of 25 30-3289 E

10 fork tails

Grounding Tails - Stranded Wire

Fig. A - #14 AWG

Fig. B - #12 AWG

Fig. C

Fig. E

Ultra-flexible

lead wire Heavy-duty

brass terminal

1-800-435-0705 for Customer Service www.idealindustries.com A-15

Wire Termination

Wire Connectors

Solid Wire Grounding Tails Quantity Cat. No. Fig.

14 AWG solid, 8 in. tail w/loop & ground

screw and stripped end Box of 50 30-3390 A

12 AWG solid, 8 in. tail w/loop & ground

screw and stripped end Box of 50 30-3392 B

12 AWG solid, 8 in. tail w/loop & ground

screw and stripped end Bundle of 50 30-3496 B

12 AWG solid, 10 in. tail w/loop & ground

screw and stripped end Bundle of 50 30-3394 C

Miscellaneous Grounding Products Quantity Cat. No. Fig.

Ground Screw, thread-forming, combination

hex, Phillips, slotted and Robertson-tip Pack of 50 30-3194 A

Ground Screw, thread-forming, combination

hex, Phillips, slotted and Robertson-tip Bag of 100 30-3294 A

Grounding clip – accepts 10, 12 or Pack of 100 30-3395 B

14 AWG wire

Grounding Accessories

■

Solid and stranded pigtail lead wires are convenient for stranded device grounding applications

■

Grounding screws offer a unique thread-forming feature, plus combination hex, Phillips, slotted and Robertson tip

Grounding Tails - Solid Wire

Grounding Accessories

Fig. B - 8 in. length

Fig. C - 10 in. length

Fig. A

Fig. A Fig. B

Combo hex head

Thread-forming

grounding screw

Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-16

Term-a-Nut®Terminal Wire Connectors

■

No tools required – installs quickly without crimping – easily

removed for quick changes

■

Use with single or multiple wires – solid and/or stranded

22 to 12 AWG

■

Highly conductive brass terminal and phosphor-bronze spring

for maximum conductivity and smooth performance

■

Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)

■

UL 486A and UL 486C Listed and tested to CSA C22.2 #65

and C22.2 #188

High-quality

brass terminal

with locking tabs

Phosphor-bronze

spring

Terminal Configurations Qty./Clamshell Cat. No.

#10 fork 25 30-3004

#8 fork 25 30-3014

.250 in. disconnect 25 30-3006

#10 ring 25 30-3012

#8 ring 25 30-3010

Assortment 40/kit* 30-3901

*Kit contains 8 each: 30-3004, 30-3014, 30-3006, 30-3012 and 30-3010.

Vinyl Insulated Ring Terminals

Max. Max.

Wire Wire Stud Stud Wire Wire Dimensions Dimensions

Range Range Size Size Ins. Dia. Ins. Dia. (Inches) (mm) Ctn. Cat. Ctn. Cat.

(AWG) (mm2) (Inches) (mm) (Inches) (mm) LW EFLWEF Qty. No. Qty. No.

6 3.7 .764 .260 .394 .248 19.4 6.6 10.0 6.3 25 83-2121 ——

22 – 18 0.5 – 1.0 8 4.3 .157 4.0 .819 .315 .394 .276 20.8 8.0 10.0 7.0 25 83-2131 ——

10 5.3 .819 .315 .394 .276 20.8 8.0 10.0 7.0 25 83-2141 ——

1/4 6.4 1.055 .457 .394 .433 26.8 11.6 10.0 11.0 25 83-2151 ——

6 3.7 .764 .260 .394 .248 19.4 6.6 10.0 6.3 25 83-2221 ——

16 – 14 1.5 – 2.5 8 4.3 .177 4.5 .858 .335 .394 .307 21.8 8.5 10.0 7.8 25 83-2231 ——

10 5.3 .858 .374 .394 .287 21.8 9.5 10.0 7.3 25 83-2241 1,000 84-2241

1/4 6.4 1.055 .472 .394 .433 26.8 12.0 10.0 11.0 25 83-2251 ——

8 4.3 1.047 .374 .512 .358 26.6 9.5 13.0 9.1 25 83-2331 ——

10 5.3 1.047 .374 .512 .358 26.6 9.5 13.0 9.1 25 83-2341 1,000 84-2341

12 – 10 4.0 – 6.0 1/4 6.4 .248 6.3 1.167 .472 .512 .413 29.5 12.0 13.0 10.5 25 83-2351 ——

5/16 8.4 1.339 .591 .512 .531 34.0 15.0 13.0 13.5 25 83-2361 ——

3/8 10.5 1.339 .591 .512 .531 34.0 15.0 13.0 13.5 25 83-2371 ——

75° C/600 Volts max.

■

Butted seam-construction prevents splitting under maximum

pressure

■

Internal barrel serrations grip wires tightly to resist pull-out and

reduce electrical resistance

■

Tin-plated brass construction for corrosion resistance

■

Shouldered barrel insulation quickly positions terminal for

proper crimping

■

Expanded insulation entry accomodates a wide variety of

insulation diameters and provides additional insulation support

■

Color-coded insulation and wire range stamped on terminal for

easy identification

Crimp Terminals-Rings, Forks, Disconnects and Splices

CUS

Crimp Terminals

1-800-435-0705 for Customer Service www.idealindustries.com A-17

Wire Termination

Vinyl Insulated Spade Terminals

Max. Max.

Wire Wire Stud Stud Wire Wire Dimensions Dimensions

Range Range Size Size Ins. Dia. Ins. Dia. (Inches) (mm) Ctn. Cat. Ctn. Cat.

(AWG) (mm2) (Inches) (mm) (Inches) (mm) L W E F L W E F Qty. No. Qty. No.

6 3.7 .827 .252 .394 .256 21.0 6.4 10.0 6.5 25 83-7111 1,000 84-7111

22 – 18 0.5 – 1.0 8 4.3 .157 4.0 .827 .283 .394 .256 21.0 7.2 10.0 6.5 25 83-7121 ——

10 5.3 .827 .374 .394 .256 21.0 9.5 10.0 6.5 25 83-7131 ——

6 3.7 .827 .236 .394 .256 21.0 6.0 10.0 6.5 25 83-7151 ——

16 – 14 1.5 – 2.5 8 4.3 .177 4.5 .827 .283 .394 .256 21.0 7.2 10.0 6.5 25 83-7161 1,000 84-7161

10 5.3 .827 .366 .394 .256 21.0 9.3 10.0 6.5 25 83-7171 1,000 84-7171

6 3.7 1.004 .327 .512 .276 25.5 8.3 13.0 7.0 25 83-7201 ——

8 4.3 1.004 .283 .512 .357 25.5 9.0 13.0 7.0 25 83-7211 ——

12 – 10 4.0 – 6.0 10 5.3 .248 6.3 1.004 .283 .512 .354 25.5 9.0 13.0 7.0 25 83-7221 500 84-7221

1/4 6.4 1.240 .472 .512 .472 31.5 12.0 13.0 12.0 25 83-7231 ——

75° C/600 Volts max.

Insulated and Non-Insulated Terminals, Splices and Disconnects (#22 - #10 AWG) are UL Listed when used with IDEAL Crimp Tool #30-518 (Replacement Die #30-519).

Non-Insulated Ring Terminals (#8 - #4 AWG) are UL Listed when used with IDEAL Crimp Tool #83-005 or 88-843.

Non-Insulated Disconnects, Splices and Vinyl Insulated Parallel Splices (#22 - #10 AWG) are not UL Listed; recommended IDEAL Crimp Tool #30-518.

Non-Insulated Splices (#8 - #4 AWG) are not UL Listed, recommended IDEAL Crimp Tool #83-005 or #88-843.

#30-518 Tool w/die

#30-519 Replacement die

#83-005 #88-843

Non-Insulated Ring Terminals

Crimp Tools

Wire Wire Stud Stud Dimensions Dimensions

Range Range Size Size (Inches)* (mm)** Ctn. Cat. Ctn. Cat.

(AWG) (mm2) (Inches) (mm) LWEFLWEF

Qty. No. Qty. No.

8 4.3 .622 .315 .189 .276 15.8 8,0 4.8 7.0 25 83-0131 ——

22 – 18 0.5 – 1.0 10 5.3 .622 .315 .189 .276 15.8 8.0 4.8 7.0 25 83-0141 ——

6 3.7 .567 .260 .189 .248 14.4 6.6 4.8 6.3 25 83-0221 ——

16 – 14 1.5 – 2.5 8 4.3 .661 .335 .189 .307 16.8 8.5 4.8 7.8 25 83-0231 ——

10 5.3 .661 .374 .189 .287 16.8 9.5 4.8 7.3 25 83-0241 1,000 84-0241

8 4.3 .772 .374 .236 .358 19.6 9.5 6.0 9.1 25 83-0331 ——

12 – 10 4.0 – 6.0 10 5.3 .772 .374 .236 .358 19.6 9.5 6.0 9.1 25 83-0341 1,000 84-0341

1/4 6.4 .886 .472 .236 .413 22.5 12.0 6.0 10.5 25 83-0351 ——

10 5.3 .937 .472 .337 .366 23.8 12.0 8.5 9.3 25 83-0421 ——

1/4 6.4 .937 .472 .337 .366 23.8 12.0 8.5 9.3 25 83-0431 ——

8 8.0 5/16 8.4 1.161 .591 .337 .543 29.8 15.0 8.5 13.8 25 83-0441 ——

3/8 10.5 1.161 .591 .337 .543 29.8 15.0 8.5 13.8 25 83-0451 ——

10 5.3 1.173 .472 .413 .524 29.8 12.0 10.5 13.3 20 83-0511 ——

1/4 6.4 1.173 .472 .413 .524 29.8 12.0 10.5 13.3 20 83-0521 ——

6 14.0 5/16 8.4 1.280 .630 .413 .559 32.5 16.0 10.5 14.2 20 83-0531 ——

3/8 10.5 1.280 .630 .413 .559 32.5 16.0 10.5 14.2 20 83-0541 ——

1/4 6.4 1.319 .650 .472 .531 33.5 16.5 12.0 13.5 20 83-0611 ——

4 22.0 5/16 8.4 1.319 .650 .472 .531 33.5 16.5 12.0 13.5 20 83-0621 ——

3/8 10.5 1.319 .650 .472 .531 33.5 16.5 12.0 13.5 20 83-0631 ——

105°C/600 Volts max.

*Plus or minus .020 in.

**Plus or minus .50 in.

Crimp Terminals

www.idealindustries.com 1-800-435-0705 for Customer Service

A-18

Vinyl Insulated Snap Spade Terminals

Max. Max.

Wire Wire Stud Stud Wire Wire Dimensions Dimensions

Range Wire Range Size Size Ins. Dia. Ins. Dia. (Inches) (mm) Ctn.

(AWG) (mm2) (Inches) (mm) (Inches) (mm) LWEF LWE F Qty. Cat. No.

6 3.7 .827 .252 .394 .256 21.0 6.4 10.0 6.5 25 83-7011

22 – 18 0.5 – 1.0 8 4.3 .134 4.0 .827 .283 .394 .256 21.0 7.2 10.0 6.5 25 83-7021

10 5.3 .827 .319 .394 .256 21.0 8.1 10.0 6.5 25 83-7031

6 3.7 .827 .236 .394 .256 21.0 6.0 10.0 6.5 25 83-7051

16 – 14 1.5 – 2.5 8 4.3 .161 4.5 .827 .319 .394 .256 21.0 8.1 10.0 6.5 25 83-7061

10 5.3 .827 .319 .394 .256 21.0 8.1 10.0 6.5 25 83-7071

8 4.3 .992 .327 .512 .276 25.2 8.3 13.0 7.0 25 83-7081

12 – 10 4.0 – 6.0 10 5.3 .248 6.3 .992 .354 .512 .276 25.2 9.0 13.0 7.0 25 83-7091

1/4 6.4 1.240 .472 .512 .472 31.5 12.0 13.0 12.0 25 83-7101

75° C/600 Volts max.

Non-Insulated Spade Terminals

Dimensions Dimensions

Wire Range Wire Range Stud Size Stud Size (Inches) (mm) Ctn. Cat. Ctn. Cat.

(AWG) (mm2) (Inches) (mm) L W E F L W E F Qty. No. Qty. No.

6 3.7 .630 .252 .189 .256 16.0 6.4 4.8 6.5 25 83-6111

22 – 18 0.5 - 1.0 8 4.3 .630 .283 .189 .256 16.0 7.2 4.8 6.5 25 83-6121 ——

10 5.3 .630 .319 .189 .256 16.0 8.1 4.8 6.5 25 83-6131 ——

16 – 14 1.5 – 2.5 8 4.3 .630 .283 .189 .256 16.0 7.2 4.8 6.5 25 83-6161 ——

10 5.3 .630 .366 .189 .256 16.0 9.3 4.8 6.5 25 83-6171 1,000 84-6171

8 4.3 .728 .354 .236 .276 18.5 9.0 6.0 7.0 25 83-6211 ——

12 – 10 4.0 – 6.0 10 5.3 .728 .354 .236 .276 18.5 9.0 6.0 7.0 25 83-6221 ——

1/4 6.4 .965 .472 .236 .472 24.5 12.0 6.0 12.0 25 83-6231 ——

105° C/600 Volts max.

Max. Max.

Wire Wire Tab Tab Wire Wire Dimensions Dimensions

Range Range Size Size Ins. Dia. Ins. Dia. (Inches) (mm) Ctn. Cat.

(AWG) (mm2) (Inches) (mm) (Inches) (mm) L B W F W1 F1 L B W F W1 F1 Qty. No.

22 – 18 0.5 – 1.0 .250 x .032 6.35 x 0.8 .150 3.8 .886 .413 .260 .315 .250 .323 22.5 10.5 6.6 8.0 6.35 8.2 25 83-9611

16 – 14 1.5 – 2.5 .250 x .032 6.35 x 0.8 .185 4.7 .886 .413 .260 .315 .250 .323 22.5 10.5 6.6 8.0 6.35 8.2 25 83-9621

12 – 10 4.0 – 6.0 .250 x .032 6.35 x 0.8 .244 6.2 .945 .512 .260 .315 .250 .323 22.5 13.0 6.6 8.0 6.35 8.2 25 83-9631

75° C/300 Volts max.

Vinyl Insulated Multi-Stack Disconnects

Crimp Terminals/Disconnects

1-800-435-0705 for Customer Service www.idealindustries.com A-19

Wire Termination

Max. Max.

Wire Wire Tab Tab Wire Wire Dimensions Dimensions

Range Range Size Size Ins. Dia. Ins. Dia. (Inches) (mm) Ctn. Cat. Ctn. Cat.

(AWG) (mm2) (Inches) (mm) (Inches) (mm) L B W F L B W L Qty. No. Qty. No.

22 – 18 0.5 – 1.0 .110 x .020 2.8 x 0.5 .150 3.8 .728 .413 .126 .256 18.5 10.5 3.2 6.5 25 83-9511 ——

16 – 14 1.5 – 2.5 .110 x .020 2.8 x 0.5 .185 4.7 .748 .413 .126 .256 19.0 10.5 3.2 6.5 25 83-9521 ——

22 – 18 0.5 – 1.0 .187 x .020 4.75 x 0.5 .150 3.8 .764 .413 .197 .252 19.4 10.5 5.0 6.4 25 83-9541 ——

16 – 14 1.5 – 2.5 .187 x .020 4.75 x 0.5 .185 4.7 .764 .413 .197 .252 19.4 10.5 5.0 6.4 25 83-9551 ——

22 – 18 0.5 – 1.0 .250 x .032 6.35 x 0.8 .150 3.8 .819 .413 .260 .287 20.8 10.5 6.6 7.3 25 83-9571 ——

16 – 14 1.5 – 2.5 .250 x .032 6.35 x 0.8 .185 4.7 .819 .413 .260 .287 20.8 10.5 6.6 7.3 25 83-9581 500 84-9581

14 – 12 2.5 – 4.0 .250 x .032 6.35 x 0.8 .244 6.2 .917 .512 .260 .287 23.3 13.0 6.6 7.3 25 83-9591 ——

12 – 10 4.0 – 6.0 .250 x .032 6.35 x 0.8 .244 6.2 .917 .512 .260 .287 23.3 13.0 6.6 7.3 25 83-9601 ——

75° C/300 Volts max.

Vinyl Insulated Female Disconnects

Vinyl Insulated Male Disconnects

Max. Max.

Wire Wire Wire Wire Dimensions Dimensions

Range Wire Range Tab Size Tab Size Ins. Dia. Ins. Dia. (Inches) (mm) Ctn.

(AWG) (mm2) (Inches) (mm) (Inches) (mm) L B W F L B W F Qty. Cat. No.

22 – 18 0.5 – 1.0 .250 x .032 6.35 x 0.8 .150 3.8 .858 .413 .250 .303 21.8 10.5 6.35 7.7 25 83-9971

16 – 14 1.5 – 2.5 .250 x .032 6.35 x 0.8 .185 4.7 .858 .413 .250 .303 21.8 10.5 6.35 7.7 25 83-9981

12 – 10 4.0 – 6.0 .250 x .032 6.35 x 0.8 .244 6.2 .945 .512 .250 .303 24.0 13.0 6.35 7.7 25 83-9991

75° C/300 Volts max.

Non-Insulated Female Disconnects

Wire Wire Tab Tab Dimensions Dimensions

Range Range Size Size (Inches) (mm)

(AWG) (mm2) (Inches) (mm) L B W F L B W F Ctn. Qty. Cat. No.

22 – 18 0.5 – 1.0 .110 x .020 2.8 x 0.5 .630 .189 .126 .256 16.0 4.8 3.2 6.5 25 83-9411

16 – 14 1.5 – 2.5 .110 x .020 2.8 x 0.5 .630 .189 .126 .256 16.0 4.8 3.2 6.5 25 83-9421

22 – 18 0.5 – 1.25 .187 x .020 4.75 x 0.5 .630 .189 .197 .252 16.0 4.8 5.0 6.4 25 83-9441

16 – 14 1.5 – 2.5 .187 x .020 4.75 x 0.5 .630 .189 .197 .252 16.0 4.8 5.0 6.4 25 83-9451

22 – 18 0.5 – 1.25 .250 x .032 6.35 x 0.8 .630 .189 .260 .287 16.0 4.8 6.6 7.3 25 83-9471

16 – 14 1.5 – 2.5 .250 x .032 6.35 x 0.8 .630 .189 .260 .287 16.0 4.8 6.6 7.3 25 83-9481

12 – 10 4.0 – 6.0 .250 x .032 6.35 x 0.8 .728 .236 .260 .287 18.5 6.0 6.6 7.3 25 83-9501

105° C/300 Volts max.

Disconnects

www.idealindustries.com 1-800-435-0705 for Customer Service

A-20

Max. Max.

Wire Wire Tab Tab Wire Wire Dimensions Dimensions

Range Range Size Size Ins. Dia. Ins. Dia. (Inches) (mm) Ctn. Cat. Ctn. Cat.

(AWG) (mm2) (Inches) (mm) (Inches) (mm) L B W F L B W L Qty. No. Qty. No.

22 – 18 0.5 – 1.0 .250 x .032 6.35 x 0.8 .150 3.8 .866 .433 .260 .287 22.0 11.0 6.6 7.3 25 83-9771 ——

16 – 14 1.5 – 2.5 .250 x .032 6.35 x 0.8 .185 4.7 .866 .433 .260 .287 22.0 11.0 6.6 7.3 25 83-9781 1,000 84-9781

12 – 10 4.0 – 6.0 .250 x .032 6.35 x 0.8 .244 6.2 .945 .512 .260 .287 24.0 13.0 6.6 7.3 25 83-9791 500 84-9791

105° C/300 Volts max.

Nylon Fully-Insulated Female Disconnects

Nylon Fully-Insulated Male Disconnects

Max. Max.

Wire Wire Wire Wire Dimensions Dimensions

Range Wire Range Tab Size Tab Size Ins. Dia. Ins. Dia. (Inches) (mm) Ctn.

(AWG) (mm2) (Inches) (mm) (Inches) (mm) L B W F L B W F Qty. Cat. No.

22 – 18 0.5 – 1.0 .250 x .032 6.35 x 0.8 .150 3.8 .906 .433 .250 .303 23.0 11.0 6.35 7.7 25 83-9911

16 – 14 1.5 – 2.5 .250 x .032 6.35 x 0.8 .185 4.7 .945 .433 .250 .303 24.0 11.0 6.35 7.7 25 83-9921

12 – 10 4.0 – 6.0 .250 x .032 6.35 x 0.8 .244 6.2 .984 .512 .250 .303 25.0 13.0 6.35 7.7 25 83-9931

105° C/300 Volts max.

Vinyl Fully-Insulated Receptacle Disconnects

Wire Wire Max. Wire Max. Wire Dimensions Dimensions

Range Range Ins. Dia. Ins. Dia. (Inches) (mm)

(AWG) (mm2) (Inches) (mm) L B W F L B W F Ctn. Qty. Cat. No.

22 – 18 0.5 – 1.0 .150 3.8 .917 .413 .153 .287 23.3 10.5 3.9 7.3 25 83-8101

16 – 14 1.5 – 2.5 .185 4.7 .917 .413 .153 .287 23.3 10.5 3.9 7.3 25 83-8111

75° C/300 Volts max.

Vinyl Insulated Bullet Disconnects

Wire Wire Max. Wire Max. Wire Dimensions Dimensions

Range Range Ins. Dia. Ins. Dia. (Inches) (mm)

(AWG) (mm2) (Inches) (mm) L B W F L B W F Ctn. Qty. Cat. No.

22 – 18 0.5 – 1.0 .150 3.8 .846 .413 .157 .335 21.5 10.5 4.0 8.5 25 83-8001

16 – 14 1.5 – 2.5 .185 4.7 .846 .413 .157 .335 21.5 10.5 4.0 8.5 25 83-8011

75° C/300 Volts max.

Non-Insulated Flag Female Disconnect

Wire Wire Tab Tab Dimensions Dimensions

Range Range Size Size (Inches) (mm)

(AWG) (mm2) (Inches) (mm) L B W F L B W F Ctn. Qty. Cat. No.

16 – 14 1.5 – 2.5 .250 x .032 6.35 x 0.8 .551 .291 .260 299 14.0 7.4 6.6 7.6 25 83-9401

105° C/300 Volts max.

Disconnect Adapter – Male to Female (2-1)

Dimensions Dimensions

Tab Size Tab Size (Inches) (mm)

(Inches) (mm2) L W L W Ctn. Qty. Cat. No.

.250 x .032 6.35 x 0.8 .551 .260 14.0 6.6 25 83-9801

105° C/300 Volts max.

Non-Insulated Butt Splices

Wire Dimensions Dimensions

Range Wire Range (Inches) (mm)

(AWG) (mm2)LDL D

Ctn. Qty. Cat. No. Ctn. Qty. Cat. No.

22 – 18 0.5 – 1.0 .591 .130 15.0 3.3 25 83-9001 ——

16 – 14 1.5 – 2.5 .591 .154 15.0 3.9 25 83-9011 ——

12 – 10 4.0 – 6.0 .591 .213 15.0 5.4 25 83-9021 500 84-9021

8 8.0 .827 .276 21.0 7.0 25 83-9031 250 84-9031

6 14.0 1.024 .350 26.0 8.9 20 83-9041 ——

4 22.0 1.142 .445 29.0 11.3 20 83-9051 ——

105° C/600 Volts max.

Non-Insulated Parallel Splices

Wire Dimensions Dimensions

Range Wire Range (Inches) (mm)

(AWG) (mm2)LDL D

Ctn. Qty. Cat. No. Ctn. Qty. Cat. No.

22 – 18 0.5 – 1.0 .315 .130 8.0 3.3 25 83-9071 ——

16 – 14 1.5 – 2.5 .315 .154 8.0 3.9 25 83-9081 1,000 84-9081

12 – 10 4.0 – 6.0 .335 .213 8.5 5.4 25 83-9091 ——

105° C/600 Volts max.

Disconnects

1-800-435-0705 for Customer Service www.idealindustries.com A-21

Wire Termination

Disconnects

www.idealindustries.com 1-800-435-0705 for Customer Service

A-22

Tap Splice Connectors

Wire Wire Dimensions Dimensions

Range Range (Inches) (mm)

(AWG) (mm2) Color L W L W Ctn. Qty. Cat. No.

22 – 18 0.5 – 1.0 Red 1.063 .787 27.0 20.0 25 83-3261

16 – 14 1.5 – 2.5 Blue 1.063 .787 27.0 20.0 25 83-3271

12 – 10 4.0 – 6.0 Yellow 1.358 .807 34.5 20.5 25 83-3281

105°C/ 600 Volts max.

Vinyl Insulated Parallel Splices

Wire Wire Max. Wire Max. Wire Dimensions Dimensions

Range Range Ins. Dia. Ins. Dia. (Inches) (mm)

(AWG) (mm2) (Inches) (mm) L W L W Ctn. Qty. Cat. No.

22 – 18 0.5 – 1.0 .157 4.0 .512 .067 13.0 1.7 25 83-9351

16 – 14 1.5 – 2.5 .177 4.5 .512 .091 13.0 2.3 25 83-9361

12 – 10 4.0 – 6.0 .248 6.3 .591 .134 15.0 3.4 25 83-9371

75°C/ 600 Volts max.

Vinyl Insulated Butt Splices

Max. Max.

Wire Wire Ins. Wire Ins. Dimensions Dimensions

Range Wire Range Dia. Dia. (Inches) (mm)

(AWG) (mm2) (Inches) (Inches) LD L D

Ctn. Qty. Cat. No. Ctn. Qty. Cat. No.

22 – 18 0.5 – 1.25 .157 4.0 .986 .067 24.6 1.7 25 83-9281 1,000 84-9281

16 – 14 1.5 – 2.5 .177 4.5 .986 .091 24.6 2.3 25 83-9291 1,000 84-9291

12 – 10 4.0 – 6.0 .248 6.3 1.043 .134 26.5 3.4 25 83-9301 500 84-9301

75° C/600 Volts max.

1-800-435-0705 for Customer Service www.idealindustries.com A-23

Wire Termination

Terminal Strips

■

Heavy-duty, corrosion-resistant screws, surface

plates and optional hardware

■

Accessory hardware provides a variety of

termination options

■

Available cover helps prevent contact with live terminals

■

.562 in. (14.28mm) center spacing

■

Accepts wire sizes from 22 through 10 AWG Cu

■

#8-32 philslot, zinc-plated steel terminal screws

(Recommended torque: 16 in. - lb.)

89-200 Series Terminal Strips

30A/600V* UL/CSA

■

.375 in. (9.52mm) center spacing

■

Accepts wire sizes from 22 through 14 AWG Cu

■

#6-32 philslot, zinc-plated steel terminal screws

(Recommended torque: 9 in. - lb.)

89-300 Series Terminal Strips

15A/250V** UL, 15A/150V** CSA

Dimensions

No. of (Inches)

Poles A B Cat. No.

2 1.40 1.12 89-302

4 2.16 1.88 89-304

6 2.90 2.62 89-306

8 3.66 3.38 89-308

10 4.40 4.12 89-310

12 5.16 4.88 89-312

**Max. electrical rating 15A/125V when used with

optional quick-connects.

■

Rugged polyester thermoplastic base

(UL Rated 94V-O)

■

Operating temperature rated from 130°C (260°F) to

-40°C (-40°F)

■

UL Recognized (E62622) and CSA Certified (LR15364)

Dimensions

No. of (Inches)

Poles A B Cat. No.

2 2.13 1.69 89-202

3 2.69 2.25 89-203

4 3.25 2.81 89-204

6 4.37 3.94 89-206

8 5.50 5.06 89-208

10 6.62 6.19 89-210

12 7.75 7.31 89-212

*Max. electrical rating 30A/250V when used

with optional quick-connects.

Terminal Strips

www.idealindustries.com 1-800-435-0705 for Customer Service

A-24

■

.437 in. (11.10mm) center spacing

■

Accepts wire sizes from 22 through 12 AWG Cu

■

#6-32 philslot, zinc-plated steel terminal screws

(Recommended torque: 9 in. - lb.)

89-400 Series Terminal Strips

20A/250V UL/CSA

■

Available in standard or shorting-block style

■

.625 in. (15.88mm) center spacing

■

Accepts wire sizes from 22 through 6 AWG Cu

■

#10-32 slotted, nickel plated brass terminal screws

(Recommended torque: 20 in. - lb.)

89-500 Series Terminal Strips

60A/600V* UL/CSA

Dimensions

No. of (Inches)Standard Block Shorting Block

Poles A B Cat. No. Cat. No.

4 3.75 2.87 89-504 89-505

6 5.00 4.12 89-506 89-507

8 6.25 5.37 89-508 89-509

12 8.75 7.87 89-512 89-513

*Max. electrical rating 60A/600V achieved only when used

with #6 AWG copper wire crimped to ring terminal.

Dimensions

No. of (Inches)

Poles A B Cat. No.

2 1.63 1.31 89-402

4 2.51 2.18 89-404

6 3.38 3.06 89-406

8 4.25 3.93 89-408

10 5.13 4.81 89-410

12 6.00 5.68 89-412

Standard Block

Shorting Block

Covers

1-800-435-0705 for Customer Service www.idealindustries.com A-25

Wire Termination

For Use With

Terminal Strip Tab Size Flat - None Flat - Flat

Series (Inches) Qty Cat. No. Cat. No.

89-300 .187 x .020 10 pcs. 89-314 89-317

89-200 & 89-400 .250 x .031 10 pcs. 89-414 89-417

For Use With Terminal Strip Series

89-200 89-300 89-400 89-500

No. of Clear Clear Clear Clear

Circuits Cat. No. Cat. No. Cat. No. Cat. No.

289-233 89-334 89-434 —

389-234 ———

489-235 89-335 89-435 89-514

689-236 89-336 89-436 89-516

889-237 89-337 89-437 89-518

10 89-238 89-338 89-438 —

12 89-239 89-339 89-439 89-520

Quick Connects

Jumpers

Flat - None

Flat Slip-on

Flat - Flat

Flat 12-Circuit

Covers

For Use With

Flat Over Barrier Flat

Terminal Strip Center Spacing Slip-on Slip-on 12-Circuit

Series (Inches)Qty. Cat. No. Cat. No. Cat. No.

89-200 .562 10 pcs. 89-229 89-224 —

100 pcs. 89-230 ——

89-300 .375 10 pcs. 89-323 89-324 —

100 pcs. 89-330 ——

89-400 .437 10 pcs. 89-423 89-424 —

100 pcs. 89-430 ——

89-500 .625 2 pcs. — — 89-525

■

Helps prevent contact with live terminals

■

Allows fast, flexible circuit changes

■

Provides easy connection of

multiple circuits

Over Barrier

Slip-on

Barrier Strips

www.idealindustries.com 1-800-435-0705 for Customer Service

A-26

Barrier Strips

Wire Dimensions Dimensions

Electrical Range No. of Torque Model (Inches)(

mm)

Ratings (AWG) Circuits in.-lb. No. A B C D E F* A B C D E F** Cat. No.

20A/600V UL 22 - 12 12 3.5 PA8DS 3.787 0.669 0.570 0.315 0.114 0.110 96.2 17.0 14.5 8.0 2.9 2.8 89-608

10A/400V CSA 20 - 18

30A/600V UL 22 - 10 12 4.4 PA10DS 4.626 0.795 0.670 0.394 0.142 0.134 117.0 20.2 17.0 10.0 3.6 3.4 89-610

20A/400V CSA 18 - 14

35A/600V UL/CUL 22 - 10 12 7.0 PA12DS 5.540 0.937 0.748 0.472 0.154 0.154 140.7 23.8 19.0 12.0 3.9 3.9 89-612

50A/600V UL/CUL 20 - 8 12 12.0 PA14DS 6.220 1.008 0.992 0.531 0.173 0.189 158.0 25.6 25.2 13.5 4.4 4.8 89-614

*Plus or minus .004 in.

**Plus or minus 0.1mm

Barrier Strips

■

Recessed screws and tubular contacts provide

added safety and help prevent short circuits

■

Tubular contacts connect stripped, un-terminated

solid or stranded wire directly to each contact

■

Integrated wire protectors prevent twisting and

breakage of stranded wire during connection

■

Modular 12-circuit design can be cut into smaller

sections, or stacked end-to-end

■

Rugged nylon construction, UL 94V2

■

Operating temperature rated to 105°C (221°F)

Wire Connectors

1-800-435-0705 for Customer Service www.idealindustries.com A-27

Wire Termination

Wire Combination

Model Range Quantity Cat. No.

600V Box of 100 30-410

410 18 thru 10 AWG Carton of 1,000 30-510

Min. 1 #14 & 1 #18

Max. 2 #10 & 2 #14 Keg of 10,000 30-610

600V Box of 40 30-401

411 18 thru 8 AWG Box of 50 30-411

Min. 3 #12

Max. 4 #10 Carton of 1,000 30-511

600V Box of 20 30-402

412 18 thru 4 AWG Box of 50 30-412

Min. 1 #14 & 1 #16

Max. 2 #8 & 1 #6 Carton of 1,000 30-512

Crimp Connectors

■

Designed for making fast, permanent, pressure-type connections

■

Long, zinc-plated steel sleeves maximize contact area

with conductors

■

Will not vibrate loose when securely crimped

■

Steel crimp connectors are UL Listed to 486C and CSA Certified

to C22.2 #188; comply with Federal Specification W-S-610E.

Wrap-Cap®Insulators

■

Provide high dielectric and physical

protection for UL Listed, non-insulated

pressure-type wire connectors

■

Cap and loop design eliminates

need for tape

■

Unique design

completely covers

splice — insulates

both around and

between wires

■

Reusable and easy to install

■

UL Listed and CSA Certified for 600V maximum building wiring

(1,000V maximum for fixtures and signs); temperature rated at

75°C (167°F) maximum

Model Description Quantity Cat. No.

Box of 20 30-405

415 Insulator for Model Box of 100 30-415

410 sleeves Carton of 1,000 30-515

Keg of 10,000 30-615

Box of 10 30-407

417 Insulator for Model 411 Box of 50 30-417

& 412 sleeves Carton of 1,000 30-517

Model A B C D

415 1/2 5/8 23/32 1-13/64

417 11/16 3/4 3/4 1-25/32

Dimensions (Inches)

Model A B

410 Steel 3/8 13/64

411 Steel 5/8 1/4

412 Steel 51/64 19/64

Dimensions (Inches)

Steel Crimp Connectors

IDEAL hand tools U.L. listed for Model 410, 411, 412.

Crimps: 30-420, 30-425, 30-429, 30-430.

Model Wire Combination Range Quantity Cat. No.

600V* 1,000 30-245

48 Min. 2 #22

Max. 1 #14 w/2 #18 10,000 30-645

600V* 1,000 30-249

49 Min. 1 #22 w/1 #18

Max. 1 #12 w/1 #16 10,000 30-649

600V* 1,000 30-148

NC-8 Min. 4 #w16

Max. 1 #12 w/4 #14 5,000 30-648

*1,000V maximum in fixtures and signs

Pre-Insulated Crimp Connectors

■

Three models cover a wide range

of wire combinations from 22 AWG

stranded through 8 AWG stranded

■

Compact design fits easily

into tight locations

■

Flared skirt protects against

turned–back strands

■

Beveled opening eases

wire entry

■

UL Listed and CSA Certified for 600V maximum building wiring

(1,000V maximum for fixtures and signs); temperature rated at

105°C (221°F) maximum

www.idealindustries.com 1-800-435-0705 for Customer Service

A-28

Wire Connectors

Set-Screw Wire Connectors

■

Eliminates need for restripping wire each time connection is disturbed

■

Solid brass sleeves in three sizes handle 18 through 12 AWG wires

■

Set-screw easily and securely applies maximum compression to

conductors to ensure a vibration-resistant splice

■

Permits fast visual inspection of splice

■

Tough, flame-retardant shell rated at 150°C (302°F)

■

UL Listed to 486C and CSA Certified to C22.2 #188 ; comply with

Federal Specification W-S-610E

Wire Combination

Model Range Quantity Cat. No.

300V Box of 100 30-210

10 22 thru 16 AWG

Min. 1 #20 w/1 #22

Max. 2 #14 w/1 #16 Carton of 1,000 30-310

600V Box of 100 30-211

11 22 thru 14 AWG

Min. 1 #14 w/1 #20

Max. 3 #14 w/2 #18 Carton of 1,000 30-311

600V Box of 100 30-222

22 20 thru 10 AWG

Min. 1 #16 w/3 #18

Max. 2 #10 w/1 #12 Carton of 1,000 30-322

Insert Shell

Model A B C D E

10 1/8 5/16 1/2 19/64 45/64

11 3/16 3/8 33/64 13/32 63/64

22 1/4 1/2 11/16 13/32 1-1/64

Dimensions (Inches)

Set-Screw Holder

For Connector Models Cat. No.

11 & 22 K-2422

Noalox®Anti-Oxidant

■

Anti-oxidant and anti-seizing compound improves efficiency

and service life of aluminum electrical applications

■

Suspended zinc particles penetrate and cut aluminum oxide

■

Provides additional inner-strand and inner-conductor current

paths for improved conductivity and cooler connections

■

Carrier material excludes air to prevent further oxidation

■

For use with all types of pressure-type wire connectors

including screw-on, tap, service entrance and split-bolt

■

Reduces galling and seizing on aluminum conduit joints —

promotes good ground continuity

Description Cat. No.

1/2-oz. Tube 30-024

4-oz. Squeeze bottle 30-026

8-oz. Squeeze bottle 30-030

8-oz. Brush cap 30-031

1-gal. Bucket 30-032

5-gal. Bucket 30-040

■

Convenient tool for holding and

tightening set-screw connectors

■

Accepts IDEAL

Models 11 and 22

set-screw connectors

1-800-435-0705 for Customer Service www.idealindustries.com A-29

1-800-435-0705 for Customer Service www.idealindustries.com

Wire Termination

Mechanical Lugs

Dual-Rated (Al/Cu) Single-Barrel Connectors

Tang and

mounting hole

Slotted screw

Wire range and

stud size

identification

Chamfered

wire entry

Tang and

mounting hole Hex socket

screw

Wire range

and stud size

identification

Chamfered

wire entry

Functional wire stop

■

Chamfered entry for faster, more reliable connections

■

Uniform plating resists corrosion, reduces contact

resistance and provides maximum conductivity

■

UL Listed at 600V — acceptable for use through 2,000V

Powr-Connect™ Mechanical Lugs

■

Can be used through 8,000V if installed in

accordance with National Electric Code Section

310-6 (UL Green Book)

■

UL Listed to 486B for dual-rated connectors —

UL Listed to 486A for copper connectors

■

Meets ANSI C119.4 requirements

■

Electro tin-plated, high-strength aluminum alloy construction

■

UL Listed to 486B (AL9CU)

Wire Dimensions (Inches) Stud Cat.

Model Range L W H Size (In.) No.

LA-50-1 6 – 14 AWG 1-1/16 3/8 1/2 1/4 87-002

Narrow type – special mounting requirements

LA-2 2 – 14 AWG 1-5/32 1/2 9/16 1/4 87-005

LA-1/0 1/0 – 14 AWG 1-15/32 5/8 25/32 1/4 87-007

LA-1/0* 1/0 – 14 AWG 1-15/32 5/8 25/32 3/8 87-008

LA-2/0 2/0 – 14 AWG 1-15/32 5/8 25/32 1/4 87-009

LA-2/0* 2/0 – 14 AWG 1-15/32 5/8 23/32 3/5 87-010

LA-250 250 KCMIL – 6 AWG 2 1 1-1/8 5/16 87-011

LA-250* 250 KCMIL – 6 AWG 2 1 1-1/8 3/8 87-012

LA-350 350 KCMIL – 6 AWG 2-1/4 1-1/8 1-1/4 3/8 87-015

LA-350* 350 KCMIL – 6 AWG 2-1/4 1-1/8 1-1/4 1/2 87-016

LA-500 500 KCMIL – 4 AWG 2-13/16 1-1/4 1-9/16 3/8 87-017

LA-500* 500 KCMIL – 4 AWG 2-13/16 1-1/2 1-9/16 1/2 87-018

*Larger mounting hole

Two hex

socket screws

Dual-Rated (Al/Cu) Two-Barrel Connectors

■

Electro tin-plated, high-strength aluminum alloy construction

■

UL 486B Listed AL9CU

Chamfered

wire entry

Tang

and mounting

hole

Wire range

and stud size

identification

Wire Dimensions (Inches) Stud Cat.

Model Range LWH

Size (In.) No.

L2A1-1/0 1/0 – 14 AWG (2) 1-15/32 1-1/8 25/32 1/4 87-040

L2A1-2/0 2/0 – 14 AWG (2) 1-15/32 1-1/4 25/32 1/4 87-042

L2A1-250 250 KCMIL – 6 AWG (2) 2-9/16 1-5/8 1-3/16 3/8 87-044

L2A1-350 350 KCMIL – 6 AWG (2) 2-7/8 1-15/16 1-1/4 1/2 87-046

L2A1-600 600 KCMIL – 2 AWG (2) 3-3/16 2-13/32 1-9/16 1/2 87-048

Mechanical Lugs

www.idealindustries.com 1-800-435-0705 for Customer Service

A-30

Wire Dimensions (Inches) Stud Cat.

Model Range LW H

Size (In.) No.

SR-2* 2 – 14 AWG 1-3/8 1/2 9/16 5/8 87-143

SR-1/0* 1/0 – 14 AWG 1-29/32 3/4 3/4 7/8 87-144

SR-250 250 KCMIL – 6 AWG 3-15/16 1 1-1/8 1-15/16 87-145

Dual-Rated (Al/Cu) Panel-Board Connectors

■

Electro tin-plated, high-strength aluminum alloy construction

■

UL Listed to 486B (AL9CU)

Tang and two

mounting holes

Flat

bottom ensures

good mounting

contact

Wire range

and stud size

identification

Chamfered

wire entry

Hex socket

screws

Wire

stop

*Slotted screws

Rounded bottom

facilitates tapping

Solid center

barrier

Chamfered

wire entry

Slotted screws

Solid center

barrier

Chamfered

wire entry

Hex socket screws

Rounded bottom

facilitates tapping

Dual-Rated (Al/Cu) Splicer Reducers

■

Electro tin-plated, high-strength aluminum alloy construction

■

UL Listed to 486B (AL9CU)

Wire Dimensions (Inches) Stud Cat.

Model Range L W H Size (In.) No.

PV2-600 600 KCMIL – 2 AWG 4-29/32 1-1/2 3 3/8 87-126

PV2-750 750 KCMIL – 1/0 AWG 4-29/32 1-9/16 3 3/8 87-129

PV3-600 600 KCMIL – 2 AWG 4-29/32 2-1/2 3 3/8 87-132

PV3-750 750 KCMIL – 1/0 AWG 4-29/32 2-27/32 3 3/8 87-135

PV4-600 600 KCMIL – 2 AWG 4-29/32 2-1/2 3 3/8 87-138

PV4-750 750 KCMIL – 3/0 AWG 4-29/32 2-27/32 3 3/8 87-141

Mechanical Lugs

1-800-435-0705 for Customer Service www.idealindustries.com A-31

Wire Termination

Flexible

hinge Self-locking

design

Dual-Rated (Al/Cu) Parallel-Tap Connectors with Covers

■

Electro tin-plated, high-strength aluminum alloy construction

■

UL Listed to 486B (AL9CU) — 105°C, 600V max.

Wire Range Strip Dimensions (Inches) Cat.

Model Main Tap Length (In.) L W H No.

GP-2C 2 – 12 AWG 4 – 14 AWG 5/8 2-7/32 1-29/32 1-7/64 87-180

GP-1/0C 1/0 – 2 AWG 1/0 – 14 AWG 3/4 2-5/8 2-5/32 1-1/4 87-182

GP-250C 250 KCMIL – 1/0 AWG 250 KCMIL – 6 AWG 1-1/16 3-7/16 2-7/8 1-5/8 87-186

GP-350C 350 KCMIL – 4/0 AWG 350 KCMIL – 6 AWG 1-1/4 3-3/4 3-3/16 1-3/4 87-190

GP-500C 500 – 350 KCMIL 500 KCMIL – 2 AWG 1-3/8 4-3/8 3-5/16 2-3/32 87-194

Powr-Connect™ Tap Connectors

Insulating cover reduces

installation cost

Slotted

screws

Serrated barrel

bottom for positive

terminations

Dual-Rated (Al/Cu) Parallel-Tap Connectors without Covers

■

Electro tin-plated, high-strength aluminum alloy construction

■

UL Listed to 486B (AL9CU)

Wire Range Strip Dimensions (Inches) Cat.

Model Main Tap Length (In.) L W H No.

GP-2 2 – 12 AWG 4 – 14 AWG 5/8 1-25/64 5/8 7/8 87-150

GP-1/0 1/0 – 2 AWG 1/0 – 14 AWG 3/4 1-3/4 3/4 1 87-152

GP-250 250 KCMIL – 1/0 AWG 250 KCMIL – 6 AWG 1-1/16 2-9/32 1-1/16 1-5/16 87-156

Self-locking

design

■

600V maximum

■

105°C maximum temperature

Thermoplastic

elastomer material

Range

identification

with color code

Flexible hinge

Insulating Covers for Parallel-Tap Connectors

For Use Dimensions (Inches) Cat.

Model With: Color LWH

No.

GIC-2 87-150 Yellow 2-7/32 1-29/32 1-7/64 87-370

GIC-1/0 87-152 Gray 2-5/8 2-5/32 1-1/4 87-372

GIC-250 87-150 Red 3-7/16 2-7/8 1-5/8 87-374

Rod Wire Dimensions (Inches) Cat.

Model Dia. (In.) Range HWL No.

WB58 5/8 1/0 – 8 2-1/8 7/8 1 87-958

Heavy-Duty Clamps

Pipe Wire Dimensions (Inches) Cat.

Model Size (In.) Range HWL No.

J 1/2 – 1 2 – 10 2-3/4 2-3/8 3/4 87-563

J2 1-1/4 – 2 2 – 10 3-3/4 3-5/8 7/8 87-564

High-Strength Ground Clamps

Mechanical Lugs

www.idealindustries.com 1-800-435-0705 for Customer Service

A-32

■

Designed to maintain proper contact and alignment between

ground and wire rod

■

Brass or plated screws for corrosion resistance

■

High-strength copper alloy construction

Powr-Connect™ Grounding Connectors

Flexible plastisol

insulating cover

Chamfered

wire entry Aluminum screws

■

High-strength copper alloy

construction (nut, bolt and

body)

■

UL 486A Listed

■

UL 486A Listed (Lug only)

Type K Split Bolts for Copper Connections

Dual-Rated (Al/Cu) Street-Light

Connector Kit with Cover

Wire No. of Dimensions (Inches) Cat.

Model Range Cond. L W H No.

SLK-1/0 1/0 – 14 AWG 3 2 1-3/16 2-3/16 88-100

■

UL 486B Listed AL9CU

Wire Range

Run Tap

Model Max. Min. Max. Min. Cat. No.

AS-6 6 str. 10 sol. 6 str. 10 sol. 87-681

AS-4 4 str. 8 sol. 4 str. 10 sol. 87-682

AS-2 2 str. 6 sol. 2 str. 8 str. 87-683

AS-1/0 1/0 str. 2 compact 1/0 str. 8 sol. 87-685

AS-2/0 2/0 str. 2 compact 2/0 str. 8 str. 87-686

AS-4/0 4/0 str. 2 compact 4/0 str. 6 str. 87-687

Dual-Rated (Al/Cu) Type AS Split Bolts

Spacer provides serration

to retard corrosion

Aluminum, tin-plated

to inhibit oxide formation

Anti-galling

threaded components

"Tooth" configuration

provides low contact

resistance

Wire range

Bottom pad

attached to

nut and guide

assembly

Range for Min. Tap

Equal Run with Max.

Model & Tap Run Cat. No.

K-10 10 str. – 12 str. 16 str. 87-650

K-8 8 str. – 10 str. 14 str. 87-651

K-6 6 sol. – 8 str. 14 str. 87-652

K-4 4 sol. – 8 str. 14 str. 87-653

K-3 2 sol. – 6 str. 14 str 87-654

K-2 2 str. – 6 str. 14 str. 87-655

K-1/0 1/0 str. – 4 str. 14 str. 87-656

K-2/0 2/0 str. – 2 str. 14 str. 87-657

K-3/0 3/0 str. – 1 str. 8 sol. 87-658

Mechanical Lugs

1-800-435-0705 for Customer Service www.idealindustries.com A-33

Wire Termination

Dual-Rated (AI/Cu) Collar Connectors

10-32 tapped mounting hole

with 0.229 in. square boss

for bottom mounting to

electrical devices or bus bars

Wire Dimensions (Inches) Cat.

Model Range LWHNo.

CA-60** 2 – 14 AWG 9/16 15/32 15/32 87-583

CA-110* 1/0 – 14 AWG 19/32 17/32 5/8 87-585

*Successfully tested to AL9CU

**Successfully tested to AL7CU

Slotted wire

screw

Single-Hole Solderless Lugs for Copper Conductors

■

Electrolytic copper construction

■

UL 486A Listed

Wire Stud Dimensions (Inches) Cat.

Model Range Size (In.) L W H No.

FT-65 6 – 14 AWG 3/16 1 3/8 3/4 87-736

FT-90 1/0 – 14 AWG 1/4 1-17/64 5/8 1 87-738

Wire range

and stud size

identification

Floating

offset tang

Slotted

screw

Hex head

bolt

Barrel collar

ensures positive contact

Tang

staked to

collar

Hex

socket

screw

Single-Hole Solderless Lugs for Copper Conductors (Offset)

■

Electrolytic copper construction

■

UL 486A listed

Powr-ConnectTM Mechanical Solderless Lugs

Slotted

screw

Wire Stud Dimensions (Inches) Cat.

Model Range Size (In.) L W H No.

CF-25* 10 – 14 AWG #8 1 5/16 3/8 87-700

CF-35 6 – 14 AWG 3/16 1-3/32 3/8 3/4 87-701

CF-70 4 – 14 AWG 1/4 1-5/16 1/2 13/16 87-702

CF-90 2 – 8 AWG 1/4 1-15/32 1/2 1 87-703

CF-125 1/0 – 2 AWG 1/4 1-13/16 5/8 1-11/32 87-704

CF-225 4/0 – 2 AWG 5/16 2-5/8 1 1-13/16 87-706

*Not CSA Certified

Notes

www.idealindustries.com 1-800-435-0705 for Customer Service

A-34

Notes:

_________________________________________________________________________________________________________________________________

Our wedge-edge expanding

spring is specially designed for faster

pull-up and quick connections.

It also accommodates a wide

range of wire gauges.

The B2 B-CAP®Wire Connector is

the universal connector that

accepts the widest range of wire

combinations. Plus, the Classic

Fin™ ergonomic design fits easily

in tight electrical boxes.

(2) #18 stranded

(1) #14 solid

(1) #18 stranded

(2) #14 solid

(1) #14 solid

(2) #12 stranded

(2) #10 stranded

(3) #12 solid

(2) #14 solid

(5) #12 solid

The Buchanan C-24 Crimp Tool

has an iron-clad reputation that’s

up to every job, every time.

A patented four-way crimp ensures

reliable connections, while the

spring-loaded, cam-actuated design

fits a wide range of connectors.

The comprehensive line of

Buchanan sectional

terminal blocks offers a

wide range of block

configurations, mounting

options and contact styles

accommodating wire sizes

from 30 AWG to 250 MCM.

Twist-on Wire Connectors

A-35

Wire Termination

Twist-on Wire Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-36

■

Three color-coded models cover a full range of wire

sizes from 22 AWG through 6 AWG

■

Classic FinTM design provides secure grip for extra

leverage on maximum wire combinations

■

Live-action spring expands to accept wire shape and size – no

pre-twisting required

■

Square-wire spring threads directly onto conductors for fast,

secure connections

■

Deep skirt protects against flash-over and turned-back strands

for maximum dielectric protection

■

Easily removed for repeat usage on same size or

larger wire combinations

■

Tough, UL 94V-2 flame-retardant shell rated at 105oC (221oF)

■

Green-B®designed for making ground connections and

bonding non-metallic sheathed cable

■

UL 486C Listed (Green-B®UL 467 Listed) and CSA 22.2 #188

Certified; comply with Federal Specification -S-610E

*1,000V maximum in fixtures and signs

Wire Combination Wire Combination

Model Color Range (Inches) Range (mm) Quantity / Package Cat. No.

100 / Box B1-1

250 / Jar B1-250JR

500 / Jar B1-500JR

2,500 / Bucket (5 bags, 500 ea.) B1-25

10,000 / Keg (20 bags, 500 ea.) B1-B

Barrel of 25,000 B1-SK

100 / Box B2-1

350 / Jar B2-350JR

500 / Jar B2-500JR

2,500 / Bucket (5 bags, 500 ea.) B2-25

10,000 / Keg (20 bags, 500 ea.) B2-B

Barrel of 25,000 B2-SK

50 / Box B4-1

1,000 / Bucket (4 bags, 250 ea.) B4-25

2,500 / Keg (10 bags, 250 ea.) B4-B

14 to 10 AWG 2,5mm2to 6,0mm250 / Box BGR-1

Min. 2 #14 Min. 2-2,5mm22,500 / Bucket (10 bags, 250 ea.) BGR-25

Max. 5 #12 Max. 5-4,0mm25,000 / Keg (20 bags, 250 ea.) BGR-B

EN 60-998-2-4

Contoured Classic

Fin™

Live-action, square-

wire spring

Tough, durable

thermoplastic

shell Deep skirt, wide

throat

()

Model A B

31/32 15/32

24.5 12

1-5/32 9/16

29.5 14

1-1/2 3/4

38 19

1-5/32 9/16

29.5 14

Dimensions Inches

BGR

Yellow

600V*

22 to 10 AWG

Min. 2 #18

Max. 3 #12

600V*

,34mm2to 6,0mm2

Min. 2-,75mm2

Max. 3-4,0mm2

600V*

22 to 8 AWG

Min. 2 #18

Max. 5 #12

600V*

,34mm2to 10,0mm2

Min. 2-,75mm2

Max. 5-4,0mm2

600V*

14 to 6 AWG

Min. 2 #12

Max. 2 #6

600V*

2,5mm2to 16,0mm2

Min. 2-4,0mm2

Max. 2-16,0mm2

Red

Blue-Gray

Green

B-CAP®Wire Connectors

Fixed square-

wire spring

Positive grip

design

Flame-retardant,

thermoplastic shell

Threaded entry

Deep skirt, wide

throat

■

Five color-coded models cover common construction wire

ranges

■

Ribbed cap provides positive grip for fast, easy installation

■

Fixed, square-wire spring threads itself creating a secure

pressure grip

■

Deep, wide-throated skirt protects against flash-over and

turned-back strands for maximum dielectric protection

■

Tough, UL 94V-2 flame-retardant shell rated at 105oC (221oF)

■

UL 486C Listed and CSA 22.2 #188 Certified

Model A B

37/64 21/64

15 8

45/64 25/64

18 10

55/64 7/16

22 11

61/64 35/64

24 14

1-1/16 21/32

27 17

()

Dimensions Inches

WT1

WT2

WT3

WT4

WT6

*1,000V maximum in fixtures and signs

**Includes 5 each of WT1, WT2, WT3, WT4 and WT6 WireTwist™ Wire Connectors

Twist-on Wire Connectors

1-800-435-0705 for Customer Service www.idealindustries.com A-37

Wire Termination

WireTwist™ Wire Connectors

Wire Combination Wire Combination BUCHANAN IDEAL

Model Color Range (Inches) Range (mm) Quantity / Package Cat. No. Cat. No.

300V 300V

22 to 14 AWG ,34mm2to 2,5mm2

100 / Box WT1-1 30-WT1C

WT1 Gray Min. 3 #22 Min. 3-,34mm2500 / Bag WT1-B 30-WT1B

Max. 2 #16 Max. 2-1,5mm2

50,000 / Barrel — 30-891

300V 300V

22 to 14 AWG ,34mm2to 2,5mm2

100 / Box WT2-1 30-WT2C

WT2 Blue Min. 3 #20 Min. 3-,50mm2500 / Bag WT2-B 30-WT2B

Max. 3 #16 Max. 3-1,5mm2

50,000 / Barrel — 30-892

600V* 600V*

22 to 14 AWG ,34mm2to 2,5mm2

100 / Box WT3-1 30-WT3C

WT3 Orange Min. 2 #18 Min. 2-,75mm2500 / Bag WT3-B 30-WT3B

Max. 2 #14 Max. 2-2,5mm2

50,000 / Barrel — 30-893

600V* 600V*

22 to 10 AWG ,75mm2to 6,0mm2

100 / Box WT4-1 30-WT4C

WT4 Yellow Min. 3 #20 Min. 3-,50mm2500 / Bag WT4-B 30-WT4B

Max. 2 #12 Max. 2-4,0mm2

30,000 / Barrel — 30-894

600V* 600V*

20 to 8 AWG ,50mm2to 10,0mm2

100 / Box WT6-1 30-WT6C

WT6 Red Min. 2 #14 Min. 2-2,5mm2250 / Bag WT6-B 30-WT6B

Max. 4 #12 Max. 4-4,0mm2

20,000 / Barrel — 30-896

Twist-on WIre Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

A-38

■

Four color-coded models cover common construction

wire ranges; green model designed for ground connections

■

Unique contoured wing design acts as built-in wrench

providing maximum torque with minimum effort

■

Fixed, square-wire spring threads itself creating secure pressure

grip

■

Deep, wide-throated skirt protects against flash-over and turned-

back strands for maximum dielectric protection

■

Tough, UL 94V-2 flame retardant shell rated at 105°C (221°F)

■

UL 486C Listed (WGR UL 467 Listed) and CSA C22.2

#188 Certified

Fixed square-

wire spring

Tough,

flame-retardant shell

Built-in

contoured wings

Deep, wide

skirt

Model A B

1-1/32 23/32

26 18

1-1/4 29/32

32 23

1-5/16 1

33 25

1-9/16 1-15/64

40 31

1-5/32 7/8

29.5 22

Wire Combination Wire Combination BUCHANAN IDEAL

Model Color Range (Inches) Range (mm) Quantity / Package Cat. No. Cat. No.

600V* 600V* 100 / Box WT51-1 30-WT51C

WT51 Yellow 18 to 10 AWG ,75mm2to 6,0mm2

500 / Bag WT51-B 30-WT51B

Min. 2 #18 Min. 2-,75mm2

500 / Jar WT51-500JR 30-WT51J

Max. 3 #12 Max. 3-4,0mm2

25,000 / Barrel WT51-SK 30-886

600V* 600V*

100 / Box WT41-1 30-WT41C

WT41 Tan 22 to 10 AWG ,34mm2to 6,0mm2500 / Bag WT41-B 30-WT41B

Min. 2 #20 Min. 2-0,5mm2500 / Jar WT41-500JR 30-WT41J

Max. 3 #10 Solid Max. 3-6,0mm2

25,000 / Barrel WT41-SK 30-885

600V* 600V*

18 to 10 AWG ,75mm2to 6,0mm2

100 / Box WT52-1 30-WT52C

WT52 Red Min. 2 #14 Min. 2-2,5mm2

500 / Bag WT52-B 30-WT52B

Max. 5 #12 Max. 5-4,0mm2500 / Jar WT52-500JR 30-WT52J

25,000 / Barrel WT52-SK 30-887

600V* 600V*

14 to 6 AWG 2,5mm2to 16,0mm250 / Box WT54-1 30-WT54C

WT54 Blue Min. 3 #12 Min. 3-4,0mm2

100 / Bag WT54-B 30-WT54B

Max. 2 #6 Max. 2-16,0mm2

14 to 10 AWG 2,5mm2to 6,0mm2

50 / Box WGR-1 30-WGRC

WGR Green Min. 2 #14 Min. 2-2,5mm2250 / Bag WGR-B 30-WGRB

Max. 5 #12 Max. 5-4,0mm2500 / Jar WGR-500JR 30-WGRJ

25,000 / Barrel WGR-SK 30-890

WT5 Assortment** See WT51 & WT52 above See WT51 & WT52 above (75 Yellow, 75 Red)/Jar WT5152JR —

()

Dimensions Inches

WT51

WT52

WT53

WT54

WGR

*1,000V maximum in fixtures and signs

**Includes 75 each of WT51 and WT52 WingTwist™ Wire Connectors

WingTwist™ Wire Connectors

Connectors/Crimp Tool

1-800-435-0705 for Customer Service www.idealindustries.com A-39

Splice Cap Insulators

■

Designed for making

fast, permanent, pressure-

type connections

■

Solid copper sleeves require

less crimping pressure

■

Resist corrosion in harsh environments

■

Tin-plated steel sleeves also available

■

UL 486C Listed and CSA C22.2 #188 Certified; comply with

Federal Specification W-S-61D

■

Convenient, safe and

fast installation

■

Snap-on nylon construction

■

Rated at 105°C (221°F) –

600V (1,000V maximum in fixtures

and signs)

Four-Way Crimp Tool

■

Patented design ensures even

compression and reliable

connectors

■

Spring-loaded, cam-actuated

plungers

■

Fingertip adjustment for

different connector sizes

*1,000V maximum in fixtures and signs

For Connector Model Quantity / Package Cat. No.

2006S & 2008S 100 / Box 2007

1,000 / Bag 2007B

2011S 50 / Box 2014

500 / Bag 2014B

Description Cat. No.

Four-Way Crimp Tool C-24

Wire Combination

Description Range (Inches) Quantity / Package Cat. No.

600V*

Copper Crimp 18 to 10 AWG 100 / Box 2006S

Connector Min. 2 #18 1,000 / Bag 2006SB

Max. 4 #12

600V*

Copper Crimp 14 to 4 AWG 50 / Box 2011S

Connector Min. 2 #10 500 / Bag 2011SB

Max. 2 #6

Termend®Lugs

■

Convenient, safe and

fast installation

■

One size fits 16 AWG

through 8 AWG solid or

stranded wire

■

Available in ring, spade

and locking spade

Wire Termination

Splice Cap Crimp Connectors

Tongue Type Stud Size Quantity / Package Cat. No.

Ring 10 50 / Box 16-8-10

Ring 1/4 50 / Box 16-8-1/4

Spade 10 50 / Box 16-8-10S

Locking Spade 10 50 / Box 16-8-10L

www.idealindustries.com 1-800-435-0705 for Customer Service

A-40

Tap Connectors

■

Eliminates split bolts and tape

■

Easy two-minute installation requires only box/socket wrench

■

Installs on energized systems eliminating costly power shutdowns

■

Self-sealing, grease-filled end-cap ensures safe, weather-tight connection

■

Unique turbo spacer keeps connector wide open for quick and easy installation

■

Torque-regulating nut breaks off when proper tension is reached

■

Full-line is 600V dual-rated,194˚F (90˚C)

Conductor

Range Voltage Dimensions (Inches) Socket Torque No. of

Run Tap Rating A B C Size (Inches) (In. Lbs.) Bolts Cat. No.

1/0-8 2-101600V 3.1 1.8 2.2 1/2 80 1 BTC1/0-10

2/0-4 10-142600V 3.1 1.8 2.2 1/2 80 1 BTC2/0-14

4/0-2 4/0-4 600V 4.4 2.4 3.2 1/2 160 1 BTC4/0-4

4/0-3 2-103600V 3.1 1.8 2.2 1/2 125 1 BTC4/0-10

4/0-2 2/0-6 600V 3.5 2.2 2.5 1/2 160 1 BTC4/0-6

250-1 4/0-4 600V 3.5 2.2 2.5 1/2 160 1 BTC250-4

350-1/0 350-1/0 600V 4.5 3 3.9 5/8 330 2 BTC350-1/0

500-2/0 4/0-4 600V 4.5 3 3.9 5/8 330 2 BTC500-4

500-4/0 350-1/0 600V 4.5 3 3.9 5/8 330 2 BTC500-1/0

750-3/0 10-144600V 3.7 2.5 2.2 1/2 80 1 BTC500-14

750-250 500-250 600V 4.7 3.4 4.75 5/8 330 2 BTC750-250

Assortment* BTCA-2

* Includes BTC 1/0-10, BTC 2/0-14, BTC 4/0-2, BTC 4/0-10, BTC 4/0-6, BTC 250-4, BTC 350-1/0, BTC 500-4 & BTC 500-1/0

1Tap #2 - #10 Cu solid/stranded; #2 - #10 Al stranded 3Tap #2 - #10 Cu solid/stranded; #2 - #8 Al stranded

2Tap #10 - #14 Cu solid/stranded; #10 - #14 Al stranded 4Tap #10 - #14 Cu solid/stranded; #10 - #12 Al stranded

B-Tap® Wire Range Chart

B-TAP®Insulation-Piercing Tap Connectors

Wire Size

Cat. No. 14 12 10 8643211/02/03/04/0250300350400500750

Main: 1/0 - 8

Tap: 2 - 10

Main: 2/0 - 4

Tap: 10 - 14

Main: 4/0 - 2

Tap: 4/0 - 4

Main: 4/0 - 3

Tap: 2 - 10

Main: 4/0 - 2

Tap: 2/0 - 6

Main: 250 - 1

Tap: 4/0 - 4

Main: 350 - 1/0

Tap: 350 - 1/0

Main: 500 - 2/0

Tap: 4/0 - 4

Main: 500 - 4/0

Tap: 350 - 1/0

Main: 750 - 3/0

Tap: 10 - 14

Main: 750 - 250

Tap: 500 - 250

Main

Tap

BTC500-1/0

BTC500-14

BTC750-250

BTC4/0-6

BTC250-4

BTC350-1/0

BTC500-4

BTC1/0-10

BTC2/0-14

BTC4/0-4

BTC4/0-10

1-800-435-0705 for Customer Service www.idealindustries.com A-41

Streetlight Kits

Wire Termination

Waterproof Breakaway Steetlight Connector & Splice Insulating Kits

Transformer

82 or 82S for Phase (fuse)

and

83 or 83S for Neutral (common)

Two 82 or 82S for

Phase (fuse)

D65 for Phases (fuse)

and two 84 or 84S

for Taps

End of run

65 Kit for Phase (fuse) and

20 Kit for Neutral (common)

or D65PN Kit

Two 65 or one

D65 to fuse

Tap unnecessary

Two 65 or one D65

to Fuse (Phases)

84 or 84S for Taps

D65PN for Phase

and Neutral

84 or 84S for Tap

Phase

to Phase

Transformer Phase

to Neutral

Phase to Phase

Transformer Phase

to Neutral

End of Run

■

Safe and easy installation in five minutes or less

■

No special equipment necessary – requires only a knife, wire stripper and crimp

tool

■

Unique wire entry port, cut-off design accommodates industry’s widest range of

insulation diameters

■

Fewer parts than competitive brands for better waterproof protection

■

Built-in break-away design eliminates de-energization of complete circuits

■

Safely separates upon impact without breaking wires – eliminates potential

danger and electrical shock (breakaway models)

■

Unique 2-in-1 one-piece crimp barrel accommodates industry’s widest range

of conductors (breakaway models)

■

Spring-loaded contacts compensate for thermal expansion to maintain integrity

of waterproof connection (breakaway models)

For Poles with Transformer Bases, Standard Bases and Junction Boxes

Configurations Comments

• D65 dual in-line for phases and two 84 or 84S kits for taps Recommended

• Two 82 or 82S Y-Tap Kits for phases and taps Cost-effective

• Two BTS4 B-CAP®Twist & Seal Wire Connectors Non-breakaway, small gauge (8 AWG and above).

See Wire Connector section.

Configurations Comments

• D65PN dual in-line for phase and neutral and Recommended configuration

Two 84 or 84S kits for tap

• One 82 or 82S Y-Tap Kit for phase and tap and Cost-effective

one 83 or 83S Y-Tap Kit for neutral and tap

• Two BTS4 B-CAP® Twist and Seal Wire Connectors Non-breakaway, small gauge (8 AWG and above).

See Wire Connector section.

For Lights Mounted to Utility Poles, etc...

• Two B-Tap® Insulation Piercing Connectors for Recommended configuration, see B-Tap®

phase and/or tap (for insulated conductors only) Insulation Piercing Connectors in this catalog.

Underground Feed Phase to Neutral

Underground Feed Phase to Phase

Application

Guide

Examples of Several

Kit Configurations

Overhead Feed

www.idealindustries.com 1-800-435-0705 for Customer Service

A-42

Streetlight Kits

Breakaway In-Line Kits

Application Electrical Ordering Code

Rating

Crimp Splice 150 Amp 84 –

Tap & Run 600 Volt

Set Screw Splice 70 Amp 84S –

Tap & Run 600 Volt

Application Electrical Ordering Code

Rating

In-Line Neutral 30 Amp 20 –

Non-Fused Breakaway 600 Volt

In-Line Phase 1/10-30 Amp 65 –

Fused Breakaway 600 Volt

Dual In-Line Phase 1/10-30 Amp D65 –

Fused Breakaway 600 Volt

Dual In-Line Phase & 1/10-30 Amp Phase D65PN –

Neutral Fused 30 Amp Neutral

Breakaway 600 Volt

Application Electrical Ordering Code

Rating

Crimped Phase 1/10-30 Amp 82 –

Fused Tap & Run 600 Volt

Crimp Neutral 125 Amp Line 83 –

Non-Fused Tap & Run 30 Amp Load

600 Volt

Set Screw Phase 1/10-30 Amp 82S –

Fused Tap & Run 600 Volt

Set Screw Neutral 70 Amp Line 83S –

Non-Fused Tap & Run 30 Amp Load

600 Volt

Breakaway Y-Tap Kits

Y-Splice Kits

MODEL

Ordering Information

Use the following chart and table to determine the correct part number by choosing model, line side, and

load side ordering codes from the shaded columns. See example below, right (Page A-45).

82TM Kit

83TM Kit

82STM Kit 83STM Kit

84TM Kit

84STM Kit

65TM Kit

D65TM Kit D65PNTM Kit

20TM Kit

Excerpts of the 1996 NEC Tables 5 & 5A

Dimensions of Insulated Conductors and Fixture Wires

Approx. Diameter in Inches for Insulation Types: Approx. Diameter in Inches for

Size RHH, THHW THHN XHH

Compact AL with Insulation Types:

(AWG) RH RHW-2,RHW TW THW,THW-2 THWN,THWN-2 XHHW, XHHW-2 THW,THHW THHN XHHW

1/0

0.163

0.182

0.236

0.326

0.364

0.412

0.440

0.472

0.582

0.622

0.193

0.212

0.236

0.326

0.364

0.412

0.440

0.472

0.582

0.622

0.133

0.152

0.176

0.236

0.304

0.352

0.380

0.412

0.492

0.532

0.163

0.182

0.206

0.266

0.304

0.352

0.380

0.412

0.492

0.532

0.111

0.130

0.164

0.216

0.254

0.324

0.352

0.384

0.446

0.486

0.133

0.152

0.176

0.236

0.274

0.322

0.350

0.382

0.442

0.482

–

0.255

0.290

0.335

–

0.390

0.465

0.500

–

0.240

0.305

–

0.360

0.415

0.450

–

0.224

0.260

0.305

–

0.360

0.415

0.450

National Electric Code

Line side

Double Ridge

Line side

housing (receptacle)

Line side

housing (receptacle)

Line side

housing (receptacle)

Line side

housing (receptacle)

Line side

housing (receptacle) Y Insert

Assembly

Y Insert

Assembly

Y Insert

Assembly

Line side

housing (receptacle)

Crimp-on

flag

terminals

Crimp-on

flag

terminals

Crimp-on

ring

terminals

Crimp-on

flag

terminals

Nut

and

Bolt

Nut

and

Bolt

Nut

and

Bolt

Line side

insert Load side

housing

(Plug)

Load side

housing

(Plug)

Load side

housing

(Plug)

Load side

housing

(Plug)

Load side

housing

(Plug)

Line Side Insert

Terminal

Block

Line side

insert Load side

housing

(Plug)

Line side

Double Ridge

Line side

Double Ridge

Line side

Double Ridge

Fuse

(not included)

White Band

Pin Contact

Load side

Single Ridge

Load side

Single Ridge

Load side

Single Ridge

Fuse

(not included)

Fuse

(not included)

Load side

Single Ridge

White Band

(Neutral Side) White Band (Neutral Side)

Metal Pin

Contact

1-800-435-0705 for Customer Service www.idealindustries.com A-43

Streetlight Kits

Wire Termination

Insulation Stranded* Ordering

Diameter Range Conductor Type Code

(Inches) Size (AWG) (

CHOOSE 1)

12-6 Copper Crimp U –

12-6 Aluminum Crimp UA –

.120-.430

4 or 2 Copper Crimp LC –

4 or 2 Aluminum Crimp LA –

Insulation Ordering Stranded* Ordering

Diameter Range Code Conductor Type Code

(Inches) (

CHOOSE 1)

Size (AWG) (

CHOOSE 1)

10 Copper Crimp 6 –

.155-.430 ADB 8 Copper Crimp 4 –

6 Copper Crimp 3 –

4 Copper Crimp 2 –

.420-.785 EAFB 2 Copper Crimp 1 –

1 Copper Crimp 0 –

1/0 Copper Crimp 10 –

.155-.430 ADB 10 1 –

81 –

6 Terminal Block 1 –

4 with Set Screws 1 –

2 Copper or Alum. 1 –

.420-.785 EAFB 1 Conductors 10 –

1/0 10 –

LINE SIDE LOAD SIDE

Insulation Equivalent Conductor Size Ordering

Diameter Range Conductor Size (AWG) Type Code

(Inches) (See Table) (

CHOOSE 1)

10 Copper Crimp 6

8 Copper Crimp 4

.120 -.430 1 6 Copper Crimp 3

4 Copper Crimp 2

2 Copper Crimp 1

1 Copper Crimp 0

Terminal Block

Copper or

.120 -.430 1 10-2 Aluminum N/A

Conductors

NOTE:

Fused kits require a 13/32” x 1 1/2” fuse. DO NOT USE GLASS OR INDICATING TYPES.

Waterproof or direct burial wire is recommended. THHN is NOT recommended.

*For solid wire: 14-4 AWG, use codes U, UA, C, or A. 2 AWG, use codes LC or LA.

Example:

A Y-Tap Kit with set screws for a 2 AWG phase line side conductor with a

diameter of .472" and a 10 AWG copper load side conductor is ordered as

an 82S-EAFB1-C.

Insulation Equivalent Stranded* Ordering

Diameter Range Conductor Conductor Type Code

(Inches) (See Table) Size (AWG) (

CHOOSE 1)

12-6 Copper Crimp U

12-6 Aluminum Crimp UA

.120-.430 1

4 or 2 Copper Crimp LC

4 or 2 Aluminum Crimp LA

NOTE: It is not necessary to use the load side ordering code if it is the same

as the line side code, i.e., a 65U-U is ordered as a 65U.

Insulation Equivalent Stranded* Ordering

Diameter Range Conductor Conductor Type Code

(Inches) (See Table) Size (AWG) (

CHOOSE 1)

12-6 Copper Crimp C

.120 -.430 1 12-6 Aluminum Crimp A

4 or 2 Copper Crimp LC

12-6 Copper Crimp C

12-6 Aluminum Crimp A

.120 -.430 1

4 or 2 Copper Crimp LC

4 or 2 Aluminum Crimp LA

Insulation Ordering Stranded* Ordering

Diameter Range Code Conductor Type Code

(Inches) (

CHOOSE 1)

Size (AWG) (

CHOOSE 1)

10 Copper Crimp 6 –

.155-.430 ADB 8 Copper Crimp 4 –

6 Copper Crimp 3 –

4 Copper Crimp 2 –

.420-.785 EAFB 2 Copper Crimp 1 –

1 Copper Crimp 0 –

1/0 Copper Crimp 10 –

.155-.430 ADB 10 1 –

81 –

6 Terminal Block 1 –

4 with Set Screws 1 –

2 Copper or Alum. 1 –

.420-.785 EAFB 1 Conductors 10 –

1/0 10 –

LR32565

www.idealindustries.com 1-800-435-0705 for Customer Service

A-44

Terminal Blocks

BUCHANAN CONSTRUCTION PRODUCTS, INC. offers the industry’s most

comprehensive and accommodating line of terminal blocks. BUCHANAN

terminal blocks make wiring jobs simpler and allow easy ready hook-up of

wires from different components or areas throughout a structure.

■

Wide range of configurations to solve virtually any wiring need

■

Wide wire ranges — 30 AWG to 250 KCMIL (MCM)

■

Easy installation — connect and disconnect quickly making

them perfect for maintenance and troubleshooting applications

■

Versatile, accommodating sectional design

■

Three housing options to meet your specific applications —

nylon, phenolic and polyester

■

Wide selection of contact types

■

Full line of accessories for easy customization

WIRE RANGE: Solid or Stranded

Tubular Clamp

1 #12 AWG, 1 #14 AWG, 1 to 3 #16 AWG, 1 to 5 #18 AWG, 1 to 6 #20 AWG,

1 to 7 #22 AWG

100 Series - Miniature (High Density)

Terminal Block Specifications

These miniature terminal blocks fit on a much smaller channel to save valuable panel space or

can be surface mounted directly to the panel. Miniature blocks accept wire as large as 12 AWG.

■No wire crimping required – clamp contacts hold wire from 30 AWG to 12 AWG better

than crimp-on terminals

■Saves installation time and cost – tubular clamp contacts supplied with captive screws

backed out

■Nylon housing for rugged applications

■Positive stop prevents wire from being inserted too far and prevents screw from being tightened on insulation; easy access contact provides

safe, reliable and cost-effective connection

■Quick installation and change – additional sections may be added or removed without removing channel mounting screw

■Matte-finish area for marking directly on block

Catalog Number - End Section

100 Series 125 115 130 120

Mounting Style Direct Mount Channel Mount Direct Mount Channel Mount

(Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base)

100 Series 125 115

Housing Material Nylon

Maximum Service Temperature 125°C (257°F)

Flammability UL94V2

Wire Strip Length (in.) 5/16

Torque (lbs.) 6-9

UL Rating 28A @ 300V

Wire Range (AWG) Solid & Stranded 30-12

Pitch (in.) 0.25

Terminals per foot 48

1-800-435-0705 for Customer Service www.idealindustries.com A-45

Terminal Blocks

Wire Termination

Miniature - Single Tier HIGH DENSITY

Flat Base

C = .29 + (.25 X N)

L = .51 + (.25 X N)

On Miniature #12 Channel:

CCH = 1.00 + (.25 XA)

LCH = 1.35 + (.25 X A)

A = N when N is even

A = N + 1 when N is odd

N = Number of Miniature Sections

Dovetail Base

C = .35 + (.25 X N)

L = .50 + (.25 X N)

On Standard #60 Channel:

CCH = 2.00 + (.25 XA)

LCH = 2.75 + (.25 X A)

N = Number of Single Tier Sections

On Miniature #12 Channel:

CCH = 1.00 + (.25 XA)

LCH = 1.35 + (.25 X A)

A = N when N is even

A = N + 1 when N is odd

N = Number of Miniature Sections

Terminal Blocks

www.idealindustries.com 1-800-435-0705 for Customer Service

A-46

This family of polyester blocks is ideal for high temperature applications.

The rugged material withstands temperatures up to 302°F (150°C)

■Three contact styles cover broad wire range — accept single wire or

combinations from 22 AWG to 8 AWG solid or stranded

■Rated at 15A to 50A per circuit

■Flat base models mount directly to surfaces; dovetail base models

mount on stranded channel

■Only one end section needed per block assembly

■Readily identifiable circuits - write directly on matte surface of block

■Sections snap-fit with Heavy Duty, Intermediate Heavy Duty and Fuse blocks

Specifications

Center-to-Center Spacing: .375 in.

Voltage Rating: 600 Volt max., Current: 50 Amp max.

Ampacity: #8 - #22 AWG

WIRE RANGE: Solid or Stranded

Strap Screw

1 #22 to 1 #14 AWG

Tubular Screw

1 #8 AWG, 1 #10 AWG, 1 to 3 #12 AWG, 1 to 4 #14 AWG, 1 to 4 #16 AWG,

1 to 5 #18 AWG, 1 to 10 #22 AWG

Tubular Clamp

1 #10 AWG, 1 or 2 #12 AWG, 1 to 3 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG,

1 to 10 #22 AWG

LR25557 E63810

Catalog Number 921 0921 924 0924 925 0925 930 0930

Mounting Style Direct Mount Channel Mount Direct Mount Channel Mount Direct Mount Channel Mount End Section End Section

(Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Direct Mount) (Channel Mount)

Ampacity 15A 50A 30A — —

Contact Type Strap Screw Tubular Screw Tubular Clamp — —

Screw Type 6-32 10-32 10-32 ——

Combo Head Combo Head Combo Head

Screw Torque 12 in./lbs. 8 in./lbs. 8 in./lbs. — —

Wire Range (AWG) #14 to #22 #8 to #22 #10 to #22 — —

Housing Material Polyester (gray)

Contact Material Copper Alloy, Zinc Plated

Screw Material Steel, Zinc Plated

Maximum Service Temperature 150°C (302°F)

Flammability UL94V-0 Rated

900 Series Medium Duty

Terminal Blocks

1-800-435-0705 for Customer Service www.idealindustries.com A-47

Wire Termination

900 Series

End Section

Direct Mount (Flat Base)

Strap Screw

Direct Mount (Flat Base)

6-32 SCREW

QTY: 2

CONTACT STRAP

.427 [10.85]

1.231

[31.27]

1.225 [31.12]

.700

[17.78]

6-32 SCREW

QTY: 2

CONTACT STRAP

1.468 [37.29]

.700

[17.78]

.427 [10.85]

1.231

[31.27]

Tubular Screw/Tubular Clamp

Direct Mount (Flat Base)

Channel Mount (Dovetail Base)

6-32 SCREW

QTY: 2

CONTACT STRAP

1.468 [37.29]

.700

[17.78]

.427 [10.85]

1.231

[31.27]

10-32 SCREW

QTY: 2

TUBULAR CONTACT

1.461 [37.11]

1.231

[31.27]

.427 [10.85]

.700

[17.78]

Terminal Blocks

www.idealindustries.com 1-800-435-0705 for Customer Service

A-48

200 Series - Nylon HEAVY DUTY

This compact design, heavy-duty line accepts single wire or combinations up to

4 AWG, solid or stranded,; 600V UL and NEMA rating.

■138 circuits per 6 foot length

■Three contact styles conservatively rated from 35A to 85A per circuit

■Two-way flat-base models surface mount directly to the panel or snap-on

miniature channel; dovetail base models mount on standard channel

■Only one end section needed per block assembly

■Readily identifiable circuits – mark directly on painted surface of block sections or

use removable marking tape

■Nylon housing for more rugged applications

■Sections snap-fit with Phenolic Heavy Duty, Intermediate Heavy Duty and Fuse blocks

Specifications

Center-to-Center Spacing: .50 in. CL: 24 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance requirements of NEMA, UL and CSA for general industrial control equipment and

panelboards. Withstand voltages greatly in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 4 AWG wire, the maximum amperage recommended is 85A.

WIRE RANGE: Solid or Stranded

Strap Screw

1 #22 to 1 #10 AWG

Tubular Screw

1 #4 AWG, 1 #6 AWG, 1 or 2 #8 AWG, 1 to 4 #10 AWG, 1 to 5 #12 AWG, 1 to 6 #14 AWG,

1 to 6 #16 AWG, 1 to 8 #18 AWG

Tubular Clamp

1 #6 AWG, 1 or 2 #8 AWG, 1 to 3 #10 AWG, 1 to 4 #12 AWG, 1 to 4 #14 AWG, 1 to 6 #16

AWG, 1 to 8 #18 AWG

LR25557 E63810

Housing Material Nylon, Type 6/6 unfilled

Contact Material Copper / Copper Alloy

Screw Material Steel Plated

Maximum Service Temperature 125°C (257°F)

Breakdown Voltage AC, 60Hz 7000V

Dielectric Strength (RH40% at sea level) 470-385 V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) 0.1 - .35

Water Absorption (24 hrs. % weight gain) 1.5%

Flammability 94V-2 (per UL94)

Chemical Resistance Resistant to aromatic hydrocarbons,

strong alkalies

Radiation Resistance (ergs g-1 C) 8 x 107

Catalog Number 241 0241 242 0242 243 0243 250 0250

Mounting Style Direct Mount Channel Mount Direct Mount Channel Mount Direct Mount Channel Mount End-Section End-Section

(Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Direct Mount) (Channel Mount)

Ampacity 35A 85A 65A — —

Contact Type Strap Screw Tubular Screw Tubular Clamp — —

Screw Type 10-32 Slotted Binding Head 1/4-28 Slotted Headless 1/4-28 Slotted Headless — —

Wire Range (AWG) #22 to #10 #18 to #4 #18 to #6 — —

Wire Strip Length — 1/2 in. 1/2 in. — —

1-800-435-0705 for Customer Service www.idealindustries.com A-49

Wire Termination

Terminal Blocks

200 Series - Nylon HEAVY DUTY

Flat Base (Direct Mount)

C = .56 + (.50 X N)

L = .78 + (.50 X N)

N = Number of circuits

Flat Base Mounted on #12 Miniature Channel

LCH = 1.85 + (.50 X N)

CCH = 1.50 + (.50 X N)

N = Number of Circuits

Dovetail Base Mounted on Standard #60 Channel

LCH = .3.03 + (.50 X N)

CCH = 2.28 + (.50 X N)

N = Number of circuits

www.idealindustries.com 1-800-435-0705 for Customer Service

A-50

Terminal Blocks

200 Series - Phenolic HEAVY DUTY

The family of phenolic heavy duty blocks is ideal for high temperature, high current

applications. The rugged material withstands temperatures up to 302°F (150°C).

■Sturdy block accepts single wire or combinations up to 4 AWG solid or stranded

■122 circuits per 6 foot length

■Three contact styles conservatively rated to 35A to 85A

■Only one end section needed per block assembly

■Readily identifiable circuits – mark directly on painted marking surface or

use removable marking strip

■Sections snap-fit with Nylon Heavy Duty, Intermediate Heavy Duty

and Fuse Blocks

Specifications

Center-to-Center Spacing: .56 in. CL: 20 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance requirements of NEMA, UL and CSA for general industrial control equipment and

panelboards. Withstand voltages greatly in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 4 AWG wire, the maximum amperage recommended is 85A.

WIRE RANGE: Solid or Stranded

Strap Screw

1 #18 to 1 #8 AWG

Tubular Screw

1 #4 AWG, 1 #6 AWG, 1 or 2 #8 AWG, 1 to 4 #10 AWG, 1 to 5 #12 AWG, 1 to 6 #14 AWG,

1 or 6 #16 AWG, 1 to 8 #18 AWG

Tubular Clamp

1 #6 AWG, 1 or 2 #8 AWG, 1 to 3 #10 AWG, 1 to 4 #12 AWG, 1 to 4 #14 AWG, 1 to 6 #16

AWG, 1 to 8 #18 AWG

LR25557 E63810

Housing Material Phenolic, Filled, Flame retardant

Contact Material Copper / Copper Alloy

Screw Material Steel Plated

Maximum Service Temperature 150°C (302°F)

Breakdown Voltage AC, 60Hz 7000V

Dielectric Strength (RH40% at sea level) 300V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .49 - .59

Water Absorption (24 hrs. % weight gain) 45% (per ASTM D570)

Flammability 94V-1 (per UL94)

Chemical Resistance Resistant to acids, alkalies, aliphatic

hydrocarbons and ketones (per ASTM D5343)

Radiation Resistance (ergs g-1 C) 2.7 x 108min.

Catalog Number 221 0221 222 0222 223 0223 230 0230

Mounting Style Direct Mount Channel Mount Direct Mount Channel Mount Direct Mount Channel Mount End-Section End-Section

(Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Direct Mount) (Channel Mount)

Ampacity 35A 85A 65A — —

Contact Type Strap Screw Tubular Screw Tubular Clamp — —

Screw Type 10-32 Slotted Binding Head 1/4-28 Slotted Headless 1/4-28 Slotted Headless — —

Wire Range (AWG) #22 to #10 #18 to #4 #18 to #6 — —

Wire Strip Length — 1/2 in. 1/2 in. — —

1-800-435-0705 for Customer Service www.idealindustries.com A-51

Terminal Blocks

Wire Termination

200 Series - Phenolic HEAVY DUTY

Flat Base (Direct Mount)

C = .59 + (.57 X N)

L = .81 + (.57 X N)

N = Number of circuits

Dovetail Base Mounted on Standard #60 Channel

CCH = 2.31 + (.57 X N)

LCH = 3.06 + (.57 X N)

N = Number of circuits

www.idealindustries.com 1-800-435-0705 for Customer Service

A-52

Terminal Blocks

Nylon INTERMEDIATE HEAVY DUTY

The 800 Series line of 600V blocks is conservatively rated up to 150A for a

single 1/0 AWG copper wire.

■Exceptionally compact block accepts single wire or combinations up to 1/0 AWG

■92 circuits per 6 foot length

■Tubular screw contact style accepts AWG sizes from 12 to 1/0, solid or stranded

■Two-way mounting base fits standard channel or mounts directly to flat surfaces

■Only one end section needed per block assembly

■Readily identifiable circuits – write directly on painted marking surface or use removable vinyl

marking strip

■Nylon housing for rugged applications, 7/16 -20 slotted headless screws

■Snap-fit with Heavy-Duty Nylon and Phenolic and Fuse Blocks

Specifications

Center-to-Center Spacing: .75 in. CL: 16 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance requirements of NEMA, UL and CSA standards for general industrial control

equipment and panelboards. Withstand voltages greatly in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 1/0 AWG copper wire, the maximum amperage recommended is 150A.

Housing Material Nylon, Type 6/6 Unfilled

Contact Material Copper

Screw Material Steel, Zinc-Plated

Maximum Service Temperature 125°C (257°F)

Breakdown Voltage AC, 60Hz 8800V

Dielectric Strength (RH40% at sea level) 470-385V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .01 - .35

Water Absorption (24 hrs. % weight gain) 1.5%

Flammability 94V-2

Chemical Resistance Resistant to aromatic hydrocarbons,

strong alkalies

Radiation Resistance (ergs g-1 C) 8 x 107

Catalog Number 824 830

Mounting Style Two-Way End Section

Mounting Base

Ampacity 150A —

Contact Type Tubular Screw —

Screw Type 7/16-20 Slotted Headless —

Wire Range (AWG) 12 to 1/0 —

Wire Strip Length 11/16 in. —

WIRE RANGE: Solid or Stranded

Tubular Screw

1 #1/0 AWG, 1 #1 AWG, 1 #2 AWG, 1 or 2 #4 AWG, 1 to 3 #6 AWG, , 2, 3 or 5 #8 AWG,

1 to 6 #10 AWG, 1 to 7 #12 AWG

LR25557 E63810

1-800-435-0705 for Customer Service www.idealindustries.com A-53

Terminal Blocks

Wire Termination

Flat Base (Direct Mount)

C = .59 + (.75 X N)

L = .81 + (.75 X N)

N = Number of circuits

Phenolic HEAVY DUTY

Dovetail Base Mounted on Standard #60 Channel

CCH = 2.31 + (.75 X N)

LCH = 3.06 + (.75 X N)

N = Number of circuits

LR25557 E63810

Fuse & Switch

www.idealindustries.com 1-800-435-0705 for Customer Service

A-54

Phenolic ULTRA HEAVY DUTY - 250 KCMIL (MCM)

This Ultra Heavy Duty line is rated up to 255 amps with a single 250 MCM conductor.

■Compact block accepts wire sizes up to 2/0 or 250 KCMIL (MCM)

■57 circuits per 6 foot length

■Tubular screw contact style for maximum electrical rating

■Block mounts directly on flat surface or standard channel

■Only one end section needed per block assembly

■Readily identifiable circuits – write directly on painted marking area or use removable vinyl

marking strip

■Hex socket screws allow maximum torque when using large wire sizes

■High current capacity snap-fit sectional blocks do not snap-fit with other block styles

Specifications

Center-to-Center Spacing: 1.19 in. CL: 9 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance requirements of NEMA, UL and CSA for general industrial control equipment and

panelboards. Withstand voltages greatly in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 250 KCMIL wire, the maximum amperage recommended is 255A.

Housing Material Phenolic, Filled, Flame retardant

Contact Material Copper

Screw Material Steel Plated

Maximum Service Temperature 150°C (302°F)

Breakdown Voltage AC, 60Hz 10000V

Dielectric Strength (RH40% at sea level) 300V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .49 - .58

Water Absorption (24 hrs. % weight gain) 0.45% (per ASTM D570)

Flammability 94V-1 (per UL94)

Chemical Resistance Resistant to acids, alkalies and aliphatic,

hydrocarbons and ketones (per ASTM D543)

Radiation Resistance (ergs g-1 C) 2.7 x 108min.

Catalog Number 426 427 430

Mounting Style Two-Way Two-Way End-Section

Mounting Base Mounting Base

Ampacity 175A 255A —

Contact Type Tubular Screw Tubular Screw —

Screw Type 1/2-30 Hex Socket 3/4-16 Hex Socket —

Wire Range (AWG) #12-2/0 #6-250 KCMIL/MCM —

Wire Strip Length 1 in. 1 in. —

LR25557 E63810

WIRE RANGE: Solid or Stranded

Tubular Screw

1 #2/0 AWG, 1 #1/0 AWG, 1 #1 AWG, 1 or 2 #2 AWG, 1 to 3 #4 AWG, 1 to 3 #6 AWG,

1 to 4 #8 AWG, 1 to 6 #10 AWG, 2 to 8 #12 AWG

Tubular Screw

1 #250 KCMIL, 1 $4/0 AWG, 1 #3/0 AWG, 1 or 2 #2/0 AWG, 1 or 2 #1/0 AWG,

1 or 2 #1 AWG, 1 to 3 #2 AWG, 1 to 4 #4 AWG, 1 to 5 #6 AWG

1-800-435-0705 for Customer Service www.idealindustries.com A-55

Wire Termination

Terminal Blocks

Flat Base Mounted on Standard #60 Channel

C = 1.19 + (1.19 X N)

L = 1.40 + (1.19 X N)

CCH = 2.90 + (2.90 X N)

LCH = 3.65 + (3.65 X N)

N = Number of circuits

Phenolic HEAVY DUTY

www.idealindustries.com 1-800-435-0705 for Customer Service

A-56

Terminal Blocks

■Provide in-line circuit protection for any circuit or group of circuits

■Three contact styles for terminated or unterminated wire are conservatively rated to 30A

■Remove, check and replace fuses safely and quickly

■Switch-action fuse blocks open circuits before fuse can be removed or installed

■Good circuit density when mounted adjacently – 91 circuits per 6 foot length

■Nylon housing for more rugged applications

■Dovetail base mounts on standard channel; can also be mounted on flat surfaces

■Only one end section needed per block assembly

■Open or close several circuits simultaneously – holes in puller handles allow use of nylon “ganging” rods

■Readily identifiable circuits – mark directly on white, matte-surface puller assembly, marking tab on block or use removable marking tape

■Sections snap-fit with Heavy Duty and Intermediate Heavy Duty Blocks

Specifications

Center-to-Center Spacing: .75 in. CL: 16 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance requirements of NEMA, UL and CSA for general industrial control equipment and

panelboards. Withstand voltages greatly in excess of IEEE switchgear standards for 750V.

Ampacity: Fuse blocks, 30A

Fuse Size: Any 13/32 in. x 1-1/2 in. ferrule-type cartridge fuse up to 30A, indicating, which meets Mil. Spec. F-15160 is recommended.

Housing Material Nylon

Contact Material Aluminum Alloy

Screw Material Steel Plated

Maximum Service Temperature 125°C (257°F)

Breakdown Voltage AC, 60Hz 7400V

Dielectric Strength (RH40% at sea level) 470-385V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .01 - .35

Water Absorption (24 hrs. % weight gain) 1.5% (per ASTM D570)

Flammability 94V-2 (per UL94)

Chemical Resistance Resistance to aromatic hydrocarbons,

strong alkalies

Radiation Resistance (ergs g-1 C) 8 x 107

Catalog Number 0311 0318 0312 0380

Mounting Style Channel Mount Channel Mount Channel Mount End-Section

(Dovetail Base) (Dovetail Base) (Dovetail Base)

Ampacity 30A 30A 30A —

Contact Type Strap Screw Strap Clamp Tubular Screw —

Screw Type 10-32 Binding Head 8-32 Pan Head w/Clamp 1/4-28 Set Screw —

Wire Range (AWG) #22 to #8 #18 to #8 #18 - #8 —

Wire Strip Length — 1/2 in. 1/2 in. —

WIRE RANGE: Solid or Stranded

Tubular Screw

1 #1/0 AWG, 1 #1 AWG, 1 #2 AWG, 1 or 2 #4 AWG, 1 to 3 #6 AWG, , 2, 3 or 5 #8 AWG,

1 to 6 #10 AWG, 1 to 7 #12 AWG

LR25557 E63810

Nylon Fuse Blocks

1-800-435-0705 for Customer Service www.idealindustries.com A-57

Terminal Blocks

Nylon Fuse Blocks

Dovetail Base Mounted on Standard #60 Channel (may also be mounted direct)

C = .56 + (.75 X N)

L = .78 + (.75 X N)

CCH = 2.28 + (.75 X N)

LCH = 3.03 + (.75 X N)

N = Number of circuits

Wire Termination

www.idealindustries.com 1-800-435-0705 for Customer Service

A-58

Terminal Blocks

Housing Material Phenolic, Filled, Flame retardant

Contact Material Copper alloy

Screw Material Steel Plated

Maximum Service Temperature 150°C (302°F)

Breakdown Voltage AC, 60Hz 8400V

Dielectric Strength (RH40% at sea level) 300V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .49 - .58

Water Absorption (24 hrs. % weight gain) 0.45% (per ASTM D570)

Flammability 94V-1 (per UL94)

Chemical Resistance Resistance to acids, alkalies and aliphatic

hydrocarbons and ketones (per ASTM D543)

Radiation Resistance (ergs g-1 C) 2.7 x 107min.

Catalog Number 351 0351 358 0358 352 0352 330 0330

Mounting Style Direct Mount Channel Mount Direct Mount Channel Mount Direct Mount Channel Mount End-Section End-Section

(Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Flat Base) (Dovetail Base) (Direct Mount) (ChannelMount)

Ampacity 30A 30A 30A — —

Contact Type Strap Screw Strap Clamp Tubular Screw — —

Screw Type 10-32 8-32 Pan 1/4-28 ——

Binding Head Head w/Clamp Set Screw

Wire Range (AWG) #22 to #8 #18 to #8 #18 - #8 — —

Wire Strip Length — 1/2 in. 1/2 in. — —

LR25557 E63810

Phenolic Fuse Blocks

Specifications

Center-to-Center Spacing: .75 in. CL: 16 circuits per foot.

Voltage Rating: Blocks meet 600V creepage and clearance requirements of NEMA, UL and CSA for general industrial control equipment and

panelboards. Withstand voltages greatly in excess of IEEE switchgear standards for 750V.

Ampacity: Fuse blocks, 30A

Fuse Size: Any 13/32 in. x 1-1/2 in. ferrule-type cartridge fuse up to 30A, indicating or non-indicating, which meets MIL. Spec. F-15160 is

recommended.

WIRE RANGE: Solid or Stranded

Tubular Screw, Cat. No. 362 and 0362

1 #4 AWG, 1 #6 AWG, 1 or 2 #8 AWG, 1 to 4 #10 AWG, 1 to 5 #12 AWG, 1 to 6 #14

AWG, 1 to 6 #16 AWG, 1 to 8 #18 AWG

■Provide in-line circuit protection for any circuit or group of circuits

■Three contact styles for terminated or unterminated wire are conservatively rated to 30A

■Remove, check and replace fuses safely and quickly – switch-action fuse blocks open

circuits before fuse can be removed or installed

■Good circuit density when mounted adjacently – 91 circuits per 6 foot length

■Use in high temperature applications – phenolic housing withstands temperatures

up to 302°F (150°C)

■Flat base models for surface mounting, dovetail base models for standard channel

■Only one end section needed per block assembly

■Open or close several circuits simultaneously – holes in puller handles allow use of nylon “ganging” rods

■Readily identifiable circuits – mark directly on white, matte-surface puller assembly, marking tab on block or use removable marking tape

■Sections snap-fit with Heavy Duty and Intermediate Heavy Duty Blocks

1-800-435-0705 for Customer Service www.idealindustries.com A-59

Terminal Blocks

LR25557 E63810

Phenolic Fuse Blocks

Flat Base (Direct Mount)

C = .59 + (.75 X N)

L = .81 + (.75 X N)

N = Number of circuits

Dovetail Base Mounted on Standard #60 Channel

CCH = 2.31+ (.76 X N)

LCH = 3.06 + (.76 X N)

N = Number of circuits

Wire Termination

Terminal Blocks

Wire Termination

A-60

Phenolic One Piece

Traditional standard in the heavy industrial, rail transport, utility and traffic control industries. The rugged, one-piece construction finds wide

application in dirty and fibration-prone environments.

■Two, four, six, eight and twelve circuit models

■Strap screw contacts accept wire 8 AWG and smaller and are rated to 50 Amps

■Dovetail base mounts on standard size channel

■Pilot point screws with strap screw contacts speed installation time

■Easily identifiable circuits with use of plain white marking strip

■No assembly required - each block is a single, easily installed unit

Specifications

Center-to-Center Spacing: .63 in. CL

Voltage Rating: Blocks meet 600V creepage and clearance requirements of NEMA, UL and CSA for general industrial control equipment and

panelboards. Withstand voltages greatly in excess of IEEE switchgear standards for 750V.

Ampacity: For a single 8 AWG wire, the maximum amperage recommended is 50A.

WIRE RANGE: Solid or Stranded

Strap Screw

1 #18 AWG through 1 #8 AWG

LR25557 E63810

Catalog Number B102 B104 B106 B108 B112

Mounting Style Two-Way Two-Way Two-Way Two-Way Two-Way Mount

Mounting Base Mounting Base Mounting Base Mounting Base Mounting Base

Number of Circuits 246812

Ampacity 50A 50A 50A 50A 50A

Contact Type Strap Screw Strap Screw Strap Screw Strap Screw Strap Screw

(Steel) (Steel) (Steel) (Steel) (Steel)

Screw Type 10-32 10-32 10-32 10-32 10-32

Binding Head Binding Head Binding Head Binding Head Binding Head

Wire Range (AWG) #18 to #8 #18 to #8 #18 to #8 #18 to #8 #18 to #8

Housing Material Phenolic, Filled, Flame retardant

Contact Material Copper / Copper Alloy

Screw Material Steel Plated

Maximum Service Temperature 150°C (302°F)

Dielectric Strength (RH40% at sea level) 300V/mil thickness (per ASTM D149)

UL High Voltage Arc Testing (in./min.) .49 - .58

Water Absorption (24 hrs. % weight gain) 0.45% (per ASTM D570)

Flammability 94V-1 (per UL94)

Chemical Resistance Resistance to acids, alkalies and aliphatic

hydrocarbons and ketones (per ASTM D543)

Radiation Resistance (ergs g-1 C) 2.7 x 107min.

No. of

Circuits CL

2 1.63 2.0

4 2.88 3.25

6 4.13 4.50

8 5.38 5.75

12 7.88 8.25

Dimensions

Terminal Blocks

1-800-435-0705 for Customer Service www.idealindustries.com A-61

Phenolic One Piece

Dovetail Base Mounted on Standard #60 Channel

Strap Screw (Steel)

No. of

Circuits C L

2 1.63 2.0

4 2.88 3.25

6 4.13 4.50

8 5.38 5.75

12 7.88 8.25

0.63

0.91

0.41

1.25

0.38

2.00

1.25

Wire Termination

Universal Clamp Screw Clalmp

www.idealindustries.com 1-800-435-0705 for Customer Service

A-62

Accessories

Mounting Channels

Mounting Channels Length Cat. No. For use with:

Miniature Channel 3 ft. 12 Heavy Duty (200 Series)

Steel Channel 6 ft. 60 Medium Duty (900 Series)

3 ft. 63 Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Steel Channel (Breakaway) 3 ft. 60B36 Medium Duty (900 Series)

Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Aluminum Channel (Pre-punched) 6 ft. 64 Medium Duty (900 Series)

3 ft. 67 Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Channel Clamps Cat. No. For use with:

Miniature Clamp 11 High Density Miniature (100 Series)

Heavy Duty (200 Series)

Snap-in Clamp 62 High Density Miniature (100 Series)

Medium Duty (900 Series)

Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Universal Clamp 68 High Density Miniature (100 Series)

Medium Duty (900 Series)

Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Universal Clamp 61 High Density Miniature (100 Series)

Medium Duty (900 Series)

Heavy Duty (200 Series)

Intermediate Heavy Duty (800 Series)

Ultra Heavy Duty (400 Series)

Fuse Blocks (300 Series)

Miniature Channel Steel Channel Steel Channel (Breakaway) Aluminum Channel (Pre-punched)

Miniature Clamp Snap-in Clamp

Channel Clamps

1-800-435-0705 for Customer Service www.idealindustries.com A-63

Accessories

Wire Termination

Description Cat. No. Available for:

Terminal Block 13 High Density Miniature (100 Series)

23 Heavy Duty (200 Series)

Heavy Duty-Phenolic (200 Series)

71 Medium Duty (900 Series)

#23 #71#13

Jumpers

Cat. No. Available for:

Jumpers for Tubular Contacts 41 Heavy Duty-Phenolic (200 Series)

42 Heavy Duty (200 Series)

43 Heavy Duty-Phenolic (200 Series)

70 Medium Duty (900 Series)

73 Medium Duty (900 Series)

Jumper for Tubular Contacts Jumper for Strap Screw Snap-apart Jumper

Covers

www.idealindustries.com 1-800-435-0705 for Customer Service

A-64

Notes

Notes:

_________________________________________________________________________________________________________________________________

Wire Installation

Selection Guide

www.idealindustries.com 1-800-435-0705 for Customer Service

B-2

■Unique finish is non-oily and resists rust

■Multiple options in width, length and

eyelet for ease of use

■Industry’s straightest wire

■Stiffer for long runs

■Highest grade carbon steel

■Tensile strength 1,600 lbs.

■Won’t rust or corrode in damp locations

or humid environments

■Super clean finish prevents marks on

walls or carpets

■Great for wet or corrosive work environment

■Smoother pay-out

■Tensile strength 1,600 lbs.

■Brass-plated coiled steel resists rust

■No “memory” – hangs straight after being

coiled for long periods

■Kink proof

■Excellent for multiple bends

■19 strands of stainless steel

■Ultrahard nylon jacket adds slipperiness,

protects cables and the user’s hands

■Excellent for corrogated plastic conduit

■Excellent for multiple bends or wet/corrosive

work environment

■The only one in the industry

■Non-conductive tape designed for use

around live circuits

■Strong S-Class®core for longer life and

greater pushing power

■Smooth nylon jacket provides great

handling around bends

■Omni-directional pushing

Blued Steel

Stainless

S®-Class

Gold-Fish®

Zoom™

Selecting

Fish Tape

Material

Best Worst

Push Long Distance Pulling Strength Omni-Directional Push Non-Corrosive Non-Conductive

19 strand twisted radial steel core encased

in high molecular density outer jacket.

S-Class™E-Glass

3radius Minimum allowable bend for 3⁄8conduit

is 3.5radius. Superior flexibility for tight

bends in conduit runs.

Selection Guide

B-3

Wire Installation

1-800-435-0705 for Customer Service www.idealindustries.com

Fish Tape Selection Guide

Description Cat. No.

Fish Tape Leader for steel or stainless steel tapes 31-148

Fish Tape Leader for S-Class®Fiberglass 31-159

Multi-Wire Pulling Leader – 6-loop 31-146

Multi-Wire Pulling Leader – 4-loop 31-147

Description Cat. No.

Fish Tape Swivel Ball 31-085

Replacement Eyelets (4) for S-Class®31-158

Replacement Eyelets (2) for Zoom™31-094

Length Width & Case End Type Tuff-Grip™

Rapid-Pak®Thumb- Replacement

Thickness Diameter Pro Winder™ Tapes

Blued Steel

25 1/8 in. x .045 in. 7 in. Formed hook – – 31-012 –

50 1/8 in. x .045 in. 7 in. Formed hook – – 31-010 –

50 1/8 in. x .060 in. 9 in. Formed hook 31-033** – – –

60 1/8 in. x .060 in. 12 in. Formed hook 31-055 – – 31-035

100 1/8 in. x .060 in. 12 in. Formed hook – 31-081†– 31-036

120 1/8 in. x .060 in. 12 in. Formed hook 31-056 – – 31-036

200 1/8 in. x .060 in. 12 in. Formed hook – 31-098†– 31-038

240 1/8 in. x .060 in. 12 in. Formed hook 31-057 – – 31-038

500 1/8 in. x .060 in. None Formed hook – – – 31-3380

700 1/8 in. x .060 in. None Formed hook – – – 31-3379

50 1/4 in. x .060 in. 12 in. Formed hook 31-058 31-051

100 1/4 in. x .060 in. 12 in. Formed hook 31-059 31-050

200 1/4 in. x .060 in. 12 in. Formed hook – 31-052

300 1/4 in. x .060 in. None Formed hook – – – 31-2127

400 1/4 in. x .060 in. None Formed hook – – – 31-2128

600 1/4 in. x .060 in. None Formed hook – – – 31-2980

750 1/4 in. x .060 in. None Formed hook – – – 31-2139

1,000 1/4 in. x .060 in. None Formed hook – – – 31-3384

10,000 1/4 in. x .060 in. None Formed hook – – – 31-2982

Stainless Steel

120 1/8 in. x .060 in. 12 in. Formed hook 31-066 – – 31-073

240 1/8 in. x .060 in. 12 in. Formed hook 31-067 – – 31-074

S-Class®Nylon Jacketed Fiberglass

50 3/16 in. diameter 12 in. Leader 31-060 31-187†– 31-150

50 3/16 in. diameter 12 in. Eyelet 31-062 31-190†– 31-160

100 3/16 in. diameter 12 in. Leader 31-061 31-186†– 31-152

100 3/16 in. diameter 12 in. Eyelet 31-063 31-189†– 31-162

200 3/16 in. diameter 16 in. Leader 31-064* 31-207†– 31-155

200 3/16 in. diameter 16 in. Eyelet 31-065* 31-208†– 31-165

300 3/16 in. diameter None Eyelet – – – 31-2138

400 3/16 in. diameter None Eyelet – – – 31-400

500 3/16 in. diameter None Eyelet – – – 31-3370

Gold-Fish®Brass Plated Steel Coil

25 3/16 in. diameter None Eyelet – – – 31-140

50 3/16 in. diameter 12 in. Eyelet 31-144 – – 31-141

100 3/16 in. diameter None Eyelet – – – 31-142

Zoom™ Nylon Jacketed Stainless Steel

50 3/16 in. diameter 12 in. Eyelet 31-090 – – 31-091

100 3/16 in. diameter 12 in. Eyelet 31-092 – – 31-093

200 3/16 in. diameter 16 in. Eyelet 31-096* – – 31-097

*16 in. diameter Tuff-Grip™ Case †16 in. diameter Rapid-Pak®Case

**9 in. diameter Tuff-Grip™ Pro Case

Fish Tapes

www.idealindustries.com 1-800-435-0705 for Customer Service

B-4

Tuff-Grip™ Pro Fish Tapes

■

Tuff-Cuff™ tape retaining feature keeps tape properly

positioned in the opening

■

Full-perimeter handle band helps keep dirt and moisture out,

prolonging life

■

Easier to install replacement tapes

■

Superior pull-out and rewind characteristics

■

Exceptionally durable case and handle

■

Clean contemporary styling

■

Large, comfortable ergonomically-designed handle, grasp

from the top or side. Allows for use with gloves.

Replacement Tape

Width & Thickness End Type Cat. No. Cat. No.

1/8” x .060” x 60’ Formed Hook 31-055 31-035

1/8” x .060” x 120’ Formed Hook 31-056 31-036

1/8” x .060” x 240’ Swivel Ball End 31-225 31-038 & 31-085

1/8” x .060” x 240’ Formed Hook 31-057 31-038

1/8” x .060” x 120’ Formed Hook 31-066 31-073

1/8” x .060” x 240’ Formed Hook 31-067 31-074

3/16” diameter x 50’ Leader 31-060 31-150

3/16” diameter x 50’ Eyelet 31-062 31-160

3/16” diameter x 100’ Leader 31-061 31-152

3/16” diameter x 100’ Eyelet 31-063 31-162

3/16” diameter x 50’ Eyelet 31-542 31-552

3/16” diameter x 100’ Eyelet 31-544 31-554

3/16” diameter x 50’ Eyelet 31-144 31-141

3/16” diameter x 50’ Eyelet 31-090 31-091

13/16” diameter x 100’ Eyelet 31-092 31-093

Stainless Steel

S-Class®Nylon Jacketed Fiberglass

Gold-Fish®Brass Plated Steel Coil

Nylon Monofilamet

Zoom™ Nylon Jacketed Stainless Steel

Blued Steel

1-800-435-0705 for Customer Service www.idealindustries.com B-5

Fish Tapes

Wire Installation

Rapid-Pak®Fish Tapes

■

Inner rotating reel with

winding knob retrieves

tape faster than

traditional fish tapes for

increased labor savings

■

Funneled tape opening

reduces kinking and

tape breakage

■

Reversible, hinged knob

for right- or left-handed

rewinds

■

Stationary handle for

extra durability

■

Textured case surface provides positive grip

■

Impact-resistant plastic case

Replacement

Tape

Description Cat. No. Cat. No.

Blued Steel tape – 100 ft. x 1/8 in. x .060 in. 31-081 31-036

Blued Steel tape – 200 ft. x 1/8 in. x .060 in. 31-098 31-038

Fiberglass tape w/leader – 50 ft. 31-187 31-150

Fiberglass tape w/leader – 100 ft. 31-186 31-152

Fiberglass tape w/leader – 200 ft. 31-207 31-155

Fiberglass tape w/eyelet – 50 ft. 31-190 31-160

Fiberglass tape w/eyelet – 100 ft. 31-189 31-162

Fiberglass tape w/eyelet – 200 ft. 31-208 31-165

Replacement crank assembly (winder knob) 31-220 —

Replacement

Tape

Description Cat. No. Cat. No.

S-Class®Fish Tape with Leader – 200 ft. 31-064 31-155

S-Class®Fish Tape with Eyelet – 200 ft. 31-065 31-165

Zoom™ – 200 ft. 31-096 31-097

Zoom™ Fish Tapes

■

Impact-resistant case

■

Unique non-slip

handle with fingertip

grooves

■

Omni-directional,

round cable design

Replacement

Tape

Description Cat. No. Cat. No.

Zoom™ Fish Tape – 50 ft. 31-090 31-091

Zoom™ Fish Tape – 100 ft. 31-092 31-093

Zoom™ Fish Tape – 200 ft. 31-096 31-097

Thumb Winder™

Fish Tapes

■

Convenient 7 in. size can be stored in

tool bag

■

Durable, impact-resistant ABS case

■

Easy-to-use thumb-operated rewind

■

1/8 in. x 0.045 in. steel tape

Description Cat. No.

Steel Tape – 25 ft. 31-012

Steel Tape – 50 ft. 31-010

Tuff-Grip™ Fish Tapes

■

Large 16 in. case accommodates

long tape lengths

■

Large, comfortable, durable handle

provides secure grip and ease of

use

■

Durable impact-resistant case

7 in.

31-092

16 in.

WARNING

Always use approved safety glasses when using this product.

Do not use near energized equipment. Electrical shock may occur. Make sure all power is off.

Do not use pliers or other tools that may kink, damage, or weaken any round fish tapes such

as S-Class®, Nylon or Zoom™. Use only a fish tape puller designed for this purpose.

While fish tapes made of fiberglass, nylon or other composite materials are non-conductive,

they may have a metal eyelet that is conductive and could be grounded against conduit. Do

not use on live electrical circuits.

Do not attempt to use fish tape that is fractured or has multiple ends.

Keep the fish tape wound in the reel to prevent damage to the tape.

Use this product in a safe work position to prevent loss of balance.

Never remove the screws from case while fish tape is coiled inside the reel.

Failure to follow instructions may result in severe bodily harm or damage to property.

Fish Tape Leaders

Description Cat. No.

Fish Tape Leader for steel or stainless steel tapes 31-148

Fish Tape Leader for S-Class®Fiberglass Fish Tape 31-159

Fish Tape Swivel Ball

Multi-Wire Pulling Leaders

Description Cat. No.

Multi-Wire Pulling Leader – 6-loop 31-146

Multi-Wire Pulling Leader – 4-loop 31-147

■

Guides fish tape around bends in conduit

■

Handles up to six 10 AWG bare wires

■

Pulls up to 500 lbs.

■

Swivels to prevent wires from twisting

during pull

■

Designed for use on 1/8 in. steel or

stainless steel tape

■

Eyelet holds up to four 10 AWG

bare wires

Puller for S-Class®Fiberglass Fish Tapes

Description Cat. No.

Fish Tape Puller 31-170

■

Non-slip material securely grips

fiberglass without damaging

material

■

Fits into standard 12 in.

fish tape case opening

when not in use

S-Class®Fiberglass and Zoom™ Fish Tape

Field Application Kits

Description Cat. No.

Field Application Kit includes:

Crimpmaster™ Crimp Tool frame, die set, S-Class®eyelets (2),

S-Class® leaders (2), Zoom™ eyelets (2) & instant adhesive

31-156

Die Set Kit* includes: eyelets (2), leaders (2)

& instant adhesive 31-164

Replacement eyelets (4) for S-Class®Fish Tape 31-158

Replacement eyelets (2) for Zoom™ Fish Tape 31-094

Replacement leaders (4) for S-Class®Fish Tape 31-159

Die Set Only 31-166

*For those who already have a Crimpmaster™ Crimp Tool

■

Crimps on new eyelet or leader

in minutes

■

Dies can be used with

Crimpmaster™ Crimp Tool

■

Connection guaranteed

to withstand 500 lbs.

■

Pulls multiple wires at

one time

■

Staggered connection

points prevent bunching

or hang-ups in tight bends

■

500 lb. working strength at

main eyelet and up to 150 lbs.

with each individual eyelet

Fish Tape Accessories

www.idealindustries.com 1-800-435-0705 for Customer Service

B-6

Wire Installation

Description Cat. No.

Fish Tape Swivel Ball 31-085 Fish Tape Replacement

Cases

Description Cat. No.

12” Tuff-Grip™ Pro Replacement Case K-8985

Replacement Screws LA-4218

■

Durable impact-

resistant case

■

Easy to install

replacement tapes

■

Full-perimeter

handle band helps

prolong life by keeping

more dirt and moisture out

■

Large, ergonomically designed

handle allows for a comfortable

grasp from the top or side, and

for use with gloves

Screws sold separately, case

requires four LA-4218.

31-147

31-146

Fishing Poles

1-800-435-0705 for Customer Service www.idealindustries.com B-7

Wire Installation

Accessory Kits

■

Includes replacement

heads, one threaded

bullet nose, one

threaded J hook

and one threaded

wisk

Tuff-Rod™ Regular Flex

■

1/4 in. white fiberglass

■

Extra stiffness for added control when maneuvering wires

Tuff-Rod™ Extra Flex Glow

■

3/16 in. pale green luminescent fiberglass

■

Glow-in-the-dark material for easy use in attics, basements

and other dim lit areas

Tuff-Rod™ Fishing Poles

■

Strong, lightweight, flexible extendable fiberglass rod kits

■

Use to reach and pull wires over suspended ceilings, in cable trays

or through interior walls

■

Packaged in clear tubes for protection and long-term storage

Description Cat. No.

12 ft. kit with fixed bullet nose and threaded J hook

(3 ea. 4 ft. sections) 31-611

24 ft. kit with fixed bullet nose and threaded bullet nose

(4 ea. 6 ft. sections) 31-612

12 pack of 1/4 in. x 4 ft. Regular Flex Replacement Rods 31-643

12 pack of 1/4 in. x 6 ft. Regular Flex Replacement Rods 31-644

Description Cat. No.

12 ft. kit with fixed bullet nose and threaded J hook

(3 ea. 4 ft. sections) 31-631

30 ft. kit with fixed bullet nose and threaded bullet nose

(5 ea. 6 ft. sections) 31-633

12 pack of 3/16 in. x 4 ft. Extra Flex Glow Replacement Rods 31-647

12 pack of 3/16 in. x 6 ft. Extra Flex Glow Replacement Rods 31-648

Description Cat. No.

3/16 in. Accessory kit 31-651

1/4 in. Accessory kit 31-652

White

Glow

Finished

Construction

ClearGlide™ Yellow 77®Yellow 77® Plus Aqua-Gel®ll Aqua-Gel® CW Aqua-Gel®IIP Velocity™

Wire Pulling Wire Pulling Wire Pulling Cable Pulling Cable Pulling Cable Pulling Wire Pulling

Lubricant Lubricant Lubricant Lubricant Lubricant Lubricant Lubricant

Base Polymer Wax Wax Polymer Polymer Polymer Polymer

Average Coefficient of Friction* .17 .08 .16 .11 .07 .11 .14

Safe Storage 32°F – 180°F 32°F – 130°F 32°F – 190°F 32°F – 180°F -28°F – 190°F 32°F – 180°F 40°F – 140°F

Temperature Range (0°C – 82°C) (0°C – 54°C) (0°C – 88°C) (0°C – 82°C) (-33°C – 82°C) (0°C – 82°C) (4°C – 82°C)

Application Temperature Range 40°F – 100°F 40°F – 100°F 40°F – 100°F 40°F – 100°F -28°F – 40°F 40°F – 100°F 25°F – 140°F

(4°C – 38°C) (4°C – 38°C) (4°C – 38°C) (4°C – 38°C) (-33°C – 4°C) (4°C – 38°C) (-3.9°C – 60°C)

COMPATIBILITY (Cable Types):

Rubber • • • • • • •

Neoprene • • • • • • •

Nylon • • • • • • •

PVC • • • • • • •

High-density or cross-linked

polyethylene •• • • • • •

Low-density polyethylene • • • • • •

Semiconducting jacket • • • • • •

Hypalon • • • • • • •

*Results from Falex Corporation, an independent testing agency specializing in tribology tests, using the Falex-ISC On Disk Tribmeter System machine with the ASTM G99

modified method.

Wire Pulling Lubricant Selection Guide

Select-a-Lubricant

Commercial Wire Pulling Utility Cable Pulling

New

Construction New

Construction

Indoors or

Outdoors Indoors or

Outdoors

Indoors or

Outdoors

ONLY Outdoors

40°F - 120°F

4°C - 49°C

-28°F - 40°F

-33°C - 4°C

40°F - 120°F

4°C - 38°C

Up to 250 ft.

Up to 24 hrs.

Up to 250 ft.

Up to 72 hrs.

Up to 250 ft.

Up to 24 hrs.

Aqua-Gel

IIP

40°F - 120°F

4°C - 49°C

40°F - 120°F

4°C - 49°C

40°F - 120°F

4°C - 49°C

Up to 75 ft.

Up to 8 hrs.

Up to 1,200 ft.

Up to 24 hrs.

Up to 1,200 ft.

Up to 24 hrs.

ClearGlide™ Yellow 77®Yellow 77®

Plus

Indoors or

Outdoors

40°F - 140°F

4°C - 82°C

Up to 250 ft.

Up to 24 hrs.

Velocity™

www.idealindustries.com 1-800-435-0705 for Customer Service

B-8

Lubricants

1-800-435-0705 for Customer Service www.idealindustries.com B-9

1-800-435-0705 for Customer Service www.idealindustries.com1-800-435-0705 for Customer Service www.idealindustries.com

Lubricants

Wire Installation

Yellow 77®Plus Wire Pulling Lubricant

■

Rapid Glide™ polytetrafluoroethylene additive provides greater

lubricity than other wax-based lubricants — great for tough pulls

■

Safe to use with all cable types

■

Clings to cable throughout long runs, even where moisture is

present

■

Remains stable in high temperatures — usable from 30°F to

190°F (-1°C to 88°C)

■

Dries slowly to a thin, non-conductive film that won’t harden

in conduit

■

Easy to apply by hand or by brush

■

Creamy texture applies easily and uniformly

■

Homogeneous blend requires no mixing

■

Won't dry out –surface coat forms to control evaporation

■

Environmentally safe – non-toxic, non-flammable and non-corrosive

Yellow 77®Wire Pulling Lubricant

■

The #1 brand of wire pulling lubricant since 1959 — the perfect

general purpose lube

■

Wax-based formula provides superior lubricity

■

Safe to use with most cable types except low-density polyethylene

and semi-conducting jackets

■

Clings to cable throughout long pulls, even where moisture is

present

■

Won’t break down or separate after repeated exposure to

freezing temperatures

■

Dries to a thin, non-conductive film

■

Easy to apply by hand or by brush

■

Creamy texture applies easily and uniformly

■

Homogeneous blend requires no mixing

■

Won’t dry out — surface coat forms to control evaporation

■

Environmentally safe — non-toxic, non-flammable and non-corrosive

Description Cat. No.

1-qt. Squeeze bottle 31-358

1-qt. Tub 31-350

1-gal. Bucket 31-351

5-gal. Bucket 31-355

55-gal. Drum 31-365

Description Cat. No.

1-qt. Squeeze bottle 31-398

1-gal. Bucket 31-391

5-gal. Bucket 31-395

Lubricants

www.idealindustries.com 1-800-435-0705 for Customer Service

B-10

Description Cat. No.

1-qt. Squeeze bottle 31-388

1-gal. Bucket 31-381

5-gal. Bucket 31-385

4 oz. Squeeze bottle in saleable 6-pack 31-389

55-gal. Drum 31-2143

ClearGlide™ Wire Pulling Lubricant

Velocity™ Wire Pulling Lubricant

■

Clear and colorless for quick and easy clean-up — great for indoor and retrofit

pulls

■

Exceptional lubricity for super-fast pulls

■

Polymer-based formula is perfect for all electrical and datacomm applications

■

Safe to use with all cable types

■

Controlled evaporation rate is ideal for shorter runs

■

Remains stable over wide temperature range — usable from

30°F to 180°F (-1°C to 82°C)

■

Dries to a semi-fluid film that won't clog conduit

■

Easy to apply by hand, brush or pump

■

Environmentally safe — non-toxic, non-flammable and non-corrosive

■

High cling factor

■

Maximum friction reduction

■

Specification grade

■

Compatible with all popular cable types

■

Temperature stable

■

UL listed

■

Non-combustible residue

■

Environmentally safe -- non-toxic, non-flammable and non-corrosive

Description Cat. No.

1-qt. Squeeze bottle 31-276

1-gal. Bucket 31-277

5-gal. Bucket 31-278

55-gal. Drum 31-279

1-qt. Bag (12 bags/bucket) 31-282

1/2-gal. Bag (6 bags/bucket) 31-283

Recommended Quantity of Lubricant Formula

Q = .0015 x L x D

Q = Quantity of recommended lube in gallons

L = Length of pull in feet

D = Nominal ID of conduit in inches

The formula listed above is used as a guideline on estimating the quantity of lube needed for various jobs. Many factors go into a cable pull,

however this formula is just based on length of the pull and diameter of the conduit.

Increase quantities for the following troubles:

• Stiff, heavy cable

• Rough, old or dirty conduits

• High percent conduit fill

• Pulls with several bends

• High temperatures

Lubricants

1-800-435-0705 for Customer Service www.idealindustries.com B-11

1-800-435-0705 for Customer Service www.idealindustries.com

Wire Installation

Aqua-Gel®CW Cable Pulling Lubricant

■

Features the same excellent qualities as Aqua-Gel®II Cable Pulling Lubricant

with a lower temperature range for use outdoors in cold weather

■

Polymer-based, cold-weather formula remains stable in storage from -28°F to 190°F

(-33°C to 82°C)

■

Formulated for exterior use in cold weather conditions

■

Cleans up easily with soap and water

■

Clings to cable throughout long pulls

■

Well-suited for hand or poured applications

■

Environmentally safe — non-toxic, non-flammable and non-corrosive

Description Cat. No.

1-qt. Squeeze bottle 31-298

1-gal. Jug 31-291

5-gal. Bucket 31-295

55-gal. Drum 31-3373

Aqua-Gel®IIP Cable Pulling Lubricant

Description Cat. No.

1-gal. Jug 31-421

5-gal. Bucket 31-425

55-gal. Drum 31-435

■

Features the same excellent qualities as Aqua-Gel®II Cable Pulling

Lubricant with a lower viscosity for easy pouring and pumping

■

Pourable formula clings to cable – eliminates hand application for a

cleaner and safer job

■

Compatible with all cable types

■

Cleans up easily with soap and water

■

Environmentally safe –non-toxic, non-flammable and non-corrosive

Aqua-Gel®II Cable Pulling Lubricant

■

Polymer-based formula provides maximum tension reduction in

high-stress electrical and communications cable-pulling operations

■

Compatible with all cable types except composite rubber

■

Cleans up easily with soap and water

■

Clings to cable throughout long pulls

■

Remains stable over wide temperature range — usable from

28°F to 180°F (-2°C to 88°C)

■

Dries to a semi-fluid film that won’t clog conduit

■

Easy to apply by hand, brush or pump

■

Environmentally safe –non-toxic, non-flammable and non-corrosive

■

For outdoor use only

Description Cat. No.

1-qt. Squeeze bottle 31-378

1-gal. Bucket 31-371

1-qt. Bag (12 bags per bucket) 31-376

1/2-gal. Bag (6 bags per bucket) 31-377

5-gal. Bucket 31-375

55-gal. Drum 31-3855

Accessories

www.idealindustries.com 1-800-435-0705 for Customer Service

B-12

Description Cat. No.

1/2-oz. Tube 30-024

4-oz. Squeeze bottle 30-026

8-oz. Squeeze bottle 30-030

8-oz. Brush cap 30-031

1-gal. Bucket 30-032

5-gal. Bucket 30-040

Noalox®Anti-Oxidant

■

Anti-oxidant and anti-seizing

compound improves efficiency

and service life of aluminum-

to-aluminum and

aluminum-to-copper

electrical connections

■

Suspended zinc

particles penetrate and

cut aluminum oxide

■

Provides additional inter-

strand and inter-conductor

current paths for improved conductivity and cooler

connections

■

Carrier material excludes air to prevent further oxidation

■

For use with all types of pressure-type wire connectors

including screw-on, tap, service entrance and split-bolt

■

Reduces galling and seizing and promotes good ground

continuity on aluminum conduit joints

Duct Seal

■

Seals around junction boxes,

flashings and service

entrances

■

Permanently soft, non-toxic

compound can be

painted immediately

after application

■

Won’t adversely affect

other plastic materials or

corrode metals

Description Cat. No.

1 lb. Block (10 per carton) 31-601

5 lb. Block (10 per carton) 31-605

Twist-a-Nut™ Conduit

Deburring Tool

■

Deburrs inside and outside edges of 1/2 in., 3/4 in. and 1 in.

thin wall conduit

■

Hooded tip tightens EMT fitting set screws without slipping

■

Square tip “seats” much more quickly on fitting screws than

slotted version

■

Head removes and is interchangeable with

IDEAL 7-in-1 Twist-a-Nut™ Screwdriver

shaft (#35-908)

■

Head can be used in drill or cordless

screwdriver

■

Universal Wire-Nut®Wire Connector

wrench in handle end eases installation of

twist-on connectors

■

Lifetime guarantee (excludes blades)

Description Cat. No.

Conduit Deburring Tool, slotted tip 35-083

Conduit Deburring Tool - head only, slotted tip 35-096

Conduit Deburring Tool, square tip 35-075

Conduit Deburring Tool - head only, #2 square tip 35-098

Replacement Blades (2/pack) 35-097

35-098

Bender Putter

■

Steel shaft with rubber grip and

conduit bender-shaped head

■

Includes velour

pouch to protect

head

Description Cat. No.

Bender Putter 74-999

Description Cat. No.

Rubber-Coated Gloves 31-417

Cable Gripping Gloves

■

Rubber coating provides positive grip

on lubricated cable

■

Comfortable fit

IDEAL Wipes™

The Multi-Purpose Towel

■

Pre-moistened wipes require no water

■

Cleans dirt, grease, lube and grime

■

Durable fabric scrubs without tearing

■

Infused with natural hand moisturizers

and Vitamin E

■

Orange citrus scent

Description Qty. Cat. No.

IDEAL Wipes™, 12 in. x 9 in. 82/can 38-500

1-800-435-0705 for Customer Service www.idealindustries.com B-13

Conduit Benders

1-800-435-0705 for Customer Service www.idealindustries.com

Wire Installation

■

Rugged, steel construction for long-term durability

■

Baked-on blue enamel finish resists corrosion and enhances visibility

■

Convenient bending guide for offset bends

Handles for Benders

Bender & Handle

Conduit Type and Size Cat. No.

1/2 in. EMT 74-026

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-027

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-028

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-034

Bender Only

Conduit Type and Size Cat. No.

1/2 in. EMT 74-001

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-002

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-003

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-006

■

Exceptional, durable, materials for extra strength

■

Reinforced at stress points for longer life

■

Markings are raised and cast into the bender body on both sides for easy visibility

■

Deeply serrated step helps prevent slippage when applying force

■

Grooved internal hook surface helps prevent conduit from slipping

■

Flat hook surface provides stable starting point

■

Desirable Benfield bending system

Ductile Iron

■

Withstands a lifetime

of heavy use

■

Ductile iron material is

stronger than

malleable iron

■

Lightweight aluminum

for easy handling

■

Strong enough for

every day use

Aluminum

Conduit Benders

Bender & Handle

Conduit Type and Size Cat. No.

1/2 in. EMT 74-046

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-047

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-048

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-035

Conduit Handle Only

Type and Size Cat. No.

1/2 in. EMT 74-019

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-019

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-020

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-021

Bender Only

Conduit Type and Size Cat. No.

1/2 in. EMT 74-031

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-032

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-033

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-036

Ductile

Conduit Handle Only

Type and Size Cat. No.

1/2 in. EMT 74-019

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-019

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-020

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-021

Aluminum

www.idealindustries.com 1-800-435-0705 for Customer Service

B-14

Conduit Benders/Hacksaws

■

Rugged, steel construction for

long-term durability

■

Baked-on blue enamel finish

resists corrosion and enhances

visibility

■

Convenient bending guide for

offset bends

Handles for Hickeys

Ductile Iron Hickeys

■

High-strength ductile iron construction

■

Grooved internal hook helps prevent conduit from slipping

■

Lifetime replacement guarantee

Hickey Only

Conduit Type and Size Cat. No.

1/2 in. EMT 74-010

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-011

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-012

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-013

Pocket Bender Guide

■

Convenient pocket-sized reference guide

■

Includes simple, concise bending

techniques for precision stubs,

back-to-back, offset and saddle bends

■

Request free booklet #P-100

■

Exceptional, durable, heat treated

materials for extra strength

■

Reinforced at stress points for

longer life

■

Grooved internal hook surface

helps prevent conduit from

slipping

Hickeys

Handle Only

Conduit Type and Size Cat. No.

1/2 in. EMT 74-019

3/4 in. EMT, 1/2 in. Rigid & 1/2 in. IMC 74-019

1 in. EMT, 3/4 in. Rigid & 3/4 in. IMC 74-020

1-1/4 in. EMT, 1 in. Rigid & 1 in. IMC 74-021

Heavy-Duty Hacksaw

■

Use as conventional hacksaw

or as jab saw to enlarge holes

■

Rugged frame provides lightweight

rigidity and exceptional control

■

Stores up to nine extra blades

■

Blades can be adjusted to 55° angle for

flush cutting and tensioned to 25,000 psi

■

Includes 12 in. x 24T bi-metal blade

Description Cat. No.

Heavy Duty Hacksaw 35-260

Ergonomic Hacksaw

■

Angled handle for easier cutting

■

Blade can easily be adjusted for flush cutting

■

Easy tensioning wing-nut keeps blades tight for straighter cuts

■

Cushioned ergonomic grip for performance and comfort

■

Includes 12 in. x 24T bi-metal blade

Description Cat. No.

Ergonomic Hacksaw 35-261

Hacksaw Blades

■

Bi-metal blades provide

strength, flexibility and

longer life

Description Qty./Pack Cat. No.

12 in. x 18T Blades 10 35-271

12 in. x 24T Blades 10 35-272

12 in. x 32T Blades 10 35-273

12 in. x 18T Blades 100 35-262

12 in. x 24T Blades 100 35-263

12 in. x 32T Blades 100 35-264

1-800-435-0705 for Customer Service www.idealindustries.com B-15

Pulling Supplies

1-800-435-0705 for Customer Service www.idealindustries.com

Wire Installation

Powr-Fish®

Pull-Line

Powr-Fish®Pull-Line

■

White with blue

tracer for easy

identification

■

Continuous-fiber

polyline great

for blowing

directly into

conduit

■

Will not rot

or mildew

■

Can be left in

conduit for

future use

Description Tensile Strength Cat. No.

Powr-Fish® Pull-Line – 6,500 ft. (bucket) 210 lb. min. 31-340

Powr-Fish® Pull-Line – 6,500 ft. (box) 210 lb. min. 31-343

Conduit Measuring

Tape

■

Provides quick and accurate

measurement of conduit runs

■

Easy-to-read markings in

sequential one-foot

increments

■

160 lb. tensile strength

■

Pulls rope through raceways

without stretching

■

Dispenser features built-in cutter, handle, non-skid base and

adjustable reel tension

■

Will not rot or mildew

Description Cat. No.

Conduit Measuring Tape – 3,000 ft. 31-347

Dispenser 31-349

Description Tensile Strength Cat. No.

Powr-Fish® Pull-Line – 2,200 ft. (bucket) 500 lb. min. 31-344

Tensile

Rope Size Strength Cat. No.

1/4 in. x 250 ft. Reel 1,125 lbs. 31-839

1/4 in. x 600 ft. Reel 1,125 lbs. 31-840

1/4 in. x 1,000 ft. Reel 1,125 Ibs. 31-841

3/8 in. x 250 ft. Reel†2,430 lbs. 31-844

3/8 in. x 600 ft. Reel†2,430 lbs. 31-845

3/8 in. x 1,200 ft. Reel†2,430 lbs. 31-846

1/2 in. x 250 ft. Reel†3,780 lbs. 31-849

1/2 in. x 600 ft. Reel†3,780 lbs. 31-850

1/2 in. x 1,200 ft. Reel†3,780 Ibs. 31-851

5/8 in. x 600 ft. Reel†5,580 Ibs. 31-853

5/8 in. x 1,200 ft. Reel†5,580 Ibs. 31-854

3/4 in. x 300 ft. Reel†7,650 lbs. 31-855

3/4 in. x 600 ft. Reel†7,650 lbs. 31-856

3/4 in. x 1,200 ft. Reel†7,650 lbs. 31-857

† Eye splice on working end.

Pro-Pull™ Rope

■

Low-friction

polypropylene rope

slides easily through

conduit

■

Non-sliver surface can

be handled without gloves

■

Will not rot or mildew

■

Rugged, lightweight construction

Description Tensile Strength Cat. No.

Valu-Line™ Pull-Line – 6,500 ft. (bucket) 190 lb. avg. 31-338

Valu-Line™ Pull-Line

■

White with gray tracer for easy

identification

■

Continuous-fiber

polyline great for

blowing directly

into conduit

■

Will not rot

or mildew

■

Can be left in

conduit for future use

■

White with red tracer for

easy identification

■

500 lb. tensile, our highest

tensile-rated pull-line

■

Continuous-fiber

polyline great for

blowing directly

into conduit

■

Will not rot

or mildew

■

Can be left in

conduit for future

use

Standard

Duty

Extra-

Heavy

Duty 500#

Heavy

Duty

Pulling Supplies

www.idealindustries.com 1-800-435-0705 for Customer Service

B-16

Foam Carriers

Multi-Pack Foam Carriers Multi-Pack Line Packages

Line Packages

■

Attach to a suitable line to serve as a piston –clears out

water or debris as they travel through conduit

■

Durable foam construction for repeated use and long life

■

For use with any type of blower or vacuum system

■

Available individually or in multi-pack bags

■

One-piece pull line and foam tip unwind as they move

through conduit

■

One-piece construction for faster, easier use with no knots

or foam carriers to retrieve

■

Line tensile strength of 17 lbs.

■

For use with any type of blower or vacuum system

■

Available individually or in multi-pack bags

Description Cat. No.

1/2 in. Foam Carrier, 5-pack bag 31-466

3/4 in. Foam Carrier, 5-pack bag 31-467

1 in. Foam Carrier, 5-pack bag 31-468

1-1/4 in. Foam Carrier, 3-pack bag 31-469

1-1/2 in. Foam Carrier, 2-pack bag 31-470

2 in. Foam Carrier, 1-pack bag 31-471

Bulk-Pack Foam Carriers

Description Cat. No.

2-1/2 in. Foam Carrier, single 31-322

3 in. Foam Carrier, single 31-323

3-1/2 in. Foam Carrier, single 31-324

4 in. Foam Carrier, single 31-325

5 in. Foam Carrier, single 31-326

6 in. Foam Carrier, single 31-327

Description Color Cat. No.

Line Package, 1/2 in. x 75 ft., 10-pack bag Red 31-472

Line Package, 1/2 in. x 150 ft., 10-pack bag Red 31-473

Line Package, 3/4 in. x 200 ft., 5-pack bag Yellow 31-475

Line Package, 3/4 in. x 300 ft., 5-pack bag Yellow 31-476

Line Package, 3/4 in. x 450 ft., 5-pack bag Yellow 31-477

Line Package, 1 in. x 200 ft., 5-pack bag White 31-479

Line Package, 1 in. x 300 ft., 5-pack bag White 31-480

Line Package, 1 in. x 450 ft., 5-pack bag White 31-481

Bulk-Pack Line Packages

Description Color Cat. No.

Line Package, 3/4 in. x 75 ft., single Yellow 31-330

Line Package, 1 in. x 75 ft., single White 31-334

Line Package, 1 in. x 200 ft., single White 31-335

Tools and Totes

Engineered to strip every wire right

www.idealindustries.com 1-800-435-0705 for Customer Service

C-2

T®-Stripper Wire Stripper Selection Guide

T®-CutterSolid

24 26 30 32

14 16 18 20 22 24

16 18 20 22 24 26

12 14 16 18

12 14 16 18 20

8 10121416

10 12 14 16 18

Ergonomic handles with Santoprene™grip

and Thumb Valley™make this the premier

wire stripper in the market.

Traditional T®-Stripper Wire Stripper features with

the added convenience of bolt-cutting holes and

locking pawl. Curved comfort-grip handles

accommodate high-volume wire stripping.

6 8 10 12 14

81012 16

24 26 28 30

3230282624222018161412108

2826242220181614121086

StrandedHole Size StrandedSolidStrandedSolidStrandedSolidStrandedSolid

45-125

45-121

45-120

45-124

45-123

—

45-317

45-316

—

45-318

45-323

45-315

45-417

45-416

45-415

45-418

45-423

—

45-617

45-616

—

45-618

—

45-615

—

45-716

45-715

45-718

—

45-915

45-918

—

#45-400’s #45-600’s #45-700’s #45-900’s

#45-100’s #45-300’s

T®-Stripper Wire Stripper

Super T®-Stripper Wire Stripper

Reflex™ Premium T®-Stripper

Reflex™ Super T®-Stripper Wire Stripper

Kinetic™ Super Wire Stripper

Kinetic™ Reflex™ T®-Stripper Wire Stripper

The ergonomic design and patented Santoprene™

grip wicks away perspiration and reduces

muscle fatigue. The Thumb Valley™guide and

precision stripping holes promote the highest

accuracy in the industry.

Designed for total-comfort and wire stripping.

Ergonomic handles fit an electrician’s natural

grip and reduces hand fatigue. Textured, slip-

resistant sleeves cushion thumb and fingers.

The ergonomic design with curved handles

reduces wrist fatigue. Features 6/32 and 8/32

self-chasing, bolt cutting holes and a locking

pawl for safe storage.

•Straight Handles

•Locking Pawl

•Bolt Cutting

•Comfort

•Curved

Handles

•Extended

Textured

•Ergo Handles

•Locking Pawl

•Bolt Cutting

•Extended

Textured

Comfort

•Ergo Handles

•Thumb Valley™

Protection

•Pocket Locket

Locking Hasp

•Shear Cut

Bolt Cutters

•Santoprene™

•Curved

Handles

•Thumb Valley™

Protection

•Pocket Locket

Locking Hasp

•Shear Cut

Bolt Cutters

•Santoprene™

•Ergo Handles

The industry standard for almost 50 years. Compact,

lightweight and easy to use. Features precision-ground,

knife-type blades, built-in looping holes, wire cutters

and a convenient plier nose.

Static Disp

Tools and Totes

Wire Strippers

1-800-435-0705 for Customer Service www.idealindustries.com C-3

Reflex™ Premium T®-Stripper

Wire Strippers

■

Ergonomic design for maximum comfort

■

Curved handles reduce wrist fatigue

■

Sleeves that extend to stripping head to cushion thumb and fingers

■

Textured, no-slip sleeves provide a sure, easy grip

Description Solid Stranded Cat. No.

Reflex™ Premium T®-Stripper Wire Stripper 10-18 12-20 45-415

Reflex™ Premium T®-Stripper Wire Stripper 14-24 16-26 45-416

Reflex™ Premium T®-Stripper Wire Stripper 22-30 24-32 45-417

Reflex™ Premium T®-Stripper Wire Stripper 6-14 8-16 45-418

Reflex™ Premium T®-Stripper – Metric 0.5mm2-4.0mm245-425-341

Reflex™ Premium 14/2 NM Cable

T®-Stripper Wire Stripper 14/2 45-448

Reflex™ Premium 12/2 NM Cable

T®-Stripper Wire Stripper 12/2 45-449

Reflex™ Premium T®-Cutter Cutter 45-423

Description Solid Stranded Cat. No.

Kinetic Super™Wire Stripper 10-18 12-20 45-715

Kinetic Super™Wire Stripper 14-24 16-26 45-716

Kinetic Super™Wire Stripper 6-14 8-16 45-718

Reflex™ Super T®-Stripper

Wire Strippers

Description Solid Stranded Cat. No.

Reflex™ Super T®-Stripper Wire Stripper 8-16 10-18 45-615

Reflex™ Super T®-Stripper Wire Stripper

w/static dissipative grips 14-24 16-26 45-616

Reflex™ Super T®-Stripper Wire Stripper

w/static dissipative grips 22-30 24-32 45-617

Reflex™ Super T®-Stripper Wire Stripper 8-14 8-16 45-618

Reflex™ Super 12/2 & 14/2 12-2 and 45-621

NM Cable T®-Stripper Wire Stripper 14-2 —

■

6/32 and 8/32 self-chasing screw-cutting holes

■

Locking pawl for safe storage

■

Ergonomic design for maximum comfort

■

Curved handles reduce wrist fatigue

■

Sleeves that extend to stripping head to cushion thumb and fingers

■

Textured sleeves with extra cushioning for added comfort

Kinetic™ Super

Wire Strippers

■

Non-slip Santoprene™ textured grips

■

Plier nose for holding and twisting wires

■

Slide lock for safety and storage

■

Thumb and finger valley makes stripping easier

and more accurate

■

“Shear-Cut™” bolt cutters

Kinetic™ Reflex™ T®-Stripper

Wire Strippers

■

Non-slip Santoprene™ textured grips and thumb rest

■

Plier nose for holding and twisting wires

■

Slide lock for safety and storage

■

Thumb and finger valley makes stripping easier and more

accurate

■

“Shear-Cut™” bolt cutters

Description Solid Stranded Cat. No.

Kinetic™ Reflex™ T®-Stripper Wire Stripper 10-18 12-20 45-915

Kinetic™ Reflex™ T®-Stripper Wire Stripper 6-14 8-16 45-918

Super T®-Stripper

Wire Strippers

■

6-32 and 8-32 self-chasing screw-cutting holes

(not available on metric stripper)

■

Curved, cushion-grip handles for ergonomic comfort

■

Locking pawl to keep stripper in closed position

Description Solid Stranded Cat. No.

Super T®-5 T®-Stripper Wire Stripper 8-16 10-18 45-315

Super T®-8 T®-Stripper Wire Stripper 6-14 8-16 45-318

Super T®-Stripper Wire Stripper – Metric 0.5-4mm245-310-341

Super T®-Stripper Wire Stripper – Metric 0.75-6mm245-315-341

Super T®-Stripper Wire Stripper – Metric 0.5-4mm245-317-341

Wire Preparation

Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

C-4

T®-Cutter Wire Cutters

■

Hardened steel, sheer-type blades

■

Spring-loaded automatic opening

■

Convenient plier nose for extra gripping strength

■

Corrosion-resistant, black oxide finish

■

Tough steel construction

■

Locking tab keeps spring in place

■

Premium model features comfort-grip handles; Super model

features curved cushion-grip handles; Reflex™ Premium model

features ergonomic design with textured cushion-grip handles

Description Wire Range Cat. No.

Up to 1/2 in. O.D. fine-stranded wire

T®-Cutter Wire Cutter and 10 AWG solid wire 45-123

Premium T®-Cutter Up to 1/2 in. O.D. fine-stranded wire

Wire Cutter and 10 AWG solid wire 45-223

Super T®-Cutter Up to 1/2 in. O.D. fine-stranded wire

w/static dissipative grips and 10 AWG solid wire 45-323

Reflex™ Premium Up to 1/2 in. O.D. fine-stranded wire

T®-Cutter Wire Cutter and 10 AWG solid wire 45-423

T®-Stripper

Wire Strippers

■

Form-ground, knife-type blades for accurate, easy stripping

without nicking insulation

■

Built-in wire cutter and looping holes

■

Convenient plier nose for extra gripping strength

■

Laser-etched wire gauge for easy-to-read visibility

■

Spring-loaded automatic opening

■

Corrosion-resistant, black oxide finish

■

Tough steel construction

■

Locking tabs keep spring in place

Premium T®-Stripper

Wire Strippers

Description Solid Stranded Cat. No.

T®-5 T®-Stripper Wire Stripper 10-18 12-20 45-120

T®-6 T®-Stripper Wire Stripper 14-24 16-26 45-121

T®-7 T®-Stripper Wire Stripper 22-30 24-32 45-125

T®-8 T®-Stripper Wire Stripper 6-14 8-16 45-124

T®-Stripper Wire Stripper – Metric 0.75-6mm245-120-341

T®-Stripper Wire Stripper – Metric 0.5-4mm245-125-341

Description Solid Stranded Cat. No.

Premium T®-5 T®-Stripper Wire Stripper 10-18 12-20 45-215

Premium T®-6 T®-Stripper Wire Stripper 14-24 16-26 45-216

Premium T®-7 T®-Stripper Wire Stripper 22-30 24-32 45-217

Premium T®-8 T®-Stripper Wire Stripper 6-14 8-16 45-218

■

Contoured, comfort-grip handles to reduce operator fatigue

Wire Strippers

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-5

Super T®-Stripper Wire Strippers—

Static Dissipative

■

Static dissipative grips for dispersing static charge buildup

through the operator to the ground (operator must be

grounded via wrist strap or other grounding device)

■

Locking pawl to keep stripper in closed position

Description Solid Stranded Cat. No.

Super T®-6 T®-Stripper Wire Stripper

w/static dissipative grips 14-24 16-26 45-316

Super T®-7 T®-Stripper Wire Stripper

w/static dissipative grips 22-30 24-32 45-317

■

Easy, one-step stripping of outer jacket of NM cable —

no slitting required

■

Versatility to strip, cut and loop conductor wires with

precision and ease

■

Stripping holes for 12 or 14 AWG solid wire

■

Locking pawl for safe storage

Description Cat. No.

14/2 NM Cable T®-Stripper Wire Stripper 45-248

12/2 NM Cable T®-Stripper Wire Stripper 45-249

Reflex™ Super 12/2 & 14/2 NM Cable T®-Stripper Wire Stripper 45-621

NM Cable Dual-Hole T®-Stripper

Wire Stripper

■

Stripping holes for stripping two 12 AWG or two 14 AWG

wires simultaneously

■

Ability to strip both conductor wires of NM cable at one time

■

Contoured, comfort grip handles on Premium model

Description Wire Range Cat. No.

Premium T®-14 T®-Stripper Wire Stripper 12 or 14 AWG solid 45-247

NM Cable T®-Stripper

Wire Strippers

Description Cat. No.

V-Notch Stripper 45-101

V-Notch Stripper

■

Cuts copper or aluminum wire, solid or stranded

■

Rotating cam wheel adjusts to strip 10-24 AWG wire

■

Looping holes for solid wire

■

Locking hasp

45-074

Wire Preparation

Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

C-6

7-in-1 Stripper

■

Versatile, seven-function tool features precision-ground stripping

blades, cushioned grips and plier nose

■

Strips 8 to 16 AWG solid and 10 to 18 AWG stranded wire

■

Crimps bare and insulated terminals for 10 to 22 AWG wire, RG-59

coax connectors and 7 to 8mm auto ignition connectors

■

Cuts unhardened wire, bolts and screws (4-40, 6-32, 8-32, 10-24

and 10-32) and reforms threads

■

Cuts stranded, solid, Romex®and U.F. wire to 8 AWG

■

Reams and de-burrs conduit

■

Gauges and loops wire

Description Cat. No.

7-in-1 Stripper 45-777

■

Convenient, four-function tool features precision-ground

stripping holes and knife-to-anvil cutting blades

■

Crimps bare and insulated terminals

■

Strips 8 to 20 AWG solid and 10 to 22 AWG stranded wire

■

Cuts unhardened bolts (4-40, 6-32, 8-32, 10-24 and 10-32)

and reforms threads

Description Cat. No.

Combo Tool 30-428

Coax Strip and Crimp Tool

■

Precision, form-ground stripping holes remove outer jacket and

insulation from RG-59 and RG-6 coaxial cable

■

Durable blades cut copper-coated steel conductors

■

Three crimping nests for crimping F-connectors and ring terminals

Description Cat. No.

Coax Strip & Crimp Tool 30-433

Coax Strip & Crimp Tool w/F-Connectors 30-433F

Multi-Crimp Strip Tool

■

Cuts wire

■

Crimps insulated

and non-insulated

wires

■

Cuts bolts

■

Strips 10-22 AWG wire

Description Cat. No.

Multi-Crimp Strip Tool 45-778

Data T®-Cutter Wire Cutters

Description Cat. No.

Data T®-Cutter 45-074

Data T®-Cutter II 45-075

■Cuts round communication cable and maintains cable geometry

for better cable performance

■Cuts multi-pair cable up to .500 in. (12.7mm) and coaxial cable

up to RG-9/U

■Suitable for soft cables (not ACSR)

■Steel reinforced center conductors can be trimmed with bolt

cutting holes

■Cushioned comfort grip handles

■Locking latch keeps tool closed in pouch

■Data T®-Cutter II designed for RG-58 and RG-6 coaxial cable

45-075

Combo Tool

Grip-N-Strip™

End Stripper

■

Self-adjusting stripping blades

automatically select proper position

■

Strips 12 AWG solid to 20 AWG

stranded PVC insulated wire

■

Dual strip-length gauge marks at

3/16 in. and 5/16 in.

■

Cuts up to 12 AWG solid wire

■

Lightweight, ergonomic design

reduces user fatigue

■

Reinforced fiberglass construction

■

Hardened steel blades for extra strength and longer life

Description Cat. No.

Grip-N-Strip™ End Stripper 45-227

Underground Feeder

(UF) Cable Stripper

■

Self-adjusting stripping blades

automatically select

proper position

■

Strips 12 AWG solid to

14 AWG Underground

Feeder (UF) Cable

■

Strips Twin and Earth

cable

■

Open-throat construction allows unlimited strip length

■

Neatly removes outer cable sheath and then inner wire

sheathing to desired lengths

■

Lightweight, ergonomic design reduces user fatigue

■

Replaceable blades

Description Cat. No.

Underground Feeder Cable Stripper 45-235

Wire Strippers

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-7

Cable Ripper Lil’ Ripper Stripper™

■

Slits cable sheathing before

stripping wires

■

Quick, clean and easy end

or mid-run removal of jacket

■

Convenient built-in wire gauge

Description Cat. No.

Side Entry Cable Ripper 45-118

Description Cat. No.

Lil’ Ripper Stripper™ 45-025

■

Rips Romex®outer jacket

cleanly and quickly

■

Clips outer sheathing to remove

excess Romex®jacket

■

Strips inner conduit wires

■

Looping holes loop wire for

screw-on connections

■

Twist-Assist™ tightens most popular

sizes of winged twist-on connectors

■

Injection molded elastomer grip provides a comfortable, slip

resistant grip

■

Strip length measuring scale allows for quick and easy

measurements

■

Conveniently fits in your pocket

Rotary BX/MC Cutters

■

Handles all common BX,

MC and Flex cables

■

Blue sapphire blade cuts

armor without damage to

internal conductors

■

Splices cleanly through

casings with only a

few turns

■

Thumbscrew holds cable

securely in place

■

Epoxy-coated to resist

corrosion

■

Handle knob stores up to

six replacement blades

Description Cat. No.

Rotary BX/MC Cutter 35-780

Replacement blades (5 per pack) 35-781

Rotary BX/MC Cutter with Lever 35-782

35-780

35-782

Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

C-8

Gripper pads hold the wire securely in

a centerline relationship with the blade.

Die-type blades incorporate a counter-bored hole sized to the

insulation and an inner cutting hole sized to the conductor.

This varies depending on insulation type and thickness.

■

Strips 30 through 10 AWG solid or stranded wire

■

Mil-spec die-type blades allow precision stripping

■

Inner cutting hole sized to conductor and counter-bored holes sized to insulation

■

Replaceable Grippers

■

Optional short stop latch and transparent wire stop

■

Cushioned, comfort grip handles

■

Custom Stripmaster®Lite is 3/4’s the size of Custom Stripmaster®Wire Stripper

and strips 16 through 30 AWG solid or stranded wire

■

Custom Stripmaster®Lite requires one-third less hand pressure for each strip

actuation

■

Engineering Service and made-to-order blades available.

Contact factory for complete product and blade number listing.

Custom

Stripmaster®Lite

Wire Stripper

Custom

Stripmaster®

Wire Stripper

Custom Stripmaster®and Custom Stripmaster®Lite Wire Strippers

Custom Stripmaster®Wire Strippers and Die-Type Blades

Specifications — Cutting Hole Diameter

Counterbore Diameter (Inches)

Wire Size AWG

30 28 26 24 22 20 18 16 14 12 10 Stripper Blade Only

For Type E Teflon®(600V)

Cat. No. Cat. No.

.076 .096 .119

.0935 .113 .136 45-176 L-5559

.023 .028 .034 .042 .052 .061

.039 .043 .052 .0595 .070 .081 45-177 L-5560

.016 .019 .023

.032 .035 .039 45-178 L-5561

For Type EE Teflon®(1000V)

.076 .096 .119

.104 .125 .144 45-173 L-5562

.023 .028 .034 .042 .052 .061

.0465 .055 .0595 .067 .0785 .089 45-174 L-5563

.016 .019 .023

.042 .043 .0465 45-175 L-5564

For Other Misc. Insulations

.076 .0937 .116

.113 .138 .154 45-170 L-5210

.022 .0292 .035 .042 .052 .062

.052 .0595 .0635 .073 .086 .096 45-171 L-5211

.016 .020 .024

.037 .040 .043 45-172 L-5436

For Wire Wrap & Other Thin Insulated Wire

.012 Three identical holes

.020 45-179 L-7625

.012 .014 .018 .024 Solid Wires

.019 .023 .025 .033 45-169 L-9300

Tolerances: Cutter Dia.: ± .001; Counter-bore Dia.: ± .002 45-169 through 45-188 include grit-type pads (standard).

The 45-170 Series is a Custom Stripmaster®Wire Stripper frame without the short 45-369 through 45-388 include file-type pads.

stop latch and wire stop. 45-469 through 45-488 include parallel-type pads.

Wire Strippers

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-9

Custom Stripmaster®Lite Wire Strippers and Die-type Blades

Specifications — Cutting Hole Diameter

Counterbore Diameter (Inches)

Wire Size AWG

30 28 26 24 22 20 18 16

Stripper

Blade Only

MIL-W-16878 Type E 600V Teflon®Wire

Cat. No. Cat. No.

.034 .042 .052 .061

.052 .0595 .070 .081 45-638 LB-918

.023 .028 .034 .042

.039 .043 .052 .0595 45-639 LB-919

.016 .019 .023 .028

.032 .035 .039 .043 45-640 LB-920

MIL-W-16878 Type EE 1000V Teflon®Wire

.034 .042 .052 .061

.0595 .067 .0785 .089 45-635 LB-915

.023 .028 .034 .042

.0465 .055 .0595 .067 45-636 LB-916

.016 .019 .023 .028

.042 .043 .0465 .055 45-637 LB-917

General Purpose

.035 .042 .052 .062

.0635 .073 .086 .096 45-632 LB-912

.022 .0292 .035 .042

.052 .0595 .0635 .073 45-633 LB-913

.016 .020 .024 .0292

.037 .040 .043 .0595 45-634 LB-914

Wire Wrapping (Thin Insulation Solid Wire)

.012 Four holes, same size

.020 45-641 LB-921

.012 .014 .018 .024 Solid Wires

.019 .023 .025 .033 45-631 LB-911

Tolerances: Cutter Dia.: ± .001; Counterbore Dia.: ± .002. Teflon®is a registered trademark of E.I. du Pont de Nemours and Company.

Custom Stripmaster®Wire Strippers and Die-Type Blades

Specifications — Cutting Hole Diameter

Counterbore Diameter (Millimeters)

mm2 Nom

0.05 0.08 0.13 0.2 0.22 0.5 1.0 1.5 2.5 4.0 6.0 Stripper Blade Only

For Type E Teflon®(600V) Cat. No. Cat. No.

1.93 2.44 3.02

2.37 2.87 3.45 45-176 L-5559

.584 .711 .863 1.07 1.33 1.55

.99 1.09 1.32 1.5 1.78 2.06 45-177 L-5560

.406 .482 .584

.813 .889 .99 45-178 L-5561

For Type EE Teflon®(1000V)

1.93 2.44 3.02

2.64 3.17 3.6 45-173 L-5562

.584 .711 .863 1.07 1.33 1.55

1.17 1.39 1.5 1.70 1.99 2.49 45-174 L-5563

.406 .482 .584

1.07 1.09 1.17 45-175 L-5564

For Other Misc. Insulations

1.93 2.38 2.94

2.87 3.45 3.91 45-170 L-5210

.560 .736 .889 1.07 1.33 1.57

1.33 1.5 1.61 1.85 2.18 2.44 45-171 L-5211

.406 .508 .609

.940 1.01 1.09 45-172 L-5436

For Wire Wrap & Other Thin Insulated Wire

.305 Three identical holes

.508 45-179 L-7625

.305 .356 .457 .609

.482 .584 .635 .838 45-169 L-9300

Tolerances: Cutter Dia.: ± .025mm; Counterbore Dia.: ± .051mm. Teflon®is a registered trademark of E.I. du Pont de Nemours and Company.

(Reference chart only. Blades are not marked in mm)

Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

C-10

Custom Stripmaster®Lite Wire Strippers and Die-type Blades

Specifications — Cutting Hole Diameter

Counterbore Diameter (Millimeters)

Wire Size AWG

1,5 1,0 0,5 0,22 0,2 0,13 0,08 0,05

Stripper

Blade Only

MIL-W-16878 Type E 600V Teflon®Wire

Cat. No. Cat. No.

1,55 1,32 1,07 0,86

2,06 1,99 1,51 1,32 45-638 LB-918

1,07 0,86 0,71 0,58

1,51 1,32 1,09 ,099 45-639 LB-919

0,71 0,58 0,48 0,41

1,09 0,99 0,89 0,82 45-640 LB-920

MIL-W-16878 Type EE 1000V Teflon®Wire

1,55 1,32 1,07 0,86

2,26 1,99 1,70 1,51 45-635 LB-915

1,07 0,86 0,71 0,58

1,70 1,51 1,40 1,18 45-636 LB-916

0,71 0,58 0,48 0,41

1,40 1,18 1,09 1,07 45-637 LB-917

General Purpose

1,57 1,32 1,07 0,89

2,44 2,18 1,85 1,61 45-632 LB-912

1,07 0,89 0,74 0,56

1,85 1,61 1,51 1,32 45-633 LB-913

0,74 0,61 0,51 0,41

1,51 1,09 1,02 0,86 45-634 LB-914

Wire Wrapping (Thin Insulation Solid Wire)

Four holes, same size 0,30

0,76 45-641 LB-921

Solid Wires 0,61 0,46 0,36 0,30

0,84 0,64 0,58 0,48 45-631 LB-911

Tolerances: Cutter Dia.: ± .001; Counterbore Dia.: ± .002. Teflon®is a registered trademark of E.I. du Pont de Nemours and Company.

Wire Strippers

Tools and Totes

C-11

Description Blade Gap ("x") vertical height Blade Only Cat. No. Frame & Blade Cat. No.

Custom Steel frame only N/A N/A LB-1091

Flat blade for 26 AWG (.40mm dia.) multi-conductor .022 in. LB-1151 45-890

Flat blade for 24 AWG (.00mm dia.) multi-conductor .030 in. LB-1152 45-891

Flat blade for 22 AWG (.64mm dia.) multi-conductor .038 in. LB-1153 45-892

Flat blade for 20 AWG (.00mm dia.) multi-conductor .050 in. LB-1154 45-893

Flat blade for 18 AWG (1.02mm dia.) multi-conductor .060 in. LB-1155 45-894

Flat blade for 16 AWG (1.29mm dia.) multi-conductor .075 in. LB-1156 45-895

Custom Steel Stripmaster®Wire Strippers and

Special Flat-Blades for Ribbon and Multi-Conductor Cable

Short-stop Latch protects wire strands by

limiting the stripping stroke to 5/32 in. and

retains the slug until the wire is ready

for terminating.

Transparent wire stop provides

uniform stripping length.

Gripper Pads are available in your choice of

either parallel, file or grit-type. File-type pads

may be used on hard-to-grip insulations such as

Kapton

and some Teflon

Stationary Gripper for Red

Handle Units

For 10, 12 & 14 AWG Wire

L-5215

.129

Stationary Gripper for Black

Handle Units

For 16 thru 30 AWG wire.

L-5217

.156

For Custom Stripmaster®and Custom Steel Stripmaster®Wire Strippers

Surface Gripper Set* Movable Gripper Stationary Gripper

Type Cat. No. Cat No. (Thickness)

Grit** LB-197 L-5212 L-5215 (.129 in.)

Grit** LB-198† L-5212 L-5217 (.156 in.)

File LB-721 LB-718 LB-719 (.129 in.)

File LB-722‡ LB-718 LB-720 (.156 in.)

Parallel LB-730 LB-727 LB-728 (.129 in.)

Parallel LB-731 LB-727 LB-729 (.156 in.)

For Custom Stripmaster®Wire Strippers Cat. No.

Frame only, 10-14 AWG L-5616

Frame only, 16-30 AWG L-5617

Frame only, 10-14 AWG, Wire Stop and Latch L-5618

Frame only, 16-30 AWG, Wire Stop and Latch L-5619

Frame only, 10-14 AWG, internal spring (see note) L-9039

Frame only, 16-30 AWG, internal spring (see note) L-9038

Note: Frames with internal springs allow additional blade penetration pressure for

difficult and multi-layered insulation types.

Replacement Frame Assemblies

For Custom Stripmaster®Lite Wire Strippers Cat. No.

Frame only LB-895

Frame only, Wire Stop and Latch LB-896

For Custom Steel Stripmaster®Wire Strippers Cat. No.

Frame only, 10-14 AWG LB-1091

Frame only, 16-30 AWG LB-1092

Frame only, 10-14 AWG, internal spring (see note) LB-1090

Frame only, 16-30 AWG, internal spring (see note) LB-1089

Note: Frames with internal springs allow additional blade penetration pressure for

difficult and multi-layered insulation types.

Short Stop Latch Cat. No.

For Custom & Custom Steel Stripmaster®Wire Strippers L-5269

For Custom Stripmaster®Lite Wire Strippers LB-1194

Optional Accessories

Transparent Adjustable Wire Stop Assembly Cat. No.

For Custom & Custom Steel Stripmaster®Wire Strippers L-5270

For Custom Stripmaster®Lite Wire Strippers LB-1195

Replacement Gripper Pads

For Custom Stripmaster®Lite Wire Strippers

Surface Gripper Set* Movable Gripper Stationary Gripper

Type Cat No. Cat. No. (Thickness)

Grit* LB-1188 LB-882 LB-883 (.109 in.)

File LB-1189 LB-1184 LB-1185 (.109 in.)

Parallel LB-1190 LB-1186 LB-1187 (.109 in.)

* Gripper Set includes one movable gripper, one stationary gripper.

** Grit pads are standard for most Custom Stripmaster®and Custom Stripmaster® Lite

products.

† Formerly L-7954

‡ Formerly L-8928. These are for use on hard-to-grip surfaces such as Kapton®and Teflon®.

Gripper pad selection depends on insulation type and user preference.

Note: For wire gauge 10-14, use .129 in. stationary gripper. For 16-30 AWG, use .156 in.

gripper.

Teflon®and Kapton®are registered trademarks of E. I. du Pont de Nemours and Company.

1-800-435-0705 for Customer Service www.idealindustries.com

Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

C-12

Custom Stripmaster®Custom Stripmaster®Lite

Wire Specification Cat. No. Blade Only Cat. No. Wire Gauge Cat. No. Blade Only Cat. No. Wire Gauge

MIL-W-81044/4/5/6 45-170 L-5210 10-14 AWG N/A N/A N/A

MIL-W-5086/1/7 45-171 L-5211 16-26 AWG

MIL-W-81044/8/9/10 45-173 L-5562 10-14 AWG

MIL-W-16878/5 45-174 L-5563 16-26 AWG 45-635 LB-915 16-22 AWG

MIL-W-81381/3/4 45-175 L-5564 26-30 AWG 45-637 LB-917 24-30 AWG

45-637 LB-917 24-30 AWG

MIL-W-22759/32/33/44/45/46 45-1987 45-1987-1 16-26 AWG 45-2133 45-2133-1 16-24 AWG

45-1654 45-1654-1 16-26 AWG 45-2132 45-2132-1 16-24 AWG

45-1611 45-1611-1 10-14 AWG

MIL-81044/11/12/13 45-2500 45-2500-1 10-14 AWG

MIL-W-22759/34/35/41/42/43 45-1987 45-1987-1 16-26 AWG 45-2133 45-2133-1 16-24 AWG

45-2118 45-2118-1 20-26 AWG

45-178 L-5561 26-30 AWG 45-640 LB-920 24-30 AWG

45-176 L-5559 10-14 AWG

Raychem 44A021X, 44/051X 45-1611 45-1611-1 10-14 AWG

MIL-W-16878/4 45-177 L-5560 16-26 AWG

MIL-W-22759/11/12/22/23 45-178 L-5561 26-30 AWG 45-640 LB-920 24-30 AWG

45-1611 45-1611-1 10-14 AWG

MIL-W-81044/16/17 45-1610 45-1610-1 16-26 AWG

45-2131 45-2131-1 16-24 AWG

45-1609 45-1609-1 10-14 AWG

MIL-W-81381/1/2//6/7/8/9/10/17/21 45-1551 45-1551-1 16-26 AWG

45-178 L-5561 26-30 AWG 45-640 LB-920 24-30 AWG

45-1608 45-1608-1 10-14 AWG

45-1654 45-1654-1 16-26 AWG

MIL-W-81381/11/12/13/14/22 45-178 L-5561 26-30 AWG

45-640 LB-920 24-30 AWG

45-1608 45-1608-1 10-14 AWG

MIL-W-22759/18/19 45-1551 45-1551-1 16-26 AWG N/A N/A N/A

45-2020 45-2020-1 20-26 AWG

MIL-W-81381/17/21 45-1633 45-1633-1 16-26 AWG

45-1609 45-1609-1 10-14 AWG

MIL-W-81381/18/19/20 45-1551 45-1551-1 16-26 AWG N/A N/A N/A

45-1611 45-1611-1 10-14 AWG

MIL-W-22759/16/17 45-1987 45-1987-1 16-26 AWG 45-2133 45-2133-1 16-24 AWG

45-2118 45-2118-1 22-26 AWG

MIL-W-24640/19/22/23/24 45-1957 45-1957-1 14-22 AWG N/A N/A N/A

45-1925 45-1925-1 10-14 AWG

MIL-W-85485/5/6/7/8 45-1924 45-1924-1 16-24 AWG N/A N/A N/A

MIL-W-85485/9/10/11/12 45-1611 45-1611-1 10-14 AWG

MIL-W-85485/9/10 45-1610 45-1610-1 16-24 AWG 45-2131 45-2131-1 16-24 AWG

BMS 1360 Type 1-6, 19-21, 23-27, 33-34 45-2541 45-2541-1 10-14 AWG

42-2543 45-2543-1 16-24 AWG 45-2697 45-2697-1 16-24 AWG

BMS 1360 Type 12-18, 28-32 45-2542 45-2542-1 10-14 AWG N/A N/A N/A

45-2544 45-2544-1 16-24 AWG

45-2565 45-2565-1 10-14 AWG

BMS 1360 Type 7-12 45-2564 45-2564-1 16-26 AWG N/A N/A N/A

45-2542 45-2542-1 10-14 AWG

MIL-W-22759/80/81/82/91/92 45-2544 45-2544-1 16-24 AWG 45-2693 45-2693-1 16-22 AWG

45-2692 45-2692-1 20-26 AWG

45-2541 45-2541-1 10-14 AWG

MIL-W-22759/83/84/85/86/87/88/89/90 45-2543 45-2543-1 16-24 AWG 45-2685 45-2685-1 16-24 AWG

45-2618 45-2618-1 16-26 AWG

Custom Stripmaster®Wire Stripper and Custom Stripmaster®Lite Wire Stripper MIL-spec reference chart

NOTE: The above blades represent the best blade for nominal conductor sizes within the wire spec. tolerance. If the conductor size is over or under the nominal dims. an alternate blade may be required.

Please contact our wire stripping applications engineer at 1-800-435-0705 ext. 300 for alternate blades and for blade numbers for MIL-specs. not listed on this chart.

Wire Strippers

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-13

Stripmaster®and Stripmaster®Lite

Wire Strippers

■

One-step stripping enhances productivity

■

Spring-action motion increases leverage and

reduces operator fatigue

■

Precision-ground, knife-type blades provide clean,

accurate stripping

■

Sturdy die cast frame provides long-term durability

■

Wire gripper holds wire securely in position

■

Stripmaster®Lite designed for smaller hands —

3/4 the size of the standard Stripmaster®

*Boxed **Blister Card Tolerances A.001 -.005

Tolerances A.001 -.005

Stripmaster®Lite Wire Strippers and Knife-Type Blades

Stripmaster®Wire Strippers and

Knife-Type Blades

Specifications — Stripping Hole Diameter (Inches) Replacement

Wire Size AWG

Blades

(Pair)

8 10 12 14 16 18 20 22 24 26 28 30 Cat. No. Cat. No.

.159 .141 .106 45-090* or 45-290** L-4419

.144 .105 .085 .073 .073 45-091 L-4420

.144 .113 .090 .072 .061 .048 .048 45-092* or 45-292** L-4421

.090 .072 .061 .039 .039 45-093 L-4422

.072 .061 .048 .039 .032 .026 45-097 L-4994

.048 .039 .032 .026 .021 .016 45-098 L-5361

.198 .167 .062 .055 45-099 L-8763

Specifications — Stripping Hole Diameter (Inches) Replacement

Wire Size AWG Blades

(Pair)

12 14 16 18 20 22 24 26 28 30 16/18 20/22 Cutting Edge Cat. No. Cat. No.

.072 .061 .048 .039 45-671 LB-1001

.032 .026 .021 .016 45-672 LB-1002

.113 .090 .072 .061 (All stranded wire) 45-673 LB-1003

.096 .085 .073 .061 (12 & 14 Solid wire, 16 & 18 Stranded wire) 45-674 LB-1004

.072 .048 .250 Wide 45-675 LB-1005

Stripmaster®

Wire Stripper Stripmaster®Lite

Wire Stripper

Optional

Accessories

Optional Accessories Cat. No.

Transparent Adjustable Wire Stop (for Stripmaster®Wire Strippers) L-5270

Transparent Adjustable Wire Stop (for Stripmaster®Lite Wire Strippers) LB-1195

Replacement Moveable Gripper L-1953

Coax Stripmaster®Wire Strippers and Blades Stripmaster®Wire Strippers with Rectangular Holes

Replacement Frame Assemblies Cat. No.

For Stripmaster®Wire Strippers L-5620

For Stripmaster®Lite Wire Strippers LB-1421

Replacement

Blades (Pair)

Description Cat. No. Cat. No.

For Flat Telephone Cable

(.60 in. or 1.52mm) N/A LB-1155

For European Flat Lamp Cord 45-089 L-8762

For SP-SPT Lamp Cord 45-095* L-4452

*Also strips 2- and 3-conductor low-voltage wire used in G.E. and Touchplate remote control

wiring system.

Coaxial Cables: two-step strip for termination, jacket and dielectric.

Coax Cable Repl. Blade

Description Type (RGU) Cat. No. Cat. No.

Coax Stripmaster®for RG-6 RG-6 LB-740 45-262

Coax Stripmaster®for RG-58 RG-58 LB-742 45-264

Coax Stripmaster®for RG-59 RG-59 LB-743 45-265

Coax Stripmaster®for RG-62 RG-62 LB-744 N/A

Coax Stripmaster®for RG-6 QuadShield RG-6 LA-3953 45-282

QuadShield

Wire Preparation

Wire Strippers

www.idealindustries.com 1-800-435-0705 for Customer Service

C-14

Specifications — Stripping Hole Diameter (mm) Replacement Replacement

Wire Size AWG Blades (Pair) Frame

8 10 12 14 16 18 20 22 24 26 28 30 Cat. No. Cat. No. Cat. No.

4 3.6 2.7 45-090 or

45-290 L-4419 L-5620

3.6 2.7 2.2 1.8 45-091 L-4420 L-5620

3.6 2.9 2.3 1.8 1.5 1.2 45-092 or

45-292-241* L-4421 L-5620

2.3 1.8 1.5 1.2 1 45-093 L-4422 L-5620

1.8 1.5 1.2 1 0.8 0.7 45-097 L-4994 L-5620

1.2 1 0.8 0.7 0.5 0.4 45-098 L-5361 L-5620

5 4.2 1.6 1.4 45-099 L-8763 L-5620

Specifications—Stripping Hole Diameter (mm) Replacement Replacement

Wire Size (mm2)Blades (Pair) Frame

0.05 0.1 0.15 0.22 0.34 0.5 0.75 1 1.5 2.5 4 6 8 10 Cat. No. Cat. No. Cat. No.

4.3 5 45-090-341 or

45-290-341* L-4419M LA-2358

1.3 1.6 1.9 2.4 3 3.6 45-092-341 or

45-292-341* L-4421M LA-2358

0.6 0.7 0.8 0.9 1 1.1 45-098-341 or

45-298-341* L-5361M LA-2358

Free Application Engineering Service and made-to-order Custom Stripmaster®and Stripmaster®Wire Strippers are available.

Contact IDEAL INDUSTRIES, INC. for complete information at 1-800-435-0705.

Stripmaster®Wire Strippers and Knife-Type Blades

Stripmaster®Lite Wire Strippers and Knife-Type Blades

Stripmaster®Wire Strippers and Knife-Type Blades for Metric Wire

Stripmaster®Lite Wire Strippers and Knife-Type Blades for Metric Wire

Specifications — Stripping Hole Diameter (mm) Replacement Replacement

Wire Size AWG Blades (Pair) Frame

12 14 16 18 20 22 24 26 28 30 16/18 20/22 Cutting Edge Cat. No. Cat. No. Cat. No.

1.8 1.5 1.2 1 45-671 LB-1001 LB-1421

0.8 0.7 0.5 0.4 45-672 LB-1002 LB-1421

2.9 2.3 1.8 1.5 (All stranded wire) 45-673 LB-1003 LB-1421

2.4 2.2 1.9 1.5 (12 & 14 Solid wire, 16 & 18 Stranded wire) 45-674 LB-1004 LB-1421

1.8 1.2 6.4 wide 45-675 LB-1005 LB-1421

Specifications—Stripping Hole Diameter (mm) Replacement Replacement

Wire Size (mm2)Blades (Pair) Frame

0.05 0.1 0.15 0.22 0.34 0.5 0.75 1 1.5 Cat. No. Cat. No. Cat. No.

1 1.1 1.3 1.6 1.9 45-671-341 LB-1001M H-2909

0.6 0.7 0.8 0.9 45-672-341 LB-1002M H-2909

*Boxed Tolerances A.001 -.005

1-800-435-0705 for Customer Service www.idealindustries.com C-15

Hand Tools

IDEAL hand tools offer a complete lineup

that includes. . .

■Insulated Hand Tools

(Pages C-42 — C-45)

■Pliers - Dipped grip and Smart-Grip™

(Pages C-16 — C-23)

■Screwdrivers

(Pages C-24 — C-29)

■Cable Cutters

(Page C-30)

■Crimpers & BX Cutters

(Page C-32)

■Measuring tapes, knives, tapping tools,

conduit deburring tools, levels, etc.

(Pages C-32 — C-33)

■Tool Kits

(Pages C-34 — C-37)

Tools and Totes

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-16

LASERedge™ pliers use high carbon, 1080 steel, which

provides extra strength and hardness without

sacrificing flexibility. It is one of the reasons our tools

outperform the competition in performance

Blade Design

LASERedge pliers feature “knife-to-anvil”

cutting blades for long life.

(Ideal for cutting screws, nails, hardened

wire and ACSR)

FastFinder™letter

identification on the

inside of our handles

provides quick

identification,

even by touch

Cross-hatched jaws

so wires won’t slip

when pulling

Textured Santoprene™

slip resistant grip

(Dipped handles also

available. See part # list.)

Laser-hardened blades

and teeth last four

times longer

Full polish for maximum

corrosion resistance

Custom hardened

tool steel for

durability

Diagonal Long Nose Tongue & Groove Cable Cutter Crimper

and durability. All of our LASERedge tools have

laser-hardened blades and teeth, which are more

precise and provide better durability for strenuous

applications like cutting steel or ACSR.

Hand Tools

1-800-435-0705 for Customer Service www.idealindustries.com C-17

■

Drop-forged, high-carbon steel construction withstands

toughest applications

■

Knife-to-anvil blades never need resharpening

■

Cuts hardened wire, bolts and ACSR

■

Laser-hardened blades and serrated jaws for long-term durability

■

High-leverage design provides 40% more cutting power

■

Unique reverse rivet protects smooth action of plier movement

■

Vinyl-coated, comfort-grip handles for a secure grip

Description (Smart-Grip™ Handles) Cat. No.

9-1/4 in. New England nose high-leverage w/fish tape puller 35-3012

9-1/4 in. New England nose high-leverage w/crimping die 30-3430

Description (Dipped Handles) Cat. No.

8-1/2 in. New England nose high-leverage w/crimping die 30-420

9-1/4 in. New England nose high-leverage w/fish tape puller 35-012

9-1/4 in. New England nose high-leverage w/crimping die 30-430

9-1/4 in. New England nose high-leverage w/box joint 35-013

Premium Electrician’s

Side-Cutting Pliers

All of the features of the Side-Cutting Pliers plus:

■

Mirror-polished finish to maintain premium appearance

■

Double-dipped grips for extra cushioning comfort

Description (Dipped Handles) Cat. No.

9-1/4 in. New England high-leverage 30-435

w/fish tape puller and crimping die

Great

Honors

Award

Side-Cutting Pliers

35-3012

w/Crimping Die w/Fish Tape Puller

w/Box Joint

35-013

Tools and Totes

30-3430

■

Narrow profile head designed for working in tight areas

■

Serrated jaws provide secure gripping surface

■

Drop-forged, high-carbon steel construction

■

Knife-to-anvil blades never need resharpening

■

Laser-hardened blades cut hardened wire, bolts and ASCR

■

Vinyl-coated, comfort-grip handles for a secure grip

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-18

Long-Nose Pliers

Description (Smart-Grip™ Handles) Cat. No.

7-3/4 in. Long Nose w/Cutter 35-3037

8-1/2 in. Long Nose w/Cutter 35-3038

Description (Dipped Handles) Cat. No.

6 in. Long Nose w/Cutter 35-036

7-3/4 in. Long Nose w/Cutter 35-037

8-1/2 in. Long Nose w/Cutter 35-038

8-1/2 in. w/Cutter & stripping holes for 12 & 14 AWG wire 35-039

35-039

Diagonal-Cutting Pliers

Description (Smart-Grip™ Handles) Cat. No.

8 in. High-leverage Diagonal 35-3028

8 in. High-leverage Diagonal w/angled head 35-3029

Description (Dipped Handles) Cat. No.

6 in. High-leverage Diagonal 35-026

7 in. High-leverage Diagonal 35-027

8 in. High-leverage Diagonal 35-028

8 in. High-leverage Diagonal w/angled head 35-029

w/Angled Head

35-029

8” Diagonal

35-3028

■

Drop-forged, high-carbon steel construction withstands

toughest applications

■

Knife-to-anvil blades never need resharpening

■

Laser-hardened blades cut hardened wire, bolts and ASCR

■

Vinyl-coated, comfort-grip handles for a secure grip

■

High-leverage design provides 40% more cutting power

■

Models 35-029 and 35-3029 feature a convenient angled

head for hard-to-reach areas and rocking out nails

35-3038

35-3052

Hand Tools

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-19

Cable Cutters

■

Drop-forged, high-carbon steel construction

■

Precision-ground, hardened cutting edges provide accurate cuts

without cable distortion

■

Designed for maximum leverage with minimum effort

■

Cuts 2/0 copper and 4/0 aluminum (not for use on ACSR)

■

Vinyl-coated, comfort-grip handles

Description (Smart-Grip™ Handles) Cat. No.

9-1/2 in. Cable Cutter 35-3052

Description (Dipped Handles) Cat. No.

9-1/2 in. Cable Cutter 35-052

Tongue and Groove Pliers

■

Patented undercut tongue and groove design

ensures solid grip

■

Patented reinforced flange protects against

breakage

■

Laser-hardened teeth remain sharp longer

■

Drop-forged, high-carbon steel construction

■

Vinyl-coated, comfort-grip handles for a secure grip

Jaw Opening

Description (Smart-Grip™ Handles) (Inches) Cat. No.

9-1/2 in. Tongue & Groove Pliers 1-1/2 35-3420

10 in. Tongue & Groove Pliers 2 35-3430

Jaw Opening

Description (Dipped Handles) (Inches) Cat. No.

6-1/2 in. Tongue & Groove Pliers 7/8 35-426

9-1/2 in. Tongue & Groove Pliers 1-1/2 35-420

10 in. Tongue & Groove Pliers 2 35-430

12 in. Tongue & Groove Pliers 2-1/4 35-440

16 in. Tongue & Groove Pliers 4-1/4 35-460

35-052

Multi-Crimp Tools

■

Crimps bare or insulated terminals and splices on

10 to 22 AWG wire

■

Knife-to-anvil blades never need resharpening

■

Excellent leverage for easy crimping and cutting

■

Drop-forged, high-carbon steel construction

■

Vinyl-coated handles provide a solid, comfortable grip

Description (Smart-Grip™ Handles) Cat. No.

9-3/4 in. Multi-Crimp Tool 30-3429

Description (Dipped Handles) Cat. No.

9-3/4 in. Multi-Crimp Tool 30-429

30-42930-3429

35-3430 35-460

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-20

WireMan™ pliers provide professional results for everyday use.

These tools are the workhorse of electrical pliers; they are

rugged yet precise, providing exceptional durability, easy

cutting and a lifetime of quality use.

Large head for

extra strength

Cross-hatched

jaws so wires

won’t slip when

pulling

FastFinder™ letter

identification

on the inside of our

handles provides

quick identification,

even by touch

Blade Design

WireMan pliers feature “knife-to-knife”

cutting blades for easy cuts.

Custom hardened

tool steel for

durability

Textured Santoprene™

slip resistant grip

(Dipped handles also

available. See part # list.)

Diagonal Long Nose Tongue & Groove Cable Cutter Crimper

High leverage rivet requires

less cutting force

Hand Tools

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-21

Side-Cutting Pliers

Diagonal-Cutting Pliers

■

Custom tool steel for durability

■

High leverage pivot requires less cutting force

■

Sharp, knife-to-knife blades for easy cutting

■

Induction hardened teeth for long life

■

Cross-hatched jaws so wires won’t slip when pulling

■

Ergonomic handles for comfortable, all-day use

■

Custom tool steel for durability

■

High leverage pivot requires less cutting force

■

Sharp, knife-to-knife blades for easy cutting

■

Induction hardened teeth for long life

■

Ergonomic handles for comfortable, all-day use

Description (Smart-Grip™ Handles) Cat. No.

7 in. Cutting Pliers 30-4419

8 in. Side-Cutting Pliers 30-4420

9-1/4 in. Side-Cutting Pliers 35-4012

9-1/4 in. Side-Cutting Pliers w/Crimp and Fish Tape Puller 30-4430

Description (Dipped Handles) Cat. No.

7 in. Cutting Pliers 30-5419

8 in. Side-Cutting Pliers 30-5420

9-1/4 in. Side-Cutting Pliers 35-5012

9-1/4 in. Side-Cutting Pliers w/Crimp and Fish Tape Puller 30-5430

30-4430 35-5012

Description (Smart-Grip™ Handles) Cat. No.

6 in. Diagonal-Cutting Pliers 35-4026

8 in. Diagonal-Cutting Pliers 35-4028

8 in. Diagonal-Cutting Pliers w/Angled Head 35-4029

Description (Dipped Handles) Cat. No.

6 in. Diagonal-Cutting Pliers 35-5026

8 in. Diagonal-Cutting Pliers 35-5028

8 in. Diagonal-Cutting Pliers w/Angled Head 35-5029

35-5029

35-4028

Tongue and Groove Pliers

■

Custom tool steel for durability

■

Ergonomic handles for comfortable, all-day use

Description (Smart-Grip™ Handles) Cat. No.

10 in. Tongue & Groove Pliers 35-4430

Description (Dipped Handles) Cat. No.

10 in. Tongue & Groove Pliers 35-5430

35-4430 35-5430

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-22

Long-Nose Pliers

■

Custom tool steel for durability

■

High leverage pivot requires less cutting force

■

Sharp, knife-to-knife blades for easy cutting

■

Induction hardened teeth for long life

■

Cross-hatched jaws so wires won’t slip when pulling

■

Ergonomic handles for comfortable, all-day use

Description (Smart-Grip™ Handles) Cat. No.

6 in. Long-Nose Pliers w/Strip & Crimp 35-4035

6 in. Long-Nose Pliers 35-4036

8 in. Long-Nose Pliers 35-4038

Description (Dipped Handles) Cat. No.

6 in. Long-Nose Pliers w/Strip & Crimp 35-5035

6 in. Long-Nose Pliers 35-5036

8 in. Long-Nose Pliers 35-5038

35-4038 35-5035

Hand Tools

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-23

Multi-Crimp Tools

■

Custom tool steel for durability

■

High-leverage pivot requires less force

■

Ergonomic handles for comfortable, all-day use

Description (Smart-Grip™ Handles) Cat. No.

9-1/4 in. Multi-Crimp Tool 30-4429

9-1/4 in. Multi-Crimp Tool - Bare Terminals 30-4431

Description (Dipped Handles) Cat. No.

9-1/4 in. Multi-Crimp Tool 30-5429

9-1/4 in. Multi-Crimp Tool - Bare Terminals 30-5431

30-4429 30-5431

Cable Cutters

■

Custom tool steel for durability

■

High-leverage pivot requires less force

■

Sharp, knife-to-knife blades for easy cutting

■

Induction hardened teeth for long life

■

Ergonomic handles for comfortable, all-day use

■

Fits LASERedge™ and

WireMan™ Pliers

■

Not insulated from

electrical shock

Description (Smart-Grip™ Handles) Cat. No.

9 in. 2/0 Cable Cutter 35-4052

Description (Dipped Handles) Cat. No.

9 in. 2/0 Cable Cutter 35-5052

35-4052

Description Cat. No.

Replacement grips for 6 in. pliers (one pair) 35-006

Replacement grips for 7 in. pliers (one pair) 35-007

Replacement grips for 8 in. or 9 in. pliers (one pair) 35-008

Tenite Grips

35-5052

Twist-a-Nut™ Screwdriver/Nutdriver

Textured Santoprene™grip

provides excellent torque and

resists perspiration, water,

oil and chemicals

Six torsion bars provide

exceptional grip

Accu-Loop™ Wire

Looping Hole

Patented Wire-Nut®Wrench

accepts a wide variety

of connectors.

Accu-Loop™ Wire

looping holes

B-Cap®WingTwist™ / WireTwist™

Wing-Nut®Wire-Nut®Twister®

Patented Wire-Nut®Wrench accepts a wide variety of IDEAL wire connectors (and others) including:

(Image actual size.)

■

Ratcheting wire

connector wrench

prevents finger fatigue

and gets in tight spots

■

Premium screwdriver ratchet

mechanism can handle high

torque without failure

■

Ergonomic, slip-free comfort grip

■

Accepts Twist-a-Nut™ replacement

bits

■

Includes: 1/4 in. and 3/16 in. slotted, #1 & #2 Phillips, 1/4 in., 5/16

in., 7/16 in. nutdrivers, ratcheting screwdriver end, ratcheting wire

connector wrench and wire-looping hole in handle

Description Cat. No.

9-in-1 Ratch-a-Nut™ Screwdriver 35-988

9-in-1 Ratch-a-Nut™

Screwdriver

Both

Ends

Ratchet!

■

Includes universal Wire-Nut®Wire

Connector Wrench in handle to

help install twist-on wire

connectors

■

Includes wire-looping

hole in handle

■

Includes #1 & #2

Phillips, 1/4 in. & 3/16 in. slotted,

1/4 in. & 5/16 in. Nutdriver

■

#35-909 includes #1 & #2 Square Recess in place of

#1 & #2 Phillips

■

Twist-a-Nut™ handle is interchangeable with new conduit

deburrer head (#35-096) and 6-in-1 Tap Tool (#35-922)

Description Cat. No.

7-in-1 Twist-a-Nut™ Screwdriver/Nutdriver 35-908

7-in-1 Twist-a-Nut™ Screwdriver/Nutdriver with square tip 35-909

Replacement Bits (for both Ratch-a-Nut™ and Twist-a-Nut™)

Description Cat. No.

1/4 in. slotted – #2 Phillips 35-911

3/16 in. slotted – #1 Phillips 35-912

1/4 in. slotted – #2 Square Recess 35-913

3/16 in. slotted – #1 Square Recess 35-914

#15 & #10 Torx®35-915

Torx

is a trademark of Camcar division of Textron, Inc.

7-in-1 Twist-a-Nut™

Screwdriver/Nutdrivers

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-24

Hand Tools

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-25

Twist-a-Nut™ Pro Electrician’s

Screwdrivers

Description Cat. No.

#2 x 4 in. Phillips 30-332

1/4 in. x 4 in. Slotted 30-331

1/4 in. x 6 in. Slotted Cabinet Tip 30-333

#2 x 6 in. Robertson 30-330

■

Convenient Wire-Nut®Wrench in end of

handle

■

Wire-looping hole in handle

■

Vapor-blasted tip prevents plate chipping

■

Tough, chrome vanadium steel shank

■

Precision ground tip provides secure fit in

screw slot

6-in-1 Twist-a-Nut™ Tapping Tool

■

Forms new threads, re-forms burred threads and cleans out

obstructions

■

Reversible, high-carbon tap with three clearly marked thread

sizes on each end

■

Handle is interchangeable with 7-in-1 Screwdriver (35-908)

and Conduit Deburrer (35-083)

Description Cat. No.

Twist-a-Nut™ Tapping Tool includes: 6-32, 8-32 & 10-32 on one 35-922

tapping side, 10-24, 12-24 & 1/4-20 on the other

Twist-a-Nut™ Shaft assembly includes: Collar, 35-422 & 35-423 35-923

■

Deburrs inside and outside edges of 1/2 in.,

3/4 in. and 1 in. thin wall conduit

■

Hooded tip tightens EMT fitting set screws

without slipping

■

Square tip “seats” much more quickly on fitting

screws than slotted version

■

Head removes and is interchangeable with

IDEAL 7-in-1 Twist-a-Nut™ Screwdriver

shaft (#35-908)

■

Head can be used in drill or cordless

screwdriver

■

Universal Wire-Nut®Wire Connector

Wrench in handle end eases installation of

twist-on connectors

■

Lifetime guarantee (excludes blades)

Description Cat. No.

Conduit Deburring Tool, slotted tip 35-083

Conduit Deburring Tool - head only, slotted tip 35-096

Conduit Deburring Tool - #2 square tip 35-075

Conduit Deburring Tool - head only, #2 square tip 35-098

Replacement Blades (2/pack) 35-097

35-098

Accu-Loop™wire

looping holes

■

Includes Twist-a-Nut™

Screwdriver (35-908),

Twist-a-Nut™

Deburring Head-

Square Tip (35-098),

Twist-a-Nut™ Tap Tool

Shaft (35-923), Three

Spare Bits (1/4 in.

slotted & #2 square,

3/16 in. slotted &

#1 square, #10 & #15

Torx®), 8-Pocket

Carrying Pouch

(35-927)

■

Nylon carrying pouch holds all three Twist-a-Nut™ tools plus

room for four replacement bits or taps

■

Strong easy-slide metal belt clip

Description Cat. No.

Twist-a-Nut™ Combo Pack 35-926

Twist-a-Nut™ Carrying Pouch only 35-927

Twist-a-Nut™ Conduit Wiring Kit

Twist-a-Nut™ Conduit

Deburring Tools

Cushioned-Grip Screwdrivers

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-26

Special tip treatment for

precise fit

Chrome vanadium steel shank

5-Piece Screwdriver Set

Description Cat. No.

5-Piece Screwdriver Set 35-297

Includes:

■

1/4 in. x 6 in. HD Cabinet

■

1/4 in. x 4 in. Square

Shank HD Keystone

■

5/16 in. x 6 in. Keystone

■

3/16 in. x 6 in. Cabinet

■

Phillips #2 x 4 in.

8-Piece

Screwdriver Set

Description Cat. No.

8-Piece Screwdriver Set 35-298

Includes:

■

1/4 in. x 6 in.

HD Cabinet

■

1/4 in. x 4 in. Square

Shank HD Keystone

■

1/4 in. x 4 in. HD Keystone

■

5/16 in. x 6 in. Keystone

■

3/16 in. x 3 in. Cabinet

■

3/16 in. x 6 in. Cabinet

■

Phillips #1 x 3 in.

■

Phillips #2 x 4 in.

Cushioned-rubber grip

(Image actual size.)

Hand Tools

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-27

Slotted Heavy-Duty

w/Keystone Tip

■

Larger shank for heavy-duty applications

■

Identification mark on ends

■

Vapor-blasted tip prevents plate chipping

■

Precision ground tip provides secure fit in screw slot

■

Square-shank models offer wrench-assisted turning

■

Tough, chrome vanadium steel shank

■

Cushioned rubber grips

Square Shank Blade Length Total Length Cat. No.

1/4 in. Shank and tip 4 in. 8-3/8 in. 35-154

5/16 in. Shank and tip 6 in. 11 in. 35-156

3/8 in. Shank and tip 8 in. 13 in. 35-158

Round Shank Blade Length Total Length Cat. No.

1/4 in. Shank and tip 1 in. 3-3/8 in. 35-161

1/4 in. Shank and tip 4 in. 8-3/8 in. 35-164

5/16 in. Shank and tip 6 in. 11 in. 35-166

3/8 in. Shank and tip 8 in. 13 in. 35-168

Slotted Keystone Tip

■

Vapor-blasted tip prevents plate chipping

■

Identification mark on ends

■

Precision ground tip provides secure fit in screw slot

■

Nickel-chrome plating for corrosion resistance

■

Tough, chrome vanadium steel shank

■

Cushioned rubber grips

Description Blade Length Total Length Cat. No.

1/4 in. Shank and tip 3 in. 7-3/8 in. 35-173

1/4 in. Shank and tip 6 in. 10-3/8 in. 35-176

1/4 in. Shank and tip 8 in. 12-3/8 in. 35-178

1/4 in. Shank and tip 10 in. 14-3/8 in. 35-180

Slotted Heavy-Duty w/Cabinet Tip

■

Large diameter shank for tough applications

■

Identification marks on ends

■

Vapor-blasted tip prevents plate chipping

■

Precision ground tip provides secure fit in screw slot

■

Nickel-chrome plating for corrosion resistance

■

Tough, chrome vanadium steel shanks

■

Cushioned rubber grip

Description Blade Length Total Length Cat. No.

1/4 in. Shank and tip 4 in. 8-3/8 in. 35-150

1/4 in. Shank and tip 6 in. 10-3/8 in. 35-151

1/4 in. Shank and tip 8 in. 12-3/8 in. 35-152

1/4 in. Shank and tip 10 in. 14-3/8 in. 35-153

Slotted Cabinet Tip

■

Vapor-blasted tip prevents plate chipping

■

Identification mark on ends

■

Precision ground tip provides secure fit in screw slot

■

Nickel-chrome plating for corrosion resistance

■

Tough, chrome vanadium steel shank

■

Cushioned rubber grip

Description Blade Length Total Length Cat. No.

3/16 in. Shank and tip 3 in. 6-3/4 in. 35-183

3/16 in. Shank and tip 4 in. 7-3/4 in. 35-184

3/16 in. Shank and tip 6 in. 9-3/4 in. 35-186

3/16 in. Shank and tip 8 in. 11-3/4 in. 35-188

3/16 in. Shank and tip 10 in. 13-3/4 in. 35-190

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-28

Phillips

■

Vapor-blasted tip prevents plate chipping

■

Identification mark on ends

■

Nickel-chrome plating for corrosion resistance

■

Tough, chrome vanadium steel shank

■

Cushioned rubber grip

Description Blade Length Total Length Cat. No.

#1 Tip Phillips 3 in. 6-3/4 in. 35-193

#2 Tip Phillips 1 in. 3-3/8 in. 35-191

#2 Tip Phillips 4 in. 8-3/8 in. 35-194

#2 Tip Phillips 6 in. 10-3/8 in. 35-195

#3 Tip Phillips 6 in. 11 in. 35-196

■

Precise tip for square-recess screws

■

Color-coded handle for easy identification

■

Nickel-chrome plating for corrosion resistance

■

Tough, chrome vanadium steel shank

■

Cushioned rubber grip

Description Color Code For Screw Sizes Cat. No.

#0 x 4 in. Yellow 3, 4 35-690

#1 x 4 in. Green 5, 6, 7 35-691

#1 x 8 in. Green 5, 6, 7 35-692

#2 x 4 in. Red 8, 9, 10 35-693

#2 x 8 in. Red 8, 9, 10 35-694

#3 x 4 in. Black 12, 14 35-695

#3 x 8 in. Black 12, 14 35-696

Square Head

Quick-Rotating

■

Ideal for threading screws in switches, fixtures and anchors

■

Identification mark on ends

■

One-handed crank action for quick and easy use

■

Vapor-blasted tip prevents plate chipping

■

Precision-ground tip provides secure fit in screw slot

■

Nickel-chrome plating for corrosion resistance

■

Tough, chrome vanadium steel shank

■

Cushioned rubber grip

Description Total Length Cat. No.

3/16 in. Shank and Tip 8-3/4 in. 35-200

#2 Phillips Tip and 1/4 in. Shank 9-3/4 in. 35-203

Screw-Holding

■

Split blade wedges into screw slot when collar is extended

■

Holds screw in place when installing in hard-to-reach locations

■

Tough, chrome vanadium steel shank and comfort grip handle

Description Blade Length Total Length Cat. No.

3/16 in. 4 in. 8 in. 35-404

3/16 in. 6 in. 10 in. 35-406

3/16 in. 8 in. 12 in. 35-408

Awl

■

Heavy-duty construction for piercing, punching and scribing

■

Identification mark on end

■

Cushioned rubber grip

Description Blade Length Total Length Cat. No.

Awl 3 in. 6-3/4 in. 35-202

Hand Tools

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-29

Slim Electronics

■

Designed for maximum

handling comfort when

working in tight areas

■

Tough, chrome vanadium steel shank

■

Phosphate tip for longer wear life

■

Rotating cap for optimum control for precise centering

■

Color-coded cap for easy identification

Description Style Blade Length Cat. No.

3/32 in. Cabinet Tip 2-1/2 in. 36-240

3/32 in. Cabinet Tip 3 in. 36-241

1/8 in. Cabinet Tip 4 in. 36-242

1/8 in. Cabinet Tip 6 in. 36-243

5/32 in. Cabinet Tip 4 in. 36-244

5/32 in. Cabinet Tip 6 in. 36-245

#0 – 1/8 in. Phillips head 2-1/2 in. 36-246

7-Piece Set includes one each of 36-240 thru 36-246 36-248

4-Piece Set includes one each of 36-240, -241, -242 & -246 36-249

7-Piece

Nutdriver Set

Description Cat. No.

7-Piece Nutdriver Set 35-299

Nutmaster®Nutdrivers

■

Long, hollow shank handles longer bolts

■

Identification and color coding on ends

■

Nickel/chrome plated to resist rust

and corrosion

■

Cushioned rubber grips

■

Models 35-292 and 35-295 fit

Twister®Wire Connectors

Description Shaft Length Color Cat. No.

3/16 in. 3-1/4 in. Black 35-290

1/4 in. 3-1/4 in. Red 35-291

5/16 in. 3-1/4 in. Yellow 35-292

11/32 in. 3-1/4 in. Green 35-293

3/8 in. 3-1/4 in. Blue 35-294

7/16 in. 4 in. Brown 35-295

1/2 in. 4 in. Red 35-296

Includes:

■

3/16 in. x 3-1/4 in.

■

1/4 in. x 3-1/4 in.

■

5/16 in. x 3-1/4 in.

■

11/32 in. x 3-1/4 in.

■

3/8 in. x 3-1/4 in.

■

7/16 in. x 4 in.

■

1/2 in. x 4 in.

■

Contains: 5/16 in. nutdriver,

#1 Phillips, #2 Phillips,

9/32 in. slotted

and 3/16 in. slotted

■

Cushion grip for

performance and

comfort

Description Cat. No.

5-in-1 Screwdriver/Nutdriver 35-905

Replacement Bits (for 5-in-1 Screwdriver)

Description Cat. No.

#1 Phillips – 3/16 in. slotted LA-4123

#2 Phillips – 9/32 in. slotted LA-4124

5-in-1 Screwdriver/Nutdriver

■

Includes 1/4 in. slotted, #2

Phillips, 3/16 in. slotted,

#1 Phillips, #1 & #2

square recess, #15 and

#10 Torx®and 5/16 in. &

1/4 in. Nutdriver

■

Cushion grip for comfort and

performance

Description Cat. No.

10-in-1 Screwdriver/Nutdriver 35-910

Replacement Bits (for 10-in-1 Screwdriver)

Description Cat. No.

1/4 in. slotted – #2 Phillips (2/pack) 35-940

3/16 in. slotted – #1 Phillips (2/pack) 35-941

#1 & #2 Square Recess (2/pack) 35-942

#15 & #10 Torx® (2/pack) 35-943

Torx

is a trademark of Camcar division of Textron, Inc.

10-in-1 Screwdriver/Nutdriver

C-30

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

Telco Ratcheting Cable Cutters

Description Cat. No.

Telco Ratcheting Cable Cutter* 35-055

Replacement blade (moveable side only) 35-054

*Max. Jaw Opening - 3 in. Not for cutting steel or ASCR.

Ratcheting Cable Cutter

Description Cat. No.

400 KCMIL (MCM) Ratcheting Cable Cutter* 35-056

Replacement blade (moveable side only) 35-085

*Max. Jaw Opening - 1.375 in. Not for cutting steel or ASCR.

■

Cuts hard drawn copper up to 400 KCMIL

(MCM) and soft copper, aluminum and multiple

conductor cable up to 600 KCMIL (MCM)

■

Hardened steel blades ensure consistent

cuts and long-term durability

■

Rounded blade design minimizes

cable distortion during cutting

■

Quick release mechanism simplifies blade back-out

■

Locking mechanism keeps handles closed for easy storage

Ratcheting Cable Cutter

■

750 KCMIL Ratcheting Cable Cutter is

designed to cut 750 KCMIL (MCM)

and smaller hard-drawn copper and

aluminum cables

■

Hardened steel blades

ensure consistent cuts and

long-term durability

■

Rounded blade design minimizes

cable distortion during cutting

■

Quick release mechanism

simplifies blade back-out

■

Locking mechanism keeps handles closed for easy storage

■

Molded-in foot provides stability and leverage when making

multiple cuts

Description Cat. No.

750 KCMIL (MCM) Ratcheting Cable Cutter* 35-053

Replacement blade (moveable side only) 35-057

*Max. Jaw Opening - 2 in. Not for cutting steel or ASCR.

CAUTION: Comfort-grip handles are not designed for protection

against electrical shock. Do not use on live circuits.

Description Cat. No.

PowerBlade™ Cable Cutter 35-078

PowerBlade™ Replacement Handle K-8947R

PowerBlade™ Replacement Blades (pair) K-8906R

PowerBlade™ Replacement Torque Arm Assembly K-8909

PowerBlade™ Replacement Carrying Case K-8926

*Max. Jaw Opening - 2 in. Not for cutting steel or ASCR.

Long-Arm Cable Cutters

■

High strength forged blades for

ultimate durability

■

Precision-ground jaws make

clean cuts with minimal cable

distortion

■

Replaceable blades

■

For copper and aluminum

only. Not designed for

steel or ACSR.

Description Length Cat. No.

250 MCM Long-Arm Cable Cutter 14 in. 35-031

500 MCM Long-Arm Cable Cutter 22 in. 35-032

1000 MCM Long-Arm Cable Cutter 32 in. 35-033

Replacement Head – 250 MCM (for 35-031) — 35-031B

Replacement Head – 500 MCM (for 35-032) — 35-032B

Replacement Head – 1000 MCM (for 35-033) — 35-033B

■

Extremely versatile: fits almost any drill

(12V minimum)

■

Cuts up to 750 MCM hard - drawn copper, 1000 MCM

aluminum*

■

Heavy-duty gears and specially hardened blades for

professional quality

■

Rounded blade design minimizes cable distortion during

cutting

■

No need to mess with battery packs or special chargers; this

tool works with the drill you already carry!

PowerBlade™ Cable Cutter

■

Telco Ratcheting Cable Cutter jaw cuts

up to 2,700 pair telephone cable and

Stalpath®type communications cable

■

Hardened steel blades ensure

consistent cuts and long-term

durability

■

Rounded blade design

minimizes cable distortion

during cutting

■

Quick release mechanism

simplifies blade back-out

■

Locking mechanism keeps

handles closed for easy storage

■

Molded-in foot provides stability and leverage when making

multiple cuts

(Drill not included)

(Folding handle for storage.)

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-31

Hand Tools

Crimp Tool

■

Crimps all IDEAL crimp sleeves

■

Excellent leverage for right-angle, double-indent crimps

■

Cuts and twists wire

■

Vinyl-coated handles provide a solid, comfortable grip

Description Cat. No.

Crimp Tool - 10-1/4 in. 30-425

Mechanical Indentor and

Crimp Tool

■

Use with aluminum (6 AWG to 4/0) and copper

(8 AWG to 250 KCMIL) wires

■

Adjustable crimping nests with clearly marked gauges

■

Lightweight and easy to operate

■

Rugged cast steel construction for long-term durability

■

Connections are UL Listed when using this tool with IDEAL

Non-Insulated Terminals (#8 - #4 AWG).

Description Cat. No.

Mechanical Indentor 88-843

Heavy-Duty Crimp Tool

■

Crimp nests for 2, 4, 6 or 8 AWG and 8-38 mm2uninsulated

terminals

■

Rotating crimp nests eliminate costly die changes

■

Decimal and metric wire sizes clearly marked on each crimp nest

■

Comfort-grip handles for a secure grip

■

Connections are UL Listed when using this tool with IDEAL

Non-Insulated Terminals (#8 - #4 AWG).

Description Cat. No.

Heavy-Duty Crimp Tool 83-005

Ratchet Crimp Tool

■

Crimps insulated or bare

terminals and splices on

10 to 22 AWG wire

■

Ratchet action

prevents release prior

to crimp connection —

helps ensure uniform crimps

■

Vinyl-coated handles provide a solid,

comfortable grip

Description Cat. No.

Ratchet Crimp Tool 83-001

Description Cat. No.

Four-Way Crimp Tool C-24

Buchanan Construction Products

Four-Way Crimp Tool

■

Patented design ensures

even compression and

reliable connections

■

Spring-loaded,

cam-actuated plungers

■

Fingertip adjustment for

different connector sizes

Rotary BX/MC Cutters

■

Handles all common BX,

MC and Flex cables

■

Blue sapphire blade cuts

armor without damage to

internal conductors

■

Splices cleanly through

casings with only a

few turns

■

Thumbscrew holds cable

securely in place

■

Epoxy-coated to resist

corrosion

■

Handle knob stores up to

six replacement blades

Description Cat. No.

Rotary BX/MC Cutter 35-780

Replacement blades (5 per pack) 35-781

Rotary BX/MC Cutter with Lever 35-782

35-780

35-782

6-in-1 Twist-a-Nut™

Tapping Tool

■

Forms new threads,

re-forms burred threads

and cleans out

obstructions

■

Reversible, high-carbon

tap with three clearly

marked thread sizes on

each end

■

Handle is interchangeable with 7-in-1 Screwdriver (35-908)

and Conduit Deburrer (35-083)

Description Cat. No.

6-32, 8-32 & 10-32 on one tapping side, 35-922

10-24, 12-24 & 1/4-20 on the other

Twist-a-Nut™ Shaft assembly includes: Collar, 35-422 & 35-423 35-923

Wire Preparation

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-32

Triple-Tap Tools

■

Cleans and chases

burred threads

■

Taps three hole sizes

Color Code Thread Sizes Cat. No.

Blue 10/24, 8/32, & 6/32 35-411

Orange 10/32, 8/32, & 6/32 35-412

Replacement Tap

Thread Sizes Cat. No.

10/24, 8/32, & 6/32 35-421

10/32, 8/32, & 6/32 35-422

10/24, 12/24 & 1/4-20 35-423

Replacement Taps (for 35-922, 35-411 and 35-412)

Adjustable Wrenches

■

Narrow profile head reaches into tight spaces

■

Tight tolerance on thumbscrew won’t loosen or wobble with use

■

Extra wide jaw capacity with standard and metric markings

■

Lightweight, non-conductive handle (not insulated)

Description Jaw Capacity Cat. No.

8 in. Adjustable Wrench 1-1/8 in. 35-020

10 in. Adjustable Wrench 1-5/16 in. 35-021

35-020 35-021

Fiberglass-Handled Hammer

■

One-piece drop-forged, tempered-steel polished

head and handle

■

Long, straight claws simplify removal of electrical fixtures

■

Comfortable, perforated anti-vibe grips

■

Electrician’s version has elongated neck for hitting inside boxes

Description Cat. No.

18 oz. x 12-1/2 in. Electrician’s Fiberglass-handled Hammer 35-210

IDEAL Wipes™

The Multi-Purpose Towel

■

Pre-moistened wipes require no water

■

Cleans dirt, grease, lube and grime

■

Durable fabric scrubs without tearing

■

Infused with natural hand moisturizers

and Vitamin E

■

Orange citrus scent

Description Qty. Cat. No.

IDEAL Wipes™, 12 in. x 9 in. 82/can 38-500

■

Low-cost, industrial-quality marker quickly and

easily engraves metal, glass, stone, ceramics,

plastics, hard rubber, wood and many

other hard materials

■

Unique design reduces bouncing

and provides smooth, easy writing

■

Operates at 7,200 strokes per minute

■

Stroke adjusts to vary depth of mark

■

Includes carbide-tipped point for

normal markings

■

Diamond point available for engraving extra-hard materials

(50 to 64 Rockwell, scale C)

Electric Engraving Tools

Description Cat. No.

Engraver w/carbide-tipped point — 120V, 60 Hz 11-111

Engraver w/carbide-tipped point & 3-conductor grounded 11-113

cord & plug — 120V, 60 Hz

Engraver w/carbide-tipped point — 220V, 50 Hz 11-115

Carbide-tipped replacement point 11-200

Diamond replacement point 11-201

Hand Tools

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-33

Hawkbill Knife Linesman Knife

Automatic Blade Lock

Measuring Tape

■

Blade automatically stays out when

extended

■

Push button for smooth blade retraction

■

Comfortable, shock-resistant rubber grip

Description Cat. No.

Auto-Lock™ Tape Measure - 25 ft. 35-242

Magnetic-Tip Measuring Tape

■

Strong magnetic tip for one person

measurement

■

Durable nylon coated blade

■

Full rubber jacket protects case

Description Cat. No.

Mag-Tape™ Tape Measure - 25 ft. 35-238

Hex-Key Sets

■

8650 steel construction

■

One-piece, chrome-plated handle

■

Internal tension spring and belt loop

Description Cat. No.

3 in. handle w/eight 2-in. keys (.050 in., 1/16 in., 5/64 in., 35-145

3/32 in., 7/64 in., 1/8 in., 9/64 in. & 5/32 in.)

4 in. handle w/nine 3-in. keys (5/64 in., 3/32 in., 7/64 in., 1/8 in., 35-146

9/64 in., 5/32 in., 3/16 in., 7/32 in. & 1/4 in.)

5-1/4 in. handle w/five 5-in. keys (3/16 in., 7/32 in., 1/4 in., 35-147

5/16 in. & 3/8 in.)

Pocket Knives

■

2-1/4 in. blade locks in position

■

High-carbon stainless steel blade construction for extra

strength and durability

■

Durable Buyrate®non-slip handle

■

Brass liners

Description Cat. No.

Electrician’s Knife w/spearpoint and screwdriver blade 35-285

Hawkbill Knife w/curved blade 35-286

Lineman’s Jack Knife w/sheepfoot blade 35-287

Utility Knife

Description Cat. No.

Utility Knife 35-300

Replacement blades – Universal (10/pack) 35-301

■

Quick-change retractable blade

system — no disassembly required

■

Built in pull-line cutter

■

Includes three blades in

storage compartment

Mini Laser Level

■

Super bright 635nm laser shoots red dot or horizontal line

■

Durable cast aluminum body

■

Rare earth magnet for superior holding power

■

Compact size for easy use and storage

■

Levels and aligns conduit, electrical boxes and stud holes

Description Cat. No.

Mini Laser Level 35-207

Torpedo Level

■

9 in. aluminum frame with magnetic and V-grooved edges

■

White windows provide easy reading of plumb level and 45°

mitre in dim lighting

Description Cat. No.

9 in. Torpedo Level 35-205

Electrician’s Knife

Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-34

17-Piece Set - #35-809

Tool Kits featuring Pliers

Set Includes:

• Four LASERedge Pliers with Smart-Grip™ Handles (9-1/4” Linesman w/fish

tape puller, 8” Long Nose, 10” Tongue and Groove, 9-1/2” Cable Cutter)

• Kinetic™ Reflex™ T®-Stripper Wire Stripper

• 7-in-1 Twist-A-Nut™ Screwdriver

• Five Cushion Grip Screwdrivers (#1 x 3 Phillips, #2 x 4 Phillips, 3/16” x 6

Slotted Cabinet Tip, 1/4” x 4 Slotted round shank, 3/16” x 6 Screw holding

slotted)

• Hawkbill Knife

• Electrician’s Hammer

• 25' Auto-Lock™ Tape Measure

• Torpedo Level

• Vol-Con®XL Voltage/Continuity Tester

• Tuff-Tote™ Premium Leather Tool Carrier

Set Includes:

• Three LASERedge Pliers with Smart-Grip™ handles

(9-1/4” Linesman w/fish tape puller, 8” Long Nose, 10” Tongue and

Groove)

• Kinetic™ Reflex™ T®-Stripper Wire Stripper

• Four Cushion Grip Screwdrivers (#1 x 3 Phillips, #2 x 4 Phillips,

3/16” x 4 Slotted Cabinet Tip, 1/4” x 4 Slotted round shank)

• 25' Auto-Lock™ Tape Measure

• Hawkbill Knife

• Medium Size Fuse Puller

• Torpedo Level

• Journeyman Electrician’s Tote™

16-Piece Set - #35-800

Set Includes:

• Five LASERedge Pliers with dipped grips (9-1/4” Linesman w/ crimper,

8” Offset Diagonal, 8” Long Nose, 10” Tongue and Groove,

2/0 Cable Cutter)

• Premium T®-5 T®-Stripper Wire Stripper

• 7-in-1 Twist-A-Nut™ Screwdriver

• Two Cushion Grip Screwdrivers (#2 x 4 Phillips, 1/4 x 4 Slotted round shank)

• Twist-A-Nut™ Conduit Deburring Tool

• Electrician’s Hammer

• 25' Auto-Lock™ Tape Measure

• Electrician’s Knife

• Vol-Con®XL Voltage/Continuity Tester

• Replacement battery

• Tuff-Tote™ Leather Tool Pouch

13-Piece Set - #35-790

Tools and Totes

Hand Tools

1-800-435-0705 for Customer Service www.idealindustries.com C-35

16-Piece Set - #35-808

6-Piece Set - #35-794

Set Includes:

• One LASERedge Plier with dipped grip handles

(9-1/4” Linesman w/crimper)

• Premium T®-5 T®-Stripper Wire Stripper

• 7-in-1 Twist-a-Nut™ Screwdriver

• 25' Auto-Lock™ Tape Measure

• Utility Knife

• Pocket Pal™ Tool Holster

Set Includes:

• Four LASERedge Pliers with dipped grips (9-1/4” Linesman w/fish tape

puller, 8” Long Nose, 10” Tongue and Groove, 9-1/2” Cable Cutter)

• Reflex™ T®-5 T®-Stripper Wire Stripper

• Combo Crimp/Strip Tool

• Four Cushion Grip Screwdrivers (#1 x 3 Phillips, #2 x 4 Phillips,

3/16” x 6 Slotted Cabinet Tip, 1/4” x 4 Slotted round shank)

• Electrician’s Hammer

• 25' Auto-Lock™ Tape Measure

• Pocket Fuse Puller

• Hawkbill knife

• Ergonomic Hacksaw

• 18” Large Mouth Bag

Set Includes:

• Four LASERedge Pliers with dipped grip handles (9-1/4” Linesman w/fish

tape puller, 8” Diagonal, 8” Long Nose, 10” Tongue and Groove)

• Premium T®-5 T®-Stripper Wire Stripper

• Four Cushion Grip Screwdrivers (#1 x 3 Phillips, #2 x 4 Phillips, 3/16” x 4

Slotted Cabinet Tip, 1/4” x 4 Heavy-Duty Slotted round shank)

• 25' Auto-Lock™ Tape Measure

• Electrician’s Leather Tool Pouch

• Web Belt

12-Piece Set - #35-805

Tool Kits featuring Pliers

Hand Tools

C-36 www.idealindustries.com 1-800-435-0705 for Customer Service

Tool Kits featuring Pliers

15-Piece Set - #35-5800

13-Piece Set - #35-4790

12-Piece Set - #35-5805

Set Includes:

• Five WireMan™ Pliers with dipped grips (9-1/4” Linesman w/ crimper,

8” Offset Diagonal, 8” Long Nose, 10” Tongue and Groove,

2/0 Cable Cutter)

• Premium T®-5 T®-Stripper Wire Stripper

• 7-in-1 Twist-a-Nut™ Screwdriver

• Two Cushion Grip Screwdrivers (#2 x 4 Phillips, 1/4 x 4 Slotted round shank)

• Electrician’s Hammer

• 25' Auto-Lock™ Tape Measure

• Electrician’s Knife

• Vol-Con®XL Voltage/Continuity Tester

• Replacement battery

• Journeyman Electrician’s Tote™

Set Includes:

• Three WireMan™ Pliers with Smart-Grip™ handles (9-1/4” Linesman w/

crimper, 8” Long Nose, 10” Tongue and Groove)

• Kinetic™ Reflex™ T®-Stripper Wire Stripper

• Four Cushion Grip Screwdrivers (#1 x 3 Phillips, #2 x 4 Phillips,

3/16” x 4 Slotted Cabinet Tip, 1/4” x 4 Slotted round shank)

• 25' Auto-Lock™ Tape Measure

• Hawkbill knife

• Pocket Fuse Puller

• Torpedo Level

• Journeyman Electrician’s Tote™

Set Includes:

• Four WireMan™ Pliers with dipped grip handles (9-1/4” Linesman,

8” Diagonal, 8” Long Nose, 10” Tongue and Groove)

• Premium T®-5 T®-Stripper Wire Stripper

• Four Cushion Grip Screwdrivers (#1 x 3 Phillips, #2 x 4 Phillips, 3/16” x 4

Slotted Cabinet Tip, 1/4” x 4 Slotted round shank)

• 25' Auto-Lock™ Tape Measure

• Electrician’s Leather Tool Pouch

• Web Belt

Tools and Totes

C-37

Hand Tools

1-800-435-0705 for Customer Service www.idealindustries.com

16-Piece Set - #35-5808

5-Piece Set - 35-5792

4-Piece Set - 35-5793

Set Includes:

• Four WireMan™ Pliers with dipped grips (9-1/4” Linesman w/crimper,

8” Long Nose, 10” Tongue and Groove, 2/0 Cable Cutter)

• Kinetic™ Reflex™ T®-Stripper Wire Stripper

• Five Cushion Grip Screwdrivers (#1 x 3 Phillips, #2 x 4 Phillips,

3/16” x 4 Slotted Cabinet Tip,1/4” x 4 Slotted round shank, 3/16” x 4

Screw holding slotted screwdriver)

• Electrician’s Hammer

• 25' Auto-Lock™ Tape Measure

• Pocket Fuse Puller

• Hawkbill Knife

• Torpedo Level

• 18” Large Mouth Bag

Set Includes:

• One WireMan™ Plier with dipped grip handles (9-1/4” Linesman

w/crimper)

•T

®-5 T®-Stripper Wire Stripper

• Two Screwdrivers (#2 x 4 Phillips, 3/16” x 4 Slotted Cabinet Tip)

• Pocket Pal™ Tool Holster

Set Includes:

• One WireMan™ Plier with dipped grip handles (9-1/4” Linesman

w/crimper)

•T

®-5 T®-Stripper Wire Stripper

• 7-in-1 Twist-a-Nut™ Screwdriver

• Pocket Pal™ Tool Holster

Tool Kits featuring Pliers

Hand Tools

C-38 www.idealindustries.com 1-800-435-0705 for Customer Service

Fabric Line

Durable, lightweight, portable tool

totes in rugged nylon polyester or

heavyweight canvas provide the

perfect tool storage. Convenient

pockets mean easy access; inner

compartments keep your tools

organized and safe when not

in use.

Standard Leather Line

Leather that stands up to the job like no

other material, these tool carriers are

constructed of top-grain, natural cowhide

and tanned for added strength and

durability. Watch their color age to a deep

tan over the years.

Premium Leather Line

Top of the line tool carriers are

handcrafted from heavy, top-grain

cowhide and slow tanned in

natural oils to enhance the leather’s

inherent strength. Each bag is hand

waxed for lasting protection against

stains and moisture and is

warranted for life. Natural or

black leather – your choice.

Tuff-Tote™ Tool Pouches

Description Cat. No.

Premium Leather Pouch w/shoulder strap 35-950

Premium Black Leather Pouch w/shoulder strap 35-950BLK

Standard Leather Pouch w/shoulder strap 35-311

Tuff-Tote™ Ultimate Tool Carriers

■

Eight-inch square tool carrier features two divided inside

compartments with six screwdriver loops each, one large center

compartment, four outside pockets and eight outside tool loops

■

Exclusive leather-wrapped grab handle for carrying comfort

■

Removable shoulder strap helps relieve lower back strain

■

Unique stand-alone design keeps tools standing upright for

easy identification and access

■

Rust-resistant, plated-steel hardware and heavy, lock-stitched

nylon thread for long-term durability

■

Oil and moisture-resistant reinforced bottom

Description Cat. No.

Premium Leather Carrier w/shoulder strap 35-975

Premium Black Leather Carrier w/shoulder strap 35-975BLK

Standard Leather Carrier w/shoulder strap 35-325

Tuff-Tote™ Tool Carriers

■

Convenient 6 in. x 8 in. tool carrier with four center screwdriver

slots, two interior compartments, two divided outside pockets

and four outside tool loops

■

Exclusive leather grab handle for carrying comfort

■

Removable shoulder strap helps relieve lower back strain

■

Unique stand-alone design keeps tools standing upright for

easy identification and access

■

Rust-resistant, plated-steel hardware and heavy, lock-stitched

nylon thread for long-term durability

■

Oil and moisture-resistant reinforced bottom

Description Cat. No.

Premium Leather Carrier w/shoulder strap 35-969

Premium Black Leather Carrier w/shoulder strap 35-969BLK

■

Eight-pocket, belt-mounted pouch features large utility compartment

with two dividers and six screwdriver loops, seven outside pockets,

release snaps and tape chain

■

Exclusive leather grab handle for carrying comfort

■

Removable shoulder strap helps relieve lower back strain

■

Rust-resistant, plated-steel hardware and heavy, lock-stitched

nylon thread for long-term durability

■

Tunnel belt loop accommodates belts up to 2-1/4 in. wide

Tools and Totes

C-39

Hand Tools

1-800-435-0705 for Customer Service www.idealindustries.com

Belts

Tuff-Tote™

Cell Phone Pouches

Tuff-Tote™

Tester Pouches

■

Fits most phones

■

Closing flap for added security

and protection

■

Convenient belt strap

Description Cat. No.

Premium Leather Pouch w/belt strap 35-958

Premium Black Leather Pouch w/belt strap 35-958BLK

■

Fits most hand-held testers

■

Easy-access top

■

Convenient belt strap

Description Cat. No.

Premium Leather Pouch w/belt strap 35-956

Premium Black Leather Pouch w/belt strap 35-956BLK

Standard Leather Pouch w/belt strap 35-339

■

Nickel-plated hardware for long-term durability and corrosion

resistance

Description Cat. No.

Premium Leather Belt – 2 in. x 48 in. 35-995

Premium Black Leather Belt – 2 in. x 48 in. 35-995BLK

Premium Leather Belt w/Clasp Buckle – 2 in. x 48 in. 35-903

Standard Leather Belt – 1-3/4 in. x 46 in. 35-316

Web Belt 10-398

Shoulder Straps

■

Nickel-plated hardware for long-term durability

and corrosion resistance

■

2-in. wide shoulder pad for added comfort

Description Cat. No.

Premium Leather Strap 35-965

Premium Black Leather Strap 35-965BLK

Standard Leather Strap 35-338

Hammer Holder

■

Heavy-duty leather construction

■

Riveted steel hammer loop

■

Fits on all sizes of tool belts

Description Cat. No.

Hammer Holder 10-399

35-316

35-903

10-398

35-995

35-995BLK

Electrician’s Tool Pouch

■

Seven-pocket tool pouch

■

Full length belt tunnel

■

Chain tape lanyard

Description Cat. No.

Electrician’s Tool Pouch 10-466

Hip Holster Tool Pouches

■

Compact, multi-pocket holsters

■

Heavy-duty leather construction

■

Riveted corners for long life

■

Tape measure holder

Description Cat. No.

6-Pocket Hip Holster, Black 35-784BLK

3-Pocket Hip Holster, Standard 35-964

Note: Tester sold separately

Hand Tools

C-40 www.idealindustries.com 1-800-435-0705 for Customer Service

Belt Bag™ Supplies Pouch

■

Holds wire connectors, staples,

and other supplies ready for use

on the job

■

Easy access opening closes

automatically to keep supplies safely

retained until needed

Pocket Pal™ Tool Holster

■

Protects pocket from sharp tools

■

Doubles tool carrying capacity

■

Can be worn in pocket or on belt

Description Cat. No.

Pocket Pal™ Tool Holster 35-505

Description Cat. No.

Belt Bag™ Supplies Pouch 35-405

Divider Pouch™ Small Parts Bag

Description Cat. No.

Divider Pouch™ 35-655

■

Designed to provide perfect

small parts storage — keeps

parts separate and organized

■

Six internally divided 5-in.

deep pockets

■

Convenient drawstring protects

contents from spillage

■

Convenient handle loop

■

Sized to stack in 5-gallon buckets

■

Durable nylon polyester construction

Bucket Bag Tool Carrier

■

11-1/2 in. deep bag fits over

the rim of a standard 5-gallon

bucket

■

Forty-three convenient

pockets — 36 pleated outside

and inside pockets

■

Rugged nylon polyester

construction

Supplies Apron

■

Two pockets for connectors and fasteners, each 8 in. x 15 in.

■

Natural duck construction

Description Cat. No.

Supplies Apron 35-474

Note: Tools sold separately.

Note: Wire Connectors sold separately.

Description Cat. No.

Bucket Bag Tool Carrier 35-665

Description Cat. No.

Zipper Pouch 10-1/2 in. long 35-402

Zipper Pouch 12-1/2 in. long 35-403

Zipper Pouches

■

Durable, water resistant material

■

Heavy duty, self-repairing zippers

Tools and Totes

Hand Tools

C-41

1-800-435-0705 for Customer Service www.idealindustries.com

Tool Carrier™/Electrician’s Carrier™

Tool Bags

Description Cat. No.

Tool Carrier™ Tool Bag – 7-1/2 in. D x 17 in. L x 6-1/4 in. W 35-533

Electrician’s Carrier™ Tool Bag – 10 in. D x 17 in. L x 6-1/4 in. W 35-534

Note: Tools sold separately.

■

Stitched outer pockets provide convenient storage and quick

access for frequently used tools

■

Heavy-duty, 18 oz. canvas construction

■

Velcro®closure protects contents from loss

Mechanic’s Tool Bag

■

Eight narrow inside pockets designed to hold small tools

■

Two side pockets with closeable snaps for large tools or loose

items

■

Double inside liner and rigid bottom prevent bag distortion

■

Durable nylon polyester construction

Description Cat. No.

Mechanic’s Tool Bag 35-535

Large Mouth Bags

■

Top opens completely for easy access

to large tools — reinforced to hold

itself open

■

Measures 9 in. wide x 12 in. deep

with outside and inside pockets

for convenient hand tool storage

■

Rugged zipper closure helps

prevent tool loss

■

Removable shoulder

strap

■

Durable multi-ply

construction

Description Cat. No.

Large Mouth Bag – 13 in. long 35-410

Large Mouth Bag – 16 in. long 35-418

Large Mouth Bag – 18 in. long 35-427

Large Mouth Bag – 20 in. long 35-431

Large Mouth Bag – 24 in. long 35-463

Journeyman Electrician’s Tote™

Description Cat. No.

Journeyman Electrician’s Tote™ 35-462

Master Electrician’s Tote™

■

Spacious and durable design

■

Organizes and displays tools for

fast access

■

Includes removable shoulder

strap

■

Durable multi-ply

construction

Description Cat. No.

Master Electrician’s Tote™ 35-441

Note: Tools sold separately.

■

Compact and versatile design

■

Carry as a hand-tote,

shoulder-tote or tool-belt

■

Includes removable

shoulder strap and belt

■

Durable multi-ply

construction

Insulated Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-42

The IDEAL insulated tool line creates a perfect blend of safety, comfort and precision functionality. Each tool features double insulated Santoprene®

handles with a soft, easy-to-grip outer surface. In addition to the ergonomic qualities found in our tools, the insulated coating process acts as an

‘at-a-glance’ safety check. If the orange outer coating reveals any of the inner yellow surface, an electrician will know that this tool needs to

be replaced.

Tools feature:

■

First UL tested and classified insulated pliers

■

Each one designed and tested to meet ASTM F1505-01, EN DIN, and IEC 60 900 test standards

■

Individually tested and VDE certified to 1000V AC (1500V DC)

■

Meets OSHA requirements for insulated tools

Insulated Tools

Permanently bonded,

double insulated handles

for added safety

Cutting jaws and edges

are laser hardened

for greater strength

and durability

Non-slip guard

for added safety

High visibility ergonomic

handles for maximum comfort

and control

Textured Santoprene®handles

provide a sure grip and are resistant

to perspiration, water, oil and

chemicals

High carbon tool

steel for precision

durability

Serrated jaws provide secure

gripping surface

Whenever possible, always de-energize lines and equipment

prior to working on or around them. 1000V insulated tools are

designed only to reduce the chance of injury where the tool may make contact with

an energized source. Work around energized circuits should only be done when

absolutely necessary and only by qualified technicians. Property damage, personal

injury or death may result if the following warnings are not heeded:

• Do not use any insulated tool if the insulation cracks, breaks or becomes dam-

aged in any way. Destroy all dual-layer tools if the inner yellow layer shows

through the orange outer layer.

• Do not touch the uninsulated portion of an insulated tool or any conductive

object when either might contact an energized source.

• Tools must be kept clean and dry for proper insulating properties.

• Always inspect insulated tools before use.

• Use additional protection by wearing protective clothing and approved eye pro-

tection.

• Always use tools that are specifically designed for the task.

• These tools meet UL 22PP, ASTM F1505-01 and IEC 60900 stan-

dards for insulated tools.

• Always follow OSHA 1910 S and NFPA 70E safety requirements when

doing electrical work.

REGULATIONS

Testing:

• Every 1000V insulated tool we sell is individually tested to ensure no failure when sub-

jected to live current.

UL and VDE Certification:

Listed below are some of the tests we perform in order to pass certification:

• Tools are immersed in water for 24 hours, then tested under current for 3 minutes

to ensure no current leakage or sparkover occurs.

• After being stored for 168 hours at -40° C (-40° F), tools are dropped to ensure no

damage from impact.

• After being stored for 168 hours at +70° C (158° F), a tensile load is applied to

ensure the grip is firmly bonded to the tool.

• Tools are subjected to flame for 10 seconds to ensure no flammability of the

insulating material.

OSHA Regulations:

OSHA 1910.335(a)(2)(i) When working near exposed energized conductors or circuit

parts, each employee shall use insulated tools or handling equipment if the tools

or handling equipment might make contact with such conductors or parts.

OSHA 1910.335 (a)(1)(i) Employees working in areas where there are potential electrical

hazards shall be provided with, and shall use, electrical protective equipment that is

appropriate for the specific parts of the body to be protected and for the work to be per-

formed.

Make sure you are in compliance by providing and using IDEAL insulated tools!

Precision-ground

tips provide secure

fit for less spin-out

Molded on insulation

provides permanent

bonding

Tempered chrome vanadium tool steel

blades are super hardened for maximum

quality

Insulated Hand Tools

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-43

10-Piece Basic Kit - #35-9300

Kit Includes:

• Four insulated pliers (9-1/4 in. Linesman w/crimper, 8 in. Offset diagonal,

8-1/2 in. Long Nose, 10 in. Tongue and Grove)

• Eight insulated screwdrivers ( 1/8 x 3 in. slotted, 3/16 x 5 in. slotted,

1/4 x 6 in. slotted, 5/16 x 6 in. slotted, 3/8 x 8 in. slotted, #1 x 3 Phillips,

#2 x 4 in. Phillips, #3 x 6 in. Phillips)

• Six insulated nutdrivers (3/16 x 5 in., 1/4 x 5 in., 5/16 x 5 in., 3/8 x 5 in.,

7/16 x 5 in., 1/2 x 5 in.)

• 9-1/2 in. insulated High-Leverage Cable Cutter

• 9-3/4 in. insulated Multi-Crimp Tool

• Insulated Reflex™ Super T®-Stripper

Wire Stripper

• Insulated Wire Stripper Cutter

• Insulated Electrician’s Skinning Knife

• Volt-Sensor®NCV Tester

• 7-1/2 in. Non-Conductive Fuse Puller

• Heavy-Duty Soft Tool Case

Kit Includes:

•Four insulated pliers (9-1/4 in. Linesman w/crimper, 8 in.

Offset diagonal, 8-1/2 in. Long Nose, 10 in. Tongue and Grove)

• Eight insulated screwdrivers ( 1/8 x 3 in. slotted, 3/16 x 5 in. slotted,

1/4 x 6 in. slotted, 5/16 x 6 in. slotted, 3/8 x 8 in. slotted, #1 x 3

Phillips, #2 x 4 in. Phillips, #3 x 6 in. Phillips)

• 9-1/2 in. Insulated High-Leverage Cable Cutter

• Insulated Reflex™ Super T®-Stripper

Wire Stripper

• Insulated Electrician’s Skinning Knife

• Volt-Sensor®NCV Tester

• 7-1/2 in. Non-Conductive Fuse Puller

• Heavy-Duty Soft Tool Case

Kit Includes:

• Three insulated pliers (9-1/4 in. Linesman w/crimper, 8 in.

Offset diagonal, 8-1/2 in. Long Nose)

• Three insulated screwdrivers ( 3/16 x 5 in. slotted, 1/4 x 6 in.,

#2 x 4 in. Phillips, #3 x 6 in. Phillips)

• 9-1/2 in. Insulated High-Leverage Cable Cutter

• Insulated Reflex™ Super T®-Stripper

Wire Stripper

• 7-1/2 in. Non-Conductive Fuse Puller

• Heavy-Duty Soft Tool Case

18-Piece Standard Kit - #35-9301

26-Piece Journeyman Kit - #35-9302

Insulated Hand Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

C-44

Insulated Pliers

E 10 in. Tongue and Groove Pliers 35-9430

F 9-3/4 in. Multi-Crimp Tool 30-9429

G 8-1/2 in. Long-Nose Pliers 35-9038

H Reflex™ Super T®-Stripper Wire Stripper 45-9615

Insulated Knife

Description Cat. No.

Insulated Electrician’s Skinning Knife 35-9340

Cases

Description Cat. No.

Soft Zipper Case for Basic Kit (35-9300) 35-9350

Soft Zipper Case for Standard Kit (35-9301) 35-9351

Soft Zipper Case for Journeyman Kit (35-9302) 35-9352

Hard Case for Screwdriver Kit (35-9303) & Nutdriver Kit (35-9304) 35-9353

Insulated Nutdrivers

Insulated Screwdrivers

A Premium T®-Stripper Wire Stripper 45-9120

B 8 in. Diagonal Cutting Pliers w/angled head 35-9029

C 9-1/2 in. High-Leverage Cable Cutter 35-9052

D 9-1/4 in. Side Cutting Linesman Pliers 30-9430

Fig. Description Cat. No.

Description Shaft Length Cat. No.

#1 Phillips Screwdriver 3 in. 35-9310

#2 Phillips Screwdriver 4 in. 35-9311

#3 Phillips Screwdriver 6 in. 35-9312

1/8 in. Slotted Screwdriver 4 in. 35-9320

3/16 in. Slotted Screwdriver 5 in. 35-9321

7/32 in. Slotted Screwdriver 7 in. 35-9322

1/4 in. Slotted Screwdriver 6 in. 35-9323

5/16 in. Slotted Screwdriver 7 in. 35-9324

3/8 in. Slotted Screwdriver 8 in. 35-9325

Screwdriver Kit Cat. No.

9-Piece Insulated Screwdriver Kit with hard case 35-9303

(Includes all 9 screwdrivers listed above.)

Description Shaft Length Cat. No.

3/16 in. Hex Nutdriver 5 in. 35-9330

1/4 in. Hex Nutdriver 5 in. 35-9331

5/16 in. Hex Nutdriver 5 in. 35-9332

3/8 in. Hex Nutdriver 5 in. 35-9333

7/16 in. Hex Nutdriver 5 in. 35-9334

1/2 in. Hex Nutdriver 5 in. 35-9335

9/16 in. Hex Nutdriver 5 in. 35-9336

Nutdriver Kit Cat. No.

7-Piece Insulated Nutdriver Kit with hard case 35-9304

(Includes all 7 Nutdrivers listed above.)

Fig. Description Cat. No.

CDE

Insulated Hand Tools

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-45

Description Cat. No.

1000V Insulated Screw Holding Screwdriver, 3/16 x 6 in. slotted Tip 35-9406

■

Split blade wedges into

screw slot

when collar

is extended

■

Holds screw in place when installing in hard to reach areas

■

Easy to start screw when wearing gloves

1000V Insulated Screw-Holding

Screwdriver

Description Cat. No.

5-in-1 Non-Conductive Screwdriver/Nutdriver 35-9905

1/4 in. Slotted Replacement Bit LA-4125

3/16 in. Slotted Replacement Bit LA-4126

#1 Phillips Replacement Bit LA-4127

#2 Phillips Replacement Bit LA-4128

Safe-T-Grip®Fuse Pullers

■

Maximum efficiency and convenience for removing or

replacing cartridge-type fuses

■

Three sizes handle fuses ranging from 0 to 600A

■

Fully insulated, high-dielectric, glass-filled

polypropylene construction

■

Notched handles provide safe, no-slip grip

■

Clearly marked amperage ranges

■

Exceed MIL specifications

Description Cat. No.

Small Puller for 250V, 9/32 in. to 1/2 in. dia. fuses; 5 in. long 34-001

Medium Puller for 0 to 100A/250V & 600V, 1/2 in. to 1 in. dia.

fuses; 7-1/2 in. long 34-002

Large Puller for 31 to 600A/250V & 31 to 400A/600V, 3/4 in. to 34-003

2-1/2 in. dia. fuses; 11-3/4 in. long

5-in-1 Non-Conductive

Screwdriver/Nutdriver

■

1000V AC, 1500V DC rated per ASTM F 1505-01 and

EN 60900 (IEC900)

■

Contains: 1/4 in. slotted, 3/16 in. slotted, #1 Phillips, #2 Phillips

and 1/4 in. nutdriver

■

Accommodates most standard 1/4 in. hex bits

■

Powerful magnet securely holds bits in place

■

Handle will store up to 8 standard bits

■

Strong 6 in. non-conductive composite material shank

Fuse Puller and Test Light

■

Convenient pocket-sized tool safely

pulls cartridge fuses and checks

electrical connections

■

Test prods fit parallel and tandem slot

receptacles

■

Built-in resistors limit current flow to eliminate false indication

■

For 9/16 in. to 1 in. fuses

■

For use on fuses to 100A/250V and 60A/600V

■

Test capacity from 100V to 600V AC/DC

Description Cat. No.

Fuse Puller & Test Light only 34-012

Fuse Pullers

■

Molded of tough,

high-impact nylon

for greater strength

■

No-slip gripping

surface and

protective

finger stops

for added

safety

Description Cat. No.

Small Puller for 0 to 30A/250V, 1/4 in. to 1/2 in. dia. fuses;

5 in. long 34-015

Large Puller for 0 to 100A/250V & O to 60A/600V, 9/16 in. to 34-016

1 in. dia. fuses; 7-1/4 in. long

Cutting & Holemaking Tools

IDEAL cutting tools offer a powerful line-up that

includes. . .

■A new line of IRONMAN™ Bi-Metal Hole Saws. Superior bi-metal

construction, a thicker flex-free backing plate and variable pitch teeth

combine to provide superior cutting performance and longevity.

■New Nailbiter™ and RESI-MASTER™ Ship Augers that outperform

and outlast any other augers on the market today.

■Superior step drill bits that deliver! Dual fluted, titanium nitride

coated bits with the NEW split-point self starting

feature, deliver faster cuts, improved

performance and longer tool life than

conventional bits.

■Bi-metal reciprocating blades for

the toughest applications.

Engineered bi-metal blades

last up to ten times longer

than standard carbon

steel blades.

■A broad line of flexible drill

bits and specialty wood

bits that deliver superior

performance at any

job site.

■An expanded range of

hacksaws and all-

purpose hand saws and

blades.

www.idealindustries.com 1-800-435-0705 for Customer Service

C-46

Hole Saws

C-47

Tools and Totes

Introducing the “New Improved” line of IRONMAN™Bi-metal hole

saws from IDEAL INDUSTRIES, INC. With re-engineered bi-metal

construction, a thick “flex-free” backing plate, and variable sized teeth,

IDEAL IRONMAN™hole saws will rival the cutting speed and longevity

of any in the industry. The bi-metal construction cuts metal, wood and

plastics including: tool and stainless steel, nail embedded wood,

plywood, and pipe. An extensive list of 52 sizes, effective accessories,

and kits are available to meet all your cutting needs. When it comes to

quality, performance and durability, IDEAL is the professional’s choice

for hole saws.

Hole Saws

■

Thicker, FLEX FREE

backing plate for clean

true holes and longer

tool life

■

Improved bi-metal construction

for long life and durability

■

Variable pitch tooth geometry for fast cutting and reduced

vibration

■

Cuts all types of machinable metal including stainless steel,

wood, nail embedded wood, plastic and fiberboard

Pipe Tap Pipe Entrance

Saw Diameter Size* Size*

(Inches) (Inches) (Inches) Cat. No.

Use Arbor No. 35-391, 35-392 or 35-393

9⁄16

––

35-340

5⁄8

––

35-341

11⁄16

––

35-342

3⁄4

1⁄2 3⁄8 35-343

13⁄16

––

35-344

7⁄8 3⁄4 1⁄2 35-345

15⁄16

––

35-346

––

35-347

1-1⁄16

––

35-348

1-1⁄8

1 3⁄4 35-349

1-3⁄16

––

35-350

Use Arbor No. 35-394,35-536 or 35-537

1-1⁄4

––

35-351

1-5⁄16

––

35-352

1-3/8

–

135-353

1-7⁄16

––

35-354

1-1⁄2 1-1⁄4

–

35-355

1-9⁄16

––

35-356

1-5⁄8

––

35-357

1-11⁄19

––

35-358

1-3⁄4 1-1⁄2 1-1⁄4 35-359

1-13⁄16

––

35-360

1-7⁄8

––

35-361

–

1-1⁄2 35-362

2-1⁄16

––

35-363

2-1⁄8

––

35-364

2-1⁄4 2

–

35-365

2-5⁄16

––

35-366

2-3⁄8

––

35-367

2-1⁄2

–

235-368

2-9⁄16

––

35-369

2-5⁄8 2-1⁄2

–

35-370

2-3⁄4

––

35-371

2-7⁄8

––

35-372

Use Arbor No. 35-394, 35-536, 35-537 or 35-538

–

2-1⁄2 35-373

3-1⁄8

––

35-374

3-1⁄4 3

–

35-375

3-3⁄8

––

35-376

3-1⁄2

––

35-377

3-5⁄8

–

335-378

3-3⁄4 3-1⁄2

–

35-379

3-7⁄8

––

35-380

––

35-381

4-1⁄8

–

3-1⁄2 35-382

4-1⁄4 4

–

35-383

4-3⁄8

––

35-384

4-1⁄2

–

435-385

4-3⁄4 4-1⁄2

–

35-386

––

35-387

5-1⁄2

––

35-388

5-3⁄4

––

35-389

––

35-390

*All pipe sizes listed in the Pipe Tap Size and Pipe Entrance Size columns are standard industry sizes. All

pipes are sized by the nominal inside diameter.

1-5/8 in. cutting depth cuts through

2’ x 4’s on the first cut

Threads fit all

standard arbors

Bi-metal construction com-

bines hardened and durable

tool steel teeth welded to

fatigue resistant body for

long and consistent cutting

life

Variable sized teeth clear

chips away from the work

quickly for faster cuts and

reduced vibration

New improved solid plate

design resists flexing of

the new hole saw for clean

true holes and added

durability

Bi-Metal Hole Saws

1-800-435-0705 for Customer Service www.idealindustries.com

Hole Saws

www.idealindustries.com 1-800-435-0705 for Customer Service

C-48

For boring jobs that require a longer

reach, arbor extensions add up to

18 in. length and can be

easily connected to IDEAL

hole saw arbors.

Arbor Extension

Description Cat. No.

Extension for 7/16 in. Arbors, 12 in. long 35-396

19-Piece Master Electrician’s

Hole Saw Kit

■

For electrical, industrial

and all-purpose

maintenance needs

■

19-piece kit comes in sturdy

durable plastic case

■

Plumbing and electrical

sizes for pipe and conduit

through 4 in.

Kit 35-518 Includes:

Description Cat. No.

Hole Saw sizes 3/4 in., 7/8 in., 1 in., 1-1/8 in., 1-3/8 in., 1-1/2 in.,

1-3/4 in., 2 in., 2-1/4 in., 2-1/2 in., 3 in., 3-5/8 in., 4-1/8 in. 35-518

& 4-1/2 in. Also includes arbor models 35-393, 35-394, pilot drill

35-397 (two pieces) and extension bar 35-396.

14-Piece Electrician’s

Hole Saw Kit

■

Generous 14-piece kit offers a

tremendous selection

■

You’ll find electrical sizes for

pipe and conduit through 4 in.

■

Sturdy plastic case survives

extra wear and tear

Kit 35-400 Includes:

Description Cat. No.

Hole Saw sizes 7/8 in., 1-1/8 in., 1-3/8 in., 1-3/4 in., 2 in.

& 2-1/2 in. Also includes arbor models 35-393 & 35-394 35-400

Hole Saw Kits

Durable steel construction means years of long-lasting performance.

Set-screw in body allows easy replacement of the pilot drill. Save

valuable time through this versatile design. Instantly change hole saws

without tools and without having to remove the arbor from the chuck.

Split point pilot drills start

on contact for faster

penetration and less

walking.

Hole Saw Arbors

Replacement Pilot Drills for Hole Saw

Arbors

Thread Chuck Fits Hole

Shank Size Size Size Saw Sizes Cat. No.

1/4 in. Round 1/2-20 in. 1/4 in. 9/16 - 1-3/16 in. 35-391

3/8 in. Hex 1/2-20 in. 3/8 in. 9/16 - 1-3/16 in. 35-392

7/16 in. Hex 1/2-20 in. 1/2 in. 9/16 - 1-3/16 in. 35-393

7/16 in. Hex 5/8-18 in. 1/2 in. 1-1/4 - 6 in. 35-394

7/16 in. Hex 5/8-18 in. 1/2 in. 1-1/4 - 6 in. 35-536

3/8 in. Hex 5/8-18 in. 3/8 in. 1-1/4 - 6 in. 35-537

7/16 in. Hex 5/8-18 in. 1/2 in. 2 - 6 in. 35-538

Description Cat. No.

4-1/2 in. x 1/4 in. – Fits 35-391, 35-393, 35-394 & 35-538 arbors 35-397

3-1/4 in. x 1/4 in. – Fits 35-392, 35-536 & 35-537 arbors 35-398

Electrician’s

Hole Saw Kit

■

Reliable 8-piece kit in a

durable plastic case

■

Find electrical sizes for

pipe and conduit through 2 in.

Kit 35-401 Includes:

Description Cat. No.

Hole Saw sizes 7/8 in., 1-1/8 in., 1-3/8 in., 1-3/4 in., 2 in.,

2-1/2 in., 3 in., 3-5/8 in., 4-1/8 in., 4-1/2 in. Also includes arbor 35-401

models 35-391, 35-393 & 35-394 and extension bar 35-396.

35-397

35-391 35-392 35-393 35-394 35-536 35-537 35-538

35-398

NEW

Sizes

Tools and Totes

Hole Saws

1-800-435-0705 for Customer Service www.idealindustries.com C-49

Tungsten Carbide Grit Hole Saws

Diameter Pipe Tap Pipe Entrance Cat. No.

Use Arbor No. 35-391, 35-392 or 35-393

3/4 in. 1/2 in. 3/8 in. 35-343CG

7/8 in. 3/4 in. 1/2 in. 35-345CG

1-1/8 in. 1 in. 3/4 in. 35-349CG

Use Arbor No. 35-394, 35-536 or 35-537

1-3/8 in.

–

1 in. 35-353CG

1-1/2 in. 1-1/4 in.

–

35-355CG

1-3/4 in. 1-1/2 in. 1-1/4 in. 35-359CG

2 in.

–

1-1/2 in. 35-362CG

2-1/8 in.

– –

35-364CG

2-1/4 in. 2 in.

–

35-365CG

2-1/2 in.

–

2 in. 35-368CG

2-5/8 in. 2-1/2 in.

–

35-370CG

3 in.

–

2-1/2 in. 35-373CG

3-1/4 in. 3 in.

–

35-375CG

3-5/8 in.

–

3 in. 35-378CG

Diameter For Fixtures Cat. No.

4-3/8 in. Capri®, Marco & Halo®, Mini-Juno®35-384CG

6-3/8 in. Capri®, Halo®, Pathway & Thomas 35-601CG

6-5/8 in. Juno®, Progress & Pathway 35-602CG

6-7/8 in. Capri®, Hubbell, Lightolier, Lithonia®,

Prescolite, Progress 35-603CG

■

Cuts drywall and ceiling tile

■

Self-sharpening carbide

coated cutting blades

■

Includes 2 dust shields to

minimize clean up

Adjustable Can Light Hole Saws

Description Cat. No.

Adjustable Can Light Hole Saw – 10 sizes from 2-1/2 in. to 7 in. 35-598

Adjustable Can Light Hole Saw – 13 sizes from 6-1/4 in. to 10-3/8 in. 35-599

■

Superior resistance to heat, wear and

abrasion

■

Unique snag resistant tooth/gullet design

results in superior cutting performance

■

The choice for abrasive or thin material

including cast iron, drywall, plaster,

stucco, ceramics, fiberglass,

hardwood and composites

■

1-1/2 in. cutting depth

Recessed Lighting Hole Saws

■

Durable tungsten carbide

grit cutting edge

■

Quick and easy installation

of recessed lighting

■

Cut abrasive materials

such as ceiling tile, lath

and plaster

■

Use with arbor 35-394

Drill not included.

www.idealindustries.com 1-800-435-0705 for Customer Service

C-50

Reciprocating Blades

■

Bi-metal blades last up to 10 times longer than carbon steel

blades

■

Flexible spring-back provides long blade life

■

Super-hard, high speed steel teeth for a sharp,

long-lasting cutting edge

■

Shatterproof for tough applications

■

Fits all reciprocating saws using 1/2 inch universal shank

Heavy-Duty Metal Cutting

Wood w/Nails

General Purpose

Specialty Cutting

Plaster/Drywall

Demolition

Metal Cutting

L/W/TH Blade

(Inches) TPI Material Bock Qty. Application Cat. No.

6 x 3/4 x .035 14 Bi-metal Straight 5 Pipe, structural steel, stainless steel:

3/32” - 1/4”, Non-ferrous metal: 3/32” - 3/8” 36-059

6 x 3/4 x .035 14 Bi-metal Straight 25 Pipe, structural steel, stainless steel:

3/32” - 1/4”, Non-ferrous metal: 3/32” - 3/8” 36-059B

Structural steel, pipe, conduit, stainless steel:

4 x 3/4 x .035 18 Bi-metal Straight 5 1/16” - 3/16” thick, Non-ferrous metal: 1/16” - 5//!6” thick 36-055

Structural steel, pipe, conduit, stainless steel:

6 x 3/4 x .035 18 Bi-metal Straight 5 1/16” - 3/16” thick, Non-ferrous metal: 1/16” - 5/16” thick 36-057

Structural steel, pipe conduit, stainless steel:

6 x 3/4 x .035 18 Bi-metal Straight 25 1/16” - 3/16” thick, Non-ferrous metal: 1/16” - 5/16” thick 36-057B

Structural steel, pipe, conduit, stainless steel:

6 x 3/4 x .035 18 Bi-metal Straight 5 1/16” - 3/16” thick, Non-ferrous metal: 1/16” - 5/16” thick 36-060

6 x 3/4 x .035 24 Bi-metal Straight 5 All metal less than 1/8” thick: Tubing conduit, trim 36-058

6 x 3/4 x .035 24 Bi-metal Straight 25 All metal less than 1/8” thick: Tubing conduit, trim 36-058B

Heavy-duty blade for cutting structural steel, pipe,

6 x 3/4 x .050 18 Bi-metal Straight 2 conduit, stainless steel: 1/16” to 3/16” thick 36-085

Heavy-duty blade for cutting structural steel, pipe,

8 x 3/4 x .050 10/14 Bi-metal Straight 2 conduit, stainless steel: 1/8” to 1/2” thick 36-086

Heavy-duty blade for cutting structural steel, pipe,

12 x 3/4 x .050 10/14 Bi-metal Taper 5 conduit, stainless steel: 1/8” to 1/2” thick 36-087

Fast cutting, roughing-in work, nail- embedded wood,

6 x 3/4 x .050 6 Bi-metal Taper 5 remodeling 36-065

Fast cutting, roughing-in work, nail-embedded wood,

6 x 3/4 x .050 6 Bi-metal Taper 25 remodeling 36-065B

Fast cutting, roughing-in work, nail-embedded wood,

9 x 3/4 x .050 6 Bi-metal Taper 5 remodeling 36-066

12 x 3/4 x .050 6 Bi-metal Taper 5 Fast cutting, roughing-in work, nail-embedded wood,

remodeling 36-067

9 x 7/8 x .062 6 Bi-metal Taper 2 Demolition work in nail-embedded wood, remodeling 36-095

9 x 7/8 x .062 10 Bi-metal Taper 2 Demolition work in wood, metal, pipe and fire and rescue 36-096

Nail embedded wood, metal and non-ferrous metal

6 x 3/4 x .035 10 Bi-metal Straight 5 composition materials & plastics 1/8” - 1/2” 36-075

Iron pipe, fiberglass, reinforced plastics, ceramic tile,

8 x 3/4 x .050 Grit Tung. Grit Straight 2 stone, slate and brick. 36-090

3 x 5/16 x .035 18 Bi-Metal Scroll 5 Scroll cutting wood, cast aluminum and non-ferrous metals 36-054

6 x 3/4 x .050 6 Bi-metal Taper 2 For plaster, drywall, plaster board & lath. 36-088

Bi-directional cutting

Reciprocating Blades

Tools and Totes

C-51

1-800-435-0705 for Customer Service www.idealindustries.com

Recip./Band Saw Blades

■

Engineered to be the longest lasting metal cutting blades available

■

Long-life blades perform up to three times as many cuts as similar metal cutting blades

■

8% cobalt cutting edge for extreme durability

■

Shatterproof bi-metal design

■

Longer life for greater value

Long-Life Metal Cutting Reciprocating Blades

Portable Band Saw Blades

■

Bi-metal construction

■

Fit all standard portable band saw machines

■

For pipe, tubing and solids

■

Cut any machinable metal, including conduit, angle iron, structurals,

rebar and stainless steel tubing

L/W/THK (Inches) TPI Qty./Pack Cat. No.

44-7/8 x 1/2 x .020 10 3 36-070

44-7/8 x 1/2 x .020 14 3 36-071

44-7/8 x 1/2 x .020 18 3 36-072

44-7/8 x 1/2 x .020 24 3 36-073

Long-Life Blades

■

Specially designed for all purpose cutting

■

Cut multiple materials without changing blades

■

Tough bi-metal and HCS construction for long life.

Progressive Tooth Reciprocating Blades

NEW

L/W/TH Blade

(Inches) Material Bock Qty. Application Cat. No.

6 x 3/4 x .035 Progressive Bi-metal 5 All metal, non-ferrous metal, sheet metal,

pipe, and other metal materials 36-056

8 x 3/4 x .050 Progressive HCS 5 All wood and composite materials 36-052

8 x 3/4 x .050 Progressive Bi-metal 5 For wood, nail-embedded wood, non-ferrous

metals, plastic and fiberglass 36-076

Long-Life Blades

L/W/TH Blade

(Inches) TPI Material Bock Qty. Application Cat. No.

6 x 3/4 x .035 18 Bi-metal Straight 5 Long-Life blade for cutting structural steel, pipe, con-

duit, stainless steel, sheet metal: 1/16” - 3/16” thick 36-043

8 x 3/4 x .035 18 Bi-metal Straight 5 Long-Life blade for cutting structural steel, pipe, con-

duit, stainless steel, sheet metal: 1/16” - 3/16” thick 36-044

6 x 1 x .042 14 Bi-metal Straight 5 Long-life blade for cutting rebar, barstock, angle iron

and other heavy gauge metals: 1/8” and thicker 36-046

12 x 1 x .050 14 Bi-metal Straight 5 Long-life blade for cutting rebar, barstock, angle iron

and other heavy gauge metals: 1/8” and thicker 36-048

NEW

Material: SAE 1020 Tubed Steel

(Round) 1OD ×.065 Wall

All blades tested are 6blades

Number of Cuts

Average Speed of Cuts

(In Seconds)

10.0

9.0

8.0

7.0

6.0

5.0

4.0

3.0

2.0

1.0

0.0

IDEAL

(.035)

Bosch

(.035)

Starrett

(.035)

Lenox

(.035)

IDEAL

(.042)

Greenfield

BluMol

(.035)

Milwaukee

(.035)

Milwaukee

(.042)

IDEAL

(.042)

Starrett

(.035)

Lenox

(.035)

Milwaukee

(.035)

IDEAL

(.035)

Milwaukee

(.042)

Bosch/VA

(.035)

Greenfield

(.035)

Durability Cutting Speed

Installer Bits

■

Hole in fluted head

for pulling wires through walls, ceiling and floors

■

Flutes designed for quick chip removal — no clogging or binding

■

Premium quality, extra-hard 52-100 carbon bearing steel

Description Length Cat. No.

Installer Bit – 1/4 in. 18 in. 35-870

Installer Bit – 3/8 in. 18 in. 35-871

Installer Bit – 1/2 in. 18 in. 35-872

Mini™ Augers - Bit Length = 4-3/4”

Twist = 2-1/2”, Shank = 7/16” Hole Overall Twist Cat.

Description Diameter Length Length No.

5/8 Mini™ Auger 5/8 in. 4-3/4 in. 2-1/2 in. 35-862

3/4 Mini™ Auger 3/4 in. 4-3/4 in. 2-1/2 in. 35-864

7/8 Mini™ Auger 7/8 in. 4-3/4 in. 2-1/2 in. 35-866

1 Mini™ Auger 1 in. 4-3/4 in. 2-1/2 in. 35-868

Augers

www.idealindustries.com 1-800-435-0705 for Customer Service

C-52

■

Designed to fit between wall

studs when used with

common drills

■

Eliminates the need for

expensive right angle drills

■

62° cutting angle

reinforces the

cutting edge and

provides greater

durability

■

Hardened lead screw and cutting edge provide increased

wear resistance and extended life

■

Secondary relief angle evacuates wood chips quickly and

prevents auger from jamming

■

Oversized cutting head makes hole larger than body of bit for

easy ejection from work piece

Mini™ Augers

RESI-MASTER™ Heavy-Duty Ship Augers

Power Ship Augers - Bit Length = 7-1/2”,

Twist = 5”, Shank = 7/16” Hole Overall Twist Cat.

Description Diameter Length Length No.

5/8 in. Power Ship Auger 5/8 in. 7-1/2 in. 5 in. 35-810

11/16 in. Power Ship Auger 11/16 in. 7-1/2 in. 5 in. 35-811

3/4 in. Power Ship Auger 3/4 in. 7-1/2 in. 5 in. 35-812

13/16 in. Power Ship Auger 13/16 in. 7-1/2 in. 5 in. 35-813

7/8 in. Power Ship Auger 7/8 in. 7-1/2 in. 5 in. 35-814

1 in. Power Ship Auger 1 in. 7-1/2 in. 5 in. 35-815

1-1/8 in. Power Ship Auger 1-1/8 in. 7-1/2 in. 5 in. 35-816

1-1/4 in. Power Ship Auger 1-1/4 in. 7-1/2 in. 5 in. 35-817

Power Ship Augers - Bit Length = 18”,

Twist = 15”, Shank = 7/16” Hole Overall Twist Cat.

Description Diameter Length Length No.

1/2 in. Power Ship Auger 1/2 in. 18 in. 15 in. 35-820

5/8 in. Power Ship Auger 5/8 in. 18 in. 15 in. 35-821

11/16 in. Power Ship Auger 11/16 in. 18 in. 15 in. 35-822

3/4 in. Power Ship Auger 3/4 in. 18 in. 15 in. 35-823

13/16 in. Power Ship Auger 13/16 in. 18 in. 15 in. 35-824

7/8 in. Power Ship Auger 7/8 in. 18 in. 15 in. 35-825

15/16 in. Power Ship Auger 15/16 in. 18 in. 15 in. 35-826

1 in. Power Ship Auger 1 in. 18 in. 15 in. 35-827

1-1/8 in. Power Ship Auger 1-1/8 in. 18 in. 15 in. 35-828

1-1/4 in. Power Ship Auger 1-1/4 in. 18 in. 15 in. 35-829

NEW

Nailbiter™ Ship Auger Bits

Auger Bit Extensions, 18 in.

Six flats to fit drill chuck – Allen wrench included

Description Cat. No.

Auger Bit Extension – 5/16 in. 35-818

Auger Bit Extension – 7/16 in. 35-819

Auger Bit Extensions

Power Ship Augers - Bit Length = 7-1/2”,

Twist = 5”, Shank = 7/16” Hole Overall Twist Cat.

Description Diameter Length Length No.

5/8 in. RESI-MASTER™ Auger 1/2 in. 7-1/2 in. 5 in. 35-892

3/4 in. RESI-MASTER™ Auger 3/4 in. 7-1/2 in. 5 in. 35-893

15/16 in. RESI-MASTER™Auger 15/16 in. 7-1/2 in. 5 in. 35-896

7/8 in. RESI-MASTER™ Auger 7/8 in. 7-1/2 in. 5 in. 35-897

1 in. RESI-MASTER™ Auger 1 in. 7-1/2 in. 5 in. 35-898

1-1/8 in. RESI-MASTER™ Auger 1-1/8 in. 7-1/2 in. 5 in. 35-899

Power Ship Augers - Bit Length = 18”,

Twist = 15”, Shank = 7/16” Hole Overall Twist Cat.

Description Diameter Length Length No.

5/8 in. RESI-MASTER™ Auger 5/8 in. 18 in. 15 in. 35-971

3/4 in. RESI-MASTER™ Auger 3/4 in. 18 in. 15 in. 35-972

15/16 in. RESI-MASTER™ Auger 15/16 in. 18 in. 15 in. 35-977

7/8 in. RESI-MASTER™ Auger 7/8 in. 18 in. 15 in. 35-976

1 in. RESI-MASTER™ Auger 1 in. 18 in. 15 in. 35-978

1-1/8 in. RESI-MASTER™ Auger 1-1/8 in. 18 in. 15 in. 35-979

■

Dual-Helix construction with twin cutting

edges provides faster and smoother drilling

action, even through nail-embedded timbers

■

Full body, dual induction heat treatment

ensures durability, minimizes warping and

delivers long lasting performance

■

Heavy-duty lead screw designed for quick

gripping power, superior penetration

and extra-long life

■

Re-sharpenable for extended tool life

*Dual locking scews

NEW

Tools and Totes

1-800-435-0705 for Customer Service www.idealindustries.com C-53

Description Cat. No.

Electrician’s Step Bit Kit 35-520

Electrician’s Step

Bit Kit

■

Durable blow-molded case

securely holds and protects

bits

■

Kit includes four step bits

(35-511, 35-513, 35-515

and 35-517)

■

Kit provides a solution for

every electrical hole size

between 1/8 in. and 1-3/8 in.

NEW

Drill Bits

Step Step

Bit Diameters No. of Increments Thickness Shank Dia. Cat.

Sizes (Inches) Hole Sizes (Inches) (Inches) (Inches) No.

1/8 to 1/2 13 1/32 1/8 1/4 35-511

1/4 to 3/4 9 1/16 1/8 3/8 35-512

1/4 to 7/8 11 1/16 1/16 3/8 35-513

1/2 to 1 8 1/16 1/8 3/8 35-514

1/4 to 1-1/8 16 1/16 1/16 3/8 35-515

3/16 to 1/2 6 1/16 3/8 1/4 35-516

1/4 to 1-3/8 10 1/32 1/16 to 1/4 3/8 35-517

Protective titanium

nitrite coating

Improved Split-Point

design for 3x faster

starts

Radius-blended,

multi-diameter steps

Double-fluted

design

Trust IDEAL step drill bits for precise, repetitive drilling through the

toughest materials including brass, carbon steel, cast iron, stainless

steel, and more. These tough and reliable tools are constructed with

a rugged titanium nitrite exterior coating. Each step is gradually

blended to ease stepping through hole sizes; reducing the need to

keep changing drill bits, which speeds up the fabrication process.

Improved Split-Point tip design eliminates the need for a starter hole

or punch and delivers three times faster starts, saving valuable time.

The double-fluted design provides balanced cuts and cooler

operation.

Titanium-Coated Step Drill Bits

35-515 35-516 35-517

35-511 35-512 35-513 35-514

Flexible Drill Bits

www.idealindustries.com 1-800-435-0705 for Customer Service

C-54

Flexible Drill Bits

Description Shank Cat. No.

3/8 in. x 24 in. Screw Point Flexible Bit 3/16 90-080

3/8 in. x 36 in. Screw Point Flexible Bit 3/16 90-081

3/8 in. x 54 in. Screw Point Flexible Bit 3/16 90-082

3/8 in. x 72 in. Screw Point Flexible Bit 3/16 90-083

1/2 in. x 36 in. Screw Point Flexible Bit 3/16 90-084

1/2 in. x 54 in. Screw Point Flexible Bit 3/16 90-085

1/2 in. x 72 in. Screw Point Flexible Bit 3/16 90-086

9/16 in. x 36 in. Screw Point Flexible Bit 3/16 90-087

9/16 in. x 54 in. Screw Point Flexible Bit 3/16 90-088

9/16 in. x 72 in. Screw Point Flexible Bit 3/16 90-089

3/4 in. x 36 in. Screw Point Flexible Bit 1/4 90-090

3/4 in. x 54 in. Screw Point Flexible Bit 1/4 90-091

3/4 in. x 72 in. Screw Point Flexible Bit 1/4 90-092

Screw Point

Flexible Bits, Type B

■

Fast and aggressive,

self-starting bit

■

Ultra-sharp ground threads

provide increased pulling power

through obstructions

■

Designed for easy to tough

wood drilling

Description Shank Cat. No.

1/4 in. x 24 in. Serrated Combination Flexible Bit 3/16 90-061

1/4 in. x 54 in. Serrated Combination Flexible Bit 3/16 90-063

3/8 in. x 24 in. Serrated Combination Flexible Bit 3/16 90-065

3/8 in. x 36 in. Serrated Combination Flexible Bit 3/16 90-066

3/8 in. x 54 in. Serrated Combination Flexible Bit 3/16 90-067

3/8 in. x 72 in. Serrated Combination Flexible Bit 3/16 90-068

1/2 in. x 54 in. Serrated Combination Flexible Bit 3/16 90-070

9/16 in. x 54 in. Serrated Combination Flexible Bit 3/16 90-073

Serrated Combination

Flexible Bits, Type C

■

Multi-purpose versatile bit for

clean holes

■

Designed for easy to medium

wood drilling and light metal

■

Pressure is needed for starting

and pulling the bit through

the wood

Professional drill bits drill and fish wire in one easy step. Drill and pull wire through blind areas in ceilings, walls and

floors. Shanks are made from premium heat-treated spring steel for maximum flexibility while practically eliminating any

retained shank bend. A three-flat non-slip grip on the shank and fish holes in both the tip and shank insure trouble-free

wire pulling in either direction. Our tip design provides superior tip/shank contact, increasing the strength and durability of

the braze and preventing separation when striking nails or other obstructions. Multiple styles are available for a variety

of applications.

Best for

WOOD

Best for

WOOD

Best for

light WOOD

& light METAL

Best for

light WOOD

& light METAL

Fish holes in tip and shank

for easy wire pulling

Extra durable

braze where

shank meets tip

Premium heat-treated spring steel

Description Shank Cat. No.

3/8 in. x 24 in. High-speed Steel Flexible Bit 3/16 90-154

3/8 in. x 36 in. High-speed Steel Flexible Bit 3/16 90-155

3/8 in. x 54 in. High-speed Steel Flexible Bit 3/16 90-156

3/8 in. x 72 in. High-speed Steel Flexible Bit 3/16 90-157

1/2 in. x 24 in. High-speed Steel Flexible Bit 1/4 90-158

1/2 in. x 36 in. High-speed Steel Flexible Bit 1/4 90-159

1/2 in. x 54 in. High-speed Steel Flexible Bit 1/4 90-160

1/2 in. x 72 in. High-speed Steel Flexible Bit 1/4 90-161

High-Speed Steel

Flexible Bits, Type HS

■

Heavy duty split point

high-speed steel drill bit

■

The best when encountering nail-

embedded wood, steel studs and steel plates

Description Shank Cat. No.

3/8 in. x 54 in. Masonry Flexible Bit 3/16 90-124

1/2 in. x 72 in. Masonry Flexible Bit 1/4 90-128

Description Shank Cat. No.

3/16 in. x 36 in. Flexible Bit Extension 3/16 90-170

3/16 in. x 54 in. Flexible Bit Extension 3/16 90-171

1/4 in. x 36 in. Flexible Bit Extension 1/4 90-173

1/4 in. x 54 in. Flexible Bit Extension 1/4 90-174

Flexible Bit Extensions

■

Three lengths available for 3/16 in.

and 1/4 in. shaft diameters

■

Connect to chuck end of shaft to

increase the length of the bit

Description Cat. No.

Flexible Bit Placement Tool 90-176

Flexible Bit

Placement Tool

■

Use as a positioning guide

for the flexible drill bits

■

Aids in more accurate placement of bit tips within walls

■

Increases directional control during drilling

Best for

METAL

Best for

METAL

Masonry Flexible Bits,

Type M

■

Masonry drill bit

■

Designed for drilling in

lightweight masonry materials

Best for

MASONRY

Best for

MASONRY

Tools and Totes

Flexible Drill Bits

1-800-435-0705 for Customer Service www.idealindustries.com C-55

Jab Saw

■

Includes replaceable bi-metal wallboard

blade

■

Holds all reciprocating blades and hack-

saw blades

■

Ergonomic grip

Description Cat. No.

Jab Saw 35-275

Replacement blade 36-088

Heavy-Duty Hacksaw

■

Cushioned ergonomic

grip for performance and

comfort

■

Rugged frame provides

lightweight rigidity and

exceptional control

■

Stores up to nine extra blades

■

Blades can be adjusted to

55° angle for flush cutting and

tensioned to 30,000 psi

■

Includes 12 in. x 24T bi-metal blade

Description Cat. No.

Heavy-Duty Hacksaw 35-260

Ergonomic Hacksaw

Mini Hacksaw

■

Angled handle for easier cutting

■

Blade can easily be adjusted

for flush cutting

■

Easy tensioning wing-nut

keeps blades tight for straighter cuts

■

Cushioned ergonomic grip for performance and comfort

■

Includes 12 in. x 24T bi-metal blade

■

Heavy-duty die cast

frame

■

Non-slip rubber comfort grip

■

Accepts all standard hacksaw blades

Description Cat. No.

Ergonomic Hacksaw 35-261

Description Cat. No.

Mini Hacksaw 35-259

Hacksaw Blades

■

Bi-metal blades

provide strength,

flexibility and longer life

Description Qty./Pack Cat. No.

12 in. x 18T Blades 10 35-271

12 in. x 24T Blades 10 35-272

12 in. x 32T Blades 10 35-273

12 in. x 18T Blades 100 35-262

12 in. x 24T Blades 100 35-263

12 in. x 32T Blades 100 35-264

Aviation Tin Snips

■

Chrome-molybdenum steel

forged blades for greater

strength and durability

■

Serrated edges provide

a stable hold when cutting

■

Labor-saving design for

easier cutting

■

Comfortable non-slip

dual durometer grips

Description Cat. No.

Straight Cut Aviation Tin Snips 35-001

Right Cut Aviation Tin Snips 35-002

Left Cut Aviation Tin Snips 35-003

Hand Tools/Saws

www.idealindustries.com 1-800-435-0705 for Customer Service

C-56

Folding Saw

■

Light-weight, heavy-duty

die cast construction

■

Ergonomic rubber comfort grip

■

Blade safely and conveniently folds down in handle

■

Accepts all standard 6” recip blades

Description Cat. No.

Folding Saw 35-274

Wire Management

UL Listed for Air Handling Ties

Cable Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

D-2

Plenum Ties

Halar®Ties

■

For use in air handling/plenum environments

■

Easily recognized maroon color

■

Low smoke density and excellent flammability rating, non-flammable UL 94V-O

■

Superior chemical resistance

■

300°F temperature use

■

UL Listed nylon 6/6 cable ties are suitable for use in air handling spaces in

accordance with Section 300-22(C) & (D) of the National Electrical Code

■

See page D-4 for additional technical information

Standard Ties

Mounting Ties

Approximate dimensions.

Halar®is a trademark of Ausimont Chemical Co.

Description Length Width Thickness Max. Bundle Tensile Strength Qty./Bag Cat. No.

Maroon Halar 8.0 in./203mm .178 in./4.5mm .053 in./1.35mm 1/16 - 2 in. 50 lbs. 100 IT2S-C702

Maroon Halar 11.0 in./279mm .178 in./4.5mm .053 in./1.35mm 1/16 - 3 in. 50 lbs. 100 IT3S-C702

Description Length Width Strap Thickness Max. Bundle Tensile Strength Screw Size Qty./Bag Cat. No.

Natural Nylon 100 IT2SMH-C

Natural Nylon 8.1 in./206mm .178 in./4.52mm .053 in./1.35mm 1/16 - 1-3/4 in. 50 lbs. No. 10 1000 IT2SMH-M

UV Black Nylon 100 IT2SMH-C0

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Maroon Nylon 100 IT2S-C35

Natural Nylon MS3367-1-9 100 IT2S-C

Natural Nylon 7.5 in./190mm .178 in./4.52mm .053 in./1.34mm 1/16 - 1-7/8 50 lbs. 1000 IT2S-M

UV Black Nylon MS3367-1-0 100 IT2S-C0

UV Black Nylon 1000 IT2S-M0

Maroon Nylon 100 IT3S-C35

Natural Nylon MS3367-7-9 100 IT3S-C

Natural Nylon 11.2 in./284mm .178 in./4.52mm .053 in./1.34mm 1/16 - 3-1/16 50 lbs. 500 IT3S-D

UV Black Nylon MS3367-7-0 100 IT3S-C0

UV Black Nylon 500 IT3S-D0

Natural Nylon MS3367-2-9 100 IT4S-C

Natural Nylon 500 IT4S-D

UV Black Nylon 14.5 in./368mm .178 in./4.52mm .053 in./1.34mm 1/16 - 4-1/8 50 lbs.

MS3367-2-0 100 IT4S-C0

UV Black Nylon 500 IT4S-D0

■

Keep your cable ties right where you need them, eliminate loss with this

convenient easy-to-use bag that clips securely onto your belt

■

Includes a bag for 8 in. cable ties and a bag for 11 in. cable ties, they

easily clip together or can be used separately

■

Elastic cord quickly and easily cinches to keep ties securely in place

Cable Tie Bag

Description Cat. No.

Cable Tie Bag IT-BAG

Cable Ties

1-800-435-0705 for Customer Service www.idealindustries.com D-3

Wire Management

Description Length Width Thickness Max. Bundle Tensile Strength Qty./Bag Cat. No.

Natural Nylon 100 IMET1_5I-C

UV Black Nylon

5.5 in./140mm 0.14 in./3.5mm 0.039 in./1.0mm 1.4 in./36mm 40 lbs./28 DaN

100 IMET1_5I-C0

Natural Nylon 100 IMET3I-C

Natural Nylon 1000 IMET3I-M

UV Black Nylon

11 in./280mm 0.14 in./3.5mm 0.039 in./1.0mm 3.1 in./80mm 40 lbs./28 DaN

100 IMET3I-C0

UV Black Nylon 1000 IMET3I-M0

Intermediate (40 lb.) Ties Natural and UV Black

Standard (50 lb.) Ties Natural and UV Black

Light Heavy-Duty (120 lb.) Ties Natural and UV Black

Description Length Width Thickness Max. Bundle Tensile Strength Qty./Bag Cat. No.

Natural Nylon 100 IMET2S-C

Natural Nylon 1000 IMET2S-M

UV Black Nylon

7.9 in./200mm 0.18 in./4.5mm 0.043 in./1.1mm 2.0 in./51mm 50 lbs./40 DaN

100 IMET2S-C0

UV Black Nylon 1000 IMET2S-M0

Natural Nylon 100 IMET3S-C

Natural Nylon 1000 IMET3S-M

UV Black Nylon

11.4 in./290mm 0.18 in./4.5mm 0.043 in./1.1mm 3.0 in./76mm 50 lbs./40 DaN

100 IMET3S-C0

UV Black Nylon 1000 IMET3S-M0

Natural Nylon 100 IMET4S-C

Natural Nylon 1000 IMET4S-M

UV Black Nylon

14.2 in./360mm 0.18 in./4.5mm 0.043 in./1.1mm 4.0 in./101mm 50 lbs./40 DaN

100 IMET4S-C0

UV Black Nylon 1000 IMET4S-M0

Description Length Width Thickness Max. Bundle Tensile Strength Qty./Bag Cat. No.

Natural Nylon 50 IMET4LH-L

Natural Nylon 500 IMET4LH-D

UV Black Nylon

14.2 in./360mm 0.30 in./7.5mm 0.059 in./1.5mm 4.0 in./101mm 120 lbs./80 DaN

50 IMET4LH-L0

UV Black Nylon 500 IMET4LH-D0

■

Larger stainless steel barb for more resistance

■

Metal tooth is cut and set firmly in place using exclusive manufacturing processes

■

Central rib design allows for maximum

flexibility without losing resistance

■

Central relief eliminates breaking points

■

Infinitely adjustable to any bundle diameter

Central Rib Replaces Teeth Superior Strength

Miniature (18 lb.) Ties Natural and UV Black

Pro-Met™

Description Length Width Thickness Max. Bundle Tensile Strength Qty./Bag Cat. No.

Natural Nylon 100 IMET1M-C

UV Black Nylon

3.9 in./100mm 0.10 in./2.5mm 0.035 in./0.9mm 0.9 in./24mm 18 lbs./18 DaN

100 IMET1M-C0

■

Straight tail gives you more tightening diameter

■

Spear point simplifies installation

■

Ribbing on the point allows for grabbing and

tightening

Unique Tail Design

■

Head design allows

for quicker installation

■

Smooth head protects

installer hands

■

Decrease your

application costs

Ergonomic Head

■

Excellent impact

resistance

Stainless Steel

Pitch 45°

Cut angle 60°

Cable Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

D-4

Powr-Tie™

Intermediate (40 lb.) Ties Natural & UV Black

■

One-piece design for added strength

■

Superior locking mechanism

■

Exceeds industry tensile strength ratings

■

Tapered thin tip reduces initial friction

■

Lowest insertion force with the highest

tensile strength

■

Reduces installation fatigue

Quality Construction

■

Eases initial insertion alignment

■

Lowers installation costs

Angled Tail

■

Natural General Purpose 6/6 Nylon

- Suitable for most applications

- Meets UL 94V-2 flammability ratings

- 85°C/185°F working temperature

■

UV Black Nylon 6/6

- Suitable for most applications with continuous or extended

exposure to outdoor elements

- Weather resistant grade, able to endure ultraviolet (UV) light

- Meets UL 94V-2 flammability ratings

- 85°C/185°F working temperature

■

Heat Stabilized Black Nylon 6/6

- Suitable for most applications with continuous or extended

exposure to high temperatures

- Meets UL standards for electrical applications

- Meets UL 94V-2 flammability ratings

- 125°C/254°F working temperature

Material Selection

Low Insertion Force

■

Smooth corners provide added safety

■

Rounded edges eliminate insulation damage

No Burrs or Sharp Edges

■

Tapered tail grip assures positive threading

■

Stepped tail allows for easier grabbing

and tightening once engaged

Stepped Tail Gripper

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Natural Nylon MS3367-5-9 100 IT1_5I-C

Natural Nylon 1000 IT1_5I-M

UV Black Nylon

5.7 in./145mm .140 in./3.56mm .049 in./1.24mm 1/16 - 1-7/16 40 lbs.

MS3367-5-0 100 IT1_5I-C0

UV Black Nylon 1000 IT1_5I-M0

Natural Nylon MS53367-5-9 100 IT2I-C

Natural Nylon 1000 IT2I-M

UV Black Nylon 8.8 in./224mm .140 in./3.56mm .049 in./1.24mm 1/16 - 2-3/8 40 lbs.

MS53367-5-0 100 IT2I-C0

UV Black Nylon 1000 IT2I-M0

Natural Nylon 100 IT3I-C

UV Black Nylon 11.5 in./292mm .142 in./3.60mm .055 in./1.40mm 1/16 - 3-3/8 40 lbs. 100 IT3I-C0

Natural Nylon 100 IT4I-C

UV Black Nylon 14.5 in./368mm .142 in./3.60mm .055 in./1.40mm 1/16 - 4 40 lbs. 100 IT4I-C0

*1_5 & 2I Series **

Miniature (18 lb.) Ties Natural & UV Black

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Natural Nylon MS3367-4-9 100 IT1M-C

Natural Nylon 4.0 in./102mm .094 in./2.39mm .042 in./1.06mm 1/16 - 7/8 18 lbs. 1000 IT1M-M

UV Black Nylon MS3367-4-0 100 IT1M-C0

Natural Nylon 100 IT1_5M-C

UV Black Nylon 6.1 in./154mm .094 in./2.39mm .042 in./1.06mm 1/16 - 1-1/2 18 lbs. 100 IT1_5M-C0

Natural Nylon 100 IT2M-C

Natural Nylon 8.1 in./206mm .094 in./2.39mm .042 in./1.06mm 1/16 - 2-3/16 18 lbs. 1000 IT2M-M

UV Black Nylon 100 IT2M-C0

*IM, 1_5M & 2M Series **

Cable Ties

1-800-435-0705 for Customer Service www.idealindustries.com D-5

Wire Management

Standard (50 lb.) Ties Natural, UV Black & Heat Stabilized Black

Light Heavy-Duty, Heavy-Duty & Extra Heavy-Duty Ties Natural, UV Black & Heat Stabilized Black

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Natural Nylon MS3367-1-9 100 IT2S-C

Natural Nylon 1000 IT2S-M

UV Black Nylon 7.5 in./190mm .178 in./4.52mm .053 in./1.34mm 1/16 - 1-7/8 50 lbs. MS3367-1-0 100 IT2S-C0

UV Black Nylon 1000 IT2S-M0

Heat Stabilized Black Nylon 100 IT2S-C30

Natural Nylon MS3367-7-9 100 IT3S-C

Natural Nylon 500 IT3S-D

UV Black Nylon 11.2 in./284mm .178 in./4.52mm .053 in./1.34mm 1/16 - 3-1/16 50 lbs.

MS3367-7-0 100 IT3S-C0

UV Black Nylon 500 IT3S-D0

Natural Nylon MS3367-2-9 100 IT4S-C

Natural Nylon 500 IT4S-D

UV Black Nylon 14.5 in./368mm .178 in./4.52mm .053 in./1.34mm 1/16 - 4-1/8 50 lbs.

MS3367-2-0 100 IT4S-C0

UV Black Nylon 500 IT4S-D0

Natural Nylon 100 IT5S-C

UV Black Nylon 17.0 in./432mm .190 in./4.82mm .053 in./1.34mm 1/16 - 4-3/4 50 lbs. 100 IT5S-CO

*2S, 3S & 4S Series **

UL Listed Nylon 6/6 cable ties are suitable for use in air handling spaces in accordance with Section 300-22(C) & (D) of the National Electrical Code.

Description Length Width Thickness Max. Bundle Tensile Strength Mil-Spec Reference Qty./Bag Cat. No.

Natural Nylon 100 IT2LH-C

UV Black Nylon 8.7/220.9mm .300 in./7.62mm .076 in./1.93mm 2-1/16 120 lbs. 100 IT2LH-C0

Natural Nylon MS3367-3-9 50 IT4LH-L

UV Black Nylon 15.1 in./384mm .300 in./7.62mm .075 in./1.90mm 3/16-4-1/16 120 lbs. MS3367-3-0 50 IT4LH-L0

Natural Nylon 50 IT5LH-L

UV Black Nylon 17.8 in./451mm .300 in./7.62mm .075 in./1.90mm 3/16-5-1/4 120 lbs. 50 IT5LH-L0

Natural Nylon 50 IT7LH-L

UV Black Nylon 24.2 in./614mm .300 in./7.62mm .075 in./1.90mm 3/16-7 120 lbs. 50 IT7LH-L0

Natural Nylon MS3367-10-9 50 IT7H-L

UV Black Nylon 25.3 in./642mm .340 in./8.64mm .090 in./2.29mm 3/16-7-3/16 175 lbs. MS3367-10-0 50 IT7H-L0

Natural Nylon MS3367-12-9 50 IT10H-L

UV Black Nylon 33.1 in./841mm .340 in./8.64mm .090 in./2.29mm 3/16-9-3/4 175 lbs. MS3367-12-0 50 IT10H-L0

Natural Nylon MS3367-13-9 50 IT11H-L

UV Black Nylon 37.1 in./942mm .340 in./8.64mm .090 in./2.29mm 3/16-11 175 lbs. MS3367-13-0 50 IT11H-L0

Natural Nylon MS3367-16-9 50 IT14H-L

Gray Nylon 47.8 in./1214mm .340 in./8.64mm .090 in./2.29mm 3/8-14-1/2 175 lbs. MS3367-16-8 50 IT14H-L8

UV Black Nylon MS3367-16-0 50 IT14H-L0

UV Black Nylon 22.8 in./579mm .50 in./12.7mm .080 in./2.03mm 3/16-6 250 lbs. 100 IT6EH-C0

*4LH, 7H, 10H, 11H, 14H Series **

Identification Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

D-6

Mounting Head Ties Natural and UV Black

■

Use for attaching bundles to surfaces

■

Allows bundling before and after

mounting

■

Write-on surface

■

Bundle and identify at the

same time

Cable Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

D-6

Description Length Width Strap Thickness Max. Bundle Tensile Strength Screw Size Qty./Bag Cat. No.

Natural Nylon 6.0 in./152mm .140 in./3.55mm .048 in./1.21mm 1/16 - 1-1/4 in. 30 lbs. No. 8 100 IT1_5IMH-C

UV Black Nylon 100 IT1_5IMH-C0

Natural Nylon 100 IT2SMH-C

Natural Nylon 8.1 in./206mm .178 in./4.52mm .053 in./1.35mm 1/16 - 1-3/4 in. 50 lbs. No. 10 1000 IT2SMH-M

UV Black Nylon 100 IT2SMH-C0

Natural Nylon 11.8 in./300mm .189 in./4.80mm .050 in./1.27mm 1/16 - 3 in. 50 lbs. No. 10 100 IT3SMH-C

UV Black Nylon 100 IT3SMH-C0

Natural Nylon 14.5 in./370mm .189 in./4.80mm .060 in./1.52mm 1/16 - 4 in. 50 lbs. No. 10 100 IT4SMH-C

Natural Nylon 15.7 in./398mm .300 in./7.62mm .075 in./1.90mm 3/16 - 4-1/16 in. 120 lbs. 1/4” 100 IT4LHMH-C

UV Black Nylon 100 IT4LHMH-C0

*4LH Series; **2S Series ** **

UL Listed Nylon 6/6 cable ties are suitable for use in air handling spaces in accordance with Section 300-22(C) & (D) of the National Electrical Code.

Description Length Width Thickness Max. Bundle Tensile Strength Pad Size (H X L) Qty./Bag Cat. No.

Natural Nylon 4.0 in./102mm .100 in./2.54mm .044 in./1.12mm 1/16 - 7/8 in. 18 lbs. 5/16 in. x 1 in. 100 IT1MID-C

Natural Nylon 7.8 in./200mm .181 in./4.59mm .055 in./1.40mm 1/16 - 1-7/8 in. 50 lbs. 1-1/8 in. x 1/2 in. 100 IT2SID-C

Natural Nylon 14.1 in./358mm .187 in./4.75mm .055 in./1.40mm 3/8 - 4 in. 50 lbs. 1-1/8 in. x 1/2 in. 100 IT4SID-C

Screw Mounting Bases - Standard and Low Profile

Standard Screw Mount Low Profile Mount

Description Length Width Height Slot Height Slot Width Screw Size Qty./Bag Cat. No.

Screw Mount Natural Nylon

.590 in./15mm .370 in./9.40mm .270 in./6.86mm .062 in./1.59mm .190 in./4.83mm No. 6

100 IT1SMB-C

Screw Mount UV Black Nylon 100 IT1SMB-C0

Screw Mount Natural Nylon

.870 in./22mm .640 in./16.26mm .380 in./9.65mm .125 in./3.18mm .300 in./7.62mm 1/4 in.

100 IT2SMB-C

Screw Mount UV Black Nylon 100 IT2SMB-C0

Low Profile Mount .750 in./19mm .500 in./12.70mm .120 in./3.04mm .062 in./1.57mm .180 in./4.57mm No. 8 100 IT1LPMB-C

1-800-435-0705 for Customer Service www.idealindustries.com D-7

Cable Ties

1-800-435-0705 for Customer Service www.idealindustries.com D-7

Wire Management

Mounting Pads

Description Width Height Slot Height Slot Width Screw Size Qty./Bag Cat. No.

Natural Nylon

.74 in./19mm .19 in./4.8mm .05 in./1.2mm .20 in./5.1mm No. 4

100 IT750MP-C

UV Black Nylon 100 IT750MP-C0

Natural Nylon

.99 in./25mm .20 in./5.0mm .06 in./1.5mm .20 in./5.1mm No. 6

100 IT1000MP-C

UV Black Nylon 100 IT1000MP-C0

Lead-N-Feature

Webbed Punch

Through Screw Hole

Rubber or Acrylic

Base Adhesives

Low Profile

“Stay-N-Place”

Ta b

Smooth Radius

Cradle

■

Patented stay-in-place tab keeps cable ties from sliding down during

vertical applications

■

Lead-N-feature allows easy insertion for hard to reach applications

■

Four-sided entry slots save time during placement orientation

■

Smooth radius cradle eliminates possible damage to

cable while providing stable support

■

Webbed punch through screw hole allows maximum

adhesive surface area, along with easy insertion of

mechanical fasteners

■

Low Profile is essential in confined spaces

■

UL recognized, rubber adhesive positioning device

Clamps

Description Closed Diameter Center to Center Width Thickness Mounting Hole Qty./Bag Cat. No.

Natural Nylon .125 in./3.18mm .343 in./8.71mm 3/8 in. .050 in./1.27mm .203 in./5.16mm 100 IT125CCL-C

Natural Nylon 100 IT250CCL-C

UV Black Nylon

.250 in./6.35mm .421 in./10.69mm 3/8 in. .050 in./1.27mm .203 in./5.16mm

100 IT250CCL-C0

Natural Nylon 100 IT375CCL2-C

UV Black Nylon

.375 in./9.52mm .500 in./12.70mm 1/2 in. .060 in./1.52mm .203 in./5.16mm

100 IT375CCL2-C0

Natural Nylon .500 in./12.70mm .553 in./14.05mm 1/2 in. .060 in./1.52mm .203 in./5.16mm 100 IT500CCL2-C

Natural Nylon .625 in./15.88mm .625 in./15.88mm 1/2 in. .060 in./1.52mm .203 in./5.16mm 100 IT625CCL2-C

Natural Nylon .750 in./19.05mm .699 in./17.75mm 1/2 in. .060 in./1.52mm .203 in./5.16mm 100 IT750CCL2-C

Natural Nylon 1.000 in./25.40mm .825 in./20.96mm 1/2 in. .060 in./1.52mm .203 in./5.16mm 100 IT1000CCL2-C

■

Use to secure wires, cables, pipes, tubing, fiber optics

■

Ultraviolet black nylon clamps available for internal and external use

■

Use with #10 mounting screw

■

Flexible polyethylene cuts easily to desired length

■

Splits open for neat “bundling” of wiring jobs

■

Snaps shut to create a continuous protective cover

Flexible Tubing*

Description Qty. Cat. No.

3/8 in. Flexible Tubing 10 ft. 772240

3/8 in. Flexible Tubing 1,200 ft. 772245

1/2 in. Flexible Tubing 1 ft. 772241

1/2 in. Flexible Tubing 900 ft. 772244

1 in. Flexible Tubing 5 ft. 772242

1 in. Flexible Tubing 250 ft. 772243

*Buchanan branded

4-Sided

Entry

Material Specifications

Continuous Tensile UL Gamma

Operating Temp. AT 73F Flame Radiation UV

Material Max. Min. ASTM D-638 Rating Resistance Resistance

Nylon 6/6 – 185° F -40° F 12,000 94V-2 1 X 10 Rads Poor

General Purpose 85° C -40° C

Nylon 6/6 – 185° F -40° F 12,000 94V-2 1 X 10 Rads Very Good

UV Stabilized 85° C -40° C

Nylon 6/6 – 220° F -40° F 12,000 94V-2 1 X 10 Rads Very Good

Heat Stabilized 105° C -40° C

Halar®284°F -50°F 7,500 94V-0 1 X 10 Rads Excellent

140° C -46 °F

Nylon 6/6 - General Purpose

General purpose nylon 6/6 features lightweight, high-strength and a

wide-temperature range. Even at higher than recommended

temperatures or exposure to flame, nylon does not give off toxic or

irritating by-products. Nylon 6/6 is hydroscopic and, therefore,

absorbs or releases moisture depending on its environment. Moisture

level of the material will affect tensile strength, stiffness and elongation

of the product.

Halar®

Although weaker than general-purpose nylon 6/6 (about 37%),

Halar is resistant to a wide range of chemicals such as concentrated

hydrofluoric and sulfuric acids. It is radiation resistant. Halar also

withstands high temperatures, ultraviolet light exposure and meets

U.L. flammability requirement 94V-O. Its outstanding characteristic is

a lower smoke density when burned. This makes Halar more

desirable for use in areas where smoke generation is a concern.

Nylon 6/6 - UV Stabilized

General purpose nylon 6/6 with increased resistance to ultraviolet

light. Carbon black is one of the most effective stabilizers known

today. A uniform dispersion of cabon black provides good ultraviolet

light resistance without adversely affecting physical properties. The

addition of carbon black, or any other ultraviolet light stabilizer,

prolongs the useful life of plastic products used outdoors, but it does

not totally eliminate the destructive effects of the light.

Material Suitability Chart (10 = most suitable, 1 = least suitable)

Nylon 6/6 - Heat Stabilizer

Used for continuous or extended exposure to high temperatures

(up to 250°F). They contain specially formulated heat stabilizers to

provide additional thermal endurance to prevent reduction in

physical properties and fatigue as a result of high temperatures.

Heat stabilized nylon meets the UL standard for electrical

applications.

Cable Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

D-8

Weather Heat Stabilized

Natural Resistant Black

Design Criteria 6.6 Nylon 6.6 Nylon 6.6 Nylon Halar®

Part # Suffix Material Designation -0 -30 -702

Loop Tensile Strength 7 7 7 5

Low Temperature Service 6 6 6 7

High Temperature Service 5 5 6 7

Flammability 6 6 6 9

Ultraviolet Resistance 1 6 4 9

Radiation Resistance 3 3 3 9

Overall Chemical Resistance 6 6 6 10

- Hydrocarbons 9 9 9 10

- Chlorinated Hydrocarbons 7 7 7 10

- Acids 2 2 2 10

- Bases 7 7 7 10

- Salts 3 3 3 10

Relative Price Low Low Low High

*Halar®is a trademark of Ausimont Chemical Co.

IDEAL Cable Tie Catalog Numbering System

Qty. Per

I = IDEAL INDUSTRIES, INC. Size TENSILE Strength Style Package Color

(at beginning of Catalog Number) Approximate M = Miniature (18 lbs.) _ = Standard Tie L = 50 _ = Natural

Bundle Diameter I = Intermediate (40 lbs.) MH = Mounting C = 100 0 = UV Black

for ties S = Standard (50 lbs.) PM = Push Mount D = 500 8 = Gray

LH = Light-Heavy Duty (120 lbs.) RL = Releasable M = 1000 30 = Heat Stabilized Black

Family: H = Heavy Duty (175 lbs.) ID = Identification 35 = Maroon

T = Standard One-Piece Cable Tie EH = Extra-Heavy Duty (250 lbs.) MB = Mounting Base 702 = Halar

MET = Stainless Steel Barb Tie LPMB = Low Profile

Mounting Base

MP = Mounting Pad

CCL = Cable Clamp

IT 2 S C

Cable Ties & Tools

1-800-435-0705 for Customer Service www.idealindustries.com D-9

Wire Management

■

Consistent, positive tension

■

Flush cut-off leaves no projections to damage nearby wires or

components

■

Lightweight economy model for smaller jobs

■

Standard and heavy-duty models feature rugged, die-cast

aluminum construction with comfortable, cushioned grips

■

Scrap tail stays in tool until trigger is released

Cable-Tie Installation Tools

Description Cat. No.

Economy – use w/intermediate & standard ties* BCTT-200

Standard – use w/intermediate & standard ties 41-990

Heavy-duty – use w/standard & heavy-duty ties 41-995

*Color may vary

Military Cross Reference

41-995 BCTT-200 41-990

Current MIL Std. Cable Tie

Part Number* Part Number

MS3367-1-* IT2S-*

MS3367-2-* IT4S-*

MS3367-3-* IT4LH-*

MS3367-4-* IT1M-*

MS3367-5-* IT1.5I-*

MS3367-5-* IT2I-*

MS3367-7-* IT3S-*

MS3367-10-* IT7H-*

MS3367-13-* IT11H-*

MS3367-16-* IT14H-*

*Color and package denotation

Cable Staples

www.idealindustries.com 1-800-435-0705 for Customer Service

D-10

Cable Staples

■

Full line of quality insulated and non-insulated staples to

fit all cabling applications

■

Packaged to answer electrician’s need for clean, dry,

rust-free staples

■

Convenient reclosable containers keep staples organized

in the truck and on the job-site

Carbon Steel Staples

■

Use with wider cable such as

Romex®, NM and UF

■

High-grade carbon steel construction

■

Sharp-point legs drive straight without

splitting wood

■

Resist rust and corrosion

Description Quantity/Package Cat. No.

1/2 in. x 1 in. 100/Box BCS1-1

1/2 in. x 1 in. 500/Jar BCS1-JR

1/2 in. x 1 in. 500/Box BCS1-5

1/2 in. x 1 in. 5,000/Bucket BCS1-5M

9/16 in. x 1-1/4 in. 100/Box BCS2-1

9/16 in. x 1-1/4 in. 400/Jar BCS2-JR

9/16 in. x 1-1/4 in. 500/Box BCS2-5

9/16 in. x 1-1/4 in. 5,000/Bucket BCS2-5M

Romex

is a registered trademark of General Cable Co.

Plastic Insulated Staples

■

Use with wider cable such as

Romex®, NM and UF

■

Smooth plastic saddle prevents

damage to cable

■

Zinc-plated nails resist rust and

corrosion

Description Quantity/Package Cat. No.

1/2 in. Insulated 50/Bag BPS2-50

1/2 in. Insulated 100/Bag BPS2-1

1/2 in. Insulated 200/Jar BPS2-JR

1/2 in. Insulated 400/Jar BPS2B-JR

1/2 in. Insulated 500/Bag BPS2-5

1/2 in. Insulated 5,000/Bucket BPS2-5M

1/2 in. Insulated 30,000/Barrel BPS2-30K

3/4 in. Insulated 50/Bag BPS3-50

3/4 in. Insulated 100/Bag BPS3-1

3/4 in. Insulated 175/Jar BPS3-JR

3/4 in. Insulated 250/Bag BPS3-2

Romex

is a registered trademark of General Cable Co.

Plastic Insulated Cable Stacker

■

Use with wider cable such as

Romex®, NM and UF

■

High-grade carbon steel

construction

■

Smooth plastic saddle prevents

damage to cable

■

Zinc-plated nails resist rust and

corrosion

Description Quantity/Package Cat. No.

1/2 in. 2 Cable Stacker 50/Bag BPS2/2-50

1/2 in. 3 Cable Stacker 50/Bag BPS2/3-50

1/2 in. 4 Cable Stacker 50/Bag BPS2/4-50

Romex

is a registered trademark of General Cable Co.

Insulated Staples

■

Use with wider cable such as

Romex®, NM and UF

■

High-grade carbon steel with flexible PVC insulation

■

Sharp-point legs drive straight without splitting wood

■

Resist rust and corrosion

Description Quantity/Package Cat. No.

1/2 in. x 1 in. 450/Jar BICS-JR

9/16 in. x 1-1/4 in. 350/Jar BICS2-JR

Romex

is a registered trademark of General Cable Co.

Metal Insulated Staple

■

Use with wider cable such as

Romex®, NM and UF

■

Resists rust and corrosion

■

Blue plastic saddle prevents wire

damage

Description Quantity/Package Cat. No.

1/2 in. Metal Staple w/Plastic Insulator 200/Jar BMICS-JR

Romex

is a registered trademark of General Cable Co.

Fiber Insulated Cable Staples

■

Use with smaller wire and cord

applications such as low voltage

bells, thermostats, telephones

and sound systems

■

Insulated fiber provides

enhanced strength and dielectric

resistance

■

Sharp-point legs drive straight

without splitting wood

■

Resists rust and corrosion

Description Quantity/Package Cat. No.

Brown Fiber 40/Clamshell 772840

White Fiber 40/Clamshell 772841

Cable Staples

1-800-435-0705 for Customer Service www.idealindustries.com D-11

Wire Management

Carbon Steel Service Entrance Staples

■

Use with service entrance cable

and conduit

■

High-grade carbon steel

construction

■

Sharp-point legs drive straight

without splitting wood

■

Resists rust and corrosion

Plastic Insulated Service Entrance Straps

■

Use with service entrance cable

and conduit

■

Smooth plastic saddle

prevents damage to cable

■

Zinc-plated nails resist rust and

corrosion

Description Quantity/Package Cat. No.

1-5/16 in. x 3/4 in. 100/Box BMSE150-1

1-1/2 in. x 1-1/16 in. 100/Box BMSE175-1

■

Use with smaller insulated wire

and cord applications such as

lamps, thermostats, telephones

and sound systems

■

Smooth plastic saddle prevents

damage to wires

■

Zinc-plated nails resist rust and

corrosion

Description Quantity/Package Cat. No.

3/16 in. White 25/Clamshell 772804

3/16 in. White 100/Clamshell 772805

3/16 in. White 250/Jar BPLVSW-JR

3/16 in. Black 25/Clamshell 772810

3/16 in. Black 100/Clamshell 772812

3/16 in. Black 250/Jar BPLVSB-JR

Description Quantity/Package Cat. No.

#6 SER & 1/2 in. EMT 50/Bag BSER6-50

#6 & #8 SEU 50/Bag BSEU6-50

#2 SER & 3/4 in. EMT 25/Bag BSER2-25

#2 SEU 25/Bag BSEU2-25

4/0 SER 5/Bag BSER4/0-5

4/0 SEU 5/Bag BSEU4/0-5

Data Cable Staples

■

Secures Category 3, 5 and other

4-pair twisted wire

■

Blue plastic saddle prevents

damage to cable

■

Zinc-plated nails resist rust and

corrosion

Description Quantity/Package Cat. No.

Data Staple 25/Bag 772880

Data Staple 250/Jar BPDATAS-JR

Coaxial Cable Straps

Description Quantity/Package Cat. No.

1/4 in. Black 25/Clamshell 772806

1/4 in. Black 100/Clamshell 772807

1/4 in. Black 250/Jar BPCXSB-JR

1/4 in. White 25/Clamshell 772808

1/4 in. White 100/Clamshell 772809

1/4 in. White 250/Jar BPCXSW-JR

7/16 in. White 50/Bag BPS4-50

Sound Straps

■

Use with round cable such as

CATV/VCR, RG-5, RG-6 and phone

cables or with plastic and metal tubing

■

Smooth plastic saddle prevents

damage to cable

■

Zinc-plated nails resist rust and corrosion

Heat Shrink

www.idealindustries.com 1-800-435-0705 for Customer Service

D-12

■

Direct burial rated, underground splice kits

■

Heavy-wall heat shrink tubing with

adhesive liner provides complete

insulation and protection

■

Connector can be used

for aluminum and/or

copper cable

■

Meets the requirements of

the 2005 NEC Code 110-14(B)

■

600V maximum, 105°C rating

■

UL Listed

■

Provides a fully-insulated

butt splice

■

600V Maximum, 105°C rating

Thermo-Shrink®Al/Cu Splice Kits

Thermo-Shrink®Copper Butt Splice Kits

Description Cat. No.

Underground Splice Kit – 8 to 4 AWG, Tubing 3/4 in. x 6 in. 46-401

Underground Splice Kit – 4 AWG to 1/0, Tubing 1.1 in. x 8 in. 46-402

Underground Splice Kit – 1/0 to 250 KCMIL, Tubing 1-1/2 in. x 12 in. 46-403

Description Cat. No.

Butt Splice Kit – Copper 14-8 AWG 46-404

Butt Splice Kit – Copper 8-2 AWG 46-405

Heat Shrinkable Tubing

■

Self-igniting trigger, starts fast and easy

■

Fully adjustable regulator valve and

air inlet port to achieve the ideal

flame setting

■

1 in. wide brass burn-tip

accommodates a variety of heat

shrink applications

■

Heavy duty, stainless steel burn

tube, combined with a cast

aluminum body with epoxy finish,

creates a durable long lasting tool

for almost any environment

■

1 - 20 threads screw directly onto

14 oz. and 16 oz. propane gas tanks

Thermo-Shrink®Torch

Description Cat. No.

Heat Shrink Torch 46-420

Thermo-Shrink®

UF Splice Kits

Description Cat. No.

UF Splice Kit - 14-8 AWG, Tubing 1.1 in. x 8 in. 46-400

UF Stretcher Kit* - 14-8 AWG, Tubing 1.1 in. x 18 in. 46-410

*Stretcher kit connector is 11.5 in.

■

Fully waterproof, submersible and

re-enterable to make future

changes or repairs

■

Meets the requirements of

the 2002 NEC Code 110-14 (b)

and UL486D

■

Accommodates 14 to 10 AWG

wire range

■

600V Maximum, 105°C rating

Thermo-Shrink®Self-Sealing

UF Splice Kit

Description Cat. No.

Self Sealing UF Splice Kit 46-411

E123896

■

Direct burial rated

■

14/3 with and without ground

thru 8/3 without ground, UF

cable range

■

Stretcher kit repairs a 7 in. to 10” in.

section damaged or destroyed by

a trencher.

■

600V Maximum, 105°C rating

■

Meets the requirements of the 2002

NEC Code 110-14(b) and UL486D

Heat Shrink

1-800-435-0705 for Customer Service www.idealindustries.com D-13

Wire Management

■

Polyolefin material electrically insulates and protects in-line

components, disconnect terminals and splices with its high strength

and excellent resilience

■

Use to bundle wires for very flexible light-duty harnesses

■

Highly flame-retardant and flexible

■

Resistant to common fluids and solvents

■

Meets UL 224 125°C VW-1 600V, SAE-AMS-DTL-23053/5

Class 1 & 3

■

Material: No PBB’s, PBBO’s, PBBE’s, Cadium < 5PPM;

Lead < 10PPM

■

2:1 shrink ratio

■

Minimum shrink temperature: 70°C

■

Minimum fully recovery temperature: 100°C

■

Operating temperature: -55°C to +135°C

Thermo-Shrink®Thin-Wall

Heat Shrinkable Tubing

Normal Expanded Nominal Recovered

Size I.D. Recovered Wall Thickness Cable Pkg. Cat.

(Inches) (Min.) I.D. (Max.) +/-10% Range* Length Type No.

3/64 0.063”/1.6mm 0.024”/0.6mm 0.013”/0.33mm 22-18 AWG 4 ft. Disk 46-600

1/16 0.079”/2.0mm 0.031”/0.8mm 0.014”/0.36mm 16 AWG 4 ft. Disk 46-601

3/32 0.122”/3.1mm 0.047”/1.2mm 0.017”/0.44mm 14-12 AWG 4 ft. Disk 46-602

6 in. Bag 46-310

1/8 0.146”/3.7mm 0.063”/1.6mm 0.017”/0.44mm 24-20 2 ft. Bag 46-311

AWG 4 ft. Disk 46-603

1,000 ft. Spool 46-312

6 in. Bag 46-313

3/16 0.205”/5.2mm 0.094”/2.4mm 0.020”/0.50mm 20-14 2 ft. Bag 46-314

AWG 4 ft. Disk 46-604

1,000 ft. Spool 46-315

6 in. Bag 46-316

1/4 0.268”/6.8mm 0.126”/3.2mm 0.022”/0.56mm 14-8 2 ft. Bag 46-317

AWG 4 ft. Disk 46-605

500 ft. Spool 46-318

5/16 0.346”/8.8mm 0.157”/4.0mm 0.022”/0.56 mm 10-6 AWG 4 ft. Disk 46-606

6 in. Bag 46-319

3/8 0.421”/10.7mm 0.185”/4.7mm 0.022”/0.56mm 8-4 2 ft. Bag 46-320

AWG 4 ft. Disk 46-607

200 ft. Spool 46-321

6 in. Bag 46-322

1/2 0.539”/13.7mm 0.252”/6.4mm 0.026”/0.65mm 4-1 2 ft. Bag 46-323

AWG 4 ft. Disk 46-608

200 ft. Spool 46-324

6 in. Bag 46-325

3/4 0.807”/20.5mm 0.374”/9.5mm 0.027”/0.69mm 2-250 2 ft. Bag 46-326

MCM 4 ft. Disk 46-609

200 ft. Spool 46-327

6 in. Bag 46-328

1 1.043”/26.5mm 0.500”/12.7mm 0.031”/0.80mm 2/0-500 2 ft. Bag 46-329

MCM 4 ft. Disk 46-610

100 ft. Spool 46-330

*Reference only - Consult the wire manufacturer's catalog for specific

O.D. of wire and insulation.

CUS

Technical Data

Property Test Method Typical Data

Tensile strength ASTM D 638 14MPa

Elongation at break ASTM D 638 600%

Elongation after aging at

175°C for 168 hours ASTM D 638 350%

Flammability UL 224 VW-1/ Pass

SAE-AMS-DTL-23053/5

Heat shock (250°C/4 hours) ASTM D 2671 No cracking

Cold bend test (-55°C/4 hours) ASTM D 2671 No cracking

Dielectric strength ASTM D 150 20KV/mm

Volume resistance ASTM D 876 1014Ω.cm

Copper corrosion UL 224 Pass

Water absorption ASTM D 570 0.15%

Chemical resistance SAE-AMS-DTL-23053/5 Pass

Longitudinal shrinkage UL 224 0±5%

Eccentricity UL 224 30%

Heat Shrink

www.idealindustries.com 1-800-435-0705 for Customer Service

D-14

Thermo-Shrink®Heavy-Wall Heat Shrinkable Tubing

■

Creates a watertight seal to protect the ends of power and control cords

■

Effectively offers protection against oxidation, ozone, UV radiation, etc.

■

Coated with hot melt adhesive to ensure environment seal

■

Fits easily over end of cable

■

Protect power cables up to 1000V and telecommunication cable

■

Recommended for both open air and underground power distribution cables with PVC,

lead or XLPE sheaths

■

Thermally stabilized cross-linked polylelin, coated with specially designed hot melt adhesive

Thermo-Shrink®Medium-Wall Heat Shrinkable End Caps

Recovered

Expanded Recovered Wall Thickness Cable Dia. Length Cat.

l.D. (Min.) I.D. (Max.) +/-10% Range* (Inches) No.

0.55”/14mm 0.18”/4.5mm 0.079”/2.0mm 0.20”/5mm - 1.77/

46-381

0.47”/12mm 45mm

0.98”/25mm 0.31”/8mm 0.091”/2.3mm 0.39”/10mm - 2.76/

46-382

0.71”/18mm 70mm

1.38”/35mm 0.59”/15mm 0.118”/3.0mm 0.67”/17mm - 3.35/

46-383

1.18”/30mm 85mm

2.95”/75mm 1.38”/35mm 0.138”/3.5mm 1.77”/45mm - 5.12/

46-384

2.76”/70mm

130mm

4.72”/120mm 2.36”/60mm 0.157”/4.0mm 2.95”/75mm - 6.10/

46-387

4.33”/110mm 155mm

*Consult the wire manufacturer's catalog for specific O.D. of wire and insulation.

Technical Data

Property Test Method Typical Data

Operating Temperature IEC 216 -55°CC to +110°C

Tensile Strength ASTM D 638 >14 MPa

Elongation at break ASTM D 638 >400%

Density ASTM D 792 1.05g/cm3

Elongation of break after aging 150°C, 168 hrs. >300%

Dielectric Strength IEC 243 >15KV/mm

Volume Resistance IEC 93 1014Ω.cm

■

TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio

■

Adhesive liner provides complete insulation and protection to

electrical splices in above-grade, underground or underwater

applications

■

Maximum flame retardancy

■

Meets UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western

Underground Guides Nos. 2.4, 2.5, MIL-DTL-23053/15,

IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and

NEMA insulation thickness requirements

■

Continuous operating temperature from -55°C to 110°C

■

Rated for 600V, 90°C continuous use

■

Shrink temperature of 120°C

Expanded Recovered Nominal

l.D. I.D. Recovered Cable Length Cat.

Model (Min.) (Max.) Wall Thickness Range* (Inches) No.

646-343

TS-46-400 .400 .150 .060 12-6 946-344

AWG 48 46-346

646-347

TS-46-750 .750 .240 .090 8-1/0 946-348

AWG 48 46-350

646-351

TS-46-1100 1.100 .350 .120 2-4/0 946-352

AWG 48 46-354

3/0 9 46-356

TS-46-1500 1.500 .470 .160 AWG- 12 46-357

400 KCMIL 48 46-358

250- 9 46-369

TS-46-2000 2.000 .630 .160 750 18 46-371

KCMIL 48 46-372

*Reference only. Consult the wire manufacturer's catalog for specific O.D. of wire

and insulation.

Properties Heavy Wall

120°C to 250°C

Shrink Temperatures (200°C recommended)

Continuous Operating Temperature -55°C to 110°C

Tensile Strength (PSI) 2,100 PSI min.

Ultimate Elongation 600% min.

Secant Modulus @ 2% Strain 25,000 PSI max.

Specific Gravity 1.20 max.

Heat Aging, 168 hrs. @ 175°C Tensile

Strength Elongation 500%

Heat Shock, 4 hrs. @ 225°C No cracks, flowing or dripping

Flammability Self-extinguishing

Low Temperature Brittle Point -55°C

Volume Resistivity 1013ohm-cm min.

Dielectric Strength 500V/mil (20kV/min.)

Corrosive Effect Non-corrosive

Solvent Resistance 24 hrs. Immersion per Good to excellent

MIL-DTL-23053

Water Absorption 0.5%

Fungus Resistance No growth

Longitudinal Change, 3 min. +1%/-10%

All values are typical performance data and are not to be used as design data.

Heat Guns

1-800-435-0705 for Customer Service www.idealindustries.com D-15

Wire Management

Thermo-Shrink®

Heat Shrink Kit

Kit includes:

■

Heat Elite Pro Heat Gun

■

Eleven sizes of thin-wall

heat shrinkable tubing

disks (3/64 in. — 1 in.)

■

Small deflector

■

Premium T®-Cutter

Wire Cutter

Description Cat. No.

Kit includes: 46-203, 45-223, 46-941, & 46-600 through 46-610 46-007

Heat Elite Heat Gun Kit

Heat Gun Accessories

■

Temperature range —

930°F (500°C)

■

Two-step switch for

heat and air flow

adjustments

■

Double-insulated power cord

■

Ergonomical distribution of weight

■

Comfortable non-slip handle for ease of use

■

UL and CUL Listing

Description Cat. No.

Heat Elite Kit - Includes #46-202 Heat Gun, #46-941 Small Deflector, 46-202

and #46-954 Wide-Slot Adapter

Description Cat. No.

Heat Elite Pro Kit - Includes #46-203 Heat Gun, #46-941 Small 46-203

Deflector, #46-950 Reduction Adapter and #46-954 Wide-Slot Adapter

Description Cat. No.

Small Deflector, 1-1/4 in. diameter (For use with all Heat Elite Heat Guns) 46-941

Reduction Adapter (For use with 46-203 and 46-204) 46-950

Glass Protection Adapter (For use with all Heat Elite Heat Guns) 46-951

Welding Adapter (For use with 46-203 and 46-204) 46-952

Solder Reflector Adapter (For use with 46-204) 46-953

Wide-Slot Adapter (For use with all Heat Elite Heat Guns) 46-954

Overlap Adapter (For use with 46-203 and 46-204) 46-955

Pressure Roller (For use with 46-204) 46-956

■

Temperature range —

180°F - 1020°F (100 - 550°C)

■

Two-step switch for heat

and air flow adjustments

■

Double-insulated power cord

■

Ergonomical distribution of

weight

■

Comfortable non-slip handle

for ease of use

■

Potentiometer for infinitely temperature adjustment

■

UL and CUL Listing

Description Cat. No.

Heat Elite Plus LCD Kit - Includes #46-204 Heat Gun, #46-941 Small

Deflector, #46-952 Welding Adapter, #46-953 Solder Reflector Adapter, 46-204

#46-955 Overlap Welding Adapter, #46-956 Pressure Roller

Heat Elite Plus LCD Heat Gun Kit

■

Temperature range —

180°F - 1200°F (80 - 650°C)

■

Double-insulated power

cord

■

Ergonomical distribution

of weight

■

Comfortable non-slip handle

for ease of use

■

LCD display with memory functions

■

Temperature and airflow adjustments

■

Stand-by mode to minimize the energy consumption

■

Ceramic heating element ensures long-term coil performance

■

UL and CUL Listing

Heat Elite Pro Heat Gun Kit

46-941

46-950

46-951

46-954

46-953 46-952 46-955

46-956

Wire Markers

www.idealindustries.com 1-800-435-0705 for Customer Service

D-16

Load Centers

Wire Marker Booklets

■

Convenient pocket-size booklets

■

Plastic-impregnated cloth construction for long-lasting durability

■

Resists abrasion, moisture, dirt and oil

■

Perforated 1/4 in. x 1-1/2 in. markers can be separated into

half-length sizes

■

Non-smear black legend ensures high visibility

■

Self-sticking on wire and cable

■

For applications above or below ground

Legend Quantity Cat. No.

0-9 45 Markers each 44-101

A-Z

0-15 10 Markers each 44-102

+, –, /

1-45 10 Markers each 44-103

46-90 10 Markers each 44-104

1, 2, 3 150 Markers each 44-105

A, B, C 150 Markers each 44-106

A-Z** 45 Markers each 44-148

T1, T2, T3 150 Markers each 44-107

L1, L2, L3 150 Markers each 44-108

1-15 6 Markers each

16-90 4 Markers each

A-Z 2 Markers each 44-109

+, –, /, 0 2 Markers each

1, 2, 3 45 Markers each

A, B, C 45 Markers each

T1, T2, T3 30 Markers each 44-110

L1, L2, L3 30 Markers each

+, –, AC, DC 45 Markers each

POS, NEG, GND 33 Markers each

NEUT 27 Markers each 44-111

SPARE, BLANK 21 Markers each

*Ten pages per booklet with each page bearing the legend assortment indicated. All booklets (except

44-111) contain 450 wire markers and 450 terminal markers. Booklet 44-111 includes 348 wire

markers and 348 terminal markers.

**Booklet 44-148 contains 26 pages, one page of 45 markers per letter, 1170 total markers.

Legend Assortments*

Specifications:

Temperature Range: -40°F to 180°F (-40°C to 82°C)

Adhesion: 45 oz./in. width ultimate

■

Contains common household

legends — bedroom, living

room, dryer, water

heater, security

system, etc.

Description Cat. No.

Load Center Wire Marker Booklet 44-154

■

Use for developing personal identification

systems

■

Surface accepts pen, pencil or rubber

stamp

Write-On Marker Booklets*

Marker Size* Markers Pages

(Inches) per page per book Cat. No.

1 x 2-1/2 6 10 44-151

1 x 5 3 10 44-152

*Write-on area for 2-1/2 in. markers is 3/4 in. x 1 in. Write-on area for 5 in. markers is 1 in. x 1 in.

Adhesion: .25 oz./in. width ultimate

Wire Marker Cards

Write-On Marker Cards

Wire Markers

1-800-435-0705 for Customer Service www.idealindustries.com D-17

Wire Management

■

Use for developing personal

identification systems

■

Cloth write-on surface

■

Accepts most writing instruments

Marker Size Markers

(Inches) per card Cat. No.

5/8 x 1-1/2 14 44-753

■

Use for positive identification and keying of wires, terminal blocks, etc.

■

Convenient pocket-size cards

■

Bold, easy-to-read black characters

■

Self-sticking on wire and cable

■

Polyester film over laminate/cloth construction for long-term durability

■

Resists abrasion, moisture, dirt and oil

■

Individual markers measure approximately 1/4 in. x 1-1/2 in.

Specifications:

Temperature Range: -40°F to 180°F (-40°C to 82°C); Adhesion: 45 oz./in. width ultimate

Markers Markers

Legend per legend per card Cat. No.

0-9 (Repeated) 3 30 43-953

A-Z 1 26 43-960

Marking Pens

■

Fast-drying, permanent ink

will not smear

■

Use on write-on marker cards

and write-on cable-tie

marker plates

■

Color-coded in red or black

Description Cat. No.

Marking Pen w/black ink 41-697

Marking Pen w/red ink 41-698

■

Convenient pocket-size

case (3 in. x 6 in.) holds

10 wire marker rolls

■

Dispenser tab holds

tapes firmly in

place — allows

removal of proper

tape length without waste

■

Flip top for easy access and refill

■

Built-in hook for hanging from belt or tool pouch

■

High-quality adhesive and 3 mil. thickness provide long-lasting,

low-profile application

■

Each plastic reel holds 8 ft. of polyester tape

Wire Marker

Dispensers

Description Cat. No.

Dispenser w/0 through 9 legend rolls 42-301

Refill pack with 1 each of 0-9 legend rolls 42-399

Specifications:

Temperature Range: -40°F to 180°F (-40°C to 82°C)

Adhesion: 25 oz./in. width ultimate

■

Identify junction boxes, switches, circuit breakers, raceways, pipe

and fuse boxes

■

Non-conductive for user safety

■

High-adhesion properties with easy removability

■

Vinyl-impregnated cloth construction provides long-lasting durability

■

Resist abrasion, moisture, dirt and oil

■

Non-smear, black legend on bright orange background for high

visibility

Large:

1 marker per card

2-1/4 in. x 9 in. each w/1-3/4 in. type

Medium:

4 markers per card

1-1/8 in. x 4-1/2 in. each w/3/4 in. type

Small:

18 markers per card

2-1/4 in. x 1/2 in. each w/5/16 in. type

Large Medium Small

Legend Cat. No. Cat. No. Cat. No.

120/208V 44-295 44-296 —

277/480V 44-298 44-299 —

120V —44-353 —

208V —44-355 —

240V —44-358 —

277V ——

44-410

480V 44-314 44-364 —

DANGER 44-289 ——

HIGH VOLTAGE 44-292 ——

Voltage and Conduit Markers

Specifications:

Temperature Range: -40°F to 180°F (-40°C to 82°C)

Adhesion: 45 oz./in. width ultimate

Safety Tapes

www.idealindustries.com 1-800-435-0705 for Customer Service

D-18

Barricade Tapes

■

High-visibility safety yellow or red polyethylene construction

with bold black letters

■

Meets OSHA specifications Section 1010.144 for marking

physical hazards

Detectable Underground Tapes

■

Solid aluminum foil core tapes for protection,

location and identification of underground

utility installations

■

Meets or exceeds industry

standards including the American

Public Works Association (APWA) color code

■

Formulated to resist degradation from acid and alkali found in soils

■

Lead-free pigments and organic lead-free ink

Property Method Value

Thickness ASTMD2103 5.0 Mils

Elongation ASTMD882-75B 80%

Bottom layer PE

Composition IDEAL Specs. Top layer PET

Foil industry standard

Tensile Strength ASTMD882 35 lbs./in. (15,000 PSI)

Non-Detectable Underground Tapes

■

For protection, location and

identification of underground

utility installations

■

Formulated to resist degradation

from acid and alkali found in soils

■

Lead-free pigments and organic lead-free ink

Property Method Value

Elongation ASTM D88-75B ≥400%

Composition IDEAL Specs. LDPE

Tensile Strength ASTM D882 2,350 PSI TD

1,893 PSI MD

Property Method Value

Thickness ASTMD2103 4.0 Mils

Elongation ASTMD882-75B 500%

Composition IDEAL Specs. LDPE

Tensile Strength ASTMD882 2,750 PSI

Recommended Burial Depth

3 in. Tape – 4 in. to 6 in.

6 in. Tape – less than 12 in.

Legend Color Size Cat. No.

Caution Buried Electric

Line Below Red 3 in. x 1,000 ft. 42-101

Caution Buried Electric

Line Below Red 3 in. x 250 ft. 42-131

Caution Buried Electric

Line Below Yellow 3 in. x 1,000 ft. 42-102

Caution Buried Telephone

Line Below Orange 3 in. x 1,000 ft. 42-103

Caution Buried Fiber Optic

Line Below Orange 3 in. x 1,000 ft. 42-104

Caution Buried Electric

Line Below Red 6 in. x 1,000 ft. 42-151

Caution Buried Electric

Line Below Yellow 6 in. x 1,000 ft. 42-152

Legend Color Size Thickness Cat. No.

Caution Yellow 3 in. x 1,000 ft. 4.0 Mils 42-001

Caution Do Not Enter Yellow 3 in. x 1,000 ft. 4.0 Mils 42-002

Caution High Voltage Yellow 3 in. x 1,000 ft. 4.0 Mils 42-003

Danger Red 3 in. x 1,000 ft. 4.0 Mils 42-051

Danger High Voltage

277V/480V Keep Out Red 3 in. x 1,000 ft. 4.0 Mils 42-052

Legend Color Size Cat. No.

Caution Buried Red 3 in. x 1,000 ft. 42-201

Electric Line Below

Caution Buried Red 6 in. x 1,000 ft. 42-251

Electric Line Below

Caution Buried Fiber Orange 6 in. x 1,000 ft. 42-252

Optic Line Below

Legend Color Size Thickness Cat. No.

Caution Yellow 3 in. x 250 ft. 2.0 Mils 42-031

Caution Yellow 3 in. x 1,000 ft. 2.0 Mils 42-011

Caution Do Not Enter Yellow 3 in. x 1,000 ft. 2.0 Mils 42-012

Danger Red 3 in. x 1,000 ft. 2.0 Mils 42-015

Lockout/Tagout Kits

1-800-435-0705 for Customer Service www.idealindustries.com D-19

Wire Management

Description Cat. No.

Starter Lockout/Tagout Kit 44-973

Kit 44-973 Includes: Qty. Cat. No.

Universal 277V Breaker/Single-Pole Lockout 1 44-809

Universal Multi-Pole Lockout 1 44-783

3/4 in. Shackle Red Padlock 1 44-906

1 in. Safety Lockout Hasp 1 44-800

Lockout Tags – Do Not Operate (striped) 2 44-833

110V Plug Lockout 1 44-818

Zipper Pouch 1 IA-3240

Quantities listed in kit description are for individual pieces, not carded packages.

Basic Lockout/Tagout Kit

Personal Lockout Pouch Kit

■

A great selection of the most popular lockout/tagout devices

■

Small nylon zipper pouch features belt loops and d-rings for

easy attachment to belts, tool pouches, tool carts and more

Description Cat. No.

Basic Lockout/Tagout Kit 44-970

Kit 44-970 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockout 2 44-810

Universal 277V Breaker Lockout/Single Pole 1 44-809

480/600V Breaker Lockout 1 44-807

Wall Switch Lockout 1 44-789

3/4 in. Red Padlock 1 44-906

1 in. Safety Lockout Hasp 1 44-800

Lockout Tags – Do Not Operate (striped) 5 44-833

Universal Multi-Pole Breaker Lockout 1 44-783

110V Plug Lockout 1 44-818

Zipper Pouch 1 IA-3240

Quantities listed in kit description are for individual pieces, not carded packages.

Starter Lockout/Tagout Kit

■

A starter selection of the lockout/tagout devices every

electrician/maintenance person needs

■

Small nylon zipper pouch features belt loops and d-rings for

easy attachment to belts, tool pouches, tool carts and more

Description Cat. No.

Personal Lockout Pouch Kit 44-969

Kit 44-969 Includes: Qty. Cat. No.

1 in. Safety Lockout Hasp 1 44-800

Lockout Tags 12 44-833*

Red Safety Padlocks - Keyed Alike 3 44-916**

Personal Lockout Pouch 1

*Masterlock equivalent.

**Keyed alike and master keyed padlocks can be special ordered by contacting IDEAL Customer

Service.

■

Easy to carry, zippered pouch holds a worker’s personal padlocks and other small devices

Plant Facility Lockout/Tagout Kit

■

Ideal for plant facility personnel to keep all lockout/tagout

devices in one convenient place

■

Polypropylene plastic tool box resists oil and chemicals

Description Cat. No.

Plant Facility Lockout/Tagout Kit 44-972

Kit 44-972 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockout 5 44-810

Universal 277V Breaker/Single Pole Lockout 3 44-809

480/600V Breaker Lockout 1 44-807

Wall Switch Lockout 2 44-789

110V Plug Lockout 1 44-818

1 in. Safety Lockout Hasps 3 44-800

Red Labeled Lockout 1 44-791

220/550V Plug Lockout 1 44-819

Lockout Tags – Do Not Operate (striped) 10 44-849

Fuse Blockout 1 44-815

Fuse Blockout 1 44-816

Gate Valve Lockout 1 44-824

Cleat for 277V Breaker Lockout 1 44-785

Cleat for 480/600V Breaker Lockout 1 44-786

Universal Multi-Pole Breaker Lockout 3 44-783

Tool Box* 1 IA-3241

Quantities listed in kit description are for individual pieces, not carded packages.

*Tool box color may vary.

www.idealindustries.com 1-800-435-0705 for Customer Service

D-20

Lockout/Tagout Kits

Standard Lockout/Tagout Kit

■

Excellent selection of lockout/tagout devices, tags and locks

for maintenance workers or contractors

■

Small nylon zipper pouch features belt loops and d-rings for

easy attachment to belts, tool pouches, tool carts and more

Description Cat. No.

Standard Lockout/Tagout Kit 44-971

Kit 44-971 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockout 3 44-810

Universal 277V Breaker Lockout/Single Pole 2 44-809

480/600V Breaker Lockout 1 44-807

Wall Switch Lockout 1 44-789

110V Small Plug Lockout 1 44-818

2 in. Shackle Red Padlocks 2 44-907

1 in. Safety Lockout Hasps 2 44-800

Lockout Tags – Do Not Operate 5 44-830

Lockout Tags – Do Not Operate (striped) 5 44-833

Cleat for 277V Breaker Lockout 1 44-785

Cleat for 480/600V Breaker Lockout 1 44-786

Universal Multi-Pole Breaker Lockout 2 44-783

Zipper Pouch 1 IA-3240

Quantities listed in kit description are for individual pieces, not carded packages.

Group Lock Box

■

Helps ensure maximum security for

complex work team situations

■

Allows up to 13 individuals to

personally lock the closed box

■

Heavy-duty steel construction resists

unauthorized entry and job-site abuse

■

Compact 8-3/4 in. x 3-1/2 in. x 6 in. design

Description Cat. No.

Group Lock Box 44-804

Lockout/Tagout Kits/Stations

1-800-435-0705 for Customer Service www.idealindustries.com D-21

Wire Management

Lockout/Tagout Large Mouth Bag

■

Ideal for both storage and

portability of your

lockout/tagout needs

■

Top opens completely

for easy access and

re-inforced to hold

itself open

■

Durable multi-ply

construction with

removable shoulder

strap

Description Cat. No.

Lockout/Tagout Embroidered Bag - 16 in. long 44-980

Lock Stations

Description Cat. No.

Four-Lock Station (board only) 44-777

Four-Lock Station Kit includes four red Safety Padlocks (44-916), 12

Heavy-Duty Lockout Tags and two 1 in. Safety Lockout Hasps (44-800) 44-778

Ten-Lock Station (board only) 44-805

Ten-Lock Station Kit includes ten red Safety Padlocks (44-916), 24

Heavy-Duty Lockout Tags and two 1 in. Safety Lockout Hasps (44-800) 44-806

■

Integrated, one-piece molded

construction eliminates loose

parts

■

Resilient polycarbonate

material provides twice the

heat resistance and

quadruple the impact

strength of typical

stations

■

Reinforced snap-lock

clips provide easy

padlock and hasp

storage and removal

■

Exclusive translucent

cover protects

contents

• Lockable to prevent

loss of valuable safety

lockout padlocks. Recommend using a combination lock

for simple access control

• Innovative hinge holds cover open for easy product

selection

Industrial Lockout/Tagout Kit

■

An industrial selection of lockout/tagout devices

■

Polypropylene plastic tool box resists oil and chemicals

Description Cat. No.

Industrial Lockout/Tagout Kit 44-974

Kit 44-974 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockout 3 44-810

Universal 277V Breaker/Single Pole Lockout 2 44-809

480/600V Breaker Lockout 1 44-807

Wall Switch Lockout 1 44-789

110V Small Plug Lockout 1 44-818

Ball Valve Lockout 1 44-820

1 in. Safety Lockout Hasp 2 44-800

Red Labeled Lockout 1 44-791

220/550V Plug Lockout 1 44-819

Lockout Tags – Do Not Operate (striped) 10 44-849

Fuse Blockout 1 44-815

Fuse Blockout 1 44-816

Gate Valve Lockout 1 44-824

Cleat for 277V Breaker Lockout 1 44-785

Cleat for 480/600V Breaker Lockout 1 44-786

Red Lockout Padlocks 4 44-916

Universal Multi-Pole Breaker Lockout 2 44-783

Tool Box* 1 IA-3241

Quantities listed in kit description are for individual pieces, not carded packages.

*Tool Box color may vary.

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

D-22

Industrial Lockout/Tagout Station

■

Large Lockout/Tagout Station can be wall mounted or easily

transported

■

All metal, lockable cabinets come with two adjustable shelves

(extra shelves available)

■

Lockout safety tips are conveniently located inside of door for

frequent reminders of proper lockout procedures

Description Cat. No.

Industrial Lockout/Tagout Station – 16” H x 14” W x 6” D 44-975

Kit 44-975 Includes: Qty. Cat. No.

Hinged Single-Pole Breaker Lockout 2 44-810

Universal Single-Pole Breaker Lockout 2 44-809

Cleat for Universal Single-Pole Lockout 2 44-785

Universal Multi-Pole Breaker Lockout 2 44-783

480/600V Breaker Lockout 1 44-807

Cleat for 480/600V Breaker Lockout 1 44-786

Wall Switch Lockout 1 44-789

1 in. Safety Lockout Hasp 3 44-800

Red Safety Padlocks 4 44-916

100V Small Plug Lockout 1 44-818

220/550V Plug Lockout 1 44-819

Lockout Tags – Do Not Operate 10 44-833

Gate Valve Lockout - 1 in. to 2-1/2 in. 1 44-824

Gate Valve Lockout - 2-1/2 in. to 5 in. 1 44-825

Ball Valve Lockout 1 44-820

Pnuematic Lockout 1 44-774

Cabinet w/two shelves 1 IA-4989

Description Qty. Cat. No.

Extra shelf 1 IA-4990

Lockout/Tagout Training Programs and Compliance Manuals

Lockout/Tagout Video Training Program for Employee Safety and OSHA Compliance.

• 10-minute video effectively conveys the importance of Lockout/Tagout in the workplace.

• Demonstrates the seven steps to properly apply and five steps to re-energize from

Lockout/Tagout

• Provides instructions for maintaining Lockout/Tagout during shift changes

• Shows how to apply, remove and maintain lockout devices

• Also suitable for employee-refresher training sessions

• Includes video, ten Lockout/Tagout Procedure Employee Reference Cards, instructor’s

guide and employee quiz

• Additional Employee Reference Cards also available (44-954)

Compliance Manual to assist your facility in complying with

Federal Lockout/Tagout Regulations

1 – Reviews the OSHA Standard in understandable, everyday language

2 – Provides a step-by-step program to help you develop your

“Lockout/Tagout” Compliance Program

3 – Outlines the type of information required for employee training

The Real, Real Life Lockout/Tagout Training Video

1 – Information you and your employees need to assist you in complying with OSHA’s Lockout/

Tagout Standards presented in an easy to understand and entertaining format

2 – This video comes in a plastic storage case and includes a leaders guide, training

handbook with quiz, and wallet card reminder of the six steps to “Lock It and Tag It.”

Description Cat. No.

Lockout/Tagout Video Training Program 44-942

Lockout/Tagout Video Training Program Reference Cards 44-954

Lockout/Tagout Compliance Manual 44-940

Real, Real Life Lockout/Tagout Training Video 44-941

Real, Real Life Lockout/Tagout Handbooks, 10/pack 44-953

480/600V Single/Multi-Pole Breaker

Lockout

■

Use thumbscrew to clamp lockout securely on to switch tongue,

then pull cover over thumbscrew and lock in place to prevent

clamp from being loosened

■

New blade design provides tighter grip with less torque on

thumbscrew

Description Qty. Cat. No.

480/600V Single/Multi-Pole Breaker Lockout 1 44-807

480/600V Single/Multi-Pole Breaker Lockout 50 44-1807

Cleat for 480/600V Single/Multi-Pole Lockout 1 44-786

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com D-23

Wire Management

Oversized Circuit Breaker Lockout System

To comply with:

“The provisions for locking or

adding a lock to the

disconnecting means shall be

permanently installed on or at

the switch or circuit breaker

used as the disconnecting

means.”

Article 430.102(B) Motor

2002 NEC.

■

Unique Lockout system for oversized 480/600V Circuit Breakers

■

System can be permanently installed into an electrical panel

putting all lockout items at the point of need

■

Easy installation of adhesive mounting rails – no tools required

■

Pegs in mounting rails mate with holes in locking arms for

security of arm when lock is in place

■

Red arms lock off, green arms lock on

Description Qty. Cat. No.

Oversized Circuit Breaker System – 144-822

480-600 Volt

Large Breaker Lockout

■

Designed to lockout

large 480/600V breaker

switches up to 2-1/2 in.

wide and 7/8 in. thick

■

Easy to install — no tools

required

Description Qty. Cat. No.

Large Breaker Lockout 1 44-823

Multi-Pole Breaker Lockout

■

Works with most major multi-pole breakers with tie-bar type switches

including GE, ITE Sylvania, Challenger, Bryant, Westinghouse, Square

D (2/3 poles) and General Switch Co.

■

Easy to install — thumbscrew secures and locks tie bar in place;

no cable ties or tools required

■

Please see breaker guide for your application

Description Qty. Cat. No.

Multi-Pole Breaker Lockout 1 44-783

Miniature Circuit Breaker Lockouts

■

A safe and effective method for locking out miniature circuit

breakers, commonly used in European and Asian equipment

■

Miniature Breaker Lockouts require NO TOOLS to install! The

Lockout easily installs with the aid of a push button. The Tie

Bar Style Lockout has a convenient thumb wheel for quick

application.

■

Recommended to lock with lightweight Xenoy padlocks (see

page D-39) or other padlocks, the lockouts can take padlocks

with a shackle diameter up to 9/32”.

■

Material: Glass-filled nylon

Pins Out Standard Pins In Standard

Pins Out Wide Tie Bar

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

D-24

Universal 120/277V Breaker Lockout

■

Use thumbscrew to clamp lockout securely on to switch

tongue, then pull cover over thumbscrew and lock in place to

prevent clamp from being loosened

■

New blade design provides tighter grip with less torque on

thumbscrew

■

Hinged single-pole lockout with locking post design, locks

lever in off position to isolate and prevent breaker use

■

Ideal for applications where panel closure is preferred

■

Please see breaker guide for your application

Description Qty. Cat. No.

Single-Pole Breaker Lockout 3 44-809

Cleat for Single-Pole Breaker Lockout 3 44-785

Single-Pole Breaker Lockout 50 44-1809

Description Qty. Cat. No.

Pins Out Standard 1 44-779

Pins In Standard 1 44-780

Pins Out Wide 1 44-784

Tie Bar 1 44-787

Description Qty. Cat. No.

Hinged Single-Pole Breaker Lockout 3 44-810

Hinged Single-Pole Breaker Lockout 100 44-1810

Hinged Single-Pole Breaker Lockout

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com D-25

Wire Management

■

Covers most 120V - 277V breakers!

■

Works on wide range of breakers,

including single- and multi-pole

configurations

■

Makes use of unique lock rail system,

providing the following benefits:

- Allows panel door to be closed even

when lockouts are in place

- Accommodates multiple locks,

facilitating group lockout activity

without hasps

- Keeps weight off the breakers,

protecting delicate electrical

components from damage

- Positions locks and tags outside the

panel, making sure lockout activity is

clearly visible to anyone in the area

Lockout device is unlocked

by inserting and turning the

red plastic key

3. Pass plastic key through

lock rail and attach lock,

preventing key from sliding

down cable and opening

lockout device.

For use on breakers that do not have a

hole in the switch tongue, including

multiple breakers with tie bars. Turn

thumb-screw to clamp lockout securely

onto switch, then snap the cover closed to

prevent thumbwheel from being loosened.

4. For group lockouts, run

key through multiple loops

in lock rail and apply

locks. No hasps required!

5. Low-profile lockouts allow

panel doors to be closed

on most breaker panels.

1. Peel liner off bottom of the

lock rail, exposing super-

bond adhesive. Permanently

affix to any location on the

panel. No drilling required.

2. Attach the lockout device

to the breaker and snap

into locked position.

Circuit Breaker Lockout System

How the System Works

• Lockout devices constructed of

high-impact Isoplast polymers

• Cables are 2 ft. in length

• Lock rails made of durable isoplast

polymers with acrylic adhesive

backing

Technical Information

Especially useful when lockout

devices will be kept at the panel in

accordance with NEC regulations.

Everything you need to lockout

breakers is kept conveniently right

at the point of need!

“The provisions for locking or adding a lock to the

disconnecting means shall be permanently installed on or at

the switch or circuit breaker used as the disconnecting means.”

NEC 2002, Article 430.102(B) Motor

“No Shackle” Locks

Clamp-on

Description: Qty. Cat. No.

Snap-on lockout for Square D NQO and other 144-768

breakers with a hole in the switch tongue

Clamp-on lockout for breakers without hole in the switch 144-764

tongue, including multi-pole breakers with tie bars

4 in. Lock Rail with seven lock loops 1 44-769

No shackle lock 1 444.001

Outer Dimensions (in.) Switch Clearance (in.)

Description A B C D E

Snap-On 0.90 1.88 0.74 0.40 0.35

Clamp-On 0.95 2.56 0.74 0.35 0.42

For use on Square D

NQO and other breakers

that have a hole in the

switch tongue. Just align

pins with hole and snap

closed. Pins prevent

switch from being

thrown.

Snap-on

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

*Use with cleat #44-785 **Use with cleat #44-786

D-26

Airpax Airpax 1 X*

Allen Bradley 1492-CB1F 1 X

Allen Bradley 1492-CB2F 2 X

Allen Bradley 1492-CB3F 3 X

Allen Bradley 1492-CB1G 1 X

Allen Bradley 1492-CB2G 2 X

Allen Bradley 1492-CB3G 3 X

Allen Bradley 1492-CB1H 1 X

Allen Bradley 1492-CB2H 2 X

Allen Bradley 1492-CB3H 3 X

Allen Bradley 1492-CB1DF 1 X

Allen Bradley 1492-CB1DG 1 X

Allen Bradley 1492-CB1DH 1 X

Allen Bradley 1492-CB2DF 2 X

Allen Bradley 1492-CB2DG 2 X

Allen Bradley 1492-CB2DH 2 X

ABB JS 2-3 X**

ABB S1 3 X

ABB S3 3 X**

ABB F362 2 X

ABB F364 4 X

ABB F374 4 X

ABB E221 1 X

ABB E222 2 X

ABB E241 1 X

ABB E271 1 X

ABB E242 2 X

ABB E272 2 X

ABB E243 3 X

ABB E273 3 X

ABB E244 4 X

ABB E274 4 X

ABB S201-B 1 X

ABB S202-B 2 X

ABB S203-B 3 X

ABB S204-B 4 X

ABB S201-C 1 X

ABB S202-C 2 X

ABB S203-C 3 X

ABB S204-C 4 X

ABB S201-D 1 X

ABB S202-D 2 X

ABB S203-D 3 X

ABB S201-K 1 X

ABB S202-K 2 X

ABB S203-K 3 X

ABB S204-K 4 X

ABB S201P-K 1 X

ABB S202P-K 2 X

ABB S203P-K 3 X

ABB S222-K 4 X

ABB S221 1 X

ABB S222 2 X

ABB S223 3 X

ABB S224 4 X

ABB S251 1 X

ABB S252 2 X

ABB S253 3 X

ABB S261-B 1 X

ABB S262-B 2 X

ABB S263-B 3 X

ABB S264-B 4 X

ABB S261-C 1 X

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com D-27

Wire Management

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

ABB S262-C 2 X

ABB S263-C 3 X

ABB S264-C 4 X

ABB S261-D 1 X

ABB S262-D 2 X

ABB S263-D 3 X

ABB S271-K 1 X

ABB S272-K 2 X

ABB S273-K 3 X

ABB S274-K 4 X

ABB S281-K 1 X

ABB S282-K 2 X

ABB S283-K 3 X

ABB S281UC-K 1 X

ABB S282UC-K 2 X

ABB S283UC-K 3 X

ABB S201P-Z 1 X

ABB S202P-Z 2 X

ABB S203P-Z 3 X

ABB S201U-K 1 X

ABB S202U-K 2 X

ABB S203U-K 3 X

ABB S204U-K 4 X

ABB S201UP-K 1 X

ABB S202UP-K 2 X

ABB S203UP-K 3 X

ABB S204UP-K 4 X

ABB S201U-Z 1 X

ABB S202U-Z 2 X

ABB S203U-Z 3 X

ABB S204U-Z 4 X

ABB S201UP-Z 1 X

ABB S202UP-Z 2 X

ABB S203UP-Z 3 X

ABB S204UP-Z 4 X

ABB F202AC 2 X

ABB F672 2 X

ABB F204AC 4 X

ABB F674 4 X

ABB S281-Z 1 X

ABB S282-Z 2 X

ABB S283-Z 3 X

ABB S281UC-Z 1 X

ABB S282UC-Z 2 X

ABB S283UC-Z 3 X

ABB S501-B 1 X

ABB S502-B 2 X

ABB S503-B 3 X

ABB S501-C 1 X

ABB S502-C 2 X

ABB S503-C 3 X

ABB S501-D 1 X

ABB S502-D 2 X

ABB S503-D 3 X

ABB S501-K 1 X

ABB S502-K 2 X

ABB S503-K 3 X

ABB S501UC-B 1 X

ABB S502UC-B 2 X

ABB S503UC-B 3 X

ABB S504UC-B 4 X

ABB S501UC-K 1 X

ABB S502UC-K 2 X

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

D-28

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

*Use with cleat #44-785 **Use with cleat #44-786

ABB S503UC-K 3 X

ABB S504UC-K 4 X

American Ckt. Bkr. NEF 3 X*

American Ckt. Bkr. NJJ 3 X** X

AEG E82S 2 X

American Switch C 1 X X X

Bryant BR 1 X X X

Bryant BR 2-3 X X

Buschmat S46 1 X

Challenger C 1 X X X

Challenger C 2-3 X X

Challenger CDK 2-3 X

Challenger LM 1 X X

Challenger NEJ 1-2 X* X

Clipsal 4CB 1-3 X

Crouse Hinds MP 2 X X

Cutler Hammer BA 1 X X

Cutler-Hammer BAB 1 X X X

Cutler-Hammer BAB 2-3 X

Cutler-Hammer BD 1 X X X

Cutler-Hammer BR 1 X X X

Cutler-Hammer BR 2-3 X X

Cutler-Hammer BRH 1 X X X

Cutler-Hammer BRH 2-3 X X

Cutler-Hammer BRHH 2 X X

Cutler-Hammer CC 3 X*

Cutler-Hammer CH 1 X X X X

Cutler-Hammer CH 2-3 X X

Cutler-Hammer CHH 3 X*

Cutler-Hammer CH2 4 X X

Cutler-Hammer CHB 1 X X X X

Cutler-Hammer CHB 2-3 X X

Cutler-Hammer CHKD 2-3 X

Cutler-Hammer CHLD 2-4 X

Cutler-Hammer CHMDL 2-3 X

Cutler-Hammer CHND 2-4 X**

Cutler-Hammer CHP 1 X X X X

Cutler-Hammer CHP 2-3 X X

Cutler-Hammer CHQ 1 X X

Cutler-Hammer CHQ 2 X X

Cutler-Hammer CHSW 2-3 X X

Cutler-Hammer CKD 2-3 X

Cutler-Hammer CL 1 X X X X

Cutler-Hammer CL 2 X X

Cutler-Hammer CLD 2-4 X

Cutler-Hammer CLDC 2-4 X

Cutler-Hammer CMDL 2-3 X

Cutler-Hammer CND 2-4 X**

Cutler-Hammer CNDC 2-4 X**

Cutler-Hammer CSR 1 X X

Cutler-Hammer DK 2-3 X

Cutler-Hammer E125B 1-4 X X

Cutler-Hammer E125E 1-4 X X

Cutler-Hammer E125H 1-4 X X

Cutler-Hammer E125S 1-4 X X

Cutler-Hammer ED 2-4 X X

Cutler-Hammer EDC 2-4 X X

Cutler-Hammer EDH 2-4 X X

Cutler-Hammer EFH 1-4 X X

Cutler-Hammer EGB 1-4 X X

Cutler-Hammer EGE 1-4 X X

Cutler-Hammer EGS 1-4 X X

Cutler-Hammer EHC 1-4 X X

Lockout/Tagout

D-29

Wire Management

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

Cutler-Hammer EHD 1-4 X X

Cutler-Hammer FB 2-3 X X

Cutler-Hammer FC 1-4 X X

Cutler-Hammer FD 1-4 X X

Cutler-Hammer FDB 2-4 X X

Cutler-Hammer FDC 2-4 X X

Cutler-Hammer FS 2-3 X X

Cutler-Hammer GB 1-3 X X

Cutler-Hammer GC 1-3 X X

Cutler-Hammer GD 1-3 X X

Cutler-Hammer GDB 1-3 X X

Cutler-Hammer GHB 1-3 X X

Cutler-Hammer GHBGFEP 1 X X

Cutler-Hammer GHC 1-3 X X

Cutler-Hammer GHCGFEP 1 X X

Cutler-Hammer HBAW 1 X X X

Cutler-Hammer HBAW 2-3 X

Cutler-Hammer HBAX 1 X X X

Cutler-Hammer HBAX 2-3 X

Cutler-Hammer HFD 1-4 X X

Cutler-Hammer HGHB 1 X X

Cutler-Hammer HGHC 1 X X

Cutler-Hammer HJD 2-4 X

Cutler-Hammer HKD 2-4 X

Cutler-Hammer HLD 2-4 X

Cutler-Hammer HMCP 2-3 X X X

Cutler-Hammer HMDL 2-3 X

Cutler-Hammer HMDLB 2-3 X

Cutler-Hammer HMPL 3 X** X

Cutler-Hammer HND 2-4 X**

Cutler-Hammer HQP 1 X X X

Cutler-Hammer HQP 2 X

Cutler-Hammer JD 2-4 X

Cutler-Hammer JDB 2-3 X

Cutler-Hammer JDC 2-4 X

Cutler-Hammer KD 2-4 X

Cutler-Hammer KDB 2-4 X

Cutler-Hammer KDC 2-4 X

Cutler-Hammer LA 2-3 X

Cutler-Hammer LD 2-4 X

Cutler-Hammer LDB 2-3 X

Cutler-Hammer LDC 2-4 X

Cutler-Hammer LH 3 X

Cutler-Hammer LHB 3 X

Cutler-Hammer LJ 3 X

Cutler-Hammer MA 2-3 X**

Cutler-Hammer MC 2-3 X**

Cutler-Hammer MD 2-3 X

Cutler-Hammer MDL 2-3 X

Cutler-Hammer MDS 2-3 X

Cutler-Hammer NB 2-3 X

Cutler-Hammer ND 2-4 X**

Cutler-Hammer NDC 2-4 X**

Cutler-Hammer OPTIM 3 X**

Cutler-Hammer PB 2-3 X

Cutler-Hammer QBGF 1 X

Cutler-Hammer QBGF 2 X

Cutler-Hammer QBGFEP 1 X

Cutler-Hammer QBGFEP 2 X

Cutler-Hammer QBHGF 1 X

Cutler-Hammer QBHGFEP 1 X

Cutler-Hammer QBHW 1 X X X

Cutler-Hammer QBHW 2-3 X

*Use with cleat #44-785 **Use with cleat #44-786

1-800-435-0705 for Customer Service www.idealindustries.com

www.idealindustries.com 1-800-435-0705 for Customer Service

Lockout/Tagout

D-30

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

Cutler-Hammer QC 1 X X X

Cutler-Hammer QC 2-3 X X

Cutler-Hammer QCD 1 X X X

Cutler-Hammer QCD 2-3 X X

Cutler-Hammer QCGF 1 X

Cutler-Hammer QCGFEP 1 X

Cutler-Hammer QCHGF 1 X

Cutler-Hammer QCHGFEP 1 X

Cutler-Hammer QCHW 1 X X X

Cutler-Hammer QCHW 2-3 X X

Cutler-Hammer QHCW 1 X X X

Cutler-Hammer QHCW 2-3 X X

Cutler-Hammer QHCX 1 X X X

Cutler-Hammer QHCX 2-3 X X

Cutler-Hammer QHPW 1 X X X

Cutler-Hammer QHPW 2-3 X

Cutler-Hammer QHPX 1 X X X

Cutler-Hammer QHPX 2-3 X

Cutler-Hammer QPGF 1 X

Cutler-Hammer QPGF 2 X

Cutler-Hammer QPGFEP 1 X

Cutler-Hammer QPGFEP 2 X

Cutler-Hammer QPHGF 1 X

Cutler-Hammer QPHGFEP 1 X

Cutler-Hammer QPHW 1 X X X

Cutler-Hammer QPHW 2-3 X

Cutler-Hammer WME 1-3 X

Cutler-Hammer WMF 1-3 X

Cutler-Hammer WMH 1-4 X

Cutler-Hammer WMM 1-4 X

Cutler-Hammer WMN 1-4 X

Cutler-Hammer WMS 1-4 X

E-T-A 911220G 2 X

E-T-A 911225 1 X

FAZ C16 1-4 X

Fed. Pacific Elec. 2B 2

Fed. Pacific Elec. BAB 1 X X

Fed. Pacific Elec. NA-single 3 X** X

Fed. Pacific Elec. NA-tie bar 2 X

Fed. Pacific Elec. NB 1 X* X

Fed. Pacific Elec. NBH GFI 1 X X

Fed. Pacific Elec. NE/NEF 1-3 X*

Fed. Pacific Elec. NEJ 1-3 X*

Fed. Pacific Elec. NFJ 1-3 X

Fed. Pacific Elec. NJJ 1-3 X

Fed. Pacific Elec. NJL 1-3 X

Fed. Pacific Elec. NM 1-3 X

Fed. Pacific Elec. NP-single 1 X X

Frank Adams P 1 X X

FUJI Electric EA53B 3 X*

FUJI Electric EA203B 3 X*

FUJI Electric BU-ESB 3 X*

FUJI Electric BU-ESA 3 X*

FUJI Electric BU-FSB 3 X*

General Electric V 1-3 X

General Electric EH400 3 X

General Electric HQC 3 X X

General Electric SED 2-3 X X

General Electric SEH 2-3 X X

General Electric SEL 2-3 X X

General Electric SEP 2-3 X X

General Electric SFH 2-3 X X

General Electric SFL 2-3 X X

*Use with cleat #44-785 **Use with cleat #44-786

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com D-31

Wire Management

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

General Electric SFP 2-3 X X

General Electric SGD 2-3 X

General Electric SGH 2-3 X

General Electric SGL 2-3 X

General Electric SGLA 2-3 X

General Electric SGP 2-3 X

General Electric SRPG 3 X

General Electric TB 2 X* X

General Electric TBC 2 X* X

General Electric TE 1-3 X* X

General Electric TEB 1-3 X* X

General Electric TED 1-3 X* X

General Electric TEF 1-3 X* X

General Electric TEL 3 X* X

General Electric TEML 3 X* X

General Electric TEY 1-3 X X

General Electric TF 1-3 X X

General Electric TFC 3 X* X

General Electric TFJ 2-3 X

General Electric TFK 2-3 X

General Electric TFL 3 X

General Electric THED 1-3 X* X

General Electric THEF 1-3 X* X

General Electric THFK 2-3 X

General Electric THHQB 2-3 X X

General Electric THHQB-A 1 X X X

General Electric THHQB-S 1 X X

General Electric THHQC 1-3 X X

General Electric THHQC-A 1 X X X

General Electric THHQC-S 1 X X

General Electric THHQL 2-3 X X

General Electric THHQL-A 1 X X X

General Electric THHQL-S 1 X X

General Electric THJK4 2-3 X**

General Electric THJK6 2-3 X**

General Electric THKM12 2-3 X

General Electric THKM8 2-3 X

General Electric THLC1 3 X*

General Electric THQB 2-3 X X

General Electric THQB GF 1-2

General Electric THQB-A 1 X X X

General Electric THQB-S 1 X X

General Electric THQC 2-3 X X

General Electric THQC-A 1 X X X

General Electric THQC-AL 2-3 X X

General Electric THQC-S 1 X X

General Electric THQD 2-3 X* X

General Electric THQDBL 3 X

General Electric THQL 2-3 X X

General Electric THQL-A 1 X X X

General Electric THQL-S 1 X X

General Electric TJ2 2-3 X** X

General Electric TJ4 3 X

General Electric TJC 2-3 X* X

General Electric TJD 2-3 X**

General Electric TJJ 2-3 X**

General Electric TJK 2-3 X**

General Electric TJS 2-3 X**

General Electric TK4V 3 X

General Electric TKC 3 X* X

General Electric TKM 2-3 X

General Electric TKMA8 3 X

General Electric TQB 2-3 X X

*Use with cleat #44-785 **Use with cleat #44-786

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

D-32

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

General Electric TQB-A 1 X X X

General Electric TQB-S 1 X X

General Electric TQC 2-3 X X

General Electric TQC-A 1 X X X

General Electric TQC-S 1 X X

General Electric TQD 2-3 X

General Electric TQL 1-3

General Electric TQL 2-3

General Electric TQL-A 1 X X X

General Electric TQL-S 1 X X

General Electric V 1-4 X

GE Vynckier Series E 1-4 X

GE Vynckier Series G 1-3 X

Hager 453717 3 X

Hager MW216A 2 X

Hager MW620A 4 X

Heinemann LB 1 X*

Heinemann LF 1 X*

Heinemann LJ 1 X*

Kapp LS68 1 X

Legrand 04302 2 X

Legrand 06469 3 X

Legrand 01908 1 X

Legrand 01935 2 X

Legrand 01980 3-4 X

Lemag SD62 1 X

Merlin Gerin B100A 2 XX

Merlin Gerin C32N 1-3 X

Merlin Gerin C45AD 3 X

Merlin Gerin C60a 1-4 X

Merlin Gerin C60H 1-4 X

Merlin Gerin C60N 1-4 X

Merlin Gerin C80A 3 XX

Merlin Gerin NC100H 1-3 X

Merlin Gerin NC125H 1-3 X

Merlin Gerin NC100L 1-4 X

Merlin Gerin NC100LH 1-4 X

Merlin Gerin NC100L MA 3 X

Merlin Gerin NC100N 1-4 X

Merlin Gerin C801N 3 X

Merlin Gerin C1251N 3 X

Merlin Gerin CE104N 3 X*

Merlin Gerin CK1200NA 3 X

Merlin Gerin CJ 3 X**

Proteus BSEN60947-3 2 X

Proteus AC22BS5419 2 X

Proteus C16 1 X

Proteus C6 1-3 X

Siemans ITE 5SX11 1 X

Siemans ITE 5SX12 2 X

Siemans ITE 5SX13 3 X

Siemans ITE 5SX21 1 X

Siemans ITE 5SQ11 1 X

Siemans ITE 5SQ12 2 X

Siemans ITE 5SQ13 3 X

Siemans ITE 5SQ16 4 X

Siemans ITE 5SN22 2 X

Siemans ITE BL 1 X X X X

Siemans ITE BL 2-3 X X

Siemans ITE BLF-GFI 2 X X

Siemans ITE BLH 1 X X X

Siemans ITE BLH 2-3 X X

Siemans ITE BQ 1 X X X

*Use with cleat #44-785 **Use with cleat #44-786

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com D-33

Wire Management

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

Siemans ITE BQ 2-3 X X

Siemans ITE BQCH 1-3 X X

Siemans ITE BQD 1-3 X X

Siemans ITE BQH 1 X X X

Siemans ITE BQH 2-3 X X

Siemans ITE CED6 2-3 X X

Siemans ITE CFD6 2-3 X**

Siemans ITE CFD6-ETI 2-3 X**

Siemans ITE CJ3 X

Siemans ITE CJD6 2-3 X

Siemans ITE CJD6-ETI 2-3 X

Siemans ITE CLF 2 X

Siemans ITE CMD6 3 X

Siemans ITE CMD6-ETI 3 X

Siemans ITE CND6 3 X

Siemans ITE CPD6 3 X

Siemans ITE CQD 1-3 X* X

Siemans ITE E2 1-3 X X

Siemans ITE E4 1-3 X X

Siemans ITE ED 1-3 X X

Siemans ITE ED4 1-3 X X

Siemans ITE ED6 1-3 X X

Siemans ITE ED6-ETI 3 X X

Siemans ITE EE3 3 X* X

Siemans ITE EH3 3 X* X

Siemans ITE EQP 4 X X

Siemans ITE EQT QF 3

Siemans ITE ET 3 X* X

Siemans ITE FD6A 2-3 X**

Siemans ITE FJ2-B 2-3 X* X**

Siemans ITE FJ3 2 X

Siemans ITE FJ6 2 X**

Siemans ITE FXD6A 2-3 X**

Siemans ITE FXD6-ETI 2-3 X**

Siemans ITE GF 1 X X

Siemans ITE HBL 1 X X X

Siemans ITE HBL 2-3 X X

Siemans ITE HBQ 1 X X X

Siemans ITE HBQ 2-3 X X

Siemans ITE HE4 1-3 X X

Siemans ITE HED4 1-3 X X

Siemans ITE HED6 2-3 X X

Siemans ITE HFD6 2-3 X**

Siemans ITE HFXD6 2-3 X**

Siemans ITE HHED6 2-3 X X

Siemans ITE HHFD6 2-3 X**

Siemans ITE HHJD6 2-3 X

Siemans ITE HHJXD6 2-3 X

Siemans ITE HJD6 2-3 X

Siemans ITE HJXD6 2-3 X

Siemans ITE HMD6 2-3 X

Siemans ITE HMXD6 2-3 X

Siemans ITE HN3 2 X

Siemans ITE HND6 2-3 X

Siemans ITE HNXD6 2-3 X

Siemans ITE HPD6 3 X

Siemans ITE HPXD6 3 X

Siemans ITE HQJ2-H 3 X X

Siemans ITE HQP 1 X X X

Siemans ITE HQP 2-3 X X

Siemans ITE HQPP 1 X X X

Siemans ITE HQPP 2-3 X X

Siemans ITE HQPPH 2 X X

*Use with cleat #44-785 **Use with cleat #44-786

www.idealindustries.com 1-800-435-0705 for Customer Service

D-34

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

D-34

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

Siemans ITE HRD6 3 X

Siemans ITE HRXD6 3 X

Siemans ITE JD2 3 X

Siemans ITE JD6-A 2-3 X

Siemans ITE JJ3 X

Siemans ITE JJ6 3 X

Siemans ITE JL3 3 X

Siemans ITE JXD2-A 2-3 X

Siemans ITE JXD6-A 2-3 X

Siemans ITE KM3 3 X

Siemans ITE LL3 3 X

Siemans ITE LL6 3 X

Siemans ITE LXD6-ETI 3 X

Siemans ITE MD6 2-3 X

Siemans ITE MXD6 2-3 X

Siemans ITE MXD6-ETI 2-3 X

Siemans ITE ND6 2-3 X

Siemans ITE NH3-F800

Siemans ITE NXD6 2-3 X

Siemans ITE PD6 3 X

Siemans ITE PXD6 3 X

Siemans ITE QJ2 2-3 X* X

Siemans ITE QJ2-H 2-3 X* X

Siemans ITE QJH2 2-3 X* X

Siemans ITE QP 1 X X X

Siemans ITE QP 2-3 X X

Siemans ITE QP1 1 X X

Siemans ITE QPH 1 X X X

Siemans ITE QPH 2-4 X X

Siemans ITE QPP 1 X X X

Siemans ITE QPP 2-3 X X

Siemans ITE QPPH 1 X X X

Siemans ITE QPPH 2-3 X X

Siemans ITE RD6 3 X

Siemans ITE RXD6 3 X

Siemans ITE SCMD6 3 X

Siemans ITE SCND6 3 X

Siemans ITE SHLD6-A 3 X

Siemans ITE SHMD6 3 X

Siemans ITE SHND6 3 X

Siemans ITE SMD6 3 X

Siemans ITE SND6 3 X

Siemans ITE SHPD6 3 X

Siemans ITE SPD6 3 X

Siemans ITE 3VF3 3 X

Simplex NX 3 X**

Square D EDB 1-3 X X

Square D EGB 1-3 X X

Square D EH4 1-3 X X

Square D EHB 1-3 X X

Square D EHB 2-3 X X

Square D EJB 1-3 X X

Square D EZ 3 X

Square D FA 1-3 X*

Square D FAL 1-3 X*

Square D FC 3 X*

Square D FCL 2-3 X*

Square D FDA X X

Square D FGA 3 X

Square D FH 1-3 X*

Square D FHL 1-3 X*

Square D FHL-DC 3 X*

Square D FHP 3 X*

*Use with cleat #44-785 **Use with cleat #44-786

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com D-35

Wire Management

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

Square D FI 3 X*

Square D FIL 3 X*

Square D FY 1 X*

Square D GJL 3 X*

Square D KA 2-3 X*

Square D KAL 2-3 X*

Square D KAP X

Square D KC 2-3 X*

Square D KCL 2-3 X*

Square D KH 2-3 X*

Square D KHL 3 X*

Square D KI 2-3 X*

Square D KIL 2-3 X*

Square D LA 2-3 X**

Square D LAL 2-3 X** X

Square D LAP 3 X** X

Square D LC 3 X

Square D LCP 3 X

Square D LH 2-3 X**

Square D LHL 3 X** X

Square D LHP X** X

Square D L2 3 X

Square D LXL 3 X

Square D MA 2-3 X**

Square D MA 3 X

Square D MAL 3 X

Square D MH 2-3 X

Square D MH 2-3 X**

Square D MHL 2-3 X

Square D ML-1 3 X**

Square D ML-3 3 X

Square D MXL 3 X

Square D Q1B 2-3 X X

Square D Q1L 2-3 X X

Square D Q2 2-3 X*

Square D Q2H 2-3 X*

Square D Q2L 2-3 X*

Square D Q2MT 2-3 X*

Square D Q4 2-3 X**

Square D Q4L 2-3 X**

Square D QO 1 X

Square D QO 2-3 X X X X

Square D QOB 1 X

Square D QOB 2-3 X X X X

Square D QOB-H 2 X

Square D QOB-VH 1 X X X

Square D QOB-VH 2-3 X

Square D QO-H 2 X

Square D QOM1-VH 2 X X

Square D QOM2-VH 2 X X

Square D QO-SWN 2-3 X X X X

Square D QOU 1 X

Square D QOU 2-3 X X X

Square D QOU w/tie bar 2-3 X X

Square D QO-VH 1 X

Square D QO-VH 2-3 X X X X

Square D QYU 1 X

Square D Y1 X

Sursum EA53 3 X

Sylvania GTE QC 2 X X

Sylvania GTE Type C 2 X X

Thomas & Betts F Frame 1-3 X X

Toshiba E225B 3 X*

*Use with cleat #44-785 **Use with cleat #44-786

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

D-36

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

Westinghouse BA w/tie bar 2-3 X

Westinghouse BA 1-3 X X X

Westinghouse BAB 1-3 X X X

Westinghouse BR 1-3 X X X

Westinghouse BR w/tie bar 2-3 X X

Westinghouse BRH w/tie bar 2-3 X

Westinghouse CA X*

Westinghouse DA X

Westinghouse DK X

Westinghouse EB 1-3 X* X

Westinghouse ED X X

Westinghouse EH 1-3 X X

Westinghouse EHB 1-3 X*

Westinghouse EHD 1-3 X X

Westinghouse FA 3 X* X

Westinghouse FB 2-3 X* X

Westinghouse FD 1-4 X X

Westinghouse FDB 2-4 X X

Westinghouse FDC 2-4 X X

Westinghouse FP 3 X**

Westinghouse GB 1-3 X X

Westinghouse GBH 1-3 X X

Westinghouse GHB 1-3 X X

Westinghouse GR 3 X

Westinghouse HBAW 1 X X X

Westinghouse HBAX 1 X X X

Westinghouse HCA 3 X* X

Westinghouse HFB 1-3 X* X

Westinghouse HFD 1-4 X X

Westinghouse HKD 3 X

Westinghouse HLA X

Westinghouse HLB X

Westinghouse HMC X

Westinghouse HMCP X* X

Westinghouse HNC X

Westinghouse HQNP 3 X X

Westinghouse HQP 1 X X X

Westinghouse JA X

Westinghouse JB 3 X

Westinghouse JD 2-4 X

Westinghouse JDB 3 X

Westinghouse KA 3 X**

Westinghouse KB X

Westinghouse LA 3 X**

Westinghouse LB X

Westinghouse LBB 3 X

Westinghouse LH X

Westinghouse MA 2-3 X**

Westinghouse MC 2-3 X**

Westinghouse MCC 2-3 X**

Westinghouse MCPO 3 X* X

Westinghouse NB X

Westinghouse P 3 X X

Westinghouse PA 3

Westinghouse QBHW 1 X X X

Westinghouse QC 1 X X X

Westinghouse QC 3 X

Westinghouse QCHQ 1 X X X

Westinghouse QHCW 1 X X X

Westinghouse QHCX 1 X X X

Westinghouse QHPW 1 X X X

Westinghouse QPHW 1 X X X

Westinghouse Quicklag P X X

*Use with cleat #44-785 **Use with cleat #44-786

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com D-37

Wire Management

Wall Switch Lockouts

■

Our patent pending

universal Wall Switch

Lockout locks out both

toggle and decora wall

switches

■

The universal design

assures switch is locked

on or off. It also hinges

open for unobstructed

normal switch operation

■

The standard wall switch

lockout fits most wall-

mounted single or three-

way electrical switches

Description Qty./Card Cat. No.

Universal Wall Switch Lockout 1 44-772

Standard Wall Switch Lockout (not shown) 1 44-789

Plug Lockouts

■

Accommodate a variety of

electrical plug and cord

sizes to prevent accidental

connection or disconnection

■

Durable plastic body resists

wear, chemicals and job-site

abuse

■

Accommodates cable ties or

padlocks (with up to 3/8 in.

shackles)

Description Size Cat. No.

Plug Lockouts – 110V 2 in. x 2 in. x 3-1/2 in. 44-818

Plug Lockouts – 220/550V 3-1/4 in. x 3-1/4 in. x 7 in. 44-819

Standard Breaker Lockouts Circuit Breaker LO Sys. Mini Circuit Breaker Lockouts

120V 120/277V 480/600V

Circuit Snap On Clamp On Clamp On Oversize Multi-Pole Snap On Clamp On Pin Out Pin In Pin Out Multi-Pole

Breaker Breaker # of (w/hole) (no hole) (no hole) 480/600V (tie bar) (SQD QO) (Universal) Standard Standard Wide w/Tie Bar

Mfg. Type Poles 44-810 44-809 44-807 44-823 44-783 44-768 44-764 44-779 44-780 44-784 44-787

Westinghouse RE X X

Westinghouse RH 3 X

Westinghouse WPHX 1 X X X

Wylex WRS40/2 2 X

Zinsco HQB 3 X X

Zinsco QB 1 X X

Zinsco QCB w/Tie Bar 2 X X

Zinsco Type Q 1 X X

Zinsco Type T 1 X X

Electric Plug Lockout

■

Slides over cord prongs and

locks in place to prevent cord

from being plugged into an

outlet

■

Cannot be removed without

key

■

Works on any 2- or 3-prong

plug

Description Cat. No.

Electric Plug Lockout 44-782

Description Qty./Card Cat. No.

1/4, 9/32 and 9/16 in. Fuse Lockout 2 44-815

Fuse Blockout and Lockout Devices

■

Fuse lockout snaps

easily into place and

can be cable tied for

added security

■

Fits most Buss and

Gould fuse blocks

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

D-38

Ball Valve Lockout Devices

■

Best available

method for locking

out ball valves

■

Patented design

fits most major

brand ball valves

■

Designed to lock

in off position only

■

Complies with

OSHA lockout

standard

Max.

Valve Size (In.) Shackle Length Material Cat. No.

1/2 to 1-1/4 — Polypropylene 44-846

1-1/4 to 3 — Polypropylene 44-847

1/4 to 1 (not shown) 9/32 Nylon 44-820

1-1/4 to 3 (not shown) 9/32 Heavy steel 44-821

Gate Valve Lockouts

■

Unique patent pending rotating

design allows for easier

installation in confined space

applications

■

Each size rotates into itself and

nests within the next larger

size to save space in storage

■

Up to four workers can apply

their personal safety locks

■

Complete with high-visibility

permanent safety labels

(English, French & Spanish)

that can be written on to identify

the responsible person, then erased for the next job

■

Tough, lightweight, dielectric Xenoy thermoplastic bodies withstand

chemicals and perform effectively in extreme conditions, temperature

range: -50°F (-46°C) to +350°F (177°C)

Valve Size Qty. Cat. No.

1 in. to 3 in. 1 44-824

2 in. to 5 in. 1 44-825

Set of five sizes (1 in. to 13 in.) — 44-817

Adjustable Cable Lockout

■

Infinitely adjustable safety hasp and cable

■

Ideal for multiple circuit breaker panels

and side-by-side gate valve lockouts

■

Feed the cable end through the points to

be locked out, then back through the

lockout body. Cinch it tight to remove any

slack with the patented locking feature

■

Tough, flexible multi-stranded 6 ft. 1/4” dia. steel cable is insulated

with a clear vinyl coating

■

Tough, lightweight, dielectric Xenoy®

thermoplastic body withstands chemicals;

performs effectively in extreme conditions

■

Up to four workers can apply their personal

safety locks

■

Complete with high-visibility, re-usable,

write-on safety labels (English, French &

Spanish). Identify the responsible person,

then erase for the next job.

Cable Lockout

Description Cat. No.

Cable Lockout, 6 ft. cable 44-829

■

44-829 Unique hasp lockout

device accepts up to six 9/32 in.

padlocks and comes with a 6 ft.

plastic-coated steel cable

Description Cat. No.

Adjustable Cable Lockout 44-808

1-800-435-0705 for Customer Service www.idealindustries.com D-39

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com D-39

Wire Management

■

High visibility, baked-on powder coated finish stays bright

■

Ideal for corrosive and tough environments

■

1-1/16 in. shackle clearance

■

1-9/16 in. wide lock with 1/4 in. shakle clearance

■

Hardened shackles for superior resistance to cutting

■

Keyed alike, master-keyed, additional colors and engraving available

by special order

Xenoy Safety Lockout

Padlocks w/Key Retention

Steel Padlocks

■

Rustproofed, steel case with nickel-plated

shackle withstands abuse and

environmental hazards

■

Includes two keys

■

1-1/2 in. wide lock with 9/32 in.

shackle diameter

■

Keyed-alike and Master-Keyed

locks available by special order

3/4 In. Shackle Clearance 2 In. Shackle Clearance

Bumper Color Cat. No. Cat. No.

Blue 44-900 44-901

Black* 44-902 44-903

White* 44-904 44-905

Red 44-906 44-907

Green* 44-908 44-909

Yellow* 44-910 44-911

*Special order thru Customer Service.

Aluminum Safety Lockout Padlocks

Bumper Color Cat. No.

Blue 44-920

Black 44-921

Red 44-922

Yellow 44-923

Lock Labels

■

Easy identification of employees’ locks

■

Write-on, vinyl labels with peel-off adhesive backing

■

Polyester over laminate protects label

Description Qty. Cat. No.

Lock Labels 8 labels 44-898

Marking Pens

■

Fast-drying, permanent ink

will not smear

■

Use on write-on marker cards

and write-on cable-tie

marker plates

■

Color-coded in red or black

Description Cat. No.

Marking Pen w/black ink 41-697

Marking Pen w/red ink 41-698

■

Dedicated safety lockout

device reduces confusion

with other locks

■

Complies with OSHA’s

“1-key, 1-lock”

■

Non-conductive,

lightweight Xenoy®body

■

Key retention ensures keys do

not get lost while not in use and

that padlocks are not left untouched

■

1-1/2 in. shackle clearance

■

1-1/2 in. wide lock with 1/4 in. shackle

■

Four colors for easy identification

■

Keyed alike, Master-Keyed, 2nd key, additional colors and

engraving available by special order

Bumper Color Cat. No.

Blue 44-912

Black 44-914

Red 44-916

Yellow 44-918

Lockout/Tagout

www.idealindustries.com 1-800-435-0705 for Customer Service

D-40

Bilingual Lockout Tags

■

Spanish/English tags provide extra safety and information

in bilingual situations

■

High-visibility lettering

■

Laminated plastic tags with non-fade legends resist corrosive

and harsh environmental conditions

■

Write-on tag with 7/8 in. grommet can be padlocked to device

to help prevent unauthorized removal

Legend Qty./Card Cat. No.

Do Not Operate (striped) 5 44-841

Heavy-Duty Lockout Tags

Legend Type Qty. Cat.No.

Do Not Operate Heavy-Duty Laminated Card of 5 44-830

Do Not Operate Heavy-Duty Laminated Box of 100 44-1830

Do Not Operate Economy Vinyl Bag of 25 44-848

Do Not Operate – Heavy-Duty Laminated Card of 5 44-831

Maintenance Department

Do Not Operate – Economy Vinyl Bag of 25 44-844

Maintenance Department

Do Not Operate – Heavy-Duty Laminated Card of 5 44-832

Electricians at Work

Do Not Operate – Economy Vinyl Bag of 25 44-843

Electricians at Work

Do Not Operate – Heavy-Duty Laminated Card of 5 44-833

(red striped background)

Do Not Operate – Heavy-Duty Laminated Box of 100 44-1833

(red striped background)

Do Not Operate – Economy Vinyl Bag of 25 44-849

(red striped background)

Do Not Operate Heavy-Duty Laminated Card of 5 44-834

(Photo ID - Self Sealant)

Safety Lockout Hasps

■

Allow up to six workers to lock out a single energy source

■

Rustproofed, plated and vinyl-coated

■

Labeled hasps feature anodized aluminum alloy construction

for long-term durability

■

Permanent “Do Not Operate” labels accept pens, pencils

and permanent markers

Jaw Diameter Qty. Cat. No.

1 in. 3 44-800

1 in. 50 44-1800

1-1/2 in. 2 44-801

Safety Lockout Hasps

Legend Color Qty. Cat. No.

Do Not Operate Blue 1 44-790

Do Not Operate Red 1 44-791

Do Not Operate Red 50 44-1791

Labeled Safety Lockout Hasps

■

High-visibility lettering

■

Laminated plastic tags have non-fade legends, resist corrosive

and harsh environmental conditions and a 7/8 in. grommet

■

Vinyl tags are silk screened with a metal grommet; fastener

included

■

Exceeds OSHA’s 50-lb. pullout requirement

Lockout/Tagout

1-800-435-0705 for Customer Service www.idealindustries.com D-41

Wire Management

Python™ Adjustable Locking Cable

Description Cat. No.

Master Lock Python Kit with 6 ft. Cable-keyed different 44-990

Master Lock Python Kit with 6 ft. Cable-keyed alike* 44-991

12 ft. (3.7m) x 3/8 in. (10mm) Cable for Python Lock* 44-992

*Special order thru Customer Service.

Python™ Adjustable Locking Cable secures

anything within its grasp. It’s the only locking

cable that is always the right length for

your application. This exclusive, patented

product holds the flexible steel cable tight at

any position for infinite possibilities.

■

Infinite Locking Positions – The patented lock

holds the cable tight at any position from

1 ft. (30cm) to 6 ft. (1.8m)

■

Application Flexibility – Interchangeable cables

■

Keyed Alike Convenience – Rekeyable cylinder

■

Cut Resistance – 3/8 in. (10mm), 100% steel braided cable

■

Weather Tough – Rust resistant aluminum lock body

■

Scratch Resistant – Vinyl cable sleeve and lock body bumper

Other Applications: Bikes, lawn furniture, lawn mowers, job sites,

canoes, boats, skis, snowboards, generators, pickup truck cargo,

spare tire locks and much more.

■

Ideal for vans, trucks, gates and vending

■

Defeats attempts to pry and cut

■

Hardened solid steel lock body withstands forcible attacks

■

Complete with high security 6-pin Pro Series®Cylinder

Pro-Series®Shackless Lock and Hasp

Description Cat. No.

Hidden Shackle Solid Steel Padlock* 44-994

Solid Steel Hasp for use with 44-994* 44-993

*Special order thru Customer Service.

Lockout/Tagout Signs

www.idealindustries.com 1-800-435-0705 for Customer Service

D-42

■

Resistant to both chemicals and abrasion —

protected graphics for indoor and

outdoor use

Lockout Signs

Legend Material Size (In.) Cat. No.

OSHA Regulation Self-sticking 3-1/2 x 10 44-877

polyester

OSHA Regulation – Bilingual Self-sticking

polyester 7 x 10 44-878

Danger – Breakers Locked Out Magnetic 5 x 7 44-890

Safety Signs

Legend Material Size (In.) Cat. No.

Danger – High Voltage Fiberglass 10 x 14 44-862

Danger – High Voltage Self-Sticking Polyester 7 x 10 44-863

Danger – High Voltage – Keep Out Fiberglass 10 x 14 44-880

Danger – High Voltage – Keep Out Self-Sticking Polyester 7 x 10 44-881

Danger High Voltage – Spanish Self-Sticking Polyester 7 x 10 44-865

■

Resistant to both

chemicals & abrasion —

protected graphics for

indoor & outdoor use

Description Type Size Qty./Bag Cat. No.

NEC Arc Flash, Warning Self-Sticking polyester 3-1/2 in. x 5 in. 5 44-892

NEC Arc Flash, Warning Self-Sticking polyester 5 in. x 7 in. 5 44-893

NEC Arc Flash, Danger Self-Sticking polyester 5 in. x 7 in. 5 44-894

NEC Arc Flash, Danger Self-Sticking polyester 4 in. x 6 in. 5 44-895

NEC Arc Flash, Warning Self-Sticking polyester 7 in. x 10 in. 1 44-896

National Electric Code 110.16 Flash Protection: Switchboards, panel boards, industrial control panels, and motor control

centers, in other than dwelling occupancies, that are likely to require examination, adjustment, servicing or maintenance while energized,

shall be field marked to warn qualified persons of potential electric arc flash hazards. The marking shall be located so as to be clearly visible to

qualified persons before examination, adjustment, servicing or maintenance of the equipment.

Required Labels –

44-892/44-893

Recommended Signs –

44-896

Arc Flash Labels

44-894/44-895

Flash Protection Labels and Signs

Test & Measurement

Selection Guide

www.idealindustries.com 1-800-435-0705 for Customer Service

E-2

310 Series 320 Series 350 Series

360

490 600 610

MULTIMETER SELECTION GUIDE

MEASUREMENT FUNCTIONS

AC & DC Voltage • • • • • • • • • •••••••

AC Current • • • • • • • ••••

DC Current • • • • • • • •••• ••

Resistance • • • • • • • • • •••••••

LV Resistance ••

Audible Continuity • • • • • • • • • ••••• •

Diode Test • • • • • • • • • ••• ••

Capacitance • • ••• • • • • •

Frequency • • ••• • ••••

Temperature • •• • •

Duty Factor ••

Battery Test • ••

Decibels ••

Phase Rotation •

FEATURES

Display Type (Digital or Analog) D D D D D D D D D D D D D D A A

True RMS • • • • •••

Auto/Manual Ranging • • • • • • • ••••

Data Hold/Auto Hold D D D D D D D D D D A A D

Max Hold •

Peak Hold • • • ••

Min/Max • • • • •

Min/Max/Avg ••

Peak Min/Max • •• • •

Relative Mode • • • ••

High Speed Analog Bar Graph • • • ••

Auto Power Off • • • • • • • • • ••••

Backlight • ••

Low Battery Indication • • • • • • • • •••••

Non-Contact Voltage • • •

Dual Display ••

Overload Protection on All Ranges • • • • • • • • • • • • • •

Data Logging ••

Data Acquisition • • •

Memory Storage & Recall • •

Optical RS-232 Interface • • •

Optional ProVision™ Software • • •

Warranty (years) 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

CERTIFICATIONS

UL 61010 Listed • • • • • • • • • • • • • • • •

CAT Rating II II II IV IV IV III III III III III III III II II II

CE • • • ••• ••••••••••

61-320

61-322

61-324

Multimeter Selection Guide

61-494

61-495

61-310

61-605

61-312

61-314

61-610

61-614

61-350

61-352

61-354

61-360

61-361

CUS

320 Series

1-800-435-0705 for Customer Service www.idealindustries.com E-3

Test and Measurement

61-324

True RMS, AC/DC

current, backlight data

acquisition and

RS-232 interface

61-320

61-322

True RMS,

AC/DC current

■AC/DC voltage

■

Capacitance

■

Frequency

■

Auto/manual ranging

■

Peak min/max

■

Max/min

■

Relative mode

■

Data hold

■

Low battery indicator

■

Auto power off

■

2-year warranty

Features

1000V

600V

Data acquisition and analysis with

320 ProVision™ software for 324.

Contractor-Grade Multimeters

Accessories

Includes

Premium Test Leads w/Alligator Clips TL-100

Optional

Carrying Case C-290

Current Clamp Adapters (page E-30)

Magnetic Strap 61-565

ProVision™ Software 61-904

RS-232 Cable 61-905

320 Series Specifications 61-320 61-322 61-324

RANGE & RESOLUTION BASIC ACCURACY

AC VOLTAGE 400.0m/4.000/40.00/400.0/750 V 1.3% 1.3% 1.3%

DC VOLTAGE 400.0m/4.000/40.00/400.0/1000 V 0.5% 0.5% 0.5%

AC CURRENT 400.0µ/4000µ/40.00m/400.0m A — 1.5% 1.5%

DC CURRENT 400.0µ/4000µ/40.00m/400.0m A 1.5% (µA range only) 1.5% 1.5%

RESISTANCE 400.0/4.000k/40.00k/400.0k./4.000M/40.00M Ω0.7% 0.7% 0.7%

CAPACITANCE 4.000n/40.00n/400.0n/4.000µ/40.00µ/ 1.9% 2.0% 2.0%

400.0µ/4.000m/40.00m F

FREQUENCY 4.000k/40.00k/400.0k/4.000M/40.00M Hz 0.01% 0.1% 0.1%

N12966

61-904

320 Series ProVision™

Software

320 Series

ProVision Software

61-905

Optical RS-232

Cable

For 320 Series

Meters

Optional magnetic strap

frees up your hands

to help you work safe.

61-565

Magnetic hand strap fits

Platinum Pro®and 350

Series Multimeters

490 Series

www.idealindustries.com 1-800-435-0705 for Customer Service

E-4

61-495

Data logging (40,000

records), thermocouple,

software and cable

interface included

61-494

Data logging

(6,000 records)

Features

■

True RMS

■

Data acquisition

■

Data logging

■

Data storage

■

Frequency

■

Capacitance

■

Temperature

■

Low voltage Ω

■

Duty factor

■

dBm/dB

■

Auto/manual ranging

■

Dual display

■

Analog bar graph

■

Auto power off

■

Peak hold

■

Min/max/avg

■

Relative mode

■

20,000 count high

resolution mode

■

Backlight

■

Low battery indication

■

2-year warranty

600V

Industrial-Grade Multimeters

490 Series Specifications 61-494 61-495

RANGE & RESOLUTION BASIC ACCURACY

AC VOLTAGE

20.000m/200.00m/2.0000/20.000/200.00/750.0 V 0.7% 0.7%

DC VOLTAGE

20.000m/200.00m/2.0000/20.000/200.00/1000.0 V 0.06% 0.06%

AC CURRENT

20.000m/200.00m/2.0000/10.000 A 0.1% 0.1%

DC CURRENT

20.000m/200.00m/2.0000/10.000 A 0.3% 0.2%

RESISTANCE

200.00/2.0000k/20.000k/200.00k/ 0.6% 0.6%

2.0000M/20.000M/200.00M/2.0000G Ω

LV RESISTANCE 2.0000k/20.000k/200.00k/ 0.3% 0.3%

2.0000M/20.000M/200.00M Ω

CAPACITANCE 4.000n/40.00n/400.0n/4.000µ/ 40.00µ/

400.0µ/4.000m/40.00mF 0.9% 0.9%

FREQUENCY 20.000/200.00/2.0000k/20.000k/200.00k/1.0000M Hz 0.01% 0.01%

DUTY FACTOR 20% - 80% 1.0% 1.0%

TEMPERATURE -150° F to 2200° F (-100° C TO 1200° C) 0.1% 0.1%

Data acquisition and analysis

with 490 ProVision™ software.

Accessories

Includes

Carrying Case C-290

Premium Test Leads with Alligator Clips TL-100

Optional

Current Clamp Adapters (page E-30)

Magnetic Strap 61-565

ProVision™ Software* 61-900

RS-232 Cable* 61-902

*Included with 61-495

N12966

61-900

490 Series ProVision™

Software

490 Series

ProVision Software

490 Series

ProVision Software

61-902

Optical RS-232

Cable

For 490 and 630

Series Meters

61-461

Beaded K-type

thermocouple

61-465

Thermocouple Adapter

350 Series

1-800-435-0705 for Customer Service www.idealindustries.com E-5

Test and Measurement

61-350

61-354

TRMS, AC/DC current,

frequency, capacitance,

max/min

Features

■

AC/DC voltage

■

Auto/manual ranging

■

Non-contact voltage (80-600VAC)

■

Resistance

■

Audible continuity

■

Diode test

■

Data hold

■

Low battery indicator

■

Auto power off

■

2-year warranty

61-350 Series Meters

61-352

AC/DC current,

frequency,

capacitance, max/min

Accessories

Includes

Premium Test Leads w/Alligator Clips TL-100

Optional

Carrying Case C-290

600A AC/DC Clamp Adapter 61-334

Current Clamp Adapters 61-451

Magnetic Strap 61-565

600V

350 Series Specifications 61-350 61-352 61-354

RANGE & RESOLUTION ACCURACY RANGE & RESOLUTION ACCURACY RANGE & RESOLUTION ACCURACY

AC VOLTAGE

200.0m/2.000/20.00/200.0/750V 1.5% 200m/2/20/200/750 VAC 1.5% 200m/2/20/200/750 VAC 1.5%

DC VOLTAGE

200.0m/2.00/20.00/200.0/1000V 0.5% 200m/2/20/200/1000 VDC 0.5% 200m/2/20/200/1000 VDC 0.5%

AC/DC CURRENT

— 1.5% 2.000A/10.00 A 1.5% 2.000A/10.00 A 1.5%

RESISTANCE

200/2k/20k/200k/2M/20M Ω0.7% 200/2k/20k/200k/2M/20M Ω0.7% 200/2k/20k/200k/2M/20M Ω0.7%

CAPACITANCE

—

2.0%

2.00µ-200.0µ/2.000m F

2.0%

2n-200µ/2.000m F 2.0%

FREQUENCY

—

0.01%

2k/20k/200k/2M/20M Hz

0.01%

2k/20k/200k/2M/20M Hz 0.01%

Optional magnetic strap

frees up your hands

to help you work safe.

Each multimeter

has a non-contact

voltage indicator

feature.

N12966

61-565

Magnetic hand strap fits

Platinum Pro®and 350

Series Multimeters

360 Series

www.idealindustries.com 1-800-435-0705 for Customer Service

E-6

Test-Pro®

Contractor-Grade Multimeters

61-360

Max hold,

data hold

61-361

True RMS,

phase rotation,

capacitance,

frequency

Features

■

AC/DC voltage

■

AC/DC current

■

Resistance

■

Audible continuity

■

Manual ranging

■

Rugged construction

■

Auto power off

■

Low battery indication

■

2-year warranty

600V

360 Series Specifications 61-360 61-361

RANGE & RESOLUTION BASIC ACCURACY

AC VOLTAGE 200.0m/2000m/20.00/200.0/600 V

1.0% 2.0%

DC VOLTAGE 200.0m/2000m/20.00/200.0/600 V

0.5% 1.2%

AC CURRENT 2.000 A

1.5% 3.0%

DC CURRENT 2.000 A

1.0% 2.5%

RESISTANCE 200.0/2.000k/20.00k/200.0k/20.00M/200.0M Ω

1.0% 1.0%

CAPACITANCE

20.00µ/200.0µ/2.000m/20.00m F

— 4.0%

FREQUENCY

10.0-100.0k Hz

— 0.50%

PHASE —80-500V

ROTATION (50-500Hz)

Accessories

Includes

Standard Test Leads TL-58

Alligator Clip Lead K-7515

Optional

Carrying Case C-290

Current Clamp Adapters (page E-30)

N12966

61-565

Magnetic Strap fits 360

Series Multimeters

310 & 600 Series

1-800-435-0705 for Customer Service www.idealindustries.com E-7

Test and Measurement

61-605

Audible continuity,

auto power off, test

lead storage

61-310

Manual ranging, tests

batteries, DC current

61-312

Auto ranging, AC/DC

current, capacitance,

frequency, auto power

off, low battery indication

Features

■

Low cost, multi-function

■

Convenient pocket size

■

Built-in test stand

■

Overload protection on

all ranges

■

2-year warranty

310 Series Specifications 61-310 61-312 & 61-314 61-605

RANGE & ACCURACY RANGE & ACCURACY RANGE & ACCURACY

RESOLUTION RESOLUTION RESOLUTION

DC VOLTAGE 200.0m/2.000/20.00/200.0/600 VDC 0.8% 400.0m/4.000/40.00/400.0/600 VDC 0.8% 200.0m/2.000/20.00/200.0/600 V 2.0%

AC VOLTAGE 200.0/600 VAC 1.2% 4.000/40.00/400.0/600 VAC 1.2% 200.0m/2.000/20.00/200.0/600V 4.0%

CURRENT 200.0m/10 ADC 1.5% 400.0µ/4000µ/40.00m/400.0m/10A AC/DC 1.5% — —

RESISTANCE 200.0/2.00k/20.00k/200.0k/20M 1.0% 400.0/4.000k/40.00k/400.0k/4.000M/40.00M Ω1.0% 200.0/2.000k/20.00k/200.0k/ 3.0%

2.000M/20.00MΩ

CAPACITANCE — 3.0% 40.00n/400.0n/4.000µ/40.00µ/400.0µ F 3.0% — —

FREQUENCY — 3.0% 10.00/100.0/1.000k/10.00k/1.000M/10.00M Hz 3.0% — —

TEMPERATURE -4-1382°F (-20-750°C) 1.0% -4-1382°F (-20-750°C) 1.0% — —

61-314

Auto ranging, true RMS,

AC/DC current,

capacitance, frequency,

auto power off, low

battery indication

600 Series Pocket Meter

Features

■

AC/DC voltage

■

Current

■

Resistance

■

Audible continuity

■

Temperature

■

Data hold

■

Diode test

■

Large numbers displayed

■

Overload protection on

all ranges

■

Rubber boot

■

2-year warranty

310 Series Digital Meters

N12966

300V

600V

610 Serues

www.idealindustries.com 1-800-435-0705 for Customer Service

E-8

Features

■

Multi-color analog display with

mirrored scale

■

High-impact thermoplastic case

■

Battery test

■

2-year warranty

Analog Multimeters

61-614

Audible continuity,

built-in stand

61-610

Pocket size,

diode protected

610 Series Specifications 61-610 61-614

RANGE & RESOLUTION ACCURACY RANGE & RESOLUTION ACCURACY

AC VOLTAGE 10/50/250/500 V +/- 4.0% Full Scale 10/50/250/1000 V +/- 4.0% Full Scale

DC VOLTAGE 10/50/250/500 V +/- 3.0% Full Scale 2.5/10/50/250/1000 V +/- 3.0% Full Scale

DC CURRENT 500µ/50m/250m A +/- 3.0% Full Scale 5m/50m/500m/20 A +/- 3.0% Full Scale

RESISTANCE 1 M ΩFull Scale 10k/100k/10M ΩFull Scale

5 k ΩMid Scale +/- 3.0% Arc Length 50/500/50k ΩMid Scale +/- 3.0% Arc Length

DECIBELS -20 to +56 dB -8 to +62 dB

BATTERY TEST — 1.5 , 9.0 VDC

N12966

300V

Selection Guide

1-800-435-0705 for Customer Service www.idealindustries.com E-9

Test and Measurement

61-732

61-736

61-710

61-768

61-766

61-764

61-774

61-772

61-704

61-702

61-701

61-452

Clamp Meter Selection Guide

700 Series 730 760 Series 770

CLAMP METER SELECTION GUIDE

MEASUREMENT FUNCTIONS

AC Voltage • • • • • • • • • • • •

DC Voltage • • • • • • • • • •

AC Current • • • • • • • • • • • •

DC Current • •

Resistance • • • • • • • • • • • •

Audible Continuity • • • • • • • • • • •

Diode Test • • •

Capacitance • • • • •

Frequency • •

Temperature

Leakage Current •

FEATURES

Display Type (Analog or Digital) D D D D A D D D D D D D

AC Current Capacity 60 200 200 200 600 400 400 660 660 660 1000 1000

DC Current Capacity 660 1000

True RMS • • • • • •

Auto/Manual Ranging • • • • • • •

Data Hold • • • • • • • • • • •

Max Hold • • •

Inrush Current • • • • •

Min/Max • • • • • •

DCA Zero • •

Pointer Lock •

Auto Power Off • • • • • • • • • • •

Non-Contact Voltage Indication • • • • •

Harmonics Indicator • •

Vibration Mode • •

Analog Output

Backlight • • • • • •

Low Battery Indication • • • • • • • • • • •

High Voltage Warning • • • • • • • •

Overload Protection • • • • • • • • • • •

Conductor Size - Inches

1.2" 1.3" 1.3" 1.3” 1.2" 1.3" 1.3" 1.4" 1.4" 1.4” 2.0” 2.0”

(mm) (30) (33) (33) (33) (30) ( 33) ( 33) (36) (36) (36) (51) (51)

Warranty (years) 2 2 2 2 2 2 2 2 2 2 2 2

CERTIFICATIONS

UL 61010 Listed • • • • • • • • • •

CAT Rating III III III III III IV IV IV IV IV

CE ••••••••••••

CUS

700 Series

www.idealindustries.com 1-800-435-0705 for Customer Service

E-10

4-in-1 Test Tools

Features

61-701

Frequency, data

hold, max hold,

CAT III - 600V

61-704

True RMS,

backlight, vibration

mode to verify AC

voltage, harmonics

indicator, max hold,

CAT III - 1000V

■

200AAC current capability

■

Non-contact voltage

(40-600VAC)

■

Capacitance

■

Low battery indication

■

Overload protection on

all ranges

■

Integral lead storage

■

Audible dangerous voltage

warning on all ranges

■

Auto power off

■

Ergonomic hourglass shape

■

Compact clamp head

■

2-year warranty

Voltage Tester with

Shaker

Use it for tactile feel of

AC voltage.

Harmonics Tester

Use it to ensure that a circuit

contains clean power, free of

harmonic distortion.

200 Amp

Clamp/Multimeter

Use it for testing a variety of

electrical parameters on

branch circuits or at

receptacles.

Non-Contact

Voltage Tester

Use it for one-touch

indication of power without

test leads.

700 Series Specifications 61-701 61-702 & 61-704

RANGE & RESOLUTION BASIC ACCURACY RANGE & RESOLUTION BASIC ACCURACY

AC VOLTAGE 200.0/600 V 1.2% 2000m/200.0/750 V 1.2%

DC VOLTAGE 20.00/200.0/600 V 0.5% 2000m/200.0/1000 V 0.5%

AC CURRENT 200.0 A 3.0% 200.0 A 3.0%

RESISTANCE 200.0/200.0k ΩScale 1.0% 200.0/200.0k Ω1.0%

CAPACITANCE 200.0µ F 3.0% 200.0µ F 3.0%

FREQUENCY 2.000k/20.00k/40.00k Hz (Auto) 0.1% —

Jaw opening is 1.3” (33mm).

Accessories

Includes

Carrying Case C-700

Silicone Test Leads TL-102

N12966

61-702

Vibration mode to

verify AC voltage,

harmonics indicator,

max hold,

CAT III - 1000V

1000V

730 Series

1-800-435-0705 for Customer Service E-11

Test and Measurement

N12966

Features

■

Measures up to 400AAC

■

Non-contact voltage indicator

(70V-600VAC)

■

Tapered jaws with hook tip

■

Auto/manual ranging

■

Data hold

■

Auto power off

■

Low battery indicator

■

2-year warranty

400 Amp Clamp Meters

61-732

Accessories

Includes

Carrying Case C-90

Standard Test Leads TL-58

61-736

True RMS

730 Series Specifications 61-732 61-736

RANGE & RESOLUTION BASIC ACCURACY

AC CURRENT 40.00/400.0 A

1.7% 1.7%

AC VOLTAGE 400.0/600 V

1.2% 1.2%

DC VOLTAGE 400.0/600 V

0.5% 0.5%

RESISTANCE 400.0/4.000k/

40.00k 1.0% 1.0%

400.0k/4.000M/40.00M Ω

Jaw opening is 1.25” (32mm).

Compact jaw for use

in tight locations.

Tapered jaws with

hook tip for easy

wire separation

Data hold button

conveniently located

for thumb

Easy-to-read

large numbers

and symbols

Convenient one-touch

non-contact voltage

indication Auto/manual ranging

600V

760 Series

www.idealindustries.com 1-800-435-0705 for Customer Service

E-12

Safety First!

The complete line of industrial clamps from IDEAL was

designed to set a new standard for safety technology. It

starts with the revolutionary TightSight™display. It allows an

electrician to keep his head and face out of potentially

dangerous panels while viewing the measurement. The

high voltage indicator is another feature not to be taken for

granted. It indicates the presence of voltage through the

test leads even with the dial set to the wrong function. The

CAT III and IV ratings, rugged construction and UL listing

should give every electrician the confidence to go about

the job without worrying about equipment safety.

660 Amp Clamp Meters

w/TightSight™ bottom display

Features

600V

1000V

61-764

61-766

True RMS,

Capacitance,

Frequency

measurement via

clamp head or leads,

66AAC low range

61-768

660 ADC current

measurements,

True RMS

■

Measures up to 660AAC

■

Voltage-presence warning on all lead

functions (selectable audible)

■

Bright, bold backlit display

■

Tapered jaws with hook tip

■

Max/min

■

Inrush current

■

Audible continuity

■

Selectable auto power off

■

Data hold

■

Low battery indicator

■

2-year warranty

Accessories

Includes

Carrying Case C-760

Test Leads w/Alligator Clip TL-104

N12966

Tapered jaws with

hook tip for tight

locations and easy

wire separation

Data hold button and offset

thumb wheel for one-handed

operation

One-touch backlight

button for glowing

green display

illumination

Large numbers and symbols

are easy-to-read

Patented backlit TightSight™display for

viewing in dark, bright or tight locations;

Hinged rubber cover prevents display

damage (field replaceable)

Audible and visual high voltage

indication over 30V

AC/DC on all functions

Contains all the capabilities of

a full-function multimeter

Range & Resolution

760 Series 61-764 61-766 61-768 Accuracy

AC Current 66.00/660.0 A 660.0 A 1.7%

DC Current – – 660.0 A 1.5%

AC Voltage 660m/6.600/66.00/660.0/750 V 1.2%

DC Voltage 660m/6.600/66.00/660.0/1000 V 0.5%

Resistance 660.0/6.600k/66.00k/660.0k/6.6M/10M Ω1.0%

Capacitance – 6.600µ/66.00µ/660.0µ F – 3.0%

20 - 400 Hz

Frequency – Sensitivity: ≥5A for 20-100 Hz – 0.1%

≥10A for 100-400 Hz

Jaw Size 1.42” (36 mm)

770 Series

1-800-435-0705 for Customer Service www.idealindustries.com E-13

Test and Measurement

Features

■

Measures up to 1000A

■

Voltage-presence warning on all

lead functions (selectable audible)

■

Bright bold backlit display

■

Tapered jaws with hook tip

■

True RMS

■

Max/min

■

Inrush current

■

Audible continuity

■

Selectable auto power off

■

Data hold

■

Low battery indicator

■

2-year warranty

61-774

AC/DC current,

capacitance

1000 Amp Clamp Meters

w/TightSight™ bottom display

Accessories

Includes

Carrying Case C-770

Test Leads w/Alligator Clip Lead TL-104

Exclusive TightSight™

Display

61-772

N12966

600V

1000V

Range & Resolution

770 Series 61-772 61-774 Accuracy

AC Current 66.00/660.0/1000 A 1.7%

DC Current – 660.0/1000 A 1.5%

AC Voltage 660m/6.600/66.00/660.0/750 V 1.2%

DC Voltage 660m/6.600/66.00/660.0/1000 V 0.5%

Resistance 660.0/6.600k/66.00k/660.0k/ 1.0%

6.6M/10M Ω

Capacitance – 6.600µ/66.00µ/ 3.0%

660.0µ F

Jaw Size 2” (51 mm)

Clamp Meters

www.idealindustries.com 1-800-435-0705 for Customer Service

E-14

Features

■

40mA to 60AAC

current capability

■

Data hold

■

Analog bar graph

■

Min/max

■

2-year warranty

Includes carrying case

61-452

61-710

600AAC current, Ohms scale on

dial drum, broad frequency

response (50 to 400 Hz)

Features

■

Analog display

■

Pointer lock

■

2-year warranty

Includes carrying case

710 Series Specifications 61-710

RANGE & RESOLUTION ACCURACY

AC VOLTAGE 150/300/600 V 3.0% F.S.

DC VOLTAGE —

AC CURRENT 6/20/60/200/600 A 3.0% F.S.

RESISTANCE 2k Ω3.0% F.S.

TEMPERATURE —

Analog Clamp Meter

N12966

300V

Leakage Current Clamp Meter

Current Clamp Specifications 61-452

RANGE & RESOLUTION ACCURACY

AC VOLTAGE 400.0 V 1.5%

AC CURRENT 40.00/400.0m/4.000/40.00/60.0 A 2.0%

RESISTANCE 400.0 Ω1.0%

N12966

Combo Cases™

1-800-435-0705 for Customer Service www.idealindustries.com E-15

Test and Measurement

Features

■

Top selling tools in rugged cases

■

Unmatched value

■

Large storage compartments

■

2-year warranty

Combo Cases™

61-2000

Tester Combo Case™ Includes:

#61-086 Vol-Con®XL Voltage Tester

#61-534 Circuit Breaker Finder

#61-063 Non-Contact Voltage Tester

61-2002

Clamp Combo Case™ Includes:

#61-766 TightSight™ Clamp Meter

#61-521 Phase Rotation Tester

61-2001

Meter Combo Case™

Includes:

#61-350 Multimeter

#61-732 400 Amp Clamp

16 www.testersandmeters.com

Exclusive Rotating Display

Revolutionary technology in the

SureTest®958 rotates the display in

90° increments so that you always

receive an upright reading. Even when

the receiver is pointing down, you can

keep up.

Transmitter will work on a

de-energized circuit and won’t affect

GFCIs and sensitive equipment on an

energized circuit. AA batteries provide the

transmitter and receiver

4x the power.

Features

■

Identifies breakers and fuses

■

Pinpoints opens and shorts

■

Traces wires

■

“0-99” display of signal strength

■

Audible intensifies in tone/pitch

■

Can be used on circuits

0-600V AC/DC

■

Works on energized or

de-energized circuits

■

Four modes of sensitivity –

search high, search low,

trace and breaker

■

Peak bar graph

■

2-year warranty

SureTest®Open/Closed Circuit Tracers

61-954

Standard LED

receiver, transmitter,

test lead set

61-956

Super bright

rotating OLED

display, transmitter,

test lead set

61-958

Super bright rotating

OLED display receiver,

transmitter, test lead

set, inductive clamp,

battery pack

The only

circuit tracer

with

SwivelDisplay™

The only

circuit tracer

with

SwivelDisplay™

600V

Circuit Tracers

www.idealindustries.com 1-800-435-0705 for Customer Service

E-16

Circuit Tracers

1-800-435-0705 for Customer Service www.idealindustries.com E-17

Test and Measurement

IC-958, BP-958

Inductive Clamp w/

Battery Pack

Accessories

Includes

Fuse – High-energy, Fast-acting, 1A/1000V F-956

Magnetic Strap 61-565

Tracer Test Lead Set (includes 1-6 below) TL-956

1. Outlet Plug Adapter for Transmitter TLOP-956

2. Blade Prongs for Lead Adapters (2/set) TLBP-956

3. Ground Prong for Lead Adapter TLGP-956

4. Alligator Clips for Lead Adapters (2/set) TLAC-956

5. 3 ft. Lead Adapters for Transmitter (2/set) TLA1-956

6. 25 ft. Lead Adapter for Transmitter TLA2-956

SureTest®Circuit Tracers

Kit Components

In Breaker Mode

receiver identifies the correct circuit to

which the transmitter is connected.

N12966

RC-954

Receiver

Red LED display

Kit Contents 61-954 61-956 61-958

Transmitter TR-958 TR-958 TR-958

Receiver RC-954 RC-958 RC-958

Tracer Test Lead Set TL-956 TL-956 TL-956

Inductive Clamp IC-958

Battery Pack BP-958

Hard Carrying Case C-954 C-954 C-958

Batteries ■■■

Instruction Manual ■■■

RC-958

Receiver

Bright OLED

rotating display

TR-958

Transmitter

SureTest®Circuit Tracer Specifications

Transmitter:

Operating Voltage 0 - 600V AC/DC

Battery Power 1.5V x (4) AA batteries (NEDA 15A, IEC LR6)

Battery Life 25 hours open circuit testing/6 hours short circuit tracing

Indicators On/Off, Line energized, low battery

Receiver:

Sensing Magnetic

Battery Power 1.5V x (3) AA batteries (NEDA 15A, IEC LR6)

Battery Life 20 hours

Made in USA

Inductive Clamp

allows you to induce a tracer signal

on the cable without affecting the low

voltage signals on the circuit.

Sorting Wires

Individual wires can be sorted, opens

can be located and shorts can be

isolated.

TL-956

Test Lead Kit 1

Ground Resistance Meters

www.idealindustries.com 1-800-435-0705 for Customer Service

E-18

61-920

Ground Resistance Clamp

Meter

Large clamp size, backlight,

saves up to 99 measurements

Specifications 61-920 61-788 61-789

RANGE & RESOLUTION ACCURACY RANGE & RESOLUTION ACCURACY RANGE & RESOLUTION ACCURACY

GROUND RESISTANCE 0/120/1200Ω1.5% 200.0/2.00kΩ2.0% 400.0/600/1500 Ω2.0%

GROUND LEAKAGE CURRENT 100m/1000m/15/30 A 2.0% — —

SOIL RESISTIVITY —— —20.00/200.0/2.000k/20.00kΩ2.0%

Features

■

Ground resistance

measurements

■

Auto ranging

■

Auto power off

■

2-year warranty

61-788

MEGGER®3-Pole Meter

2- & 3-point fall of potential

methods, easy single push-

button operation, includes

terminal shorting bars,

rugged weatherproof

construction, optional lead

set (61-798) not included 61-789

MEGGER®4-Pole Meter

3- & 4- fall of potential

methods, soil resistivity, easy

single push-button operation,

includes terminal shorting

bars, rugged weatherproof

construction, optional lead set

(61-798) not included.

61-798

MEGGER®Earth Resistance Lead

Set Kit

Kit includes four silicone test leads

with alligator clips (3,15, 30, 50m),

20 in. auxiliary grounding rods (2 pr.)

and padded nylon carrying case

MEGGER®is a registered trademark of Megger, Inc.

*Clamp accomodates conductor size up to 1.25 in. (32mm).

300V

N12966

Insulation Testers

1-800-435-0705 for Customer Service www.idealindustries.com E-19

Test and Measurement

61-791

MEGGER®Hand-held

Insulation Tester

Test voltage: 250/500/1000V,

test inhibition >25V, default

voltmeter to 600V AC/DC,

digital display with analog

arc, auto discharge, auto

power off, auto ranging,

protective rubber boot,

continuity, low battery

indication, Cat III – 300V,

includes carrying case

Features

■

Checks new installations for

proper insulation

■

Checks existing installations

and motor windings for

breakdowns in insulation

■

2-year warranty

300V

61-792

MEGGER®5kV Insulation

Tester

500V/1000V/2500V/5000V

test voltages, battery or

hand-crank operation, auto

discharge, AC/DC voltage

to 600V, battery test,

Cat III - 300V, includes

carrying case

N12966

Insulation Tester

Specifications 61-791 61-792

RANGE & RESOLUTION ACCURACY RANGE & RESOLUTION ACCURACY

TEST VOLTAGE 250/500/ 500/1000/

1000 V 2500/5000 V

INSULATION 5.0%

RESISTANCE 999MΩ3.0% 100k - 20GΩ

CONTINUITY 0.01-100Ω3.0%

MEGGER®is a registered trademark of Megger, Inc.

www.idealindustries.com 1-800-435-0705 for Customer Service

E-20

Power Analyzer Display Screens

3-Phase Power Analyzer

The IDEAL Power Quality Analyzer is a versatile and easy-to-use tool that will give you the information you need to get the job done.

The unit measures and analyzes power quality on both single-and three-phase electrical systems. Instaneous readouts of current,

voltage, power and harmonics including tables, bar graphs and even individual waveforms, make job site data interpretation easy. With

a real-time clock and 1MB of memory, the Power Analyzer stores data that can be downloaded to a personal computer for in-depth

analysis using PowerVision™ software.

It’s everything a professional needs for monitoring and analysis in a single unit: rugged, versatile and

easy to use. Models available with 3 or 4 current channels to meet your needs and budget.

■

True RMS

■

Single- or three-phase measurements

■

Data logging (1MB memory)

■

Up to one month of recording time

■

4-channels for voltage measurements

■

4-channels for current measurements*

■

Auto ranging

■

Min/max/avg

■

Energy and Harmonics Program

■

PowerVision™ Software

■

Lightweight, portable design

■

Easy-to-use push-button operation

■

Backlit display

■

Customized data collection

■

2-year warranty

■

Optional FIFO memory

■

Real-time clock

■

Programmable trigger-points and

start/stop time

■

Intelligent battery charging system

■

Easy set-up

■

Interactive demo CD

Power & Energy Measurements

■

Kilowatts (KW)

■

Volt-amperes (VA)

■

Inductive reactive power (kvarL)

■

Capacitive reactive power (kvarC)

■

Power factor (PF)

■

Frequency

■

Kilowatt hours (kWh)

■

Reactive power per hour (kvarhL,

kvarhC)

Features

Program Setup Table Exploded View Bar Graph Scope View Waveform Zoom

800 Series

Harmonics Measurements

■

Total harmonic distortion (% THD)

■

Harmonic factorization (FFT) to 51st

harmonic

*Model 805 equipped with three channels for

current

Power Analyzer Specifications 61-805, 61-806, 61-807

RANGE & RESOLUTION ACCURACY

AC VOLTAGE 20 to 600 V (phase-neutral) 0.5%

20 to 866 V (phase-phase) 0.5%

AC CURRENT 10 to 1000 A (with supplied clamp adapters) 1.0%

ACTIVE POWER 866 kW (with supplied clamp adapters) 1.0%

REACTIVE POWER 866 kW (with supplied clamp adapters) 1.0%

POWER FACTOR 0.5 to 1.0 1.0%

800 Series

1-800-435-0705 for Customer Service www.idealindustries.com E-21

Test and Measurement

PowerVision™ Software

Standard Equipment

Accessory Clamps

RS-232

Interface/

Power Supply

Power Analyzer

1000AAC

Clamp Adapters

N12966

RS-232

Interface/

Power Supply

100AAC

Neutral Clamp

200/2000/20000AAC

Flexible Clamp Adapters

Current and Voltage Harmonic Distortion

600V

Accessories

1000AAC clamps (set of 3) 61-811

100AAC neutral clamp (1) 61-813

5AAC compact neutral clamp (blue) 61-814

2000AAC clamps (set of 3) 61-810

500AAC clamps (set of 3) 61-812

5AAC compact clamps (set of 3) 61-819

100AAC compact clamps (set of 3) 61-820

100AAC compact neutral clamp (blue) 61-821

200/2000/20000AAC Flexible clamp

adapters (set of 3) 61-457

Standard Equipment 61-805 61-806 61-807

1000AAC Clamps (61-811) • • •

100AAC Neutral Clamps (61-813) •

Voltage leads with •• •

Alligator Clips (TL-806)

Power supply with RS-232 Interface •• •

and cables

PowerVision™ Analysis Software • • •

Demonstration CD and Instructions • • •

Protective Carrying Case • • •

Test Leads with

Alligator Clips

5AAC Compact

Current Clamp 100AAC Compact

Current Clamp 100AAC

Current Clamp 500AAC

Current Clamp 2000AAC

Current Clamp

PowerVision™ software provides intuitive analysis of data and automatic generation

of useful tables and graphs. Files are easily downloaded from any 800 series unit.

PowerVision™ provides multiple ways to view basic and detailed information,

allowing you to customize readouts according to your trouble shooting needs.

Compare up to 12 variables simultaneously. Easily scroll through, expand and

collapse data over time. Compare data from multiple files to show before and after

studies. Data can be exported to text files, databases, graphs and tables can be

pasted into Excel or Word reports. Highly-trained technical support people are

always a phone call away.

Specifications 61-830

Operating Range 15-265V

Memory 512 events

Sampling Method Continuous (128 samples per cycle)

Voltage Accuracy 1%

Impulse Detection 6µs, 4kV

THD FFT calculation

N12966

See voltage through the eyes of your equipment

Poor voltage quality increases facility expenses, warranty costs and downtime

plus shortens the life of equipment. The IDEAL VPM identifies voltage

conditions that can damage equipment or cause equipment failure.

Applications

Monitor voltage near sensitive equipment

• Installation and Service Technicians

– Monitor voltage at point of equipment connection

• Electricians

– Eliminate guesswork on service calls

• Building Maintenance Technicians

– Identify voltage caused equipment failures

• Equipment Manufacturers

– Eliminate unnecessary warranty costs

• Hospital/IT Maintenance Engineers

– Monitor voltage quality to critical equipment

61-830

E-22

Accessories

Includes

Replacement Adapters (set of four) PA-830

Replacement Carrying Case 61-179

Optional

Alligator Clip Adapters (2-wire) TL-532

1 ft. US Extension Cord 61-177

Kit w/(1) SureTest®164,

(2) VPM 61-830, Soft Case 61-2003

Kit w/(1) SureTest®164,

(4) VPM 61-830, Soft Case 61-2004

Power Quality Monitor

Features

■

Real-time TRMS voltage, frequency and

harmonics monitoring

■

Logs voltage, sags, swells and impulses

■

Measures %THD and logs periods over

3% (line to neutral)

■

Selectable thresholds based on the most

accepted international standards, defaults to ITIC*

■

Custom programmable event thresholds

■

Invertible display, when it is necessary

to plug in upside down

■

2-year warranty

*Captures events that would affect equipment on

branch circuit

300V

Voltage Performance Monitor (VPM)

Monitor Screen: Real-time

information on voltage, voltage

events and harmonics.

Log Screen: Review events by

category or chronological order.

Event Detail: Provides a time stamp

with event magnitude and duration.

Impulse Detail: Fast response catches

positive and negative impulses up to

4kV.

Set Standard: Select from more than

a dozen threshold options based on

existing standards or customize your

own (defaults to ITIC).

Voltage Performance Monitor

Display Screens

www.idealindustries.com 1-800-435-0705 for Customer Service

SureTest®Circuit Analyzers

1-800-435-0705 for Customer Service www.idealindustries.com E-23

Test and Measurement

Features

■

Super-bright display

■

High accuracies

■

Measures voltage drop under full load*

■

True RMS

■

Line voltage

■

Peak voltage

■

Frequency

■

Ground to neutral voltage

■

Ground impedance

■

Hot and neutral conductor impedances

■

Identifies proper wiring in 3-wire

receptacles

■

Identifies false (bootleg) grounds

■

Tests GFCIs and EPDs for proper operation

■

Conducts testing without disturbing

sensitive loads

■

Verifies isolated grounds

(with 61-176 adapter)

■

2-year warranty

*12A, 15A, 20A load tests

61-165

Tests AFCIs for proper

operation, tests for

shared neutrals

61-183

Accessories

Includes

Carrying Case 61-179

1’ Extension Cord 61-182

Optional

Ground Continuity Adapter 61-175

Isolated Ground Adapter 61-176

Alligator Clip Adapter 61-183

Made in USA

SureTest®160 Series Specifications

RANGE & RESOLUTION BASIC ACCURACY

AC VOLTAGE 85.0 - 265.0 VAC 1.0%

FREQUENCY 45.0 - 65.0 Hz 1.0%

IMPEDANCE 0.00 - 1.99 Ω5.0%

GROUND-NEUTRAL VOLTAGE 0.0 - 24.0 VAC 2.0%

% VOLTAGE DROP 0.1% - 50.0% 5.0%

12A, 15A, 20A load tests

GFCI TEST CURRENT 6.0 - 9.0 mA 2.0%

Times out after 6.5 seconds 0.0 - 6500 mS

300V

SureTest®Circuit Analyzers

61-164

61-175 and 61-176

Ground Continuity and

Isolated Ground Adapters,

respectively

61-182

1-ft. Extension Cord

Circuit Identifiers

www.idealindustries.com 1-800-435-0705 for Customer Service

E-24

Features

■

Fully automatic operation

■

Positively identifies circuit breakers

and fuses without service interruption

■

Self calibrating

■

Visual and audible indicators

■

2-year warranty

61-534

Circuit Identifier with Digital

Receiver

Microprocessor controlled

sensitivity level, verifies proper

wiring, checks GFCI operation,

non-contact voltage, works on

120 and 240V circuits

TL-532

Alligator Plug Adapter

Circuit Identifiers

61-532

Circuit Identifier with

Analog Receiver

Accessories

Optional

Carrying Case C-290

Alligator Clip Adapter TL-532

Circuit Identifier Specifications

61-532 61-534

OPERATING VOLTAGE 100 - 140 VAC 100 - 250 VAC

OPERATING FREQUENCY 47 - 63 Hz 47 - 63 Hz

N12966

Receptacle Testers

1-800-435-0705 for Customer Service www.idealindustries.com E-25

Test and Measurement

61-035

E-Z Check®

Circuit Tester

■

Tests AFCIs for proper operation

■

Tests GFCIs for proper operation

■

Tests for shared neutrals

■

Verifies wiring configuration

■

Compact size fits comfortably in pocket

■

1-year warranty

Features

■

Warns against faulty wiring

in 3-wire receptacles

■

For use on 125VAC circuits

■

1-year warranty

61-501

GFCI

Receptacle Tester

Tests GFCI

receptacles for

proper operation

Features

E-Z Check®Circuit Testers

SureTest®Arc Circuit Tester

Receptacle Testers

61-500

Receptacle

Tester

61-058

SureTest®Arc

Circuit Tester

Tests AFCI/GFCI

devices for proper

operation

Made in USA

61-051

E-Z Check®Plus

GFCI Circuit Tester

Tests GFCI

receptacles for

proper operation

■

Tests for correct wiring, open ground, reverse

polarity, open hot, open neutral, hot on neutral,

hot and ground reversed with open hot, and

ground fault interruption in 3-wire, 125VAC

circuits

■

No-slip ergonomic design maximizes comfort

■

Premium neon lamps prevent false readings

■

Tough, impact-resistant case

■

Tests GFCI receptacles for proper operation

■

2-year warranty

Features

Accessories

Optional

1’ Cord Adapter 61-177

Allligator Clip Adapter 61-184

Carrying Case with Belt Clip C-50

61-184

Alligator Clip Adapter

C-50

Carrying Case

61-177

1-ft. Extension Cord

Digital Voltage Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

E-26

61-092

Vibration mode

Features

61-090

Non-contact voltage sensor easily

locates breaks in power cords.

Vibration mode gives a tactile

indication of the voltage level.

1000V

Vol-Con®Elite Voltage Testers

■

Digital circuitry for better

resolution

■

Tests for AC Voltage from 24-600VAC

■

Tests for DC Voltage from 6-220VDC

■

Audible continuity

■

Non-contact voltage indication

■

Low impedance to eliminate ghost

voltages

■

Low battery indicator

■

Replaceable silicone test leads

■

Integral lead storage

■

2-year warranty

Accessories

Includes

Silicone Test Leads TL-102

Optional

Carrying Case C-90

N12966

1-800-435-0705 for Customer Service www.idealindustries.com E-27

Test and Measurement

Accessories

Includes

Standard Test Leads 61-070

Optional

Resistor-fused Leads* 61-072

Padded Nylon Case C-90

Leather Case 61-010

*Special, current-limiting resistor in each lead acts as a fuse to

open in a short-circuit situation.

Features

61-065

Vol-Test® Voltage Tester

Tests from 100-600V AC/DC

61-076

Vol-Con®Voltage/

Continuity Tester

Automatic switching

continuity tester, tests

from 5-600V AC/DC

Made in USA

61-086

Vol-Con®XL

Voltage/Continuity

Tester

Audible continuity,

audible voltage

indication, tests from

6-600V AC/DC

61-085

Vol-Test®XL

Voltage Tester

Tests from

80-600V AC/DC

Features

600V

■

Extremely rugged and reliable tester

■

Vibrates when voltage is present

■

Tests AC/DC Voltage

■

Replaceable leads with shielded probe tips

■

Bright, long-life LED’s and neon indicator

■

Dual voltage indication for backup safety

■

Compact size

■

2-year warranty

Accessories

Includes

Standard Test Leads TL-80

Optional

Resistor-fused Leads* TL-82

Padded Nylon Case C-90

Leather Case 61-010

*Special, current-limiting resistor in each lead acts as a fuse to

open in a short-circuit situation.

N12966

Solenoid Voltage Testers

XL-Series Solenoid Voltage Testers

■

Extremely rugged and reliable

■

Vibrates when voltage is present

■

Tests for AC Voltage

■

Tests for DC Voltage

■

Replaceable leads with shielded probe tips

■

Bright, long-life LED’s and neon indicator lamp

■

Dual voltage indication for backup safety

■

2-year warranty

AUDIBLEAUDIBLEAUDIBLE

600V

Solenoid Voltage Testers

Electrical Tester

www.idealindustries.com 1-800-435-0705 for Customer Service

E-28

61-096

Split-Jaw™

Features

■

Measures 0.1-200AAC*

■

Measures 1.3-750VAC

■

Measures 0.1-1000VDC

■

Measures 0.1-2000Ω

■

Audible continuity

■

Data hold

■

Integral lead storage

■

Replaceable test leads

■

Auto power off

■

Low battery indication

■

2-year warranty

Specifications 61-096

AC VOLTAGE 1.3 - 750 V 1.5%

DC VOLTAGE 1.8 - 1000 V 1.0%

-0.6 - 1000 V

AC CURRENT 0.6 - 200.0 A 3.0%

RESISTANCE 0 - 2000 Ω1.0%

*Note: Jaw opening is 0.6 in. (16mm) - up to 1/0 copper cable

1000V

600V

Accessories

Optional

Carrying Case C-90

Split-Jaw™ Smart Meter

AC Amps

Ohms/

Continuity

AC/DC Volts

N12966

Electrical Testers

1-800-435-0705 for Customer Service www.idealindustries.com E-29

Test and Measurement

1-800-435-0705 for Customer Service www.idealindustries.com

Features

■

Indicates presence of voltage from 50-1000VAC

■

Visual indication of voltage

■

Selectable audible indication of voltage

■

Sleek, compact design

■

Green LED indicates power on

■

Low battery indicator

■

Battery replacement (AAA size)

■

2-year warranty

VoltAware™ Non-Contact Voltage Tester

Features

■

Checks continuity of

dead circuits and

ground on conduit

systems and

identifies wires in

multi-wire cables

■

Light signal indicates

completed circuit

■

Bulb-in end can serve

as flashlight

■

Pocket clip functions as probe

■

Removable 4-ft. test lead with alligator clip

■

1-year warranty

Continuity Tester

Twin Lead Tester

■

Check voltage from

80V to 500V AC/DC

■

Heavy-duty test probes

■

1-year warranty

Features

61-503

Twin Lead

Tester

61-025

VoltAware™ NCV

Tester

Overmolded cushion

grip

N12966

61-063

Volt-Sensor®

NCV Tester

Overmolded cushion

grip

■

Industrial-quality

tester checks

voltage from

80V to 600V AC/DC

■

Neon test lamp at

front of probe

■

Resistors reduce voltage

reaching leads

■

24-in. lead — rated 1,000V

■

1-year warranty

Features

61-040

Test-Glo™ Circuit

Tester

Circuit Tester

1000V

61-030

Continuity Tester

N12966

Features

■

Tests for voltage from 40V to 600VAC

■

Audible and visual indication

■

Locates breaks along live insulated wires

■

Tests for energized circuits

■

1-year warranty

Non-Contact Voltage Tester

600V

Specialty Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

E-30

61-521

3-Phase/Motor

Rotation Tester

Features

■

Identifies three-phase sequence

■

Indicates motor rotation

■

Checks for open phases

■

For use up to 600V

■

2-year warranty

Includes carrying case

3-Phase/Motor Rotation Testers

600V

N12966

Features

■

For use up to 600V

■

Color-coded insulators over alligator clips

■

Shock resistant housing

■

Easy to read

■

2-year warranty

Includes carrying case

61-520

3-Phase/Motor

Rotation Tester

N12966

Light Meter

61-681

Digital Light Meter

Features

■

Wide lighting range

■

Foot candle and lux measurement

■

Remote light sensor

■

Cosine and color corrected

■

Peak hold

■

Low battery indication

■

2-year warranty

Includes carrying case

Specifications 61-681

RANGE & RESOLUTION ACCURACY

FOOT CANDLES 20.00/200.00/2000.0/200000 2%

LUX 20.00/200.00/2000.0/200000 2%

N12966

61-682

Infrared Thermometer

Features

■

15:1 angle of viewability

■

Built-in laser pointer

■

Backlit display

■

Auto power off

■

Measures temperatures from 0° F to 500°F

(-18° C to 260°C)

■

2-year warranty

Includes carrying case

Infrared Thermometer

Specifications 61-682

RANGE & RESOLUTION ACCURACY

0° F to 500° F (-18° C to 260° C) 3.0%

N12966

Clamp Adapters

1-800-435-0705 for Customer Service www.idealindustries.com E-31

Test and Measurement

61-332

200AAC

61-333

500AAC

Features

■

Provide safe, easy measurement of

AC current

■

Extend the current measurement

capabilities of digital multimeters

■

AC milli-volt output

(1mVAC = 1mA)

61-436

1000AAC

2’ lead length

Features

Flexible Clamp Adapters

61-334

600A AC/DC

2’ lead length

61-331

300/3000AAC

61-330

1000AAC

Specifications 61-330 61-331 61-332 61-333 61-334 61-436 61-451

AC CURRENT

1000 A 300/3000 A 200 A 500 A 600 A 1000 A 300 A

DC CURRENT ————

600 A

——

OUTPUT SIGNAL

1mV/A 1mV/A/10mV/A 1mV/A 1mV/A 1mV/A 1mV/A 1mV/A

MAX CONDUCTOR SIZE

8” (19cm) 8” (19cm) 0.78” (19.8mm) 1.18” (30mm) 1.125” (28.5mm) 2.25” (57.1mm) 0.91” (23mm)

SENSOR LENGTH

24” (61cm) 36” (91cm)

—— —— —

■

Provide safe, easy measurement of high

AC currents

■

Large opening and flexible materials to

wrap around conductors and bus bars

■

Shape Memory allows pre-forming

before installation

■

Extend the current measurement

capabilities of digital multimeters

61-451

300AAC

Current Clamp Adapters

Line Splitter

N12966

61-561

Line splitter with direct

and 10x sensitivity

Carrying Cases

www.idealindustries.com 1-800-435-0705 for Customer Service

E-32

61-010

Leather case for use

with voltage testers

C-290

Nylon carrying case

for use with DMM’s

61-445

Small nylon carrying

case with four

convenient pockets

61-447

Large nylon carrying

case with six large

inside pockets and

one zippered outside

pocket

61-020

Premium leather case

for use with voltage

testers

C-90

Nylon carrying case

for use with all

Vol-Con®and

Vol-Test®Testers

Carrying Cases

Carrying Case Selection Guide

61-452

700 Series 730 760 Series 770

CLAMP METER CARRYING CASE

SELECTION GUIDE

61-179 Nylon Carrying Case • •

C-452 Nylon Carrying Case •

C-700 Nylon Carrying Case •••

C-730 Nylon Carrying Case ••

C-760 Carrying Case • • •

C-770 Nylon Carrying Case ••

Voltage Testers

TESTER CARRYING CASE

SELECTION GUIDE

61-010 Leather Tester Case ••

61-020 Premium Leather Tester Case ••

61-179 Nylon Carrying Case • •

C-50 Nylon Carrying Case •

C-90 Nylon Carrying Case ••••••••

C-954 Hard Carrying Case ••

C-958 Hard Carrying Case •

320 Series 350 360 490 600 Series 610 630

MULTIMETER CARRYING CASE

SELECTION GUIDE

C-290 Nylon Carrying Case ••••••••••••• ••

61-354

61-360

61-361

61-494

61-495

61-602

61-603

61-609

61-610

61-614

61-633

61-635

61-320

61-322

61-324

61-350

61-352

61-732

61-736

61-764

61-766

61-768

61-772

61-774

61-701

61-702

61-704

61-065

61-058

61-076

61-085

61-086

61-681

61-682

61-164

61-165

61-954

61-956

61-958

61-090

61-092

Accessories

1-800-435-0705 for Customer Service www.idealindustries.com E-33

Test and Measurement

Test Lead Kits

Test Leads

TL-435

Industrial Test Lead Kit

Kit contains: 1.5m silicone lead set, probes w/SS

tips, rigid alligator clips, flex pincer clips,

insulated alligator clips, insulated spade lugs and

padded zipper pouch, 1000V, 10A rating

TL-58

Standard Test

Leads

TL-102

Silicone Test

Leads

TL-436

Electrical Test Lead Kit

Kit contains: 1.5m silicone lead set,

probes w/SS tips, insulated alligator

clips and tri-fold pouch, 1000V, 10A

rating

TL-100

Premium Test

Leads

with alligator

clips

TLF-252

Fused test leads

with alligator clips,

10A/600V,

CAT III - 1000V

TL-104

Test Leads

w/Alligator

Clip

61-461

Beaded K-type

Thermocouple

Features

Thermocouples

■

Measures up to 1500˚ F (816˚ C)

■

K-type thermocouples plug into

digital multimeter or clamp meter

voltage ports with 61-465 adapter

61-465

Thermocouple Adapter

Replacement Parts/Safety

www.idealindustries.com 1-800-435-0705 for Customer Service

E-34

Safety in the Field

The power demands of today’s high-tech world have caused a marked increase in

occurrences and levels of transient overvoltages. The International Electrotechnical

Commission (IEC) has developed a safety standards model for measurement, control

and laboratory use.

Category I – The signal level for telecommunications, electronic and other low-energy

equipment with transient-limiting protection. Peak impulse transient range is 600–4,000

volts with a 30 ohm source.

Category II – The local level for fixed and non-fixed powered devices including

appliances, lighting and portable equipment. Outlets located more than 30 feet from

CAT III sources and 60 feet from CAT IV sources. Peak impulse transient range is from

600–6,000 volts with a 12 ohm source.

Category III – The distribution level for fixed primary feeders or branch circuits.

Circuits that are separated from CAT IV sources by at least one level of transformer

isolation. Peak impulse transient range is 600–8,000 volts with a 2 ohm source.

Category IV (proposed) – The primary supply level for the highest levels of transient

overvoltage. Includes the utility service both outside and at the service entrance,

service drop from the pole to the building, overhead line to remote buildings, and

underground line to a well pump. Peak impulse transient range is 600–12,000 volts

with less than a 1 ohm source.

CAT I

Copiers

• Electronic

equipment

• Low energy

equipment with

transient limiting

protection

CAT II

Appliances,

PCs, TVs

• Outlets and long

branch equipment

• All outlets at more

than 10m (30 ft)

from Category III

source

• All outlets at more

than 20m (60 ft)

from Category IV

source

CAT III

MC Panels

• Feeders and short

branch circuits

• Distribution

panel devices

• Heavy appliance

outlets with “short”

connections to

service entrance

CAT IV

Exterior

Transformers,

Meters

• Outside and

service entrance

• Service drop from

pole to building

• Overhead line to

detached building

• Underground line

to well pump

Service

Entrance

Service

Entrance

Meter

Transformer

Outbuilding

Underground Service

Service

Entrance Outbuilding

Underground Service

310 Series 320 Series 350 Series 360 450 490 600 610 700 Series 710 730 760 Series 770

METER REPLACEMENT

PARTS SELECTION GUIDE

FUSES

F-1 0.5A (250V)0.25 x 1.25 in. ••

F-102 1A (600V).41 x 1.5 in. •• ••

F-103 15A (600V).41 x 1.5 in. ••

F-310 250mA (250V) 5 x 20mm •

F-312 500mA (250V) 5 x 20mm • •

F-314 10A (250V) 5 x 20mm • •

F-350 10A (500V) 6.35 x 32mm ••

LA-3893 2A (600V)6.35 x 25.4mm •

LA-3895 0.5A (250V)5 x 20mm •

LA-3896 0.5A (500V)6.35 x 32mm •

LA-3897 10A (600V)6.35 x 25.4mm •

LA-3898 0.1A (250V)5 x 20mm •

BATTERIES

61-201 1.5V (LR44)•

— 1.5V (AA)••• • •• •

— 1.5V (AAA) • ••

— 9V •• •• •• ••• ••• ••

TEST LEADS

TL-34 Leads w/pin connectors •

TL-54 Test Leads

TL-58 Standard ••• •• • • ••

TL-100 Premium leads w/alligator clips ••• ••

TL-102 Silicone test leads •••

TL-104 Test leads w/alligator clips •• • ••

RUBBER BOOTS

61-370 360 Series rubber boot ••

C-92 Pocket-style meters rubber boot

C-320 320 Series rubber boot •••

C-490 490 Series rubber boot ••

MISCELLANEOUS

61-565 Magnetic Strap ••• ••• ••

Replacement Parts Selection Guide

61-614

61-701

61-702

61-704

61-764

61-766

61-768

61-710

61-610

61-605

61-320

61-322

61-324

61-310

61-312

61-314

61-350

61-352

61-354

61-360

61-361

61-452

61-494

61-495

61-732

61-736

61-772

61-774

DataComm

Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

F-2

LANTEK®6/6A/7G LAN Cable Certification Testers

LANTEK offers a family of high performance cable certification testers to support a full range of LAN cable testing. The LANTEK family

of certification testers uses the IDEAL patented measurement system that removes the effects of ordinary patchcords, thus making

channel and permanent link certification of a cable standard such as CAT6a or ISO-F possible without changing adapters. The same

patented technology also makes DUALmode Testing possible so the users can get any two test results simultaneously. As a result, the

LANTEK Cable Certification Testers save you money and time on the job.

■LANTEK 7G 1GHz is the world’s first independently verified Level IV accurate LAN cable certification tester capable of testing installations

up to 1 GHz, exceeding the requirements for CAT6a/7/ISO-F.

■LANTEK 6A 500MHz is a Level IIIe verified certification tester designed to support the emerging CAT6a Standard to certify LAN cabling to

support applications up to 10G Ethernet.

■LANTEK 6 350MHz is a Level III verified LAN certification tester designed to support up to CAT6/ISO-E cabling.

Features of LANTEK®Products

■

High-Performance LANTEK 7G/6A/6 – sweeps

to 1 GHz and supports testing requirements up to

CAT 6/6a/7/ISO-F and beyond

■

Level IV/IIIe/III Accuracy – independently verified

by ETL for baseline, channel and permanent link

■

DUALmode Testing to Save Time – reports

channel and permanent link test results simultaneously

■

Test with Patchcords to Save Money – performs

CAT6A/6/5e/ISO-Ea/E/D testing with standard

patchcords to achieve the lowest cost of ownership

■

Largest Internal/External Memory Capacity –

makes record management easy

■

Convenient FIBERTEK™ Accessory –

simultaneously tests two fibers for attenuation and

length

■

Innovative TRACETEK™ Accessory – performs

advanced fiber fault location and troubleshooting

functions

The only

tester

to sweep

to 1GHz

Testers

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-3

FEATURES LANTEK7G

Premium

LANTEK6A

Premium

LANTEK6

Basic

Frequency Range 350 MHz 500 MHz 1 GHz

Supports CAT7 & ISO-F Upgradeable Upgradeable ✔

Supports CAT6a Upgradeable ✔✔

Support CAT6/5e/3 and ISO-E/D/C ✔✔✔

Accuracy Level III/IIIe (Draft)/IV

(LANTEK6/6A/7G) verified by ETL ETL ETL

Support DUALmode Testing to

Save Time ✔✔✔

Test with Patchcords to Save Money ✔✔✔

Screen Display Area Best Best Best

CAT6 Test Storage with Graphs 500 500 500

Standard External Compact Flash

Memory Option 64MB 64MB

USB/Serial Port ✔✔✔

Copper TDR Trace ✔✔✔

Fiber Loss Measurement (FIBERTEK) Option Option Option

Fiber Distance to Break (TRACETEK) Option Option Option

Talk over Fiber & Copper

(Full Duplex) ✔✔✔

Display Screen on Remote ✔✔✔

Troubleshooting Tone Generator

on Remote ✔✔✔

External Rapid Battery Charger &

Extra Batteries Option ✔✔

Kits Include:

Soft Carrying Case ✔✔ ––✔––

Deluxe Hard Shell Case –– ✔––✔–

Airline Grade Travel Case with Wheels –– – ✔––✔

64MB Compact-Flash Memory Card –– ✔✔–✔✔

Category 6 Universal Adapters & Reference Cables

✔–– –– – –

Category 6a Universal Adapters & Reference Cables

–✔✔ ✔✔ ✔ ✔

CAT7 (TERA) Adapters & Reference Cables –– – – ✔✔ ✔

Batteries 22 4 4 2 4 4

DUAL Bay Rapid Battery Charger –– ✔✔–✔✔

Headsets (2), AC Adapters (2),

Hanging Straps (2), Serial Cable (1), ✔✔ ✔ ✔ ✔ ✔ ✔

USB Cable (1), LANTEK Reporter Software (1)

PACKAGE AND ACCESSORIES LANTEK7GPREM

Premium

LANTEK6B

Basic

LANTEK6ABAS

Basic

LANTEK6APREM

Premium

LANTEK6ATRV

Travel

LANTEK7GBAS

Basic

LANTEK7GTRV

Travel

Note: Delivery content may vary outside of US. Please contact your local IDEAL sales office for details.

The airline grade Travel Case fits in most airline overhead storage compartments.

Other Accessories LANTEK6/6A/7G

Soft Carry Case 3010-12-0036

Deluxe Hard Carry Case 3010-12-0092

Batteries 1219-00-1604

Serial Cable 6011-50-0031

64 MB CompactFlash Card 2112-27-0605

CompactFlash Card Reader for PC 2112-27-0604

LANTEK CAT 6/5e Channel Adapters (ea.) 0012-00-0629

LANTEK CAT 6a/6/5e Channel Adapters (ea.) 0012-00-0656

LANTEK CAT 6a/6/5e Reference Patchcords (ea.) 6011-50-0029

Talkset (2) 3010-70-0015

User Manual 6510-00-5000

Dual Bay Battery Charger 0012-00-0642

LANTEK CAT 7 TERA Testing Kit 1019-00-1105

LANTEK CAT 7 NEXANS Testing Kit 1019-00-1110

Coax Testing Adapter Kit 1019-00-0343

110 Block Testing Adapter Kit 1019-00-1112

BIX Block Testing Adapter Kit 1019-00-1114

66 Block Testing Adapter Kit 1019-00-1115

Selector Guide

www.idealindustries.com 1-800-435-0705 for Customer Service

F-4

Selector Sales Guide

LAN Testers/Certifiers - Capabilities LANTEK6B LANTEK6ABAS LANTEK6APREM LANTEK6ATRV LANTEK7GBAS LANTEK7GPREM LANTEK7GTRV

Frequency Range 350 MHz 500 MHz 500 MHz 500 MHz 1000 MHz 1000 MHz 1000 MHz

CAT 7/ISO F (600+MHz) Upgradeable Upgradeable Upgradeable Upgradeable Incl. Incl. Incl.

CAT 6a (500MHz) Upgradable Incl. Incl. Incl. Incl. Incl. Incl.

CAT 6 Incl. Incl. Incl. Incl. Incl. Incl. Incl.

CAT 5e Incl. Incl. Incl. Incl. Incl. Incl. Incl.

CAT 5 Incl. Incl. Incl. Incl. Incl. Incl. Incl.

CAT 3 Incl. Incl. Incl. Incl. Incl. Incl. Incl.

COAX Testing Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option

Color Screen Yes (Brightest) Yes (Brightest) Yes (Brightest) Yes (Brightest) Yes (Brightest) Yes (Brightest) Yes (Brightest)

Screen on Remote Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Internal Memory (# of tests - no graphs) 6,000 6,000 6,000 6,000 6,000 6,000 6,000

Internal Memory (# of Cat 6 tests with graphs) 500 500 500 500 500 500 500

Compact Flast Incl. Incl. Incl. Incl. Incl. Incl. Incl.

External Memory ( 64 MB compact flash card) Option Option Incl. Incl. Option Incl. Incl.

USB Port (Fastest method for uploading tests) Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Serial Port Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Copper Trace (TDR) Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Fiber Trace (TRACETEK for finding fiber cable faults) Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option

Fiber Loss Measurement Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option

Fiber Length Measurement Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option

Talk over Fiber (full duplex with FIBERTEK option) Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option Yes w/option

Talk over Copper (full duplex) Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Adapters (Patented) Fits within Fits within Fits within Fits within Fits within Fits within Fits within

Autotest w/ Standard Patchcords Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Autotest Button also on remote Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Trade Price (Best Price Performance) $5,495 $6,695 $7,495 $7,695 $7,495 $8,495 $8,695

LAN Testers/Certifiers Accessories(included or optional) LANTEK6B LANTEK6ABAS LANTEK6APREM LANTEK6ATRV LANTEK7GBAS LANTEK7GPREM LANTEK7GTRV

Soft Carry Case Incl. Incl. Option Option Incl. Option Option

Deluxe Hard Carry Case (3010-12-0092) Option Option Incl. Option Option Incl. Option

Wheeled Travel Case (3010-12-0105) Option Option Option Incl. Option Option Incl.

Display Unit Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Remote Unit Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Batteries (Part #s are for (1) battery) (All models include (2) batteries

except for LANTEK PREM/TRV packages which include (4) batteries.

(2)

1219-00-1604

(2)

1219-00-1604

(4)

1219-00-1604

(4)

1219-00-1604

(2)

1219-00-1604

(4) 1219-

00-1604

(4) 1219-

00-1604

Dual Bay Battery Charger (P/N for LT8XXX series is

LT8BTCHG120, P/N for LANTEK is 0012-00-0642)

Option Option Incl. Incl. Option Incl. Incl.

Hanging Straps (pair) Incl. Incl. Incl. Incl. Incl. Incl. Incl.

LT-Record Manager Software -- - - - - -

LANTEK Reporter Software Incl. Incl. Incl. Incl. Incl. Incl. Incl.

Serial Cable Incl. Incl. Incl. Incl. Incl. Incl. Incl.

USB Cable (fast port for uploading tests results) Incl. Incl. Incl. Incl. Incl. Incl. Incl.

PCMCIA Adapter Option Option Incl. Incl. Option Incl. Incl.

64 MB CompactFlash Card Option Option Incl. Incl. Option Incl. Incl.

USB Port Flash Card Reader for PC Option Option Incl. Incl. Option Incl. Incl.

CAT5/5e Basic Link Adapter(1 pair incl.) Part # is a pair -- - - - - -

CAT5/5e Channel Link Adapter (1 pair incl.) Part # is a pair -- - - - - -

CAT 6 Cable Adapters (vendor specific and sold as a pair) -- - - - - -

Calibration Adapter (LANTEK series utilizes CAT 6/5e channel

adapter)

Not Req'd Not Req'd Not Req'd Not Req'd Not Req'd Not Req'd Not Req'd

CAT 6/5e Universal Adapter (0012-00-0629) each 2 - - - - - -

CAT 6a/6/5e Reference Patchcord Part # is for a pair 2 2 2 2 2 2 2

CAT 6a Universal Adapter (0012-00-0656) each -22 22 2 2

CAT 7 Channel Adapter "Option" Part # is for one -- - -0012-00-0628 0012-00-0628 0012-00-0628

CAT 7 TERA Patchcords "Option" P/N is for a pair -- - -6011-50-0027 6011-50-0027 6011-50-0027

COAX "Options" [LT series requires (2) adapters, LANTEK series

(1) Kit]

1019-00-0343 1019-00-0343 1019-00-0343 1019-00-0343 1019-00-0343 1019-00-0343 1019-00-0343

AC adapters (2 incl.) 1019-00-1510 = 1 1019-00-1510 1019-00-1510 1019-00-1510 1019-00-1510 1019-00-1510 1019-00-1510 1019-00-1510

Headset (1 pair incl.) Both part #s are for a pair 3010-70-0015 3010-70-0015 3010-70-0015 3010-70-0015 3010-70-0015 3010-70-0015 3010-70-0015

User Manual - CD-Rom Incl. Incl. Incl. 6510-00-5000 6510-00-5000 6510-00-5000 6510-00-5000

Quick Start Guide & Registration Card -- - - - - -

Testers

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-5

FIBERTEK™ and TRACETEK™

Advanced Fiber Test Options

FIBERTEK/TRACETEK PACKAGES

FIBERTEK – 850nm MM Adapter ✔✔ ✔✔

FIBERTEK – 1300nm MM Adapter ✔✔ ✔✔

FIBERTEK – 1310nm SM Adapter ✔✔✔✔

FIBERTEK – 1550nm SM Adapter ✔✔✔✔

TRACETKEK – 1300nm MM Adapter ✔✔✔

TRACETKEK – 1310NM SM Adapter ✔✔✔

Fiber Cleaning Starter Kit ✔✔✔✔✔✔✔✔

62.5/50µm, MM, ST-ST Cable Kit ✔✔ ✔✔

62.5/50µm, MM, FC-ST/FC-SC Cable Kit ✔✔✔

9µm, SM, FC-ST Cable Kit ✔✔✔✔

9µm, SM, FC-ST/FC-SC Cable Kit ✔✔✔

See your IDEAL representative for additional

specifications on all certification products.

Features of FIBERTEK™ Products

■

Measures signal loss and length

■

850nm VCSEL light source enables

Gigabit Ethernet certification

on Multimode fiber

■

Enables bi-directional, dual

wavelength measurements

■

Full duplex talkset capability

■Provides easy switching of LANTEK®

Cable Tester between Copper and Fiber LAN testing

■Separate loopback testing method for high precision length

■Outstanding Temperature Compensation provides highly accurate

test results in a wide variety of environments

FIBERTEKMMP Multimode Fiber Testing Premium Kit

■All of the features of the FIBERTEKMMB plus TRACETEKMM

(below):

FIBERTEKSMP Singlemode Fiber Testing Premium Kit

■All of the features of the FIBERTEKSMB Plus TRACETEKSM

(below):

Features of TRACETEK™ Products

■

Enables LANTEK®certification testers to provide an event trace

at a fraction of the price of an OTDR

■

Provides easy switching of LANTEK®certification tester between

FIBERTEK™ loss and length measurement and TRACETEK™

■

Includes event plots that pinpoint significant losses along the fiber

■

Provided with launch cable and appropriate connectors

TRACETEKSM

SIGNALTEK™ Cable Performance Tester

SIGNALTEK™ provides a

technically innovative method

to test and document

performance of voice, data,

video, and VoIP applications

for cabling installers and

network technicians. It

tests the link's ability to support

applications by transmitting

Ethernet packets on the wire

and measuring the link

performance according to

IEEE 802.3ab Gigabit Ethernet

standard. By monitoring

transmitted and received

data packets, it can report the

BERT (Bit Error Rate Test) for the link.

It uses the latest generation of Gigabit Ethernet technology to provide

the best performance to this new class of testers.

Features of SIGNALTEK™

■

Unique - Simulate real world network traffic with full-duplex

gigabit performance testing

■

Unique - User selectable 10/100/1000 Bit Error Rate Testing

(BERT) to ensure performance for all Ethernet devices

■

Unique - Smart autotest function detects line condition and

automatically chooses appropriate test to run to allow testing

cable that is terminated with a SIGNALTEK remote, a network

device, or unterminated

■

Unique - Save time using the remote to perform 10/100 or

gigabit service detection AND initiate an Autotest when main

unit is connected

■

Unique - Maximum flexibility with two USB ports. Connect

to a computer to upload test results, connect directly to a

printer, or connect a USB memory drive for unlimited storage

■

Unique - Get maximum coverage with a full two year

warranty

■

Unique - Configure multiple target IP addresses for pinging

several network devices to ensure communications with

servers, printers, IP cameras, home automation controls, etc.

■

Offers network interrogation tools such as link establishment,

port LED blink and ping

■

Exceeds 100m measurement distance required by IEE

802.3ab gigabit Ethernet standard

■

Easy to read Pass/Fail performance reports that can be

stored and printed for customer documentation

■

Multiple BERT configurations for VoIP, data, and video-over-

IP specific testing

■

Brilliant high-resolution color display visible in any lighting

condition

■

Uses readily available AA batteries

■

Wiremap faults easily with selectable 568 A/B color coding

■

TDR to accurately measure length and locate shorts and

opens

FIBERTEKMMB

FIBERTEKMMP

FIBERTEKSMB

FIBERTEKSMP

FIBERTEKALLB

FIBERTEKALLP

TRACETEKMM

Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

F-6

SIGNALTEK™ Specifications

Cable Types

■Voice/phone cable - USOC/RJ-11/RJ-12 interface

■Data Cable - STP/UTP (RJ-45) for CAT 3/5e/6/6a/7 cabling

■Coax cable - via RJ-45 to F Patchcord, series 6, 59, 58 cabling

(50/75 Ohm)

Battery Life: Standard AA Alkaline batteries

■Stand by - 90 days

■Cable testing - 30 hours

■Network monitoring - 4 hours

Physical Dimensions

■Display handset: 7.9” L x 3.6” W x 1.5” D

■Remote handset: 6.8” L x 3.5” W x 1.5” D

■Near-end Weight: 12.5 oz.

Ports/Connections

■RJ-45 test interface port

■Mini USB “A” port

■Standard USB “B” port

■DC power input for long-term network monitoring

SIGNALTEK™ Cable Performance Tester SIGNALTEK™-FO Multimedia

Qualification Tester

Description Cat. No.

SIGNALTEK™ Kit 33-974

Universal 120-240V Power Adapter 4010-00-0136

RJ-45 to 8 Head Alligator Clip K-7920

Replacement Cable Accessory Kit - contains all original

cables in SIGNALTEK™ Kit 1019-00-1112

Description Cat. No.

SIGNALTEK™-FO w/850 Modules 33-981

SINGALTEK™-FO w/13X0 Modules 33-982

SIGNALTEK™-FO w/850 & 13X0 Modules 33-983

SIGNALTEK™-FO w/o Modules (Fiber-Ready) 33-987

SIGNALTEK-FO is the first Qualification

tester that offers both copper and fiber

optic testing; and SIGNALTEK-FO does

it for less than the price of an Optical

Test Set alone.

■Fiber Optic and Copper Gigabit

Qualification – Qualify copper and

fiber-optic cabling to IEEE 802.3

standards

■Multimedia Gigabit Qualification

(Multimode and Single Mode

capability) – Qualify short and long

range cabling to a distance of up

to 10km

■BERT and Optical Attenuation

Measurements – Perform Bit Error Rate

Testing and decibel (dB) loss

measurements of optical links.

■Dual Wavelength Capability – available in

both 850nm and 1300mn wavelengths to

support virtually all LAN and campus fiber

applications.

■Small Form factor Pluggable (SFP) modules are compact,

light-weight and field changeable.

■Storage and Reporting for Thousands of Reports – Store and print

Qualification reports for copper and fiber jobs using internal

memory or USB “thumb-drives”.

NEW

#33-974 #33-983

LAN Cable Testers

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-7

LinkMaster™ PRO and LinkMaster™ PRO XL Testers

Six Modes of Operation

• Cable Test

• Hub Blink

• Tone

• Length

• Coax

• Setup Mode

Main Jack for all Testing

Remote Jack for Patch Cords

Larger Backlit LCD

Screen

Press SEL to:

• Turn on back-light (Hold 2 sec)

• Execute current displayed mode

• Start new test cycle

• Select one of four tones

• Change pair being measured

for length

• Change user selectable options

– Beep On/Off

– Unshielded or Shielded Cable

– Units—Feet or Meters

Arrow Keys

• To change length constant

(see chart for required parameters)

• To change pair or pin selection for tone

• To scroll through setup selectable options

Features

Description LinkMaster™ LinkMaster™

PRO PRO XL

Blinks the hub ■

Displays length measurement with test results ■

Remotes have both RJ-11 and RJ-45 jacks ■

Backlight LCD screen ■

Measures length on UTP, STP and coax ■■

Tests UTP for shorts, opens, miswires, reversals, ■■

split pairs and shield continuity

Test coax for opens, shorts and continuity ■■

Shows wiring errors ■■

Tests and identifies with all eight twisted pair

and coax remotes ■■

Sends tone with four different signals ■■

Displays test results in wire map format ■■

Snap-off battery cap ■■

9 volt battery included ■■

The LinkMaster™ PRO & LinkMaster™ PRO XL Testers enable

installers, contractors and maintenance technicians to map, test and

troubleshoot data and voice communication cable and coax runs.

Rugged, versatile, and easy-to-use, they have mastered the link

between performance, simplicity and value for both commercial and

residential applications.

Kits and Accessories

Description Cat. No.

LinkMaster™ PRO XL Kit w/eight remotes 33-880

LinkMaster™ PRO XL Kit w/eight remotes & ABS™ Tester 33-881

LinkMaster™ PRO XL Kit w/eight remotes (international packaging) 33-886

LinkMaster™ PRO XL Economy Kit w/one remote 33-887

LinkMaster™ PRO Kit w/eight remotes - Unshielded jumper cables 33-825

LinkMaster™ PRO Kit w/eight remotes - Shielded jumper cables 33-826

LinkMaster™ PRO Economy Kit w/one remote - Unshielded

jumper cables 33-835

LinkMaster™ PRO Economy Kit w/one remote - Unshielded

jumper cables 33-836

RJ-45 to RJ-11 jack adapter (2/card) POP Packaging LA-4233

RJ-45 to F-connector adapter (2/card) POP Packaging LA-4234

LinkMaster™ PRO XL remotes UTP/STP 2-8 only (white carton) LA-4235

LinkMaster™ PRO XL large replacement case H-3412

Security Kit - 8-position modular adapter and eight RJ-45 to

alligator clip lead sets LA-4157

BNC Accessory Kit LA-4173

Set of eight color-coded F-terminators for LinkMaster™ PRO or PRO XL LA-4159

LinkMaster™ PRO large replacement case H-3324

Replacement economy kit case IA-4868

#33-880

#33-825

#33-887

#33-835

Testers

www.idealindustries.com 1-800-435-0705 for Customer Service

F-8

SecuriTEST™ CCTV/Security Tester

CCTV installers often need to carry a variety of testing tools to complete

their work. SecuriTEST combines the most-needed tools in one

easy-to-carry package. Since all connections (video/communications/DMM)

attach to a single unit, SecuriTEST eliminates the need to juggle several devices

while on a ladder or lift, making working conditions safer and increasing productivity.

■Six Essential CCTV Tools – Combines a CCTV video tester, PTZ camera

controller, Digital Multi-Meter, UTP cable tester, video test pattern generator

and PTZ protocol analyzer in a single compact package.

■Save Time & Money – Test, aim and focus cameras when working alone and

save time by not having to walk back to the control center to verify functionality

of each camera.

■Compact Design – Combines all the most needed—security tools in a

lightweight, easy-to-carry unit with a sharp, bright 2.5in (6.3cm) color LCD

screen with on-screen displays

for PTZ control/diagnostics and

DMM readouts.

■PTZ Protocol Analyzer –

Compatible with over a dozen

PTZ protocols to test and

program cameras in the field.

Decodes and identifies output

from PTZ console to aid in

troubleshooting.

VDV MultiMedia Cable Tester

Easy-to-use tester for installers working with

voice, data and video applications. One tester

for all applications!

■Voice — supports 3-pair USOC and

6-position RJ-11/12 jacks for telephone

cable testing

■Data — supports both shielded and

unshielded cable testing to T568A/B

(RJ-45)

■Video — tests coax cable for opens and

shorts with F-connector interface

■Tests for opens, shorts, miswires, reversals

and split pairs. Also indicates correct wiremap.

Has automatic shut off (to prolong battery life)

and low battery indicator.

■Easy to read LCD display with “PASS/FAIL”

indicator after each test

■Tone generator supports 4 different tones

making fault isolation easier

■One remote wiremap and testing unit is stored

inside tester— easier to keep all parts together

■Uniquely designed remote accommodates

RJ-11, RJ-45 and F-style connectors

Description Cat. No.

Kit with integrated remote and accessories 33-856

LED Indicators

Test Lead Ports

Carrying Case

Includes: Rechargeable batteries,

AC charger, car charger, test leads,

wiremap terminator, neck strap and

manual.

PTZ Control Pad

Main Power Switch

Description Cat. No.

SecuriTEST™ CCTV/Security Tester only 33-891

SecuriTEST™ Tester Pouch only 62-891

Large LCD displays user

current test mode, test

results and all faults for the

various cable types.

Display automatically warns

of voltage on lines and

shows a Pass or Miswire

message after each test.

Pressing the TONE button

starts “Instant-On” tone

generator in the VOICE,

DATA or VIDEO mode.

Compact ergonomic design

puts full-featured VDV

functionality in the

palm of your hand.

A single button push

immediately selects between

VOICE, DATA or VIDEO

testing functions.

Integrated RJ11/12

(phone), RJ45 (UTP/STP)

and Coax (F-Connector)

interfaces on top of the

unit

Detachable remote with

RJ11/12, RJ45 and

Coax (F-Connector)

interfaces.

Stores securely in the

base of the main unit for

ready availability and

easy patch cable testing.

Remote ID number (flashing)

or “S” for shielded (flashing).

NEW

Testers

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-9

ABS™ Tester & ABS™ Signal Thrower™

ABS™ Tester & ABS™ Signal Thrower™ Kits

ABS™ Tester

■

Amplifier probe with telephone troubleshooting capabilities

■

Tone TRACE feature detects tone signal

■

Receives and reproduces telephone system dial tone

■

Indicates call addressing for correct telephone number

■

Polarity indicator tests for correct wiring and power

ABS™ Signal Thrower™

■

Works with the ABS™ Tester to locate and identify cables

■

Emits three different types of signals

■

Auto-off after 3 hours of non-use

Description Cat. No.

ABS™ Tester 62-180

ABS™ Signal Thrower™ 62-184

Kits include: ABS™ Tester, ABS™ Signal Thrower™, Lead Set and

Cable Assembly

Description Cat. No.

Kit in soft black pouch 33-854

Kit in hard gray case 33-852

Kit on blister card 62-188

62-180

33-854

33-852

62-188

62-184

Amplifier Probe and Tone Generator

Amplifier Probe and Tone Generator Kits

33-864 33-862

62-164 62-160

Amplifier Probe

■Identifies and traces wire or cables within a group

■Battery cap allows quick and easy battery replacement

■Battery low indicator

Tone Generator

■Emits three different types of tones

■Auto-off after three hours of non-use

■Tone can be added in any status

Description Cat. No.

Amplifier Probe 62-164

Tone Generator 62-160

TRACETone™ Tone Generator &

Amplifier Probe

■Test continuity and locate signal

of installed wire and cable

■Two selectable tone styles

■Tone Generator & Amplifier

Probe fit together for easy storage

■Extra-deep serrations grips wire better

■RJ-11 Alligator Clip, RJ-11 Cable Assembly included

Description Cat. No.

TRACETone™ Tester and Accessories 62-140

Kits include: Amplifier Probe, Tone Generator, Lead Set, Cable

Assembly and flat tip

Description Cat. No

Kit in soft black pouch 33-864

Kit in hard gray case 33-862

Replacement Tips (Standard & Flat)

Description Cat. No

Standard Tip LA-4145

Flat Tip LA-4144

35-495

110 Blade

Testers/Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

F-10

■For paired conductors

■Ratchet version of

popular Telemaster™

Tool for RJ-45 and

RJ-11 modular plugs

■Repeatable crimp action

for consistent, high quality

connections

Modular Adapters

Smart6™ Modular Tester

■6-position Tester

■Incoming call identification

Data8™ Modular Adapter

■8-position Adapter

■High-performance jack

■Internal circuit design to reduce

attentuation, coupling, NEXT

62-096

62-098

Description Cat. No.

Smart6™ Modular Tester 62-096

Data8™ Modular Adapter 62-098

LinkMaster™ Tester

Tests wiring configurations on UTP/

STP cables. Checks for shorts,

miswires, reversals and split pairs.

Debug feature, automatic shut-off

and low battery LED indication.

■Designed to test installed

twisted pair wiring

■Tests unshielded and shielded

modular plugs

■Main unit and remote allow one person testing

Description Cat. No.

LinkMaster™ Tester and Remote 62-200

Ratchet Telemaster™

Description Cat. No.

Ratchet Telemaster™ 30-696

Description Cat. No.

Modular Plug Tool Kit 33-296

Kit Tool Only

Description Cat. No. Cat. No.

Tool for RJ-11 (1, 2, 3 pair) and RJ-45 (4 pair) Plugs 33-700* 30-496

Tool for RJ-45 (4 pair) & DECconnect MMJ (RJ-11, 3 pair) N/A 30-497

Tool for RJ-11 (1, 2, 3 pair) & DECconnect MMJ

(RJ-11, 3 pair) N/A 30-498

Tool for RJ-22 (handset) and RJ-11 (1, 2, 3 pair) N/A 30-499

Replacement Cut and Strip Blade Set for Telemaster™ N/A LB-1747

Kit includes 10 each, RJ-11 and RJ-45 plugs

Telemaster™ Telephone Tools

Punch Down Tools

35-485

35-492

35-185

Impact Turn-Lock™ Punch Down Tools Cat. No.

Punchmaster™ II Punch Down Tool - body only 35-483

Punchmaster™ II Punch Down Tool w/110 blade 35-485

Punchmaster™ II Punch Down Tool w/66 blade 35-487

Non-Impact Turn-Lock™ Punch Down Tools Cat. No.

Punch Down Tool - body only 35-491

Punch Down Tool w/110 blade 35-492

Punch Down Tool w/66 blade 35-493

Economy Punch Down Tool Cat. No.

Non-impact Tool w/permanent non-cut blade 35-185

Removable Blades* Cat. No.

110 Turn-Lock™ blade 35-495

66 Turn-Lock blade 35-497

110/66 combo blade w/cutting edges 35-407

Krone®blade 35-478

Bix®blade 35-479

*Not applicable for Economy Punch Down tool.

Bix®is a registered trademark of Nortel. Krone®is a registered trademark of Krone, Inc.

35-407

110/66 Blade

■For paired conductors

■Multi-function telephone

tool cuts, strips and crimps

for easy one-tool application

■Steel frame for long-term durability. (Crimps primary modular

plug strain relief only)

Modular Plug Tool Kit

■Multi-function telephone/

network tool; cuts, strips

and crimps

■Steel frame construction

for durability

■Interchangeable dies allow

for crimping RJ-45 and RJ-11

modular plugs

■Tool-less die change for added convenience

■Spring return handle for comfort

New cushion-grip

handles

35-497

66 Blade

35-478

Krone®Blade

35-479

Bix®Blade

Works Great

on CAT 5

Cabling

Works Great

on CAT 6

Cabling

Tools

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-11

Data T®-Cutter

D-Sub/Double-D Service Tool

Description Cat. No.

Data T®-Cutter 45-074

Data T®-Cutter II 45-075

Description Cat. No.

D-Sub/Double-D Service Tool 30-426

■Exact replacement of the AMP open-

barrel service tool for stamped

contacts and D-Sub contacts

■Also crimps

Double-D, high

density, miniature

contacts

■Includes openings for crimping insulated terminals and cutters for

machine screws

Description Cat. No.

Multi Conductor Cable to .500 in. (12.7mm) 35-051

Solid or Stranded

Economy Round Cable

and Wire Cutter

■Cuts multi-conductor cable

up to .500 in. (12.7mm)

and solid or stranded

wire up to

#8 AWG (10mm2)

■Built-in return spring, locking latch

■Stamped, hardened steel frame with curved cutting blades

Center Conductor Cutter

■Trims coax center conductor to

3/16 in. (4.8 mm) length for

proper installation into a dual

crimp coax connector.

Lever™ -Snips Electrician’s Scissors

with Stripping Notches

■Ergonomic design gives

added leverage

■Spring-action,

mechanical advantage

increases stripping

leverage and reduces

operator fatigue

■Double plated for added rust protection

■Extra-deep serrations grips wire better

Description Cat. No.

Electrician’s Scissors with Stripping Notches 35-087

Cable Splicing Kit

Description Cat. No.

Cable Splicing Kit (Scissors, Splicing Knife, Leather Holder) 35-093

Leather Holder only for Scissors and Knife 35-094

35-093

■Cuts round communication

cable and maintains cable

geometry for better cable

performance

■Cuts multi-pair cable up

to .500 in. (12.7mm) and

coaxial cable up to RG-9/U

■Suitable for soft cables

(not ACSR)

■Steel reinforced center

conductors can be trimmed

with bolt cutting holes

■Locking latch keeps tool closed in pouch

■Data T®-Cutter II designed for RG-58 and RG-6 coaxial cable

■Designed for use in telephone and electrical service applications

■Cut up to 16 AWG solid and 12 AWG stranded wire

■Serrated surface on back blade edge cleans wire

■Electrician’s Scissors with stripping notches strip

19 and 23 AWG wire

Description Cat. No.

Electrician’s Scissors w/stripping notches 35-088

Electrician’s Scissors 35-089

Leather Scissors Holder Only 35-090

Electrician’s Scissors

35-088

35-090

Holder

Only

35-089

Description Cat. No.

Center Conductor Cutter 35-060

■High carbon steel blade remains sharp

and cuts easily through many

insulation types

■Comfortable, full size, no slip handle

for easy use

Description Cat. No.

Cable Splicing Knife and Leather Holder 35-091

Leather Knife Holder Only 35-092

Cable Splicing Knife

Replacement

Description Cassette Cat. No.

Coax Stripper - 3 Step

• For crimp BNC and TNC conn. 45-522 45-520

• Strips braid 0.240 in. or 6mm and (Black)

Dielectric 0.240 in. or 6mm

Coax Stripper - 3 Step

• For dual crimp BNC/TNC and Thinnet BNC conn.

• For 735A Belden®cable 45-523 45-521

• Strips braid 0.328 in. or 8.2mm and (Brown)

dielectric 0.109 in. or 2.7mm

Coax Stripper - 2 Step

• For F-Type, many single crimp BNC/TNC's, 45-524 45-526

Twist-on BNC/TNC's, Twinax and UHF conn. (Blue)

• Strips 0.250 in. or 6.35mm

Coax Strippers

■Specific adjustments

needed for each cable

size

Coax Cable Repl. Blade

Description Type (RGU) Cat. No. Cat. No.

Coax Stripmaster®for RG-6 RG-6 LB-740 45-262

Coax Stripmaster®for RG-59 RG-59 LB-743 45-265

Coax Stripmaster®for RG-6 RG-6 LA-3953 45-282

Quad Shield Quad Shield

Strippers

F-12

Coax Stripmaster®Wire Strippers

■Speeds 2-step cable stripping

■Spring-action operation grips and strips in one

motion

■Knife-type blades feature multiple hole diameters

sized for two step removal of outer jacket

insulation and center conductor

Description Cat. No.

Coax Stripper for RG-8/11U 45-510

Coax Stripper for RG-6 45-513

Toggle®Coax Strippers

UTP Cable Stripper

Description Cat. No.

UTP Cable Stripper 45-167

Coax Cable Stripper

■Toggle®Tools for stripping Ethernet,

Thinnet, RG-62 or RG-59 coax cable

and other cable sizes

■Strips Cat 3, 5, 5e & 6 cables

■One step stripping

■For RG-6, RG-6 Quad and RG-59

■No adjustment required

■Strips center conductor and

cable jacket

Coax/UTP Cable Stripper

Description Cat. No.

Coax/UTP Cable Stripper 45-603

■Features a primary and

secondary strip cartridge

■Strips UTP, RG-59 and

RG-6 coax cable

■Rotates easily around finger

■Push-on ring for easy

connector termination

Typical

Description RG Cables Cat. No.

Coaxial Cable Stripper, RG-174, 45-162

up to 1/8 in. (3.2mm) O.D RG-187 (Gray)

Coaxial Cable Stripper, RG-58,CB 45-163

1/8 in. (3.2mm) to 7/32 in. (5.556mm) O.D. Antenna Cable (Blue)

Coaxial Cable Stripper, 1/4 in. (6.4mm) to 45-164

9/16 in. (14.3mm) O.D. RG-11, RG-8 (Blue)

Cable Stripper, 3/16 in. (4.8mm) to 5/16 in. RG-59, 45-165

(8mm) O.D. UTP Cable (Black)

Replacement Blade Set* for 45-162,

45-163, 45-165

__ L-9225

Replacement Blade Set* for 45-164 __ L-9226

*A set of blades consists of three straight blades and one round blade.

UTP/STP/Coaxial Cable Strippers

■Adjustable blades can

be set for any depth

to help ensure nick-free

strips

Description Cat. No.

Coax Cable Stripper 45-320

Coax Connector Kit w/four Push-On F-Connectors 33-320

Description Cat. No.

Data Cable Stripper for unshielded and shielded twisted pair cable 45-514

Cyclops®Data Cable Stripper

■Fast, easy removal of outer sheath

insulations (PVC and Plenum types,

UTP & STP)

NEW

www.idealindustries.com 1-800-435-0705 for Customer Service

Tools

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-13

Coax Strip and Crimp Tool

■

Precision, form-ground stripping

holes remove outer jacket

and insulation from

RG-59 and RG-6

coaxial cable

■

Durable blades cut

copper-coated steel

conductors

■

Three crimping nests for crimping F-connectors and ring terminals

■

Cushioned, comfort-grip handles

Description Cat. No.

Round Cable Slitting and Ringing Tool 45-144

Replacement Blades for 45-144 (2/pkg.) LB-1748

■Cuts around cable jacket as well as

slits the length of jacket for

easy removal

■Use with single or multiple

conductor cable up to

1.75 in. O.D.

■Blade adjusts for jacket thicknesses up to .125 in.

■Spare blade in handle base

Round Cable Slitting and Ringing Tool

Description Cat. No.

Coax Strip & Crimp Tool 30-433

Coax Strip & Crimp Tool Kit w/ten RG-6 F-Connectors 30-433F

Crimpmaster™ Crimp Tools & Die Sets

Replacement

Description Tool Die Set

Cat. No. Cat. No.

Crimpmaster™ Crimp Tool Frame 30-506 —

RJ-45 Eight-position Crimp Tool 30-521 30-560

for AMP RJ-45 modular plugs

RJ-45 Eight-position Crimp Tool 30-522 30-559

for keyed or non-keyed modular plugs

RJ-11 Crimp Tool for two, four or —30-556

six-position modular plugs

RJ-11 Crimp Tool for DEC MMJ

six-position modular plugs with an 30-525 30-558

off-set release tab

Crimpmaster™ Handset Die for 30-526 30-565

four-position handset modular plugs

Dies change quickly and easily

with a screwdriver.

Interchangeable dies provide

versatility in a single tool

Pressure adjustment

for actuation force

Ratchet crimp action

provides repeatable and

reliable terminations New cushion-grip

handles

Crimp release provides

operator safety

High quality ratchet-type crimp tool for electricians, contractors and

installers who require guaranteed repeatability of good mechanical

and electrical connections.

Paired Conductor Termination

Replacement

Description Tool Die Set

Cat. No. Cat. No.

22-10 AWG (.324mm2- 5.261mm2)

fully insulated slide-on connectors —30-594

Large gauge sound cable 30-478 —

Insulated Terminal Crimp Tool

with built-in locator 30-479 —

22-12 AWG (.324mm2- 3.31mm2)

Non-insulated open barrel — 30-586

crimp style connectors

RG-58, 59, 62 Non-plenum Cambridge

BNC/TNC connectors 30-481 30-573

RG-8/11, RG-213, RG-216 Ethernet Thickwire,

N-Series type plugs and jacks 30-482 30-577

RG-9, Belden®8281® and RG-6 Cable,

50 & 75 Ohm 30-483 30-578

RG-58 and RG-174 cable for 50 and

75 Ohm cables —30-587

RG-174 Mini-59 Hex BNC/TNC

coax connector 30-485 30-576

RG-58 and RG-59 Plenum cables,

Thinwire PVC Hex —30-591

16-26 AWG (1.31mm2- 1.28mm2)

Miniature insulated rings and splices —30-572

SMA or SFR-Type fiber optic connectors 30-490 30-597

22-10 AWG (.324mm2- 5.261mm2)

Insulated ring tongue terminals and splices 30-500 30-579

22-8 AWG (.3mm2- 8mm2)

Non-insulated terminals and splices —30-580

RG-58 RG-59/62AU BNC/TNC

3-Piece Hex type connectors 30-502 30-581

CATV RG-59 and RG-6

Captive Ring F-connectors 30-503 30-582

SMA or SFR-Type Hex fiber optic connectors 30-489 30-596

Coaxial Termination

Tools/Die Sets

www.idealindustries.com 1-800-435-0705 for Customer Service

F-14

Crimpmaster™ Crimp Tool Replacement Die Sets

30-582

F-type CATV RG-59, RG-6

Connectors (Hex, 0.350 (8.89 mm),

0.320 (8.13 mm), 0.255 6.48 mm)

Tool w/die 30-503

30-586

22-12 AWG (.324 mm2- 3.31 mm2)

Non Insulated Open Barrel

Connectors, Commercial Type

30-587

RG-58, RG-174 and RG-8218

for both 50 and 75 ohm cables

(Hex 0.213 (5.41 mm), 0.178

(4.52 mm), 0.068 (1.73 mm),

0.042 (1.07 mm)

30-591

Plenum and Non-Plenum Thinwire

Cables RG-58 and 59 (Hex, 0.213

(5.41 mm), 0.190 (4.83 mm), 0.068

(1.73 mm), 0.042 (1.07 mm)

30-593

Mini UHF and BNC/TNC 5 cavity

(Hex, 0.052 (1.32 mm), 0.068

(1.73 mm), 0.100 (2.54 mm), 0.213

(5.41 mm), 0.255 (6.48 mm)

Tool w/die N/A

30-594

Fully Insulated quick

disconnect terminals with thinner

wire barrels 22-10 AWG

(.324 mm2- 5.261 mm2)

30-599

30-18 AWG (.205 mm2-

2.08 mm2) Open Barrel Pins

and Sockets

Tool w/die N/A

30-570

RG-6, RG-174, Belden-Type

RG-8281 cables (Hex. 0.324

(8.23 mm), 0.178 (4.52 mm),

0.068 (1.73 mm)

Tool w/die N/A

30-572

16-26 AWG (1.31 mm2- .128 mm2)

miniature insulated rings, spade

and butt splices

30-573

Cambridge CP-88, CP-89 BNC/

TNC coax connectors with RG-58,

RG-59/62 AU cables (Hex 0.305

(7.75 mm), 0.068 (1.73 mm),

0.228 (5.79 mm)

Tool w/die 30-481

30-576

RG-174, Mini 59 BNC/TNC

Connectors (Hex, 0.178 (4.52 mm),

0.128 (3.25 mm), 0.068 (1.73 mm)

Tool w/die 30-485

30-577

N-Series and RG-8/11 Connectors

(Hex, 0.429 (10.90 mm), 0.100

(2.54 mm), 0.080 (2.03 mm)

Tool w/die 30-482

30-578

RG-59, RG-6, and 8281 50 and

75 OHM cables (Hex, 0.324

(8.23 mm), 0.255 (6.48 mm),

0.068 (1.73 mm), 0.042 (1.07 mm)

Tool w/die 30-483

30-579

22-10 AWG

(.324 mm2- 5.261 mm2) insulated

terminals/color coded nests

Tool w/die 30-500

30-580

22-8 AWG (.3 mm2- 8 mm2)

non-insulated terminals

30-581

RG-58, RG-59/62, BNC/TNC

Coax Connectors (Hex, 0.255

(6.48 mm), 0.213 (5.41 mm),

0.068 (1.73 mm)

Tool w/die 30-502

■Factory pre-set to work with all IDEAL compression connectors

and most major manufacturer’s RG-59, RG-6, RG-6 Quad and

RG-11 F-connectors

■Adjustable to fit multiple cables and other manufacturer’s

connectors

■High-strength aluminum body for durability and long life

■Lightweight and durable

composite material

■High leverage design

reduces hand fatigue

OmniSeal™ Pro

Compression Tools

Description Cat. No.

OmniSeal™ Pro Compression Tool - F-type (RG-6, 59, 11),

Mini F-type, RCA Mini Connectors 30-603

OmniSeal™ Pro XL Compression Tool - F-type (RG-6, 59, 11),

Mini F-type, RCA Mini RCA and BNC Connectors 30-793

30-603

30-793

DataComm Equipment

Compression Tools/Connectors

F-15

1-800-435-0705 for Customer Service www.idealindustries.com

Universal Compression Connectors

■Four universal connectors

terminate all plenum RG-6,

RG-6, RG-59 and RG-11

braid types from 60%

through quad shielding

■Approved by most satellite

and cable TV companies

■Approved for indoor/outdoor use

OmniSeal™ Compression Tools

■Approved for use by most cable TV and

satellite companies

■RF signal containment ensures strong signal

■Permanent connections do not pull

off or come loose

■One-piece design for quick

installation

■Compression port seal provides

a water-tight seal for outdoor

applications

Description Qty. Cat. No.

RG-59 Compression F-Connector 50 89-054

RG-59 Compression F-Connector 100 89-104

RG-6 Compression F-Connector 50 89-055

RG-6 Compression F-Connector 100 89-105

RG-6 Quad Compression F-Connector 50 89-056

RG-6 Quad Compression F-Connector 100 89-106

BNC Compression Connectors

■Color coded by cable series for

easy identification

■Approved for indoor/outdoor use

Description Qty. Cat. No.

BNC RG-6 Compression Connector Clam of 15 89-057

BNC RG-6 Compression Connector Jar of 50 89-5057

BNC RG-59 Compression Connector Clam of 15 89-058

BNC RG-59 Compression Connector Jar of 50 89-5058

■Easily compresses

series 6 and 59

coax compression

F-connectors

■Permanent connection –

never comes loose

■Works with most brands of compression connectors

■Adjustable nesting fixture accommodates a variety of connectors

Description Cat. No.

Economy Compression Tool 30-633

Economy Compression Tool Kit - Includes four 89-035 Connectors 33-653

Economy Compression Tool

CMP Compression Connectors

Description Qty. Cat. No.

Universal RG-59 Compression Connectors Jar of 50 89-059

Jar of 100 89-159

Universal RG-6 Compression Connectors Jar of 50 89-060

Jar of 100 89-160

Plenum RG-6 Compression Connectors Jar of 50 89-060P

Jar of 100 89-160P

Universal RG-11 Compression Connectors Clam of 10 89-011

Feature OmniSeal™ XL OmniSeal™ 11

30-703 30-720

For RG-6 & RG-59 Cables X X

Compresses RCA & F-Connectors X X

Compresses BNC Connectors X —

Works with IDEAL and PPC brand RCA

connectors X X

For RG-11 cables — X

NEW

Connectors/Splitters

www.idealindustries.com 1-800-435-0705 for Customer Service

F-16

Compression F-Connector

Port Seals

Mini Compression Connectors

■For use with IDEAL RG-6, RG-6 Quad

and RG-59 F-Style compression connectors

to make connections water tight

■For use with most 21-25 AWG

mini coax cable

■Body is nickel plated for

outstanding corrosion

resistance

■Mini RCA head is gold

plated for superior

contact performance

■Bandwidth is 5 MHz - 3 GHz,

Impedence is 75 Ohms (nominal),

return loss min. -30 dB @ 3 GHz

Description Qty. Cat. No.

Port Seal 5 89-026

Push-on Connectors

■Permanent connection

■No termination tool needed

Description Quantity Cat. No.

CATV Cable Splitter, 5-900 MHz, 2-Way Card of 1 85-032

Box of 10 86-432

CATV Cable Splitter, 5-900 MHz, 3-Way Card of 1 85-033

Box of 10 86-433

CATV Cable Splitter, 5-900 MHz, 4-Way Card of 1 85-034

High Performance Cable Splitter, Card of 1 85-132

5MHz-1GHz 2-Way Box of 10 86-132

High Performance Cable Splitter, Card of 1 85-133

5MHz-1GHz 3-Way Box of 10 86-133

High Performance Cable Splitter, Card of 1 85-134

5MHz-1GHz 4-Way Box of 10 86-134

Splitters

Satellite and Digital TV Splitters

■Designed for easy mounting over cable

■All ports are F female connectors, 75Ω

■Two grounding screws eliminate the need for grounding block

■Includes two mounting screws (Phillips/slotted head)

Description Qty. Cat. No.

2-Way, 5MHz - 2.3GHz 1 85-332

3-Way, 5MHz - 2.3GHz 1 85-333

4-Way, 5HMz - 2.3GHz 1 85-334

Description Qty. Cat. No.

Mini Compression F-Connector 10 89-014SM

Mini Compression RCA Connector 10 89-014SMRCA

85-332

85-032

85-033

F-Connector

RCA Connector

85-333

85-334

85-034

F-Series Coaxial Connectors

F-Series Connectors utilize threaded couplings and cable conductors

as contacts for CATV and other UHF applications.

Description Quantity Cat. No.

F-Series, Twist-on Card of 4 84-018

Plug, RG-59 Card of 10 85-035

Card of 4 84-016

F-Series, Crimp Card of 10 85-036

Plug, RG-59 Card of 50 85-016

Box of 100 86-016

Card of 4 84-017

F-Series, Crimp Card of 10 85-037

Plug, RG-6 Card of 50 85-017

Box of 100 86-017

Card of 4 84-030

F-Series, Crimp Plug, Card of 10 85-057

RG-6, Quad Shield Card of 50 85-030

Box of 100 86-030

F-Series, Female Card of 10 85-031

Adapter

F-Series, Card of 10 85-038

Terminator

Card of 4 84-039

F-Type, Twist-on Card of 10 85-053

RG-6 Card of 50 85-039

Box of 100 86-039

Description Qty. Cat. No.

RG-6 Push-on F-Connectors 4 85-065

RG-6Q Push-on F-Connectors 4 85-066

RG-59 Push-on F-Connectors 4 85-067

RG-6 Push-on F-Connectors 50 89-165

Coax Connector Kit w/Economy Coax Stripper & —33-320

four RG-6 Push-On F-Connectors

Grounding Block

■Solid zinc alloy, nickel plated

and chromate finished

■High performance 360°

beryllium copper contact

■Excellent electrical performance

0 - 3,000 MHz

■Dual grounding holes can accept up to #6 wire

■UL/CSA approved

Description Cat. No.

2-Port Grounding Block for F-Connectors 85-311

Description Cat. No.

Coax Connector Tool - F & BNC 35-046

Coax Connector Tool - F & BNC

■Works on compression and

hex connectors

■Makes attaching (and detaching)

connector to equipment easier

■Aids in installing CATV

connectors on coax cable

■New comfort grip handle

Tools/Kits

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-17

Description Cat. No.

Digital Cable Splitter, 8-Way 85-138

Digital Cable Splitter

■Nickel-plated housing

■High-performance impedance-

balanced Printed Circuit Board

design

■Bandwidth: 5MHz - 1 GHz

Impedance: 75 Ohm

■Over 120 dB of RFI shielding

■Low insertion loss

■Splits signals up to 8 outlets

■Terminators (85-038) needed for all unused ports for optimal

performance

Diplexer, 2.3 GHz

■Combine or split cable/

antenna signals with

satellite signals

■High quality PCB design

■Corrosion-resistant sealed

construction

■Nickel-plated die-cast zinc housing

■High-quality machined threads for quick connections

■Grounding hole for up to 6 AWG wire

35-465

Mini Coax Stripper

■Adjustable stripper for mini

coax cable

Description Cat. No.

Mini Coax Stripper 45-529

NEW

Description Cat. No.

20-26 AWG (.519 mm2- .128 mm2) RS232 D-sub 35-465

Round Barrel Contacts, Pins or Sockets

16-22 AWG (1.31 mm2- .324 mm2) Round Barrel 35-466

Contacts, Pins,Sockets and Deutsch 16 Pin Contacts

Trompeter BNC Connector Center Pins 35-468

4-Way Indent Crimp Tools

Crimp solid barrel contacts for

RS232 interface connectors.

Feature four-way indent dies

(per MS22520 specifications),

full cycle ratchet, built-in pin and

socket locator and comfort-grip handles.

■High-grade steel construction for outstanding performance

Description Cat. No.

Diplexer, 2.3 GHz, SATV/TV Combiner Splitter 85-323

Kit 33-915 Includes:

Description Qty. Cat. No.

Data T®-Cutter 1 45-074

Economy Coax Stripper 1 45-320

Economy UTP Stripper 1 45-167

Non-Impact Turn-Lock™ Tool w/110 Blade 1 35-492

Telemaster™ Telephone Tool 1 30-496

Economy Compression Tool 1 30-633

Mechanics Bag 1 35-535

Economy Data

and CATV Kit

Residential

Compression Kit

Kit 33-625 Includes:

Description Qty. Cat. No.

OmniSeal™ Pro Compression Tool 1 30-603

Mechanic’s Tool Bag 1 35-535

Data T®-Cutter 1 45-074

Coax Stripmaster®Wire Stripper for RG-6 1 45-262

Stripmaster®RG-6 QuadShield Repl. Blade 1 LA-3953

Universal RG-6 Compression Connectors 50/jar 89-060

Economy

Compression Kit

Kits

www.idealindustries.com 1-800-435-0705 for Customer Service

F-18

Kit 33-620 Includes:

Description Qty. Cat. No.

Economy Tool 1 30-633

Data T®-Cutter 1 45-074

Coax Stripper 1 45-526

RG-59 Compression F-Connectors 10 89-054

RG-6 Quad Compression F-Connectors 10 89-056

RG-6 Compression F-Connectors 20 89-055

Kit 33-917 Includes:

Description Qty. Cat. No.

Data T®-Cutter 1 45-074

Twist-a-Nut™ 7-in-1 Screwdriver 1 35-908

UTP Stripper 1 45-165

Coax Stripper w/Replaceable Cartridge 1 45-526

Punchmaster™ II Punch Down Tool w/110 Blade 1 35-485

110/66 Blade Combo Punch Down Blade 1 35-407

Crimpmaster™ Crimp Tool for RJ-45 Modular Plugs 1 30-522

OmniSeal™ Pro XL Compression Tool 1 30-793

Probe Pic and Spudger 1 35-473

Coax Connector Tool - F & BNC 1 35-046

VDV MultiMedia Cable Tester 1 33-856

Amplifier Probe 1 62-164

Electrician’s Scissors w/Stripping Notch 1 35-088

Large Mouth Bag — 13 in. 1 35-410

Data/Video Kit

Kit 33-621 Includes:

Description Qty. Cat. No.

Economy Compression Tool 1 30-633

Data T®-Cutter 1 45-074

Economy Coax Stripper 1 45-320

Zipper Pouch 1 35-402

RG6 CMP Compression Connectors 4 89-015

Economy CATV

Compression Kit

Kit 33-916 Includes:

Description Qty. Cat. No.

Data T®-Cutter 1 45-074

UTP Stripper 1 45-165

Stripmaster®Wire Stripper for RG-6 1 45-262

Punchmaster™ II Punch Down Tool w/110 Blade 1 35-485

OmniSeal™ Pro XL Compression Tool 1 30-793

TRACETone™ Tone Generator & Amplifier Probe 1 62-140

VDV Multimedia Cable Tester 1 33-856

Journeyman Electrician’s Tote™ 1 35-462

33-916

Basic Data and

Video Kit

Kits

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-19

Service

Compression Kit

Kit 33-630 Includes:

Description Qty. Cat. No.

Universal RG-6 Compression Connectors 50 89-060

Plenum RG-6 Compression Connectors 10 89-060P

BNC RG-59 Compression Connectors 10 89-058

BNC RG-6 Compression Connectors 10 89-057

OmniSeal™ Pro XL Compression Tool 1 30-793

Compression F-Connector Port Seals 5 89-026

Data T®-Cutter 1 45-074

Coax Stripmaster®Wire Stripper for RG-6 1 45-262

Replacement Blade for 45-262 1 LA-3953

Kit 33-704 Includes:

Description Qty. Cat. No.

Telemaster™ for RJ-11/RJ-45 Plugs 1 30-496

4-Position, RJ-11 Stranded Modular Plugs 15 85-351

6-Position, RJ-11 Stranded Modular Plugs 15 85-352

8-Position, RJ-45 Stranded Modular Plugs 15 85-353

RJ-45/11 Two, Four, Six and Eight-Position

Combination TelCom Termination Kit

Kit 33-750 Includes:

Description Qty. Cat. No.

UTP/Coax Stripper 1 45-165

Telemaster™ RJ-11/RJ-45 Crimp Tool 1 30-496

8-Position RJ-45 Non-keyed Solid Plugs 50 85-346

Economy 10Base-T Kit

Crimpmaster™ Twisted Pair Kit

Kit 33-651 Includes:

Description Qty. Cat. No.

Data T®-Cutter 1 45-074

UTP/Coax Stripper 1 45-165

Crimpmaster™ Frame Only 1 30-506

2,4,6-Position Die Set for RJ-11 Plugs 1 30-556

6-Position DEC MMJ Die Set for RJ-11 Plugs 1 30-558

8-Position Die Set for RJ-45 Plugs 1 30-559

8-Position Die Set for RJ-45, AMP Plugs 1 30-560

4-Position Solid Modular Plugs 50 85-394

6-Position Solid Modular Plugs 50 85-395

DEC Connect 6-Position Solid Modular Plugs 50 85-393

8-Position RJ-45 Non-Keyed

Solid Modular Plugs 50 85-396

Kit 33-320 Includes:

Description Qty. Cat. No.

RG-6 Push-On Connectors 4 85-065

2-Step 59 & 6 Series Stripper 1 45-320

RG-6 Push-on

Connector Kit

Kit 33-652 Includes:

Description Qty. Cat. No.

Data T®-Cutter 1 45-074

UTP/Coax Stripper 1 45-165

Crimpmaster™ Crimp Tool Frame only 1 30-506

8-Position Die Set for RJ-45 Plugs 1 30-559

8-Position RJ-45 Non-Keyed Solid Plugs 200 86-396

Crimpmaster™ 10Base-T

RJ-45 Crimping Kit

Kits

www.idealindustries.com 1-800-435-0705 for Customer Service

F-20

Kit 33-623 Includes:

Description Qty. Cat. No.

Data T®-Cutter 1 45-074

Coax Cable Stripper 1 45-320

Economy Compression Tool 1 30-633

Pouch w/belt clip 1 —

Compression Connector

Installation Kit

Kit 33-605 Includes:

Description Qty. Cat. No.

Punchmaster™ Punch Down Tool w/110 Blade 1 35-485

66 Blade Only 1 35-497

Electrician’s Scissors w/Stripping Notches 1 35-088

UTP/STP Stripper 1 45-165

5-in-1 Screwdriver 1 35-905

Probe Pic & Spudger 1 35-473

Tone Generator 1 62-160

Amplifier Probe 1 62-164

Journeyman’s Electrician’s Tote™ 1 35-462

Cable Service Kit

Kit 33-705 Includes:

Description Qty. Cat. No.

Punchmaster™ II Punch Down Tool w/110 Blade 1 35-485

66 Blade Only 1 35-497

Electrician’s Scissors w/Stripping Notches 1 35-088

UTP/STP Stripper 1 45-165

5-in-1 Screwdriver 1 35-905

Probe Pic & Spudger 1 35-473

Tone Generator 1 62-160

Amplifier Probe 1 62-164

Journeyman’s Electrician’s Tote™ 1 35-462

Telemaster™ Telphone Tool 1 30-496

LinkMaster™ Tester and Remote 1 62-200

Deluxe Cable

Service Kit

NEW

Kit 33-861 Includes:

Description Qty. Cat. No.

Data T®-Cutter 1 45-074

Center Conductor Cutter 1 35-060

UTP/Coax Stripper 1 45-165

Coax Stripper w/black cassette 1 45-520

Crimpmaster™ RG-58/59 Crimp Tool 1 30-502

2, 4, 6-Position Die Set for RJ-11 Plugs 1 30-556

8-Position Die Set for RJ-45 Plugs 1 30-559

Punchmaster™ II Punch Down Tool w/66 Blade 1 35-487

Punchmaster™ II 110 Blade only 1 35-495

ABS™ Signal Thrower™ 1 62-184

ABS™ Tester 1 62-180

LinkMaster™ Tester w/Remote 1 62-200

Cable Assemblies 1 K-7921

Cable Service/Termination Kit

Kit 33-869 Includes:

Description Qty. Cat. No.

Data T®-Cutter 1 45-074

Scissors w/Stripping Notch 1 35-088

Center Conductor Cutter 1 35-060

UTP/Coax Stripper 1 45-165

Coax Stripper w/Black Cassette 1 45-520

Crimpmaster™ Frame Only 1 30-506

2,4,6-Position Die Set for RJ-11 Plugs 1 30-556

8-Position Die Set for RJ-45 Plugs 1 30-559

RG-58/59/62 BNC Die Set 1 30-581

Punchmaster™ II w/110 Blade 1 35-485

Punchmaster™ II 66 Blade Only 1 35-497

ABS™ Signal Thrower™ 1 62-184

ABS™ Tester 1 62-180

ZipKit™ Carrying Case 1 35-419

Twisted Pair/Coax

Termination Kit

Kits

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-21

Kit 33-400 Includes:

Description Qty. Cat. No.

Crimpmaster™ CATV Crimp Tool 1 30-503

F-Connector, Crimp-on RG-59 Plugs 20 85-016

F-Connector, Crimp-on RG-6 Plugs 20 85-017

Crimpmaster™ F-Type

(CATV) Connectors Kit

Technician’s

Service Kit

Kit 33-505 Includes:

Description Qty. Cat. No.

Punchmaster™ II Punch Down Tool w/110 Blade 1 35-485

Punchmaster™ II 66 Blade only 1 35-497

Electrician’s Scissors w/stripping notches 1 35-088

UTP/STP Stripper 1 45-165

7-in-1 Twist-a-Nut™ Screwdriver/Nutdriver 1 35-908

Probe Pick and Spudger 1 35-473

Nylon case 1 62-205

Now

includes

7-in-1

Screwdriver

Installer Kit

Kit 33-935 Includes:

Description Qty. Cat. No.

UTP/STP Stripper 1 45-165

Data T®-Cutter 1 45-074

Jab Saw 1 35-275

Large Mouth Bag – 18 in. 1 35-427

Punchmaster™ II 110 Blade only 1 35-485

110/66 Blade 1 35-407

Electrician’s Scissors w/stripping notches 1 35-088

Torpedo Level 1 35-205

Mag-Tape™ Tape Measure 1 35-238

Tongue & Groove Pliers – 10 in. 1 35-430

5-in-1 Screwdriver/Nutdriver 1 35-905

Probe Pic and Spudger 1 35-473

Cable Cutter 1 35-061

Fiberglass-Handled Hammer – 18 oz. x 12-1/2 in. 1 35-210

Kit 33-945 Includes:

Description Qty. Cat. No.

Large Mouth Bag – 18 in. 1 35-427

110/66 Blade 1 35-407

66 Blade only 1 35-497

Punchmaster™ II 110 Blade only 1 35-485

Lever™-Snips Electrician’s Scissors 1 35-087

Probe Pic and Spudger 1 35-473

UTP/STP Stripper 1 45-165

7-in-1 Twist-a-Nut™ Screwdriver/Nutdriver 1 35-908

Mag-Tape™ Tape Measure 1 35-238

Torpedo Level 1 35-205

Jab Saw 1 35-275

OmniSeal™ Compression Tool 1 30-603

Coax Stripper - 2-Step 1 45-526

Smart-Grip™ Long-Nose Pliers – 7-3/4 in. 1 35-3037

Smart-Grip™ Tongue & Groove Pliers – 10 in. 1 35-3430

Tongue & Groove Pliers – 9-1/2 in. 1 35-420

Tone Generator 1 62-160

Amplifier Probe 1 62-164

Data T®-Cutter 1 45-074

Cable Splicing Knife 1 35-091

Ratchet Telemaster™ 1 30-696

F-Connector Tool 1 35-046

Pro Installer Kit

Connectors

www.idealindustries.com 1-800-435-0705 for Customer Service

F-22

BNC Coaxial Connectors

IDEAL coaxial connectors are available in two grades. A premium specification grade features precision machined brass bodies with nickel

plating. The commercial grade consists of machined diecast components with nickel plating. A variety of connectors handle different

termination types, cable size, impedance rating and attachment means.

■Connector construction covers both plenum and non-plenum cable jackets

■Captive gold center contacts provide maximum conductivity and minimal resistance

■Nickel plating resists corrosion, tarnish and ensures signal quality

■Meets military specifications. MS39012 and MIL202 where applicable.

■Available in both small and bulk quantities to suit a range of application requirements

BNC/TNC Connector Removal Tools

35-043

35-042

■BNC/TNC connector removal tools for easy access to high density

locations of connectors.

Description Cat. No.

8 in. (20.3 cm) Overall Length, 35-041

4-1/2 in. (11.4 cm) Blade Length

12 in. (30.5 cm) Overall Length, 35-042

8 in. (20.3 cm) Blade Length

16 in. (40.6 cm) Overall Length, 35-043

12 in. (30.4 cm) Blade Length

IDEAL •

•

Connector Cable Center Connector Connector

Type Type Conductor Jacket Impedance Grade Insulation Model Quantity Cat. No.

BNC Plug RG-58 20 AWG Solid Non- 50 Ohm Commercial Delrin IA-3620 Bag of 5 85-490

Plenum

BNC Plug RG-58 20 AWG Solid Non- 50 Ohm Specification Delrin IA-3621 Bag of 5 85-491

Plenum

BNC Plug RG-59 20 AWG Solid Non- 75 Ohm Commercial Delrin IA-3617 Bag of 5 85-502

Plenum Box of 100 86-502

BNC Plug RG-59 20 AWG Solid Plenum 75 Ohm Commercial Delrin IA-3618 Bag of 5 85-512

BNC Plug RG-59 22-23 AWG Solid Non- 75 Ohm Commercial Delrin IA-3624 Bag of 5 85-513

Plenum

BNC Plug RG-59 22-23 AWG Solid Plenum 75 Ohm Commercial Delrin IA-3626 Bag of 5 85-515

BNC Plug RG-59 22-23 AWG Solid Non- 50 Ohm Specification Delrin IA-3592 Bag of 5 85-517

Plenum

BNC Plug RG-6 18 AWG Solid Non- 75 Ohm Specification Delrin IA-3634 Bag of 5 85-545

Plenum

BNC Plug Belden 20 AWG Solid Non- 75 Ohm Specification Delrin IA-3636 Bag of 5 85-550

8281 Plenum

BNC Jack RG-59 22-23 AWG Solid Non- 75 Ohm Specification Teflon IA-3638 Bag of 5 85-553

Plenum

BNC —— —

50 Ohm Specification Delrin IA-3641 Bag of 5 85-556

Terminator

90° BNC Plug RG-6 18 AWG Solid Non- 75 Ohm Specification Delrin IA-3659 Bag of 5 85-575

Plenum

BNC Tee Jack to Plug to 50 Ohm Commercial Delrin IA-3667 Bag of 5 85-588

Adapter ——

BNC Adapter Jack to Jack 50 Ohm Specification Delrin IA-3668 Bag of 5 85-590

BNC RG-59 22-23 AWG Solid Non- 50 Ohm Commercial Delrin IA-3677 Bag of 5 85-480

Twist-on Plug Plenum

#35-041 not shown.

Wall Plates/Jacks

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-23

85-205 85-218

85-220

Wall Plates

85-232

85-239 85-237

Telephone Wall Plates are listed and approved by the Underwriter’s

Laboratories and contain 50 micro inches of gold plating on the

contacts.

Telephone Wall Plates - Standard Size

Description Color Qty. Cat. No.

Ivory Card of 1 85-206

Box of 100 86-206

RJ-11, 2 Pair White Card of 1 85-207

Box of 100 86-207

Almond Card of 1 85-223

Box of 100 86-223

Ivory Card of 1 85-208

Dual RJ-11, 2 Pair Box of 100 86-208

White Card of 1 85-209

Box of 100 86-209

RJ-11, 3 Pair

Almond Card of 1 85-225

Box of 100 86-225

RJ-11, 3 Pair Ivory Card of 1 85-212

Box of 100 86-212

White Card of 1 85-213

Box of 100 86-213

Ivory Card of 1 85-214

Box of 100 86-214

RJ-45, 4 Pair White Card of 1 85-215

Box of 100 86-215

Almond Card of 1 85-227

Box of 100 86-227

Ivory Card of 1 85-216

Dual RJ-45, 4 Pair Box of 100 86-216

White Card of 1 85-217

Box of 100 86-217

Ivory Card of 1 85-218

RJ-11, 2 Pair Box of 100 86-218

Wall Mount Plate White Card of 1 85-219

Box of 100 86-219

Almond Card of 1 85-229

Box of 100 86-229

Ivory Card of 1 85-200

Box of 100 86-200

CATV Coax White Card of 1 85-201

Box of 100 86-201

Almond Card of 1 85-220

Box of 100 86-220

Ivory Box of 100 86-202

Dual CATVCoax White Box of 100 86-203

Ivory Card of 1 85-204

Box of 100 86-204

Combo CATV/RJ-11 White Card of 1 85-205

Box of 100 86-205

Almond Card of 1 85-222

Box of 100 86-222

Surface Jacks

For initial installations where cable cannot be pulled through wall

or for replacement of modular four-prong jacks.

Description Color Qty. Cat. No.

RJ-11, 2 Pair White Card of 1 85-244

RJ-11, 2 Pair Ivory Card of 1 85-245

RJ-11, 2 Pair Almond Card of 1 85-246

Telephone Wall Plates — Mid-Size

Description Color Qty. Cat. No.

Ivory Card of 1 85-242

Box of 100 86-242

RJ-11, 2 Pair White Card of 1 85-237

Box of 100 86-237

Almond Card of 1 85-233

Box of 100 86-233

Ivory Card of 1 85-241

Box of 100 86-241

Combo CATV/RJ11 White Card of 1 85-236

Box of 100 86-236

Almond Card of 1 85-232

Box of 100 86-232

Ivory Card of 1 85-239

Box of 100 86-239

CATV Coax White Card of 1 85-234

Box of 100 86-234

Almond Card of 1 85-230

Box of 100 86-230

Dual CATV Coax White Box of 100 86-235

■Customizable bulk cable

■Bulk CAT 5e solid 4-pair, CMR rated, 24 AWG, 350 MHz cable

■Bulk 2-conductor in-wall, 16 AWG speaker wire

Connectors/Cables/Plugs

www.idealindustries.com 1-800-435-0705 for Customer Service

F-24

85-394

85-403

Description Qty. Cat. No.

25 85-351

6-Position 4-Contact Flat Stranded 50 85-401

100 86-401

25 85-352

6-Position 6-Contact Flat Stranded 50 85-402

100 86-402

4-Position 4-Contact Flat Stranded (Handset) 100 86-398

25 85-353

8-Position 8-Contact Flat Stranded 50 85-403

100 86-403

25 85-344

6-Position 4-Contact Round Solid 50 85-394

100 86-394

6-Position 6-Contact Round Solid 100 86-395

8-Position 8-Contact CAT 6 Modular Plug 25 85-366

25 85-346

8-Position 8-Contact Round Solid 50 85-396

100 86-396

85-396

TelCom Modular Plugs

Cables

Description Cat. No.

CAT 5e Cable - 100 ft. 85-780

In-wall Speaker Wire - 50 ft. 85-770

■All plugs comply with FCC 68 guidelines and are UL Listed

■Plugs are capable of supporting the latest EIA/TIA cable system

performance categories when installed in compliance with

appropriate EIA/TIA standards and methods

■Plugs offered for round cable with solid conductors and

for flat cable and stranded conductors

■Position and contact configurations cover popular styles

IDC connectors create fast splice and tap connections on solid

copper wires. Designed for low voltage telecommunication cables.

■Moisture-resistant sealant protects wires from corrosion

■Use with solid copper single-conductor wire

■Kinetic Super™ Wire Stripper/Crimper easily cuts and strips

22 to 24 AWG solid wire

Insulation Displacement

Connectors (IDC)

85-900 85-925

85-950

45-719

85-770

85-780

Description Qty. Cat. No.

UB-I, 2-Wire Tap Splice IDC 25 85-900

UR-I, 3-Wire Butt Splice IDC 25 85-925

UY-I, 2-Wire Butt Splice IDC 25 85-950

UR-I, 2-Wire Butt Splice IDC 100 86-925

UY-I, 2-Wire Butt Splice IDC 100 86-950

UB-I, 2-Wire Tap Splice IDC 1,000 87-900

UR-I, 3-Wire Butt Splice IDC 1,000 87-925

UY-I, 2-Wire Butt Splice IDC 1,000 87-950

IDC Combo Pack 25 85-960

Kinetic Super™ Wire Stripper/Crimper 1 45-719

CAT 6 Modular Plugs

Description Qty. Cat. No.

CAT 6 Modular Plugs 25 85-366

■Supports CAT 6

■Unique three-piece design provides

easy installation and optimal performance

■Crimps with a standard RJ-45 crimp die

■50 micron gold contacts, 8-position, 8-contact

■Suitable for solid or stranded conductors

Coaxial Selection Chart

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-25

Coaxial Selection Chart

Compression Style

Crimp Style

Cable Cutter Stripper Crimper Connector Tester

CATV/SATV/F-type

RG-59 45-074, 45-075 45-265, 45-603, 45-320 30-603, 30-793, 30-703, 30-720, 30-633 89-054, 89-104, 89-059, 89-159

RG-6 45-074, 45-075 45-262, 45-603, 45-320 30-603, 30-793, 30-703, 30-720, 30-633 89-055, 89-105,89-060, 89-160

RG-6 Quad Shield 45-074, 45-075 45-282, 45-603, 45-320 30-603, 30-793, 30-703, 30-720, 30-633 89-056, 89-106, 89-060, 89-160

RG-6 & Quad 6 45-074, 45-075 45-510 30-603, 30-793, 30-703, 30-720, 30-633 89-060P, 89-160P

Plenum

RG-11 45-074, 45-075 45-164, 45-510 30-603, 30-793, 30-720 89-011

Minis 45-074, 45-075 45-529 30-603, 30-793, 30-703 89-014SM, 89-014SMRCA

BNC

RG-59 45-074, 45-075 45-265, 45-603, 45-320 30-603, 30-793, 30-703 89-058, 89-5058

RG-6 45-074, 45-075 45-265, 45-603, 45-320 30-603, 30-793, 30-703 89-057, 89-5057

Cable Cutter Stripper Crimper Connector Tester

CATV/SATV/F-Type

RG-59 45-074, 45-075 45-265, 45-603, 45-320 30-503 85-036, 85-016, 86-016

RG-6 45-074, 45-075 45-265, 45-603, 45-320 30-503 85-037, 85-017, 86-017

RG-6 Quad Shield 45-074, 45-075 45-282, 45-603, 45-320 30-503 85-057, 85-030, 86-030

RG-6 Plenum 45-074, 45-075 45-282, 45-603 30-503 N/A

RG-11 45-074, 45-075 45-164, 45-510 N/A N/A

BNC

RG-59, Non-Plenum 45-074, 45-075 45-520 30-502, 30-483 85-513, 85-517, 85-502

RG-6 Non-Plenum 45-074, 45-075 45-520 30-483 85-545

*Need LA-4173 adapter.

33-856, 33-880

33-881, 33-887*

33-856, 33-880

33-881, 33-887*

Fiber Optic Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

F-26

Serrated Cutter (For Kevlar®)

with Breaker Notch

Stripmaster®Ribbon Fiber

Jacket Stripper

Simplex/Duplex 3mm

Jacket Stripper

Lite-Strip™

Optical Fiber Stripper

V-notch blades strip a wide range of outer cable jacket. Precision-

ground, replaceable knife-type blades strip tight buffer tube

insulations (900µm). Also strips mechanically strippable coatings

from 250 microns to 900 microns.

■Replaceable precision-ground blades cleanly strip buffer

coatings

■New funneled hole makes cable insertion easier

■Improved spring mounting returns handles to original position

after every application

■One-step, 900 micron stripping hole provides broader

stripping range

■Extra durable to withstand normal drops without requiring

tool realignment

■New gauge color makes fiber and hole identification easier

■Improved comfort-grip handles for an easier, more comfortable

stripping process

Description Fiber Sizes Cat. No.

Lite-Strip™Optical Fiber Stripper (900µm/250µm) 125µm, 140µm 45-350

MiniLite-Strip™

Optical Fiber Stripper

■Small strip notch

engineered and

precision-ground to

strip 900 micron or

250 micron buffer coatings

from 125 micron fiber

■Larger round strip notch machined to remove the 3mm outer jacket

■Strip notches pre-set and locked, no field adjustment necessary

Description Cat. No.

MiniLite-Strip™ Optical Fiber Stripper 45-352

■Two-Step process significantly

increases the life of this rugged tool

■Superior quality high-carbon stainless steel with molybdenum and

vanadium provides the super-hard edges needed to stand up to

the demands of today’s market

■Textured cushioned-grip handles

■Value-priced for contractors, cable assembly houses, fiber

installers/technicians and tool kits

Description Cat. No.

Serrated Cutter w/Breaker Notch (Patent pending) 45-344

Note: Kevlar®is a registered trademark of DuPont.

■Designed to remove the jacket from 3mm Simplex or Duplex (zip

cord) fiber optic cable

■Form-ground, knife-type blades for accurate easy stripping without

damaging the fiber or Kevlar®strength member

■Contoured, comfort-grip handles to reduce operator fatigue

Description Cat. No.

Simplex/Duplex 3mm Jacket Stripper 45-349

Note: Kevlar®is a registered trademark of DuPont.

Description Cat. No.

Stripmaster®Wire Stripper Frame only L-5620

Blade-set for use with Corning Plenum and Riser Ribbon Fiber Cable LB-1152

Blade-set for use with Corning “Fanout” Ribbon Cable LB-1153

Note: Kevlar®is a registered trademark of DuPont.

■Removes jacket from Ribbon Fiber without

damage to the Kevlar®strength member of

the Ribbon Fiber

Note: Frame and blade-set sold separately.

Fiber Optic Tools

DataComm Equipment

1-800-435-0705 for Customer Service www.idealindustries.com F-27

Cable Strippers

45-162

This lightweight, compact stripper is inexpensive and

simple to operate.

■Adjustable blades can be set for any depth to help ensure

nick-free strips

■Use with twisted-pair wire, tightly wrapped stranded cables,

CATV cable, CB antenna cable, SO, SJ, SJT and other types of

flexible power cords

■Includes three straight and one round blade

Description Cat. No.

Cable Stripper, up to 1/8 in. (3.2 mm) O.D., Gray 45-162

Cable Stripper, 1/8 in. (3.2 mm) to 7/32 in. (5.556 mm) O.D., Blue 45-163

Replacement Blade Set for 45-162, 45-163, 45-165 L-9225

Split-Tip Fiber Optic Swabs

Polishing Films for Fiber

Optic Connectors

■Split-tip design cleans fiber easier

and more efficiently than other

methods

■Tube/handle is pre-loaded

with 99% isopropyl alcohol

■A single swab can be used

for many cleanings or until the

alcohol is gone

Description Qty. Cat. No.

Split-Tip Fiber Optic Swabs 20/bag 45-360

■For optimum connector

polishing results, we

recommend a three-step

procedure using 0.5µm,

3µm and 12µm 3 in. x 6 in.

aluminum oxide polishing

films

■Lot-to-lot consistency in our

films means repeatable connector

finishes on ceramic, stainless steel,

plastic and composite ferrules

■A single sheet will typically yield 10 to 20 connectors when using

the recommended 3-step procedure

Description Color Qty. Cat. No.

0.5µm, 3” x 6”, Aluminum Oxide Ivory 20 films/sleeve 45-337

3.0µm, 3” x 6”, Aluminum Oxide Lt. Yellow 20 films/sleeve 45-338

12µm, 3” x 6”, Aluminum Oxide Lt. Red 20 films/sleeve 45-339

■Three professional quality blade styles

to choose from to meet your specific

needs – Ruby, Sapphire, Carbide

■Color-coded handles for quick,

easy identification

Red – Ruby

Blue – Sapphire

Black – Carbide

■30° single bevel – DualScribe™

reversible blade doubles tool life

■Soft non-slip grip provides precise

control during scribing

■Clear safety cap protects the blades from

damage when not in use

Description Handle Color Cat. No.

Ruby Blade Fiber Optic Scribe Red 45-357

Sapphire Blade Fiber Optic Scribe Blue 45-358

Carbide Blade Fiber Optic Scribe Black 45-359

Plastic Polishing

Fixture

DualScribe™ Double-Ended

Fiber Optic Scribes

■Universal fitting accepts all ST®, SC

and FC connectors with 2.5mm

ferrules

■Economically priced

■Grooved face for polishing efficiency

■Precision tool used by manufacturers, contractors and

in tool kits

Description Cat. No.

Plastic Polishing Fixture 45-342

Note: ST®is a registered trademark of AT&T.

Stainless Steel Polishing Fixture for

Optical Fiber ST®and

SC Type Connectors

Produces polished fiber optic ST®and

SC type connectors for optimum

connector performance.

■Precision-machined, stainless-steel

disk provides accurate polishing angle

for desired end face finish

■Stainless-steel hardness maintains long life and resists

uneven wear

■Stepped surface reduces drag and friction for easier polishing

Description Qty. Cat. No.

Polishing Fixture for Optical Fiber 145-341

SC/ST®Type Connectors

Note: ST®is a registered trademark of AT&T.

45-359

45-358

45-357

45-339

45-338 45-337

Fiber Optic Tools

www.idealindustries.com 1-800-435-0705 for Customer Service

F-28

Fiber Inspection Microscope

Description Cat. No.

Fiber Inspection Microscope 45-332

1.25mm Connector Adapter 45-334

MTRJ-Style Connector Adapter 45-335

200X Conversion Eyepiece for Singlemode Connectors 45-336

Note: ST®is a registered trademark of AT&T.

■100X magnification for viewing multimode connectors

■Includes 2.5mm connector “Universal Adapter” for FC, ST®

and SC style connectors

■Oblique illumination provides excellent view of ferrule cleanliness

and core condition

■Rugged, rubberized metal housing, precision glass optics and a

built-in laser safety filter

■White LED illumination delivers 100,000 hours bulb life

■Soft padded carrying case included

■Battery life 48+ hours

■Compact size 7.5 in. x 1.96 in. x 1.18 in.

■Optional 200X Conversion Eyepiece threads on for viewing finish/

polish of singlemode connectors

VFF Visual Fault Finder

Laser light source used to locate breaks, faulty

splices and crimps

■NEW 2.5mm Universal Adapter for all

ST®, SC and FC connectors

■Useful over a distance of 5km (3 miles)

■Two AA batteries provide over 30 hours

of continuous use

■Slim, pocket-sized tool in rugged

metal housing

■Nylon carrying case with belt

loop included

Description Cat. No.

Visual Fault Finder VFF5

Note: ST®is a registered trademark of AT&T.

Supplies

Toggle Switches

www.idealindustries.com 1-800-435-0705 for Customer Service

G-2

Standard and Heavy-Duty Toggle Switches

■

Great for power tool and motor control switch applications

■

Rugged long-wearing solid brass/nickel-plated bushings

■

1/2 in. diameter mounting hole

■

Dielectric Strength: 1500V

■

Mechanical Life: 100,000 cycles

■

Operating Temperature: 32°F to 185°F (0°C to 85°C)

■

DC Rating: Factory tested 100,000 cycles to 21 Amp 14.8 VDC

■

Bulk packaging of 100 available upon request

Product

Rating

Toggle Switch SPDT On-On Screw 3 20 10 3/4 1.13 ×.57 ×.61 774012

Toggle Switch SPDT On-On Spade 3 20 10 3/4 1.13 ×.57 ×.61 774100

Toggle Switch SPDT On-Off-On Screw 3 20 10 3/4 1.13 ×.57 ×.61 774013

Toggle Switch SPDT On-Off-On Spade 3 20 10 3/4 1.13 ×.57 ×.61 774027

Toggle Switch SPDT On-Off-(On) Screw 3 20 10 3/4 1.13 ×.57 ×.61 774094

Toggle Switch SPDT (On)-Off-(On) Screw 3 20 10 3/4 1.13 ×.57 ×.61 774009

Description Poles Circuitry Termination No. of Amps 125 Amps 277 HP 125-250 Dimensions Cat. No.

Style Terminals VAC VAC VAC (L ×

W×

H )

Toggle Switch with SPST On-Off Screw 2 20 10 3/4 1.13 ×.57 ×.61 774011

On-Off Faceplate 774011BK†

Toggle Switch with SPST On-Off Spade 2 20 10 3/4 1.13 ×.57 ×.61 774008

On-Off Faceplate 774008BK†

Toggle Switch SPST On-Off “O”Ring & Screw 2 20 10 3/4 1.13 ×.57 ×.61 774010

Toggle Switch SPST (On)-Off Screw 2 20 10 3/4 1.13 ×.57 ×.61 774093

Toggle Switch SPST On-(Off) Screw 2 20 10 3/4 1.13 ×.57 ×.61 774088

774088BK†

( ) denotes momentary action †Bulk Package of 100

1-1/2

Heavy-Duty Toggle Switch DPST On-Off Screw 4 20 10 1-1/2 1.30 x .76 ×.80 774014

774014BK†

Heavy-Duty Toggle Switch DPST On-Off Spade 4 20 10 1-1/2 1.30 ×.76 ×.80 774005

774005BK†

Heavy-Duty Toggle Switch DPST (On)-Off Screw 4 20 10 1-1/2 1.30 ×.76 ×.80 774103

Heavy-Duty Toggle Switch DPST On-(Off) Screw 4 20 10 1-1/2 1.30 ×.76 ×.80 774105

774111

Toggle Switch w/boot SPST On-Off 2 20 20 1.18 ×.68 ×.75

774111BK†

Wire leads

w/boot

1-800-435-0705 for Customer Service www.idealindustries.com

Supplies

Toggle Switches

G-3

Standard and Heavy-Duty Toggle Switches

*250VAC, Dielectric strength: 1000V ( ) denotes momentary action †Bulk Package of 100

Product

Toggle Switch 4PDT On-On Screw 12 15 10* 3/4 1.31 ×1.44 ×.80 774109

Toggle Switch 4PDT On-Off-On Screw 12 15 10* 3/4 1.31 ×1.44 ×.80 774110

Toggle Switch 4PST On-Off Screw 8 15 10* 3/4 1.31 ×1.44 ×.80 774108

Toggle Switch 3PDT On-On Screw 9 15 10* 3/4 1.31 ×1.09 ×.80 774089

774089BK†

Toggle Switch 3PDT On-Off-On Screw 9 15 10* 3/4 1.31 ×1.09 ×.80 774092

Toggle Switch 3PST On-Off Screw 6 15 10* 3/4 1.31 ×1.09 ×.80 774106

Rating

Description Poles Circuitry Termination No. of Amps 125 Amps 277 HP 125-250 Dimensions Cat. No.

Style Terminals VAC VAC VAC (L ×

W×

H )

Heavy-Duty Toggle Switch DPDT On-On Screw 6 20 10 1-1/2 1.30 ×.76 ×.80 774015

774015BK†

Heavy-Duty Toggle Switch DPDT On-On Spade 6 20 10 1-1/2 1.30 ×.76 ×.80 774091

774091BK†

Heavy-Duty Toggle Switch DPDT (On)-On Screw 6 20 10 1-1/2 1.30 ×.76 ×.80 774028

774028BK†

Heavy-Duty Toggle Switch DPDT On-Off-On Screw 6 20 10 1-1⁄2 1.30 ×.76 ×.80 774016

Heavy-Duty Toggle Switch DPDT On-Off-On Spade 6 20 10 1-1/2 1.30 ×.76 ×.80 774003

774003BK†

Heavy-Duty Toggle Switch DPDT (On)-Off-On Screw 6 20 10 1-1⁄2 1.30 ×.76 ×.80 774104

Heavy-Duty Toggle Switch DPDT (On)-Off-(On) Screw 6 20 10 1-1⁄2 1.30 ×.76 ×.80 774000

Heavy-Duty Toggle Switch DPDT (On)-Off-(On) Spade 6 20 10 1-1/2 1.30 ×.76 ×.80 774115

774115BK†

Extra Heavy-Duty AC/DC Toggle Switches

Medium and Light-Duty Toggle Switches

Toggle Switches

www.idealindustries.com 1-800-435-0705 for Customer Service

G-4

Short Ball Toggle Switch SPST On-Off Screw 2 6 Amps 120 VAC, 3 Amps 240 VAC .69 × .55 × .34 774001

Short Ball Toggle Switch SPST On-Off Wire Leads 2 6 Amps 125 VAC, 3 Amps 250 VAC .89 × .47 × .55 774002

774002BK†

*DC rating not CSA or RU listed

CUS

Rating

Product

Termination No. of Dimensions

Description Poles Circuitry Style Terminals Rating (L ×

W×

H ) Cat. No.

Bat Toggle with SPST On-Off Screw 2 6 Amps 120 VAC, 3 Amps 240 VAC .69 × .55 × .34

774017

On-Off Faceplate 774017BK†

Bat Toggle with SPST On-Off Wire Leads 2 4 Amps 250VAC/DC, 8 Amps 125VAC/DC, .98 × .64 × .62 774018

On-Off Faceplate 10 Amps 125 VAC, 1⁄3HP 125 VAC

Bat Toggle*SPST On-Term Spade 1 21 Amps 14 VDC .69 × .55 × .34 774007

Ground

Product

■

Great for household appliances and equipment

■

Bat toggle switch, 774007, is ideal for battery-powered equipment including trimmers and lawn mowers

■

Wire leads are #18 AWG, 6 stripped wire

■

1/2 in. diameter mounting hole

■

Bulk packaging available upon request

■

The switch that can handle your heavy-duty requirements

■

Quick-make/quick-break type switches are ideal for DC voltage applications

■

Perfect for industrial motor control, with its sturdy metal construction and stiff actuation force, it will

withstand the abuses of virtually any application

■

Bulk packaging of 100 available upon request

†Bulk Package of 100

Description Poles Circuitry Termination No. of Amps Amps HP Dimensions Cat. No.

Style Terminals 125V 250V 125-250V (L ×

W×

H )

Heavy-Duty Toggle Switch SPST On-Off Screw 2 16 8 1 1.75 ×.84 ×.76

774095

774095BK†

Heavy-Duty Toggle Switch DPST On-Off Screw 4 16 8 1 1.75 ×.84 ×.76 774096

Heavy-Duty Toggle Switch DPST On-Off Screw 4 20 10 1-1/2 2.09 ×1.00 ×.90 774097

Double Insulated Plastic Toggle Switches

Toggle Switch Accessories

Supplies

Toggle Switches

1-800-435-0705 for Customer Service www.idealindustries.com G-5

Product Description Mounting Dimensions Quantity/Card Cat. No.

2774020

Toggle Switch Cover 15/32- 32 NS-2B .93 Height ×.62 Base Dia.

100 774020BK†

Push Button Switch Cover 2774087

(Gray) 15/32 - 32 NS-2B .72 Height x .62 Base Dia. x .42 ID

100 774087BK†

Push Button Switch Cover 2774117

(Clear) 3/8 - 27 NS-2B .59 Height x .60 Base Dia. x .34 ID

100 774117BK†

10 774099

Indicator Plate 15/32” Diameter 1.03 x .62 Hole Diameter

100 774099BK†

■

These neoprene covers are great for outdoor and

other environmentally tough conditions. They

screw onto toggle switches to protect switches

from moisture, dust and dirt.

■

Great for outdoor, marine/recreational

equipment, automotive and weather

resistant applications

■

Double-insulated with an internal “O” ring

design for moisture and dust resistance

■

1/2 in. diameter mounting hole

■

Bulk packaging available upon request

■

Nickel indicator plate fits easily on most toggle

switches to identify the On-Off positions

( ) Denotes momentary action

Termination No. of Dimensions

Description Poles Circuitry Style Terminals Amps 125 VAC Amps 250 VAC (L ×

W×

H ) Cat. No.

Double Insulated, Plastic Toggle Switch SPST On-Off Screw 2 20 10 1.37 ×.76 ×.94 774019

Double Insulated, Plastic Toggle Switch SPST On-Off Spade 2 20 10 1.37 ×.76 ×.94 774098

Double Insulated, Plastic Toggle Switch SPDT (On)-Off-(On) Spade 3 20 10 1.37 ×.76 ×.94 774004

Double Insulated, Plastic Toggle Switch DPDT (On)-Off-(On) Spade 6 20 10 1.37 ×.76 ×.94 774006

Product

CUS

Rating

†Bulk Package of 100

Full-Size Rocker Switches

■

For commercial appliances, industrial controls, automotive and marine applications

■

Moisture- and dust-resistant

■

Suitable for low-voltage DC applications

■

Recommended .830 ×1.450 mounting hole, .125 panel thickness

■

Operating temperature: 32°F to 185°F (0°C to 85°C)

■

Bulk packaging available upon request

Rocker Switches

www.idealindustries.com 1-800-435-0705 for Customer Service

G-6

Red Lighted Rocker*** DPST On-Off Spade 4 15 10* 3/4** 1.70 ×.97 ×1.09 774056

Switch

Amber Lighted Rocker*** DPST On-Off Spade 4 15 10* 3/4** 1.70 ×.97 ×1.09 774055

Switch

Rating

Black Rocker Switch DPST (On)-Off Spade 4 20 15 2 1.70 ×.97 ×1.09 774120

Black Rocker Switch DPST On-(Off) Spade 4 20 15 2 1.70 ×.97 ×1.09 774121

( ) Denotes momentary action *Amps 250 VAC **HP 125-250VAC †Bulk package of 100

CUS

***

Product Termination No. of Dimensions

Description Poles Circuitry Style Terminals Amps 125 Amps 277 HP 110-250 (L ×

W×

H ) Cat. No.

VAC VAC VAC

Black Rocker Switch SPST On-Off Spade 2 20 15 2 1.70 ×.97 ×1.09 774045

Black Rocker Switch DPDT On-On Spade 6 20 15 2 1.70 ×.97 ×1.09 774050

Black Rocker Switch DPDT (On)-On Spade 6 20 15 2 1.70 ×.97 ×1.09 774122

Black Rocker Switch DPDT On-Off-On Spade 6 20 15 2 1.70 ×.97 ×1.09

Black Rocker Switch DPDT (On)-Off-On Spade 6 20 15 2 1.70 ×.97 ×1.09 774123

Black Rocker Switch*** DPDT (On)-Off-(On) Spade 6 15 10* 3/4** 1.70 ×.97 ×1.09

774040

774040BK†

774054

774054BK†

Appliance Rocker Switches

■

Great for home appliances, computer equipment, automotive and industrial controls

■

Appliance Rockers fit standard .55 ×1.12 panel cut outs

■

Miniature Rockers fit .520 ×.776 panel cut outs

■

Plain and lighted versions available

■

Operating temperature: 32°F to 185°F (0°C to 85°C)

■

Bulk packaging of 100 available upon request

Supplies

Rocker Switches

1-800-435-0705 for Customer Service www.idealindustries.com G-7

CUS

*3rd terminal to power lighted rocker

Product

Miniature Rocker Switch Red Lighted SPST On-Off Spade 3* 16 Amp 1/3 HP 125 VAC, .83 ×.59 ×.50 774048

10 Amp 1/2 HP 250 VAC

Appliance Rocker Switch** Visi-Red SPST On-Off Spade 2 16 Amp 125 VAC, 10 Amp 250 VAC, 1.24 ×68 ×.72 774052

3/4 HP 125-250VAC

Visi-Red,

Appliance Rocker Switch** Printed SPST On-Off Spade 2 16 Amp 125 VAC, 10 Amp 250 VAC, 1.24 ×68 ×.72 774047

On-Off 3/4 HP 125-250 VAC

Vertical

Termination No. of Dimensions

Description Rocker Poles Circuitry Style Terminals Ratings (L ×

W×

H ) Cat. No.

SPST On-Off Spade 2 774038

SPDT On-On Spade 3 774049

Appliance Rocker Switch Black 16 Amp 1/3 HP 125 VAC, 1.24 ×68 ×.77 774049BK†

SPDT On-Off-On Spade 3

10 Amp 1/2 HP 250 VAC

774059

774059BK†

16 Amp 1/3 HP 125 VAC, 1.24 ×68 ×.77 774039

Red Lighted SPST On-Off Spade 3* 10 Amp 1/2 HP 250 VAC

Appliance Rocker Switch 774060

Amber Lighted SPST On-Off Spade 3* 16 Amp 125 VAC, 10 Amp 250 VAC 1.24 x 68 x .77

774060BK†

** †Bulk Package of 100

Push-Button Switches

www.idealindustries.com 1-800-435-0705 for Customer Service

G-8

Push-Button Switches

■

Great for household appliances, lamps and motor controls

■

Available in normally open, normally closed and standard On-Off circuitry

■

Wire leads are #18 AWG, 6 stripped wire

■

1/2 in. diameter mounting hole

■

Bulk packaging of 100 available upon request

CUS

Termination No. of Dimensions

Description Actuator Poles Circuitry Style Terminals Ratings (L ×

W×

H ) Cat. No.

Miniature 6 Amp 125VAC,

Push-Button Switch* Black Plastic SPST On-Off Wire Lead 2 1 Amp 250VAC, .66 ×.53 ×.32 774082

10 Amp 14VDC

Momentary Contact 15 Amp 125VAC, 774085

Nickel Plated SPST NO (On)-Off Screw 2 1.38 ×.58 ×.60

Push-Button Switch** 10 Amp 250VAC 774085BK†

Momentary Contact Nickel Plated SPST NC On-(Off) Screw 2 15 Amp 125VAC, 1.38 ×.58 ×.60 774086

Push-Button Switch** 10 Amp 250VAC

Maintained Contact Nickel Plated SPST On-Off Screw 2 15 Amp 125VAC, .92 ×.66 ×.46 774081

Push-Button Switch** 10 Amp 250VAC

Maintained Contact Nickel Plated SPST On-Off Screw 2 6 Amp 125VAC/DC, 1.18 ×.52 ×.54 774080

Push-Button Switch** 3 Amp 250VAC/DC

8 Amp 125VAC/DC,

Maintained Contact Black Plastic SPST On-Off Wire Leads 2 4 Amp 250VAC/DC, .98 ×.64 ×.62 774021

Push-Button Switch 10 Amp 125VAC,

1/3 HP 125VAC

** *

Product

( ) Denotes momentary action

Round Body Black Plastic SPST NO (On)-Off Screw 2 3/4 Amp 125VAC/DC, .66 Dia. ×1.89 774083

Push-Button Switch** 1/4 Amp 250VAC/DC

Round Body Black Plastic SPST NC On-(Off) Screw 2 3/4 Amp 125VAC/DC, .66 Dia. ×1.89 774084

Push-Button Switch** 1/4 Amp 250VAC/DC

Maintained Contact 6 Amp 125VAC,

Push-Button Switch* Nickel Plated SPST On-Off Wire Leads 2 3 Amp 250VAC .97 ×.80 ×.36 774024

Maintained Contact 6 Amp 125VAC,

Push-Button Switch* Brass Plated SPST On-Off Wire Leads 2 3 Amp 250VAC .97 ×.80 ×.36 774025

Momentary Contact Black Plastic SPST NO (On)-Off Screw 2 6 Amp 120VAC, .88 ×.54 ×.35 774022

Push-Button Switch 3 Amp 240VAC

Momentary Contact Red Plastic SPST NC On-(Off) Screw 2 3 Amps 120VAC, .88 ×.54 ×.35 774023

Push-Button Switch 1.5 Amp 240VAC

†Bulk Package of 100

Cord Switches

■

Place your lighting controls in a convenient location with a lamp cord toggle switch

■

Available in brown or ivory

■

Bulk packaging available upon request

Lever and Pull Chain Switches

■

Use for ceiling fixtures, lamps and fans

■

Wire leads are #18 AWG, 6 stripped wire

■

Push in connectors for #18 AWG wire

■

13/32 in. diameter mounting hole

■

Bulk packaging of 100 available upon request

Supplies

Switches

1-800-435-0705 for Customer Service www.idealindustries.com G-9

3-Speed Pull Chain Brass SPTT Off-On(A)-On(B)- Wire Leads 4 Pos - 3 Wire 6 3 — .87 ×1.05 ×.65 774037

On(A+B)

3-Speed Pull Chain* Brass SPTT Off-On-On-On Push-In 4 Pos - 4 Wire 6 3 — 1.43 ×1.25 ×.73 774034

2-Speed Pull Chain* Brass SPDT Off-On-On Push-In 3 Pos - 3 Wire 6 3 6 1.43 ×1.25 ×.73 774033

Pull Chain Nickel SPST On-Off Wire Leads 2 Pos - 2 Wire 6 3 3 .92 ×.88 ×.67 774031

Pull Chain Brass SPST On-Off Wire Leads 2 Pos - 2 Wire 6 3 3 .92 ×.88 ×.67 774032

Product

Rating

Amps Amps Amps Dimensions

125 VAC 250 VAC 125 VL (L ×

W×

H )

All-Angle Lever Switch* Nickel SPST On-Off Wire Leads 2 Pos - 2 Wire 6 3 — 1.50 ×1.28 ×.50 774035

Product Description Poles Circuitry Circuit Cat. No.

Pull-Chain

Color

Termination

Type

CUS

Termination Dimensions

Description Color Poles Circuitry Style Ratings (L ×

W×

H ) Cat. No.

Cord Toggle Switch Ivory SPST On-Off Pass Thru 10 Amp 125VAC, 5 Amp 250VAC 2.50 ×.83 ×1.28

774074

774074BK†

Cord Toggle Switch Brown SPST On-Off Pass Thru 10 Amp 125VAC, 6 Amp 250VAC 2.50 ×.83 ×1.28 774073

Cord Switch Ivory SPST On-Off Pass Thru 6 Amp 125VAC, 3 Amp 250VAC, 1.38 ×.62 ×.73 774072

3 Amp 125VT 774072BK†

Cord Switch Brown SPST On-Off Pass Thru 6 Amp 125VAC, 3 Amp 250VAC, 1.38 ×.62 ×.73 774071

3 Amp 125VT 774071BK†

†Bulk Package of 100

Rotary Switches

■

Rotary switches are perfect for household appliances, ceiling fixtures and lamps

■

Single or three-position switches available

■

#18 AWG, 6 stripped wire leads

■

Bulk packaging available upon request

Door and Slide Switches

■

Standard slide switch fits 9/16” x 7⁄8” opening

■

Door switches are great for closets, turning the light on when the door is open and off when it is closed

■

Door switch kit comes with metal box, cover plate and mounting hardware

Switches

www.idealindustries.com 1-800-435-0705 for Customer Service

G-10

Termination Dimensions

Description Color Poles Circuitry Style Ratings (L ×

W×

H ) Cat. No.

Rotary Switch Black Plastic SPST On-Off Wire Leads 3 Amp 125VAC, 1.5 Amp 250VAC .60 Dia ×

774063B

.730 overall height

774063BK†

Rotary Switch Brass Plated SPST On-Off Wire Leads 6 Amp 125VAC, 3 Amp 250VAC .97 ×.80 ×.39 774061

3-Way Rotary Switch Brass Plated SPTT Off-On(A)-On(B)- Wire Leads 6 Amp 125VAC, 3 Amp 250VAC .86 ×1.03 ×.34 774062

On(A+B)

Rotary Switch Black Plastic SPST On-Off Wire Leads 6 Amp 125VAC, 3 Amp 250VAC .89 ×.79 ×.31 774069

Product

CUS

Product Termination Dimensions

Description Color Poles Circuitry Style Ratings (L ×

W×

H ) Cat. No.

Slide Switch Black Slide SPST On-Off Solder Terminals 10 Amp 125VAC, 1.38 ×.44 ×.30 774051

5 Amp 250VAC

AC/DC Door Switch Kit White Button SPST Normally On-(Off) Wire Leads 10 Amp 1/3HP 125/250VAC 1.25 ×2.75 ×2.0

Door Replacement Switch White Button SPST Normally On-(Off) Wire Leads 10 Amp 1/3HP 125/250VAC 1.17 ×.69 ×.98 774026

( ) Denotes momentary action †Bulk package of 25

774026K

774026KBK†

†Bulk Package of 100

Raised Indicator Lights

■

Nylon body with raised transparent polycarbonate lens and stainless steel bezel

■

1/2 in. mounting diameter

■

Lamp voltage is AC/DC

■

Bulk packaging available upon request

Flush Indicator Lights

■

Nylon body with flush transparent polycarbonate lens and stainless steel bezel

■

6 in. wire leads

■

1/2 in. mounting diameter

■

Lamp voltage is AC/DC

■

Bulk packaging available upon request

Supplies

Indicator Lights

1-800-435-0705 for Customer Service www.idealindustries.com G-11

Description Lens Color Lamp Voltage Lamp Type Termination Style Height (Base ×Bezel ) Cat. No.

Flush Indicator Light Red 14V Incandescent 6 Wire Leads .91 ×.10 775121*

Flush Indicator Light Red 28V Incandescent 6 Wire Leads .91 ×.10 776121*

Flush Indicator Light Red 125V Neon 6 Wire Leads .91 ×.10 777121*

Flush Indicator Light Green 125V Neon 6 Wire Leads .91 ×.10 777221*

Flush Indicator Light Amber 125V Neon 6 Wire Leads .91 ×.10 777321*

Product

Base

Bezel

Base

Bezel

Raised Indicator Light Red 28V Incandescent .187 Spade 1.09 ×.10 ×.20 776112

Raised Indicator Light Red 125V Neon .187 Spade 1.09 ×.10 ×.20 777112

Raised Indicator Light Green 125V Neon .187 Spade 1.09 ×.10 ×.20 777212

Description Lens Color Lamp Voltage Lamp Type Termination Style Height Cat. No.

(Base ×Bezel ×Lamp )

Raised Indicator Light Red 14V Incandescent 6 Wire Leads .91 ×.10 ×.20 775111*

Raised Indicator Light Red 28V Incandescent 6 Wire Leads .91 ×.10 ×.20 776111*

Raised Indicator Light Green 28V Incandescent 6 Wire Leads .91 ×.10 ×.20 776211*

Raised Indicator Light Amber 28V Incandescent 6 Wire Leads .91 ×.10 ×.20 776311*

Raised Indicator Light Red 125V Neon 6 Wire Leads .91 ×.10 ×.20 777111*

777111BK†

Raised Indicator Light Green 125V Neon 6 Wire Leads .91 ×.10 ×.20 777211*

777211BK†

Raised Indicator Light Amber 125V Neon 6 Wire Leads .91 ×.10 ×.20 777311*

Raised Indicator Light Blue 125V Neon 6 Wire Leads .91 ×.10 ×.20 777411*

Raised Indicator Light Clear 125V Neon 6 Wire Leads .91 ×.10 ×.20 777511*

Raised Indicator Light Red 250V Neon 6 Wire Leads .91 ×.10 ×.20 778111*

Raised Indicator Light Green 250V Neon 6 Wire Leads .91 ×.10 ×.20 778211*

*VDE certified †Bulk Package of 100

Lamp

Battery Clips

■

Great for testing and many other electrical applications

■

Insulated grips are color-coded for positive (red) and negative (black) identification

■

For screw and/or crimp connections

Miniature Indicator Lights

■

Nylon body with flush transparent polycarbonate lens

■

6 in. wire leads

■

5/16 in. mounting diameter

■

Lamp voltage is AC/DC

■

Bulk packaging available upon request

Indicator Lights/Battery Clips

www.idealindustries.com 1-800-435-0705 for Customer Service

G-12

Description Amps Dimensions Jaw Opening Wire Diameter Quantity Cat. No.

(L ×H )

Miniature General Purpose Clip 5 1-17/32 x 15/32 5/16” 9/64” 2 770218L

General Purpose Clip 10 2 x 5/8 1/2” 3/16” 1 Red/1 Black 170207L

*Insulators sold separately

Product

Copper Test & Battery Clips* 40 2-7/16 x 11/16 5/8” 3/16” 2 770217L

Copper Test & Battery Clips* 75 3 x 15/16 3/4” 9/32” 2 770216L

Copper Test & Battery Clips* 100 4-7/64 x 19/16 1-1/16” 11/30” 2 770215L

Insulated Grips for 770217L — 3-1/2 x 3/4 ID — — 1 Red/1 Black 770223L

Insulated Grips for 770216L — 3-7/8 x 11/64 ID — — 1 Red/1 Black 770219L

Insulated Grips for 770215L — 5 x 1-13/32 ID — — 1 Red/1 Black 770221L

Description Lens Color Lamp Voltage Lamp Type Termination Style Height (Base ×Bezel ) Cat. No.

Miniature Indicator Light Red 125V Neon 6 Wire Leads 1.43 ×.13 777131

Miniature Indicator Light Green 125V Neon 6 Wire Leads 1.43 ×.13 777231

Miniature Indicator Light Amber 125V Neon 6 Wire Leads 1.43 ×.13 777331

Product

Base

Bezel

Test and Battery Clip 20 2-1/2 x 5/8 5/8” 3/16” 1 Red/1 Black 170208L

Test and Battery Clip 30 2-1/2 x 5/8 5/8” 3/16” 1 Red/1 Black 170209L

Plier-Type Battery Clamps

■

Great for battery charging and test equipment

■

Insulated grips are color-coded for positive (red) and negative (black) identification

■

For crimp or solder connections

Alligator Clips

■

Great for temporary connections, testing wires and troubleshooting projects

■

Spring-loaded, grab-tight jaws make these clips quick and easy-to-use

■

For screw and/or crimp connections

Supplies

Miscellaneous Supplies

1-800-435-0705 for Customer Service www.idealindustries.com G-13

Description Amps Dimensions (L ×H) Jaw Opening Wire Gauge Quantity Cat. No.

Non-Insulated — 2 ×7/16 5/16 #22 - #14 4 770200L

Insulated Barrel — 2-1/2 ×7/16 5/16 #22 - #14 1 Red/1 Black 770204L

Fully Insulated — 2-1/2 ×7/16 5/16 #22 - #14 1 Red/1 Black 770205L

Product

Description Amps Dimensions (L” ×H”) Jaw Opening Wire Dia. Quantity Cat. No.

Plier-Type Battery Clip, 50 2-7/8 x 2 1-1/8 ” 9/32” 1 Red/1 Black 770213L

Steel

Plier-Type Battery Clip, 75 2-7/8 x 2 1-1/8 ” 9/32” 1 Red/1 Black 770212L

Copper

Plier-Type Battery Clip, 400 6 x 4-1/2 1-9/16” 9/16” 1 Red/1 Black 770225L

Copper

Product

NM Cable Connectors

■

Unique snap-in detents hold fitting

firmly in place – eliminates the

need for screws, lock nuts or

clamps

■

UL Listed and CSA Certified for

14/2, 14/3, 12/2, 12/3, 10/2, 10/3

and for double-runs of 14/2 and

12/2 NM sheathed cable

Description Quantity Cat. No.

12 in. NM Cable Connector 100 1050

Spacer Shims

■

Eliminates the need to cut plate

screws for “GFCI” decorator devices

when installing on tile, marble, etc.

■

Supports loose outlets

■

Prevents broken face plates

■

Snaps over #6, #8, #10 screws

■

Also works as a shim

Description Quantity Cat. No.

Caterpillar 5 772450

Caterpillar 25 172451

Caterpillar 500 772451

Anchors

www.idealindustries.com 1-800-435-0705 for Customer Service

G-14

Flange-Type Plastic Anchors

■

Multi-purpose use in solid materials or hollow walls, will not fall

through

■

For use with sheet-metal or wood screws

■

High-impact plastic construction resists moisture, corrosion and

deterioration

Screw Drill

Description Size Size (In.) Quantity Cat. No.

Yellow – 7/8 in. long 6-8-10 3/16 100 90-041

Red – 1 in. long 10-12 1/4 100 90-042

White – 1-1/2 in. long 14-16 5/16 50 90-044

Flange-Type Plastic Anchor Kits

■

Kits include flange-type anchors, slotted/Phillips head screws

and masonry bit

■

Convenient plastic storage container

Contents Cat. No.

100 # 6-8-10 x 7/8 in. Flange-type anchors, 100 # 8 x 1 in. combo-

head, sheet-metal screws & 1-3/16 in. masonry bit (carbide-tipped) 90-051

100 # 10-12 x 1 in. Flange-type anchors, 100 # 10 x 1-1/4 in. combo-

combo-head, sheet-metal screws & 1-1/4 in. masonry bit (carbide-tipped) 90-052

100 # 10-12 x 1 in. Flange-type anchors, 100 # 12 x 1 in. combo-head,

sheet-metal screws & 1-1/4 in. masonry bit (carbide-tipped) 90-053

40 # 14-16 x 1-1/2 in. Flange-type anchors, 40 # 14 x 1-1/2 in. combo-

head, sheet-metal screws 1-5/16 in. masonry bit (carbide-tipped) 90-054

100 # 10-12 x 1 in. Flange-type anchors, 100 # 10 x 1 in. combo-head,

sheet-metal screws & 1-1/4 in. masonry bit (carbide-tipped) 90-055

Supplies

Miscellaneous Supplies

1-800-435-0705 for Customer Service www.idealindustries.com G-15

Grommets*

■

Installs instantly! Flexible PVC

grommets side slotted 1/16”

for quick installation

■

Snap into holes in electrical

boxes, sheet metal, auto

firewalls and more

■

Prevents steel and other sharp

edge chafing of wire insulation

or cording

■

Black, PVC, flexible, 60

durometer

Description A B C D E Quantity Cat. No.

1/4” Grommets 9/16 .37 1/4 .28 3/32 6 774114

1/4” Grommets 9/16 .37 1/4 .28 3/32 25 774116

1/4” Grommets 9/16 .37 1/4 .28 3/32 1,000 774114BK

3/8” Grommets 43/64 .49 3/8 .28 1/16 5 774138

3/8” Grommets 43/64 .49 3/8 .28 1/16 25 774137

1/2” Grommets 55/64 .69 1/2 .25 1/16 4 774112

1/2” Grommets 55/64 .69 1/2 .25 1/16 25 774113

3/4” Grommets 15/64 1.0 3/4 .31 1/16 3 774134

3/4” Grommets 15/64 1.0 3/4 .31 1/16 25 774136

*Buchanan branded

Universal Metal

Stud Bushings

■

Non-metallic stud bushing fits

all hole configurations you are

likely to encounter in pre-punched

steel studs

■

Long pulls of cable slide smoothly through the bushing, make

a difficult job easier

■

Protects wire without falling out of the hole

Description A B C D Quantity Cat. No.

Stud Bushing 5.670 2.50 .505 1.30 25 772271

ABC

Common hole configurations

in metal studs.

CODE VIOLATION

SHARP EDGE

NM CABLE

Wire Marker

Booklets*

Legend Quantity Cat. No.

0-9 45 775101

A-Z, 0-15, +, -, / 10 775102

1-45 10 775103

46-90 10 775104

*Buchanan branded

■

Self-sticking on wire

and cable

■

Perforated 1/4” x 1-1/2”

markers

■

For applications above or

below ground

■

Resists abrasion, moisture,

dirt and oil

■

Non-smear black legend ensures high visibility

Cable Ties

www.idealindustries.com 1-800-435-0705 for Customer Service

G-16

Tensile

Size Color Strength Pkg. Cat. No.

(lbs.) Qty.

Assorted Cable Tie Packages

B-AST-4811-9-7C Includes:

4” Natural 18 200 B-4-18-9-C

8” Natural 50 300 B-8-50-9-C

11” Natural 50 200 B-11-50-9-C

B-ASST-650C Cannister Includes:

4” Assorted 18 200 —

4” Natural 18 100 B-4-18-9-C

8” Natural 50 300 B-8-50-9-C

11” Natural 50 50 B-11-50-9-C

B-ASST-500C Cannister Includes:

4” Natural 18 200 B-4-18-9-C

6” Natural 40 100 B-6-40-9-C

8” Natural 50 200 B-8-50-9-C

B-AST-48-0-200 Tube Includes:

4” UV Black 18 100 B-4-18-0-C

8” UV Black 50 100 B-8-50-0-C

B-AST-48-9-200 Tube Includes:

4” Natural 18 100 B-4-18-9-C

8” Natural 50 100 B-8-50-9-C

Mounting Ties

6” Natural 30 100 B-6-30MT-9-C

8” Natural 50 100 B-8-50MT-9-C

8” UV Black 50 100 B-8-50MT-0-C

14” Natural 50 100 B-14-50MT-9-C

14” UV Black 50 100 B-14-50MT-0-C

Mounting Pads

3/4” x 3/4” Natural N/A 100 BMP-750-9-C

3/4” x 3/4” UV Black N/A 100 BMP-750-0-C

1” x 1” Natural N/A 100 BMP-1000-9-C

1” x 1” UV Black N/A 100 BMP-1000-0-C

Cable Clamps

1/8" Natural N/A 100 BCCL-125-9-C

1/4" Natural N/A 100 BCCL-250-9-C

3/8" Natural N/A 100 BCCL-375-9-C

1/2" Natural N/A 100 BCCL-500-9-C

Installation Tools

Tighten-n-Trim Cable Tie Tool BCTT-100

Standard Cable Tie Tool BCTT-200

Multi-Purpose Cable Ties

■

General purpose cable tie for every day bundling

and cable management

■

UL recognized

Tensile

Size Color Strength Pkg. Cat. No.

(lbs.) Qty.

Miniature Ties

4” Natural 18 100 B-4-18-9-C

4” Natural 18 1000 B-4-18-9-M

4” UV Black 18 100 B-4-18-0-C

4” UV Black 18 1000 B-4-18-0-M

8” Natural 18 100 B-8-18-9-C

8” UV Black 18 100 B-8-18-0-C

Intermediate Ties

6” Natural 40 100 B-6-40-9-C

6” Natural 40 1000 B-6-40-9-M

6” UV Black 40 100 B-6-40-0-C

6” UV Black 40 1000 B-6-40-0-M

11” Natural 40 100 B-11-40-9-C

11” UV Black 40 100 B-11-40-0-C

Standard Ties

8” Natural 50 100 B-8-50-9-C

8” Natural 50 500 B-8-50-9-D

8” Natural 50 1000 B-8-50-9-M

8” UV Black 50 100 B-8-50-0-C

8” UV Black 50 1000 B-8-50-0-M

8” Red 50 100 B-8-50-2-C

8” Green 50 100 B-8-50-5-C

11” Natural 50 100 B-11-50-9-C

11” Natural 50 300 B-11-50-9-300

11” Natural 50 500 B-11-50-9-D

11” UV Black 50 100 B-11-50-0-C

11” UV Black 50 500 B-11-50-0-D

14” Natural 50 100 B-14-50-9-C

14” Natural 50 500 B-14-50-9-D

14” UV Black 50 100 B-14-50-0-C

14” UV Black 50 500 B-14-50-0-D

Heavy-Duty Ties

11” Natural 120 100 B-11-120-9-C

11” UV Black 120 100 B-11-120-0-C

14” Natural 120 50 B-14-120-9-L

14” UV Black 120 50 B-14-120-0-L

17" Natural 175 50 B-17-175-9-L

17" UV Black 175 50 B-17-175-0-L

21" Natural 175 50 B-21-175-9-L

21" UV Black 175 50 B-21-175-0-L

24" Natural 175 50 B-24-175-9-L

24" UV Black 175 50 B-24-175-0-L

30" Natural 175 50 B-30-175-9-L

30" UV Black 175 50 B-30-175-0-L

36" UV Black 175 50 B-36-175-0-L

36" Natural 175 50 B-36-175-9-L

48" Natural 175 50 B-48-175-9-L

48" UV Black 175 50 B-48-175-0-L

Supplies

Commutator Maintenance

1-800-435-0705 for Customer Service www.idealindustries.com G-17

Tramway-Handle Resurfacer

Sizes (Inches) Grades Cat. No.

2 x 1-1/2 x 2 80-255*

2 x 2 x 2 80-265*

*Add grade letter suffix to Cat. No. Please allow 2-3 weeks for delivery.

■

Handle shaped to ensure secure grip

■

10-1/2 in. handle permanently

mounted at 45° angle W

How to Select Resurfacer Grade

Small Motor and Pocket Resurfacers

Grade code letters designate the following grade combinations:

AMedium/Finish GCoarse/Medium

BCoarse/Finish HMedium/Polish

DFinish/Polish

All Other Resurfacers

Resurfacers for commutators and copper-alloy slip rings are made

in five grades:

XExtra coarse—very fast cutting, for “hogging” off excessive copper

CCoarse—fast cutting

MMedium—for general use, high mica, small ridges and burns

FFinish—for use after the three grades above, for periodic

application and for removing small burns and ridges immediately

after their appearance

P Polish—very fine grade (220 aggregate grain) for burnish finish

For all resurfacers, specify grade by adding the appropriate letter as

a suffix to the catalog number. (Example: 80-475M for medium grade.)

How to Select Resurfacer Size

Size is always written length x width x thickness (working face area

x depth of stone). For handle types, the handle is mounted parallel

to the first dimension. Always use a resurfacer with the largest

face possible (length x width). Thickness should be governed by

clearance around commutator or ring.

Commutator Resurfacers

The resurfacer should have a width of approximately 3/4 the length

of the commutator bar and as long as will conveniently go between

the brush riggings. For periodic application, three or four sizes are

generally sufficient. After determining approximate dimensions,

select nearest standard size and type.

Slip Ring Resurfacers

When space permits, use a resurfacer about 1 in. wider than the face

width of the ring. Length should be at least three times greater

than the longest flat spot to bridge over and ensure a true ring.

Pencil-Type Resurfacer

Size (Inches) Grades Cat. No.

5/8 x 3/8 x 6 C, M, F, P 80-075*

*Add grade letter suffix to Cat. No. Please allow 2-3 weeks for delivery.

Small Motor-Type Resurfacer

Size (Inches) Grades Cat. No.

3/4 x 1/2 x 3/8 A, B, D, G, H 80-012*

*Add grade letter suffix to Cat. No. Please allow 2-3 weeks for delivery.

■

For use on fans, signal motors,

auto generators, locomotive

headlight motors and other

fractional horsepower

motors

■

Different grades of

stone on each end

■

10 in. handle

■

For use on small fractional horsepower motors

Sizes (Inches) Grades Cat. No.

3/4 x 3/4 x 3 80-504*

1 x 1-1/2 x 6-1/2 80-454*

1 x 2 x 8 80-461*

2 x 2 x 8 80-475*

*Add grade letter suffix to Cat. No. Please allow 2-3 weeks for delivery.

Tool-Type Resurfacer

■

For use in lathe-turning

device

■

Two resurfacers required for

each grinder

C, M, F, P

Commutator Maintenance

www.idealindustries.com 1-800-435-0705 for Customer Service

G-18

Brush Seater and Commutator Cleaner

Sizes (Inches) Grades Cat. No.

1/4 x 1/4 x 4-3/4 M, H 23-001*

1/2 x 1/4 x 4-3/4 M, H 23-002*

3/8 x 3/8 x 4-3/4 M, H 23-003*

1/2 x 3/8 x 4-3/4 S, M, H 23-004*

1/2 x 1/2 x 4-3/4 S, M, H 23-005*

5/8 x 1/2 x 4-3/4 S, M, H 23-006*

3/4 x 1/2 x 4-3/4 S, M, H 23-007*

1-1/8 x 5/8 x 4-3/4 S, M, H 23-008*

1/2 x 1 x 4-3/4 S, M, H 23-027*

1 x 1 x 4-3/4 — 23-035S

2 x 1 x 4-3/4 — 23-036S

3 x 2 x 4 — 23-039S

3 x 2 x 6 — 23-041S

3 x 2 x 8 — 23-042S

*Add grade letter suffix to Cat. No.

Please allow 2-3 weeks for delivery.

■

Gentle acting abrasive for seating carbon brushes and cleaning

commutators and slip rings

■

Soft, loosely bound grain produces a scouring effect when held

against commutator

■

Will not remove or scratch copper

■

Self-cleaning

■

Available in soft(S), medium(M) and hard(H) grades

Powr-Polish™ Flexible Abrasive

■

Fine-grain, non-dusting

abrasive held together

by a flexible bond

■

Serves as both

commutator cleaner

and burnisher

■

Removes dirt and grease—

imparts super-finished surface

■

Non-conductive and

non-loading

Sizes (Inches) Cat. No.

3/8 x 1/2 x 5 82-001

3/8 x 3/4 x 5 82-002

5/8 x 1 x 5 82-003

1 x 2 x 5 82-004

1 x 4 x 5 82-005

1/8 x 1 x 5 82-006

Please allow 2-3 weeks for delivery.

Commutator Smoothie®Resurfacing Tool

Description Cat. No.

Commutator Smoothie®Resurfacing Tool 80-033

Please allow 2-3 weeks for delivery.

■

Designed to smooth commutators of auto generators, starting

motors and other similar equipment

■

8-1/2 in. plastic handle with a 5/16 in. x 7/8 in. x 11/16 in.

resurfacer on each end

■

Features one polish-grade and one finish-grade resurfacer

■

Bent handle reaches into any motor frame

■

Non-conductive for user safety

Alphabetical Index 11

1000 Amp Clamp Meter…………E-13

1000V Insulated Screw-Holding

Screwdriver ……………………C-45

10-in-1 Screwdriver/Nutdriver …C-29

310 Series Digital Meter …………E-7

3-Phase Power Analyzer …E-20, E-21

3-Phase/Motor Rotation Tester …E-30

400 Amp Clamp Meter …………E-11

4-in-1 Test Tool …………………E-10

5-in-1 Non-Conductive

Screwdriver/Nutdriver ………C-45

5-in-1 Screwdriver/Nutdriver …C-29

600 Amp Clamp Meter …………E-12

600 Series Pocket Meter …………E-7

61-350 Series Meters ……………E-5

6-in-1 Twist-a-Nut™

Tapping Tool ……………………C-25

7-in-1 Twist-a-Nut™

Screwdriver ……………………C-24

9-in-1 Ratch-a-Nut™

Screwdriver ……………………C-24

Abrasive, Powr-Polish™

Flexible …………………………G-18

ABS™ Signal Thrower™ …………F-9

ABS™ Tester ………………………F-9

Accessories, Grounding ………A-15

Accessories, Heat Gun …………D-15

Accessories, Toggle Switch………G-5

Accessory Kits, Tuff-Rod™

Fishing Pole ……………………B-7

Adapter, Thermocouple ……E-4, E-32

Adapters, Current Clamp ………E-31

Adapters, Flexible Clamp ………E-31

Adapters, Modular ………………F-10

Adjustable Cable Lockout………D-38

Adjustable Can Light

Hole Saw ………………………C-49

Adjustable Wrenches……………C-32

Alligator Clips……………………G-13

Aluminum Benders ……………B-13

Aluminum Safety Lockout

Padlocks ………………………D-39

Amplifier Probe……………………F-9

Analog Clamp Meter ……………E-14

Analog Multimeters ………………E-8

Anchor Kits, Flange-Type

Plastic …………………………G-14

Anchors, Flange-Type Plastic …G-14

Anti-Oxidant, Noalox®……A-28, B-12

Appliance Rocker Switches ……G-7

Apron, Supplies …………………C-40

Aqua-Gel®CW Cable

Pulling Lubricant ………………B-11

Aqua-Gel®II Cable

Pulling Lubricant ………………B-11

Aqua-Gel®IIP Cable

Pulling Lubricant ………………B-11

Arbor Extension, Hole Saw ……C-48

Arbors, Hole Saw ………………C-48

Auger Bit Extensions ……………C-52

Auger Bits, Nailbiter™ Ship ……C-52

Augers …………………………C-52

Augers, RESI-MASTER™

Heavy-Duty Ship ………………C-52

Automatic Blade Lock

Measuring Tape ………………C-33

Aviation Tin Snips ………………C-56

Awl ………………………………C-28

Bag, Cable Tie ……………………D-2

Bag, Lockout/Tagout ……………D-20

Bags, Large Mouth ……………C-41

Ball Valve Lockout Devices ……D-38

Barricade Tapes …………………D-18

Barrier Strips ……………………A-26

Bases, Screw Mounting …………D-6

Basic Data & Video Kit …………F-18

Battery Clamps, Plier-Type………G-13

Battery Clips ……………………G-12

B-CAP®Wire Connectors ………A-36

Belt Bag™ Supplies Pouch ……C-40

Belts ……………………………C-39

Bender Handles …………………B-13

Bender Putter ……………………B-12

Bender, Pocket Guide …………B-14

Benders, Aluminum ……………B-13

Benders, Conduit ………………B-13

Benders, Ductile Iron ……………B-13

Bilingual Lockouts & Tags………D-40

Bits, Flexible Drill ………………C-54

Bits, Installer ……………………C-52

Blades, Die-Type……………C-9, C-10

Blades, Hacksaw …………B-14, C-56

Blades, Knife-Type ………C-13, C-14

Blades, Reciprocating ……C-50, C-51

Block, Grounding ………………F-17

BNC Coaxial Connectors ………F-22

BNC Compression Connectors …F-15

Booklets, Wire Marker …………D-16

Booklets, Write-On Wire ………D-16

Box, Group Lock ………………D-20

Breaker Lockout, Hinged

Single-Pole ……………………D-24

Breaker Lockout, Large …………D-23

Breaker Lockout, Multi-Pole ……D-23

Breaker Lockout, Single-Pole …D-23

Breaker Lockout, Universal ……D-24

Brush Seater Cleaner……………G-18

B-TAP®Connectors ……………A-40

Bucket Bag Tool Carrier…………C-40

Bushings, Universal

Metal Stud ……………………G-15

Butt Splices ………………A-21, A-22

Cabinet Tip Screwdrivers ………C-27

Cable Certification Testers,

LANTEK®……………………F-2, F-3

Cable Cutter, Ratcheting ………C-30

Cable Cutter, Telco Ratcheting …C-30

Cable Cutters ……………C-19, C-23

Cable Cutters, Long-Arm ………C-30

Cable Cutters, NM………………G-13

Cable Gripping Gloves …………B-12

Cable Lockout …………………D-38

Cable Performance Tester,

SIGNALTEK™ ………………F-5, F-6

Cable Pulling Lubricant,

Aqua-Gel®CW …………………B-11

Cable Pulling Lubricant,

Aqua-Gel®II ……………………B-11

Cable Pulling Lubricant,

Aqua-Gel®IIP …………………B-11

Cable Ripper………………………C-7

Cable Service Kit…………………F-20

Cable Service/Termination Kit …F-20

Cable Slitting Tool, Round ………F-13

Cable Splicing Kit ………………F-11

Cable Splicing Knife ……………F-11

Cable Stacker, Plastic

Insulated ………………………D-10

Cable Staples……………………D-10

Cable Staples, Data ……………D-11

Cable Staples, Fiber Insulated …D-11

Cable Straps, Coaxial……………D-11

Cable Stripper, Coax ……………F-12

Cable Stripper, Coax/UTP ………F-12

Cable Stripper, Cyclops®Data …F-12

Cable Stripper, UTP ……………F-12

Cable Strippers …………………F-27

Cable Strippers, UTP/STP/

Coaxial …………………………F-12

Cable Tie Bag ……………………D-2

Cable Tie Installation Tools ………D-9

Cable Ties, Multi-Purpose ………G-16

Cable Ties, Powr-Tie™ ………D-4, D-5

Cable Ties, Pro-Met®……………D-3

Cable, RS-232 ……………………E-4

Cables ……………………………F-24

Can Light Hole Saw,

Adjustable ……………………C-49

Carbon Steel Service

Entrance Staples ………………D-11

Carbon Steel Staples……………D-10

Cards, Wire Marker ……………D-17

Cards, Write-On Marker ………D-17

Carriers, Foam …………………B-16

Carrying Case Selection Guide …E-32

Carrying Cases …………………E-32

Cases, Carrying …………………E-32

Cases, Fish Tape Replacement …B-6

CAT 6 Modular Plugs ……………F-24

CCTV/Security Tester,

SecuriTEST™ ……………………F-8

Cell Phone Pouch ………………C-39

Center Conductor Cutter ………F-11

Channel Clamps…………………A-62

Circuit Analyzers, SureTest®……E-23

Circuit Breaker Lockout

System …………………………D-25

Circuit Breaker Lockout System,

Oversized ………………………D-23

Circuit Breaker Lockouts,

Miniature ………………………D-24

Circuit Identifiers ………………E-24

Circuit Tester ……………………E-29

Circuit Tester, SureTest®Arc ……E-25

Circuit Testers, E-Z Check®……E-25

Circuit Tracers, SureTest®………E-17

Circuit Tracers, SureTest®

Open/Closed……………………E-16

Clamp Adapters, Current ………E-31

Clamp Adapters, Flexible ………E-31

Clamp Meter Selection Guide ……E-9

Clamp Meter, 1000 Amp ………E-13

Clamp Meter, 400 Amp …………E-11

Clamp Meter, 600 Amp …………E-12

Clamp Meter, Analog ……………E-14

Clamp Meter, Ground

Resistance ……………………E-18

Clamp Meter, Leakage Current …E-14

Clamps …………………………A-32

Clamps ……………………………D-7

Clamps, Channel ………………A-62

Clamps, Plier-Type Battery………G-13

Cleaner, Brush Seater …………G-18

Cleaner, Commutator……………G-18

ClearGlide™ Wire Pulling

Lubricant ………………………B-10

Clips, Alligator …………………G-13

Clips, Battery ……………………G-12

CMP Compression Connectors …F-15

Coax Cable Stripper ……………F-12

Coax Connector Tool ……………F-17

Coax Strip & Crimp Tool……C-6, F-13

Coax Stripmaster®

Wire Strippers …………………F-12

Coax Strippers …………………F-12

Coax Strippers, Toggle®…………F-12

Coax/UTP Cable Stripper ………F-12

Coaxial Cable Straps ……………D-11

Coaxial Connectors, BNC ………F-22

Coaxial Connectors, F-Series……F-16

Coaxial Selection Chart …………F-25

Combo Cases™ …………………E-15

Combo Tool ………………………C-6

Commutator Cleaner ……………G-18

Commutator Smoothie®

Resurfacing Tool ………………G-18

Compression Connector

Installer Kit ……………………F-20

Item Page Item Page Item Page Item Page

Alphabetical Index

Index

Alphabetical Index

Compression Connectors,

BNC ……………………………F-15

Compression Connectors,

CMP ……………………………F-15

Compression Connectors, Mini …F-16

Compression Connectors,

Universal ………………………F-15

Compression F-Connector

Port Seals ………………………F-16

Compression Tool, Economy ……F-15

Compression Tools, OmniSeal™…F-15

Compression Tools,

OmniSeal™ Pro …………………F-15

Conduit Benders ………………B-13

Conduit Deburring Tool,

Twist-a-Nut™ …………………B-12

Conduit Markers ………………D-17

Conduit Measuring Tape ………B-15

Connector Removal Tools ………F-22

Connector Tool, Coax ……………F-17

Connectors, BNC Coaxial ………F-22

Connectors, B-TAP®……………A-40

Connectors, Crimp ………………A-27

Connectors, F-Series Coaxial……F-16

Connectors, Grounding …………A-14

Connectors, Insulation

Displacement …………………F-24

Connectors, Mini Compression …F-16

Connectors, Powr-Connect™

Grounding ……………………A-32

Connectors, Push-On ……………F-16

Connectors, Tap …………………A-40

Connectors, Tap Splice …………A-22

Connects, Quick…………………A-25

Continuity Tester…………………E-29

Contractor-Grade

Multimeters…………………E-3, E-6

Cord Switches ……………………G-9

Covers……………………………A-63

Covers, Terminal Strip …………A-25

Crimp Connectors ………………A-27

Crimp Connectors,

Pre-Insulated …………………A-27

Crimp Connectors, Splice Cap …A-39

Crimp Terminals …………………A-16

Crimp Tool ………………………C-31

Crimp Tool & Mechanical

Indentor ………………………C-31

Crimp Tool, Coax Strip & ………F-13

Crimp Tool, Four-Way …………A-39

Crimp Tool, Heavy-Duty…………C-31

Crimp Tool, Ratchet ……………C-31

Crimp Tools, 4-Way Indent ………F-17

Crimp Tools, Crimpmaster™ ……F-13

Crimpmaster™ 10Base-T Kit ……F-19

Crimpmaster™ Crimp Tools ……F-13

Crimpmaster™ Die Sets …F-13, F-14

Crimpmaster™ F-Type

Connector Kit …………………F-21

Crimpmaster™ Twisted Pair Kit …F-19

Current Clamp Adapters ………E-31

Custom Stripmaster®Lite

Wire Strippers ……………C-8, C-9

Custom Stripmaster®

Wire Strippers ……………C-8, C-9

Cutter, Center Conductor ………F-11

Cutter, PowerBlade™ Cable ……C-30

Cutter, Serrated …………………F-26

Cutters, Cable ……………C-19, C-23

Cutters, NM Cable………………G-13

Cutters, Rotary BX/MC ……C-7, C-31

Cutters, T®-Cutter Wire …………C-4

Cyclops®Data Cable Stripper …F-12

Data Cable Staples ……………D-11

Data T®-Cutter …………………F-11

Data T®-Cutters …………………C-6

Data/Video Kit …………………F-18

DataComm Tool Kits ……………F-17

Deburring Tools, Twist-a-Nut™ Conduit

C-25

Deluxe Cable Service Kit ………F-20

Detectable Underground

Tapes …………………………D-18

Device, Fuse Blockout …………D-37

Diagonal-Cutting Pliers …C-18, C-21

Die Sets, Crimpmaster™ …F-13, F-14

Die-Type Blades ……………C-9, C-10

Digital Cable Splitter ……………F-17

Digital Light Meter ………………E-30

Digital Meter, 310 Series …………E-7

Diplexer …………………………F-17

Disconnect, PowerPlug™

Luminaire ………………………A-11

Disconnects …A-18, A-19, A-20, A-21

Dispenser, Wire Marker…………D-17

Divider Pouch™ Small

Parts Bag ………………………C-40

Door Switches …………………G-10

Double Insulated Plastic Toggle

Switches …………………………G-5

Drill Bits …………………………C-53

D-Sub/Double-D Service Tool …F-11

Duct Seal ………………………B-12

Ductile Iron Benders ……………B-13

Ductile Iron Hickeys ……………B-14

Economy 10Base-T Kit …………F-19

Economy CATV Compression

Kit ………………………………F-18

Economy Compression Kit ………F-18

Economy Compression Tool ……F-15

Economy Data & CATV Kit………F-17

Economy Round Cable and

Wire Cutter ……………………F-11

Electric Plug Lockout……………D-37

Electrician's Carrier™ Tool Bag …C-41

Electrician's Hole Saw Kit ………C-48

Electrician's Knife ………………C-33

Electrician's Scissors ……………F-11

Electrician's Step Bit Kit…………C-53

Electrician's Tool Pouch …………C-39

End Caps, Thermo-Shrink®……D-14

Engraving Tools …………………C-32

Entrance Staples, Carbon

Steel Service …………………D-11

Entrance Straps, Plastic

Insulated Service ………………D-11

Ergonomic Hacksaw ……B-14, C-56

Extensions, Auger Bit……………C-52

Extra Heavy-Duty Toggle

Switches …………………………G-4

E-Z Check®Circuit Testers ……E-25

Fault Finder, Visual ……………………

Fiber Inspection Microscope ……F-28

Fiber Insulated Cable Staples …D-11

Fiber Optic Scribes ………………F-27

Fiber Optic Swabs ………………F-27

Fiber Stripper, Lite-Strip™

Optical …………………………F-26

Fiber Stripper, MiniLite-Strip™

Optical …………………………F-26

Fiberglass-Handled Hammer …C-32

FIBERTEK™ ………………………F-5

Field Application Kits, Fish Tape …B-6

Films, Polishing …………………F-27

Fish Tape Field Application Kits …B-6

Fish Tape Leaders ………………B-6

Fish Tape Puller …………………B-6

Fish Tape Replacement Cases……B-6

Fish Tape Selection Chart ………B-3

Fish Tape Swivel Ball ……………B-6

Fish Tape, Rapid-Pak®………B-3, B-5

Fish Tape, Thumb-Winder™ …B-3, B-5

Fish Tape, Tuff-Grip™ Pro……B-3, B-4

Fish Tapes, Tuff-Grip™ ……………B-5

Fish Tapes, Zoom™ ………………B-5

Fishing Poles, Tuff-Rod™ …………B-7

Flange-Type Plastic Anchor Kits G-14

Flange-Type Plastic Anchors ……G-14

Flash Protection

Labels & Signs…………………D-42

Flexible Abrasive,

Powr-Polish™ …………………G-18

Flexible Bit Extension ……………C-55

Flexible Bit Replacement Tool …C-55

Flexible Bits, High-Speed ………C-55

Flexible Bits, Masonry …………C-55

Flexible Bits, Screw Point ………C-54

Flexible Bits, Serrated …………C-54

Flexible Clamp Adapters ………E-31

Flexible Drill Bits ………………C-54

Flexible Tubing ……………………D-7

Flush Indicator Lights …………G-11

Foam Carriers ……………………B-16

Folding Saw ……………………C-56

Four-Way Crimp Tool ……………A-39

Four-Way Crimp Tool …………C-31

Four-Way Indent Tool ……………F-17

F-Series Coaxial Connectors ……F-16

Full-Size Rocker Switches ………G-6

Fuse Blockout Device …………D-37

Fuse Pull & Test Light …………C-45

Fuse Pullers ……………………C-45

Gate Valve Lockouts ……………D-38

Generator, Tone……………………F-9

Gloves, Cable Gripping …………B-12

Greenie®Grounding Connector …A-5

Grip-N-Strip™ End Stripper………C-7

Gripper Pads ……………………C-11

Grips, Tenite ……………………C-23

Grommets ………………………G-15

Ground Resistance Clamp

Meter……………………………E-18

Grounding Accessories …………A-15

Grounding Block…………………F-17

Grounding Connector, Greenie®…A-5

Grounding Connectors …………A-14

Grounding Connectors,

Powr-Connect™ ………………A-32

Grounding Tails …………………A-15

Group Lock Box …………………D-20

Guide, Pocket Bender …………B-14

Hacksaw Blades …………B-14, C-56

Hacksaw, Ergonomic ……B-14, C-56

Hacksaw, Heavy-Duty ……B-14, C-56

Hacksaw, Mini …………………C-56

Halar®Ties ………………………D-2

Hammer …………………………C-32

Hammer Holder …………………C-39

Hand Tools,

Laseredge™…………C-16 thru C-19

Hand Tools,

WireMan ……………C-20 thru C-23

Hand-held Insulation Tester,

MEGGER®………………………E-19

Handles, Bender…………………B-13

Handles, Hickey …………………B-14

Handling Ties ……………………D-2

Hasps, Safety Lockout …………D-40

Hawkbill Knife …………………C-33

Heat Elite Heat Gun Kit …………D-15

Heat Elite Plus Heat Gun Kit ……D-15

Heat Elite Pro Heat Gun Kit ……D-15

Heat Gun Accessories …………D-15

Heat Gun Kit, Heat Elite ………D-15

Heat Gun Kit, Heat Elite Plus …D-15

Heat Gun Kit, Heat Elite Pro ……D-15

Item Page Item Page Item Page Item Page

Index

Alphabetical Index 3

Alphabetical Index

Heat Shrink Kit,

Thermo-Shrink®………………D-15

Heat Shrinkable

Tubing ……………D-12, D-13, D-14

Heavy-Duty Crimp Tool …………C-31

Heavy-Duty Hacksaw ……B-14, C-56

Heavy-Duty Lockout Tags ………D-40

Heavy-Duty Toggle

Switches……………………G-2, G-3

Hex-Key Sets ……………………C-33

Hickey Handles …………………B-14

Hickeys …………………………B-14

Hickeys, Ductile Iron ……………B-14

High-Speed Flexible Bits ………C-55

High-Temperature

Wire Connectors ………………A-3

Hinged Single-Pole Breaker

Lockout…………………………D-24

Hip Holster Tool Pouch …………C-39

Hole Saw Arbor Extension ……C-48

Hole Saw Arbor Replacement

Bits ……………………………C-48

Hole Saw Arbors ………………C-48

Hole Saw Kit, Electrician's ………C-48

Hole Saw Kit,

Master Electrician's ……………C-48

Hole Saw Kits ……………………C-48

Hole Saw, Adjustable

Can Light ………………………C-49

Hole Saws ………………………C-47

Hole Saws, Recessed Lighting …C-49

Hole Saws, Tungsten

Carbide Grit ……………………C-49

IDEAL Wipes™ …………………C-32

Identification Ties…………………D-6

Identifiers, Circuit ………………E-24

Indicator Lights, Flush …………G-11

Indicator Lights, Miniature ……G-12

Indicator Lights, Raised…………G-11

Industrial Lockout/Tagout

Station …………………………D-22

Industrial-Grade Multimeters ……E-4

Infrared Thermometer …………E-30

Installation Tools, Cable Tie………D-9

Installer Bits ……………………C-52

Installer Kit ………………………F-21

Insulated Knife …………………C-44

Insulated Nutdrivers ……………C-44

Insulated Pliers …………………C-44

Insulated Screwdrivers …………C-44

Insulated Staples ………………D-10

Insulated Tool Cases ……………C-44

Insulated Tool Kits ………………C-43

Insulated Tools ………C-42 thru C-45

Insulation Displacement

Connectors ……………………F-24

Insulation Tester, MEGGER®

5kV ……………………………E-19

Insulation Tester, MEGGER®

Hand-held………………………E-19

Insulators, Splice Cap …………A-39

Insulators, Wrap-Cap®…………A-27

In-Sure™ Push-In Wire

Connectors ……………………A-12

Jab Saw …………………………C-56

Jacket Stripper,

Simplex/Duplex ………………F-26

Jacks, Surface……………………F-23

Journeyman Electrician's

Tote™ …………………………C-41

Jumpers …………………A-25, A-63

Keystone Tip Screwdrivers………C-27

Kinetic™ Reflex™ T®-Stripper

Wire Strippers …………………C-3

Kinetic™ Super Wire Strippers …C-3

Kit, Cable Splicing ………………F-11

Kit, Modular Plug Tool …………F-10

Kits,

DataComm…………F-17, F-18, F-19,

F-20, F-21

Hole Saw ………………………C-48

Lockout/Tagout …D-19, D-20, D-21

Test Lead ………………………E-33

Knife, Cable Splicing ……………F-11

Knife, Electrician's ………………C-33

Knife, Hawkbill …………………C-33

Knife, Insulated …………………C-44

Knife, Lineman's Jack …………C-33

Knife, Utility ……………………C-33

Knife-Type Blades…………C-13, C-14

Knives, Pocket …………………C-33

K-type Thermocouple………E-4, E-32

Labels, Flash Protection ………D-42

Labels, Lock ……………………D-39

LANTEK®6 Cable Certification

Tester ………………………F-2, F-3

LANTEK®6A Cable

Certification Tester …………F-2, F-3

LANTEK®7G Cable

Certification Tester …………F-2, F-3

LANTEK®Selection Guide ………F-4

Large Breaker Lockout …………D-23

Large Mouth Bags………………C-41

Laseredge™ Tool Kits ……C-34, C-35

Laseredge™ Hand

Tools…………………C-16 thru C-19

Lead Set Kit, MEGGER®Earth

Resistance ……………………E-18

Leaders, Fish Tape ………………B-6

Leads, Test ………………………E-33

Leakage Current Clamp Meter …E-14

Level, Mini Laser ………………C-33

Level, Torpedo …………………C-33

Lever Switches ……………………G-9

Lever™-Snips Electrician's

Scissors …………………………F-11

Light Meter ………………………E-30

Light-Duty Toggle Switches ……G-4

Lights, Flush Indicator …………G-11

Lights, Miniature Indicator ……G-12

Lights, Raised Indicator…………G-11

Line Packages …………………B-16

Line Splitter………………………E-31

Lineman's Jack Knife……………C-33

LinkMaster™ PRO SL Tester ……F-7

LinkMaster™ PRO Tester …………F-7

LinkMaster™ Tester ……………F-10

Lite-Strip™ Optical

Fiber Stripper …………………F-26

Load Centers ……………………D-16

Lock Box, Group ………………D-20

Lock Labels ……………………D-39

Lock Stations ……………………D-20

Locking Cable, Python™

Adjustable ……………………D-41

Lockout Devices, Ball Valve ……D-38

Lockout Hasps, Safety …………D-40

Lockout Padlocks ………………D-39

Lockout Padlocks, Aluminum

Safety …………………………D-39

Lockout Signs …………………D-42

Lockout System,

Circuit Breaker…………………D-25

Lockout Tags, Heavy-Duty………D-40

Lockout, Adjustable Cable ……D-38

Lockout, Cable …………………D-38

Lockout, Electric Plug …………D-37

Lockout, Hinged Single-Pole

Breaker…………………………D-24

Lockout, Large Breaker …………D-23

Lockout, Multi-Pole Breaker ……D-23

Lockout, Single-Pole Breaker …D-23

Lockout, Universal Breaker ……D-24

Lockout/Tagout Kit, Basic ………D-19

Lockout/Tagout Kit, Industrial …D-21

Lockout/Tagout Kit,

Plant Facility……………………D-21

Lockout/Tagout Kit, Standard …D-20

Lockout/Tagout Kit, Starter ……D-19

Lockout/Tagout

Kits ………………D-19, D-20, D-21

Lockout/Tagout

Large Mouth Bag ……………D-20

Lockout/Tagout Station,

Industrial ………………………D-22

Lockout/Tagout

Training Manuals ………………D-22

Lockouts, Bilingual ……………D-40

Lockouts, Gate Valve ……………D-38

Lockouts, Plug …………………D-37

Lockouts, Wall Switch …………D-37

Long-Arm Cable Cutters ………C-30

Long-Nose Pliers …………C-18, C-22

Lugs, Termend®…………………A-39

Magnetic Hand Strap ………E-3. E-5

Magnetic-Tip Measuring Tape …C-33

Markers, Conduit ………………D-17

Markers, Voltage ………………D-17

Marking Pens ……………D-17, D-39

Masonry Flexible Bits……………C-55

Master Electrician's

Hole Saw Kit……………………C-48

Master Electrician's Tote™………C-41

Measuring Tape,

Automatic Blade Lock ………C-33

Measuring Tape, Conduit ………B-15

Measuring Tape, Magnetic-Tip …C-33

Mechanical Indentor &

Crimp Tool ……………………C-31

Mechanical Lugs,

Powr-Connect™ …A-29, A-30, A-31,

A-32, A-33

Mechanic's Tool Bag ……………C-41

Medium Toggle Switches ………G-4

MEGGER®3-Pole Meter ………E-18

MEGGER®4-Pole Meter ………E-18

MEGGER®5kV

Insulation Tester ………………E-19

MEGGER®Earth Resistance

Lead Set Kit ……………………E-18

MEGGER®Hand-held

Insulation Tester ………………E-19

Metal Insulated Staple …………D-10

Meter, 1000 Amp Clamp ………E-13

Meter, 310 Series Digital …………E-7

Meter, 400 Amp Clamp …………E-11

Meter, 600 Amp Clamp …………E-12

Meter, 600 Series Pocket …………E-7

Meter, Analog Clamp ……………E-14

Meter, Ground Resistance

Clamp …………………………E-18

Meter, Leakage Current Clamp …E-14

Meter, Light ……………………E-30

Meter, MEGGER®3-Pole ………E-18

Meter, MEGGER®4-Pole ………E-18

Meter, Split-Jaw™ Smart ………E-28

Meters, 61-350 Series ……………E-5

Microscope, Fiber Inspection……F-28

Mini Coax Stripper ………………F-17

Mini Compression Connectors …F-16

Mini Hacksaw …………………C-56

Mini Laser Level …………………C-33

Miniature Circuit Breaker

Lockouts ………………………D-24

Miniature Indicator Lights………G-12

MiniLite-Strip™ Optical

Fiber Stripper …………………F-26

Mini™ Augers……………………C-52

Modular Adapters ………………F-10

Modular Plug Tool Kit……………F-10

Item Page Item Page Item Page Item Page

Alphabetical Index

Modular Plugs, CAT 6……………F-24

Modular Plugs, TelCom …………F-24

Monster-Wipes™ ………………B-12

Motor-Type Resurfacer, Small …G-17

Mounting Bases, Screw …………D-6

Mounting Channels ……………A-62

Mounting Head Ties ……………D-6

Mounting Pads……………………D-7

Multi-Crimp Strip Tool ……………C-6

Multi-Crimp Tools ………C-19, C-23

Multimedia Cable Tester, VDV ……F-8

Multimedia Qualification Tester,

SIGNALTEK™ ……………………F-6

Multimeter Selection Guide ………E-2

Multimeters, Analog………………E-8

Multimeters,

Contractor-Grade …………E-3, E-6

Multimeters, Industrial-Grade ……E-4

Multimeters, PlatinumPro®…E-3, E-4

Multi-Pole Breaker Lockout ……D-23

Multi-Purpose Cable Ties ………G-16

Multi-Wire Pulling Leaders ………B-6

Nailbiter™ Ship Auger Bits ……C-52

NM Cable Cutters ………………G-13

NM Cable Dual-Hole T®-Stripper

Wire Stripper ……………………C-5

NM Cable T®-Stripper

Wire Strippers …………………C-5

Noalox®Anti-Oxidant ……A-28, B-12

Non-Contact Voltage Tester ……E-29

Non-Contact Voltage Tester,

VoltAware™ ……………………E-29

Non-Detectable Underground

Tapes …………………………D-18

Nutdriver Set ……………………C-29

Nutdrivers, Insulated ……………C-44

Nutdrivers, Nutmaster®…A-10, C-29

Nutmaster®Nutdrivers……A-10, C-29

OmniSeal™ Compression Tools …F-15

OmniSeal™ Pro Compression

Tools ……………………………F-15

Oversized Circuit Breaker

Lockout System ………………D-23

Packages, Line …………………B-16

Padlocks, Lockout ………………D-39

Padlocks, Steel …………………D-39

Pads, Gripper ……………………C-11

Pads, Mounting …………………D-7

Parallel Splices …………………A-22

Pencil-Type Resurfacer …………G-17

Pens, Marking ……………D-17, D-39

Phillips Screwdrivers ……………C-28

Pigtail Wire Connectors,

Term-a-Nut®……………………A-13

Plastic Anchor Kits,

Flange-Type ……………………G-14

Plastic Anchors, Flange-Type …G-14

Plastic Insulated Cable

Stacker …………………………D-10

Plastic Insulated Service Entrance

Straps …………………………D-11

Plastic Insulated Staples ………D-10

Plastic Polishing Fixture …………F-27

Plates, Wall ………………………F-23

PlatinumPro®Multimeters …E-3, E-4

Plenum Ties ………………………D-2

Pliers …………………C-17 thru C-22

Pliers, Diagonal-Cutting …C-18, C-21

Pliers, Insulated …………………C-44

Pliers, Premium Electrician's

Side-Cutting ……………………C-17

Pliers, Side-Cutting ………C-17, C-21

Pliers, Tongue & Groove …C-19, C-22

Pliers. Long-Nose…………C-18, C-22

Plier-Type Battery Clamps ………G-13

Plug Lockouts …………………D-37

Plugs, CAT 6 Modular……………F-24

Plugs, TelCom Modular …………F-24

Pocket Bender Guide……………B-14

Pocket Knives ……………………C-33

Pocket Meter, 600 Series …………E-7

Pocket Pal™ Tool Holster ………C-40

Polishing Films …………………F-27

Polishing Fixture, Plastic…………F-27

Polishing Fixture,

Stainless Steel …………………F-27

Port Seals, Compression

F-Connector ……………………F-16

Portable Band Saw Blades ……C-51

Pouches, Tuff-Tote™

Cell Phone ……………………C-39

Pouches, Zipper …………………C-40

Power Analyzer, 3-Phase …E-20, E-21

PowerBlade™ Cable Cutter ……C-30

PowerPlug™ Luminaire

Disconnect ……………………A-11

Powr-Connect™ Grounding

Connectors ……………………A-32

Powr-Connect™ Mechanical

Lugs …A-29, A-30, A-31, A-32, A-33

Powr-Connect™ Mechanical

Solderless Lugs ………………A-33

Powr-Connect™ Tap

Connectors ……………………A-31

Powr-Fish®Pull-Line ……………B-15

Powr-Polish™ Flexible

Abrasive ………………………G-18

Powr-Tie™ Cable Ties ………D-4, D-5

Pre-Insulated Crimp

Connectors ……………………A-27

Premium Electrician's

Side-Cutting Pliers ……………C-17

Premium T®-Stripper

Wire Stripper ……………………C-4

Pro Installer Kit …………………F-21

Probe, Amplifier …………………F-9

Pro-Met®Cable Ties ……………D-3

Pro-Pull™ Rope …………………B-15

Pro-Series®Shackless

Lock & Hasp …………………D-41

ProVision®, 490 Series Software …E-4

Pull-Chain Switches………………G-9

Puller, Fish-Tape …………………B-6

Pullers, Fuse ……………………C-45

Pullers, Safe-T-Grip®Fuse ………C-45

Pulling Leaders, Multi-Wire ………B-6

Pull-Line, Powr-Fish®……………B-15

Pull-Line, Value-Line™ …………B-15

Punch Down Tools ………………F-10

Push-Button Switches ……………G-8

Push-In Wire Connectors,

In-Sure™ ………………………A-12

Push-On Connectors ……………F-16

Putter, Bender……………………B-12

Python™ Adjustable

Locking Cable …………………D-41

Quick Connects …………………A-25

Quick-Rotating Screwdrivers …C-28

Raised Indicator Lights …………G-11

Rapid-Pak®Fish Tape ………B-3, B-5

Ratch Wrench……………………A-10

Ratchet Crimp Tool ……………C-31

Ratchet Telemaster™ ……………F-10

Ratcheting Cable Cutter ………C-30

Receptacle Testers ………………E-25

Recessed Lighting Hole Saws …C-49

Reciprocating Blades ……C-50, C-51

Reflex™ Premium T®-Stripper Wire

Strippers …………………………C-3

Reflex™ Super T®-Stripper Wire

Strippers …………………………C-3

Removal Tools, Connector ………F-22

Replacement Bits,

Hole Saw Arbor ………………C-48

Replacement Cases, Fish Tape …B-6

Replacement Parts

Selection Guide ………………E-34

Residential Compression Kit ……F-18

RESI-MASTER™ Heavy-Duty

Ship Augers ……………………C-52

Resurfacer, Pencil-Type …………G-17

Resurfacer, Small Motor-Type …G-17

Resurfacer, Tool-Type ……………G-17

Resurfacer, Tramway-Handle …G-17

Resurfacing Tool, Commutator

Smoothie®………………………G-18

RG-6 Push-On Connector Kit …F-19

Ring, Terminals……………A-16, A-17

Ringing Tool ……………………F-13

Ripper, Cable ……………………C-7

Rocker Switches, Appliance ……G-7

Rocker Switches, Full-Size ………G-6

Rope, Pro-Pull™ …………………B-15

Rotary BX/MC Cutters ……C-7, C-31

Rotary Switches …………………G-10

Round Cable Slitting Tool ………F-13

RS-232 Cable ……………………E-4

Safe-T-Grip®Fuse Pullers ………C-45

Safety Lockout Hasps …………D-40

Safety Lockout Padlocks,

Aluminum………………………D-39

Safety Signs ……………………D-42

Satellite & Digital TV Splitters …F-16

Saw Blades, Portable Band ……C-51

Saw, Folding ……………………C-56

Saw, Jab …………………………C-56

Saws, Hole ………………………C-47

Scissors, Electrician's ……………F-11

Scissors, Lever™-Snips …………F-11

Screw Mounting Bases …………D-6

Screw Point Flexible Bits ………C-54

Screwdriver Sets ………………C-26

Screwdriver, 1000V Insulated

Screw-Holding …………………C-45

Screwdriver,

7-in-1 Twist-a-Nut™……………C-24

Screwdriver,

9-in-1 Ratch-a-Nut™ …………C-24

Screwdriver, Twist-a-Nut™ ……A-10

Screwdriver, Twist-a-Nut™ Pro™

Electrician's ……………………C-25

Screwdriver/Nutdriver, 10-in-1 …C-29

Screwdriver/Nutdriver, 5-in-1 …C-29

Screwdriver/Nutdriver, 5-in-1

Non-Conductive ………………C-45

Screwdrivers …………C-26 thru C-29

Screwdrivers, Insulated …………C-44

Screwdrivers, Phillips ……………C-28

Screwdrivers, Quick-Rotating …C-28

Screwdrivers, Screw-Holding …C-28

Screwdrivers, Slotted ……………C-27

Screwdrivers, Slotted

Cabinet Tip ……………………C-27

Screwdrivers, Slotted

Keystone Tip……………………C-27

Screwdrivers, Square Head ……C-28

Screw-Holding Screwdrivers……C-28

Seal, Duct ………………………B-12

SecuriTEST™ CCTV/Security

Tester ……………………………F-8

Selection Chart, Coaxial …………F-25

Selection Chart, Fish Tape ………B-3

Selection Guide, Carrying Case…E-32

Selection Guide, Clamp Meter……E-9

Item Page Item Page Item Page Item Page

Index

Alphabetical Index 5

Alphabetical Index

Selection Guide, LANTEK®…………

Selection Guide, Multimeter ……E-2

Selection Guide, Replacement

Parts ……………………………E-34

Selection Guide, T®-Stripper

Wire Stripper ……………………C-2

Selection Guide, Wire Pulling

Lubricant ………………………B-8

Serrated Combination

Flexible Bits ……………………C-54

Serrated Cutter …………………F-26

Service Compression Kit ………F-19

Service Tool, D-Sub/Double-D …F-11

Set-Screw Holder ………………A-28

Set-Screw Wire Connectors ……A-28

Seven-In-One Stripper……………C-6

Shackless Lock & Hasp,

Pro-Series®……………………D-41

Shims, Spacer …………………G-13

Shoulder Straps …………………C-39

Side-Cutting Pliers ………C-17, C-21

SIGNALTEK™ Cable Performance

Tester ………………………F-5, F-6

SIGNALTEK™-FO Multimedia

Qualification Tester………………F-6

Signs, Flash Protection …………D-42

Signs, Lockout …………………D-42

Signs, Safety ……………………D-42

Simplex/Duplex

Jacket Stripper …………………F-26

Single-Pole Breaker Lockout……D-23

Slide Switches …………………G-10

Slim Electronics …………………C-29

Small Motor-Type Resurfacer …G-17

Socket, Spin-Twist®

Wire Connector ………………A-10

Socket, Wire-Nut®

Wire Connector ………………A-10

Solderless Lugs,

Powr-Connect™ ………………A-33

Solenoid Voltage Testers ………E-27

Sound Straps ……………………D-11

Spacer Shims ……………………G-13

Spade Terminals …………………A-17

Spin-Twist®Wire Connector

Socket …………………………A-10

Splice Cap Crimp Connectors …A-39

Splice Cap Insulators……………A-39

Splice Kits, Thermo-Shrink®……D-12

Splices, Butt ………………A-21, A-22

Splices, Parallel …………………A-22

Split Bolts ………………………A-32

Split-Jaw™ Smart Meter ………E-28

Splitter, Digital Cable ……………F-17

Splitter, Line ……………………E-31

Splitters …………………………F-16

Splitters, Satellite &

Digital TV ………………………F-16

Split-Tip Fiber Optic Swabs ……F-27

Square Head Screwdrivers ……C-28

Stacker, Plastic

Insulated Cable ………………D-10

Stainless Steel

Polishing Fixture ………………F-27

Standard Toggle Switches …G-2, G-3

Staple, Metal Insulated …………D-10

Staples, Cable …………………D-10

Staples, Carbon Steel …………D-10

Staples, Carbon Steel

Service Entrance ………………D-11

Staples, Data Cable ……………D-11

Staples, Fiber Insulated Cable …D-11

Staples, Insulated ………………D-10

Staples, Plastic Insulated ………D-10

Static Dissipative Wire Stripper …C-5

Stations, Lock……………………D-20

Steel Padlocks …………………D-39

Step Bit Kit, Electrician's ………C-53

Step Drill Bits ……………………C-53

Strap, Magnetic Hand ………E-3. E-5

Straps, Coaxial Cable……………D-11

Straps, Plastic Insulated Service

Entrance ………………………D-11

Straps, Shoulder…………………C-39

Straps, Sound……………………D-11

Streetlight Kits ……………A-41, A-42

Stripmaster®Lite

Wire Stripper ……………C-12, C-13

Stripmaster®Ribbon Fiber

Jacket Stripper …………………F-26

Stripmaster®Wire

Stripper …………………C-12, C-13

Stripper, Grip-N-Strip™ …………C-7

Stripper, Mini Coax ………………F-17

Stripper, NM Cable Dual-Hole

T®-Stripper Wire…………………C-5

Stripper, Seven-In-One …………C-6

Strippers, Premium T®-Stripper

Wire ……………………………C-4

Strippers, Stripmaster®Lite

Wire………………………C-12, C-13

Stripper, Stripmaster®

Wire………………………C-12, C-13

Stripper, T®-Stripper Wire ………C-4

Stripper, Underground Feeder

Cable ……………………………C-7

Stripper, V-Notch …………………C-5

Strippers, Cable …………………F-27

Strippers, Custom

Stripmaster®Wire …………C-8, C-9

Strippers, Custom

Stripmaster®Lite Wire ……C-8, C-9

Strippers, Kinetic™ Reflex™

T®-Stripper Wire…………………C-3

Strippers, Kinetic™ Super Wire …C-3

Strippers, NM Cable

T®-Stripper Wire…………………C-5

Strippers, Reflex™ Premium

T®-Stripper Wire…………………C-3

Strippers, Reflex™ Super

T®-Stripper Wire…………………C-3

Strippers, Super T®-Stripper

Wire………………………………C-4

Strippers, Wire…………C-2 thru C-14

Stud Bushings,

Universal Metal ………………G-15

Super T®-Stripper

Wire Strippers …………………C-4

Super T®-Stripper Wire Strippers,

Static Dissipative ………………C-4

Supplies Apron …………………C-40

Supplies Pouch, Belt Bag™ ……C-30

SureTest®Arc Circuit Tester ……E-25

SureTest®Circuit Analyzer ………E-23

SureTest®Circuit Tracers ………E-17

SureTest®Open/Closed

Circuit Tracers …………………E-16

Surface Jacks ……………………F-23

Switch, Toggle Accessories………G-5

Switches, Appliance Rocker ……G-7

Switches, Cord ……………………G-9

Switches, Door …………………G-10

Switches, Double Insulated

Plastic Toggle ……………………G-5

Switches, Extra Heavy-Duty

AC/DC Toggle …………………G-4

Switches, Full-Size Rocker ………G-6

Switches, Heavy-Duty

Toggle………………………G-2, G-3

Switches, Lever …………………G-9

Switches, Light-Duty Toggle ……G-4

Switches, Medium Toggle ………G-4

Switches, Pull-Chain ……………G-9

Switches, Push-Button …………G-8

Switches, Rotary…………………G-10

Switches, Slide …………………G-10

Switches, Standard Toggle …G-2, G-3

Swivel Ball, Fish Tape ……………B-6

T®-Cutter Wire Cutters……………C-4

T®-Cutters, Data …………………C-6

T®-Stripper Wire Stripper…………C-4

T®-Stripper Wire Stripper

Selection Guide …………………C-2

Tails, Grounding …………………A-15

Tap Connectors …………………A-40

Tap Connectors,

Powr-Connect™ ………………A-31

Tap Splice Connectors …………A-22

Tape, Conduit Measuring ………B-15

Tapes, Barricade ………………D-18

Tapes, Detectable

Underground …………………D-18

Tapes, Non-Detectable

Underground …………………D-18

Tapping Tool, 6-in-1

Twist-a-Nut™ …………………C-25

Tapping Tool, Twist-a-Nut ………C-32

Technician's Service Kit …………F-21

Telco Ratcheting Cable Cutter …C-30

TelCom Modular Plugs …………F-24

Telcom Termination Kit …………F-19

Telemaster™ Telephone Tool ……F-10

Telephone Tool, Telemaster™ ……F-10

Tenite Grips………………………C-23

Term-a-Nut®Pigtail

Wire Connectors ………………A-13

Term-a-Nut®Terminal Wire

Connectors ……………………A-16

Termend®Lugs …………………A-39

Terminal Blocks……A-44, A-46, A-48,

A-50, A-52, A-54, A-56, A-58, A-60

Terminal Strip Covers ……………A-25

Terminal Strips ……………A-23, A-24

Terminals, Crimp ………………A-16

Terminals, Ring……………A-16, A-17

Terminals, Spade …………A-17, A-18

Test Lead Kits ……………………E-33

Test Leads ………………………E-33

Test Light, Fuse Puller & ………C-45

Test Tool, 4-in-1 …………………E-10

Tester Pouches, Tuff-Tote™ ……C-39

Tester, 3-Phase/Motor

Rotation ………………………E-30

Tester, ABS™ ………………………F-9

Tester, Circuit ……………………E-29

Tester, Continuity ………………E-29

Tester, LinkMaster™ ……………F-10

Tester, LinkMaster™ Pro …………F-7

Tester, LinkMaster™ Pro XL ………F-7

Tester, Non-Contact Voltage ……E-29

Tester, SecuriTEST™

CCTV/Security …………………F-8

Tester, SIGNALTEK™ Cable

Performance ………………F-5, F-6

Tester, SIGNALTEK™-FO

Multimedia Qualification ………F-6

Tester, Twin Lead ………………E-29

Tester, VDV Multimedia Cable ……F-8

Tester, Vol-Con®

Voltage/Continuity ……………E-27

Tester, Vol-Con®XL

Voltage/Continuity ……………E-27

Tester, VoltAware™ Non-Contact

Voltage …………………………E-29

Tester, Vol-Test®Voltage …………E-27

Tester, Vol-Test®XL Voltage ……E-27

Testers, LANTEK®……………F-2, F-3

Testers, Receptacle………………E-25

Test-Glo™ Circuit Tester …………E-29

Test-Pro®Multimeters ……………E-6

Thermocouple Adapter ……E-4, E-32

Thermocouple, K-type ……E-4, E-32

Thermometer, Infrared …………E-30

Thermo-Shrink®Heat Shrink

Kit ………………………………D-15

Thermo-Shrink®Heat

Shrinkable End Caps …………D-14

Thermo-Shrink®Heat

Shrinkable Tubing ………D-13, D-14

Item Page Item Page Item Page Item Page

Alphabetical Index

Thermo-Shrink®Splice Kits ……D-12

Thermo-Shrink®Torch …………D-12

Thumb-Winder™ Fish Tape …B-3, B-5

Ties, Halar®………………………D-2

Ties, Handling ……………………D-2

Ties, Identification ………………D-6

Ties, Mounting Head ……………D-6

Ties, Plenum………………………D-2

Ties, Powr-Tie™ Cable ………D-4, D-5

Ties, Pro-Met®Cable ……………D-3

Tin Snips, Aviation ………………C-56

Toggle Switch Accessories ………G-5

Toggle Switches, Double Insulated

Plastic ……………………………G-5

Toggle Switches, Extra Heavy-Duty

AC/DC …………………………G-4

Toggle Switches,

Heavy-Duty ………………G-2, G-3

Toggle Switches, Light-Duty ……G-4

Toggle Switches, Medium ………G-4

Toggle Switches, Standard …G-2, G-3

Toggle®Coax Strippers …………F-12

Tone Generator ……………………F-9

Tongue & Groove Pliers …C-19, C-22

Tool Bag, Electrician's Carrier™…C-41

Tool Bag, Mechanic's……………C-41

Tool Bag, Tool Carrier™ …………C-41

Tool Carrier, Bucket Bag ………C-40

Tool Carriers ……………………C-38

Tool Carriers, Tuff-Tote™…………C-38

Tool Carriers, Tuff-Tote™

Ultimate ………………………C-38

Tool Carrier™ Tool Bag …………C-41

Tool Cases, Insulated ……………C-44

Tool Holsters, Pocket Pal™………C-40

Tool Kits………………C-34 thru C-37

Tool Kits, Insulated………………C-43

Tool Kits, Laseredge™ ……C-34, C-35

Tool Kits, WireMan™ ……C-36, C-37

Tool Pouch, Electrician's ………C-39

Tool Pouch, Hip Holster …………C-39

Tool Pouches, Tuff-Tote™ ………C-38

Tool, Commutator Smoothie®

Resurfacing ……………………G-18

Tools, Cable Tie Installation………D-9

Tools, Insulated ………C-42 thru C-45

Tools, Multi-Crimp ………C-19, C-23

Tools, Punch Down ………………F-10

Tool-Type Resurfacer ……………G-17

Torch, Thermo-Shrink®…………D-12

Torpedo Level ……………………C-33

TRACETEK™ ………………………F-5

Training Manuals,

Lockout/Tagout ………………D-22

Tramway-Handle Resurfacer……G-17

Triple-Tap Tools …………………C-32

Tubing, Flexible …………………D-7

Tubing, Heat

Shrinkable ………D-12, D-13, D-14

Tuff-Grip™ Fish Tapes ……………B-5

Tuff-Grip™ Pro Fish Tape ……B-3, B-4

Tuff-Rod™ Fishing Poles …………B-7

Tuff-Tote™ Cell Phone Pouches…C-39

Tuff-Tote™ Tester Pouches ………C-39

Tuff-Tote™ Tool Carriers …………C-38

Tuff-Tote™ Tool Pouches ………C-38

Tuff-Tote™ Ultimate

Tool Carriers ……………………C-38

Tungsten Carbide Grit

Hole Saws ……………………C-49

Twin Lead Tester…………………E-29

Twist-a-Nut Pro™ Electrician's

Screwdriver ……………………C-25

Twist-a-Nut Tapping Tool ………C-32

Twist-a-Nut™ 7-in-1

Screwdriver ……………………A-10

Twist-a-Nut™ Conduit

Deburring Tool …………………B-12

Twist-a-Nut™ Conduit ………………

Deburring Tools ………………C-25

Twist-a-Nut™ Conduit

Wiring Kit ………………………C-25

Twisted Pair/Coax

Termination Kit …………………F-20

Twister®Al/Cu Wire Connectors …A-9

Twister®Pro Wire Connectors ……A-7

Twister®Wire Connectors ………A-6

Underground Feeder

Cable Stripper …………………C-7

Underground Tapes,

Detectable ……………………D-18

Underground Tapes,

Non-Detectable ………………D-18

UnderGround™

Wire Connectors ………………A-8

Universal Breaker Lockout ……D-24

Universal Compression

Connectors ……………………F-15

Universal Metal

Stud Bushings …………………G-15

Utility Knife ………………………C-33

UTP Cable Stripper ………………F-12

UTP/STP/Coaxial

Cable Strippers …………………F-12

Value-Line™ Pull-Line …………B-15

VDV Multimedia Cable Tester ……F-8

Velocity™ Wire Pulling

Lubricant ………………………B-10

Visual Fault Finder ……………………

V-Notch Stripper …………………C-5

Vol-Con®Elite Voltage Testers …E-26

Vol-Con®Voltage/Continuity

Tester……………………………E-27

Vol-Con®XL Voltage/Continuity

Tester……………………………E-27

Voltage Markers…………………D-17

Voltage Performance Monitor …E-22

Voltage Tester, Non-Contact ……E-29

Voltage Tester, Vol-Test®…………E-27

Voltage Tester, Vol-Test®XL ……E-27

Voltage Testers, Solenoid ………E-27

Voltage Testers, Vol-Con®Elite …E-26

Voltage/Continuity Tester,

Vol-Con®………………………E-27

Voltage/Continuity Tester,

Vol-Con®XL ……………………E-27

VoltAware™ Non-Contact

Voltage Tester …………………E-29

Vol -Te s t®Voltage Tester …………E-27

Vol -Te s t®XL Voltage Tester ……E-27

VPM………………………………E-22

Wall Plates ………………………F-23

Wall Switch Lockouts……………D-37

WeatherProof™ Wire Connectors A-8

Wing-Nut®Wire Connectors ……A-4

WingTwist™ Wire Connectors …A-38

Wipes ……………………………C-32

Wire Connector Chuck …………A-10

Wire Connector Socket,

Spin-Twist®……………………A-10

Wire Connector Socket,

Wire-Nut®………………………A-10

Wire Connector Wrench,

Wire-Nut®………………………A-10

Wire Connectors, B-CAP®………A-36

Wire Connectors,

High-Temperature ………………A-3

Wire Connectors, In-Sure™

Push-In …………………………A-12

Wire Connectors, Set-Screw ……A-28

Wire Connectors, Term-a-Nut®

Pigtail …………………………A-13

Wire Connectors, Term-a-Nut®

Terminal ………………………A-16

Wire Connectors, Twister®………A-6

Wire Connectors,

Twister®Al/Cu …………………A-9

Wire Connectors, Twister®Pro……A-7

Wire Connectors,

UnderGround™ …………………A-8

Wire Connectors,

WeatherProof™ …………………A-8

Wire Connectors, Wing-Nut®……A-4

Wire Connectors, WingTwist™ …A-38

Wire Connectors, Wire-Nut®……A-2

Wire Connectors, WireTwist™ …A-37

Wire Cutter, Economy Round

Cable and ………………………F-11

Wire Cutters, T®-Cutter …………C-4

Wire Marker Booklets …………D-16

Wire Marker Cards ……………D-17

Wire Marker Dispenser …………D-17

Wire Pulling Lubricant

Selection Guide …………………B-8

Wire Pulling Lubricant,

ClearGlide™ ……………………B-10

Wire Pulling Lubricant,

Velocity™ ………………………B-10

Wire Pulling Lubricant,

Yellow 77®………………………B-9

Wire Stripper, NM Cable Dual-Hole

T®-Stripper ………………………C-5

Wire Stripper, Premium

T®-Stripper ………………………C-4

Wire Stripper, Static Dissipative …C-5

Wire Stripper, T®-Stripper ………C-4

Wire Strippers …………C-2 thru C-14

Wire Strippers,

Coax Stripmaster®……………F-12

Wire Strippers, Kinetic™

Reflex™ T®-Stripper ……………C-3

Wire Strippers, Kinetic™ Super …C-3

Wire Strippers, NM Cable

T®-Stripper ………………………C-5

Wire Strippers, Reflex™

Premium T®-Stripper ……………C-3

Wire Strippers, Reflex™

Super T®-Stripper ………………C-3

Wire Strippers, Super

T®-Stripper ………………………C-4

Wire Strippers, Super

T®-Stripper - Static Dissipative …C-4

WireMan™

Hand Tools …………C-20 thru C-23

WireMan™ Tool Kits ………C-36, C-37

Wire-Nut®Wire Connector

Socket …………………………A-10

Wire-Nut®Wire Connector

Wrench …………………………A-10

Wire-Nut®Wire Connectors ……A-2

WireTwist™ Wire Connectors……A-37

Wiring Kit, Twist-a-Nut™

Conduit …………………………C-25

Wrap-Cap®Insulators …………A-27

Wrench, Ratch …………………A-10

Wrench, Wire-Nut®

Wire Connector ………………A-10

Wrenches, Adjustable …………C-32

Write-On Marker Cards…………D-17

Write-On Wire Marker

Booklets ………………………D-16

Yellow 77®Plus Wire Pulling

Lubricant ………………………B-9

Yellow 77®Wire Pulling

Lubricant ………………………B-9

Zipper Pouches …………………C-40

Zoom™ Fish Tapes ………………B-5

Item Page Item Page Item Page Item Page

Index

Catalog Number Index 7

Catalog Number Index

Cat. Page Cat. Page Cat. Page Cat. PageCat. Page

0012-00-0629 ……………F-3

0012-00-0642 ……………F-3

0012-00-0656 ……………F-3

0221 ……………………A-50

0222 ……………………A-50

0223 ……………………A-50

0230 ……………………A-50

0241 ……………………A-48

0242 ……………………A-48

0243 ……………………A-48

0250 ……………………A-48

0311 ……………………A-56

0312 ……………………A-56

0318 ……………………A-56

0330 ……………………A-58

0351 ……………………A-58

0352 ……………………A-58

0358 ……………………A-58

0380 ……………………A-56

0921 ……………………A-46

0924 ……………………A-46

0925 ……………………A-46

0930 ……………………A-46

11 ………………………A-62

12 ………………………A-62

13 ………………………A-63

23 ………………………A-63

41 ………………………A-63

42 ………………………A-63

43 ………………………A-63

60 ………………………A-62

61 ………………………A-62

62 ………………………A-62

63 ………………………A-62

64 ………………………A-62

67 ………………………A-62

68 ………………………A-62

70 ………………………A-63

71 ………………………A-63

73 ………………………A-63

115 ……………………A-44

120 ……………………A-44

125 ……………………A-44

130 ……………………A-44

221 ……………………A-50

222 ……………………A-50

223 ……………………A-50

230 ……………………A-50

241 ……………………A-48

242 ……………………A-48

243 ……………………A-48

250 ……………………A-48

330 ……………………A-58

351 ……………………A-58

352 ……………………A-58

358 ……………………A-58

426 ……………………A-54

427 ……………………A-54

430 ……………………A-54

444.001…………………D-25

824 ……………………A-52

830 ……………………A-52

921 ……………………A-46

924 ……………………A-46

925 ……………………A-46

930 ……………………A-46

1050 ……………………G-13

1019-00-0343 ……………F-3

1019-00-1105 ……………F-3

1019-00-1110 ……………F-3

1019-00-1112 ………F-3, F-6

1019-00-1114 ……………F-3

1019-00-1115 ……………F-3

10-398 …………………C-39

10-399 …………………C-39

10-466 …………………C-39

11-111 …………………C-32

11-113 …………………C-32

11-115 …………………C-32

11-200 …………………C-32

11-201 …………………C-32

1219-00-1604 ……………F-3

16-8-1/4 ………………A-39

16-8-10…………………A-39

16-8-10L ………………A-39

16-8-10S ………………A-39

170207L ………………G-12

170208L ………………G-12

170209L ………………G-12

172451 …………………G-13

2006S …………………A-39

2006SB …………………A-39

2007 ……………………A-39

2007B …………………A-39

2011S …………………A-39

2011SB …………………A-39

2014 ……………………A-39

2014B …………………A-39

2112-27-0604 ……………F-3

2112-27-0605 ……………F-3

23-001 …………………G-18

23-002 …………………G-18

23-003 …………………G-18

23-004 …………………G-18

23-005 …………………G-18

23-006 …………………G-18

23-007 …………………G-18

23-008 …………………G-18

23-027 …………………G-18

23-035S ………………G-18

23-036S ………………G-18

23-039S ………………G-18

23-041S ………………G-18

23-042S ………………G-18

30-024 …………A-28, B-12

30-026 …………A-28, B-12

30-030 …………A-28, B-12

30-031 …………A-28, B-12

30-032 …………A-28, B-12

30-040 …………A-28, B-12

30-059 …………………A-3

30-060 …………………A-8

30-061 …………………A-8

30-062 …………………A-8

30-063 …………………A-8

30-064 …………………A-8

30-065 …………………A-9

30-071 …………………A-2

30-072 …………………A-2

30-073 …………………A-2

30-073J …………………A-2

30-074……………………A-2

30-074J …………………A-2

30-076 …………………A-2

30-084 …………………A-12

30-084J…………………A-12

30-085 …………………A-12

30-085J…………………A-12

30-086 …………………A-12

30-086J…………………A-12

30-087 …………………A-12

30-087J…………………A-12

30-088 …………………A-12

30-088J…………………A-12

30-090 …………………A-12

30-090J…………………A-12

30-092 …………………A-5

30-092J …………………A-5

3010-12-0036 ……………F-3

3010-12-0092 ……………F-3

30-102 …………………A-11

3010-70-0015 ……………F-3

30-141 …………………A-6

30-142 …………………A-6

30-144J …………………A-7

30-148 …………………A-27

30-151 …………………A-3

30-152 …………………A-3

30-153 …………………A-3

30-159 …………………A-3

30-161 …………………A-8

30-162 …………………A-8

30-163 …………………A-8

30-164Y …………………A-8

30-165 …………………A-9

30-171 …………………A-2

30-172 …………………A-2

30-173 …………………A-2

30-174……………………A-2

30-176……………………A-2

30-184 …………………A-12

30-185 …………………A-12

30-186 …………………A-12

30-187 …………………A-12

30-188 …………………A-12

30-190 …………………A-12

30-192 …………………A-5

30-210 …………………A-28

30-211 …………………A-28

30-222 …………………A-28

30-244J …………………A-7

30-245 …………………A-27

30-249 …………………A-27

30-251 …………………A-3

30-252 …………………A-3

30-253 …………………A-3

30-259 …………………A-3

30-260 …………………A-8

30-261 …………………A-8

30-262 …………………A-8

30-263 …………………A-8

30-264 …………………A-8

30-265 …………………A-9

30-271 …………………A-2

30-272 …………………A-2

30-273 …………………A-2

30-274……………………A-2

30-276 …………………A-2

30-292 …………………A-5

30-3004 ………………A-16

30-3006 ………………A-16

30-3010 ………………A-16

30-3012 ………………A-16

30-3014 ………………A-16

30-310 …………………A-28

30-311 …………………A-28

30-3170…………………A-13

30-3171 ………………A-13

30-3172 ………………A-13

30-3173 ………………A-13

30-3180 …………A-13, A-14

30-3181 ………………A-13

30-3182 ………………A-14

30-3183 ………………A-15

30-3184 ………………A-15

30-3194 ………………A-15

30-322 …………………A-28

30-3280 ………………A-14

30-3284 ………………A-15

30-3287…………………A-15

30-3288 ………………A-15

30-3289 ………………A-15

30-3294 ………………A-15

30-330 …………………C-25

30-331 …………A-10, C-25

30-332 …………………C-25

30-333 …………A-10, C-25

30-3370…………………A-13

30-3371 ………………A-13

30-3380 …………A-13, A-14

30-3386 ………………A-14

30-3390 ………………A-15

30-3392 ………………A-15

30-3394 ………………A-15

30-3395 ………………A-15

30-340 …………………A-6

30-341 …………………A-6

30-341J …………………A-6

30-342 …………………A-6

30-3429 ………………C-19

30-3430 ………………C-17

30-3496 ………………A-15

30-352J…………………A-11

30-360 …………………A-8

30-360Y …………………A-8

30-362 …………………A-8

30-363 …………………A-8

30-364 …………………A-8

30-365 …………………A-9

30-3680 ………………A-14

30-372 …………………A-11

30-382J…………………A-11

30-3901 ………………A-16

30-401 …………………A-27

30-402 …………………A-27

30-405 …………………A-27

30-407 …………………A-27

30-410 …………………A-27

30-411 …………………A-27

30-412 …………………A-27

30-415 …………………A-27

30-417 …………………A-27

30-420 …………………C-17

30-425 …………………C-31

30-426 …………………F-11

Catalog Number Index

30-428 ……………C-6, C-27

30-429 …………………C-19

30-430 …………………C-17

30-433 ……………C-6, F-13

30-433F ……………C-6, F-13

30-435 …………………C-17

30-4419 ………………C-21

30-441J …………………A-6

30-4420 ………………C-21

30-4429 ………………C-23

30-4430 ………………C-21

30-4431 ………………C-23

30-451 …………………A-4

30-451J …………………A-4

30-452 …………………A-4

30-452J …………………A-4

30-454 …………………A-4

30-478 …………………F-13

30-479 …………………F-13

30-481 ……………F-13, F-14

30-482 ……………F-13, F-14

30-483 ……F-13, F-14, F-25

30-485 ……………F-13, F-14

30-489 …………………F-13

30-490 …………………F-13

30-496 ……F-10, F-17, F-19,

F-20

30-497 …………………F-10

30-498 …………………F-10

30-499 …………………F-10

30-500 ……………F-13, F-14

30-502 ……F-13, F-14, F-20

30-503 ……F-13, F-14, F-21,

F-25

30-506 ……F-13, F-19, F-20

30-510 …………………A-27

30-511 …………………A-27

30-512 …………………A-27

30-515 …………………A-27

30-517 …………………A-27

30-521 …………………F-13

30-522 ……………F-13, F-18

30-525 …………………F-13

30-526 …………………F-13

30-541 …………………A-6

30-5419 ………………C-21

30-5420 ………………C-21

30-5429 ………………C-23

30-5430 ………………C-21

30-5431 ………………C-23

30-551 …………………A-4

30-552 …………………A-4

30-556 ……F-13, F-19, F-20

30-558 ……………F-13, F-19

30-559 ……F-13, F-19, F-20

30-560 ……………F-13, F-19

30-565 …………………F-13

30-570 …………………F-14

30-572 ……………F-13, F-14

30-573 ……………F-13, F-14

30-576 ……………F-13, F-14

30-577 ……………F-13, F-14

30-578 ……………F-13, F-14

30-579 ……………F-13, F-14

30-580 ……………F-13, F-14

30-581 ……F-13, F-14, F-20

30-582 ……………F-13, F-14

30-586 ……………F-13, F-14

30-587 ……………F-13, F-14

30-591 ……………F-13, F-14

30-593 …………………F-14

30-594 ……………F-13, F-14

30-596 …………………F-13

30-597 …………………F-13

30-599 …………………F-14

30-603 ……F-15, F-18, F-21,

F-25

30-610 …………………A-27

30-615 …………………A-27

30-633 ……F-15, F-17, F-18,

F-20, F-25

30-640 …………………A-6

30-640J …………………A-6

30-641 …………………A-6

30-642 …………………A-6

30-644J …………………A-7

30-645 …………………A-27

30-648 …………………A-27

30-649 …………………A-27

30-651 …………………A-4

30-651J …………………A-4

30-652 …………………A-4

30-652J …………………A-4

30-654 …………………A-4

30-673 …………………A-2

30-674……………………A-2

30-684 …………………A-12

30-685 …………………A-12

30-686 …………………A-12

30-687 …………………A-12

30-688 …………………A-12

30-690 …………………A-12

30-696 ……………F-10, F-21

30-703 ……………F-15, F-25

30-720 ……………F-15, F-25

30-760 …………………A-8

30-764 …………………A-8

30-765 …………………A-9

30-793 ……F-15, F-18, F-19,

F-25

30-840 …………………A-6

30-841 …………………A-6

30-851 …………………A-4

30-852 …………………A-4

30-871 …………………A-2

30-872 …………………A-2

30-873 …………………A-2

30-874……………………A-2

30-876……………………A-2

30-885 …………………A-38

30-886 …………………A-38

30-887 …………………A-38

30-890 …………………A-38

30-891 …………………A-37

30-892 …………………A-37

30-893 …………………A-37

30-894 …………………A-37

30-896 …………………A-37

30-902 …………………A-10

30-903 …………………A-10

30-904 …………………A-10

30-905 …………………A-10

30-906 …………………A-10

30-9429 ………………C-44

30-9430 ………………C-44

30-WGRB ………………A-38

30-WGRC ………………A-38

30-WGRJ ………………A-38

30-WT1B ………………A-37

30-WT1C ………………A-37

30-WT2B ………………A-37

30-WT2C ………………A-37

30-WT3B ………………A-37

30-WT3C ………………A-37

30-WT41B ……………A-38

30-WT41C ……………A-38

30-WT41J ………………A-38

30-WT4B ………………A-37

30-WT4C ………………A-37

30-WT51B ……………A-38

30-WT51C ……………A-38

30-WT51J ………………A-38

30-WT52B ……………A-38

30-WT52C ……………A-38

30-WT52J ………………A-38

30-WT54B ……………A-38

30-WT54C ……………A-38

30-WT6B ………………A-37

30-WT6C ………………A-37

31-010 ……………B-3, B-5

31-012 ……………B-3, B-5

31-033 …………………B-3

31-035………………B-3, B-4

31-036 ………B-3, B-4, B-5

31-038 ………B-3, B-4, B-5

31-050 …………………B-3

31-051 …………………B-3

31-052 …………………B-3

31-055………………B-3, B-4

31-056 ……………B-3, B-4

31-057………………B-3, B-4

31-058 …………………B-3

31-059 …………………B-3

31-060 ……………B-3, B-4

31-061 ……………B-3, B-4

31-062 ……………B-3, B-4

31-063 ……………B-3, B-4

31-064 ……………B-3, B-5

31-065 ……………B-3, B-5

31-066 ……………B-3, B-4

31-067………………B-3, B-4

31-073………………B-3, B-4

31-074………………B-3, B-4

31-081 ……………B-3, B-5

31-085 ………B-3, B-4, B-6

31-090 ………B-3, B-4, B-5

31-091 ………B-3, B-4, B-5

31-092 ………B-3, B-4, B-5

31-093 ………B-3, B-4, B-5

31-094 ……………B-3, B-6

31-096 ……………B-3, B-5

31-097………………B-3, B-5

31-098 ……………B-3, B-5

31-140 …………………B-3

31-141 ……………B-3, B-4

31-142 …………………B-3

31-144 ……………B-3, B-4

31-146 ……………B-3, B-6

31-147………………B-3, B-6

31-148 ……………B-3, B-6

31-150 ………B-3, B-4, B-5

31-152…………B-3, B-4, B-5

31-155………………B-3, B-5

31-156 …………………B-6

31-158 ……………B-3, B-6

31-159 ……………B-3, B-6

31-160 ………B-3, B-4, B-5

31-162 ………B-3, B-4, B-5

31-164 …………………B-6

31-165………………B-3, B-5

31-166 …………………B-6

31-170……………………B-6

31-186 ……………B-3, B-5

31-187………………B-3, B-5

31-189 ……………B-3, B-5

31-190 ……………B-3, B-5

31-207………………B-3, B-5

31-208 ……………B-3, B-5

31-2127 …………………B-3

31-2128 …………………B-3

31-2138 …………………B-3

31-2139 …………………B-3

31-2143…………………B-10

31-220 …………………B-5

31-225 …………………B-4

31-276 …………………B-10

31-277 …………………B-10

31-278 …………………B-10

31-279 …………………B-10

31-282 …………………B-10

31-283 …………………B-10

31-291 …………………B-11

31-295 …………………B-11

31-298 …………………B-11

31-2980 …………………B-3

31-2982 …………………B-3

31-322 …………………B-16

31-323 …………………B-16

31-324 …………………B-16

31-325 …………………B-16

31-326 …………………B-16

31-327 …………………B-16

31-330 …………………B-16

31-334 …………………B-16

31-335 …………………B-16

31-3370 …………………B-3

31-3373…………………B-11

31-3379 …………………B-3

31-338 …………………B-15

31-3380 …………………B-3

31-3384 …………………B-3

31-340 …………………B-15

31-343 …………………B-15

31-344 …………………B-15

31-347 …………………B-15

31-349 …………………B-15

31-350 …………………B-9

31-351 …………………B-9

31-355 …………………B-9

31-358 …………………B-9

31-365 …………………B-9

31-371 …………………B-11

31-375 …………………B-11

31-376 …………………B-11

31-377 …………………B-11

31-378 …………………B-11

31-381 …………………B-10

31-385 …………………B-10

31-3855 ………………B-11

31-388 …………………B-10

Cat. PageCat. Page Cat. Page Cat. Page Cat. Page

Index

Catalog Number Index 9

Catalog Number Index

31-389 …………………B-10

31-391 …………………B-9

31-395 …………………B-9

31-398 …………………B-9

31-400 …………………B-3

31-417 …………………B-12

31-421 …………………B-11

31-425 …………………B-11

31-435 …………………B-11

31-466 …………………B-16

31-467 …………………B-16

31-468 …………………B-16

31-469 …………………B-16

31-470 …………………B-16

31-471 …………………B-16

31-472 …………………B-16

31-473 …………………B-16

31-475 …………………B-16

31-476 …………………B-16

31-477 …………………B-16

31-479 …………………B-16

31-480 …………………B-16

31-481 …………………B-16

31-542 …………………B-4

31-544 …………………B-4

31-552 …………………B-4

31-554 …………………B-4

31-601 …………………B-12

31-605 …………………B-12

31-611 …………………B-7

31-612 …………………B-7

31-631 …………………B-7

31-633 …………………B-7

31-643 …………………B-7

31-644 …………………B-7

31-647……………………B-7

31-648 …………………B-7

31-651 …………………B-7

31-652 …………………B-7

31-839 …………………B-15

31-840 …………………B-15

31-841 …………………B-15

31-844 …………………B-15

31-845 …………………B-15

31-846 …………………B-15

31-849 …………………B-15

31-850 …………………B-15

31-851 …………………B-15

31-853 …………………B-15

31-854 …………………B-15

31-855 …………………B-15

31-856 …………………B-15

31-857 …………………B-15

33-296 …………………F-10

33-320 ……F-12, F-16, F-19

33-400 …………………F-21

33-505 …………………F-21

33-605 …………………F-20

33-620 …………………F-18

33-621 …………………F-18

33-623 …………………F-20

33-625 …………………F-18

33-630 …………………F-19

33-651 …………………F-19

33-652 …………………F-19

33-653 …………………F-15

33-700 …………………F-10

33-704 …………………F-19

33-705 …………………F-20

33-750 …………………F-19

33-825 ……………………F-7

33-826 ……………………F-7

33-835 ……………………F-7

33-836 ……………………F-7

33-852 ……………………F-9

33-854 ……………………F-9

33-856 ………F-8, F-18, F-25

33-861 …………………F-20

33-862……………………F-9

33-864……………………F-9

33-869 …………………F-20

33-880 ……………F-7, F-25

33-881 ……………F-7, F-25

33-886……………………F-7

33-887 ……………F-7, F-25

33-891……………………F-8

33-915 …………………F-17

33-916 …………………F-18

33-917 …………………F-18

33-935 …………………F-21

33-945 …………………F-21

33-974 ……………………F-6

33-981……………………F-6

33-982 ……………………F-6

33-983 ……………………F-6

33-987 ……………………F-6

34-001 …………………C-45

34-002 …………………C-45

34-003 …………………C-45

34-012 …………………C-45

34-015 …………………C-45

34-016 …………………C-45

35-001 …………………C-56

35-002 …………………C-56

35-003 …………………C-56

35-006 …………………C-23

35-007 …………………C-23

35-008 …………………C-23

35-012 …………………C-17

35-013 …………………C-17

35-020 …………………C-32

35-021 …………………C-32

35-026 …………………C-18

35-027 …………………C-18

35-028 …………………C-18

35-029 …………………C-18

35-031 …………………C-30

35-031B ………………C-30

35-032 …………………C-30

35-032B ………………C-30

35-033 …………………C-30

35-033B ………………C-30

35-036 …………………C-18

35-037 …………………C-18

35-038 …………………C-18

35-039 …………………C-18

35-041 …………………F-22

35-042 …………………F-22

35-043 …………………F-22

35-046………F-17, F-18, F-21

35-051 …………………F-11

35-052 …………………C-19

35-053 …………………C-30

35-054 …………………C-30

35-055 …………………C-30

35-056 …………………C-30

35-057 …………………C-30

35-060 ……………F-11, F-20

35-061 …………………F-21

35-075……………B-12, C-25

35-078 …………………C-30

35-083 …………B-12, C-25

35-085 …………………C-30

35-087 ……………F-11, F-21

35-088 ……F-11, F-18, F-20,

F-21

35-089 …………………F-11

35-090 …………………F-11

35-091 ……………F-11, F-21

35-092 …………………F-11

35-093 …………………F-11

35-094 …………………F-11

35-096 …………B-12, C-25

35-097……………B-12, C-25

35-098 …………B-12, C-25

35-145 …………………C-33

35-146 …………………C-33

35-147 …………………C-33

35-150 …………………C-27

35-151 …………………C-27

35-152 …………………C-27

35-153 …………………C-27

35-154 …………………C-27

35-156 …………………C-27

35-158 …………………C-27

35-161 …………………C-27

35-164 …………………C-27

35-166 …………………C-27

35-168 …………………C-27

35-173 …………………C-27

35-176 …………………C-27

35-178 …………………C-27

35-180 …………………C-27

35-183 …………………C-27

35-184 …………………C-27

35-185 …………………F-10

35-186 …………………C-27

35-188 …………………C-27

35-190 …………………C-27

35-191 …………………C-28

35-193 …………………C-28

35-194 …………………C-28

35-195 …………………C-28

35-196 …………………C-28

35-200 …………………C-28

35-202 …………………C-28

35-203 …………………C-28

35-205 ……………C-33, F-21

35-207 …………………C-33

35-210 ……………C-32, F-21

35-238 ……………C-33, F-21

35-242 …………………C-33

35-259 …………………C-56

35-260 …………B-14, C-56

35-261 …………B-14, C-56

35-262 …………B-14, C-56

35-263 …………B-14, C-56

35-264 …………B-14, C-56

35-271 …………B-14, C-56

35-272……………B-14, C-56

35-273……………B-14, C-56

35-274 …………………C-56

35-275……………C-56, F-21

35-285 …………………C-33

35-286 …………………C-33

35-287 …………………C-33

35-290 …………………C-29

35-291 …………………C-29

35-292 …………A-10, C-29

35-293 …………………C-29

35-294 …………………C-29

35-295 …………A-10, C-29

35-296 …………………C-29

35-297 …………………C-26

35-298 …………………C-26

35-299 …………………C-29

35-300 …………………C-33

35-301 …………………C-33

35-3012…………………C-17

35-3028 ………………C-18

35-3029 ………………C-18

35-3037 …………C-18, F-21

35-3038 ………………C-18

35-3052 ………………C-19

35-311 …………………C-38

35-316 …………………C-39

35-325 …………………C-38

35-338 …………………C-39

35-339 …………………C-39

35-340 …………………C-47

35-341 …………………C-47

35-342 …………………C-47

35-3420 ………………C-19

35-343 …………………C-47

35-3430 …………C-19, F-21

35-343CG ………………C-49

35-344 …………………C-47

35-345 …………………C-47

35-345CG ………………C-49

35-346 …………………C-47

35-347 …………………C-47

35-348 …………………C-47

35-349 …………………C-47

35-349CG ………………C-49

35-350 …………………C-47

35-351 …………………C-47

35-352 …………………C-47

35-353 …………………C-47

35-353CG ………………C-49

35-354 …………………C-47

35-355 …………………C-47

35-355CG ………………C-49

35-356 …………………C-47

35-357 …………………C-47

35-358 …………………C-47

35-359 …………………C-47

35-359CG ………………C-49

35-360 …………………C-47

35-361 …………………C-47

35-362 …………………C-47

35-362CG ………………C-49

35-363 …………………C-47

35-364 …………………C-47

35-364CG ………………C-49

35-365 …………………C-47

35-365CG ………………C-49

35-366 …………………C-47

35-367 …………………C-47

35-368 …………………C-47

35-368CG ………………C-49

Cat. Page Cat. Page Cat. Page Cat. PageCat. Page

Catalog Number Index

35-369 …………………C-47

35-370 …………………C-47

35-370CG ………………C-49

35-371 …………………C-47

35-372 …………………C-47

35-373 …………………C-47

35-373CG ………………C-49

35-374 …………………C-47

35-375 …………………C-47

35-375CG ………………C-49

35-376 …………………C-47

35-377 …………………C-47

35-378 …………………C-47

35-378CG ………………C-49

35-379 …………………C-47

35-380 …………………C-47

35-381 …………………C-47

35-382 …………………C-47

35-383 …………………C-47

35-384 …………………C-47

35-384CG ………………C-49

35-385 …………………C-47

35-386 …………………C-47

35-387 …………………C-47

35-388 …………………C-47

35-389 …………………C-47

35-390 …………………C-47

35-391 …………………C-48

35-392 …………………C-48

35-393 …………………C-48

35-394 …………………C-48

35-396 …………………C-48

35-397 …………………C-48

35-398 …………………C-48

35-400 …………………C-48

35-401 …………………C-48

35-4012 ………………C-21

35-402……………C-40, F-18

35-4026 ………………C-21

35-4028 ………………C-21

35-4029 ………………C-21

35-403 …………………C-40

35-4035 ………………C-22

35-4036 ………………C-22

35-4038 ………………C-22

35-404 …………………C-28

35-405 …………………C-40

35-4052 ………………C-23

35-406 …………………C-28

35-407 ……F-10, F-18, F-21

35-408 …………………C-28

35-410……………C-41, F-18

35-411 …………………C-32

35-412 …………………C-32

35-418 …………………C-41

35-419 …………………F-20

35-420 ……………C-19, F-21

35-421 …………………C-32

35-422 …………………C-32

35-423 …………………C-32

35-426 …………………C-19

35-427……………C-41, F-21

35-430 ……………C-19, F-21

35-431 …………………C-41

35-440 …………………C-19

35-441 …………………C-41

35-4430 ………………C-22

35-462 ……C-41, F-18, F-20

35-463 …………………C-41

35-465 …………………F-17

35-466 …………………F-17

35-468 …………………F-17

35-473 ……F-18, F-20, F-21

35-474 …………………C-40

35-478 …………………F-10

35-479 …………………F-10

35-4790…………………C-36

35-483 …………………F-10

35-485 ……F-10, F-18, F-20,

F-21

35-487 ……………F-10, F-20

35-491 …………………F-10

35-492 ……………F-10, F-17

35-493 …………………F-10

35-495 ……………F-10, F-20

35-497 ……F-10, F-20, F-21

35-5012 ………………C-21

35-5026 ………………C-21

35-5028 ………………C-21

35-5029 ………………C-21

35-5035 ………………C-22

35-5036 ………………C-22

35-5038 ………………C-22

35-505 …………………C-40

35-5052 ………………C-23

35-511 …………………C-53

35-512 …………………C-53

35-513 …………………C-53

35-514 …………………C-53

35-515 …………………C-53

35-516 …………………C-53

35-517 …………………C-53

35-518 …………………C-48

35-520 …………………C-53

35-533 …………………C-41

35-534 …………………C-41

35-535 ……C-41, F-17, F-18

35-536 …………………C-48

35-537 …………………C-48

35-538 …………………C-48

35-5430 ………………C-22

35-5792…………………C-37

35-5793…………………C-37

35-5800 ………………C-36

35-5805 ………………C-36

35-5808 ………………C-37

35-598 …………………C-49

35-599 …………………C-49

35-601CG ………………C-49

35-602CG ………………C-49

35-603CG ………………C-49

35-655 …………………C-40

35-665 …………………C-40

35-690 …………………C-28

35-691 …………………C-28

35-692 …………………C-28

35-693 …………………C-28

35-694 …………………C-28

35-695 …………………C-28

35-696 …………………C-28

35-780 ……………C-7, C-31

35-781 ……………C-7, C-31

35-782 ……………C-7, C-31

35-784BLK ……………C-39

35-790 …………………C-34

35-794 …………………C-35

35-800 …………………C-34

35-805 …………………C-35

35-808 …………………C-35

35-809 …………………C-34

35-810 …………………C-52

35-811 …………………C-52

35-812 …………………C-52

35-813 …………………C-52

35-814 …………………C-52

35-815 …………………C-52

35-816 …………………C-52

35-817 …………………C-52

35-818 …………………C-52

35-819 …………………C-52

35-820 …………………C-52

35-821 …………………C-52

35-822 …………………C-52

35-823 …………………C-52

35-824 …………………C-52

35-825 …………………C-52

35-826 …………………C-52

35-827 …………………C-52

35-828 …………………C-52

35-829 …………………C-52

35-862 …………………C-52

35-864 …………………C-52

35-866 …………………C-52

35-868 …………………C-52

35-870 …………………C-52

35-871 …………………C-52

35-872 …………………C-52

35-892 …………………C-52

35-893 …………………C-52

35-896 …………………C-52

35-897 …………………C-52

35-898 …………………C-52

35-899 …………………C-52

35-9029 ………………C-44

35-903 …………………C-39

35-9038 ………………C-44

35-905 ……C-29, F-20, F-21

35-9052 ………………C-44

35-908 ……A-10, C-24, F-18,

F-21

35-909 …………………C-24

35-910 …………………C-29

35-911 …………………C-24

35-912 …………………C-24

35-913 …………………C-24

35-914 …………………C-24

35-915 …………………C-24

35-922 …………C-25, C-32

35-923 …………C-25, C-32

35-926 …………………C-25

35-927 …………………C-25

35-9300 ………………C-43

35-9301 ………………C-43

35-9302 ………………C-43

35-9303 ………………C-44

35-9304 ………………C-44

35-9310 ………………C-44

35-9311 ………………C-44

35-9312 ………………C-44

35-9320 ………………C-44

35-9321 ………………C-44

35-9322 ………………C-44

35-9323 ………………C-44

35-9324 ………………C-44

35-9325 ………………C-44

35-9330 ………………C-44

35-9331 ………………C-44

35-9332 ………………C-44

35-9333 ………………C-44

35-9334 ………………C-44

35-9335 ………………C-44

35-9336 ………………C-44

35-9340 ………………C-44

35-9350 ………………C-44

35-9351 ………………C-44

35-9352 ………………C-44

35-9353 ………………C-44

35-940 …………………C-29

35-9406 ………………C-45

35-941 …………………C-29

35-942 …………………C-29

35-943 …………………C-29

35-9430 ………………C-44

35-950 …………………C-38

35-950BLK ……………C-38

35-956 …………………C-39

35-956BLK ……………C-39

35-958 …………………C-39

35-958BLK ……………C-39

35-964 …………………C-39

35-965 …………………C-39

35-965BLK ……………C-39

35-969 …………………C-38

35-969BLK ……………C-38

35-971 …………………C-52

35-972 …………………C-52

35-975 …………………C-38

35-975BLK ……………C-38

35-976 …………………C-52

35-977 …………………C-52

35-978 …………………C-52

35-979 …………………C-52

35-988 …………………C-24

35-9905 ………………C-45

35-995 …………………C-39

35-995BLK ……………C-39

36-043 …………………C-51

36-044 …………………C-51

36-046 …………………C-51

36-048 …………………C-51

36-052 …………………C-51

36-054 …………………C-50

36-055 …………………C-50

36-056 …………………C-51

36-057 …………………C-50

36-057B ………………C-50

36-058 …………………C-50

36-058B ………………C-50

36-059 …………………C-50

36-059B ………………C-50

36-060 …………………C-50

36-065 …………………C-50

36-065B ………………C-50

36-066 …………………C-50

36-067 …………………C-50

36-070 …………………C-51

36-071 …………………C-51

36-072 …………………C-51

36-073 …………………C-51

36-075 …………………C-50

Cat. PageCat. Page Cat. Page Cat. Page Cat. Page

Index

Catalog Number Index 11

Catalog Number Index

36-076 …………………C-51

36-085 …………………C-50

36-086 …………………C-50

36-087 …………………C-50

36-088 …………C-50, C-56

36-090 …………………C-50

36-095 …………………C-50

36-096 …………………C-50

36-240 …………………C-29

36-241 …………………C-29

36-242 …………………C-29

36-243 …………………C-29

36-244 …………………C-29

36-245 …………………C-29

36-246 …………………C-29

36-248 …………………C-29

36-249 …………………C-29

38-500 …………B-12, C-32

4010-00-0136 ……………F-6

41-697 …………………D-17

41-698 …………………D-17

41-990 …………………D-9

41-995 …………………D-9

42-001 …………………D-18

42-002 …………………D-18

42-003 …………………D-18

42-011 …………………D-18

42-012 …………………D-18

42-015 …………………D-18

42-031 …………………D-18

42-051 …………………D-18

42-052 …………………D-18

42-101 …………………D-18

42-102 …………………D-18

42-103 …………………D-18

42-104 …………………D-18

42-131 …………………D-18

42-151 …………………D-18

42-152 …………………D-18

42-201 …………………D-18

42-251 …………………D-18

42-252 …………………D-18

42-301 …………………D-17

42-399 …………………D-17

43-953 …………………D-17

43-960 …………………D-17

44-101 …………………D-16

44-102 …………………D-16

44-103 …………………D-16

44-104 …………………D-16

44-105 …………………D-16

44-106 …………………D-16

44-107 …………………D-16

44-108 …………………D-16

44-109 …………………D-16

44-110 …………………D-16

44-111 …………………D-16

44-148 …………………D-16

44-151 …………………D-16

44-152 …………………D-16

44-154 …………………D-16

44-1791 ………………D-40

44-1800 ………………D-40

44-1807 ………………D-23

44-1809 ………………D-24

44-1810 ………………D-24

44-1830 ………………D-40

44-1833 ………………D-40

44-289 …………………D-17

44-292 …………………D-17

44-295 …………………D-17

44-296 …………………D-17

44-298 …………………D-17

44-299 …………………D-17

44-314 …………………D-17

44-353 …………………D-17

44-355 …………………D-17

44-358 …………………D-17

44-364 …………………D-17

44-410 …………………D-17

44-697 …………………D-39

44-698 …………………D-39

44-753 …………………D-17

44-764 …………………D-25

44-768 …………………D-25

44-769 …………………D-25

44-772 …………………D-37

44-774 …………………D-22

44-777 …………………D-21

44-778 …………………D-21

44-779 …………………D-24

44-780 …………………D-24

44-782 …………………D-37

44-783……D-19, D-20, D-21,

D-22, D-23

44-784 …………………D-24

44-785……D-20, D-21, D-22,

D-24

44-786……D-20, D-21, D-22,

D-23

44-787 …………………D-24

44-789……D-19, D-20, D-21,

D-22, D-37

44-790 …………………D-40

44-791 …………D-21, D-40

44-800……D-19, D-20, D-21,

D-22, D-40

44-801 …………………D-40

44-804 …………………D-20

44-805 …………………D-21

44-806 …………………D-21

44-807……D-19, D-20, D-21,

D-22, D-23

44-808 …………………D-38

44-809……D-19, D-20, D-21,

D-22, D-24

44-810……D-19, D-20, D-21,

D-22, D-24

44-815 …………D-21, D-37

44-816 …………………D-21

44-817 …………………D-38

44-818……D-19, D-20, D-21,

D-22, D-37

44-819 ……D-21, D-22, D-37

44-820 ……D-21, D-22, D-38

44-821 …………………D-38

44-822 …………………D-23

44-823 …………………D-23

44-824 ……D-21, D-22, D-38

44-825 …………D-22, D-38

44-829 …………………D-38

44-830 …………D-20, D-40

44-831 …………………D-40

44-832 …………………D-40

44-833……D-19, D-20, D-22,

D-40

44-834 …………………D-40

44-841 …………………D-40

44-843 …………………D-40

44-844 …………………D-40

44-846 …………………D-38

44-847 …………………D-38

44-848 …………………D-40

44-849 …………D-21, D-40

44-862 …………………D-42

44-863 …………………D-42

44-865 …………………D-42

44-877 …………………D-42

44-878 …………………D-42

44-880 …………………D-42

44-881 …………………D-42

44-890 …………………D-42

44-892 …………………D-42

44-893 …………………D-42

44-894 …………………D-42

44-895 …………………D-42

44-896 …………………D-42

44-898 …………………D-39

44-900 …………………D-39

44-901 …………………D-39

44-902 …………………D-39

44-903 …………………D-39

44-904 …………………D-39

44-905 …………………D-39

44-906 …………D-19, D-39

44-907 …………D-20. D-39

44-908 …………………D-39

44-909 …………………D-39

44-910 …………………D-39

44-911 …………………D-39

44-912 …………………D-39

44-914 …………………D-39

44-916……D-19, D-21, D-22,

D-39

44-918 …………………D-39

44-920 …………………D-39

44-921 …………………D-39

44-922 …………………D-39

44-923 …………………D-39

44-940 …………………D-22

44-941 …………………D-22

44-942 …………………D-22

44-953 …………………D-22

44-954 …………………D-22

44-969 …………………D-19

44-970 …………………D-19

44-971 …………………D-20

44-972 …………………D-0

44-973 …………………D-19

44-974 …………………D-21

44-975 …………………D-22

44-980 …………………D-1

44-990 …………………D-41

44-991 …………………D-41

44-992 …………………D-41

44-993 …………………D-41

44-994 …………………D-41

45-025 …………………C-7

45-074 ………C-6, F-11, F-17,

F-18, F-19, F-20,

F-21, F-25

45-075 ………C-6, F-11, F-25

45-089 …………………C-13

45-090 …………C-13, C-14

45-090-341 ……………C-14

45-091 …………C-13, C-14

45-092 …………C-13, C-14

45-092-341 ……………C-14

45-093 …………C-13, C-14

45-095 …………………C-13

45-097……………C-13, C-14

45-098 …………C-13, C-14

45-098-341 ……………C-14

45-099 …………C-13, C-14

45-101 …………………C-5

45-118 …………………C-7

45-120 ……………C-2, C-4

45-120-341………………C-4

45-121 ……………C-2, C-4

45-123 ……………C-2, C-4

45-124 ……………C-2, C-4

45-125 ……………C-2, C-4

45-125-341………………C-4

45-144 …………………F-13

45-162 ……………F-12, F-27

45-163 ……………F-12, F-27

45-164 ……………F-12, F-25

45-165 ……F-12, F-18, F-20,

F-21

45-167 ……………F-12, F-17

45-169 ……………C-8, C-9

45-170………………C-8, C-9

45-171………………C-8, C-9

45-172………………C-8, C-9

45-173………………C-8, C-9

45-174………………C-8, C-9

45-175………………C-8, C-9

45-176………………C-8, C-9

45-177………………C-8, C-9

45-178………………C-8, C-9

45-179………………C-8, C-9

45-215 …………………C-4

45-216 …………………C-4

45-217……………………C-4

45-218 …………………C-4

45-223 …………………C-4

45-227……………………C-7

45-235 …………………C-7

45-247……………………C-5

45-248 …………………C-5

45-249 …………………C-5

45-262 ……C-13, F-12, F-18,

F-19

45-264 …………………C-13

45-265 ……C-13, F-12, F-25

45-266 …………………C-13

45-282 ……………C-13, F-12

45-290 …………C-13, C-14

45-290-341 ……………C-14

45-292 …………………C-13

45-292-241 ……………C-14

45-298-341 ……………C-14

45-310-341………………C-4

45-315 ……………C-2, C-4

45-315-341………………C-4

45-316 ……………C-2, C-5

45-317………………C-2, C-5

45-317-341 ………………C-4

45-318 ……………C-2, C-4

45-320 ……F-12, F-17, F-18,

F-19, F-20, F-25

45-323 ……………C-2, C-4

Cat. Page Cat. Page Cat. Page Cat. PageCat. Page

Catalog Number Index

45-332 …………………F-28

45-334 …………………F-28

45-335 …………………F-28

45-336 …………………F-28

45-337 …………………F-27

45-338 …………………F-27

45-339 …………………F-27

45-341 …………………F-27

45-342 …………………F-27

45-344 …………………F-26

45-349 …………………F-26

45-350 …………………F-26

45-352 …………………F-26

45-357 …………………F-27

45-358 …………………F-27

45-359 …………………F-27

45-360 …………………F-27

45-372-341 ……………C-14

45-415 ……………C-2, C-3

45-416 ……………C-2, C-3

45-417………………C-2, C-3

45-418 ……………C-2, C-3

45-423 ………C-2, C-3, C-4

45-425-341………………C-3

45-448 …………………C-3

45-449 …………………C-3

45-510 ……………F-12, F-25

45-513 …………………F-12

45-514 …………………F-12

45-520 ……………F-12, F-20

45-521 …………………F-12

45-522 …………………F-12

45-523 …………………F-12

45-524 …………………F-12

45-526 ……F-12, F-18, F-21

45-529 ……………F-17, F-25

45-603 ……………F-12, F-25

45-615 ……………C-2, C-3

45-616 ……………C-2, C-3

45-617………………C-2, C-3

45-618 ……………C-2, C-3

45-621 ……………C-3, C-5

45-631 ……………C-9, C-10

45-632 ……………C-9, C-10

45-633 ……………C-9, C-10

45-634 ……………C-9, C-10

45-635 ……………C-9, C-10

45-636 ……………C-9, C-10

45-637 ……………C-9, C-10

45-638 ……………C-9, C-10

45-639 ……………C-9, C-10

45-640 ……………C-9, C-10

45-641 ……………C-9, C-10

45-671 …………C-13, C-14

45-671-341 ……………C-14

45-672……………C-13, C-14

45-673……………C-13, C-14

45-674……………C-13, C-14

45-675……………C-13, C-14

45-714 …………………C-2

45-715 ……………C-2, C-3

45-716 ……………C-2, C-3

45-718 ……………C-2, C-3

45-719 …………………F-24

45-777……………………C-6

45-778……………………C-6

45-890 …………………C-11

45-891 …………………C-11

45-892 …………………C-11

45-893 …………………C-11

45-894 …………………C-11

45-895 …………………C-11

45-9120 ………………C-44

45-915 ……………C-2, C-3

45-918 ……………C-2, C-3

45-9615 ………………C-44

46-007 …………………D-15

46-202 …………………D-15

46-203 …………………D-15

46-204 …………………D-15

46-310 …………………D-13

46-311 …………………D-13

46-312 …………………D-13

46-313 …………………D-13

46-314 …………………D-13

46-315 …………………D-13

46-316 …………………D-13

46-317 …………………D-13

46-318 …………………D-13

46-319 …………………D-13

46-320 …………………D-13

46-321 …………………D-13

46-322 …………………D-13

46-323 …………………D-13

46-324 …………………D-13

46-325 …………………D-13

46-326 …………………D-13

46-328 ……………D-13

46-329 …………………D-13

46-330 …………………D-13

46-343 …………………D-14

46-344 …………………D-14

46-346 …………………D-14

46-347 …………………D-14

46-348 …………………D-14

46-350 …………………D-14

46-351 …………………D-14

46-352 …………………D-14

46-354 …………………D-14

46-356 …………………D-14

46-357 …………………D-14

46-358 …………………D-14

46-369 …………………D-14

46-371 …………………D-14

46-372 …………………D-14

46-381 …………………D-14

46-382 …………………D-14

46-383 …………………D-14

46-384 …………………D-14

46-387 …………………D-14

46-400 …………………D-12

46-401 …………………D-12

46-402 …………………D-12

46-403 …………………D-12

46-404 …………………D-12

46-405 …………………D-12

46-410 …………………D-12

46-411 …………………D-12

46-420 …………………D-12

46-600 …………………D-13

46-601 …………………D-13

46-602 …………………D-13

46-603 …………………D-13

46-604 …………………D-13

46-605 …………………D-13

46-606 …………………D-13

46-607 …………………D-13

46-608 …………………D-13

46-609 …………………D-13

46-610 …………………D-13

46-941 …………………D-15

46-950 …………………D-15

46-951 …………………D-15

46-952 …………………D-15

46-953 …………………D-15

46-954 …………………D-15

46-955 …………………D-15

46-956 …………………D-15

6011-50-0031 ……………F-3

60B36 …………………A-62

61-010 ……………E-27, E-32

61-020 …………………E-32

61-025 …………………E-29

61-030 …………………E-29

61-035 …………………E-25

61-040 …………………E-29

61-051 …………………E-25

61-058 ……………E-25, E-32

61-063 …………………E-29

61-065 ……………E-27, E-32

61-070 …………………E-27

61-072 …………………E-27

61-076 ……………E-27, E-32

61-085 ……………E-27, E-32

61-086 ……………E-27, E-32

61-090 ……………E-26, E-32

61-092 ……………E-26, E-32

61-096 …………………E-28

61-164 ……………E-23, E-32

61-165 ……………E-23, E-32

61-175 …………………E-23

61-176 …………………E-23

61-177 ……………E-22, E-25

61-179 ……………E-22, E-23

61-182 …………………E-23

61-183 …………………E-23

61-184 …………………E-25

61-2000…………………E-15

61-2001…………………E-15

61-2002…………………E-15

61-2003…………………E-22

61-2004…………………E-22

61-310 ………E-2, E-7, E-34

61-312 ………E-2, E-7, E-34

61-314 ………E-2, E-7, E-34

61-320 …E-2, E-3, E-32, E-34

61-322 …E-2, E-3, E-32, E-34

61-324 …E-2, E-3, E-32, E-34

61-330 …………………E-31

61-331 …………………E-31

61-332 …………………E-31

61-333 …………………E-31

61-334 …………………E-31

61-350 …E-2, E-5, E-32, E-34

61-352 …E-2, E-5, E-32, E-34

61-354 …E-2, E-5, E-32, E-34

61-360 …E-2, E-6, E-32, E-34

61-361 …E-2, E-6, E-32, E-34

61-436 …………………E-31

61-445 …………………E-32

61-447 …………………E-32

61-451 ……………E-5, E-31

61-452 E-9, E-14, E-32, E-34

61-457 …………………E-21

61-461 ……………E-4, E-33

61-465 ……………E-4, E-33

61-494 …E-2, E-4, E-32, E-34

61-495 …E-2, E-4, E-32, E-34

61-500 …………………E-25

61-501 …………………E-25

61-503 …………………E-29

61-520 …………………E-30

61-521 …………………E-30

61-532 …………………E-24

61-534 …………………E-24

61-561 …………………E-31

61-565……E-3, E-4, E-5, E-6,

E-17

61-602 …………………E-32

61-603 …………………E-32

61-605 ………E-2, E-7, E-34

61-609 …………………E-32

61-610 …E-2, E-8, E-32, E-34

61-614 …E-2, E-8, E-32, E-34

61-633 …………………E-32

61-635 …………………E-32

61-681……………E-30, E-32

61-682……………E-30, E-32

61-701…E-9, E-10, E-32, E-34

61-702…E-9, E-10, E-32, E-34

61-704…E-9, E-10, E-32, E-34

61-710 ………E-9, E-14, E-34

61-732…E-9, E-11, E-32, E-34

61-736…E-9, E-11, E-32, E-34

61-764…E-9, E-12, E-32, E-34

61-766…E-9, E-12, E-32, E-34

61-768…E-9, E-12, E-32, E-34

61-772…E-9, E-13, E-32, E-34

61-774…E-9, E-13, E-32, E-34

61-788 …………………E-18

61-789 …………………E-18

61-791 …………………E-19

61-792 …………………E-19

61-798 …………………E-18

61-805 ……………E-20, E-21

61-806 ……………E-20, E-21

61-807 ……………E-20, E-21

61-810 …………………E-21

61-811 …………………E-21

61-812 …………………E-21

61-813 …………………E-21

61-814 …………………E-21

61-819 …………………E-21

61-820 …………………E-21

61-821 …………………E-21

61-830 …………………E-22

61-900……………………E-4

61-902……………………E-4

61-904……………………E-3

61-905……………………E-3

61-920 …………………E-18

61-954 ……E-16, E-17, E-32

61-956 ……E-16, E-17, E-32

61-958 ……E-16, E-17, E-32

62-096 …………………F-10

62-098 …………………F-10

62-140 ……………F-9, F-18

62-160 ………F-9, F-20, F-21

62-164…F-9, F-18, F-20, F-21

62-180 ……………F-9, F-20

Cat. PageCat. Page Cat. Page Cat. Page Cat. Page

Index

Catalog Number Index 13

Catalog Number Index

62-184 ……………F-9, F-20

62-188……………………F-9

62-200 ……………F-10, F-20

62-205 …………………F-21

62-891……………………F-8

6510-00-5000 ……………F-3

74-001 …………………B-13

74-002 …………………B-13

74-003 …………………B-13

74-006 …………………B-13

74-010 …………………B-14

74-011 …………………B-14

74-012 …………………B-14

74-013 …………………B-14

74-019……………B-13, B-14

74-020……………B-13, B-14

74-021……………B-13, B-14

74-026 …………………B-13

74-027 …………………B-13

74-028 …………………B-13

74-031 …………………B-13

74-032 …………………B-13

74-033 …………………B-13

74-034 …………………B-13

74-035 …………………B-13

74-036 …………………B-13

74-046 …………………B-13

74-047 …………………B-13

74-048 …………………B-13

74-999 …………………B-12

770200L ………………G-13

770204L ………………G-13

770205L ………………G-13

770212L ………………G-13

770213L ………………G-13

770215L ………………G-12

770216L ………………G-12

770217L ………………G-12

770218L ………………G-12

770219L ………………G-12

770221L ………………G-12

770223L ………………G-12

770225L ………………G-13

772240 …………………D-7

772241 …………………D-7

772242 …………………D-7

772243 …………………D-7

772244 …………………D-7

772245 …………………D-7

772271 …………………G-15

772450 …………………G-13

772451 …………………G-13

772804 …………………D-11

772805 …………………D-11

772806 …………………D-11

772807 …………………D-11

772808 …………………D-11

772809 …………………D-11

772810 …………………D-11

772812 …………………D-11

772840 …………………D-11

772841 …………………D-11

772880 …………………D-11

774000 …………………G-3

774001 …………………G-4

774002 …………………G-4

774003 …………………G-3

774004 …………………G-5

774005 …………………G-2

774006 …………………G-5

774007 …………………G-4

774008 …………………G-2

774009 …………………G-2

774010 …………………G-2

774011 …………………G-2

774012 …………………G-2

774013 …………………G-2

774014 …………………G-2

774015 …………………G-3

774016 …………………G-3

774017 …………………G-4

774018 …………………G-4

774019 …………………G-5

774020 …………………G-5

774021 …………………G-8

774022 …………………G-8

774023 …………………G-8

774024 …………………G-8

774025 …………………G-8

774026 …………………G-10

774027 …………………G-2

774028 …………………G-3

774031 …………………G-9

774032 …………………G-9

774033 …………………G-9

774034 …………………G-9

774035 …………………G-9

774037 …………………G-9

774038 …………………G-7

774039 …………………G-7

774040 …………………G-6

774045 …………………G-6

774047 …………………G-7

774048 …………………G-7

774049 …………………G-7

774050 …………………G-6

774051 …………………G-10

774052 …………………G-7

774054 …………………G-6

774055 …………………G-6

774056 …………………G-6

774059 …………………G-7

774060 …………………G-7

774061 …………………G-10

774062 …………………G-10

774063 …………………G-10

774069 …………………G-10

774071 …………………G-9

774072 …………………G-9

774073 …………………G-9

774074 …………………G-9

774080 …………………G-8

774081 …………………G-8

774082 …………………G-8

774083 …………………G-8

774084 …………………G-8

774085 …………………G-8

774086 …………………G-8

774087 …………………G-5

774088 …………………G-2

774089 …………………G-3

774091 …………………G-3

774092 …………………G-3

774093 …………………G-2

774094 …………………G-2

774095 …………………G-4

774096 …………………G-4

774097 …………………G-4

774098 …………………G-5

774099 …………………G-5

774100 …………………G-2

774103 …………………G-2

774104 …………………G-3

774105 …………………G-2

774106 …………………G-3

774108 …………………G-3

774109 …………………G-3

774110 …………………G-3

774111 …………………G-2

774112 …………………G-15

774113 …………………G-15

774114 …………………G-15

774115 …………………G-3

774116 …………………G-15

774117 …………………G-5

774120 …………………G-6

774121 …………………G-6

774122 …………………G-6

774123 …………………G-6

774134 …………………G-15

774136 …………………G-15

774137 …………………G-15

774138 …………………G-15

774002BK ………………G-4

774003BK ………………G-3

774005BK ………………G-2

774008BK ………………G-2

774011BK ………………G-2

774014BK ………………G-2

774015BK ………………G-3

774017BK ………………G-4

774020BK ………………G-5

774026K ………………G-10

774026KBK ……………G-10

774028BK ………………G-3

774040BK ………………G-6

774049BK ………………G-7

774054BK ………………G-6

774059BK ………………G-7

774060BK ………………G-7

774063B ………………G-10

774063BK………………G-10

774071BK ………………G-9

774072BK ………………G-9

774074BK ………………G-9

774085BK ………………G-8

774087BK ………………G-5

774088BK ………………G-2

774089BK ………………G-3

774091BK ………………G-3

774095BK ………………G-4

774099BK ………………G-5

774111BK ………………G-2

774114BK ………………G-15

774115BK ………………G-3

774117BK ………………G-5

775101 …………………G-15

775102 …………………G-15

775103 …………………G-15

775104 …………………G-15

775111 …………………G-11

775121 …………………G-11

776111 …………………G-11

776112 …………………G-11

776121 …………………G-11

776211 …………………G-11

776311 …………………G-11

777111 …………………G-11

777111BK ………………G-11

777112 …………………G-11

777121 …………………G-11

777131 …………………G-12

777211 …………………G-11

777212 …………………G-11

777221 …………………G-11

777221BK ………………G-11

777231 …………………G-12

777311 …………………G-11

777321 …………………G-11

777331 …………………G-12

777411 …………………G-11

777511 …………………G-11

778111 …………………G-11

778211 …………………G-11

80-012 …………………G-17

80-033 …………………G-18

80-075 …………………G-17

80-255 …………………G-17

80-265 …………………G-17

80-454 …………………G-17

80-461 …………………G-17

80-475 …………………G-17

80-504 …………………G-17

82-001 …………………G-18

82-002 …………………G-18

82-003 …………………G-18

82-004 …………………G-18

82-005 …………………G-18

82-006 …………………G-18

83-001 …………………C-31

83-005 …………………C-31

83-0131 ………………A-17

83-0141 ………………A-17

83-0221…………………A-17

83-0231…………………A-17

83-0241…………………A-17

83-0331…………………A-17

83-0341 ………………A-17

83-0351…………………A-17

83-0421…………………A-17

83-0431 ………………A-17

83-0441 ………………A-17

83-0451 ………………A-17

83-0511…………………A-17

83-0521…………………A-17

83-0531…………………A-17

83-0541 ………………A-17

83-0611 ………………A-17

83-0621 ………………A-17

83-0631 ………………A-17

83-2121 ………………A-16

83-2131 ………………A-16

83-2141 ………………A-16

83-2151 ………………A-16

83-2221 ………………A-16

83-2231 ………………A-16

83-2241 ………………A-16

83-2251 ………………A-16

83-2331 ………………A-16

83-2341 ………………A-16

Cat. Page Cat. Page Cat. Page Cat. PageCat. Page

Catalog Number Index

83-2351 ………………A-16

83-2361 ………………A-16

83-2371 ………………A-16

83-3261 ………………A-22

83-3271 ………………A-22

83-3281 ………………A-22

83-6111 ………………A-18

83-6121 ………………A-18

83-6131 ………………A-18

83-6161 ………………A-18

83-6171 ………………A-18

83-6211 ………………A-18

83-6221 ………………A-18

83-6231 ………………A-18

83-7011 ………………A-18

83-7021…………………A-18

83-7031 ………………A-18

83-7051 ………………A-18

83-7061 ………………A-18

83-7071…………………A-18

83-7081 ………………A-18

83-7091 ………………A-18

83-7101 ………………A-18

83-7111…………………A-17

83-7121…………………A-17

83-7131 ………………A-17

83-7151 ………………A-17

83-7161 ………………A-17

83-7171…………………A-17

83-7201…………………A-17

83-7211…………………A-17

83-7221…………………A-17

83-7231…………………A-17

83-8001 ………………A-20

83-8011 ………………A-20

83-8101 ………………A-20

83-8111 ………………A-20

83-9001 ………………A-21

83-9011 ………………A-21

83-9021 ………………A-21

83-9031 ………………A-21

83-9041 ………………A-21

83-9071 ………………A-21

83-9081 ………………A-21

83-9091 ………………A-21

83-9281 ………………A-22

83-9291 ………………A-22

83-9301 ………………A-22

83-9351 ………………A-22

83-9361 ………………A-22

83-9371 ………………A-22

83-9401 ………………A-21

83-9411 ………………A-19

83-9421 ………………A-19

83-9441 ………………A-19

83-9451 ………………A-19

83-9471 ………………A-19

83-9481 ………………A-19

83-9501 ………………A-19

83-9511 ………………A-19

83-9521 ………………A-19

83-9541 ………………A-19

83-9551 ………………A-19

83-9571 ………………A-19

83-9581 ………………A-19

83-9591 ………………A-19

83-9601 ………………A-19

83-9611 ………………A-18

83-9621 ………………A-18

83-9631 ………………A-18

83-9771…………………A-20

83-9781…………………A-20

83-9791…………………A-20

83-9801 ………………A-21

83-9911 ………………A-20

83-9921 ………………A-20

83-9931 ………………A-20

83-9971 ………………A-19

83-9981 ………………A-19

83-9991 ………………A-19

84-016 …………………F-16

84-017 …………………F-16

84-018 …………………F-16

84-0241 ………………A-17

84-030 …………………F-16

84-0341 ………………A-17

84-039 …………………F-16

84-2241 ………………A-16

84-2341 ………………A-16

84-6171 ………………A-18

84-7111 ………………A-17

84-7161 ………………A-17

84-7171…………………A-17

84-7221…………………A-17

84-9021 ………………A-21

84-9031 ………………A-21

84-9081 ………………A-21

84-9281 ………………A-22

84-9291 ………………A-22

84-9301 ………………A-22

84-9581 ………………A-19

84-9781…………………A-20

84-9791…………………A-20

85-016 ……F-16, F-21, F-25

85-017 ……………F-16, F-21

85-030 ……………F-16, F-25

85-031 …………………F-16

85-032 …………………F-16

85-033 …………………F-16

85-034 …………………F-16

85-035 …………………F-16

85-036 ……………F-16, F-25

85-037 ……………F-16, F-25

85-038 …………………F-16

85-039 …………………F-16

85-053 …………………F-16

85-057 …………………F-16

85-065 ……………F-16, F-19

85-066 …………………F-16

85-067 ……………F-16, F-25

85-132 …………………F-16

85-133 …………………F-16

85-134 …………………F-16

85-138 …………………F-17

85-200 …………………F-23

85-201 …………………F-23

85-204 …………………F-23

85-205 …………………F-23

85-206 …………………F-23

85-207 …………………F-23

85-208 …………………F-23

85-209 …………………F-23

85-212 …………………F-23

85-213 …………………F-23

85-214 …………………F-23

85-215 …………………F-23

85-216 …………………F-23

85-217 …………………F-23

85-218 …………………F-23

85-219 …………………F-23

85-220 …………………F-23

85-222 …………………F-23

85-223 …………………F-23

85-225 …………………F-23

85-227 …………………F-23

85-229 …………………F-23

85-230 …………………F-23

85-232 …………………F-23

85-233 …………………F-23

85-234 …………………F-23

85-236 …………………F-23

85-237 …………………F-23

85-239 …………………F-23

85-241 …………………F-23

85-242 …………………F-23

85-244 …………………F-23

85-245 …………………F-23

85-246 …………………F-23

85-311 …………………F-17

85-323 …………………F-17

85-332 …………………F-16

85-333 …………………F-16

85-334 …………………F-16

85-344 …………………F-24

85-346 ……………F-19, F-24

85-351 ……………F-19, F-24

85-352 ……………F-19, F-24

85-353 ……………F-19, F-24

85-366 …………………F-24

85-393 …………………F-19

85-394 ……………F-19, F-24

85-395 …………………F-19

85-396 ……………F-19, F-24

85-401 …………………F-24

85-402 …………………F-24

85-403 …………………F-24

85-480 …………………F-22

85-490 …………………F-22

85-491 …………………F-22

85-502 ……………F-22, F-25

85-512 …………………F-22

85-513 ……………F-22, F-25

85-515 …………………F-22

85-517 ……………F-22, F-25

85-545 ……………F-22, F-25

85-550 …………………F-22

85-553 …………………F-22

85-556 …………………F-22

85-575 …………………F-22

85-588 …………………F-22

85-590 …………………F-22

85-770 …………………F-24

85-780 …………………F-24

85-900 …………………F-24

85-925 …………………F-24

85-950 …………………F-24

85-960 …………………F-24

86-016 ……………F-16, F-25

86-017 ……………F-16, F-25

86-030 ……………F-16, F-25

86-039 …………………F-16

86-132 …………………F-16

86-133 …………………F-16

86-134 …………………F-16

86-200 …………………F-23

86-201 …………………F-23

86-202 …………………F-23

86-203 …………………F-23

86-204 …………………F-23

86-205 …………………F-23

86-206 …………………F-23

86-207 …………………F-23

86-208 …………………F-23

86-209 …………………F-23

86-212 …………………F-23

86-213 …………………F-23

86-214 …………………F-23

86-215 …………………F-23

86-216 …………………F-23

86-217 …………………F-23

86-218 …………………F-23

86-219 …………………F-23

86-220 …………………F-23

86-222 …………………F-23

86-223 …………………F-23

86-225 …………………F-23

86-227 …………………F-23

86-229 …………………F-23

86-230 …………………F-23

86-232 …………………F-23

86-233 …………………F-23

86-234 …………………F-23

86-235 …………………F-23

86-236 …………………F-23

86-237 …………………F-23

86-239 …………………F-23

86-241 …………………F-23

86-242 …………………F-23

86-394 …………………F-24

86-395 …………………F-24

86-396 ……………F-19, F-24

86-398 …………………F-24

86-401 …………………F-24

86-402 …………………F-24

86-403 …………………F-24

86-432 …………………F-16

86-433 …………………F-16

86-502 …………………F-22

86-925 …………………F-24

86-950 …………………F-24

87-002 …………………A-29

87-005 …………………A-29

87-007 …………………A-29

87-008 …………………A-29

87-009 …………………A-29

87-010 …………………A-29

87-011 …………………A-29

87-012 …………………A-29

87-015 …………………A-29

87-016 …………………A-29

87-017 …………………A-29

87-018 …………………A-29

87-040 …………………A-29

87-042 …………………A-29

87-044 …………………A-29

87-046 …………………A-29

87-048 …………………A-29

87-126 …………………A-30

87-129 …………………A-30

87-132 …………………A-30

Cat. PageCat. Page Cat. Page Cat. Page Cat. Page

Index

Catalog Number Index 15

Catalog Number Index

87-135 …………………A-30

87-138 …………………A-30

87-141 …………………A-30

87-143 …………………A-30

87-144 …………………A-30

87-145 …………………A-30

87-150 …………………A-31

87-152 …………………A-31

87-156 …………………A-31

87-180 …………………A-31

87-182 …………………A-31

87-186 …………………A-31

87-190 …………………A-31

87-194 …………………A-31

87-370 …………………A-31

87-372 …………………A-31

87-374 …………………A-31

87-563 …………………A-32

87-564 …………………A-32

87-583 …………………A-33

87-585 …………………A-33

87-650 …………………A-32

87-651 …………………A-32

87-652 …………………A-32

87-653 …………………A-32

87-654 …………………A-32

87-655 …………………A-32

87-656 …………………A-32

87-657 …………………A-32

87-658 …………………A-32

87-681 …………………A-32

87-682 …………………A-32

87-683 …………………A-32

87-685 …………………A-32

87-686 …………………A-32

87-687 …………………A-32

87-700 …………………A-33

87-701 …………………A-33

87-702 …………………A-33

87-703 …………………A-33

87-704 …………………A-33

87-706 …………………A-33

87-736 …………………A-33

87-738 …………………A-33

87-900 …………………F-24

87-925 …………………F-24

87-950 …………………F-24

87-958 …………………A-32

88-100 …………………A-32

88-843 …………………C-31

89-011 ……………F-15, F-25

89-014SM ………F-16, F-25

89-014SMRCA …F-16, F-25

89-015 …………………F-18

89-026 ……………F-16, F-19

89-054 ……F-15, F-18, F-25

89-055 ……F-15, F-18, F-25

89-056 ……………F-15, F-18

89-057 ……F-15, F-19, F-25

89-058 ……F-15, F-19, F-25

89-059 ……………F-15, F-25

89-060 ……F-15, F-18, F-19,

F-25

89-060P ……F-15, F-19, F-25

89-104 ……………F-15, F-25

89-105 ……………F-15, F-25

89-106 …………………F-15

89-159 ……………F-15, F-25

89-160 ……………F-15, F-25

89-160P …………F-15, F-25

89-165 …………………F-16

89-202 …………………A-23

89-203 …………………A-23

89-204 …………………A-23

89-206 …………………A-23

89-208 …………………A-23

89-210 …………………A-23

89-212 …………………A-23

89-224 …………………A-25

89-229 …………………A-25

89-230 …………………A-25

89-233 …………………A-25

89-234 …………………A-25

89-235 …………………A-25

89-236 …………………A-25

89-237 …………………A-25

89-238 …………………A-25

89-239 …………………A-25

89-302 …………………A-23

89-304 …………………A-23

89-306 …………………A-23

89-308 …………………A-23

89-310 …………………A-23

89-312 …………………A-23

89-314 …………………A-25

89-317 …………………A-25

89-323 …………………A-25

89-324 …………………A-25

89-330 …………………A-25

89-334 …………………A-25

89-335 …………………A-25

89-336 …………………A-25

89-337 …………………A-25

89-338 …………………A-25

89-339 …………………A-25

89-402 …………………A-24

89-404 …………………A-24

89-406 …………………A-24

89-408 …………………A-24

89-410 …………………A-24

89-412 …………………A-24

89-414 …………………A-25

89-417 …………………A-25

89-423 …………………A-25

89-424 …………………A-25

89-430 …………………A-25

89-434 …………………A-25

89-435 …………………A-25

89-436 …………………A-25

89-437 …………………A-25

89-438 …………………A-25

89-439 …………………A-25

89-504 …………………A-24

89-505 …………………A-24

89-5057 …………F-15, F-25

89-5058 …………F-15, F-25

89-506 …………………A-24

89-507 …………………A-24

89-508 …………………A-24

89-509 …………………A-24

89-512 …………………A-24

89-513 …………………A-24

89-514 …………………A-25

89-516 …………………A-25

89-518 …………………A-25

89-520 …………………A-25

89-525 …………………A-25

89-608 …………………A-26

89-610 …………………A-26

89-612 …………………A-26

89-614 …………………A-26

90-041 …………………G-14

90-042 …………………G-14

90-044 …………………G-14

90-051 …………………G-14

90-052 …………………G-14

90-053 …………………G-14

90-054 …………………G-14

90-055 …………………G-14

90-061 …………………C-54

90-063 …………………C-54

90-065 …………………C-54

90-066 …………………C-54

90-067 …………………C-54

90-068 …………………C-54

90-070 …………………C-54

90-073 …………………C-54

90-080 …………………C-54

90-081 …………………C-54

90-082 …………………C-54

90-083 …………………C-54

90-084 …………………C-54

90-085 …………………C-54

90-086 …………………C-54

90-087 …………………C-54

90-088 …………………C-54

90-089 …………………C-54

90-090 …………………C-54

90-091 …………………C-54

90-092 …………………C-54

90-124 …………………C-55

90-128 …………………C-55

90-154 …………………C-55

90-155 …………………C-55

90-156 …………………C-55

90-157 …………………C-55

90-158 …………………C-55

90-159 …………………C-55

90-160 …………………C-55

90-161 …………………C-55

90-170 …………………C-55

90-171 …………………C-55

90-173 …………………C-55

90-174 …………………C-55

90-176 …………………C-55

93-9051 ………………A-21

B102 ……………………A-60

B104 ……………………A-60

B106 ……………………A-60

B108 ……………………A-60

B1-1 ……………………A-36

B-11-120-0-C …………G-16

B-11-120-9-C …………G-16

B112 ……………………A-60

B-11-40-0-C……………G-16

B-11-40-9-C……………G-16

B-11-50-0-C……………G-16

B-11-50-0-D …………G-16

B-11-50-9-300 …………G-16

B-11-50-9-C……………G-16

B-11-50-9-D …………G-16

B1-25 …………………A-36

B1-250JR ………………A-36

B-14-120-0-L …………G-16

B-14-120-9-L …………G-16

B-14-18-9-M …………G-16

B-14-50-0-C……………G-16

B-14-50-0-D …………G-16

B-14-50-9-C……………G-16

B-14-50-9-D …………G-16

B-14-50MT-0-C ………G-16

B-14-50MT-9-C ………G-16

B1-500JR ………………A-36

B-17-175-0-L …………G-16

B-17-175-9-L …………G-16

B1-B ……………………A-36

B1-SK …………………A-36

B2-1 ……………………A-36

B-21-175-0-L …………G-16

B-21-175-9-L …………G-16

B2-25 …………………A-36

B2-350JR ………………A-36

B-24-175-0-L …………G-16

B-24-175-9-L …………G-16

B2-500JR ………………A-36

B2-B ……………………A-36

B2-SK …………………A-36

B-30-175-0-L …………G-16

B-30-175-9-L …………G-16

B-36-175-0-L …………G-16

B-36-175-9-L …………G-16

B4-1 ……………………A-36

B-4-1-0-M ……………G-16

B-4-18-0-C ……………G-16

B-4-18-9-C ……………G-16

B4-25 …………………A-36

B-48-175-0-L …………G-16

B-48-175-9-L …………G-16

B4-B ……………………A-36

B-6-30MT-9-C …………G-16

B-6-40-0-C ……………G-16

B-6-40-0-M ……………G-16

B-6-40-9-C ……………G-16

B-6-40-9-M ……………G-16

B-8-18-0-C ……………G-16

B-8-18-9-C ……………G-16

B-8-50-0-C ……………G-16

B-8-50-0-M ……………G-16

B-8-50-2-C ……………G-16

B-8-50-5-C ……………G-16

B-8-50-9-D ……………G-16

B-8-50-9-M ……………G-16

B-8-50MT-0-C …………G-16

B-8-50MT-9-C …………G-16

BCCL-125-9-C …………G-16

BCCL-250-9-C …………G-16

BCCL-375-9-C …………G-16

BCCL-500-9-C …………G-16

BCS1-1 …………………D-10

BCS1-5 …………………D-10

BCS1-5M ………………D-10

BCS1-JR ………………D-10

BCS2-1 …………………D-10

BCS2-5 …………………D-10

BCS2-5M ………………D-10

BCS2-JR ………………D-10

BCTT-100 ………………G-16

BCTT-200 …………D-9, G-16

BGR-1 …………………A-36

Cat. PageCat. Page Cat. Page Cat. Page Cat. Page

Catalog Number Index

BGR-25…………………A-36

BGR-B …………………A-36

BICS2-JR ………………D-10

BICS-JR ………………D-10

BMICS-JR ……………D-10

BMP-1000-0-C ………G-16

BMP-1000-9-C ………G-16

BMP-750-0-C …………G-16

BMP-750-9-C …………G-16

BMSE150-1 ……………D-11

BMSE175-1 ……………D-11

BP-958 …………………E-17

BPCXSB-JR ……………D-11

BPCXSW-JR……………D-11

BPDATAS-JR …………D-11

BPLVSB-JR ……………D-11

BPLVSW-JR ……………D-11

BPS2/2-50 ……………D-10

BPS2/3-50 ……………D-10

BPS2/4-50 ……………D-10

BPS2-1 …………………D-10

BPS2-30K………………D-10

BPS2-5 …………………D-10

BPS2-5M ………………D-10

BPS2B-JR………………D-10

BPS2-JR ………………D-10

BPS3-1 …………………D-10

BPS3-2 …………………D-10

BPS3-50 ………………D-10

BPS3-JR ………………D-10

BPS4-50 ………………D-11

BR-5 ……………………A-10

BSER2-25………………D-11

BSER4/0-5 ……………D-11

BSER6-50………………D-11

BSEU2-25………………D-11

BSEU4/0-5 ……………D-11

BSEU6-50 ……………D-11

BTC1/0-10 ……………A-40

BTC2/0-14 ……………A-40

BTC250-4 ………………A-40

BTC350-1/0 ……………A-40

BTC4/0-10 ……………A-40

BTC4/0-4 ………………A-40

BTC4/0-6 ………………A-40

BTC500-1/0 ……………A-40

BTC500-14 ……………A-40

BTC500-4 ………………A-40

BTC750-250 ……………A-40

BTCA-2 …………………A-40

C-24 ……………A-39, C-31

C-290 E-3, E-4, E-5, E-6, E-24,

E-32.

C-50 ……………………E-25

C-700 …………………E-10

C-760 …………………E-12

C-770……………………E-13

C-90 …E-11, E-26, E-27, E-28,

E-32

F-956 ……………………E-17

FIBERTEKALLB …………F-5

FIBERTEKALLP …………F-5

FIBERTEKMMB …………F-5

FIBERTEKMMP …………F-5

FIBERTEKSMP …………F-5

H-2909 …………………C-14

H-3324 …………………F-7

H-3412 …………………F-7

H-632 …………………A-10

HSC-1 …………………A-10

IA-3240 …………D-19, D-20

IA-3241…………………D-21

IA-4868 …………………F-7

IA-4989 ………………D-22

IA-4990 ………………D-22

IC-958 …………………E-17

IMET1_5I-C ……………D-3

IMET1_5I-C0 ……………D-3

IMET1M-C ………………D-3

IMET1M-CO ……………D-3

IMET2S-C ………………D-3

IMET2S-C0………………D-3

IMET2S-M ………………D-3

IMET2S-M0 ……………D-3

IMET3I-C ………………D-3

IMET3I-C0 ………………D-3

IMET3I-M ………………D-3

IMET3I-M0………………D-3

IMET3S-C ………………D-3

IMET3S-C0………………D-3

IMET3S-M ………………D-3

IMET3S-M0 ……………D-3

IMET4LH-D ……………D-3

IMET4LH-D0 ……………D-3

IMET4LH-L………………D-3

IMET4LH-L0 ……………D-3

IMET4S-C ………………D-3

IMET4S-C0………………D-3

IMET4S-M ………………D-3

IMET4S-M0 ……………D-3

IT1_5I-C …………………D-4

IT1_5I-C0 ………………D-4

IT1_5I-M…………………D-4

IT1_5I-M0 ………………D-4

IT1_5IMH-C ……………D-6

IT1_5IMH-C0 ……………D-6

IT1_5M-C ………………D-4

IT1_5M-C0 ………………D-4

IT1000CCL2-C …………D-7

IT1000MP-C ……………D-7

IT1000MP-C0……………D-7

IT10H-L …………………D-5

IT10H-L0…………………D-5

IT11H-L …………………D-5

IT11H-L0…………………D-5

IT125CCL-C ……………D-7

IT14H-L …………………D-5

IT14H-L0…………………D-5

IT14H-L8…………………D-5

IT1LPMB-C ……………D-6

IT1M-C …………………D-4

IT1M-C0 …………………D-4

IT1MID-C ………………D-6

IT1M-M …………………D-4

IT1SMB-C ………………D-6

IT1SMB-C0 ……………D-6

IT250CCL-C ……………D-7

IT250CCL-C0 ……………D-7

IT2I-C ……………………D-4

IT2I-C0 …………………D-4

IT2I-M……………………D-4

IT2I-M0 …………………D-4

IT2LH-C …………………D-5

IT2LH-C0 ………………D-5

IT2M-C …………………D-4

IT2M-C0 …………………D-4

IT2M-M …………………D-4

IT2S-C ……………D-2, D-5

IT2S-C0 ……………D-2, D-5

IT2S-C30…………………D-5

IT2S-C35…………………D-2

IT2S-C702 ………………D-2

IT2SID-C…………………D-6

IT2S-M ……………D-2, D-5

IT2S-M0 ……………D-2, D-5

IT2SMB-C ………………D-6

IT2SMB-C0 ……………D-6

IT2SMH-C …………D-2, D-6

IT2SMH-C0 ………D-2, D-6

IT2SMH-M…………D-2, D-6

IT375CCL2-C ……………D-7

IT375CCL2-C0 …………D-7

IT3I-C ……………………D-4

IT3I-C0 …………………D-4

IT3S-C ……………D-2, D-5

IT3S-C0 ……………D-2, D-5

IT3S-C35…………………D-2

IT3S-C702 ………………D-2

IT3S-D ……………D-2, D-5

IT3S-D0 ……………D-2, D-5

IT3SMH-C ………………D-6

IT3SMH-C0 ……………D-6

IT4I-C ……………………D-4

IT4I-C0 …………………D-4

IT4LH-L …………………D-5

IT4LH-L0 ………………D-5

IT4LHMH-C ……………D-6

IT4LHMH-C0 ……………D-6

IT4S-C ……………D-2, D-5

IT4S-C0 ……………D-2, D-5

IT4S-D ……………D-2, D-5

IT4S-D0 …………………D-5

IT4SID-C…………………D-6

IT4SMH-C ………………D-6

IT500CCL2-C ……………D-7

IT5LH-L …………………D-5

IT5LH-L0 ………………D-5

IT5S-C……………………D-5

IT5S-CO …………………D-5

IT625CCL2-C ……………D-7

IT6EH-C0 ………………D-5

IT750CCL2-C ……………D-7

IT750MP-C………………D-7

IT750MP-C0 ……………D-7

IT7H-L …………………D-5

IT7H-L0 …………………D-5

IT7LH-L …………………D-5

IT7LH-L0 ………………D-5

K-2422 …………………A-28

K-7515 …………………E-6

K-7920……………………F-6

K-7921 …………………F-20

K-8906R ………………C-30

K-8909 …………………C-30

K-8926 …………………C-30

K-8947R ………………C-30

K-8985 …………………B-6

L-1953 …………………C-13

L-4419 …………C-13, C-14

L-4419M ………………C-14

L-4420 …………C-13, C-14

L-4421 …………C-13, C-14

L-4421M ………………C-14

L-4422 …………C-13, C-14

L-4452 …………………C-13

L-4994 …………………C-14

L-5210………………C-8, C-9

L-5211………………C-8, C-9

L-5212 …………………C-11

L-5215 …………………C-11

L-5217 …………………C-11

L-5269 …………………C-11

L-5270 …………………C-11

L-5361 …………C-13, C-14

L-5361M ………………C-14

L-5436 ……………C-8, C-9

L-5559 ……………C-8, C-9

L-5560 ……………C-8, C-9

L-5561 ……………C-8, C-9

L-5562 ……………C-8, C-9

L-5563 ……………C-8, C-9

L-5564 ……………C-8, C-9

L-5616 …………………C-11

L-5617 …………………C-11

L-5618 …………………C-11

L-5619 …………………C-11

L-5620 ……C-13, C-14, F-26

L-7625………………C-8, C-9

L-8762 …………………C-13

L-8763……………C-13, C-14

L-9038 …………………C-11

L-9039 …………………C-11

L-9225 ……………F-12, F-27

L-9226 …………………F-12

L-9300 ……………C-8, C-9

LA-2358 ………………C-14

LA-3953 …C-13, F-12, F-18,

F-19

LA-4123 ………………C-29

LA-4124 ………………C-29

LA-4125 ………………C-45

LA-4126 ………………C-45

LA-4127 ………………C-45

LA-4128 ………………C-45

LA-4144 …………………F-9

LA-4145 …………………F-9

LA-4157 …………………F-7

LA-4159 …………………F-7

LA-4173 …………………F-7

LA-4218 …………………B-6

LA-4233 …………………F-7

LA-4234 …………………F-7

LA-4235 …………………F-7

LANTEK6……………F-2, F-3

LANTEK6A …………F-2, F-3

LANTEK6ABAS ……F-3, F-4

LANTEK6APREM …F-3, F-4

LANTEK6ATRV ……F-3, F-4

LANTEK6B …………F-3, F-4

LANTEK7G …………F-2, F-3

LANTEK7GBAS ……F-3, F-4

LANTEK7GPREM …F-3, F-4

LANTEK7GTRV ……F-3, F-4

LB-1001 …………C-13, C-14

LB-1001M ……………C-14

LB-1002 …………C-13, C-14

LB-1002M………………C-14

LB-1003 …………C-13, C-14

LB-1004 …………C-13, C-14

LB-1005 …………C-13, C-14

Index

Cat. PageCat. Page Cat. Page Cat. Page Cat. Page

Index

Catalog Number Index 17

Catalog Number Index

LB-1089 ………………C-11

LB-1090 ………………C-11

LB-1091 ………………C-11

LB-1092 ………………C-11

LB-1151 ………………C-11

LB-1152 …………C-11, F-26

LB-1153 …………C-11, F-26

LB-1154 ………………C-11

LB-1155 ………………C-11

LB-1156 ………………C-11

LB-1184 ………………C-11

LB-1185 ………………C-11

LB-1186 ………………C-11

LB-1187 ………………C-11

LB-1188 ………………C-11

LB-1189 ………………C-11

LB-1190 ………………C-11

LB-1194 ………………C-11

LB-1195 …………C-11, C-13

LB-1421 …………C-13, C-14

LB-1747 …………………F-10

LB-1748…………………F-13

LB-197 …………………C-11

LB-198 …………………C-11

LB-718 …………………C-11

LB-719 …………………C-11

LB-720 …………………C-11

LB-721 …………………C-11

LB-722 …………………C-11

LB-727 …………………C-11

LB-728 …………………C-11

LB-729 …………………C-11

LB-730 …………………C-11

LB-731 …………………C-11

LB-740……………C-13, F-12

LB-742 …………………C-13

LB-743……………C-13, F-12

LB-744 …………………C-13

LB-882 …………………C-11

LB-883 …………………C-11

LB-895 …………………C-11

LB-896 …………………C-11

LB-911 ……………C-9, C-10

LB-912 ……………C-9, C-10

LB-913 ……………C-9, C-10

LB-914 ……………C-9, C-10

LB-915 ……………C-9, C-10

LB-916 ……………C-9, C-10

LB-917 ……………C-9, C-10

LB-918 ……………C-9, C-10

LB-920 ……………C-9, C-10

LB-921 ……………C-9, C-10

PA-830 …………………E-22

TL-100 …E-3, E-4, E-5, E-33

TL-102 ……E-10, E-26, E-33

TL-104 ……E-12, E-13, E-33

TL-435 …………………E-33

TL-436 …………………E-33

TL-532 ……………E-22, E-24

TL-58 ………E-6, E-11, E-33

TL-80 ……………………E-27

TL-82 ……………………E-27

TL-956 …………………E-17

TLA1-956 ………………E-17

TLA2-956 ………………E-17

TLAC-956 ………………E-17

TLBP-956 ………………E-17

TLF-252…………………E-33

TLGP-956 ………………E-17

TLOP-956 ………………E-17

TRACETEKMM …………F-5

TRACETEKSM …………F-5

VFF5 ……………………F-28

WGR-1 …………………A-38

WGR-500JR ……………A-38

WGR-B …………………A-38

WGR-SK ………………A-38

WT1-1 …………………A-37

WT1-B …………………A-37

WT2-1 …………………A-37

WT2-B …………………A-37

WT3-1 …………………A-37

WT3-B …………………A-37

WT4-1 …………………A-37

WT41-1…………………A-38

WT41-500JR …………A-38

WT41-B ………………A-38

WT41-SK ………………A-38

WT4-B …………………A-37

WT51-1…………………A-38

WT51-4…………………A-38

WT51-500JR …………A-38

WT5152JR ……………A-38

WT51-B ………………A-38

WT51-SK ………………A-38

WT52-1…………………A-38

WT52-500JR……………A-38

WT52-B ………………A-38

WT52-SK ………………A-38

WT54-B ………………A-38

WT6-1 …………………A-37

WT6-B …………………A-37

Cat. PageCat. Page Cat. Page Cat. Page Cat. Page

Customer Service/

Technical Support

Merchandising

Promotions

Distribution Center

It has long been a goal at IDEAL to serve our customers and distributors more

effectively than anyone in the industry. A promise of helping our customers and

distributors in any way we can comes with every product we ship.

Point-of-purchase communication is an important aspect of the IDEAL sales

strategy. We are committed to helping our distributors move our products off

their shelves. To do that, we’ve developed a variety of exciting, thoughtful ways

to increase a store’s association with IDEAL and build repeat customers.

There is no substitute for the impact that an effectively managed national

promotion can achieve. Our record of exciting and successful promotions is

second-to-none in the industry. The annual Collectible Toy Truck promotion, for

example, has become a phenomenon of its own and helps sell millions of wire

connectors. With a well-designed promotion, everyone wins.

Our new state-of-the-art facility located at IDEAL headquarters in

Sycamore, IL is responsible for making sure our products arrive on time and

as ordered to our customers around the world. Our employees manage an

inventory of thousands of different products, ensuring they’re available

when our customers need them. Orders received by 1 p.m. are normally shipped

by 5 p.m. of the same day.

IDEAL INDUSTRIES, INC.

Corporate Headquarters

Becker Place

Sycamore, IL 60178, USA

ph: 815-895-5181 • 800-435-0705 in USA

fax: 815-895-9470 • 800-533-4483 in USA

email: ideal@idealindustries.com

IDEAL INDUSTRIES, INC.

International Division

Becker Place

Sycamore, IL 60178, USA

ph: 815-895-1122

fax: 815-895-4800

email: ideal_international@idealindustries.com

IDEAL INDUSTRIES PUERTO RICO, INC.

PMB 196

405 Esmeralda, Suite 102

Guaynabo, Puerto Rico 00969, USA

ph: 787-412-7215

fax: 787-731-1128

IDEAL INDUSTRIES (CANADA), CORP.

33 Fuller Road

Ajax, Ontario L1S 2E1, Canada

ph: 905-683-3400 • 800-824-3325 in Canada

fax: 905-683-0209 • 800-263-3115 in Canada

email: ideal_canada@idealindustries.com

IDEAL INDUSTRIES (AUST) PTY. LTD.

Level 6

75-85 Elizabeth Street

Sydney NSW 2000 Australia

ph: 61300 765 800 • 61405 123 100 (mobile)

fax: 61300 765 801

email: ideal_australia@idealindustries.com

IDEAL INDUSTRIES (UK) LIMITED

225 Europa Boulevard, Gemini Business Park

Warrington, Cheshire, WA5 7TN, UK

ph: +44-(0) 1925 444446

fax: +44-(0) 1925 445501

email: ideal_uk@idealindustries.com

IDEAL INDUSTRIES GmbH

Gutenbergstrasse 10

85737 Ismaning, Germany

ph: +49-(0) 89 996860

fax: +49-(0) 89 99686111

email: ideal_germany@idealindustries.com

IDEAL INDUSTRIES CHINA, LLC

Unit 911, Tower W1, The Towers, Oriental Plaza

No. 1 East

Chang An Avenue, Dong Cheng District

Beijing, 100738, China

ph: 86-10-8518-3141 • 86-10-8518-3142

fax: 86-10-8518-3143

Room 1401, Finance Square, 333 Jiujiang Road

Shanghai, 2000001, China

ph: 86-21-6360-7045

fax: 86-21-6350-8891

email: ideal_china@idealindustries.com

IDEAL INDUSTRIES BRAZIL COMÉRCIO LTDA.

Av. Major Sylvio de Magalh

ães

Padilha, 5200

Bloco F, Cj 201 CEP - 05677-000 São Paulo – SP - Brazil

ph: 55-11-3759-8777

fax: 55-11-3759-8775

email: ideal_brazil@idealindustries.com

IDEAL INDUSTRIES MEXICO, INC.

Parque Intermex, Periferico Sur 7999 A

Col. Santa Maria Tequepexpan

Tlaquepaque, Jalisco, Mexico, c.p. 45601

ph: 52-33-37702320 • 52-33-38097219 (mobile)

fax: 52-33-37702300

CUSTOMER SERVICE 800-435-0705

email: ideal@idealindustries.com

QUALITY HOTLINE 800-304-3578

email: quality@idealindustries.com

TECHNICAL HOTLINE 800-338-4495

email: techsupt@idealindustries.com

www.idealindustries.com

Rev. 7/07

Form No. P-070

Printed in USA

Wire Termination

DataComm Equipment

Test & Measurement

Wire Installation

Tools & Totes

Wire Management

IDEAL INDUSTRIES, INC.

Becker Place, Sycamore, IL 60178, USA / 815-895-5181 • 800-435-0705 in USA

International offices: Australia • Brazil • Canada • China • Germany • Mexico • UK

For complete sales office contact information, visit us at:

www.idealindustries.com
