Surge Protection
and Power Supply Units
2013 / 2014
PCB connection technology and electronics housing
• PCB terminal blocks and plug-in connectors
• Electronics housing
Sensor/actuator cabling and industrial plug-in connectors
• Sensor/actuator cabling
• Cables and connectors
• Plug-in connectors
Marking systems, tools, and mounting material
• Marking and labeling
•Tools
• Installation and mounting material
Surge protection
and power supply units
Interface technology and switching devices
• Electronic switching devices and motor control
• Measurement and control technology • Monitoring
• Relay modules • System cabling for controllers
Control technology, I/O systems and automation infrastructure
• Ethernet networks • Functional safety • HMIs and industrial PCs • I/O systems
• Industrial lighting and signaling • Industrial communication technology
• Fieldbus components and systems • Wireless data communication
• Process infrastructure • Software • Controllers
Modular terminal blocks
• Modular terminal blocks
Connection technology for field devices
• Plug-in connectors
• Cables and connectors
2PHOENIX CONTACT
Introduction
Product range overview
Lightning current measur-
ing system
Surge protection for the power supply
LM-S Page 8 Type 1 lightning arrester
FLASHTRAB Page 28
POWERTRAB Page 32
VALVETRAB T1/T2 Page 34
Type 1 + 2 lightning and surge arrester
combination
FLASHTRABcompact Page 36
Type 2 surge arrester
VALVETRABcompact Page 40
VALVETRAB MS Page 42
Combination arrester Page 52
Set solutions
Type 3 device protection Page 56 Building set Page 65 Arrester for PV systems Page 64
Box solution for PV systems Page 66
Box solution for the
American market Page 68
Surge protection for measurement and control technology Surge protection for information technology
DIN rail modules
PLUGTRAB Page 72
LINETRAB Page 90
TERMITRAB Page 94
Special systems Page 100
LSA-PLUS modules Page 102
For networks Page 114
For interfaces Page 116
Telecommunications systems Page 126
Surge protection for transceiver systems EMC solutions Testers
For mobile phone networks Page 136
For video communication Page 140
For radio and television sets Page 142 Mains interference filters with integrated
surge protection Page 146
Interference filters Page 148
CHECKMASTER Page 152
Test adapters Page 152
For additional information, visit www.phoenixcontact.net/products
3PHOENIX CONTACT
Introduction
Product range overview

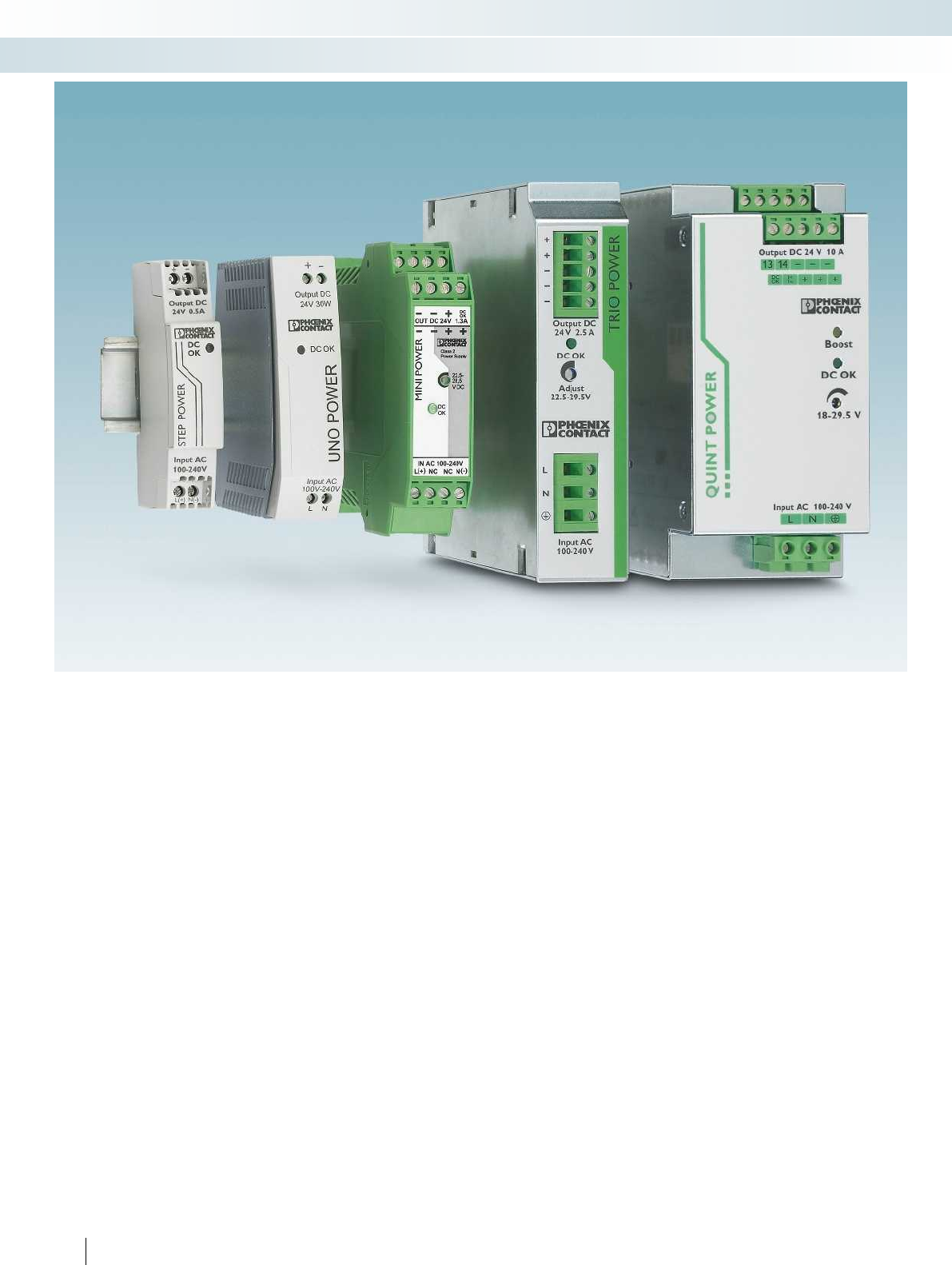

Power supply units
QUINT POWER Page 166 TRIOPOWER Page 174 MINI POWER Page 180 UNOPOWER Page 184
DC/DC converters
Redundancy modules
STEPPOWER Page 186 QUINT POWER, dip-coated Page 194 QUINT DC/DC converters Page 198
MINIDC/DC converter Page 202
QUINT ORING Page 206
TRIO DIODE Page 208
QUINTDIODE Page 210
STEP DIODE Page 210
UPS for the control cabinet
QUINT UPS-IQ Page 218 Power storage for
QUINT UPS-IQ Page 222
UPS with integrated power storage
QUINTUPS Page 230
QUINTBUFFER Page 231
STEPUPS Page 232
UPS with integrated power supply unit
TRIOUPS Page 234
MINIUPS Page 235
UPS for 19" rack/tower Protective devices
UPS devices Page 244 Battery modules Page 246
Accessories Page 248

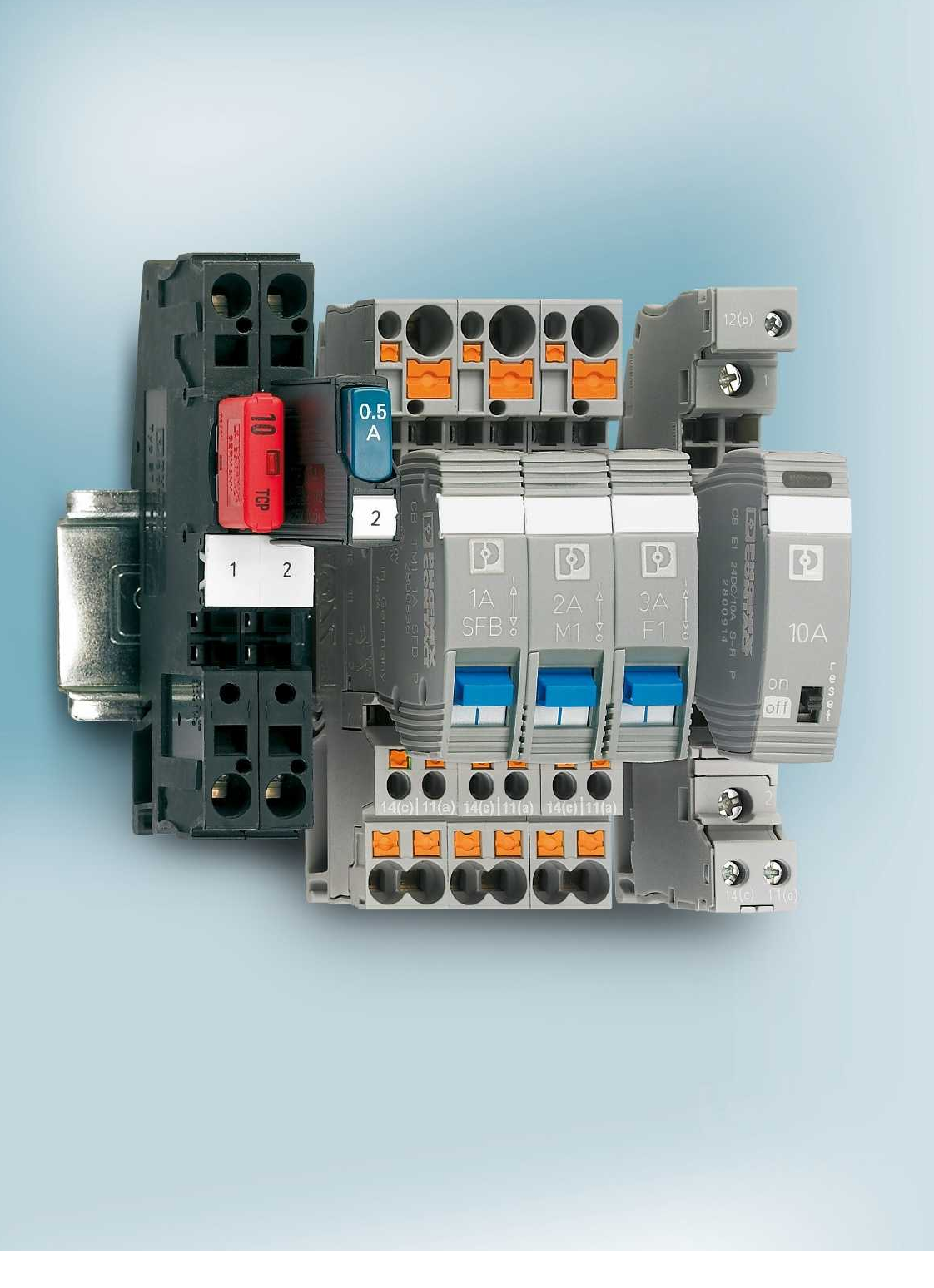

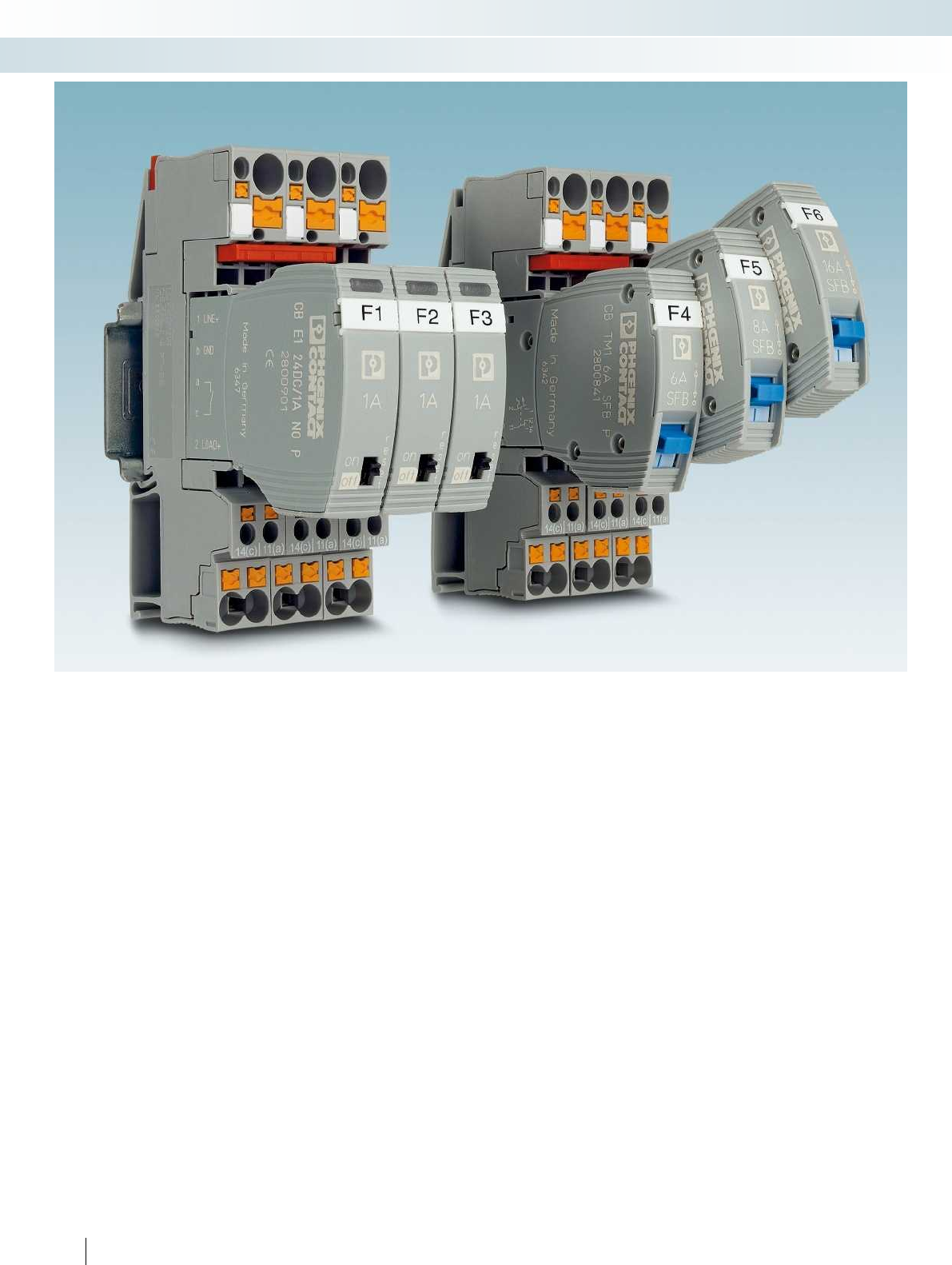

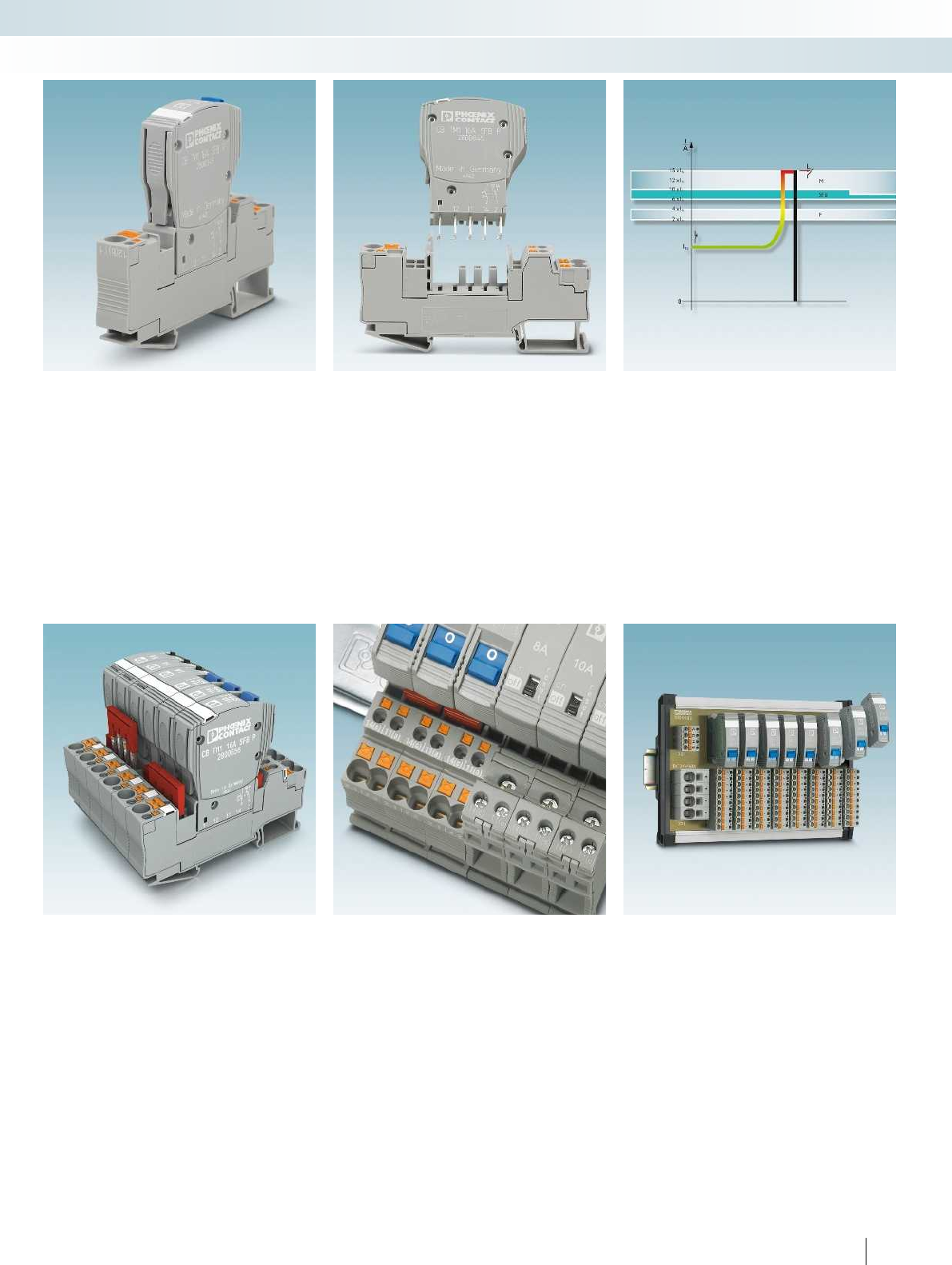

CB device circuit breakers Page 256
Circuit breaker Page 263
TCP thermal circuit breakers Page 264
Fuse terminal blocks, see Catalog 3
4PHOENIX CONTACT
Lightning monitoring system
Introduction 6
LM-S
Sensor 8
Connecting cable 8
Evaluation unit 9
Optoelectronic module 9
5PHOENIX CONTACT
Lightning strikes are a particular hazard
for exposed structures such as offshore
wind parks, radio masts, leisure facilities or
high buildings.
The LM-S lightning current measuring sys-
tem can detect, evaluate, and remotely
monitor lightning strikes in realtime. This
means that information about the actual
load on the system from lightning strikes is
available at all times. The findings obtained
regarding the load on a system enable opti-
mized maintenance planning.

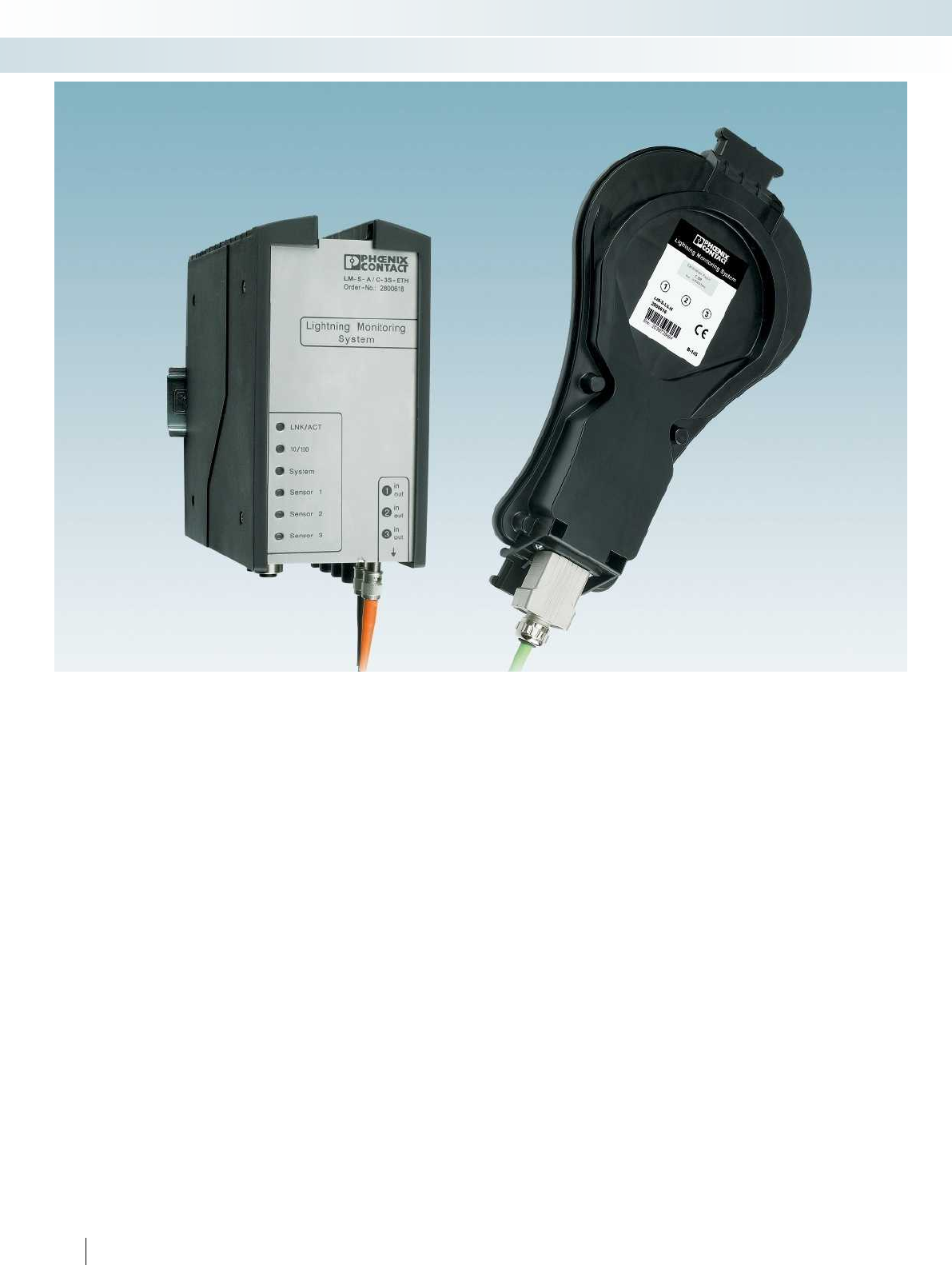

LM-S lightning monitoring system
6PHOENIX CONTACT
Lightning current measuring system
Lightning current measuring system introduction
Lightning strikes cause devastating dam-
age to buildings and systems. It is practically
impossible for employees to continuously
monitor exposed or large-scale systems,
which means that damage is detected too
late.
Detecting lightning with the lightning
monitoring system
The LM-S lightning monitoring system
supports continuous monitoring. Lightning
events are detected, evaluated, and remote-
ly monitored via network access. This
means that information about the actual
load on the system from lightning strikes is
available at all times. The findings obtained
regarding the load on a system enable opti-
mized maintenance planning.
The LM-S lightning current measuring sys-
tem consists of the following components:
–Sensor
– Connecting cable
–O/E module
– Evaluation unit
For additional information, visit www.phoenixcontact.net/products
7PHOENIX CONTACT
Lightning current measuring system
Lightning current measuring system introduction
Faraday effect as a reliable measuring
method
The internal measuring principle of the
LM-S is based on the Faraday effect. Polar-
ized light in a specific medium is rotated
through a magnetic field over a defined
length and measured.
The higher the amperage (i) generated by
a lightning strike the greater the magnetic
flux density (B) and, therefore, the rotation
of the polarized light.
The lightning monitoring system detects
this change in the light signal and uses this as
the basis for the corresponding measured
value results.
Detection and evaluation
The sensors are mounted on the lightning
arrester cables. They record the magnetic
field that occurs around the conductor due
to the lightning surge current. The mea-
sured result is transmitted via fiber optics to
the O/E module of the evaluation unit,
where the optical signal is converted into an
electrical signal. Based on the values ob-
tained, the evaluation unit determines the
lightning characteristics with their typical
parameters, including, for example, the
maximum lightning current strength, light-
ning current rate of rise, charge, and energy.
These results can be forwarded to an avail-
able management system via the Ethernet
interface.
Remote monitoring in realtime
The evaluation unit can be easily integrat-
ed into standard network systems via the
RJ45 Ethernet interface. An internal web
server is used as the basis for accessing re-
corded data and configuring the system.
The web interface is opened via the Internet
browser of a PC connected to the system
using IP addressing.
Technical data
Detectable values
Maximum current strength 250 kA
FO interface
Connection method SCRJ socket with push/pull connector, IP67
General data
Ambient temperature (operation) -30 °C ... 60 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Degree of protection IP67
Ordering data
Description Type Order No. Pcs. /
Pkt.
Sensor
LM-S-LS-H 2800616 1
– Optical lightning sensor for measuring
current strength of lightning surge cur-
rents
– Subsequent mounting is possible
– Rugged design
– Resistant to vibrations, temperature, and
humidity
– Good UV resistance
– Good oil resistance
Sensor
Lightning current measuring system
LM-S
Sensor
Technical data
General data
Ambient temperature (operation) -40°C ... 70°C
Ambient temperature (storage/transport) -40°C ... 70°C
Degree of protection IP20 (B-FOC)/IP67 (PPCME)
Ordering data
Description Type Order No. Pcs. /
Pkt.
Connecting cable
Variable FOC-HCS-BFOC/1018B/PPCME/… 1408480 1
Notes:
The specified plug configuration (see ordering example) must be
used in order to use the connecting cable in the LM-S lightning
monitoring system. Recommended length: 10 to 200 m
– HCS cable for connecting LM-S sensors
to the O/E module
– Robust cable for use in harsh environ-
ments
– Good UV resistance
– Good oil resistance
Connecting cable
Connecting cable for LM-S
Ordering example for LM-S connecting
cable with variable cable length:
Assembled connecting cable for the LM-S lightning monitoring sys-
tem, with a metal push/pull plug-in connector, a B-FOC plug, and a
cable length of 10 m.
Order No. Length [m]
Max. 200 m
1408480 /
FOC-HCS-BFOC/1018B/PPCME / 10.0
Increments:
10.0 m ... 200 m = 1.0 m
8PHOENIX CONTACT
For additional information, visit www.phoenixcontact.net/products
Technical data
Supply voltage 24 V DC ± 4 V
Ethernet interfaces
Connection method RJ45
Transmission speed 10/100 Mbps
FO interface
Interface B-FOC (ST®)
Number of ports 3
Sensor interfaces
Connection method Rack for plug-in I/O module
Remote indication contact
Connection method M12 D-coded
Max. operating voltage - / 60 V DC
General data
Ambient temperature (operation) -30 °C ... 60 °C
Degree of protection IP20
Ordering data
Description Type Order No. Pcs. /
Pkt.
Evaluation unit with O/E module
LM-S-A/C-3S-ETH 2800618 1
– Complete module including O/E module
for connecting up to three LM-S sensors
– Evaluation and storage of amperage, cur-
rent increase rate, charge, and specific en-
ergy
– Realtime analysis and exact time alloca-
tion
– Status and diagnostic indicators
– Communication via Ethernet
– Operation and configuration via web in-
terface
– Mounting on a DIN rail
Evaluation unit
Lightning current measuring system
LM-S
Evaluation unit with O/E module
Technical data
FO interface
Interface B-FOC (ST®)
Number of ports 3
General data
Ambient temperature (operation) -40 °C ... 60 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Degree of protection IP20
Ordering data
Description Type Order No. Pcs. /
Pkt.
Optoelectronic module
LM-S-C-3LS 2800617 1
9
PHOENIX CONTACT
– O/E module replacement for evaluation
unit
– Connection of up to three LM-S sensors
– Status and diagnostic display via evalua-
tion unit
Optoelectronic module
O/E module
10 PHOENIX CONTACT
Selection guides and applications 12
Surge protection for the power supply 26
Type 1 lightning arresters 28
Type 1 + 2 lightning/surge arrester combinations 36
Type 2 surge arresters 40
Industry solutions 50
Type 2 combined solutions 52
Type 3 device protection 56
Renewable energy sources 64
Set solutions 65
Surge protection for measurement and control technol-
ogy
70
DIN rail modules
- PLUGTRABPT-IQ
- MCR-PLUGTRAB
- LINETRAB
- TERMITRAB
72
Special systems
- SURGETRAB
100
Modules for LSA-PLUS technology
- COMTRAB modular
- COMTRAB
102
Surge protection for information technology 112
Bus systems 114
Telecommunications 126
Surge protection for transceiver systems 134
Transceiver technology 136
TV and radio systems 140
Interference filters 144
Filters with type 3 surge protection 146
Filters 149
Test device for arresters 150
Approvals 154
11PHOENIX CONTACT
Damage caused by surge voltages
The number of electrical devices damaged
or destroyed by surge voltages is increasing
year on year. This can prove expensive in
terms of repairs and downtimes. In an in-
dustrial environment, the hazards are not
only restricted to systems and devices.
Building technology applications and even
residential buildings may be affected.
Interference voltages
Switching operations triggered mechani-
cally or electronically generate pulse-like
and high-frequency interference voltages.
These voltages spread in an unimpeded
manner across the cable network. All the
devices within this cable network are affect-
ed. Data errors, uncontrolled functions, and
system crashes can result, with electronic
and data processing devices at particular
risk.
Surge protection and interference filters
L1 L1
F1 F1 F1
F2* F2*F2*
L2 L2
L3 L3
N N
PE PE
General information on the application drawings below
– The example illustrations are intended to help you select the right surge protection. They make no claim to be complete with regard
to the prescribed safety measures.
– The illustrated connection diagrams do not replace standard-compliant planning of a protection concept by an electrical or lightning
protection specialist.
– The fixed electrical installation may only be accessed by trained specialist personnel.
– In order to ensure the correct and appropriate use of products, the relevant installation notes must be observed prior to installation
or startup.
– All information/notes can be downloaded under the relevant product documentation at www.phoenixcontact.net/products.
Three-stage protection for the power supply, type 1 and type 2 installed separately + type 3
TN-S/TT
230/400 V AC
240/415 V AC
Ty p e 1 Ty p e 2 Ty p e 3
FLT-CP-PLUS-3S-350 VAL-CP-3S-350 PT 4-PE/S-230AC/FM
2882640 2859521 2882459
Page 28 Page 40 Page 56
* F2 is not needed if F1 maximum backup fuse according to IEC
Distinguishing features of the protective devices for the power supply
Type 1 Type 1+2 Type 1/2 Type 2 Type 3
Lightning protection zone transition 0-1 0-2 0-1/1-2 1-2 2-3
Without detailed calculation of the lightning surge current at
the installation location can be used at Lightning Protection
Level
I - IV I - IV III - IV
Type 1 and type 2 combined in a single device
Can be used universally
12 PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
L1 L1
F1
F2*
L2 L2
L3 L3
N N
PE PE
F1
F2* F2*
L1 L1
L3
F1 F1
F1
F2*F2*
F2*
L2 L2
N
L3 L3
PE
N N
L2
PE PE
L1
For additional information, visit www.phoenixcontact.net/products
Two-stage protection for the power supply, type 1/2 combination based on varistor + type 3
TN-S/TT
230/400 V AC
240/415 V AC
Ty p e 1 / 2 Ty p e 3
VAL-MS-T1/T2 335/12.5/3+1-FM MNT-1 D
2800183 2882200
Page 34 Page 60
Three-stage protection for the power supply, type 1 and type 2 installed separately + type 3
TN-S/TT
230/400 V AC
240/415 V AC
Type 1 Ty p e 2 Ty p e 3
FLT-CP-PLUS-3S-350 VAL-CP-RCD-3S/40/0.3/SEL PRT-CD-AD1 + PRT-S-230/FM
2882640 2808001 2749673 + 2749686
Page 28 Page 52 Page 58
* F2 is not needed if F1 maximum backup fuse according to IEC
13PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
10
7911
11 12
L1 L1
F1 F1 F1
F2* F2*F2*
L2 L2
L3 L3
N
PEN PE
L1 L1
F1 F1
F2*
F2*
L2 L2
L3 L3
N
PEN PE
F2*
Three-stage protection for the power supply, type 1 and type 2 installed separately + type 3
TN-C-S
230/400 V AC
240/415 V AC
Ty p e 1 Ty p e 2 Ty p e 3
FLT-CP-PLUS-3C-350 VAL-CP-3S-350 PT 2-PE/S-230AC/FM
2882653 2859521 2858357
Page 28 Page 40 Page 56
Two-stage protection for the power supply, type 1/2 combination based on varistor + type 3
TN-C-S
230/400 V AC
240/415 V AC
Type 1/2 Ty p e 3
VAL-MS-T1/T2 335/12.5/3+0-FM MNT-1 D
2800188 2882200
Page 34 Page 60
* F2 is not needed if F1 maximum backup fuse according to IEC
14 PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
L1 L1
F1 F1
F2*
L2 L2
L3 L3
N
PEN PE
F2*
For additional information, visit www.phoenixcontact.net/products
Three-stage protection for the power supply, type 1 and type 2 combined in a single device + type 3
TN-C-S
230/400 V AC
240/415 V AC
Ty p e 1 + 2 Ty p e 3
FLT-CP-3C-350 BT-1S-230AC/A
2859725 2803409
Page 36 Page 58
* F2 is not needed if F1 maximum backup fuse according to IEC
15PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
L1 L1
F1 F1
F2*
F2*
L2 L2
L3 L3
PEN PEN
Two-stage protection for the power supply, type 1 and type 2 installed separately
TN-C
400/690 V AC
554/960 V AC
Type 1 Type 2
PWT 100-800AC-FM VAL-MS 750/30/3+0-FM
2800531 2920272
Page 32 Page 51
* F2 is not needed if F1 maximum backup fuse according to IEC
16 PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
L1 L1
F1 F1
F2*
F2*
L2 L2
L3 L3
PE
L1 L1
F1 F1
F2*
F2*
L2 L2
L3 L3
PE
For additional information, visit www.phoenixcontact.net/products
Two-stage protection for the power supply, type 1 and type 2 installed separately
IT
500 V AC
Type 1 Type 2 **
PWT 100-800AC-FM VAL-MS 580/3+0-FM
2800531 2920447
Page 32 Page 42
Two-stage protection for the power supply, type 1 and type 2 installed separately
IT
690 V AC
Type 1 Type 2**
PWT 100-800AC-FM VAL-MS 750/30/3+0-FM
2800531 2920272
Page 32 Page 51
* F2 is not needed if F1 maximum backup fuse according to IEC
** Application only in IT systems supplied with a low voltage
17PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
135
81012
246
7911
135
81012
246
7911
135
81012
246
7911
24 V 24 V
L+
L-
0 V 0 V
PLC
6
IN OUT
81012
7911
81012
7911
81012
7911
24 V 24 V
L+
L-
0 V 0 V
PLC
6
IN OUT
IN OUT
L+
L-
PE
PLC
Protection of a binary signal input with actuator circuit, floating reference potential
E.g.,
24 V switched
Plug-in
Push-in connection
1 x PT-IQ-PTB-PT +
2 x PT-IQ-4X1+F-24DC-PT
Optional screw connection
1 x PT-IQ-PTB-UT +
2 x PT-IQ-4X1+F-24DC-UT
2801296 + 2801272 2800768 + 2800983
Page 74 Page 72
Protection of a binary signal input with actuator circuit, grounded reference potential
E.g.,
24 V switched
Plug-in
Screw connection
1 x PT-IQ-PTB-UT +
2 x PT-IQ-4X1-24DC-UT
Optional push-in connection
1 x PT-IQ-PTB-PT +
2 x PT-IQ-4X1-24DC-PT
2800768 + 2800982 2801296 + 2801271
Page 72 Page 74
Protection of a binary signal input with actuator circuit, common grounded reference potential (negative pole)
E.g.,
24 V switched
One-piece
Screw connection
TT-2/2-M-24DC
Optional
spring-cage connection
TT-ST-M-2/2-24DC
2920722 2858917
Page 94 Page 96
18 PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
IN OUT
L+
L-
PE
PLC
81012
7911
81012
7911
I
U
U
I
Power
PE
OUT IN IN OUT
5
5
I
U
U
I
Power
PE
OUT IN IN OUT
For additional information, visit www.phoenixcontact.net/products
Protection of a binary signal input with actuator circuit, common floating reference potential (negative pole)
E.g.,
24 V switched
One-piece
Spring-cage connection
TT-ST-M-2/2-24DC
Optional
screw connection
TT-2/2-M-24DC
2858917 2920722
Page 96 Page 94
Protection of a four-conductor measurement
E.g., temperature
measurement
Plug-in PT 4-24DC-ST + PT 4-BE PT 4-24DC-ST + PT 4-BE
2839240 + 2839402 2839240 + 2839402
Page 84 Page 84
Protection of a four-conductor measurement, for Ex and non-Ex applications
E.g., temperature
measurement
One-piece LIT 4-24 LIT 4-24
2804678 2804678
Page 92 Page 92
19PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
4...20 mA
PLC
4...20 mA
PE
OUT IN IN OUT
PLC
4...20 mA
PE
OUT IN IN OUT
4...20 mA
Protection of an analog measurement
0(4) ... 20 mA
0 ... 10 V
Plug-in
Push-in connection
1 x PT-IQ-PTB-PT +
2 x PT-IQ-1X2-24DC-PT
Optional screw connection
1 x PT-IQ-PTB-UT +
2 x PT-IQ-1X2-24DC-UT
2801296 + 2801255 2800768 + 2800976
Page 74 Page 72
Protection of an analog measurement
0(4) ... 20 mA
0 ... 10 V
One-piece
Screw connection
TT-2-PE-M-24DC
Optional
spring-cage connection
TT-ST-2-PE-24DC
2920641 2858904
Page 94 Page 96
Protection of an analog measurement, intrinsically safe circuits
0(4) ... 20 mA
0 ... 10 V
One-piece
Spring-cage connection
TT-ST-M-EX(I)-24DC
Optional
screw connection
TT-EX(I)-M-24DC
2859424 2803865
Page 96 Page 94
20 PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
PLC
4...20 mA
PE
IN OUT
4...20 mA
For additional information, visit www.phoenixcontact.net/products
Protection of an analog measurement, intrinsically safe circuits
0(4) ... 20 mA
0 ... 10 V
Plug-in PT 2XEX(I)-24DC-ST + PT 2XEX(I)-BE PT 2XEX(I)-24DC-ST + PT 2XEX(I)-BE
2838225 + 2839279 2838225 + 2839279
Page 87 Page 87
Protection of an analog measurement, intrinsically safe circuits
0(4) ... 20 mA
0 ... 10 V
One-piece S-PT-EX-24DC TT-ST-M-EX(I)- 24DC
2800034 2859424
Page 100 Page 96
Protection of an analog measurement, intrinsically safe circuits
0(4) ... 20 mA
0 ... 10 V
One-piece S-PT-EX(I)-24DC PT 2XEX(I)-24DC-ST + PT 2XEX(I)-BE
2880671 2838225 + 2839279
Page 100 Page 87
21PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
Protection of PROFIBUS DP
PT-IQ-PTB-UT + PT-IQ-5HF-12DC-UT
Optional
PT 5-HF-12DC-ST +
PT 2X2-BE
2800768 + 2800799 2838775 + 2839208
Page 78 Page 88
Protection of PROFIBUS PA
PT 2XEX(I)-24DC + PT 2XEX(I)-BE
2838225 + 2839279
Page 87
Protection of CAN bus/DeviceNet™
PT 5-HF-12DC-ST + PT 2X2-BE PT 2-PE/S-24AC/FM PT 3-HF-12DC-ST +
PT 1X2-BE
2838775 + 2839208 2800457 2858043 + 2856113
Page 88 Page 56 Page 88
22 PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
For additional information, visit www.phoenixcontact.net/products
Protection of an RS-485 interface
PT-IQ-PTB-PT + PT-IQ-5-HF-12DC-PT
Optional
PT 5-HF-12DC-ST +
PT 2X2-BE
2801296 + 2801293 2838775 + 2839208
Page 79 Page 88
Protection of an Ethernet interface (including PoE)
100Base-T
1000Base-T
10GBase-T
DT-LAN-CAT.6+
2881007
Page 114
Protection of a DSL interface
ADSL
HDSL
VDSL
PT 2-TELE MNT-TAE D/WH
2882828 2882394
Page 129 Page 130
23PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
IN OUT
Protection of video signals
C-UFB 5DC PT 3-HF-12DC-ST + PT 1X2-BE
2797858 2858043 + 2856113
Page 140 Page 116
Protection of the SAT antenna connection
C-SAT-BOX
2880561
Page 142
Protection of the cable TV connection
MNT-TV-SAT D
2882284
Page 143
24 PHOENIX CONTACT
Surge protection and interference filters
Selection guide and applications
26 PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit

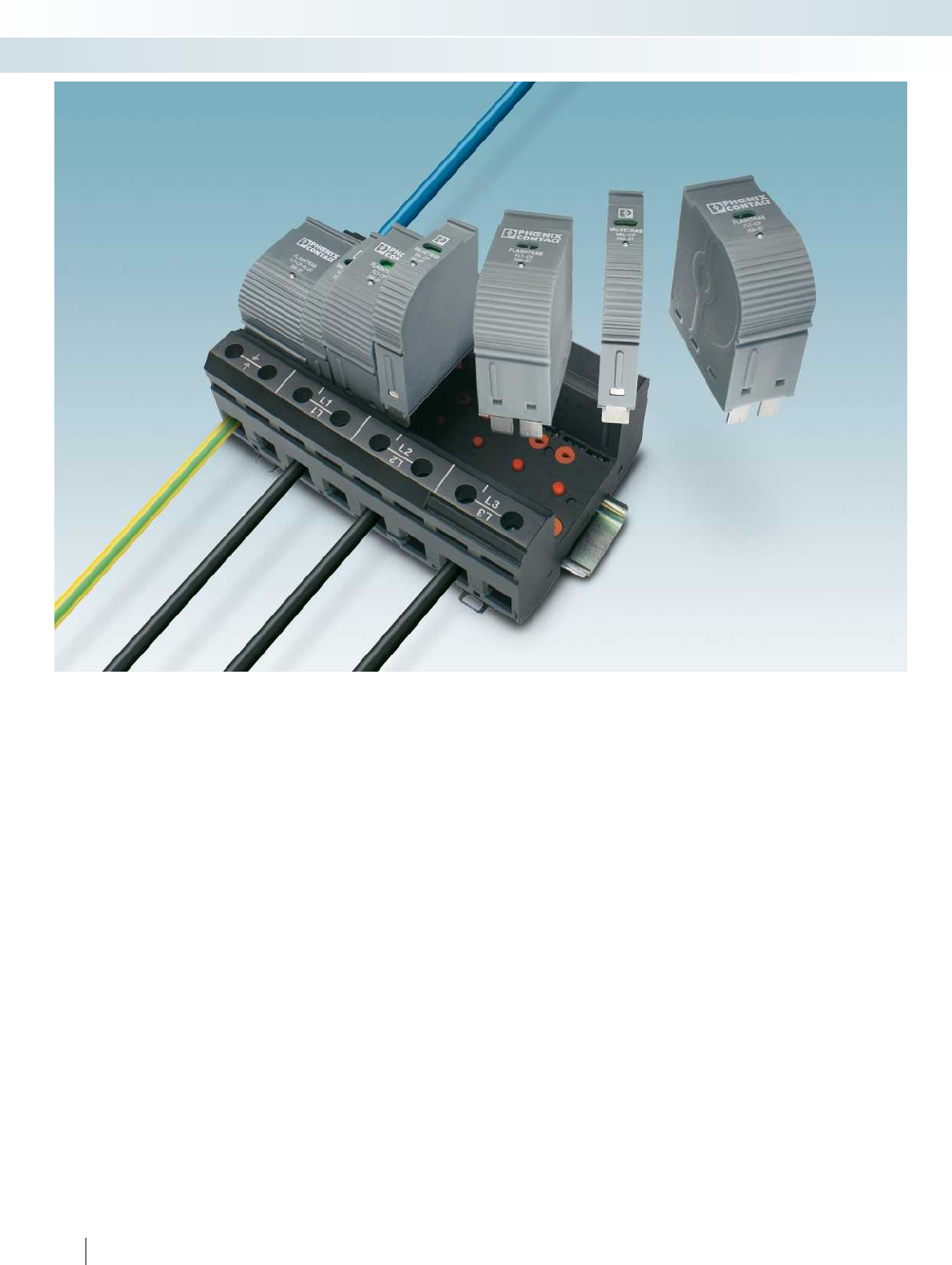

The complete system
The protective devices in the “compact”
range offer a consistent installation con-
cept. Uniform and high-capacity modules
are available for virtually all power supply
systems. Be it lightning arrester, surge ar-
rester or a combination of the two, the de-
sign will persuade you with its consistent
and universal application.
Worldwide use
The voltage fluctuations in power supplies
vary from country to country. The surge
protection also has to deal with these
short-term (temporary) voltage fluctua-
tions. Due to the high rated voltage of
350VAC, the arresters in the “compact”
range have no limitations and can be used in
systems upto240/415V.
FLASHTRAB compact PLUS
High-performance type 1 lightning arrest-
ers with low protection level based on spark
gap technology for power supply systems up
to 240/415 V.
FLASHTRABcompact
Combined lighting and surge arrester for
power supply systems up to 240/415 V.
VALVETRABco mpact
Space-saving surge arrester for all com-
mon power supply systems up to 240/415 V.
Combined solutions
The VALVETRAB compact type 2 surge
arresters, which are available as Combi-
RCD surge protection with residual current
device and Combi-MCB surge protection
with coordinated backup fuse, are equipped
with further functions.
Device protection in multiple versions
Type 3 device protection is designed to
provide protection for highly sensitive de-
vices. Depending on installation location,
the following protective devices are avail-
able, for example:
– For DIN rail mounting – PLUGTRAB PT
– For cable ducts – BLOCKTRAB
– Socket attachment plugs – MAINTRAB
For additional information, visit www.phoenixcontact.net/products
27PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit

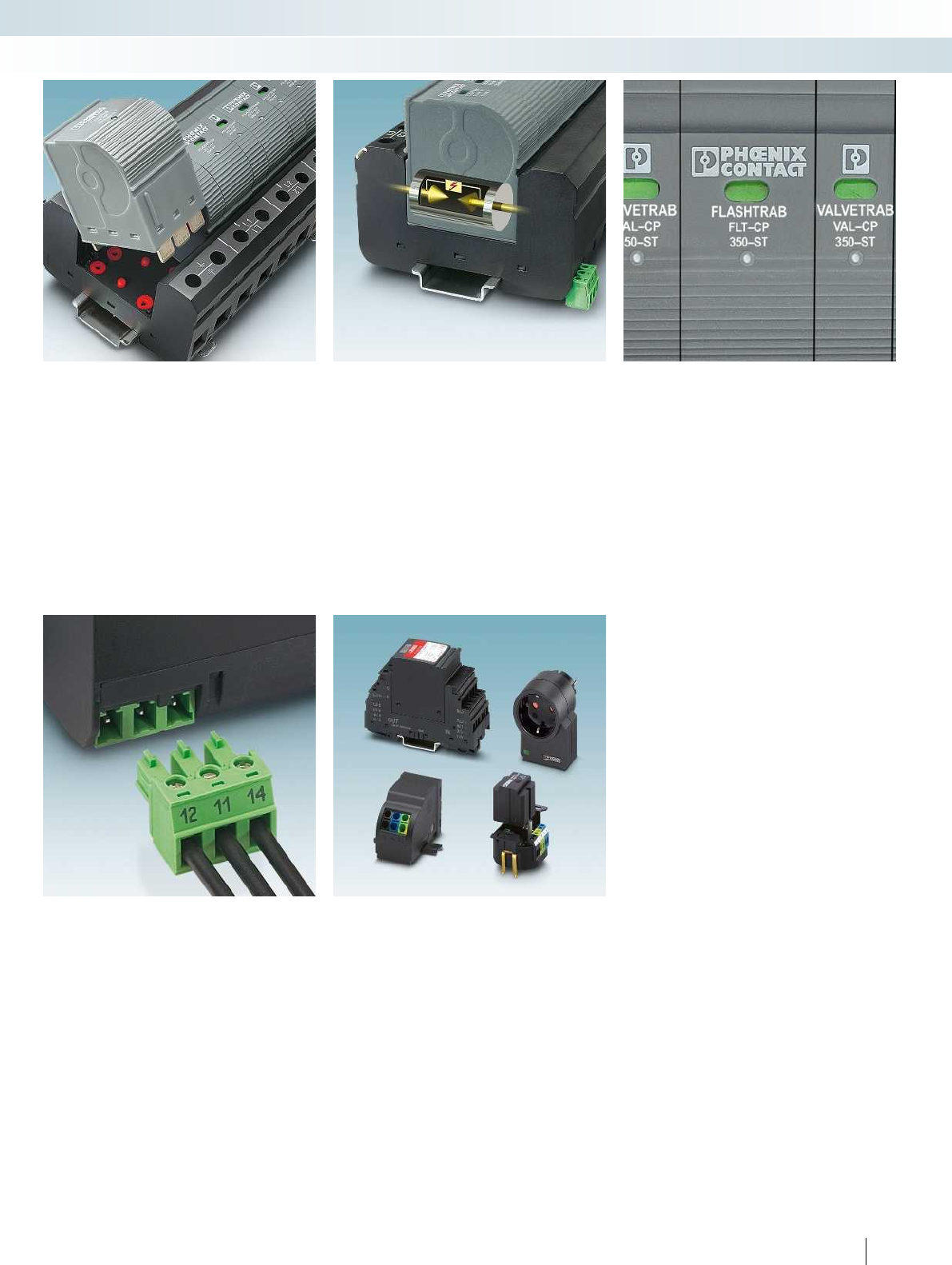

Plug-in to perfection
Universal plug-in capability ensures a high
degree of comfort, e.g., for insulation mea-
surements in the system. Instead of tamper-
ing with the installation, just pull out the
plug.
The symmetrical plug design facilitates
plugging in both directions within the base
element. These protective devices can be
installed in any control cabinet environment
thanks to this flexible installation direction.
Innovative technology
The high breaking capacity of the innova-
tive spark gaps also enables their use in low-
voltage high-current installations with
short-circuit currents of up to 50 kA. The
encapsulated lightning arresters are also
able to limit line follow currents so that
even small backup fuses are not affected.
Status at a glance
The mechanical status indicator provides
information locally at a glance.
Remote signaling
A common floating remote indication
contact enables remote signaling without
taking up extra space.
Different designs
Arresters in different designs are available
for the various areas of application.
N
PE L2
L1 L3
12 14
11
FM
PEN
L1 L3
L2
12 14
11
FM
Total width 142.8 mm Total width 106.9 mm
Technical data Technical data
Electrical data
IEC category / EN type I / T1 I / T1
Nominal voltage UN240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V A
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 350 V AC / 350 V AC / - - / - / 350 V AC
Lightning test curr. Iimp (10/350) µs
Peak value 100 kA 75 kA
Charge 50 As 37.5 As
Specific energy 2.50 MJ/Ω1.40 MJ/Ω
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 25 kA / 100 kA / - - / - / 75 kA (3L-PEN)
Follow current quenching capacity Ifi
L-N / N-PE / L-PEN 50 kA (264 V AC) / 100 A / - - / - / 50 kA (264 V AC) 50 kA (264 V AC) / 100 A / - - / - / 50 kA (264 V AC) 50 kA
Protection level UP
L-N / N-PE / L-PEN ≤ 1.5 kV / ≤ 1.5 kV / - - / - / ≤ 1.5 kV
Response time tA
L-N / N-PE / L-PEN ≤ 100 ns / ≤ 100 ns / - - / - / ≤ 100 ns
Backup fuse max. in acc. with IEC 315 A (gL/gG) 315 A (gL/gG)
Immunity to short-circuiting (with max. backup fuse) IP50 kA 50 kA
General data
Dimensions W / H / D 142.8 mm / 97 mm / 71.5 mm 106.9 mm / 95.8 mm / 70 mm 106.9 mm / 95.8 mm / 70 mm 71.6 mm / 95.8 mm / 70 mm 71.6
Connection data solid / stranded / AWG 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 3
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 / IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 / IEC 61643-1 / EN 61643-
UL 1449 UL 1449
Remote indication contact PDT PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm²
Max. operating voltage 250 V AC / 125 V DC 250 V AC / 125 V DC
Max. operating current 1 A AC / 200 mA DC 1 A AC / 200 mA DC
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
FLASHTRAB compact PLUS
FLT-CP-PLUS-3S-350 2882640 1FLT-CP-PLUS-3C-350 2882653 1
Accessories Accessories
Replacement connector
L-N / L-PEN FLT-CP-PLUS-350-ST 2859913 10 FLT-CP-PLUS-350-ST 2859913 10
N-PE FLT-CP-N/PE-350-ST 2859686 10
Labeling material ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
28 PHOENIX CONTACT
– Seamless pluggability (even for N/PE
spark gap)
– Thermal disconnect device for each indi-
vidual connector
– Optical, mechanical status indication for
the individual arresters
– With floating remote indication contact
– Connectors can be checked with
CHECKMASTER
– High continuous voltage of 350VAC for
230/400VAC networks with high volt-
age fluctuations
Notes:
For certifications, see page 154
Type 1 lightning arresters
FLASHTRAB compact PLUS
Surge protection and interference filters
Surge protection for the power supply unit
5-conductor system; L1, L2, L3, N, PE 4-conductor system; L1, L2, L3, PEN 4-conductor system; L1, L2, N, PE 3-conductor system; L1
H
W
D
H
W
D
N
PE L2
L1
12 14
11
FM
PEN
L1 L2
12 14
11
FM
N
PE L1
12 14
11
FM
For additional information, visit www.phoenixcontact.net/products
Total width 106.9 mm Total width 71.6 mm Total width 71.6 mm
Technical data Technical data Technical data
I / T1 I / T1 I / T1
240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC)
350 V AC / 350 V AC / - - / - / 350 V AC 350 V AC / 350 V AC / -
75 kA 50 kA 50 kA
37.5 As 25 As 25 As
1.40 MJ/Ω625.00 kJ/Ω625.00 kJ/Ω
25 kA / 100 kA / - - / - / 25 kA 25 kA / 100 kA / -
L-N / N-PE / L-PEN 50 kA (264 V AC) / 100 A / - - / - / 50 kA (264 V AC) 50 kA (264 V AC) / 100 A / - - / - / 50 kA (264 V AC) 50 kA (264 V AC) / 100 A / -
≤ 1.5 kV / ≤ 1.5 kV / - - / - / ≤ 1.5 kV ≤ 1.5 kV / ≤ 1.5 kV / -
≤ 100 ns / ≤ 100 ns / - - / - / ≤ 100 ns ≤ 100 ns / ≤ 100 ns / -
315 A (gL/gG) 315 A (gL/gG) 315 A (gL/gG)
50 kA 50 kA 50 kA
Dimensions W / H / D 142.8 mm / 97 mm / 71.5 mm 106.9 mm / 95.8 mm / 70 mm 106.9 mm / 95.8 mm / 70 mm 71.6 mm / 95.8 mm / 70 mm 71.6 mm / 95.8 mm / 70 mm
Connection data solid / stranded / AWG 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2
-40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
V0 V0 V0
Test standards IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 / IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 / IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 / IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 / IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 /
UL 1449 UL 1449 UL 1449
PDT PDT PDT
6 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC / 125 V DC 250 V AC / 125 V DC 250 V AC / 125 V DC
1 A AC / 200 mA DC 1 A AC / 200 mA DC 1 A AC / 200 mA DC
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
FLT-CP-PLUS-2S-350 2882666 1FLT-CP-PLUS-2C-350 2882679 1FLT-CP-PLUS-1S-350 2882682 1
Accessories Accessories Accessories
FLT-CP-PLUS-350-ST 2859913 10 FLT-CP-PLUS-350-ST 2859913 10 FLT-CP-PLUS-350-ST 2859913 10
FLT-CP-N/PE-350-ST 2859686 10 FLT-CP-N/PE-350-ST 2859686 10
ZBN 18 ..., see page 63 ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
29PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
L3, PEN 4-conductor system; L1, L2, N, PE 3-conductor system; L1, L2, PEN 3-conductor system; L, N, PE
H
W
D
H
W
D
PEN
L1
12 14
11
FM
N
PE
12 14
11
FM
Total width 35.8 mm Total width 35.8 mm
Technical data Technical data
Electrical data
IEC category / EN type I / T1 I / T1
Nominal voltage UN240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (N-PE)
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 350 V AC / - / 350 V AC - / 350 V AC / -
Lightning test curr. Iimp (10/350) µs
Peak value 25 kA 100 kA
Charge 12.5 As 50 As
Specific energy 160.00 kJ/Ω2.50 MJ/Ω
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 25 kA / - / 25 kA - / 100 kA / -
Follow current quenching capacity Ifi
L-N / N-PE / L-PEN 50 kA (264 V AC) / - / 50 kA (264 V AC) - / 100 A / -
Protection level UP
L-N / N-PE / L-PEN ≤ 1.5 kV / - / ≤ 1.5 kV - / ≤ 1.5 kV / -
Response time tA
L-N / N-PE / L-PEN - / - / ≤ 100 ns - / ≤ 100 ns / -
Backup fuse max. in acc. with IEC 315 A (gL/gG) -
Immunity to short-circuiting (with max. backup fuse) IP50 kA 25 kA
General data
Dimensions W / H / D 35.8 mm / 95.8 mm / 70 mm 35.8 mm / 95.8 mm / 70 mm
Connection data solid / stranded / AWG 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 / IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 /
UL 1449 UL 1449
Remote indication contact PDT PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
Max. operating voltage 250 V AC / 125 V DC 250 V AC / 125 V DC
Max. operating current 1 A AC / 200 mA DC 1 A AC / 200 mA DC
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
FLASHTRAB compact PLUS
FLT-CP-PLUS-1C-350 2882695 1
FLASHTRAB compact
FLT-CP-N/PE-350 2859754 1
Accessories Accessories
Replacement connector
L-N / L-PEN FLT-CP-PLUS-350-ST 2859913 10
N-PE FLT-CP-N/PE-350-ST 2859686 10
Labeling material ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
30 PHOENIX CONTACT
– Seamless pluggability (even for N/PE
spark gap)
– Thermal disconnect device for each indi-
vidual connector
– Optical, mechanical status indication for
the individual arresters
– With floating remote indication contact
– Connectors can be checked with
CHECKMASTER
– High continuous voltage of 350VAC for
230/400VAC networks with high volt-
age fluctuations
Notes:
For certifications, see page 154
H
W
D
H
W
D
Type 1 lightning arresters
FLASHTRAB compact PLUS
Surge protection and interference filters
Surge protection for the power supply unit
2-conductor system; L, PEN N-PE spark gap,
for Lightning Protection Level 1
L/N( ) L/N( )
L/N ( ) L/N ( )
For additional information, visit www.phoenixcontact.net/products
Total width 35.5 mm Total width 35.8 mm
Technical data Technical data
Electrical data ... 2.5 ... 3.0 ... 1.5
IEC category / EN type I / T1 I / T1 I / T1
Nominal voltage UN230 V AC (400 V AC) 230 V AC (400 V AC) 230 V AC (N-PE)
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 440 V AC / - / 440 V AC 440 V AC / - / 440 V AC - / 260 V AC / -
Lightning test curr. Iimp (10/350) µs
Peak value 50 kA 50 kA 100 kA
Charge 25 As 25 As 50 As
Specific energy 625.00 kJ/Ω625.00 kJ/Ω2.50 MJ/Ω (N-PE)
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 50 kA / - / 50 kA 50 kA / - / - - / 100 kA / -
Protection level UP
L-N / N-PE / L-PEN ≤ 2.5 kV / - / ≤ 2.5 kV ≤ 3 kV / - / ≤ 3 kV - / ≤ 1.5 kV / -
Response time tA
L-N / N-PE / L-PEN ≤ 100 ns / - / ≤ 100 ns ≤ 100 ns / - / ≤ 100 ns - / ≤ 100 ns / -
Backup fuse max. in acc. with IEC 500 A (NH-gL) -
Immunity to short-circuiting (with max. backup fuse) IP25 kA (440 V AC) -
General data
Dimensions W / H / D 35.5 mm / 150 mm / 80.5 mm 35.8 mm / 95.8 mm / 70 mm
Connection data solid / stranded / AWG 10 ... 50 mm² / 16 ... 35 mm² / 6 - 1 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2
Temperature range -40 °C ... 85 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / DIN EN 61643-11 / DIN EN 61643-11/A11 IEC 61643-1 / EN 61643-11 / EN 61643-11/A11
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
FLASHTRAB PLUS CTRL
Without status indicator FLT-PLUS CTRL-2.5 2800121 1
FLT-PLUS CTRL-3.0 2800168 1
FLASHTRAB PLUS CTRL
With status indicator FLT-PLUS CTRL-2.5/I 2800122 1
FLT-PLUS CTRL-3.0/I 2800170 1
FLASHTRAB
FLT 100 N/PE-1.5 2800303 1
Accessories Accessories
Labeling material ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
Wiring bridge MPB ..., see page 61 MPB ..., see page 61
31PHOENIX CONTACT
– 1-channel
– Triggered
– High discharge capacity
– Good follow current quenching capacity
with higher rated voltage
– Direct parallel connection with type 2 ar-
resters supported
Notes:
For certifications, see page 154
H
W
D
H
W
D
Type 1 lightning arresters
FLASHTRAB
Surge protection and interference filters
Surge protection for the power supply unit
2.5 kV/3 kV protection level N-PE spark gap, single-channel, plug-in
12
11
FM
21
22
PE / PEN /
Total width 56 mm
Technical data
Electrical data
IEC category I, II / T1, T2
Nominal voltage UN690 V AC
Maximum continuous operating voltage UC800 V AC
TOV behavior at UT1500 V AC (5 sec.)
Nominal load current IL150 A (Serial through wiring with 50 mm2) 150 A (Serial through wiring with 50 mm
Nominal discharge surge current In (8/20) µs 35 kA
Max. discharge surge current Imax (8/20) µs 100 kA
Lightning test current Iimp (10/350) µs
Peak value Iimp 35 kA
Protection level UP≤ 4.5 kV
Max. required backup fuse with branch wiring 400 A (gG; 2 x 50 mm2)
800 A (aR)
Max. required backup fuse with V-type through wiring 150 A (gG; ≥ 35 mm2)
Short-circuit resistance IP with max. backup fuse (effective) 50 kA
General data
Dimensions W / H / D 56 mm / - / 191 mm
Ambient temperature (operation) -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Housing material PA / PC
Inflammability class in acc. with UL 94 V-2
Test standards IEC 61643-11 / EN 61643-11/A11 IEC 61643-11 / EN 61643-11/A11
Conductor
Connection name Double terminal point
Connection method Screw connection
Screw thread M6
Connection data solid / stranded / AWG 16 ... 50 mm² / 16 ... 50 mm² / 6 - 1/0 16 ... 50 mm² / 16 ... 50 mm² / 6 - 1/0
Protective conductor connection
Connection name PE conductor connection PE conductor connection
Connection method Ring cable lug
Screw thread M10
Connection data solid / stranded / AWG 16 ... 95 mm² / 16 ... 95 mm² / 6 - 3/0 16 ... 95 mm² / 16 ... 95 mm² / 6 - 3/0
Remote indication contact N/C contact 1-pos.
Connection data solid / stranded / AWG 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 12
Max. operating voltage 30 V AC / 30 V DC
Max. operating current 1.5 A AC / 1.5 A DC
Ordering data
Description Type Order No. Pcs. /
Pkt.
POWERTRAB
PWT 35-800AC-FM 2800419 1
Mounting set, comprising: 1x PE aluminum rail (147.5 x 30 x 3 mm),
3x M10x20 hexagon-head screw, 3x M10 hexagonal nut,
3x M10 washer, 3x M10 spring washer, 1x installation instructions
32 PHOENIX CONTACT
Type 1 lightning arresters
POWERTRAB
– Type 1 arrester based on a varistor
– Meets Lightning Protection Level I
– Universal solution for various network
types:
500 ... 690 VAC IT systems
554/960 VAC TN-C systems
400/690 VAC TN-C systems
– Multi-stage status monitoring via remote
indication contact
– Local optical status indication
– Encapsulated, non-extinguishing
– Free of leakage current/noline follow cur-
rent
– Very high TOV resistance
– Meets installation requirements according
to CLC/TS 50539-22
– Use in harsh industrial environments
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
Notes:
For certifications, see page 154
Single-channel 4-conductor system; L1, L2, L3, PE/PEN Mounting set
PE / PEN /
12
11
FM
21
22
L1 L2 L3
For additional information, visit www.phoenixcontact.net/products
Total width 176 mm
Technical data
I, II / T1, T2
690 V AC
800 V AC
1500 V AC (5 sec.)
) 150 A (Serial through wiring with 50 mm2)
35 kA (per position)
100 kA (per position)
35 kA (per position)
≤ 4.5 kV
400 A (gG; 2 x 50 mm2)
800 A (aR)
150 A (gG; ≥ 35 mm2)
50 kA
176 mm / - / 191 mm
-40 °C ... 80 °C
IP20
PA / PC
V-2
Test standards IEC 61643-11 / EN 61643-11/A11 IEC 61643-11 / EN 61643-11/A11
Double terminal point
Screw connection
M6
Connection data solid / stranded / AWG 16 ... 50 mm² / 16 ... 50 mm² / 6 - 1/0 16 ... 50 mm² / 16 ... 50 mm² / 6 - 1/0
Connection name PE conductor connection PE conductor connection
Ring cable lug
M10
Connection data solid / stranded / AWG 16 ... 95 mm² / 16 ... 95 mm² / 6 - 3/0 16 ... 95 mm² / 16 ... 95 mm² / 6 - 3/0
N/C contact 1-pos.
Connection data solid / stranded / AWG 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 12
30 V AC / 30 V DC
1.5 A AC / 1.5 A DC
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PWT 100-800AC-FM 2800531 1
PWT CCT-SET 2800532 1
33PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
Single-channel 4-conductor system; L1, L2, L3, PE/PEN Mounting set
12 14
11
FM
NL1 L2 L3
12 14
11
FM
NL1 L2 L3
Total width 71.2 mm Total width 71.2 mm
Technical data Technical data
Electrical data ...335 ...175 ...335
IEC category / EN type I, II / T1, T2 I, II / T1, T2 I, II / T1, T2
Nominal voltage UN240 V AC (230/400 V AC ...
240/415 V AC)
120 V AC 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ...
Maximum continuous operating voltage UC
L-N / L-PE / N-PE / L-PEN 335 V AC / - / 264 V AC / - 175 V AC / - / 264 V AC / - - / 335 V AC / 335 V AC / - - / - / - / 335 V AC -
Lightning test curr. Iimp (10/350) µs
Peak value 50 kA 50 kA 50 kA
Charge 25 As 25 As 25 As
Specific energy 625.00 kJ/Ω625.00 kJ/Ω625.00 kJ/Ω
Follow current quenching capacity Ifi
L-N / L-PE / N-PE / L-PEN - / - / 100 A (264 V AC) / - - / - / 100 A (264 V AC) / - -
Nominal discharge surge current In (8/20) µs
L-N / L-PE / N-PE / L-PEN 12.5 kA / - / 50 kA / - 12.5 kA / - / 50 kA / - - / 37.5 kA (3 x L) / 12.5 kA / - - / - / - / 37.5 kA (3
Max. discharge surge current Imax. (8/20) µs
L-N / L-PE / N-PE / L-PEN 50 kA / - / 50 kA / - 50 kA / - / 50 kA / - - / 150 kA (3 x L) / 50 kA / - - / - / - / 150 kA (3 x L) - /
Protection level UP
L-N / L-PE / N-PE / L-PEN ≤ 1.2 kV / ≤ 2 kV / ≤ 1.7 kV / - ≤ 0.8 kV / ≤ 2 kV / ≤ 1.7 kV / - - / ≤ 1.2 kV / ≤ 1.2 kV / - - / - / - /
Backup fuse max. in acc. with IEC 160 A (gL/gG) 160 A (gL/gG) 160 A (gL/gG)
General data
Dimensions W / H / D 71.2 mm / 99 mm / 77.5 mm 71.2 mm / 99 mm / 77.5 mm
Connection data solid / stranded / AWG 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 3
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11
Remote indication contact PDT, 1-pos. PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm²
Max. operating voltage 250 V AC / 30 V DC 250 V AC
Max. operating current 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5
Ordering data Ordering data
Description UCType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VALVETRAB-MS, varistor-based lightning arrester
with remote indication contact 335 V AC VAL-MS-T1/T2 335/12.5/3+1-FM 2800183 1VAL-MS-T1/T2 335/12.5/4+0-FM 2800644 1
without remote indication contact 335 V AC VAL-MS-T1/T2 335/12.5/3+1 2800184 1VAL-MS-T1/T2 335/12.5/4+0 2800645 1
with remote indication contact 175 V AC VAL-MS-T1/T2 175/12.5/3+1-FM 2800670 1
without remote indication contact 175 V AC VAL-MS-T1/T2 175/12.5/3+1 2800671 1
with remote indication contact 75 V AC
without remote indication contact 75 V AC
Accessories Accessories
Replacement connector
L-N / L-PEN VAL-MS-T1/T2 335/12.5 ST 2800190 10 VAL-MS-T1/T2 335/12.5 ST 2800190 10
L-N / L-PEN VAL-MS-T1/T2 175/12.5 ST 2800676 10
L-N / L-PEN
N-PE F-MS-T1/T2 50 ST 2800191 10
Labeling material ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
34 PHOENIX CONTACT
– Seamless pluggability (even for N/PE
spark gap)
– Secure hold of connectors in the event of
high lightning current loads and strong vi-
bration thanks to new latching
– Thermal disconnect device for each indi-
vidual connector
– Optical, mechanical status indication for
the individual arresters
– With or without floating remote indica-
tion contact
– Mechanical keying of all slots
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
Type 1/2 lightning arrester/surge
arrester
VAL -MS -T 1/T2
Surge protection and interference filters
Surge protection for the power supply unit
5-conductor system;
L1, L2, L3, N, PE (3+1 circuit)
5-conductor system;
L1, L2, L3, N, PE (4+0 circuit)
H
W
D
H
W
D
PENPEN
L1 L2 L3
12 14
11
FM
12 14
11
FM
NL
12 14
11
FM
N / PEN
L
For additional information, visit www.phoenixcontact.net/products
Total width 53.4 mm Total width 35.6 mm Total width 17.5 mm
Technical data Technical data Technical data
...335 ...175 ...335 ...175 ...335 ...175 ... 48
I, II / T1, T2 I, II / T1, T2 I, II / T1, T2 I, II / T1, T2 I, II / T1, T2 I, II / T1, T2 I, II / T1, T2
120 V AC 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ...
240/415 V AC)
120 V AC 240 V AC
(230 V AC ... 240 V AC)
120 V AC 240 V AC 120 V AC 60 V AC/DC
L-N / L-PE / N-PE / L-PEN 335 V AC / - / 264 V AC / - 175 V AC / - / 264 V AC / - - / 335 V AC / 335 V AC / - - / - / - / 335 V AC - / - / - / 175 V AC 335 V AC / - / 264 V AC / - 175 V AC / - / 264 V AC / - 335 V AC / - / - / - 175 V AC / - / - / - 75 V AC / - / - / -
37.5 kA 37.5 kA 25 kA 25 kA 12.5 kA 12.5 kA 12.5 kA
18.75 As 18.75 As 12.5 As 12.5 As 6.25 As 6.25 As 6.25 As
352.00 kJ/Ω352.00 kJ/Ω160.00 kJ/Ω160.00 kJ/Ω39.00 kJ/Ω39.00 kJ/Ω39.00 kJ/Ω
- - - / - / 100 A (264 V AC) / - - / - / 100 A (264 V AC) / - - - -
L-N / L-PE / N-PE / L-PEN 12.5 kA / - / 50 kA / - 12.5 kA / - / 50 kA / - - / 37.5 kA (3 x L) / 12.5 kA / - - / - / - / 37.5 kA (3 x L) - / - / - / 37.5 kA (3 x L) 12.5 kA / - / 50 kA / - 12.5 kA / - / 50 kA / - / - / - / 12.5 kA / - / - / 12.5 kA - / - / - / 12.5 kA
L-N / L-PE / N-PE / L-PEN 50 kA / - / 50 kA / - 50 kA / - / 50 kA / - - / 150 kA (3 x L) / 50 kA / - - / - / - / 150 kA (3 x L) - / - / - / 150 kA (3 x L) 50 kA / - / 50 kA / - 50 kA / - / 50 kA / - / - / - / 50 kA / - / - / 50 kA - / - / - / 30 kA
1.2 kV / - - / - / - / ≤ 1.2 kV - / - / - / ≤ 0.7 kV ≤ 1.2 kV / ≤ 2 kV / ≤ 1.7 kV / - ≤ 0.8 kV / ≤ 2 kV / ≤ 1.7 kV / - ≤ 1.2 kV / - / - / - ≤ 0.8 kV / - / - / - ≤ 0.4 kV / - / - / -
160 A (gL/gG) 160 A (gL/gG) 160 A (gL/gG) 160 A (gL/gG) 160 A (gL/gG) 160 A (gL/gG) 160 A (gL/gG)
53.4 mm / 99 mm / 77.5 mm 35.6 mm / 99 mm / 77.5 mm 17.5 mm / 99 mm / 77.5 mm
Connection data solid / stranded / AWG 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2
-40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
V0 V0 V0
IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11
PDT, 1-pos. PDT, 1-pos. PDT, 1-pos.
6 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC / 30 V DC 250 V AC / 30 V DC 250 V AC
Max. operating current 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC / 1.5 A DC (30 V DC)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VAL-MS-T1/T2 335/12.5/3+0-FM 2800188 1VAL-MS-T1/T2 335/12.5/1+1-FM 2800186 1VAL-MS-T1/T2 335/12.5/1+0-FM 2801042 1
VAL-MS-T1/T2 335/12.5/3+0 2800189 1VAL-MS-T1/T2 335/12.5/1+1 2800187 1VAL-MS-T1/T2 335/12.5/1+0 2801041 1
VAL-MS-T1/T2 175/12.5/3+0-FM 2800672 1VAL-MS-T1/T2 175/12.5/1+1-FM 2800674 1VAL-MS-T1/T2 175/12.5/1+0-FM 2801044 1
VAL-MS-T1/T2 175/12.5/3+0 2800673 1VAL-MS-T1/T2 175/12.5/1+1 2800675 1VAL-MS-T1/T2 175/12.5/1+0 2801043 1
VAL-MS-T1/T2 48/12.5/1+0-FM 2801240 1
VAL-MS-T1/T2 48/12.5/1+0 2801241 1
Accessories Accessories Accessories
VAL-MS-T1/T2 335/12.5 ST 2800190 10 VAL-MS-T1/T2 335/12.5 ST 2800190 10 VAL-MS-T1/T2 335/12.5 ST 2800190 10
VAL-MS-T1/T2 175/12.5 ST 2800676 10 VAL-MS-T1/T2 175/12.5 ST 2800676 10 VAL-MS-T1/T2 175/12.5 ST 2800676 10
VAL-MS-T1/T2 48/12.5 ST 2801242 10
F-MS-T1/T2 50 ST 2800191 10
ZBN 18 ..., see page 63 ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
35PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
4-conductor system; L1, L2, L3, PEN 3-conductor system; L, N, PE 2-conductor system; L, N/PEN
H
W
D
H
W
D
N
PE
L2L1 L3
12 14
11
FM
PEN
L1 L2 L3
12 14
11
FM
Total width 142.8 mm Total width 106.9 mm
Technical data Technical data
Electrical data
IEC category / EN type I + II / T1 + T2 I + II / T1 + T2
Nominal voltage UN240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V A
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 350 V AC / 350 V AC / - - / - / 350 V AC
Lightning test curr. Iimp (10/350) µs
Peak value 100 kA 75 kA (3-pos.)
Charge 50 As 37.5 As
Specific energy 2.50 MJ/Ω1.40 MJ/Ω
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 25 kA / 100 kA / - - / - / 75 kA (all channels) 25 kA / 100 kA / - - / - / 50 kA (all channels) 25 kA / 100 kA /
Follow current quenching capacity Ifi
L-N / N-PE / L-PEN 25 kA (264 V AC) / 100 A / - - / - / 25 kA (264 V AC) 25 kA (264 V AC) / 100 A / - - / - / 25 kA (264 V AC) 25 kA
Protection level UP
L-N / N-PE / L-PEN ≤ 1.5 kV / ≤ 1.5 kV / - - / - / ≤ 1.5 kV
Response time tA
L-N / N-PE / L-PEN ≤ 25 ns / ≤ 100 ns / - - / - / ≤ 25 ns
Backup fuse max. in acc. with IEC 315 A (gL/gG) 315 A (gL / gG)
Immunity to short-circuiting (with max. backup fuse) IP25 kA 25 kA
General data
Dimensions W / H / D 142.8 mm / 95.8 mm / 70 mm 106.9 mm / 95.8 mm / 70 mm 106.9 mm / 95.8 mm / 70 mm 71.6 mm / 95.8 mm / 70 mm 71.6
Connection data solid / stranded / AWG 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 3
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / EN 61643-11 / UL 1449 IEC 61643-1 / EN 61643-11 / UL 1449 IEC 61643-1 / EN 61643-11 / UL 1449 IEC 6164
Remote indication contact PDT PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm²
Max. operating voltage 250 V AC / 125 V DC 250 V AC / 125 V DC
Max. operating current 1 A AC / 200 mA DC 1 A AC / 200 mA DC
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
FLASHTRAB compact
FLT-CP-3S-350 2859712 1FLT-CP-3C-350 2859725 1
Accessories Accessories
Replacement connector
L-N / L-PEN FLT-CP-350-ST 2881887 10 FLT-CP-350-ST 2881887 10
N-PE FLT-CP-N/PE-350-ST 2859686 10
L-N / L-PEN VAL-CP-350-ST 2859602 10 VAL-CP-350-ST 2859602 10
Labeling material ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
36 PHOENIX CONTACT
– Seamless pluggability (even for N/PE
spark gap)
– Thermal disconnect device for each indi-
vidual connector
– Optical, mechanical status indication for
the individual arresters
– With floating remote indication contact
– Connectors can be checked with
CHECKMASTER
– High continuous voltage of 350VAC for
230/400VAC networks with high volt-
age fluctuations
Notes:
For certifications, see page 154
Type 1+2 lightning/surge arrester
combination
FLASHTRAB compact
Surge protection and interference filters
Surge protection for the power supply unit
5-conductor system; L1, L2, L3, N, PE 4-conductor system; L1, L2, L3, PEN 4-conductor system; L1, L2, N, PE 3-conductor system; L1
H
W
D
H
W
D
N
PE
L1 L2
12 14
11
FM
PEN
L1 L2
12 14
11
FM
N
PE L1
12 14
11
FM
For additional information, visit www.phoenixcontact.net/products
Total width 106.9 mm Total width 71.6 mm Total width 71.6 mm
Technical data Technical data Technical data
I + II / T1 + T2 I + II / T1 + T2 I + II / T1 + T2
240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230 V AC ... 240 V AC)
350 V AC / 350 V AC / - - / - / 350 V AC 350 V AC / 350 V AC / -
75 kA 50 kA (2-pos.) 50 kA
37.5 As 25 As 25 As
1.40 MJ/Ω625.00 kJ/Ω625.00 kJ/Ω
L-N / N-PE / L-PEN 25 kA / 100 kA / - - / - / 75 kA (all channels) 25 kA / 100 kA / - - / - / 50 kA (all channels) 25 kA / 100 kA / -
L-N / N-PE / L-PEN 25 kA (264 V AC) / 100 A / - - / - / 25 kA (264 V AC) 25 kA (264 V AC) / 100 A / - - / - / 25 kA (264 V AC) 25 kA (264 V AC) / 100 A / -
≤ 1.5 kV / ≤ 1.5 kV / - - / - / ≤ 1.5 kV ≤ 1.5 kV / ≤ 1.5 kV / -
≤ 25 ns / ≤ 100 ns / - - / - / ≤ 25 ns ≤ 25 ns / ≤ 100 ns / -
315 A (gL/gG) 315 A (gL / gG) 315 A (gL/gG)
25 kA 25 kA 25 kA
Dimensions W / H / D 142.8 mm / 95.8 mm / 70 mm 106.9 mm / 95.8 mm / 70 mm 106.9 mm / 95.8 mm / 70 mm 71.6 mm / 95.8 mm / 70 mm 71.6 mm / 95.8 mm / 70 mm
Connection data solid / stranded / AWG 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2
-40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
V0 V0 V0
Test standards IEC 61643-1 / EN 61643-11 / UL 1449 IEC 61643-1 / EN 61643-11 / UL 1449 IEC 61643-1 / EN 61643-11 / UL 1449 IEC 61643-1 / EN 61643-11 / UL 1449 IEC 61643-1 / EN 61643-11 / UL 1449
PDT PDT PDT
6 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC / 125 V DC 250 V AC / 125 V DC 250 V AC / 125 V DC
1 A AC / 200 mA DC 1 A AC / 200 mA DC 1 A AC / 200 mA DC
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
FLT-CP-2S-350 2859767 1FLT-CP-2C-350 2859770 1FLT-CP-1S-350 2859738 1
Accessories Accessories Accessories
FLT-CP-350-ST 2881887 10 FLT-CP-350-ST 2881887 10 FLT-CP-350-ST 2881887 10
FLT-CP-N/PE-350-ST 2859686 10 FLT-CP-N/PE-350-ST 2859686 10
VAL-CP-350-ST 2859602 10 VAL-CP-350-ST 2859602 10 VAL-CP-350-ST 2859602 10
ZBN 18 ..., see page 63 ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
37PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
L3, PEN 4-conductor system; L1, L2, N, PE 3-conductor system; L1, L2, PEN 3-conductor system; L, N, PE
H
W
D
H
W
D
PEN
L1
12 14
11
FM
Total width 35.8 mm
Technical data
Electrical data
IEC category / EN type I + II / T1 + T2
Nominal voltage UN240 V AC (230 V AC ... 240 V AC) 240 V AC (N-PE)
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 350 V AC / - / 350 V AC - / 350 V AC / -
Lightning test curr. Iimp (10/350) µs
Peak value 25 kA
Charge 12.5 As
Specific energy 160.00 kJ/Ω
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 25 kA / - / 25 kA
Follow current quenching capacity Ifi
L-N / N-PE / L-PEN 25 kA (264 V AC) / - / 25 kA (264 V AC) - / 100 A / -
Protection level UP
L-N / N-PE / L-PEN ≤ 1.5 kV / - / ≤ 1.5 kV
Response time tA
L-N / N-PE / L-PEN ≤ 25 ns / - / ≤ 25 ns
Backup fuse max. in acc. with IEC 315 A (gL / gG)
Immunity to short-circuiting (with max. backup fuse) IP25 kA
General data
Dimensions W / H / D 35.8 mm / 95.8 mm / 70 mm 35.8 mm / 95.8 mm / 70 mm
Connection data solid / stranded / AWG 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2
Temperature range -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-1 / EN 61643-11 / UL 1449 IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 /
Remote indication contact PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 1
Max. operating voltage 250 V AC / 125 V DC
Max. operating current 1 A AC / 200 mA DC
Ordering data
Description Type Order No. Pcs. /
Pkt.
FLASHTRAB compact
1-pos. FLT-CP-1C-350 2859741 1
Accessories
Replacement connector
L-N / L-PEN FLT-CP-350-ST 2881887 10
N-PE
L-N / L-PEN VAL-CP-350-ST 2859602 10
Labeling material ZBN 18 ..., see page 63
38 PHOENIX CONTACT
Type 1+2 lightning/surge arrester
combination
FLASHTRAB compact
– Seamless pluggability (even for N/PE
spark gap)
– Thermal disconnect device for each indi-
vidual connector
– Optical, mechanical status indication for
the individual arresters
– With floating remote indication contact
– Connectors can be checked with
CHECKMASTER
– High continuous voltage of 350VAC for
230/400VAC networks with high volt-
age fluctuations
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
Notes:
For certifications, see page 154
2-conductor system; L, PEN N-PE spark gap,
N
PE
12 14
11
FM
For additional information, visit www.phoenixcontact.net/products
Total width 35.8 mm
Technical data
I / T1
240 V AC (230 V AC ... 240 V AC) 240 V AC (N-PE)
L-N / N-PE / L-PEN 350 V AC / - / 350 V AC - / 350 V AC / -
100 kA
50 As
2.50 MJ/Ω
- / 100 kA / -
L-N / N-PE / L-PEN 25 kA (264 V AC) / - / 25 kA (264 V AC) - / 100 A / -
- / ≤ 1.5 kV / -
- / ≤ 100 ns / -
-
25 kA
Dimensions W / H / D 35.8 mm / 95.8 mm / 70 mm 35.8 mm / 95.8 mm / 70 mm
Connection data solid / stranded / AWG 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2 2.5 ... 35 mm² / 2.5 ... 25 mm² / 13 - 2
-40 °C ... 80 °C
V0
Test standards IEC 61643-1 / EN 61643-11 / UL 1449 IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 /
UL 1449
PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC / 125 V DC
1 A AC / 200 mA DC
Ordering data
Type Order No. Pcs. /
Pkt.
FLT-CP-N/PE-350 2859754 1
Accessories
FLT-CP-N/PE-350-ST 2859686 10
ZBN 18 ..., see page 63
39PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
2-conductor system; L, PEN N-PE spark gap,
for Lightning Protection Level 1
12 14
11
FM
N
PE L1 L2 L3
12 14
11
FM
PEN
L1 L2 L3
Total width 49.2 mm Total width 37.25 mm
Technical data Technical data
Electrical data ... 350 ... 175 ... 350 ... 175
IEC category / EN type II / T2 II / T2 II / T2 II / T2 II / T2 II / T2 II / T2 II / T2 II / T2 II / T2
Nominal voltage UN240 V AC (230/400 V AC ...
240/415 V AC)
120 V AC 240 V AC (230/400 V AC ...
240/415 V AC)
120 V AC (3P/PEN) 240 V AC (230/400 V AC ...
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 350 V AC / 264 V AC / - 175 V AC / 150 V AC / - - / - / 350 V AC - / - / 175 V AC 350 V AC / 264 V AC / - 175 V AC
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 20 kA / 20 kA / - 60 kA (all channels) / 20 kA / - - / - / 60 kA (all channels) - / - / 60 kA (all channels) 40 k
Max. discharge surge current Imax. (8/20) µs
L-N / N-PE / L-PEN 120 kA (all channels) / 40 kA / - 120 kA (all channels) / 40 kA / - - / - / 120 kA (all channels) - / - / 120 kA (all channels) 80 kA (all channels) / 40 kA / - 80 kA (all channels) / 40 kA / - - / - / 80 kA (all channels) - / - / 80 kA (all c
Residual voltage at 5 kA L-N / N-PE / L-PEN ≤ 1.1 kV / ≤ 0.25 kV / - ≤ 600 V / ≤ 200 V / - - / - / ≤ 1.1 kV - / - / ≤ 600 V
Protection level UP
L-N / N-PE / L-PEN ≤ 1.4 kV / ≤ 1.5 kV / - ≤ 850 V / ≤ 950 V / - - / - / ≤ 1.4 kV - / - / ≤ 850 V (at In)
Response time tA
L-N / N-PE / L-PEN ≤ 25 ns / ≤ 100 ns / - ≤ 25 ns / ≤ 100 ns / - - / - / ≤ 25 ns - / - / ≤ 25 ns
Backup fuse max. in acc. with IEC 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125
General data
Dimensions W / H / D 49.2 mm / 98.5 mm / 70 mm 37.25 mm / 98.5 mm / 70 mm 37.25 mm / 98.5 mm / 70 mm 25.3 mm / 98.5 mm / 70 mm 25.3
Connection data solid / stranded / AWG 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 2
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / DIN EN 61643-11 / DIN EN 61643-11/A11 / IEC 61643-1 / DIN EN 61643-11 / UL 1449 / IEC 61643-1 / DIN E
IEEE C62.1 / C62.34 / C62.45 / UL 1449 IEEE C62.1 / C62.34 / C62.45 IEEE C62.1 / C62.34 / C62.45 / UL 1449 IEEE C62.1 / C62.34 / C
Remote indication contact PDT, 1-pos. PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm²
Max. operating voltage 250 V AC / 125 V DC 250 V AC / 125 V DC
Max. operating current 1 A AC (ohmic) / 200 mA DC (ohmic) 1 A AC (ohmic) / 200 mA DC (ohmic) 1 A AC (ohmic) / 200 mA DC (ohmic) 1 A
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VALVETRAB compact
with remote indication contact VAL-CP-3S-350 2859521 1VAL-CP-3C-350 2859547 1
without remote indication contact VAL-CP-3S-350/O 2881010 1VAL-CP-3C-350/O 2881023 1
with remote indication contact VAL-CP-3S-175 2859453 1VAL-CP-3C-175 2859466 1
Bridge set, for bridging VALVETRAB compact to the r.c.c.b.
MPB SET VAL-CP-3S 2880684 1
Accessories Accessories
Replacement connector
L-N / L-PEN VAL-CP-350-ST 2859602 10 VAL-CP-350-ST 2859602 10
N-PE VAL-CP-N/PE-350-ST 2859699 10
L-N / L-PEN VAL-CP-175-ST 2859628 10 VAL-CP-175-ST 2859628 10
Labeling material ZBFM 5 ..., see page 63 ZBFM 5 ..., see page 63
40 PHOENIX CONTACT
– Type 2 seamless plug-in surge arrester
– Disconnect device on each individual con-
nector
– Optical, mechanical status indication for
the individual arresters
– With or without floating remote indica-
tion contact
– Mechanical keying of all slots
– Modular arrester blocks with ultra-slim
design
– Use of varistors that are free of leakage
current
– Connectors can be checked with
CHECKMASTER
– High continuous voltage of 350VAC for
230/400VAC networks with high volt-
age fluctuations
Notes:
For certifications, see page 154
Type 2 surge arresters
VALVETRABcompac t
Surge protection and interference filters
Surge protection for the power supply unit
5-conductor system; L1, L2, L3, N, PE 4-conductor system; L1, L2, L3, PEN 4-conductor system; L1, L2, N, PE 3-conductor system; L1
H
W
D
H
W
D
12 14
11
FM
N
PE L1 L2
12 14
11
FM
PEN
L1 L2
12 14
11
FM
N
PE L1
For additional information, visit www.phoenixcontact.net/products
Total width 37.25 mm Total width 25.3 mm Total width 25.3 mm
Technical data Technical data Technical data
... 350 ... 175 ... 350 ... 175 ... 350 ... 175
IEC category / EN type II / T2 II / T2 II / T2 II / T2 II / T2 II / T2 II / T2 II / T2 II / T2 II / T2
120 V AC (3P/PEN) 240 V AC (230/400 V AC ...
240/415 V AC)
120 V AC 240 V AC (230/400 V AC ...
240/415 V AC)
120 V AC (2P/PEN) 240 V AC (230/400 V AC ...
240/415 V AC)
120 V AC
L-N / N-PE / L-PEN 350 V AC / 264 V AC / - 175 V AC / 150 V AC / - - / - / 350 V AC - / - / 175 V AC 350 V AC / 264 V AC / - 175 V AC / 150 V AC / - - / - / 350 V AC - / - / 175 V AC 350 V AC / 264 V AC / - 175 V AC / 150 V AC / -
L-N / N-PE / L-PEN 20 kA / 20 kA / - 60 kA (all channels) / 20 kA / - - / - / 60 kA (all channels) - / - / 60 kA (all channels) 40 kA (all channels) / 20 kA / - 40 kA (all channels) / 20 kA / - - / - / 40 kA (all channels) - / - / 40 kA (all channels) 20 kA / 20 kA / - 20 kA / 20 kA / -
(all channels) 80 kA (all channels) / 40 kA / - 80 kA (all channels) / 40 kA / - - / - / 80 kA (all channels) - / - / 80 kA (all channels) 40 kA / 40 kA / - 40 kA / 40 kA / -
≤ 1.1 kV / ≤ 0.25 kV / - ≤ 600 V / ≤ 200 V / - - / - / ≤ 1.1 kV - / - / ≤ 600 V ≤ 1.1 kV / ≤ 0.25 kV / - ≤ 600 V / ≤ 200 V / -
≤ 1.4 kV / ≤ 1.5 kV / - ≤ 850 V / ≤ 950 V / - - / - / ≤ 1.4 kV - / - / ≤ 850 V (at In) ≤ 1.4 kV / ≤ 1.5 kV / - ≤ 850 V / ≤ 950 V / -
≤ 25 ns / ≤ 100 ns / - ≤ 25 ns / ≤ 100 ns / - - / - / ≤ 25 ns - / - / ≤ 25 ns ≤ 25 ns / ≤ 100 ns / - ≤ 25 ns / ≤ 100 ns / -
Backup fuse max. in acc. with IEC 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG) 125 A (gL/gG)
Dimensions W / H / D 49.2 mm / 98.5 mm / 70 mm 37.25 mm / 98.5 mm / 70 mm 37.25 mm / 98.5 mm / 70 mm 25.3 mm / 98.5 mm / 70 mm 25.3 mm / 98.5 mm / 70 mm
Connection data solid / stranded / AWG 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4
-40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
V0 V0 V0
Test standards IEC 61643-1 / DIN EN 61643-11 / DIN EN 61643-11/A11 / IEC 61643-1 / DIN EN 61643-11 / UL 1449 / IEC 61643-1 / DIN EN 61643-11 / DIN EN 61643-11/A11 / IEC 61643-1 / DIN EN 61643-11 / UL 1449 / IEC 61643-1 / DIN EN 61643-11 / DIN EN 61643-11/A11 /
IEEE C62.1 / C62.34 / C62.45 / UL 1449 IEEE C62.1 / C62.34 / C62.45 IEEE C62.1 / C62.34 / C62.45 / UL 1449 IEEE C62.1 / C62.34 / C62.45 IEEE C62.1 / C62.34 / C62.45 / UL 1449
PDT PDT PDT
6 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC / 125 V DC 250 V AC / 125 V DC 250 V AC / 125 V DC
Max. operating current 1 A AC (ohmic) / 200 mA DC (ohmic) 1 A AC (ohmic) / 200 mA DC (ohmic) 1 A AC (ohmic) / 200 mA DC (ohmic) 1 A AC (ohmic) / 200 mA DC (ohmic) 1 A AC (ohmic) / 200 mA DC (ohmic)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VAL-CP-2S-350 2859505 1VAL-CP-2C-350 2859589 1VAL-CP-1S-350 2859563 1
VAL-CP-2S-350/O 2881049 1VAL-CP-2C-350/O 2881052 1VAL-CP-1S-350/O 2881036 1
VAL-CP-2S-175 2859495 1VAL-CP-2C-175 2859482 1VAL-CP-1S-175 2859479 1
Accessories Accessories Accessories
VAL-CP-350-ST 2859602 10 VAL-CP-350-ST 2859602 10 VAL-CP-350-ST 2859602 10
VAL-CP-N/PE-350-ST 2859699 10 VAL-CP-N/PE-350-ST 2859699 10
VAL-CP-175-ST 2859628 10 VAL-CP-175-ST 2859628 10 VAL-CP-175-ST 2859628 10
ZBFM 5 ..., see page 63 ZBFM 5 ..., see page 63 ZBFM 5 ..., see page 63
41PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
L3, PEN 4-conductor system; L1, L2, N, PE 3-conductor system; L1, L2, PEN 3-conductor system; L, N, PE
H
W
D
H
W
D
12 14
11
FM
NL1 L2 L3
12
14
11
FM
NL1L2L3
Total width 70.8 mm Total width 70.8 mm
Technical data Technical data
Electrical data VAL-MS 230 VAL-MS 320 VAL-MS 320
IEC category / EN type II / T2 II / T2 II / T2
Nominal voltage UN230 V AC (400 V AC) 230 V AC (400 V AC) 230 V AC (400 V AC)
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 275 V AC / 260 V AC / - 335 V AC / 260 V AC / - 335 V AC / 260 V AC / - - / - / 335 V AC - / - / 580 V AC 275 V AC
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 20 kA / 20 kA / - 20 kA / 20 kA / - 20 kA / 20 kA / -
Max. discharge surge current Imax. (8/20) µs
L-N / N-PE / L-PEN 40 kA / 40 kA / - 40 kA / 40 kA / - 40 kA / 40 kA / -
Residual voltage at 5 kA L-N / N-PE / L-PEN ≤ 1.1 kV / ≤ 0.15 kV / - ≤ 1.25 kV / ≤ 0.15 kV / - ≤ 1.25 kV / ≤ 0.15 kV / - - / - /
Protection level UP
L-N / N-PE / L-PEN ≤ 1.35 kV / ≤ 1.5 kV / - ≤ 1.6 kV / ≤ 1.5 kV / - ≤ 1.6 kV / ≤ 1.5 kV / -
Response time tA
L-N / N-PE / L-PEN ≤ 25 ns / ≤ 100 ns / - ≤ 25 ns / ≤ 100 ns / - ≤ 25 ns / ≤ 100 ns / -
Backup fuse max. in acc. with IEC 125 A (gL) 125 A (gL)
Immunity to short-circuiting (with max. backup fuse) IP25 kA 25 kA
General data
Dimensions W / H / D 70.8 mm / 96.8 mm / 65.5 mm 70.8 mm / 96.8 mm / 65.5 mm
Connection data solid / stranded / AWG 0.5 ... 35 mm² / 0.5 ... 25 mm² / 20 - 2 0.5 ... 35 mm² / 0.5 ... 25 mm² / 20 - 2 1.5 ... 3
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11
Remote indication contact PDT PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm²
Max. operating voltage 250 V AC / 30 V DC 250 V AC / 30 V DC
Max. operating current 0.75 A AC (250 V AC) / 1 A DC (30 V DC) 0.75 A AC (250 V AC) / 1 A DC (30 V DC) 1.5 A AC (250 V AC) / 1 A D
Ordering data Ordering data
Description Imax UCType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VALVETRAB, multi-position surge arrester combination
without remote indication contact 40 kA 275 V AC VAL-MS 230/3+1 2838209 1
with remote indication contact 40 kA 275 V AC VAL-MS 230/3+1 FM 2838199 1
without remote indication contact 40 kA 335 V AC VAL-MS 320/3+1 2859178 1
with remote indication contact 40 kA 335 V AC VAL-MS 320/3+1/FM 2859181 1VAL-MS 320/3+1/FM-UD 2856689 1
VALVETRAB MS
without remote indication contact 30 kA 580 V AC
with remote indication contact 30 kA 580 V AC
Accessories Accessories
Replacement connector
1L-N/PE VAL-MS 230 ST 2798844 10
1L-N/PE VAL-MS 320 ST 2838843 10 VAL-MS 320-UD ST 2858315 10
1L-N/PE
N-PE F-MS 12 ST 2817990 10 F-MS 12 ST 2817990 10
Marking material ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
42 PHOENIX CONTACT
– Multi-channel type2 arrester
– Type 2 seamless plug-in surge arrester
– Disconnect device on each individual con-
nector
– Optical, mechanical status indication for
the individual arresters
– With or without floating remote indica-
tion contact
– Mechanical keying of all slots
Notes:
For certifications, see page 154
Type 2 surge arresters
VALVETRABMS
30/40 kA performance class
Surge protection and interference filters
Surge protection for the power supply unit
5-conductor system; L1, L2, L3, N, PE,
supply line supply from below
5-conductor system; L1, L2, L3, N, PE,
supply line supply from above
H
W
D
H
W
D
PENPEN
L1 L2 L3
12 14
11
FM
12 14
11
FM
NL1
12 14
11
FM
PEN
L1L2
For additional information, visit www.phoenixcontact.net/products
Total width 53.4 mm Total width 35.6 mm Total width 35.6 mm
Technical data Technical data Technical data
VAL-MS 320 VAL-MS 580 VAL-MS 230 VAL-MS 320 VAL-MS 230
II / T2 II / T2 II / T2 II / T2 II / T2
230 V AC (Max. 240/415 V AC) 400 V AC (400/690 V AC TN-C) 230 V AC 230 V AC 230 V AC (400 V AC)
L-N / N-PE / L-PEN 275 V AC / 260 V AC / - 335 V AC / 260 V AC / - 335 V AC / 260 V AC / - - / - / 335 V AC - / - / 580 V AC 275 V AC / 260 V AC / - 335 V AC / 260 V AC / - - / - / 275 V AC
- / - / 60 kA (all channels) - / - / 45 kA (all channels) 20 kA / 20 kA / - 20 kA / 20 kA / - - / - / 40 kA (all channels)
- / - / 120 kA (all channels) - / - / 90 kA (all channels) 40 kA / 40 kA / - 40 kA / 40 kA / - - / - / 80 kA (all channels)
0.15 kV / - - / - / ≤ 1.2 kV - / - / ≤ 2.1 kV ≤ 1.1 kV / ≤ 150 V / - - 1.2 kV / ≤ 150 V / - - / - / ≤ 1.1 kV
- / - / ≤ 1.5 kV - / - / ≤ 2.5 kV ≤ 1.35 kV / ≤ 1.5 kV / - ≤ 1.5 kV / ≤ 1.5 kV / - - / - / ≤ 1.35 kV
- / - / ≤ 25 ns - / - / ≤ 25 ns ≤ 25 ns / ≤ 100 ns / - ≤ 25 ns / ≤ 100 ns / - - / - / ≤ 25 ns
125 A (gL / gG) 125 A (gL/gG) 125 A (gL/gG)
25 kA 25 kA 25 kA
53.4 mm / 99 mm / 65.5 mm 35.6 mm / 97 mm / 65.5 mm 35.6 mm / 97 mm / 65.5 mm
Connection data solid / stranded / AWG 0.5 ... 35 mm² / 0.5 ... 25 mm² / 20 - 2 0.5 ... 35 mm² / 0.5 ... 25 mm² / 20 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2
-40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
V0 V0 V0
IEC 61643-1 / EN 61643-11 IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11
PDT PDT, 1-pos. PDT, 1-pos.
6 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC / 30 V DC 250 V AC / 30 V DC 250 V AC / 30 V DC
Max. operating current 0.75 A AC (250 V AC) / 1 A DC (30 V DC) 0.75 A AC (250 V AC) / 1 A DC (30 V DC) 1.5 A AC (250 V AC) / 1 A DC (30 V DC) 1.5 A AC (250 V AC) / 1 A DC (30 V DC) 1.5 A AC (250 V AC) / 1 A DC (30 V DC)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VAL-MS 230/1+1 2804429 1VAL-MS 230/2+0 2800103 1
VAL-MS 230/1+1-FM 2804432 1VAL-MS 230/2+0-FM 2800102 1
VAL-MS 320/3+0 2920230 1VAL-MS 320/1+1 2804380 1
VAL-MS 320/3+0-FM 2920243 1VAL-MS 320/1+1-FM 2804393 1
VAL-MS 580/3+0 2920450 1
VAL-MS 580/3+0-FM 2920447 1
Accessories Accessories Accessories
VAL-MS 230 ST 2798844 10 VAL-MS 230 ST 2798844 10
VAL-MS 320 ST 2838843 10 VAL-MS 320 ST 2838843 10
VAL-MS 580-ST 2920434 10
F-MS 12 ST 2817990 10
ZBN 18 ..., see page 63 ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
43PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
4-conductor system; L1, L2, L3, PEN 3-conductor system; L, N, PE 3-conductor system; L1, L2, PEN
H
W
D
H
W
D
12 14
11
FM
N / PEN
L
Total width 17.7 mm
Technical data
Electrical data ... 60AC ... 230AC
IEC category / EN type II / T2 II / T2 II / T2 II / T2
Nominal voltage UN60 V AC/DC 230 V AC 230 V AC 230 V AC
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 75 V AC / - / 75 V AC 275 V AC / - / 275 V AC - / 260 V AC / - 350 V AC / - / 350 V AC
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 15 kA / - / - 20 kA / - / 20 kA - / 20 kA / - 10 kA / - / 10 kA
Max. discharge surge current Imax. (8/20) µs
L-N / N-PE / L-PEN 40 kA / - / 40 kA 40 kA / - / 40 kA - / 40 kA / - 20 kA / - / 20 kA
Residual voltage at 5 kA L-N / N-PE / L-PEN ≤ 325 V / - / ≤ 325 V ≤ 1 kV / - / ≤ 1 kV - /
Protection level UP
L-N / N-PE / L-PEN ≤ 500 V / - / ≤ 500 V ≤ 1.35 kV / - / ≤ 1.35 kV - /
Response time tA
L-N / N-PE / L-PEN ≤ 25 ns / - / ≤ 25 ns ≤ 25 ns / - / ≤ 25 ns - /
Backup fuse max. in acc. with IEC 125 A (gL/gG) - 125 A (gL)
General data
Dimensions W / H / D 17.7 mm / - / 96.8 mm 17.7 mm / - / 96.8 mm 17.7 mm / - / 96.8 mm
Connection data solid / stranded / AWG 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 0.5 ... 35 mm² / 0.5 ... 25 mm² / 20 - 2 0.5 ... 3
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0 -
Test standards IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 / NF C61-740 /
Remote indication contact PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 1
Max. operating voltage 250 V AC / 30 V DC 250 V AC / 30 V DC 250 V AC / 30 V DC
Max. operating current 1 A AC / 1 A DC 1 A AC / 1 A DC 1 A AC / 1 A DC
Ordering data
Description Type Order No. Pcs. /
Pkt.
VALVETRAB MS
with remote indication contact VAL-MS 60/FM 2868033 1
without remote indication contact VAL-MS 60 2868020 1
with remote indication contact VAL-MS 230/FM 2839130 1
without remote indication contact VAL-MS 230 2839127 1
Accessories
Replacement connector
1L-N/PE VAL-MS 60 ST 2807573 10
1L-N/PE VAL-MS 230 ST 2798844 10
VALVETRAB, single-position base element
with remote indication contact VAL-MS BE/FM 2817738 10
without remote indication contact VAL-MS BE 2817741 10
Labeling material ZBN 18 ..., see page 63
44 PHOENIX CONTACT
Type 2 surge arresters
VALVETRABMS
– Single-channel, DIN-rail mountable pro-
tective devices
– Comprising base element and connector
– Base element with/without floating re-
mote indication contact
– Disconnect device on each individual con-
nector
– Optical, mechanical status indication for
the individual arresters
– Mechanical keying of all slots
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
Notes:
For certifications, see page 154
2-conductor system; L, N/PEN Spark gap, N-PE 2-conductor system; L, N/PEN
12 14
11
FM
N
12 14
11
FM
L
N / PEN
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
F-MS 12 VAL-MS 350 VF
IEC category / EN type II / T2 II / T2 II / T2 II / T2
60 V AC/DC 230 V AC 230 V AC 230 V AC
L-N / N-PE / L-PEN 75 V AC / - / 75 V AC 275 V AC / - / 275 V AC - / 260 V AC / - 350 V AC / - / 350 V AC
L-N / N-PE / L-PEN 15 kA / - / - 20 kA / - / 20 kA - / 20 kA / - 10 kA / - / 10 kA
L-N / N-PE / L-PEN 40 kA / - / 40 kA 40 kA / - / 40 kA - / 40 kA / - 20 kA / - / 20 kA
1 kV - / ≤ 150 V / - ≤ 1 kV / - / ≤ 1 kV
1.35 kV - / ≤ 1.5 kV / - ≤ 1.5 kV / - / ≤ 1.5 kV
25 ns - / ≤ 100 ns / - ≤ 100 ns / - / ≤ 100 ns
Backup fuse max. in acc. with IEC 125 A (gL/gG) - 125 A (gL)
Dimensions W / H / D 17.7 mm / - / 96.8 mm 17.7 mm / - / 96.8 mm 17.7 mm / - / 96.8 mm
Connection data solid / stranded / AWG 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 0.5 ... 35 mm² / 0.5 ... 25 mm² / 20 - 2 0.5 ... 35 mm² / 0.5 ... 25 mm² / 20 - 2
-40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0 -
IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 / NF C61-740 /
UL 1449
PDT PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
Max. operating voltage 250 V AC / 30 V DC 250 V AC / 30 V DC 250 V AC / 30 V DC
1 A AC / 1 A DC 1 A AC / 1 A DC 1 A AC / 1 A DC
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
F-MS 12/FM 2817974 1VAL-MS 350 VF/FM 2856579 1
F-MS 12 2817987 1VAL-MS 350VF 2856582 1
Accessories Accessories
F-MS 12 ST 2817990 10 VAL-MS 350 VF ST 2856595 10
VAL-MS BE/FM 2817738 10 VAL-MS BE/FM 2817738 10
VAL-MS BE 2817741 10 VAL-MS BE 2817741 10
ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
45PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
H
W
D
2-conductor system; L, N/PEN Spark gap, N-PE 2-conductor system; L, N/PEN
Total width 17.7 mm
Technical data
Electrical data ... 120 ST ... 230 ITST ... 400 ST ... 500 ST
IEC category / EN type II / T2 II / T2 II / T2 II / T2
Nominal voltage UN120 V AC 230 V AC 400 V AC 500 V AC
Maximum continuous operating voltage UC150 V AC 385 V AC 440 V AC 600 V AC
Nominal discharge surge current In (8/20) µs 20 kA 20 kA 20 kA 20 kA
Max. discharge surge current Imax (8/20) µs 40 kA 40 kA 40 kA 30 kA
Residual voltage at 5 kA ≤ 550 V ≤ 1.35 kV ≤ 1.5 kV ≤ 2.3 kV
Protection level UP≤ 800 V ≤ 1.8 kV ≤ 2.2 kV ≤ 2.7 kV
Response time tA: ≤ 25 ns ≤ 25 ns ≤ 25 ns ≤ 25 ns
Backup fuse max. in acc. with IEC 125 A (gL)
General data
Dimensions W / H / D 17.7 mm / 52.4 mm / 54.5 mm
Temperature range -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Housing material PA
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-1 / EN 61643-11/A11 / UL 1449 /
IEEE C62.1 / C62.34 / C62.45
Ordering data
Description Nominal voltage UNType Order No. Pcs. /
Pkt.
VALVETRAB surge protection plug
120 V AC VAL-MS 120 ST 2807586 10
230 V AC VAL-MS 230 IT ST 2807599 10
400 V AC VAL-MS 400 ST 2816399 10
500 V AC VAL-MS 500 ST 2807609 10
Accessories
VALVETRAB, base element for 4-wire systems, L1, L2, L3, PEN,
for individual assembly with VAL-MS...ST
with remote indication contact 3L-PEN VAL-MS/3+0-BE/FM 2881803 1
without remote indication contact 3L-PEN VAL-MS/3+0-BE 2881816 1
VALVETRAB, base element for 3-wire systems, L1, L2, PEN, for
individual assembly with VAL-MS...ST
with remote indication contact 2L-GND VAL-MS/2+0-BE/FM 2805321 1
without remote indication contact 2L - PEN VAL-MS/2+0-BE 2804584 1
VALVETRAB, single-position base element
with remote indication contact VAL-MS BE/FM 2817738 10
without remote indication contact VAL-MS BE 2817741 10
46 PHOENIX CONTACT
Notes:
For certifications, see page 154
Please follow the installation instructions. These are provided with
the packaging documentation or can be downloaded from the corre-
sponding product page online at www.phoenixcontact.net/products.
You can find a list of all possible combination options and safety
notes in the download area for the corresponding replacement
plug at www.phoenixcontact.net/products.
– Thermal disconnect device for each indi-
vidual connector
– Optical, mechanical status indication for
all protective connectors
– Connectors can be checked with
CHECKMASTER
Type 2 surge protection plug for
VAL-MS base elements
Surge protection and interference filters
Surge protection for the power supply unit
Plug, 1-pos., L-N/L-PEN
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
Electrical data ... 60 ST ... 120 ST ... 240 ST ... 277 ST ... 347 ST ... 480 ST
IEC category / EN type II / T2 II / T2 II / T2 II / T2 II / T2 II / T2
Nominal voltage UN60 V AC 120 V AC 240 V AC 277 V AC 347 V AC 480 V AC
Maximum continuous operating voltage UC75 V AC 150 V AC 275 V AC 385 V AC 440 V AC 580 V AC
Nominal discharge surge current In (8/20) µs 10 kA 20 kA 20 kA 20 kA 20 kA 15 kA
Residual voltage at 5 kA ≤ 325 V ≤ 550 V ≤ 1 kV ≤ 1.35 kV ≤ 1.5 kV ≤ 2.1 kV
Protection level UP≤ 500 V ≤ 800 V ≤ 1.35 kV ≤ 1.8 kV ≤ 2.2 kV ≤ 2.5 kV
Backup fuse max. in acc. with IEC 125 A (gL (AC)) 125 A (gL)
General data
Dimensions W / H / D 17.7 mm / 52.4 mm / 54.5 mm 17.7 mm / 52.4 mm / 54.5 mm
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Housing material PA 6.6 PA 6.6
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / DIN EN 61643-11 / DIN EN 61643-11/A11 / IEC 61643-1 / EN 61643-11/A11 / NF C61-740
UL 1449 / IEEE C62.1 / C62.34 / C62.45
Ordering data Ordering data
Description Nominal voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VALVETRAB surge protection plug
60 V AC VAL-US 60 ST 2800738 10
120 V AC VAL-US 120 ST 2800739 10
240 V AC VAL-US 240 ST 2800740 10
277 V AC VAL-US 277 ST 2800741 10
347 V AC VAL-US 347 ST 2800742 10
480 V AC VAL-US 480 ST 2800743 10
Accessories Accessories
VALVETRAB, base element for 4-wire systems, L1, L2, L3, PEN,
for individual assembly with VAL-MS...ST
with remote indication contact 3L-PEN VAL-MS/3+0-BE/FM 2881803 1VAL-MS/3+0-BE/FM 2881803 1
without remote indication contact 3L-PEN VAL-MS/3+0-BE 2881816 1VAL-MS/3+0-BE 2881816 1
VALVETRAB, base element for 3-wire systems, L1, L2, PEN, for
individual assembly with VAL-MS...ST
with remote indication contact 2L-GND VAL-MS/2+0-BE/FM 2805321 1VAL-MS/2+0-BE/FM 2805321 1
without remote indication contact 2L - PEN VAL-MS/2+0-BE 2804584 1VAL-MS/2+0-BE 2804584 1
VALVETRAB, single-position base element
with remote indication contact VAL-MS BE/FM 2817738 10 VAL-MS BE/FM 2817738 10
without remote indication contact VAL-MS BE 2817741 10 VAL-MS BE 2817741 10
47PHOENIX CONTACT
– Specifically for use in American applica-
tions
–1-pos.
– Thermal disconnect device for each indi-
vidual connector
– Optical, mechanical status indication for
all protective connectors
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
Please follow the installation instructions. These are provided with
the packaging documentation or can be downloaded from the corre-
sponding product page online at www.phoenixcontact.net/products.
You can find a list of all possible combination options and safety
notes in the download area for the corresponding replacement
plug at www.phoenixcontact.net/products.
Type 2 surge protection plug for
VAL-MS base elements
Surge protection and interference filters
Surge protection for the power supply unit
Single-pos. Single-pos.
12 14
11
FM
NL1 L2 L3
/PE /PE
Total width 71.2 mm
Technical data
Electrical data .. 385/65 .. 385/80
IEC category / EN type II / T2 II / T2 II / T2 II / T2 II / T2 II / T2
Nominal voltage UN240 V AC (230/400 V AC ...
240/415 V AC)
240 V AC (230/400 V AC ...
240/415 V AC)
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 385 V AC / 264 V AC / - 385 V AC / 264 V AC / - - / - / 385 V AC - / - / 385 V AC 385 V AC / 264 V AC / - 385 V AC
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 30 kA / 40 kA / - 40 kA / 40 kA / - - / - / 90 kA (all channels) - / - / 120 kA (all channels) 30 kA / 40 kA / - 4
Max. discharge surge current Imax. (8/20) µs
L-N / N-PE / L-PEN 65 kA / 80 kA / - 80 kA / 80 kA / - - / - / 150 kA (all channels) - / - / 200 kA (all channels) 65 kA / 80 kA / -
Residual voltage at 5 kA L-N / N-PE / L-PEN ≤ 1.25 kV / ≤ 0.5 kV / - ≤ 1.25 kV / ≤ 0.5 kV / - - / - /
Protection level UP
L-N / N-PE / L-PEN ≤ 1.8 kV / ≤ 1.7 kV / - ≤ 2 kV / ≤ 1.7 kV / - - / - /
Response time tA
L-N / N-PE / L-PEN ≤ 25 ns / ≤ 100 ns / - ≤ 25 ns / ≤ 100 ns / - - / - /
Backup fuse max. in acc. with IEC 250 A (gL/gG)
Immunity to short-circuiting (with max. backup fuse) IP25 kA
General data
Dimensions W / H / D 71.2 mm / 99 mm / 77.5 mm 53.4 mm / 99 mm / 77.5 mm 35.6 mm / 99 mm / 77.5 mm
Connection data solid / stranded / AWG 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 3
Temperature range -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11
Remote indication contact PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 1
Max. operating voltage 250 V AC
Max. operating current 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5
Min. operational current 5 mA (5 V)
Ordering data
Description Imax UCType Order No. Pcs. /
Pkt.
VALVETRAB MS
with remote indication contact 65 kA 385 V AC VAL-MS 385/65/3+1-FM 2920887 1
without remote indication contact 65 kA 385 V AC VAL-MS 385/65/3+1 2920890 1
VALVETRAB MS
with remote indication contact 80 kA 385 V AC VAL-MS 385/80/3+1-FM 2920968 1
without remote indication contact 80 kA 385 V AC VAL-MS 385/80/3+1 2920971 1
Accessories
Replacement connector
For VAL-MS 385/65... 1L-N/PE VAL-MS 385/65 ST 2920308 10
For VAL-MS 385/80... 1L-N/PE VAL-MS 385/80 ST 2920353 10
N-PE F-MS 80 ST 2921307 10
Marking material ZBN 18 ..., see page 63
48 PHOENIX CONTACT
Type 2 surge arresters
VALVETRAB MS 65/80 kA perfor-
mance class
– Multi-channel type2 arrester
– Type 2 seamless plug-in surge arrester
– Secure hold of connectors in the event of
high lightning current loads and strong vi-
bration thanks to new latching
– Disconnect device on each individual con-
nector
– Optical, mechanical status indication for
the individual arresters
– With or without floating remote indica-
tion contact
– Mechanical keying of all slots
– Connectors can be checked with
CHECKMASTER
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
Notes:
For certifications, see page 154
5-conductor system; L1, L2, L3, N, PE 4-conductor system; L1, L2, L3, PEN 3-conductor system; L, N, PE
PENPEN
L1 L2 L3
12 14
11
FM
12 14
11
FM
NL1
/PE /PE
For additional information, visit www.phoenixcontact.net/products
Total width 53.4 mm Total width 35.6 mm
Technical data Technical data
.. 385/65 .. 385/80 .. 385/65 .. 385/80
IEC category / EN type II / T2 II / T2 II / T2 II / T2 II / T2 II / T2
240 V AC (230/400 V AC ...
240/415 V AC)
240 V AC (230/400 V AC ...
240/415 V AC)
240 V AC (230 V AC ... 240 V AC) 240 V AC (230 V AC ... 240 V AC)
L-N / N-PE / L-PEN 385 V AC / 264 V AC / - 385 V AC / 264 V AC / - - / - / 385 V AC - / - / 385 V AC 385 V AC / 264 V AC / - 385 V AC / 264 V AC / -
L-N / N-PE / L-PEN 30 kA / 40 kA / - 40 kA / 40 kA / - - / - / 90 kA (all channels) - / - / 120 kA (all channels) 30 kA / 40 kA / - 40 kA / 40 kA / -
L-N / N-PE / L-PEN 65 kA / 80 kA / - 80 kA / 80 kA / - - / - / 150 kA (all channels) - / - / 200 kA (all channels) 65 kA / 80 kA / - 80 kA / 80 kA / -
0.5 kV / - - / - / ≤ 1.2 kV - / - / ≤ 1.2 kV ≤ 1.2 kV / ≤ 0.5 kV / - ≤ 1.2 kV / ≤ 0.5 kV / -
1.7 kV / - - / - / ≤ 1.8 kV - / - / ≤ 2 kV ≤ 1.8 kV / ≤ 1.7 kV / - ≤ 2 kV / ≤ 1.7 kV / -
100 ns / - - / - / ≤ 25 ns - / - / ≤ 25 ns ≤ 25 ns / ≤ 100 ns / - ≤ 25 ns / ≤ 100 ns / -
250 A (gL/gG) 250 A (gL/gG)
25 kA 25 kA
Dimensions W / H / D 71.2 mm / 99 mm / 77.5 mm 53.4 mm / 99 mm / 77.5 mm 35.6 mm / 99 mm / 77.5 mm
Connection data solid / stranded / AWG 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2
-40 °C ... 80 °C -40 °C ... 80 °C
V0 V0
IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11
PDT, 1-pos. PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC 250 V AC
Max. operating current 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC)
5 mA (5 V) 5 mA (5 V)
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VAL-MS 385/65/3+0-FM 2921006 1VAL-MS 385/65/1+1-FM 2921242 1
VAL-MS 385/65/3+0 2921019 1VAL-MS 385/65/1+1 2921255 1
VAL-MS 385/80/3+0-FM 2921080 1VAL-MS 385/80/1+1-FM 2921284 1
VAL-MS 385/80/3+0 2921093 1VAL-MS 385/80/1+1 2921297 1
Accessories Accessories
VAL-MS 385/65 ST 2920308 10 VAL-MS 385/65 ST 2920308 10
VAL-MS 385/80 ST 2920353 10 VAL-MS 385/80 ST 2920353 10
F-MS 80 ST 2921307 10
ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
49PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
H
W
D
5-conductor system; L1, L2, L3, N, PE 4-conductor system; L1, L2, L3, PEN 3-conductor system; L, N, PE
12 14
11
FM
N / PEN
L
12 14
11
FM
12
Total width 17.5 mm Total width 35.6 mm
Technical data Technical data
Electrical data Base element Plug
IEC category / EN type I, II / T1, T2 - II / T2
Nominal voltage UN60 V AC/DC 240 V AC (415 V AC) 48 V AC (5 V...48 V AC)
Maximum continuous operating voltage UCAC/DC 75 V AC / 100 V DC - 75 V AC / 100 V DC
Nominal discharge surge current In (8/20) µs 12.5 kA - 10 kA
Max. discharge surge current Imax. (8/20) µs 30 kA - 20 kA
Residual voltage at 5 kA ≤ 0.3 kV - ≤ 350 V
Protection level UP≤ 0.4 kV - ≤ 1.4 kV
Response time tA≤ 25 ns - ≤ 100 ns
Backup fuse max. in acc. with IEC 160 A (gL/gG) 63 A (gL / gG) 63 A (gL / gG)
General data
Dimensions W / H / D 17.5 mm / 97 mm / 77.5 mm 35.6 mm / 97 mm / 51.5 mm
Connection data solid / stranded / AWG 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1 ... 35 mm² / 1 ... 25 mm² / 18 - 2
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-11 / EN 61643-11/A11 IEC 61643-1 / DIN EN 61643-11 / DIN EN 61643-11/A11
Remote indication contact PDT, 1-pos. PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
Max. operating voltage 250 V AC 250 V
Max. operating current 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1 A DC (30 V DC)
Ordering data Ordering data
Description UCType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VALVETRAB-MS, varistor-based lightning arrester
with remote indication contact 75 V AC VAL-MS-T1/T2 48/12.5/1+0-FM 2801240 1
without remote indication contact 75 V AC VAL-MS-T1/T2 48/12.5/1+0 2801241 1
Protective plug, for inserting in base element
75 V AC VAL-MS 75 VF ST 2805318 10
Base element, for individual assembly with protective plugs
with remote indication contact VAL-MS/2+0-BE/FM/S2 2800246 1
Accessories Accessories
Replacement connector
L-N / L-PEN VAL-MS-T1/T2 48/12.5 ST 2801242 10
Labeling material ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
50 PHOENIX CONTACT
– Universal pluggability
– Also suitable for industry solutions, e.g.,
in the rail and telecommunications sec-
tors
– Thermal disconnect device for each indi-
vidual connector
– Optical, mechanical status indication for
the individual arresters
– With or without floating remote indica-
tion contact
– Mechanical keying of all slots
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
H
W
D
H
W
D
Surge protection for special
applications
Surge protection and interference filters
Surge protection for the power supply unit
For nominal voltages up to 48VDC For nominal voltages up to 48VAC
12 14
11
FM
L
PENPEN
L1 L2 L3
12 14
11
FM
For additional information, visit www.phoenixcontact.net/products
Total width 35.6 mm Total width 53.4 mm
Technical data Technical data
Electrical data
IEC category / EN type II / T2 II / T2
Nominal voltage UN690 V AC 554 V AC (554/960 V AC TN-C)
Maximum continuous operating voltage UC800 V AC 750 V AC
Nominal discharge surge current In (8/20) µs 15 kA -
L-PEN - 45 kA (all channels)
Protection level UP≤ 5 kV -
L-PEN - ≤ 2.7 kV
Response time tA≤ 100 ns -
L-PEN - ≤ 25 ns
General data
Dimensions W / H / D 35.6 mm / 97 mm / 65.5 mm 53.4 mm / 99 mm / 65.5 mm
Connection data solid / stranded / AWG 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Test standards IEC 61643-1 / DIN EN 61643-11 / DIN EN 61643-11/A11 IEC 61643-1 / DIN EN 61643-11 / DIN EN 61643-11/A11
Remote indication contact PDT, 1-pos. PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
Max. operating voltage 250 V AC / 30 V DC 250 V AC / 30 V DC
Max. operating current 1.5 A AC (250 V AC) / 1 A DC (30 V DC) 1.5 A AC (250 V AC) / 1 A DC (30 V DC)
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VALVETRAB MS, for mounting on NS35
with remote indication contact VAL-MS 800/30 VF/FM 2805402 1VAL-MS 750/30/3+0-FM 2920272 1
without remote indication contact VAL-MS 750/30/3+0 2920269 1
Accessories Accessories
Replacement connector
1L-N/PE VAL-MS 750/30-ST 2920256 10 VAL-MS 750/30-ST 2920256 10
F-MS 2200/30 ST 2805392 10
Labeling material ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
51PHOENIX CONTACT
– For power supplies with higher supply
voltages
– Other solutions for power supplies
UN ≥ 400 V available on request
– Universal pluggability
– Thermal disconnect device for each indi-
vidual connector
– Optical, mechanical status indication for
the individual arresters
– With or without floating remote indica-
tion contact
– Mechanical keying of all slots
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
H
W
D
H
W
D
Surge protection for use in wind
power plants
Surge protection and interference filters
Surge protection for the power supply unit
Free of leakage current, for nominal voltages
up to 690VAC, e.g., rotor protection for wind
power plants
4-conductor system;
L1, L2, L3, PEN (554/960 VTN-C system)
PE
N
N
T
1
2
3
4
5
6
PE
N
N
T
1
2
3
4
5
6
Total width 121 mm Total width 121 mm
Technical data Technical data
Electrical data
IEC category / EN type II / T2 II / T2
Nominal voltage UN240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC)
Maximum continuous operating voltage UC
L-N / N-PE 350 V AC / 264 V AC 350 V AC / 264 V AC
Nominal discharge surge current In (8/20) µs
L-N / N-PE 60 kA (all channels) / 20 kA 60 kA (all channels) / 20 kA
Max. discharge surge current Imax. (8/20) µs
L-N / N-PE 90 kA (all channels) / 30 kA 90 kA (all channels) / 30 kA
Residual voltage at 5 kA L-N / N-PE ≤ 1.2 kV / ≤ 0.3 kV ≤ 1.2 kV / ≤ 0.3 kV
Protection level UP
L-N / N-PE ≤ 2 kV / ≤ 2 kV ≤ 2 kV / ≤ 2 kV
Response time tA
L-N / N-PE ≤ 25 ns / ≤ 100 ns ≤ 25 ns / ≤ 100 ns
General data
Dimensions W / H / D 121 mm / 90 mm / 76 mm 121 mm / 90 mm / 76 mm
Connection data solid / stranded / AWG 4 ... 16 mm² / 4 ... 16 mm² / 12 - 4 4 ... 16 mm² / 4 ... 16 mm² / 12 - 4
Temperature range -25 °C ... 40 °C -25 °C ... 40 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / EN 61643-11 / IEC 61008-1 / IEC 61643-1 / EN 61643-11 / IEC 61008-1 /
IEC 61008-1/A11 / IEC 61008-2-1 / IEC 60947-3 IEC 61008-1/A11 / IEC 61008-2-1 / IEC 60947-3
RCD data
Class A selective A
Nominal load current IL40 A 40 A
Dimensioning error current 300 mA 30 mA
Rated making and breaking capacity Im630 A 1.5 kA
Rated residual making and breaking capacity IΔm630 A 2.5 kA
Surge withstand capability 6 kV (1.2/50 µs) 6 kV (1.2/50 µs)
Immunity to short-circuiting Inc 10 kA Back-up fuse: 63 A 10 kA Back-up fuse: 63 A
Tripping time for IΔn≤ 300 ms ≤ 300 ms
Tripping time for 5xIΔn≤ 40 ms ≤ 40 ms
Cycles, max. 20000 20000
Utilization category AC 23 A AC 23 A
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VALVETRAB compact with RCD
VAL-CP-RCD-3S/40/0.3/SEL 2808001 1
VAL-CP-RCD-3S/40/0.03 2882802 1
Accessories Accessories
Replacement connector
L-N / L-PEN VAL-CP-350-ST-GY 2882718 10 VAL-CP-350-ST-GY 2882718 10
N-PE VAL-CP-N/PE-350-ST-GY 2882734 10 VAL-CP-N/PE-350-ST-GY 2882734 10
52 PHOENIX CONTACT
– For 5-conductor systems; L1, L2, L3, N,
PE
– Combination of type 2 surge arrester and
RCD residual current circuit breaker
– Personal protection and device protec-
tion in a single device
– Type 2 seamless plug-in surge arrester
– Disconnect device on each individual con-
nector
– Optical, mechanical status indication for
all protective connectors
– Residual current circuit breaker is not
triggered by magnetic influences caused
by discharge currents in the type2 arrest-
er
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
H
W
D
H
W
D
Type 2 surge arresters with RCD
Combi-RCD
Surge protection and interference filters
Surge protection for the power supply unit
With selective RCD residual current circuit
breaker, 300 mA
With selective RCD residual current circuit
breaker, 30 mA
12 14
11
FM
L1 L2 L3
N
PE
12 14
11
FM
L1 L2 L3
PEN
For additional information, visit www.phoenixcontact.net/products
Total width 54 mm Total width 54 mm
Technical data Technical data
Electrical data
IEC category / EN type II / T2 II / T2
Nominal voltage UN240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC)
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 350 V AC / 264 V AC / - - / - / 350 V AC
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 60 kA (all channels) / 20 kA / - - / - / 60 kA (all channels)
Max. discharge surge current Imax. (8/20) µs
L-N / N-PE / L-PEN 75 kA (all channels) / 40 kA / - - / - / 75 kA (all channels)
Residual voltage at 5 kA L-N / N-PE / L-PEN ≤ 1.8 kV / ≤ 0.25 kV / - - / - / ≤ 1.8 kV
Protection level UP
L-N / N-PE / L-PEN ≤ 2.5 kV / ≤ 1.5 kV / - - / - / ≤ 2.5 kV
Response time tA
L-N / N-PE / L-PEN ≤ 25 ns / ≤ 100 ns / - - / - / ≤ 25 ns
Backup fuse max. in acc. with IEC (Not required) (Not required)
Immunity to short-circuiting (with max. backup fuse) IP25 kA 25 kA
Rated surge current resistance Ipk 52 kA 52 kA
General data
Dimensions W / H / D 54 mm / 220 mm / 110 mm 54 mm / 220 mm / 110 mm
Connection data solid / stranded / AWG 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4
Temperature range -25 °C ... 60 °C -25 °C ... 60 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / EN 61643-11 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11 / EN 61643-11/A11
Remote indication contact PDT PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
Max. operating voltage 250 V AC / 125 V DC 250 V AC / 125 V DC
Max. operating current 1 A AC (ohmic) / 0.2 A DC (ohmic) 1 A AC (ohmic) / 0.2 A DC (ohmic)
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VALVETRAB compact
VAL-CP-MOSO 60-3S-FM 2804403 1VAL-CP-MOSO 60-3C-FM 2804416 1
Accessories Accessories
Replacement connector
L-N / L-PEN VAL-CP-350-ST-GY 2882718 10 VAL-CP-350-ST-GY 2882718 10
N-PE VAL-CP-N/PE-350-ST-GY 2882734 10
Marking material ZBF 12 ..., see page 63 ZBF 12 ..., see page 63
53PHOENIX CONTACT
– Combinations of type2 arresters with in-
tegrated arrester backup fuse
– For 60mm system technology
– Tool-free mounting on 5 and 10mm bus-
bars
– Signaling to monitoring systems via re-
mote indication contact in the event of an
error
– Surge-proof arrester backup fuse tailored
to type2 arresters
– Type 2 seamless plug-in surge arrester
– Disconnect device on each individual con-
nector
– Optical, mechanical status indication for
the individual arresters
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
H
W
D
H
W
D
Type 2 surge arresters for 60 mm
system technology
Combi-MCB
Surge protection and interference filters
Surge protection for the power supply unit
5-conductor system; L1, L2, L3, N, PE 4-conductor system; L1, L2, L3, PEN
IN
L1 L2 L3N
PE
14 12
11
FM
Total width 131.5 mm
Technical data
Electrical data
IEC category / EN type II / T2
Nominal voltage UN240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC)
Maximum continuous operating voltage UC
L-N / N-PE / L-PEN 350 V AC / 264 V AC / - - / - / 350 V AC 350 V AC / 264 V AC / -
Nominal discharge surge current In (8/20) µs
L-N / N-PE / L-PEN 60 kA (all channels) / 20 kA / - - / - / 60 kA (all channels) 20 kA / 20 kA / -
Max. discharge surge current Imax. (8/20) µs
L-N / N-PE / L-PEN 90 kA (all channels) / 30 kA / - - / - / 90 kA (all channels) 30 kA / 30 kA / -
Residual voltage at 5 kA L-N / N-PE / L-PEN ≤ 1.3 kV / ≤ 0.5 kV / -
Protection level UP
L-N / N-PE / L-PEN ≤ 2.5 kV / ≤ 1.7 kV / -
Response time tA
L-N / N-PE / L-PEN ≤ 25 ns / ≤ 100 ns / -
Backup fuse max. in acc. with IEC (Not required)
Immunity to short-circuiting (with max. backup fuse) IP25 kA
General data
Dimensions W / H / D 131.5 mm / 101 mm / 76 mm 114 mm / 101 mm / 76 mm 72 mm / 101 mm / 76 mm
Connection data solid / stranded / AWG 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 2
Temperature range -25 °C ... 60 °C
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-1 / EN 61643-11 / IEC 60364-4-443 / IEC 61643-1 / EN 61643-11 / IEC 60364-4-443 / IEC 61643-1 / EN 61643-
IEC 60364-5-534
Remote indication contact PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 1
Max. operating voltage 250 V AC / 250 V DC
Max. operating current 2 A AC / 50 mA DC
Ordering data
Description Type Order No. Pcs. /
Pkt.
VALVETRAB compact, with an arrester backup fuse
VAL-CP-MCB-3S-350/40/FM 2882750 1
Accessories
Replacement connector
L-N / L-PEN VAL-CP-350-ST-GY 2882718 10
N-PE VAL-CP-N/PE-350-ST-GY 2882734 10
54 PHOENIX CONTACT
Type 2 surge arresters with integrated
backup fuse
Combi-MCB
– Combinations of type2 arresters with in-
tegrated arrester backup fuse
– Overload of the surge protection results
in all-pole disconnection from the mains
– Signaling to monitoring systems via re-
mote indication contact in the event of an
error
– Surge-proof arrester backup fuse tailored
to type2 arresters
– Type 2 seamless plug-in surge arrester
– Disconnect device on each individual con-
nector
– Optical, mechanical status indication for
the individual arresters
– Connectors can be checked with
CHECKMASTER
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
Notes:
For certifications, see page 154
5-conductor system; L1, L2, L3, N, PE 4-conductor system; L1, L2, L3, PEN 3-conductor system; L, N, PE
IN
L1 L2 L3
PE
14 12
11
FM
IN
L1N
PE
14 12
11
FM
For additional information, visit www.phoenixcontact.net/products
Total width 114 mm Total width 72 mm
Technical data Technical data
II / T2 II / T2
240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC) 240 V AC (230/400 V AC ... 240/415 V AC)
L-N / N-PE / L-PEN 350 V AC / 264 V AC / - - / - / 350 V AC 350 V AC / 264 V AC / -
L-N / N-PE / L-PEN 60 kA (all channels) / 20 kA / - - / - / 60 kA (all channels) 20 kA / 20 kA / -
L-N / N-PE / L-PEN 90 kA (all channels) / 30 kA / - - / - / 90 kA (all channels) 30 kA / 30 kA / -
- / - / ≤ 1.3 kV ≤ 1.3 kV / ≤ 0.5 kV / -
- / - / ≤ 2.5 kV ≤ 2.5 kV / ≤ 1.7 kV / -
- / - / ≤ 25 ns ≤ 25 ns / ≤ 100 ns / -
(Not required) (Not required)
25 kA 25 kA
Dimensions W / H / D 131.5 mm / 101 mm / 76 mm 114 mm / 101 mm / 76 mm 72 mm / 101 mm / 76 mm
Connection data solid / stranded / AWG 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4 2.5 ... 25 mm² / 2.5 ... 16 mm² / 12 - 4
-25 °C ... 60 °C -25 °C ... 60 °C
V0 V0
Test standards IEC 61643-1 / EN 61643-11 / IEC 60364-4-443 / IEC 61643-1 / EN 61643-11 / IEC 60364-4-443 / IEC 61643-1 / EN 61643-11 / IEC 60364-4-443 /
IEC 60364-5-534 IEC 60364-5-534
PDT, 1-pos. PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC / 250 V DC 250 V AC / 250 V DC
2 A AC / 50 mA DC 2 A AC / 50 mA DC
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VAL-CP-MCB-3C-350/40/FM 2882776 1VAL-CP-MCB-1S-350/40/FM 2882763 1
Accessories Accessories
VAL-CP-350-ST-GY 2882718 10 VAL-CP-350-ST-GY 2882718 10
VAL-CP-N/PE-350-ST-GY 2882734 10
55PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
H
W
D
5-conductor system; L1, L2, L3, N, PE 4-conductor system; L1, L2, L3, PEN 3-conductor system; L, N, PE
IN
OUT
12
6
L
2
N
10
L
L
L
L
N
11
8
L
4
1
3
5
7
9
1
2
3
3
2
1
IN
OUT
56
34
12
11
12
J
N
L
PE
PE
N
L
Total width 35.4 mm Total width 17.7 mm
Technical data Technical data
Electrical data ... 230AC ... 24AC ... 60AC ... 120AC ... 230AC
IEC category / EN type III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3
Nominal voltage UN230 V AC (max. 240/415 V AC) 24 V AC/DC 60 V AC 120 V AC 230 V AC 24 V AC 60 V AC 120 V AC 230 V AC 230 V AC 48 V DC
Maximum continuous operating voltage UCAC/DC 335 V AC (255 V AC / N-PE) / - 34 V AC /
44 V DC
100 V AC /
95 V DC
150 V AC / - 253 V AC / - 34 V AC /
Nominal load current IL26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (3
Nominal discharge surge current In (8/20) µs 1.5 kA (per channel) 1 kA 2.5 kA 2.5 kA 3 kA 1 kA 2.5 kA 2.5 kA 3 kA 3 kA 500 A
Max. discharge surge current Imax. (8/20) µs 10 kA (N-PE) 6.5 kA -
Combined surge UOC 4 kV 2 kV 4 kV 6 kV 6 kV 2 kV 4 kV 6 kV 6 kV 6 kV 6 kV (for 12
Protection level UPL-N/L(N)-PE ≤ 1.2 kV / ≤ 1.5 kV ≤ 180 V / - ≤ 400 V / - ≤ 620 V /
≤ 850 V
≤ 1.1 kV /
≤ 1.5 kV
Response time tAL-N/L(N)-PE ≤ 25 ns / ≤ 100 ns ≤ 25 ns /
≤ 100 ns
≤ 25 ns /
≤ 100 ns
≤ 25 ns /
≤ 100 ns
≤ 25 ns /
≤ 100 ns
Backup fuse max. in acc. with IEC 25 A (gL) 25 A (gL)
General data
Dimensions W / H / D 35.4 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 45 mm / 52 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm /
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Temperature range -40 °C ... 85 °C -40 °C ... 85 °C
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 / UL 1449 ed. 3 IEC 61643-1 / EN 61643-11/A11 / UL 1449
- -
Remote indication contact N/C contact N/C contact
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Max. operating voltage 250 V 250 V
Max. operating current 3 A AC 3 A AC
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
MAINS-PLUGTRAB, consisting of a plug and base element
24 V AC/DC PT 2-PE/S-24AC/FM 2800457 1
60 V AC PT 2-PE/S-60AC/FM 2800961 10
120 V AC PT 2-PE/S-120AC/FM 2856812 1
230 V AC PT 4-PE/S-230AC/FM 2882459 5PT 2-PE/S-230AC/FM 2858357 1
48 V DC
MAINS-PLUGTRAB plug
24 V AC
60 V AC
120 V AC
230 V AC PT 4-PE/S-230AC-ST 2882462 5
48 V DC
Accessories Accessories
PLUGTRAB base element, for mounting on NS35
PT-BE/FM 2839282 10
Grounding plug
PT MAIN-EST 2880736 10
Marking material ZBF ..., see page 111 ZBF ..., see page 111
56 PHOENIX CONTACT
– For single and multi-phase power supply
units
– Rail-mountable module
– Comprising base element and connector
– With floating remote indication contact
– Optical signaling of disconnection via LED
– Tool-free connector replacement
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
Type 3 device protection
MAINS-PLUGTRAB
Surge protection and interference filters
Surge protection for the power supply unit
5-conductor system; L1, L2, L3, N, PE 3-conductor system; L, N, PE Replacement connector for 3-conductor
H
W
D
H
W
D
IN
OUT
56
34
12
11
12
J
N
L
PE
PE
N
L
IN
OUT
56
34
12
11
12
PE
PE
J
IN
OUT
12
34
56
12
11
+
-
~~
(+)
(-)
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm Total width 17.7 mm
Technical data Technical data Technical data
... 24AC ... 60AC ... 120AC ... 230AC ... 230AC ... 48DC
IEC category / EN type III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3 III / T3
230 V AC (max. 240/415 V AC) 24 V AC/DC 60 V AC 120 V AC 230 V AC 24 V AC 60 V AC 120 V AC 230 V AC 230 V AC 48 V DC
150 V AC / - 253 V AC / - 34 V AC /
44 V DC
100 V AC /
95 V DC
150 V AC / - 253 V AC / - 275 V AC / - - / 60 V DC -
26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C) 26 A (30 °C)
(8/20) µs 1.5 kA (per channel) 1 kA 2.5 kA 2.5 kA 3 kA 1 kA 2.5 kA 2.5 kA 3 kA 3 kA 500 A
8 kA 500 A
4 kV 2 kV 4 kV 6 kV 6 kV 2 kV 4 kV 6 kV 6 kV 6 kV 6 kV (for 12 Ω)
≤ 180 V /
≤ 550 V
≤ 400 V /
≤ 700 V
≤ 620 V /
≤ 850 V
≤ 1.1 kV /
≤ 1.5 kV
≤ 1.2 kV / ≤ 1.5 kV ≤ 120 V / ≤ 120 V
≤ 25 ns /
≤ 100 ns
≤ 25 ns /
≤ 100 ns
≤ 25 ns /
≤ 100 ns
≤ 25 ns /
≤ 100 ns
≤ 25 ns / ≤ 100 ns ≤ 1 ns / ≤ 1 ns
25 A (gL) 25 A (gL/C) 25 A (gL)
Dimensions W / H / D 35.4 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 45 mm / 52 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
- 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
-40 °C ... 85 °C (non-EX) -40 °C ... 75 °C -40 °C ... 85 °C
V0 V0 V0
Test standards IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 / UL 1449 ed. 3 IEC 61643-1 / EN 61643-11/A11 / UL 1449 IEC 61643-1 / EN 61643-11/A11 IEC 61643-1 / EN 61643-11/A11 / BS 6651 /
- - ANSI/IEEE C62.41 / EN 50082-2
N/C contact N/C contact
- 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
- 250 V 250 V
- 3 A AC/DC 3 A AC
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PT 2-IT-230AC/FM 2805130 1
PT 2+1-S-48DC/FM 2817958 10
PT 2-PE/S- 24AC-ST 2839318 10
PT 2-PE/S- 60AC-ST 2839321 10
PT 2-PE/S-120AC-ST 2839334 10
PT 2-PE/S-230AC-ST 2839347 10 PT 2-IT-230AC-ST 2805127 10
PT 2+1-S-48DC-ST 2839648 10
Accessories Accessories Accessories
PT-BE/FM 2839282 10 PT-BE/FM 2839282 10 PT-BE/FM 2839282 10
PT MAIN-EST 2880736 10 PT MAIN-EST 2880736 10
ZBF ..., see page 111 ZBF ..., see page 111 ZBF ..., see page 111
57PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
H
W
D
5-conductor system; L1, L2, L3, N, PE 3-conductor system; L, N, PE Replacement connector for 3-conductor
system; L, N, PE
3-conductor system; L, N, PE/L, L, PE
(IT system)
3-conductor system, for single-phase DC
power supply units
H
W
D
PE
!
J
J
230 V
Total width 22.5 mm
Technical data
Electrical data ... 230AC
IEC category / EN type III / T3
Nominal voltage UN240 V AC
Maximum continuous operating voltage UCL-N / L-PE 275 V AC / 440 V AC (4-conductor IT system) 275 V AC / 440 V AC (4-conductor IT system) 335 V AC / - 150 V AC / 150 V AC
Nominal load current IL16 A (30 °C)
Nominal discharge surge current In (8/20) µs 3 kA
Max. discharge surge current Imax. (8/20) µs L-N / L-PE 8 kA (> 100x 1 kA) / -
Combined surge UOC 6 kV
Protection level UPL-N/L(N)-PE ≤ 1.3 kV / -
Response time tAL-N/L(N)-PE ≤ 25 ns (L-N) / ≤ 100 ns (L, N-PE)
Backup fuse max. in acc. with IEC 16 A (gL/C/B)
General data
Dimensions W / H / D 22.5 mm / 43 mm / 26.2 mm 22.5 mm / 43 mm / 26.2 mm -
Connection data solid / stranded / AWG 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14 - .
Temperature range -30 °C ... 75 °C
Inflammability class in acc. with UL 94 V0
Test standards EN 61643-11/A11 / IEC 61643-1 EN 61643-11/A11 / IEC 61643-1 EN 61643-11/A11 / IEC 61643-1 IEC 61643-1 / EN 61643-11/
Remote indication contact
Connection data solid / stranded / AWG -
Max. operating voltage -
Max. operating current -
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
BLOCKTRAB, for universal mounting
240 V AC BT-1S-230AC/O 2800625 1
SOCKETTRAB, device protection for installation socket inserts
230 V AC
MAINS-PRINTRAB, device protection plug with temperature moni-
toring and optical fault warning, as well as remote indication contact
120 V AC
230 V AC
MAINS-PRINTRAB, device protection plug with temperature moni-
toring, optical and acoustic fault warning and remote indicator con-
tact
120 V AC
230 V AC
MAINS-PRINTRAB, flush-type base for installation in cable ducts
and flush-type boxes
230 V AC
Accessories
Central plate
58 PHOENIX CONTACT
Type 3 device protection
BLOCKTRAB and PRINTRAB
BT-1S-230AC/... is device protection in
deep installation boxes (in acc. with DIN
49073), cable ducts, underfloor systems,
and termination devices.
– With double spring-cage terminal blocks
for tool-free conductor connection
– Side latches for easy fixing
– Optical/acoustic signaling of disconnec-
tion
BT-SKT 230/A is device protection for
UP sockets.
– Independent of the switch range and pin
arrangement
– Is mounted on the socket insert
– For installation boxes as per DIN 49073
– Bridges provided for multiple combina-
tion
– Subsequent on-site installation possible
– Thermally monitored protective circuit
– Acoustic signaling of disconnection
– Signal deactivation by pulling the link un-
der the socket cover
MAINS-PRINTRAB is device protec-
tion for installation in cable ducts and instal-
lation boxes.
– Two-piece design, consisting of
PRT-S-.../FM protective connector and
PRT-CD-AD1 flush-type base
– Optical and optical/audible signaling of
disconnection
– With floating remote indication contact
– Installation in range of switches with the
appropriate central plate possible
– Tool-free connector replacement
Surge protection and interference filters
Surge protection for the power supply unit
Notes:
For certifications, see page 154
For universal mounting, optical signaling For universal mounting, acoustic signaling For mounting in flush-type sockets For mounti
PE
!
J
J
230 V
N
L
PE
!
L
PE
N
FM
11
12
For additional information, visit www.phoenixcontact.net/products
Total width 22.5 mm Total width 31.5 mm
Technical data Technical data Technical data
... 230AC ... 230AC ... 120AC ... 230AC
III / T3 III / T3 III / T3 III / T3
240 V AC 230 V AC 120 V AC 230 V AC
L-N / L-PE 275 V AC / 440 V AC (4-conductor IT system) 275 V AC / 440 V AC (4-conductor IT system) 335 V AC / - 150 V AC / 150 V AC 253 V AC / 253 V AC
16 A (30 °C) 16 A (30 °C) 10 A (CSA) 16 A (45°C)
3 kA 1.5 kA 1.5 kA 1.5 kA
8 kA (> 100x 1 kA) / - 4.5 kA / 4.5 kA 4.5 kA / 4.5 kA 4.5 kA / 4.5 kA
6 kV 4 kV 4 kV 4 kV
≤ 1.3 kV / - ≤ 1.3 kV / ≤ 1.5 kV ≤ 600 V / ≤ 800 V ≤ 1.3 kV / ≤ 1.5 kV (at UOC)
≤ 25 ns (L-N) / ≤ 100 ns (L, N-PE) ≤ 25 ns / ≤ 100 ns ≤ 25 ns / ≤ 100 ns ≤ 25 ns / ≤ 100 ns
16 A (gL/C/B) 16 A (gL / B) 16 A (gL/C)
Dimensions W / H / D 22.5 mm / 43 mm / 26.2 mm 22.5 mm / 43 mm / 26.2 mm - 31.5 mm / 32.7 mm / 33 mm
Connection data solid / stranded / AWG 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14 - ... - / - ... 1.5 mm² / - 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
-25 °C ... 75 °C -25 °C ... 75 °C -25 °C ... 75 °C
V0 V0 V0
Test standards EN 61643-11/A11 / IEC 61643-1 EN 61643-11/A11 / IEC 61643-1 EN 61643-11/A11 / IEC 61643-1 IEC 61643-1 / EN 61643-11/A11
N/C contact
-- 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 26 - 16
-- 250 V AC
-- 3 A
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
BT-1S-230AC/A 2803409 10
BT-SKT 230/A 2859343 1
PRT-S-120/FM 2830618 10
PRT-S-230/FM 2749686 10
PRT-S/A-120/FM 2830605 1
PRT-S/A-230/FM 2830621 10
PRT-CD-AD1 2749673 25
Accessories Accessories Accessories
ZP-J/TAE/ST550 WH 2830362 10
59PHOENIX CONTACT
Surge protection and interference filters
Surge protection for the power supply unit
For universal mounting, optical signaling For universal mounting, acoustic signaling For mounting in flush-type sockets For mounting in cable ducts and installation
boxes
N
PE
L
N
PE
L
Total width 56 mm Total width 63 mm
Technical data Technical data
Electrical data
IEC category / EN type III / T3 III / T3
Nominal voltage UN230 V AC 230 V AC
Maximum continuous operating voltage UC
L-N / L-PE 275 V AC / 360 V AC 260 V AC / 260 V AC
Nominal load current IL16 A (30 °C) 16 A (30 °C)
Nominal discharge surge current In (8/20) µs
L-N / L-PE 3 kA / 3 kA 3 kA / 3 kA
Combined surge UOC 4 kV 6 kV
Protection level UP
L-N/N-PE/L-PE ≤ 1.2 kV / ≤ 1.5 kV / ≤ 1.5 kV ≤ 1.1 kV / ≤ 1.5 kV / ≤ 1.5 kV
Response time tA
L-N / L-PE ≤ 25 ns / ≤ 100 ns ≤ 25 ns / ≤ 100 ns
General data
Dimensions W / H / D 56 mm / 76.3 mm / 78.2 mm 63 mm / 79 mm / 103.5 mm
Temperature range -25 °C ... 75 °C -25 °C ... 75 °C
Inflammability class in acc. with UL 94 V0/HB V0/HB
Test standards EN 61643-11/A11 / IEC 61643-1 / VDE 0620-1 / IEC 61643-1 / EN 61643-11/A11 / IEC 60884-1 /
SEK SS 428 08 34 / IEC 60884-1 / NEK-HD 195 S6 DIN VDE 0620-1
Ordering data Ordering data
Description For country-
specific use in Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
MAINTRAB, attachment plug with signal lamp for plugging into a
socket, for device protection
Black D, A, NL MNT-1 D 2882200 1
White D, A, NL MNT-1 D/WH 2882213 1
Black B, F, CZ, SVK, PL MNT-NET B/F 2882226 1
Black E, P MNT-1 E 2882239 1
White S, FIN, N MNT-1 S/WH 2880862 1
Black CH MNT-1 CH II 2882255 1
MAINTRAB-POWERLINE, attachment plug with signal lamp for
use in Powerline transmission systems
Black D, A, NL, E, P MNT-POWERLINE 2858001 1
60 PHOENIX CONTACT
– Attachment plug
– For individual termination devices
– With increased touch-proof protection
– Optical signaling of the surge voltage
function via LED
Note: More information on other ver-
sions of MNT attachment plugs with com-
bined protection for the power supply unit
and the interfaces of data/information tech-
nology can be found starting on page 126.
MNT-POWERLINE
– For Powerline transmission systems
– With adapted protective circuit
– Optimized attenuation behavior
– Optical signaling of the surge voltage
function via LED
Notes:
For certifications, see page 154
Type 3 device protection
MAINTRAB
Surge protection and interference filters
Surge protection for the power supply unit
Attachment plug Attachment plug for Powerline transmission
For additional information, visit www.phoenixcontact.net/products
Ordering data
Description Nominal current INType Order No. Pcs. /
Pkt.
Wiring bridge, for modules with 17.5 mm connecting pitch,
1-phase
2-pos. 100 A MPB 18/1- 2 2809209 10
3-pos. 100 A MPB 18/1- 3 2809212 10
4-pos. 100 A MPB 18/1- 4 2809225 10
5-pos. 100 A MPB 18/1- 5 2817864 10
6-pos. 100 A MPB 18/1- 6 2748564 10
7-pos. 100 A MPB 18/1- 7 BU 2856278 10
8-pos. 100 A MPB 18/1- 8 BU 2858470 10
8-pos. 100 A MPB 18/1- 8 2748577 10
9-pos. 100 A MPB 18/1- 9 2748580 10
12-pos. 100 A MPB 18/1-12 2748593 10
57-pos. 100 A MPB 18/1-57 2809238 1
Wiring bridge, for modules with 17.5 mm connecting pitch,
3-phase
6-pos. 80 A MPB 18/3- 6 2809241 10
9-pos. 80 A MPB 18/3- 9 2809254 10
Wiring bridge, for modules with 17.5 mm connecting pitch,
4-phase
8-pos. 80 A MPB 18/4- 8 2809283 10
12-pos. 80 A MPB 18/4-12 2809296 10
Wiring bridge, flexible, diameter 16 mm²,
fork-type cable lug on one side
200 mm 100 A (30 °C) MPB F200X16/ 1GS 2818339 1
400 mm 100 A (30 °C) MPB F400X16/ 1GS 2818342 1
600 mm 100 A (30 °C) MPB F600X16/ 1GS 2818355 1
61PHOENIX CONTACT
– For combinations of lightning and surge
arresters
– In combination with other devices in the
installation distributor, such as residual
current circuit breakers and miniature cir-
cuit breakers
– Practical wiring of all common applica-
tions
– Single, three or four-phase versions with
various numbers of positions
– The rated cross section of the MPB bridge
metals is 16 mm2 per phase
– End covers are used to terminate and in-
sulate individually cut bridges
TRABTECH wiring bridges
Surge protection and interference filters
Surge protection for the power supply unit
49 160
59
Technical data
Electrical data
Maximum continuous operating voltage UC500 V AC/DC
Nominal current IN125 A (30 °C)
Lightning test curr. Iimp (10/350) µs
Peak value 100 kA
General data
Dimensions W / H / D 17.7 mm / 89.8 mm / 65.5 mm
Connection data solid / stranded / AWG 35 ... 0.5 mm² / 0.5 ... 25 mm² / 20 - 2
Temperature range -40 °C ... 85 °C
Inflammability class in acc. with UL 94 V0
Test standards IEC 60947-7-1 / IEC 60947-7-1 / IEC 60947-7-1
Ordering data
Description Type Order No. Pcs. /
Pkt.
Feed-through terminal block
DK-BIC-35 2749880 1
Accessories
Marking material ZBN 18 ..., see page 63
Notes:
For certifications, see page 154
H
W
D
– Biconnect feed-through terminal block
– For wiring mixed combinations of light-
ning and surge arresters
– As a system extension for FLASHTRAB
and VALVETRAB applications
Feed-through terminal block
Surge protection and interference filters
Surge protection for the power supply unit
Feed-through terminal block
Ordering data
Description Type Order No. Pcs. /
Pkt.
Equipotential bonding strip
PAS-1 2765615 1
62 PHOENIX CONTACT
– Equipotential bonding strip for main equi-
potential bonding according to
DINVDE0100
– As well as for lightning protection equipo-
tential bonding in acc. with
DINEN62305
– Has a comb-shaped contact bar
Equipotential bonding
Equipotential bonding strip
PR INTED
FOR YOU
120
134 160
For additional information, visit www.phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Marking labels
Can be labeled acc. to customer specifications ZBN 18 CUS 0825059 1
unprinted ZBN 18:UNBEDRUCKT 2809128 10
L1, L2, L3, N, ZBN 18,LGS:L1-N,ERDE 2749576 10
, , , , ZBN 18,LGS:ERDE 2749589 10
Zack marker sheet, flat, 120-section, can be separated
Can be labeled acc. to customer specifications ZBFM 5 CUS 0825037 1
unprinted ZBFM 5/WH:UNBEDRUCKT 0803595 10
Zack marker strip, flat, 5-section, without color print
5-section ZBF 12:UNBEDRUCKT 0809735 10
– Flat zack marker strips
– Comprising five individual labels with
17.5mm pitch.
– Can be labeled with CMS computer
marking system or by hand using B-STIFT
Labeling material
Surge protection and interference filters
Surge protection for the power supply unit
Ordering data
Description Type Order No. Pcs. /
Pkt.
TRABTECH housing, for the isolated mounting of surge arresters
TG 40 2788896 1
63
PHOENIX CONTACT
– For separate installation of surge protec-
tive devices
– Use in harsh environmental conditions at
the installation location
– Installation outdoors or indoors possible
– Aluminum housing equipped with two ca-
ble glands
– Supplied as standard: an NS35/7.5 DIN
rail
– The DIN rail requires five part width sec-
tions of 17.5mm each
TRABTECH housing
IP65 protection class
12 14
11
FM
L–L+
12 14
11
FM
L–L+
Total width 53.4 mm Total width 53.4 mm
Technical data Technical data
Electrical data ... 1000 DC ... 600 DC ... 1000 DC ... 600 DC
IEC category / EN type PV- / PV-PV- / PV-PV- /PV- /
Nominal discharge surge current In (8/20) µs 15 kA 15 kA 15 kA 15 kA
Max. discharge surge current Imax. (8/20) µs 40 kA 40 kA 40 kA 40 kA
Protection level UP
(L+) - (L-) / (L+/L-) - PE ≤ 3.5 kV / ≤ 3.5 kV ≤ 2.6 kV / ≤ 2.6 kV ≤ 3.7 kV / ≤ 3.7 kV ≤ 2.7 kV / ≤ 2.7 kV
Non-load voltage UOCSTC ≤ 875 V DC ≤ 600 V DC ≤ 970 V DC ≤ 670 V DC
Highest continuous voltage UCPV 1050 V DC 720 V DC 1170 V DC 800 V DC
Immunity to short-circuiting ISCPV 300 A 300 A 300 A 300 A
Response time tA: ≤ 25 ns ≤ 25 ns ≤ 25 ns ≤ 25 ns
General data
Dimensions W / H / D 53.4 mm / 99 mm / 65.5 mm 53.4 mm / 99 mm / 65.5 mm
Connection data solid / stranded / AWG 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2 1.5 ... 35 mm² / 1.5 ... 25 mm² / 15 - 2
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Housing material PBT / PA PBT / PA
Inflammability class in acc. with UL 94 V0 V0
Test standards EN 50539-11 EN 50539-11
Remote indication contact PDT, 1-pos. PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 30 - 14 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 30 - 14
Max. operating voltage 250 V AC / 30 V 250 V AC / 30 V
Max. operating current 1.5 A AC (250 V AC) / 1 A DC (30 V DC) 1.5 A AC (250 V AC) / 1 A DC (30 V DC)
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
VALVETRAB-MS
with remote indication contact VAL-MS-T1/T2 1000DC-PV/2+V-FM 2801161 1VAL-MS 1000DC-PV/2+V-FM 2800627 1
without remote indication contact VAL-MS-T1/T2 1000DC-PV/2+V 2801160 1VAL-MS 1000DC-PV/2+V 2800628 1
with remote indication contact VAL-MS-T1/T2 600DC-PV/2+V-FM 2801164 1VAL-MS 600DC-PV/2+V-FM 2800641 1
without remote indication contact VAL-MS-T1/T2 600DC-PV/2+V 2801163 1VAL-MS 600DC-PV/2+V 2800642 1
Accessories Accessories
Replacement connector
1000 V DC VAL-MS-T1/T2 1000DC-PV-ST 2801162 1VAL-MS 1000DC-PV-ST 2800624 1
600 V DC VAL-MS-T1/T2 600DC-PV-ST 2801165 1VAL-MS 600DC-PV-ST 2800623 1
Labeling material ZBN 18 ..., see page 63 ZBN 18 ..., see page 63
64 PHOENIX CONTACT
– Type 1 and type 2 consistent plug-in ar-
resters
– Reliable contact, thanks to integrated ro-
tating latch
– Optical, mechanical status indication for
the individual arresters
– With or without floating remote indica-
tion contact
– Mechanical keying of all slots
Notes:
For certifications, see page 154
H
W
D
H
W
D
Lightning and surge arresters for
PV systems
Surge protection and interference filters
Renewable energy sources
Type 1/2 arrester for insulated and
single-sided grounded PV applications
Type 2 arrester for insulated and
single-sided grounded PV applications
For additional information, visit www.phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Building set, consisting of:
1 x VAL-MS-T1/T2 (surge arrester),
1 x MNT-1D (device protection adapter),
1 x MNT-TV-SAT D (device and TV-SAT protective adapter),
1 x MNT-TAE D (device and TAE protective adapter),
2 x adapter F to TV (IEC) connector,
1 x KBL TV-SAT/150, 1 x KBL TV/150,
1 x KBL TAE/150 (connecting cable)
GEB-SET-T1/T2 TAE/TV-SAT 2801022 1
65PHOENIX CONTACT
– Surge protection set for powerful basic
protection
– Coordinated protective devices
– VAL-MS-T1/T2 lightning arrester for in-
stallation in the distribution
– Three device protection adapters (type 3)
for protecting the power supply
– Two of these are equipped with additional
signal line protection (TV/SAT or TAE)
– Cables and adapters are supplied as stan-
dard
Set solution for building installation
Surge protection and interference filters
Set solutions
Set solution with surge protection for TAE and
TV-SAT
IN
OUT
L+L+
L–L–
Total width 125 mm
Technical data
Electrical data
IEC category / EN type PV- / PV-
Lightning test curr. Iimp (10/350) µs
Peak value 5 kA
Nominal discharge surge current In (8/20) µs 15 kA
Max. discharge surge current Imax. (8/20) µs 40 kA
Protection level UP
(L+) - (L-) / (L+/L-) - PE ≤ 3.5 kV / ≤ 3.5 kV
Highest continuous voltage UCPV 1000 V DC
Immunity to short-circuiting ISCPV 32 A DC
Response time tA: ≤ 25 ns
General data
Dimensions W / H / D 125 mm / 200 mm / 122 mm 200 mm / 200 mm / 122 mm 300 mm / 300 mm / 142 mm 200 mm / 200 mm / 122 mm
Temperature range -30 °C ... 55 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP65
Housing material Polycarbonate, glass-fiber-reinforced Polycarbonate, glass-fiber-reinforced Polycarbonate, glass-fiber-reinforced
Inflammability class in acc. with UL 94 V2 (housing/cover)
Test standards IEC 61439-2 / EN 61439-2 / prEN 50539-11 IEC 61439-2 / EN 61439-2 / prEN 50539-11 IEC 61439-2 / EN 61439-2 / prEN 5
Remote indication contact PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 1
Max. operating voltage 250 V AC / 30 V DC
Max. operating current 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5
Ordering data
Description Type Order No. Pcs. /
Pkt.
Surge protection in IP65 housing, for photovoltaic systems up to
1000 V DC
(L+)-PE & (L-)-PE & (L+)-(L-) PV-SET 1ST/1000DC/1MPP-SPD-SC 2801529 1
Accessories
Replacement connector
VAL-MS-T1/T2 1000DC-PV-ST 2801162 1
66 PHOENIX CONTACT
Surge protection for photovoltaic
systems
– For insulated or grounded PV applications
up to 1000 V DC
– Pre-assembled protection solutions
– Suitable for DC applications such as PV
systems
– Type 1/2 universally plug-in capable light-
ning arresters and surge arresters
– Optical, mechanical status indication for
the individual arresters
– Mechanical keying of all slots
– Connectors can be checked with
CHECKMASTER
Surge protection and interference filters
Set solutions
Notes:
For certifications, see page 154
For insulated or grounded PV applications up
to 1000 V DC, with SUNCLIX
L+
L+
L+
L+
L+
L+
L-
L-
OUTOUT
IN IN
L+ L+L- L+ L- L-
OUTOUT
IN IN IN
OUT
L+ L- L+ L+L- L-
IN
OUT
L+L+
L–L–
For additional information, visit www.phoenixcontact.net/products
Total width 200 mm Total width 300 mm Total width 200 mm
Technical data Technical data Technical data
PV- / PV-PV- / PV-PV- / PV-
5 kA 5 kA 5 kA
15 kA 15 kA 15 kA
40 kA 40 kA 40 kA
≤ 3.5 kV / ≤ 3.5 kV ≤ 3.5 kV / ≤ 3.5 kV ≤ 3.5 kV / ≤ 3.5 kV
1000 V DC 1000 V DC 1000 V DC
32 A DC (per MPP) 32 A DC (per MPP) 32 A DC
≤ 25 ns ≤ 25 ns ≤ 25 ns
Dimensions W / H / D 125 mm / 200 mm / 122 mm 200 mm / 200 mm / 122 mm 300 mm / 300 mm / 142 mm 200 mm / 200 mm / 122 mm
-30 °C ... 55 °C -30 °C ... 55 °C -20 °C ... 40 °C
IP65 IP65 IP65
Housing material Polycarbonate, glass-fiber-reinforced Polycarbonate, glass-fiber-reinforced Polycarbonate, glass-fiber-reinforced Polycarbonate, glass-fiber-reinforced
V2 (housing/cover) V2 (housing/cover) V2 (housing/cover)
Test standards IEC 61439-2 / EN 61439-2 / prEN 50539-11 IEC 61439-2 / EN 61439-2 / prEN 50539-11 IEC 61439-2 / EN 61439-2 / prEN 50539-11 prEN 50539-11 / EN 61439-2
PDT, 1-pos. PDT, 1-pos. PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC / 30 V DC 250 V AC / 30 V DC 250 V AC / 30 V DC
Max. operating current 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC) 1.5 A AC (250 V AC) / 1.5 A DC (30 V DC)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PV-SET 2ST/1000DC/2MPP-SPD-SC 2801317 1PV-SET 3ST/1000DC/3MPP-SPD-SC 2801531 1PV-SET 2ST/1000DC-SPD-SD-SC 2801318 1
Accessories Accessories Accessories
VAL-MS-T1/T2 1000DC-PV-ST 2801162 1VAL-MS-T1/T2 1000DC-PV-ST 2801162 1VAL-MS-T1/T2 1000DC-PV-ST 2801162 1
67PHOENIX CONTACT
Surge protection and interference filters
Set solutions
For two MPP trackers, up to 1000 VDC,
with SUNCLIX
For three MPP trackers, up to 1000 VDC,
with SUNCLIX
For two solar strings, including a generator
disconnect
N/GND L1 L2
N/GND L1 L2 L3
Technical data Technical data
MCOV 275 V 275 V
Nominal voltage UN< 240 V < 240 V
Lightning test curr. Iimp (10/350) µs 50 kA (per mode) 50 kA (per mode)
Response time tA≤ 25 ns ≤ 25 ns
Voltage Protection Rating (VPR)
L-L /L-PE 1500 V / 900 V 1500 V / 900 V
Short-circuit current rating (SCCR) 50 kA 50 kA
UL Type Type 2 Type 2
Connection data solid / stranded / AWG 10 ... 50 mm² / 16 ... 35 mm² / 6 - 1 10 ... 50 mm² / 16 ... 35 mm² / 6 - 1 10 ... 50 mm² /
Error/status indicator Remote indicator contact Remote indicator contact Remote indicator contact Remote indicator contact Remote in
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Dimensions W / H / D 400 mm / 500 mm / 210 mm 400 mm / 500 mm / 210 mm 400 mm / 500 mm / 210 mm 400 mm / 500 mm / 210 mm 400 mm / 500
Test standards UL 1449 3rd edition, Sept. 2009 / IEC 60643-1 /
EN 61643-11
UL 1449 3rd edition, Sept. 2009 / IEC 60643-1 /
EN 61643-11
CAN/CSA-C22.2 No. 8 CAN/CSA-C22.2 No. 8 CAN/CSA-C22.2 No. 8 CAN/CSA-C22.2 No. 8 CAN/CSA-C22.2 No. 8
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
SYSTEMTRAB arrester and TVSS system
IP66 / NEMA 4 cabinet SYS N4 120/240S 2800705 1SYS N4 120/208Y 2800704 1
IP66 / NEMA 4 cabinet with indicator lamps SYS N4/I 120/240S 2800710 1SYS N4/I 120/208Y 2800709 1
IP66 / NEMA 4X cabinet SYS N4X 120/240S 2800715 1SYS N4X 120/208Y 2800714 1
IP66 / NEMA 4X cabinet with indicator lamps SYS N4X/I 120/240S 2800720 1SYS N4X/I 120/208Y 2800719 1
68 PHOENIX CONTACT
–Protects AC power mains
– 50 kA direct lightning strike energy
– Combination lightning arrester and TVSS
– Revolutionary Arc Chopping Spark Gap
technology
– Extinguishes up to 50 kA of follow cur-
rent
– Remote status contacts
– Status LED lamps available
– ETL listed to UL 1449, 3rd edition
Device protection for components
Surge protection and interference filters
NEMA set solutions
120/240 V single/split phase system 120/208Y system 277/480Y system 240 V High-Leg Delta 480 V Delta system
N/GND L1 L2 L3
N/GND L1 L2 L3
N/GND L1 L2 L3
For additional information, visit www.phoenixcontact.net/products
Technical data Technical data Technical data
- / 600 V (L-L) / 440 V (L-G) 275 V - / 600 V (L-L) / 480 V (L-G)
< 277 V < 240 V < 480 V
50 kA (per mode) 50 kA (per mode) 50 kA (per mode)
≤ 25 ns ≤ 25 ns ≤ 25 ns
2500 V / 1500 V 1500 V / 900 V 2500 V / 1500 V
50 kA 50 kA 50 kA
Type 2Type 2Type 2
Connection data solid / stranded / AWG 10 ... 50 mm² / 16 ... 35 mm² / 6 - 1 10 ... 50 mm² / 16 ... 35 mm² / 6 - 1 10 ... 50 mm² / 16 ... 35 mm² / 6 - 1 10 ... 50 mm² / 16 ... 35 mm² / 6 - 1 10 ... 50 mm² / 16 ... 35 mm² / 6 - 1
Error/status indicator Remote indicator contact Remote indicator contact Remote indicator contact Remote indicator contact Remote indicator contact
-40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
Dimensions W / H / D 400 mm / 500 mm / 210 mm 400 mm / 500 mm / 210 mm 400 mm / 500 mm / 210 mm 400 mm / 500 mm / 210 mm 400 mm / 500 mm / 210 mm
UL 1449 3rd edition, Sept. 2009 / IEC 60643-1 /
EN 61643-11
UL 1449 3rd edition, Sept. 2009 / IEC 60643-1 / EN 61643-11 / UL 1449 3rd edition, Sept. 2009 / IEC 60643-1 / EN 61643-11 /
CAN/CSA-C22.2 No. 8 CAN/CSA-C22.2 No. 8 CAN/CSA-C22.2 No. 8 CAN/CSA-C22.2 No. 8 CAN/CSA-C22.2 No. 8
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
SYS N4 277/480Y 2800703 1SYS N4 120/240HLD 2800706 1SYS N4 480D 2800707 1
SYS N4/I 277/480Y 2800708 1SYS N4/I 120/240HLD 2800711 1SYS N4/I 480D 2800712 1
SYS N4X 277/480Y 2800713 1SYS N4X 120/240HLD 2800716 1SYS N4X 480D 2800717 1
SYS N4X/I 277/480Y 2800718 1SYS N4X/I 120/240HLD 2800721 1SYS N4X/I 480D 2800722 1
69PHOENIX CONTACT
Surge protection and interference filters
NEMA set solutions
120/240 V single/split phase system 120/208Y system 277/480Y system 240 V High-Leg Delta 480 V Delta system
70 PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
Intelligent and systematic surge pro-
tection – PLUGTRAB PT-IQ
The PLUGTRAB PT-IQ product range is
the first to offer predictive function moni-
toring for surge protective devices in the
context of measurement and control tech-
nology. Boasting a whole range of additional
features, the new surge protection system is
a real highlight from Phoenix Contact.
Always know what is happening – pre-
dictive monitoring
The individual components of the protec-
tive devices are permanently monitored.
When the performance limit has been
reached as a result of frequent surge voltag-
es, this is indicated by the yellow status sym-
bol. The arrester continues to function and
your system is still protected. However, re-
placement of the protective plug is recom-
mended. This ensures you are informed
even earlier and can replace your surge pro-
tection before the protective plug is over-
loaded (red signal). Furthermore, if you use
the remote signaling option, you can check
how well your system is being protected
from anywhere and at any time.
Permanent and error-free installation
The PLUGTRAB PT-IQ minimizes the
amount of wiring required. This is made
possible by the DIN rail connector (TBUS),
which is easily clipped onto the DIN rail. A
controller handles the distribution of the
power supply and implements remote sig-
naling of all connected surge protective de-
vices via the TBUS. All you have to do then
is install the surge protective devices on the
TBUS – and you're done! The plug and base
element are coded to avoid installation er-
rors during replacement.
Limitless extension
The controller monitors all arresters
which are connected to the controller via
the TBUS. You can bridge the TBUS across
DIN rails to monitor even more protective
devices. After 28 protective devices, an ad-
ditional controller must be installed to sup-
ply voltage. Remote signaling can be per-
formed from any controller in the system.
Other surge protective devices
PLUGTRAB PT are plug-in arresters with-
out remote signaling, also with switching
variants for intrinsically safe signal circuits.
The multi-stage modular terminal blocks
in the TERMITRAB or LINETRAB product
ranges have a design width of just 6.2 mm
yet are able to offer protection for up to
four signal wires.
As they are installed directly on measur-
ing sensors, the SURGETRAB screw con-
nection modules are able to provide reliable
protection against transients even in EX-i
and Ex-d applications.
The products in the COMTRAB modular
range have been designed specifically for use
in marshalling distributors.
For additional information, visit www.phoenixcontact.net/products
71PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
Group message
Green: protective device OK
Yellow: performance limit reached,
replacement recommended
Red: protective device overloaded,
replace
Multi-level remote signaling
Connect the remote signaling to the con-
troller that acts as a supply and remote
module (one-off connection operation).
The status is output according to the prior-
ity as red, yellow or green. This ensures you
always know what is happening and can al-
ways keep an eye on your system's protec-
tion.
TBUS DIN rail connector
The DIN rail connector (TBUS) supplies
voltage to the protection modules and for-
wards the status of each individual arrester
to the controller. You benefit from the re-
duced wiring costs and can implement surge
protection quickly without errors.
Narrow arresters
The narrow TERMITRAB modular
terminal blocks have a design width of just
6.2 mm. Some offer multi-stage protective
circuits for Ex and non-Ex applications.
Special systems
Implement protection in the field directly
at the measuring sensor with SURGETRAB
screw connection modules.
Versions for terminal strips
COMTRAB modular type protective de-
vices are used for highly compressed cable
networks like those found in marshalling
distributors, for example.
5
1
3
6
2
4
12
10
8FM
FM
DC +
DC –
Power
SPD
DC +
DC –
DC –
FM
78
11 12
910
34
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
Electrical data ... 5DC ... 12DC ... 24DC ... 48DC
IEC category / EN type - C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
Maximum continuous operating voltage UCDC/AC - 6 V DC /
4 V AC
15 V DC /
10 V AC
30 V DC /
21 V AC
53 V DC /
37 V AC
Lightning test curr. Iimp (10/350) µs Per path - 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA
Nominal current INmax. 130 mA (24 V DC) 1000 mA (Up
to 45°C)
1000 mA (Up
to 45°C)
1000 mA (Up
to 45°C)
300 mA (Up to
45°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground - 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10
Total surge current (8/20) µs - 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
Protection level UP
Core-Core - ≤ 25 V
(C3 - 25 A)
≤ 35 V
(C3 - 25 A)
≤ 55 V
(C3 - 25 A)
≤ 90 V
(C3 - 25 A)
Core-Ground - ≤ 600 V (C1 -
1 kV/500 A)
≤ 600 V (C1 -
1 kV/500 A)
≤ 600 V (C1 -
1 kV/500 A)
≤ 600 V (C1 -
1 kV/500 A)
Resistance per path - 1.2 Ω1.2 Ω1.2 Ω1.2 Ω
General data
Dimensions W / H / D 17.7 mm / 91.1 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 m
Connection data solid/stranded with ferrule/AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0
Temperature range -40 °C ... 70 °C -40 °C ... 70 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards EN 61000-6-2 / EN 61000-6-2/A1 / EN 61000-6-3 EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 / EN 61643-21/A1 / IE
EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3
Remote indication contact 2 x N/C contacts Via TBUS
Connection data solid/AWG 0.2 ... 4 mm² / 24 - 14 -
Max. operating voltage 30 V AC (50 - 60 Hz) / 50 V DC -
Max. operating current 1 A (up to 50°C) / 200 mA (up to 70°C) -
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PLUGTRAB supply module, consisting of a plug, base element,
and DIN rail bus
24 V DC PT-IQ-PTB-UT 2800768 1
MCR-PLUGTRAB, consisting of a plug, base element, and DIN rail
bus
5 V DC PT-IQ-1X2-5DC-UT 2800791 1
12 V DC PT-IQ-1X2-12DC-UT 2800793 1
24 V DC PT-IQ-1X2-24DC-UT 2800976 1
48 V DC PT-IQ-1X2-48DC-UT 2800978 1
Accessories Accessories
Replacement connector
5 V DC PT-IQ-1X2-5DC-P 2800770 1
12 V DC PT-IQ-1X2-12DC-P 2800771 1
24 V DC PT-IQ-PTB-P 2800989 1PT-IQ-1X2-24DC-P 2800772 1
48 V DC PT-IQ-1X2-48DC-P 2800773 1
Marking material ZB 6, see page 111 ZB 6, see page 111
72 PHOENIX CONTACT
– Surge protection system
– Multi-level state monitoring
– Collective message about supply and re-
mote module
– Multi-level, floating remote signaling
– System supplied via DIN rail bus
– Up to 28 protection modules per supply
module
– Maximum ease of maintenance thanks to
the two-piece design
–Plugs are coded
– Impedance-neutral disconnection of plug
for maintenance purposes
– Base element remains an integral part of
the installation
– Base element with screw connection
technology
Notes:
For certifications, see page 154
PLUGTRAB PT-IQ with screw
connection
Surge protection and interference filters
Surge protection for measurement and control technology
Controller for supply and remote signaling Double conductor (loop), floating,
9/10 connection grounded directly
H
W
D
H
W
D
78
11 12
910
34
78
11 12
910
34
78
11 12
910
34
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm Total width 17.7 mm
Technical data Technical data Technical data
... 5DC ... 12DC ... 24DC ... 48DC ... 5DC ... 12DC ... 24DC ... 48DC ... 5DC ... 12DC ... 24DC ... 48DC
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
6 V DC /
4 V AC
15 V DC /
10 V AC
30 V DC /
21 V AC
53 V DC /
37 V AC
6 V DC /
4 V AC
15 V DC /
4 V AC
30 V DC /
21 V AC
53 V DC /
37 V AC
6 V DC /
4 V AC
15 V DC /
10 V AC
30 V DC /
21 V AC
53 V DC /
37 V AC
(10/350) µs Per path - 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA
1000 mA (Up
to 45°C)
1000 mA (Up
to 45°C)
1000 mA (Up
to 45°C)
300 mA (Up to
45°C)
1000 mA (Up
to 45°C)
1000 mA (Up
to 45°C)
1000 mA (Up
to 45°C)
300 mA (Up to
45°C)
1000 mA (Up
to 45°C)
1000 mA (Up
to 45°C)
1000 mA (Up
to 45°C)
300 mA (Up to
45°C)
Core-Core / Core-Ground - 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA
Total surge current (8/20) µs - 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
≤ 25 V
(C3 - 25 A)
≤ 35 V
(C3 - 25 A)
≤ 55 V
(C3 - 25 A)
≤ 90 V
(C3 - 25 A)
≤ 900 V (C1 -
1 kV/500 A)
≤ 900 V (C1 -
1 kV/500 A)
≤ 900 V (C1 -
1 kV/500 A)
≤ 900 V (C1 -
1 kV/500 A)
≤ 25 V
(C3 - 25 A)
≤ 35 V
(C3 - 25 A)
≤ 55 V
(C3 - 25 A)
≤ 90 V
(C3 - 25 A)
≤ 720 V (C1 -
1 kV/500 A)
≤ 750 V (C1 -
1 kV/500 A)
≤ 800 V (C1 -
1 kV/500 A)
≤ 750 V (C1 -
1 kV/500 A)
1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω
Dimensions W / H / D 17.7 mm / 91.1 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 mm
AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
-40 °C ... 70 °C -40 °C ... 70 °C -40 °C ... 70 °C
IP20 IP20 IP20
V0 V0 V0
Test standards EN 61000-6-2 / EN 61000-6-2/A1 / EN 61000-6-3 EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 / EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 / EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 / EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 /
EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3
Via TBUS Via TBUS Via TBUS
---
---
---
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PT-IQ-1X2+F-5DC-UT 2800792 1PT-IQ-2X1-5DC-UT 2800778 1PT-IQ-2X1+F-5DC-UT 2800779 1
PT-IQ-1X2+F-12DC-UT 2800975 1PT-IQ-2X1-12DC-UT 2800780 1PT-IQ-2X1+F-12DC-UT 2800781 1
PT-IQ-1X2+F-24DC-UT 2800977 1PT-IQ-2X1-24DC-UT 2800787 1PT-IQ-2X1+F-24DC-UT 2800788 1
PT-IQ-1X2+F-48DC-UT 2800979 1PT-IQ-2X1-48DC-UT 2800789 1PT-IQ-2X1+F-48DC-UT 2800790 1
Accessories Accessories Accessories
PT-IQ-1X2-5DC-P 2800770 1PT-IQ-2X1-5DC-P 2800774 1PT-IQ-2X1-5DC-P 2800774 1
PT-IQ-1X2-12DC-P 2800771 1PT-IQ-2X1-12DC-P 2800775 1PT-IQ-2X1-12DC-P 2800775 1
PT-IQ-1X2-24DC-P 2800772 1PT-IQ-2X1-24DC-P 2800776 1PT-IQ-2X1-24DC-P 2800776 1
PT-IQ-1X2-48DC-P 2800773 1PT-IQ-2X1-48DC-P 2800777 1PT-IQ-2X1-48DC-P 2800777 1
ZB 6, see page 111 ZB 6, see page 111 ZB 6, see page 111
73PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Double conductor (loop), floating,
9/10 connection grounded via gas-filled surge
arrester
2-wire with common reference potential,
9/10 connection grounded directly
2-wire with common reference potential,
9/10 connection grounded via gas-filled surge
arrester
H
W
D
H
W
D
5
1
3
6
2
4
12
10
8FM
FM
DC +
DC –
Power
SPD
DC +
DC –
DC –
FM
78
11 12
910
34
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
Electrical data ... 5DC ... 12DC ... 24DC ... 48DC
IEC category / EN type - C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
Maximum continuous operating voltage UCDC/AC - 6 V DC /
4 V AC
15 V DC /
10 V AC
30 V DC /
21 V AC
53 V DC /
37 V AC
Lightning test curr. Iimp (10/350) µs Per path - 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA
Nominal current INmax. 130 mA (24 V DC) 1000 mA (up to
40 °C)
1000 mA (up to
40 °C)
1000 mA (up to
40 °C)
300 mA (up to
70°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground - 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 k
Total surge current (8/20) µs - 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
Protection level UP
Core-Core - ≤ 25 V
(C3 - 25 A)
≤ 35 V
(C3 - 25 A)
≤ 55 V
(C3 - 25 A)
≤ 90 V
(C3 - 25 A)
Core-Ground - ≤ 600 V (C1 -
1 kV/500 A)
≤ 600 V (C1 -
1 kV/500 A)
≤ 600 V (C1 -
1 kV/500 A)
≤ 600 V (C1 -
1 kV/500 A)
Resistance per path - 1.2 Ω1.2 Ω1.2 Ω1.2 Ω
General data
Dimensions W / H / D 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77
Connection data solid/stranded with ferrule/AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0
Temperature range -40 °C ... 70 °C -40 °C ... 70 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards EN 61000-6-2/A1 / EN 61000-6-3 IEC 61643-21/A2 / EN 61643-21/A1 / EN 61000-6-2/A1 / IEC 61643-21/A2 / EN 61643-21/A
EN 61000-6-3
Remote indication contact 2 x N/C contacts Via TBUS
Connection data solid/AWG 0.2 ... 4 mm² / 24 - 12 -
Max. operating voltage 35 V AC (50 - 60 Hz) / 50 V DC -
Max. operating current 1 A (up to 50°C) / 200 mA (up to 70°C) -
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PLUGTRAB supply module, consisting of a plug, base element,
and DIN rail bus
24 V DC PT-IQ-PTB-PT 2801296 1
MCR-PLUGTRAB, consisting of a plug, base element, and DIN rail
bus
5 V DC PT-IQ-1X2-5DC-PT 2801251 1
12 V DC PT-IQ-1X2-12DC-PT 2801253 1
24 V DC PT-IQ-1X2-24DC-PT 2801255 1
48 V DC PT-IQ-1X2-48DC-PT 2801257 1
Accessories Accessories
Replacement connector
5 V DC PT-IQ-1X2-5DC-P 2800770 1
12 V DC PT-IQ-1X2-12DC-P 2800771 1
24 V DC PT-IQ-PTB-P 2800989 1PT-IQ-1X2-24DC-P 2800772 1
48 V DC PT-IQ-1X2-48DC-P 2800773 1
Marking material ZB 6, see page 111 ZB 6, see page 111
74 PHOENIX CONTACT
– Surge protection system
– Multi-level state monitoring
– Collective message about supply and re-
mote module
– Multi-level, floating remote signaling
– System supplied via DIN rail bus
– Up to 28 protection modules per supply
module
– Maximum ease of maintenance thanks to
the two-piece design
–Plugs are coded
– Impedance-neutral disconnection of plug
for maintenance purposes
– Base element remains an integral part of
the installation
– Base element in push-in connection tech-
nology
Notes:
For certifications, see page 154
PLUGTRABPT-IQ with push-in
connection technology
Surge protection and interference filters
Surge protection for measurement and control technology
Controller for supply and remote signaling Double conductor (loop), floating,
9/10 connection grounded directly
H
W
D
H
W
D
78
11 12
910
34
78
11 12
910
34
78
11 12
910
34
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm Total width 17.7 mm
Technical data Technical data Technical data
... 5DC ... 12DC ... 24DC ... 48DC ... 5DC ... 12DC ... 24DC ... 48DC ... 5DC ... 12DC ... 24DC ... 48DC
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
6 V DC /
4 V AC
15 V DC /
10 V AC
30 V DC /
21 V AC
53 V DC /
37 V AC
6 V DC /
4 V AC
15 V DC /
4 V AC
30 V DC /
21 V AC
53 V DC /
37 V AC
6 V DC /
4 V AC
15 V DC /
10 V AC
30 V DC /
21 V AC
53 V DC /
37 V AC
(10/350) µs Per path - 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA
1000 mA (up to
40 °C)
1000 mA (up to
40 °C)
1000 mA (up to
40 °C)
300 mA (up to
70°C)
1000 mA (up to
40 °C)
1000 mA (up to
40 °C)
1000 mA (up to
40 °C)
300 mA (up to
70°C)
1000 mA (up to
40 °C)
1000 mA (up to
40 °C)
1000 mA (up to
40 °C)
300 mA (up to
70°C)
Core-Core / Core-Ground - 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA
Total surge current (8/20) µs - 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
≤ 25 V
(C3 - 25 A)
≤ 35 V
(C3 - 25 A)
≤ 55 V
(C3 - 25 A)
≤ 90 V
(C3 - 25 A)
≤ 900 V (C1 -
1 kV/500 A)
≤ 900 V (C1 -
1 kV/500 A)
≤ 900 V (C1 -
1 kV/500 A)
≤ 900 V (C1 -
1 kV/500 A)
≤ 25 V
(C3 - 25 A)
≤ 35 V
(C3 - 25 A)
≤ 55 V
(C3 - 25 A)
≤ 90 V
(C3 - 25 A)
≤ 720 V (C1 -
1 kV/500 A)
≤ 750 V (C1 -
1 kV/500 A)
≤ 780 V (C3 -
25 A)
≤ 750 V (C1 -
1 kV/500 A)
1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω1.2 Ω
Dimensions W / H / D 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm
AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
-40 °C ... 70 °C -40 °C ... 70 °C -40 °C ... 70 °C
IP20 IP20 IP20
V0 V0 V0
Test standards EN 61000-6-2/A1 / EN 61000-6-3 IEC 61643-21/A2 / EN 61643-21/A1 / EN 61000-6-2/A1 / IEC 61643-21/A2 / EN 61643-21/A1 / EN 61000-6-2/A1 / IEC 61643-21/A2 / EN 61643-21/A1 / EN 61000-6-2/A1 / IEC 61643-21/A2 / EN 61643-21/A1 / EN 61000-6-2/A1 /
EN 61000-6-3 EN 61000-6-3 EN 61000-6-3
Via TBUS Via TBUS -
- - -
---
---
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PT-IQ-1X2+F-5DC-PT 2801252 1PT-IQ-2X1-5DC-PT 2801243 1PT-IQ-2X1+F-5DC-PT 2801244 1
PT-IQ-1X2+F-12DC-PT 2801254 1PT-IQ-2X1-12DC-PT 2801245 1PT-IQ-2X1+F-12DC-PT 2801246 1
PT-IQ-1X2+F-24DC-PT 2801256 1PT-IQ-2X1-24DC-PT 2801247 1PT-IQ-2X1+F-24DC-PT 2801248 1
PT-IQ-1X2+F-48DC-PT 2801258 1PT-IQ-2X1-48DC-PT 2801249 1PT-IQ-2X1+F-48DC-PT 2801250 1
Accessories Accessories Accessories
PT-IQ-1X2-5DC-P 2800770 1PT-IQ-2X1-5DC-P 2800774 1PT-IQ-2X1-5DC-P 2800774 1
PT-IQ-1X2-12DC-P 2800771 1PT-IQ-2X1-12DC-P 2800775 1PT-IQ-2X1-12DC-P 2800775 1
PT-IQ-1X2-24DC-P 2800772 1PT-IQ-2X1-24DC-P 2800776 1PT-IQ-2X1-24DC-P 2800776 1
PT-IQ-1X2-48DC-P 2800773 1PT-IQ-2X1-48DC-P 2800777 1PT-IQ-2X1-48DC-P 2800777 1
ZB 6, see page 111 ZB 6, see page 111 ZB 6, see page 111
75PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Double conductor (loop), floating,
9/10 connection grounded via gas-filled surge
arrester
2-wire with common reference potential,
9/10 connection grounded directly
2-wire with common reference potential,
9/10 connection grounded via gas-filled surge
arrester
H
W
D
H
W
D
12
56
34
910
78
11 12
Total width 17.7 mm
Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1
Maximum continuous operating voltage UCDC/AC 30 V DC / 21 V AC
Lightning test curr. Iimp (10/350) µs Per path 2.5 kA
Nominal current IN700 mA (Up to 45°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA
Total surge current (8/20) µs 20 kA
Protection level UP
Core-Core ≤ 55 V (C3 - 25 A)
Core-Ground ≤ 600 V (C1 - 1 kV/500 A)
PT-IQ...UT dimensions W/H/D 17.7 mm / 91 mm / 77.5 mm 17.7 mm / 91 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.
Resistance per path 1.2 Ω
General data
PT-IQ...PT dimensions W/H/D 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3
Connection data solid/stranded with ferrule/AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0
Connection data, push-in solid/stranded with ferrule/AWG 0.2 ... 4 mm² / - ... - / 20 - 12 0.2 ... 4 mm² / - ... - / 20 - 12 0.5 .
Temperature range -40 °C ... 70 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Test standards EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 / EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 / EN 61643-21/A1
EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3
Remote indication contact Via TBUS
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
MCR-PLUGTRAB, consisting of a plug, base element, and DIN rail
bus, with screw connection technology
24 V PT-IQ-2X2-24DC-UT 2800980 1
MCR-PLUGTRAB, consisting of a plug, base element, and DIN rail
bus, with push-in connection technology
24 V DC PT-IQ-2X2-24DC-PT 2801263 1
Accessories
Replacement connector
24 V DC PT-IQ-2X2-24DC-P 2800804 1
Marking material ZB 6, see page 111
76 PHOENIX CONTACT
PLUGTRAB PT-IQ
– Surge protection system
– Multi-level state monitoring
– Collective message about supply and re-
mote module
– Multi-level, floating remote signaling
– System supplied via DIN rail bus
– Up to 28 protection modules per supply
module
– Maximum ease of maintenance thanks to
the two-piece design
–Plugs are coded
– Impedance-neutral disconnection of plug
for maintenance purposes
– Base element remains an integral part of
the installation
– PT-IQ...-UT base element with screw con-
nection technology
– PT-IQ...-PT base element with push-in
connection technology
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Notes:
For certifications, see page 154
2 double conductors (loops), floating,
9/10 connection grounded directly
12
56
34
910
78
11 12
12
56
78
11 12
910
34
12
56
78
11 12
910
34
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm Total width 17.7 mm
Technical data Technical data Technical data
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
30 V DC / 21 V AC 30 V DC / 21 V AC 30 V DC / 21 V AC
2.5 kA 2.5 kA 2.5 kA
700 mA (Up to 45°C) 700 mA (Up to 45°C) 700 mA (Up to 45°C)
10 kA / 10 kA - / 10 kA - / 10 kA
20 kA 20 kA 20 kA
≤ 55 V (C3 - 25 A) - -
≤ 900 V (C1 - 1 kV/500 A) ≤ 60 V (C3 - 50 A) ≤ 780 V (C3 - 25 A)
PT-IQ...UT dimensions W/H/D 17.7 mm / 91 mm / 77.5 mm 17.7 mm / 91 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 mm 17.7 mm / 91.1 mm / 77.5 mm
1.2 Ω1.2 Ω1.2 Ω
PT-IQ...PT dimensions W/H/D 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm
AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Connection data, push-in solid/stranded with ferrule/AWG 0.2 ... 4 mm² / - ... - / 20 - 12 0.2 ... 4 mm² / - ... - / 20 - 12 0.5 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.5 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
-40 °C ... 70 °C -40 °C ... 70 °C -40 °C ... 70 °C
IP20 IP20 IP20
V0 V0 V0
Test standards EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 / EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 / EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 / EN 61643-21/A1 / IEC 61643-21/A1 / EN 61000-6-2 /
EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3 EN 61000-6-2/A1 / EN 61000-6-3
Via TBUS Via TBUS Via TBUS
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PT-IQ-2X2+F-24DC-UT 2800981 1PT-IQ-4X1-24DC-UT 2800982 1PT-IQ-4X1+F-24DC-UT 2800983 1
PT-IQ-2X2+F-24DC-PT 2801264 1PT-IQ-4X1-24DC-PT 2801271 1PT-IQ-4X1+F-24DC-PT 2801272 1
Accessories Accessories Accessories
PT-IQ-2X2-24DC-P 2800804 1PT-IQ-4X1-24DC-P 2800813 1PT-IQ-4X1-24DC-P 2800813 1
ZB 6, see page 111 ZB 6, see page 111 ZB 6, see page 111
77PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
H
W
D
H
W
D
2 double conductors (loops), floating,
9/10 connection grounded via gas-filled surge
arrester
4-wire with common reference potential,
9/10 connection grounded directly
4-wire with common reference potential,
9/10 connection grounded via gas-filled surge
arrester
protectedunprotected
7
11
5
1
9
3
2
6
8
12
10
4
protectedunprotected
7
11
5
1
9
3
2
6
8
12
10
4
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
Electrical data ... 5DC ... 12DC ... 5DC ... 12DC
IEC category / EN type C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
Maximum continuous operating voltage UCDC/AC 6 V DC / 4 V AC 15 V DC / 10 V AC 6 V DC / 4 V AC 15 V DC / 10 V AC
Lightning test curr. Iimp (10/350) µs Per path 2.5 kA 2.5 kA 2.5 kA 2.5 kA
Nominal current IN600 mA (up to 40 °C) 600 mA (up to 40 °C) 600 mA (up to 40 °C) 600 mA (up to 40 °C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA
Protection level UP
Core-Core ≤ 30 V (C3 - 25 A) ≤ 40 V (C3 - 25 A) ≤ 30 V (C3 - 25 A) ≤ 40 V (C3 - 25 A)
Core-Ground ≤ 30 V (C3 - 25 A) ≤ 40 V (C3 - 25 A) ≤ 900 V (C3 - 25 A) ≤ 900 V (C3 - 25 A)
Cut-off frequency fg (3 dB)
Symmetrical in the 150 Ω system > 60 MHz > 60 MHz > 60 MHz > 60 MHz
General data
Dimensions W / H / D 17.7 mm / 91 mm / 77.5 mm 17.7 mm / 91 mm / 77.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / - ... - / 24 - 12 0.2 ... 4 mm² / - ... - / 24 - 12
Temperature range -40 °C ... 70 °C -40 °C ... 70 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards EN 61643-21/A1 / IEC 61643-21/A2 / EN 61000-6-2/A1 / EN 61643-21/A1 / IEC 61643-21/A2 / EN 61000-6-2/A1 /
EN 61000-6-3 EN 61000-6-3
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
MCR-PLUGTRAB, consisting of a plug, base element, and DIN rail
bus
Bridge between 3/4 () and 9/10 5 V DC PT-IQ-5-HF-5DC-UT 2800797 1
Bridge between 3/4 () and 9/10 24 V DC PT-IQ-5-HF-12DC-UT 2800799 1
Gas-filled surge arrester between 3/4 () and 9/10 5 V DC PT-IQ-5-HF+F-5DC-UT 2800798 1
Gas-filled surge arrester between 3/4 () and 9/10 24 V DC PT-IQ-5-HF+F-12DC-UT 2800801 1
Accessories Accessories
Replacement connector
PT-IQ-5-HF-5DC-P 2800795 1PT-IQ-5-HF-5DC-P 2800795 1
PT-IQ-5-HF-12DC-P 2800796 1PT-IQ-5-HF-12DC-P 2800796 1
Marking material ZB 6, see page 111 ZB 6, see page 111
78 PHOENIX CONTACT
– Surge protection system
– Multi-level state monitoring
– Collective message about supply and re-
mote module
– Multi-level, floating remote signaling
– System supplied via DIN rail bus
– Up to 28 protection modules per supply
module
– Maximum ease of maintenance thanks to
the two-piece design
–Plugs are coded
– Impedance-neutral disconnection of plug
for maintenance purposes
– Base element remains an integral part of
the installation
– Base element with screw connection
technology
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
H
W
D
H
W
D
PLUGTRAB PT-IQ with screw
connection
Surge protection and interference filters
Surge protection for measurement and control technology
5-wire with common reference potential,
9/10 connection grounded directly
5-wire with common reference potential,
9/10 connection grounded via gas-filled surge
arrester
protectedunprotected
7
11
5
1
9
3
2
6
8
12
10
4
protectedunprotected
7
11
5
1
9
3
2
6
8
12
10
4
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
Electrical data ... 5DC ... 12DC ... 5DC ... 12DC
IEC category / EN type C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
Maximum continuous operating voltage UCDC/AC 6 V DC / 4 V AC 15 V DC / 10 V AC 6 V DC / 4 V AC 15 V DC / 10 V AC
Lightning test curr. Iimp (10/350) µs Per path 2.5 kA 2.5 kA 2.5 kA 2.5 kA
Nominal current IN600 mA (up to 40 °C) 600 mA (up to 40 °C) 600 mA (up to 40 °C) 600 mA (up to 40 °C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA
Protection level UP
Core-Core ≤ 30 V (C3 - 25 A) ≤ 40 V (C3 - 25 A) ≤ 30 V (C3 - 25 A) ≤ 40 V (C3 - 25 A)
Core-Ground ≤ 30 V (C3 - 25 A) ≤ 40 V (C3 - 25 A) ≤ 900 V (C3 - 25 A) ≤ 900 V (C3 - 25 A)
Cut-off frequency fg (3 dB)
Symmetrical in the 150 Ω system > 60 MHz > 60 MHz > 60 MHz > 60 MHz
General data
Dimensions W / H / D 17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Temperature range -40 °C ... 70 °C -40 °C ... 70 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards EN 61643-21/A1 / IEC 61643-21/A2 / EN 61000-6-2/A1 / EN 61643-21/A1 / IEC 61643-21/A2 / EN 61000-6-2/A1 /
EN 61000-6-3 EN 61000-6-3
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
MCR-PLUGTRAB, consisting of a plug, base element, and DIN rail
bus
Bridge between 3/4 () and 9/10 5 V DC PT-IQ-5-HF-5DC-PT 2801291 1
Bridge between 3/4 () and 9/10 12 V DC PT-IQ-5-HF-12DC-PT 2801293 1
Gas-filled surge arrester between 3/4 () and 9/10 5 V DC PT-IQ-5-HF+F-5DC-PT 2801292 1
Gas-filled surge arrester between 3/4 () and 9/10 12 V DC PT-IQ-5-HF+F-12DC-PT 2801295 1
Accessories Accessories
Replacement connector
PT-IQ-5-HF-5DC-P 2800795 1PT-IQ-5-HF-5DC-P 2800795 1
PT-IQ-5-HF-12DC-P 2800796 1PT-IQ-5-HF-12DC-P 2800796 1
Marking material ZB 6, see page 111 ZB 6, see page 111
79PHOENIX CONTACT
– Surge protection system
– Multi-level state monitoring
– Collective message about supply and re-
mote module
– Multi-level, floating remote signaling
– System supplied via DIN rail bus
– Up to 28 protection modules per supply
module
– Maximum ease of maintenance thanks to
the two-piece design
–Plugs are coded
– Impedance-neutral disconnection of plug
for maintenance purposes
– Base element remains an integral part of
the installation
– Base element in push-in connection tech-
nology
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
PLUGTRABPT-IQ with push-in
connection technology
Surge protection and interference filters
Surge protection for measurement and control technology
5-wire with common reference potential,
9/10 connection grounded directly
5-wire with common reference potential,
9/10 connection grounded via gas-filled surge
arrester
*
IN
OUT
4
3
10
9
2
1
12
11
6
5
8
7
Total width 17.7 mm
Technical data
Electrical data ... 5DC ... 12DC ... 24DC
IEC category / EN type C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 /
Maximum continuous operating voltage UCDC/AC 6 V DC /
4 V AC
13 V DC /
9 V AC
28 V DC / 20 V AC 18 V DC / 13 V AC 40 V DC / 28 V AC 6 V DC /
Lightning test curr. Iimp (10/350) µs Per path 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA
Nominal current IN450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - /
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
Output voltage limitation at 1 kV/µs
Core-Core ≤ 10 V ≤ 18 V ≤ 40 V
Core-Ground - - - - -
Cut-off frequency fg (3 dB)
Symmetrical/asymmetrical in the 50 Ω system Typ. 1 MHz / - Typ. 3 MHz / - Typ. 6 MHz / - Typ. 4 MHz / - Typ. 8 MHz / - - / Typ. 1 MHz - / Typ. 3 MHz - / Typ. 6 MHz - / Typ.
Resistance per path 2.2 Ω2.2 Ω2.2 Ω
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ...
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-21
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
PLUGTRAB plug, with protection circuit for plugging into base ele-
ment PT
5 V DC PT 2X2- 5DC-ST 2838241 10
12 V DC PT 2X2-12DC-ST 2838254 10
24 V DC PT 2X2-24DC-ST 2838228 10
48 V DC
12 V AC
24 V AC
48 V AC
PLUGTRAB base element, for mounting on NS35
Bridge between 3/4 () and 9/10 PT 2X2-BE 2839208 10
Gas-filled surge arrester between 3/4 () and 9/10 PT 2X2+F-BE 2839224 10
Accessories
Shield fast connection
For Ø 3-6 mm SSA 3-6 2839295 10
For Ø 5-10 mm SSA 5-10 2839512 10
Labeling material ZBF ..., see page 111
80 PHOENIX CONTACT
MCR-PLUGTRAB PT
– Seamless plug-in signal circuit protection
– Maximum ease of maintenance thanks to
the two-piece design
– Base element remains an integral part of
the installation
– Impedance-neutral disconnection of con-
nector for test and maintenance purposes
– Connectors can be checked with
CHECKMASTER
PT 2x2...
– Protection for two separate floating signal
circuits
– Installed in conjunction with the
PT 2x2...-BE base element
PT 4x1...
– Protection for four wires with common
reference potential
– Installed in conjunction with the
PT 4x1...-BE base element
* Note:
Various grounding options for the base ele-
ments:
PT .x.-BE connections 9/10 (GND) direct-
ly connected to the mounting foot.
PT .x.+F-BE connection 9/10 (GND) con-
nected to the mounting foot via a gas-filled
surge arrester.
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Notes:
For certifications, see page 154
2 double wires (loops), floating 2 double wires (loops), floating 4-
*
IN
OUT
4
3
10
9
2
1
12
11
6
5
8
7
*
IN
OUT
2
1
10
9
8
7
12
11
6
5
4
3
*
IN
OUT
2
1
10
9
8
7
12
11
6
5
4
3
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm Total width 17.7 mm
Technical data Technical data Technical data
... 12AC ... 24AC ... 5DC ... 12DC ... 24DC ... 48DC ... 12AC ... 24AC ... 48AC
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 / D1
28 V DC / 20 V AC 18 V DC / 13 V AC 40 V DC / 28 V AC 6 V DC /
4 V AC
13 V DC /
9 V AC
28 V DC /
20 V AC
53 V DC /
37 V AC
18 V DC /
13 V AC
40 V DC /
13 V AC
77 V DC / 55 V AC
(10/350) µs Per path 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA
450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 300 mA (45°C) 300 mA (45°C) 300 mA (45°C) 300 mA (45°C) 300 mA (45°C) 300 mA (45°C) 300 mA (45°C)
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
≤ 25 V ≤ 55 V ---- ---
Core-Ground - - - - - ≤ 10 V ≤ 18 V ≤ 40 V ≤ 70 V ≤ 25 V ≤ 55 V ≤ 110 V (BE: 4x1)
system Typ. 1 MHz / - Typ. 3 MHz / - Typ. 6 MHz / - Typ. 4 MHz / - Typ. 8 MHz / - - / Typ. 1 MHz - / Typ. 3 MHz - / Typ. 6 MHz - / Typ. 9 MHz - / Typ. 4 MHz - / Typ. 8 MHz - / Typ. 10 MHz
2.2 Ω2.2 Ω4.7 Ω4.7 Ω4.7 Ω4.7 Ω4.7 Ω4.7 Ω4.7 Ω
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
-40 °C ... 85 °C -40 °C ... 85 °C -40 °C ... 85 °C
IP20 IP20 IP20
V0 V0 V0
IEC 61643-21 IEC 61643-21 IEC 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PT 4X1- 5DC-ST 2838306 10
PT 4X1-12DC-ST 2838319 10
PT 4X1-24DC-ST 2838322 10
PT 4X1-48DC-ST 2858014 10
PT 2X2-12AC-ST 2838270 10 PT 4X1-12AC-ST 2838348 10
PT 2X2-24AC-ST 2838283 10 PT 4X1-24AC-ST 2838351 10
PT 4X1-48AC-ST 2804856 10
PT 2X2-BE 2839208 10 PT 4X1-BE 2839363 10 PT 4X1-BE 2839363 10
PT 2X2+F-BE 2839224 10 PT 4X1+F-BE 2839376 10 PT 4X1+F-BE 2839376 10
Accessories Accessories Accessories
SSA 3-6 2839295 10 SSA 3-6 2839295 10 SSA 3-6 2839295 10
SSA 5-10 2839512 10 SSA 5-10 2839512 10 SSA 5-10 2839512 10
ZBF ..., see page 111 ZBF ..., see page 111 ZBF ..., see page 111
81PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
H
W
D
H
W
D
2 double wires (loops), floating 2 double wires (loops), floating 4-wire, with common reference potential 4-wire, with common reference potential
*
IN
OUT
109
43
87
1211
Total width 17.7 mm
Technical data
Electrical data ... 5DC ... 12DC ... 24DC ... 48DC
IEC category / EN type C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
Maximum continuous operating voltage UCDC/AC 6 V DC /
4 V AC
13 V DC /
9 V AC
28 V DC /
20 V AC
53 V DC /
37 V AC
Lightning test curr. Iimp (10/350) µs Per path 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA
Nominal current IN450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA - / 10 kA - / 10 kA - / 10 k
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
Output voltage limitation at 1 kV/µs
Core-Core ≤ 10 V ≤ 18 V ≤ 40 V ≤ 70 V
Core-Ground---- - -
Cut-off frequency fg (3 dB)
Symmetrical/asymmetrical in the 50 Ω system Typ. 1 MHz / - Typ. 3 MHz / - Typ. 6 MHz / - Typ. 10 MHz / - Typ. 4 MHz / - Typ. 8 MHz / - - / Typ. 1 MHz - / Typ. 3 MHz - / Typ
Resistance per path 2.2 Ω2.2 Ω2.2 Ω2.2 Ω
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ...
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-21
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
PLUGTRAB plug, with protection circuit for plugging into base ele-
ment PT
5 V DC PT 1X2- 5DC-ST 2856016 10
12 V DC PT 1X2-12DC-ST 2856029 10
24 V DC PT 1X2-24DC-ST 2856032 10
12 V AC
24 V AC
48 V DC PT 1X2-48DC-ST 2803658 10
PLUGTRAB base element, for mounting on NS35
Bridge between 3/4 () and 9/10 PT 1X2-BE 2856113 10
Gas-filled surge arrester between 3/4 () and 9/10 PT 1X2+F-BE 2856126 10
Accessories
Shield fast connection
For Ø 3-6 mm SSA 3-6 2839295 10
For Ø 5-10 mm SSA 5-10 2839512 10
Labeling material ZBF ..., see page 111
82 PHOENIX CONTACT
MCR-PLUGTRAB PT
– Seamless plug-in signal circuit protection
– Maximum ease of maintenance thanks to
the two-piece design
– Base element remains an integral part of
the installation
– Impedance-neutral disconnection of con-
nector for test and maintenance purposes
– Connectors can be checked with
CHECKMASTER
PT 1x2...
– Protection for a floating signal circuit
– Installed in conjunction with the
PT 1x2...-BE base element
PT 2x1...
– Protection for two wires with common
reference potential
– Installed in conjunction with the
PT 2x1...-BE base element
* Note:
Various grounding options for the base ele-
ments:
PT .x.-BE connections 9/10 (GND) direct-
ly connected to the mounting foot.
PT .x.+F-BE connection 9/10 (GND) con-
nected to the mounting foot via a gas-filled
surge arrester.
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Notes:
For certifications, see page 154
Double wire (loop), floating Double wire (loop), floating 2-wire,
*
IN
OUT
109
43
87
1211
*
IN
OUT
8
7
10
9
12
11
4
3
*
IN
OUT
8
7
10
9
12
11
4
3
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm Total width 17.7 mm
Technical data Technical data Technical data
... 12AC ... 24AC ... 5DC ... 12DC ... 24DC ... 12AC ... 24AC
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
18 V DC / 13 V AC 40 V DC / 28 V AC 6 V DC /
4 V AC
13 V DC /
9 V AC
28 V DC / 20 V AC 18 V DC / 13 V AC 40 V DC / 28 V AC
(10/350) µs Per path 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA
450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 300 mA (45°C) 300 mA (45°C) 300 mA (45°C) 300 mA (45°C) 300 mA (45°C)
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA - / 10 kA
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
≤ 25 V ≤ 55 V --- - -
Core-Ground---- - - ≤ 10 V ≤ 18 V ≤ 40 V ≤ 25 V ≤ 55 V
system Typ. 1 MHz / - Typ. 3 MHz / - Typ. 6 MHz / - Typ. 10 MHz / - Typ. 4 MHz / - Typ. 8 MHz / - - / Typ. 1 MHz - / Typ. 3 MHz - / Typ. 6 MHz - / Typ. 4 MHz - / Typ. 8 MHz
2.2 Ω2.2 Ω4.7 Ω4.7 Ω4.7 Ω4.7 Ω4.7 Ω
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
-40 °C ... 85 °C -40 °C ... 85 °C -40 °C ... 85 °C
IP20 IP20 IP20
V0 V0 V0
IEC 61643-21 IEC 61643-21 IEC 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PT 2X1- 5DC-ST 2856061 10
PT 2X1-12DC-ST 2856074 10
PT 2X1-24DC-ST 2856087 10
PT 1X2-12AC-ST 2856045 10 PT 2X1-12AC-ST 2856090 10
PT 1X2-24AC-ST 2856058 10 PT 2X1-24AC-ST 2856100 10
PT 1X2-BE 2856113 10 PT 2X1-BE 2856139 10 PT 2X1-BE 2856139 10
PT 1X2+F-BE 2856126 10 PT 2X1+F-BE 2856142 10 PT 2X1+F-BE 2856142 10
Accessories Accessories Accessories
SSA 3-6 2839295 10 SSA 3-6 2839295 10 SSA 3-6 2839295 10
SSA 5-10 2839512 10 SSA 5-10 2839512 10 SSA 5-10 2839512 10
ZBF ..., see page 111 ZBF ..., see page 111 ZBF ..., see page 111
83PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
H
W
D
H
W
D
Double wire (loop), floating Double wire (loop), floating 2-wire, with common reference potential 2-wire, with common reference potential
*
IN
OUT
2
1
6
5
8
7
12
11
10
9
4
3
IN
OUT
12(+)
11(+)
7(-) 8(-)
56
12
34
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
Electrical data ... 5DC ... 12DC ... 24DC ... 24AC Mains protection Data protection
IEC category / EN type C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
III / T3 C1 / C2 / C3 / D1
Maximum continuous operating voltage UC6 V DC /
4 V AC
12.8 V DC /
9 V AC
27 V DC /
19 V AC
40 V DC /
28 V AC
44 V DC / 34 V AC 40 V DC / 28 V AC
Lightning test curr. Iimp (10/350) µs Per path 2.5 kA 2.5 kA 2.5 kA 2.5 kA - 2.5 kA
Nominal current IN2 A (80 °C) 2 A (80 °C) 2 A (80 °C) 2 A AC (80 °C) 6 A (30 °C) 450 mA (45°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 720 A / 10 kA 690 A / 10 kA 365 A / 10 kA 187 A / 10 kA 700 A / 700 A 10 kA / 10 kA
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA - 20 kA
Max. discharge surge current Imax. (8/20) µs 10 kA 10 kA 10 kA 10 kA 2 kA 10 kA
Output voltage limitation at 1 kV/µs
Core-Core ≤ 10 V ≤ 18 V ≤ 40 V ≤ 75 V - ≤ 55 V
Core-Ground ≤ 450 V ≤ 450 V ≤ 450 V
(PT 4-BE)
≤ 450 V
(PT 4-BE)
-450 V
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Temperature range -40 °C ... 85 °C -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-21 / DIN EN 61643-21 / UL 497B IEC 61643-1 / EN 61643-11 IEC 61643-21
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PLUGTRAB plug, with protection circuit for plugging into base ele-
ment PT
5 V DC PT 4- 5DC-ST 2839211 10
12 V DC PT 4-12DC-ST 2839237 10
24 V DC PT 4-24DC-ST 2839240 10
24 V AC PT 4-24AC-ST 2800078 1PT PE/S+1X2-24-ST 2819008 10
PLUGTRAB base element, for mounting on NS35
Bridge between 3/4 () and 9/10 PT 4-BE 2839402 10
Gas-filled surge arrester between 3/4 () and 9/10 PT 4+F-BE 2839415 10
PLUGTRAB base element, for mounting on NS35
PT PE/S+1X2-BE 2856265 10
Accessories Accessories
Shield fast connection
For Ø 3-6 mm SSA 3-6 2839295 10 SSA 3-6 2839295 10
For Ø 5-10 mm SSA 5-10 2839512 10 SSA 5-10 2839512 10
Labeling material ZBF ..., see page 111 ZBF ..., see page 111
84 PHOENIX CONTACT
– Seamless plug-in signal circuit protection
– Maximum ease of maintenance thanks to
the two-piece design
– Base element remains an integral part of
the installation
– Impedance-neutral disconnection of con-
nector for test and maintenance purposes
– Connectors can be checked with
CHECKMASTER
* Note:
Various grounding options for the base ele-
ments:
PT .x.-BE connections 9/10 (GND) direct-
ly connected to the mounting foot.
PT .x.+F-BE connection 9/10 (GND) con-
nected to the mounting foot via a gas-filled
surge arrester.
Notes:
For certifications, see page 154
H
W
D
H
W
D
MCR-PLUGTRAB PT
Surge protection and interference filters
Surge protection for measurement and control technology
4-wire, floating, impedance-free Combination of double wire protection
(floating) and single-phase power supply
1
3
5
2
4
6
12
11
IN
OUT
2(+)
1(+)
6(+)
5(+)
J
J
3(-) 4(-)
J
11
12
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
Electrical data ... 120AC ... 230AC ... 60AC ... 120AC ... 230AC
IEC category / EN type C1 / C2 / C3 C1 / C2 / C3 / D1 C2 C2 C2
Maximum continuous operating voltage UCDC/AC - / 175 V AC - / 250 V AC 100 V DC /
75 V AC
200 V DC /
150 V AC
350 V DC / 275 V AC
Lightning test curr. Iimp (10/350) µs Per path 300 A 500 A - - -
Nominal current IN6 A 6 A 26 A (30 °C) 26 A (30 °C) 26 A (30 °C)
Nominal discharge surge current In (8/20) µs
Core-Ground 3 kA 3 kA 2 kA (C2 -
4 kV/2 kA)
2.5 kA (C2 -
5 kV/2.5 kA)
2.5 kA (C2 - 5 kV/2.5 kA)
Total surge current (8/20) µs 8 kA 8 kA 4 kA 5 kA 5 kA
Output voltage limitation at 1 kV/µs
Core-Ground ≤ 800 V ≤ 1.4 kV ≤ 200 V ≤ 380 V ≤ 650 V
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Temperature range -40 °C ... 80 °C -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards EN 61643-21 IEC 616431 / DIN EN 61643-21
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
MAINS-PLUGTRAB, consisting of a connector and a base element
120 V AC PT 2X1-VF-120AC 2859327 10
230 V AC PT 2X1-VF-230AC 2805460 10
PLUGTRAB plug, with protection circuit for plugging into base ele-
ment PT
60 V AC PT 2X1VA- 60AC-ST 2839172 10
120 V AC PT 2X1-VF-120AC-ST 2856799 10 PT 2X1VA-120AC-ST 2839185 10
230 V AC PT 2X1-VF-230AC-ST 2921365 10 PT 2X1VA-230AC-ST 2839198 10
PLUGTRAB base element, for mounting on NS35
PT-BE/FM 2839282 10 PT-BE/FM 2839282 10
Accessories Accessories
Shield fast connection
For Ø 3-6 mm SSA 3-6 2839295 10 SSA 3-6 2839295 10
For Ø 5-10 mm SSA 5-10 2839512 10 SSA 5-10 2839512 10
Labeling material ZBF ..., see page 111 ZBF ..., see page 111
85PHOENIX CONTACT
– Protective devices for use in telecommu-
nications and signaling networks accord-
ing to IEC 61643-21
– Seamless plug-in signal circuit protection
– Maximum ease of maintenance thanks to
the two-piece design
– Base element remains an integral part of
the installation
– Impedance-neutral disconnection of con-
nector for test and maintenance purposes
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
H
W
D
H
W
D
MCR-PLUGTRAB PT
Surge protection and interference filters
Surge protection for measurement and control technology
2-wire, floating, free of leakage current 2-wire, with common reference potential,
remote signaling
IN
OUT
2
1
65
43
IN
OUT
2
1
65
87
12
11
10
9
43
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
Maximum continuous operating voltage UCDC/AC 68 V DC / 48 V AC 170 V DC / 120 V AC
Lightning test curr. Iimp (10/350) µs Per path 5 kA 2.5 kA
Nominal current IN2 A (80 °C) 2 A (80 °C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground - / 20 kA 10 kA / 10 kA
Total surge current (8/20) µs 40 kA 20 kA
Protection level UP
Core-Ground ≤ 600 V ≤ 450 V
Output voltage limitation at 1 kV/µs
Core-Ground ≤ 600 V ≤ 450 V
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Temperature range -40 °C ... 85 °C -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-21 IEC 61643-21
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PLUGTRAB plug, with protection circuit for plugging into base ele-
ment PT
48 V AC PT 2-F-ST 2859000 10
110 V AC PT 4-F-ST 2858441 10
PLUGTRAB base element, for mounting on NS35
PT-BE/FM 2839282 10
Bridge between 3/4 () and 9/10 PT 4-BE 2839402 10
Accessories Accessories
Shield fast connection
For Ø 3-6 mm SSA 3-6 2839295 10 SSA 3-6 2839295 10
For Ø 5-10 mm SSA 5-10 2839512 10 SSA 5-10 2839512 10
Labeling material ZBF ..., see page 111 ZBF ..., see page 111
86 PHOENIX CONTACT
– For systems with high dielectric strength
or fine protection installed
– Installation location - directly where the
MCR cable enters the building
– Seamless plug-in signal circuit protection
– Maximum ease of maintenance thanks to
the two-piece design
– Base element remains an integral part of
the installation
– Impedance-neutral disconnection of con-
nector for test and maintenance purposes
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
H
W
D
H
W
D
MCR-PLUGTRAB PT
Coarse surge protection
Surge protection and interference filters
Surge protection for measurement and control technology
2-wire, coarse protection 4-wire, coarse protection
IN
OUT
4
3
10
9
2
1
12
11
6
5
8
7
IN
OUT
4
3
10
9
2
1
12
11
6
5
8
7
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm
Technical data Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
Maximum continuous operating voltage UCDC/AC 30 V DC / 21 V AC 30 V DC / 21 V AC
Lightning test curr. Iimp (10/350) µs Per path 1 kA 1 kA
Nominal current IN325 mA (40°C) 500 mA (40°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA 308 A / 10 kA
Total surge current (8/20) µs 20 kA 20 kA
Protection level UP
Core-Core ≤ 50 V (C3 - 25 A) ≤ 50 V (C3 - 25 A)
Core-Ground ≤ 1 kV (C2 - 10 kV / 5 kA) ≤ 1 kV (C2 - 10 kV / 5 kA)
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 45 V / ≤ 1 kV ≤ 45 V / ≤ 1 kV
Cut-off frequency fg (3 dB)
Symmetrical in the 50 Ω system Typ. 4.5 MHz Typ. 7 MHz
Resistance per path 2.2 Ω-
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Temperature range -40 °C ... 85 °C -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards EN 61643-21 / EN 60079-0 / EN 60079-11 / EN 61643-21 / EN 60079-0 / EN 60079-11 /
EN 60079-26 / EN 61241-0 / EN 61241-11 EN 60079-26 / EN 61241-0 / EN 61241-11
Safety data
EC-type examination certificate according to ATEX KEMA 00ATEX1099 X KEMA 00ATEX1099 X
Identification according to ATEX II 1G Ex ia IIC T4...T6 Ga
II 1D Ex ia IIIC T135°C...T85°C Da II 1G Ex ia IIC T4...T6 Ga
II 1D Ex ia IIIC T135°C...T85°C Da
Maximum inner capacity Ci1.3 nF 1.1 nF
Maximum inner inductance Li1 µH 1 µH
Maximum input current Ii325 mA (T4 / ≤ 80°C) 500 mA (T4 / ≤ 80°C)
Maximum input voltage Ui30 V DC 30 V DC
Maximum input power Pi3 W 850 mW (T4 / ≤ 80°C)
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PLUGTRAB plug, with protection circuit for plugging into base ele-
ment PT
24 V DC PT 2XEX(I)-24DC-ST 2838225 10 PT 4-EX(I)-24DC-ST 2839253 10
PLUGTRAB base element, for mounting on NS35
PT 2XEX(I)-BE 2839279 10 PT 4-EX(I)-BE 2839486 10
Accessories Accessories
Shield fast connection
For Ø 3-6 mm SSA 3-6 2839295 10 SSA 3-6 2839295 10
For Ø 5-10 mm SSA 5-10 2839512 10 SSA 5-10 2839512 10
Labeling material ZBF ..., see page 111 ZBF ..., see page 111
87PHOENIX CONTACT
– Tailored to the special requirements of in-
trinsically safe circuits
– Seamless plug-in signal circuit protection
– Maximum ease of maintenance thanks to
the two-piece design
– Base element remains an integral part of
the installation
– Impedance-neutral disconnection of con-
nector for test and maintenance purposes
– Connectors can be checked with
CHECKMASTER
Notes:
For certifications, see page 154
H
W
D
H
W
D
MCR-PLUGTRABPT
For Ex-i circuits
Surge protection and interference filters
Surge protection for measurement and control technology
2 double wires (loops), intrinsically safe 4-wire, intrinsically safe, impedance-free
*
IN
OUT
2
6
8
7
12
11
5
1
10
9
4
3
Total width 17.7 mm
Technical data
Electrical data ... 5DC ... 12DC
IEC category / EN type C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 /
Maximum continuous operating voltage UCDC/AC 5.2 V DC / 3.6 V AC 14 V DC / 9.8 V AC 5.2 V DC /
Lightning test curr. Iimp (10/350) µs Per path 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA -
Nominal current IN450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 2 A (at 40 °C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA -
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
Output voltage limitation at 1 kV/µs
Core-Core ≤ 15 V ≤ 25 V
Core-Ground ≤ 15 V ≤ 25 V - - -
Cut-off frequency fg (3 dB)
Symmetrical in the 100 Ω system Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz -
Resistance per path 2.2 Ω2.2 Ω
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 45 mm / 52 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ...
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21 IEC 61643-21/A1 / EN 61643-21/A1 -
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
PLUGTRAB plug, with protection circuit for plugging into base ele-
ment PT
5 V DC PT 5-HF- 5 DC-ST 2838762 10
Protection for 2 signal conductors 12 V DC PT 5-HF-12 DC-ST 2838775 10
24 V DC
Grounding plug, for MCR-PLUGTRAB base elements
PLUGTRAB base element, for mounting on NS35
Bridge between 3/4 () and 9/10 PT 2X2-BE 2839208 10
Gas-filled surge arrester between 3/4 () and 9/10 PT 2X2+F-BE 2839224 10
Accessories
Shield fast connection
For Ø 3-6 mm SSA 3-6 2839295 10
For Ø 5-10 mm SSA 5-10 2839512 10
Labeling material ZBF ..., see page 111
88 PHOENIX CONTACT
MCR-PLUGTRAB PT
– Protection for fieldbus systems,
PROFIBUS, and signal circuits with 3 to
5-wire technology
– Cable shield connection using SSA...
shield fast connection
– Grounding plug (PT MCR-EST) to short
circuit and ground the potentials in
PLUGTRAB-PT base elements
– Seamless plug-in signal circuit protection
– Maximum ease of maintenance thanks to
the two-piece design
– Base element remains an integral part of
the installation
– Impedance-neutral disconnection of con-
nector for test and maintenance purposes
– Connectors can be checked with
CHECKMASTER
* Note:
Various grounding options for the base ele-
ments:
PT .x.-BE connections 9/10 (GND) direct-
ly connected to the mounting foot.
PT .x.+F-BE connection 9/10 (GND) con-
nected to the mounting foot via a gas-filled
surge arrester.
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
5-wire, with common reference potential 2 x 2 conductor, floating 3-wire, PROFIBUS (up to 12 MHz) Grounding plug for MCR-PLUGTRAB
*
IN
OUT
2
6
8
7
12
11
5
1
10
9
4
3
*
IN
OUT
7
11
9
3
8
12
10
4
*
IN
OUT
12
8
6
5
2
1
7
11
10
9
4
3
() ()()
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm Total width 17.7 mm
Technical data Technical data Technical data
... 5DC ... 12DC ... 24DC ... 3-PB ... 3-HF
IEC category / EN type C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 -
DC/AC 5.2 V DC / 3.6 V AC 14 V DC / 9.8 V AC 5.2 V DC /
3.6 V AC
13 V DC /
9 V AC
28 V DC / 19.8 V AC 5.2 V DC / 3.6 V AC 14 V DC / 9.8 V AC -
(10/350) µs Per path 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA 2.5 kA -
450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 450 mA (45°C) 2 A (at 40 °C)
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA -
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA
≤ 15 V ≤ 25 V ≤ 45 V ≤ 15 V ≤ 25 V -
25 V - - - ≤ 15 V ≤ 25 V -
system Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz Typ. 70 MHz -
2.2 Ω2.2 Ω2.2 Ω2.2 Ω2.2 Ω-
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 45 mm / 52 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 90 mm / 65.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 -
-40 °C ... 85 °C -40 °C ... 85 °C -40 °C ... 85 °C
IP20 IP20 IP20
V0 V0 V0
Test standards IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21 IEC 61643-21/A1 / EN 61643-21/A1 -
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PT 2X2-HF- 5 DC-ST 2839567 10 PT 3-PB-ST 2858030 10
PT 2X2-HF-12 DC-ST 2839570 10 PT 3-HF-12DC-ST 2858043 10
PT 2X2-HF-24 DC-ST 2839729 10
PT MCR-EST 2880749 10
PT 2X2-BE 2839208 10 PT 1X2-BE 2856113 10
PT 2X2+F-BE 2839224 10 PT 1X2+F-BE 2856126 10
Accessories Accessories Accessories
SSA 3-6 2839295 10 SSA 3-6 2839295 10
SSA 5-10 2839512 10 SSA 5-10 2839512 10
ZBF ..., see page 111 ZBF ..., see page 111 ZBF ..., see page 111
89PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
H
W
D
5-wire, with common reference potential 2 x 2 conductor, floating 3-wire, PROFIBUS (up to 12 MHz) Grounding plug for MCR-PLUGTRAB
IN
OUT
7
5
3
1
8
6
4
2
Total width 6.2 mm
Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1
Maximum continuous operating voltage UCDC/AC 36 V DC / 25 V AC
Lightning test curr. Iimp (10/350) µs Per path 500 A
Nominal current IN350 mA (40°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 5 kA / 5 kA
Total surge current (8/20) µs 20 kA
Protection level UP
Core-Core / Core-Ground ≤ 50 V (C3 - 10 A) / ≤ 650 V (C1 - 500 V / 250 A)
Cut-off frequency fg (3 dB)
Symmetrical in the 50 Ω system Typ. 6 MHz
Resistance per path 3.3 Ω
General data
Dimensions W / H / D 6.2 mm / 93 mm / 102.5 mm 6.2 mm / 93 mm / 102.5 mm 6.2 mm / 93 mm / 102.5 mm 6.2 mm / 93 mm / 102.5 mm
Connection data solid / stranded / AWG 0.14 ... 2.5 mm² / 0.2 ... 2.5 mm² / 26 - 12 0.14 ... 2.5 mm² / 0.2 ... 2.5 mm² / 26 - 12 0
Temperature range -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-21 / DIN EN 61643-21 / EN 60079-0 / IEC 61643-21 / DIN EN 61643-21 / EN 60079-0 / IEC 61643-21 / DIN EN 6
EN 60079-11 / EN 60079-26 / EN 61241-0 EN 60079-11 / EN 60079-26 / EN 61241-0 - -
Safety data
EC-type examination certificate according to ATEX KEMA 09ATEX0051 X KEMA 09ATEX0051 X - -
Identification according to ATEX II 1 G Ex ia IIC T4...T6
II 1 D Ex iaD 20 T85°C...135°C
Maximum inner capacity Ci1.3 nF
Maximum inner inductance Li< 1 µH
Maximum input current Ii350 mA (T4 / ≤ 80°C)
Maximum input voltage Ui36 V DC
Maximum input power Pi3 W
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
LINETRAB
24 V DC LIT 1X2-24 2804610 10
Accessories
System adapter, for MINI Analog modules with screw connection
MINI MCR-SL-V8-FLK 16-A 2811268 1
VARIOFACE system cable for connecting LIT and MINI Analog
via system adapter
Cable length: 2 m VIP-CAB-FLK16/FR/FR/0,14/2,0M 2900156 1
Cable length: 1 m VIP-CAB-FLK16/FR/FR/0,14/1,0M 2900155 1
Cable length: 0.5 m VIP-CAB-FLK16/FR/FR/0,14/0,5M 2900154 1
UniCard sheets, for marker groove UC-TM 6 (see page 111)
90 PHOENIX CONTACT
LINETRAB LIT
– Protection of up to four signal wires with
a design width of 6.2mm
– Can be used in binary, analog, and intrin-
sically safe circuits
The latest information on approvals and
use in intrinsically safe circuits can be found
at www.phoenixcontact.net/products.
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Notes:
For certifications, see page 154
For additional safety data, visit www.phoenixcontact.com
Double wire (loop), floating 2 double wires (loops), floating 2-wire
IN
OUT
7
5
3
1
8
6
4
2
7
5
8
6
OUTIN
3
1
4
2
7
5
3
1
8
6
4
OUTIN
2
For additional information, visit www.phoenixcontact.net/products
Total width 6.2 mm Total width 6.2 mm Total width 6.2 mm
Technical data Technical data Technical data
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
36 V DC / 25 V AC 36 V DC / 25 V AC 36 V DC / 25 V AC
500 A 500 A 500 A
350 mA (40°C) 350 mA (40°C) 350 mA (40°C)
5 kA / 5 kA - / 5 kA - / 5 kA
20 kA 20 kA 20 kA
≤ 50 V (C3 - 10 A) / ≤ 650 V (C1 - 500 V / 250 A) - / ≤ 60 V (C1 - 500 V / 250 A) - / ≤ 60 V (C1 - 500 V / 250 A)
Typ. 6 MHz - -
3.3 Ω3.3 Ω3.3 Ω
Dimensions W / H / D 6.2 mm / 93 mm / 102.5 mm 6.2 mm / 93 mm / 102.5 mm 6.2 mm / 93 mm / 102.5 mm 6.2 mm / 93 mm / 102.5 mm
Connection data solid / stranded / AWG 0.14 ... 2.5 mm² / 0.2 ... 2.5 mm² / 26 - 12 0.14 ... 2.5 mm² / 0.2 ... 2.5 mm² / 26 - 12 0.14 ... 2.5 mm² / 0.2 ... 2.5 mm² / 26 - 12 0.14 ... 2.5 mm² / 0.2 ... 2.5 mm² / 26 - 12
-40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
IP20 IP20 IP20
V0 V0 V0
Test standards IEC 61643-21 / DIN EN 61643-21 / EN 60079-0 / IEC 61643-21 / DIN EN 61643-21 / EN 60079-0 / IEC 61643-21 / DIN EN 61643-21 IEC 61643-21 / DIN EN 61643-21
EN 60079-11 / EN 60079-26 / EN 61241-0 EN 60079-11 / EN 60079-26 / EN 61241-0 - -
EC-type examination certificate according to ATEX KEMA 09ATEX0051 X KEMA 09ATEX0051 X - -
II 1 G Ex ia IIC T4...T6
II 1 D Ex iaD 20 T85°C...135°C
--
1.3 nF - -
< 1 µH - -
350 mA (T4 / ≤ 80°C) - -
36 V DC - -
3 W - -
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
LIT 2X2-24 2804623 10 LIT 2X1-24 2804636 10 LIT 4X1-24 2804649 10
Accessories Accessories Accessories
UC-TM 6 (see page 111) UC-TM 6 (see page 111) UC-TM 6 (see page 111)
91PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
H
W
D
H
W
D
Double wire (loop), floating 2 double wires (loops), floating 2-wire, with common reference potential 4-wire, with common reference potential
8
6
4
2
7
3
5
1
X
IN OUT
8
6
4
2
7
5
3
IN OUT
1
X
Total width 6.2 mm Total width 6.2 mm
Technical data Technical data
Electrical data ... 12 ... 24 ... 12 ... 24
IEC category / EN type C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
Maximum continuous operating voltage UCDC/AC 18 V DC / 13 V AC 36 V DC / 25 V AC 18 V DC / 13 V AC 36 V DC / 25 V AC
Lightning test curr. Iimp (10/350) µs Per path 500 A 500 A 500 A 500 A
Nominal current IN500 mA (40°C) 500 mA (40°C) 500 mA (40°C) 500 mA (40°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 350 A / 5 kA 250 A / 5 kA 350 A / 5 kA 250 A / 5 kA
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA
Protection level UP
Core-Core ≤ 50 V (C3 - 10 A) ≤ 60 V (C3 - 10 A) ≤ 50 V (C3 - 10 A) ≤ 60 V (C3 - 10 A)
Core-Ground ≤ 650 V (C2 - 10 kV / 5 kA) ≤ 650 V (C2 - 10 kV / 5 kA) ≤ 650 V (C2 - 10 kV / 5 kA) ≤ 650 V (C2 - 10 kV / 5 kA)
Cut-off frequency fg (3 dB)
Asymmetrical in the 50 Ω system Typ. 5 MHz Typ. 7.5 MHz Typ. 5 MHz Typ. 7.5 MHz
Resistance per path 0 Ω0 Ω0 Ω0 Ω
General data
Dimensions W / H / D 6.2 mm / 93 mm / 102.5 mm 6.2 mm / 93 mm / 102.5 mm
Connection data solid / stranded / AWG 0.14 ... 2.5 mm² / 0.2 ... 2.5 mm² / 26 - 12 0.14 ... 2.5 mm² / 0.2 ... 2.5 mm² / 26 - 12
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-21 / DIN EN 61643-21 / EN 60079-0 / IEC 61643-21 / DIN EN 61643-21 / EN 60079-0 /
Safety data
EC-type examination certificate according to ATEX KEMA 09ATEX0051 X KEMA 09ATEX0051 X KEMA 09ATEX0051 X KEMA 09ATEX0051 X
Identification according to ATEX II 1 G Ex ia IIC T4...T6
II 1 D Ex iaD 20 T85°C...135°C II 1 G Ex ia IIC T4...T6
II 1 D Ex iaD 20 T85°C...135°C II 1 G Ex ia IIC T4...T6
II 1 D Ex iaD 20 T85°C...135°C II 1 G Ex ia IIC T4...T6
II 1 D Ex iaD 20 T85°C...135°C
Maximum inner capacity Ci3 nF 1.3 nF 6 nF 2.5 nF
Maximum inner inductance Li< 1 µH < 1 µH < 1 µH < 1 µH
Maximum input current Ii500 mA (T4 / -40...+80°C) 500 mA (T4 / -40...+80°C) 500 mA (T4 / -40...+80°C) 500 mA (T4 / -40...+80°C)
Maximum input voltage Ui18 V DC 36 V DC 18 V DC 36 V DC
Maximum input power Pi635 mW 635 mW 550 mW 550 mW
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
LINETRAB, with integrated surge protection, for mounting on
NS35
12 V DC LIT 2-12 2804694 10 LIT 4-12 2804704 10
24 V DC LIT 2-24 2804665 10 LIT 4-24 2804678 10
Accessories Accessories
System adapter, for MINI Analog modules with screw connection
MINI MCR-SL-V8-FLK 16-A 2811268 1
DIN rail connector
ME 6,2 TBUS-2 1,5/5-ST-3,81KMGY 2969401 10 ME 6,2 TBUS-2 1,5/5-ST-3,81KMGY 2969401 10
UniCard sheets, for marker groove UC-TM 6 (see page 111) UC-TM 6 (see page 111)
92 PHOENIX CONTACT
– Protection for up to four signal wires
– Cross-arrester bridging of the reference
potential with ME 6,2 TBUS
– Protection of up to four signal wires with
a design width of 6.2mm
– Complete normal mode voltage protec-
tion between all wires
Notes:
For certifications, see page 154
For additional safety data, visit www.phoenixcontact.com
H
W
D
H
W
D
LINETRAB LIT
Surge protection and interference filters
Surge protection for measurement and control technology
2-wire, floating, impedance-free 4-wire, floating, impedance-free
For additional information, visit www.phoenixcontact.net/products
93PHOENIX CONTACT
TRABTECH - LINETRAB INTERFACE - MINI Analog
Order No. Type Order No. Type
2864383 MINI MCR-SL-UI-UI
2864150 MINI MCR-SL-UI-UI-NC
2865007 MINI MCR-SL-U-UI-NC
2813512 MINI MCR-SL-U-I-0
2813525 MINI MCR-SL-U-I-4
2813541 MINI MCR-SL-I-U-0
2813538 MINI MCR-SL-I-U-4
2864406 MINI MCR-SL-I-I
2804610 LIT 1X2-24 2864684 MINI MCR-SL-U-U
2864794 MINI MCR-SL-UI-2I
2864176 MINI MCR-SL-UI-2I-NC
2864419 MINI MCR-SL-1CP-I-I
2864082 MINI MCR-SL-UI-F
2864105 MINI MCR-SL-NAM-2RNO
2864480 MINI MCR-SL-UI-REL
2810780 MINI MCR-SL-SHUNT-UI-NC
2810858 MINI MCR-SL-SHUNT-UI
Configuration aid for LINETRAB - MINI Analog
Since LINETRAB and MINI Analog housing is the same shape, the advantages of system cabling can be utilized. You can create
a perfectly coordinated, protected signal string from the sensor through to the controller.
The table below lists possible combinations with the system adapter (8 modules each). The complete configuration aid is
available in the Download Center under LINETRAB. More detailed information about MINI Analog can be found in the catalog 7.
Front adapter
e.g., FLKM 16-PA-S300/MINI-MCR
(see catalog 7)
Assembled round cable
VIP-CAB-FLK16/FR...
Assembled round cable
VIP-CAB-FLK16/FR...
System adapter
MINI MCR-SL-V8-FLK 16-A
Surge protection and interference filters
Surge protection for measurement and control technology
IN
OUT
31
42
Total width 6.2 mm
Technical data
Electrical data ... M-24DC ... 24DC ... 110AC
IEC category / EN type C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
Maximum continuous operating voltage UCDC/AC 30 V DC /
21 V AC
30 V DC / - - / 120 V AC 30 V DC / 21 V AC 30 V DC / 21 V AC 30 V DC / 21 V AC 30 V DC / - 30 V DC / 21 V AC 30 V DC / -
Lightning test curr. Iimp (10/350) µs Per path 500 A 500 A 500 A 500 A 500 A 500 A 500 A 500 A 500 A
Nominal load current IL300 mA (40°C) 300 mA (40°C) 300 mA (30 °C) 10 A (40°C) 10 A (40°C) 300 mA (40°C) 300 mA (40°C) 250 mA (T
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 5 kA / 5 kA 5 kA / 5 kA 5 kA / 5 kA 300 A / 5 kA 300 A / 5 kA 5 kA / 5 kA - / 5 kA 5 kA / 5 kA 5 kA / 5 kA
Total surge current (8/20) µs 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 45 V /
≤ 650 V
≤ 45 V /
≤ 650 V
≤ 250 V / ≤ 650 V
Cut-off frequency fg (3 dB)
Symmetrical/asymmetrical in the 50 Ω system Typ. 6 MHz / - Typ. 3.2 MHz / - Typ. 15 MHz / - Typ. 7 MHz / - Typ. 6 MHz / - - / Typ. 6 MHz - / Typ. 1.5 MHz Typ. 6 MHz / - Typ
Resistance per path 3.3 Ω3.7 Ω9.4 Ω
General data
Dimensions W/H/D (with disconnect knife) 6.2 mm / 92 mm / 66.45 mm 6.2 mm / 92 mm / 66.45 mm 6.2 mm / 92 mm / 66.45 mm 6.2 mm / 92
Dimensions W/H/D (without disconnect knife) 6.2 mm / 79.6 mm / 54.6 mm 6.2 mm / 79.6 mm / 54.6 mm 6.2 mm / 79.6 mm / 54.6 mm 6.2 mm
Connection data solid / stranded / AWG 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14 0.2
Temperature range -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V2
Test standards -
Safety data
EC-type examination certificate according to ATEX - - - - - - - KEMA 99ATEX5687 X KEMA 99ATEX5687 X
Identification according to ATEX - - - - - - -
Approvals according to IECEx - - - - - - - Ex ia IIC T4...T6 Ga
Maximum inner capacity Ci- - - - - - - 2 nF 2 nF
Maximum inner inductance Li- - - - - - - 1 µH 1 µH
Maximum input current Ii- - - - - - - 250 mA 250 mA (T
Maximum input voltage Ui--- - - - - 30 V 30 V
Maximum input power Pi- - - - - - - 0.75 W 0.75 W
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
TERMITRAB, modular terminal block with integrated surge protec-
tion, for mounting on NS35
With disconnect knife 24 V DC TT-2-PE-M-24DC 2920641 14
Without disconnect knife 24 V DC TT-2-PE- 24DC 2838186 10
Without disconnect knife 110 V AC TT-2-PE-110AC 2858483 10
Accessories
Cover, for terminating a row of terminal blocks
For terminal blocks with disconnect knife TT-D-2-PE-M-BK 2920654 50
For terminal blocks without disconnect knife D-DEK 1,5 BK 2838995 50
Labeling material ZB 6, see page 111
94 PHOENIX CONTACT
Modular terminal blocks with
multiple stage surge protection
TERMITRAB
– Multi-stage modular terminal blocks with
screw connection method
– Versions with and without disconnect
knife
– Disconnection of signal circuits by discon-
nect knife
TT-2-PE-
– Protection of a floating double wire
– E.g., 0 - 20 mA or 0 - 10 V signals
TT-2-PE/S1
– Protection of a floating double wire in
which the introduction of additional resis-
tors for decoupling the protection stages
leads to problems
– E.g., for two-wire temperature measure-
ment, PT 100
TT-2/2
– Protection of two signal wires with com-
mon reference potential
– E.g., binary signals of position encoders
TT-EX(I)-
– Protection of a floating double wire in in-
trinsically safe circuits
– Use in Ex protection zones 1 and 2
– Wires can be led through to Ex protec-
tion zone 0
– To terminate a row of TERMITRAB TT...
devices, covers are available in the corre-
sponding colors
– Other voltage levels available on request
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Notes:
For certifications, see page 154
Double wire (loop), floating Double wire (loop), floating 2-wire,
IN
OUT
31
4
2
IN
OUT
31
42
IN
OUT
4
2
3
1
For additional information, visit www.phoenixcontact.net/products
Total width 6.2 mm Total width 6.2 mm Total width 6.2 mm
Technical data Technical data Technical data
... M-24DC ... 24DC ... M-24DC ... 24DC ... M-24DC ... 24DC
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
30 V DC / - - / 120 V AC 30 V DC / 21 V AC 30 V DC / 21 V AC 30 V DC / 21 V AC 30 V DC / - 30 V DC / 21 V AC 30 V DC / -
(10/350) µs Per path 500 A 500 A 500 A 500 A 500 A 500 A 500 A 500 A 500 A
300 mA (40°C) 300 mA (40°C) 300 mA (30 °C) 10 A (40°C) 10 A (40°C) 300 mA (40°C) 300 mA (40°C) 250 mA (TA < 40 °C) 250 mA (40°C)
Core-Core / Core-Ground 5 kA / 5 kA 5 kA / 5 kA 5 kA / 5 kA 300 A / 5 kA 300 A / 5 kA 5 kA / 5 kA - / 5 kA 5 kA / 5 kA 5 kA / 5 kA
Total surge current (8/20) µs 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA
≤ 45 V / ≤ 650 V ≤ 45 V / ≤ 700 V - / ≤ 45 V - / ≤ 50 V ≤ 44 V / ≤ 1.5 kV ≤ 50 V / ≤ 1.7 kV
system Typ. 6 MHz / - Typ. 3.2 MHz / - Typ. 15 MHz / - Typ. 7 MHz / - Typ. 6 MHz / - - / Typ. 6 MHz - / Typ. 1.5 MHz Typ. 6 MHz / - Typ. 6 MHz / -
-- 4.7 Ω6.6 Ω4.7 Ω4.7 Ω
Dimensions W/H/D (with disconnect knife) 6.2 mm / 92 mm / 66.45 mm 6.2 mm / 92 mm / 66.45 mm 6.2 mm / 92 mm / 66.45 mm 6.2 mm / 92 mm / 66.45 mm
Dimensions W/H/D (without disconnect knife) 6.2 mm / 79.6 mm / 54.6 mm 6.2 mm / 79.6 mm / 54.6 mm 6.2 mm / 79.6 mm / 54.6 mm 6.2 mm / 79.6 mm / 54.6 mm
Connection data solid / stranded / AWG 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14
-40 °C ... 80 °C -40 °C ... 80 °C -40 °C ... 80 °C
IP20 IP20 IP20
V2 V2 V2
DIN EN 61643-21 IEC 61643-21 IEC 61643-21 / EN 60079-0 / EN 60079-11 /
EC-type examination certificate according to ATEX - - - - - - - KEMA 99ATEX5687 X KEMA 99ATEX5687 X
Identification according to ATEX - - - - - - - II 1G Ex ia IIC T4...T6 Ga
II 1D Ex ia IIIC T135°C...T85°C Da II 1G Ex ia IIC T4...T6 Ga
II 1D Ex ia IIIC T135°C...T85°C Da
Approvals according to IECEx - - - - - - - Ex ia IIC T4...T6 Ga
Ex ia IIIC T135°C...T85°C Da
Ex ia IIC T4...T6 Ga
Ex ia IIIC T135°C...T85°C Da
- - - - - - - 2 nF 2 nF
- - - - - - - 1 µH 1 µH
- - - - - - - 250 mA 250 mA (TA < 40 °C)
--- - - - - 30 V 30 V
- - - - - - - 0.75 W 0.75 W
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
TT-2-PE/S1-M-24DC 2920638 14 TT-2/2-M-24DC 2920722 14 TT-EX(I)-M-24DC 2803865 14
TT-2-PE/S1- 24DC 2839538 10 TT-2/2- 24DC 2838173 10 TT-EX(I)- 24DC 2832124 10
Accessories Accessories Accessories
TT-D-2-PE-M-BK 2920654 50 TT-D-2-PE-M-BK 2920654 50 TT-D-2-PE-M-BU 2803878 50
D-DEK 1,5 BK 2838995 50 D-DEK 1,5 BK 2838995 50 D-DEK 1,5 BU 2838982 50
ZB 6, see page 111 ZB 6, see page 111 ZB 6, see page 111
95PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
H
W
D
H
W
D
Double wire (loop), floating Double wire (loop), floating 2-wire, with common reference potential Double wire (loop), intrinsically safe
IN
OUT
31
42
Total width 6.2 mm
Technical data
Electrical data ... M...24AC ... M...24DC ... 24DC
IEC category / EN type C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 / D1 C1 / C2 / C3 /
Maximum continuous operating voltage UCDC/AC 45 V DC /
31 V AC
30 V DC /
21 V AC
30 V DC / 21 V AC 45 V DC /
Lightning test curr. Iimp (10/350) µs Per path 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 500 A 1 kA
Nominal load current IL350 mA (45°C) 350 mA (45°C) 350 mA (45°C) 300 mA (4
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 5 kA / 5 kA 5 kA / 5 kA 5 kA / 5 kA - / 5 kA - / 5 kA - / 5 kA 300 A / 5 kA 5 kA / 5 kA
Total surge current (8/20) µs 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 5 kA 10 kA
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 55 V /
≤ 600 V
≤ 40 V /
≤ 600 V
≤ 40 V / ≤ 600 V - /
Cut-off frequency fg (3 dB)
Symmetrical/asymmetrical in the 50 Ω system 3.5 MHz / - Typ. 3 MHz / - 3 MHz / - - / Typ. 3.5 MHz - / Typ. 3 MHz - / Typ. 3 MHz Typ. 3.3 MHz / - Typ. 3 MHz / -
Resistance per path 6.6 Ω6.6 Ω6.6 Ω
Capacity per path 2 pF 2 pF 2 pF 2 nF 2 nF 2 nF - -
General data
Dimensions W/H/D (with disconnect knife) 6.2 mm / 100 mm / 63.5 mm 6.2 mm / 100 mm / 63.5 mm - 6.2 mm / 100 mm / 63.5 mm
Dimensions W/H/D (without disconnect knife) 6.2 mm / 100 mm / 63.5 mm 6.2 mm / 100 mm / 63.5 mm 6.2 mm / 100 mm / 63.5 mm -
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ...
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V2
Test standards IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21/A1 / EN 61643-21/A1 DIN EN 61643-21 /
Safety data
EC-type examination certificate according to ATEX - - - - - - - KEMA 04ATEX1059 X
Identification according to ATEX - - - - - - -
Approvals according to IECEx - - - - - - - Ex ia IIC T4...T6 Ga
Maximum inner capacity Ci--- --- - 4 nF
Maximum inner inductance Li--- --- - 1 µH
Maximum input current Ii--- --- - 200 mA (T4/
Maximum input voltage Ui--- --- - 30 V
Maximum input power Pi--- --- - 1.6 W
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
TERMITRAB, spring-cage modular terminal block with integrated
surge protection disconnect knives, for mounting on NS35
With disconnect knife 24 V AC TT-ST-M-2-PE-24AC 2858920 10
With disconnect knife 24 V DC TT-ST-M-2-PE-24DC 2858904 10
Without disconnect knife 24 V DC TT-ST-2-PE-24DC 2858878 10
Accessories
Cover, for terminating a row of terminal blocks
TT-D-STTCO-BK 2858894 50
Labeling material ZB 6, see page 111
96 PHOENIX CONTACT
Modular terminal blocks with
multiple stage surge protection
TERMITRAB
– Multi-stage modular terminal blocks with
spring-cage connection
– Versions with and without disconnect
knife
– Disconnection of signal circuits by discon-
nect knife
TT-ST-M-EX(I)-24D
– Can be used in Ex protection zones 1
and 2
– Wires can be led through to Ex protec-
tion zone 0
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Notes:
For certifications, see page 154
Double wire (loop), floating 2-wire, with common reference potent
IN
OUT
31
42
OUT
3
4
IN
1
2
IN
OUT
31
42
For additional information, visit www.phoenixcontact.net/products
Total width 6.2 mm Total width 6.2 mm Total width 6.2 mm
Technical data Technical data Technical data
... M...24AC ... M...24DC ... 24DC
C1 / C2 / C3 / D1 C1 / C2 / C3 /
D1
C1 / C2 / C3 /
D1
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
30 V DC / 21 V AC 45 V DC /
31 V AC
30 V DC /
21 V AC
30 V DC / 21 V AC 30 V DC / 21 V AC 30 V DC / -
(10/350) µs Per path 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 500 A 1 kA
350 mA (45°C) 350 mA (45°C) 350 mA (45°C) 300 mA (45°C) 300 mA (45°C) 300 mA (45°C) 6 A (40°C) 200 mA (TA < 40 °C)
Core-Core / Core-Ground 5 kA / 5 kA 5 kA / 5 kA 5 kA / 5 kA - / 5 kA - / 5 kA - / 5 kA 300 A / 5 kA 5 kA / 5 kA
Total surge current (8/20) µs 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 5 kA 10 kA
600 V - / ≤ 55 V - / ≤ 40 V - / ≤ 40 V ≤ 45 V / ≤ 800 V ≤ 40 V / ≤ 1.5 kV
system 3.5 MHz / - Typ. 3 MHz / - 3 MHz / - - / Typ. 3.5 MHz - / Typ. 3 MHz - / Typ. 3 MHz Typ. 3.3 MHz / - Typ. 3 MHz / -
9.4 Ω9.4 Ω9.4 Ω-6.6 Ω
Capacity per path 2 pF 2 pF 2 pF 2 nF 2 nF 2 nF - -
Dimensions W/H/D (with disconnect knife) 6.2 mm / 100 mm / 63.5 mm 6.2 mm / 100 mm / 63.5 mm - 6.2 mm / 100 mm / 63.5 mm
Dimensions W/H/D (without disconnect knife) 6.2 mm / 100 mm / 63.5 mm 6.2 mm / 100 mm / 63.5 mm 6.2 mm / 100 mm / 63.5 mm -
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.5 ... 4 mm² / 0.5 ... 2.5 mm² / 24 - 12
-40 °C ... 85 °C -40 °C ... 80 °C -40 °C ... 80 °C
IP20 IP20 IP20
V2 V0 V2
Test standards IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21/A1 / EN 61643-21/A1 DIN EN 61643-21 / EN 60079-0 / EN 60079-11 /
EC-type examination certificate according to ATEX - - - - - - - KEMA 04ATEX1059 X
Identification according to ATEX - - - - - - - II 1G Ex ia IIC T4...T6 Ga
II 1D Ex ia IIIC T135°C...T85°C Da
Approvals according to IECEx - - - - - - - Ex ia IIC T4...T6 Ga
Ex ia IIIC T135°C...T85°C Da
--- --- - 4 nF
--- --- - 1 µH
--- --- - 200 mA (T4/≤ 85°C)
--- --- - 30 V
--- --- - 1.6 W
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
TT-ST-M-2/2-24AC 2858933 10
TT-ST-M-2/2-24DC 2858917 10 TT-ST-M-EX(I)-24DC 2859424 10
TT-ST-2/2-24DC 2858881 10 TT-ST-2-PE/S2-24DC 2801458 10
Accessories Accessories Accessories
TT-D-STTCO-BK 2858894 50 TT-D-STTCO-BK 2858894 50 TT-D-ST-BU 2856773 10
ZB 6, see page 111 ZB 6, see page 111 ZB 6, see page 111
97PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
H
W
D
H
W
D
Double wire (loop), floating 2-wire, with common reference potential Double wire (loop), floating Double wire (loop), intrinsically safe
Total width 6.2 mm
Technical data
Electrical data ... 12DC ... 24DC ... 48DC
IEC category / EN type C1 / C3 C3 C3 C3 C3 C3 C1 / C3 C3 C3 C1 / C2 / C3 C1 / C2 / C3 C1 / C2 / C3
Maximum continuous operating voltage UCDC/AC 13 V DC /
9 V AC
28 V DC /
20 V AC
53 V DC / 37 V AC 28 V DC /
Nominal current IN32 A (50°C) 32 A (50°C) 32 A (50°C) 12 A (45°C) 12 A (45°C) 12 A (45°
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground - / 346 A - / 169 A - / 90 A 169 A / - 90 A / - 69 A / - - / 346 A - / 169 A - / 90 A - / 700 A - / 700 A - / 2 kA
Total surge current (8/20) µs 346 A 169 A 90 A 169 A 90 A 69 A 346 A 169 A 90 A 2 kA 2 kA 6.5 kA
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground - / ≤ 19 V - / ≤ 40 V - / ≤ 80 V
General data
Dimensions W / H / D 6.2 mm / 42.5 mm / 47 mm 6.2 mm / 80 mm / 68 mm 6.2 mm / 66.5 mm / 69.5 mm 6.2 mm / 66.5 mm / 69.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 4 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 4 mm² / 24 - 12 0.2 ... 4 m
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V2
Test standards IEC 61643-21 IEC 61643-21 / DIN EN 61643-21 IEC 61643-21 IEC 61643-21
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
TERMITRAB, modular terminal block with integrated surge protec-
tion, for mounting on NS35
12 V DC TT-UK5/ 12DC 2794686 50
24 V DC TT-UK5/ 24DC 2794699 50
48 V DC TT-UK5/ 48DC 2794709 50
60 V DC
Accessories
Spacer plate, compensates for level offsets when normal terminal
blocks are aligned, 2.5mm thick
Black
Cover, for terminating a row of terminal blocks
Black D-TERMITRAB-UK 5 2794990 50
Labeling material ZB 6, see page 111
98 PHOENIX CONTACT
TERMITRAB modular terminal block
with single-level surge protection
– Modular terminal blocks with screw con-
nection method
– Can be used as fine protection/medium
protection in the signal circuits of elec-
tronic controllers
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
Notes:
For certifications, see page 154
With suppressor diode, direction of action:
core-ground
For additional information, visit www.phoenixcontact.net/products
Total width 6.2 mm Total width 6.2 mm Total width 6.2 mm
Technical data Technical data Technical data
... 24DC ... 48DC ... 60DC ... 12DC ... 24DC ... 48DC ... 12DC ... 24DC ... 48DC
IEC category / EN type C1 / C3 C3 C3 C3 C3 C3 C1 / C3 C3 C3 C1 / C2 / C3 C1 / C2 / C3 C1 / C2 / C3
53 V DC / 37 V AC 28 V DC /
20 V AC
53 V DC /
37 V AC
70 V DC / 49 V AC 13.6 V DC /
9.5 V AC
28.2 V DC /
20 V AC
53 V DC / 37 V AC 14 V DC /
11 V AC
31 V DC /
11 V AC
65 V DC / 50 V AC
32 A (50°C) 32 A (50°C) 32 A (50°C) 12 A (45°C) 12 A (45°C) 12 A (45°C) 32 A (50°C) 32 A (50°C) 32 A (50°C) 32 A (50°C) 32 A (50°C) 32 A (50°C)
Core-Core / Core-Ground - / 346 A - / 169 A - / 90 A 169 A / - 90 A / - 69 A / - - / 346 A - / 169 A - / 90 A - / 700 A - / 700 A - / 2 kA
Total surge current (8/20) µs 346 A 169 A 90 A 169 A 90 A 69 A 346 A 169 A 90 A 2 kA 2 kA 6.5 kA
≤ 40 V / - ≤ 80 V / - ≤ 100 V / - - / ≤ 19 V - / ≤ 41 V - / ≤ 79 V - / ≤ 45 V - / ≤ 80 V - / ≤ 125 V
Dimensions W / H / D 6.2 mm / 42.5 mm / 47 mm 6.2 mm / 80 mm / 68 mm 6.2 mm / 66.5 mm / 69.5 mm 6.2 mm / 66.5 mm / 69.5 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 4 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 4 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 4 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 4 mm² / 24 - 12
-40 °C ... 85 °C -40 °C ... 85 °C -40 °C ... 85 °C
IP20 IP20 IP20
V2 V2 V2
IEC 61643-21 IEC 61643-21 / DIN EN 61643-21 IEC 61643-21 IEC 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
TT-SLKK5-S- 12DC 2809597 50 TT-SLKK5/ 12DC 2794893 50
TT-UKK5-M/ 24DC 2795960 50 TT-SLKK5-S- 24DC 2809607 50 TT-SLKK5/ 24DC 2794903 50
TT-UKK5-M/ 48DC 2795973 50 TT-SLKK5-S- 48DC 2809610 50 TT-SLKK5/ 48DC 2794916 50
TT-UKK5-M/ 60DC 2795986 50
Accessories Accessories Accessories
DP-UKK 3/5 BK 2770833 50 DP-UKK 3/5 BK 2770833 50
D-UKK 3/5 BK 2770228 50 D-UKK 3/5 BK 2770228 50
ZB 6, see page 111 ZB 6, see page 111 ZB 6, see page 111
99PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
H
W
D
H
W
D
H
W
D
With suppressor diode, disconnect knife,
direction of action: core-core
With suppressor diode, direction of action:
core-ground
With varistor, direction of action: core-ground
IN
OUT
BK
BN
1
BL
2
IN
OUT
BK
BN
1
BL
2
Total width 34 mm Total width 34 mm
Technical data Technical data
Electrical data
Maximum continuous operating voltage UCDC/AC 40 V DC / 28 V AC 30 V DC / 21 V AC
Lightning test curr. Iimp (10/350) µs Per path 1 kA 1 kA
Nominal current IN450 mA (55°C) 350 mA (50°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA
Maximum permitted short-circuit current at installation location 1 A 350 mA
Total surge current (8/20) µs 20 kA
Protection level UP
Core-Core ≤ 80 V (C2 -5 kA) ≤ 50 V (C3 - 25 A)
Core-Ground ≤ 1.4 kV (C3 - 100 A)
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 55 V / ≤ 450 V (Direct grounding) ≤ 50 V / ≤ 1.4 kV (Direct grounding)
Resistance per path 2.2 Ω2.2 Ω
General data
Dimensions W / H / D 34 mm / 34 mm / 137 mm 34 mm / 34 mm / 137 mm
Temperature range -40 °C ... 85 °C -40 °C ... 50 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP67 IP67
Test standards IEC 61643-21 DIN EN 61643-21 / EN 60079-0 / EN 60079-11 / EN 61643-21 / EN 60079-0 / EN 60079-1 / EN 61643-21 / EN 6
- EN 60079-26
Safety data
EC-type examination certificate according to ATEX - KEMA 06ATEX0002
Identification according to ATEX - II 1G Ex ia IIC T4...T6 Ga
Maximum inner capacity Ci-2 nF
Maximum inner inductance Li-1 µH
Maximum input current Ii-350 mA (T4,T5,T6/≤ 50°C) 500 mA 500 mA 500 mA 500 mA 500 mA
Maximum input voltage Ui-30 V
Maximum input power Pi-3 W
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
SURGETRAB, protective adapter for installation on measuring
sensors
Outer thread: M20 x 1.5 24 V DC S-PT-1X2-24DC 2880668 1
Outer thread: 1/2'' 14 NPT 24 V DC S-PT-1X2-24DC-1/2" 2882569 1
Outer thread: 3/4'' 14 NPT 24 V DC S-PT-1X2-24DC-3/4" 2882598 1
SURGETRAB protective adapter for installation on measuring sen-
sors for Ex protection zones
Outer thread: M20 x 1.5 24 V DC S-PT-EX(I)-24DC 2880671 1
Outer thread: 1/2'' 14 NPT 24 V DC S-PT-EX(I)-24DC-1/2" 2882572 1
Outer thread: 3/4'' 14 NPT 24 V DC S-PT-EX(I)-24DC-3/4" 2882585 1
Outer thread: M20 x 1.5 48 V DC
Outer thread: 1/2'' 14 NPT 48 V DC
100 PHOENIX CONTACT
– Arresters in hexagonal tube with various
outer threads
–S-PT-1x2 and S-PT-EX(I) installa-
tion in signal path feed-through
–S-PT-EX, S-PT-2xEX..., and
S-PT-4-EX installation in a separate ca-
ble gland parallel to the signal cables
– S-PT-EX... devices are approved for Ex-i
and Ex-d measuring probes
Notes:
For certifications, see page 154
For more information about EX approvals, visit
www.phoenixcontact.com
For additional safety data, visit www.phoenixcontact.com
Surge protection direct at the sensor
head
SURGETRAB
Surge protection and interference filters
Surge protection for measurement and control technology
Double wire (loop), floating Double wire (loop), intrinsically safe Double conductor (loop), floating,
BN
BL
/BK
+–
˜
˜
BN
RD
BL
/BK
WH
BN
RD
BL
/BK
WH
+
+
–
–
˜
˜˜
˜
For additional information, visit www.phoenixcontact.net/products
Total width 28 mm Total width 28 mm Total width 28 mm
Technical data Technical data Technical data
... 24DC ... 48DC ... 24DC ... 48DC
36 V DC / 25 V AC 53 V DC / 37 V AC 36 V DC / 25 V AC 53 V DC / 37 V AC 36 V DC / 25 V AC
1 kA 1 kA 1 kA 1 kA 1 kA
-- -- -
260 A / 10 kA 170 A / 10 kA 260 A / 10 kA 170 A / 10 kA 260 A / 10 kA
1 A (non-EX) 1 A (non-EX) 1 A (non-EX) 1 A (non-EX) 1 A (non-EX)
20 kA 20 kA 20 kA 20 kA 20 kA
≤ 65 V (C3 - 10 A) ≤ 90 V (C3 - 10 A) ≤ 50 V (C3 - 10 A) ≤ 80 V (C3 - 10 A) ≤ 65 V (C3 - 10 A)
≤ 1.1 kV (C3 - 100 A) ≤ 1.1 kV (C3 - 100 A) ≤ 1.1 kV (C3 - 100 A) ≤ 1.1 kV (C3 - 100 A) ≤ 1.1 kV (C3 - 100 A)
≤ 60 V / - ≤ 80 V / - ≤ 50 V / - ≤ 80 V / - ≤ 60 V / -
-- -- -
28 mm / 28 mm / 79 mm 28 mm / 28 mm / 79 mm 28 mm / 28 mm / 79 mm
-25 °C ... 80 °C (non-EX) -25 °C ... 80 °C (non-EX) -25 °C ... 80 °C (non-EX)
IP67 IP67 IP67
Test standards IEC 61643-21 DIN EN 61643-21 / EN 60079-0 / EN 60079-11 / EN 61643-21 / EN 60079-0 / EN 60079-1 / EN 61643-21 / EN 60079-0 / EN 60079-1 / EN 61643-21 / EN 60079-0 / EN 60079-1 /
EN 60079-11 / EN 60079-26 / EN 61241-0 EN 60079-11 / EN 60079-26 / EN 61241-0 EN 60079-11 / EN 60079-26 / EN 61241-0
KEMA 09ATEX0028 X KEMA 09ATEX0028 X KEMA 09ATEX0028 X KEMA 09ATEX0028 X KEMA 09ATEX0028 X
II 1 G Ex ia IIC T4...T6
II 2 G Ex d IIC T4...T6 II 1 G Ex ia IIC T4...T6
II 2 G Ex d IIC T4...T6 II 1 G Ex ia IIC T4...T6
II 2 G Ex d IIC T4...T6 II 1 G Ex ia IIC T4...T6
II 2 G Ex d IIC T4...T6 II 1 G Ex ia IIC T4...T6
II 2 G Ex d IIC T4...T6
1.65 nF 1.14 nF 1.65 nF 1.14 nF 1.65 nF
1 µH 1 µH 1 µH 1 µH 1 µH
50°C) 500 mA 500 mA 500 mA 500 mA 500 mA
36 V DC 53 V DC 36 V DC 53 V DC 36 V DC
3 W3 W 3 W3 W 3 W
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
S-PT-EX-24DC 2800034 1S-PT-2XEX-24DC 2800040 1S-PT-4-EX-24DC 2800036 1
S-PT-EX-24DC-1/2" 2800035 1S-PT-2XEX-24DC-1/2" 2800041 1S-PT-4-EX-24DC-1/2" 2800037 1
S-PT-EX-48DC 2800053 1S-PT-2XEX-48DC 2800038 1
S-PT-EX-48DC-1/2" 2800054 1S-PT-2XEX-48DC-1/2" 2800039 1
101PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
Double wire (loop), floating Double wire (loop), intrinsically safe Double conductor (loop), floating,
intrinsically safe, encapsulated,
without decoupling resistance
2 double conductors (loops), floating,
intrinsically safe, encapsulated,
without decoupling resistance
4-wire with common reference potential,
intrinsically safe, encapsulated,
without decoupling resistance
IN
OUT
1
2
2'
1'
IN
OUT
1
2
2'
1'
Total width 9.5 mm Total width 9.5 mm
Technical data Technical data
Electrical data ... 12DC ... 24DC ... 60DC ... 110AC ... 5DC ... 12DC ... 24DC ... 60DC
IEC category / EN type B2 / C1 / C2 /
C3 / D1
B2 / C1 / C2 /
C3 / D1
B2 / C1 / C2 /
C3 / D1
B2 / C1 / C2 /
C3 / D1
B2 / C1 / C2 /
C3 / D1
B2 / C1 / C2 /
C3 / D1
B2 / C1 / C2 /
C3 / D1
B2 / C1 / C2 /
C3 / D1
Maximum continuous operating voltage UCDC/AC ± 15 V DC /
10 V AC
± 30 V DC /
21 V AC
± 65 V DC /
50 V AC
± 180 V DC / - ± 6 V DC /
5 V AC
± 15 V DC /
10 V AC
± 30 V DC /
21 V AC
± 65 V DC /
50 V AC
Lightning test curr. Iimp (10/350) µs Per path 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA
Nominal current IN380 mA (25°C) 380 mA (25°C) 380 mA (25°C) 380 mA (25°C) 380 mA (25°C) 380 mA (25°C) 380 mA (25°C) 380 mA (25°C) 380 mA (25°C) 1.5 A (25°
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 5 kA / 5 kA 5 kA / 5 kA 5 kA / 5 kA 5 kA / 5 kA - / 5 kA - / 5 kA - / 5 kA - / 5 kA - / 5 kA - / 5 kA - / 5 kA
Total surge current (8/20) µs 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA
Output voltage limitation at 1 kV/µs
Core-Core ≤ 25 V ≤ 70 V ≤ 160 V ≤ 260 V---- - - -
Core-Ground ≤ 700 V ≤ 700 V ≤ 700 V ≤ 800 V ≤ 12 V ≤ 22 V ≤ 45 V ≤ 160 V
Cut-off frequency fg (3 dB)
Symmetrical/asymmetrical in the 100 Ω system 1.2 MHz / - 2.7 MHz / - 2 MHz / - 20 MHz / - - / 700 kHz - / 1.5 MHz - / 2.7 MHz - / 2 MHz - / Typ. 20 MHz - / > 100 MHz - / > 100
Resistance per path 3.3 Ω3.3 Ω3.3 Ω3.3 Ω3.3 Ω3.3 Ω3.3 Ω3.3 Ω
General data
Dimensions W / H / D 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21
Temperature range -25 °C ... 75 °C -25 °C ... 75 °C -25 °C ... 75 °C -40 °C ... 85 °C -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20 IP20 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0 V0 V0 V0
Test standards IEC 61643-21 IEC 61643-21 IEC 61643-21 IEC 61643-21 IEC 61643-21
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
COMTRAB modular, surge protection for a double wire with
coarse and fine protection and ohmic decoupling, DSL-compatible
5 V DC CTM 2X1- 5DC 2838571 10
12 V DC CTM 1X2- 12DC 2838597 10 CTM 2X1- 12DC 2838584 10
24 V DC CTM 1X2- 24DC 2838513 10 CTM 2X1- 24DC 2838500 10
60 V DC CTM 1X2- 60DC 2838568 10 CTM 2X1- 60DC 2838542 10
110 V AC CTM 1X2-110AC 2838539 10
180 V DC
Accessories Accessories
Magazine, with grounding rail for accommodating up to
10 LSA-PLUS protective connectors (CTM...), for insertion in
CT-TERMIBLOCK or LSA-PLUS disconnect strip
CTM 10-MAG 2838610 5CTM 10-MAG 2838610 5
102 PHOENIX CONTACT
– Modular compact protection for high-
density networks
– Space-saving LSA-PLUS connection tech-
nology
– Surge protection connectors for 1 - 10
double wires or 2 - 20 individual wires
– Typical installation locations include mar-
shalling distributors
– Can be used in LSA-PLUS disconnect and
control strips or CT-TERMIBLOCK
– The CTM 10-MAG surge protection card
cage can be mounted with any of the dif-
ferent protective connectors
Notes:
For certifications, see page 154
COMTRAB modular
Surge protection and interference filters
Surge protection for measurement and control technology
Double wire (loop), floating 2-wire, with common reference potential 2-wire, with common reference potential 2-wire, coarse protec
IN
OUT
1
2
2'
1'
IN
OUT
1
2
2'
1'
J
J
IN
OUT
1
2
2'
1'
J
J
J
J
16.000
For additional information, visit www.phoenixcontact.net/products
Total width 9.5 mm Total width 9.5 mm Total width 9.5 mm
Technical data Technical data Technical data
B2 / C1 / C2 / C3 / D1 A2 / B1 / B2 / B3 / C1 / C2 / C3 / D1 / D2 A2 / B1 / B2 / B3 / C1 / C2 / C3 / D1 / D2
± 180 V DC / - ± 180 V DC / - ± 180 V DC / -
(10/350) µs Per path 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA 1 kA
C) 380 mA (25°C) 380 mA (25°C) 380 mA (25°C) 380 mA (25°C) 1.5 A (25°C) 120 mA (25 °C)
Core-Core / Core-Ground 5 kA / 5 kA 5 kA / 5 kA 5 kA / 5 kA 5 kA / 5 kA - / 5 kA - / 5 kA - / 5 kA - / 5 kA - / 5 kA - / 5 kA - / 5 kA
Total surge current (8/20) µs 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA
260 V---- - - -
≤ 15 V ≤ 800 V ≤ 800 V
system 1.2 MHz / - 2.7 MHz / - 2 MHz / - 20 MHz / - - / 700 kHz - / 1.5 MHz - / 2.7 MHz - / 2 MHz - / Typ. 20 MHz - / > 100 MHz - / > 100 MHz
3.3 Ω-5.5 Ω
Dimensions W / H / D 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm
-25 °C ... 75 °C -25 °C ... 75 °C -25 °C ... 75 °C -40 °C ... 85 °C -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20 IP20 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0 V0 V0 V0
IEC 61643-21 IEC 61643-21 IEC 61643-21 IEC 61643-21 IEC 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CTM 2X1-110AC 2838526 10
CTM 2X1-180DC-GS 2838636 10 CTM 2X1-180DC-GS-P 2838623 10
Accessories Accessories Accessories
CTM 10-MAG 2838610 5CTM 10-MAG 2838610 5CTM 10-MAG 2838610 5
103PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
Double wire (loop), floating 2-wire, with common reference potential 2-wire, with common reference potential 2-wire, coarse protection, with failsafe contact 2-wire, coarse protection, with failsafe contact
and current protection (Powercross)
IN
OUT
1'
1
2'
2
IN
OUT
1
2
2'
1'
Total width 9.5 mm Total width 9.5 mm
Technical data Technical data
Electrical data
IEC category / EN type B2 / C2 / C3 / D1 / C1 -
Maximum continuous operating voltage UC± 6 V DC -
Lightning test curr. Iimp (10/350) µs Per path 1 kA -
Nominal current IN1.5 A (25 °C) 1.5 A (25 °C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 350 A / 5 kA - / -
Total surge current (8/20) µs 10 kA 10 kA
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 15 V / ≤ 700 V -
Cut-off frequency fg (3 dB)
Symmetrical in the 100 Ω system ≥ 100 MHz -
General data
Dimensions W / H / D 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm
Temperature range -25 °C ... 75 °C -25 °C ... 75 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 V0
Test standards IEC 61643-21 -
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
COMTRAB modular, surge protection for the ISDN-S0 interface
6 V DC CTM ISDN 2838555 10
COMTRAB modular, LSA-PLUS grounding plug to short-circuit
and ground potentials in CT-TERMIBLOCK... and disconnect strip
CT 10...
CTM EST 2838649 10
104 PHOENIX CONTACT
CTM ISDN
– Tailored to the ISDN bus with basic and
primary multiplex connections
– Two protective connectors are required
to protect the ISDN bus
CTM EST
– Grounding plug to short circuit and
ground the wires
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
COMTRAB modular
Surge protection and interference filters
Surge protection for measurement and control technology
Double wire (loop), ISDN So
(2 connectors are required for one bus)
LSA-PLUS grounding plug
1... 9
10 10
1... 9
J
For additional information, visit www.phoenixcontact.net/products
Total width 111 mm
Technical data
Electrical data
IEC category / EN type C1 / C3
Maximum continuous operating voltage UCDC/AC 275 V DC / 275 V AC
Nominal current IN1.5 A
Nominal discharge surge current In (8/20) µs
GND-Ground / Core-GND 5 kA / 1.5 kA
Total surge current (8/20) µs 5 kA
General data
Dimensions W / H / D 111 mm / 22 mm / 68.5 mm
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V2
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
COMTRAB, LSA-PLUS plug with surge protection incl. optical fault
warning for nine signal circuits
230 V AC CT 10-9VA-230AC 2830498 1
Accessories
Screw terminal block, with disconnect contacts for accommodat-
ing the CT and CTM protective connectors, design: 10 double wires
CT-TERMIBLOCK 10 DA 0441711 10
105PHOENIX CONTACT
– Multi-position, plug-in modular design
– For use with CT-TERMIBLOCK and with
LSA-PLUS and LSA-PROFIL disconnect
and control strips
– Specially designed for higher signal voltag-
es of 120 V and 230 V
– For controllers with a large number of sig-
nal inputs and outputs, such as those used
in remote control technology or traffic
light systems
– Protection modules must be inserted in
the correct direction
Notes:
For certifications, see page 154
COMTRAB
Surge protection and interference filters
Surge protection for measurement and control technology
For 9 wires with common reference potential
IN
OUT
1.../19
2.../20
2'.../20’
1'.../19’
Total width 111 mm
Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1
Maximum continuous operating voltage UCDC/AC 40 V DC / 28 V AC
Nominal current IN1.5 A (75°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 119 A (25°C) / 5 kA
Total surge current (8/20) µs 10 kA
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 60 V / ≤ 650 V
Resistance per path -
General data
Dimensions W / H / D 111 mm / 22 mm / 68.5 mm 111 mm / 22 mm / 68.5 mm 111 mm / 22 mm / 68.5 mm 111 mm / 22 mm / 68.5 mm
Temperature range -25 °C ... 75 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-21
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
COMTRAB, surge arrester modules for use in CT-TERMIBLOCK
and LSA-PLUS or LSA-PROFIL disconnect and control strips
Without decoupling 24 V DC CT 10-2PE/FS-24 2807955 1
With decoupling 24 V DC
Accessories
Screw terminal block, with disconnect contacts for accommodat-
ing the CT and CTM protective connectors, design: 10 double wires
CT-TERMIBLOCK 10 DA 0441711 10
106 PHOENIX CONTACT
COMTRAB
– Multi-position, plug-in modular design
– For use with CT-TERMIBLOCK and with
LSA-PLUS and LSA-PROFIL disconnect
and control strips
– Applications include systems with higher
signal voltages
– Combined protective circuits
– Protection modules must be inserted in
the correct direction
Surge protection and interference filters
Surge protection for measurement and control technology
Notes:
For certifications, see page 154
For 10 double conductors, floating,
without decoupling resistance
IN
OUT
1.../19
2.../20
2'.../20’
1'.../19’
IN
OUT
1.../17
2.../18
2'.../18'
1'.../17'
19/20
GND
19'/20'
IN
OUT
1.../17
2.../18
2'.../18'
1'.../17'
19/20
GND
19'/20'
For additional information, visit www.phoenixcontact.net/products
Total width 111 mm Total width 111 mm Total width 111 mm
Technical data Technical data Technical data
C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
40 V DC / 28 V AC 40 V DC / 28 V AC 40 V DC / 28 V AC
200 mA (25°C) 1.5 A (75°C) 140 mA (25°C)
5 kA / 5 kA 214 A (25°C) / 5 kA 5 kA / 5 kA
10 kA 10 kA 10 kA
≤ 60 V / ≤ 650 V - / ≤ 650 V - / ≤ 650 V
10 Ω-22 Ω
Dimensions W / H / D 111 mm / 22 mm / 68.5 mm 111 mm / 22 mm / 68.5 mm 111 mm / 22 mm / 68.5 mm 111 mm / 22 mm / 68.5 mm
-25 °C ... 75 °C -25 °C ... 75 °C -25 °C ... 75 °C
IP20 IP20 IP20
V0 V0 V0
IEC 61643-21 IEC 61643-21 IEC 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CT 10-18FS+F/PE-24 2807926 1
CT 10-2PE/FSR-24 2807968 1CT 10-18FSR+F/PE-24 2807939 1
Accessories Accessories Accessories
CT-TERMIBLOCK 10 DA 0441711 10 CT-TERMIBLOCK 10 DA 0441711 10 CT-TERMIBLOCK 10 DA 0441711 10
107PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
For 10 double wires, floating, with decoupling For 18 conductors with common reference
potential, without decoupling resistance
For 18 conductors with common reference po-
tential, with decoupling
b1
a1
b2
a2
b3
a3
b4
a4
b5 b8/b10
a5 a8/a10
b1
b2 b3 b4 b5
b8/b10
a1 a2 a3 a4 a5
a8/a10
Total width 113 mm Total width 113.3 mm
Ordering data Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Coarse protection magazine, to accommodate 20 two-electrode
gas-filled surge arresters, design H, bare, model: 10 double con-
ductors
CT 10-2/2-GS 2765398 5
Coarse protection card cage, for 10 double conductors
unassembled, for accommodating 10 three-elec-
trode gas-filled surge arresters
CT 10-2/2-GS/3E 2765408 5
assembled, with 10 three-electrode gas-filled
surge arresters
110 V AC CT 10-2/2-GS/3E-110AC 2920829 10
Accessories Accessories
2-electrode gas-filled surge arrester filled with inert gas,
type H, for use in CT 10-2/2-GS coarse protection magazine
48 V AC SVP 2E- 48AC 2788919 10
110 V AC SVP 2E-110AC 2765534 10
3-electrode gas-filled surge arrester filled with inert gas,
for use in CT 10-2/2-GS/3E coarse protection magazine
110 V AC SVP 3E-110AC 2765521 10
108 PHOENIX CONTACT
– For use in CT-TERMIBLOCK or in
LSA-PLUS and LSA-PROFIL disconnect
and terminal strips
CT 10-2/2-GS
– For fitting with 20 two-electrode arrest-
ers filled with inert gas
– Common mode voltage coarse protec-
tion for 20 signal wires
CT ...-2/2-GS/3E
– Fitted with up to 10 three-electrode ar-
resters filled with inert gas
– When the gas-filled arrester is triggered,
the potentials of the three connections a-
b- are equalized
– Coarse protection both in the normal
mode voltage branch and the common
mode voltage branch for 10 double wires
Notes:
For dimensional drawings, see www.phoenixcontact.net/products
LSA-PLUS coarse protection
magazine
Surge protection and interference filters
Surge protection for measurement and control technology
For 10 double wires (loops) and 20 two-elec-
trode GDTs
For 10 double wires (loops) and 10 three-elec-
trode GDTs
For additional information, visit www.phoenixcontact.net/products
Technical data
General data
Dimensions W / H / D 118 mm / 43 mm / 40.9 mm
Connection data solid / stranded / AWG 0.2 ... 2.5 mm² / 0.2 ... 2.5 mm² / 24 - 14
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V2
Ordering data
Description Type Order No. Pcs. /
Pkt.
Screw termination block with disconnect contacts for accommo-
dating the protective plugs CT and CTM, model: 10 double conduc-
tors
CT-TERMIBLOCK 10 DA 0441711 10
Accessories
Marker strips, self-adhesive, color: white, can be labeled accord-
ing to customer specifications
SK CUS 0828492 1
Notes:
For dimensional drawings, see www.phoenixcontact.net/products
H
W
D
–Screw terminal block
– For COMTRAB protective connectors
– Automatically closing feed-through/dis-
connect contacts
– Ground terminal blocks on both sides
with plug-in connection for the protective
connectors used
– Mounting on DIN rails according to
EN60715
CT-TERMIBLOCK
Surge protection and interference filters
Surge protection for measurement and control technology
For accommodating the CT and CTM
protective connectors, with screw connection
Technical data
General data
Dimensions W / H / D 112.5 mm / 21.8 mm / 44 mm
Temperature range -25 °C ... 75 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Ordering data
Description Type Order No. Pcs. /
Pkt.
Magazine, with a grounding rail to accommodate up to
10 LSA-PLUS protective plugs (CTM...), to insert in
CT-TERMIBLOCK or LSA-PLUS disconnect strip
CTM 10-MAG 2838610 5
109
PHOENIX CONTACT
Notes:
For dimensional drawings, see www.phoenixcontact.net/products
– For accommodating up to 10 protective
connectors
– Integrated grounded rail for connecting
the CTM connectors to equipotential
bonding
COMTRABmodular magazine
Magazine for 10 CTM
Ordering data
Description Type Order No. Pcs. /
Pkt.
LSA-PLUS disconnect strip to hold the CTM and CT 10 protec-
tion modules, model: 10 double conductors
CT 10-TL 2765356 5
Notes:
For dimensional drawings, see www.phoenixcontact.net/products
– LSA-PLUS disconnect strip
– For COMTRAB protective connectors
– For up to 10 CTM connectors
COMTRAB disconnect strip
Surge protection and interference filters
Surge protection for measurement and control technology
For accommodating the CT and CTM protec-
tive connectors, with LSA-PLUS connection
Ordering data
Description Type Order No. Pcs. /
Pkt.
Ground rail for CTM protective plug when used in combination
with LSA-PLUS disconnect strip, model: 10 double conductors
CT 1-10-ES 2765547 10
Mounting clip, for holding 3 disconnect or ground wire strips,
model: 10 double conductors
CT 10-MB/ 3 2765372 2
Mounting clip, for holding 10 disconnect or
ground wire strips, model: 10 double conductors
CT 10-MB/10 2765385 2
Cable feed-through sleeve for assembly troughs,
for protection of the lines guided through the lami-
nated frame
CT-KDT 2765518 10
110 PHOENIX CONTACT
Notes:
For dimensional drawings, see www.phoenixcontact.net/products
CT 1-10-ES
– For grounding up to 10 x 1DA CTM pro-
tective connectors
CT 10-MB...
– For accommodating 3 or 10 x LSA-PLUS
disconnect or ground wire strips
COMTRAB grounding rails and
mounting clips
Grounded rail/mounting clip
For additional information, visit www.phoenixcontact.net/products
Total width 6 mm
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Shield fast connection
For Ø 3 - 6 mm SSA 3-6 2839295 10
For Ø 5 - 10 mm SSA 5-10 2839512 10
UniCard sheets, for 6.2 mm terminal block width, 80-section, can
be labeled with BLUEMARK
White UC-TM 6 0818085 10
Orange UC-TM 6 OG 0818328 10
Yellow UC-TM 6 YE 0818331 10
Blue UC-TM 6 BU 0818344 10
Red UC-TM 6 RD 0818357 10
Green UC-TM 6 GN 0818360 10
UniCard sheets, for 12 mm terminal block width,
40-section, can be labeled with BLUEMARK
White UC-TM 12 0819194 10
Orange UC-TM 12 OG 0817691 10
Yellow UC-TM 12 YE 0819204 10
Blue UC-TM 12 BU 0817785 10
Red UC-TM 12 RD 0817701 10
Green UC-TM 12 GN 0817808 10
Zack marker strip, 10-section, unprinted
White ZB 5 :UNBEDRUCKT 1050004 10
White ZB 6:UNBEDRUCKT 1051003 10
White ZB 12:UNPRINTED 0812120 10
Zack marker strip, printed horizontally, 10-
section, with consecutive numbers, e.g. 1-10, 11-
20, etc. up to 91-100
White ZB 5,LGS:FORTL.ZAHLEN 1050017 10
White ZB 6,LGS:FORTL.ZAHLEN 1051016 10
Zack marker strip, 10-section, printed horizontally: With L1, L2,
L3, N, PE
White ZB 5,LGS:L1-N,PE 1050415 10
White ZB 6,LGS:L1-N,PE 1051414 10
White ZB 12,LGS:L1-N,PE 0812146 10
Zack marker strip, flat, 10-section, without color print
White ZBF 5:UNBEDRUCKT 0808642 10
White ZBF 6:UNBEDRUCKT 0808710 10
White ZBF 12:UNBEDRUCKT 0809735 10
White ZBF 15:UNBEDRUCKT 0811202 10
Zack marker strip, 10-section, printed horizontally: with con-
secutive numbers, e.g., 1 - 10, 11 - 20 and so on up to 91 - 100
White ZBF 5,LGS:FORTL.ZAHLEN 0808671 10
White ZBF 6,LGS:FORTL.ZAHLEN 0808749 10
111PHOENIX CONTACT
Surge protection and interference filters
Surge protection for measurement and control technology
Shield fast connection Labeling material
SSA
– For connecting cable shielding to cable
terminal points
– Can be connected to PLUGTRAB PT
– Easy assembly
ZB...
– For clear and logical identification
– The multi-section ZB strips can be easily
separated
– Individual labeling of unlabeled ZB strips
Shield fast connection and labeling
material
112 PHOENIX CONTACT
Surge protection and interference filters
Surge protection for information technology and telecommunications
Low signal levels at high frequencies re-
quire special protective circuits in data pro-
cessing and telecommunications. The ar-
resters must guarantee short reaction times
to quickly limit the surge voltages to safe
values, without impairing signal quality. In
addition, the protective devices support
system-specific connections, such as RJ45
or D-SUB connectors, and all types of net-
work topology.
DATATRAB DT - The all-round solu-
tion for protecting data interfaces
DATATRAB DT reliably protects high-
speed networks against damage caused by
surge voltages. DT-LAN-CAT.6+ supports
various data protocols at very high trans-
mission speeds, such as Ethernet, Power
over Ethernet (PoE), ISDN, token ring, and
DS1, in a single device.
The housing has a ground connection
snap-on foot into which the ground connec-
tion cover with equipotential bonding cable
is inserted. DATATRAB can be therefore
used either as an adapter or a DIN rail mod-
ule after removing the ground connection
cover.
For additional information, visit www.phoenixcontact.net/products
113PHOENIX CONTACT
Surge protection and interference filters
Surge protection for information technology and telecommunications
Use
Protective devices suitable for all com-
mon applications including Ethernet, token
ring, CDDI, ISDN, DS1, DSL, analog tele-
communications, RS-485, RS-232, V.11, etc.
are available.
The circuit breakers also support Power
over Ethernet (PoE) in Mode A and B ver-
sions.
Speed
Used in EDP systems with a transmission
speed of up to 10 Gbps (CAT.6/CLASS Ea)
and in telecommunications networks with
16Mbps (ADSL2+).
Ver s a t i le
The DATATRAB product range can offer
a suitable protective device for many and
varied applications. The protective devices
are simply installed between the signal paths
with interfaces for RJ11/12, RJ45, D-SUB, or
screw connection.
Other designs
Other application-specific protective de-
vices include:
– Two-part plug-in protective devices in the
PLUGTRAB product range
– Combined adapters for the power supply
and MAINTRAB interfaces
– Narrow plug-in arresters for COMTRAB
modular marshalling distributors
64 57 8321
64 57 8321 IN
OUT
Total width 25 mm
Technical data
Electrical data
IEC category / EN type B2 / C1 / C2 / C3 / D1
Maximum continuous operating voltage UC≤ 3.3 V DC (± 60 V DC/PoE+)
Nominal current IN≤ 1.5 A (25°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 100 A / 2 kA (per signal pair) 350 A / 350 A 350 A / 350 A 10 kA / 10 kA
Total surge current (8/20) µs 10 kA
Protection level UP
Core-Core / Core-Ground ≤ 9 V (B2 - 1 kV/25 A) / ≤ 700 V (C2 - 4 kV/2 kA)
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 9 V / ≤ 700 V
Cut-off frequency fg (3 dB)
In a 100 Ω system Symmetrical > 500 MHz
General data
Dimensions W / H / D 25 mm / 103 mm / 63 mm 28 mm / 110 mm / 60 mm 483 mm / 44 mm / 160 mm 17.7 mm / 90 mm / 65.5 mm
Temperature range -40 °C ... 70 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 -
Connection method RJ45
Test standards IEC 61643-21 / EN 50173-1 / ISO/IEC 11801-Am.1 IEC 61643-21/A1 / GB/T 18802.21 / EN 61643-21/A1 IEC 61643-21 IEC 616
Ordering data
Description Type Order No. Pcs. /
Pkt.
DATATRAB adapter, protective adapter to be inserted into the
data line
DT-LAN-CAT.6+ 2881007 1
DATATRAB, for use in Ethernet, token ring, FDDI/CDDI in acc. with
Cat.D/CAT5e EN 50173 (1000Base-T)
24 ports
20 ports
16 ports
12 ports
8 ports
4 ports
Surge protection PCB as replacement or for retrofitting in D-LAN-
19"... products incl. RJ45 sockets
4 ports
Patch cable, CAT6, preassembled
FL CAT6 PATCH 1,0 2891385 10
PLUGTRAB plug, with protection circuit for plugging into base ele-
ment PT
PLUGTRAB base element, for mounting on NS35
Bridge between 3/4 () and 9/10
114 PHOENIX CONTACT
Surge protection for Ethernet/
PROFINET networks with twisted
pair cabling
DT-LAN-CAT.6+
– Suitable for category 6 high-speed data
networks
– Reliable transmission rates up to 10 Gbps
– Protective adapter for eight signal paths
via RJ45 connector
– Can be installed in a control cabinet by re-
moving a ground connection adapter
D-LAN-CAT.5-FP
– Suitable for category 5 data networks
– Reliable transmission speeds up to 1 Gbps
– Protective adapter for eight signal paths
via RJ45 connector
D-LAN-19“
– 19" rack for installation in storey distribu-
tors
– Up to 24 ports with RJ45 connection
– Reliable transmission speeds up to 1 Gbps
– Protection of all eight signal wires of the
data cable
– Indirect grounding via a gas-filled surge ar-
rester in the housing
– Direct grounding via a connection on the
housing
DATA-PLUGTRAB PT 5-HF
– Protection for up to five signal wires
– For high transmission speeds
– High discharge capacity
– Connectors can be checked with
CHECKMASTER
* Note: PT .x.-BE connections 9/10
(GND) are linked directly to the mounting
foot.
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
Notes:
For certifications, see page 154
For LAN interfaces (Class EA/CAT 6) including
PoE and ISDN S0 protection
64578
321
64578
321
OUT
IN
2
1
12
J2
J1
78
78
3 4 56
34 5 6
OUT
IN
*
IN
OUT
2
6
8
7
12
11
5
1
10
9
4
3
For additional information, visit www.phoenixcontact.net/products
Total width 28 mm Total width 483 mm Total width 17.7 mm
Technical data Technical data Technical data
B2 / C1 C1 / C2 / C3 / B3 C1 / C2 / C3 / D1
≤ 5 V DC (±57 V DC/PoE) 6 V DC 5.2 V DC / 3.6 V AC
≤ 1.5 A (25°C) 1.5 A (25°C) 450 mA (45°C)
Core-Core / Core-Ground 100 A / 2 kA (per signal pair) 350 A / 350 A 350 A / 350 A 10 kA / 10 kA
- 10 kA 20 kA
≤ 35 V (C1 - 700 V/350 A) ≤ 110 V (C1 - 700 V/350 A - PoE) / - ≤ 50 V (C1, 500 V/250 A) / ≤ 40 V (C1, 500 V/250 A (J2 ON)) ≤ 34 V (C3 - 25 A) / ≤ 34 V (C3 - 25 A)
≤ 25 V / ≤ 750 V ≤ 20 V / ≤ 30 V (J2 plugged) ≤ 15 V / ≤ 15 V
> 100 MHz > 100 MHz Typ. 70 MHz
Dimensions W / H / D 25 mm / 103 mm / 63 mm 28 mm / 110 mm / 60 mm 483 mm / 44 mm / 160 mm 17.7 mm / 90 mm / 65.5 mm
-40 °C ... 85 °C -40 °C ... 80 °C -40 °C ... 85 °C
IP20 IP20 IP20
V0 - V0
RJ45 RJ45 Screw connection (in connection with the base element)
Test standards IEC 61643-21 / EN 50173-1 / ISO/IEC 11801-Am.1 IEC 61643-21/A1 / GB/T 18802.21 / EN 61643-21/A1 IEC 61643-21 IEC 61643-21/A1 / EN 61643-21/A1
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
D-LAN-CAT.5-FP 2800723 1
D-LAN-19"-24 2838791 1
D-LAN-19"-20 2880134 1
D-LAN-19"-16 2880147 1
D-LAN-19"-12 2880150 1
D-LAN-19"-8 2880163 1
D-LAN-19"-4 2880176 1
D-LAN-19"-D-P 2880192 1
FL CAT6 PATCH 1,0 2891385 10
PT 5-HF- 5 DC-ST 2838762 10
PT 2X2-BE 2839208 10
115PHOENIX CONTACT
IN
OUT
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
H
W
D
For LAN interfaces (Class D/CAT 5) including
PoE and ISDN S0 protection
For data interfaces, with RJ45 connection
Class D/CAT5e
Plug-in arrester with screw connection, for five
conductors, with common reference potential
55
99
88
77
66
44
33
22
11
IN OUT
Total width 25 mm
Technical data
Electrical data
IEC category / EN type B2 / C1 / C2 / C3
Maximum continuous operating voltage UC15 V DC / 10 V AC
Nominal current IN≤ 1 A (25°C)
Nominal discharge surge current In (8/20) µs
Core-Earth/Core-GND ≤ 250 A / ≤ 250 A
Total surge current (8/20) µs 5 kA
Protection level UP
Core-Core / Core-Ground ≤ 55 V (C1 - 250 A) / ≤ 450 V (C1 - 250 A)
Cut-off frequency fg (3 dB)
In a 100 Ω system Symmetrical / Asymmetrical Typ. 2.5 MHz / Typ. 1.3 MHz Typ. 2.5 MHz / Typ. 1.3 MHz Typ. 70 MHz / -
General data
Dimensions W / H / D 25 mm / 110 mm / 63 mm 25 mm / 110 mm / 63 mm 17.7 mm / 90 mm / 65.5 mm
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 -
Connection method D-SUB-9
Test standards DIN EN 61643-21 / IEC 61643-21 DIN EN 61643-21 / IEC 61643-21 IEC 61643-21/A1 / EN 61643-21/A1
Ordering data
Description Type Order No. Pcs. /
Pkt.
DATATRAB-Adapter, protective adapter for inserting into the data
line for protecting the RS-232 interface with D-SUB-9 connector
DT-UFB-V24/S-9-SB 2803069 1
DATATRAB-Adapter, protective adapter for inserting into the data
line for protecting the RS-232 interface with D-SUB-25 adapter
cable
PLUGTRAB plug, with protection circuit for plugging into base ele-
ment PT
PLUGTRAB base element, for mounting on NS35
with a gas-filled surge arrester between the 3/4 () and the 9/10
connections
Accessories
Labeling material
116 PHOENIX CONTACT
Protection for RS-232
interfaces
DT-UFB-V24/S
– Connection: 9-pos. D-SUB and 25-pos.
D-SUB
– For data and handshake cables
PLUGTRAB PT 3-HF-12DC
– Connection: Screw terminal blocks
– For high transmission speeds
– High discharge capacity
– Connectors can be checked with
CHECKMASTER
Pin assignment DT-UFB-V24/S-9-SB
– 1,2,3,4,6,7,8,9 Data lines
– 5 Signal ground (Ground)
Pin assignment
DT-UFB-V24/S-SB-SET
– 2,3,4,5,6,8,20,22 data lines
– 7 Signal ground (Ground)
Pin assignment PT 3-HF-12DC:
– 7.11 Data lines
– 9 Signal ground (Ground)
– 3
* Note: PT .x.+F-BE connections 9/10
(GND) are linked to the mounting foot via
a gas-filled surge arrester.
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
Notes:
For certifications, see page 154
Protective adapter with 9-pos. D-SUB Protective adapter with 9-pos. D-SUB and
77
22 22
55
44
66
20 20
22
33
88
IN OUT
*
IN
OUT
7
11
9
3
8
12
10
4
For additional information, visit www.phoenixcontact.net/products
Total width 25 mm Total width 17.7 mm
Technical data Technical data
B2 / C1 / C2 / C3 C1 / C2 / C3 / D1
15 V DC / 10 V AC 14 V DC / 9.8 V AC
≤ 1 A (25°C) 450 mA (45°C)
≤ 250 A / ≤ 250 A 10 kA / 10 kA
5 kA 20 kA
≤ 55 V (C1 - 250 A) / ≤ 450 V (C1 - 250 A) ≤ 45 V (C3 - 25 A) / ≤ 45 V (C3 - 25 A)
system Symmetrical / Asymmetrical Typ. 2.5 MHz / Typ. 1.3 MHz Typ. 2.5 MHz / Typ. 1.3 MHz Typ. 70 MHz / -
Dimensions W / H / D 25 mm / 110 mm / 63 mm 25 mm / 110 mm / 63 mm 17.7 mm / 90 mm / 65.5 mm
-40 °C ... 85 °C -40 °C ... 85 °C
IP20 IP20
-V0
D-SUB-25 Screw connection (in connection with the base element)
Test standards DIN EN 61643-21 / IEC 61643-21 DIN EN 61643-21 / IEC 61643-21 IEC 61643-21/A1 / EN 61643-21/A1
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DT-UFB-V24/S-SB-SET 2803072 1
PT 3-HF-12DC-ST 2858043 10
PT 1X2+F-BE 2856126 10
Accessories Accessories
ZBF ..., see page 111
117PHOENIX CONTACT
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
H
W
D
Protective adapter with 9-pos. D-SUB Protective adapter with 9-pos. D-SUB and
adapter cable with 25-pos. D-SUB
Plug-in arrester with screw connection,
for three conductors, with common reference
potential
*
IN
OUT
2
6
8
7
12
11
5
1
10
9
4
3
Total width 17.7 mm
Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1
Maximum continuous operating voltage UC14 V DC / 9.8 V AC
Nominal current IN450 mA (45°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA
Total surge current (8/20) µs 20 kA
Protection level UP
Core-Core / Core-Ground ≤ 45 V (C3 - 25 A) / ≤ 45 V (C3 - 25 A)
Cut-off frequency fg (3 dB)
In a 100 Ω system Symmetrical Typ. 70 MHz
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-21/A1 / EN 61643-21/A1
Ordering data
Description Nominal volt-
age UN
Type Order No. Pcs. /
Pkt.
PLUGTRAB connector, with protective circuit for inserting in PT
base element
12 V DC PT 5-HF-12 DC-ST 2838775 10
PLUGTRAB base element, for mounting on NS35
Gas-filled surge arrester between 3/4 () and 9/10 PT 2X2+F-BE 2839224 10
Accessories
Labeling material ZBF ..., see page 111
118 PHOENIX CONTACT
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
H
W
D
– For floating signal circuits or signal cables
– For high data transmission rates
– Connectors can be checked with
CHECKMASTER
Pin assignment PT 5-HF-12DC:
– 1,5 Data line pair 1: T(A), T(B)
– 7,11 Data line pair 2: R(A), R(B)
– 9 Signal ground (Ground)
– 3
* Note: PT .x.+F-BE connections 9/10
(GND) are linked to the mounting foot via
a gas-filled surge arrester.
Surge protection for V.11/RS-422
interfaces
Surge protection and interference filters
Surge protection for information technology and telecommunications
Plug-in arrester with screw connection, for five
conductors, with common reference potential
*
IN
OUT
4
3
10
9
2
1
12
11
6
5
8
7
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm
Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1
Maximum continuous operating voltage UC28 V DC / 20 V AC
Nominal current IN450 mA (45°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA
Total surge current (8/20) µs 20 kA
Protection level UP
Core-Core / Core-Ground ≤ 50 V (C3 - 25 A) / -
Cut-off frequency fg (3 dB)
In a 50 Ω system Symmetrical Typ. 6 MHz
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Test standards IEC 61643-21 / DIN EN 61643-21 / UL 497B
Ordering data
Description Nominal volt-
age UN
Type Order No. Pcs. /
Pkt.
PLUGTRAB connector, with protective circuit for inserting in PT
base element
24 V DC PT 2X2-24DC-ST 2838228 10
PLUGTRAB base element, for mounting on NS35
Bridge between 3/4 () and 9/10 PT 2X2-BE 2839208 10
Gas-filled surge arrester between 3/4 () and 9/10 PT 2X2+F-BE 2839224 10
Accessories
Shield fast connection
For Ø 3-6 mm SSA 3-6 2839295 10
For Ø 5-10 mm SSA 5-10 2839512 10
Labeling material ZBF ..., see page 111
119PHOENIX CONTACT
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
H
W
D
– For floating signal circuits or signal cables
– Low voltage limitation
– Fast response
– High discharge capacity
– Connectors can be checked with
CHECKMASTER
Pin configuration PT 2x2-24DC...:
– 1/5 data line pair A
– 7/11 data line pair B
– 3
* Note:
Various grounding options for the base ele-
ments:
PT .x.-BE connections 9/10 (GND) direct-
ly connected to the mounting foot.
PT .x.+F-BE connection 9/10 (GND) con-
nected to the mounting foot via a gas-filled
surge arrester.
Surge protection for TTY interfaces
Surge protection and interference filters
Surge protection for information technology and telecommunications
Two double wires (loops), floating,
for 20 mA current loops
*
IN
OUT
2
6
8
7
12
11
5
1
10
9
4
3
Total width 17.7 mm
Technical data
Electrical data ... 5DC ... 12DC
IEC category / EN type C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 B2
Maximum continuous operating voltage UC5.2 V DC / 3.6 V AC 14 V DC / 9.8 V AC 6 V DC / 4 V AC 15 V DC / 10 V AC 6 V DC / 4 V AC 15 V DC / 10 V AC 12 V DC / -
Nominal current IN450 mA (45°C) 450 mA (45°C) 600 mA (up to 40 °C) 600 mA (up to 40 °C) 600 mA (up to 40 °C) 600 mA (up to 40 °C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 10 kA
Protection level UP
Core-Core / Core-Ground ≤ 34 V (C3 - 25 A) / - ≤ 45 V (C3 - 25 A) /
≤ 45 V (C3 - 25 A)
Cut-off frequency fg (3 dB)
In a 100 Ω system Symmetrical Typ. 70 MHz Typ. 70 MHz - - - - Typ. 50 MHz
In a 150 Ω system Symmetrical - - > 60 MHz > 60 MHz > 60 MHz > 60 MHz -
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 91 mm / 77.5 mm 17.7 mm / 91 mm / 77.5 mm 25 mm / 110 mm / 63 mm
PT-IQ...UT dimensions W/H/D -
PT-IQ...PT dimensions W/H/D -
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Connection method Screw connection (in connection with the base element) Screw connection / Push-in connection Screw connection /
Test standards IEC 61643-21/A1 / EN 61643-21/A1 EN 61643-21/A1 /
Ordering data
Description Nominal volt-
age UN
Type Order No. Pcs. /
Pkt.
PLUGTRAB connector, with protective circuit for inserting in PT
base element
5 V DC PT 5-HF- 5 DC-ST 2838762 10
12 V DC PT 5-HF-12 DC-ST 2838775 10
PLUGTRAB base element, for mounting on NS35
Bridge between 3/4 () and 9/10 PT 2X2-BE 2839208 10
Gas-filled surge arrester between 3/4 () and 9/10 PT 2X2+F-BE 2839224 10
MCR-PLUGTRAB, consisting of a plug, base element, and DIN rail
bus, with screw connection technology
Bridge between 3/4 () and 9/10
Bridge between 3/4 () and 9/10
MCR-PLUGTRAB, consisting of a plug, base element, and DIN rail
bus, with push-in connection technology
Bridge between 3/4 () and 9/10
Bridge between 3/4 () and 9/10
DATATRAB-Adapter, Protective adapter to be inserted in the data
line for the protection of the RS-485 interfaces
Accessories
Marking material ZBF ..., see page 111
120 PHOENIX CONTACT
Surge protection for RS-485
interfaces
PLUGTRAB PT 5-HF
– High transmission speed
– Fast response time
– High discharge capacity
– Connectors can be checked with
CHECKMASTER
PLUGTRAB PT-IQ 5-HF
– Surge protection system
– Collective message about supply and re-
mote module
– Multi-level, floating remote signaling
– System supplied via DIN rail bus
– PT-IQ...-UT base element with screw con-
nection technology
– PT-IQ...-PT base element with push-in
connection technology
Pin assignment PT 5-HF...:
– 1,5 Data line pair 1T(A)/T(B)
– 7,11 Data line pair 2 R(A)/R(B)
– 9 Signal ground (Ground)
– 3
DATATRAB DT-UFB-485
– Adapter type
– 9-pos. D-SUB connection
– DIN rail mounting possible by removing
the cap
Pin assignment DT-UFB-485:
– 3,8 Data line pair 1 T(A)/T(B)
– 4,9 Data line pair 2 R(A)/R(B)
– 2,7 Signal ground (Ground)
–
* Note:
Various grounding options for the base ele-
ments:
PT .x.-BE connections 9/10 (GND) direct-
ly connected to the mounting foot.
PT .x.+F-BE connection 9/10 (GND) con-
nected to the mounting foot via a gas-filled
surge arrester.
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
Plug-in arrester with screw connection, for five
conductors, with common reference potential
protectedunprotected
7
11
5
1
9
3
2
6
8
12
10
4
protectedunprotected
7
11
5
1
9
3
2
6
8
12
10
4
IN
OUT
4
3
4
3
9
8
2,7
9
8
2,7
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 17.7 mm Total width 25 mm
Technical data Technical data Technical data
... 5DC ... 12DC ... 5DC ... 12DC
IEC category / EN type C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 B2 / C1 / C2 / C3 / D1
5.2 V DC / 3.6 V AC 14 V DC / 9.8 V AC 6 V DC / 4 V AC 15 V DC / 10 V AC 6 V DC / 4 V AC 15 V DC / 10 V AC 12 V DC / -
450 mA (45°C) 450 mA (45°C) 600 mA (up to 40 °C) 600 mA (up to 40 °C) 600 mA (up to 40 °C) 600 mA (up to 40 °C) ≤ 380 mA (25°C)
Core-Core / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA ≤ 5 kA / ≤ 5 kA
Total surge current (8/20) µs 20 kA 20 kA 20 kA 20 kA 20 kA 20 kA 10 kA
≤ 30 V (C3 - 25 A) / - ≤ 40 V (C3 - 25 A) / - ≤ 30 V (C3 - 25 A) / - ≤ 40 V (C3 - 25 A) / - ≤ 30 V (C1 - 500 A) / ≤ 700 V (C1 - 500 A)
system Symmetrical Typ. 70 MHz Typ. 70 MHz - - - - Typ. 50 MHz
system Symmetrical - - > 60 MHz > 60 MHz > 60 MHz > 60 MHz -
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 91 mm / 77.5 mm 17.7 mm / 91 mm / 77.5 mm 25 mm / 110 mm / 63 mm
17.7 mm / 91 mm / 77.5 mm 17.7 mm / 91 mm / 77.5 mm -
17.7 mm / 109.3 mm / 77.5 mm 17.7 mm / 109.3 mm / 77.5 mm -
-40 °C ... 70 °C -40 °C ... 70 °C -40 °C ... 85 °C
IP20 IP20 IP20
V0 V0 -
element) Screw connection / Push-in connection Screw connection / Push-in connection D-SUB-9
Test standards IEC 61643-21/A1 / EN 61643-21/A1 EN 61643-21/A1 / IEC 61643-21/A2 / EN 61000-6-2/A1 / EN 61643-21/A1 / IEC 61643-21/A2 / EN 61000-6-2/A1 / DIN EN 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PT-IQ-5-HF-5DC-UT 2800797 1PT-IQ-5-HF+F-5DC-UT 2800798 1
PT-IQ-5-HF-12DC-UT 2800799 1PT-IQ-5-HF+F-12DC-UT 2800801 1
PT-IQ-5-HF-5DC-PT 2801291 1PT-IQ-5-HF+F-5DC-PT 2801292 1
PT-IQ-5-HF-12DC-PT 2801293 1PT-IQ-5-HF+F-12DC-PT 2801295 1
DT-UFB-485/BS 2920612 1
Accessories Accessories Accessories
ZBF ..., see page 111 ZBF ..., see page 111
121PHOENIX CONTACT
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
H
W
D
H
W
D
5-wire with common reference potential,
9/10 connection grounded directly
5-wire with common reference potential,
9/10 connection grounded via gas-filled surge
arrester
Protective adapter with 9-pos. D-SUB
IN
OUT
6
7
6
7
1
2
3
1
2
3
I
I
I
I
Total width 25 mm
Technical data
Electrical data
IEC category / EN type B2 / C1 / C2 / C3 / D1
Maximum continuous operating voltage UC5.8 V DC / -
Nominal current IN≤ 180 mA (25°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground ≤ 5 kA / ≤ 5 kA
Total surge current (8/20) µs 10 kA
Protection level UP
Core-Core / Core-Ground ≤ 20 V (C1 - 500 A) / ≤ 700 V (C1 - 500 A)
Cut-off frequency fg (3 dB)
In a 100 Ω system Symmetrical ≥ 100 MHz
In a 150 Ω system Symmetrical ≥ 100 MHz
General data
Dimensions W / H / D 25 mm / 110 mm / 63 mm 25 mm / 110 mm / 63 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 91 mm / 77.5 mm
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 -
Connection method D-SUB-9
Test standards DIN EN 61643-21 / IEC 61643-21 DIN EN 61643-21 / IEC 61643-21 IEC 61643-21/A1 / EN 61643-21/A1 EN 61643-21/A1 / IEC
Ordering data
Description Nominal volt-
age UN
Type Order No. Pcs. /
Pkt.
PLUGTRAB connector, with protective circuit for inserting in PT
base element
5 V DC
PLUGTRAB base element, for mounting on NS35
Gas-filled surge arrester between 3/4 () and 9/10
DATATRAB adapter, protective adapters for inserting into the
data line
DT-UFB-IB-RBI 2800055 1
MCR-PLUGTRAB, consisting of a plug, base element, and DIN rail
bus
Gas-filled surge arrester between 3/4 () and 9/10
TERMITRAB, modular terminal block with integrated surge protec-
tion, for mounting on NS35
122 PHOENIX CONTACT
Surge protection for the INTERBUS
remote bus
DATATRABDT-UFB-IB-RBI/ -RBO
– Adapter type
– 9-pos. D-SUB connection
–For remote bus modules
– DIN rail mounting possible by removing
the cap
–D-SUB cable included
PLUGTRAB PT 5-HF
– High transmission speed
– Fast response time
– High discharge capacity
– Connectors can be checked with
CHECKMASTER
* Note: PT .x.+F-BE connections 9/10
(GND) are linked to the mounting foot via
a gas-filled surge arrester.
PLUGTRAB PT-IQ 5-HF
– Surge protection system
– Collective message about supply and re-
mote module
– Multi-level, floating remote signaling
– System supplied via DIN rail bus
– Base element with screw connection
technology
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
Protective adapters for 5-wire remote bus
input
IN
OUT
6
7
6
7
1
2
3
1
2
3
I
I
I
I
*
IN
OUT
2
6
8
7
12
11
5
1
10
9
4
3
protectedunprotected
7
11
5
1
9
3
2
6
8
12
10
4
For additional information, visit www.phoenixcontact.net/products
Total width 25 mm Total width 17.7 mm Total width 17.7 mm
Technical data Technical data Technical data
B2 / C1 / C2 / C3 / D1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
5.8 V DC / - 5.2 V DC / 3.6 V AC 6 V DC / 4 V AC
≤ 180 mA (25°C) 450 mA (45°C) 600 mA (up to 40 °C)
≤ 5 kA / ≤ 5 kA 10 kA / 10 kA 10 kA / 10 kA
10 kA 20 kA 20 kA
≤ 20 V (C1 - 500 A) / ≤ 700 V (C1 - 500 A) ≤ 34 V (C3 - 25 A) / ≤ 34 V (C3 - 25 A) ≤ 30 V (C3 - 25 A) / ≤ 900 V (C3 - 25 A)
≥ 100 MHz Typ. 70 MHz -
≥ 100 MHz - > 60 MHz
Dimensions W / H / D 25 mm / 110 mm / 63 mm 25 mm / 110 mm / 63 mm 17.7 mm / 90 mm / 65.5 mm 17.7 mm / 91 mm / 77.5 mm
-40 °C ... 85 °C -40 °C ... 85 °C -40 °C ... 70 °C
IP20 IP20 IP20
-V0V0
D-SUB-9 Screw connection (in connection with the base element) Screw connection
Test standards DIN EN 61643-21 / IEC 61643-21 DIN EN 61643-21 / IEC 61643-21 IEC 61643-21/A1 / EN 61643-21/A1 EN 61643-21/A1 / IEC 61643-21/A2 / EN 61000-6-2/A1 /
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PT 5-HF- 5 DC-ST 2838762 10
PT 2X2+F-BE 2839224 10
DT-UFB-IB-RB0 2800056 1
PT-IQ-5-HF+F-5DC-UT 2800798 1
TT-SLKK5-F/110AC 2765602 50
123PHOENIX CONTACT
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
H
W
D
H
W
D
Protective adapters for 5-wire remote
bus output
Plug-in arrester with screw connection, for five
conductors, with common reference potential
Plug-in arrester with screw connection, for five
conductors, with common reference potential
*
IN
OUT
7
11
9
3
8
12
10
4
Total width 17.7 mm
Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1
Maximum continuous operating voltage UC5.2 V DC / 3.6 V AC
Nominal current IN450 mA (45°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA
Total surge current (8/20) µs 20 kA
Protection level UP
Core-Core / Core-Ground ≤ 34 V (C3 - 25 A) / ≤ 34 V (C3 - 25 A)
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 15 V / ≤ 15 V
Cut-off frequency fg (3 dB)
In a 100 Ω system Symmetrical Typ. 70 MHz
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 44.5 mm / 58 mm / 16.6 mm
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Connection method Screw connection (in connection with the base element) Screw connection & D-SUB-9
Test standards IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21
Ordering data
Description Nominal volt-
age UN
Type Order No. Pcs. /
Pkt.
PLUGTRAB connector, with protective circuit for inserting in PT
base element
5 V DC PT 3-PB-ST 2858030 10
PLUGTRAB base element, for mounting on NS35
Bridge between 3/4 () and 9/10 PT 1X2-BE 2856113 10
DATATRAB, Protective device for PROFIBUS-DP applications
with up to 12 Mbps
Accessories
Shield fast connection
For Ø 3-6 mm SSA 3-6 2839295 10
For Ø 5-10 mm SSA 5-10 2839512 10
Labeling material ZBF ..., see page 111
124 PHOENIX CONTACT
Surge protection for PROFIBUS
PT 3-PB
– Protection for two signal wires with com-
mon reference potential
– Data transmission rate up to 12 Mbps
– For INTERBUS/PROFIBUS systems
– For field multiplexers
– Connectors can be checked with
CHECKMASTER
Pin assignment PT 3-PB:
– 7,11 data cable pair
– 9 Signal ground (Ground)
D-UFB-PB
– Direct use at the interface
– Data transmission rate up to 12 Mbps
– Integrated termination resistor
* Note: PT .x.-BE connections 9/10
(GND) are linked directly to the mounting
foot.
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
Plug-in arrester with screw connection, for five
conductors, with common reference potential
3
8
5
6
V
GND
D(P)
D(N)
P
IN
OUT
2B
2A
1B
1A
For additional information, visit www.phoenixcontact.net/products
Total width 44.5 mm
Technical data
C1 / C3 / B2
5.2 V DC / -
250 mA (25°C)
350 A / 350 A
350 A
≤ 25 V (C1 (500 V/250 A)) / ≤ 25 V (C1 (500 V/250 A))
≤ 14 V / ≤ 14 V
Typ. 70 MHz
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 44.5 mm / 58 mm / 16.6 mm
-20 °C ... 75 °C
IP40
-
Connection method Screw connection (in connection with the base element) Screw connection & D-SUB-9
Test standards IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21
Ordering data
Type Order No. Pcs. /
Pkt.
D-UFB-PB 2880642 1
Accessories
125PHOENIX CONTACT
Surge protection and interference filters
Surge protection for information technology and telecommunications
Fine protection with 9-pos. D-SUB
N
PE
L
5
5
4
4
6
6
3
3
Total width 63 mm
Technical data
Electrical data Mains protection Data protection
IEC category / EN type III / T3 C2 / C3 / D1 / C1 B2 / C1 / C2 / C3 / D1 C2 / C3 / D1
Nominal voltage UN230 V AC - - 50 V DC (S
Maximum continuous operating voltage UC360 V AC (L/N-PE) 6 V DC
Nominal current IN16 A (30 °C) 1.5 A (25°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 3 kA / 3 kA 650 A / 2.5 kA 100 A / 2 kA (per signal pair) 350 A / 5 kA
Combined surge UOC 4 kV - - -
Protection level UP
Core-Core / Core-Ground ≤ 1.2 kV / ≤ 1.5 kV ≤ 65 V (C1 - 1 kV/500 A) / ≤ 900
V (C2 - 4 kV/2 kA)
Total surge current (8/20) µs - 10 kA 10 kA 10 kA
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground - ≤ 10 V / ≤ 900 V
Cut-off frequency fg (3 dB)
In a 100 Ω system Core-Core - Typ. 300 kHz > 500 MHz Typ. 80 MHz
General data
Dimensions W / H / D 63 mm / 79 mm / 103.5 mm 25 mm / 103 mm / 63 mm 65 mm / 30 mm / 80 mm
Temperature range -25 °C ... 75 °C -40 °C ... 70 °C -40 °C ... 60 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 (child-proof) IP20 IP20
Inflammability class in acc. with UL 94 V0/HB - -
Connection method RJ45 RJ45 Screw connection & RJ45
Test standards IEC 61643-1 IEC 61643-21 IEC 61643-21 IEC 61643-21
Ordering data
Description Can be used as typical for
the country Type Order No. Pcs. /
Pkt.
MAINTRAB, surge protection attachment plug for plugging into a
socket for equipment and data interface protection, incl. 1.5 m
coaxial cable.
Black D, A, NL MNT-ISDN D 2882336 1
White D, A, NL MNT-ISDN D/WH 2882349 1
White S, FIN, N MNT-ISDN S/WH 2880891 1
DATATRAB adapter, protective adapters for inserting into the
data line
WESTERNTRAB, RJ45 outlet box, surface-type with surge protec-
tion for ISDN So bus interface
Accessories
Patch cable, CAT6, pre-assembled
126 PHOENIX CONTACT
For power supply and ISDN-S0
interface
MNT-ISDN
– Compact protection for termination de-
vices
–Easy operation
– Combined power supply and ISDN
protection
– Connection to telecommunications
socket using separate cable
– Thermal monitoring of the protective
circuit
– Green LED - operating indicator for the
power supply
DT-LAN-CAT.6+
– Protective adapter for eight signal paths
via RJ45 connector
– Can be installed in a control cabinet by
removing a ground connection adapter
WT-RJ 45-S/ISDN 1/K AP
– Surface-mounted socket
– With RJ45 socket as IAE
– Optimum in-house protection for sensi-
tive interfaces
Surge protection and interference filters
Surge protection for information technology and telecommunications
Notes:
For certifications, see page 154
For network and ISDN/RDSI systems/termina-
tion devices, with RJ45 connection
64 57 8321
64 57 8321 IN
OUT
IN
OUT
3
3
5
5
PE
6
6
4
4
For additional information, visit www.phoenixcontact.net/products
Total width 25 mm Total width 65 mm
Technical data Technical data
IEC category / EN type III / T3 C2 / C3 / D1 / C1 B2 / C1 / C2 / C3 / D1 C2 / C3 / D1
230 V AC - - 50 V DC (S0 phantom power supply)
≤ 3.3 V DC (± 60 V DC/PoE+) 6.2 V DC
≤ 1.5 A (25°C) 1.5 A (25°C)
Core-Core / Core-Ground 3 kA / 3 kA 650 A / 2.5 kA 100 A / 2 kA (per signal pair) 350 A / 5 kA
4 kV - - -
≤ 9 V (B2 - 1 kV/25 A) / ≤ 700 V (C2 - 4 kV/2 kA) ≤ 70 V (C1 - 1 kV/500 A) / ≤ 460 V (C1 - 1 kV/500 A)
Total surge current (8/20) µs - 10 kA 10 kA 10 kA
≤ 9 V / ≤ 700 V ≤ 12 V / ≤ 460 V
system Core-Core - Typ. 300 kHz > 500 MHz Typ. 80 MHz
Dimensions W / H / D 63 mm / 79 mm / 103.5 mm 25 mm / 103 mm / 63 mm 65 mm / 30 mm / 80 mm
-25 °C ... 75 °C -40 °C ... 70 °C -40 °C ... 60 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 (child-proof) IP20 IP20
Inflammability class in acc. with UL 94 V0/HB - -
RJ45 RJ45 Screw connection & RJ45
Test standards IEC 61643-1 IEC 61643-21 IEC 61643-21 IEC 61643-21
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DT-LAN-CAT.6+ 2881007 1
WT-RJ 45-S/ISDN1/K AP 2809830 1
Accessories Accessories
FL CAT6 PATCH 1,5 2891482 10
127PHOENIX CONTACT
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
For LAN interfaces (Class EA/CAT 6) including
PoE and ISDN S0 protection
Surface-mounted flush-type socket with RJ45
connection
IN
OUT
1'
1
2'
2
Total width 9.5 mm
Technical data
Electrical data
IEC category / EN type B2 / C2 / C3 / D1 / C1
Maximum continuous operating voltage UC± 6 V DC
Nominal current IN1.5 A (25 °C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 350 A / 5 kA
Total surge current (8/20) µs 10 kA
Protection level UP
Core-Core / Core-Ground ≤ 35 V (C1, 700 V/350 A) / ≤ 700 V (C3, 7.5 kV/100 A, spike)
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 15 V / ≤ 700 V
Cut-off frequency fg (3 dB)
In a 100 Ω system Symmetrical ≥ 100 MHz
General data
Dimensions W / H / D 9.5 mm / 21 mm / 53.5 mm
Temperature range -25 °C ... 75 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Connection method can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS dis-
connect and switching strips
Test standards IEC 61643-21
Ordering data
Description Type Order No. Pcs. /
Pkt.
COMTRAB modular, surge protection for the ISDN S0 interface
CTM ISDN 2838555 10
Accessories
Magazine, with grounding rail for accommodating up to
10 LSA-PLUS protective connectors (CTM...), for insertion in
CT-TERMIBLOCK or LSA-PLUS disconnect strip
CTM 10-MAG 2838610 5
Screw terminal block, with disconnect contacts for
accommodating the CT and CTM protective connectors,
design: 10 double wires
CT-TERMIBLOCK 10 DA 0441711 10
128 PHOENIX CONTACT
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
COMTRAB modular
– Plug-in module
– Can be used in LSA-PLUS disconnect and
control strips or CT-TERMIBLOCK
– High transmission bandwidth
– Use of two CTM ISDN for one ISDN
connection
– Connectors can be checked with
CHECKMASTER
Surge protection for the ISDN-S0
interface
Surge protection and interference filters
Surge protection for information technology and telecommunications
For a double wire
IN
OUT
7
11
9
3
8
12
10
4
J
J
IN
OUT
1
1
2
2
4
4
5
5
For additional information, visit www.phoenixcontact.net/products
Total width 17.7 mm Total width 25.4 mm
Technical data Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1 / B2 C2 / C3 / D1
Maximum continuous operating voltage UC185 V DC / 130 V AC 7 V DC / -
Nominal current IN450 mA (45°C) 1.5 A (25°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA 350 A / 2.5 kA
Total surge current (8/20) µs 20 kA 10 kA
Protection level UP
Core-Core / Core-Ground ≤ 270 V (C1 - 1 kV/500 A) / ≤ 300 V (C2 - 2 kV / 1 kA) ≤ 50 V / ≤ 600 V
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 300 V / ≤ 300 V ≤ 20 V / ≤ 450 V
Cut-off frequency fg (3 dB)
In a 100 Ω system Symmetrical Typ. 20 MHz ≥ 100 MHz
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 25.4 mm / 25.4 mm / 102 mm
Temperature range -40 °C ... 85 °C -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Inflammability class in acc. with UL 94 V0 -
Connection method Screw connection RJ45
Connection data solid / stranded / AWG 0.2 mm² - 4 mm² / 0.2 mm² - 2.5 mm² / 24 - 12 -
Test standards IEC 61643-21 / DIN EN 61643-21 IEC 61643-21
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DATA-PLUGTRAB,
consisting of plug and base element
PT 2-TELE 2882828 10
DATATRAB, attachment connector with surge protection for T1/E1
systems.
D-DS1-A/RJ45-BB 2838050 1
Accessories Accessories
Replacement plug
PT 2-TELE-ST 2838733 10
Patch cable, CAT6, pre-assembled
FL CAT6 PATCH 1,0 2891385 10
Labeling material ZBF ..., see page 111
129PHOENIX CONTACT
PT 2-TELE
–For ISDN U
k0 and DSL applications
– Broadband protection for telecommuni-
cations lines
– Connection: 7.11 for a/b wire pair
D-DS1-A/RJ45-BB
– For applications with T1 (DS1) or E1 data
transmission protocol
– Connection via a keyed RJ45 (RJ48) fe-
male connector
– High transmission bandwidth
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
H
W
D
Surge protection for ISDN-Uk0
interfaces and T1/DS1 systems
Surge protection and interference filters
Surge protection for information technology and telecommunications
Plug-in arrester with screw connection,
for three conductors, with common reference
potential
RJ45 attachment plug for two double wires
N
PE
L
3/5
2
2/4
1
16.000
Total width 63 mm
Technical data
Electrical data Mains protection Data protection
IEC category / EN type III / T3 C1 / C2 / C3 / D1 B2 / C1 / C2 / C3 / D1 III / T3 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
Nominal voltage UN230 V AC - 60 V DC 230 V AC - -
Maximum continuous operating voltage UC360 V AC (L/N-PE) 200 V DC 185 V DC 360 V AC (L/N-PE) 200 V DC 185 V DC
Nominal current IN16 A (30 °C) 1.5 A (25°C) 450 mA (
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 3 kA / 3 kA 1 kA / 2.5 kA 5 kA / 5 kA 3 kA / 3 kA 1 kA / 2.5 kA 2.5 kA / 2.5 kA
Combined surge UOC 4 kV - - 4 kV - -
Protection level UP
Core-Core / Core-Ground ≤ 1.2 kV / ≤ 1.5 kV ≤ 460 V (C2 - 1 kA) / ≤ 900 V (C2
- 2 kA)
Total surge current (8/20) µs - 5 kA 10 kA - 10 kA 10 kA
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground - / - ≤ 360 V / -
Cut-off frequency fg (3 dB)
In a 600 Ω system Core-Core - - Typ. 2 MHz - - Typ. 1.7 MHz
General data
Dimensions W / H / D 63 mm / 79 mm / 103.5 mm 65 mm / 27 mm / 80 mm 63 mm / 79 mm / 103.5 mm 65 mm / 39 mm / 80 mm
Temperature range -25 °C ... 75 °C -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 (child-proof) IP20
Inflammability class in acc. with UL 94 V0/HB -
Connection method RJ12/TAE 6 Screw connection & TAE 6
Test standards IEC 61643-1 IEC 61643-21 DIN EN 61643-21 EN 61643-11/A11 EN 61643-11/A11 IEC 61643-21
Ordering data
Description Can be used as typical for
the country Type Order No. Pcs. /
Pkt.
MAINTRAB, combination surge protection adapter for plugging
into a socket, for equipment and TAE protection
Black D MNT-TAE D 2882381 1
White D MNT-TAE D/WH 2882394 1
TAE outlet box (NFN) with surge protection for analog telecommu-
nications interfaces
Surface-mounted socket D
MAINTRAB, combined surge protection adapter for plugging into a
socket, for device and TEL/TELE protection.
Black B, F, CZ, SVK, PL
Black E, P, I, NL, LUX
White S, FIN
White N
WESTERNTRAB, RJ12 connection socket with surge protection
for analog telecommunication interfaces
Surface-mounted socket, 1 socket
130 PHOENIX CONTACT
For analog and DSL telecommunica-
tions systems
MNT ...
– Compact protection for termination de-
vices
–Easy operation
– Thermal monitoring of the protective
circuit
– Green LED - operating indicator for the
power supply
– MNT-TAE, with TAE connection for DSL
(ADSL2+) and in the ISDN network be-
fore the NTBA
– MNT-TELE, with RJ12/RJ45 sockets, for
telephone, modem, and answering ma-
chine with a max. operating voltage of
185 V
TAE-TRAB FM-NFN
–For surface mounting
– Three TAE6 slots
– For two N-encoded and one F-encoded
termination device
– Suitable for DSL (ADSL2+)
– Main areas of application: phone termi-
nals, answering machines, modems, and
fax machines
WT-RJ12
– Surface-mounted socket
– With 6-pos. RJ12 Western socket
– Also accommodates RJ11 plug
–Angled RJ12 take-up
Surge protection and interference filters
Surge protection for information technology and telecommunications
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
For telecommunications systems with TAE
connection
L
b
L
a
45 6
32 1
45 6
32 1
45 6
32 1
N
F
N
a2
b2
E
W
5243PENL
6
1
4
3
5
2
a
1
b
2
b
1
L
b
L
a
a
2
16.000
16.000
For additional information, visit www.phoenixcontact.net/products
Total width 65 mm Total width 63 mm Total width 65 mm
Technical data Technical data Technical data
Mains protection Data protection
IEC category / EN type III / T3 C1 / C2 / C3 / D1 B2 / C1 / C2 / C3 / D1 III / T3 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
230 V AC - 60 V DC 230 V AC - -
360 V AC (L/N-PE) 200 V DC 185 V DC 360 V AC (L/N-PE) 200 V DC 185 V DC
16 A (30 °C) 1.5 A (25°C) 450 mA (≤ 40°C) 16 A (30 °C) 1.5 A (25°C) 150 mA (25°C)
Core-Core / Core-Ground 3 kA / 3 kA 1 kA / 2.5 kA 5 kA / 5 kA 3 kA / 3 kA 1 kA / 2.5 kA 2.5 kA / 2.5 kA
4 kV - - 4 kV - -
≤ 250 V (C2 - 10 kV / 5 kA) / ≤ 500 V (C2 - 10 kV / 5 kA) ≤ 1.2 kV / ≤ 1.5 kV ≤ 460 V (C2 - 1 kA) / ≤ 900 V (C2
- 2 kA)
≤ 240 V / ≤ 700 V
Total surge current (8/20) µs - 5 kA 10 kA - 10 kA 10 kA
≤ 250 V / ≤ 450 V - / - ≤ 360 V / - ≤ 220 V / ≤ 700 V
system Core-Core - - Typ. 2 MHz - - Typ. 1.7 MHz
Dimensions W / H / D 63 mm / 79 mm / 103.5 mm 65 mm / 27 mm / 80 mm 63 mm / 79 mm / 103.5 mm 65 mm / 39 mm / 80 mm
-25 °C ... 75 °C -40 °C ... 80 °C -25 °C ... 75 °C -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 (child-proof) IP20 IP20 (child-proof) IP20
Inflammability class in acc. with UL 94 V0/HB - V0/HB -
RJ12/TAE 6 Screw connection & TAE 6 RJ12 Screw connection & RJ12
Test standards IEC 61643-1 IEC 61643-21 DIN EN 61643-21 EN 61643-11/A11 EN 61643-11/A11 IEC 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
TAE-TRAB FM-NFN-AP 2749628 1
MNT-TEL B/F 2882404 1
MNT-TELE E 2882417 1
MNT-TELE S/WH 2880901 1
MNT-TELE N/WH 2881764 1
WT-RJ 12-S/FM A/K AP 2809186 1
131PHOENIX CONTACT
Surge protection and interference filters
Surge protection for information technology and telecommunications
TAE outlet box (NFN) For telecommunications systems with
RJ12/RJ45 connection
Surface-mounted socket with RJ12
connection
IN
OUT
7
11
9
3
8
12
10
4
J
J
Total width 17.7 mm
Technical data
Electrical data
IEC category / EN type C1 / C2 / C3 / D1 / B2
Maximum continuous operating voltage UC185 V DC / 130 V AC
Nominal current IN450 mA (45°C)
Nominal discharge surge current In (8/20) µs
Core-Core / Core-Ground 10 kA / 10 kA
Total surge current (8/20) µs 20 kA
Output voltage limitation at 1 kV/µs
Core-Core / Core-Ground ≤ 300 V / ≤ 300 V
Cut-off frequency fg (3 dB)
In a 100 Ω system Symmetrical / Asymmetrical Typ. 20 MHz / -
General data
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 25 mm / 103 mm / 63 mm 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V0
Connection method Screw connection
Connection data solid / stranded / AWG 0.2 mm² - 4 mm² / 0.2 mm² - 2.5 mm² / 24 - 12 - - -
Test standards IEC 61643-21 / DIN EN 61643-21 IEC 61643-21 IEC 61643-21 IEC 61643-21
Ordering data
Description Type Order No. Pcs. /
Pkt.
DATA-PLUGTRAB,
consisting of plug and base element
PT 2-TELE 2882828 10
DATATRAB, surge protection for two signal pairs of the analog and
digital (DSL) telecommunication interface
COMTRAB modular
Accessories
Replacement connector
PT 2-TELE-ST 2838733 10
Magazine, with grounding rail for accommodating up to
10 LSA-PLUS protective connectors (CTM...), for insertion in
CT-TERMIBLOCK or LSA-PLUS disconnect strip
Screw terminal block, with disconnect contacts for
accommodating the CT and CTM protective connectors,
design: 10 double wires
Labeling material ZBF ..., see page 111
132 PHOENIX CONTACT
Surge protection for analog and DSL
telecommunication systems
PT 2-TELE
– For analog telecommunications
– Two-piece, plug-in
– Universal use
– High discharge capacity
– Connectors can be checked with
CHECKMASTER
DT-TELE-RJ45
– For analog and digital (DSL) telecommuni-
cations interface
– Connection: RJ45 socket and/or plug-in
screw terminal blocks
– The adapter included enables conversion
from RJ45 to RJ11 and RJ12 (for contact-
ing, see circuit diagram)
– International use thanks to multiple as-
signment
– DIN rail mounting possible by removing
the cap
CTM
– For analog telecommunications
– Plug-in module
– Can be used in LSA-PLUS discon-
nect/control strips or CT-TERMIBLOCK
– Connectors can be checked with
CHECKMASTER
Surge protection and interference filters
Surge protection for information technology and telecommunications
H
W
D
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
Plug-in arrester with screw connection,
for three conductors, with common reference
potential
IN
2
3
5
4
RJ 12
1
2
4
3
RJ 11
3
4
6
5
RJ 45
a2
a1
b2
b1
Plug
OUT
1
2
4
3
RJ 11
2
3
5
4
RJ 12
3
4
6
5
RJ 45
a2
a1
b2
b1
Plug
IN
OUT
1
2
2'
1'
J
J
IN
OUT
1
2
2'
1'
16.000
16.000
16.000
For additional information, visit www.phoenixcontact.net/products
Total width 25 mm Total width 9.5 mm Total width 9.5 mm
Technical data Technical data Technical data
B2 / C1 / C2 / C3 / D1 A2 / B1 / B2 / B3 / C1 / C2 / C3 / D1 / D2 B2 / C1 / C2 / C3 / D1
185 V DC / 130 V AC ± 180 V DC / - ± 180 V DC / -
≤ 380 mA (25°C) 1.5 A (25°C) 380 mA (25°C)
≤ 5 kA / ≤ 5 kA - / 5 kA 5 kA / 5 kA
10 kA 10 kA 10 kA
≤ 250 V / ≤ 250 V - / ≤ 800 V ≤ 260 V / ≤ 800 V
Typ. 50 MHz / - - / > 100 MHz 20 MHz / -
Dimensions W / H / D 17.7 mm / 90 mm / 65.5 mm 25 mm / 103 mm / 63 mm 9.5 mm / 21 mm / 53.5 mm 9.5 mm / 21 mm / 53.5 mm
-40 °C ... 85 °C -40 °C ... 85 °C -25 °C ... 75 °C
IP20 IP20 IP20
-V0V0
RJ45 / Combicon can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS dis-
connect and switching strips
can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS dis-
connect and switching strips
Connection data solid / stranded / AWG 0.2 mm² - 4 mm² / 0.2 mm² - 2.5 mm² / 24 - 12 - - -
Test standards IEC 61643-21 / DIN EN 61643-21 IEC 61643-21 IEC 61643-21 IEC 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DT-TELE-RJ45 2882925 1
CTM 2X1-180DC-GS 2838636 10 CTM 1X2-110AC 2838539 10
Accessories Accessories Accessories
CTM 10-MAG 2838610 5CTM 10-MAG 2838610 5
CT-TERMIBLOCK 10 DA 0441711 10 CT-TERMIBLOCK 10 DA 0441711 10
133PHOENIX CONTACT
Surge protection and interference filters
Surge protection for information technology and telecommunications
RJ45 attachment plug for two double wires 2-wire coarse protection, with failsafe contact Double wire (loop), floating
134 PHOENIX CONTACT
Surge protection and interference filters
Surge protection for transceiver systems
You won't lose reception with COAX-
TRAB
Transceiver systems are generally consid-
ered to be particularly susceptible to surge
voltages. Antenna cables which extend be-
yond a building and are usually very long,
plus the antennas themselves, are directly
exposed to atmospherical discharge.
Cables with a coaxial structure and there-
fore favorable EMC properties are primarily
used in antenna systems. However, the risk
of surge voltage coupling in antenna cables
and potential transfer through to the sensi-
tive interfaces of transceiver systems is not
eliminated.
Thanks to interface-optimized surge pro-
tective devices, the COAXTRAB product
range significantly increases safety for trans-
ceiver equipment. The aim of such safety
measures is to increase the availability and
operability of the devices affected.
For additional information, visit www.phoenixcontact.net/products
135PHOENIX CONTACT
Surge protection and interference filters
Surge protection for transceiver systems
Shielding
Good shielding properties are vital for a
clean transmission. The rugged metal hous-
ings provide ideal shielding properties and
are also suitable for use in harsh industrial
environments.
Customized products
Appropriate protective devices are avail-
able for all applications including SAT receiv-
er systems, mobile phones, and video mon-
itoring.
The very low attenuation values ensure
that data transmission is clean.
Performance classes
The protective devices conform to stan-
dards in all performance classes. This applies
for coarse protection in accordance with
Category D1, 10/350 s and for fine protec-
tion in accordance with Category C1,
8/20 s.
Connection technology
The right connection technology to suit
the application: F connector, TV connector,
type N, 7/16, UHF, BNC, SMA.
Total width 31 mm
Technical data
Electrical data
IEC category / EN type C2 / C3 / D1
Maximum continuous operating voltage UC280 V DC / -
Nominal current IN5 A (25°C)
Nominal discharge surge current In (8/20) µs
Core-Shield / Core-Ground 20 kA / 20 kA
Total surge current (8/20) µs 20 kA
Protection level UP
Core-Shield / Core-Ground ≤ 900 V (C1 - 1 kV/500 A) / ≤ 900 V (C1 - 1 kV/500 A) - /
Frequency range 0 Hz ... 3 GHz
Standing wave ratio SWR in a 50 Ω system Typ. 1.15 (≤ 3 GHz)
Permissible. RF power Pmax 700 W (VSWR = 1.1)
General data
Dimensions W / H / D 31 mm / 57.8 mm / 33.5 mm 24 mm / 24 mm / 50 mm 25.4 mm / 83 mm / 25.4 mm 25.4 mm / 2.54 mm / 80 mm
Temperature range -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP55
Connection method N connector 50 Ω
Test standards IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21 - IEC 61643-21 / DIN EN 61643-21
Ordering data
Description Type Order No. Pcs. /
Pkt.
COAXTRAB, protective adapter for antenna connections
Female/female CN-UB-280DC-3-BB 2801050 1
Male/female CN-UB-280DC-3-SB 2801051 1
Accessories
Mounting plate, for individual attachment to housing panels
straight CN-UB/MP 2818135 10
angled CN-UB/MP-90DEG-50 2803137 1
BNC connector, single-level, for mounting on NS32 or NS35/7.5
50 Ω wave impedance
Adapter, insertion loss <0.3 dB at 2.4 GHz
N (male) -> SMA (female)
Adapter cable, pigtail, insertion loss 1.5 dB at 2.4 GHz; imped-
ance 50 Ω;
50 cm long, MCX (male) -> N (male)
136 PHOENIX CONTACT
Protective adapters with coaxial
connection
COAXTRAB
– For antennas with N and BNC
connection
– High transmission capacities even for fre-
quencies up to 6 GHz
– Mounting plate enables fixed mounting,
e.g., in a control cabinet
– The protective adapters can also be used
in a 75 system with 50 BNC connec-
tors
Surge protection and interference filters
Surge protection for transceiver systems
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
For GSM systems (3 GHz), grounded shield,
connection: N type
For additional information, visit www.phoenixcontact.net/products
Total width 24 mm Total width 25.4 mm Total width 25.4 mm
Technical data Technical data Technical data
C2 / C3 / D1 C2 / C3 / D1 C2 / C3 / D1
70 V DC / 50 V AC 180 V DC / 130 V AC 180 V DC / 130 V AC
10 A 5 A (25°C) 3.5 A (25°C)
5 kA / 5 kA 5 kA / 5 kA 5 kA / 5 kA
5 kA 10 kA 10 kA
900 V (C1 - 1 kV/500 A) - / ≤ 800 V (C2 (4 kV/2 kA)) - / ≤ 500 V (C2, 10 kV/5 kA) - / ≤ 500 V (C2 - 10 kV / 5 kA)
0 Hz ... 6 GHz - -
Typ. 1.15 (6 GHz) ≤ 1.2 (≤ 200 MHz) Typ. 1.3 (≤ 150 MHz)
30 W (VSWR = 1.15) 300 W (VSWR = 1.1) 300 W (VSWR = 1.1)
Dimensions W / H / D 31 mm / 57.8 mm / 33.5 mm 24 mm / 24 mm / 50 mm 25.4 mm / 83 mm / 25.4 mm 25.4 mm / 2.54 mm / 80 mm
-40 °C ... 90 °C -40 °C ... 80 °C -40 °C ... 80 °C
IP68 IP20 IP20
N connector 50 ΩN connector 50 ΩBNC 50 Ω
Test standards IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21 - IEC 61643-21 / DIN EN 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CN-UB-70DC-6-BB 2803166 1CN-UB/E-BB 2817686 1
CN-UB-70DC-6-SB 2803153 1CN-UB/E 2763691 1C-UB/E 2763701 10
Accessories Accessories Accessories
CN-UB/MP 2818135 10
CN-UB/MP-90DEG-50 2803137 1
BNC-V 50 2805041 10 BNC-V 50 2805041 10
RAD-ADP-N/M-SMA/F 2917036 1
RAD-PIG-EF316-MCX-N 2867681 1
137PHOENIX CONTACT
Surge protection and interference filters
Surge protection for transceiver systems
With N connector (0 - 6 GHz), grounded shield With N connector, floating shield With BNC connector, floating shield
λ/4
λ/4
Total width 32 mm Total width 25 mm
Technical data Technical data
Electrical data
IEC category / EN type C2 / C3 / D1 C2 / C3 / D1
Nominal current IN5 A (25 °C) 5 A (25 °C)
Nominal discharge surge current In (8/20) µs
Core-Shield / Core-Ground 20 kA / 20 kA 50 kA / 50 kA
Total surge current (8/20) µs 30 kA 60 kA
Protection level UP
Core-Shield / Core-Ground ≤ 95 V (C2 - 10 kV / 5 kA) / ≤ 95 V (C2 - 10 kV / 5 kA) - / ≤ 5 V (C1 - 1 kV/500 A) - /
Frequency range 380 MHz ... 470 MHz 0.8 GHz ... 2.25 GHz
Standing wave ratio SWR in a 50 Ω system Typ. 1.05 (≤ 1,15) Typ. 1.2
Permissible. RF power Pmax ≤ 800 W ≤ 500 W
General data
Dimensions W / H / D 32 mm / 32 mm / 83 mm 25 mm / 78.7 mm / 77.5 mm 39 mm / 83.5 mm / 82 mm 46.5 mm / 25 mm / 70 mm 26.1 mm / 38 mm
Temperature range -40 °C ... 90 °C -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP68 IP68
Connection method N connector N connector 50 Ω
Test standards IEC 61643-21 IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21/A1 / EN 61643-21/A1 IEC 6
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
COAXTRAB, protective adapter for antenna connections with
Lambda/4 technology
Female/female CN-LAMBDA/4-0.47-BB 2800021 1CN-LAMBDA/4-2.25-BB 2801057 1
Male/female CN-LAMBDA/4-0.47-SB 2800022 1CN-LAMBDA/4-2.25-SB 2801056 1
Surge protection for UMTS and quad-band GSM antenna, with
SMA connector and SMA coupling
Accessories Accessories
Mounting plate, for individual attachment to housing panels
straight CN-UB/MP 2818135 10
angled CN-UB/MP-90DEG-50 2803137 1CN-UB/MP-90DEG-50 2803137 1
Adapter, insertion loss <0.3 dB at 2.4 GHz
N (male) -> SMA (female) RAD-ADP-N/M-SMA/F 2917036 1
Adapter cable, pigtail, insertion loss 1.5 dB at 2.4 GHz; imped-
ance 50 Ω;
50 cm long, MCX (male) -> N (male) RAD-PIG-EF316-MCX-N 2867681 1
138 PHOENIX CONTACT
– For antennas with N, 7/16, and SMA con-
nection
– High transmission capacities even for fre-
quencies up to 6 GHz
– Maintenance-free surge protection with
Lambda/4 technology
– Low protection level
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
Protection for mobile phone antennas
Surge protection and interference filters
Surge protection for transceiver systems
For TETRA systems (380 MHz - 470 MHz),
grounded shield
For GSM systems (0.8 GHz-2.25 GHz),
grounded shield, connection: N type
λ/4
λ/4
λ/4
For additional information, visit www.phoenixcontact.net/products
Total width 39 mm Total width 46.5 mm Total width 26.1 mm
Technical data Technical data Technical data
C2 / C3 / D1 C2 / C3 / D1 C2 / C3 / D1
5 A (25 °C) 2 A (25°C) 5 A (25°C)
50 kA / 50 kA 6 kA / 6 kA 50 kA / 50 kA
60 kA 6 kA 60 kA
5 V (C1 - 1 kV/500 A) - / ≤ 5 V (C1 - 1 kV/500 A) - / ≤ 5 V (C1 (1 kV/500 A)) - / ≤ 11 V (6 kV/3 kA)
0.8 GHz ... 2.25 GHz 0.8 GHz ... 2.25 GHz 2.4 GHz ... 5.9 GHz
Typ. 1.2 ≤ 1.2 (0.8 GHz ... 2.25 GHz) Typ. 1.1 (≤ 1.20 (2.4 GHz...5.9 GHz))
≤ 500 W ≤ 110 W (VSWR = 1.0) ≤ 500 W
Dimensions W / H / D 32 mm / 32 mm / 83 mm 25 mm / 78.7 mm / 77.5 mm 39 mm / 83.5 mm / 82 mm 46.5 mm / 25 mm / 70 mm 26.1 mm / 38 mm / 60 mm
-40 °C ... 85 °C -40 °C ... 70 °C -40 °C ... 90 °C
IP68 IP55 IP68
7/16 connector SMA connector N connector
Test standards IEC 61643-21 IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21/A1 / EN 61643-21/A1 IEC 61643-21
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
C7/16-LAMBDA/4-2.25-BB 2801060 1CN-LAMBDA/4-5.9-BB 2838490 1
C7/16-LAMBDA/4-2.25-SB 2801059 1CN-LAMBDA/4-5.9-SB 2800023 1
CSMA-LAMBDA/4-2.0-BS-SET 2800491 1
Accessories Accessories Accessories
CN-UB/MP 2818135 10 CN-UB/MP 2818135 10
CN-UB/MP-90DEG-50 2803137 1CN-UB/MP-90DEG-50 2803137 1CN-UB/MP-90DEG-50 2803137 1
RAD-ADP-N/M-SMA/F 2917036 1
RAD-PIG-EF316-MCX-N 2867681 1
139PHOENIX CONTACT
Surge protection and interference filters
Surge protection for transceiver systems
For GSM systems (0.8 GHz-2.25 GHz),
grounded shield, connection: 7/16
Protective adapter set with SMA connection,
grounded shield
For GSM and WiMAX systems
(2.4 GHz - 5.9 GHz), grounded shield
IN
OUT
IN
OUT
Total width 25.4 mm Total width 25.4 mm
Technical data Technical data
Electrical data ... 5DC/E ... 24DC/E ... 5DC/E 75 ... 5DC ... 24DC
IEC category / EN type C2 / C3 / D1 C2 / C3 / D1 C2 / C3 / D1 C2 / C3 / D1 C2 / C3 / D1
Maximum continuous operating voltage UC5 V DC 30 V DC 5 V DC 5 V DC 30 V DC
Nominal current IN185 mA (25°C) 185 mA (25°C) - 185 mA (25°C) 185 mA (25°C)
Nominal discharge surge current In (8/20) µs
Core-Shield / Core-Ground 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA
Total surge current (8/20) µs 20 kA 20 kA 20 kA 10 kA 10 kA
Output voltage limitation at 1 kV/µs
Core-Shield / Core-Ground ≤ 15 V / - ≤ 45 V / - ≤ 15 V / - ≤ 15 V / ≤ 15 V ≤ 45 V / ≤ 45 V
Cut-off frequency fg (3 dB)
In a 50 Ω system Asymmetrical Typ. 90 MHz Typ. 90 MHz Typ. 80 MHz Typ. 90 MHz Typ. 90 MHz
General data
Temperature range -40 °C ... 80 °C -40 °C ... 80 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Connection method BNC 50 ΩBNC 50 ΩBNC 75 ΩBNC 50 ΩBNC 50 Ω
Test standards IEC 61643-21 IEC 61643-21
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
COAXTRAB, as surge protection for coaxial cables, connection via
plug and socket
BNC 50 ΩC-UFB- 5DC/E 2782300 10 C-UFB- 5DC 2797858 10
BNC 50 ΩC-UFB-24DC/E 2782313 10 C-UFB-24DC 2797861 10
BNC 75 ΩC-UFB- 5DC/E 75 2763604 10
Accessories Accessories
BNC connector, single-level, for mounting on NS32 or NS35/7.5
50 Ω wave impedance BNC-V 50 2805041 10 BNC-V 50 2805041 10
75 Ω wave impedance BNC-V 75 2805070 10
BNC connector, double-level, for mounting on NS32 or NS35/7.5
50 Ω wave impedance BNC-DV 50 2805038 10 BNC-DV 50 2805038 10
75 Ω wave impedance BNC-DV 75 2805083 10
140 PHOENIX CONTACT
– For insertion in the cable
– Ground connection via separately led
cable
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
Protective adapters with BNC con-
nection
COAXTRAB
Surge protection and interference filters
Surge protection for transceiver systems
For floating communication systems For non-floating communication systems
For additional information, visit www.phoenixcontact.net/products
Total width 22 mm Total width 22 mm
Technical data Technical data
General data BNC-V 50 BNC-V 75 BNC-DV 50 BNC-DV 75
Temperature range 125 °C 125 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 IP20
Connection method BNC 50 ΩBNC 75 ΩBNC 50 ΩBNC 75 Ω
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
BNC connector, single-level, for mounting on NS32 or NS35/7.5
50 Ω wave impedance BNC-V 50 2805041 10
75 Ω wave impedance BNC-V 75 2805070 10
BNC connector, double-level, for mounting on NS32 or NS35/7.5
50 Ω wave impedance BNC-DV 50 2805038 10
75 Ω wave impedance BNC-DV 75 2805083 10
Accessories Accessories
Terminal marking, can be labeled according to customer specifi-
cations
4-section ZB 22 CUS 0824949 1ZB 22 CUS 0824949 1
141PHOENIX CONTACT
Surge protection and interference filters
Surge protection for transceiver systems
BNC connector, single-level BNC connector, double-level
– For coaxial cables
– DIN rail-mountable and can be aligned
– Single or double-level
– Can be labeled individually
– With isolated structure on the DIN rail
BNC connectors
OUT
IN
Total width 140 mm Total width 28 mm
Technical data Technical data
Electrical data F-connector TV connector
IEC category / EN type B2 / C2 / C3 / D1 / C1 C1 / C2 / C3 / D1 C1 / C2 / C3 / D1
Maximum continuous operating voltage UC20 V DC / - 180 V DC / 130 V AC 180 V DC / 130 V AC
Nominal current IN400 mA (25°C) 1.5 A (25°C) 1.5 A (25°C)
Nominal discharge surge current In (8/20) µs
Core-Shield / Core-Ground 2.5 kA / 2.5 kA 2.5 kA / - 2.5 kA / -
Total surge current (8/20) µs 10 kA 2.5 kA 2.5 kA
Output voltage limitation at 1 kV/µs
Core-Shield / Core-Ground ≤ 70 V / ≤ 70 V ≤ 600 V / - ≤ 600 V / -
Cut-off frequency fg (3 dB)
In a 75 Ω system Symmetrical / Asymmetrical - / > 2.5 GHz - / > 3 GHz - / > 1 GHz
General data
Dimensions W / H / D 140 mm / 74 mm / 35 mm 28 mm / 66 mm / 44 mm
Temperature range -40 °C ... 80 °C -25 °C ... 75 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP40 IP20
Inflammability class in acc. with UL 94 - V0
Connection method F connector F connector PAL-TV (IEC 169-2)
Test standards IEC 61643-21 / EN 50083 - CLASS A IEC 61643-21 / EN 50083 - CLASS A
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
COAXTRAB, protective device for antenna distributors/multi-
switches for insertion in the antenna line
C-SAT-BOX 2880561 1
COAXTRAB,
surge protection adapter
F connector C-TV-SAT 2856993 1
TV connector C-TV/HIFI 2857002 1
Accessories Accessories
Adapter, to connect the C-SAT-BOX with antenna distributors with
a pitch of 20 mm (e.g. ASTRO, SPAUN)
ADAPTER KOAX TYP F 2880972 5
Connection cable, to connect the C-SAT-BOX with the antenna
distributor, length: 0.2 m
KBL-SAT/20 2880985 5
142 PHOENIX CONTACT
C-SAT-BOX
– Protection for antenna inputs in satellite
receiver technology
– Use before antenna distributor or multi-
switch
– Analog and digital SAT signals
– Terrestrial antenna signals
– Direct wall mounting supported
C-TV-SAT and C-TV/HIFI
– Protective adapter for antenna connec-
tions
– Use on broadband cable or SAT connec-
tion
–TV or F connector
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
Protection for antenna inputs of radio
and television equipment
Surge protection and interference filters
Surge protection for transceiver systems
For antenna distributor or multi-switch Adapter with F and IEC connector
N
PE
L
For additional information, visit www.phoenixcontact.net/products
Total width 63 mm
Technical data
Electrical data Mains protection Data protection
IEC category / EN type III / T3 C2 / C3 / D1
Nominal voltage UN230 V AC -
Maximum continuous operating voltage UC360 V AC (L/N-PE) 50 V AC / 72 V DC
Nominal current IN16 A (30 °C) 1.5 A (25°C)
Nominal discharge surge current In (8/20) µs
Core-Shield / Core-Ground 3 kA / 3 kA 2.5 kA / 2.5 kA
Combined surge UOC 4 kV -
Protection level UP
Core-Shield / Core-Ground ≤ 1.2 kV / ≤ 1.5 kV ≤ 700 V (C2 - 2 kA) / -
Output voltage limitation at 1 kV/µs
Core-Ground / Core-Shield / Shield-Ground - / - - / ≤ 700 V / ≤ 1 kV
Cut-off frequency fg (3 dB)
In a 75 Ω system Core/Shield - > 2.5 GHz
General data
Dimensions W / H / D 63 mm / 79 mm / 106.5 mm
Temperature range -25 °C ... 75 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20 (child-proof)
Inflammability class in acc. with UL 94 V0/HB
Connection method F connector
Test standards IEC 61643-1 IEC 61643-21
Ordering data
Description Can be used as typical for
the country Type Order No. Pcs. /
Pkt.
MAINTRAB, surge protection attachment plug for plugging into a
socket for equipment and data interface protection, incl. 1.5 m
coaxial cable.
Black D, A, NL MNT-TV-SAT D 2882284 1
White D, A, NL MNT-TV-SAT D/WH 2882297 1
Black B, F, CZ, SVK, PL MNT-TV-SAT B/F 2882307 1
White S, FIN, N MNT-TV-SAT S/WH 2880888 1
143PHOENIX CONTACT
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
– For termination devices
–Easy operation
– Connection to antenna junction box using
separate cable
– Thermal monitoring of the protective cir-
cuit
– Green LED - operating indicator for the
power supply
For power supply and antenna inputs
Surge protection and interference filters
Surge protection for transceiver systems
For network and TV antennas/cables and SAT
systems, with F connector and IEC adapter
144 PHOENIX CONTACT
Surge protection and interference filters
EMC solutions
Reliable signals with mains interfer-
ence filter
Switching operations triggered mechani-
cally or electronically generate pulse-like
and high-frequency interference voltages.
These voltages spread in an unimpeded
manner across the cable network. All the
devices within this cable network are affect-
ed. Data errors, uncontrolled functions, and
system crashes can result, with data pro-
cessing devices at particular risk.
Interference voltage filters for power
supply units
Interference filters limit conducted high-
frequency interference voltages. Devices
used in data processing or automation par-
ticularly benefit from a clean power supply.
The end result is safe operation and reliable
measured results.
Interference filters with type3 surge
protection
Interference filters with integrated type3
surge protection have two tasks: they ab-
sorb surge voltages and also limit high-fre-
quency interference voltages.
SFP-TRAB
For additional information, visit www.phoenixcontact.net/products
145PHOENIX CONTACT
Surge protection and interference filters
EMC solutions
Mains interference filters - operating
principle and range
Filtering of symmetrical disturbance
variables
X - Interference voltages between the
phase and neutral conductor are filtered.
Filtering of asymmetrical disturbance
variables
Y1,Y 2 - The opposite grounded interfer-
ence voltages from phase to PE and from
the neutral conductor to PE are filtered.
Operating range of filters
An attenuation curve diagram illustrates
the effective operating range of mains inter-
ference filters. The relevant frequency-de-
pendent attenuation can be read according
to the symmetrical or asymmetrical filter
circuit.
J
IN
OUT
LL
N
N
NO 14
11
12
COM
NC
J
Total width 112 mm
Technical data
Electrical data ... 230AC ... 120AC
IEC category / EN type III / T3 III / T3 III / T3 III / T3 III / T3
Nominal voltage UN230 V AC 120 V AC 120 V AC 120 V AC 120 V AC
Maximum continuous operating voltage UCDC/AC - / 264 V AC - / 150 V AC - / 150 V AC - / 150 V AC - / 150 V AC
Nominal load current IL20 A (40°C) 20 A (40°C) 5 A (72°C) 10 A (62°C) 15 A (52 °C)
Nominal discharge surge current In (8/20) µs L-N / L-PE 5 kA / 5 kA 3 kA / 3 kA 3 kA / 3 kA 3 kA / 3 kA 3 kA / 3 kA
Max. discharge surge current Imax. (8/20) µs L-N / L-PE 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA
Combined surge UOC 10 kV 6 kV (3 kA) 6 kV (3 kA) 6 kV (3 kA) 6 kV (3 kA)
Protection level UPL-N/L(N)-PE ≤ 1 kV / ≤ 1 kV ≤ 450 V / ≤ 450 V
Response time tAL-N/L(N)-PE ≤ 25 ns / ≤ 25 ns ≤ 25 ns / ≤ 25 ns
Backup fuse max. in acc. with IEC 20 A (gL / gG) 20 A (gL / gG) 20 A (gL / gG) 20 A (gL / gG) 20 A (gL / gG)
Input attenuation aI
Symmetrical 20 dB (≥ 100 kHz / 50 Ω)Typ. 40 dB (≥ 500 kHz / 50 Ω)Typ. 40 dB (
Asymmetrical 30 dB (≥ 1 MHz / 50 Ω)Typ. 30 dB (≥ 1 MHz / 50 Ω)Typ. 30 dB (
Inductivity 2x 1 mH ±30 % (with current
compensation)
2x 1 mH ±30 % (with current
compensation)
General data
Dimensions W / H / D 112 mm / 93 mm / 79 mm 112 mm / 93 mm / 79 mm 112 mm / 93 mm / 79 mm 112 mm / 93 mm / 79 mm
Connection data solid / stranded / AWG 4 ... 6 mm² / 4 ... 4 mm² / 12 - 10 4 ... 6 mm² / 4 ... 4 mm² / 12 - 10 4 ... 6 mm² / 4 ...
Temperature range -40 °C ... 70 °C -25 °C ... 40 °C -25 °C ... 70 °C -25 °C ... 60 °C -25 °C ... 50 °C
Inflammability class in acc. with UL 94 V0 V0 V0 V0
Test standards IEC 61643-1 / DIN EN 61643-11 / EN 61643-11/A11 / IEC 61643-1 / EN 61643-11/A11 / UL 1449 / IEC 61643-1 / EN 61643-
UL 1449 / UL 1283 UL 1283 UL 1283 UL 1283
Remote indication contact PDT, 1-pos.
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 1
Max. operating voltage 250 V AC / - 250 V AC / - 250 V AC / - 250 V AC / -
Max. operating current 1 A (250 V AC) / 0.25 A (250 V DC) / 1 A (48 V DC) 1 A (250 V AC) / 0.25 A (250 V DC) / 1 A (48 V DC) 1 A (
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
SFP-TRAB, DIN rail-mountable device protection with integrated
mains interference filter and optical signaling
Nominal current: 20 A 230 V AC SFP 1-20/230AC 2859987 1
Nominal current: 20 A 120 V AC SFP 1-20/120AC 2856702 1
SFP-TRAB, DIN rail-mountable device protection with integrated
mains interference filter and optical signaling
Nominal current: 5 A 120 V AC
Nominal current: 10 A 120 V AC
Nominal current: 15 A 120 V AC
146 PHOENIX CONTACT
DIN-rail-mountable device protection
with SFP-TRAB interference filter
– Combined protective circuit for absorb-
ing transient surge voltages and high-fre-
quency interference voltages
– Thermal monitoring of the protective cir-
cuit
– Disconnection status signaled via floating
remote indication contact
– Can be installed in industrial environ-
ments
Surge protection and interference filters
EMC solutions
H
W
D
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
20A nominal current 5
J
IN
OUT
LL
N
N
NO 14
11
12
COM
NC
J
J
IN
OUT
LL
N
N
NO 14
11
12
COM
NC
J
J
IN
OUT
LL
N
N
NO 14
11
12
COM
NC
J
For additional information, visit www.phoenixcontact.net/products
Total width 112 mm Total width 112 mm Total width 112 mm
Technical data Technical data Technical data
IEC category / EN type III / T3 III / T3 III / T3 III / T3 III / T3
230 V AC 120 V AC 120 V AC 120 V AC 120 V AC
DC/AC - / 264 V AC - / 150 V AC - / 150 V AC - / 150 V AC - / 150 V AC
20 A (40°C) 20 A (40°C) 5 A (72°C) 10 A (62°C) 15 A (52 °C)
(8/20) µs L-N / L-PE 5 kA / 5 kA 3 kA / 3 kA 3 kA / 3 kA 3 kA / 3 kA 3 kA / 3 kA
(8/20) µs L-N / L-PE 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA 10 kA / 10 kA
10 kV 6 kV (3 kA) 6 kV (3 kA) 6 kV (3 kA) 6 kV (3 kA)
≤ 450 V / ≤ 450 V ≤ 450 V / ≤ 450 V ≤ 450 V / ≤ 450 V
≤ 25 ns / ≤ 25 ns ≤ 25 ns / ≤ 25 ns ≤ 25 ns / ≤ 25 ns
Backup fuse max. in acc. with IEC 20 A (gL / gG) 20 A (gL / gG) 20 A (gL / gG) 20 A (gL / gG) 20 A (gL / gG)
)Typ. 40 dB (≥ 500 kHz / 50 Ω) Typ. 40 dB (≥ 500 kHz / 50 Ω) Typ. 40 dB (≥ 500 kHz / 50 Ω)
)Typ. 30 dB (≥ 1 MHz / 50 Ω) Typ. 30 dB (≥ 1 MHz / 50 Ω) Typ. 30 dB (≥ 1 MHz / 50 Ω)
2x 1 mH ±30 % (with current compensation) 2x 1 mH ±30 % (with current compensation) 2x 1 mH ±30 % (with current compensation)
Dimensions W / H / D 112 mm / 93 mm / 79 mm 112 mm / 93 mm / 79 mm 112 mm / 93 mm / 79 mm 112 mm / 93 mm / 79 mm
Connection data solid / stranded / AWG 4 ... 6 mm² / 4 ... 4 mm² / 12 - 10 4 ... 6 mm² / 4 ... 4 mm² / 12 - 10 4 ... 6 mm² / 4 ... 4 mm² / 12 - 10 4 ... 6 mm² / 4 ... 4 mm² / 12 - 10
Temperature range -40 °C ... 70 °C -25 °C ... 40 °C -25 °C ... 70 °C -25 °C ... 60 °C -25 °C ... 50 °C
Inflammability class in acc. with UL 94 V0 V0 V0 V0
Test standards IEC 61643-1 / DIN EN 61643-11 / EN 61643-11/A11 / IEC 61643-1 / EN 61643-11/A11 / UL 1449 / IEC 61643-1 / EN 61643-11/A11 / UL 1449 / IEC 61643-1 / EN 61643-11/A11 / UL 1449 /
UL 1449 / UL 1283 UL 1283 UL 1283 UL 1283
PDT, 1-pos. PDT PDT
Connection data solid / stranded / AWG 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16 0.14 ... 1.5 mm² / 0.14 ... 1.5 mm² / 28 - 16
250 V AC / - 250 V AC / - 250 V AC / - 250 V AC / -
Max. operating current 1 A (250 V AC) / 0.25 A (250 V DC) / 1 A (48 V DC) 1 A (250 V AC) / 0.25 A (250 V DC) / 1 A (48 V DC) 1 A (250 V AC) / 0.25 A (250 V DC) / 1 A (48 V DC) 1 A (250 V AC) / 0.25 A (250 V DC) / 1 A (48 V DC)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
SFP 1-5/120AC 2920667 1
SFP 1-10/120AC 2920670 1
SFP 1-15/120AC 2920683 1
147PHOENIX CONTACT
Surge protection and interference filters
EMC solutions
H
W
D
H
W
D
H
W
D
A nominal current 5A nominal current 10A nominal current 15A nominal current
IN
OUT
24
13
Total width 6.2 mm
Technical data
Electrical data
IEC category / EN type C1 / C3
Maximum continuous operating voltage UCDC/AC 38 V DC / 30 V AC
Nominal load current IL0.5 A (55°C)
Nominal discharge surge current In (8/20) µs
Core-Ground 350 A
Total surge current (8/20) µs 700 A
Output voltage limitation at 1 kV/µs
Core-Ground ≤ 70 V
Cut-off frequency fg (3 dB)
Asymmetrical in the 50 Ω system Typ. 60 kHz
Resistance per path 0.5 Ω
Inductance per path 100 µH (per path)
Capacitance per path 130 nF
General data
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Temperature range -40 °C ... 85 °C
Degree of protection in acc. with IEC 60529/ EN 60529 IP20
Inflammability class in acc. with UL 94 V2
Test standards IEC 61643-21/A1 / EN 61643-21/A1
Ordering data
Description Voltage UNType Order No. Pcs. /
Pkt.
TERMITRAB, spring-cage modular terminal block with integrated
surge protection as a filter circuit and disconnect knives, for mount-
ing on NS35
24 V AC TT-ST-M-SFP-24AC 2858946 10
Accessories
Cover, for terminating a row of terminal blocks
TT-D-STTCO-BK 2858894 50
Zack marker strip, 10-section, white ZB 6, see page 111
148 PHOENIX CONTACT
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
H
W
D
– Combined protective circuit for absorb-
ing transient surge voltages and high-fre-
quency interference voltages
– With spring-cage connection
– Disconnection of signal circuits by discon-
nect knife
TERMITRAB
Surge protection and interference filters
EMC solutions
Protection for two conductors with a common
reference potential
IN
OUT
24
13
IN
OUT
24
13
For additional information, visit www.phoenixcontact.net/products
Total width 25 mm Total width 40 mm
Technical data Technical data
Electrical data NEF 1- 1 NEF 1- 3 NEF 1- 6 NEF 1-10
Nominal voltage UN240 V AC 240 V AC 240 V AC 240 V AC
Maximum continuous operating voltage UCL - N 264 V AC 264 V AC 264 V AC 264 V AC
Nominal load current IL1 A (40°C) 3 A (40°C) 6 A (40°C) 10 A (40°C)
Backup fuse max. in acc. with IEC 1 A (gL) 3 A (gL) 6.3 A (gL/C) 10 A (gL)
Inductivity 2x 10 mH 2x 2.7 mH 2x 2.7 mH 2x 1.8 mH
Input attenuation aI
Symmetrical ≥ 65 dB (50 Ω/ 1 MHz) ≥ 55 dB (50 Ω/ 1 MHz) > 80 dB (50 Ω/ 1 MHz) > 80 dB (50 Ω/ 1 MHz)
Asymmetrical ≥ 45 dB (50 Ω/ 1 MHz) ≥ 35 dB (50 Ω/ 1 MHz) > 40 dB (50 Ω/ 1 MHz) > 40 dB (50 Ω/ 1 MHz)
General data
Dimensions W / H / D 25 mm / 79.4 mm / 84.15 mm 40 mm / 79.4 mm / 84.1 mm
Connection data solid / stranded / AWG 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12 0.2 ... 4 mm² / 0.2 ... 2.5 mm² / 24 - 12
Temperature range -25 °C ... 100 °C (HMF) -25 °C ... 100 °C (HMF)
Inflammability class in acc. with UL 94 V2 V2
Test standards IEC 60939-2 / DIN EN 60939-2 IEC 60939-2 / DIN EN 60939-2
Ordering data Ordering data
Description Nominal load
current IL
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
FILTRAB, interference filter for single-phase current circuits, for
mounting on NS32 or NS35...
1 A NEF 1- 1 2794123 10
3 A NEF 1- 3 2794110 10
6 A NEF 1- 6 2783082 5
10 A NEF 1-10 2788977 5
Accessories Accessories
Labeling material For ZB 5..., see page 111 For ZB 5..., see page 111
149PHOENIX CONTACT
– Low pass filters for nominal currents of 1
to 10 A
– For single-phase circuits
– Rail-mountable module
Notes:
For certifications, see page 154
Attenuation characteristics at www.phoenixcontact.net/products
H
W
D
H
W
D
FILTRAB
Surge protection and interference filters
EMC solutions
1 A / 3 A nominal current 6 A / 10 A nominal current
150 PHOENIX CONTACT
Lightning protection systems must be
regularly tested in accordance with the re-
quirements of IEC 62305-3 and official reg-
ulations. A basic visual check is not enough
to identify surge protective devices that
were previously damaged. Only an electrical
check using the CHECKMASTER produces
meaningful results. The test device checks
all the relevant components of an arrester.
The nominal data of protective elements,
such as spark gaps, varistors, gas-filled surge
arresters, and suppressor diodes, is tested
in a single test cycle.
CHECKMASTER –
the arrester test system
The CHECKMASTER offers real advantages
for safety in all sectors where a high level of sys-
tem availability is crucial.
4-line LCD
Robust keypad
Replaceable test sockets Item identification via barcode and hand-
held scanner
Sturdy case with a flight
case design
Interface to printer or
computer
Surge protection and interference filters
Te s t d ev ic e
For additional information, visit www.phoenixcontact.net/products
151PHOENIX CONTACT
User-friendly and reliable testing of plug-in arresters in just four steps
1. Easy selection
The CHECKMASTER has a modular de-
sign. Various test sockets are compatible
with the various plugs. Further information
about the test sockets required can be
found on the next page.
2. User-friendly scanning
The barcodes on the surge protective
devices present a fast and error-free solu-
tion for entering items. System-specific ab-
breviations or user-defined IDs can be en-
tered via the operator interface or read in
from the individually created barcode labels.
3. Safe testing
When started, an automatic test process is run which checks the ar-
resters with regard to their specific electrical properties. The results are
visualized via the display and via two signal lamps.
4. Fast logging
The tests are documented according to
IEC 62305-3. In addition to the immediate
processing of all test values, the CHECK-
MASTER also allows the contents of the in-
ternal memory to be exported directly to
an Excel worksheet, for example.
The protective plug is OK and can be used.
The protective plug has been damaged – replacement is recommended.
The protective plug is faulty and must be replaced.
Status:
OK
Status:
Tolerance limit
reached
Status:
Faulty
Surge protection and interference filters
Te s t d ev i c e
Total width 450 mm
152 PHOENIX CONTACT
CHECKMASTER Notes:
Dimensional drawing at: www.phoenixcontact.net/products
The programming cable has a special pin assignment. It can be
used only to update the CHECKMASTER software!
1) EMC: Class A product, see page 287
– Modular test device for virtually all plug-in
surge arresters from Phoenix Contact
– Corresponding test sockets are available
for the arrester connectors
– Test sockets can be easily changed
– Easy operation thanks to barcode scanner
or keypad
– Optional entry of system-specific name
for protective devices
– Documentation of test results
The test socket for PLUGTRAB PT
is included in the scope of supply of
the CHECKMASTER.
Case for transporting test sockets
PA - CA S E
– Six padded compartments
– Sufficient space for all connecting cables
– The test adapters are not supplied as
standard with the PA-CASE.
CM-KBL-RS232/USB
– Adapter cable
– For connection of the test device to a lap-
top/PC
CM-KBL-PROG
– Necessary for updating CHECKMASTER
firmware
Free software for updating
CHECKMASTER can be found at the
Download Center on Phoenix Contact's
homepage.
The operation of the CHECKMASTER
and that of the CM-PA sockets do not meet
the general protection requirements for
residential areas. Please take the appropri-
ate precautions.
Technical data
Nominal voltage UN230 V AC (100 V AC ... 240 V AC)
Ambient temperature (operation) 5 °C ... 35 °C
Degree of protection IP20
Interface RS-232
Ordering data
Description Type Order No. Pcs. /
Pkt.
Test device, for the function test of TRABTECH protective
devices, incl. CM-PA-PT for PLUGTRAB PT
CHECKMASTER1) 2838924 1
Transport case, to accommodate 6 TRABTECH test adapters
CM-PA...
TRABTECH test adapter, for testing the function of:
FLASHTRAB compact and VALVETRAB compact
COMTRAB CTM
COMTRAB CT 10
PLUGTRAB PT
PLUGTRAB UFBK, UAK
TF-TRAB
VALVETRAB
USB RS232 converter,
D-SUB, 9-pos. to USB, type A, 4-pos.
D-SUB adapter, 25-pos. to D-SUB, 9-pos.
Update cable, for CHECKMASTER firmware updates
Surge protection and interference filters
Te s t d ev ic e
Arrester test device Transport case for test sockets Test sockets Data cable
For additional information, visit www.phoenixcontact.net/products
153PHOENIX CONTACT
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PA-CASE 2858988 1
CM-PA-FLT/VAL-CP1) 2880392 1
CM-PA-CTM1) 2816962 1
CM-PA-CT101) 2816959 1
CM-PA-PT1) 2882844 1
CM-PA-PT/A1) 2816933 1
CM-PA-TF1) 2816975 1
CM-PA-VAL-MS1) 2800104 1
CM-KBL-RS232/USB 2881078 1
CM-KBL-PROG 2881557 1
Surge protection and interference filters
Te s t d ev ic e
Arrester test device Transport case for test sockets Test sockets Data cable
Type Order No. Certification
B
BNC-DV 50 2805038
BNC-DV 75 2805083
BNC-V 50 2805041
BNC-V 75 2805070
BT-1S-230AC/A 2803409
CCA
BT-1S-230AC/O 2800625 CCA
BT-SKT 230/A 2859343
C
CHECKMASTER 2838924
CM-KBL-PROG 2881557
CM-KBL-RS232/USB 2881078
CM-PA-CT10 2816959
CM-PA-CTM 2816962
CM-PA-FLT/VAL-CP 2880392
CM-PA-PT 2882844
CM-PA-PT/A 2816933
CM-PA-TF 2816975
CN-LAMBDA/4-0.47-BB 2800021
CN-LAMBDA/4-0.47-SB 2800022
CN-LAMBDA/4-5.9-BB 2838490
CN-LAMBDA/4-5.9-SB 2800023
CN-UB/E 2763691
CN-UB/E-BB 2817686
CN-UB/MP 2818135
CN-UB/MP-90DEG-50 2803137
CN-UB-70DC-6-BB 2803166
CN-UB-70DC-6-SB 2803153
C-SAT-BOX 2880561
CT 1-10-ES 2765547
CT 10-18FS+F/PE-24 2807926
CT 10-18FSR+F/PE-24 2807939
CT 10-2/2-GS 2765398
CT 10-2/2-GS/3E 2765408
CT 10-2/2-GS/3E-110AC 2920829
CT 10-2PE/FS-24 2807955
CT 10-2PE/FSR-24 2807968
CT 10-9VA-230AC 2830498
CT 10-MB/ 3 2765372
CT 10-MB/10 2765385
CT 10-TL 2765356
CTM 10-MAG 2838610
CTM 1X2- 12DC 2838597
CTM 1X2- 24DC 2838513
CTM 1X2- 60DC 2838568
CTM 1X2-110AC 2838539
CTM 2X1- 12DC 2838584
CTM 2X1- 24DC 2838500
CTM 2X1- 5DC 2838571
CTM 2X1- 60DC 2838542
CTM 2X1-110AC 2838526
CTM 2X1-180DC-GS 2838636
154 PHOENIX CONTACT
CTM 2X1-180DC-GS-P 2838623
CTM EST 2838649
CTM ISDN 2838555
CT-TERMIBLOCK 10 DA 0441711
C-TV/HIFI 2857002
C-TV-SAT 2856993
C-UB/E 2763701
C-UFB- 5DC 2797858
C-UFB- 5DC/E 2782300
C-UFB- 5DC/E 75 2763604
C-UFB-24DC 2797861
C-UFB-24DC/E 2782313
D
D-DEK 1,5 BK 2838995
D-DEK 1,5 BU 2838982
D-DS1-A/RJ45-BB 2838050
DK-BIC-35 2749880
D-LAN-19"-12 2880150
D-LAN-19"-16 2880147
D-LAN-19"-20 2880134
D-LAN-19"-24 2838791
D-LAN-19"-4 2880176
D-LAN-19"-8 2880163
D-LAN-19"-D-P 2880192
D-LAN-CAT.5-FP 2800723
DP-UKK 3/5 BK 2770833
D-TERMITRAB-UK 5 2794990
DT-LAN-CAT.6+ 2881007
DT-TELE-RJ45 2882925
DT-UFB-485/BS 2920612
DT-UFB-IB-RB0 2800056
DT-UFB-IB-RBI 2800055
DT-UFB-V24/S-9-SB 2803069
DT-UFB-V24/S-SB-SET 2803072
D-UFB-PB 2880642
D-UKK 3/5 BK 2770228
F
FLT 100 N/PE-1.5 2800303
FLT 100 N/PE-1.5 2800303
FLT-CP-1C-350 2859741 CCA
FLT-CP-1S-350 2859738 CCA
FLT-CP-2C-350 2859770 CCA
FLT-CP-2S-350 2859767 CCA
FLT-CP-350-ST 2881887 CCA
FLT-CP-3C-350 2859725 CCA
FLT-CP-3S-350 2859712 CCA
FLT-CP-N/PE-350 2859754 CCA
FLT-CP-N/PE-350-ST 2859686 CCA
FLT-CP-PLUS-1C-350 2882695
FLT-CP-PLUS-1S-350 2882682
FLT-CP-PLUS-2C-350 2882679
FLT-CP-PLUS-2S-350 2882666
FLT-CP-PLUS-350-ST 2859913
Type Order No. Certification
Surge protection and interference filters
Approvals
For additional information, visit www.phoenixcontact.net/products
155PHOENIX CONTACT
FLT-CP-PLUS-3C-350 2882653
FLT-CP-PLUS-3S-350 2882640
FLT-PLUS CTRL-2.5 2800121 CCA
FLT-PLUS CTRL-2.5/I 2800122 CCA
FLT-PLUS CTRL-3.0 2800168 CCA
FLT-PLUS CTRL-3.0/I 2800170 CCA
F-MS 12 2817987 CCA
F-MS 12 ST 2817990 CCA
F-MS 12/FM 2817974 CCA
F-MS 2200/30 ST 2805392 CCA
F-MS 80 ST 2921307 CCA
F-MS-T1/T2 50 ST 2800191 CCA
K
KBL-SAT/20 2880985
L
LIT 1X2-24 2804610 Ex:
LIT 2-12 2804694 Ex:
LIT 2-24 2804665 Ex:
LIT 2X1-24 2804636
LIT 2X2-24 2804623 Ex:
LIT 4-12 2804704 Ex:
LIT 4-24 2804678 Ex:
LIT 4X1-24 2804649
M
ME 6,2 TBUS-2 1,5/5-ST-
3,81KMGY 2969401
MINI MCR-SL-V8-FLK 16-A 2811268 Ex:
MNT-1 CH II 2882255
MNT-1 D 2882200
MNT-1 D/WH 2882213
MNT-1 E 2882239
MNT-1 S/WH 2880862
MNT-ISDN D 2882336
MNT-ISDN D/WH 2882349
MNT-ISDN S/WH 2880891
MNT-NET B/F 2882226
MNT-POWERLINE 2858001
MNT-TAE D 2882381
MNT-TAE D/WH 2882394
MNT-TEL B/F 2882404
MNT-TELE E 2882417
MNT-TELE N/WH 2881764
MNT-TELE S/WH 2880901
MNT-TV-SAT B/F 2882307
MNT-TV-SAT D 2882284
MNT-TV-SAT D/WH 2882297
MNT-TV-SAT S/WH 2880888
N
NEF 1- 1 2794123
NEF 1- 3 2794110
NEF 1- 6 2783082
NEF 1-10 2788977
P
PAS-1 2765615
Type Order No. Certification
PRT-CD-AD1 2749673
PT 1X2- 5DC-ST 2856016 Ex:
PT 1X2+F-BE 2856126 Ex:
PT 1X2-12AC-ST 2856045 Ex:
PT 1X2-12DC-ST 2856029 Ex:
PT 1X2-24AC-ST 2856058 Ex:
PT 1X2-24DC-ST 2856032 Ex:
PT 1X2-48DC-ST 2803658
PT 1X2-BE 2856113 Ex:
PT 2+1-S-48DC/FM 2817958
PT 2+1-S-48DC-ST 2839648
PT 2-F-ST 2859000
PT 2-IT-230AC/FM 2805130
PT 2-IT-230AC-ST 2805127
PT 2-PE/S- 24AC-ST 2839318 CCA Ex:
PT 2-PE/S- 60AC-ST 2839321 CCA Ex:
PT 2-PE/S-120AC/FM 2856812 CCA Ex:
PT 2-PE/S-120AC-ST 2839334 CCA Ex:
PT 2-PE/S-230AC/FM 2858357 CCA Ex:
PT 2-PE/S-230AC-ST 2839347 CCA Ex:
PT 2-PE/S-24AC/FM 2800457
PT 2-TELE 2882828
PT 2-TELE-ST 2838733
PT 2X1- 5DC-ST 2856061 Ex:
PT 2X1+F-BE 2856142 Ex:
PT 2X1-12AC-ST 2856090 Ex:
PT 2X1-12DC-ST 2856074 Ex:
PT 2X1-24AC-ST 2856100 Ex:
PT 2X1-24DC-ST 2856087 Ex:
PT 2X1-BE 2856139 Ex:
PT 2X1VA- 60AC-ST 2839172
PT 2X1VA-120AC-ST 2839185
PT 2X1VA-230AC-ST 2839198
PT 2X1-VF-120AC 2859327
PT 2X1-VF-120AC-ST 2856799
PT 2X1-VF-230AC 2805460
PT 2X1-VF-230AC-ST 2921365
PT 2X2- 5DC-ST 2838241 Ex:
PT 2X2+F-BE 2839224 Ex:
PT 2X2-12AC-ST 2838270 Ex:
PT 2X2-12DC-ST 2838254 Ex:
PT 2X2-24AC-ST 2838283 Ex:
PT 2X2-24DC-ST 2838228 Ex:
PT 2X2-BE 2839208 Ex:
PT 2X2-HF- 5 DC-ST 2839567 Ex:
PT 2X2-HF-12 DC-ST 2839570 Ex:
PT 2X2-HF-24 DC-ST 2839729 Ex:
PT 2XEX(I)-24DC-ST 2838225 Ex:
PT 2XEX(I)-BE 2839279 Ex:
PT 3-HF-12DC-ST 2858043
PT 3-PB-ST 2858030
PT 4- 5DC-ST 2839211 Ex:
PT 4+F-BE 2839415 Ex:
PT 4-12DC-ST 2839237 Ex:
Type Order No. Certification
Surge protection and interference filters
Approvals
Type Order No. Certification
PT 4-12DC-ST 2839237 Ex:
PT 4-24DC-ST 2839240 Ex:
PT 4-BE 2839402 Ex:
PT 4-EX(I)-24DC-ST 2839253 Ex:
PT 4-EX(I)-BE 2839486 Ex:
PT 4-F-ST 2858441
PT 4-PE/S-230AC/FM 2882459
PT 4-PE/S-230AC-ST 2882462
PT 4X1- 5DC-ST 2838306 Ex:
PT 4X1+F-BE 2839376 Ex:
PT 4X1-12AC-ST 2838348 Ex:
PT 4X1-12DC-ST 2838319 Ex:
PT 4X1-24AC-ST 2838351 Ex:
PT 4X1-24DC-ST 2838322 Ex:
PT 4X1-48AC-ST 2804856
PT 4X1-48DC-ST 2858014
PT 4X1-BE 2839363 Ex:
PT 5-HF- 5 DC-ST 2838762 Ex:
PT 5-HF-12 DC-ST 2838775 Ex:
PT MAIN-EST 2880736
PT MCR-EST 2880749
PT PE/S+1X2-24-ST 2819008
PT PE/S+1X2-BE 2856265
PT-BE/FM 2839282 CCA Ex:
S
SFP 1-10/120AC 2920670
SFP 1-15/120AC 2920683
SFP 1-20/120AC 2856702
SFP 1-20/230AC 2859987
SFP 1-5/120AC 2920667
S-PT-1X2-24DC 2880668
S-PT-1X2-24DC-1/2" 2882569
S-PT-1X2-24DC-3/4" 2882598
S-PT-2XEX-24DC 2800040 Ex:
S-PT-2XEX-48DC 2800038 Ex:
S-PT-4-EX-24DC 2800036 Ex:
S-PT-EX(I)-24DC 2880671 Ex:
S-PT-EX(I)-24DC-1/2" 2882572 Ex:
S-PT-EX(I)-24DC-3/4" 2882585 Ex:
S-PT-EX-24DC 2800034 Ex:
S-PT-EX-48DC 2800053 Ex:
SVP 2E- 48AC 2788919
SVP 2E-110AC 2765534
SVP 3E-110AC 2765521
SYS N4 120/208Y 2800704
SYS N4 120/240HLD 2800706
SYS N4 120/240S 2800705
SYS N4 277/480Y 2800703
SYS N4 480D 2800707
SYS N4X 120/240HLD 2800716
SYS N4X 120/240S 2800715
SYS N4X 277/480Y 2800713
156 PHOENIX CONTACT
T
TAE-TRAB FM-NFN-AP 2749628
TT-2/2- 24DC 2838173 Ex:
TT-2/2-M-24DC 2920722
TT-2-PE- 24DC 2838186 Ex:
TT-2-PE/S1- 24DC 2839538
TT-2-PE/S1-M-24DC 2920638
TT-2-PE-110AC 2858483
TT-2-PE-M-24DC 2920641
TT-D-2-PE-M-BK 2920654
TT-D-2-PE-M-BU 2803878
TT-D-ST-BU 2856773
TT-D-STTCO-BK 2858894
TT-EX(I)- 24DC 2832124 Ex:
TT-EX(I)-M-24DC 2803865 Ex:
TT-SLKK5/ 12DC 2794893
TT-SLKK5/ 24DC 2794903
TT-SLKK5/ 48DC 2794916
TT-SLKK5-F/110AC 2765602
TT-SLKK5-S- 12DC 2809597
TT-SLKK5-S- 24DC 2809607
TT-SLKK5-S- 48DC 2809610
TT-ST-2/2-24DC 2858881
TT-ST-2-PE-24DC 2858878
TT-ST-M-2/2-24AC 2858933
TT-ST-M-2/2-24DC 2858917
TT-ST-M-2-PE-24AC 2858920
TT-ST-M-2-PE-24DC 2858904
TT-ST-M-EX(I)-24DC 2859424
Ex:
TT-ST-M-SFP-24AC 2858946
TT-UK5/ 12DC 2794686
TT-UK5/ 24DC 2794699
TT-UK5/ 48DC 2794709
TT-UKK5-M/ 24DC 2795960
TT-UKK5-M/ 48DC 2795973
TT-UKK5-M/ 60DC 2795986
V
VAL-CP-175-ST 2859628
VAL-CP-1S-175 2859479
VAL-CP-1S-350 2859563
VAL-CP-1S-350/O 2881036
VAL-CP-2C-175 2859482
VAL-CP-2C-350 2859589
VAL-CP-2C-350/O 2881052
VAL-CP-2S-175 2859495
VAL-CP-2S-350 2859505
VAL-CP-2S-350/O 2881049
VAL-CP-350-ST 2859602
VAL-CP-350-ST-GY 2882718
VAL-CP-3C-175 2859466
VAL-CP-3C-350 2859547
VAL-CP-3C-350/O 2881023
VAL-CP-3S-175 2859453
Type Order No. Certification
Surge protection and interference filters
Approvals
For additional information, visit www.phoenixcontact.net/products
157PHOENIX CONTACT
VAL-CP-3S-350 2859521
VAL-CP-3S-350/O 2881010
VAL-CP-MCB-1S-350/40/FM 2882763 CCA
VAL-CP-MCB-3C-350/40/FM 2882776 CCA
VAL-CP-MCB-3S-350/40/FM 2882750 CCA
VAL-CP-MOSO 60-3C-FM 2804416
VAL-CP-MOSO 60-3S-FM 2804403
VAL-CP-N/PE-350-ST 2859699
VAL-CP-N/PE-350-ST-GY 2882734
VAL-CP-RCD-3S/40/0.03 2882802
CCA
VAL-CP-RCD-3S/40/0.3/SEL 2808001 CCA
VAL-MS 60 ST 2807573 CCA
VAL-MS 1000PV ST 2805185
VAL-MS 120 ST 2807586 CCA
VAL-MS 230 2839127 CCA
VAL-MS 230 IT ST 2807599 CCA
VAL-MS 230 ST 2798844 CCA
VAL-MS 230/1+1 2804429
VAL-MS 230/1+1-FM 2804432
VAL-MS 230/2+0 2800103
VAL-MS 230/2+0-FM 2800102
VAL-MS 230/3+1 2838209 CCA
VAL-MS 230/3+1 FM 2838199 CCA
VAL-MS 230/FM 2839130 CCA
VAL-MS 320 ST 2838843 CCA
VAL-MS 320/1+1 2804380
VAL-MS 320/1+1-FM 2804393
VAL-MS 320/3+0 2920230 CCA
VAL-MS 320/3+0-FM 2920243 CCA
VAL-MS 320/3+1 2859178 CCA
VAL-MS 320/3+1/FM 2859181 CCA
VAL-MS 320/3+1/FM-UD 2856689
VAL-MS 320-UD ST 2858315
VAL-MS 350 VF ST 2856595 CCA
VAL-MS 350 VF/FM 2856579 CCA
VAL-MS 350VF 2856582 CCA
VAL-MS 385/65 ST 2920308 CCA
VAL-MS 385/65/1+1 2921255 CCA
VAL-MS 385/65/1+1-FM 2921242 CCA
VAL-MS 385/65/3+0 2921019 CCA
VAL-MS 385/65/3+0-FM 2921006 CCA
VAL-MS 385/65/3+1 2920890 CCA
VAL-MS 385/65/3+1-FM 2920887 CCA
VAL-MS 385/80 ST 2920353 CCA
VAL-MS 385/80/1+1 2921297 CCA
VAL-MS 385/80/1+1-FM 2921284 CCA
VAL-MS 385/80/3+0 2921093 CCA
VAL-MS 385/80/3+0-FM 2921080 CCA
VAL-MS 385/80/3+1 2920971 CCA
VAL-MS 385/80/3+1-FM 2920968 CCA
VAL-MS 400 ST 2816399 CCA
VAL-MS 500 ST 2807609 CCA
VAL-MS 580/3+0 2920450 CCA
Type Order No. Certification
VAL-MS 580/3+0-FM 2920447 CCA
VAL-MS 580-ST 2920434 CCA
VAL-MS 60 2868020
VAL-MS 60/FM 2868033
VAL-MS 75 VF ST 2805318
VAL-MS 750/30/3+0 2920269 CCA
VAL-MS 750/30/3+0-FM 2920272 CCA
VAL-MS 750/30-ST 2920256 CCA
VAL-MS 800/30 VF/FM 2805402 CCA
VAL-MS BE 2817741 CCA
VAL-MS BE/FM 2817738 CCA
VAL-MS/2+0-BE 2804584
VAL-MS/2+0-BE/FM 2805321
VAL-MS/3+0-BE 2881816 CCA
VAL-MS/3+0-BE/FM 2881803
CCA
VAL-MS-T1/T2 175/12.5 ST 2800676 CCA
VAL-MS-T1/T2 175/12.5/1+1 2800675 CCA
VAL-MS-T1/T2 175/12.5/1+1-FM 2800674 CCA
VAL-MS-T1/T2 175/12.5/3+0 2800673 CCA
VAL-MS-T1/T2 175/12.5/3+0-FM 2800672 CCA
VAL-MS-T1/T2 175/12.5/3+1 2800671 CCA
VAL-MS-T1/T2 175/12.5/3+1-FM 2800670 CCA
VAL-MS-T1/T2 335/12.5 ST 2800190 CCA
VAL-MS-T1/T2 335/12.5/1+1 2800187 CCA
VAL-MS-T1/T2 335/12.5/1+1-FM 2800186 CCA
VAL-MS-T1/T2 335/12.5/3+0 2800189 CCA
VAL-MS-T1/T2 335/12.5/3+0-FM 2800188 CCA
VAL-MS-T1/T2 335/12.5/3+1 2800184 CCA
VAL-MS-T1/T2 335/12.5/3+1-FM 2800183 CCA
VAL-MS-T1/T2 335/12.5/4+0 2800645
VAL-MS-T1/T2 335/12.5/4+0-FM 2800644
VAL-US 120 ST 2800739
VAL-US 240 ST 2800740
VAL-US 277 ST 2800741
VAL-US 347 ST 2800742
VAL-US 480 ST 2800743
VAL-US 60 ST 2800738
W
WT-RJ 12-S/FM A/K AP 2809186
WT-RJ 45-S/ISDN1/K AP 2809830
Type Order No. Certification
Surge protection and interference filters
Approvals
158 PHOENIX CONTACT
Power supply units and UPS
Selection guide 160
Power supply units 164
QUINT POWER 166
TRIO POWER 174
MINIPOWER 180
UNO POWER 184
STEPPOWER 186
QUINT POWER, dip-coated 194
DC/DC converters 196
QUINT DC/DC converters 198
DC/DC converter, dip-coated 200
MINI DC/DC converter 202
Redundancy modules 204
QUINT ORING 206
TRIODIODE 208
QUINTDIODE 210
STEP DIODE 210
Accessories 212
Uninterruptible power supply units for the control cab-
inet
214
Selection guide 216
QUINT UPS-IQ 218
Power storage device for QUINTUPS-IQ 222
Accessories 228
UPS module with integrated power storage 230
UPS module with integrated power supply unit 234
Power storage devices for TRIOUPS and MINIUPS 236
Uninterruptible power supply units for 19" racks/towers 240
Selection guide 242
UPS devices 244
Power storage 246
Accessories 248
159PHOENIX CONTACT
For maximum system availability
Power supply units
Thanks to high-quality products featuring
leading technology, our QUINT, TRIO,
MINI, UNO, and STEPPOWER product
ranges optimally equip you for international
competition.
DC/DC converter
Change the voltage level, regenerate the
voltage at the end of long cables or enable
the creation of independent supply systems
with the QUINT and MINIDC/DC con-
verters.
Redundancy modules
A redundant power supply system is the
result of the parallel connection of two
power supply units. Optimize this solution
with the QUINTORING redundancy mod-
ules and the QUINT, TRIO, and STEPdi-
odes for maximum system availability.
Uninterruptible power supply (UPS)
units for control cabinets
IQtechnology is the key to an intelligent
power supply solution. The UPS monitors
and optimizes the power storage device.
Avoid interruptions when working with the
intelligent UPS for non-stop power.
Uninterruptible power supply (UPS)
for 19" racks/towers
Protect all connected loads against any
faults on the mains side with the single-
phase VFl-SS-111 UPS devices.
Power supply units and UPS
QUINT POWER 1∼
24 DC / 3.5 A 24 DC / 5 A 24 DC / 10 A 24 DC / 20 A 24 DC / 40 A
Page 166 Page 166 Page 166 Page 166 Page 166
12 DC / 15 A 12 DC / 20 A
Page 170 Page 170
48 DC / 5 A 48 DC / 10 A 48 DC / 20 A
Page 170 Page 170 Page 170
QUINT POWER 3∼
24 DC / 5 A 24 DC / 10 A 24 DC / 20 A 24 DC / 40 A
Page 168 Page 168 Page 168 Page 168
48 DC / 20 A
Page 172
TRIO POWER 1∼
24 DC / 2.5 A 24 DC / 5 A 24 DC / 10 A 24 DC / 20 A
Page 174 Page 174 Page 174 Page 174
12 DC / 5 A 12 DC / 10 A 48 DC / 5 A 48 DC / 10 A
Page 178 Page 178 Page 178 Page 178
TRIO POWER 3∼
24 DC / 5 A 24 DC / 10 A 24 DC / 20 A 24 DC / 40 A
Page 176 Page 176 Page 176 Page 176
MINI POWER 1∼
24 DC / 1.3 A 24 DC / 1.5 A 24 DC / 2 A 24 DC / 4 A 1 AC / 24 DC / 1.5 A EX
Page 180 Page 180 Page 180 Page 180 Page 194
5 DC / 3 A 10 - 15 DC / 2 A 24 DC / 100 W
Page 182 Page 182 Page 180
±15 DC / 1 A 10 - 15 DC / 8 A
Page 182 Page 182
160 PHOENIX CONTACT
Power supply units and UPS
Selection guide
For additional information, visit www.phoenixcontact.net/products
UNO POWER 1∼
24 DC / 30 W 24 DC / 60 W 24 DC / 100 W
Page 184 Page 184 Page 184
12 DC / 30 W 12 DC / 55 W
Page 184 Page 184
STEP POWER 1∼
24 DC / 0.5 A 24 DC / 0.75 A / FL 24 DC / 0.75 A 24 DC / 1.75 A 24 DC / 2.5 A 24 DC / 4.2 A
Page 186 Page 186 Page 186 Page 188 Page 188 Page 188
48 AC / 24 DC / 0.5 A 12 DC / 1.5 A / FL 12 DC / 1.5 A 12 DC / 3 A 5 DC / 6.5 A 24 DC / 100 W
Page 186 Page 192 Page 192 Page 192 Page 190 Page 2868667
12 DC / 1 A 12 DC / 5 A 48 DC / 2 A
Page 192 Page 192 Page 190
5 DC / 2 A 15 DC / 4 A
Page 190 Page 190
QUINT POWER, dip-coated 1∼, 3∼ power supply units QUINT DC/DC converters
1 AC / 24 DC / 5 A CO 1 AC / 24 DC / 10 A CO 1 AC / 24 DC / 20 A CO 3 AC / 24 DC / 20 A CO 24 DC / 24 DC / 5 A / 24 DC / 24 DC / 10 A / 24 DC / 24 DC / 20 A /
Page 194 Page 194 Page 194 Page 194 Page 200 Page 200 Page 200
QUINT DC/DC converters MINI DC/DC converters TRIO POWER 600 V
24 DC / 24 DC / 5 A 24 DC / 24 DC / 10 A 24 DC / 24 DC / 20 A 12 - 24 DC/24 DC/1 A AC power module 600 DC / 24 DC / 20 A
Page 198 Page 198 Page 198 Page 202 Page 202 Page 178
24 DC / 12 DC / 8 A 24 DC / 48 DC / 5 A 48 - 60 DC/24 DC/1 A
Page 198 Page 198 Page 202
48 DC / 24 DC / 5 A 12 - 24 DC/5 - 15 DC/2 A
Page 200 Page 202
12 DC / 24 DC / 5 A 12 - 24 D /48 DC/0.7 A
Page 200 Page 202
Redundancy modules - QUINT - TRIO - STEP
24 DC / 2x10 A 24 DC / 2x20 A 24 DC / 2x40 12 - 24 DC / 2x20 A 12 - 24 DC / 2x10 A 5 - 24 DC / 2x5 A
Page 206 Page 206 Page 206 Page 210 Page 208 Page 210
48 DC / 2x20 A 48 DC / 2x10 A
Page 210 Page 208
161PHOENIX CONTACT
Power supply units and UPS
Selection guide
QUINT DC-UPS QUINT AC-UPS
24 DC / 5 A 24 DC / 10 A 24 DC / 20 A 24 DC / 40 A
12 DC / 5 / 24 DC / 10
1 AC / 1 AC / 500 VA
Page 218 Page 218 Page 218 Page 218 Page 220 Page 221
UPS-CAP UPS-BAT/LI-ION UPS-BAT/VRLA-WTR
24 DC / 10 A / 10 KJ 24 DC / 20 A / 20 KJ 24 DC / 120 WH 24 DC / 13 AH 24 DC / 26 AH
Page 222 Page 222 Page 223 Page 226 Page 226
UPS-BAT/VRLA
24DC / 1.3AH 24DC / 3.4AH 24 DC / 7.2 AH 24 DC / 12 AH 24 DC / 38 AH
Page 224 Page 224 Page 224 Page 224 Page 224
UPS with integrated QUINT, STEP power storage QUINT-BUFFER
24DC / 5 / 1.3AH 24DC /10 / 3.4AH AH 24 DC / 3 12 DC / 4 24 DC / 40
Page 230 Page 230 Page 232 Page 232 Page 231
UPS with integrated power supply unit
1AC / 24 DC / 2 1AC / 12 DC / 4 1 AC / 24 DC / 5
Page 235 Page 235 Page 234
162 PHOENIX CONTACT
Power supply units and UPS
Selection guide
For additional information, visit www.phoenixcontact.net/products
Power storage for TRIO UPS - MINI UPS
24 DC / 1.3 AH 24 DC / 3.4 AH 24 DC / 7.2 AH 24 DC / 12 AH 24 DC / 1.3 AH 24 DC / 0.8 AH
Page 236 Page 236 Page 236 Page 236 Page 238 Page 238
12 DC / 2.6 AH 12 DC / 1.6 AH
Page 238 Page 238
USV-CP
1 kVA / 240 AC 2 kVA / 240 AC 3 kVA / 240 AC 4.5 kVA / 240 AC 6 kVA / 240 AC
Page 244 Page 244 Page 244 Page 244 Page 244
Power storage for USV-CP
1 kVA / 19 minutes 1 kVA / 36 minutes 2/3 kVA / 8 minutes 2/3 kVA / 19 minutes 4.5/6 kVA / 10 minutes
Page 246 Page 246 Page 246 Page 246 Page 246
For UPS-CP-1KVA For UPS-CP-1KVA For UPS-CP-2KVA For UPS-CP-2KVA For UPS-CP-4.5KVA
2/3 kVA / 5 minutes 2/3 kVA / 12 minutes 2/3 kVA / 8 minutes
Page 246 Page 246 Page 246
For UPS-CP-3KVA For UPS-CP-3KVA For UPS-CP-6KVA
163PHOENIX CONTACT
Power supply units and UPS
Selection guide
164 PHOENIX CONTACT
Power supply units and UPS
Power supply units
Leading technology and high quality -
power supply units ensure your sys-
tem is always reliably supplied with
power.
Thanks to high-quality products featuring
leading technology, with our power supply
solutions from the QUINT, TRIO, MINI, and
STEP product ranges, you are optimally
equipped to handle competitors on an in-
ternational scale.
Functionality, performance class, and de-
sign are tailored to the demands of various
different sectors and always offer the ideal
solution. Choose from our wide range of
power supply units and DC/DC converters.
QUINT POWER for maximum sys-
tem availability
Cost-effective selective fuse protection
with SFB technology:
In order to trip standard circuit breakers
magnetically and quickly, power supply units
must be able to supply several times the
nominal current for a short period. With
SFB (Selective Fuse Breaking) technology,
which supplies up to 6 times the nominal
current for 12ms, a dynamic power reserve
is available. Faulty current paths are selec-
tively switched off, the fault is isolated, and
important system components remain op-
erational.
Preventive function monitoring:
Comprehensive diagnostics are provided
through constant monitoring of the output
voltage and output current. This preventive
function monitoring visualizes critical oper-
ating states, before errors can occur. The
remote monitoring takes place by means of
active switching outputs and floating relay
contacts.
POWER BOOST power reserve:
The static power reserve offers up to 1.5
times the nominal current permanently. At
ambient temperatures of up to +40°C the
POWER BOOST is continuously available
and at higher temperatures, it is available for
a few minutes. This ensures that both high
inrush currents of capacitive loads, as well as
loads with DC/DC converters in the prima-
ry circuit, can be reliably supplied.
For additional information, visit www.phoenixcontact.net/products
165PHOENIX CONTACT
Power supply units and UPS
Power supply units
Power supply units - a comparison of
the advantages
Choose the range of power supply units
that best suits your requirements based on
① functionality and ② power.
QUINT POWER – power supply units
for maximum system availability
The unique SFB technology and preven-
tive function monitoring maximize the avail-
ability of your application.
– Quick tripping of the standard power cir-
cuit breakers
– Preventive function monitoring
– Reliable starting of heavy loads
TRIO POWER - basic functionality at
the highest level
Basic functionality combined with high
quality and reliability - this makes the power
supply units ideal for use in standard ma-
chine production.
–Robust design
– Minimize installation costs
– High operational reliability
UNO POWER - compact basic
functionality
The UNO POWER power supply units
offer extremely compact basic functionality.
– Save energy thanks to high efficiency and
low idling losses
– Wide-range input
– Wide temperature range
MINI POWER - for measurement and
control technology
The MINI POWER comes into its own in
fields where modular electronics housing
has become the standard.
– Service-friendly connection technology:
encoded COMBICON plug-in connec-
tors
– Active function monitoring with switching
output for remote monitoring of the out-
put voltage
STEP POWER - for installation
distributors and flat control panels
The low idling losses and high efficiency
make the STEP POWER the most energy
efficient in its class.
– Flexible: snap onto the DIN rail or screw
onto a level surface
– Energy savings: maximum energy efficien-
cy and incredibly low idling losses
13
I < IN
DC OK
14
L (+)
N (-)
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
-
Ex:
-
Ex:
Technical data Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240
Input voltage range AC/DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264
Frequency range 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 1.4 A (120 V AC) / 0.8 A (230 V AC) 1.2 A (120 V AC) / 0.6 A (230 V AC) 2.24 A (120 V AC) / 1.3
Inrush current limitation at 25°C (typ.) / I2t < 20 A / < 2 A2s < 15 A / < 1 A2s
Mains buffering (IN, typ.) > 20 ms (120 V AC) / > 80 ms (230 V AC) > 30 ms (120 V AC) / > 30 ms (230 V AC) > 32 ms (120 V AC) / > 36 ms (230 V AC) > 2
Output data
Nominal output voltage 24 V DC ±1% 24 V DC ±1%
Setting range of the output voltage 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24
Output current / POWER BOOST / SFB (12 ms) 3.5 A / 4 A / 15 A 5 A / 7.5 A / 30 A
Magnetic fuse tripping B2 B2 , B4 , C2
Can be connected in parallel / series Yes / Yes Yes / Yes
Max. power dissipation (no load / nominal load) 3.5 W / 11 W 3 W / 15 W
Efficiency (typ.) > 88 % (for 230 V AC and nominal values) > 90 % (for 230 V AC and nominal values) > 92.5 % (for 230 V AC and nom
Residual ripple < 50 mVPP < 40 mVPP
Signaling
Signaling DC OK LED, active switching output, relay contact LED, active switching output, relay contact LED, active switching outp
Boost signaling LED, active switching output LED, active switching output LED, active switching outp
General data
Weight / Dimensions W x H x D 0.5 kg / 32 x 130 x 125 mm 0.7 kg / 40 x 130 x 125 mm 1.1 kg / 60 x 130 x 125 mm 1.7 kg / 90 x 130 x
Spacing when mounting Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 -
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 -
Degree of protection / Protection class IP20 / I IP20 / I
MTBF (EN 29500, 40°C) > 820000 h > 635000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tes
Standards/regulations
Insulation voltage input/output 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IE
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN V
Medical standard IEC 60601 IEC 60601
UL approvals UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Limitation of harmonic line currents EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
QUINT-PS/ 1AC/24DC/ 3.5 2866747 1QUINT-PS/ 1AC/24DC/ 5 2866750 1
166 PHOENIX CONTACT
– Quick tripping of standard circuit break-
ers thanks to the dynamic power reserve
SFB (selective fuse breaking) technology
with up to 6x the nominal current for
12 ms
– Reliable starting of heavy loads with the
static POWER BOOST power reserve
with permanently up to 1.5 times the
nominal current
– Preventive function monitoring warns
against critical operating states before er-
rors occur
– Approved according to SEMI F47:
all 24 V DC
QUINT POWER power supply units –
for maximum system availability
Power supply units and UPS
Power supply units
Power supply,
1 AC, 24 V DC, 3.5 A
Power supply,
1 AC, 24 V DC, 5 A
H
W
D
H
W
D
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
For additional information, visit www.phoenixcontact.net/products
-
BSH
Ex:
-
BSH
Ex:
-
BV-CPS
Ex:
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 300 V DC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 1.4 A (120 V AC) / 0.8 A (230 V AC) 1.2 A (120 V AC) / 0.6 A (230 V AC) 2.24 A (120 V AC) / 1.33 A (230 V AC) 5.1 A (120 V AC) / 2.3 A (230 V AC) 8.8 A (120 V AC) / 4.6 A (230 V AC)
< 15 A / < 1.5 A2s < 20 A / < 3.2 A2s< 15 A / < 1.7 A
2s
, typ.) > 20 ms (120 V AC) / > 80 ms (230 V AC) > 30 ms (120 V AC) / > 30 ms (230 V AC) > 32 ms (120 V AC) / > 36 ms (230 V AC) > 20 ms (120 V AC) / > 20 ms (230 V AC) > 20 ms (120 V AC) / > 20 ms (230 V AC)
24 V DC ±1% 24 V DC ±1% 24 V DC ±1%
ity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity)
10 A / 15 A / 60 A 20 A / 26 A / 120 A 40 A / 45 A / 215 A
B2 , B4 , B6 , C2 , C4 B2 , B4 , B6 , B10 , B16 , C2 , C4 , C6 B2 , B4 , B6 , B10 , B16 , B25 , C2 , C4 , C6 , C13
Yes / Yes Yes / Yes Yes / Yes
9.1 W / 22 W 8 W / 40 W 14 W / 80 W
Efficiency (typ.) > 88 % (for 230 V AC and nominal values) > 90 % (for 230 V AC and nominal values) > 92.5 % (for 230 V AC and nominal values) > 93 % (for 230 V AC and nominal values) > 92 % (for 230 V AC and nominal values)
< 50 mVPP < 30 mVPP < 30 mVPP
active switching output, relay contact LED, active switching output, relay contact LED, active switching output, relay contact LED, active switching output, relay contact
output LED, active switching output LED, active switching output LED, active switching output
Weight / Dimensions W x H x D 0.5 kg / 32 x 130 x 125 mm 0.7 kg / 40 x 130 x 125 mm 1.1 kg / 60 x 130 x 125 mm 1.7 kg / 90 x 130 x 125 mm 3.3 kg / 180 x 130 x 125 mm
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 14 - 10
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6
- 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 24 - 10
IP20 / I IP20 / I IP20 / I
> 535000 h > 520000 h > 530000 h
ed) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested)
ype test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
10 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-101
IEC 60601 IEC 60601 -
UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL Listed UL 508 , UL/C-UL Recognized UL 60950 , UL ANSI/ISA-
12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Loca-
tion)
UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-PS/ 1AC/24DC/10 2866763 1QUINT-PS/ 1AC/24DC/20 2866776 1QUINT-PS/ 1AC/24DC/40 2866789 1
167PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 24 V DC, 10 A
Power supply,
1 AC, 24 V DC, 20 A
Power supply,
1 AC, 24 V DC, 40 A
H
W
D
H
W
D
L1 (+)
L2
L3 (-)
13
I < IN
DC OK
14
-
Ex:
Technical data
Input data
Nominal input voltage range 3x 400 V AC ... 500 V AC 3x 400 V AC ... 500 V AC 3x 400 V AC ... 500 V AC 3x 400 V AC ... 500 V AC
Input voltage range AC/DC 320 V AC ... 575 V AC / 450 V DC ... 800 V DC 320 V AC ... 575 V AC / 450 V DC ... 800 V DC 320 V AC ...
Frequency range 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 3x 0.8 A (400 V AC) / 3x 0.7 A (500 V AC) 3x 1.2 A (400 V AC) / 3x 1 A (500 V AC) 3x 1.6 A (400
Inrush current limitation at 25°C (typ.) / I2t< 15 A / < 1 A
2s
Mains buffering (IN, typ.) > 20 ms (400 V AC) / > 30 ms (500 V AC) > 20 ms (400 V AC) / > 30 ms (500 V AC) > 20 ms (400 V AC) / > 30 ms (500 V AC) > 2
Output data
Nominal output voltage 24 V DC ±1%
Setting range of the output voltage 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capac
Output current / POWER BOOST / SFB (12 ms) 5 A / 7.5 A / 30 A
Magnetic fuse tripping B2 , B4 , C2
Can be connected in parallel / series Yes / Yes
Max. power dissipation (no load / nominal load) 4 W / 14 W
Efficiency (typ.) > 89 % (at 400 V AC and nominal values) > 93 % (at 400 V AC and nominal values) > 93 % (at 400 V AC and nominal
Residual ripple < 20 mVPP
Signaling
Signaling DC OK LED, active switching output, relay contact LED, active switching output, relay contact LED, active switching outp
Boost signaling LED, active switching output LED, active switching
General data
Weight / Dimensions W x H x D 0.7 kg / 40 x 130 x 125 mm 1.1 kg
Spacing when mounting Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Plug-in screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 -
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 -
Degree of protection / Protection class IP20 / I
MTBF (EN 29500, 40°C) > 635000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C deratin
Standards/regulations
Insulation voltage input/output 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-4
UL approvals UL Listed UL 508 , UL/C-UL Recognized UL 60950 (3-wire + PE,
star net) , UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C,
D (Hazardous Location)
Limitation of harmonic line currents EN 61000-3-2
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
QUINT-PS/ 3AC/24DC/ 5 2866734 1
168 PHOENIX CONTACT
QUINT POWER power supply units –
for maximum system availability
QUINT POWER, 3 AC, 24 V DC
– High system availability even in the event
of a permanent phase failure
– High surge strength of up to 6 kV thanks
to integrated gas-filled arresters
– Quick tripping of standard circuit break-
ers thanks to the dynamic power reserve
SFB (selective fuse breaking) technology
with up to 6x the nominal current for
12 ms
– Reliable starting of heavy loads with the
static POWER BOOST power reserve
with permanently up to 1.5 times the
nominal current
– Preventive function monitoring warns
against critical operating states before er-
rors occur
– Approved according to SEMI F47:
all 24 V DC
Power supply units and UPS
Power supply units
H
W
D
Power supply,
3 AC, 24 V DC, 5 A
L1 (+)
L2
L3 (-)
13
I < IN
DC OK
14
L1 (+)
L2
L3 (-)
13
I < IN
DC OK
14
L1 (+)
L2
L3 (-)
13
I < IN
DC OK
14
For additional information, visit www.phoenixcontact.net/products
-
BSH
Ex:
-
BSH
Ex:
-
Ex:
Technical data Technical data Technical data
Nominal input voltage range 3x 400 V AC ... 500 V AC 3x 400 V AC ... 500 V AC 3x 400 V AC ... 500 V AC 3x 400 V AC ... 500 V AC
Input voltage range AC/DC 320 V AC ... 575 V AC / 450 V DC ... 800 V DC 320 V AC ... 575 V AC / 450 V DC ... 800 V DC 320 V AC ... 575 V AC / 450 V DC ... 800 V DC 320 V AC ... 575 V AC / 450 V DC ... 800 V DC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 3x 0.8 A (400 V AC) / 3x 0.7 A (500 V AC) 3x 1.2 A (400 V AC) / 3x 1 A (500 V AC) 3x 1.6 A (400 V AC) / 3x 1.3 A (500 V AC) 3x 2.1 A (400 V AC) / 3x 1.7 A (500 V AC)
< 15 A / < 1.5 A2s< 20 A / < 3.2 A
2s < 20 A / < 1 A2s
, typ.) > 20 ms (400 V AC) / > 30 ms (500 V AC) > 20 ms (400 V AC) / > 30 ms (500 V AC) > 20 ms (400 V AC) / > 30 ms (500 V AC) > 25 ms (400 V AC) / > 35 ms (500 V AC)
24 V DC ±1% 24 V DC ±1% 24 V DC ±1%
Setting range of the output voltage 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity)
10 A / 15 A / 60 A 20 A / 26 A / 120 A 40 A / 45 A / 215 A
B2 , B4 , B6 , C2 , C4 B2 , B4 , B6 , B10 , B16 , C2 , C4 , C6 B2 , B4 , B6 , B10 , B16 , B25 , C2 , C4 , C6 , C13
Yes / Yes Yes / Yes Yes / Yes
7 W / 19 W 11 W / 40 W 18 W / 63 W
Efficiency (typ.) > 89 % (at 400 V AC and nominal values) > 93 % (at 400 V AC and nominal values) > 93 % (at 400 V AC and nominal values) > 94 % (at 400 V AC and nominal values)
< 20 mVPP < 40 mVPP < 40 mVPP
Signaling DC OK LED, active switching output, relay contact LED, active switching output, relay contact LED, active switching output, relay contact LED, active switching output, relay contact
Boost signaling LED, active switching output LED, active switching output LED, active switching output LED, active switching output
Weight / Dimensions W x H x D 0.7 kg / 40 x 130 x 125 mm 1.1 kg / 60 x 130 x 125 mm 1.5 kg / 69 x 130 x 125 mm 2.5 kg / 96 x 130 x 176 mm
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Plug-in screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10
- 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10
IP20 / I IP20 / I IP20 / I
> 633000 h > 534000 h > 501000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested)
ype test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-101
UL Listed UL 508 , UL/C-UL Recognized UL 60950 (3-wire + PE,
star net) , UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C,
D (Hazardous Location)
UL Listed UL 508 , UL/C-UL Recognized UL 60950 (3-wire + PE,
star net) , UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C,
D (Hazardous Location)
UL Listed UL 508 , UL/C-UL Recognized UL 60950 (3-wire + PE,
star net) , UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C,
D (Hazardous Location)
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-PS/ 3AC/24DC/10 2866705 1QUINT-PS/ 3AC/24DC/20 2866792 1QUINT-PS/ 3AC/24DC/40 2866802 1
169PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
H
W
D
H
W
D
Power supply,
3 AC, 24 V DC, 10 A
Power supply,
3 AC, 24 V DC, 20 A
Power supply,
3 AC, 24 V DC, 40 A
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
Ex:
Ex:
Technical data Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240
Input voltage range AC/DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264
Frequency range 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 1.9 A (120 V AC) / 0.9 A (230 V AC) 2.4 A (120 V AC) / 1.4 A (230 V AC) 2.8 A (120 V AC) / 1.2
Inrush current limitation at 25°C (typ.) / I2t < 15 A / < 1.5 A2s < 20 A / < 3.2 A2s
Mains buffering (IN, typ.) > 65 ms (120 V AC) / > 65 ms (230 V AC) > 40 ms (120 V AC) / > 40 ms (230 V AC) > 40 ms (120 V AC) / > 40 ms (230 V AC) > 2
Output data
Nominal output voltage 12 V DC ±1% 12 V DC ±1%
Setting range of the output voltage 5 V DC ... 18 V DC (> 12 V constant capacity) 5 V DC ... 18 V DC (> 12 V constant capacity) 30
Output current / POWER BOOST / SFB (12 ms) 15 A / 16 A / 60 A 20 A / 26 A / 120 A
Magnetic fuse tripping B2 , B4 , B6 , C2 , C4 B2 , B4 , B6 , B10 , C2 , C4 , C6 B2 , B4 , C2 B2 , B4 , B6 , C2 , C4 B2 , B4 , B6 , B
Can be connected in parallel / series Yes / Yes Yes / Yes
Max. power dissipation (no load / nominal load) 5 W / 21 W 6 W / 29 W
Efficiency (typ.) > 89 % (for 230 V AC and nominal values) > 90 % (for 230 V AC and nominal values) > 92.5 % (for 230 V AC and nom
Residual ripple < 10 mVPP < 50 mVPP
Signaling
Signaling DC OK LED, active switching output, relay contact LED, active switching output, relay contact LED, active switching outp
Boost signaling LED, active switching output LED, active switching output LED, active switching outp
General data
Weight / Dimensions W x H x D 1.1 kg / 60 x 130 x 125 mm 1.5 kg / 90 x 130 x 125 mm 1.1 kg / 60 x 130 x 125 mm 1.7 kg / 90 x 130 x
Spacing when mounting Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 2.5 m
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.2 - 2.5
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 2.5
Degree of protection / Protection class IP20 / I IP20 / I
MTBF (EN 29500, 40°C) > 570000 h > 600000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derati
Standards/regulations
Insulation voltage input/output 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IE
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN V
Medical standard IEC 60601 IEC 60601
UL approvals UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Limitation of harmonic line currents EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
QUINT-PS/ 1AC/12DC/15 2866718 1QUINT-PS/ 1AC/12DC/20 2866721 1
170 PHOENIX CONTACT
QUINT POWER, 1 AC, 12 and
48 V DC
– Quick tripping of the standard power
circuit breakers
– Reliable starting of heavy loads
– Preventive function monitoring
– Approved according to SEMI F47: 12 V
DC, 15 A A and 20 A, 48 V DC, 5 A and
10 A
– Adjustable output voltage of 5 to
18 V DC, or 30 to 56 V DC
QUINT POWER power supply units –
for maximum system availability
Power supply units and UPS
Power supply units
Power supply,
1 AC, 12 V DC, 15 A
Power supply,
1 AC, 12 V DC, 20 A
H
W
D
H
W
D
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
For additional information, visit www.phoenixcontact.net/products
Ex:
Ex:
Ex:
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 300 V DC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 1.9 A (120 V AC) / 0.9 A (230 V AC) 2.4 A (120 V AC) / 1.4 A (230 V AC) 2.8 A (120 V AC) / 1.2 A (230 V AC) 5.1 A (120 V AC) / 2.3 A (230 V AC) 8.7 A (120 V AC) / 4.5 A (230 V AC)
< 15 A / < 1.5 A2s < 20 A / < 3.2 A2s< 15 A / < 1.6 A
2s
, typ.) > 65 ms (120 V AC) / > 65 ms (230 V AC) > 40 ms (120 V AC) / > 40 ms (230 V AC) > 40 ms (120 V AC) / > 40 ms (230 V AC) > 20 ms (120 V AC) / > 20 ms (230 V AC) > 22 ms (120 V AC) / > 25 ms (230 V AC)
48 V DC ±1% 48 V DC ±1% 48 V DC ±1%
Setting range of the output voltage 5 V DC ... 18 V DC (> 12 V constant capacity) 5 V DC ... 18 V DC (> 12 V constant capacity) 30 V DC ... 56 V DC (> 48 V constant capacity) 30 V DC ... 56 V DC (> 48 V constant capacity) 30 V DC ... 56 V DC (> 48 V constant capacity)
5 A / 7.5 A / 30 A 10 A / 13 A / 60 A 20 A / 22.5 A / 100 A
Magnetic fuse tripping B2 , B4 , B6 , C2 , C4 B2 , B4 , B6 , B10 , C2 , C4 , C6 B2 , B4 , C2 B2 , B4 , B6 , C2 , C4 B2 , B4 , B6 , B10 , C2 , C4 , C6
Yes / Yes Yes / Yes Yes / Yes
7 W / 21 W 16 W / 41 W 12 W / 74 W
Efficiency (typ.) > 89 % (for 230 V AC and nominal values) > 90 % (for 230 V AC and nominal values) > 92.5 % (for 230 V AC and nominal values) > 93 % (for 230 V AC and nominal values) > 93 % (for 230 V AC and nominal values)
< 50 mVPP < 80 mVPP < 50 mVPP
active switching output, relay contact LED, active switching output, relay contact LED, active switching output, relay contact LED, active switching output, relay contact
output LED, active switching output LED, active switching output LED, active switching output
Weight / Dimensions W x H x D 1.1 kg / 60 x 130 x 125 mm 1.5 kg / 90 x 130 x 125 mm 1.1 kg / 60 x 130 x 125 mm 1.7 kg / 90 x 130 x 125 mm 3.3 kg / 180 x 130 x 125 mm
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Plug-in screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 14 - 10
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6
- 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 24 - 10
IP20 / I IP20 / I IP20 / I
> 535000 h > 630000 h > 523000 h
g, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested)
ype test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
10 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
IEC 60601 IEC 60601 -
UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-PS/ 1AC/48DC/ 5 2866679 1QUINT-PS/ 1AC/48DC/10 2866682 1QUINT-PS/ 1AC/48DC/20 2866695 1
171PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 48 V DC, 5 A
Power supply,
1 AC, 48 V DC, 10 A
Power supply,
1 AC, 48 V DC, 20 A
H
W
D
H
W
D
L1 (+)
L2
L3 (-)
13
I < IN
DC OK
14
Ex:
Technical data
Input data
Nominal input voltage range 3x 400 V AC ... 500 V AC
Input voltage range AC/DC 320 V AC ... 575 V AC / 450 V DC ... 800 V DC
Frequency range 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 3x 2.1 A (400 V AC) / 3x 1.7 A (500 V AC)
Inrush current limitation at 25°C (typ.) / I2t< 20 A / < 1 A
2s
Mains buffering (IN, typ.) > 25 ms (400 V AC) / > 35 ms (500 V AC)
Output data
Nominal output voltage 48 V DC ±1%
Setting range of the output voltage 30 V DC ... 56 V DC (> 48 V constant capacity)
Output current / POWER BOOST / SFB (12 ms) 20 A / 22.5 A / 100 A
Magnetic fuse tripping B2 , B4 , B4 , B10 , C2 , C4 , C6
Can be connected in parallel / series Yes / Yes
Max. power dissipation (no load / nominal load) 24 W / 70 W
Efficiency (typ.) > 93 % (at 400 V AC and nominal values)
Residual ripple < 50 mVPP
Signaling
Signaling DC OK LED, active switching output, relay contact
Boost signaling LED, active switching output
General data
Weight / Dimensions W x H x D 2.5 kg / 96 x 130 x 176 mm
Spacing when mounting Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10
Output connection data (solid/stranded/AWG) 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6
Signal connection data (solid/stranded/AWG) 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10
Degree of protection / Protection class IP20 / I
MTBF (EN 29500, 40°C) > 509000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60°C derating, startup at -40°C type-tested)
Standards/regulations
Insulation voltage input/output 2 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV)
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010
UL approvals UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Limitation of harmonic line currents EN 61000-3-2
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
QUINT-PS/ 3AC/48DC/20 2320827 1
172 PHOENIX CONTACT
QUINT POWER power supply units –
for maximum system availability
QUINT POWER, 3 AC, 48 V DC
– Quick tripping of standard circuit break-
ers thanks to the dynamic power reserve
SFB (selective fuse breaking) technology
with up to 6x the nominal current for
12 ms
– Reliable starting of heavy loads with the
static POWER BOOST power reserve
with permanently up to 1.5 times the
nominal current
– Preventive function monitoring warns
against critical operating states before er-
rors occur
– Adjustable output voltage of 30 to
56 V DC
Power supply units and UPS
Power supply units
H
W
D
Power supply,
3 AC, 48 V DC, 20 A
For additional information, visit www.phoenixcontact.net/products
173PHOENIX CONTACT
Power supply units and UPS
Power supply units
L
N
PE
Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC 85 V AC ... 264 V AC
Frequency range 45 Hz ... 65 Hz
Current consumption (nominal load) 0.95 A (120 V AC) / 0.5 A (230 V AC) 1.65 A (120 V AC) / 0.9 A (230 V AC) 3 A (100 V AC) / 1.5
Inrush current limitation at 25°C (typ.) / I2t < 15 A / 0.5 A2s
Mains buffering (IN, typ.) > 20 ms (120 V AC) / > 100 ms (230 V AC) > 20 ms (120 V AC) / > 110 ms (230 V AC) > 24 ms (120 V AC) / > 24 ms (230 V AC) >
Output data
Nominal output voltage 24 V DC ±1%
Setting range of the output voltage 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant c
Output current 2.5 A
Can be connected in parallel / series Yes / Yes
Max. power dissipation (no load / nominal load) 0.8 W / 10 W
Efficiency (typ.) > 86 % (for 230 V AC and nominal values) > 89 %
Residual ripple < 30 mVPP
Signaling
Signaling DC OK LED
General data
Weight / Dimensions W x H x D 0.5 kg / 32 x 130 x 115 mm 0.6 kg
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can
Connection method Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 -
Degree of protection / Protection class IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection IP20
MTBF (EN 29500, 40°C) > 2054000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C
Standards/regulations
Insulation voltage input/output 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-4
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 U
Limitation of harmonic line currents EN 61000-3-2
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
TRIO-PS/ 1AC/24DC/ 2.5 2866268 1
174 PHOENIX CONTACT
TRIO POWER power supply units –
basic functionality at the highest level
TRIOPOWER, 1 AC, 24 VDC
– Rugged design with metal housing and
wide temperature range of -25 to +70°C
– Third negative terminal block for ground-
ing on the secondary side
– Maximum availability thanks to high MTBF
(Mean Time Between Failures) of more
than 500,000 hours and high dielectric
strength of up to 300 V AC
– Compensation of voltage drops by means
of output voltage of 22.5 to 29.5 V DC
that can be adjusted on the front
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 24 V DC, 2.5 A
L
N
PE
L
N
PE
active
PFC
L
N
PE
active
PFC
For additional information, visit www.phoenixcontact.net/products
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
85 V AC ... 264 V AC 85 V AC ... 264 V AC 85 V AC ... 264 V AC
45 Hz ... 65 Hz 45 Hz ... 65 Hz 45 Hz ... 65 Hz
Current consumption (nominal load) 0.95 A (120 V AC) / 0.5 A (230 V AC) 1.65 A (120 V AC) / 0.9 A (230 V AC) 3 A (100 V AC) / 1.5 A (240 V AC) 4.6 A (120 V AC) / 2.4 A (230 V AC)
< 15 A / 1.1 A2s < 15 A / 0.7 A2s < 15 A / 1.4 A2s
, typ.) > 20 ms (120 V AC) / > 100 ms (230 V AC) > 20 ms (120 V AC) / > 110 ms (230 V AC) > 24 ms (120 V AC) / > 24 ms (230 V AC) > 13 ms (120 V AC) / > 13 ms (230 V AC)
24 V DC ±1% 24 V DC ±1% 24 V DC ±1%
Setting range of the output voltage 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant capacity)
5 A 10 A 20 A
Yes / Yes Yes / Yes Yes / Yes
1.1 W / 18 W 6.7 W / 30 W 4 W / 46 W
Efficiency (typ.) > 86 % (for 230 V AC and nominal values) > 89 % (for 230 V AC and nominal values) > 89 % (for 230 V AC and nominal values) > 91 % (for 230 V AC and nominal values)
< 20 mVPP < 10 mVPP < 10 mVPP
LED LED LED
Weight / Dimensions W x H x D 0.5 kg / 32 x 130 x 115 mm 0.6 kg / 40 x 130 x 115 mm 1.4 kg / 60 x 130 x 152.5 mm 2.2 kg / 115 x 130 x 152.5 mm
50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14
- 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.5 - 6 mm² / 0.5 - 4 mm² / 20 - 10
Degree of protection / Protection class IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection
> 2031000 h > 981000 h > 915000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
ype test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
TRIO-PS/ 1AC/24DC/ 5 2866310 1TRIO-PS/ 1AC/24DC/10 2866323 1TRIO-PS/ 1AC/24DC/20 2866381 1
175PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
H
W
D
H
W
D
Power supply,
1 AC, 24 V DC, 5 A
Power supply,
1 AC, 24 V DC, 10 A
Power supply,
1 AC, 24 V DC, 20 A
L1
L2
(L3)
PE
Technical data
Input data
Nominal input voltage range 2x / 3x 400 V AC ... 500 V AC 2x / 3x 400 V AC ... 500 V AC 3x 400 V AC ... 500 V AC 3x 400 V AC ... 50
Input voltage range AC 320 V AC ... 575 V AC 320 V AC ... 575 V AC 320 V AC ... 575 V AC 320 V AC ... 575 V AC
Frequency range 45 Hz ... 65 Hz
Current consumption (nominal load) 3x 0.3 A (400 V AC) / 3x 0.25 A (500 V AC) 3x 0.6 A (400 V AC) / 3x 0.5 A (480 V AC) 3x 1.1 A (
Inrush current limitation at 25°C (typ.) / I2t < 15 A / 0.2 A2s
Mains buffering (IN, typ.) > 20 ms (400 V AC) / > 30 ms (480 V AC) > 20 ms (400 V AC) / > 25 ms (480 V AC) > 17 ms (400 V AC) / > 20 ms (480 V AC) > 1
Output data
Nominal output voltage 24 V DC ±1%
Setting range of the output voltage 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant c
Output current 5 A
Can be connected in parallel / series Yes / Yes
Max. power dissipation (no load / nominal load) 4 W / 15 W
Efficiency (typ.) > 89 % (at 400 V AC and nominal values) > 89 % (at 400 V AC and nominal values) > 91 % (at 400 V AC and nominal
Residual ripple < 30 mVPP
Signaling
Signaling DC OK LED
General data
Weight / Dimensions W x H x D 0.6 kg / 40 x 130 x 115 mm 1.3 kg /
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can
Connection method Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.5 -
Degree of protection / Protection class IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection IP20
MTBF (EN 29500, 40°C) > 1474000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C
Standards/regulations
Insulation voltage input/output 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-4
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 U
Limitation of harmonic line currents EN 61000-3-2
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
TRIO-PS/ 3AC/24DC/ 5 2866462 1
176 PHOENIX CONTACT
TRIO POWER power supply units –
basic functionality at the highest level
TRIO POWER, 3 AC, 24 V DC
– Rugged design with metal housing and
wide temperature range of -25 to +70°C
– Third negative terminal block for ground-
ing on the secondary side
– Maximum availability thanks to high MTBF
(Mean Time Between Failures) of more
than 500,000 hours
– Compensation of voltage drops by means
of output voltage of 22.5 to 29.5 V DC
that can be adjusted on the front
Power supply units and UPS
Power supply units
H
W
D
Power supply,
3 AC, 24 V DC, 5 A
L1
L2
(L3)
PE
L1
L2
L3
PE
L1
L2
L3
PE
For additional information, visit www.phoenixcontact.net/products
Technical data Technical data Technical data
Nominal input voltage range 2x / 3x 400 V AC ... 500 V AC 2x / 3x 400 V AC ... 500 V AC 3x 400 V AC ... 500 V AC 3x 400 V AC ... 500 V AC
Input voltage range AC 320 V AC ... 575 V AC 320 V AC ... 575 V AC 320 V AC ... 575 V AC 320 V AC ... 575 V AC
45 Hz ... 65 Hz 45 Hz ... 65 Hz 45 Hz ... 65 Hz
Current consumption (nominal load) 3x 0.3 A (400 V AC) / 3x 0.25 A (500 V AC) 3x 0.6 A (400 V AC) / 3x 0.5 A (480 V AC) 3x 1.1 A (400 V AC) / 3x 0.8 A (480 V AC) 3x 2 A (400 V AC) / 3x 1.6 A (480 V AC)
< 15 A / 0.2 A2s < 15 A / 0.5 A2s < 20 A / 1.3 A2s
, typ.) > 20 ms (400 V AC) / > 30 ms (480 V AC) > 20 ms (400 V AC) / > 25 ms (480 V AC) > 17 ms (400 V AC) / > 20 ms (480 V AC) > 16 ms (400 V AC) / > 20 ms (480 V AC)
24 V DC ±1% 24 V DC ±1% 24 V DC ±1%
Setting range of the output voltage 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant capacity)
10 A 20 A 40 A
Yes / Yes Yes / Yes Yes / Yes
6 W / 28 W < 6 W / < 48 W 16 W / 91 W
Efficiency (typ.) > 89 % (at 400 V AC and nominal values) > 89 % (at 400 V AC and nominal values) > 91 % (at 400 V AC and nominal values) > 91.5 % (at 400 V AC and nominal values)
< 10 mVPP < 10 mVPP < 20 mVPP
LED LED LED
Weight / Dimensions W x H x D 0.6 kg / 40 x 130 x 115 mm 1.3 kg / 60 x 130 x 152.5 mm 2 kg / 115 x 130 x 152.5 mm 2.9 kg / 139 x 130 x 190 mm
50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 6 mm² / 0.2 - 4 mm² / 22 - 10
- 2.5 mm² / 16 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.5 - 6 mm² / 0.5 - 4 mm² / 12 - 10 0.5 - 16 mm² / 0.5 - 10 mm² / 8 - 6
Degree of protection / Protection class IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection
> 1156000 h > 1190000 h > 930000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
ype test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
TRIO-PS/ 3AC/24DC/10 2866459 1TRIO-PS/ 3AC/24DC/20 2866394 1TRIO-PS/ 3AC/24DC/40 2866404 1
177PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
H
W
D
H
W
D
Power supply,
3 AC, 24 V DC, 10 A
Power supply,
3 AC, 24 V DC, 20 A
Power supply unit,
3 AC, 24 V DC, 40 A
PE
L
N
Technical data Technical data
Input data
Nominal input voltage range 600 V DC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC - / 450 V DC ... 840 V DC 85 V AC ... 264 V AC
Frequency range - / 0 Hz 45 Hz ... 65 Hz
Current consumption (nominal load) 0.9 A (600 V DC) 1.1 A (100 V AC) / 0.5 A (240 V AC) 1.7 A (120 V AC) / 0.9 A (230 V AC) 2.5 A (
Inrush current limitation at 25°C (typ.) / I2t < 26 A / 0.8 A2s < 15 A / < 0.5 A2s
Mains buffering (IN, typ.) > 15 ms (600 V DC) > 26 ms (120 V AC) / > 100 ms (230 V AC) > 20 ms (120 V AC) / > 86 ms (230 V AC) > 15 ms (120 V AC) / >
Output data
Nominal output voltage 24 V DC ±1% 12 V DC ±1%
Setting range of the output voltage 22.5 V DC ... 29.5 V DC (UIN > 475 V DC)
22.5 V DC ... 28 V DC (UIN ≤ 475 V DC)
10 V DC ... 18 V DC (> 12 V constant capacity) 10 V DC ... 18 V DC (> 12 V constant capacity) 30 V DC ... 56 V DC (> 48 V constan
Output current 20 A 5 A
Can be connected in parallel / series Yes / Yes Yes / Yes
Max. power dissipation (no load / nominal load) 3.8 W / 45 W 0.9 W / 11 W
Efficiency (typ.) > 91 % (With 600 V DC and nominal values) > 83 % (for 230 V AC and nominal values) > 86 % (for 230 V AC and nomi
Residual ripple < 40 mVPP < 20 mVPP
Signaling
Signaling DC OK LED LED
General data
Weight / Dimensions W x H x D 2 kg / 115 x 130 x 152.5 mm 0.5 kg / 32 x 130 x 115 mm 0.6 kg / 40 x 130 x 115 mm 1.4 kg / 60 x 130 x
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can
Connection method Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2
Output connection data (solid/stranded/AWG) 0.5 - 6 mm² / 0.5 - 4 mm² / 12 - 10 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5
Degree of protection / Protection class IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection IP20
MTBF (EN 29500, 40°C) > 701147 h > 1853000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C
Standards/regulations
Insulation voltage input/output 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 609
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN V
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL liste
Limitation of harmonic line currents EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
TRIO-PS/600DC/24DC/20 2866530 1TRIO-PS/ 1AC/12DC/ 5 2866475 1
178 PHOENIX CONTACT
TRIO POWER, 600 V DC, 24 V DC
– Connection to 600 V DC intermediate
circuits of frequency inverters: in the
event of a line supply failure, 24V loads
are supplied using the kinetic energy of
the motor. In this way, the motor acts as
a generator and supplies energy to the
intermediate circuits (e.g., in plastic injec-
tion molding machines).
TRIO POWER, 1 AC, 12 V DC and
48 V DC
– Adjustable output voltage of 10 to
18 V DC, or 30 to 56 VDC
TRIO POWER power supply units –
basic functionality at the highest level
Power supply units and UPS
Power supply units
Power supply,
600 V DC, 24 V DC, 20 A
Power supply,
1 AC, 12 V DC, 5 A
H
W
D
H
W
D
L
N
L
N
PE
active
PFC
L
N
PE
active
PFC
For additional information, visit www.phoenixcontact.net/products
Technical data Technical data Technical data
Nominal input voltage range 600 V DC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
85 V AC ... 264 V AC 85 V AC ... 264 V AC 85 V AC ... 264 V AC
45 Hz ... 65 Hz 45 Hz ... 65 Hz 45 Hz ... 65 Hz
Current consumption (nominal load) 0.9 A (600 V DC) 1.1 A (100 V AC) / 0.5 A (240 V AC) 1.7 A (120 V AC) / 0.9 A (230 V AC) 2.5 A (120 V AC) / 1.3 A (230 V AC) 4.6 A (120 V AC) / 2.4 A (230 V AC)
< 15 A / < 1.1 A2s < 15 A / < 0.7 A2s< 15 A / < 1.4 A
2s
, typ.) > 15 ms (600 V DC) > 26 ms (120 V AC) / > 100 ms (230 V AC) > 20 ms (120 V AC) / > 86 ms (230 V AC) > 15 ms (120 V AC) / > 16 ms (230 V AC) > 13 ms (120 V AC) / > 18 ms (230 V AC)
12 V DC ±1% 48 V DC ±1% 48 V DC ±1%
10 V DC ... 18 V DC (> 12 V constant capacity) 10 V DC ... 18 V DC (> 12 V constant capacity) 30 V DC ... 56 V DC (> 48 V constant capacity) 30 V DC ... 56 V DC (> 48 V constant capacity)
10 A 5 A 10 A
Yes / Yes Yes / Yes Yes / Yes
1.1 W / 18 W 7 W / 28 W 8 W / 49 W
Efficiency (typ.) > 91 % (With 600 V DC and nominal values) > 83 % (for 230 V AC and nominal values) > 86 % (for 230 V AC and nominal values) > 89 % (for 230 V AC and nominal values) > 91 % (for 230 V AC and nominal values)
< 20 mVPP < 50 mVPP < 50 mVPP
LED LED LED
Weight / Dimensions W x H x D 2 kg / 115 x 130 x 152.5 mm 0.5 kg / 32 x 130 x 115 mm 0.6 kg / 40 x 130 x 115 mm 1.4 kg / 60 x 130 x 152.5 mm 1.9 kg / 115 x 130 x 152.5 mm
lly 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14
Output connection data (solid/stranded/AWG) 0.5 - 6 mm² / 0.5 - 4 mm² / 12 - 10 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.5 - 6 mm² / 0.5 - 4 mm² / 20 - 10
Degree of protection / Protection class IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection IP20 / I, with PE connection
> 1871000 h > 1337000 h > 1168000 h
) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
ype test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
10 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL Listed UL 508 , UL/C-UL Recognized UL 60950
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
TRIO-PS/ 1AC/12DC/10 2866488 1TRIO-PS/ 1AC/48DC/ 5 2866491 1TRIO-PS/ 1AC/48DC/10 2866501 1
179PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 12 V DC, 10 A
Power supply,
1 AC, 48 V DC, 5 A
Power supply,
1 AC, 48 V DC, 10 A
H
W
D
H
W
D
N(-)
NC
NC
L(+)
DC OK
L
N
NC
13
24V
24V
14
0V
0V
Ex:
Ex:
Technical data Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240
Input voltage range AC/DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC
Frequency range 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz
Current consumption (nominal load) 0.65 A (120 V AC) / 0.25 A (230 V AC) 0.75 A (120 V AC) / 0.45 A (230 V AC) 0.7 A (120 V AC) /
Inrush current limitation at 25°C (typ.) / I2t < 15 A / 0.6 A2s < 15 A / 0.6 A2s
Mains buffering (IN, typ.) > 20 ms (120 V AC) / > 110 ms (230 V AC) > 35 ms (120 V AC) / > 150 ms (230 V AC) > 35 ms (120 V AC) / > 170 ms (230 V AC)
Output data
Nominal output voltage 24 V DC ±1% 24 V DC ±1%
Setting range of the output voltage 22.5 V DC ... 28.5 V DC (> 24 V constant capacity) -
Output current / POWER BOOST 1.3 A / 1.6 A 1.5 A / 2 A
Can be connected in parallel / series Yes / Yes Yes / No
Max. power dissipation (no load / nominal load) 0.9 W / 4.5 W 1.5 W / 6.5 W
Efficiency (typ.) > 85 % (for 230 V AC and nominal values) > 84 % (for 230 V AC and nominal values) > 88 % (for 230 V AC and nomin
Residual ripple < 20 mVPP < 40 mVPP
Signaling
Signaling DC OK LED, active switching output LED, relay contact
General data
Weight / Dimensions W x H x D 0.2 kg / 22.5 x 99 x 107 mm 0.25 kg / 35 x 99 x 95 mm 0.25 kg / 45 x 99 x 107 mm 0.4 kg / 67.5 x 99 x
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 m
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20
MTBF (EN 29500, 40°C) > 1104000 h > 2789000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C
Standards/regulations
Insulation voltage input/output 3 kV (Routine test) / 4 kV (type test) 3 kV (Routine test) / 4 kV (type test) 3 kV (Routine test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 609
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN V
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location) , NEC Class 2 as per UL 1310
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Limitation of harmonic line currents EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
MINI-PS-100-240AC/24DC/1.3 2866446 1MINI-SYS-PS-100-240AC/24DC/1.5 2866983 1
Accessories Accessories
DIN rail connector (optional), for routing through the supply volt-
age and data signal, two pieces are required per device
ME 17,5 TBUS 1,5/ 5-ST-3,81 GN 2709561 10
180 PHOENIX CONTACT
MINI POWER, 1 AC, 24 V DC
– Easy-to-maintain connection method
thanks to keyed COMBICON connector
– Remote monitoring of output voltage via
switching output
MINI POWER, 1.5 A
– Flat power supply units with a depth of
just 95 mm
– Optional: DIN rail connector for supply-
ing other modules
Per power supply:
2 x ME 17,5 TBUS 1,5/5-ST-3,82 GN
(Order No.: 2709561)
MINI POWER, 100 W
– Output power limited to 100 W: specifi-
cally for applications that require certifica-
tion according to UL 1310/508 Listed
Class 2
MINI POWER power supply units - for
measurement and control technology
Power supply units and UPS
Power supply units
Power supply,
1 AC, 24 V DC, 1.3 A
Power supply unit, 1 AC, 24 V DC, 1.5 A,
flat design, optional DIN rail connector
H
W
D
H
W
D
N(-)
NC
NC
L(+)
DC OK
L(+)
N(-)
DC OK
L(+)
N(-)
DC OK
For additional information, visit www.phoenixcontact.net/products
Ex:
Ex:
Ex:
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.65 A (120 V AC) / 0.25 A (230 V AC) 0.75 A (120 V AC) / 0.45 A (230 V AC) 0.7 A (120 V AC) / 0.4 A (230 V AC) 1.3 A (120 V AC) / 0.8 A (230 V AC) 1.3 A (120 V AC) / 0.8 A (230 V AC)
< 15 A / 4.1 A2s < 15 A / 2.1 A2s< 15 A / 2.1 A
2s
, typ.) > 20 ms (120 V AC) / > 110 ms (230 V AC) > 35 ms (120 V AC) / > 150 ms (230 V AC) > 35 ms (120 V AC) / > 170 ms (230 V AC) > 20 ms (120 V AC) / > 100 ms (230 V AC) > 20 ms (120 V AC) / > 100 ms (230 V AC)
24 V DC ±1% 24 V DC ±1% 24 V DC ±1%
22.5 V DC ... 28.5 V DC (> 24 V constant capacity) 22.5 V DC ... 26 V DC (> 24 V constant capacity) 22.5 V DC ... 28.5 V DC (> 24 V constant capacity)
2 A / 2.9 A 3.8 A 4 A / 5 A
Yes / Yes Yes / Yes Yes / Yes
2 W / 7 W 2.5 W / 12 W 2.5 W / 12 W
Efficiency (typ.) > 85 % (for 230 V AC and nominal values) > 84 % (for 230 V AC and nominal values) > 88 % (for 230 V AC and nominal values) > 88 % (for 230 V AC and nominal values) > 88 % (for 230 V AC and nominal values)
< 20 mVPP < 40 mVPP < 20 mVPP
LED, active switching output LED, active switching output LED, active switching output
/ 35 x 99 x 95 mm 0.25 kg / 45 x 99 x 107 mm 0.4 kg / 67.5 x 99 x 107 mm 0.4 kg / 67.5 x 99 x 107 mm
lly 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet)
> 507981 h > 815000 h > 815000 h
ting) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating)
st) 3 kV (Routine test) / 4 kV (type test) 3 kV (Routine test) / 4 kV (type test) 3 kV (Routine test) / 3 kV (type test) 3 kV (Routine test) / 3 kV (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
10 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location) , NEC Class 2 as per UL 1310
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location) , NEC Class 2 as per UL 1310
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
MINI-PS-100-240AC/24DC/2 2938730 1MINI-PS-100-240AC/24DC/C2LPS 2866336 1MINI-PS-100-240AC/24DC/4 2938837 1
Accessories Accessories Accessories
181PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 24 V DC, 2 A
Power supply,
1 AC, 24 V DC, 100 W
NEC Class 2
Power supply,
1 AC, 24 V DC, 4 A
H
W
D
H
W
D
N(-)
NC
NC
L(+)
Ex:
Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264
Frequency range 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.4 A (120 V AC) / 0.2 A (230 V AC) 0.4 A (120 V AC) / 0.2 A (230 V AC) 1.3 A (120 V AC) / 0.8
Inrush current limitation at 25°C (typ.) / I2t < 15 A / 1.5 A2s
Mains buffering (IN, typ.) > 30 ms (120 V AC) / > 140 ms (230 V AC) > 20 ms (120 V AC) / > 120 ms (230 V AC) > 20 ms (120 V AC) / > 20 ms (230 V AC) >
Output data
Nominal output voltage 5 V DC ±1%
Setting range of the output voltage 4.5 V DC ... 5.5 V DC (> 5 V constant capacity) 10 V DC ... 15 V DC (> 12 V constant capacity
Output current / POWER BOOST 3 A / 5 A
Can be connected in parallel / series Yes / Yes
Max. power dissipation (no load / nominal load) 1 W / 5 W
Efficiency (typ.) > 73 % (for 230 V AC and nominal values) > 86 %
Residual ripple < 40 mVPP
Signaling
Signaling DC OK LED
General data
Weight / Dimensions W x H x D 0.17 kg / 22.5 x 99 x 107 mm 0.25 kg
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 m
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20
MTBF (EN 29500, 40°C) > 500000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C
Standards/regulations
Insulation voltage input/output 3 kV (Routine test) / 4 kV (type test) 3 kV (Routine test) / 4 kV (type test) 3 kV (Routine test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-4
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Limitation of harmonic line currents EN 61000-3-2
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
MINI-PS-100-240AC/ 5DC/3 2938714 1
182 PHOENIX CONTACT
MINI POWER power supply units - for
measurement and control technology
MINI POWER, 1 AC, 5 to 15 V DC
– Easy-to-maintain connection method
thanks to keyed COMBICON connector
– Remote monitoring of output voltage via
switching output
MINI POWER, 5 and 10 - 15 V DC
– Adjustable output voltage of 4.5 to
5.5 V DC, or of 10 to 15 V DC
MINI POWER, ±15 V DC
– For supplying operational amplifiers
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 5 V DC, 3 A
N(-)
NC
NC
L(+)
L(+)
N(-)
DC OK
NC
NC
L(+)
N(-)
OV
OV
For additional information, visit www.phoenixcontact.net/products
Ex:
Ex:
Ex:
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.4 A (120 V AC) / 0.2 A (230 V AC) 0.4 A (120 V AC) / 0.2 A (230 V AC) 1.3 A (120 V AC) / 0.8 A (230 V AC) 0.6 A (120 V AC) / 0.4 A (230 V AC)
< 15 A / 1.7 A2s < 15 A / 2.1 A2s < 35 A / 4 A2s
, typ.) > 30 ms (120 V AC) / > 140 ms (230 V AC) > 20 ms (120 V AC) / > 120 ms (230 V AC) > 20 ms (120 V AC) / > 20 ms (230 V AC) > 30 ms (120 V AC) / > 150 ms (230 V AC)
12 V DC ±1% 12 V DC ±1% ± 15 V DC ±1%
Setting range of the output voltage 4.5 V DC ... 5.5 V DC (> 5 V constant capacity) 10 V DC ... 15 V DC (> 12 V constant capacity) 10 V DC ... 15 V DC (> 12 V constant capacity) -
2 A / 2.3 A 8 A / 6.6 A 1 A / 1.5 A
Yes / Yes Yes / Yes Yes / Yes
< 1 W / < 7 W < 2.5 W / < 12 W 2 W / 8 W
Efficiency (typ.) > 73 % (for 230 V AC and nominal values) > 86 % (for 230 V AC and nominal values) > 88 % (for 230 V AC and nominal values) > 80 % (for 230 V AC and nominal values)
< 20 mVPP < 40 mVPP < 30 mVPP
LED LED, active switching output LED
Weight / Dimensions W x H x D 0.17 kg / 22.5 x 99 x 107 mm 0.25 kg / 45 x 99 x 107 mm 0.4 kg / 67.5 x 99 x 107 mm 0.25 kg / 45 x 99 x 107 mm
50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet)
> 507000 h > 984000 h > 500000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating)
st) 3 kV (Routine test) / 4 kV (type test) 3 kV (Routine test) / 3 kV (type test) 3 kV (Routine test) / 4 kV (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location) , NEC Class 2 as per UL 1310
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
MINI-PS-100-240AC/10-15DC/2 2938756 1MINI-PS-100-240AC/10-15DC/8 2866297 1MINI-PS-100-240AC/2X15DC/1 2938743 1
183PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
H
W
D
H
W
D
Power supply,
1 AC, 10 - 15 V DC, 2 A
Power supply,
1 AC, 10 - 15 V DC, 8 A
Power supply,
1 AC, ±15 V DC, 1 A
+
-
L
N
N
L
+
+
–
–
Technical data Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240
Input voltage range AC/DC 85 V AC ... 264 V AC 85 V AC ... 264 V AC
Frequency range 45 Hz ... 65 Hz 45 Hz ... 65 Hz
Current consumption (nominal load) 0.5 A (120 V AC) / 0.3 A (230 V AC) 1 A (120 V AC) / 0.6 A (230 V AC) 1.7 A (120 V AC) / 1 A (2
Inrush current limitation at 25°C (typ.) / I2t < 20 A / < 0.4 A2s < 30 A / < 0.5 A2s
Mains buffering (IN, typ.) > 35 ms (120 V AC) / > 140 ms (230 V AC) > 20 ms (120 V AC) / > 85 ms (230 V AC) > 20 ms (120 V AC) / > 90 ms (230 V AC) >
Output data
Nominal output voltage 24 V DC ±1% 24 V DC ±1%
Output current 1.25 A 2.5 A
Can be connected in parallel / series yes, with redundancy module / Yes yes, with redundancy module / Yes yes, with redundancy mod
Max. power dissipation (no load / nominal load) < 0.3 W / < 5 W < 0.3 W / < 7 W
Efficiency (typ.) > 88 % > 90 %
Residual ripple < 60 mVPP < 30 mVPP
Signaling
Signaling DC OK LED LED
General data
Weight / Dimensions W x H x D 0.15 kg / 22.5 x 90 x 84 mm 0.2 kg / 35 x 90 x 84 mm 0.34 kg / 55 x 90 x 84 mm 0.15 kg / 22.5 x 90 x
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 m
Connection method Screw connection Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 m
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20
MTBF (EN 29500, 40°C) > 500000 h > 500000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C
Standards/regulations
Insulation voltage input/output 3 kV AC (routine test) / 4 kV AC (type test) 3 kV AC (routine test) / 4 kV AC (type test) 3 kV AC
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IE
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN V
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310
UL applied for
Limitation of harmonic line currents EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched, 1-phase
UNO-PS/1AC/24DC/30W 2902991 1UNO-PS/1AC/24DC/60W 2902992 1
184 PHOENIX CONTACT
– More space in the control cabinet with up
to 20% higher power density
– Height of housing is just 84mm, suitable
for all 120mm control cabinets
– Maximum energy efficiency: energy sav-
ings with over 90% efficiency and ex-
tremely low idling losses under 0.3W
UNO POWER power supply units -
compact basic functionality
Power supply units and UPS
Power supply units
Power supply, 1 AC, 24 DC, 30 W Power supply, 1 AC, 24 DC, 60 W Power supply, 1 AC, 24 DC, 100 W Power supply, 1 AC, 12 DC, 30 W Po
H
W
D
H
W
D
N
L
+
+
–
–
+
-
L
N
N
L
+
+
–
–
For additional information, visit www.phoenixcontact.net/products
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
85 V AC ... 264 V AC 85 V AC ... 264 V AC 85 V AC ... 264 V AC
45 Hz ... 65 Hz 45 Hz ... 65 Hz 45 Hz ... 65 Hz
Current consumption (nominal load) 0.5 A (120 V AC) / 0.3 A (230 V AC) 1 A (120 V AC) / 0.6 A (230 V AC) 1.7 A (120 V AC) / 1 A (230 V AC) 0.5 A (120 V AC) / 0.3 A (230 V AC) 1 A (120 V AC) / 0.6 A (230 V AC)
< 40 A / < 1.5 A2s < 30 A / < 0.6 A2s< 30 A / < 0.5 A
2s
, typ.) > 35 ms (120 V AC) / > 140 ms (230 V AC) > 20 ms (120 V AC) / > 85 ms (230 V AC) > 20 ms (120 V AC) / > 90 ms (230 V AC) > 20 ms (120 V AC) / > 120 ms (230 V AC) > 25 ms (120 V AC) / > 125 ms (230 V AC)
24 V DC ±1% 12 V DC ±1% 12 V DC ±1%
4.2 A 2.5 A 4.6 A
Can be connected in parallel / series yes, with redundancy module / Yes yes, with redundancy module / Yes yes, with redundancy module / Yes yes, with redundancy module / Yes yes, with redundancy module / Yes
< 0.5 W / < 11 W < 0.3 W / < 5.6 W < 0.3 W / < 8 W
> 90 % > 87 % > 90 %
< 30 mVPP < 30 mVPP < 30 mVPP
LED LED LED
Weight / Dimensions W x H x D 0.15 kg / 22.5 x 90 x 84 mm 0.2 kg / 35 x 90 x 84 mm 0.34 kg / 55 x 90 x 84 mm 0.15 kg / 22.5 x 90 x 84 mm 0.2 kg / 35 x 90 x 84 mm
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically
Screw connection Screw connection Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet)
> 500000 h > 500000 h > 500000 h
) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
ype test) 3 kV AC (routine test) / 4 kV AC (type test) 3 kV AC (routine test) / 4 kV AC (type test) 3 kV AC (routine test) / 4 kV AC (type test) 3 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
10 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL applied for UL applied for UL applied for
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UNO-PS/1AC/24DC/100W 2902993 1UNO-PS/1AC/12DC/30W 2902998 1UNO-PS/1AC/12DC/55W 2902999 1
185PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
Power supply, 1 AC, 24 DC, 30 W Power supply, 1 AC, 24 DC, 60 W Power supply, 1 AC, 24 DC, 100 W Power supply, 1 AC, 12 DC, 30 W Power supply, 1 AC, 12 DC, 55 W
H
W
D
H
W
D
+
-
L
N(-)
(+)
Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 48 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264
Frequency range 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.28 A (120 V AC) / 0.13 A (230 V AC) 0.3 A (120 V AC) / 0.25 A (230 V AC) 0.3 A (120 V AC) / 0
Inrush current limitation at 25°C (typ.) / I2t< 15 A / < 0.1 A
2s
Mains buffering (IN, typ.) > 15 ms (120 V AC) / > 90 ms (230 V AC) > 15 ms (120 V AC) / > 70 ms (230 V AC) > 15 ms (120 V AC) / > 70 ms (230 V AC) > 1
Output data
Nominal output voltage 24 V DC ±1%
Output current 0.5 A
Can be connected in parallel / series Yes / Yes
Max. power dissipation (no load / nominal load) < 0.3 W / < 2.2 W
Efficiency (typ.) > 84 % (for 230 V AC and nominal values) > 84 %
Residual ripple < 20 mVPP
Signaling
Signaling DC OK LED
General data
Weight / Dimensions W x H x D 0.07 kg / 18 x 90 x 61 mm 0.11 kg /
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 m
Connection method Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 m
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20
MTBF (EN 29500, 40°C) > 1567000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C
Standards/regulations
Insulation voltage input/output 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-4
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310
Limitation of harmonic line currents EN 61000-3-2
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
STEP-PS/ 1AC/24DC/0.5 2868596 1
186 PHOENIX CONTACT
STEP POWER - power supply units
for distributor boards and flat control
panels
STEP POWER, 1 AC, 24 V DC
– Flexible assembly by simply snapping the
product onto the DIN rail or screwing it
onto an even surface
– Energy savings thanks to maximum ener-
gy efficiency and incredibly low no-load
losses
– Wide temperature range from -25°C to
+70°C
– Reliable power supply thanks to the high
MTBF (mean time between failures) of
more than 500,000 hours and the UI char-
acteristic curve
STEP POWER, 24 V DC, 0.5 A
– Slim design with a design width of just
18 mm (1 pitch)
STEP POWER, 24 V DC, 0.75 A
– Flat design with a depth of just 43 mm
STEP POWER, 48 V AC, 0.5 A
– Connection to 48 V AC operating net-
works
– Slim design with a design width of just
18 mm (1 pitch)
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 24 V DC, 0.5 A
N(-)
L(+)
+
+
–
–
N(-)
L(+)
+
+
–
–
+
-
L
N(-)
(+)
For additional information, visit www.phoenixcontact.net/products
Ex: BSH
Ex:
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 48 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 43 V AC ... 52 V AC / 60 V DC ... 80 V DC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.28 A (120 V AC) / 0.13 A (230 V AC) 0.3 A (120 V AC) / 0.25 A (230 V AC) 0.3 A (120 V AC) / 0.2 A (230 V AC) 0.5 A (43 V AC) / 0.45 A (48 V AC)
< 15 A / < 0.1 A2s< 15 A / < 0.1 A
2s < 10 A / < 0.1 A2s
, typ.) > 15 ms (120 V AC) / > 90 ms (230 V AC) > 15 ms (120 V AC) / > 70 ms (230 V AC) > 15 ms (120 V AC) / > 70 ms (230 V AC) > 15 ms (48 V AC) / > 20 ms (52 V AC)
24 V DC ±1% 24 V DC ±1% 24 V DC ±1%
0.75 A 0.75 A 0.5 A
Yes / Yes Yes / Yes Yes / Yes
< 0.5 W / < 3.6 W < 0.5 W / 3.6 W < 0.3 W / < 3.4 W
Efficiency (typ.) > 84 % (for 230 V AC and nominal values) > 84 % (for 230 V AC and nominal values) > 84 % (for 230 V AC and nominal values) > 81 % (for 48 VAC and nominal values)
< 75 mVPP < 75 mVPP < 30 mVPP
LED LED LED
Weight / Dimensions W x H x D 0.07 kg / 18 x 90 x 61 mm 0.11 kg / 36 x 90 x 43 mm 0.11 kg / 36 x 90 x 61 mm 0.07 kg / 18 x 90 x 61 mm
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically
Screw connection Screw connection Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet)
> 926000 h > 926000 h > 1860000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310 , UL ANSI/ISA-12.12.01 Class I,
Division 2, Groups A, B, C, D (Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310 , UL ANSI/ISA-12.12.01 Class I,
Division 2, Groups A, B, C, D (Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
STEP-PS/ 1AC/24DC/0.75/FL 2868622 1STEP-PS/ 1AC/24DC/0.75 2868635 1STEP-PS/48AC/24DC/0.5 2868716 1
187PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
H
W
D
H
W
D
Power supply,
1 AC, 24 V DC, 0.75 A,
flat design
Power supply,
1 AC, 24 V DC, 0.75 A
Power supply,
48 V AC, 24 V DC, 0.5 A
N(-)
L(+)
+
+
–
–
BSH
Ex:
Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264
Frequency range 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.6 A (120 V AC) / 0.3 A (230 V AC) 0.8 A (120 V AC) / 0.4 A (230 V AC) 1.3 A (120 V AC) / 0.8
Inrush current limitation at 25°C (typ.) / I2t< 15 A / < 0.6 A
2s
Mains buffering (IN, typ.) > 25 ms (120 V AC) / > 150 ms (230 V AC) > 20 ms (120 V AC) / > 100 ms (230 V AC) > 25 ms (120 V AC) / > 120 ms (230 V AC)
Output data
Nominal output voltage 24 V DC ±1%
Setting range of the output voltage 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant c
Output current 1.75 A
Can be connected in parallel / series Yes / Yes
Max. power dissipation (no load / nominal load) < 0.7 W / 5 W
Efficiency (typ.) > 89 % (for 230 V AC and nominal values) > 86 %
Residual ripple < 60 mVPP
Signaling
Signaling DC OK LED
General data
Weight / Dimensions W x H x D 0.19 kg / 54 x 90 x 61 mm 0.27 kg /
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 m
Connection method Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 m
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20
MTBF (EN 29500, 40°C) > 1569000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C
Standards/regulations
Insulation voltage input/output 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-4
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310 , UL ANSI/ISA-12.12.01 Class I,
Division 2, Groups A, B, C, D (Hazardous Location)
Limitation of harmonic line currents EN 61000-3-2
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
STEP-PS/ 1AC/24DC/1.75 2868648 1
188 PHOENIX CONTACT
STEP POWER - power supply units
for distributor boards and flat control
panels
STEP POWER, 1 AC, 24 V DC
– Flexible assembly by simply snapping the
product onto the DIN rail or screwing it
onto an even surface
– Energy savings thanks to maximum ener-
gy efficiency and incredibly low no-load
losses
– Wide temperature range from -25°C to
+70°C
– Reliable power supply thanks to the high
MTBF (mean time between failures) of
more than 500,000 hours and the UI char-
acteristic curve
– Adjustable output voltage of 22.5 to
29.5 VDC
STEP POWER, 100 W
– Output power limited to 100 W: specifi-
cally for applications that require certifica-
tion according to UL 1310/508 Listed
Class 2
– Approved for DeviceNet™
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 24 V DC, 1.75 A
N(-)
L(+)
+
+
–
–
N(-)
L(+)
+
+
–
–
N(-)
L(+)
+
+
–
–
For additional information, visit www.phoenixcontact.net/products
BSH
Ex:
Ex: BSH
Ex:
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.6 A (120 V AC) / 0.3 A (230 V AC) 0.8 A (120 V AC) / 0.4 A (230 V AC) 1.3 A (120 V AC) / 0.8 A (230 V AC) 1.3 A (120 V AC) / 0.8 A (230 V AC)
< 15 A / < 0.6 A2s< 15 A / < 1 A
2s < 15 A / < 1 A2s
, typ.) > 25 ms (120 V AC) / > 150 ms (230 V AC) > 20 ms (120 V AC) / > 100 ms (230 V AC) > 25 ms (120 V AC) / > 120 ms (230 V AC) > 20 ms (120 V AC) / > 100 ms (230 V AC)
24 V DC ±1% 24 V DC ±1% 24 V DC ±1%
Setting range of the output voltage 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant capacity) 22.5 V DC ... 25 V DC (> 24 V constant capacity) 22.5 V DC ... 29.5 V DC (> 24 V constant capacity)
2.5 A 3.8 A 4.2 A
Yes / Yes No / No Yes / Yes
< 0.7 W / 9.9 W < 0.7 W / 11.8 W < 0.7 W / 13.2 W
Efficiency (typ.) > 89 % (for 230 V AC and nominal values) > 86 % (for 230 V AC and nominal values) > 88 % (for 230 V AC and nominal values) > 88 % (for 230 V AC and nominal values)
< 80 mVPP < 80 mVPP < 40 mVPP
LED LED LED
Weight / Dimensions W x H x D 0.19 kg / 54 x 90 x 61 mm 0.27 kg / 72 x 90 x 61 mm 0.33 kg / 90 x 90 x 61 mm 0.33 kg / 90 x 90 x 61 mm
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically
Screw connection Screw connection Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet)
> 1061000 h > 897000 h > 897498 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310 , UL ANSI/ISA-12.12.01 Class I,
Division 2, Groups A, B, C, D (Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310 , UL ANSI/ISA-12.12.01 Class I,
Division 2, Groups A, B, C, D (Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
STEP-PS/ 1AC/24DC/2.5 2868651 1STEP-PS/ 1AC/24DC/3.8/C2LPS 2868677 1STEP-PS/ 1AC/24DC/4.2 2868664 1
189PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
H
W
D
H
W
D
Power supply,
1 AC, 24 V DC, 2.5 A
Power supply,
1 AC, 24 V DC, 100 W
NEC Class 2
Power supply,
1 AC, 24 V DC, 4.2 A
+
-
L
N(-)
(+)
Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264
Frequency range 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.2 A (120 V AC) / 0.13 A (230 V AC) 0.5 A (120 V AC) / 0.3 A (230 V AC) 0.8 A (120 V AC) / 0.5
Inrush current limitation at 25°C (typ.) / I2t< 15 A / < 0.1 A
2s
Mains buffering (IN, typ.) > 20 ms (120 V AC) / > 100 ms (230 V AC) > 25 ms (120 V AC) / > 140 ms (230 V AC) > 27 ms (120 V AC) / > 120 ms (230 V AC)
Output data
Nominal output voltage 5 V DC ±1%
Setting range of the output voltage -
Output current 2 A
Can be connected in parallel / series Yes / Yes
Max. power dissipation (no load / nominal load) < 0.4 W / < 2.7 W
Efficiency (typ.) > 80 % (for 230 V AC and nominal values) > 80 %
Residual ripple < 20 mVPP
Signaling
Signaling DC OK LED
General data
Weight / Dimensions W x H x D 0.07 kg / 18 x 90 x 61 mm 0.27 kg /
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 m
Connection method Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 m
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20
MTBF (EN 29500, 40°C) > 500000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C
Standards/regulations
Insulation voltage input/output 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-4
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310
Limitation of harmonic line currents EN 61000-3-2
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched, 1-phase
STEP-PS/ 1AC/5DC/2 2320513 1
190 PHOENIX CONTACT
STEP POWER - power supply units
for distributor boards and flat control
panels
STEP POWER, 1 AC, 5 to 48 V DC
– Flexible assembly by simply snapping the
product onto the DIN rail or screwing it
onto an even surface
– Energy savings thanks to maximum ener-
gy efficiency and incredibly low no-load
losses
– Wide temperature range from -25°C to
+70°C
– Reliable power supply thanks to the high
MTBF (mean time between failures) of
more than 500,000 hours and the UI char-
acteristic curve
STEP POWER, 5 V DC, 2 A
– Slim design with a design width of just
18 mm (1 pitch)
STEP POWER, 5 V DC, 6.5 A
– Adjustable output voltage of 4 to
6.5 V DC
STEP POWER, 15 V DC, 4 A
– Adjustable output voltage of 10 to
16.5 V DC
STEP POWER, 48 V DC, 2 A
– Adjustable output voltage of 30 to
56 V DC
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 5 V DC, 2 A
N(-)
L(+)
+
+
–
–
N(-)
L(+)
+
+
–
–
N(-)
L(+)
+
+
–
–
For additional information, visit www.phoenixcontact.net/products
Ex:
Ex:
Ex:
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.2 A (120 V AC) / 0.13 A (230 V AC) 0.5 A (120 V AC) / 0.3 A (230 V AC) 0.8 A (120 V AC) / 0.5 A (230 V AC) 1.3 A (120 V AC) / 0.8 A (230 V AC)
< 15 A / < 0.6 A2s< 15 A / < 0.6 A
2s < 15 A / < 1.4 A2s
, typ.) > 20 ms (120 V AC) / > 100 ms (230 V AC) > 25 ms (120 V AC) / > 140 ms (230 V AC) > 27 ms (120 V AC) / > 120 ms (230 V AC) > 20 ms (120 V AC) / > 120 ms (230 V AC)
5 V DC ±1% 15 V DC ±1% 48 V DC ±1%
4 V DC ... 6.5 V DC (> 5 V constant capacity) 10 V DC ... 16.5 V DC (> 15 V constant capacity) 30 V DC ... 56 V DC (> 48 V constant capacity)
6.5 A 4 A 2 A
Yes / Yes Yes / Yes Yes / Yes
< 0.4 W / 8.1 W < 0.5 W / 8.6 W < 0.9 W / 9.6 W
Efficiency (typ.) > 80 % (for 230 V AC and nominal values) > 80 % (for 230 V AC and nominal values) > 87 % (for 230 V AC and nominal values) > 90 % (for 230 V AC and nominal values)
< 50 mVPP < 55 mVPP < 30 mVPP
LED LED LED
Weight / Dimensions W x H x D 0.07 kg / 18 x 90 x 61 mm 0.27 kg / 72 x 90 x 61 mm 0.27 kg / 72 x 90 x 61 mm 0.33 kg / 90 x 90 x 61 mm
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically
Screw connection Screw connection Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet)
> 1111000 h > 1134000 h > 1048000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
STEP-PS/ 1AC/ 5DC/6.5 2868541 1STEP-PS/ 1AC/15DC/4 2868619 1STEP-PS/ 1AC/48DC/2 2868680 1
191PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
H
W
D
H
W
D
Power supply,
1 AC, 5 V DC, 6.5 A
Power supply,
1 AC, 15 V DC, 4 A
Power supply,
1 AC, 48 V DC, 2 A
+
-
L
N(-)
(+)
N(-)
L(+)
+
+
–
–
Ex:
Technical data Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240
Input voltage range AC/DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264
Frequency range 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.26 A (120 V AC) / 0.13 A (230 V AC) 0.33 A (120 V AC) / 0.18 A (230 V AC) 0.3 A (120 V AC) /
Inrush current limitation at 25°C (typ.) / I2t < 15 A / < 0.1 A2s < 15 A / < 0.1 A2s
Mains buffering (IN, typ.) > 15 ms (120 V AC) / > 90 ms (230 V AC) > 15 ms (120 V AC) / > 70 ms (230 V AC) > 15 ms (120 V AC) / > 70 ms (230 V AC) > 2
Output data
Nominal output voltage 12 V DC ±1% 12 V DC ±1%
Setting range of the output voltage - -
Output current 1 A 1.5 A
Can be connected in parallel / series Yes / Yes Yes / Yes
Max. power dissipation (no load / nominal load) < 0.4 W / < 2.8 W < 0.4 W / < 3.2 W
Efficiency (typ.) > 83 % (for 230 V AC and nominal values) > 84 % (for 230 V AC and nominal values) > 84 % (for 230 V AC and nomin
Residual ripple < 20 mVPP < 75 mVPP
Signaling
Signaling DC OK LED LED
General data
Weight / Dimensions W x H x D 0.07 kg / 18 x 90 x 61 mm 0.07 kg / 36 x 90 x 43 mm 0.11 kg / 36 x 90 x 61 mm 0.19 kg / 54 x 90 x 61
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 m
Connection method Screw connection Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 m
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20
MTBF (EN 29500, 40°C) > 1478000 h > 1800000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C
Standards/regulations
Insulation voltage input/output 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IE
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN V
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310 , UL ANSI/ISA-12.12.01 Class I,
Division 2, Groups A, B, C, D (Hazardous Location)
Limitation of harmonic line currents EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
STEP-PS/ 1AC/12DC/1 2868538 1STEP-PS/ 1AC/12DC/1.5/FL 2868554 1
192 PHOENIX CONTACT
STEP POWER, 1 AC, 12 V DC
– Flexible assembly by simply snapping the
product onto the DIN rail or screwing it
onto an even surface
– Energy savings thanks to maximum ener-
gy efficiency and incredibly low no-load
losses
– Wide temperature range from -25°C to
+70°C
– Reliable power supply thanks to the high
MTBF (mean time between failures) of
more than 500,000 hours and the UI char-
acteristic curve
STEP POWER - power supply units
for distributor boards and flat control
panels
Power supply units and UPS
Power supply units
Power supply,
1 AC, 12 V DC, 1 A
Power supply,
1 AC, 12 V DC, 1.5 A,
flat design
H
W
D
H
W
D
N(-)
L(+)
+
+
–
–
N(-)
L(+)
+
+
–
–
N(-)
L(+)
+
+
–
–
For additional information, visit www.phoenixcontact.net/products
Ex:
Ex:
Ex:
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC 85 V AC ... 264 V AC / 95 V DC ... 250 V DC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 0.26 A (120 V AC) / 0.13 A (230 V AC) 0.33 A (120 V AC) / 0.18 A (230 V AC) 0.3 A (120 V AC) / 0.2 A (230 V AC) 0.6 A (120 V AC) / 0.3 A (230 V AC) 0.8 A (120 V AC) / 0.5 A (230 V AC)
< 15 A / < 0.1 A2s < 15 A / < 0.6 A2s< 15 A / < 0.6 A
2s
, typ.) > 15 ms (120 V AC) / > 90 ms (230 V AC) > 15 ms (120 V AC) / > 70 ms (230 V AC) > 15 ms (120 V AC) / > 70 ms (230 V AC) > 26 ms (120 V AC) / > 160 ms (230 V AC) > 27 ms (120 V AC) / > 120 ms (230 V AC)
12 V DC ±1% 12 V DC ±1% 12 V DC ±1%
- 10 V DC ... 16.5 V DC (> 12 V constant capacity) 10 V DC ... 16.5 V DC (> 12 V constant capacity)
1.5 A 3 A 5 A
Yes / Yes Yes / Yes Yes / Yes
< 0.4 W / < 3.2 W < 0.5 W / 6.4 W < 0.5 W / 8.6 W
Efficiency (typ.) > 83 % (for 230 V AC and nominal values) > 84 % (for 230 V AC and nominal values) > 84 % (for 230 V AC and nominal values) > 85 % (for 230 V AC and nominal values) > 87 % (for 230 V AC and nominal values)
< 75 mVPP < 40 mVPP < 55 mVPP
LED LED LED
Weight / Dimensions W x H x D 0.07 kg / 18 x 90 x 61 mm 0.07 kg / 36 x 90 x 43 mm 0.11 kg / 36 x 90 x 61 mm 0.19 kg / 54 x 90 x 61 mm 0.27 kg / 72 x 90 x 61 mm
Spacing when mounting Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically Alignable: 0 mm horizontally, 30 mm vertically
Screw connection Screw connection Screw connection
Connection data solid / stranded / AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet)
> 1800000 h > 1689000 h > 1134000 h
) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test) 3.75 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
10 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310 , UL ANSI/ISA-12.12.01 Class I,
Division 2, Groups A, B, C, D (Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
NEC Class 2 as per UL 1310 , UL ANSI/ISA-12.12.01 Class I,
Division 2, Groups A, B, C, D (Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
STEP-PS/ 1AC/12DC/1.5 2868567 1STEP-PS/ 1AC/12DC/3 2868570 1STEP-PS/ 1AC/12DC/5 2868583 1
193PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
Power supply,
1 AC, 12 V DC, 1.5 A
Power supply,
1 AC, 12 V DC, 3 A
Power supply,
1 AC, 12 V DC, 5 A
H
W
D
H
W
D
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
Ex: -
Ex:
Technical data Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 3x 400 V AC ... 500 V AC 100 V AC ...
Input voltage range AC/DC 85 V AC ... 264 V AC / 90 V DC ... 430 V DC 85 V AC ... 264 V AC / 90 V DC ... 430 V DC 85 V AC ... 264
Frequency range 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz
Current consumption (nominal load) 1.2 A (120 V AC) / 0.6 A (230 V AC) 2.24 A (120 V AC) / 1.33 A (230 V AC) 5.1 A (120 V AC) / 2.
Inrush current limitation at 25°C (typ.) / I2t < 15 A / < 1 A2s < 15 A / < 1.5 A2s
Mains buffering (IN, typ.) > 25 ms (120 V AC) / > 25 ms (230 V AC) > 27 ms (120 V AC) / > 31 ms (230 V AC) > 20 ms (120 V AC) / > 20 ms (230 V AC) > 1
Output data
Nominal output voltage 24 V DC ±1% 24 V DC ±1%
Setting range of the output voltage 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) -
Output current / POWER BOOST / SFB (12 ms) 5 A / 7.5 A / 30 A 10 A / 15 A / 60 A
Magnetic fuse tripping B2 , B4 , C2 B2 , B4 , B6 , C2 , C4
Can be connected in parallel / series Yes / Yes Yes / Yes
Max. power dissipation (no load / nominal load) 3 W / 15 W 9.1 W / 22 W
Efficiency (typ.) > 90 % (for 230 V AC and nominal values) > 92.5 % (for 230 V AC and nominal values) > 93 % (for 230 V AC and nom
Residual ripple < 40 mVPP < 50 mVPP
Signaling
Signaling DC OK LED, active switching output, relay contact LED, active switching output, relay contact LED, active switching outp
Boost signaling LED, active switching output LED, active switching output LED, active switching outp
General data
Weight / Dimensions W x H x D 0.7 kg / 40 x 130 x 125 mm 1.1 kg / 60 x 130 x 125 mm 1.7 kg / 90 x 130 x 125 mm 1.5 kg / 69 x 130 x
Spacing when mounting Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Plug-in screw connection Screw connection Screw connection Plug-in screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 -
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 -
Degree of protection / Protection class IP20 / I IP20 / I
MTBF (EN 29500, 40°C) > 635000 h > 535000 h
Ambient temperature (operation) -40 °C ... 70 °C (ATEX/IECEx: -25°C ... +60°C) -40 °C ... 70 °C (ATEX/IECEx: -25°C ... +60°C) -25
Standards/regulations
Insulation voltage input/output 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) EN
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN V
Rail applications EN 50121-4 / EN 50155 EN 50121-4 / EN 50155 EN 50121-4 / EN 50155 EN 50121-4 / EN 50155 -
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Limitation of harmonic line currents EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply unit, primary-switched
QUINT-PS/ 1AC/24DC/ 5/CO 2320908 1QUINT-PS/ 1AC/24DC/10/CO 2320911 1
194 PHOENIX CONTACT
QUINT POWER, dip-coated
With ATEX approval for maximum sys-
tem availability under extreme ambient con-
ditions, such as dust, dirt, corrosive gases,
and 100% humidity
– Complies with standard EN 60079-15 and
may be installed in a potentially explosive
area.
– They are suitable for use in Class I, Divi-
sion 2, Groups A, B, C, D
MINI POWER EX
Corresponds to standard EN 60079-15
– Installation within potentially explosive
area in which category 3G items are nec-
essary
Notes:
MINI-PS...: DIN rail connector (optional), for routing through the
supply voltage and data signal, two required per device (ME 17,5
TBUS 1,5/5-ST-3,81 GN, 2709561).
Power supply units for extreme ambi-
ent conditions
Power supply units and UPS
Power supply units
Power supply,
dip-coated,
1 AC, 24 V DC, 5 A
Power supply,
dip-coated,
1 AC, 24 V DC, 10 A
13
I < IN
DC OK
14
L (+)
N (-)
active
PFC
L1 (+)
L2
L3 (-)
13
I < IN
DC OK
14
L
N
NC
13
24V
24V
14
0V
0V
For additional information, visit www.phoenixcontact.net/products
Ex:
Technical data Technical data Technical data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC 100 V AC ... 240 V AC 3x 400 V AC ... 500 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 90 V DC ... 430 V DC 85 V AC ... 264 V AC / 90 V DC ... 430 V DC 85 V AC ... 264 V AC / 90 V DC ... 350 V DC 320 V AC ... 575 V AC / 450 V DC ... 800 V DC 85 V AC ... 264 V AC
45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz / 0 Hz 45 Hz ... 65 Hz
Current consumption (nominal load) 1.2 A (120 V AC) / 0.6 A (230 V AC) 2.24 A (120 V AC) / 1.33 A (230 V AC) 5.1 A (120 V AC) / 2.3 A (230 V AC) 3x 1.6 A (400 V AC) / 3x 1.3 A (500 V AC) 0.75 A (120 V AC) / 0.45 A (230 V AC)
< 20 A / < 3.2 A2s < 20 A / < 3.2 A2s< 15 A / 0.6 A
2s
, typ.) > 25 ms (120 V AC) / > 25 ms (230 V AC) > 27 ms (120 V AC) / > 31 ms (230 V AC) > 20 ms (120 V AC) / > 20 ms (230 V AC) > 15 ms (400 V AC) / > 25 ms (500 V AC) > 20 ms (120 V AC) / > 100 ms (230 V AC)
24 V DC ±1% 24 V DC ±1% 24 V DC ±1%
ity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) -
20 A / 26 A / 120 A 20 A / 26 A / 120 A 1.5 A / 2 A
B2 , B4 , B6 , B10 , B16 , C2 , C4 , C6 B2 , B4 , B6 , B10 , B16 , C2 , C4 , C6 -
Yes / Yes Yes / Yes Yes / Yes
8 W / 40 W 11 W / 40 W 2.5 W / 12 W
Efficiency (typ.) > 90 % (for 230 V AC and nominal values) > 92.5 % (for 230 V AC and nominal values) > 93 % (for 230 V AC and nominal values) > 93 % (at 400 V AC and nominal values) > 84 % (for 230 V AC and nominal values)
< 30 mVPP < 40 mVPP < 40 mVPP
active switching output, relay contact LED, active switching output, relay contact LED, active switching output, relay contact LED, relay contact
output LED, active switching output LED, active switching output -
Weight / Dimensions W x H x D 0.7 kg / 40 x 130 x 125 mm 1.1 kg / 60 x 130 x 125 mm 1.7 kg / 90 x 130 x 125 mm 1.5 kg / 69 x 130 x 125 mm 0.25 kg / 35 x 99 x 95 mm
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Can be aligned: Horizontally 0 mm, vertically 50 mm
Connection method Plug-in screw connection Plug-in screw connection Screw connection Screw connection Plug-in screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
- 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 18 - 10 0.5 - 16 mm² / 0.5 - 10 mm² / 20 - 6
IP20 / I IP20 / I IP20 / II (in an enclosed control cabinet)
> 520000 h > 534000 h > 2789000 h
5°C ... +60°C) -40 °C ... 70 °C (ATEX/IECEx: -25°C ... +60°C) -25 °C ... 70 °C (> 60 °C derating) -40 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating)
ype test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 2 kV AC (routine test) / 4 kV AC (type test) 3 kV AC (routine test) / 4 kV AC (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
10 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010 DIN VDE 0100-410 , DIN VDE 0106-1010
Rail applications EN 50121-4 / EN 50155 EN 50121-4 / EN 50155 EN 50121-4 / EN 50155 EN 50121-4 / EN 50155 -
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
EN 61000-3-2 EN 61000-3-2 EN 61000-3-2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-PS/ 1AC/24DC/20/CO 2320898 1QUINT-PS/ 3AC/24DC/20/CO 2320924 1MINI-PS-100-240AC/24DC/1.5/EX 2866653 1
195PHOENIX CONTACT
Power supply units and UPS
Power supply units
H
W
D
Power supply,
dip-coated,
1 AC, 24 V DC, 20 A
Power supply,
dip-coated,
3 AC, 24 V DC, 20 A
Power supply
1 AC, 24 DC, 1.5 A
DIN rail connector optional
H
W
D
H
W
D
196 PHOENIX CONTACT
Power supply units and UPS
DC/DC converters
QUINT and MINI DC/DC converters
alter the voltage level, regenerate the
voltage at the end of long cables, or
enable the creation of independent
supply systems by means of electrical
isolation.
There are numerous fields of application
for DC/DC converters. As the name sug-
gests, they convert voltages in order to
match different voltage levels to one anoth-
er. On long supply lines, they raise the volt-
age to compensate for voltage drops.
DC/DC converters separate circuits from
each other using electrical isolation and pro-
tect the sensitive loads by decoupling them.
The primary-switched switching devices
have an internal intermediate circuit. This
acts as a filter. This means, for example, that
grounded and ungrounded circuits can be
kept separate. A further advantage is the
protection of critical loads from damaging
voltage fluctuations: if, for example, a motor
is switched on that requires a higher current
for the starting torque, there is a short volt-
age dip. The same occurs when loads with
high input capacities are switched on. Trou-
bleshooting these temporary faults is often
difficult and time-consuming.
DC/DC converters are also ideal in bat-
tery-supported power supply networks or
solutions with unregulated transformers,
when sensitive loads require a stable DC.
QUINT POWER for maximum sys-
tem availability
Cost-effective selective fuse protection
with SFB technology:
In order to trip standard circuit breakers
magnetically and quickly, power supply units
must be able to supply several times the
nominal current for a short period. With
SFB (Selective Fuse Breaking) technology,
which supplies up to 6 times the nominal
current for 12ms, a dynamic power reserve
is available. Faulty current paths are selec-
tively switched off, the fault is isolated, and
important system components remain op-
erational.
Preventive function monitoring:
Comprehensive diagnostics are provided
through constant monitoring of the output
voltage and current. This constant, preven-
tive monitoring of input voltage, output
voltage, and output current visualizes criti-
cal operating states before errors can occur.
Remote monitoring is provided by means of
active switching outputs and floating relay
contacts.
POWER BOOST power reserve:
The static power reserve offers up to 1.25
times the nominal current permanently. At
ambient temperatures of up to +40°C the
POWER BOOST is continuously available
and at higher temperatures, it is available for
a few minutes. This ensures that both high
inrush currents of capacitive loads, as well as
loads with DC/DC converters in the prima-
ry circuit, can be reliably supplied.
For additional information, visit www.phoenixcontact.net/products
197PHOENIX CONTACT
Power supply units and UPS
DC/DC converters
For maximum system availability
The unique SFB technology and preven-
tive function monitoring maximize the avail-
ability of your application.
– Quick tripping of the standard power cir-
cuit breakers
– Preventive function monitoring
– Reliable starting of heavy loads
Maximum system availability with
SFB technology
SFB technology using a frayed display ca-
ble as an example:
– The fuse triggers immediately, the lower
lever display is dark.
– The controller, sensors, and actuators
continue to operate without interruption.
– Production continues.
MINI DC/DC converter - for control
technology
MINI DC/DC converters come into their
own in fields where modular electronics
housing has become the standard.
– Service-friendly connection technology
with COMBICON encoded plug-in con-
nectors
– Active function monitoring with switching
output for remote monitoring of the out-
put voltage
Voltage levels of QUINT DC/DC con-
verters
The QUINT DC/DC converters alter the
voltage level:
– Input voltages: 12 V DC, 24 V DC,
48 V DC
– Output voltages: 12 V DC, 24 V DC,
48 V DC
Voltage levels of MINI DC/DC con-
verters
The MINI DC/DC converters alter the
voltage level:
– Input voltages: 12 V DC, 24 V DC,
48 V DC
– Output voltages: 5...15 V DC, 24 V DC,
48 V DC
TRIO for frequency inverters
– Direct connection to the 600 V DC inter-
mediate circuit of a frequency inverter
– Mains failure: 24 V loads continue to be
supplied using the kinetic energy of the
motor. In this case, the motors act as gen-
erators and supply energy to the interme-
diate circuit.
Details about this product can be found
on page 178
DC OK
U >19,2 V
IN
I<IN
++
+
-
-
-
-
DCOK
U>19,2V
IN
I<IN
13
14
++
+
-
-
-
-
-
Ex: -
Ex:
Technical data Technical data
Input data
Nominal input voltage 24 V DC 24 V DC
DC input voltage range 18 V DC ... 32 V DC 18 V DC ... 32 V DC
Current consumption (POWERBOOST) 7 A (24 V DC) 14 A (24 V DC)
Inrush current limitation at 25°C (typ.) / I2t < 15 A / < 0.5 A2s < 15 A / < 2.7 A2s
Mains buffering (IN, typ.) > 10 ms (24 V DC) > 12 ms (24 V DC)
Output data
Nominal output voltage 24 V DC ±1% 24 V DC ±1%
Setting range of the output voltage 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 5 V DC ... 18 V DC (> 12 V constant capacity) 30 V DC ... 56 V DC (> 48 V co
Output current / POWER BOOST / SFB (12 ms) 5 A / 6.25 A / 30 A 10 A / 12.5 A / 60 A
Magnetic fuse tripping B2 , B4 , C2 B2 , B4 , B6 , C2 , C4
Can be connected in parallel / series Yes / Yes Yes / Yes
Max. power dissipation (no load / nominal load) 2.4 W / 11.4 W 1.6 W / 24 W
Efficiency (typ.) > 92 % > 92 %
Residual ripple < 20 mVPP < 20 mVPP
Signaling
Signaling DC OK LED, active switching output LED, active switching output, relay contact LED, active switching output, relay conta
Boost signaling LED, active switching output LED, active switching output LED, active switching outp
UIN signaling LED, active switching output LED, active switching output LED, active switching output LE
General data
Weight / Dimensions W x H x D 0.7 kg / 32 x 130 x 125 mm 0.9 kg / 48 x 130 x 125 mm 1.7 kg / 82 x 130 x 125 mm 0.7 kg / 32 x 130 x
Spacing when mounting Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Plug-in screw connection Screw connection Plug-in screw connection Plug-in screw connecti
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.5 - 1
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 -
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 -
Degree of protection / Protection class IP20 / III IP20 / III
MTBF (EN 29500, 40°C) > 890000 h > 763000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C
Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, no condensation) ≤ 95 % (at 25 °C, no condensation)
Standards/regulations
Insulation voltage input/output 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine te
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 609
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 DIN VDE 0100-410
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DC/DC converter, primary switched mode
QUINT-PS/24DC/24DC/ 5 2320034 1QUINT-PS/24DC/24DC/10 2320092 1
198 PHOENIX CONTACT
– Support conversion to various voltage
levels
– Constant voltage: output voltage regen-
erated even at the end of long cables
– Electrical isolation: for setting up inde-
pendent supply systems
– SFB technology: fast tripping of standard
circuit breakers, thanks to the dynamic
power reserve with up to 6 times the
nominal current for 12 ms
– Reliable starting of heavy loads thanks to
the static POWER BOOST power re-
serve with permanently up to 125% of the
nominal current
– Preventive function monitoring warns
against critical operating states before er-
rors occur
QUINT DC/DC converters, 24VDC
Power supply units and UPS
DC/DC converters
DC/DC converter,
24 V DC / 24 V DC, 5 A
DC/DC converter,
24 V DC / 24 V DC, 10 A
H
W
D
H
W
D
DCOK
U>19,2V
IN
I<IN
13
14
++
+
-
-
-
-
DC OK
U >19,2 V
IN
I<IN
++
+
-
-
-
-
DCOK
U>19,2V
IN
I<IN
13
14
++
+
-
-
-
-
For additional information, visit www.phoenixcontact.net/products
Ex: -
Ex: -
Ex:
Technical data Technical data Technical data
24 V DC 24 V DC 24 V DC
18 V DC ... 32 V DC 18 V DC ... 32 V DC 18 V DC ... 32 V DC
28 A (24 V DC) 6 A (24 V DC) 14 A (24 V DC)
< 26 A / < 11 A2s < 15 A / < 0.5 A2s< 15 A / 3 A
2s
> 10 ms (24 V DC) > 10 ms (24 V DC) > 12 ms (24 V DC)
24 V DC ±1% 12 V DC ±1% 48 V DC ±1%
ity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 5 V DC ... 18 V DC (> 12 V constant capacity) 30 V DC ... 56 V DC (> 48 V constant capacity)
20 A / 25 A / 120 A 8 A / 10 A / 48 A 5 A / 6.25 A / 30 A
B2 , B4 , B6 , B10 , B16 , C2 , C4 , C6 B2 , B4 , C2 B2 , B4 , C2
Yes / Yes Yes / Yes Yes / Yes
2.2 W / 39 W 2 W / 10.5 W 5.2 W / 21 W
> 93 % > 90 % > 92.5 %
< 20 mVPP < 20 mVPP < 20 mVPP
g output, relay contact LED, active switching output, relay contact LED, active switching output LED, active switching output, relay contact
output LED, active switching output LED, active switching output LED, active switching output
ut LED, active switching output LED, active switching output LED, active switching output
Weight / Dimensions W x H x D 0.7 kg / 32 x 130 x 125 mm 0.9 kg / 48 x 130 x 125 mm 1.7 kg / 82 x 130 x 125 mm 0.7 kg / 32 x 130 x 125 mm 0.9 kg / 48 x 130 x 125 mm
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Plug-in screw connection Screw connection Plug-in screw connection Plug-in screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
- 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
IP20 / III IP20 / III IP20 / III
> 554000 h > 843000 h > 461000 h
ting) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating)
≤ 95 % (at 25 °C, no condensation) ≤ 95 % (at 25 °C, no condensation) ≤ 95 % (at 25 °C, no condensation)
test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
DIN VDE 0100-410 DIN VDE 0100-410 DIN VDE 0100-410
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-PS/24DC/24DC/20 2320102 1QUINT-PS/24DC/12DC/ 8 2320115 1QUINT-PS/24DC/48DC/ 5 2320128 1
199PHOENIX CONTACT
Power supply units and UPS
DC/DC converters
H
W
D
DC/DC converter,
24 V DC / 24 V DC, 20 A
DC/DC converter,
24 V DC / 12 V DC, 8 A
DC/DC converter,
24 V DC / 48 V DC, 5 A
H
W
D
H
W
D
DC OK
U >9,6V
IN
I<IN
DC OK
U <38,4V
IN
I<I
N
+
+
-
-
-
+
-
Ex:
Ex:
Technical data Technical data
Input data
Nominal input voltage 12 V DC 48 V DC
DC input voltage range 9 V DC ... 18 V DC 30 V DC ... 60 V DC
Current consumption (POWERBOOST) 15 A (12 V DC) 3.5 A (48 V DC)
Inrush current limitation at 25°C (typ.) / I2t < 12 A / < 0.3 A2s < 5 A / < 0.2 A2s
Mains buffering (IN, typ.) > 3 ms (12 V DC) > 14 ms (48 V DC)
Output data
Nominal output voltage 24 V DC ±1% 24 V DC ±1%
Setting range of the output voltage 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24
Output current / POWER BOOST / SFB (12 ms) 5 A / 6.25 A / 30 A 5 A / 6.25 A / 30 A
Magnetic fuse tripping B2 , B4 , C2 B2 , B4 , C2
Can be connected in parallel / series Yes / Yes Yes / Yes
Max. power dissipation (no load / nominal load) 2 W / 13.5 W 2.7 W / 11 W
Efficiency (typ.) > 90 % > 91.5 %
Residual ripple < 75 mVPP < 25 mVPP
Signaling
Signaling DC OK LED, active switching output LED, active switching output LED, active switching ou
Boost signaling LED, active switching output LED, active switching output LED, active switching outp
UIN signaling LED, active switching output LED, active switching output LED, active switching output LE
General data
Weight / Dimensions W x H x D 0.7 kg / 32 x 130 x 125 mm 0.7 kg / 32 x 130 x 125 mm 0.7 kg / 32 x 130 x 125 mm 0.9 kg / 60 x 130 x
Spacing when mounting Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection Screw connecti
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 - 2
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 -
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 -
Degree of protection / Protection class IP20 / III IP20 / III
MTBF (EN 29500, 40°C) > 1005000 h > 995000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C
Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, no condensation) ≤ 95 % (at 25 °C, no condensation) 100 % (at 25 °C, no condensation) 100 % (at 25 °C, no condensation) 100 % (at 25 °C, no condensa
Standards/regulations
Insulation voltage input/output 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine te
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 609
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 DIN VDE 0100-410
Rail applications - -
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DC/DC converter, primary switched mode
QUINT-PS/12DC/24DC/5 2320131 1QUINT-PS/48DC/24DC/5 2320144 1
200 PHOENIX CONTACT
QUINT DC/DC converter, 12 and
48VDC
– SFB technology: quick tripping of stan-
dard circuit breakers
– Reliably start difficult loads, thanks to the
static POWERBOOST power reserve
– Preventive function monitoring
QUINT DC/DC converter, 24 V DC,
dip-coated
– For maximum system availability under
extreme ambient conditions, such as
dust, dirt, corrosive gases, and 100% hu-
midity
– They are suitable for use in Class I, Divi-
sion 2, Groups A, B, C, D
QUINT DC/DC converters
Power supply units and UPS
DC/DC converters
DC/DC converter,
12 V DC / 24 V DC, 5 A
DC/DC converter,
48 V DC / 24 V DC, 5 A
H
W
D
H
W
D
DC OK
U >19,2 V
IN
I<IN
++
+
-
-
-
-
DCOK
U>19,2V
IN
I<IN
13
14
++
+
-
-
-
-
DCOK
U>19,2V
IN
I<IN
13
14
++
+
-
-
-
-
For additional information, visit www.phoenixcontact.net/products
Technical data Technical data Technical data
24 V DC 24 V DC 24 V DC
18 V DC ... 32 V DC 18 V DC ... 32 V DC 18 V DC ... 32 V DC
7 A (24 V DC) 14 A (24 V DC) 28 A (24 V DC)
< 15 A / < 0.5 A2s < 15 A / < 2.7 A2s< 26 A / < 11 A
2s
> 10 ms (24 V DC) > 12 ms (24 V DC) > 10 ms (24 V DC)
24 V DC ±1% 24 V DC ±1% 24 V DC ±1%
ity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity) 18 V DC ... 29.5 V DC (> 24 V constant capacity)
5 A / 6.25 A / 30 A 10 A / 12.5 A / 60 A 20 A / 25 A / 120 A
B2 , B4 , C2 B2 , B4 , B6 , C2 , C4 B2 , B4 , B6 , B10 , B16 , C2 , C4 , C6
Yes / Yes Yes / Yes Yes / Yes
2.4 W / 11.4 W 1.6 W / 24 W 2.2 W / 39 W
> 92 % > 92 % > 93 %
< 20 mVPP < 20 mVPP < 20 mVPP
g output LED, active switching output LED, active switching output, relay contact LED, active switching output, relay contact
output LED, active switching output LED, active switching output LED, active switching output
ut LED, active switching output LED, active switching output LED, active switching output
Weight / Dimensions W x H x D 0.7 kg / 32 x 130 x 125 mm 0.7 kg / 32 x 130 x 125 mm 0.7 kg / 32 x 130 x 125 mm 0.9 kg / 60 x 130 x 125 mm 1.7 kg / 82 x 130 x 125 mm
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10
- 2.5 mm² / 18 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 18 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
IP20 / III IP20 / III IP20 / III
> 890000 h > 763000 h > 554000 h
ting) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating)
95 % (at 25 °C, no condensation) 100 % (at 25 °C, no condensation) 100 % (at 25 °C, no condensation) 100 % (at 25 °C, no condensation)
test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
DIN VDE 0100-410 DIN VDE 0100-410 DIN VDE 0100-410
EN 50121-4 / EN 50155 EN 50121-4 / EN 50155 EN 50121-4 / EN 50155
UL applied for UL applied for UL applied for
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-PS/24DC/24DC/5/CO 2320542 1QUINT-PS/24DC/24DC/10/CO 2320555 1QUINT-PS/24DC/24DC/20/CO 2320568 1
201PHOENIX CONTACT
Power supply units and UPS
DC/DC converters
H
W
D
DC/DC converter,
dip-coated,
24 V DC/24 V DC, 5 A
DC/DC converter,
dip-coated,
24 V DC/24 V DC, 10 A
DC/DC converter,
dip-coated,
24 V DC/24 V DC, 20 A
H
W
D
H
W
D
NC
NC
DC OK
NC
NC
DC OK
Ex:
Technical data Technical data
Input data
Nominal input voltage range 12 V DC ... 24 V DC 12 V DC ... 24 V DC
Input voltage range AC/DC - / 10 V DC ... 32 V DC - / 10 V DC ... 32 V DC - / 10 V DC ... 32 V DC - / 36 V DC ... 75 V DC 0 V AC ...
Current consumption (nominal load) 2.6 A (12 V DC) / 1.3 A (24 V DC) 2.3 A (12 V DC) / 1.1 A (24 V DC) 3.2 A (12 V DC) / 1.6 A (24
Inrush current limitation at 25°C (typ.) / I2t < 15 A / 1.8 A2s < 10 A / 0.2 A2s
Output data
Nominal output voltage 24 V DC ±1% 12 V DC ±1%
Setting range of the output voltage 22.5 V DC ... 28.5 V DC (> 24 V constant capacity) 5 V DC ... 15 V DC
Output current 1 A 2 A
Can be connected in parallel / series Yes / Yes Yes / Yes
Max. power dissipation (no load / nominal load) < 1.2 W / < 5 W < 1 W / < 4.2 W
Efficiency (typ.) > 83 % (at 24 V DC and nominal values) > 88 % (at 24 V DC and nominal values) > 87 % (at 24 V DC and nominal val
Residual ripple < 30 mVPP < 20 mVPP
Signaling
Signaling DC OK LED, active switching output LED, active switching output LED, active switching ou
General data
Weight / Dimensions W x H x D 0.2 kg / 22.5 x 99 x 107 mm 0.2 kg / 22.5 x 99 x 107 mm 0.2 kg / 22.5 x 99 x 107 mm 0.2 kg / 22.5 x 9
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 -
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 -
Degree of protection / Protection class IP20 / III IP20 / III
MTBF (EN 29500, 40°C) > 2569000 h > 2072000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> +60°C derating) -25 °C ... 70 °C (> +60°C
Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, no condensation) ≤ 95 % (At +25°C, no condensation)
Standards/regulations
Insulation voltage input/output 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine te
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 609
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN
Safe isolation DIN VDE 0100-410 , DIN VDE 0106-101 DIN VDE 0100-410 , DIN VDE 0106-101 DIN VDE 0100-410 , DIN VDE 0106-101 DIN VDE
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DC/DC converter, primary switched mode
MINI-PS- 12- 24DC/24DC/1 2866284 1MINI-PS- 12- 24DC/ 5-15DC/2 2320018 1
202 PHOENIX CONTACT
– Support conversion to various voltage
levels
– Constant voltage: output voltage regen-
erated even at the end of long cables
– Electrical isolation: for setting up inde-
pendent supply systems
MINI AC power terminal block
– For supplying MINI DC/DC converters
from unregulated AC networks
– A transformer's AC voltage is rectified
and filtered
MINI DC/DC converters
Power supply units and UPS
DC/DC converters
DC/DC converter,
12 - 24 V DC / 24 V DC, 1 A
DC/DC converter,
12 - 24 V DC / 5 - 15 V DC, 2 A
H
W
D
H
W
D
NC
NC
DC OK
NC
NC
DC OK
(+)
(-)
NC
NC
NC
NC
~
~
For additional information, visit www.phoenixcontact.net/products
Ex:
Technical data Technical data Technical data
12 V DC ... 24 V DC 48 V DC ... 60 V DC 10 V AC ... 42 V AC
Input voltage range AC/DC - / 10 V DC ... 32 V DC - / 10 V DC ... 32 V DC - / 10 V DC ... 32 V DC - / 36 V DC ... 75 V DC 0 V AC ... 42 V AC
DC) 2.3 A (12 V DC) / 1.1 A (24 V DC) 3.2 A (12 V DC) / 1.6 A (24 V DC) 0.6 A (48 V DC) / 0.5 A (60 V DC) 6.5 A
< 10 A / 0.3 A2s < 15 A / 1.8 A2s< 45 A / 8 A
2s
48 V DC ±1% 24 V DC ±1% 24 V DC ±1%
30 V DC ... 56 V DC (> 48 V constant capacity) 22.5 V DC ... 28.5 V DC (> 24 V constant capacity) -
0.7 A 1 A 3 A
Yes / Yes Yes / Yes Yes / No
< 1.5 W / < 4.5 W < 1.2 W / < 5 W < 0.04 W / < 6.9 W
Efficiency (typ.) > 83 % (at 24 V DC and nominal values) > 88 % (at 24 V DC and nominal values) > 87 % (at 24 V DC and nominal values) > 85 % (at 60 V DC and nominal values) > 95.7 % (For 42 V AC and nominal values)
< 20 mVPP < 40 mVPP < 3.6 VPP
g output LED, active switching output LED, active switching output -
/ 22.5 x 99 x 107 mm 0.2 kg / 22.5 x 99 x 107 mm 0.2 kg / 22.5 x 99 x 107 mm 0.16 kg / 22.5 x 99 x 107 mm
lly 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Connection method Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection Plug-in screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
- 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 - / - / -
IP20 / III IP20 / II IP20 / III
> 1993000 h > 1147000 h > 18175000 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> +60°C derating) -25 °C ... 70 °C (> +60°C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating)
≤ 95 % (At +25°C, no condensation) ≤ 95 % (at 25 °C, no condensation) ≤ 95 % (at 25 °C, no condensation)
test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test) 1 kV (routine test) / 1.5 kV (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
10 , DIN VDE 0106-101 DIN VDE 0100-410 , DIN VDE 0106-101 DIN VDE 0100-410 , DIN VDE 0106-101 -
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
MINI-PS- 12- 24DC/48DC/0.7 2320021 1MINI-PS- 48- 60DC/24DC/1 2866271 1MINI-PS- 10- 42AC/15-60DC/3 2320199 1
203PHOENIX CONTACT
Power supply units and UPS
DC/DC converters
H
W
D
DC/DC converter,
12 - 24 V DC / 48 V DC, 0.7 A
DC/DC converter,
48 - 60 V DC / 24 V DC, 1 A
AC power terminal for
MINI DC/DC converter
H
W
D
H
W
D
204 PHOENIX CONTACT
Power supply units and UPS
Redundancy modules
Maximum availability due to redun-
dancy modules
To prevent the effects of errors on the
load in a redundant system and increase the
operational reliability, power supply units
should be decoupled from one another with
a redundancy module. Only by doing this, is
it possible to ensure that an incorrectly con-
nected power supply unit or a short circuit
does not have an effect on the load.
Simple decoupling with STEP and
QUINT DIODE redundancy modules
If the power supply units are decoupled, a
short circuit at the output of one of the
power supply units or in the supply line
from the power supply unit to the diode no
longer has any effect on the load.
Decoupling and monitoring with
TRIO DIODE redundancy modules
The redundancy modules check the out-
put voltages of the power supply units, as
well as the wiring up to the redundancy
module itself. Should one of these pathways
short circuit, the load will continue to be
supplied. Cable breaks are also detected and
reported.
Decoupling, monitoring, and closed-
loop control by means of the QUINT
ORING active redundancy modules
The QUINT ORING active redundancy
modules monitor the entire redundancy so-
lution. They detect critical operating states
and inform the user in good time. For exam-
ple, faulty wiring or defective cables are re-
ported.
For additional information, visit www.phoenixcontact.net/products
205PHOENIX CONTACT
Power supply units and UPS
Redundancy modules
QUINT ORING redundancy module
for maximum system availability
Constant monitoring of input voltage,
output current, and decoupling section
– ACB technology doubles the service life
– Energy savings of 70% by using MOSFETs
over diodes
– Two positive output terminals
ACB technology doubles the service
life
The ACB (Auto Current Balancing) tech-
nology provides symmetrical loading of the
power supply units, thereby reducing the
operating temperature. This means up to
double the service life of the redundant sys-
tem.
Continuous monitoring
QUINT ORING detects critical operating
states within the entire supply path and no-
tifies the operator in good time.
Monitoring
– Power supply unit voltages
–Wiring
– Decoupling section
–Load current
TRIO DIODE redundancy module
– Permanent redundancy monitoring
– Consistent redundancy up to the load
– Flexible: nominal voltages of 12 V DC to
48 V DC
Redundancy module QUINT DIODE
– Rugged design for currents of up to 60 A
– Consistent redundancy up to the load
– Flexible: nominal voltages of 12 V DC to
48 V DC
STEP DIODE redundancy module
– Space-saving: design width of just 18 mm
– Consistent redundancy up to the load
– Flexible: nominal voltages of 5 V DC to
24 V DC
+
+
14
23
24
+
+
I...[A]
-
-
-
IN2
IN1
Out
13
30 V AC/DC
100 mA
Ex:
Technical data
Input data
Nominal input voltage range 24 V DC
DC input voltage range 18 V DC ... 28 V DC
Nominal current 2x 10 A (-25 °C ... 60 °C) 2x 20 A (-25 °C ... 60 °C) 2x 40 A (-25 °C ... 60 °C)
1x 20 A (-25 °C ... 60 °C) 1x 40 A (-25 °C ... 60 °C) 1x 80 A (-25 °C ... 60 °C)
Maximum current 2x 15 A (-25°C ... 40°C) 2x 26 A (-25°C ... 40°C) 2x 45 A (-25°C ... 40°C)
1x 30 A (-25°C ... 40°C) 1x 52 A (-25°C ... 40°C) 1x 90 A (-25°C ... 40°C)
Transient surge protection Varistor
Voltage drop, input/output 0.1 V (IOUT = 20 A)
Max. power dissipation (nominal load) 2 W (IOUT = 20 A)
General data
Weight / Dimensions W x H x D 0.4 kg / 32 x 130 x 125 mm 0.6 kg / 38 x 130 x 125 mm 0.9 kg / 66 x 130 x 125 mm
Spacing when mounting Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 4 mm² / 0.2 - 2.5 mm² / 14 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 10 - 10 0.5 - 16 mm²
Output connection data (solid/stranded/AWG) 0.2 - 6 mm² / 0.2 - 4 mm² / 10 - 10 0.5 - 16 mm² / 0.5 - 16 mm² / 6 - 6 0.5 - 35 mm² /
Degree of protection / Protection class IP20 / III
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C
Standards/regulations
Insulation voltage: input, output/housing 500 V
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Ordering data
Description Type Order No. Pcs. /
Pkt.
Active redundancy module
QUINT-ORING/24DC/2X10/1X20 2320173 1
206 PHOENIX CONTACT
QUINT ORING, 24 V DC
– Preventive function monitoring: perma-
nent monitoring of the input voltage, out-
put current, and decoupling section
– Continuous redundancy right through to
the load: the use of two Plus output ter-
minal blocks makes it possible to devise a
redundant wiring concept that runs right
through to the load
– Double the service life of the redundant
solution thanks to even load distribution:
the ACB (Auto Current Balancing) tech-
nology automatically and symmetrically
distributes the load current to two power
supply units operating in parallel
– Save energy: decoupling is achieved with
MOSFETs and results in energy savings of
up to 70% compared with conventional
diodes
– OVP (Over Voltage Protection): surge
voltages are limited to 30 V
Power supply units and UPS
Redundancy modules
H
W
D
Active redundancy module
24 V DC, 2x 10 A, 1x 20 A
+
+
14
23
24
+
+
I...[A]
-
-
-
IN2
IN1
Out
13
30 V AC/DC
100 mA
+
+
14
23
24
+
+
I...[A]
-
-
-
IN2
IN1
Out
13
30 V AC/DC
100 mA
For additional information, visit www.phoenixcontact.net/products
Ex:
Technical data Technical data
24 V DC 24 V DC
18 V DC ... 28 V DC 18 V DC ... 28 V DC
Nominal current 2x 10 A (-25 °C ... 60 °C) 2x 20 A (-25 °C ... 60 °C) 2x 40 A (-25 °C ... 60 °C)
1x 20 A (-25 °C ... 60 °C) 1x 40 A (-25 °C ... 60 °C) 1x 80 A (-25 °C ... 60 °C)
Maximum current 2x 15 A (-25°C ... 40°C) 2x 26 A (-25°C ... 40°C) 2x 45 A (-25°C ... 40°C)
1x 30 A (-25°C ... 40°C) 1x 52 A (-25°C ... 40°C) 1x 90 A (-25°C ... 40°C)
Varistor Varistor
0.2 V (IOUT = 40 A) 0.2 V (IOUT = 80 A)
8 W (IOUT = 40 A) 16 W (IOUT = 80 A)
mm 0.6 kg / 38 x 130 x 125 mm 0.9 kg / 66 x 130 x 125 mm
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 4 mm² / 0.2 - 2.5 mm² / 14 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 10 - 10 0.5 - 16 mm² / 0.5 - 16 mm² / 6 - 6
4 mm² / 10 - 10 0.5 - 16 mm² / 0.5 - 16 mm² / 6 - 6 0.5 - 35 mm² / 0.5 - 35 mm² / 2 - 2
IP20 / III IP20 / III
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating)
500 V 500 V
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
E 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL applied for
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-ORING/24DC/2X20/1X40 2320186 1QUINT-ORING/24DC/2X40/1X80 2902879 1
207PHOENIX CONTACT
Power supply units and UPS
Redundancy modules
H
W
D
H
W
D
Active redundancy module
24 V DC, 2x 20 A, 1x 40 A
Active redundancy module
24 V DC, 2 x 40 A, 1 x 80 A
13
+
IN2
+
+
IN1
+
14
–
2x10A
13
+
IN2
+
+
IN1
+
14
–
1x20A
Technical data
Input data
Nominal input voltage range 12 V DC ... 24 V DC
DC input voltage range 10 V DC ... 30 V DC
Nominal current 2x 10 A (-25°C ... 55°C) 2x 10 A (-25°C ... 55°C)
1x 20 A (-25°C ... 55°C) 1x 20 A (-25°C ... 55°C)
Maximum current 2x 15 A (-25°C ... 40°C) 2x 15 A (-25°C ... 40°C)
1x 30 A (-25°C ... 40°C) 1x 30 A (-25°C ... 40°C)
Transient surge protection Varistor
Voltage drop, input/output Approx. 0.5 V
Max. power dissipation (nominal load) 7 W (IOUT = 10 A)
General data
Weight / Dimensions W x H x D 0.37 kg / 32 x 130 x 115 mm 0.37 kg / 32 x 130 x 115 mm
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Connection method Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14
Output connection data (solid/stranded/AWG) 0.5 - 6 mm² / 0.5 - 4 mm² / 20 - 10 0.5 - 6 mm² / 0.5 - 4 mm² / 20 - 10
Degree of protection / Protection class IP20 / III
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
Standards/regulations
Insulation voltage: input, output/housing 500 V
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety, safety transformer EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
Ordering data
Description Type Order No. Pcs. /
Pkt.
Redundancy module
TRIO-DIODE/12-24DC/2X10/1X20 2866514 1
208 PHOENIX CONTACT
TRIO DIODE, 12 - 24 and 48 V DC
– Permanent redundancy monitoring:
checking of output voltages of parallel-
connected power supplies and of wiring
running to the redundancy module
– Continuous redundancy right through to
the load: the use of two Plus output ter-
minal blocks makes it possible to devise a
redundant wiring concept that runs right
through to the load
– Flexible: nominal voltages of 12 V DC to
48 V DC
Power supply units and UPS
Redundancy modules
H
W
D
Redundancy module,
12 - 24 V DC, 2 x 10 A, 1 x 20 A
13
+
IN2
+
+
IN1
+
14
–
2x10A
13
+
IN2
+
+
IN1
+
14
–
1x20A
For additional information, visit www.phoenixcontact.net/products
Technical data
48 V DC
30 V AC ... 56 V AC
Nominal current 2x 10 A (-25°C ... 55°C) 2x 10 A (-25°C ... 55°C)
1x 20 A (-25°C ... 55°C) 1x 20 A (-25°C ... 55°C)
Maximum current 2x 15 A (-25°C ... 40°C) 2x 15 A (-25°C ... 40°C)
1x 30 A (-25°C ... 40°C) 1x 30 A (-25°C ... 40°C)
Varistor
Approx. 0.65 V
14 W (IOUT = 20 A)
Weight / Dimensions W x H x D 0.37 kg / 32 x 130 x 115 mm 0.37 kg / 32 x 130 x 115 mm
lly 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 14
/ 0.5 - 4 mm² / 20 - 10 0.5 - 6 mm² / 0.5 - 4 mm² / 20 - 10
IP20 / III
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating) -25 °C ... 70 °C (> 55° C derating)
500 V
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety, safety transformer EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
s EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
Ordering data
Type Order No. Pcs. /
Pkt.
TRIO-DIODE/48DC/2X10/1X20 2866527 1
209PHOENIX CONTACT
Power supply units and UPS
Redundancy modules
H
W
D
Redundancy module
48 V DC, 2x 10 A, 1x 20 A
++
++
IN OUT
--
--
Ex:
Technical data
Input data
Nominal input voltage range 12 V DC ... 24 V DC
DC input voltage range 10 V DC ... 30 V DC
Nominal current 2x 20 A (-25 °C ... 60 °C) 2x 20 A (-25 °C ... 60 °C) 2x 5 A (-25°C ... 55°C)
1x 40 A (-25 °C ... 60 °C) 1x 40 A (-25 °C ... 60 °C) 1x 10 A (-25°C ... 55°C)
Maximum current 2x 30 A (-25°C ... 40°C) 2x 30 A (-25°C ... 40°C) -
1x 60 A (-25°C ... 40°C) 1x 60 A (-25°C ... 40°C) -
Transient surge protection Varistor
Voltage drop, input/output 0.5 V
Max. power dissipation (nominal load) 10 W (IOUT = 20 A)
General data
Weight / Dimensions W x H x D 0.75 kg / 50 x 130 x 125 mm 0.75 kg / 50 x 130 x 125 mm 0.1 kg / 18 x 90 x 61 mm
Spacing when mounting Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Connection method Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.2 - 2.5 mm² /
Output connection data (solid/stranded/AWG) 0.5 - 16 mm² / 0.5 - 16 mm² / 10 - 6 0.5 - 16 mm² / 0.5 - 16 mm² / 10 - 6 0.2 - 2.5 mm
Degree of protection / Protection class IP20 / III
Ambient temperature (operation) -40 °C ... 70 °C (> 60 °C derating) -40 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 55° C
Standards/regulations
Insulation voltage: input, output/housing 500 V
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance wi
Electrical safety, safety transformer EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Ordering data
Description Type Order No. Pcs. /
Pkt.
Diode module
QUINT-DIODE/12-24DC/2X20/1X40 2320157 1
210 PHOENIX CONTACT
QUINT DIODE and STEPDIODE di-
ode modules
QUINT DIODE, 12 - 24 V and 48 V DC
– Rugged design for currents of up to 60 A
– Continuous redundancy right through to
the load: the use of two Plus output ter-
minal blocks makes it possible to devise a
redundant wiring concept that runs right
through to the load
– Flexible: nominal voltages of 12 V DC to
48 V DC
– Complies with standard EN 60079-15 and
may be installed in a potentially explosive
area
STEP DIODE
– Space-saving: design width of just 18 mm
– Continuous redundancy right through to
the load: the use of two Plus output ter-
minal blocks makes it possible to devise a
redundant wiring concept that runs right
through to the load
– Flexible: nominal voltages of 5 V DC to
24 V DC
Power supply units and UPS
Redundancy modules
H
W
D
Diode module
12 - 24 V DC, 2x 20 A, 1x 40 A
++
++
IN OUT
--
--
1
2
INOUT
For additional information, visit www.phoenixcontact.net/products
Ex:
Technical data Technical data
48 V DC 5 V DC ... 24 V DC
30 V DC ... 56 V DC 4.5 V DC ... 30 V DC
Nominal current 2x 20 A (-25 °C ... 60 °C) 2x 20 A (-25 °C ... 60 °C) 2x 5 A (-25°C ... 55°C)
1x 40 A (-25 °C ... 60 °C) 1x 40 A (-25 °C ... 60 °C) 1x 10 A (-25°C ... 55°C)
Maximum current 2x 30 A (-25°C ... 40°C) 2x 30 A (-25°C ... 40°C) -
1x 60 A (-25°C ... 40°C) 1x 60 A (-25°C ... 40°C) -
Varistor Transil diode
0.7 V 0.5 V
14 W (IOUT = 20 A) 2.5 W (IOUT = 5 A)
Weight / Dimensions W x H x D 0.75 kg / 50 x 130 x 125 mm 0.75 kg / 50 x 130 x 125 mm 0.1 kg / 18 x 90 x 61 mm
Alignable: 5 mm horizontally, 15 mm next to active components,
50 mm vertically
Alignable: 0 mm horizontally, 30 mm vertically
Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Output connection data (solid/stranded/AWG) 0.5 - 16 mm² / 0.5 - 16 mm² / 10 - 6 0.5 - 16 mm² / 0.5 - 16 mm² / 10 - 6 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
IP20 / III IP20 / III
Ambient temperature (operation) -40 °C ... 70 °C (> 60 °C derating) -40 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 55° C derating)
500 V 500 V
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety, safety transformer EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV) IEC 60950-1/VDE 0805 (SELV)
E 0160 (PELV) EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-DIODE/48DC/2X20/1X40 2320160 1STEP-DIODE/5-24DC/2X5/1X10 2868606 1
211PHOENIX CONTACT
Power supply units and UPS
Redundancy modules
H
W
D
H
W
D
Diode module
48 V DC, 2x 20 A, 1x 40 A
Diode module
5 - 24 V DC, 2x 5 A, 1x 10 A
Technical data Technical data
Dimensions W x H x D 74 / 130 / 11 mm 104 / 130 / 11 mm
Material Aluminum Aluminum
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Adapter for S7-300 rail mounting, for:
QUINT-PS/1AC/24DC/3.5
QUINT-PS/1AC/24DC/5
QUINT-PS/3AC/24DC/5
QUINT-PS-ADAPTERS7/1 2938196 1
Adapter for S7-300 rail mounting, for:
QUINT-PS/1AC/24DC/10
QUINT-PS/3AC/24DC/10
QUINT-PS/3AC/24DC/20
QUINT-PS-ADAPTERS7/2 2938206 1
To su pp l y a S I M ATI C® S7-300 control
unit, QUINT POWER 2.5 A, 5 A, and 10 A
are mounted on the S7 rail using a
QUINT-PS-ADAPTER-S7.
No further accessories are required for
fastening.
Mounting on S7-300 rail
Power supply units and UPS
Power supply unit accessories
Technical data
Dimensions W x H x D 41 / 27 / 42.2 mm
Material V0 (UL 94)
Ordering data
Description Type Order No. Pcs. /
Pkt.
Fan for QUINT POWER SFB, 24 V DC
QUINT-PS/FAN/4 2320076 1
212 PHOENIX CONTACT
With the standard power supply mount-
ing position, the temperature range increas-
es by 10 K (max. ambient temperature of
70°C), when the mounting position is rotat-
ed, position-dependent derating no longer
applies.
– assembly without tools
Fans
For additional information, visit www.phoenixcontact.net/products
Technical data Technical data
Dimensions W x H x D 52 / 182 / 9 mm 25 / 130 / 17 mm
Material Steel, powder-coated Steel, powder-coated
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Universal panel adapter, for direct panel mounting of the
TRIO-PS (from 10 A), QUINT-PS, QUINT-DC-UPS,
QUINT-BUFFER power supply units
UWA 182/52 2938235 1
Universal wall adapter, for direct panel mounting of the
QUINT-PS/1AC/24DC/40 and QUINT-UPS/1AC/1AC/500VA
power supply units
UWA 130 2901664 1
Adapter for mounting on even surfaces
Universal wall adapter
Power supply units and UPS
Power supply unit accessories
Technical data
Dimensions W / H / D 12.3 mm / 90 mm / 77.3 mm
Degree of protection IP30 (Actuation area)
Ordering data
Description Nominal
current Type Order No. Pcs. /
Pkt.
Thermomagnetic circuit breaker, plug-in, 1-pos.,
signal contact 1 PDT
0.5 A CB TM1 0.5A SFB P 2800835 1
1 A CB TM1 1A SFB P 2800836 1
2 A CB TM1 2A SFB P 2800837 1
3 A CB TM1 3A SFB P 2800838 1
4 A CB TM1 4A SFB P 2800839 1
5 A CB TM1 5A SFB P 2800840 1
6 A CB TM1 6A SFB P 2800841 1
Accessories
Base element, for accommodating CB TM.../CB E... device circuit
breakers
With push-in connection technology CB 1/6-2/4 PT-BE 2800929 10
With screw connection technology CB 1/10-1/10 UT-BE 2801305 10
213
PHOENIX CONTACT
– Device circuit breakers for protecting
against overcurrents and short circuits
– SFB characteristic curve enables longer
cables and release times < 10ms
– Maximum ease of maintenance thanks to
the two-piece design
– Further circuit breakers can be found
from page 259 onwards
Plug-in thermomagnetic circuit
breakers
Can be plugged in, SFB characteristic curve
214 PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
The intelligent UPS system ensures
maximum system availability
Uninterruptible power supply (UPS) units
continue to deliver power even if the supply
network goes down. An uninterruptible so-
lution consists of the three function units
shown:
– Power supply
– UPS module
–Power storage
QUINT UPS-IQ
IQ technology is the key to an intelligent
power supply solution. The uninterruptible
power supply unit monitors and optimizes
the power storage. Avoid interruptions
when working with the intelligent UPS for
non-stop power.
–SOC (state of charge) keeps you in-
formed of the charging state and remain-
ing runtime of your battery at all times
–SOH (state of health) reports remain-
ing life expectancy of the power storage
device, warns of failure at an early stage
–SOF (state of function) determines
the current performance capability of the
power storage device.
Practical example
An industrial PC must be continuously
supplied with 24 V DC.
Previous solution:
The UPS with 3.4 Ah buffers 24 V DC/5 A
for 20 minutes under optimum conditions.
Can the power storage device actually
bridge this time?
Charging state, performance, and remain-
ing runtime of the power storage device are
unknown.
The solution is the QUINT UPS-IQ:
The intelligent UPS determines all rele-
vant power storage device states. This en-
sures the crucial transparency required to
guarantee the stability of the supply and op-
timum use of the power storage device at all
times.
The intelligent battery management de-
tects the current charging state of the con-
nected power storage device and uses this
to calculate the remaining runtime.
The QUINT UPS-IQ also indicates
whether the buffer time is actually 20min-
utes. As soon as an adjustable threshold val-
ue is reached, a warning message is sent via
the floating relay contact, the software or
directly to higher-level controllers. The IPC
continues working for as long as possible
and is shut down before the battery voltage
runs out.
For additional information, visit www.phoenixcontact.net/products
215PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
IQ technology
The IQ technology is intuitive and pro-
vides you with information as soon as it is
required.
– Intelligent battery management with
SOC, SOH, and SOF
– Intelligent battery control
– Intelligent charging
– Data port
Signaling and configuration
The UPS-CONF configuration and man-
agement software allows you to monitor
and configure your UPS system. The soft-
ware can be downloaded free of charge at:
www.phoenixcontact.net/products.
– Flexible adaptation of QUINT UPS-IQ be-
havior to individual requirements
– Monitoring and data recorder
Communication
The data cables allow you to integrate the
UPS module into your application. You can
therefore benefit from all the advantages of
IQ technology and be kept informed of the
state of your UPS solution. The information
provided by QUINTUPS-IQ can, for exam-
ple, be forwarded to higher-level controllers
via Ethernet or be implemented directly in
control solutions from Phoenix Contact.
Modular solution
1. Choose your power supply unit, e.g.,
QUINT POWER
2. Choose your UPS module
QUINTUPS-IQ
3. Choose your power storage device:
– UPS-CAP for maximum service life
– UPS-BAT/LI-ION for long service life with
long buffer times
– UPS-BAT/VRLA and VRLA-WTR for
maximum buffer times
UPS with integrated power storage
Particularly space-saving and easy to ret-
rofit, the UPS module and power storage
device are combined in the same housing.
– QUINT UPS: power storage device with
lead AGM technology
– STEP UPS: LiPo-based power storage de-
vice
– QUINT BUFFER buffer module: capaci-
tor-based power storage device
UPS with integrated power supply
unit
The UPS module and power supply unit in
a single housing is a space-saving solution.
Only one power storage device is required
to complete the UPS system.
– MINI UPS: for 24 or 12VDC
– TRIO UPS: for 24DC
216 PHOENIX CONTACT
Selecting the power storage device for QUINT UPS-IQ
You can always find the ideal solution for
maximum system availability with the new
modular system for uninterruptible power
supply units. The various storage media fea-
ture a wide range of different properties:
long service life or a very long buffer time,
no maintenance or use at extreme ambient
temperatures. Whatever your require-
ments, we have the ideal power storage de-
vice.
Type Buffer time
(typical) Temperature Service life
At 20°C
Service life
At 50°C
Charging cycles
At 20°C
Weight
(standardized)
UPS-CAP… < 5 min. -40 ... 60°C > 20 years 8 years > 500,000 0.4 kg
UPS-BAT/LI-ION… > 40 min. -20 ... 58°C 15 years 2 years 7000 0.45 kg
UPS-BAT/VRLA-WTR… > 5 h -40 ... 60°C 15 years 1.5 years 300 1.3 kg
UPS-BAT/VRLA… > 8 h 0 ... 40°C 6 ... 9 years 1 year 250 1 kg
UPS-BAT/LI-ION...
• Long service life with long buffer
times
• Lithium-ion technology
UPS-BAT/VRLA-WTR...
(Valve Regulated Lead Acid/
Wide Temperature Range)
• Maximum buffer times at extreme
temperatures
• Pure lead AGM (Absorbent Glass
Mat) technology
UPS-CAP (Capacitor)
• Maximum service life
• Maintenance-free double-layer capaci-
tors
UPS-BAT/VRLA...
(Valve Regulated Lead Acid)
• Maximum buffer times
• Lead AGM (Absorbent Glass Mat) tech-
nology
Immediate availability:
All power storage devices leave our
warehouse fully charged
Yo u r a d v a n t a g e s
Fast installation
– Automatic detection of the power stor-
age device by QUINT UPS-IQ
– Tool-free replacement during operation
Maximum availability
– Constant communication with
QUINT UPS-IQ for continuous monitor-
ing and intelligent management
Extremely long service life
– Optimum charging characteristic accord-
ing to the technology and ambient condi-
tions
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
0.20.4128163012356789 1020304045501235 8101520
1 A
1+1
2 A
1+1 1+1 1+1 1+1
3 A
1+1
5 A
1+1
7 A
1+1
10 A
1+1
15 A
1+1
20 A
1+1
25 A
30 A
35 A
40 A
40
1+1
1+1 1+1
1+11+1
1+11+1
1+1
1+1
1+1
1+1
1+1
1+11+1
1+11+11+11+1
1+11+11+1
0.2 0.4 2 8 2 3 5 6 7 8 9 10 20 30 40 45 50 1 2 3 5 8
15 W
35 W
55 W
90 W
125 W 1+1
180 W 1+1 1+1
275 W 1+1 1+1
400 W 1+1
0.20.42823567891020304045501 2 3 5 8
1 A
2 A
3 A
5 A
7 A 1+1
10 A 1+1 1+1
15 A 1+1 1+1
20 A 1+1
25 A 1+1 1+1
30 A 1+1 1+1 1+1
35 A 1+1 1+1 1+1 1+1
40 A 1+1 1+1 1+1 1+1
0.20.42815204012356789 1020304045501 2 3 5 8 101520
15 W
35 W
55 W
90 W
125 W
180 W
275 W
400 W
40
1+1
1+11+1
1+11+1
1+1
1+1
1+1
1+1
1+1
1+1 1+1 1+1
1+11+1
1+1 1+1
1+1
1+1
1+1
1+1
1+1
For additional information, visit www.phoenixcontact.net/products
217PHOENIX CONTACT
Buffer times for DC UPS modules
Select your UPS-BAT and UPS-CAP for
24 V DC applications here.
Example: 20 A needs to be buffered for
6 minutes.
Solution: UPS-BAT/LI-ION/24DC/120WH
Load cur-
rent
Buffer time
Seconds Minutes Hours
Load cur-
rent
Buffer time
Seconds Minutes Hours
Load cur-
rent
Buffer time
Seconds Minutes Hours
Load cur-
rent
Buffer time
Seconds Minutes Hours
Buffer times for AC UPS modules
Select your UPS-BAT and UPS-CAP for
120 V AC/230 V AC applications here.
Example: 125 W needs to be buffered for
one hour.
Solution:
UPS-BAT/VRLA-WTR/24DC/13AH
UPS-CAP power storage device UPS-CAP/24DC/10A/10KJ UPS-CAP/24DC/20A/20KJ
UPS-BAT/VRLA-WTR power storage
device
UPS-BAT/VRLA-WTR/24DC/13AH UPS-BAT/VRLA-WTR/24DC/26AH
UPS-BAT/LI-ION power storage device UPS-BAT/LI-ION/24DC/120WH
1+1 … Two rechargeable battery modules of the same capacity are
required in this case.
The data is based on an ambient temperature of 20°C.
Buffer times for DC UPS modules
Select your UPS-BAT for 24 V DC
applications here.
Example: 20 A needs to be buffered for
10 minutes.
Solution: UPS-BAT/VRLA/24DC/7.2AH
UPS-BAT/VRLA power storage device UPS-BAT/VRLA/24DC/1.3AH UPS-BAT/VRLA/24DC/3.4AH
UPS-BAT/VRLA/24DC/7.2AH UPS-BAT/VRLA/24DC/12AH
UPS-BAT/VRLA/24DC/38AH
Buffer times for AC UPS modules
Select your UPS-BAT for 120 V AC/230 V AC
applications here.
Example: 125 W needs to be buffered for
one hour.
Solution: UPS-BAT/VRLA/24DC/12AH
Selection of power storage devices with capacitors, lithium ion, and pure lead AGM technology
Selection of power storage devices with lead AGM technology
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
13
23
33
14
24
34
R1
R2
Alarm
Bat.-
Mode
Bat.-
Charge
Remote
Battery
Confirm
Data-Port
Input
DC 24V Output
DC 24V
24V 0.2A
I < I
N
m
C
J
t [min]
max
24VDC
J
Technical data
Input data
Nominal input voltage 24 V DC
DC input voltage range 18 V DC ... 30 V DC
Max. current consumption 9.4 A (Maximum, mains operation) 19 A (Maximum, mains operation) 32.9 A (Maximum, mains operation) 51.9 A
Output data (mains operation)
Nominal output voltage 24 V DC
Output voltage range 18 V DC ... 30 V DC
Efficiency (typ.) > 98 % (Mains operation, with charged power storage) > 98 % (Mains operation, with charged power storage) > 98 %
Output current with convection cooling
- Nominal output current IN (continual) 5 A (-25 °C ... 60 °C)
- SFB technology (12 ms) 30 A (-25 °C ... 60 °C)
- POWER BOOST IBOOST (continual) 7.5 A (-25 °C ... 40 °C) 15 A (-25 °C ... 40 °C) 26 A (-25 °C ... 40 °C) 45 A (-25 °C ... 40 °C)
Output data (battery operation)
Nominal output voltage 24 V DC
Output voltage range 19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0.5 V DC) 19.2 V DC ... 27.6 V DC (U
Output current with convection cooling
- Nominal output current IN (continual) 5 A (-25 °C ... 60 °C)
- SFB technology (15 ms) 32.5 A (-25 °C ... 60 °C) 65 A (-25 °C ... 60 °C) 120 A (-25 °C ... 60 °C) 215 A (-25 °C ... 60 °C)
- POWER BOOST IBOOST (continual) 7.5 A (-25 °C ... 40 °C) 15 A (-25 °C ... 40 °C) 27 A (-25 °C ... 40 °C) 45 A (-25 °C ... 40 °C)
Power storage device
Nominal voltage UN24 V DC
End-of-charge voltage 24 V DC ... 29 V DC (temperature compensated) 24 V DC ... 29 V DC (temperature compensated) 24 V DC ... 29 V
Nominal capacity range 0.8 Ah ... 140 Ah
Max. charging current 0.2 A ... 1.36 A
Signaling
Signaling LED, relay contact, interface/software LED, relay contact, interface/software LED, relay contact, interface/software LED,
Interfaces IFS (Interface system data port) IFS (Interface system
General data
Weight / Dimensions W x H x D 0.5 kg / 35 x 130 x 125 mm 0.5 kg
Connection method Plug-in screw connection Plug-in screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 -
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 -
Degree of protection / Protection class IP20 / III
Ambient temperature (operation) -25 °C ... 70 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Derating 60 °C ... 70 °C (2.5%/K) 60 °C ... 70 °C (2.5%/K) 60 °C ... 70 °C (2.5%/K) 60 °C ... 70 °C (2.5%/K)
Max. permissible relative humidity (operation) ≤ 95 % (25°C, no condensation)
Standards/regulations
UL approvals UL/C-UL Recognized UL 60950 , UL Listed UL 508 UL/C-UL Recognized UL 60950 , UL Listed UL 508 UL/C-UL Recognized UL 6
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply, uninterruptible
QUINT-UPS/ 24DC/ 24DC/ 5 2320212 1
218 PHOENIX CONTACT
QUINT UPS-IQ for DC applications
The UPS module for 24 V DC with output
currents ranging from 5 to 40 A allows you
to create a custom solution combining pow-
er supply unit, UPS module, and power
storage device.
Optimum use of the buffer time and pre-
ventive monitoring of the power storage
device:
– Detects the current charging state of the
power storage device and calculates the
remaining runtime
– Calculates the current life expectancy of
the power storage device
Substantial power reserve:
– For mains and battery operation
– POWER BOOST static power reserve
– Dynamic power reserve with SFB (Selec-
tive Fuse Breaking) technology
Fast battery charging:
– Adaptive current management charges
the power storage device twice as fast as
before, while simultaneously providing
sufficient energy for the loads.
Extensive signaling and parameterization:
– Floating relay contacts
– Data port
– Parameterization with memory block
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
H
W
D
Uninterruptible power supply,
24 V DC / 24 V DC, 5 A
13
23
33
14
24
34
R1
R2
Alarm
Bat.-
Mode
Bat.-
Charge
Remote
Battery
Confirm
Data-Port
Input
DC 24V Output
DC 24V
24V 0.2A
I < I
N
m
C
J
t [min]
max
24VDC
J
13
23
33
14
24
34
R1
R2
Alarm
Bat.-
Mode
Bat.-
Charge
Remote
Battery
Confirm
Data-Port
Input
DC 24V Output
DC 24V
24V 0.2A
I < I
N
m
C
J
t [min]
max
24VDC
J
13
23
33
14
24
34
R1
R2
Alarm
Bat.-
Mode
Bat.-
Charge
Remote
Battery
Confirm
Data-Port
Input
DC 24V Output
DC 24V
24V 0.2A
I < I
N
m
C
J
t [min]
max
24VDC
J
For additional information, visit www.phoenixcontact.net/products
Technical data Technical data Technical data
24 V DC 24 V DC 24 V DC
18 V DC ... 30 V DC 18 V DC ... 30 V DC 18 V DC ... 30 V DC
Max. current consumption 9.4 A (Maximum, mains operation) 19 A (Maximum, mains operation) 32.9 A (Maximum, mains operation) 51.9 A (Maximum, mains operation)
24 V DC 24 V DC 24 V DC
18 V DC ... 30 V DC 18 V DC ... 30 V DC 18 V DC ... 30 V DC
Efficiency (typ.) > 98 % (Mains operation, with charged power storage) > 98 % (Mains operation, with charged power storage) > 98 % (Mains operation, with charged power storage) > 99 % (Mains operation, with charged power storage)
10 A (-25 °C ... 60 °C) 20 A (-25 °C ... 60 °C) 40 A (-25 °C ... 50 °C)
60 A (-25 °C ... 60 °C) 120 A (-25 °C ... 60 °C) 215 A (-25 °C ... 60 °C)
(continual) 7.5 A (-25 °C ... 40 °C) 15 A (-25 °C ... 40 °C) 26 A (-25 °C ... 40 °C) 45 A (-25 °C ... 40 °C)
24 V DC 24 V DC 24 V DC
- 0.5 V DC) 19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0.5 V DC) 19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0.5 V DC) 19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0.5 V DC)
10 A (-25 °C ... 60 °C) 20 A (-25 °C ... 60 °C) 40 A (-25 °C ... 60 °C)
- SFB technology (15 ms) 32.5 A (-25 °C ... 60 °C) 65 A (-25 °C ... 60 °C) 120 A (-25 °C ... 60 °C) 215 A (-25 °C ... 60 °C)
(continual) 7.5 A (-25 °C ... 40 °C) 15 A (-25 °C ... 40 °C) 27 A (-25 °C ... 40 °C) 45 A (-25 °C ... 40 °C)
24 V DC 24 V DC 24 V DC
End-of-charge voltage 24 V DC ... 29 V DC (temperature compensated) 24 V DC ... 29 V DC (temperature compensated) 24 V DC ... 29 V DC (temperature compensated) 24 V DC ... 29 V DC (temperature compensated)
1.3 Ah ... 140 Ah 3 Ah ... 200 Ah 7 Ah ... 200 Ah
0.2 A ... 2.88 A 0.2 A ... 5 A 0.2 A ... 5 A
Signaling LED, relay contact, interface/software LED, relay contact, interface/software LED, relay contact, interface/software LED, relay contact, interface/software
Interfaces IFS (Interface system data port) IFS (Interface system data port) IFS (Interface system data port) IFS (Interface system data port)
Weight / Dimensions W x H x D 0.5 kg / 35 x 130 x 125 mm 0.5 kg / 35 x 130 x 125 mm 0.6 kg / 40 x 130 x 125 mm 0.7 kg / 47 x 130 x 125 mm
Connection method Plug-in screw connection Plug-in screw connection Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6
- 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 12 - 10 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 4 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 4 mm² / 0.2 - 2.5 mm² / 24 - 12
IP20 / III IP20 / III IP20 / III
-25 °C ... 70 °C -25 °C ... 70 °C -25 °C ... 70 °C
-40 °C ... 85 °C -40 °C ... 85 °C -40 °C ... 85 °C
Derating 60 °C ... 70 °C (2.5%/K) 60 °C ... 70 °C (2.5%/K) 60 °C ... 70 °C (2.5%/K) 60 °C ... 70 °C (2.5%/K)
≥ 95 % (25°C, no condensation) ≤ 95 % (25°C, no condensation) ≤ 95 % (25°C, no condensation)
UL approvals UL/C-UL Recognized UL 60950 , UL Listed UL 508 UL/C-UL Recognized UL 60950 , UL Listed UL 508 UL/C-UL Recognized UL 60950 , UL Listed UL 508 UL/C-UL Recognized UL 60950 , UL Listed UL 508
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-UPS/24DC/24DC/10 2320225 1QUINT-UPS/ 24DC/ 24DC/20 2320238 1QUINT-UPS/24DC/24DC/40 2320241 1
219PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
H
W
D
H
W
D
H
W
D
Uninterruptible power supply,
24 V DC / 24 V DC, 10 A
Uninterruptible power supply,
24 V DC / 24 V DC, 20 A
Uninterruptible power supply,
24 V DC / 24 V DC, 40 A
13
23
33
14
24
34
R1
R2
Alarm
Bat.-
Mode
Bat.-
Charge
Remote
Battery
Confirm
Data-Port
Input
DC 24V Output
DC 24V
Output
DC 12V
24V 0.2A
I < I
N
m
C
J
t [min]
max
24VDC
Technical data
Input data
Nominal input voltage 24 V DC
DC input voltage range 18 V DC ... 30 V DC
Max. current consumption 16 A
Output data (mains operation) 12 V DC 24 V DC
Nominal output voltage 12 V DC 24 V DC
Output voltage range 18 V DC ... 30 V DC
(UOUT = UIN - 0.5 V DC)
Efficiency (typ.) > 93 % (Mains operation, with
charged power storage)
> 98 % (Mains operation, with
charged power storage)
Output current with convection cooling
(Pmax = P12 V + P24 V = 360 W)
- Nominal output current IN (continual) 5 A (-25 °C ... 60 °C) 10 A (-25 °C ... 60 °C)
- SFB technology (15 ms) 60 A (-25 °C ... 60 °C)
- POWER BOOST IBOOST (continual) 7.5 A (-25 °C ... 40 °C) 15 A (-25 °C ... 40 °C)
Output data (battery operation) 12 V DC 24 V DC
Nominal output voltage 12 V DC 24 V DC
Output voltage range - 19.2 V DC ... 27.6 V DC
(UOUT = UBAT - 0.5 V DC)
Output current with convection cooling
(Pmax = P12 V + P24 V = 360 W)
- Nominal output current IN (continual) 5 A (-25 °C ... 60 °C) 10 A (-25 °C ... 60 °C)
- SFB technology (15 ms) 65 A (-25 °C ... 60 °C)
- POWER BOOST IBOOST (continual) 7.5 A (-25 °C ... 60 °C) 15 A (-25 °C ... 60 °C)
Power storage device
Nominal voltage UN24 V DC
End-of-charge voltage 24 V DC ... 29 V DC (temperature compensated)
Nominal capacity range 1.3 Ah ... 140 Ah
Max. charging current 2.88 A
Signaling
Signaling LED, relay contact, interface/software
Interfaces IFS (Interface system data port)
General data
Weight / Dimensions W x H x D 0.6 kg / 35 x 130 x 125 mm
Connection method Plug-in screw connection
Connection data input/output solid/stranded/AWG 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / III
Ambient temperature (operation) -25 °C ... 70 °C
Derating 60 °C ... 70 °C (2.5%/K)
Standards/regulations
UL approvals UL Listed UL 508 , UL/C-UL Recognized UL 60950
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply, uninterruptible
QUINT-UPS/24DC/12DC/5/24DC/10 2320461 1
220 PHOENIX CONTACT
H
W
D
The UPS module for two output voltages,
12 and 24 V DC, allows you to create a cus-
tom solution combining power supply unit,
UPS module, and power storage device.
– Flexible and space-saving thanks to the
two output voltages in one unit
Optimum use of the buffer time and pre-
ventive monitoring of the power storage
device:
– Detects the current charging state of the
power storage device and calculates the
remaining runtime
– Calculates the current life expectancy of
the power storage device
Substantial power reserve:
– For mains and battery operation
– POWER BOOST static power reserve
– Dynamic power reserve with SFB (Selec-
tive Fuse Breaking) technology
Fast battery charging:
– Adaptive current management charges
the power storage device twice as fast as
before, while simultaneously providing
sufficient energy for the loads.
Extensive signaling and parameterization:
– Floating relay contacts
– Data port
– Parameterization with memory block
QUINT UPS-IQ for DC applications
with dual output voltage
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Uninterruptible power supply,
24 V DC/12 V DC, 5 A and 24 V DC, 10 A
R1
GND
R2
t [min]
max
Alarm
Bat.-Mode
Power-Boost
Remote
Battery
Confirm
Data-Port
USB-Port
Input AC
100..240V
Output AC
120/230V
Autonomic-
Start
24V 0.03A
120V 230V
m
C
J
I
F
S
24VDC
L L
N N
PE PE
For additional information, visit www.phoenixcontact.net/products
Technical data
General input data
Input voltage range AC 80 V AC ... 264 V AC
Frequency range 45 Hz ... 65 Hz
Activation threshold UN ±10%. Can be configured using UPS-CONF software.
Input data 120 VAC 230 V AC
Nominal input voltage 120 V AC 230 V AC
AC input voltage range 80 V AC ... 150 V AC 180 V AC ... 264 V AC
Nominal frequency 60 Hz 50 Hz
Max. current consumption (IIN = ICHARGE + IBOOST) 6.8 A 3.7 A
General output data
Nominal power / Apparent power 400 W / 500 VA
Derating > 50 °C ... 70 °C (2.5%/K)
Switch-over time < 10 ms
Efficiency (typ.) > 98 % (Mains operation)
Output data (mains operation) 120 VAC 230 V AC
Nominal output voltage 120 V AC 230 V AC
Output voltage range 96 V AC ... 144 V AC 184 V AC ... 276 V AC
- Nominal output current IN (continual) 4.3 A ( -25 °C ... 70 °C ) 2.2 A ( -25 °C ... 70 °C )
- POWER BOOST IBOOST (continual) 5.2 A ( -25 °C ... 70 °C ) 2.7 A ( -25 °C ... 70 °C )
Output data (battery operation) 120 VAC 230 V AC
Nominal output voltage 120 V AC 230 V AC
- Nominal output current IN (continual) 4.3 A ( -25 °C ... 50 °C ) 2.2 A ( -25 °C ... 50 °C )
- POWER BOOST IBOOST (5 s) 5.2 A ( -25 °C ... 50 °C ) 2.7 A ( -25 °C ... 50 °C )
Power storage device
Nominal voltage UN24 V DC
End-of-charge voltage 25 V DC ... 30 V DC (temperature compensated)
Nominal capacity range 3 Ah ... 200 Ah
Max. charging current 0.2 A ... 2 A
Signaling
Signaling LED, active switching outputs, interface/software
Interfaces IFS (Interface system data port) , MINI-USB type B
General data
Classification according to IEC 62040-3 VFD-SS-311
Weight / Dimensions W x H x D 2.2 kg / 125 x 130 x 125 mm
Connection method Screw connection
Connection data input/output solid/stranded/AWG 1.5 - 6 mm² / 1.5 - 4 mm² / 18 - 10
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 10
Degree of protection / Protection class IP20 / I
Ambient temperature (operation) -25 °C ... 70 °C (> 50°C derating)
Standards/regulations
UL approvals UL/C-UL Recognized UL 1778
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply, uninterruptible
QUINT-UPS/ 1AC/1AC/500VA 2320270 1
221PHOENIX CONTACT
H
W
D
The UPS module for 120 V AC/230 V AC
with 400 W/500 VA power can be com-
bined with all UPS-CAP and UPS-BAT pow-
er storage devices.
Optimum use of the buffer time and pre-
ventive monitoring of the power storage
device:
– Detects the current charging state of the
power storage device and calculates the
remaining runtime
– Calculates the current life expectancy of
the power storage device
Worldwide use:
– Input voltages from 96 to 264VAC
– Storage of the level and frequency of the
input voltage, in the event of mains failure,
the output is automatically supplied with
120 V AC/60 Hz or 230 V AC/50 Hz
– Manual voltage pre-selection possible
Maximum energy efficiency:
– Offline operation: 98% efficiency for
charged power storage device
Extensive signaling and parameterization:
– Switching outputs
–USB interface
– Data port
– Parameterization with memory block
Simplified startup:
– The UPS can be switched on without a
power supply network
QUINT UPS-IQ for AC applications
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Uninterruptible power supply,
1 AC / 1 AC, 500 VA
Input/
Output
m
ϑ
C
Input/
Output
m
ϑ
C
Technical data Technical data
Input data
Nominal input voltage 24 V DC 24 V DC
DC input voltage range 18 V DC ... 30 V DC 18 V DC ... 30 V DC
Nominal capacity 10 kJ 20 kJ
Output data
Nominal output voltage 24 V DC 24 V DC
Output voltage range 22 V DC ... 27 V DC 22 V DC ... 27 V DC
Output current 10 A 20 A
Output fuse 1x 25 A (internal) 2x 25 A (internal)
Can be connected in parallel / series Yes / No Yes / No
Buffer period 6 min (1 A) / 33 s (10 A) 12 min (1 A) / 33 s (20 A)
General data
Storage medium Dual layer capacitor Dual layer capacitor
Weight / Dimensions W x H x D 1.7 kg / 126 x 130 x 126 mm 2.9 kg / 150 x 130 x 176 mm
Degree of protection / Protection class IP20 / III IP20 / III
Ambient temperature (operation) -40 °C ... 60 °C -40 °C ... 60 °C
Ambient temperature (storage/transport) -40 °C ... 60 °C -40 °C ... 60 °C
Service life 20 Years (20°C) 20 Years (20°C)
Standards/regulations
UL approvals UL Listed UL 508 , UL/C-UL Recognized UL 60950 UL Listed UL 508 , UL/C-UL Recognized UL 60950
GL approvals GL applied for GL applied for
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power storage device
UPS-CAP/24DC/10A/10KJ 2320377 1UPS-CAP/24DC/20A/20KJ 2320380 1
222 PHOENIX CONTACT
Maintenance-free CAP UPS
– Dual layer capacitors
– Life expectancy: >20 years (20°C),
>8 years (50°C)
– Communication with QUINT UPS-IQ
– Integrated temperature sensor
– Works reliably, even under extreme ambi-
ent temperatures of -40°C to +60°C
H
W
D
H
W
D
Power storage device for
QUINT UPS-IQ
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Maintenance-free power storage device,
24 V DC, 10 A, 10 kJ
Maintenance-free power storage device,
24 V DC, 20 A, 20 kJ
Battery
DC 24V
m
C
J
12V
12V
For additional information, visit www.phoenixcontact.net/products
Technical data
Input data/output data
Nominal voltage 24 V DC
Nominal capacity 120 Wh
Output current 30 A
Output fuse 1x 30 A
Can be connected in parallel / series Yes / No
Buffer period 14 min (20 A)
General data
Storage medium LI-ION, 120 Wh
Weight / Dimensions W x H x D 2.9 kg / 135 x 202 x 110 mm
Degree of protection / Protection class IP20 / III
Ambient temperature (operation) -20 °C ... 58 °C
Service life 15 Years (20°C)
Standards/regulations
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power storage device
UPS-BAT/LI-ION/24DC/120WH 2320351 1
223PHOENIX CONTACT
H
W
D
UPS-BAT/LI-ION for long service life
with long buffer times
– Lithium-ion technology
– Works reliably, even under extreme ambi-
ent temperatures of -20 to +58°C
– Communication with QUINT UPS-IQ
– Integrated temperature sensor for opti-
mum charging
– Battery can be changed without tools
Power storage device for
QUINT UPS-IQ
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
120 Wh
Battery
DC 24V
m
C
J
12V
12V
Battery
DC 24V
m
C
J
12V
12V
Ex:
Ex:
Technical data Technical data
Input data/output data
Nominal voltage 24 V DC 24 V DC
Nominal capacity 1.3 Ah 3.4 Ah
Output current 15 A 25 A
Output fuse 1x 15 A 1x 25 A
Can be connected in parallel / series Yes / No Yes / No
Buffer period 20 min (2 A) / 5 min (5 A) 4.5 min (20 A) / 3 min (25 A) 10 min (20 A) / 3 min (40 A) 22.5 min (20 A) / 9 min (40 A) 7
General data
Storage medium Lead rechargeable battery module Lead rechargeable battery module Lead rechargeable battery module Lead rechargeable
Weight / Dimensions W x H x D 1.7 kg / 54 x 157 x 113 mm 3.3 kg / 85 x 191 x 110 mm 5.9 kg / 135 x 202 x 110 mm 8.9 kg / 202 x 202
Degree of protection / Protection class IP20 / III IP20 / III
Ambient temperature (operation) 0 °C ... 40 °C 0 °C ... 40 °C
Service life 6 Years ... 9 Years (20°C) 6 Years ... 9 Years (20°C) 6 Years ... 9 Years (20°C) 6 Years ... 9 Years (20°C) 10 Years ..
Standards/regulations
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 , UL/C-UL
Recognized UL 1778 , UL ANSI/ISA-12.12.01 Class I, Division 2,
Groups A, B, C, D (Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 , UL/C-UL
Recognized UL 1778 , UL ANSI/ISA-12.12.01 Class I, Division 2,
Groups A, B, C, D (Hazardous Location)
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power storage device
UPS-BAT/VRLA/24DC/ 1.3AH 2320296 1UPS-BAT/VRLA/24DC/ 3.4AH 2320306 1
Accessories Accessories
Mounting set
224 PHOENIX CONTACT
UPSBAT/VRLA for maximum buffer
times
– Lead AGM (Absorbent Glass Mat) tech-
nology
– Ambient temperatures from 0 to +40°C
– Long buffer times for high currents
– Communication with QUINT UPS-IQ
– Integrated temperature sensor for opti-
mum charging
– Battery can be changed without tools
Power storage device for
QUINT UPS-IQ
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
1.3 Ah 3.4 Ah 7.2 Ah 12 Ah 38 Ah
H
W
D
H
W
D
Battery
DC 24V
m
C
J
12V
12V
Battery
DC 24V
m
C
J
12V
12V
DC 12V
DC 12V
Battery
DC 24V
J
m
C
For additional information, visit www.phoenixcontact.net/products
Ex:
Ex:
Technical data Technical data Technical data
24 V DC 24 V DC 24 V DC
7.2 Ah 12 Ah 38 Ah
50 A50 A50 A
2x 25 A 2x 25 A 2x 25 A
Yes / No Yes / No Yes / No
Buffer period 20 min (2 A) / 5 min (5 A) 4.5 min (20 A) / 3 min (25 A) 10 min (20 A) / 3 min (40 A) 22.5 min (20 A) / 9 min (40 A) 72 min (20 A) / 35 min (40 A)
Storage medium Lead rechargeable battery module Lead rechargeable battery module Lead rechargeable battery module Lead rechargeable battery module Lead rechargeable battery module
Weight / Dimensions W x H x D 1.7 kg / 54 x 157 x 113 mm 3.3 kg / 85 x 191 x 110 mm 5.9 kg / 135 x 202 x 110 mm 8.9 kg / 202 x 202 x 110 mm 26 kg / 330 x 210 x 197 mm
IP20 / III IP20 / III IP20 / III
0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C
Service life 6 Years ... 9 Years (20°C) 6 Years ... 9 Years (20°C) 6 Years ... 9 Years (20°C) 6 Years ... 9 Years (20°C) 10 Years ... 12 Years (20°C)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 , UL/C-UL
Recognized UL 1778 , UL ANSI/ISA-12.12.01 Class I, Division 2,
Groups A, B, C, D (Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 , UL/C-UL
Recognized UL 1778 , UL ANSI/ISA-12.12.01 Class I, Division 2,
Groups A, B, C, D (Hazardous Location)
UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 , UL/C-UL
Recognized UL 1778
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UPS-BAT/VRLA/24DC/ 7.2AH 2320319 1UPS-BAT/VRLA/24DC/12AH 2320322 1UPS-BAT/VRLA/24DC/38AH 2320335 1
Accessories Accessories Accessories
BATTERY MOUNTING KIT 2320788 1
225PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
H
W
D
1.3 Ah 3.4 Ah 7.2 Ah 12 Ah 38 Ah
H
W
D
H
W
D
DC 12V
DC 12V
Battery
DC 24V
J
m
C
DC 12V
DC 12V
Battery
DC 24V
J
m
C
Technical data Technical data
Input data/output data
Nominal voltage 24 V DC 24 V DC
Nominal capacity 13 Ah 26 Ah
Output current 50 A 50 A
Output fuse 2x 25 A 2x 25 A
Can be connected in parallel / series Yes / No Yes / No
Buffer period 50 min (10 A) / 10 min (40 A) 120 min (10 A) / 30 min (40 A)
General data
Storage medium Pure lead AGM Pure lead AGM
Weight / Dimensions W x H x D 10.8 kg / 178 x 168 x 172 mm 21.6 kg / 358 x 165 x 169 mm
Degree of protection / Protection class IP20 / III IP20 / III
Ambient temperature (operation) -40 °C ... 60 °C -40 °C ... 60 °C
Ambient temperature (storage/transport) -40 °C ... 60 °C -40 °C ... 60 °C
Service life 10 Years ... 15 Years (20°C) 10 Years ... 15 Years (20°C)
Standards/regulations
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950 UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
GL approvals GL applied for GL applied for
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power storage device
UPS-BAT/VRLA-WTR/24DC/13AH 2320416 1UPS-BAT/VRLA-WTR/24DC/26AH 2320429 1
Accessories Accessories
Mounting set BATTERY MOUNTING KIT 2320788 1BATTERY MOUNTING KIT 2320788 1
226 PHOENIX CONTACT
BAT/VRLA-WTR UPS for tempera-
tures from -40°C to +60°C
–Pure lead AGM technology
– Communication with QUINT UPS-IQ
– Integrated temperature sensor for opti-
mum charging
Power storage device for
QUINT UPS-IQ
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Power storage device with wide temperature
range
24 V DC, 13 Ah
Power storage device with wide temperature
range
24 V DC, 26 Ah
For additional information, visit www.phoenixcontact.net/products
227PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Ordering data
Description Type Order No. Pcs. /
Pkt.
Configuration software for QUINT UPS IQ
UPS-CONF 2320403 1
The UPS CONF configuration software
can be downloaded free of charge from our
homepage. Remember to order the
IFS-USB-DATACABLE as well in order to
use the software.
Supported operating systems:
– Windows 7 (32 and 64-bit)
–Windows Vista
–Windows XP
Minimum requirements:
– Display: 800 x 600, 256 colors
– Processor: 400 MHz, Pentium processor
or similar
–RAM: 96 MB
Configuration software for
QUINT UPS-IQ
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Used for communication between the UPS CONF configuration
software and the QUINT UPS IQ or TRIO UPS uninterruptible
power supply
Cable length: 3 m IFS-USB-DATACABLE 2320500 1
Multi-functional memory block for the INTERFACE system
- Flat design IFS-CONFSTICK1)2986122 1
- Tall design IFS-CONFSTICK-L 2901103 1
228 PHOENIX CONTACT
IFS-USB-DATACABLE is required for
communication between the uninterrupt-
ible power supply and the UPS CONF con-
figuration software.
IFS-CONFSTICK for storing the values
you have configured and transferring them
to other uninterruptible power supplies.
Notes:
1) EMC: Class A product, see page 287
Accessories for QUINT UPS-IQ and
TRIO UPS
For additional information, visit www.phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Data cable for communication between higher-level controllers
and QUINT UPS-IQ uninterruptible power supply units, cable
length: 2 m
Modbus communication IFS-RS232-DATACABLE 2320490 1
Direct communication IFS-MINI-DIN-DATACABLE 2320487 1
Flexible communication IFS-OPEN-END-DATACABLE 2320450 1
IFS-RS232-DATACABLE
– For Modbus communication with the
RS-232 interface
– Connection to the Phoenix Contact
COM server for Ethernet communication
– Communicate directly with higher-level
controllers, such as Phoenix Contact ILC
or RFC, or use as a gateway
IFS-MINI-DIN-DATACABLE
– For direct communication with the ILC
from the Phoenix Contact Inline system
IFS-OPEN-END-DATACABLE
– Open cable for flexible communication
QUINT UPS-IQ function blocks
– For further processing of information
communicated via data cables
– For PC Worx software
– Free download at www.phoenixcon-
tact.net/products
Accessories for QUINT UPS-IQ
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Ordering data
Description Type Order No. Pcs. /
Pkt.
Mounting set
BATTERY MOUNTING KIT 2320788 1
229
PHOENIX CONTACT
– For attaching individual battery blocks to
a mounting plate
– Consists of four powder-coated metal
brackets and a fabric lashing strap
Mounting set
13
23
33
14
24
34
R1
R2
Alarm
Bat.-
Mode
Bat.-
Charge
Remote
Confirm
Data-Port
Input
DC 24V Output
DC 24V
24V 0.2A
I < I
N
m
C
J
t [min]
max
Battery
24VDC
J
13
23
33
14
24
34
R1
R2
Alarm
Bat.-
Mode
Bat.-
Charge
Remote
Confirm
Data-Port
Input
DC 24V Output
DC 24V
24V 0.2A
I < I
N
m
C
J
t [min]
max
Battery
24VDC
J
Technical data Technical data
Input data
Nominal input voltage 24 V DC 24 V DC
DC input voltage range 18 V DC ... 30 V DC 18 V DC ... 30 V DC
Max. current consumption 9.3 A (24 V DC) 18.6 A (24 V DC)
Output data
Nominal output voltage 24 V DC 24 V DC
Output voltage range 19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0.5 V DC) 19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0.5 V DC)
Output current 5 A 10 A
Can be connected in parallel / series Yes / No Yes / No
Buffer period 50 min (1 A) / 5 min (5 A) 180 min (1 A) / 10 min (10 A)
Max. power dissipation (normal mode / buffer mode) 2.5 W / 3.3 W 3.1 W / 6.3 W
Efficiency (typ.) > 97.1 % (with charged power storage device) > 97.6 % (with charged power storage device)
Signaling
Signaling LED, relay contact, interface/software LED, relay contact, interface/software
Interfaces IFS (Interface system data port) IFS (Interface system data port)
General data
Storage medium Lead rechargeable battery module 1.3 Ah Lead rechargeable battery module, 3.4 Ah
Weight / Dimensions W x H x D 2.2 kg / 88 x 138 x 125 mm 3.8 kg / 120 x 169 x 125 mm
Installation position horizontal DIN rail NS 35, EN 60715 horizontal DIN rail NS 35, EN 60715
Spacing when mounting Can be aligned: horizontal 5 mm, vertical 50 mm Can be aligned: horizontal 5 mm, vertical 50 mm
Connection method Plug-in screw connection Plug-in screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 20 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 16 - 12
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / III IP20 / III
MTBF (EN 29500, 40°C) > 806493 h > 806493 h
Ambient temperature (operation) 0 °C ... 40 °C 0 °C ... 40 °C
Ambient temperature (storage/transport) -15 °C ... 40 °C -15 °C ... 40 °C
Service life 6 Years ... 9 Years (20°C) 6 Years ... 9 Years (20°C)
Latest startup 9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C)
9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C)
Standards/regulations
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety, safety transformer EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
UL approvals UL/C-UL Recognized UL 60950 , UL Listed UL 508 UL/C-UL Recognized UL 60950 , UL Listed UL 508
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply, uninterruptible
QUINT-UPS/ 24DC/ 24DC/ 5/1.3AH 2320254 1QUINT-UPS/ 24DC/ 24DC/10/3.4AH 2320267 1
230 PHOENIX CONTACT
QUINT-UPS is very easy to install in ex-
isting systems. It's just a case of connecting
a 24VDC power supply unit upstream and
the reliable UPS solution is complete.
– Advantages of using IQ technology
–Minimal wiring effort
– Maintenance-free power storage device
with lead AGM technology
Notes:
The buffer time associated with your solution is dependent on the
load current. Exact details for each uninterruptible power supply
can be found on page 233
H
W
D
H
W
D
UPS module with integrated power
storage
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Uninterruptible power supply
with integrated power storage,
24 V DC / 24 V DC, 5 A, 1.3 Ah
Uninterruptible power supply
with integrated power storage,
24 V DC / 24 V DC, 10 A, 3.4 Ah
Power
Good
Backup
Threshold
GND
Output
Input
For additional information, visit www.phoenixcontact.net/products
Ex:
Technical data
Input data
Nominal input voltage 24 V DC
DC input voltage range 18 V DC ... 30 V DC
Current consumption (idling/charging process/max.) 0.1 A / 0.7 A / 44.7 A
Connect threshold (fixed, variable) < 20 V DC (< 22 V; < 24 V; < 26 V) , (UIN - 1 V)/0.1 s
Output data
Nominal output voltage 24 V DC (depending on the input voltage)
Output current 40 A
Can be connected in parallel / series Yes / No
Buffer period 0.2 s (40 A) / 8 s (1 A)
Max. power dissipation (normal mode / buffer mode) 8 W / 48 W
Efficiency (typ.) > 99 % (with charged power storage device)
Signaling
Signaling DC OK LED, active switching output
General data
Storage medium Electrolytic capacitor
Weight / Dimensions W x H x D 1.1 kg / 64 x 130 x 125 mm
Installation position horizontal DIN rail NS 35, EN 60715
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm
Connection method Screw connection
Input connection data (solid/stranded/AWG) 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6
Output connection data (solid/stranded/AWG) 0.5 - 16 mm² / 0.5 - 16 mm² / 8 - 6
Signal connection data (solid/stranded/AWG) 0.2 - 4 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / III
MTBF (EN 29500, 40°C) > 902725 h
Ambient temperature (operation) -25 °C ... 80 °C
Standards/regulations
Insulation voltage: input, output/housing 500 V
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC
Electrical safety EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV)
UL approvals UL/C-UL Recognized UL 60950 , UL Listed UL 508
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply, uninterruptible
QUINT-BUFFER/24DC/24DC/40 2320393 1
231PHOENIX CONTACT
Notes:
The buffer time associated with your solution is dependent on the
load current. Exact details for each uninterruptible power supply
can be found on page 233
H
W
D
The buffer module can accommodate fail-
ures lasting several seconds.
It combines an electronic switch-over
unit and a capacitor-based power storage
device in the same housing.
Maintenance-free buffer module
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Buffer module,
24 V DC / 24 V DC, 40 A
Alarm
Bat.- Mode
Bat.- Charge
GND
R1
R2
Remote
Battery
Input
DC 24V Output
DC 24V
m
C
t
[min]
max
J
Alarm
Bat.- Mode
Bat.- Charge
GND
R1
R2
Remote
Battery
Input
DC 12V Output
DC 12V
m
C
t
[min]
max
J
Technical data Technical data
Input data
Nominal input voltage 24 V DC 12 V DC
DC input voltage range 22.5 V DC ... 29.5 V DC 10 V DC ... 16.5 V DC
Max. current consumption 4.1 A (24 V DC) 5.7 A (12 V DC)
Current consumption charging process 4.7 A 6 A
Input fuse 7 A (slow-blow, internal) 7 A (slow-blow, internal)
Output data
Nominal output voltage 24 V DC 12 V DC
Output current standard operation 3 A 4 A
Output current POWERBOOST 4 A (0°C ... 35°C) 5 A (0°C ... 35°C)
Can be connected in parallel / series No / No No / No
Buffer period 50 min (1 A) / 25 min (2 A) 100 min (1 A) / 50 min (2 A)
Max. power dissipation (normal mode / buffer mode) 2.7 W / 4.4 W 2 W / 3.4 W
Efficiency (typ.) > 98 % (Mains operation, with charged power storage) > 97.4 % (Mains operation, with charged power storage)
Signaling
Signaling Power OK LED LED
Signaling alarm LED, active transistor switching output LED, active transistor switching output
Signaling battery charge LED, active transistor switching output LED, active transistor switching output
Signaling battery mode LED, active transistor switching output LED, active transistor switching output
General data
Storage medium Lithium polymer Lithium polymer
Weight / Dimensions W x H x D 0.45 kg / 108 x 90 x 61 mm 0.46 kg / 108 x 90 x 61 mm
Installation position horizontal DIN rail NS 35, EN 60715 horizontal DIN rail NS 35, EN 60715
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Connection method Screw connection Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / III IP20 / III
MTBF (EN 29500, 40°C) > 1401000 h > 1997000 h
Ambient temperature (operation) 0 °C ... 40 °C 0 °C ... 40 °C
Standards/regulations
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety, safety transformer EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
UL approvals UL Listed UL 508 , UL/C-UL Recognized UL 60950 UL Listed UL 508 , UL/C-UL Recognized UL 60950
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply, uninterruptible
STEP-UPS/24DC/24DC/3 2868703 1STEP-UPS/12DC/12DC/4 2868693 1
Accessories Accessories
Power storage device STEP-BAT/LIPO/18.5DC/1.4AH 2320364 1STEP-BAT/LIPO/18.5DC/1.4AH 2320364 1
232 PHOENIX CONTACT
– Uninterruptible power supply with inte-
grated power storage device
STEP UPS
The STEP BAT power supply unit is in-
cluded as part of the STEP UPS order. The
STEP BAT can be reordered separately. (See
accessories on this page)
Notes:
With the STEP-UPS/12DC/12DC/4, buffer times are double those
of the STEP-UPS/24DC/24 DC/3. See page 233
H
W
D
H
W
D
UPS module with integrated power
storage
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
Uninterruptible power supply
with integrated rechargeable battery,
24 V DC / 24 V DC, 3 A
Uninterruptible power supply
with integrated rechargeable battery,
12 V DC / 12 V DC, 4 A
2356789102030404550123
0.5 A
1 A
1.5 A
2 A
3 A
4 A
5 A
For additional information, visit www.phoenixcontact.net/products
233PHOENIX CONTACT
Buffer times for UPS with integrated
power storage
Particularly space-saving and easy to ret-
rofit, the UPS module and power storage
device are combined in the same housing.
The maintenance-free buffer module is now
also available with 40 A load current.
0.20.412 816301235678 910152025304045501 23
0,5 A
1 A
2 A
3 A
5 A
7 A
10 A
15 A
20 A
25 A
30 A
35 A
40 A
Load cur-
rent
Buffer time
Seconds Minutes Hours
QUINT UPS QUINT-UPS/24DC/24DC/5/1.3AH QUINT-UPS/24DC/24DC/10/3.4AH
QUINT BUFFER QUINT-BUFFER/24DC/24DC/40
STEP UPS STEP-UPS/24DC/24DC/3
Minutes Hours
MINI-BAT for MINI-UPS MINI-BAT/24DC/0.8AH QUINT-BAT/24DC/7.2AH
MINI-BAT/24DC/1.3AH QUINT-BAT/24DC/12AH
MINI-BAT for TRIO-UPS MINI-BAT/24DC/1.3AH
QUINT-BAT/24DC/3.4AH
Power storage devices for MINI UPS
and TRIO UPS
The UPS module and power supply unit
are combined in the same housing in a par-
ticularly space-saving way. Only one power
storage device is required to complete the
UPS system.
MINI UPS
Power storage devices with lead AGM
technology for output voltages of 24 or
12 V DC. Buffer times of up to 50 minutes
with 1 A load current.
Note: with the MINI-DC-UPS/12DC/4,
buffer times are double those of the
MINI-DC-UPS/24DC/2.
TRIO UPS
Power storage devices with lead AGM
technology buffer failures lasting up to
2 hours with 5 A load current.
Select your QUINT UPS,
QUINT BUFFER, and STEP UPS here.
Example: 5 A needs to be buffered for
20 minutes.
Solution:
QUINT-UPS/24DC/24DC/10/3.4AH
Select your MINI-BAT and QUINT-BAT
for MINI UPS and TRIO UPS here.
Example: 2 A needs to be buffered for
20 minutes.
Solution: MINI-BAT/24DC/1.3AH
Note: with the STEP-UPS/12DC/12DC/4,
buffer times are double those of the
STEP-UPS/24DC/24 DC/3.
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
t...[min]
JJ
Output DC
24 V5A
Remote
On/Off
2x12V
Battery
PS
Alarm
Bat.-Charge
Bat.-Mode
IFSConfig.-Port
Confirm
L(+)
N (-)
R1
R2
Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 100 V DC ... 350 V DC
Max. current consumption in normal mode 0.95 A / 1.1 A (230 V AC) , 1.7 A / 1.8 A (120 V AC)
Input fuse 6.3 A (slow-blow, internal)
Reliable backup fuse, circuit breaker B6 , B10 , B16
Output data
Nominal output voltage 24 V DC
Output current 5 A
Can be connected in parallel / series No / No
Buffer period 20 min (5 A)
Max. power dissipation (normal mode / buffer mode) 16 W / 4 W
Efficiency (typ.) > 88 % (230 V AC, network operation)
Signaling
Interfaces IFS (Interface system data port)
Signaling Power OK LED
Signaling alarm LED, active switching output
Signaling battery charge LED, active switching output
Signaling battery mode LED, active switching output
General data
Storage medium External, battery 1.3 Ah / 3.4 Ah / 7.2 Ah / 12 Ah
Weight / Dimensions W x H x D 1.1 kg / 60 x 130 x 118 mm
Installation position horizontal DIN rail NS 35, EN 60715
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm
Connection method Screw connection
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / I
MTBF (EN 29500, 40°C) > 596285 h
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating)
Standards/regulations
Insulation voltage input/output 2 kV (Routine test) / 4 kV (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC
Electrical safety, safety transformer EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV)
UL approvals UL/C-UL listed UL 508 , UL/C-UL Recognized UL 60950
Ordering data
Description Type Order No. Pcs. /
Pkt.
Power supply, uninterruptible
TRIO-UPS/1AC/24DC/ 5 2866611 1
234 PHOENIX CONTACT
TRIO UPS
Developed specifically for supplying indus-
trial PCs. Configuration port: freely param-
eterizable with the UPS CONF configura-
tion software. Configuration stick:
parameterize stick once and transfer to any
number of TRIO UPS units.
The UPS-CONF TRIO (Order No.:
2320348) configuration software can be
downloaded free of charge from our
homepage.
Notes:
The buffer time associated with your solution is dependent on the
load current. Exact details for each uninterruptible power supply
can be found on page 233
H
W
D
UPS module with integrated power
supply unit
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
UPS with integrated power supply,
100 - 240 V AC / 24 V DC, 5 A
-
+
-
+
L(+)
N(-) +24 V/2A
Alarm
Remote
On/Off
Bat. Mode
Battery
Charge
t...[min]
R1
R2
PS
-
+
-
+
L(+)
N(-) +12 V/4A
Alarm
Remote
On/Off
Bat. Mode
Battery
Charge
t...[min]
R1
R2
PS
For additional information, visit www.phoenixcontact.net/products
Ex:
Ex:
Technical data Technical data
Input data
Nominal input voltage range 100 V AC ... 240 V AC 100 V AC ... 240 V AC
Input voltage range AC/DC 85 V AC ... 264 V AC / 100 V DC ... 350 V DC 85 V AC ... 264 V AC / 100 V DC ... 350 V DC
Max. current consumption in normal mode 0.6 A / 0.85 A (230 V AC) , 1.1 A / 1.5 A (120 V AC) 0.5 A / 0.65 A (230 V AC) , 1.15 A / 1.35 A (120 V AC)
Input fuse 3.15 A (slow-blow, internal) 3.15 A (slow-blow, internal)
Reliable backup fuse, circuit breaker B6 , B10 , B16 B6 , B10 , B16
Output data
Nominal output voltage 24 V DC (AC input voltage available: 22.5 to 29.5 V DC, AC input
voltage not available: 27.9 to 19.2 V DC)
12 V DC (AC input voltage available: 10 to 16 V DC, AC input voltage
not available: 13.6 to 9.6 V DC)
Output current 2 A 4 A
Can be connected in parallel / series No / Yes No / Yes
Buffer period 20 min (2 A) 20 min (4 A)
Max. power dissipation (idling / normal mode / buffer mode) 3.8 W / 10.1 W / 2.1 W 1.6 W / 10.5 W / 2.6 W
Efficiency (typ.) > 83 % > 82 %
Signaling
Signaling Power OK LED LED
Signaling alarm LED, active switching output LED, active switching output
Signaling battery charge LED, active switching output LED, active switching output
Signaling battery mode LED, active switching output LED, active switching output
General data
Storage medium External, battery 0.8 Ah / 1.3 Ah External, rechargeable battery 1.6 Ah / 2.6 Ah
Weight / Dimensions W x H x D 0.45 kg / 67.5 x 99 x 107 mm 0.45 kg / 67.5 x 99 x 107 mm
Installation position horizontal DIN rail NS 35, EN 60715 horizontal DIN rail NS 35, EN 60715
Spacing when mounting Can be aligned: Horizontally 0 mm, vertically 50 mm Can be aligned: Horizontally 0 mm, vertically 50 mm
Connection method Plug-in COMBICON screw connections Plug-in COMBICON screw connections
Input connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Output connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Signal connection data (solid/stranded/AWG) 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 2.5 mm² / 0.2 - 2.5 mm² / 24 - 12
Degree of protection / Protection class IP20 / II (in an enclosed control cabinet) IP20 / II (in an enclosed control cabinet)
MTBF (EN 29500, 40°C) > 728579 h > 753179 h
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating) -25 °C ... 70 °C (> 60 °C derating)
Standards/regulations
Insulation voltage input/output 2 kV (routine test) / 4 kV (type test) 2 kV (routine test) / 4 kV (type test)
Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Conformance with EMC Directive 2004/108/EC
Electrical safety, safety transformer EN 60950-1/VDE 0805 (SELV) EN 60950-1/VDE 0805 (SELV)
Electronic equipm. for electrical power installations EN 50178/VDE 0160 (PELV) EN 50178/VDE 0160 (PELV)
UL approvals UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
UL Listed UL 508 , UL/C-UL Recognized UL 60950 ,
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D
(Hazardous Location)
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Power supply, uninterruptible
MINI-DC-UPS/24DC/2 2866640 1MINI-DC-UPS/12DC/4 2866598 1
235PHOENIX CONTACT
MINI-UPS 24 V DC and 12 V DC
The MINI UPS combines the power sup-
ply unit and the UPS module in the same
housing in a particularly space-saving way.
Notes:
With the MINI-DC-UPS/12DC/4, buffer times are double those of
the MINI-DC-UPS/24DC/2.
The buffer time associated with your solution is dependent on the
load current. Exact details for each uninterruptible power supply
can be found on page 233
H
W
D
H
W
D
UPS module with integrated power
supply unit
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
UPS with integrated power supply,
100 - 240 V AC / 24 V DC, 2 A
UPS with integrated power supply,
100 - 240 V AC / 12 V DC, 4 A
Ex:
Technical data
Input data/output data
Nominal input voltage 24 V DC
Nominal capacity 1.3 Ah
Nominal output voltage 24 V DC
Output current 15 A
Can be connected in parallel / series Yes / No
General data
Weight / Dimensions W x H x D 1.7 kg / 52 x 130 x 110 mm 3.5 kg /
Degree of protection / Protection class IP20 / III
Ambient temperature (operation) 0 °C ... 40 °C
Service life 6 Years ... 9 Years (20 °C) 6 Years ... 9 Years (20 °C) 6 Years ... 9 Years (20 °C) 6 Years ... 9 Years (20 °C)
Latest startup 9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C)
Ordering data
Description Type Order No. Pcs. /
Pkt.
Battery module
MINI-BAT/24DC/1.3AH 2866417 1
236 PHOENIX CONTACT
Power storage device for TRIOUPS
MINI-BAT, QUINT-BAT
MINI-BAT and QUINTBAT for maximum
buffer times
– Lead AGM (Absorbent Glass Mat) tech-
nology
– Ambient temperatures from 0 to +40°C
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
H
W
D
Power storage, 24 V DC, 1.3 Ah
for TRIO UPS and MINI UPS 2 A
For additional information, visit www.phoenixcontact.net/products
BSH
Technical data Technical data Technical data
24 V DC 24 V DC 24 V DC
3.4 Ah 7.2 Ah 12 Ah
24 V DC 24 V DC 24 V DC
25 A 50 A 50 A
Yes / No Yes / No Yes / No
Weight / Dimensions W x H x D 1.7 kg / 52 x 130 x 110 mm 3.5 kg / 112 x 145 x 123 mm 6 kg / 164 x 156 x 110 mm 9 kg / 231 x 156 x 110 mm
IP20 / III IP20 / III IP20 / III
0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C
Service life 6 Years ... 9 Years (20 °C) 6 Years ... 9 Years (20 °C) 6 Years ... 9 Years (20 °C) 6 Years ... 9 Years (20 °C)
9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C)
9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C)
9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
QUINT-BAT/24DC/ 3.4AH 2866349 1QUINT-BAT/24DC/ 7.2AH 2866352 1QUINT-BAT/24DC/12AH 2866365 1
237PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
H
W
D
H
W
D
H
W
D
Power storage, 24 V DC, 3.4 Ah
for TRIO UPS
Power storage, 24 V DC, 7.2 Ah
for TRIO UPS
Power storage, 24 V DC, 12 Ah
for TRIO UPS
Ex:
Technical data
Input data/output data
Nominal input voltage 24 V DC
Nominal capacity 0.8 Ah
Nominal output voltage 24 V DC
Output current 5 A
Can be connected in parallel / series Yes / No
General data
Weight / Dimensions W x H x D 0.9 kg / 67.5 x 99 x 107 mm 1.7 kg
Degree of protection / Protection class IP20 / III
Ambient temperature (operation) 0 °C ... 40 °C
Service life 4 Years (20 °C)
Latest startup 6 Months (20 °C ... 30 °C)
3 Months (30 °C ... 40 °C)
Ordering data
Description Type Order No. Pcs. /
Pkt.
Battery module
MINI-BAT/24DC/0.8AH 2866666 1
238 PHOENIX CONTACT
Power storage device for MINIUPS
MINI-BAT
MINI-BAT for maximum buffer times
– Lead AGM (Absorbent Glass Mat) tech-
nology
– Ambient temperatures from 0 to +40°C
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
H
W
D
Notes:
The buffer time associated with your solution is dependent on the
load current. Exact details for each uninterruptible power supply
can be found on page 233
Power storage, 24 V DC, 0.8 Ah
for MINI UPS 2 A
For additional information, visit www.phoenixcontact.net/products
Ex: Ex: Ex:
Technical data Technical data Technical data
24 V DC 12 V DC 12 V DC
1.3 Ah 1.6 Ah 2.6 Ah
24 V DC 12 V DC 12 V DC
15 A 10 A 15 A
Yes / No Yes / No Yes / No
Weight / Dimensions W x H x D 0.9 kg / 67.5 x 99 x 107 mm 1.7 kg / 52 x 130 x 110 mm 0.9 kg / 67.5 x 99 x 107 mm 1.7 kg / 52 x 130 x 110 mm
IP20 / III IP20 / III IP20 / III
0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C
6 Years ... 9 Years (20 °C) 4 Years (20 °C) 6 Years ... 9 Years (20 °C)
9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C)
6 Months (20 °C ... 30 °C)
3 Months (30 °C ... 40 °C)
9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
MINI-BAT/24DC/1.3AH 2866417 1MINI-BAT/12DC/1.6AH 2866572 1MINI-BAT/12DC/2.6AH 2866569 1
239PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for the control cabinet
H
W
D
H
W
D
H
W
D
Power storage, 24 V DC, 1.3 Ah
for TRIO UPS and MINI UPS 2 A
Power storage 12 V DC, 1.6 Ah
for MINI UPS 4 A
Power storage 12 V DC, 2.6 Ah
for MINI UPS 4 A
240 PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
Constant power supply and improved
power quality
UPS devices play an important role in en-
suring reliable power quality. They bridge
power failures and remove other mains
faults such as:
– Under voltages or surge voltages
– High-frequency noise
– Frequency fluctuations
–Harmonics
Class VFI-SS-111 UPS devices accord-
ing to IEC 62040-3
The UPS devices are class VFI-SS-111 sin-
gle-phase, uninterruptible power supply
units. The connected loads are protected
against any faults on the mains side. Double
conversion technology permanently sup-
plies loads with an output voltage/frequency
that is independent of the mains input.
Extensive configuration options:
Configure your UPS system according to
your requirements and the operating envi-
ronment.
UPS-CP devices can be configured directly
via the control panel, even with no external
power supply, provided the batteries are
charged:
– Quick status check via LED and illuminat-
ed LCD control panel
– Controlled computer shutdown by means
of additional software
– Remote access via web browser with
SNMP network card
Complete and extend your UPS system:
– DIN rails offer the option of installing the
UPS-CP devices in 19" racks
– All devices can be extended with SNMP
network cards or relay cards
For additional information, visit www.phoenixcontact.net/products
241PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
Long battery life
The special charge control of the UPS-CP
devices ensures ripple-free DC voltage
without higher-level AC currents.
Integrated safety cut-off
If required the UPS-CP devices can be in-
tegrated in a safety concept via a two-pos.
connection.
Easy battery replacement
Batteries can be easily replaced during op-
eration and when integrated. This is true for
all UPS devices and battery modules.
Stand-alone or 19" rack installation
possible
Depending on the application, the control
panel on the UPS-CP devices can be rotated
90° for optimum display clarity.
1
10
100
1000
50 100 150 200 250 300 350 400 450 550500 600 650 700 750 800
3
2
1
1
10
100
1000
100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600
3
5
1
2
4
242 PHOENIX CONTACT
In order to select the ideal UPS, the pow-
er requirement of the connected loads and
the required bridging time must be known.
The diagrams illustrated can be used to select
the appropriate UPS.
By adding external battery units, corre-
spondingly longer bridging times can be
achieved.
For the assignment and maximum possible
number of external battery units, please refer
to the table on the right.
UPS-CP-1kVA/240AC
UPS-CP-2kVA/240AC
... BAT-1KVA-P1
UPS-CP-...
... BAT-1KVA-P2
... BAT-2/3KVA-P3
... BAT-2/3KVA-P4
... BAT-4.5/6KVA-P5
...1KVA/240AC Max. 2 Max. 1 — — —
...2KVA/240AC — — Max. 4 Max. 2 —
...3KVA/240AC — — Max. 4 Max. 2 —
...4.5KVA/240AC — — — — Max. 5
...6KVA/240AC — — — — Max. 5
Nominal real power [W]
Time [min.]
1 = 2xP1 or 1xP2
2 = 1xP2
3 = Without additional battery
Nominal real power [W]
Time [min.]
1 = 4xP3 or 2xP4
2 = 3xP3
3 = 2xP3 or 1xP4
4 = 1xP3
5 = Without additional battery
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
1
10
100
1000
100 300 900500 700 1100 1300 1500 1700 1900 2100 2300
1
2
4
3
5
100 400 700 1000 1600 220019001300 2500 2800 3100
1
2
4
3
5
1
10
100
1000
10000
100 500 900 1300 1700 2100 2500 2900 3300 3700 4100
1
10
100
1000
10000
1
2
4
3
5
For additional information, visit www.phoenixcontact.net/products
243PHOENIX CONTACT
UPS-CP-3kVA/240AC
UPS-CP-4.5kVA/240AC
UPS-CP-6kVA/240AC
Nominal real power [W]
Time [min.]
1 = 4xP3 or 2xP4
2 = 3xP3
3 = 2xP3 or 1xP4
4 = 1xP3
5 =
Without additional batt
ery
Nominal real power [W]
Time [min.]
1 = 5xP5
2 = 4xP5
3 = 3xP5
4 = 2xP5
5 = 1xP5
Nominal real power [W]
Time [min.]
1 = 5xP5
2 = 4xP5
3 = 3xP5
4 = 2xP5
5 = 1xP5
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
Output
Input
=
=
Output
Input
=
=
Total width 483 mm Total width 483 mm
Technical data Technical data
Common characteristics
Apparent power 1000 VA 2000 VA
Nominal power (real power) 800 W 1600 W
Power factor 0.8 0.8
UPS topology Double conversion technology Double conversion technology Double conversion technology Double conversion technology Dou
Classification VFI-SS-111 VFI-SS-111
UPS input side
AC input voltage range 160...288 V AC 160...288 V AC
AC frequency range 50 Hz ... 60 Hz +/-5 Hz (automatic recognition) 50 Hz ... 60 Hz +/-5 Hz (automatic recognition) 50 Hz ... 60 Hz
Nominal input current 3.8 A 8 A
Power factor (cos phi) 0.99 (with linear load) 0.99 (with linear load)
Current distortion (THDi) < 6 % (at full load) < 6 % (at full load)
UPS output side
Output voltage range 230 V AC ±1% (200/208/220/230/240 V AC adjustable) 230 V AC ±1% (200/208/220/230/240 V AC adjustable) 230 V A
Nominal output current 4.35 A 8.7 A
AC frequency range 50/60 Hz(automatic recognition) 50/60 Hz(automatic recognition) 50
Battery system
Battery type VRLA VRLA
Bridging time ≥ 6 min ≥ 6 min (Nominal load, in addition)
Charging time 4 h (90% charge) 4 h (90% charge)
Type of battery replacement Hot-swappable Hot-swappable
General data
Ambient temperature (operation) 0 °C ... 40 °C 0 °C ... 40 °C
Ambient temperature (storage/transport) 0 °C ... 45 °C 0 °C ... 45 °C
Degree of protection IP20 IP20
Height unit 2 HU 2 HU
Design 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing
Depth 490.00 mm 680.00 mm
Permissible humidity (operation) 0 % ... 90 % (no condensation) 0 % ... 90 % (no condensation) 0 % ... 90 % (no condensation) 0 % .
Noise level 50.00 dB(A) 50.00 dB(A)
Weight 19.00 kg 30.00 kg
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UPS compact
UPS-CP-1KVA/240AC1) 2800274 1UPS-CP-2KVA/240AC1) 2800275 1
Accessories Accessories
Optional power storage device
UPS-CP-BAT-1KVA-P1 2800280 1UPS-CP-BAT-2/3KVA-P3 2800283 1
UPS-CP-BAT-1KVA-P2 2800281 1UPS-CP-BAT-2/3KVA-P4 2800284 1
DIN rail
For 19" rack installation UPS-CP-19"MR 2800288 1UPS-CP-19"MR 2800288 1
244 PHOENIX CONTACT
– Class VFI-SS-111 single-phase UPS (ac-
cording to IEC 62040-3)
– Double conversion technology for maxi-
mum voltage quality
– Use as rack (19") or tower device with ro-
tatable control panel
– Hot-swappable battery replacement on
the front
– Long battery life thanks to ripple-free
charging
– Mains-independent output voltage
– Comprehensive accessories for enhanced
functions
– Supports a variety of operating systems
Notes:
1) EMC: Class A product, see page 287
UPS devices
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
1 kVA nominal power 2 kVA nominal power 3 kVA nominal power 4.5 kVA nominal power 6 kVA nominal power
Output
Input
=
=
Output
Input
=
=
Output
Input
=
=
For additional information, visit www.phoenixcontact.net/products
Total width 483 mm Total width 483 mm Total width 483 mm
Technical data Technical data Technical data
3000 VA 4500 VA 6000 VA
2400 W 4050 W 5400 W
0.8 0.9 0.9
UPS topology Double conversion technology Double conversion technology Double conversion technology Double conversion technology Double conversion technology
VFI-SS-111 VFI-SS-111 VFI-SS-111
160...288 V AC 160...280 V AC 160...280 V AC
AC frequency range 50 Hz ... 60 Hz +/-5 Hz (automatic recognition) 50 Hz ... 60 Hz +/-5 Hz (automatic recognition) 50 Hz ... 60 Hz +/-5 Hz (automatic recognition) 50 Hz ... 60 Hz +/-5 Hz (automatic recognition) 50 Hz ... 60 Hz +/-5 Hz (automatic recognition)
11.5 A 21.9 A 28.48 A
0.99 (with linear load) 0.99 (with linear load) 0.99 (with linear load)
< 6 % (at full load) < 6 % (at full load) < 6 % (at full load)
Output voltage range 230 V AC ±1% (200/208/220/230/240 V AC adjustable) 230 V AC ±1% (200/208/220/230/240 V AC adjustable) 230 V AC ±1% (200/208/220/230/240 V AC adjustable) 230 V AC ±1% (200/208/220/230/240 V AC adjustable) 230 V AC ±1% (200/208/220/230/240 V AC adjustable)
13.04 A 19.57 A 26.09 A
(automatic recognition) 50/60 Hz(automatic recognition) 50/60 Hz(automatic recognition) 50/60 Hz(automatic recognition)
VRLA - -
≥ 5 min (Nominal load, in addition) 9 min (Full load) 6 min (Full load)
4 h (90% charge) - -
Hot-swappable - -
0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C
0 °C ... 45 °C 0 °C ... 45 °C 0 °C ... 45 °C
IP20 IP20 IP20
2 HU 2 HU 2 HU
Design 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing
680.00 mm 680.00 mm 680.00 mm
Permissible humidity (operation) 0 % ... 90 % (no condensation) 0 % ... 90 % (no condensation) 0 % ... 90 % (no condensation) 0 % ... 90 % (no condensation) 0 % ... 90 % (no condensation)
50.00 dB(A) 50.00 dB(A) 50.00 dB(A)
33.00 kg 22.00 kg 22.00 kg
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UPS-CP-3KVA/240AC1) 2800276 1UPS-CP-4.5KVA/240AC1) 2800277 1UPS-CP-6KVA/240AC1) 2800278 1
Accessories Accessories Accessories
UPS-CP-BAT-2/3KVA-P3 2800283 1
UPS-CP-BAT-2/3KVA-P4 2800284 1
UPS-CP-19"MR 2800288 1UPS-CP-19"MR 2800288 1UPS-CP-19"MR 2800288 1
245PHOENIX CONTACT
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
1 kVA nominal power 2 kVA nominal power 3 kVA nominal power 4.5 kVA nominal power 6 kVA nominal power
Total width 483 mm Total width 483 mm
Technical data Technical data
Battery system
Battery type VRLA VRLA
Battery capacity 14.40 Ah 28.80 Ah
Bridging time 19 min (Nominal load, in addition) 36 min (Nominal load, in addition) 8 min (nominal load - 2 kVA) 19 min (nominal lo
Bridging time - -
Charging time 4 h (90% charge) 4 h (90% charge)
Type of battery replacement Hot-swappable Hot-swappable
General data
Ambient temperature (operation) 0 °C ... 40 °C 0 °C ... 40 °C
Ambient temperature (storage/transport) 0 °C ... 45 °C 0 °C ... 45 °C
Degree of protection IP20 IP20
Height unit 2 HU 2 HU
Design 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing
Depth 680.00 mm 680.00 mm
Weight 29.00 kg 44.00 kg
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Optional power storage device
UPS-CP-BAT-1KVA-P1 2800280 1UPS-CP-BAT-1KVA-P2 2800281 1
Accessories Accessories
DIN rail
For 19" rack installation UPS-CP-19"MR 2800288 1UPS-CP-19"MR 2800288 1
246 PHOENIX CONTACT
For UPS-CP-1KVA, 19 minutes (nominal load) For UPS-CP-1KVA, 36 minutes (nominal load) For UPS-CP-2KVA, 8 minutes (nominal load)
– Power storage for increasing the duration
of the bridging
– Hot-swappable battery replacement
– Error-free connection thanks to adapted
connection method
Power storage devices
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
For additional information, visit www.phoenixcontact.net/products
Total width 483 mm Total width 483 mm Total width 483 mm
Technical data Technical data Technical data
VRLA VRLA VRLA
7.20 Ah 14.40 Ah 7.20 Ah
Bridging time 19 min (Nominal load, in addition) 36 min (Nominal load, in addition) 8 min (nominal load - 2 kVA) 19 min (nominal load - 2 kVA) 9 min (Nominal load - 4.5 kVA)
5 min (nominal load - 3 kVA) 12 min (nominal load - 3 kVA) 6 min (nominal load - 6 kVA)
4 h (90% charge) 4 h (90% charge) 4 h (90% charge)
Hot-swappable Hot-swappable Hot-swappable
0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C
0 °C ... 45 °C 0 °C ... 45 °C 0 °C ... 45 °C
IP20 IP20 IP20
2 HU 2 HU 3 HU
Design 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing 19" rack/fixed housing
680.00 mm 680.00 mm 680.00 mm
29.00 kg 44.00 kg 70.00 kg
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UPS-CP-BAT-2/3KVA-P3 2800283 1UPS-CP-BAT-2/3KVA-P4 2800284 1UPS-CP-BAT-4.5/6KVA-P5 2800285 1
Accessories Accessories Accessories
UPS-CP-19"MR 2800288 1UPS-CP-19"MR 2800288 1UPS-CP-19"MR 2800288 1
247PHOENIX CONTACT
For UPS-CP-1KVA, 19 minutes (nominal load) For UPS-CP-1KVA, 36 minutes (nominal load) For UPS-CP-2KVA, 8 minutes (nominal load)
For UPS-CP-3KVA, 5 minutes (nominal load)
For UPS-CP-2KVA, 19 minutes (nominal load)
For UPS-CP-3KVA, 12 minutes (nominal load)
For UPS-CP-4.5KVA, 10 minutes (nominal load)
For UPS-CP-6KVA, 8 minutes (nominal load)
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
Total width 20 mm Total width 20 mm
Technical data Technical data
Electrical data ... CARD ... CARD E
Input
Nominal voltage 9 V AC ... 30 V AC 9 V AC ... 30 V AC -
Nominal current 120 mA 120 mA -
Power supply connection PCB connector PCB connector PCB connector
Output
Nominal voltage - - 40 V DC
Nominal current - - max. 25 mA
Load connection RJ 45 RJ45, RJ12, Mini-DIN Screw terminal block
Available interfaces Ethernet / 1x RS-232 Ethernet / 3x RS-232 Screw terminal block
General data
Ambient temperature (operation) 0 °C ... 60 °C 0 °C ... 60 °C 0 °C ... 40 °C
Ambient temperature (storage/transport) 0 °C ... 45 °C 0 °C ... 45 °C 0 °C ... 45 °C
Degree of protection - - -
Design Slot card Slot card Slot card
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Network card
Basic version (RJ45) UPS-SNMP-CARD1) 2800289 1
Extended version (RJ45, Modbus, AUX port) UPS-SNMP-CARD E1) 2800290 1
Relay card
6-way relay card UPS-6REL1)2800287 1
External bypass module
For UPS-CP 1 - 3 kVA
For UPS-CP 4.5 and 6 kVA
Socket strip
With 9 x 10 A IEC outputs
With 4 x 16 A IEC outputs
With 5 x 16 A + 9 x 10 A IEC outputs
Redundancy module
For two units
For three units
RCCMD software license
UPS-CP RCCMD LICENSEKEY 2800550 1
248 PHOENIX CONTACT
SNMP interface adapter card 6-way relay card External bypass module
– SNMP network cards for UPS remote
control and monitoring
– Relay cards with extended signal outputs
for control functions
– External bypass modules for bypassing the
UPS during servicing
– Multiple socket strips for connecting addi-
tional loads
– Redundancy modules for parallel connec-
tion of UPS devices to increase the reli-
ability of the supply
Notes:
1) EMC: Class A product, see page 287
UPS accessories
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
For additional information, visit www.phoenixcontact.net/products
Total width 482.6 mm Total width 483 mm Total width 483 mm
Technical data Technical data Technical data
... 1/2/3KVA ... 4.5/6KVA ... 9X10A-IEC ... 4X16A-IEC ... 5X16A/9X10A-IEC ... 32A-4.5/6KV ... 63A-4.5/6KV
240 V AC 240 V AC 240 V AC 240 V AC 240 V AC 240 V AC 240 V AC
max. 16 A max. 32 A max. 16 A max. 16 A max. 32 A max. 32 A max. 63 A
Socket C20 - IEC 60320 Cable L/N/PE C20 -
IEC 60320
C20 -
IEC 60320
Terminal block base - L/N/PE Cable L/N/PE; 2.8 m; open ends Cable L/N/PE; 2.8 m; open ends
240 V AC 240 V AC 240 V AC 240 V AC 240 V AC 240 V AC 240 V AC
16 A (thermal fuse) 32 A 10 A (thermal
fuse)
16 A (thermal
fuse)
16 A (10 A/thermal fuse) 32 A 63 A
6 x C13/10 A - IEC 60320 Cable L/N/PE; 2.8 m; open ends 9 x C13 -
IEC 60320
4 x C19 -
IEC 60320
5 x C19/16 A - IEC 60320 Cable L/N/PE; 2.8 m; open ends Cable L/N/PE; 2.8 m; open ends
-- - --
0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C 0 °C ... 40 °C
0 °C ... 45 °C 0 °C ... 45 °C 0 °C ... 45 °C 0 °C ... 45 °C 0 °C ... 45 °C 0 °C ... 45 °C 0 °C ... 45 °C
IP20 IP20 IP20 IP20 IP20 IP20 IP20
19" rack patch module 19" rack patch module 19" rack patch
module
19" rack patch
module
19" rack patch module 19" rack patch module 19" rack patch module
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UPS-CP-BP-1/2/3KVA 2800291 1
UPS-CP-BP-4.5/6KVA 2800292 1
UPS-CP-MS-9X10A-IEC 2800293 1
UPS-CP-MS-4X16A-IEC 2800294 1
UPS-CP-MS-5X16A/9X10A-IEC 2800296 1
UPS-CP-PU-240AC/32A-4.5/6KV 2800297 1
UPS-CP-PU-240AC/63A-4.5/6KV 2800298 1
249PHOENIX CONTACT
SNMP interface adapter card 6-way relay card External bypass module Multiple socket strip Module for parallel/redundancy operation with
external bypass
Power supply units and UPS
Uninterruptible power supply units for 19" racks/towers
250 PHOENIX CONTACT
Introduction 252
Product overview 254
CB series device circuit breakers
Electronic circuit breakers 256
Thermomagnetic circuit breakers 213
Device circuit breaker board 262
Device circuit breakers
Thermomagnetic circuit breakers 263
Thermal circuit breakers 264
Electronic circuit breakers 268
251PHOENIX CONTACT
High-grade device circuit breakers of-
fer safety for your systems
Device circuit breakers are a key factor in
high system availability. In the event of over-
load and short-circuit currents, they selec-
tively shut down the faulty circuit.
Protective devices
252 PHOENIX CONTACT
Protective devices
Introduction to protective devices
Branch out
The device circuit breakers provide reli-
able protection even if your systems involve
long cable paths. Together with the SFB
technology* of the QUINT POWER power
supply units, the special SFB trigger charac-
teristic of the CB device circuit breakers en-
sures fast shutdown in the event of an error.
This combination offers maximum protec-
tion against overload and short-circuit cur-
rents.
*SFB = Selective fuse breaking, selective
shutdown
Individual adaptation
You can pre-wire your systems with base
elements and individually equip them with
protective plugs on site. The device circuit
breakers can also be quickly adapted to ac-
commodate necessary changes in your sys-
tem. Should you change a load, simply re-
place the relevant protective plug. Various
tripping methods, characteristic curves, and
nominal currents are available depending on
the application.
Modular extension
It couldn't be easier. Enhance your system
with additional device circuit breakers in no
time at all. You can bridge the power distri-
bution, remote signaling or even the auxilia-
ry voltage for electronic circuit breakers
without this resulting in significant wiring
costs. The uniform, plug-in housing concept
as well as the bridgeability of the base ele-
ments simplify installation.
Device circuit breaker board
The multi-channel circuit breaker boards
are used in standard production machines
or in control and process technology, for
example.
Central potential distribution minimizes the
time and effort that has to be spent on in-
stallation. The boards are very versatile in
application, as each one is populated with
thermomagnetic circuit breakers individual-
ly.
For additional information, visit www.phoenixcontact.net/products
253PHOENIX CONTACT
Protective devices
Introduction to protective devices
Latching
You can quickly and easily remove the
plugs from the base element. The new latch-
ing ensures a secure fit in harsh environ-
ments and where there are vibrations in the
installation environment. It holds the plug in
place in the base element.
Coding
Straightforward coding means that com-
ponents can be mounted on the base ele-
ment according to individual requirements
without any errors.
SFB trigger characteristic
Thermomagnetic device circuit breakers
with the SFB trigger characteristic* provide
maximum overcurrent protection – even in
large systems with long cable paths.
Bridge
With the unique bridge system from our
standard range, the device circuit breakers
can be combined easily as per your require-
ments. Potentials of the same type can be
connected quickly and safely.
Variable connection technologies
You can choose base elements with either
push-in or screw connection technology.
Device circuit breaker board
The multi-channel device circuit breaker
boards are available with 4, 8 or 12 chan-
nels.
254 PHOENIX CONTACT
Circuit breakers: electronic Selective Thermal
CB E1... EC-E1 + EC-E4 ECP-E ECP ... TCP ...32V TCP ...
Page 256 Page 268 Page 270 Page 273 Page 264 Page 265
EC-E ECP-E2
Page 269 Page 271
ECP-E3
Page 272
Circuit breakers: thermomagnetic
CB-TM1...SFB CB-TM1...M1 P CB-TM2...M1 P UT 6-TMC M TMC 1 F1 100 0,2A TMCP 1 F1 300 0,2A
Page 259 Page 260 Page 260 Page 263 Page 266 Page 266
CB-TM2...SFB CB-TM1...F1 P CB-TM2...F1 P
Page 259 Page 260 Page 260
Board
CBB TM 04...P-PT
Page 262
CBB TM 08...P-PT
Page 262
CBB TM 12...P-PT
Page 262
Protective devices
Product overview
0
10
1
0,1
0,01
100
1000
123
12,3
90
40,7
45
77,3
Total width 12.3 mm
Technical data
Rated data
Operating voltage 24 V DC
Nominal current INDepends on the selected item version Depends on the selected item version Depends on the selected item version Depends on the sele
Disconnection
Switch-off time See trigger characteristic See trigger characteristic See trigger characteristic See trigger characteristic
Switch off typ. 1.25 x IN
Current limitation active
General data
Temperature range 0 °C ... 50 °C (without condensation) 0 °C ... 50 °C (without condensation) 0 °C ... 50 °C (without condensation
Degree of protection IP30 (Actuation area)
Standards/regulations UL 2367 / UL 508 / CSA 22.2 / EN 61000-6-3 UL 2367 / UL 508 / CSA 22.2 / EN 61000-6-3 UL 2367 / UL 508 / CSA
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Electronic circuit breaker, 1-pos.
1 A CB E1 24DC/1A NO P 2800901 1
2 A CB E1 24DC/2A NO P 2800902 1
3 A CB E1 24DC/3A NO P 2800903 1
4 A CB E1 24DC/4A NO P 2800904 1
6 A CB E1 24DC/6A NO P 2800905 1
8 A
10 A
Accessories
Bridge plug, 0 volt distribution
CB PT BRIDGE 2801014 1
Base element
With push-in connection technology CB 1/6-2/4 PT-BE 2800929 10
With screw connection technology CB 1/10-1/10 UT-BE 2801305 10
Plug-in bridge, for cross connections in the bridge shaft For FBS ..., see page 258
256 PHOENIX CONTACT
Switching time [s]
Multiples of IN
Trigger characteristic
Plug-in electronic circuit breakers
– Device circuit breakers for protecting
against voltage dips caused by overloads
and short circuits
– Integrated active current limitation
– Remote control possible
– Maximum ease of maintenance thanks to
the two-piece design
– Snap-in function for secure hold and easy
removal
– Plug coding possible
– Narrow design
Protective devices
Device circuit breakers
1 N/O contact 1 N/C contact 1 x Reset IN + 1 x Status OUT 1 x Control IN + 1 x Status OUT
The figure shows the complete module consisting of a base
element and connector
For additional information, visit www.phoenixcontact.net/products
Total width 12.3 mm Total width 12.3 mm Total width 12.3 mm
Technical data Technical data Technical data
24 V DC 24 V DC 24 V DC
Depends on the selected item version Depends on the selected item version Depends on the selected item version Depends on the selected item version
Switch-off time See trigger characteristic See trigger characteristic See trigger characteristic See trigger characteristic
typ. 1.25 x INtyp. 1.25 x INtyp. 1.25 x IN
active active active
Temperature range 0 °C ... 50 °C (without condensation) 0 °C ... 50 °C (without condensation) 0 °C ... 50 °C (without condensation) 0 °C ... 50 °C (without condensation)
IP30 (Actuation area) IP30 (Actuation area) IP30 (Actuation area)
Standards/regulations UL 2367 / UL 508 / CSA 22.2 / EN 61000-6-3 UL 2367 / UL 508 / CSA 22.2 / EN 61000-6-3 UL 2367 / UL 508 / CSA 22.2 / EN 61000-6-3 UL 2367 / UL 508 / CSA 22.2 / EN 61000-6-3
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CB E1 24DC/1A NC P 2800915 1CB E1 24DC/1A S-R P 2800908 1CB E1 24DC/1A S-C P 2800922 1
CB E1 24DC/2A NC P 2800916 1CB E1 24DC/2A S-R P 2800909 1CB E1 24DC/2A S-C P 2800923 1
CB E1 24DC/3A NC P 2800917 1CB E1 24DC/3A S-R P 2800910 1CB E1 24DC/3A S-C P 2800924 1
CB E1 24DC/4A NC P 2800918 1CB E1 24DC/4A S-R P 2800911 1CB E1 24DC/4A S-C P 2800925 1
CB E1 24DC/6A NC P 2800919 1CB E1 24DC/6A S-R P 2800912 1CB E1 24DC/6A S-C P 2800926 1
CB E1 24DC/8A S-R P 2800913 1CB E1 24DC/8A S-C P 2800927 1
CB E1 24DC/10A S-R P 2800914 1CB E1 24DC/10A S-C P 2800928 1
Accessories Accessories Accessories
CB PT BRIDGE 2801014 1CB PT BRIDGE 2801014 1CB PT BRIDGE 2801014 1
CB 1/6-2/4 PT-BE 2800929 10 CB 1/6-2/4 PT-BE 2800929 10 CB 1/6-2/4 PT-BE 2800929 10
CB 1/10-1/10 UT-BE 2801305 10 CB 1/10-1/10 UT-BE 2801305 10 CB 1/10-1/10 UT-BE 2801305 10
For FBS ..., see page 258 For FBS ..., see page 258 For FBS ..., see page 258
257PHOENIX CONTACT
Protective devices
Device circuit breakers
1 N/O contact 1 N/C contact 1 x Reset IN + 1 x Status OUT 1 x Control IN + 1 x Status OUT
Total width 12.3 mm Total width 12.3 mm
Technical data Technical data
Rated surge voltage 4 kV 2.5 kV -
General data
Dimensions W / H / D 12.3 mm / 90 mm / 46.7 mm 12.3 mm / 90.8 mm / 70 mm
Connection method Push-in connection Screw connection
Temperature range -30 °C ... 60 °C -30 °C ... 60 °C
Degree of protection IP30 (Actuation area) IP30 (Actuation area)
Inflammability class according to UL 94 V0 V0
Standards/regulations IEC 60947-7-1 UL 1059
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Base element
CB 1/6-2/4 PT-BE 2800929 10 CB 1/10-1/10 UT-BE 2801305 10
Accessories Accessories
Plug-in bridge, red Number of positions
2FBS 2-6 3030336 50 FBS 2-6 3030336 50
3FBS 3-6 3030242 50 FBS 3-6 3030242 50
4FBS 4-6 3030255 50 FBS 4-6 3030255 50
5FBS 5-6 3030349 50 FBS 5-6 3030349 50
10 FBS 10-6 3030271 10 FBS 10-6 3030271 10
20 FBS 20-6 3030365 10 FBS 20-6 3030365 10
50 FBS 50-6 3032224 10 FBS 50-6 3032224 10
Plug-in bridge, blue Number of positions
2FBS 2-6 BU 3036932 50 FBS 2-6 BU 3036932 50
3FBS 3-6 BU 3036945 50 FBS 3-6 BU 3036945 50
4FBS 4-6 BU 3036958 50 FBS 4-6 BU 3036958 50
5FBS 5-6 BU 3036961 50 FBS 5-6 BU 3036961 50
10 FBS 10-6 BU 3032198 10 FBS 10-6 BU 3032198 10
20 FBS 20-6 BU 3032208 10 FBS 20-6 BU 3032208 10
50 FBS 50-6 BU 3032211 10 FBS 50-6 BU 3032211 10
Plug-in bridge, gray Number of positions
2FBS 2-6 GY 3032237 50 FBS 2-6 GY 3032237 50
3FBS 3-6 GY 3032240 50 FBS 3-6 GY 3032240 50
4FBS 4-6 GY 3032279 50 FBS 4-6 GY 3032279 50
5FBS 5-6 GY 3032266 50 FBS 5-6 GY 3032266 50
10 FBS 10-6 GY 3032253 10 FBS 10-6 GY 3032253 10
258 PHOENIX CONTACT
Protective devices
Device circuit breakers
1-pos. with push-in connection,
input 1 x 6mm2/output2 x 4mm2
1-pos. with screw connection,
input 1 x 10mm2/output1 x 10mm2
Base elements
– For accommodating CB TM/CB E.
device circuit breakers
– Rail-mountable module
– With bridge shafts
– Systematic structure with 1-channel base
elements possible
Notes:
Can be loaded with up to 41A if two bridges are connected for the
supply.
Base element and plug-in bridges
10000
1000
100
10
1
0,1
0,01
0,00112 20
440
610100 220
440
610100
8...16 A0,5...6 A
12,3
90
40,7
45
77,3
For additional information, visit www.phoenixcontact.net/products
Total width 12.3 mm
Technical data
Rated data IEC UL/CUL
Rated voltage 240 V AC 277 V AC
Rated voltage 50 V DC 50 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type SFB
Rated short-circuit switching capacity Icn 300 A (240 V AC) / 600 A (50 V DC)
Cycles, max. 6000 (at 1 x In)
General data
Temperature range -30 °C ... 60 °C
Degree of protection IP30 (Actuation area)
Standards/regulations EN 60934 / UL 1077 / UL 508 / CSA 22.2
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Thermomagnetic circuit breaker, plug-in, 1-pos., signal contact
1 PDT
0.5 A CB TM1 0.5A SFB P 2800835 1
1 A CB TM1 1A SFB P 2800836 1
2 A CB TM1 2A SFB P 2800837 1
3 A CB TM1 3A SFB P 2800838 1
4 A CB TM1 4A SFB P 2800839 1
5 A CB TM1 5A SFB P 2800840 1
6 A CB TM1 6A SFB P 2800841 1
8 A CB TM1 8A SFB P 2800842 1
10 A CB TM1 10A SFB P 2800843 1
12 A CB TM1 12A SFB P 2800844 1
16 A CB TM1 16A SFB P 2800845 1
Thermomagnetic circuit breaker, plug-in, 2-pos., signal contact
1 PDT
0.5 A CB TM2 0.5A SFB P 2800868 1
1 A CB TM2 1A SFB P 2800869 1
2 A CB TM2 2A SFB P 2800870 1
3 A CB TM2 3A SFB P 2800871 1
4 A CB TM2 4A SFB P 2800872 1
5 A CB TM2 5A SFB P 2800873 1
6 A CB TM2 6A SFB P 2800874 1
8 A CB TM2 8A SFB P 2800875 1
10 A CB TM2 10A SFB P 2800876 1
12 A CB TM2 12A SFB P 2800877 1
16 A CB TM2 16A SFB P 2800878 1
Accessories
Bridge plug, 0 volt distribution
CB PT BRIDGE 2801014 1
Base element
With push-in connection technology CB 1/6-2/4 PT-BE 2800929 10
With screw connection technology CB 1/10-1/10 UT-BE 2801305 10
Switching time [s]
Multiples of I
N
259PHOENIX CONTACT
– Device circuit breakers for protecting
against voltage dips caused by overloads
and short circuits
– SFB characteristic curve enables longer
cables and release times < 10ms
– Maximum ease of maintenance thanks to
the two-piece design
– Snap-in function for secure hold and easy
removal
– Plug coding possible
– Narrow design
Plug-in thermomagnetic circuit
breakers
Trigger characteristic in the DC range
Protective devices
Device circuit breakers
Can be plugged in, SFB characteristic curve
The figure shows the complete module consisting of a base
element and connector
10000
1000
100
10
1
0,1
0,01
0,00112 20
440
610100 220
440
610100
8...16 A0,5...6 A
12,3
90
40,7
45
77,3
Total width 12.3 mm
Technical data
Rated data IEC UL/CUL
Rated voltage 240 V AC 277 V AC 240 V AC 277 V AC 240 V AC 277 V AC 240 V AC 277 V AC
Rated voltage 50 V DC 50 V DC 80 V DC 80 V DC 50 V DC 50 V DC 80 V DC 80 V DC
Rated current InDepends on the selected item version Depends on the selected item version Depends on the selected item version Depends on the sele
Disconnection
Switch-off time See trigger characteristic See trigger characteristic See trigger characteristic See trigger characteristic
Fuse type normal blow
Rated short-circuit switching capacity Icn 300 A (240 V AC) / 600 A (50 V DC) 400 A (240 V AC) / 600 A (80 V DC) 300 A (240 V AC) / 600 A (50 V DC) 400 A (240 V AC) / 600 A
Cycles, max. 6000 (at 1 x In)
General data
Temperature range -30 °C ... 60 °C
Degree of protection IP30 (Actuation area)
Standards/regulations EN 60934 / UL 1077 / UL 508 / CSA 22.2 EN 60934 / UL 1077 / UL 508 / CSA 22.2 EN 60934 / UL 1077 / UL 508 /
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Thermomagnetic circuit breaker, plug-in, signal contact 1 PDT
0.5 A CB TM1 0.5A M1 P 2800846 1
1 A CB TM1 1A M1 P 2800847 1
2 A CB TM1 2A M1 P 2800848 1
3 A CB TM1 3A M1 P 2800849 1
4 A CB TM1 4A M1 P 2800850 1
5 A CB TM1 5A M1 P 2800851 1
6 A CB TM1 6A M1 P 2800852 1
8 A CB TM1 8A M1 P 2800853 1
10 A CB TM1 10A M1 P 2800854 1
12 A CB TM1 12A M1 P 2800855 1
16 A CB TM1 16A M1 P 2800856 1
Accessories
Bridge plug, 0 volt distribution
CB PT BRIDGE 2801014 1
Base element
With push-in connection technology CB 1/6-2/4 PT-BE 2800929 10
With screw connection technology CB 1/10-1/10 UT-BE 2801305 10
260 PHOENIX CONTACT
Multiples of IN
Switching time [s]
Trigger characteristic
Gray: DC range, blue: AC range
Plug-in thermomagnetic circuit
breakers
– Device circuit breakers for protecting
against voltage dips caused by overloads
and short circuits
– Medium-blow and fast-blow tripping char-
acteristics
– 1 and 2-pos. circuit breakers
– Maximum ease of maintenance thanks to
the two-piece design
– Snap-in function for secure hold and easy
removal
– Plug coding possible
– Narrow design
Protective devices
Device circuit breakers
Can be plugged in, M1 characteristic curve,
1-pos.
The figure shows the complete module consisting of a base
element and connector
10000
1000
100
10
1
0,1
0,01
0,00112 20
440
610100 220
440
610100
8...16 A0,5...6 A
10000
1000
100
10
1
0,1
0,01
0,00112 20
440
610100 220
440
610100
8...16 A
0,5...6 A
10000
1000
100
10
1
0,1
0,01
0,00112 20
440
610100 220
440
610100
8...16 A
0,5...6 A
For additional information, visit www.phoenixcontact.net/products
Total width 24.6 mm Total width 12.3 mm Total width 24.6 mm
Technical data Technical data Technical data
IEC UL/CUL IEC UL/CUL IEC UL/CUL
Rated voltage 240 V AC 277 V AC 240 V AC 277 V AC 240 V AC 277 V AC 240 V AC 277 V AC
Rated voltage 50 V DC 50 V DC 80 V DC 80 V DC 50 V DC 50 V DC 80 V DC 80 V DC
Depends on the selected item version Depends on the selected item version Depends on the selected item version Depends on the selected item version
Switch-off time See trigger characteristic See trigger characteristic See trigger characteristic See trigger characteristic
normal blow fast blow fast blow
300 A (240 V AC) / 600 A (50 V DC) 400 A (240 V AC) / 600 A (80 V DC) 300 A (240 V AC) / 600 A (50 V DC) 400 A (240 V AC) / 600 A (80 V DC)
6000 (240 V AC/1 x In) 6000 (at 1 x In) 6000 (240 V AC/1 x In)
-30 °C ... 60 °C -30 °C ... 60 °C -30 °C ... 60 °C
IP30 (Actuation area) IP30 (Actuation area) IP30 (Actuation area)
Standards/regulations EN 60934 / UL 1077 / UL 508 / CSA 22.2 EN 60934 / UL 1077 / UL 508 / CSA 22.2 EN 60934 / UL 1077 / UL 508 / CSA 22.2 EN 60934 / UL 1077 / UL 508 / CSA 22.2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CB TM2 0.5A M1 P 2800879 1CB TM1 0.5A F1 P 2800857 1CB TM2 0.5A F1 P 2800890 1
CB TM2 1A M1 P 2800880 1CB TM1 1A F1 P 2800858 1CB TM2 1A F1 P 2800891 1
CB TM2 2A M1 P 2800881 1CB TM1 2A F1 P 2800859 1CB TM2 2A F1 P 2800892 1
CB TM2 3A M1 P 2800882 1CB TM1 3A F1 P 2800860 1CB TM2 3A F1 P 2800893 1
CB TM2 4A M1 P 2800883 1CB TM1 4A F1 P 2800861 1CB TM2 4A F1 P 2800894 1
CB TM2 5A M1 P 2800884 1CB TM1 5A F1 P 2800862 1CB TM2 5A F1 P 2800895 1
CB TM2 6A M1 P 2800885 1CB TM1 6A F1 P 2800863 1CB TM2 6A F1 P 2800896 1
CB TM2 8A M1 P 2800886 1CB TM1 8A F1 P 2800864 1CB TM2 8A F1 P 2800897 1
CB TM2 10A M1 P 2800887 1CB TM1 10A F1 P 2800865 1CB TM2 10A F1 P 2800898 1
CB TM2 12A M1 P 2800888 1CB TM1 12A F1 P 2800866 1CB TM2 12A F1 P 2800899 1
CB TM2 16A M1 P 2800889 1CB TM1 16A F1 P 2800867 1CB TM2 16A F1 P 2800900 1
Accessories Accessories Accessories
CB PT BRIDGE 2801014 1CB PT BRIDGE 2801014 1CB PT BRIDGE 2801014 1
CB 1/6-2/4 PT-BE 2800929 10 CB 1/6-2/4 PT-BE 2800929 10 CB 1/6-2/4 PT-BE 2800929 10
CB 1/10-1/10 UT-BE 2801305 10 CB 1/10-1/10 UT-BE 2801305 10 CB 1/10-1/10 UT-BE 2801305 10
261PHOENIX CONTACT
Multiples of IN
Switching time [s]
Trigger characteristic
Gray: DC range, blue: AC range
Switching time [s]
Multiples of IN
Trigger characteristic in the DC range
Switching time [s]
Multiples of IN
Trigger characteristic in the DC range
Protective devices
Device circuit breakers
Can be plugged in, M1 characteristic curve,
2-pos.
Can be plugged in, F1 characteristic curve,
1-pos.
Can be plugged in, F1 characteristic curve,
2-pos.
Technical data
Rated data CBB TM 04 CBB TM 08 CBB TM 12
Rated voltage
Main circuit 24 V DC 24 V DC 24 V DC
Remote indication circuit 24 V DC 24 V DC 24 V DC
Rated current In
Complete main circuit 48 A DC 60 A DC 60 A DC
Main circuit per channel 12 A DC 12 A DC 12 A DC
Remote indication circuit 1 A DC 1 A DC 1 A DC
Rated insulation voltage Ui50 V DC 50 V DC 50 V DC
Rated surge voltage 0.5 kV 0.5 kV 0.5 kV
General data
Dimensions W / H / D 118.5 mm /
127.8 mm /
72 mm
185.5 mm /
127.8 mm /
72 mm
252.5 mm / 127.8 mm / 72 mm
Ambient temperature (operation) -30 °C ... 60 °C
(At max. 45 A,
see derating)
-30 °C ... 60 °C
(At In 60 A)
-30 °C ... 60 °C (At In 60 A)
Degree of protection IP20 (Terminal blocks and fuse holders) IP00 (PCB)
Test standards DIN EN 50178
Ordering data
Description Type Order No. Pcs. /
Pkt.
Device circuit breaker board, for accommodating device circuit
breakers
With 4 channels CBB TM 04 2X2RC P-PT 2801481 1
With 8 channels CBB TM 08 2X4RC P-PT 2801482 1
With 12 channels CBB TM 12 2X6RC P-PT 2801483 1
262 PHOENIX CONTACT
– Reduced installation time thanks to multi-
channel device circuit breaker board
(4/8/12 channels)
– Space savings of up to 35% thanks to com-
pact design
– Fuse protection of up to 12A per channel
provides best possible protection for con-
nected loads
– Up to 5 loads can be protected simultane-
ously with the additional terminal points
– Integrated group remote signaling ensures
that you are always kept informed
– High current carrying capacity of the
board supports supply of up to 60A
– Maximum overcurrent protection across
long cable paths thanks to device circuit
breakers with SFB trigger characteristic
Device circuit breaker board
Protective devices
Device circuit breakers
H
W
D
DIN-rail mountable
Notes:
The board is supplied without a plug.
Only type CB TM1... plugs can be used.
For dimensional drawings, see www.phoenixcontact.net/products
12 20
45068 1
2
7A
<7A
10000
1000
100
10
1
0,1
0,01
0,00112 20
450681
2
For additional information, visit www.phoenixcontact.net/products
Total width 12.3 mm
Technical data
Rated data IEC UL/CUL
Rated voltage 240 V AC 240 V AC
Rated voltage 28 V DC 28 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type Normal blow (M1)
Rated short-circuit switching capacity Icn 200 A (240 V AC) / 400 A (28 V DC)
Cycles, max. 6000 (at 1 x In)
General data
Dimensions W / H / D 12.3 mm / 85.5 mm / 89.5 mm
Connection method Screw connection
Connection data solid / stranded / AWG 0.2 ... 10 mm² / 0.2 ... 10 mm² / 24 - 8
Stranded conductor cross section with ferrule 0.25 ... 6 mm²
Temperature range -30 °C ... 60 °C
Degree of protection IP40 (Actuation area) / IP20 (Connection area)
Standards/regulations EN 60934 / UL 1077 / CSA 22.2
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Thermomagnetic circuit breaker, for mounting on NS35...
0.5 A UT 6-TMC M 0,5A 0916603 6
1 A UT 6-TMC M 1A 0916604 6
2 A UT 6-TMC M 2A 0916605 6
4 A UT 6-TMC M 4A 0916606 6
5 A UT 6-TMC M 5A 0916607 6
6 A UT 6-TMC M 6A 0916608 6
8 A UT 6-TMC M 8A 0916609 6
10 A UT 6-TMC M 10A 0916610 6
12 A UT 6-TMC M 12A 0916611 6
15 A UT 6-TMC M 15A 0916612 6
16 A UT 6-TMC M 16A 0916613 6
Accessories
Plug-in bridge, red Number of positions
2FBS 2-6 3030336 50
3FBS 3-6 3030242 50
4FBS 4-6 3030255 50
5FBS 5-6 3030349 50
10 FBS 10-6 3030271 10
20 FBS 20-6 3030365 10
Warning label, for UT series WS UT 6 3047345 10
Screwdriver SZS 1,0X4,0 VDE 1205066 10
Lateral groove labeling For UC-TM 12 or ZB 12, see page 111
Multiples of I
N
Switching time [s]
263PHOENIX CONTACT
– Thermomagnetic circuit breakers feature
a compact design, large-surface labeling
options, and a double plug-in bridge shaft
– They can be integrated into the CLIPLINE
complete system via the plug-in bridge
shaft
– 12.3 mm compact design
– High level of system availability thanks to
their reclosure function and clear status
display
– Eleven nominal current levels can be se-
lected from 0.5A to 16A
– Clear assignment of the relevant circuit
breaker thanks to the large center labeling
area
A complete data sheet is available to
download for each product at www.phoe-
nixcontact.net/products.
Thermomagnetic circuit breaker
UT6TMC...
Trigger characteristic
Protective devices
Device circuit breakers
DIN-rail mountable
0,10,1
11
1010
10
2
10
2
10
3
10
3
10
4
10
4
0,412 1020
44
0,412 1020
-40°C-40°C
-40°C
+23°C
+23°C
+85°C
+85°C
TCP/DC32V
7,5A-30 A
TCP/DC32V
7,5A-30 A
TCP/DC32V
5A
Total width 6 mm
Technical data
Rated data IEC
Rated voltage 32 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type Slow-blow
Rated short-circuit switching capacity Icn ≤ 50 A (300 switch-offs)
General data
Dimensions W / H / D 6 mm / 20 mm / 31.2 mm
Height 17 mm
Temperature range -40 °C ... 85 °C
Degree of protection IP30 (Actuation area)
Ordering data
Description Nominal
current Type Order No. Pcs. /
Pkt.
One-pos., thermal circuit breaker, for fuse holders in acc. with
ISO 8820-3
5 A TCP 5/DC32V 0700005 50
7.5 A TCP 7,5/DC32V 0700007 50
10 A TCP 10/DC32V 0700010 50
15 A TCP 15/DC32V 0700015 50
20 A TCP 20/DC32V 0700020 50
25 A TCP 25/DC32V 0700025 50
30 A TCP 30/DC32V 0700030 50
40 A TCP 40/DC32V 0700040 50
Accessories
Fuse terminal block, with spring-cage connection, for mounting
on NS35...
ST 4-FSI/C 3036372 50
With LED for 12VDC, 1.7mA ST 4-FSI/C-LED 12 3036495 50
With LED for 24 V DC, 1.9mA1)ST 4-FSI/C-LED 24 3036505 50
Fuse terminal block, for mounting on NS32... or NS35...
UK 6-FSI/C 3118203 50
With LED for 12 V DC UK 6-FSI/C-LED12 3001925 50
With LED for 24 V DC, 1.9mA1)UK 6-FSI/C-LED24 3001938 50
Switching time [s]
Current [A]
264 PHOENIX CONTACT
– Plug-in thermal miniature circuit breakers
combine the protective mechanism of an
auto flat-type fuse with the advantages of
a circuit breaker
– In the event of an error, the time-sensitive
search for a suitable replacement fuse is
eliminated thanks to the reclosure func-
tion
– The area of application extends to the
protection of integrated circuits in all
battery and onboard systems with up to
32V DC
– Fits in all fuse holders designed for flat-
type fuse inserts according to
ISO88203 (DIN725813)
– A version with screw or spring-cage con-
nection is used as a basic terminal block
You can find more fuse terminal
blocks in Catalog 3, Modular terminal
blocks.
TCP thermal circuit breaker
Trigger characteristic
Protective devices
Device circuit breakers
For fuse holder
Notes:
Attention: The reset button must not be obstructed. During instal-
lation, please leave enough room for using button.
For additional technical data, drawings, and accessories, please
visit www.phoenixcontact.net/products.
You can find a wide selection of fuse terminal blocks in Catalog 3,
Modular terminal blocks
1) If the fuse is faulty, the downstream circuit is not off load.
2468
10 20 30
10,8
10
3
10
4
10
2
10
1
0,1
0,25-4A
6-10A
For additional information, visit www.phoenixcontact.net/products
Total width 8.2 mm
Technical data
Rated data IEC
Rated voltage 250 V AC
Rated voltage 65 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type Slow-blow
General data
Dimensions W / H / D 8.2 mm / 64 mm / 88.5 mm
Temperature range -20 °C ... 60 °C
Degree of protection IP40 (Actuation area)
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Thermal miniature circuit breaker, can be plugged into UK 6
FSI/C or ST 4-FSI/C fuse terminal block
0.25 A TCP 0,25A 0712123 20
0.5 A TCP 0,5A 0712152 20
1 A TCP 1A 0712194 20
2 A TCP 2A 0712217 20
3 A TCP 3A 0712233 20
4 A TCP 4A 0712259 20
6 A TCP 6A 0712275 20
8 A TCP 8A 0712291 20
10 A TCP 10A 0712314 20
Accessories
Fuse terminal block, for mounting on NS32... or NS35...
UK 6-FSI/C 3118203 50
Fuse terminal block, with spring-cage connection, for mounting
on NS35...
ST 4-FSI/C 3036372 50
Lateral groove labeling For ZB 5, see page 111
Response [s]
Multiples of I
N
265PHOENIX CONTACT
– The reclosable thermal circuit breaker is
available in nine nominal current levels
ranging from 0.25 to 10A
– The integrated switching function enables
immediate reclosure and thus ensures the
availability of the system
–Compact design
– A version with screw or spring-cage con-
nection is used as a basic terminal block
– Potential distribution possible by means
of bridges
A complete data sheet is available to
download for each product at
www.phoenixcontact.net/products.
TCP thermal circuit breaker
Trigger characteristic
Protective devices
Device circuit breakers
Can be plugged into a fuse terminal block
Notes:
Note:
When mounted in rows, the nominal current of the devices can be
transmitted only at 80% or must be correspondingly overdimen-
sioned.
For additional technical data, drawings, and accessories, please
visit www.phoenixcontact.net/products.
Total width 12.5 mm Total width 12.5 mm
Technical data Technical data
Rated data IEC IEC
Rated voltage 250 V AC 250 V AC
Rated voltage 65 V DC 65 V DC
Rated current InDepends on the selected item version Depends on the selected item version
Disconnection
Switch-off time See trigger characteristic See trigger characteristic
Fuse type Fast blow (F1) Fast blow (F1)
Rated short-circuit switching capacity Icn 400 A / 2500 A (32 V DC) 400 A / 2500 A (32 V DC)
General data
Dimensions W / H / D 12.5 mm / 82.5 mm / 96 mm 38 mm / 115 mm / 121 mm
Connection method Screw connection plug-in
Connection data solid / stranded / AWG 0.2 ... 6 mm²2) / 0.2 ... 4 mm² / 24 - 10 -
Stranded conductor cross section with ferrule 0.25 ... 4 mm² -
Temperature range -30 °C ... 60 °C -30 °C ... 60 °C
Degree of protection IP30 (Actuation area) / IP20 (Connection area) IP30 (Actuation area) / IP00 (Connection area)
Ordering data Ordering data
Description Nominal
current Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Thermomagnetic circuit breaker, with universal foot for
mounting on NS32... or NS35...1)
TMC 1 F1 100 0,2A 0914015 6
Thermomagnetic circuit breaker, plug-in, one,
two or three-position1)
TMCP 1 F1 300 0,2A 0915506 6
Accessories Accessories
Spring lock, for mechanical locking in the case of overhead
mounting, 1-pos.
SPRING-LOCK 0713009 10
Modular socket, 2-position, for holding two circuit breakers,
each with a single position
TMCP SOCKET M 0916589 10
Socket termination elements, can be plugged in both left and
right, contain the connections for the reset inputs/group query
TMCP CONNECT LR 0916592 3
Signal bridge, plug-in, for bridging group signaling when
there is a free slot on the TMCPSOCKETM socket
TMCP SB 0916602 6
266 PHOENIX CONTACT
Protective devices
Device circuit breakers
DIN-rail mountable Can be plugged onto base
– Available with fast-blow and medium-
blow characteristic curve for various
nominal current strengths
– Single or two-pos. main current path
– All TMCP... plug-in thermomagnetic cir-
cuit breakers also have integrated signal
contacts
Notes:
For additional technical data, drawings, and accessories, please
visit www.phoenixcontact.net/products.
1) Please observe the type key on the right side.
2) Main contact
TMC thermomagnetic circuit breaker
S>1,5mm
90°
11,5
32
16
12,5
30
4
1)
2)
1,5
S
10000
1000
100
10
1
0,1
0,01
0,001 12203304406608 10 100
-30°C
+55°C
+23°C
10000
1000
100
10
1
0,1
0,01
0,001 12203304406608 10 100
-30°C
+55°C
+23°C
AC DC
10000
1000
100
10
1
0,1
0,01
0,001 12203304406608 10 100
-30°C
+50°C
AC DC
+23°C
For additional information, visit www.phoenixcontact.net/products
267PHOENIX CONTACT
Multiples of INMultiples of INMultiples of IN
Medium-blow (M1): 0.2 - 6 A nominal value
Lower tripping limit: 1.05 IN
Upper tripping limit: 1.4 IN
Medium-blow (M1): 8 - 16 A nominal value
Lower tripping limit: 1.05 IN
Upper tripping limit: 1.4 IN
Fast-blow (F1): 0.2 - 16 A nominal value
Only for DC applications
Lower tripping limit: 1.05 IN
Upper tripping limit: 1.4 IN
Switching time in seconds [s]
Switching time in seconds [s]
Switching time in seconds [s]
TMC and TMCP trigger characteris-
tics
TMC and TMCP type keys
The type key indicates the unique struc-
ture of the product.
Type Main current paths Characteristic curve Auxiliary contact versions Nominal current
TMC
or TMCP
1= Single-pos.
2= Two-pos.
3= Three-pos.
F1 = Therm. 1.05 - 1.4 IN,
magn. 2 - 4 IN DC (fast-blow),
Only for DC applications
M1= Therm. 1.05 - 1.4 IN,
magn. 6 - 12 IN AC,
7.8 - 15.6 IN DC
(medium-blow)
100 = Single-pos.: 1 N/O contact
200 = Single-pos.: 1 N/C contact
120 = Two-pos.: 1 N/O contact,
1 N/C contact
122 = Three-pos.: 1 N/O contact,
2 N/C contacts
3004) = 1 N/O contact and 1 N/C
contact per position
0.2 A 2.5 A
0.3 A 3 A
0.4 A 4 A
0.5 A 5 A
0.6 A 6 A
0.8 A 8 A
1 A 10 A
1.5 A 12 A
2 A 16 A
TMC with single-pos. main current path, one N/O contact, medium-blow characteristic curve, and a nominal current of 2 A.
TMC 1M1 100 2 A
²) 2-pos.
1) 1-pos.
Drilling diagram for front plate
mounting of TMCP
Multiplication factor for higher ambi-
ent temperatures for TCP..., UT 6-
TMC..., TMC..., and TMCP...
Note:
When mounted in rows with simultaneous load, a mutual thermal ef-
fect occurs. This is equivalent to a rise in the ambient temperature.
It depends on the nominal current, the ambient temperature, the
number of devices, and the distance between devices. The nominal
device current can be either overdimensioned (see multiplication
factor for temperature behavior) or limited to just > 80%. Please re-
quest the maximum permissible current if planning to mount in rows.
Ambient temperature, °C Multiplication factor
-30 0.76
-20 0.79
-10 0.83
00.93
+10 0.93
+23 1.00
+30 1.04
+40 1.11
+50 1.19
+60 1.29
4) Only version for TMCP, cannot be used for TMC.
Ordering example:
Protective devices
Device circuit breakers
0,01
0,1
1
10
10
2
10
3
10
4
5
1023
I
K
EC-E 1 ...
1
3
0V
Line+
LOAD+
2
13
14
EC-E 4 ...
1
3
0V
Line+
LOAD+
2
11
12
Total width 12.5 mm
Technical data
Rated data IEC
Operating voltage 24 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type Electronic
General data
Dimensions W / H / D 12.5 mm / 83 mm / 80 mm
Connection method Screw connection
Connection data solid / stranded / AWG 0.5 ... 16 mm² / 0.5 ... 16 mm² / 20 - 6
Stranded conductor cross section with ferrule 0.5 ... 10 mm²
Temperature range 0 °C ... 50 °C (without condensation)
Degree of protection IP20 (Housing)
Inflammability class according to UL 94 V0
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Electronic circuit breaker, signal contact: 1 N/O contact
0.5 A EC-E1 0,5A 0903022 6
1 A EC-E1 1A 0903023 6
2 A EC-E1 2A 0903024 6
3 A EC-E1 3A 0903025 6
4 A EC-E1 4A 0903026 6
6 A EC-E1 6A 0903028 6
8 A EC-E1 8A 0903029 6
10 A EC-E1 10A 0903030 6
12 A EC-E1 12A 0903031 6
Electronic circuit breaker, signal contact: 1 N/C contact
0.5 A EC-E4 0,5A 0903040 6
1 A EC-E4 1A 0903032 6
2 A EC-E4 2A 0903033 6
3 A EC-E4 3A 0903034 6
4 A EC-E4 4A 0903035 6
6 A EC-E4 6A 0903036 6
8 A EC-E4 8A 0903037 6
10 A EC-E4 10A 0903038 6
12 A EC-E4 12A 0903039 6
Accessories
Cont. plug-in bridge, 500 mm long, isolated, can be cut to length,
for potential distribution
FBST 500-PLC BU 2966692 20
Nominal current: 32 A FBST 500-PLC RD 2966786 20
FBST 500 TMC-N GY 0901028 10
Screwdriver SZS 0,6X3,5 1205053 10
Lateral groove labeling For ZBF 12, see page 111
Stop point
typ. 1,1xl 1,8xl
Switching time [s]
Multiples of I
N
NN
268 PHOENIX CONTACT
– Selective protection of all 24VDC load
circuits at switched-mode power supply
units
– A combination of active electronic cur-
rent limitation in the event of short cir-
cuit and overload shutdown ensures that
the circuit breaker can respond to over-
loads faster than the switched-mode
power supply unit
– The residual current is always limited to
1.3 - 1.8 times the nominal current
A complete data sheet is available to
download for each product at
www.phoenixcontact.net/products.
Notes:
For additional technical data, drawings, and accessories, please
visit www.phoenixcontact.net/products.
EC-E1 and EC-E4 electronic circuit
breakers
Trigger characteristic
Protective devices
Device circuit breakers
With signal contact as N/C contact or N/O con-
tact
0,01
0,1
1
10
10
2
10
3
10
4
5
1023
I
K
EC-E ...
1
3
0V
Line+
LOAD+
2
Reset 22
Status 23
For additional information, visit www.phoenixcontact.net/products
Total width 12.5 mm
Technical data
Rated data IEC
Operating voltage 24 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type Electronic
General data
Dimensions W / H / D 12.5 mm / 83 mm / 80 mm
Connection method Screw connection
Connection data solid / stranded / AWG 0.5 ... 16 mm² / 0.5 ... 16 mm² / 26 - 6
Stranded conductor cross section with ferrule 0.5 ... 10 mm²
Temperature range 0 °C ... 50 °C (without condensation)
Degree of protection IP20 (Housing)
Inflammability class according to UL 94 V0
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Electronic circuit breaker, with reset input
0.5 A EC-E 0,5A DC24V 0903041 6
1 A EC-E 1A DC24V 0903042 6
2 A EC-E 2A DC24V 0903043 6
3 A EC-E 3A DC24V 0903044 6
4 A EC-E 4A DC24V 0903045 6
6 A EC-E 6A DC24V 0903046 6
8 A EC-E 8A DC24V 0903047 6
10 A EC-E 10A DC24V 0903048 6
12 A EC-E 12A DC24V 0903049 6
Accessories
Cont. plug-in bridge, 500 mm long, isolated, can be cut to length,
for potential distribution
FBST 500-PLC BU 2966692 20
Nominal current: 32 A FBST 500-PLC RD 2966786 20
FBST 500 TMC-N GY 0901028 10
Lateral groove labeling For ZBF 12, see page 111
Stop point
typ. 1,1xl 1,8xl
Switching time [s]
Multiples of I
N
NN
269PHOENIX CONTACT
– Selective protection of all 24VDC load
circuits at switched-mode power supply
units
– A combination of active electronic cur-
rent limitation in the event of short cir-
cuit and overload shutdown ensures that
the circuit breaker can respond to over-
loads faster than the switched-mode
power supply unit
– The residual current is always limited to
1.3 - 1.8 times the nominal current
A complete data sheet is available to
download for each product at
www.phoenixcontact.net/products.
Notes:
For additional technical data, drawings, and accessories, please
visit www.phoenixcontact.net/products.
EC-E electronic circuit breakers
Trigger characteristic
Protective devices
Device circuit breakers
With reset input and status output
0,01
0,1
1
10
10
2
10
3
10
4
5
1023
I
K
LINE (+)
Reset
Status
Reset
On/Off
LOAD (L+)
GND (-)
2
12
14
13
11
1
Control Unit
Total width 12.5 mm
Technical data
Rated data IEC
Operating voltage 24 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type Electronic
General data
Dimensions W / H / D 38 mm / 115 mm / 112.5 mm
Temperature range 0 °C ... 50 °C (without condensation)
Degree of protection IP30 (Actuation area)
Inflammability class according to UL 94 V0
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Electronic circuit breaker, standard variant with status output
and reset input, can be plugged into TMCP socket, signaling
through three-color LED
1 A ECP-E 1A 0900113 5
2 A ECP-E 2A 0900210 5
3 A ECP-E 3A 0900317 5
4 A ECP-E 4A 0900414 5
6 A ECP-E 6A 0900618 5
8 A ECP-E 8A 0900812 5
10 A ECP-E 10A 0901002 5
12 A ECP-E-12A 0900126 5
Accessories
Modular socket, 2-position, for holding two circuit breakers, each
with a single position
TMCP SOCKET M 0916589 10
Socket termination elements, can be plugged in both left and
right, contain the connections for the reset inputs/group query
TMCP CONNECT LR 0916592 3
Lateral groove labeling ZB 6, see page 111
Stop point
typ. 1,1xl 1,8xl
Switching time [s]
Multiples of I
N
NN
270 PHOENIX CONTACT
The area of application for the electronic
circuit-breaker ECP-E extends to all aspects
connected with the power supply unit. In
the event of an overload, power supply units
reduce their output voltage and all the con-
nected loads are no longer supplied with
sufficient power, e.g., in the case of short-
circuit at the load.
The solution here is the electronic circuit
breaker:
– Selective protection of all 24VDC load
circuits at switched-mode power supply
units
– Residual current always limited to
1.8 times the nominal current
– Capacitive loads can be switched on and
loads are only switched off in the event of
an overload or short circuit
After detecting overload or short-circuit
in the load circuit, the load output of the
ECP-E is locked. The current flow is inter-
rupted in the faulty current circuit. The
ECP-E and subsequently the current circuit
can be activated again through the electron-
ic reset input (13;14) or manually at the de-
vice through the slide-type switch.
The ECP-E has the following features:
– The operating or error state is indicated
by a multi-color LED as well as an inte-
grated status output (12)
– Design width of just 12.5mm
– Can be plugged onto TMCPSOCKETM
base
A complete data sheet is available to
download for each product at
www.phoenixcontact.net/products.
Notes:
For additional technical data, drawings, and accessories, please
visit www.phoenixcontact.net/products.
ECP-E plug-in electronic circuit
breaker
Protective devices
Device circuit breakers
With reset input and status output
0,01
0,1
1
10
10
2
10
3
10
4
5
1023
I
K
2
12
14
13
11
1
LINE (+)
SO
Control
SC
LOAD (+)
GND (-)
Control Unit
On/Off
I<
For additional information, visit www.phoenixcontact.net/products
Total width 12.5 mm
Technical data
Rated data IEC
Operating voltage 24 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type Electronic
General data
Dimensions W / H / D 38 mm / 115 mm / 112.5 mm
Temperature range 0 °C ... 50 °C (without condensation)
Degree of protection IP30 (Actuation area)
Inflammability class according to UL 94 V0
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Electronic circuit breaker, variant with control input and group
query, can be plugged into TMCP socket, signaling through three-
color LED
1 A ECP-E2-1A 0900139 5
2 A ECP-E2-2A 0900236 5
3 A ECP-E2-3A 0900333 5
4 A ECP-E2-4A 0900430 5
6 A ECP-E2-6A 0900634 5
8 A ECP-E2-8A 0900838 5
10 A ECP-E2-10A 0900100 5
12 A ECP-E2-12A 0900207 5
Accessories
Modular socket, 2-position, for holding two circuit breakers, each
with a single position
TMCP SOCKET M 0916589 10
Socket termination elements, can be plugged in both left and
right, contain the connections for the reset inputs/group query
TMCP CONNECT LR 0916592 3
Lateral groove labeling ZB 6, see page 111
Stop point
typ. 1,1xl 1,8xl
Switching time [s]
Multiples of I
N
NN
271PHOENIX CONTACT
– Area of application covers all aspects of
the switched-mode power supply unit
– Includes the advantages of current limita-
tion
– Responds faster than switched-mode
power supply unit to overload and short
circuit
– Output voltage of switched-mode power
supply unit remains stable
– Sufficient supply of all error-free load cir-
cuits
– In addition, the ECP-E2 can be controlled
remotely by the control input (12), e.g., by
means of a PLC
Notes:
For additional technical data, drawings, and accessories, please
visit www.phoenixcontact.net/products.
ECP-E2 plug-in electronic circuit
breaker
Protective devices
Device circuit breakers
With control input and group request
0,01
0,1
1
10
10
2
10
3
10
4
5
1023
I
K
2
12
14
13
11
1
LINE(+)
SO
Reset
SC
LOAD (+)
GND(-)
Control Unit
On/Off
I<
Total width 12.5 mm
Technical data
Rated data IEC
Operating voltage 24 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type Electronic
General data
Dimensions W / H / D 38 mm / 115 mm / 112.5 mm
Temperature range 0 °C ... 50 °C (without condensation)
Degree of protection IP30 (Actuation area)
Inflammability class according to UL 94 V0
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Electronic circuit breaker, variant with control input and group
query, can be plugged into TMCP socket, signaling through three-
color LED
1 A ECP-E3 1A 0912041 5
2 A ECP-E3 2A 0912042 5
3 A ECP-E3 3A 0912043 5
4 A ECP-E3 4A 0912044 5
6 A ECP-E3 6A 0912046 5
8 A ECP-E3 8A 0912048 5
10 A ECP-E3 10A 0912050 5
12 A ECP-E3 12A 0912052 5
Accessories
Modular socket, 2-position, for holding two circuit breakers, each
with a single position
TMCP SOCKET M 0916589 10
Socket termination elements, can be plugged in both left and
right, contain the connections for the reset inputs/group query
TMCP CONNECT LR 0916592 3
Lateral groove labeling ZB 6, see page 111
Stop point
typ. 1,1xl 1,8xl
Switching time [s]
Multiples of I
N
NN
272 PHOENIX CONTACT
– Area of application covers all aspects of
the switched-mode power supply unit
– Includes the advantages of current limita-
tion
– Responds faster than switched-mode
power supply unit to overload and short
circuit
– Output voltage of switched-mode power
supply unit remains stable
– Sufficient supply of all error-free load cir-
cuits
– In addition, the ECP-E3 can be restarted
by the reset input (12), e.g., by means of a
PLC
Notes:
For additional technical data, drawings, and accessories, please
visit www.phoenixcontact.net/products.
ECP-E3 electronic circuit breaker
Protective devices
Device circuit breakers
With reset input and group query
0,01
0,1
1
10
10
2
10
3
10
4
5
1023
I
K
LINE (+)
SO
SI
SC
LOAD (L+)
GND (-)
On/Off
2
12
14
13
11
1
LINE
LOAD
Control Unit
For additional information, visit www.phoenixcontact.net/products
Total width 12.5 mm
Technical data
Rated data IEC
Operating voltage 24 V DC
Rated current InDepends on the selected item version
Disconnection
Switch-off time See trigger characteristic
Fuse type Electronic
General data
Dimensions W / H / D 38 mm / 115 mm / 147.5 mm
Temperature range 0 °C ... 50 °C (without condensation)
Degree of protection IP30 (Actuation area)
Inflammability class according to UL 94 V0
Ordering data
Description Nominal cur-
rent Type Order No. Pcs. /
Pkt.
Selective circuit breaker, can be plugged into TMCP base, sig-
naling using two-color LED, floating signal contact, on/off pushbut-
ton
2 A ECP 2 0911034 5
3 A ECP 3 0911047 5
4 A ECP 4 0912034 5
6 A ECP 6 0912033 5
8 A ECP 8 0912019 5
10 A ECP 10 0912020 5
Selective circuit breaker, as above, but nominal current can be
set via a switch, 1A and 2A
1 A (Adjustable) ECP 1-2 0912018 5
Selective circuit breaker, as above, but nominal current can be
set via a switch, 3A and 6A
3 A (Adjustable) ECP 3-6 0916536 5
Accessories
Modular socket, 2-position, for holding two circuit breakers, each
with a single position
TMCP SOCKET M 0916589 10
Socket termination elements, can be plugged in both left and
right, contain the connections for the reset inputs/group query
TMCP CONNECT LR 0916592 3
Spring lock, for mechanical locking in the case of overhead
mounting, 1-pos.
ECP-LOCK 0912021 10
Lateral groove labeling ZB 6, see page 111
Stop point
typ. 1,1xl 1,8xl
Switching time [s]
Multiples of I
N
NN
273PHOENIX CONTACT
The area of application for the ECP... ex-
tends to all aspects of the power supply
unit. In the case of an overload, power sup-
ply units reduce the output voltage. As a
consequence, all connected loads would no
longer be sufficiently supplied. This means
that if an error occurs in one load of a sys-
tem, the voltage will be affected in all load
circuits.
The solution here is the electronic circuit
breaker:
– Selective protection of all 24VDC load
circuits at switched-mode power supply
units
– Residual current always limited to 1.8
times the nominal current
– Combination of active electronic current
limitation and proven circuit breaker
technology including electrical isolation
– Capacitive loads can be switched on and
loads are only switched off in the event of
an overload or short circuit
Other properties:
– Operating or error state indicated by
LED and integrated signal contacts
– Design width of just 12.5mm
– Can be plugged onto TMCPSOCKETM
base
A complete data sheet is available to
download for each product at
www.phoenixcontact.net/products.
ECP selective circuit breaker
Protective devices
Device circuit breakers
Can be plugged onto base
Total width 25 mm
Technical data
General data
Dimensions W / H / D 25 mm / 115 mm / 110.5 mm
Connection method Spring-cage connection
Connection data solid / stranded / AWG 1.5 ... 10 mm² / 1.5 ... 10 mm² / 15 - 7
Ordering data
Description Type Order No. Pcs. /
Pkt.
Modular socket, 2-position, for holding two circuit breakers, each
with a single position
TMCP SOCKET M 0916589 10
Accessories
Socket termination elements, can be plugged in both left and
right, contain the connections for the reset inputs/group query
TMCP CONNECT LR 0916592 3
Signal bridge, plug-in, for bridging group signaling when there is a
free slot on the TMCPSOCKETM, nominal current: 1A
TMCP SB 0916602 6
Fixed bridge, plug-in, 500 mm long, can be cut to length, for distri-
bution of the input potential in the socket, nominal current: 50A
FBST 500 TMCP 0916615 20
Continuous plug-in bridge, 500 mm long, can be cut to length,
for potential distribution, nominal current: 32A
FBST 500-PLC BU 2966692 20
Continuous plug-in bridge, 500 mm long, can be cut to length,
for potential distribution, nominal current: 32 A
Nominal current: 32 A FBST 500-PLC RD 2966786 20
Lateral groove labeling ZB 6, see page 111
274 PHOENIX CONTACT
– The TMCPSOCKETM base element is
used to mount TMCP... and ECP... plug-
in circuit breakers on DIN rails
– Flexible structure with any number of po-
sitions
– Individual protection thanks to free com-
bination of both circuit breaker types on
a single module
– The TMCPCONNECTLR termination
elements are plugged in at the start and
end of the module structure
– Supply indicated via connections 11 and
12
– Separate signal request for each circuit
breaker
– Using connections 13 and 14 in the termi-
nation elements, a signal loop can be cre-
ated via all circuit breakers quickly and
without the need for additional wiring.
– All electrical connections of the main and
signal contacts are located in the base
– Potential distribution possible by means
of bridges
– User-friendly spring-cage connection
– Large-surface labeling options make it
easier to assign the circuit breakers to the
modules
Base for ECP and TMCP
Protective devices
Device circuit breakers
To accommodate single-position circuit
breakers
Notes:
For additional technical data, drawings, and accessories, please
visit www.phoenixcontact.net/products.
11
1212 22
11
14
11
13
For additional information, visit www.phoenixcontact.net/products
275PHOENIX CONTACT
Nominal
current Maximum
backup fuse Internal resistance [Ω]Switching capacity
as per EN 60934
F1 (fast blow) M1 (normal blow)
[A] [A] for DC for DC/AC [A]
0.2 Any 39.3 26.1 400
0.3 Any 17.5 11.6 400
0.4 Any 9.2 6.6 400
0.5 Any 6.8 4.1 400
0.6 Any 4.2 3 400
0.8 Any 2.8 1.65 400
1 Any 1.6 1.10 400
1.5 25 0.78 0.47 400
2 25 0.42 0.28 400
2.5 25 0.26 0.183 400
3 25 0.18 0.124 400
425 0.12 0.077 400
5 25 0.092 0.063 400
650 0.054 0.045 800
850 0.025≤ 0.02 800
10 50 0.022 ≤ 0.02 800
12 50 ≤ 0.02 ≤ 0.02 800
16 50 ≤ 0.02 ≤ 0.02 800
TMCP and TMC nominal currents, internal resistances and backup fuses
Backup fuse
A backup fuse together with a circuit
breaker must always be used if there is a risk
of the maximum switching capacity being
exceeded in the event of a fault. The
adjacent table specifies the maximum
switching current, the respective internal
resistance and the resulting backup fuse.
TMCP circuit diagram
Display and definitions in the switched-off, zero-current state.
Device 1 Device 2
Protective devices
Device circuit breakers
IN
OUT
IN OUT
1
2
3
4
1
2
3
4
276 PHOENIX CONTACT
Installation instructions for
surge protective devices
Cable routing:
Protected and unprotected cables
must not be laid directly parallel to one
another. They must be physically separated
or shielded from one another so that
surge voltages cannot be coupled from
unprotected cables to protected ones. If
crossed, cables that can influence one
another must be crossed at right angles.
Quenching follow currents:
Gas-filled surge arresters only have
limited self-quenching capability and are
therefore almost always suitable for
protecting message transmission systems.
The arresters easily meet the
requirements of the usually high-
impedance remote indication circuits.
Distinct quenching behavior is observed
under the following conditions in the case
of systems with higher operating voltage
or lower impedance:
AC application: if the possible
short-circuit current of the source
exceeds the alternating current carrying
capacity, a fuse is required to prevent
overheating caused by the follow current.
DC application: for voltages
> 12 V DC, the possible short-circuit
current of the source must not exceed
100 mA. Otherwise a fuse that enables
shutdown within 5 seconds should be
selected. Self-quenching capability is
ensured for voltages ≤ 12 V. Please note,
however, that the specific technical data
for the product must always be observed.
Backup fuse: the system must be
protected against impermissibly high
short-circuit currents due to arrester
overload. The maximum permissible or
required backup fuse for the affected
arrester is documented in the technical
data of the relevant product.
Installation direction:
Surge protective devices with a
multi-stage configuration which are
looped into the circuit are marked “IN”
and “OUT”. They must be connected
before the device to be protected so that
“IN” points towards the direction from
which the surge voltage is expected.
The device to be protected should be
connected to the terminal points marked
“OUT”. This is the only way to ensure
correct operation of the surge protective
device in the event of a surge voltage
coupling.
Connection:
The protective conductor connection
of the system to be protected should be
connected directly and via the shortest
route to the ground connection of the
surge protective device or the
corresponding connection terminal block
on the “OUT” side of the surge
protective device.
This is the only way to ensure that
impermissibly high voltages due to
potential increases caused by discharge
currents are prevented between the
ground connections of the surge
protective device and the device to be
protected. The same is true for the
connection between ground and the live
conductors of the device to be protected
(see figure: ground connection).
Equipotential bonding:
Correct operation of the surge
protective devices requires complete
equipotential bonding in accordance with
the applicable regulations.
Ground connection
Electronics
Electronics
Correct
Incorrect
Surge voltage limiting
components
The main function-specific
components for lightning arresters and
surge protective devices are spark gaps,
gas-filled surge arresters, varistors, and
diodes, as well as decoupling impedances.
All components have specific
advantages and disadvantages. In order to
achieve optimum protection, protective
circuits and multi-stage protection
concepts that combine various
components can be implemented.
Suppressor diode
The reverse voltage UR is the highest
voltage that the diode can safely block.
A current of 1 mA flows through the
suppressor diode at the breakdown
voltage UB. At this point the suppressor
diode starts limiting the surge voltage.
The maximum clamping voltage UC is
the highest voltage which can be present
at the suppressor diode in the event of a
peak pulse current Ipp (10/1000) µs.
U/I characteristic curve of a suppressor diode
Explanation:
UR= Reverse voltage
UB= Breakdown voltage
UC= Clamping voltage
Ipp = Peak pulse current
IR= Reverse current
Technical information
General installation notes/surge voltage limiting components
10-5 10-3 100103A105
I
UN
U
VA B
1200
V
V/U
SZ
800
600
400
200
0102104106108V/s 1010
du/dt
dv/dt
100 V/s 100 V/ sm
1 kV/ sm
10 kV/ sm
277PHOENIX CONTACT
Varistors
Block varistor with thermal disconnect device
U/I characteristic curve of metal oxide varistors
Explanation:
A = High-resistance operating area
B = Low-resistance operating area/
limiting area
Disc varistor
Varistors are “voltage-dependent
resistors” which, due to their voltage/
current characteristic curves enable a high
discharge capacity with a low residual
voltage.
Gas-filled surge arresters consist of an
electrode arrangement in a ceramic or
glass tube. Between the electrodes is an
inert gas, such as argon or neon. When
the igniting voltage is reached, the
component changes to a low-resistance
state as a result of the gas discharge used.
The igniting voltage is not a constant,
instead it is dependent on the rate of rise
of the surge voltage.
After igniting the discharge path, an arc
voltage between 10 and 30 V typically
occurs, which can be measured as a
voltage drop at the arrester. In this
low-resistance state, a line follow current,
whose value depends on the impedance of
the mains connected upstream, can flow
through the arrester. In order to interrupt
line follow currents that exceed the
self-quenching capability, a fuse must be
connected upstream of the surge arrester.
Series connection of varistors or resistors
is also possible.
Characteristic ignition curve of a gas-filled surge arrester
Static response behavior
Dynamic response behavior
Gas-filled surge arresters
Spark gaps
ArC spark gap
The ArC spark gap in the FLASHTRAB
lightning arrester is based on arc chopping
technology. Two spark horns positioned
opposite one another are kept at a
distance by an isolator bridge bar. In
addition, a baffle plate is fitted below the
electrodes in the direction of the opening.
In the event of a surge voltage, surface
discharge occurs along the isolator bridge
bar, which creates an arc. This is driven
along the spark horns towards the baffle
plate where it is chopped up. The resulting
physical effects quench the arc and the
associated line follow currents.
A significant increase in the follow current
quenching capacity can be achieved with
spark gap types in which quenching plates
are arranged around the spark horns.
Characteristic ignition curve of a spark gap
Encapsulated ArC spark gap
ArC spark gap with quenching plates
Technical information
General installation notes/surge voltage limiting components
Explanation of termsSurge protective devices
AC withstand voltage
The r.m.s. value of the highest
sinusoidal voltage at mains frequency
which will not lead to a disruptive
discharge under the specified test
conditions.
Aging
Modification of the original
performance data due to disturbing
pulses, operation or unfavorable ambient
conditions.
Ambient conditions
The immediate ambient conditions
for the device or the relevant air and
creepage distances.
Arc voltage Ubo
The arc voltage is the instantaneous
value of the voltage on a discharge path
(arc discharge) during an arresting
process.
Arrester
Item of equipment that mainly
consists of voltage-dependent resistors
and/or spark gaps. Both elements can be
connected in series or in parallel, or even
used individually. Arresters are used to
protect other electrical equipment and
electrical systems against impermissibly
high surge voltages.
Associated electrical equipment
An item of electrical equipment in
which not all circuits are intrinsically safe,
but which contains circuits that can
influence the safety of the intrinsically
safe circuits to which they are connected.
Asymmetrical interference
Asymmetrical means that the source
of interference and the potentially
susceptible equipment are grounded, i.e.,
they have a capacitive or galvanic
connection to the protective conductor.
As shown in the figure, the interference
moves from the source along both
conductors to the potentially susceptible
equipment and back via ground. The
terms “common-mode interference” or
“common mode” are also used.
Source of
interference
Potentially
susceptible
equipment
The wide range of different
applications also requires numerous
different surge protective devices with
application-specific properties. Important
criteria include the type of circuit, the
surge-voltage limiting properties, and the
design. The TRABTECH range from
Phoenix Contact offers numerous
versions, such as adapters, junction boxes
or DIN-rail-mountable arresters in a
modular and compact design, providing
practical system solutions for all
applications.
In line with their intended application,
surge protective devices are designed for
high electrical loads. However, excessive
or very frequent surge voltages may lead
to overload. This can result in a reduction
or even failure of the protective function,
and the affected protective device having
to be replaced. Where possible, surge
protective devices should therefore have a
plug-in design and support testing.
The TRABTECH product range from
Phoenix Contact takes these
requirements into consideration as far as
modern technology permits. The product
range includes surge protective devices in
the form of adapters, as well as devices
with a two-piece plug-in modular design.
The protective devices in the
FLASHTRAB, VALVETRAB, PLUGTRAB,
and COMTRAB product ranges are
particularly interesting with regard to their
plug-in capability and testability. They have
been developed with various protective
circuits and different nominal voltages for
applications in power supply,
measurement and control, and data
interface protection.
With components that are perfectly
designed to work together, i.e., gas-filled
surge arresters, varistors, and suppressor
diodes depending on the protective
circuit, their specific advantages are fully
utilized.
Asymmetrical voltage, common
mode voltage
Average voltage between each
conductor and a specified reference
point, usually reference ground or
ground.
Burst
Pulses which occur repeatedly within
a specific time interval.
Common mode voltage
The common mode voltage is the
voltage which occurs in the event of
interference between live conductors and
ground.
Coupling
Interaction between circuits, in which
energy is transferred capacitively,
inductively or galvanically from one
circuit to the other.
Direct or close-up strikes
These cause surge voltages with an
energy level that constitutes a
considerable part of the total energy of
the lightning discharge.
Discharge of static electricity;
electrostatic discharge; ESD
The transmission of an electrical
charge between bodies with different
electrostatic potentials when they are in
close proximity or touching.
Disconnect device
This is a device which disconnects a
SPD from the mains when it fails. It is
designed to prevent a permanent fault in
the system caused by the faulty surge
arrester and provide an optical indication
of the faulty SPD.
Disturbance variable
The disturbance variable is an
electromagnetic (or electrical or
magnetic) variable, which can have an
undesirable influence on electrical
equipment.
Electromagnetic compatibility
(EMC)
The ability of a device or system to
operate without faults in an
electromagnetic environment without
itself causing electromagnetic
interference, which would be
unacceptable for other devices in this
environment.
Electromagnetic environment
The sum of all electromagnetic
phenomena at a given location.
278 PHOENIX CONTACT
Technical information
Explanation of terms
Electromagnetic interference
A loss in the quality of the operating
behavior, such as malfunction or failure of
electrical or electronic equipment, that is
caused by an electromagnetic disturbance
variable.
Equipment to be protected
All equipment of a structural system
or a range which requires surge
protection or lightning protection.
Equipotential bonding
The removal of potential differences
between conductive parts, in which all
points assume virtually the same
potential.
A distinction is made between
functional equipotential bonding and
protective equipotential bonding.
Equipotential bonding conductors
These are electrically conductive
connections used to create equipotential
bonding.
Equipotential bonding strip
This is the strip which is designed to
connect protective conductors,
equipotential bonding conductors, and
conductors for functional earth
grounding to the ground conductor and
the ground electrodes.
Equipotential bonding system
This refers to all the interconnected
equipotential bonding conductors,
including the conductive parts such as
housing or external conductive parts
which work in the same way.
The equipotential bonding system can
also be the grounding system or part of a
grounding system.
Exposure
Exposure is an insufficient distance
between the lightning protection system
and metal installations or electrical
systems which leads to a risk of flashover
or disruptive discharge in the event of a
lightning strike.
Exposure voltage
The exposure voltage is a voltage that
occurs at the exposure point when
lightning strikes the lightning protection
system.
Follow current If
Current which flows through the SPD
following discharge and is supplied by the
mains. The follow current differs
considerably from the continuous
operating current.
Gas-filled surge arrester
The gas-filled surge arrester is a
discharge path which is filled with a gas
other than air, generally an inert gas.
Ground
This expression refers to the earth
and the ground.
Ground conductor
A conductor which connects the
equipment to be grounded to a ground
electrode, as long as the ground
conductor is not laid in the ground or, if
laid in the ground, is insulated.
Ground electrode
A conductor embedded in the ground
with an electrically conductive
connection to ground. Parts of supply
lines to a ground electrode, which are not
insulated in the ground, are considered to
be parts of the ground electrode.
Grounding
Grounding is the sum of all means and
measures used for grounding.
Grounding resistance
The resistance between the
grounding system and the reference
ground. The amount of grounding
resistance depends on the interaction of
the individual ground electrodes.
Impulse sparkover voltage of
1.2/50 s
Highest voltage value before the
disruptive discharge between the
electrodes of the spark gap of a SPD.
Impulse withstand voltage Ust
The peak value of the highest surge
voltage with a predefined form and
polarity, which will not lead to a
disruptive discharge under the specified
test conditions.
Note: the impulse withstand voltage
is equal to or greater than the rated surge
voltage.
Inactive parts
Inactive parts are conductive parts
that are electrically isolated from all live
parts through basic insulation.
Insertion attenuation
To determine the insertion
attenuation of a SPD, the mains and
frequency are specified. The attenuation
value is defined as the ratio of voltages
that occur immediately before and after
the insertion point of the SPD to be
tested. The result is expressed in
decibels.
Insulation coordination
The assignment of characteristic
insulation data for an item of equipment
for:
– Expected surge voltages
– Characteristic data of the surge
protective device
– Expected ambient conditions
– Protective measures against
contamination
Interference suppression
Measure to reduce or avoid the
electromagnetic disturbance variables
that occur.
Intrinsically safe circuit
A circuit protected against sparks and
thermal effects that may occur under the
conditions specified in DIN EN 60079-11
(which include error-free operation and
specific fault conditions), which can cause
the ignition of a particular explosive gas
atmosphere.
Intrinsically safe electrical
equipment
Electrical equipment in which all
circuits are intrinsically safe.
Lightning protection system
All devices as a whole that provide
external and internal lightning protection
for the system to be protected.
Lightning surge current Iimp
Lightning surge currents are
characterized by the parameters peak
value, charge, specific energy, and current
increase rate. The lightning surge current
Iimp is a measurement for the discharge
capacity of lightning arresters (class I). It
is determined according to a defined test
procedure using 10/350 µs waveform test
pulses.
Lightning surge voltage
Surge voltage as a result of lightning
discharge.
279PHOENIX CONTACT
Technical information
Explanation of terms
Normal mode voltage
The normal mode voltage is the
voltage which occurs in the event of
interference between two conductors of
a circuit.
Potentially susceptible equipment
All electrical equipment whose
function can be influenced by disturbance
variables is referred to as potentially
susceptible equipment. Influence on
function may be in the form of a
functional disturbance, reduction in
function, malfunction or failure.
Protection level Up
A parameter that characterizes the
performance capabilities of the SPD with
regard to voltage limitation via its
connection terminal blocks. This value,
which should be specified by the
manufacturer, must be greater than the
highest measured value of the clamping
voltages.
Protective paths
The voltage-limiting or switching
components of the SPD can be
connected between conductor/
conductor, conductor/ground,
conductor/neutral conductor, and neutral
conductor/ground or a combination of
these options. These circuit types are
referred to as protective paths.
Pulse
Rapid, brief alteration of a physical
variable, followed by a fast return to the
original value.
Pulse burst; burst
Result of a limited number of pulses
or waves of a limited duration.
Rate of rise
Average rate of change of a variable
between two specified values, e.g., 10%
and 90% of the peak value.
Reference ground
An area of the earth, particularly of
the earth's surface, which is so far away
from the ground conductors that no
noticeable voltages occur between any
points of this area as a result of the
current entering the earth.
Remote strikes
These usually cause surge voltages
with a significantly lower energy level
than close-up strikes. Remote strikes are
responsible for causing surge voltages in
electrical and electronic systems.
Lightning test current
The (10/350) μs lightning test current
has a rise time of 10 μs and a decay time
to half-value of 350 μs.
10/350 lightning current pulse according to IEC 62305-1
Live parts
Live parts are conductors and
conductive parts of equipment that are
energized under normal operating
conditions.
Maximum continuous voltage UC
The rated voltage is the maximum
permissible r.m.s. value of the
power-frequency AC voltage, which may
be permanently applied to the protective
paths of the arrester.
Nominal current IN or load current IL
Highest continuous current for
products according to IEC 61643 which
can flow through the surge protective
device at the specified temperature
without altering the electrical operating
properties. For higher operating
temperatures, the nominal current is
lower (derating).
Nominal discharge surge current In
Peak value of the current flowing
through the SPD with surge form
(8/20) μs. It is used to classify the SPD
according to class II. Source:
EN 61643-11
8/20 surge current pulse according to IEC 60060-1
Nominal voltage UN
A suitable rounded voltage value,
which is specified by the manufacturer for
equipment for the purpose of designation
or identification.
30
60
010
100
350
I
(%)
t (us)
100
90
50
10
0
8
20
I
(%)
t (us)
Residual current device (RCD)
Residual current devices are devices
which isolate electrical systems from the
power supply system as soon as the
residual current to ground exceeds a
specific value.
Residual voltage Ures
The peak voltage value that occurs
while discharge surge current is flowing
via the terminal blocks of the SPD.
Source: EN 61643-11:2002
Response
A response is when either:
– The peak value of the ohmic
components of the current flowing
through the arrester reaches 5 mA
– A voltage dip with an increase in the
peak value of the current flowing
through the arrester to 5 mA occurs
Selective residual current device
Selective residual current devices are
time-delayed circuit breakers.
Short circuit stability
Highest interference-free
short-circuit current the SPD can
withstand.
Source of interference
A source of interference is the origin
of disturbance variables. In principle, any
electrical equipment, such as motors or
fluorescent lamps, can be a source of
interference.
Specialist
A specialist is a person who, because
of their education, experience, and
instruction, and their knowledge of
relevant regulations, can assess any
required operations and recognize any
possible dangers.
Note: when considering a person's
professional training, several years'
experience in the relevant field can also
be taken into account.
Spike
A relatively short single-polarity
pulse.
Surface discharge surge arrester
The surface discharge surge arrester,
according to DIN VDE 0845 Part 1, is a
discharge path in which gas discharge is
initiated by means of surface discharge.
Surge current of (8/20) μs
Surge current with a rise time of 8 μs
and a decay time to half-value of 20 μs.
Source: IEC 60060-1
280 PHOENIX CONTACT
Technical information
Explanation of terms
Surge current of (10/350) μs
Surge current with a rise time of 10 μs
and a decay time to half-value of 350 μs.
Source: IEC 62305-1
Surge protection equipment (SPE)
Surge protection equipment consists
of surge protective devices and all
equipment in telecommunications
systems, including their cables, used for
surge protection.
Surge protective device (SPD)
A device to limit surge voltages and
discharge surge currents. It contains at
least one non-linear voltage-limiting
component.
Surge voltage
Any voltage with a peak value that
exceeds the corresponding peak value of
the maximum continuous voltage under
normal operating conditions.
Source: EN 60664-1
Surge voltage category
Assignment of electrical equipment to
the anticipated surge voltage.
Surge voltage of (1.2/50) μs
Surge voltage with a rise time of
1.2 μs and a decay time to half-value of
50 μs. Source: IEC 60060-1
1.2/50 surge voltage pulse according to IEC 60060-1
10/700 surge voltage pulse according to ITU-T K.44
10/1000 surge current pulse according to IEEE C62.41.1
Switching surge voltage
Surge voltage as a result of a switching
operation.
Symmetrical interference
As shown in the figure, the
disturbance variable moves from the
source along one conductor to the
potentially susceptible equipment and
back along the other conductor. The
terms “normal-mode interference” or
“differential mode” are also used.
100
90
50
30
01,2
50
U
(%)
t (us)
100
90
50
30
0
U
(%)
t (us)
10
700
100
90
50
10
0
I
(%)
t (us)
10
1000
Source of
interference
Potentially
susceptible
equipment
Symmetrical interference voltage
Interference voltage between
two wires of a cable (e.g., double cable)
or between two connection points of
electrical equipment for this cable type.
Symmetrical voltage, differential
mode voltage
Voltage between two live conductors
from one defined group.
Temperature range
Range between the minimum and
maximum temperature that may be
present at/in housing. For devices
without self-heating, this value is the
permissible ambient temperature. For
devices with self-heating, these values are
the maximum temperatures that may
occur at/in the device during operation.
To g ro u n d
An electrically conductive part, e.g.,
the lightning protection system is
connected to ground via a grounding
system.
Tr a n s i e n t
Describes a phenomenon or variable
which changes during what is, in
comparison to the time scale being
observed, a short period of time between
two consecutive stationary states.
Tr a n s i e n t s
Irregular and relatively short positive
and/or negative voltage or current
changes between two stationary states.
Varistors
A varistor is a bipolar non-linear
resistor with a symmetrical voltage/
current characteristic curve and a
resistance value which decreases as the
voltage increases.
281PHOENIX CONTACT
Technical information
Explanation of terms
Phoenix Testlab is a “Notified Body” in
accordance with EMC Directive 2004/108/EC
and according to R&TTE Directive 1999/5/EC
for radio and telecommunications terminal
equipment. As a “Telecom Certification
Body” (TCB), Phoenix Testlab may also
approve these products for markets in the
USA, Canada, and Japan.
Standards and regulations
All relevant standards and regulations are
used as the basis for the development and
maintenance of our products.
International standards are subject to
continuous changes as a result of
harmonization and new developments. In line
with this process, the current version of all
standards that are relevant to our products is
documented in the product area on our
website at www.phoenixcontact.net/
products.
Online product information service on
the web
Phoenix Contact's product range is
growing constantly.
Due to our commitment to product
monitoring, all products are subject to
improvement.
The Internet is an ideal platform to quickly
communicate new product developments and
improvements to the market.
You can quickly access the relevant
Phoenix Contact website for your region via
www.phoenixcontact.com. Here, you will
always find the latest overview of products,
solutions, and services from Phoenix Contact.
This includes technical documents, such as
data sheets and user manuals, the latest driver
and demo software, plus a means of
contacting the appropriate contact person
directly.
marketing the product within the EU.
Where applicable, the products that our
company currently manufactures fall within
the scope of the following directives:
– 2006/95/EC
Electrical equipment designed for use within
certain voltage limits (Low Voltage
Directive)
– 2004/108/EC
Electromagnetic compatibility
(EMC Directive)
– 2006/42/EC
Safety of machinery
(Machinery Directive)
– 94/9/EC
Equipment and protective systems intended
for use in potentially explosive areas
(ATEX Directive 100a)
– 1999/5/EC
Radio and telecommunications terminal
equipment (R&TTE)
The standards upon which the specified
directives are based, have been part of our
standard of development for a long time. This
guarantees conformance with European
directives. The numbers of the directives
indicate their version at the time of
publication. In the event of changes to
directives and/or standards, our products will
undergo conformity assessment again in good
time and a new declaration of conformity will
be issued promptly. The current declarations
for each product can also be found in our
Download Center.
The EMC Directive occupies a special
place among the European directives listed. It
defines electromagnetic compatibility as a
fundamental property of devices based on
mandatory guidelines. European Law
therefore acknowledges the electromagnetic
compatibility of devices and systems as an
important condition for error-free operation
of machinery and systems. Phoenix Contact is
one of the leading international companies in
surge protection, and therefore possesses
broad expertise in EMC. This expertise and
the experience gained over years of
developing and applying industrial interface
and communication technology have resulted
in our products having an extremely high
standard of quality with regard to
electromagnetic compatibility. It was with a
view to providing other companies with this
expertise that our associate company,
Phoenix Testlab, was founded. Phoenix
Testlab GmbH is an independent, accredited
service provider offering EMC testing that
conforms to European standards. At Phoenix
Testlab, devices are also tested with regard to
their electrical safety, mechanical influences,
and their behavior in relation to
environmental influences. Furthermore,
Integrated management system
The aim of the Phoenix Contact
integrated management system is to
coordinate all the requirements regarding
products, processes, and organization.
Statutory and regulatory requirements, as
well as those of international standards and
our customers, are met and, in some cases,
even exceeded in all phases of the product
lifecycle.
In the Phoenix Contact management
system, the integration of quality,
environmental protection, and safety in the
workplace is monitored each year for
conformance by internationally recognized
independent bodies. Certification in
accordance with international standards ISO
9001, ISO 14001, and BS OHSAS 18001 is the
result of our corporate philosophy of meeting
the needs of our customers, staff, and
environment as best as possible. They serve as
the basis for innovative products with the
familiar high Phoenix quality standard, actively
practiced environmental protection, and
responsibility in the field of occupational
health and safety. Of course, we integrate all
further requirements of standards,
international approvals or special customer
requirements into company processes.
This system provides a building block for
the success of the Phoenix Contact Group
and its products and services.
CE marking
The CE mark was introduced as an
important instrument for the free movement
of goods and services within the single
European market. By attaching the mark to a
product, the manufacturer confirms that it
complies with all applicable European Union
(EU) directives. EC directives describe the
product properties with regard to device
safety and avoiding danger. These are legally
binding regulations of the European Union
(EU). In other words, compliance with the
requirements is a statutory condition for
Quality in quantity
282 PHOENIX CONTACT
Technical information
60
200
Shock protection
formed by an even envelope curve 30 mm in
radius must surround the live parts. This area
must be touch proof, i.e., the live parts of the
electrical device must not be within reach of
the VDE test finger in accordance with
IEC 60529/DIN VDE 0470-1 (test finger).
Back of hand safety is specified for the
“rest of the area” up to 100 mm around the
operating element. Back of hand safety
means that when a force of 50 N is applied to
a ball with a diameter of 50 mm, this does not
come into contact with the live parts of the
equipment. No special measures for shock
BGV A 2. The confirmation required relates
to systems and equipment that have been
installed and are ready for operation and can
only be issued by the installer or installation
Touch proof
Back of hand safety
Example: pressure actuation
The accident prevention regulations
BGV A 2 issued by the German employer's
liability insurance association for precision
mechanics and electrical engineering apply to
the operators of electrical systems and are
aimed at the prevention of electrical accidents
by means of special safety requirements.
These regulations contain specifications
regarding the safety distances for work,
operation, and occasional handling in the
proximity of “live parts” in low-voltage
systems up to 1000 V ~ or 1500 V –.
– Work with live parts is only permitted once
they have been de-energized. Operational
activities are only permitted in the vicinity of
live parts if these parts are de-energized or
are protected against direct contact (§ 6).
The following safety measures are applicable
when working in close proximity to live
parts:
– Provision of the de-energized state for the
duration of the work
– Ensure shock protection is in place in the
form of covers or barriers during the work
– Assurance that proximity limits will not be
violated (§ 7)
The term “occasional handling” has been
introduced for the operation of elements such
as pushbuttons, rocker arms or rotary
buttons in the proximity of live parts.
In VDE 0105-1, this is covered by
“operation with partial protection against
direct contact”.
Detailed specifications for “occasional
handling” can be found in DIN VDE 0106-100.
This specifies to what degree live parts in the
proximity of operating elements are to be
protected against contact. The basis for this is
the definition of a “protection area for
occasional handling”; this is the area into
which the user must reach in order to handle
the machine.
The most important thing is that an area
protection are provided outside this area.
Note: systems and equipment that are
operated with SELV up to 25 V ~ or 60 V – are
considered to be protected against direct
contact.
According to § 5, Subsection 4 of the
BGV A 2 regulations, there is no need to test
the condition of the system prior to initial
startup if the company has confirmation from
the manufacturer or installer that the
electrical systems and equipment conform to
283PHOENIX CONTACT
Technical information
company. The manufacturer of the electrical
equipment can only issue a confirmation that
products have been produced in accordance
with the relevant electrotechnical DIN VDE
regulations stipulated in BGV A 2. The
installer must bear this in mind when selecting
the equipment to be used.
In the field of connection technology,
Phoenix Contact offers a wide range of
products that are touch proof or that can be
protected against contact using covers.
Depending on the conditions, all of this must
be taken into account when selecting the
individual types of terminal block and
accessories.
Quality features of insulating housing
Thermoplastics
The majority of our insulating housing is
made from thermoplastic materials. Roughly
speaking, these can be divided into amorphous
and semi-crystalline substances.
Thermoplastics are processed using the
efficient and environmentally-friendly injection
molding process. They have good recycling
properties and can be re-used. We use many
materials that are modified in different ways to
meet the demanding requirements that
electrical and electronic modules, devices, and
systems have to meet with regard to their
mechanical, thermal, and electrical properties.
Behavior of plastics under the
influence of temperature (operating
temperatures, mechanical influences)
All plastics undergo a process referred to
as thermal aging when they are subjected to
heat over long periods. This process causes
changes in the mechanical and electrical
properties of the material. External influences,
e.g., radiation, additional mechanical, chemical
or electrical stresses, amplify this effect.
Special tests on samples can yield
characteristic data which provides a good
means of drawing comparisons between
different plastics. However, applying these
characteristics to an evaluation of molded
plastic parts is only possible to a limited
extent, and can only give the designer a rough
guide when it comes to selecting a plastic
material. This catalog uses the following
assessment criteria: the RTI value according
to UL746B/ANSI 746 B (elec. based on
dielectric strength) and the Ti value
according to IEC 60216-1 (based on a 50%
reduction in tensile strength after
20,000 hours).
IEC 60947-7-1/EN 60947-7-1 specifies a
permissible temperature increase of 45 K for
modular terminal blocks under nominal load.
Phoenix Contact terminal blocks meet this
requirement.
The properties of plastics are not only
affected by the influence of heat as described
above; they also undergo changes as a result of
cold influences. When subjected to cold as
well as low levels of humidity, plastics become
increasingly brittle with the result that they
are no longer capable of withstanding the
same mechanical loads. As the table on the
right shows, the plastics concerned can be
used down to a temperature of -40°C, but
only without a mechanical load. As far as the
products presented in the catalog are
concerned, it is the ambient temperature
specified in each case that is to be regarded as
definitive for operation. Regardless of the
plastics used, this may be subject to further
restrictions (e.g., limited to -20°C) as a result
of the components used or other restrictive
parameters.
At very low temperatures, this means that
any form of mechanical load on the plastic
components must be avoided (e.g., mounting
of products on/removal of products from the
DIN rail, actuation of terminal points, locking/
ejection of relays from bases, prizing out of
plug-in bridges, bending of cables and lines,
etc.), as there is always an associated risk of
damage. Unless otherwise indicated, it is
recommended that you carry out the
specified mounting/operational tasks in a
temperature range from -10°C to +40°C.
Inflammability characteristics of
plastics (UL 94)
Inflammability tests for plastics have been
defined by Underwriters Laboratories (USA)
in regulation UL 94. This applies to all areas of
application, but in particular to electrical
engineering. A horizontal or vertical test is
carried out at the test laboratory to
determine the inflammability of the plastic
material with a naked flame. In order of
increasing resistance to combustion, the
evaluation classes are HB, V2, V1, V0, and 5V.
Test results are recorded on “yellow cards”
and are published annually in the Recognized
Component Directory.
Thermoplastics: non-reinforced
polyamide, PA
We use modern, semi-crystalline
polyamide insulation material, which has now
become an essential component in electrical
engineering and electronics. It has long
occupied a leading position and is authorized
for use by the relevant approval authorities
such as the CSA, NEMKO, KEMA, PTB, SEV,
UL, VDE, etc.
Polyamide also has excellent electrical,
mechanical, chemical, and other properties,
even at high operating temperatures. Brief
peak temperatures up to approximately
200°C are permitted as a result of heat aging
stabilization. Depending on the type (PA 4.6,
6.6, 6.10, etc.), its melting point is in the region
of 215°C to 295°C.
Polyamide absorbs moisture from its
surroundings, on average 2.8%. However, this
moisture is not in the form of crystallization
water in the plastic itself, but chemically
bonded H2O groups in the molecule
structure. This makes the plastic flexible and
resistant to breakage, even at temperatures as
low as -40°C. According to UL 94, PA belongs
to inflammability class V2 to V0.
Thermoplastics: polyester, PBT
We use the semi-crystalline
thermoplastic polyester in non-reinforced
and fiberglass-reinforced variants for special
applications which require increased
dimensional and form stability.
In addition to the high operating
temperature, the material is characterized by
excellent mechanical strength and hardness,
and does not absorb moisture from its
surroundings. PBT is therefore particularly
suitable for strips, for example, which are
soldered onto PCBs and subsequently have to
pass a burn-in test while they are subjected to
heat. According to UL 94, PBT belongs to
inflammability class V2 to V0.
Thermoplastics: polycarbonate, PC
Polycarbonate combines many advantages
such as rigidity, impact strength, transparency,
dimensional stability, good insulation
properties, and resistance to heat.
This amorphous material only absorbs
moisture to a very limited degree, and is used
for items such as large, rigid electronic
component housing.
In its transparent form, polycarbonate is
particularly suitable for use as cover profiles
or marking materials.
PC has good resistance properties against
mineral acids, saturated aliphatic
hydrocarbons, gasoline, greases, and oils.
The material is less resistant to solvents,
benzene, lyes, acetone, and ammonia. Strain
cracks may result from contact with certain
chemicals.
According to UL 94, PC belongs to
inflammability class V2 to V0.
284 PHOENIX CONTACT
Technical information
Properties Unit/level Polyamide
PA
Polyester
PBT
Polycarbonate
PC
Polycarbonate
PC-F
ABS
Operating temperature RTI */** °C ≤ 105 ≤ 105 ≤ 125 ≤ 120 ≤ 80
Minimum temperature (without mechanical load) °C -40 -40 -40 -40 -40
Dielectric strength acc. to IEC 60243-1/DIN VDE 0303-21 kV/cm 600 400 > 300 850
Creep resistance CTI...M 550 225 175 200
IEC 60112/DIN VDE 0303-1 CTI... 600 225 175 175 600
Tropical and termite resistance Good Good Good
Specific contact resistance
IEC 60093/VDE 0303 Part 30; IEC 60167/VDE 0303 Part 31 Ω cm 1012 1016 > 1016 > 1014 1014
Surface resistance
IEC 60093/VDE 0303 Part 30; IEC 60167/VDE 0303 Part 31 Ω1010 1013 > 1014 1013
Inflammability class according to UL 94 V2 - V0 V0 V2 - V0 V0 HB - V0
* According to UL 746 B/ANSI 746 B (elec.) ** Minimum value
Thermoplastics:
polycarbonate fiber-reinforced, PC-F
Compared to non-reinforced materials,
fiber-reinforced polycarbonates feature
greater rigidity, impact strength, and operating
temperature. In other respects, their
properties are largely identical to those of
non-reinforced polycarbonate.
Thermoplastics: ABS
We use the thermoplastic molding
compound ABS for products which must have
good impact and notched impact properties in
addition to high mechanical stability and
rigidity. The products are resistant to
chemicals and stress cracking due to their
special surface quality and hardness.
The characteristic thermal properties
provide good dimensional stability at both low
and high temperatures. Products made from
ABS can be coated with metallic surfaces, e.g.,
nickel.
According to UL 94, the molding
compound used belongs to inflammability
class HB to V0.
285PHOENIX CONTACT
Technical information
Dimensions: width / height / depth
The dimensions for “width / height /
depth” are defined as follows for all DIN-rail
mountable products in the INTERFACE
range:
– Width: measurement taken along the
DIN rail
– Height: measurement taken across the
DIN rail
– Depth: measurement taken starting from
the mounting plate and including the NS 35/
7,5 DIN rail (EN 60715)
The width, height, and depth never
change, even if the products shown in this
catalog happen to be photographed from
two different perspectives (horizontal or
vertical).
To make things easier for you, one of the
following two symbols has been included next
to each product photo:
D
H
W
DW
H
Tightening torque of terminal block
screws
IEC 60947-1/EN 60947-1, modified,
Table 4 specifies tightening torques for screw
connections based on the screw size for
electrical and mechanical type tests.
Extract from IEC 60 947-1/EN 60 947-1, Table 4
The torque according to IEC and the recommended tightening torque
for Phoenix Contact terminal blocks are specified.
Thread Head screw with slot
Torque
[Nm]
Recommended
tightening torque
[Nm]
M2.5 (M2.6) 0.4 0.4 - 0.5
M3 0.5 0.5 - 0.6
M3.5 0.8 0.8 - 1.0
M4 1.2 1.2 - 1.5
M5 2.0 3
M6 2.5 4
These values can be found in the
product-specific technical data.
The rated connection capacity of the
Phoenix Contact modular terminal blocks
usually exceeds standard requirements, which
specify that it must only be possible to
connect one conductor with one of the two
next smallest cross sections, excluding the
rated cross section (standardized for the cross
section range from 0.2 to 35 mm2).
In addition, conductors with a rated cross
section can usually be wired with ferrules with
plastic sleeve.
Phoenix Contact modular terminal blocks
are designed to allow copper conductors to
be connected to them untreated. “Special
treatment” or the use of ferrules – both
permitted according to IEC 60947-7-1 – is not
Connection cross section
The rated cross sections of modular
terminal blocks must be specified by the
manufacturer in accordance with
IEC 60947-7-1. The rated cross section is the
maximum conductor cross section that can be
connected in single-, multi- or fine-strand
versions subject to specific thermal,
mechanical and electrical requirements.
The manufacturer must also specify the
rated connection capacity, i.e., the area of
the conductor that can be connected, as well
as the number of conductors that can be
connected simultaneously and the necessary
preparation of the conductor ends. The
conductors can be solid (single or
multi-strand) or stranded (fine-strand).
required. If ferrules are nevertheless used to
protect stranded conductors against splicing,
the connection capacity of the stranded
conductor is generally reduced by one level.
Structure and dimensions of connecting cables
Cross
section
Single-strand Multi-strand Fine-strand American Wire Gauge [AWG]
[mm2]
Diameter
max.
dimension
Number of
wires
Diameter
max.
dimension
Number of
wires
(minimum
number)
Diameter
max.
dimension
Number of
wires
(guide
value)
Gauge No.
AWG [∅ mm]
Solid
wires
[circ. mils] [mm2] [∅ mm]
Stranded
wires
[circ. mils] [mm2]
0.2 0.5 1 – – – – 24 0.51 404 0.21 –––
0.5 0.9 11.1 71.1 16 20 0.81 1022 0.52 0.97 1111 0.56
0.75 1.0 11.2 71.3 24 18 1.02 1620 0.82 1.16 1600 0.82
11.2 11.4 71.5 32 (17) 1.15 2050 1.04
– – – – – – – 16 1.29 2580 1.31 1.50 2580 1.32
1.5 1.5 11.7 71.8 30 (15) 1.45 3260 1.65
– – – – – – – 14 1.63 4110 2.08 1.85 4100 2.09
2.5 1.9 12.2 72.3 50 (13) 1.83 5180 2.63
– – – – – – – 12 2.05 6530 3.31 2.41 6500 3.32
42.4 12.7 72.9 56 (11) 2.30 8230 4.17
– – – – – – – 10 2.59 10380 5.26 2.95 10530 5.37
62.9 13.3 73.9 84 (9) 2.91 13100 6.63
– – – – – – – 8 3.26 16510 8.37 3.73 16625 8.48
10 3.7 1 4.2 7 5.1 80 (7) 3.67 20800 10.56 4.15 20820 10.55
-- -- - - -64.12 26240 13.30 4.67 26250 13.39
16 4.6 1 5.3 7 6.3 126 (5) 4.62 33100 16.77 5.24 33100 16.77
-- -- - - -45.19 41740 21.15 5.90 41650 21.24
25 - - 6.6 7 7.8 196 35.83 52600 26.67 6.61 52630 26.67
35 - - 7.9 7 9.2 276 26.54 66360 33.62 7.42 66150 33.74
-- -- - - -17.35 83690 42.41 8.33 83706 42.69
286 PHOENIX CONTACT
Current carrying capacity
Standard IEC 60947-7-1/EN 60947-7-1/
DIN VDE 0611-1 specifies the test currents
for the individual conductor cross sections
listed in the adjacent table. The corresponding
currents are listed with the connection data
for the individual terminal blocks. The type
tests for modular terminal blocks are based on
this data.
Test currents according to IEC 60947-7-1/EN 60947-7-1, Table 5
Rated cross
section [mm2]0.2 0.5 0.75 1.0 1.5 2.5 4 6 10 16
Test current [A] 4 6 913.517.52432415776
Technical information
X
jfv
F
Cpx
N
Am
n
a!o
U
uz
gwy
PN
Ad
$l
K
S
s
J
V
h
T
287PHOENIX CONTACT
Technical information
Overview of certification bodies and
safety marks
Certification bodies and approvals Country
code Explosion protection Country
code Ship classification societies Country
code
IECEE CB Scheme
(in combination with certifying body)
Internatio
nal FM Approvals US Bureau Veritas FR
CCA
CENELEC Certification Agreement (CCA
inspection report)
(in combination with certifying body)
EU DEKRA Certification B.V. NL Germanischer Lloyd AG DE
Canadian Standards Association (CSA) CA Physikalisch-Technische Bundesanstalt DE Lloyd's Register EMEA GB
Underwriters Laboratories Inc. (UL) US QS Schaffhausen CH Nippon Kaiji Kyokai JP
Underwriters Laboratories Inc. (UL)
- UL approval for Canada - CA VTT Expert Services Oy FI Det Norske Veritas NO
Underwriters Laboratories Inc. (UL)
Combined logo
- UL approval for the USA and Canada -
US
CA
IBExU Institut für Sicherheitstechnik
GmbH DE Polski Rejestr Statków PL
INSIEME PER LA QUALITA'E LA
SICUREZZA IT TÜV Rheinland do Brasil BR Russian Maritime Register of Shipping RU
Gosudarstvenne Komitet Standartov
(GOST) RU Underwriters Laboratories Inc. (UL) US Korean Register of Shipping KR
DEKRA Certification B.V. NL TÜV Nord DE American Bureau of Shipping US
Österreichischer Verband für
Elektrotechnik AT DEKRA EXAM GmbH DE
South African Bureau of Standards ZA
electrosuisse SEV Verband für Elektro-,
Energie- und Informationstechnik CH
Verband Deutscher Elektrotechniker
e.V.(VDE)
– Approval of drawings
– Reports with production monitoring
DE
Berufsgenossenschaft (BG)
GS - Geprüfte Sicherheit DE
TÜV Rheinland Industrie Service GmbH DE
Note:
Subject to changes that serve the
purpose of technical progress.
EMC: Class A product:
In accordance with statutory
regulations, our products are indicated with
this footnote if they are intended for use in
industrial environments. This means that
the permissible limit values for residential
applications may be exceeded in the event
of conducted and emitted interference. In
such cases, the operator may have to take
additional safety measures in order to
ensure electromagnetic compatibility in
residential applications.
,
288 PHOENIX CONTACT
Dimensioning of clearances Rated surge voltages for items that are directly supplied by
the low-voltage network (extract from Table 1)
Nominal voltage of the power supply
system 1) (mains) acc. to IEC 60038 3)
[V]
Conductor-neutral conductor voltage
derived from the total nominal
AC voltage or nominal DC voltage
Rated surge voltage 2)
[V]
Surge voltage category 4)
Three-phase Single-phase [V] I II III IV
120 to 240
50 330 500 800 1500
100 500 800 1500 2500
150 800 1500 2500 4000
230/400 277/480 300 1500 2500 4000 6000
400/690 600 2500 4000 6000 8000
1000 1000 4000 6000 8000 12000
1) Refer to Appendix B for application in existing deviating low-voltage networks and their nominal voltages.
2) Items with this rated surge voltage may be used in systems in accordance with IEC 60364-4-443.
3) The slash, i.e., /, indicates a three-phase 4-conductor system. The lower value is the conductor-to-neutral conductor voltage,
whereas the higher value is the conductor-to-conductor voltage. When only one value is specified, it refers to a three-phase 3-
conductor system, and indicates the conductor-to-conductor voltage.
4) Refer to 2.2.2.1.1 for an explanation of surge voltage categories.
Minimum clearances for surge voltages (extract from Table 2)
Required impulse
withstand
voltage 1) 5)
Condition A
Non-homogeneous field (refer to 1.3.15)
Condition B
Homogeneous field (refer to 1.3.14)
Pollution degree 6) Pollution degree 6)
123 123
[mm] [mm] [mm] [mm] [mm] [mm]
0.33 2)0.01
0.2 3) 4)
0.8 4)
0.01
0.2 3) 4)
0.8 4)
0.40 0.02 0.02
0.5 2)0.04 0.04
0.60 0.06 0.06
0.80 2)0.10 0.10
1.0 0.15 0.15
1.2 0.25 0.25 0.2
1.5 2)0.5 0.5 0.3 0.3
2.0 1.0 1.0 1.0 0.45 0.45
2.5 2)1.5 1.5 1.5 0.6 0.6
3.0 2.0 2.0 2.0 0.8 0.8
4.0 2)333 1.21.21.2
5.0 444 1.51.51.5
6.0 2)5.5 5.5 5.5 2 2 2
8.0 2)888 333
10 11 11 11 3.5 3.5 3.5
12 2)14 14 14 4.5 4.5 4.5
15 18 18 18 5.5 5.5 5.5
20 25 25 25 8 8 8
25 33 33 33 10 10 10
30 40 40 40 12.5 12.5 12.5
40 60 60 60 17 17 17
50 75 75 75 22 22 22
60 90 90 90 27 27 27
80 130 130 130 35 35 35
100 170 170 170 45 45 45
1) This voltage is:
– For function insulation: the highest surge voltage expected for the clearance
– For basic insulation, if influenced directly or considerably by surge voltages from the low-voltage network:
the item's rated surge voltage
– For a different basic insulation: the highest surge voltage possible in the circuit
2) Preferred values
3) For PCBs, the values of pollution degree 1 are applicable, except that no deviation below the value of 0.04 mm is permitted, as
specified in Table 4.
4) Minimum clearances for pollution degrees 2 and 3 are based on the corresponding creepage distances. This resistance is reduced
due to the effects of humidity.
5) Values can be interpolated for parts or circuits within items that are subjected to surge voltages.
6) The distances for pollution degree 4 are equal to those for pollution degree 3, except that the minimum clearance is 1.6 mm.
Schematic for determining clearances
Nominal voltage of the
power supply
Rated surge
voltage according to
Table 1
Minimum clearance L
according to Table 2
Multiply L with altitude
correction factor
according to Table A2
Surge
voltage
category
Pollution
degree
Rated
surge
voltage
Height
> 2000 m
above sea
No
Clearance L
Yes
Rating acc.
to case A
Altitude correction factors
(extract from Table A.2)
Height
in m
Normal air pressure
in kPa
Multiplication factor
for gaps
2000
3000
4000
80.0
70.0
62.0
1.00
1.14
1.29
5000
6000
7000
54.0
47.0
41.0
1.48
1.70
1.95
8000
9000
10000
35.5
30.5
26.5
2.25
2.62
3.02
15000
20000
12.0
5.5
6.67
14.50
Surge
voltage
test
Technical information
289PHOENIX CONTACT
Dimensioning of creepage distances
Schematic for determining creepage
distances
Single-phase 3 or 2-conductor AC or DC voltage
systems (extract from Table 3a)
Nominal
voltage of the
power supply
system
(mains) *)
Voltages for Table 4
for conductor-
conductor
for conductor-ground
insulation 1)
All systems 3-conductor systems
center point
[V] [V] [V]
12.5 12.5 –
24
25 25 –
30 32 –
42
48
50 **)
50 –
60 63 –
30 - 60 63 32
100 **) 100 –
110
120 125 –
150 **) 160 –
220 250 –
110 - 220
220 - 240 250 125
300 **) 320 –
220 - 440 500 250
600 **) 630 –
480 - 960 1000 500
1000 **) 1000 –
1) Conductor-ground insulation levels for non-grounded
systems or those grounded through impedance
correspond to conductor-conductor insulation levels as the
operating voltage of every conductor to ground can, in
practice, reach the conductor-conductor voltage. This is
due to the fact that the actual voltage to ground is
determined by the insulation resistance and the capacitive
reactance of each conductor to ground. A low (but
permissible) insulation resistance of one conductor can
thereby practically ground it and increase the other two to
conductor-conductor voltage to ground.
*) Refer to 2.2.1 for correlation with the rated voltage.
**) These values correspond to the values in Table 1.
Three-phase 4 or 3-conductor AC voltage systems
(extract from Table 3b)
Nominal
voltage of
the power
supply
system
(mains) *)
Voltages for Table 4
for
conductor-
conductor
insulation
All systems
Insulation for conductor-
Three-phase
4-conductor
systems with
grounded
neutral
conductor 2)
Three-phase
3-conductor
systems non-
grounded 1)
or conductor
grounded
[V] [V] [V] [V]
60 63 32 63
110/120/127 125 80 125
150 **) 160 – 160
208 200 125 200
220/230/240 250 160 250
300 **) 320 – 320
380/400/415 400 250 400
440 500 250 400
480/500 500 320 500
575 630 400 630
600 **) 630 – 630
660/690 630 400 630
720/830 800 500 800
960 1000 630 1000
1000 **) 1000 – 1000
1) Conductor-ground insulation levels for non-grounded
systems or those grounded through impedance
correspond to conductor-conductor insulation levels as the
operating voltage of every conductor to ground can, in
practice, reach the conductor-conductor voltage. This is
due to the fact that the actual voltage to ground is
determined by the insulation resistance and the capacitive
reactance of each conductor to ground. A low (but
permissible) insulation resistance of one conductor can
thereby practically ground it and increase the other two to
conductor-conductor voltage to ground.
2) For items designed for use in three-phase 4-conductor and
three-phase 3-conductor systems, grounded as well as
non-grounded, only the values for 3-conductor systems
may be used.
*) Refer to 2.2.1 for correlation with the rated voltage.
**) These values correspond to the values in Table 1.
Creepage distances to prevent failures occurring due to creepage (extract from Table 4)
Voltage 1)
r.m.s. value
Minimum creepage distances
Printed circuits Pollution degree 1) This voltage is:
a) For function insulation: the
working voltage
b) For basic and additional
insulation of a circuit supplied
directly by the low-voltage
network: either the voltage
selected from Table 3a or 3b on
the basis of the rated voltage of
the equipment or the rated
insulation voltage
c) For basic and additional
insulation of systems, equipment
and internal circuits which are not
supplied directly from the mains:
the highest r.m.s. value of the
voltage that, within the bounds of
the rated data, can occur in the
system, the equipment or the
internal circuit, when supplied
with rated voltage and in the case
of the most unfavorable
combination of operating
conditions.
2) With pollution degree 3,
insulation material group IIIb is
not recommended for use if
voltages are greater than 630 V.
Pollution degree
121 2 3
All insulation
material groups
All insulation
material groups
except IIIb
All insulation
material groups
Insulation material group Insulation material group
I II III I II III 2)
[V] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
10
12.5
16
0.025
0.025
0.025
0.04
0.04
0.04
0.08
0.09
0.10
0.40
0.42
0.45
0.40
0.42
0.45
0.40
0.42
0.45
1.00
1.05
1.10
1.00
1.05
1.10
1.00
1.05
1.10
20
25
32
0.025
0.025
0.025
0.04
0.04
0.04
0.11
0.125
0.14
0.48
0.50
0.53
0.48
0.50
0.53
0.48
0.50
0.53
1.20
1.25
1.30
1.20
1.25
1.30
1.20
1.25
1.30
40
50
63
0.025
0.025
0.040
0.04
0.04
0.63
0.16
0.18
0.20
0.56
0.60
0.63
0.80
0.85
0.90
1.10
1.20
1.25
1.4
1.5
1.6
1.6
1.7
1.8
1.8
1.9
2.0
80
100
125
0.063
0.10
0.16
0.10
0.16
0.25
0.22
0.25
0.28
0.67
0.71
0.75
0.95
1.00
1.05
1.3
1.4
1.5
1.7
1.8
1.9
1.9
2.0
2.1
2.1
2.2
2.4
160
200
250
0.25
0.40
0.56
0.40
0.63
1.00
0.32
0.42
0.56
0.80
1.00
1.25
1.1
1.4
1.8
1.6
2.0
2.5
2.0
2.5
3.2
2.2
2.8
3.6
2.5
3.2
4.0
320
400
500
0.75
1.00
1.30
1.60
2.00
2.50
0.75
1.00
1.30
1.60
2.00
2.50
2.2
2.8
3.6
3.2
4.0
5.0
4.0
5.0
6.3
4.5
5.6
7.1
5.0
6.3
8.0
630
800
1000
1.80
2.40
3.20
3.20
4.00
5.00
1.8
2.4
3.2
3.2
4.0
5.0
4.5
5.6
7.1
6.3
8.0
10
8.0
10.0
12.5
9
11
14
10.0
12.5
16.0
1250
1600
2000
4.2
5.6
7.5
6.3
8
10
9
11
14
12.5
16
20
16
20
25
18
22
28
20
25
32
2500
3200
4000
10
12.5
16
12.5
16
20
18
22
28
25
32
40
32
40
50
36
45
56
40
50
63
5000
6300
8000
20
25
32
25
32
40
36
45
56
50
63
80
63
80
100
71
90
110
80
100
125
10000 40 50 71 100 125 140 160
Nominal mains
voltage of the power
Rated AC/DC voltage
Insulation
Pollution
degree
Minimum creepage
distance K acc. to
Pollution degree 1
Clearance L
Increase K
to L K < L K < L
acc. to case A
Creepage
distance K
Increase
K to L
acc. to case
Yes
Yes
Yes
No
NoNo
Technical information
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
A
ADAPTER KOAX TYP F 2880972 142
B
BATTERY MOUNTING KIT 2320788 229
BNC-DV 50 2805038 141
BNC-DV 75 2805083 141
BNC-V 50 2805041 141
BNC-V 75 2805070 141
BT-1S-230AC/A 2803409 59
BT-1S-230AC/O 2800625 58
BT-SKT 230/A 2859343 59
C
C-SAT-BOX 2880561 142
C-TV-SAT 2856993 142
C-TV/HIFI 2857002 142
C-UB/E 2763701 137
C-UFB- 5DC 2797858 140
C-UFB- 5DC/E 2782300 140
C-UFB- 5DC/E 75 2763604 140
C-UFB-24DC 2797861 140
C-UFB-24DC/E 2782313 140
C7/16-LAMBDA/4-2.25-BB 2801060 139
C7/16-LAMBDA/4-2.25-SB 2801059 139
CB 1/10-1/10 UT-BE 2801305 258
CB 1/6-2/4 PT-BE 2800929 258
CB E1 24DC/10A S-C P 2800928 257
CB E1 24DC/10A S-R P 2800914 257
CB E1 24DC/1A NC P 2800915 257
CB E1 24DC/1A NO P 2800901 256
CB E1 24DC/1A S-C P 2800922 257
CB E1 24DC/1A S-R P 2800908 257
CB E1 24DC/2A NC P 2800916 257
CB E1 24DC/2A NO P 2800902 256
CB E1 24DC/2A S-C P 2800923 257
CB E1 24DC/2A S-R P 2800909 257
CB E1 24DC/3A NC P 2800917 257
CB E1 24DC/3A NO P 2800903 256
CB E1 24DC/3A S-C P 2800924 257
CB E1 24DC/3A S-R P 2800910 257
CB E1 24DC/4A NC P 2800918 257
CB E1 24DC/4A NO P 2800904 256
CB E1 24DC/4A S-C P 2800925 257
CB E1 24DC/4A S-R P 2800911 257
CB E1 24DC/6A NC P 2800919 257
CB E1 24DC/6A NO P 2800905 256
CB E1 24DC/6A S-C P 2800926 257
CB E1 24DC/6A S-R P 2800912 257
CB E1 24DC/8A S-C P 2800927 257
CB E1 24DC/8A S-R P 2800913 257
CB PT BRIDGE 2801014 256
CB TM1 0.5A F1 P 2800857 261
CB TM1 0.5A M1 P 2800846 260
CB TM1 0.5A SFB P 2800835 259
CB TM1 10A F1 P 2800865 261
CB TM1 10A M1 P 2800854 260
CB TM1 10A SFB P 2800843 259
CB TM1 12A F1 P 2800866 261
CB TM1 12A M1 P 2800855 260
CB TM1 12A SFB P 2800844 259
CB TM1 16A F1 P 2800867 261
CB TM1 16A M1 P 2800856 260
CB TM1 16A SFB P 2800845 259
CB TM1 1A F1 P 2800858 261
CB TM1 1A M1 P 2800847 260
CB TM1 1A SFB P 2800836 259
CB TM1 2A F1 P 2800859 261
CB TM1 2A M1 P 2800848 260
CB TM1 2A SFB P 2800837 259
CB TM1 3A F1 P 2800860 261
CB TM1 3A M1 P 2800849 260
CB TM1 3A SFB P 2800838 259
CB TM1 4A F1 P 2800861 261
CB TM1 4A M1 P 2800850 260
CB TM1 4A SFB P 2800839 259
CB TM1 5A F1 P 2800862 261
CB TM1 5A M1 P 2800851 260
CB TM1 5A SFB P 2800840 259
CB TM1 6A F1 P 2800863 261
CB TM1 6A M1 P 2800852 260
CB TM1 6A SFB P 2800841 259
CB TM1 8A F1 P 2800864 261
CB TM1 8A M1 P 2800853 260
CB TM1 8A SFB P 2800842 259
CB TM2 0.5A F1 P 2800890 261
CB TM2 0.5A M1 P 2800879 261
CB TM2 0.5A SFB P 2800868 259
CB TM2 10A F1 P 2800898 261
CB TM2 10A M1 P 2800887 261
CB TM2 10A SFB P 2800876 259
CB TM2 12A F1 P 2800899 261
CB TM2 12A M1 P 2800888 261
CB TM2 12A SFB P 2800877 259
CB TM2 16A F1 P 2800900 261
CB TM2 16A M1 P 2800889 261
CB TM2 16A SFB P 2800878 259
CB TM2 1A F1 P 2800891 261
CB TM2 1A M1 P 2800880 261
CB TM2 1A SFB P 2800869 259
CB TM2 2A F1 P 2800892 261
CB TM2 2A M1 P 2800881 261
CB TM2 2A SFB P 2800870 259
CB TM2 3A F1 P 2800893 261
CB TM2 3A M1 P 2800882 261
CB TM2 3A SFB P 2800871 259
CB TM2 4A F1 P 2800894 261
CB TM2 4A M1 P 2800883 261
CB TM2 4A SFB P 2800872 259
CB TM2 5A F1 P 2800895 261
CB TM2 5A M1 P 2800884 261
CB TM2 5A SFB P 2800873 259
CB TM2 6A F1 P 2800896 261
CB TM2 6A M1 P 2800885 261
CB TM2 6A SFB P 2800874 259
CB TM2 8A F1 P 2800897 261
CB TM2 8A M1 P 2800886 261
CB TM2 8A SFB P 2800875 259
CBB TM 04 2X2RC P-PT 2801481 262
CBB TM 08 2X4RC P-PT 2801482 262
CBB TM 12 2X6RC P-PT 2801483 262
CHECKMASTER 2838924 152
CM-KBL-PROG 2881557 153
CM-KBL-RS232/USB 2881078 153
CM-PA-CT10 2816959 153
CM-PA-CTM 2816962 153
CM-PA-FLT/VAL-CP 2880392 153
CM-PA-PT 2882844 153
CM-PA-PT/A 2816933 153
CM-PA-TF 2816975 153
CM-PA-VAL-MS 2800104 153
CN-LAMBDA/4-0.47-BB 2800021 138
CN-LAMBDA/4-0.47-SB 2800022 138
CN-LAMBDA/4-2.25-BB 2801057 138
CN-LAMBDA/4-2.25-SB 2801056 138
CN-LAMBDA/4-5.9-BB 2838490 139
CN-LAMBDA/4-5.9-SB 2800023 139
CN-UB-280DC-3-BB 2801050 136
CN-UB-280DC-3-SB 2801051 136
CN-UB-70DC-6-BB 2803166 137
CN-UB-70DC-6-SB 2803153 137
CN-UB/E 2763691 137
CN-UB/E-BB 2817686 137
CN-UB/MP 2818135 136
CN-UB/MP-90DEG-50 2803137 136
CSMA-LAMBDA/4-2.0-BS-SET 2800491 139
CT 1-10-ES 2765547 110
CT 10-18FS+F/PE-24 2807926 107
CT 10-18FSR+F/PE-24 2807939 107
CT 10-2/2-GS 2765398 108
CT 10-2/2-GS/3E 2765408 108
CT 10-2/2-GS/3E-110AC 2920829 108
CT 10-2PE/FS-24 2807955 106
CT 10-2PE/FSR-24 2807968 107
CT 10-9VA-230AC 2830498 105
CT 10-MB/ 3 2765372 110
CT 10-MB/10 2765385 110
CT 10-TL 2765356 110
CT-KDT 2765518 110
CT-TERMIBLOCK 10 DA 0441711 109
CTM 10-MAG 2838610 109
CTM 1X2- 12DC 2838597 102
CTM 1X2- 24DC 2838513 102
CTM 1X2- 60DC 2838568 102
CTM 1X2-110AC 2838539 102
CTM 2X1- 12DC 2838584 102
CTM 2X1- 24DC 2838500 102
CTM 2X1- 5DC 2838571 102
CTM 2X1- 60DC 2838542 102
CTM 2X1-110AC 2838526 103
CTM 2X1-180DC-GS 2838636 103
CTM 2X1-180DC-GS-P 2838623 103
CTM EST 2838649 104
CTM ISDN 2838555 104
D
D-DEK 1,5 BK 2838995 94
D-DEK 1,5 BU 2838982 95
D-DS1-A/RJ45-BB 2838050 129
D-LAN-19"-12 2880150 115
D-LAN-19"-16 2880147 115
D-LAN-19"-20 2880134 115
D-LAN-19"-24 2838791 115
D-LAN-19"-4 2880176 115
D-LAN-19"-8 2880163 115
D-LAN-19"-D-P 2880192 115
D-LAN-CAT.5-FP 2800723 115
D-TERMITRAB-UK 5 2794990 98
D-UFB-PB 2880642 125
D-UKK 3/5 BK 2770228 99
DK-BIC-35 2749880 62
DP-UKK 3/5 BK 2770833 99
DT-LAN-CAT.6+ 2881007 114
DT-TELE-RJ45 2882925 133
DT-UFB-485/BS 2920612 121
DT-UFB-IB-RB0 2800056 123
DT-UFB-IB-RBI 2800055 122
DT-UFB-V24/S-9-SB 2803069 116
DT-UFB-V24/S-SB-SET 2803072 117
E
EC-E 0,5A DC24V 0903041 269
EC-E 1A DC24V 0903042 269
EC-E 2A DC24V 0903043 269
EC-E 3A DC24V 0903044 269
EC-E 4A DC24V 0903045 269
EC-E 6A DC24V 0903046 269
EC-E 8A DC24V 0903047 269
EC-E 10A DC24V 0903048 269
EC-E 12A DC24V 0903049 269
EC-E1 0,5A 0903022 268
EC-E1 10A 0903030 268
EC-E1 12A 0903031 268
EC-E1 1A 0903023 268
EC-E1 2A 0903024 268
EC-E1 3A 0903025 268
EC-E1 4A 0903026 268
EC-E1 6A 0903028 268
EC-E1 8A 0903029 268
EC-E4 0,5A 0903040 268
EC-E4 10A 0903038 268
EC-E4 12A 0903039 268
EC-E4 1A 0903032 268
EC-E4 2A 0903033 268
EC-E4 3A 0903034 268
EC-E4 4A 0903035 268
EC-E4 6A 0903036 268
EC-E4 8A 0903037 268
ECP 4 0912034 273
ECP 6 0912033 273
ECP 1-2 0912018 273
ECP 10 0912020 273
ECP 2 0911034 273
ECP 3 0911047 273
ECP 3-6 0916536 273
ECP 8 0912019 273
ECP-E 1A 0900113 270
ECP-E 2A 0900210 270
ECP-E 3A 0900317 270
ECP-E 4A 0900414 270
ECP-E 6A 0900618 270
ECP-E 8A 0900812 270
ECP-E 10A 0901002 270
ECP-E-12A 0900126 270
ECP-E2-10A 0900100 271
ECP-E2-12A 0900207 271
ECP-E2-1A 0900139 271
ECP-E2-2A 0900236 271
ECP-E2-3A 0900333 271
ECP-E2-4A 0900430 271
ECP-E2-6A 0900634 271
ECP-E2-8A 0900838 271
ECP-E3 10A 0912050 272
ECP-E3 12A 0912052 272
ECP-E3 1A 0912041 272
ECP-E3 2A 0912042 272
ECP-E3 3A 0912043 272
ECP-E3 4A 0912044 272
ECP-E3 6A 0912046 272
ECP-E3 8A 0912048 272
ECP-LOCK 0912021 273
F
F-MS 12 2817987 45
F-MS 12 ST 2817990 42
F-MS 12/FM 2817974 45
F-MS 2200/30 ST 2805392 51
F-MS 80 ST 2921307 48
F-MS-T1/T2 50 ST 2800191 34
FBS 2-6 3030336 258
FBS 2-6 BU 3036932 258
FBS 2-6 GY 3032237 258
FBS 3-6 3030242 258
FBS 3-6 BU 3036945 258
FBS 3-6 GY 3032240 258
FBS 4-6 3030255 258
FBS 4-6 BU 3036958 258
FBS 4-6 GY 3032279 258
FBS 5-6 3030349 258
FBS 5-6 GY 3032266 258
FBS 10-6 3030271 258
FBS 10-6 BU 3032198 258
FBS 10-6 GY 3032253 258
FBS 20-6 3030365 258
FBS 20-6 BU 3032208 258
FBS 5-6 BU 3036961 258
FBS 50-6 3032224 258
FBS 50-6 BU 3032211 258
FBST 500 TMC-N GY 0901028 268
FBST 500 TMCP 0916615 274
FBST 500-PLC BU 2966692 268
FBST 500-PLC RD 2966786 268
FL CAT6 PATCH 1,0 2891385 114
FL CAT6 PATCH 1,5 2891482 127
FLT 100 N/PE-1.5 2800303 31
FLT-CP-1C-350 2859741 38
FLT-CP-1S-350 2859738 37
FLT-CP-2C-350 2859770 37
FLT-CP-2S-350 2859767 37
FLT-CP-350-ST 2881887 36
FLT-CP-3C-350 2859725 36
FLT-CP-3S-350 2859712 36
FLT-CP-N/PE-350 2859754 30
Index
Alphabetical
290 PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
FLT-CP-N/PE-350-ST 2859686 28
FLT-CP-PLUS-1C-350 2882695 30
FLT-CP-PLUS-1S-350 2882682 29
FLT-CP-PLUS-2C-350 2882679 29
FLT-CP-PLUS-2S-350 2882666 29
FLT-CP-PLUS-350-ST 2859913 28
FLT-CP-PLUS-3C-350 2882653 28
FLT-CP-PLUS-3S-350 2882640 28
FLT-PLUS CTRL-2.5 2800121 31
FLT-PLUS CTRL-2.5/I 2800122 31
FLT-PLUS CTRL-3.0 2800168 31
FLT-PLUS CTRL-3.0/I 2800170 31
FOC-HCS-BFOC/1018B/PPCME/... 1408480 8
G
GEB-SET-T1/T2 TAE/TV-SAT 2801022 65
I
IFS-CONFSTICK 2986122 228
IFS-CONFSTICK-L 2901103 228
IFS-MINI-DIN-DATACABLE 2320487 229
IFS-OPEN-END-DATACABLE 2320450 229
IFS-RS232-DATACABLE 2320490 229
IFS-USB-DATACABLE 2320500 228
K
KBL-SAT/20 2880985 142
L
LIT 1X2-24 2804610 90
LIT 2-12 2804694 92
LIT 2-24 2804665 92
LIT 2X1-24 2804636 91
LIT 2X2-24 2804623 91
LIT 4-12 2804704 92
LIT 4-24 2804678 92
LIT 4X1-24 2804649 91
LM-S-A/C-3S-ETH 2800618 9
LM-S-C-3LS 2800617 9
LM-S-LS-H 2800616 8
M
ME 17,5 TBUS 1,5/ 5-ST-3,81 GN 2709561 180
ME 6,2 TBUS-2 1,5/5-ST-3,81KMGY 2969401 92
MINI MCR-SL-V8-FLK 16-A 2811268 90
MINI-BAT/12DC/1.6AH 2866572 239
MINI-BAT/12DC/2.6AH 2866569 239
MINI-BAT/24DC/0.8AH 2866666 238
MINI-BAT/24DC/1.3AH 2866417 236
MINI-DC-UPS/12DC/4 2866598 235
MINI-DC-UPS/24DC/2 2866640 235
MINI-PS- 10- 42AC/15-60DC/3 2320199 203
MINI-PS- 12- 24DC/ 5-15DC/2 2320018 202
MINI-PS- 12- 24DC/24DC/1 2866284 202
MINI-PS- 12- 24DC/48DC/0.7 2320021 203
MINI-PS- 48- 60DC/24DC/1 2866271 203
MINI-PS-100-240AC/ 5DC/3 2938714 182
MINI-PS-100-240AC/10-15DC/2 2938756 183
MINI-PS-100-240AC/10-15DC/8 2866297 183
MINI-PS-100-240AC/24DC/1.3 2866446 180
MINI-PS-100-240AC/24DC/1.5/EX 2866653 195
MINI-PS-100-240AC/24DC/2 2938730 181
MINI-PS-100-240AC/24DC/4 2938837 181
MINI-PS-100-240AC/24DC/C2LPS 2866336 181
MINI-PS-100-240AC/2X15DC/1 2938743 183
MINI-SYS-PS-100-240AC/24DC/1.5 2866983 180
MNT-1 CH II 2882255 60
MNT-1 D 2882200 60
MNT-1 D/WH 2882213 60
MNT-1 E 2882239 60
MNT-1 S/WH 2880862 60
MNT-ISDN D 2882336 126
MNT-ISDN D/WH 2882349 126
MNT-ISDN S/WH 2880891 126
MNT-NET B/F 2882226 60
MNT-POWERLINE 2858001 60
MNT-TAE D 2882381 130
MNT-TAE D/WH 2882394 130
MNT-TEL B/F 2882404 131
MNT-TELE E 2882417 131
MNT-TELE N/WH 2881764 131
MNT-TELE S/WH 2880901 131
MNT-TV-SAT B/F 2882307 143
MNT-TV-SAT D 2882284 143
MNT-TV-SAT D/WH 2882297 143
MNT-TV-SAT S/WH 2880888 143
MPB 18/1- 2 2809209 61
MPB 18/1- 3 2809212 61
MPB 18/1- 4 2809225 61
MPB 18/1- 5 2817864 61
MPB 18/1- 6 2748564 61
MPB 18/1- 7 BU 2856278 61
MPB 18/1- 8 2748577 61
MPB 18/1- 8 BU 2858470 61
MPB 18/1- 9 2748580 61
MPB 18/1-12 2748593 61
MPB 18/1-57 2809238 61
MPB 18/3- 6 2809241 61
MPB 18/3- 9 2809254 61
MPB 18/4- 8 2809283 61
MPB 18/4-12 2809296 61
MPB F200X16/ 1GS 2818339 61
MPB F400X16/ 1GS 2818342 61
MPB F600X16/ 1GS 2818355 61
MPB SET VAL-CP-3S 2880684 40
N
NEF 1- 1 2794123 149
NEF 1- 3 2794110 149
NEF 1- 6 2783082 149
NEF 1-10 2788977 149
P
PA-CASE 2858988 153
PAS-1 2765615 62
PRT-CD-AD1 2749673 59
PRT-S-120/FM 2830618 59
PRT-S-230/FM 2749686 59
PRT-S/A-120/FM 2830605 59
PRT-S/A-230/FM 2830621 59
PT 1X2+F-BE 2856126 82
PT 1X2- 5DC-ST 2856016 82
PT 1X2-12AC-ST 2856045 83
PT 1X2-12DC-ST 2856029 82
PT 1X2-24AC-ST 2856058 83
PT 1X2-24DC-ST 2856032 82
PT 1X2-48DC-ST 2803658 82
PT 1X2-BE 2856113 82
PT 2+1-S-48DC-ST 2839648 57
PT 2+1-S-48DC/FM 2817958 57
PT 2-F-ST 2859000 86
PT 2-IT-230AC-ST 2805127 57
PT 2-IT-230AC/FM 2805130 57
PT 2-PE/S- 24AC-ST 2839318 57
PT 2-PE/S- 60AC-ST 2839321 57
PT 2-PE/S-120AC-ST 2839334 57
PT 2-PE/S-120AC/FM 2856812 56
PT 2-PE/S-230AC-ST 2839347 57
PT 2-PE/S-230AC/FM 2858357 56
PT 2-PE/S-24AC/FM 2800457 56
PT 2-PE/S-60AC/FM 2800961 56
PT 2-TELE 2882828 129
PT 2-TELE-ST 2838733 129
PT 2X1+F-BE 2856142 83
PT 2X1- 5DC-ST 2856061 83
PT 2X1-12AC-ST 2856090 83
PT 2X1-12DC-ST 2856074 83
PT 2X1-24AC-ST 2856100 83
PT 2X1-24DC-ST 2856087 83
PT 2X1-BE 2856139 83
PT 2X1-VF-120AC 2859327 85
PT 2X1-VF-120AC-ST 2856799 85
PT 2X1-VF-230AC 2805460 85
PT 2X1-VF-230AC-ST 2921365 85
PT 2X1VA- 60AC-ST 2839172 85
PT 2X1VA-120AC-ST 2839185 85
PT 2X1VA-230AC-ST 2839198 85
PT 2X2+F-BE 2839224 80
PT 2X2- 5DC-ST 2838241 80
PT 2X2-12AC-ST 2838270 81
PT 2X2-12DC-ST 2838254 80
PT 2X2-24AC-ST 2838283 81
PT 2X2-24DC-ST 2838228 80
PT 2X2-BE 2839208 80
PT 2X2-HF- 5 DC-ST 2839567 89
PT 2X2-HF-12 DC-ST 2839570 89
PT 2X2-HF-24 DC-ST 2839729 89
PT 2XEX(I)-24DC-ST 2838225 87
PT 2XEX(I)-BE 2839279 87
PT 3-HF-12DC-ST 2858043 89
PT 3-PB-ST 2858030 89
PT 4+F-BE 2839415 84
PT 4- 5DC-ST 2839211 84
PT 4-12DC-ST 2839237 84
PT 4-24AC-ST 2800078 84
PT 4-24DC-ST 2839240 84
PT 4-BE 2839402 84
PT 4-EX(I)-24DC-ST 2839253 87
PT 4-EX(I)-BE 2839486 87
PT 4-F-ST 2858441 86
PT 4-PE/S-230AC-ST 2882462 56
PT 4-PE/S-230AC/FM 2882459 56
PT 4X1+F-BE 2839376 81
PT 4X1- 5DC-ST 2838306 81
PT 4X1-12AC-ST 2838348 81
PT 4X1-12DC-ST 2838319 81
PT 4X1-24AC-ST 2838351 81
PT 4X1-24DC-ST 2838322 81
PT 4X1-48AC-ST 2804856 81
PT 4X1-48DC-ST 2858014 81
PT 4X1-BE 2839363 81
PT 5-HF- 5 DC-ST 2838762 88
PT 5-HF-12 DC-ST 2838775 88
PT MAIN-EST 2880736 56
PT MCR-EST 2880749 89
PT PE/S+1X2-24-ST 2819008 84
PT PE/S+1X2-BE 2856265 84
PT-BE/FM 2839282 85
PT-IQ-1X2+F-12DC-PT 2801254 75
PT-IQ-1X2+F-12DC-UT 2800975 73
PT-IQ-1X2+F-24DC-PT 2801256 75
PT-IQ-1X2+F-24DC-UT 2800977 73
PT-IQ-1X2+F-48DC-PT 2801258 75
PT-IQ-1X2+F-48DC-UT 2800979 73
PT-IQ-1X2+F-5DC-PT 2801252 75
PT-IQ-1X2+F-5DC-UT 2800792 73
PT-IQ-1X2-12DC-P 2800771 72
PT-IQ-1X2-12DC-PT 2801253 74
PT-IQ-1X2-12DC-UT 2800793 72
PT-IQ-1X2-24DC-P 2800772 72
PT-IQ-1X2-24DC-PT 2801255 74
PT-IQ-1X2-24DC-UT 2800976 72
PT-IQ-1X2-48DC-P 2800773 72
PT-IQ-1X2-48DC-PT 2801257 74
PT-IQ-1X2-48DC-UT 2800978 72
PT-IQ-1X2-5DC-P 2800770 72
PT-IQ-1X2-5DC-PT 2801251 74
PT-IQ-1X2-5DC-UT 2800791 72
PT-IQ-2X1+F-12DC-PT 2801246 75
PT-IQ-2X1+F-12DC-UT 2800781 73
PT-IQ-2X1+F-24DC-PT 2801248 75
PT-IQ-2X1+F-24DC-UT 2800788 73
PT-IQ-2X1+F-48DC-PT 2801250 75
PT-IQ-2X1+F-48DC-UT 2800790 73
PT-IQ-2X1+F-5DC-PT 2801244 75
PT-IQ-2X1+F-5DC-UT 2800779 73
PT-IQ-2X1-12DC-P 2800775 73
PT-IQ-2X1-12DC-PT 2801245 75
PT-IQ-2X1-12DC-UT 2800780 73
PT-IQ-2X1-24DC-P 2800776 73
PT-IQ-2X1-24DC-PT 2801247 75
PT-IQ-2X1-24DC-UT 2800787 73
PT-IQ-2X1-48DC-P 2800777 73
PT-IQ-2X1-48DC-PT 2801249 75
PT-IQ-2X1-48DC-UT 2800789 73
PT-IQ-2X1-5DC-P 2800774 73
PT-IQ-2X1-5DC-PT 2801243 75
PT-IQ-2X1-5DC-UT 2800778 73
PT-IQ-2X2+F-24DC-PT 2801264 77
PT-IQ-2X2+F-24DC-UT 2800981 77
PT-IQ-2X2-24DC-P 2800804 76
PT-IQ-2X2-24DC-PT 2801263 76
PT-IQ-2X2-24DC-UT 2800980 76
PT-IQ-4X1+F-24DC-PT 2801272 77
PT-IQ-4X1+F-24DC-UT 2800983 77
PT-IQ-4X1-24DC-P 2800813 77
PT-IQ-4X1-24DC-PT 2801271 77
PT-IQ-4X1-24DC-UT 2800982 77
PT-IQ-5-HF+F-12DC-PT 2801295 79
PT-IQ-5-HF+F-12DC-UT 2800801 78
PT-IQ-5-HF+F-5DC-PT 2801292 79
PT-IQ-5-HF+F-5DC-UT 2800798 78
PT-IQ-5-HF-12DC-P 2800796 78
PT-IQ-5-HF-12DC-PT 2801293 79
PT-IQ-5-HF-12DC-UT 2800799 78
PT-IQ-5-HF-5DC-P 2800795 78
PT-IQ-5-HF-5DC-PT 2801291 79
PT-IQ-5-HF-5DC-UT 2800797 78
PT-IQ-PTB-P 2800989 72
PT-IQ-PTB-PT 2801296 74
PT-IQ-PTB-UT 2800768 72
PV-SET 1ST/1000DC/1MPP-SPD-SC 2801529 66
PV-SET 2ST/1000DC-SPD-SD-SC 2801318 67
PV-SET 2ST/1000DC/2MPP-SPD-SC 2801317 67
PV-SET 3ST/1000DC/3MPP-SPD-SC 2801531 67
PWT 100-800AC-FM 2800531 33
PWT 35-800AC-FM 2800419 32
PWT CCT-SET 2800532 33
Q
QUINT-BAT/24DC/ 3.4AH 2866349 237
QUINT-BAT/24DC/ 7.2AH 2866352 237
QUINT-BAT/24DC/12AH 2866365 237
QUINT-BUFFER/24DC/24DC/40 2320393 231
QUINT-DIODE/12-24DC/2X20/1X40 2320157 210
QUINT-DIODE/48DC/2X20/1X40 2320160 211
QUINT-ORING/24DC/2X10/1X20 2320173 206
QUINT-ORING/24DC/2X20/1X40 2320186 207
QUINT-ORING/24DC/2X40/1X80 2902879 207
QUINT-PS-ADAPTERS7/1 2938196 212
QUINT-PS-ADAPTERS7/2 2938206 212
QUINT-PS/ 1AC/12DC/15 2866718 170
QUINT-PS/ 1AC/12DC/20 2866721 170
QUINT-PS/ 1AC/24DC/ 3.5 2866747 166
QUINT-PS/ 1AC/24DC/ 5 2866750 166
QUINT-PS/ 1AC/24DC/ 5/CO 2320908 194
QUINT-PS/ 1AC/24DC/10 2866763 167
QUINT-PS/ 1AC/24DC/10/CO 2320911 194
QUINT-PS/ 1AC/24DC/20 2866776 167
QUINT-PS/ 1AC/24DC/20/CO 2320898 195
QUINT-PS/ 1AC/24DC/40 2866789 167
QUINT-PS/ 1AC/48DC/ 5 2866679 171
QUINT-PS/ 1AC/48DC/10 2866682 171
QUINT-PS/ 1AC/48DC/20 2866695 171
QUINT-PS/ 3AC/24DC/ 5 2866734 168
QUINT-PS/ 3AC/24DC/10 2866705 169
QUINT-PS/ 3AC/24DC/20 2866792 169
QUINT-PS/ 3AC/24DC/20/CO 2320924 195
Index
Alphabetical
291PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
QUINT-PS/ 3AC/24DC/40 2866802 169
QUINT-PS/ 3AC/48DC/20 2320827 172
QUINT-PS/12DC/24DC/5 2320131 200
QUINT-PS/24DC/12DC/ 8 2320115 199
QUINT-PS/24DC/24DC/ 5 2320034 198
QUINT-PS/24DC/24DC/10 2320092 198
QUINT-PS/24DC/24DC/10/CO 2320555 201
QUINT-PS/24DC/24DC/20 2320102 199
QUINT-PS/24DC/24DC/20/CO 2320568 201
QUINT-PS/24DC/24DC/5/CO 2320542 201
QUINT-PS/24DC/48DC/ 5 2320128 199
QUINT-PS/48DC/24DC/5 2320144 200
QUINT-PS/FAN/4 2320076 212
QUINT-UPS/ 1AC/1AC/500VA 2320270 221
QUINT-UPS/ 24DC/ 24DC/ 5 2320212 218
QUINT-UPS/ 24DC/ 24DC/ 5/1.3AH 2320254 230
QUINT-UPS/ 24DC/ 24DC/10/3.4AH 2320267 230
QUINT-UPS/ 24DC/ 24DC/20 2320238 219
QUINT-UPS/24DC/12DC/5/24DC/10 2320461 220
QUINT-UPS/24DC/24DC/10 2320225 219
QUINT-UPS/24DC/24DC/40 2320241 219
R
RAD-ADP-N/M-SMA/F 2917036 137
RAD-PIG-EF316-MCX-N 2867681 137
S
S-PT-1X2-24DC 2880668 100
S-PT-1X2-24DC-1/2" 2882569 100
S-PT-1X2-24DC-3/4" 2882598 100
S-PT-2XEX-24DC 2800040 101
S-PT-2XEX-24DC-1/2" 2800041 101
S-PT-2XEX-48DC 2800038 101
S-PT-2XEX-48DC-1/2" 2800039 101
S-PT-4-EX-24DC 2800036 101
S-PT-4-EX-24DC-1/2" 2800037 101
S-PT-EX(I)-24DC 2880671 100
S-PT-EX(I)-24DC-1/2" 2882572 100
S-PT-EX(I)-24DC-3/4" 2882585 100
S-PT-EX-24DC 2800034 101
S-PT-EX-24DC-1/2" 2800035 101
S-PT-EX-48DC 2800053 101
S-PT-EX-48DC-1/2" 2800054 101
SFP 1-10/120AC 2920670 147
SFP 1-15/120AC 2920683 147
SFP 1-20/120AC 2856702 146
SFP 1-20/230AC 2859987 146
SFP 1-5/120AC 2920667 147
SK CUS 0828492 109
SPRING-LOCK 0713009 266
SSA 3-6 2839295 111
SSA 5-10 2839512 111
ST 4-FSI/C 3036372 264
ST 4-FSI/C-LED 12 3036495 264
ST 4-FSI/C-LED 24 3036505 264
STEP-BAT/LIPO/18.5DC/1.4AH 2320364 232
STEP-DIODE/5-24DC/2X5/1X10 2868606 211
STEP-PS/ 1AC/ 5DC/6.5 2868541 191
STEP-PS/ 1AC/12DC/1 2868538 192
STEP-PS/ 1AC/12DC/1.5 2868567 193
STEP-PS/ 1AC/12DC/1.5/FL 2868554 192
STEP-PS/ 1AC/12DC/3 2868570 193
STEP-PS/ 1AC/12DC/5 2868583 193
STEP-PS/ 1AC/15DC/4 2868619 191
STEP-PS/ 1AC/24DC/0.5 2868596 186
STEP-PS/ 1AC/24DC/0.75 2868635 187
STEP-PS/ 1AC/24DC/0.75/FL 2868622 187
STEP-PS/ 1AC/24DC/1.75 2868648 188
STEP-PS/ 1AC/24DC/2.5 2868651 189
STEP-PS/ 1AC/24DC/3.8/C2LPS 2868677 189
STEP-PS/ 1AC/24DC/4.2 2868664 189
STEP-PS/ 1AC/48DC/2 2868680 191
STEP-PS/ 1AC/5DC/2 2320513 190
STEP-PS/48AC/24DC/0.5 2868716 187
STEP-UPS/12DC/12DC/4 2868693 232
STEP-UPS/24DC/24DC/3 2868703 232
SVP 2E- 48AC 2788919 108
SVP 2E-110AC 2765534 108
SVP 3E-110AC 2765521 108
SYS N4 120/208Y 2800704 68
SYS N4 120/240HLD 2800706 69
SYS N4 120/240S 2800705 68
SYS N4 277/480Y 2800703 69
SYS N4 480D 2800707 69
SYS N4/I 120/208Y 2800709 68
SYS N4/I 120/240HLD 2800711 69
SYS N4/I 120/240S 2800710 68
SYS N4/I 277/480Y 2800708 69
SYS N4/I 480D 2800712 69
SYS N4X 120/208Y 2800714 68
SYS N4X 120/240HLD 2800716 69
SYS N4X 120/240S 2800715 68
SYS N4X 277/480Y 2800713 69
SYS N4X 480D 2800717 69
SYS N4X/I 120/208Y 2800719 68
SYS N4X/I 120/240HLD 2800721 69
SYS N4X/I 120/240S 2800720 68
SYS N4X/I 277/480Y 2800718 69
SYS N4X/I 480D 2800722 69
SZS 0,6X3,5 1205053 268
SZS 1,0X4,0 VDE 1205066 263
T
TAE-TRAB FM-NFN-AP 2749628 131
TCP 0,25A 0712123 265
TCP 0,5A 0712152 265
TCP 1A 0712194 265
TCP 2A 0712217 265
TCP 3A 0712233 265
TCP 4A 0712259 265
TCP 5/DC32V 0700005 264
TCP 6A 0712275 265
TCP 7,5/DC32V 0700007 264
TCP 8A 0712291 265
TCP 10/DC32V 0700010 264
TCP 10A 0712314 265
TCP 15/DC32V 0700015 264
TCP 20/DC32V 0700020 264
TCP 25/DC32V 0700025 264
TCP 30/DC32V 0700030 264
TCP 40/DC32V 0700040 264
TG 40 2788896 63
TMC 1 F1 100 0,2A 0914015 266
TMCP 1 F1 300 0,2A 0915506 266
TMCP CONNECT LR 0916592 266
TMCP SB 0916602 266
TMCP SOCKET M 0916589 274
TRIO-DIODE/12-24DC/2X10/1X20 2866514 208
TRIO-DIODE/48DC/2X10/1X20 2866527 209
TRIO-PS/ 1AC/12DC/ 5 2866475 178
TRIO-PS/ 1AC/12DC/10 2866488 179
TRIO-PS/ 1AC/24DC/ 2.5 2866268 174
TRIO-PS/ 1AC/24DC/ 5 2866310 175
TRIO-PS/ 1AC/24DC/10 2866323 175
TRIO-PS/ 1AC/24DC/20 2866381 175
TRIO-PS/ 1AC/48DC/ 5 2866491 179
TRIO-PS/ 1AC/48DC/10 2866501 179
TRIO-PS/ 3AC/24DC/ 5 2866462 176
TRIO-PS/ 3AC/24DC/10 2866459 177
TRIO-PS/ 3AC/24DC/20 2866394 177
TRIO-PS/ 3AC/24DC/40 2866404 177
TRIO-PS/600DC/24DC/20 2866530 178
TRIO-UPS/1AC/24DC/ 5 2866611 234
TT-2-PE- 24DC 2838186 94
TT-2-PE-110AC 2858483 94
TT-2-PE-M-24DC 2920641 94
TT-2-PE/S1- 24DC 2839538 95
TT-2-PE/S1-M-24DC 2920638 95
TT-2/2- 24DC 2838173 95
TT-2/2-M-24DC 2920722 95
TT-D-2-PE-M-BK 2920654 94
TT-D-2-PE-M-BU 2803878 95
TT-D-ST-BU 2856773 97
TT-D-STTCO-BK 2858894 96
TT-EX(I)- 24DC 2832124 95
TT-EX(I)-M-24DC 2803865 95
TT-SLKK5-F/110AC 2765602 123
TT-SLKK5-S- 12DC 2809597 99
TT-SLKK5-S- 24DC 2809607 99
TT-SLKK5-S- 48DC 2809610 99
TT-SLKK5/ 12DC 2794893 99
TT-SLKK5/ 24DC 2794903 99
TT-SLKK5/ 48DC 2794916 99
TT-ST-2-PE-24DC 2858878 96
TT-ST-2-PE/S2-24DC 2801458 97
TT-ST-2/2-24DC 2858881 97
TT-ST-M-2-PE-24AC 2858920 96
TT-ST-M-2-PE-24DC 2858904 96
TT-ST-M-2/2-24AC 2858933 97
TT-ST-M-2/2-24DC 2858917 97
TT-ST-M-EX(I)-24DC 2859424 97
TT-ST-M-SFP-24AC 2858946 148
TT-UK5/ 12DC 2794686 98
TT-UK5/ 24DC 2794699 98
TT-UK5/ 48DC 2794709 98
TT-UKK5-M/ 24DC 2795960 99
TT-UKK5-M/ 48DC 2795973 99
TT-UKK5-M/ 60DC 2795986 99
U
UC-TM 6 0818085 111
UC-TM 6 BU 0818344 111
UC-TM 6 GN 0818360 111
UC-TM 6 OG 0818328 111
UC-TM 6 RD 0818357 111
UC-TM 6 YE 0818331 111
UC-TM 12 0819194 111
UC-TM 12 BU 0817785 111
UC-TM 12 GN 0817808 111
UC-TM 12 OG 0817691 111
UC-TM 12 RD 0817701 111
UC-TM 12 YE 0819204 111
UK 6-FSI/C 3118203 264
UK 6-FSI/C-LED12 3001925 264
UK 6-FSI/C-LED24 3001938 264
UNO-PS/1AC/12DC/30W 2902998 185
UNO-PS/1AC/12DC/55W 2902999 185
UNO-PS/1AC/24DC/100W 2902993 185
UNO-PS/1AC/24DC/30W 2902991 184
UNO-PS/1AC/24DC/60W 2902992 184
UPS-6REL 2800287 248
UPS-BAT/LI-ION/24DC/120WH 2320351 223
UPS-BAT/VRLA-WTR/24DC/13AH 2320416 226
UPS-BAT/VRLA-WTR/24DC/26AH 2320429 226
UPS-BAT/VRLA/24DC/ 1.3AH 2320296 224
UPS-BAT/VRLA/24DC/ 3.4AH 2320306 224
UPS-BAT/VRLA/24DC/ 7.2AH 2320319 225
UPS-BAT/VRLA/24DC/12AH 2320322 225
UPS-BAT/VRLA/24DC/38AH 2320335 225
UPS-CAP/24DC/10A/10KJ 2320377 222
UPS-CAP/24DC/20A/20KJ 2320380 222
UPS-CONF 2320403 228
UPS-CP RCCMD LICENSEKEY 2800550 248
UPS-CP-19"MR 2800288 244
UPS-CP-1KVA/240AC 2800274 244
UPS-CP-2KVA/240AC 2800275 244
UPS-CP-3KVA/240AC 2800276 245
UPS-CP-4.5KVA/240AC 2800277 245
UPS-CP-6KVA/240AC 2800278 245
UPS-CP-BAT-1KVA-P1 2800280 246
UPS-CP-BAT-1KVA-P2 2800281 246
UPS-CP-BAT-2/3KVA-P3 2800283 247
UPS-CP-BAT-2/3KVA-P4 2800284 247
UPS-CP-BAT-4.5/6KVA-P5 2800285 247
UPS-CP-BP-1/2/3KVA 2800291 249
UPS-CP-BP-4.5/6KVA 2800292 249
UPS-CP-MS-4X16A-IEC 2800294 249
UPS-CP-MS-5X16A/9X10A-IEC 2800296 249
UPS-CP-MS-9X10A-IEC 2800293 249
UPS-CP-PU-240AC/32A-4.5/6KV 2800297 249
UPS-CP-PU-240AC/63A-4.5/6KV 2800298 249
UPS-SNMP-CARD 2800289 248
UPS-SNMP-CARD E 2800290 248
UT 6-TMC M 0,5A 0916603 263
UT 6-TMC M 10A 0916610 263
UT 6-TMC M 12A 0916611 263
UT 6-TMC M 15A 0916612 263
UT 6-TMC M 16A 0916613 263
UT 6-TMC M 1A 0916604 263
UT 6-TMC M 2A 0916605 263
UT 6-TMC M 4A 0916606 263
UT 6-TMC M 5A 0916607 263
UT 6-TMC M 6A 0916608 263
UT 6-TMC M 8A 0916609 263
UWA 130 2901664 213
UWA 182/52 2938235 213
V
VAL-CP-175-ST 2859628 40
VAL-CP-1S-175 2859479 41
VAL-CP-1S-350 2859563 41
VAL-CP-1S-350/O 2881036 41
VAL-CP-2C-175 2859482 41
VAL-CP-2C-350 2859589 41
VAL-CP-2C-350/O 2881052 41
VAL-CP-2S-175 2859495 41
VAL-CP-2S-350 2859505 41
VAL-CP-2S-350/O 2881049 41
VAL-CP-350-ST 2859602 36
VAL-CP-350-ST-GY 2882718 52
VAL-CP-3C-175 2859466 40
VAL-CP-3C-350 2859547 40
VAL-CP-3C-350/O 2881023 40
VAL-CP-3S-175 2859453 40
VAL-CP-3S-350 2859521 40
VAL-CP-3S-350/O 2881010 40
VAL-CP-MCB-1S-350/40/FM 2882763 55
VAL-CP-MCB-3C-350/40/FM 2882776 55
VAL-CP-MCB-3S-350/40/FM 2882750 54
VAL-CP-MOSO 60-3C-FM 2804416 53
VAL-CP-MOSO 60-3S-FM 2804403 53
VAL-CP-N/PE-350-ST 2859699 40
VAL-CP-N/PE-350-ST-GY 2882734 52
VAL-CP-RCD-3S/40/0.03 2882802 52
VAL-CP-RCD-3S/40/0.3/SEL 2808001 52
VAL-MS 60 ST 2807573 44
VAL-MS 1000DC-PV-ST 2800624 64
VAL-MS 1000DC-PV/2+V 2800628 64
VAL-MS 1000DC-PV/2+V-FM 2800627 64
VAL-MS 120 ST 2807586 46
VAL-MS 230 2839127 44
VAL-MS 230 IT ST 2807599 46
VAL-MS 230 ST 2798844 42
VAL-MS 230/1+1 2804429 43
VAL-MS 230/1+1-FM 2804432 43
VAL-MS 230/2+0 2800103 43
VAL-MS 230/2+0-FM 2800102 43
VAL-MS 230/3+1 2838209 42
VAL-MS 230/3+1 FM 2838199 42
VAL-MS 230/FM 2839130 44
VAL-MS 320 ST 2838843 42
VAL-MS 320-UD ST 2858315 42
VAL-MS 320/1+1 2804380 43
VAL-MS 320/1+1-FM 2804393 43
VAL-MS 320/3+0 2920230 43
VAL-MS 320/3+0-FM 2920243 43
VAL-MS 320/3+1 2859178 42
VAL-MS 320/3+1/FM 2859181 42
VAL-MS 320/3+1/FM-UD 2856689 42
VAL-MS 350 VF ST 2856595 45
Index
Alphabetical
292 PHOENIX CONTACT
Type Order No. Page Type Order No. Page
293PHOENIX CONTACT
Index
Alphabetical
VAL-MS 350 VF/FM 2856579 45
VAL-MS 350VF 2856582 45
VAL-MS 385/65 ST 2920308 48
VAL-MS 385/65/1+1 2921255 49
VAL-MS 385/65/1+1-FM 2921242 49
VAL-MS 385/65/3+0 2921019 49
VAL-MS 385/65/3+0-FM 2921006 49
VAL-MS 385/65/3+1 2920890 48
VAL-MS 385/65/3+1-FM 2920887 48
VAL-MS 385/80 ST 2920353 48
VAL-MS 385/80/1+1 2921297 49
VAL-MS 385/80/1+1-FM 2921284 49
VAL-MS 385/80/3+0 2921093 49
VAL-MS 385/80/3+0-FM 2921080 49
VAL-MS 385/80/3+1 2920971 48
VAL-MS 385/80/3+1-FM 2920968 48
VAL-MS 400 ST 2816399 46
VAL-MS 500 ST 2807609 46
VAL-MS 580-ST 2920434 43
VAL-MS 580/3+0 2920450 43
VAL-MS 580/3+0-FM 2920447 43
VAL-MS 60 2868020 44
VAL-MS 60/FM 2868033 44
VAL-MS 600DC-PV-ST 2800623 64
VAL-MS 600DC-PV/2+V 2800642 64
VAL-MS 600DC-PV/2+V-FM 2800641 64
VAL-MS 75 VF ST 2805318 50
VAL-MS 750/30-ST 2920256 51
VAL-MS 750/30/3+0 2920269 51
VAL-MS 750/30/3+0-FM 2920272 51
VAL-MS 800/30 VF/FM 2805402 51
VAL-MS BE 2817741 44
VAL-MS BE/FM 2817738 44
VAL-MS-T1/T2 1000DC-PV-ST 2801162 64
VAL-MS-T1/T2 1000DC-PV/2+V 2801160 64
VAL-MS-T1/T2 1000DC-PV/2+V-FM 2801161 64
VAL-MS-T1/T2 175/12.5 ST 2800676 34
VAL-MS-T1/T2 175/12.5/1+0 2801043 35
VAL-MS-T1/T2 175/12.5/1+0-FM 2801044 35
VAL-MS-T1/T2 175/12.5/1+1 2800675 35
VAL-MS-T1/T2 175/12.5/1+1-FM 2800674 35
VAL-MS-T1/T2 175/12.5/3+0 2800673 35
VAL-MS-T1/T2 175/12.5/3+0-FM 2800672 35
VAL-MS-T1/T2 175/12.5/3+1 2800671 34
VAL-MS-T1/T2 175/12.5/3+1-FM 2800670 34
VAL-MS-T1/T2 335/12.5 ST 2800190 34
VAL-MS-T1/T2 335/12.5/1+0 2801041 35
VAL-MS-T1/T2 335/12.5/1+0-FM 2801042 35
VAL-MS-T1/T2 335/12.5/1+1 2800187 35
VAL-MS-T1/T2 335/12.5/1+1-FM 2800186 35
VAL-MS-T1/T2 335/12.5/3+0 2800189 35
VAL-MS-T1/T2 335/12.5/3+0-FM 2800188 35
VAL-MS-T1/T2 335/12.5/3+1 2800184 34
VAL-MS-T1/T2 335/12.5/3+1-FM 2800183 34
VAL-MS-T1/T2 335/12.5/4+0 2800645 34
VAL-MS-T1/T2 335/12.5/4+0-FM 2800644 34
VAL-MS-T1/T2 48/12.5 ST 2801242 35
VAL-MS-T1/T2 48/12.5/1+0 2801241 35
VAL-MS-T1/T2 48/12.5/1+0-FM 2801240 35
VAL-MS-T1/T2 600DC-PV-ST 2801165 64
VAL-MS-T1/T2 600DC-PV/2+V 2801163 64
VAL-MS-T1/T2 600DC-PV/2+V-FM 2801164 64
VAL-MS/2+0-BE 2804584 46
VAL-MS/2+0-BE/FM 2805321 46
VAL-MS/2+0-BE/FM/S2 2800246 50
VAL-MS/3+0-BE 2881816 46
VAL-MS/3+0-BE/FM 2881803 46
VAL-US 120 ST 2800739 47
VAL-US 240 ST 2800740 47
VAL-US 277 ST 2800741 47
VAL-US 347 ST 2800742 47
VAL-US 480 ST 2800743 47
VAL-US 60 ST 2800738 47
VIP-CAB-FLK16/FR/FR/0,14/0,5M 2900154 90
VIP-CAB-FLK16/FR/FR/0,14/1,0M 2900155 90
VIP-CAB-FLK16/FR/FR/0,14/2,0M 2900156 90
W
WS UT 6 3047345 263
WT-RJ 12-S/FM A/K AP 2809186 131
WT-RJ 45-S/ISDN1/K AP 2809830 127
Z
ZB 12,LGS:L1-N,PE 0812146 111
ZB 12:UNPRINTED 0812120 111
ZB 22 CUS 0824949 141
ZB 5 :UNBEDRUCKT 1050004 111
ZB 5,LGS:FORTL.ZAHLEN 1050017 111
ZB 5,LGS:L1-N,PE 1050415 111
ZB 6,LGS:FORTL.ZAHLEN 1051016 111
ZB 6,LGS:L1-N,PE 1051414 111
ZB 6:UNBEDRUCKT 1051003 111
ZBF 12:UNBEDRUCKT 0809735 63
ZBF 15:UNBEDRUCKT 0811202 111
ZBF 5,LGS:FORTL.ZAHLEN 0808671 111
ZBF 5:UNBEDRUCKT 0808642 111
ZBF 6,LGS:FORTL.ZAHLEN 0808749 111
ZBF 6:UNBEDRUCKT 0808710 111
ZBFM 5 CUS 0825037 63
ZBFM 5/WH:UNBEDRUCKT 0803595 63
ZBN 18 CUS 0825059 63
ZBN 18,LGS:ERDE 2749589 63
ZBN 18,LGS:L1-N,ERDE 2749576 63
ZBN 18:UNBEDRUCKT 2809128 63
ZP-J/TAE/ST550 WH 2830362 59
