Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
EMC UPDATE TEST REPORT
For
Channel Well Technology Co., Ltd.
Switching Power supply
Model: PSHxy-zz (x= 350, 400, 450, 500, 550, 600, 650, 700, 750, 850;
y=P, Q, R, S, V, P1, Q1, R1, S1, V1, H1, U1, F; z= 0-9, A-Z or Blank);
GREATPOWER X14S4P3 500W; GREATPOWER X14S4P3 550W;
GREATPOWER X14S4P4 600W;
GREATPOWER X14S4P4 650W; GREATPOWER X14S4P4 700W;
GREATPOWER X14S4P4 750W; GREATPOWER X14S8P4 850W;
CWT-abz (a = 500, 550, 600, 650, 700, 750, 850; b=P, Q, R, S, V;
z = 0-9,A-Z or blank); NRP-MC651; NRP-MC751; NRP-MC851
Trade Name: CWT
Revision: 03
Description of Rev. 03:
1. Applicant modifies applicant’s address as per customer required.
(Please refer to page 3 on this report)
2. Applicant adds alternate Input and Output rating for model number: PSH-850V1-zz.
(Please refer to Page 4 for input and Page 6 for output.)
3. Applicant adds alternate schematic and layout (only secondary different) and DC fan
source to re-test.
(Please refer to have ** mark items on this report)
4. Other information, please refer to the 51104105, 61012102, 70620101 and this test report.
Approved by: Reviewed by:
Robert Huan Julia Wei
Section Manager of Linkou Laboratory Senior Specialist of Linkou Laboratory
Note: This report shall not be reproduced except in full, without the written approval of Compliance
Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services
Inc. personnel only, and shall be noted in the revision section of the document.
Compliance Certification Services Inc. Compliance Certification Services Inc.
Page 1 Total Page: 15
Rev. 03
![](asset-2.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
TABLE OF CONTENTS
1 TEST RESULT CERTIFICATION .....................................................................................................3
2 EUT DESCRIPTION............................................................................................................................4
3 TEST METHODOLOGY.....................................................................................................................7
3.1 DECISION OF FINAL TEST MODE ........................................................................................7
4 SETUP OF EQUIPMENT UNDER TEST...........................................................................................7
5 LABORATORY ACCREDITATIONS AND LISTINGS ...................................................................8
5.1 MEASURING INSTRUMENT CALIBRATION.......................................................................8
5.2 TEST AND MEASUREMENT EQUIPMENT ..........................................................................8
6 TEST RESULTS ................................................................................................................................10
APPENDIX I - PHOTOGRAPHS OF TEST SETUP ................................................................................14
Page 2 Rev. 03
![](asset-3.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
1 TEST RESULT CERTIFICATION
Applicant: Channel Well Technology Co., Ltd.
NO. 222, SEC. 2, NANKAN RD., LUJHU TOWNSHIP,
TAOYUAN HSIEN, TAIWAN, R.O.C.
Manufacturer: Channel Well Technology Co., Ltd.
3rd F1-2, 888, Jing-Gwo Rd.,
Taoyuan City, Taiwan, R.O.C.
Equipment Under Test: Switching Power supply
Trade Name: CWT
Model:
PSHxy-zz (x= 350, 400, 450, 500, 550, 600, 650, 700, 750, 850;
y=P, Q, R, S, V, P1, Q1, R1, S1, V1, H1, U1, F;
z= 0-9, A-Z or Blank); GREATPOWER X14S4P3 500W;
GREATPOWER X14S4P3 550W; GREATPOWER X14S4P4 600W;
GREATPOWER X14S4P4 650W; GREATPOWER X14S4P4 700W;
GREATPOWER X14S4P4 750W; GREATPOWER X14S8P4 850W;
CWT-abz (a = 500, 550, 600, 650, 700, 750, 850; b=P, Q, R, S, V;
z = 0-9,A-Z or blank); NRP-MC651; NRP-MC751; NRP-MC851
Detailed EUT Description: See Item 2 of this report
Date of Test: October 15 ~ 16, 2008
Applicable Standard Class / Limit Test Result
FCC Part 15 Subpart B,
IC ICES-003 Class B No non-compliance noted
Deviation from Applicable Standard
None
The above equipment was tested by Compliance Certification Services Inc. for compliance with
the requirements set forth in the FCC Rules and Regulations Part 15, Subpart B and the
measurement procedures were according to ANSI C63.4. This said equipment in the
configuration described in this report shows the maximum emission levels emanating from
equipment are within the compliance requirements.
Page 3 Rev. 03
![](asset-4.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
2 EUT DESCRIPTION
Product Switching Power supply
Trade Name CWT
Model
PSHxy-zz (x= 350, 400, 450, 500, 550, 600, 650, 700, 750, 850;
y=P, Q, R, S, V, P1, Q1, R1, S1, V1, H1, U1, F;
z= 0-9, A-Z or Blank); GREATPOWER X14S4P3 500W;
GREATPOWER X14S4P3 550W; GREATPOWER X14S4P4 600W;
GREATPOWER X14S4P4 650W; GREATPOWER X14S4P4 700W;
GREATPOWER X14S4P4 750W; GREATPOWER X14S8P4 850W;
CWT-abz (a = 500, 550, 600, 650, 700, 750, 850; b=P, Q, R, S, V;
z = 0-9,A-Z or blank); NRP-MC651; NRP-MC751; NRP-MC851
Housing Type Plastic
EUT Power Rating see as below
AC Power Cord Type Unshielded, 1.8m (Detachable)
Note:
1. The means of xy-zz (x= 350, 400, 450, 500, 550, 600, 650, 700, 750, 850;
y=P, Q, R, S, V P1, Q1, R1, S1, V1, H1, U1, F; z= 0-9, A-Z or Blank) on model number are list as below:
x represents max. Input / Output wattage; x = 350, 400, 450, 500, 550, 600, 650, 700, 750, 850; for
PSHxy-zz
AC Input Power Rating
Model VAC A Hz
100-240 5-2.5
115-230 5/2.5
200-240 2.3
PSH350y-zz
PSH400y-zz
230 2.5
47-63
100-240 6-3
115-230 6/3
200-240 3
PSH450y-zz
PSH500y-zz
GREATPOWER X14S4P3 500W; CWT-500bz 230 3
47-63
100-240 8-4
115-230 8/4
200-240 4
PSH550y-zz
PSH600y-zz
PSH650y-zz
GREATPOWER X14S4P3 550W
GREATPOWER X14S4P4 600W
GREATPOWER X14S4P4 650W;
CWT-550bz; CWT-600bz; CWT-650bz
230 4
47-63
100-240 10-5
115-230 10/5
200-240 5
PSH700y-zz
PSH750y-zz
GREATPOWER X14S4P4 700W
GREATPOWER X14S4P4 750W
GREATPOWER X14S8P4 850W;
CWT-700bz; CWT-750bz; CWT-850bz; PSH850y-zz
230 5
47-63
NRP-MC651 100-240V 8/4 47-63
NRP-MC751; NRP-MC851 100-240V 10/5 47-63
PSH850V1-zz **100-240V **12 **50/60
Page 4 Rev. 03
![](asset-5.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
DC Output Power Rating
Model +5V
(A)
+3.3V
(A)
+12V1
(A)
+12V2
(A)
+12V3
(A)
+12V4
(A)
-12V
(A)
+5Vsb
(A)
Watt
21 22 10 15 --- --- 0.8 3
PSH350y-zz 12 20 10 15 --- --- 0.8 3 350W
28 30 14 15 --- --- 0.8 3
PSH400y-zz 14 20 14 15 --- --- 0.8 3 400W
28 30 14 16 --- --- 0.8 3
PSH450y-zz 15 22 14 16 --- --- 0.8 3 450W
28 30 18 18 16 --- 0.8 3 PSH500y-zz
GREATPOWER X14S4P3 500W;
CWT-500bz 16 22 18 18 16 --- 0.8 3 500W
28 30 18 18 16 --- 0.8 3 PSH550y-zz
GREATPOWER X14S4P3 550W;
CWT-550bz 24 24 18 18 16 --- 0.8 3 550W
28 30 18 18 18 18 0.8 3 PSH600y-zz
GREATPOWER X14S4P4 600W;
CWT-600bz 24 24 18 18 18 18 0.8 3 600W
28 30 18 18 18 18 0.8 3 PSH650y-zz
GREATPOWER X14S4P4 650W;
CWT-650bz 24 24 18 18 18 18 0.8 3 650W
28 30 18 18 18 18 0.8 3 PSH700y-zz
GREATPOWER X14S4P4 700W;
CWT-700bz 24 24 18 18 18 18 0.8 3 700W
28 30 18 18 18 18 0.8 3 PSH750y-zz
GREATPOWER X14S4P4 750W;
CWT-750bz; NRP-MC751 24 24 18 18 18 18 0.8 3 750W
PSH850y-zz
GREATPOWER X14S8P4 850W;
CWT-850bz; NRP-MC851
30 30 18 18 30 30 0.8 3 850W
**+12V3, +12V4 for Optional
DC Output Power Rating
Model +5V
(A)
+3.3V
(A)
+12V
(A)
-12V
(A)
+5Vsb
(A)
Watt
**PSH850V1-zz 30 30 70 0.8 3 850W
Page 5 Rev. 03
![](asset-6.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
y represents the form factor; y=P, Q, R, S, V, P1, Q1, R1, S1, V1, H1, U1, F
y W x L x H FA N EMI Board &
Main Board PCB No. x 1 PCB No. x 2
150 x 140 x 86.0 mm 80mm x 1
P; P1 150 x 140 x 86.0 mm
(Cable Management) 80mm x 1 Separate
350W, 400W
450W, 500W
550W, 600W
650W, 700W
750W
150 x 160 x 86.0 mm
Q; Q1 150 x 160 x 86.0 mm
(Cable Management)
120mm x 1 on top Combine
150 x 160 x 86.0 mm On middle x 2
On Side x 2
R; R1 150 x 160 x 86.0 mm
(Cable Management) On Side x 2
Separate
S; S1 150 x 140 x 86.0 mm 120mm x 1 Combine
150 x 160 x 86.0 mm 140mm x 1
V; V1 150 x 160 x 86.0 mm
(Cable Management)
120mm x 1
140mm x 1
Combine
350W, 400W
450W, 500W
550W, 600W
350W, 400W
450W, 500W
550W, 600W
650W, 700W
750W;
**850W for
Case V and R
U1 150 x 160 x 86.0 mm 140mm x 1 Combine -- 55W
H1 150 x 160 x 86.0 mm 140mm x 1 Combine -- 750W
F 150 x 160 x 86.0 mm 140mm x 1 Combine --
500W;
550W;
600W; 650W
z represents cosmetic changes; z = 0-9, A-Z, or Blank
2. Client consigns four model samples (Model number: PSH350Y, PSH450Y, PSH600P, PSH750Y) to test.
Therefore, testing Lab. just guarantees the units, which have been tested.
3. Client consigns four model samples (Model number: PSH850V) to test. Therefore, testing Lab. just
guarantees the units, which have been tested.
4. The means of “x (x= 500, 550, 600, 650, 700, 750, 850F)” on model number is list as below:
DC Output Power Rating
Model +5V
(A)
+3.3V
(A)
+12V
(A)
-12V
(A)
+5Vsb
(A)
TOTAL POWER
+5V& +3.3V Watt
F
or y = P1, Q1, R1, S1, V1, H1 or U1 ( y = H1 for x = 550 only, y = U1 for x = 750 only)
28 30 36 0.8 3.0 140
PSH500y-zz 16 22 36 0.8 3.0 130 500W
28 30 41 0.8 3.0 140
PSH550y-zz 24 24 41 0.8 3.0 140 550W
28 30 48 0.8 3.0
PSH600y-zz 24 24 48 0.8 3.0
180
180 600W
28 30 52 0.8 3.0
PSH650y-zz 24 24 52 0.8 3.0
180
180 650W
28 30 56 0.8 3.0
PSH700y-zz 24 24 56 0.8 3.0
180
180 700W
28 30 60 0.8 3.0
PSH750y-zz 24 24 60 0.8 3.0
180
180 750W
PSH850y-zz 30 30 62 0.8 3.0 180 850W
PSH850V1-zz **30 **30 **70 **0.8 **3.0 **180 **850W
5. Client consigns four model samples (Model number: PSH750U) to test. Therefore, testing Lab. just
guarantees the units, which have been tested.
** 6. Client consigns four model samples (Model number: PSH850V1-ZZ) to test. Therefore, testing Lab. just
guarantees the units, which have been tested.
Page 6 Rev. 03
![](asset-7.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
3 TEST METHODOLOGY
3.1 DECISION OF FINAL TEST MODE
1. The following test mode(s) were scanned during the preliminary test:
Mode 1
Full Load – PSH850V1-ZZ
2. After preliminary test, found mode 1 producing the highest emission level, used this
mode for all final test.
4 SETUP OF EQUIPMENT UNDER TEST
Setup Diagram

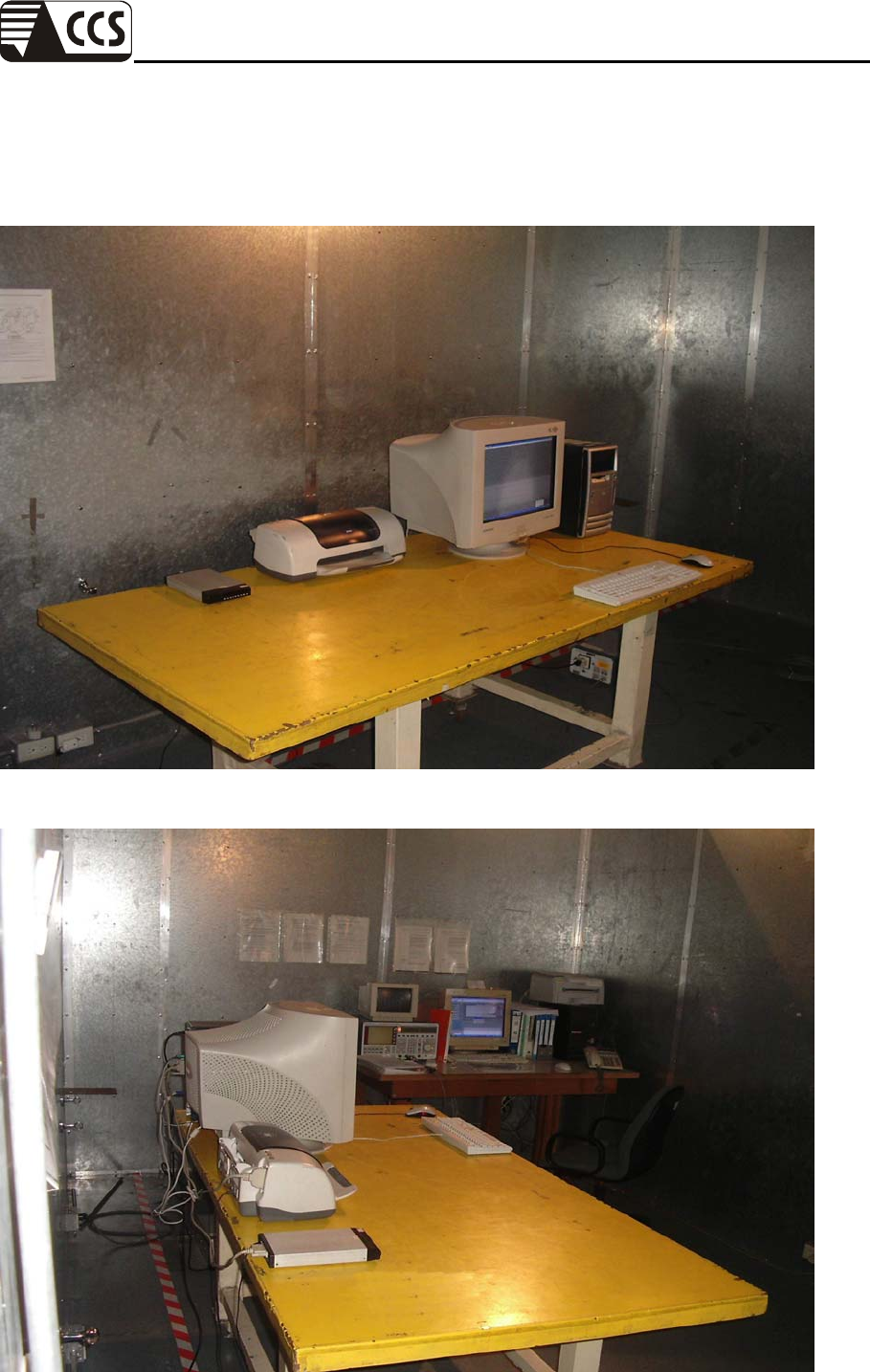

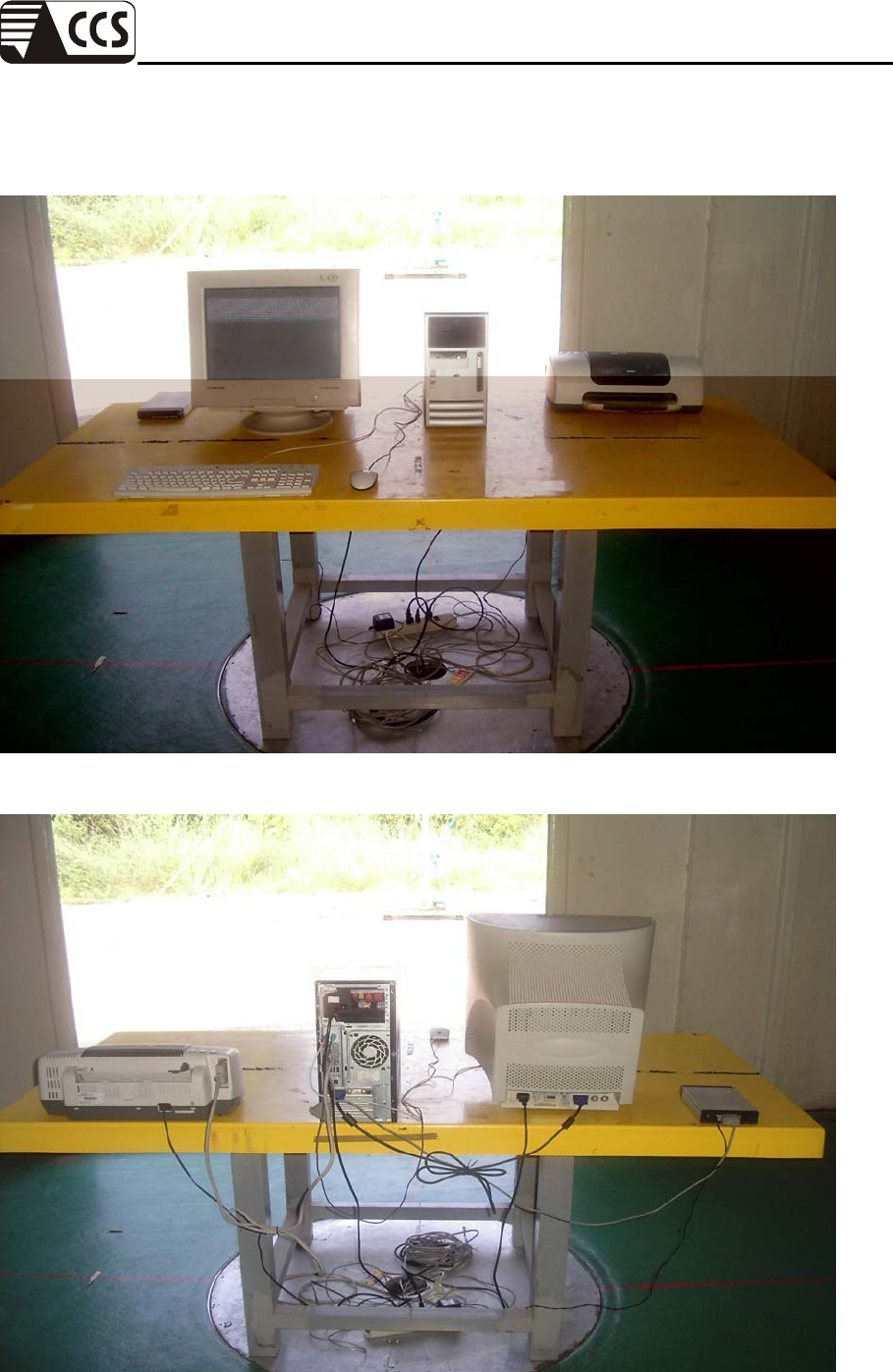

See test photographs attached in Appendix 1 for the actual connections between EUT and
support equipment.
Support Equipment
No. Equipment Model No. Serial No. FCC ID Trade Name Data Cable Power Cord
1 PC DX-6120 SGH53102TR FCC DoC HP N/A Unshielded, 1.8m
2 Monitor 959NF AQ19H2RT706121B FCC DoC SAMSUNG
Shielded, 1.8m
with two cores Unshielded, 1.8m
3 Modem DM-1414 304012262 IFAXDM1414 ACEEX
Unshielded, 1.8m Unshielded, 1.8m
4 Printer STYLUS C60 DR3K041515 FCC DoC EPSON Unshielded, 1.8m Unshielded, 1.8m
5 PS/2 Keyboard Y-SJ17 SY520U00642 FCC DoC Logitech Unshielded, 1.8m N/A
6 PS/2 Mouse M-SBF69 HCA51604416 DZL211029 Logitech
Unshielded, 1.8m N/A
Note: Grounding was in accordance with the manufacturer’s requirements and conditions for the intended use.
Page 7 Rev. 03
![](asset-8.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
5 LABORATORY ACCREDITATIONS AND LISTINGS
5.1 MEASURING INSTRUMENT CALIBRATION
The measuring equipment utilized to perform the tests documented in this report has been
calibrated once a year or in accordance with the manufacturer's recommendations, and is
traceable under the IEC 17025 to international or national standards. Equipment has been
calibrated by accredited calibration laboratories.
5.2 TEST AND MEASUREMENT EQUIPMENT
The following list contains measurement equipment used for testing. The equipment conforms
to the requirement of CISPR 16-1, ANSI C63.2 and other required standards.
Calibration of all test and measurement, including any accessories that may effect such
calibration, is checked frequently to ensure the accuracy. Adjustments are made and
correction factors are applied in accordance with the instructions contained in the respective
manual.
Equipment Used for Emission Measurement
Conducted Emission Test Site # 3
Name of Equipment Manufacturer Model Serial Number Calibration Due
EMI Test Receiver R&S ESCS30 845552/030 04/08/2009
LISN R&S ENV216 100074 12/03/2008
LISN FCC
FCC-LISN-50/
250-16-2-07 06013 10/12/2009
Test S/W LabVIEW 6.1 (CCS Conduction Test SW Version_01)
Note: The measurement uncertainty is less than +/-1.7806dB, which is evaluated as per the NAMAS NIS 81 and
CISPR/A/291/CDV.
Page 8 Rev. 03
![](asset-9.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
Open Area Test Site # 5
Name of Equipment Manufacturer Model Serial Number Calibration Due
Spectrum Analyzer ADVANTEST R3132 91700456 N.C.R
EMI Test Receiver R&S ESVS10 846285/016 06/06/2009
Bilog Antenna TESEQ CBL 6112D 23190 06/27/2009
Pre-Amplifier WIRELESS FPA-6592G 060010 08/29/2009
Turn Table CCS CC-T-1F N/A N.C.R
Antenna Tower CCS CC-A-1F N/A N.C.R
Controller CCS CC-C-1F 04 N.C.R
RF Switch ANRITSU MP59B 10877 N.C.R
Site NSA CCS N/A N/A 11/23/2008
Test S/W LabVIEW 6.1 (CCS OATS EMI SW V2.7)
Note: The measurement uncertainty is less than +/- 3.8906dB, which is evaluated as per the NAMAS NIS 81 and
CISPR/A/291/CDV.
Page 9 Rev. 03

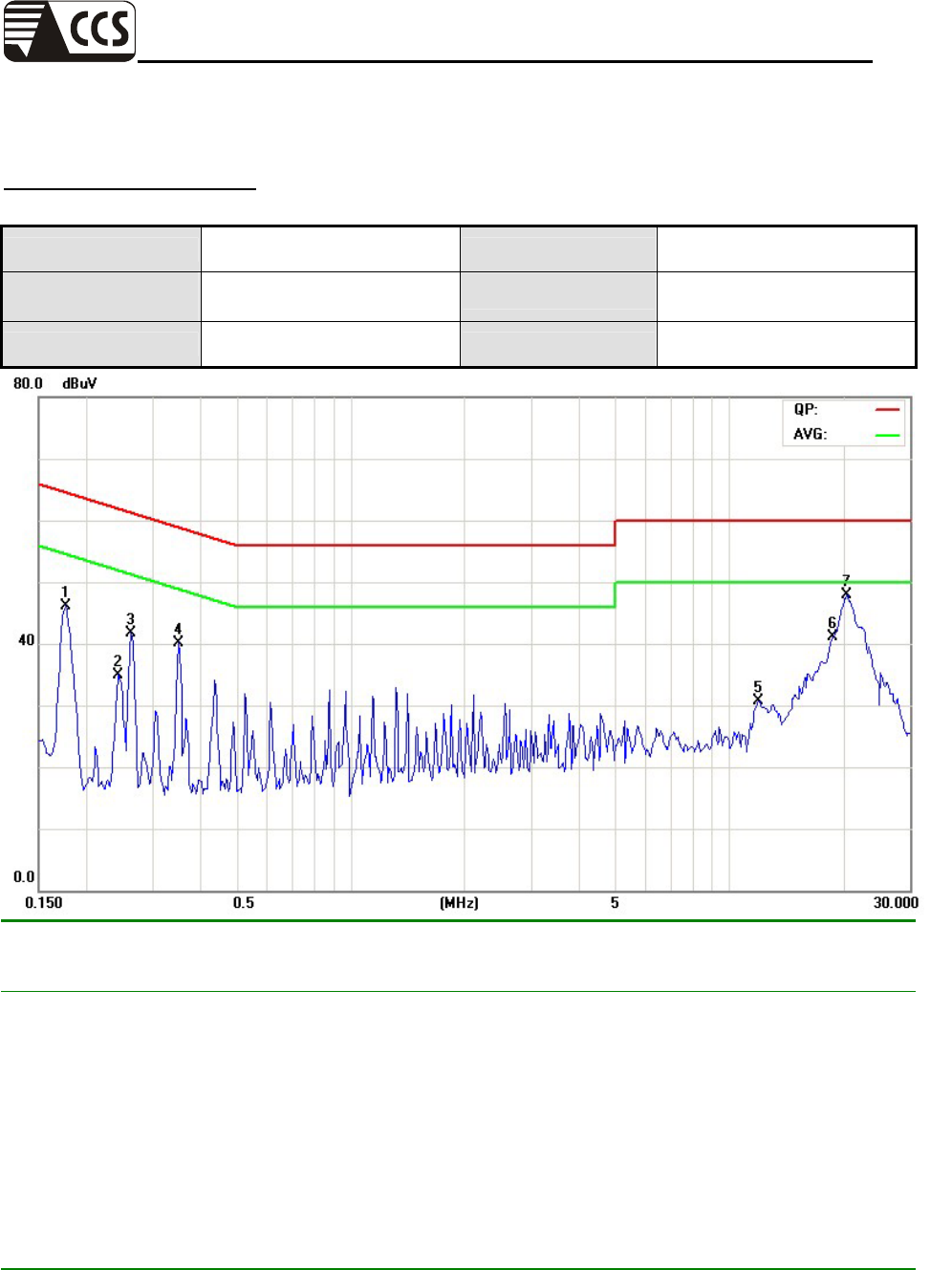

![](asset-a.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
6 TEST RESULTS
Line Conducted Emission

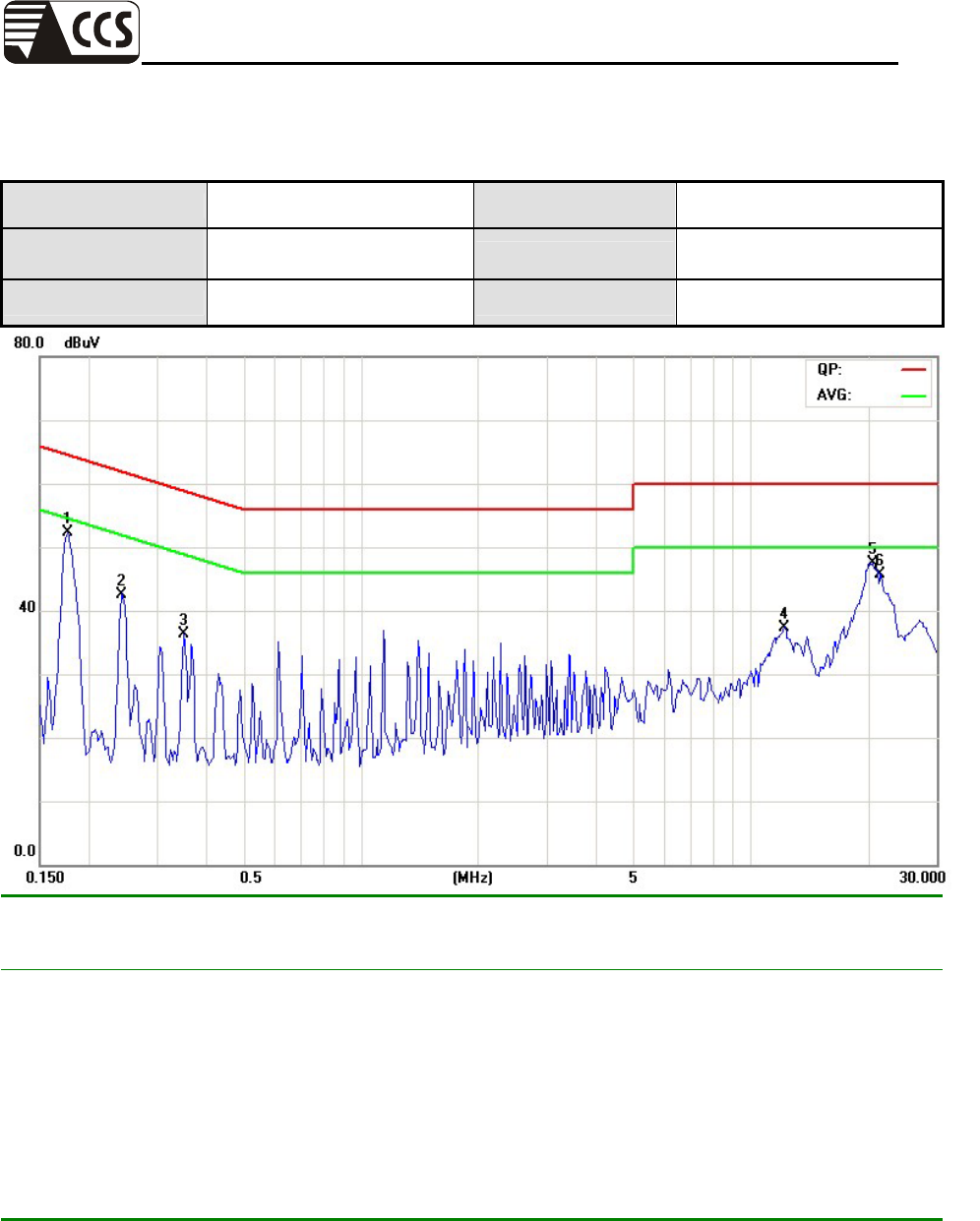

CCS Conduction Test 3
Model No. PSH850V1-ZZ 6dB Bandwidth 9 kHz
Environmental
Conditions 25oC, 57% RH Tes t Mode Mode 1
Tes ted By Alex Tsai Line L1
NO. Frequency
QuasiPeak
reading
Average
reading
Correction
factor
QuasiPeak
result
Average
result
QuasiPeak
limit
Average
limit
QuasiPeak
margin
Average
margin
Remark
(MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dBuV) (dBuV) (dB) (dB) (Pass/Fail)
1 0.1773 35.80 35.30 9.70 45.50 45.00 64.61 54.61 -19.11 -9.61 Pass
2 0.2437 24.60 24.30 9.70 34.30 34.00 61.97 51.97 -27.67 -17.97 Pass
3 0.2633 31.60 31.50 9.70 41.30 41.20 61.33 51.33 -20.03 -10.13 Pass
4* 0.3531 30.09 29.99 9.71 39.80 39.70 58.89 48.89 -19.09 -9.19 Pass
5 11.9898 15.86 13.36 10.24 26.10 23.60 60.00 50.00 -33.90 -26.40 Pass
6 18.5237 26.62 17.42 10.38 37.00 27.80 60.00 50.00 -23.00 -22.20 Pass
7 20.4469 35.77 25.47 10.43 46.20 35.90 60.00 50.00 -13.80 -14.10 Pass
REMARKS: L1 = Line One (Live Line)
Page 10 Rev. 03
![](asset-b.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
CCS Conduction Test 3
Model No. PSH850V1-ZZ 6dB Bandwidth 9 kHz
Environmental
Conditions 25oC, 57% RH Tes t Mode Mode 1
Tes ted By Alex Tsai Line L2
NO. Frequency
QuasiPeak
reading
Average
reading
Correction
factor
QuasiPeak
result
Average
result
QuasiPeak
limit
Average
limit
QuasiPeak
margin
Average
margin
Remark
(MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dBuV) (dBuV) (dB) (dB) (Pass/Fail)
1* 0.1773 41.90 41.50 9.70 51.60 51.20 64.61 54.61 -13.01 -3.41 Pass
2 0.2437 32.50 32.40 9.70 42.20 42.10 61.97 51.97 -19.77 -9.87 Pass
3 0.3531 25.69 25.39 9.71 35.40 35.10 58.89 48.89 -23.49 -13.79 Pass
4 12.2477 24.76 23.46 10.24 35.00 33.70 60.00 50.00 -25.00 -16.30 Pass
5 20.6148 34.77 24.67 10.43 45.20 35.10 60.00 50.00 -14.80 -14.90 Pass
6 21.7149 27.81 15.61 10.49 38.30 26.10 60.00 50.00 -21.70 -23.90 Pass
REMARKS: L2 = Line Two (Neutral Line)
Page 11 Rev. 03

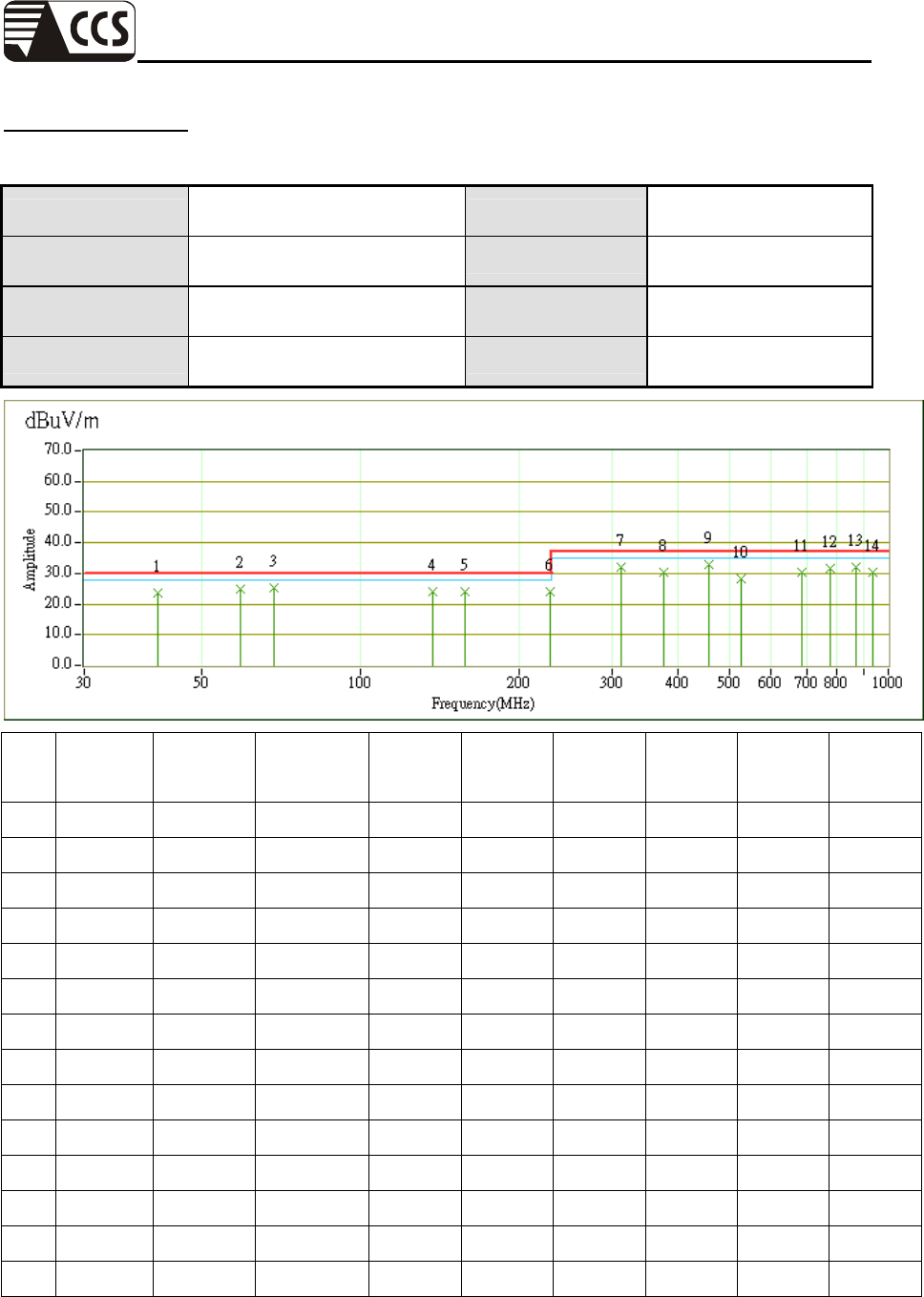

![](asset-c.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
Radiated Emission
CCS Radiated Test OATS 5
Model No. PSH850V1-ZZ Test Mode Mode 1
Environmental
Conditions 34oC, 64% RH 6dB Bandwidth 120 kHz
Antenna Pole Ver tic al Antenna Distance 10m
Detector Function: Quasi-peak. Tested By Steve Cheng
No. Frequency
(MHz)
Reading
(dBuV)
Correction
Factor(dB/m)
Result
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
Degree
(°)
Height
(cm)
Remark
1 41.26 10.01 13.53 23.54 30.00 -6.46 222.60 100.00 QP
2 59.32 16.96 7.76 24.72 30.00 -5.28 276.60 100.00 QP
3 68.49 17.69 7.78 25.47 30.00 -4.53 33.90 100.00 QP
4 137.18 8.89 15.28 24.18 30.00 -5.82 106.80 100.00 QP
5 157.50 9.58 14.32 23.90 30.00 -6.10 194.50 100.00 QP
6 229.16 8.14 15.80 23.93 30.00 -6.07 81.40 100.00 QP
7 311.40 11.82 20.16 31.98 37.00 -5.02 154.30 324.30 QP
8 374.60 7.74 22.75 30.49 37.00 -6.51 53.70 324.30 QP
9 456.60 8.32 24.44 32.76 37.00 -4.24 311.70 184.00 QP
10 526.20 3.27 25.16 28.43 37.00 -8.57 10.30 146.20 QP
11 687.30 2.57 28.00 30.57 37.00 -6.43 321.10 135.10 QP
12 775.50 2.74 28.90 31.65 37.00 -5.35 10.20 112.50 QP
13 867.30 2.55 29.42 31.97 37.00 -5.03 109.70 100.00 QP
14 933.30 0.36 29.87 30.23 37.00 -6.77 76.90 100.00 QP
REMARKS: The other emission levels were very low against the limit.
Page 12 Rev. 03

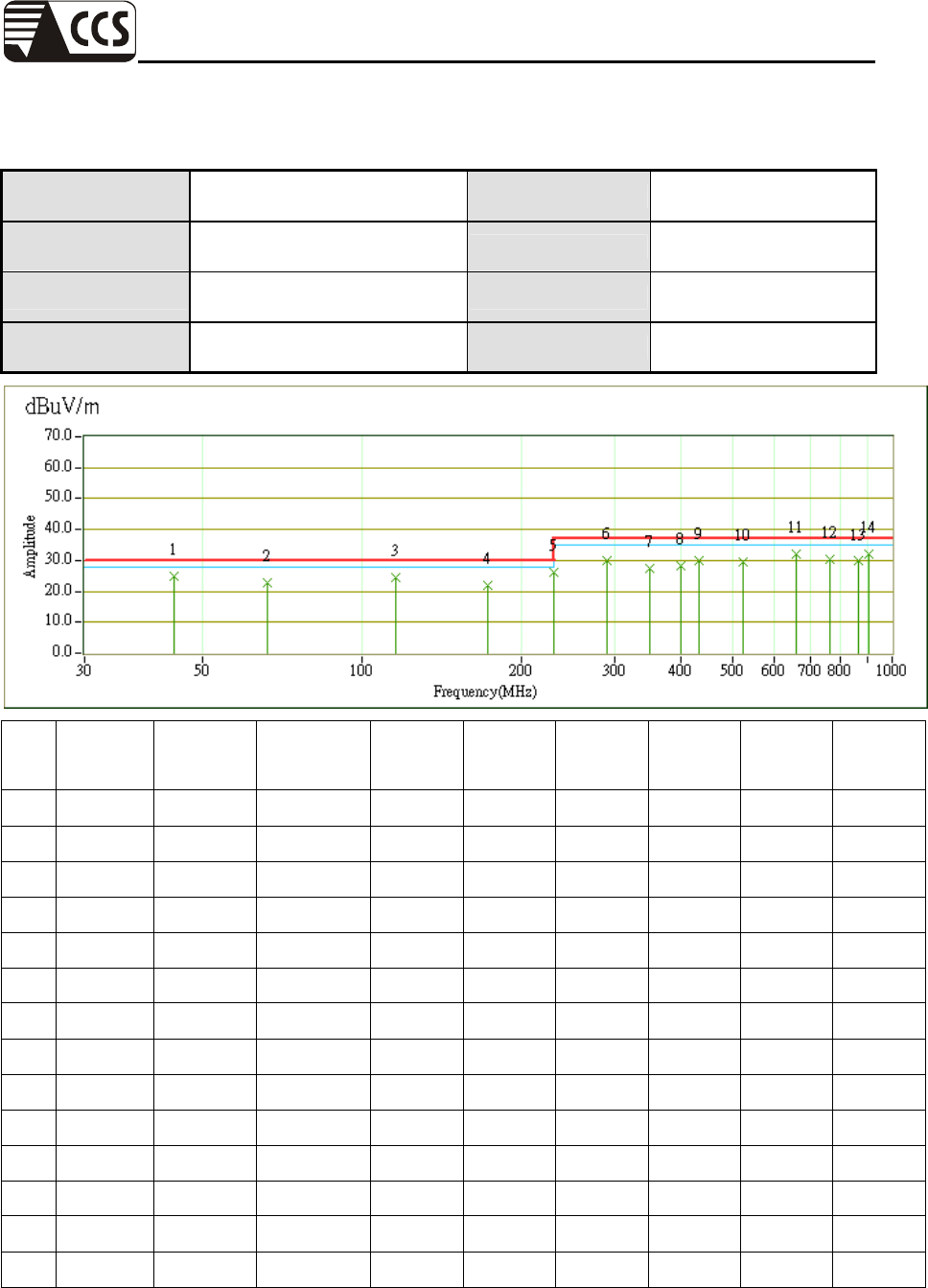

![](asset-d.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
CCS Radiated Test OATS 5
Model No. PSH850V1-ZZ Test Mode Mode 1
Environmental
Conditions 34oC, 64% RH 6dB Bandwidth 120 kHz
Antenna Pole Horizontal Antenna Distance 10m
Detector Function: Quasi-peak. Tested By Steve Cheng
No. Frequency
(MHz)
Reading
(dBuV)
Correction
Factor(dB/m)
Result
(dBuV/m)
Limit
(dBuV/m)
Margin
(dB)
Degree
(°)
Height
(cm)
Remark
1 44.34 12.96 11.98 24.94 30.00 -5.06 49.80 399.70 QP
2 66.38 14.85 7.74 22.60 30.00 -7.40 314.00 399.70 QP
3 115.74 9.16 15.44 24.61 30.00 -5.39 239.30 399.70 QP
4 172.62 8.10 13.80 21.90 30.00 -8.10 47.70 399.70 QP
5 229.67 10.10 15.85 25.95 30.00 -4.05 269.60 399.70 QP
6 289.99 10.55 19.49 30.04 37.00 -6.96 20.60 399.70 QP
7 348.80 5.67 21.77 27.43 37.00 -9.57 321.40 367.10 QP
8 400.00 4.41 23.71 28.12 37.00 -8.88 304.80 367.10 QP
9 431.80 5.68 24.18 29.86 37.00 -7.14 149.50 187.20 QP
10 523.50 4.52 25.08 29.60 37.00 -7.40 209.10 147.10 QP
11 659.90 4.08 27.79 31.87 37.00 -5.13 0.70 136.30 QP
12 761.30 1.60 28.84 30.44 37.00 -6.56 353.90 117.10 QP
13 865.50 0.34 29.40 29.74 37.00 -7.26 101.70 100.40 QP
14 905.10 2.19 29.88 32.07 37.00 -4.93 71.00 100.40 QP
REMARKS: The other emission levels were very low against the limit.
Page 13 Rev. 03
![](asset-e.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
APPENDIX I - PHOTOGRAPHS OF TEST SETUP
LINE CONDUCTED EMISSION TEST
Page 14 Rev. 03
![](asset-f.png)
Compliance Certification Services Inc.
Report No.: 81014101-D Refer No.: 70620101-D Date of Issue: October 22, 2008
Page 15 Rev. 03
RADIATED EMISSION TEST
