CATALOG
PVC Electrical Fittings
www.kraloyfittings.com
ELECTRICAL SYSTEMS
INTRODUCTION / APPLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
ADVANTAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
SOLVENT CEMENTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
EXPANSION / CONTRACTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
APPLICABLE STANDARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
CONDUIT FITTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
COVERS & COVER PLATES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
BOXES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
CONDUIT INTERLOCKING SPACERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

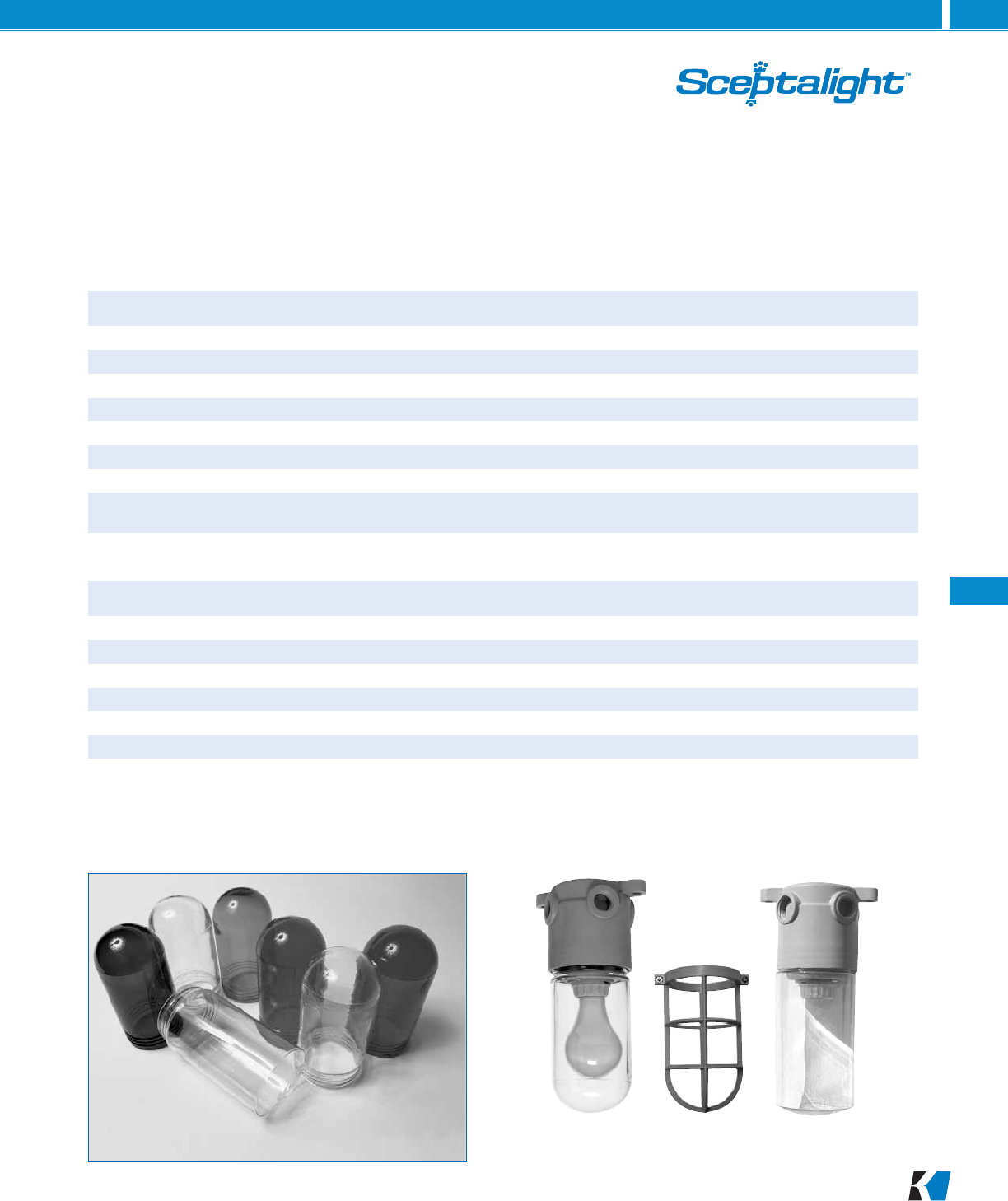

SCEPTALIGHT NONMETALLIC VAPOR PROOF LIGHT FIXTURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
CONDUIT CEMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
TOOL & REPAIR KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
KRALOY PVC ELECTRICAL FITTINGS 1
TABLE OF CONTENTS
Elbows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Couplings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Terminal Adapters . . . . . . . . . . . . . . . . . . . . . . . . . .17
Female Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Reducer Bushings . . . . . . . . . . . . . . . . . . . . . . . . . .18
End Bells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
End Caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Tapered Conduit Plugs . . . . . . . . . . . . . . . . . . . . . .20
Expansion Joints . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Pipe Straps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Conduit Clamps & Spacers . . . . . . . . . . . . . . . . . . .22
Access Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Service Entrance Fittings . . . . . . . . . . . . . . . . . . . . .25
Offset Terminal Adapters . . . . . . . . . . . . . . . . . . . . .25
Pull Elbows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

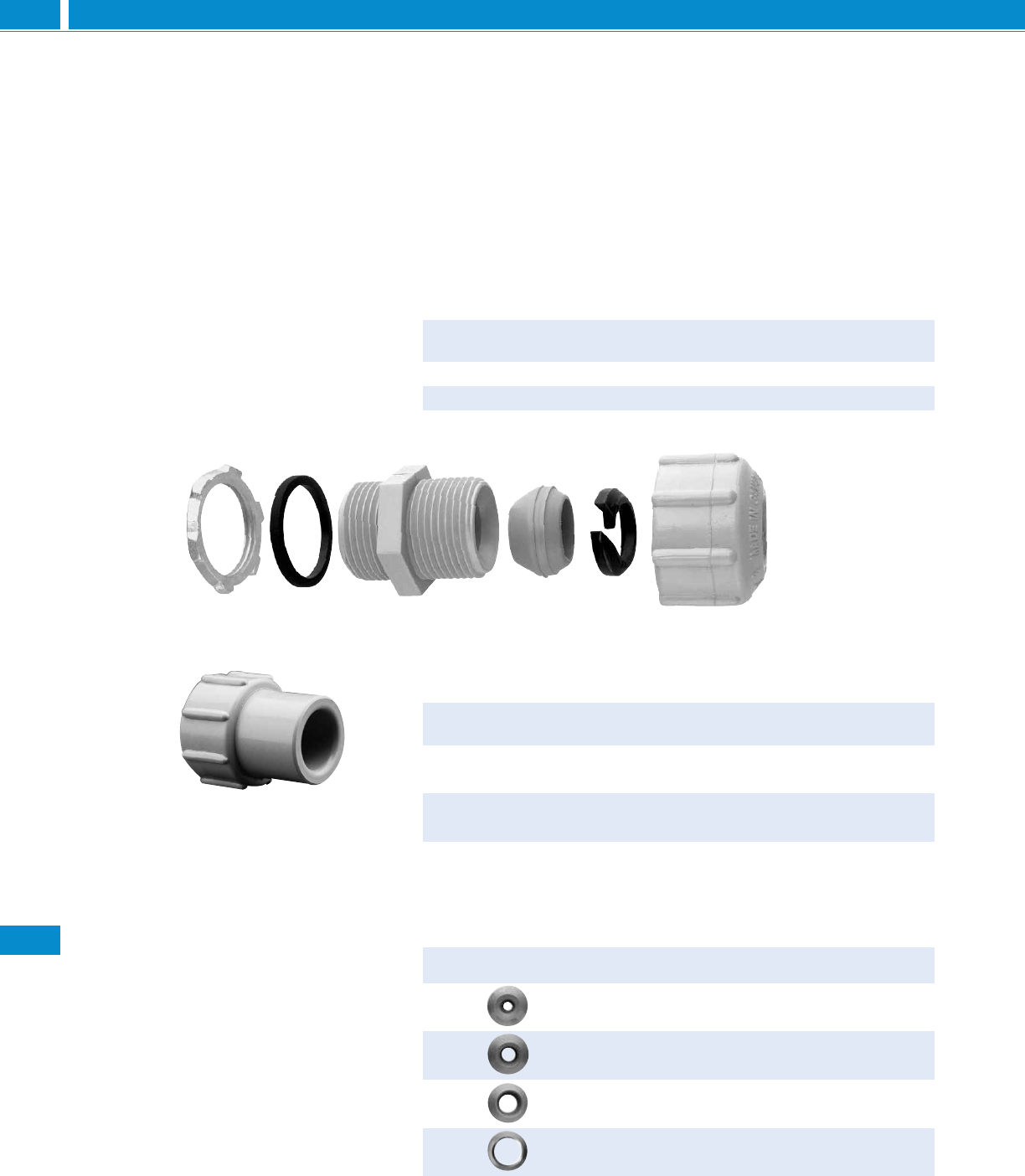

Strain Relief Connectors . . . . . . . . . . . . . . . . . . . . .26
F-Series - Single Gang Plates . . . . . . . . . . . . . . . . .27
F-Series - Double Gang Plates . . . . . . . . . . . . . . . .27
F-Series - Triple Gang Plates . . . . . . . . . . . . . . . . .27
Weatherproof Single Gang Covers . . . . . . . . . . . . .28
Weatherproof Double Gang Covers . . . . . . . . . . . .28
F-Series Single Gang Boxes . . . . . . . . . . . . . . . . . .29
F-Series Single Gang Deep Boxes . . . . . . . . . . . . .29
F-Series Double Gang Boxes . . . . . . . . . . . . . . . . .29
F-Series Triple Gang Boxes . . . . . . . . . . . . . . . . . . .30
Octagonal Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Junction Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Junction Box Adapters . . . . . . . . . . . . . . . . . . . . . . .31
Floor Boxes & Accessories . . . . . . . . . . . . . . . . . . .32
Intermediate Vertical-Lok Spacers . . . . . . . . . . . . . .31 Base Vertical-Lok Spacers . . . . . . . . . . . . . . . . . . . .31
EPR Kits for Conduit Repair . . . . . . . . . . . . . . . . . .37
INTRODUCTION / APPLICATIONS
For more than 40 years, Kraloy has been a pioneer in the field
of PVC conduit fittings. As the first UL approved manufacturer
of PVC fittings, Kraloy’s rich history allows us to be an industry
leader today.
At Kraloy we are committed to providing the highest quality
products, technical support, and outstanding service.
We formulate our own compounds, maintain strict quality
control during production, and offer the most comprehensive
line of PVC conduit fittings available today.
By combining our market knowledge with the creativity of our
engineering and design teams, Kraloy continually offers the
most up-to-date products meeting the ever changing needs of
our customers.
This manual has been prepared to provide electrical
wholesalers, contractors, engineers, specifiers and utilities with
the most current technical journal on Kraloy PVC conduit
fittings.
Only when you specify Kraloy by name are you guaranteed
“The Fitting Choice”.

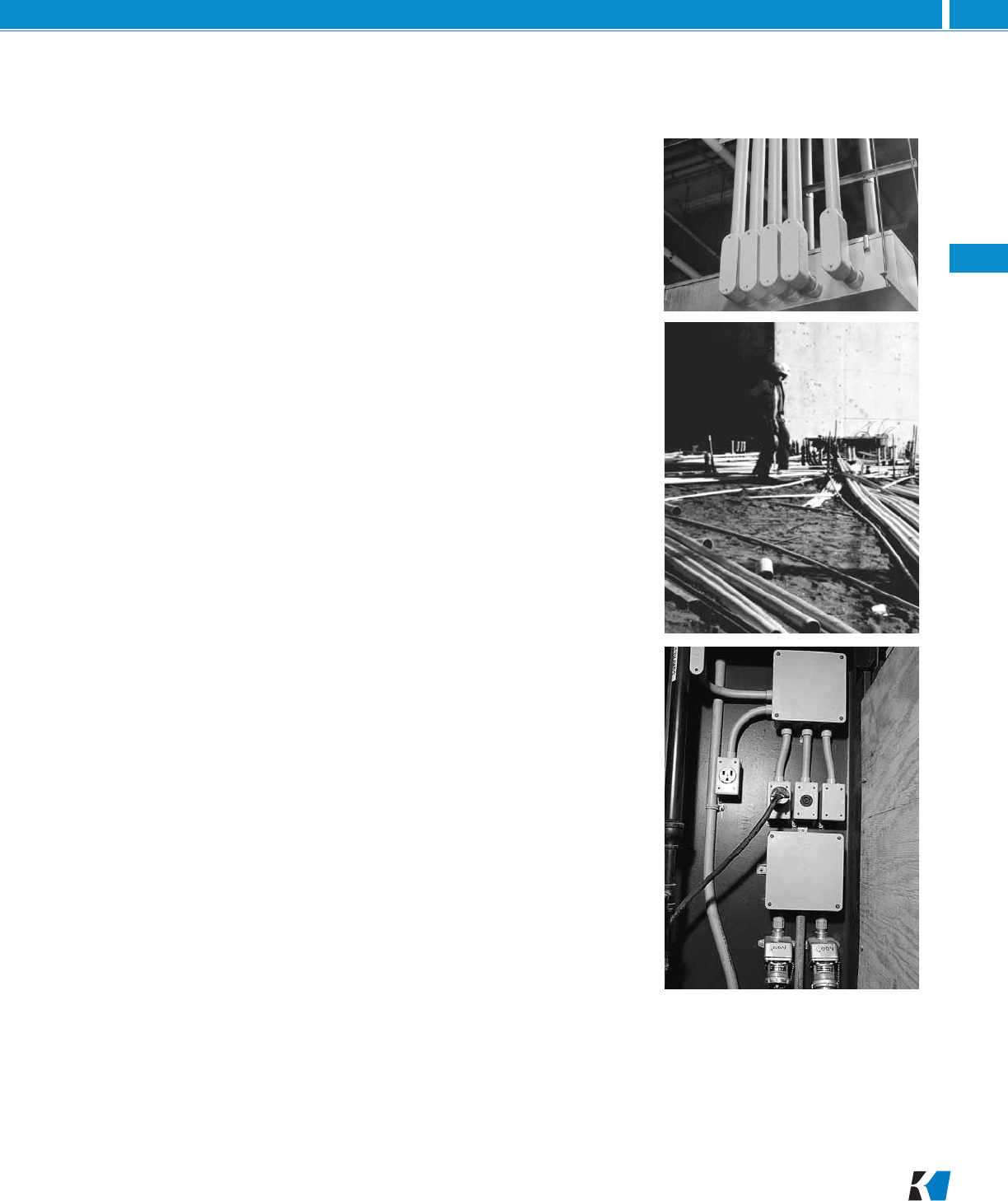

Typical industrial, commercial and residential applications for
Kraloy PVC conduit fittings include:
Residential single & multi family dwellings
Food processing plants
Fish processing plants
• Agricultural
Bridges and tunnels
• Airports
Car washes
• Marinas
Sewage treatment plants
Water treatment plants
Pulp and paper
Street and highway lighting
• Utilities
• Communications
• Cable
INTRODUCTION &
APPLICATIONS
2KRALOY PVC ELECTRICAL FITTINGS
ADVANTAGES
Labor Savings
Compared to yesterday’s metal products, PVC reduces labor on typical
installations by as much as two-thirds, because it is easy to work with.
PVC does not require the labor intensive tools usually associated with
steel products, such as vises, threading equipment and reamers.
Assembly
All that is required to join your Kraloy fittings with PVC conduit is Kraloy
solvent cement (see solvent cementing instructions, page 4).
Strength
Kraloy PVC fittings offer both high impact and high tensile strength.
Corrosion Resistant
PVC is resistant to external corrosion and pitting and will not rust. This
ensures a lower maintenance cost and a longer performance life.
Nonconductive
PVC eliminates the most dangerous second point of contact in phase to
ground faults. The use of a separate grounding conductor gives a complete
and positive ground for the entire system.
Chemical Resistant
Kraloy PVC fittings are resistant to a wide range of chemicals such as
acids, alkalis or salt solutions. For more information on chemical
resistance, contact Kraloy customer service.
Aging Characteristics
After years of exposure to direct sunlight, heat, and extreme weather,
Kraloy PVC fittings retain their original properties. They are also resistant
to fungi, bacterial action, rodents and termites, providing for a long and
trouble free life.
Fire Resistance
As a building material PVC offers outstanding fire performance
characteristics. PVC will not burn unless an external flame source is
applied, and will not sustain ignition once the flame source is removed.
PVC has a flash ignition temperature of 850°F.
ADVANTAGES
3
KRALOY PVC ELECTRICAL FITTINGS

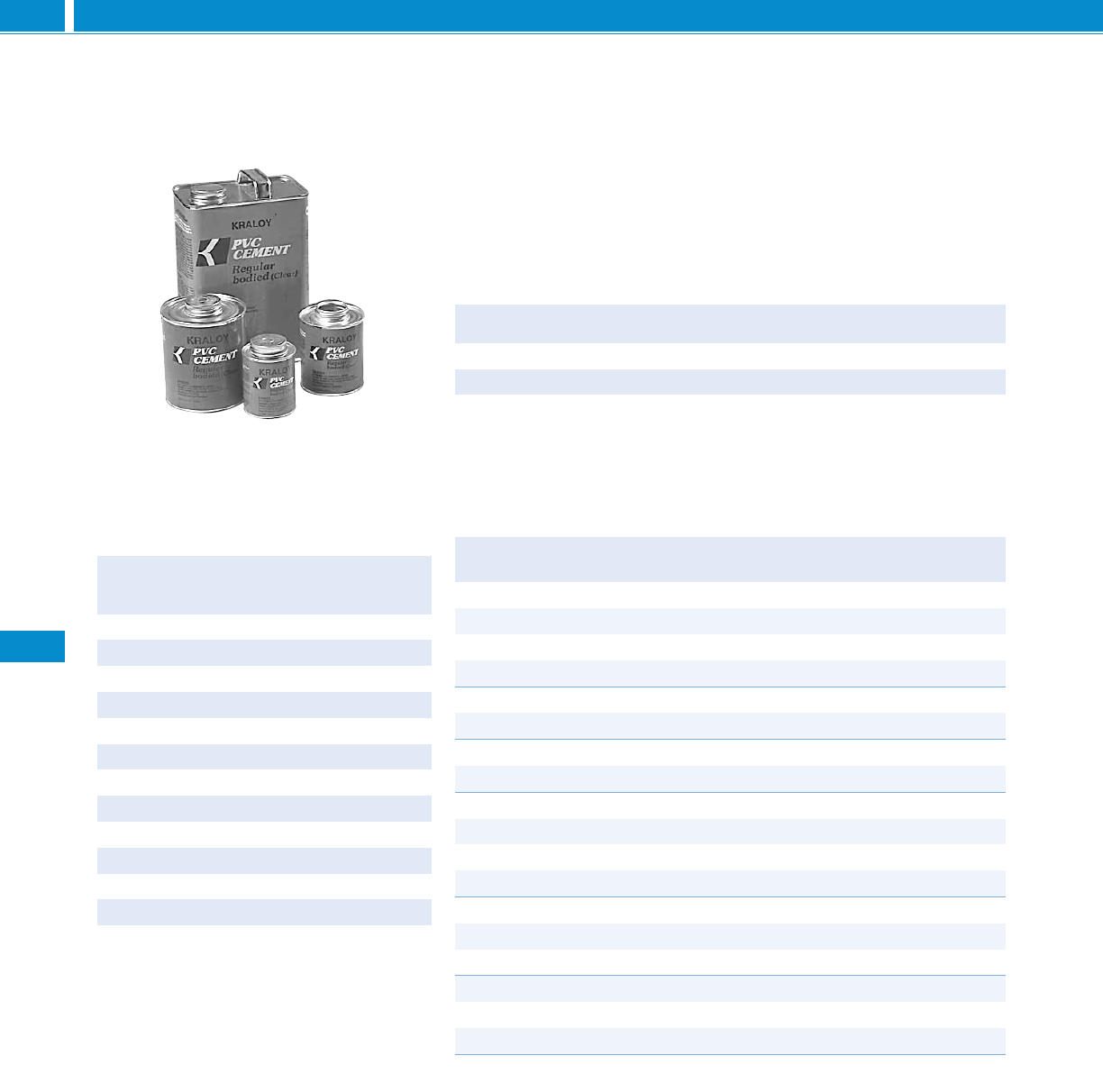

SOLVENT CEMENTING
Solvent Cementing

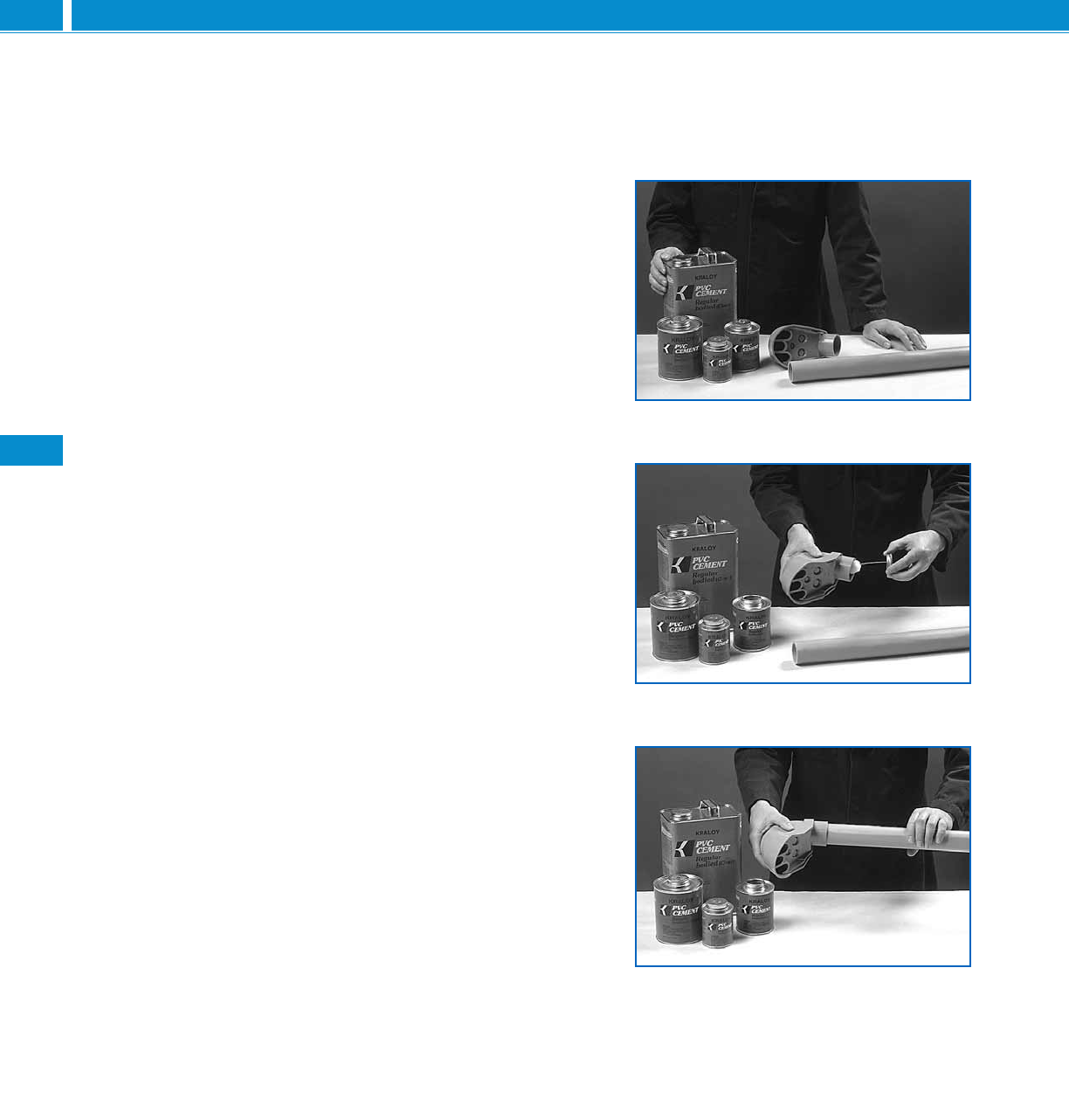

After cutting PVC rigid conduit, sharp edges or burrs from inside
the conduit should be removed with a knife. Thoroughly clean the
end of the pipe and inside the fitting with a pipe cleaner. In
extreme weather conditions, a primer should be used to prepare
the joint for solvent cementing. Apply a generous amount of
solvent cement to both surfaces, slide together and give a quarter
turn to ensure solvent is spread evenly on the material. Hold
together for a few seconds until the joint is made.
Usually the solvent-cemented joint will be strong enough to install
immediately, but in low temperatures and high humidity, extra
time may be required before moving the pipe to install it
permanently. Solvent cemented joints appear to “set up” instantly,
but will take 24 hours to cure properly. After this time, the solvent-
cemented joint has completely cured and is waterproof. Kraloy
cement is available in half-pint, pint, quarts and one-gallon
containers.
Handling
Solvent cements should be used as received in original
containers. Adding thinners to change viscosity is not
recommended. If cement is jelly-like and not free-flowing, it
should not be used. Containers should be kept tightly covered
when not in use.
Storage Conditions
Solvent cements should be stored at temperatures between 40°F
and 110°F away from heat or open flame. Cements should be
used before the expiry date stamped on the container. If new
cement is subjected to freezing temperatures, it may become
extremely thick. This cement can be placed in a warm area where
it will soon return to its original, usable condition. However, if the
product is gelled or hardened due to actual solvent loss (when a
container is left open too long during use or not sealed properly
after use), the cement will not return to its original condition.
Cement in this condition has lost its formulation and should be
discarded in an environmentally friendly manner.
SOLVENT
CEMENTING
4KRALOY PVC ELECTRICAL FITTINGS
Safety Precautions
Solvent cements are extremely flammable and should not be used or
stored near heat or open flame. In confined or partially enclosed
areas, a ventilating device should be used to remove vapors and
minimize inhalation. Containers should be kept tightly closed when not
in use, and covered as much as possible when in use. Avoid frequent
contact with the skin. In case of eye contact, flush repeatedly with
water. Keep out of the reach of children.
Cold Weather
Although normal installation temperatures are between 40°F to 110°F,
high strength joints have been made at temperatures as low as -15°F.
However, the installer must ensure he has adequately softened the
joining surfaces with a primer. In addition, cement must be kept warm
to prevent excessive thickening and gelation in cold weather.
INITIAL SET SCHEDULE FOR PVC SOLVENT CEMENTS*
Temp. Pipe Size Pipe Size Pipe Size
Range 1/2" - 11/4"1
1/2" - 2" 21/2" - 6"
60° - 100°F 2 min. 3 min. 30 min.
40° - 60°F 5 min. 8 min. 2 hrs.
0° - 40°F 10 min. 15 min. 12 hrs.
NOTE: Initial set schedule is the necessary time to allow before the joint can be carefully handled.
*These figures are estimates based on our laboratory tests. Due to the many variables in the field, these figures should be
used as a general guide only.
After initial set, the joints will withstand the stresses of a normal installation. (A misaligned installation will cause excessive
stresses in the joint). For long runs of pipe, care should be taken not to disturb joints for 1/2 to 1 1/2 hours before handling or
burying.
AVERAGE NUMBER OF JOINTS PER PINT OR QUART OF CEMENT
Nominal Pipe Size # of Joints # of Joints Nominal Pipe Size # of Joints # of Joints
Inches
per Pint per Quart
Inches
per Pint per Quart
1/2 350 700 2-1/2 40 80
3/4 200 400 3 35 70
1 150 300 3-1/2 30 60
1-1/4 110 220 4 24 48
1-1/2 80 160 5 10 20
245906 816
SOLVENT
CEMENTING
5
KRALOY PVC ELECTRICAL FITTINGS
EXPANSION / CONTRACTION
Expansion and Contraction

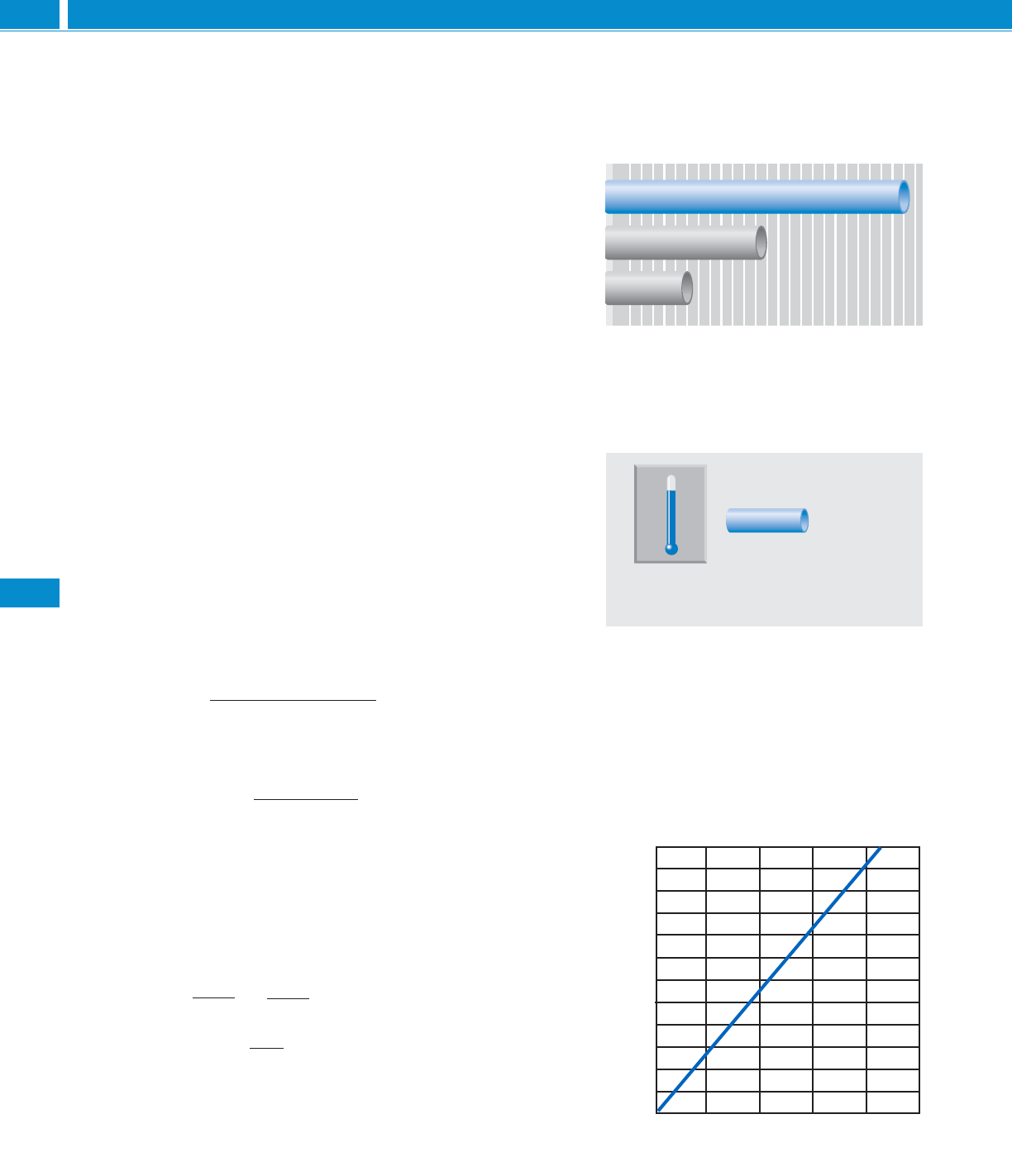

All conduit pipe and fittings expand and contract with changes in
temperature. All materials’ expansion and contraction rates are
represented by coefficients of thermal expansion.
A general rule of thumb is that for every 100°F temperature
change in a 100 ft. run of PVC conduit, the conduit will undergo
3.6" of expansion or contraction.

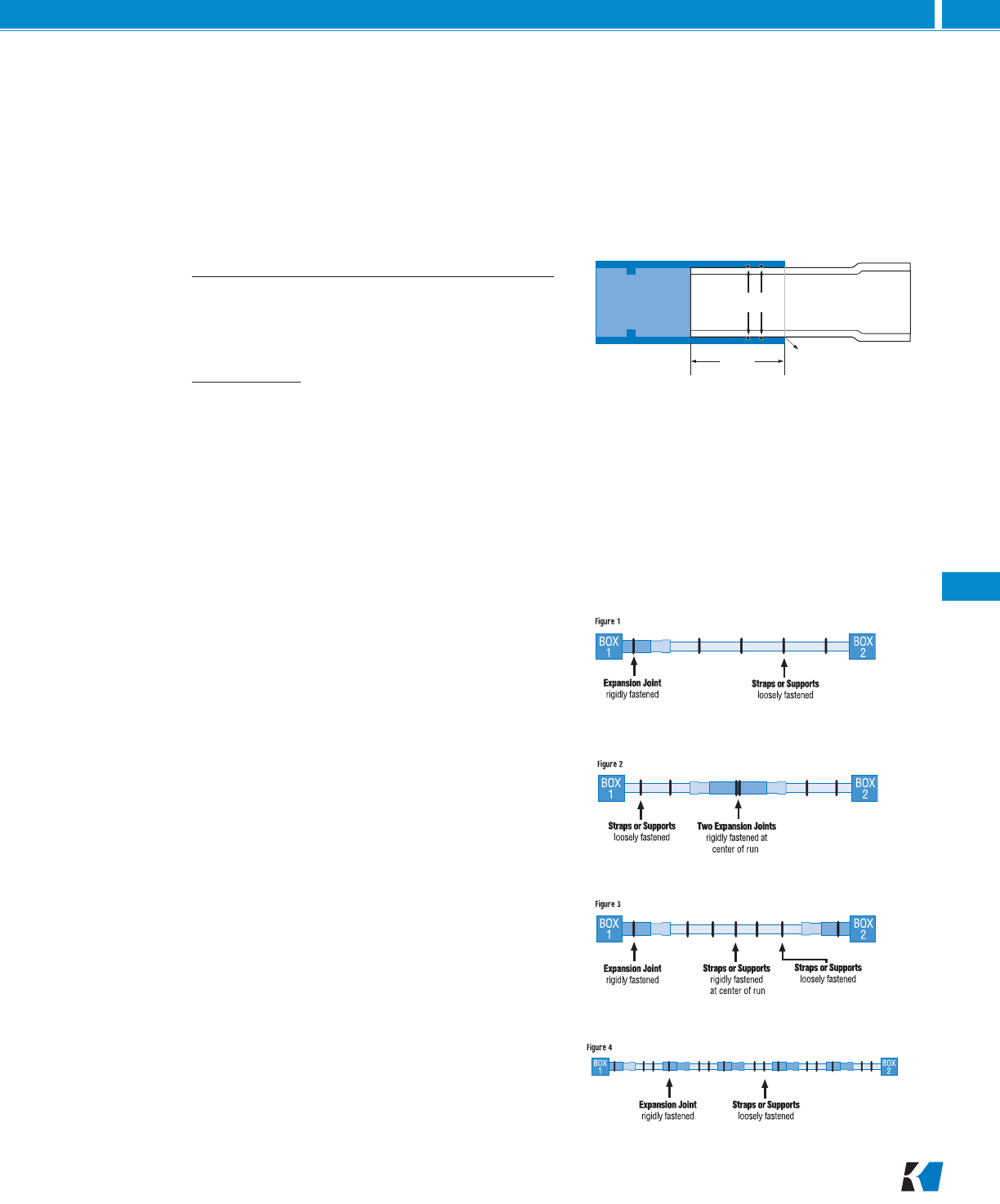

Use of Expansion Joints
In installations where the expected temperature variation exceeds
25°F expansion joints must be used. An expansion joint consists
of two tubes, one telescoping inside another. When installing
expansion joints alignment of the piston and barrel is important.
Straps should be placed approximately one foot on either side of
the joint to ensure that any movement is directed squarely into
the joint.
When expansion joints are required the following steps should be
followed:
PVC
PVC
PVC
Aluminum
Aluminum
Aluminum
Steel
Steel
Steel
Expansion Comparison
100 ft.
100 ft.
100 ft.
For every
100˚F change
in temperature
A 100 ft.
run of pipe will undergo a
change of 3.6"
= 3.6"+
Rule of Thumb
for PVC Expansion
PVC PIPE LENGTH VARIATION
DUE TO TEMPERATURE CHANGE (°F)
Coefficient = 3.6 x 10-4 in./ft./°F
120
110
100
90
80
70
60
50
40
30
20
10
0
0 1 2 3 4 5
TEMPERATURE CHANGE IN °F
LENGTH VARIATION 100/FT. OF PIPE
1. DETERMINE NUMBER OF JOINTS REQUIRED:
Use the following formula to calculate the total expected expansion in
the run.
Total Total temp. Length of
expansion = change °F x run ft. x .36
10 100
The expansion joints should then be installed at even intervals
throughout the run.
Number of joints = Total expansion
4
EXAMPLE:
Assume a 200 ft. run of conduit is to be installed in an unheated building
where the temperature will vary from 10°F in the winter to 110°F in the
summer. The installation will be carried out when the temperature is 60°F.
Using step 1 we determine the number of joints required.
Total = 100 °F x 200 ft. x .36 = 7.2"
Expansion 10 100
Number of joints = 7.2 = 1.8
4
Note: Always round off to the next highest number. Therefore in this
example we see that two expansion joints are necessary.
EXPANSION &
CONTRACTION
6KRALOY PVC ELECTRICAL FITTINGS
2. DETERMINE PISTON OPENING:
The expansion joint must be installed to allow both expansion and
contraction of the conduit run. Because installation temperatures may
vary, the piston setting must be determined. The correct piston opening
is determined using the following formula:
Piston (in.) = max. temperature (°F) - installing temperature (°F) x 4
temperature change (°F)
EXAMPLE:
Using step 2 we determine the proper piston opening.
Piston (in.) = 110 (°F) - 60 (°F) x 4" = 2"
100 (°F)
Therefore this piston should be opened 2 inches when the joints are
installed.
Location of Expansion Joints
Proper functioning of an expansion joint depends on three procedures:
1. The correct placement of the expansion joint.
2. The proper installation of rigid PVC conduit and the expansion joint.
3. The proper placement and fastening of support straps.
One Expansion Joint - Figure 1
If only one expansion joint is needed between two boxes, the barrel of
the joint should be rigidly fastened close to the first box. Rigid PVC
conduit should then be loosely supported with straps, allowing the
conduit to move freely as it expands and contracts.
Two Expansion Joints - Figure 2
If two expansion joints are needed, the joints should be firmly fastened
back to back at the center of the run. Rigid PVC conduit should be
loosely supported with straps, allowing the conduit to move freely as it
expands and contracts.
Two Expansion Joints (Alternative) - Figure 3
Alternatively, the center of the run and the two expansion joints (located
at the boxes) should be rigidly fastened. All other support straps should
be loosely fastened.
Three or More Expansion Joints - Figure 4
If more than two joints are needed in a very long run, they should be
put in a series, one after the other. Each barrel must be rigidly fastened
while conduit is loosely supported with straps allowing the conduit to
move freely as it expands and contracts. When installed in a series,
each section acts independently of the other. Spacing of conduit
supports must be in accordance with NEC article 347-8.

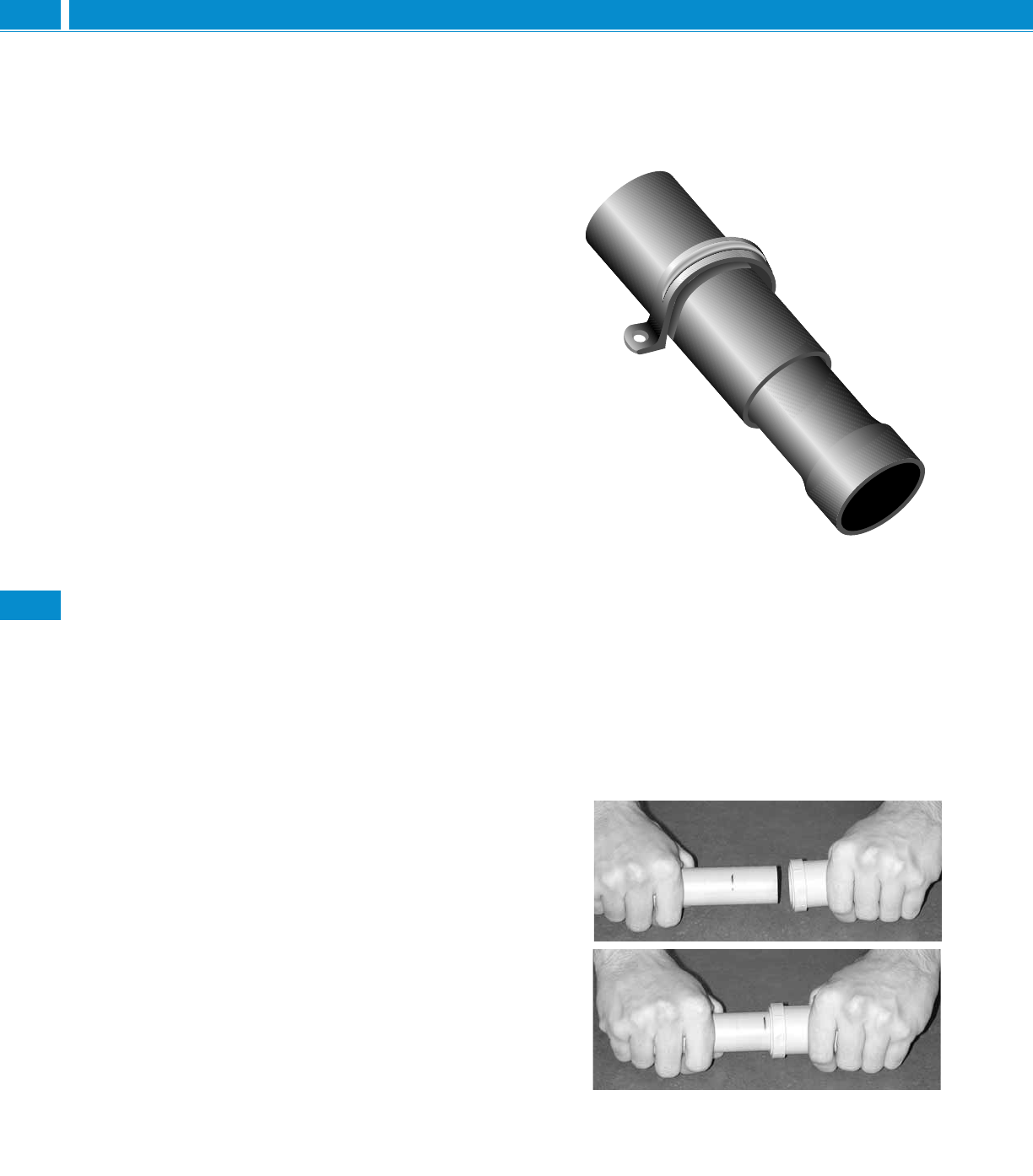

Piston
Expansion
Joint Barrel
Muzzle
“O” Ring Gasket
Piston
Opening
EXPANSION &
CONTRACTION
7
KRALOY PVC ELECTRICAL FITTINGS
EXPANSION / CONTRACTION (CONT’D)
Installation of Expansion Joints
Installation recommendations:
Expansion joints should be mounted so the piston can travel in
a straight line in the barrel. If the alignment is not straight, the
piston will bind, preventing the joint from working correctly.
The expansion joint barrel should be clamped tight, but the
conduit mounted loose enough in its hangers to allow for
movement as it expands and contracts.
Kraloy nonmetallic straps are correctly sized and designed for
proper support, and must be used to secure the conduit.
When expansion joints are used in a vertical position, the
piston should be mounted in a downward position so dirt
cannot deposit between the barrel and piston at the muzzle of
the expansion joints.
Common Mistakes
Three common mistakes are:
1. Forgetting to use expansion joints.
2. Not using enough expansion joints.
3. Overtightening of support straps.
It is more cost effective to use more expansion joints than
needed, rather than too few. It is difficult to correct the problem
after conductors are installed and in service. Failure to
accommodate expansion/contraction may result in pipe fracture.
Installation of the One Piece Expansion Joint
(OPEJ)
1. Solvent cement the PVC conduit into the conduit hub of the
OPEJ and firmly secure the PVC conduit on the solvent cement
side of the OPEJ using Kraloy pipe straps.
2. Set the expansion fitting by marking a line 11/2" from the end of
the conduit to be inserted and insert the conduit into the OPEJ
to this mark.
3. Secure and support the conduit raceway using Kraloy pipe
straps.
EXPANSION &
CONTRACTION
8KRALOY PVC ELECTRICAL FITTINGS
APPLICABLE STANDARDS
Underwriters Laboratories
UL50 Enclosures for Electrical Equipment
UL514B Fittings for Cable & Conduit
UL514C Nonmetallic Outlet Boxes, Flush-Device Boxes & Covers
APPLICABLE
STANDARDS
9
KRALOY PVC ELECTRICAL FITTINGS
Size
(in.)
Part
Number
Product
Code A (in.) B (in.) C (in.)
1/2 40STD0590 078540 0.840 1.500 4.000
3/4 40STD0790 078541 1.050 1.500 4.500
140STD1090 078542 1.315 1.875 5.750
1-1/4 40STD1290 078543 1.660 2.000 7.250
1-1/2 40STD1590 078544 1.900 2.000 8.250
240STD2090 078545 2.375 2.000 9.500
2-1/2 40STD2590 078546 2.875 3.000 10.500
340STD3090 078547 3.500 3.125 13.000
3-1/2 40STD3590 078548 4.000 3.250 15.000
440STD4090 078549 4.500 3.375 16.000
540STD5090 078550 5.563 3.625 24.000
640STD6090 078551 6.625 3.750 30.000
B
C
A

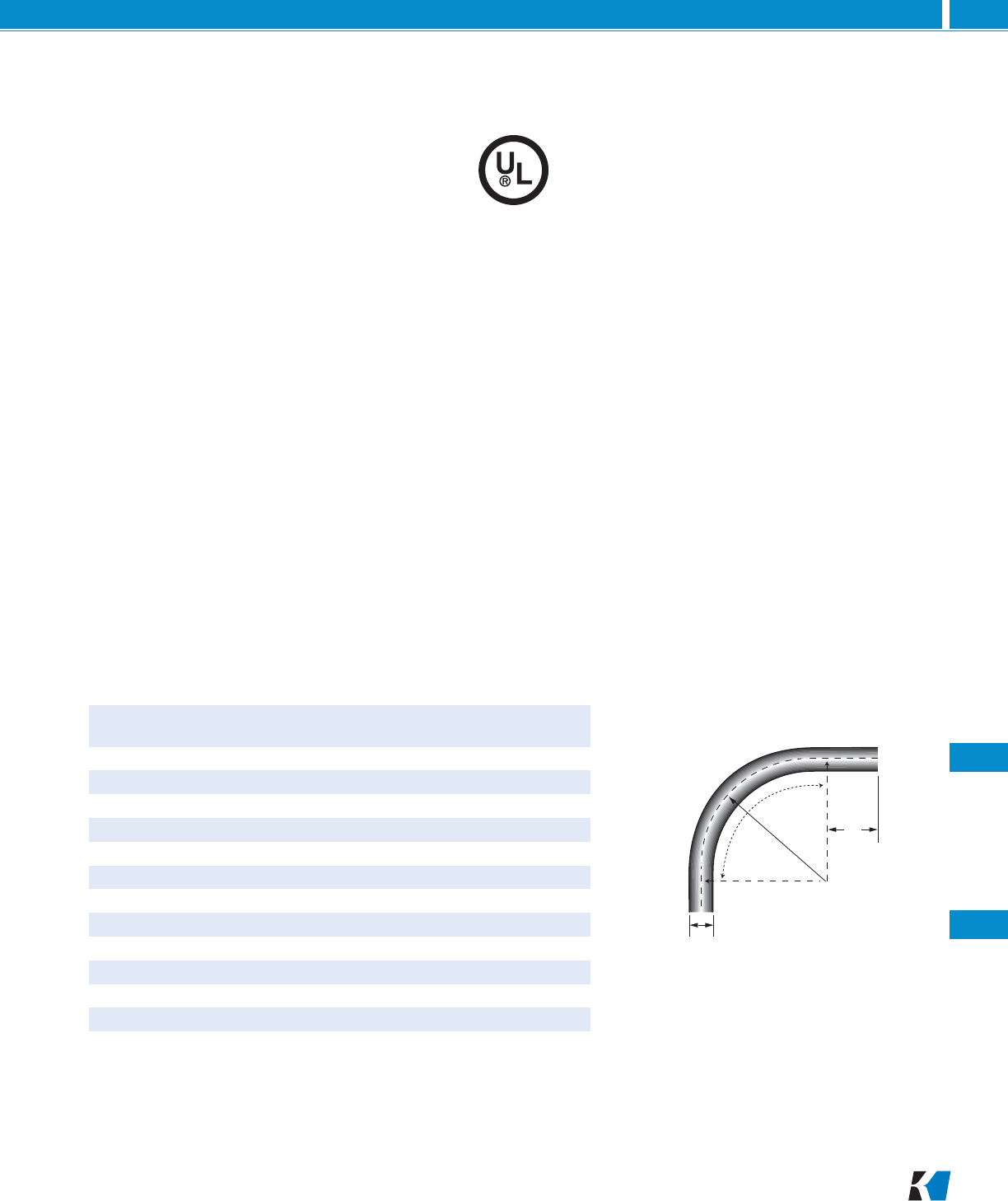

Schedule 40 Standard Radius 90° Elbows
CONDUIT FITTINGS
CONDUIT FITTINGS
Size
(in.)
Part
Number
Product
Code A (in.) B (in.) C (in.)
1/2 40STD0545 078552 0.840 1.500 4.000
3/4 40STD0745 078553 1.050 1.500 4.500
140STD1045 078554 1.315 1.875 5.750
1-1/4 40STD1245 078555 1.660 2.000 7.250
1-1/2 40STD1545 078556 1.900 2.000 8.250
240STD2045 078557 2.375 2.000 9.500
2-1/2 40STD2545 078558 2.875 3.000 10.500
340STD3045 078559 3.500 3.125 13.000
3-1/2 40STD3545 078560 4.000 3.250 15.000
440STD4045 078561 4.500 3.375 16.000
540STD5045 078562 5.563 3.625 24.000
640STD6045 078563 6.625 3.750 30.000
A
B
C
Schedule 40 Standard Radius 30° Elbows
Schedule 40 Standard Radius 45° Elbows
CONDUIT FITTINGS
Size
(in.)
Part
Number
Product
Code A (in.) B (in.) C (in.)
1/2 40STD0530 078564 0.840 1.500 4.000
3/4 40STD0730 078565 1.050 1.500 4.500
140STD1030 078566 1.315 1.875 5.750
1-1/4 40STD1230 078567 1.660 2.000 7.250
1-1/2 40STD1530 078568 1.900 2.000 8.250
240STD2030 078569 2.375 2.000 9.500
2-1/2 40STD2530 078570 2.750 3.000 10.500
340STD3030 078571 3.500 3.125 13.000
3-1/2 40STD3530 078572 4.000 3.250 15.000
440STD4030 078573 4.500 3.375 16.000
540STD5030 078574 5.563 3.625 24.000
640STD6030 078575 6.625 3.750 30.000
A
B
C
CONDUIT FITTINGS
10 KRALOY PVC ELECTRICAL FITTINGS
Schedule 40 Standard Radius 22-1/2° Elbows
Size
(in.)
Part
Number
Product
Code A (in.) B (in.) C (in.)
1-1/2 40STD1522 078580 1.900 2.000 8.25
240STD2022 078581 2.375 2.000 9.50
2-1/2 40STD2522 078582 2.875 3.000 10.50
340STD3022 078583 3.500 3.125 13.00
3-1/2 40STD3522 078584 4.000 3.250 15.00
440STD4022 078585 4.500 3.375 16.00
540STD5022 078586 5.563 3.625 24.00
640STD6022 078587 6.625 3.750 30.00
A
B
C
CONDUIT FITTINGS
11
KRALOY PVC ELECTRICAL FITTINGS
Size
(in.)
Part
Number
Product
Code A (in.) B (in.) C (in.)
1/2 B40STD0590 078588 0.840 1.500 4.000
3/4 B40STD0790 078589 1.050 1.500 4.500
1B40STD1090 078590 1.315 1.875 5.750
1-1/4 B40STD1290 078591 1.660 2.000 7.250
1-1/2 B40STD1590 078592 1.900 2.000 8.250
2B40STD2090 078593 2.375 2.000 9.500
2-1/2 B40STD2590 078594 2.875 3.000 10.500
3B40STD3090 078595 3.500 3.125 13.000
3-1/2 B40STD3590 078596 4.000 3.250 15.000
4B40STD4090 078597 4.500 3.375 16.000
5B40STD5090 078598 5.563 3.625 24.000
6B40STD6090 078599 6.625 3.750 30.000
A
B
C
Schedule 40 Standard Radius 90° Bell End Elbows
Schedule 80 Standard Radius 90° Elbows
Size
(in.)
Part
Number
Product
Code A (in.) B (in.) C (in.)
1/2 80STD0590 078620 0.840 1.500 4.000
3/4 80STD0790 078621 1.050 1.500 4.500
180STD1090 078622 1.315 1.875 5.750
1-1/4 80STD1290 078623 1.660 2.000 7.250
1-1/2 80STD1590 078624 1.900 2.000 8.250
280STD2090 078625 2.375 2.000 9.500
2-1/2 80STD2590 078626 2.875 3.000 10.500
380STD3090 078627 3.500 3.125 13.000
480STD4090 078628 4.500 3.375 16.000
580STD5090 078629 5.563 3.625 24.000
680STD6090 078630 6.625 3.750 30.000
B
C
A
Size
(in.)
Part
Number
Product
Code A (in.) B (in.) C (in.)
1/2 B40STD0545 078600 0.840 1.500 4.000
3/4 B40STD0745 078601 1.050 1.500 4.500
1B40STD1045 078602 1.315 1.875 5.750
1-1/4 B40STD1245 078603 1.660 2.000 7.250
1-1/2 B40STD1545 078604 1.900 2.000 8.250
2B40STD2045 078605 2.375 2.000 9.500
2-1/2 B40STD2545 078606 2.875 3.000 10.500
3B40STD3045 078607 3.500 3.125 13.000
3-1/2 B40STD3545 078608 4.000 3.250 15.000
4B40STD4045 078609 4.500 3.375 16.000
5B40STD5045 078610 5.563 3.625 24.000
6B40STD6045 078611 6.625 3.750 30.000
A
B
C
Schedule 40 Standard Radius 45° Bell End Elbows
CONDUIT FITTINGS
CONDUIT FITTINGS
12 KRALOY PVC ELECTRICAL FITTINGS
Schedule 80 Standard Radius 45° Elbows
Size
(in.)
Part
Number
Product
Code A (in.) B (in.) C (in.)
1/2 80STD0545 078631 0.840 1.500 4.000
3/4 80STD0745 078632 1.050 1.500 4.500
180STD1045 078633 1.315 1.875 5.750
1-1/4 80STD1245 078634 1.660 2.000 7.250
1-1/2 80STD1545 078635 1.900 2.000 8.250
280STD2045 078636 2.375 2.000 9.500
2-1/2 80STD2545 078637 2.875 3.000 10.500
380STD3045 078638 3.500 3.125 13.000
480STD4045 078639 4.500 3.375 16.000
580STD5045 078640 5.563 3.625 24.000
680STD6045 078641 6.625 3.750 30.000
A
B
C
CONDUIT FITTINGS
13
KRALOY PVC ELECTRICAL FITTINGS
Size
(in.)
Part
Number
Product
Code A (in.) B (in.) C (in.)
1/2 80STD0530 078642 0.840 1.500 4.000
3/4 80STD0730 078643 1.050 1.500 4.500
180STD1030 078644 1.315 1.875 5.750
1-1/4 80STD1230 078645 1.660 2.000 7.250
1-1/2 80STD1530 078646 1.900 2.000 8.250
280STD2030 078647 2.375 2.000 9.500
2-1/2 80STD2530 078648 2.750 3.000 10.500
380STD3030 078649 3.500 3.125 13.000
480STD4030 078650 4.500 3.375 16.000
580STD5030 078651 5.563 3.625 24.000
680STD6030 078652 6.625 3.750 30.000
A
B
C
Schedule 80 Standard Radius 30° Elbows

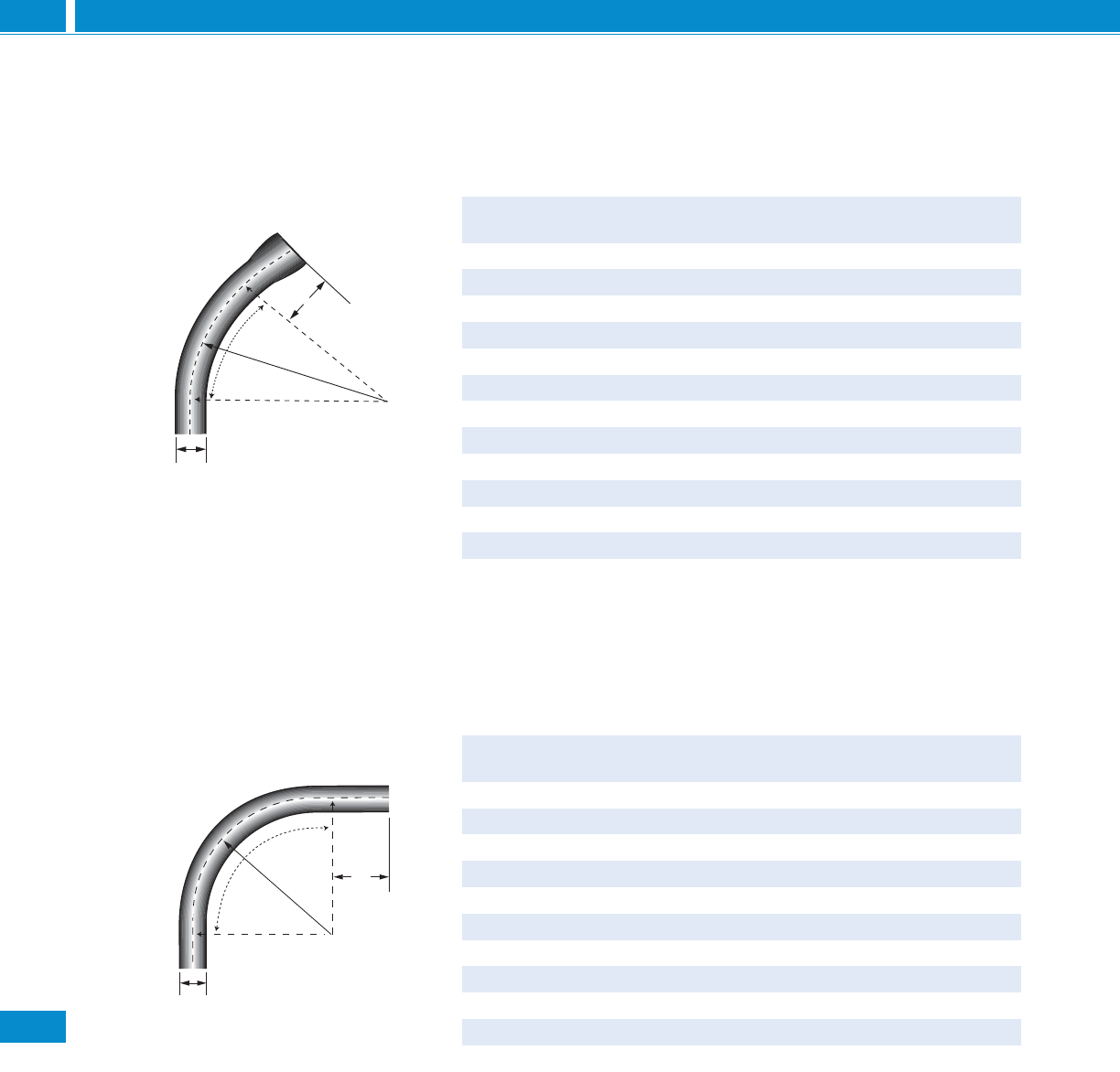

Conduit Elbows Schedule 40 Special Radius (Plain End)
CONDUIT FITTINGS
Size
inches Degree Bend 18" Radius
Product Code
24" Radius
Product Code
30" Radius
Product Code
36" Radius
Product Code
48" Radius
Product Code
60" Radius
Product Code
1
90 068702 068722 068742 068762 068782 #
45 068802 068822 068842 068862 068882 #
30 068902 068922 068942 068962 068982 #
22-1/2 078853 078035 ####
1-1/4
90 068703 068723 068743 068763 068783 #
45 068803 068823 068843 068863 068883 #
30 068903 068923 068943 068963 068983 #
22-1/2 068513 078667 # # # #
1-1/2
90 068704 068724 068744 068764 068784 #
45 068804 068824 068844 068864 068884 #
30 068904 068924 068944 068964 068984 #
22-1/2 068523 078668 ####
2
90 068705 068725 068745 068765 068785 068113
45 068805 068825 068845 068865 068885 #
30 068905 068925 068945 068965 068985 #
22-1/2 068514 068547 #068515 178065 #
2-1/2
90 068706 068726 068746 068766 068786 #
45 068806 068826 068846 068866 068886 #
30 068906 068926 068946 068966 068986 #
22-1/2 068524 078275 ####
3
90 068707 068727 068747 068767 068787 068114
45 068807 068827 068847 068867 068887 #
30 068907 068927 068947 068967 068987 #
22-1/2 068516 068525 #068517 068526 #
3-1/2
90
Use Std. Sch. 40
Radius (15")
068728 068748 068768 068788 #
45 068828 068848 068868 068888 #
30 068928 068948 068968 068988 #
22-1/2 068130 ####
4
90
Use Std. Sch. 40
Radius (16")
068729 068749 068769 068789 068112
45 068829 068849 068869 068889 078011
30 068929 068949 068969 068989 #
22-1/2 068518 068519 068520 068521 068111
5
90
Use Std. Sch. 40 Radius (24")
068751 068771 068791 068115
45 068851 068871 068891 078615
30 068951 068971 068991 068132
22-1/2 068529 068522 078485 #
6
90
Use Std. Sch. 40 Radius (30")
068772 068792 #
45 068872 068892 078220
30 068972 068992 #
22-1/2 068528 068527 078221
8
90 ----068052 #
45 ----068082 #
22-1/2----068081 #
11-1/4----068080 #
Note: 1) # indicates available on request. Material is non-cancelable and non-returnable.
2) Larger Radius Elbows are available on request and are non-cancelable and non-returnable.
CONDUIT FITTINGS
14 KRALOY PVC ELECTRICAL FITTINGS
KRALOY PVC ELECTRICAL FITTINGS 15
CONDUIT FITTINGS
Size
inches Degree Bend 18" Radius
Product Code
24" Radius
Product Code
36" Radius
Product Code
48" Radius
Product Code
2
90 078255 068030 068054 068078
45 078256 078506 078507 078268
2-1/2
90 078257 068034 068056 068086
45 078258 068035 078508 078269
3
90 078259 068036 068058 068091
45 078539 078514 078513 078476
3-1/2
90 Use Std. Sch. 40
Radius (15")
078260 078262 078477
45 078261 078263 078478
4
90 Use Std. Sch. 40 Radius
(16")
068050 068072 068095
45 078945 078536 078479
5
90
Use Std. Sch. 40 Radius (24")
068074 068097
45 078265 078481
6
90
Use Std. Sch. 40 Radius (30")
068076 068099
45 078267 078483
Note: 1) # indicates available on request. Material is non-cancelable and non-returnable.
2) 30º and 22-1/2º Elbows are available on request.
3) Larger Radius Elbows are available on request and are non-cancelable and non-returnable.

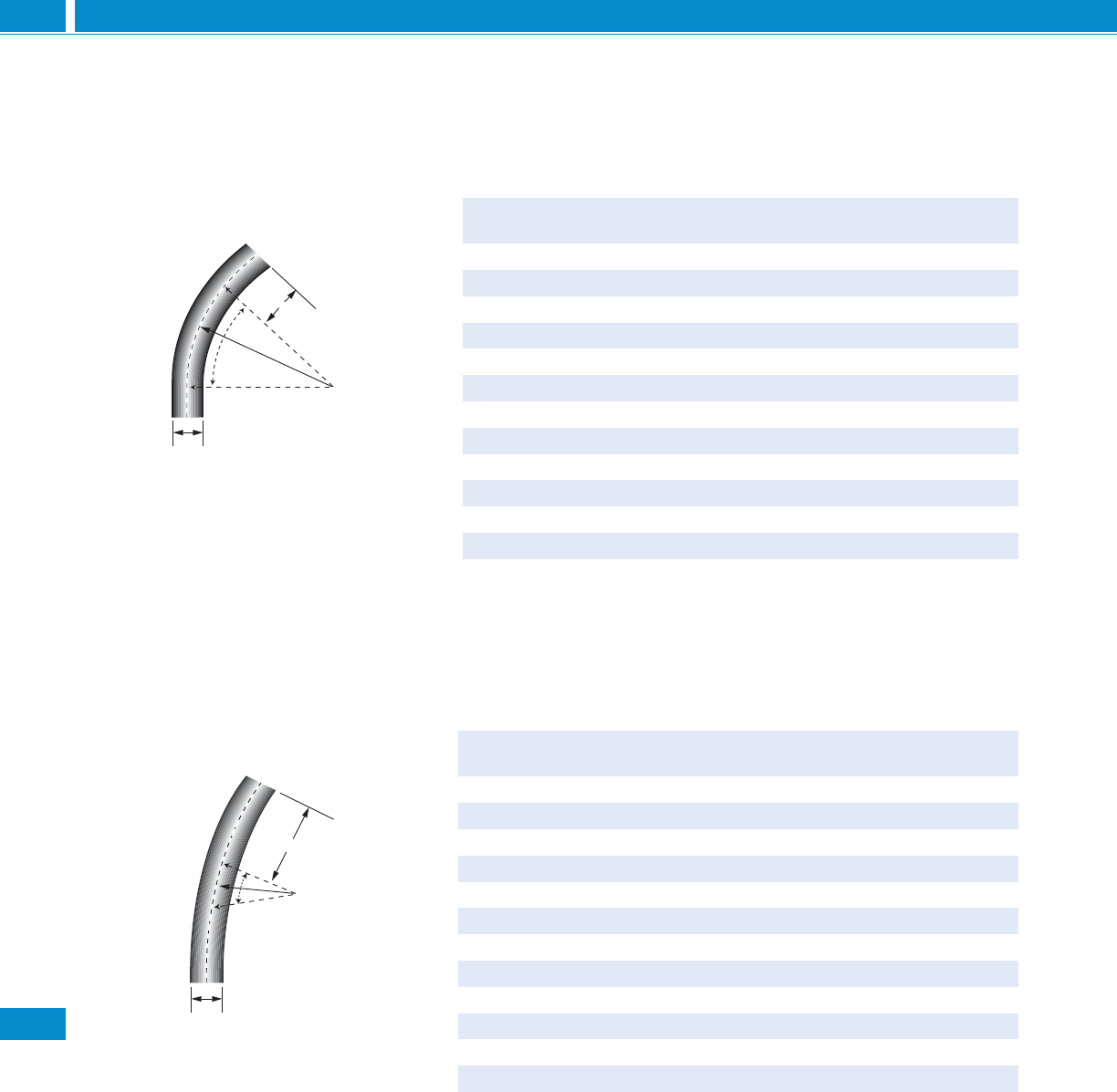

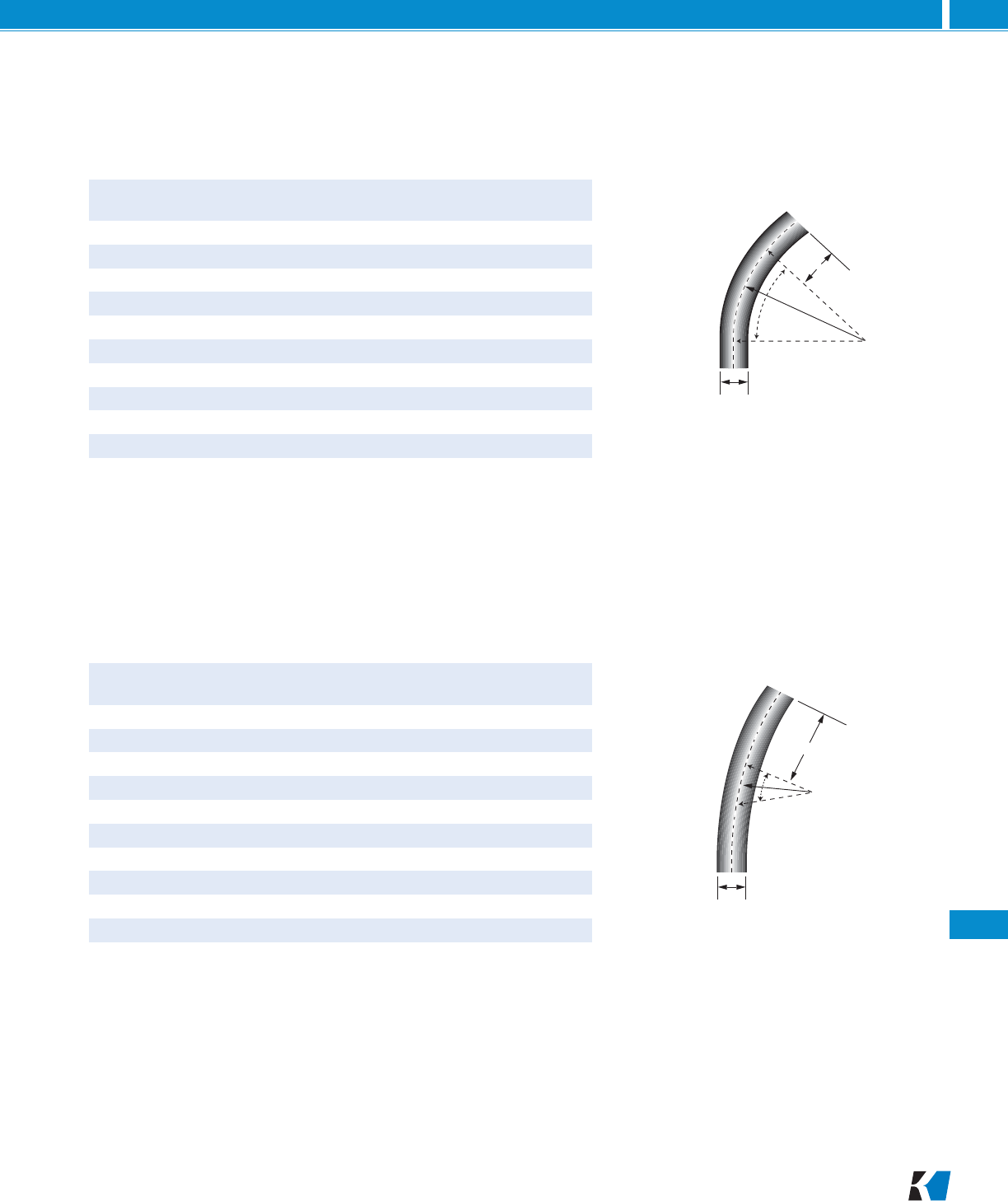

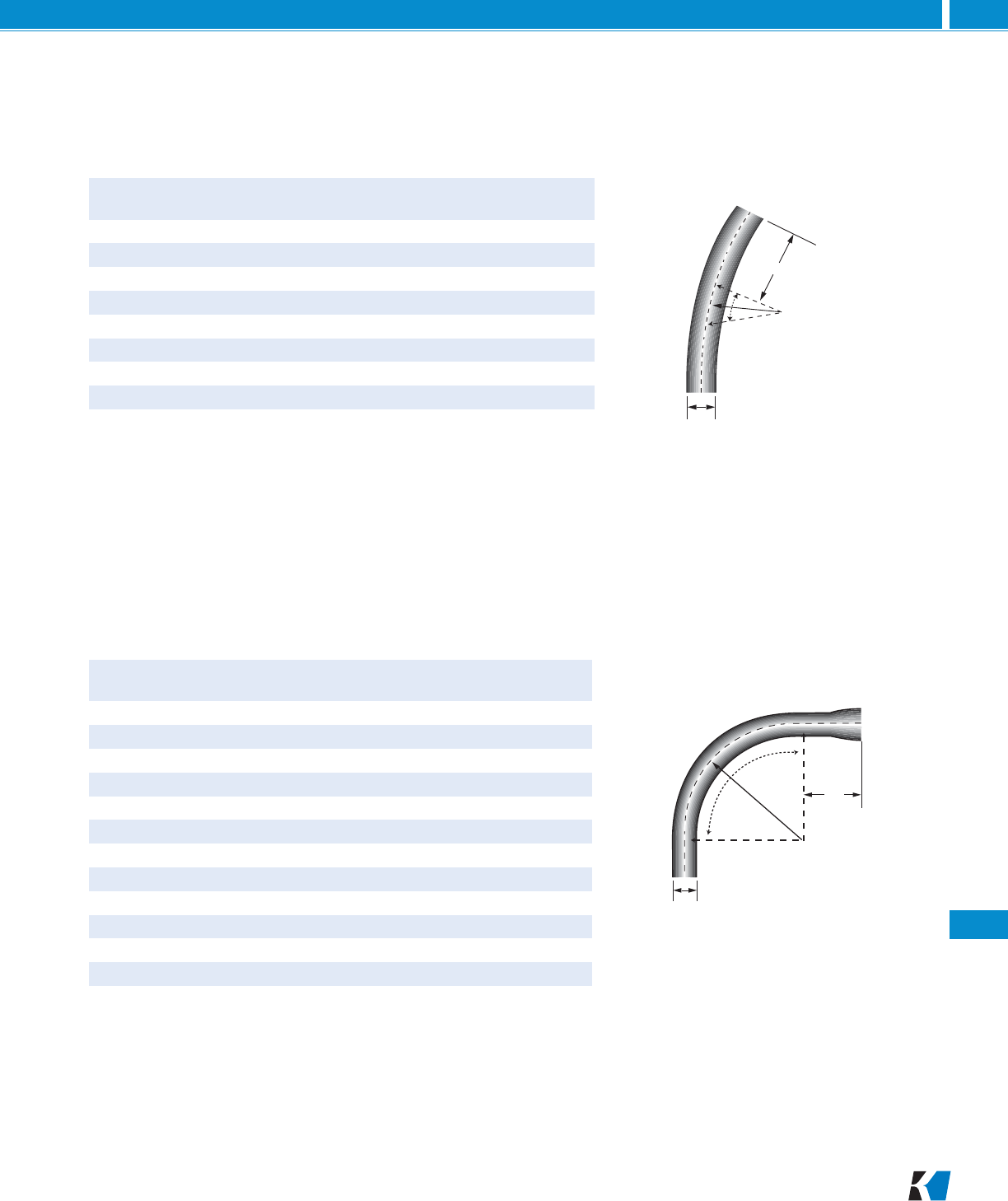

Conduit Elbows - Schedule 40 Special Radius (Belled One End)
Conduit Elbows - Schedule 80 Special Radius (Plain End)
CONDUIT FITTINGS
Size
inches
Size
inches
18" Radius
Product Code
24" Radius
Product Code
30" Radius
Product Code
36" Radius
Product Code
48" Radius
Product Code
190 068710 # # # 068541
45 #####
1-1/4 90 068711 068735 # # 068542
45 #####
1-1/2 90 068712 # # 068545 068543
45 #####
290 068713 068736 078910 068775 068544
45 #068530 #068534 078198
2-1/2 90 068714 068737 078524 068776 068548
45 # 068531 # 068535 #
390 068715 068738 078525 068777 068794
45 #068532 #068536 #
490 068716 068739 068549 068778 068795
45 # 068533 # 068537 078911
590 Use Standard Schedule 80 Radius (24") 078373 068779 068796
45 #068538 068546
690 Use Standard Schedule 80 Radius (24") 068540 068797
45 068539 078966

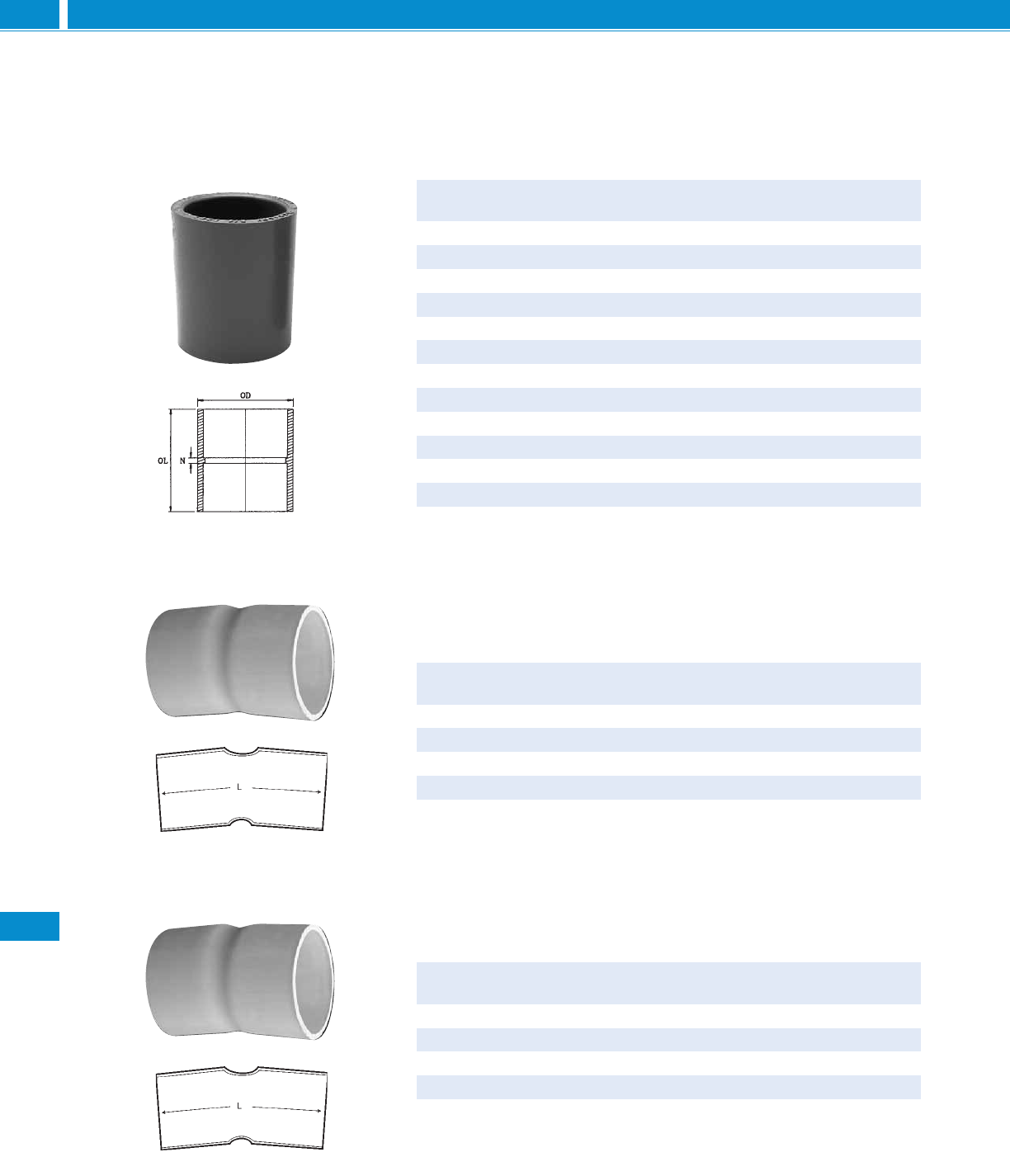

5º Couplings B x B
5º Couplings B x S
CONDUIT FITTINGS

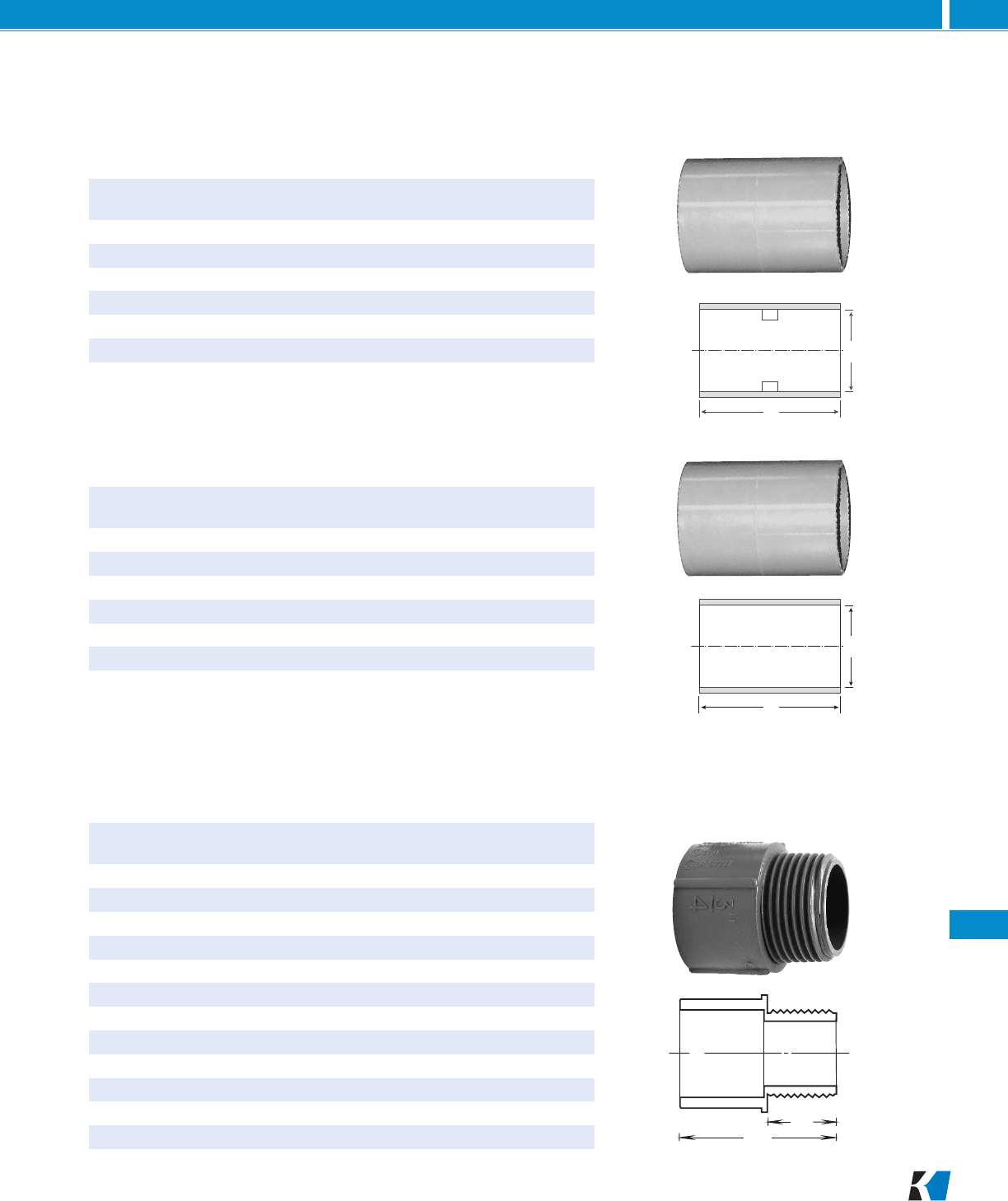

Couplings
Size
(in.)
Part
Number
Product
Code N Min (in.) OD
(in.)
OL
(in.)
1/2 CP05 078001 0.055 1.062 1.410
3/4 CP07 078002 0.070 1.265 1.535
1CP10 078003 0.095 1.545 1.860
1-1/4 CP12 078004 0.110 1.945 2.020
1-1/2 CP15 078005 0.084 2.180 2.255
2CP20 078006 0.095 2.683 2.390
2-1/2 CP25 078007 0.170 3.240 3.120
3CP30 078008 0.166 3.940 3.340
3-1/2 CP35 078009 0.200 4.480 3.615
4CP40 078010 0.225 5.000 3.765
5CP50 078012 0.270 6.120 4.170
6CP60 078014 0.255 7.285 4.875
8 CP80 178192 - - -
Size
(in.)
Part
Number
Product
Code L (in.)
25EC20 078049 4.0
35EC30 078051 6.0
45EC40 078053 7.0
55EC50 078055 7.5
65EC60 078422 11.0
Size
(in.)
Part
Number
Product
Code L (in.)
25EC20BS 078025 4.0
35EC30BS 078026 6.0
45EC40BS 078028 7.0
65EC60BS 078030 11.0
CONDUIT FITTINGS
16 KRALOY PVC ELECTRICAL FITTINGS
Terminal Adapters
Repair Coupling Sleeves
L
D
Size
(in.)
Part
Number
Product
Code L (in.) D Min (in.) D Max (in.)
1-1/2 REC15 077292 2.300 1.912 1.924
2REC20 078617 2.405 2.367 2.399
2-1/2 REC25 078041 3.450 2.883 2.897
3REC30 078042 3.600 3.507 3.523
4REC40 078044 3.920 4.506 4.524
5REC50 078619 4.275 5.583 5.603
6REC60 077298 4.620 6.647 6.669
Size
(in.)
Part
Number
Product
Code OL (in.) TL Min (in.)
1/2 TA 0 5 078084 1.305 0.550
3/4 TA 0 7 078085 1.435 0.565
1TA 1 0 078086 1.775 0.800
1-1/4 TA 1 2 078087 1.855 0.800
1-1/2 TA 1 5 078088 1.980 0.800
2TA 2 0 078089 2.070 0.810
2-1/2 TA 2 5 078090 2.480 0.820
3TA 3 0 078091 2.580 0.765
3-1/2 TA 3 5 078092 2.815 0.920
4TA 4 0 078093 2.870 0.870
5TA 5 0 078094 3.710 1.390
6TA 6 0 078095 3.540 1.080
8 TA80 178190 - -
Long Line Couplings
L
D
Size
(in.)
Part
Number
Product
Code L (in.) D Max (in.)
2LLC20 078063 3.675 2.399
2-1/2 LLC25 078065 4.28 2.897
3LLC30 078066 4.80 3.523
4LLC40 078067 6.20 4.524
5LLC50 078068 8.22 5.603
6LLC60 078069 8.22 6.669
CONDUIT FITTINGS
17
KRALOY PVC ELECTRICAL FITTINGS
OL
TL
Reducer Bushings
Size
(in.)
Part
Number
Product
Code
3/4 x 1/2 MR0705 078353
1 x 1/2 MR1005 078354
1 x 3/4 MR1007 078355
1-1/4 x 3/4 MR1207 078356
1-1/4 x 1 MR1210 078357
1-1/2 x 1 MR1510 078359
1-1/2 x 1-1/4 MR1512 078360
2 x 1 MR2010 078361
2 x 1-1/4 MR2012 078363
2 x 1-1/2 MR2015 078362
2-1/2 x 2 MR2520 078364
3 x 2 MR3020 078365
3 x 2-1/2 MR3025 078366
4 x 2 MR4020 078369
4 x 3 MR4030 078367
4 x 3-1/2 MR4035 078368

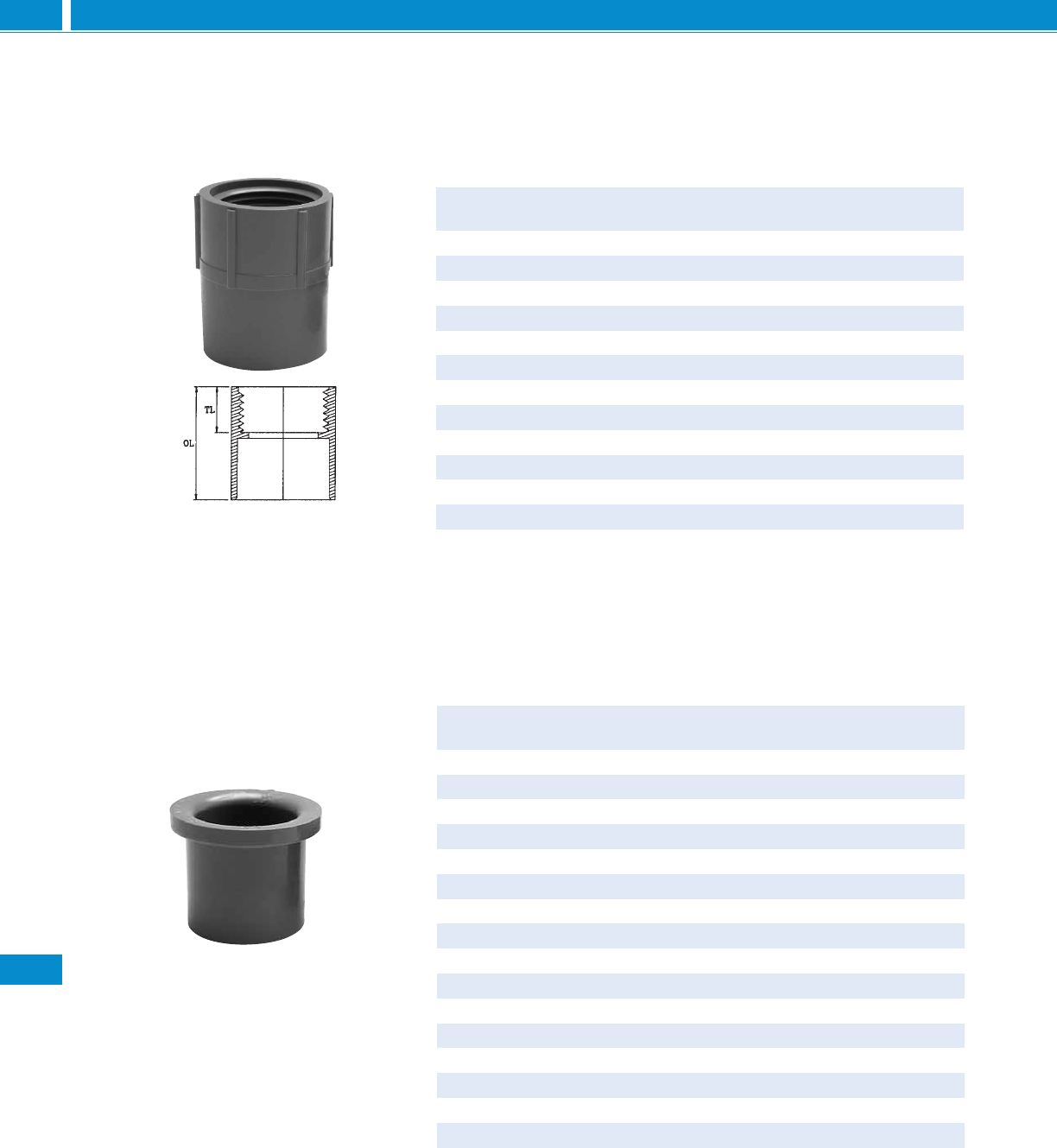

Female Adapters
Size
(in.)
Part
Number
Product
Code OL (in.) TL Min (in.)
1/2 FA05 078070 1.400 0.700
3/4 FA07 078071 1.550 0.765
1FA10 078072 2.000 1.000
1-1/4 FA12 078073 2.065 1.000
1-1/2 FA15 078074 2.185 1.000
2FA20 078075 2.260 1.000
2-1/2 FA25 078076 2.290 1.000
3FA30 078077 2.950 1.145
3-1/2 FA35 078078 4.100 1.800
4FA40 078079 3.120 1.150
5FA50 078080 3.750 1.520
6FA60 078081 4.062 1.500
8 FA80 178189 - -
CONDUIT FITTINGS
18 KRALOY PVC ELECTRICAL FITTINGS
CONDUIT FITTINGS

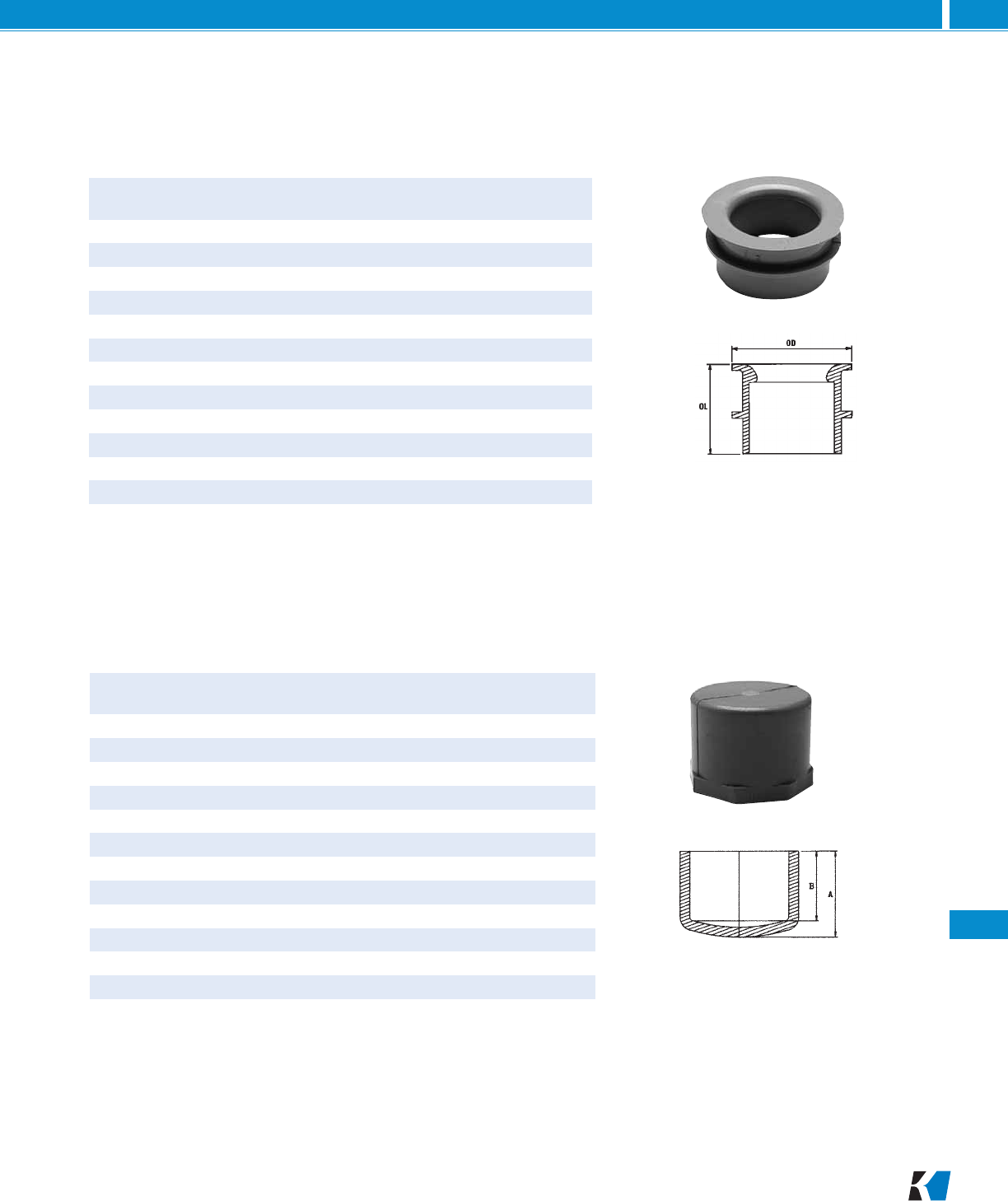

End Bells
Size
(in.)
Part
Number
Product
Code OD (in.) OL (in.)
1/2 MEB05 078288 1.250 1.000
3/4 MEB07 078289 1.500 1.000
1MEB10 078290 1.745 1.120
1-1/4 MEB12 078291 2.085 1.200
1-1/2 MEB15 078292 2.950 1.500
2MEB20 078293 3.050 1.440
2-1/2 MEB25 078294 3.585 1.790
3MEB30 078295 3.865 1.910
3-1/2 MEB35 078296 4.437 2.093
4MEB40 078297 4.870 2.175
5MEB50 078298 6.187 2.375
6MEB60 078299 7.187 2.562
8 MEB80 077652 - -
CONDUIT FITTINGS
19
KRALOY PVC ELECTRICAL FITTINGS
End Caps
Size
(in.)
Part
Number
Product
Code A (in.) B (in.)
1/2 EC05 078314 1.410 1.000
3/4 EC07 078315 1.630 1.125
1EC10 078316 1.860 1.187
1-1/4 EC12 078317 2.005 1.275
1-1/2 EC15 078318 2.115 1.500
2EC20 078319 2.445 1.812
2-1/2 EC25 078320 2.915 2.125
3EC30 078321 3.050 2.375
3-1/2 EC35 078322 2.150 2.625
4EC40 078323 3.260 3.050
5EC50 078324 4.375 3.000
6EC60 078325 5.180 4.125
8 EC80 178191 - -

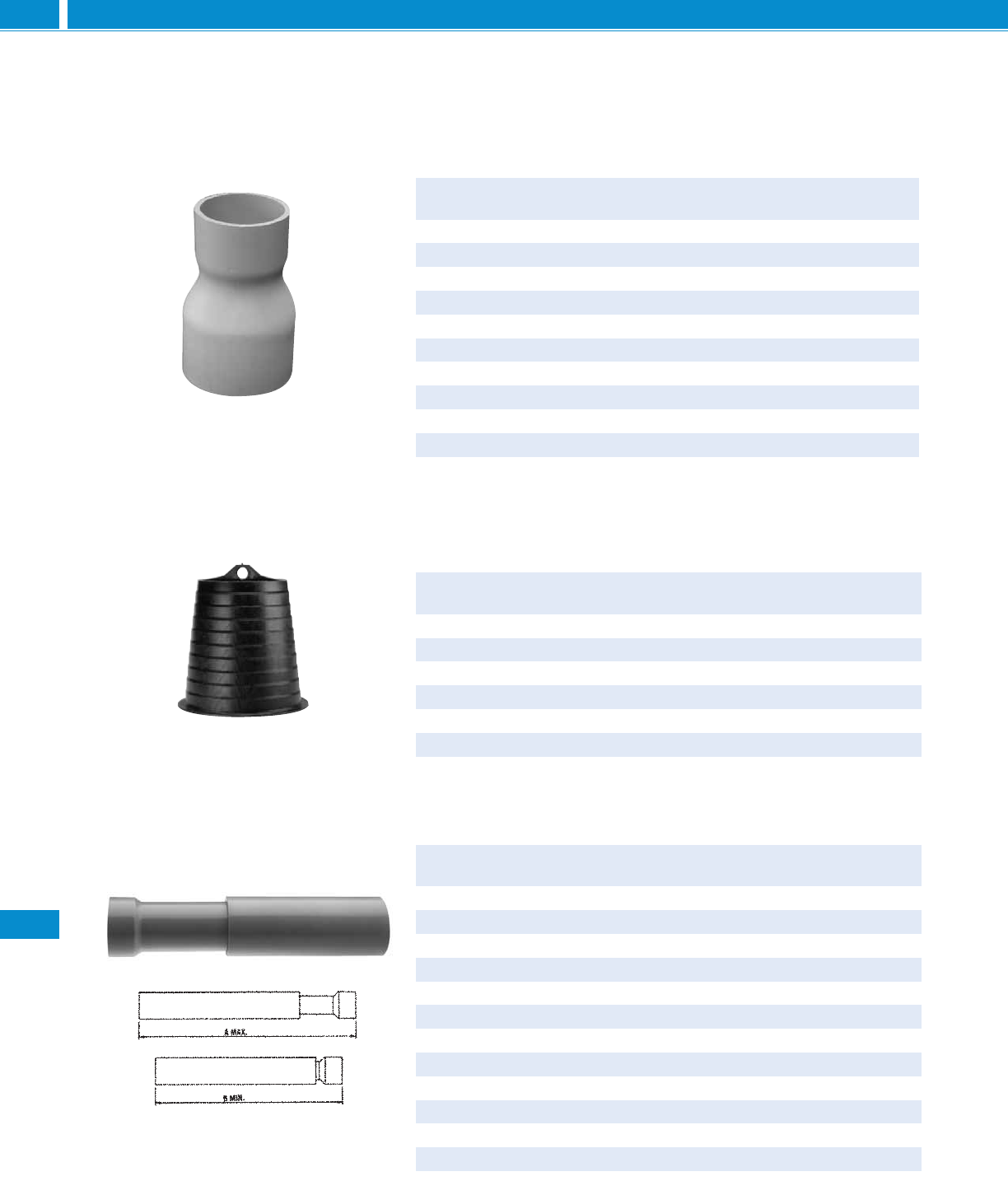

Tapered Conduit Plugs
Fabricated Swedge Reducer Couplings Sp x Sp
Expansion Joints
Size
(in.)
Part
Number
Product
Code
2 - 2-1/2 UTP20 078424
3 - 3-1/2 UTP30 078425
4UTP40 078427
5UTP50 078428
6UTP60 078429
8UTP80 077648
Size
(in.)
Part
Number
Product
Code
A Max
(in.)
B Min
(in.)
1/2 EJ05 078328 12.00 8.00
3/4 EJ07 078329 12.00 8.00
1 EJ10 078330 12.50 8.50
1-1/4 EJ12 078331 13.00 9.00
1-1/2 EJ15 078332 13.00 9.00
2 EJ20 078333 13.25 9.25
2-1/2 EJ25 078334 22.25 14.25
3 EJ30 078336 22.25 14.25
3-1/2 EJ35 078337 22.90 14.90
4 EJ40 078338 22.90 14.90
5*EJ50 078339 34.00 26.00
6*EJ60 078340 34.00 26.00
* indicates Fabricated fittings
Size
(in.)
Part
Number
Product
Code
2 x 1-1/4 SW2012 078398
2 x 1-1/2 SW2015 078399
2-1/2 x 2 SW2520 078400
3 x 2 SW3020 078401
3 x 2-1/2 SW3025 078402
3-1/2 x 3 SW3530 078404
4 x 3 SW4030 078407
4 x 3-1/2 SW4035 078408
5 x 4 SW5040 078409
6 x 5 SW6050 078410
Other sizes available on request. Contact Kraloy customer service.
CONDUIT FITTINGS
20 KRALOY PVC ELECTRICAL FITTINGS
CONDUIT FITTINGS

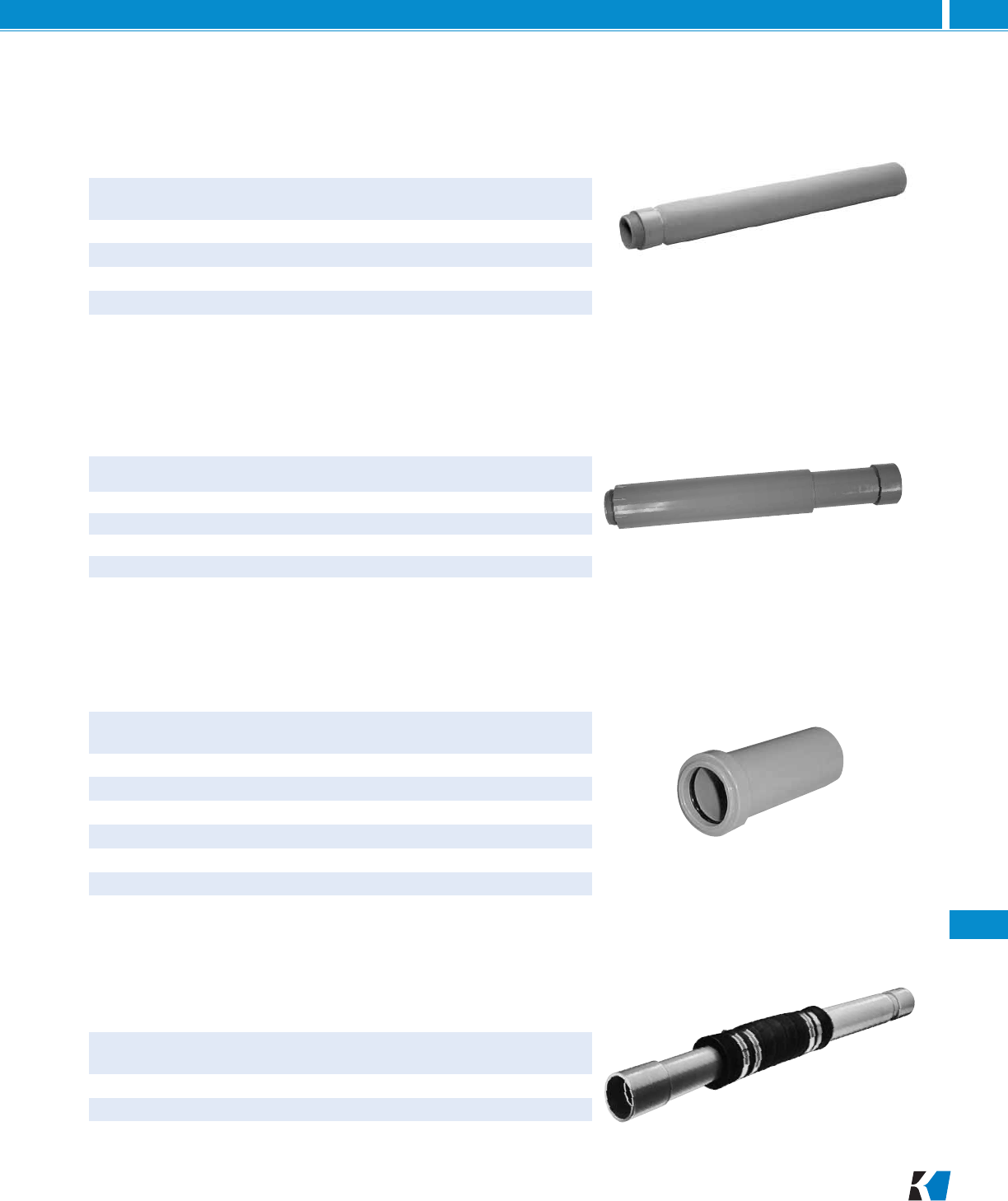

Expansion and Deflection Fittings Assemblies
One Piece Expansion Joints
Size
(in.)
Part
Number
Product
Code
1/2 OPEJ05 078240
3/4 OPEJ07 078209
1OPEJ10 078208
1-1/4 OPEJ12 078204
1-1/2 OPEJ15 078045
2OPEJ20 078388
Size
(in.)
Part
Number
Product
Code
2SE-J-35 077889
3SE-J-45 077890
4SE-J-55 077891
Slip Meter Risers (NEC Article 300)
Expansion Joint c/w Terminal Adapter
CONDUIT FITTINGS
21
KRALOY PVC ELECTRICAL FITTINGS
Size
(in.)
Part
Number
Product
Code
2' slip sleeve / 2" TA SMR20TA 068371
2' slip sleeve / 2-1/2" TA SMR25TA 068372
2' slip sleeve / 3" TA SMR30TA 068373
2' slip sleeve / 4" TA SMR40TA 068374
Size
(in.)
Part
Number
Product
Code
2" x 4" of travel EJ35TA 077680
2-1/2" x 12" of travel EJ40TA 077398
3" x 8" of travel EJ45TA 077681
4" x 8" of travel EJ55TA 077682
CONDUIT FITTINGS

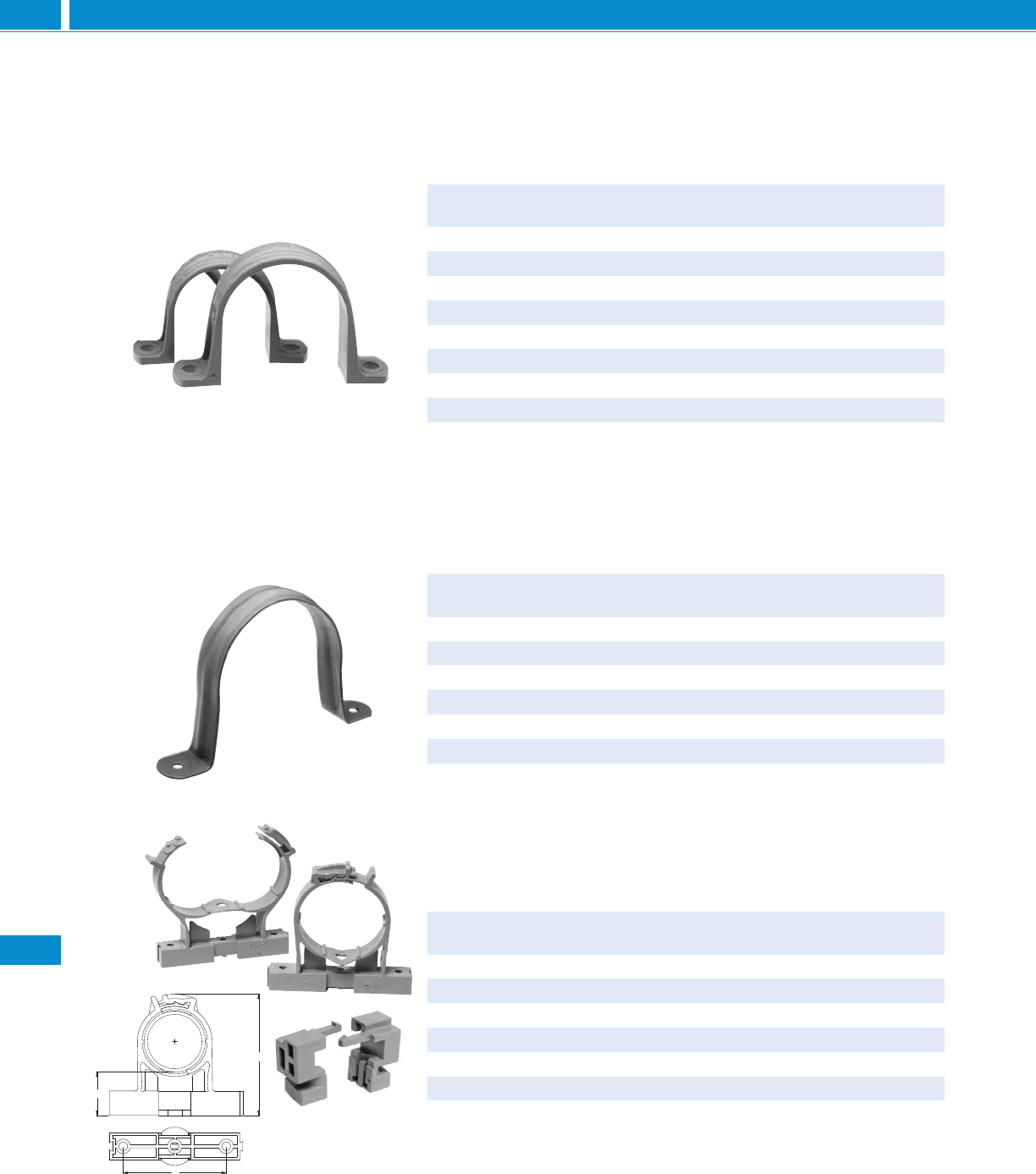

Pipe Straps, PVC 2 Hole
Pipe Straps, PVC Coated Steel 2 Hole
Conduit Clamps & Spacers
X
Y
Z
Size
(in.)
Part
Number
Product
Code
1/2 PS05 078375
3/4 PS07 078376
1 PS10 078377
1-1/4 PS12 078378
1-1/2 PS15 078379
2 PS20 078380
2-1/2 PS25 178108
3 PS30 178109
4 PS40 178110
Size
(in.)
Part
Number
Product
Code
2PSC20 078190
2-1/2 PSC25 078191
3PSC30 078192
3-1/2 PSC35 078193
4PSC40 078194
5PSC50 078195
6PSC60 078196
Size
(in.)
Part
Number
Product
Code X (in.) Y (in.) Z (in.)
1/2 CCS10 278106 1.191 2.414 1.824
3/4 CCS15 278095 1.195 2.660 2.106
1CCS20 278096 1.215 2.962 2.443
1-1/4 CCS25 278097 1.182 3.300 2.855
1-1/2 CCS30 278098 1.193 3.600 3.170
2CCS35 278099 1.195 4.135 3.785
Base CCS-B 278107 ---
CONDUIT FITTINGS
22 KRALOY PVC ELECTRICAL FITTINGS

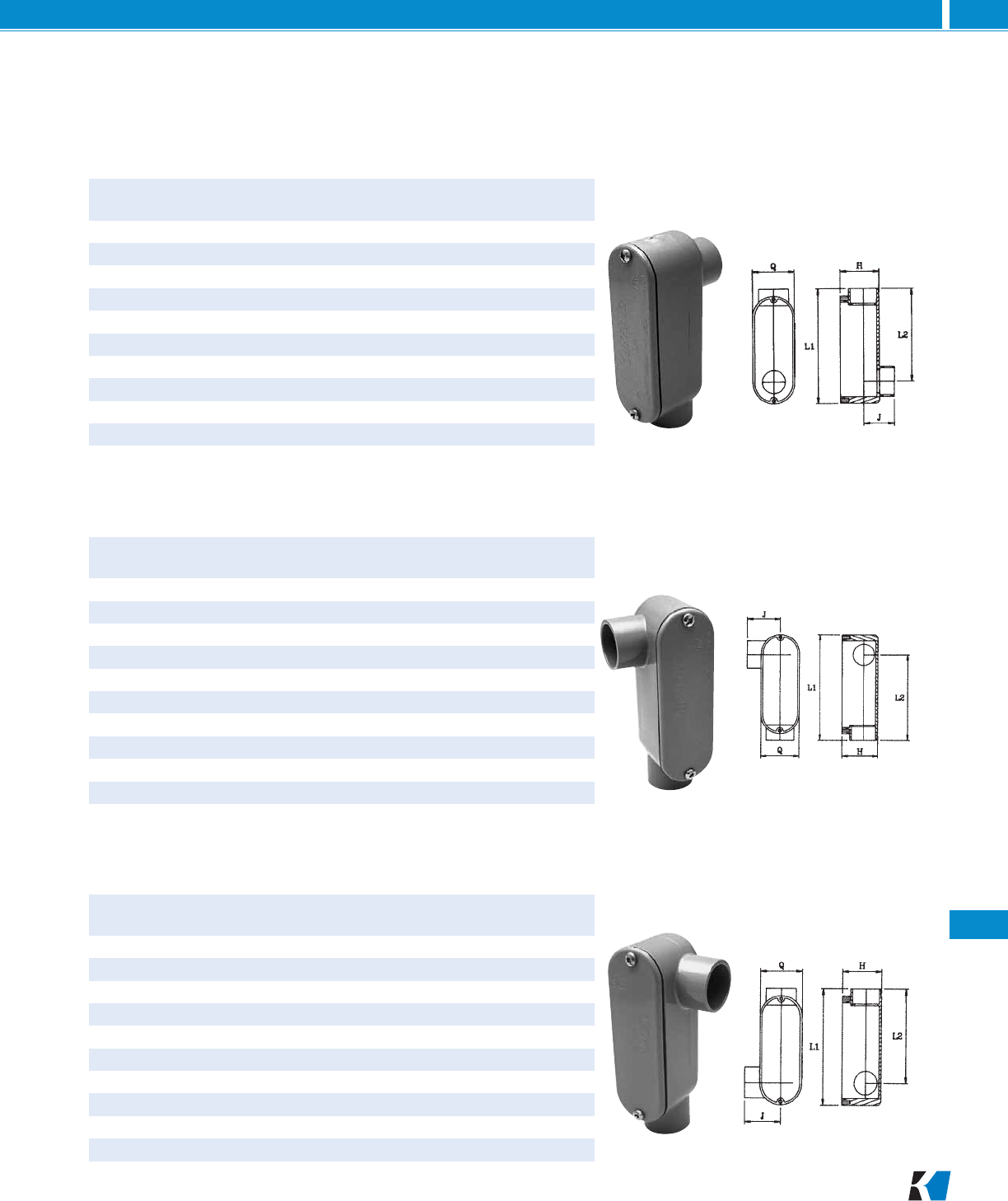

Type 'LB' Access Fittings
Type 'LR' Access Fittings
Type 'LL' Access Fittings
Size
(in.)
Part
Number
Product
Code
L1
(in.)
L2
(in.)
H
(in.)
J
(in.)
Q
(in.)
1/2 LB05 078140 4.285 3.290 1.500 1.175 1.312
3/4 LB07 078141 4.970 3.980 1.625 1.375 1.500
1LB10 078142 5.900 4.656 2.010 1.665 1.750
1-1/4 LB12 078143 7.650 6.060 2.510 1.910 2.450
1-1/2 LB15 078144 7.812 6.180 2.520 2.187 2.468
2LB20 078145 9.970 8.055 3.455 2.500 3.062
2-1/2 LB25 078146 13.750 11.843 4.625 3.375 4.625
3LB30 078147 14.250 11.843 4.625 3.405 4.625
3-1/2 LB35 078148 15.500 12.750 5.450 4.210 5.445
4LB40 078149 15.500 12.750 5.450 4.210 5.445
Includes: Gasket, Cover & Screws
Size
(in.)
Part
Number
Product
Code
L1
(in.)
L2
(in.)
H
(in.)
J
(in.)
Q
(in.)
1/2 LR05 078164 4.625 3.615 1.490 1.405 1.310
3/4 LR07 078165 5.260 4.265 1.665 1.540 1.500
1LR10 078166 6.125 4.875 2.000 1.812 1.750
1- 1/4 LR12 078167 8.125 6.500 2.500 2.250 2.500
1-1/2 LR15 078168 8.187 6.500 2.750 2.312 2.500
2LR20 078169 10.562 8.625 3.500 2.687 3.125
2-1/2 LR25 078170 13.812 12.125 4.625 5.562 4.625
3LR30 078171 14.250 12.125 4.625 5.562 4.625
3-1/2 LR35 078172 15.656 14.250 5.484 6.203 5.468
4LR40 078173 15.500 14.250 5.484 6.203 5.468
Includes: Gasket, Cover & Screws
Size
(in.)
Part
Number
Product
Code
L1
(in.)
L2
(in.)
H
(in.)
J
(in.)
Q
(in.)
1/2 LL05 078152 4.625 3.500 1.500 1.375 1.312
3/4 LL07 078153 5.250 4.260 1.675 1.545 1.500
1LL10 078154 6.170 4.925 2.000 1.820 1.750
1-1/4 LL12 078155 8.187 6.500 2.500 2.250 2.500
1-1/2 LL15 078156 8.250 6.500 2.750 2.312 2.500
2LL20 078157 10.500 8.625 3.500 2.687 3.125
2-1/2 LL25 078158 13.875 12.125 4.625 5.562 4.625
3LL30 078159 14.250 12.125 4.625 5.562 4.625
3-1/2 LL35 078160 15.656 14.250 5.484 6.203 5.468
4LL40 078161 15.500 14.250 5.484 6.203 5.468
Includes: Gasket, Cover & Screws
CONDUIT FITTINGS
23
KRALOY PVC ELECTRICAL FITTINGS

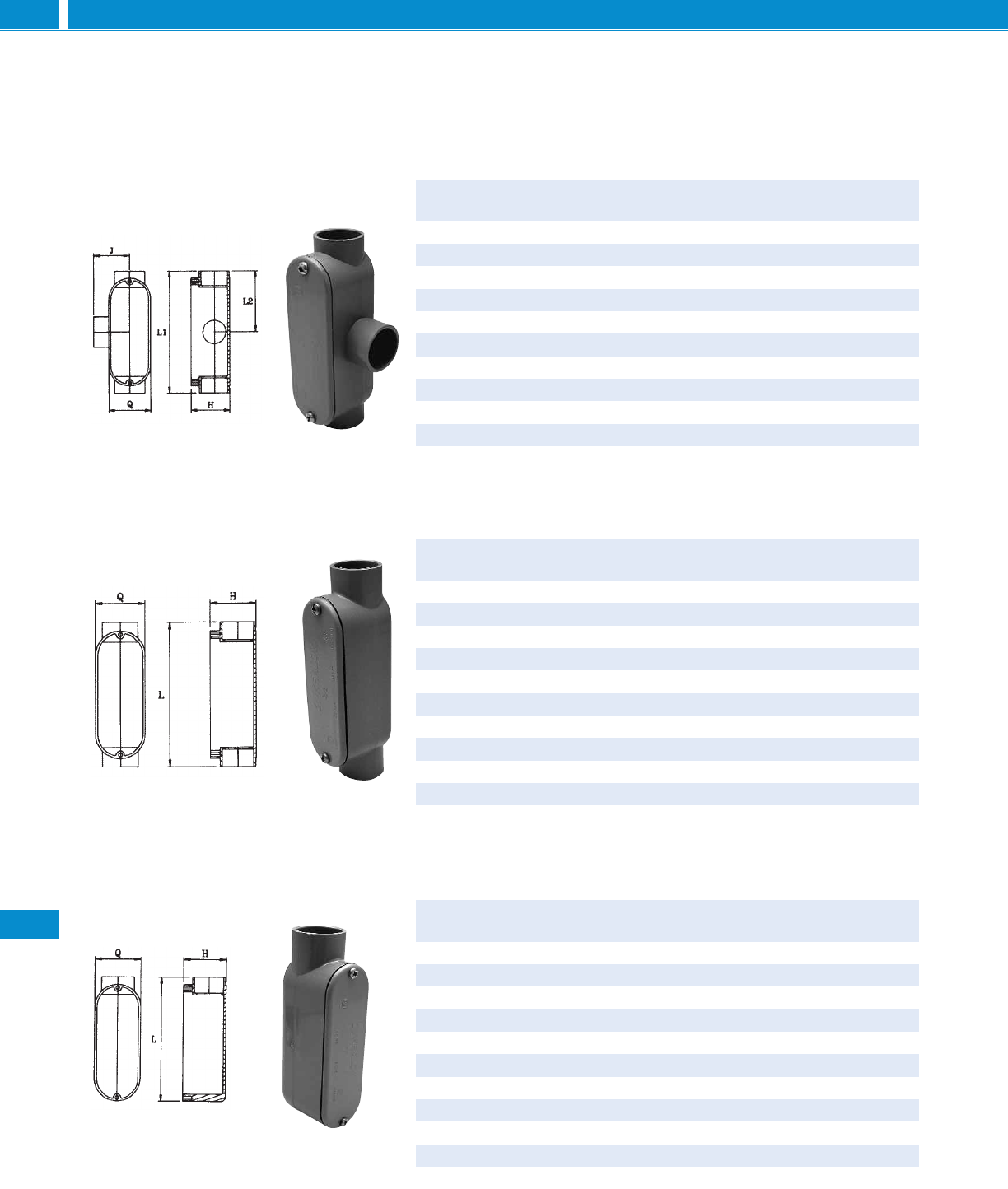

Type 'E' Access Fittings
Type 'T' Access Fittings
Type 'C' Access Fittings
CONDUIT FITTINGS
Size
(in.)
Part
Number
Product
Code
L1
(in.)
L2
(in.)
H
(in.)
J
(in.)
Q
(in.)
1/2 T05 078176 4.565 2.275 1.500 1.315 1.315
3/4 T07 078177 5.330 2.685 1.625 1.490 1.490
1T10 078178 6.390 3.195 2.000 1.770 1.740
1-1/4 T12 078179 9.125 6.500 2.500 2.250 2.500
1-1/2 T15 078180 9.250 6.500 2.750 2.312 2.500
2T20 078181 11.375 8.625 3.500 2.687 3.125
2-1/2 T25 078182 17.125 12.125 4.625 5.562 4.625
3T30 078183 17.562 12.125 4.625 5.562 4.625
3-1/2 T35 078184 19.125 14.250 5.484 6.203 5.468
4T40 078185 19.125 14.250 5.484 6.203 5.468
Includes: Gasket, Cover & Screws
Size
(in.)
Part
Number
Product
Code L (in.) H (in.) Q (in.)
1/2 C05 078116 5.230 1.490 1.330
3/4 C07 078117 5.880 1.675 1.510
1C10 078118 6.937 2.000 1.750
1-1/4 C12 078119 9.125 2.500 2.500
1-1/2 C15 078120 9.250 2.750 2.500
2C20 078121 11.437 3.500 3.125
2-1/2 C25 078122 17.125 4.625 4.625
3C30 078123 17.652 4.625 4.625
3-1/2 C35 078124 19.125 5.484 5.468
4C40 078125 19.125 5.484 5.468
Includes: Gasket, Cover & Screws
Size
(in.)
Part
Number
Product
Code L (in.) H (in.) Q (in.)
1/2 E05 078128 4.635 1.500 1.312
3/4 E07 078129 5.250 1.675 1.515
1E10 078130 6.170 2.000 1.750
1-1/4 E12 078131 8.187 2.500 2.500
1-1/2 E15 078132 8.250 2.750 2.500
2E20 078133 10.500 3.500 3.125
2-1/2 E25 078134 13.875 4.625 4.625
3E30 078135 14.250 4.625 4.625
3-1/2 E35 078136 15.656 5.484 5.468
4E40 078137 15.500 5.484 5.468
Includes: Gasket, Cover & Screws
CONDUIT FITTINGS
24 KRALOY PVC ELECTRICAL FITTINGS
Pull Elbow
The new “two-in-one” access pull elbow reduces your inventory costs (3/4" hub
fitting supplied with 3/4" x 1/2" reducers). The pull elbow is approved for wet
location use and is manufactured from high impact, nonconducting and
noncorroding PVC.

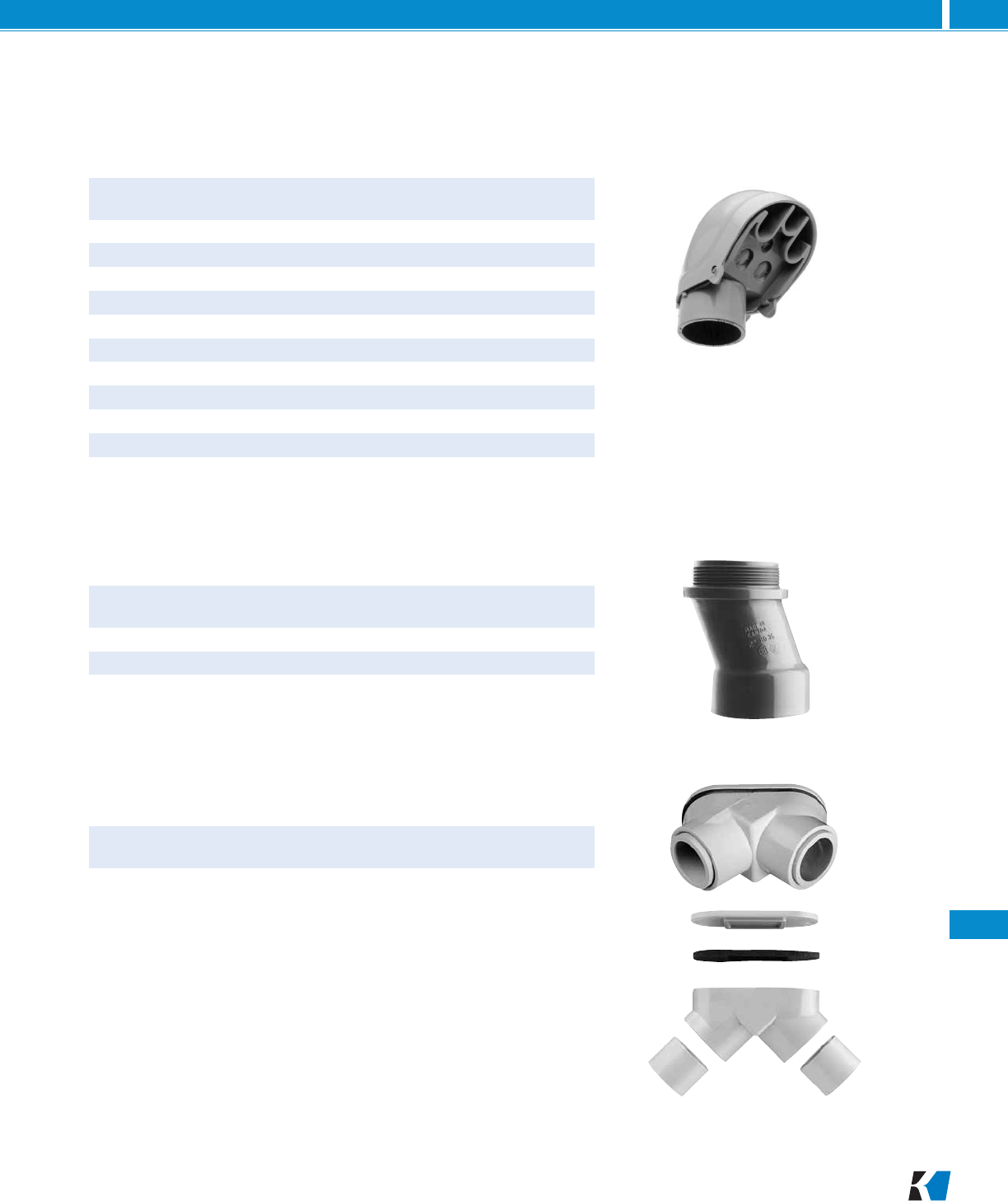

Service Entrance Fittings
Offset Terminal Adapters
Size
(in.)
Part
Number
Product
Code
1/2 MH05 078302
3/4 MH07 078303
1MH10 078304
1-1/4 MH12 078305
1-1/2 MH15 078306
2MH20 078307
2-1/2 MH25 078308
3 MH30 078309
3-1/2 MH35 078310
4MH40 078311
Size S x H (in) Part
Number
Product
Code OL (in)
1-1/4 MO12 078351 4.240
2MO20 078352 4.360
Size
(in.)
Part
Number
Product
Code
1/2 & 3/4 PULEL0705 078386
CONDUIT FITTINGS
25
KRALOY PVC ELECTRICAL FITTINGS
CONDUIT FITTINGS
Nonmetallic Strain Relief Connectors
Kraloy’s Nonmetallic Strain Relief Connectors are supplied with all the components you need for a complete connection. The
connector body, a selection of grommets and compression rings accepting a range of cord dimensions, a sealing ‘O’ ring and
metallic locknut are all supplied in one package. Available in 1/2" and 3/4" threaded hub and 3/4" PVC socket solvent weld
configurations to accommodate a variety of applications.
Threaded Strain Relief Connector
Strain Relief Connector
Size
(in.)
Part
Number
Product
Code
3/4 SRCU07 278102
c/w 4 Grommets - 3/4" solvent weld male end
3/4 SRC15 077985
c/w 6 Grommets - 3/4" solvent weld male end
Grommet Dimensions
Grommet from to
Ø = .240" Ø = .315"
Ø = .320" Ø = .415"
Ø = .420" Ø = .515"
Ø = .520" Ø = .615"
Note: All four grommets and corresponding compression rings are supplied with
TSRCU05, TSRCU07 & SRCU07.
Size
(in.)
Part
Number
Product
Code
1/2 TSRCU05 278100
3/4 TSRCU07 278101
CONDUIT FITTINGS
26 KRALOY PVC ELECTRICAL FITTINGS
KRALOY PVC ELECTRICAL FITTINGS 27
COVERS &
COVER PLATES
TSC20-2-U
TSDC20-2-U
COVERS & COVER PLATES

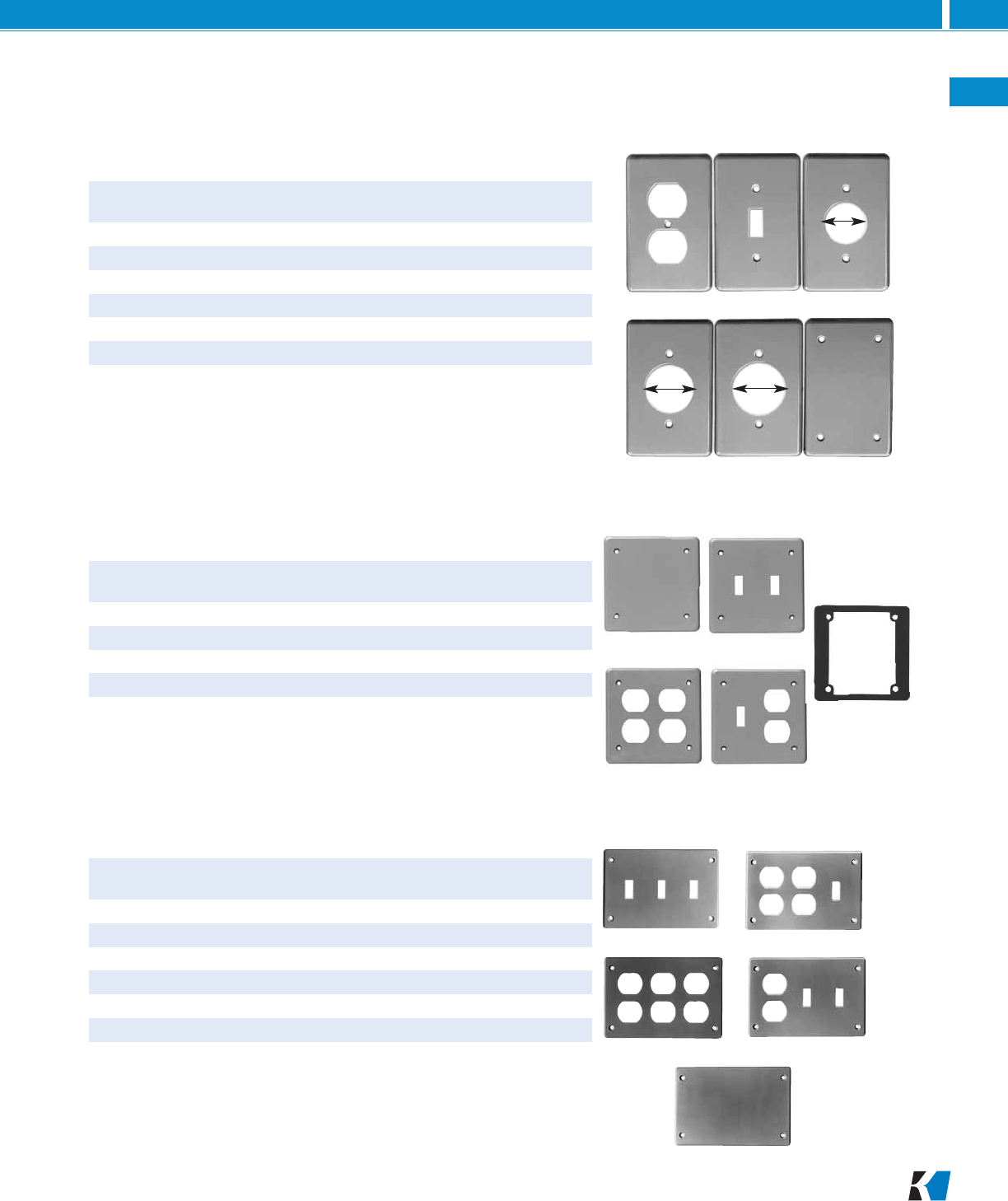

F Series - Single Gang Plates
F Series - Double Gang Plates
F Series - Triple Gang Plates
20RC15/10TSC15/10
DRC15/10
1.415"
DIA.
FSKIT
30-3RC15/1020-3RC15/10
DIA. DIA.
1.610" 1.760"
TSC20-3
DSDR20-3
DRC20-3
BRC20-3
TSDC20-3
BRC20-2-U
DRC20-2-U
Description Part
Number
Product
Code
Duplex Receptacle DRC15/10 078889
Toggle Switch TSC15/10 078898
Single Receptacle 20RC15/10 078882
Single Receptacle 20-3RC15/10 078913
Single Receptacle 30-3RC15/10 078914
Blank c/w Gasket FSKIT 078241
Description Part
Number
Product
Code
Blank Cover c/w Gasket BRC20-2-U 278085
Double Switch TSC20-2-U 278088
Double Duplex Receptacle DRC20-2-U 278086
Combo Switch Duplex Rec. TSDC20-2-U 278089
Foam Gasket with Adhesive GASKF20-2-U 172650
Description Part
Number
Product
Code
Triple Receptacle DRC20-3 278070
Combo Switch Receptacle DSDR20-3 278071
Triple Switch TSC20-3 278072
Combo Switch Receptacle TSDC20-3 278073
Blank Cover c/w Gasket BRC20-3 077748
Gasket for 3 Gang ‘F’ Boxes GASK20-3 077749
GASKF20-2-U
WTL15
WTL20
WTL30

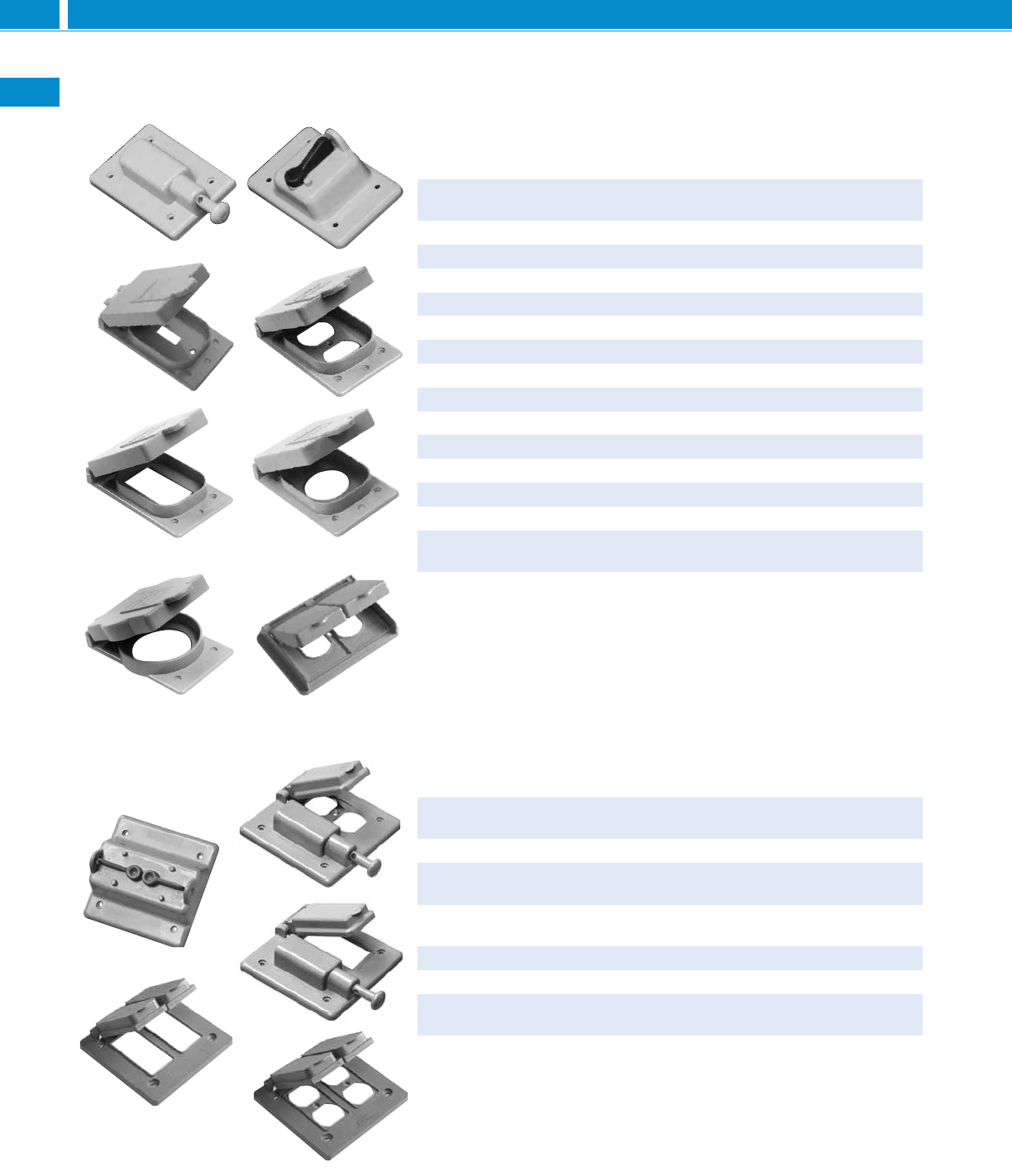

Weatherproof Single Gang Covers
Weatherproof Double Gang Covers
VPT15/10
WDR15/10
RWDR15/10
WGF15/10
RWGF15/10
WDRE15/10
RWDRE15/10
WTL50
VSC20-2-U
VSC15/10
WTG15/10
VSDD20-2
VSGG20-2
** All covers are universal and will fit on most PVC and metal boxes.
* Gaskets are included with all weatherproof covers.
VSDR20-2-U
VSRC20-2-U
Description (in) Part
Number
Product
Code
Plunger-style Switch Cover VPT15/10 078899
Toggle Switch Cover VSC15/10 078900
Grey Toggle Switch Cover WTG15/10 078903
Grey Duplex Receptacle WDR15/10 078901
White Duplex Receptacle RWDR15/10 078843
Grey Ground Fault Receptacle WGF15/10 078902
White Ground Fault Receptacle RWGF15/10 078844
Single Receptacle Device 15 AMP 1.375 WTL15 078904
Single Receptacle Device 20 AMP 1.625 WTL20 078905
30 AMP Twist-Lock 1.722 WTL30 078906
50 AMP Twist-Lock 2.187 WTL50 078909
Grey Double Door Duplex Receptacle WDRE15/10 078326
White Double Door Duplex Receptacle RWDRE15/10 078383
Gasket for W Series Cover
(except WDRE & RWDRE) GASKW 077755
Gasket for WDRE & RWDRE Covers GASKDD 072225
Description Part
Number Product Code
Toggle Switch Cover VSC20-2-U 278090
Combination Switch Cover & GFI
Receptacle VSRC20-2-U 278092
Combination Switch Cover & Duplex
Receptacle VSDR20-2-U 278091
Double Door GFCI Cover VSGG20-2 078327
Double Door Duplex Cover VSDD20-2 078335
Gasket for Double Gang ‘F’ Boxes
(except VSGG20-2 & VSDD20-2) GASK20-2-U 172650
Gasket for VSGG20-2 & VSDD20-2
Double Gangs GASKV20-2 072227
COVERS &
COVER PLATES
28 KRALOY PVC ELECTRICAL FITTINGS
COVERS & COVER PLATES

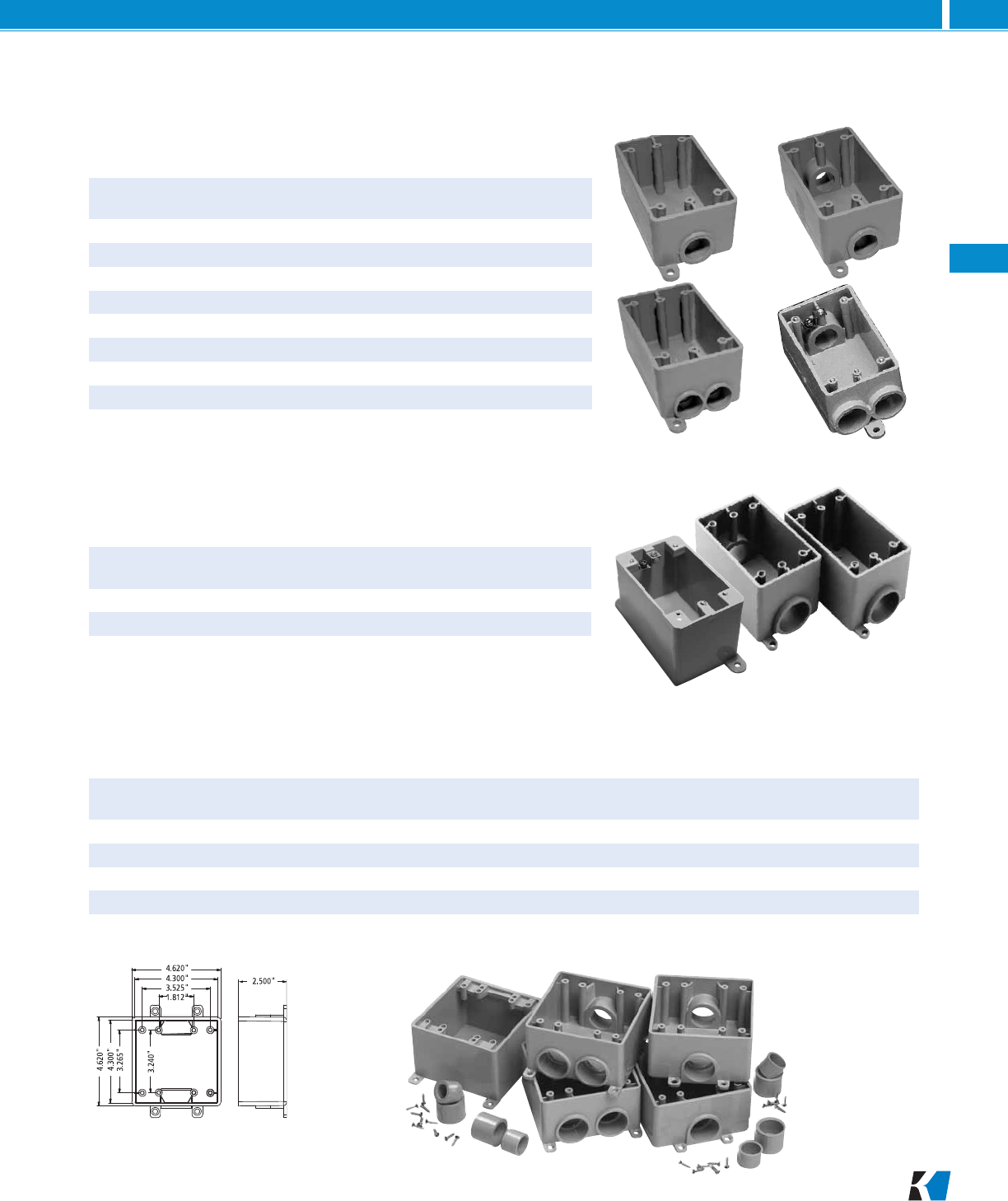

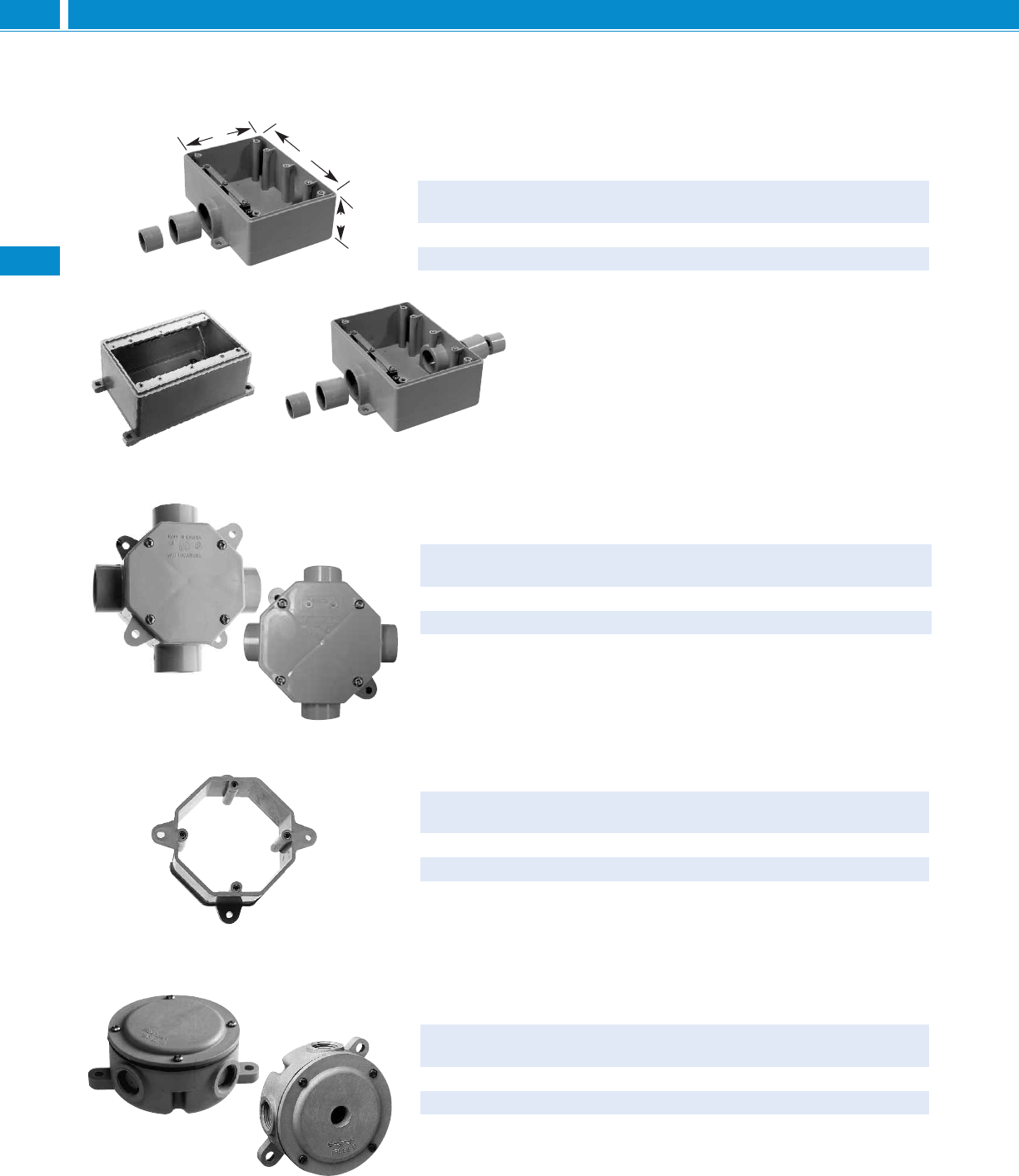

F-Series Single Gang Boxes
FSS FSCC
FSE
FSC DEEP
FD BLANK
F-Series Single Gang Deep Boxes
FSE DEEP
BOXES
Size (in.) Part
Number
Cubic Inch
Capacity
Product
Code L (in.) W (in.) D (in.)
1/2 FSE05 17.5 078229 4.58 2.82 2.0
3/4 FSE07 17.5 078230 4.58 2.82 2.0
1/2 FSC05 17.0 078226 4.58 2.82 2.0
3/4 FSC07 17.0 078227 4.58 2.82 2.0
1/2 FSS05 17.0 078232 4.58 2.82 2.0
3/4 FSS07 17.0 078233 4.58 2.82 2.0
1/2 FSCC05 16.3 078235 4.65 2.85 2.0
3/4 FSCC07 16.3 078236 4.65 2.85 2.0
Size (in.) Part
Number
Cubic Inch
Capacity
Product
Code
L
(in.)
W
(in.)
D
(in.)
1/2, 3/4, 1 FSCD050710 26.0 278051 4.58 2.82 2.76
1/2, 3/4, 1 FSED050710 26.8 278050 4.58 2.82 2.76
BLANK FD 29.0 078215 4.54 2.79 2.91
FSC
BOXES
29
KRALOY PVC ELECTRICAL FITTINGS
F-Series Double Gang Boxes
FD-2-U
FSS-2-101520-U
FSCC-2-101520-U
FS-2-101520-U
FSC-2-101520-
U
Size (in.) Part
Number Cubic Inch Capacity Product Code H (in.) W (in.) E (in.)
1/2, 3/4, 1 FSE-2-050710-U 38.5 278082 4.62 4.62 2.5
1/2, 3/4, 1 FSS-2-050710-U 37.0 278087 4.62 4.62 2.5
1/2, 3/4, 1 FSC-2-050710-U 37.0 278083 4.62 4.62 2.5
1/2, 3/4, 1 FSCC-2-050710-U 35.0 278084 4.62 4.62 2.5
BLANK FD-2-U 47.5 278038 4.75 4.75 3.0
Octagonal Boxes
F-Series Triple Gang Boxes
Size (in.) Part
Number
Cubic Inch
Capacity
Product
Code
L
(in.)
W
(in.)
D
(in.)
1/2, 3/4, 1 FSE-3-050710 56.0 278067 4.50 6.06 2.5
1/2, 3/4, 1 FSC-3-050710 54.0 278068 4.50 6.06 2.5
BLANK FD-3 56.0 278069 4.1 6.73 3.1
Size
(in)
Hub Size
(in)
Part
Number
Product
Code
4 x 1 1/2 1/2 + 3/4 OB401505/07 078414
4 X 2 1/8 1OB402010 078415
Threaded Round Boxes
Size
(in)
Part
Number
Product
Code
4 - 3/4" Threaded Hubs LFB150C 077250
4 - 3/4" Threaded Hubs LFB150T * 077251
BOXES
30 KRALOY PVC ELECTRICAL FITTINGS
BOXES
*LFB150T complete with 1/2 threaded" hole in center of cover
Octagonal Box Extension Rings
Size
(in)
Part
Number
Product
Code
1 XR20 077989
2 XR35 077990
*LFB150T complete with 1/2 threaded" hole in center of cover
FSE-3-050710
FSS-3-050710
D
W
FD-3
L

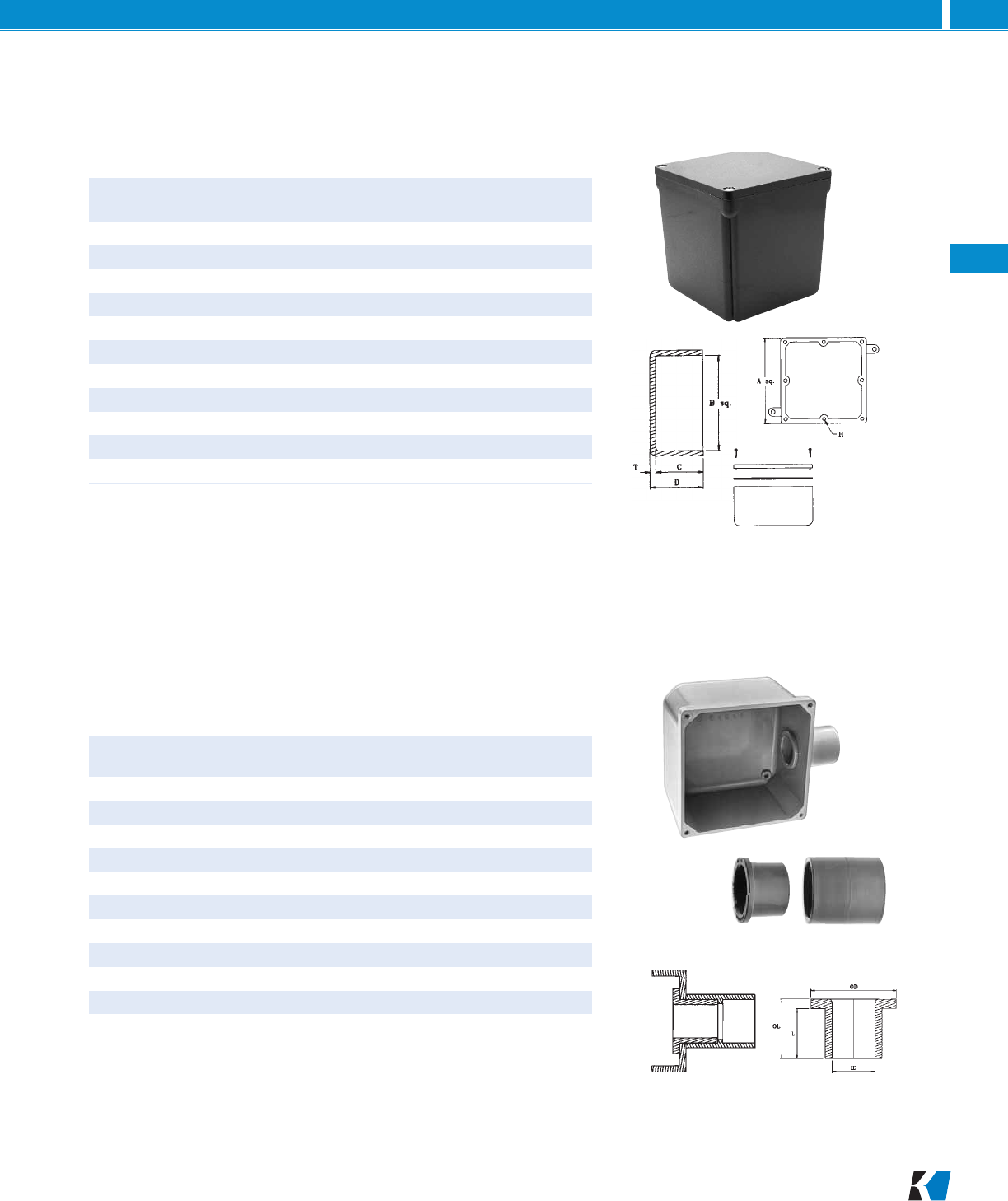

Junction Boxes
Junction Box Adapters
JBA EC
Size (in.) Part
Number
Part
Number
A sq. B sq. C D H T
(inches)
4 x 4 x 2 JB442 078242 4.375 4.000 2.020 2.200 40.187
✧✧ 4 x 4 x 4 JB444 078243 4.375 4.000 4.000 4.187 40.187
✧✧✧ 4 x 4 x 6 JB446 078244 4.000 3.675 6.000 6.225 40.225
✧✧✧ 5 x 5 x 2 JB552 078245 5.000 4.680 2.000 2.000 40.155
✧✧ 6 x 6 x 4 JB664 078246 6.375 6.000 4.000 4.187 40.187
✧✧ 6 x 6 x 6 JB666 078247 6.375 6.000 6.000 6.187 40.187
✧✧ 8 x 8 x 4 JB884 078248 8.812 8.000 4.000 4.187 40.187
✧✧ 8 x 8 x 7 JB887 078249 8.812 8.000 7.000 7.175 40.250
✧✧ 12 x 12 x 4 JB12124 078250 12.687 12.000 4.000 4.250 80.250
✧✧ 12 x 12 x 6 JB12126 078251 12.687 12.000 6.000 6.250 80.250
✧✧✧ 12 x 12 x 8 JB12128 078252 12.580 12.085 8.025 8.250 80.225
NEMA 1, 2, 3, 3R, 4, 4X, 5, 6P
✧✧ NEMA 1, 2, 4, 4X, 5 6, 6P
✧✧✧ NEMA 1, 2, 3, 4, 4X, 6P, 12 & 13
Note: Boxes include cover, gasket and screws.
External mounting feet are supplied with all sizes except JB444 and JB446.
Fabricated Junction Boxes are available upon request. Contact your Kraloy
Customer Service Representative for more information.
Size (in.) Part
Number
Product
Code
ID
(in.)
OD
(in.)
L
(in.)
OL
(in.)
1/2 JBA05 078276 0.605 1.125 0.812 1.000
3/4 JBA07 078277 0.807 1.375 0.937 1.125
1 JBA10 078278 1.060 1.625 1.120 1.325
1-1/4 JBA12 078279 1.355 1.975 1.125 1.325
1-1/2 JBA15 078280 1.560 2.330 1.100 1.370
2 JBA20 078281 2.030 2.890 1.315 1.650
2-1/2 JBA25 078282 2.450 3.375 1.843 2.156
3 JBA30 078283 3.030 4.000 2.093 2.406
3-1/2 JBA35 078284 3.150 3.500 2.125 2.525
4 JBA40 078285 4.016 5.000 2.375 2.687
BOXES
31
KRALOY PVC ELECTRICAL FITTINGS

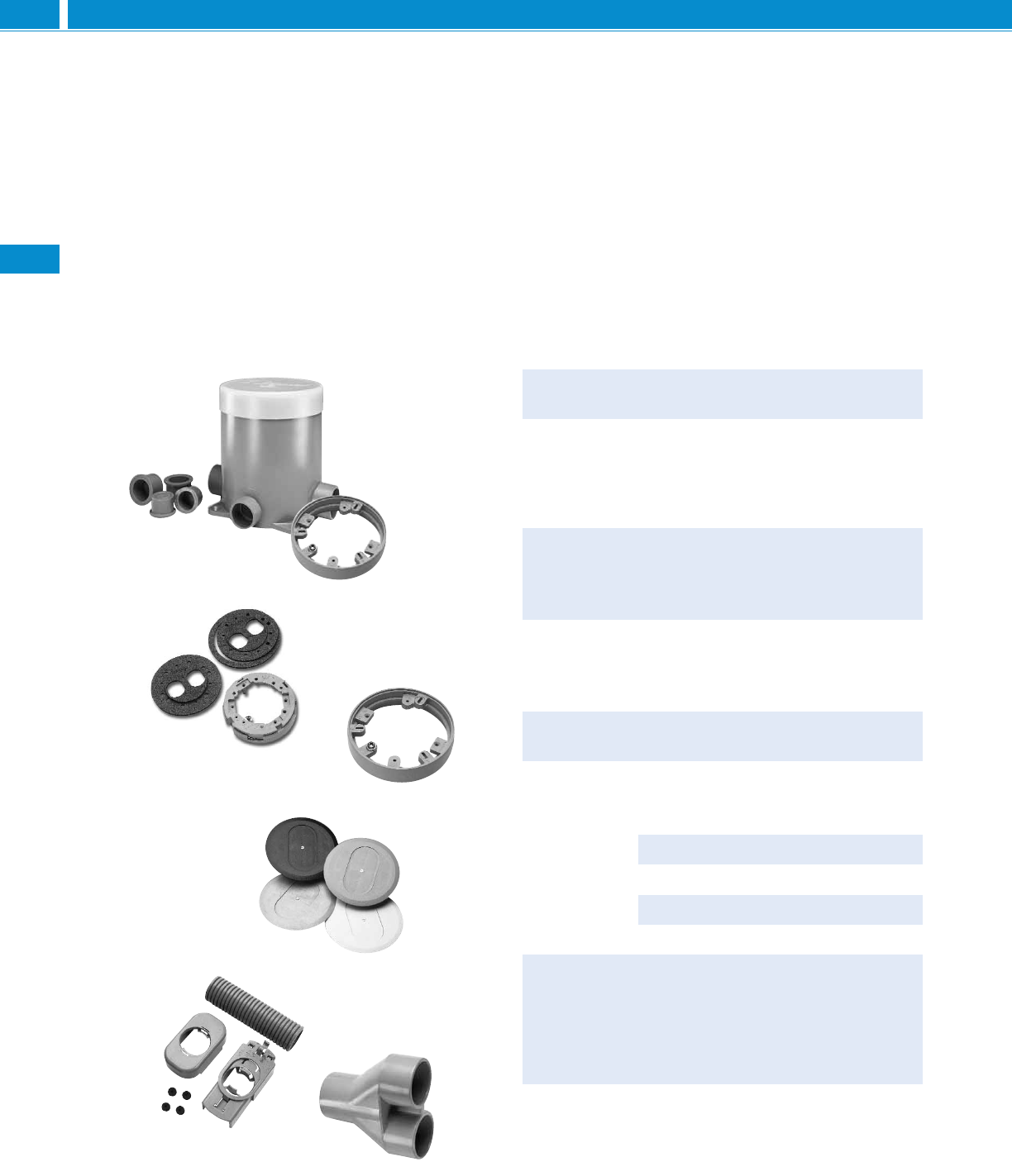

Nonmetallic Floor Box, Cover & Metal Cover Adapter
AFMC
LRA-U
FBDRCB
FBDRCG
FBDRCGR
FBDRCA
FBUDK
FBYC
Installation is quick and simple with our nonmetallic floor box and covers, saving both time and money over similar metallic
assemblies.
Kraloy’s floor box and duplex receptacle covers are constructed from high impact, noncorroding and nonconducting PVC. The
flush mount covers are available in custom colors and are shipped with a leveling ring. Metal cover adapter kits are also
available, allowing you to adapt to metal floor plates. Our 6" deep floor box allows flexibility for various concrete floor pours, while
our 4 3/4" width offers easy access and ample wire room. The box comes complete with 2 - 1" and 2 - 3/4" hub openings.
All boxes are shipped complete with reducer plugs (2 - 1 x 3/4, 3 - 3/4 x 1/2) for added versatility.
Description Part
Number
Product
Code
Floor Box Base FB 078876
(includes disposable protective cap & reducer plugs) suitable for
slab-on-grade or below grade, and wood floor construction
Floor Box Kit FBKIT 078908
c/w Universal leveling ring adapter, disposable protective cap
and reducer plugs
Metal Cover Adapter Kit AFMC 078875
(includes leveling ring, metal cover adapter ring & two shim
gaskets for height adjustment)
Universal Leveling Ring Adapter LRA-U 078446
Floor Box Duplex Receptacle Cover (Nonmetallic)
c/w leveling ring and blank cover & gasket. Accepts standard
duplex receptacle (not included)
Brown FBDRCB 078877
Gold FBDRCG 078878
Grey FBDRCGr 078618
Light Almond FBDRCA 078841
Tri-Service Universal Divider Kit FBUDK 078993
(includes upper & lower dividers, riser tube & four grommets) Kit
partitions the round PVC floor box to permit power, communication
and/or data cabling in one location and within the same box
Y Connector FBYC 078928
use y connector to feed through (in/out) or to bring a parallel run of
3/4" conduit to the same hub
FB KIT
FB
BOXES
32 KRALOY PVC ELECTRICAL FITTINGS
BOXES

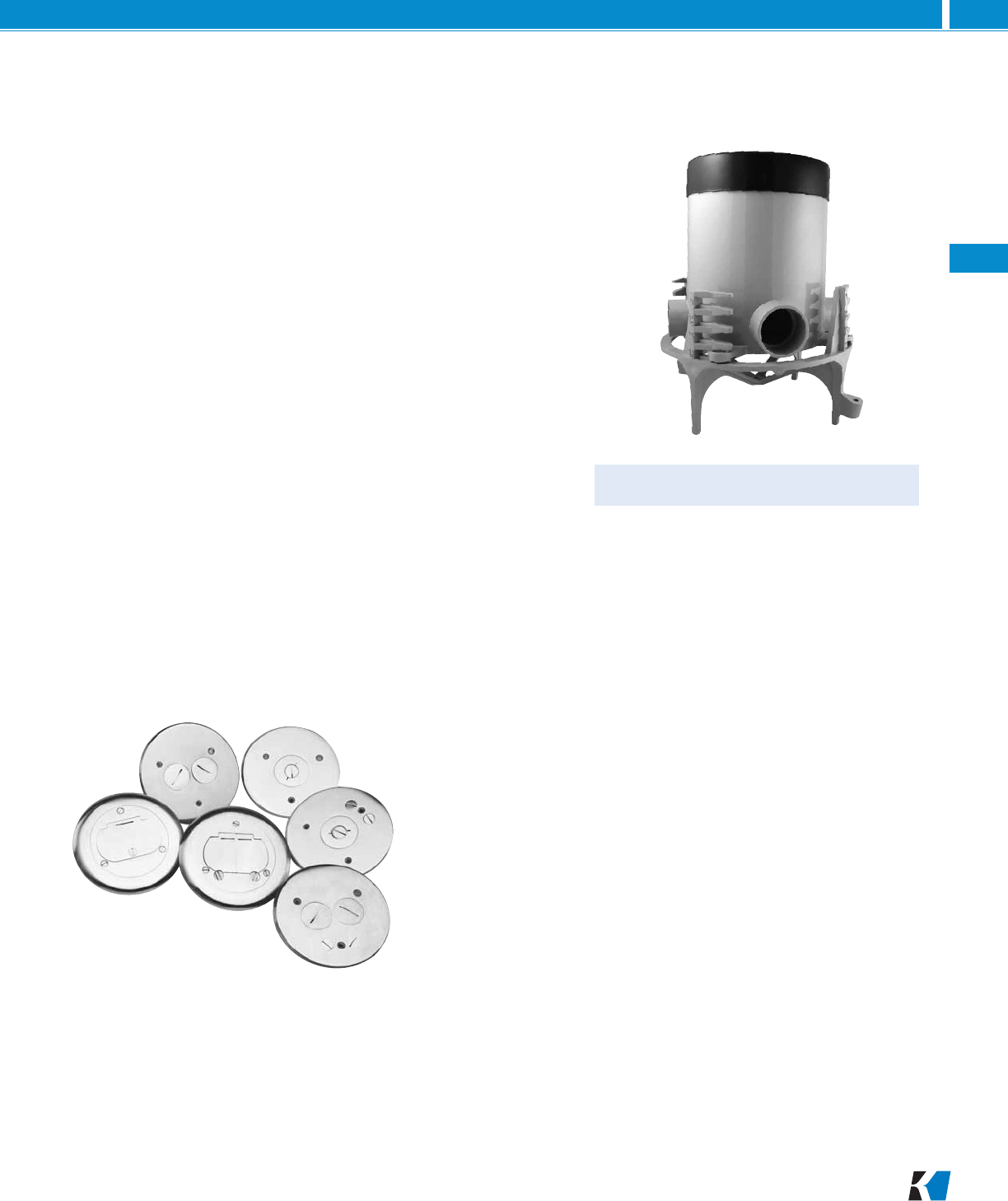

Round Floor Box Stand
This simple yet innovative Round Floor Box Stand is equipped with several
height brackets which accommodate the different rebar and post-tension cable
heights and slab depths. When installed together, the Floor Box and Stand can
be used in 5-1/2" to 10" slab depths.
Features:
• Four adjustable heights
• Raises entrance hubs to rebar height
• Minimizes footprint on concrete form
Withstands tough job site conditions
• Easy to install
• Cost effective
The Round Floor Box easily snaps into the Stand on one of the four
convenient height brackets at 2-1/2", 3", 3-1/2" and 4". By raising the Floor
Box off the concrete form, the footprint is minimized which reduces the
amount of time the contractor spends finishing the concrete surface. In
addition, the various Stand heights allow the ENT to enter the Box in a flat and
straight path, resulting in less effort by the contractor when pulling in the
electrical cable.
Brass Cover Plates
Brass cover plates offer a one-piece design measuring 5-3/4" diameter
• Available in a variety of styles accommodating power
(single or duplex receptacle) and communication needs
• Mount to FB Box using LRA-U Leveling Ring Adapter
DSC
178091
SSC
178093
DFL-1
178095 DFL-2
178096
DSC-P/C
178092
SSC-P/C
178094
Part Number Product Code
FBS-KIT 178269
BOXES
33
KRALOY PVC ELECTRICAL FITTINGS
DFL-2
Brass cover plate with dual flip-lid
opening for a duplex receptacle
5-3/4" diameter.
Product Code: 178096
DSC
Brass cover plate with two screw
plug (1-1/2") openings for a duplex
receptacle 5-3/4" diameter.
Product Code: 178091
DSC-P/C
Brass cover plate with two screw
plug (1-1/2") openings and two
screw plug (1/2") openings for
data/communication, 5-3/4"
diameter.
Product Code: 178092
SSC
Brass cover plate with a
combination (2" - 1/2") screw plug
opening for single receptacle or
data/communication,
5-3/4" diameter.
Product Code: 178093
SSC-P/C
Brass cover plate with a
combination (2" - 1/2") screw plug
opening for single receptacle and
two screw plug (1/2") openings for
data/communication, 5-3/4"
diameter.
Product Code: 178094

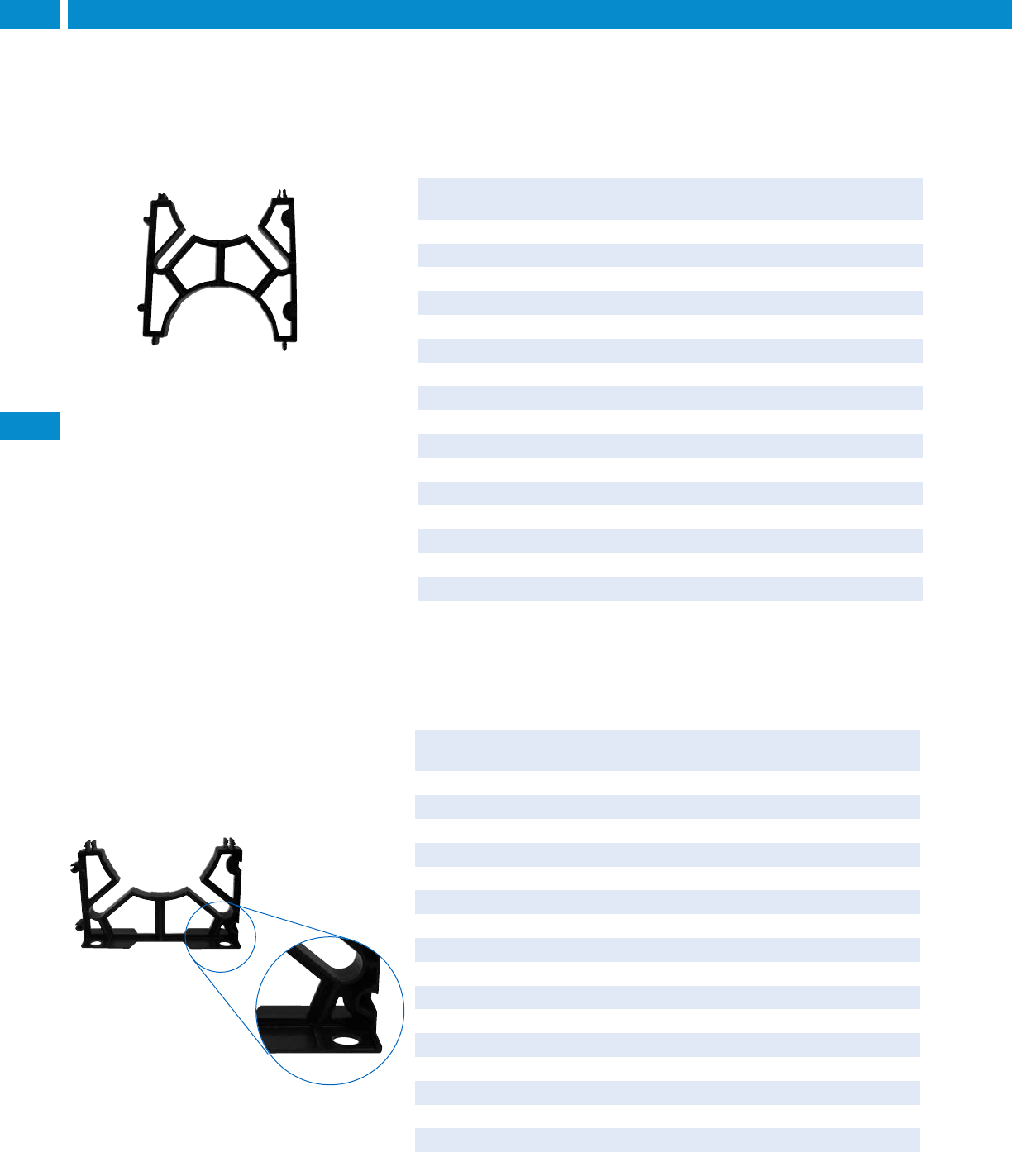

Intermediate Vertical-Lok Spacers
CONDUIT INTERLOCKING SPACERS
Base Vertical-Lok Spacers
Kraloy conduit interlocking spacers are
available in a variety of spacing dimensions
for all conduit sizes. Our most popular sizes
are offered with unique rebar holder slots for
quick reinforcing bar installation and the
bases have support holes for securing the
base spacers to the trench bottom.
Kraloy conduit spacers manufactured with
the rebar holder slots can accommodate a
maximum rebar diameter of 5/8" for the 2"
conduit size and 7/8" for all other conduit
size spacers. All conduit spacers provide a 3"
clearance from the trench base to the bottom
of the first conduit.
Kraloy recommends the installation of a
spacer every 5 to 6 feet along the raceway
length to provide the proper and even
support of the conduit assembly.
Size
(in.)
Part
Number
Product
Code
2 x 1-1/2 IV2015 029550
2 x 2 IV2020 029551
2 x 3 IV2030 029552
*3 x 1-1/2 IV3015 029553
3 x 2 IV3020 029554
3 x 3 IV3030 029555
*4 x 1 IV4010 029556
4 x 1-1/2 IV4015 029557
4 x 2 IV4020 029558
4 x 3 IV4030 029559
*5 x 1-1/2 IV5015 029560
5 x 2 IV5020 029561
5 x 3 IV5030 029562
6 x 1-1/2 IV6015 029563
6 x 2 IV6020 029564
6 x 3 IV6030 029565
* 8 x 2 IV8020 029294
Size
(in.)
Part
Number
Product
Code
2 x 1-1/2 BV2015 029566
2 x 2 BV2020 029567
2 x 3 BV2030 029568
*3 x 1-1/2 BV3015 029569
3 x 2 BV3020 029570
3 x 3 BV3030 029571
*4 x 1 BV4010 029572
4 x 1-1/2 BV4015 029573
4 x 2 BV4020 029574
4 x 3 BV4030 029575
*5 x 1-1/2 BV5015 029576
5 x 2 BV5020 029577
5 x 3 BV5030 029578
6 x 1-1/2 BV6015 029579
6 x 2 BV6020 029580
6 x 3 BV6030 029581
*8 x 2 BV8020 029293
INTERLOCKING
SPACERS
34 KRALOY PVC ELECTRICAL FITTINGS
* Do not have rebar slots or base holes
* Do not have rebar slots or base holes
Nonmetallic Vapor Proof Incandescent Light Fixtures
Kraloy’s “lighting you can trust” is constructed of noncorroding, nonconductive, high impact glass reinforced polyester resin. It
features a one-piece fixture base with threaded hub entry offering a 15 cubic inch volume. Kraloy’s fixture is approved for use
with 75°C (167ºF) wiring and rated for use with 150 Watt A21 medium base incandescent lamp. Integral molded mounting
feet provide for easy installation and ensure a secure support.
LVPE 150-10/15
GLOBE OPTIONS
LVPUG 150
LVPE 150-PCC
Description - Fixture c/w: Part Number Hub Product Code
Clear Glass Globe LVPE 150-10/15 1/2" - 3/4" 078666
Heat Resistant Clear Glass Globe LVPE150HRC 1/2" - 3/4" 078716
Heat Resistant Red Glass Globe LVPE150HRR 1/2" - 3/4" 078736
Heat Resistant Blue Glass Globe LVPE150HRB 1/2" - 3/4" 078738
Heat Resistant Green Glass Globe LVPE150HRG 1/2" - 3/4" 078748
Heat Resistant Amber Glass Globe LVPE150HRA 1/2" - 3/4" 078749
Clear Glass Globe & Clamp-on Guard LVPE 150-0507G 1/2" - 3/4" 278036
Light Fixture w/ Polycarbonate Globe (Approved for use with
60W Max Type A lamp). LVPE 150-PCC 1/2" - 3/4" 278033
Nonmetallic Clamp-on Guard LVPUG 150 077558
Replacement Globes + HR Globes
Standard Clear Glass Globe LGC150 077247
Heat Resistant Clear Glass Globe LG150T 077909
Heat Resistant Red Glass Globe LCGR150T 077239
Heat Resistant Blue Glass Globe LCGB150T 077910
Heat Resistant Green Glass Globe LCGG150T 077241
Heat Resistant Amber Glass Globe LCGA150T 077242
Polycarbonate Clear Globe LPCC 19 077911
Note: Lamp is not supplied with fixture.
Please refer to our Sceptalight brochure for our Wet, Hazardous and Marine Location rated non-metallic light fixtures.
LIGHT FIXTURES
35
KRALOY PVC ELECTRICAL FITTINGS
Size
(in.)
Product
Code
Units
per Case
Pint 078798 12
Quart 078799 12
Gallon 078105 4
Use Clear Conduit Solvent Cement Medium Bodied to create solid,
waterproof joints when connecting electrical PVC conduit pipe. The cement
is approved for use with rigid PVC conduit such as Kraloy’s Rigid PVC
conduit & fittings, Kwikon ENT and fittings, and Duct & fittings.
Size
(in.) Description Product
Code
Low
VOC
1/2 Pint Medium Bodied Grey Cement 078082 no
Pint Medium Bodied Grey Cement 078083 no
Quart Medium Bodied Grey Cement 078096 no
Gallon Medium Bodied Grey Cement 078097 no
Pint Cold Weather Cement 078503 no
Quart Cold Weather Cement 078886 no
Pint ENT Cement 078501 no
Quart ENT Cement 078186 yes
1/2 Pint Clear Regular Bodied Solvent Cement 078883 yes
Pint Clear Regular Bodied Solvent Cement 078884 yes
Quart Clear Regular Bodied Solvent Cement 078885 yes
Gallon Clear Regular Bodied Solvent Cement 078887 yes
Pint Purple Primer 078050 yes
Quart Purple Primer 078054 yes
Gallon Purple Primer 078062 yes
1/2 Pint Clear Conduit Primer 078163 yes
Pint Clear Conduit Primer 078174 yes
Quart Clear Conduit Primer 078175 yes
All cements and primers come with applicator caps except were indicated with *
*
*
CONDUIT CEMENT
Clear Conduit Cement
Cements and Primers
Average Number of Joints per
Pint or Quart of Cement
Nominal Pipe
Size (inches)
Number of
Joints per
Pint
Number of
Joints per
Quart
1/2 350 700
3/4 200 400
1150 300
1-1/4 110 220
1-1/2 80 160
245 90
2-1/2 40 80
335 70
3-1/2 30 60
424 48
510 20
6 8 16
CONDUIT
CEMENTS
36 KRALOY PVC ELECTRICAL FITTINGS

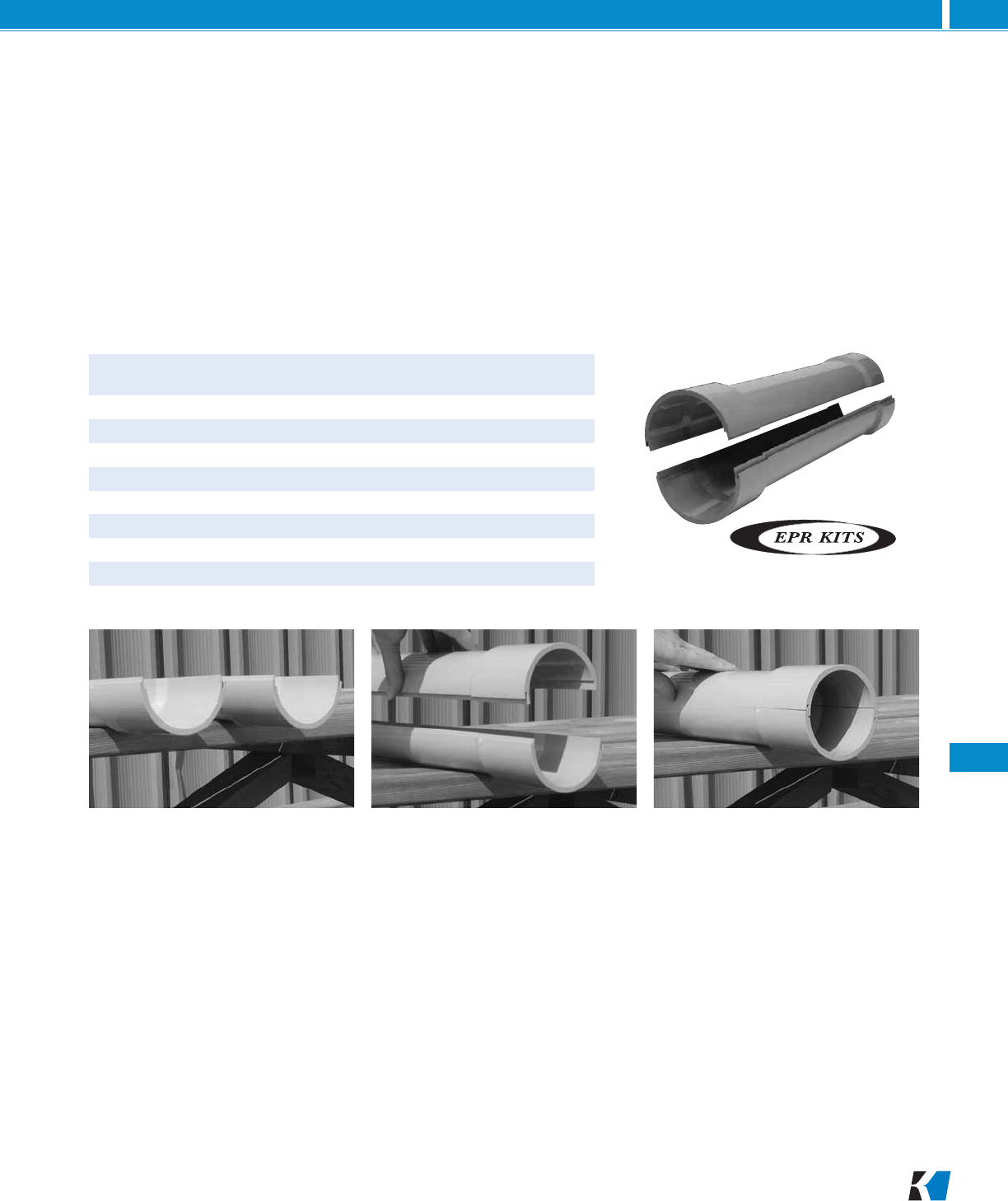

EPR Kits for Conduit Repair
TOOL & REPAIR KITS
EPR Kits are the first total repair systems for broken and damaged PVC conduit. They offer fast and easy repairs for
damaged conduit caused by actions such as earth excavation, horizontal and core drilling.
With unique interlocking joints, the EPR Kits’ two half shell bell by bell pieces simply close around the installed wire and
cable. Using standard PVC solvent cement, EPR Kits are quickly and easily assembled and connected, restoring the conduit
to its original form.
EPR Kits are manufactured of high-impact and non-conductive PVC, ensuring a life long quality repair for your system.
Step 1 Step 2 Step 3
Size
(in)
Part
Number
Product
Code
Length
(in)
1-1/4 EPR25 077976 24
1-1/2 EPR30 077971 24
2EPR35 077972 24
2-1/2 EPR40 077973 24
3EPR45 077974 24
4EPR55 077975 24
5EPR60 077977 24
6EPR65 077979 24
TOOL & REPAIR
KITS
37
KRALOY PVC ELECTRICAL FITTINGS
NOTES
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
38 KRALOY PVC ELECTRICAL FITTINGS
NOTES
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
39
KRALOY PVC ELECTRICAL FITTINGS
NOTES
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
40 KRALOY PVC ELECTRICAL FITTINGS
DISTRIBUTED BY:
CTELNAKR100308 © 2010 Kraloy KR004
CUSTOMER SERVICE CENTER
1055 Wilton Grove Road Tel: (519) 681-2140
London, Ontario N6A 4K3 Toll Free: (800) 265-1815
Fax: (519) 681-2156
www.kraloyfittings.com
Products are manufactured by IPEX Electrical Inc. and distributed in the
United States by Kraloy, a division of Multi Fittings Corp.
Kraloy®is a trademark of Multi Fittings Corp.
Kwikon®, Kwikflex®and SceptalightTM are trademarks of IPEX Branding Inc.
This literature is published in good faith and is believed to be reliable.
However, Kraloy does not represent and/or warrant in any manner the
information and suggestions contained in this brochure. Data
presented is the result of laboratory tests and field experience. Kraloy
maintains a policy of ongoing product improvement. This may result in
modifications of features and/or specifications without notice.
Kraloy has been an industry leader for over 40 years supplying the
electrical trade with a comprehensive offering of nonmetallic PVC
fittings. Kraloy offers adapters, couplings, elbows, access fittings,
boxes, cover plates, expansion fittings and spacers – virtually any
fitting required to complete the PVC conduit system.
Check out the full Kraloy product offering on our web site
www.kraloyfittings.com or contact us directly for information.
Only when you specify Kraloy by name are you guaranteed The
Fitting Choice.
Kraloy is proud to offer these quality brands.
www.kraloyfittings.com

Navigation menu
