FIT CHART
1
www.totousa.com
INSTALLING A WASHLET®
IS MUCH LIKE CHANGING A TOILET SEAT,
BUT THE FEATURES AND BENEFITS
FAR EXCEED
ANY TOILET YOU EVER OWNED.
WASHLET® FIT CHART BROCHURE
2
RATED POWER USAGE 835W 835W 406W 313W 406W 406W
LENGTH OF POWER CORD 3.9 ft. (1.2 m) 3.9 ft. (1.2 m) 3.9 ft. (1.2 m) 3.9 ft. (1.2 m) 3.9 ft. (1.2 m) 3.9 ft. (1.2 m)
WASHLET NOZZLE FLOW RATE
REAR 9.1 ~ 14.5 oz. / min. 9.1 ~ 14.5 oz. / min. 9.8 ~ 20.3 oz. / min. 9.8 ~ 20.3 oz. / min. 9.1 ~ 14.5 oz. / min. 9.1 ~ 14.5 oz. / min.
SOFT 10.8 ~ 14.5 oz. / min. 10.8 ~ 14.5 oz. / min. 9.8 ~ 18.6 oz. / min. 9.8 ~ 18.6 oz. / min. 9.1 ~ 14.5 oz. / min. 9.1 ~ 14.5 oz. / min.
FRONT 9.8 ~ 14.5 oz. / min. 9.8 ~ 14.5 oz. / min. 9.1 ~ 20.3 oz. / min. 9.1 ~ 18.6 oz. / min. 9.8 ~ 14.5 oz. / min. 9.8 ~ 14.5 oz. / min.
WATER TEMPERATURE 86°F ~ 104°F 86°F ~ 104°F 86°F ~ 104°F 95°F ~ 104°F 95°F ~ 104°F 95°F ~ 104°F
DRYER AIR TEMPERATURE 95°F ~ 140°F 95°F ~ 140°F 104°F ~ 140°F - - -
AIR VOLUME 10.24 ft3 / min. 10.24 ft3 / min. 9.54 ft3 / min. - - -
HEATED SEAT
SURFACE TEMPERATURE 82° F - 97° F 82° F - 97° F 82° F - 97° F 82° F - 95° F 82° F - 97° F 82° F - 97° F
WATER SUPPLY PRESSURE 7 psi - 109 psi 7 psi - 109 psi 7 psi - 109 psi 7 psi - 109 psi 7 psi - 109 psi 7 psi - 109 psi
WATER SUPPLY TEMPERATURE 33˚F to 95˚F 33˚F to 95˚F 33˚F to 95˚F 33˚F to 95˚F 33˚F to 95˚F 33˚F to 95˚F
AMBIENT TEMPERATURE 33°F to 104°F 33°F to 104°F 33°F to 104°F 33°F to 104°F 33°F to 104°F 33°F to 104°F
SIZE ROUND 15-5/16"W x 18-
7/8D x 3-15/16"H
15-5/16"W x 18-
7/8D x 3-15/16"H - - 15-3/8”W x 18-
7/8”D x 7-3/8”H
18-7/8”W x 18-7/8”D
x 7-3/8”H
ELONGATED
15-5/16"W x
20-3/4”D x
3-15/16"H
15-5/16"W x
20-3/4”D x
3-15/16"H
15 15/16"W x
20.5"D x
6-3/4"H
18-7/8"W x
20.5"D x
6-3/4"H
15-3/8”W x
20-7/8”D x 7-3/8”H
18-7/8”W x
20-7/8”D x 7-3/8”H
S350e S300e C200 C100 A200 A100
SW583 (round)
SW584 (elongated)
SW573 (round)
SW574 (elongated)
SW2043 (round)
SW2044 (elongated)
SW2033 (round)
SW2034 (elongated) SW2024 (elongated) SW2014 (elongated)
MSRP
COTTON (#01) $ 1,560 $ 1404 $ 699 $ 599 $ 599 $ 499
SEDONA BEIGE (#12) $ 1,794 $ 1,616 $ 804 $ 689
CLEANSE
REAR CLEANSE
SOFT REAR CLEANSE
FRONT CLEANSE
WIDE FRONT CLEANSE
OSCILLATING CLEANSE
PULSATING CLEANSE
INSTANTANEOUS
WATER HEATING
WATER PRESSURE CONTROL 5 SETTINGS 5 SETTINGS 5 SETTINGS 5 SETTINGS 5 SETTINGS 5 SETTINGS
WATER TEMPERATURE CONTROL 5 SETTINGS 5 SETTINGS 5 SETTINGS 3 SETTINGS 3 SETTINGS 3 SETTINGS
WAND POSITION ADJUSTMENT
AIR
AIR PURIFIER (DEODORIZER)
AIR DRYER
AIR TEMPERATURE CONTROL 5 SETTINGS 5 SETTINGS 5 SETTINGS 3 SETTINGS
SEAT
HEATED SEAT
HEATED SEAT
TEMPERATURE CONTROL
5 SETTINGS 5 SETTINGS 5 SETTINGS 3 SETTINGS 5 SETTINGS 3 SETTINGS
SoftClose SEAT
AND LID
SENSOR
SEAT SENSOR
AUTOMATIC OPEN AND CLOSE LID
AUTOMATIC FLUSH
NIGHT LIGHT
REMOTE
CONTROL
REMOTE CONTROL SIDE PANEL SIDE PANEL
REMOTE CONTROLLED SEAT
REMOTE CONTROLLED FLUSH
HYGIENE
REMOVABLE LID
PREMIST™
EWATER+
WAND CLEANING MODE
SELF-CLEANING WAND
ENERGY
SAVING
ENERGY-SAVER TIMER 3, 6, 9 HOURS 3, 6, 9 HOURS
AUTO ENERGY SAVER
WASHLET®
COMPARISON CHART
3
www.totousa.com
SW2014/SW2024 elongatedSW2034/SW2044 elongated
SW2033/SW2043 round
SW554/SW574/SW584 elongated
SW553/SW573/SW583 round
* Extension kit THU9090R required
WASHLET®
COMPATIBILITY CHART
SIZE NAME S300e/ S350 C100/C200 A100/A200
ONE- PIECE
TOILETS
ELONGATED
AIMES®
AQUIA®
CAROLINA® II
CARLYLE® II / II 1G®
GUINEVERE®
LEGATO®
LLOYD®
PROMENADE® II / II 1G
SOIREE®
SUPREME®
SUPREME II
ULTIMATE®
ULTRAMAX®
ULTRAMAX® II / II 1G
ROUND
SUPREME
ULTIMATE
ULTRAMAX
TWO- PIECE
TOILETS
ELONGATED
AQUIA I / II*
CONNELLY®
CLAYTON®
DARTMOUTH®
DRAKE II / II 1G
DRAKE®
MARIS® *
NEXUS®
PROMENADE I / II
PROMENADE
ROWAN®
VESPIN® II / II 1G
WHITNEY®
ROUND
DRAKE
PROMENADE
ROWAN
WALL-HUNG
TOILETS
AQUIA
MARIS
WASHLET® FIT CHART BROCHURE
4
WASHLET®
S300e/S350e Fit Chart

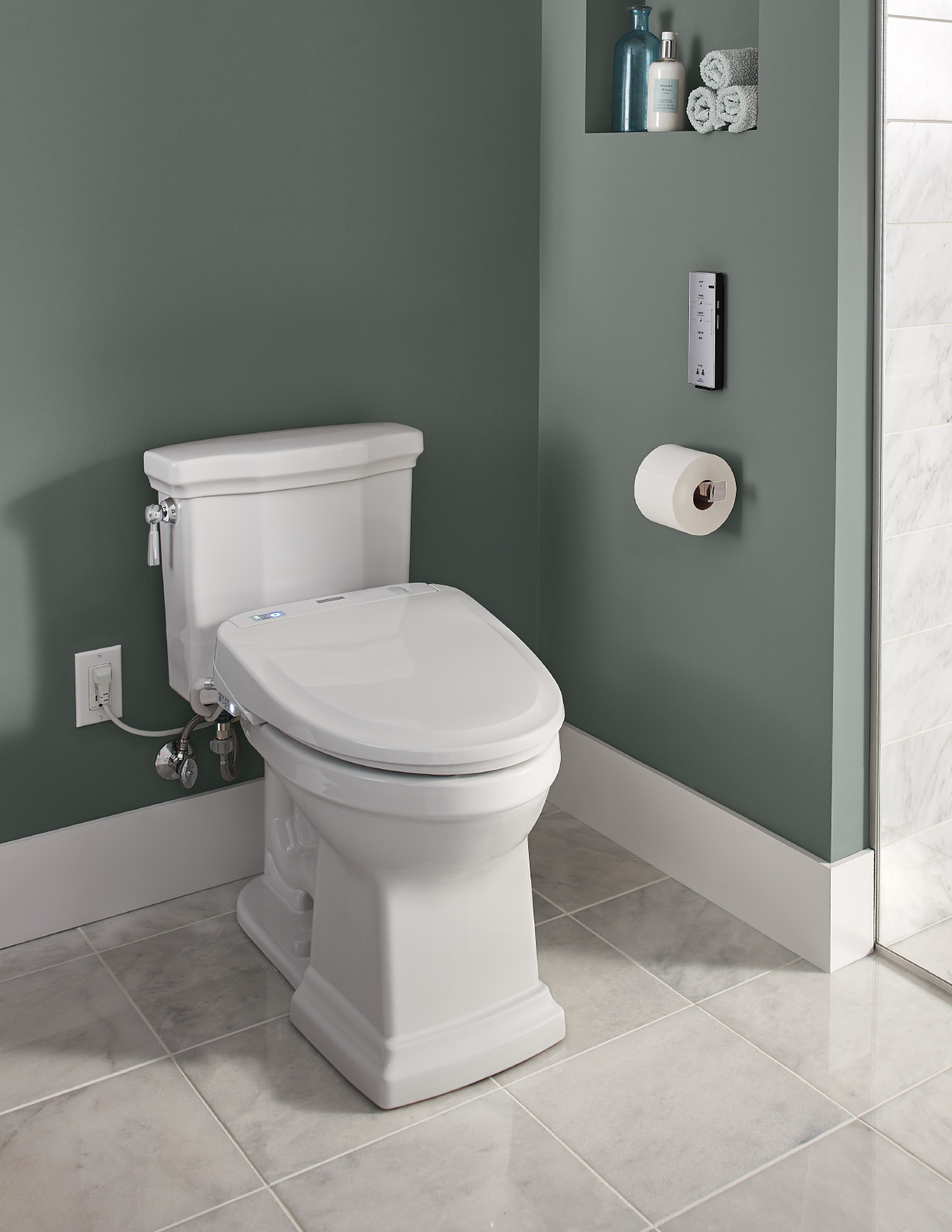

WASHLET S350e;
PROMENADE® II 1G® ONE-PIECE TOILET
WASHLET S350e/s300e
FIT CHART
5
www.totousa.com
1-3/4” (45 mm) min
2-3/16” (55 mm)
SEAT MOUNTING
HOLE
5-1/2”
(140 mm)
FRONT
OF TANK
POWER CORD
3.9 FT.
CENTER
OF HOLE
CENTER LEFT
TO RIGHT
SEAT MOUNTING
BOLT HOLES
CENTER
OF HOLE
18-1/2”
(470 mm)
LIP OF
BOWL
ELONGATED BOWL
SW584
SW574
GFCI OUTLET REQUIRED
Power cord 3.9 feet. Surge protector recommended
ROUND BOWL
SW583
SW573
CENTER
OF HOLE
16-1/2”
(420 mm)
LIP OF
BOWL
5-1/2”
(140 mm)
FRONT
OF TANK
CENTER
OF HOLE
CENTER LEFT
TO RIGHT
SEAT MOUNTING
BOLT HOLES
WASHLET requires a minimum distance of 1-3/4” (45 mm) between the center of the mounting holes and the front most face of
the tank. As long as the toilet corresponds with the above measurements, the WASHLET will fit.
POWER CORD
3.9 FT.
1-3/4” (45 mm) min
NOTE: Some styles of toilets may not allow the Washlet S300e/S350e to be installed due to certain contours
near the tank and bowl area (see figures below). In the figure on the left side below, dimension
D does not allow enough open space to accommodate the minimum width of 9 inches.

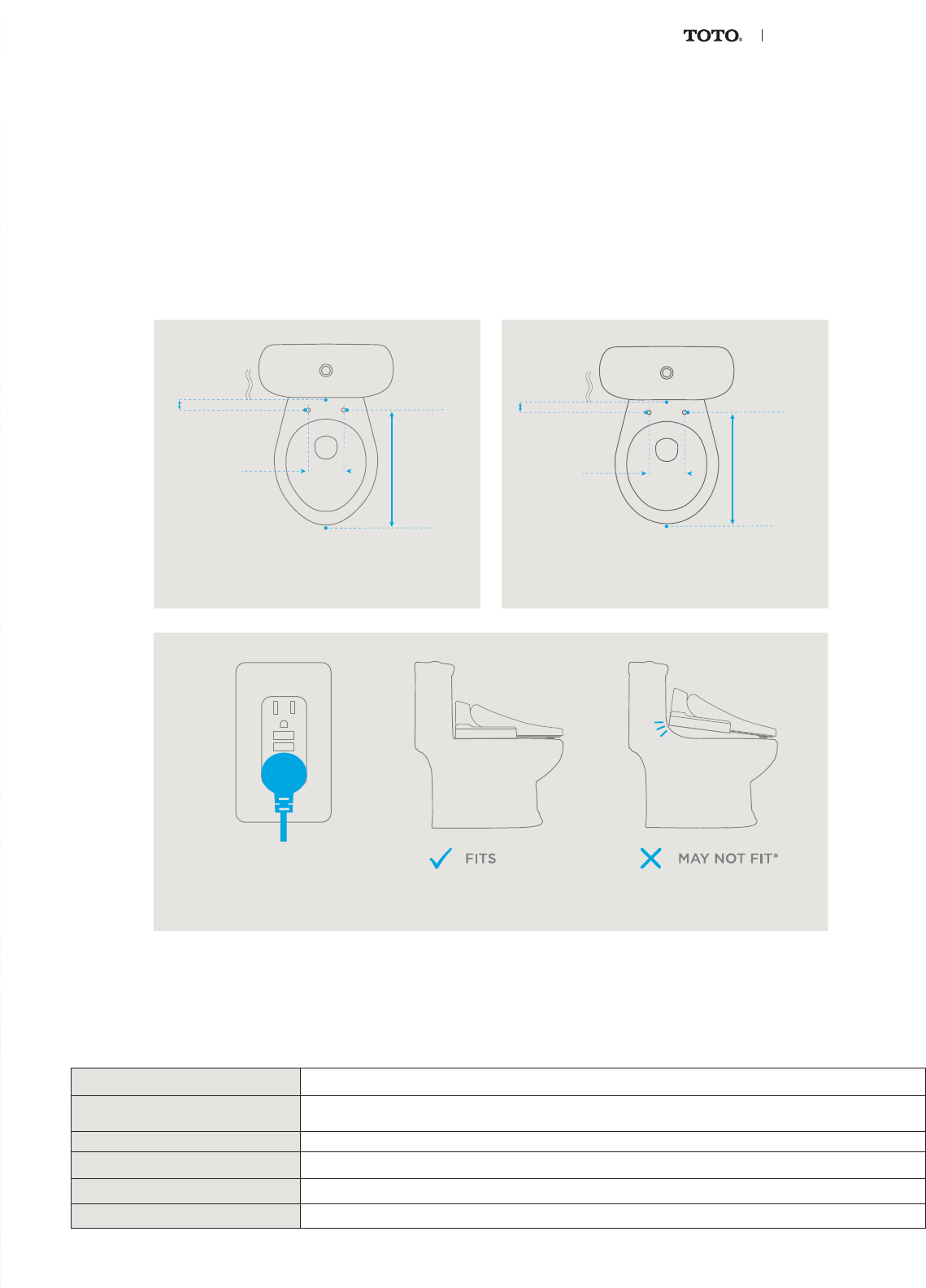

DIMENSIONS DIMENSION REQUIREMENTS
AElongated - Approximately 18-1/2 inches (470 mm) from seat mounting holes to front of bowl
Round - Approximately 16-1/2 inches (420 mm) from seat mounting holes to front of bowl
B Minimum of 1-3/4 inches (45 mm) from front most face of tank to the center of mounting bolt holes
C Approximately 5-1/2 inches (140 mm) from center left to right seat mounting holes
DMinimum 8 inches (203 mm) of open space from center of Washlet S300e/S350e (or toilet to edge of
Washlet S300e/S350e and flat bowl surface)
WHAT IF MY TOILET ISN’T A TOTO TOILET?
WILL THE WASHLET STILL FIT?
On a standard Toilet with no curves between the seat and tank, all you
need is 1-3/4 inches of room past the mounting bolts.
WASHLET® FIT CHART BROCHURE
6
WASHLET C200;
ULTRAMAX® II 1G® ONE-PIECE TOILET
WASHLET C200/A200
FIT CHART
WASHLET C200;
ULTRAMAX® II 1G® ONE-PIECE TOILET
7
www.totousa.com

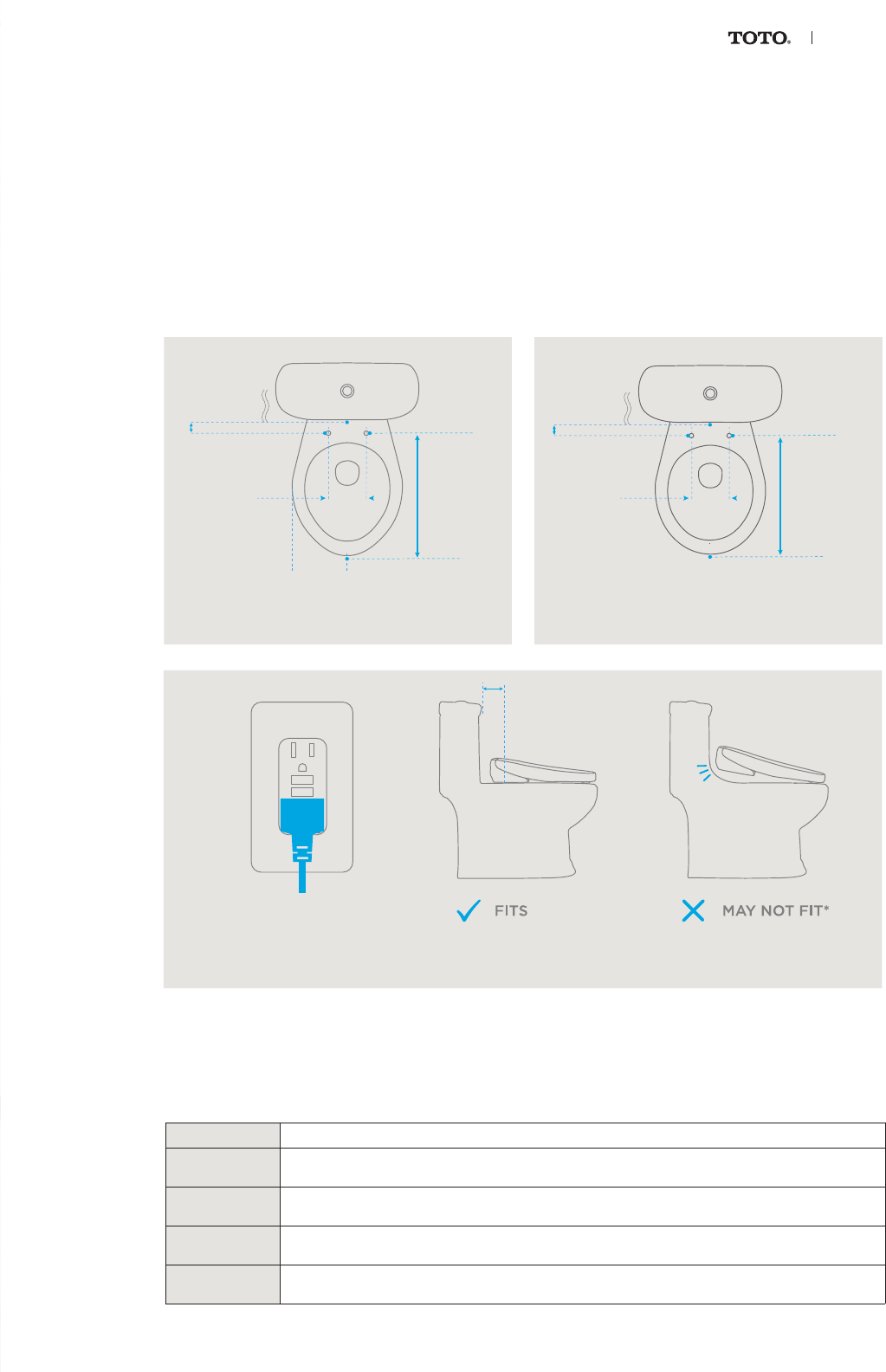

DIMENSIONS DIMENSION REQUIREMENTS
A Elongated - Approximately 18-1/2 inches (470 mm) from seat mounting holes to front of bowl
Round - Approximately 16-1/2 inches (420 mm) from seat mounting holes to front of bowl
B Minimum of 2 inches (50 mm) from front most face of tank to the center of mounting bolt holes
C Approximately 5-1/2 inches (140 mm) from center left to right seat mounting holes
D Minimum 9 inches (210 mm) of open space from center of Washlet C200 (or toilet to edge of
Washlet C200/A200 and flat bowl surface.
WHAT IF MY TOILET ISN’T A TOTO TOILET?
WILL THE WASHLET STILL FIT?
On a standard Toilet with no curves between the seat and tank, all you
need is 2 inches of room past the mounting bolts.
NOTE: Some styles of toilets may not allow the Washlet C200/A200 to be installed due to certain contours
near the tank and bowl area (see figures below). In the figure on the left side below, dimension D
does not allow enough open space to accommodate the minimum width of 9 inches.
FRONT
OF TANK
CENTER
OF HOLE
CENTER LEFT
TO RIGHT
SEAT MOUNTING
BOLT HOLES
CENTER
OF HOLE
LIP OF
BOWL
CENTER
OF HOLE
LIP OF
BOWL
FRONT
OF TANK
CENTER
OF HOLE
CENTER LEFT
TO RIGHT
SEAT MOUNTING
BOLT HOLES
ELONGATED BOWL
SW2044 (C200)
SW2024 (A200)
ROUND BOWL
SW2043 (C200)
5-1/2”
(140 mm)
5-1/2”
(140 mm)
18-1/2”
(470 mm)
16-1/2”
(420 mm)
2” (50 mm) min 2” (50 mm) min
WASHLET requires a minimum distance of 2” (50 mm) between the center of the mounting holes and the front most face of
the tank. As long as the toilet corresponds with the above measurements, the WASHLET will fit.
GFCI OUTLET REQUIRED
Power cord 3.9 feet. Surge protector recommended
POWER CORD
3.9 FT. POWER CORD
3.9 FT.
WASHLET® FIT CHART BROCHURE
8

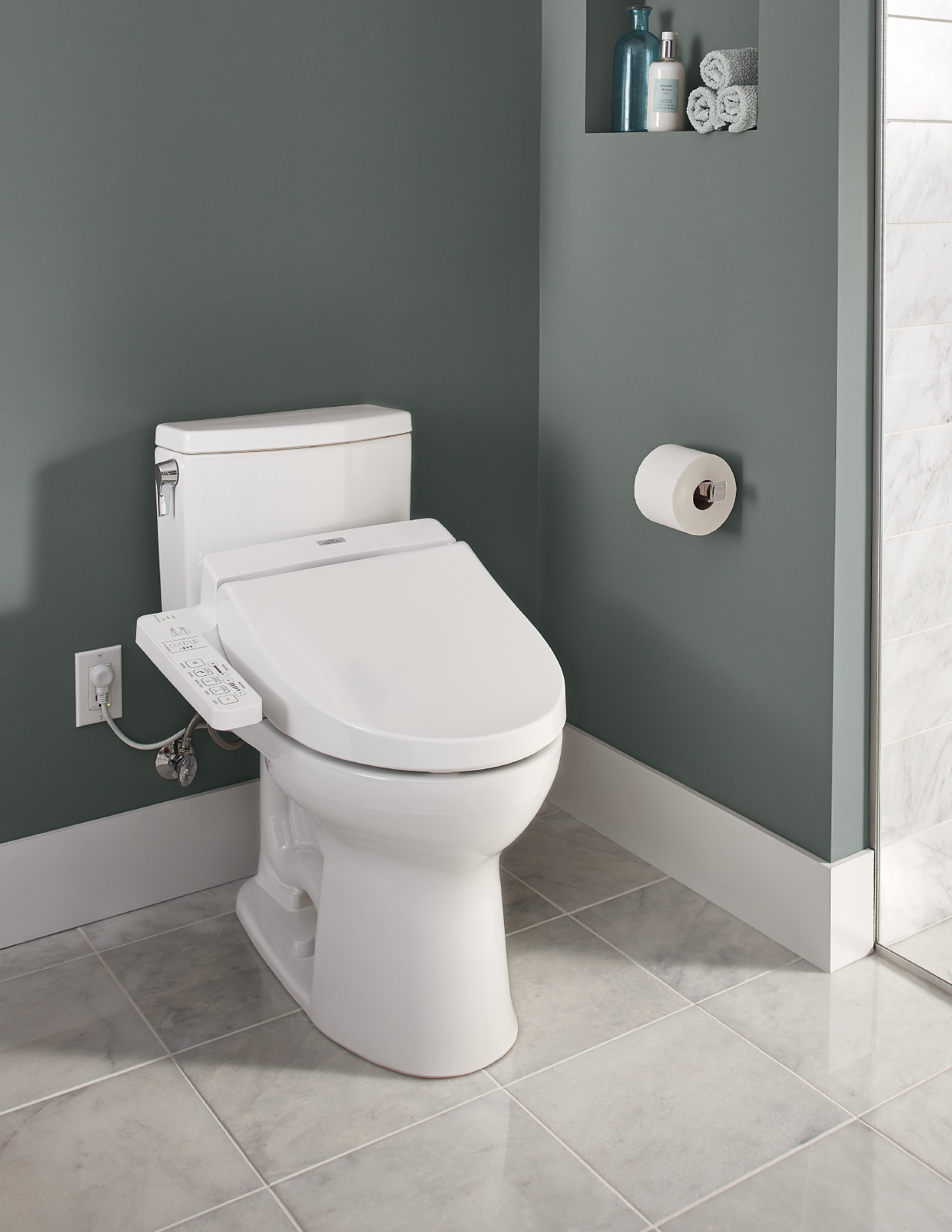

WASHLET C100;
DRAKE® II 1G® ONE-PIECE TOILET
WASHLET C100/A100
FIT CHART
9
www.totousa.com
DIMENSIONS DIMENSION REQUIREMENTS
A Elongated - Approximately 18-1/2 inches (470 mm) from seat mounting holes to front of bowl
Round - Approximately 16-1/2 inches (420 mm) from seat mounting holes to front of bowl
B Minimum of 2 inches (50 mm) from front most face of tank to the center of mounting bolt holes
C Approximately 5-1/2 inches (140 mm) from center left to right seat mounting holes
D Minimum 11 inches (277 mm) of open space from center of Washlet C100/A100 to left side
E Maximum 8-3/8 inches (213 mm) from center to edge of bowl surface
NOTE: Some styles of toilets may not allow the Washlet C100/A100 to be installed due to certain contours
near the tank and bowl area (see figures below). In the figure on the left side below, dimension D
does not allow enough open space to accommodate the minimum width of 11 inches.
WHAT IF MY TOILET ISN’T A TOTO TOILET?
WILL THE WASHLET STILL FIT?
On a standard Toilet with no curves between the seat and tank, all you
need is 2 inches of room past the mounting bolts.
FRONT
OF TANK
CENTER
OF HOLE
CENTER LEFT
TO RIGHT
SEAT MOUNTING
BOLT HOLES
CENTER
OF HOLE
LIP OF
BOWL
CENTER
OF HOLE
LIP OF
BOWL
FRONT
OF TANK
CENTER
OF HOLE
CENTER LEFT
TO RIGHT
SEAT MOUNTING
BOLT HOLES
ELONGATED BOWL
SW2034 (C100)
SW2014 (A100)
ROUND BOWL
SW2033 (C100)
2” (50 mm) min 2” (50 mm) min
5-1/2”
(140 mm)
5-1/2”
(140 mm)
18-1/2”
(470 mm)
16-1/2”
(420 mm)
WASHLET requires a minimum distance of 2” (50 mm) between the center of the mounting holes and the front most face of
the tank. As long as the toilet corresponds with the above measurements, the WASHLET will fit.
GFCI OUTLET REQUIRED
Power cord 3.9 feet. Surge protector recommended
POWER CORD
3.9 FT. POWER CORD
3.9 FT.
