REPORT NO. : E970256-4
Page 1 of 23
PEP Testing Laborator
y
FCC TEST REPORT
According to
FCC Part 15 Class A
EQUIPMENT H.264 4CH DVR
MODEL NO. HDR-04RD, HDR-04RJ, YSD-04RA, YDS-04RA-V,
CV500-4CH, SN500-4CH
APPLICANT HUNT ELECTRONIC CO., LTD.
ADDRESS 9F., No. 171, Sec. 2, Datong Rd., Sijhih City, Taipei 22183,
Taiwan, R. O. C.
CHECKED BY ΚNICK LEE
ISSUED DATE ΚSEP. 16, 2009
ΘThe test result refers exclusively to the test presented test model / sample.
ΘWithout the written authorization of the test lab., the Test Report may not be copied.
PEP TESTING LABORATORY
NO. 9-6, Huzi, Hubei Village, Linkou Shiang, Taipei Hsien, Taiwan 244, R. O. C.
TEL : 886-2-26021042 FAX : 886-2-26021045
REPORT NO. : E970256-4
Page 2 of 23
PEP Testing Laborator
y
TABLE OF CONTENTS
1. General 3
1.1 General Information
1.2 Place of Measurement
2. Product Information 4
3. EUT Description And Test Methods/ Test Software Used/ 5
Modification(s)
4. Supporting Devices To Test 7
5. Conducted Disturbance Test 8
5.1 Setup of the Test Facilities
6. Radiated Disturbance Test 9
6.1 Setup of the Test Facilities
6.2 Open Test Site Setup Diagram
6.3 Radiated Disturbance Emission Limit
7. Conducted Test Configuration Photo 11
8. Conducted Emissions Test Data 12
9. Radiated Test Configuration Photos 15
10. Radiated Emissions Test Data 16
11. List Of Test Equipment 17
12. Labelling Requirements 18
13. Information To The User 19
14. EUT Photographs 20
REPORT NO. : E970256-4
Page 3 of 23
PEP Testing Laborator
y
1. General
1.1 General Information:
Applicant : HUNT ELECTRONIC CO., LTD.
Address : 9F., No. 171, Sec. 2, Datong Rd., Sijhih City, Taipei 22183,
Taiwan, R. O. C.
Manufacturer : HUNT ELECTRONIC CO., LTD.
Address : 6F., No. 57Ε59, Jiun Hsien Rd., Chi Tu District, Keelung
20653, Taiwan, R. O. C.
MEASUREMENT PROCEDURE: CISPR 22
1.2 Place of Measurement
PEP TESTING LABORATORY
NO. 9-6, Huzi, Hubei Village, Linkou Shiang, Taipei Hsien, Taiwan 244, R. O. C.
E-Mail : peplab@ms32.hinet.net
TEL : 886-2-26021042 FAX : 886-2-26021045
Accreditation ---
FCC Registration No. : 97129 (U. S. A.)
REPORT NO. : E970256-4
Page 4 of 23
PEP Testing Laborator
y
2. Product Information
a. EUT Name: H.264 4CH DVR
b. Model No. HDR-04RD
c. CPU Type N/A
d. CPU Frequency N/A
e. Crystal/Oscillator(s) 12MHz, 12.888MHz, 25MHz, 27MHz, 30MHz
f. Chassis Used ABS
g. Port/Connector(s)
Video Input Port *4, Audio Input Port *1, Audio Output
Port *1, Ethernet Port *1, USB Port *2, RS-232 Port
*1, VGA Output Port *1, Monitor Output Port *1
h. Power Rating
AC Adapter---
Manufacturer: Wearnes
Model Number: WDS050120
Input: AC 100-240V 50-60Hz
Output: DC 12V 4.16A
i. Condition of the EUT : ϭʳPrototype Sample
ϭʳEngineering Sample
ϭʳ
Production Sample
j. Test Item Receipt Date : SEP. 01, 2008
k. Date(s) of performance of
test: SEP. 01, 2008 – OCT. 16, 2008
9
REPORT NO. : E970256-4
Page 5 of 23
PEP Testing Laborator
y
3. EUT Description And Test Methods/ Test Software
Used/ Modification(s)
Description about EUT
The EUT is H.264 4CH DVR, which main function shall be digital recording
supervisory system and monitoring at remote network system, and bearing model
under test is HDR-04RD. The series model is HDR-04RJ, YSD-04RA, YDS-04RA-V,
CV500-4CH, SN500-4CH. Those models have identical electrical design and
construction except that they are different in model number for marketing purpose.
EUT used adapter which is AC 100-240V, 50-60Hz. For the more details specification
about EUT, please refer to the user’ s manual.
About I/O Ports description as follow
I/O Port Name Quantity Connect peripheral Name
Video Input Port 4 DVD Player / Free-ended data Cable
Monitor Output Port 1 TV / Free-ended data Cable
Audio Input Port 1 DVD Player
Audio Output Port 1 TV
VGA Output Port 1 LCD Displayer
Ethernet Port 1 PC
USB Port 2 Mouse / HDD
RS-232 Port 1 Free-ended data Cable
Test Operation Mode and Step
According to the major function designed, operation modes of conducted and
radiated preliminary test are both Player mode. The detail as follow: To test EUT in the
status of play video via DVD Player. After preliminary test, the worst-case test result
was recorded and provided in the report.
Test step
1. EUT should conform to I/O connect peripheral specification to link, and set up
on the table according to regulation.
2. Turning on the EUT and peripheral power. Then execute EUT’ s main function
and enable peripheral which is EUT connection.
3. Execute EMCTEST program and show H letter continuously to drive peripheral
of PC.
4. Move EUT/ peripheral/ data cable to find the worst emission.
5. Starting to test.
REPORT NO. : E970256-4
Page 6 of 23
PEP Testing Laborator
y
Test Software(s) Used
N/A
Modifications
1. VGA out connector add gasket to connector traces ground.
2. USB1 connector and Ethernet port add gasket to connector traces ground.
3. Video port, RCA1 port’ s ground add spring to connector traces ground.
4. C68ΕC69 add 330pf cap.
5. F11 add 104pf cap.
6. J23 pin1Εpin4 add 104pf cap.
7. Video port’ s ground adds spring to connector traces ground.
8. Video portΕMonitor outΕAudio port’s signal line add 1000pf cap.
9. USB2 port 5V Vcc add 104pf cap.
10. CRG5D110 board’ s ground need connector traces ground.
REPORT NO. : E970256-4
Page 7 of 23
PEP Testing Laborator
y
4. Support Equipment Used
TV (TV1) CPU : N/A
FCC ID N/A
Manufacturer SONY
Model Number PVM-14N2E
Power Supply Switching
Power Cord Non-Shielded , Detachable,1.8m
Data Cable 1 > Shielded , Detachable,1.2m
2 > Back Shell : N/A
DVD Player Manufacturer Pioneer
Model Number DV-490V-S
Power Supply AC110~127V, 220~240v 50-60Hz
Power Cord Non-Shielded, Detachable, 1.8m
Data Cable N/A
LCD (LCD1 17”) FCC ID Declaration of Conformity(DoC)
Manufacturer SAMSUNG
Model Number 740B
Power Supply Switch, 12Vdac
Power Cord Non-Shielded, Detachable, 1.8m
Data Cable 1 > Shielded , Detachable,1.7m
2 > Back Shell : Metal
External Hard Disk
(USB 2.0 HD)
FCC ID N/A
Manufacturer TeraSys
Model Number F12-U
Power Supply DC +12V/1.25A,
Power Cord Non-Shielded , 1.5m (Core)
Data Cable 1 > Shielded, detachable, 1.7m
2 > Back Shell: N/A
REPORT NO. : E970256-4
Page 8 of 23
PEP Testing Laborator
y
5. Conducted Disturbance Test
5.1 Conducted Disturbance Emission Limit
Frequency Maximum RF Line Voltage dB(µV)
Class A
MHz QUASI- PEAK
0.15–0.5 79
0.5–30.0 73
Remarks: In the above table, the tighter limit applies at the band edges.
REPORT NO. : E970256-4
Page 9 of 23
PEP Testing Laborator
y
6. Radiated Disturbance Test
6.1 Setup of the Test Facilities
The equipment under test was setup on the non-conductive table in the open
field site. The table was placed on a remote turntable constructed of a
wooden material. The top of the table is located 1m above the ground plane.
The turntable was rotated to obtain the maximum level of radiated emissions
from the system containing the EUT for each emissions level investigated.

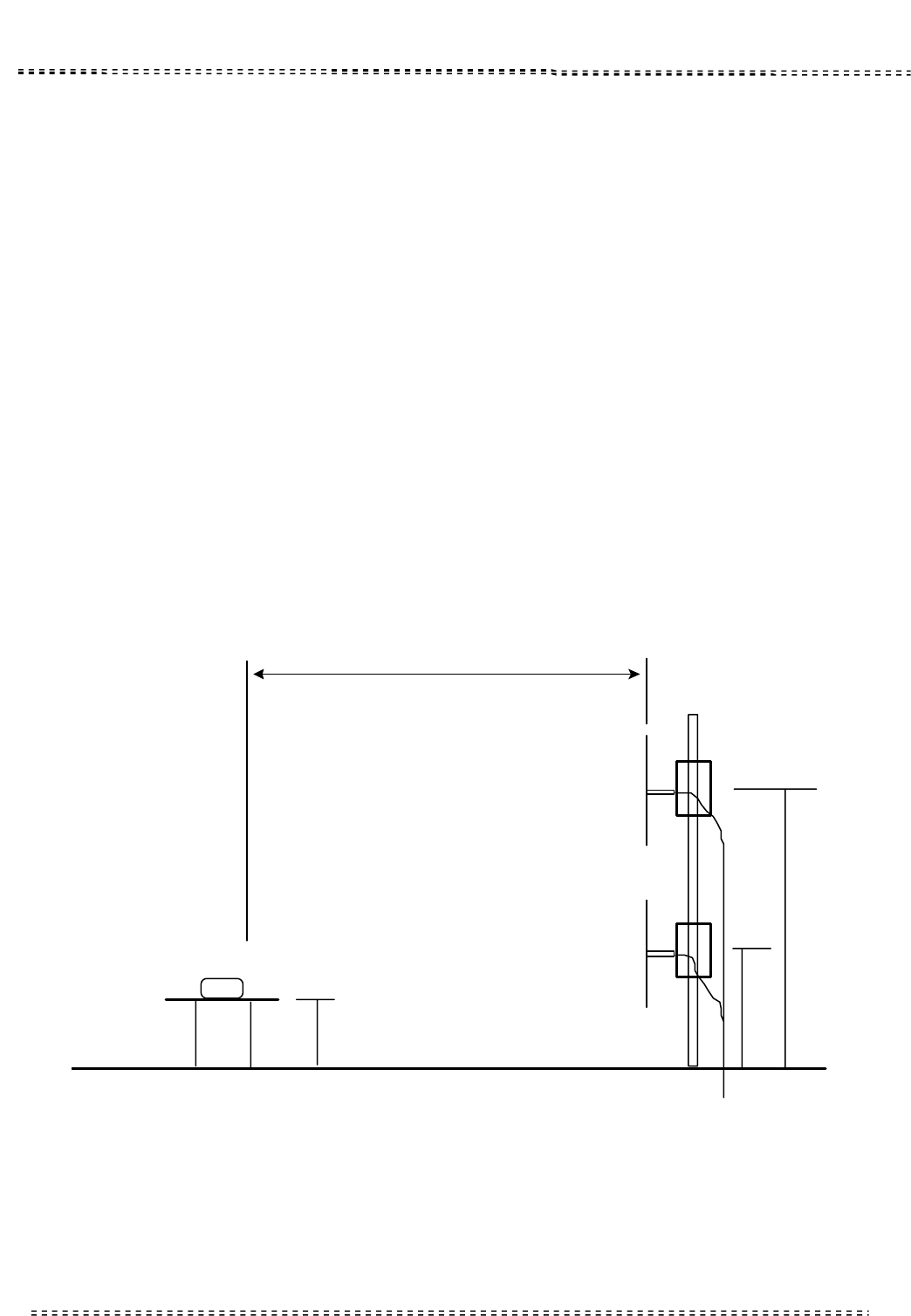

6.2 Open Test Site Setup Diagram
(EUT)
10m
4
m
1
m
0.8
m
GROUND
P
L
A
N
E
TURN TABLE
T
O
R
E
C
E
I
V
E
R
REPORT NO. : E970256-4
Page 10 of 23
PEP Testing Laborator
y
6.3 Radiated Disturbance Emission Limit
Limits for radiated disturbance of Class A ITE at
a measuring distance of 10 m
Frequency
MHz
Field Strength
dB(µV/m)
30 – 88 39.0
88 – 216 43.5
216 – 960 46.4
960 above 49.5
NOTES
1 The lower limit shall apply at the transition frequency.
2 Additional provisions may be required for cases where interference
occurs.
REPORT NO. : E970256-4
Page 11 of 23
PEP Testing Laborator
y
7. Conducted Test Configuration Photo
* FRONT VIEW *
REPORT NO. : E970256-4
Page 12 of 23
PEP Testing Laborator
y

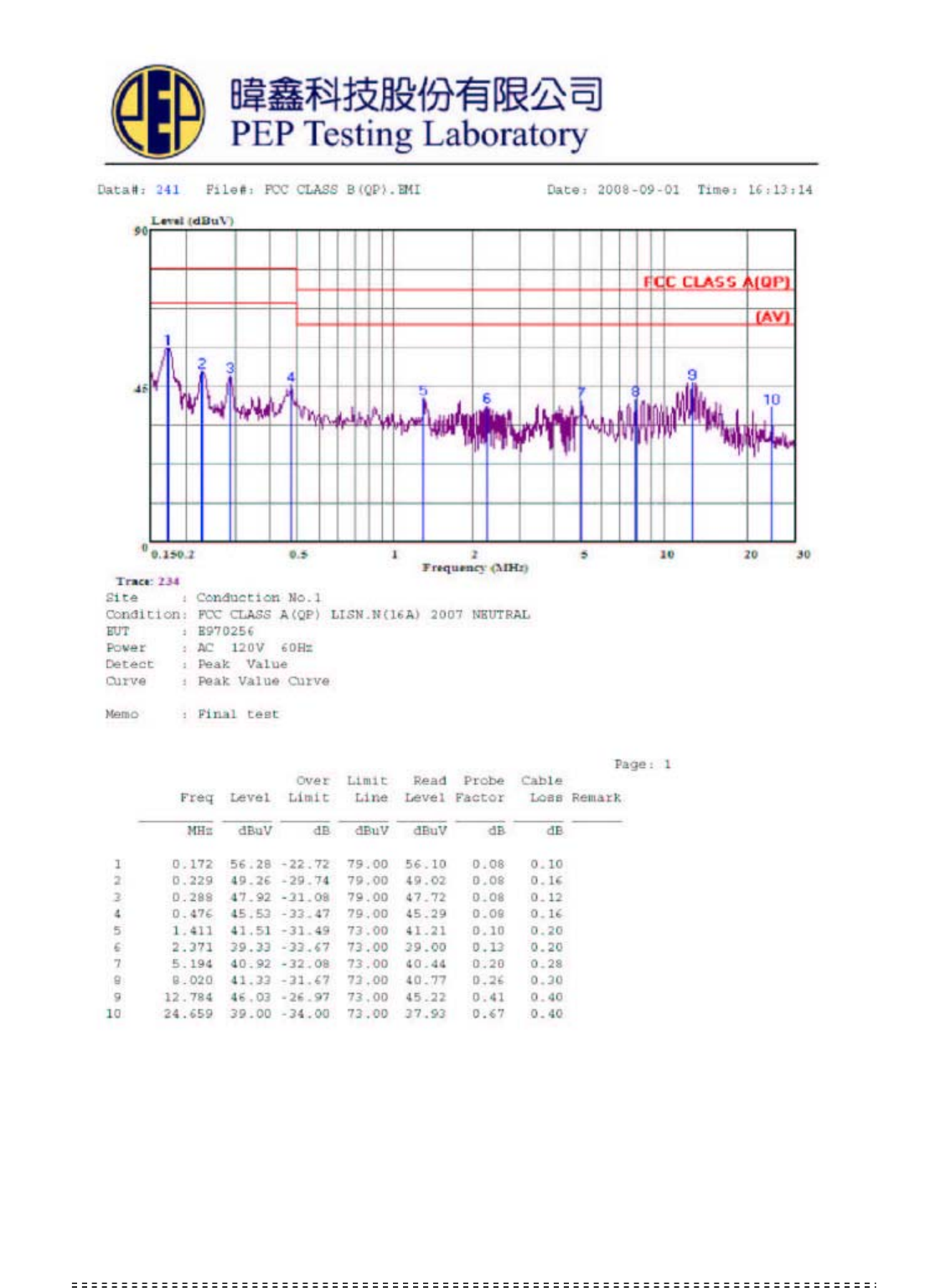

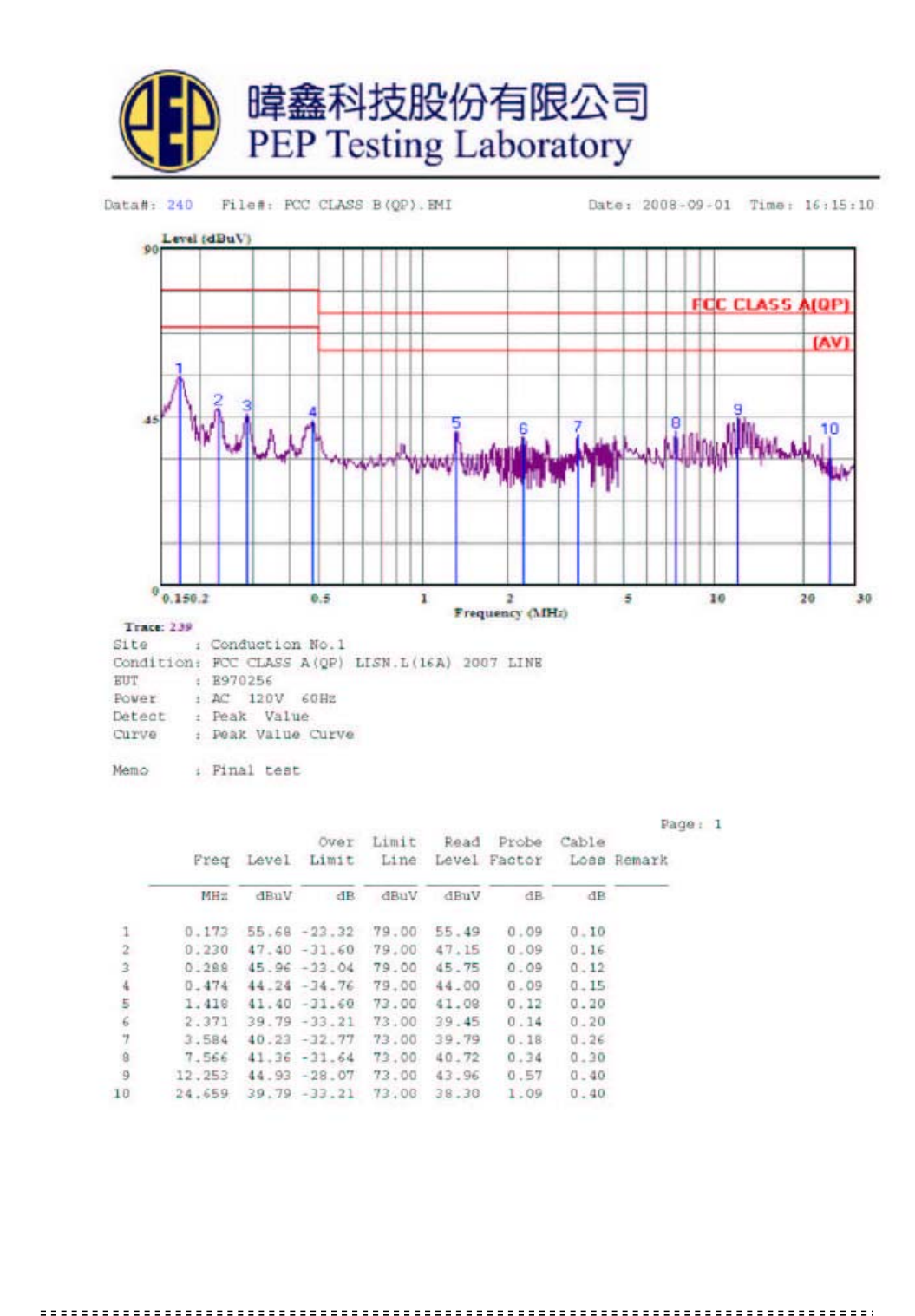

8. Conducted Emissions Test Data
Model No. : HDR-04RD
Frequency range : 150kHz to 30MHz
Detector : Peak Value
Temperature :29
Humidity :48%
Test Data : #240 <LINE >
#241 <NEUTRAL >
Note 1. Level = Read Level + Cable Loss + Probe (LISN)
2. Over Limit = Level – Limit = Margin
REPORT NO. : E970256-4
Page 13 of 23
PEP Testing Laborator
y
REPORT NO. : E970256-4
Page 14 of 23
PEP Testing Laborator
y
REPORT NO. : E970256-4
Page 15 of 23
PEP Testing Laborator
y

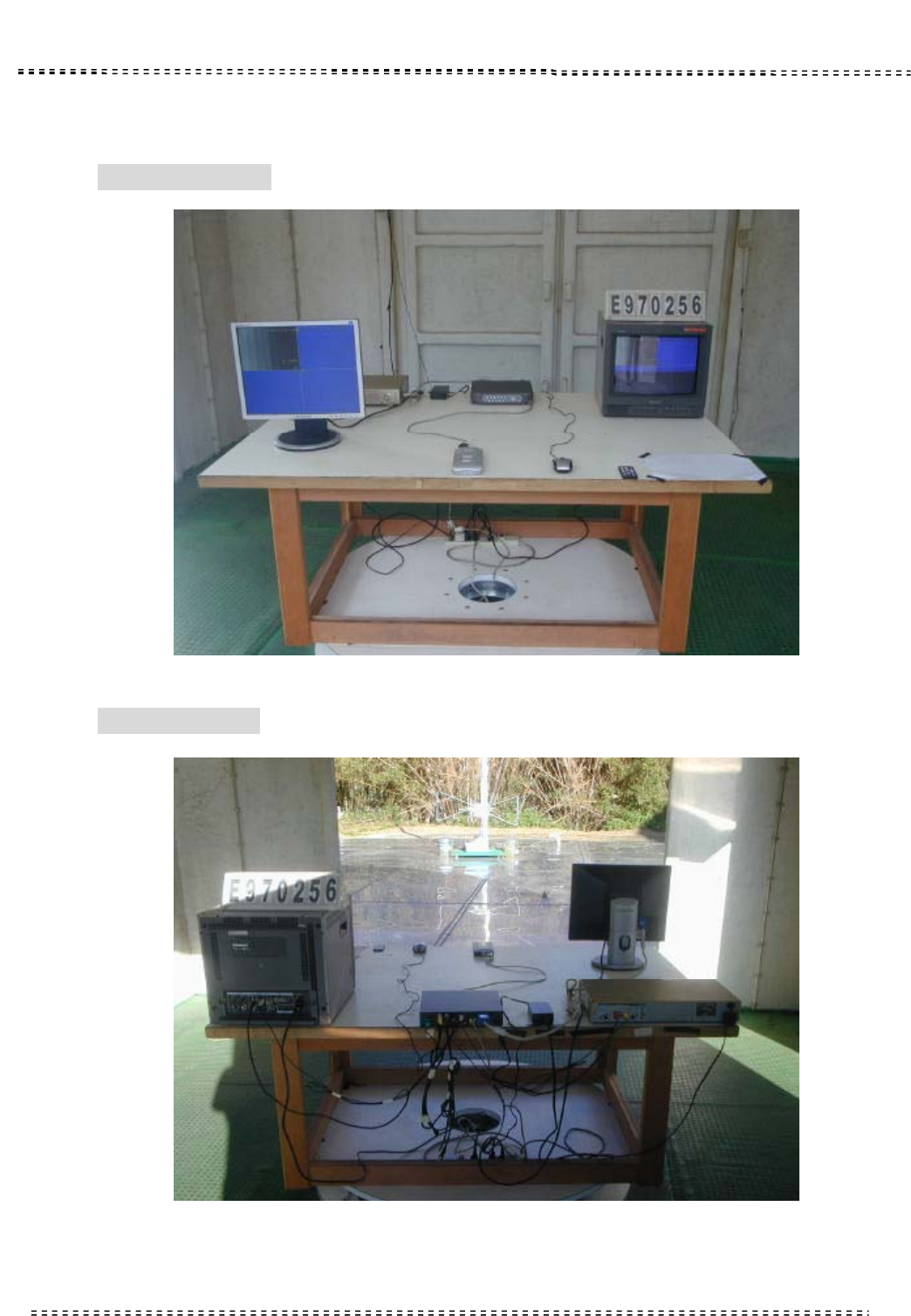

9. Radiated Test Configuration Photos
* FRONT VIEW *
* REAR VIEW *
REPORT NO. : E970256-4
Page 16 of 23
PEP Testing Laborator
y
10. Radiated Emissions Test Data
Model No. : HDR-04RD
Frequency range : 30MHz to 1GHz Detector : Quasi-Peak Value
Frequency range : above 1GHz Detector : Quasi-Peak/Average Value
Temperature :26 Humidity :42%
Antenna polarization : HORIZONTAL ; Test distance : 10m ;
Over Limit Read Antenna Cable Preamp
Freq. Level Limit Line Level Factor Loss Factor Azimuth Antenna
(MHz) (dBuV/m) (dB) (dBuV/m) (dBuV) (dB) (dB) (dB) (̓angle) High(m)
!!!!74/711!!!39/63!!!.21/59!!!4:/11!!!46/53!!!22/14!!!3/88!!!31/81!!!351!!!!5/1!!!!!
!!!238/251!!!42/:1!!!.22/71!!!54/61!!!48/74!!!22/63!!!4/48!!!31/73!!!!97!!!!5/1!!!!!
!!!361/121!!!49/55!!!.!8/:7!!!57/51!!!54/:5!!!21/66!!!5/16!!!31/21!!!245!!!!5/1!!!!!
!!!461/121!!!49/12!!!.!9/4:!!!57/51!!!4:/92!!!24/7:!!!5/62!!!31/11!!!463!!!!5/1!!!!!
!!!611/121!!!42/16!!!.26/46!!!57/51!!!39/86!!!27/86!!!6/47!!!2:/92!!!371!!!!5/1!!!!!
!!!922/161!!!35/77!!!.32/85!!!57/51!!!26/:5!!!32/74!!!7/52!!!2:/43!!!411!!!!5/1!!!!!
Antenna polarization : VERTICAL ; Test distance : 10m ;
Over Limit Read Antenna Cable Preamp
Freq. Level Limit Line Level Factor Loss Factor Azimuth Antenna
(MHz) (dBuV/m) (dB) (dBuV/m) (dBuV) (dB) (dB) (dB) (̓angle) High(m)
!
!!!238/2:1!!!38/2:!!!.27/42!!!54/61!!!43/:3!!!22/63!!!4/48!!!31/73!!!247!!!!2/1!!!!!
!!!313/621!!!46/15!!!.!9/57!!!54/61!!!51/:2!!!21/79!!!4/86!!!31/41!!!!73!!!!2/1!!!!!
!!!361/111!!!49/74!!!.!8/88!!!57/51!!!55/24!!!21/66!!!5/16!!!31/21!!!291!!!!2/1!!!!!
!!!489/121!!!47/62!!!.!:/9:!!!57/51!!!48/58!!!25/62!!!5/75!!!31/22!!!!5:!!!!2/1!!!!!
!!!732/121!!!39/31!!!.29/31!!!57/51!!!34/17!!!2:/38!!!6/82!!!2:/95!!!384!!!!2/1!!!!!
!!!922/591!!!35/74!!!.32/88!!!57/51!!!26/:2!!!32/74!!!7/52!!!2:/43!!!3:5!!!!2/1!!!!!
!
Note:
1. Level = Read Level + Antenna Factor + Cable Loss – Preamp Factor
2. Over Limit = Level – Limit Line
REPORT NO. : E970256-4
Page 17 of 23
PEP Testing Laborator
y
11. List of Test Equipment
!
Test Site Instrument Manufacturer Model No. S/N Next Cal. Date Cal.
Interval
Conduction
(No.1)
Receiver R&S ESHS10 830223/008 Nov. 23, 2009 1 Year
Spectrum Analyzer R&S FSP 833387/001 Nov. 16, 2009 1 Year
RF cable N/A N/A N/A Jan. 18, 2010 1 Year
L.I.S.N R&S ESH2-Z5 831886/004 Apr. 22, 2010 1 Year
DC LISN Mess Tec LN-KFZ/100 2001/019 Apr. 22, 2010 1 Year
OP
(No.1)
Receiver R&S ESVS30 863342/012 Jul. 29, 2010 1 Year
Antenna Schwarzbeck VULB 9161
SE 4051 Jan. 22, 2010 1 Year
RF cable N/A N/A N/A Jan. 18, 2010 1 Year
Pre - Amp Schaffner CPA- 9232 1012 Jan. 20, 2010 1 Year
REPORT NO. : E970256-4
Page 18 of 23
PEP Testing Laborator
y
12. Labeling Requirement
A warning label with the following statement shall be permanently attached and
conspicuously located on the equipment:
This device complies with Part 15 of the FCC
Rules . Operation is subject to the following two
conditions : (1) This device may not cause harmful
interference , and (2) this devices must accept any
interference received , including interference that
may cause undesired operation.
REPORT NO. : E970256-4
Page 19 of 23
PEP Testing Laborator
y
13. Information to The User
The following FCC statement should be declared in a conspicuous location in the
user’ s manual.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
REPORT NO. : E970256-4
Page 20 of 23
PEP Testing Laborator
y

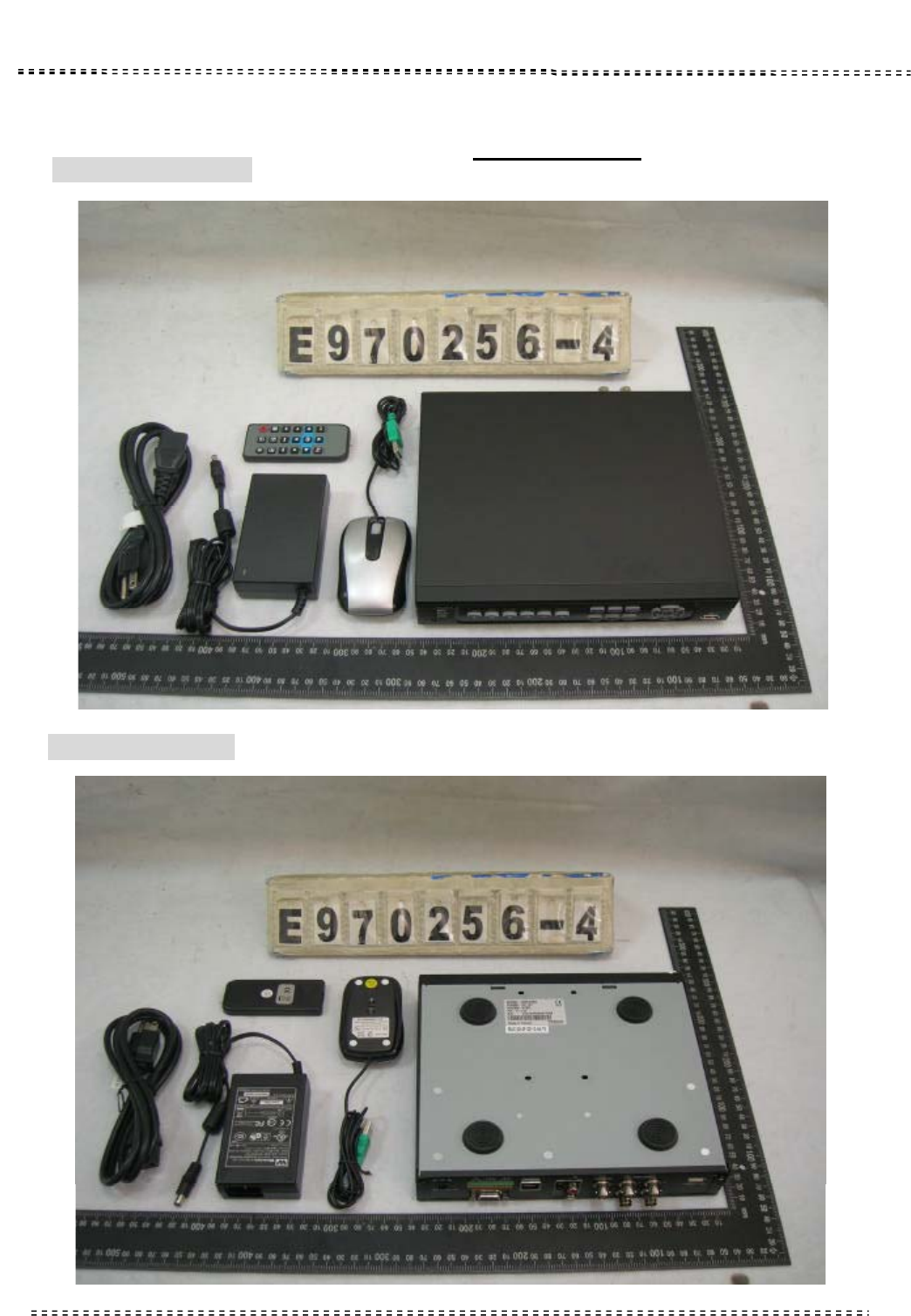

14. EUT Photographs
MODEL NO. : HDR-04RD
EUT FRONT VIEW
EUT REAR VIEW
REPORT NO. : E970256-4
Page 21 of 23
PEP Testing Laborator
y

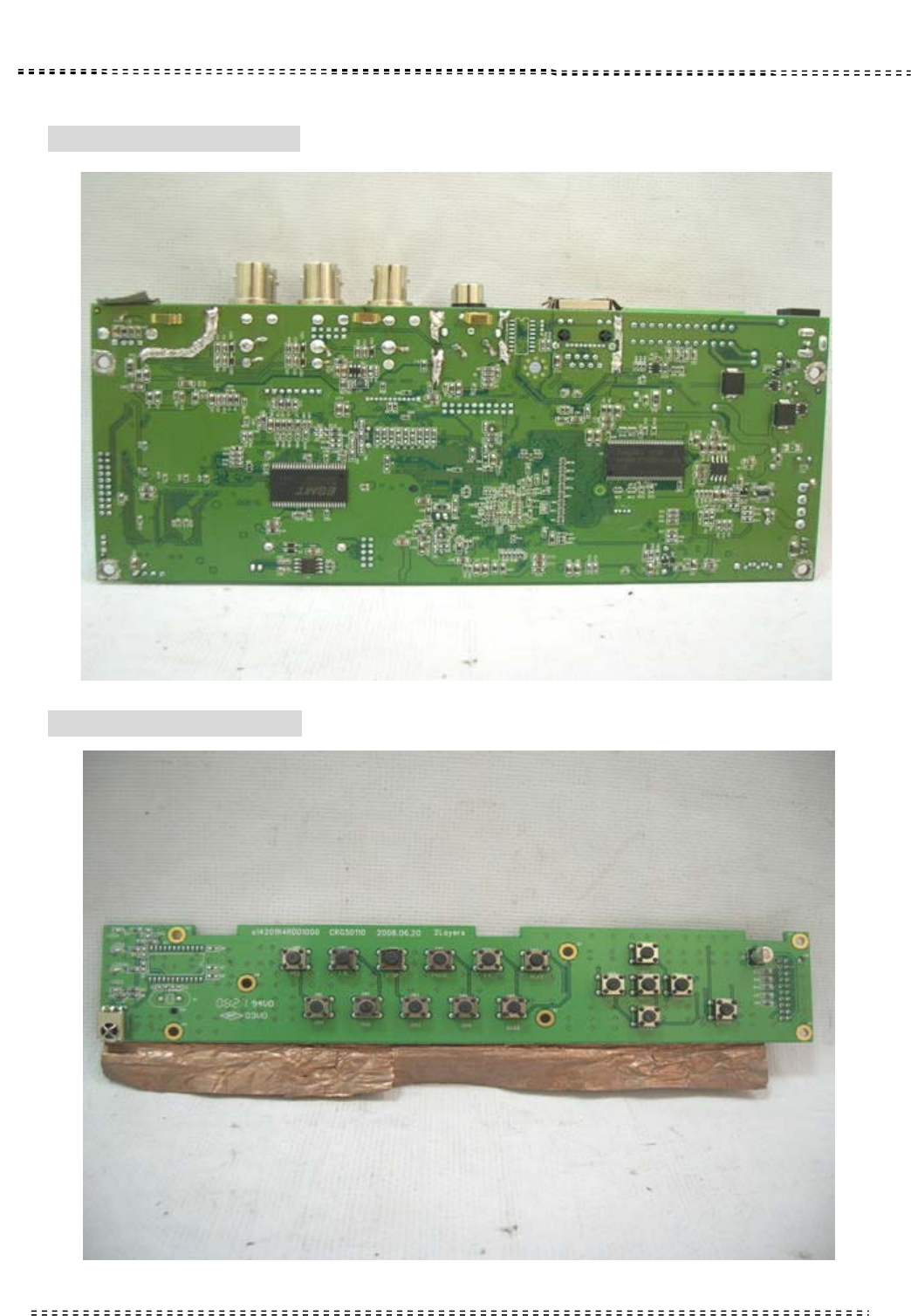

EUT INSIDE VIEW
EUT COMPONENT VIEW
REPORT NO. : E970256-4
Page 22 of 23
PEP Testing Laborator
y

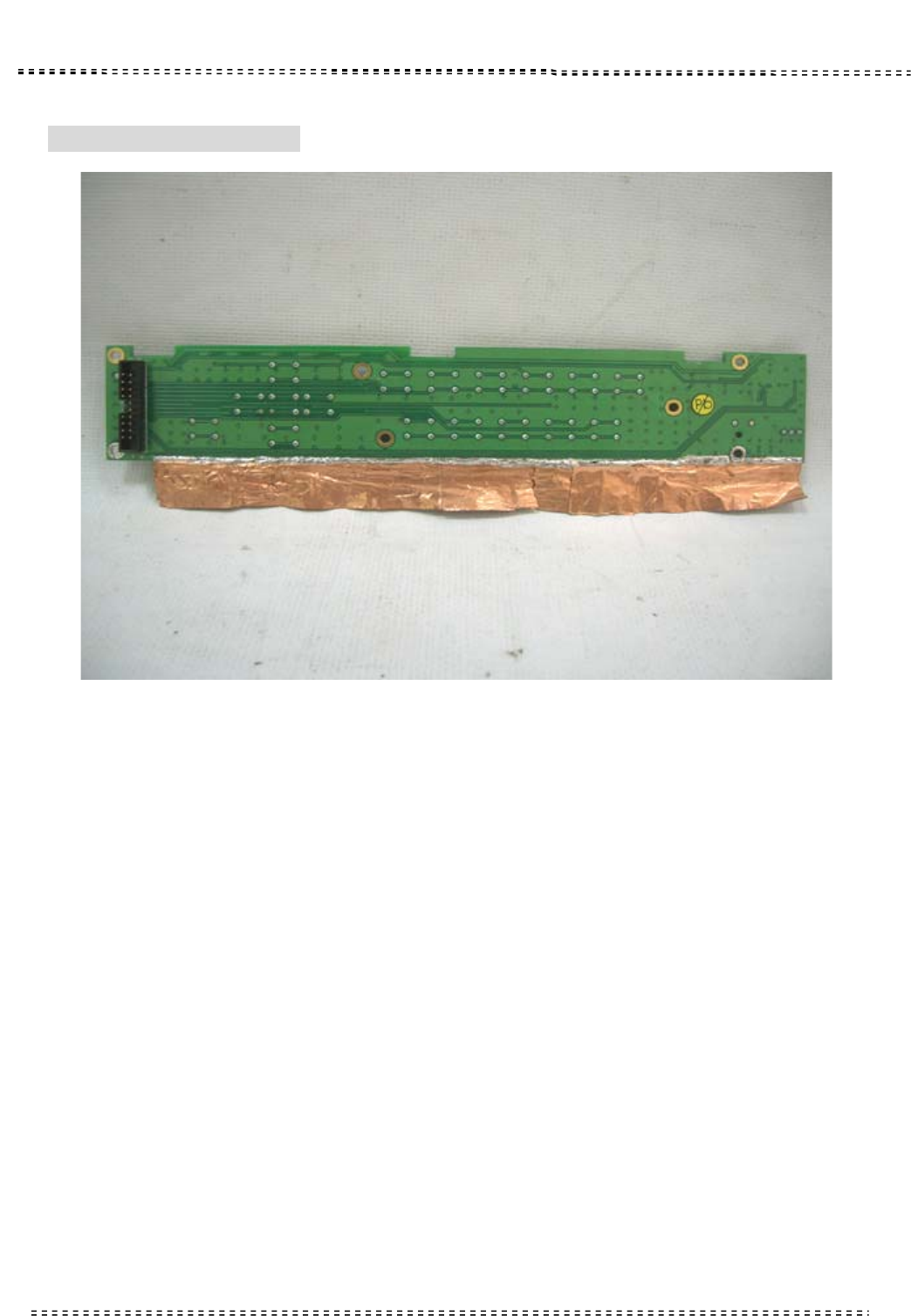

EUT SOLDERING VIEW
EUT COMPONENT VIEW
REPORT NO. : E970256-4
Page 23 of 23
PEP Testing Laborator
y
EUT SOLDERING VIEW
VERIFICATION
WE HEREBY VERIFY THAT:
The Equipment Under Test (EUT) listed below has completed RFI testing
by PEP Testing Laboratory and the interference emissions can pass FCC
Class A limitations.
The test report shall not be reproduced except in full, without the written
approval of the laboratory.
The estimate uncertainty of the test result is about ±3dB. The test result is
only effect for the sample as below.
APPLICANT : HUNT ELECTRONIC CO., LTD.
EQUIPMENT : H.264 4CH DVR
MODEL NO. : HDR-04RD, HDR-04RJ, YSD-04RA,
: YDS-04RA-V, CV500-4CH, SN500-4CH
REPORT NO. : E970256-4
M. Y. TSUI / Manager Date : SEP. 16, 2009

Navigation menu
