Linear recessed and surface lighting
BPhilips Lightolier For complete specification information visit www.lightolier.com
Linear recessed
and surface lighting
Linear recessed and surface lighting
CComprehensive lighting catalog 7th Edition
Section 4
Linear recessed and surface lighting
DPhilips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting
4.1Comprehensive lighting catalog 7th Edition
Philips Lightolier has a rich heritage of
providing innovative, high quality recessed
and surface lighting solutions for commercial,
industrial and institutional markets. The line
encompasses a diverse range of products,
each designed to answer a specific lighting
need. From the most comprehensive
recessed soft lighting coffer styled direct/
indirect luminaires in the industry to

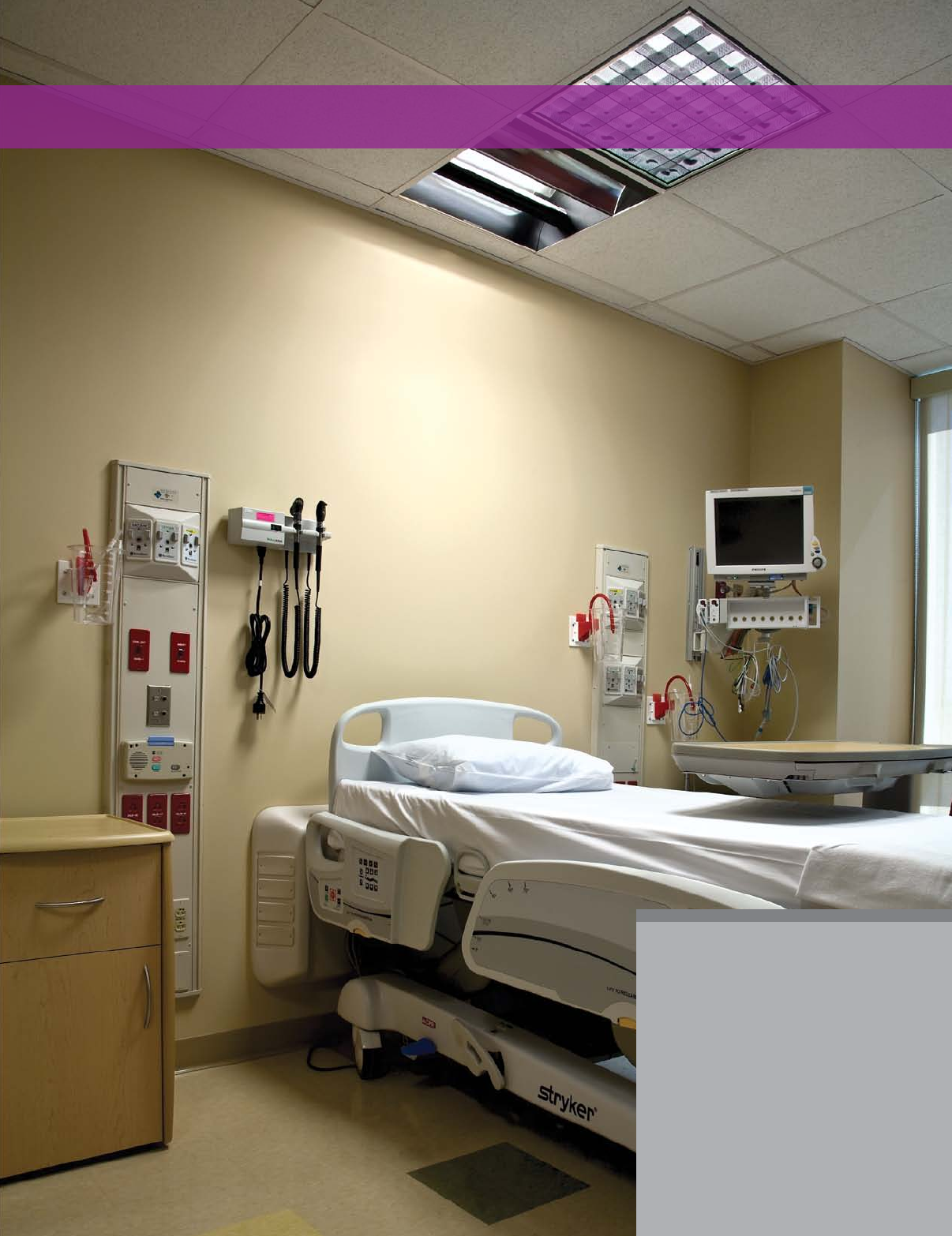

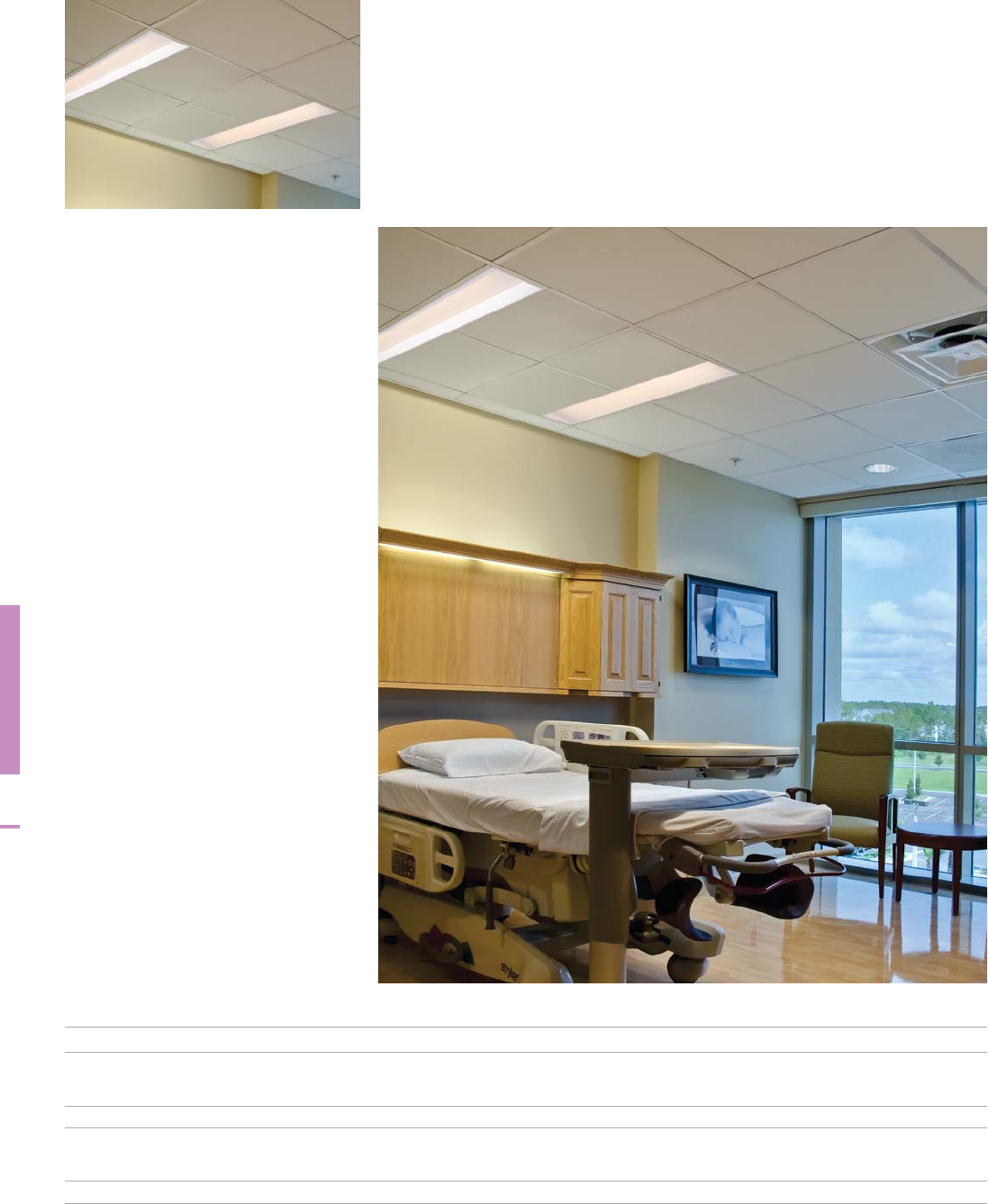

innovative medical patient room lighting and
parabolics designed for illuminating computer
screens properly, Philips Lightolier features
only energy-efficient products that provide
effective, glare-free illumination to achieve
the highest quality visual environment
possible. Philips Lightolier works constantly
to develop innovative new products and
ensure that each new luminaire meets the
most demanding specifications. Carefully
designed around the light source, Philips
Lightolier recessed and surface products
ensure you the best luminaire for the task at
hand. Highlighted here are just some of the
products that showcase our design abilities.
Recessed soft lighting > 4.2
Recessed & wall washing > 4.90

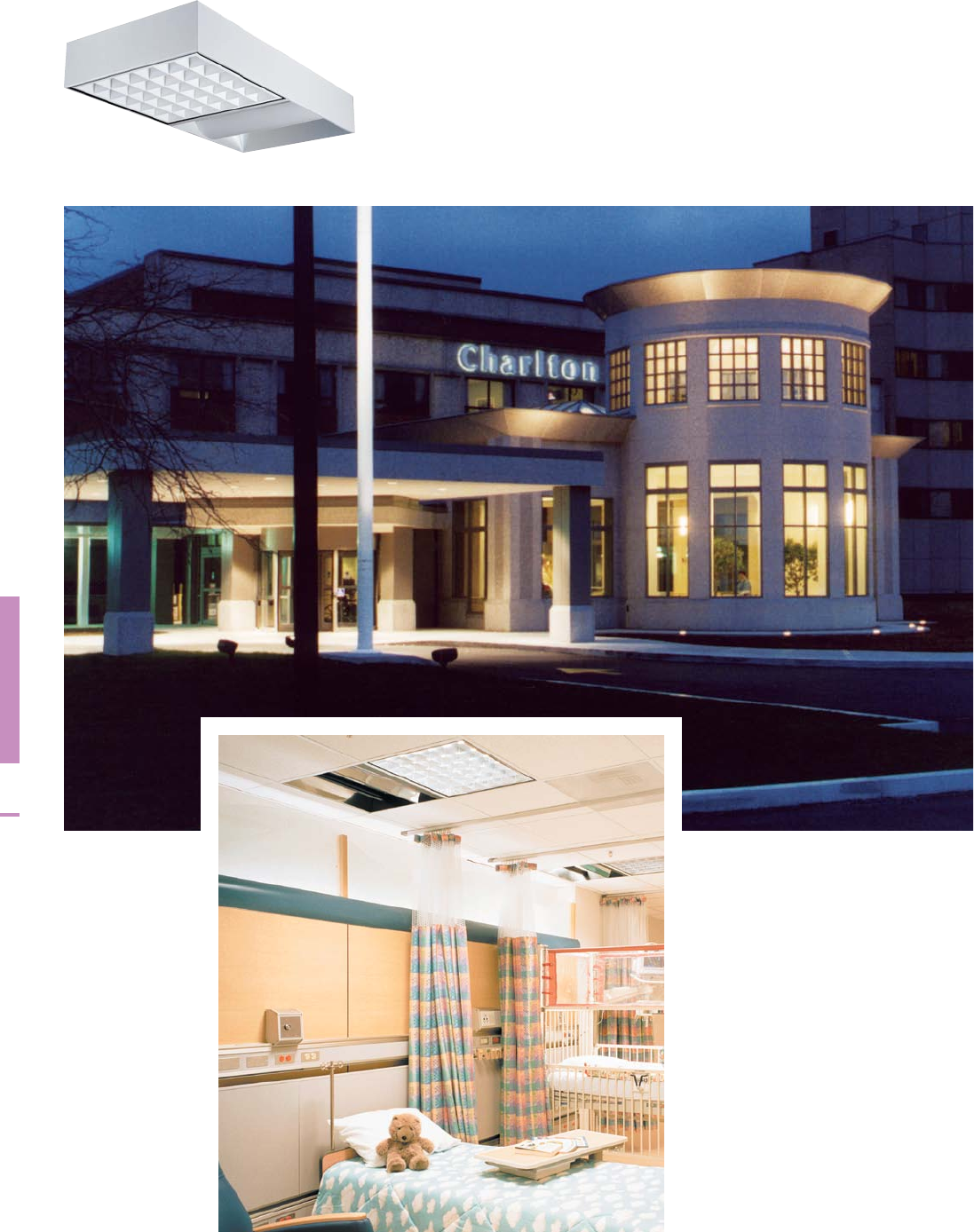

Medical luminaires > 4.135
Architectural & surface utility > 4.146
Task lighting > 4.167
Special purpose & industrial > 4.172
General utility > 4.202
Innovative specification grade fixtures
utilizing today’s most energy efficient
light sources.
Contents
Linear recessed and surface lighting
4.2 Philips Lightolier For complete specification information visit www.lightolier.com
Recessed soft lighting
Gain a broader perspective with Soft Lights. Soft
Lights encompasses a full range of luminaires, including
decorative round, low-glare, recessed, non-directional
recessed, solutions for shallow plenums, and more.
EverySoft Lights luminaire enhances the quality of the
visual environment by embracing the principles ofquality
visual concepts.
Linear recessed and surface lighting
4.3Comprehensive lighting catalog 7th Edition
LED recessed luminaires > 4.4
HP90 family > 4.8
Paraplus II > 4.20
Opalescent family > 4.24
Skyway family > 4.30
Aletta > 4.36
Alter family > 4.38
Alter concept > 4.64
Coffaire family > 4.74
DL Day lighting system > 4.88
Contents
4.4 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Recessed 2' x 2' LED luminaires
Providing illumination virtually indistinguishable fromtraditional
technologieswhile consuming less energy.
The Philips Lightolier LED recessed luminaire , designed specifically around the led light
source, sets a new standard for lighting efficiency, performance and sustainability. With our
versatile offering of both contemporary and classical shielding appearances, lighting designers
and architects have the ability to utilize a LED light source in any environment. Our LED
product families, provide an ideal energy saving fixture for all2' x 2’ recessed T-bar grid and
drywall applications.

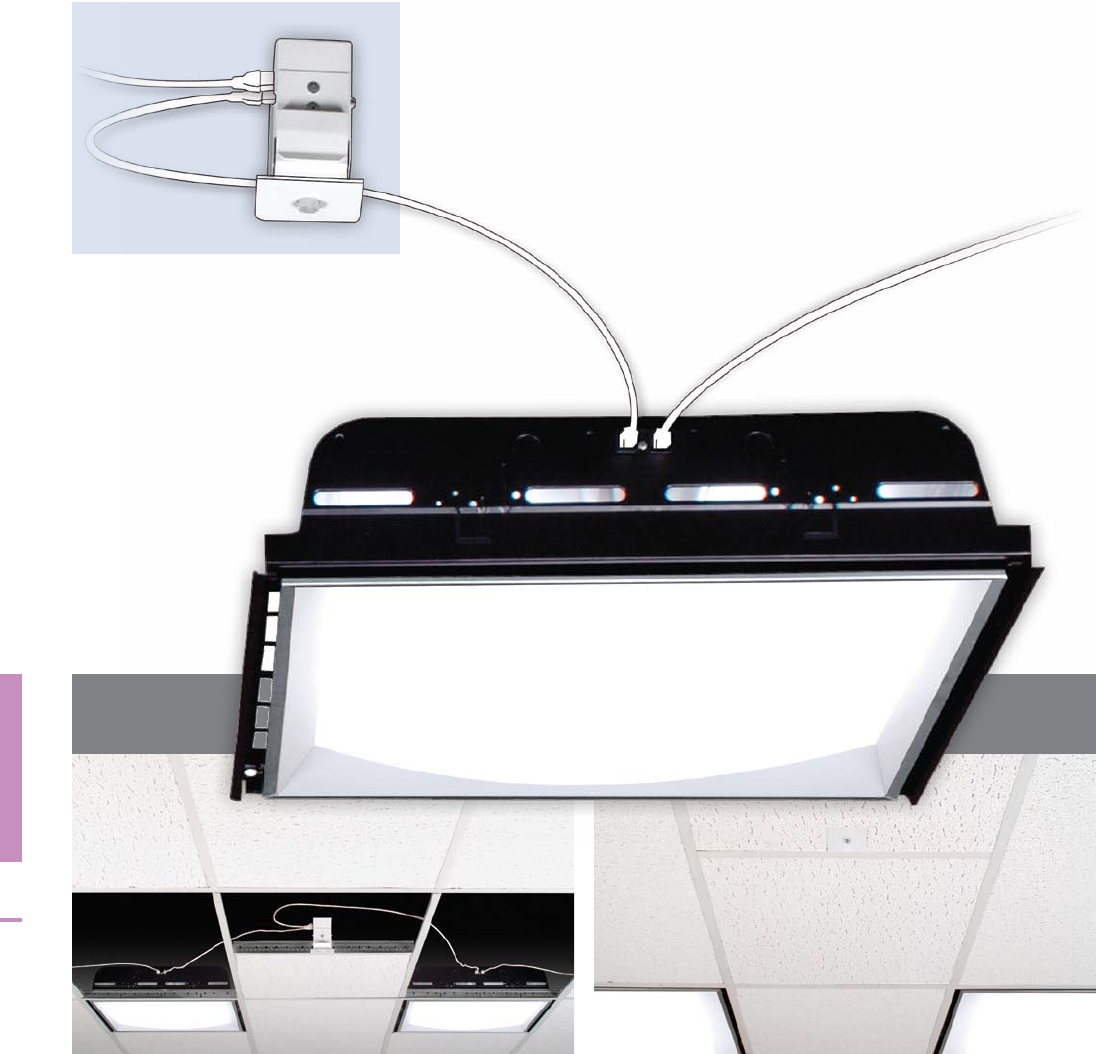

Construction
•FieldreplaceableLEDarrayaccessible
from below.
•Integratedthermalmanagement
system conducts heat away from LEDs
and transfers it to the surrounding
environment. Designed to keep
LEDs below specified maximum
temperatures in typical commercial
installations.
•Depth=5"
Electrical system
•Integral,highefficiency
driverand power supply.
•Nominalpowerfactor=0.9.
•Inputvoltage=120V-277V,
50/60Hz
LED Facts
LEDs have no breakable glass, their
solid-state design renders them
impervious to shock, vibration, frequent
switching and environmental extremes.
With an average lifespan of more than
50,000 hours, these maintenance-free
LED luminaires eliminate repeated
relamping, and operate in ambient
roomtemperatures of -22°F to +104°F
[-30°C to +40°C].
•LEDscontainnotoxic
materials, hazardous
mercury, or halogen gases.
•LEDsemitnoultraviolet
(UV)raysorinfrared(IR)
radiation.
•LEDsdonotrequirea
material safetydata sheet
(MSDS)orhazardous
waste disposal.
•LEDsdonotproduce
electro-magnetic
interference.
4.5Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
24" (610mm)
5"
(127mm)

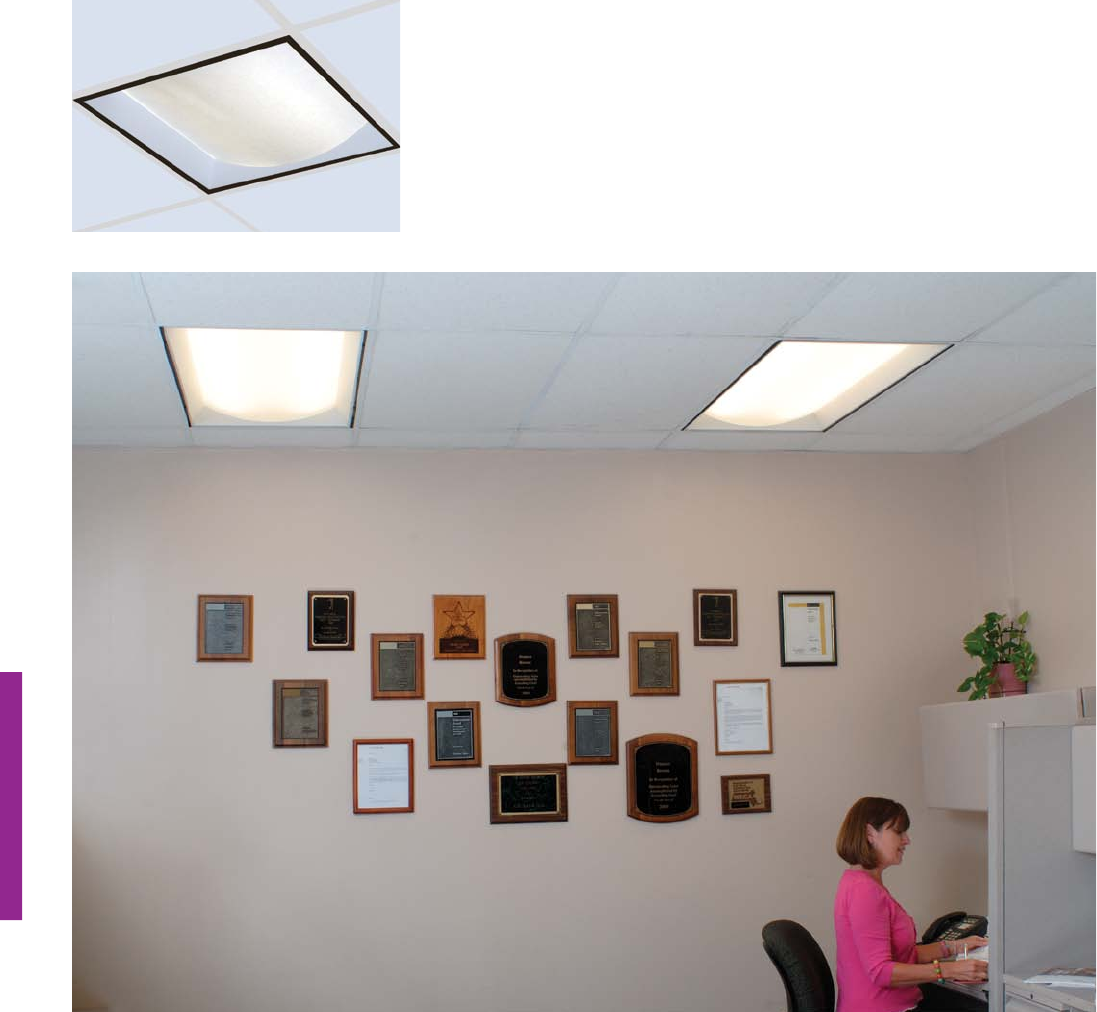

Opalescent LED 2' x 2'
Direct recessed air handling or static luminaires
Opalescent 2x2 LED’s deep curved lens combined with a regressed frame opening that
appears as a cove or skylight. The opal lens subtly highlights the ceiling plenum while
shielding the LED’s from direct view. Opalescent blends with any architectural environment
and creates balanced brightness, illuminating both vertical and horizontal surfaces.
Features
•Boldbutsimple2½"regressedframewith
contouredlens.
•Highlighttransmissionfrostwhiteacryliclens.
•Canprovide48initialfootcandlesat0.56wattsper
square foot.
•Delivers3619lumenswithjust44.9inputwatts.
•FieldreplaceableLEDarrayanddriversaccessible
frombelow.
•Integratedthermalmanagementsystemconductsheat
away from LEDs and transfers it to the surrounding
environment.
•Factorycalibratedintelligentdrivercapableofproviding
various lumen outputs to balance energy savings with
lighting application needs.
•HighefficiencyLEDshave50,000hourratedlifeatL70.
•PredictedL70lifetimeisbasedonLEDmanufacturer’s
supplied LM-80 data and in-situ laboratory testing.
•Truemiteredcornerlensframe.
•Doorjambfinishedblackonfoursidesforpositive
lightstop.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•5"deepbody.
•BlackbodytodissipateheatfromLEDs.
•Earthquake/Hold-downclips.
•Hemmedoversiderailsformaximumsafety.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
•Notforcontinuousrowmounting.
•Five-yearwarrantyonluminaire,LEDboardsanddriver.
Options & accessories
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical wiring options: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
OPS22GPW38A40ULAG
30˚
60˚
550
1100
1650
Candlepower Curve
Reference data
Delivered lumens 3619
Efficiency lm/w 80.6
LED Driver
Inputwatts(120V) 44.9W
Opalescent Lens shielding Lumen 1 Color temp 1,2 Voltage Driver
2 Options
LED PW=Highlight 25A=25klm40=4000K UNV = LAG = Seepage4.5
Direct transmission frost 33A=33klm 120-277V LEDDriver
Recessed white acrylic lens. 38A=38klm
42A=42klm
 1.Approximatedeliveredvalues(ConsultIESfile).
2. Consult representative for other color temperature options and driver dimming options.
PWOPS22G 40
Example
Ordering information
Type Size Delivered
lumens
Input
watts
Lumens
per watt
Avg 8'x10' initial
footcandles*
8'x10' Watts
per sq. foot Catalog no.
Static 2' x 2'
2553
3167
3619
4140
30.4
38.4
44.9
52.8
84.0
82.5
80.6
78.4
34
42
48
55
0.38
0.40
0.56
0.66
OPS22GPW25A40ULAG
OPS22GPW33A40ULAG
OPS22GPW38A40ULAG
OPS22GPW42A40ULAG
For Air handling housing models substitute OPS22 for OPA22.
* 42 Recessed LED Luminaires in a 60' x 56' x 9' room with a reflectance of 80/50/20, placed 8' x 10' on center.
Footcandlereadingsaretaken2½'fromfloorlevel.
ULAG
4.6 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
24" (610mm)
5"
(127mm)
Skyway LED 2' x 2'
Direct recessed air handling or static luminaires
Skyway 2x2 LED’s modern triple lens design features a clear conical prismatic center lens
complemented by frosted white acrylic side lenses. Alternating lens textures creates visual
interest while shielding the LEDs from direct view and preventing pixilation. The soft, balanced,
uniform brightness of Skyway make it ideal for office, institution and healthcare applications.
Features
•Aestheticallypleasingtriplelensdesign.
•Curvedhighlighttransmissionfrostwhiteacrylic
sidelenses.
•Clearacrylicconicalprismaticcenterlens.
•Canprovide45initialfootcandlesat0.56wattsper
square foot.
•Delivers3366lumenswithjust44.9inputwatts.
•FieldreplaceableLEDarrayanddriversaccessiblefrom
below.
•Integratedthermalmanagementsystemconductsheat
away from LEDs and transfers it to the surrounding
environment.
•Factorycalibratedintelligentdrivercapableofproviding
various lumen outputs to balance energy savings with
lighting application needs.
•HighefficiencyLEDshave50,000hourratedlifeatL70.
•PredictedL70lifetimeisbasedonLEDmanufacturer’s
supplied LM-80 data and in-situ laboratory testing.
•BlackbodytodissipateheatfromLEDs.
•5"deepbody.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Earthquake/Hold-downclips.
•Doorjambfinishedblackonfoursidesforpositive
lightstop.
•Truemiteredcorneraluminumlensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
•Notforcontinuousrowmounting.
•Five-yearwarrantyonluminaire,LEDboardsanddriver.
Options & accessories
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical wiring options: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
SKS22GPK33A40ULAG
30˚
60˚
600
1200
1800
Candlepower Curve
Reference data
Delivered lumens 3366
Efficiency lm/w 75.0
LED Driver
Inputwatts(120V) 44.9W
Skyway Lens shielding Lumen 1 Color temp 1,2 Voltage Driver
2 Options
LED PW=Pattern 25A=25klm 40=4000K UNV = LAG = Seepage4.6
Direct 19, 0.156 virgin 33A=33klm 120-277V LEDDriver
Recessed acrylic center lens 38A=38klm
with frost white
acrylic side lenses.
PP=Frostwhite
acrylic center lens
with frost white
acrylic side lenses.
 1.Approximatedeliveredvalues(ConsultIESfile).
2. Consult representative for other color temperature options and driver dimming options.
SKS22G 40
Example
Ordering information
Type Size Delivered
lumens
Input
watts
Lumens
per watt
Avg 8'x10' initial
footcandles*
8'x10' Watts
per sq. foot Catalog no.
Static 2' x 2'
2381
3366
3851
30.4
44.9
52.8
78.3
75.0
72.9
32
45
52
0.38
0.56
0.66
SKS22GPK25A40ULAG
SKS22GPK33A40ULAG
SKS22GPK38A40ULAG
ForAirhandlinghousingmodelssubstituteSKS22forSKA22.
* 42 Recessed LED Luminaires in a 60' x 56' x 9' room with a reflectance of 80/50/20, placed 8' x 10' on center.
Footcandlereadingsaretaken2½'fromfloorlevel.
ULAG
4.7Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
24" (610mm)
5"
(127mm)
SpecPlus LED 2' x 2'
Direct recessed static luminaires
Easily transition into the new era of the Green office with the SpecPlus LED 2x2 lensed
troffer.SpecPlusLEDoffersa1/2"regressedextrudedaluminumframewithspringloaded
latches.The9/16"wideframetrimgivesa500squareinchaperture.Thelensisextruded
acrylic,squarebasemaleconicalprismof.156"overallthickness.Providingexcellent
obscuration of the light source while controlling volumetric illumination.
Features
•Prismaticacryliclens.
•FlatsteelDoorframewith500squareinchlensopening.
•Canprovide52initialfootcandlesat0.56wattsper
square foot.
•Delivers3860lumenswithjust44.9inputwatts.
•FieldreplaceableLEDarrayanddriversaccessible
frombelow.
•Integratedthermalmanagementsystemconductsheat
away from LEDs and transfers it to the surrounding
environment.
•Factorycalibratedintelligentdrivercapableofproviding
various lumen outputs to balance energy savings with
lighting application needs.
•HighefficiencyLEDshave50,000hourratedlifeatL70.
•PredictedL70lifetimeisbasedonLEDmanufacturer’s
supplied LM-80 data and in-situ laboratory testing.
•BlackbodytodissipateheatfromLEDs.
•5"deepbody.
•Earthquake/Hold-downclips.
•Hemmedoversiderailsformaximumsafety.
•Springloadedroosterheadlatches.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
•Notforcontinuousrowmounting.
•Five-yearwarrantyonluminaire,LEDboardsanddriver.
Options & accessories
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical wiring options: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
SPS22GFSKA38A40ULAG
30˚
60˚
700
1400
2100
Candlepower Curve
Reference data
Delivered lumens 3621
Efficiency lm/w 85.5
LED Driver
Inputwatts(120V) 44.9W
SpecPlus Lens frame Lens shielding Lumen 1 Color temp 1,2 Voltage Driver
2 Options
LED FS=FlatsteelframeKA=0.156prismatic 25A=25klm40=4000K UNV = LAG = Seepage4.7
Direct FA=Flatalum.frame  acryliclens 33A=33klm 120-277V LEDdriver
recessed RA=Regressed VA= 0.095prismatic 38A=38klm
aluminum. frame acrylic lens 42A=42klm
 1.Approximatedeliveredvalues(ConsultIESfile).
2. Consult representative for other color temperature options and driver dimming options.
PWSPS22G 40
Example
Ordering information
Type Size Delivered
lumens
Input
watts
Lumens
per watt
Avg 8'x10' initial
footcandles*
8'x10' Watts
per sq. foot Catalog no.
Flat steel/aluminum Door frame with KA lens
Static 2' x 2'
2565
3158
3621
4140
30.0
38.4
44.9
52.8
84.4
82.5
80.6
78.4
35
43
50
57
0.38
0.48
0.56
0.66
SPS22GFSKA25A40ULAG
SPS22GFSKA33A40ULAG
SPS22GFSKA38A40ULAG
SPS22GFSKA42A40ULAG
ULAG
Flat steel/aluminum Door frame with VA lens
Static 2' x 2'
2722
3362
3841
4397
30.0
38.4
44.9
52.8
89.5
87.6
85.5
83.3
36
45
52
59
0.38
0.48
0.56
0.66
SPS22GFSVA25A40ULAG
SPS22GFSVA33A40ULAG
SPS22GFSVA38A40ULAG
SPS22GFSVA42A40ULAG
Regressed aluminum Door frame with KA lens
Static 2' x 2'
2598
3194
3681
4199
30.0
38.4
44.9
52.8
85.5
83.4
82.0
79.5
35
44
50
58
0.38
0.48
0.56
0.66
SPS22GRAKA25A40ULAG
SPS22GRAKA33A40ULAG
SPS22GRAKA38A40ULAG
SPS22GRAKA42A40ULAG
Regressed aluminum Door frame with VA lens
Static 2' x 2'
2729
3358
3860
4397
30.0
38.4
44.9
52.8
89.8
87.7
86.0
83.3
37
45
52
59
0.38
0.48
0.56
0.66
SPS22GRAVA25A40ULAG
SPS22GRAVA33A40ULAG
SPS22GRAVA38A40ULAG
SPS22GRAVA42A40ULAG
* 42 Recessed LED luminaires in a 60' x 56' x 9' room with a reflectance of 80/50/20, placed 8' x 10' on center.
Footcandlereadingsaretaken2½'fromfloorlevel.
4.8 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
HP90
Direct/indirect recessed luminaires
4.9Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
HP90
Direct/indirect recessed luminaires
TheHP90familycontinuestogrow.NowofferedinT5orT8lampingaswellasairsupply
and return capabilities. It's an excellent choice when choosing an architectural designed
luminaire for LEED compliant office space. HP90 combines a recessed contoured body
with an enclosed linear prismatic lens to create an efficient direct/indirect luminaire.
HP90will illuminate both vertical and horizontal surfaces creating balanced brightness.
4.10 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
5" (127mm)
5"
(127mm)
24" (610mm)
HP90 T5 2' x 4'
Direct/indirect recessed static luminaires
HP90 combines a recessed contoured body with an enclosed linear prismatic lens to create
a 90.4% efficient direct/indirect luminaire. HP90 has an excellent spacing ratio of 1.4 and will
illuminate both vertical and horizontal surfaces creating balance brightness while consuming
only .63 watts per square foot. It is available in 2' x 4', 2' x 2' and 1' x 4' sizes utilizing T5
lamps. An excellent choice when choosing an architectural designed luminaire for LEED
compliant office spaces. The construction pays attention to fit and finish.
Features
•Canprovide54.6maintainedfootcandlesofbalanced
brightness illumination at only .68 watts per square foot.
•87.2%efficientsinglelamp28WT52'x4'luminaire.
•90.4%efficienttwolamp28WT52'x4'luminaire.
•84.6%efficienttwolamp54WT5HO2'x4'luminaire.
•Direct/indirectappearancewithsoftcontouredinterior.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceilingtypes.
•Lampshieldopensfromeitherside.
•95%reflectivespecularaluminumreflector.
•Ballastaccessiblefromroomside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENtechnologyacceptsdigital
dimming commands from computers, scene controllers
and automatic control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
Options & accessories page 4.130
Finish: Chassis exterior – baked white acrylic enamel.
Cavity – baked flat white acrylic enamel. Rust preventive
undercoating. Reflector – low iridescence specular
aluminum 95% reflectance.
Ballast type <10THD
Electronic T5 program start PG
Electronic T5 28W instant start WA*†
Electronic T5 28W bi-level step ballast VY
(2lamp)
DALIBallast DA
*Ballast(WA)onlyavailablein120or277volt.
†56Inputwatts0.93B.F.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
H9S2GLR228120WA
30˚
60˚
550
1100
1650
Candlepower Curve
Reference data
Efficiency 90.4%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 54.6W
Ballastfactor 0.93
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.10 See page 4.10
Recessed 277=277V  andpage4.130
UNV=120-277V
120H9S2GLR228 AWA
Example
H9S2GLR254UNVPG
30˚
60˚
800
1600
2400
Candlepower Curve
Reference data
Efficiency 84.6%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 112.4W
Ballastfactor 1.0
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.10 See page 4.10
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S2GLR254 APG
Example
H9S2GLR128UNVPG
30˚
60˚
300
600
900
Candlepower Curve
Reference data
Efficiency 87.2%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 31.6W
Ballastfactor 1.0
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.10 See page 4.10
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S2GLR128 APG
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T5 28W H9S2GLR228
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T5HO 54W H9S2GLR254
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 1-T5
1-T5HO
28W
54W
H9S2GLR128
H9S2GLR154
5" (127mm)
5"
(127mm)
24" (610mm)
5" (127mm)
5"
(127mm)
24" (610mm)
4.11Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
5" (127mm)
5"
(127mm)
24" (610mm)
HP90 T5 2' x 2'
Direct/indirect recessed static luminaires
HP90 combines a recessed contoured body with an enclosed linear prismatic lens to create
an efficient direct/indirect luminaire.
Features
•72.9%efficientsinglelamp40WtwintubeT52'x2'
luminaire.
•83.2%efficientonelamp14WT52'x2'luminaire.
•80.3%efficienttwolamp24WT5HO2'x2'luminaire.
•Direct/indirectappearancewithsoftcontouredinterior.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceilingtypes.
•Lampshieldopensfromeitherside.
•95%reflectivespecularaluminumreflector.
•Ballastaccessiblefromroomside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENtechnologyacceptsdigital
dimming commands from computers, scene controllers
and automatic control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
Options & accessories page 4.130
Finish: Chassis exterior – baked white acrylic enamel.
Cavity – baked flat white acrylic enamel. Rust preventive
undercoating. Reflector – low iridescence specular
aluminum 95% reflectance.
Ballast type <10THD <20THD
Electronic T5 program start PG –
Electronic TT5 40W PR* –
Electronic TT5 40W IB SB
Electronic TT5 50W BP –
Electronic TT5 55W BF –
Electronic T5 14W bi-level VY –
 stepballast(2lamp)
DALIBallast DA –
* Program start.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
H9S2GLR1FTUNVPR
30˚
60˚
300
600
900
Candlepower Curve
Reference data
Efficiency 72.9%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 37.6W
Ballastfactor 1.0
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.11 See page 4.11
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S2GLR1FT AIB
Example
H9S2GLR224UNVPG
30˚
60˚
300
600
900
Candlepower Curve
Reference data
Efficiency 80.3%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 49.4W
Ballastfactor 1.0
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.11 See page 4.11
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S2GLR224 APG
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 1-TT5 40W H9S2GLR1FT
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-T5
2-T5HO
14W
24W
H9S2GLR214
H9S2GLR224
5" (127mm)
5"
(127mm)
24" (610mm)
4.12 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
5"
(127mm)
11
1516 (303mm)
5"
(127mm)
11
1516 (303mm)
HP90 T5 1' x 4'
Direct/indirect recessed static luminaires
HP90 combines a recessed contoured body with an enclosed linear prismatic lens to create
an efficient direct/indirect luminaire.
Features
•86.9%efficientonelamp28WT51'x4'luminaire.
•88.9%efficienttwolamp28WT51'x4'luminaire.
•86.5%efficienttwolamp54WT5HO1'x4'luminaire.
•Direct/indirectappearancewithsoftcontouredinterior.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceilingtypes.
•Lampshieldopensfromeitherside.
•95%reflectivespecularaluminumreflector.
•Ballastaccessiblefromroomside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENtechnologyacceptsdigital
dimming commands from computers, scene controllers
and automatic control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
Options & accessories page 4.130
Finish: Chassis exterior – baked white acrylic enamel.
Cavity – baked flat white acrylic enamel. Rust preventive
undercoating. Reflector – low iridescence specular
aluminum 95% reflectance.
Ballast type <10THD
Electronic T5 program start PG
Electronic T5 28W instant start WA*†
Electronic T5 28W bi-level step ballast VY
(2lamp)
DALIBallast DA
*Ballast(WA)onlyavailablein120or277volt.
†56Inputwatts0.93B.F.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing)
H9S1GLR228UNVPG
30˚
60˚
600
1200
1800
Candlepower Curve
Reference data
Efficiency 88.9%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 63.3W
Ballastfactor 1.0
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.12 See page 4.12
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S1GLR228 APG
Example
H9S1GLR128UNVPG
30˚
60˚
250
500
750
Candlepower Curve
Reference data
Efficiency 86.9%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 32.6W
Ballastfactor 1.0
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.12 See page 4.12
Recessed 277=277V  andpage4.130
UNV=120-277V
120H9S1GLR128 APG
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4' 2-T5
2-T5HO
28W
54W
H9S1GLR228
H9S1GLR254
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4' 1-T5
1-T5HO
28W
54W
H9S1GLR128
H9S1GLR154
4.13Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
5" (127mm)
5"
(127mm)
24" (610mm)
5" (127mm)
5"
(127mm)
24" (610mm)
HP90 T8 2' x 4'
Direct/indirect recessed static luminaires
HP90 T8 combines a recessed contoured body with an enclosed linear prismatic lens to
create a 85.2% efficient direct/indirect luminaire. HP90 has an excellent spacing ratio of 1.4
and will illuminate both balanced vertical and horizontal surfaces creating balance brightness.
It is available in 2' x 4', 2' x 2' and 1' x 4' sizes utilizing T8 lamps. An excellent choice
when choosing an architectural designed luminaire for LEED compliant office spaces. The
construction pays attention to fit and finish.
Features
•85.2%efficientsinglelamp32WT82'x4'luminaire.
•85.2%efficienttwolamp32WT82'x4'luminaire.
•Direct/indirectappearancewithsoftcontouredinterior.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceilingtypes.
•Lampshieldopensfromeitherside.
•95%reflectivespecularaluminumreflector.
•Ballastaccessiblefromroomside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENtechnologyacceptsdigital
dimming commands from computers, scene controllers
and automatic control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
Options & accessories page 4.130
Finish: Chassis exterior – baked white acrylic enamel.
Cavity – baked flat white acrylic enamel. Rust preventive
undercoating. Reflector – low iridescence specular
aluminum 95% reflectance.
Ballast type <10THD <20THD
ElectronicT8(1or2lamp) HI* SO*
ElectronicT8(1or2lamp) P2** –
LOL Dimming T8 PS –
Electronic T8 32W bi-level V2 –
 stepballast(2lamp)
DALIBallast DA –
* Instant start. Standard.
** Program start.
DALI=digitaladdressabledimming
Other dimming options consultfactory.
Note: For T8 UNV, you must use HI or P2 ballast code.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing)
H9S2GLR232UNVHI
30˚
60˚
550
1100
1650
Candlepower Curve
Reference data
Efficiency 85.2%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 59.7W
Ballastfactor 0.88
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.13 See page 4.13
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S2GLR232 AHI
Example
H9S2GLR132UNVHI
30˚
60˚
300
600
900
Candlepower Curve
Reference data
Efficiency 85.2%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 31.2W
Ballastfactor 0.88
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.13 See page 4.13
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S2GLR132 AHI
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T8 32W H9S2GLR232
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 1-T8 32W H9S2GLR132
4.14 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
5" (127mm)
5"
(127mm)
24" (610mm)
5" (127mm)
5"
(127mm)
24" (610mm)
HP90 T8 2' x 2'
Direct/indirect recessed static luminaires
HP90 T8 combines a recessed contoured body with an enclosed linear prismatic lens to
create an efficient direct/indirect luminaire.
Features
•82.5%efficientonelamp17WT82'x2'luminaire.
•80.3%efficienttwolamp17WT82'x2'luminaire.
•Direct/indirectappearancewithsoftcontoured
interior.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceilingtypes.
•Lampshieldopensfromeitherside.
•95%reflectivespecularaluminumreflector.
•Ballastaccessiblefromroomside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENtechnologyacceptsdigital
dimming commands from computers, scene controllers
and automatic control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
Options & accessories page 4.130
Finish: Chassis exterior – baked white acrylic enamel.
Cavity – baked flat white acrylic enamel. Rust preventive
undercoating. Reflector – low iridescence specular
aluminum 95% reflectance.
Ballast type <10THD <20THD
ElectronicT8(1or2lamp) HI*, P2** SO*
LOL Dimming T8 PS –
DALIBallast DA –
* Instant start. Standard.
** Program start.
DALI=digitaladdressabledimming
Other dimming options consultfactory.
Note: For T8 UNV, you must use HI or P2 ballast code.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing)
H9S2GLR217UNVHI
30˚
60˚
250
500
750
Candlepower Curve
Reference data
Efficiency 80.3%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 30.6W
Ballastfactor 0.88
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.14 See page 4.14
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S2GLR217 AHI
Example
H9S2GLR117UNVHI
30˚
60˚
120
240
360
Candlepower Curve
Reference data
Efficiency 82.5%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 16.7W
Ballastfactor 0.88
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.14 See page 4.14
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S2GLR117 AHI
Example
Emergency Pack
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-T8 17W H9S2GLR217
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 1-T8 17W H9S2GLR117
4.15Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
HP90 T8 1' x 4'
Direct/indirect recessed static luminaires
HP90 T8 combines a recessed contoured body with an enclosed linear prismatic lens to
create an efficient direct/indirect luminaire.
Features
•77.8%efficientonelamp32WT81'x4'luminaire.
•78.4%efficienttwolamp32WT81'x4'luminaire.
•Direct/indirectappearancewithsoftcontoured
interior.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceilingtypes.
•Lampshieldopensfromeitherside.
•95%reflectivespecularaluminumreflector.
•Ballastaccessiblefromroomside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENtechnologyacceptsdigital
dimming commands from computers, scene controllers
and automatic control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
Options & accessories page 4.130
Finish: Chassis exterior – baked white acrylic enamel.
Cavity – baked flat white acrylic enamel. Rust preventive
undercoating. Reflector – low iridescence specular
aluminum 95% reflectance.
Ballast type <10THD <20THD
ElectronicT8(1or2lamp) HI*, P2** SO*
LOL Dimming T8 PS –
Electronic T8 32W bi-level V2 –
 stepballast(2lamp)
DALIBallast DA –
* Instant start. Standard
** Program start.
DALI=digitaladdressabledimming
Other dimming options consultfactory.
Note: For T8 UNV, you must use HI or P2 ballast code.
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing)
H9S1GLR232UNVHI
30˚
60˚
550
1100
1650
Candlepower Curve
Reference data
Efficiency 78.4%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 59.4W
Ballastfactor 0.88
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.15 See page 4.15
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S1GLR232 AHI
Example
H9S1GLR132UNVHI
30˚
60˚
250
500
750
Candlepower Curve
Reference data
Efficiency 77.8%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 29.4W
Ballastfactor 0.88
HP90 Voltage Ballast Options
Direct/indirect 120=120V Seepage4.15 See page 4.15
Recessed 277=277V  andpage4.130
UNV=120-277V
UNVH9S1GLR132 AHI
Example
5"
(127mm)
12"(305mm)
5"(127mm)
5"
(127mm)
12"(305mm)
5"(127mm)
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4' 2-T8 32W H9S1GLR232
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4' 1-T8 32W H9S1GLR132
4.16 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
5"
(127mm)
24" (610mm)
21½" (546mm)
5"
(127mm)
24" (610mm)
21½" (546mm)
HP90 Air 2' x 4'
Direct/indirect recessed air handling luminaires
HP90 Air combines a recessed contoured body with an enclosed linear prismatic lens to
create an efficient direct/indirect luminaire with air supply or return capabilities. HP90 Air
will illuminate both vertical and horizontal surfaces creating balance brightness. It is available
in 2' x 4' and 2' x 2' sizes. An excellent choice when choosing an architectural designed
luminaire for LEED compliant office spaces. The construction pays attention to fit and finish.
Features
•90.4%efficienttwolamp28WT52'x4'luminaire.
•85.2%efficienttwolamp32WT82'x4'luminaire.
•Direct/indirectappearancewithsoftcontouredinterior.
•airsupplyorReturn.
•AirreturnmodelmeetsUL1598,paragraph
9.2.2.5 requirements.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceilingtypes.
•Lampshieldopensfromeitherside.
•95%reflectivespecularaluminumreflector.
•Ballastaccessiblefromroomside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENtechnologyacceptsdigital
dimming commands from computers, scene controllers
and automatic control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
Options & accessories page 4.130
Ballast type <10THD <20THD
Electronic T5 program start PG –
Electronic T5 28W instant start WA*† –
Electronic T5 28W bi-level VY –
 stepballast(2lamp)
ElectronicT8(1or2lamp) HI*, P2** SO*
LOL Dimming T8 PS –
Electronic T8 32W bi-level V2 –
 stepballast(2lamp)
DALIBallast DA –
* Instant start. Standard
(WABallastonlyavailablein120or277volt)
** Program start.
†56Inputwatts0.93B.F.
DALI=digitaladdressabledimming
Other dimming options consultfactory.
Note: For T8 UNV, you must use HI or P2 ballast code.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
H9A2GLR128UNVPG H9A2GLR228120WA
5"
(127mm)
24" (610mm)
21½" (546mm)
5"
(127mm)
24" (610mm)
21½" (546mm)
HP90 Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.16 See page 4.16
air supply and return 277=277V  andpage4.130
UNV=120-277V
UNVH9A2GLR228 APG
Example
30˚
60˚
300
600
900
Candlepower Curve
30˚
60˚
550
1100
1650
Candlepower Curve
Reference data
Efficiency 87.2%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 31.6W
Ballastfactor 1.0
Reference data
Efficiency 90.4%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 54.6W
Ballastfactor 0.93
5"
(127mm)
24" (610mm)
21½" (546mm)
5"
(127mm)
24" (610mm)
21½" (546mm)
H9A2GLR132UNVHI H9A2GLR232UNVHI
5"
(127mm)
24" (610mm)
21½" (546mm)
5"
(127mm)
24" (610mm)
21½" (546mm)
HP90 Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.16 See page 4.16
air supply and return 277=277V  andpage4.130
UNV=120-277V
UNVH9A2GLR232 AHI
Example
30˚
60˚
300
600
900
Candlepower Curve
30˚
60˚
550
1100
1650
Candlepower Curve
Reference data
Efficiency 85.2%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 31.2W
Ballastfactor 0.88
Reference data
Efficiency 85.2%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 59.7W
Ballastfactor 0.88
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Air supply
and return 2' x 4'
1-T5
1-T5HO
2-T5
2-T5HO
28W
54W
28W
54W
H9A2GLR128
H9A2GLR154
H9A2GLR228
H9A2GLR254
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Air supply
and return 2' x 4' 1-T8
2-T8 32W H9A2GLR132
H9A2GLR232
4.17Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
5"
(127mm)
24" (610mm)
21½" (546mm)
5"
(127mm)
24" (610mm)
21½" (546mm)
HP90 Air 2' x 2'
Direct/indirect recessed air handling luminaires
HP90 Air combines a recessed contoured body with an enclosed linear prismatic lens to
create an efficient direct/indirect luminaire with air supply or return capabilities. HP90 Air
will illuminate both vertical and horizontal surfaces creating balance brightness. It is available
in 2' x 4' and 2' x 2' sizes. An excellent choice when choosing an architectural designed
luminaire for LEED compliant office spaces. The construction pays attention to fit and finish.
Features
•72.9%efficientsinglelamp40WTwintubeT52'x2'
luminaire.
•83.2%efficientonelamp14WT52'x2'luminaire.
•80.3%efficienttwolamp24WT5HO2'x2'luminaire.
•Direct/indirectappearancewithsoftcontouredinterior.
•airsupplyorReturn.
•AirreturnmodelmeetsUL1598,paragraph.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceilingtypes.
•Lampshieldopensfromeitherside.
•95%reflectivespecularaluminumreflector.
•Ballastaccessiblefromroomside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENtechnologyacceptsdigital
dimming commands from computers, scene controllers
and automatic control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
Options & accessories page 4.130
Ballast type <10THD <20THD
Electronic T5 program start PG –
Electronic TT5 40W IB SB
Electronic TT5 50W BP –
Electronic TT5 55W BF –
Electronic T5 14W bi-level VY –
 stepballast(2lamp)
ElectronicT8(1or2lamp) HI*, P2** SO*
LOL Dimming T8 PS –
DALIBallast DA –
* Instant start. Standard
** Program start.
DALI=digitaladdressabledimming
Other dimming options consultfactory.
Note: For T8 UNV, you must use HI or P2 ballast code.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
H9A2GLR1FTUNVPR H9A2GLR224UNVPG
5"
(127mm)
24" (610mm)
21½" (546mm)
5"
(127mm)
24" (610mm)
21½" (546mm)
HP90 Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.17 See page 4.17
air supply and return 277=277V  andpage4.130
UNV=120-277V
UNVH9A2GLR214 APG
Example
30˚
60˚
300
600
900
Candlepower Curve
30˚
60˚
300
600
900
Candlepower Curve
Reference data
Efficiency 72.9%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 37.6W
Ballastfactor 1.0
Reference data
Efficiency 80.3%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 49.4W
Ballastfactor 1.0
5"
(127mm)
24" (610mm)
21½" (546mm)
5"
(127mm)
24" (610mm)
21½" (546mm)
H9A2GLR117UNVHI H9A2GLR217UNVHI
5"
(127mm)
24" (610mm)
21½" (546mm)
5"
(127mm)
24" (610mm)
21½" (546mm)
HP90 Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.17 See page 4.17
air supply and return 277=277V  andpage4.130
UNV=120-277V
UNVH9A2GLR232 AHI
Example
30˚
60˚
120
240
360
Candlepower Curve
30˚
60˚
250
500
750
Candlepower Curve
Reference data
Efficiency 82.5%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 16.7W
Ballastfactor 0.88
Reference data
Efficiency 80.3%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 30.6W
Ballastfactor 0.88
Emergency Pack Emergency Pack
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Air supply
and return 2' x 2'
1-TT5
2-T5
2-T5HO
40W
14W
24W
H9A2GLR1FT
H9A2GLR214
H9A2GLR224
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Air supply
and return 2' x 2' 1-T8
2-T8 17W H9A2GLR117
H9A2GLR217
4.18 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
HP90 2' x 4' & 2' x 2'
Direct/indirect semi-recessed static luminaires
HP90DropLens~SemiRecessedoffersT5lampoptionsinabodythatisonlyrecessed2¼".
The translucent linear prismatic lens and softly contoured body, create a pleasing architectural
statement that is evenly illuminated. Its broad light distribution illuminates both horizontal and
vertical surfaces, creating a soft balanced brightness in any space that enhances visual acuity.
Features
•Only2-1/4"plenumdepth.
•87.0%efficientsinglelamp28WT52'x4'luminaire.
•88.5%efficienttwolamp28WT52'x4'luminaire.
•78.2%efficientsinglelamp40WTwintubeT52'x2'
luminaire.
•77.1%efficienttwolamp24wattT52'x2'luminaire.
•Direct/indirectappearancewithsoftcontouredinterior.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•Lampshieldopensfromeitherside.
•Ballastaccessiblefromroomside.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENTechnologyacceptsdigital
dimming controllers, scene controllers and automatic
control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
Options & accessories page 4.130
Finish: Chassis exterior – baked white acrylic enamel.
Cavity – baked flat white acrylic enamel. Rust preventive
undercoating. Reflector – low iridescence specular
aluminum 95% reflectance.
Ballast type <10THD
40W TT5 PR
Electronic T5 program start PG
Electronic T5 28W instant start WA*†
Electronic T5 14W/28W bi-level VY
stepballast(2lamp)
DALIBallast DA
*Ballast(WA)onlyavailablein120or277volt.
†56Inputwatts0.93B.F.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
500
1000
1500
Candlepower Curve
HDS2GLW228120WA
4
916"
(116mm)
21½" (546mm)
4
916"
(116mm)
21½" (546mm)
2 1/4 (57mm)
2 5/16 (59mm)
24 (610mm)
2 1/4 (57mm)
2 5/16 (59mm)
24 (610mm)
2 1/4 (57mm)
2 5/16 (59mm)
24 (610mm)
2 1/4 (57mm)
2 5/16 (59mm)
24 (610mm)
1 9/16 X 2 13/16 ACCESS
PLATE W/ 2-7/8 DIA KO
24"
(610mm)
2 1/4 (57.15mm)
48" (1219mm)
1 9/16 X 2 13/16 ACCESS
PLATE W/ 2-7/8 DIA KO
24"
(610mm)
24" (1219mm)
2 1/4
(57.15mm)
1 9/16 X 2 13/16 ACCESS
PLATE W/ 2-7/8 DIA KO
24"
(610mm)
24" (1219mm)
2 1/4
(57.15mm)
Reference data
Efficiency 88.5%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 54.1W
Ballastfactor 0.93
30˚
60˚
250
500
750
Candlepower Curve
HDS2GLW1FTUNVPR Reference data
Efficiency 78.2%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 38.4W
Ballastfactor 1
4
916"
(116mm)
21½" (546mm)
4
916"
(116mm)
21½" (546mm)
2 1/4 (57mm)
2 5/16 (59mm)
24 (610mm)
2 1/4 (57mm)
2 5/16 (59mm)
24 (610mm)
2 1/4 (57mm)
2 5/16 (59mm)
24 (610mm)
2 1/4 (57mm)
2 5/16 (59mm)
24 (610mm)
1 9/16 X 2 13/16 ACCESS
PLATE W/ 2-7/8 DIA KO
24"
(610mm)
2 1/4 (57.15mm)
48" (1219mm)
1 9/16 X 2 13/16 ACCESS
PLATE W/ 2-7/8 DIA KO
24"
(610mm)
24" (1219mm)
2 1/4
(57.15mm)
1 9/16 X 2 13/16 ACCESS
PLATE W/ 2-7/8 DIA KO
24"
(610mm)
24" (1219mm)
2 1/4
(57.15mm)
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
1-T5
2-T5
1-T5HO
2-T5HO
28W
28W
54W
54W
HDS2GLW128
HDS2GLW228
HDS2GLW154
HDS2GLW254
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
2-T5HO
1-Twin tube T5
14W
24W
40W
HDS2GLW214
HDS2GLW224
HDS2GLW1FT
HP90 Semi-recessed Voltage Ballast Options
Direct/indirect 120=120V Seepage4.18 See page 4.18
recessed static 277=277V  andpage4.130
UNV=120-277V
120HDS2GLW228 AWA
Example
HP90 Semi-recessed Voltage Ballast Options
Direct/indirect 120=120V Seepage4.18 See page 4.18
recessed static 277=277V  andpage4.130
UNV=120-277V
UNVHDS2GLW1FT APR
Example
4.19Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
HP90 2' x 4' & 2' x 2'
Direct/indirect surface-mounted static luminaires
HP90DropLens~SurfaceMountedoffersT5lampoptionsinabodythatisonly2-17/32"
deep. The translucent linear prismatic lens and softly contoured body, create a pleasing
architectural statement that is evenly illuminated. Its broad light distribution illuminates
both horizontal and vertical surfaces, creating a soft balanced brightness in any space that
enhances visual acuity.
Features
•88.5%efficienttwolamp28W2'x4'luminaire.
•87.0%efficientsinglelamp28W2'x4'luminaire.
•77.1%efficienttwolamp24WT5HO2'x2'luminaire.
•78.2%efficientsinglelamp40WtwintubeT52'x2'
luminaire.
•Direct/indirectappearancewithsoftcontouredinterior.
•Lensencloseslampcompartment.
•TranslucentDRacryliclinearprismaticlens.
•Tensionscrewssecureendstobody.
•Lampshieldopensfromeitherside.
•Ballastaccessiblefromroomside.
•Built-inearthquakeclips.
•OptionalDALIballastiGENTechnologyacceptsdigital
dimming controllers, scene controllers and automatic
control devices.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirement available.
•Notforcontinuousrowmounting.
Options & accessories page 4.130
Finish: Chassis exterior – baked white acrylic enamel.
Cavity – baked flat white acrylic enamel. Rust preventive
undercoating. Reflector – low iridescence specular
aluminum 95% reflectance.
Ballast type <10THD
40 W TT5 PR
Electronic T5 program start PG
Electronic T5 28W instant start WA*†
Electronic T5 14W/28W bi-level VY
stepballast(2lamp)
DALIBallast DA
*Ballast(WA)onlyavailablein120or277volt.
†56Inputwatts0.93B.F.
DALI=digitaladdressabledimming
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
500
1000
1500
Candlepower Curve
HDB2SLW228120WA
24 1/8" (613mm)
48" (1219mm)
2-7/8 DIA KO
3 5/8" (92mm)
2 15/16" (75mm)
1 5/8" (41mm)
3 5/8" (92mm)
2-1/4 MOUNTING HOLES
39 3/4" (1010mm)
42 1/2" (1080mm)
3 5/8" (92mm)
2 15/16" (75mm)
24 1/8" (613mm)
15 3/4" (400mm)
2-1/4 MOUNTING HOLES
1 5/8" (41mm)
3 5/8" (92mm)
18 7/16" (468mm)
2-7/8 DIA KO
24" (1219mm)
3 5/8" (92mm)
2 15/16" (75mm)
24 1/8" (613mm)
15 3/4" (400mm)
2-1/4 MOUNTING HOLES
1 5/8" (41mm)
3 5/8" (92mm)
18 7/16" (468mm)
2-7/8 DIA KO
24" (1219mm)
2 17/32 (64mm)
2 5/16 (59mm)
24 1/8 (613mm)
24 1/8 (613mm)
2 5/16 (59mm)
2 17/32 (64mm)
24 1/8 (613mm)
2 5/16 (59mm)
2 17/32 (64mm)
24 1/8 (613mm)
2 5/16 (59mm)
2 17/32 (64mm)
4 ⅞"
(123mm)
21½" (546mm)
4 ⅞"
(123mm)
21½" (546mm)
Reference data
Efficiency 88.5%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 54.1W
Ballastfactor 0.93
30˚
60˚
250
500
750
Candlepower Curve
HDB2SLW1FTUNVPR Reference data
Efficiency 78.2%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 38.4W
Ballastfactor 1
24 1/8" (613mm)
48" (1219mm)
2-7/8 DIA KO
3 5/8" (92mm)
2 15/16" (75mm)
1 5/8" (41mm)
3 5/8" (92mm)
2-1/4 MOUNTING HOLES
39 3/4" (1010mm)
42 1/2" (1080mm)
3 5/8" (92mm)
2 15/16" (75mm)
24 1/8" (613mm)
15 3/4" (400mm)
2-1/4 MOUNTING HOLES
1 5/8" (41mm)
3 5/8" (92mm)
18 7/16" (468mm)
2-7/8 DIA KO
24" (1219mm)
3 5/8" (92mm)
2 15/16" (75mm)
24 1/8" (613mm)
15 3/4" (400mm)
2-1/4 MOUNTING HOLES
1 5/8" (41mm)
3 5/8" (92mm)
18 7/16" (468mm)
2-7/8 DIA KO
24" (1219mm)
2 17/32 (64mm)
2 5/16 (59mm)
24 1/8 (613mm)
24 1/8 (613mm)
2 5/16 (59mm)
2 17/32 (64mm)
24 1/8 (613mm)
2 5/16 (59mm)
2 17/32 (64mm)
24 1/8 (613mm)
2 5/16 (59mm)
2 17/32 (64mm)
4 ⅞"
(123mm)
21½" (546mm)
4 ⅞"
(123mm)
21½" (546mm)
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
1-T5
2-T5
1-T5HO
2-T5HO
28W
28W
54W
54W
HDB2SLW128
HDB2SLW228
HDB2SLW154
HDB2SLW254
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
2-T5HO
1-Twin tube T5
14W
24W
40W
HDB2SLW214
HDB2SLW224
HDB2SLW1FT
HP90 Surface mounted Voltage Ballast Options
Direct/indirect 120=120V Seepage4.19 See page 4.19
recessed static 277=277V  andpage4.130
UNV=120-277 V
120HDB2SLW228 AWA
Example
HP90 Surface mounted Voltage Ballast Options
Direct/indirect 120=120V Seepage4.19 See page 4.19
recessed static 277=277V  andpage4.130
UNV=120-277 V
UNVHDB2SLW1FT APR
Example
4.20 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•Direct/indirectlouverappearancewithsoft
contoured interior.
•12cellflatwhitelouverwithprismaticlensoverlay.
•67.8%efficientthreelampT82'x4'luminaire.
•82.0%efficienttwolampT52'x4'luminaire.
•72.1%efficienttwolampT82'x4'luminaire.
•Only5"deep.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Airreturnstandard(meetsULrequirements).
•Staticoptional.
•Louverhingesfromeitherside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•Builtinearthquakeclips.
•Housingisavailablein20gaugesteelthatmeets
NYCrequirements.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Paraplus II 2' x 4'
Direct/indirect louver air return or static recessed luminaires
Paraplus II is an architecturally styled recessed luminaire that combines the features of a parabolic
louver and an indirect cove to create an aesthetically pleasing direct/indirect appearance.
30˚
60˚
850
1700
2550
Candlepower Curve
PPH2G12FW332UNVH3
5"
(127mm)
24" (610mm)
Reference data
Efficiency 67.8%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 85W
Paraplus Voltage Ballast Options
Recessed direct/indirect 120,277orUNV(120-277) Seepage4.20 See page 4.20 and page 4.130
UNVPPH2G12FW332 AH3
Example
30˚
60˚
650
1300
1950
Candlepower Curve
PPH2G12FW232UNVHI
5"
(127mm)
24" (610mm)
Reference data
Efficiency 72.1%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 62W
30˚
60˚
650
1300
1950
Candlepower Curve
PPS2G12FW254UNVPG
5"
(127mm)
24" (610mm)
Reference data
Efficiency 82.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 120W
Paraplus Voltage Ballast Options
Recessed direct/indirect 120,277orUNV(120-277) Seepage4.20 See page 4.20 and page 4.130
UNVPPH2G12FW232 AHI
Example
Paraplus Voltage Ballast Options
Recessed direct/indirect 120,277orUNV(120-277) Seepage4.20 See page 4.20 and page 4.130
UNVPPS2G12FW254 APG
Example
Ordering information
Type Size Lamp qty –type Louver overlay Catalog no.
Air return 2' x 4' 3-T8
P20
P20 & white overlay
Matte white lens
PPH2G12FW332
PPH2G12FO332
PPH2G12FM332
Static 2' x 4' 3-T8
P20
P20 & white overlay
Matte white lens
PPS2G12FW332
PPS2G12FO332
PPS2G12FM332
Ordering information
Type Size Lamp qty –type Louver overlay Catalog no.
Air return 2' x 4' 2-T8
P20
P20 & white overlay
Matte white lens
PPH2G12FW232
PPH2G12FM232
PPH2G12FO232
Static 2' x 4' 2-T8
P20
P20 & white overlay
Matte white lens
PPS2G12FW232
PPS2G12FO232
PPS2G12FM232
Ordering information
Type Size Lamp qty –type Louver overlay Catalog no.
Air return 2' x 4' 2-T5HO
P20
P20 & white overlay
Matte white lens
PPS2G12FW254
PPS2G12FO254
PPS2G12FM254
Static 2' x 4' 2-T5
P20
P20 & white overlay
Matte white lens
PPS2G12FW228
PPS2G12FO228
PPS2G12FM228
4.21Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Direct/indirectlouverappearancewithsoft
contoured interior.
•8cellflatwhitelouverwithprismaticlensoverlay.
•72.0%efficienttwolampTT52'x2'luminaire.
•71.4%efficienttwolampT5HO2'x2'luminaire.
•Only5"deep.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Airreturnstandard(meetsULrequirements).
•Staticoptional.
•Louverhingesfromeitherside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•Builtinearthquakeclips.
•Housingisavailablein20gaugesteelthatmeets
NYCrequirements.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic TT5 IB* SB*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Paraplus II 2' x 2'
Direct/indirect louver air return or static recessed luminaires
Paraplus II is an architecturally styled recessed luminaire that combines the features of a parabolic
louver and an indirect cove to create an aesthetically pleasing direct/indirect appearance.
30˚
60˚
700
1400
2100
Candlepower Curve
PPH2G8FW2FT120SB
5"
(127mm)
24" (610mm)
Reference data
Efficiency 72.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 72.6W
Paraplus Voltage Ballast Options
Recessed direct/indirect 120,277orUNV(120-277) Seepage4.21 See page 4.21 and page 4.130
120PPH2G8FW2FT ASB
Example
30˚
60˚
450
900
1350
Candlepower Curve
PPS2G8FW224UNVPG
5"
(127mm)
24" (610mm)
Reference data
Efficiency 71.4%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 56.9W
Paraplus Voltage Ballast Options
Recessed direct/indirect 120,277orUNV(120-277) Seepage4.21 See page 4.21 and page 4.130
UNVPPS2G8FW224 APG
Example
Ordering information
Type Size Lamp qty –type Louver overlay Catalog no.
Air return 2' x 2' 2-TT5
P20
P20 & white overlay
Matte white lens
PPH2G8FW2FT
PPH2G8FO2FT
PPH2G8FM2FT
Static 2' x 2' 2-TT5
P20
P20 & white overlay
Matte white lens
PPS2G8FW2FT
PPS2G8FO2FT
PPS2G8FM2FT
Ordering information
Type Size Lamp qty –type Louver overlay Catalog no.
Static 2' x 2'
2-T5
P20
P20 & white overlay
Matte white lens
PPS2G8FW214
PPS2G8FO214
PPS2G8FM214
2-T5HO
P20
P20 & white overlay
Matte white lens
PPS2G8FW224
PPS2G8FO224
PPS2G8FM224
2-T8
P20
P20 & white overlay
Matte white lens
PPS2G8FW217
PPS2G8FO217
PPS2G8FM217
3-T8
P20
P20 & white overlay
Matte white lens
PPS2G8FW317
PPS2G8FO317
PPS2G8FM317
4.22 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•Direct/indirectlouverappearancewithsoft
contoured interior.
•6cellflatwhitelouverwithprismaticlensoverlay.
•60.2%efficienttwolampT81'x4'luminaire.
•67.5%efficientsinglelampT5HO1'x4'luminaire.
•71.4%efficienttwolampT5HO1'x4'luminaire.
•Only5"deep.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Airreturnstandard(meetsULrequirements).
•Staticoptional.
•Louverhingesfromeitherside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•4earthquakeclipsstandard.
•Housingis20gaugesteel,meetsNYCrequirements.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Paraplus II 1' x 4'
Direct/indirect louver air return or static recessed luminaires
Paraplus II is an architecturally styled recessed luminaire that combines the features of a parabolic
louver and an indirect cove to create an aesthetically pleasing direct/indirect appearance.
PPH1G6FW232UNVHI
30˚
60˚
600
1200
1800
Candlepower Curve
Reference data
Efficiency 60.2%
Spacing ratio 1.1
Electronic ballast
Inputwatts(120V) 64.1W
UNVPPH1G6FW232 AHI
Example
PPS1G6FW154UNVPG
30˚
60˚
550
1100
1650
Candlepower Curve
Reference data
Efficiency 67.5%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 60.7W
UNVPPS1G6FW154 APG
Example
5"
(127mm)
12" (305mm)
5"
(127mm)
12" (305mm)
Ordering information
Type Size Lamp qty –type Louver overlay Catalog no.
Static 1' x 4'
2-T5HO
P20
P20 & white overlay
Matte white lens
PPS1G6FW254
PPS1G6FO254
PPS1G6FM254
1-T5HO
P20
P20 & white overlay
Matte white lens
PPS1G6FW154
PPS1G6FO154
PPS1G6FM154
2-T5
P20
P20 & white overlay
Matte white lens
PPS1G6FW228
PPS1G6FO228
PPS1G6FM228
Ordering information
Type Size Lamp qty –type Louver overlay Catalog no.
Air return 1' x 4' 2-T8
P20
P20 & white overlay
Matte white lens
PPH1G6FW232
PPH1G6FO232
PPH1G6FM232
Paraplus Voltage Ballast Options
Recessed direct/indirect 120=120V Seepage4.22 See page 4.22
277=277V  andpage4.130
UNV=120-277V
Paraplus Voltage Ballast Options
Recessed direct/indirect 120=120V Seepage4.22 See page 4.22
277=277V  andpage4.130
UNV=120-277V
4.23Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Paraplus II
Direct/indirect louver air return or static recessed luminaires
4.24 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Opalescent
Premium specification recessed air handling or static luminaires
Opalescent’s2½"regressedframewithcontouredlens,madeofahighlighttransmission
frost white acrylic, creates a bold but simple appearance that will blend with any
architectural environment. The Opalescent lens frame assembly, designed with precision
mitered side rails and integrated spring loaded latches, allows for simple installation and
maintenance of the lamps and ballast.
The exterior of the Opalescent housing is black and incorporates eyeleted heat removal
vents on the end caps, creating an environment for a cooler ballast operating temperature.
The internal reflector system is powder coated with our 95% reflective white paint.
When matched with the high light transmission frost white acrylic lens it gives the
Opalescent efficiencies that qualify for many rebate programs, making it a true energy
andcost saving choice.
4.25Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Boldbutsimple2-1/2"regressedframe
with contoured lens.
•Highlighttransmissionfrostwhiteacryliclens.
•Truemiteredcornerlensframe.
•86.8%efficienttwolamp28WT52'x4'luminaire.
•79.5%efficienttwolamp54WT5HO2'x4'luminaire.
•Internalreflectorcoatedwith95%reflectivewhitepaint.
•5"deepbody.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursidesforpositive
lightstop.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
Options & accessories page 4.130
Ballast type <10THD
Electronic T5 program start PG
Electronic T5 28W instant start WA*†
Electronic T5 28W bi-level step ballast VY
(2lamp)
DALIBallast DA
*Ballast(WA)onlyavailablein120or277volt.
†56Inputwatts0.93B.F.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Opalescent T5 2' x 4'
Premium specification recessed air handling or static luminaires
Opalescent’s2½"regressedframewithcontouredlens,madeofahighlighttransmission
frost white acrylic, creates a bold but simple appearance that will blend with any
architectural environment. The Opalescent lens frame assembly, designed with precision
mitered side rails and integrated spring loaded latches, allows for simple installation and
maintenance of the lamps and ballast. The exterior of the Opalescent housing is black and
incorporates eyeleted heat removal vents on the end caps, creating an environment for
a cooler ballast operating temperature. The internal reflector system is powder coated
with our 95% reflective white paint. When matched with the high light transmission frost
white acrylic lens it gives the Opalescent efficiencies that qualify for many rebate programs,
makingit a true energy and cost saving choice.
30˚
60˚
650
1300
1950
Candlepower Curve
OPA2GPW228UNVPG
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 86.8%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 62.7W
Ballastfactor 1
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T5 28W OPS2GPW228
Air handling 2' x 4' 2-T5 28W OPA2GPW228
30˚
60˚
950
1900
2850
Candlepower Curve
OPA2GPW254UNVPG
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 79.5%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 115.0W
Ballastfactor 1
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T5HO 54W OPS2GPW254
Air handling 2' x 4' 2-T5HO 54W OPA2GPW254
Opalescent Voltage Ballast Options
Frost white contoured lens design 120=120V Seepage4.25 See page 4.25
Air handling or static 277=277V  andpage4.130
UNV=120-277 V
UNVOPA2GPW228 APG
Example
Opalescent Voltage Ballast Options
Frost white contoured lens design 120=120V Seepage4.25 See page 4.25
Air handling or static 277=277V  andpage4.130
UNV=120-277 V
UNVOPA2GPW254 APG
Example
4.26 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•Aestheticallypleasingtriplelensdesign.
•Curvedhighlighttransmissionfrostwhiteacrylic
sidelenses.
•Clearacrylicconicalprismaticcenterlens.
•Internalreflectorcoatedwith95%reflective
whitepaint.
•82.8%efficienttwolamp40WTT52'x2'luminaire.
•75.6%efficienttwolamp14WT52'x2'luminaire.
•76.1%efficienttwolamp24WT5HO2'x2'luminaire.
•5"deepbody.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursidesforpositive
lightstop.
•Truemiteredcorneraluminumlensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
Options & accessories page 4.130
Ballast type <10THD <20THD
Electronic T5 program start PG –
Electronic TT5 40W PR* –
Electronic TT5 40W IB SB
Electronic TT5 50W BP –
Electronic TT5 55W BF –
Electronic T5 14W bi-level VY –
 stepballast(2lamp)
DALIBallast DA –
* Program start.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Opalescent T5 2' x 2'
Premium specification recessed air handling or static luminaires
Opalescent’s2½"regressedframewithcontouredlens,madeofahighlighttransmission
frost white acrylic, creates a bold but simple appearance that will blend with any
architectural environment. The Opalescent lens frame assembly, designed with precision
mitered side rails and integrated spring loaded latches, allows for simple installation and
maintenance of the lamps and ballast. The exterior of the Opalescent housing is black and
incorporates eyeleted heat removal vents on the end caps, creating an environment for
a cooler ballast operating temperature. The internal reflector system is powder coated
with our 95% reflective white paint. When matched with the high light transmission frost
white acrylic lens it gives the Opalescent efficiencies that qualify for many rebate programs,
makingit a true energy and cost saving choice.
30˚
60˚
650
1300
1950
Candlepower Curve
OPS2GPW2FTUNVPR
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 82.8%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 67.4W
Ballastfactor 0.88
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-Twin tube T5 40W OPS2GPW2FT
Air handling 2' x 2' 2-Twin tube T5 40W OPA2GPW2FT
30˚
60˚
400
800
1200
Candlepower Curve
OPA2GPW224UNVPG
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 76.1%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 51.1W
Ballastfactor 1
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-T5
2-T5HO
14W
24W
OPS2GPW214
OPS2GPW224
Air handling 2' x 2' 2-T5
2-T5HO
14W
24W
OPA2GPW214
OPA2GPW224
Opalescent Voltage Ballast Options
Frost white contoured lens design 120=120V Seepage4.26 See page 4.26
Air handling or static 277=277v  andpage4.130
UNV=120-277 V
UNVOPS2GPW2FT APR
Example
Opalescent Voltage Ballast Options
Frost white contoured lens design 120=120V Seepage4.26 See page 4.26
Air handling or static 277=277V  andpage4.130
UNV=120-277 V
UNVOPA2GPW224 APG
Example
4.27Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Boldbutsimple2½"regressedframewith
contouredlens.
•Highlighttransmissionfrostwhiteacryliclens.
•Truemiteredcornerlensframe.
•80.8%efficienttwolamp32WT82'x4'luminaire.
•80.0%efficientthreelamp25WT82'x4'luminaire.
•Internalreflectorcoatedwith95%reflective
whitepaint.
•5"deepbody.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursidesforpositive
lightstop.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
and add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Advance Optanium C5* –
Low Watt.77 Electronic T8
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Opalescent T8 2' x 4'
Premium specification recessed air handling or static luminaires
Opalescent’s2½"regressedframewithcontouredlens,madeofahighlighttransmission
frost white acrylic, creates a bold but simple appearance that will blend with any
architectural environment. The Opalescent lens frame assembly, designed with precision
mitered side rails and integrated spring loaded latches, allows for simple installation and
maintenance of the lamps and ballast. The exterior of the Opalescent housing is black and
incorporates eyeleted heat removal vents on the end caps, creating an environment for
a cooler ballast operating temperature. The internal reflector system is powder coated
with our 95% reflective white paint. When matched with the high light transmission frost
white acrylic lens it gives the Opalescent efficiencies that qualify for many rebate programs,
makingit a true energy and cost saving choice.
30˚
60˚
650
1300
1950
Candlepower Curve
OPA2GPW232UNVC5
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 80.8%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 53.5W
Ballastfactor 0.77
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T8 32W OPS2GPW232
Air handling 2' x 4' 2-T8 32W OPA2GPW232
30˚
60˚
950
1900
2850
Candlepower Curve
OPA2GPW332UNVH3
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data – 25W
Efficiency 80.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 71.1W
Ballastfactor 0.88
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 3-T8 32W OPS2GPW332
Air handling 2' x 4' 3-T8 32W OPA2GPW332
Opalescent Voltage Ballast Options
Frost white contoured lens design 120=120V Seepage4.27 See page 4.27
Air handling or static 277=277V  andpage4.130
UNV=120-277 V
UNVOPA2GPW232 AC5
Example
Opalescent Voltage Ballast Options
Frost white contoured lens design 120=120V Seepage4.27 See page 4.27
Air handling or static 277=277V  andpage4.130
UNV=120-277 V
UNVOPA2GPW332 AH3
Example
4.28 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Opalescent T8 2' x 2'
Premium specification recessed air handling or static luminaires
Opalescent’s2½"regressedframewithcontouredlens,madeofahighlighttransmission
frost white acrylic, creates a bold but simple appearance that will blend with any
architectural environment. The Opalescent lens frame assembly, designed with precision
mitered side rails and integrated spring loaded latches, allows for simple installation and
maintenance of the lamps and ballast. The exterior of the Opalescent housing is black and
incorporates eyeleted heat removal vents on the end caps, creating an environment for
a cooler ballast operating temperature. The internal reflector system is powder coated
with our 95% reflective white paint. When matched with the high light transmission frost
white acrylic lens it gives the Opalescent efficiencies that qualify for many rebate programs,
makingit a true energy and cost saving choice.
30˚
60˚
300
600
900
Candlepower Curve
OPA2GPW217UNVHI
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 74.5%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 30.2W
Ballastfactor 0.90
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-T8
2-6"UT8
17W
32W
OPS2GPW217
OPS2GPW26U
Air handling 2' x 2' 2-T8
2-6"UT8
17W
32W
OPA2GPW217
OPA2GPW26U
30˚
60˚
450
900
1350
Candlepower Curve
OPA2GPW317UNVH3
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 70.1%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 45.5W
Ballastfactor 0.92
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 3-T8 17W OPS2GPW317
Air handling 2' x 2' 3-T8 17W OPA2GPW317
Features
•Aestheticallypleasingtriplelensdesign.
•Curvedhighlighttransmissionfrostwhiteacrylic
sidelenses.
•Clearacrylicconicalprismaticcenterlens.
•Internalreflectorcoatedwith95%reflective
whitepaint.
•74.5%efficienttwolamp17WT82'x2'luminaire.
•70.1%efficientthreelamp17WT82'x2'luminaire.
•5"deepbody.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursidesforpositive
lightstop.
•Truemiteredcorneraluminumlensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirements
or Chicago Plenum is available.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
and add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Opalescent Voltage Ballast Options
Frost white contoured lens design 120=120V Seepage4.28 See page 4.28
Air handling or static 277=277V  andpage4.130
UNV=120-277 V
UNVOPA2GPW217 AHI
Example
Opalescent Voltage Ballast Options
Frost white contoured lens design 120=120V Seepage4.28 See page 4.28
Air handling or static 277=277V  andpage4.130
UNV=120-277 V
UNVOPA2GPW317 AH3
Example
4.29Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Opalescent Twin 2' x 4' & 2' x 2'
Premium specification recessed luminaires
Dual sculptured ends and curved opal prismatic lens, presented in a shallow regressed Door
frame the Opalescent Twin provides a broad distribution that illuminates the vertical and
horizontal surfaces in the work space. This creates a soft, balanced brightness that enhances
the ability to see and work.
OTS2GPW232UNVHI
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T8
2-T5
2-T5HO
32W
28W
54W
OTS2GPW232UNVHI
OTS2GPW228UNVPG
OTS2GPW254UNVPG
Static 2' x 2'
2-T5
2-T8
2-T5HO
2-TT5
14W
17W
24W
40W
OTS2GPW214UNVPG
OTS2GPW217UNVHI
OTS2GPW224UNVPG
OTS2GPW2FTUNVPR
The Opalescent Twin provides illumination
at power levels below LEED requirements
and yet is a highly efficient luminaire. With
ashallowdepthofonly3½",accesstothe
ballast from below, the Opalescent Twin
is an excellent choice for any commercial
application and awelcome part of the
Opalescent family.
The Opalescent Twin will be available with
two high performance T8 lamps, as well as
T5 and T5HO fluorescent lamps in the 2'
x 4', and T8, T5, T5HO or TT5 fluorescent
lamps in the 2' x 2', both sizes will also be
offered with LED options. Opalescent Twin
will fit standard grid and dry wall ceilings
withuseofoptionalFKDrywallkit.
Available 4th quarter 2011
4.30 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Skyway T5 2' x 4'
Premium specification recessed air handling or static luminaires
Skyway’s aesthetically pleasing triple lens design features a clear conical prismatic center lens,
enhanced by softly curved frost white acrylic lenses on each side, mounted in a regressed
extruded aluminum frame with spring loaded latches. These 85% light transmission lenses,
coupled with an internal reflector system coated with our 95% reflective white paint, creates
our new, energy efficient Skyway.
Features
•Aestheticallypleasingtriplelensdesign.
•Curvedhighlighttransmissionfrostwhite
acrylic side lenses.
•Clearacrylicconicalprismaticcenterlens.
•Internalreflectorcoatedwith95%reflective
whitepaint.
•73%efficienttwolamp28WT52'x4'luminaire.
•72.7%efficienttwolamp54WT5HO2'x4'luminaire.
•5"deepbody.
•Blackhousingexteriorforcoolerballast
operating temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursides
for positive light stop.
•Truemiteredcorneraluminumlensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
Options & accessories page 4.130
Ballast type <10THD
Electronic T5 program start PG
Electronic T5 28W instant start WA*†
Electronic T5 28W bi-level step ballast VY
(2lamp)
DALIBallast DA
*Ballast(WA)onlyavailablein120or277volt.
†56Inputwatts0.93B.F.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
650
1300
1950
Candlepower Curve
SKS2GPK228120WA
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 73.0%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 54.5W
Ballastfactor 0.93
30˚
60˚
950
1900
2850
Candlepower Curve
SKS2GPK254UNVPG
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 72.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 114.9W
Ballastfactor 1.0
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T5HO
3-T5HO 54W SKS2GPK254
SKS2GPK354
Air handling 2' x 4' 2-T5HO
3-T5HO 54W SKA2GPK254
SKA2GPK354
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T5
3-T5 28W SKS2GPK228
SKS2GPK328
Air handling 2' x 4' 2-T5
3-T5 28W SKA2GPK228
SKA2GPK328
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.30 See page 4.30
Air handling or static 277=277V  andpage4.130
UNV=120-277V
UNVSKS2GPK254 APG
Example
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.30 See page 4.30
Air handling or static 277=277V  andpage4.130
UNV=120-277V
120SKS2GPK228 AWA
Example
4.31Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Aestheticallypleasingtriplelensdesign.
•Curvedhighlighttransmissionfrostwhite
acrylic side lenses.
•Clearacrylicconicalprismaticcenterlens.
•Internalreflectorcoatedwith95%reflective
whitepaint.
•76.5%efficienttwolamp40WTwintubeT52'x2'
luminaire.
•72.8%efficienttwolamp14WT52'x2'luminaire.
•74.6%efficienttwolamp24WT5HO2'x2'luminaire.
•5"deepbody.
•Blackhousingexteriorforcoolerballast
operating temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursides
for positive light stop.
•Truemiteredcorneraluminumlensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
Options & accessories page 4.130
Ballast type <10THD <20THD
Electronic T5 program start PG –
Electronic TT5 40W PR* –
Electronic TT5 40W IB SB
Electronic TT5 50W BP –
Electronic TT5 55W BF –
Electronic T5 14W bi-level VY –
 stepballast(2lamp)
DALIBallast DA –
* Program start.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Skyway T5 2' x 2'
Premium specification recessed air handling or static luminaires
Skyway’s aesthetically pleasing triple lens design features a clear conical prismatic center lens,
enhanced by softly curved frost white acrylic lenses on each side, mounted in a regressed
extruded aluminum frame with spring loaded latches. These 85% light transmission lenses,
coupled with an internal reflector system coated with our 95% reflective white paint, creates
our new, energy efficient Skyway.
30˚
60˚
700
1400
2100
Candlepower Curve
SKS2GPK2FTUNVIB
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 76.5%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 69.1W
Ballastfactor 0.88
30˚
60˚
400
800
1200
Candlepower Curve
SKS2GPK224UNVPG
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 74.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 51.3W
Ballastfactor 1.0
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-Twin tube T5 40W SKS2GPK2FT
Air handling 2' x 2' 2-Twin tube T5 40W SKA2GPK2FT
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
2-T5HO
3-T5HO
14W
24W
24W
SKS2GPK214
SKS2GPK224
SKS2GPK324
Air handling 2' x 2'
2-T5
2-T5HO
3-T5HO
14W
24W
24W
SK A2GPK214
SKA2GPK224
SKA2GPK324
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.31 See page 4.31
Air handling or static 277=277V  andpage4.130
UNV=120-277V
UNVSKS2GPK224 APG
Example
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.31 See page 4.31
Air handling or static 277=277V  andpage4.130
UNV=120-277V
UNVSKS2GPK2FT AIB
Example
4.32 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Skyway T5 1' x 4'
Premium specification recessed air handling or static luminaires
Skyway’s aesthetically pleasing triple lens design features a clear conical prismatic center lens,
enhanced by softly curved frost white acrylic lenses on each side, mounted in a regressed
extruded aluminum frame with spring loaded latches. These 85% light transmission lenses,
coupled with an internal reflector system coated with our 95% reflective white paint,
createsour new, energy efficient Skyway.
Features
•Aestheticallypleasingtriplelensdesign.
•Curvedhighlighttransmissionfrostwhiteacrylic
sidelenses.
•Clearacrylicconicalprismaticcenterlens.
•Internalreflectorcoatedwith95%reflective
whitepaint.
•64.7%efficienttwolamp28WT51'x4'luminaire.
•4"deepbody.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursidesforpositive
lightstop.
•Truemiteredcorneraluminumlensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirements
or Chicago Plenum is available.
Options & accessories page 4.130
Ballast type <10THD
Electronic T5 program start PG
Electronic T5 28W instant start WA*†
Electronic T5 28W bi-level step ballast VY
 (2lamp)
DALIBallast DA
*Ballast(WA)onlyavailablein120or277volt.
†56Inputwatts0.93B.F.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
SKS1GPK228UNVPG
4"
(102mm)
11⅞" (302mm)
4"
(102mm)
11⅞" (302mm)
Reference data
Efficiency 64.7%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 59.0W
Ballastfactor 1
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4'
1-T5
2-T5
1-T5HO
2-T5HO
28W
28W
54W
54W
SKS1GPK128
SKS1GPK228
SKS1GPK154
SKS1GPK254
Air handling 1' x 4'
1-T5
2-T5
1-T5HO
2-T5HO
28W
28W
54W
54W
SKA1GPK128
SKA1GPK228
SKA1GPK154
SKA1GPK254
30˚
60˚
550
1100
1650
Candlepower Curve
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.32 See page 4.32
Air handling or static 277=277V  andpage4.130
UNV=120-277V
UNVSKS1GPK228 APG
Example
4.33Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Aestheticallypleasingtriplelensdesign.
•Curvedhighlighttransmissionfrostwhite
acrylic side lenses.
•Clearacrylicconicalprismaticcenterlens.
•Internalreflectorcoatedwith95%reflective
whitepaint.
•75.3%efficienttwolamp32WT82'x4'luminaire.
•75.4%efficientthreelamp32WT82'x4'luminaire.
•5"deepbody.
•Blackhousingexteriorforcoolerballast
operating temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursides
for positive light stop.
•Truemiteredcorneraluminumlensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirements
or Chicago Plenum is available.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
and add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic T5 PG –
Advance Optanium C5* –
low watt.77 Electronic T8
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Skyway T8 2' x 4'
Premium specification recessed air handling or static luminaires
Skyway’s aesthetically pleasing triple lens design features a clear conical prismatic center lens,
enhanced by softly curved frost white acrylic lenses on each side, mounted in a regressed
extruded aluminum frame with spring loaded latches. These 85% light transmission lenses,
coupled with an internal reflector system coated with our 95% reflective white paint, creates
our new, energy efficient Skyway.
30˚
60˚
700
1400
2100
Candlepower Curve
SKS2GPK232UNVC5
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 75.3%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 51.9W
Ballastfactor 0.77
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T8 32W SKS2GPK232
Air handling 2' x 4' 2-T8 32W SKA2GPK232
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 3-T8 32W SKS2GPK332
Air handling 2' x 4' 3-T8 32W SKA2GPK332
30˚
60˚
1050
2100
3150
Candlepower Curve
SKS2GPK332UNVH3
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 75.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 87W
Ballastfactor 0.88
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.33 See page 4.33
Air handling or static 277=277V  andpage4.130
UNV=120-277V
UNVSKS2GPK232 AC5
Example
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.33 See page 4.33
Air handling or static 277=277V  andpage4.130
UNV=120-277V
UNVSKS2GPK332 AH3
Example
4.34 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•Aestheticallypleasingtriplelensdesign.
•Curvedhighlighttransmissionfrostwhiteacrylic
sidelenses.
•Clearacrylicconicalprismaticcenterlens.
•Internalreflectorcoatedwith95%reflective
whitepaint.
•70.7%efficienttwoLamp17WT82'x2'luminaire.
•72.9%efficientthreeLamp17WT82'x2'luminaire.
•5"deepbody.
•Blackhousingexteriorforcoolerballast
operating temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursides
for positive light stop.
•Truemiteredcorneraluminumlensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
and add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Skyway T8 2' x 2'
Premium specification recessed air handling or static luminaires
Skyway’s aesthetically pleasing triple lens design features a clear conical prismatic center lens,
enhanced by softly curved frost white acrylic lenses on each side, mounted in a regressed
extruded aluminum frame with spring loaded latches. These 85% light transmission lenses,
coupled with an internal reflector system coated with our 95% reflective white paint, creates
our new, energy efficient Skyway.
30˚
60˚
300
600
900
Candlepower Curve
SKS2GPK217UNVHI
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 70.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 31.7W
Ballastfactor 0.83
30˚
60˚
500
1000
1500
Candlepower Curve
SKS2GPK317UNVH3
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 72.9%
Spacing ratio 1.1
Electronic ballast
Inputwatts(120V) 46.6W
Ballastfactor 1.0
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-T8 17W SKS2GPK217
Air handling 2' x 2' 2-T8 17W SK A2GPK217
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 3-T8 17W SKS2GPK317
Air handling 2' x 2' 3-T8 17W SKA2GPK317
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.34 See page 4.34
Air handling or static 277=277V  andpage4.130
UNV=120-277V
UNVSKS2GPK217 AHI
Example
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.34 See page 4.34
Air handling or static 277=277V  andpage4.130
UNV=120-277V
UNVSKS2GPK317 AH3
Example
4.35Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Aestheticallypleasingtriplelensdesign.
•Curvedhighlighttransmissionfrostwhite
acrylic side lenses.
•Clearacrylicconicalprismaticcenterlens.
•Internalreflectorcoatedwith95%reflective
whitepaint.
•66.4%efficienttwolamp32WT81'x4'luminaire.
•4"deepbody.
•Blackhousingexteriorforcoolerballast
operating temperature.
•Eyeletedheatremovalventsinfixtureends.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Doorjambfinishedblackonfoursides
for positive light stop.
•Truemiteredcorneraluminumlensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeRequirementsor
Chicago Plenum is available.
Options & accessories page 4.130
Ballast type <10THD <20THD
ElectronicT8(1or2lamp) HI* SO*
ElectronicT8(1or2lamp) P2** –
LOL Dimming T8 PS –
Electronic T8 32W bi-level V2 –
 stepballast(2lamp)
DALIBallast DA –
* Instant start. Standard
** Program start.
DALI=digitaladdressabledimming
Other dimming options consultfactory.
Note: For T8 UNV, you must use HIBallastCode.
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Electrical wiring options: Consultfactory.
For motion or light sensor see folio OA20-10.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Skyway T8 1' x 4'
Premium specification recessed air handling or static luminaires
Skyway’s aesthetically pleasing triple lens design features a clear conical prismatic center lens,
enhanced by softly curved frost white acrylic lenses on each side, mounted in a regressed
extruded aluminum frame with spring loaded latches. These 85% light transmission lenses,
coupled with an internal reflector system coated with our 95% reflective white paint, creates
our new, energy efficient Skyway.
30˚
60˚
700
1400
2100
Candlepower Curve
SKS1GPK232UNVHI
4"
(102mm)
11 ⅞" (302mm)
4"
(102mm)
11 ⅞" (302mm)
Reference data
Efficiency 66.4%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 49.6W
Ballastfactor 0.77
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4' 1-T8
2-T8 32W SKS1GPK132
SKS1GPK232
Air handling 1' x 4' 1-T8
2-T8 32W SKA1GPK132
SKA1GPK232
Skyway Voltage Ballast Options
Triple lens design 120=120V Seepage4.35 See page 4.35
Air handling or static 277=277V  andpage4.130
UNV=120-277V
UNVSKS1GPK232 AHI
Example
4.36 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Aletta louver shield
T8 & T5 2' x 4' & 2' x 2'
Direct/indirect recessed static luminaires
This family of recessed luminaires features a gently concaved diffuser that provides balanced
luminosity, combined with distinctive and elegant architectural detailing.
Features
•66.2%efficienttwolamp32WT82'x4'luminaire.
•68.6%efficienttwolamp28WT52'x4'luminaire.
•63.7%efficienttwolamp17WT82'x2'luminaire.
•62.1%efficienttwolamp24WT5HO2'x2'luminaire.
•Housingisblackbakedpolyesterenameldie-formed
codegaugecoldrolledsteel.20gaugeavailableforNYC.
•Thelensassemblyismadefromextruded100%DR
Frost acrylic. Spring latch lens hinges, left and right sides
independently, downward into the room cavity.
•ThecenterpanellouverishighpuritySemi-Specular,
2-3/4"(6.99cm)openingx1-3/8"(3.49cm)deepon2"
(5.08cm)centerswithmicro-prismaticsideoverlays.
•95%reflectivewhitepowderpaintedperformancekick
reflector.
•Extrudedaluminumtrim,paintedwhite,interfaces
withceilinggridorplasterframe(byothers).
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
975
1950
Candlepower Curve
ALS2GUL232UNVHI
5 ⅜"
(137mm)
24" (610mm)
Reference data
Efficiency 66.2%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 59.0W
Ballastfactor 0.88
30˚
60˚
900
1800
Candlepower Curve
ALS2GUL228UNVPG
5 ⅜"
(137mm)
24" (610mm)
5 ⅜"
(137mm)
24" (610mm)
Reference data
Efficiency 68.6%
Spacing ratio 1.1
Electronic ballast
Inputwatts(120V) 61.6W
Ballastfactor 1.03
30˚
60˚
450
900
Candlepower Curve
ALS2GUL217UNVHI
5 ⅜"
(137mm)
24" (610mm)
Reference data
Efficiency 63.7%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 31.4W
Ballastfactor 0.93
30˚
60˚
600
1200
Candlepower Curve
ALS2GUL224UNVPG
5 ⅜"
(137mm)
24" (610mm)
5 ⅜"
(137mm)
24" (610mm)
Reference data
Efficiency 62.1%
Spacing ratio 1.1
Electronic ballast
Inputwatts(120V) 47.7W
Ballastfactor 1.0
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T8
3-T8
2-T5
3-T5
2-T5HO
1-T5HO
32W
32W
28W
28W
54W
54W
ALS2GUL232
ALS2GUL332
ALS2GUL228
ALS2GUL328
ALS2GUL254
ALS2GUL154
Aletta Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.36 See page 4.36
Static panel w/elongated lens 277=277V  andpage4.130
UNV=120-277 V
UNV
2X2
ALS2GUL232 AHI
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
3-T5
2-T8
3-T8
2-T5HO
3-T5HO
14W
14W
17W
17W
24W
24W
ALS2GUL214
ALS2GUL314
ALS2GUL217
ALS2GUL317
ALS2GUL224
ALS2GUL324
Aletta Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.36 See page 4.36
Static panel w/elongated lens 277=277V  andpage4.130
UNV=120-277 V
UNVALS2GUL224 APG
Example
Whether used in office, conference, classroom
or public areas, Aletta is truly easy on the eyes:
comfortable lighting to see by and beautiful
lighting to look at.
Aletta is a unique soft lighting coffer
4.37Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•69.8%efficienttwolamp32WT82'x4'luminaire.
•73.6%efficienttwolamp28WT52'x4'luminaire.
•68.4%efficienttwolamp17WT82'x2'luminaire.
•66.8%efficienttwolamp24WT5HO2'x2'luminaire.
•Housingisblackbakedpolyesterenameldie-formed
codegaugecoldrolledsteel.20gaugeavailableforNYC.
•Thelensassemblyismadefromextruded100%DR
Frost acrylic. Spring latch lens hinges, left and right sides
independently, downward into the room cavity.
•CenterPanelisconstructedwith24gaugepowder
painted CRS with linear micro-prismatic lens overlays.
Elongatedlensopeningsare21-1/2"(54.61cm)windows.
•95%reflectivewhitepowderpaintedperformancekick
reflector.
•Extrudedaluminumtrim,paintedwhite,interfaces
withceilinggridorplasterframe(byothers).
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Aletta panel shield
T8 & T5 2' x 4' & 2' x 2'
Direct/indirect recessed static luminaires
This family of recessed luminaires features a gently concaved diffuser that provides balanced
luminosity, combined with distinctive and elegant architectural detailing.
2X2
30˚
60˚
825
1650
Candlepower Curve
ALS2GUP232UNVHI
5 ⅜"
(137mm)
24" (610mm)
Reference data
Efficiency 69.8%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 59.0W
Ballastfactor 0.88
30˚
60˚
750
1500
Candlepower Curve
ALS2GUP228UNVPG
5 ⅜"
(137mm)
24" (610mm)
5 ⅜"
(137mm)
24" (610mm)
Reference data
Efficiency 73.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 61.7W
Ballastfactor 1.0
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T8
3-T8
2-T5
3-T5
2-T5HO
1-T5HO
32W
32W
28W
28W
54W
54W
ALS2GUP232
ALS2GUP332
ALS2GUP228
ALS2GUP328
ALS2GUP254
ALS2GUP154
Aletta Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.37 See page 4.37
Static panel w/elongated lens 277=277V  andpage4.130
UNV=120-277 V
UNVALS2GUP232 AHI
Example
30˚
60˚
450
900
Candlepower Curve
ALS2GUP217UNVHI
5 ⅜"
(137mm)
24" (610mm)
Reference data
Efficiency 68.4%
Spacing ratio 1.1
Electronic ballast
Inputwatts(120V) 31.2W
Ballastfactor 0.93
30˚
60˚
525
1050
Candlepower Curve
ALS2GUP224UNVPG
5 ⅜"
(137mm)
24" (610mm)
5 ⅜"
(137mm)
24" (610mm)
Reference data
Efficiency 66.8%
Spacing ratio 1.1
Electronic ballast
Inputwatts(120V) 47.5W
Ballastfactor 1.0
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
3-T5
2-T8
3-T8
2-T5HO
3-T5HO
14W
14W
17W
17W
24W
24W
ALS2GUP214
ALS2GUP314
ALS2GUP217
ALS2GUP317
ALS2GUP224
ALS2GUP324
Aletta Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.37 See page 4.37
Static panel w/elongated lens 277=277V  andpage4.130
UNV=120-277 V
UNVALS2GUP217 AHI
Example Whether used in office, conference, classroom
or public areas, Aletta is truly easy on the eyes:
comfortable lighting to see by and beautiful
lighting to look at.
Aletta is a unique soft lighting coffer
4.38 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•75.7%efficienttwolamp28WT52'x4'luminaire.
•AltersoftwhitefilmoninsideofmicroperforatedMesh
Lamp Shields conceal lamp image providing balance
between reflected and direct light.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•95%reflectiveAltersoftwhitepaintfinishandspecular
interior reflector.
•5½"deepone-piecebodyforeasyinstallation.
•Swing-downmicroperforatedlampshieldsfor
easy relamping.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-grid,exposedslotT-gridand
drywall ceilings.
•Luminairecanberowmounted
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
T8 HI T8 PS
3LPBT8 H3
T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
500
1000
1500
Candlepower Curve
1378
QHE2GPFOP232UNVHI 2' x 4' Microperforated mesh lamp shields, 2-lamp 32W T8
5½"
(140mm)
23
1316" (605mm)
47
1316" (1214mm)
Reference data
Efficiency 70.3%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 62.0W
Ballastfactor 0.88
RCR C.U.
1 74
3 57
5 45
7 36
9 29
30˚
60˚
700
1400
2100
Candlepower Curve
1916
QHE2GPFOP332UNVH3 2' x 4' Microperforated mesh lamp shields, 3-lamp 32W T8
5½"
(140mm)
24" (610mm)
47
1316" (1214mm)
Reference data
Efficiency 64.3%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 85.0W
Ballastfactor 0.88
RCR C.U.
1 67
3 52
5 41
7 33
9 27
30˚
60˚
500
1000
1500
Candlepower Curve
1311
QHE2GPFOP228UNVPG 2' x 4' Microperforated mesh lamp shields, 2-lamp 28W T5
5½"
(140mm)
47
1316" (1214mm)
23
1316" (605mm)
Reference data
Efficiency 75.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 65.0W
Ballastfactor 0.88
RCR C.U.
1 79
3 61
5 48
7 38
9 31
Alter High Efficiency Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.38 See page 4.38
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQHE2GPFOP232 HI
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T5
2-T5HO
3-T5
3-T5HO
2-T8
3-T8
4-TT5
28W
54W
28W
54W
32W
32W
40, 50, 55W
QHE2GPFOP228
QHE2GPFOP254
QHE2GPFOP328
QHE2GPFOP354
QHE2GPFOP232
QHE2GPFOP332
QHE2GPFOP4FT
Alter high efficiency 2' x 4'
Direct/indirect recessed static luminaires
With its balanced brightness and high-lumen package capable of accommodating up to
3linear T8, T5 or 4TT5lamps, the Alter High Efficiency 2' x 4' delivers superior luminous
efficacy that is perfect for wide open spaces, including workplaces with no or low partitions.
This common-dimension luminaire is optically designed to create cost-effective specification-
ready soft lighting for popular ceiling grids.
4.39Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Alter high efficiency 2' x 2'
Direct/indirect recessed static luminaires
The compact architectural styling of Alter High Efficiency 2' x 2' provides shadowless balanced
brightness combined with increased light efficacy in keeping with specification requirements.
Designed for popular 2' x 2' grids, this luminaire allows more flexible, more symmetrical
luminaire arrangements. It is suited to most environments, especially private offices where
wide distribution, uniformly lit walls and low power densities are important considerations.
30˚
60˚
500
1000
1500
Candlepower Curve
1444
QHE2GPFOP2FTUNVIB 2' x 2' Microperforated mesh lamp shields, 2-lamp 40W TT5
5½"
(140mm)
23
1316" (605mm)
23
1316" (605mm)
5½"
(140mm)
23
1316" (605mm)
23
1316" (605mm)
5½"
(140mm)
23
1316" (605mm)
23
1316" (605mm)
Reference data
Efficiency 66.3%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 65.2W
Ballastfactor 0.88
RCR C.U.
1 70
3 54
5 44
7 35
9 26
30˚
60˚
250
500
750
Candlepower Curve
606
QHE2GPFOP217UNVHI 2' x 2' Microperforated mesh lamp shields, 2-lamp 17W T8
Reference data
Efficiency 64.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 74.0W
Ballastfactor 0.88
RCR C.U.
1 68
3 53
5 41
7 33
9 27
30˚
60˚
300
600
900
Candlepower Curve
820
QHE2GPFOP224UNVPG 2' x 2' Microperforated mesh lamp shields, 2-lamp 24W T5
Reference data
Efficiency 68.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 51.0W
Ballastfactor 0.88
RCR C.U.
1 72
3 56
5 44
7 35
9 28
Alter High Efficiency Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.39 See page 4.39
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQHE2GPFOP232 IB
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
1-T T5
2-T T5
2-T8
3-T8
2-T5HO
3-T5HO
40, 50, 55W
40, 50, 55W
17W
17W
24W
24W
QHE2GPFOP1FT
QHE2GPFOP2FT
QHE2GPFOP217
QHE2GPFOP317
QHE2GPFOP224
QHE2GPFOP324
Features
•69%efficienttwolamp24WT5HO2'x2'luminaire.
•AltersoftwhitefilmoninsideofmicroperforatedMesh
Lamp Shields conceal lamp and provides a balance
between reflected and direct light.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•95%reflectiveAltersoftwhitepaintfinish.
•5½"deep,one-piecebodyforeasyinstallation.
•Swing-downlampshieldforeasyrelamping.
•Easyaccesstoballastthroughlampcompartment.
•Luminairecanberowmounted
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF T8 PS
T8 HI
3LPBT8 H3
T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
4.40 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•65%efficienttwolamp28WT51'x4'luminaire.
•Even,shadowlesslightingreducesveilingreflections.
•AltersoftwhitefilmoninsideofmicroperforatedMesh
Lamp Shields conceal lamp image providing a balance
between reflected and direct light.
•95%reflectiveAltersoftwhitepaintfinish.
•Swing-downlampshieldsforeasyrelamping.Easy
access to ballast through removable back reflector
compartment.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•Canberowmounted
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
T8 HI T5 PF
T5 PG T8 PS
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter high efficiency 1' x 4'
Direct/indirect recessed static luminaires
The Alter High Efficiency 1' x 4' brings together excellent power-density value, architectural
styling and Alter’s characteristic low, balanced brightness glow producing a soft awareness
of the lighting element. Its linear appearance suggests movement, making it ideally suited for
specification in corridors and circulation areas.
30˚
60˚
500
1000
1500
Candlepower Curve
1372
QHE1GPFOP232UNVHI 1' x 4' Microperforated mesh lamp shields, 2-lamp 32W T8
5"
(127mm)
12" (305mm)
11
1316"
(300mm)
1
1116"
(43mm)
47
1316" (1214mm)
9 ¾"
(248mm)
Reference data
Efficiency 62.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 56.5W
Ballastfactor 0.88
RCR C.U.
1 66
3 52
5 41
7 33
9 25
30˚
60˚
500
1000
1500
Candlepower Curve
1375
QHE1GPFOP228UNVPG 1' x 4' Microperforated mesh lamp shields, 2-lamp 28W T5
5"
(127mm)
12" (305mm)
11
1316"
(300mm)
1
1116"
(43mm)
47
1316" (1214mm)
9 ¾"
(248mm)
Reference data
Efficiency 65.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 65.0W
Ballastfactor 0.88
RCR C.U.
1 68
3 54
5 43
7 35
9 27
Alter High Efficiency Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.40 See page 4.40
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQHE1GPFOP232 HI
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4'
1-T5
1-T5HO
2-T5
2-T5HO
2-T8
28W
54W
28W
54W
32W
QHE1GPFOP128
QHE1GPFOP154
QHE1GPFOP228
QHE1GPFOP254
QHE1GPFOP232
4.41Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•AltersoftwhitefilmoninsideofmicroperforatedMesh
Lamp Shields conceal lamp image providing balance
between reflected and direct light.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•95%reflectiveAltersoftwhitepaintfinishandspecular
interior reflector.
•5½"deepone-piecebodyforeasyinstallation.
•Swing-downmicroperforatedlampshields
for easy relamping.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-grid,exposedslotT-gridand
drywall ceilings.
•Fullyrecessedluminaireandlampcompartment.
•Luminairecanberowmounted
(notapplicablewiththeairhandlingoption)
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
T8 HI T8 PS
3LPBT8 H3
Program start T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
400
800
1200
1135
Candlepower Curve
QVS2GPFOS232UNVHI2'x4'Microperforatedmeshlampshields(static),2-lamp32WT8
5½"
(140mm)
23
1316" (605mm)
47
1316" (1214mm)
Reference data
Efficiency 56.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 62.0W
Ballastfactor 0.88
RCR C.U.
1 60
3 46
5 37
7 29
9 24
30˚
60˚
700
1400
2100
1751
Candlepower Curve
QVA2GPFOP232UNVHI 2'x4'Microperforatedmeshlampshields(airhandling),2-lamp32WT8
5⅛"
(130mm)
23
1316" (605mm)
40" (1016mm)
48" (1120mm)
Reference data
Efficiency 49.2%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 62.0W
Ballastfactor 0.88
RCR C.U.
1 52
3 41
5 32
7 26
9 19
Alter Classic Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.41 See page 4.41
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQVS2GPFOS232 HI
Example
One-piece lamp shield
Replace OS in the ordering
info by OP. OS Static only.
Air handling
Replace QVS in the ordering
info by QVA and OS to OP.
N/Afor1'x4'.
Clear Acrylic Plate Drop Down Element
Clear polished acrylic drop-down visual element with
projected color face. Substitute acrylic color suffix in
place ofopen slot only.
Suffix: GC(clear) GB(blue)
GG(green) GR(red)
e.g.QVS2GPFOS (OS=OpenSlot)
e.g.QVS2GPFGB (GB=BlueAcrylic)
For other colors or special orders, consult your Philips
Lightolier representative.
Ordering information For QVA see below for ordering instructions
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T5
2-T5HO
3-T5
3-T5HO
2-T8
3-T8
4-TT5
28W
54W
28W
54W
32W
32W
40, 50, 55W
QVS2GPFOS228
QVS2GPFOS254
QVS2GPFOS328
QVS2GPFOS354
QVS2GPFOS232
QVS2GPFOS332
QVS2GPFOS4FT
Alter classic 2' x 4'
Direct/indirect air handling or static recessed luminaires
Functionality with crisp clean lines describes the 2' x 4' Alter luminaire. Using very popular
T5, T8 and TT5 lamp technology, it offers the perfect lighting solution for spaces where
larger ceiling grids are used. This luminaire provides visual interest, soft balanced brightness
and is well suited for larger open spaces. When installed in continuous rows this luminaire
can also create a very clean cove-like appearance.
4.42 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•AltersoftwhitefilmoninsideofmicroperforatedMesh
Lamp Shields conceal lamp and provides a balance
between reflected and direct light.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Novisiblewelding.Specularinteriorreflectorwithsolid
lamp shield only.
•95%reflectiveAltersoftwhitepaintfinish.
•5½"deep,one-piecebodyforeasyinstallation
(QVSonly).
•Swing-downlampshieldforeasyrelamping.
•Easyaccesstoballastthroughlampcompartment.
•Luminairecanberowmounted
(notapplicablewiththeairhandlingoption)
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP
55W TT5 BF
T8 HI
3LPBT8 H3
Program start T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter classic 2' x 2'
Direct/indirect air handling or static recessed luminaires
Architectural styling combined with visually exciting elements can provide shadowless
balanced brightness. Low brightness glow provides the occupant with a soft awareness of
the lighting element, while increasing depth perception and sense of orientation within the
space. These luminaires offer a good lighting solution for open circulation for a distinctive
appearance.
30˚
60˚
500
1000
1500
1227
Candlepower Curve
QVS2GPFOS2FTUNVIB 2'x2'Microperforatedmeshlampshields(static),2-lamp40WTT5
5½"
(140mm)
23
1316" (605mm)
23
1316" (605mm)
Reference data
Efficiency 58.5%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 74.0W
Ballastfactor 0.88
RCR C.U.
1 61
3 48
5 38
7 30
9 25
30˚
60˚
200
400
600
590
Candlepower Curve
QVA2GPFOP2FTUNVIB 2'x2'Microperforatedmeshlampshields(airhandling),2-lamp40WTT5
5⅛"
(130mm)
24" (610mm)
20" (508mm)
24" (610mm)
Reference data
Efficiency 50.8%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 74.0W
Ballastfactor 0.88
RCR C.U.
1 49
3 38
5 31
7 25
9 18
Alter Classic Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.42 See page 4.42
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQVS2GPFOS2FT IB
Example
One-piece lamp shield
Replace OS in the ordering
info by OP. OS Static only.
Air handling
Replace QVS in the ordering
info by QVA and OS to OP.
N/Afor1'x4'.
Clear acrylic plate drop down element
Clear polished acrylic drop-down visual element with
projected color face. Substitute acrylic color suffix in
place ofopen slot only.
Suffix: GC(clear) GB(blue)
GG(green) GR(red)
e.g.QVS2GPFOS (OS=OpenSlot)
e.g.QVS2GPFGB (GB=BlueAcrylic)
For other colors or special orders, consult your Philips
Lightolier representative.
Ordering information For QVA see below for ordering instructions
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
1-TT5
2-TT5
2-T8
3-T8
2-T5HO
3-T5HO
40, 50, 55W
40, 50, 55W
17W
17W
24W
24W
QVS2GPFOS1FT
QVS2GPFOS2FT
QVS2GPFOS217
QVS2GPFOS317
QVS2GPFOS224
QVS2GPFOS324
4.43Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Alter classic 1' x 4'
Direct/indirect static recessed luminaires
The Alter 1' x 4' combines architectural styling with visually exciting elements to provide a
shadowless balanced brightness. Linear appearance makes this luminaire ideally suited for
corridors and circulation areas.
Features
•Even,shadowlesslightingreducesveilingreflections.
•AltersoftwhitefilmoninsideofmicroperforatedMesh
Lamp Shields conceal lamp image providing a balance
betweenreflectedanddirectlight.Notavailablein
airhandling.
•95%reflectiveAltersoftwhitepaintfinish.
•Swing-downlampshieldsforeasyrelamping.Easy
access to ballast through removable back reflector
compartment.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•Canberowmounted
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF T8 PS
T8 HI
T5 PG
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Air handling:N/Afor1'x4'model.
Available for Standards, Slot and Concealed.
30˚
60˚
400
800
1200
1145
Candlepower Curve
QVS1GPFOS232UNVHI 1' x 4' Microperforated mesh lamp shields, 2-lamp 32W T8
5"
(127mm)
12" (305mm)
47
1316" (1214mm)
Reference data
Efficiency 50.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 62.0W
Ballastfactor 0.88
RCR C.U.
1 53
3 42
5 33
7 27
9 22
30˚
60˚
400
800
1200
1053
Candlepower Curve
QVS1GPFOS2FTUNVIB 1' x 4' Microperforated mesh lamp shields, 2-lamp 40W TT5
47
1316" (1214mm)
5"
(127mm)
12" (305mm)
Reference data
Efficiency 47.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 74.0W
Ballastfactor 0.88
RCR C.U.
1 52
3 41
5 32
7 26
9 19
Alter Classic Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.43 See page 4.43
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQVS1GPFOS232 HI
Example
One-piece lamp shield
Replace OS in the ordering
info by OP.
Clear acrylic plate drop down element
Clear polished acrylic drop-down visual element with
projected color face. Substitute acrylic color suffix in
place ofopen slot only.
Suffix: GC(clear) GB(blue)
GG(green) GR(red)
e.g.QVS1GPFOS (OS=OpenSlot)
e.g.QVS1GPFGB (GB=BlueAcrylic)
For other colors or special orders, consult your Philips
Lightolier representative.
Ordering information
Type Size Lamp qty –type Lamp watts Cat. no. Exposed T-grid Cat. no. Slot or Concealed T
Static 1' x 4'
1-T5
1-T5HO
2-T5
2-T5HO
2-T8
2-TT5
28W
54W
28W
54W
32W
40, 50, 55W
QVS1GPFOS128
QVS1GPFOS154
QVS1GPFOS228
QVS1GPFOS254
QVS1GPFOS232
QVS1GPFOS2FT
QVS1TPFOS128
QVS1TPFOS154
QVS1TPFOS228
QVS1TPFOS254
QVS1TPFOS232
QVS1TPFOS2FT
4.44 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•AltersoftwhitefilmoninsideofmicroperforatedMesh
Lamp Shields conceal lamp image providing balance
between reflected and direct light.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•Airhandlingversionavailable.
•95%reflectiveAltersoftwhitepaintfinishandspecular
interior reflector.
•5½"deepone-piecebodyforeasyinstallation.
•Swing-downmicroperforatedlampshieldsforeasy
relamping.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-grid,exposedslotT-gridand
drywallceilings.
•Fullyrecessedluminaireandlampcompartment.
•Onlyluminairesofsamesizecanberowmounted
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB T5 PF
50W TT5 BP T8 PS
55W TT5 BF
T8 HI
3LPBT8 H3
T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 20x40 unit: FK920X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Filler Plate: Sold separately.
For20"x60"openingwith20"x48"
luminaire: FPQVS2060.
Alter classic
20"x48"&500mmx48"
Direct/indirect static recessed luminaires
20"x48"luminairesfor5-footmoduleceilinggrid(3-part20"x60"modules)and
metricluminaires.
30˚
60˚
400
800
1200
1089
Candlepower Curve
QVS5GPFOS232UNVHI 20"x48"Microperforatedmeshlampshields2-lamp32WT8
5
316"
(148mm)
19
1316"
(503mm)
9 ⅞"
(251mm)
20" (508mm)
47
1316" (1214mm)
23
1516" (608mm)
Reference data
Efficiency 53.4%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 56.0W
Ballastfactor 0.9
RCR C.U.
1 59
3 49
5 41
7 35
9 30
Alter Classic Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.44 See page 4.44
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQVS5GPFOS232 HI
Example
One-piece lamp shield
Replace OS in the ordering
info by OP. OS Static only.
Ordering information
Type Size Lamp qty –type Lamp watts Cat. no. Static Cat. no. Air handling*
Static 20"x48"
2-T5
2-T5HO
3-T5
3-T5HO
2-T8
3-T8
28W
54W
28W
54W
32W
32W
QVS5GPFOS228
QVS5GPFOS254
QVS5GPFOS328
QVS5GPFOS354
QVS5GPFOS232
QVS5GPFOS332
QVA5GPFOP228
QVA5GPFOP254
QVA5GPFOP232
Static 500mmx48"
2-T5
2-T5HO
3-T5
3-T5HO
2-T8
3-T8
28W
54W
28W
54W
32W
32W
QVS5MPFOS228
QVS5MPFOS254
QVS5MPFOS328
QVS5MPFOS354
QVS5MPFOS232
QVS5MPFOS332
* Only luminaires with one piece lamp shield, shown here, are available for air handling.
4.45Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Alter classic air 2' x 4' & 2' x 2'
Direct/indirect recessed luminaires
The compact architectural styling of Alter Classic 2' x 2' provides shadowless balanced
brightness. Designed for popular 2' x 2' grids, this luminaire allows more flexible, more
symmetrical luminaire arrangements. It is suited to most environments, especially private
offices where wide distribution and uniformly light walls are important considerations.
Features
•Full-lengthairslotwithrightanglestiffenerformaximum
rigidity and no slot interference.
•Dualswingdownsolidlampshieldsseparatedby
luminous strip for easy relamping and maintenance.
•Fullyrecessedluminaireandwithtwoseparate
lamp compartments.
•95%ReflectiveAltersoftwhitepaintfinish.
•Specularinteriorreflector.
•Onepiecebodyforeasyinstallation.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-Gridceilings.
•Optionalacrylicdrop-downvisualelement.
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
add as suffix, e.g. 120SB.
Bal. Type <10THD <20THD PowerSpec
Electronic HDF Dimming
T5 Linear PG – –
40W TT5 IB SB PB
50W TT5 – BP –
55W TT5 BF – –
T8 HI SO PS
3LPBT8 H3 03 –
DALIBallast DA – –
LPB=Numberoflampsperballast.
DALI=digitaladdressabledimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
350
700
1050
Candlepower Curve
QVA2GPFOP332UNVH3 2' x 4' Solid lamp shields, 3-lamp 32W T8
5⅛"
(130mm)
24" (610mm)
24"
(610mm)
20"
(508mm)
Reference data
Efficiency 52.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 84.3W
Ballastfactor 0.88
Coefficients of utilization
RF 20% RC 80%
RW 70 50 30
RCR
1 58 56 54
3 49 44 40
5 41 35 30
7 35 28 23
10 27 20 16
30˚
60˚
400
800
1200
950
Candlepower Curve
QVA2GPFOP2FT120SB 2' x 2' Solid lamp shields, 2-lamp 40W TT5
5⅛"
(130mm)
24" (610mm)
48"
(1220mm)
40"
(1016mm)
Reference data
Efficiency 50.8%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 64.8W
Ballastfactor 0.88
Coefficients of utilization
RF 20% RC 80%
RW 70 50 30
RCR
1 56 54 52
3 47 42 39
5 40 34 30
7 34 27 23
10 27 21 16
Alter Classic Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.45 See page 4.45
w/one piece lamp shield 277=277V  andpage4.72
UNV=120-277 V
120QVA2GPFOP2FT SB
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static
Air supply or
Air return
2' x 4'
2-T8
3-T8
2-T5
3-T5
2-T5
3-T5
4-TT5
32W
32W
28W
28W
54W
54W
40, 50, 55W
QVA2GPFOP232
QVA2GPFOP332
QVA2GPFOP228
QVA2GPFOP328
QVA2GPFOP254
QVA2GPFOP354
QVA2GPFOP4FT
Static
Air supply or
Air return
2' x 2'
1-T T5
2-T T5
2-T8
3-T8
2-T5
3-T5
40, 50W
40, 50W
17W
17W
24W
24W
QVA2GPFOP1FT
QVA2GPFOP2FT
QVA2GPFOP217
QVA2GPFOP317
QVA2GPFOP224
QVA2GPFOP324
4.46 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•MicroperforatedMeshLampShieldsprovideasoft
awareness of the light source.
•AltersoftwhitefilmoninsideofmicroperforatedMesh
Lamp Shields conceal lamp image providing balance
between reflected and direct light.
•4"deep,meetsADAwhenwallmounted.
•Allluminairesurfaceshavethesamevisualappearance.
•95%reflectiveAltersoftwhitepaintfinish.
•One-piecebodyforeasyinstallation.
•Swingopenlampshieldsforeasyrelamping.
•Novisiblewelding,screws,latches,springs,hooks,
rivetsor plastic supports
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVIB.
Ballast type
Electronic PowerSpec HDF dimming
18W TT5 BA 40W TT5 PB
40W TT5 IB T8 PS
50W TT5 BP
55W TT5 BF
T8 HI
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter classic wall
9"x12",9"x24"&9"x48"
Direct/indirect sconce luminaires
This simple and clean design can create beautiful slim rows of perforated soft light or add
asplashoflightinasmallspace.TwohighlumenTT5Bi-Tubeor2T8lampscanprovide
highilluminationlevelswhenusedinpublicspaces.(Luminairenotforthroughwiring).
120˚
150˚
1200
600
0
Candlepower Curve
228
QVW8SPFOS2FTUNVIB Surface sconce microperforated mesh lamp shields, 2-lamp 40W TT5
Reference data
Efficiency 69.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 68.4W
Ballastfactor 0.88
4"
(102mm)
9" (229mm)
12" (305mm) - 24" (610mm) - 48" (1220mm)
RCR C.U.
1 60
3 46
5 36
7 29
10 21
Alter Classic Wall Voltage Ballast Options
Direct/indirect Sconce 120=120V Seepage4.46 See page 4.46
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQVW8SPFOS2FT IB
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static
9"x12"
9"x24"
9"x48"
2-TT5
2-TT5
2-T8
18W
40, 50, 55W
32W
QVW8SPFOS218
QVW8SPFOS2FT
QVW8SPFOS232
4.47Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Alter Wal-Lyter 1' x 2' & 1' x 4'
Direct/indirect luminaires
This recessed wall washer features smooth-flowing curves and a unique design that
incorporates a single lateral lamp and reflector. The result is an asymmetrical light
distribution that creates a soft glow and projects additional uniform light onto the wall.
Style-matched with Alter full basketdesign.
Features
•MicroperforatedMeshLampShieldsprovidessoft
awareness of the light source.
•Swing-downlampshieldforeasyrelamping.
•Asymmetricalopticalsystemprovidesasoftuniform
wall wash
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF T8 PS
T8 HI
T5 PG
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
400
800
1200
Candlepower Curve
1056
QVS1GPFAD232UNVHI 1' x 4' Asymmetrical distribution microperforated mesh lamp shields, 2-lamp 32W T8
5"
(127mm)
12" (305mm)
48" (1220mm)
Reference data
Efficiency 56.1%
Electronic ballast
Inputwatts(120V) 56.7W
Ballastfactor 0.88
RCR C.U.
1 58
3 44
5 34
7 28
10 21
Alter Wal-Lyter Voltage Ballast Options
Direct/indirect asymmetrical 120=120V Seepage4.47 See page 4.47
distribution w/microperforated 277=277V  andpage4.72
mesh lamp shields UNV=120-277 V
UNVQVS1GPFAD232 HI
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 2' 2-T8 17W QVS1GPFAD217
Static 1' x 4'
2-T T5
1-T5
1-T5HO
2-T5
2-T5HO
1-T8
2-T8
40, 50, 55W
28W
54W
28W
54W
32W
32W
QVS1GPFAD2FT
QVS1GPFAD128
QVS1GPFAD154
QVS1GPFAD228
QVS1GPFAD254
QVS1GPFAD132
QVS1GPFAD232
4.48 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter louver 2' x 4' & 2' x 2'
Direct/indirect recessed static luminaires
The Alter Louver luminaire is designed for areas requiring higher light levels. The flat blade
perforated louver provides a soft glow shielding. A lens overlay prevents direct view of the
lamp source.
Features
•Flatbladelouverlensoverlaylampshieldandperforated
curved side lamp shield.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•95%reflectiveAltersoftwhitepaintfinish.
•5½"deep,one-piecebodyforeasyinstallation.
•Swing-downlampshieldforeasyrelamping.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-grid,exposedslotT-gridceilingsand
drywallceilings(seepage4.218).
•Luminairecanberowmounted
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF T8 PS
3LPB40WTT5 I3
T8 HI
3LPBT8 H3
Program start T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Conversion kit for 2' x 4' unit: FK92X4.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
600
1200
1800
Candlepower Curve
1599
QVS2GPFLW332UNVH32' x 4' Microperforated mesh white lamp shields /white solid blades, 3-lamp 32W T8
5½"
(140mm)
23
1316" (605mm)
47
1316" (1214mm)
Reference data
Efficiency 56.7%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 88.6W
Ballastfactor 0.88
RCR C.U.
1 60
3 47
5 37
7 29
10 21
5½"
(140mm)
23
1316" (605mm)
23
1316" (605mm)
30˚
60˚
300
600
900
Candlepower Curve
782
QVS2GPFLW317UNVH32' x 2' Microperforated mesh white lamp shields/white solid blades, 3-lamp 17W T8
Reference data
Efficiency 55.4%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 50.1W
Ballastfactor 0.88
RCR C.U.
1 59
3 46
5 36
7 29
10 21
Alter Louver Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.48 See page 4.48
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQVS2GPFLW332 H3
Example
White solid blade
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T8
3-T8
2-T5
3-T5
2-T5HO
3-T5HO
32W
32W
28W
28W
54W
54W
QVS2GPFLW232
QVS2GPFLW332
QVS2GPFLW228
QVS2GPFLW328
QVS2GPFLW254
QVS2GPFLW354
Static 2' x 2'
2-T T5
3-TT5
2-T8
3-T8
2-T5HO
3-T5HO
40, 50, 55W
40, 50, 55W
17W
17W
24W
24W
QVS2GPFLW2FT
QVS2GPFLW3FT
QVS2GPFLW217
QVS2GPFLW317
QVS2GPFLW224
QVS2GPFLW324
4.49Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Flatbladelouverlensoverlaylampshieldandperforated
curved side lamp shield.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•95%reflectiveAltersoftwhitepaintfinish.
•5½"deep,one-piecebodyforeasyinstallation.
•Swing-downlampshieldforeasyrelamping.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-grid,exposedslotT-gridceilingsand
drywallceilings(seepage4.218).
•Luminairecanberowmounted
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
T8 HI T5 PF
3LPBT8 H3 T8 PS
Program start T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter louver 1' x 4'
Direct/indirect recessed static luminaires
The Alter Louver luminaire is designed for areas requiring higher light levels. The flat blade
perforated louver provides a soft glow shielding. A lens overlay prevents direct view of the
lamp source.
30˚
60˚
600
1200
1800
1465
Candlepower Curve
QVS1GPFLG232UNVHI 1' x 4' Microperforated mesh white lamp shields/grey solid louver blades, 2-lamp 32W T8
5"
(127mm)
12" (305mm)
48" (1220mm)
Reference data
Efficiency 59.8%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 50.1W
Ballastfactor 0.88
RCR C.U.
1 64
3 51
5 41
7 33
10 24
Alter Louver Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.49 See page 4.49
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQVS2GPFLV332 H3
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4'
2-T8
2-T5
2-T5HO
32W
28W
54W
QVS1GPFLW232
QVS1GPFLW228
QVS1GPFLW254
White solid blade
4.50 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter Metalyte 2' x 4' & 2' x 2'
Direct/indirect recessed static luminaires
Sporting a modern look for modern decors, Alter Metalyte emit surprisingly soft light and
auniform, low-level luminance. Once illuminated the reflector and mesh lamp shields appear
bathed in the same uniform brightness. The mixture of direct lighting and backlighting
provides a mitigated yet stunning effect. These luminaires blend in particularly well with
interiors featuring metallic elements.
Features
•Seamlesssemi-specularmetallicreflectorwith
lengthwise ridges.
•Availableone-piecemeshlampshieldswithnoslot.
•Optionaldrop-downvisualelementcomes
invariouscolors(seepage4.72).
•Suitedtorowmountingforacontinuouscoveeffect
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T8(32Wonly) PS
55W TT5 BF IGENDALI DA
T8 HI
3LPBT8 H3
T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
30˚
60˚
400
800
1200
Candlepower Curve
907
QVS2GPTOS232UNVHI 2' x 4' Microperforated mesh lamp shields, 2-lamp 32W T8
5½"
(140mm)
24" (610mm)
48" (1220mm)
Reference data
Efficiency 44.8%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 57.1W
Ballastfactor 0.88
RCR C.U.
1 47
3 37
5 29
7 23
9 17
30˚
60˚
500
1000
1500
Candlepower Curve
1273
QVS2GPTOS332UNVH32' x 4' Microperforated mesh lamp shields, 3-lamp 32W T8
5½"
(140mm)
24" (610mm)
48" (1220mm)
Reference data
Efficiency 39.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 80.4W
Ballastfactor 0.88
RCR C.U.
1 42
3 33
5 26
7 21
9 19
30˚
60˚
400
800
1200
Candlepower Curve
939
QVS2GPTOS2FTUNVIB 2' x 2' Microperforated mesh lamp shields, 2-lamp 40W TT5
5½"
(140mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 39.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 80.4W
Ballastfactor 0.88
RCR C.U.
1 42
3 33
5 26
7 21
9 19
Alter Metalyte Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.50 See page 4.50
w/mesh lamp shields 277=277V  andpage4.72
UNV=120-277 V
UNVQVS2GPTOS2FT IB
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static* 2' x 4'
2-T8
3-T8
2-T5
3-T5
2-T5HO
3-T5HO
4-TT5
32W
32W
28W
28W
54W
54W
40, 50, 55W
QVS2GPTOS232
QVS2GPTOS332
QVS2GPTOS228
QVS2GPTOS328
QVS2GPTOS254
QVS2GPTOS354
QVS2GPTOS4FT
Static* 2' x 2'
1-T T5
2-T T5
2-T8
3-T8
2-T5HO
3-T5HO
40, 50, 55W
40, 50, 55W
17W
17W
24W
24W
QVS2GPTOS1FT
QVS2GPTOS2FT
QVS2GPTOS217
QVS2GPTOS317
QVS2GPTOS224
QVS2GPTOS324
* For optional one-piece lamp shield, replace OS by OP.
4.51Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Alter Metalyte louver 2' x 4' & 2' x 2'
Direct/indirect recessed static luminaires
Sporting a modern look for modern decors, Alter Metalyte louver emit surprisingly soft light
and a uniform, low-level luminance. This luminaire allows up to 3 TT5 lamps for a higher
lumen package. Once illuminated the reflector and mesh lamp shield appear bathed in the
same uniform brightness. The mixture of direct lighting, backlighting and the choice of louver
and blades finishes indeed provides a mitigated yet stunning effect. These luminaires blend
inparticularly well with interiors featuring metallic elements.
30˚
60˚
300
600
900
Candlepower Curve
QVS2GPTLG232UNVHI 2' x 4' Microperforated mesh white lamp shields /grey solid louver blades, 2-lamp 32W T8
5½"
(140mm)
24" (610mm)
48" (1220mm)
Reference data
Efficiency 41.1%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 62.0W
Ballastfactor 0.88
RCR C.U.
1 43
3 34
5 27
7 21
9 16
30˚
60˚
600
1200
1800
Candlepower Curve
1441
QVS2GPTLG332UNVH3 2' x 4' Microperforated mesh white lamp shields /grey solid louver blades, 3-lamp 32W T8
5½"
(140mm)
24" (610mm)
48" (1220mm)
Reference data
Efficiency 40.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 85.0W
Ballastfactor 0.88
RCR C.U.
1 47
3 37
5 29
7 23
9 19
Features
•Seamlesssemi-specularmetallicreflectorwith
lengthwise ridges.
•Lensoverlaypreventingdirectviewofthelampsource.
•Choiceofthreeflatbladelouvers.
(Seebottomofpagefororderinginformation).
•Suitedtorowmountingforacontinuouscoveeffect.
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF T8(32Wonly) PS
3LPB40WTT5 I3 IGENDALI DA
T8 HI
3LPBT8 H3
T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
400
800
1200
Candlepower Curve
939
QVS2GPTLG2FTUNVIB 2' x 2' Microperforated mesh white lamp shields /grey solid louver blades, 2-lamp 40W TT5
5½"
(140mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 40.7%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 74.0W
Ballastfactor 0.88
RCR C.U.
1 43
3 34
5 27
7 22
9 17
Example
Alter Metalyte Louver Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.51 See page 4.51
w/mesh white lamp 277=277V  andpage4.72
shields/grey solid UNV=120-277 V
louver blades
UNVQVS2GPTLG2FT IB
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static* 2' x 4'
2-T8
3-T8
2-T5
3-T5
2-T5HO
3-T5HO
32W
32W
28W
28W
54W
54W
QVS2GPTLG232
QVS2GPTLG332
QVS2GPTLG228
QVS2GPTLG328
QVS2GPTLG254
QVS2GPTLG354
Static* 2' x 2'
2-T T5
3-TT5
2-T8
3-T8
2-T5HO
3-T5HO
40, 50, 55W
40, 50, 55W
17W
17W
24W
24W
QVS2GPTLG2FT
QVS2GPTLG3FT
QVS2GPTLG217
QVS2GPTLG317
QVS2GPTLG224
QVS2GPTLG324
4.52 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter OPL 2' x 4'
Direct/indirect static curved opal lens recessed luminaires
Sober design, high performance and Alter’s trademark balanced brightness come together
beautifully in Alter OPL 2'x4'. Exhibiting pure form, the one-piece opal acrylic lens
produces soft glowing illumination that uniformly lights all surfaces, while creating a feeling
of spaciousness. Exceptional value for lighting efficiency provides increased specification
opportunities. Models with up to 3 high-output lamps ensure extra-wide lighting distribution
in larger open spaces, including workplaces with no or low partitions. Also, this luminaire is
well-suited to continuous rows, creat ing a continuous cove effect that enhances architectural
perspectives.
Features
•80.2%efficientthreelamp32WT82'x4'luminaire.
•Altersoftwhitefilminsideofopalacryliclampshield
conceals lamp image, providing balance between
reflected and direct light.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•95%reflectiveAltersoftwhitepaintfinishandspecular
interior reflector.
•5½"deepone-piecebodyforeasyinstallation.
•Swing-downlampshieldforeasyrelamping.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-grid,exposedslotT-gridand
drywall ceilings.
•Fullyrecessedluminaireandlampcompartment.
•Luminairecanberowmounted.
•Airhandlingversionunavailable
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
T8 HI T5 PF
3LPBT8 H3 T5 PS
T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
800
1600
2400
Candlepower Curve
2283
QVS2GOLOP332UNVH32' x 4' One-piece opal acrylic lamp shields, 3-lamp 32W T8
5½"
(140mm)
24" (610mm)
48" (1220mm)
Reference data
Efficiency 80.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 86.9W
Ballastfactor 0.9
RCR C.U.
1 78
3 65
5 55
7 47
9 40
Alter OPL Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.52 See page 4.52
w/one-piece opal lens 277=277V (347VN/A) andpage4.72
UNV=120-277 V
UNVQVS2GOLOP232 HI
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T8
3-T8
2-T5
3-T5
2-T5HO
3-T5HO
32W
32W
28W
28W
54W
54W
QVS2GOLOP232
QVS2GOLOP332
QVS2GOLOP228
QVS2GOLOP328
QVS2GOLOP254
QVS2GOLOP354
4.53Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Altersoftwhitefilminsideofopalacryliclampshield
conceals lamp image, providing balance between
reflected and direct light.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Novisiblewelding,screws,latches,springs,hooks,rivets
or plastic supports.
•95%reflectiveAltersoftwhitepaintfinishandspecular
interior reflector.
•5½"deepone-piecebodyforeasyinstallation.
•Swing-downlampshieldforeasyrelamping.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-grid,exposedslotT-gridand
drywall ceilings.
•Fullyrecessedluminaireandlampcompartment.
•Optionalhold-downclipsavailable.
•Luminairecanberowmounted.
•Airhandlingversionnotavailable
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVIB.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF T8 PS
3LPB40WTT5 I3
T8 HI
3LPBT8 H3
Program start T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter OPL 2' x 2'
Direct/indirect static curved opal lens recessed luminaires
The one-piece opal acrylic lens features an attractive, uncluttered, flush-ceiling, shadowless
look that adds elegance to modern interiors. What’s more, Alter OPL offers excellent value,
while providing superior efficiency. Alter OPL is ideal for open-plan environments, private
offices, entrance halls and public spaces.
30˚
60˚
600
1200
1800
Candlepower Curve
1611
QVS2GOLOP2FTUNVIB 2' x 2' One-piece opal acrylic lamp shields, 2-lamp 40W TT5
5½"
(140mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 71.8%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 64.6W
Ballastfactor 0.88
RCR C.U.
1 81
3 63
5 50
7 40
9 30
Alter OPL Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.53 See page 4.53
w/one-piece opal lens 277=277V  andpage4.72
UNV=120-277 V
UNVQVS2GOLOP2FT IB
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
1-T T5
2-T T5
3-TT5
2-T8
3-T8
2-T5HO
3-T5HO
40, 50, 55W
40, 50, 55W
40, 50, 55W
17W
17W
24W
24W
QVS2GOLOP1FT
QVS2GOLOP2FT
QVS2GOLOP3FT
QVS2GOLOP217
QVS2GOLOP317
QVS2GOLOP224
QVS2GOLOP324
4.54 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter Waves 2' x 4' & 2' x 2'
Direct/indirect static side basket recessed luminaires
Architectural styling and curved door elements come together in this unique luminaire that
provides balanced lighting environment. Dual-door light effect offers visual interest and soft
awareness of the lighting element. Twin lateral opposing curved door lamp shields and Alter
Soft Light reflector create soft light to enhance any decor.
Features
•Microperforatedmeshlampshieldsprovidesoft
awareness of light source.
•Curveddoorlaterallampshieldsprojectlightupwards
to reflector and provide indirect light.
•95%reflectiveAltersoftwhitepaintfinish.
•Fullyrecessedlampshieldsandreflector.
•Curvedtopandsidesofreflectorareformedtogether
without any gaps or visual barriers.
•Novisiblewelding,screws,latches,springs,holes,rivets
or plastic supports.
•Optionalsolidorcurvedlampshields.
•Altersoftwhitefilminsideofmicroperforatedmesh
lamp shield conceals lamp image, providing balance
between reflected and direct light.
•Swing-downlampshieldforeasyrelamping.
•Easyaccesstoballast.
•FitsstandardT-grid,exposedslot-T-gridanddrywall
ceilings(seepage4.218).
•Notsuitableforrowmounting
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF T8 PS
T8 HI
3LPBT8 H3
4LPBT8 H4
Program start T5 PG
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
400
800
1200
Candlepower Curve
1066
QVL2GPFSS232UNVHI 2' x 4' Microperforated mesh dual lateral side lamp shields, 2-lamp 32W T8
5½"
(140mm)
24" (610mm)
48" (1220mm)
Reference data
Efficiency 64.7%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 62.0W
Ballastfactor 0.88
RCR C.U.
1 66
3 48
5 37
7 30
10 23
30˚
60˚
800
1600
2400
Candlepower Curve
1993
QVL2GPFSS432UNVH4 2’ x 4’ Microperforated mesh dual lateral side lamp shields, 4-lamp 32W T8
5½"
(140mm)
24" (610mm)
48" (1220mm)
Reference data
Efficiency 58.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 112.0W
Ballastfactor 0.88
RCR C.U.
1 60
3 45
5 35
7 28
10 20
30˚
60˚
300
600
900
Candlepower Curve
851
QVL2GPFSS2FTUNVIB 2' x 2' Microperforated mesh dual lateral side lamp shields, 2-lamp 40W TT5
5½"
(140mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 45.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 74.0W
Ballastfactor 0.88
RCR C.U.
1 47
3 36
5 28
7 22
10 178
Alter Waves Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.54 See page 4.54
w/microperforated mesh 277=277V  andpage4.72
dual lateral lamp shields UNV=120-277 V
UNVQVL2GPFSS2FT IB
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T8
2-T5HO
4-T5
4-T5HO
2-T8
4-T8
28W
54W
28W
54W
32W
32W
QVL2GPFSS228
QVL2GPFSS254
QVL2GPFSS428
QVL2GPFSS454
QVL2GPFSS232
QVL2GPFSS432
Static 2' x 2' 2-TT5
2-T5HO
40, 50, 55W
24W
QVL2GPFSS2FT
QVL2GPFSS224
* For optional curved lamp shield replace Wave lamp shield SS with SR.
4.55Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Utilizesonehigh-lumenTT5compactfluorescentlamp.
•Microperforatedmeshlampshieldprovidessoft
awareness of the light source.
•Swing-downlampshieldforeasyrelamping.
•Altersoftwhitefilmoninsideofmicroperforatedmesh
lamp shield conceals lamp image providing balance
between reflected and direct light.
•95%reflectiveAltersoftwhitepaintfinishandspecular
interior reflector
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type
Electronic
40W TT5 IB
50W TT5 BP
55W TT5 BF
LPB=Numberoflampsperballast.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:Standard15/16"only:QVS-HD.
Emergency pack:Notavailable.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter Dome 2' x 2'
Direct/indirect static round recessed luminaires
Architectural luminaire with uniquely styled optic features “circle in square” form. The
open look, elegant appearance and balanced soft light provide a distinctive touch. Rotating
luminaires create patterns of light that add variety to thedecor.
30˚
60˚
300
600
900
Candlepower Curve
669
QVC2GPFOS1FTUNVBP2' x 2' Microperforated mesh lamp shields, 1-lamp 50W TT5
24" (610mm)
23 ¹³¹6" (605mm)
5 ½"
(140mm)
6 ½"
(165mm)
2 ⅛"
(54mm)
24" (610mm)
23 ¹³¹6" (605mm)
5 ½"
(140mm)
6 ½"
(165mm)
2 ⅛"
(54mm)
Reference data
Efficiency 53.9%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 53.7W
Ballastfactor 0.88
RCR C.U.
1 56
3 42
5 33
7 27
10 21
Alter Dome Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.55 See page 4.55
w/microperforated mesh 277=277V  andpage4.72
lamp shields UNV=120-277 V
UNVQVC2GPFOS1FT BP
Example
30˚
60˚
200
400
600
Candlepower Curve
554
QVC2GPFOS1FTUNVIB2' x 2' Microperforated mesh lamp shields, 1-lamp 40W TT5
24" (610mm)
23 ¹³¹6" (605mm)
5 ½"
(140mm)
6 ½"
(165mm)
2 ⅛"
(54mm)
24" (610mm)
23 ¹³¹6" (605mm)
5 ½"
(140mm)
6 ½"
(165mm)
2 ⅛"
(54mm)
Reference data
Efficiency 58.3%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 47.3W
Ballastfactor 0.88
RCR C.U.
1 60
3 45
5 36
7 29
10 22
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 1-T T5 40, 50, 55W QVC2GPFOS1FT
4.56 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter Windows 2' x 2'
Direct/indirect static symmetrical recessed luminaires
The gradations of light and gently curved square lamp shields of Alter Windows make a bold
design statement. The non-directional design of the Alter Windows shield helps maintain the
architectural look of a space. The multi-textured lamp shield and Alter Soft White reflector
combine to create visual interest and gradations of light within a single lighting element.
Features
•Utilizestwotripletube(TTT)lamps.
•Altersoftwhitefilminsideofmicroperforated
lamp shield conceals lamp image and provides
balance between reflected and direct light.
•Opaquelensprovidesagradationoflight
effect that creates visual interest and architectural detail.
•Uniquesymmetricaldesignelements.
•FitsstandardT-grid,exposedslot-T-grid
anddrywallceilings(seepage4.218).
•Swing-downdesignforeasyrelamping.
•Novisiblewelding,screws,latches,springs,holes,rivets
or plastic supports.
•Forwallversion(seenextpage).
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVTD.
Ballast type
Electronic PowerSpec HDF dimming
26W TTT TB 40W TTT PD
32W TTT TC
42W TTT TD
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency pack:Notavailable.
30˚
60˚
300
600
900
Candlepower Curve
732
QVS2GPASQ2TTUNVTD2' x 2' Recessed microperforated mesh square lamp shield, 2-lamp 42W TTT
5 ½"
(140mm)
24" (610mm)
23 ¹3¹6" (605mm)
23 ¹3¹6"
(605mm)
8 "
(203mm)
Reference data
Efficiency 46.7%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 71.6W
Ballastfactor 1
RCR C.U.
1 49
3 39
5 31
7 24
10 18
Alter Waves Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.56 See page 4.56
w/solid white perimeter 277=277V  andpage4.72
lamp shield / white UNV=120-277V
mesh center
UNVQVS2GPASQ2TT TD
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-TTT 26, 32, 42W QVS2GPASQ2TT
4.57Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Utilizestwoquadtube(QT)lampsforsurfacewall.
•Altersoftwhitefilminsideofmicroperforatedlamp
shield conceals lamp image and provides balance
between reflected and direct light.
•Opaquelensprovidesagradationoflighteffectthat
creates visual interest and architectural detail.
•Uniquesymmetricaldesignelements.
•Novisiblewelding,screws,latches,springs,holes,rivets
or plastic supports.
•CompactADAcompliantwallsconceform(4"deep)
makes it ideal for mounting on columns and for use
where wall space is limited
Options & accessories
Ballast:Specifyvoltage(120,277orUNV)andtype
and add as suffix, e.g. UNVF4.
F4: Electronic P.S., 1 or 2 lamps
per ballast 18W Quad Tube.
QD: 18W QT PowerSpec HDF dimming.
(Notavailablein347V)
Emergency pack:Notavailable.
AlterWindowsWall13½"x13½"
Direct/indirect recessed luminaires
Matches ceiling luminaire styling. Protruding design pro jects light backwards to wall, creating
a splash of light that surrounds the luminaire. Attention is focused on the gradations of light
that frame the translucid center.
45˚
135˚
0
50
150
200
Candlepower Curve
QVW1SPASQ2QTUNVF4 13½"x13½"Surfacewallmicroperforatedmeshsquarelampshield,2-lamp18WQT
4 "
(102mm)
13 ½ "
(343mm)
13 ½ " (343mm)
Reference data
Efficiency 40.2%
Electronic ballast
Inputwatts(120V) 38.3W
Ballastfactor 1
RCR C.U.
1 35
3 24
5 18
7 14
10 10
Alter Windows Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.57 See page 4.57
w/solid white perimeter 277=277V  andpage4.72
lamp shield/white UNV=120 -277V
mesh center
UNVQVW1SPASQ2QT F4
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 13 ½"x13½" 2-QT 18W QVW1SPASQ2QT
4 "
(102mm)
13 ½ "
(343mm)
13 ½ " (343mm)
4.58 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter TileLyte 2' x 2'
Direct/indirect recessed static luminaires with glass lens
Alter TileLyte comprises a recessed 2' x 2' square of radiant light, softened by an interior
opal film. It installs flush with the ceiling using decorative hardware, while concealing
T-bars. This textured lighting element features glass with chamfered edges, bringing pure
sophistication to modern interiors.
Easy Maintenance
•Easy-to-removethumbscrewsfacilitateloweringof
glassshield.
•Aircraft-cablesafetychainattachesbehindeach
thumbscrew to hold glass shield when open.
•Safetychainscanberemovedforeasycleaning,ballast
access and lamp replacement
Elegant Compatibility
•Fitsallceilinggridtypes(standardT,slim-Tandslot-T).
•Blendsinwithregularflat-edgeandaestheticrecessed-
edge ceiling tiles.
•Fourdecorativestainless-steelthumbscrewscreating
discreet visual interest at the ceiling line
Endless Possibilities
•Unlimitedabilitytocreateluminousceilingpatterns.
•Configurationversatilitycomplementsceilingdesigns,
adapts well to architectural interiors.
•Creativeside-by-sideinstallationscangeneraterows,
squares,rectangles,"L"shapes,"T"shapesandother
geometric figures
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVPG.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF
T5 PG
3LPB40WTT5 I3
LPB=Numberoflampsperballast.
Dimming ballast recommended with cer tain configurations.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Lens replacement: Available as a complete assembly.
Order cat. no.: QVD22GLOP.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
800
1600
2400
Candlepower Curve
1865
QVD2GGLOP3FTUNVI3 2' x 2' Glass with opal film, 3-lamp 40W TT5
5 "
(127mm)
24" (610mm)
5 "
(127mm)
24" (610mm)
24 "
(610mm)
24" (610mm)
5 "
(127mm)
24" (610mm)
5 "
(127mm)
24" (610mm)
24 "
(610mm)
24" (610mm)
Reference data
Efficiency 48.9%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 99.8W
Ballastfactor 0.88
RCR C.U.
1 52
3 41
5 33
7 27
9 20
Alter TileLyte Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.58 See page 4.58
glass with opal film 277=277V  andpage4.72
UNV=120-277 V
UNVQVD2GGLOP3FT I3
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
3-TT5
3-T5
3-T5
4-T5
4-T5
40, 50, 55W
14W
24W
14W
24W
QVD2GGL0P3FT
QVD2GGL0P314
QVD2GGL0P324
QVD2GGL0P414
QVD2GGL0P424
4.59Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Alter TileLyte 2' x 2'
Direct/indirect recessed static luminaires with glass lens
4.60 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter Slim Semi-recessed 2' x 4' & 2' x 2'
Direct/indirect recessed static luminaires
This slimly profiled luminaire adds beauty and visual interest to the ceiling. With their gently
curved fluid architectural details, they blend into the ceiling perspective. For applications where
plenum depth is limited. The combined use of style matched Slim Semi-recessed andSlim
Surface luminaires can provide the perfect solution.
Features
•Microperforatedmeshlampshieldsprovideasoft
awareness of the light source.
•Altersoftwhitefilmoninsideofmicroperforatedmesh
lamp shields conceal lamp image providing balance
between reflected and direct light.
•Luminaireis2-3/16"totaldepthforeasyinstallationinto
shallow plenum.
•Swing-downlampshieldsforeasyrelamping.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-grid,exposedslotT-gridand
drywall ceilings.
•Optionaldrop-downvisualelement.
•Canberowmounted.
•T8notavailable
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVIB.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF
T5 PG
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Add appropriate Suffix: PF(Perforated)orSD(Solid)
(e.g.QVH2GPF/ Q V H 2 G SD).
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
300
600
900
Candlepower Curve
853
QVH2GPFOS2FTUNVIB 2' x 2' Slim semi-recessed microperforated mesh lamp shields, 2-lamp 40W TT5
2
3¹6"
(56mm)
24" (610mm)
23 ¹3¹6"
(605mm)
11 ¹5¹6"
(303mm)
23 ¹3¹6"(605mm)
Reference data
Efficiency 52.6%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 67.0W
Ballastfactor 0.88
RCR C.U.
1 53
3 39
5 30
7 25
9 21
Alter Slim Semi-recessed Voltage Ballast Options
Direct/indirect recessed with 120=120V Seepage4.60 See page 4.60
microperforated mesh lamp shields 277=277V  andpage4.72
UNV=120-277 V
UNVQVH2GPFOS2FT IB
Example
Ordering information
Type Size Recessed
ceiling depth Lamp qty –type Lamp watts Catalog no.
Static
microperforated
mesh lamp shields
2' x 4' 2 ¼"
2-TT5
4-TT5
2-T5
2-T5HO
3-T5
3-T5HO
40, 50, 55W
40, 50, 55W
28W
54W
28W
54W
QVH2GPFOS2FL
QVH2GPFOS4FT
QVH2GPFOS228
QVH2GPFOS254
QVH2GPFOS328
QVH2GPFOS354
Static
microperforated
mesh lamp shields
2' x 2' 2 ¼"
2-T5HO
3-T5HO
1-TT5
2-TT5
24W
24W
40, 50, 55W
40, 50, 55W
QVH2GPFOS224
QVH2GPFOS324
QVH2GPFOS1FT
QVH2GPFOS2FT
Clear acrylic plate drop down element
Clear polished acrylic drop-down visual element with
projected color face. Substitute acrylic color suffix in
place ofopen slot only.
Suffix: GC(clear) GB(blue)
GG(green) GR(red)
e.g.QVH2GPFOS (OS=OpenSlot)
e.g.QVH2GPFGB (GB=BlueAcrylic)
For other colors or special orders, consult your Philips
Lightolier representative.
30˚
60˚
700
1400
2100
Candlepower Curve
1706
QVH2GPFOS4FTUNVIB 2' x 4' Slim semi-recessed microperforated mesh lamp shields, 4-lamp 40W TT5
24" (610mm)
2
3¹6
(56mm)
23 ¹5¹6"
(608mm)
11 ¹5¹6"
(303mm)
47 ¹3¹6" (1214mm)
23 ¹5¹6 (608mm)
Reference data
Efficiency 52.6%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 142.0W
Ballastfactor 0.88
RCR C.U.
1 53
3 40
5 32
7 25
9 21
4.61Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Microperforatedmeshlampshieldsprovideasoft
awareness of the light source.
•Altersoftwhitefilmoninsideofmicroperforatedmesh
lamp shields conceal lamp image providing balance
between reflected and direct light.
•Luminaireis3-9/16"totaldepthforeasyinstallationinto
shallow plenum.
•Swing-downlampshieldsforeasyrelamping.
•Easyaccesstoballastthroughlampcompartment.
•FitsstandardT-grid,exposedslotT-gridand
drywall ceilings.
•Optionaldrop-downvisualelement.
•Canberowmounted
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVIB.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T8 PS
55W TT5 BF
T5 PG
Drywall kit: Conversion kit for 2' x 2' unit: FK91X4.
Hold down clips:StandardT15/16"only:QVS-HD.
Add appropriate Suffix: PF(Perforated)orSD(Solid)
(e.g.QVH1GPF/ Q V H 1 G SD).
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter Slim Semi-recessed 1' x 4'
Direct/indirect recessed static luminaires
This slimly profiled luminaire adds beauty and visual interest to the ceiling. With their gently
curved fluid architectural details, they blend into the ceiling perspective. For applications
where plenum depth is limited. The combined use of style matched Slim Semi-recessed
andSlim Surface luminaires can provide the perfect solution.
30˚
60˚
300
600
900
Candlepower Curve
800
QVH1GPFOS2FTUNVIB 1' x 4' Slim semi-recessed microperforated mesh lamp shields, 2-lamp 40W TT5
3
9¹6"
(90mm)
12" (305mm)
11 ¹3¹6"
(300mm)
5 ¹5¹6"
(150mm)
47 ¹3¹6" (1215mm)
23 ¹5¹6" (608mm)
3
9¹6"
(90mm)
12" (305mm)
11 ¹3¹6"
(300mm)
5 ¹5¹6"
(150mm)
47 ¹3¹6" (1215mm)
23 ¹5¹6" (608mm)
Reference data
Efficiency 47.5%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 68.0W
Ballastfactor 0.9
RCR C.U.
1 50
3 38
5 30
7 24
10 18
Clear acrylic plate drop down element
Clear polished acrylic drop-down visual element with
projected color face. Substitute acrylic color suffix in
place ofopen slot only.
Suffix: GC(clear) GB(blue)
GG(green) GR(red)
e.g.QVH2GPFOS (OS=OpenSlot)
e.g.QVH2GPFGB (GB=BlueAcrylic)
For other colors or special orders, consult your Philips
Lightolier representative.
Ordering information
Type Size Recessed
ceiling depth Lamp qty –type Lamp watts Catalog no.
Static
microperforated
mesh lamp shields
1' x 4' 3-9/16"
2-TT5
2-T5
2-T5HO
40, 50, 55W
28W
54W
QVH1GPFOS2FT
QVH1GPFOS228
QVH1GPFOS254
Alter Slim Semi-recessed Voltage Ballast Options
Direct/indirect recessed with 120=120V Seepage4.61 See page 4.61
microperforated mesh lamp shields 277=277V  andpage4.72
UNV=120-277 V
UNVQVH1GPFOS2FT IB
Example
4.62 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter Slim Surface 2' x 4' & 2' x 2'
Direct/indirect recessed luminaires
These slimly profiled luminaires add beauty and visual interest to the ceiling. With their gently
curved fluid architectural details, they blend into the ceiling perspective. For applications where
plenum depth is limited. The combined use of style matched slim semi-recessed and slim surface
luminaires can provide the perfect solution.
Features
•Altersoftwhitefilmoninsideofmicroperforatedmesh
lamp shields conceal lamp image providing balance
between reflected and direct light.
•UtilizethesamereflectorandopticsdesignasSlim
Semi-recessed model providing the same lighting
performance. Luminaire with its contoured housing gives
the visual perception of a very low-profile luminaire.
•Contouredhousingdepthonly21/4".Totaldepth
315/16".
•95%reflectiveAltersoftwhitepaintfinishandspecular
interior reflector.
•Swing-downlampshieldsforeasyrelamping.
Easy access to ballast through lamp compartment.
•FitsstandardT-grid,exposedslotT-gridand
drywallceilings.
•Novisiblewelding,screws,latches,springs,hooks,
rivetsor plastic supports.
•T8notavailable.
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVIB.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP T5 PF
55W TT5 BF
T5 PG
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
300
600
900
Candlepower Curve
853
QVF2SPFOS2FTUNVIB 2' x 2' Slim surface microperforated mesh lamp shields, 2-lamp 40W TT5
Ceiling
25
9¹6" (650mm)
2 ¼"
(57mm)
24" (610mm)
Reference data
Efficiency 52.6%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 67.0W
Ballastfactor 0.88
RCR C.U.
1 53
3 39
5 30
7 25
10 19
30˚
60˚
700
1400
2100
Candlepower Curve
1854
QVF2SPFOS4FTUNVIB 2' x 4' Surface wall microperforated mesh lamp shields, 4-lamp 40W TT5
Ceiling
25
9¹6" (650mm)
48" (1220mm)
2 ¼"
(57mm)
Reference data
Efficiency 51.0%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 130.0W
Ballastfactor 0.88
RCR C.U.
1 52
3 39
5 31
7 25
10 19
Clear acrylic plate drop down element
Clear polished acrylic drop-down visual element with
projected color face. Substitute acrylic color suffix in
place ofopen slot only.
Suffix: GC(clear) GB(blue)
GG(green) GR(red)
e.g.QVH2GPFOS (OS=OpenSlot)
e.g.QVH2GPFGB (GB=BlueAcrylic)
For other colors or special orders, consult your Philips
Lightolier representative.
Alter Slim Surface: added profile dimensions
1-11/16"=Depthofbasketfrombottomofsurfaceframe
2-1/4"=Fulldepthoffixturefromceilingsurface Ceiling
2 ¼"
(57mm)
1 ¹¹6"
(43mm)
3 ¹5¹6"
(100mm)
Ordering information
Type Size Recessed
ceiling depth Lamp qty –type Lamp watts Catalog no.
Static
Microperforated
Mesh Lamp Shields
2' x 4' 3
15 ⁄16"
2-TT5
4-TT5
2-T5
2-T5HO
3-T5
3-T5HO
40, 50, 55W
40, 50, 55W
28W
54W
28W
54W
QVF2SPFOS2FT
QVF2SPFOS4FT
QVF2SPFOS228
QVF2SPFOS254
QVF2SPFOS328
QVF2SPFOS354
Static
Microperforated
Mesh Lamp Shields
2' x 2' 3
15 ⁄16"
1-TT5
2-TT5
2-T5HO
3-T5HO
40, 50, 55W
40, 50, 55W
24W
24W
QVF2SPFOS1FT
QVF2SPFOS2FT
QVF2SPFOS224
QVF2SPFOS324
Allow3"forrecessedT-barmounting
Actualrecessedluminairedepth⅝"
Alter Slim Surface Voltage Ballast Options
Direct/indirect recessed with 120=120V Seepage4.62 See page 4.62
microperforated mesh lamp shields 277=277V  andpage4.72
UNV=120-277 V
UNVQVF2SPFOS2FT IB
Example
4.63Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Microperforatedmeshlampshield.
•Availableeitherinwhiteortitaniumpaintedfinish.
•Economicalconstructionprovidingexcellentvalue.
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVIB.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP
55W TT5 BF
Alter Slim Square 2' x 2'
Direct/indirect recessed luminaires
Featuring an attractive inset frame, Alter Slim Square produces a floating effect while
hugging the ceiling line. This surface-mount fluorescent lumi naire displays a sleek profile
with architectural detailing that blends into most environments. For balanced brightness
applications where plenum depth is very limited.
30˚
60˚
300
600
900
Candlepower Curve
876
QVB2SPGOS2FTUNVIB 2' x 2' Microperforated mesh lamp shields, 2-lamp 40W TT5
Ceiling
28 ¹¹6" (713mm)
2
5¹6"
(59mm)
¾"
(19mm)
24" (610mm)
Reference data
Efficiency 50.5%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 64.5W
Ballastfactor 0.88
RCR C.U.
1 52
3 39
5 31
7 25
10 20
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static with white body
microperforated mesh
white lamp shields
2' x 2' 1-TT5
2-TT5
40, 50, 55W
40, 50, 55W
QVB2SPWOS1FT
QVB2SPWOS2FT
Static with titanium body
microperforated mesh
white lamp shields
2' x 2' 1-TT5
2-TT5
40, 50, 55W
40, 50, 55W
QVB2SPGOS1FT
QVB2SPGOS2FT
For Solid Lamp Shield replace PW or PG by SW or SG.
Alter Slim Semi-recessed Voltage Ballast Options
Direct/indirect recessed with 120=120V Seepage4.63 See page 4.63
microperforated mesh lamp shields 277=277V  andpage4.72
UNV=120-277 V
UNVQVB2SPGOS2FT IB
Example
3/4"(9mm)
1-11/16"(43mm)
1-9/16"(40mm)
SlimSquare3/4"contouredframegivestheluminaireaverylowprofilevisualperception.
4.64 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter Concept
Direct/indirect recessed luminaires
4.65Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Alter Concept
Direct/indirect recessed luminaires
Less bulk. Less weight. More performance – up to 92.7% efficient. More sustainable lighting
opportunities, especially in shallow and cluttered plenums. And more lighting value for
today’s modern interiors.
Alter Concept Elegance
Available in glass and perforated steel shielding models,
and in a lens version with fully enclosed dust-free lamp
compartment ideal for food preparation areas and
hospitalapplications.
Alter Concept SR
Semi-recessed T5 and T8 versions
with microperforated mesh lamp shield.
Decorative
elements
Glass versions of Alter
Concept Elegance,
including style-matched
Alter Elegance Glass Wall,
integrate richly textured
architectural materials,
such as frosted ridged
glass and natural satin-
finished metal.
Increased maintenance convenience
Tool-free access from below facilitates lamp and ballast
replacements.
Less is more
Introducing a combination of functionalities so practical,
they could change the way architects design energy
efficient buildings. Alter Concept features a generation
of low profile luminaires. In addition to offering Alter
hallmark aesthetics in a greener, more compact and
more affordable lighting package, these luminaires
deliver superior lighting output well suited to meeting
sustainability objectives and LEED requirements.
•Suitedtosustainable
building trend favouring
less materials and
shallower plenums with
3⅝"depthidealfor
restricted ceiling space
(standard Alter Classic
housingis5½").
•Streamlinedlightweight
construction Alter
Concept luminaires are
about 30% lighter than
regular Alter models
with5½"housings.
•Material-savingapproach
These products feature
less fuel consumption
for transportation. Also,
they use considerably
less steel and less
packaging than standard
luminaires.
•Architecturalflexibility
Alter Concept luminaires
can help reduce floor-
to-floor heights and
overall building elevation,
while minimizing the use
of energy and resources
Lowerprofile:3⅝"vs.5½"
Solid edge lamp shield
Most Alter Concept models with microperforated
mesh lamp shield include signature Solid Edge finish
foraesthetic visual appearance where shield and
reflector meet.
Old version Improved version with Solid-Edge
technology and seamless design
4.66 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter Concept Elegance Perforated
2' x 4', 2' x 2' & 1' x 4'
Direct/indirect static shallow T5 recessed luminaires
Attractive Concept Elegance provides outstanding lighting design statements in offices and
public spaces. This luminaire features seamless construction along with the clean look of
solid-edge microperforated mesh lamp shields. It belongs to the Alter Concept collection
of sustainable lighting elements, offering cost-effective lighting in a lightweight, low-profile
design ideal for shallow plenums, modern interiors and green buildings.
Features
•Efficienciesupto67.9%.
•Seamlessweldedformfor2'x2'and2'x4'models:
curved top and side reflectors are formed together
without any gaps or visual barriers.
•Shallowdesign,only3⅝"deepforeasyinstallation
in shallow plenum.
•Post-paintedluminaire.
•Solid-Edgeswing-downmicroperforatedlampshield
for easy relamping and maintenance.
•Altersoftwhitefilmoninsideofmeshconcealslamp
image providing balance between reflected and
directlight.
•Fullyrecessedluminaireandlampcompartment.
•95%ReflectiveAltersoftwhitepaintfinish.
•One-piecebodyforeasyinstallation.
•Easyaccesstoballastthroughlampcompartment.
•Canberowmounted.
•Fitsstandard15/16"T-Grid,SlotT-Grid
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVPG.
Ballast type <10THD
Electronic T5/T5HO Program start PG
Electronic TT5 40W Instant start IB
Electronic TT5 40W Program rapid start PR
Electronic TT5 50W Rapid start BP
Electronic TT5 55W Rapid start BF
Electronic(2)T528WStep-dim AY
 ProgramedRapidStart(B.F.=0.95/0.35)
Electronic TT5/T5/T5HO Program start DA
DALI Digital addressable dimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Conversion kit for 1' x 4' unit: FK91X4.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency Lighting: Consult factory for options.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
400
800
1200
Candlepower Curve
QCE2GPFOS2FTUNVPR 2' x 2' Alter Concept Elegance Perf, 2-Lamp 40W TT5
3 ⅝"
(92mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 56.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 68.5W
Ballastfactor 0.9
RCR C.U.
1 59
3 46
5 36
7 29
10 22
30˚
60˚
400
800
1200
Candlepower Curve
QCE2GPFOS228UNVPG 2' x 4' Alter Concept Elegance Perf, 2-Lamp 28W T5
48" (1220mm)
3 ⅝"
(92mm)
24" (610mm)
Reference data
Efficiency 67.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 65.0W
Ballastfactor 1.0
RCR C.U.
1 71
3 55
5 43
7 34
10 25
Alter Concept Elegance Perf Voltage Ballast Options
Direct/indirect recessed UNV=120-277V Seepage4.66 See page 4.66
and page 4.72
UNVQCE2GPFOS2FT IB
Example
Ordering information
Type Size Recessed
ceiling depth Lamp qty –type Lamp watts Catalog no.
Static
microperforated
mesh lamp shields
2' x 4' 3 ⅝"
2-T5
3-T5
2-T5HO
28W
28W
54W
QCE2GPFOS228
QCE2GPFOP328*
QCE2GPFOS254
Static
microperforated
mesh lamp shields
2' x 2' 3 ⅝"2-TT5
2-T5HO
40, 50, 55W
24W
QCE2GPFOS2FT
QCE2GPFOS224
Static
microperforated
mesh lamp shields
1' x 4' 3 ⅝"
1-T5HO
2-T5
2-T5HO
54W
28W
54W
QCE1GPFOS154
QCE1GPFOS228
QCE1GPFOS254
Replace OS(openslot)byOP for one piece lamp shield (e.g. QCE2GPFOP2FTUNVIB).
* 3-lamp combination only available with one-piece lamp shield.
4.67Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Efficienciesupto92.7%.
•Seamlessweldedformfor2'x2'and2'x4'models:
curved top and side reflectors are formed together
without any gaps or visual barriers.
•Shallowdesign,only3⅝"deepforeasyinstallationin
shallow plenum.
•Post-paintedluminaire.
•Highperformancecontouredlensconcealslampimage
providing balance between reflected and directlight.
•Notoolsrequiredtoremovelensforeasyrelamping
and maintenance.
•Fullyrecessedluminaireandlampcompartment.
•95%ReflectiveAltersoftwhitepaintfinish.
•One-piecebodyforeasyinstallation.
•Easyaccesstoballastthroughlampcompartment.
•Canberowmounted.
•Fitsstandard15/16"T-Grid,SlotT-Gridordrywall
ceilings
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVPG.
Ballast type <10THD
Electronic T5/T5HO Program start PG
Electronic TT5 40W Instant start IB
Electronic TT5 40W Program rapid start PR
Electronic TT5 50W Rapid start BP
Electronic TT5 55W Rapid start BF
Electronic(2)T528WStep-dim AY
 ProgramedRapidStart(B.F.=0.95/0.35)
Electronic TT5/T5/T5HO Program start DA
DALI Digital addressable dimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Conversion kit for 1' x 4' unit: FK91X4.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency Lighting: Consult factory for options.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter Concept Elegance Lens
2' x 4', 2' x 2' & 1' x 4'
Direct/indirect static shallow T5 recessed luminaires
The Concept Elegance Lens model takes lighting performance to new levels while delivering
Alter’s signature soft lighting effect. It features superior efficiency and seamless construction.
It belongs to the Alter Concept collection of sustainable lighting elements, offering cost-
effective lighting in a lightweight, low-profile design ideal for shallow plenums, modern
interiors and green buildings.
30˚
60˚
250
500
750
Candlepower Curve
QCE2GOLOP214UNVPG 2' x 2' Alter Concept Elegance Lens, 2-Lamp 14W T5
3 ⅝"
(92mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 87.6%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 32.6W
Ballastfactor 1.0
RCR C.U.
1 83
3 56
5 41
7 32
10 23
Alter Concept Elegance Lens Voltage Ballast Options
Direct/indirect recessed UNV=120-277V Seepage4.67 See page 4.67
and page 4.72
UNVQCE2GOLOP214 PG
Example
Ordering information
Type Size Recessed
ceiling depth Lamp qty –type Lamp watts Catalog no.
Static
Etched lens
lamp shields
2' x 4' 3 ⅝"2-T5
2-T5HO
28W
54W
QCE2GOLOP228
QCE2GOLOP254
Static
etched lens
lamp shields
2' x 2' 3 ⅝"
1-TT5
2-T5
2-T5HO
40, 50, 55W
14W
24W
QCE2GOLOP1FT
QCE2GOLOP214
QCE2GOLOP224
Static
etched lens
lamp shields
1' x 4' 3 ⅝"
1-T5HO
2-T5
2-T5HO
54W
28W
54W
QCE1GOLOP154
QCE1GOLOP228
QCE1GOLOP254
30˚
60˚
500
1000
Candlepower Curve
1438
QCE2GOLOP228UNVPG2' x 4' Alter Concept Elegance Lens, 2-Lamp 28W T5
48" (1220mm)
3 ⅝"
(92mm)
24" (610mm)
Reference data
Efficiency 92.7%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 61.5W
Ballastfactor 1.0
RCR C.U.
1 96
3 72
5 56
7 45
10 33
4.68 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•Efficienciesupto70.7%.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Shallowdesign,only3⅝"deepforeasyinstallation
in shallow plenum.
•Post-paintedluminaire.
•Elegantridgedglasslampshieldsonhingedaluminium
extrusions swing down for easy relamping and
maintenance.
•Altersoftwhitefilmoninsideofridgedglassconceals
lamp image providing balance between reflected and
directlight.
•Fullyrecessedluminaireandlampcompartment.
•95%ReflectiveAltersoftwhitepaintfinish.
•One-piecebodyforeasyinstallation.
•Easyaccesstoballastthroughlampcompartment.
•Canberowmounted.
•Fitsstandard15/16"T-Grid,SlotT-Grid
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVPG.
Ballast type <10THD
Electronic T5/T5HO Program start PG
Electronic TT5 40W Instant start IB
Electronic TT5 40W Program rapid start PR
Electronic TT5 50W Rapid start BP
Electronic TT5 55W Rapid start BF
Electronic(2)T528WStep-dim AY
 Programedrapidstart(B.F.=0.95/0.35)
Electronic TT5/T5/T5HO Program start DA
DALI Digital addressable dimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency Lighting: Consult factory for options.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter Concept Elegance Glass
2' x 4' & 2' x 2'
Direct/indirect static shallow T5 recessed luminaires
Concept Elegance Glass exudes soft lighting presence to bring an air of distinction to
architectural decors. This luminaire family features beautifully textured glass panels, seamless
construction and includes a 2' x 4' version. It belongs to the Alter Concept collection of
sustainable lighting elements, offering cost-effective lighting in a lightweight, low-profile
design ideal for shallow plenums, modern interiors and green buildings.
30˚
60˚
400
800
1200
Candlepower Curve
QCE2GGLOS2FTUNVPR2' x 2' Alter Concept Elegance Perf, 2-Lamp 40W TT5
3 ⅝"
(92mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 58.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 68.9W
Ballastfactor 0.9
RCR C.U.
1 61
3 43
5 33
7 26
10 18
30˚
60˚
400
800
1200
Candlepower Curve
QCE2GGLOS228UNVPG2' x 4' Alter Concept Elegance Perf, 2-Lamp 28W T5
48" (1220mm)
3 ⅝"
(92mm)
24" (610mm)
Reference data
Efficiency 70.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 63.0W
Ballastfactor 1.0
RCR C.U.
1 74
3 58
5 45
7 36
10 27
Alter Concept Elegance Perf Voltage Ballast Options
Direct/indirect recessed UNV=120-277V Seepage4.68 See page 4.68
and page 4.72
UNVQCE2GGLOS2FT IB
Example
Ordering information
Type Size Recessed
ceiling depth Lamp qty –type Lamp watts Catalog no.
Static
Concept Elegance Glass
double glass lamp shields
2' x 4' 3 ⅝"2-T5
2-T5HO
28W
54W
QCE2GGLOS228
QCE2GGLOS254
Static
Concept Elegance Glass
double glass lamp shields
2' x 2' 3 ⅝"2-TT5
2-T5HO
40, 50, 55W
24W
QCE2GGLOS2FT
QCE2GGLOS224
4.69Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Alter Concept Elegance Perf Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.69 See page 4.69
277=277V  andpage4.72
UNV=120-277 V
UNVQVW8SGLOS2FT BA
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static
Elegance Wall
9"x12"
9"x24" 2-TT5 18W
40W
QVW8SGLOS218
QVW8SGLOS2FT
Features
•Efficiency60.9%.
•Usesmountingsurfaceaspartofopticalsystem.
•Availablein12"and24"options.
•Installsverticallyorhorizontallyonwall/ceiling.
•Providingbalancebetweenreflectedanddirectlight.
•0degreelampcut-off.
•Onepiecebodyforeasyinstallation.
•Lampshieldconstructedofdecorativefrostedrigidglass
and natural satin-finished metal
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVIB.
Ballast type
Electronic PowerSpec HDF dimming
40W TT5 IB 40W TT5 PB
50W TT5 BP
55W TT5 BF
18W TT5 BA
Fusing: Suffix: A (Internalfusing).
Alter Elegance Wall
9"x12"&9"x24"
Direct/indirect static ceiling & wall luminaires
Alter Elegance Wall employs decorative elements in its design such as frosted, ridged glass
lenses with natural satin finished trim accents made of satin finished metal. This design
brings a unique level of refinement to the world of balanced brightness. Whether installed
on walls, columns, partitions or even in alcoves, these luminaires create visual interest in
combination with Alter Elegance for example. The utilization of these two products provides
opportunities in any space for design consistency.
45˚
135˚
1000
750
500
250
Candlepower Curve
QVW8SGLOS218UNVBA Alter Elegance Wall, 2-Lamp 18W TT5
24" (610mm)
9 ¾" (248mm)
4"
(101mm)
9 ¾" (248mm)
4"
(101mm)
12 ¼" (311mm)
Reference data
Efficiency 60.9%
Electronic ballast
Inputwatts(120V) 65.6W
Ballastfactor 0.88
RCR C.U.
1 52
3 37
5 28
7 22
10 16
4.70 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•Efficienciesupto77.5%.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Shallowdesign,only3⅝"deepforeasyinstallationin
shallow plenum.
•Post-paintedluminaire.
•Solid-edgeswing-downmicroperforatedlampshield
for easy relamping and maintenance.
•Altersoftwhitefilmoninsideofmeshconcealslamp
image providing balance between reflected and
directlight.
•Semi-recessedluminaireandlampcompartment.
•95%ReflectiveAltersoftwhitepaintfinish.
•One-piecebodyforeasyinstallation.
•Easyaccesstoballastthroughlampcompartment.
•Canberowmounted.
•Fitsstandard15/16"T-Grid,SlotT-Grid
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVIB.
Ballast type <10THD
Electronic T5/T5HO Program start PG
Electronic TT5 40W Instant start IB
Electronic TT5 40W Program rapid start PR
Electronic TT5 50W Rapid start BP
Electronic TT5 55W Rapid start BF
Electronic(2)T528WStep-Dim AY
 Programedrapidstart(B.F.=0.95/0.35)
Electronic TT5/T5/T5HO Program start DA
DALI Digital addressable dimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency Lighting: Consult factory for options.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter Concept SR T5
2' x 4' & 2' x 2'
Direct/indirect static T5 semi recessed luminaires
Subtle presence at the ceiling line and classy styling make Concept SR T5 a visually pleasing
option for halls, corridors and other spaces. This semi-recessed luminaire features seamless
construction along with the clean look of solid-edge microperforated mesh lamp shields.
It belongs to the Alter Concept collection of sustainable lighting elements, offering cost-
effective lighting in a lightweight, low-profile design ideal for shallow plenums, modern
interiors and green buildings.
30˚
60˚
400
800
1200
Candlepower Curve
QCH2GPFOS2FTUNVPR2' x 2' Alter Concept SR T5, 2-Lamp 40W TT5
3 ⅝"
(92mm)
24" (610mm)
24" (610mm)
4 ¹5¹6"
(126mm)
Reference data
Efficiency 58.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 70.7W
Ballastfactor 0.9
RCR C.U.
1 61
3 47
5 37
7 30
10 22
Alter Concept Elegance Perf Voltage Ballast Options
Direct/indirect recessed UNV=120-277V Seepage4.70 See page 4.70
and page 4.72
UNVQCH2GPFOS2FT IB
Example
Ordering information
Type Size Recessed
ceiling depth Lamp qty –type Lamp watts Catalog no.
Static
Microperforated
mesh lamp shields
2' x 4' 3 ⅝"
2-T5
2-T5HO
3-T5HO
28W
54W
28W
QCH2GPFOS228
QCH2GPFOS254
QCH2GPFOP328*
Static
microperforated
mesh lamp shields
2' x 2' 3 ⅝"
2-T5
2-T5HO
3-T5HO
40, 50, 55W
24W
24W
QCH2GPFOS2FT
QCH2GPFOS224
QCH2GPFOP324*
* 3-lamp combination only available with one-piece lamp shield.
30˚
60˚
400
800
Candlepower Curve
1172
QCH2GPFOS228UNVPG 2' x 4' Alter Concept SR T5, 2-Lamp 28W T5
3 ⅝"
(92mm)
24" (610mm)
48" (1220mm)
4 ¹5¹6"
(126mm)
Reference data
Efficiency 71.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 67.5W
Ballastfactor 1.0
RCR C.U.
1 75
3 57
5 45
7 36
10 26
4.71Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Efficienciesupto70.5%.
•Seamlessweldedform:curvedtopandsidereflectors
are formed together without any gaps or visual barriers.
•Post-paintedluminaire.
•Cost-effectiveT8solutionwithshallowdesign,only3⅝"
deep for easy installation in shallow plenum.
•One-pieceswing-downmicroperforatedlampshieldfor
easy relamping and maintenance.
•Altersoftwhitefilmoninsideofmeshconcealslamp
image providing balance between reflected and
directlight.
•Semi-recessedluminaireandlampcompartment.
•95%ReflectiveAltersoftwhitepaintfinish.
•One-piecebodyforeasyinstallation.
•Easyaccesstoballastthroughlampcompartment.
•Notsuitableforrowmounting.
•Fitsstandard15/16"T-Grid,SlotT-Grid
Options & accessories page 4.72 + 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD
Electronic T8 Program start P2
Electronic T8 Instant start HI
Electronic T8 3-lamp instant start H3
Electronic T8 Program start DA
DALI Digital addressable dimming
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Hold down clips:StandardT15/16"only:QVS-HD.
Emergency Lighting: Consult factory for options.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Alter Concept SR T8
2' x 4' & 2' x 2'
Direct/indirect static T8 semi recessed luminaires
Subtle presence at the ceiling line and classy styling make Concept SR T8 a visually pleasing
option for halls, corridors and other spaces. This semi-recessed luminaire features T8
affordability and seamless construction, along with the clean look of microperforated mesh
lamp shields. It belongs to the Alter Concept collection of sustainable lighting elements,
offering cost-effective lighting in a lightweight, low-profile design ideal for shallow plenums,
modern interiors and green buildings.
Alter Concept Elegance Perf Voltage Ballast Options
Direct/indirect recessed UNV=120-277V Seepage4.71 See page 4.71
and page 4.72
UNVQCJ2GPFOP217 HI
Example
Ordering information
Type Size Recessed
ceiling depth Lamp qty –type Lamp watts Catalog no.
Static
microperforated
mesh lamp shields
2' x 4' 3 ⅝"2-T8
3-T8
32W
32W
QCJ2GPFOP232
QCJ2GPFOP332
Static
microperforated
mesh lamp shields
2' x 2' 3 ⅝"2-T8 17W QCJ2GPFOP217
30˚
60˚
200
400
607
Candlepower Curve
QCJ2GPFOP217UNVHI 2' x 2' Alter Concept SR T8, 2-Lamp 17W T8
3 ⅝"
(92mm)
24" (610mm)
24" (610mm)
4 ¹5¹6"
(126mm)
Reference data
Efficiency 68.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 31.2W
Ballastfactor 0.91
RCR C.U.
1 71
3 55
5 43
7 34
10 25
30˚
60˚
600
1200
Candlepower Curve
1944
QCJ2GPFOP332UNVH3 2' x 4' Alter Concept SR T8, 3-Lamp 32W T8
24" (610mm)
48" (1220mm)
4 ¹5¹6"
(126mm)
3 ⅝"
(92mm)
Reference data
Efficiency 70.5%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 90.7W
Ballastfactor 0.88
RCR C.U.
1 73
3 56
5 44
7 35
10 25
4.72 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Alter
Options & accessories
Clear Acrylic Lens
GI=⅛"nominal
thickness
Clear Polycarb-
onate Lens
PX=⅛"nominal
thickness
Available for:
Alter Classic Recessed 2' x 2' .......(notavail.withairhandling)
Alter Classic Recessed 2' x 4' .......(notavail.withairhandling)
Alter Classic Recessed 1' x 4' .......(notavail.for1lamp)
Alter Slim Semi-recessed 2' x 2' .....(notavail.for1lamp)
Alter Slim Semi-recessed 2’ x 4’ .....(notavail.for2-lampTT5)
Alter Slim Square 2' x 2' ............(notavail.for1lamp)
Alter Slim Surface 2' x 2', 2’ x 4’ .....(notavail.for2-TT5)
Liteguard
Liteguard is a lens for recessed luminaires
adding protection against pathogens, dust
and bugs and makes cleaning easy. It fits
on almost all 2' x 2', 2' x 4' and 1' x 4'
fully recessed luminaires including troffers,
parabolics and Alter-types. Post-painted
matte white aluminum frame fits Alter paint.
See Liteguard brochure for more details.
Luminaire
Family Nominal size Lens
LG=Liteguard 2X2=2'x2' GI=ClearAcrylic
2X4 =2'x4' PX=ClearPolycarbonate
1X4 =1'x4'
2X2LG GI
Example
Optional clear polished acrylic drop-down
visual element with projected color face
Substitute acrylic suffix in place of open slot (OS)only.
(e.g.replaceQVS2GPFOSbyQVS2GPFGR(Red)
Suffix: GC(Clear) GG (GreenAcrylic)
GB (Blue) GR(RedAcrylic)
For other colors, consult your Philips Lightolier representative.
Hold down clips
Four clips required per
luminaire. Suited to
standard15/16"andslot
Tgrid ceilings. Can also
be used for row-mounting
applications.
Order separately:
catalog no. QVS-HD.
(Kitbagcontains4clips)
Emergency power battery pack
Add appropriate suffix in option box:
T8/T5/T5HO models. Suffix: E
Internal fusing
Suffix: A(Internalfast-blowfusing).
Suffix: C(Internalslow-blowfusing).
Radio interference filter
Suffix: R(inOptionbox)
Inductive capacitor circuit
designed to minimize
interference from line
radiation or feedback.
(Onepercircuitrequired)
Factory installed emergency power battery pack with
charger and inverter, concealed in luminaire channel.
Upon loss of AC power, operates one fluorescent lamp
at15%lightoutputfor90minutes.120Vand277V
versions available.
Note: 2' x 2' Alter Concept luminaires equipped with Emergency
Lightingare5-1/4"deep.2'x4'versionswithdouble-switching
are5-1/4"deepwhileregular2'x4'versions(1ballast)are
3-5/8"deep.
To get a lens separately, order Catalog no.
Size Example Description Catalog no.
1' x 4'
2' x 2'
2' x 4'
LNQVS14
LNQVS22
LNQVS24
(ColorSuffix)
(ColorSuffix)
(ColorSuffix)
LNQVS14 - GB
LNQVS22 - GR
LNQVS24 - GG
4.74 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampbasketwithunique
TransOptixlens.
•Body95%reflectiveflatwhitepowdercoated.
•95%InternalMiro® ref lector.
•73.4%efficienttwolamp32WT82'x4'luminaire.
•66.9%efficientthreelamp32WT82'x4'luminaire.
•80.2%efficienttwolamp28WT52'x4'luminaire.
•80.7%efficienttwolamp54WT5HO2'x4'luminaire.
•Only5"deep.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceiling.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Injectionmoldedlightstopatbasketends.
•Perforatedlampshieldhingesfromeitherside.
•Ballastaccessiblethrulampcompartment
from room side.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•ConstructiontomeetNYCCode
or Chicago Plenum requirement available.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic T5 PG –
LOL Dimming T8 PS –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Coffaire HP 2' x 4'
Direct/indirect recessed static luminaires
Our new high-performance Coffaire HP luminaire features a high 95% reflectance white
powder painted body, our new Transoptix lens and a 95% reflectance Miro® aluminum reflector.
Achieving efficiencies 20% greater than comparable luminaires currently available in the market.
30˚
60˚
800
1600
2400
Candlepower Curve
30˚
60˚
500
1000
1500
Candlepower Curve
CFS2GHP228120WA
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP254UNVPG
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP232UNVHI
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP228120WA
Reference data
Efficiency 80.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 56.6W
Ballastfactor 0.93
CFS2GHP254UNVPG Reference data
Efficiency 80.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 121.1W
Ballastfactor 1
CFS2GHP232UNVHI
30˚
60˚
550
1100
1650
Candlepower Curve
Reference data
Efficiency 73.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 58.7W
Ballastfactor 0.88
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP254UNVPG
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP232UNVHI
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP228120WA
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP254UNVPG
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP232UNVHI
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP228120WA
Coffaire HP Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.74 See page 4.74
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
120CFS2GHP228 AWA
Example
Coffaire HP Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.74 See page 4.74
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCFS2GHP254 APG
Example
Coffaire HP Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.74 See page 4.74
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCFS2GHP232 AHI
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T5
3-T5 28W CFS2GHP228
CFS2GHP328
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 1-T5HO
2-T5HO 54W CFS2GHP154
CFS2GHP254
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T8
3-T8 32W CFS2GHP232
CFS2GHP332
4.75Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Coffaire HP 2' x 2'
Direct/indirect recessed static luminaires
Our new high-performance Coffaire HP luminaire features a high 95% reflectance white powder
painted body, our new Transoptix lens and a 95% reflectance Miro® aluminum reflector. Achieving
efficiencies 20% greater than comparable luminaires currently available in the market. The 2' x 2'
model, with Philips ballast and 25 watt PL-L lamps, is over 85% efficient. This unique combination of
the Coffaire HP, lamps and ballast provides 46maintained foot candles at 0.71 watts per square foot.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampbasketwithunique
TransOptixlens.
•Body95%reflectiveflatwhitepowdercoated.
•95%InternalMiro® ref lector.
•76.6%efficienttwolamp24WT5HO2'x2'luminaire.
•85.4%efficienttwolamp25WTT52'x2'luminaire.
•71.5%efficienttwolamp40WTT52'x2'luminaire.
•72.5%efficienttwolamp17WT82'x2'luminaire.
•Only5"deep.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceiling.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Injectionmoldedlightstopatbasketends.
•Perforatedlampshieldhingesfromeitherside.
•Ballastaccessiblethrulampcompartment
from room side.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•ConstructiontomeetNYCCode
or Chicago Plenum requirement available.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic TT5 40W IB*, PR** SB*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
550
1100
1650
Candlepower Curve
30˚
60˚
300
600
900
Candlepower Curve
CFS2GHP224UNVPG
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP2FTUNVIB ~ 25 Watt Lamps
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GPF217UNVHI
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GPF224UNVPG
Reference data
Efficiency 76.6%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 52.8W
Ballastfactor 1
CFS2GHP2FTUNVIB Reference data - 25W
Efficiency 85.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 57.3W
Ballastfactor 0.88
CFS2GHP217UNVHI
30˚
60˚
250
500
750
Candlepower Curve
Reference data
Efficiency 72.5%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 30.1W
Ballastfactor 0.91
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP2FTUNVIB ~ 25 Watt Lamps
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GPF217UNVHI
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GPF224UNVPG
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GHP2FTUNVIB ~ 25 Watt Lamps
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GPF217UNVHI
5"
(127mm)
24" (610mm)
Spotlight Fixture: CFS2GPF224UNVPG
Coffaire HP Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.75 See page 4.75
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVCFS2GHP224 APG
Example
Coffaire HP Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.75 See page 4.75
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVCFS2GHP2FT AIB
Example
Coffaire HP Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.75 See page 4.75
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVCFS2GHP217 AHI
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
2-T5HO
3-T5HO
14W
24W
24W
CFS2GHP214
CFS2GHP224
CFS2GHP324
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-Twin tube T5 40W
25W
CFS2GHP2FT
CFS2GHP2FT
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-T8
3-T8 17W CFS2GHP217
CFS2GHP317
4.76 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampbasketwithunique
TransOptixlens.
•Body95%reflectiveflatwhitepowdercoated.
•95%InternalMiro® ref lector.
•69.1%efficienttwolamp32WT81'x4'luminaire.
•77.4%efficienttwolamp28WT51'x4'luminaire.
•Only5"deep.
•Tensionscrewssecureendstobody.
•SamefixturefitsbothGandTceiling.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Injectionmoldedlightstopatbasketends.
•Perforatedlampshieldhingesfromeitherside.
•Ballastaccessiblethrulampcompartment
from room side.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•ConstructiontomeetNYCCode
or Chicago Plenum requirement available.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 P2** –
ElectronicT8(1&2Lamp) HI* SO*
ElectronicT528W(1-2Lamp) PG** –
ElectronicT554W(1-2Lamp) PG** –
Electronic T5 28W instant start WA*† –
LOL Dimming T8 † PS –
* Instant start. Standard
(WABallastonlyavailableineither120or277.)
** Program rapid start (UNVonly)
†57.5Inputwatts0.93B.F.
Other dimming options. Consultfactory.
Note: For T8 UNV, you must use HI or P2 ballast code.
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Coffaire HP 1' x 4'
Direct/indirect recessed static luminaires
Our new high-performance Coffaire HP luminaire features a high 95% reflectance white
powder painted body, our new Transoptix lens and a 95% reflectance Miro® aluminum reflector.
Achieving efficiencies 20% greater than comparable luminaires currently available in the market.
CFS1GHP232UNVHI Reference data
Efficiency 69.1%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 57.4W
Ballastfactor .88
CFS1GHP228120WA Reference data
Efficiency 77.4%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 55.4W
Ballastfactor .93
Spotlight Fixture: CFS1GHP232UNVHI
4
1516"
(125mm)
11⅞" (302mm)
Spotlight Fixture: CFS1GHP228120WA
4
1516"
(125mm)
11⅞" (302mm)
Spotlight Fixture: CFS1GHP232UNVHI
4
1516"
(125mm)
11⅞" (302mm)
Spotlight Fixture: CFS1GHP228120WA
4
1516"
(125mm)
11⅞" (302mm)
30˚
60˚
550
1100
1650
Candlepower Curve
30˚
60˚
550
1100
1650
Candlepower Curve
Coffaire HP Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.76 See page 4.76
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVCFS1GHP232 AHI
Example
Coffaire HP Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.76 See page 4.76
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
120CFS1GHP228 AWA
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4' 1-T8
2-T8 32W CFS1GHP132
CFS1GHP232
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4'
1-T5
2-T5
1-T5HO
2-T5HO
28W
28W
54W
54W
CFS1GHP128
CFS1GHP228
CFS1GHP154
CFS1GHP254
4.77Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
30˚
60˚
350
700
1050
Candlepower Curve
30˚
60˚
550
1100
1650
Candlepower Curve
Coffaire II 2' x 4'
Direct/indirect recessed air return or static luminaires
Coffaire II combines a perforated mesh lamp shields and an indirect cove to create an
aesthetically pleasing direct/indirect luminaire that has provision for air return or static operation.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior one piece body.
•PerforatedMeshLampShieldswithwhiteacrylic
overlay.
•60.2%efficientthreelampT82'x4'luminaire.
•63.8%efficienttwolampT82'x4'luminaire.
•70.8%efficienttwolampT52'x4'luminaire.
•Only5"deep.
•SamefixturefitsbothGandTceilingtypes.
•FitsflushtofaceofslotgridTceiling.
•Endsecuringtensionbars.
•Airreturnstandard(meetsULrequirements).
•Lighttrapsbetweenbasketandfixtureend
(staticmodels).
•Lampshieldhingesfromeitherside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•Builtinearthquakeclipsstandard.
•Housingisavailablein20gaugesteelthatmeets
NYCrequirements.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
CFH2GPF332UNVH3
5"
(127mm)
24" (610mm)
Reference data
Efficiency 60.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 89W
Ballastfactor 0.90
Coffaire Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.77 See page 4.77
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCFH2GPF332 AH3
Example
CFH2GPF232UNVHI Reference data
Efficiency 63.8%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 58W
Ballastfactor 0.88
CFS2GPF254UNVPG
30˚
60˚
700
1400
2100
Candlepower Curve
Reference data
Efficiency 70.8%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 123.2W
Ballastfactor 1.0
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Coffaire Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.77 See page 4.77
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCFH2GPF232 AHI
Example
Coffaire Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.77 See page 4.77
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCFS2GPF254 APG
Example
Ordering information
Type Size Lamp qty –type Catalog no.
Static 2' x 4' 3-T8 CFS2GPF332
Air return 2' x 4' 3-T8 CFH2GPF332
Ordering information
Type Size Lamp qty –type Catalog no.
Static 2' x 4' 2-T8 CFS2GPF232
Air return 2' x 4' 2-T8 CFH2GPF232
Ordering information
Type Size Lamp qty –type Catalog no.
Static 2' x 4'
1-T5HO
2-T5HO
2-T5
CFS2GPF154
CFS2GPF254
CFS2GPF228
4.78 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Meets fire test
requirement of UL 1598
30˚
60˚
300
600
900
Candlepower Curve
30˚
60˚
400
800
1200
Candlepower Curve
Coffaire II 2' x 2'
Direct/indirect recessed air return or static luminaires
Coffaire II combines a perforated mesh lamp shields and an indirect cove to create an
aesthetically pleasing direct/indirect luminaire that has provision for air return or static operation.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior one piece body.
•Perforatedmeshlampshieldswithwhiteacrylicoverlay.
•68.10%efficienttwolampTT52'x2'luminaire.
•56.7%efficienttwolampT5HO2'x2'luminaire.
•Only5"deep.
•SamefixturefitsbothGandTceilingtypes.
•FitsflushtofaceofslotgridTceiling.
•Endsecuringtensionbars.
•Airreturnstandard(meetsULrequirements).
•Lighttrapsbetweenbasketandfixtureend
(staticmodels).
•Lampshieldhingesfromeitherside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•Builtinearthquakeclipsstandard.
•Housingisavailablein20gaugesteelthatmeets
NYCrequirements.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic TT5 40W IB*, PR** SB*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
5"
(127mm)
24" (610mm)
Coffaire Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.78 See page 4.78
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
(Elec.TT5Ballastonly)
120CFH2GPF2FT ASB
Example
CFH2GPF2FT120SB Reference data
Efficiency 68.1%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 65.5W
Ballastfactor 0.90
CFS2GPF224UNVPG Reference data
Efficiency 56.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 56.1W
Ballastfactor
5"
(127mm)
24" (610mm)
Coffaire Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.78 See page 4.78
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCFS2GPF224 APG
Example
Mounting methods
Exposed T-grid ceiling Exposed slot T-grid ceiling
Exposed T-bar
by others
Acoustical
material
by others
1 ½"max.
15/16"
24"
Exposed T-bar
by others
1 ½"max.
Acoustical
material
by others
9/16"
24"
Ordering information
Type Size Lamp qty –type Catalog no.
Static 2' x 2' 2-TT5 CFS2GPF2FT
Air return 2' x 2' 2-T T5 CFH2GPF2FT
Ordering information
Type Size Lamp qty –type Catalog no.
Static 2' x 2'
2-T8
3-T8
2-T5
2-T5HO
CFS2GPF217
CFS2GPF317
CFS2GPF214
CFS2GPF224
Air return 2' x 2' 2-T8
3-T8
CFH2GPF217
CFH2GPF317
4.79Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Coffaire II 1' x 4'
Direct/indirect recessed air return or static luminaires
Coffaire II combines a perforated mesh lamp shields and an indirect cove to create an
aesthetically pleasing direct/indirect luminaire that has provision for air return or static operation.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampshieldswithwhiteacrylicoverlay.
•52.1%efficienttwolampT81'x4'luminaire.
•55.7%efficienttwolampT51'x4'luminaire.
•Only5"deep.
•SamefixturefitsbothGandTceilingtypes.
•FitsflushtofaceofslotgridTceiling.
•Airreturnstandard(meetsULrequirements).
•Lampshieldhingesfromeitherside.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•2earthquakeclipsstandard.
•Housingisavailablein20gaugesteelthatmeets
NYCrequirements.
•ConstructiontomeetChicagoPlenumrequirements
isavailable.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 P2** –
ElectronicT8(1&2Lamp) HI* SO*
ElectronicT528W(1-2Lamp) PG** –
ElectronicT554W(1-2Lamp) PG** –
Electronic T5 28W instant start WA*† –
LOL Dimming T8 PS –
* Instant start. Standard
(WABallastonlyavailableineither120or277.)
** Program rapid start (UNVonly)
†57.5Inputwatts0.93B.F.
Other dimming options. Consultfactory.
Note: For T8 UNV, you must use HI or P2 ballast code.
Drywall kit: Conversion kit for 1' x 4' unit: FK91X4.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
CFH1GPF232UNVHI
5"
(127mm)
12" (305mm)
Coffaire Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.79 See page 4.79
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVCFH1GPF232 AHI
Example
CFH1GPF228120WA
5"
(127mm)
12" (305mm)
Coffaire Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.79 See page 4.79
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
120CFH1GPF228 AWA
Example
30˚
60˚
400
800
1200
Candlepower Curve
30˚
60˚
400
800
1200
Candlepower Curve
Reference data
Efficiency 52.1%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 67.7W
Ballastfactor 0.87
Reference data
Efficiency 55.7%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 57.0W
Ballastfactor 0.93
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Air return 1' x 4'
1-T5
2-T5
1-T5HO
2-T5HO
28W
28W
54W
54W
CFH1GPF128
CFH1GPF228
CFH1GPF154
CFH1GPF254
Static 1' x 4'
1-T5
2-T5
1-T5HO
2-T5HO
28W
28W
54W
54W
CFS1GPF128
CFS1GPF228
CFS1GPF154
CFS1GPF254
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Air return 1' x 4' 1-T8
2-T8 32W CFH1GPF132
CFH1GPF232
Static 1' x 4' 1-T8
2-T8 32W CFS1GPF132
CFS1GPF232
4.80 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Coffaire II Air 2' x 4'
Direct/indirect recessed air supply and return luminaires
Coffaire II Air combines our traditional soft light perforated basket appearance with air
supply/return functions for installations that demand both features.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampshieldswithwhiteacrylicoverlay.
•Contouredbodyandends.
•airsupplyandreturn.
•Airreturnslotslocatedabovelampshield.
•AirreturnmodelsmeetUL1598,Paragraph9.2.2.5
requirements.
•65.0%efficienttwolamp28WT52'x4'luminaire.
•70.8%efficienttwolamp54WT52'x4'luminaire.
•63.8%efficienttwolampT82'x4'luminaire.
•60.2%efficientthreelampT82'x4'luminaire.
•Only5"deep.
•Tensionscrewssecureendstobody.
•Perforatedlampshieldhingesfromeitherside.
•Canbecontinuousrowmounted.
•Built-inearthquakeclips.
•Ballastaccessiblefromroomside.
•Optionalsupplyairslotcover.
•MeetsNYCCode.
•ConstructiontomeetChicagoPlenumrequirements
isavailable.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Electrical wiring options: Consultfactory.
Dust Shield: See folio number: OA50-20.
Optional supply air slot cover:OrderCatNo:
CACS-4 CSP.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
30˚
60˚
700
1400
2100
Candlepower Curve
CFA2GPF254UNVPG
5"
(127mm)
24" (610mm)
Reference data
Efficiency 70.8%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 123W
Ballastfactor 1.0
Coffaire II Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.80 See page 4.80
air supply and return 277=277V  andpage4.130
w/perforated mesh shield UNV=120 -277V
UNVCFA2GPF254 APG
Example
30˚
60˚
400
800
1200
Candlepower Curve
CFA2GPF232UNVHI
5"
(127mm)
24" (610mm)
Reference data
Efficiency 63.8%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 58W
Ballastfactor .87
Coffaire II Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.80 See page 4.80
air supply and return 277=277V  andpage4.130
w/perforated mesh shield UNV=120 -277V
UNVCFA2GPF232 AHI
Example
30˚
60˚
600
1200
1800
Candlepower Curve
CFA2GPF332UNVH3
5"
(127mm)
24" (610mm)
Reference data
Efficiency 60.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 85W
Ballastfactor .88
Coffaire II Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.80 See page 4.80
air supply and return 277=277V  andpage4.130
w/perforated mesh shield UNV=120 -277V
UNVCFA2GPF332 AH3
Example
Ordering information
Type Size Lamp qty –type Catalog no.
Air supply and return 2' x 4' 2-T5 CFA2GPF254
CFA2GPF228
Ordering information
Type Size Lamp qty –type Catalog no.
Air supply and return 2' x 4' 2-T8 CFA2GPF232
Ordering information
Type Size Lamp qty –type Catalog no.
Air supply and return 2' x 4' 3-T8 CFA2GPF332
4.81Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Coffaire II Air 2' x 2'
Direct/indirect recessed air supply and return luminaires
Coffaire II Air combines our traditional soft light perforated basket appearance with air
supply/return functions for installations that demand both features.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampshieldswithwhiteacrylicoverlay.
•Contouredbodyandends.
•airsupplyandreturn.
•Airreturnslotslocatedabovelampshield.
•AirreturnmodelsmeetUL1598,Paragraph9.2.2.5
requirements.
•68.1%efficienttwolampTT52'x2'luminaire.
•55.2%efficienttwolampTT52'x2'luminaire.
•61.7%efficienttwolampT82'x2'luminaire.
•55.9%efficientthreelampT82'x2'luminaire.
•Only5"deep.
•Tensionscrewssecureendstobody.
•Perforatedlampshieldhingesfromeitherside.
•Canbecontinuousrowmounted.
•Built-inearthquakeclips.
•Ballastaccessiblefromroomside.
•Optionalsupplyairslotcover.
•MeetsNYCCode.
•ConstructiontomeetChicagoPlenumrequirements
isavailable.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic TT5 40W IB*, PR** SB*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical wiring options: Consultfactory.
Dust Shield: See folio number: OA50-20.
Optional supply air slot cover:OrderCatNo:
CACS-2 CSP.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
30˚
60˚
500
1000
1500
Candlepower Curve
CFA2GPF2FT120SB
5"
(127mm)
24" (610mm)
Reference data
Efficiency 68.1%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 65W
Ballastfactor .86
Coffaire II Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.81 See page 4.81
air supply and return 277=277V  andpage4.130
w/perforated mesh shield UNV=120 -277V
120CFA2GPF2FT ASB
Example
30˚
60˚
200
400
600
Candlepower Curve
CFA2GPF217UNVHI
5"
(127mm)
24" (610mm)
Reference data
Efficiency 61.7%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 30W
Ballastfactor .93
Coffaire II Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.81 See page 4.81
air supply and return 277=277V  andpage4.130
w/perforated mesh shield UNV=120 -277V
UNVCFA2GPF217 AHI
Example
30˚
60˚
300
600
900
Candlepower Curve
CFA2GPF317UNVH3
5"
(127mm)
24" (610mm)
Reference data
Efficiency 55.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 46W
Ballastfactor 1.0
Coffaire II Air Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.81 See page 4.81
air supply and return 277=277V  andpage4.130
w/perforated mesh shield UNV=120 -277V
UNVCFA2GPF317 AH3
Example
Ordering information
Type Size Lamp qty –type Catalog no.
Air supply and return 2' x 2' 2-TT5
3-TT5
CFA2GPF2FT
CFA2GPF3FT
Ordering information
Type Size Lamp qty –type Catalog no.
Air supply and return 2' x 4' 3-T8 CFA2GPF317
Ordering information
Type Size Lamp qty –type Catalog no.
Air supply and return 2' x 2'
2-T8
2-T5
2-T5HO
CFA2GPF217
CFA2GPF214
CFA2GPF224
4.82 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
CoffaireDropBasket2'x4'
Direct/indirect recessed static luminaires
CoffaireDropBasketoffersT8andT5lampoptionsinabodythatisonlyrecessed2-1/4".
The2-7/16"deepperforatedbasketcreatesuniformlightdistributionthatbrightenswalls
and ceilings. Evenly illuminating both horizontal and vertical surfaces, creating a soft, balanced
brightness that enhances visual acuity while creating a visual statement on the ceiling line.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampshieldswithwhiteacrylicoverlay.
•60.8%efficienttwolampT82'x4'luminaire.
•66.0%efficientthreelampT82'x4'luminaire.
•69.9%efficienttwolamp28WT52'x4'luminaire.
•66.4%efficienttwolamp54WT5HO2'x4'luminaire.
•Only2-1/4"plenumdepth.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Lampshieldhingesfromeitherside.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENTechnologyacceptsdigital
dimming controllers, scene controllers and automatic
control devices.
•ConstructiontomeetChicagoPlenumavailable.
•MeetsNYCCoderequirements.
•Notforcontinuousrowmounting.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Electrical wiring options: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Only 2 ¼" Deep
30˚
60˚
450
900
1350
Candlepower Curve
CDS2GPF228UNVPG
4
1116"
(119mm)
24" (610mm)
Reference data
Efficiency 69.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 122W
Ballastfactor 1.0
Coffaire Drop Basket Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.82 See page 4.82
277=277V  andpage4.130
UNV=120-277 V
UNVCDS2GPF228 APG
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T5
3-T5
2-T8
3-T8
1-T5HO
2-T5HO
28W
28W
32W
32W
54W
54W
CDS2GPF228
CDS2GPF328
CDS2GPF232
CDS2GPF332
CDS2GPF154
CDS2GPF254
4.83Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
CoffaireDropBasket2'x2'
Direct/indirect recessed static luminaires
CoffaireDropBasketoffersT8andT5lampoptionsinabodythatisonlyrecessed2-1/4".
The2-7/16"deepperforatedbasketcreatesuniformlightdistributionthatbrightenswalls
and ceilings. Evenly illuminating both horizontal and vertical surfaces, creating a soft, balanced
brightness that enhances visual acuity while creating a visual statement on the ceiling line.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampshieldswithwhite
acrylic overlay.
•59.4%efficienttwolampT82'x2'luminaire.
•55.5%efficientthreelampT82'x2'luminaire.
•62.9%efficienttwolampT52'x2'luminaire.
•62.6%efficienttwolampT5HO2'x2'luminaire.
•55.0%efficienttwolampTT52'x2'luminaire.
•Only2-1/4"plenumdepth.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Lampshieldhingesfromeitherside.
•Wiringaccessplatestandard.
•OptionalDALIballastiGENTechnologyacceptsdigital
dimming controllers, scene controllers and automatic
control devices.
•ConstructiontomeetChicagoPlenumavailable.
•MeetsNYCCoderequirements.
•Notforcontinuousrowmounting.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic TT5 40W IB*, PR** SB*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical wiring options: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
180
360
540
Candlepower Curve
CDS2GPF214UNVPG
4
1116"
(119mm)
24" (610mm)
Reference data
Efficiency 62.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 33W
Ballastfactor 1.0
Coffaire Drop Basket Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.83 See page 4.83
277=277V  andpage4.130
UNV=120-277 V
UNVCDS2GPF214 APG
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
2-T5HO
2-TT5
2-T8
3-T8
14W
24W
40W
17W
17W
CDS2GPF214
CDS2GPF224
CDS2GPF2FT
CDS2GPF217
CDS2GPF317
4.84 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
CoffaireDropBasket2'x4'
Direct/indirect surface mounted static luminaires
CoffaireDropBasket~SurfaceMountedoffersT8andT5lampoptionsinabodythatis
only2-17/32"deep.The2-7/16"deepperforatedbasketcreatesuniformlightdistribution
that brightens walls and ceilings. Evenly illuminating both horizontal and vertical surfaces,
creating a soft, balanced brightness that enhances visual acuity while creating a visual
statement on the ceiling line.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampshieldswithwhiteacrylicoverlay.
•68.0%efficienttwolamp32WT82'x4'luminaire.
•69.9%efficienttwolamp28WT52'x4'luminaire.
•Lampshieldhingesfromeitherside.
•OptionalDALIballastiGENTechnologyacceptsdigital
dimming controllers, scene controllers and automatic
control devices.
•MeetsNYCCoderequirements.
•Notforcontinuousrowmounting.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic T5 PG –
* Instant start.
** Program start.
Emergency/wiring options: For special wiring, fusing,
electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
400
800
1200
Candlepower Curve
CDB2SPF232UNVHI
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
Spotlight Fixture: CFS2GPF224UNVPG Spotlight Fixture: CDB2SPF228UNVPG
Spotlight Fixture: CDB2SPF217UNVHI Spotlight Fixture: CDB2SPF214UNVPG
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
4
1116"
(119mm)
24" (610mm)
4
1116"
(119mm)
24" (610mm)
4
1116"
(119mm)
24" (610mm)
Reference data
Efficiency 68.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 50.4W
Ballastfactor 0.88
30˚
60˚
450
900
1350
Candlepower Curve
CDB2SPF228UNVPG
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
Spotlight Fixture: CFS2GPF224UNVPG Spotlight Fixture: CDB2SPF228UNVPG
Spotlight Fixture: CDB2SPF217UNVHI Spotlight Fixture: CDB2SPF214UNVPG
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
4
1116"
(119mm)
24" (610mm)
4
1116"
(119mm)
24" (610mm)
4
1116"
(119mm)
24" (610mm)
Reference data
Efficiency 69.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 122.1W
Ballastfactor 1
Coffaire Drop Basket Voltage Ballast Options
Direct/indirect Surface 120=120V Seepage4.84 See page 4.84
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCDB2SPF232 AHI
Example
Coffaire Drop Basket Voltage Ballast Options
Direct/indirect Surface 120=120V Seepage4.84 See page 4.84
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCDB2SPF228 APG
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4' 2-T8
3-T8 32W CDB2SPF232
CDB2SPF332
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T5
3-T5
1-T5HO
2-T5HO
28W
28W
54W
54W
CDB2SPF228
CDB2SPF328
CDB2SPF154
CDB2SPF254
4.85Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
CoffaireDropBasket2'x2'
Direct/indirect surface mounted static luminaires
CoffaireDropBasket~SurfaceMountedoffersT8andT5lampoptionsinabodythatis
only2-17/32"deep.The2-7/16"deepperforatedbasketcreatesuniformlightdistribution
that brightens walls and ceilings. Evenly illuminating both horizontal and vertical surfaces,
creating a soft, balanced brightness that enhances visual acuity while creating a visual
statement on the ceiling line.
Features
•Direct/indirectlampshieldappearancewithsoft
contoured interior.
•Perforatedmeshlampshieldswithwhiteacrylicoverlay.
•59.4%efficienttwolampT82'x2'luminaire.
•62.9%efficienttwolampT52'x2'luminaire.
•Lampshieldhingesfromeitherside.
•OptionalDALIballastiGENTechnologyacceptsdigital
dimming controllers, scene controllers and automatic
control devices.
•MeetsNYCCoderequirements.
•Notforcontinuousrowmounting.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic TT5 40W IB*, PR** SB*
Electronic T5 PG –
* Instant start.
** Program start.
Emergency/wiring options: For special wiring, fusing,
electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
170
340
510
Candlepower Curve
CDB2SPF217UNVHI
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
Spotlight Fixture: CFS2GPF224UNVPG Spotlight Fixture: CDB2SPF228UNVPG
Spotlight Fixture: CDB2SPF217UNVHI Spotlight Fixture: CDB2SPF214UNVPG
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
4
1116"
(119mm)
24" (610mm)
4
1116"
(119mm)
24" (610mm)
4
1116"
(119mm)
24" (610mm)
Reference data
Efficiency 59.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 30.8W
Ballastfactor 0.88
30˚
60˚
180
360
540
Candlepower Curve
CDB2SPF214UNVPG
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
Spotlight Fixture: CFS2GPF224UNVPG Spotlight Fixture: CDB2SPF228UNVPG
Spotlight Fixture: CDB2SPF217UNVHI Spotlight Fixture: CDB2SPF214UNVPG
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
24" (610mm)
2 7/16 (61.91mm)
2 1/4 (57.15mm)
4
1116"
(119mm)
24" (610mm)
4
1116"
(119mm)
24" (610mm)
4
1116"
(119mm)
24" (610mm)
Reference data
Efficiency 62.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 33.2W
Ballastfactor 1.06
Coffaire Drop Basket Voltage Ballast Options
Direct/indirect Surface 120=120V Seepage4.85 See page 4.85
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCDB2SPF217 AHI
Example
Coffaire Drop Basket Voltage Ballast Options
Direct/indirect Surface 120=120V Seepage4.85 See page 4.85
w/perforated mesh shield 277=277V  andpage4.130
UNV=120-277 V
UNVCDB2SPF214 APG
Example
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-T8
3-T8 17W CDB2SPF217
CDB2SPF317
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
2-T5HO
2-Twin tube T5
14W
24W
40W
CDB2SPF214
CDB2SPF224
CDB2SPF2FT
4.86 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Coffaire SQ 2' x 2'
Direct/indirect recessed static luminaires
Coffaire SQ offers a white translucent acrylic lens that blends into the reflector paint finish
toprovideauniquefreefloatingappearancetotheattached10"squareperforatedmesh
steel center panel in an aesthetically pleasing direct/indirect luminaire.
30˚
60˚
350
700
1050
Candlepower Curve
CFS2GSQ224UNVPG
5"
(127mm)
24"
(610mm)
24" (610mm)
24" (610mm)
5"
(127mm)
24"
(610mm)
24" (610mm)
24" (610mm)
5"
(127mm)
24"
(610mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 75.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 49.8W
Ballastfactor 1
Features
•75.6%efficienttwolamp24WT5HO2'x2'luminaire.
•75.2%efficienttwolamp14WT52'x2'luminaire.
•72.7%efficienttwolamp17WT82'x2'luminaire.
•Direct/indirectfixturewithasoftlycontouredinterior.
•Lenshingesfromeithersideoffixture.
•Only5"deep.
•SamefixturefitsbothGandTceilingtypes.
•Fitsflushtofaceofslotgrid(T)ceiling.
•Built-inearthquakeclips.
•Canbecontinuousrowmounted.
•Wiringaccessplatestandard.
•MeetsNYCCoderequirements.
•ConstructiontomeetChicagoPlenumrequirement
isavailable.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp T8 H3*, P3** O3*
Electronic TT5 40W IB*, PR** SB*
Electronic T5 PG –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Emergency/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Packaging: Individual carton is standard.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
3-T5
2-T5HO
3-T5HO
14W
14W
24W
24W
CFS2GSQ214
CFS2GSQ314
CFS2GSQ224
CFS2GSQ324
Coffaire SQ Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.86 See page 4.86
w/acrylic lens and perforated 277=277V  andpage4.130
steel center panel UNV=120-277 V
UNVCFS2GSQ224 APG
Example
30˚
60˚
250
500
750
Candlepower Curve
CFS2GSQ217UNVHI
5"
(127mm)
24"
(610mm)
24" (610mm)
24" (610mm)
5"
(127mm)
24"
(610mm)
24" (610mm)
24" (610mm)
5"
(127mm)
24"
(610mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 72.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 30.3W
Ballastfactor 0.91
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-T8
3-T8 17W CFS2GSQ217
CFS2GSQ317
Coffaire SQ Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.86 See page 4.86
W/acrylic lens and perforated 277=277V  andpage4.130
steel center panel UNV=120-277 V
UNVCFS2GSQ217 AHI
Example
30˚
60˚
550
1100
1650
Candlepower Curve
CFS2GSQ2FT120SB
5"
(127mm)
24"
(610mm)
24" (610mm)
24" (610mm)
5"
(127mm)
24"
(610mm)
24" (610mm)
24" (610mm)
5"
(127mm)
24"
(610mm)
24" (610mm)
24" (610mm)
Reference data
Efficiency 71.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 67.0W
Ballastfactor 0.88
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2' 2-Twin tube T5
3-Twin tube T5 40W CFS2GSQ2FT
CFS2GSQ3FT
Coffaire SQ Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.86 See page 4.86
w/acrylic lens and perforated 277=277V  andpage4.130
steel center panel UNV=120-277 V
UNVCFS2GSQ2FT APR
Example
4.87Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Features
•Masksunsightlyinsectsanddebrisfromappearingon
the perforated basket.
•ForusewithCoffaireSeries.
•.040Translucentwhiteacrylicsecondaryliner
Features
•Minimizespenetrationofdust,insectsandotherdebris
into the lamp compartment.
•Encloseslampcompartment.
•Impactresistantclearacryliclens.
•Hingesatendcaps.
•Doesnotinterferewithbasketremovalandrelamping
Coffaire Dust/Insect Shield D
For Coffaire series
1x4 Dust Shield
Dust Shield Liner
2x2 & 2x4 Dust Shield
Dust Shield Liner
Plastic
Stand off
Perforated
Basket
Perforated
Basket
6 ⅜"
(161mm)
8 ⅛"
(206mm)
1116"
(23mm)
1116"
(23mm)
45
1116" (1167mm)
45
1516" (1167mm)
21
1516" (557mm)
Plastic
Stand off
1x4 Dust Shield
Dust Shield Liner
2x2 & 2x4 Dust Shield
Dust Shield Liner
Plastic
Stand off
Perforated
Basket
Perforated
Basket
6 ⅜"
(161mm)
8 ⅛"
(206mm)
1116"
(23mm)
1116"
(23mm)
45
1116" (1167mm)
45
1516" (1167mm)
21
1516" (557mm)
Plastic
Stand off
Ordering information
Ordering information
Standard With dust/insect sheild
CFS2G PF 2FTUNVIB
CFS2G PF 232UNVHI
CFS2G PD 2FTUNVIB
CFS2G PD 232UNVHI
Standard With dust/insect sheild
CFS2G PF 2FTUNVIB
CFS2G PF 232UNVHI
CFS2G PG 2FTUNVIB
CFS2G PG 232UNVHI
To specifiy dust/insect shield change
PF in the catalog no. to PD
To specifiy dust/insect shield change
PF in the Catalog no. to PG
Compatible with Coffaire Series
Prefix CFS, CFH, CFA 1X4, 2X2 and 2X4 Sizes
Photometry: Use standard photometric tests
and multiply light loss factor by 0.98
Compatible with Coffaire Series
Prefix CFS, 2X2 and 2X4 Sizes
Photometry: Use standard photometric tests
and multiply light loss factor by 0.98
Coffaire Dust Guard G
For static Coffaire series
Clear
Lens
Example
Example
4.88 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
ULM-EZR Module can be relocated at any time with out use of tools. ULM-EZR Module blends in with the ceiling system. With a low profile and visible
flatdimensionof3"X3.2"theULM-EZR causes a minimal interruption to the
ceilingplane.
DL Daylighting System
Direct/indirect recessed luminaires
Even when you have selected the most energy efficient luminaire/ballast/lamp combination for
your space, additional energy savings can be made by utilizing natural daylight through use of
controls. In the past, many have felt “Daylighting” was too complicated because of the wiring
required for the interface of the fixtures to the control sensors, the adjustability
ofthe sensors and the inflexibility if you relocated furniture
or it did not quite work to your satisfaction.
4.89Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
DL Daylighting System
Direct/indirect recessed luminaires
Now,PhilipsLightoliermakesdaylightingaseasyas1-2-3.
Step 1
Install Philips Lightolier recessed luminaires* which include
a 0-10 volt dimming ballast and the #EZR option per your
Lighting Layout and connect to AC power as you
normally would any recessed luminaire.
Step 2
Step 3
Install a ULM-EZR module in the ceiling, positioning it
6to 10 feet from windows and over a work surface
(itmustbewithin10ftofaluminaire).
The DL System is the combination of the
ULM-EZR Module (UF2F-EZR)and
a Philips Lightolier recessed fluorescent
fixture* with a 0-10 volt dimming ballast
and the #EZR option. This option
includes integrated RJ45 receptacles
and a 12' long CAT5 cable.
Using the low voltage plug-in 12' long CAT5 cables
provided with the luminaires*, connect the luminaire
and ULM-EZR module.
An additional CAT5 cable will be provided with each
luminaire* to plug in additional luminaires* as in a daisy
chain. Up to 20 luminaires* can be connected to a single
ULM-EZR module.
When there is no daylight, place a
lightmeter on the work surface and
take a footcandle reading.
Adjust to desired footcandle level by
rotating the sensor in the face of the
ULM-EZR Module.
To get MORE light on desk from the
luminaire, close aperture by rotating
it counter-clockwise. The lamps will
get brighter.
To get LESS light on desk from the
luminaire, open aperture by rotating it
clockwise. The lamps will dim down.
The sensors are factory pre-calibrated
to 45fc on the horizontal, assuming
standardreflectances(80/50/20),ceiling
heights(8-10’)andworksurfaces(2.5’).
To return to the default setting, rotate
the aperture until it ‘clicks’ back into
place at the mid-point.
ULM-EZR modules can be moved or added at any time
merely by plugging or unplugging the CAT5 cables.
BothULM-EZR modules and fixtures have RJ45 dual
receptacles for the CAT5 cablewith RJ45 plugs.
ULM-EZR module sensor placement guidelines
Beforeadjustingsensorsettings,checktomakesurethey
have been installed in accordance with the following
guidelines:
Sensor SHOULD be located.
•Between6-10’awayfromwindow.
•Overworksurfaces.
Sensor should NOT be located.
•Oververydarksurfaces(e.g.darkcarpetorfurniture).
•Overhighlyreflectivesurfaces(e.g.polishedfloorortable).
•Outsidethedaylitzone(typicallybeyond15’fromwindow)
Ordering information
The module and luminaire need to be
ordered separately.
ULM-EZR Module: UL2F-EZR
DL System fixture: Specify a Philips Lightolier
recessed fluorescent fixture* with a 0-10 volt, 2
wire, dimming ballast and then add suffix #EZR.
(e.g. CFS2GPF232UNVM7-#EZR)
M7DenotesAdvanceMarkVIIdimmingballastforthislampingconfiguration.Otherlampingconfigurationsanddimming
ballast manufacturers available. *Consult your Philips Lightolier representative for list of DL System compatible 1' x 4', 2'
x2'and2'x4'recessedfluorescentfixtures(Alterexempt).
Linear recessed and surface lighting
4.90 Philips Lightolier For complete specification information visit www.lightolier.com
Recessed & wall washing
Recessed fluorescent luminaires represent just
slightly less than 50% of all commercial and industrial
fluorescents sold in the United States. They are usually
the “A” fixture on a project. Their use has become
popular over the years because the use of low ceiling
heights dictates putting the fixture behind the ceiling
instead of on it, and mechanical ceiling lay-in systems
made the fixture less costly to install than surface or
pendant luminaires.
Our recessed line consists of many different body sizes
and shielding media, such as large or small cell aluminum
parabolic louvers, plastic parabolic louvers, and a variety
of lenses, all to meet a designer’s application needs.
Our vast product offering allows today’s designer to
carefully select luminaires that will enhance any space
andperform to exceptional standards.
Linear recessed and surface lighting
4.91Comprehensive lighting catalog 7th Edition
Lytecel 6 > 4.94
CTS3 > 4.100
PTS family > 4.102
GO2 family > 4.106
VisionSmart > 4.110
Stacklyte > 4.117
Deepcel Plus > 4.118
Prismalyte Plus > 4.122
Specplus > 4.124
XP&XP/XA > 4.126
FRX > 4.128
Options & accessories > 4.130
Quick-connect interties > 4.131
Wall washer & accent > 4.132
Contents
Linear recessed and surface lighting
4.92 Philips Lightolier For complete specification information visit www.lightolier.com
LightingforVDTareas
ANSI/IES RP-1, 2004 requirements for lighting VDT areas
The near-universal use of computers in office areas today is a major change in the
workplace. Whereas office lighting was formerly designed to suit visual conditions for paper
tasks in the horizontal plane, it must now take into consideration visual tasks comprised of a
reflectivevisualdisplayterminal(VDT)intheverticalplaneandpapertasksinthehorizontal
or vertical plane. This means that a new set of parameters must be considered both to limit
distractingreflectionsinthevisualdisplayterminal(VDT)andbecauseofthepotentialfor
eye adaption problems; otherwise, a loss of visual performance will occur, with attendant
problems of eyestrain, fatigue and loss of productivity.
A number of authorities have concerned themselves with this issue, most notably the
Illuminating Engineering Society, who in 1989 issued a recommended practice for lighting
office areas containing visual display terminals, RP-24. This was replaced in 1993 and then in
2004bytheAmericanNationalStandardforOfficeLightingANSI/IESRP-12004,whichis
accepted as the quality standard for the lighting of today’s office.
ToreducecontrastbetweentheVDTscreenandthesurroundingareaandtasks
Illuminance: Average maintained
illuminance levels should not exceed
50 footcandles on the horizontal plane.
If a higher level is required because of
older eyes or very demanding tasks, it
should be provided by supplemental
task lighting. In office work that requires
constant viewing of the visual display (e.g.:
telephone reservations or scientific and
engineeringdialogueswiththecomputer)
where paper based visual tasks are not
important, illuminance should be kept as
low as possible while still achieving good
visual performance.
Luminance ratios: Notmorethan3:1
between the task and adjacent surfaces;
not more than 10:1 between the task and
remote surfaces.
24 Horizontal footcandles
PhilipsLightolierVP1Lamp
49 Horizontal footcandles
PhilipsLightolierVP2Lamp
VDTscreeninaspacewithfixtures
that do not meet RP-1, 2004.
VDTscreeninaspacewithfixtures
that meet RP-1, 2004.
70 Horizontal footcandles
Typical 3 Lamp. Does not meet
IES RP-1 2004 requirements.
1.3:1Brightnessratio
 3:1Maximum(RP-1-04)
2.1:1Brightnessratio
 3:1Maximum(RP-1-04)
3.4:1Brightnessratio
 3:1Maximum(RP-1-04)
To reduce direct glare from the
lighting fixtures at normal viewing
angles: Visual Comfort Probability
(VCP): 80, minimum.
To minimize reflections of the
lightingfixtures in the VDT screen.
Angle from VDT VDT
Vertical Intensive Normal
55° 300 cd —
65° 220 cd 300 cd
75° 135 cd 185 cd
85° 45 cd 60 cd
Note: This table shows candlepower values, not
luminance values as in previous recommendations.
Linear recessed and surface lighting
4.93Comprehensive lighting catalog 7th Edition
Philips Lightolier suggested LEED luminaires
Comparisons in office space
Direct/indirect recessed 90.1 1999 90.1 2004
Philips Lightolier
catalog no. Family Lamp Lamp
lumens Watts BF Luminaire
spacing fc* w/sq ft % LEED % LEED
H9S2GPR228120WA HP90 T5 28W 2600 54.6 0.93 8X10 55.2 0.683 47.47% 31.70%
H9S2GPR232(28)UNV HP90 T5 28W 2725 51.1 0.88 8X10 50.6 0.639 50.85% 36.10%
PPH2G12FW228120WA Paraplus T5 28W 2600 55.4 0.93 8X10 48.9 0.693 46.69% 30.70%
H9S2GPR228120WA HP90 T5 28W 2600 54.6 0.93 8X10 48.0 0.630 51.54% 37.00 %
H9S2GPR232(28)UNV HP90 T5 28W 2725 51.1 0.88 8X10 41.5 0.590 54.62% 41.00%
PPH2G12FW228120WA Paraplus T5 28W 2600 56 0.93 8X10 44.0 0.646 50.31% 35.40%
H9S2GPR228120WA HP90 T5 28W 2600 54.6 0.93 844.2 0.910 30.00% 9.00%
H9S2GPR232(28)UNV HP90 T5 28W 2725 51.1 0.88 837.9 0.852 34.46% 14.80%
PPH2G12FW228120WA Paraplus T5 28W 2600 56 0.98 842.3 0.933 28.23% 6.70%
Recessed direct 90.1 1999 90.1 2004
Philips Lightolier
catalog no. Family Lamp Lamp
lumens Watts BF Luminaire
spacing fc* w/sq ft % LEED % LEED
DPA2G12LS232120WO Deepcel T8 30W 2900 52 0.88 8X10 50.9 0.650 50.00% 35.00%
DPA2G12LS232120DG Deepcel T8 32W 2950 77 1.20 8X10 70.6 0.963 25.92% 3.70%
SPS2GFSVA232120WO Specline T8 30W 2900 52 0.88 8X10 52.3 0.650 50.00% 35.00%
SPS2GFSVA232120DG Specline T8 32W 2950 77 1.20 8X10 72.6 0.963 25.92% 3.70%
DPA2G12LS232120WO Deepcel T8 30W 2900 52 0.88 8X10 46.1 0.600 53.85% 40.00%
DPA2G12LS232120DG Deepcel T8 32W 2950 77 1.20 8X10 62.9 0.888 31.69% 11.20%
SPS2GFSVA232120WO Specline T8 30W 2900 52 0.88 8X10 48.6 0.600 53.85% 40.00%
SPS2GFSVA232120DG Specline T8 32W 2950 77 1.20 8X10 64.7 0.888 31.69% 11.20%
DPA2G12LS232120WO Deepcel T8 30W 2900 52 0.88 846.8 0.867 33.31% 13.30%
SPS2GFSVA232120WO Specline T8 30W 2900 52 0.88 846.9 0.867 33.31% 13.30%
60' x 56' Room 30' x 26' Room 12' x 10' Room
4.94 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Lytecel6LensLED6"x48"
Direct recessed air return or static luminaires
The Lytecel 6 LED recessed lens brings both flexibility and unity to lighting. Create
continuous lines of light with the recessed Lytecel 6 Lens LED. Its crisp, clean lines and
minimalist design is sure to bring style, freshness and subtle distinction to modern office and
retail interiors. A unique non-visible return air opening allows this product to have air return
capabilitiesifneeded.Itfitsmoststandard6"X48"layinsystemsandisdesignedspecifically
for the Armstrong TechZone® ceiling systems.
Features
•Non-visiblereturnairopenings.
•Airreturnlensregressed1-9/16",staticregressed
1-3/16".
•AirreturnmodelsmeetUL1598,Paragraph9.2.2.5
requirements.
•Extrudedaluminumfixturetrimflatwhitepolyester
powder coated.
•Extruded.080whiteopalescentacryliclens.
•Only6"deepbody.
•Canprovide34initialfootcandlesat0.53wattsper
square foot.
•Delivers2864lumenswithjust44.9inputwatts.
•FieldreplaceableLEDarrayanddriversaccessiblefrom
below.
•Integratedthermalmanagementsystemconductsheat
away from LEDs and transfers it to the surrounding
environment.
•HighefficiencyLEDshave50,000hourratedlifeatL70.
•PredictedL70lifetimeisbasedonLEDmanufacturer’s
supplied LM-80 data and in-situ laboratory testing.
•20gaugesteelhousing.
•UL-Listedtwinknockoutaccessplate.
•2hold-downclipsstandard.
•MeetsNYCCoderequirements.
•CompatiblewithArmstrongTechZoneceilingsystems.
•Five-yearwarrantyonluminaire,LEDboardsanddriver.
Options & accessories
Drywall kit: For individual mounts only: FK906X4.
Access plate: Top wiring access plate is shipped with
fixture as standard. When access plates are required in
advance for wiring convenience, specify separately.
Order catalog no.: ACP5 CSP.
EM Pack or dimming ballast: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
LIA64GPN28A40ULAG
5"
(126mm)
6"
(152mm)
6"
(152mm)
1
⅛
"
(30mm)
1
916
"
(40mm)
Air Return Static
5 ¾"
(146mm)
5 ¾"
(146mm)
5"
(126mm)
6"
(152mm)
6"
(152mm)
2
⅞
" K.O. (22mm)
LED Driver
Lens
⅞
" K.O. (22mm)
4 ¼"
(108mm)
48" (1,219mm)
Ordering information
Type Delivered
lumens
Input
watts
Lumens
per watt
8'x10½" initial
footcandles*
8'x10½' watts
per sq. foot Catalog no.
Air return and
Static
2011
2500
2864
3174
30.0
38.4
44.9
50.8
67.0
65.1
63.8
62.5
24
30
34
38
0.36
0.46
0.53
0.60
LIA64GPN20A40ULAG
LIA64GPN25A40ULAG
LIA64GPN28A40ULAG
LIA64GPN31A40ULAG
For Static Handling housing models substitute LIS64 for LIA64.
* 42 Recessed LED Luminaires in a 60' x 56' x 9' room with a reflectance of 80/50/20, placed 8' x 10' on center.
Footcandlereadingsaretaken2½'fromfloorlevel.
Lytecel 6 Lens shielding Lumen 1 Color temp 1,2 Voltage Driver
2 Options
LED PN=.08White 20A=20klm40=4000K UNV = LAG = Seepage4.94
Direct Acrylic 25A=25klm 120-277V LEDDriver
Recessed 28A=28klm
31A=31klm
 1.Approximatedeliveredvalues(ConsultIESfile).
2. Consult representative for other color temperature options and driver dimming options.
LIA64G 40
Example ULAG
4.95Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Lytecel6Lens6"x48"
Direct recessed air return or static luminaires
Lytecel 6 Lens is an extension of our popular Lytecel 6 parabolic product line. Lytecel 6 Lens
offers a low in brightness extruded white opalescent acrylic lens, allowing the right amount
of light to be delivered to walls and work surfaces in an office environment. A unique
non-visible return air opening allows this product to have air return capabilities if needed.
Itfitsmoststandard6"X48"layinsystemsandisdesignedspecificallyfortheArmstrong
TechZone® ceiling systems.
Features
•Non-visiblereturnairopenings.
•Lensregressed19/16".
•Fixturetrimflatwhitepolyesterpowdercoated.
•Extruded.080whiteopalesentacryliclens.
•Only6"deepbody.
•64.3%efficient1lamp54WattT5HOwithlens.
•1.2spacingmountingratio.
•20gaugesteelhousing.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•UL-Listedtwinknockoutaccessplate.
•Canbemountedincontinuousrows.
•2hold-downclipsstandard.
•CompatiblewithArmstrongTechZone® ceiling systems.
•MeetsNYCCoderequirements.
•OptionalDALIballastacceptsdigitaldimmingcommands
from computers, scene controllers andautomatic
control devices.
Options & accessories page 4.130
Ballast type <10THD <20THD
Electronic T8 HI* SO*
Elec.PST832W(1or2Lamp) P2 –
Elec. T5 P.S. 28W or 54W PG –
* Instant start
Drywall kit: For individual mounts only: FK906X4.
Access plate: Top wiring access plate is shipped with
fixture as standard. When access plates are required in
advance for wiring convenience, specify separately.
Order catalog no.: ACP5 CSP.
Electrical/wiring options: Consultfactory.
EM Pack or dimming ballast: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
LIA6GPNXR254UNVPG
4 1516"
(126mm)
6"
(152mm)
6"
(152mm)
1
⅛
"
(30mm)
1
916
"
(40mm)
2
⅞
" K.O. (22mm)
Air Return Static
5 ¾"
(146mm)
5 ¾"
(146mm)
⅞
" K.O. (22mm)
4 ¼"
(108mm)
48" (1,219mm)
4 1516"
(126mm)
6"
(152mm)
6"
(152mm)
Lytecel 6 Voltage Ballast Options
 6"x48"RecessedLens 120=120V Seepage4.95 See page 4.95
277=277V  andpage4.130
UNV=120-277 V
  (ElectT5orT8)
UNVLIA6GPNXR154 APG
Example
Ordering information
Type Lamp qty –type Lamp watts Standard grid ceiling = G Slot grid ceiling = T
Air return
2-T5HO
1-T5HO
2-T5
1-T5
2-T8
1-T8
54W
54W
28W
28W
32W
32W
LIA6GPNXR254
LIA6GPNXR154
LIA6GPNXR228
LIA6GPNXR128
LIA6GPNXR232
LIA6GPNXR132
LIA6TPNXR254
LIA6TPNXR154
LIA6TPNXR228
LIA6TPNXR128
LIA6TPNXR232
LIA6TPNXR132
Static
2-T5HO
1-T5HO
2-T5
1-T5
2-T8
1-T8
54W
54W
28W
28W
32W
32W
LIS6GPNXR254
LIS6GPNXR154
LIS6GPNXR228
LIS6GPNXR128
LIS6GPNXR232
LIS6GPNXR132
LIS6TPNXR254
LIS6TPNXR154
LIS6TPNXR228
LIS6TPNXR128
LIS6TPNXR232
LIS6TPNXR132
* For any additional ceiling systems not shown please consultfactory.
4.96 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Lytecel6individualT56"x48"
Recessed parabolic luminaires
Featuresalowbrightness20cellparaboliclouverthathasanopeningthatisonly4¼"wide.
The precise contours provide photometrics that meet the IES requirements for lighting
VDTareas.Itfitsmoststandard6"X48"lay-inceilingsystemsplusArmstrongTechZone®
ceiling systems.
Features
•Semi-specularorspecular,lowiridescence,pre-anodized
aluminum louver.
•Verticalgrainoncrossbladeseliminatesreflected
lampimage.
•Springloadedlatches(selfcentering).
•Louverhasprotectivedustguard.
•Only5-1/2"deepbody.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•UL-Listedtwinknockoutaccessplate.
•Canbemountedincontinuousrows.
•2hold-downclipsstandard.
•CompatiblewithArmstrongTechZone® ceilingsystems.
•MeetsNYCCoderequirements.
•OptionalDALIballastacceptsdigitaldimming
commands from computers, scene controllers and
automatic control devices.
Options & accessories page 4.130
Louver: LI is available in either specular (P)or
semi-specular (L)louvers.
(e.g. LIS6G20PW228 or LISG20LW228)
Ballast type <10THD <20THD
ElectronicPST5(1or2Lamp) PG –
 (28Wor54W)
Drywall kit: For individual mounts only: FK906X4.
Access plate: Top wiring access plate is shipped with
fixture as standard. When access plates are required in
advance for wiring convenience, specify separately.
Order Catalog no.: ACP5 CSP.
Electrical/wiring options: Consultfactory.
EM Pack or dimming ballast: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
30˚
60˚
500
1000
1500
Candlepower Curve
LIS6G20PW154UNVPG
Standard T-Grid ceiling
Slot Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
Standard T-Grid ceiling
Slot Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
1 Lamp T5 specular
louver reference data
Efficiency 58.2%
Spacing ratio 1.6
Electronic ballast
Inputwatts(120V) 59.0W
Ballastfactor 1.0
30˚
60˚
550
1100
1650
Candlepower Curve
2 Lamp T5 specular
louver reference data
Efficiency 55.3%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 66.0W
Ballastfactor 1.0
Ordering information
Type Lamp qty –type Lamp watts Standard grid ceiling = G Slot grid ceiling = T Tegular 9/16" ceiling = D Tegular 15/16" ceiling = A
Static
1-T5
2-T5
1-T5
2-T5
28W
28W
54W
54W
LIS6G20PW128UNVPG
LIS6G20PW228UNVPG
LIS6G20PW154UNVPG
LIS6G20PW254UNVPG
LIS6T20PW128UNVPG
LIS6T20PW228UNVPG
LIS6T20PW154UNVPG
LIS6T20PW254UNVPG
LIS6D20PW128UNVPG
LIS6D20PW228UNVPG
LIS6D20PW154UNVPG
LIS6D20PW254UNVPG
LIS6A20PW128UNVPG
LIS6A20PW228UNVPG
LIS6A20PW154UNVPG
LIS6A20PW254UNVPG
Air handling
1-T5
2-T5
1-T5
2-T5
28W
28W
54W
54W
LIA6G20PW128UNVPG
LIA6G20PW228UNVPG
LIA6G20PW154UNVPG
LIA6G20PW254UNVPG
LIA6T20PW128UNVPG
LIA6T20PW228UNVPG
LIA6T20PW154UNVPG
LIA6T20PW254UNVPG
LIA6D20PW128UNVPG
LIA6D20PW228UNVPG
LIA6D20PW154UNVPG
LIA6D20PW254UNVPG
LIA6A20PW128UNVPG
LIA6A20PW228UNVPG
LIA6A20PW154UNVPG
LIA6A20PW254UNVPG
Lytecel 6 Voltage Ballast Options
 6"x48"Recessedparabolic 120=120V Seepage4.96 See page 4.96
277=277V  andpage4.130
UNV=120-277 V
  (ElectT5)
UNVLIS6G20PW154 PG
Example
LIS6G20PW228UNVPG
4.97Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•Semi-specularorspecular,lowiridescence,pre-anodized
aluminum louver.
•Verticalgrainoncrossbladeseliminatesreflected
lampimage.
•Springloadedlatches(selfcentering).
•Louverhasprotectivedustguard.
•Only5-1/2"deepbody.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•UL-Listedtwinknockoutaccessplate.
•Canbemountedincontinuousrows.
•2hold-downclipsstandard.
•CompatiblewithArmstrongTechZone® ceilingsystems.
•MeetsNYCCoderequirements.
•OptionalDALIballastacceptsdigitaldimming
commands from computers, scene controllers and
automatic control devices.
Options & accessories page 4.130
Louver: LI is available in either specular (P)or
semi-specular (L)louvers.
(e.g. LIS6G20PW228 or LISG20LW228)
Ballast type <10THD <20THD
Elec.IST832W(1or2Lamp) HI SO
Elec.PST832W(1or2Lamp) P2 –
Drywall kit: For individual mounts only: FK906X4.
Access plate: Top wiring access plate is shipped with
fixture as standard. When access plates are required in
advance for wiring convenience, specify separately.
Order Catalog no.: ACP5 CSP.
Electrical/wiring options: Consultfactory.
EM Pack or dimming ballast: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
Lytecel6individualT86"x48"
Recessed parabolic luminaires
Featuresalowbrightness20cellparaboliclouverthathasanopeningthatisonly4¼"
wide. The precise contours provide photometrics that meet the IES requirements for
lightingVDTareas.Itfitsmoststandard6"X48"lay-inceilingsystemsplusArmstrong
TechZone® ceiling systems.
30˚
60˚
250
500
750
Candlepower Curve
LIS6G20PW132UNVHI
Standard T-Grid ceiling
Slot Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
Standard T-Grid ceiling
Slot Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
1 Lamp T8 specular
louver reference data
Efficiency 57.6%
Spacing ratio 1.7
Electronic ballast
Inputwatts(120V) 39.0W
Ballastfactor 1.1
30˚
60˚
500
1000
1500
Candlepower Curve
2 Lamp T8 specular
louver reference data
Efficiency 51.6%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 78.0W
Ballastfactor 1.1
Ordering information
Type Lamp qty –type Lamp watts Standard grid ceiling = G Slot grid ceiling = T Tegular 9/16" ceiling = D Tegular 15/16" ceiling = A
Static 1-T8
2-T8 32W LIS6G20PW132UNVHI
LIS6G20PW232UNVHI
LIS6T20PW132UNVHI
LIS6T20PW232UNVHI
LIS6D20PW132UNVHI
LIS6D20PW232UNVHI
LIS6A20PW132UNVHI
LIS6A20PW232UNVHI
Air handling 1-T8
2-T8 32W LIA6G20PW132UNVHI
LIA6G20PW232UNVHI
LIA6T20PW132UNVHI
LIA6T20PW232UNVHI
LIA6D20PW132UNVHI
LIA6D20PW232UNVHI
LIA6A20PW132UNVHI
LIA6A20PW232UNVHI
Lytecel 6 Voltage Ballast Options
 6"x48"Recessedparabolic 120=120V Seepage4.97 See page 4.97
277=277V  andpage4.130
UNV=120-277 V
  (ElectT8)
UNVLIS6G20PW132 HI
Example
LIS6G20PW232UNVHI
4.98 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Lytecel6continuousT56"x48"
Recessed parabolic luminaires
Featuresalowbrightness20cellparaboliclouverthathasanopeningthatisonly4¼"
wideandalengthof48".Whenmountedincontinuousrowsitcreatesanuninterrupted
continuouslouverappearance.Itwillfitmost6"widelay-inorslotgridceilingsystemsand
has unique aligning and clamping hardware that creates the proper fit of the fixture into
the ceiling system.
Features
•48"longlouvergivesanuninterruptedlouver
appearance when row mounted. Ideal for continuous
row applications.
•Semi-specularorspecular,lowiridescence,pre-
anodized aluminum louver.
•Verticalgrainoncrossbladeseliminatesreflected
lampimage.
•Springloadedlatches(selfcentering).
•Louverhasprotectivedustguard.
•Only5-1/2"deepbody.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•UL-Listedtwinknockoutaccessplate.
•Canbemountedincontinuousrows.
•2hold-downclipsstandard.
•MeetsNYCCoderequirements.
•OptionalDALIballastacceptsdigitaldimming
commands from computers, scene controllers and
automatic control devices.
Options & accessories page 4.130
Louver: LC is available in either specular (P)or
semi-specular (L)louvers.
(e.g. LCS6G20PW228 or LCS6G20LW228)
Ballast type <10THD <20THD
Elec.IST528W(1or2Lamp) PI SO
Elec. PS T5 28W or 54W PG –
 (1or2Lamp)
ElecIST832W(1or2Lamp) HI –
Access plate: Top wiring access plate is shipped with
fixture as standard. When access plates are required in
advance for wiring convenience, specify separately.
Order Catalog no.: ACP5 CSP.
Electrical/wiring options: Consultfactory.
EM Pack or dimming ballast: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
30˚
60˚
500
1000
1500
Candlepower Curve
LCS6G20PW154UNVPG
Standard T-Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
Slot Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
Standard T-Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
Slot Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
1 Lamp T5 specular
louver reference data
Efficiency 58.2%
Spacing ratio 1.6
Electronic ballast
Inputwatts(120V) 59.0W
Ballastfactor 1.0
30˚
60˚
550
1100
1650
Candlepower Curve
2 Lamp T5 specular
louver reference data
Efficiency 55.3%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 66.0W
Ballastfactor 1.0
Lytecel 6 Voltage Ballast Options
 6"x48"Recessedparabolic 120=120V Seepage4.98 See page 4.98
277=277V  andpage4.130
UNV=120-277 V
  (ElectT5orT8)
UNVLCS6G20PW154 PG
Example
Ordering information
Type Lamp qty –type Lamp watts Standard grid ceiling = G Slot grid ceiling = T
Static
1-T5
2-T5
1-T5
2-T5
28W
28W
54W
54W
LCS6G20PW128UNVPG
LCS6G20PW228UNVPG
LCS6G20PW154UNVPG
LCS6G20PW254UNVPG
LCS6T20PW128UNVPG
LCS6T20PW228UNVPG
LCS6T20PW154UNVPG
LCS6T20PW254UNVPG
Air handling
1-T5
2-T5
1-T5
2-T5
28W
28W
54W
54W
LCA6G20PW128UNVPG
LCA6G20PW228UNVPG
LCA6G20PW154UNVPG
LCA6G20PW254UNVPG
LCA6T20PW128UNVPG
LCA6T20PW228UNVPG
LCA6T20PW154UNVPG
LCA6T20PW254UNVPG
End trim required for
beginning and end of row.
Order catalog no.: LC6
End trim
Continuous row coupler locks
fixtures together for a continuous
line of light without cell configuration
interruption,supplied with fixture.
(For end of row order LC85 CLAMP)
LCS6G20PW228UNVPG
4.99Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•48"longlouvergivesanuninterruptedlouver
appearance when row mounted. Ideal for continuous
row applications.
•Semi-specularorspecular,lowiridescence,pre-
anodized aluminum louver.
•Verticalgrainoncrossbladeseliminatesreflected
lampimage.
•Springloadedlatches(selfcentering).
•Louverhasprotectivedustguard.
•Only5-1/2"deepbody.
•Blackhousingexteriorforcoolerballastoperating
temperature.
•UL-Listedtwinknockoutaccessplate.
•Canbemountedincontinuousrows.
•2hold-downclipsstandard.
•MeetsNYCCoderequirements.
•OptionalDALIballastacceptsdigitaldimming
commands from computers, scene controllers and
automatic control devices.
Options & accessories page 4.130
Louver: LC is available in either specular (P)or
semi-specular (L)louvers.
(e.g. LCS6G20PW232 or LCS6G20 LW232)
Ballast type <10THD <20THD
Elec.IST832W(1or2Lamp) HI SO
Elec.PST832W(1or2Lamp) P2 –
Access plate: Top wiring access plate is shipped with
fixture as standard. When access plates are required in
advance for wiring convenience, specify separately.
Order catalog no.: ACP5 CSP.
Electrical/wiring options: Consultfactory.
EM Pack or dimming ballast: Consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
Lytecel6continuousT86"x48"
Recessed parabolic luminaires
Featuresalowbrightness20cellparaboliclouverthathasanopeningthatisonly4¼"
wideandalengthof48".Whenmountedincontinuousrowsitcreatesanuninterrupted
continuouslouverappearance.Itwillfitmost6"widelay-inorslotgridceilingsystemsand
has unique aligning and clamping hardware that creates the proper fit of the fixture into
the ceiling system.
30˚
60˚
250
500
750
Candlepower Curve
LCS6G20PW132UNVHI
Standard T-Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
Slot Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
Standard T-Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
Slot Grid ceiling
5
½
"
(139mm)
4 ¼"
(108mm)
6"
(152mm)
1 Lamp T8 specular
louver reference data
Efficiency 57.6%
Spacing ratio 1.7
Electronic ballast
Inputwatts(120V) 39.0W
Ballastfactor 1.1
30˚
60˚
500
1000
1500
Candlepower Curve
2 Lamp T8 specular
louver reference data
Efficiency 51.6%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 78.0W
Ballastfactor 1.1
Lytecel 6 Voltage Ballast Options
 6"x48"Recessedparabolic 120=120V Seepage4.99 See page 4.99
277=277V  andpage4.130
UNV=120-277 V
  (ElectT8)
UNVLCS6G20PW132 HI
Example
Ordering information
Type Lamp qty –type Lamp watts Standard grid ceiling = G Slot grid ceiling = T
Static 1-T8
2-T8 32W LCS6G20PW132UNVHI
LCS6G20PW232UNVHI
LCS6T20PW132UNVHI
LCS6T20PW232UNVHI
Air handling 1-T8
2-T8 32W LCA6G20PW132UNVHI
LCA6G20PW232UNVHI
LCA6T20PW132UNVHI
LCA6T20PW232UNVHI
End trim required for
beginning and end of row.
Order catalog no.: LC6
ENd trim
Continuous row coupler locks
fixtures together for a continuous
line of light without cell configuration
interruption,supplied with fixture.
(For end of row order LC85 CLAMP)
LCS6G20PW232UNVHI
4.100 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
CTS3 2', 4' & 8'
1 lamp recessed luminaires
Features
Housing: 20 gauge pre-painted steel.
Bulkhead: 18 gauge galvanized steel
Reflector: Semi-specular aluminum.
Trim:Flangehasanaluminumextrudedwidthof3/4".
Flangeless and grid mount has no trim visible. Grid mount
fixture drops into grid system by others.
Lamping: T5 or T5 HO fluorescent.
Lens: Extruded frosted acrylic.
Louver:ExtrudedSemispecularparabolic,2"nominal
blade spacing.
Electronic ballast: Extruded Programmed start,
3conductors, 12 gauge wire. Color-coded quick
connectors allow easy connection for modular fixture.
Emergency battery pack: 450 Lumens @ 90
minimum.
Labels included:UL,cUL,andIBEW
Ordering instructions
Continuous rows:
1. Determine run length.
2. Order starter fixture. .
3. Order one telescoping fixture*.
4. Order remainder of joiner fixtures.
Individual Fixtures:
1.OrdernumberofINDIVIDUALUNITSrequired
* For best one lamp effect, use telescoping
fixture at longest length possible.
30˚
60˚
300
600
900
Candlepower Curve
30˚
60˚
300
600
900
Candlepower Curve
Flush Lens
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
Flange
Flange
Flange
Grid Mount
Grid Mount
Grid Mount
Distribution
Zone Lumens %Lamp %Luminaire
0-90 1854 37.8 100.0
90-180 0 0.0 0
0-180 1854 37.8 100.0
Distribution
Zone Lumens %Lamp %Luminaire
0-90 1815 37.1 100.0
90-180 0 0.0 0
0-180 1815 37.1 100.0
Family Mounting Shielding Configuration Output Length (nom.) Housing Voltage Options
CT3=CTS3 F=Flange
L=Flangeless
G=GridMount
L=FlushLens
R=RecessedLens
P=ParabolicLouver
A=1Lamp 1 H=HighOutput
S =Standard
2=2Foot
4=4Foot
8=8Foot
U=Indiv.Unit
S=Starter 2
J=Joiner
T=Telescoping 3
1=120V
2=277V
4 =4throughwires
5 =5throughwires
T=TandemSwitch
E=EmergencyPack 4
1Lampismounteddiagonallyandextendsintoadjacentfixtureby21/2"instarter,joinerandtelescopingfixtures
2 Starter available as 4' and 8' only
3Telescopingfixtureships853/8",adjustabledownto493/8"
4 EM pack not available in 2' or telescoping fixtures
CT3 A
Regressed Lens
30˚
60˚
300
600
900
Candlepower Curve
Distribution
Zone Lumens %Lamp %Luminaire
0-90 1880 38.4 100.0
90-180 0 0.0 0
0-180 1880 38.4 100.0
Parabolic Louver
Ordering information
CTS3-1
CTS3-3
CTS3-5
CTS3-13
CTS3-15
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
CTS3-7
CTS3-9
CTS3-11
3 ¾"
(95mm)
5 ⅛"
(130mm)
3"
(76mm)
3 ¾"
(95mm)
5 ⅛"
(130mm)
3"
(76mm)
3 ¾"
(95mm)
5 ⅛"
(130mm)
3"
(76mm)
Flangeless
Flangeless
Flangeless
CTS3-17
4.101Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
Flange
Flange
Flange
Grid Mount
Grid Mount
Grid Mount
CTS3 2', 4' & 8'
2 lamp recessed luminaires
Features
Housing: 20 gauge pre-painted steel.
Bulkhead: 18 gauge galvanized steel
Reflector: Semi-specular aluminum.
Trim:Flangehasanaluminumextrudedwidthof3/4".
Flangeless and grid mount has no trim visible. Grid mount
fixture drops into grid system by others.
Lamping: T5 or T5 HO fluorescent.
Lens: Extruded frosted acrylic.
Louver:ExtrudedSemispecularparabolic,2"nominal
blade spacing.
Electronic ballast: Extruded programmed start,
3conductors, 12 gauge wire. Color-coded quick
connectors allow easy connection for modular fixture.
Emergency battery pack: 450 Lumens @ 90
minimum.
Labels included:UL,cUL,andIBEW
Ordering instructions
Continuous rows:
1. Determine run length.
2. Order starter fixture. .
3. Order one telescoping fixture*.
4. Order remainder of joiner fixtures.
Individual fixtures:
1.OrdernumberofINDIVIDUALUNITSrequired
* For best one lamp effect, use telescoping
fixture at longest length possible.
30˚
60˚
300
600
900
Candlepower Curve
Flush Lens
Distribution
Zone Lumens %Lamp %Luminaire
0-90 3429 35.0 100.0
90-180 0 0.0 0
0-180 3429 35.0 100.0
Family Mounting Shielding Configuration Output Length (nom.) Housing Voltage Options
CT3=CTS3 F=Flange
L=Flangeless
G=GridMount
L=FlushLens
R=RecessedLens
P=ParabolicLouver
C=2Lamp 1 H=HighOutput
S =Standard
2=2Foot
4=4Foot
8=8Foot
U=Indiv.Unit
S=Starter 2
J=Joiner
T=Telescoping 3
1=120V
2=277V
4 =4throughwires
5 =5throughwires
T=TandemSwitch
E=EmergencyPack 4
1Lampismounteddiagonallyandextendsintoadjacentfixtureby21/2"instarter,joinerandtelescopingfixtures
2 Starter available as 4' and 8' only
3Telescopingfixtureships853/8",adjustabledownto493/8"
4 EM pack not available in 2' or telescoping fixtures
CT3 C
Ordering information
30˚
60˚
500
1000
1500
Candlepower Curve
Regressed Lens
Distribution
Zone Lumens %Lamp %Luminaire
0-90 3158 32.2 100.0
90-180 0 0.0 0
0-180 3158 32.2 100.0
30˚
60˚
650
1300
1950
Candlepower Curve
Parabolic Louver
Distribution
Zone Lumens %Lamp %Luminaire
0-90 3483 35.5 100.0
90-180 0 0.0 0
0-180 3483 35.5 100.0
CTS3-2
CTS3-4
CTS3-6
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
3 ¾"
(95mm)
5 ¼"
(133mm)
3"
(76mm)
CTS3-8
CTS3-10
CTS3-12
3 ¾"
(95mm)
5 ⅛"
(130mm)
3"
(76mm)
3 ¾"
(95mm)
5 ⅛"
(130mm)
3"
(76mm)
3 ¾"
(95mm)
5 ⅛"
(130mm)
3"
(76mm)
Flangeless
Flangeless
Flangeless
CTS3-18
CTS3-14
CTS3-16
4.102 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
PTS7 2', 3', 4', 5' & 7'
Perimeter trough system
Features
Housing: Die-formed steel. Integral flanges at each end
strengthen the housing and permit housings to be bolted
together in continuous runs and facilitate suspension of
fixture. Concealed openings for heat extraction.
Lamping: One or two T8 fluorescent lamps, as
specified. Provided by others.
Reflector: Die-formed semi-specular aluminum.
Louver: Semi-specular anodized aluminum, 40 degrees
lengthwise by 30 degrees minimum crosswise shielding.
Supported along both edges by concealed frame
of extruded aluminum.
Socket Channels: Die-formed, prepainted steel held
bysupportbracketsandallowsforupto6"lampoverlap.
Ceiling Trim: Extruded aluminum with integral aligner
splines.
Electrical: Specify 120 volt or 277 volt. 3 conductor, 12
gauge wire. Color-coded quick connectors allow ease of
connection for joiner modules. For special circuiting,
consultfactory. Rapid start, HPF, class “P” thermally
protected.
Emergency battery pack: 450 Lumens @ 90
minimum.4'fixtureandlongeronly.Notavailablein
telescoping fixtures.
Mountings: Wall adjustment bracket - allows for
inconsistencies in wall straightness. Die-formed steel
used to mount system to the wall.
Finish: Ceiling trim painted baked enamel semi-gloss
white.
Options and Accessories
90 degree inside, 90 degree outside, 135 degree inside,
and 135 outside corners available.
Labels
UL,cULandI.B.E.W.
PTS7-1 1LightT8,paraboliclouver,81/4"aperture
11 ¼"
(286mm)
8 ¼"
(210mm)
7 116"
(179mm)
300
600
900
Candlepower Curve
30˚
60˚
Family Style Lamps Length Ballast Options
PTS7=PTS7 T=Telescoping *
Blank=Non-telescoping
1=1Lamp 24 =24"
36
=36"
48
=48" *
60
=60"
84 =84"
E81=ELET8120V
E82=ELET8277V
X4=4throughwires
X5=5throughwires
X6=6throughwires
T=Tandemswitch
PTS7 1
Ordering information
* PTS7-1 lamp telescoping available
in48"withadjustmentof27"to48".
End plate and corner block accessories
135° Inside
PTS7C1351 Standard
135° Outside
PTS7C1350 Standard
End cap set
PTS7EP Standard
90° Inside
PTS7C901 Standard
90° Outside
PTS7C900 Standard
Each run must be closed
up by one End cap set
Distribution
Zone Lumens %Lamp %Luminaire
0-90 2644 45.6 100.0
90-180 0 0.0 0.0
0-180 2644 45.6 100.0
Reference data
Report no: LRL 499-5D
Efficiency: 46.7%
Lamps: 1-FO32T8
90 Inside
14''
(356mm)
90 Outside
1 ½''
(38mm)
135 Inside
8 ½''
(213mm)
4 ¾"
(12mm)
4.103Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
30˚
60˚
500
1000
1500
Candlepower Curve
PTS7-2 2LightT8,paraboliclouver,81/4"aperture
11 ¼"
(286mm)
8 ¼"
(210mm)
7 116"
(179mm)
Family Style Lamps Length Ballast Options
PTS7=PTS7 T=Telescoping *
Blank=Non-telescoping
2=2Lamp 24 =24" 60
=60"
36
=36" 96 =96"
48
=48" 54
=54" *
42
=42" *
E81=ELET8120V
E82=ELET8277V
X4=4throughwires
X5=5throughwires
X6=6throughwires
T=Tandemswitch
PTS7 2
Ordering information
*PTS7-2lamptelescopingavailablein42"withadjustment
of27"to42".Alsoavailablein54"withadjustmentof39"to54".
PTS72',3',3½',4½',5'&8'
Perimeter trough system
Sample run accessories
Example of a 21' 10 ¾" run of 1 light 277v PTS7
Lighted
telescoping
unit
Example of a 1 light pattern using IS and OS corners
Telescoping
unit (3 places)
90º Inside corner
90º Outside corner 1 ½"
(4cm)
1 ½"
(4cm)
21' 10 ¾"
(667cm)
10' 2 ¼"
(311cm)
9' 0"
(274cm) 14"
(36cm)
14"
(36cm)
8' ½"
(245cm)
8' ½"
(245cm)
48"
(122cm)
48"
(122cm)
60"
(152cm)
84"
(213cm)
84"
(213cm)
60"
(152cm)
Example of a 21' 10 ¾" run of 2 light 277v PTS7
Lighted
telescoping
unit
Example of a 2 light pattern using IS and OS corners
Telescoping
unit (3 places)
90º Inside corner
90º Outside corner 1 ½"
(4cm)
1 ½"
(4cm)
21' 10 ¾"
(667cm)
9' 2 ¼"
(280cm)
8' 0"
(244cm) 14"
(36cm)
14"
(36cm)
8' ½"
(245cm)
8' ½"
(245cm)
48"
(122cm)
48"
(122cm)
48"
(122cm)
96"
(244cm)
36"
(91cm)
48"
(122cm)
24"
(61cm)
Example of a 21' 10 ¾" run of 1 light 277v PTS7
Lighted
telescoping
unit
Example of a 1 light pattern using IS and OS corners
Telescoping
unit (3 places)
90º Inside corner
90º Outside corner 1 ½"
(4cm)
1 ½"
(4cm)
21' 10 ¾"
(667cm)
10' 2 ¼"
(311cm)
9' 0"
(274cm) 14"
(36cm)
14"
(36cm)
8' ½"
(245cm)
8' ½"
(245cm)
48"
(122cm)
48"
(122cm)
60"
(152cm)
84"
(213cm)
84"
(213cm)
60"
(152cm)
Example of a 21' 10 ¾" run of 2 light 277v PTS7
Lighted
telescoping
unit
Example of a 2 light pattern using IS and OS corners
Telescoping
unit (3 places)
90º Inside corner
90º Outside corner 1 ½"
(4cm)
1 ½"
(4cm)
21' 10 ¾"
(667cm)
9' 2 ¼"
(280cm)
8' 0"
(244cm) 14"
(36cm)
14"
(36cm)
8' ½"
(245cm)
8' ½"
(245cm)
48"
(122cm)
48"
(122cm)
48"
(122cm)
96"
(244cm)
36"
(91cm)
48"
(122cm)
24"
(61cm)
Qty Catalog number
1 PTS7T148E82
2 PTS7184E82
1 PTS7160E82
1 PTS7EP
Top
Qty Catalog number
1 PTS7C901 IS Corner
1 PTS7T148E82 Tele
1 PTS7160E82 Fixture
Top
Qty Catalog number
1 PTS7C901 IS Corner
1 PTS7T254E82 Tele
1 PTS7248E82 Fixture
Side
Qty Catalog number
1 PTS7T148E82 Tele
1 PTS7148E82 Fixture
1 PTS7C900 OS Corner
Side
Qty Catalog number
1 PTS7T254E82 Tele
1 PTS7248E82 Fixture
1 PTS7C900 OS Corner
Bottom
Qty Catalog number
1 PTS7T148E82 Tele
1 PTS7148E82 Fixture
1 PTS7EP End set
Bottom
Qty Catalog number
1 PTS7T254E82 Tele
1 PTS7248E82 Fixture
1 PTS7EP End set
Qty Catalog number
1 PTS7T254E82
1 PTS7296E82
1 PTS7248E82
1 PTS7236E82
1 PTS7224E82
1 PTS7EP
Distribution
Zone Lumens %Lamp %Luminaire
0-90 2644 45.6 100.0
90-180 0 0.0 0.0
0-180 2644 45.6 100.0
Reference data
Report no: LRL 499-5E
Lamps: 2-32W T8
Lumens: 2900
Efficiency: 45.6%
4.104 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Family Lamps Type Shielding Voltage Length Options
PTS5=PTS5 2=2Lamp S=Standard
H=HO
O=Open
S= Straight
blade
louver
L=Lens
1=120V
2=277V
3=347V
D1=Dimming120V
D2=Dimming277V
D3=Dimming347V
E1=Emergency120V
E2=Emergency277V
2 =2'
3
=3'
4
=4'
6
=6'
8 =8'
Blank=Nooptions
A =Adjustable
AS= Adjustable
Staggered
S =Staggered
X4=4throughwires
X5=5throughwires
A4= Ajustable 4
throughwires
A5= Ajustable 5
throughwires
S5= Staggered 4
throughwires
S5= Staggered 5
throughwires
B4= Adjustable
Staggered 4
throughwires
B5= Adjustable
Staggered 5
throughwires
9 ⅜"
(238mm)
7"
(178mm)
5 ½"
(140mm)
Features
Housing: Die formed 20 gauge pre-painted steel.
Integral heavy gauge bulk-heads support housing and
trim, permitting modules to be bolted together in
continuous runs and to facilitate suspension.
Lamping: Cross sectional one or two linear T5
fluorescent lamps. Provided by others.
Reflector: Precision parabolic roll-formed semi-
specular aluminum or precision die-formed CRS finished
in a high reflective baked white powder coat.
Louver: Lift and shift straight blade louver constructed
from die-formed aluminum and painted to match
housing.Louverbladesare1"highon11/8"centers
(optional).
Mounting: “J” Rail is first mounted to the wall and the
modulesconnecttotherailfor1/4"walladjustment.
Modules are hung from suspension wires attached to the
fixture bulkheads and the structure above.
Electrical
Electronic ballast: Programmed start, 3 conductor,
12 gauge wire. Color-coded quick connectors allow easy
connection for modular fixtures.
Dimming:AdvanceMarkX,useAdvancecompatible
two-wirecontrol(noextraleadrequired).
Emergency battery pack: 450 Lumens @ 90
minimum.4'fixtureandlongeronly.Notavailable
in adjustable fixtures.
PTS5 T5 lamps 2', 3', 4', 6' & 8'
Architectural profiles
PTS5-1 1 Light T5, high efficiency reflector
PTS5-2 2 Light T5, high efficiency reflector
Reference data
Report no: ITL53559 Lumens: 5000
Cat no: PTS51HS14 Efficiency: 37.2%
Lamps: 1-F54T5
Distribution
Zone Lumens %Lamp %Luminaire
0-90 3026 30.3 100.0
90-180 0.0 0.0 0.0
0-180 3026 30.3 100.0
Distribution
Zone Lumens %Lamp %Luminaire
0-90 1861 37.2 100.0
90-180 0.0 0.0 0.0
0-180 1861 37.2 100.0
Reference data
Report no: ITL53560 Lumens: 5000
Cat no: PTS52HS14 Efficiency: 30.3%
Lamps: 2-F54T5
30˚
60˚
900
1800
2700
Candlepower Curve
Family Lamps Type Shielding Voltage Length Options
PTS5=PTS5 1=1Lamp S=Standard
H=HO
O=Open
S= Straight
blade
louver
L=Lens
1=120V
2=277V
3=347V
D1=Dimming120V
D2=Dimming277V
D3=Dimming347V
E1=Emergency120V
E2=Emergency277V
2 =2'
3
=3'
4
=4'
6
=6'
8 =8'
Blank=Nooptions
A =Adjustable
X4=4throughwires
X5=5throughwires
A4= Ajustable 4
through wires
A5= Ajustable 5
through wires
PTS5
PTS5
1
2
Module ordering information
Module ordering information
30˚
60˚
1000
2000
3000
Candlepower Curve
Sample Run
6'
(183cm)
4'
(122cm)
Three-Foot A¹
8'
(244cm)
3’ - 10 ¾"
(119cm)
21'-10 ¾" (667cm)
Fixture used at
For fixture using non-staggered lamps
Thefour-footadjustablefixturehasarangeof48.75”(123.83cm)-60”(152.40cm).
Thethree-footadjustablefixturehasarangeof36.75”(93.35cm)-48”(121.92cm).
Thetwo-footadjustablefixturehasarangeof24.75”(62.87cm)-36”(91.44cm).
For fixture using staggered lamps
Thefour-footadjustablestaggeredfixturehasarangeof51”(129.54cm)-60”(152.40cm).
Thethree-footadjustablestaggeredfixturehasarangeof39”(99.06cm)-48”(121.92cm).
Thetwo-footadjustablestaggeredfixturehasarangeof27”(68.58cm)-36”(91.44cm).
Three-Foot A¹ 6' (183cm)
Three-Foot A¹
Three-Foot A¹
4' (122cm)
1¾"
(4cm)
1¾"
(4cm)
9'-3¼" (283cm)
7'-10½"
(240cm)
1' (30cm)
Fixture used at
3'-3¼" (100cm)
Fixture used at
3'-10½"
(118cm)
Fixture used at
3'-10½"
(118cm)
3' (91cm)
7'-10½"
(240cm)
9 ⅜"
(238mm)
7"
(178mm)
5 ½"
(140mm)
4.105Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Family Lamps Shielding Voltage Length Options
PTS8=PTS8 1=1Light O=Open
S= Straight
blade
louver
L=Lens
1=120V
2=277V
3=347V
D1=Dimming120V
D2=Dimming277V
D3=Dimming347V
E1=Emergency120V
E2=Emergency277V
2 =2'
3
=3'
4
=4'
6
=6'
8 =8'
Blank=Nooptions
A =Adjustable
X4=4throughwires
X5=5throughwires
A4= Ajustable 4 through wires
A5= Ajustable 5 through wires
Family Lamps Shielding Voltage Length Options
PTS8=PTS8 2=2Light O=Open
S= Straight
blade
louver
L=Lens
1=120V
2=277V
3=347V
D1=Dimming120V
D2=Dimming277V
D3=Dimming347V
E1=Emergency120V
E2=Emergency277V
2 =2'
3
=3'
4
=4'
6
=6'
8 =8'
Blank=Nooptions
A =Adjustable
AS= Adjustable staggered
S =Staggered
X4=4throughwires
X5=5throughwires
A4= Ajustable 4 through wires
A5= Ajustable 5 through wires
S4= Staggered 4 through wires
S5= Staggered 5 through wires
B4= Adjustable Staggered 4 through wires
B5= Ajustable Staggered 5 through wires
90° Inside corner:
PTS135INCL=Lens
PTS135INCO=Open
PTS135INCS =Straightblade
90° Outside corner:
PTS90OTCL=Lens
PTS90OTCO=Open
PTS90OTCS=Straightblade
135° Inside corner:
PTS90INCL=Lens
PTS90INCO=Open
PTS90INCS=Straightblade
135° Outside corner:
PTS135OTCL=Lens
PTS135OTCO=Open
PTS135OTCS=Straightblade
Features
Housing: Die formed 20 gauge pre-painted steel.
Integral heavy gauge bulk-heads support housing and
trim, permitting modules to be bolted together in
continuous runs and to facilitate suspension.
Lamping: Cross sectional one or two linear
T8 fluorescent lamps. Provided by others.
Reflector: Precision parabolic roll-formed
semi-specular aluminum.
Louver: Lift and shift straight blade louver constructed
from die-formed aluminum and painted to match
housing.Louverbladesare1"highon11/8"centers
(optional).
Mounting: “J” Rail is first mounted to the wall and the
modulesconnecttotherailfor1/4"walladjustment.
Modules are hung from suspension wires attached to the
fixture bulkheads and the structure above.
Electrical
Electronic ballast: Programmed start, 3 conductor,
12 gauge wire. Color-coded quick connectors allow easy
connection for modular fixtures.
Dimming:AdvanceMarkX,useAdvancecompatible
two-wirecontrol(noextraleadrequired).
Emergency battery pack:
450 Lumens @ 90 minimum. 4' fixture and longer only.
Notavailableinadjustablefixtures.
Ordering instructions
1. Order number of fixtures necessary
to complete therun.
2. Order one end set per run. Runs with staggered lamp
fixtures must end in adjustable staggered module.
Contact factory for details.
Adjustable fixtures in 2', 3' and 4's length only. Fixture will ship
one foot longer than posted length. Staggered lamp fixtures
willadjustdownto3"pastpostedlength.Non-staggeredlamp
fixtureswilladjustdownto1"pastpostedlength.Areaof
adjustability is not lamped.
PTS8 T8 lamps 2', 3', 4', 6' & 8'
Architectural profiles
PTS8-1 1 Light T8, high efficiency reflector
PTS8-2 2 Light T8, high efficiency reflector
Mounting accessories
Reference data
Report no: ITL53557 Lumens: 2900
Cat no: PTS81S14 Efficiency: 39.4%
Lamps: 1-F32T8
Distribution
Zone Lumens %Lamp %Luminaire
0-90 1162 39.4 100.0
90-180 0 0.0 0.0
0-180 1162 39.4 100.0
Reference data
Report no: ITL53558 Lumens: 2950
Cat no: PTS82S14 Efficiency: 31.8%
Lamps: 2-F32T8
Distribution
Zone Lumens %Lamp %Luminaire
0-90 1878 31.8 100.0
90-180 0 0.0 0.0
0-180 1878 31.8 100.0
PTS8
PTS8
1
2
Module ordering information
Module ordering information
30˚
60˚
450
900
1350
Candlepower Curve
9 ⅜"
(238mm)
7"
(178mm)
5 ½"
(140mm)
30˚
60˚
650
1300
1950
Candlepower Curve
9 ⅜"
(238mm)
7"
(178mm)
5 ½"
(140mm)
12"
(305mm) 1 ¾" (45mm) 6 ¼" (159mm) 2" (51mm)
End cap set:
PTSEP
4.106 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
GO2
Recessed high performance louver luminaires
GO2 features a high reflectance flat white louver, and aluminum reflector system that are
entirely fabricated with recyclable materials, finished with emission free powder coating, and
packaged in recycled corrugated containers. Add to that, it is made in the USA, saving fuel
from the factory to the job site, and it makes GO2 an environmentally friendly product.
The sharp cut-off of a traditional parabolic fixture casts dark shadows on the
wallcreating a cave effect.
The flat white louver makes the luminaire low in brightness yet
gives a broad light distribution that evenly illuminates all surfaces
in the space, which creates a comfortable balanced brightness for
theoccupants.
InadditionitcanprovideilluminationlevelsequaltotheIESNA
requirements,withaVisualComfortProbability(VCP)thatexceeds
70 at less than .6 watts per square foot.
Replacing a typical 3 lamp parabolic with GO2 can save as much as
44% on your energy bill. The GO2 will not only meet your lighting
level requirements, but also your LEED goals.
4.107Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
GO2 2' x 4', 2' x 2' & 1' x 4'
Recessed high performance louver luminaires
Features
•GO2evenlyilluminateshorizontalandverticalsurfaces
and is low in brightness.
•GO22X4canprovide51maintainedfootcandlesatonly
.58 watts per square foot.
•85.9%efficienttwolamp32wattT82'x4'luminaire.
•80.5%efficienttwolamp17wattT82'x2'luminaire.
•80.7%efficientsinglelamp32wattT81'x4'luminaire.
•94%reflectiveflatwhitepowdercoatedlouver.
•94%reflectanceMiro® reflector system.
•5"deepbody.
•Onepiecehousing.
•Blackexteriorforcoolerballastoperatingtemperature.
•Built-inearthquakeclips.
•Springloadedlatches.
•18gaugesteelhinges.
•ConstructiontomeetNYCCodeorChicagoPlenum
requirements is available.
•ManufacturedinUSA
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO
Electronic T5 PG –
Electronic TT5 40W IB*, PR** SB
BilevelstepdimT8 V2 –
BilevelstepdimT514W/28W  VY –
Adv. Optainum low watt T8 C5 –
Adv. Optainum stand. Watt T8 C2 –
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Conversion kit for 2' x 2' unit: FK92X2.
Conversion kit for 1' x 4' unit: FK91X4.
For drywall or plaster ceilings.
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
800
1600
2400
Candlepower Curve
GOS2G232UNVC5
5"
(127mm)
24" (610mm)
6"
(152mm)
Air supply slots (GOA Only)
2" X 2-1/2" access plate with
two K.O.s (7/8" dia.)
39-1/4" (997mm)
48" (1219mm)
Reference data
Efficiency 85.9%
Spacing ratio 1.7
Electronic ballast
Inputwatts(120V) 51.0W
Ballastfactor 0.78
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 4'
2-T5
2-T5
2-T5HO
2-T8
2-T8
2-T8
28W
28W
54W
32W
32W
32W
GOS2G228UNVPG
GOS2G228UNVVY
GOS2G254UNVPG
GOS2G232UNVC5
GOS2G232UNVHI
GOS2G232UNVV2
GO2 Series Voltage Ballast Options
Direct/indirect 120=120V Seepage4.107 See page 4.107
recessed static 277=277V  andpage4.130
or air supply/return UNV=120-277V
UNVGOS2G232 C5
Example
For air handling type
fixturechange S to A.
(e.g.: GOA2G232UNVHI)
For slot grid ceiling
changeG to T.
(e.g.: GOS2T232UNVH)
30˚
60˚
350
700
1050
Candlepower Curve
GOS2G217UNVC2
5"
(127mm)
24" (610mm)
23-7/8"
(606mm)
15-11/16"
(398mm)
5"
(127mm)
Air supply slots
(GOA Only)
2" X 2-1/2" access plate
with two K.O.s (7/8" dia.)
5"
(127mm)
24" (610mm)
Reference data
Efficiency 80.5%
Spacing ratio 1.7
Electronic ballast
Inputwatts(120V) 30.2W
Ballastfactor 0.88
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 2' x 2'
2-T5
2-T5HO
2-T T5
2-T8
2-T8U 1 ⅝"
14W
24W
40W
17W
32W
GOS2G214UNVPG
GOS2G224UNVPG
GOS2G2FTUNVPR
GOS2G217UNVHI
GOS2G22UUNVHI
GO2 Series Voltage Ballast Options
Direct/indirect 120=120V Seepage4.107 See page 4.107
recessed static 277=277V  andpage4.130
or air supply/return UNV=120-277V
UNVGOS2G217 C2
Example
For air handling type
fixturechange S to A.
(e.g.: GOA2G217UNVHI)
For slot grid ceiling
changeG to T.
(e.g.: GOS2T217UNVHI)
30˚
60˚
400
800
1200
Candlepower Curve
GOS1G132UNVC2
5
¾"
(146mm)
12" (305mm)
11-1/2"
(292mm)
48" (1219mm)
4-1/2" (114mm)
2-3/4" (70mm)
Air supply slots (GOA Only)
Reference data
Efficiency 80.7%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 30.2W
Ballastfactor 0.87
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Static 1' x 4'
2-T5
2-T5
1-T5HO
2-T8
2-T8
28W
28W
54W
32W
32W
GOS1G228UNVPG
GOS1G228UNVVY
GOS1G154UNVPG
GOS1G232UNVHI
GOS1G232UNVV2
GO2 Series Voltage Ballast Options
Direct/indirect 120=120V Seepage4.107 See page 4.107
recessed static 277=277V  andpage4.130
or air supply/return UNV=120-277V
UNVGOS1G132 C2
Example
For air handling type
fixturechange S to A.
(e.g.: GOA1G232UNVHI)
For slot grid ceiling
changeG to T.
(e.g.: GOS1T232UNVHI)
4.108 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
GO2 Retro 2' x 4' & 2' x 2'
Retro fit recessed luminaires
GO2 Retro features a flat white louver and a unique power tray that can be used to convert
most installations of 2' x 4' or 2' x 2' parabolic or specification grade lens troffers, that are at
least43/8"deep,tostateoftheart,energysavingGREENFIXTURES.GO2Retroisover
80% efficient with a broad light distribution that will illuminate both horizontal and vertical
surfaces, creating a comfortable balanced brightness.
Features
•GO2Retrocanbeusedtoconvertmost2'x4'
and 2' x 2' parabolic or specification grade lens troffers
into energy saving luminaires.
•GO2Retroevenlyilluminateshorizontalandvertical
surfaces and is low in brightness.
•GO2Retroisidealforthoseareaswhereyouwouldlike
to have a minimum of down time such as retail spaces
and schools.
•ManufacturedinUSA
30˚
60˚
650
1300
1950
Candlepower Curve
GOR2G232UNVC5 Reference data
Efficiency 84.5%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 53.0W
Ballastfactor 0.77
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Retro fit 2' x 4'
2-T5
2-T5HO
2-T8
28W
54W
32W
GOR2G228UNVPG
GOR2G254UNVPG
GOR2G232UNVHI
Available with EM Pack Consult factory
GO2 Retro Voltage Ballast Options
Direct/indirect 120=120V Seepage4.108 See page 4.108
Retro fit recessed 277=277V  andpage4.130
UNV=120-277 V
UNVGOR2G232 AHI
Example
30˚
60˚
300
600
900
Candlepower Curve
GOR2G217UNVC2 Reference data
Efficiency 80.6%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 30.8W
Ballastfactor 0.88
Ordering information
Type Size Lamp qty –type Lamp watts Catalog no.
Retro fit 2' x 2'
2-T5
2-T5HO
2-T8
14W
24W
17W
GOR2G214UNVPG
GOR2G224UNVPG
GOR2G217UNVHI
2x2NotAvailablewithEmergencyPack
GO2 Retro Voltage Ballast Options
Direct/indirect 120=120V Seepage4.108 See page 4.108
Retro Fit Recessed 277=277V  andpage4.130
UNV=120-277 V
UNVGOR2G217 AHI
Example
3"
(76mm)
20
⅞" (530mm) min.
¾" (19mm)
¾" (19mm) min.
22
¾" (578mm) min.
46
¼" (1175mm) 2 x 4
22
¼" (565mm) 2 x 2
20
5¹6" (516mm) min.
4
⅜"
(111mm)
Dimensions are clearance required
in fixture for GO2 Retro to fit
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
and add as suffix, e.g. UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO
Electronic T5 PG –
BilevelstepdimT8 V2 –
BilevelstepdimT514W/28W  VY –
Adv. Optainum low watt T8 C5 –
Adv. Optainum stand. Watt T8 C2 –
* Instant start.
** Program start.
GO2 Retro 2' x 4'
•12Cell95%reflective
flat white powder
coatedlouver.
•84.5%efficient32WT8.
•1.5spacemountingratio.
GO2 Retro 2' x 2'
•6Cell95%reflective
flatwhite powder
coatedlouver.
•80.6%efficient17WT8.
•1.5spacemountingratio.
4.109Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
GO2 easy installation
Retro fit recessed luminaires
Retrofitting with GO2 Retro as opposed to installing new fixtures is ideal for those areas
where you would like to have a minimum of down time such as retail spaces or schools.
Step 1
The first step in installation,
after making sure power
to fixture is disconnected,
is to remove all existing
components of the
previous fixture, leaving
only the body. Place the
GO2 Retro end adaptors
between the base of the
fixtureandtheT-Bar.
Secure the GO2 Retro End
Adaptors in place with the
suppliedtechscrews(4).
Step 3
Lift GO2 Retro power
trayinto position. Slide
GO2 Retro power tray into
brackets on end adaptors.
Step 5
Insert the GO2 Retro
louver pins into the louver
slots of the GO2 Retro
endadaptors and close.
Step 4
Slide the telescoping end
of the GO2 Retro power
tray into place, resting on
the end adaptors. Tighten
the integrated white thumb
screws of the GO2 Retro
power tray securing it in
place.
The installation of the
GO2 Retro is complete.
Step 2
Hang GO2 Retro power
tray on tab and slot as
shown above. Using
the ballast disconnect
supplied (accepts up to 12
gaugewire),makepower
connections and ground
connection to body.
4.110 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
VisionSmart2'x4'
4" Parabolic louver recessed air handling luminaires
VisionSmart2'x4'ParabolicsmeetcriteriaofIESRP-1andRP-24.
Features
•VRunitmeetsIESRP24andRP1recommended(basic)
criteriaforlightingVDTareas.
•CandelasatNadir(0°),1510on2-lampVR.
•Semi-specularlowiridescencepre-anodizedlouverin
VRmodel.
•Concealedspring-loadedlatch/hingecanbe
opened either side.
•Only6"deep.
•Earthquakeclipsincluded.
•Protectivefilmdustguard.
•UL-Listedtwinknockoutaccessplate.
•Metalgauge/constructiontomeetNYCCode
or Chicago Plenum is available.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start.
** Program start.
Consult factory for other wattages.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Air closure strips: ACS4(factoryinstalled).
ACS4 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Note: For concealed spline, plaster or drywall ceiling, use “G” type
fixtures with either S2X4FKit(seeFolioOA-30-30),orDrywall
kit, FK92X4(seeFolioOA30-10).
30˚
60˚
800
1600
2400
Candlepower Curve
VRA2G12LS232UNVHI Reference data
Efficiency 70.9%
Spacing ratio 1.8
Electronic ballast
Inputwatts(120V) 62.0W
LER 60.4
Max average brightness
55° 1701cd/m2
65° 345cd/m2
75° 61cd/m2
85° 36cd/m2
6"
(152mm)
24" (610mm)
Vision Smart Voltage Ballast Options
 4"Precisioncontoured 120=120V Seepage4.110 See page 4.110
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elec.T8ballastonly)
UNVVRA2G12LS232 ACS4HI
Example
Ordering information
Type Size Cells Lamp
qty –Type Exposed T-Grid Exposed Slot-T or
concealed T-Grid
Air handling 2' x 4' 12 2-T8 VRA2G12LS232 VRA2T12LS232
8 Cell
12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
4.111Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
VisionSmart2'x4'
4" Parabolic louver recessed air handling luminaires
VisionSmart2'x4'ParabolicsmeetthecriteriaofIESRP-1andRP-24.
Features
•VRunitmeetsIESRP24andRP1recommended(basic)
criteriaforlightingVDTareas.
•CandelasatNadir(0°),1510on2-lampVR.
•Semi-specularlowiridescencepre-anodizedlouverin
VRmodel.
•Concealedspring-loadedlatch/hingecanbe
opened either side.
•Only6"deep.
•Earthquakeclipsincluded.
•Protectivefilmdustguard.
•UL-Listedtwinknockoutaccessplate.
•Metalgauge/constructiontomeetNYCCode
or Chicago Plenum is available.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Elec. T8 H3*, P3** O3*
LOL T8 Dimming – PS
* Instant start.
** Program start.
Consult factory for other wattages.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Air closure strips: ACS4(factoryinstalled).
ACS4 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Note: For concealed spline, plaster or drywall ceiling, use “G” type
fixtures with either S2X4FKit(seeFolioOA-30-30),orDrywall
kit, FK92X4(seeFolioOA30-10).
30˚
60˚
1000
2000
3000
Candlepower Curve
VRA2G18LP332UNVH3 Reference data
Efficiency 64.5%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 85.0W
LER 60.1
Max average brightness
55° 2681cd/m2
65° 304cd/m2
75° 147cd/m2
85° 0cd/m2
6"
(152mm)
24" (610mm)
Vision Smart Voltage Ballast Options
 4"Precisioncontoured 120=120V Seepage4.111 See page 4.111
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elec.T8ballastonly)
UNVVRA2G18LP332 ACS4H3
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Exposed Slot-T or
concealed T-Grid
Air handling 2' x 4' 18 3-T8 VRA2G18LP332 VRA2T18LP332
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell 32 Cell
18 Cell
24 Cell
12 Cell
4.112 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
VisionSmart2'x2'
4" Parabolic louver recessed air handling luminaires
VisionSmartVRarchitecturallysymmetrical2'x2'ParabolicsmeetthecriteriaofIESRP-1
and RP-24.
Features
•CandelasatNadir(0°),1224on2-lampVR.
•Semi-specularlowiridescencepre-anodizedlouverin
VRmodels.
•Concealedspring-loadedlatch/hingecanbe
opened either side.
•Only6"deep.
•Louverframewithintegralpositivelightstop.
•Earthquakeclipsincluded.
•Protectivefilmdustguard.
•UL-Listedtwinknockoutaccessplate.
•Metalgauge/constructiontomeetNYCCode
or Chicago Plenum is available.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVPR.
Ballast type <10THD <20THD
1 - 2 Lamp Elec. TT5 40W IB*, PR** SB*
LOL TT5 Dimming – PB
* Instant start.
** Program start.
Consult factory for other wattages.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Air closure strips: ACS2(factoryinstalled).
ACS2 CSP(fieldinstalled).
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
Note: For concealed spline, plaster or drywall ceiling, use “G” type
fixtures with either S2X2FKit(seeFolioOA-30-30),orDrywall
kit, FK92X2(seeFolioOA30-10).
30˚
60˚
800
1600
2400
Candlepower Curve
30˚
60˚
600
1200
1800
Candlepower Curve
VRA2G16LV2FT120SB Reference data
Efficiency 52.2%
Spacing ratio 1.8
Electronic ballast
Inputwatts(120V) 74.0W
LER 39.9
Max average brightness
55° 1130cd/m2
65° 267cd/m2
75° 121cd/m2
85° 72cd/m2
6"
(152mm)
24" (610mm)
Vision Smart Voltage Ballast Options
 4"Precisioncontoured 120=120V Seepage4.112 See page 4.112
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elec.T8orTT5ballastonly)
120VR A 2G16LV 2FT ACS2SB
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Exposed Slot-T or
concealed T-Grid
Air handling 2' x 2' 16 2-TT5 VR A2G16LV2FT VR A2T16LV2FT
8 Cell 12 Cell
9 Cell 12 Cell
16 Cell
32 Cell18 Cell 24 Cell
12 Cell
4.113Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
VisionSmart2'x2'
4" Parabolic louver recessed air handling luminaires
VisionSmartVRarchitecturallysymmetrical2'x2'ParabolicsmeetthecriteriaofIESRP-1
and RP-24.
Features
•VR9cellunitmeetsIESRP24andRP1recommended
(basic)criteriaforlightingVDTareas.
•Semi-specularlowiridescencepre-anodizedlouverin
VRmodels.
•Concealedspring-loadedlatch/hingecanbe
opened either side.
•Only6"deep.
•Louverframewithintegralpositivelightstop.
•Earthquakeclipsincluded.
•Protectivefilmdustguard.
•UL-Listedtwinknockoutaccessplate.
•Metalgauge/constructiontomeetNYCCode
or Chicago Plenum is available.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Elec. T8 H3*, P3** O3*
LOL T8 Dimming – PS
* Instant start.
** Program start.
Consult factory for other wattages.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Air closure strips: ACS4(factoryinstalled).
ACS4 CSP(fieldinstalled).
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
Note: For concealed spline, plaster or drywall ceiling, use “G”
type fixtures with either S2X2FKIT(seeFolioOA-30-30),or
DRYWALLKIT,FK92X2(seeFolioOA30-10).
30˚
60˚
800
1600
2400
Candlepower Curve
30˚
60˚
600
1200
1800
Candlepower Curve
VRA2G9LP317UNVH3 Reference data
Efficiency 62.7%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 47.0W
LER 50.4
Max average brightness
55° 2203cd/m2
65° 238cd/m2
75° 91cd/m2
85° 0cd/m2
6"
(152mm)
24" (610mm)
Vision Smart Voltage Ballast Options
 4"Precisioncontoured 120=120V Seepage4.113 See page 4.113
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elec.T8ballastonly)
UNVVRA2G9LP317 ACS2H3
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Exposed Slot-T or
concealed T-Grid
Air handling 2' x 2' 9 3-T8 VRA2G9LP317 VRA2T9LP317
8 Cell 12 Cell
9 Cell
12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
4.114 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
VisionSmart2'x2'
4" Parabolic louver recessed air handling luminaires
VisionSmartarchitecturallysymmetrical2'x2'VRParabolicsmeetthecriteriaofIESRP-1
andRP-24.TheVRSeriesisbestsuitedwhereveruseofVDT’sisoccasionalornonintensive.
Features
•VRunitsmeetIESRP24andRP1recommended(basic)
criteriaforlightingVDTareas.
•Only6"deep.
•Semi-specularlowiridescencepre-anodizedlouveris
standardonVRmodels.
•Concealedspring-loadedlatch/hingecanbe
opened either side.
•Louverframewithintegralpositivelightstop.
•Earthquakeclipsincluded.
•ProtectiveFilmdustguard.
•UL-Listedtwinknockoutaccessplate.
•Metalgauge/constructiontomeetNYCCode
or Chicago Plenum is available.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start.
** Program start.
Consult factory for other wattages.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Air closure strips: ACS2(factoryinstalled).
ACS2 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
Note: For concealed spline, plaster or drywall ceiling, use “G” type
fixtures with either S2X2FKit(seeFolioOA-30-30),orDrywall
kit, FK92X2(seeFolioOA30-10).
30˚
60˚
550
1100
1650
Candlepower Curve
VRA2G9LS26UUNVHI Reference data
Efficiency 57.1%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 60.0W
LER 50.0
Max average brightness
55° 3272cd/m2
65° 357cd/m2
75° 130cd/m2
85° 38cd/m2
6"
(152mm)
24" (610mm)
Vision Smart Voltage Ballast Options
 4"Precisioncontoured 120=120V Seepage4.114 See page 4.114
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elect.Ballastonly)
UNVVRA2G9LS26U ACS2HI
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Exposed Slot-T or
concealed T-Grid
Air handling 2' x 2' 9 2-T8U6 VRA2G9LS26U VRA2T9LS26U
30˚
60˚
650
1300
1950
Candlepower Curve
VRA2G16LS26UUNVHI Reference data
Efficiency 51.7%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 60.0W
LER 45.4
Max average brightness
55° 1619cd/m2
65° 293cd/m2
75° 104cd/m2
85° 77cd/m2
6"
(152mm)
24" (610mm)
Vision Smart Voltage Ballast Options
 4"Precisioncontoured 120=120V Seepage4.114 See page 4.114
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elect.Ballastonly)
UNVVRA2G9LS26U ACS2HI
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Exposed Slot-T or
concealed T-Grid
Air handling 2' x 2' 16 2-T8U6 VRA2G16LS26U VRA2T16LS26U
8 Cell 12 Cell
9 Cell
12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell
16 Cell
32 Cell18 Cell 24 Cell
12 Cell
4.115Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
VisionSmart2'x2'
4" Parabolic louver recessed air handling luminaires
VisionSmartarchitecturallysymmetrical2'x2'VRParabolicsmeetthecriteriaofIESRP-1
andRP-24.TheVRSeriesisbestsuitedwhereveruseofVDT’sisoccasionalornonintensive.
Features
•VRunitsmeetIESRP24andRP1recommended(basic)
criteriaforlightingVDTareas.
•Only6"deep.
•Semi-specularlowiridescencepre-anodizedlouveris
standardonVRmodels.
•Concealedspring-loadedlatch/hingecanbe
opened either side.
•Louverframewithintegralpositivelightstop.
•Earthquakeclipsincluded.
•ProtectiveFilmdustguard.
•UL-Listedtwinknockoutaccessplate.
•Metalgauge/constructiontomeetNYCCode
or Chicago Plenum is available.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp elec. T8 H3*, P3** O3*
1 & 2 Lamp elec. TT5 40W IB*, PR** SB*
1 - 3 Lamp elec. TT5 40W I3* X3*
LOL T8 Dimming – PS
LOL TT5 Dimming – PB
* Instant start.
** Program start.
Consult factory for other wattages.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Air closure strips: ACS4(factoryinstalled).
ACS4 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
Note: For concealed spline, plaster or drywall ceiling, use “G”
type fixtures with either S2X2FKIT(seeFolioOA-30-30),or
DRYWALLKIT,FK92X2(seeFolioOA30-10).
Louver finish is
low iridescence
semi-specular.
30˚
60˚
1400
2800
4200
Candlepower Curve
VRA2G9LP32UUNVH3 Reference data
Efficiency 56.7%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 83.0W
LER 57.0
Max average brightness
55° 4605cd/m2
65° 484cd/m2
75° 181cd/m2
85° 115cd/m2
24" (610mm)
6" (152mm)
9 Cells
Vision Smart Voltage Ballast Options
 4"Precisioncontoured 120=120V Seepage4.115 See page 4.115
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elect.Ballastonly)
UNVVRA2G9LP32U ACS2H3
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Exposed Slot-T or
concealed T-Grid
Air handling 2' x 2' 93-T8U1.6
3-TT5
VRA2G9LP32U
VRA2G9LP3FT
VRA2T9LP32U
VRA2T9LP3FT
8 Cell 12 Cell
9 Cell
12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
30˚
60˚
1500
3000
4500
Candlepower Curve
VRA2G12PP32UUNVH3 Reference data
Efficiency 55.5%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 83.0W
LER 53.0
Max average brightness
55° 1151cd/m2
65° 71cd/m2
75° 52cd/m2
85° 38cd/m2
24" (610mm)
6" (152mm)
12 Cells
Vision Smart Voltage Ballast Options
 4"Precisioncontoured 120=120V Seepage4.115 See page 4.115
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elect.Ballastonly)
120VRA2G12PP3FT ACS2X3
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Exposed Slot-T or
concealed T-Grid
Air handling 2' x 2' 12 3-T8U1.6
3-TT5
VRA2G12PP32U
VRA2G12PP3FT
VRA2T12PP32U
VRA2T12PP3FT
Louver finish is
low iridescence
specular.
8 Cell 12 Cell
9 Cell
12 Cell
16 Cell 32 Cell18 Cell 24 Cell
12 Cell
4.116 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
VisionSmart1'x4'
3" Parabolic louver recessed air supply/return/static luminaires
VisionSmart(VR)luminaires1lamp8cell,2lamp12cellcomplywiththeBasicCriteriaof
RP-1(formerlyRP-24).
Features
•MeetsIESRP-1recommended(minimum
requirements)forlightingVDTareas(VR1lamp
8and12cell).
•Semi-specularlowiridescencepre-anodizedlouver.
•Verticalgrainonlouvereliminatesreflectedlamp
images on cross baffle.
•Louverframewithpositivelightstop.
•Spring-loadedlatches(selfcentering).
•Blackhousingexteriorforcoolerballast
operating temperature.
•Built-inearthquakeclip
•UL-Listedtwinknockoutaccessplate.
•Metalgauge/constructiontomeetNYCCode
or Chicago Plenum is available.
•Turned-inedgesforsafehandling.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtype
andaddassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start.
** Program start.
Consult factory for other wattages.
Drywall kit: Catalog no. FK91X4 with “G” type
fixtures for drywall or plaster ceilings.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF14 for 1' x 4' troffer.
Continuous row installation: For “F” type fixtures,
half-width flanges are required between fixtures.
Catalog no. 1FCTRIM(eachjoint).
Air closure strips: ACS4(factoryinstalled).
ACS4 CSP(fieldinstalled).
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
30˚
60˚
200
400
800
Candlepower Curve
VRA1G8LW132UNVHI Reference data
Efficiency 67.9%
Spacing ratio 1.9
Electronic ballast
Inputwatts(120V) 30.0W
Max average brightness
65° 837cd/m2
75° 82cd/m2
85° 0cd/m2
5 ¾"
(146mm)
12" (305mm)
Vision Smart Voltage Ballast Options
 3"Parabolic 120=120V Seepage4.116 See page 4.116
277=277V  andpage4.130
UNV=120-277 V
  (Elect.Ballastonly)
UNVVRA1G8LW132 HI
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 1' x 4'
8
12
8
12
1-T8
1-T8
2-T8
2-T8
VRA1G8LW132
VRA1G12LW132
VRA1G8LW232
VRA1G12LW232
VRA1F8LW132
VRA1F12LW132
VRA1F8LW232
VRA1F12LW232
VRA1T8LW132
VRA1T12LW132
VRA1T8LW232
VRA1T12LW232
Static 1' x 4'
8
12
8
12
1-T8
1-T8
2-T8
2-T8
VRS1G8 LW132
VRS1G12LW132
VRS1G8LW232
VRS1G12LW232
VRS1F8 LW132
VRS1F12LW132
VRS1F8LW232
VRS1F12LW232
VRS1T8LW132
VRS1T12LW132
VRS1T8LW232
VRS1T12LW232
8 Cell
12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
4.117Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Stacklyte 1' x 4'
3" Parabolic louver recessed air supply/return/static luminaires
Stacklyte(STA)isexcellentforlightinglibrarybookshelveswith97.5%ofthefixture
distribution in the 90° zone.
Features
•Semi-specularlowiridescencepre-anodizedlouver.
•Verticalgrainonlouvereliminatesreflectedlamp
images on cross baffle.
•Louverframewithpositivelightstop.
•Spring-loadedlatches(selfcentering).
•Blackhousingexteriorforcoolerballast
operating temperature.
•Built-inearthquakeclip
•UL-Listedtwinknockoutaccessplate.
•Metalgauge/constructiontomeetNYCCode
or Chicago Plenum is available.
•Turned-inedgesforsafehandling.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtype
andaddassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start.
** Program start.
Consult factory for other wattages.
Drywall kit: Catalog no. FK91X4
with “G” type fixtures for drywall or plaster ceilings.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF14 for 1' x 4' troffer.
Continuous row installation: For “F” type fixtures,
half-width flanges are required between fixtures.
Catalog no. 1FCTRIM(eachjoint).
Air closure strips: ACS4(factoryinstalled).
ACS4 CSP(fieldinstalled).
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
30˚
60˚
400
800
1200
Candlepower Curve
STA1G8LR132UNVHI
5 ¾"
(146mm)
12" (305mm)
Stacklyte Voltage Ballast Options
 3"Parabolic 120=120V Seepage4.117 See page 4.117
277=277V  andpage4.130
UNV=120-277 V
  (Elect.Ballastonly)
UNVSTA1G8LR132 HI
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 1' x 4'
8
12
8
12
1-T8
1-T8
2-T8
2-T8
STA1G8LR132
STA1G12LR132
STA1G8LR232
STA1G12LR232
STA1F8LR132
STA1F12LR132
STA1F8LR232
STA1F12LR232
STA1T8LR132
STA1T12LR132
STA1T8LR232
STA1T12LR232
Static 1' x 4'
8
12
8
12
1-T8
1-T8
2-T8
2-T8
STS1G8LR132
STS1G12LR132
STS1G8LR232
STS1G12LR232
STS1F8LR132
STS1F12LR132
STS1F8LR232
STS1F12LR232
STS1T8LR132
STS1T12LR132
STS1T8LR232
STS1T12LR232
5 ¾"
(146mm)
12" (305mm)
8 Cell
12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
  Verticalfootcandlesonbookshelves
1' 2' 3' 4'
Ceiling
1 48 48 49 48 48 48 49 48 48
2 36 36 36 36 36 36 36 36 36
3 28 28 28 28 28 28 28 28 28
4 24 24 24 24 24 24 24 24 24
5 21 21 21 21 21 21 21 21 21
6 18 18 18 18 18 18 18 18 18
7 16 16 16 16 16 16 16 16 16
8 16 16 16 16 16 16 16 16 16
9 15 15 15 15 15 15 15 15 15
10 14 14 14 14 14 14 14 14 14
11 12 12 12 12 12 12 12 12 12
12 10 10 10 10 10 10 10 10 10
Floor
36"bookshelfaislewidth
4.118 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Deepcel Plus 2' x 4'
3" Parabolic louver recessed air return/static luminaires
PhilipsLightolierDeepcelPlusistheindustrystandard3"paraboliclouvertrofferwith
features that offer value above the industry standard.
Features
•5"deepbody.
•Individuallampcompartments.
•77.7%efficient,3lamp18cell.
•Cleancontouredinterior.
•Eyeletedheatremovalventsinfixtureends.
•Onepiecehousing.
•Blackexteriorforcoolerballastoperatingtemperature.
•Hemmedoversiderailsforsafehandling.
•Built-inearthquakeclips.
•Pre-anodizedaluminumparaboliclouver.
•Verticalgrainlouvereliminatesreflectedlampimageson
cross baffle.
•Spring-loadedroosterheadlatches.
•18gaugesteelhinges.
•Louverframewithintegralpositivelightstop.
•Louverhasprotectivefilmdustguard.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp elec. T8 H3*, P3** O3*
1 - 4 Lamp elec. T8 H4*, P4** O4*
LOL T8 Dimming – PS
* Instant start.
** Program start.
Consult factory for other wattages.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF24 for 2' x 4' troffer.
Continuous row installation: For “F” type fixtures,
half-width flanges are required between fixtures.
Catalog no. 2FCTRIM(eachjoint).
Air closure strips: ACS4(factoryinstalled).
ACS4 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
NYC code: Change DP to DY.
30˚
60˚
900
1800
2700
Candlepower Curve
DPA2G18LP332UNVH3 Reference data
Efficiency 77.7%
Spacing ratio 1.6
Electronic ballast
Inputwatts(120V) 85.9W
Luminaireeff.(LER) 68.6
5"
(127mm)
24" (610mm)
Deepcel Plus Voltage Ballast Options
 3"Precisioncontoured 120=120V Seepage4.118 See page 4.118
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elec.T8ballastonly)
UNVDPA2G18LP332 ACS4H3
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 2' x 4' 18
24 3-T8 DPA2G18LP332
DPA2G24LP332
DPA2F18LP332
DPA2F24LP332
DPA2T18LP332
DPA2T24LP332
Static 2' x 4' 18
24 3-T8 DPS2G18LP332
DPS2G24LP332
DPS2F18LP332
DPS2F24LP332
DPS2T18LP332
DPS2T24LP332
30˚
60˚
850
1700
2550
Candlepower Curve
DPA2G18LS332UNVH3Reference data
Efficiency 77.6%
Spacing ratio 1.6
Electronic ballast
Inputwatts(120V) 85.8W
Luminaireeff.(LER) 68.6
5"
(127mm)
24" (610mm)
Deepcel Plus Voltage Ballast Options
 3"Precisioncontoured 120=120V Seepage4.118 See page 4.118
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elec.T8ballastonly)
UNVDPA2G18LS332 ACS4H3
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 2' x 4' 18 3-T8
4-T8
DPA2G18LS332
DPA2F18LS432
DPA2F18LS332
DPA2F18LS432
DPA2T18LS332
DPA2T18LS432
Static 2' x 4' 18 3-T8
4-T8
DPS2G18LS332
DPS2G18LS432
DPS2F18LS332
DPS2F18LS432
DPS2T18LS332
DPS2T18LS432
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell 32 Cell
18 Cell
24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell
24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell 32 Cell
18 Cell
24 Cell
12 Cell
4.119Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Features
•5"deepbody.
•80%efficient,2lamp12cell.
•Cleancontouredinterior.
•Eyeletedheatremovalventsinfixtureends.
•Onepiecehousing.
•Blackexteriorforcoolerballastoperatingtemperature.
•Hemmedoversiderailsforsafehandling.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Pre-anodizedaluminumparaboliclouver.
•Verticalgrainlouvereliminatesreflectedlampimageson
cross baffle.
•Spring-loadedroosterheadlatches.
•18gaugesteelhinges.
•1.6spacingtomountingheightratio.
•Snap-inballastcover.
•Louverframewithintegralpositivelightstop.
•Louverhasprotectivefilmdustguard.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 4 Lamp elec. T8 H4*, P4** O4*
LOL T8 Dimming – PS
* Instant start.
** Program start.
Consult factory for other wattages.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF24 for 2' x 4' troffer.
Continuous row installation: For “F” type fixtures,
half-width flanges are required between fixtures.
Catalog no. 2FCTRIM(eachjoint).
Air closure strips: ACS4(factoryinstalled).
ACS4 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
NYC code: Change DP to DY.
Deepcel Plus 2' x 4'
3" Parabolic louver recessed air return/static luminaires
PhilipsLightolierDeepcelPlusistheindustrystandard3"paraboliclouvertrofferwith
features that offer value above the industry standard.
30˚
60˚
650
1300
1950
Candlepower Curve
DPA2G12LS232UNVHI
24" (610mm)
5"
(127mm)
Deepcel Plus Voltage Ballast Options
 3"Precisioncontoured 120=120V Seepage4.119 See page 4.119
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elec.T8ballastonly)
UNVDPA2G12LS232 ACS4HI
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 2' x 4' 12 2-T8
4-T8
DPA2G12LS232
DPA2G12LS432
DPA2F12LS232
DPA2F12LS432
DPA2T12LS232
DPA2T12LS232
Static 2' x 4' 12 2-T8
4-T8
DPS2G12LS232
DPS2G12LS432
DPS2F12LS232
DPS2F12LS432
DPS2T12LS232
DPS2T12LS432
30˚
60˚
1100
2200
3300
Candlepower Curve
DPA2G32LS432UNVH4 Reference data
Efficiency 64.1%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 110.9W
LuminaireEff.(LER) 56.7
5"
(127mm)
24" (610mm)
Deepcel Plus Voltage Ballast Options
 3"Precisioncontoured 120=120V Seepage4.119 See page 4.119
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=120-277V
  (Elec.T8ballastonly)
UNVDPA2G32LS432 ACS4H4
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 2' x 4' 32 4-T8 DPA2G32LS432 DPA2F32LS432 DPAT32LS432
Static 2' x 4' 32 4-T8 DPS2G32LS432 DPS2F32LS432 DPS2T32LS432
8 Cell
12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell
32 Cell
18 Cell 24 Cell
12 Cell
Reference data
Efficiency 80.0%
Spacing ratio 1.6
Electronic ballast
Inputwatts(120V) 61.6W
LuminaireEff.(LER) 64.4
4.120 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Deepcel Plus 2' x 2'
3" Parabolic louver recessed air handling/static luminaires
Deepcel Plus 2' x 2' parabolic troffers feature all of the design benefits of the 2' x 4' product.
AvailablewithT8andBiaxtypelampsin9,12or16cellconfigurations.Forgeneraloffice
lighting Deepcel Plus 2' x 2' is the preferred choice.
Features
•5"deepbody,cleancontouredinterior.
•66.2%efficient,2lamp9cellU6T8.
•63.4%efficient,3lamp9cellT81.6.
•Eyeletedheatremovalventsinfixtureends.
•Onepiecehousing.
•Blackexteriorforcoolerballastoperatingtemperature.
•Hemmedoversiderailsforsafehandling.
•Fixturesendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Pre-anodizedaluminumparaboliclouver.
•Verticalgrainlouvereliminatesreflectedlampimages
oncross baffle.
•Spring-loadedroosterheadlatches.
•18gaugesteelhinges.
•Louverframewithintegralpositivelightstop.
•Louverhasprotectivefilmdustguard.
•AvailableforU-shapeOctronCurvalumeorBiax
lamptypes.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp elec. T8 H3*, P3** O3*
LOL T8 Dimming – PS
* Instant start.
** Program start.
Consult factory for other wattages.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF22 for 2' x 2' troffer.
Continuous row installation: For “F” type fixtures,
half-width flanges are required between fixtures.
Catalog no. 2FCTRIM(eachjoint).
Air closure strips: ACS2(factoryinstalled).
ACS2 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
NYC code: Change DP to DY.
30˚
60˚
550
1100
1650
Candlepower Curve
DPA2G9LS26UUNVHI Reference data
Efficiency 66.2%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 57.2W
Luminaireeff.(LER) 53.4
5"
(127mm)
24" (610mm)
Deepcel Plus Voltage Ballast Options
 3"Precisioncontoured 120=120V Seepage4.120 See page 4.120
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=  1 2 0 - 2 7 7 V
  (Elec.T8orTT5ballastonly)
UNVDPA2G9LS26U ACS2HI
Example
Ordering information For 17W T8 substitute 6U with 17 in Catalog number.
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 2' x 2' 9
12 2-T8U6 DPA2G9LS26U
DPA2G12LS26U
DPA2F9LS26U
DPA2F12LS26U
DPA2T9LS26U
DPA2T12LS26U
Static 2' x 2' 9
12 2-T8U6 DPS2G9LS26U
DPS2G12LS26U
DPS2F9LS26U
DPS2F12LS26U
DPS2G9LS26U
DPS2T12LS26U
30˚
60˚
800
1600
2400
Candlepower Curve
DPA2G9LP32UUNVH3 Reference data
Efficiency 63.4%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 57.2W
Luminaireeff.(LER) 56.2
5"
(127mm)
24" (610mm)
Deepcel Plus Voltage Ballast Options
 3"Precisioncontoured 120=120V Seepage4.120 See page 4.120
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=  1 2 0 - 2 7 7 V
  (Elec.T8orTT5ballastonly)
UNVDPA2G9LP32U ACS2H3
Example
Ordering information For 17W T8 substitute 2U with 17 in Catalog number.
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 2' x 2' 9
12 3-T8U1.6 DPA2G9LP32U
DPA2G12LP32U
DPA2F9LP32U
DPA2F12LP32U
DPA2T9LP32U
DPA2T12LP32U
Static 2' x 2' 9
12 3-T8U1.6 DPS2G9LP32U
DPS2G12LP32U
DPS2F9LP32U
DPS2F12LP32U
DPS2T9LP32U
DPS2T12LP32U
8 Cell 12 Cell
9 Cell
12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell
12 Cell
16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell
12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell
12 Cell
16 Cell 32 Cell18 Cell 24 Cell
12 Cell
4.121Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Features
•5"deepbody,cleancontouredinterior.
•61.6%efficient,2lamp9cellU6T8.
•72.0%efficient,3lamp9cellTT5.
•Eyeletedheatremovalventsinfixtureends.
•Onepiecehousing.
•Blackexteriorforcoolerballastoperatingtemperature.
•Hemmedoversiderailsforsafehandling.
•Fixturesendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Pre-anodizedaluminumparaboliclouver.
•Verticalgrainlouvereliminatesreflectedlampimages
oncross baffle.
•Spring-loadedroosterheadlatches.
•18gaugesteelhinges.
•Louverframewithintegralpositivelightstop.
•Louverhasprotectivefilmdustguard.
•AvailableforU-shapeOctronCurvalumeorBiaxtype.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp elec. TT5 40W I3* X3*
Electronic TT5 40W IB*, PR** SB*
LOL T8 Dimming – PS
LOL TT5 Dimming – PB
* Instant start.
** Program start.
Consult factory for other wattages.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF22 for 2' x 2' troffer.
Continuous row installation: For “F” type fixtures,
half-width flanges are required between fixtures.
Catalog no. 2FCTRIM(eachjoint).
Air closure strips: ACS2(factoryinstalled).
ACS2 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
NYC code: Change DP to DY.
Deepcel Plus 2' x 2'
3" Parabolic louver recessed air handling/static luminaires
Deepcel Plus 2' x 2' parabolic troffers feature all of the design benefits of the 2' x 4' product.
AvailablewithT8andBiaxtypelampsin9,12or16cellconfigurations.Forgeneraloffice
lighting Deepcel Plus 2' x 2' is the preferred choice.
30˚
60˚
550
1100
1650
Candlepower Curve
DPA2G16LS26UUNVHI
24" (610mm)
5"
(127mm)
Deepcel Plus Voltage Ballast Options
 3"Precisioncontoured 120=120V Seepage4.121 See page 4.121
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=  1 2 0 - 2 7 7 V
  (Elec.T8orTT5ballastonly)
UNVDPA2G16LS26U ACS2HI
Example
Ordering information For 17W T8 substitute 6U with 17 in Catalog number.
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 2' x 2' 16 2-T8U6 DPA2G16LS26U DPA2G16LS26U DPA2T16LS26U
Static 2' x 2' 16 2-T8U6 DPS2G16LS26U DPS2F16LS26U DPS2T16LS26U
30˚
60˚
1050
2100
3150
Candlepower Curve
DPA2G9LP3FT120SB&DPA2G12LP3FT120SB
Reference data
Efficiency 72.0%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 100.0W
Luminaireeff.(LER) 59.9
5"
(127mm)
24" (610mm)
Deepcel Plus Voltage Ballast Options
 3"Precisioncontoured 120=120V Seepage4.121 See page 4.121
pre-anodized aluminum 277=277V  andpage4.130
parabolic louver UNV=  1 2 0 - 2 7 7 V
  (Elec.T8orTT5ballastonly)
120DPA2G9LP3FT ACS2X3
Example
Ordering information
Type Size Cells Lamp
qty –type Exposed T-Grid Flanged for
dry or plaster
Slot-T or
Concealed T
Air handling 2' x 2' 9
12 3-TT5 DPA2G9LP3FT
DPA2G12LP3FT
DPA2F9LP3FT
DPA2F12LP3FT
DPA2T9LP3FT
DPA2T12LP3FT
Static 2' x 2' 9
12 3-TT5 DPS2G9LP3FT
DPS2G12LP3FT
DPS2F9LP3FT
DPS2G12LP3FT
DPS2T9LP3FT
DPS2T12LP3FT
8 Cell 12 Cell
9 Cell 12 Cell
16 Cell
32 Cell18 Cell 24 Cell
12 Cell
Reference data
Efficiency 61.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 51.5W
Luminaireeff.(LER) 49.4
8 Cell 12 Cell
9 Cell
12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell
12 Cell
16 Cell 32 Cell18 Cell 24 Cell
12 Cell
4.122 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Prismalyte Plus 2' x 4'
Premium specification lensed recessed air handling luminaires
Prismalyte Plus luminaires are top of the line air handling lensed fluorescent luminaires
with floating door appearance, regressed, aluminum doors and black painted housing for
optimum lamp and ballast operations. Door frames are interchangeable with Deepcel Plus
2'x4'louvers.
Features
•5"deepbody(2'x4').
•Blackhousingexteriorforcoolerballastoperating
temperature.
•Built-inearthquakeclipson2'x4'.
•Hemmedoversiderailsforsafety.
•Fixtureendsturnedinforsafehandling.
•Doorjambfinishedblackonfoursidesfor
positive light stop.
•Truemiteredcorneraluminumlensframe.
•InterchangeablewithDeepcelandParabafflelouvers.
•Springloadedroosterheadlatches.
Options & accessories page 4.130
Special lenses:VAlenspattern12prismaticvirgin
acrylic is standard. For other available lenses, see options
and accessories page.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Elec. T8 H3*, P3** O3*
1 - 4 Lamp Elec. T8 H4*, P4** O4*
* Instant start.
** Program start.
Consult factory for other wattages.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF24 for 2' x 4' troffer.
Air closure strips: ACS4(factoryinstalled).
ACS4 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
For NYC code consult factory
30˚
60˚
1250
2500
3750
Candlepower Curve
PRA2GRFVA432UNVH4 Reference data
Efficiency 76.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 109.5W
Luminaireeff.(LER) 68.7
24" (610mm)
24" (610mm)
24" (610mm)
5"
(127mm)
5"
(127mm)
5"
(127mm)
Prismalyte Plus Voltage Ballast Options
Floating lens frame 120=120V Seepage4.122 See page 4.122
recessed fluorescent 277=277V  andpage4.130
troffer UNV=120 -277V
  (Elec.T8orTT5Ballastonly)
UNVPRA2GRFVA432 CH4
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
Air handling 2' x 4'
2-T8
3-T8
4-T8
PRA2GRFVA232
PRA2GRFVA332
PRA2FRFVA432
PRA2FRFVA232
PRA2GRFVA332
PRA2FRFVA432
Static 2' x 4'
2-T8
3-T8
4-T8
PRS2GRFVA232
PRS2FRFVA332
PRS2GRFVA432
PRS2FRFVA232
PRS2FRFVA332
PRS2GRFVA432
4.123Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
•5"deepbody(2'x2').
•4"deep(1'x4'GType).
•Blackhousingexteriorforcoolerballastoperating
temperature.
•Built-inearthquakeclipson2'x2'.
•Hemmedoversiderailsforsafety.
•Fixtureendsturnedinforsafehandling.
•Doorjambfinishedblackonfoursidesfor
positive light stop.
•Truemiteredcorneraluminumlensframe.
•InterchangeablewithDeepcelandParabafflelouvers.
•Springloadedroosterheadlatches.
Options & accessories page 4.130
Special lenses:VAlenspattern12prismaticvirgin
acrylic is standard. For other available lenses, see options
and accessories page.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Elec. T8 H3*, P3** O3*
1 - 3 Lamp Elec. TT5 40W IB*, PR** X3*
Electronic TT5 40W IB* SB
* Instant start.
** Program start.
Consult factory for other wattages.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Conversion kit for 1' x 4' unit: FK91X4.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF22 for 2' x 2' troffer.
Catalog no. PF14 for 1' x 4' troffer.
Air closure strips: ACS2(factoryinstalled).
ACS2 CSP(fieldinstalled).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
For NYC code consult factory
Prismalyte Plus 2' x 2' & 1' x 4'
Premium specification lensed recessed air handling luminaires
Prismalyte Plus luminaires are top of the line air handling lensed fluorescent luminaires
with floating door appearance, regressed, aluminum doors and black painted housing for
optimum lamp and ballast operations. Door frames are interchangeable with Deepcel Plus
2'x2'louvers.
30˚
60˚
600
1200
1800
Candlepower Curve
PRA2GRFVA26UUNVHI&PRA2GRFVA32UUNVH3
Reference data
Efficiency 71.6%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 60.0W
Luminaireeff.(LER) 58.0
PRA26U
5"
(127mm)
24" (610mm)
Prismalyte Plus Voltage Ballast Options
Floating lens frame 120=120V Seepage4.123 See page 4.123
recessed fluorescent 277=277V  andpage4.130
troffer UNV=120 -277V
  (Elec.T8orTT5Ballastonly)
UNVPRA2GRFVA26U CHI
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
Air handling 2' x 2'
2-T8U6
3-T8U1.6/
3-TT5
PRA2GRFVA26U
PRA2GRFVA32U
PRA2GRFVA3FT
PRA2FRFVA26U
PRA2FRFVA32U
PRA2FRFVA3FT
Static 2' x 2'
2-T8U6
3-T8U1.6/
3-TT5
PRS2GRFVA26U
PRS2GRFVA32U
PRS2GRFVA3FT
PRS2FRFVA26U
PRS2FRFVA32U
PRS2FRFVA3FT
24" (610mm)
PRA32U
5"
(127mm)
30˚
60˚
800
1600
2400
Candlepower Curve
Reference data
Efficiency 67.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 76.0W
Luminaireeff.(LER) 63.4
30˚
60˚
600
1200
1800
Candlepower Curve
PR A1GF VA 232UNVHI Reference data
Efficiency 65.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 56.6W
Luminaireeff.(LER) 58.0
12" (305mm)
4"
(101mm)
Prismalyte Plus Voltage Ballast Options
Floating lens frame 120=120V Seepage4.123 See page 4.123
recessed fluorescent 277=277V  andpage4.130
troffer UNV=120 -277V
  (Elec.T8orTT5Ballastonly)
UNVPRA1GRFVA232 CHI
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
Air handling 1' x 4' 1-T8
2-T8
PRA1GRFVA132
PRA1GRFVA232
PRA1FRFVA132
PRA1FRFVA232
Static 1' x 4' 1-T8
2-T8
PRS1GRFVA132
PRS1GRFVA232
PRS1FRFVA132
PRS1FRFVA232
4.124 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Specplus 2' x 4'
Specification grade lensed recessed static luminaires
SpecplushasallthefeaturesyoulookforinaTRUEspecificationgradelenstroffer.Our5"
depth reverses the industry trend of making fixtures shallower thus putting the lamps closer
to the lens. And there is more.
Features
•5"deepbody(2'x4').
•31/16"lamptolensforbetterlampobscuration(2'x4').
•81.2%efficient(4light).
•Cleancontouredinterior,noholes.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips(2'x4').
•SlimlineDoorframewith475and1000squareinchlens
openings(2'x4').
•Doorjambfinishedblackonfoursidesforpositive
lightstop.
•TrueMiteredcornersteellensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•Flatandregressedaluminumdoorsavailable.
•ConstructiontomeetChicagoPlenum
requirements isavailable.
Options & accessories page 4.130
Special lenses:VAlenspattern12prismaticvirgin
acrylic is standard. For other available lenses, see options
and accessories page.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Elec. T8 H3*, P3** O3*
1 - 4 Lamp Elec. T8 H4*, P4** O4*
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 4' unit: FK92X4.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF24 for 2' x 4' troffer.
Continuous row installation: For “F” type fixtures,
half-width flanges are required between fixtures.
Catalog no. 2FCTRIM(eachjoint).
Door frames: SPS2GFS (Flatsteeldoor).
SPS2GFA (Flataluminumdoor).
SPS2GRA(Regressedaluminumdoor).
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
30˚
60˚
1250
2500
3750
Candlepower Curve
SPS2GFSVA432UNVH4
Reference data
Efficiency 81.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 108.7W
LuminaireEff.(LER) 73.2
5"
(127mm)
24" (610mm)
Specplus Voltage Ballast Options
Lens Frame Recessed 120=120V Seepage4.124 See page 4.124
Fluorescent Troffer 277=277V  andpage4.130
UNV=120-277 V
  (Elec.T8orTT5Ballastonly)
UNVSPS2GFSVA432 AH4
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
Static 2' x 4'
2-T8
3-T8
4-T8
SPS2GFSVA232
SPS2GFSVA332
SPS2GFSVA432
SPS2FFSVA232
SPS2FFSVA332
SPS2FFSVA432
5"
(127mm)
24" (610mm)
24" (610mm)
5"
(127mm)
Sky lens The Sky lens offers an aesthetically pleasing lens option
for any environment giving you the ability to customize
your space. The Sky lens exudes a soothing alternative
to conventional lenses when used in areas such as
health care waiting or examination rooms, assisted living
commonareas or child care faculties.
These options are available on the Philips Lightolier
SpecPlus Recessed Fluorescent 2' x 2' and 2' x 4'
models. To order the Sky Lens simply insert your choice
of Sky lenses, S1 orS2,intothestandardSpecPlus(SPS)
Catalog number.
Sky lens 2' x 4' S1
Sky lens 2' x 4' S2 Sky lens 2' x 2' S2
Sky lens 2' x 2' S1
Example
Standard: SPS2GFS VA 232UNVHI
Sky Lens: SPS2GFS S1 232UNVHI
4.125Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Features
•5"deepbody(2'x2').
•31/16"lamptolensforbetterlampobscuration(2'x2').
•71.6%efficient(2-6UT8).
•Cleancontouredinterior,noholes.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips(2'x2').
•SlimlineDoorframewith475and1000squareinchlens
openings(2'x2').
•Doorjambfinishedblackonfoursidesforpositive
lightstop.
•TrueMiteredcornersteellensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•Flatandregressedaluminumdoorsavailable.
•ConstructiontomeetChicagoPlenumrequirements
isavailable.
Options & accessories page 4.130
Special lenses:VAlenspattern12prismaticvirgin
acrylic is standard. For other available lenses, see options
and accessories page.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Elec. T8 H3*, P3** O3*
1 - 3 Lamp Elec. TT5 40W I3* X3*
Electronic TT5 40W IB*, PR** SB*
* Instant start.
** Program start.
Drywall kit: Conversion kit for 2' x 2' unit: FK92X2.
Conversion kit for 1' x 4' unit: FK91X4.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF22 for 2' x 2' troffer.
Catalog no. PF14 for 1' x 4' troffer.
Continuous row installation: For “F” type fixtures,
half-width flanges are required between fixtures.
Catalog no. 2FCTRIM(eachjoint-2'x2').
Catalog no. 1FCTRIM(eachjoint-1'x4').
Door frames: SPS2GFS (Flatsteeldoor).
SPS2GFA (Flataluminumdoor).
SPS2GRA(Regressedaluminumdoor).
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
Specplus 2' x 2' & 1' x 4'
Specification grade lensed recessed static luminaires
SpecplushasallthefeaturesyoulookforinaTRUEspecificationgradelenstroffer.Our5"
depth reverses the industry trend of making fixtures shallower thus putting the lamps closer
to the lens. And there is more.
30˚
60˚
600
1200
1800
Candlepower Curve
SPS2GFSVA26UUNVHI&SPS2GFSVA32UUNVH3
Reference data
Efficiency 71.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 56.3W
LuminaireEff.(LER) 63.1
5"
(127mm)
24" (610mm)
Prismalyte Plus Voltage Ballast Options
Floating Lens Frame 120=120V Seepage4.125 See page 4.125
Recessed Fluorescent 277=277V  andpage4.130
Troffer UNV=120-277 V
  (Elec.T8orTT5Ballastonly)
UNVSPS2GFSVA26U AHI
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
Static 2' x 2'
2-T8U6
3-TT5
3-T8U1.6/
3-T8F17
SPS2GFSVA26U
SPS2GFSVA3FT
SPS2GFSVA32U
SPS2GFSVA317
SPS2FFSVA26U
SPS2FFSVA3FT
SPS2FFSVA32U
SPS2FFSVA317
5"
(127mm)
5"
(127mm)
24" (610mm)
24" (610mm)
30˚
60˚
800
1600
2400
Candlepower Curve
Reference data
Efficiency 67.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 76.2W
LuminaireEff.(LER) 64.1
30˚
60˚
800
1200
1800
Candlepower Curve
SPS1GFSVA232UNVHI
Reference data
Efficiency 69.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 55.8W
LuminaireEff.(LER) 62.0
4"
(101mm)
12" (305mm)
Specplus Voltage Ballast Options
Lens Frame Recessed 120=120V Seepage4.125 See page 4.125
Fluorescent Troffer 277=277V  andpage4.130
UNV=120-277 V
  (Elec.T8orTT5Ballastonly)
UNVSPS1GFSVA232 AHI
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
Static 1' x 4' 1-T8
2-T8
SPS1GFSVA132
SPS1GFSVA232
SPS1FFSVA132
SPS1FFSVA232
4.126 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Standard
XPseries2'x4'
High perform lensed recessed static luminaires
PhilipsLightolier’sXPtrofferoffershighefficienciesanduniquefeaturesatanaffordableprice.
Features
•Efficiency:83.0%(4lamp),85.0%(3lamp),87.0%
(2lamp).
•Shallow3"deephousing.
•Ribbedhousingforstrengthandstability.
•Endsofhousingformedinwardforsafehandling.
•Built-inearthquakeclips.
•Hemmed-oversiderailsforsafehandling.
•EndshavescrewdimplesforinstallationtoT-bar
(nofixtureorceilingdistortion).
•Flatsteelorregressedaluminumlensframe
with mitered corners.
•EdgesofsteelorregressedDoorframehemmed-
over for safe handling.
•Nolightleak.
•Internal“T”hinges-easyinstallationandmaintenance.
•Roosterheadspringlatches.
•Meetscode30requirementsinNewEngland.
Options & accessories page 4.130
Special lenses:VAlenspattern12prismaticvirgin
acrylic is standard. For other available lenses, see options
and accessories page.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Elec. T8 H3*, P3** O3*
1 - 4 Lamp Elec. T8 H4*, P4** O4*
* Instant start.
** Program start.
Drywall kit: Catalog no. FK92X4 with fixtures for
drywall or plaster ceilings.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF24 for 2' x 4' troffer.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
1200
2400
3600
Candlepower Curve
XP2GVA432UNVH4Reference data
Efficiency 83.0%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 112.0W
LuminaireEff.(LER) FL-74.3
3"
(76mm)
24" (610mm)
XP Voltage Ballast Options
Flat Steel Lens Frame 120=120V Seepage4.126 See page 4.126
Recessed Fluorescent Troffer 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVXP2GVA432 AH4
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
XP
Static 2' x 4' 4-T8 XP2GVA432 XP2FVA432
30˚
60˚
950
1900
2850
Candlepower Curve
XP2GVA332UNVH3Reference data
Efficiency 85.0%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 85.0W
LuminaireEff.(LER) FL-75.2
24" (610mm)
3"
(76mm)
24" (610mm)
XP Voltage Ballast Options
Flat Steel Lens Frame 120=120V Seepage4.126 See page 4.126
Recessed Fluorescent Troffer 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVXP2GVA332 AH3
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
XP
Static 2' x 4' 3-T8 XP2GVA332 XP2FVA332
30˚
60˚
650
1300
1950
Candlepower Curve
XP2GVA232UNVHIReference data
Efficiency 87.0%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 58.0W
LuminaireEff.(LER) FL-74.3
24" (610mm)
3"
(76mm)
24" (610mm)
XP Voltage Ballast Options
Flat Steel Lens Frame 120=120V Seepage4.126 See page 4.126
Recessed Fluorescent Troffer 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVXP2GVA232 AHI
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
XP
Static 2' x 4' 2-T8 XP2GVA232 XP2FVA232
4.127Comprehensive lighting catalog 7th Edition
Standard – Linear recessed and surface lighting
XP/XAseries2'x2'&1'x4'
High perform lensed recessed static luminaires
PhilipsLightolier’shighperformanceXP/XAseriesoflensedtroffersoffersuniquefeaturesthat
outperform and extend more value for money than any other comparable fluorescenttroffer.
Features
•4"deep(1'x4').31/2"deep(2'x2').
•Fixturesiderailshaverolled-overedgesfor
maximumsafety.
•Built-inearthquakeclips.
•Flushsteelfull-sizedDoorframewithmitered
corner detailing.
•Angleregressedextrudedaluminumdooroption.
•Endcaphassingleformconfigurationandformededges
for easy lamping and safety.
•Doorframeoverlapsendcapforpositivelightstop.
•UL-Listedtwinknock-outaccessplateforeasyclosed-
door wiring.
•Fitsnewnarrowslotgridceilingsystems.
Options & accessories page 4.130
Special lenses:VAlenspattern12prismaticvirgin
acrylic is standard. For other available lenses, see options
and accessories page.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Elec. T8 H3*, P3** O3*
Electronic TT5 40W IB*, PR** SB*
* Instant start.
** Program start.
Drywall kit: Catalog no. FK91X4 or FK92X2 with
fixtures for drywall or plaster ceilings.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Seismic Hold-Down Clip: Suffix: 2HD.
For 1' x 4', type G, factory installed.
Plaster frame: For type F troffers, order plaster
frames separately. Catalog no. PF14 for 1' x 4' troffer.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Suffix: C.
For products that meet Chicago Plenum requirements.
For NYC code consult factory
30˚
60˚
600
1200
1800
Candlepower Curve
XP1GVA232UNVHIReference data
Efficiency 69.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 55.8W
LuminaireEff.(LER) 62.0
4"
(101mm)
12" (305mm)
XP Voltage Ballast Options
Flat Steel Lens Frame 120=120V Seepage4.127 See page 4.127
Recessed Fluorescent Troffer 277=277V  andpage4.130
UNV=120-277 V
XA (Elec.T8Ballastonly)
Regressed Aluminum Lens Frame
Recessed Fluorescent Troffer
UNVXP1GVA232 AHI
Example
Ordering information
Type Size Lamps
qty –type Exposed T-Grid Flanged for
dry or plaster
XP
Static 1' x 4' 2-T8/T12 XP1GVA232 XP1FVA232
XA
Static 1' x 4' 2-T8/T12 X A1GVA232 XA1FVA232
30˚
60˚
600
1200
1800
Candlepower Curve
XP2GVA26UUNVHI Reference data (SO)
Efficiency 71.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 55.3W
LuminaireEff.(LER) 62.3
24" (610mm)
3"
(76mm)
XP Voltage Ballast Options
Flat Steel Lens Frame 120=120V Seepage4.127 See page 4.127
Recessed Fluorescent Troffer 277=277V  andpage4.130
UNV=120-277 V
XA (Elec.T8Ballastonly)
Regressed Aluminum Lens Frame
Recessed Fluorescent Troffer
UNVXP2GVA26U AHI
Example
Reference data (SB)
Efficiency 84.1%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 58.0W
LuminaireEff.(LER) 74.3
Ordering information
Type Size Lamps
qty –type Exposed T-Grid
XP
Static 2' x 2' 2-TT5
2-T8U6
XP2GVA2FT
XP2GVA26U
XA
Static 2' x 2' 2-TT5
2-T8U6
XA2GVA2FT
XA2GVA26U
4.128 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Standard
FRX2'x2'
Recessed luminaires
TheFRXSeriesoffersanarchitecturallydecorativelightingelementthatwillenhanceyour
boardrooms, entrances or executive offices. The 2' x 2' frost white acrylic lens with softly
rounded edges provides a luminescent glow of light.
Features
•Creativeside-by-sideinstallationscangeneraterows,
squares,rectangles,"+"shapes,"T"shapesandother
geometric figures.
•Illuminatesbothhorizontalandverticalsurfaces.
•Lensopensfromeitherside.
•Lensutilizesspringloadedlatches/hinge.
•5"deepbody.
•FixturefitsaStandard15/16"or9/16"T-gridceiling.
Options & accessories page 4.130
Ballast type <10THD <20THD
2 Lamp Elec. T5HO 14/24W PG –
2 Lamp Elec. TT5 25/40W IB* SB*
2 Lamp Elec. TT5 40W PR** –
2 Lamp Elec. TT5 50W – BP
2 Lamp Elec. TT5 55W BF –
LOL Dimming TT5 – PB
1-2 Lamp Elec. T8 HI SO
LOL T8 Dimming – PS
* Instant start.
** Program start.
Ordering information
Cat. no. Fixture
efficiency
Lamps
type
Lamp
watts
FRS2GFW2FTUNVIB
FRS2GFW26UUNVHI
FRS2GFW224UNVPG
FRS2GFW324UNVPG
74.0%
62.2%
66.0%
70.0%
2-TT5
2-6"UT8
2-T5HO
3-T5H0
25W
24W
24W
Family Body style Width Ceiling type Lens style Reflector Lamp qty Lamps Voltage Ballast Options
FR=FRX S=Static 2 =2Foot G=StandardGrid
15/16"or9/16"
ceiling type
F=FrostWhite
Acrylic
W=White 2=2Lamp
3=3Lamp
FT=TT5
6U=6"UT8
14 =14WT5HO
24 =24WT5HO
(Nominal24")
120=120V
277=277V
UNV=120-277V
See page 4.128 See page 4.128
and page 4.130
FR S 2 G F W
Ordering information
24" (610mm)
13
16
"
(21mm)
5"
(127mm)
23-7/8" (606mm) Square Lens
4.129Comprehensive lighting catalog 7th Edition
Standard – Linear recessed and surface lighting
FRX2'x2'
Recessed luminaires
Linear recessed and surface lighting
4.130 Philips Lightolier For complete specification information visit www.lightolier.com
Options & accessories
Fluorescent lenses, diffusers, louvers and recessed luminaire options
Philips Lightolier Standard Shielding. Extruded virgin acrylic,
3/16"squarebasedfemalecones,running45°tothepanel
edge..095"nominalthickness(similartopattern12).
Catalog no. Substitute: SPS2GFS VA 332UNVH3.
Excellentobscurationandcontrol(similartoK12)..125"
nominal thickness, extruded virgin acrylic lens, (average
weightpersquarefootis7.8ounces).
Catalog no. Substitute: SPS2GFS VY 332UNVH3.
Economy with more rigidity.
.125"nominalthickness,extrudedvirginacryliclens,
(averageweightpersquarefootis6.8ounces).
Catalog no. Substitute: SPS2GFS VI 332UNVH3.
VA VY VI
Extruded acrylic, square base male conical prism.
.156"overallthickness(similartoK19pattern).
Catalog no. Substitute: SPS2GFS KA 332UNVH3.
Injectionmoldedacrylicparaboliclouver,1½"x1½"x1"
cell size, with silver specular protected by a clear acrylic.
Catalog no. Substitute: SPS2GFS MC 332UNVH3.
Injection molded polystyrene plastic, parabolic louver.
½"x½"x½"cellsize,withmetallizedspecularfinish.
Catalog no. Substitute: SPS2GFS BP 332UNVH3.
KA MC BP
For additional shieldings, consult your local Philips Lightolier Representative.
Prewiring
FF6; FF143/8"factoryprewiredcable
wired into fixture. Configurations available
in various wire gauges, numbers of wires
and lengths up to 6'.
e.g: DPA2G18LS332UNVH3 FF6
(3#18AWGleads,6'long);
e.g: e.g: DPA2G18LS332INVHI FF14
(4#18AWGleads,6'long).
e.g: DPA2G18LS332120SOEM FF92
(5#18AWGleads,6'long).
Job-packed
J =Uncartonedfixtureson
pallets are secured by heavy-duty
corrugated protectors.
31"x50"x78"
e.g: DPA2G18LS332UNVH3 J
* Consult factory for quantities
Internal fusing
A=Internalfast-blowfusing.
C =Internalslow-blowfusing.
e.g: SPS2GFSVA332UNVH3 A
Radio frequency shielding
Forhospitals,TVstationsorwherever
sensitive electronic equipment is in use.
Consultfactory.
Flange kit
Attaches to Philips
Lightolier recessed
bodies, except
XP and XA.
2x4=S2X4FKit
2x2=S2X2FKit
1x4=S1X4FKit
see folio OA30-30
For continuous
rows, half-width
flanges are required
between fixtures.
2'=2FCTrim
1'=1FCTrim
Radio interference filter
R =Inductivecapacitorcircuit
designedto minimize interference
fromline radiation or feedback.
120 or 277 volt at 50 or 60Hz.
e.g: DPA2G18LS332120O3 R
(one per fixture R)
e.g: DPA2G18LS332120SO B
(one per ballast B)
Fluorescent emergency
lighting system
EM =EMFactory-installedemergency
power battery pack with charger and
inverter,B100orequal,120Vor277V.
e.g: SPS2GFSVA332120O3 EM
Lamps installed
Consult factory after ascertaining
wattage, diameter, color rendering,
color temperature.
Linear recessed and surface lighting
4.131Comprehensive lighting catalog 7th Edition
M/S interties
Quick connect interties for master/satellite troffers
Master/satellite troffers are quoted as a single line item, but are shipped as 3 line items
to a job, the Master Troffer, the Satellite Troffer and the Intertie. All are bulk packed.
Thisrequires writing 3 separate line items. The following is the
method for the proper Catalog number.
(1' x 4' 1-LampTroffers)
1-2 Lamp Ballast
XX=All Lamps On
(1' x 4' 2-Lamp Troffers)
1-4 Lamp Ballast
XX=All Lamps On
(2' x 4' 2-Lamp Troffers)
1-4 Lamp Ballast
XX=All Lamps On
(2' x 4' 2-Lamp Troffers)
1-2 Lamp Ballast (A)
1-2 Lamp Ballast (B)
TI =Tandem inline
(2' x 4' 3-Lamp Troffers)
1-2 Lamp Ballast (B)
1-4 Lamp Ballast (A)
IO=Inboard/Outboard Lamps On
(2' x 4' 4-Lamp Troffers)
1-4 Lamp Ballast (A)
1-4 Lamp Ballast (B)
IO=Inboard/Outboard Lamps On
(2' x 2' 3-Lamp Troffers)
1-2 Lamp Ballast (B)
1-4 Lamp Ballast (A)
IO=Inboard/Outboard Lamps On
(2' x 2' 2-Lamp Troffers)
1-4 Lamp Ballast
XX=All Lamps On
AB AB AB BA
AAAAAA
BB B B
BB
AA A A
Features
•Quickconnectplug-in.
•Snap-inaccessplateforeasyconnection.
•Polarizednylonplugsforpositiveerrorfreeconnections.
•90°connectorsfitshallowplenums.
•Reducedinstallationlaborcosts.
•FitsCF,DP,SP,MP,LC,LI,MB,PP,PR,VP,XP,XAand
VRtrofferfamilies.
•Master/satelliterequiresfewerballastsreducing
energycosts.
(1' x 4' 1-LampTroffers)
1-2 Lamp Ballast
XX=All Lamps On
(1' x 4' 2-Lamp Troffers)
1-4 Lamp Ballast
XX=All Lamps On
(2' x 4' 2-Lamp Troffers)
1-4 Lamp Ballast
XX=All Lamps On
(2' x 4' 2-Lamp Troffers)
1-2 Lamp Ballast (A)
1-2 Lamp Ballast (B)
TI =Tandem inline
(2' x 4' 3-Lamp Troffers)
1-2 Lamp Ballast (B)
1-4 Lamp Ballast (A)
IO=Inboard/Outboard Lamps On
(2' x 4' 4-Lamp Troffers)
1-4 Lamp Ballast (A)
1-4 Lamp Ballast (B)
IO=Inboard/Outboard Lamps On
(2' x 2' 3-Lamp Troffers)
1-2 Lamp Ballast (B)
1-4 Lamp Ballast (A)
IO=Inboard/Outboard Lamps On
(2' x 2' 2-Lamp Troffers)
1-4 Lamp Ballast
XX=All Lamps On
AB AB AB BA
AAAAAA
BB B B
BB
AA A A
(1' x 4' 1-LampTroffers)
1-2 Lamp Ballast
XX=All Lamps On
(1' x 4' 2-Lamp Troffers)
1-4 Lamp Ballast
XX=All Lamps On
(2' x 4' 2-Lamp Troffers)
1-4 Lamp Ballast
XX=All Lamps On
(2' x 4' 2-Lamp Troffers)
1-2 Lamp Ballast (A)
1-2 Lamp Ballast (B)
TI =Tandem inline
(2' x 4' 3-Lamp Troffers)
1-2 Lamp Ballast (B)
1-4 Lamp Ballast (A)
IO=Inboard/Outboard Lamps On
(2' x 4' 4-Lamp Troffers)
1-4 Lamp Ballast (A)
1-4 Lamp Ballast (B)
IO=Inboard/Outboard Lamps On
(2' x 2' 3-Lamp Troffers)
1-2 Lamp Ballast (B)
1-4 Lamp Ballast (A)
IO=Inboard/Outboard Lamps On
(2' x 2' 2-Lamp Troffers)
1-4 Lamp Ballast
XX=All Lamps On
AB AB AB BA
AAAAAA
BB B B
BB
AA A A
M/S Interties
Master Satellite for:
CF, DP, SP, MP, LC, LI, PP, PR, VP, XP, XA and VR Series
Instant start (1) 2 lamp electronic ballast
INT09I2XXXX  2-1LampsUnits 9'length
INT11I2XXXX  2-1LampsUnits 11'length
Instant start (1) 4 lamp electronic ballast
INT09I4XXXX  2-2LampsUnits 9'length
INT11I4XXXX  2-2LampsUnits 11'length
Instant start (1) 4 lamp and 2 lamp electronic ballast
INT09I42XIO  2-3LampsUnits 9'length
INT11I42XIO  2-3LampsUnits 11'length
Program start (1) 2 lamp electronic ballast
INT09P2XXXX  2-1LampsUnits 9'length
INT11P2XXXX  2-1LampsUnits 11'length
Program start (1) 4 lamp electronic ballast
INT09P4XXXX  2-2LampsUnits 9'length
INT11P4XXXX  2-2LampsUnits 11'length
Instant start (2) 2 lamp electronic ballast for tandem Inline
INT09I22XTI  2-2LampsUnits 9'length
INT11I22XTI  2-2LampsUnits 11'length
Program start also available in tandem inline replace I with P
(e.g: INTO9P22XT I ).
Typical Master Troffer Catalog no.
(e.g:DeepcelFamily=DPA2G18LS332120SO2XX)
Master/Satellite troffer layouts
Lamp Lamp Ballast Ballast
Qty Type Voltage Type Qty (1'x4'only)
2=2Lamp 32=T8120=120V SO=20THD2X=1-2Lamp(2'x2'/2'x4')
3=3Lamp  277=277V HI=10THD22=2-2Lamp
4=4Lamp  4X=1-4Lamp
42=1-2Lamp&1-4Lamp
(ISonly)
44=2-4Lamp
(ISonly)
DPA2G18LS
Typical Satellite catalog no.
(e.g:DeepcelFamily=DPA2G18LS332XXXSO42X)
No Ballast in Must match ballast quantity
Ballast master troffer code in master troffer
SO=20THD Catalog number
HI=10THD
DPA2G18LS
4.132 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Wal-Lyter high performance 2' & 4'
Recessed wall washer/accent luminaires
Wal-Lyter is a high performance wall-washer that delivers an exceptionally even wash of light
fromtheceilinglinetothefloorlineutilizingTT5(BiaxType)compactfluorescentlamps.Itis
much more efficient and more cost effective than most incandescent units producing equivalent
illumination. Wal-Lyter is ideal for highlighting merchandise displays, brightening the walls in
offices illuminating with sharp cut-off parabolics and for many other wall lighting applications.
Features
•Lowiridescentspecularreflectorsystemforprecise
controlled light output.
•Evenlylightsverticalsurfacesordisplays.
•87%energysavingsvs.incandescent.
•1,250lumen(18watt),3150lumen(40watt)Biaxtype
lamp requires fewer fixtures to provide the same wall
illumination as a 60 watt incandescent wallwasher.
•20,000hourslampliferequireslessmaintenancethan
incandescent wallwasher.
•Fitsalllay-ingridceilingsystems.
•One-piecebodyandintegralhangerforeasy,
quick installation.
•UL-Listedaccessplate.
•MeetsNYCCoderequirements.
•WLRKlens,extrudedacrylic(similartoK19pattern),
seepage 4.130.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. 120SB.
Ballast type
Electronic PowerSpec HDF dimming
18W TT5 BA 40W TT5 PB
24W TT5 BB
40W TT5 IB*, PR**
50W TT5 BE
55W TT5 BF
* Instant start.
** Program start.
Drywall kit: Catalog no. WL2DF/
UNV with 2' fixtures and WL4DF/
UNV with 4' fixtures.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Radio interference filter: Suffix: R.
120 or 277 volt at 50 or 60Hz.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Chicago Plenum: Consultfactory.
WLRN124UNVPR 2' fixture, 1 lamp 40 watt TT5
10 1316" (275mm)
10 1316" (275mm)
7 1316" (183mm) Opening
7 1316" (183mm) Opening
4 716"
(113mm)
4 716"
(113mm)
Lens
Footcandles on wall: Fixtures3feetfromwalltooutsidetrimonlampsideoffixture(withoutlens)
Individual Wal-Lyter Multiple Units
0' 1' 2' 3' 4' 5' 6' 7' 8' 4' 6'
Ceiling
8' 76 67 46 25 14 8 5 4 3 107 104 102 104 107 86 79 63 50 63 79 86
7' 64 60 46 29 17 10 7 5 4 102 104 106 104 102 78 75 67 58 67 75 78
6' 47 44 36 24 17 12 8 6 4 85 86 88 86 85 63 62 57 48 57 62 63
5' 33 34 29 24 14 10 8 6 5 66 74 74 74 66 49 50 48 48 48 50 49
4' 26 28 23 20 14 11 8 6 5 59 65 62 65 59 42 45 42 40 42 45 42
3' 19 21 20 17 12 9 8 6 5 48 53 56 53 48 35 36 37 34 37 36 35
2' 15 16 15 13 11 9 8 6 5 42 44 46 44 42 31 31 31 26 31 31 31
1' 13 12 11 11 10 8 7 6 5 38 37 36 37 38 28 26 26 22 26 26 27
Floor
Ordering information
Lamps
qty –type
Lamp
watts
No lens
cat. no.
With lens
cat. no.
1-TT5
18W
24W
40W
50W
55W
WLRN121
WLRN122
WLRN124
WLRN125
WLRN126
WLRK121
WLRK122
WLRK124
WLRK125
WLRK126
NominalLength24"Units
WLRN244UNVPR 4' fixture, 2 lamp 40 watt TT5
10 1316" (275mm)
10 1316" (275mm)
7 1316" (183mm) Opening
7 1316" (183mm) Opening
4 716"
(113mm)
4 716"
(113mm)
Lens
Footcandles on wall fixtures: 3 feet from wall
tooutsidetrimonlampsideoffixture(withoutlens)
Individual Wal-Lyter
0' 1' 2' 3' 4' 5' 6' 7' 8'
Ceiling
8' 111 101 75.5 47.8 28.3 18.1 13.2 10.4 8.7
7' 113 104 81.7 55.7 35.5 23.5 16.6 12.5 9.8
6' 86.4 81.0 66.9 49.8 34.8 24.6 17.7 13.4 10.4
5' 62.5 59.1 51.4 41.6 31.9 24.3 18.4 13.9 10.7
4' 50.5 48.6 42.9 35.6 28.7 22.6 18.0 14.3 11.1
3' 39.7 38.5 34.9 30.0 25.1 20.6 16.9 14.1 11.4
2' 31.1 30.3 28.1 25.0 21.7 18.5 15.7 13.4 11.1
1' 24.2 23.6 22.5 20.8 18.7 16.6 14.6 12.8 11.0
Floor
Ordering information
Lamps
qty –type
Lamp
watts
No lens
cat. no.
With lens
cat. no.
2-TT5
18W
24W
40W
50W
55W
WLRN241
WLRN242
WLRN244
WLRN245
WLRN246
WLRK241
WLRK242
WLRK244
WLRK245
WLRK246
NominalLength48"Units
Wal-Lyter Voltage Ballast Options
High Performance 120=120V Seepage4.132 See page 4.132
Wall Washer 277=277V  andpage4.130
UNV=120-277 V
UNVWLRN124 APR
Example
Integral hanger
fixture: installs easily
with adjustable integral
hanger that clamps to
T bar. Wire fixture
through access plate
without opening lamp
compartment.
 WLRN241UNVPR
10 1316" (275mm)
10 1316" (275mm)
7 1316" (183mm) Opening
7 1316" (183mm) Opening
4 716"
(113mm)
4 716"
(113mm)
Lens
Ordering information
Lamps
qty –type
Lamp
watts
No lens
cat. no.
With lens
cat. no.
2-TT5
Twin tube 18W
WLRN241
–
–
WLRK241
NominalLength48"Units
30˚
60˚
600
1200
1800
Candlepower Curve
30˚
60˚
1200
2400
3600
Candlepower Curve
30˚
60˚
1200
2400
3600
Candlepower Curve
4.133Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Individual Wal-Lyter
0' 1' 2' 3' 4' 5' 6' 7'
Ceiling
8' 49 38 21 12 8 5 4 3
7' 49 42 29 18 12 8 6 4
6' 36 33 25 18 12 8 6 5
5' 27 25 21 16 12 9 7 5
4' 21 20 17 14 11 8 7 5
3' 16 16 14 12 9 8 6 5
2' 13 13 12 10 9 7 6 5
1' 11 10 10 9 8 6 6 5
Floor
WMRL124UNVPR 2' fixture, 1 lamp 40 watt TT5
Ordering information
Lamps
qty –type
Lamp
watts
Catalog
number
1-TT5
18W
24W
40W
50W
55W
WMRL121
WMRL122
WMRL124
WMRL125
WMRL126
NominalLength24"Units
Walmaster 2' & 4'
Recessed wall washer/accent luminaires
Walmaster is a high performance luminaire with low-iridescence semi-specular
reflectors that do not protrude below the ceiling line. This provides a clean appearance
whilecontrollingthelightoutputofaT8orTT5(twintube)lamptoilluminatevertical
surfaces uniformly.
Features
•Lowiridescentspecularreflectorsystemfor
precise controlled light output.
•Evenlylightsverticalsurfacesordisplays(noscallops).
•87%energysavingsvs.incandescent.
•Lessthan3:1maximumtominimumwallillumination
when installed 6 feet on center.
•20,000hourslampliferequireslessmaintenancethan
incandescent.
•Noedgesprotrudebelowceilingline.
•Canbeinstalledonly2feetfromwalltofarthestedge
offixture(3'maximum).
•Fitsallstandardandnarrowgridceilingsystems.
•One-piecebodyandintegralhangerforeasy,
quick installation.
•SidesoffixturecansupporttileorsitonT-bar.
•ULListedaccessplate.
•MeetsNYCCoderequirements.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. 120SB.
Ballast type
Electronic PowerSpec HDF dimming
18W TT5 BA 40W TT5 PB
24W TT5 BB T8 PS†
40W TT5 IB*, PR**
50W TT5 BP
55W TT5 BF
T8 HI*
* Instant start. † 4' unit only
** Program start.
Drywall kit: Catalog no. WL2DF/UNV
with 2' fixtures and WL4DF/UNV with 4' fixtures.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
24" (610mm)
7 ⅞"
(178mm)
4 716"
(113mm)
24" (610mm)
7 ⅞"
(178mm)
4 716"
(113mm)
WMRL244UNVPR 4' fixture, 2 lamp 40 watt TT5
48" (1220mm)
7 ⅞" (178mm)
4 716"
(113mm)
48" (1220mm)
48" (1220mm)
7 ⅞" (178mm)
4 716"
(113mm)
48" (1220mm)
Ordering information
Lamps
qty –type
Lamp
watts
Catalog
number
2-TT5
18W
24W
40W
50W
55W
WMRL241
WMRL242
WMRL244
WMRL245
WMRL246
NominalLength48"Units
Individual Wal-Lyter
0' 1' 2' 3' 4' 5' 6' 7' 8'
Ceiling
8' 116 88 51 30 19 13 13 10 8
7' 119 102 71 45 29 19 19 14 11
6' 92 83 64 45 31 22 22 16 12
5' 69 64 53 40 30 22 22 16 13
4' 52 50 43 35 27 21 21 17 13
3' 40 39 35 30 24 19 19 16 13
2' 32 31 29 25 21 17 17 15 12
1' 26 25 23 21 18 15 15 13 12
Floor
WMRL143UNVHI4' fixture, 1 lamp 32 watt T8
48" (1220mm)
7 ⅞" (178mm)
4 716"
(113mm)
48" (1220mm)
48" (1220mm)
7 ⅞" (178mm)
4 716"
(113mm)
48" (1220mm)
Ordering information
Lamps
qty –type
Lamp
watts
Catalog
number
1-T8 32W WMRL143
NominalLength48"Units
Drywall kit:
WL2DF/UNV
with 2' fixtures
WL4DF/UNV
with 4' fixtures
Integral Hanger Fixture:
installs easily with adjustable
integral hanger that clamps
to T bar. Wire fixture
through access plate without
opening lamp compartment.
Walmaster Voltage Ballast Options
High Performance 120=120V Seepage4.133 See page 4.133
Wall Washer 277=277V  andpage4.130
UNV=120-277 V
UNVWMRL124 APR
Example
30˚
60˚
600
1200
1800
Candlepower Curve
30˚
60˚
1200
2400
3600
Candlepower Curve
30˚
60˚
550
1100
1650
Candlepower Curve
4.134 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Bi-lyter2'&4'
Surface wall washer or indirect wall mount luminaires
Features
•Samefixturecanbeusedasawallwasherwhenceiling
mounted, or for indirect lighting when wall mounting.
•Only4"deep.
•MeetsADAwhenwallmounted.
•Softroundedcornersandedgescreatean
elegant appearance.
•20gaugecoldrolledsteelbody.
•Specularreflector.
•Novisiblehardware.
•4'unit2-TT5or1-T8lamp.
•2'unitTT5lamp.
•Flatwhitebakedacrylicfinish(standard).
•Canbeusedincontinuousrows.Consultfactory.
•MeetsNYCCoderequirements.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
TT5 IB* SB
T8 HI* SO*
* 4' unit only
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Wall mount spacer: Order BL spacer.
For uneven walls or a floating visual effect.
Continuous row coupler: Order BL coupler.
T-Grid mounting: Order BL mount.
BLSF124120SB
4 "
(102mm)
4 ⅜" (111mm)
Ceiling Ordering information
Length Lamps
qty –type
Lamp
watts
Catalog
number
24" 1-TT5
18W
24W
40W
50W
55W
BLSF121
BLSF122
BLSF124
BLSF125
BLSF126
48"2-TT5
18W
24W
40W
50W
55W
BLSF241
BLSF242
BLSF244
BLSF245
BLSF246
48" 1-T8 32W BLSF143
30˚
60˚
400
800
Candlepower Curve
Bi-lyter Voltage Ballast Options
Surface Wall or 120=120V Seepage4.134 See page 4.134
Ceiling Mounted 277=277V  andpage4.130
UNV=120-277 V
120BLSF124 ASB
Example
For flat white finish order BLSF. (e.g: BLSF126120SB)
Wall washer
Indirect wall mount
4 "
(102mm)
4 ⅜" (111mm)
4"(102mm)
4 ⅜"
(111mm)
Wall
Footcandles on wall: Fixtures3feetfromwalltooutsidetrimonlampsideoffixture(WallWasher)
Individual Wal-Lyter Multiple Units Continuous Row
0' 1' 2' 3' 4' 5' 6' 7' 8' 4' 6' 0' 1' 2' 3' 4' 5' 6' 7' 8'
Ceiling
8' 4 5 6 9 14 25 46 72 86 100 98 92 98 100 93 82 60 50 60 82 93 157 184 199 204 207 204 199 184 157
7' 4 5 6 9 14 24 40 60 70 83 84 81 84 83 76 69 54 47 54 69 76 134 158 170 176 178 176 170 158 134
6' 4 5 6 9 13 20 31 42 47 59 63 63 63 59 53 51 44 41 44 51 53 101 118 128 134 135 134 128 118 101
5' 4 5 6 7 10 16 22 27 30 40 43 43 43 40 35 35 32 31 32 35 35 71 82 89 93 94 93 89 82 71
4' 3 4 5 6 8 10 13 15 17 24 26 26 26 24 21 21 21 21 21 21 21 45 51 55 57 58 57 55 51 45
3' 3 3 4 5 6 7 8 9 9 15 16 16 16 15 13 14 14 14 14 14 13 30 33 35 36 36 36 35 33 30
2' 3 3 3 4 4 5 5 6 6 10 10 11 10 10 9 9 9 9 9 9 9 21 23 24 25 25 25 24 23 21
1' 2 3 3 3 3 4 4 4 4 8 8 8 8 8 7 7 7 7 7 7 7 17 17 18 18 19 18 18 17 17
Floor
Small office application
OnlyfourBy-Lyters55wattlamp
are required to illuminate a 12' x 12'
(80/80/50)officespaceto50maintained
footcandles with only 1.68 watts per
square foot.
Luminaire:mounted18"
from ceiling 12' x 12' Office
Space with a9' Ceiling Height
Reflectance: 80% Ceiling,
80%Wall, 50% Floor.
Reported numbers are
maintained footcandles at
desk top level with 55 watt
lamp. Footcandle readings
will vary depending on room
reflectance.
6 1116"
(170mm) 8 ¾" (222mm)
⅞" (22mm)
Dia K.O.
932" (7mm)
Mounting Hole
25 1516" (659mm)
4 ⅜"
(111mm)
⅞" (22mm)
Dia K.O. 9 1516" (252mm) Mounting Holes
22 1316" (579mm) 49 1516" (1268mm)
10" (254mm)
20 ⅛" (511mm)
4 ⅜"
(111mm)
2" Unit
4" Unit
4.135Comprehensive Lighting Catalog 7th Edition
MD*4 & MD*2 > 4.138
MD* Coffer > 4.140
MD*A Assymetric > 4.142
OBL&SUS432/632 > 4.144
Contents
Medical luminaires
4.136 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Medical luminaires
Hospital patient room lighting
Philips Lightolier’s MD* series luminaires combine all of the lighting functions in a patient’s
room into a single, ceiling-mounted luminaire. Removing lighting from walls and other
locations where it may be interfering with equipment and prone to damage. It supports a
friendly and more residential design for the entire room.
MD*4 installs at the edge of the
ceiling and provides ambient, reading,
examination, and night lighting – all from
carefully shielded sources. MD*Coffer
installs12-18"fromthewallandprovides
the same lighting functions, using an
indirect coffer for the ambient and
reading light.
4.137Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Medical luminaires
Hospital patient room lighting
•Indirectambientlightwithperforated
mesh shield.
•Fourintegrallightingfunctions:indirect
ambient, direct reading, examination
and optional night light.
•Installsasaone-pieceunit.
•Preciselightcontrolforglare-free
patient environment.
•Recessedorsurfacemountedtoceiling
which eliminates damage to fixture
from hospital equipment attached to
patient's bed.
•Optionallowvoltageelectronic
sequential switch mounted in fixture
for ambient and reading light controlled
withpillowspeaker(optionalbyothers).
•MeetsNYCCoderequirements.
Chicago Plenum requirements available.
.
•6⅞"deep.
•Alllampsareshielded.
•AlltwintubeT5lampsareaccessible
for relamping without tools.
•Fourlightingfunctionswithintegral
ambient, reading, examination and
optional night light.
•Installsasaone-pieceunit.
•Preciselightcontrolforglarefree
patient environment.
•Recessedorsurfacemountedtoceiling
against wall directly behind patient
which eliminates damage to fixture
from hospital equipment attached to
patients bed.
•Optionallowvoltageelectronic
sequential switch mounted in fixture
for ambient and reading light controlled
withpillowspeaker(optionalbyothers).
•MeetsNYCCoderequirements.
Chicago Plenum requirements available.
•6⅞"deep.
•Alllampsareenclosed.
•AlltwintubeT5lampsareaccessible
for relamping without tools.
MD*4 Series
MD* Coffer
MD*4 Style 3 (AWoption)
All components white
For single patient room
MD* Coffer style
MD*4 Style 2(FFoption)
White louver and
horizontal surfaces
toblend with ceiling
For multiple patient room
Lighted
Zone
Lighted
Zone
Lighted
Zone
Lighted
Zone
Optional LED Night Light
Night Light:120Vor277V,3watt,coolwhite
LED(50,000hourslife-suppliedwithfixture).
Suffix: LD (available on MD*4only).
Lighted
Zone
Shielded
Zone
Lighted
Zone
Shielded
Zone
4.138 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•2x4Unithasfourlightingfunctionswithintegral
ambient, reading, examination and optional nurse’s
nightlight.
•Specularaluminumreflectorsforpreciselightcontrol
and glare free patient environment.
•Installsasaone-pieceunit.Recessedorsurface
mounted to ceiling against wall directly behind patient.
•Eliminatesdamagetoluminairefromhospitalequipment
attached to patient bed.
•6⅞"deep.
•Topwiringaccessplateisstandard.
•Alllampsareenclosed.
•AllTT5typelamps(notincluded)areaccessiblefor
relamping without tools.
•Rugged20gaugesteelhousing.
•Optionallowvoltage(1-3volts)electronicsequential
switch mounted in luminaire for ambient and reading
lightcontrolledwithpillowswitch(byothers).
•ExaminationLightin2x4has36cellspecularaluminum
parabolic louver with pattern 12 lens overlay.
Options & accessories
Electronic (low voltage) sequential switch:
Switch factory mounted in luminaire for ambient and
reading light convenience (controlled by pillow switch,
byothers).Suffix:SW.
Nurse night light:120Vmediumbase,narrowspot,
50W PAR 20 reflector lamp included with specular
anodized mirror, field adjustable to right or left side of
patients bed. Suffix: NL.TheLEDNightLight120Volt,
3W, cool white LED (50,000 hours life - supplied with
fixture).Suffix:LD
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Tamper proof: Order Germ Shield.
Germ shield: Order Cat. no., MD4CLGS24(2x4).
Germshield can only be used with recessed MD*4.
48" (1220mm)
Wall angle
or T-bar
by others
Acoustical tile by others
Secure Luminaire
(4 Places)
Ceiling
Wall
Wall
48" (1220mm)
6 ⅞"
(175mm)
MD*4 2' x 4'
Sequential switch (SW)
Ordering information
Type Cells Examination
light shielding
Lamps
qty –type* Ballast type Grid ceiling
MD*4 2x4
Ambient,
Reading and
Examination
Light
36 Traditional Specular Louver 6-TT5
5-TT5 40W Electronic MD4GPSVA2SB4SB
MD4GPSVA2SB3SB
36 Louver with
all White Components
6-TT5
5-TT5 40W Electronic MD4GAWVA2SB4SB
MD4GAWVA2SB3SB
36 White Louver with
White Horizontal Surface
6-TT5
5-TT5 40W Electronic MD4GFFVA2SB4SB
MD4GFFVA2SB3SB
* Include 2-TT5 for ambient / reading section.
MD*4 Voltage Options Options Options
Multi-function 120=120V SW=Electronic LD=3WLED Seepage4.138
Examination Luminaire 277=277V SequentialSwitch NursesNightLight
120MD4GPSVA2SB4SB SW
Example A
•Excellentcolor
rendition. (82
CRI TT5 Type
lamp).
•Wiredfor
independent
switching
(1or2circuit).
Numbersinparenthesis()aretotal
footcandle level of ambient and
reading lights only.
FootcandlesonBed(withSpecularLouver)
(TotalsofAmbient,Reading&Examinationlights)
Reading light
•Eliminatesreflectedglarefromreading
material(overtheshoulderillumination).
•Nodirectglaretopatientorvisitors.
(7 footcandles maximum at head of bed.
15footcandlesmaximumatfootofbed.).
•Controlslightdirectlyontopatientsbed.
•Noreadinglightspill-overtoadjacent
beds. (1 footcandle maximum at head
ofadjacentpatient’sbed.)
2 2 2 2 2 2 1 1 1 1 1 1
3 3 3 3 3 2 2 2 1 1 1 1
6 7 7 7 6 4 3 3 2 2 1 1
33 38 39 38 33 23 16 12 9 5 3 2
30 38 38 38 30 23 15 12 8 6 3 2
14 15 15 15 14 11 9 7 5 4 2 2
5 5 5 5 5 5 4 4 2 2 1 1
BED
WALL
Reading Light/On
3"
6"
Adjacent MD*4 Off
BED 12"
3"
6"
12"
FootcandlesonBeds(Horizontal)
Illumination at the
reading task ranges
50-80 footcandles.
Examination light
MD*4 series 2' x 4'
Multi-function patient room luminaire
(ambient/reading/examination/nurse’s night light)
MD*4 combines all of the lighting functions in a patient’s room in a single luminaire that is
ceiling mounted to permit clean headwalls. This enables architects and interior designers to
create a more home-like environment and moves the light luminaire off the wall, a location
where it can be damaged easily or interfere with medical equipment. MD*4 is more efficient
and more economical than all other patient lighting systems.
4.139Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
MD*2 series 2' x 2'
Multi-function patient room luminaire
(ambient/reading/nurse’s night light)
MD*4 combines all of the lighting functions in a patient’s room in a single luminaire that is
ceiling mounted to permit clean headwalls. This enables architects and interior designers to
create a more home-like environment and moves the light luminaire off the wall, a location
where it can be damaged easily or interfere with medical equipment. MD*4 is more efficient
and more economical than all other patient lighting systems.
Features
•2x2Unithasthreelightingfunctionswithintegral
ambient, reading, and optional nurse’s night light.
•Specularaluminumreflectorsforpreciselightcontrol
and glare free patient environment.
•Installsasaone-pieceunit.Recessedorsurface
mounted to ceiling against wall directly behind patient.
•Eliminatesdamagetoluminairefromhospitalequipment
attached to patient bed.
•6⅞"deep.
•Topwiringaccessplateisstandard.
•Alllampsareenclosed.
•AllTT5typelamps(notincluded)areaccessiblefor
relamping without tools.
•Rugged20gaugesteelhousing.
•Optionallowvoltage(1-3volts)electronicsequential
switch mounted in luminaire for ambient and reading
lightcontrolledwithpillowswitch(byothers).
Options & accessories
Electronic (low voltage) sequential switch:
Switch factory mounted in luminaire for ambient and
reading light convenience (controlled by pillow switch,
byothers).Suffix:SW.
Nurse night light:120Vmediumbase,narrowspot,
50W PAR 20 reflector lamp included with specular
anodized mirror, field adjustable to right or left side of
patients bed. Suffix: NL.TheLEDNightLight120Volt,
3W, cool white LED (50,000 hours life - supplied with
fixture).Suffix:LD
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Tamper proof: Order Germ Shield.
Germ shield: Order Cat. no., MD4CLGS22(2x2).
Germshield can only be used with recessed MD*2.
Sequential switch (SW)
Ordering information
Type Lamps
qty –type Ballast type Grid ceiling
MD*2 2x2
Ambient and
Reading Light
2-TT5 40W Electronic MD2G2SB
Reading light
•Eliminatesreflectedglarefromreading
material(overtheshoulderillumination).
•Nodirectglaretopatientorvisitors.
(7 footcandles maximum at head of bed.
15footcandlesmaximumatfootofbed.).
•Controlslightdirectlyontopatientsbed.
•Noreadinglightspill-overtoadjacent
beds. (1 footcandle maximum at head of
adjacentpatient’sbed.)
2 2 2 2 2 2 1 1 1 1 1 1
3 3 3 3 3 2 2 2 1 1 1 1
6 7 7 7 6 4 3 3 2 2 1 1
33 38 39 38 33 23 16 12 9 5 3 2
30 38 38 38 30 23 15 12 8 6 3 2
14 15 15 15 14 11 9 7 5 4 2 2
5 5 5 5 5 5 4 4 2 2 1 1
BED
Illuminating at the reading task ranges 50-60 footcandles
WALL
Reading Light/On
3"
6"
Adjacent MD*4 Off
BED 12"
3"
6"
12"
FootcandlesonBeds(Horizontal)
Ambient light
•Indirectilluminationfromwall
directly behind patient provides
glare-free lighting.
•Nodirectglaretopatient(Lightis
directedtowardswall).
•Nodirectglaretopatientsvisitor.
•Nodirectglaretoadjacentpatients.
(3 footcandles maximum on wall
behindadjacentpatient’sbed.)
Ambient Light/On Adjacent MD*4/Off
Reading Light/On Adjacent MD*4/Off
MD*2 Voltage Options Options Options
Multi-function 120=120V SW=Electronic LD=3WLED Seepage4.139
Patient Luminaire 277=277V SequentialSwitch NursesNightLight
120MD2G2SB SW
Example A
6 ⅞"
(175mm)
24" (610mm)
24" (610mm)
Wall angle
or T-bar
by others
Acoustical tile
by others
Ceiling
Wall
Wall
Secure
Luminaire
(4 Places)
MD*2 2' x 2' 2 types of lighting: ambient & reading
Illumination at the
reading task ranges
50-80 footcandles.
4.140 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•2x4Unithasfourlightingfunctionswithintegral
ambient, reading, examination and optional nurse’s
nightlight.
•Specularaluminumreflectorsforpreciselightcontrol
and glare free patient environment.
•Installsasaone-pieceunit.Recessedorsurface
mounted to ceiling against wall directly behind patient.
•Eliminatesdamagetoluminairefromhospitalequipment
attached to patient bed.
•Topwiringaccessplateisstandard.
•AllTT5typelamps(notincluded)areaccessiblefor
relamping without tools. All lamps are enclosed.
•Rugged20gaugesteelhousing.
•Optionallowvoltage(1-3volts)electronicsequential
switch mounted in luminaire for ambient and reading
lightcontrolledwithpillowswitch(byothers).
•ExaminationLightin2x4has36cellflatwhitebaked
enamel louver with pattern 12 lens overlay.
•Perforatedmeshshieldforambient/readingsection.
Options & accessories
277V:Change120to277(e.g.MDCGWSVA2SB4SB120,
changestoMDCGWSVA2SB4SB277).
Electronic (low voltage) sequential switch:
Switch factory mounted in luminaire for ambient and
reading light convenience (controlled by pillow switch,
byothers).Suffix:SW.
9/7 Watt night light: Suffix: PL(Lampnotincluded).
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Tamper proof: Order Germ Shield.
Germ shield: Order Cat. no., MD4CLGS24(2x4).
Germshield can only be used with recessed MD* Coffer.
MD*Coffer 2' x 4'
Sequential switch (SW)
Ambient light
•IndirectilluminationfromTT5shielded
by perforated mesh shield with white
acrylic overlay.
•Nodirectglaretopatient.
•Nodirectglaretopatientsvisitor.
•Nodirectglaretoadjacentpatients.
Lighted
Zone 14 15 15 14 12 12 7
14 16 16 14 12 12 8
14 15 15 14 12 12 7
12"
6" 12"
3"fromWall
FootcandlesonBed
Bed
17 21 23 28 33 6 5
18 22 24 29 35 6 5
17 21 23 28 33 6 5
12"
6" 12"
3"fromWall
FootcandlesonBed
Bed
Illumination at the reading task
ranges 45-50 footcandles.
Ordering information
Type Cells Examination
light shielding
Lamps
qty –type* Ballast type Grid ceiling
MD* Coffer 2x4
Ambient, Reading
and Examination Light
36 White Louver with
Prismatic Overlay
6-TT5
5-TT5 40W Electronic MDCGWSVA2SB4SB
MDCGWSVA2SB3SB
* Include 2-TT5 for ambient / reading section.
MD* Coffer 2x4 Voltage Options Options Options
Multi-function 120=120V SW=Electronic PL =Nurses Seepage4.140
Examination Luminaire 277=277V SequentialSwitch NightLight
120MDCGWSVA2SB4SB PLSW
Example A
Reading light
•Eliminatesreflectedglarefromreading
material(overshoulderillumination).
•Nodirectglaretopatientorvisitors.
•Controlslightdirectlyontopatient’sbed.
Lighted
Zone
Examination light
•Excellentcolorrendition.Wiredfor
independentswitching(1or2circuit).
•Optionallouverorlensframe.
•Concealedhingingandlatching.
Lighted
Zone 68 85 93 99 100 65 49
(31)(36)(38)(42)(45)(18)(12)
73 89 99 104 106 68 53
(32)(38)(40)(43)(47)(18)(13)
68 85 93 99 100 65 49
(31)(36)(38)(42)(45)(18)(12)
12"
6" 12"
3"fromWall
FootcandlesonBed
Bed
Numbersinparenthesis()aretotal
footcandle level of ambient and
reading lights only.
48" (1220mm)
6 ⅞"
(175mm)
Wall
Mount
12" - 18"
from wall
Mount
12" - 18"
from wall
9'6" max.
mounting height
Ceiling
Wall angle
or T-bar
by others
Acoustical tile by others
48" (1220mm)
Wall
Secure Luminaire
(4 Places)
MD* Coffer 2' x 4'
Multi-function patient room luminaire
(ambient/reading /examination /nurse’s night light)
MD* Coffer combines all of the lighting functions in a patient’s room in a single luminaire that
is ceiling mounted to permit clean headwalls. This enables architects and interior designers
to create a more home like environment and moves the light luminaire off the wall, a
location where it can be damaged easily or interfere with medical equipment. MD*Coffer
ismore efficient and more economical than all other patient lighting systems.
4.141Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
MD* Coffer 2' x 2'
Multi-function patient room luminaire
(ambient/reading /nurse’s night light)
MD* Coffer combines all of the lighting functions in a patient’s room in a single luminaire that
is ceiling mounted to permit clean headwalls. This enables architects and interior designers
to create a more home like environment and moves the light luminaire off the wall, a
location where it can be damaged easily or interfere with medical equipment. MD*Coffer
ismore efficient and more economical than all other patient lighting systems.
MD*Coffer 2' x 2' 2 types of lighting: ambient & reading
Nightlight(optional)
•Indirect9or7wattPLlampshielded
by perforated mesh with internal
white acrylic overlay.
•Noglaretoanypatient.
•Wiredforindependentswitching.
Ambient light
Reading light
•Eliminatesreflectedglarefromreading
material(overshoulderillumination).
•Nodirectglaretopatientorvisitors.
•Controlslightdirectlyontopatient’sbed.
•IndirectilluminationfromTT5shielded
by perforated mesh shield with white
acrylic overlay.
•Nodirectglaretopatient.
•Nodirectglaretopatientsvisitor.
•Nodirectglaretoadjacentpatients.
Lighted
Zone
Lighted
Zone
14 15 15 14 12 12 7
14 16 16 14 12 12 8
14 15 15 14 12 12 7
12"
6" 12"
3"fromWall
FootcandlesonBed
Bed
17 21 23 28 33 6 5
18 22 24 29 35 6 5
17 21 23 28 33 6 5
12"
6" 12"
3"fromWall
FootcandlesonBed
Bed
Illumination at the reading task
ranges 45-50 footcandles.
3 4 3 3 2 2 1
3 4 3 3 2 2 1
3 4 3 3 2 2 1
12"
6" 12"
3"fromWall
FootcandlesonBed
Bed
Features
•2x2Unithasthreelightingfunctionswithintegral
ambient, reading, and optional nurse’s night light with
perforated mesh shield.
•Specularaluminumreflectorsforpreciselightcontrol
and glare free patient environment.
•Installsasaone-pieceunit.Recessedorsurface
mounted to ceiling against wall directly behind patient.
•Eliminatesdamagetoluminairefromhospitalequipment
attached to patient bed.
•Topwiringaccessplateisstandard.
•AllTT5typelamps(notincluded)areaccessiblefor
relamping without tools. All lamps are enclosed.
•Rugged20gaugesteelhousing.
•Optionallowvoltage(1-3volts)electronicsequential
switch mounted in luminaire for ambient and reading
lightcontrolledwithpillowswitch(byothers).
•Perforatedmeshshieldforambient/readingsection.
Options & accessories
277V:Change120to277(e.g.MDCGWSVA2SB4SB120,
changestoMDCGWSVA2SB4SB277).
Electronic (low voltage) sequential switch:
Switch factory mounted in luminaire for ambient and
reading light convenience (controlled by pillow switch,
byothers).Suffix:SW.
9/7 Watt night light: Suffix: PL(Lampnotincluded).
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Tamper proof: Order Germ Shield.
Germ shield: Order Cat. no., MD4CLGS22(2x2).
Germshield can only be used with recessed MD* Coffer.
Sequential switch (SW)
6 ⅞"
(175mm)
24" (610mm)
Wall angle
or T-bar
by others
Wall Ceiling
Mount
12" - 18"
from wall Mount
12" - 18"
from wall
9'6" max.
mounting height
Secure
Luminaire
(4 Places)
Acoustical tile
by others
24" (610mm)
Wall
Ordering information
Type Lamps
qty –type* Ballast type Grid ceiling
MD* Coffer 2x2
Ambient, Reading 2-TT5 40W Electronic MDCG2SB
MD* Coffer 2x2 Voltage Options Options Options
Multi-function 120=120V SW=Electronic NL =Nurses Seepage4.141
Patient Luminaire 277=277V SequentialSwitch NightLight
120MDCG2SB PLSW
Example A
4.142 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
MD*A6"x48"
Recessed fluorescent multi-function patient luminaire asymmetric
examination and ambient lighting
With the ever-increasing amounts of medical equipment needing headwall space and an
overall desire to create a comforting, home-like environment, the Philips Lightolier MD*A
meets these challenges.
The Philips Lightolier MD*A offers three
integral lighting functions: ambient light,
examination light and an optional wall switch
controlled night light. The ambient light
provides a soft level of light that is perfect
for general illumination. The examination
light produces shadow-free illumination over
the entire bed. When these two modes are
switched on simultaneously, very high light
levels are achieved, up to 120 footcandles.
Ideally installed in opposing pairs over the
bed. The Philips Lightolier MD*A can be
ordered as two individual luminaires for wall
switch operation. Or as Master and Satellite
luminaires utilizing our optional sequential
switch, giving the patient the ability to
control the aforementioned functions from a
pillow switch.
Ordering information
Explanation of Individual MD*A luminaire Catalog number. Example: MDA6G254117120PGP2
MD*Asymmetric Fixture width Ceiling type Exam lamp Ambient lamp Voltage Exam ballast Ambient ballast
MDA 6 G 254 117 120 PG P2
Explanation of Master MD*A luminaire Catalog number with sequential switch. Example: MDA6G254117120PGP2-SW
MD*Asymmetric Fixture width Ceiling type Exam lamp Ambient lamp Voltage Exam ballast Ambient ballast Sequence switch
MDA 6 G 254 117 120 PG P2 SW
Explanation of Satellite MD*A luminaire Catalog number with sequential switch. Example: MDA6G254117120PGXX-SW
MD*Asymmetric Fixture width Ceiling type Exam lamp Ambient lamp Voltage Exam ballast Ambient ballast Satellite Sequence switch
MDA 6 G 254 117 120 PG P2 XX SW
4.143Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Only available in the Individual
or Satellite luminaire. Suffix: NL.
MD*A6"x48"
Recessed fluorescent multi-function patient luminaire asymmetric
examination and ambient lighting
Ambient light
Indirect illumination from either two 17W
T8 or two 24 watt T5HO two foot lamps.
•Nodirectglaretopatient.
•Nodirectglaretopatient'svisitor.
•Lowlevelofilluminationcomfortable
for visitors or viewing television.
Examination light
Excellent color rendition given
by four 54 watt T5HO lamps.
•Wiredfortandemswitching.
Ambient and examination light
Full light level output.
•Lensencloseslampswithinluminaire.
Two 17W T8 Lamps
footcandle levels*
Four 54W T5HO Lamps
footcandle levels*
Two 17W T8 Lamps
and Four 54 Watt T5HO
Lamps, footcandle levels*
7
9
10
10
8
8
10
10
9
7
8
10
11
10
8
79
100
106
99
79
79
99
106
100
79
84
106
114
106
84
82
101
108
101
80
80
101
108
101
82
89
108
117
108
88
Two 24W T5HO Lamps
footcandle levels*
Four 54W T5HO Lamps
footcandle levels*
Two 24W T5HO Lamps
and Four 54 Watt T5HO
Lamps, footcandle levels*
10
13
15
15
12
12
15
15
13
10
11
15
16
15
11
79
100
106
99
79
79
99
106
100
79
84
106
114
106
84
85
104
111
106
86
86
106
111
104
85
92
111
120
110
92
Two 17W T8 Lamps
footcandle levels*
Four 54W T5HO Lamps
footcandle levels*
Two 17W T8 Lamps
and Four 54 Watt T5HO
Lamps, footcandle levels*
7
9
10
10
8
8
10
10
9
7
8
10
11
10
8
79
100
106
99
79
79
99
106
100
79
84
106
114
106
84
82
101
108
101
80
80
101
108
101
82
89
108
117
108
88
Two 24W T5HO Lamps
footcandle levels*
Four 54W T5HO Lamps
footcandle levels*
Two 24W T5HO Lamps
and Four 54 Watt T5HO
Lamps, footcandle levels*
10
13
15
15
12
12
15
15
13
10
11
15
16
15
11
79
100
106
99
79
79
99
106
100
79
84
106
114
106
84
85
104
111
106
86
86
106
111
104
85
92
111
120
110
92
Two 17W T8 Lamps
footcandle levels*
Four 54W T5HO Lamps
footcandle levels*
Two 17W T8 Lamps
and Four 54 Watt T5HO
Lamps, footcandle levels*
7
9
10
10
8
8
10
10
9
7
8
10
11
10
8
79
100
106
99
79
79
99
106
100
79
84
106
114
106
84
82
101
108
101
80
80
101
108
101
82
89
108
117
108
88
Two 24W T5HO Lamps
footcandle levels*
Four 54W T5HO Lamps
footcandle levels*
Two 24W T5HO Lamps
and Four 54 Watt T5HO
Lamps, footcandle levels*
10
13
15
15
12
12
15
15
13
10
11
15
16
15
11
79
100
106
99
79
79
99
106
100
79
84
106
114
106
84
85
104
111
106
86
86
106
111
104
85
92
111
120
110
92
Optional 3 watt LED night light
*Footcandle levels based on an opposing pair of MD*A luminaries.
36"
72"
42"
Ambient
Exam
Exam & Ambient
4 1516" (126mm)
6" (152mm)
6"
(152mm)
5 ¾" (146mm)
20 Gauge
steel housingExam light (2) 54w T5HO
lamps (by others)
Ambient light
(1) 17W T8
or 24W T5HO
(by others)
Miro 4
reflector
Lens hold
down latch
Asymmetric prismatic lens
36"
72"
42"
Ambient
Exam
Exam & Ambient
4 1516" (126mm)
6" (152mm)
6"
(152mm)
5 ¾" (146mm)
20 Gauge
steel housingExam light (2) 54w T5HO
lamps (by others)
Ambient light
(1) 17W T8
or 24W T5HO
(by others)
Miro 4
reflector
Lens hold
down latch
Asymmetric prismatic lens
4.144 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•Fornursinghomes,hospitalsandotherhealth
care facilities.
•Separatelampcompartmentsforcontrolled
uplight anddownlight.
•Four-waypullswitch,standard(120voltonly).
•.125thickDRacryliclinearprismaticrefractor.
(impactresistant).
•Flatwhitefasciastandard.
•Coldrolledsteelbodywithdie-castaluminumends.
•Concealedpull-actionspring-loadedlatches
to retainlens.
•Optionaloakfasciainsert.
•Optionallowvoltageelectronicsequentialswitch
for push button control of up/down lighting.
UL 544 listed. Includes phone jack type receptacle.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. 277SO.
Ballast type <10THD <20THD
T8 HI PS
6 116"
(154mm)
5 916" (141mm)
Pull Switch
Switching
4Lamps=1,2,3,4
3Lamps=1,2,4
2Lamps=2,4
30˚
60˚
120˚
150˚
1000
500
0
500
Candlepower Curve
6'
3'
side view
50 FC reading plane
(60˚ from horizontal)
3-6' reading
plane
Reading Position
Over-Bed Wall Mounted Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.144 See page 4.144
277=277V  andpage4.216
120OBL332 RSO
Example
Ordering information
Lamp Configuration Size Lamp qty –type Catalog no.
2 Up/1 Down
2 Up/2 Down
1 Up/1 Down
48"
3-T8
4-T8
2-T8
OBL332
OBL432
OBL232
Optional fascia insert: Oak—to order substitute
Kfor L in Catalog no. (e.g. OBL332 to OBK332).
Momentary button cordset: Traditional “Winged”
Pendant Design ESD protection to 15000 volts. Heavy
duty7"cable.Consultfactory.
Nite light: Consultfactory.
Radio interference filter: Suffix: R.
120 or 277 volt at 50 or 60Hz.
Electronic (low voltage) sequential switch: Switch
factory mounted in fixture for Up and Down Light
Operation from pillow switch, UL544 listed. Includes
phone jack type receptacle. Consultfactory.
(120Vor277V).
OBLOver-bedlight
Features
•2unitsprovide123averagefootcandlesonpatientsbed
when installed over each end of bed.
•Utilizes2-2lampelectronicballast.
•Utilizes4-40wattBiaxtypelampswithexcellentcolor
rendition(82CRI).
•31/2"x31/2"cellsize.
•Doorjambwithintegralpositivelightstop.
•Spring-loadedlatches.
•Integralearthquakeclip.
Options & accessories page 4.130
Ballast: Electronic 120 volt standard. For 277 volt,
change 120 to 277 (e.g. MDS2G36PS4FT277SB).
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Radio interference filter: Suffix: R.
120 or 277 volt at 50 or 60Hz. One per fixture standard.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Note: For concealed spline, plaster or drywall ceiling, use “G”
typefixtures with either: S2X2FKIT,orDrywallkit,FK92X2.
MDS2G36PS4FT120SB
MD*4 2' x 2'
Recessed 36 cell with prismatic overlay examination luminaire
5"
(127mm)
24" (610mm)
Reference data
Efficiency 55.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 132.0W
LuminaireEff.(LER) 31.3
WALL 3"
6"
12"
12"12"12"12"
C L C L
52.5 54.8 52.7 106 111 107
63.9 66.8 64.1 119 125 120
74.5 78.0 74.7 128 134 129
77.9 81.6 78.1 133 139 133
75.6 79.1 75.8 132 138 133
68.6 71.8 68.8 123 129 123
57.6 60.3 57.9 109 114 110
InitialFootcandlesonBed
1 Fixture 2 Fixture
Ordering information
Type Cells Examination
light shielding T-Grid Slot-T or Concealed-T
MD*4 2x2
Recessed
Examination
Light
36 Low iridescence specular louver
w/prismatic overlay MDS2G36PS4FT120SB MDS2T36PS4FT120SB
36
Low iridescence
semi-specular louver
w/prismatic overlay
MDS2G36LS4FT120SB MDS2T36LS4FT120SB
Examination Light Voltage Ballast Options
Direct/indirect recessed 120=120V Seepage4.144 See page 4.144
277=277V  andpage4.130
120MDS2G36PS4FT ASB
Example
30˚
60˚
1800
3600
Candlepower Curve
OBLseries
Over-bed, wall mounted luminaire
4.145Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
SUS 432/632
Over-bed, wall mounted luminaire
30˚
60˚
2400
3400
4400
Candlepower Curve
Ordering information
Lamp
qty –type
Exposed
T-Grid
Flanged for
dry or plaster
6-T8 SUS2GFSMA632 SUS2FFSMA632
SUS2GFSMA632UNVH6
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
Features
•Asymmetric/symmetricdistribution
provides:Supplemental illumination to operating tables.
•Minimizescontrastbetweensurgicalandsurrounding
areas.
•MeetsgovernmentspecificationforRadioFrequency
Interference(RFI),MIL-STD461-A,MIL-STD463.
•Oneradiosuppressorperfixture(standard).
•Highefficiency60.9%(6light),61.2%(4light).
•One-piecehousing.
•Built-inearthquakeclips.
•Flatfull-sizesteellensframeisgasketed.
•21/4"lamptointegrallightstopforeasylampremoval.
•Blackhousingexteriorforcoolerballast
operating temperature.
•Hemmedoversiderailsforsafety.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. 277SO.
Ballast type <10THD <20THD
2 - 2 Lamp Elec. T8 SO* HI*
3 - 2 Lamp Elec. T8 SO* HI*
1 - 4 Lamp Elec. T8 O4* H4*
2 - 3 Lamp Elec. T8 O6* H6*
LOL Dimming T8 PS
* Instant start Standard.
Continuous row installation: For “F” type fixtures,
half-width flanges are required between fixtures.
Catalog no. 2FC Trim(eachjoint).
Plaster frames: “F” type fixtures do not include plaster
frames. For individual or continuous mounting, specify
PF24 universal frame per fixture.
Electrical/wiring: Options consultfactory.
Seismic hold-down clips:For"G"typetroffers.
Suffix:4HD(forNYConly).
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Radio interference filter: Suffix: R.
If one per ballast is required. 120 or 277 volt at 50 or 60Hz.
Note:Onlyoneradiointerferencefilter(RF)forfixtureif
3ballasts are used.
The footcandle readings
of a typical 8' x 12' pat-
tern layout of 8, 6 lamp
units, illustrates that the
asymmetric distribution
adds 35% more light to
the operating area (room
size12'x16'x9'ceiling).
Fully gasketed
lens frame
Hemmed over
side-rails for
safe handling
Blackhousingexterior
for cooler ballast
operating temperature
Blackstripedinterior
perimeter of body
eliminates light leak
Symmetrical distribution Asymmetrical distribution
One-piece housing
SUS 632 Voltage Ballast Options
Surgical Perimeter 120=120V Seepage4.145 See page 4.145
Static Luminaire 277=277V  andpage4.130
UNV=120-277 V
UNVSUS2GFSMA632 AH6
Example
30˚
60˚
1200
2200
3200
Candlepower Curve
Ordering information
Lamp
qty –type
Exposed
T-Grid
Flanged for
dry or plaster
4-T8 SUS2GFSMA432 SUS2FFSMA432
SUS2GFSMA432UNVH4
The footcandle readings
ofa typical 8' x 12' pat-
tern layout of 8, 4 lamp
units, illustrates that the
asymmetric distribution
adds 35% more light to
the operating area (room
size12'x16'x9'ceiling).
Fully gasketed
lens frame
Hemmed over
side-rails for
safe handling
Blackhousingexterior
for cooler ballast
operating temperature
Blackstripedinterior
perimeter of body
eliminates light leak
Symmetrical distribution Asymmetrical distribution
One-piece housing
SUS 432 Voltage Ballast Options
Surgical Perimeter 120=120V Seepage4.145 See page 4.145
Static Luminaire 277=277V  andpage4.130
UNV=120-277 V
UNVSUS2GFSMA432 AH4
Example
Earthquake Clip installed
(lay-ingrid)
Built-inEar thquakeClip
before installation
Linear recessed and surface lighting
4.146 Philips Lightolier For complete specification information visit www.lightolier.com
Architectural & surface utility
Surface mounted luminaires are most often used in
situations where it is not feasible to install recessed
lighting: where there is no suspended ceiling, where
there are obstructions above the ceiling, or where it
is costly and troublesome to penetrate but surface-
mounted luminaires are also extensively used because
they serve as elements of distinctive style, providing
an identity or signature; they add character to a space.
Becauseasurfacemountedfluorescentissubjectto
closer visual scrutiny than a recessed, standards of
detailing craftsmanship are necessarily higher. The high
quality of Philips Lightolier’s production is seen in this
productoffering.
Linear recessed and surface lighting
4.147Comprehensive lighting catalog 7th Edition
Stairwell > 4.148
Celebrity > 4.150
 Belmont > 4.153
Dorm Lyte > 4.158
Dominaire Surface > 4.159
LWBUandLSW > 4.160
Deepcel Surface > 4.162
Prismalyte Surface > 4.163
VisionSmartSurface > 4.164
SLB > 4.165
Contents
4.148 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Philips Lightolier stairwell luminaire
Wall/ceiling mounted fluorescent
Conserving energy while maintaining safety.
Stairwell lighting typically operates continuously at full output despite very low, intermittent use.
The solution to this unique application is bi-level lighting which maintains minimum illumination
requirementswhenthestairwellsareempty,therebymaximizingenergysavings.Bi-levellighting
incorporates a sensor integrated into the fixture that dims the lighting down to minimum
standards, when no one is present. When the fixture detects someone in the area, the lighting
is restored to full brightness. This can result in 50 to 80 percent energy savings per fixture.
The Philips Lightolier stairwell luminaire incorporates an internal motion sensor and a
bi-level ballast. It provides a standby low-light level, and upon detection of motion in a space,
immediately increases the lighting to full brightness. After occupancy is no longer detected, the
fixture reverts back to the low, standby level. The automatic bi-level lighting control saves energy
and ensures full light output when the space is occupied. The Philips Lightolier stairwell luminaire
can be mounted on the wall or installed on a ceiling and is available in one or two lamp T8 and
two lamp T5 linear fluorescent.
Prismatic lens option
Philips Lightolier stairwell luminaire
Ideal for Stairwells, restrooms, laundry rooms and other areas where maximum light levels are not required on a
constant basis.
Lens options
•Uniquecomposite,1/8"thickDR(impactresistant)acryliclenswithawhiteopaquecenterandlinear
prisms to spread up/down light.
•Classic1/8"thicklinearprismaticvirginacryliclensthatislowinbrightness
•ALinearprismaticlensof50%DR(impactresistant)and50%standardacrylicwithanominalthicknessof
1/8"thatwillwithstand70foot-poundsofimpactwithoutbreaking.
Sensor options
Ultrasonic Occupancy Sensor
•Ultrasonictechnology(40Khz)
Ultrasonic detection operates by
transmitting sound waves throughout
an area and measuring the speed at
which they return.
Infrared Occupancy Sensor
• Adjustable time delay from 30 seconds to 30 minutes.
• Fixed sensitivity optimized for FS-LxW lens coverages.
• RoHS compliant.
• Light level daylighting feature from 10-120 fc.
Tamper proof option Secondary endcaps, secured with Holt head screws, can be added to the luminaire for tamper proofing
Example catalog
SF4C232UNVV2-US, two 32 watt T8 lamps, bi-level dimming ballast and integrated Ultrasonic sensor
SF4C232UNVV2-OC, two 32 watt T8 lamps, bi-level dimming ballast and integrated Infrared sensor
For complete listing of available fixtures and specification sheets search Stairwell at www.lightolier.com
4.149Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Philips Lightolier stairwell luminaire
Wall/ceiling mounted fluorescent
Recessed and Surface lighting Recessed and Surface lighting
1000 1001Comprehensive Lighting Catalog 7th EditionPhilips Lightolier For complete specification information visit www.lightolier.com
Lightolier Stairwell Luminaire
Wall/Ceiling Mounted Fluorescent
Conserving energy while maintaning safety.
Lighting
in motion.
Lightolier Stairwell Luminaire
Wall/Ceiling Mounted Fluorescent
Composite lens option
Prismatic lens option
Fast Facts
• Integrated occupancy sensor, Ultrasonic or Infrared motion
• Available in T8, T5 and T5HO lamping
• Three unique lens options
• Only 3 ⅞" deep, meeting the Americans with Disabilities Act
requirements for wall mounted fixtures
• Additional proprietary dimmer available for GSA requirements
(Consult Factory)
Lightolier Stairwell Luminaire
Ideal for
Lens Options
Sensor Options
Ultrasonic Occupancy Sensor
•
Infrared Occupancy Sensor
• Adjustable time delay from 30 seconds to 30 minutes.
• Fixed sensitivity optimized for FS-LxW lens coverages.
• RoHS compliant.
• Light level daylighting feature from 10-120 fc.
Tamper Proof Option Secondary endcaps, secured with Holt head screws, can be add to the luminaire for tamper proofing
Example Catalog
SF4C232UNVV2-US, two 32 watt T8 lamps, bi-level dimming ballast and integrated Ultrasonic sensor
SF4C232UNVV2-OC, two 32 watt T8 lamps, bi-level dimming ballast and integrated Infrared sensor
For complete listing of available fixtures and specification sheets search Stairwell at www.lightolier.com
Stairwell lighting typically operates continuously at full output despite very low, intermittent use. The solution to this unique
application is bi-level lighting which maintains minimum illumination requirements when the stairwells are empty, thereby maximizing
energy savings. Bi-level lighting incorporates a sensor integrated into the fixture that dims the lighting down to minimum standards,
when no one is present. When the fixture detects someone in the area, the lighting is restored to full brightness. This can result in 50
to 80 percent energy savings per fixture.
The Lightolier Stairwell luminaire incorporates an internal motion sensor and a bi-level ballast. It provides a standby low-light level,
and upon detection of motion in a space, immediately increases the lighting to full brightness. After occupancy is no longer detected,
the fixture reverts back to the low, standby level. The automatic bi-level lighting control saves energy and ensures full light output
when the space is occupied. The Lightolier Stairwell luminaire can be mounted on the wall or installed on a ceiling and is available in
one or two lamp T8 and two lamp T5 linear fluorescent.
Stairwells, restrooms, laundry rooms and other areas where maximum light levels are not required on a constant basis.
• Unique composite, 1/8" thick DR (impact resistant) acrylic lens with a white opaque center and linear prisms to spread up/down light.
• Classic 1/8" thick linear prismatic virgin acrylic lens that is low in brightness
• A Linear prismatic lens of 50% DR (impact resistant) and 50% standard acrylic with a nominal thickness of 1/8" that will withstand
70 foot-pounds of impact without breaking.
Ultrasonic technology (40Khz)
Ultrasonic detection operates by
transmitting sound waves throughout
an area and measuring the speed at
which they return.
Ordering Information T5 or T5HO
Ordering Information T8
Note: Consult local code
authority for applications
where Stairwell luminaire will
be used as emergency lighting.
Stairwell:
Wall
Mounted
Fluorescent
SF
Fixture
Length:
4=48"
(Nominal 48")
4
Lens Type:
C =White Composite
Acrylic Lens
R = Linear Prismatic Virgin
Acrylic Lens
V = Vandal Proof ~ A High
impact, 50% DR Acrylic Linear
Prismatic Lens with Additional
Secondary Vandal proof
end-caps secured with holt
head screws. (Factory
Installed Only)
C
Lamp
Quantity:
2=2 Lamp
2
Lamp Type:
(By Others)
28=T5 28W
54=T5HO 54W
(Nominal 48")
28
Voltage‡:
120, 277 or
UNV =
120-277
UNV
Ballast Type: <10THD
2 Lamp 28W Elec. T5 VY (.95BF)
100% / 50% Bi-level
2 Lamp 28W Elec. T5 PG ††
2 Lamp 54W Elec. T5HO NQ (.80BF)
100% / 50% Bi-level
2 Lamp 54W Elec. T5HO PG ††
Dimming 0-10 Volt
2 Lamp 28W Elec. T5 EQ‡
2 Lamp 54W Elec. T5HO MW‡
‡ Specific 120 or 277 voltage must be
specified with use of a 0-10 volt dimming
ballast.
††Program Rapid Start (UNV only)
Note: UNV PG combination will result in
lamps controlled by occupancy sensor in a
ON or OFF capacity.
Sensor Type:
US=UltraSonic
OC=Infrared
US
Options:
DL=Optional GSA
ballast low level
controller.
Note: DL option
requires the use of
a 0-10 volt dimming
ballast.
Options:
Emergency Pack
(Consult Factory
for applicable
code)
Optional
Fusing:
A=Internal
fast blowing
C=Internal
slow blowing
Note: Consult local code
authority for applications
where Stairwell luminaire will
be used as emergency lighting.
Stairwell:
Wall
Mounted
Fluorescent
SF
Fixture
Length:
2=24"
4=48"
4
Lens Type:
C =White Composite
Acrylic Lens
R = Linear Prismatic
Virgin Acrylic Lens
V = Vandal Proof ~
A High impact, 50% DR
Acrylic Linear Prismatic
Lens with Additional
Secondary Vandal proof
end-caps secured with
holt head screws.
(Factory Installed Only)
C
Lamp
Quantity:
1=1 Lamp
2=2 Lamps
2
Lamp Type:
(By Others)
17=17W T8
(Nominal 24")
32=32W T8
(Nominal 48")
32
Voltage‡:
120, 277 or
UNV=120-277
UN2 = 2, one
lamp universal
voltage ballasts
(SF4 ONLY)
UNV
Ballast Type: <10THD
1 or 2 Lamp 17W or 32W Elec. T8 V2
100% / 50% Bi-level
1 or 2 Lamp 17W or 32W Elec. T8 P2*
Dimming 0-10 Volt
1 or 2 Lamp 17W or 32W Elec. T8 M7‡
‡ Specific 120 or 277 voltage must be
specified with use of a 0-10 volt dimming
ballast.
*Program Start Standard
Note: UN2 P2 combination will result in
one lamp always ON with second lamp
controlled by occupancy sensor.
UNV P2 combination will result in
lamp/lamps controlled by occupancy sensor
in a ON or OFF capacity.
Sensor Type:
US=UltraSonic
OC=Infrared
US
Options:
DL=Optional GSA
ballast low level
controller.
Note: DL option
requires the use of
a 0-10 volt dimming
ballast.
Options:
Emergency Pack
(Consult Factory
for applicable
code)
Optional
Fusing:
A=Internal
fast blowing
C=Internal
slow blowing
-
-
VY
V2
Recessed and Surface lighting Recessed and Surface lighting
1000 1001Comprehensive Lighting Catalog 7th EditionPhilips Lightolier For complete specification information visit www.lightolier.com
Lightolier Stairwell Luminaire
Wall/Ceiling Mounted Fluorescent
Conserving energy while maintaning safety.
Lighting
in motion.
Lightolier Stairwell Luminaire
Wall/Ceiling Mounted Fluorescent
Composite lens option
Prismatic lens option
Fast Facts
• Integrated occupancy sensor, Ultrasonic or Infrared motion
• Available in T8, T5 and T5HO lamping
• Three unique lens options
• Only 3 ⅞" deep, meeting the Americans with Disabilities Act
requirements for wall mounted fixtures
• Additional proprietary dimmer available for GSA requirements
(Consult Factory)
Lightolier Stairwell Luminaire
Ideal for
Lens Options
Sensor Options
Ultrasonic Occupancy Sensor
•
Infrared Occupancy Sensor
• Adjustable time delay from 30 seconds to 30 minutes.
• Fixed sensitivity optimized for FS-LxW lens coverages.
• RoHS compliant.
• Light level daylighting feature from 10-120 fc.
Tamper Proof Option Secondary endcaps, secured with Holt head screws, can be add to the luminaire for tamper proofing
Example Catalog
SF4C232UNVV2-US, two 32 watt T8 lamps, bi-level dimming ballast and integrated Ultrasonic sensor
SF4C232UNVV2-OC, two 32 watt T8 lamps, bi-level dimming ballast and integrated Infrared sensor
For complete listing of available fixtures and specification sheets search Stairwell at www.lightolier.com
Stairwell lighting typically operates continuously at full output despite very low, intermittent use. The solution to this unique
application is bi-level lighting which maintains minimum illumination requirements when the stairwells are empty, thereby maximizing
energy savings. Bi-level lighting incorporates a sensor integrated into the fixture that dims the lighting down to minimum standards,
when no one is present. When the fixture detects someone in the area, the lighting is restored to full brightness. This can result in 50
to 80 percent energy savings per fixture.
The Lightolier Stairwell luminaire incorporates an internal motion sensor and a bi-level ballast. It provides a standby low-light level,
and upon detection of motion in a space, immediately increases the lighting to full brightness. After occupancy is no longer detected,
the fixture reverts back to the low, standby level. The automatic bi-level lighting control saves energy and ensures full light output
when the space is occupied. The Lightolier Stairwell luminaire can be mounted on the wall or installed on a ceiling and is available in
one or two lamp T8 and two lamp T5 linear fluorescent.
Stairwells, restrooms, laundry rooms and other areas where maximum light levels are not required on a constant basis.
• Unique composite, 1/8" thick DR (impact resistant) acrylic lens with a white opaque center and linear prisms to spread up/down light.
• Classic 1/8" thick linear prismatic virgin acrylic lens that is low in brightness
• A Linear prismatic lens of 50% DR (impact resistant) and 50% standard acrylic with a nominal thickness of 1/8" that will withstand
70 foot-pounds of impact without breaking.
Ultrasonic technology (40Khz)
Ultrasonic detection operates by
transmitting sound waves throughout
an area and measuring the speed at
which they return.
Ordering Information T5 or T5HO
Ordering Information T8
Note: Consult local code
authority for applications
where Stairwell luminaire will
be used as emergency lighting.
Stairwell:
Wall
Mounted
Fluorescent
SF
Fixture
Length:
4=48"
(Nominal 48")
4
Lens Type:
C =White Composite
Acrylic Lens
R = Linear Prismatic Virgin
Acrylic Lens
V = Vandal Proof ~ A High
impact, 50% DR Acrylic Linear
Prismatic Lens with Additional
Secondary Vandal proof
end-caps secured with holt
head screws. (Factory
Installed Only)
C
Lamp
Quantity:
2=2 Lamp
2
Lamp Type:
(By Others)
28=T5 28W
54=T5HO 54W
(Nominal 48")
28
Voltage‡:
120, 277 or
UNV =
120-277
UNV
Ballast Type: <10THD
2 Lamp 28W Elec. T5 VY (.95BF)
100% / 50% Bi-level
2 Lamp 28W Elec. T5 PG ††
2 Lamp 54W Elec. T5HO NQ (.80BF)
100% / 50% Bi-level
2 Lamp 54W Elec. T5HO PG ††
Dimming 0-10 Volt
2 Lamp 28W Elec. T5 EQ‡
2 Lamp 54W Elec. T5HO MW‡
‡ Specific 120 or 277 voltage must be
specified with use of a 0-10 volt dimming
ballast.
††Program Rapid Start (UNV only)
Note: UNV PG combination will result in
lamps controlled by occupancy sensor in a
ON or OFF capacity.
Sensor Type:
US=UltraSonic
OC=Infrared
US
Options:
DL=Optional GSA
ballast low level
controller.
Note: DL option
requires the use of
a 0-10 volt dimming
ballast.
Options:
Emergency Pack
(Consult Factory
for applicable
code)
Optional
Fusing:
A=Internal
fast blowing
C=Internal
slow blowing
Note: Consult local code
authority for applications
where Stairwell luminaire will
be used as emergency lighting.
Stairwell:
Wall
Mounted
Fluorescent
SF
Fixture
Length:
2=24"
4=48"
4
Lens Type:
C =White Composite
Acrylic Lens
R = Linear Prismatic
Virgin Acrylic Lens
V = Vandal Proof ~
A High impact, 50% DR
Acrylic Linear Prismatic
Lens with Additional
Secondary Vandal proof
end-caps secured with
holt head screws.
(Factory Installed Only)
C
Lamp
Quantity:
1=1 Lamp
2=2 Lamps
2
Lamp Type:
(By Others)
17=17W T8
(Nominal 24")
32=32W T8
(Nominal 48")
32
Voltage‡:
120, 277 or
UNV=120-277
UN2 = 2, one
lamp universal
voltage ballasts
(SF4 ONLY)
UNV
Ballast Type: <10THD
1 or 2 Lamp 17W or 32W Elec. T8 V2
100% / 50% Bi-level
1 or 2 Lamp 17W or 32W Elec. T8 P2*
Dimming 0-10 Volt
1 or 2 Lamp 17W or 32W Elec. T8 M7‡
‡ Specific 120 or 277 voltage must be
specified with use of a 0-10 volt dimming
ballast.
*Program Start Standard
Note: UN2 P2 combination will result in
one lamp always ON with second lamp
controlled by occupancy sensor.
UNV P2 combination will result in
lamp/lamps controlled by occupancy sensor
in a ON or OFF capacity.
Sensor Type:
US=UltraSonic
OC=Infrared
US
Options:
DL=Optional GSA
ballast low level
controller.
Note: DL option
requires the use of
a 0-10 volt dimming
ballast.
Options:
Emergency Pack
(Consult Factory
for applicable
code)
Optional
Fusing:
A=Internal
fast blowing
C=Internal
slow blowing
-
-
VY
V2
Lighting
in motion.
Fast facts
•Integratedoccupancysensor,ultrasonicorinfraredmotion
•AvailableinT8,T5andT5HOlamping
•Threeuniquelensoptions
•Only3⅞"deep,meetingtheAmericanswithDisabilitiesAct
requirements for wall mounted fixtures
•AdditionaldimmeravailableforGSArequirements(consultfactory)
– –
– –
– –
– –
–
–
Note: Stairwell luminaire also available in LED
4.150 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•Universalluminairethathasuplight/downlight
or downlight capabilities on the same fixture.
•Lowbrightnesscontrolleddownlightinganduplighting/
downlighting.
•Injection-moldedone-piecevirginacrylicdownlight
refractor(1side,2endsandface).
•Catadioptricsideandendwalldesign(downlight).
•Slim31/16"depth.
•Nominal2'and4'lengths.
•63%efficientT8lampsdownlight.
•67.1%efficientT8lampsuplight/downlight.
•Invisiblesteellatchesalignrefractortohousing.
•Individualorcontinuousrows.
•Forovermirror,overbed,corridor,stairwell
andbulletinboard applications.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Radio interference filter: 120 or 277 volt,
50 or 60 Hz. One per fixture. Suffix: R.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Celebrity(CWBU)Universal
Wall mounted downlight luminaire
The ultimate in glare-free architectural lighting. A classic rectilinear wall fixture with a
jewel-like diamond faceted injection molded refractor that mirrors out brightness at
critical viewing angles. Ideal for nursing homes when used as a bed-light in the uplight/
downlight configuration. It is also excellent when used over mirrors, in corridors and for
task lighting in the downlight only configuration.
Uplight lens cover
for downlignt only
CWBU232UNVHI 2 Lamp Downlight
CWBU132UNVHI1 Lamp Downlight
Reference data
Efficiency 63.0%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 62.0W
Reference data
Efficiency 68.4%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 30.0W
Ordering information
Type Size Lamp qty –type Catalog no.
Downlight 7 ⅝"x25 ½"
7 ⅝"x49 ½" 2-T8 CWBU217
CWBU232
Ordering information
Type Size Lamp qty –type Catalog no.
Downlight 7 ⅝"x25 ½"
7 ⅝"x49 ½" 1-T8 CWBU117
CWBU132
CWBU Voltage Ballast Options
Wall Mounted 120=120V Seepage4.150 See page 4.150
Downlight 277=277V  andpage4.216
Luminaire UNV=120-277 V
(Elec.T8Ballastonly)
CWBU Voltage Ballast Options
Wall Mounted 120=120V Seepage4.150 See page 4.150
Downlight 277=277V  andpage4.216
Luminaire UNV=120-277 V
(Elec.T8Ballastonly)
UNV
UNV
CWBU232
CWBU132
A
A
HI
HI
Example
Example
7 ⅝" (194mm)
3 116"
(78mm)
Uplight Lens Cover
7 ⅝" (194mm)
3 116"
(78mm)
Uplight Lens Cover
7 ⅝" (194mm)
3 116"
(78mm)
Uplight Lens Cover
30˚
60˚
90˚
500
1000
1500
Candlepower Curve
30˚
60˚
90˚
500
1000
1500
Candlepower Curve
4.151Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Features
•Universalluminairethathasuplight/downlight
or downlight capabilities on the same fixture.
•Lowbrightnesscontrolleddownlightinganduplighting/
downlighting.
•Injection-moldedone-piecevirginacrylicdownlight
refractor(1side,2endsandface).
•Catadioptricsideandendwalldesign(downlight).
•Slim31/16"depth.
•Nominal2'and4'lengths.
•63%efficientT8lampsdownlight.
•67.1%efficientT8lampsuplight/downlight.
•Invisiblesteellatchesalignrefractortohousing.
•Individualorcontinuousrows.
•Forovermirror,overbed,corridor,stairwell
andbulletinboard applications.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Radio interference filter: 120 or 277 volt,
50 or 60 Hz. One per fixture. Suffix: R.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Celebrity(CWBU)Universal
Wall mounted uplight/downlight luminaire
The ultimate in glare-free architectural lighting. A classic rectilinear wall fixture with a
jewel-like diamond faceted injection molded refractor that mirrors out brightness at
critical viewing angles. Ideal for nursing homes when used as a bed-light in the uplight/
downlight configuration. It is also excellent when used over mirrors, in corridors and for
task lighting in the downlight only configuration.
Uplight lens cover
removed for uplight/
downlignt
CWBU232UNVHI 2 Lamp Uplight / Downlight
CWBU132UNVHI1 Lamp Uplight / Downlight
30˚
60˚
90˚
45˚
500
500
1000
Candlepower Curve
30˚
60˚
90˚
45˚
500
500
1000
Candlepower Curve
Reference data
Efficiency 67.1%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 62.0W
Reference data
Efficiency 69.8%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 30.0W
Ordering information
Type Size Lamp qty –type Catalog no.
Uplight / Downlight 7 ⅝"x25 ½"
7 ⅝"x49 ½" 2-T8 CWBU217
CWBU232
Ordering information
Type Size Lamp qty –type Catalog no.
Uplight /Downlight 7 ⅝"x25 ½"
7 ⅝"x49 ½" 1-T8 CWBU117
CWBU132
CWBU Voltage Ballast Options
Wall Mounted 120=120V Seepage4.151 See page 4.151
Uplight/Downlight 277=277V  andpage4.216
Luminaire UNV=120-277 V
(Elec.T8Ballastonly)
CWBU Voltage Ballast Options
Wall Mounted 120=120V Seepage4.151 See page 4.151
Uplight/Downlight 277=277V  andpage4.216
Luminaire UNV=120-277 V
(Elec.T8Ballastonly)
UNV
UNV
CWBU232
CWBU132
A
A
HI
HI
Example
Example
7 ⅝" (194mm)
3 116"
(78mm)
Uplight Lens Cover
7 ⅝" (194mm)
3 116"
(78mm)
Uplight Lens Cover
7 ⅝" (194mm)
3 116"
(78mm)
Uplight Lens Cover
4.152 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
30˚
60˚
700
1400
2100
Candlepower Curve
SpecificationSurfaceLensCBSUnitMatchesCWBUCelebrityWallUnit
Sturdy steel chassis Four sided injection molding
Photograph illustrates action of Celebrity lens
enclosure. Catadioptric prisms “mirror” out
glare, refract light beams into useful areas.
Celebrity Surface
Surface
12" (305mm)
3 ¼"
(83mm)
Features
•.187lensthickness.
•Fivesideinjectionmoldedrefractorwithsquarebase,
conicalprisms(absolutelynosag).
•Catadioptricside/endwalldesign,forlowbrightness.
•Tightaligningrefractorfit.
•Invisiblespringsteellatches.
•Easyballastaccessibility.
•Rigid,reinforcedhousing.
•Individualorcontinuousrowmounting.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
1 - 2 Lamp Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Not recommended for stem mounting.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
CBS232UNVHI Reference data
Efficiency 78.2%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 59.1W
LuminaireEff(LER) 66.2
Ordering information
Type Size Lamp qty –type Catalog no.
Surface Prismatic 12"x49
9⁄16"2-T8 CBS232
Celebrity Voltage Ballast Options
Surface Wrap 120=120V Seepage4.152 See page 4.152
Luminaire 277=277V  andpage4.216
UNV=120-277 V
(Elec.T8Ballastonly)
UNVCBS232 AHI
Example
4.153Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
BelmontSpillFrame
BelmontSpillFrame
BelmontSpillFrame1'x4'
Architectural surface luminaire
10 ½"
(267mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
916" Mounting
Hole
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
18"
(457mm)
15 ½"
(394mm)
5" (127mm)
3" (76mm)
26"
(660mm)
20"
(508mm)
7 1132"
(187mm)
⅞" K.O.
⅞" K.O. Within
1 ⅞" K.O.
1 116" (27mm)
932" Mounting
Hole
⅞" KO
⅞" KO
⅞" K.O.
⅞" KO
⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
932" Mounting
Hole
15 ½"
(394mm)
2 3132" (75mm)
3132"
(25mm)
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
⅞" K.O.
10 ½"
(267mm)
2 3132" (75mm)
3132"
(25mm)
⅞" K.O.
⅞" K.O.
932" Mounting
Hole ⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
1X4 BELMONT SF (2) F32 T8 2X4 BELMONT SF (4) F32 T8 2X2 BELMONT SF (4) F17 T8
2X4 BELMONT SF (2) F32 T8 2X2 BELMONT SF (2) F40 TT5
Features
•Excellentforlightingcafeterias,smalloffices,corridors,
kitchens and family rooms.
•Uniquerectangulardoubleframecreates
uninterruptedspill of light from all four sides.
•Extrudedaluminumframewithmiteredcorners.
•1/8”thickwhiteacryliclenscontaining25%DR.
•Only3-3/4”totaldepth.
•Stepbackhousingforanapparentdepthof1-1/2”.
•Lensopensandhingesfromeitherside.
•Zip-clipflushmountonT-gridceilings.
•Off-center7/8”K.O.forflushmounttoT-gridceiling.
Ordering information
TypeLamps
qty –type
Electronic
ballast Finish Shielding Chassis
Belmont
Spill Frame
Architectural
Surface Luminaire
4-T8
2 - 2 Lamp
2 - 2 Lamp
1 - 4 Lamp
1 - 4 Lamp
Black
White
Black
White
BESF2X4
BESF2X4
BESF2X4
BESF2X4
BE2B432UNVHI
BE2W432UNVHI
BE2B432UNVH4
BE2W432UNVH4
Ordering information
TypeLamps
qty –type
Electronic
ballast Finish Shielding Chassis
Belmont
Spill Frame
Architectural
Surface Luminaire
2-T8 1 - 2 Lamp Black
White
BESF1X4
BESF1X4
BE1B232UNVHI
BE1W232UNVHI
Note: Chassis and
shielding are packed
in separate cartons.
When ordering, enter
as separate line items.
Note: Chassis and
shielding are packed
in separate cartons.
When ordering, enter
as separate line items.
10 ½"
(267mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
916" Mounting
Hole
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
18"
(457mm)
15 ½"
(394mm)
5" (127mm)
3" (76mm)
26"
(660mm)
20"
(508mm)
7 1132"
(187mm)
⅞" K.O.
⅞" K.O. Within
1 ⅞" K.O.
1 116" (27mm)
932" Mounting
Hole
⅞" KO
⅞" KO
⅞" K.O.
⅞" KO
⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
932" Mounting
Hole
15 ½"
(394mm)
2 3132" (75mm)
3132"
(25mm)
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
⅞" K.O.
10 ½"
(267mm)
2 3132" (75mm)
3132"
(25mm)
⅞" K.O.
⅞" K.O.
932" Mounting
Hole ⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
1X4 BELMONT SF (2) F32 T8 2X4 BELMONT SF (4) F32 T8 2X2 BELMONT SF (4) F17 T8
2X4 BELMONT SF (2) F32 T8 2X2 BELMONT SF (2) F40 TT5
10 ½"
(267mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
916" Mounting
Hole
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
18"
(457mm)
15 ½"
(394mm)
5" (127mm)
3" (76mm)
26"
(660mm)
20"
(508mm)
7 1132"
(187mm)
⅞" K.O.
⅞" K.O. Within
1 ⅞" K.O.
1 116" (27mm)
932" Mounting
Hole
⅞" KO
⅞" KO
⅞" K.O.
⅞" KO
⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
932" Mounting
Hole
15 ½"
(394mm)
2 3132" (75mm)
3132"
(25mm)
50"
(1270mm)
5"
(127mm)
44
1
16
"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
⅞" K.O.
10 ½"
(267mm)
2 3132" (75mm)
3132"
(25mm)
⅞" K.O.
⅞" K.O.
932" Mounting
Hole ⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
1X4 BELMONT SF (2) F32 T8 2X4 BELMONT SF (4) F32 T8 2X2 BELMONT SF (4) F17 T8
2X4 BELMONT SF (2) F32 T8 2X2 BELMONT SF (2) F40 TT5
Theintriguing appearance and ease
ofmaintenancemakeBelmontSpill
Frame the ideal choice for surface
mounted lighting applications for
cafeterias, corridors, small offices,
kitchens or family rooms.
10 ½"
(267mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
916" Mounting
Hole
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
18"
(457mm)
15 ½"
(394mm)
5" (127mm)
3" (76mm)
26"
(660mm)
20"
(508mm)
7 1132"
(187mm)
⅞" K.O.
⅞" K.O. Within
1 ⅞" K.O.
1 116" (27mm)
932" Mounting
Hole
⅞" KO
⅞" KO
⅞" K.O.
⅞" KO
⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
932" Mounting
Hole
15 ½"
(394mm)
2 3132" (75mm)
3132"
(25mm)
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
⅞" K.O.
10 ½"
(267mm)
2 3132" (75mm)
3132"
(25mm)
⅞" K.O.
⅞" K.O.
932" Mounting
Hole ⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
1X4 BELMONT SF (2) F32 T8 2X4 BELMONT SF (4) F32 T8 2X2 BELMONT SF (4) F17 T8
2X4 BELMONT SF (2) F32 T8 2X2 BELMONT SF (2) F40 TT5
BelmontSpillFrame2'x4'
Architectural surface luminaire
BelmontSpillFramefeaturesanextrudedaluminumframewithauniqueuninterruptedspill
of light on all four sides with a soft-white, impact resistant acrylic lens. The step back chassis
createsafloatingframeeffectwithanapparentdepthofonly1½inches.Theframecanbe
opened and/or hinged from either side without tools for easy lamp replacement.
4.154 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
BelmontSpillFrame2'x2'
Architectural surface luminaire
BelmontSpillFramefeaturesanextrudedaluminumframewithauniqueuninterruptedspill
of light on all four sides with a soft-white, impact resistant acrylic lens. The step back chassis
createsafloatingframeeffectwithanapparentdepthofonly1½inches.Theframecanbe
opened and/or hinged from either side without tools for easy lamp replacement.
Features
•Excellentforlightingcafeterias,smalloffices,
corridors, kitchens and family rooms.
•Uniquerectangulardoubleframecreates
uninterruptedspill of light from all four sides.
•Extrudedaluminumframewithmiteredcorners.
•1/8”thickwhiteacryliclenscontaining25%DR.
•Only3-3/4”totaldepth.
•Stepbackhousingforanapparentdepthof1-1/2”.
•Lensopensandhingesfromeitherside.
•Zip-clipflushmountonT-gridceilings.
•Off-center7/8”K.O.forflushmounttoT-gridceiling.
Ordering information
TypeLamps
qty –type
Electronic
ballast Finish Shielding Chassis
Belmont
Spill Frame
Architectural
Surface Lum.
4-T8
4-T8
4-T8
4-T8
2-TT5 40W
2-TT5 40W
2 - 2 Lamp
2 - 2 Lamp
1 - 4 Lamp
1 - 4 Lamp
1 - 2 Lamp
1 - 2 Lamp
Black
White
Black
White
Black
White
BESF2X2
BESF2X2
BESF2X2
BESF2X2
BESF2X2
BESF2X2
BE2B417UNVHI
BE2W417UNVHI
BE2B417UNVH4
BE2W417UNVH4
BE2B2FTUNVIB
BE2W2FTUNVIB
Note: Chassis and
shielding are packed
in separate cartons.
When ordering, enter
as separate line items.
10 ½"
(267mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
916" Mounting
Hole
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
18"
(457mm)
15 ½"
(394mm)
5" (127mm)
3" (76mm)
26"
(660mm)
20"
(508mm)
7 1132"
(187mm)
⅞" K.O.
⅞" K.O. Within
1 ⅞" K.O.
1 116" (27mm)
932" Mounting
Hole
⅞" KO
⅞" KO
⅞" K.O.
⅞" KO
⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
932" Mounting
Hole
15 ½"
(394mm)
2 3132" (75mm)
3132"
(25mm)
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
⅞" K.O.
10 ½"
(267mm)
2 3132" (75mm)
3132"
(25mm)
⅞" K.O.
⅞" K.O.
932" Mounting
Hole ⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
1X4 BELMONT SF (2) F32 T8 2X4 BELMONT SF (4) F32 T8 2X2 BELMONT SF (4) F17 T8
2X4 BELMONT SF (2) F32 T8 2X2 BELMONT SF (2) F40 TT5
The intriguing appearance and ease
ofmaintenancemakeBelmontSpill
Frame the ideal choice for surface
mounted lighting applications for
cafeterias, corridors, small offices,
kitchens or family rooms.
10 ½"
(267mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
916" Mounting
Hole
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
18"
(457mm)
15 ½"
(394mm)
5" (127mm)
3" (76mm)
26"
(660mm)
20"
(508mm)
7 1132"
(187mm)
⅞" K.O.
⅞" K.O. Within
1 ⅞" K.O.
1 116" (27mm)
932" Mounting
Hole
⅞" KO
⅞" KO
⅞" K.O.
⅞" KO
⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
932" Mounting
Hole
15 ½"
(394mm)
2 3132" (75mm)
3132"
(25mm)
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
⅞" K.O.
10 ½"
(267mm)
2 3132" (75mm)
3132"
(25mm)
⅞" K.O.
⅞" K.O.
932" Mounting
Hole ⅞" K.O. Within
1 ⅞" K.O.
932" Mounting
Hole
50"
(1270mm)
5"
(127mm)
44 116"
(1119mm)
39 ⅝"
(1006mm)
5 316"
(132mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
15 ½"
(394mm)
1 ½"
(38mm)
3 ¾"
(95mm)
1X4 BELMONT SF (2) F32 T8 2X4 BELMONT SF (4) F32 T8 2X2 BELMONT SF (4) F17 T8
2X4 BELMONT SF (2) F32 T8 2X2 BELMONT SF (2) F40 TT5
BelmontSpillFrame
4.155Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
BelmontI&ll2'x4'&1'x4'
Linear fluorescent utility luminaire
Ideally suited to circulation, utility, and workspaces, these shallow, sleek
lightforms are available in the more efficient T8 Electronic lamp-ballast systems.
BelmontI
Belmontll
Wrap-around acrylic diffuser with end caps attached.
Complete Iuminaire consists of Lightshield and Chassis.
Specify and order each item separately.
Notsuitable
for row mounting.
Linear acrylic arc with no visible trim.
Complete luminaire consists of Lightshield and Chassis.
Specify and order each item separately.
Notsuitable
for row mounting.
* Footcandle values of illumination are initial and average and
areataheightof30"abovethefloor.Theyareshownfor
rooms with ceiling heights ranging from 8' to 12'.
Roomfinishesaretypical:whiteceiling(80%refl.).
LightWalls(50%refl.)anddarkfloor(20%refl.).
All units are: cULus listed, suitable for damp locations.
50 ¼"
(1276mm)
10 ¾"
(273mm)
3 ½" (89mm)
49 ½"
(1257mm)
10 ⅝"
(270mm)
3 ⅞" (98mm)
15 ⅝" (397mm)
49 ½"
(1257mm)
3 ⅞" (98mm)
1x4
1x4
2x4
2x4
Application data for surface mounted
Style Multiple Fixtures
Single Fixture
Lamp Fixture
Spacing,
O.C
F.C.*
30' x 50'
Room
F.C.*
12 x 12'
Room
BelmontI 6'
8'
10'
78
28
28
15
(2)40WT12
(2)32WT8:F.C.x0.9
BelmontII 8'
10'
12'
96
61
42
22
(4)40WT12
(4)32WT8:F.C.x0.9
Ordering information
Type Size Lamps
qty –type Wattage Electronic
ballast Finish Chassis Lightshield
(Orderseparately)
Belmont I
Utility Luminaire
1' x 4'
1' x 4'
2-T8
2-T8 32W UNV Black
White
BE1B232UNVHI
BE1W232UNVHI
10324
10324
2' x 4'
2' x 4'
4-T8
4-T8 32W UNV Black
White
BE2B432UNVHI
BE2W432UNVHI
10328
10328
For products that require 1-4 light ballast add suffix H4.
Example: BE2B432UNVH4
Ordering information
Type Size Lamps
qty –type Wattage Electronic
ballast Finish Chassis Lightshield
(Orderseparately)
Belmont II
Utility Luminaire
1' x 4'
1' x 4'
2-T8
2-T8 32W UNV Black
White
BE1B232UNVHI
BE1W232UNVHI
10326
10326
2' x 4'
2' x 4'
4-T8
4-T8 32W UNV Black
White
BE2B432UNVHI
BE2W432UNVHI
10330
10330
For products that require 1-4 light ballast add suffix H4.
Example: BE2B432UNVH4
16" (406mm)
50 ¼"
(1276mm)
3 ¾" (95mm)
4.156 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
BelmontCloud2'x4'&1'x4'
Linear fluorescent utility luminaire
Ideally suited to circulation, utility, and workspaces, these shallow, sleek lightforms
areavailable in the more efficient T8 Electronic lamp-ballast systems.
BelmontCloud
Acrylic diffuser with softly contoured edges.
Complete luminaire consists of Lightshield and Chassis.
Specify and order each item separately.
Notsuitable
for row mounting.
All units are: cULus listed, suitable for damp locations.
51 ½"
(1308mm)
13 ¾"
(349mm)
4" (102mm)
1x4 2x4
Ordering information
Type Size Lamps
qty –type Wattage Electronic
ballast Finish Chassis Lightshield
(Orderseparately)
Belmont
Cloud
Utility Luminaire
1' x 4'
1' x 4'
2-T8
2-T8 32W UNV Black
White
BE1B232UNVHI
BE1W232UNVHI
10325
10325
2' x 4'
2' x 4'
4-T8
4-T8 32W UNV Black
White
BE2B432UNVHI
BE2W432UNVHI
10327
10327
For products that require 1-4 light ballast add suffix H4.
Example: BE2B432UNVH4
17" (432mm)
51 ½"
(1308mm)
4" (102mm)
4.157Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Belmont6"Cloud&VanityLight
Architectural surface
Features
•6"whiteopalacryliclens(vacuumformed).
•Canbehorizontallyorverticallywallmounted.
•Canbeceilingmounted.
•Efficiency69.0%.
•Lenssecuredtobodywithscrewsatends.
•Quarterturnlatchsecureschannelcoverforeasy
wireway access.
•Heavydutychannelofcodegaugedieformedsteel.
•Fullyenclosedwiring.
•ULListedsnap-onendcaps(body).
•Greengroundingscrewinstalledinchannel.
Options & accessories
Ballast type <10THD <20THD
Electronic T8 HI –
Features
•Canbehorizontallyorverticallymounted.
•43/4"diametersopalwhiteacryliclens.
•Positivestainlesssteellensretainers.
•Permanentlyinstalledmilkwhiteopaquediffuserends
with decorative trim.
•Efficiency76.6%(T8).
•Quarterturnlatchsecureschannelcoverforeasy
wireway access.
•Heavydutychannelofcodegaugedieformedsteel.
•Fullyenclosedwireway.
•ULListedsnap-onendcaps(body).
•Greengroundingscrewinstalledinchannel.
Options & accessories
Ballast type <10THD <20THD
Electronic T8 HI –
Belmont6"Cloud
VanityLight
26 ½" (673mm)38 ½" (978mm)
24" (610mm) or 36" (914mm)
2' or 3' Channel
4"
(102mm)
K.O.
6" (152mm)
4 ⅝"
(117mm)
50 ½" (1282mm)
48"
4' Channel
4"
(102mm)
K.O.
6 ⅜" (162mm)
2" Dia. K.O. with ⅞" Dia. ⅞" Dia. K.O.
6" (152mm)
4 ⅝"
(117mm)
4 ⅛"
(105mm)
4 ⅛"
(105mm)
6" (152mm)
2"
(51mm)
24" (610mm)
36" (914mm)
48" (1219mm)
24" (610mm)
36" (914mm)
48" (1219mm)
25 ½" (648mm)
37 ½" (953mm)
49 ½" (1257mm)
⅞" Dia. (22mm)
4 ¾" (121mm)
4"
(102mm)
2 ½"
(64mm)
Ordering information When ordering, enter as separate line items.
Type Size Lamps
qty –type Voltage Chassis Shielding
Belmont
6" Cloud
Utility Luminaire
6"x24"
6"x36"
6"x48"
2-T8 UNV(120-277V)
SW2S217HPFUNVHI
SW2S225HPFUNVHI
SW2S232HPFUNVHI
BCW6X24
BCW6X36
BCW6X48
Note: Chassis and shielding are packed in separate cartons. Chassis and shielding shown are stock items.
Ordering information When ordering, enter as separate line items.
Type Size Lamps
qty –type Voltage Chassis Shielding
Vanity Light
Utility Luminaire
4 ¾"x24"
4 ¾"x36"
4 ¾"x48"
1-T8 UNV(120-277V)
SN2S117HPFUNVHI
SN2S125HPFUNVHI
SN2S132HPFUNVHI
VLW4X24
VLW4X36
VLW4X48
Note: Chassis and shielding are packed in separate cartons. Chassis and shielding shown are stock items.
4.158 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•Fordorms,nursinghomes,assistedliving,health
care facilities, or other over bed or wall mounted
applications.
•Upanddownlight,1or2lamp.
•Separatelampcompartmentsforcontrolleduplight
anddownlight for 2 lamp models.
•1/8"thickDRacryliclens.Uniqueco-extension.White
opaque center. Frosted white front sections for subtle
glow. Linear prisms to spread up/downlight.
•Only3-7/8"deep,meetsAmericanWithDisabilities
Actfor wall mounted fixtures.
•Concealedpull-actionspring-loadedlatchesto
retainlens.
•20gaugecoldrolledsteelpostpaintedbakedwhite
enamel end caps.
•Nominal4'length.
•Four-waypullswitch,(120voltonly)optional.
•Optionallowvoltageelectronicsequentialswitchfor
push button control of up/down lighting. UL 544 listed.
Includes phone jack type receptacle.
Options & accessories page 4.216
Ballast type <10THD <20THD
Electronic T8 HI* SO*
ElectronicT5P.S.(28Wor54W) PG –
* Instant start
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
3 ⅞" (95mm)
3 ⅞" (98mm)
48 ½" (1232mm)
24 ¼" (616mm)
6 ⅛"
(156mm)
4 ¼"
(108mm)
6" (152mm)
3 ⅞" (95mm)
6" (152mm)
Uplight or Downlight Up/Downlight
4"
(102mm)
6"
(152mm) 24" (610mm) 47
15
16
" (1218mm)
Up/Down Light
1 or 2 T5 or T8 Lamps
Independent Up/Down Light
2 T5 or T8 Lamps
6 ⅛" (155mm)
6 ⅛" (155mm)
3 ⅞" (98mm)
Dorm Lyte
Ordering information
Type Size Lamps
qty –type Wattage Catalog number
Up/Down Light 48"
1-T5
1-T8
1-T5HO
2-T5
2-T8
2-T5HO
28W
32W
54W
28W
32W
54W
DM4X128
DM4X132
DM4X154
DM4X228
DM4X232
DM4X254
Independent
Up or Down Light 48"
2-T5
2-T8
2-T5HO
28W
32W
54W
DM4R228
DM4R232
DM4R254
Dorm Lyte Voltage Ballast Options
Wall Mounted 120=120V Seepage4.158 See page 4.158
Fluorescent 277=277V  andpage4.216
UNV=120-277 V
(Elec.T8orT5Ballast)
UNVDM4X232 AHI
Example
Dorm Lyte
Wall mounted fluorescent luminaire
1' 15 35 52 35 15
3' 15 25 31 35 15
5' 12 14 16 14 12
7' 9 10 10 10 9
9' 8 8 8 8 7
11' 7 7 7 7 7
1' 3' 5' 7' 9'
35 to 40 fc reading plane
(60° from horizontal)
3 ½'
Reading
Plane
Reading Position
3'
5'
Reference data
Room Size: 12' x 10' x 8' Ceiling.
Reflection: 80-50-20.80LLF
Reading Area: 35-40fc
1' 15 35 52 35 15
3' 15 25 31 35 15
5' 12 14 16 14 12
7' 9 10 10 10 9
9' 8 8 8 8 7
11' 7 7 7 7 7
1' 3' 5' 7' 9'
35 to 40 fc reading plane
(60° from horizontal)
3 ½'
Reading
Plane
Reading Position
3'
5'
4.159Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
30˚
60˚
600
1200
1800
Candlepower Curve
30˚
60˚
1000
2000
3000
Candlepower Curve
14" (356mm)
2 ⅝"
(67mm)
14" (356mm)
2 ⅝"
(67mm)
9" (229mm)
2 ⅝"
(67mm)
Features
•Stepbackhousingforanapparentdepthof11/2".
•Prismaticvirginacryliclens.
•Luminouscatadioptricendcaps.
•Twosideshelf-levelinglenshinging.
•9"wide,4'nominallengths.
•14"wide,4'nominallength.
•Zip-clipflushmountonT-gridceilings.
•Off-center7/8"K.O.forflushmounttoT-gridceiling.
•OptionalUL-listedlowdensitymountingspacers.
•Completelyassembledwithsetupendstolampholders.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1-2LampElectronicTT5(40W)SB*, PR** IB*
1 - 3 Lamp Electronic T8 H3*, P3** O3*
1 - 4 Lamp Electronic T8 H4*, P4** O4*
LOL T8 Dimming – PS
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Canopy spacer:Suspendsfixture11/2"fromsurface.
Order Catalog no. AC1 CSP.
Stem and canopy sets:Suspendfixture6",12",18"
or24"fromsurface.(Fourperfixtureisrecommended.)
Catalog no.: ASC6 CSP(6");ASC12 CSP(12");
ASC18 CSP (18"); ASC24 CSP(24").
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Stems not available with 3 lamp unit.
WA4A232UNVHI
WB4B432UNVH4
Reference data
Efficiency 70.9%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 63.0W
LuminaireEff(LER) 56.5
Reference data
Efficiency 70.1%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 84.4W
LuminaireEff(LER) 71.0
Ordering information
Type Size Lamp qty –type Catalog no.
Prismatic Luminaire 9"x49
9⁄16"2-T8 WA4A232
Ordering information
Type Size Lamp qty –type Catalog no.
Surface Prismatic Luminaire
14"x48 ¾"
14"x48 ¾"
14"x48 ¾"
24"x48 ⅝"
24"x48 ⅝"
2-T8
3-T8
4-T8
4-T8
2-TT5-40
WB4B232
WB4B332
WB4B432
WB2B417
WB2B2FT
Dominaire Voltage Ballast Options
Surface Wrap 120=120V Seepage4.159 See page 4.159
Luminaire 277=277V  andpage4.216
UNV=120-277 V
(Elec.T8Ballastonly)
Dominaire Voltage Ballast Options
Surface Wrap 120=120V Seepage4.159 See page 4.159
Luminaire 277=277V  andpage4.216
UNV=120-277 V
(Elec.T8Ballastonly)
UNV
UNV
WA4A232
WB4B432
A
A
HI
H4
Example
Example
Dominaire Surface
Surface
4.160 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•Universalluminairethathasuplight/downlight
or downlight capabilities on the same fixture.
•Lowbrightnesscontrolleddownlightinganduplighting/
downlighting.
•Lowbrightnesslinearprismaticvirginacrylicrefractor.
•Invisiblesteellatchesalignrefractortohousing.
•Individualorcontinuousrows.
•Forovermirror,overbed,corridor,stairwellandbulletin
board applications.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
LWBU232UNVHI 1 & 2 Lamp Downlight
30˚
60˚
90˚
0
210
420
630
Candlepower Curve
Reference data
Efficiency 62.4%
Spacing ratio 1.2
Ordering information
Type Size Lamp qty –type Catalog no.
Downlight
7 ⅝"x25 ½"
7 ⅝"x37 ½"
7 ⅝"x49 ½"
1-T8
LWBU117
LWBU125
LWBU132
7 ⅝"x25 ½"
7 ⅝"x37 ½"
7 ⅝"x49 ½"
2-T8
LWBU217
LWBU225
LWBU232
LWBU Voltage Ballast Options
Wall Mounted 120=120V Seepage4.160 See page 4.160
Downlight 277=277V  andpage4.216
Luminaire UNV=120-277 V
(Elec.T8Ballastonly)
UNVLWBU132 AHI
Example
7 ⅝" (194mm)
3 116"
(78mm)
Uplight Lens Cover
LWBU232UNVHI 1 & 2 Lamp Uplight/Downlight
30˚
60˚
90˚
45˚
450
0
450
900
Candlepower Curve
Reference data
Efficiency 65.2%
Spacing ratio 1.2
Ordering information
Type Size Lamp qty –type Catalog no.
Uplight / Downlight
7 ⅝"x25 ½"
7 ⅝"x37 ½"
7 ⅝"x49 ½"
1-T8
LWBU117
LWBU125
LWBU132
7 ⅝"x25 ½"
7 ⅝"x37 ½"
7 ⅝"x49 ½"
2-T8
LWBU217
LWBU225
LWBU232
LWBU Voltage Ballast Options
Wall Mounted 120=120V Seepage4.160 See page 4.160
Uplight/Downlight 277=277V  andpage4.216
Luminaire UNV=120-277 V
(Elec.T8Ballastonly)
UNVLWBU132 AHI
Example
7 ⅝" (194mm)
3 116"
(78mm)
Uplight Lens Cover
7 ⅝" (194mm)
3 116"
(78mm)
Uplight Lens Cover
Uplight lens cover
for downlight only
Controlled uplight/
downlight (LWBU)
Uplight lens cover
removed for uplight/
downlight
LWBUUniversal
Wall mounted downlight or uplight/downlight
4.161Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Features
•Forceilingorwall(verticallyorhorizontally)mounted
applications.
•Only37/8"deep,meetsAmericanswithDisabilitiesAct
(wallmounted).
•Lowbrightness.125thicklinearprismaticvirginacrylic
refractor.
•Invisiblespringsteellatchesalignrefractortohousing.
•20gaugecoldrolledsteelpostpaintedbakedwhite
enamel end caps.
•Forovermirror,overbed,corridor,stairwellandbulletin
board applications.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
LS4R232UNVHI1 Lamp Downlight
30˚
60˚
90˚
0
400
800
1200
Candlepower Curve
Reference data
Efficiency 73.9%
Spacing ratio 1.3
Ordering information
Type Size Lamp qty –type Catalog no.
Prismatic Lens Luminaire 6"x23
15⁄16"
6"x47
15⁄16"2-T8 LS2R217
LS4R232
LSW Voltage Ballast Options
Wall or Ceiling 120=120V Seepage4.161 See page 4.161
Mounted 277=277V  andpage4.216
Luminaire UNV=120-277 V
(Elec.T8Ballastonly)
UNVLS4R232 AHI
Example
LS4R232UNVHI LS4R132UNVHI
6 ⅛" (155mm)6 ⅛" (155mm)
3 ⅞"
(98mm)
3 ⅞"
(98mm)
LS4R232UNVHI LS4R132UNVHI
6 ⅛" (155mm)6 ⅛" (155mm)
3 ⅞"
(98mm)
3 ⅞"
(98mm)
LS4R132UNVHI2 Lamp Downlight
30˚
60˚
90˚
0
190
380
570
Candlepower Curve
Reference data
Efficiency 76.9%
Spacing ratio 1.4
Ordering information
Type Size Lamp qty –type Catalog no.
Prismatic Lens Luminaire 6"x23
15⁄16"
6"x47
15⁄16"1-T8 LS2R117
LS4R132
LSW Voltage Ballast Options
Wall or Ceiling 120=120V Seepage4.161 See page 4.161
Mounted 277=277V  andpage4.216
Luminaire UNV=120-277 V
(Elec.T8Ballastonly)
UNVLS4R132 AHI
Example
LSW
Wall mounted/ceiling mounted
4.162 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•Only51/2"deep.
•Welded20gaugesteelbody.
•45°miteredcorners(bodyandlouver).
•Side-mountedballastforcooleroperation.
•3"deepaluminumparaboliclouver.
•Verticalgrainonlouvereliminatesreflectedlampimage
on cross baffle.
•MatchesDeepcel2x2and2x4recessed.
•Perfectlyuniformfour-sideblackreveal.
•Spring-loadedlatches.
•Reversiblelouverhinging.
•Doorjambwithintegralpositivelightstop.
•FlushendK.O.’sforsmoothsurfaceappearance
(atendofroworindividual).
•Louverhaspolyethylenedustguard.
•MeetsNYCCoderequirements.
Options & accessories page 4.130
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Electronic T8 H3*, P3** O3*
1 - 4 Lamp Electronic T8 H4*, P4** O4*
1-3LampElec.TT5(40W) I3* X3*
1&2LampElec.TT5(40W) IB*, PR** SB*
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Stem and canopy sets:Suspendfixture6",12",18"
or24"fromsurface.(Fourperfixtureisrecommended.)
Catalog no.: ASC6 CSP(6");ASC12 CSP(12");
ASC18 CSP (18"); ASC24 CSP(24").
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Deepcel Surface 2' x 4' & 2' x 2'
3" parabolic louver surface fluorescent luminaires
30˚
60˚
1000
2000
3000
Candlepower Curve
DPB2S18LS332UNVH3
24" (610mm)
5 ½"
(140mm)
24" (610mm)
5 ½"
(140mm)
24" (610mm)
5 ½"
(140mm)
Reference data
Efficiency 69.6%
Spacing ratio 1.6
Electronic ballast
Inputwatts(120V) 85.0W
Ordering information
Type Cells Size Lamp qty –type Catalog no.
Surface
Parabolic
12
18
24
32
2' x 4'
2-T8
3-T8
3-T8
4-T8
DPB2S12LS232
DPB2S18LS332
DPB2S24LS332
DPB2S32LS432
Deepcel Surface Voltage Ballast Options
 Surface3"Parabolic 120=120V Seepage4.162 See page 4.162
277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVDPB2S9LS26U AHI
Example
30˚
60˚
600
1200
2400
Candlepower Curve
DPB2S9LS26UUNVHI
24" (610mm)
5 ½"
(140mm)
24" (610mm)
5 ½"
(140mm)
24" (610mm)
5 ½"
(140mm)
Reference data
Efficiency 57.6%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 60.0W
Ordering information
Type Cells Size Lamp qty –type Catalog no.
Surface
Parabolic
9
12
16
9
9
9
12
12
2' x 2'
2-T8 U6
2-T8 U6
2-T8 U6
3-T8 17W
3-TT5Biax
3-T8U1.6
3-TT5Biax
3-T8U1.6
DPB2S9LS26U
DPB2S12LS26U
DPB2S16LS26U
DPB2S9LS317
DPB2S9LS3FT
DPB2S9LS32U
DPB2S12LS3FT
DPB2S12LS32U
Deepcel Surface Voltage Ballast Options
 Surface3"Parabolic 120=120V Seepage4.162 See page 4.162
277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVDPB2S18LS332 AH3
Example
8 Cell
12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell 32 Cell
18 Cell
24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell
24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell
32 Cell
18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell
12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell
12 Cell
16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell
16 Cell
32 Cell18 Cell 24 Cell
12 Cell
4.163Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
30˚
60˚
600
1200
1800
Candlepower Curve
The Prismalyte Surface box
Available with your choice of 3 different Door frames.
To specify which Door frame you prefer, use door
name abbreviation indicated in Catalog number
(PNB2SRAVA232).
30˚
60˚
600
1200
2400
Candlepower Curve
12" (305mm)
5 ½"
(140mm)
12" (305mm)
5 ½"
(140mm)
12" (305mm)
5 ½"
(140mm)
24" (610mm)
5 ½"
(140mm)
24" (610mm)
5 ½"
(140mm)
Features
•20gaugesteelhousing.
•Housingmiteredcornerdetailing.
•Only51/2"deep.
•Dualsidewirewaysforcooleroperation.
•Quickremoveballastcovers.
•Fullyenclosedwiring.
•Availableinthreelensframestyles.
•Doorjambwithpositivelightstop.
•Positivespring-loadedorcam-actionlatches.
•Availablewithfloatingorfullsizedoors.
•Aluminumdoorswithmiteredcorners.
•MatchesPrismalytetroffer(seepage4.122).
•MeetsNYCCoderequirements.
•Matches1x4,2x2,2x4PrismalyteRecessed.
Options & accessories page 4.130
Special lenses:VAlensisstandardvirginacrylic.
For other available lenses, see page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Electronic T8 H3*, P3** O3*
1 - 4 Lamp Electronic T8 H4*, P4** O4*
1-3LampElec.TT5(40W) I3* X3*
1&2LampElec.TT5(40W) IB*, PR** SB*
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Stem and canopy sets:Suspendfixture6",12",18"
or24"fromsurface.(Fourperfixtureisrecommended.)
Catalog no.: ASC6 CSP(6");ASC12 CSP(12");
ASC18 CSP (18"); ASC24 CSP(24").
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
Prismalyte Surface 2' x 4', 2' x 2' & 1' x 4'
Premium specification lensed surface fluorescent luminaires
PNB1SR AVA232UNVHI
PNB2SR AVA26UUNVHI
Reference data
Efficiency 58.4%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 62.0W
Reference data
Efficiency 57.3%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 60.0W
Ordering information
Type Size Lamp qty –type Catalog no.
Surface
Parabolic 1' x 4'
1-T8
2-T8
3-T8
PNB1SRAVA132
PNB1SRAVA232
PNB1SRAVA332
Ordering information
Type Size Lamp qty –type Catalog no.
Surface
Parabolic 2' x 2'
2-T8 U6
3-TT5
3-T8 U1.6
PNB2SRAVA26U
PNB2SRAVA3FT
PNB2SRAVA32U
Prismalyte Surface Voltage Ballast Options
Premium Lensed 120=120V Seepage4.163 See page 4.163
Surface Luminaire 277=277V  andpage4.130
UNV=120-277 V
(Elec.T8Ballastonly)
UNVPNB1SR AVA232 AHI
Example
24" (610mm)
5 ½"
(140mm)
24" (610mm)
5 ½"
(140mm)
30˚
60˚
1200
2400
3600
Candlepower Curve
24" (610mm)
5 ½"
(140mm)
PNB2SR AVA432UNVH4 Reference data
Efficiency 60.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 112W
Ordering information
Type Size Lamp qty –type Catalog no.
Surface
Parabolic 2' x 4'
2-T8
3-T8
4-T8
PNB2SRAVA232
PNB2SRAVA332
PNB2SRAVA432
FA =Flush
Aluminum
Full-Size
Door
RF =Regressed
Aluminum
Floating
Door
RA =Regressed
Aluminum
Full-Size
Door
4.164 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
30˚
60˚
300
600
900
Candlepower Curve
12" (305mm)
5 ½"
(140mm)
•
•
•
•
•
••
•
Features
•20gaugesteelweldedbody.
•Sidemountedballastforcooleroperation.
•45°miteredcorners(bodyandlouver).
•3"deepcellaluminumparaboliclouver(VRB).
•Spring-loadedlatches.
•Perfectlyuniformfoursidereveal.
•Low-iridescence,semi-specularaluminum,standard.
•Louverhaspolyethylenedustguard.
•MeetsNYCCoderequirements.
•Louverassemblycanbereplacedwithanyof3standard
Philips Lightolier Door frames.
Options & accessories page 4.216
Louver finish: Low iridescence semi-specular is
standard. Consult factory for other finishes.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
LOL T8 Dimming – PS
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Stem and canopy sets:Suspendfixture6",12",18"
or24"fromsurface.(Fourperfixtureisrecommended.)
Catalog no.: ASC6 CSP(6");ASC12 CSP(12");
ASC18 CSP (18"); ASC24 CSP(24").
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
VisionSmartSurface1'x4'
Surface
VRB1S8LS132UNVHI Reference data
Efficiency 66.0%
Spacing ratio 1.9
Electronic ballast
Inputwatts(120V) 30.0W
Ordering information
Type Cells Size Lamp qty –type Catalog no.
Surface
Parabolic
8
12 1' x 4' 1-T8
1-T8
VRB1S8LS132
VRB1S12LS132
8
12 1' x 4' 2-T8
2-T8
VRB1S8LS232
VRB1S12LS232
Vision Smart Voltage Ballast Options
Surface 1' x 4' 120=120V Seepage4.164 See page 4.164
277=277V  andpage4.216
UNV=120-277 V
(Elec.T8Ballastonly)
UNVVRB1S8LS132 AHI
Example
8 Cell
12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
8 Cell 12 Cell
9 Cell 12 Cell 16 Cell 32 Cell18 Cell 24 Cell
12 Cell
4.165Comprehensive lighting catalog 7th Edition
Standard – Linear recessed and surface lighting
FS =FlushSteel RA =RegressedAluminum
Features
•Shallow4"deep,20gaugesteelhousing.
•Positivecam-actionlatchessecureframeoneitherside.
•Centermountedballastcompartment.
•Snap-onwiringchannelcoverisremovedwithouttools.
•Matteblacklightsealonbothendstopreventlightleaks.
Options & accessories page 4.216
Special lenses:VAlensisstandardvirginacrylic.
For other available lenses, see page 4.130.
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Electronic T8 H3*, P3** O3*
1 - 4 Lamp Electronic T8 H4*, P4** O4*
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Stem and canopy sets:Suspendfixture6",12",18"
or24"fromsurface.(Fourperfixtureisrecommended.)
Catalog no.: ASC6 CSP(6");ASC12 CSP(12");
ASC18 CSP (18"); ASC24 CSP(24").
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
30˚
60˚
550
1100
1650
Candlepower Curve
SLB1SFSVA232UNVHI
24" (610mm)
24" (610mm)
24" (610mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
12"
(305mm)
24" (610mm)
24" (610mm)
24" (610mm)
24" (610mm)
24" (610mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
Reference data
Efficiency 56.2%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 62.0W
Ordering information
Type Door frame Size Lamp qty –type Catalog no.
Surface
Luminaire
Flush Steel 1' x 4' 2-T8 SLB1SFSVA232
Regressed
Aluminum 1' x 4' 2-T8 SLB1SRAVA232
SLB Voltage Ballast Options
High Performance 120=120V Seepage4.165 See page 4.165
Lensed Surface 277=277V  andpage4.216
Luminaire UNV=120-277V
(Elec.T8Ballastonly)
UNVSLB1SFSVA232 HI
Example
30˚
60˚
550
1100
1650
Candlepower Curve
SLB2SFSVA26UUNVHI
24" (610mm)
24" (610mm)
24" (610mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
12"
(305mm)
24" (610mm)
24" (610mm)
24" (610mm)
24" (610mm)
24" (610mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
Reference data
Efficiency 63.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 60.0W
Ordering information
Type Door frame Size Lamp qty –type Catalog no.
Surface
Luminaire
Flush Steel 2' x 2' 2-T8 U6
4-17W
SLB2SFSVA26U
SLB2SFSVA417
Regressed
Aluminum 2' x 2' 2-T8 U6
4-17W
SLB2SRAVA26U
SLB2SRAVA417
30˚
60˚
1200
2400
3600
Candlepower Curve
SLB2SFSVA432UNVH4
24" (610mm)
24" (610mm)
24" (610mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
12"
(305mm)
24" (610mm)
24" (610mm)
24" (610mm)
24" (610mm)
24" (610mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
4"
(102mm)
Reference data
Efficiency 67.1%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 112.0W
Ordering information
Type Door frame Size Lamp qty –type Catalog no.
Surface
Luminaire
Flush Steel 2' x 4'
2-T8
3-T8
4-T8
SLB2SFSVA232
SLB2SFSVA332
SLB2SFSVA432
Regressed
Aluminum 2' x 4'
2-T8
3-T8
4-T8
SLB2SRAVA232
SLB2SRAVA332
SLB2SRAVA432
The Prismalyte Surface box
Available with your choice of 2 different door frames.
To specify which door frame you prefer, use door
name abbreviation indicated in catalog number
(PNB2SRAVA232).
SLB2'x4',2'x2'&1'x4'
High performance lensed surface fluorescent luminaires
Highqualitysurfaceluminaireswith4"deephousings.Doorframesareextrudedaluminum
orsteel.SLBseriessurfaceluminairescanbeusedinlowplenumdepthareasthatrequire
surface luminaires.
4.166 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Standard
Features
•Idealforlowceilingheightapplicationswhererecessed
units cannot be used.
•213/16"totaldepth.
•Step-backhousingforanapparentdepthof13/4".
•Ashallowprofileandlinearprismaticsidescombineto
reduce ceiling contrast.
•Virginacryliclenswithone-pieceextrudedprismatic
pattern 12 bottom and linear prism side walls.
•Shieldinghingesfromeitherside(self-leveling).
•Full-lengthballastcoversnaps-in,snaps-out(notools).
•Individualorcontinuousrowinstallations.
•Suitableformountingonlow-densitycellulose
fiberboard surfaces.
•Suitablefordamplocations.
Jet Star Lens
Surface
Jet Star Corridor Lens
Surface
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI*, P2** SO*
1 - 4 Lamp Electronic T8 H4*, P4** O4*
LOL T8 Dimming – PS
* Instant start
** Program start
For20WT12,useBallastsuffixPL.
Electrical/wiring options: For special wiring,
fusing, electronic dimming ballasts or emergency pack,
consultfactory.
Canopy spacer:Suspendsfixture11/4"fromsurface.
Order Catalog no. AC1 CSP.
Stem and canopy sets:Suspendfixture6",12",18"
or24"fromsurface.(Fourperfixtureisrecommended.)
Catalog no.: ASC6 CSP(6");ASC12 CSP(12");
ASC18 CSP (18"); ASC24 CSP(24").
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
JS4A232UNVHI
JS4C132UNVHI
Reference data
Efficiency 85.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 56.0W
LER 78.2
Reference data
Efficiency 84.3%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 34.3W
LER 77.7
8 ¼" (108mm)
13 ¼" (339mm)
2 ½"
(61mm)
2 ½"
(61mm)
Ordering information
Type Size Lamp qty –type Catalog no.
Jet Star
Lens Luminaire
8 ¼"x24"
8 ¼"x24"
8 ¼"x48"
8 ¼"x96"
2-T12
2-T8
2-T8
4-T8*
JS2A220
JS2A217
JS4A232
JS8A232
13 ¼"x48" 4-T8 JS4B432
* 2-Lamps In Tandem - 4 Lamps Total
Ordering information
Type Size Lamp qty –type Catalog no.
Jet Star
Lens Luminaire
5 ½"x24"
5 ½"x24"
5 ½"x24"
5 ½"x24"
5 ½"x48"
5 ½"x48"
5 ½"x96"
5 ½"x96"
1-T12
1-T8
2-T12
2-T8
1-T8
2-T8
2-T8*
4-T8**
JS2C120
JS2C117
JS2C220
JS2C217
JS4C132
JS4C232
JS8C132
JS8C232
5 ½"
(140mm)
4 ¼"
(108mm)
4 ⅛"
(105mm)
1 ⅞"
(48mm)
Jet Star Voltage Ballast Options
Corridor lens 120=120V Seepage4.166 See page 4.166
Surface 277=277V  andpage4.216
UNV=120-277 V
(Elec.T8Ballastonly)
UNVJS4C132 AHI
Example
30˚
60˚
550
1100
Candlepower Curve
30˚
60˚
280
560
Candlepower Curve
*1-Lamp in tandem - 2 lamps total
**2-Lamps in tandem - 4 lamps total
For T5 options consult factory
Jet Star lens Voltage Ballast Options
Surface 120=120V Seepage4.166 See page 4.166
277=277V  andpage4.216
UNV=120-277 V
(Elec.T8Ballastonly)
UNVJS4A232 AHI
Example
Reference data
Efficiency 90.7%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 57.0W
LER 81.6
8 ¼" (108mm)
13 ¼" (339mm)
2 ½"
(61mm)
2 ½"
(61mm)
30˚
60˚
550
1100
Candlepower Curve
4.167Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Pristine > 4.168
Taskmaster I > 4.169
Taskmaster II > 4.169
Taskmaster Solid Front T8 > 4.170
Taskmaster Solid Front T5 > 4.171
Contents
Task lighting
4.168 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•Architecturallypleasingroundedslimprofileonly3/4"
deepx4-3/4"wide.
•Providesmedianfootcandlelevelof55on2'x5'
desktop.
•Prismaticacrylicspreadlens.
•Flushpushbuttonswitch.
•Electronicprogramstart<10THDballast.
•LampT213W,CRI=80,colortemperature3500K,
lamp is included.
•Ninefootstraightblackcord.
•Bakedpewterpolyesterenamelfinishforcordandplug.
•Bakedwhitepolyesterenamelfinishforhardwireoption.
•MeetsNewYorkCityrequirementsfortasklighting.
Please consult factory for any further options.
Pristine
T2 Task lighting
Pristine
Hard wire series
Aluminum
Reflector
4 ¾" (121mm)
1 ⅜"
(35mm)
¾"
(19mm)
Nine Foot
Straight Cord
22" (559mm)
4 ¾"
(121mm)
12" (305mm)
5 116"
(132mm)
Aluminum
Reflector
4 ¾" (121mm)
1 ⅜"
(35mm)
¾"
(19mm)
Nine Foot
Straight Cord
22" (559mm)
4 ¾"
(121mm)
12" (305mm)
5 116"
(132mm)
Ordering information
Type Color Length Lamp qty –type Lamp watts Catalog no.
Pristine One Lamp
with Cord and Plug Pewter 22” 1-T2 13W PC2P13T2120PTCPB
Pristine One Lamp
with Chicago Style Plug Pewter 22” 1-T2 13W PC2P13T2120PTCPBCH
Ordering information
Type Color Length Lamp qty –type Lamp watts Catalog no.
Pristine One Lamp
Hardwire White 22” 1-T2 13W PC2W13T2120PTHW
Aluminum
Reflector
4 ¾" (121mm)
1 ⅜"
(35mm)
¾"
(19mm)
Nine Foot
Straight Cord
22" (559mm)
4 ¾"
(121mm)
12" (305mm)
5 116"
(132mm)
2~⅞" K.O.
2~⅞" K.O. Center Line
4 ¾"
(121mm)
5 116"
(132mm)
6" (153mm)
8"
(203mm)
12" (305mm)
22" (559mm)
3" (76mm)
T2 Lamp
6 316" (161mm)
Aluminum
Reflector
4 ¾" (121mm)
1 ¼"
(32mm)
¾"
(19mm)
1 ¼"
(32mm)
2~⅞" K.O.
2~⅞" K.O. Center Line
4 ¾"
(121mm)
5 116"
(132mm)
6" (153mm)
8"
(203mm)
12" (305mm)
22" (559mm)
3" (76mm)
T2 Lamp
6 316" (161mm)
Aluminum
Reflector
4 ¾" (121mm)
1 ¼"
(32mm)
¾"
(19mm)
1 ¼"
(32mm)
2~⅞" K.O.
2~⅞" K.O. Center Line
4 ¾"
(121mm)
5 116"
(132mm)
6" (153mm)
8"
(203mm)
12" (305mm)
22" (559mm)
3" (76mm)
T2 Lamp
6 316" (161mm)
Aluminum
Reflector
4 ¾" (121mm)
1 ¼"
(32mm)
¾"
(19mm)
1 ¼"
(32mm)
Backwall
Desktop
Pristine
Pristine
4.169Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Features
•11/8"shallowdepth.
•Fivenominallengths:12",21",24",33",42".
•Groundedconvenienceoutlet(optional).
•On/offrockerswitch(includedinsupplypack).
•Bakedwhiteenamelfinish.
Options & accessories
Accessories that will ship separately order the following:
GLR-B(6packof3ampfusing)
RIF-SUPR(1-RFIsuppressor)
CONV OUTLET 10-pack
(10packofoutletsandhardware)
Accessories are for field installation.
Features
•17/8"shallowdepth.
•Fournominallengths:18",24",36",48".
•Groundedconvenienceoutlet(optional).
•On/offrockerswitch,standard(includedinsupplypack).
•Bakedwhiteenamelfinish.
Options & accessories
Accessories that will ship separately order the following:
GLR-B(6packof3ampfusing)
RIF-SUPR(1-RFIsuppressor)
CONV OUTLET10-PACK
(10packofoutletsandhardware)
Accessories are for field installation.
Taskmaster II
Under shelf luminaires
Ordering information
Type Length Lamp watts/Type Catalog no.
Taskmaster I
(OneLamp)
12 ¼"
21 ¼"
33 ½"
8PH
13PH
8PH/13PH(1each)
TSL0018W BPR
TSL0113W BPR
TSL1813W BPR
Taskmaster I
(TwoLamp)
24 ¼"
42 ½"
8PH
13PH
TSL0028W BPR
TSL0213W BPR
Ordering information
Type Length Lamp qty –type Lamp watts Catalog no.
Taskmaster II
18⅛"
24⅛"
36⅛"
48⅛"
24⅛"
36⅛"
48⅛"
TS-T12
TS-T12
TS-T12
TS-T12
T8
T8
T8
15W
20W
30W
40W
17W
25W
32W
TCU15W120P BPR
TCU20W120P BPR
TCU30W120P BPR
TCU40W120P BPR
TCU20WUNVRO BPR
TCU30WUNVRO BPR
TCU40WUNVRO BPR
5" (127mm)
1 ⅛"
(29mm)
5¼" (134mm)
1 ⅞"
(48mm)
5" (127mm)
1 ⅛"
(29mm)
5¼" (134mm)
1 ⅞"
(48mm)
Taskmaster I
Under Shelf Luminaire
For electronic ballast,
substitute TSLP for TSL,
e.g: TSLP0018W BPR.
TSL0018W BPR
Example
Attractive,
unobtrusive
lighting
Lamp/fixture Bulk pack
Taskmaster II length/watts Finish Voltage Ballast rocker switch
Undershelf 15=15WTST12(Nom.18") W =White 120 =120VP =Standard Warning(277BPR)Bulk
Luminaire 20=20WTST12or17WT8(Nom.24")  (T12Only) Magnetic T12 pack rocker switch can
30 =30WRST12or25WT8(Nom.36")  UNV=120-277V RO =RapidStart notbeinstalledonfixture
40=40WRST12or32WT8(Nom.48")  (Elec.T8Ballastonly) <10THDT8 if277Visbeingrun.
TCU W40
Example UNV RO BPR
Taskmaster
Taskmaster
Taskmaster I
Under shelf luminaires
4.170 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Taskmaster Solid Front T8
Specification undershelf luminaire
Features
•1¾”shallowdepth.
•Threenominallengths:24",36",48"
•Specificationgradeundershelfluminaire.
•Solidfrontdesign.
•Lensremovablewithouttoolsforeasymaintenance.
•100%acryliclinearprismaticlenstoobscurelampimage
and uniformly distribute light output
•LampT8,CRI=70,colortemp3500K,isstandard
andincluded.
•Paintafterfabricationwithwhitepolyesterpaintfinish.
•On/offrockerswitch(includedinsupplypack)
120 volt use only.
•Universalvoltage.
Options & accessories
Accessories that will ship separately order the following:
GLR-B(6packof3ampfusing)
RIF-SUPR(1-RFIsuppressor)
CONV OUTLET(10PACK)
L
C
C
L
C
L
⅝"
(16mm)
½" (13mm) Dia. K.O.
This End Only
5 ¼" (133mm)
1 ¾"
(44mm)
716" (11mm) Dia. K.O.
Each End
⅞" (22mm) Dia. K.O.
Each End
⅞" (22mm) Dia. K.O. (2)
(One Top/One Back)
4 ¼"
(108mm)
5 ¼"
(133mm)
2 716"
(62mm)
24 116" (611mm)
316" (5mm)
Dia. Hole (4)
(2 Top/2 Back)
Keyhole K.O. (2)
36 116" (916mm)
⅞" (22mm) Dia. K.O. (2)
(One Top/One Back)
2 716"
(62mm)
316" Dia. Hole (4)
(2 Top/2 Back)
Keyhole K.O. (2)
⅞" (22mm) Dia. K.O. (2)
(One Top/One Back)
48 116" (1221mm)
Keyhole K.O. (2)
316" Dia. Hole (4)
(2 Top/2 Back)
2 716"
(62mm)
5 ¼"
(133mm)
4 ¼"
(108mm)
4 ¼"
(108mm)
5 ¼"
(133mm)
Ordering information
Type Length Lamp qty –type Lamp watts Catalog no. Electronic ballast type
Taskmaster
Sold Front T8
24
1⁄16"
36
1⁄16"
48
1⁄16"
1-T8
17W
25W
32W
TCF117WUNVRO BPR
TCF125WUNVRO BPR
TCF132WUNVRO BPR
<10ProgramRapidStart
24
1⁄16"
36
1⁄16"
48
1⁄16"
1-T8
17W
25W
32W
TCF117WUNVHI BPR
TCF125WUNVHI BPR
TCF132WUNVHI BPR
<10Instantstart
Lamp/fixture Bulk pack
Taskmaster Lamp length/watts Finish Voltage Ballast rocker switch
Solid Front T8 Specification 1=Number17 =17WT8(Nom24") W =White UNV=120-277V HI =Instantstart Canonlybeinstalled
Undershelf Luminaire of Lamps 25 =25WT8(Nom36")  (Elec.T8Ballastonly)  <10THDT8 ina120voltapplication
32 =32WT8(Nom48")  RO=RapidStart
  <10THDT8
1TCF W32
Example UNV RO BPR
Taskmaster
4.171Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Taskmaster Solid Front T5
Specification undershelf luminaire
Features
•11/8”shallowdepth.
•Threenominallengths:22”,34”,46”
•Specificationgradeundershelfluminaire.
•Solidfrontdesign.
•Lensremovablewithouttoolsforeasymaintenance.
•100%acryliclinearprismaticlenstoobscurelampimage
and uniformly distribute light output
•LampT5,CRI=80,colortemp3500K,isstandard
andincluded.
•Paintafterfabricationwithwhitepolyesterpaintfinish.
•On/offrockerswitch(includedinsupplypack)
120 volt use only.
•Universalvoltage.
Options & accessories
Accessories that will ship separately order the following:
GLR-B(6packof3ampfusing)
CONV OUTLET(10pack)
5" (127mm)
1 ⅛"
(29mm)
½"
(13mm)
⅝" (16mm) Dia.
22 ¾" (578mm)
1 ½"
(38mm)
2 ½"
(64mm)
5"
(127mm)
1 ¾"
(45mm)
1 ¾"
(45mm)
2 ⅜"
(60mm) Keyhole K.O. (2)
11 ⅜ "
(289mm)
316" (5mm)
Dia. Hole (2)
.53" (13mm) Dia. K.O. (6)
(3 Top/3 Back)
34 ½" (876mm)
316" (5mm)
Dia. Hole (2)
2 ½"
(64mm)
5"
(127mm)
1 ¾"
(45mm)
2 ⅜"
(60mm) Keyhole K.O. (2)
1 ¾"
(45mm)
.53" (13mm) Dia. K.O. (6)
(3 Top/3 Back)
1 ½"
(38mm)
17 ¼ "
(438mm)
.53" (13mm) Dia. K.O. (6)
(3 Top/3 Back)
1 ½"
(38mm)
2 ⅜"
(60mm) Keyhole K.O. (2)
1 ¾"
(45mm)
1 ¾"
(45mm)
2 ½"
(64mm)
5"
(127mm)
46 ¼" (1175mm)
23 ⅛"
(587mm)
316" (5mm)
Dia. Hole (2)
1 ½"
(38mm)
Ordering information
Type Length Lamp qty –type Lamp watts Catalog no. Electronic ballast type
Taskmaster
Sold Front T5
22 ¾”
34 ½”
46 ¼”
1-T5
14W
21W
28W
TSF114WUNVPG BPR
TSF121WUNVPG BPR
TSF128WUNVPG BPR
<10ProgramRapidStart
Lamp/fixture Bulk pack
Taskmaster Lamp length/watts Finish Voltage Ballast rocker switch
Solid Front T8 Specification 1=Number14 =14WT5(Nom22") W =White UNV=120-277V HI=ProgramRapidStart Canonlybe
Undershelf Luminaire of Lamps 21 =21WT5(Nom34")  (Elec.T5Ballastonly)  <10THDT5 installedina
28 =28WT5(Nom46")  120Vapplication
1TSF W28
Example UNV PG BPR
Taskmaster
Linear recessed and surface lighting
4.172 Philips Lightolier For complete specification information visit www.lightolier.com
Special purpose & industrial
Special purpose luminaires that address vandal, wet
and cleanroom application needs. Industrial lighting for
enclosed or open luminaires where special construction
is provided to meet concerns of hazardous and industrial
areas for proper and safe lighting levels.
Linear recessed and surface lighting
4.173Comprehensive lighting catalog 7th Edition
FluorescentHigh&LowBays > 4.174
Cleanguard Class > 4.186
Hazardline > 4.188
Sealatron > 4.190
Cleanguard Wet > 4.192
Cleanlite > 4.193
GuardsmanVandalResistant > 4.194
IC Series > 4.198
TU Turret Industrial > 4.200
KD/KWIndustrial> 4.201
Contents
4.174 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
90° 90°
0°
90° 90°
0°
90° 90°
0°
Contoured Miro IV specular reflector
Features a mirrored silver finish designed to concentrate
beam spread and optimize lamp performance making it
ideal to concentrate light on the racks of a warehouse
or a store.
Flat white reflector
In gymnasiums, low-glare and wide light distribution
which can be provided by a flat white reflector are
a must.
Flat Miro IV specular reflector
For assembly plant as well as retail open area, a flat
design reflector with mirrored silver finish produces
very wide light distribution and optimizes efficiency.
Fluorescent high & low bays
Current statistics reveal 65% of the energy is being consumed by the commercial and
industrial markets and 22% of this energy is being utilized for lighting alone. Smart business
managers have discovered the incredible energy savings of up to 50% by replacing traditional
HID high bay fixtures with efficient linear fluorescent T5HO and T8 luminaires. These are
the ideal green solution and have the added benefits of high Philips Lightolier, illumination
uniformity and instant-on starting.
A wide variety of T5 and T8 fluorescent fixtures are offered by Philips Lightolier for high and
low bay lighting, all providing exceptional features for the application they were designed for.
Here are some features you may want to consider when choosing a fluorescent high bay.
Light beam
Uplight vs. downlight only Motion sensors for additional savings
1. Selecting the right reflector is just as important as choosing the right luminaire.
Reflectors determine how light is distributed in a space. Each reflector design has a
specific light distribution function that is suited to certain applications better than others.
2. A well-lit, inviting ceiling appearance contributes to a store's or working's positive
ambience. Darker ceilings produce a more closed-in feeling, uncomfortable to most
people. Uplight reduces the cave effect, expands the space and makes it look cleaner.
3. Byincludingoccupancysensorcontrols,theenergyreductionisevengreater,
especially in areas of a facility that have limited traffic. Unlike HID lamping, adding
occupancy sensors to T5HO and T8 systems is relatively easy and inexpensive. If
the addition of a sensor makes you nervous, consider
using the Smart TriLyte turnkey solution which has the
technology to optimize lamp life.
Whether it is for industrial, recreational or commercial
uses, you will find that Philips Lightolier’s fluorescent
high bays deliver great lighting packages, superior energy
efficiency and occupancy sensing capabilities.
4.175Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Trilyte Nordik
The same light output at -18°C as the
regular TriLyte at 25°C, making it perfect
for cold storage.
Gymlyter
Highly resistant, full body luminaire
with strong wireguard.
Trily te
The best design in its category including
ballast ventilation and body strength.
Most versatile high bay in regards to
application, especially in industrial aisles.
Smar t Trilyte
TriLyte including Philips Alto low mercury
lamps, Advance electronic ballast and a
sensor optimizing lamp life and energy
savings. Guaranteed for 3 years.
Fluorescent high bay
Selection chart
Design Lamp Distribution Reflector Application Mounting Accessories
Lamps
Warranty
Narrow
Wide
T5
T8
Downlight/
Uplight
Downlight
Contoured MIRO
IV
Flat MIRO IV
Flat White
Industrial
Recreative
Retail
Cold
Environments*
Hot
Environments**
Surface
Pendant
Chain
Stern
Sensor
Door
Wireguard
Trily te 2, 3, 4,
4T 6●● ● ●●●●●● ●●●●●● ●●
Smar t Trilyte 4 6 ●● ● ●●●● ●●●●●STD ●STD 3 years
TrilyteNordik 4 6 T5HO ● ● ● ● ● STD STD
Gymlyter 2, 3, 4,
4T 6● ● ● ● STD ● ●●●●●● STD ●
STD=Standard
T=Lampsintandem(e.g.4Tmeans8lampstotal)
**Ratedforusefrom5°Cto55°Cambient(withoutlens).
**Rated for use from -18°C to 5°C ambient.
For any special solution, contact your Philips Lightolier representative.
4.176 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
2 ¾"
(70mm)
17"
(432mm)
13 ⅜"
(340mm)
36"
(914mm)
17 "
(432mm)
8 ¾"
(222mm) Narrow-Body 4'
49 ½"
(1257mm)
98 ¼"
(2496mm)
17 "
(432mm)
8 ¾"
(222mm)
36"
(914mm)
36"
(914mm)
Narrow-Body 8'
TriLyteNarrow
Narrow-body 2, 3 & 4 lamp lowbay surface/pendant luminaire
DesignedforTrade(commercialspaces),RecreationalandIndustriallocations,TriLyte
provides much needed versatility in lowbay applications. Using the appropriate lamp,
wattage and reflector options, this narrow-body version is also suitable for highbay lighting,
particularlyretailoutletsandindoorsportsfacilities.Itslow-profilehousing(almost1"
shallowerthanmostcompetingmodels)isperfectforareasthatplaceapremiumon
luminaire appearance. Dual-circuit TriLyte equipped with optional motion sensor delivers
added lighting control flexibility for industrial applications.
Features
•Sturdyone-piecepost-paintedhousingprovidingclean,
smooth,installation-friendly corners.
•Side-mountedballastforlow2-3/4"profile.
•Mountingheightsfrom12'to45'withsuitablelamping-
reflector lens selection.
•2,3and4-lampversions(cross-sectionview).
•Availablein4'and8'lengths.
•Choiceofcontouredspecular,flatspecularorflat
whitereflector.
•Contouredspecularreflectoroffersoptimum
performance and 95% reflectivity (not available on
2-lampmodel).
•Choiceofstem,surfaceorchainmounting.
•Acceptsemergencybatterypacks.
•Availablemotionsensorallowsfortotallightingcontrol,
added energy savings.
Options & accessories
Ballast:Specifyvoltage(120,277orUNV)
and add as suffix, e.g. 120PU.
Ballast type <10THD
Elect.I.S.T8,(1)4-Lamp H4
Elect.I.S.T8,(1)4-Lamp&(1)2-Lamp H5
Elect.I.S.T8,(2)4-Lamp H7
one 4-Lamp ballast to operate outside lamps
one 4-lamp ballast to operate inside lamps
Elect.P.S.T5/T5HO,(1)2-Lamp PG
Elect.P.S.T5/T5HO,(1)3-Lamp PU
Elect.P.S.T5/T5HO,(1)4-Lamp PV
Elect.P.S.T5/T5HO,(1)4-Lamp&(1)2-Lamp P6
one 4-Lamp ballast to operate outside lamps
one 2-lamp ballast to operate inside lamps
Elect.P.S.T5/T5HO,(2)3-Lamp P7
one 3-Lamp for 1, 3, & 5 and one 3-Lamp for 2, 4, & 6
Elect.P.S.T5/T5HO,(2)4-Lamp P8
one 4-Lamp for 1, 3, & 5 and one 4-Lamp for 2, 4, & 6
Consult your representative for other ballast options.
Electrical/wiring options:
Consult your Philips Lightolier representative.
Stem and canopy sets 4 stems required per luminaire.
Order cat. no. ASC12 CSP (12"), ASC18 CSP(18"),
ASC24 CSP(24"),ASC36 CSP(36"),ASC48 CSP (48").
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
Chain hanger kit: 2 kits required per luminaire.
Order catalog number EE9HC.
Wireguard/lens:Varietyofshieldingoptionsavailable.
Luminaire-mounted motion sensor: 360° coverage.
Field installed. Only available on luminaires with contoured
specular reflectors. Order catalog number FH360.
Remote-mounted motion sensor:Narrowcoverage.
Field installed. Order catalog number FH110.
FH4C4DXX454120PV
30˚
60˚
3000
6000
9000
Candlepower Curve
Reference data
Efficiency 89.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 58W
LER FI-T 6.0
VA =Pattern 12 prismatic lens
madeofvirginacrylic(.095"
nominal).Completewith
hinged white wireguard.
VI = Pattern12prismaticlens
madeofvirginacrylic(.125"
nominal).Completewith
hinged white wireguard.XX =Versionwithoutlensshielding.
WW =Whitehingedwireguard
only(nolens),9-gauge
wire adding rigidity to
luminaire.
RCP C.U.
1
2
3
4
5
6
7
8
9
10
63
57
51
45
41
37
33
30
27
24
Application data*
Luminaire spacing FC W/Sq Ft
300' x 400' x 25' Space 17' on center 50 0.81
120' x 80' x 28' Space 16' on center 55 0.98
300' x 400' x 25' Space 14' on center 75 1.15
*AverageFootcandlesMaintained.TotalLLF=0.84.
Reflectance: 80% Ceiling, 50% Wall, 20% Floor.
54W T5HO lamp rated at 4400 lumens at 25°C.
4.177Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Luminaire
type
Luminaire
length Body style Width Type Lens/shielding
Lamp qty
in a luminaire
cross-section Lamp/type Voltage Ballast Options
FH=TriLyte 4=4'
8=8'
W =FlatDesign
White Reflector
C =Contoured
Specular Reflector
S =FlatDesign
Specular Reflector
4=17"D=Downlight VA=PrismaticLens
VAwithWireguard
VI=PrismaticLens
VIwithWireguard
WW =Wireguard,
White/NoLens
XX=NoShielding
2=2Lamps
3=3Lamps
4=4Lamps
28=T528W
32=T832W
54=T5HO54W
120=120V
277=277V
UNV=120-277V
See previous
page
See previous
page
TriLyteNarrow
Narrow-body 2, 3 & 4 lamp lowbay surface/pendant luminaire
DesignedforTrade(commercialspaces),RecreationalandIndustriallocations,TriLyte
provides much needed versatility in lowbay applications. Using the appropriate lamp,
wattage and reflector options, this narrow-body version is also suitable for highbay lighting,
particularlyretailoutletsandindoorsportsfacilities.Itslow-profilehousing(almost1"
shallowerthanmostcompetingmodels)isperfectforareasthatplaceapremiumon
luminaire appearance. Dual-circuit TriLyte equipped with optional motion sensor delivers
added lighting control flexibility for industrial applications.
Ordering information for T5
Type Lamp
qty/type
Lamp/luminaire
nominal length
Luminaire
width Catalog no.
PrismaticLens(VI)
with Wireguard
2-T5HO
3-T5HO
4-T5HO
6-T5HO
8-T5HO
48"
48"
48"
96"tandem
96"tandem
17"
FH4W4DVI254UNVPG
FH4C4DVI354UNVPG
FH4C4DVI454UNVPG
FH8C4DVI354UNVP6
FH8C4DVI454UNVP8
White Wireguard
withNoLens
2-T5HO
3-T5HO
4-T5HO
6-T5HO
8-T5HO
48"
48"
48"
96"tandem
96"tandem
17"
FH4W4DWW254UNVPG
FH4C4DWW354UNVPG
FH4C4DWW454UNVPG
FH8C4DWW354UNVP6
FH8C4DWW454UNVP8
Ordering information for T8
Type Lamp
qty/type
Lamp/luminaire
nominal length
Luminaire
width
Catalog no.
PrismaticLens(VI)
with Wireguard
2-T8
3-T8
4-T8
6-T8
8-T8
48"
48"
48"
96"tandem
96"tandem
17"
FH4W4DVI232UNVHI
FH4C4DVI332UNVH3
FH4C4DVI432UNVH4
FH8C4DVI332UNVH5
FH8C4DVI432UNVH7
White Wireguard
withNoLens
2-T8
3-T8
4-T8
6-T8
8-T8
48"
48"
48"
96"tandem
96"tandem
17"
FH4W4DWW232UNVHI
FH4C4DWW332UNVH3
FH4C4DWW432UNVH4
FH8C4DWW332UNVH5
FH8C4DWW432UNVH7
FH 4 4W D WW 454 UNV PV
Basic catalog no. Voltage Ballast Options
TriLyte Luminaire 120=120V Seepreviouspage Seepreviouspage
277=277V
UNV=120-277V
FH4W4DWW454 UNV APV
Example
Numberinglogic
Acronyms used
CU =Coefficientsofutilization
FC =Footcandles
IS =Instantstart
LLF =Light loss factor
PS = Program start
RCR =Room cavity ratio
THD =Total harmonic distortion
4.178 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
TriLyte Wide
Wide-body 6 lamp highbay surface/pendant luminaire
DesignedforTrade(commercialspaces),RecreationalandIndustriallocations,TriLyte
provides much needed versatility in highbay applications. Using the appropriate lamp, wattage
and reflector options, this wide-body version is also suitable for lowbay lighting, particularly
retailoutletsandindoorsportsfacilities.Itslow-profilehousing(almost1"shallowerthan
mostcompetingmodels)isperfectforareasthatplaceapremiumonluminaireappearance.
Dual-circuit TriLyte equipped with optional motion sensor delivers added lighting control
flexibility for industrial applications.
Features
•Sturdyone-piecepost-paintedhousingprovidingclean,
smooth, installation-friendly corners.
•Side-mountedballastforlow2-3/4"profile.
•Mountingheightsupto45'.
•6-lampversionsonly(cross-sectionview).
•Availablein4'lengthsonly.
•Choiceofcontouredspecularorflatwhitereflector.
•Contouredspecularreflectoroffersoptimum
performance and 95% reflectivity.
•Choiceofstem,surfaceorchainmounting.
•Acceptsemergencybatterypacks.
•Availablemotionsensorallowsfortotallightingcontrol,
added energy savings.
Options & accessories
Ballast:Specifyvoltage(120,277orUNV)
and add as suffix, e.g. UNVPG.
Ballast type <10THD
Elect.I.S.T8,(1)4-Lamp&(1)2-Lamp H5
Elect.P.S.T5/T5HO,(1)4-Lamp&(1)2-Lamp P6
one 4-Lamp ballast to operate outside lamps
one 2-lamp ballast to operate inside lamps
Elect.P.S.T5HO,(2)3-Lamp P7
one 3-Lamp for 1, 3, & 5 and one 3-Lamp for 2, 4, & 6
Consult your representative for other ballast options.
Electrical/wiring options:
Consult your Philips Lightolier representative.
Stem and canopy sets: 4 stems required per luminaire.
Order cat. no. ASC12 CSP(12"),
ASC18 CSP(18"),ASC24 CSP(24"),
ASC36 CSP(36"),ASC48 CSP (48").
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
Chain hanger kit 2 kits required per luminaire.
Order catalog number EE9HC.
Wireguard/lensVarietyofshieldingoptionsavailable.
Luminaire-mounted motion sensor 360° coverage.
Field installed. Only available on luminaires with
contoured specular reflectors. Order cat. no. FH360.
Remote-mounted motion sensor Narrowcoverage.
Field installed. Order catalog number FH110.
FH4C5DXX654UNVP6
Reference data
Efficiency 90.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 234W
LER 1.00
23 ⅛"
(587mm)
23 ⅛"
(587mm)
2 ¾"
(70mm)
19 ⅝"
(498mm)
15"
(381mm)
36"
(914mm)
49 ½"
(1257mm)
30˚
60˚
3000
6000
9000
Candlepower Curve
RCP C.U.
1
2
3
4
5
6
7
8
9
10
100
92
85
79
72
67
62
58
53
49
Application data*
Luminaire spacing FC W/Sq Ft
120' x 80' x 28' Space 240 sq ft per lum. 80 1.5
120' x 80' x 28' Space 20' on center 50 1.9
300' x 400' x 25' Space 18' on center 75 1.1
*Averagefootcandlesmaintained.TotalLLF=0.84.
Reflectance: 80% Ceiling, 50% Wall, 20% Floor.
54W T5HO lamp rated at 4400 lumens at 25°C.
**Averagefootcandlesmaintained.TotalLLF=0.84.
Reflectance: 50% Ceiling, 30% Wall, 20% Floor.
54W T5HO lamp rated at 4400 lumens at 25°C.
VA =Pattern 12 prismatic lens
madeofvirginacrylic(.095"
nominal).Completewith
hinged white wireguard.
VI = Pattern12prismaticlens
madeofvirginacrylic(.125"
nominal).Completewith
hinged white wireguard.
WW =Whitehingedwireguardonly
(nolens),9-gaugewireadd-
ing rigidity to luminaire.
XX =Versionwithoutlensshielding.
4.179Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Luminaire
type
Luminaire
length Body style Width Type Lens/shielding
Lamp qty
in a luminaire
cross-section Lamp/type Voltage Ballast Options
FH=TriLyte 4=4' W =FlatDesign
White Reflector
C =Contoured
Specular Reflector
5=23"D=Downlight VA=PrismaticLens
VAwithWireguard
VI=PrismaticLens
VIwithWireguard
WW =Wireguard,
WhitewithNoLens
XX=NoShielding
6=6Lamps 28=T528W
32=T832W
54=T5HO54W
120=120V
277=277V
UNV=120-277V
See previous
page
See previous
page
TriLyte Wide
Wide-body 6 lamp highbay surface/pendant luminaire
DesignedforTrade(commercialspaces),RecreationalandIndustriallocations,TriLyte
provides much needed versatility in highbay applications. Using the appropriate lamp, wattage
and reflector options, this wide-body version is also suitable for lowbay lighting, particularly
retailoutletsandindoorsportsfacilities.Itslow-profilehousing(almost1"shallowerthan
mostcompetingmodels)isperfectforareasthatplaceapremiumonluminaireappearance.
Dual-circuit TriLyte equipped with optional motion sensor delivers added lighting control
flexibility for industrial applications.
Ordering information for T5
Type Lamp
qty/type
Lamp/luminaire
nominal length
Luminaire
width Catalog no.
PrismaticLens(VI)
with Wireguard 6-T5HO 48"23"FH4C5DVI654UNVP6
White Wireguard
withNoLens 6-T5HO 48"23"FH4C5DWW654UNVP6
Ordering information for T8
Type Lamp
qty/type
Lamp/luminaire
nominal length
Luminaire
width
Catalog no.
PrismaticLens(VI)
with Wireguard 6-T8 48"23"FH4C5DVI632UNVH5
White Wireguard
withNoLens 6-T8 48"23"FH4C5DWW632UNVH5
FH 4 5W D WW 654 UNV P6
Basic Catalog no. Voltage Ballast Options
TriLyte Luminaire 120=120V Seepreviouspage Seepreviouspage
277=277V
UNV=120-277V
FH4W5DWW654 UNV P6
Example
Acronyms used
CU =Coefficientsofutilization
FC =Footcandles
IS =Instantstart
LLF =Light loss factor
PS = Program start
RCR =Room cavity ratio
THD =Total harmonic distortion
Numberinglogic
4.180 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
2 ¾"
(70mm)
17"
(432mm)
13 ⅜"
(340mm)
36"
(914mm)
17 "
(432mm)
8 ¾"
(222mm) Narrow-Body 4'
49 ½"
(1257mm)
98 ¼"
(2496mm)
17 "
(432mm)
8 ¾"
(222mm)
36"
(914mm)
36"
(914mm)
Narrow-Body 8'
36"
(914mm)
17 "
(432mm)
8 ¾"
(222mm) Narrow-Body 4'
49 ½"
(1257mm)
98 ¼"
(2496mm)
17 "
(432mm)
8 ¾"
(222mm)
36"
(914mm)
36"
(914mm)
Narrow-Body 8'
VA =Pattern 12 prismatic lens
madeofvirginacrylic(.095"
nominal).Completewith
hinged white wireguard.
VI = Pattern12prismaticlens
madeofvirginacrylic(.125"
nominal).Completewith
hinged white wireguard.
White hinged 9-gauge wireguard
adding rigidity to luminaire available
as an accessory. (FH4WG4 for
narrow luminaire and FH4WG5 for
wide luminaire. Add VA or VI for a
wireguardwithlens.)
XX =Versionwithoutlensshielding.
Smar t TriLy te
Low / high bay including lamps, ballast and sensor with a 3 year warranty
The Smart TriLyte is the first and only packaged fluorescent low/high bay engineered
specifically to correctly address sensor applications lamp cycling in Canada. It delivers
optimal performance and is the only occupancy-sensored linear fluorescent low/high bay
that carries a complete system warranty on all components including lamps, ballast,
sensor and luminaire for 3 years.
Features
•Completesystemintetegratingmotionsensorand
Philips lamps, ballast, and lighting fixture
•Lamps: Low Mercury Philips Alto II T8 lamps (Philips
F32T8/TL841/AltoII,4100K,2850initiallumens)orAlto
T5HOlamps(PhilipsF54T5/841/HO/ALTO,4100K,
5000initiallumens)showing95%lumenmaintenance
and reduced lamp-end blackening. For other lamp
colour temperatures, consult your Philips Lightolier
representative
•4models(Narrow-body)–Availablein4'and8'lengths
•6models(Wide-body)–Availablein4'lengthonly.
• Sensor: LampMaximizer optimizes lamp life and
energy costs while reducing maintenance costs. Circular
detection with passive infrared for 30-40 ft diameter
coverage. Green LED on the sensor will blink constantly
for 31 days once 70% of the projected lamp life has been
reached
•Ballast: Philips Advance programmed start electronic
ballast.TotalHarmonicDistorsionof<10%
•Ratedforballastcasetemperatureupto90°C.Tested
to operate at ambient temperatures of 55°C (6-lamp
versionwithoutlens).Forlensapplications,consultyour
Philips Lightolier representative
•Guarantee: 3-year guarantee on all components
including lamps, ballasts, sensor and any other
component installed on the product by the factory.
Properly installed product that Philips Lightolier
determines to be defective will be repaired or replaced
at Philips Lightolier’s discretion. (The warranty covers
the repair or replacement of the product and does not
extend to transportation, installation or replacement
charges.Nootherwarranty,eitherexpressedor
implied, beyond this statement is included. Consult your
PhilipsLightolierrepresentativeforfurtherinformation.)
•Body: One-piece post-painted housing providing clean,
smooth, installation-friendly corners
•Reflector:ContouredMiroIVreflectoroffers
optimum performance and 95% reflectivity
•Mounting: Choice of stem, surface or chain mounting.
12' to 45' mounting height with suitable lamp reflector
lens mix
•Bulk Pack: Sold in bulk pack only
Options & accessories
Wireguard/lens: See besides.
Emergency/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
Stem and canopy sets: 4 stems required per luminaire.
Order catalog no. STKF12(12"),STKF18(18"),
STKF24(24"),STKF36(36"),STKF48(48").
Chain hanger kit: 2 kits per luminaire.
Order catalog no. EE9HC.
FH4C4DXX454UNVSML Narrow Body, 4-Lamp T5HO
30˚
60˚
3000
6000
9000
Candlepower Curve
Reference data
Efficiency 86.2%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 234W
Ballastfactor 1.0
Ordering information T8
Type* Lamp
qty/type
Lamp/luminaire
nominal length
Lumin.
Width
Catalog
number
4-T8
6-T8
48"
48"
17"
23"
FH4C4DXX432UNVSML
FH4C5DXX632UNVSML
*Noshielding(accessoriesorderedseparately).
Application data*
Luminaire spacing FC W/Sq Ft
100' x 12' x 28' Space 20' on center 17/10 0.98
100' x 12' x 28' Space 15' on center 23/14 1.37
*Averagefootcandlesmaintained.TotalLLF=0.84.
Reflectance: 50% Ceiling, 30% Wall, 20% Floor.
54W T5HO lamp rated at 4400 lumens at 25°C.
4 pi x4' grid at floor level.
**Footcandlesatthefloor(horizontal)
withFootcandlesonthewalls(vertical).
RCP C.U.
1
2
3
4
5
6
7
8
9
10
96
88
82
76
70
66
60
56
52
48
4.181Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Smar t TriLy te
Low / high bay including lamps, ballast and sensor with a 3 year warranty
The Smart TriLyte is the first and only packaged fluorescent low/high bay engineered
specifically to correctly address sensor applications lamp cycling in Canada. It delivers
optimal performance and is the only occupancy-sensored linear fluorescent low/high bay
that carries a complete system warranty on all components including lamps, ballast,
sensor and luminaire for 3 years.
FH4C5DXX654UNVSML Wide Body, 6-Lamp T5HO
Reference data
Efficiency 90.0%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 358.0W
Ballastfactor 1.0
Ordering information T8
Type* Lamp
qty/type
Lamp/luminaire
nominal length
Luminaire
width
Catalog
number
4-T5HO
6-T5HO
48"
48"
17"
23"
FH4C4DXX454UNVSML
FH4C5DXX654UNVSML
*Noshielding(accessoriesorderedseparately).
Luminaire
type
Luminaire
length
Reflector
type Width Type Shielding/cord
Lamp qty
in a luminaire
cross-section Lamp/Type Voltage Ballast
FH= TriLyte
Series
4= 4'
(4 & 6 Lamp
8= 8'
(4Lamponly)
C= Contoured
MiroIV
4=17"
(4-lamponly)
5=23"
(6-lamp only;
4'unitonly)
D=Downlight XX=NoShielding
X3=Noshielding,
3' cord, twist lock
plug(singleswitching)
X6=Noshielding,
6' cord, twist lock
plug (single switching
for 4 lamps or less;
double switching for
6lamps)
X7=Noshielding,
6' cord, no plug
(doubleswitching)
4=4Lamps
6=6Lamps
32=T832W
54=T5HO54W
120=120V
277=277V
UNV=120-277V
SML = Smart Lighting
(Philips Alto or AltoII
841 lamps, Philips
Advance elect. P.S. bal-
last and LampMaximizer
sensor.)BulkPack.
FH 4 4C D XX 432 UNV SML
2 ¾"
(70mm)
23 ⅛"
(587mm)
19 ⅝"
(498mm)
36"
(914mm)
49 ½"
(1257mm)
23 ⅛"
(587mm)
15"
(381mm)
30˚
60˚
3000
6000
9000
Candlepower Curve
Application data*
Luminaire spacing FC W/Sq Ft
100' x 12' x 28' Space 20' on center 24/16 1.49
100' x 12' x 28' Space 15' on center 32/22 2.09
*Averagefootcandlesmaintained.TotalLLF=0.84.
Reflectance: 50% Ceiling, 30% Wall, 20% Floor.
54W T5HO lamp rated at 4400 lumens at 25°C.
4 pi x4' grid at floor level.
**Footcandlesatthefloor(horizontal)
withFootcandlesonthewalls(vertical).
RCP C.U.
1
2
3
4
5
6
7
8
9
10
100
92
85
79
72
67
62
58
53
49
Numberinglogic
4.182 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Features
•TheTrilyteNordikisdesignedforrefrigerated
environments
•Candlelightrelativeoutput86.2%at-18°Cwhen
ordered with Philips Lightolier supplied amalgam lamps
(CRIof4100K)
•ldealfortemperaturesbetween-18°Cand5°Cwhen
ordered with Philips Lightolier recommended T5HO
amalgam lamps.For ambient temperatures of 5°C to
55°C, use regular TriLyte
•Body: One-piece post painted steel housing for
superior strength and able to withstand the harshest
environments. Smooth and installation-friendly corners
•Shielding: Full gasket sealed Door frame standard
withclearacryliclens(0.12"nominalthickness)and
spring latch design for easy tool less access to the
lamp compartment . Polycarbonate lens also available.
WireguardN/A
•Reflector: ContouredMiroIVreflectoroffers
optimum performance and 95% reflectivity
•Mounting: Surface or chain
Options & accessories
Ballast:Specifyvoltage(120,277orUNV,347)
and add suffix, e.g. UNVPV.
Ballast type <10THD
Elect.P.S.T5HO,(2)2-Lamp PG
Elect.P.S.T5HO,(1)4-Lamp PV
Elect.P.S.T5HO,(1)4-Lamp&(1)2-Lamp P6
one 4-Lamp for 1, 2, 5, & 6 and one 2-Lamp for 3 & 4
Elect.P.S.T5HO,(2)3-Lamp P7
one 3-Lamp for 1, 3, & 5 and one 3-Lamp for 2, 4, & 6
Emergency/wiring options: For special wiring, fusing,
electronic dimming ballasts, consultfactory. Emergency
packN/A.
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
Chain hanger kit:24"chainsuspensionkit.2kits
required per luminaire. Order catalog no. EE9HC.
Lamps: Philips Lightolier strongly recommends purchasing
the fixture complete with special amalgam lamps to insure
maximum light output. Suffix: 6.
Shielding: For clear polycarbonate lens instead of clear
arylic lens, replace GI by PX.
36"
(914mm)
49 ⅜"
(1255mm)
17" (431mm)
2 ¾"
(70mm)
Spring latch design for easy, toolless
access to the lamp compartment.
TriLyteNordik
Fluorescent high bay for cold environments
TheTriLyteNordikisdesignedtoachievethesameleveloutputat-18°Casaregular
fluorescenthighbayat25°Cambienttemperature.WiththeTriLyteNordik,youbenefitof
the energy savings, high color rendering and very low lumen depreciation that were reserved
to standard ambient temperature, making it perfect for applications such as cold storage.
FHC4C4DGI454UNVPV6 Narrow Body
RCP C.U.
1
2
3
4
5
6
7
8
9
10
96
88
82
76
70
66
60
56
52
48
Reference data
Efficiency 86.2%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 234W
Ballastfactor 1.0
Ordering information
Type* Size Lamp
qty/type Catalog no.
Clear Acrylic Lens
with Lamps 17"x49⅜" 4-T5HO FHC4C4DGI454UNVPV6
*Noshielding(accessoriesorderedseparately).
30˚
60˚
3000
6000
9000
Candlepower Curve
Basic catalog no. Voltage Ballast Options
 TriLyteNordik 120=120V Seepage4.182 See page 4.182
277=277V  Addappropriatesuffix.
UNV=120-277V toCatalognumber.
6=Amalgamlamps
(recommended).
FHC4C4DGI454 UNV 6PV
Example
Application data*
Luminaire spacing FC W/Sq Ft
300' x 400' x 25' Space 17' on center 50 0.81
120' x 80' x 28' Space 16' on center 55 0.98
300' x 400' x 25' Space 14' on center 75 1.15
*Averagefootcandlesmaintained.TotalLLF=0.84.
Reflectance: 80% Ceiling, 50% Wall, 20% Floor.
Lamps rated at 4400 lumens.
4.183Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
TriLyteNordik
Fluorescent high bay for cold environments
TheTriLyteNordikisdesignedtoachievethesameleveloutputat-18°Cthanaregular
fluorescenthighbayat25°Cambienttemperature.WiththeTriLyteNordik,youbenefit
from energy savings, high color rendering and very low lumen depreciation that were
reserved for standard ambient temperature, making it perfect for applications such as
cold storage.
FHC4C5DGI654UNVP66 Wide Body
RCP C.U.
1
2
3
4
5
6
7
8
9
10
100
92
85
79
72
67
62
58
53
49
Reference data
Efficiency 90.0%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 358.0W
Ballastfactor 1.00
Ordering information
Type* Size Lamp
qty/type Catalog no.
Clear Acrylic Lens
with Lamps 23"x49⅜" 6-T5HO FHC4C5DGI654UNVP66
*Noshielding(accessoriesorderedseparately).
2 ¾"
(70mm)
36"
(914mm)
49 ⅜"
(1254mm)
23 ⅛" (588mm)
Basic catalog no. Voltage Ballast Options
 TriLyteNordik 120=120V Seepreviouspage Seepreviouspage
277=277V  Addappropriatesuffix.
UNV=120-277V toCatalognumber.
6=Amalgamlamps
(recommended).
FHC4C5DGI454 UNV 6P6
Example
30˚
60˚
4000
8000
12000
Candlepower Curve
Application data*
Luminaire spacing FC W/Sq Ft
120' x 80' x 28' Space 240' on center 80 1.5
120' x 80' x 28' Space 20' on center 50 1.9
300' x 400' x 25' Space 18' on center 75 1.1
300' x 400' x 25' Space** 22' on center 50 0.76
*Averagefootcandlesmaintained.TotalLLF=0.84.
Reflectance: 80% Ceiling, 50% Wall, 20% Floor.
Lamps rated at 4400 lumens.
**Idem with 30% wall reflectance.
4.184 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
17"
(432mm)
2 ¾"
(70mm)
13 ⅜"
(340mm)
49 ½"
(1257mm)
98 ¼"
(2496mm)
8 ¾"
(222mm)
17"
(432mm)
8 ¾"
(222mm)
17"
(432mm)
Narrow Body 4'
Narrow Body 8'
36"
(914mm)
36"
(914mm)
36"
(914mm)
Features
•Flatwhitereflectorandwireguardasstandard.
(ChoiceofMiroIVflatreflectoralsoavailalble)
•Sturdyone-piecepost-paintedhousingprovidingclean,
smooth, installation-friendly corners
•Side-mountedballastforlow2-3/4"profile
•2-,3-,4-and8-lamp(4-lampintandem)T8orT5HO
(cross-sectionview)
•Availablein4'and8'lengths
•Choiceofstem,surfaceorchainmountingwith
installation up to 45'
•Acceptsemergencybatterypacks
Options & accessories
Ballast:Specifyvoltage(120,277orUNV,347)
and addsuffix, e.g. UNVPV.
Ballast type <10THD
Elect.I.S.T8,4LPB H4
Elect.I.S.T8,(1)4LPB&(1)2LPB H5
Elect.I.S.T8,(2)4LPB H7
one for outside and one for inside lamps
Elect.P.R.S.T5/T5HO,1or2LPB PG
Elect.P.R.S.T5/T5HO,1or3LPB PU
Elect.P.R.S.T5/T5HO,1or4LPB PV
Elect.P.S.T5/T5HO,(1)4LPB&(1)2LPB P6
 one4LPBforoutsidelampsandone2LPBforinsidelamps
Elect.P.S.T5/T5HO,(1)3LPB&(1)3LPB P7
 one3LPBforlamps1,3,&5andone3LPBforlamps2,4,&6
Elect.P.S.T5/T5HO,(2)4LPB P8
one for outside and one for inside lamps
LPB=Numberoflampsperballast
Emergency/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
Lamps: not included except upon request. For T5HO
lamps(8/41K)installed,CFIchoiceofbrand,addsuffix6.
Consult your Philips Lightolier representative for additional
options.
Gymlyter
Resistant high bay dedicated to gymnasiums
Gymlyter is a one-piece body made of 22-gauge steel and a strong wireguard, with or
without lens, fully dedicated to gymnasiums and other recreative environments.
FH4W4DWW454UNVCV Narrow Body, 6-Lamp T5HO
RCP C.U.
1
2
3
4
5
6
7
8
9
10
96
88
82
76
70
66
60
56
52
48
Reference data
Efficiency 86.2%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 234W
Ballastfactor 1.0
White hinged 9-gauge
wireguard adding rigidity
to luminaire available as
an accessory.
FH4WG4 for narrow
luminaire. Add VA or VI
for a wire guard withlens.
VI Pattern
12 prismatic lens made
ofvirginacrylic(.125"
nominal).Complete
with hinged white
wireguard.
30˚
60˚
3000
6000
9000
Candlepower Curve
Application data*
Luminaire spacing FC W/Sq Ft
300' x 400' x 25' Space 17' on center 50 0.8
120' x 80' x 28' Space 16' on center 55 1.0
300' x 400' x 25' Space 14' on center 75 1.2
*Averagefootcandlesmaintained.TotalLLF=0.84.
Reflectance=80%Ceiling,50%Wall,20%Floor.
54W T5HO lamp rated at 4400 lumens at 25°C.
4.185Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Lumin.
Type
Lumin.
Length
Reflector
type Width Type Lens/shielding
Lamp qty
in a luminaire
cross-section Lamp/type Voltage Ballast Options
FH 4= 4'
8= 8'
W= Flat Design
White
Reflector
S= Flat Design
Specular
Reflector
4=17"D=Downlight VI=Prismatic
LensVIwith
Wireguard
WW=Wireguard,
White with
NoLens
2=2Lamps
3=3Lamps
4=4Lamps
8 =4Lamps
intandem
(8total)
28=T528W
32=T832W
54=T5HO54W
120=120V
277=277V
UNV=120-277V
See prev.
page
See previous page
Add appropriate
suffix to Catalog
number
Gymlyter
Resistant high bay dedicated to gymnasiums
Gymlyter is a one-piece body made of 22-gauge steel and a strong wireguard, with or
without lens, fully dedicated to gymnasiums and other recreative environments.
Ordering information for T5
Type Length Lamp
qty/type
Lamp/luminaire
nominal length Catalog no.
Prismatic Lens
with Wireguard 17 "
4-T5HO
6-T5HO
8-T5HO
48"
96"tandem
96"tandem
FH4W4DVI454
FH8W4DVI354
FH8W4DVI454
White Wireguard
withNoLens 17"
4-T5HO
6-T5HO
8-T5HO
48"
96"tandem
96"tandem
FH4W4DWW454
FH8W4DWW354
FH8W4DWW454
Ordering information for T8
Type Length Lamp
qty/type
Lamp/luminaire
nominal length Catalog no.
PrismaticLens(VI)
with Wireguard 17 "
2-T8
3-T8
4-T8
6-T8
8-T8
48"
48"
48"
96"tandem
96"tandem
FH4W4DVI232
FH4W4DVI332
FH4W4DVI432
FH8W4DVI332
FH8W4DVI432
White Wireguard
withNoLens 17"
2-T8
3-T8
4-T8
6-T8
8-T8
48"
48"
48"
96"tandem
96"tandem
FH4W4DWW232
FH4W4DWW332
FH4W4DWW432
FH8W4DWW332
FH8W4DWW432
FH 4 4W D WW 454 UNV PV 6
Numberinglogic
4.186 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Cleanguard Voltage Ballast Options
Wet location 120=120V Seepage4.186 See page 4.186
Class 10,000 or 277=277V  andpage4.130
100,000 Clean Room UNV=120-277V
(Elec.T8orTT5Ballastonly)
CXS2GFSVI26U UNV AHI
Example
Cleanguard Class 10,000
CleanRoom 2' x 4' & 2' x 2'
Recessed fluorescent luminaire
Features
•MeetsrequirementsforFederalStandard209EClass
10,000& 100,000 Clean Room tested by Independent Lab.
•ULandULcListedforwetordamplocationsfor
covered ceiling use.
•Fits15/16"to1"widefacegridceilingsystemsorflanged
for drywall type ceilings. Contractor responsible for
sealing fixture to ceiling.
•Fullperimetergasketing(closedcellNeoprene)between
Door frame and lens, between housing and Door frame.
•Endssealedtobody.
•.125pattern12lensinstalledsmoothsidedown.
•Doorframeispostpainted,bakedacrylicenamel.
•Hemmedoversiderailsformaximumsafety.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•Flatandregressedaluminumdoorsavailable.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. UNVHI
Ballast type <10THD <20THD
Electronic T8 HI*, P2** S0*
1-3 Lamp Elec T8 H3*, P3** 03*
1-4 Lamp Elect T8 H4*, P4** 04*
1-3 Lamp TT5 40 Watt IB*, PR** SB*
Electronic TT5 40 Watt I3* X3*
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Continuous row installation: For F type fixtures,
half-width flanges are required between fixtures.
Catalog no.: 2FCTrim for each joint.
Plaster frame: For F type troffers, order plaster
frames separately. Catalog no.: PF24 for 2'x4' troffer;
PF22 for 2'x2' troffer.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
CXS2GFSVI26UUNVHI
30˚
60˚
500
1000
1500
Candlepower Curve
Reference data
Efficiency 63.1%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 53.7W
LER FL 56.0
Ordering information
Type Size Lamp
qty–type
Exposed
T-Grid
Flanged for dry
wall or plaster
Flat Aluminum
Door 2' x 2'
2-6" T8
3-TT5
3-1.6"U T8
CXS2GFAVI26U
CXS2GFAVI3FT
CXS2GFAVI32U
CXS2FFAVI26U
CXS2FFAVI3FT
CXS2FFAVI32U
Flat Steel
Door 2' x 2'
2-6"T8
3-TT5
3-1.6"UT8
CXS2GFSVI26U
CXS2GFSVI3FT
CXS2GFSVI32U
CXS2FFSVI26U
CXS2FFSVI3FT
CXS2FFSVI32U
Regressed
Aluminum
Door
2' x 2'
2-6"T8
3-TT5
3-1.6"UT8
CXS2GRAVI26U
CXS2GRAVI3FT
CXS2GRAVI32U
CXS2FRAVI26U
CXS2FRAVI3FT
CXS2FRAVI32U
CXS2GFSVI332UNVH3
Cleanguard Voltage Ballast Options
Wet location 120=120V Seepage4.186 See page 4.186
Class 10,000 or 277=277V  andpage4.130
100,000 Clean Room UNV=120-277V
(Elec.T8Ballastonly)
CXS2GFSVI332 UNV AH3
Example
Reference data
Efficiency 67.9%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 108.7W
LER FL 73.2
Ordering information
Type Size Lamp
qty–type
Exposed
T-Grid
Flanged for dry
wall or plaster
Flat Aluminum
Door 2' x 4'
2 T8
3-T8
4-T8
CXS2GFAVI232
CXS2GFAVI332
CXS2GFAVI432
CXS2FFAVI232
CXS2FFAVI332
CXS2FFAVI432
Flat Steel
Door 2' x 4'
2 T8
3-T8
4-T8
CXS2GFSVI232
CXS2GFSVI332
CXS2GFSVI432
CXS2FFSVI232
CXS2FFSVI332
CXS2FFSVI432
Regressed
Aluminum
Door
2' x 4'
2 T8
3-T8
4-T8
CXS2GRAVI232
CXS2GRAVI332
CXS2GRAVI432
CXS2FRAVI232
CXS2FRAVI332
CXS2FRAVI432
5"
(127mm)
24" (610mm)
30˚
60˚
750
1500
2250
Candlepower Curve
5"
(127mm)
24" (610mm)
4.187Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
5"
(127mm)
24" (610mm)
Exposed T-grid ceiling, 1 ½" face,
(with flat aluminum frame).
Exposed T-grid ceiling 15⁄16" to 1" face
(with flat aluminum frame).
24"
1 ½"
¼"max.
1 ½"
max.
gasketing
Cleanguard Class 1,000/10,000
CleanRoom 2' x 4' & 2' x 2'
Recessed fluorescent luminaire 2' x 2', 2' x 4' - 1½" wide T-bar
CXS2WFAVI26UUNVHI
CXS2WFAVI332UNVH3
30˚
60˚
500
1000
1500
Candlepower Curve
Cleanguard Voltage Ballast Options
Wet location 120=120V Seepage4.187 See page 4.187
Class 1,000, 10,000 or 277=277V  andpage4.130
100,000 Clean Room UNV=120-277V 
(Elec.T8orTT5Ballastonly)
CXS2WFAVI26U UNV AHI
Example
Cleanguard Voltage Ballast Options
Wet location 120=120V Seepage4.187 See page 4.187
Class 1,000, 10,000 or 277=277V  andpage4.130
100,000 Clean Room UNV=120-277V
(Elec.T8Ballastonly)
CXS2WFAVI332 UNV AH3
Example
Reference data
Efficiency 63.1%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 53.7W
LER FL 56.0
Reference data
Efficiency 67.9%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 108.7W
LER FL 73.2
Ordering information
Type Size Lamp
qty–type
¹5⁄¹6" to 1 ½"
Wide face T-Grid
Flat Aluminum
Door 2' x 2'
2-6" T8
3-TT5
3-1.6"U T8
CXS2WFAVI26U
CXS2WFAVI3FT
CXS2WFAVI32U
Ordering information
Type Size Lamp
qty–type
¹5⁄¹6" to 1 ½"
Wide face T-Grid
Flat Aluminum
Door 2' x 2'
2-T8
3-T8
4-T8
CXS2WFAVI232
CXS2WFAVI332
CXS2WFAVI432
30˚
60˚
750
1500
2250
Candlepower Curve
Features
•MeetsrequirementsforFederalStandard209EClass
1,000/10,000 & 100,000 Clean Room tested by
Independent Lab.
•ULandULcListedforwetordamplocationsfor
covered ceiling use.
•Fits15/16"to11/2"widefacegridceilingsystems.
Contractor responsible for sealing fixture to ceiling.
•Fullperimetergasketing(closedcellNeoprene)
betweenDoor frame and lens, closed cell ethafoam
gasketing between housing and Door frame.
•Endssealedtobody.
•.125pattern12lensinstalledsmoothsidedown.
•Doorframeispostpainted,bakedacrylicenamel.
•Hemmedoversiderailsformaximumsafety.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•Flatextrudedaluminumdoor.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. UNVHI
Ballast type <10THD <20THD
Electronic T8 HI*, P2** S0*
1-3 Lamp Elec T8 H3*, P3** 03*
1-4 Lamp Elect T8 H4*, P4** 04*
1-3 Lamp TT5 40 Watt IB*, PR** SB*
Electronic TT5 40 Watt I3* X3*
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
5"
(127mm)
24" (610mm)
Mounting Methods
gasketing
24"
¼"max.
gasketing
gasketing
¹5⁄¹6"or1"
1 ½"
max.
4.188 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
8 932"
(210mm)
9 ¾" (247mm)
7 516"
(186mm)
5 932"
(134mm)
8 932"
(210mm)7 516"
(186mm)
5 932"
(134mm)
9 ¾" (247mm)
Features
•SamefixturemeetsClassI,II,IIIandWetLocation
requirements.
•UL-ListedClassI,Division2,GroupsA,B,CandD
locations.
•UL-ListedClassII,Division1and2,GroupsFandGand
Class III, Division 1 and 2 locations.
•ULListedforwetlocations.
•Non-corrosivefiberglassreinforcedpolyestercomposite
bodysuitable(T8orT12RS)for40°Cambient
temperature.
•MeetsUL844staticdischargerequirements.
•MeetsUL746Cimpacttestrequirements.
•MeetsUL94-5VAfirerating.
•Stainlesssteel,16gaugesteeldoorwith3/16"tempered
glass lens.
•Stainlessspringsteeltoggleclampstosecurelens
doorframe.
•One-piecesiliconegasketing.
Options & accessories page 4.217
Ballast:Specifyvoltage(120,277)andtype
and add assuffix, e.g. HSCXT232UNVHI
Ballast type <10THD <20THD
1-2 Lamp Elec T8 HI* S0*
1-3 Lamp Elec T8 H3* 03*
* Instant start
Electrical/wiring options: For special wiring,
fusing,consultfactory.
Hazardline
Vapor/dust/wet locations enclosed luminaire
This luminaire is suitable for indoor and outdoor application in three areas. Class I Div.
2 locations are those in which flammable gases, vapors or liquids are handled in closed
containers from which any escape of hazardous materials are accidental. Class II locations
are hazardous because of the presence of combustible dust. Class III locations are hazardous
because of the presence of easily ignitable fibers of flyings. Hazardline, additionally has a wet
location rating for use indoors.
HSCXT232120SO
30˚
60˚
500
1000
1500
Candlepower Curve
Reference data
Efficiency 72.7%
Spacing ratio 1.0
Electronic ballast
Inputwatts(120V) 62.0W
Ballastfactor 0.88
Ordering information
Type Class/division Fixture
length
Lamp
qty/type Catalog no.
Enclosed Industrial
Fluorescent
Vapor-tight
Class I
Division 2
Dust-tight
Class II/III
Division 1
Division 2
Wet-Location
53"
53"
2-T8
3-T8
HSCXT232
HSCXT332
*800 MA HO fixtures are standard with -20°F ballasts
*Consult factory for HO units.
Hazardline Voltage Ballast Options
 Vapor/Dust/Wet 120=120V Seepage4.188 See page 4.188
Locations Enclosed 277=277V  andpage4.217
Luminaire UNV=120-277V
HSCXT232 120 SO
Example
Application data*
Luminaire spacing FC W/Sq Ft
50' x 70' x 12' Space 51 0.9
8'x8'(64sqft/fixture)
12' x 16' x 8.5' Space 54 1.2
6'x8'(48sqft/fixture)
8'x8'x8.5'Cubicle/60"Partition 54 0.9
30'x30'(64sqft/fixture)
*AveragefootcandlesmaintainedTotalLLF=.75
Reflectance: 80% Ceiling, 50% Wall, 20% Floor
RE835 lamp rated at 3000 lumens
Coefficients
of utilization
% wall reflectance
Room Cavity Ratio
70 50 30
178 75 72
272 67 62
366 59 54
460 53 47
555 46 40
651 42 35
747 37 31
843 33 27
939 30 24
10 36 27 21
20% of floor and
80% of ceiling
effective cavity
reflectance
4.189Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Features
The following hazardous location definitions are excerpted
fromArticle500ofthe1990NationalElectricalCode
HSCXT Series meets the following classifications
Class I, Division 2 locations
(a) ClassI,Division2locationisalocation(1)inwhich
volatile flammable liquids or flammable gases are
handled, processed, or used, but in which the liquids,
vapors, or gases will normally be confined within
closed containers or closed systems from which
they can escape only in case of accidental rupture or
breakdown of such containers or systems, or in case
of abnormal operation of equipment.
Class II locations
Class II locations are those that are hazardous because of
the presence of combustible dust.
(a) ClassII,Division1.AClassII,Division1locationis
alocation:(1)whichcombustibledustisintheair
under normal operating conditions, in quantities
sufficient to produce explosive or ignitible mixtures;
or(2)wheremechanicalfailureorabnormal
operation of machinery or equipment might cause
such explosive or ignitible mixtures to be produced,
and might also provide a source of ignition through
simultaneous failure of electric equipment, operation
ofprotectiondevices,orfromothercauses;or(3)in
which combustible dusts of an electrically conductive
nature may be present in hazardous quantities.
(b)ClassII,Division2.AClassII,Division2locationisa
location where combustible dust is not normally in
the air in quantities sufficient to produce explosive
or ignitible mixtures, and dust accumulations are
normally insufficient to interfere with the normal
operation of electrical equipment or other apparatus,
but combustible dust may be in suspension in the air
as a result of infrequent malfunctioning of handling or
processing equipment and where combustible dust
accumulations on, in, or in the vicinity of the electrical
equipment may be sufficient to interfere with the
safe dissipation of heat from electrical equipment or
may be ignitible by abnormal operation or failure of
electrical equipment.
Class III locations
Class III locations are those that are hazardous because
of the presence of easily ignitible fibers of flyings, but
in which such fibers or flyings are not likely to be in
suspension in the air in quantities sufficient to produce
ignitible mixtures.
(a) ClassIII,Division1.AClassIII,Division1location
is a location in which easily ignitible fibers or
materials producing combustible flyings are handled,
manufactured, or used.
(b)ClassIII,Division2.AClassIII,Division2locationis
a location in which easily ignitible fibers are stored or
handled.
Hi-temp power channel Heavy-duty hinged stainless steel door
Top/end suspension hubs Class I/Division 2 construction
45° Adjustable quadrant brackets NKH45 Top-mount angle-bars HACM CSP
Hazardline
Vapor/dust/wet locations enclosed luminaire
This luminaire is suitable for indoor and outdoor application in three areas. Class I Div.
2 locations are those in which flammable gases, vapors or liquids are handled in closed
containers from which any escape of hazardous materials are accidental. Class II locations
are hazardous because of the presence of combustible dust. Class III locations are hazardous
because of the presence of easily ignitable fibers of flyings. Hazardline, additionally has a wet
location rating for use indoors.
ThermalPerformanceofHSCXTFixtures*
Features
Options
Ordering information
Lamp
qty/type
Ambient
temp. °C
“T”
Numbers
Fixture
Temp.* Catalog no.
2-T8
3-T8
40
40
T-4A
T-4A
120°C(248°F)
120°C(248°F)
HSCXT232
HSCXT332
*800 MA HO fixtures are standard with -20°F ballasts
*Consult factory for HO units.
4.190 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Professional
Sealatron Voltage Ballast Options
Wet Location 120=120V Seepage4.190 See page 4.190
Enclosed Luminaire 277=277V
UNV=120-277V
ST4WA 232 UNV AHI
Example
Sealatron
Wet location enclosed industrial luminaire
The Sealatron is an enclosed industrial luminaire rated for wet locations with an IP67 rating
Features
•WetLocation-Areasofhighhumidity,watervapor,rain,
incidental water spray, or other non-corrosive or non-
flammableliquid.(UL-Listed)
•NSFCertifiedforNon-FoodZoneinstallations.
•IP67rating.
•Acceptableforoutdooraswellasindoorinstallations.
•One-pieceimpactresistant,non-conductive,non-
corrosive housing, reinforced polyester fiberglass
housing.
•Smoothexteriorsurfaceforeasycleaning.
•Lightingchannelhashighreflectancebakedwhite
enamel finish.
•Twogasketedthreaded(1/2"tradesize)wetlocation
hubs installed on ends.
•HighimpactDRacrylicmoldedlens.
•Crepepatterninnersurfacelens.
•Continuous,compressible,closed-cellneoprenegasket
bonded to housing.
•ABSlock-tightplasticmoldedcam-actiontension
latches.
•K.O.'sprovidedthroughoutforeasyaccess.
•Canbesurface(wall/ceiling)orsuspendedmounted
unless otherwise specified.
•Mountingbracketsavailable,Orderseparately.
Options & accessories
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. ST4WA232UNVHI
ElectronicT12(HOonly)  SS
Ballast type <10THD <20THD
Electronic T8 H0 P2 SO
Electronic T8 HI* SO*
1-4 Lamp Electronic T8 H4* 04*
ElectronicT5InstantS(28W) PI
Electronic T5 Program S PG
1-4LampElectronicT5(54W) PV
* Instant start Standard
Cold weather ballasts: T12 HO lamped fixtures are
standard with –20°F ballasts. To specify cold weather
(0°F)ballastsforRSorT8fixtures.Suffix: CW.
Water tight kits: One installed each end of fixture.
For additional kits, order Catalog no.: STW-DC2.
Electrical/wiring options: Consultfactory.
Radio interference filter: 120 or 277 volt, 50 or 60 Hz.
One per fixture. Suffix: R. One per ballast. Suffix: B.
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
Top mounting bracket:
Order Catalog no.: STW TOP BRKT.
ST4WA232120SO
30˚
60˚
500
1000
1500
Candlepower Curve
Reference data
Efficiency 85.10%
Spacing ratio 1.5
Electronic ballast
I.W.(120V) 54W
Ballastfactor 0.88
Ordering information
Type Size Lamp
length
Lamp
qty–type Catalog no.
STW
Wet
Location
Enclosed
Industrial
7 x 25 ¹3⁄¹6"24"
24"
1-T8
1-T8
ST4WA117
ST4WA217
7 x 49 ¹3⁄¹6"
48"
46"
46"
48"
46"
46"
1-T8
1-T5
1-T5HO
2-T8
2-T5
2-T5HO
ST4WA132
ST4WA128
ST4WA154
ST4WA232
ST4WA228
ST4WA254
7 x 97 ¹3⁄¹6"
48"
46"
46"
48"
46"
46"
96"
96"
96"
1-T8*
1-T5*
1-T5HO*
2-T8**
2-T5**
2-T5HO**
2-T8SL
2-T8HO
2-T12HO
ST8WA132
ST8WA128
ST8WA154
ST8WA232
ST8WA228
ST8WA254
ST8WA259SL
ST8WA286HO
ST8WA296HO
*2lampstotal,(intandem)
**4lampstotal,(intandem)
Precision molded pre-
formed knockouts for
stem, chain or surface
mounting.
Smooth virgin acrylic
lens opens easily and
hinges from either side
for easy maintenance.
3 316"
(81mm)
2 ⅛"
(154mm)
1 ½"
(38mm)
5 316"
(132mm)
6 ⅝"
(168mm)
7"
(178mm)
Hole each end
.88" Dia. (⅞")
3 316"
(81mm)
3"
(76mm)
1 ½"
(38mm)
5 ⅞"
(149mm)
6 ⅝"
(168mm)
7"
(178mm)
Hole each end
.88" Dia. (⅞")
38 ¾" (984mm)
41 ⅞" (1064mm)
Stud location
(2 places)
Stud location
(2 places)
Drill Point location
(2 places)
49 1316" (127mm)
5 ⅛"
(130mm)
89 ⅞" (2283mm)
Stud location
(4 places)
Drill Point
Location
(2 places)
17 ½" (445mm)
14 ¾" (375mm)
¼" - 28 Brass Studs
Drill Point location
(2 places)
25 1316" (655mm)
Two To p
Mounting Brackets:
STW TOP BRKT
Two Surface or
Chain Mounting Brackets:
STW END BRKTS
¼" - 28 Brass Studs¼" - 28 Brass Studs
40 1316" (1037mm)40 1316" (1037mm)
97 1316" (2484mm)
Note: Sealatron luminaire also available in LED
4.191Comprehensive lighting catalog 7th Edition
Professional – Linear recessed and surface lighting
Sealatron IP low profile
Wet location enclosed industrial luminaire
The Sealatron IP Low Profile enclosed Industrial is a wet location listed luminaire that
incorporates a low profile housing design, high impact lenses and IP ratings.
Features
•IP65ratingforribbedlensesandIP67ratingfor
prismaticlens.
•Acceptableforoutdooraswellasindoorinstallations.
•WetLocationAreasofhighhumidity,watervapor,rain,
incidental water spray, or other non-corrosive or non-
flammable liquid.
•Alsosuitablefordamplocations.
•Non-conductive,non-corrosivehousing.
•Smoothexteriorsurfaceforeasycleaning.
•Moldedfiberglass5V-Ahousing.
•Choiceofribbedorinjectionmoldedprismaticdiffusers.
•Continuouspouredgasket.
•Polycarbonatecamactionlatchesarestandard.
•Ballastisretainedbyasnap-ongeartrayinlieuof
channel, reducing weight.
•Twosnap-onstainlesssteelmountingbracketsincluded,
can be installed anywhere along housing (except at
latches).
Options & accessories
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. IP4WP232UNVHI
Ballast type <10THD <20THD
Electronic T8 HI* SO*
1 - 3 Lamp Electronic T8 H3* 03*
1 - 4 Lamp Electronic T8 H4* 04*
2 - 3 Lamp Electronic T8 H6*
1 - 4 Lamp or 1 - 4 Lamp Elect T8 H5*
ElectronicT5(28W/54W) PG**
1-3LampElectronicT5(54W) PU**
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing,electronic dimming options, consultfactory.
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
30˚
60˚
550
1100
1650
Candlepower Curve
IP4WP232UNVHI
Sealatron Fixture Fixture Lamp Lamp type/
IP low length width Lens shielding type quantity fixture length Voltage Ballast type Options
profile 2=2'W=7¼" R=LinealRibbed 1=1Lamp14=T5(2') 120=120V See page 4.191 Add appropriate
4=4' N*=  4  ½"  (IP65)Polycarbonate 2=2Lamps 17=T8(2') 277=277V suffix to catalog
8=8'  A=LinealRibbedHigh 3=3Lamps 24=T5HO(2')UNV=120-277 V
  ImpactAcrylic(IP65) (28W,32W,54W 28=T5(4')
P=PrismaticInjection lamptypesonly)** 32=T8(4')
Polycorbonate 54=T5SO(4')
IP W4
Example
Ordering information
Size Family Lamps
X section
Lamp
fixture
Available
lenses
Lamp
type
Length
in. (mm)
Width
in. (mm)
Height
in. (mm)
2'
4'
8'
IP
IP
IP
1
2
1
2
3
1
2
3
1
2
1
2
3
2
4
6
R, P
R, P
A, R, P
A, R, P
A
14, 17, 24HO
28, 32, 54HO
28, 32, 54HO
28, 32, 54HO
28, 32, 54HO
28, 32, 54HO
28, 32
27 11/16"(703)
51 9/16"(1310)
100"(2540)
4½"(114)
7¼"(184)
4½"(114)
7¼"(184)
7¼"(184)
7¼"(184)
4¼"(108)
4¼"(108)
4¼"(108)
UNV AHIA322
*Narrowhousingonlyavailableinonelamp,twoandfourfootfixturesizes.
** 28W, 32W and 54W available in three lamp, four foot fixture sizes.
28W and 32W available in three lamp, eight foot fixture sizes.
A
Prismatic Injected Molded Lens (P)
Ribbed Lenses (R, A)
2 and 3 lamp (1 lamp 8')1 lamp (except 8')
4 ¼"
(108mm)
4 ¼"
(108mm)
4 ¼"
(108mm)
4 ¼"
(108mm)
4 ½" (114mm)
4 ½" (114mm)7 ¼" (184mm)
7 ¼" (184mm)
Mounting Bracket
(included)
A (Overall Length)
2'models2711/16"(703mm)
4'models519/16"(1310mm)
8'models100"(2540mm)
Reference data
Efficiency 66.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 55W
4.192 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Cleanguard wet location
Recessed fluorescent luminaire 2' x 4', 2' x 2' & 1' x 4'
WES1GFAVA232UNVHI
WES2GFAVA26UUNVHI
Cleanguard Voltage Ballast Options
Wet Location 120=120V Seepage4.192 See page 4.192
277=277V  andpage4.130
UNV=120-277V
WES1GFAVA232 UNV AHI
Example
Cleanguard Voltage Ballast Options
Wet Location 120=120V Seepage4.192 See page 4.192
277=277V  andpage4.130
UNV=120-277V
WES2GFAVA26U UNV AHI
Example
Reference data
Efficiency 69.0%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 80.0W
LER FL 48.3
Reference data
Efficiency 71.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 56.3W
LER FL 58.6
Ordering information
Type Size Lamp
qty–type
Exposed T
T-Grid
Flanged for Dry
Wall or Plaster
Flat Steel Door
Regressed Alum. Door
Flat Aluminum Door
1' x 4'
2-T8
2-T8
2-T8
WES1GFSVA232
WES1GRAVA232
WES1GFAVA232
WES1FFSVA232
WES1FRAVA232
WES1FFAVA232
Features
•ULandC-ULListedforwetordamplocationsfor
covered ceiling use.
•Fullperimetergasketing(closedcellNeoprene)between
Door frame and lens, between housing and Door frame.
•Doorframeispostpainted,bakedacrylicenamel.
•5"deepbodyfor2x4and2x2.
•81.2%efficient(T8),2x44lamp.
•69.0%efficient(T8),2-6"U.
•64.6%efficient(T8).1x42lamp.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips2x4,2x2.
•SlimlineDoorframewith1000squareinchlensopening
on 2x4 door.
•Miteredcornersteellensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•Flatandregressedaluminumdoorsavailable.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
and add as suffix, e.g. UNVHI
Ballast type <10THD <20THD
Electronic T8 HI*, P2** S0*
1-3 Lamp Elec T8 H3*, P3** 03*
1-4 Lamp Elect T8 H4*, P4** 04*
1-3 Lamp TT5 40 Watt I3* X3*
Electronic TT5 40 Watt IB*, PR** SB*
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Seismic Hold-Down Clip: For 1'x4' type G,
Suffix: 2HD. Factory installed.
Plaster frame: For F type troffers, order plaster
frames separately. Catalog no.: PF24 for 2'x4' troffer;
PF22 for 2'x2' troffer; PF14 for 1'x4' troffer.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing)
Continuous row installation: For 1'x4' F type
fixtures, trim is required between fixtures. Cat. no.:
1FCTrim For 2'x4' and 2'x2' F type fixtures, trim is
required between fixture Cat. no. S2FCTrim
(Oneperjointisrequired).
4"
(101mm)
12" (305mm)
30˚
60˚
600
1200
1800
Candlepower Curve
5"
(127mm)
24" (610mm)
30˚
60˚
600
1200
1800
Candlepower Curve
Ordering information
Type Size Lamp
qty–type
Exposed T
T-Grid
Flanged for Dry
Wall or Plaster
Flat Steel Door 2' x 2'
2-6" T8
3-TT5
3-1.6"U T8
WES2GFSVA26U
WES2GFSVA3FT
WES2GFSVA32U
WES2FFSVA26U
WES2FFSVA3FT
WES2FFSVA32U
Regressed
Aluminum Door 2' x 2'
2-6" T8
3-TT5
3-1.6"U T8
WES2GRAVA26U
WES2GRAVA3FT
WES2GRAVA32U
WES2FR AVA26U
WES2FRAVA3FT
WES2FRAVA32U
Flat Aluminum
Door 2' x 2'
2-6" T8
3-TT5
3-1.6"U T8
WES2GFAVA26U
WES2GFAVA3FT
WES2GFAVA32U
WES2FFAVA26U
WES2FFAVA3FT
WES2FFAVA32U
WES2GFAVA432UNVH4 Reference data
Efficiency 81.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 108.7W
LER FL 73.2
5"
(127mm)
24" (610mm)
30˚
60˚
1250
2500
3750
Candlepower Curve
Cleanguard Voltage Ballast Options
Wet Location 120=120V Seepage4.192 See page 4.192
277=277V  andpage4.130
UNV=120-277V(Elec.T8Ballastonly)
WES2GFAVA432 UNV AH4
Example
Ordering information
Type Size Lamp
qty–type
Exposed T
T-Grid
Flanged for Dry
Wall or Plaster
Flat Steel Door 2' x 4'
2-T8
3-T8
4-T8
WES2GFSVA232
WES2GFSVA332
WES2GFSVA432
WES2FFSVA232
WES2FFSVA332
WES2FFSVA432
Regressed
Aluminum Door 2' x 4'
2-T8
3-T8
4-T8
WES2GRAVA232
WES2GRAVA332
WES2GRAVA432
WES2FR AVA232
WES2FRAVA332
WES2FR AVA432
Flat Aluminum
Door 2' x 4'
2-T8
3-T8
4-T8
WES2GFAVA232
WES2GFAVA332
WES2GFAVA432
WES2FFAVA232
WES2FFAVA332
WES2FFAVA432
4.193Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
6 116"
(27mm)
2 1316"
(71mm)
8 532" (207mm)
6 116"
(27mm)
8 532" (207mm)
2 1316"
(71mm)
6 116"
(27mm)
2 1316"
(71mm)
8 532" (207mm)
6 116"
(27mm)
8 532" (207mm)
2 1316"
(71mm)
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.193 See page 4.193
Damp/Wet Locations 277=277V
Enclosed Luminaire UNV=120-277V
(Elec.T8Ballastonly)
SC4WC232 UNV TPHI
Example
Cleanlite
Damp/wet locations enclosed luminaire
Features
•UL-listedfordryanddamplocations.
•UL-listedforwetlocations.
•Siliconesealedbody(SC4W).
•Forindustrialorcommercialapplications.
•Crispmodulardesign.
•Availablein4'onepiecebody.
•Continuousclosed-cellgasketingatallsealpoints.
•Smoothone-piecewater-clearacryliclens.
•Lock-tightcam-actionlatches.
•Water-tighthubsforelectricalfeed(SC4W).
•ConstructionmeetsNYCcoderequirements.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. SC4DC232UNVHI
Ballast type <10THD <20THD
Electronic T8 HI* SO*
1 - 3 Lamp Electronic T8 H3* 03*
Electronic T5 Program S PG SO*
1-3LampElectT5(54W) PU –
* Instant start Standard
Tamperproof latches: Suffix: TP.
Optional lenses: Lexan lenses or DR acrylic lens.
Consultfactory.
Water tight kits: All fixtures are furnished with one
watertight hub kit for top or end conduit entry. Additional
water tight kits required for every entry. Catalog no.:
GWHB CSP. For coupling kits required for continuous
row mounting. Catalog no.: KWCP CSP
SC4WC232UNVHI
30˚
60˚
500
1000
1500
Candlepower Curve
Reference data
Efficiency 79.3%
Spacing ratio 1.6
Electronic ballast
Inputwatts(120V) 53.0W
Ordering information
Type Size Lamp
length
Lamp
qty–type Catalog no.
Damp Locations 8
3⁄16"x50
5⁄16"
48"
46"
46"
48"
46"
46"
48"
46"
46"
1-T8
1-T5
1-T5HO
2-T8
2-T5
2-T5HO
3-T8
3-T5
3-T5HO
SC4DC132
SC4DC128
SC4DC154
SC4DC232
SC4DC228
SC4DC254
SC4DC332
SC4DC328
SC4DC354
Wet Locations 8
3⁄16"x50
5⁄16"
48"
46"
46"
48"
46"
46"
48"
46"
46"
1-T8
1-T5
1-T5HO
2-T8
2-T5
2-T5HO
3-T8
3-T5
3-T5HO
SC4WC132
SC4WC128
SC4WC154
SC4WC232
SC4WC228
SC4WC254
SC4WC332
SC4WC328
SC4WC354
Water-tight hubs
4.194 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.194 See page 4.194
277=277V  andpage4.130
UNV=120-277V
GVS1GFSVL232 UNV AHI
Example
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.194 See page 4.194
277=277V  andpage4.130
UNV=120-277V
GVS2GFSVL26U UNV AHI
Example
GuardsmanVandalResistant
Recessed fluorescent luminaire 2' x 4', 2' x 2' & 1' x 4'
Features
•Excellentforlocationswherevandalresistance
isrequired.
•Prismaticlens(VL)is3/16"thickpattern12,minimum
impact strength, 130 foot pounds.
•Fullperimetergasketing(closedcellNeoprene)
betweenDoor frame and lens.
•Tamperresistantholtheadscrewssecurelens
to housing.
•5"deepbody,2x2and2x4.
•74.4%efficient(T8),2x44lamp.
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclipson2x2and2x4.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•69.3%efficient(T8),2x22-6"U.
•62.2%efficient(T8),1x42lamp.
•Turnedupedgesforsafehandling.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277)andtype
and add as suffix, e.g. UNVHI
Ballast type <10THD <20THD
Electronic T8 HI*, P2** S0*
1-3 Lamp Elec T8 H3*, P3** 03*
1-4 Lamp Elect T8 H4*, P4** 04*
1-3 Lamp TT5 40 Watt I3* X3*
1 & 2 Lamp TT5 40 Watt IB*, PR** SB*
* Instant start
** Program start
Lens:Foroptional9/64"thick(VK) pattern 12,
minimum impact strength, 80 foot pounds, substitute
VL with VK inCatalogno.i.e:GVS2GFSVK432.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Seismic hold-down clip: For 1'x4' type G,
Suffix: 2HD. Factory installed.
Plaster frame: For F type troffers, order plaster
frames separately. Catalog no.: PF24 for 2'x4' troffer;
PF22 for 2'x2' troffer.
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
GVS1GFSVL232UNVHI
GVS2GFSVL26UUNVHI
Reference data
Efficiency 62.3%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 80.0W
LER FL 48.3
Reference data
Efficiency 69.3%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 56.4W
LER FL 58.9
Ordering information
Type Size Lamp
qty–type
Exposed
T-Grid
Flanged for dry
wall or plaster
Flat Steel Door 1' x 4' 2-T8 GVS1GFSVL232 GVS1FFSVL232
Ordering information
Type Size Lamp
qty–type
Exposed
T-Grid
Flanged for dry
wall or plaster
Flat Steel Door 2' x 2'
2-6" T8
3-TT5
3-1.6"U T8
GVS2GFSVL26U
GVS2GFSVL3FT
GVS2GFSVL32U
GVS2FFSVL26U
GVS2FFSVL3FT
GVS2FFSVL32U
5"
(127mm)
24" (610mm)
4"
(101mm)
12" (305mm)
30˚
60˚
500
1000
1500
Candlepower Curve
30˚
60˚
600
1200
1800
Candlepower Curve
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.194 See page 4.194
277=277V  andpage4.130
UNV=120-277V
GVS2GFSVL432 UNV AH4
Example
GVS2GFSVL432UNVH4 Reference data
Efficiency 74.4%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 105W
LER FL 69.0
Ordering information
Type Size Lamp
qty–type
Exposed
T-Grid
Flanged for dry
wall or plaster
Flat Steel Door 2' x 4'
2-T8
3-T8
4-T8
GVS2GFSVL232
GVS2GFSVL332
GVS2GFSVL432
GVS2FFSVL232
GVS2FFSVL332
GVS2FFSVL432
5"
(127mm)
24" (610mm)
30˚
60˚
1250
2500
3750
Candlepower Curve
4.195Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
24" (610mm)
5 ½"
(140mm)
24" (610mm)
5 ½"
(140mm)
30˚
60˚
450
900
1350
Candlepower Curve
30˚
60˚
1050
2100
3150
Candlepower Curve
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.195 See page 4.195
277=277V  andpage4.130
UNV=120-277V
(Elec.T8Ballastonly)
GVB2SFSVL26U UNV AHI
Example
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.195 See page 4.195
277=277V  andpage4.130
UNV=120-277V
(Elec.T8Ballastonly)
GVB2SFSVL432 UNV AH4
Example
GuardsmanVandalResistant
Surface box luminaire 2' x 4', 2' x 2' & 1' x 4'
GVB2SFSVL26UUNVHI
GVB2SFSVL432UNVH4
Reference data
Efficiency 55.5%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 60.7W
Reference data
Efficiency 65.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 13.3W
Ordering information
Type Size Lamp qty–Type Surface box
Flat Steel Door 2' x 2'
2-6" T8
3-TT5
3-1.6"U T8
GVB2SFSVL26U
GVB2SFSVL3FT
GVB2SFSVL32U
Ordering information
Type Size Lamp qty–Type Surface box
Flat Steel Door 2' x 4'
2-T8
3-T8
4-T8
GVB2SFSVL232
GVB2SFSVL332
GVB2SFSVL432
Features
•Excellentforlocationswherevandalresistance
is required.
•20gaugesteelbody.
•Prismaticlens(VL)is3/16"thick,pattern12,minimum
impact strength, 130 foot pounds.
•Fullperimetergasketing(closedcellNeoprene)between
Door frame and lens.
•Tamperresistantholtheadscrewssecurelens
to housing.
•45°miteredcorners(bodyandDoorframe).
•Only5-1/2"deep.
•54.9%efficient(2lampT8).1x4
•55.5%efficient(2UlampT8).
•65.2%efficient(4lampT8).
•Sidemountedballastforcooleroperation.
•Fullyenclosedwiring.
•MeetsNYCCoderequirements.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. UNVHI
Ballast type <10THD <20THD
Electronic T8 HI*, P2** S0*
1-3 Lamp T8 H3*, P3** 03*
1-4 Lamp T8 H4*, P4** 04*
Electronic TT5 40 Watt IB*, PR** SB*
1-3 Lamp TT5 40 Watt I3* X3*
* Instant start
** Program start
Lens:Foroptional9/64"thick(VK) pattern 12,
minimum impact strength 80 foot pounds, substitute VL
with VKincatalogno.ieGVB2SFSVK432
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, or emergency pack,
consultfactory.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing)
24" (610mm)
5 ½"
(140mm)
30˚
60˚
500
1000
1500
Candlepower Curve
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.195 See page 4.195
277=277V  andpage4.130
UNV=120-277V
(Elec.T8Ballastonly)
GVB1SFSVL232 UNV AHI
Example
GVB1SFSVL232UNVHI Reference data
Efficiency 54.9%
Spacing ratio 1.2
Electronic ballast
Inputwatts(120V) 55.6W
Ordering information
Type Size Lamp qty–Type Surface box
Flat Steel Door 1' x 4' 2-T8 GVB1SFSVL232
4.196 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Candela Distribution
Angle End 45 Cross
0 2339 2339 2339
5 2340 2337 2331
15 2267 2302 2328
25 2110 2208 2274
35 1876 2053 2133
45 1534 1730 1757
55 866 1020 973
65 474 540 679
75 260 310 453
85 68 184 322
95 0 134 266
105 1 137 205
115 4 94 129
125 8 60 78
135 10 45 60
145 9 34 47
155 9 22 33
165 8 12 17
175 8 7 9
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.196 See page 4.196
277=277V  andpage4.130
UNV=120-277V
GV4WB332 UNV AH3
Example
GuardsmanVandalResistant
Fluorescent wraparound luminaire
Features
•Excellentforlocationswherevandalresistance
is required.
•Prismaticlensis50%DR(impactresistant),and50%
standardacrylicwithanominalthicknessof1/8",
withstands 70 ft. lbs. impact without breaking.
•Tamperresistantholtheadscrewssecurelens
to housing.
•UL-Listedfordirectmountingonlowdensityceilings
and damp locations.
•Steelendcaps,standard.
•Self-aligningforcontinuousrowmounting.
•Heavyduty,dieformedchannelofcodegaugesteel.
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. UNVHI
Ballast type <10THD <20THD
Electronic T8 HI*, P2** S0*
1-3 Lamp T8 H3*, P3** 03*
1-4 Lamp T8 H4*, P4** 04*
* Instant start
** Program start
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
GV4WB332UNVH3 Reference data
Efficiency 79.8%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 86W
LER FL 75
Ordering information
Type Size Lamp qty–Type Catalog no.
Surface Wraparound 15
5⁄¹6"x48"3-T8 GV4WB332
⅞"Dia. K.O.
Spanner
Head
Screw
Lens
Retainer
Bracket
End Plate
Lens
³¹6"
K.O. (2)
13 ⅞" (325mm)
2 ¹³¹6"
(71mm)
12 ¹¹6" (306mm)
⅞"Dia. K.O. Spanner
Head Screw
Lens Retainer
Bracket
End Plate
Lens
³¹6" K.O. (2)
2 ¹³¹6"
(71mm)
8 ⅝" (219mm)
6 ¹³
¹6
" (173mm)
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.196 See page 4.196
277=277V  andpage4.130
UNV=120-277V
GV4WA232 UNV AHI
Example
GV4WA232UNVHI Reference data
Efficiency 77.8%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 59W
LER FL 70
Ordering information
Type Size Lamp qty–Type Catalog no.
Surface Wraparound 10
5⁄¹6" x 48"
10
5⁄¹6" x 96"
2-T8
2-T8inTandem(4total)
GV4WA232
GV8WA232
Candela Distribution
Angle End 45 Cross
0 1482 1482 1482
5 1482 1482 1479
15 1432 1463 1483
25 1331 1409 1458
35 1186 1313 1375
45 967 1078 1045
55 541 615 568
65 305 329 388
75 162 208 292
85 45 129 251
95 0 111 261
105 1 147 199
115 3 83 107
125 4 48 62
135 6 44 57
145 7 34 47
155 7 21 32
165 5 9 15
175 5 6 7
Spanner
Head
Screw
Lens
Retainer
Bracket
End Plate
Lens
³¹6"
K.O. (2)
13 ⅞" (325mm)
2 ¹³¹6"
(71mm)
12 ¹¹6" (306mm)
⅞"Dia. K.O.
Candela Distribution
Angle End 45 Cross
0 3116 3116 3116
5 3123 3119 3107
15 3020 3063 3099
25 2814 2941 3020
35 2506 2716 2830
45 2040 2285 2285
55 1178 1348 1257
65 632 695 862
75 348 395 553
85 95 229 372
95 0 156 306
105 3 163 237
115 6 119 162
125 10 87 117
135 15 65 91
145 13 48 65
155 13 31 46
165 11 17 25
175 11 11 14
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.196 See page 4.196
277=277V  andpage4.130
UNV=120-277V
(Elec.T8Ballastonly)
GV4WB432 UNV AH4
Example
GV4WB432UNVH4 Reference data
Efficiency 78.2%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 108W
LER FL 76
Ordering information
Type Size Lamp qty–Type Catalog no.
Surface Wraparound 15
5⁄¹6"x48"2-T8
4-T8
GV4WB232
GV4WB432
4.197Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Guardsman Voltage Ballast Options
Vandal Resistant 120=120V Seepage4.197 See page 4.197
GSW Series 277=277V  andpage4.130
UNV=120-277V
(Elec.T8Ballastonly)
GS4V232 UNV AHI
Example
GuardsmanVandalResistant
GSW series ceiling or wall mounted luminaire
Features
•Excellentforlocationswherevandalresistanceis
required, areas such as hallways, stairwells, locker
rooms, parking garages and psychiatric hospitals.
•Forceilingorwallmountedapplications.
•Canbeverticallyorhorizontallymountedonwall.
•20gaugecoldrolledsteel,postpainted,bakedwhite
enamel housing.
•18gaugecoldrolledsteelpostpaintedbakedwhite
enamel end caps, standard.
•Linearprismaticlens50%DR(impactresistant)and
50%standardacrylicwithnominalthicknessof1/8",
withstands 70 foot pounds of impact without breaking.
•Tamperresistantholtheadscrewssecureends
to housing.
•Only3-7/8"deep,meetsAmericanswithDisabilitiesAct
for wall mounted fixtures.
•Nominal2'and4'lengths.
•73.9%efficient(T8lamps).
Options & accessories page 4.130
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. UNVHI
Ballast type <10THD <20THD
Electronic T8 HI* S0*
* Instant start
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C (Internalslow-blowfusing).
GS4V232UNVHI Reference data
Efficiency 73.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 59.1W
LER 62.9
Ordering information
Type Size Lamp
Length
Lamp
qty–type Catalog no.
GSW
VandalResistant
Ceiling or Wall
6"x23¹5⁄¹6"24" 1-T8
2-T8
GS2V117
GS2V217
6"x48" 48" 1-T8
2-T8
GS4V132
GS4V132
3 ⅞"
(98mm)
6" (152mm)
4"
6"
(152mm)23 1516"
(608mm)
⅞" dia. K.O. (2)
932" hole (2)
End Cap End Cap
Nut Nut
Nut
For continuous row mounting
Required to
space fixtures
apart so ends
can be
removed or
installed.
Threaded
Nipple
30˚
60˚
400
800
1200
Candlepower Curve
⅞" dia. K.O. (3) 1 ⅞" dia. K.O.
932" hole (2)
4"
6"
(152mm)24"
(610mm) 48"
(1219mm)
4.198 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
9 Cells or 12 Cells (2-T8U6)
9 Cells or 12 Cells (3-T8U1.6)
9 Cells or 12 Cells (3-TT5)
16 Cells (2-T8U6)
5"
(127mm)
24" (610mm)
24" (610mm)
24" (610mm)
5"
(127mm)
5"
(127mm)
5"
(127mm)
24" (610mm)
9 Cells or 12 Cells (2-T8U6)
9 Cells or 12 Cells (3-T8U1.6)
9 Cells or 12 Cells (3-TT5)
16 Cells (2-T8U6)
5"
(127mm)
24" (610mm)
24" (610mm)
24" (610mm)
5"
(127mm)
5"
(127mm)
5"
(127mm)
24" (610mm)
IC Series 2' x 4' & 2' x 2'
3" parabolic recessed suitable for thermal insulation contact
Features
•ULListedTypeICRecessedLuminaire(Intendedfor
ThermalInsulatedContact).
•Constructionprovidesoptimumthermalperformance.
•Idealforfireratedceilings.
•Blackexteriorforcoolerballastoperatingtemperature.
•5"deepbody(2x4,2x2)
•77.7%efficient(3light18cell)
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•Pre-anodizedaluminumparaboliclouver.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•Louverhasprotectivefilmdustguard.
Options & accessories page 4.130
Louver: Finish Low iridescence semi-specular is standard.
Consult factory for other finishes.
Ballast:Specifyvoltage(UNV)andtype
and add assuffix, e.g. UNVC4.
Ballast type <10THD
Electronic T8 C2*
1-3 Lamp Elec T8 C3*
1-4 Lamp Elect T8 C4*
1-3LampTT5(40W) NI*
ElectronicTT5(40W) NJ*
* Instant start High Efficiency.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Continuous row installation: For F type fixtures,
half-width flanges are required between fixtures.
Catalog no.: 2FCTrim for each joint.
Plaster frame: For F type troffers, order plaster
frames separately. Catalog no.: PF24 for 2'x4' troffer;
PF22 for 2'x2' troffer.
Drywall kit: Catalog no.: FK92X4 for 2'x4' troffer;
FK92X2 for 2'x2' troffer
Chicago Plenum: For products that meet Chicago
Plenum requirements, add Suffix: C.
ICS2G9LS26UNVC2
Ordering information
Type Cells Lamp
qty–type
Exposed
T-Grid
Flanged for dry
wall or plaster
Slot-T or
Concealed T
Static
9
12
2-T8U6
2-T8U6
ICS2G9LS26U
ICS2G12LS26U
ICS2F9LS26U
ICS2F12LS26U
ICS2G9LS26U
ICS2T12LS26
16 2-T8U6 ICS2G16LS26U ICS2F16LS26U ICS2T16LS26U
9
12
3-T8U1.6
3-T8U1.6
ICS2G9LP32U
ICS2G12LP32U
ICS2F9LP32U
ICS2F12LP32U
CS2T9LP32U
ICS2T12LP32U
9
12
3-TT5
3-TT5
ICS2G9LP3FT
ICS2G12LP3FT
ICS2G12LP3FT
ICS2G12LP3FT
ICS2T9LP3FT
ICS2T12LP3FT
IC Series Voltage Ballast Options
 3"ParabolicRecessed UNV=120-277V Seepage4.198 See page 4.198
Suitable for Thermal (Elec.T8orTT5Ballastonly) and page 4.130
Insulation Contact
UNVICS2G9LS26U AC2
Example
18 Cells 24 Cells (3-T8)
18 Cells 24 Cells (3-T8 or 4-T8)
32 Cells (4-T8)
12 Cells (2-T8 or 4-T8)
5"
(127mm)
5"
(127mm)
5"
(127mm)
5"
(127mm)
24" (610mm)
24" (610mm)
24" (610mm)
24" (610mm)
18 Cells 24 Cells (3-T8)
18 Cells 24 Cells (3-T8 or 4-T8)
32 Cells (4-T8)
12 Cells (2-T8 or 4-T8)
5"
(127mm)
5"
(127mm)
5"
(127mm)
5"
(127mm)
24" (610mm)
24" (610mm)
24" (610mm)
24" (610mm)
ICS2G12LS232UNVC2
Ordering information
Type Cells Lamp
qty–type
Exposed
T-Grid
Flanged for dry
wall or plaster
Slot-T or
Concealed T
Static
12
12
2-T8
4-T8
ICS2G12LS232
ICS2G12LS432
ICS2F12LS232
ICS2F12LS432
ICS2T12LS232
ICS2T12LS432
18
24
3-T8
3-T8
ICS2G18LP332
ICS2G24LP332
ICS2F18LP332
ICS2F24LP332
ICS2T18LP332
ICS2T24LP332
18
18
3-T8
4-T8
ICS2G18LS332
ICS2G18LS432
ICS2F18LS332
ICS2F18LS432
ICS2T18LS332
ICS2T18LS432
32 4-T8 ICS2G32LS432 ICS2F32LS432 ICS2T32LS432
IC Series Voltage Ballast Options
 3"ParabolicRecessed UNV=120-277V Seepage4.198 See page 4.198
Suitable for Thermal (Elec.T8Ballastonly) and page 4.130
Insulation Contact
UNVICS2G12LS232 AC2
Example
4.199Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
4 Lamp Data
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
5"
(127mm)
24" (610mm)
IC Series 2' x 4' & 2' x 2'
Recessed lensed static suitable for thermal insulation contact
Features
•ULListedTypeICRecessedLuminaire(Intendedfor
ThermalInsulatedContact).
•Constructionprovidesoptimumthermalperformance.
•Idealforfireratedceilings.
•Blackexteriorforcoolerballastoperatingtemperature.
•5"deepbody(2x4,2x2)
•81.2%efficient(4light)
•Hemmedoversiderailsformaximumsafety.
•Fixtureendsturned-inforsafehandling.
•Built-inearthquakeclips.
•TrueMiteredcornersteellensframe.
•Springloadedroosterheadlatches.
•18gaugesteelhinges.
•Flatandregressedaluminumdoorsavailable.
•ConstructiontomeetChicagoPlenumrequirements
is available.
Options & accessories page 4.130
Special lenses:VIlensisstandardvirginacrylic.
For other available lenses, see page 4.130.
Ballast:Specifyvoltage(UNV)andtype
and add assuffix, e.g. UNVC2.
Ballast type <10THD
Electronic T8 C2*
1-3 Lamp Elec T8 C3*
1-4 Lamp Elect T8 C4*
1-3 Lamp TT5 40 Watt NI*
Electronic TT5 40 Watt NJ*
* Instant start High Efficiency.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Continuous row installation: For F type fixtures,
half-width flanges are required between fixtures.
Catalog no.: 2FCTrim(eachjoint,2x2,2x4).
Plaster frame: For F type troffers, order plaster
frames separately. Catalog no.: PF24 for 2'x4' troffer;
PF22 for 2'x2' troffer.
Door frames Available: ICS2GFS(flatsteeldoor),
ICS2GFA(flataluminumdoor)ICS2GRA (regressed
aluminumdoor).
Chicago Plenum: For products that meet Chicago
Plenum requirements, add Suffix: C.
Fusing: Suffix: A(Internalfast-blowfusing).
Suffix: C(Internalslow-blowfusing.)
ICS2GFSVI432UNVC4
Ordering information
Type Size Lamp
qty–type
Exposed
T-Grid
Flanged for dry
wall or plaster
Static 2' x 4'
2-T8
3-T8
4-T8
ICS2GFSVI232
ICS2GFSVI332
ICS2GFSVI432
ICS2FFSVI232
ICS2FFSVI332
ICS2FFSVI432
Reference data
Efficiency 81.2%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 108.7W
Ballastfactor 73.2
IC Series Voltage Ballast Options
Recessed Lensed Static UNV=120-277VSeepage4.199 See page 4.199
Suitable for Thermal (Elec.T8Ballastonly)and page 4.130
Insulation Contact
UNVICS2GFSVI432 AC4
Example
2 Lamp Data 3 Lamp Data
5"
(127mm)
24" (610mm)
5"
(127mm)
5"
(127mm)
24" (610mm)
24" (610mm)
ICS2GFSVI26UUNVC2&ICS2GFSVI32UUNVC3
Ordering information
Type Size Lamp
qty–type
Exposed
T-Grid
Flanged for dry
wall or plaster
Static 2' x 2'
2-T8U6
3-TT5
3-T8U1.6
3-T8F17
ICS2GFSVI26U
ICS2GFSVI3FT
ICS2GFSVI32U
ICS2GFSVI317
ICS2FFSVI26U
ICS2FFSVI3FT
ICS2FFSVI32U
ICS2FFSVI317
IC Series Voltage Ballast Options
Recessed Lensed Static UNV=120-277V Seepage4.199 See page 4.199
Suitable for Thermal (Elec.T8orTT5Ballastonly) and page 4.130
Insulation Contact
UNVICS2GFSVI26U AC2
Example
Reference data
Efficiency 71.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 56.3W
Ballastfactor 58.6
Reference data
Efficiency 67.9%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 76.2W
Ballastfactor 64.1
4.200 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
4 ⅛"
(105 mm)
6 ⅛"
(156 mm)
11 ¾"
(298 mm)
5 ⅜"
(127 mm)
Turret Industrial Voltage Ballast Options
Fluorescent Premium 120=120V Seepage4.200 See page 4.200
Open Industrial Luminaire 277=277V  andpage4.217
UNV=120-277 V
(Elec.T832WBallastonly)
TU4A232 UNV AHI
Example
TU Turret Industrial
Fluorescent premium open industrial luminaire
Features
•Ruggedtelescopingturretlampholders.
•Optimum53/8"lampspacing(2lampunits).
•Reflectorisembossedforrigidity.
•Reflectorsidesareturnedupforrigidityand
safehandling.
•12%aperturereflector,standard.
•Solidtopreflector,optional.
•Reflectorsecuredtohousingwitheasytouse
thumb screws.
•41/8"wideclevistypehousingchannel.
•Fullyenclosedwiring.
•Optionalporcelainreflectors.
•Optionalslidegriphangers.
•Optionalheavydutycoupling,wireguardsand
reflectoraligners.
page 4.217
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. TU4A232UNVHI
Ballast type <10THD <20THD
Electronic T12 H0 – SS
Std.Mag.HO/VHO  – PH
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Electronic T8 H3*, P3** 03*
1 - 4 Lamp Electronic T8 H4*, P4** 04*
* Instant start
** Program start
Cold weather ballasts: T12 HO lamped fixtures are
standard with –20°F ballasts. To specify cold weather
(0°F)ballastsforRSorT8fixtures.Suffix: CW.
Reflector Row Aligners: For continuous row
installations, specify two additional bulk-packed aligners.
Order Catalog no. TU - SNA.
Housing row couplers: For continuous row mounting
(stem/chain).Oneperjointrequired.Ordercat.no. LFL - 3.
Side-grip hangers:Accepts1/2"threadstemsorrods.
Slides into fixture chassis grooves. Order cat. no. LFL - 111.
Chain hanger kit: Order catalog no. LFL - 123.
4' Wire guard: Order catalog no. LFL - 173.
TU4A232UNVHI
30˚
60˚
1450
2900
Candlepower Curve
Reference data
Efficiency 91.7%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 61W
LER FI 80
Ordering information
Type Fixture
length
Lamp
length
Lamp
qty/type Catalog no.
12% Uplight
49 ½"
49 ½"
99 ⅞"
99 ⅞"
96"
96"
48"
96"
48"
96"
48"
48"
48"
48"
96"
96"
48"
96"
48"
96"
2-T8
3-T8
2-T8inTandem(4total)
3-T8inTandem(6total)
2-T8SL
2-T8HO
2-T12HO
2-T12HO
2-T12VHO
2-T12VHO
TU4A232
TU4A332
TU8A232
TU8A332
TU8A259SL
TU8A286HO
TU4A248HO
TU8A296HO
TU4A248VO
TU8A296VO
Solid Top
NoUplight
49 ½"
49 ½"
99 ⅞"
99 ⅞"
96"
96"
48"
96"
48"
96"
48"
48"
48"
48"
96"
96"
48"
96"
48"
96"
2-T8
3-T8
2-T8inTandem(4total)
3-T8inTandem(6total)
2-T8SL
2-T8HO
2-T12HO
2-T12HO
2-T12VHO
2-T12VHO
TU4S232
TU4S332
TU8S232
TU8S332
TU8S259SL
TU8S286HO
TU4S248HO
TU8S296HO
TU4S248VO
TU8S296VO
4.201Comprehensive lighting catalog 7th Edition
Standard – Linear recessed and surface lighting
Turret Industrial Voltage Ballast Options
Standard Open 120=120V Seepage4.201 See page 4.201
Industrial Luminaire 277=277V  andpage4.217
UNV=120-277 V
(Elec.T832WBallastonly)
KW4S232 UNV AHI
Example
KD/KWIndustrial
Standard open industrial luminaire
Features
•Reflectorisembossedforrigidity.
•Reflectorsidesareturnedupforrigidityand
safe handling.
•Solidtopreflector,standard.
•10%aperturereflector,optional.
•41/8"widehousingchannel.
•U.L.Listedsnap-onendcaps.
•Fullyenclosedwiring.
•Combinationendcapforcontinuousrowmounting.
•Optionalhangers,wireguardsandaligners.
•Optionalheavydutycoupling.
•ConvenienceoutletandswitchK.O.’sprovided.
Options & accessories page 4.217
Ballast:Specifyvoltage(120,277orUNV)andtype
andadd as suffix, e.g. KW4S232UNVHI
Ballast type <10THD <20THD
ElectronicT12(H0&SL)  – SS
Std.Mag.HO/VHO  – PH
Electronic T8 HI*, P2** SO*
1 - 3 Lamp Electronic T8 H3*, P3** 03*
1 - 4 Lamp Electronic T8 H4*, P4** 04*
* Instant start
** Program start
4' Wire guard: Order two per 8' fixture.
Order catalog no. AWG4W CSP.
Reflector row aligner: For continuous row
installations. Order catalog no. KND CSP.
Side grip hanger:Accepts1/2"threadstemsorrods.
Slides into fixture chassis grooves. For KW series order
NAHW CSP and for KD series order NAHD CSP.
Hard surface mounting or twist tee:
For KW series order NAH3 CSP and for KD series
order NAH3D CSP.
Chain hanger kit: Order catalog no. AH 5 CSP.
Heavy duty housing coupler: Order catalog no.
NHDC-W CSP.
KW4S232UNVHI
Ordering information
Type Fixture
length
Lamp
length
Lamp
qty/type Catalog no.
Solid Top
NoUplite
48"
96"
96"
96"
96"
48"
96"
48"
96"
48"
48"
96"
96"
96"
48"
96"
48"
96"
2-T8
2-T8inTandem(4total)
2-T8SL
2-T8HO
2-T12SL
2-T12HO
2-T12HO
2-T12VHO
2-T12VHO
KW4S232
KW8S232
KW8S259SL
KD8S286HO
KW8S296SL
KD4S248HO
KD8S296HO
KD4S248VO
KD8S296VO
10% Uplite
48"
96"
96"
96"
96"
48"
96"
48"
96"
48"
48"
96"
96"
96"
48"
96"
48"
96"
2-T8
2-T8inTandem(4total)
2-T8SL
2-T8HO
2-T12SL
2-T12HO
2-T12HO
2-T12VHO
2-T12VHO
KW4A232
KW8A232
KW8A259SL
KD8A286HO
KW8A296SL
KD4A248HO
KD8A296HO
KD4A248VO
KD8A296VO
10 ½"
(267mm)
4 ⅜"
(103mm)
4 ⅝"
(117mm)
30˚
60˚
Candlepower Curve
500
1000
1500
Reference data
Efficiency 88.4%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 62.0W
LER FI 75.3
Linear recessed and surface lighting
4.202 Philips Lightolier For complete specification information visit www.lightolier.com
General utility
General utility luminaires are used in a wide variety of
applications, ranging from the complex to the simple.
This section highlights quality surface mounted strip
lightinginallT12,T8andT5lampstyles.OurSV5
Louver and Lens Series offers many combinations within
ourSVT5channelfamily.Enablingdesignerstouse
channels in both a stylish and practical method. Our
standard, narrow, wide, deep and staggered channels
meet all the requirements for today's construction
needs.YouwilldiscoverthatPhilipsLightolierprovides
many solutions for your general utility lighting needs.
Linear recessed and surface lighting
4.203Comprehensive lighting catalog 7th Edition
SV5 > 4.204
T5 Strips > 4.206
Symmetric & Asymmetric Reflectors > 4.208
SD Deep Strip > 4.210
SS Staggered Strip > 4.211
SM Side Mount Strip > 4.211
SNStrip > 4.212
SW Strip > 4.213
Catalog numbering logic > 4.214
Surface/wall options > 4.216
Industrial options > 4.217
Drywall kit > 4.218
The ULM Module > 4.219
Ballastcodeoptions > 4.220
Air handling data > 4.222
Contents
4.204 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Ordering information
Type Length
(nom)
SV5 Reflector
and louver*
White Perforated
Reflector with White
PerforatedRadialBlade
46" SV5LVW4SPER**
White Solid Reflector
with Grey Solid Radial
Blade
46" SV5LGW4SSLD**
*Onlyforusewith1or2-lampT5Strip(SV)
** For Slotted White Reflector, replace Solid White SLD by S LT. For Perforated White Reflector, replace Solid White SLD by PER.
ForWhitePerforatedRadialBladeLouver,replaceLW with LV.ForGreyPerforatedRadialBladeLouver,replaceLG with LH
30˚
60˚
0
0
Candlepower Curve
0
SV5LV W4S PER Two 28W T5 Fluorescent lamps
2"
(51mm)
4 116"
(103mm)
2 916"
(42mm) 3 1116"
(94mm)
4 ⅞"
(124mm)
RCR C.U.
1 91
2 83
3 76
4 70
5 64
6 59
7 54
8 50
9 46
10 43
Features
•90.6%Efficiency-basedon1-54WSVStripwith
perforated reflector and clear linear ribbed lens.
•86.1%Efficiency-Basedon2-28WSVStripwith
perforated reflector and perforated radial louver.
•Postpaintedwithhighefficiencywhitepowderedpaint.
•Lay-indesignopticallowsforeasylampmaintenance.
•Lowprofile3”11-16profilewheninstalled.
•Tooledradiallouverensuresdesignconsistencyin
continuous row applications.
•Retro-fittablewithCFIBrandSV4T5Strip.
•Louver-solidorperforatedpatternradialblade.
•Lens-frostedlinearorclearlinear
Options & accessories
Stem and canopy sets: Suspend luminaire
12",18",24",36",or48"fromsurface.
(Twoperluminaireisrecommended.)
Catalog no.: SV5F12 (12");SV5F18(18");
SV5F24(24");SV5F36(36");SV5F48(48").
Aircraft cable kit:CatNo:SVCC60-UNV
(adj.6"-60")60"SV5PowerFeed,CableandCanopyKit
Cable and canopy kit:CatNo:SVC60(adj.6"-60")
Chain hanging kit:CatNo:EE9HC
Includes two 5' heavy duty link chains with sturdy
“V”hookforfixturesuspension.
Rocker switches and convenience outlets: Certain
combinationsoftheSVSeriesstripwiththenewSV5
Reflector assembly will not accommodate these options.
Please consult the specification sheets or your Philips
Lightolier representative to validate the request.
Reference data
Efficiency 86.1%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 64.0W
LuminaireEff(LER) 1.0
Application data*
Luminaire spacing FC W/Sq Ft
50' x 70' x 8.5' Space 8' on center 51 1.02
30' x 30' x 8.5' Space 10' on center 53 1.14
10' x 8' x 8' Space 6' on center 43 1.28
6' x 8' x 8' Space Work Cell 36 1.33
* Average foot candles maintained. Total Light Loss Factor
LLF=.90Reflectances:80%Ceiling,50%Wall,20%FloorRE835
T5/T5HO lamp lumens at 4400 rated at 25C.
Louver options
SV5 Louver design Reflector Light dist. Reflector style
Reflector LV=White/PerforatedBlade W4=Nominal S =Symmetric SLD=Solid
Accessory LW=White/SolidBlade  46”White SLT=Slotted
LG=Grey/SolidBlade (Std)  PER=Perforated
LH=Grey/PerforatedBlade
LVSV5 SW4
Example PER
+
SV4 Strip
(1or2lamps)
SV5 Reflector
and shielding options
Complete SV5
luminaire
CompleteSV5Luminaire
=
Dimensions are the same
for 1 or 2-lamp luminaire.
SV5louverandlensseries
For 1 and 2 lamp 46 T5 strip (SV)
Stylish, when utilizing either the radial louver or linear ribbed prismatic lens, or practical in
instanceswherenoopticisrequiredandshieldedlightisrequired.TheSV5Seriesoffers
many combinations within its offering that allows combinations of either solid, slotted or
peforated reflector designs to be interchanged with different radial louver or lens options.
The new reflector design also offers a nice alternative to the standard straight blade
reflectorwhenusedwithoutthelens/louveroption.TheSV5Seriesisretro-fittablewith
SV4Seriesstrip.
4.205Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
SV5louverandlensseries
For 1 and 2 lamp 46 T5 strip (SV)
Options & accessories
Stem and canopy sets: Suspend luminaire
12",18",24",36",or48"fromsurface.
(Twoperluminaireisrecommended.)
Catalog no.: SV5F12 (12");SV5F18(18");
SV5F24(24");SV5F36(36");SV5F48(48").
Aircraft cable kit:CatNo:SVCC60-UNV
(adj.6"-60")60"SV5powerfeed,cableandcanopykit
Cable and canopy kit:CatNo:SVC60(adj.6"-60")
Chain hanging kit:CatNo:EE9HC
Includes two 5' heavy duty link chains with sturdy
“V”hookforfixturesuspension.
Rocker switches and convenience outlets: Certain
combinationsoftheSVSeriesstripwiththenewSV5
Reflector assembly will not accommodate these options.
Please consult the specification sheets or your Philips
Lightolier representative to validate the request.
Features
•90.6%Efficiency-Basedon1-54WSVStripwith
perforated reflector and clear linear ribbed lens.
•86.1%Efficiency-Basedon2-28WSVStripwith
perforated reflector and perforated radial louver.
•Postpaintedwithhighefficiencywhitepowderedpaint.
•Lay-indesignopticallowsforeasylampmaintenance.
•Lowprofile3”11-16profilewheninstalled.
•Tooledradiallouverensuresdesignconsistencyin
continuous row applications.
•Retro-fittablewithCFIBrandSV4T5Strip.
•Louver-solidorperforatedpatternradialblade.
•Lens-frostedlinearorclearlinear
Lens options
Ordering information
Type Length
(nom)
SV5 Reflector
and louver*
White Perforated
Reflector with
Clear Linear Lens
46" SV5CLW4SPER**
White Solid Reflector
with Frosted Linear Lens 46" SV5FLW4SSLT**
*Onlyforusewith1or2-lampT5Strip(SV)
** For Perforated White Reflector, replace Solid White SLT by PER
30˚
60˚
0
0
Candlepower Curve
0
SV5CLW4SPEROne 54W T5 HO Fluorescent lamp
2"
(51mm)
4 116"
(103mm)
2 916"
(42mm) 3 1116"
(94mm)
4 ⅞"
(124mm)
RCR C.U.
1 95
2 86
3 79
4 72
5 66
6 61
7 56
8 51
9 47
10 44
Reference data
Efficiency 90.6%
Spacing ratio 1.3
Electronic ballast
Inputwatts(120V) 64.0W
LuminaireEff(LER) 1.1
Application data*
Luminaire spacing FC W/Sq Ft
50' x 70' x 12' Space 8' on center 45 0.92
30' x 30' x 8.5' Space 10' on center 46 1.06
10' x 8' x 8' Space 8' on center 37 1.19
6' x 8' x 8' Space Work Cell 36 1.25
* Average foot candles maintained. Total Light Loss Factor
LLF=.90Reflectances:80%Ceiling,50%Wall,20%FloorRE835
T5/T5HO lamp lumens at 4400 rated at 25C.
SV5 Louver design Reflector Light dist. Reflector style
Reflector CL=ClearLinearLens W4=NominalS =SymmetricSLT=Slotted
Accessory FL=FrostedLinearLens  46”White PER=Perforated
  (Std)
CLSV5 SW4
Example PER
Ordering information
Type Length
(nom)
SV5 Reflector
and louver*
White Solid Reflector 46"
SV5XXW4SSLD**
SV5XXW4SSLD**
SV5XXW4SSLD**
Lens option not available with a solid reflector
*Onlyforusewith1or2-lampT5Strip(SV)
** For Slotted White Reflector, replace Solid White SLD by S LT.
For Perforated White Reflector, replace Solid White SLD by PER.
30˚
60˚
0
0
0
Candlepower Curve
0
SV5XXW4SSLD Two 28W T5 Fluorescent lamps
2"
(51mm)
4 116"
(103mm)
2 916"
(42mm) 3 1116"
(94mm)
4 ⅞"
(124mm)
RCR C.U.
1 96
2 88
3 80
4 74
5 67
6 62
7 57
8 52
9 48
10 44
Reference data
Efficiency 87.8%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 64.0W
LuminaireEff(LER) 1.0
Application data*
Luminaire spacing FC W/Sq Ft
50' x 70' x 12' Space 8' on center 45 0.88
30' x 30' x 8.5' Space 10' on center 34 0.64
10' x 8' x 8' Space 8' on center 22 0.64
6' x 8' x 8' Space Work Cell 28 1.33
* Average foot candles maintained. Total Light Loss Factor
LLF=.90Reflectances:80%Ceiling,50%Wall,20%FloorRE835
T5/T5HO lamp lumens at 4400 rated at 25C.
SV5 Louver design Reflector Light dist. Reflector style
Reflector XX=NoLens/LouverW4=NominalS =Symmetric SLD=Solid(N/AwithLensoption)
Accessory 46” White SLT=Slotted
  (Std) PER=Perforated
XXSV5 SW4
Example SLD
Dimensions are the same
for 1 or 2-lamp luminaire.
Dimensions are the same
for 1 or 2-lamp luminaire.
4.206 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•Only13/8"deep.
•Utilizescompact,highefficiency,T5orT5HOlamps.
•Fullyenclosedwiring.
•ConvenienceoutletandswitchK.O.sprovided
(1lamponly).
•Pushthroughlampholderswithrotorforsecure
lampretention.
Features
•Only2"Wide.
•Utilizescompact,highefficiency,T5orT5HOlamps.
•Fullyenclosedwiring.
•Optionalwhiteorspecular,symmetricand
assymetricreflector.
•ConvenienceoutletandswitchK.O.sprovided.
•Pushthroughlampholderswithrotorforsecure
lampretention.
•Optionalhangersandguards.
T5 side-mount strip series
26",38",50"
Surface side-mount strips (SM)
30˚
60˚
350
700
1050
Candlepower Curve
SV4S228UNVPG2 T5 Strip
1⅜"
(35mm)
2⅜"
(60mm)
2" (51mm)
1⅜"
(35mm)
2⅜"
(60mm)
2" (51mm)
RCR C.U.
1 90
2 77
3 67
4 59
5 52
6 46
7 41
8 37
9 33
10 30
Reference data
Efficiency 93,3%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 66.0W
Ballastfactor 1.0
Ordering information
Type Length
(nominal)
Number
of lamps T5 T5HO
Strip
T5
22"
22"
34"
34"
46"
46"
92"
92"
1
2
1
2
1
2
2(tandem)
4(tandem)
SV2S114
SV2S214
SV3S121
SV3S221
SV4S128
SV4S228
SV8S128
SV8S228
SV2S124
SV2S224
SV3S139
SV3S239
SV4S154
SV4S254
SV8S154
SV8S254
30˚
60˚
350
700
Candlepower Curve
SM4S228UNVPG 2 T5 Sidemount Strip
3" (76mm)
2" (51mm)
1 ⅜"
(35mm)
1 ⅜"
(35mm)
4" (102mm)
2" (51mm)
RCR C.U.
1 86
2 74
3 65
4 57
5 50
6 45
7 40
8 36
9 33
10 30
Reference data
Efficiency 94,5%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 66.0W
Ballastfactor 1.0
Ordering information
Type Length
(nominal)
Number
of lamps T5 T5HO
Side-
mount
Strip
T5
22"
22"
34"
34"
46"
46"
1
2
1
2
1
2
SM2S114
SM2S214
SM3S121
SM3S221
SM4S128
SM4S228
SM2S124
SM2S224
SM3S139
SM3S239
SM4S154
SM4S254
Strip T5 Voltage Ballast Options
Surface Strips 120=120V SeenextpageSeenextpage
277=277V
UNV=120-277 V
Strip T5 Voltage Ballast Options
Surface Strips 120=120V SeenextpageSeenextpage
277=277V
UNV=120-277 V
UNV
UNV
SV4S228
SM4S228
PG
PG
Example
Example
T5 strip series
22",34",46",92"
Surface strips (SV)
4.207Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
T5 staggered strip series
26",38",50"
Surface staggered strips
Application data*
Luminaire spacing FC W/Sq Ft
50' x 70' x 8.5' Space 12' on center 29 .45
30' x 30' x 8.5' Space 10' on center 36 .66
12' x 16' x 8.5' Space 8' on center 54 1.4
* Average footcandles mounted total LLF Reflectance 60% ceiling,
50%wall,20%.FloorT5ratedat2610lumens(25°C).
Features
•Only2"Wide.
•Utilizescompact,highefficiency,T5orT5HOlamps.
•Fullyenclosedwiring.
•Optionalwhiteorspecular,symmetricand
assymetricreflector.
•ConvenienceoutletandswitchK.O.sprovided.
•Pushthroughlampholderswithrotorforsecurelamp
retention.
•Optionalhangersandguards.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. UNVPG.
Ballast type
ElectronicT5(1or2LPB)Programstart PG
ElectronicT5(1or2LPB)PowerSpecDimming PF
(120/277Vonly)
LPB=Numberoflampsperballast.
Radio interference filter: Suffix: R.
120 or 277 volt at 50 or 60Hz.
Stem and canopy sets:Suspendluminaire12",18",
24",36",or48"fromsurface.(Twoperluminaireis
recommended.For34"and46"SVStriponly.)
Catalog no.: SV5F12(12");SV5F18(18");SV5F24(24");
SV5F36(36");SV5F48(48")
Chain hanging kit: Includes two 5' heavy duty link
chains with sturdy “V”hookforfixturesuspension.(34"
and46"SVStriponly.)Catalogno.:AH5 CSP
Wire guard: white wire guard. Catalog no.:
For SVStripT534":SV5GXW3
For SVStripT546":SV5GXW4
Reflectors: See Page page 4.208 + 4.209
30˚
60˚
0
0
Candlepower Curve
0
SS4S228UNVPG 2 T5 Staggered Strip
3 ⅛"
(79mm)
2 ⅜"
(60mm)
26 ½"
(673mm)
38 ¼"
(972mm)
50"
(1270mm)
4" (102mm)
4" (102mm)
4" (102mm)
1 716"
(37mm)
Ordering information
Type Length
(nominal)
Number
of lamps T5 T5HO
26 ½"
26 ½"
38 ¼"
38 ¼"
50"
50"
1
2
1
2
1
2
SS2S114
SS2S214
SS3S121
SS3S221
SS4S128
SS4S228
SS2S124
SS2S224
SS3S139
SS3S239
SS4S154
SS4S254
Staggered
Strip T5
Staggered Voltage Ballast Options
Strip T5 120=120V Seepage4.207 See page 4.207
Surface Strips 277=277V  andpage4.216
UNV=120-277 V
UNVSS4S228 PG
Example
RCR C.U.
1 88
2 76
3 66
4 58
5 50
6 45
7 40
8 36
9 32
10 29
Reference data
Efficiency 90,4%
Spacing ratio 1.5
Electronic ballast
Inputwatts(120V) 66.0W
Ballastfactor 1.0
4.208 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
30˚
60˚
300
600
900
Candlepower Curve
SV5R1S4SSLD/SV4S154UNVPG 1 T5 Symmetric Silver
2
½"
(64mm)
1
⅜"
(35mm)
4
⅛" (105mm)
2" (51mm)
RCR C.U.
1 90
2 77
3 67
4 59
5 52
6 46
7 41
8 37
9 33
10 30
30˚
60˚
300
600
900
Candlepower Curve
SV5R1W4SSLD/SV4S254UNVPG 2 T5 Symmetric White
4
⅛" (105mm)
2" (51mm)
2
½"
(64mm)
1
⅜"
(35mm)
RCR C.U.
1 86
2 74
3 65
4 57
5 50
6 45
7 40
8 36
9 33
10 30
Features
•Only1⅜"deep.
•InstallationonregularSVT5strip,1or2lamps.
•Availableinwhiteorhighreflectivityspecularfinish.
•Optionalmicro-perforatedorslottedwhitereflector.
Reference data
Efficiency 87,5%
Spacing ratio 1.9
Electronic ballast
Inputwatts(120V) 64.0W
Ballastfactor 1.0
Application data*
Luminaire spacing FC W/Sq Ft
50' x 70' x 8.5' Space 12' on center 25 .44
30' x 30' x 8.5' Space 10' on center 31 .64
12' x 16' x 8.5' Space 8' on center 47 1.3
*AveragefootcandlesmountedtotalLLF=.90Reflectance80%
ceiling,50%wall,20%FloorT5ratedat(25°C).
Lamp rated at 2610 lumens
Reference data
Efficiency 78.7%
Spacing ratio 1.4
Electronic ballast
Inputwatts(120V) 121.0W
Ballastfactor 1.0
Ordering information
Type Length
(nominal)
Reflector
for T5 Strip*
Symetric
Reflector
White
22"
34"
46"
92"
SV5R1W2SSLD**
SV5R1W3SSLD**
SV5R1W4SSLD**
2X SV5R1W4SSLD**
Symetric
Reflector
Silver
22"
34"
46"
92"
SV5R1S2SSLD
SV5R1S3SSLD
SV5R1S4SSLD
2X SV5R1S4SSLD
* Use with 1 or 2 T5 Strip (SV)
** For Slotted White Reflector, replace Solid White SLD by S LT
For Microperforated White Reflector, replace Solid White SLD by PER
Application data*
Luminaire spacing FC W/Sq Ft
50' x 70' x 8.5' Space 12' on center 50 .83
30' x 30' x 8.5' Space 10' on center 51 1.2
12' x 16' x 8.5' Space 8' on center 84 2.5
*AveragefootcandlesmountedtotalLLF=.90Reflectance80%
ceiling,50%wall,20%FloorT5ratedat(25°C).
Lamp rated at 4400 lumens
Ordering information
Type Length
(nominal)
Reflector
for T5 Strip*
Symetric
Reflector
White
22"
34"
46"
92"
SV5R1W2SSLD**
SV5R1W3SSLD**
SV5R1W4SSLD**
2X SV5R1W4SSLD**
Symetric
Reflector
Silver
22"
34"
46"
92"
SV5R1S2SSLD
SV5R1S3SSLD
SV5R1S4SSLD
2X SV5R1S4SSLD
* Use with 1 or 2 T5 Strip (SV)
** For Slotted White Reflector, replace Solid White SLD by S LT
For Microperforated White Reflector, replace Solid White SLD by PER
Symmetric reflector 2', 3', 4'
For 1 or 2 lamps T5 strip (SV)
4.209Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Asymmetric reflector 2', 3', 4'
For 1 or 2 lamps T5 strip (SV)
Features
•Only1⅜"deep.
•InstallationonregularSVT5strip,1or2lamps.
•Availableinwhiteorhighreflectivityspecularfinish.
30˚
60˚
Candlepower Curve
300
600
SV5R1W4ASLD/SV4S154UNVPG 1 T5 Asymmetric White
3
⅛" (79mm)
2" (51mm)
2
½"
(64mm)
1
⅜"
(35mm)
RCR C.U.
1 88
2 76
3 66
4 58
5 50
6 45
7 40
8 36
9 32
10 29
30˚
60˚
300
600
Candlepower Curve
SV5R1W4ASLD/SV4S254UNVPG 2 T5 Asymmetric White
3
⅛" (79mm)
2" (51mm)
2
½"
(64mm)
1
⅜"
(35mm)
RCR C.U.
1 86
2 75
3 65
4 57
5 50
6 45
7 40
8 36
9 32
10 29
Reference data
Efficiency 91.8%
Spacing ratio -
Electronic ballast
Inputwatts(120V) 64.0W
Ballastfactor 1.1
Reference data
Efficiency 85.8%
Spacing ratio -
Electronic ballast
Inputwatts(120V) 121.0W
Ballastfactor 1.0
Ordering information
Type Length
(nominal)
Reflector
for T5 Strip*
Symetric
Reflector
White
22"
34"
46"
92"
SV5R1W2ASLD**
SV5R1W3ASLD**
SV5R1W4ASLD**
2X SV5R1W4ASLD**
Symetric
Reflector
Silver
22"
34"
46"
92"
SV5R1S2ASLD
SV5R1S3ASLD
SV5R1S4ASLD
2X SV5R1S4ASLD
* Use with 1 or 2 T5 Strip (SV)
** For Slotted White Reflector, replace Solid White SLD by S LT
For Microperforated White Reflector, replace Solid White SLD by PER
Ordering information
Type Length
(nominal)
Reflector
for T5 Strip*
Symetric
Reflector
White
22"
34"
46"
92"
SV5R1W2ASLD**
SV5R1W3ASLD**
SV5R1W4ASLD**
2X SV5R1W4ASLD**
Symetric
Reflector
Silver
22"
34"
46"
92"
SV5R1S2ASLD
SV5R1S3ASLD
SV5R1S4ASLD
2X SV5R1S4ASLD
* Use with 1 or 2 T5 Strip (SV)
** For Slotted White Reflector, replace Solid White SLD by S LT
For Microperforated White Reflector, replace Solid White SLD by PER
4.210 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Specification
Features
•Fixturessuitableforindividual,row,surface,
or suspension mounting.
•Efficiency92.3%(T12).
•Quarterturnlatchsecureschannelcoverforeasy
wireway access.
•Heavydutychannelofcodegaugedieformedsteel.
•Fullyenclosedwiring.
•U.L.Listedsnap-onendcaps.
•Combinationendcapforcontinuousrowmounting.
•Greengroundingscrewinstalledinchannel.
•Lampholdersmaybeindividuallyreplacedorrewired.
•T8(380mA)andT12(800mA)standardfixturesinclude
ballasts rated for –20°F starting temperature.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)
and type and add as suffix, e.g. 120SO.
Ballast type <10THD <20THD
Electronic T8 HI* SO*
Electronic P.S. T8 P2 –
Electro-Magnetic – PH
Elcetronic T12 Standard – SS
* Instant start.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Optional hangers, wire guards & aligners, see page 4.216.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
SD8S296HO120SS
Reference data
Efficiency 92,3%
Spacing ratio 1.59
Electronic ballast
Inputwatts(120V) 232W
LER =FS 67.3
5 1⁄16"(T12)
(129mm)
4 13 ⁄16"(T8)
(122mm)
1 Lamp
5 1⁄16"(T12)
(129mm)
4 13 ⁄16"(T8)
(122mm)
2 Lamp
5 ⅞"
(149mm)
5 ⅞"
(149mm)
⅞" Dia.
K.O. (4)
½" Dia.
K.O. (2)
Side View
2 ¾"
(70mm)
4"
(102mm)6" (152mm)
⅞" Dia. K.O. (4) S Hook
K.O. (8)
4
'
Channel
4 ⅛"
(105mm)
2" Dia. K.O.
4 ⅝"
(117mm)
6 ⅜" (162mm)
1 ⅛" (29mm)
48" (1220mm)
30˚
60˚
1400
2800
Candlepower Curve
Ordering information
Fixture
length
Nominal
lamp
length
Lamps
qty - type
Catalog no.
SD 1 or 2
lamps wide
48"
96"
96"
192"
96"
192"
48"
48"
96"
96"
96"
96
1-T12HO
1-T12VHO
1-T12HO
1-T12HOinTandem(2Total)
1-T12VHO
1-T12HOinTandem(2Total)
SD4S148HO
SD4S148VO
SD8S196HO
SD8T196HO
SD8S196VO
SD8T196VO
48" 48"
2-T8HO
2-T12HO
2-T12VHO
SD4S244HO
SD4S248HO
SD4S248VO
96" 96" 2-T12HO
2-T12VHO
SD8S296HO
SD8S296VO
96"
192"
96"
96"
1-T8HO
1-T8inTandem(2Total)
2-T8HO
SD8S186HO
SD8T186HO
SD8S286HO
Reflectors
Type Size Catalog no.
Symmetrical 48" NSYMF48S CSP
Asymmetrical 48" NASYF48S CSP
Accessories
AC1 CSP=spacereach.
NAH3D CSP =twisteeeach.
NAHD CSP=slidegripeach.
AWG3W CSP=wireguardeach4ft.
All symmetric and asymmetric
reflectors areshipped separately
fromthe fixture.
SD Strip Voltage Ballast Options
High Output 120=120V Seepage4.210 See page 4.210
 VeryHighOutput 277=277V  andpage4.216
120SD8S296HO ASS
Example
72" (1829mm) or 96" (2438mm)
6" (152mm)
⅞" Dia. K.O. (4)
6' & 8' Channel
4 ⅛"
(105mm)
2" Dia. K.O.
6 ⅜" (162mm) S Hook
K.O. (8)
4 ⅝"
(117mm)
24"
(610mm)
4" (102mm)
3 116"
(78mm)
SD Deep Strip
High output/very high output
4.211Comprehensive lighting catalog 7th Edition
Specification – Linear recessed and surface lighting
Features
•Full3"overlapeliminatesshadowscaused
by lampholders or lamp ends.
•Housingisonly15/8"deep.
•Safe-handlingmetaledges.
•Fullyenclosedwireway.
•Excellentforperimetercovelightingorother
applications where continuous even illumination
is required.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI* SO*
1-4 Lamp Electronic T8 H4* O4*
LOL T8 Dimming – PS
Magnetic T12
HPF Models – PH
LPF Models – PL
* Instant start.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Optional hangers, wire guards & aligners, see page 4.216.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
SS4S132HPFUNVHI SS4S232HPFUNVHI
1 Lamp Reference data
Efficiency 89,5%
Spacing ratio 1.6
Ordering information
Fixture
length
Nominal
lamp
length
Lamps
qty - type
1 Lamp
Catalog no.
23 15 ⁄16"
23 15 ⁄16"
35 15 ⁄16"
35 15 ⁄16"
47 15 ⁄16"
68 15 ⁄16"
68 15 ⁄16"
92 15 ⁄16"
24"
24"
36"
36"
48"
36"
36"
48"
1-T8
1-T12
1-T8
1-T12
1-T8
2-T8
2-T12
2-T8
SS2S117HPF
SS2S120HPF
SS3S125HPF
SS3S130HPF
SS4S132HPF
SS6T125HPF
SS6T130HPF
SS8T132HPF
Ordering information
Fixture
length
Nominal
lamp
length
Lamps
qty - type
2 Lamp
Catalog no.
26 15 ⁄16"
26 15 ⁄16"
38 15 ⁄16"
38 15 ⁄16"
50 15 ⁄16"
74 15 ⁄16"
74 15 ⁄16"
98 15 ⁄16"
24"
24"
36"
36"
48"
36"
36"
48"
2-T8
2-T12
2-T8
2-T12
2-T8
4-T8
4-T12
4-T8
SS2S217HPF
SS2S220HPF
SS3S225HPF
SS3S230HPF
SS4S232HPF
SS6T225HPF
SS6T230HPF
SS8T232HPF
Ordering information
Fixture
length
Nominal
lamp
length
Lamps
qty - type
1 Lamp
Catalog no.
1 Lamp
Catalog no.
24"
24"
36"
36"
36"
48"
48"
24"
24"
36"
36"
36"
48"
48"
T8
T12
T8
T12
T12
T12
T8
SM117HPF
SM120LPF
SM125HPF
SM130LPF
SM130HPF
SM134LPF
SM132HPF
SM217HPF
SM220LPF
SM225HPF
–
SM230HPF
–
SM232HPF
SS Strip Voltage Ballast Options
 NarrowWidthChannel 120=120V Seepage4.211 See page 4.211
277=277V  andpage4.216
UNV=120-277V(ElectT8only)
UNVSS4S132HPF AHI
Example
2lampReflectors(T8only)
Type Size Catalog no.
Asymmetrical
24"
36"
48"
ASYF24STG
ASYF36STG
ASYF48STG
1lampT8Reflectors(T8only)
Type Size Catalog no.
Asymmetrical
24"
36"
48"
ASYC20STG
ASYC30STG
ASYC40STG
Features
•Only113/16"deep.
•Efficiency95.8%.
•Ballastcoversecuredbyquarter-turnlatches.
•Fullyenclosedwiring.
•Maybesurfacemountedorsuspended.
•Maybecontinuousrowmounted.
•Codegauge,heavyduty,dieformedsteelchannel.
•Multipleknockoutsforconvenientinstallation.
•Lampholdersmaybeindividuallyreplacedorrewired.
•Highreflectancebakedwhiteenamelfinish.
•U.L.Listedfordamplocations.
2 Lamp Reference data
Efficiency 89,5%
Spacing ratio 1.6
SM132HPFUNVHI
SIDE VIEW
TOP VIEW
2"(51mm)
2 ½"
(66mm)
4 ⅛"
(105mm)
1 1316"
(46mm)
1 1316"
(46mm)
⅞" K.O. (4)
⅞" K.O. (3) ½" K.O. (2)
1 116" (27mm) 1 116" (27mm)
1 ¼"
(32mm)
3 ¾"
(95mm)
SIDE VIEW
TOP VIEW
2"(51mm)
2 ½"
(66mm)
4 ⅛"
(105mm)
1 1316"
(46mm)
1 1316"
(46mm)
⅞" K.O. (4)
⅞" K.O. (3) ½" K.O. (2)
1 116" (27mm) 1 116" (27mm)
1 ¼"
(32mm)
3 ¾"
(95mm)
1 Lamp
SIDE VIEW
TOP VIEW
2" (51mm)
2½"
(66mm)
5¹¹¹6" (145mm)
1¹3¹6"
(46mm)
1¹3¹6"
(46mm)
⅞" K.O. (4)
⅞" K.O. (3) ½" K.O. (2)
1¹¹6" (27mm) 1¹¹6" (27mm)
1¼"
(32mm)
3¾" (95mm)
2 Lamp
Dimensions
Channel
length Inches (mm)
2' Channel
3' Channel
4' Channel
24"
36"
48"
(610mm)
(914mm)
(1219mm)
1 ⅝"
(141mm)
3 ¾" (T12)
(95mm)
3 ½" (T8)
(89mm)
4 ¼" (110mm)
1 ⅝"
(141mm)
3 ¾" (T12)
(95mm)
3 ½" (T8)
(89mm)
4 ¼" (110mm)
SS Staggered Strip
Surface strip
SM Side Mount Strip
Surface strip
4.212 Philips Lightolier For complete specification information visit www.lightolier.com
Linear recessed and surface lighting – Standard
Features
•Fixturessuitableforindividual,row,surface,or
suspension mounting.
•Efficiency94%(T8).
•Quarterturnlatchsecureschannelcoverforeasy
wireway access.
•Heavydutychannelofcodegaugedieformedsteel.
•Only21/2"wide.
•Fullyenclosedwiring.
•U.L.Listedsnap-onendcaps.
•Combinationendcapforcontinuousrowmounting.
•Greengroundingscrewinstalledinchannel.
•U.L.listedfordirectmountingonlowdensityceilings
and damp location.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI* SO*
LOL T8 Dimming – PS
Magnetic T12
Standard Electro-Magnetic PL –
LPF Models
Electronic T12 SS –
HPFModels18",24",36"only
* Instant start.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Optional hangers, wire guards & aligners, see page 4.216.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
SN4S132HPFUNVHI
SIDE VIEW
TOP VIEW
2" (51mm)
2 ½"
(66mm)
2 ½"
(66mm)
3 1316"
(94mm)
1 1316"
(46mm)
⅞" K.O. (4)
⅞" K.O. (3)
½" K.O. (2)
1 116" (27mm) 1 116" (27mm)
1 ¼"
(32mm)
3 ¾" (95mm)
30˚
60˚
200
400
Candlepower Curve
Reference data
Efficiency 94,0%
Spacing ratio 1.6
Electronic ballast
Inputwatts(120V) 36.0W
LER =FS 66.7
Dimensions
Channel length Inches (mm)
18"Channel
2' Channel
3' Channel
4' Channel
6' Channel
8' Channel
18"
24"
36"
48"
72"
96"
(457mm)
(610mm)
(914mm)
(1219mm)
(1829mm)
(2438mm)
Ordering information
Fixture
length
Lamp
length
Lamps
qty - type Catalog no.
24"
36"
48"
96"
24"
36"
48"
48"
1-T8
1-T8
1-T8
1-T8inTandem(2Total)
SN2S117HPF
SN3S125HPF
SN4S132HPF
SN8T132HPF
18"
18"
24"
24"
36"
36"
48"
18"
18"
24"
24"
36"
36"
48"
1-T12
1-T12
1-T12
1-T12
1-T12
1-T12
1-T12
SN1S115HPF
SN1S115LPF
SN2S120HPF
SN2S120LPF
SN3S130HPF
SN3S130LPF
SN4S134LPF
Reflectors
Type Size Catalog no.
Symmetrical
24"
36"
48"
NSYMC20 CSP
NSYMC30 CSP
NSYMC40 CSP
Asymmetrical
24"
36"
48"
NASYC20 CSP
NASYC30 CSP
NASYC40 CSP
SN Strip Voltage Ballast Options
 NarrowWidthChannel 120=120V Seepage4.212 See page 4.212
277=277V  andpage4.216
UNV=120-277 V
  (ElectT8only)
UNVSN4S132HPF AHI
Example
Accessories
AC1 CSP=spacereach.
AWG1W CSP=wireguardeach.
All symmetric and asymmetric
reflectors areshipped separately
from the fixture.
Symmetrical
5 ⅛
"
(130mm)
6
"
(152mm)
Asymmetrical
5 ⅛
"
(130mm)
5
7⁄16"
(138mm)
SNStrip
Narrow width channel
4.213Comprehensive lighting catalog 7th Edition
Standard – Linear recessed and surface lighting
Features
•Fixturessuitableforindividual,row,surface,or
suspension mounting.
•Efficiency97.3%(T8).
•Quarterturnlatchsecureschannelcoverforeasy
wireway access.
•Heavydutychannelofcodegaugedieformedsteel.
•Fullyenclosedwiring.
•U.L.Listedsnap-onendcaps.
•Combinationendcapforcontinuousrowmounting.
•Greengroundingscrewinstalledinchannel.
•Lampholdersmaybeindividuallyreplacedorrewired.
•U.L.listedfordirectmountingonlowdensityceilings
and damp locations.
Options & accessories page 4.216
Ballast:Specifyvoltage(120,277orUNV)andtypeand
addassuffix,e.g.UNVHI.
Ballast type <10THD <20THD
Electronic T8 HI* SO*
1-4 Lamp Electronic T8 H4* O4*
LOL T8 Dimming – PS
Magnetic T12
Standard Electro-Magnetic – PL
LPF Models
Electronic T12
Standard Electro-Magnetic – SS
HPF and SL Models
* Instant start.
Electrical/wiring options: For special wiring,
fusing,electronic dimming ballasts, consultfactory.
Optional hangers, wire guards & aligners, see page 4.216.
Fusing: Suffix: A (Internalfast-blowfusing).
Suffix: C (Internal slow-blow fusing).
SW4S232HPFUNVHI
30˚
60˚
400
800
Candlepower Curve
Reference data
Efficiency 97,3%
Spacing ratio 1.58
Electronic ballast
Inputwatts(120V) 60.3W
LEF =FS 80.5
Ordering information
Fixture
length
Lamp
length 1 Lamp -type 1 Lamp
Catalog no. 2 Lamp -type 2 Lamp
Catalog no.
24"
36"
48"
96"
96"
24"
36"
48"
48"
96"
1-T8
1-T8
1-T8
1-T8inTandem(2Total)
1-T8 SL
SW2S117HPF
SW3S125HPF
SW4S132HPF
SW8T132HPF
SW8S159SL
2-T8
2-T8
2-T8
2-T8(inTandem-2Total)
2-T8 SL
SW2S217HPF
SW3S225HPF
SW4S232HPF
SW8T232HPF
SW8S259SL
24"
24"
36"
36"
48"
48"
72"
96"
192"
24"
24"
36"
36"
48"
48"
72"
96"
96"
1-T12
1-T12
1-T12
1-T12
1-T12
1-T12SL
1-T12SL
1-T12SL
1-T12inTandem(2Total)
SW2S120HPF
SW2S120LPF
SW3S130HPF
SW3S130LPF
SW4S134LPF
SW4S148SL
SW6S172SL
SW8S196SL
SW8T196SL
2-T12
2-T12
2-T12
2-T12
2-T12
2-T12SL
2-T12SL
2-T12SL
–
SW2S220HPF
SW2S220LPF
SW3S230HPF
SW3S230LPF
SW4S234LPF
SW4S248SL
SW6S272SL
SW8S296SL
–
Reflectors
Type Size Catalog no.
Symmetrical
24"
36"
48"
NSYMF24S CSP
NSYMF36S CSP
NSYMF48S CSP
Asymmetrical
24"
36"
48"
NASYF24S CSP
NASYF36S CSP
NASYF48S CSP
SW Strip Voltage Ballast Options
Standard Strip Wide 120=120V Seepage4.213 See page 4.213
277=277V  andpage4.216
UNV=120-277 V
  (ElectT8only)
UNVSW4S232HPF AHI
Example
3¾"(T12)
(95mm)
3½"(T8)
(89mm)
1 Lamp
3¾"(T12)
(95mm)
3½"(T8)
(89mm)
2 Lamp
Accessories
AC1 CSP=spacereach.
NAH3 CSP=twisteeeach.
AWG1W CSP=wireguardeach.
All symmetric and asymmetric
reflectors areshipped separately
from the fixture.
SW Strip
Standard strip wide
Linear recessed and surface lighting
4.214 Philips Lightolier For complete specification information visit www.lightolier.com
Add appropriate
suffix to Cat. no.
BF=2 lamps Elec.
55W TT5
BP=2lampsElec.
50W TT5
DA=iGENDALI
DS=iGENBroadCast
4Sensorw/iGENBallast
F4 =Electronic18WQT4pin
O3=3lampElectronicT8Instantstart
O4=Electronic4LPBT8Instantstart
PA=PowerSpecHDFdimming
Electronic 18W TT5
PB=PowerSpecHDFdimming
Electronic 40W TT5
PC=PowerSpecHDFdimming
Electronic 50/55W TT5
PD=ElectronicDimming
2x42W TTT 4 pin
PG=ElectronicT5Programstart
PS =PowerSpecHDFdimming
Electronic T8
SB=2lampsElectronic40WTT5
SO=2lampElectronicT8Instantstart
TC=Electronic2x32WTTT4pin
TD=Electronic2x42WTTT4pin
X3=3lamps40WElectronicTT5
HI =ElectronicT8<10THD
H3=1-3lampElectronicT8<10THD
H4=1-4lampElectronicT8<10THD
120=120V
277=277V
UNV=120-277V
AD=Asymmetric
Distribution
CB=Circularlamp
shield
GB=Clearacrylic
w/Blue
projected
color face
GC=Clearacrylic
GG=Clearacrylic
w/Green
projected
color face
GR=Clearacrylic
w/Red
projected
color face
LG=Greysolid
flat blade louver
LV  =Whiteperforated
flat blade louver
LW=Whitesolid
flat blade louver
OP =One-Piecelampshield
OB=One-piecelampshield
w/Sensor
OS=OpenSlot(noacrylic)
SQ=SquareWindowsbasket
SS =LateralWavesideshields
SR =LateralCurvedsideshields
Catalog numbering logic
Coffaire (recessed)
Please note that this ordering guide lists all coffaire luminaire numbering logic. The possible
combinations and options do not apply to all luminaires. Please refer to the specific
luminairepage.
Family
Lumin.
width
Ceiling
type
Lamp shield with
luminaire finish
Lamp shield
details
Lamp
qty
Lamp
type Voltage Ballast Options
QVS 2 G PF OS 332 UNV H3 A
QVC=RoundEclipse
QVE =Elegance
QVB=SlimSquare
QMF=MetaformSR
QVF =SlimSurface
QVH=SlimSR
QVS =ClassicClassic
OP Windows
SmartVision
Louver Metalyte
Metalyte Louver
QVW=ClassicWall
Eclipse Wall
Windows Wall
QVL =Waves
QVA=Air
QHE=High-Efficiency
QVD=AlterTileLyte
QCE=Concept
Elegance
QCH=ConceptSR
QCJ =Concept
1=12"
2=24"
5=20"
1=1lamp
2=2lamp
3=3lamp
4=4lamp
G=Grid
S=Surface
T=SlotT-grid
Ceiling
GL=GlassLampShield
PA=SolidWhite
Perimeter Lamp
Shield w/White
Mesh Center
PC=SolidWhite
Perimeter Lamp
Shield w/White
Mesh Inner Area
andSolid center
PF =Microperforated
MeshLamp Shield
PT=MetallicReflector
w/Microperforated
MeshLamp Shield
PG=Microperforated
MeshLamp Shield
w/TitaniumBody
PW=Microperforated
MeshLamp Shield
w/WhiteBody
SG=SolidTitanium
Lamp Shield
w/TitaniumBody
SW=SolidWhite
Lamp Shield
w/WhiteBody
14=2'T514W
17=2'T817W
24=2'T5HO24W
32=4'T832W
FT=TT5
FL=TwoTT5in2'x4'
TT=TTTTripleTube
28=4'T528W
54=4'T5HO54W
QT=QuadQTlamp
Add appropriate
suffix to Cat. no.
HI=ElectronicT8
Instant start
H3=1-3lampElec.
T8 Instant start
PG=ElectronicT5
Program start
PR=ElectronicTT5(40W)
Program start
BP=2lampsElec.
50W TT5
P2=ElectronicT8
Program start
P3=1-3lampElec.T8
Program start
I3 =1-3lampElec.TT5(40W)
Instant start
120=120V
277=277V
UNV=120-277V
PF=Perforated
MeshShield
HP=Highperformance
SQ=AcrylicLensand
Perforated Steel
Center Panel
CF S 2 G PF 232 UNV
H3 A
HI A
1=1lamp
2=2lamp
3=3lamp
14=2'T514W
17=2'T817W
24=2'T5HO24W
FT=TT5
28 =4'T528W
32 =4'T832W
54 =4'T5HO54W
CF=Coffaire A=Airsupply
and return
S=Static
H=Airreturn
1=12"
2=24"
G=BothStandardGrid
and Slot Grid
N=9/16"NarrowT-Grid
Family Body style
Lumin.
width Ceiling type Shielding
Lamp
qty
Lamp
type Voltage Ballast Options
Catalog numbering logic
Alter
Please note that this ordering guide lists all Alter Soft Light numbering logic. The possible
combinations and options do not apply to all luminaires. Please refer to the specific
luminairepage.
Linear recessed and surface lighting
4.215Comprehensive lighting catalog 7th Edition
SO=ElectronicT8
O3=1-3lamp
Electronic T8
O4=1-4lamp
ElectronicT8
SB=Electronic40WTT5
X3=1-3lampElectronic40WTT5
PS=LOLPowerSpec
T8 Dimming
PB=LOLPowerSpec
40W TT5 Dimming
HI=ElectronicT8<10THD
H3=1-3lamp
ElectronicT8<10THD
H4=1-4lamp
ElectronicT8<10THD
in a lumin.
cross sec-
tion
1=1lamp
2=2lamp
3=3lamp
4=4lamp
17=2'T8
20=2'T12
32=4'T8
2U=T8U1.6
6U=T8U6or
T12U6
FT=TT5
8 =1x8 (1'x4')
9 =3x3 (2'x2')
12=2x6 (2'x4')
3x4 (2'x2')
1x12(1x4')
16=4x4 (2'x2')
2x8 (2'x4')
18=3x6 (2'x4')
20=1x20(6'x48')
24=2x12(1'x4')
3x8 (2'x4')
27=3x9 (2'x4')
29=2x9 (2'x4')
32=4x8 (2'x4')
Catalog numbering logic
Parabolic (recessed and surface)
Please note that this ordering guide lists all parabolic luminaire numbering logic. The
possible combinations and options do not apply to all luminaires. Please refer to the specific
luminairepage.
Catalog numbering logic
Lens (recessed and surface) except XP troffer
Please note that this ordering guide lists all lens luminaire numbering logic. The possible
combinations and options do not apply to all luminaires. Please refer to the specific
luminairepage.
Family Body style
Lumin.
width
Ceiling
type
Number
of cells
Louver
finish
Mounting
method
Lamp
qty
Lamp
type Voltage Ballast Options
DP A 2 G 18 L S 3 32 UNV
DP=Deepcel
Plus
VR=Vision
Smart
Recom-
mended
ST=Stacklyte
LI =LytecelIndividual
LC=LytecelContinuous
A=Airsupply
and return
S=Static
B=Surfacebox
L=Low
iridescence
Semi-
specular
P=Low
iridescence
Specular
1=12"
2=24"
6=6"
G=Grid
(lay-inTbar)
T=Slotgridor
two-directional
concealed T
(seeoptions)
F=Flangefor
drywall, plaster
or concealed
splice
S=Surface
for ballast
cover louver
S=Single
P=Twin
R=Specular
reflector
H3 A
Add appropriate
suffix to Cat. no.
120=120V
277=277V
UNV=120-277V
SO=ElectronicT8
O3=1-3lamp
Electronic T8
O4=1-4lamp
ElectronicT8
SB=Electronic40WTT5
X3=1-3lampElectronic40WTT5
PS=LOLPowerSpec
T8 Dimming
PB=LOLPowerSpec
40W TT5 Dimming
HI=ElectronicT8<10THD
H3=1-3lamp
ElectronicT8<10THD
H4=1-4lamp
ElectronicT8<10THD
in a lumin.
cross sec-
tion
1=1lamp
2=2lamp
3=3lamp
4=4lamp
6=6lamp
17=2'T8
20=2'T12
32=4'T8
2U=T8U1.6
6U=T8U6or
T12U6
FT=TT5
SP S 2 G FS VA 432 UNV
SP=SpecPlus
PR=Prismalyte
Plus
SU=Operating
Room Luminaire
PN=PrismalyteBox
SL=SLSurfacebox
A=Airsupply
S=Static
B=Surfacebox
FS=Flatsteel
frame
RA=Regressed
aluminum
frame
FA=Flat
aluminum
frame
iridescence
RF=Regressed
aluminum
floating door
1=12"
2=24"
G=Grid
(lay-inTbar)
F=Flangefor
drywall, plaster
or concealed
splice
S=Surface
VA=Standard
(virgin acrylic -
see options and
consultfactory)
H4 A
Add appropriate
suffix to Cat. no.
120=120V
277=277V
UNV=120-277V
Family Body style
Lumin.
width
Ceiling
type
Lens
frame
Lens/shield
type
Lamp
qty
Lamp
type Voltage Ballast Options
Linear recessed and surface lighting
4.216 Philips Lightolier For complete specification information visit www.lightolier.com
Radio interference filter
RF =Inductivecapacitorcircuitdesigned
to minimize interference from line
radiationorfeedback.120Vor277V,
50or 60 Hz. One per fixture.
e.g: WA4A232120SO RF
Cord and plug convenience
CPA(120V) CPB(277V) =Factory
wired six foot 3-conductor cord
with a heavy-duty twist-lock plug
withproperNEMAconfigurationfor
specifiedvoltage.
e.g: WA4A232120SO CPA
Fluorescent emergency
lighting system
EM =Factory-installedemergency
power battery pack with charger and
inverter,B100orequal,120Vor277V.
e.g: WA4A232120SO EM
Chain hanger kit
AH5 CSP (SW/SD/KW/KDfixtures)
Two5'heavydutychainswithsturdy“V”
hooks that grip fixtures at four knock-out
points for level suspension.
Row couplers
NHDC-W CSP (SD/SWfixtures)
Required to connect, stabilize stem
or chain-mounted fixtures used in
continuous rows.
Wire guards
AWG1W CSP (SNstrip)
AWG3W CSP (SW/SDstrip)
Hinge and latch positive-lock
construction, complete with longitudinal
and transverse struts for secure
protection.BakedWhiteEnamel.
Heavy duty
slide-grip hanger
NAHD CSP (SD/KDfixtures)
NAHW CSP(SW/KWfixtures)
Hinge and latch positive-lock
construction, complete with
longitudinal and transverse struts
for secure protection.
Fusing
A=Internalfast-blowfusing.
C=Internalslow-blowfusing.
e.g: WA4A232120SO A
Stem and canopy set
ASC6 CSP(6")
ASC12 CSP (12")
ASC18 CSP(18")
ASC24 CSP(24")
Suspendsfixture6",12",18"or24"from
surface and can be used in conjunction
with Heavy-Duty Slide Grip Hanger.
Canopy spacer (1 ½")
AC1 CSP
Suspends fixture approximately
1½"fromsurface.
Twist tee hanger
NAH3 CSP (SW/KWfixtures)
NAH3D CSP (SD/KDfixtures)
ForSW/SD/KW/KDinstallation
of4⅛"wide(channel)fixtureon
exposed “T” grid ceilings on hard
surfaces.Provides1½"clearance
from surface.
Surface/wall
Options & accessories
Linear recessed and surface lighting
4.217Comprehensive lighting catalog 7th Edition
Reflector row aligners
KND CSP
Clear, tough, plastic aligners
forKW/KDfixturereflectors.
Radio interference filter
RF =Inductivecapacitorcircuitdesigned
to minimize interference from line
radiationorfeedback.120Vor277V,
50or 60 Hz. One per fixture standard.
e.g: TU4A232120S0 RF
Fusing
A=Internalfast-blowfusing.
C=Internalslow-blowfusing.
e.g: TF4A232120S0 A
Cord and plug convenience
CPA(120V) CPB(277V) =Factory
wired six foot 3-conductor cord
with a heavy-duty twist-lock plug
withproperNEMAconfigurationfor
specifiedvoltage.
e.g: TU4A232120S0 CPA
Fluorescent emergency
lighting system
EM =Factory-installedemergency
power battery pack with charger and
inverter,B100orequal,120Vor277V.
e.g: TU4A232120SO EM
Chain hanger kit
AH5 CSP (KW/KDfixtures)
Two5'heavydutychainswithsturdy“V”
hooks that grip fixtures at four knock-out
points for level suspension.
Wire guards
AWG4W CSP(KD/KWfixtures)
LFL - 173 (TUfixtures)
Hinge and latch positive-lock
construction, complete with longitudinal
and transverse struts for secure
protection.
Heavy duty
slide-grip hanger
NAHD CSP (KDfixtures)
NAHW CSP(KWfixtures)
LFL - 111 (TUfixtures)
Hinge and latch positive-lock
construction, complete with
longitudinal and transverse struts
for secure protection.
Twist tee hanger
NAH3 CSP (SW/KWfixtures)
NAH3D CSP (SD/KDfixtures)
ForSW/SD/KW/KDinstallation
of4⅛"wide(channel)fixtureon
exposed “T” grid ceilings on hard
surfaces.Provides1½"clearance
from surface.
Stem and canopy set
ASC6 CSP(6")
ASC12 CSP (12")
ASC18 CSP(18")
ASC24 CSP(24")
Suspends fixture 6', 12', 18' or 24' from
surface and can be used in conjunction
with Heavy-Duty Slide Grip Hanger or
Ice-Tong Hanger.
Row couplers
NHDC-W CSP (KD/KWfixtures)
Required to connect, stabilize stem
or chain-mounted fixtures used in
continuous rows.
Canopy spacer (1 ½")
AC1 CSP
Suspends fixture approximately
1½"fromsurface.
Reflector row aligners
TU - SNA(TUfixtures)
Aluminum joiners clamp reflectors
together for straight, permanent
alignment. Two aligners are included
with all 8' fixtures. For continuous row
installations, specify two additional bulk-
packed aligners per reflector point.
Housing row couplers
LFL - 3(TUfixtures)
Industrial
Options & accessories
Linear recessed and surface lighting
4.218 Philips Lightolier For complete specification information visit www.lightolier.com
“F” Mounting Frame
A
B
CeilingOpening
Fixture
Wire Hangers
(byothers)
AcousticalTile
(byothers)
“F” Mounting Frame
1
⅛"
“F” Mounting Frame
“F” Mounting Frame
Screws
(supplied)
Fixture
Wire Hangers
(by others)
Plaster
(by others)
“F” Mounting Frame
Plaster Frame
1
⅛"
Fixture
Wire Hangers
(by others)
AcousticalTile
(byothers)
“F” Mounting Frame
Channel (by others)
1
⅛"
¼" Dia. Wire Hanger Hole ⅛" Dia. Screw Assembly Hole
1
⅛"
316"
1 ⅜" 1 ½"
48
⅝"
25
516"
49
516"
25
516"
6
⅝"
OR
12
⅝"
Features
•Designedtopermituseofgrid(NEMA G)fixturesin
ceilings requiring flanges.
•Maybeusedwithany“G” type Philips Lightolier troffer.
•MaybeusedinconjunctionwithPhilipsLightolier
plasterframe.
•Extrudedaluminumconstructionwithmiteredcorners.
•Includesscrewsforcompleteassembly.
•Notforcontinuousrowmounting.
“F” Mounting frame assembly
6"x48",1'x4',2'x2',2'x4'
For Mounting in Drywall or
Ceilings Requiring Flanges
Ordering information
Catalog
number
Fixture
Size
Ceiling (cut out) Opening
A B
FK906X4
FK91X4
FK92X2
FK92X4
6"X48"
1' x 4'
2' x 2'
2' x 4'
6⅝" (168mm)
12 ⅝" (321mm)
24 ⅝" (626mm)
24 ⅝" (626mm)
48⅝" (1235mm)
48 ⅝" (1235mm)
24 ⅝" (626mm)
48 ⅝" (1235mm)
Mounting methods for “F” mounting frame assembly Note: Donotusewirehangers(byothers)atendoffixture.
Note:Donotusewirerhangers(byothers)atendoffixture.
Assemble “F”mountingframewithsuppliedscrews(4places).
Install “F” mounting frame into ceiling opening. May be used
withplasterframe(seereversesideformountingmethods).
Note:Donotusewirerhangers(byothers)atendoffixture. Note:Donotusewirerhangers(byothers)atendoffixture.
“F” Mounting frame assembly installation instructions Ceiling cut out dimensions
Assemble “F”
mounting frame with
screws supplied (4
places).
Install “F” mounting
frame into ceiling
opening.
May be used with
plaster frame. Install
fixture into “F”
mounting frame.
1. 2.
Drywall kit
For most recessed fixtures
Linear recessed and surface lighting
4.219Comprehensive lighting catalog 7th Edition
The ULM Module clamps to the ceiling “T” bar and then
the fixture is dropped in place. The same ULM Module
will fit either standard or slot grid ceilings. Plug-in quick
connectors are used for electrical connection of module
to fixture.
Housing encloses electrical connections
— line or low voltage. Tile is notched
and dropped in place.
4
½"
(114mm)
6
½"
(165mm)
4"
(102mm)
Exposed T-Grid Ceiling Exposed Slot T-Grid Ceiling
Features
•Canaccommodatemostmanufacturerslightor
occupancy sensor switch.
•Lineorlowvoltage.
•Fitsstandardorslotgridceilingsystems.
•Plug-inconnectiontomatingfixture
(orderedseparately).
•Securestoceiling"T"(standardorslotgrid).
•Ceilingtilehold-down.
•18gaugesteelfascia.
Fixture Sensor Manufacturer Manufacturer
ULM Module width Finish code Manufacturer part number Power rating
Motion or Light 2=24" F=Flat TR1=Tridonic DSISmart120V 120V
Sensor Enclosure White TR2 = Tridonic DSISmart277V 120V
WS1=WattStopper FS205 24VDC
WS2=WattStopper FS305 24VDC
WS3=WattStopper FS355 120-277VAC
WS4=WattStopper FS405 24VDC
LU1 =Lutron C-R-M1-WH 15VDC
LU2 =Lutron C-SR-M1-WH 15VDC
2UL F
Example
Mates with 2' x 2' & 2' x 4'
recessed fixture products
Alter Classic (QVS)
Alter High Efficiency (QHE)
Alter Louver (QV S -LV )
Coffaire (CF)
Deepcel (DP)
HP90 (H9)
Opalescent (OP)
Paraplus (PP)
Prismalyte (PR)
Skyway (SKS)
Specplus (SP)
VisionSmart2'x2' (VR)
VisionSmart2'x4' (VR)
Specifications
Materials: 18 gauge cold rolled steel fascia.
Finish: Flat white.
Housing: 24 gauge galvanized steel.
Labels:I.B.E.W.
The ULM module
Motion or light sensor enclosure
TheUniversalLightandMotion(ULM)Modulesensorintegrateswithrecessedlighting
fixtures. The clean design allows it to blend in nicely with the ceiling system and lighting
fixture. The ULM Module is an enclosure that will accommodate most manufacturers
motion or daylight sensors in either line or low voltage. It is designed to interface and quick
connect to most of our 2x4 and 2x2 recessed lighting fixtures. The ULM Module creates the
convenienceofbeingabletobuildamotionordaylightsensor(producedbyothers)intoany
of our recessed fixtures eliminating the potential errors in how the sensors and fixtures are
electrically connected. The ULM Module comes packaged complete with the appropriate
sensor and can be easily installed and connected to the end of the lighting fixture.
Note: Fixtures and ULM Modules are ordered as separate items.
Sensors used and wiring of fixtures will be based on information provided by specifier.
Linear recessed and surface lighting
4.220 Philips Lightolier For complete specification information visit www.lightolier.com
 Ballastcodeoptions
Ballast code Ballast lamp capacity Type Ballast factor THD Voltage Wattage Ballast designation
B3 1 - 3 Lamp Rapid Start 1.00 <10% 120 or 277 40W Generic Electronic1
BA31 or 2 Lamp Rapid Start 1.00 <10% UNV 18W Generic Electronic1
BB31 or 2 Lamp Rapid Start 0.95 <10% UNV 24W Generic Electronic1
BF31 or 2 Lamp Program start 1.00 <10% UNV 55W Generic Electronic1
BP31 or 2 Lamp Program Rapid Start 0.98 <10% UNV 50W Generic Electronic1
CD31 or 2 Lamp Instant start 0.88 <10% UNV 40W Advance Electronic Centium
CE 1 - 3 Lamp Instant start 0.88 <10% UNV 40W Advance Electronic Centium
CF 1 Lamp Program start 1.00 <10% UNV 40W AdvanceElectronicCentiumIntelliVolt
CT31 or 2 Lamp Program start 1.10 <10% UNV 50W or 55W AdvanceElectronicCentiumIntelliVolt
CY 1 - 3 Lamp Program Rapid Start 0.90 <10% UNV 50W or 55W AdvanceElectronicCentiumIntelliVolt
CZ 1 - 4 Lamp Program Rapid Start 0.90 <10% UNV 50W or 55W AdvanceElectronicCentiumIntelliVolt
I3 1 - 3 Lamp Instant start 0.88 <10% UNV 40W Generic Electronic1
IB31 or 2 Lamp Instant start 0.88 <10% UNV 40W Generic Electronic1
M7 1 - 2 Lamp Program start 1.00 / 0.03 <10% UNV 40W AdvanceElectronicMarkVIIDimming
MW31 or 2 Lamp Program start 0.90 / 0.03 <10% 120 or 277 55W AdvanceElectronicMarkVIIDimming
MX31 or 2 Lamp Program start 1.00 / 0.05 <10% 120 or 277 40W AdvanceElectronicMarkXDimming
MZ31 or 2 Lamp Program start 0.90 / 0.05 <10% 120 or 277 55W AdvanceElectronicMarkXDimming
P931 or 2 Lamp Program start 1.00 <10% UNV 55W Generic Electronic1 90°C
PB31 or 2 Lamp Program start 0.95 <10% UNV 40W Philips Lightolier Electronic Dimming
PC31 or 2 Lamp Program start 0.90 <10% UNV 55W Philips Lightolier Electronic Dimming
PR31 or 2 Lamp Program Rapid Start 1.00 <10% UNV 40W Generic Electronic1
SB31 or 2 Lamp Instant start 1.00 <20% 120 or 277 40W Generic Electronic1
X3 1 - 3 Lamp Instant start 0.88 <20% 120 or 277 40W Generic Electronic1
1Genericelectronicballast(Advance,Sylvania,Universal,UltraSaveorGE)chosenbyfactorybasedonavailability.
2Ballastfactorbasedon4'lengthlamps.
3Ballastcodesignifiesuseofasingle1lampballastina2lampfixture,asingle1lampballastanda2lampballastina3lampfixtureandtwo2lampballastsina4lampfixture.
Voltage Ballast
120=120V
277=277V
UNV=120-277 V
Example
Example of voltage and
ballast code fields to be
populated within fixture
specification sheet.
Twin tube T5 ballast code options
22 ½" Long
Linear recessed and surface lighting
4.221Comprehensive lighting catalog 7th Edition
Ballastcodeoptions
T8 ballast code options
2', 3' and 4' lengths
Ballast code Ballast lamp capacity Type Ballast factor2THD Voltage Ballast designation
A3 1 - 3 Lamp Program Rapid Start 0.71 <10% UNV Advance Electronic Optanium Low Watt
A4 1 - 4 Lamp Program Rapid Start 0.71 <10% UNV Advance Electronic Optanium Low Watt
A531 or 2 Lamp Instant start 0.77 <10% UNV Advance Electronic Optanium IOPA Low Watt
A6 1 - 3 Lamp Instant start 0.77 <10% UNV Advance Electronic Optanium IOPA Low Watt
A7 1 - 4 Lamp Instant start 0.77 <10% UNV Advance Electronic Optanium IOPA Low Watt
C231 or 2 Lamp Instant start 0.87 <10% UNV Advance Electronic Optanium
C3 1 - 3 Lamp Instant start 0.87 <10% UNV Advance Electronic Optanium
C4 1 - 4 Lamp Instant start 0.87 <10% UNV Advance Electronic Optanium
C531 or 2 Lamp Instant start 0.77 <10% UNV Advance Electronic Optanium Low Watt
C6 1 - 3 Lamp Instant start 0.77 <10% UNV Advance Electronic Optanium Low Watt
C7 1 - 4 Lamp Instant start 0.77 <10% UNV Advance Electronic Optanium Low Watt
C8 1 - 3 Lamp Program Rapid Start 0.88 <10% UNV Advance Electronic Optanium
C9 1 - 4 Lamp Program Rapid Start 0.88 <10% UNV Advance Electronic Optanium
CA31 or 2 Lamp Instant start 0.88 <10% UNV Advance Electronic Centium
CG 1 or 2 Lamp Program Rapid Start 0.88 <10% UNV Advance Electronic Optanium
CI 1 - 3 Lamp Instant start 0.88 <10% UNV Advance Electronic Centium
CJ 1 - 4 Lamp Instant start 0.88 <10% UNV Advance Electronic Centium
CK31 or 2 Lamp Program Rapid Start 0.71 <10% UNV Advance Electronic Optanium Low Watt
CO31 or 2 Lamp Instant start 1.18 <10% UNV Advance Electronic Optanium High Lite Output
H3 1 - 3 Lamp Instant start 0.88 <10% UNV Generic Electronic1
H4 1 - 4 Lamp Instant start 0.88 <10% UNV Generic Electronic1
H5 1 - 2 Lamp & 1 - 4 Lamp Instant start 0.88 <10% UNV Generic Electronic1
H6 2 - 3 Lamp Instant start 0.88 <10% UNV Generic Electronic1
HI31 or 2 Lamp Instant start 0.88 <10% UNV Generic Electronic1
L3 1 - 3 Lamp Instant start 0.77 <10% UNV Generic Electronic1 Low Watt
L4 1 - 4 Lamp Instant start 0.77 <10% UNV Generic Electronic1 Low Watt
LW31 or 2 Lamp Instant start 0.77 <10% UNV Generic Electronic1 Low Watt
M4 1-4Lamp(No17W) Program start 0.88 <10% UNV AdvanceElectronicMarkVIIDimming
M731 or 2 Lamp Program start 1.00 <10% UNV AdvanceElectronicMarkVIIDimming
M8 1 - 3 Lamp Program start 0.88 <10% UNV AdvanceElectronicMarkVIIDimming
MY 1 - 3 Lamp Program start 1.02 <10% 120 or 277 AdvanceElectronicMarkXDimming
P231 or 2 Lamp Program start 0.88 <10% UNV Generic Electronic1
P3 1 - 3 Lamp Program start 0.88 <10% UNV Generic Electronic1
P4 1 - 4 Lamp Program start 0.88 <10% UNV Generic Electronic1
PS31 or 2 Lamp Program start 0.98 <10% UNV Philips Lightolier Electronic Dimming
PW 1 - 3 Lamp Program start 0.98 <10% UNV Philips Lightolier Electronic Dimming
PX 1 - 4 Lamp Program start 0.98 <10% UNV Philips Lightolier Electronic Dimming
V231 or 2 Lamp Program Rapid Start 0.95 <10% UNV Generic Electronic Step Dimming1
1Genericelectronicballast(Advance,Sylvania,Universal,UltraSaveorGE)chosenbyfactorybasedonavailability.
2Ballastfactorbasedon4'lengthlamps.
3Ballastcodesignifiesuseofasingle1lampballastina2lampfixture,asingle1lampballastanda2lampballastina3lampfixtureandtwo2lampballastsina4lampfixture.
Voltage Ballast
120=120V
277=277V
UNV=120-277 V
Example
Example of voltage and
ballast code fields to be
populated within fixture
specification sheet.
Linear recessed and surface lighting
4.222 Philips Lightolier For complete specification information visit www.lightolier.com
 Ballastcodeoptions
Deepcel 2' x 4' size
All performance data on the 2' x 4' luminaire is based
onamaintainedroomtemperatureof75°F(24°C).Air
performance tests were conducted in accordance with
AirDiffusionCouncil(ADC)airdiffusingtrofferheat
removal test code TC-66.
HEAT TRANSFER,
ENERGY DISTRIBUTION,
THREE LAMPS – FOUR LAMPS
NEGATIVESTATICPRESSURE(IN.OFH2O)
COMBINATION RETURN
AIR/HEAT REMOVAL
1.Input,BTUH
2.Heatremoved;BTUH
3.Heattospace;BTUH
Ballast code Ballast lamp capacity Type Ballast factor THD Voltage Ballast designation
AY 2 Lamp Program start 0.95 <10% UNV AdvanceElectronicOptaniumStepDimming(28WattOnly)
CT31 or 2 Lamp Program start 1.00 - 1.032<10% UNV AdvanceElectronicCentiumIntelliVolt
CY 1 - 3 Lamp Program Rapid Start 1.00 <10% UNV AdvanceElectronicCentiumIntelliVolt(54WattOnly)
CZ 1 - 4 Lamp Program Rapid Start 0.90 <10% UNV AdvanceElectronicCentiumIntelliVolt(54WattOnly)
MW31 or 2 Lamp Program start 1.00 / 0.03 <10% 120 or 277 AdvanceElectronicMarkVIIDimming(54WattOnly)
MZ31 or 2 Lamp Program start 1.00 / 0.052<10% 120 or 277 AdvanceElectronicMarkXDimming(24or54WattOnly)
P5 1 - 3 Lamp Program start 1.00 <10% UNV Generic Electronic190°C(54WattOnly)
P931 or 2 Lamp Program start 1.00 <10% UNV Generic Electronic190°C(54WattOnly)
PF31 or 2 Lamp Program start 1.00 - 1.052<10% UNV Philips Lightolier Electronic Dimming
PG31 or 2 Lamp Program start 1.00 - 1.052<10% UNV Generic Electronic1
PU 1 - 3 Lamp Program start 1.00 <10% UNV Generic Electronic1(54WattOnly)
PV 1 - 4 Lamp Program start 1.00 <10% UNV Generic Electronic190°C(54WattOnly)
VY 2 lamp Program Rapid Start 0.95 <10% UNV Generic Electronic Step Dimming1(14or28WattOnly)
VZ 1 or 2 Lamp Program Rapid Start 1.15 <10% UNV Generic Electronic Step Dimming1(14or28WattOnly)
WA31 or 2 Lamp Instant start 0.93 <10% 120 or 277 Generic Electronic1(28WattOnly)
WW31 or 2 Lamp Program start 0.95 <10% UNV Generic Electronic1(28WattOnly)
WX31 or 2 Lamp Program start 1.15 <10% UNV Generic Electronic1(28WattOnly)
1Genericelectronicballast(Advance,Sylvania,Universal,UltraSaveorGE)chosenbyfactorybasedonavailability.
2Ballastfactorbasedon4'lengthlamps.
3Ballastcodesignifiesuseofasingle1lampballastina2lampfixture,asingle1lampballastanda2lampballastina3lampfixtureandtwo2lampballastsina4lampfixture.
Voltage Ballast
120=120V
277=277V
UNV=120-277 V
Example
Example of voltage and
ballast code fields to be
populated within fixture
specification sheet.
T5 ballast code options
2', 3' and 4' lengths
Air handling data
Air return/heat transfer data for Deepcel
Linear recessed and surface lighting
4.223Comprehensive lighting catalog 7th Edition
NEGATIVESTATICPRESSURE(IN.OFH2O)
*Lytecel6"x48"
Air return Information
Is only the Air return through the side slot.
(Noheattransferdatatoright)
Deepcel 2' x 2' size
VR1'x4'size
All performance data on the 1' x 4'
luminaire is based on a maintained
roomtemperatureof75°F(24°C).Air
performance tests were conducted in
accordance with Air Diffusion Council
(ADC)airdiffusingtrofferheatremoval
test code TC-66.
All performance data on the 2' x 2'
luminaire is based on a maintained
roomtemperatureof75°F(24°C).Air
performance tests were conducted in
accordance with Air Diffusion Council
(ADC)airdiffusingtrofferheatremoval
test code TC-66.
Air return through side slots
Heat transfer,
energy distribution,
two lamps
Heat transfer,
energy distribution,
two F40 lamps
Heat transfer,
energy distribution,
two lamps
NEGATIVESTATICPRESSURE(IN.OFH2O)
1.Input,BTUH
2.Heatremoved;BTUH
3.Heattospace;BTUH
1.Input,BTUH
2.Heatremoved;BTUH
3.Heattospace;BTUH
Air handling data
Air return/heat transfer data for VR
Air handling data
Air return/heat transfer data for Deepcel & Lytecel
Linear recessed and surface lighting
4.224 Philips Lightolier For complete specification information visit www.lightolier.com
Air handling data
Air return/heat transfer data for Prismalyte Plus
2' x 4' size 2' x 4' & 2' x 2' size
2' x 2' size
All performance data on the 2' x 2' luminaire is based
onamaintainedroomtemperatureof75°F(24°C).Air
performance tests were conducted in accordance with Air
DiffusionCouncil(ADC)airdiffusingtrofferheatremoval
test code TC-66.
All performance data on the 1' x 4' luminaire is based
onamaintainedroomtemperatureof75°F(24°C).Air
performance tests were conducted in accordance with Air
DiffusionCouncil(ADC)airdiffusingtrofferheatremoval
test code TC-66.
All performance data on the 2' x 4' luminaire is based on a
maintainedroomtemperatureof75°F(24°C).Airperformance
tests were conducted in accordance with Air Diffusion Council
(ADC)airdiffusingtrofferheatremovaltestcodeTC-66.
1' x 4' size
1.Input,BTUH
2.Heatremoved;BTUH
3.Heattospace;BTUH
Linear recessed and surface lighting
4.225Comprehensive lighting catalog 7th Edition
Air handling data
Air return/heat transfer data for Paraplus and Coffaire
2' x 4' size 2' x 2' size
CFM Through Lamp Compartment
0 10 20 30 40 50 60
Static Pressure-In. Wg.
20° Plenum to space
two 54W T5HO lamps
1. Input:BTUH.
2. Totaltoplenum:BTUH
3.RemovedinexhaustBTUH.
1
3
2
1' x 4' size
500
400
300
200
100
0
-100
-200
Paraplus ParaplusCoffaire Coffaire
CFM Through Lamp Compartment
0 10 20 30 40 50 60
Static Pressure-In. Wg.
20° Plenum to space
two 54W T5HO Lamps
1. Input:BTUH.
2. Totaltoplenum:BTUH
3.RemovedinexhaustBTUH.
1
2
3
500
400
300
200
100
0
-100
-200
10 20 30 40 50 70 100 150 200 250
Pressure drop tested in accor-
dance with ADC 1062R2
Static Pressure-In. Wg.
1. Return air through 20 heat
slots1/2"wideeachinside
lamp compartment.
ReturnAirFlow(CFM)
.100
.010
.001
10 20 30 40 50 70 100
Pressure drop tested in
accordance with ADC 1062R2
Static Pressure-In. Wg.
1. Return air
through 8 heat
slots1/2"wide
each inside lamp
compartment.
ReturnAirFlow(CFM)
.100
.010
.001
Air performance tests on the 1' x
4' luminaire were conducted with
procedure described in I.E.S. Journal,
Summer1987,Vol.16,No.2,Pages
21-31byBuildingAcousticsLighting
Laboratories, Inc.
CFM Through Lamp Compartment
0 10 20 30 40 50 60
Static Pressure-In. Wg.
20° Plenum to space
two 54W T5HO lamps
1. Input:BTUH.
2. Totaltoplenum:BTUH
3.RemovedinexhaustBTUH.
500
400
300
200
100
0
-100
-200
10 20 30 40 50 70 100 150 200 250
Pressure drop tested in
accordance with ADC 1062R2
Static Pressure-In. Wg.
1. Return air through 20 heat
slots1/2"wideeachinside
lamp compartment.
ReturnAirFlow(CFM)
.100
.010
.001
Air performance tests on the 2' x
4' luminaire were conducted with
procedure described in I.E.S. Journal,
Summer1987,Vol.16,No.2,Pages
21-31byBuildingAcousticsLighting
Laboratories, Inc.
Air performance tests on the 2' x
2' luminaire were conducted with
procedure described in I.E.S. Journal,
Summer1987,Vol.16,No.2,Pages
21-31byBuildingAcousticsLighting
Laboratories, Inc.
Paraplus Coffaire
Paraplus and Coffaire with air return meets the requirements of UL 1598, Paragraph
9.2.2.5, Large scale fallout tested in accordance with the fire test described in
Paragraph9.2.3.2.2.,andisUL(UnderwritersLaboratories)listedunderFileR5892,
Vol.1,Section4,dated11/16/2001.

Navigation menu
