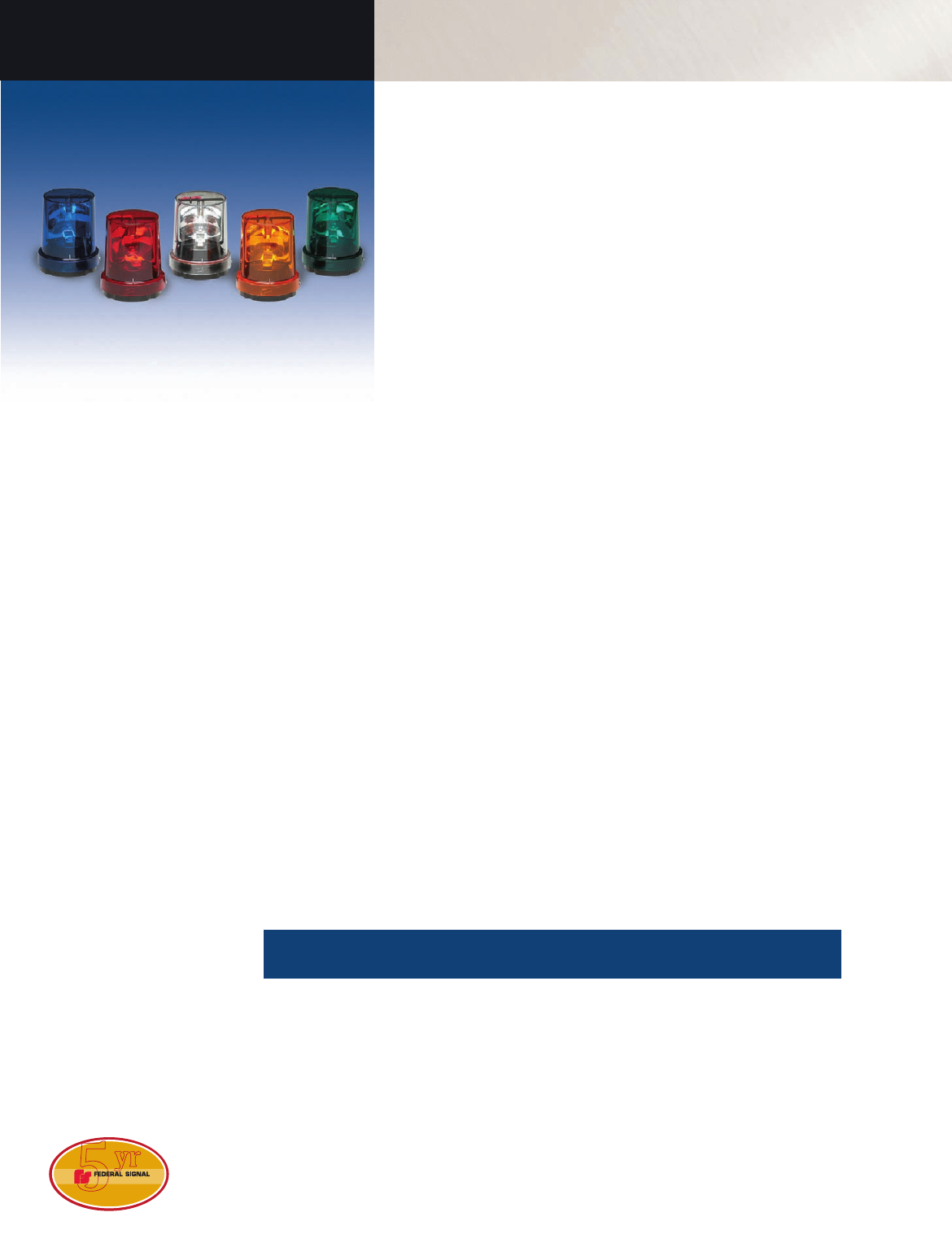

LIGHT DUTY VEHICULAR
LIGHT
•Available in 12VDC and 24VDC
•Five dome colors
•121 - Magnetic mount with
cigarette lighter cord and plug
•121A - Integrated pipe and
surface mount
•Model 121 - Type 3R,
IP32 enclosure
•Model 121A - Type 4X,
IP66 enclosure
•UL and cUL Listed and
CSA Certified
Vitalite®
Rotating Warning
Light
Models 121 and 121A

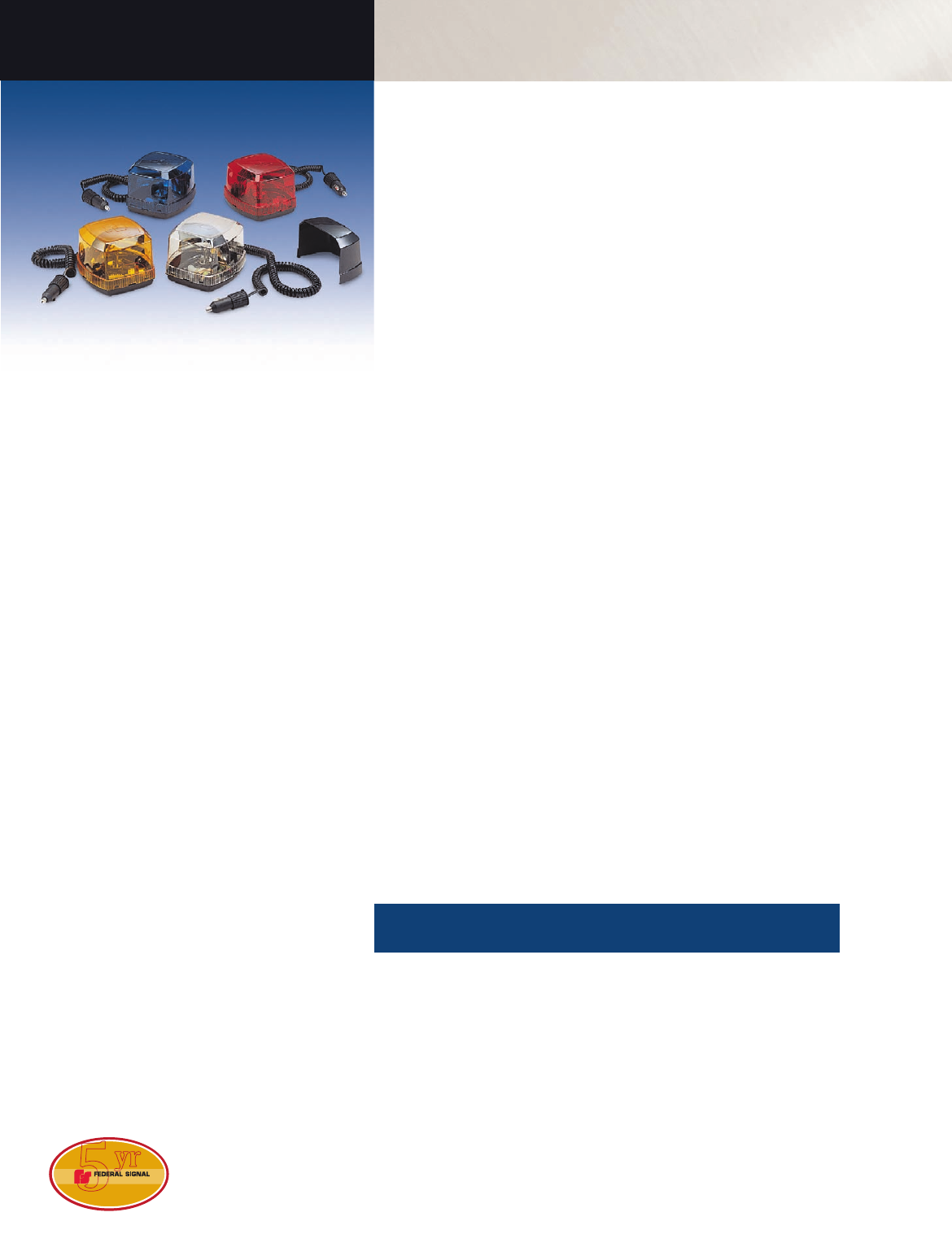

The Federal Signal Vitalite®Models 121 and 121A are compact,
rotating lights designed for vehicular applications. They feature a
parabolic reflector that rotates around an incandescent lamp,
providing 60 flashes per minute in all directions. Both Models are
available in five dome colors — amber, blue, clear, green and red.
The 121 comes with an integrated magnetic mount and steel
mounting plate. Power is supplied to the 121 via a 10-foot electrical
cord with a cigarette lighter type plug. The 121 is available in 12VDC.
The 121A rotating light is designed for both vehicular and in-plant
applications. This unit can be surface mounted or mounted on a
1/2” pipe with the integrated pipe mount. The 121A is available in
12VDC and 24VDC. The enclosure is also rated Type 4x for a
water tight and dust tight seal.
Both Models are UL Listed.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
121 12VDC 3.0 amps 60 18,000 Magnetic
121A 12VDC 3.0 amps 60 18,000 Pipe/Surface
121A 24VDC 1.3 amps 60 4,000 Pipe/Surface
007_122_62362_FedSig.qxd 1/31/08 12:30 AM Page 30
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

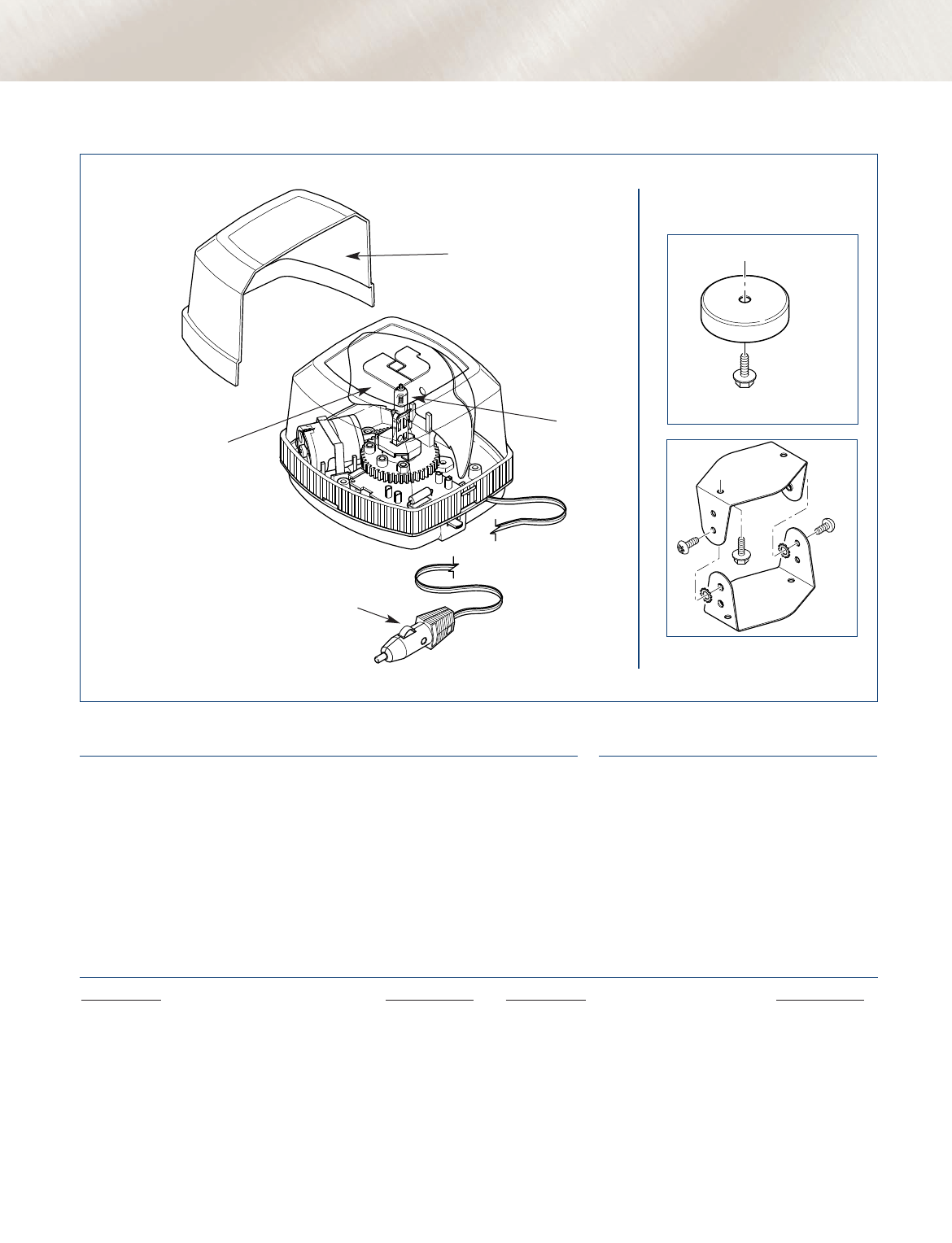

VITALITE®ROTATING WARNING LIGHT (121/121A)
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
121/121A beginning on page 373
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
SPECIFICATIONS
Lamp Life*: 300 Hours 300 Hours
Lamp Style: Incandescent Incandescent
Operating Temperature: -31°F to 150°F -35°C to 66°C
121A
Net Weight: 1.8 lbs. 0.79 kg
Shipping Weight: 1.9 lbs. 0.86 kg
Height: 6.26" 159.0 mm
Diameter: 5.13" 130.0 mm
121
Net Weight: 2.2 lbs. 1.0 kg
Shipping Weight: 2.3 lbs. 1.04 kg
Height: 6.75" 172.0 mm
Diameter: 5.13" 130.0 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8444357A-02 Dome, Red K8444357A-03
Dome, Blue K8444357A-01 Incandescent Lamp, 12VDC K8107223A
Dome, Clear K8444357A Incandescent Lamp, 24VDC K8107236A
Dome, Green K8444357A-04 Motor, Stepper K8444382A
Dome, Magenta K8444357A-05 PC Board Assembly K2001927A
Series A & B Domes on page 33
* Optimal hours under ideal conditions.

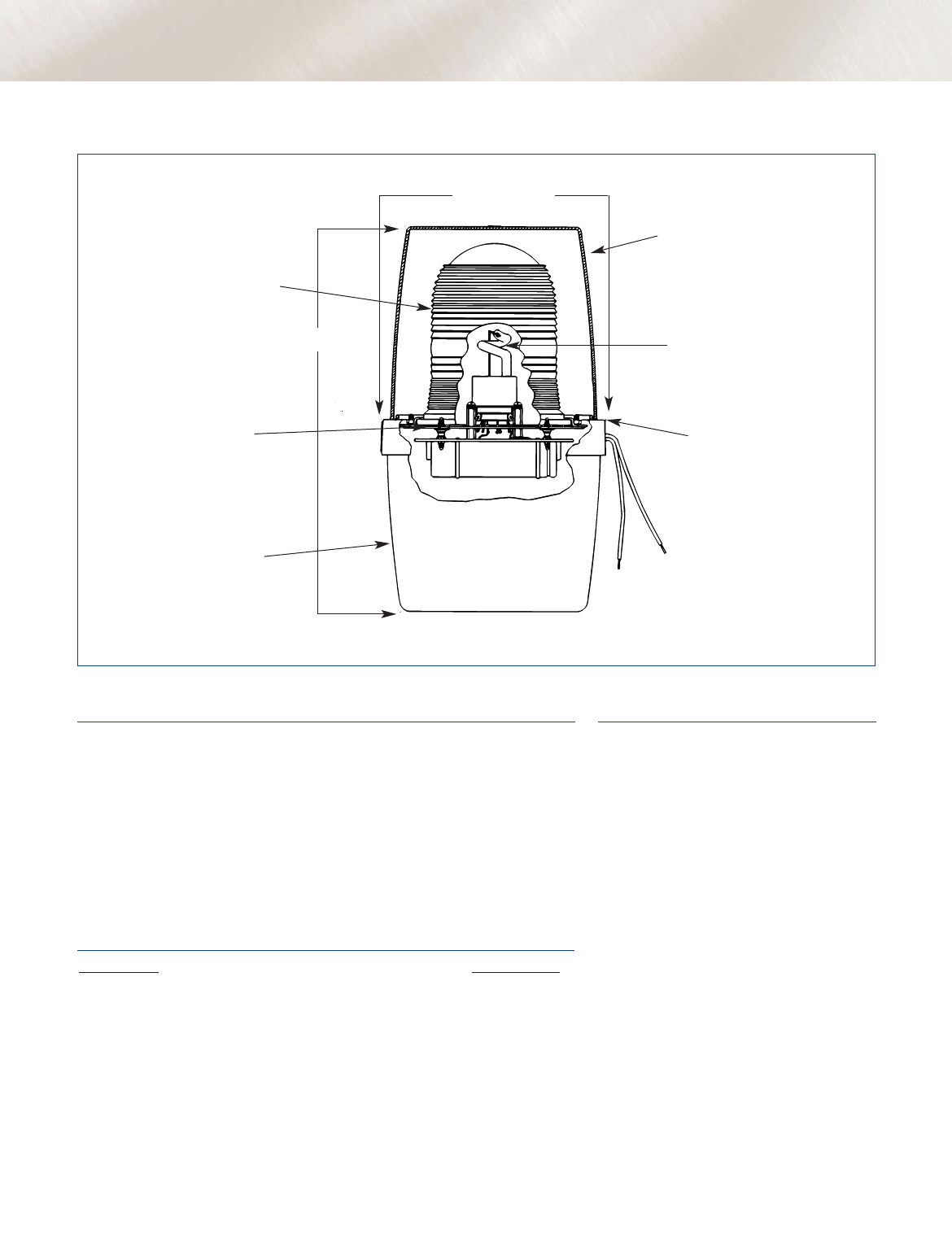

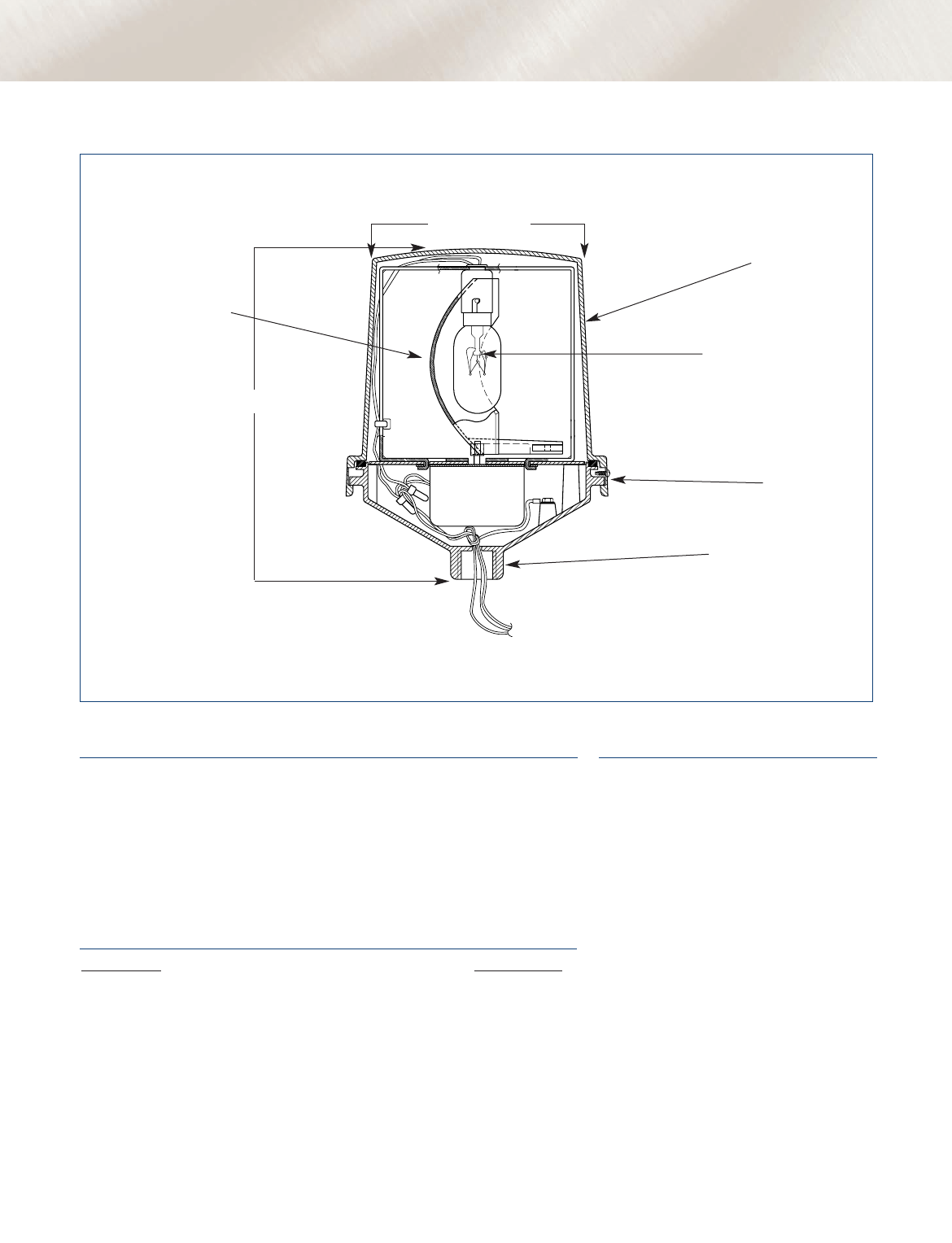

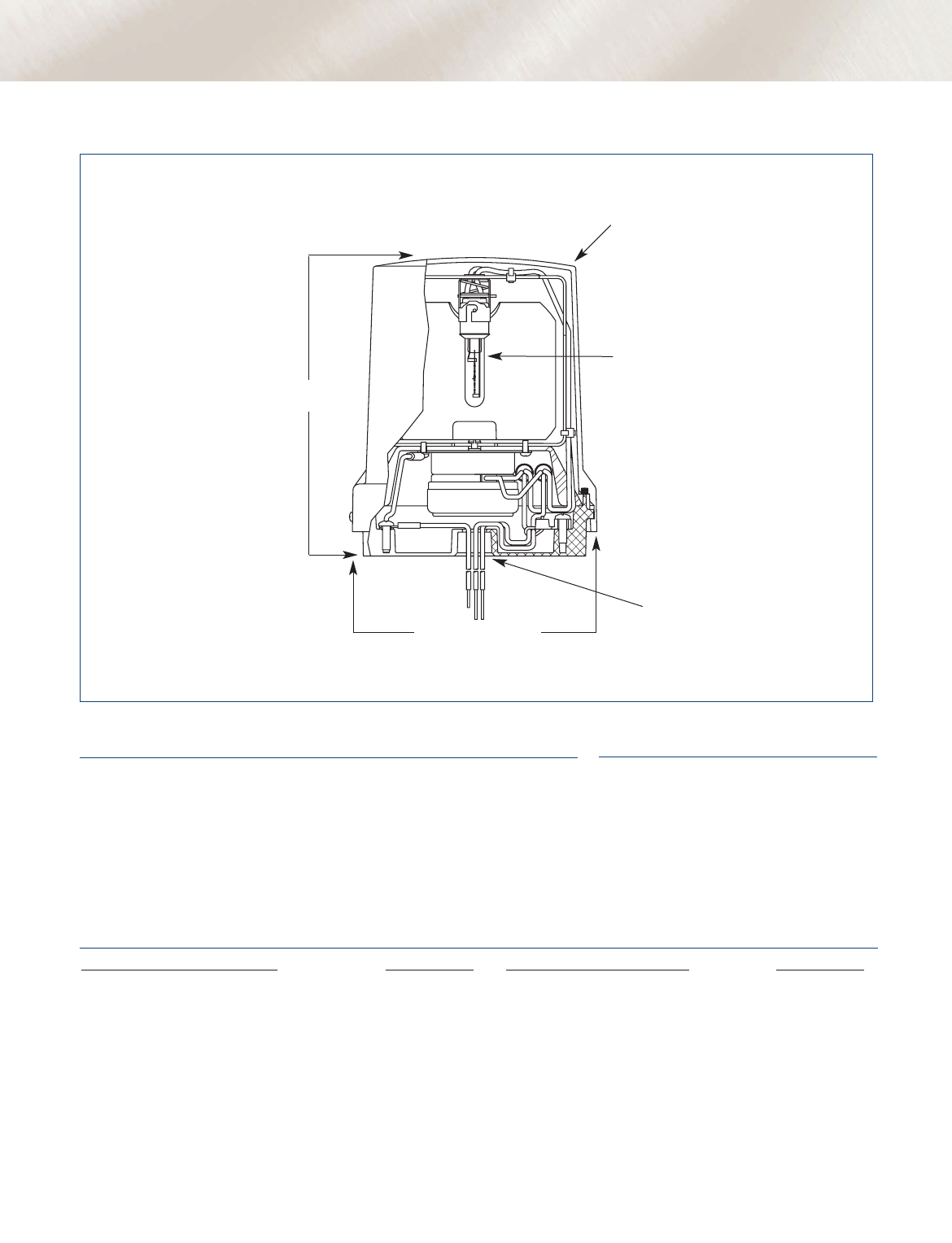

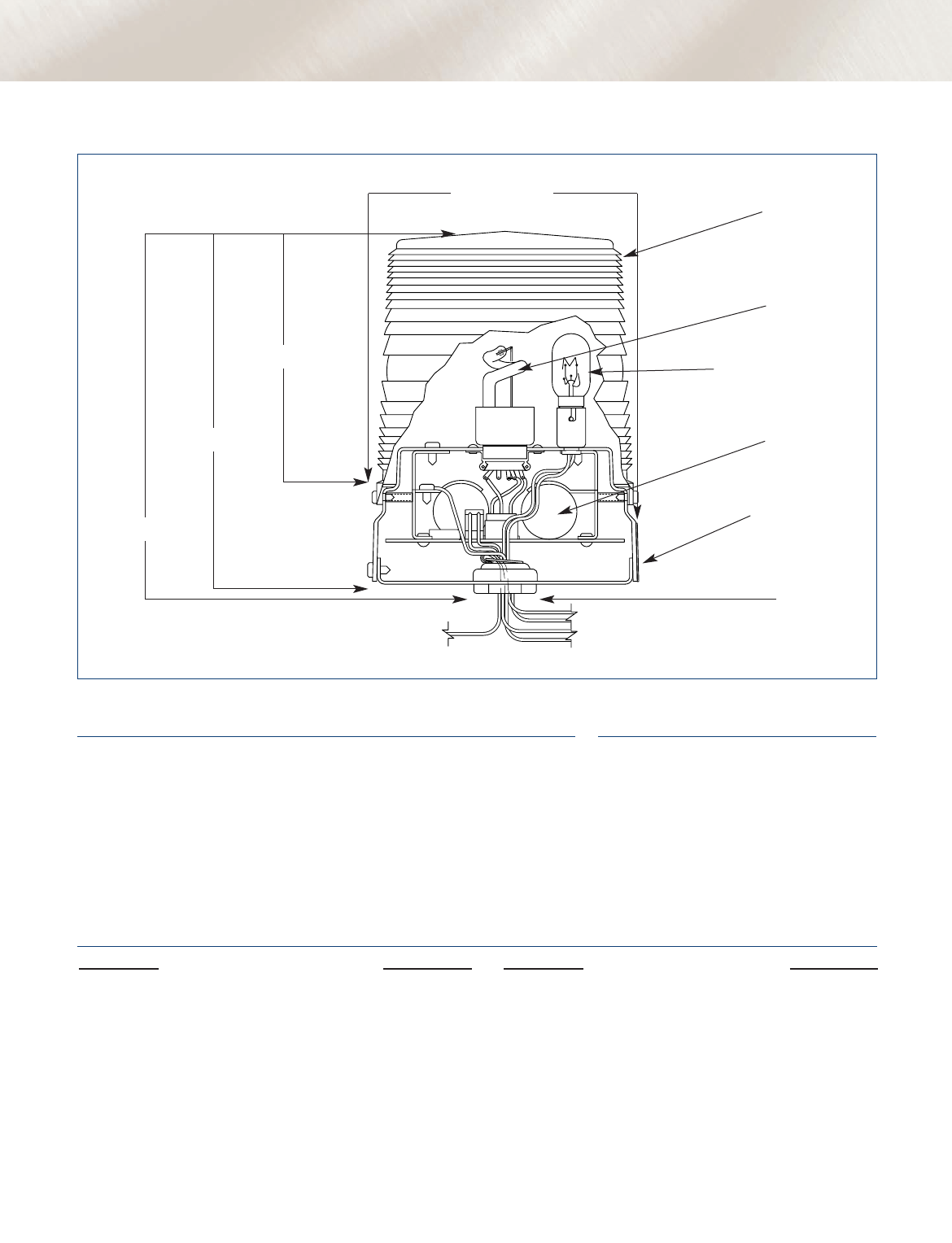

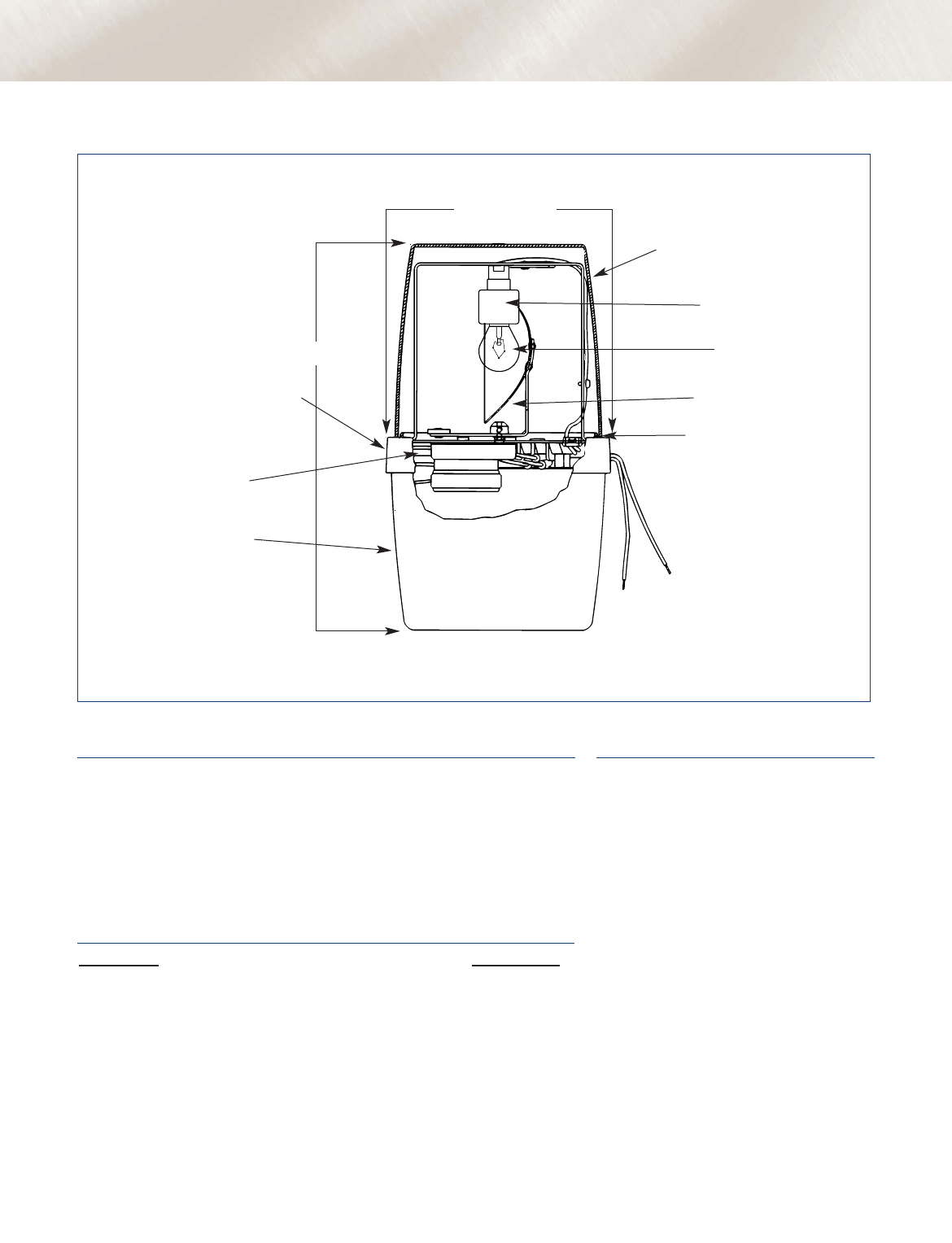

5.13"/130 mm
6.26"/
159 mm
6.75"/
172 mm
5.13"/130 mm
Polycarbonate
Dome
Polycarbonate
Dome
Incandescent
Lamp
Magnetic
Mount
Model 121A Model 121
007_122_62362_FedSig.qxd 1/26/08 7:01 PM Page 31
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

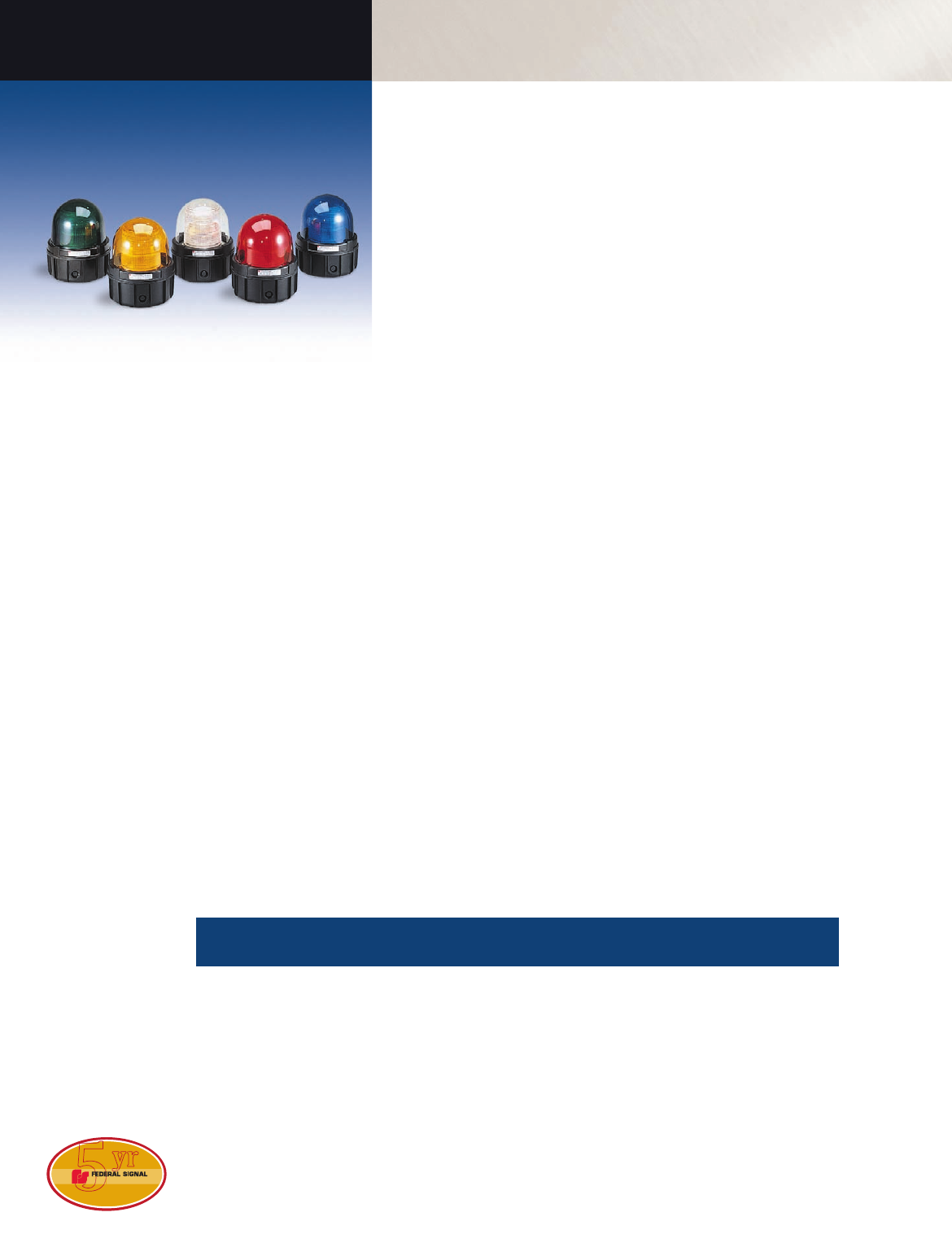

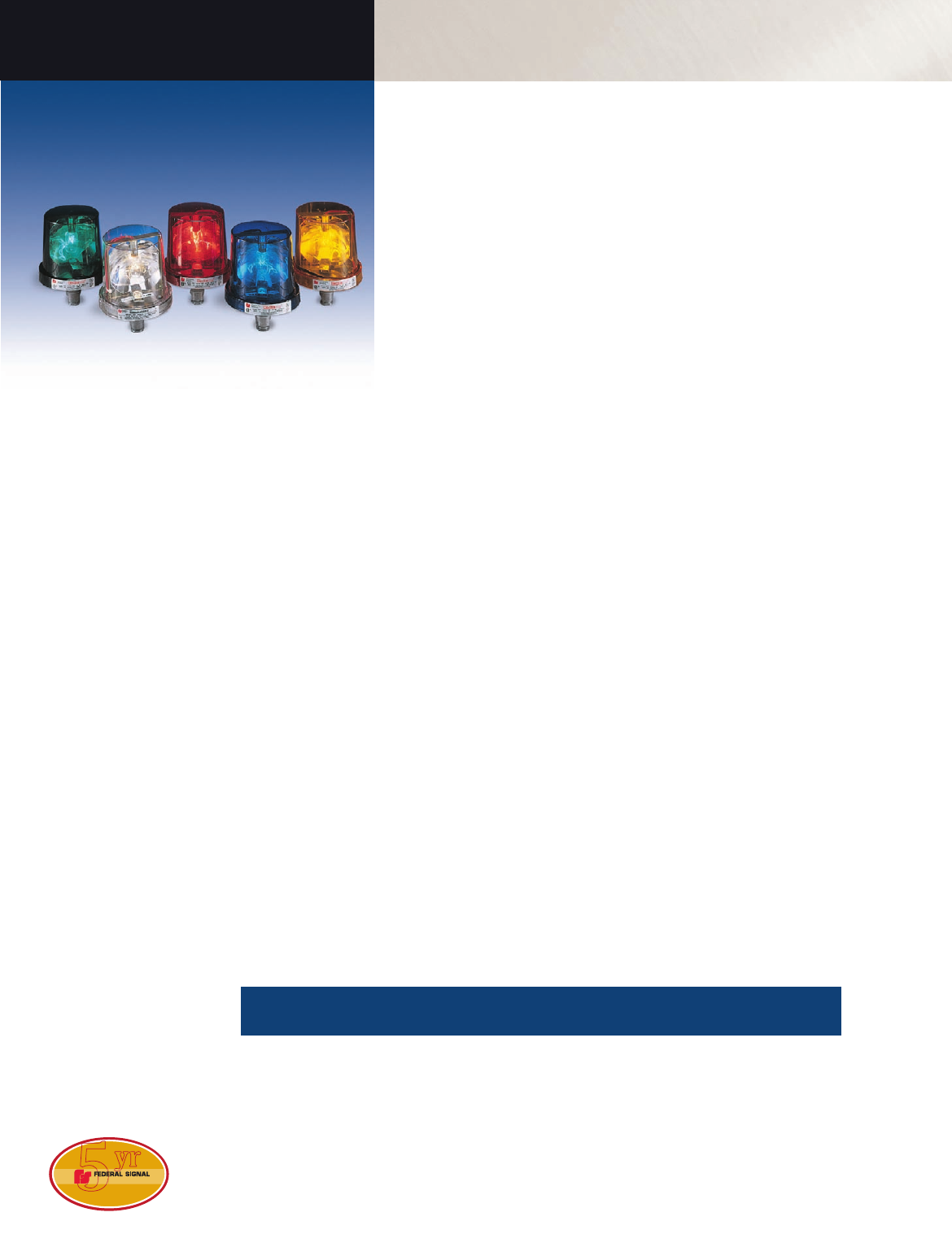

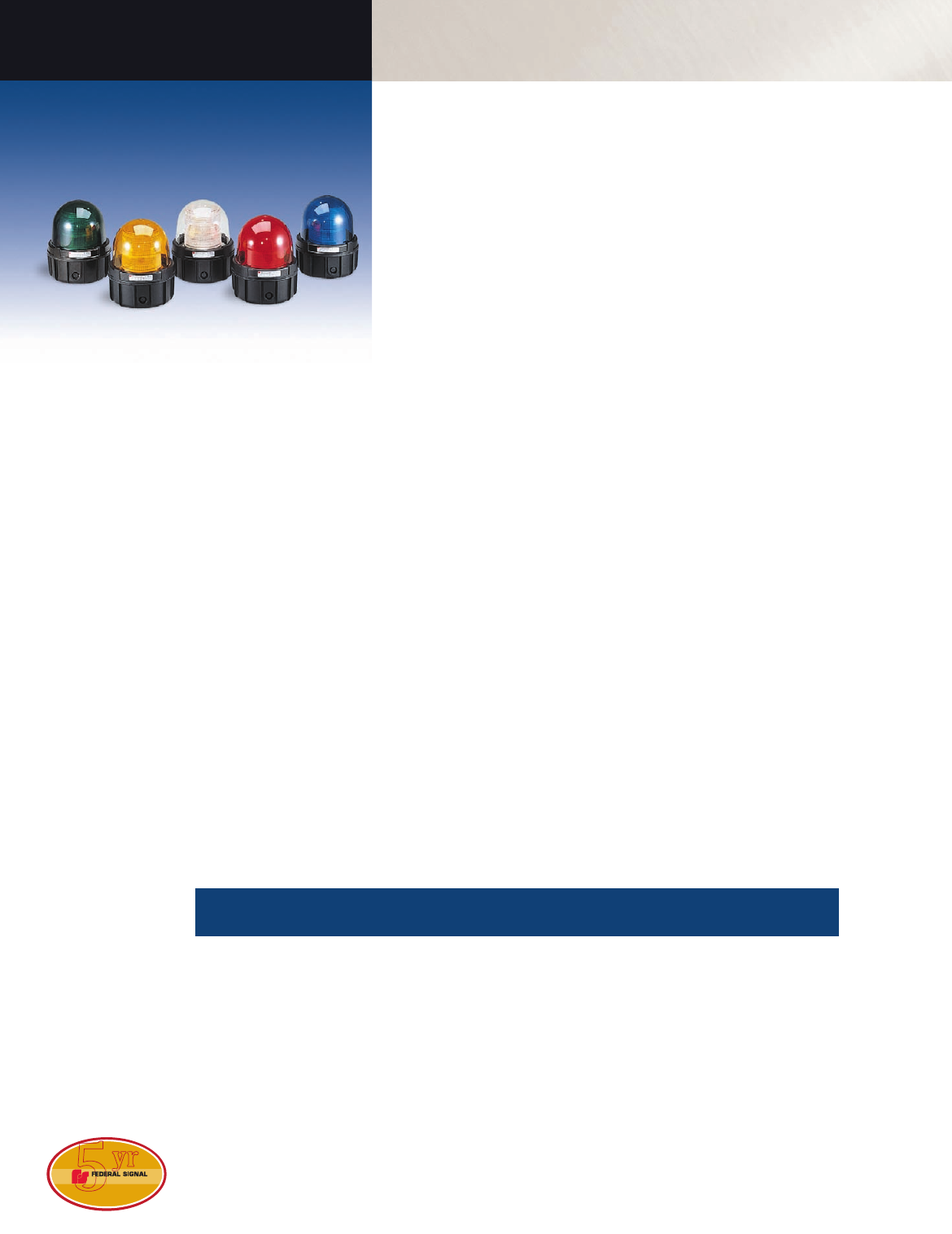

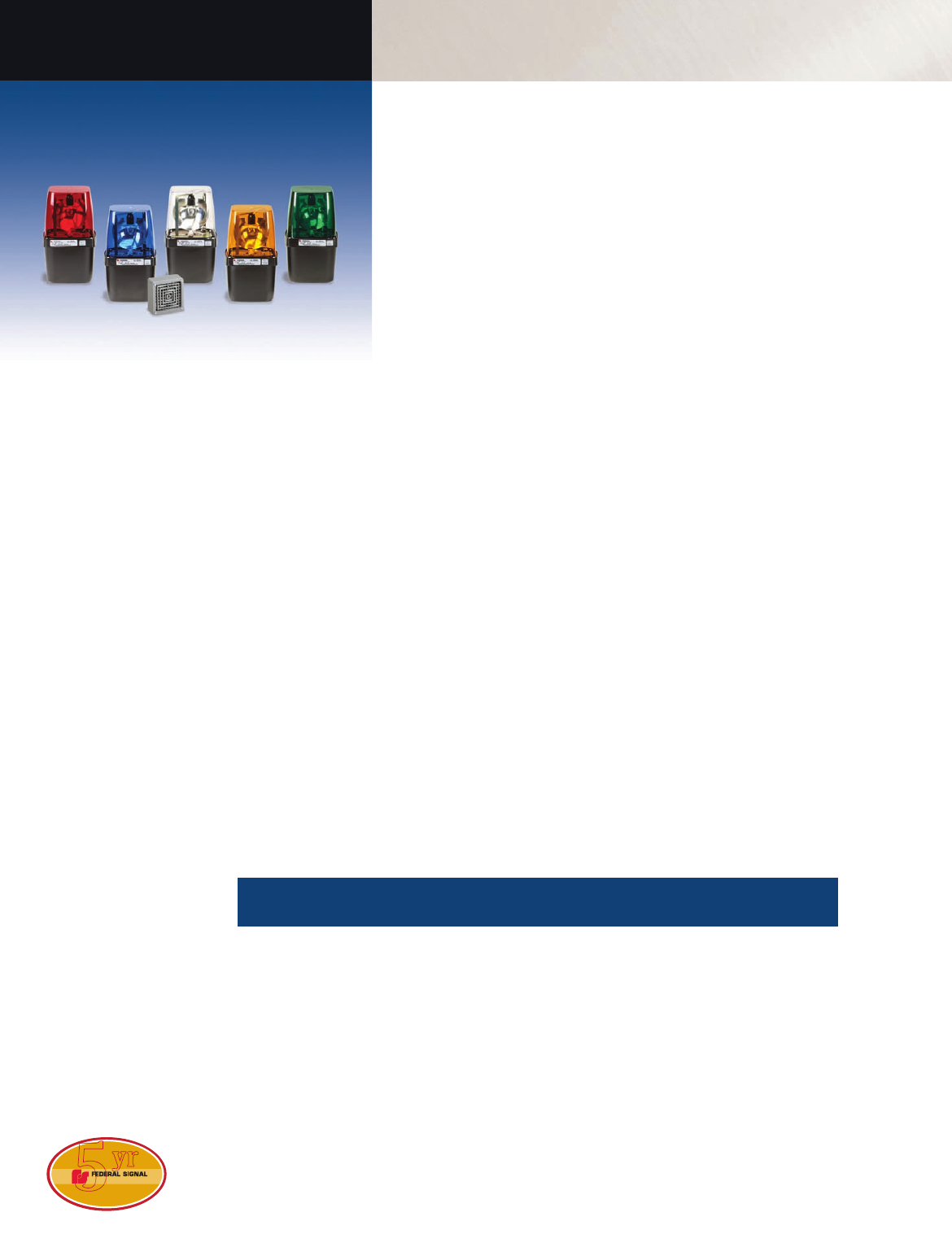

LIGHT DUTY WARNING LIGHT
•Available in 120VAC
•Five dome colors
•Integrated 1/2- inch pipe mount
and surface mount
•Type 4X, IP66 enclosure
•UL and cUL Listed and
CSA Certified
Vitalite®
Rotating Warning
Light
Model 121S
Federal Signal’s Model 121S is a compact, rotating warning light
designed for in-plant use. It features a parabolic reflector which
rotates around an incandescent lamp, providing 60 flashes per
minute in all directions. The 121S Vitalite®is available in five
dome colors (amber, blue, clear, green and red). It is UL
(Underwriters Laboratories) Listed, cUL Listed, and CSA Certified.
Federal Signal’s 121S comes ready to mount on a 1/2-inch pipe or
surface mount. Optional brackets simplify installation on walls or
in corners (see page 108). The enclosure is also rated Type 4x for
a water tight and dust tight seal.
The lamp projects an intense, fixed beam onto a parabolic reflector
which rotates 360°, producing 60 flashes per minute. The 121
features a twist and lock dome which allows for fast and easy
access to inspect and change the lamp.
This light is particularly useful as a signaling or warning device in
high ambient noise areas where it can supplement audible signal-
ing devices. It is also effective alerting hazardous conditions or
dangerous areas.
Federal Signal’s Vitalite is an economical rotating warning light for
emergency warning or status indication in noisy areas.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
121S 120VAC 50/60Hz 0.36 amps 60 2,100 Pipe/Surface
007_122_62362_FedSig.qxd 1/31/08 12:32 AM Page 32
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
VITALITE®ROTATING WARNING LIGHT (121S)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Corner Bracket (LCMB2)
Wall Bracket (LWMB2)
• Please refer to Model Number Index
121S beginning on page 373
SPECIFICATIONS
Lamp Style: Incandescent Incandescent
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 2.0 lbs. 0.91 kg
Shipping Weight: 2.1 lbs. 0.96 kg
Height: 6.26" 159.0 mm
Diameter: 5.13" 130.0 mm
REPLACEMENT PARTS
Description (Current Series) Part Number Description (Older Series) Part Number
Dome, Amber, Series C K8444357A-02 Motor, 120VAC K8241A030-03
Dome, Blue, Series C K8444357A-01 Dome, Amber, Series A and B K8444B019A-12
Dome, Clear, Series C K8444357A Dome, Blue, Series A and B K8444B019A-13
Dome, Green, Series C K8444357A-04 Dome, Clear, Series A and B K8444B019A-14
Dome, Magenta, Series C K8444357A-05 Dome, Green, Series A and B K8444B019A-15
Dome, Red, Series C K8444357A-03 Dome, Magenta, Series A and B K8444B019A-17
Incandescent Lamp, 120V, Krypton Series C K8107251A Dome, Red, Series A and B K8444B019A-11
Incandescent Lamp, 120V, Series A and B K8107181A
5.13"/130 mm
6.26"/
159 mm
Polycarbonate
Dome
Incandescent
Lamp
1/2" Pipe Mount
007_122_62362_FedSig.qxd 1/26/08 7:02 PM Page 33
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
121X 24VDC 1.05 amps 90 2,350 3/4" Pendant
121X 120VAC 60Hz 0.33 amps 90 1,800 3/4" Pendant

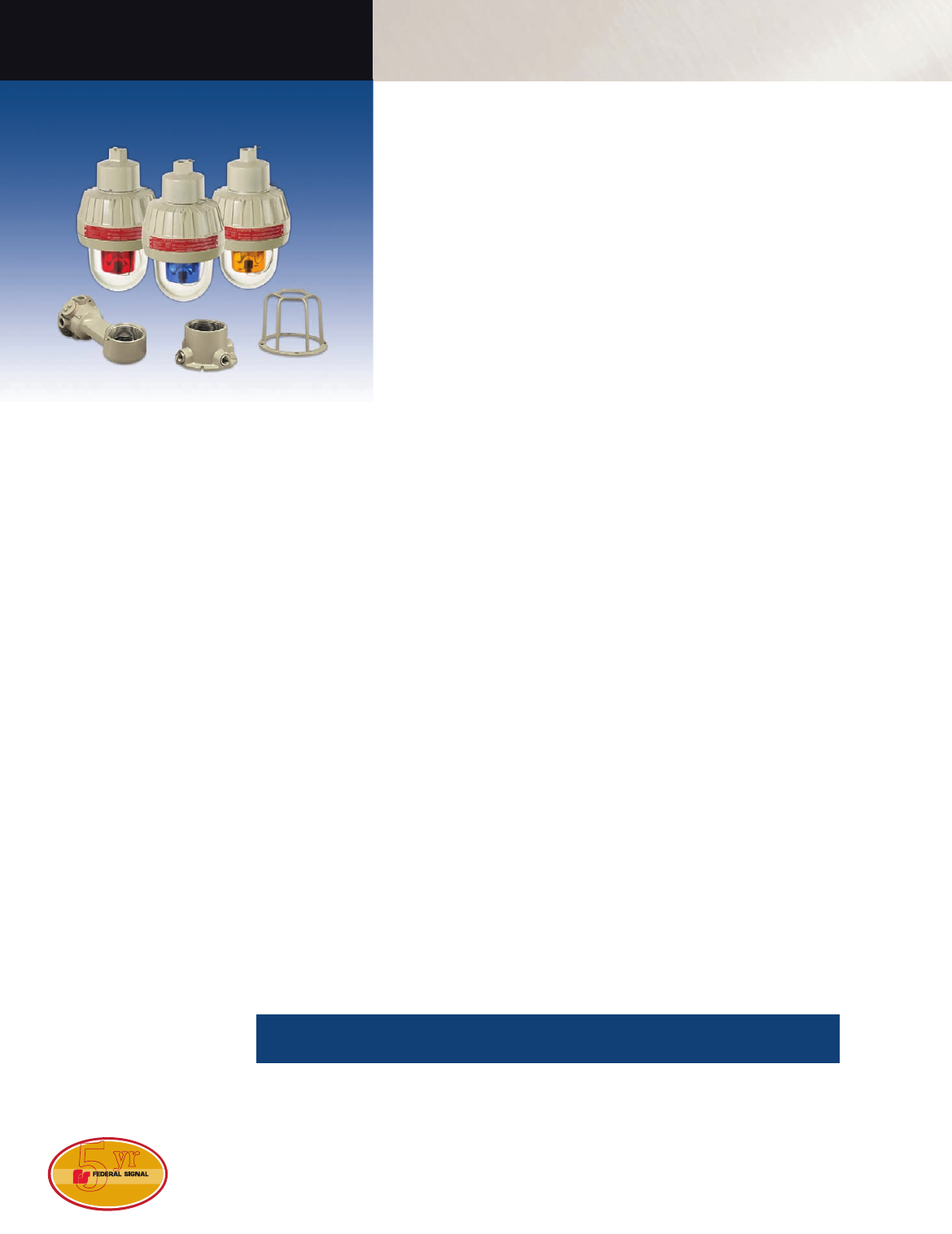

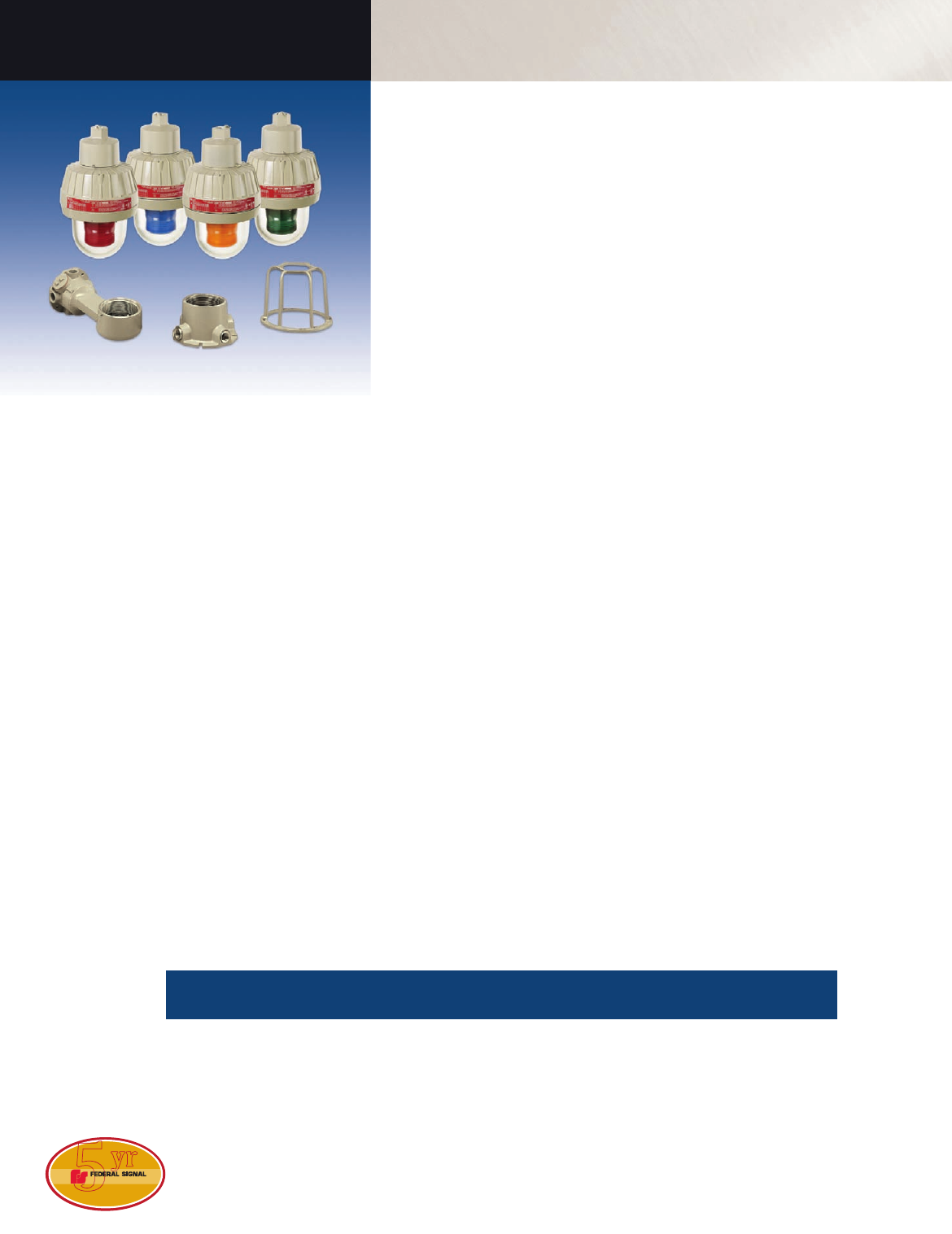

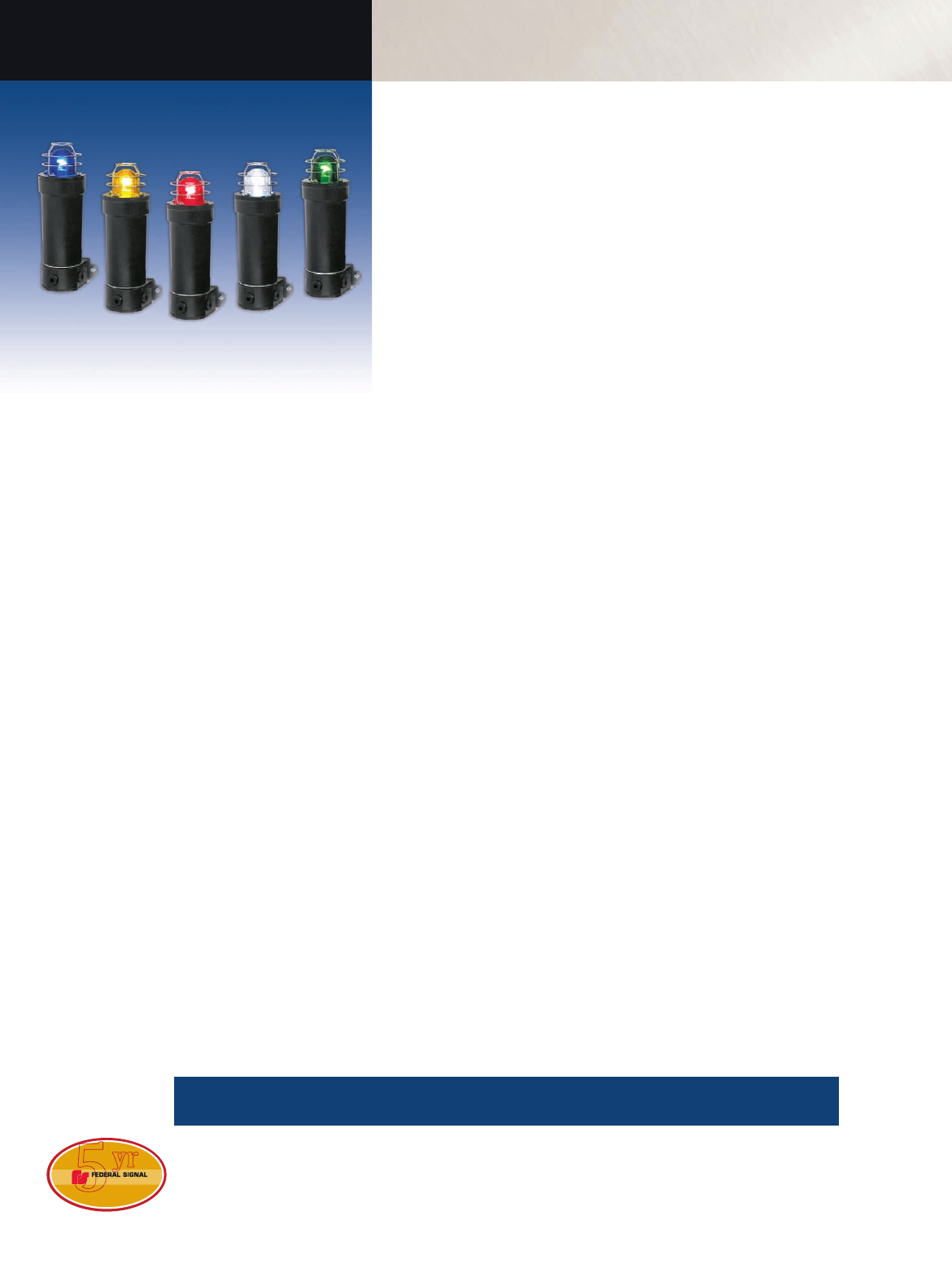

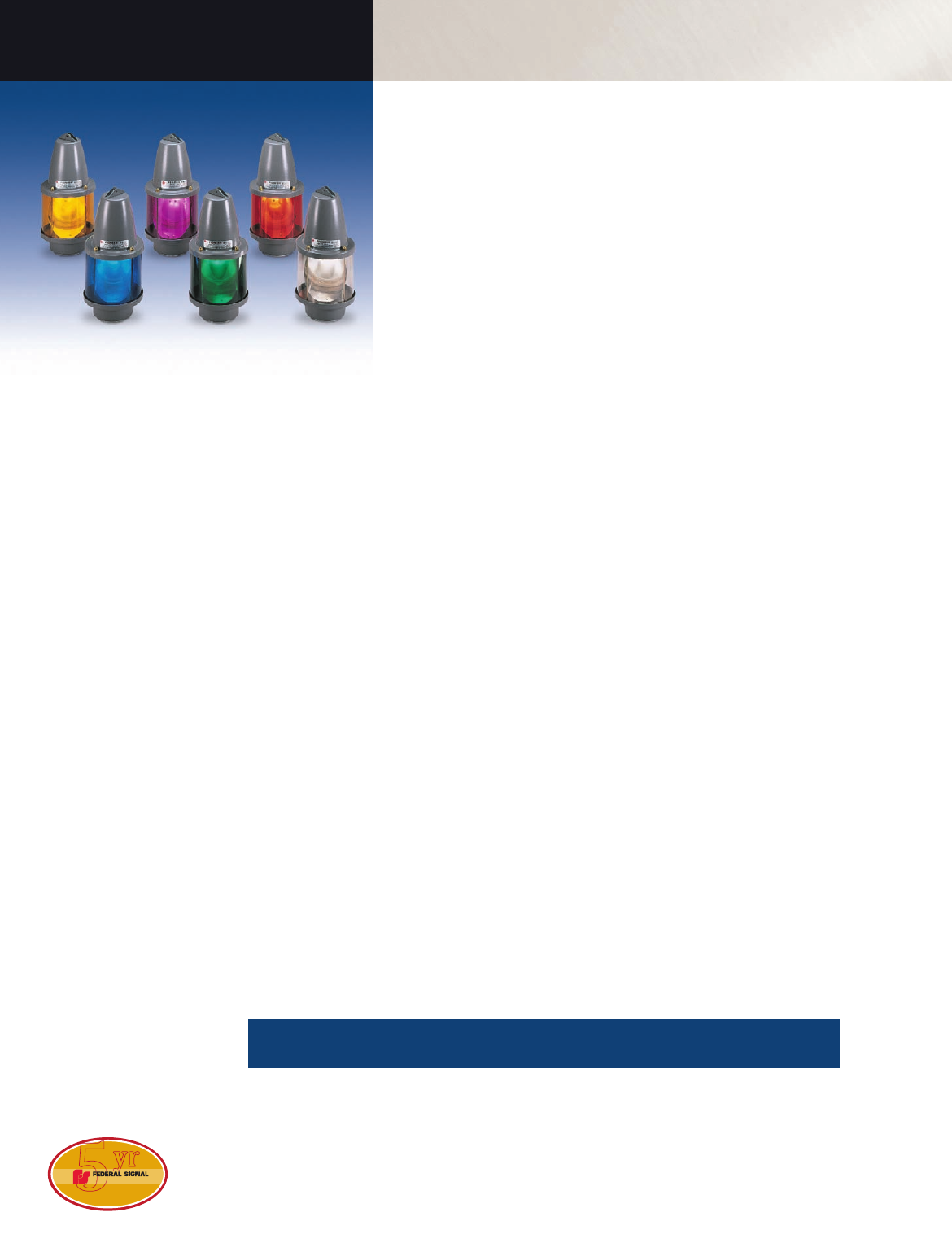

DESIGNED FOR USE IN
EXPLOSION-PROOF
ATMOSPHERES
•Available in 24VDC and 120VAC
•Five lens colors
•3/4- inch pendant mount standard;
other options available
•Optional dome guard
•Type 4X, IP66 enclosure
•UL and cUL Listed, CSA Certified
and Marine Rated
Explosion-Proof
Rotating Light
Model 121X
Federal Signal’s Model 121X rotating light flashes 90 times per
minute and produces a 360° visual signal. This explosion-proof
light has an incandescent lamp and is available in five lens colors
– amber, blue, clear, green and red.
The Model 121X is UL Listed for Class I, Division 1, Groups C &
D; Class II, Division 1, Groups E, F & G; Class I, Division 2,
Groups A, B; and Class III. The 121X is CSA Certified, Marine
Rated and constructed to Type 4X, IP66 standards.
This corrosion-resistant unit’s copper-free aluminum housing is
finished with a powder epoxy. All exposed hardware is constructed
of 316 grade stainless steel.
The 121X uses a synchronous motor to drive a parabolic reflector
around an incandescent lamp. This results in a 360° rotating
beam which is concentrated in a horizontal plane.
The 121X features a spring-clip mounted lens for quick access
when inspecting or relamping. A pendant mount is supplied and a
ceiling mount and 90° wall mount are available options. Installation
is simple; with the mounting box in place, the fixture is threaded
onto the mounting box, making the electrical connection.
Electrical continuity is made when five threads are engaged.
Federal Signal’s rugged 121X Warning Light is designed for
explosion-proof applications and/or corrosive environments. It is
ideal for use in indoor and outdoor areas such as oil rigs, mines,
refineries, and chemical plants.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 12:22 AM Page 42
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EXPLOSION-PROOF ROTATING LIGHT (121X)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Ceiling Mount Kit (CMXC)
Wall Mount (WMXC)
Dome Guard (DGXC)
• Please refer to Model Number Index
121X beginning on page 373
SPECIFICATIONS
Lamp Life*: 800 Hours 800 Hours
Lamp Style Incandescent Incandescent
Ambient Temperature Range: -31°F to 150°F -35°C to 66°C
Net Weight: 14.75 lbs. 6.69 kg
Shipping Weight: 18.9 lbs. 8.57 kg
Height: 15.63" 397.0 mm
Diameter: 8.82" 224.0 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Exterior Dome Assembly, Clear K8444C271A-01 24VDC Mechanism, Amber K8444269A
Interior Lens, Amber K8444242A 24VDC Mechanism, Blue K8444269A-01
Interior Lens, Blue K8444242A-01 24VDC Mechanism, Clear K8444269A-02
Interior Lens, Clear K8444242A-02 24VDC Mechanism, Green K8444269A-03
Interior Lens, Green K8444242A-03 24VDC Mechanism, Red K8444269A-04
Interior Lens, Red K8444242A-04 120VAC Mechanism, Amber K8444277A
Lamp, 24VDC K8107A041 120VAC Mechanism, Blue K8444277A-01
Lamp, 120VAC K8444A173A 120VAC Mechanism, Clear K8444277A-02
120VAC Mechanism, Green K8444277A-03
120VAC Mechanism, Red K8444277A-04

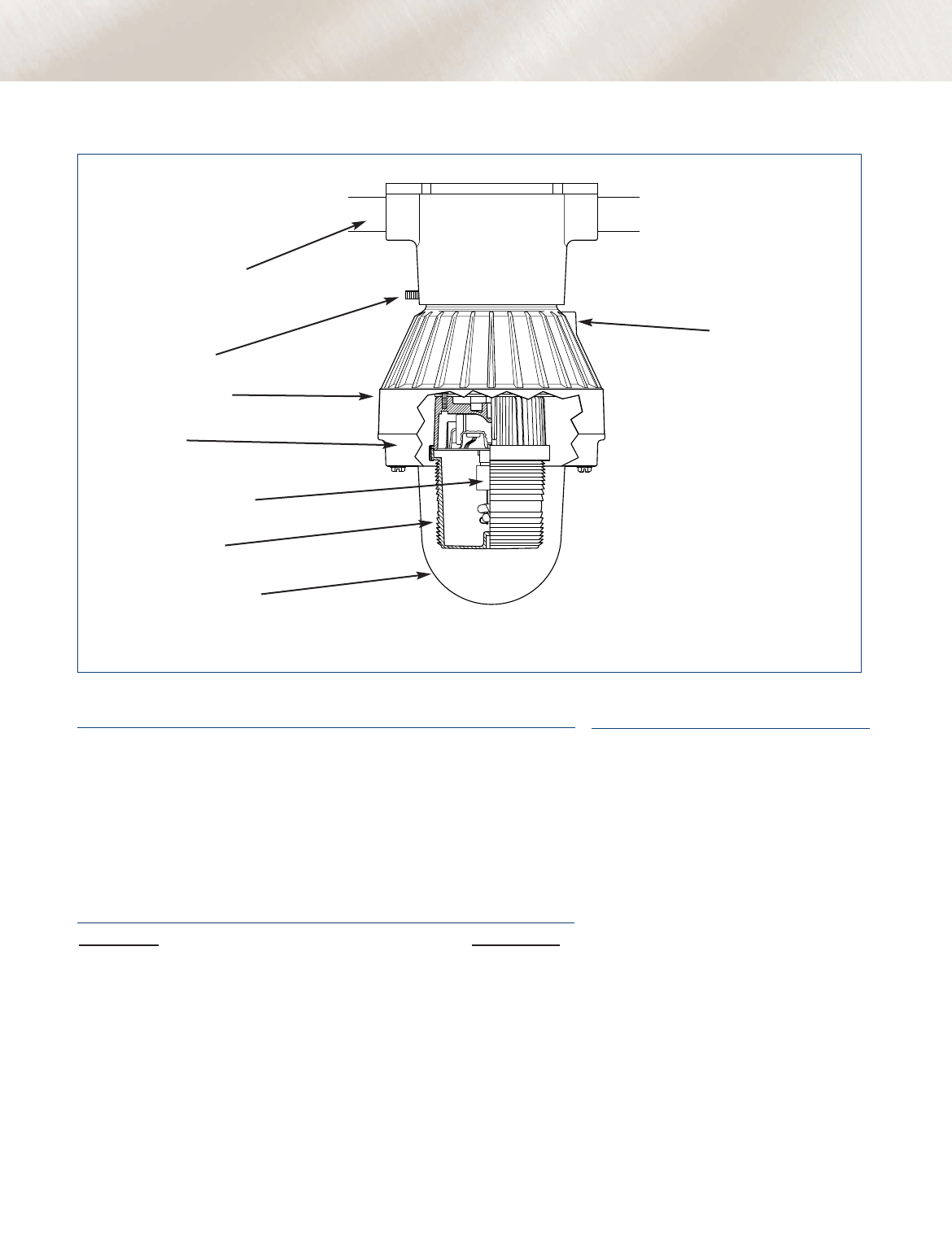

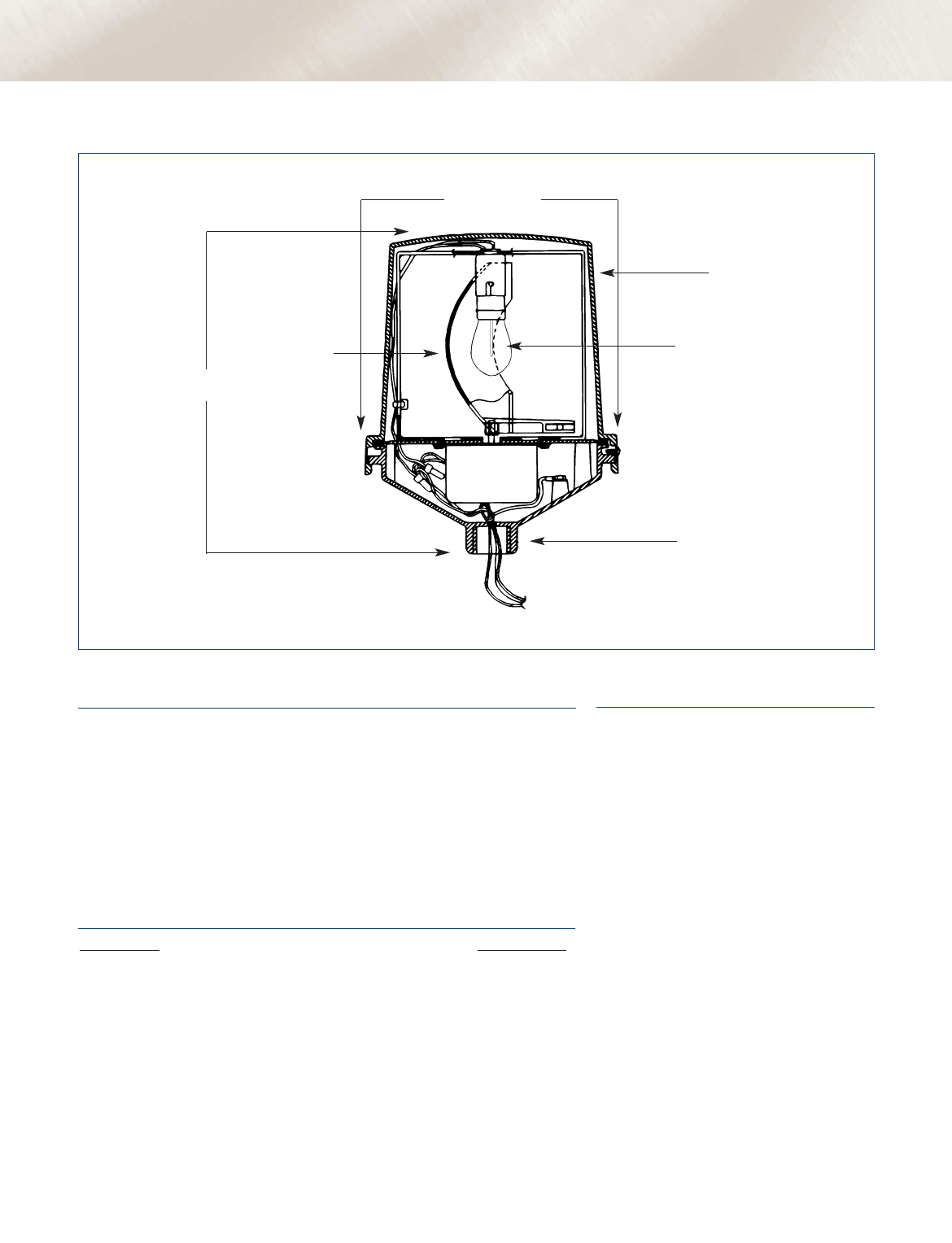

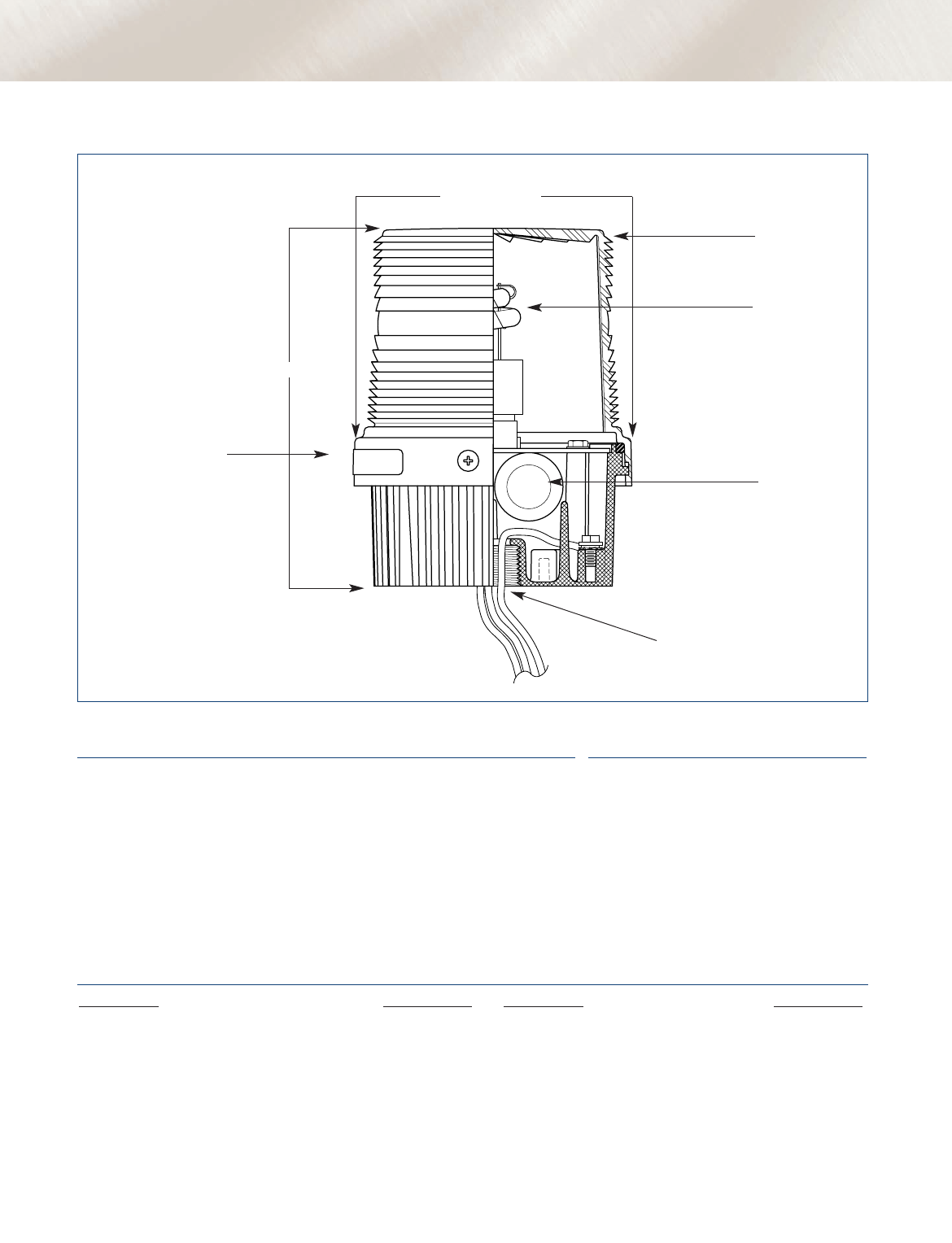

3/4" Pendant
Mount
Cast Aluminum,
Corrosion-Resistant,
Explosion-Proof
Housing

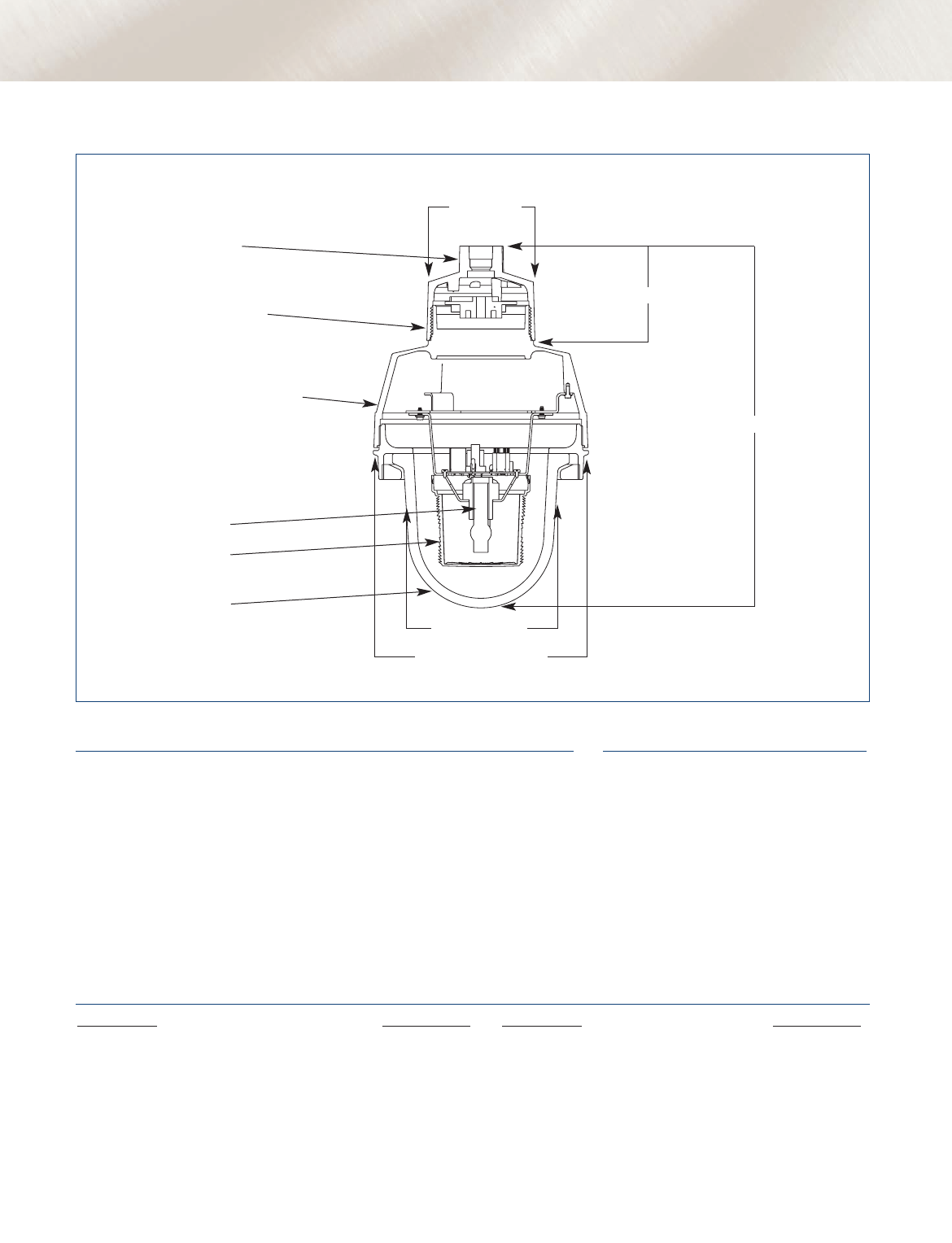

Interior Lens
Glass Dome
Electrical
Connection
Block
Motor
Lamp
15.63"/397 mm
11.25"/285.8 mm
8.82"/224 mm
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/31/08 12:42 AM Page 43
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
OUR BRIGHTEST MEDIUM
DUTY STROBE…
PLUS A STEADY-BURN
INCANDESCENT
•Available in 24VDC and 120VAC
•Five dome colors
•Both a 10,000 hour strobe tube
and a 7,000 hour incandescent
•1/2- inch pipe mount
•Type 3R enclosure
(Dome up orientation)
•Surface mount kit optional
Starfire®
Strobe/Incandescent
Combination Light
Model 131C
Federal Signal introduces a new hybrid signal designed specifically
for safety showers and emergency call stations.
Inside the 131C are two light sources — a 7,000 hour incandescent
lamp and a 10,000 hour strobe tube. When power is present, the
incandescent lamp burns steady to draw attention to the location
of the emergency station and to indicate that the station is receiving
power. When an emergency activation occurs, the strobe begins
to flash, calling attention and indicating a status change.
The 131C measures less than nine inches high and six inches in
diameter, yet is highly visible; the emergency signal flashes with
an effective candela of 1000.
The fresnel dome is designed to stand up to impact and abuse
and is available in amber, blue, clear, green and red. The base of
the light is made of corrosion-resistant anodized aluminum. The
131C comes with a standard 1/2-inch pipe mount.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Strobe Candela
Model Voltage Current Minute Peak1ECP2
131C 24VDC 1.25 amps (strobe) 80 2,000,000 1,000
0.50 amps (incandescent)
131C 120VAC 0.60 amps (strobe) 80 2,000,000 1,000
0.13 amps (incandescent)
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
007_122_62362_FedSig.qxd 1/31/08 2:53 AM Page 108
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
STROBE/INCANDESCENT WARNING LIGHT (131C)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Corner Bracket (LCMB2)
Wall Bracket (LWMB2)
Surface Mount Kit (K8444A211B)
• Please refer to Model Number Index
131C beginning on page 377
SPECIFICATIONS
Lamp #1 Style: 10,000 Hour Strobe
Lamp #2 Style: 7,000 Hour Incandescent
Net Weight: 2.0 lbs. 1.0 kg
Shipping Weight: 3.4 lbs. 1.5 kg
Height: 8.5" 215.9 mm
Diameter: 5.7" 144.8 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8422B428A-01 PC Assembly, 24VDC K2001260C
Dome, Blue K8422B428A-02 PC Assembly, 120VAC K2001188C
Dome, Clear K8422B428A Strobe Tube K8107178A
Dome, Green K8422B428A-03 Incandescent Lamp (24VDC) K8107210A
Dome, Red K8422B428A-04 Incandescent Lamp (120VAC) K8107194A
Dome Gasket K8444A193A

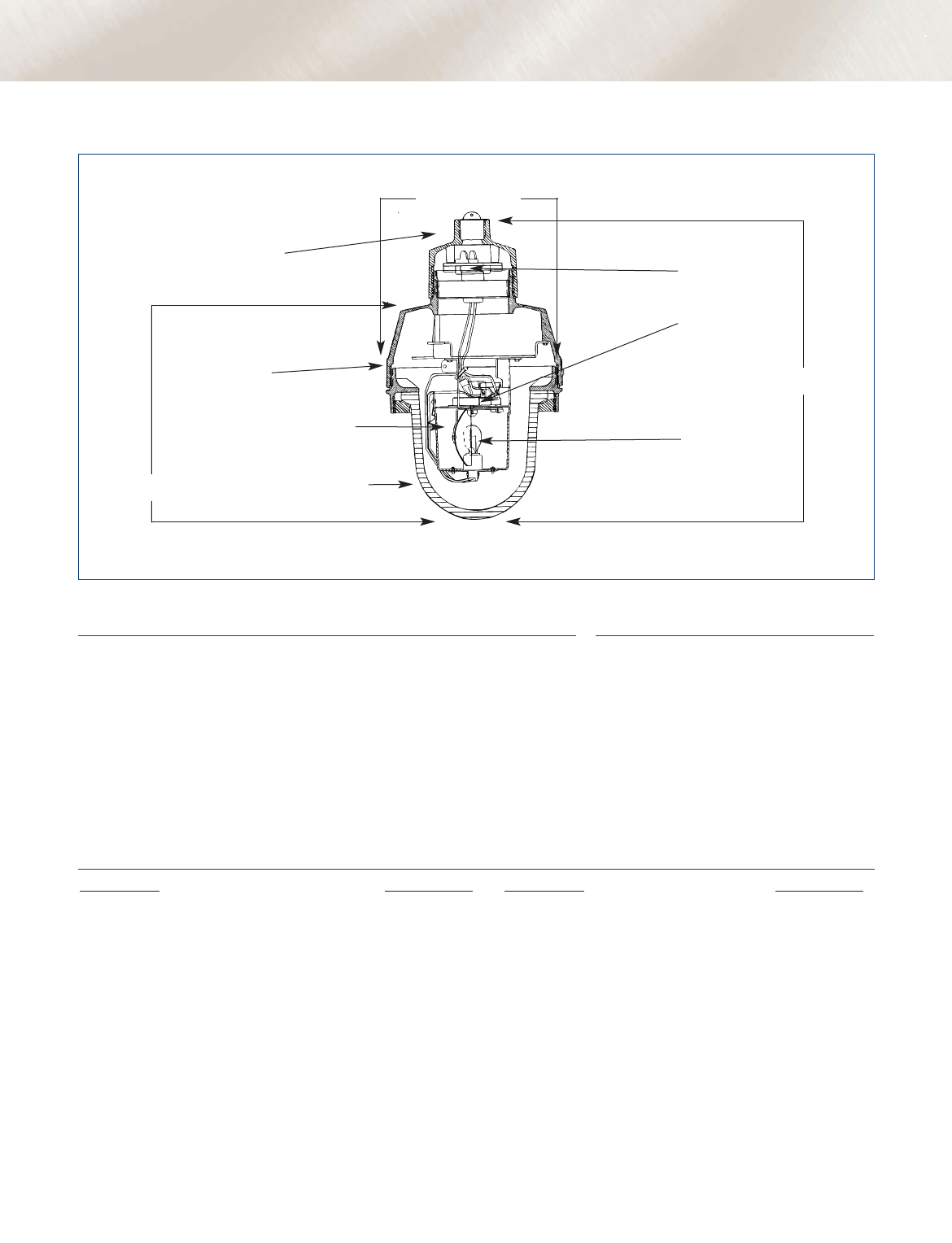

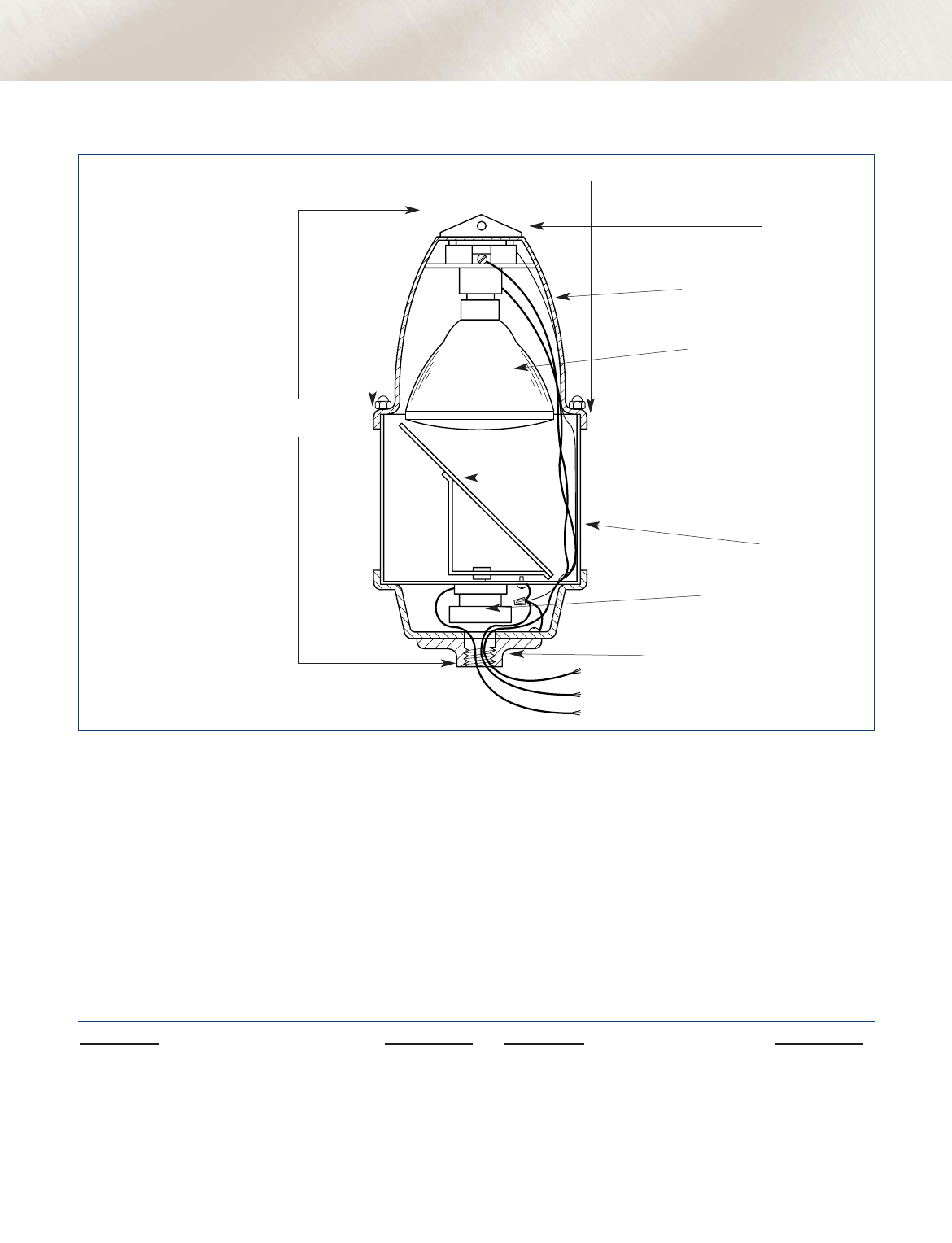

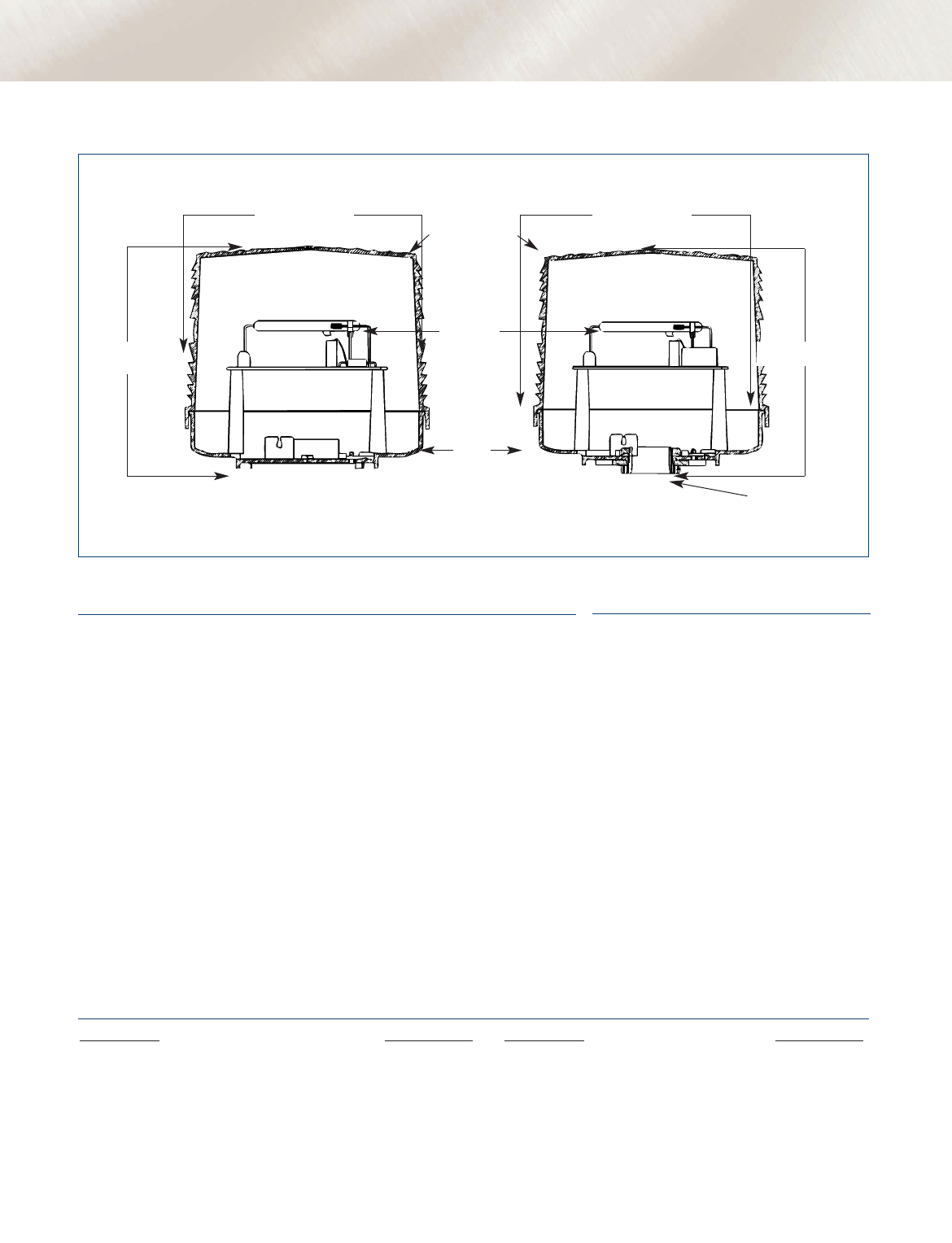

Fresnel Dome
High Intensity
Strobe Tube
Built-in Strobe
Power Supply
Anodized
Aluminum Base
1/2"
Pipe Mount
5.7"/144.8 mm
5.81"/147.6 mm
8"/203.2 mm
8.5"/215.9 mm
Incandescent Lamp
Earth Ground
Strobe Power
Steady Burn Lamp Power
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 7:21 AM Page 109
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

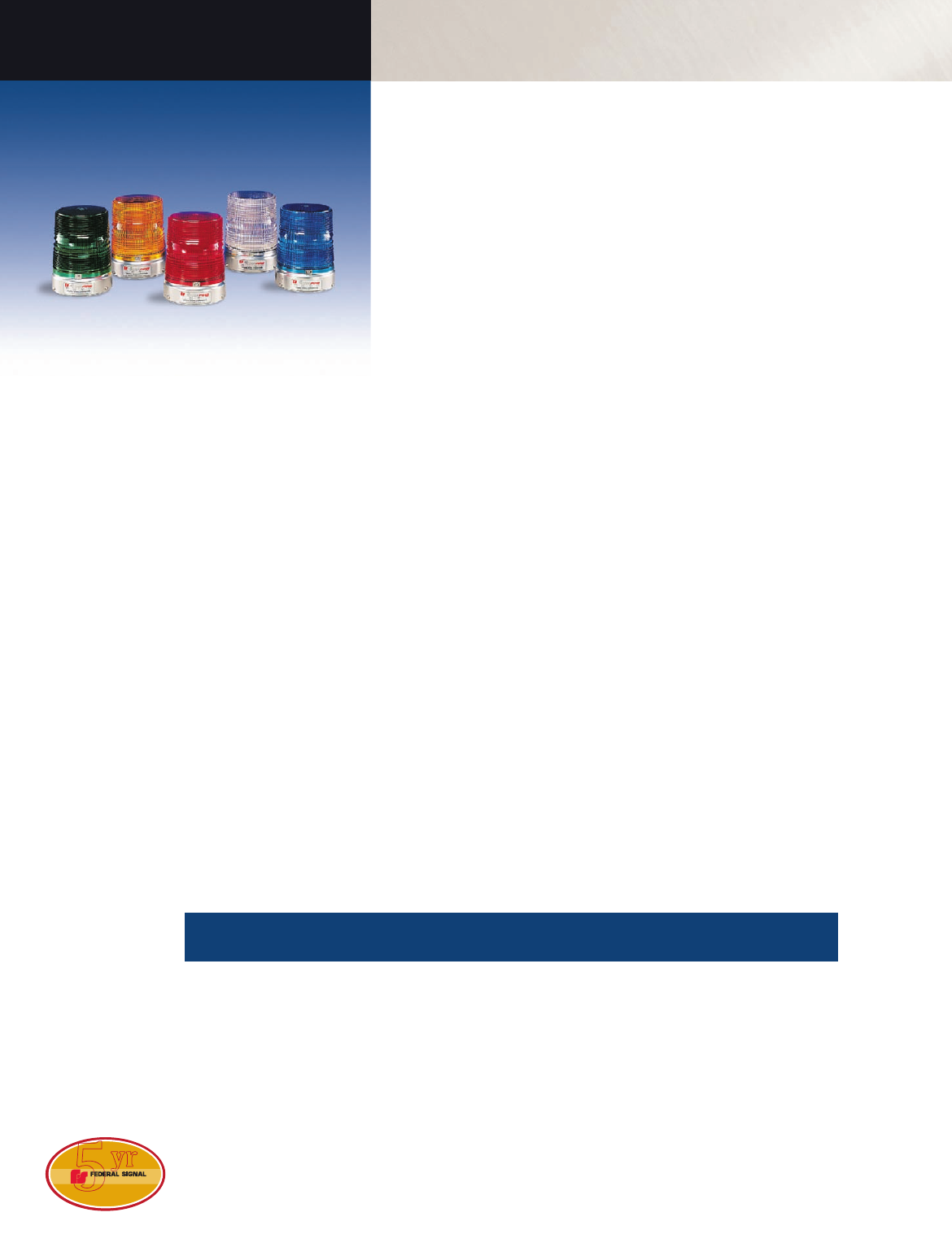

OUR BRIGHTEST MEDIUM
DUTY STROBE LIGHT
•Available in 12-24VDC, 120VAC
and 240VAC
•Five dome colors
•10,000 hour strobe tube
•Single or double flash strobe
•1/2- inch pipe mount
•Indoor use only
•Type 3R, IP45 enclosure
(Dome up orientation)
•UL and cUL Listed and
CSA Certified

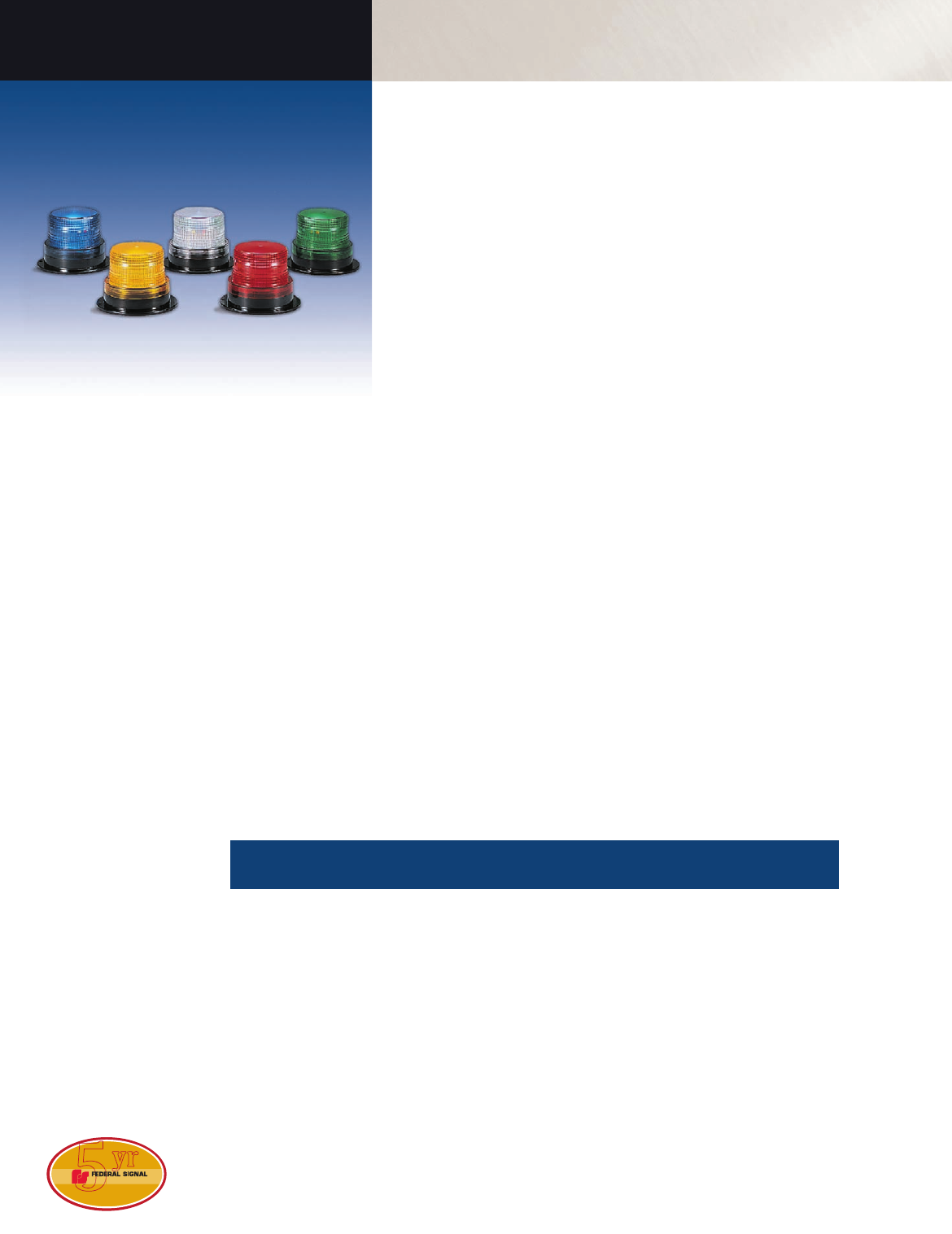

Starfire®Strobe
Warning Lights
Models 131ST and 131DST
Federal Signal’s Starfire®strobe warning lights are available in
single-flash (131ST) and double-flash (131DST) models. Through
precise timing of the strobe flash, the double flash unit produces
1,200 effective candela; the single flash unit produces 1,000
effective candela.
Starfire models are available in 12-24VDC, 120VAC (50/60Hz) and
240VAC (50/60Hz). All units are less than nine inches high and six
inches in diameter, but powerfully effective.
Starfire strobe warning lights contain their own strobe power
supply in the base of the light. The strobe flash tube is mounted in
an eight-pin octal socket base. The fresnel dome stands up to
impact and abuse and is available in amber, blue, clear, green and
red. The base of the light is made of corrosion-resistant anodized
aluminum. Each Starfire model comes with a standard 1/2-inch
pipe mount. An optional surface mount can be ordered.
Because of its convenient size and intense light output, the
Starfire strobes can be used for multiple applications. Excellent for
in-plant use, the Models 131ST/DST warn of hazardous conditions,
mark dangerous areas (either permanently or temporarily) and
mounts on lift trucks, cranes and other moving devices. These
powerful strobes can be used on emergency, utility, maintenance
or any other vehicle requiring emergency warning.
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount4
131DST 12-24VDC 3.0-1.9 amps 8031,000,000 1,200 1/2" Pipe
131DST 120VAC 0.60 amps 8031,000,000 1,200 1/2" Pipe
131DST 240VAC 0.30 amps 8031,000,000 1,200 1/2" Pipe
131ST 12-24VDC 2.75-1.25 amps 80 2,000,000 1,000 1/2" Pipe
131ST 120VAC 50/60Hz 0.60 amps 80 2,000,000 1,000 1/2" Pipe
131ST 240VAC 50/60Hz 0.30 amps 80 2,000,000 1,000 1/2" Pipe
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
3 Double Flash
4 Magnet and surface mount kits available
FEDERAL SIGNAL CORPORATION
007_122_62362_FedSig.qxd 1/31/08 2:09 AM Page 82
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
STARFIRE®STROBE WARNING LIGHT (131ST/131DST)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Corner Bracket (LCMB2)
Wall Bracket (LWMB2)
Surface Mount (K8444A211B)
• Please refer to Model Number Index
131ST/131DST beginning on
page 376
SPECIFICATIONS
Lamp Life*: 10,000 Hours 10,000 Hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 2.0 lbs. 1.0 kg
Shipping Weight: 3.4 lbs. 1.5 kg
Height: 8.5" 215.9 mm
Width: 5.7" 144.8 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8422B428A-01 PC Assembly, 12-24VDC (131ST) K2001260C
Dome, Blue K8422B428A-02 PC Assembly, 120VAC (131ST) K2001188C
Dome, Clear K8422B428A PC Assembly, 240VAC (131ST) K2001188C-01
Dome, Green K8422B428A-03 PC Assembly, 12-24VDC (131DST) K2001265D
Dome, Red K8422B428A-04 PC Assembly, 120VAC (131DST) K200865G
Dome, Magenta K8422B428A-05 PC Assembly, 120VAC (131DST) K200865G
Strobe Tube K8107178A PC Assembly, 240VAC (131DST) K200865G-01
Surface Mount Kit K8444A211B Dome Gasket K8444A193A
Fresnel Dome
High Intensity
Strobe Tube
Built-in Strobe
Power Supply
Anodized
Aluminum Base
1/2"
Pipe Mount
5.7"/144.8 mm
5.81"/147.6 mm
8"/203.2 mm
8.5"/215.9 mm
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 5:19 AM Page 83
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DESIGNED FOR INDUSTRIAL
OR VEHICULAR USE
•Available in 12VDC, 24VDC,
36VDC, and 120VAC
•Five dome colors
•Surface mount or integrated
1/2- inch pipe mount
•Type 3R enclosure
•UL Listed and CSA Certified

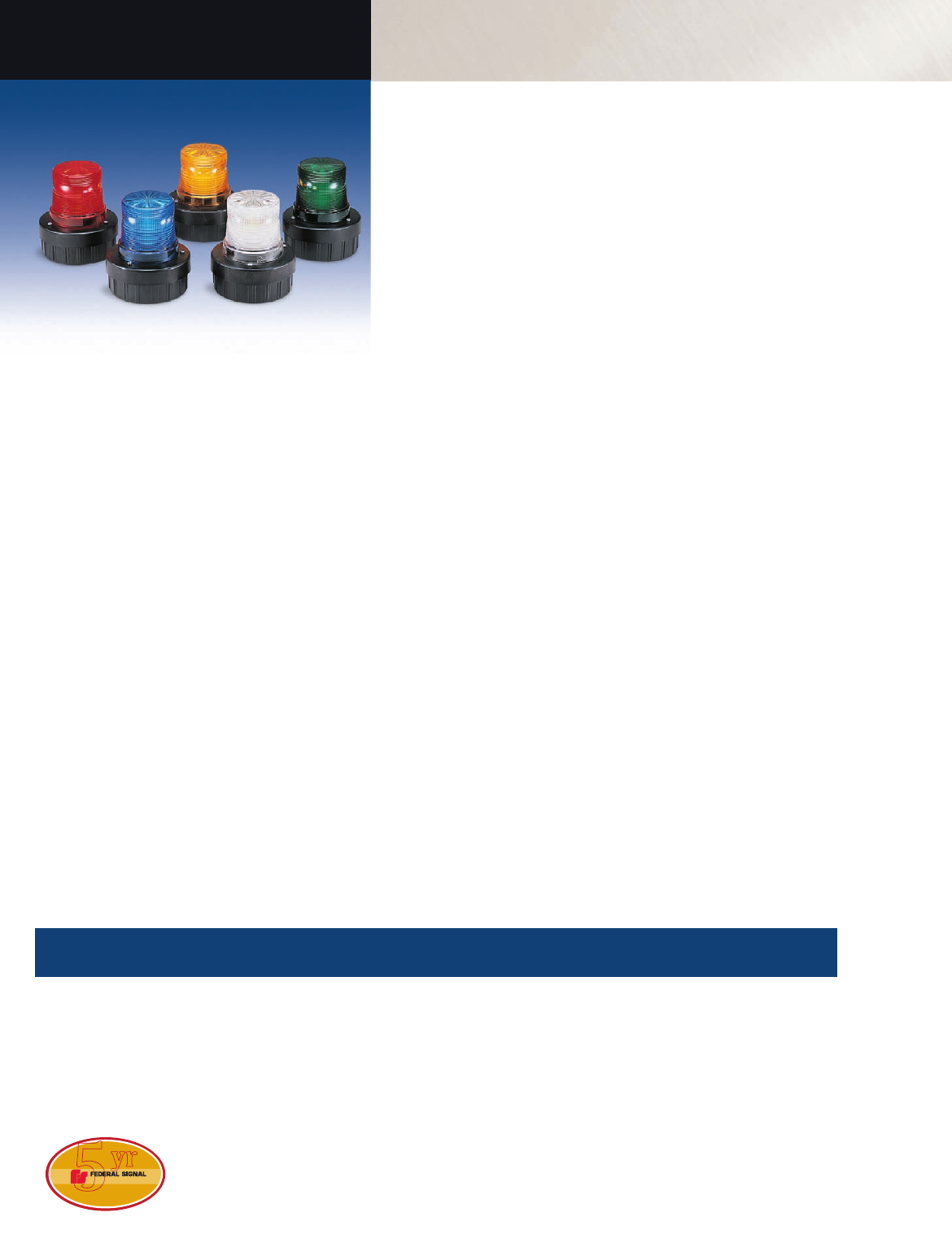

Electraflash®
Flashing Lights
Model 141
Federal Signal’s Electraflash®Model 141 is an economical
incandescent flashing light. The Electraflash is less than six inches
high and six inches in diameter. It is available in five impact-
resistant fresnel dome colors: amber, blue, clear, green and red.
The 120VAC model is UL Listed and CSA Certified.
The Model 141 is available in 12VDC, 24VDC, 36VDC and
120VAC. This light consists of a flasher unit with an incandescent
bayonet lamp secured to its base (screw-in type lamp in
120VAC only).
The 12, 24 and 36VDC units each provide three holes for easy
flat surface mounting. The 120VAC unit is ready to mount on a
1/2-inch pipe. Optional mounting brackets are available for the
120VAC unit, including the Model LWMB2 wall mount bracket and
the Model LCMB2 corner mount bracket.
Federal Signal’s economical flashing lights are designed for both
indoor and outdoor environments. Model 141’s convenient size
and intense light output are ideal for maintenance vehicles, fork
lifts, and other material handling equipment. The Electraflash can
effectively identify hazardous conditions or dangerous areas.
Federal Signal’s Electraflash is a compact warning light designed
specifically for use in light-duty industrial applications.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
141 12VDC 3.00 amps 70 325 Surface
141 24VDC 0.90 amps 70 125 Surface
141 36VDC 0.60 amps 70 200 Surface
141 120VAC 50/60Hz 0.38 amps 70 275 1/2" Pipe
007_122_62362_FedSig.qxd 1/31/08 1:05 AM Page 52
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
ELECTRAFLASH®FLASHING LIGHT (141)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options (120VAC only):
Corner Bracket (LCMB2)
Wall Bracket (LWMB2)
• Please refer to Model Number Index
141 beginning on page 374
SPECIFICATIONS
Lamp Life*:
12VDC - Incandescent 1,000 Hours 1,000 Hours
24VDC - Incandescent 7,000 Hours 7,000 Hours
36VDC - Incandescent 500 Hours 500 Hours
120VAC - Incandescent 7,000 Hours 7,000 Hours
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight:
DC Versions 0.8 lbs. 0.4 kg
AC Version 1.0 lb. 0.5 kg
Shipping Weight:
DC Versions 1.1 lbs. 0.5 kg
AC Version 1.3 lbs. 0.6 kg
Height:
DC Versions 5.06" 128.5 mm
AC Version 5.25" 133.4 mm
Diameter:
DC Versions 5.5" 139.7 mm
AC Version 5.5" 139.7 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8263073A Incandescent Lamp (36VDC) K8263078A
Dome, Blue K8263073A-01 Incandescent Lamp (120VAC) K8107181A
Dome, Clear K8263073A-03 Flasher (12VDC) K8263A083A
Dome, Green K8263073A-04 Flasher (24VDC & 36VDC) K8285237A
Dome, Red K8263073A-02 Flasher (120VAC) K8285238A-01
Incandescent Lamp (12VDC) K8107212A Pipe Mount Kit K8263093A
Incandescent Lamp (24VDC) K8107213A

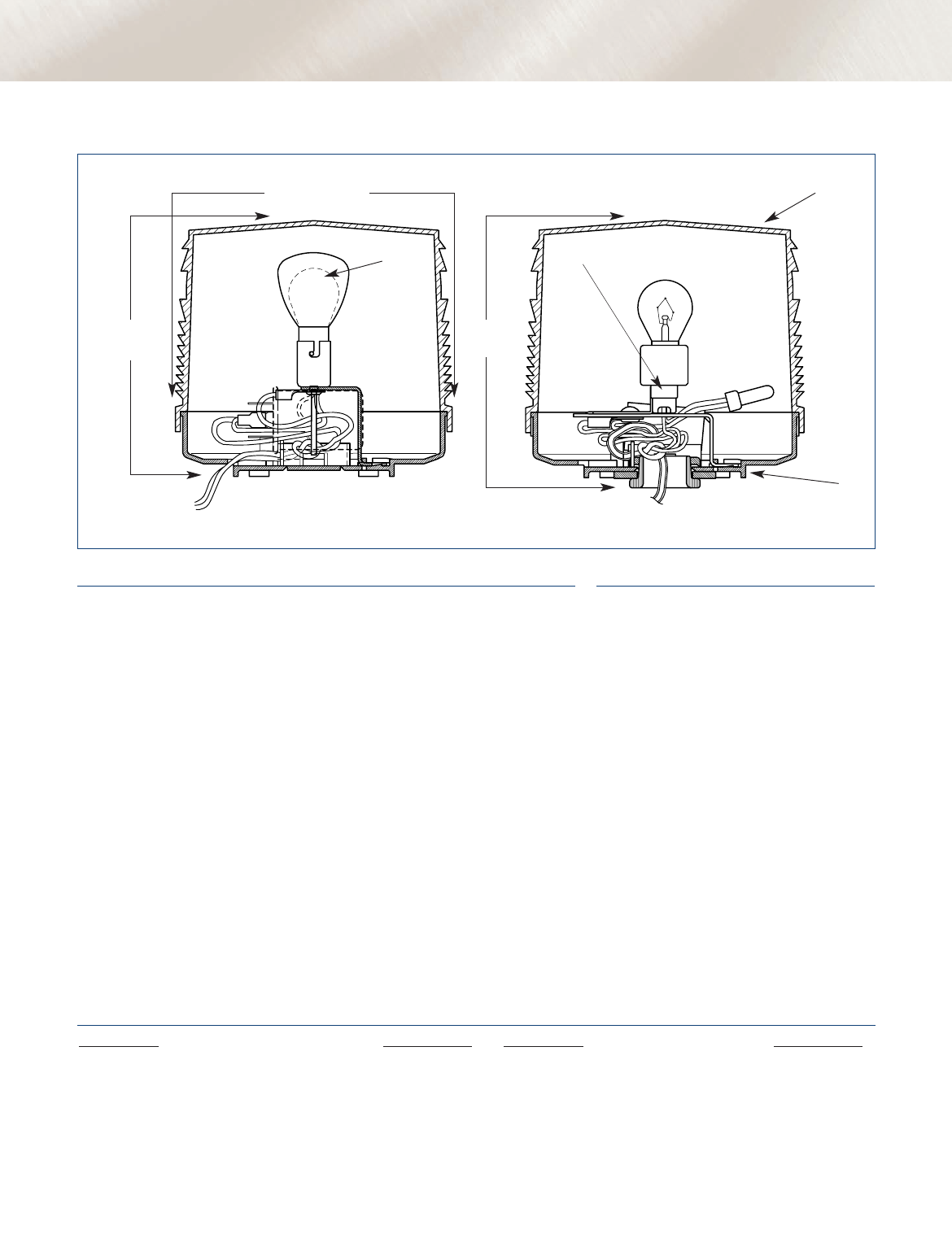

120VAC (Pipe Mount)
12, 24 & 36VDC
(Surface Mount)
Fresnel
Dome
Flasher
Unit
Polycarbonate
Base
Incandescent
Lamp
5.06"/
128.5 mm
5.25"/
133.4 mm
5.5"/139.7 mm
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 12:34 AM Page 53
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DESIGNED FOR INDUSTRIAL
OR VEHICULAR USE
•Available in 12VDC, 24VDC,
120VAC and 240VAC
•Four dome colors
•4,000 hour strobe tube
•Surface mount or integrated
1/2- inch pipe mount
•Indoor use only
•Type 3R enclosure
•UL Listed and CSA Certified
Electraflash®
Strobe Warning Light
Model 141ST
Federal Signal’s Electraflash®141ST is an economical strobe light
designed for a variety of industrial uses. This compact warning
light is less than six inches tall and six inches in diameter. Models
are available in four fresnel dome colors, including amber, blue,
green and red. All models are UL Listed for indoor/outdoor use
and the 120VAC models are CSA Certified.
The Model 141ST is available in 12VDC, 24VDC, 120VAC and
240VAC and includes a removable strobe mechanism. The 12VDC
and 24VDC units have three holes for flat surface mounting. The
120VAC and 240VAC versions come ready to mount on a 1/2-inch
pipe. Optional wall mounting brackets (Model LWMB2) or corner
mounting brackets (Model LCMB2) are available for the 120VAC
and 240VAC units.
Federal Signal’s Electraflash strobe lights are designed for both
indoor and outdoor industrial environments. The unit’s convenient
size and intense light output make it ideal for use on maintenance
vehicles, fork lifts, and other material handling equipment. The
economical Model 141ST effectively alerts of hazardous conditions
or dangerous areas.
Federal Signal’s Electraflash strobe warning light is an affordable
visual signal which is ideally suited for light duty applications.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1Mount
141ST 12VDC 0.18 amps 80 100,000 Surface
141ST 24VDC 0.08 amps 80 100,000 Surface
141ST 120VAC 50/60HZ 0.06 amps 80 100,000 1/2" Pipe
141ST 240VAC 50/60HZ 0.03 amps 80 100,000 1/2" Pipe
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
007_122_62362_FedSig.qxd 1/31/08 1:19 AM Page 72
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
ELECTRAFLASH®STROBE LIGHT (141ST)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options (120VAC and
240VAC only):
Corner Bracket (LCMB2)
Wall Bracket (LWMB2)
• Please refer to Model Number Index
141ST beginning on page 375
SPECIFICATIONS
Lamp Life*: 4,000 hours 4,000 hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight:
DC Models 0.8 lbs. 0.4 kg
AC Models 0.9 lbs. 0.4 kg
Shipping Weight:
DC Models 1.3 lbs. 0.5 kg
AC Models 1.4 lbs. 0.5 kg
Height:
DC Models 5.06" 128.5 mm
AC Models 5.25" 133.4 mm
Diameter:
DC Models 5.5" 139.7 mm
AC Models 5.5" 139.7 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8263079A PC Assembly, 24VDC K2001201B-01
Dome, Blue K8263079A-01 PC Assembly, 120VAC K2001195D
Dome, Green K8263079A-03 PC Assembly, 240VAC K2001195D-01
Dome, Red K8263079A-02 Strobe Tube K149128A
PC Assembly, 12VDC K2001201B Pipe Mount Kit K8263093A

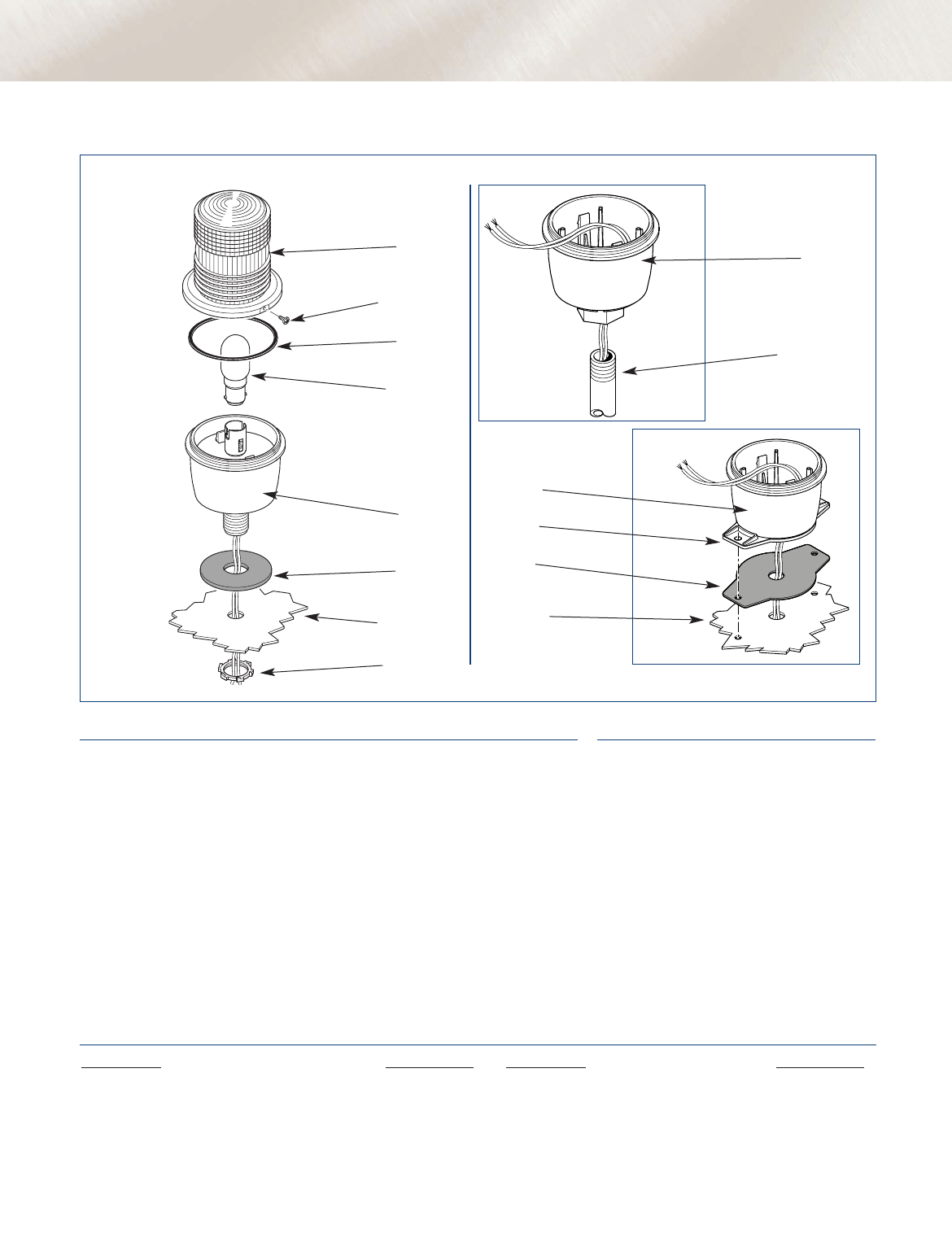

Fresnel Dome
1/2" Pipe Mount
12VDC/24VDC 120VAC/
240VAC
5.5"/139.7 mm
5.06"/128.5
mm 5.25"/133.4 mm
5.5"/139.7 mm
Base
High
Intensity
Strobe
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 5:09 AM Page 73
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount
151XST 12-24VDC 1.3-0.60 amps 80 520,000 165 3/4" Pipe
151XST 120VAC 50/60Hz 0.35 amps 80 520,000 165 3/4" Pipe
151XST 240VAC 50/60Hz 0.18 amps 80 520,000 165 3/4" Pipe
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
RUGGED DESIGN FOR USE IN
HAZARDOUS LOCATIONS
•Available in 12-24VDC, 120VAC
and 240VAC
•Six dome colors
•10,000-hour high-intensity strobe
•3/4- inch pipe mount
•Dome guard included
•Indoor use only
•Type 4X, IP66 enclosure
•Marine Rated
•UL and cUL Listed and
CSA Certified
Hazardous Location
Warning Light
Model 151XST
Federal Signal’s Model 151XST hazardous location strobe light
provides 80 high-intensity flashes per minute. This warning light
is available in 12-24VDC, 120VAC and 240VAC, 50/60Hz.
The Model 151XST strobe light is UL Listed and CSA Certified for
Class I, Division 2, Groups A, B, C and D; Class II, Division 1,
Groups E, F and G; and Class III.
The 151XST meets Type 4X water-tight, dust-tight, and corrosion-
resistant requirements; constructed to IP66. This hazardous location
warning light has an aluminum base, coated for corrosion-resistance
that is ready for mounting on a 3/4-inch pipe. The Dome Guard
(included) fits over the glass dome to protect it against accidental
collision with moving equipment, such as forklifts.
The 151XST has an effective candela (ECP) of 165 and a 520,000
peak candela. It is available in six dome colors, including amber,
blue, clear, green and red (magenta upon request).
Federal Signal’s rugged 151XST strobe warning light is specifically
designed for hazardous locations or corrosive environments
where a very bright visual signal is required. This warning light
can be used for plant evacuation or other communication needs.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/31/08 2:03 AM Page 80
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
HAZARDOUS LOCATION STROBE LIGHT (151XST)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
151XST beginning on page 376
SPECIFICATIONS
Lamp Life*: 10,000 Hours 10,000 Hours
Lamp Style Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 3.8 lbs. 1.7 kg
Shipping Weight: 4.5 lbs. 2.0 kg
Height: 9.25" 234.95 mm
Diameter: 5.5" 139.7 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Series C Dome and Ring Assembly*
Dome & Ring Assembly, Amber K8449078C-01 PC Assembly, 12-24VDC K2001173A
Dome & Ring Assembly, Blue K8449078C-02 PC Assembly, 120VAC K2001071B
Dome & Ring Assembly, Clear K8449078C-04 PC Assembly, 240VAC K2001071B-01
Dome & Ring Assembly, Green K8449078C-03 Strobe Tube K149122B
Dome & Ring Assembly, Red K8449078C Dome Gaskets K8449080B
Dome & Ring Assembly, Magenta K8449078C-05 Guard K8449090B

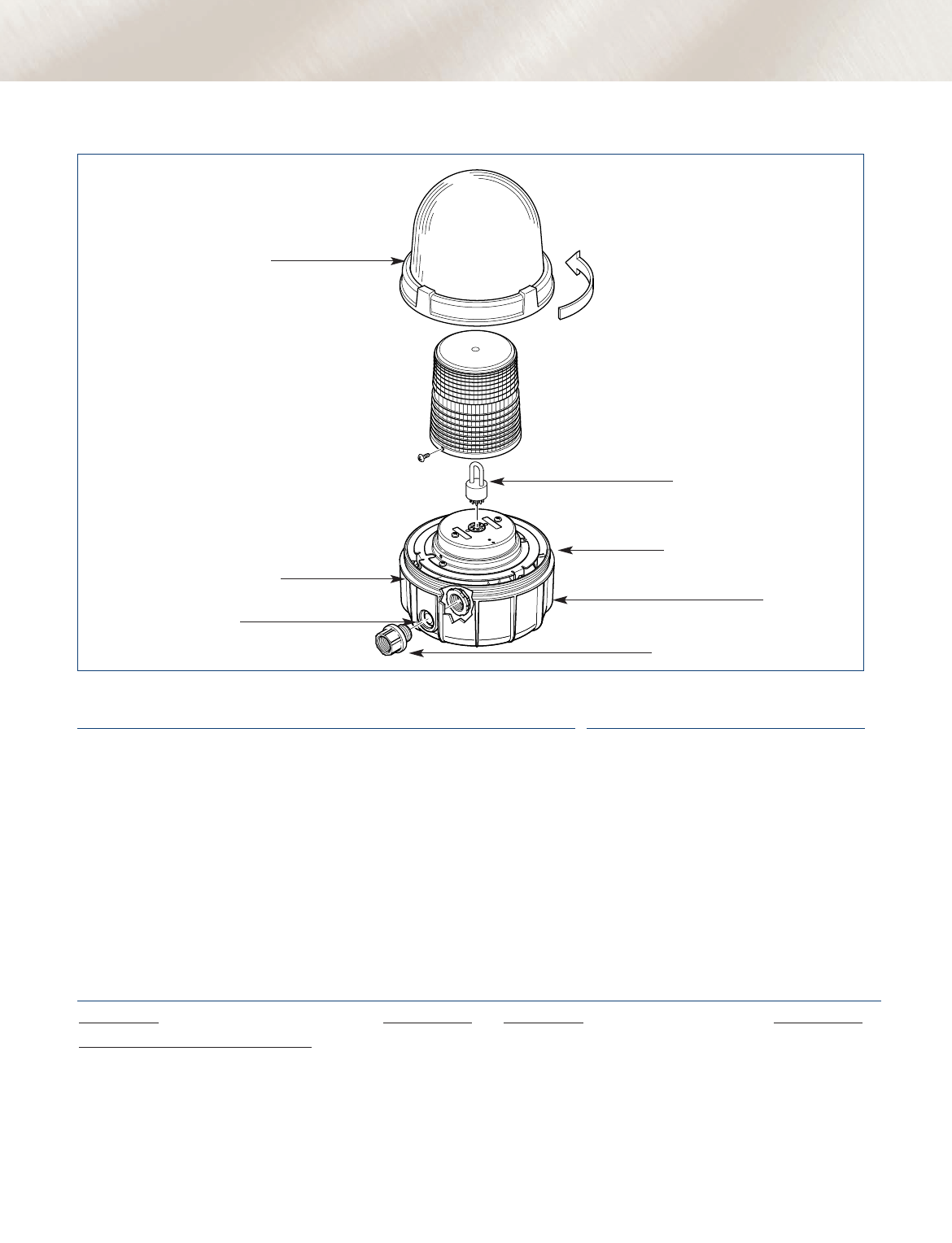

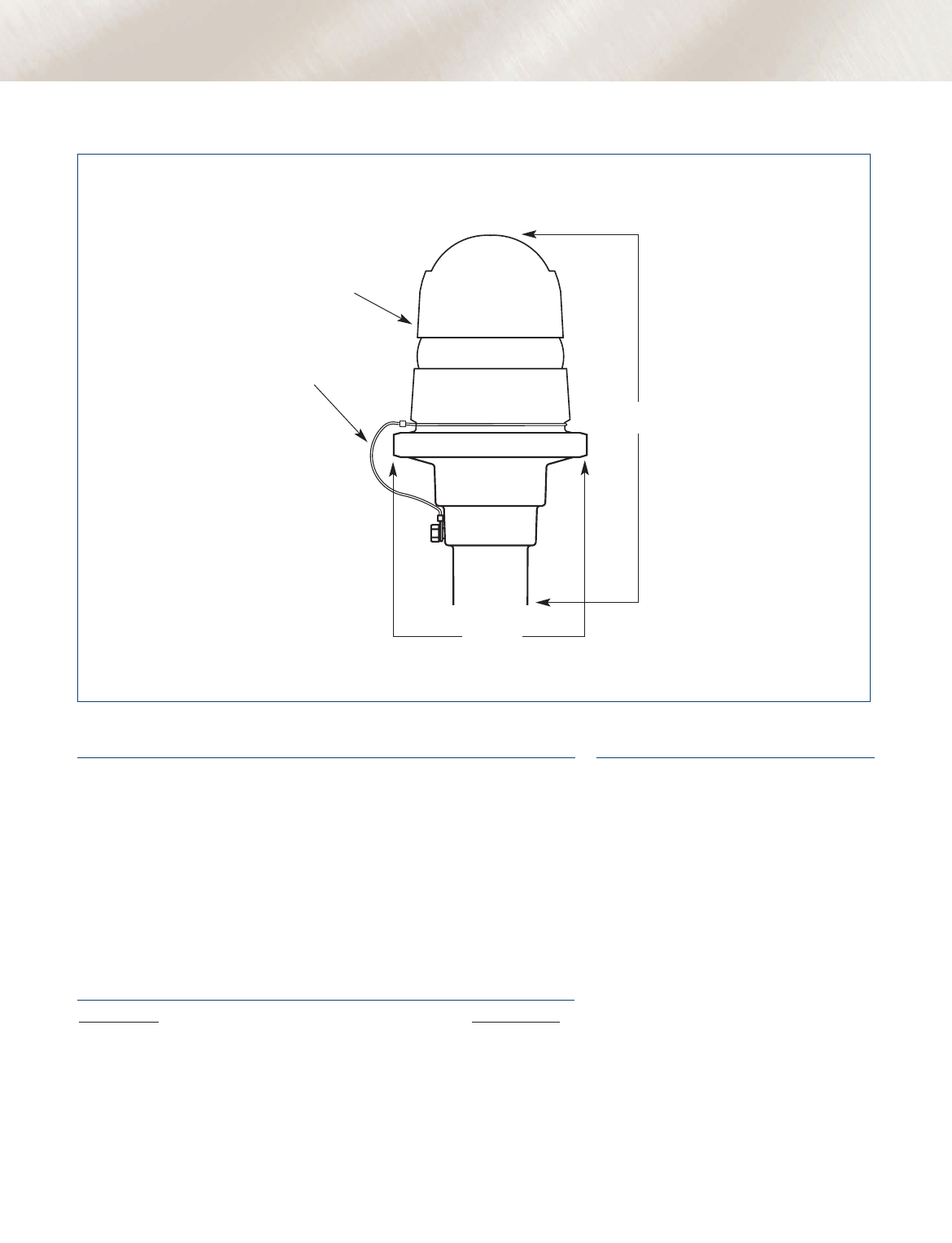

Glass Dome
Aluminum Base
Power Wires
Strobe Tube
Gasket
3/4" Pipe Mount
5.5"/139.7 mm
9.25"/
234.95 mm
Dome Guard
(Included)
* Optimal hours under ideal conditions.
* Call the factory for Series A and B part numbers.
007_122_62362_FedSig.qxd 1/27/08 5:17 AM Page 81
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DESIGNED FOR USE IN
HAZARDOUS LOCATIONS
•24-250 VAC/VDC
•Six tempered glass dome colors
•Uses standard A-19 incandescent
lamp (40W-100W)
•3/4- inch pipe mount
•Dome Guard included
•Indoor use only
•Type 4X, IP66 enclosure
•UL and cUL Listed and
CSA Certified
Hazardous Location
Steady-Burning Light
Model 191X
Federal Signal's Model 191X hazardous location steady burning
light is rated for operation with any voltage from 24 - 250 VAC or
VDC. The user determines the voltage based on the lamp used.
The fixture will accommodate lamps up to a 100 watt/A-19
(user supplied).
The Model 191X is UL Listed and CSA Certified for Class I,
Division 2, Groups A, B, C and D; Class II, Division 1 and 2,
Groups E and F.
The 191X has been certified by UL and CSA as meeting Type 4X
water-tight and corrosion-resistant requirements; constructed to
meet IP66. This hazardous location steady burning light has an
aluminum base ready for mounting on a 3/4-inch pipe. The base
features electrostatically applied (e-coated) epoxy paint for
corrosion-resistance. A dome guard fits over the glass dome to
protect it against accidental collision with moving equipment,
such as forklifts.
To determine the proper lamp wattage and wire insulation rating
for a specific application, refer to the Operating Temperature Chart
below. Model 191X is available in six dome colors – amber, blue,
clear, green, red and magenta.
Federal Signal's Model 191X steady burning light is designed for
hazardous locations where a visual signal is needed. This fixture
can be used for status indication or area lighting on offshore oil
rigs, in mines, and in refineries.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
OPERATING TEMPERATURE CODES
* at 40°C ambient
Hazardous Max. Temperature*/ Dome Lamp Supply Wire
Environment UL Temp. Code Color Wattage Insulation Rating
Class I, Division 2 350°C/T1 Blue 100 (A-19) 125°C
325°C/T1 Red, Green, Amber 100 (A-19) 125°C
260°C/T2B Clear 100(A-19) 125°C
215°C/T2D All 40(A-19) 85°C
Class II, Division 1 200°C/T3 All 40(A-19) 85°C
Class II, Division 2 200°C/T3 All 40(A-19) 85°C
007_122_62362_FedSig.qxd 1/31/08 1:09 AM Page 56
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
HAZARDOUS LOCATION LIGHT (191X)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
191X beginning on page 374
SPECIFICATIONS
Lamp Style: Incandescent A-19s (40W-100W)
Operating Voltage: 24-250VAC/VDC 24-250VAC/VDC
Mount: 3/4" Pipe 3/4" Pipe
Net Weight: 3.3 lbs. 1.5 kg
Shipping Weight: 4.2 lbs. 1.9 kg
Height: 9.25" 235 mm
Diameter: 5.5" 139.7 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Series C Dome and Ring Assembly*
Glass Dome & Ring Assembly, Amber K8449078C-01 Glass Dome & Ring Assembly, Magenta K8449078C-05
Glass Dome & Ring Assembly, Blue K8449078C-02 Glass Dome & Ring Assembly, Red K8449078C
Glass Dome & Ring Assembly, Clear K8449078C-04 Gasket K8449080B

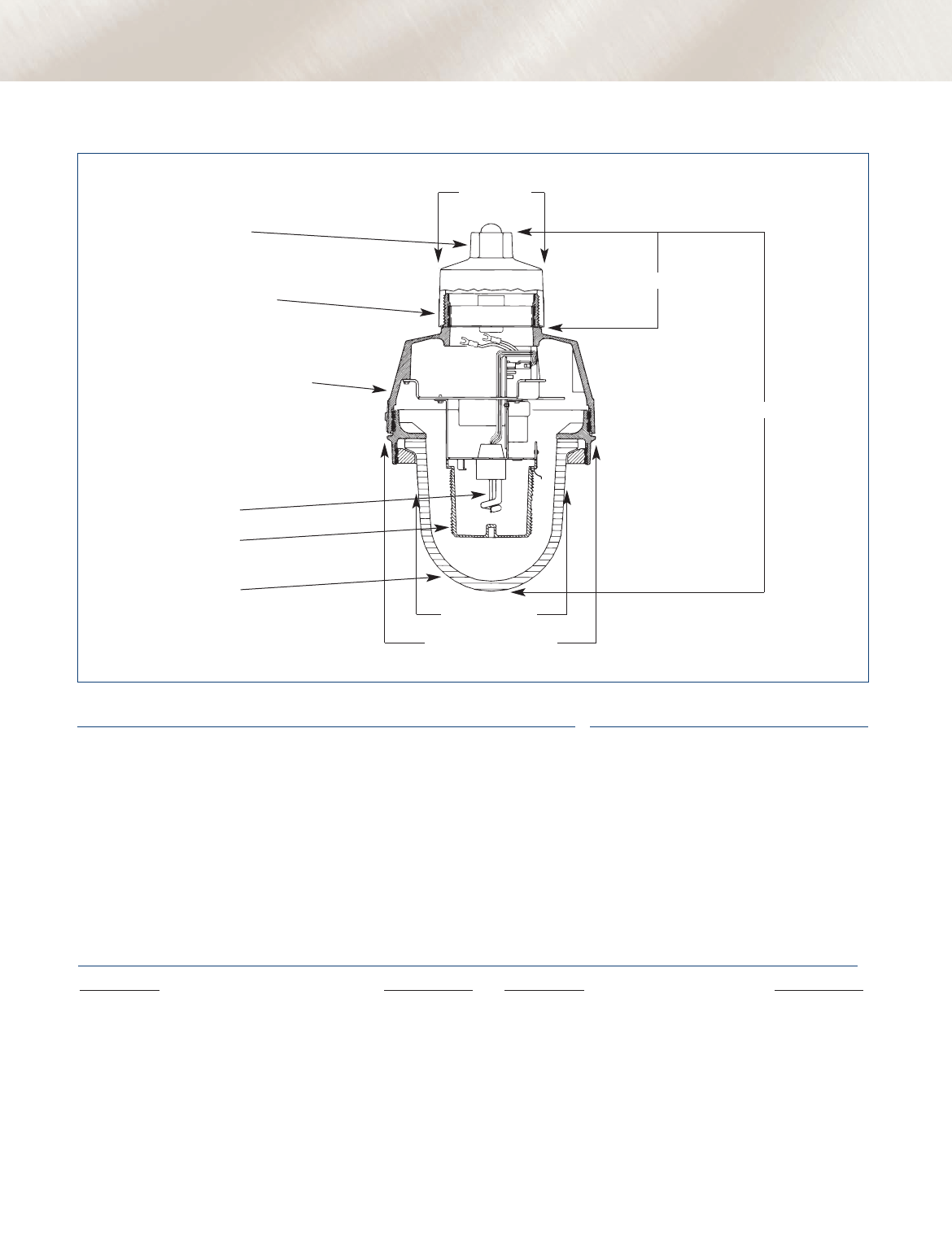

Glass Dome & Ring Assembly, Green K8449078C-03 Guard K8449090B

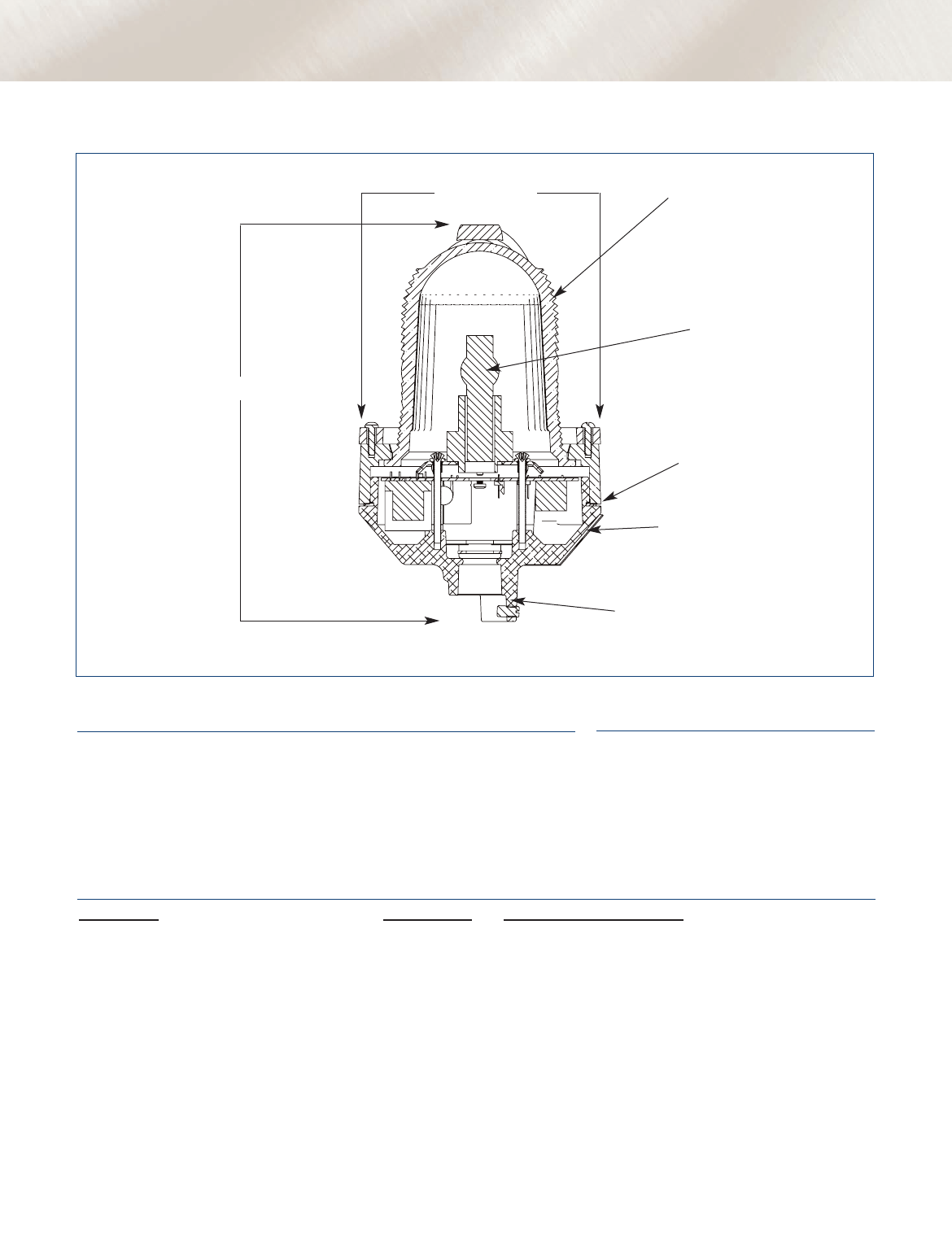

3/4" Pipe
Mount
Aluminum Base
Gasket
Glass Dome
Lamp
(user supplied)
9.25"/235 mm
5.5"/139.7 mm
Dome Guard
(Included)
* Call the factory for Series A part numbers.
007_122_62362_FedSig.qxd 2/7/08 3:18 PM Page 57
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Operating In-rush Flash
Model Voltage Current Current Rate/Minute Mount
191XL 24VAC/DC 0.38 amps 1.75 amps, 5.0 mS 60 3/4" Pipe
191XL 120VAC 0.21 amps 2.0 amps, 0.25 mS 60 3/4" Pipe
191XL 240VAC 0.13 amps 2.0 amps, 0.25 mS 60 3/4" Pipe

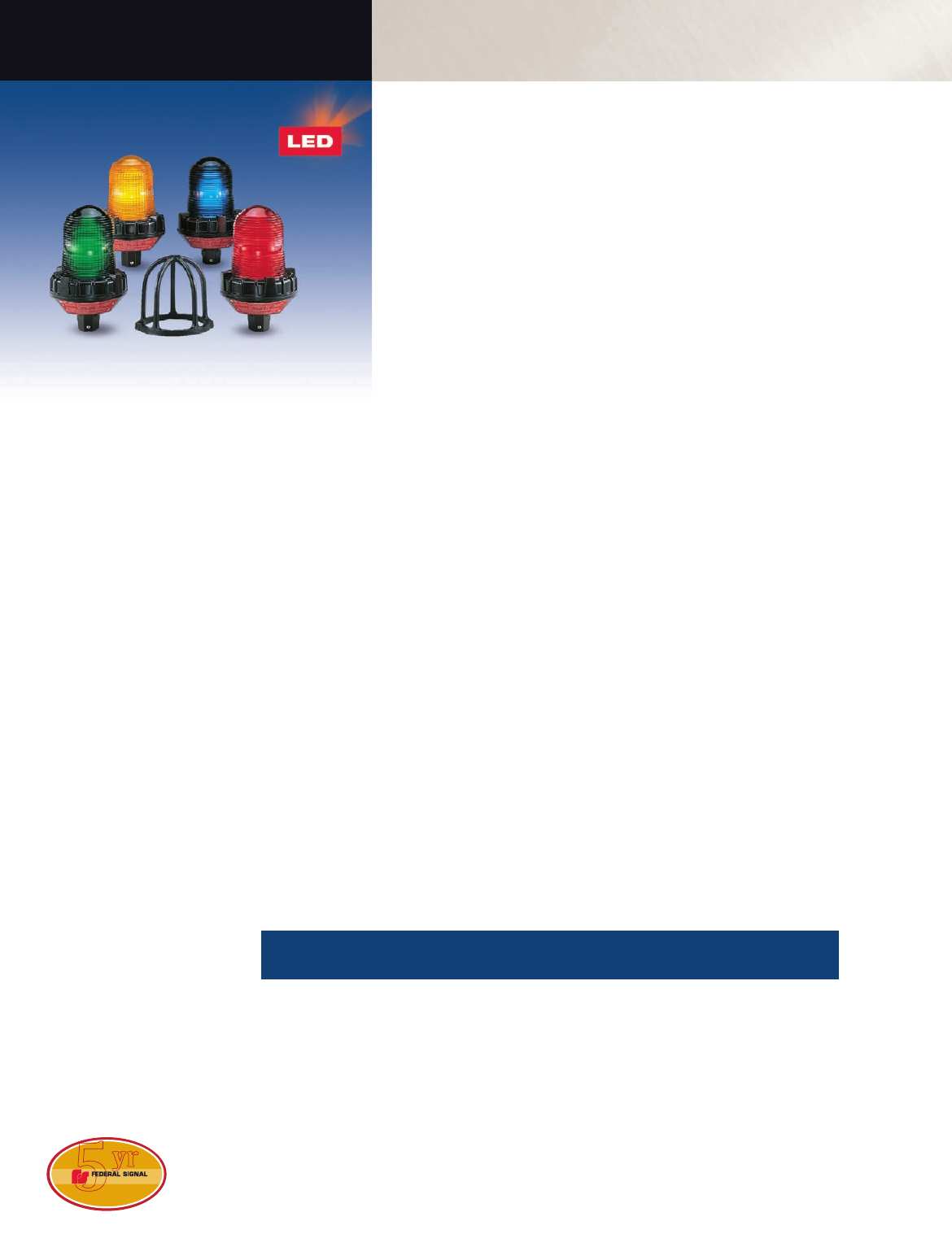

RUGGED DESIGN FOR USE IN
HAZARDOUS LOCATIONS
•XLTTM Technology
•Available in 24VAC/DC, 120VAC
and 240VAC
•Four lamp/lens colors
•Flashing mode standard,
configurable to Steady-burn
•60,000 hour, vibration resistant
LED lamp
•3/4- inch pipe mount
•Dome guard included
•Type 4X, IP66 enclosure,
Marine Listed
•UL and cUL Listed

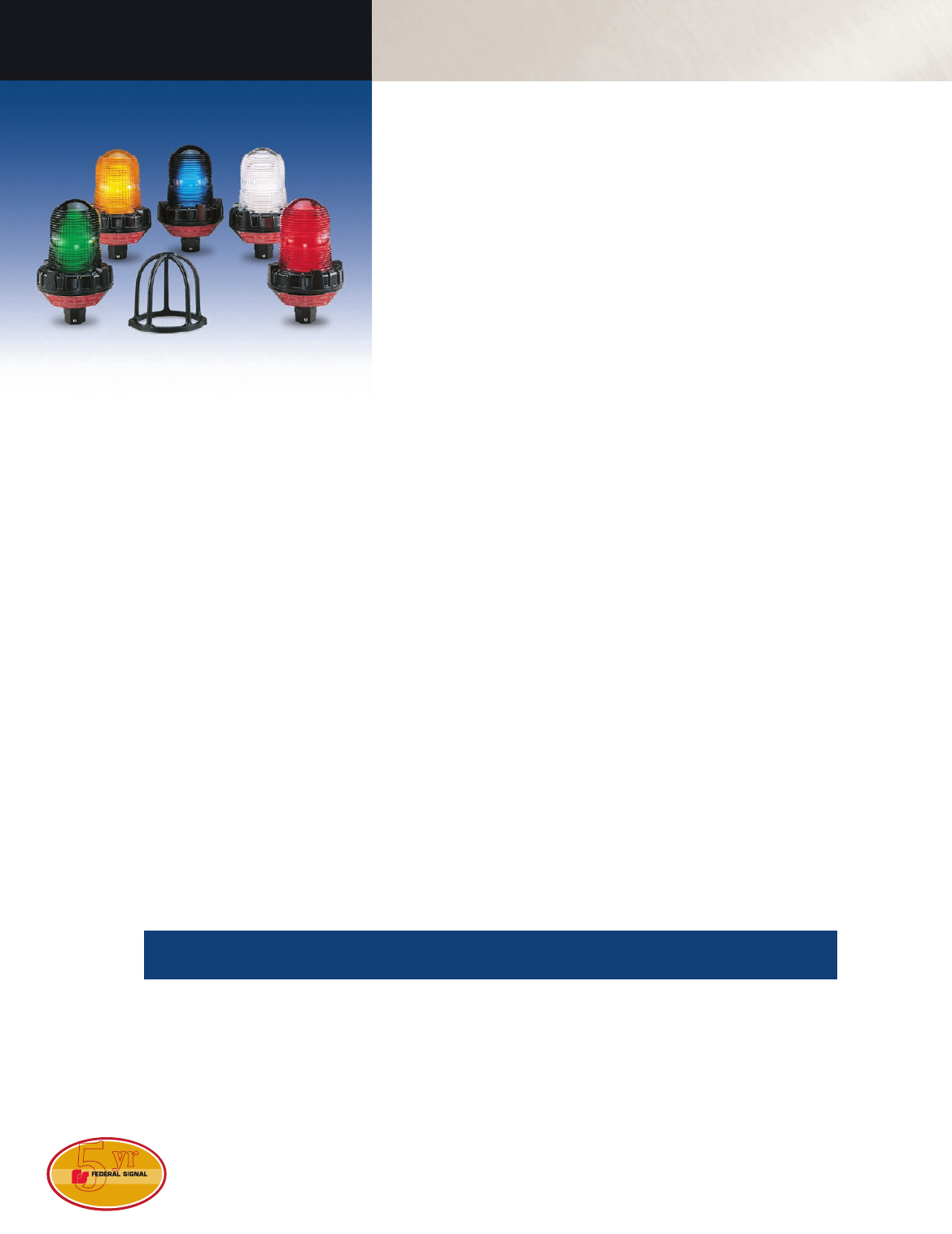

Flashing LED
Hazardous Location
Warning Light
with XLT™
Model 191XL
The model 191XL is a hazardous location flashing signal light that
features the super bright LED array with XLTTM, eXtreme Light
Technology. The unit is available in 24VAC/DC, 120VAC or 240VAC
and four colors – amber, blue, green and red. The 191XL comes
standard in flashing mode and is field configurable to steady burn
mode for maximum functionality.
The Model 191XL has been certified by UL as meeting Type 4X
watertight and corrosion-resistant requirements, and IP66 rated.
This hazardous location warning light has an aluminum base ready
for mounting on a 3/4 inch pipe. The base features electrostatically
applied (e-coated) epoxy paint for corrosion-resistance. A dome
guard fits over the glass dome to protect it against accidental
collision with moving equipment, such as a forklift. The outer
glass dome and LED pairing are available in four colors – amber,
blue green and red.
Federal Signal’s super bright LED array used in the 191XL with XLT
inside produces intense light output and 60,000 hours of service.
Increased shock and vibration resistance add to this unit’s rugged
industrial portfolio of features.
The 191XL is UL Listed for Class I, Division 2, Groups A, B, C
and D; Class II Division 1, Groups E, F and G; and Class III.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 12:39 AM Page 58
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

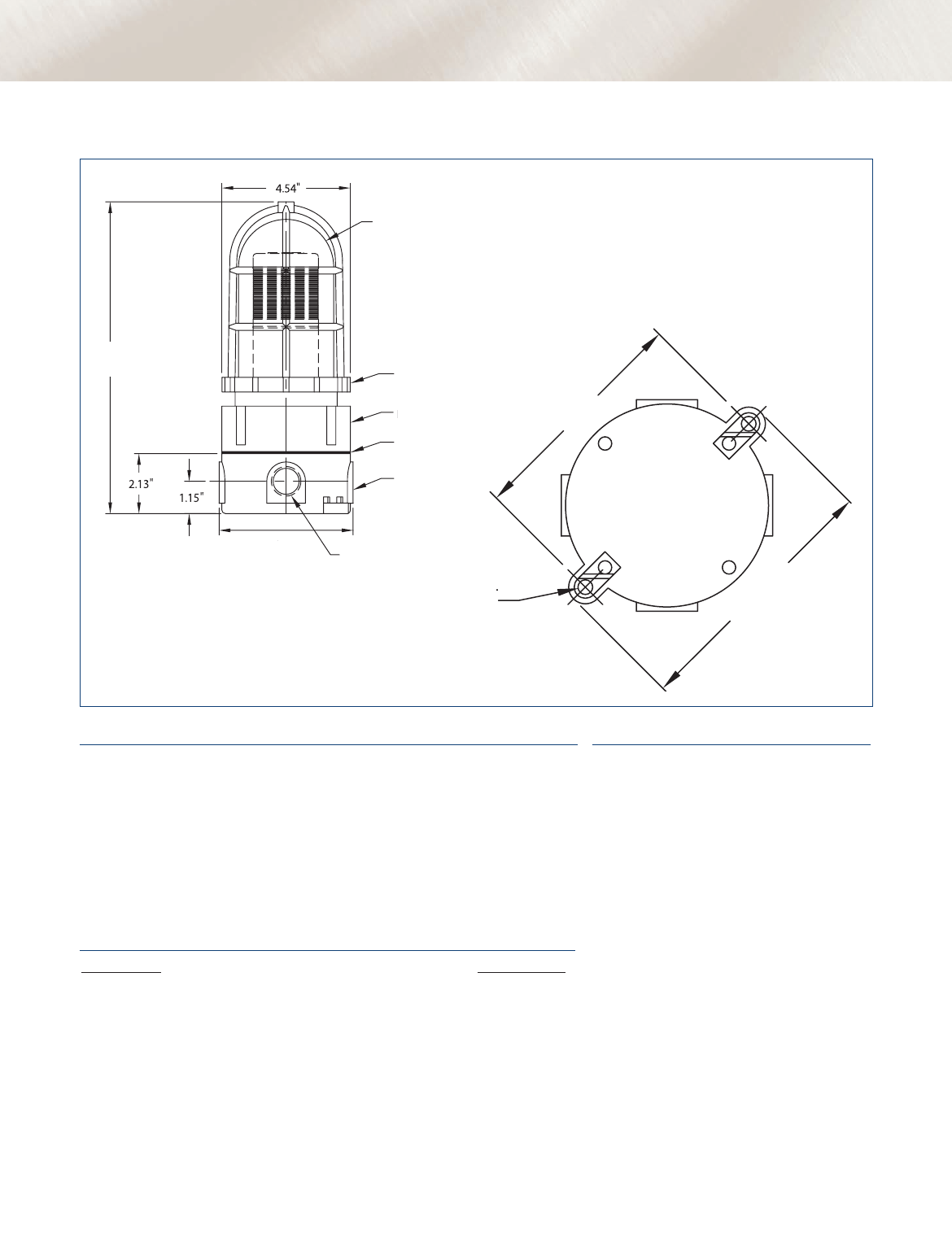

HAZARDOUS LOCATION LED WARNING LIGHT (191XL)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
191XL beginning on page 374
SPECIFICATIONS
Operating Temperature: -58°F to 150°F -50°C to 66°C
Net Weight: 4.0 lbs. 1.82 kg
Shipping Weight: 4.25 lbs. 1.93 kg
Height (with Dome Guard): 9.25" 235.0 mm
Diameter: 5.5" 140.0 mm
REPLACEMENT PARTS
Description Part Number
Dome and Ring Assembly*
PC Board Assembly, 24VDC K2005455A Glass Dome/Ring Assembly, Amber K8449078C-01
PC Board Assembly, 120/240VAC K2005416A Glass Dome/Ring Assembly, Blue K8449078C-02
LED array, Amber K147169A-06 Glass Dome/Ring Assembly, Green K8449078C-03
LED array, Blue K147169A-07 Glass Dome/Ring Assembly, Red K8449078C
LED array, Green K147169A-08 Gasket K8449080B
LED array, Red K147169A-09
3/4" Pipe
Mount
Aluminum Base
Gasket
Glass Dome
9.25"/235 mm
5.5"/140 mm
LED Array
* Call the factory for Series A part numbers.
007_122_62362_FedSig.qxd 1/27/08 12:41 AM Page 59
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DESIGNED FOR USE IN ATEX
ZONE RATED ATMOSPHERES
•Super bright output
with XLTTM Technology
•3 remotely selectable
flash patterns
•50,000 hour lamp life
•Available in five colors
•Ex ‘e’ terminal chamber available
•AC and DC voltage ranges
•Approved for use in Zone
1, 2, 21, 22 Atmospheres

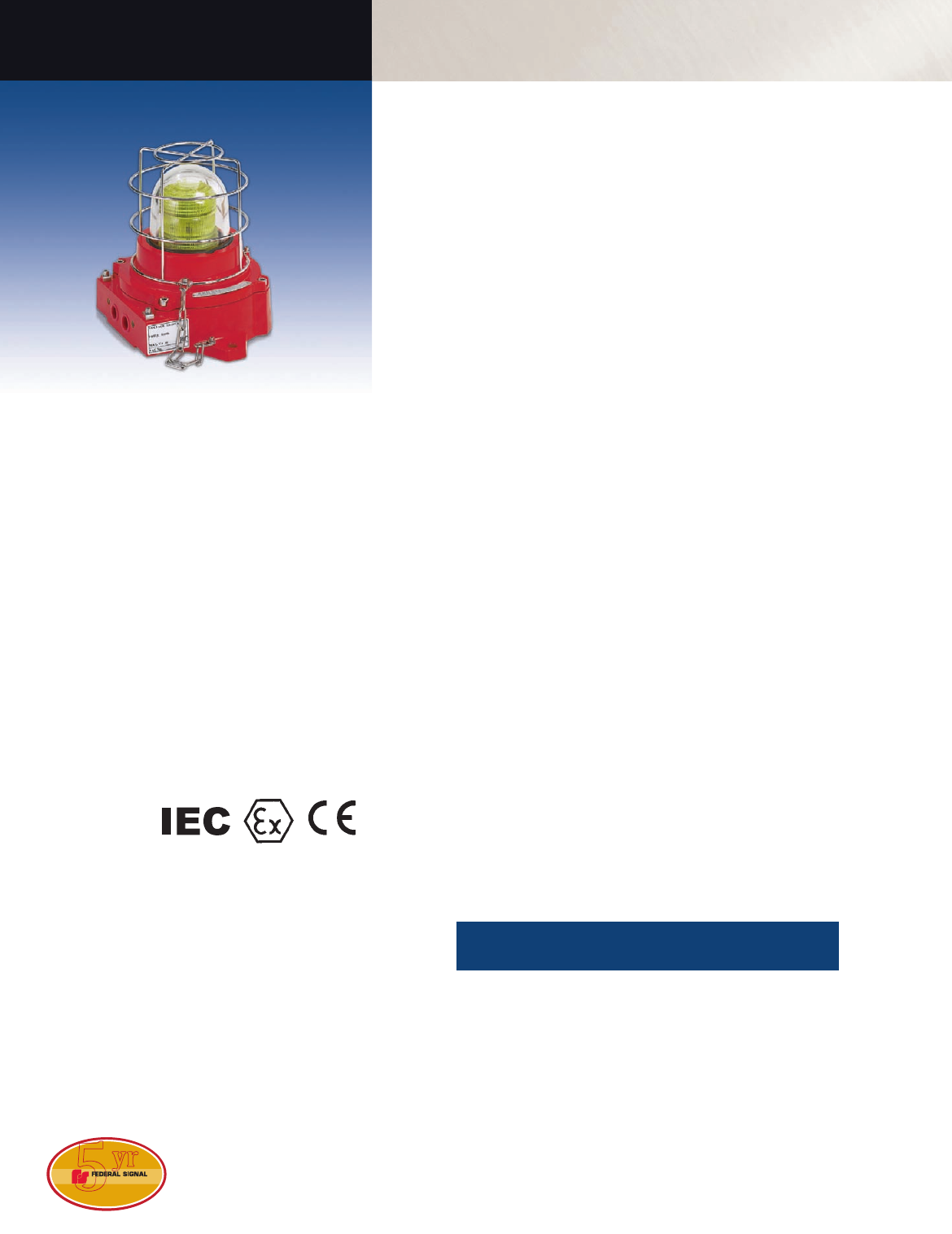

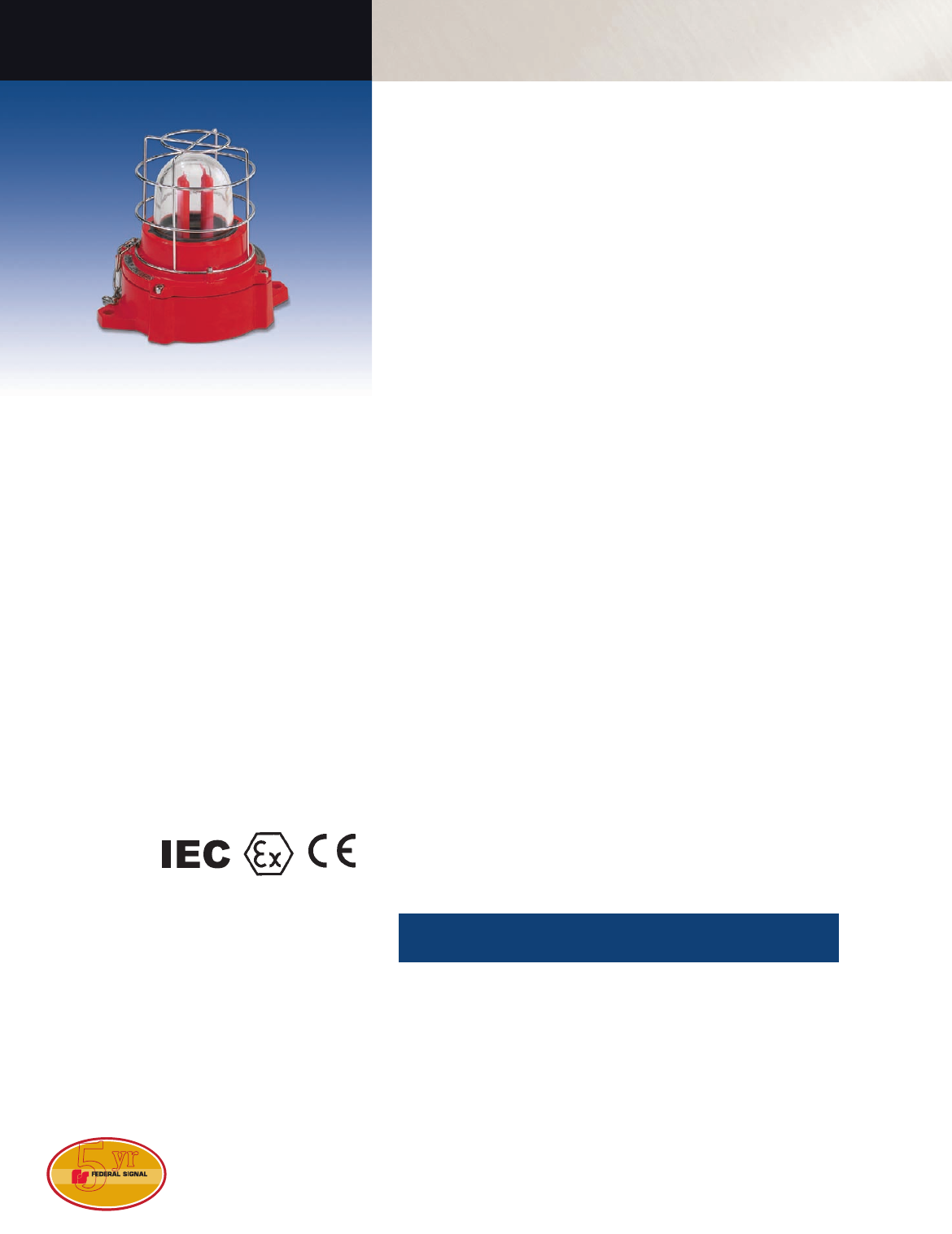

Explosion-Proof

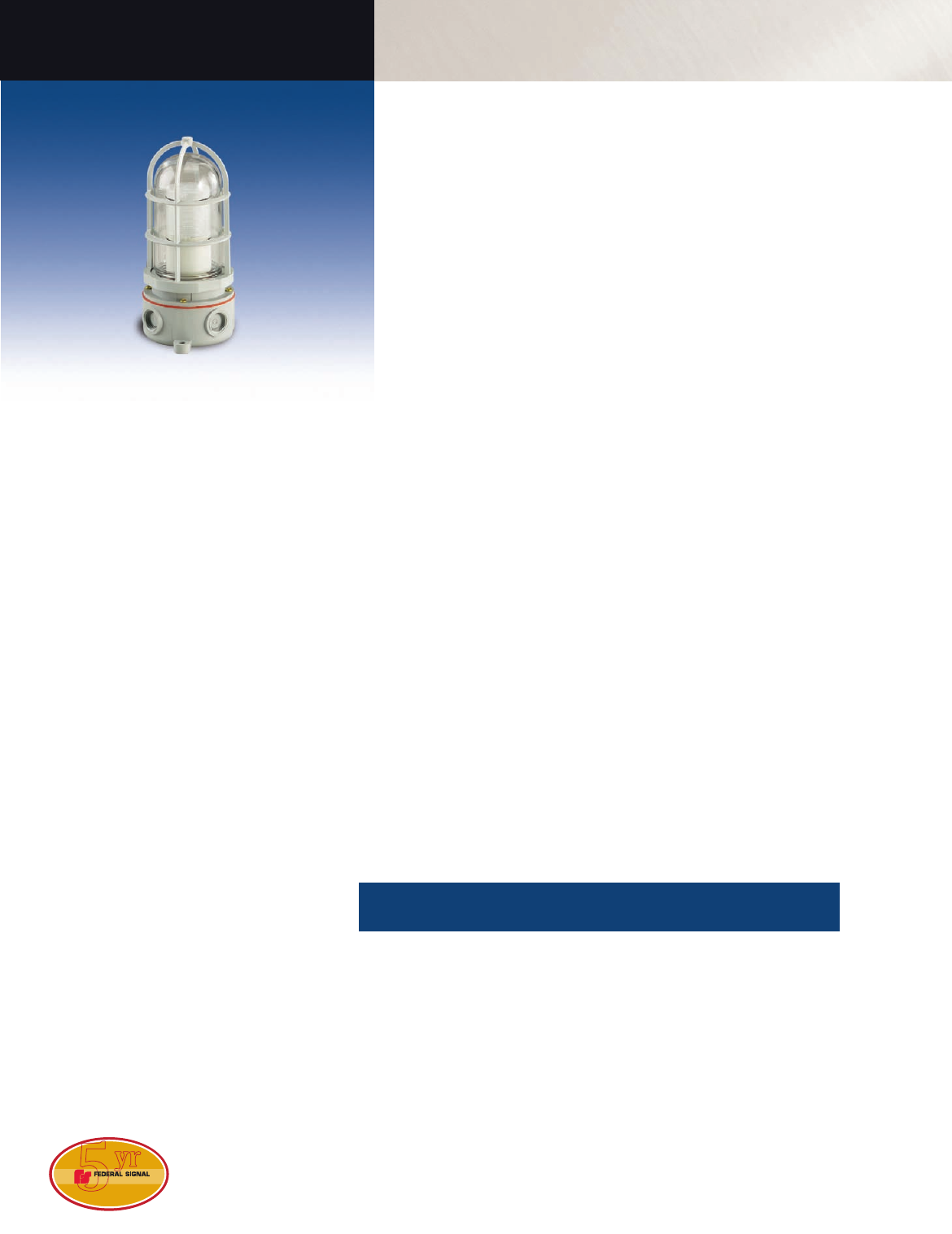

LED Warning Light
2000 Series Model LED
The 2000 Series model LED beacon, with XLTTM technology, is a
visual signal warning light for use in hazardous locations requiring
ATEX approval. The beacon can produce three light patterns
depending on the configuration of a field selectable jumper wire
or remote contact closure. The light patterns are: steady-on, slow
flash and rapid flash. An optional telephone initiation feature
also allows the beacon to flash when telephone ringing voltage
is present.
The 2000 Series LED beacon is sealed from dust and water by a
nitrile rubber o-ring seal. All exterior cast aluminum surfaces
are finished in powder coat paint and external hardware is
manufactured from stainless steel to resist corrosion. Available
signal colors are amber, blue, green, red and yellow.
The 2000 Series LED beacon is externally powered by 24VDC or
110-240VAC source. All AC powered units feature a switch mode
power supply that accommodates a wide input voltage range
without requiring any additional configuration from the user. The
current consumption from the beacon is less than 500mA and the
in-rush current is low enough to allow PLC initiation without the
use of an external relay. Screw type terminal blocks are provided
for field wiring on all units.
All variations of the 2000 Series LED beacon feature a four entry
fixture to allow cable looping. These cable entries are metric
M20 X 1.5, but other configurations are available upon request.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Max In-Rush
Model Voltage Current Minute Current
LED 24VDC 0.50 amps 60-80 1.75A for 5.00mS
LED 110VAC 0.22 amps 60-80 2.00A for 0.25mS
LED 240VAC 0.13 amps 60-80 2.00A for 0.25mS
ATEX
007_122_62362_FedSig.qxd 2/1/08 2:52 PM Page 120
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com

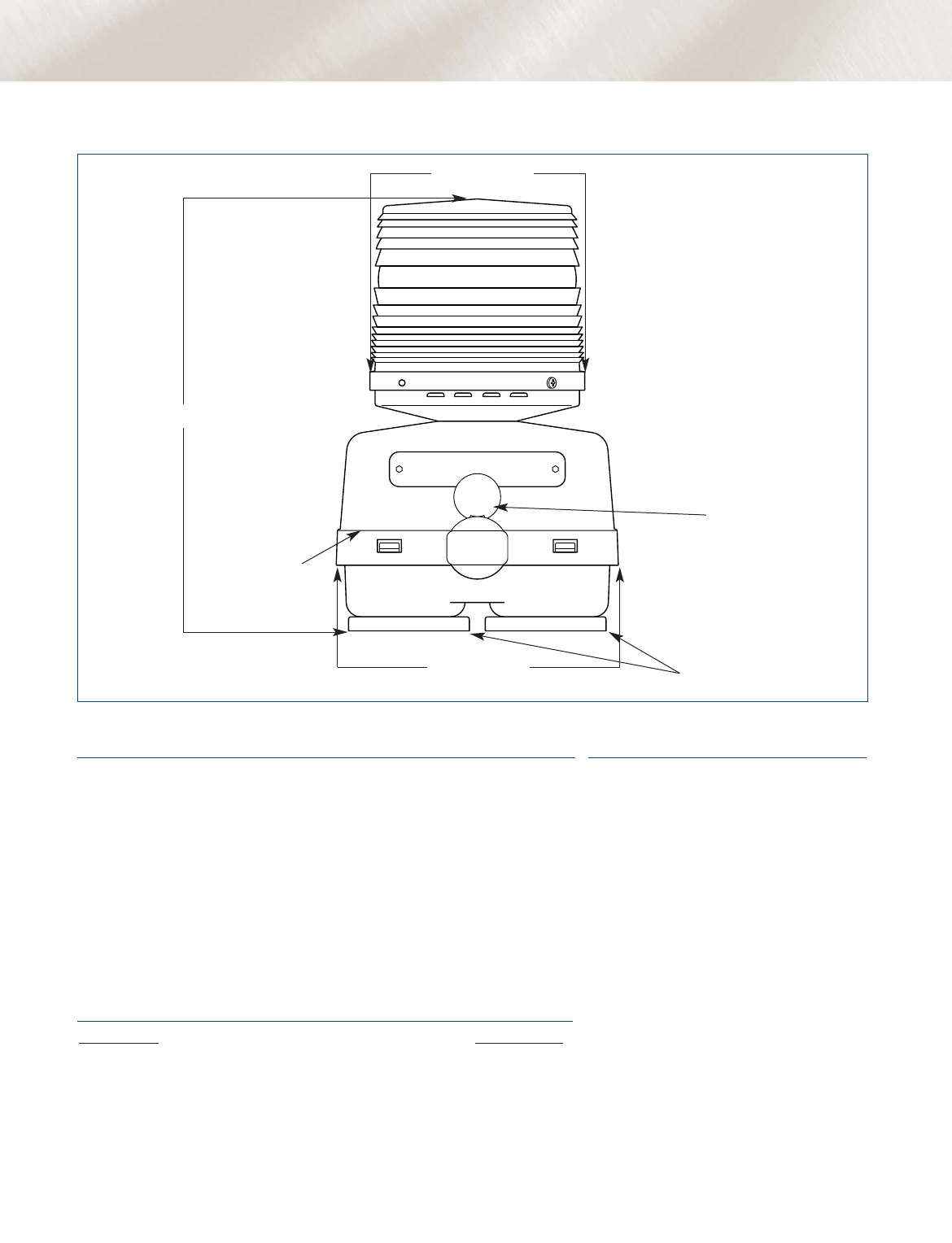

EXPLOSION-PROOF WARNING LIGHT (2000 SERIES LED)

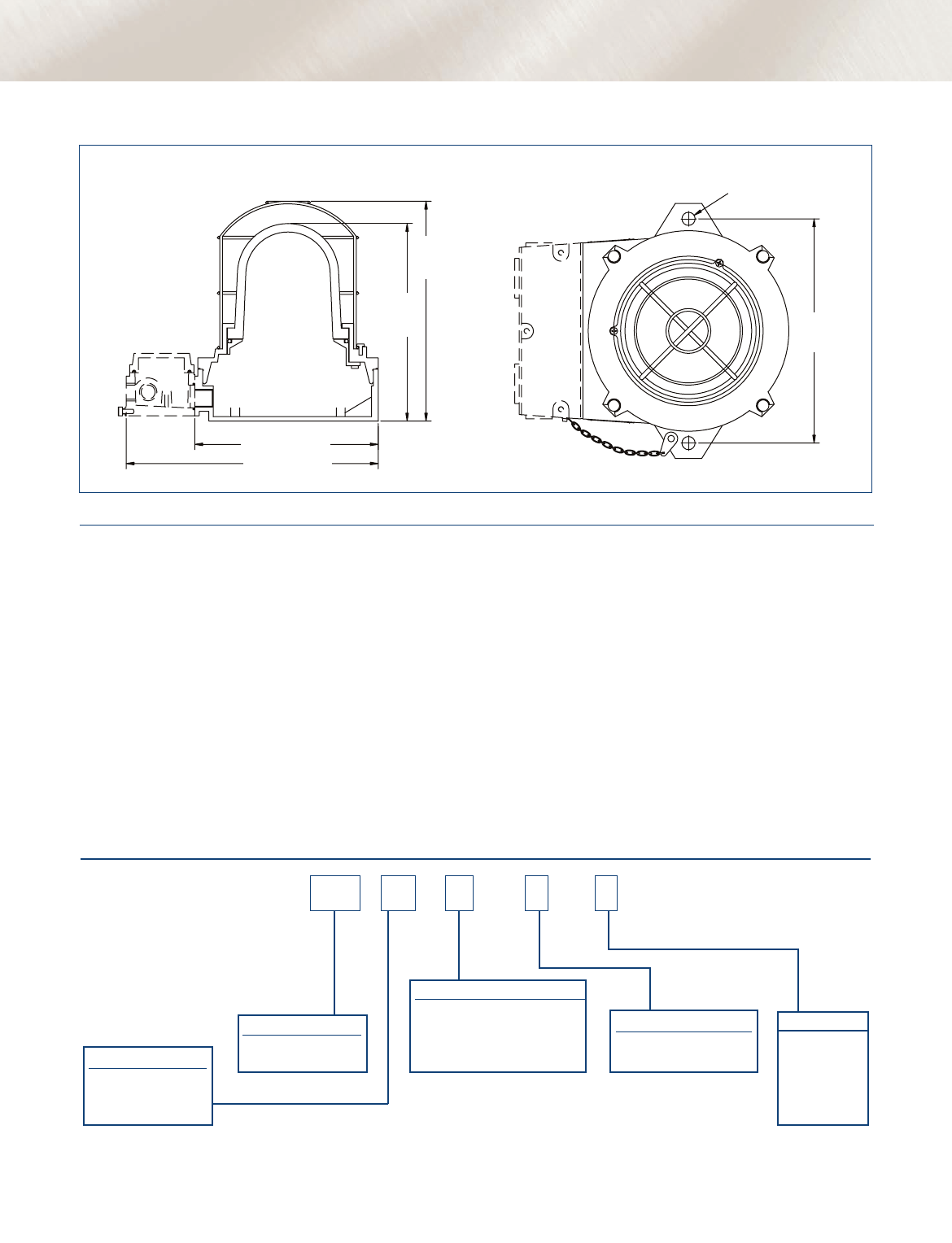

SPECIFICATIONS
Lamp Style: LED Terminals:
Operating Temperature: Ex d: 4 way block mounted PCB
Ex d and Ex de: -40°F to 131°F -40°C to 55°C Ex de: 12 way block in terminal chamber
Net Weight: Cable entries:
Ex d: 13.23 lbs. 6.0 kg Ex d: 4 entries - M20 x 1.5
Ex de: 15.43 lbs. 7.0 kg Ex de: 4 entries - M20 x 1.5
Shipping Weight: 16.5 lbs. 7.5 kg Mounting: Via fixed cast lugs at two
Height: 9.84" 250.0 cm mounting points
Width: 10.04" 255.0 cm Body: Marine Grade Alloy painted Regal Red
Length: 8.23" 209.0 cm Exterior dome: Toughened glass
ATEX Certificate Number: Baseefa 07ATEX0150 Guard: 316 Stainless steel
IECEx Certificate Number: IECEx BAS 07.0038 Ingress Protection: IP66
Certification Marking: Ex d IIB T6 Ex tD A21 Ex de IIB T6 Ex tD A21
TYPE
LED Lamp - LED
PROTECTION
Exde - DE
Exd 4 Entry - D4
LED D4 U N A
VOLTAGE (-20%/+10%)
U- 110-240VAC
(50/60 Hz)(2)
B- 24VDC
FACILITIES
N- None
T- Telephone Link(1)
COLOR
Amber - A
Blue - B
Green - G
Red - R
Yellow - Y
LIGHT OUTPUT
Amber 113cd
Blue 12cd
Green 66cd
Yellow 60cd
Red 63cd

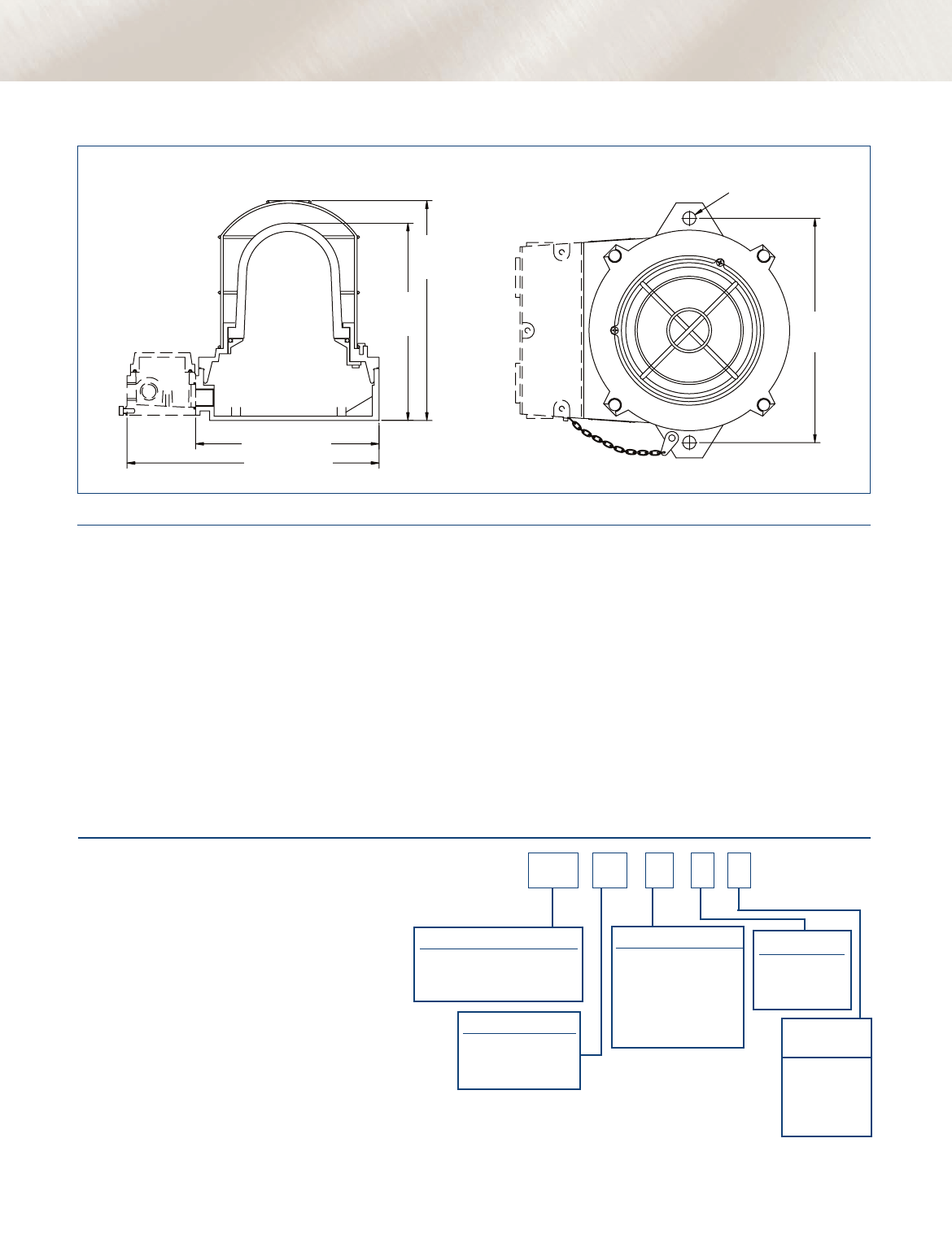

11.3”/287 mm
8.23”/209 mm
8.86”/
225 mm
9.84”/
250 mm
0.51”/
13 mm
10.04”/
255 mm
NOTES:
(1) Applicable to Xenon AND LED beacons only
(2) LED beacon available in 24VDC and 110-240VAC only
007_122_62362_FedSig.qxd 1/27/08 7:52 AM Page 121
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DESIGNED FOR USE IN ATEX
ZONE RATED ATMOSPHERES
•Twin Flourescent lamps for security
•Individual lamp control gear
•8,000 hour lamp life
•Available in five colors
and clear
•Ex ‘e’ terminal chamber available
•AC and DC voltage ranges
•Approved for use in Zone
1, 2, 21, 22 Atmospheres
Explosion-Proof
Static Warning Lights
2000 Series Models FL18 and FL36
The 2000 Series model FL18 and FL36 static warning beacons are
visual signals designed for use in hazardous locations that require
ATEX approval. At the heart of its design is a compact fluorescent
lamp configuration that provides long life, excellent vibration
resistance and a signal-specific colored glow.
FL18 and FL36 beacons are sealed from dust and water by a
nitrile rubber o-ring seal. All exterior cast aluminum surfaces
are finished in powder coat paint and external hardware is
manufactured from stainless steel to resist corrosion. Available
signal colors are amber, blue, clear, green, red, and yellow.
The FL18 and FL36 beacons are externally powered by an AC or
DC source. Screw type terminal blocks are provided for field
wiring on all units.
All variations of the FL18 and FL36 beacons feature a four entry
fixture to allow cable looping. These cable entries are metric M20
X 1.5, but other configurations are available upon request.
FEDERAL SIGNAL CORPORATION
Operating Equivalent
Model Voltage Current Wattage
FL18 240VAC 0.18 amps 17.5W
FL18 110VAC 0.27 amps 16.0W
FL18 110VDC 0.14 amps 14.5W
FL18 48VDC 0.42 amps 19.2W
FL18 24VDC 0.87 amps 20.9W
FL36 240VAC 0.18 amps 40.2W
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
ATEX
007_122_62362_FedSig.qxd 1/27/08 7:46 AM Page 116
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EXPLOSION-PROOF STATIC WARNING LIGHTS (2000 SERIES FL18/FL36)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
SPECIFICATIONS
Lamp Style: Flourescent Terminals:
Operating Temperature: Ex d: 4 way block mounted PCB
Ex d and Ex de: -40°F to 158°F -40°C to 70°C(T4) Ex de: 12 way block in terminal chamber
Net Weight: Cable entries:
Ex d: 13.23 lbs. 6.0 kg Ex d: 4 entries - M20 x 1.5
Ex de: 15.43 lbs. 7.0 kg Ex de: 4 entries - M20 x 1.5
Shipping Weight: 16.5 lbs. 7.5 kg Mounting: Via fixed cast lugs at two
Height: 9.84" 250.0 mm mounting points
Width: 10.04" 255.0 mm Body: Marine Grade Alloy painted Regal Red
Length: 8.23" 209.0 mm Exterior dome: Toughened glass
ATEX Certificate Number: Baseefa 07ATEX0150 Guard: 316 Stainless steel
IECEx Certificate Number: IECEx BAS 07.0038 Ingress Protection: IP66
Certification Marking: Ex d IIB T4 Ex tD A21 Ex de IIB T4 Ex tD A21
HOW TO ORDER
• Flourescent Lamps Sold Separately
• Two Required for FL18,
Four Required for FL36
FL Tube, Red P/N A2158R
FL Tube,Yellow P/N A2158Y
FL Tube,Blue P/N A2158B
FL Tube,Green P/N A2158G
FL Tube,Clear P/N A2158
FL Tube,Amber P/N A2158A
11.3”/287 mm
8.23”/209 mm
8.86”/
225 mm
9.84”/
250 mm
0.51”/
13 mm
10.04”/
255 mm
NOTES:
(1) Only the 240VAC voltage is available with FL36 beacon
(2) Range 22VDC to 32VDC with FL18 beacon (4) 2 pcs. required for FL18, 4 pcs. required for FL36
(3) Range 100VDC to 135VDC with xenon beacons (inclusive of ±10%). (5) Applicable to Xenon AND LED beacons only
FL18 is 100VDC to 150VDC inclusive of ±10%. (6) LED beacon available in 24VDC and 110-240VAC only
TYPE
Fluorescent, 18W(4) - FL18
Fluorescent, 36W(1,4) -FL36
PROTECTION
Exde - DE
Exd 4 Entry - D4
FL18 D2 M N O
VOLTAGE (±10%)
M- 240VAC
B- 024VDC(2)(6)
L- 110VAC
C- 048VDC
D- 110VDC(3)
FACILITIES
N- None
T- Telephone
Link(5)
SPECIAL
FEATURES
For special
features
and future
variations
007_122_62362_FedSig.qxd 2/1/08 2:45 PM Page 117
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DESIGNED FOR USE IN ATEX
ZONE RATED ATMOSPHERES
•Single and four tube models
•Internal fresnel lens
•Available in five colors
and clear
•Ex ‘e’ terminal chamber available
•AC and DC voltage ranges
•Approved for use in Zone
1, 2, 21, 22 Atmospheres
Explosion-Proof
Strobe Lights
2000 Series Models XEN1 and XEN4
The 2000 Series Models XEN1 and XEN4 Xenon beacons are
visual warning lights for use in hazardous locations that require
ATEX approval. Model XEN1 is a strobe light that contains a single
xenon flashing tube. This makes it ideally suited for use in indoor
explosion-proof areas that require compliance to European electrical
safety directives.
Model XEN4 is a strobe light that utilizes four strobe tubes, timed
in a sequential manner, to simulate the operation of a mechanical
rotating beacon. This four-strobe version is ideal in outdoor
situations where a conventional beacon may not be adequate.
The 2000 Series Xenon beacon is sealed from dust and water
by a nitrile rubber o-ring seal. All exterior cast aluminum surfaces
are finished in powder coat paint and external hardware is
manufactured from stainless steel to resist corrosion. Available
signal colors are amber, blue, clear green, red, and yellow. An
optional telephone initiation feature is also available for either
beacon that allows the product to flash when telephone ringing
voltage is present.
The 2000 Series Xenon beacon is externally powered by a DC or
AC power source. Screw type terminal blocks are provided for
field wiring on all units.
All variations of the 2000 Series Xenon beacon feature a four
entry fixture to allow cable looping. These cable entries are metric
M20 X 1.5, but other configurations are available upon request.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/
Model Voltage Current Minute
XEN1 24VDC 0.93 amps 80
XEN1 48VDC 0.81 amps 80
XEN1 110VDC 0.61 amps 80
XEN1 110VAC 0.48 amps 80
XEN1 240VAC 0.38 amps 80
XEN4 24VDC 1.90 amps N/A
XEN4 48VDC 1.22 amps N/A
XEN4 110VDC 0.92 amps N/A
XEN4 110VAC 0.53 amps N/A
XEN4 240VAC 0.41 amps N/A
ATEX
007_122_62362_FedSig.qxd 2/1/08 2:50 PM Page 118
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
EXPLOSION-PROOF STROBE LIGHTS (2000 SERIES XEN1/XEN4)
SPECIFICATIONS
Lamp Style: Xenon Terminals:
Operating Temperature: Ex d: 4 way block mounted PCB
Ex d and Ex de: -40°F to 131°F -40°C to 70°C Ex de: 12 way block in terminal chamber
Net Weight: Cable entries:
Ex d: 13.23 lbs. 6.0 kg Ex d: 4 entries - M20 x 1.5
Ex de: 15.43 lbs. 7.0 kg Ex de: 4 entries - M20 x 1.5
Shipping Weight: 16.5 lbs. 7.5 kg Mounting: Via fixed cast lugs at two
Height: 9.84" 250.0 cm mounting points
Width: 10.04" 255.0 cm Body: Marine Grade Alloy painted Regal Red
Length: 8.23" 209.0 cm Exterior dome: Toughened glass
ATEX Certificate Number: Baseefa 07ATEX0150 Guard: 316 Stainless steel
IECEx Certificate Number: IECEx BAS 07.0038 Ingress Protection: IP66
Certification Marking: Ex d IIB T4 Ex tD A21 Ex de IIB T4 Ex tD A21
HOW TO ORDER
• Colored Xenon Lens Ordered Separately
• Part Numbers Are As Follows:
Red A1779S
Yellow A3410S
Blue A1111S
Green A1198S
Clear A2133S
Amber A1131S
11.3”/287 mm
8.23”/209 mm
8.86”/
225 mm
9.84”/
250 mm
0.51”/
13 mm
10.04”/
255 mm
NOTES:
(1) Range 100VDC to 135VDC with xenon beacons (inclusive of ±10%).
FL18 is 100VDC to 150VDC inclusive of ±10%.
(2) Applicable to Xenon AND LED beacons only
TYPE
Xenon, Single - XEN1
Xenon, Four - XEN4
PROTECTION
Exde - DE
Exd 4 Entry - D4
XEN1 D4 M N O
VOLTAGE (±10%)
M- 240VAC
B- 024VDC
L- 110VAC
C- 048VDC
D- 110VDC(1)
FACILITIES
N- None
T- Telephone
Link(2)
SPECIAL
FEATURES
For special
features
and future
variations
007_122_62362_FedSig.qxd 1/27/08 7:50 AM Page 119
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
ECONOMICAL LIGHT DUTY
WARNING LIGHT
•Available in 120VAC
•Five dome colors
•Integrated 1/2- inch pipe mount
•Indoor use only
•Type 4X, IP66 enclosure
•UL and cUL Listed
Electraray®
Rotating Warning
Light
Model 225
The Federal Signal Electraray®Model 225 is a compact, economical
rotating warning light designed for industrial uses. This innovative
dome design features a single retaining screw that allows quick
and easy access for inspection and relamping.
The Federal Signal Electraray has a closed cell neoprene gasket
that makes it water resistant. The injection molded reflector
rotates around an incandescent lamp and produces 90 flashes
per minute. It is available in five dome colors (amber, blue, clear,
green and red) and is UL Listed for Type 4X. Constructed to IP66
specifications, the Electraray 225 is ready to mount on a 1/2-inch
pipe. Optional mounting brackets are available, simplifying
installation on walls and in corners.
The Electraray 225 is one of the most economical rotating signaling
lights in the Federal Signal product line. Its design makes it easily
adaptable for a multitude of indoor and outdoor applications. It is
designed for permanent mounting where a 120VAC, 50/60Hz line
is available. This light provides an effective, economical means of
supplementing audible signaling devices.
Federal Signal’s Electraray rotating light is an inexpensive warning
light for calling attention to emergency situations or process
status changes.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
225 120VAC 50/60HZ 0.22 amps 90 1,000 1/2" Pipe
007_122_62362_FedSig.qxd 1/31/08 12:35 AM Page 34
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
ELECTRARAY®(225)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Corner Bracket (LCMB2)*
Wall Bracket (LWMB2)*
• Please refer to Model Number Index
225 beginning on page 373
* Mounting brackets not rated for Type 4X
SPECIFICATIONS
Lamp Style: Incandescent Incandescent
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 2.0 lbs. 0.9 kg
Shipping Weight: 2.7 lbs. 1.2 kg
Height: 7.25" 184.0 mm
Diameter: 5.5" 140.0 mm
5.5"/139.7 mm
Parabolic Mirror
7.25"/184.2 mm
Polycarbonate
Dome
Incandescent Lamp
Retaining
Screw
1/2" Pipe Mount
REPLACEMENT PARTS
Description Part Number
Dome, Amber K8444D219C-03
Dome, Blue K8444D219C-01
Dome, Clear K8444D219C-04
Dome, Green K8444D219C-02
Dome, Red K8444D219C
Lamp K149123A
Motor, 120VAC K8241A030-02
007_122_62362_FedSig.qxd 1/27/08 12:03 AM Page 35
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
225X 120VAC 50/60Hz 0.220 amps 90 1,000 1/2" Pipe
225X 240VAC 50/60Hz 0.120 amps 90 1,000 1/2" Pipe
DESIGNED FOR USE IN
HAZARDOUS LOCATIONS
•Available in 120VAC and 240VAC
•Five dome colors
•25-watt incandescent lamp
• 1/2- inch pipe mount
•Indoor use only
•Type 4X, IP66 enclosure
•UL and cUL Listed and
CSA Certified
Electraray®
Hazardous Location
Rotating Warning
Light
Model 225X
The new Federal Signal Electraray®Model 225X is a compact,
economical rotating warning light designed for a variety industrial
applications. This innovative dome design, with a single screw
allows quick and easy access for inspection and relamping.
The Federal Signal Electraray 225X features a silicone rubber
gasket that provides a water-resistant seal between the dome and
the black poly-coated base. The injection molded reflector rotates
around a 25-watt lamp producing 90 flashes per minute. It is
available in five dome colors (amber, blue, clear, green and red)
and is UL listed for Class I, Division 2, Group A, B, C and D; Class
II, Division 2, Groups F and G; and Class III. The Electraray 225X
is ready to mount on a 1/2" pipe.
The Electraray 225X design makes it a good choice for a multitude
of indoor and outdoor applications. It is designed for permanent
mounting where 120VAC, 50/60Hz is available. This particular
light provides an effective means of supplementing audible signaling
devices in hazardous environments.
Federal Signal’s affordable Electraray rotating warning light is
specifically designed for use in hazardous locations or where
corrosive materials are present.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 12:10 AM Page 36
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
ELECTRARAY®HAZARDOUS LOCATION WARNING LIGHT (225X)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
SPECIFICATIONS
Lamp Life*: 200 Hours 200 Hours
Lamp Style: Incandescent Incandescent
Operating Temperature: -40°F to 104°F -40°C to 40°C
Net Weight: 2.0 lbs. 0.9 kg
Shipping Weight: 2.7 lbs. 1.2 kg
Height: 7.5" 190.5 mm
Diameter: 5.5" 139.7 mm
5.5"/139.7 mm
Polycarbonate
Dome
25 Watt
Incandescent
Lamp
1/2" Pipe Mount
Parabolic
Mirror
7.5"/
190.5 mm
REPLACEMENT PARTS
Description Part Number
Dome, Amber K8444D219C-03
Dome, Blue K8444D219C-01
Dome, Clear K8444D219C-04
Dome, Green K8444D219C-02
Dome, Red K8444D219C
Lamp, 120VAC K149123A
Lamp, 240VAC K8107A149A
Motor, 120VAC K8241A030-02
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
225X beginning on page 373
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 12:11 AM Page 37
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
LED-BASED WARNING LIGHT
FOR HEAVY-DUTY
INDUSTRIAL APPLICATIONS
•XLTTM Technology
•Available in 24VAC/DC, 120VAC
and 240VAC
•Four lens/lamp colors
•Flashing mode standard,
configurable to Steady-burn
•60,000-hour, vibration-resistant
LED lamp
•1/2- inch pipe mount
•Type 4X, IP66 enclosure,
Marine Listed
•UL and cUL Listed for Class 1,
Division 2 applications
Electraray®
Hazardous Location
LED Flashing Warning
Light with XLT™
Model 225XL
The Model 225XL is a hazardous location flashing signal light that
features the super bright LED array with XLTTM, eXtreme Light
Technology. The unit is available in 24VAC/DC, 120VAC or 240VAC
and four colors – amber, blue, green and red. The 225XL comes
standard in flashing mode and is field configurable to steady burn
mode for maximum functionality.
The Model 225XL has been certified by UL as meeting Type 4X
watertight and corrosion-resistant requirements, and is rated for
Division 2 applications. This hazardous location warning light has
a black polyurethane-coated base and the inner Fresnel lens is
available in four colors – amber, blue green and red. The clear
polycarbonate outer dome can be quickly removed for access
while changing the lamp or inspecting the unit.
Federal Signal’s super bright LED array used in the 225XL with
XLT inside produces intense light output and 60,000 hours of
service. Increased shock and vibration resistance add to this unit’s
rugged industrial portfolio of features.
The 225XL is UL Listed for Class I, Division 2, Groups A, B, C and
D; Class II Division 2, Groups F and G; and Class III.
The Federal Signal Model 225XL is ideal for wet, corrosive
atmospheres like those found in food processing industries or
anywhere a vibration-resistant visual signal is needed.
FEDERAL SIGNAL CORPORATION
Operating In-rush Flash
Model Voltage Current Current Rate/Minute Mount
225XL 24VAC/DC 0.38 amps 1.75 amps, 5.0 mS 60 1/2" Pipe
225XL 120VAC 0.21 amps 2.00 amps, 0.25 mS 60 1/2" Pipe
225XL 240VAC 0.13 amps 2.00 amps, 0.25 mS 60 1/2" Pipe
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 12:31 AM Page 50
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

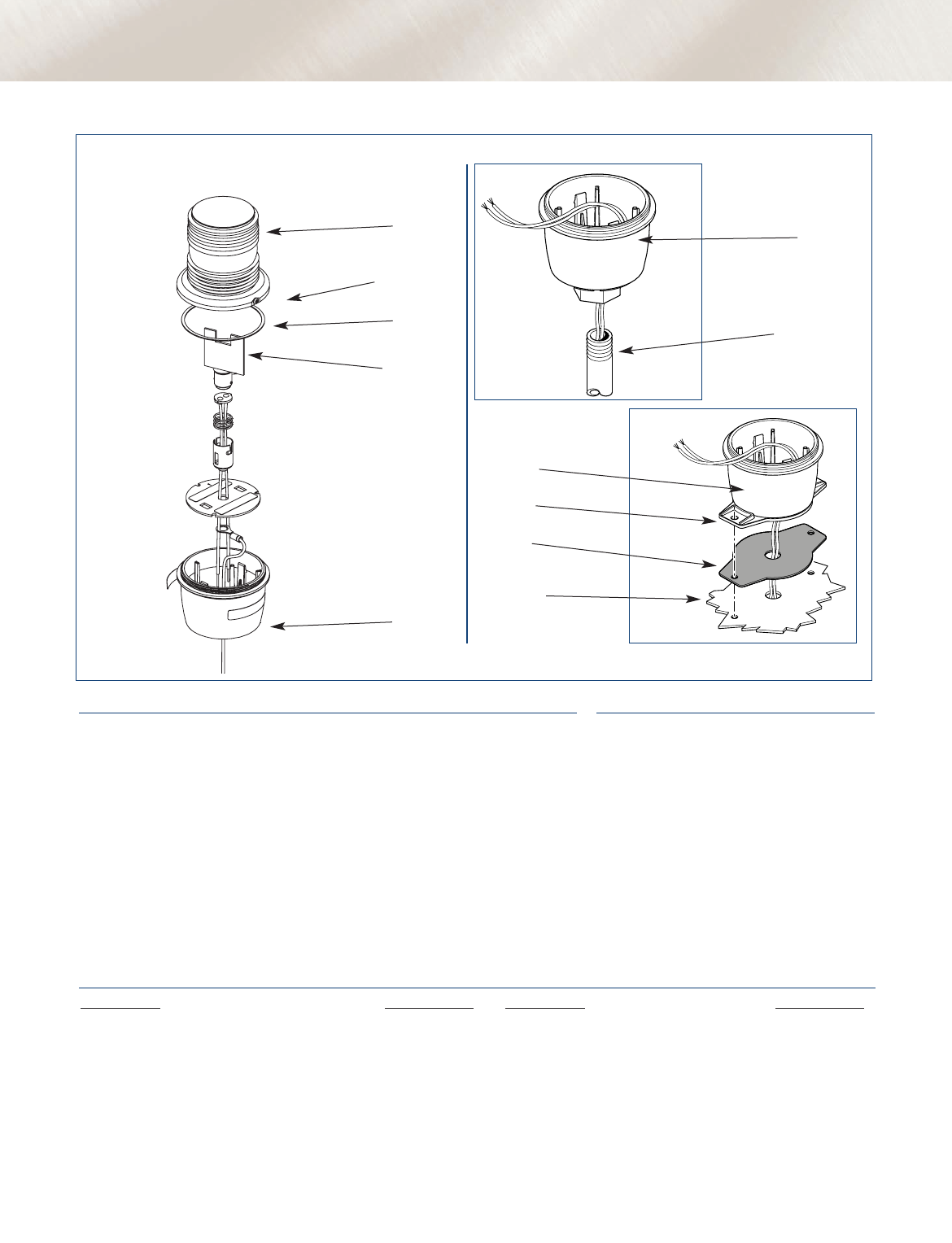

ELECTRARAY®HAZARDOUS LOCATION LED LIGHT (225XL)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
225XL beginning on page 374
SPECIFICATIONS
Lamp Life*: 60,000 hours 60,000 hours
Lamp Style: LED-based Lamp LED-based Lamp
Operating Temperature: -58°F to 150°F -50°C to 66°C
Net Weight: 3.2 lbs. 1.5 kg
Shipping Weight: 4.0 lbs. 1.8 kg
Height: 7.5" 190.5 mm
Diameter: 5.5" 139.7 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Exterior Dome, Clear K8444D219C-04 PC Board Assembly, 24VAC/DC K2005455A
Interior Lens, Blue K8550C095A-01 PC Board Assembly, 120/240VAC K2005416A
Interior Lens, Amber K8550C095A-02 LED Lamp, Amber K147169A-06
Interior Lens, Red K8550C095A-03 LED Lamp, Blue K147169A-07
Interior Lens, Green K8550C095A-04 LED Lamp, Green K147169A-08
LED Lamp, Red K147169A-09
1/2" Pipe
Mount
5.5"/139.7 mm
7.5"/190.5 mm
Outer Dome
Inner
Fresnel Lens
LED Array
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 12:32 AM Page 51
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount
225XST 12-24VDC 1.70-0.70 amps 80 580,000 240 1/2" Pipe
225XST-I 24VDC 0.70 amps 80 580,000 240 1/2" Pipe
(2.0 amp In-rush)
225XST 120VAC 0.25 amps 80 580,000 240 1/2" Pipe
225XST 240VAC 0.20 amps 80 580,000 240 1/2" Pipe
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
DESIGNED FOR USE IN
HAZARDOUS LOCATIONS
•12-24VDC, 24VDC, 120VAC
and 240VAC
•Six lens colors
•5,000 hour, high-intensity
strobe tube
•1/2- inch pipe mount
•Indoor use only
•Type 4X, IP66 enclosure
(Dome up orientation)
•UL and cUL Listed and
CSA Certified
Electraray®
Hazardous Location
Strobe Warning Light
Model 225XST and 225XST-I
Federal Signal’s Electraray®Model 225XST hazardous location
strobe light provides 80 high intensity flashes per minute. This
warning light is available in 12-24VDC, 24VDC, 120VAC and 240VAC.
The Model 225XST has been certified by UL as meeting Type 4X
water tight and corrosion resistant requirements; constructed to
IP66 (in dome up orientation). This hazardous location warning
light has a black polyurethane coated base and the inner fresnel
lens is available in six colors (including magenta). The clear poly-
carbonate outer dome can be quickly removed for easy access to
inspect the unit or change the lamp. The 225XST has an effective
candela of 240 and a 580,000 peak candela.
The 24VDC 225XST-I features a voltage in-rush limiting PCB
design that provides greater compatibility with factory automation
control systems and less electrical interference with in-rush
sensitive devices.
The 225XST is UL Listed and CSA Certified for Class I, Division 2,
Groups A, B, C and D; Class II, Division 2, Groups F and G; and
Class III.
Model 225XST is ideal for wet, corrosive atmospheres like those
found in food processing industries, or anywhere a visual signal
is needed.
Federal Signal’s affordable Electraray Strobe Warning Light is
specifically designed for use in hazardous locations or where
corrosive materials are present.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 5:14 AM Page 78
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

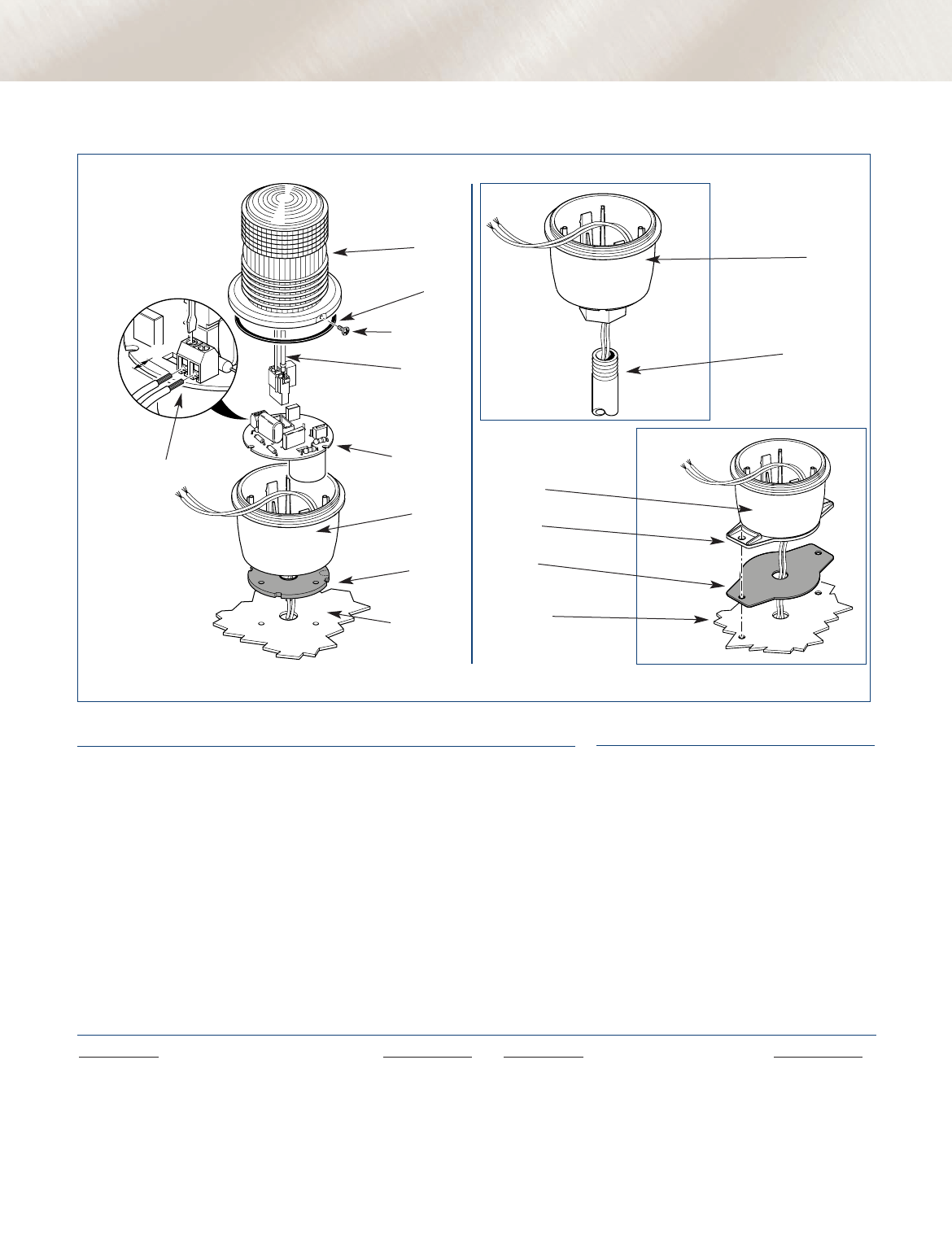

ELECTRARAY®HAZARDOUS LOCATION WARNING LIGHT (225XST/225XST-I)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
225XST/225XST-I beginning on
page 376
SPECIFICATIONS
Lamp Life*: 10,000 Hours 10,000 Hours
Lamp Style: Strobe Strobe
Operating Temperature: -40°F to 149°F -40°C to 65°C
Net Weight: 1.5 lbs. 0.68 kg
Shipping Weight: 2.0 lbs. 0.9 kg
Height: 7.5" 190.5 mm
Diameter: 5.5" 139.7 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Interior Lens Exterior Dome, Clear K8444D219C-04
Amber K8550C095A-02 PC Assembly, 024VDC K2001202C-01
Blue K8550C095A-01 PC Assembly, 120VAC K2001905A
Clear K8550C095A PC Assembly, 240VAC K2001905A-01
Green K8550C095A-04 Strobe Tube K8107177A
Magenta K8550C095A-07
Red K8550C095A-03
5.5"/139.7 mm
Outer Dome
7.5"/190.5 mm
Inner
Fresnel Lens
Retaining
Screw
Strobe Tube
1/2" Pipe Mount
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/31/08 1:59 AM Page 79
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
MEDIUM DUTY WARNING
LIGHT
•Available in 120VAC
•Six lens colors
•2,000 hour sealed beam lamp
•Integrated 1/2 - inch pipe mount
•Type 3R enclosure
•UL and cUL Listed and
CSA Certified
Pioneer™
Rotating Beacon Ray
Model 27S
Federal Signal’s Model 27S is a medium sized, highly effective
warning light designed for upright mounting and AC operation.
The 27S streamlined design features a sturdy housing finished in
gray enamel. The Pioneer™ is available in six lens colors (amber,
blue, clear, green, magenta and red), and is UL Listed and
CSA Certified.
The Model 27S is ready to mount on a 1/2-inch pipe. In addition,
optional mounting brackets simplify installation on walls or
in corners.
A high intensity 65-watt sealed beam lamp projects a fixed beam
downward onto a 360° rotating reflector set at a 45° angle,
producing the 60 flashes per minute in all directions.
Model 27S is a versatile warning or signaling light useful in a
variety of in-plant applications. It has been designed for permanent
installation where a 120VAC, 50/60Hz line voltage is available.
This light is particularly useful as a signaling or warning device in
high ambient noise areas where it can be used to supplement or
supplant audible signaling devices.
The 27S is effective for alerting of hazardous conditions or
identifying dangerous areas.
Federal Signal’s Pioneer Rotating Beacon Ray is a dependable
mid-range warning light which meets or exceeds the durability
and light output requirements of most manufacturing environments.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
27S 120VAC 50/60HZ 0.64 amps 60 6,000 1/2" Pipe
007_122_62362_FedSig.qxd 1/31/08 12:38 AM Page 38
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
PIONEER™ BEACON RAY (27S)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Corner Bracket (LCMB2)
Wall Bracket (LWMB2)
• Please refer to Model Number Index
27S beginning on page 373
SPECIFICATIONS
Lamp Life*: 2,000 Hours 2,000 Hours
Lamp Style: 65-watt Sealed Beam 65-watt Sealed Beam
Operating Temperature: 32°F to 120°F 0°C to 49°C
Net Weight: 3.1 lbs. 1.4 kg
Shipping Weight: 4.0 lbs. 1.8 kg
Height: 14.13" 358.9 mm
Diameter: 6.25" 158.9 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8241B031K-16 Dome, Magenta K8241B031K-15
Dome, Blue K8241B031K-14 Dome, Red K8241B031K-12
Dome, Clear K8241B031K-13 Sealed Beam Lamp, 120V K8241A014B
Dome, Green K8241B031K-11 Motor, 120VAC K8241A030-03
14.13"/
358.9 mm
6.25"/
158.8 mm
Suspension
Clip
Aluminum
Housing
Sealed
Beam Lamp
Polished Aluminum
45° Angle Reflector
Lens
Motor
1/2" Pipe Mount
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 12:16 AM Page 39
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DESIGNED FOR USE IN
EXPLOSION-PROOF
ATMOSPHERES
•XLTTM Technology
•Available in 24VDC, 120VAC
and 240VAC
•Available in flashing or
steady-burn mode
•Four lens colors
•60,000 hour LED
•3/4- inch pendant mount standard;
other options available
•Dome guard optional
•UL and cUL Listed
•Type 4X, IP66 enclosure
•Marine Listed
Explosion-Proof
LED Warning Light
with XLT™
Model 27XL
Federal Signal’s Model 27XL explosion-proof LED light with XLTTM
produces 60 high-intensity flashes per minute. This warning light
operates on 24VDC, 120VAC, and 240VAC 50/60Hz and is UL
Listed for Class I, Division 1, Groups C & D; Class II, Division 1,
Groups E, F & G; Class I, Division 2, Groups A, B; and Class III.
The 27XL is also Marine Rated.
eXtreme Light Technology (XLT) is a break through high-intensity
LED array designed to meet the demands of industrial customers,
producing maximum light output and superior lens fill.
Configurable to either steady burning state or flashing mode XLT
provides improved performance over standard LED’s and
increased versatility while maintaining low power consumption
and vibration resistances expected from LED signals.
The 27XL features a standard low in-rush circuitry design that
provides greater compatibility with factory automation control
systems and less electrical interference with in-rush sensitive devices.
The 27XL is Type 4X rated; constructed to IP66. Corrosion
resistance is achieved with a powder epoxy finish applied over
the copper-free aluminum housing. All exposed hardware is 316
grade stainless steel.
Federal Signal’s Model 27XL has an effective candela (ECP) of up
to 134. A pendant mount is supplied and a ceiling mount and 90°
wall mount are available options. For easy installation, the mounting
box is first installed and the fixture is then threaded onto the
mounting box, making the electrical connection. Electrical continuity
is made when five threads are engaged.
Federal Signal’s Model 27XL is specifically designed for explosion-
proof atmospheres and/or corrosive environments. Because it is
easy to install and requires very low maintenance, it is ideal for
use in areas such as oil rigs, mines, refineries, and chemical plants.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount
27XL 24VDC 380mA 60 211 134 3/4" Pendant
27XL 120VAC 210mA 60 211 134 3/4" Pendant
27XL 240VAC 130mA 60 211 134 3/4" Pendant
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse through amber lens
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily through amber lens
007_122_62362_FedSig.qxd 1/27/08 12:42 AM Page 60
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
EXPLOSION-PROOF LED LIGHT (27XL)
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Dome Guard (DGXC)
Ceiling Mount (CMXC)
Wall Mount (WMXC)
• Please refer to Model Number
Index 27XL beginning
on page 374
SPECIFICATIONS
Lamp Life*: 60,000 hours 60,000 hours
Lamp Style: LED LED
Ambient Temp. Range: -55˚C to 70˚C Canada
-25˚ to 65˚C USA
Net Weight: 14.1 lbs. 6.45 kg
Shipping Weight: 18.4 lbs. 8.35 kg
Height: 15.63" 397.0 mm
Diameter: 8.82" 224.0 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Exterior Dome Assembly, Clear K8444C271A-01 PC board assembly, 24VDC K2005455A
Interior Lens Assembly, Amber K8550C095A-02 PC board assembly, 120/240VAC K2005416A
Interior Lens Assembly, Blue K8550C095A-01 LED array, Amber K147169A
Interior Lens Assembly, Green K8550C095A-04 LED array, Blue K147169A-01
Interior Lens Assembly, Red K8550C095A-03 LED array, Green K147169A-02
LED array, Red K147169A-03
* Optimal hours under ideal conditions.
3/4” Pendant
Electrical
Connection Block
Cast Aluminum
Corrosion Resistant
Explosion-Proof Housing
High Intensity
LED Array
Glass Dome
Fresnel Lens
4.5"/
114.3 mm
4"/101.6 mm
15.63"/397 mm
8.82"/224 mm
6.36"/162 mm
007_122_62362_FedSig.qxd 1/27/08 12:43 AM Page 61
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
DESIGNED FOR USE IN
EXPLOSION-PROOF
ATMOSPHERES
•Available in 24VDC, 120VAC
and 240VAC
•Six lens colors
•10,000 hour strobe tube
•3/4- inch pendant mount standard;
other options available
•Dome guard optional
•Type 4X, IP66 enclosure
•Marine Rated
•UL and cUL Listed, CSA Certified
and CSFM Approved
Explosion-Proof
Strobe Light
Model 27XST
Federal Signal’s Model 27XST explosion-proof strobe light
produces 80 high-intensity flashes per minute. This warning light
operates on 24VDC, 120VAC, and 240VAC 50/60Hz.
The 27XST is UL Listed for Class I, Division 1, Groups C & D;
Class II, Division 1, Groups E, F & G; Class I, Division 2, Groups
A, B; and Class III. The 27XST is CSA Certified and Marine Rated.
The 24VDC 27XST features a voltage in-rush limiting PCB design
that provides greater compatibility with factory automation control
systems and less electrical interference with in-rush sensitive devices.
The 27XST is Type 4X rated; constructed to IP66. Corrosion
resistance is achieved with a powder epoxy finish applied over
the copper-free aluminum housing. All exposed hardware is 316
grade stainless steel.
Federal Signal’s Model 27XST has an effective candela (ECP) of
850 and a two million peak candela. A pendant mount is supplied
and a ceiling mount and 90° wall mount are available options. For
easy installation, the mounting box is first installed and the fixture
is then threaded onto the mounting box, making the electrical
connection. Electrical continuity is made when five threads are
engaged.
Federal Signal’s Model 27XST is specifically designed for explosion-
proof atmospheres and/or corrosive environments. Because it is
easy to install and requires very low maintenance, it is ideal for
use in areas such as oil rigs, mines, refineries, and chemical plants.
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount
27XST 24VDC 1.90 amps 80 2,000,000 850 3/4" Pendant
(3.0 amp In-rush)
27XST 120VAC 50/60Hz 0.60 amps 80 2,000,000 850 3⁄4” Pendant
27XST 240VAC 50/60Hz 0.30 amps 80 2,000,000 850 3⁄4” Pendant
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
007_122_62362_FedSig.qxd 1/31/08 2:25 AM Page 90
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
EXPLOSION-PROOF STROBE LIGHT (27XST)
HOW TO ORDER
• Specify model, voltage and color
(Magenta upon request)
• Specify options:
Dome Guard (DGXC)
Ceiling Mount (CMXC)
Wall Mount (WMXC)
• Please refer to Model Number Index
27XST beginning on page 377
SPECIFICATIONS
Lamp Life*: 10,000 hours 10,000 hours
Lamp Style: Strobe Strobe
Ambient Temp. Range: -50˚C to 65˚C Canada
-25˚C to 65˚C USA
Net Weight: 14 lbs. 6.4 kg
Shipping Weight: 18.1 lbs. 8.2 kg
Height: 15.63" 397.0 mm
Diameter: 8.82" 224.0 mm
3/4” Pendant
Electrical
Connection Block
Cast Aluminum
Corrosion Resistant
Explosion-Proof Housing
High Intensity
Strobe Tube
Glass Dome
Fresnel Lens
4.5"/
114.3 mm
4"/101.6 mm
15.63"/397 mm
8.82"/224 mm
6.36"/162 mm
* Optimal hours under ideal conditions.
REPLACEMENT PARTS
Description Part Number Description Part Number
Exterior Dome Assembly, Clear K8444C271A-01 24VDC Mechanism K8436107F-03
Interior Lens Assembly, Amber K8550C095A-02 120VAC Mechanism K8436107E-02
Interior Lens Assembly, Blue K8550C095A-01 240VAC Mechanism K8436107E-01
Interior Lens Assembly, Clear K8550C095A Strobe Tube, Series C1, C2 K8107159A
Interior Lens Assembly, Green K8550C095A-04 Strobe Tube, Series C1, C2 K8107159A
Interior Lens Assembly, Red K8550C095A-03 Pendant Mount K8444A272A
Interior Lens Assembly, Magenta K8550C095A-07
007_122_62362_FedSig.qxd 1/31/08 2:30 AM Page 91
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
HEAVY DUTY WARNING
LIGHTS
•Available in 120VAC
•Five dome colors
•Pivoting lamp yoke
•Surface mount and integrated
1-inch pipe mount
•Type 4X, IP66 enclosure
•UL and cUL Listed and
CSA Certified

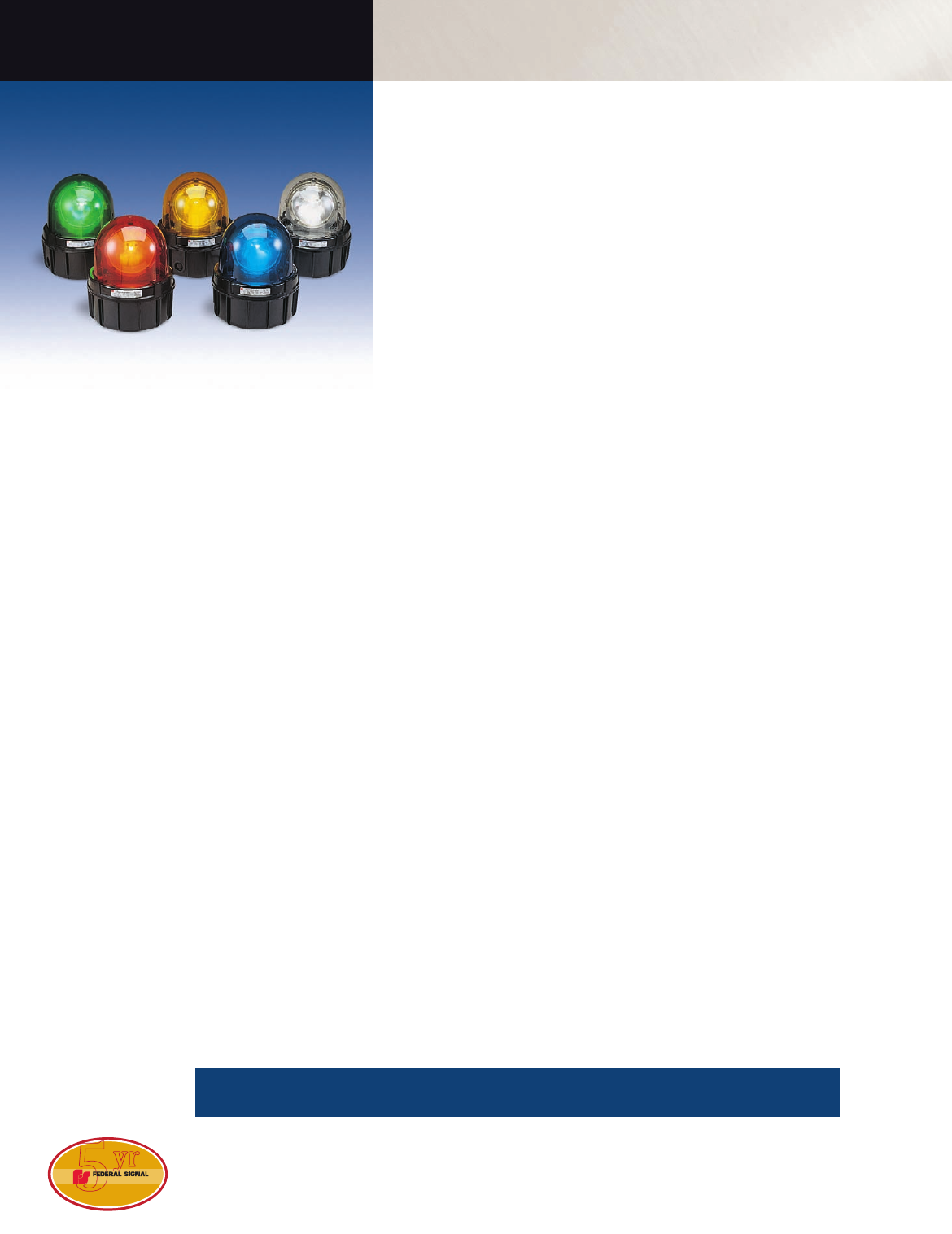

Commander®
Rotating Warning
Lights
Models 371 and 371L
Federal Signal Models 371/371L incandescent warning lights have
a powerful sealed beam lamp that rotates 360° within a glass or
polycarbonate dome. Power is delivered to the Commander’s
rotating lamp by a unique collector ring. The lamp itself is mounted
in a pivoting yoke. This allows the lamp beam angle to be adjusted
through 90 degrees from horizontal to vertical. Changing the
beam angle allows the user to create unique light patterns and/or
direct the light for better visibility.
The Model 371 features a 200-watt sealed beam lamp and a high-
temperature resistant glass dome. The glass dome of the 371 is
ideal for applications such as steel mills or arc furnaces/smelters
where high ambient temperatures or red hot materials would melt
or damage the dome.
The Model 371L features a 100-watt sealed beam lamp and an
impact-resistant polycarbonate dome. The thinner polycarbonate
dome allows more light to pass through while protecting the lamp.
Both models of the Commander®are available in five colors
(amber, blue, clear, green and red). The dome and ring assembly
simply screws on, providing access to the interior of the light.
The new 371/371L base features electrostatically applied (e-coated)
black epoxy paint for greater corrosion-resistance. Wiring can be
routed through the pipe-mount opening in the bottom of the light
or the two side knockouts can be used for side entry wiring.
Installation can be surface- or 1-inch pipe-mount. Optional wall
and corner mount brackets are available.
The 371 and 371L are Type 4X, IP66 rated, UL and cUL Listed and
CSA Certified.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
371 120VAC 50/60HZ 1.75 amps 60 36,000 1" Pipe/Surface
371L 120VAC 50/60HZ 0.80 amps 60 20,000 1" Pipe/Surface
007_122_62362_FedSig.qxd 1/27/08 12:19 AM Page 40
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
COMMANDER®ROTATING LIGHTS (371/371L)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Corner Bracket (LCMB2)*
Wall Bracket (LWMB2)*
Solid Surface Mounting Bracket
(371BRCKT)*
Shock Mount Kit (K8459A076C)
3/4" Hub Kit (K8459138A)
1" Plug Kit (K8459130A)
• Please refer to Model Number Index
371/371L beginning on page 373
* Rated for NEMA 3R installations.
SPECIFICATIONS
Lamp Life*: 2,000 Hours 2,000 Hours
Lamp Style: 371 200W Sealed Beam 200W Sealed Beam
371L 100W Sealed Beam 100W Sealed Beam
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight:
371 13.25 lbs. 6.0 kg
371L 9.8 lbs. 4.4 kg
Shipping Weight:
371 14.25 lbs. 6.5 kg
371L 10.8 lbs. 4.9 kg
Height: 11.38" 288.9 mm
Diameter: 9.12" 231.8 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Series B Dome and Ring Assembly*
Amber Glass (371) K8459126A Lamp (371) K8442A039
Blue Glass (371) K8459126A-01 Lamp (371L) K8107A130
Red Glass (371) K8459126A-02 Motor Replacement Kit (371/371L) K8459A113B
Clear Glass (371) K8459126A-03 Worm Gear Assembly (371/371L) K8459A017
Green Glass (371) K8459126A-04 Brush and Spring (371/371L) K8442A028
Amber Polycarbonate (371L) K8459125A Gasket, Surface Mount K8459127A
Blue Polycarbonate (371L) K8459125A-01
Clear Polycarbonate (371L) K8459125A-02
Green Polycarbonate (371L) K8459125A-03
Red Polycarbonate (371L) K8459125A-04
Ceramic Lamp Connector
Polycarbonate
or Glass Dome
& Ring Assembly
Twists off of base
Pivotable Lamp Yoke
Cooling Fins
Quick Lamp Release
Sealed Beam Lamp
Die-Cast
NEMA 4X
Aluminum Housing
Side entry conduit
openings
1" Plug (optional)
Hubs (optional)
* Optimal hours under ideal conditions.
* Call factory for Series A part numbers
007_122_62362_FedSig.qxd 1/27/08 12:20 AM Page 41
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
DESIGNED FOR USE IN
HAZARDOUS LOCATIONS
•Available in 12-24VDC,
120VAC and 240VAC
•Five dome colors
•Surface mount and integrated
1-inch pipe mount
•Type 4X, IP66 enclosure
•UL and cUL Listed and
CSA Certified
Commander®Double
Strobe Hazardous
Location Warning
Light
Model 371DST
Federal Signal Model 371DST is a double-flash strobe housed in a
Type 4X enclosure. At 80 flashes per minute and 1,000 effective
candela, the Commander®is the largest strobe signal in the
Federal Signal product line.
The 371DST features an impact resistant polycarbonate dome
available in five colors (amber, blue, clear, green, and red). The
dome and ring assembly simply screws on, allowing for quick
access to the strobe tube and printed circuit board assembly.
The new base of the Commander features electrostatically applied,
black epoxy paint for greater corrosion resistance. Wiring can be
routed through the pipe mount opening in the bottom of the light
or the side knockouts can be used for side entry wiring.
Installation can be surface- or 1-inch pipe mount. Optional wall
and corner mount brackets are available for the 371DST. The
Commander is rated Type 4X, IP66 (watertight, dust tight,
corrosion resistant).
The 371DST is also rated for Hazardous Location, Class I Division
2, Groups A,B,C, and D, Class II Division 2, Groups F & G; and
Class III. The LWMB2 wall mount bracket and the LCMB2 corner
mount bracket can be used for all non-hazardous environments.
This strobe is also UL and cUL Listed and CSA Certified.
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount
371DST 12-24 VDC 3.00-1.90 amps 803750,000 1,000 1" Pipe
or Surface
371DST 120VAC 50/60Hz 0.60 amps 803750,000 1,000 1" Pipe
or Surface
371DST 240VAC 50/60Hz 0.30 amps 803750,000 1,000 1" Pipe
or Surface
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
3 Double flash
FEDERAL SIGNAL CORPORATION
007_122_62362_FedSig.qxd 1/31/08 2:12 AM Page 84
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
COMMANDER®STROBE LIGHT (371DST)
REPLACEMENT PARTS
Description Part Number Description Part Number
Series B Dome and Ring Assembly*
Amber Polycarbonate K8459125A PCB Assembly 12-24VDC K2001265D-01
Blue Polycarbonate K8459125A-01 PCB Assembly 120VAC K200865G-02
Clear Polycarbonate K8459125A-02 PCB Assembly 240VAC K200865G-03
Green Polycarbonate K8459125A-03 Gasket, Surface Mount K8459127A
Red Polycarbonate K8459125A-04 Strobe Tube K8107178A
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Corner Bracket (LCMB2)*
Solid Surface Mounting
Bracket (371BRCKT)
Shock Mount Kit (K8459A076C)
Wall Bracket (LWMB2)*
3/4" Hub Kit (K8459138A)
1" Plug Kit (K8459130A)
• Please refer to Model Number Index
371DST beginning on page 376
SPECIFICATIONS
Lamp Life*: 10,000 Hours 10,000 Hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 104°F -35°C to 40°C
Net Weight: 6.23 lbs. 2.83 kg
Ship. Weight: 8.3 lbs. 3.76 kg
Height: 11.38" 288.9 mm
Diameter: 9.13" 231.8 mm
Polycarbonate
Dome & Ring
Assembly Twists
off of base
Cooling Fins
Strobe Tube
Neoprene Gaskets
Die-Cast
NEMA 4X
Aluminum Housing
Side entry conduit
openings
* Optimal hours under ideal conditions.
* Not rated for Div. 2 applications; Type 3R.
* Call the factory for Series A part numbers.
007_122_62362_FedSig.qxd 1/27/08 5:23 AM Page 85
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
HEAVY DUTY STROBE LIGHT
•Available in 250VDC
•Five dome colors
•Surface mount and integrated
1-inch pipe mount
•Type 4X, IP66 enclosure
Commander®
Strobe Warning Light
Model 371ST
Federal Signal Model 371ST is a single-flash strobe housed in a
Type 4X enclosure. At 60 flashes per minute and 275 effective
candela, the Commander®is the largest strobe signal in the
Federal Signal product line.
The 371ST features a heat resistant glass dome available in five
colors (amber, blue, clear, green, and red). The dome and ring
assembly simply screws on, allowing for easy access to the
strobe tube and printed circuit board assembly.
The new base of the Commander features electrostatically applied,
black epoxy paint for greater corrosion resistance. Wiring can be
routed through the pipe mount opening in the bottom of the light
or the side knockouts can be used for side entry wiring.
Installation can be surface- or 1-inch pipe mount. Optional wall
and corner mount brackets are available for the 371ST. The
Commander is rated Type 4X, IP66 (watertight, dust tight,
corrosion resistant).
The LWMB2 wall mount bracket and the LCMB2 corner mount
bracket can be used to mount this strobe light.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount
371ST 250VDC 0.25 amps 60 625,000 275 1" Pipe
or Surface
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
007_122_62362_FedSig.qxd 1/31/08 2:21 AM Page 86
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
COMMANDER®STROBE LIGHT (371ST)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
Glass
Dome & Ring
Assembly Twists
off of base
Cooling Fins
Strobe Tube
Neoprene Gaskets
Die-Cast
NEMA 4X
Aluminum Housing
Side entry conduit
openings
Hubs (user supplied)
REPLACEMENT PARTS
Description Part Number Description Part Number
Series B Dome and Ring Assembly*
Amber Glass K8459126A Clear, Inner Polycarbonate Dome K8422B428A
Blue Glass K8459126A-01 PC Assembly 250VDC K2001070B
Clear Glass K8459126A-03 Gasket, Surface Mount K8459127A
Green Glass K8459126A-04 Strobe Tube K149122B
Red Glass K8459126A-02
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Corner Bracket (LCMB2)*
Solid Surface Mounting
Bracket (371BRCKT)
Shock Mount Kit (K8459A076C)
Wall Bracket (LWMB2)*
3/4" Hub Kit (K8459138A)
1" Plug Kit (K8459130A)
• Please refer to Model Number Index
371ST beginning on page 376
SPECIFICATIONS
Lamp Life*: 10,000 Hours 10,000 Hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 10.0 lbs. 4.54 kg
Shipping Weight: 12.4 lbs. 5.62 kg
Height: 11.38" 288.9 mm
Diameter: 9.13" 231.8 mm
* Optimal hours under ideal conditions.
* Type 3R applications.
* Call the factory for Series A part numbers.
007_122_62362_FedSig.qxd 1/27/08 5:25 AM Page 87
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
AUDIBLE AND VISUAL
WARNING IN A SINGLE
VERSATILE UNIT
•Available in 120VAC
•Five dome colors
•Wall mount
•Sounder/Horn (Model 350)
sold separately
•Indoor use only
•Type 3R enclosure
•UL and cUL Listed
Rotating Combination
Audible/Visual
Warning Signal
Model 400R
Federal Signal’s Model 400R audible/visual signal combines
the effective warning of a rotating light with an optional Federal
Signal Model 350 horn.
The Model 400R includes a large 4.25-inch diameter rotating
reflector assembly for projecting light beams. The unit features an
incandescent lamp that produces 60 flashes per minute.
Available in five dome colors: amber, blue, clear, green and red.
The Model 400R is ideal for use wherever both audible and visual
warning signals are needed. This rugged unit is excellent for
industrial use and adaptable to most in-plant signaling needs.
A modern housing design makes the Model 400R suitable for use
in institutional or non-industrial settings requiring an audible/
visual alarm system, where heavy-duty industrial equipment might
not be appropriate. Sounder/Horn (Model 350) sold separately.
FEDERAL SIGNAL CORPORATION
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
400R 120VAC 50/60Hz 0.33 amps 60 85 Wall/Surface
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 5:39 AM Page 98
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
ROTATING AUDIBLE/VISUAL WARNING SIGNAL (400R)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Audible signaling with horn (350)
and mounting kit (400HMK-AC)
sold separately
• Please refer to Model Number Index
400R beginning on page 377
SPECIFICATIONS
Lamp Style: Incandescent Incandescent
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 4.5 lbs. 2.0 kg
Shipping Weight: 5.1 lbs. 2.3 kg
Height: 10.5" 266.7 mm
Diameter: 6.31" 160.3 mm
Dome
Ceramic
Socket
Lamp
Synchronous
Motor
Aluminum
Housing
Neoprene
Gasket
Chrome-Plated
Frame
Parabolic
Reflector
6.31"/160.3 mm
10.5"/266.7 mm
REPLACEMENT PARTS
Description Part Number
Exterior Dome, Amber K8547C001A-04
Exterior Dome, Blue K8547C001A-02
Exterior Dome, Clear K8547C001A-05
Exterior Dome, Green K8547C001A-03
Exterior Dome, Red K8547C001A-01
Lamp, 120VAC K8107181A
007_122_62362_FedSig.qxd 1/31/08 2:52 AM Page 99
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount
400ST 120VAC 50/60Hz 0.6 amps 75 900,000 400 Wall/Surface
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
AUDIBLE AND VISUAL
WARNING IN A SINGLE
VERSATILE UNIT
•Available in 120VAC
•Five dome colors
•10,000 hour strobe tube
•Wall mount
•Sounder/Horn (Model 350)
sold separately
•Indoor use only
•Type 3R enclosure
(In dome up orientation)
•UL and cUL Listed
Strobe Combination
Audible/Visual
Warning Signal
Model 400ST
Federal Signal’s Model 400ST audible/visual signal combines
the effective warning of a strobe light with an optional Federal
Signal Model 350 horn.
The Model 400ST includes a fresnel lens, providing 360-degree
flash coverage. Its strobe tube produces bright, high-intensity
flashes at 400 effective candela at 75 flashes per minute.
Available in five dome colors: amber, blue, clear, green and red.
The Model 400ST is ideal for use wherever both audible and
visual warning signals are needed. This rugged unit is excellent
for industrial use and adaptable to most in-plant signaling needs.
A modern housing design makes the Model 400ST suitable for
use in institutional or non-industrial settings requiring an audible/
visual alarm system, where heavy-duty industrial equipment might
not be appropriate. Sounder/Horn (Model 350) sold separately.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 7:07 AM Page 100
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
STROBE AUDIBLE/VISUAL WARNING SIGNAL (400ST)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Audible signaling with horn (350)
and mounting kit (400HMK-AC)
sold separately
• Please refer to Model Number Index
400ST beginning on page 377
SPECIFICATIONS
Lamp Life*: 10,000 hours 10,000 hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 4.5 lbs. 2.0 kg
Shipping Weight: 5.1 lbs. 2.3 kg
Height: 10.5" 266.7 mm
Diameter: 6.31" 160.3 mm
* Optimal hours under ideal conditions.
REPLACEMENT PARTS
Description Part Number
Exterior Dome, Amber K8547C001A-04
Exterior Dome, Blue K8547C001A-02
Exterior Dome, Clear K8547C001A-05
Exterior Dome, Green K8547C001A-03
Exterior Dome, Red K8547C001A-01
Interior Fresnel Lens, Clear K8248C004E-04
Strobe Tube K8107178A
PC Assembly, 120VAC K200D825E
Dome
Strobe Tube
Solid State
Circuitry
Aluminum
Housing
Neoprene
Gasket
6.31"/160.3 mm
10.5"/266.7 mm
Clear Glass
Fresnel Lens
007_122_62362_FedSig.qxd 1/27/08 7:07 AM Page 101
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
FAA APPROVED LIGHTING
•Available in 120VAC
•Dual lamps
•116 watt lamps
•8,000 hour lamp life
•1-inch pipe mount
•Optional photoelectric cell
•Optional transfer relay
•FAA L-810 Certified, ETL tested

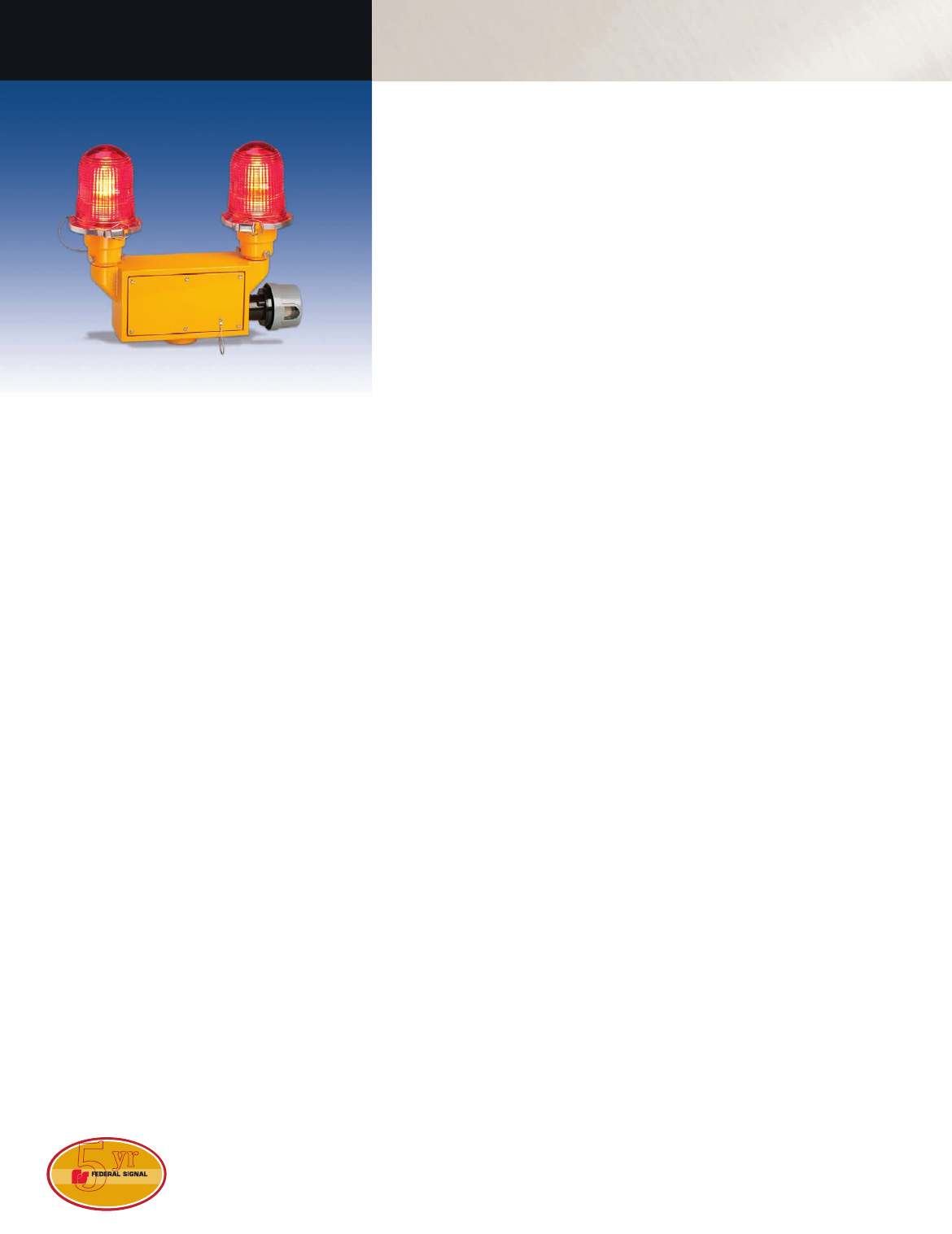

Red Aviation
Obstruction Light
Model 810DE
Federal Signal Obstruction Lights are designed to mark tall structures
that present hazards to air navigation. When installed in accordance
with FAA AC 70/7460-1, these lights increase the conspicuity of
obstructions for pilots flying at night.
Federal Signal Model 810DE is a steady burning double obstruction
light (FAA Ref. L-810). The 810DE features a die-cast aluminum
housing with a wiring enclosure and mounts on 1" NPT pipe. The
corrosion resistant housing is sealed with aviation yellow powder-
coat paint and includes stainless steel hardware. For ease of
installation and maintenance the housing is equipped with captive
cover screws, stainless steel tethers secure the glass domes and
stainless steel bands provide tool-free access to the lamp.
An optional photoelectric controller provides automatic light
activation at dusk per FAA specifications. The optional transfer
relay powers the standby lamp if the operating lamp fails. All
Federal Signal Obstruction Lights are shipped factory-assembled
with lamps and options.
The 116-Watt lamps are rated for 8000 hours of continuous use.
The Photoelectric Cells are rated at over 5000 on/off operations
for years of reliability.
Typical applications include water towers, cellular phone towers,
antennas, smoke stacks, skyscrapers and airport perimeter
fencing. For the number and placement of lights, the required
duration of operation, and recommendations for specific types of
structures, refer to FAA Advisory Circular No. 70/7460-1K.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 7:19 AM Page 106
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
RED AVIATION OBSTRUCTION LIGHT (810DE)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
810DE beginning on page 377
SPECIFICATIONS
Lamp Life:* 8,000 hours 8,000 hours
Lamp Style: Incandescent Incandescent
Operating Temperature: -35°F to 150°F -37°C to 40°C
Net Weight: 14.0 lbs. 6.35 kg
Shipping Weight: 15.0 lbs. 6.8 kg
Height: 13.1" 33.27 cm
Width: 15.0" 38.1 cm
Depth: 3.5" 8.89 cm

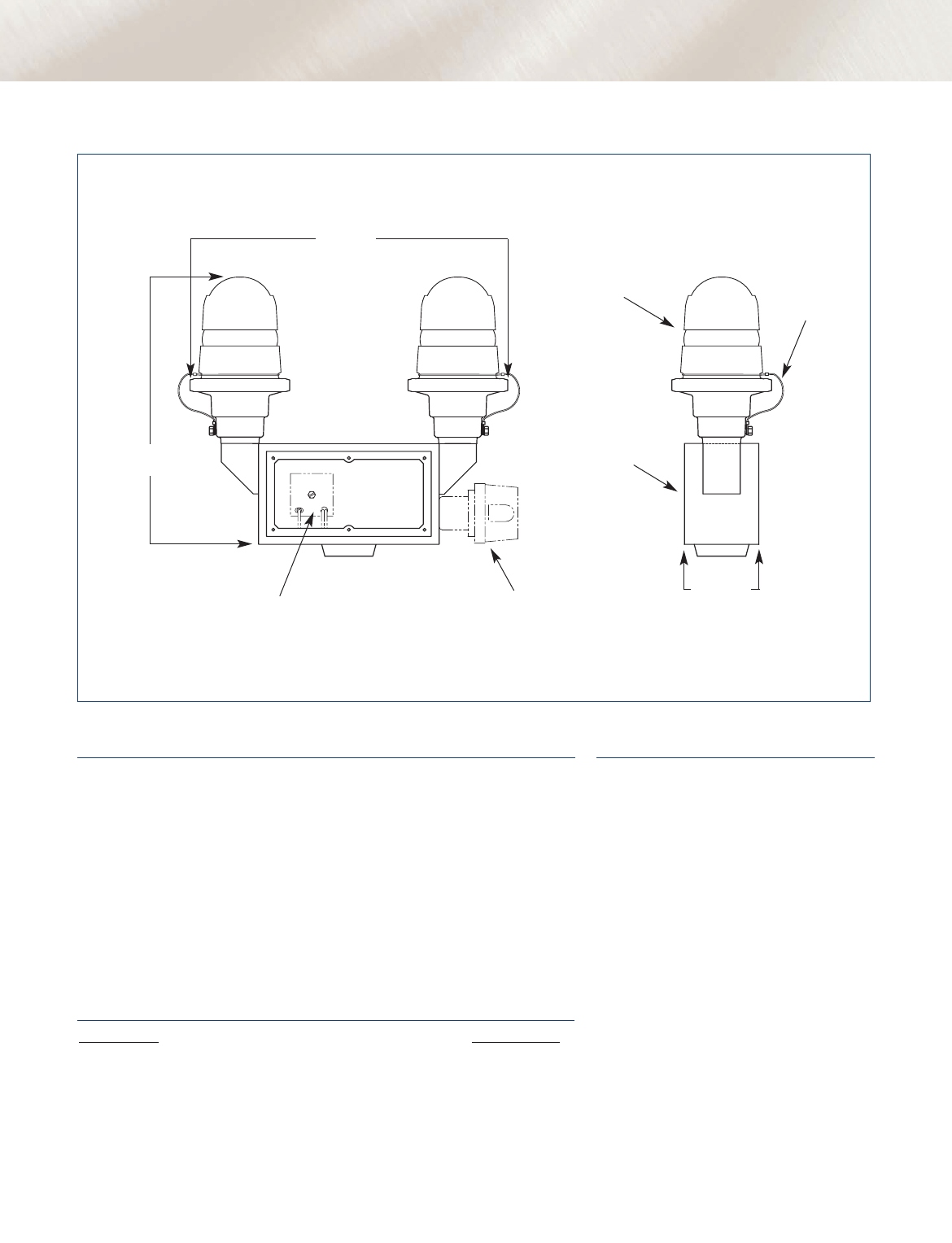

Junction Box
Optional
Transfer Relay
Glass Dome
Optional
Photoelectric
Controller
Stainless
Steel Tether
3.5"
8.89 cm
13.10"
33.27 cm
15"
38.1 cm
REPLACEMENT PARTS
Description Part Number
Lens, Red with Tether K8449121A
Lamp, 116W K8107234A
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 7:20 AM Page 107
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
FAA APPROVED LIGHTING
•Available in 120VAC
•Single lamp
•116 watt lamp
•8,000 hour lamp life
•1-inch pipe mount
•FAA L-810 Certified, ETL tested

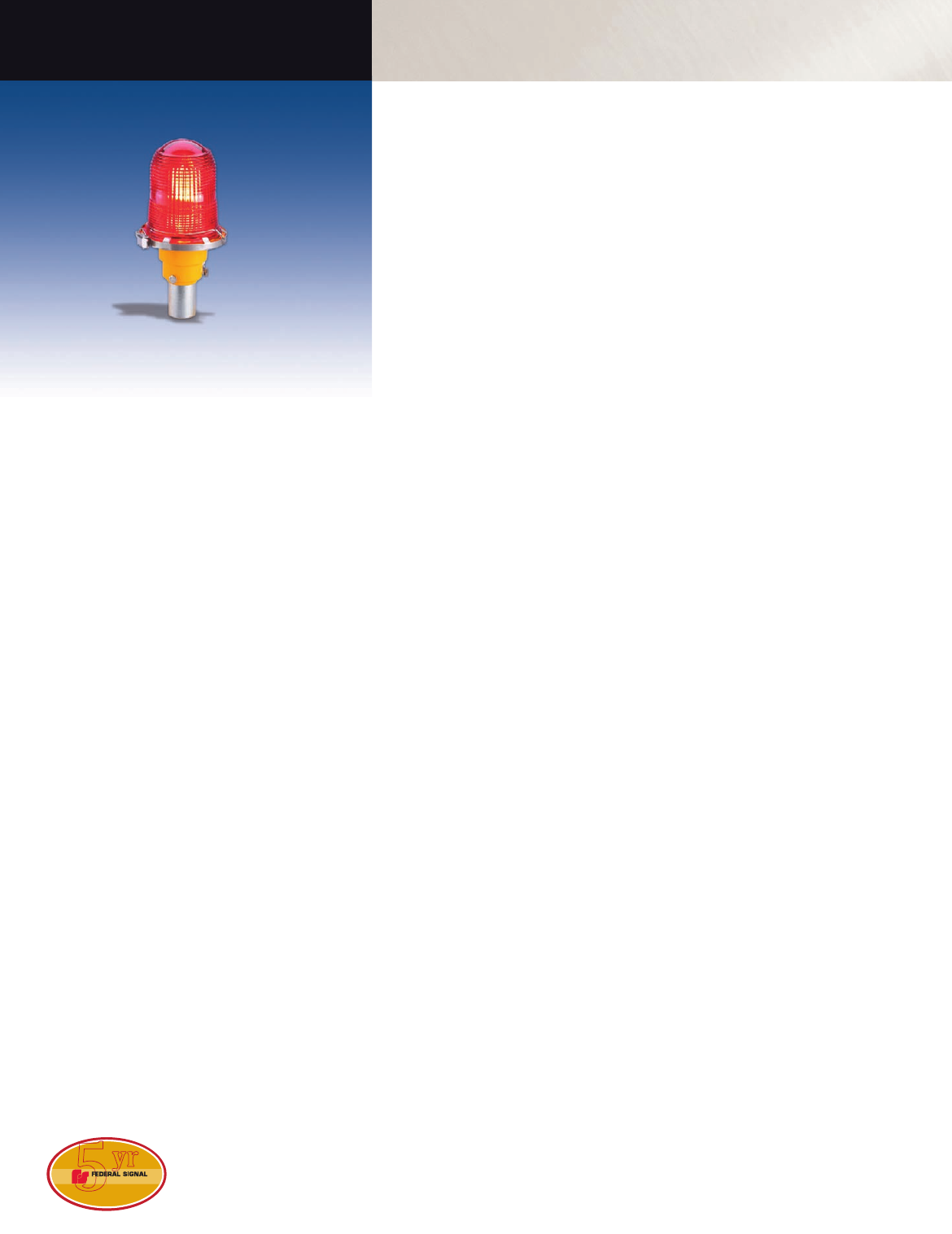

Red Aviation
Obstruction Light
Model 810S
Federal Signal Obstruction Lights are designed to mark tall structures
that present hazards to air navigation. When installed in accordance
with FAA AC 70/7460-1, these lights increase the conspicuity of
obstructions for pilots flying at night.
Federal Signal Model 810S is a steady burning obstruction light
(FAA Ref. L-810). The 810S mounts on 1" NPT pipe. For ease of
installation and maintenance the fixture is equipped with a stainless
steel tether securing the glass dome and a stainless steel band
providing tool-free access to the lamp.
The 116-Watt lamp is rated for 8000 hours of continuous use. All
Federal Signal Obstruction Lights are shipped factory-assembled
with lamps.
Typical applications include water towers, cellular phone towers,
antennas, smoke stacks, skyscrapers and airport perimeter fenc-
ing. For the number and placement of lights, the required duration
of operation, and recommendations for specific types of structures,
refer to FAA Advisory Circular No. 70/7460-1K.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 7:08 AM Page 102
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
RED AVIATION OBSTRUCTION LIGHT (810S)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model
• Please refer to Model Number Index
810S beginning on page 377
SPECIFICATIONS
Lamp Life:* 8,000 hours 8,000 hours
Lamp Style: Incandescent Incandescent
Operating Temperature: -35°F to 150°F -37°C to 40°C
Net Weight: 4.0 lbs. 1.81 kg
Shipping Weight: 5.0 lbs. 2.27 kg
Height: 9.5" 24.13 cm
Diameter: 4.5" 11.43 cm
9.5"
24.13 cm
4.5"
11.43 cm
Glass Dome
Stainless Steel
Tether
REPLACEMENT PARTS
Description Part Number
Lens, Red with Tether K8449121A
Lamp, 116W K8107234A
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 7:09 AM Page 103
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
FAA APPROVED LIGHTING
•Available in 120VAC
•Single lamp
•116 watt lamp
•8,000 hour lamp life
•1-inch pipe mount
•Optional photoelectric cell
•FAA L-810 Certified, ETL tested

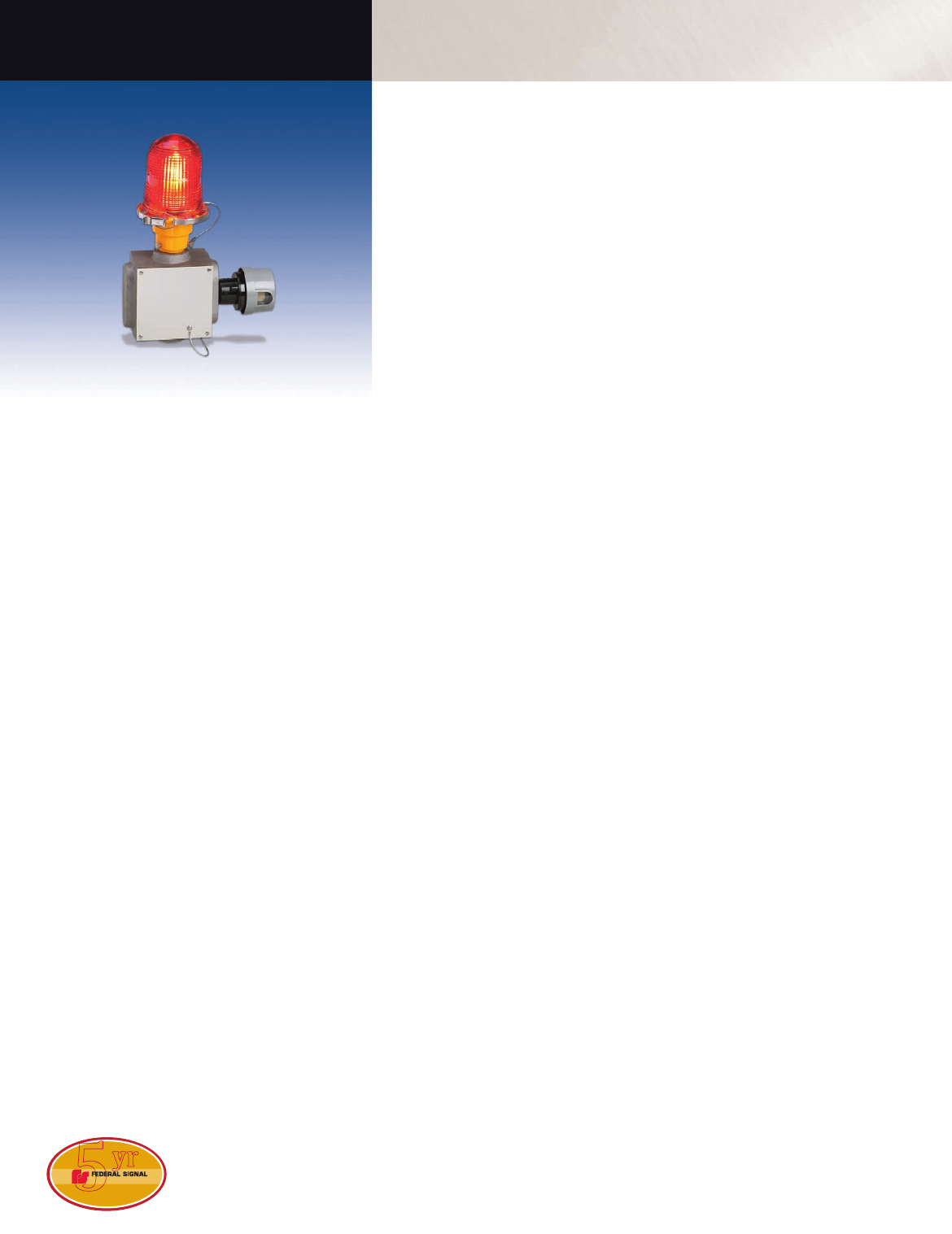

Red Aviation
Obstruction Light
Model 810SE
Federal Signal Obstruction Lights are designed to mark tall structures
that present hazards to air navigation. When installed in accordance
with FAA AC 70/7460-1,these lights increase the conspicuity of
obstructions for pilots flying at night.
Federal Signal Model 810SE is a steady burning obstruction light
(FAA Ref. L-810). The 810SE features a die-cast aluminum housing
with a wiring enclosure and mounts on 1" NPT pipe. For ease of
installation and maintenance the housing is equipped with captive
cover screws, a stainless steel tether secures the glass dome and
a stainless steel band provides tool-free access to the lamp.
An optional photoelectric controller provides automatic light
activation at dusk per FAA specifications. All Federal Signal
Obstruction Lights are shipped factory-assembled with lamps
and options.
The 116-Watt lamp is rated for 8000 hours of continuous use.
Photoelectric Cells are rated at over 5000 on/off operations for
years of reliability.
Typical applications include water towers, cellular phone towers,
antennas, smoke stacks, skyscrapers and airport perimeter fencing.
For the number and placement of lights, the required duration of
operation, and recommendations for specific types of structures,
refer to FAA Advisory Circular No. 70/7460-1K.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 7:10 AM Page 104
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
RED AVIATION OBSTRUCTION LIGHT (810SE)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
810SE beginning on page 377
SPECIFICATIONS
Lamp Life:* 8,000 hours 8,000 hours
Lamp Style: Incandescent Incandescent
Operating Temperature: -35°F to 150°F -37°C to 40°C
Net Weight: 10.0 lbs. 4.54 kg
Shipping Weight: 11.0 lbs. 4.99 kg
Height: 13.94" 35.41 cm
Width: 5.0" 12.7 cm
Depth: 3.5" 8.9 cm

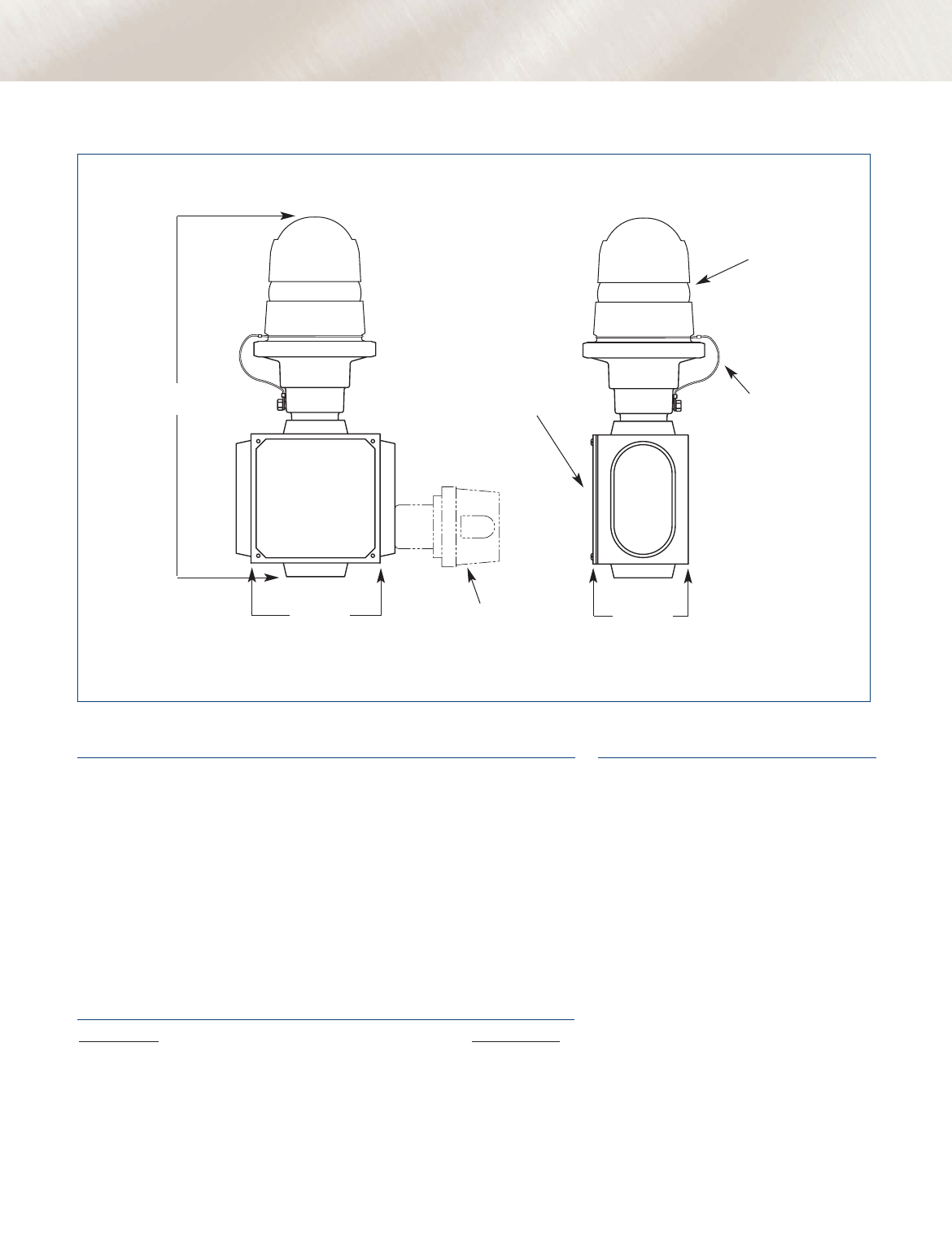

13.94"
35.41 cm
3.5"
8.9 cm
5"
12.7 cm
Optional
Photoelectric
Controller
Junction Box
Glass Dome
Stainless Steel
Tether
REPLACEMENT PARTS
Description Part Number
Lens, Red with Tether K8449121A
Lamp, 116W K8107234A
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 7:11 AM Page 105
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
ECONOMICAL
AUDIBLE/VISUAL SIGNAL
•Available in 24VDC and 120VAC
•Surface mount, integrated 1/2- inch
pipe mount, and 4-inch electrical
box mount
•Five dome colors
•Twist-off lens for easy access
•Internal buzzer produces
85dB at 10' (95dB @ 1m)
•Type 3R enclosure
•UL and cUL Listed and
CSA Certified
Flashing Combination
Audible/Visual Signal
Model AV1
Federal Signal introduces the Model AV1 combination
audible/visual signal. The AV1 features a 100% polycarbonate
housing that is rated for Type 3R rain-tight applications. Available
dome colors include amber, blue, clear, green and red.
The AV1 design provides three mounting configurations. The
black base will accommodate mounting to a 1/2-inch NPT pipe, a
4-inch octagonal electrical box or any flat surface. The surface
mount gasket serves as a template for preparing a flat surface
with appropriate mounting holes.
All AV1 units feature a unique twist and lock dome to allow for
tool-free access to the incandescent lamp. The fresnel lensing
provides superior visibility in all directions.
The integrated buzzer provides 85dB output at 10 feet (95dB @ 1
meter). The sounder is synchronized to buzz at the same rate as
the visual signal — 75 times per minute.
The AV1 comes in two voltage variations: 24VDC and 120VAC.
Each unit is factory assembled with two color-coded leads. If
desired, the user can remove the leads and connect directly to the
terminal block located in the base of the unit. The AV1 is UL and
cUL Listed and CSA Certified.
FEDERAL SIGNAL CORPORATION
Operating Flash Rate/ Decibels @
Model Voltage Current Minute 10' 1m Mount
AV1 24VDC 0.98 amps 75 85 95 Pipe/Surface
AV1 120VAC 0.27 amps 75 85 95 Pipe/Surface
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/31/08 2:50 AM Page 94
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
AUDIBLE/VISUAL SIGNALING DEVICE (AV1)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
AV1 beginning on page 377
SPECIFICATIONS
Lamp Life*: 1,000 hours 1,000 hours
Lamp Style: Incandescent Incandescent
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 1.25 lbs. 0.57 kg
Shipping Weight: 1.75 lbs. 0.8 kg
Height (from bottom): 6.48" 16.5 cm
Diameter: 5.76" 14.6 cm
Buzzer is located
under upper housing
Fresnel dome
optimizes light output
Lens gasket provides a
raintight seal
Incandescent lamp
features standard
bayonet base
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8550292A-02 Incandescent Lamp (24VDC) K8107210A
Dome, Blue K8550292A-01 Incandescent Lamp (120VAC) K149123A
Dome, Clear K8550292A Flasher, 24VDC K8285237A-01
Dome, Green K8550292A-04 Flasher, 120VAC K8285238A-01
Dome, Red K8550292A-03 Buzzer, 24VDC K8591002A-01
Lens Gasket K8550306A Buzzer, 120VAC K8591002A
Surface Mount Gasket K8591003A
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 5:35 AM Page 95
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
ECONOMICAL AUDIBLE/
VISUAL SIGNAL
•Available in 24VDC and 120VAC
•Surface mount, integrated 1/2- inch
pipe mount, and 4-inch electrical
box mount
•Five dome colors
•Twist-off lens for easy access
•Internal buzzer produces
85dB at 10' (95dB @ 1m)
•Type 3R enclosure
•UL and cUL Listed and
CSA Certified

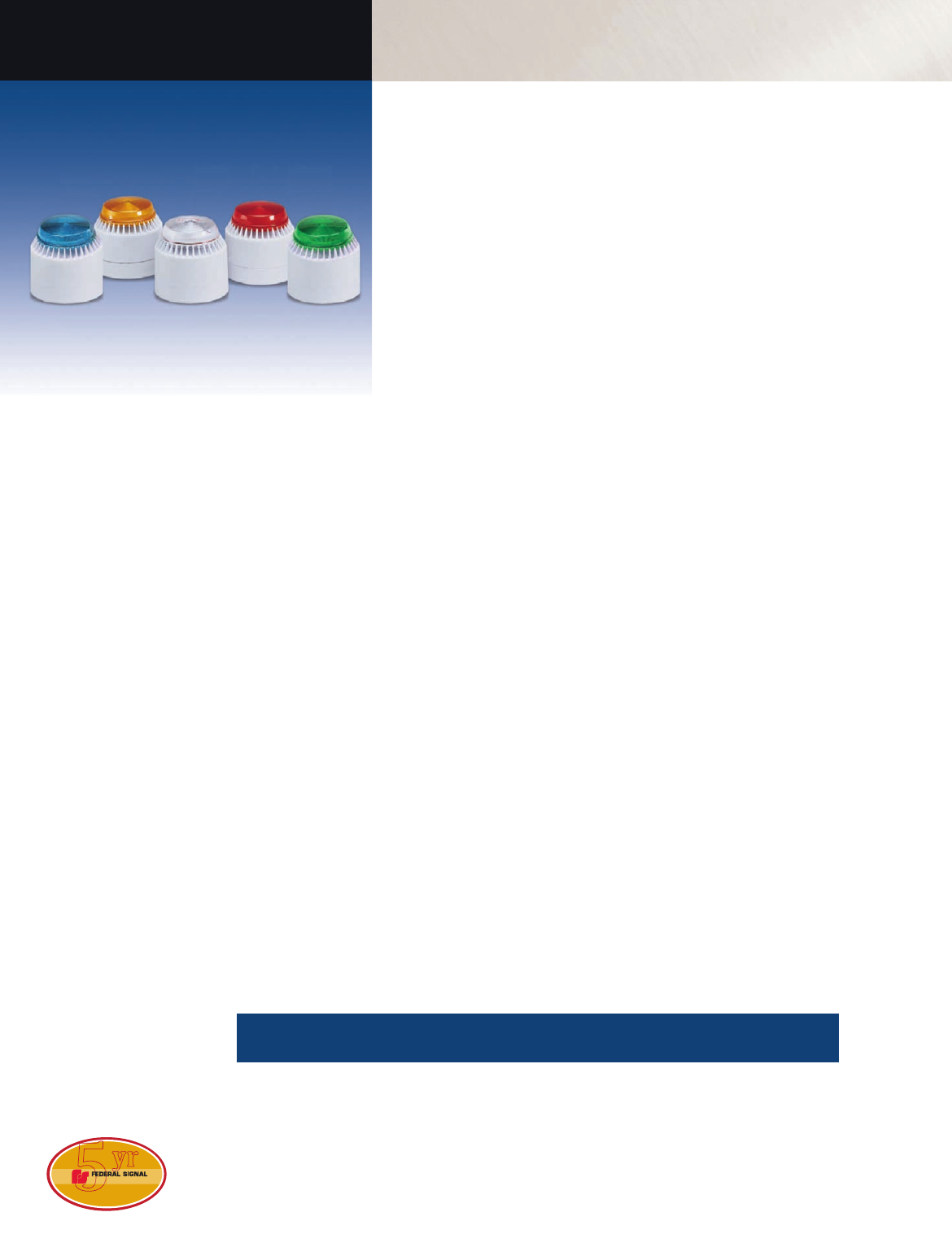

Strobe Combination
Audible/Visual Signal
Model AV1ST
Federal Signal introduces the Model AV1ST combination
audible/visual signal. The AV1ST features a 100% polycarbonate
housing that is rated for Type 3R rain-tight applications. Available
dome colors include amber, blue, clear, green and red.
The AV1ST design provides three mounting configurations. The
black base will accommodate mounting to a 1/2-inch NPT pipe, a
4-inch octagonal electrical box or any flat surface. The surface
mount gasket serves as a template for preparing a flat surface
with appropriate mounting holes.
All AV1ST units feature a unique twist and lock dome to allow for
tool free access to the strobe tube. The fresnel lensing provides
superior visibility in all directions.
The integrated buzzer provides 85dB output at 10 feet (95dB @ 1 meter).
The AV1ST comes in two voltage variations: 24VDC and 120VAC.
Each unit is factory assembled with two color-coded leads. If
desired, the user can remove the leads and connect directly to the
terminal block located in the base of the unit. The AV1ST is UL
and cUL Listed and CSA Certified.
Operating Flash Rate/ Joule Candela Decibels @
Model Voltage Current Minute Output Peak1ECP210' 1m Mount
AV1ST 24VDC 0.39 amps 65-95 2.2 175,000 51.5 85 95 Pipe/Surface
AV1ST 120VAC 0.15 amps 65-95 2.2 175,000 51.5 85 95 Pipe/Surface
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
FEDERAL SIGNAL CORPORATION
007_122_62362_FedSig.qxd 1/31/08 2:51 AM Page 96
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
AUDIBLE/VISUAL SIGNALING DEVICE (AV1ST)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
AV1ST beginning on page 377
SPECIFICATIONS
Lamp Life* 7000 Hours 7000 Hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 1.25 lbs. 0.57 kg
Shipping Weight: 1.75 lbs. 0.8 kg
Height (from bottom): 6.48" 16.5 cm
Diameter: 5.76" 14.6 cm
Buzzer is located
under upper housing
Fresnel dome
optimizes light output
Lens gasket provides a
raintight seal
Strobe Tube
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8550292A-02 PCB Assembly (120VAC) K2001887A
Dome, Blue K8550292A-01 PCB Assembly (24VDC) K2005083A
Dome, Clear K8550292A Lens Gasket K8550306A
Dome, Green K8550292A-04 Surface Mount Gasket K8591003A
Dome, Red K8550292A-03 Strobe Tube K149130A
Buzzer, 24VDC K8591002A-01
Buzzer, 120VAC K8591002A
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 5:38 AM Page 97
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y

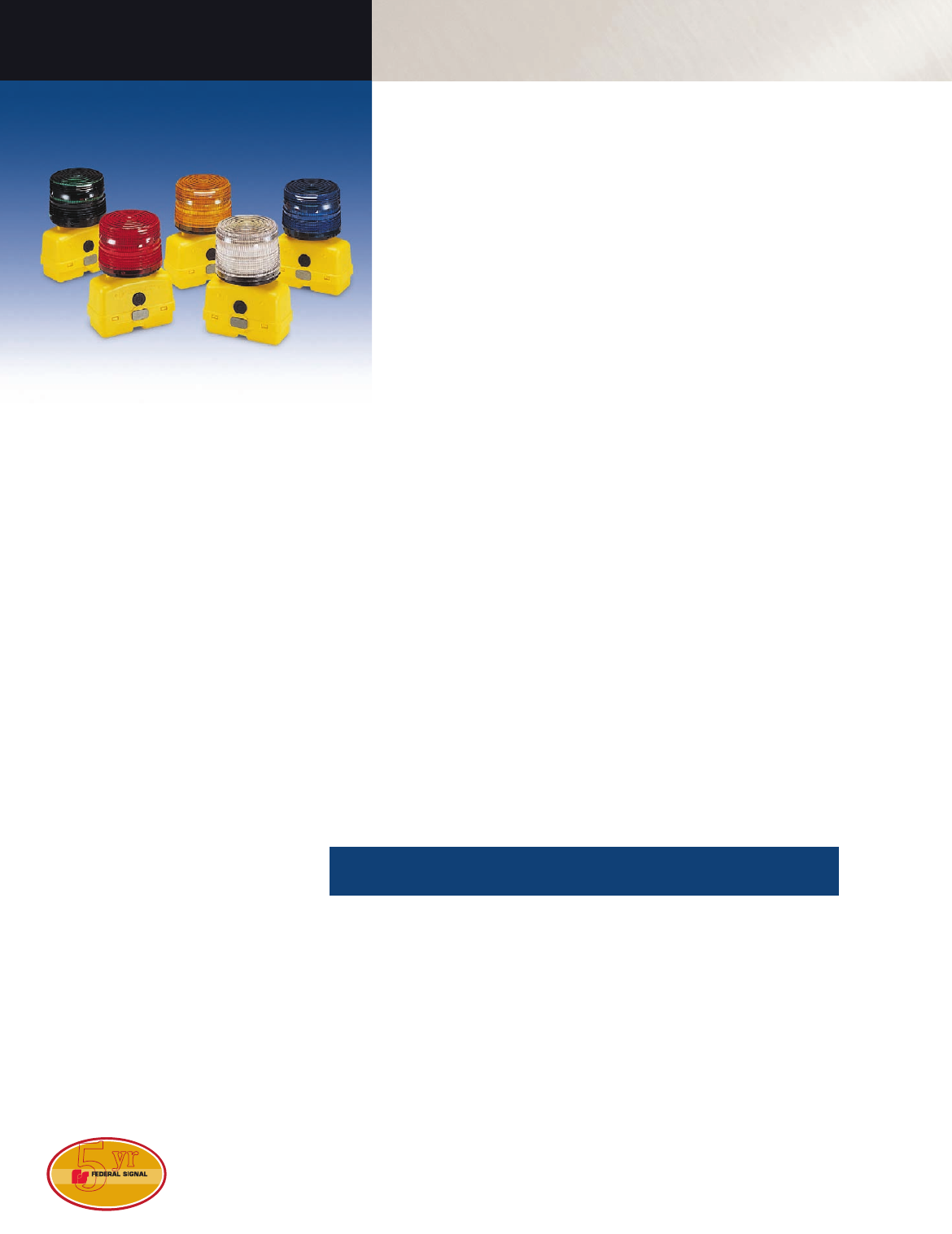

PORTABLE WARNING LIGHT
•12VDC — uses two standard
6VDC lantern batteries
•Five dome colors
•300-hour, 5W incandescent lamp
•Type 3R enclosure

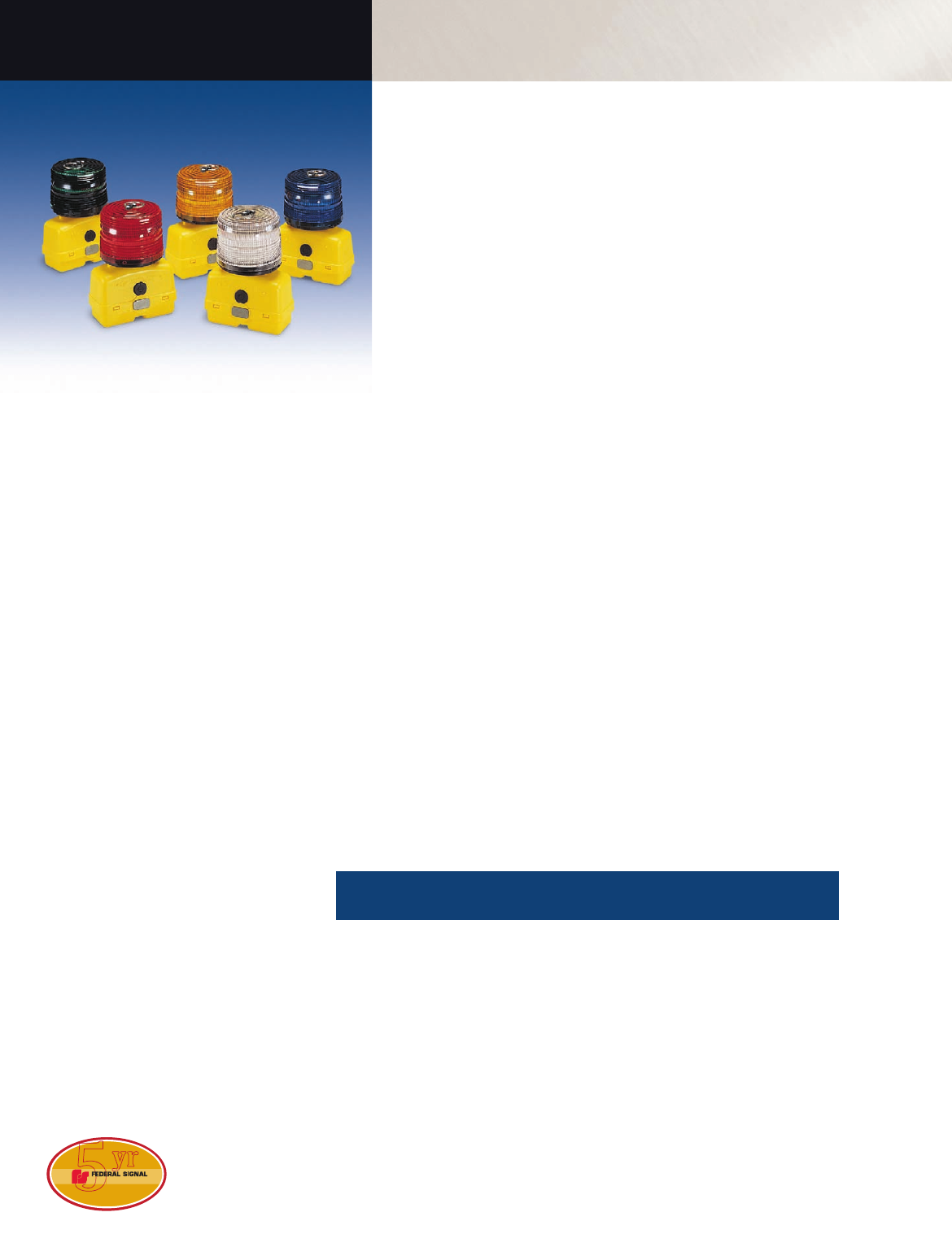

Battery Powered
Warning Light
Model BPL26
Federal Signal’s Model BPL26 is a portable, battery powered
warning light which flashes 65 times per minute. The solid state
flasher features components which are moisture-proof and
reverse polarity protected to ensure extended battery life and
trouble-free performance.
The BPL26 is available in five fresnel dome colors; amber, blue,
clear, green and red. For increased durability, the dome is made of
impact-resistant polycarbonate materials, and the base is constructed
from a high-density polyethylene. A flexible, rubber seal covers
the on/off switch to protect it from the elements.
A steel carrying handle on the top of the unit makes this warning
light completely portable. Power is supplied by two standard
6-volt DC, spring terminal lantern batteries (not included).
The Model BPL26 is ideal for job sites requiring temporary warning
lights or for any location where primary power is unavailable.
Operating Flash Rate/
Model Voltage Current Minute Mount
BPL26 12VDC 0.58 amps 65 Portable
FEDERAL SIGNAL CORPORATION
007_122_62362_FedSig.qxd 2/7/08 3:16 PM Page 54
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SPECIFICATIONS
Lamp Life*: 300 Hours 300 Hours
Lamp Style: Incandescent Incandescent
Operating Voltage: 12VDC 12VDC
Net Weight: 1.9 lbs. 0.86 kg
Shipping Weight: 3.0 lbs. 1.36 kg
Height: 11.12" 282.5 mm
Width: 7.22" 183.4 mm
Diameter of Dome: 5.5" 139.7 mm
HOW TO ORDER
• Specify model number and color
• Please refer to Model Number Index
BPL26 beginning on page 374
BATTERY POWERED LIGHT (BPL26)
REPLACEMENT PARTS
Description Part Number
Dome, Amber K8263A084A
Dome, Blue K8263A084A-01
Dome, Red K8263A084A-02
Dome, Clear K8263A084A-03
Dome, Green K8263A084A-04
12VDC, 5-watt Lamp K8107A151A
Incandescent
Lamp
On/Off Switch
Battery Case
Carrying Handle
7.22"/183.4 mm
5.5"/139.7 mm
11.12"/282.5 mm
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 12:36 AM Page 55
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
PORTABLE WARNING LIGHT
•12VDC — uses two standard 6VDC
lantern batteries
•4,000 Hour strobe tube
•Five dome colors
•Type 3R weatherproof enclosure
•Magnetic mount
Battery Powered
Strobe Warning Light
Model BPL26ST
Federal Signal’s Model BPL26ST is a portable, battery-powered
strobe warning light which flashes 65 times per minute. Components
are moisture-proof and reverse polarity protected to ensure
extended battery life and trouble-free performance.
The BPL26ST is available in five fresnel dome colors; amber, blue,
clear, green and red. For increased durability, the dome is made of
impact-resistant polycarbonate materials and the base is constructed
from a high-density polyethylene. A flexible rubber seal covers the
on/off switch to protect it from the elements.
Two Magnetic pads (not shown) are included for simple yet
secure, temporary mounting.
Power is supplied by two standard 6VDC, spring terminal lantern
batteries (not included).
The Model BPL26ST is ideal for job sites requiring temporary
warning lights or for any location where primary power is unavailable.
Operating Flash Rate/
Model Voltage Current Minute Mount
BPL26ST 12VDC 0.48 amps 60 Magnetic
007_122_62362_FedSig.qxd 1/31/08 1:35 AM Page 74
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
BATTERY POWERED LIGHT (BPL26ST)
HOW TO ORDER
• Specify model number and color
• Please refer to Model Number Index
BPL26ST beginning on page 375
REPLACEMENT PARTS
Description Part Number
Dome, Amber K8263079A
Dome, Blue K8263079A-01
Dome, Clear K8263079A-04
Dome, Red K8263079A-02
Dome, Green K8263079A-03
Strobe Tube K8107215A
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
SPECIFICATIONS
Lamp Life*: 4,000 Hours 4,000 Hours
Lamp Style: Strobe Strobe
Operating Voltage: 12VDC 12VDC
Net Weight: 2.3 lbs. 1.04 kg
Shipping Weight: 3.5 lbs. 1.59 kg
Height: 10.5" 266.7 mm
Width: 7.22" 183.4 mm
Diameter of Dome: 5.5" 139.7 mm
On/Off Switch
Battery Case
7.22"/183.4 mm
5.5"/139.7 mm
11.12"/282.5 mm
* Optimal hours under ideal conditions.
Magnetic
Mounting Pads
007_122_62362_FedSig.qxd 1/27/08 5:11 AM Page 75
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
LIGHT DUTY STROBE LIGHT
•Available in 12-24VDC, 120VAC
and 240VAC
•Six dome colors
•10,000 hour strobe tube
•Integrated 1/2- inch pipe and
surface mount
•Indoor use only
•Type 4X, IP66 enclosure
•UL and cUL Listed and
CSA Certified
Fireball®
Strobe Warning Light
Model FB2PST and FB2PST-I
Federal Signal’s brightest and most compact strobe light, the
Fireball®emits a powerful "lightning bolt" flash of light.
Approximately five inches tall and four inches in diameter and
rated at 300 effective candela, the Fireball is an economical
solution to a wide variety of stationary and vehicular warning
requirements. The Fireball is available in 12-24VDC, 24VDC,
120VAC and 240VAC. All models are UL Listed and CSA Certified.
The FB2PST is available in six colors – amber, blue, clear, green,
magenta, and red.
The 24VDC Model FB2PST-I features a voltage in-rush limiting
PCB design that provides greater compatibility with factory
automation control systems and less electrical interference with
in-rush sensitive devices.
The Fireball features a unique dome that twists off easily for quick
dome and lamp replacements. The newly redesigned base features
an integrated 1/2-inch pipe mount base as well as the three holes
required for surface mount configurations. Black epoxy paint is
electrostatically applied to the base for superior corrosion resistance.
The Fireball dome and base design provides a watertight, dust-
tight and corrosion resistant Type 4X rating.
The FB2PST is designed for stationary pipe and surface
mount applications.
The Fireball can be used in any application where a superior visual
signal is needed. It is especially effective in the warning of industrial
hazards, process control, status indication and in areas with high
ambient noise levels.
Federal Signal’s Fireball Strobe is a very low-maintenance warning
light for industrial applications where a vibration-resistant light is
required to signal an emergency or process status.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount
FB2PST 12-24VDC 1.70-0.70 amps 80 1,000,000 300 1/2" Pipe/Surface
FB2PST-I 24VDC 0.70 amps 80 1,000,000 300 1/2" Pipe/Surface
(2.0 amp In-rush)
FB2PST 120VAC 50/60Hz 0.25 amps 90 1,000,000 300 1/2" Pipe/Surface
FB2PST 240VAC 50/60Hz 0.20 amps 90 1,000,000 300 1/2" Pipe/Surface
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
007_122_62362_FedSig.qxd 2/7/08 3:25 PM Page 76
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Corner Bracket (LCMB2)*
Wall Bracket (LWMB2)*
• Please refer to Model Number Index
FB2PST beginning on page 375
SPECIFICATIONS
Lamp Life*: 10,000 Hours 10,000 Hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35˚C to 66˚C
Net Weight: 2.0 lbs. 0.9 kg
Shipping Weight: 2.12 lbs. 0.96 kg
Height: 5.25" 133.4 mm
Diameter: 4.10" 100.1 mm
FIREBALL®STROBE WARNING LIGHT (FB2PST)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8550320A PC Assembly, 12-24VDC K2001202C
Dome, Blue K8550320A-01 PC Assembly, 120VAC K200D866G
Dome, Clear K8550320A-02 PC Assembly, 240VAC K200D866G-01
Dome, Green K8550320A-03 Strobe Tube, Series A, A1, A2, A3 Call Factory
Dome, Red K8550320A-04 Strobe Tube, Series A4, A5, B K8107177A
Dome, Magenta K8550320A-05 120VAC Fuse K148A155A-01
Easy-Access
Twist-off Dome
1/2" Pipe Mount and
3-hole Surface Mount
Built-In Strobe
Power Supply
High-Powered
Strobe Tube
Impact-Resistant
Fresnel Dome
4.1"/100.1 mm
5.25"/133.4 mm
* Optimal hours under ideal conditions.
* Not Type 4X rated.
007_122_62362_FedSig.qxd 1/27/08 5:13 AM Page 77
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DESIGNED FOR USE IN
EXPLOSION-PROOF
ATMOSPHERES
•Available in 12-24VDC, 120VAC
and 230-240VAC
•Five lens colors
•10,000 hour strobe tube
•Ceiling mount standard; other
options available
•Marine Listed
•Type 4X, IP66 enclosure
•UL and cUL Listed
Fireball®2
Explosion-Proof
Strobe Warning Light
Model FB2PSTX and FB2PSTX-I
Federal Signal’s FB2PSTX explosion-proof strobe light is a compact
unit that produces a “lightning bolt” flash of light. Measuring
13.69" (348mm) high and 7.44" (189mm) in diameter, the FB2PSTX
is available in 12-24VDC, 24VDC, 120VAC and 230-240VAC. These
strobe lights are well suited for a wide range of explosion-proof
warning light applications.
All models are UL and cUL Listed for indoor/outdoor and marine
use. This model is UL Listed for Class I, Division 1, Groups C and
D; Class I, Division 2, Groups A, B, C and D; Class II, Division 1,
Groups E, F and G; Class II, Division 2, Groups F and G; and Class III.
Model FB2PSTX has a self-contained power supply. The copper-
free aluminum finned base dissipates heat and ensures long life.
The outer dome is made of tempered glass. Polycarbonate inner
lenses are available in amber, blue, clear, green and red. A rugged
ceiling mount fixture is standard; optional wall mounts and dome
guards are also available.
The FB2PST-I features a voltage in-rush limiting PCB design that
provides greater compatibility with factory automation control sys-
tems and less electrical interference with in-rush sensitive devices.
The Model FB2PSTX is suited for any application where a superior
visual signal is needed and is especially effective for warning of
industrial hazards, process control, status indication or in areas
with high ambient noise levels.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2
FB2PSTX 12-24VDC 1.70-0.70 amps 80 800,000 320
FB2PSTX-I 24VDC 0.70 amps 80 800,000 320
(2.0 amp In-rush)
FB2PSTX 120VAC 50/60HZ 0.25 amps 80 800,000 320
FB2PSTX 230-240VAC 50/60HZ 0.20 amps 80 800,000 320
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
007_122_62362_FedSig.qxd 1/27/08 5:26 AM Page 88
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EXPLOSION-PROOF STROBE LIGHT (FB2PSTX/FB2PSTX-I)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Wall Mount (WMXC)
Dome Guard (DGFBX)
• Please refer to Model Number Index
FB2PSTX beginning on page 376
SPECIFICATIONS
Lamp Life*: 10,000 Hours 10,000 Hours
Operating Temperature: -13°F to 149°F -25°C to 65°C
Net Weight: 9.6 lbs. 4.35 kg
Shipping Weight: 13.1 lbs. 5.94 kg
Height: 13.69" 348.0 mm
Diameter: 7.44" 189.0 mm
3/4" NPT Conduit
Set Screws
Strobe Flash Tube
Internal Lens
Holder
Glass Outer Dome
Copper-Free
Aluminum Housing
External Ground
REPLACEMENT PARTS
Description Part Number
Inner Lens, Amber K8550292A-02
Inner Lens, Blue K8550292A-01
Inner Lens, Clear K8550292A
Inner Lens, Green K8550292A-04
Inner Lens, Red K8550292A-03
Outer Dome Assembly K8550272A-01
PC Assembly, 12-24VDC K2001202C
PC Assembly, 120VAC K200D866G
PC Assembly, 240VAC K200D866G-01
Strobe Tube K8107177A
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/31/08 2:22 AM Page 89
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
OUR BRIGHTEST VEHICULAR
WARNING LIGHT!
•Available in 12VDC
•68,000 candela output
•55-watt Halogen lamp
•Dual Speed Motor for 95
or 175 FPM
•Five dome colors
•Low profile — only 3.8" high
FireBeam®
Compact Vehicular
Warning Light
Model FB3SM
Federal Signal’s FireBeam®is a super-bright, compact vehicular
warning light. This rotating 55-watt halogen light produces 68,000
candelas per flash.
Each lightweight unit features a polycarbonate base and snap-on
dome. The light is easily and quickly serviced without the use
of tools.
The jewel-shaped lens is available in five colors: amber, blue,
clear, green, and red. Each FireBeam comes with a black half-
dome that snaps over the back of the unit and prevents back flash
when used inside vehicles.
The FireBeam features a dual speed motor with a convenient slide
switch that allows you to choose an operating speed of 95 or 175
flashes per minute.
Power is supplied to the FireBeam via a 10-foot coil cord with a
cigarette lighter-type plug. The FireBeam operates on 12VDC.
The FireBeam is supplied with both a magnetic mount for use
outside the vehicle on the roof or hood and a swivel mount for
permanent installation.
FEDERAL SIGNAL CORPORATION
Operating Flash Rate/ Candela
Model Voltage Current Minute Output
FB3SM 12VDC 4.3 amps 95 or 175 68,000
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/31/08 12:20 AM Page 28
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
FIREBEAM®COMPACT VEHICULAR WARNING LIGHT (FB3SM)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
SPECIFICATIONS
Lamp Life:* 200 hours 200 hours
Lamp Style: Halogen Halogen
Net Weight: 1.8 lbs. 0.8 kg
Shipping Weight: 2.0 lbs. 0.9 kg
Height: 4.8" 12.0 cm
Width: 3.8" 9.5 cm
Depth: 5.1" 13.0 cm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8550137A-02 55-Watt Halogen Lamp, 12VDC K8440A265A-02
Dome, Blue K8550137A-03 Motor for FB3SM K8422B463B-02
Dome, Clear K8550137A Half Lens Cover, Black K8550140A
Dome, Red K8550137A-01 Cigarette Plug Cord K8550318A
Dome, Green K8550137A-04 Magnet Mount Assembly K8550A012A
2556-01
A
A
H4
BLACK
-
2001073
R1
SOC.1
H5
RED
+
H3
RIBBED
+
H2
-
2556-02
Optional
Snap-On Half Lens
in Black eliminates
backflash
Rotating Parabolic
Reflector operates
at 95 or 175 flashes
per minute
Mounting Options:
2556-03
10-foot electrical
coil-cord features
a cigarette lighter
type plug for
12VDC power
55-Watt
Halogen Lamp
* Optimal hours under ideal conditions.
HOW TO ORDER
• Specify model and color
• Please refer to Model Number Index
FB3SM beginning on page 373
007_122_62362_FedSig.qxd 1/31/08 12:24 AM Page 29
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
COMPACT, ECONOMICAL
STROBE LIGHT — IDEAL
FOR CONTROL PANEL
APPLICATIONS
•Available in 12VDC, 24VDC,
120VAC and 240VAC
•Easy access dome available in
five colors
•Surface mount
•Low profile — only 2.6" High by
2.33" Wide by 5" Long
•Type 4X, IP65 enclosure
•UL Listed

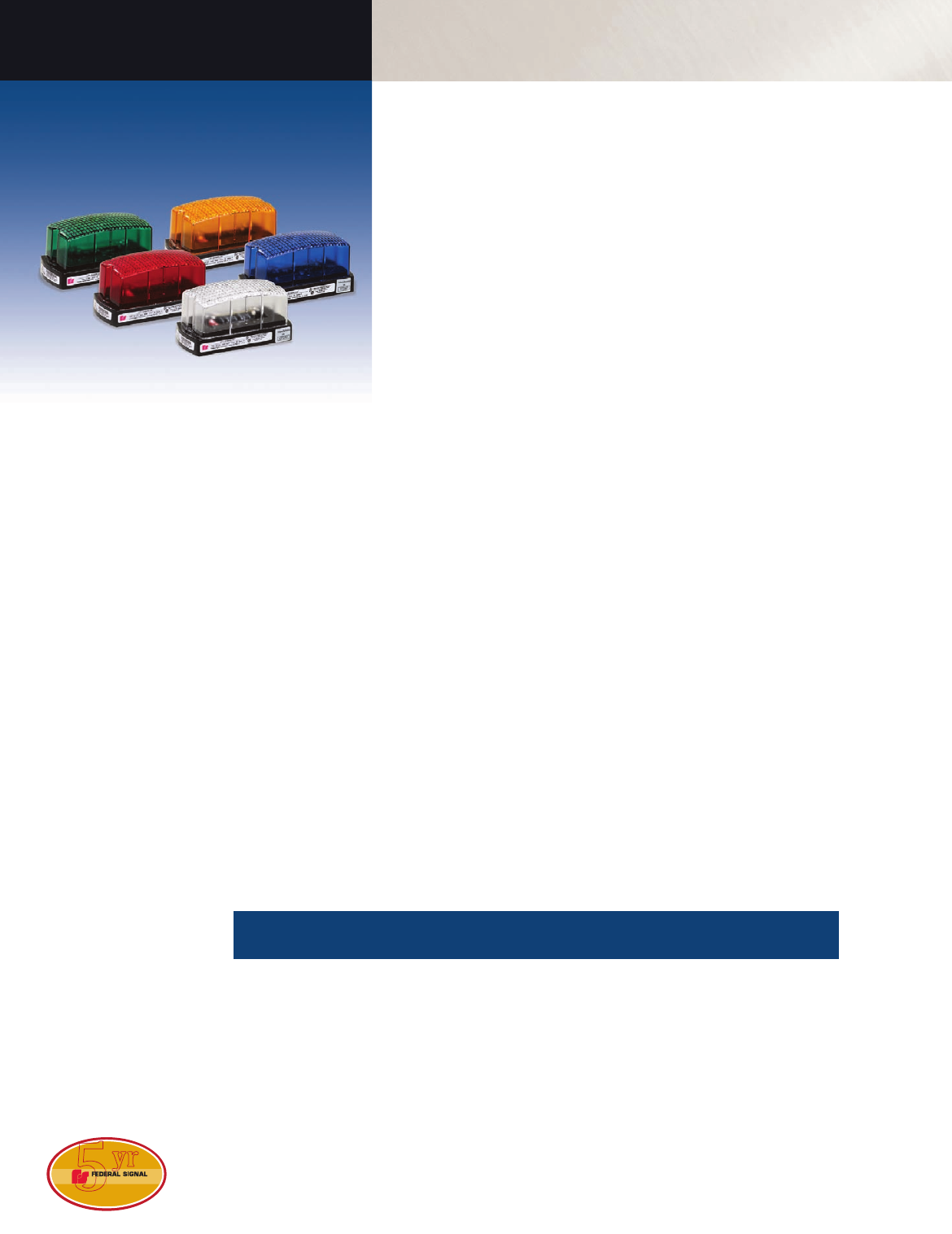

Streamline®
Low Profile
Mini Strobe
Model LP1
Federal Signal introduces the Model LP1 low profile strobe light.
This rectangular Type 4X strobe light is available in five colors:
amber, blue, clear, green and red. The LP1 is designed to be flush
mounted to control panels or other flat surfaces. Mounting is
accomplished with two supplied 11/4", 8/32 slotted hex bolts. A
polypropylene gasket is supplied to create a water-tight and dust-
tight seal. The gasket mounts between the base of the light and
the mounting surface.
The user replaceable strobe tube is rated for 4,000 hours of life.
The LP1 is available in 12VDC, 24VDC, 120VAC and 240VAC versions.
The unit is UL Listed. Access to the printed circuit board and
strobe tube is provided through the back of the unit.
With its Type 4X rating, small size, and bright signal, the LP1 suits
an endless number of applications. The LP1 is especially suited
for use on control panels, machines, above entry ways, on walls,
and along assembly lines. The 12/24VDC units are suitable in
battery backup systems and vehicular applications such as
forklifts and moving guided vehicles.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1ECP2Mount
LP1 12VDC 0.18 amps 80 108,000 30 Surface
LP1 24VDC 0.08 amps 80 108,000 30 Surface
LP1 120VAC 0.06 amps 80 108,000 30 Surface
LP1 240VAC 0.03 amps 80 108,000 30 Surface
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
007_122_62362_FedSig.qxd 1/31/08 1:11 AM Page 62
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

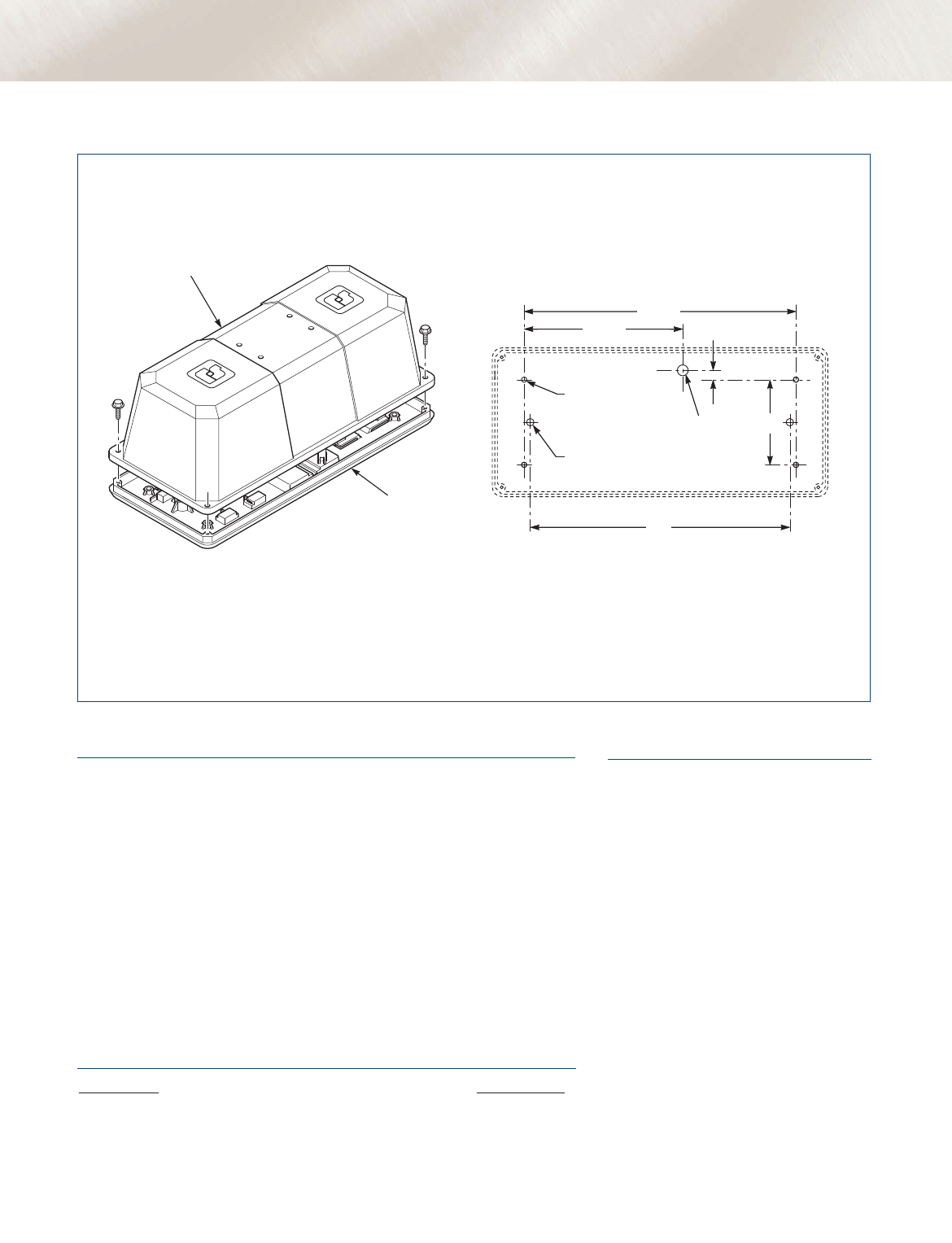

LOW-PROFILE MINI STROBE (LP1)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
LP1 beginning on page 374
SPECIFICATIONS
Lamp Life: 4,000 hours 4,000 hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 151°F -35°C to 66°C
Net Weight: 0.23 lbs. 0.1 kg
Shipping Weight: 0.6 lbs. 0.27 kg
Height: 2.61" 6.63 cm
Width: 2.33" 5.92 cm
Length: 5.05" 12.83 cm

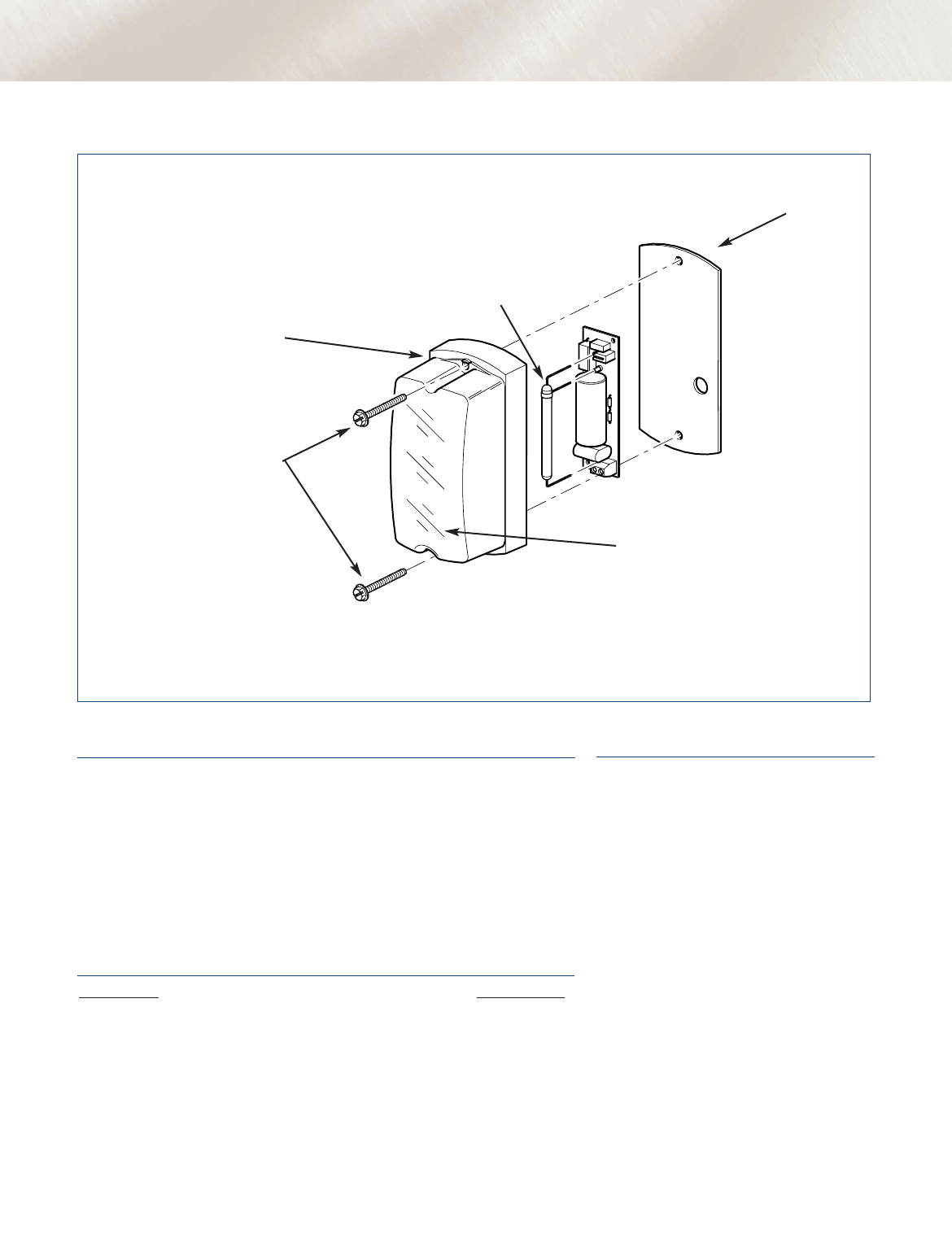

Unit assembles
and mounts
with two (2) 11/4"
8/32 slotted hex bolts
Strobe Tube
Gasket
Vertical and
horizontal lensing
provides
superior visibility
One piece construction
REPLACEMENT PARTS
Description Part Number
Replacement Strobe Tube K149128A
Dome, Amber K8435711A-02
Dome, Blue K8435711A-03
Dome, Clear K8435711A
Dome, Green K8435711A-04
Dome, Red K8435711A-01
007_122_62362_FedSig.qxd 1/27/08 12:45 AM Page 63
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
PERFECT SIZE MEETS
SUPERIOR PERFORMANCE
•Available in 24VAC/VDC
and 120VAC
•Surface or panel mount
•Steady burning
•Five dome colors
•Type 4X enclosure
•Low profile — only 2.5" H x 3"
diameter (65mm x 76mm)
•Built-in strain relief
•Incandescent lamp included
•UL and cUL Listed and
CE Compliant
Streamline®
Low Profile Light
Model LP2
The Streamline®Model LP2 is a unique, steady burning incandescent
light, ideal for both horizontal and vertical panel mount installation.
This device mounts easily through any 1.54" (39mm)
diameter hole; a lock nut secures the light firmly in place. A gasket
positioned above the mounting surface assures a water-tight and
dust-tight fit. The lamp is easily replaced from below the mounting
surface. Inherent strain relief secures all wiring from the rear, for
added durability. The enclosure consists of a polycarbonate dome
in five colors (amber, blue, clear, green and red), and a polyamide
base; the enclosure with gasket is rated Type 4X.
A 6-watt incandescent lamp is included with the 24VAC/DC and
120VAC units. The double-contact bayonet base (Type S-6) is a
standard lamp style, readily available when replacement is
required. Lamp life is approximately 1,500 hours when run on
AC power.
Like all Federal Signal products, the StreamLine LP2 is designed
with customer applications in mind. The LP2 functions in most
PLC applications (including triac outputs). Careful consideration
has been given to the relationship between lamp shape and lens
design for maximum light output.
When your application calls for a compact signal with unparalleled
reliability, Federal Signal’s Streamline products are the clear choice.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating
Model Voltage Power Current
LP2 24VAC/DC 6 watts 0.30 amps
LP2 120VAC 6 watts 0.06 amps
007_122_62362_FedSig.qxd 1/31/08 12:44 AM Page 44
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
STREAMLINE®LOW PROFILE LIGHT (LP2)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
LP2 beginning on page 373
SPECIFICATIONS
Lamp Life:* 1,500 hours 1,500 hours
Lamp Style: Incandescent Incandescent
Operating Temperature: -4°F to 140°F -20°C to 60°C
Net Weight: 3.4 oz. 96.4 g
Shipping Weight: 4.5 oz. 127.6 g
Height — above surface: 2.5" 65.0 mm
Height — below surface: 1.26" 32.0 mm
Diameter: 3.0" 75.0 mm
Lens
Gasket
Mounting
Surface
Mounting
Lock Nut
Bayonet-Base
Lamp
Lamp
Holder
Inherent Strain
Relief Mechanism
3" (76mm)
2.68" (68mm)
2.5"
(65mm)
1.26"
(32mm)
0.63"
(16mm)
1.46"
(37mm)
0.28" (7mm)
* Optimal hours under ideal conditions.
REPLACEMENT PARTS
Description Part Number
Lamp, 24VAC/DC K8107195A
Lamp, 120VAC K8107195A-01
007_122_62362_FedSig.qxd 1/27/08 12:27 AM Page 45
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

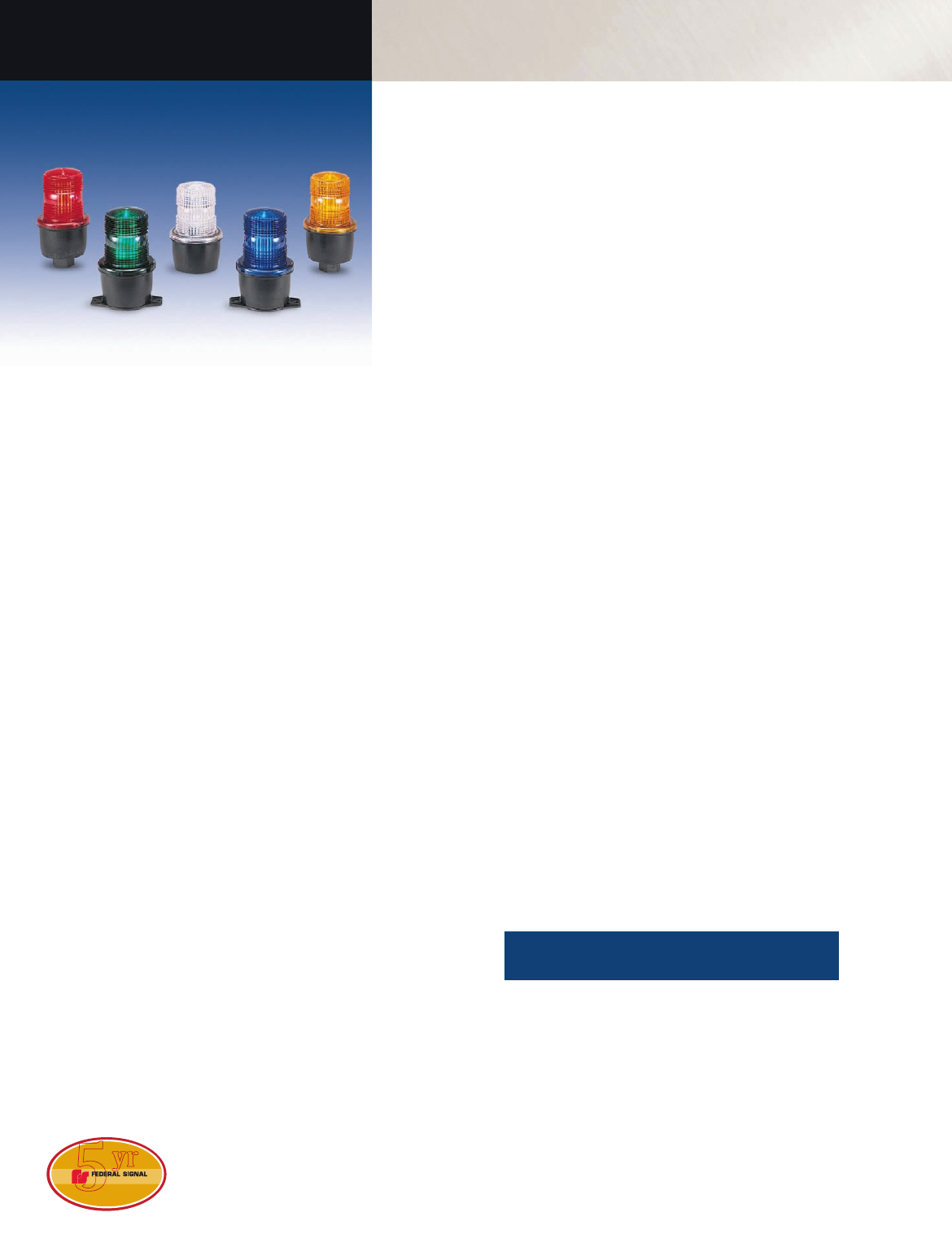

PERFECT SIZE MEETS
SUPERIOR PERFORMANCE
•LP3S and LP3M are available in
12-48VDC, 120VAC and 240VAC;
LP3E in 120VAC
•Surface mount, Edison mount, or
integrated 1/2- inch pipe mount
•Five dome colors
•Screw-on lens provides easy
access
•Low profile — Model LP3S is
only 5" high
•Type 4X, IP66 enclosure
•PLC and triac compatible
•UL and cUL Listed, CSA Certified
and CE Approved*
Streamline®
Low Profile
Strobe Light
Models LP3S, LP3E, LP3M
Federal Signal introduces the Model LP3 low profile strobe light.
This Type 4X strobe is available in five colors: amber, blue, clear,
green and red.
The LP3 is offered in three mounting configurations: the LP3S
features a three-hole surface mount — ideal for control panels
and other flat or flush surfaces; the LP3E features a standard A-19
medium Edison screw base; the LP3M features a 1/2" male pipe
mount and 18' wire leads.
Both the LP3S and LP3M include a surface gasket to complete
the Type 4X installation. An optional dome guard is available for
use with the LP3M when installed flush with a panel. All LP3 units
feature a unique threaded screw-on lens to provide for tool free
wiring and strobe tube replacement. The strobe tube is rated for
7,000 hours.
LP3 comes in three voltage variations: 12-48VDC, 120VAC and
240VAC. The state-of-the-art strobe mechanism produces 2.2
joules of energy, while drawing relatively low amperage.
StreamLine®strobes feature high-quality, long-life strobe tubes
which are designed to reduce tungsten build-up for longer lamp
maintenance cycles. Careful consideration is given to the relationship
between tube shape and lens design for maximum light output.
StreamLine products make use of surface mount technology,
which provides a more powerful light in a much smaller package.
The high-quality dry-electrolyte capacitor used in StreamLine
products runs cooler than those used in many competitive
strobes, resulting in a more reliable product that won’t fail due
to overheating.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Joule Candela
Model Voltage Current Minute Output Peak1ECP2
LP3 12-48VDC 0.44-0.10 amps 65-95 2.2 175,000 51.5
LP3 120VAC 0.10 amps 65-95 2.2 175,000 51.5
LP3 240VAC 0.07 amps 65-95 2.2 175,000 51.5
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
* CE Approval for S, M models only.
007_122_62362_FedSig.qxd 2/7/08 3:20 PM Page 66
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

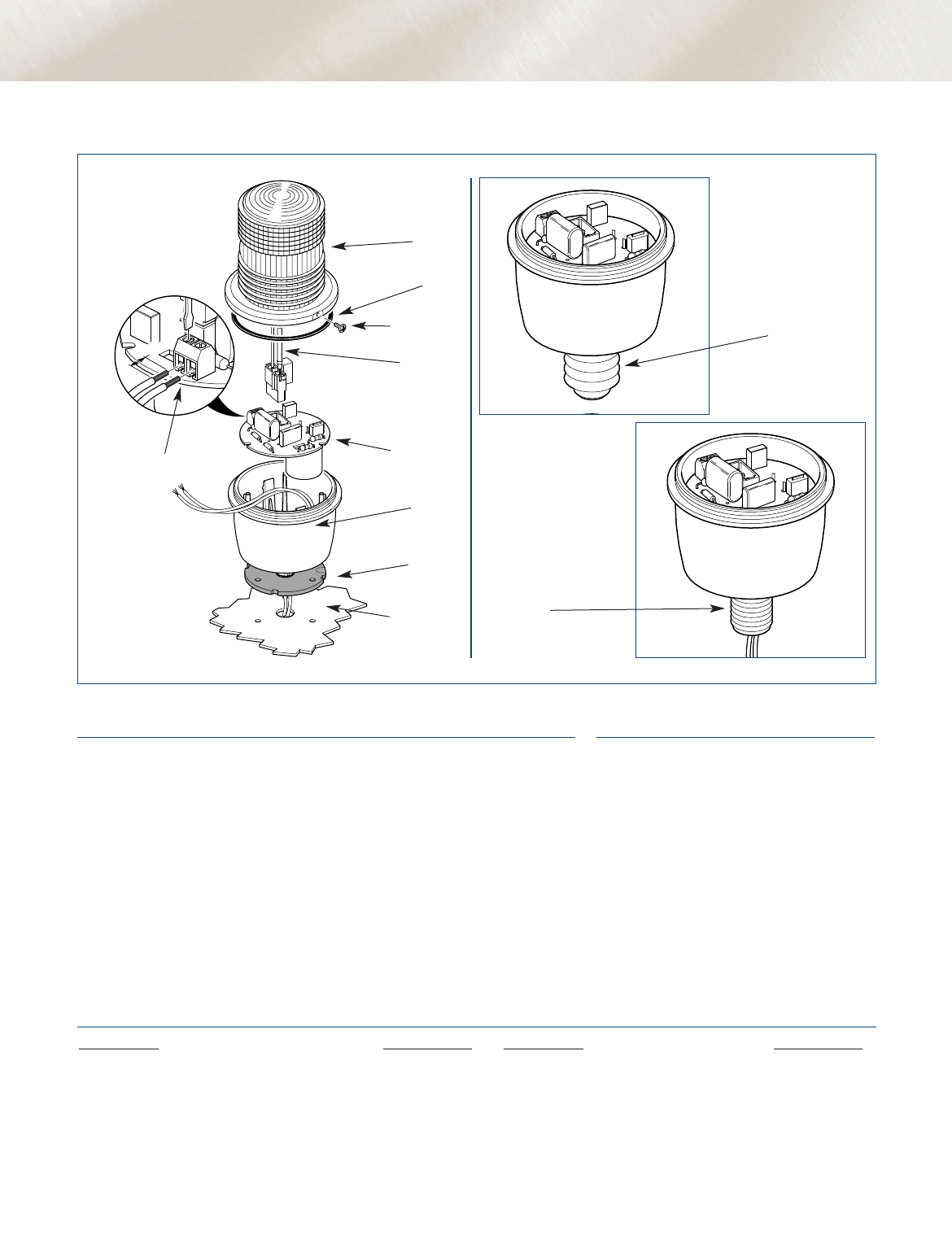

STREAMLINE®LOW PROFILE STROBE LIGHT (LP3S/LP3E/LP3M)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options
Wire/Dome guard for LP3S and
LP3M (LP3G)
• Please refer to Model Number Index
LP3 (E.M) beginning on page 375
SPECIFICATIONS
Lamp Life:* 7,000 hours 7,000 hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 7.3 oz. 206.96 g
Shipping Weight: 8.5 oz. 240.98 g
Diameter: 3.125" 7.94 cm
Height (from bottom):
LP3S 5.0" 12.7 cm
LP3E 6.1" 15.5 cm
LP3M 5.8" 14.7 cm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8589063A PC Assembly, 12-48VDC K2001316B
Dome, Blue K8589063A-01 PC Assembly, 120VAC K2001317A
Dome, Clear K8589063A-02 PC Assembly, 240VAC K2001317A-01
Dome, Green K8589063A-03 Gasket, Lens K8589013A
Dome, Red K8589063A-04 Gasket, Base LP3S K8589011A
Strobe Tube K149130A
.25"
(6.4mm)
LP3S
LP3E
LP3M
Dome
Custom
Strobe Tube
Snap-in Printed
Circuit Board
Assembly
Surface
Mount
Base
Lens
Gasket
Gasket
Mounting
Surface
A-19 Medium
Edison
Screw-in Base
1/2" Male
Pipe Mount
Power
Connection
Schematic
Set Screw
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 2/11/08 8:29 AM Page 67
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
COMPACT, ECONOMICAL
AND FLEXIBLE
•Available in 24VDC and 120VAC
•T-mount, integrated 1/2- inch pipe
mount or 1/2- inch male pipe mount
•Incandescent lamp included
•Five dome colors
•Screw-on lens
•Type 4X enclosure
•Optional wire guard
•UL and cUL Listed and
CSA Certified
StreamLine®
Low Profile
Steady Burning Light
Models LP3MI, LP3PI, LP3TI
Federal Signal introduces the Model LP3I low profile steady burning
light. The Type 4X light is available in five colors: amber, blue,
clear, green, and red.
The LP3I is offered in three mounting configurations. LP3PI
features an integrated 1/2-inch NPT pipe mount. LP3MI features
an integrated 1/2-inch male pipe mount. The "T-mount" LP3TI has
a popular 2-hole design for wall or flush mounting.
Both the LP3MI and LP3TI include a surface gasket to complete
the Type 4X installation. All LP3I units feature a threaded screw-on
lens. The LP3I comes in two voltages: 24VDC and 120VAC.
A 15-watt incandescent lamp is included with all units. The lamp
features a standard double-contact bayonet base readily available
when replacement is required.
Like all Streamline®products, the LP3I is designed with OEM
applications in mind. It is economical, easy to install and attractive.
Careful consideration has been given to the relationship between
lamp shape and lens design for maximum light output.
When your application calls for a compact signal with unparalleled
reliability, Federal Signal’s Streamline products are the clear choice.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating
Model Voltage Power Current
LP3I 24VDC 15-watts 0.67 amps
LP3I 120VAC 15-watts 0.13 amps
007_122_62362_FedSig.qxd 2/11/08 11:56 PM Page 46
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
LP3MI
LP3PI
LP3TI
Dome
Lamp
Male
Pipe
Housing
Lens
Gasket
Gasket
Mounting
Surface
Housing
1/2"
Pipe Mount
Housing
Gasket
Mounting
Surface
Set Screw
T-mount
Locknut
STREAMLINE®LOW PROFILE STEADY BURN LIGHT (LP3MI/LP3PI/LP3TI)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options (wire guard - LP3G)
• Please refer to Model Number Index
LP3I beginning on page 373
SPECIFICATIONS
Operating Temperature: -31°F to 150°F -35°C to 65°C
Net Weight: 7.3 oz. 206.96 g
Shipping Weight: 8.5 oz. 240.98 g
Diameter: 3.13" 7.95 cm
Height (from bottom):
LP3PI 5.7" 14.48 cm
LP3MI 5.8" 14.7 cm
LP3TI 5.1" 12.95 cm
REPLACEMENT PARTS
Description Part Number Description Part Number
Lens, Amber K8589063A Lamp, 120VAC K8107194A
Lens Blue K8589063A-01 Lamp, 24VDC K8107227A
Lens, Clear K8589063A-02 Gasket, LP3TI K8589012A
Lens, Green K8589063A-03 Gasket, Lens K8589013A
Lens, Red K8589063A-04
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/31/08 12:51 AM Page 47
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Operating
Model Voltage Current
LP3L 24VDC 0.08 amps
LP3L 120VAC 0.13 amps
ECONOMICAL
AUDIBLE/VISUAL SIGNAL
•Available in 24VDC and 120VAC
•T-mount, integrated 1/2- inch pipe
mount, 1/2- inch male pipe mount
or surface mount
•Five dome/lens colors available
•100,000 LED lamp life*
•Screw on lens
•Type 4X enclosure
•Optional wire lens guad
•UL and cUL Listed and
CSA Certified
StreamLine®
Low Profile LED Light
Model LP3SL, LP3PL, LP3TL, LP3ML
Federal Signal introduces the Model LP3L low profile LED light.
The Type 4X light is available in five LED/lens color combinations;
amber, blue, clear, green and red. All LP3 models feature the easy
access screw on lens.
The LP3L is offered in four mounting configurations; LP3PL
with an integrated 1/2-inch NPT pipe mount, LP3ML features an
integrated 1/2-inch male pipe mount, LP3TL features a T formation
base with 2 mounting holes for wall or flush mounting and the
LP2SL features a three hole surface mounting configuration. The
T-mount and Surface mount units include surface gaskets to
maintain the 4X installation.
The LP3L series is available in 24VDC and 120VAC. All models
include the vibration resistant, double contact bayonet style
100,000 hour LED module.
Like all StreamLine®products, the LP3L is designed with OEM
applications in mind. It is economical, easy to install and
attractive. Careful consideration has been given to the relationship
between the LED light source and the lens design for maximum
light output.
When your application calls for a compact signal with
unparalleled reliability, Federal Signal’s StreamLine products
are the clear choice.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 2/11/08 11:57 PM Page 48
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
STREAMLINE®LOW PROFILE LED LIGHT (LP3SL/LP3PL/LP3TL)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
LP3SL
LP3PL
LP3TL
Dome
LED
Module
Lens
Gasket
Gasket
Housing
1/2"
Pipe Mount
Housing
Gasket
Mounting
Surface
Set Screw
T-mount
HOW TO ORDER
• Specify model, voltage and color
• Specify options (wire guard - LP3G)
• Please refer to Model Number Index
LP3L beginning on page 374
SPECIFICATIONS
Lamp Life*: 100,000 hours 100,000 hours
Operating Temperature: -31°F to 150°F -35°C to 65°C
Net Weight: 0.46 lbs. 206.96 g
Shipping Weight: 0.53 lbs. 240.98 g
Diameter: 3.13" 7.95 cm
Height (from bottom):
LP3PL 5.7" 14.48 cm
LP3ML 5.8" 14.7 cm
LP3TL 5.1" 12.95 cm
LP3SL 5.0" 12.7 cm
REPLACEMENT PARTS
Description Part Number Description Part Number
Lens, Amber K8589063A LED, 24V Amber K8107199A
Lens Blue K8589063A-01 LED, 24V Blue K8107199A-03
Lens, Clear K8589063A-02 LED, 24V Clear K8107199A-04
Lens, Green K8589063A-03 LED, 24V Green K8107199A-02
Lens, Red K8589063A-04 LED, 24V Red K8107199A-01
Gasket, LP3TL K8589012A LED, 120V Amber K8107200A
Gasket, LP3SL K8589011A LED, 120V Blue K8107200A-03
Gasket, Lens K8589013A LED, 120V Clear K8107200A-04
LED, 120V Green K8107200A-02
LED, 120V Red K8107200A-01
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 2/9/08 3:14 PM Page 49
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
PERFECT SIZE MEETS
SUPERIOR PERFORMANCE
•Available in 12-48VDC, 120VAC
and 240VAC
•Surface mount, T-mount, or
integrated 1/2- inch pipe mount
•Five dome colors
•Screw-on lens
•Low profile — Model LP3S
is only 5" high
•Type 4X, IP66 enclosure
•PLC and triac compatible
• Optional dome guard
•UL and cUL Listed, CSA Certified
and CE Approved*
StreamLine®
Low Profile
Strobe Light
Models LP3P, LP3S, LP3T
Federal Signal introduces the Model LP3 low profile strobe light.
This Type 4X strobe is available in five colors: amber, blue, clear,
green and red. An optional dome wire guard is available for the
LP3S and LP3T.
The LP3 is offered in three mounting configurations. LP3P features
an integrated 1/2-inch NPT pipe mount. LP3S features a three-hole
surface mount — ideal for control panels and other flat or flush
surfaces. The “T-mount” LP3T has a popular 2-hole design for
wall or flush mounting.
Both the LP3S and LP3T include a surface gasket to complete the
Type 4X installation. An optional dome guard is available for use
with the LP3S and LP3T. All LP3 units feature a threaded screw-
on lens that provides tool-free wiring and strobe tube replacement.
The strobe tube is rated for 7,000 hours.
The LP3 comes in three voltage variations: 12-48VDC, 120VAC
and 240VAC. The state-of-the-art strobe mechanism produces 2.2
joules of energy, while drawing relatively low level amperage.
StreamLine®strobes feature high-quality, long-life strobe lamps
which are designed to reduce tungsten build-up for longer lamp
maintenance cycles. Careful consideration is given to the relationship
between lamp shape and lens design for maximum light output.
StreamLine products make use of surface mount technology,
which provides a more powerful light in a much smaller package.
The dry-electrolyte capacitor used in StreamLine products runs
cooler than those used in many competitive strobes, resulting in a
more reliable product that won’t fail due to overheating.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Joule Candela
Model Voltage Current Minute Output Peak1ECP2
LP3 12-48VDC 0.44-0.10 amps 65-95 2.2 175,000 51.5
LP3 120VAC 0.10 amps 65-95 2.2 175,000 51.5
LP3 240VAC 0.07 amps 65-95 2.2 175,000 51.5
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
* CE Approval for P, S models only.
007_122_62362_FedSig.qxd 2/11/08 11:58 PM Page 64
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
STREAMLINE®LOW PROFILE STROBE LIGHT (LP3S/LP3P/LP3T)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options
Wire/Dome guard for LP3S, LP3T
(LP3G)
• Please refer to Model Number Index
LP3 (P,S,T) beginning on page 374
SPECIFICATIONS
Lamp Life:* 7,000 hours 7,000 hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 7.3 oz. 206.96 g
Shipping Weight: 8.5 oz. 240.98 g
Diameter: 3.125" 7.94 cm
Height (from bottom):
LP3P 5.7" 14.48 cm
LP3S 5.0" 12.7 cm
LP3T 5.1" 12.95 cm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8589063A PC Assembly, 12-48VDC K2001316B
Dome, Blue K8589063A-01 PC Assembly, 120VAC K2001317A
Dome, Clear K8589063A-02 PC Assembly, 240VAC K2001317A-01
Dome, Green K8589063A-03 Gasket, Lens K8589013A
Dome, Red K8589063A-04 Gasket, LP3S K8589011A
Strobe Tube K149130A Gasket, LP3T K8589012A
.25"
(6.4mm)
LP3S
LP3P
LP3T**
Dome
Custom
Strobe Tube
Snap-in Printed
Circuit Board
Assembly
Surface
Mount
Housing
Lens
Gasket
Gasket
Mounting
Surface
Housing
1/2"
Pipe Mount
Housing
Gasket
Mounting
Surface
Power
Connection
Schematic
Set Screw
T-mount
*Optimal hours under ideal conditions.
**LP3T-120 & 240VAC shown
007_122_62362_FedSig.qxd 2/10/08 8:16 PM Page 65
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
COMPACT, ECONOMICAL
STROBE LIGHT
•Available in 12-48VDC and 120VAC
•Screw-on dome available in
five colors
•Surface mount
•Low profile — only 35/8" high
•Type 4X enclosure
•UL and cUL Listed and
CSA Certified
Streamline®
Low Profile
Mini Strobe
Model LP6
The Model LP6 is a very compact, high power strobe light
designed for applications where space is critical. At 35/8" high, this
strobe light is ideal for fork lift applications where head room is
important. The LP6 also mounts easily to small control panels.
The LP6 features a two joule power supply that works in multiple
voltages from 12-48VDC to 120VAC. Modular construction incorporates
a powerful flash tube and vibration resistant circuit board.
The LP6 housing utilizes a unique screw-on dome for easy
relamping and service. The polycarbonate base and lens combination
gives this strobe excellent impact and corrosion resistance and
meets Type 4X requirements. The LP6 is also UL Listed, cUL
Listed and CSA Certified.
The LP6 is available in five colors — amber, blue, clear, green
and red.
This economical light does not sacrifice power for price or size.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Joule Candela
Model Voltage Current Minute Output Peak1ECP2
LP6 12-48VDC 0.44-0.10 amps 65-95 2.2 175,000 51.5
LP6 120VAC 0.10 amps 65-95 2.2 175,000 51.5
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2 ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
007_122_62362_FedSig.qxd 1/31/08 1:17 AM Page 70
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
STREAMLINE®LOW PROFILE MINI STROBE (LP6)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Please refer to Model Number Index
LP6 beginning on page 375
SPECIFICATIONS
Lamp Life*: 7,000 hours 7,000 hours
Lamp Style: Strobe Strobe
Operating Temperature: -31˚F to 150˚F -35˚C to 65˚C
Net Weight: 0.65 lbs. 0.29 kg
Shipping Weight: 0.85 lbs. 0.39 kg
Height: 3.63" 9.2 cm
Diameter: 5.0" 12.7 cm
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8589037A PC Assembly, 012-048VDC K2005083A-01
Dome, Blue K8589037A-01 PC Assembly, 120VAC K2001887A-02
Dome, Clear K8589037A-02 O-Ring K8589038A
Dome, Green K8589037A-03 Base Gasket K8589039A
Dome, Red K8589037A-04 Strobe Tube K149130A
Screw-On
Dome
#10-32 Pan
Head Screws (3)
Lexan™ Surface
Mounting Base
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 5:06 AM Page 71
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Operating Flash Rate/ Joule Decibels @
Model Voltage Current Minute Output 10' 1m
LP7 18-30VDC 0.068 amps 60 0.7 82-100 92-110
PERFECT SIZE MEETS
SUPERIOR PERFORMANCE
•Available in 18–30VDC
•Fully integrated xenon strobe circuit
•Five dome colors — Amber, Blue,
Clear, Green, Red
•Heavy duty ABS plastic body
•Type 4X, IP54 (IP65 with optional
deep base)
•82–100dB @ 10'
(92–110dB @ 1m)
•Type 4X, IP54 (IP65 with optional
deep base)
•CE Compliant
StreamLine®
Low Profile
Combination
Sounder/Strobe
Model LP7
Providing an audible/visual warning, the LP7 sounder/strobe
combines the features of a mini sounder with a fully integrated
xenon strobe circuit. The result is an attractive unit suitable for
internal or external locations where a combination of high sound
output and visual signal is required.
The strobe color choices include amber, clear, green, blue or red.
The unit comes with a standard shallow base. An optional deeper
base allows 20mm diameter conduit entry.
Operating voltage ranges from 18-30VDC with an average of only
68mA current consumption.
The LP7 has two switchable tone patterns - “Sweeping”
and “Continuous”.
The LP7 has a range of 82dB–100dB @ 10' (92–110dB @ 1m),
dependent upon tone selected. Volume control allows for 20dB
of adjustment.
The LP7 features a bright xenon strobe that produces 0.7 Joules
of flash energy with a flash frequency of 60 flashes per minute.
The beacon will operate with any tone selected.
The Federal Signal Model LP7 sounder/strobe is PLC compatible.
It is ideal for wall or panel mount applications where low voltage
is required.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 2/11/08 9:40 PM Page 92
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
STREAMLINE®LOW PROFILE SOUNDER/STROBE (LP7)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Deep Base (DBLP)
• Please refer to Model Number Index
LP7 beginning on page 377
SPECIFICATIONS
Operating Temperature: -40°F to 176°F -40°C to 80°C
Net Weight: 11.1 oz. 315.0 kg
Shipping Weight: 13.5 oz. 383.0 kg
Height: 3.5" 88.9 cm
Diameter: 3.66" 93.0 cm
3.5"/88.9 cm
3.66"/93 cm
007_122_62362_FedSig.qxd 1/27/08 5:33 AM Page 93
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

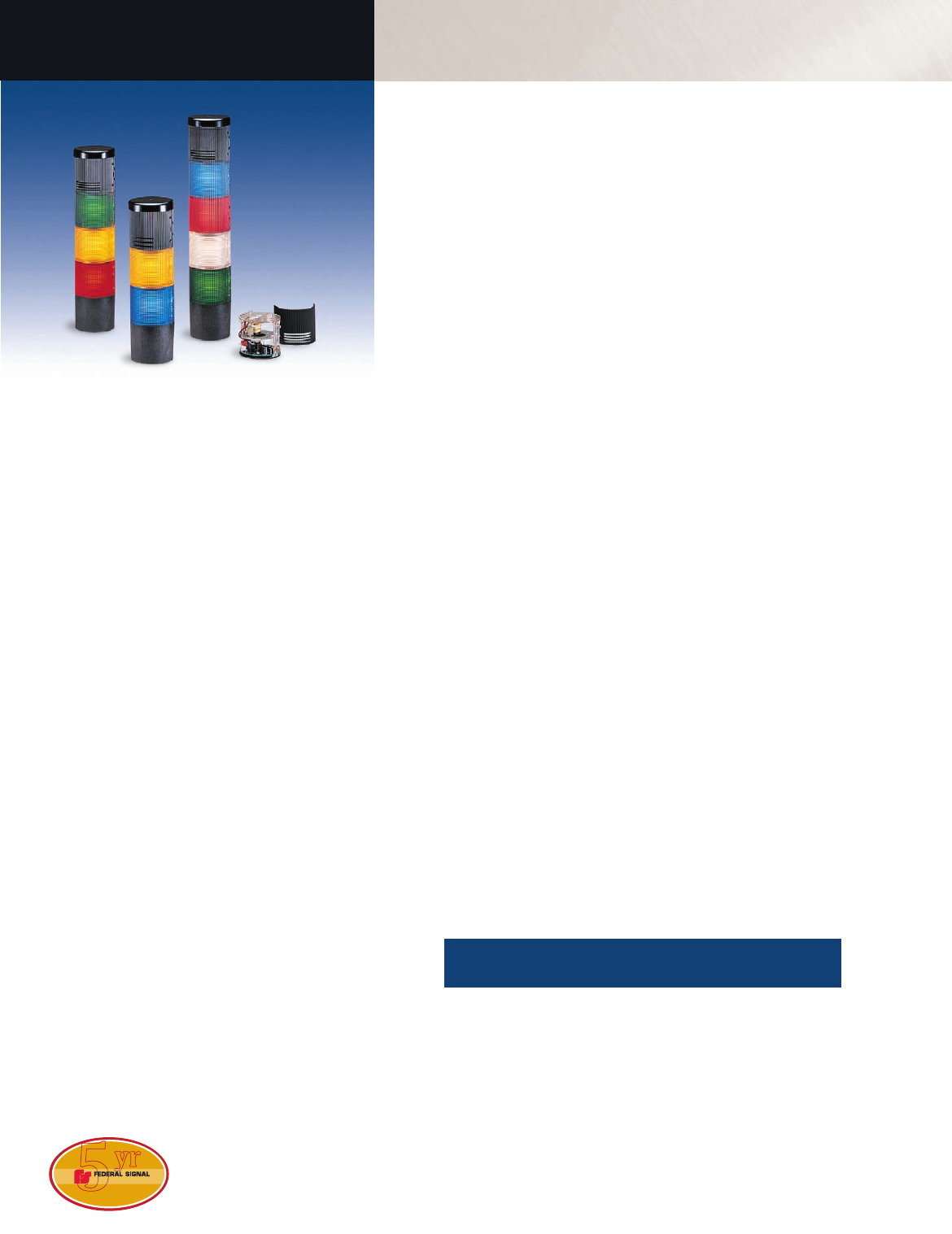

NOTIFY STATUS CHANGES
WITH COLOR AND SOUND
•Available in 24VDC, 120VAC
and 240VAC
•Five lens colors
•Surface mount and integrated
3/4 - inch pipe mount
•Indoor use only
•Type 1 enclosure
•Optional sounder available
•UL and cUL Listed and
CSA Certified
Litestak®
Status Indicator
Models LSB and LSL
Federal Signal’s Litestak®status indicator is a column of signal
lights that indicate the status of a process or machine. The units
may include up to five Light Modules (Model LSL) available in
amber, blue, clear, green and red; or four light modules plus an
optional Sound Module (Models LSS or LSH) to create a dual
purpose audible/visual status indicator. The Sound Module always
occupies the top position of a Litestak unit.
Litestak’s lensing provides a 360° visual signal. Individual light
modules may be set to either flash or burn steadily. The flasher
is included with the 120VAC LSB model and sold separately for
other voltages.
Each light module consists of two impact-resistant polycarbonate
lens halves that snap apart to provide easy maintenance and
interchangeability of colors.
Litestak units can be installed on a 3/4" pipe mount or surface
mounted with the Model LSB Base. If low profile surface mount-
ing is required, Model LSBS is available.
Litestak is UL and cUL Listed, and CSA Certified for indoor use.
Multiple lens colors can communicate machine shutdown, shortage
of materials, supervisor attention, etc. Ideal applications for the
Litestak include assembly lines, instrument panels, workcells, etc.
Federal Signal’s Litestak is an economical device for increasing
productivity in any manufacturing environment.
FEDERAL SIGNAL CORPORATION
Operating Flash Rate/
Model Voltage Current Minute Candela Mount
LSB324-240VAC/DC N/A1N/A1N/A13
/4" Pipe/Surface
LSB3120VAC 50/60Hz N/A170 N/A13
/4" Pipe/Surface
LSBS324-240VAC/DC N/A1N/A1N/A1Low Profile Surface
LSL224VDC 0.76 amps N/A1123 N/A1
LSL2120VAC 50/60Hz 0.13 amps N/A1123 N/A1
LSL2240VAC 50/60Hz 0.11 amps N/A1123 N/A1
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
1 Not Applicable
2 Model LSL includes lens, lamp and light module.
3 Cap kit included.
007_122_62362_FedSig.qxd 1/26/08 6:50 PM Page 18
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

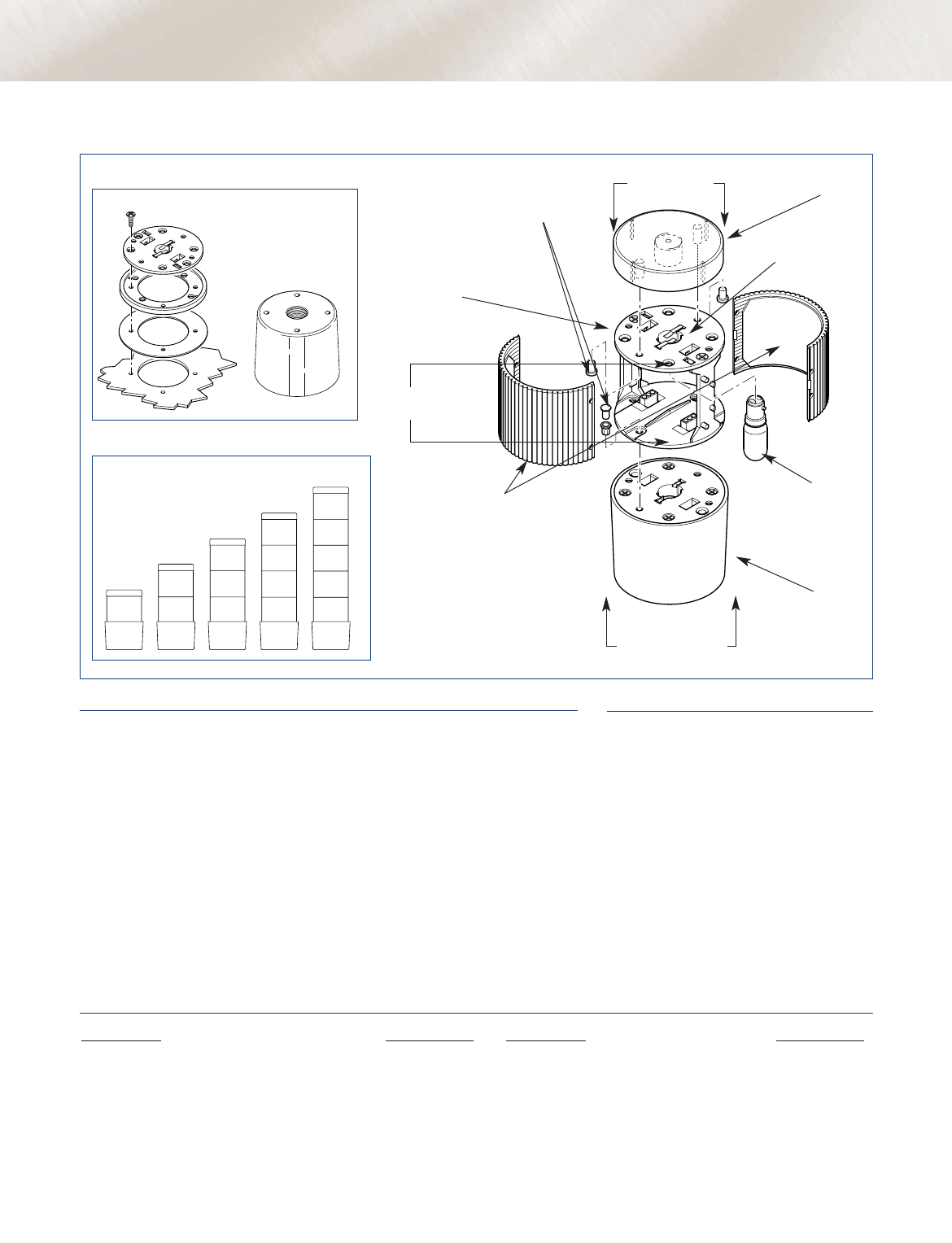

REPLACEMENT PARTS
Description Part Number Description Part Number
Lens Kit, Amber K8447014A-02 Lamp, 24VDC K8107210A
Lens Kit, Blue K8447014A-04 Lamp, 120VAC K8107194A
Lens Kit, Clear K8447014A-05 Lamp, 240VAC K8107A149A
Lens Kit, Green K8447014A-01 Flasher, 24VDC K8285237A
Lens Kit, Red K8447014A-03 Flasher, 120VAC K8285239A
Lens Kit, Blackout (1/2 lens) K8447014A-06 Cap Kit-Snap Rivets included K8447009E
Snap Rivets, 25 pieces K7099A112A-01
HOW TO ORDER
• Light modules and base modules
are ordered separately
• Specify model and voltage of base
unit
• Specify model, voltage and colors
of light modules
• Specify optional sound module
(page 24 & 26)
• Please refer to Model Number
Index LSL/LSB beginning on
page 372
A
C
B
1
2
3
1
2
3
290
A
A) LSBS Low Profile Base B) LSB Base
SPECIFICATIONS
Lamp Life*: 7,000 Hours 7,000 Hours
Lamp Style: Incandescent Incandescent
Operating Temperature: 0°F to 120°F -18°C to 49°C
Net Weight: LSL 0.5 lbs. 0.2 kg
LSB 0.75 lbs. 0.3 kg
Shipping Weight: LSL 0.8 lbs. 0.4 kg
LSB 1.0 lbs. 0.4 kg
Height: LSL 3.25" 82.5 mm
LSB 3.3" 82.8 mm
Diameter: LSL 3.93" 99.8 mm
LSB 3.93" 99.8 mm
LITESTAK®LIGHT (LSL) AND BASE (LSB)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com

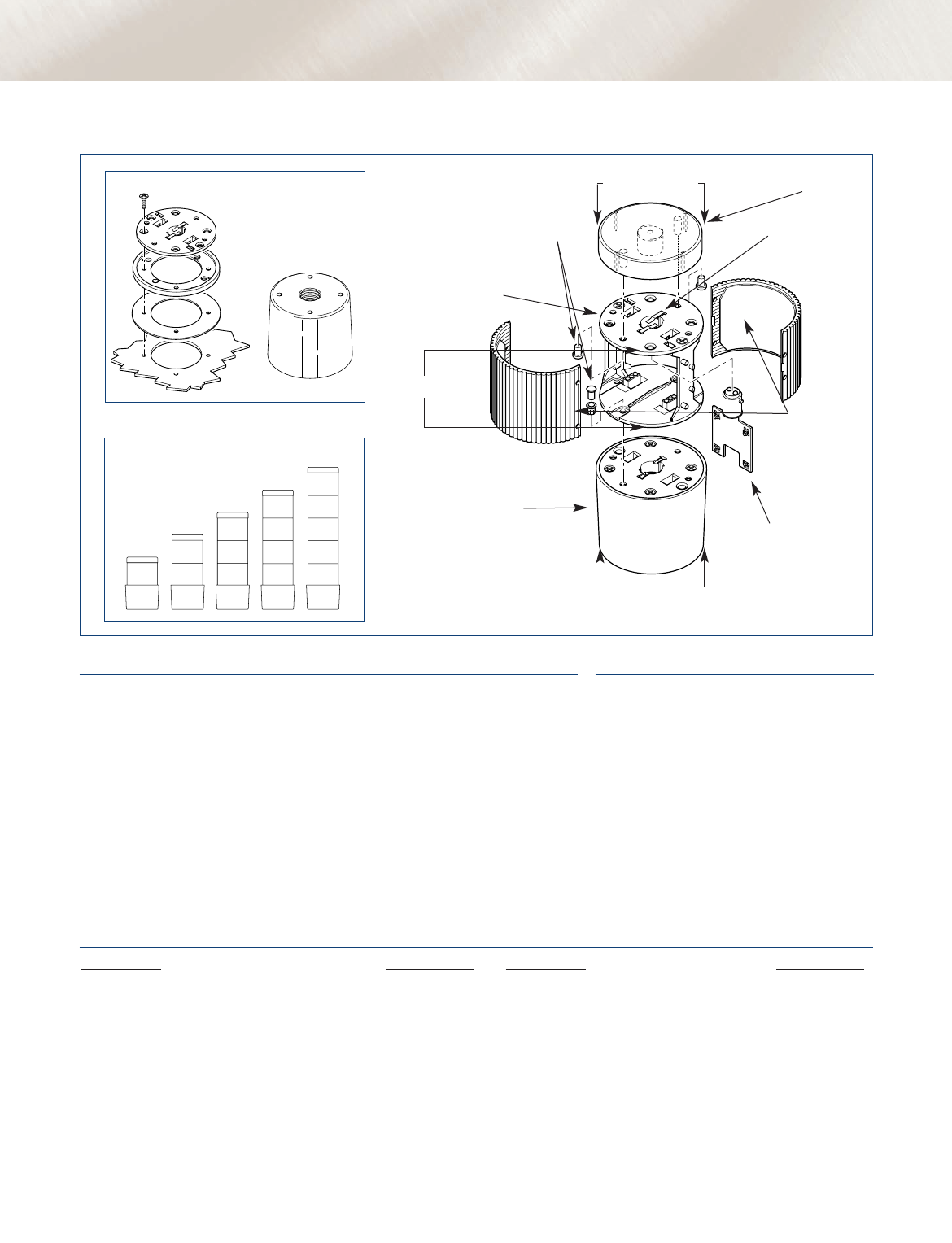

A
C
B
1
2
3
1
2
3
A
C
B
1
2
3
1
2
3
4"/101.6 mm
6.55"
9.8"
13.05"
16.03
19.35"
3.93"/99.8 mm
3.25"/
82.5 mm
Snap-Apart
Polycarbonate Lens
Halves
Mounting Options
Litestak®Heights
Base Unit
(Model LSB)
Lamp
A
B
Top Cap
Easy to install
snap rivets
Spring Design
Contacts Resist
Vibration
Litestak™
Light Module
(Model LSL)
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/26/08 7:55 PM Page 19
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
A SINGLE-TONE HORN
FOR LITESTAK®STATUS
INDICATORS
•Available in 24VDC, 120VAC
and 240VAC
•Adjustable volume
•Capable of producing
75-77dB @ 10' (85-87dB @ 1m)
•Indoor use only
•Type 1 enclosure
•UL Listed and CSA Certified
Litestak®
Piezoelectric Horn
Model LSH
The Litestak®LSH Horn is a piezoelectric unit that employs a
ceramic element which expands or bends when voltage is applied,
generating a single tone. The Model LSH can be used as a stand-
alone audible device (with the LSB pipe/surface mount base or
LSBS surface mount base), or combined with the Federal Signal
Litestak light modules to create a combination audible/visual signal.
The LSH Horn is a modular unit which mounts directly onto the
top of any Litestak light or base (sound units must be positioned
at the top module of the status indicator). A black speaker grille
cover protects the horn. The volume can be adjusted by
removing the grille covers and turning the volume control below
the horn mechanism.
The 24VDC and 240VAC LSH units produce 75dB @ 10' (85dB @
1m); the 120VAC unit produces 77dB @ 10' (87dB @ 1m).
Litestak is UL Listed for indoor use and CSA Certified.
Ideal applications for Litestak audible/visual status indicators
include assembly lines, conveyor systems, automated lines,
instrument panels, workshops, etc.
Federal Signal’s Piezoelectric Horn is an inexpensive way to add
an audible signal to Litestak Status Indicators.
FEDERAL SIGNAL CORPORATION
Operating Decibels @
Model Voltage Current 10' 1m
LSH 24VDC 70 mA 75 85
LSH 120VAC 40 mA 77 87
LSH 240VAC 40 mA 75 85
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/26/08 6:56 PM Page 26
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
LITESTAK®PIEZOELECTRIC HORN (LSH)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model and voltage of sound
module (base required, page 18)
• Please refer to Model Number Index
LSH beginning on page 372
SPECIFICATIONS
Operating Temperature: 32°F to 120°F 0°C to 49°C
Net Weight: 0.45 lbs. 0.2 kg
Shipping Weight: 0.65 lbs. 0.3 kg
Height: 3.25" 82.6 mm
Diameter: 3.93" 99.8 mm
REPLACEMENT PARTS
Description Part Number
Grille Kit, Black K8447014A-10
Piezo Horn, 24VDC K8447040A
Piezo Horn, 120VAC K8447040A-01
Piezo Horn, 240VAC K8447040A-02
A
C
B
1
2
3
1
2
3
3034
A
C
B
1
2
3
1
2
3
4"/101.6 mm
3.25"/82.6 mm
Base Unit
(Model LSB)
OPEN
CLOSE
VOLUME ADJUSTER
Volume adjustment knob
on underside of Piezo Horn
twists open or closed.
3.93"/
99.8 mm
Split Grille
pries open at
screwdriver slots
Cap
(Supplied with
four plastic pins)
Piezoelectric
Sound Module
(Model LSH)
007_122_62362_FedSig.qxd 1/26/08 7:56 PM Page 27
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

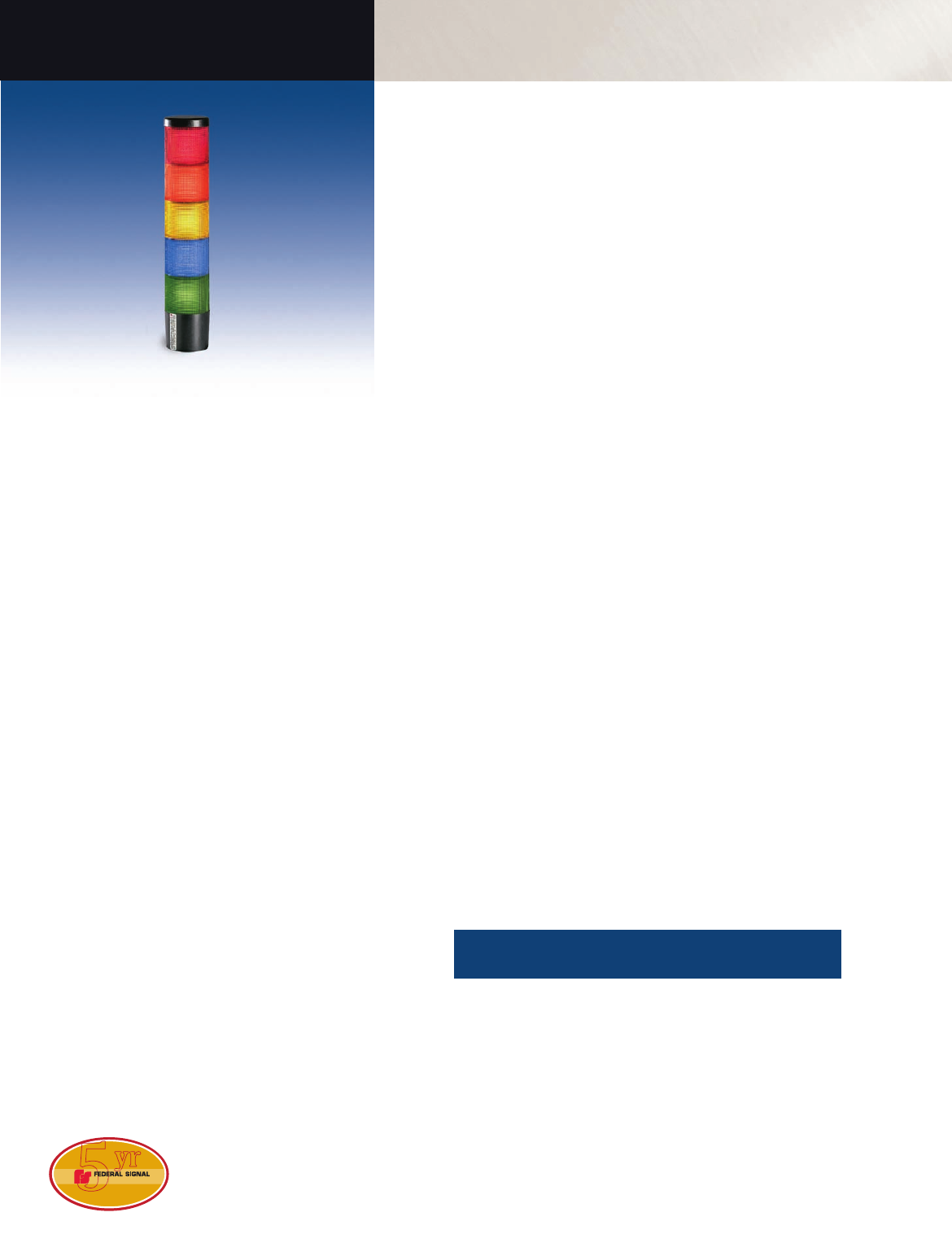

NOTIFY HOMELAND
SECURITY STATUS CHANGES
•Available in 24VDC and 120VAC
•Five lens colors
•Surface mount and integrated
3/4- inch pipe mount
•Available with LED or
Incandescent Lamps
•Indoor use only
•Type 1 enclosure
•Made in the USA
•UL and cUL Listed and
CSA Certified
Litestak®
Homeland Security
Status Indicator
Model LSHLS
Federal Signal, the world’s largest prime manufacturer of audible
and visual signaling for industry has introduced a Homeland
Security Advisory Status Indicator. The LiteStak®is an effective
tool for communicating the Threat Conditions as outlined in the
Homeland Security Presidential Directive; Low (Green), Guarded
(Blue), Elevated (Yellow), High (Orange) and Severe (Red). The
LiteStak is suitable for use in industrial, commercial and
municipal environments.
Each light module produces 360 degrees of light dispersion.
Optical cross-hatching ensures a lens-filling distribution of light
that is free of “hot spots”. Each module of the LiteStak can be set
up for either steady burning or flashing operation (with relays,
flashers or PLCs). The lens of each module snaps on for quick
and easy lamp maintenance.
Lamps choices include a rugged 25-watt incandescent bulb or a
lifetime guaranteed 100,000 hour LED lamp. The LiteStak can be
installed easily in a surface mount or a 3/4” NPT pipe mount
configuration. The choice of operating voltages includes 24VDC
and120VAC for incandescent models and 24VDC and 120VAC for
LED models.
FEDERAL SIGNAL CORPORATION
Operating
Model Voltage Current Mount
LSHLS 24VDC 760 mA Pipe/Surface
LSHLS 120VAC 230 mA Pipe/Surface
LSHLS-LED 24VDC 80 mA Pipe/Surface
LSHLS-LED 120VAC 40 mA Pipe/Surface
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/26/08 6:53 PM Page 22
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
HOMELAND SECURITY STATUS INDICATOR (LSHLS)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
REPLACEMENT PARTS
Description Part Number Description Part Number
Lens Kit, Amber K8447014A-02 Incandescent Lamp, 24VDC K8107210A
Lens Kit, Blue K8447014A-04 Incandescent Lamp, 120VAC K8107194A
Lens Kit, Green K8447014A-01 LED Lamp, Amber LED-024ASB
Lens Kit, Orange K8447014A-08 LED Lamp, Blue LED-024BSB
Lens Kit, Red K8447014A-03 LED Lamp, Green LED-024GSB
Snap Rivets, 25 pieces K7099A112A-01 LED Lamp, Orange LED-024ASB
Cap Kit-Snap Rivets included K8447009E LED Lamp, Red LED-024RSB
SPECIFICATIONS
Lamp Life, Incandescent*: 7,000 Hours 7,000 Hours
Lamp Life, L.E.D*: 100,000 Hours 100,000 Hours
Operating Temperature: 32°F to 120°F 0°C to 49°C
Net Weight: 3.0 lbs. 1.4 kg
Shipping Weight: 4.8 lbs. 2.2 kg
Height: 19.35" 491.5 mm
Diameter: 3.93" 99.8 mm
* Optimal hours under ideal conditions.
HOW TO ORDER
• Specify model, voltage and lamp
style (incandescent or LED)
• Please refer to Model Number Index
LSL/LSB beginning on page 372

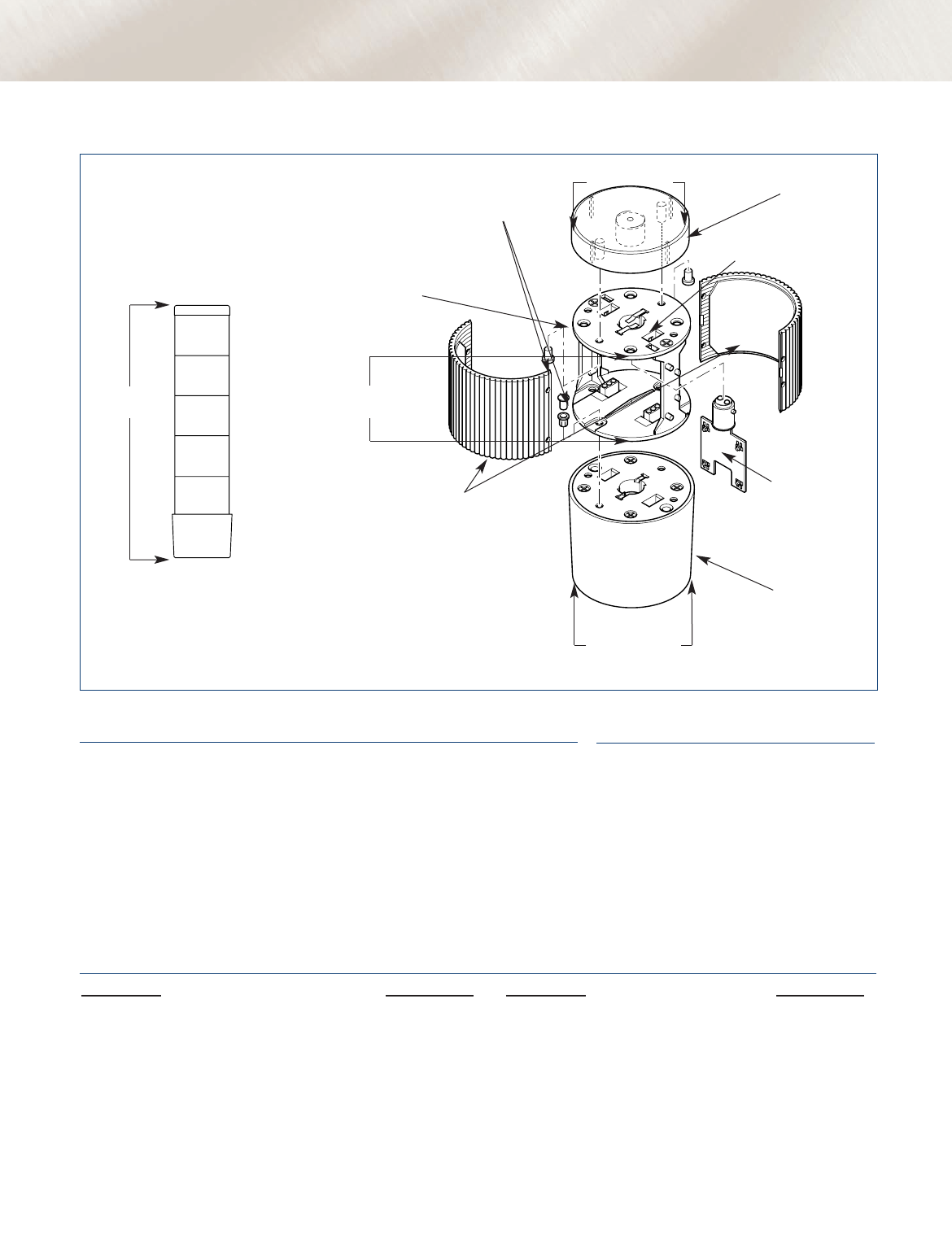

A
C
B
1
2
3
1
2
3
A
C
B
1
2
3
1
2
3
4"/101.6 mm
3.93"/99.8 mm
3.25"/
82.6 mm
Snap-Apart
Polycarbonate Lens
Halves
Base Unit
(model LSB)
100,000 Hour
LED Lamp
Top Cap
Easy to install
snap rivets
Spring Design
Contacts Resist
Vibration
Litestak™
Light Module
(model LSL)
Litestak®Height
Drawing illustrates base unit and one light module.
19.35"/
491.5 mm
007_122_62362_FedSig.qxd 1/26/08 7:56 PM Page 23
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
LONG LIFE LIGHT SOURCE
•Available in 24VDC and 120VAC
•Five lens colors
•100,000 hour, vibration-resistant
LED lamp
•Surface mount and integrated
3/4 - inch pipe mount
•Indoor use only
•Type 1 enclosure
•UL and cUL Listed and
CSA Certified
Litestak®
Status Indicator
with LED Lamp
Model LSLD
Federal Signal’s Litestak®status indicators are vertical columns of
light that indicate the status of a machine’s operating process in a
full 360° radius.
The Litestak Model LSLD modular indicator light system allows
the user to combine up to five interchangeable lamp units with
a base power unit. Modules are sold separately for a truly
customized indicator.
Light modules come complete with a 100,000-hour LED lamp;
LED light output coordinates with the module’s impact-resistant
polycarbonate lensing. LED lamps consume less power, operate at
a lower temperature, and are remarkably resistant to vibration —
which makes them perfect for use in heavy-duty, high
vibration applications.
LED lamps are available in five colors — amber, blue, clear, green
or red. The standard double-contact bayonet base retrofits into
any Federal Signal Litestak unit to replace original incandescent lamps.
An optional Sound Module (Models LSS or LSH) can be added to
the top of the Litestak column to create a dual purpose
audible/visual status indicating signal. The LSS sound module
allows the user to select from 32 tones via a simple dip switch
panel. In applications where a single loud tone is all that is
necessary, the LSH piezo-electric horn is a perfect audible addition.
Litestak is a versatile system that allows the user to select either
steady burn or flash. A flasher is included on the 120VAC LSB unit
only but can be purchased separately for 24VDC models. The
Litestak base unit can be either surface mount, or 3/4" pipe mount.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating
Model Voltage Current Mount
LSB324-240VAC/DC N/A13
/4" Pipe/Surface
LSB3120VAC 50/60Hz N/A13
/4" Pipe/Surface
LSBS324-240VAC/DC N/A1Surface
LSLD224VDC 80 mA N/A1
LSLD2120VAC 50/60Hz 45 mA N/A1
1 Not Applicable
2 Includes lens, lamp and light module.
3 Cap kit included.
007_122_62362_FedSig.qxd 1/26/08 6:51 PM Page 20
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SPECIFICATIONS
Lamp Life*: 100,000 Hours 100,000 Hours
Lamp Style: LED LED
Operating Temperature: 0°F to 120°F -18°C to 49°C
Net Weight, LSLD: 0.45 lbs. 0.2 kg
Shipping Weight, LSLD: 0.7 lbs. 0.32 kg
LSLD Height: 3.25" 82.5 mm
LSB Height: 3.3" 83.8 mm
LSLD Diameter: 3.93" 99.82 mm
LSB Diameter: 3.93" 99.82 mm
LITESTAK®WITH LED LAMP (LSLD)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Light modules and base modules are
ordered separately
• Specify model, voltage and color of
light modules
• Specify model and voltage of base
unit
• Specify optional sound module
(page 24 & 26)
• Please refer to Model Number Index
LSLD beginning on page 372
REPLACEMENT PARTS
Description Part Number Description Part Number
Lens Kit, Amber K8447014A-02 LED Lamp, Amber, 24VDC LED-024ASB
Lens Kit, Blue K8447014A-04 LED Lamp, Blue, 24VDC LED-024BSB
Lens Kit, Clear K8447014A-05 LED Lamp, Clear, 24VDC LED-024CSB
Lens Kit, Green K8447014A-01 LED Lamp, Green, 24VDC LED-024GSB
Lens Kit, Red K8447014A-03 LED Lamp, Red, 24VDC LED-024RSB
Lens Kit, Black-out (1/2 lens) K8447014A-06 LED Lamp, Amber, 120VAC LED-120ASB
Flasher, 24VDC K8285237A LED Lamp, Blue, 120VAC LED-120BSB
Flasher, 120VAC K8285239A LED Lamp, Clear, 120VAC LED-120CSB
Cap Kit-Snap Rivets included K8447009E LED Lamp, Green, 120VAC LED-120GSB
Snap Rivets, 25 pieces K7099A112A-01 LED Lamp, Red, 120VAC LED-120RSB
A
C
B
1
2
3
1
2
3
A
C
B
1
2
3
1
2
3
Litestak®Heights
Spring Design
Contacts
Resist Vibration
4"/101.6 mm
3.93"/99.8 mm
3.25"/82.5 mm
19.35"
16.3"
13.05"
9.8"
6.55"
Top Cap
Easy to install
snap rivets
Litestak™
Light Module
(Model LSLD)
Snap-apart
Polycarbonate
Lens Halves
Polycarbonate
Base Unit
(Model LSB) 100,000 Hour LED
Lamp
* Optimal hours under ideal conditions.
A
C
B
1
2
3
1
2
3
290
A
A) LSBS Low Profile Base B) LSB Base
Mounting Options
A
B
007_122_62362_FedSig.qxd 1/26/08 7:55 PM Page 21
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
ADD SOUND TO A FEDERAL
SIGNAL LITESTAK®
•Available in 24VDC and 120VAC
•Modular unit fits on top of any
Litestak®configuration
•Select one of 18 tones
•Capable of outputs between
59-69dB @ 10' (69-79dB @ 1m)
•Indoor use only
•Type 1 enclosure
•UL Listed and CSA Certified
Litestak®
Sound Module
Model LSS
The Federal Signal Litestak®Sound Module is a microprocessor-
based audible signaling device. The model LSS can be used as a
stand-alone audible device or combined with the Federal Signal
Litestak light modules to create an audible/visual signal.
The sound module contains a microprocessor-based tone generator
and an integrated speaker which produces one of 18 tones. Select
tones by setting five, 2-position DIP-switches. The sound module
can work as a stand-alone audible signal when plugged into the
Model LSBS Low Profile Surface Mount Base or Model LSB Pipe
Mount Base.
The Model LSS can be combined with any Litestak light module
configuration of up to four colors. Controlling the sound module
is done via the wires normally used for the clear light module. The
sound module always occupies the top module position in a
Litestak tower.
Ideal applications for the LSS include environments where the
ambient noise is not extreme – assembly lines, conveyor systems,
automated lines, instrument panels and workshops.
LSS is UL Listed and CSA Certified.
Federal Signal’s Litestak Sound Module allows the user to add a
distinctive audible signal to a Litestak Status Indicator.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating
Model Voltage Current dB Output
LSS 24VDC 180 mA See Page 25
LSS 120VAC 70 mA
007_122_62362_FedSig.qxd 1/26/08 6:55 PM Page 24
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Model Name Description Frequency Rep. Rate dBA @ 10'/1m
TM1 Wail Conventional Siren 560-1055Hz 11 cycles/min. 68.8 / 78.8
TM2 Yelp Rapid Siren 560-1055Hz 3.3 cycles/min. 67.6 / 77.6
TM3 Hi-Lo Alternating High & Low Low: 561Hz High: 760Hz 50 cycles/min. 68.3 / 78.3
TM4 Bell Bell, struck rapidly 801Hz 50 cycles/min. 59.0 / 69.0
TM5 Yeow Descending high to low, repeated Low: 545Hz High: 1295Hz 36 cycles/min. 67.8 / 77.8
TM6 Horn Steady Horn 470Hz Continuous 61.0 / 71.0
TM7 Beep Slow intermittent horn 470Hz 50 cycles/min. 59.6 / 69.6
TM8 Stutter Rapid intermittent horn 470Hz 5 cycles/sec. 59.4 / 69.4
TM9 Slow Whoop Slow ascending low to high, repeated Low: 424Hz High: 1164Hz 15 cycles/min. 66.5 / 76.5
TM10 Gradual Horn Steady horn, gradually increasing volume 514Hz Continuous 62.3 / 72.3
TM11 Temp. Slow Whoop NFPA1coded slow whoop Low: 424Hz High: 774Hz 15 cycles/min. 65.2 / 75.2
TM12 Westminster Chime Westminster Chime Musical tone 1 cycle; 8 notes 63.4 / 73.4
TM13 Evac./Radiation Amplitude modulated horn 479Hz 4.3 cycles/sec. 61.7 / 71.7
TM14 Air Horn Steady horn Low: 400Hz High: 800Hz Continuous 66.2 / 76.2
TM15 Chime Single strike chime Musical tone 49 cycles/min. 60.6 / 70.6
TM16 Phaser Rapid siren 600-1200Hz 15 cycles/sec. 63.7 / 73.7
TM17 Alternating Hi-Lo Alternating High & Low Low: 363Hz High: 518Hz 60 cycles/min. 63.8 / 73.8
TM18 Warble Extremely rapid siren 560-1055Hz 63 cycles/sec. 67.1 / 77.1
AVAILABLE TONES
LITESTAK®SOUND MODULE (LSS)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model and voltage of sound
module (base required, page 18)
• Please refer to Model Number Index
LSS beginning on page 372
SPECIFICATIONS
Operating Temperature: 32°F to 120°F 0°C to 49°C
Net Weight: 24VDC 0.6 lbs. 0.3 kg
120VAC 0.9 lbs. 0.4 kg
Shipping Weight: 24VDC 0.8 lbs. 0.4 kg
120VAC 1.1 lbs. 0.5 kg
Height: 3.25" 82.6 mm
Diameter: 3.93" 99.8 mm
REPLACEMENT PARTS
Description Part Number
Grille Kit, Black K8447014A-07
Snap Rivets, 25 pieces K7099A112A-01
Cap
(Top of Unit)
Included with base
Tone
Selection
Chart
3.93"/99.8 mm
Five
Position
DIP switch
Speaker
Speaker
Grille
(black)
3.25"/82.6 mm
007_122_62362_FedSig.qxd 1/26/08 6:55 PM Page 25
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

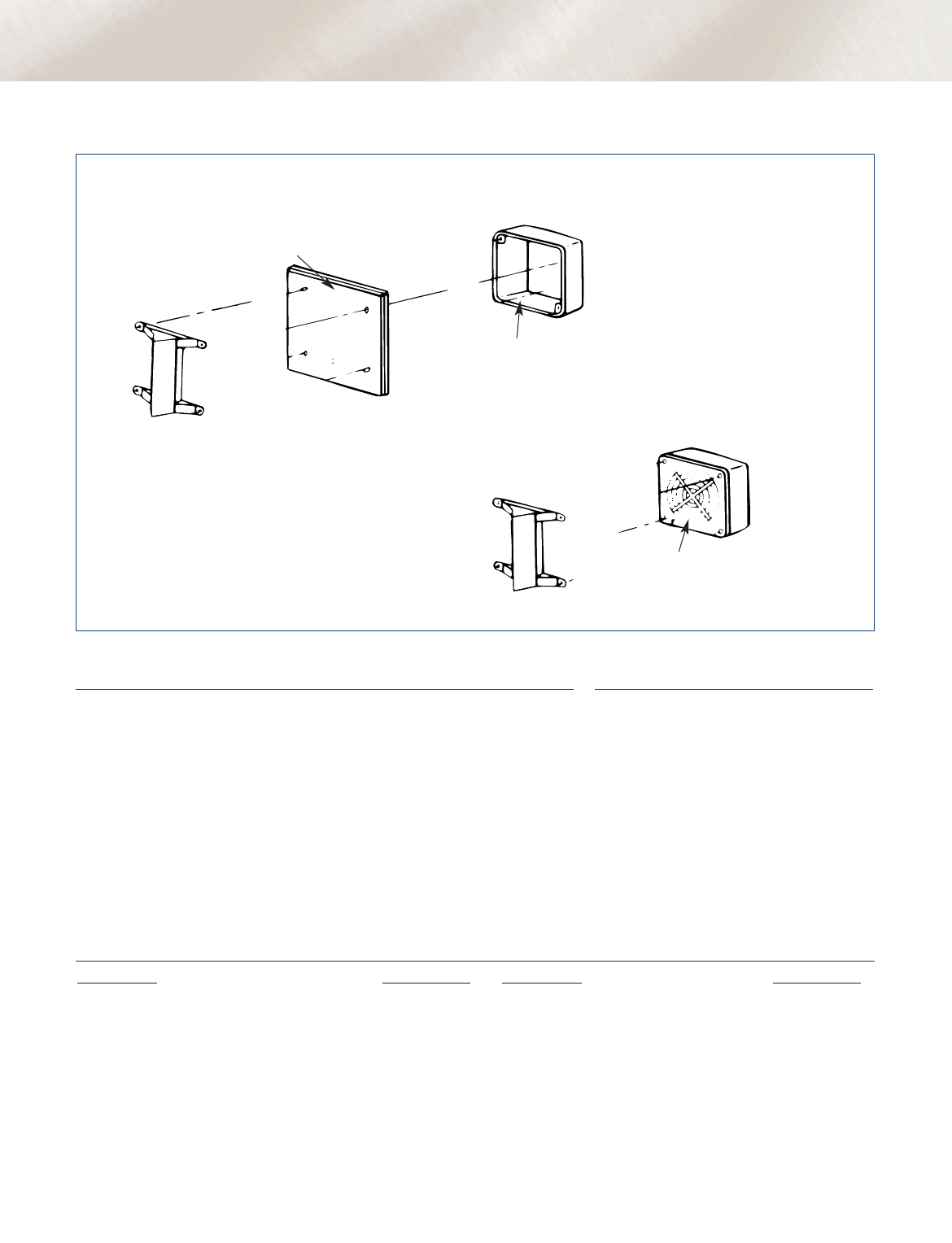

CUSTOM MOUNTING
BRACKETS
•Heavy-duty construction
•Easy installation
•For walls and outside corners
•Replaces unsightly and hazardous
makeshift supports
•1/2- inch, 3/4- inch and 1 - inch
pipe mount
•Indoor and outdoor use
•Type 3R
Mounting Kits
Models LWMB2 and LCMB2
Federal Signal’s Models LWMB2 and LCMB2 mounting brackets
are specifically designed for use with Federal Signal’s stationary
warning lights to provide an easy and consistent means of mounting
lights throughout a facility.
Federal Signal’s Models LWMB2 and LCMB2 are constructed of
durable cast aluminum and sealed with gray powder coat paint.
Easy to install, these units can be wired through the back of the
bracket for electrical box mounting or through the threaded hole
in the base for external 1/2-inch conduit connection. Each kit
includes a bracket, plate and mounting screws.
Easy installation, heavy-duty construction and a professional
appearance make the brackets suitable for use in commercial,
institution and industrial environments.
These brackets are suitable for any Type 3R application in
ordinary (non Division 1/Division 2) environments.
The LCMB2 and LWMB2 mounting kits may be used with the
following Federal Signal models: 121S, 131ST, 131DST, 131C,
141(120V), 141ST, 225, 371, 371L, 371ST, 371DST, AV1, AV1ST,
FB2PST and the FB24ST.
FEDERAL SIGNAL CORPORATION
Net Shipping
Model Height Width Extension Weight Weight
LWMB2 6.0" 6.375" 5.875" 2.6 lbs. 2.95 lbs.
LCMB2 6.0" 5.000" 5.750" 2.3 lbs. 2.50 lbs.
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/27/08 7:22 AM Page 110
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
MOUNTING KITS (LWMB2/LCMB2)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model
LCMB2 – Corner Mount
LWMB2 – Wall Mount
• Please refer to Model Number Index
LCMB2/LWMB2 beginning on
page 377
BACKPLATE
INCLUDED
MACH. SCREWS
INCLUDED
CORNER
MOUNTING
BRACKET
SET SCREWS
INCLUDED
CONNECTOR
1/2" TAPPED HOLE
1/2" TAPPED HOLE
1/2" CONDUIT
WALLS
SHEET METAL
SCREWS
BACKPLATE
INCLUDED
ANCHORS
(NOT SUPPLIED)
Installation of an outside corner bracket with conduit
Installation of a wall bracket with conduit wiringInstallation of a wall bracket on a 4" electrical box
MACH. SCREWS
INCLUDED
PLASTER RING
OR ELECTRICAL BOX
INCLUDED ADAPTER PLATE
INCLUDED
MOUNTING
BRACKET
ASSEMBLY
WALL
ANCHORS
(NOT SUPPLIED)
MACH. SCREWS
SET SCREWS
WALL
MOUNTING
BRACKET
CONNECTOR
1/2" CONDUIT
.028 HOLE SIZE
.028 HOLE SIZE
007_122_62362_FedSig.qxd 1/27/08 7:23 AM Page 111
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

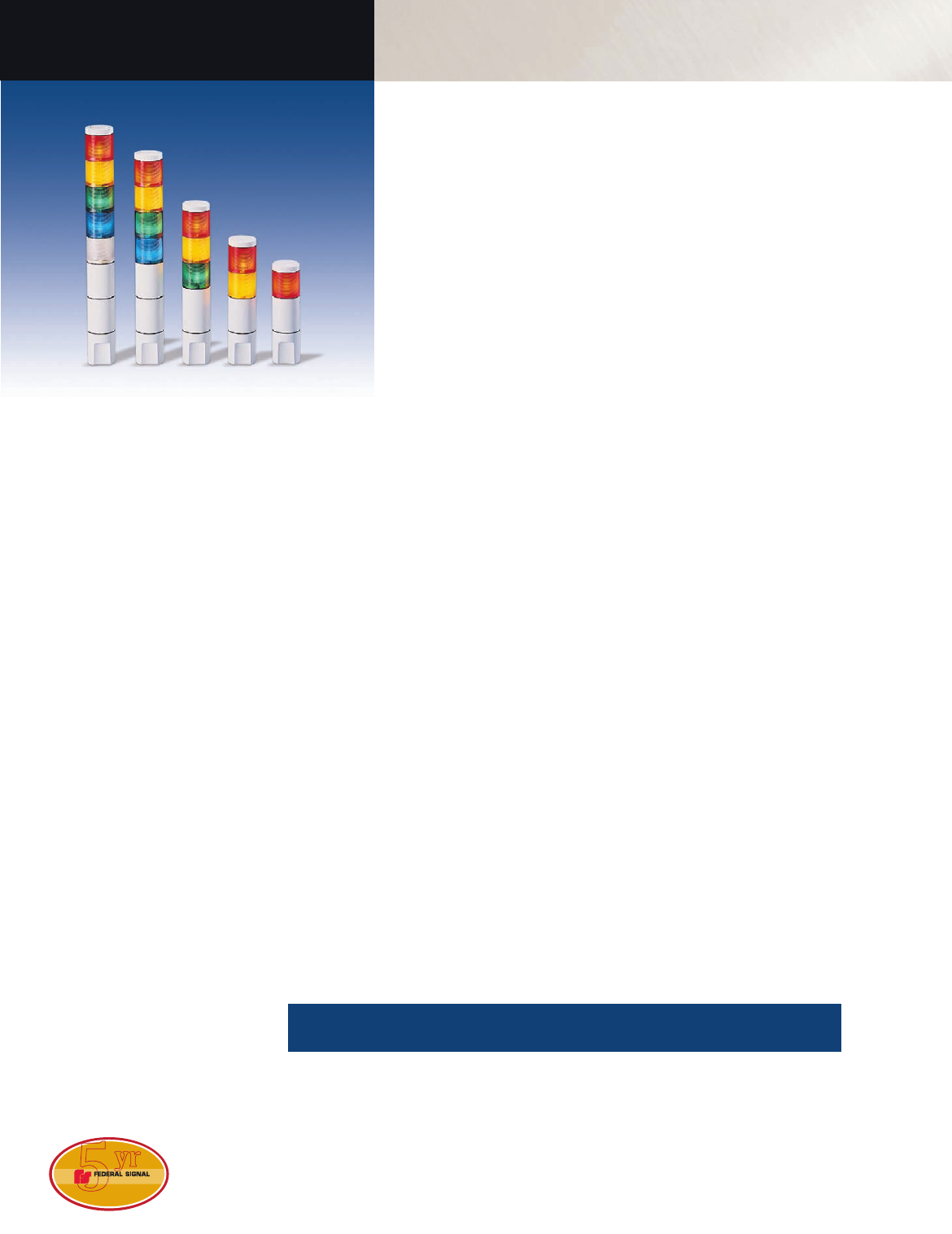

COMPACT STATUS INDICATOR
IN WATER-TIGHT ENCLOSURE
•MSL1, MSL2, MSL3 available in
24VAC/DC, 120VAC and 240VAC;
MSL4 and MSL5 available in
24VAC/DC and 120VAC
•Factory assembled
•Small footprint — only 2.2"
diameter (55.9 mm)
•Vibration-resistant 5.6W
wedge lamp
•Surface mount and integrated
3/4- inch pipe mount
•Type 4X enclosure1
•Indoor Use only
•Optional Sound Module, LED
Lamp, Pipe Mount Base
and Flasher
•PLC Compatible
•UL and cUL Listed
MicroStat®
Status Indicator
Model MSL
The Federal Signal MicroStat®is a compact, Type 4X status
indicator, Type 1 with optional sounder. Ideal for OEM applications,
the MicroStat comes pre-assembled as 1-, 2-, 3-, 4-, or 5-high
light units. The user selects combinations from five colors; amber,
blue, clear, green and red. O-rings between each segment provide
a water-tight and dust-tight seal. The MSL1, MSL2, MSL3 are
available in 24VAC/DC, 120VAC and 240VAC; the MSL4 and MSL5
are available in 24VAC/DC and 120VAC. The base of each light can
be surface or pipe mounted (3/4-inch NPT).
The lenses lock together and snap apart with a simple twisting
motion, allowing for easy lamp changes and quick lens resequencing.
A rugged vibration-resistant, thick-filament wedge lamp fills each
lens with light, providing excellent optical performance.
Wire connections are made through a 2-piece terminal block.
The MicroStat is designed to work with PLC outputs including “Triacs”.
An optional 100,000-hour LED light source is available in the five
colors. This lamp, made of surface mounted LEDs, plugs directly
into the same socket as the standard lamp.
An optional sound module can be installed in the top position of
any MicroStat. The Sound Module Kit (MSS) consists of a slotted
grille and board-mounted piezoelectric horn. The sounder plugs
directly into the wedge socket.
A pipe mount base, pipes and flashers are also available. See page
16 for a complete list of options.
FEDERAL SIGNAL CORPORATION
Operating
Model Description Current Voltage
MSL1 One status segment 0.2 amps MSL1, MSL2, MSL3
MSL2 Two status segments 0.4 amps available in 24VAC/DC
MSL3 Three status segments 0.6 amps 120VAC, 240VAC
MSL4 Four status segments 0.8 amps MSL4, MSL5
MSL5 Five status segments 1.0 amps available in
24VAC/DC, 120VAC
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
1 MSL with optional sounder rated NEMA Type 1.
007_122_62362_FedSig.qxd 1/26/08 6:47 PM Page 14
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
REPLACEMENT PARTS
Description Part Number Description Part Number
Lens, Amber K8447042A Terminal Block (3 position) K140373A-03
Lens, Clear K8447042A-02 Terminal Block (4 position) K140373A-04
Lens, Red K8447042A-04 Terminal Block (6 position) K140373A-06
Lens, Blue K8447042A-01 Light Barrier K8447061A
Lens, Green K8447042A-03 Cap K8447044A
Wedge Lamp (#655), .28V K8107185A O-Ring K8447054B
MSLED Lamp Please refer to page 16
SPECIFICATIONS
Lamp Life*: 7,000 Hours 7,000 Hours
Lamp Style: Wedge-Type Lamp #655
Operating Temperature: 32°F to 104°F 0°C to 40°C
Net Weight: 1-high 0.4 lbs. 0.18 kg
2-high 0.55 lbs. 0.25 kg
3-high 0.65 lbs. 0.29 kg
4-high 0.85 lbs. 0.39 kg
5-high 1.0 lbs. 0.45 kg
Ship. Weight: 1-high 0.7 lbs. 0.32 kg
2-high 0.85 lbs. 0.39 kg
3-high 1.3 lbs. 0.59 kg
4-high 1.5 lbs. 0.68 kg
5-high 1.65 lbs. 0.75 kg
MICROSTAT®STATUS INDICATOR (MSL)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
Colored Lenses
Twist On/Off and
“Click” into Place
234 N15
Terminal Block
Wiring Diagram
O-Ring Gasket
Base is
Designed for
Surface or
Pipe Mounting
Printed Circuit Board
Sleeve
Cap
Two Phillips-Head
Screws Connect
Sleeve to Base
Wedge-Type Lamp #655
Lamp Socket
& Cover Assembly
Dimensions —
(Diameter: 2.2"/55.9 mm)
7.8"/197.2 mm
9.8"/248 mm
12.5"/317.9 mm
16.5"/419.5 mm
18.5"/444.9 mm
Sound Module
Assembly
HOW TO ORDER
• Determine number of status
segments required; one for each
light segment and one for a sounder
• Specify Model MSL1, MSL2, MSL3,
MSL4, MSL5.
• Specify colors for MSL1 and MSL2
(MSL3, MSL4 and MSL5 are pack-
aged with one each of the colored
lenses)
• Specify voltage
• Specify options (see page 16)
• Please refer to Model Number Index
MSL beginning on page 372
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/26/08 7:54 PM Page 15
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

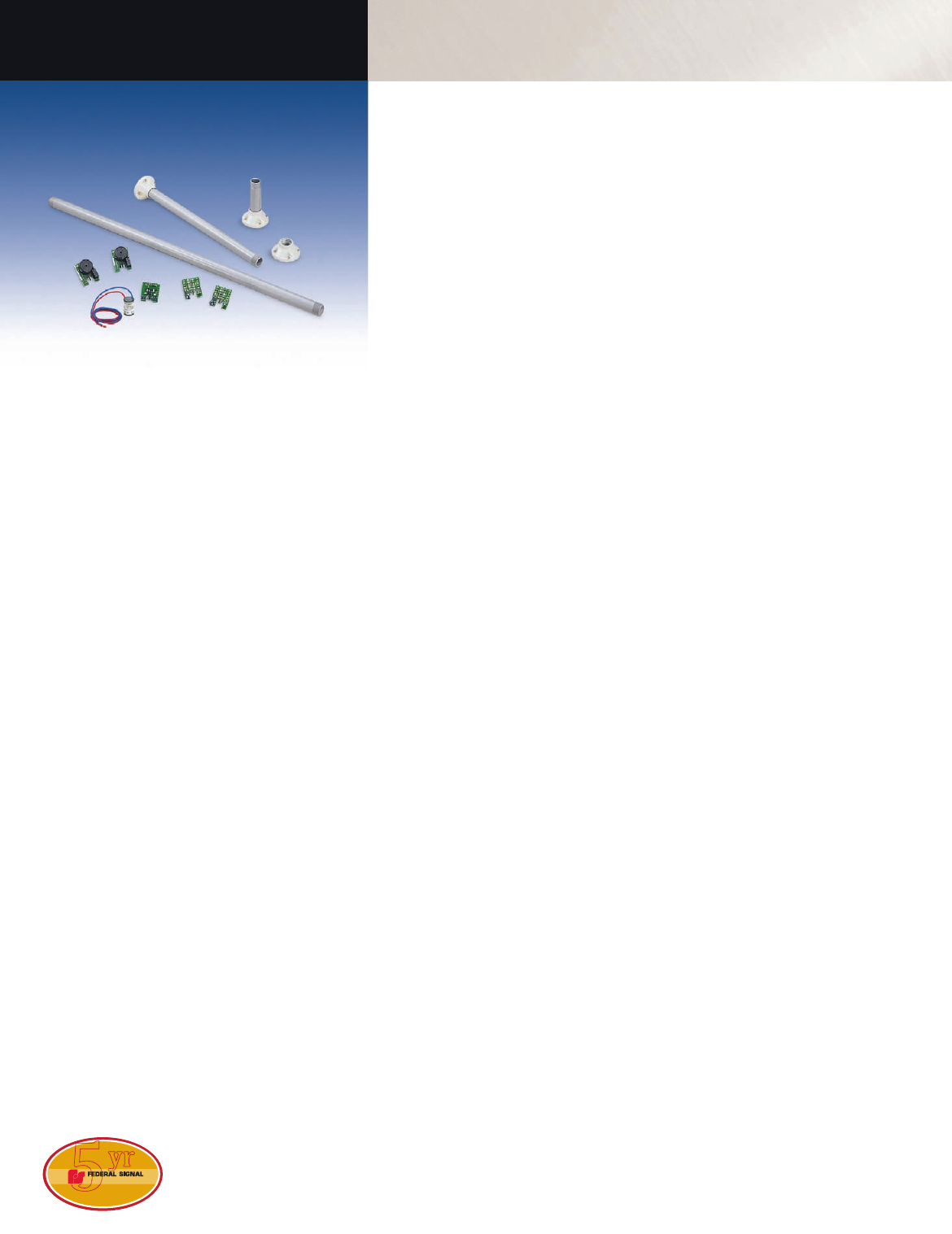

ADD THESE OPTIONS TO
YOUR MICROSTAT®
•Plug-in sound module, 24VDC
and 120VAC
•Flashers, 24VDC and 120VAC
•Wall mount bracket
•Plug-in LED's in five colors –
amber, blue, clear, green, or red
•Pipe extensions
•Tulip-style pipe-mount base
•UL and cUL Listed (MSLED, MSS)
MicroStat®
Status Indicator
Optional Equipment
Models MSLBRCKT, MSLED, MSP, MSS,
MSTB
A variety of optional equipment is available for the MicroStat®.
MSLBRCKT
Wall mounting the MicroStat is simple with this basic bracket.
MSLED
Five plug-in LED’s are available for the MicroStat; amber, blue,
clear, green, or red. The MSLED replaces the lamp in any MSL
light module. These surface mount printed circuit board lamp
simulators represent the state of the art in LED technology.
MSLED modules are UL Listed.
MSP
Some applications require that the status indicators be raised
above the machine surface. Using powder coated steel pipe
extensions helps improve the visibility of the MicroStat. Three
different lengths are available for the MicroStat. They measure
4-inches (MSP-4), 16-inches (MSP-16) and 32-inches(MSP-32).
MSS
Adding sound to the MicroStat is simple with the plug-in Sound
Module. The Sound Module produces 83-85dB @ 10’. This compact
piezo device replaces the lamp in the top position of any MicroStat.
A slotted opaque lens protects the sound module circuit and permits
the sound to be heard at maximum levels. Adding the sound module
to the MicroStat changes the Type rating from 4X to Type 1.
Sound modules are available in 24VDC and 120VAC operating voltages.
MSTB
The MicroStat base can be pipe-mounted or surface-mounted.
When using the pipe extensions the Tulip Base is required for a
true surface mount.
FLASHERS
Flashers for the MicroStat are available in 24VDC and 120VAC.
Each flash at 75 fpm.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
007_122_62362_FedSig.qxd 1/26/08 6:48 PM Page 16
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SPECIFICATIONS
MSS
Operating Current: 24VDC 0.03 amps
120VAC 0.04 amps
dB Output: 93-95dB @ 10' 83-85 @ 1m
Net Weight: 0.25 lbs. 0.11 kg
Shipping Weight: 0.75 lbs. 0.34 kg
Height: 2.0" 50.8 mm
Diameter: 2.2" 55.9 mm
MSLED
Operating Current: 24VDC 0.095 amps
120VAC 0.095 amps
Net Weight: 0.05 lbs. 0.02 kg
Shipping Weight: 0.55 lbs. 0.25 kg
Height: 1.75" 44.45 mm
Width: 1.5" 38.1 mm
MSLBRCKT
Net Weight: 0.4 lbs. 0.18 kg
Shipping Weight: 0.9 lbs. 0.41 kg
Height: 3.45" 87.63 mm
Width: 2.0" 50.8 mm
MSTB
Net Weight: 0.3 lbs. 0.14 kg
Shipping Weight: 0.8 lbs. 0.36 kg
Height: 1.5" 38.1 mm
Diameter: 2.75" 1.25 mm
FLASHERS
Flasher, 24VDC K8285237A
Flasher, 120VAC K8285239A

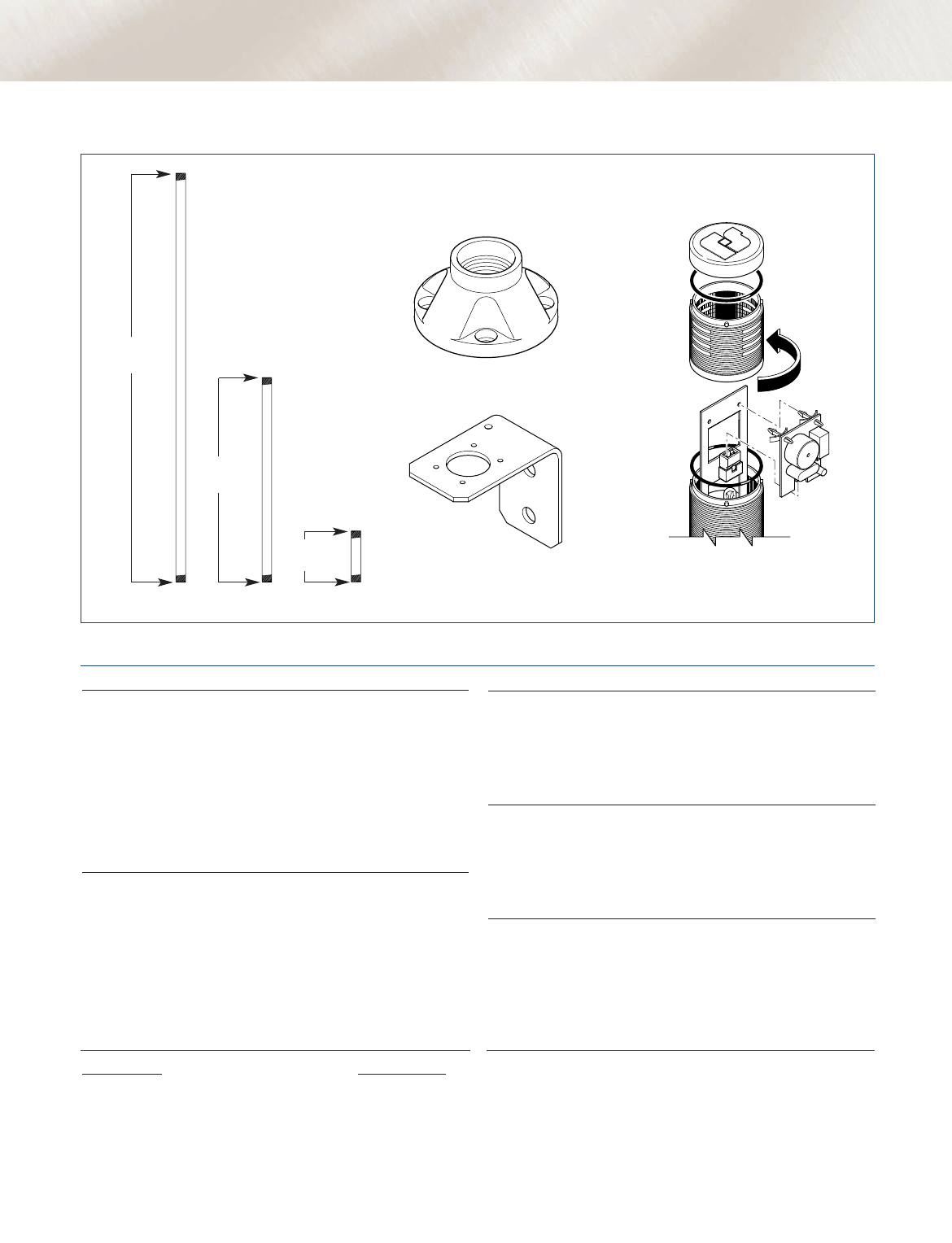

MICROSTAT®OPTIONAL EQUIPMENT
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model
• Specify voltage for sound modules and flashers
• Specify color for LED lamps
• Please refer to Model Number Index Microstat
Options beginning on page 372
MSLBRCKT
MSTB
MSS
MSP's
31.5"
80 cm
16"
40.6 cm
4"
10.6 cm
REPLACEMENT PARTS
Description Part Number
LED Lamp, Amber MSLED-A
LED Lamp, Blue MSLED-B
LED Lamp, Clear MSLED-C
LED Lamp, Green MSLED-G
LED Lamp, Red MSLED-R
007_122_62362_FedSig.qxd 1/26/08 6:49 PM Page 17
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

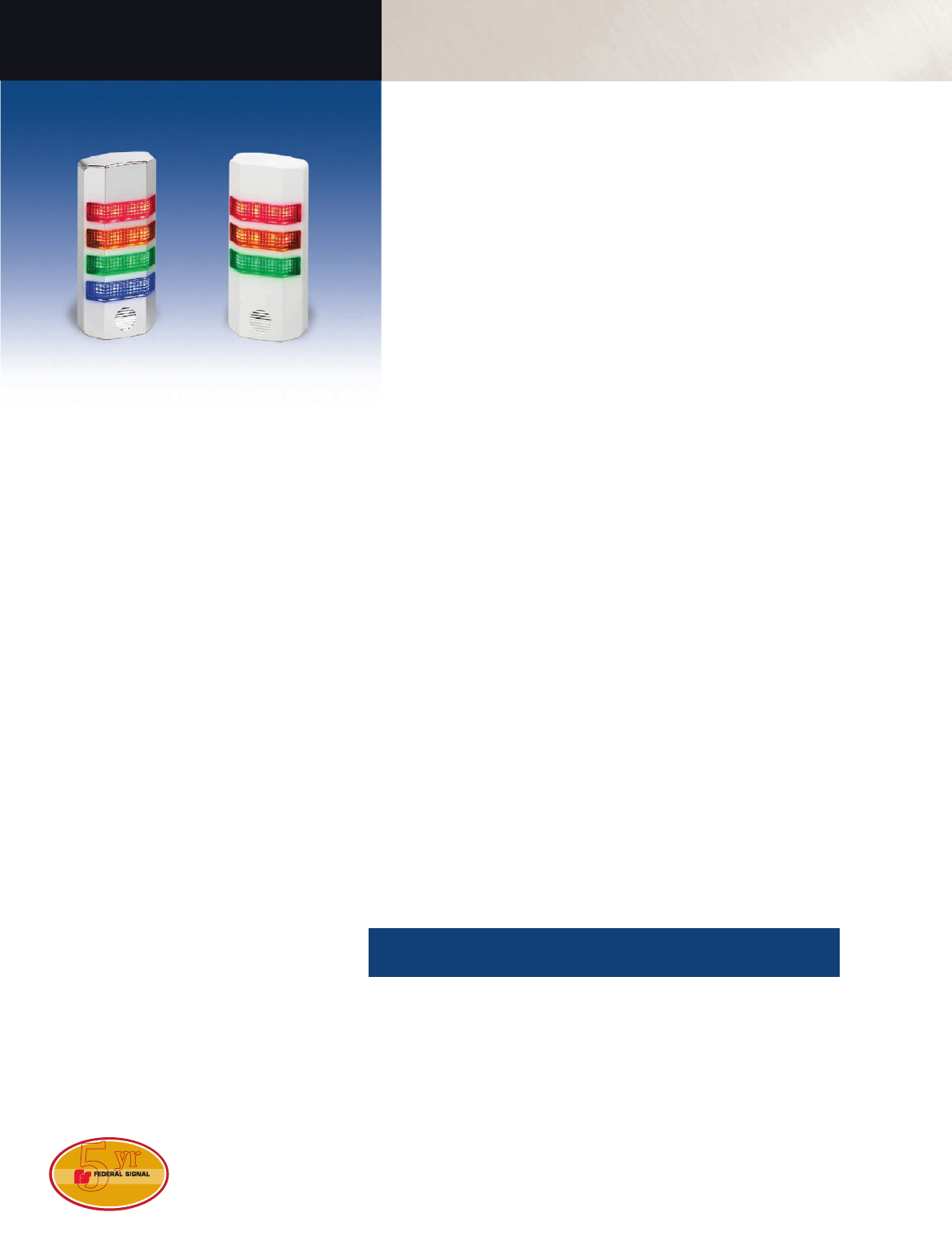

OEM STATUS INDICATOR
•Available in 24VAC/VDC
•Tri or quad-color models
•Available in chrome or white finish
•100,000 hour vibration resistant
LED lamps
•Integrated sounder
•Surface mount
•Indoor use only
SemiStat®
Status Indicator
Models SCB and SCC
Federal Signal introduces the SemiStat®Status Indicator. Designed
to meet the needs of the OEM market, the SemiStat is an attractive,
easy-to-install and economical status indicator.
SemiStats operate on 24VAC or 24VDC. The snap fit housing
cover and a standard terminal block make the installation and
wiring of the SemiStat a quick job.
The attractive and durable ABS housing is available with either a
white or “chrome” finish to complement the machine or location
of installation.
SemiStat LED light modules utilize extremely bright light emitting
diodes for the greatest attention-getting affect. Tri-Color SemiStat
features red, amber and green light modules and Quad Color
SemiStat features red, amber, green and blue light modules. Clear
LED light modules are available separately. The sequence of the
LED light modules can be easily changed to suit the application –
just pop off the housing cover, disconnect the modules and then
reconnect in the desired order. Light modules can be set to flash-
ing or steady burning mode.
For further utility, each SemiStat is equipped with an integrated
piezo sounder. SemiStat sounders produce 60dB at ten feet. A
selection of two beep patterns is offered.
FEDERAL SIGNAL CORPORATION
Operating Decibels @
Model Voltage Current 10' 1m Mount
Tri-color 24VAC/VDC 150 mA* 60 70 Surface
Quad color 24VAC/VDC 175 mA* 60 70 Surface
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
* Amp draw measured with all colors and sounder activated simultaneously.
007_122_62362_FedSig.qxd 1/26/08 6:42 PM Page 8
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

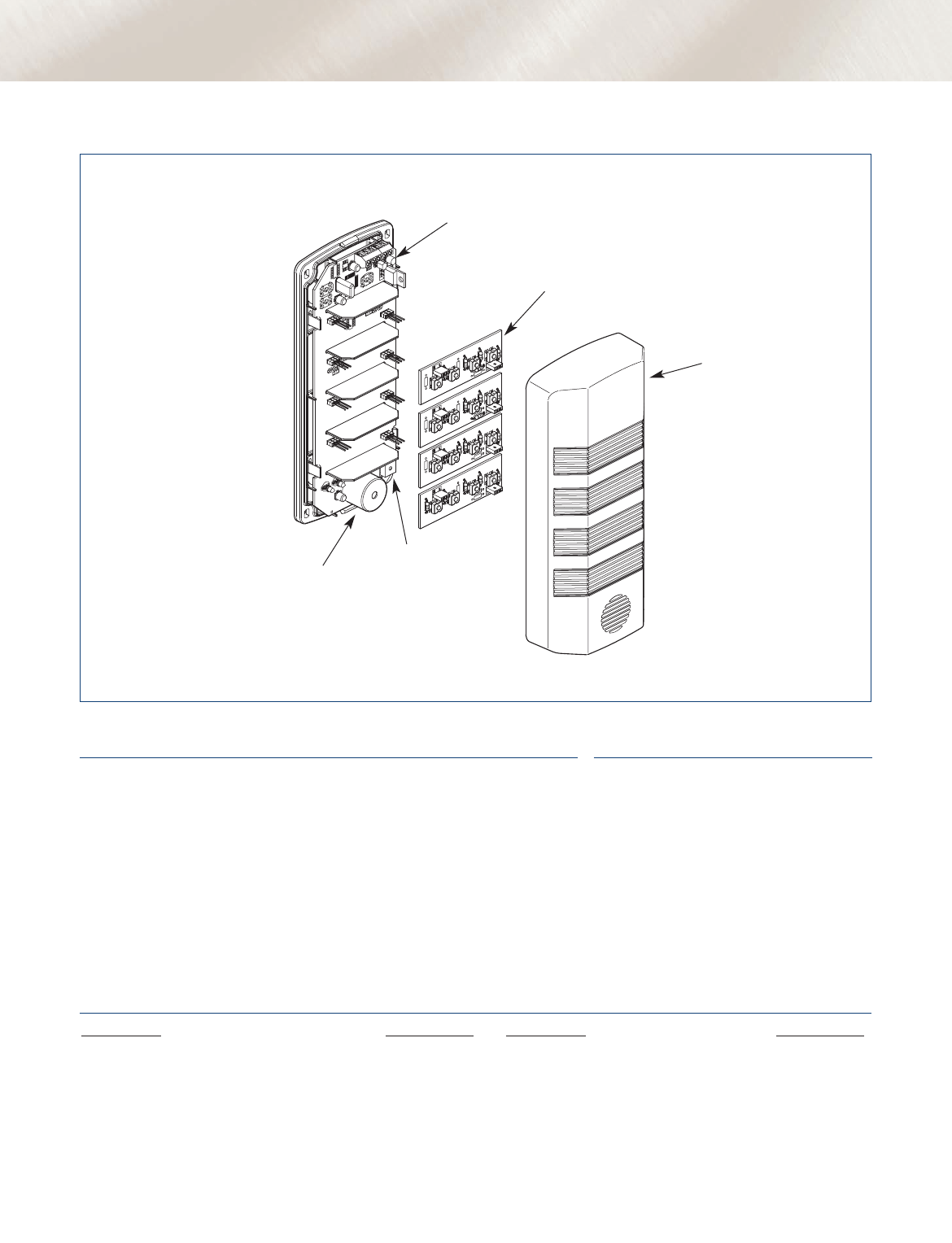

SEMISTAT®STATUS INDICATOR (SCB/SCC)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model and tri- or quad color
• Specify finish
White/Beige (B) or Chrome (C)
• Please refer to Model Number Index
SCB/SCC beginning on page 372
SPECIFICATIONS
Lamp Style: LED Lamp LED Lamp
Lamp Life: 100,000 hours 100,000 hours
Operating Temperature: 32°F to 140°F 0°C to 60°C
Net Weight: 0.7 lbs. 0.32 kg
Shipping Weight: 1.0 lbs. 0.45 kg
Height: 8.14" 207.0 mm
Width: 3.55" 90.0 mm
Depth: 1.55" 39.0 mm
LED Modules
Cover
Piezo Sounder
Printed Circuit Board
Vol um e Con t r o l
REPLACEMENT PARTS
Description Part Number Description Part Number
PCB Assembly K2001958A LED Module, Red K2001925A
LED Module, Amber K2001925A-01 LED Module, Green K2001925A-03
LED Module, Blue K2001925A-02 LED Module, Clear K2001925A-04
007_122_62362_FedSig.qxd 1/26/08 6:42 PM Page 9
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SYNCHRONIZE LOW IN-RUSH
FEDERAL SIGNAL STROBES
•Synchronizes strobe lights to
72 flashes per minute
•Mounts on double-gang
electrical box
•UL1971 Approved for hearing
impaired applications
•Polarized design allows for
remote supervision
•Compatible with select Federal
Signal model strobe lights
(see chart)
Synchronous
Strobe Module
Model SSM
The Model SSM, Synchronous Strobe Module, is an electronic
timing mechanism designed to energize select Federal Signal low
in-rush 24VDC strobe lights simultaneously, while maintaining the
ability to remotely supervise the strobe light circuit. This module
is designed to synchronize a special series of Federal Signal
strobe lights, which meet the requirement for Private-Mode Fire
Alarm use, while maintaining the agency approval and environ-
mental rating of the strobe light. The SSM is only compatible with
Federal Signal brand strobe lights. See compatible models on the
“How to Order” page.
The SSM enables the customer to meet local building codes
through a visually appealing “single-flash” created by the simulta-
neous control of strobe lights connected to it. Mixed signals are
reduced to a minimum as reflection of many light pulses are now
viewed as one single flash.
The SSM mounts to the plaster ring of a double-gang electrical
box, and requires 24 VDC at all times to operate the timing circuit.
Screw terminals are provided for field termination of control
wiring and a maximum of three non-Explosion-proof strobe lights
or two Explosion-proof strobe lights may be connected to each
SSM. Electrically, the SSM should be mounted in the middle of
the circuit, with a maximum cable distance of 100’ from the SSM
to each Strobe light. Supervision is accomplished the same as
without the SSM, with a flash rate of 72 Flashes per minute in lieu
of the advertised flash rate for each strobe light. The SSM is
capable of switching 6 Amps of current. Please note: Not all
strobe lights have the same in-rush current and therefore the
SSM’s circuit’s switching potential may be reduced. Please see the
application drawings on the second page.
FEDERAL SIGNAL CORPORATION
Operating
Model Current Voltage
SSM 0.95 amps 24VDC
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SPECIFICATIONS
Operating Temperature: 32°F to 120°F 0°C to 49°C
Net Weight: 0.53 lbs. 0.24 kg
Ship. Weight: 0.93 lbs. 0.42 kg
Height: 4.5” 114.3 mm
Width: 4.5” 114.3 mm
Depth: 1.12” 28.4 mm
SYNCHRONOUS STROBE MODULE (SSM)
VISUAL
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
REPLACEMENT PARTS
Description Part Number
PC Board Assembly K2001933A
CONTROL PANEL
OR
POWER SUPPLY
SYNC MODULE SSM
STROBE
SIGNAL
24VDC
IN – –
–
+
+
++
24VDC
OUT END OF
LINE
RESISTOR
FB24STHI
OR
224XSTHI
STROBE #1
FB24STHI
OR
224XSTHI
STROBE #2
FB24STHI
OR
224XSTHI
STROBE #3
IN
+
IN
+
IN
+
OUT
+
OUT
+
OUT
–
OUT
–
OUT
–
OUT
–
IN
–
IN
–
IN
BLACK
RED
–
+
BLACK
RED
–
+
BLACK
RED
–
+
290A5130
HOW TO ORDER
•Specify model
RED +
+
–IN
OUT
+
+
+
CONTROL PANEL
OR
POWER SUPPLY
SYNC MODULE SSM
STROBE
SIGNAL
24VDC
IN
2
BLACK–
––
–IN
–OUT
24VDC
OUT
+OUT
FSEX–HI
STROBE #1
+IN
RED +
BLACK–
FSEX–HI
STROBE #2
END OF
LINE
RESISTOR
–OUT
–
+IN
COMPATIBLE STROBE LIGHTS
224XST-024, Series C 3 per circuit
225XST-I-024, Series B 3 per circuit
FB2PSTX-I-024, Series B 3 per circuit
FB2PST-I-024, Series B 3 per circuit
FB24ST-024, Series B 3 per circuit
FB24ST-HI-024, Series C 3 per circuit
224XST-HI-024, Series B 3 per circuit
FSEX-HI-024, Series D 2 per circuit
FSEX-024, Series D 2 per circuit
27XST-024, Series E 2 per circuit
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y

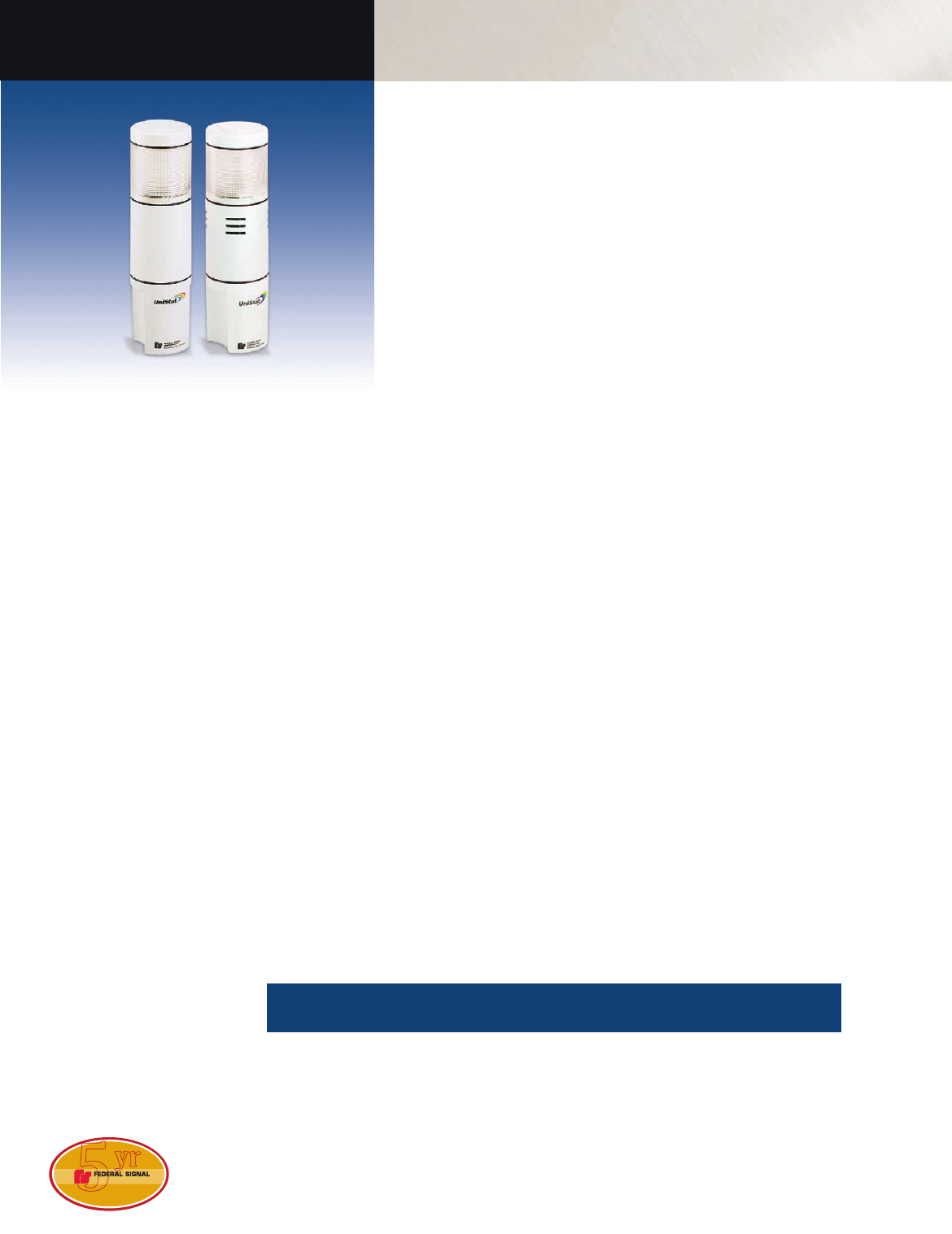

MULTICOLOR LED TYPE
4X STATUS INDICATOR
•Available in 24VAC/DC and 120VAC
•Tri or quad-color models
•100,000 hour, vibration-resistant
LED light source
•Models available with
built-in sounder
•Surface mount and integrated
3/4 - inch pipe mount
•PLC compatible
•Indoor use only
•Type 4X, IP66 enclosure
•Type 1 with sounder
•UL and cUL Listed
UniStat™
Status Indicator
Model USI and USIS
The UniStat™ is an LED (light emitting diode) based, multi-color,
single-high status indicator.
Using the latest die level LED technology, this unique status indicator
can produce three colors (Amber, Green and Red) or four colors
(amber, blue, green and red) from a single light source.
Ideal for OEM applications, the UniStat is compact, attractive, and
easy to install. The low profile UniStat produces as much light as
its much larger competitors.
The UniStat offers a choice of four integrated flash patterns –
steady-burn, slow flash, strobe flash and SimuStrobe™.
SimuStrobe simulates the attention-getting flash rate of a strobe
light but with a much more color-rich output. The user can
choose a total of 12 possible flash/color combinations in the
tri-color models and 16 in the quad-color models.
When the application calls for an increased sense of urgency,
specify the model USIS with an integrated piezo sounder.
Producing 60dB @ 10 feet, the USIS is the ideal attention getter in
process control applications.
Like the multi-level, multi-color, multi-lamp Microstat™, the
UniStat is rated Type 4X (models with sounder are rated Type1).
Each model arrives pre-assembled and ready to surface mount or
3/4-inch pipe mount. Options for the UniStat include pipe mount
extensions (4",16", & 32"), a wall mount bracket and a tulip mount
base (see page 16).
Operating
Model Description Voltage Current Mount
USI/USIS-024TC Tri-color 24VAC/DC 100 mA* 3/4" Pipe or Surface
USI/USIS-120TC Tri-color 120VAC 60 mA* 3/4" Pipe or Surface
USI/USIS-024QC Quad-color 24VAC/DC 100 mA* 3/4" Pipe or Surface
USI/USIS-120QC Quad-color 120VAC 60 mA* 3/4" Pipe or Surface
* Sounder draws 100 mA on all models
FEDERAL SIGNAL CORPORATION
007_122_62362_FedSig.qxd 1/26/08 6:43 PM Page 10
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
UNISTAT™ WITH LED LAMP (USI/USIS)
REPLACEMENT PARTS
Description Part Number
Lens, Clear K8447042A-02
Cap, Clear K8447044A
O-Ring K8447054B
LED Array, Tricolor K2005328A
LED Array, Quad Color K2005328A-01
PCB, USI 24VDC K2005347A
PCB, USI 120VAC K2005347A-02
PCB, USIS 24VDC K2005347A-01
PCB, USIS 120VAC K2005347A-03
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model number, voltage and
tri-color or quad-color
• Specify optional sounder
• Specify options from page 16
• Please refer to Model Number Index
USI/USIS beginning on page 372
SPECIFICATIONS
Lamp Life*: 100,000 Hours 100,000 Hours
Light Source: LED LED
Operating Temperature: 32°F to 104°F 0°C to 40°C
Net Weight: 0.4 lbs. 0.18 kg
Shipping Weight: 0.7 lbs. 0.32 kg
Height: 7.8" 197.2 mm
Diameter: 2.2" 55.9 mm
* Optimal hours under ideal conditions.
2.2"
55.89 mm
7.8"
197.2 mm
Clear Lens -
Twist On/Off and
“Click” into Place
“O”-Ring Gasket
Base is
Designed for
Surface or
Pipe Mounting
Sleeve
Cap
Two Phillips-Head
Screws Connect
Sleeve to Base
LED Light Source
Sleeve of USIS features sound vents not pictured here.
007_122_62362_FedSig.qxd 1/26/08 7:54 PM Page 11
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
MULTICOLOR LED
STATUS INDICATOR FOR
HAZARDOUS AREAS
•Available in 24VAC/DC and 120VAC
•Tri or quad-color models
•100,000 hour, vibration-resistant
LED light source
•Surface mount
•PLC compatible
•Type 4X, IP66 enclosure
•UL and cUL Listed
Hazardous Location
UniStat™ Status
Indicator
Model USIX
The UniStat™ is an LED (light emitting diode) based, multi-color,
single-high status indicator.
Using the latest die level LED technology, this unique status indicator
can produce three colors (Amber, Green and Red) or four
colors (Amber, Blue, Green and Red) from a single light source.
The UniStat offers a choice of four integrated flash patterns –
steady-burn, slow flash, strobe flash and SimuStrobe™.
SimuStrobe simulates the attention-getting flash rate of a strobe
light but with a much more color-rich output. The user can choose
a total of 12 possible flash/color combinations in the tri-color
models and 16 in the quad-color models.
The USIX is protected in a durable polycarbonate housing utilizing
four 3⁄4inch knockout conduit openings in the surface mount base.
The outer glass globe is protected by a polycarbonate dome
guard(included). Each model arrives pre-assembled and ready to
surface mount.
The USIX has been designed for use in Class I, Division 2, Groups
A, B, C, D; Class II, Division 2, Groups F and G; and Class III. The
USIX is suitable for use in Type 4X applications.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating
Model Description Voltage Current Mount
USIX-024TC Tri-color 24VAC/DC 0.087 amps Surface
USIX-120TC Tri-color 120VAC 0.058 amps Surface
USIX-024QC Quad-color 24VAC/DC 0.087 amps Surface
USIX-120QC Quad-color 120VAC 0.058 amps Surface
007_122_62362_FedSig.qxd 1/26/08 6:45 PM Page 12
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
HAZARDOUS LOCATION UNISTAT™ (USIX)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
REPLACEMENT PARTS
Description Part Number
Lens, Clear K8447042A-02
Cap, Clear K8447044A
O-Ring K8447054B
Clear Glass Globe Call Factory
Polycarbonate Globe Call Factory
Plastic Guard Call Factory
PCB, USIX 24VAC/DC K2005347A
PCB, USIX 120VAC K2005347A-02
LED Array, TC K2005328A
LED Array, QC K2005328A-01
HOW TO ORDER
• Specify model number, voltage and
tri-color
• Please refer to Model Number Index
USIX beginning on page 372
SPECIFICATIONS
Lamp Life*: 100,000 Hours 100,000 Hours
Light Source: LED LED
Operating Temperature: -40°F to 150°F -40°C to 66°C
Net Weight: 2.49 lbs. 1.13 kg
Shipping Weight: 2.53 lbs. 1.15 kg
Height: 11.07" 28.11 cm
Diameter: 4.75" 12.06 cm
* Optimal hours under ideal conditions.
2X 0.33 5.94"/
15.08 cm
5.19"/
13.18 cm
2X 0.33"
Ceiling Box
Gasket
Base
Guard
Clear Glass
Dome
11.07"/
28.11 cm
4.75"/
12.06 cm 4X 3/4" NPT
007_122_62362_FedSig.qxd 1/26/08 6:46 PM Page 13
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
STROBE WARNING LIGHT
•Available in 12VDC and 24VDC,
120VAC and 240VAC
•Five lens colors
•4,000 hour strobe tube
•Flush or surface mounts on Federal
Signal audible signaling devices or
control panel
•Indoor use only
•Type 3R, IP44 enclosure
•UL Listed and CSA Certified
Visalert®
Strobe Light
Model VALS
Federal Signal’s Visalert®is a three dimensional, triangular warning
light designed to be mated with Federal Signal’s Model 350
Vibratone®horn and the Model 50GC SelecTone®speaker/amplifier.
The Model VALS can also be used as a stand alone device.
Visalert is available in five lens colors: amber, blue, clear, green
and red.
Knockouts on the 50GC and the 350 audible devices ensure easy
installation. The units can be either independently or simultaneously
wired with the audible device. Model VALS uses a linear strobe
tube and all the circuitry is contained within the lens.
Visalert units are recommended for use in industrial applications
and situations where effective visual warning is needed. The
Visalert can be flush or surface mounted on the Model 350 horn
or Model 50GC speaker/amplifier.
Federal Signal’s Visalert strobe light is an affordable, low-maintenance
strobe light in a compact size that is perfect for control panel applications.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Flash Rate/ Candela
Model Voltage Current Minute Peak1Mount
VALS 12VDC 0.18 amps 80 108,000 Surface
VALS 24VDC 0.08 amps 80 108,000 Surface
VALS 120VAC 50/60HZ 0.06 amps 80 108,000 Surface
VALS 240VAC 50/60HZ 0.03 amps 80 108,000 Surface
1 Peak candela is the maximum light intensity generated by a flashing light during its light pulse
007_122_62362_FedSig.qxd 2/7/08 3:21 PM Page 68
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
VISALERT®STROBE LIGHT (VALS)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
HOW TO ORDER
• Specify model, voltage and color
• Specify options:
Electrical Box (NB)
Mounting Plate (BCL)
Speaker (50GC, page 174)
• Please refer to Model Number Index
VALS beginning on page 375
SPECIFICATIONS
Lamp Life*: 4,000 Hours 4,000 hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 0.1 lbs. 0.057 kg
Shipping Weight: 0.25 lbs. 0.113 kg
Height: 3.95" 100.3 mm
Width: 3.94" 100.0 mm
Depth: 1.6 40.6 mm
REPLACEMENT PARTS
Description Part Number Description Part Number
Lens, Amber K8435D539A Lens, Green K8435D539A-03
Lens, Blue K8435D539A-08 Lens, Red K8435D539A-07
Lens, Clear K8435D539A-02 Strobe Tube K149128A
Gasket K8435A225
Surface-Mounted Light
Surface-Mounted 50GC Speaker
BCL Plate
NB Box
Knock-Out
Hole for
Light Leads
* Optimal hours under ideal conditions.
007_122_62362_FedSig.qxd 1/27/08 5:04 AM Page 69
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

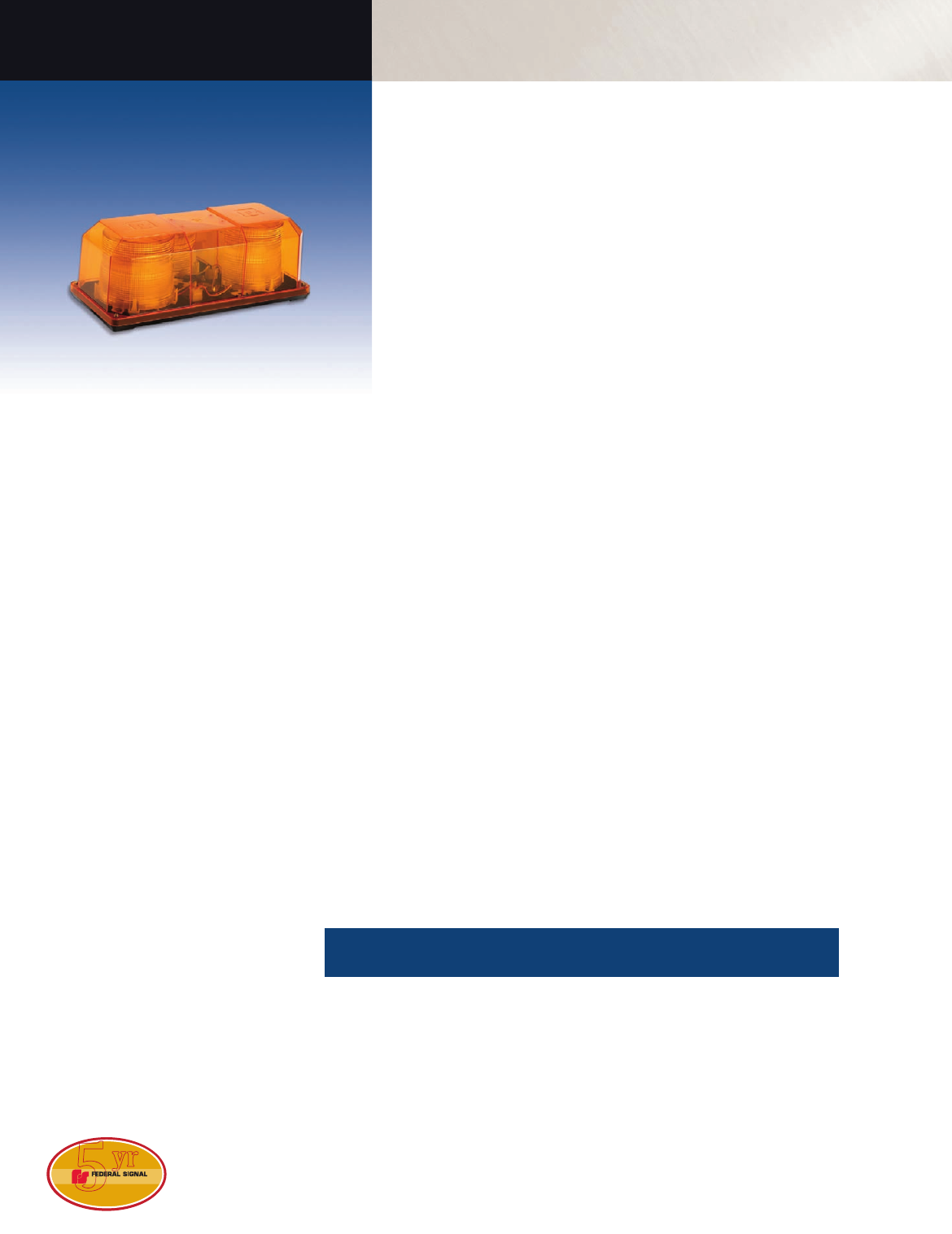

MINI LIGHTBAR
•Modular system
•360 degree light distribution
•Quad flash, 9 joule output
•Magnet mount or
permanent mount
•Low current draw
•Weather resistant housing
•Meets, SAE J1318 Class II
Vehicular Light Bar
Model VLB
The Highlighter Strobe is designed for those who prefer the look
of the traditional halogen light bar, but require strobe technology.
The Highlighter Strobe features 2 strobe heads and an integrated
microprocessor controlled power supply that produces an
alternating quad flash of 9-joules per head. The alternating
flash tubes are positioned under onmi-directional Fresnel lens
for maximum lens fill and off-axis visibility.
All Highlighter Strobe models meet SAE J1318
Class 2 requirements.
Mounting options include permanent mount or the flexibility
of a suction cup/magnetic mounting. Magnetic mount unit come
equipped with a cigarette lighter power plug with an integrated
ON/OFF switch for easy operational control. Permanent mounting
can be achieve with any of the available mounting kits1;
FMK – Flat Mounting Kit, RMK – Riser Mounting Kit.
FEDERAL SIGNAL CORPORATION
Operating Operating Mounting
Model Voltage Current Configuration
VLB-012AP 12VDC 3.6 amps @ 12.8VDC Permanent
VLB-012AM 12VDC 3.6 amps @ 12.8VDC Magnetic
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
1 Permanent mounting requires one of the available mounting kits for installation
007_122_62362_FedSig.qxd 1/27/08 7:24 AM Page 112
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
HOW TO ORDER
• Specify model, mounting, color
and voltage
• Select option mounting bracket for
Permanent Mounting;
FMK – Flat mount kit
RMK – Riser mount kit
• Please refer to Model Number
Index VLB beginning on page 377
SPECIFICATIONS
Shipping Weight:
Permanent 5.0 lbs. 2.3 kg
Magnetic 5.0 lbs. 2.3 kg
Height:
Permanent 5.0” 127.0 mm
Magnetic 5.0” 127.0 mm
Width: 9.0” 229.0 mm
Length: 15.0” 381.0 mm
VEHICULAR LIGHT BAR (VLB)
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com
REPLACEMENT PARTS
Description Part Number
Strobe tube assembly with connector KZ8560082A
Power supply assembly KZ8560081A
Clear internal lens K208669
Outer dome, Amber K452510-02
Dome
Baseplate
Assembly
12.75"
12.13" .81"
1/2" Dia.
Wire Exit Hole
4"
12"
(A)
(B)
(A) Drill 0.20"Dia. holes (4) for top mounting or drill 0.28"Dia. holes (4)
for bottom mounting
(B) Drill 0.38" Dia. holes (2) for center mounting only
007_122_62362_FedSig.qxd 1/31/08 2:54 AM Page 113
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
P/N 259195 Rev B
GLASS REINFORCED
POLYESTER DESIGN FOR LOW
MAINTENANCE AND
CORROSION RESISTANCE
•Available in 24-48VDC, 110VAC,
220-248VAC
•Available in 5, 10 and 15
Joule Units
•Seven available lens colors: red,
amber, yellow, blue, green, clear
and magenta
•316 Stainless steel mounting
bracket included
•Toughened, impact resistant dome
•IP66
•Corrosion free GRP (glass
reinforced polyester)
•Included dome guard
•Two M20 entries standard
•Zone rated, IECEx
ATEX EExd IIB + H2 T4 + T3
Hazardous Location
GRP Strobe Light
Model WV450XD and WV450XE
The Federal Signal Model WV450X Hazardous Location GRP
Strobe Light is designed to serve the needs of rugged land-
based and offshore industrial applications that demand reliable,
long life operation while complying with stringent International
approval requirements.
The Federal Signal Model WV450X Hazardous Location GRP
Strobe Light utilizes the latest technology in non-metallic housing
construction. The housing of the WV450X is comprised entirely
of Glass Reinforced Polyester (GRP) which makes the product
corrosion free and lighter than a comparable metallic fixture. The
fact that the WV450X is corrosion free also makes the product
safer, and “maintenance-free” by eliminating the need to regularly
inspect the flame path. An electro-polished stainless steel dome
guard is also provided for protection of the glass lens in the event
of accidental impact.
Two versions of the WV450X are available. The “D” version of the
product (WV450XD) comes standard with a stainless steel mounting
bracket for wall mounting or fastening to a vertical surface. Two
holes are tapped for M20 thread in the bottom of the product
allowing for field gland connection. The “E” version of the product
(WV450XE) includes the same features as the WV450XD, but
incorporates a terminal chamber with three M20 tapped holes on
the very bottom of the fixture. This terminal chamber is designed
to house field terminations and through going power supplies.
The WV450X is available in seven standard colors and three voltage
ranges to satisfy most applications. There are also three different
Joule output ratings available for each model and each voltage
range, providing the ability to tailor the light output and current
draw for a given area. The WV450X is ATEX, IECEx approved,
making it ideal for applications that require International third
party safety standards.
FEDERAL SIGNAL CORPORATION
5
yr
5
5
5
5
y
W
A
R
R
A
N
T
Y
Operating Max Operating Temperature Flash Lamp
Model Voltage Current Code Rate Life*
WV450 24-48VDC 0.94/0.48 A @ 24-48VDC T4 60 10,000 hrs
110VAC 0.57 A @ 110VAC 50/60Hz T3 60 10,000 hrs
220-248VAC 0.30 A @ 220-248VAC 50/60Hz T3 60 10,000 hrs
* Optimal Hours under ideal conditions
007_122_62362_FedSig.qxd 1/31/08 2:55 AM Page 114
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com

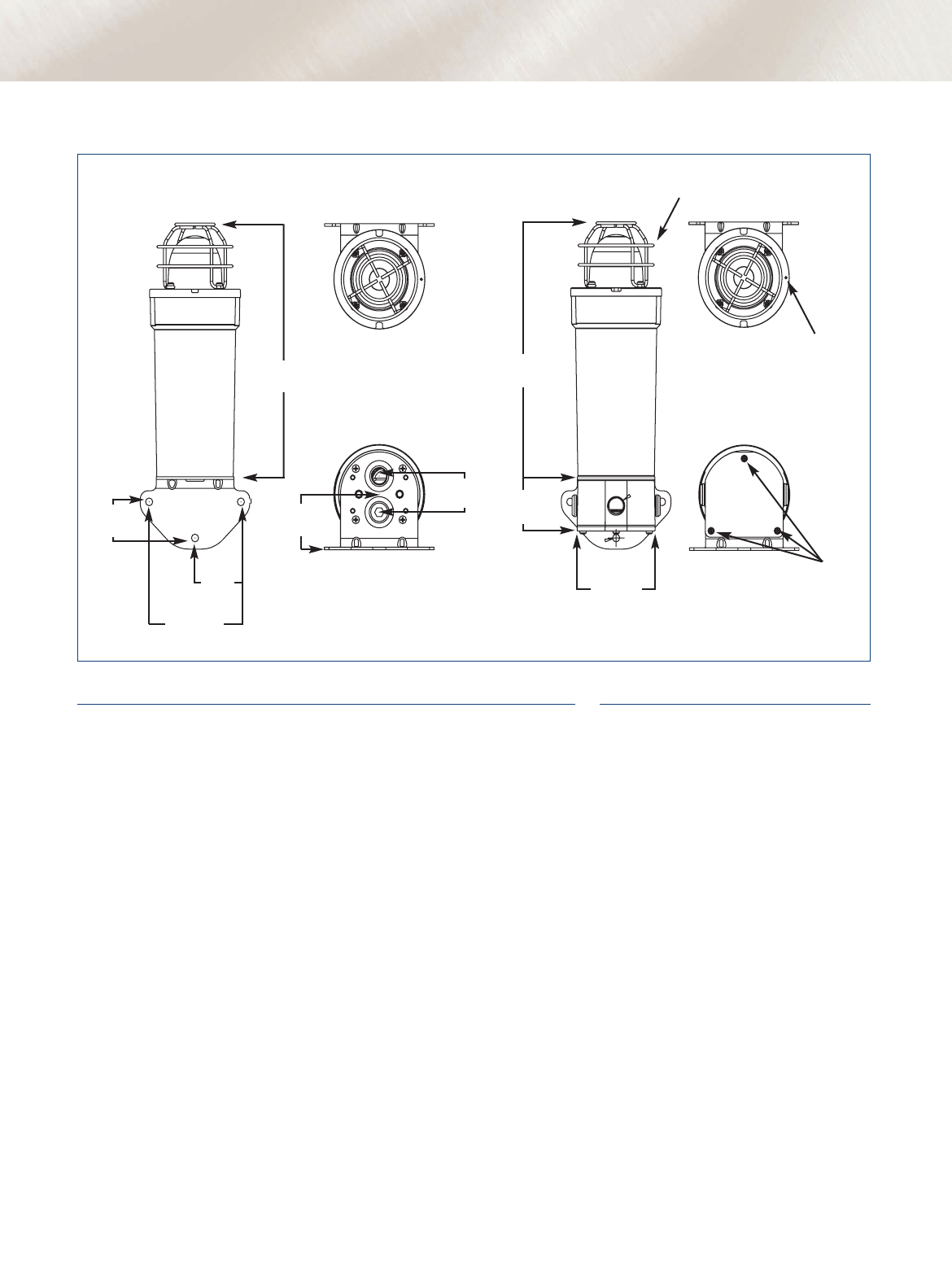

HAZARDOUS GRP STROBE (WV450XD/WV450XE)
HOW TO ORDER
• Specify Model Number
• Specify Construction Series,
“D” or “E”
• Specify Joule Output
• Specify Voltage Range
• Specify Lens Color
• Please contact factory for
model selection
SPECIFICATIONS
Operating Temperatures:
“d” version without terminal chamber
ATEX -55˚C to 55˚C (-67˚F to 131˚F)
IECEx -20˚C to 55˚C (-4˚F to 131˚F)
“e” version with terminal chamber
ATEX -20˚C to 55˚C (-22˚F to 131˚F)
IECEx -20˚C to 55˚C (-4˚F to 131˚F)
WV450XD
NET Weight: 7.1 lbs. 3.23 kg
Shipping Weight: 8.6 lbs. 3.88 kg
Height: 11.41” 289.7 mm
Diameter: 4.46” 113.3 mm
WV450XE
NET Weight: 8.6 lbs. 3.9 kg
Shipping Weight: 10.0 lbs. 4.54 kg
Height: 13.67” 170.7 mm
Diameter: 3.82” 97.1 mm
Certificate Number: IECEx UL 06.0010X
06 UL DEMKO ATEX 0425693X
Guard
Lens Cover Assembly
Grub Screw
Cover Screws
WV450XD WV450XE
P/N 259195 Rev B
4.46”/
113.3 mm
2.5"/
63.5 mm
11.41"/
289.7 mm
1.63"/
41.3 mm
3.82"/
97.1 mm
2.25"/
2.26"/
57.4 mm
1.63"/
41.3 mm
13.67"/
170.7 mm
57.2 mm
007_122_62362_FedSig.qxd 1/27/08 7:45 AM Page 115
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
