Residential &
Light Commercial
Distribution
Products
Product Guide
Loadcentres
Circuit Breakers
Generator Panels
Spa Panels
Surge Suppressors
Street Lighting Panels
Mini-Power Centres
Fuse Panel Inserts
Pressure Switches
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca i
Type CPM/CPL Plug-In Loadcentres
Type CPM/CPL Plug-In Loadcentres ............................................................................................ 1
Type CPM Plug-In Loadcentres
Combination (Main Circuit Breaker) Single Phase Type 1 ........................................................... 2
Combination (Main Circuit Breaker) Single Phase Type 3R ......................................................... 3
Combination (Main Circuit Breaker) Three Phase Type 1 ............................................................ 4
Combination (Main Circuit Breaker) Three Phase Type 3R .......................................................... 5
Type CPL Plug-In Loadcentres
Non-Combination (Main Lug Only) Single Phase Type 1 ............................................................. 6
Non-Combination (Main Lug Only) Single Phase Type 3R ........................................................... 7
Non-Combination (Main Lug Only) Three Phase Type 1 .............................................................. 8
Non-Combination (Main Lug Only) Three Phase Type 3R ........................................................... 9
Non-Combination (Main Lug Only) 70A Single Phase ............................................................... 10
Type CPM/CPL Plug-In Loadcentre Accessories
Type CPM/CPL Plug-In Loadcentre Accessories .......................................................................11
Plug-In Circuit Breakers for CPM/CPL

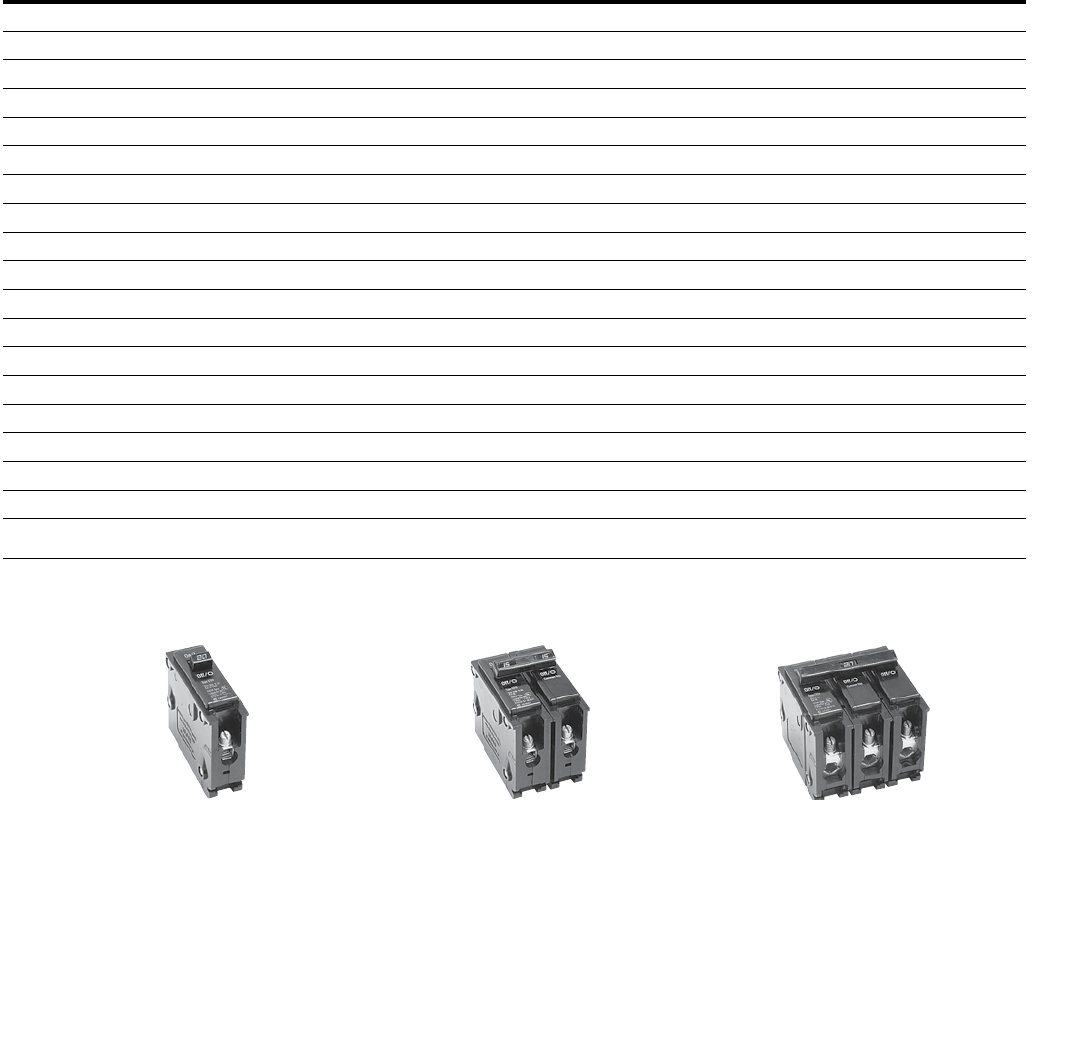

Type BR Single & Multi-Pole ..................................................................................................... 13

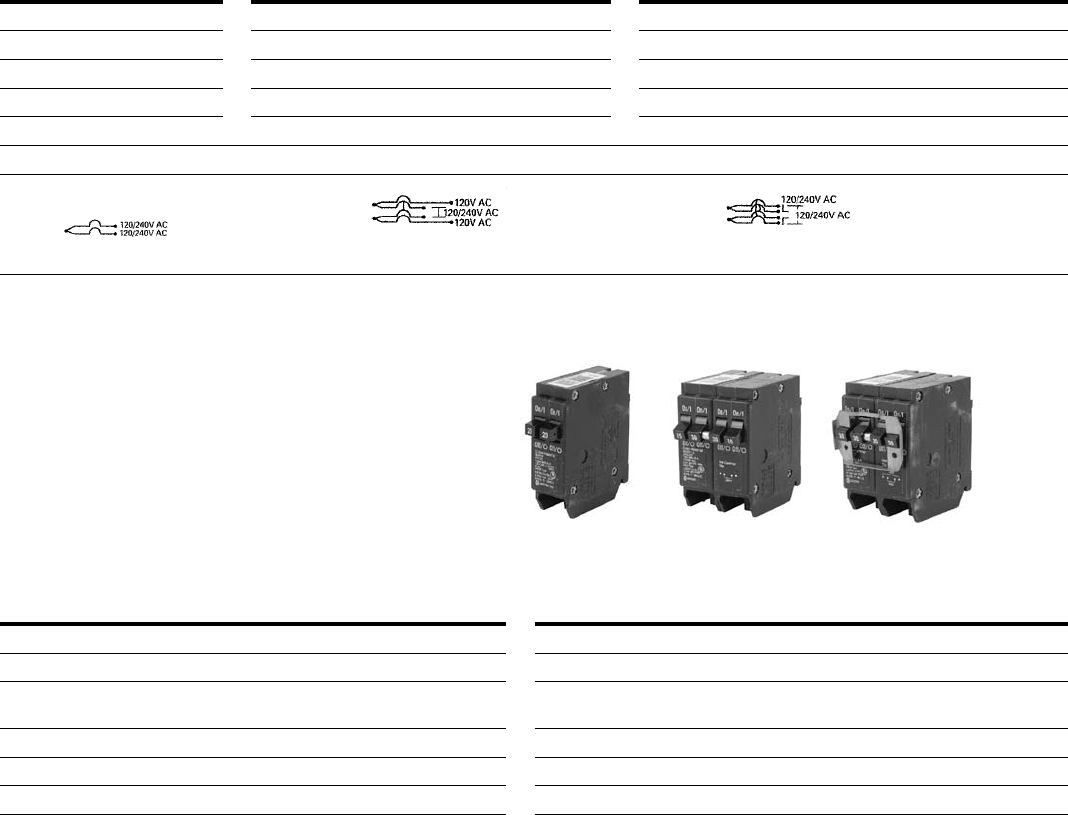

Type DNPL Duplex™, Independent Quadplex™, & Circuit Breaker Packs ............................... 14
Type BR Arc Fault Circuit Interrupter ......................................................................................... 15

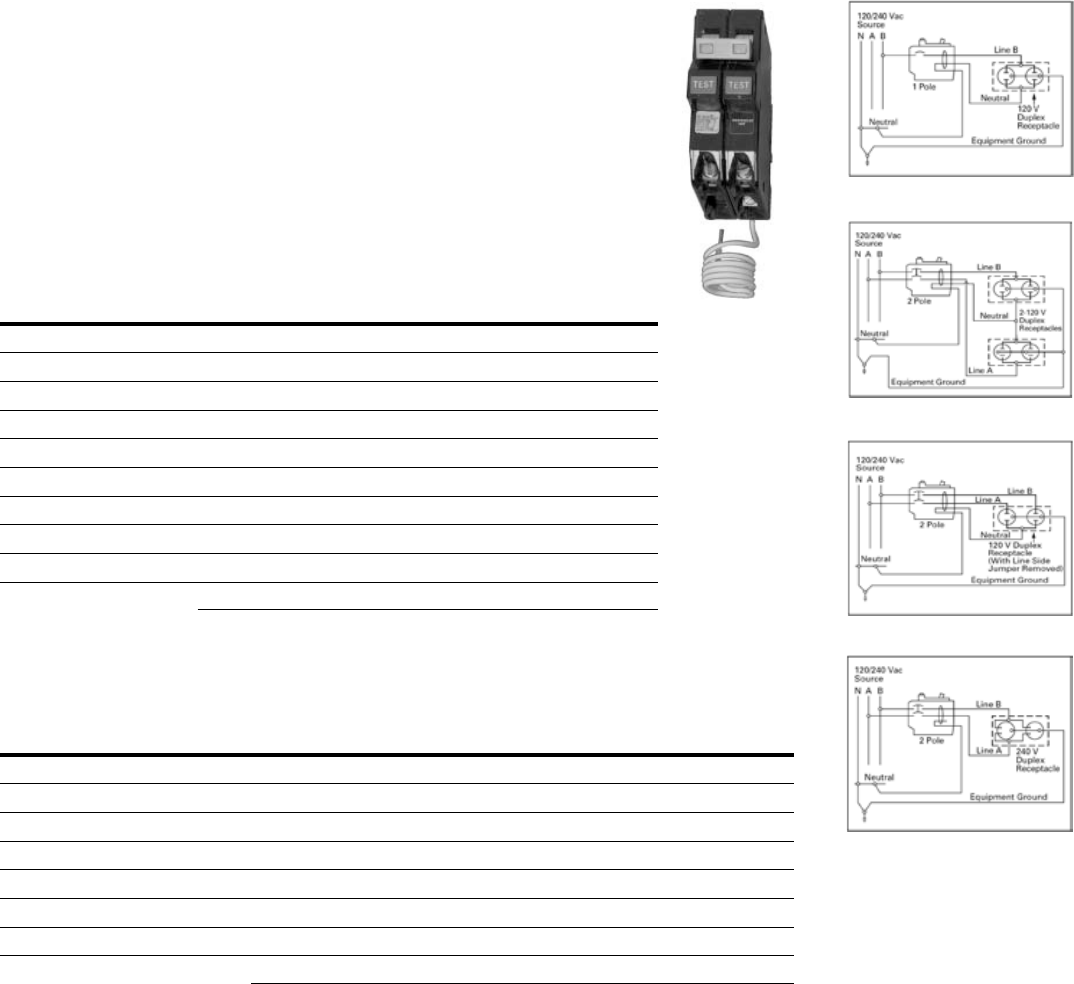

Type GFCB and GFEP Ground Fault .......................................................................................... 16
Type BR Internationally Rated ................................................................................................... 17
Type GFXB Internationally Rated Ground Fault & Type BR Moulded Case Switches ............... 18
Plug-In Loadcentre Main Circuit Breakers for CPM/CPL
Type CSR, BWH, & CC .............................................................................................................. 19
Plug-In Circuit Breaker Accessories for CPM/CPL Loadcentres
Accessories for Types BR, DNPL, GFCB, GFEP, GFXB, CSR, BWH, & CC ............................... 20
Plug-In OEM Loadcentre Interior Assemblies
Plug-In OEM Loadcentre Interior Assemblies ........................................................................... 21
Type CH Plug-In Loadcentres
Combination & Non-Combination Single Phase ........................................................................ 26
Plug-In Circuit Breakers for CH
Type CH Single, Multi-Pole, & Twin .......................................................................................... 27
Type CHP Commercial ............................................................................................................. 28
Type CH Arc Fault Circuit Interrupter ........................................................................................ 29
Type CH Ground Fault ............................................................................................................... 30
Plug-In Loadcentre Main Circuit Breakers for CH
Type CSH ................................................................................................................................... 31
Plug-In Loadcentre & Circuit Breaker Accessories for CH
Type CH Accessories ................................................................................................................. 32
Type CBM Bolt-On Loadcentres
Combination (Main Circuit Breaker) Single & Three Phase Aluminum Bus ............................... 33
Combination (Main Circuit Breaker) Single & Three Phase Copper Bus .................................... 34
Type CBL Bolt-On Loadcentres
Non-Combination (Main Lug Only) Single & Three Phase Aluminum Bus ................................ 35
Non-Combination (Main Lug Only) Single & Three Phase Copper Bus ..................................... 36
Residential & Light Commercial Distribution Products
ii residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Bolt-On Circuit Breakers for CBM/CBL
Type BAB & QBHW Single and Multi-Pole ................................................................................ 37
Type QBA Arc Fault Circuit Interrupter & DNBA Duplex ........................................................... 38
Type GFCBB and QBGFEP Ground Fault ................................................................................. 39
Bolt-On Loadcentre and Circuit Breaker Accessories
Bolt-On Loadcentre and Circuit Breaker Accessories ................................................................ 40

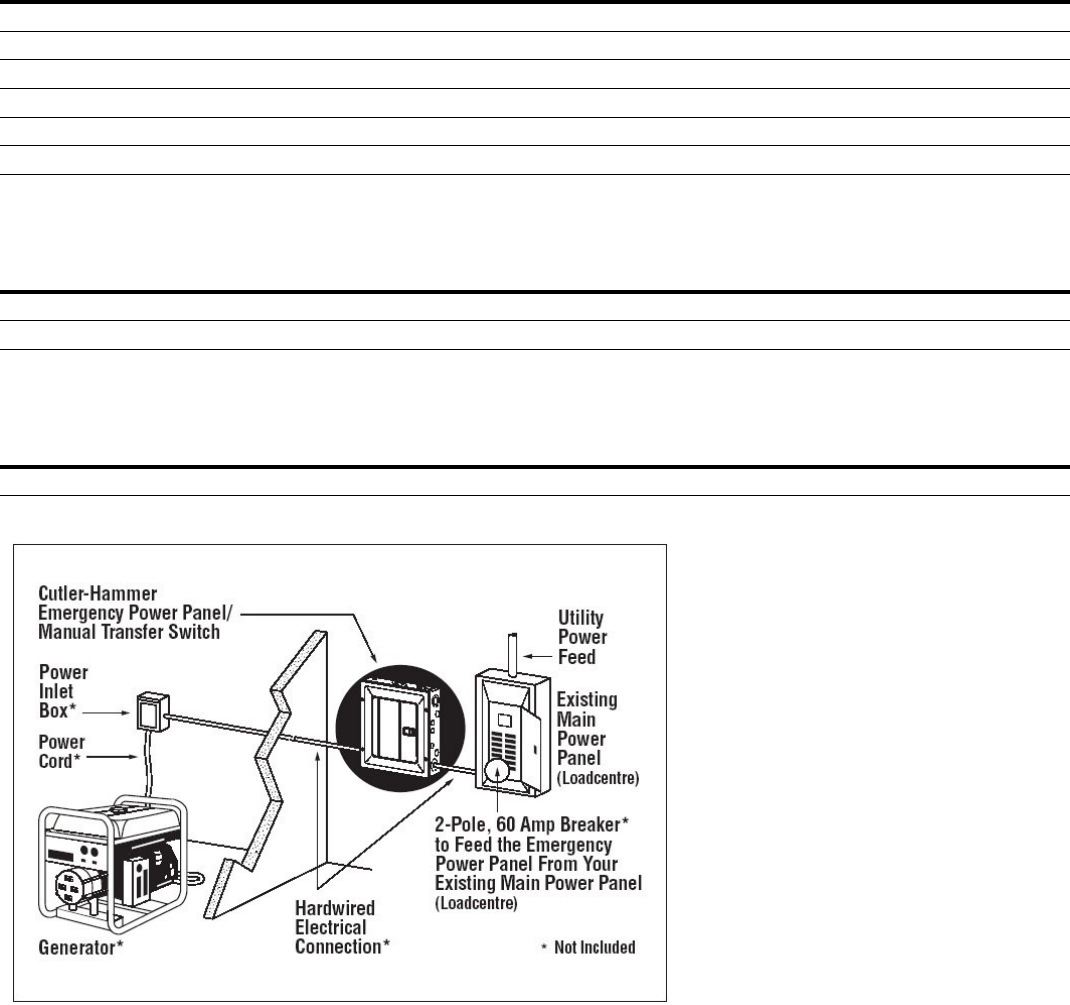

Manual Transfer Switches / Generator Panels
Manual Transfer Switches / Generator Panels .......................................................................... 41
Spa Panels
Spa Panels ................................................................................................................................. 43

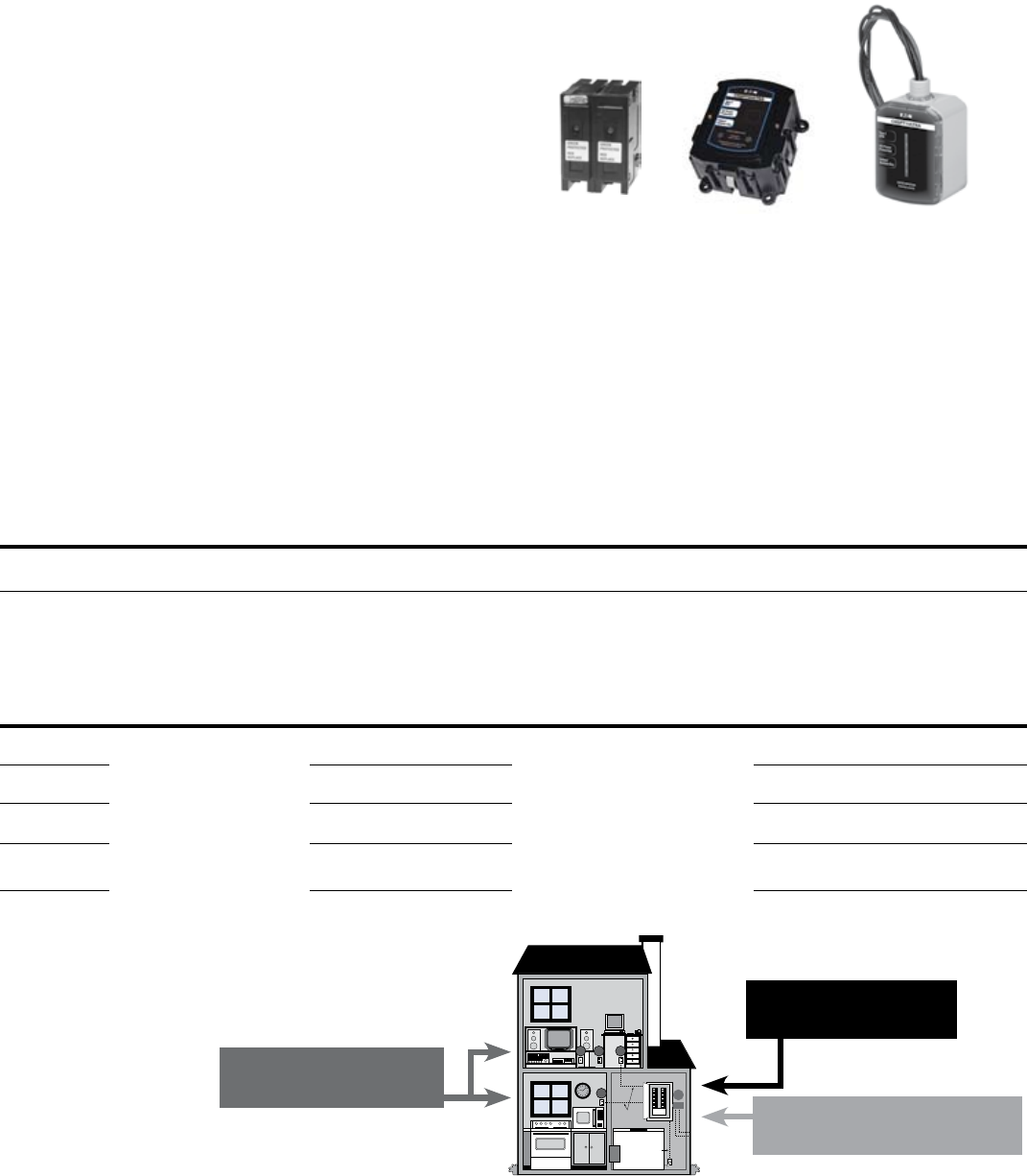

Surge Suppression Products
Stage 1 & Stage 1 Type 2 .......................................................................................................... 44
Stage 2 & Accessories .............................................................................................................. 45
Type 1 ........................................................................................................................................ 46

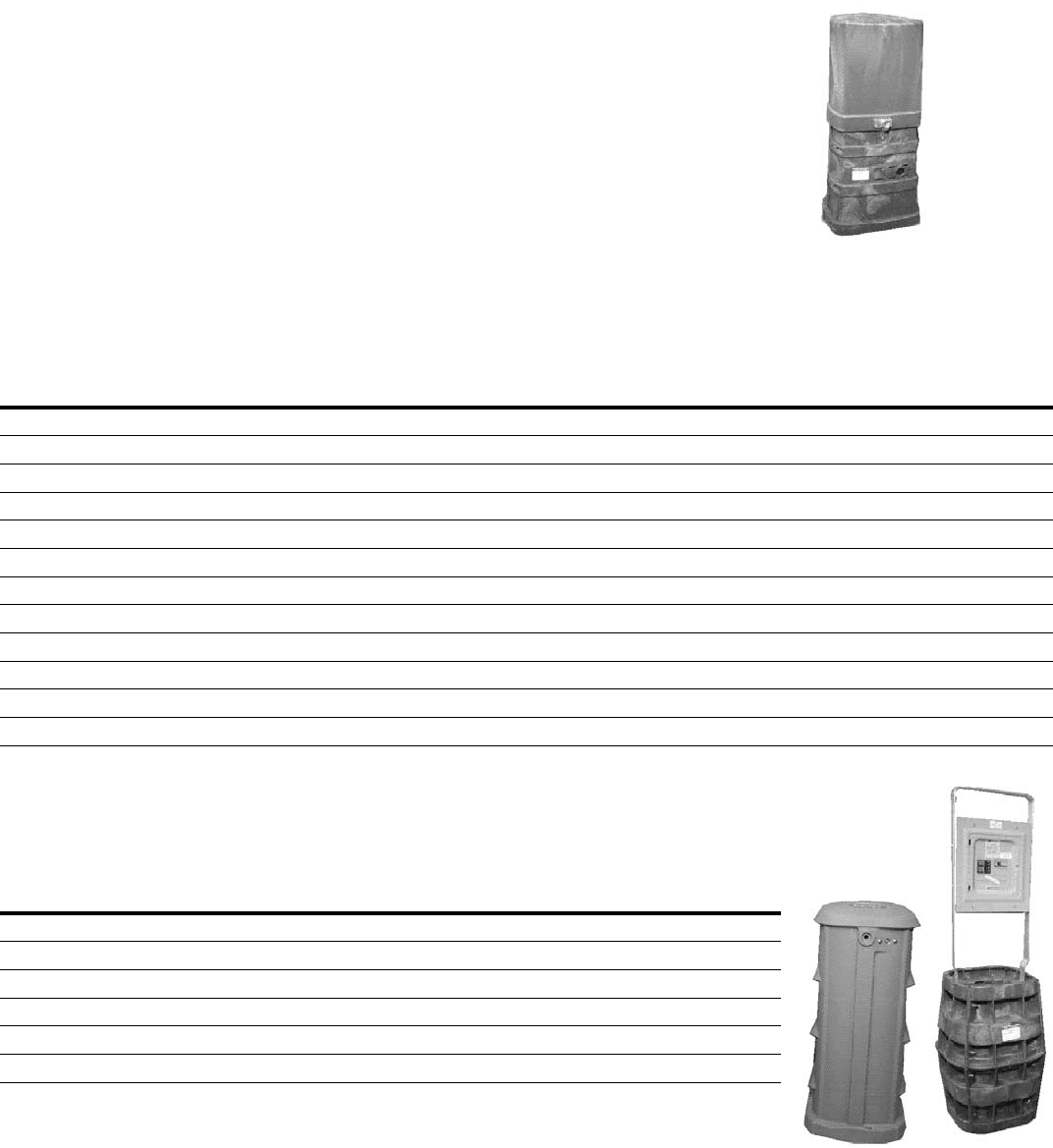

Street Lighting Panels
In-Pole ........................................................................................................................................ 47
On-Pole ...................................................................................................................................... 48
Pedestal ..................................................................................................................................... 49

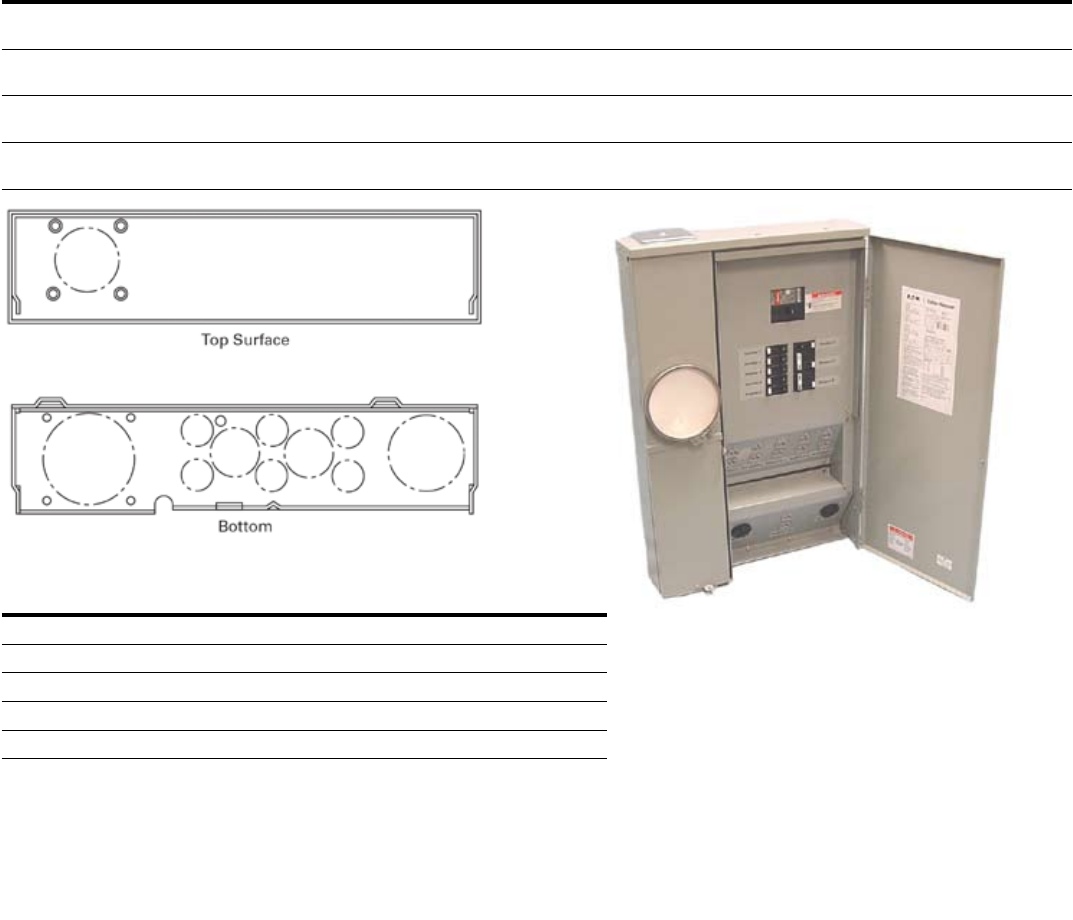

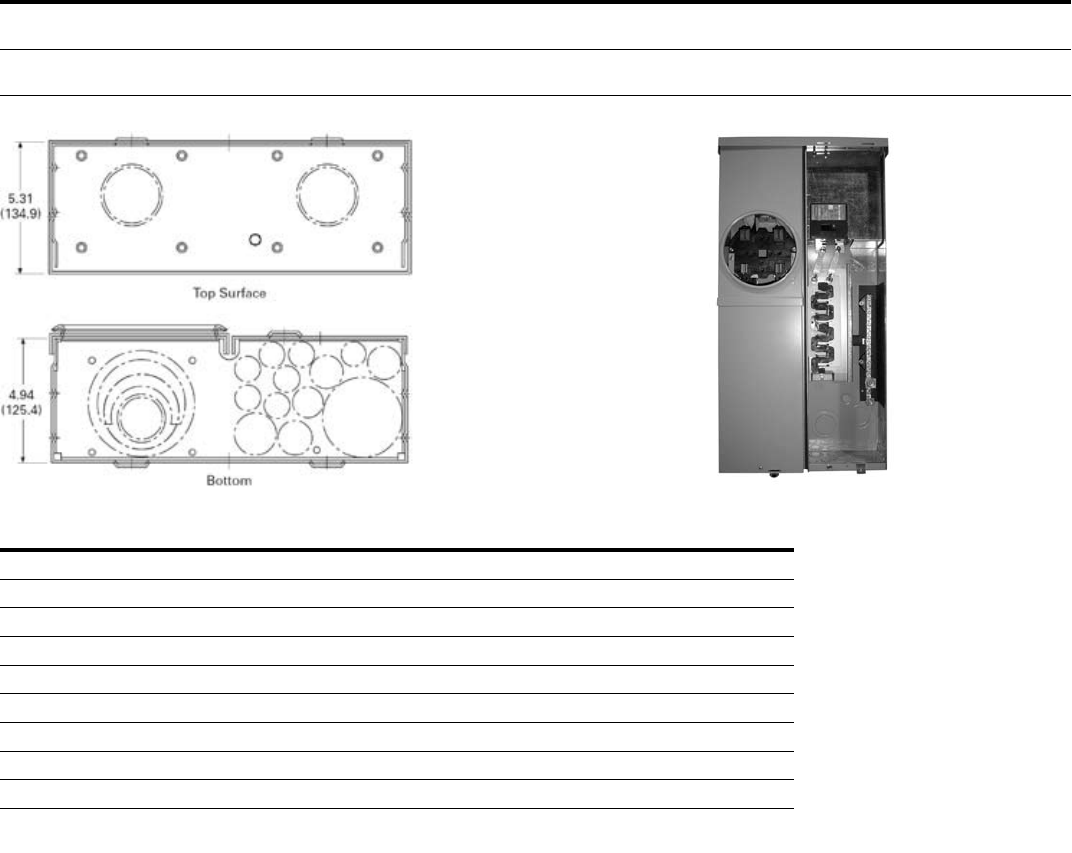

Combined Loadcentre and Meter Socket
Combined Loadcentre and Meter Socket .................................................................................. 50
Metered Temporary Ground Fault Power Panel
Metered Temporary Ground Fault Power Panel ........................................................................ 51
Mini-Power Centres
Plug-In ........................................................................................................................................ 53
Bolt-On ...................................................................................................................................... 54
Residential Fuse Panel Inserts
Insert Interiors ........................................................................................................................... 56
Trims .......................................................................................................................................... 57
Data Information Form .............................................................................................................. 58
Replacement Classic Circuit Breakers
Bolt-On Type BQL Single, Multi-Pole, Duplex™, & Quadplex™ ................................................59
Bolt-On Type BQL Ground Fault & Moulded Case Switches .................................................... 60
Bolt-On Type QBH Single, Multi-Pole, & Accessories ............................................................... 61
Plug-In Type BJ Two & Three Pole ............................................................................................ 62
Pressure Switches
Pressure Switches ..................................................................................................................... 63
Catalogue Number Index
Catalogue Number Index ........................................................................................................... 64
Residential & Light Commercial Distribution Products
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 1
Product Description
Loadcentres feature factory
installed main lugs or main
breakers. The BR interiors are
manufactured of formed, plated
aluminum. Eaton also supplies
a full line of Eaton brand
BR, DNPL, GFCB and GFEP
type branch circuit breakers
and accessories for these
loadcentres.
Product Application
Designed for the protection and
distribution of single and multi-
dwelling residential and light
commercial loads to 120/240
volts AC, such as lighting,
heating, appliance and small
motor branch circuits.
All Main Breaker Combination
Loadcentres are CSA listed
for use as service entrance
equipment.
Ratings
Single phase, 3 wire, 120/240
volts AC and 3 phase, 4 wire,
120/208 volts AC. Mains
through 400 amperes. Available
with up to 84 branch circuits.
Main breakers on 150 & 200
Amp panels are rated at 25,000
AIC.
Metal Enclosure
Specifications
Enclosures are made of 16
gauge galvanized sheet steel.
The galvanized coating provides
corrosion protection and as such
does not require paint. All trims
used on BR Loadcentres are
chromate sealed and finished
with an electro-disposition
epoxy paint (ANSI-61) which
exceeds requirements for
outdoor and indoor applications.
A combination surface/flush
cover with integral door
is supplied with indoor
loadcentres rated from 100
through 400 amperes.
All plug-in loadcentres are CSA
listed to file LL98266.
CSA Certified to C22.2 No.29.
All plug-in loadcentres are UL
listed to file E52977.
All loadcentres carry GOS
approvals of conformity.
Warranty
5 year limited.

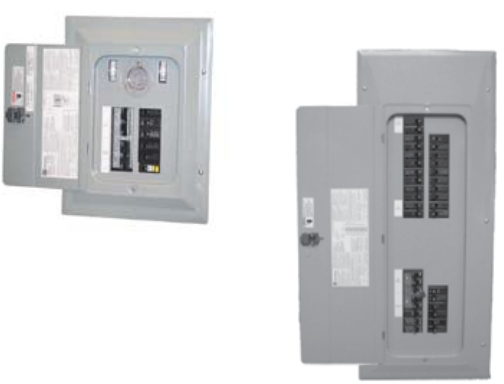

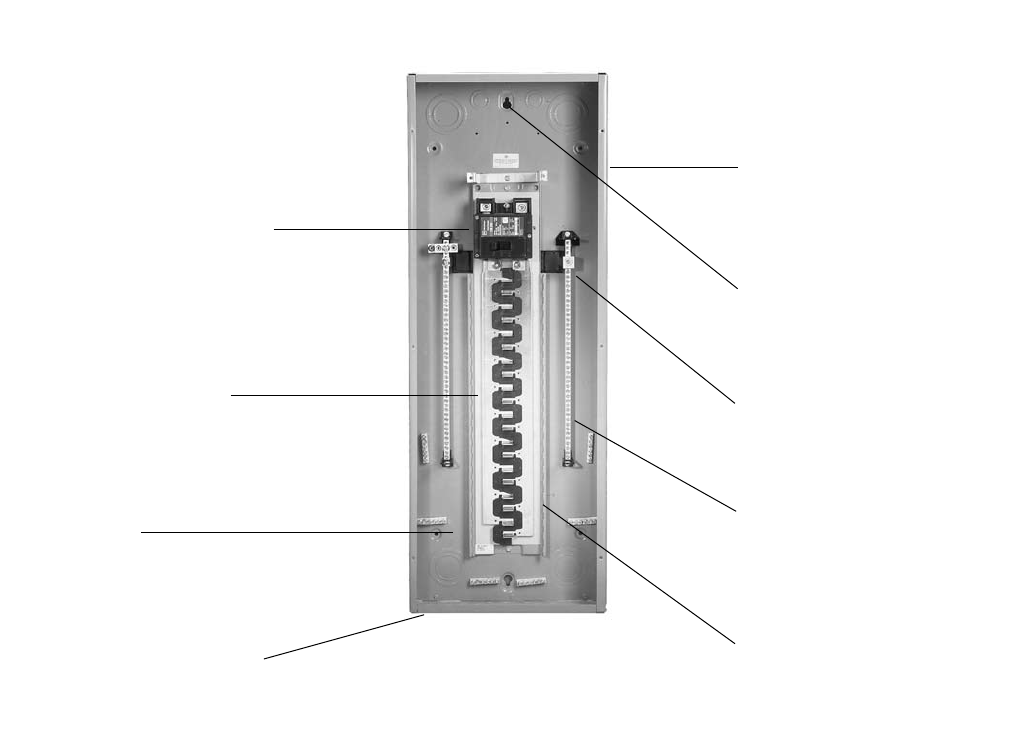

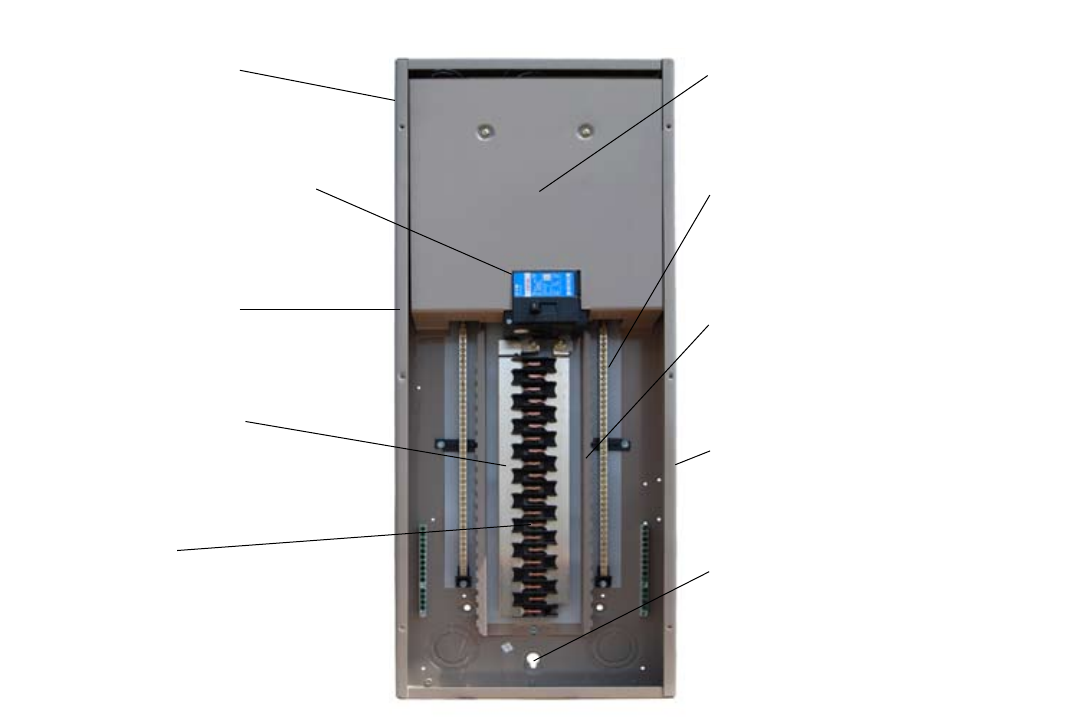

Type CPM / CPL Loadcentre Features and Benefits
Adjustable Trim
For convenient flush leveling.
200A Commercial Grade Main Breaker
Designed for straight-in wiring – horizontally
operated for top feed without modification.
100A models utilize a reverse fed branch circuit
breaker.
Single Piece, Formed, Plated Aluminum Bus Bar
Provides superior conductivity.
Maximum Wiring Space
For ease of wiring in compliance with CSA
requirements.
Contractor Friendly Knockouts
Improved knockout configurations include
tangential knockouts in top and bottom box
ends.
Standard 14-3/8” Wide Enclosure
Six Mounting Holes
Three top, three bottom for ease of installation
in either vertical, horizontal or inverted
positions.
Dry Wall Markings on Enclosure
Notches on outside of box enclosure indicates
depth for dry wall.
Single Keyhole Mounting
Just one keyhole at top and bottom for easier
mounting and leveling.
Neutral Bonding Strap
Pre-attached at factory to eliminate loose parts.
Twin Neutral Design
Reduces wireway congestion, provides for
easier wiring and load balancing. I-beam
design for improved durability.
Steel Backpan
Provides positive, reliable breaker mounting.
Type CPM/CPL Plug-In Loadcentres
2 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
a Type BR-100 Amp 10kAIC Main Circuit Breaker is factory installed (BR2100).
b Factory installed 25 kAIC Main Breaker.
c High Interrupting BRH Breakers are available on page 13.
d Restricted due to available neutrals, extra neutrals are available on page 11, which will expand
available circuitry to a maximum of 84 circuits.
e DK Breaker is a 65 kAIC, factory-sealed Breaker.
f BR2125 main breaker is factory installed.
g BRH2100 – 22kA high interrupting main breaker is factory installed.
h Main Breaker is not supplied.
i 3TA401K must be ordered separately for #2/0-500 MCM.

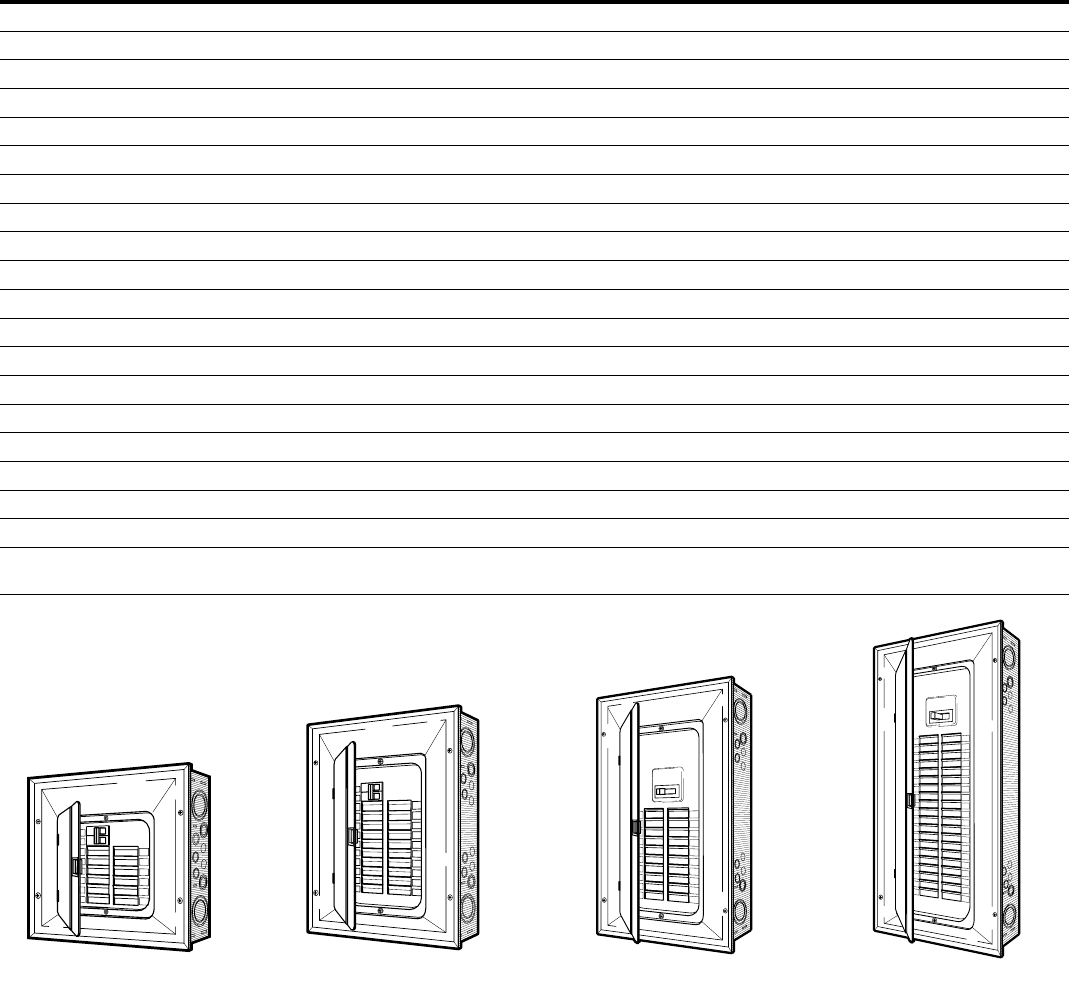

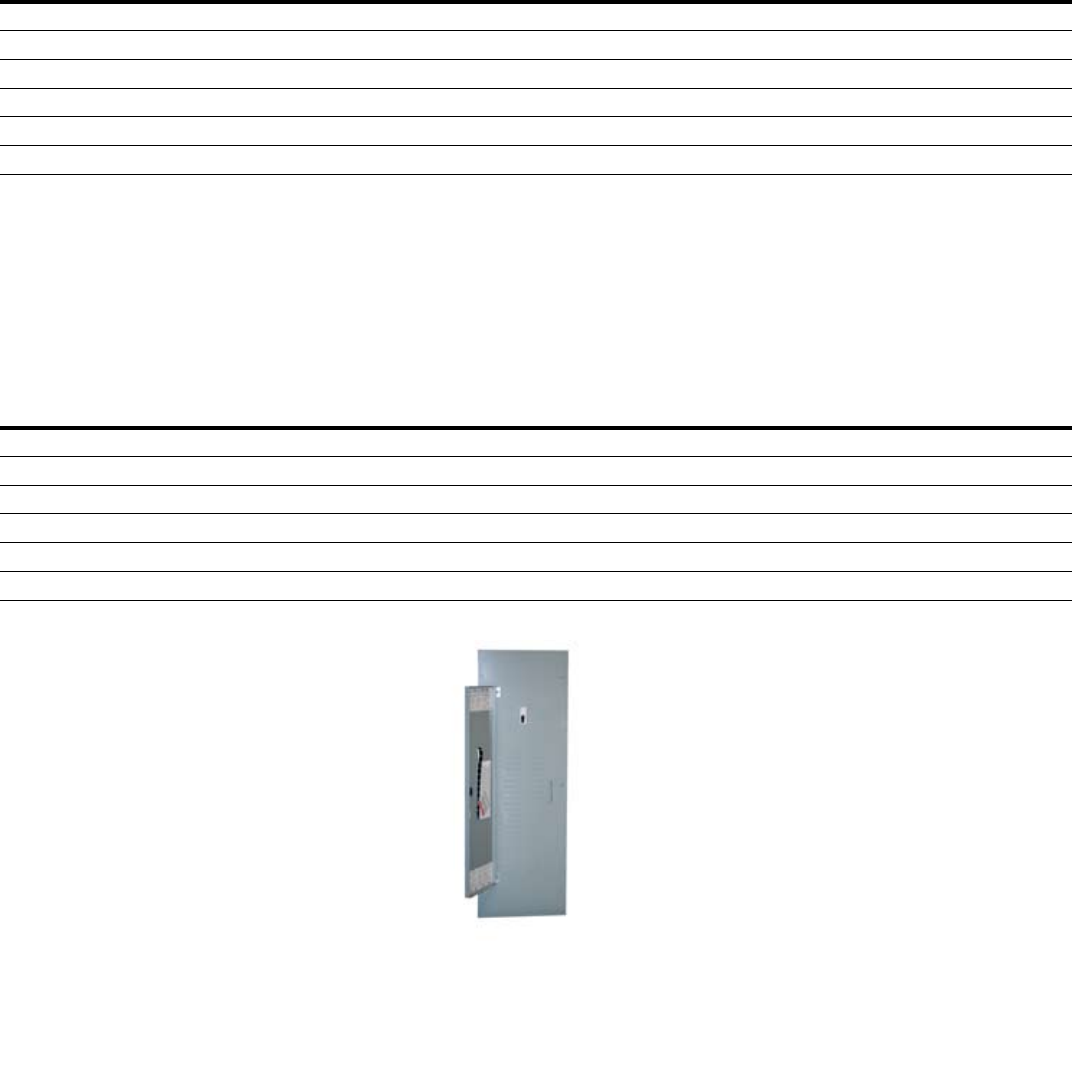

3 Wire 120/240VAC Combination Service Entrance Type 1 (Indoor)
Product Selection
Table 1. Main Circuit Breaker Indoor Type 1 Loadcentres
Maximum
Ampere
Rating
Main
Breaker
Rating Catalogue Number
Max. No. 1”
Spaces
Max.
No. 1/2”
Spaces Cover Style
Type of
Main
Breaker
Dimensions (in)
Wire Size Range for
Main CU/ALH W D
125 Amp 100 Amp CPM112 12 24 Flush/Surface BR ac 18-3/4 14-3/8 3-7/8 #4 - 1/0
125 Amp – CPM112LMB 12 24 Flush/Surface BR h18-3/4 14-3/8 3-7/8 #4 - 1/0
125 Amp 100 Amp CPM116 16 32 Flush/Surface BR ac 21 14-3/8 3-7/8 #4 - 1/0
125 Amp – CPM116LMB 16 32 Flush/Surface BR h21 14-3/8 3-7/8 #4 - 1/0
125 Amp 125 Amp CPM116Z 20 40 Flush/Surface BR f21 14-3/8 3-7/8 #4-2/0
125 Amp 100 Amp CPM120 20 40 Flush/Surface BR ac 27 14-3/8 3-7/8 #4 - 1/0
125 Amp – CPM120LMB 20 40 Flush/Surface BR h27 14-3/8 3-7/8 #4 - 1/0
125 Amp 125 Amp CPM120Z 20 40 Flush/Surface BR f27 14-3/8 3-7/8 #4-2/0
125 Amp 100 Amp CPM120H 20 40 Flush/Surface BRH g27 14-3/8 3-7/8 #4 - 1/0
125 Amp 100 Amp CPM130 30 60 Flush/Surface BR ac 29 14-3/8 3-7/8 #4 - 1/0
125 Amp 125 Amp CPM130Z 30 60 Flush/Surface BR f29 14-3/8 3-7/8 #4-2/0
125 Amp 100 Amp CPM130H 30 60 Flush/Surface BRH g29 14-3/8 3-7/8 #4 - 1/0
150 Amp 150 Amp CPM1520 20 40 Flush/Surface BWH b29-1/8 14-3/8 3-7/8 #2-300MCM
150 Amp 150 Amp CPM1530 30 60 Flush/Surface BWH b34-1/8 14-3/8 3-7/8 #2-300MCM
150 Amp 150 Amp CPM1540 40 80 Flush/Surface BWH b39 14-3/8 3-7/8 #2-300MCM
200 Amp 200 Amp CPM216 16 32 Flush/Surface BWH b29-1/8 14-3/8 3-7/8 #2-300MCM
200 Amp 200 Amp CPM220 20 40 Flush/Surface BWH b29-1/8 14-3/8 3-7/8 #2-300MCM
200 Amp 200 Amp CPM230 30 60 Flush/Surface BWH b34-1/8 14-3/8 3-7/8 #2-300MCM
200 Amp 200 Amp CPM240 40 80 Flush/Surface BWH b39 14-3/8 3-7/8 #2-300MCM
400 Amp 400 Amp CPM442 42 42 dFlush/Surface DK e66-1/2 16-1/8 6-5/16 (2)#2/0- 250MCM or
(1)#2/0-500MCM i

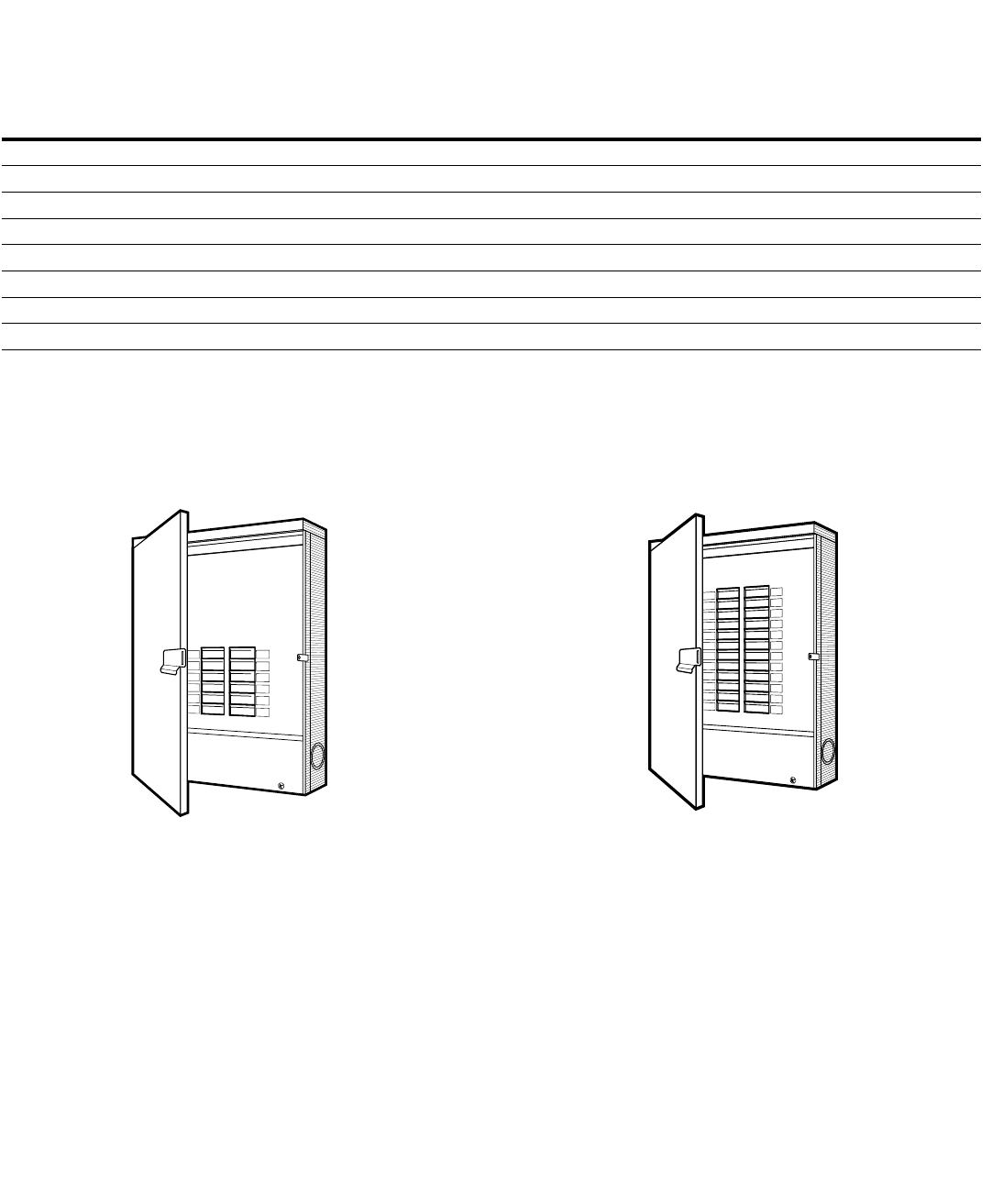

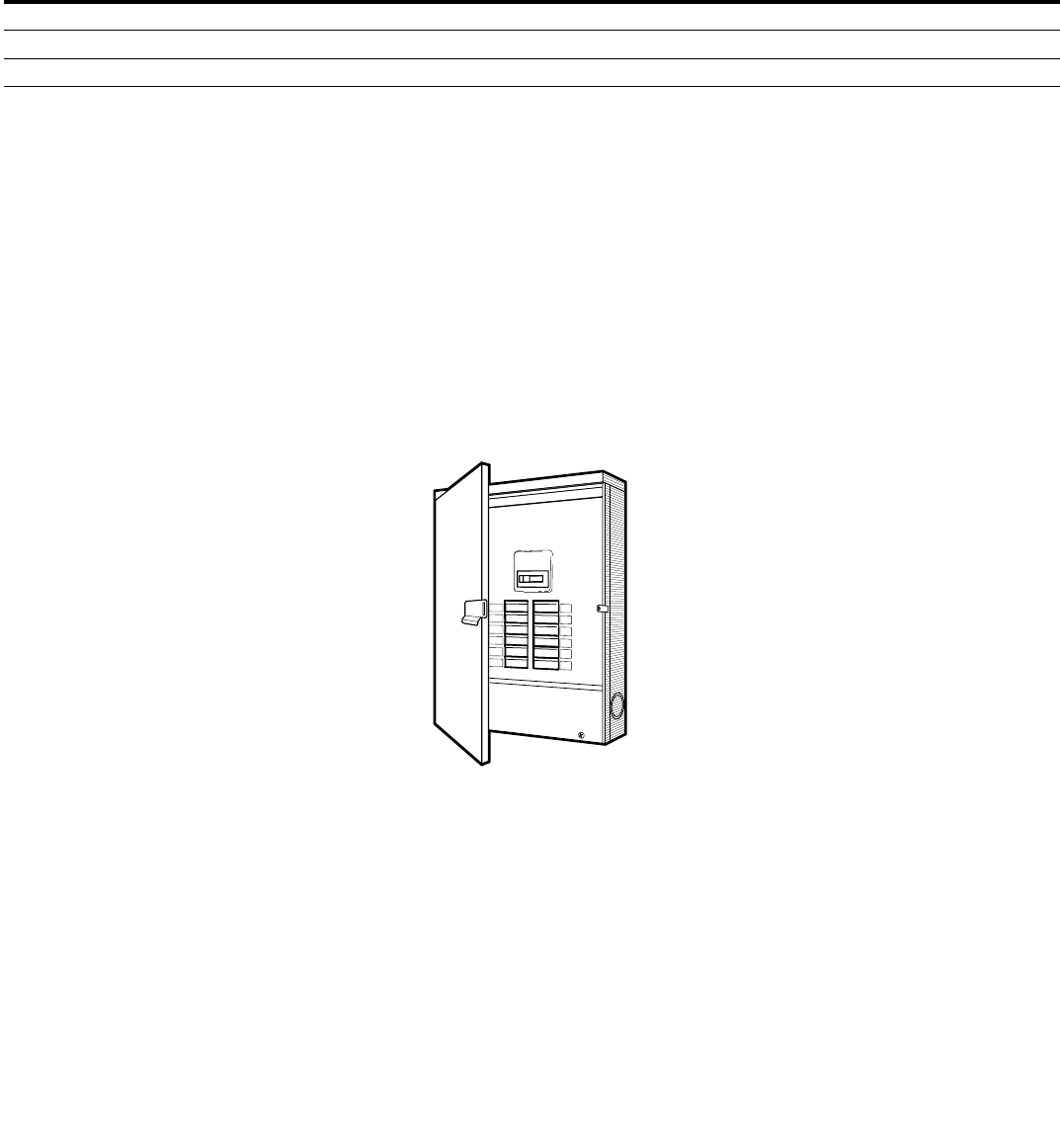

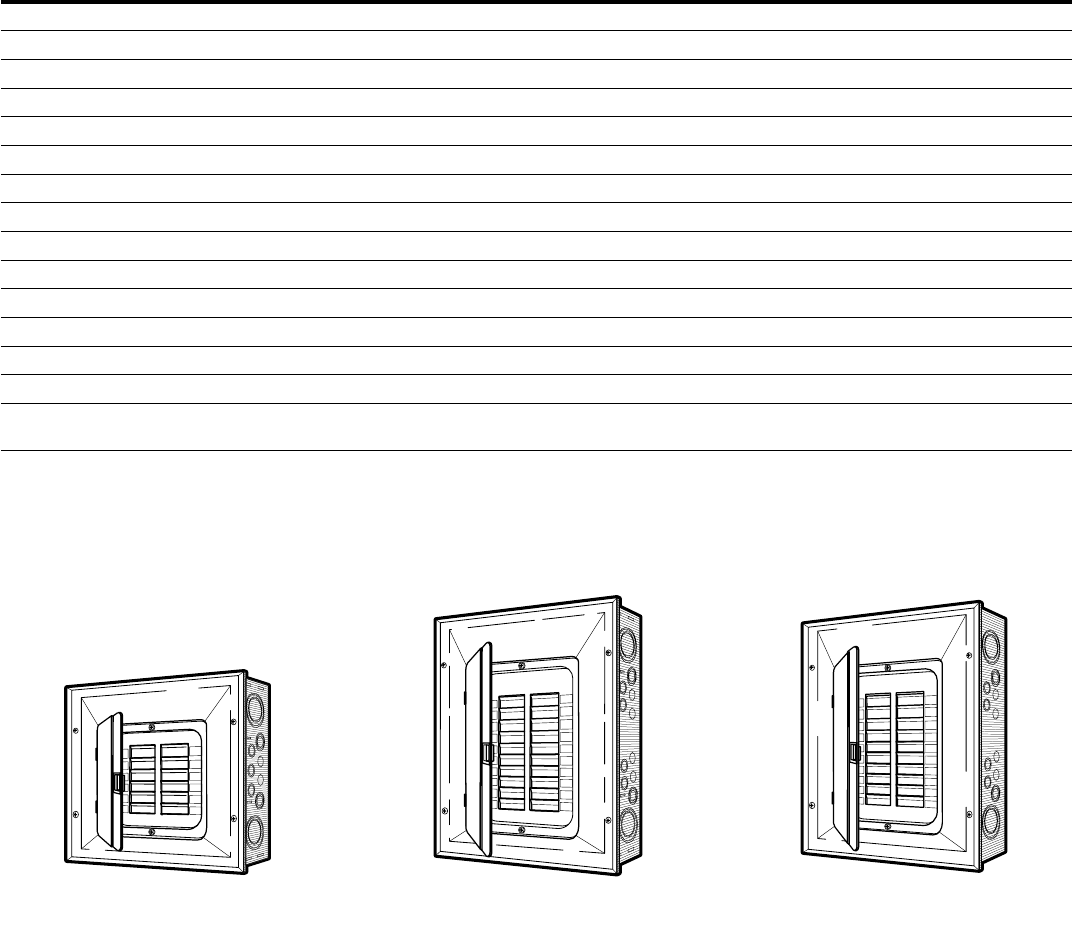

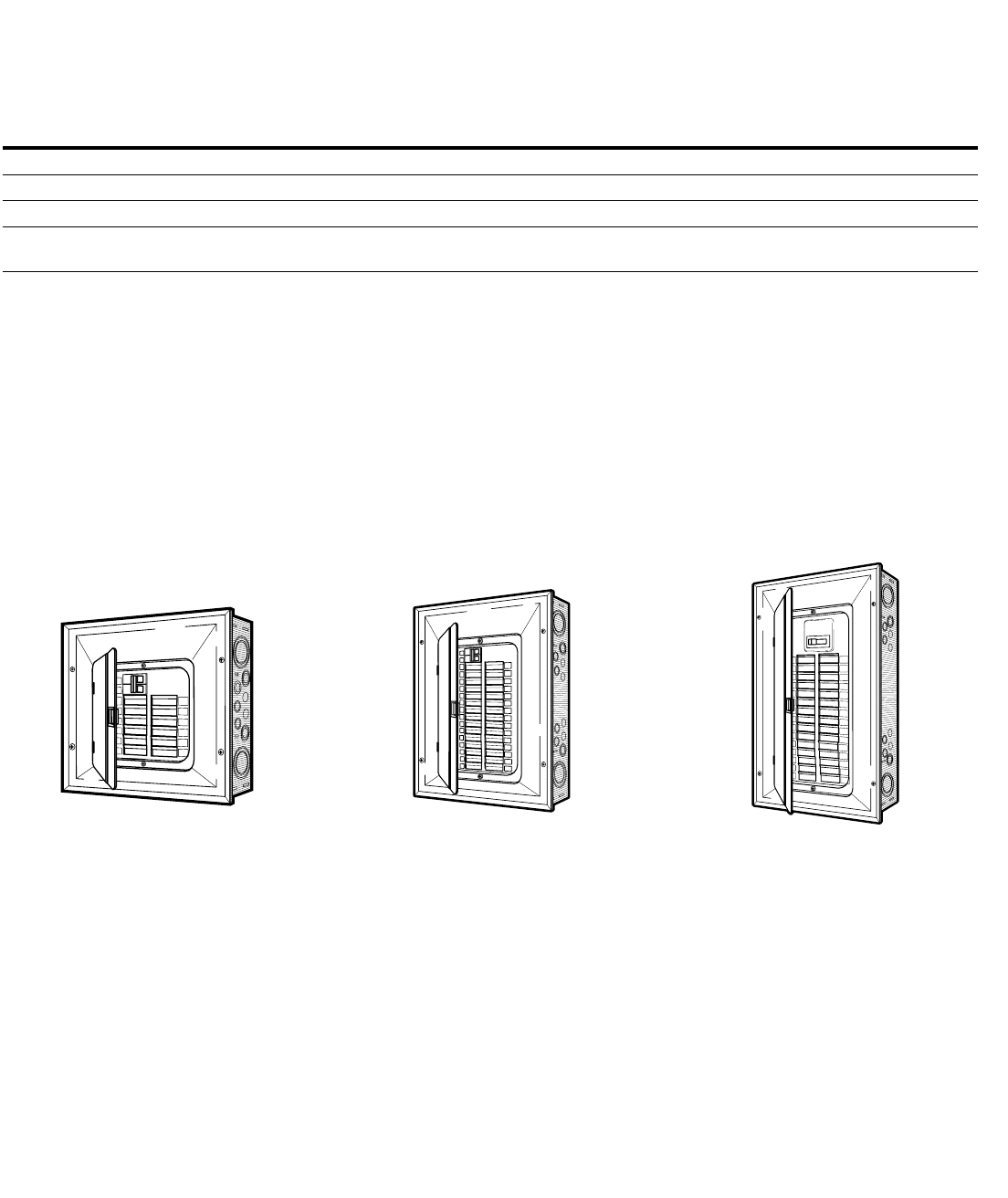

CPM112
BR2020B100P LOADCENTER
100 AMP MAIN BREAKER

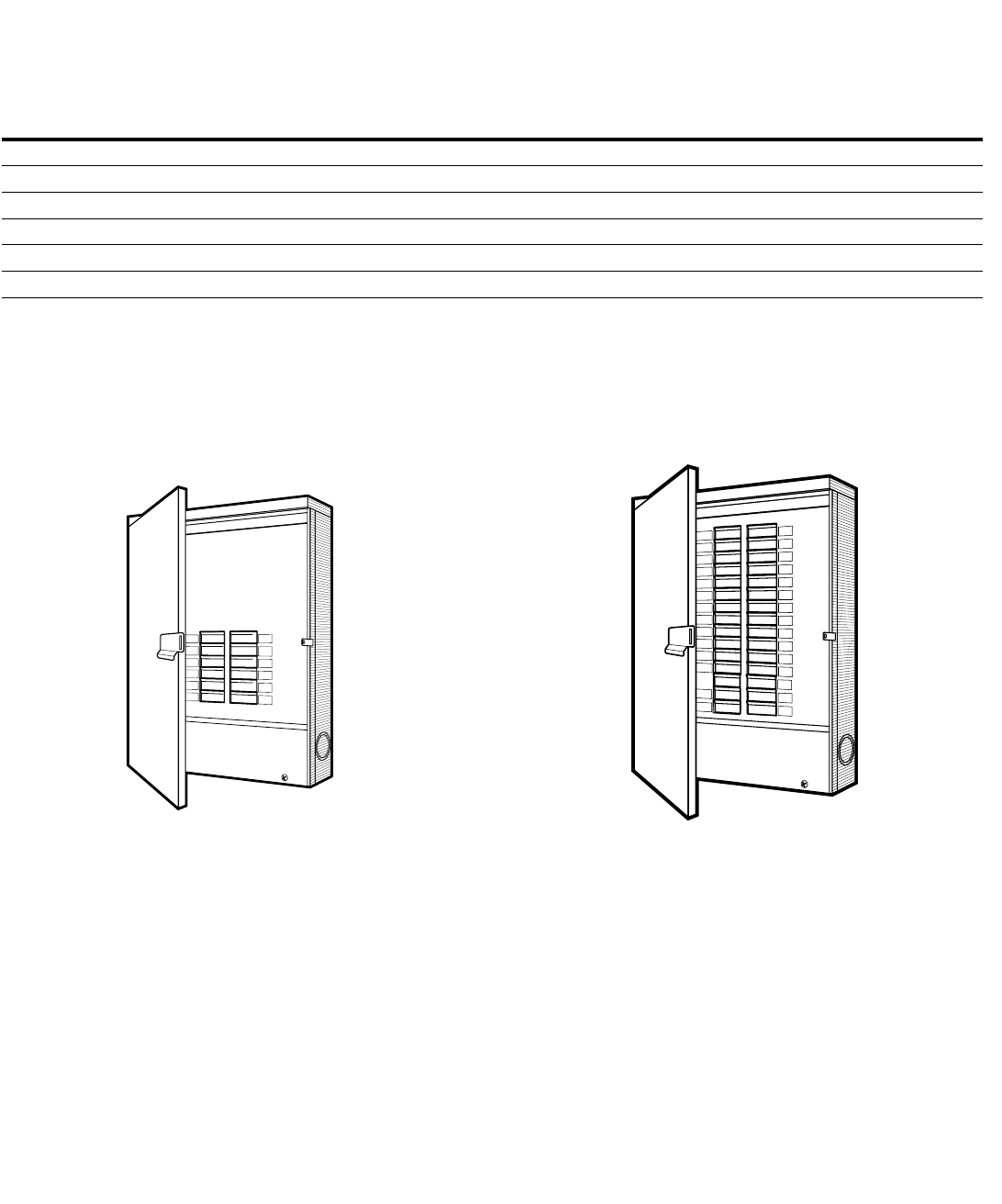

CPM120 CPM1520
BR2040B200P LOADCENTER
200 AMP MAIN BREAKER
CPM240
BR4040B200P LOADCENTER
200 AMP MAIN BREAKER
Type CPM Plug-In Loadcentres
Combination (Main Circuit Breaker) Single Phase Type 1
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 3
RCPM220
a Type BR-100 Amp 10kAIC Main Circuit Breaker is factory installed (BR2100).
bFactory installed 25 kAIC Main Breaker.
cOutdoor Loadcentres accommodate Type DS Conduit Hubs. Hubs not included. See Page 11 for selection.
dHigh interrupting BRH breakers are available on page 13.
eAll enclosures include a locking hasp as an integral part of the door latching mechanism.
3 Wire 120/240VAC Combination Service Entrance Type 3Rc (Outdoor/Raintight)
Product Selection
Table 2. Main Circuit Breaker Outdoor/Raintight Type 3Rc Loadcentres
Maximum
Ampere
Rating
Main Breaker
Rating
Catalogue
Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Type of Main
Breaker
Dimensions (in)
Wire Size Range
for Main CU/ALH W D
125 Amp 100 Amp RCPM112 e12 24 Outdoor BRad 18-1/2 14-3/8 5 #4 - 1/0
125 Amp 100 Amp RCPM120 e20 40 Outdoor BRad 25 14-3/8 5 #4 - 1/0
125 Amp 100 Amp RCPM130 e30 60 Outdoor BRad 28-7/8 14-3/8 5 #4 - 1/0
150 Amp 150 Amp RCPM1530 e30 60 Outdoor BWHb33-7/8 14-3/8 5 #2-300MCM
200 Amp 200 Amp RCPM220 e20 40 Outdoor BWHb28-7/8 14-3/8 5 #2-300MCM
200 Amp 200 Amp RCPM230 e30 60 Outdoor BWHb33-7/8 14-3/8 5 #2-300MCM
200 Amp 200 Amp RCPM240 e40 80 Outdoor BWHb38-3/4 14-3/8 5 #2-300MCM
Type CPM Plug-In Loadcentres
Combination (Main Circuit Breaker) Single Phase Type 3R
4 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
3CPM112
BR2020B100P LOADCENTER
100 AMP MAIN BREAKER
3CPM130 3CPM230
a Type BR-100 Amp 10kAIC Main Circuit Breaker is factory installed (BR3100).
b High interrupting BRH breakers are available on page 13.
c Factory installed 10 kAIC Main Breaker.
d Extra Neutrals which will expand available circuitry to a maximum of 84 circuits are available on page 11.
e DK Breaker is a 65 kAIC factory-sealed Main Breaker.
f Circuit breaker lug kit 3TA401 must be ordered separately to accept #2/0 - 500MCM cabling.
4 Wire 120/208VAC Combination Service Entrance Type 1 (Indoor)
Product Selection
Table 3. Main Circuit Breaker Indoor Type 1 Loadcentres
Maximum
Ampere
Rating
Main Breaker
Rating
Catalogue
Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Type of Main
Breaker
Dimensions (in)
Wire Size Range for
Main CU/ALH W D
125 Amp 100 Amp 3CPM112 12 24 Flush/Surface BR ab 21 14-3/8 3-3/4 #4 - 1/0
125 Amp 100 Amp 3CPM130 30 60 Flush/Surface CC c39 14-3/8 3-3/4 #4 - 4/0
200 Amp 200 Amp 3CPM230 30 60 Flush/Surface CC c39 14-3/8 3-3/4 #1 - 250 MCM
400 Amp 400 Amp 3CPM442d42 42 dFlush/Surface DK e66-1/2 16-1/8 6-5/16 (2) 2/0-250MCM
(1) 2/0-500MCM f
Type CPM Plug-In Loadcentres
Combination (Main Circuit Breaker) Three Phase Type 1
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 5
R3CPM230
4 Wire 120/208VAC Combination Service Entrance Type 3R d e (Outdoor/Raintight)
Product Selection
Table 4. Main Circuit Breaker Outdoor/Raintight Type 3R d e Loadcentres
Maximum
Ampere Rating
Main Breaker
Rating
Catalogue
Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Type of Main
Breaker
Dimensions (in) Wire Size Range
for Main CU/ALH W D
100 Amp 100 Amp R3CPM112 e12 24 Outdoor BRab 20-3/4 14-3/8 5 #4 - 1/0
125 Amp 100 Amp R3CPM130 e30 60 Outdoor CC c38-3/4 14-3/8 3-3/4 #4 - 4/0
200 Amp 200 Amp R3CPM230 e30 60 Outdoor CC c38-3/4 14-3/8 3-3/4 #1-250MCM
a Type BR-100 Amp 10kAIC Main Circuit Breaker is factory installed (BR3100).
b High interrupting BRH breakers are available on page 13.
c Factory installed 10 kAIC Main Breaker.
d Outdoor Loadcentres accommodate Type DS conduit hubs. Hubs not included. See Page 11 for selection.
e All enclosures include a locking hasp as an integral part of the door latching mechanism.
Type CPM Plug-In Loadcentres
Combination (Main Circuit Breaker) Three Phase Type 3R
6 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
BR1224L125P LOADCENTER
100 AMP MAIN LUG

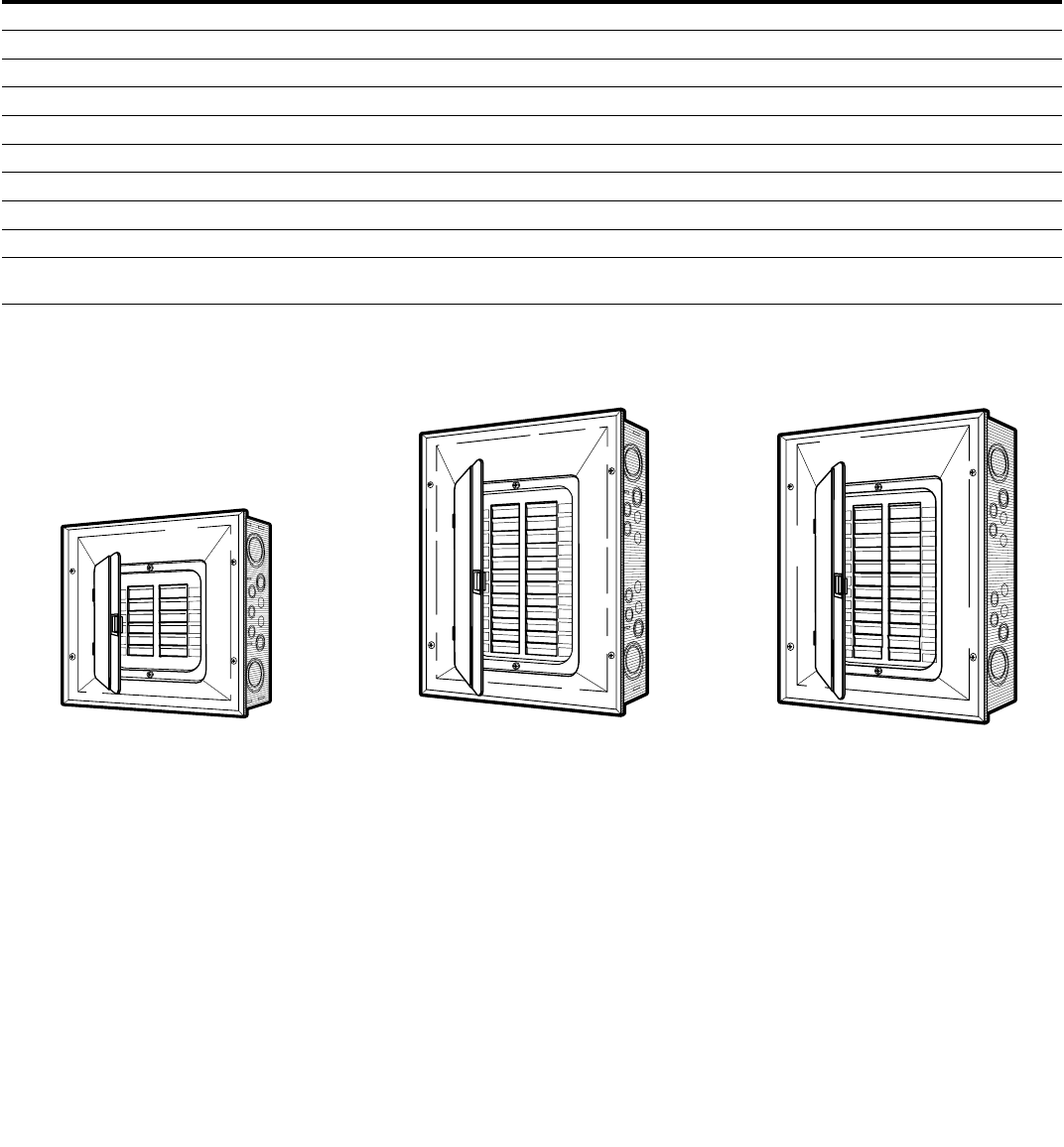

CPL112 CPL220 CPL120
a Service equipment approved when used with 2 pole BR type breaker.
b Loadcentre comes with a painted white trim & door
c Extra Neutrals which will expand available circuitry to a maximum of 84 circuits are available on page 11.

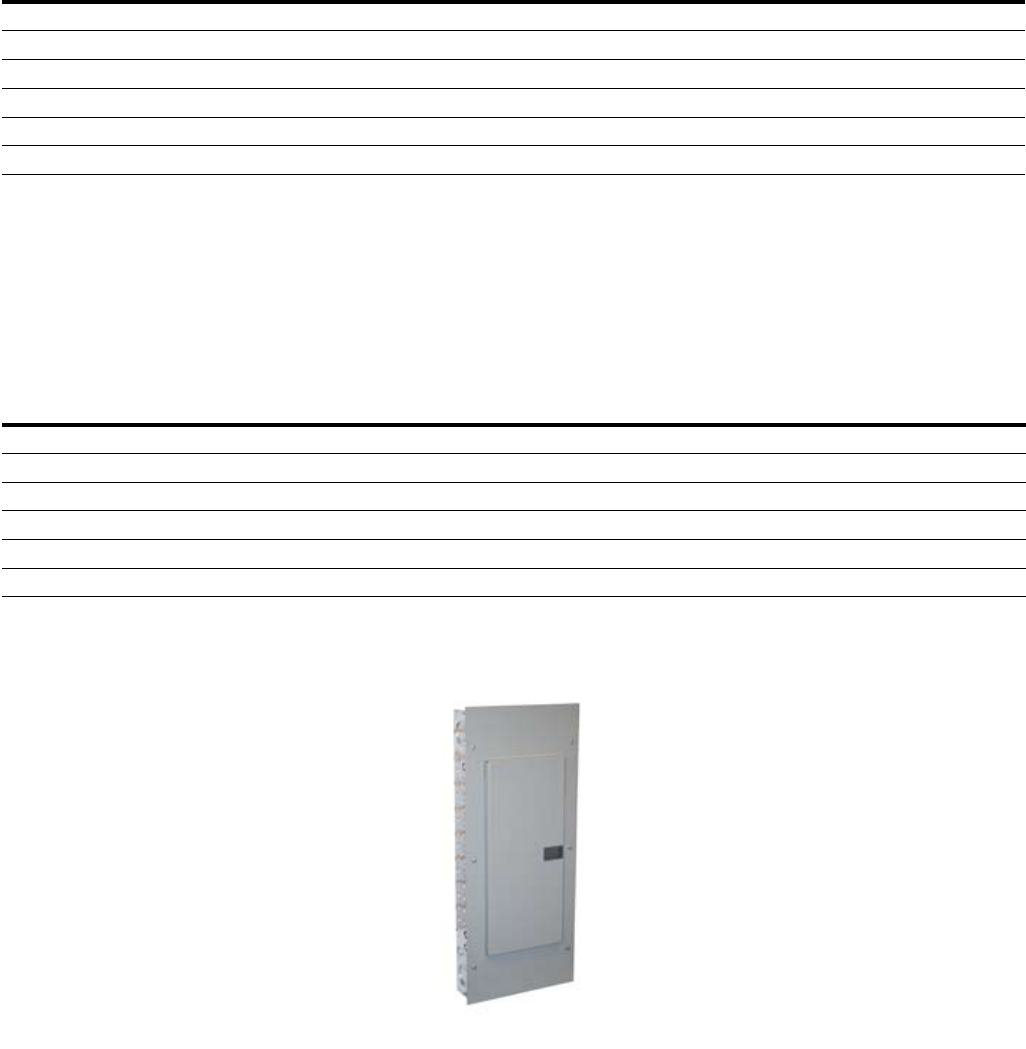

3 Wire 120/240VAC Non-Combination Type 1 (Indoor)
Product Selection
Table 5. Main Lug Only Indoor Type 1 Loadcentres
Maximum
Ampere Rating Catalogue Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (in)
Wire Size Range for Main CU/AL
H W D
100 Amp CCPL102 2 a4 Surface 11-1/2 6-3/4 3-1/4 #14 - 1/0
125 Amp CCPL104 4 8 Flush/Surface 13 11 3-1/2 #14 - 1/0
125 Amp CCPL108 8 16 Flush/Surface 13 11 3-1/2 #14 - 1/0
125 Amp CPL112 12 24 Flush/Surface 16-3/4 14-3/8 3-7/8 #14 - 1/0
125 Amp CPL116 16 32 Flush/Surface 18-3/4 14-3/8 3-7/8 #14 - 1/0
125 Amp CPL116W b16 32 Flush/Surface 18-3/4 14-3/8 3-7/8 #14 - 1/0
125 Amp CPL120 20 40 Flush/Surface 21 14-3/8 3-7/8 #14 - 1/0
125 Amp CPL120W b20 40 Flush/Surface 21 14-3/8 3-7/8 #14 - 1/0
125 Amp CPL130 30 60 Flush/Surface 29-1/8 14-3/8 3-7/8 #14 - 1/0
125 Amp CPL130W b30 60 Flush/Surface 29-1/8 14-3/8 3-7/8 #14 - 1/0
200 Amp CPL220 20 40 Flush/Surface 27 14-3/8 3-7/8 #2-300MCM
200 Amp CPL220W b20 40 Flush/Surface 27 14-3/8 3-7/8 #2-300MCM
200 Amp CPL240 40 80 Flush/Surface 34-1/8 14-3/8 3-7/8 #2-300MCM
200 Amp CPL240W 40 80 Flush/Surface 34-1/8 14-3/8 3-7/8 #2-300MCM
400 Amp CPL442 42 42 cFlush/Surface 54 16-1/8 6-5/16 (1) 250-750MCM
(2) 3/0-250MCM
Type CPL Plug-In Loadcentres
Non-Combination (Main Lug Only) Single Phase Type 1
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 7
RCPL112 RCPL220
3 Wire 120/240VAC Non-Combination Service Entrance Type 3R a (Outdoor/Raintight)
Product Selection
Table 6. Main Lug Only Outdoor/Raintight Type 3R a Loadcentres
Maximum
Ampere Rating Catalogue Number Max. No. 1” Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (in) Wire Size Range for
Main CU/ALH W D
100 Amp RCCPL102 c2 b4 Outdoor 11-1/2 6-1/2 4 #14-2/0
125 Amp RCCPL104 c4 8 Outdoor 13 11 3-1/2 #14-2/0
125 Amp RCCPL108 c8 16 Outdoor 13 11 3-1/2 #14-2/0
125 Amp RCPL112 c12 24 Outdoor 16-1/2 14-3/8 5 #14-2/0
125 Amp RCPL120 c20 40 Outdoor 20-3/4 14-3/8 5 #14-2/0
125 Amp RCPL130 c30 60 Outdoor 28-7/8 14-3/8 5 #14-2/0
200 Amp RCPL220 c20 40 Outdoor 25 14-3/8 5 #2-300MCM
200 Amp RCPL240 c40 80 Outdoor 33-7/8 14-3/8 5 #1-250MCM
BR1224L200RFP LOADCENTER
200 AMP MAIN LUG
CH24L125RP
125 amp
Main Lug Loadcenter
Outdoor
a Outdoor Loadcentres accommodate Type DS conduit hubs. Hubs not included. See page 11 for selection.
b Service equipment approved when used with 2 pole BR type breaker.
c All enclosures include a locking hasp as an integral part of the door latching mechanism.
Type CPL Plug-In Loadcentres
Non-Combination (Main Lug Only) Single Phase Type 3R
8 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
a Suitable for use as Service Equipment when used with 3 pole BR type breaker.
b Extra Neutrals which will expand available circuitry to a maximum of 84 circuits are available on page 11.
4 Wire 120/208VAC Non-Combination Type 1 (Indoor)
Product Selection
Table 7. Main Lug Only Indoor Type 1 Loadcentres
Maximum Ampere
Rating Catalogue Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (in) Wire Size Range for
Main CU/AL
H W D
100Amp 3CCPL103 3 a6 Surface 14-1/4 6-1/2 3-1/4 #14-2/0
125 Amp 3CPL112 12 24 Flush/Surface 21 14-3/8 3-7/8 #14-2/0
125Amp 3CPL124 24 48 Flush/Surface 29 14-3/8 3-3/4 #14-2/0
125 Amp 3CPL130 30 60 Flush/Surface 34.12 14-3/8 3-3/4 #14-2/0
125 Amp 3CPL136 36 72 Flush/Surface 39 14-3/8 3-3/4 #14-2/0
200 Amp 3CPL218 18 36 Flush/Surface 27 14-3/8 3-7/8 #2-300MCM
200 Amp 3CPL224 24 48 Flush/Surface 34.12 14-3/8 3-7/8 #2-300MCM
200 Amp 3CPL230 30 60 Flush/Surface 34.12 14-3/8 3-3/4 #2-300MCM
200 Amp 3CPL242 42 84 Flush/Surface 39 14-3/8 3-7/8 #2-300MCM
400 Amp 3CPL442 42 42 bFlush/Surface 54 16-3/8 6-5/16 (1) 250-750MCM
(2) 3/0-250MCM
BR1224L125P LOADCENTER
100 AMP MAIN LUG
3CPL112 3CPL224 3CPL124
Type CPL Plug-In Loadcentres
Non-Combination (Main Lug Only) Three Phase Type 1
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 9
a Outdoor Loadcentres accommodate Type DS conduit hubs. Hubs not included. See page 11 for selection.
b Suitable for use as Service Equipment when used with 3 pole BR type breaker.
c Extra Neutrals to expand available circuitry to a maximum of 84 circuits are available on page 11.
d All enclosures include a locking hasp as an integral part of the door latching mechanism.
4 Wire 120/208VAC Non-Combination Service Entrance Type 3R a (Outdoor/Raintight)
Product Selection
Table 8. Main Lug Only Outdoor/Raintight Type 3R a Loadcentres
Maximum
Ampere Rating Catalogue Number Max. No. 1” Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (in) Wire Size Range for
Main CU/ALH W D
100 Amp R3CCPL103 d3 b- Outdoor 14-1/4 7 3-1/2 #14-2/0
125 Amp R3CPL112 d12 24 Outdoor 20-3/4 14-3/8 5 #14-2/0
125 Amp R3CPL130 d30 60 Outdoor 38-3/4 14-3/8 5 #14-2/0
125 Amp R3CPL136 d36 72 Outdoor 38-3/4 14-3/8 5 #14-2/0
200 Amp R3CPL230 d30 60 Outdoor 33-7/8 14-3/8 5 #2-300MCM
200 Amp R3CPL242 d42 42 cOutdoor 38-3/4 14-3/8 5 #2-300MCM
R3CPL112 R3CPL230
BR1224L200RFP LOADCENTER
200 AMP MAIN LUG
Type CPL Plug-In Loadcentres
Non-Combination (Main Lug Only) Three Phase Type 3R
10 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
a Service Entrance approved when used with 2 pole BR/BRH breakers.
b BR and BRH 2 pole breakers can be found on page 13.
c Uses DS*H1 style hubs found on page 11.
d The circuit breaker protective cover incorporates a locking hasp.
3 Wire 250VAC Maximum Non-Combination
♦ Service entrance approved when used with 2 pole BR or BRH breakers. b
Product Selection
Table 9. 70A Main Lug Only Polymeric and Metallic Loadcentres
Maximum
Ampere Rat-
ing (A) Enclosure Style Material Catalogue Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces
Dimensions (in) Wire Size Range
for Main CU/AL
(AWG)H W D
70 Indoor Type 1aPolymeric CPL072 2 4 8-5/8 5 3-1/4 #14 - 2
70 Indoor/Outdoor Type 3R aPolymeric CPL072R d2 4 8-11/16 6-1/4 4-5/16 #14 - 2
70 Indoor Type 1 Flush Mount aMetallic CPL072FGP 2 4 9-7/16 4-1/2 3 #14 - 2
70 Indoor Type 1 Surface Mount aMetallic CPL072SGP 2 4 9-7/16 4-1/2 3 #14 - 2
70 Indoor/Outdoor Type 3R aMetallic CPL072RGP c d 2 4 9-7/16 4-1/2 3 #14 - 2

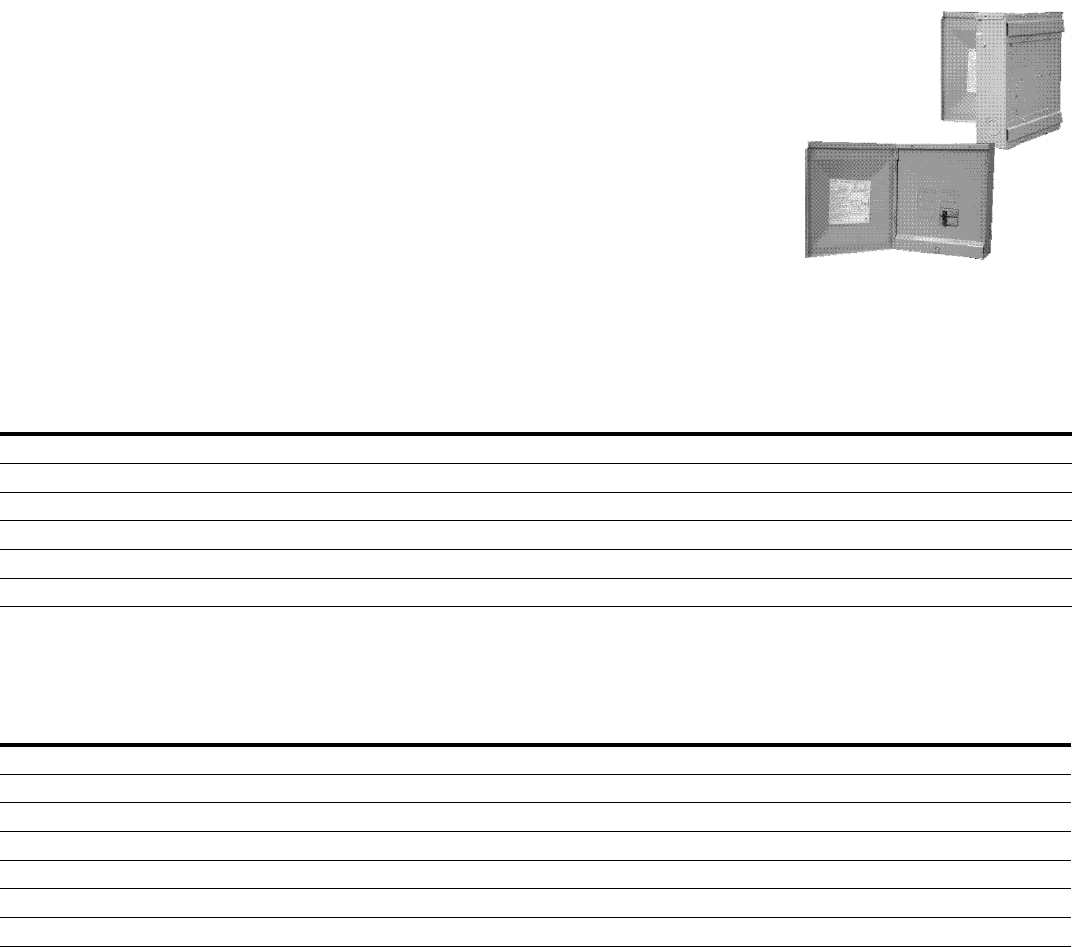

CPL072R Outdoor
CPL072 Indoor CPL072FGP Flush CPL072SGP Surface CPL072RGP Outdoor
Type CPL Plug-In Loadcentres
Non-Combination (Main Lug Only) 70A Single Phase
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 11

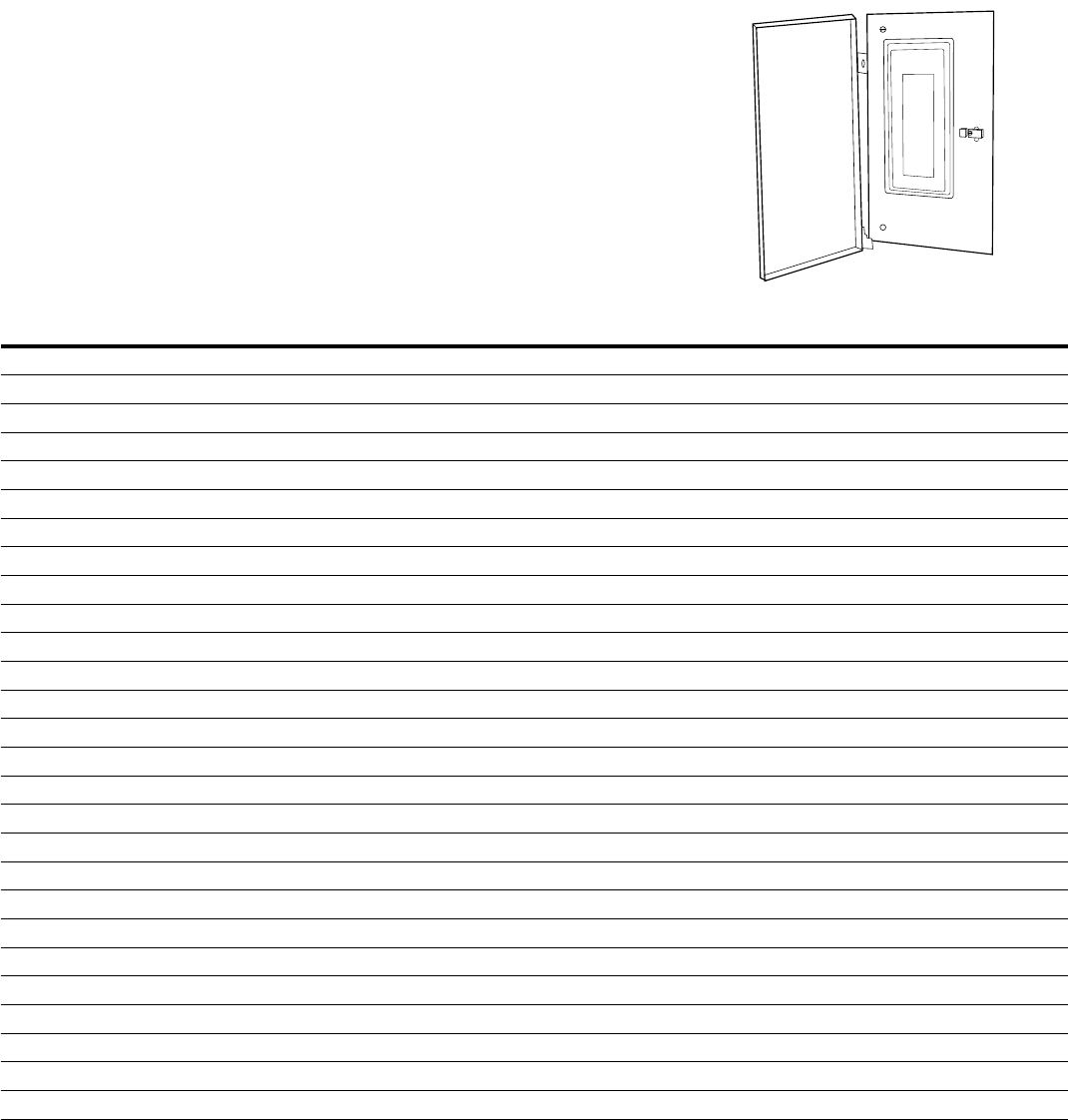

Accessories
Product Selection
Table 10. Plug-In Loadcentre Accessories
Description Catalogue Number Description Catalogue Number
Number Strips for CPL/CPM 42 Circuits aNSP42 Door lock for 4-8 circuit 125A (CPM/CPL) CH9FL
Circuit Identification Labels (e.g. Hot Water Heater) bBP3110C Door lock for 12-42 circuit 100-225A & 400A (CPM/CPL) TDL
Replacement door c for CPM112 CPM112COV Isolated ground kit ISGRD
Replacement door c for CPM116 CPM116COV Trim screw kit (CPM/CPL) dCVRSCRW
Replacement door c for CPM120 CPM120COV 3/4” Hub for 100-125A Type 3R Loadcentres eDS075H1 3”x2-3/4”
Replacement door c for CPM130 CPM130COV 1” Hub for 100-125A Type 3R Loadcentres eDS100H1 3”x2-3/4”
Replacement door c for CPM216 CPM216COV 1-1/4” Hub for 100-125A Type 3R Loadcentres eDS125H1 3”x2-3/4”
Replacement door c for CPM220 CPM220COV 1-1/2” Hub for 100-125A Type 3R Loadcentres eDS150H1 3”x2-3/4”
Replacement door c for CPM230 CPM230COV 2” Hub for 100-125A Type 3R Loadcentres eDS200H1 3”x2-3/4”
Replacement door c for CPM240 CPM240COV 2” Hub for 150 & 200A Type 3R Loadcentres DS200H2 4-3/4”x4-5/8”
Replacement door c for CPL112 CPL112COV 2-1/2” Hub for 150 & 200A Type 3R Loadcentres DS250H2 4-3/4”x4-5/8”
Replacement door c for CPL116 CPL116COV 3” Hub for 150 & 200A Type 3R Loadcentres DS300H2 4-3/4”x4-5/8”
Replacement door c for CPL120 CPL120COV 3/4” Hub for R3CCPL103 Loadcentres RH75P 2-1/8”x3-1/4”
Replacement door c for CPL130 CPL130COV 1” Hub for R3CCPL103 Loadcentres RH100P 2-1/8”x3-1/4”
Replacement door c for CPL220 CPL220COV 1-1/4” Hub for R3CCPL103 Loadcentres RH125P 2-1/8”x3-1/4”
Replacement door c for CPL240 CPL240COV 1” Filler plate kit fBRFP
Replacement door c for 3CPM112 3CPM112COV Sub-feed kit for 125A Loadcentres #8-2/0 gBRSF125
Replacement door c for 3CPM130 3CPM130COV Sub-feed kit for 150A 3 phase Loadcentres #8-2/0 g3BRSF150
Replacement door c for 3CPM230 3CPM230COV Sub-feed kit for 225A Loadcentres #2-300MCM gBRS225
Replacement door c for 3CPL112 3CPL112COV Sub-feed kit for 225A 3 phase Loadcentres #2-300MCM g 3BRS225
Replacement door c for 3CPL124 3CPL124COV Sub-feed kit for 400A Loadcentres #8-300MCM gBRS400
Replacement door c for 3CPL130 3CPL130COV Sub-feed kit for 400A 3 phase Loadcentres g3BRS400
Replacement door c for 3CPL136 3CPL136COV Neutral/Ground lug kit for 2/0 hNL20
Replacement door c for 3CPL218 3CPL218COV Neutral/Ground lug kit for 3/0 hNL30
Replacement door c for 3CPL224 3CPL224COV Neutral/Ground lug kit for 300MCM (Maximum) hNL300
Replacement door c for 3CPL230 3CPL230COV Neutral kit for 400A Combination Loadcentres iCPM400KIT
Replacement door c for 3CPL242 3CPL242COV Neutral kit for 400A Non-combination Loadcentres jCPL400KIT
Grey plastic replacement door latch 52-3125-5
a 25 Per package. Catalogue number represents one package.
b 50 Per package. Catalogue number represents one package.
c Includes trim, door, and deadfront..
d 100 Per package. Catalogue number represents one package.
e Except R3CCPL103.
f Kit includes 25 pieces.
g Line/Load terminals supplied only. Neutral conductor must be purchased separately. See above listed kits.
h Neutral bolts to main neutral bar i.e. remove screw & install lug kit.
i Kit includes 2 Neutral bars.
j Kit includes 1 Neutral bar.
Comes with a set of keys.
Type CPM/CPL Plug-In Loadcentre Accessories
12 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
1”
BR Circuit Breakers
Eaton Type BR plug-in breakers in the
standard 1-inch per pole moulded case
and can be used as main and/or branch
disconnect devices. All are CSA and UL
listed. Typical ampacity range for BR
breakers is 15 through 125 amperes a
.
FIRE-GUARD™ Arc
Fault Circuit Interrupter
(AFCI)
The FIRE-GUARD Arc Fault Circuit
Interrupter (AFCI) is a residential circuit
breaker with an integrated processor
which recognizes the unique current
and/or voltage signatures associated
with arcing faults, and acts to interrupt
the circuit to reduce the likelihood of
an electrical fire. With the Eaton Fire-
Guard AFCI, protection from arcing
faults is combined with conventional
thermal and magnetic overloads as
found in standard residential circuit
breakers protecting wiring from
excessive heat or damage due to
overloading or short circuits. Fire-Guard
AFCI can also be equipped with 5 mA
ground fault protection to protect from
personal shock hazards. Now, there is a
residential circuit breaker that provides
protection from arcing faults, conductor
damage due to thermal overloads and
short circuits, as well as 5 mA ground
fault protection in one integrated
design.
GFCB® People
Protection Breakers
Eaton Type GFCB (ground fault circuit
breaker) combines state-of-the-art
electronic technology with a circuit
breaker mechanism in a compact 1-
inch per pole moulded case. The GFCB
automatically senses hot wire-to-ground
faults in a 4 to 6 milliampere range
and shuts off the power thus providing
an extra margin of safety beyond
that of conventional circuit breakers.
GFCB applications include bathrooms,
basement outlets, swimming pools,
outdoor branch circuits and kitchen
branch circuits. Type GFCB breakers
are also available in 10mA and 30mA
equipment protectors. 10mA GFCB are
required for submersible pump, sump
pump and well applications b. 30mA
breakers are for equipment requiring a
higher interrupting value such as heat
tracing.
DNPL Twin Circuit
Breakers
DNPL plug-in breakers have the same
construction as Eaton Type BR 1-inch
per pole devices except that two one
pole circuits are provided in a
1-inch space a. CSA listed interrupting
rating is 10,000 AIC. All ratings are CSA
and UL listed.
DNPL Quad Circuit
Breakers
QuadplexTM construction of Eaton Type
DNPL plug-in breakers provides various
combinations of two pole and single
pole devices in a 2-inch moulded case.
All plug-in breakers are approved for
HACR applications a.
All ratings are CSA & UL listed.
CSA certified to C22.2 No. 5, file
LR3300.
All loadcentre breakers are GOS listed
for conformity.

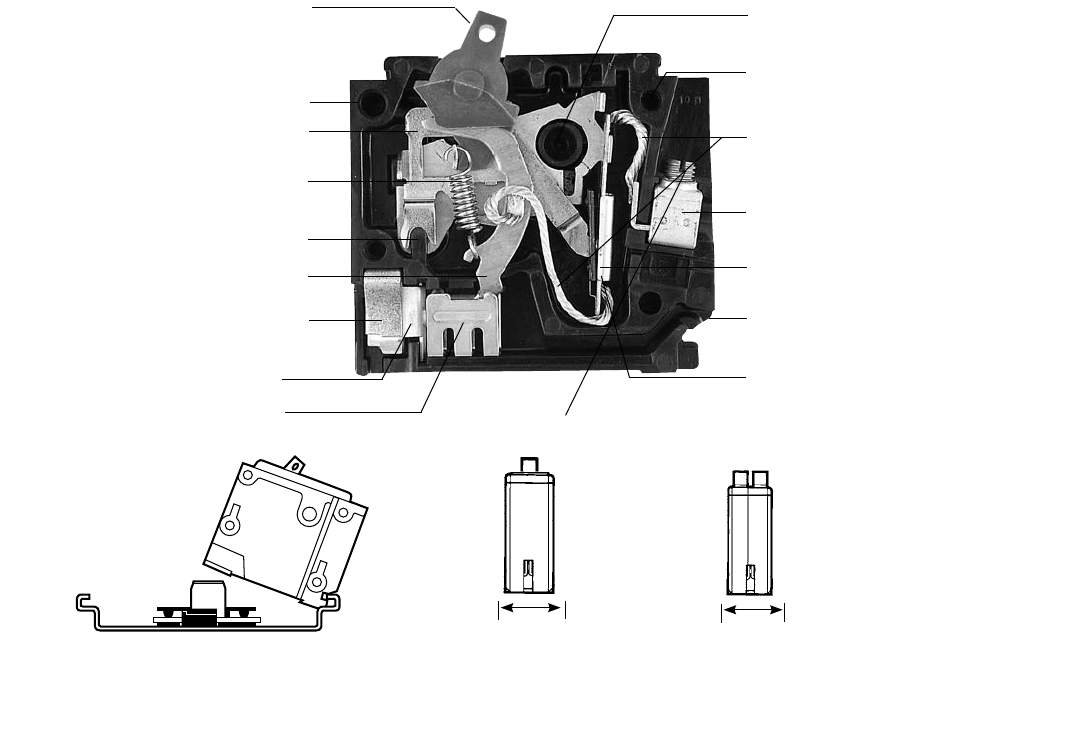

Handle position On, Off, and Tripped
Indication
One-piece moulded case construction.
Hardened cradle for positive action under
fault conditions.
Heavy duty mechanism spring for reliable
operation.
Non-abrasive integrally moulded pivot for
quick mechanism response.
One-piece moving contact arm for quick
on/off response.
Heavy duty line terminal and spring clip
for quick loadcentre installation and cool
operation.
Silver tungsten alloy contacts.
Unique one-piece heavy duty DE-ION® arc
extinguisher for quick arc interruption.
Type DNPL
Duplex
Exclusive steel frame calibration provides
greater calibration integrity than with screw
adjustment.
Four rivet construction enhances strength and
structural integrity of breaker case.
Heavy duty multi-strand flexible copper shunt
provides load terminal torque isolation.
CSA approved terminal assembly for use with
copper or aluminum wire, screw is “backed
out” for faster insertion of wires.
Magnetic assembly for reliable short circuit
protection.
Large gas port for venting short circuit gases
safely into loadcentre gutter.
Calibrated one-piece bimetal for reliable
thermal trip function.
Type BR
1”
Robertson/slot load side screw.
a One pole 15 and 20 ampere units are switching duty (SWD) rated.
b Submersible pump installations require ground fault protection to the maximum sensitivity level of 10 milliampere. These breakers meet Canadian electrical code CEC 26-956.

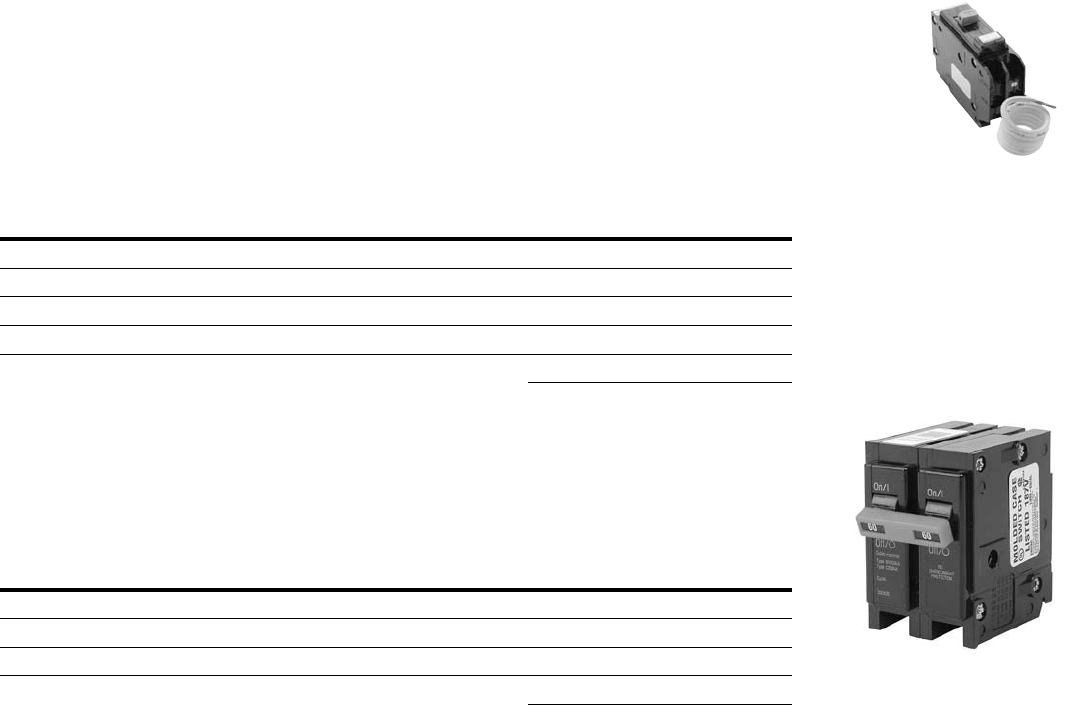

Plug-In Circuit Breakers for CPM/CPL
Type BR, DNPL, GFCB, GFEP, & GFXB
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 13
Type BR c d
♦ 10,000 / 22,000 Amperes Interrupting Capacity at 120VAC, 120/240VAC, and 240VAC
♦ 2 and 3 pole versions feature a common trip
Product Selection
Table 11. Single and Multi-Pole Plug-In Circuit Breakers
Ampere Rating
Wire Size Range
(Cu/AL 60ºC or 75ºC)
1-Pole 120/240VAC 1-Pole 120/240VAC 2-Pole 120/240VAC 2-Pole 120/240VAC 3-Pole 120/240VAC 3-Pole 120/240VAC
10 per Shelf Carton 10 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton
10kAIC 22kAIC 10kAIC 22kAIC 10kAIC 22kAIC
Catalogue Number Catalogue Number Catalogue Number Catalogue Number Catalogue Number Catalogue Number
15 #14 - 4 BR115 a b BRH115 BR215 BRH215 BR315 BRH315
20 #14 - 4 BR120 a b BRH120 BR220 BRH220 BR320 BRH320
25 #14 - 4 BR125 aBRH125 BR225 BRH225 BR325 BRH325
30 #14 - 4 BR130 aBRH130 BR230 BRH230 BR330 BRH330
35 #14 - 4 BR135 aBRH135 BR235 BRH235 BR335 BRH335
40 #14 - 4 BR140 aBRH140 BR240 BRH240 BR340 BRH340
45 #14 - 4 — BRH145 BR245 BRH245 BR345 BRH345
50 #14 - 4 BR150 aBRH150 BR250 BRH250 BR350 BRH350
60 #4 - 1/0 — BRH160 BR260 BRH260 BR360 BRH360
70 #4 - 1/0 — BRH170 BR270 BRH270 BR370 BRH370
80 #4 - 1/0 — — BR280 BRH280 BR380 BRH380
90 #4 - 1/0 — — BR290 BRH290 BR390 BRH390
100 #4 - 1/0 — — BR2100 BRH2100 BR3100 BRH3100
110 #4 - 1/0 — — — — — —
125 #4 - 2/0 e— — BR2125 e—e—
150 e——e—e—
175 e——e—e—
200 e——e—e—
Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces Requires Three 1-Inch (25.4mm) Spaces

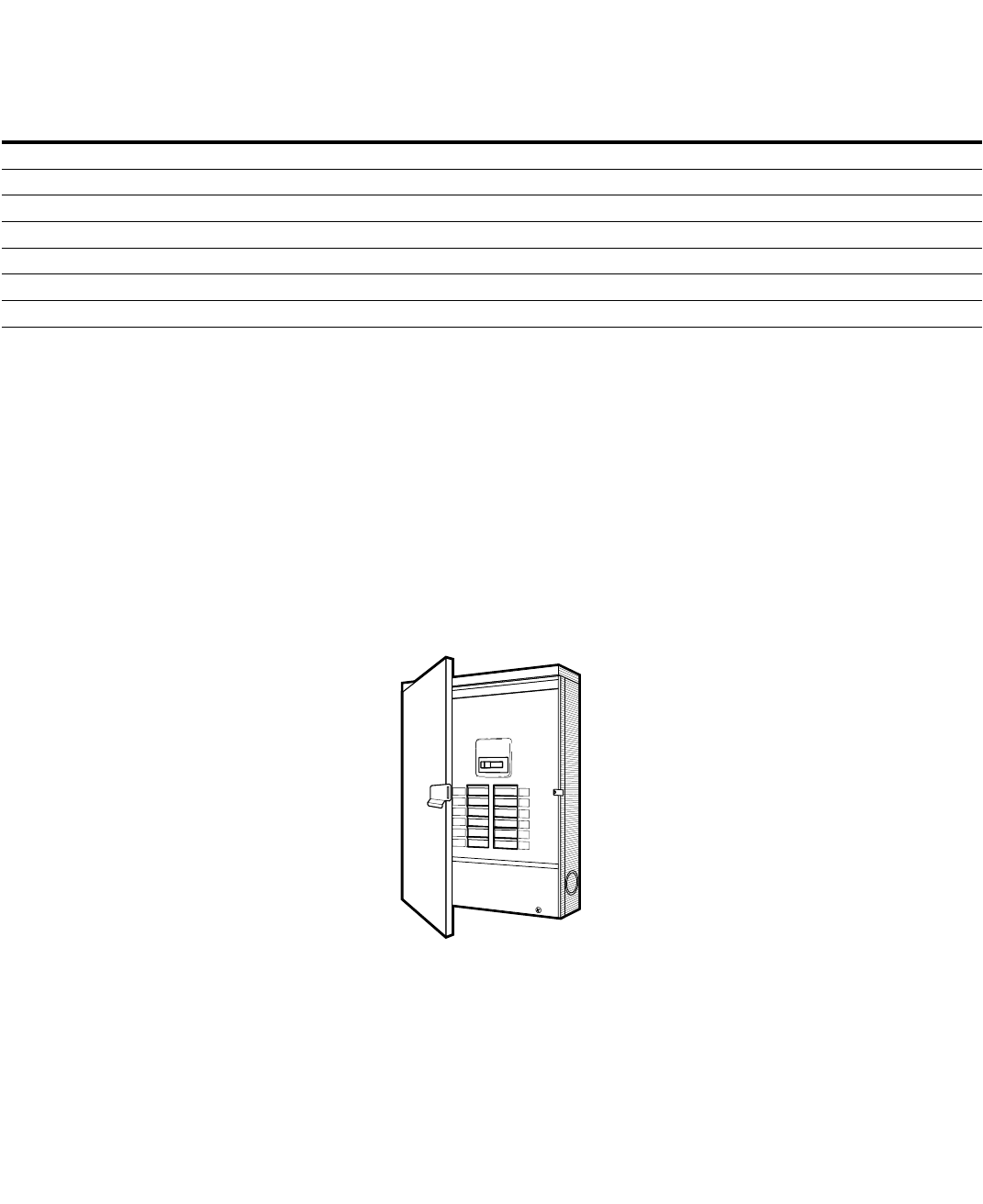

Loadcenters & Circuit Breakers

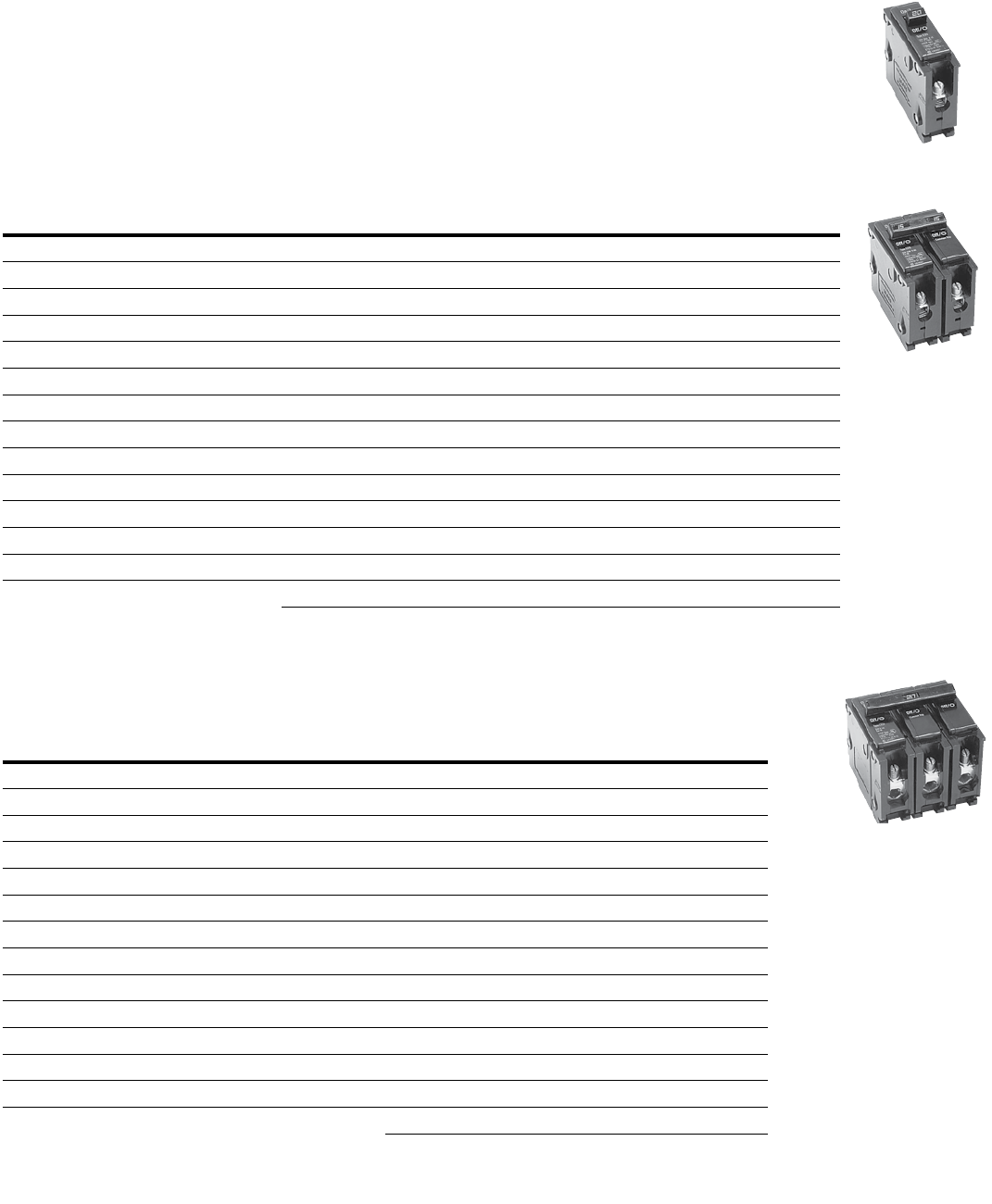

Type BR Loadcenters & Circuit Breakers
Circuit Breaker Product Selection
Plug-on Circuit Breakers, Types BR
BR120 BR215 BR320
Add suffix H to catalog number.
Switching duty rated.
 
For circuit breakers with a shunt trip, add ST suffix.
Ampere
Rating
Wire Size
Range
Cu/Al
60°C or
75°C
1-Pole 120/240 Vac
Requires One 1-Inch (25.4 mm) Space
2-Pole 120/240 Vac
Common Trip
Requires Two 1-Inch (25.4 mm) Spaces
10 per Shelf Carton 5 per Shelf Carton
22 kAIC
Catalog
Number
Catalog
Number
Catalog
Number
Catalog
Number
10
15
20
25
30
#14 – 4 BR110
BR115

BR120

BR125
BR130
—
BRH115
BRH120
BRH125
BRH130
BR210
BR215
BR220
BR225
BR230
—
BRH215
BRH220
BRH225
BRH230
35
40
45
50
#14 – 4 BR135
BR140
—
BR150
BRH135
BRH140
BRH145
BRH150
BR235
BR240
BR245
BR250
BRH235
BRH240
BRH245
BRH250
55 #14 – 3 BR150 BRH155 BR255 BRH255
60
70
80
90
100
110
#4 – 1/0 BR160
BR170
—
—
—
—
BRH160
BRH170
—
—
—
—
BR260
BR270
BR280
BR290
BR2100
BR2110
BRH260
BRH270
BRH280
BRH290
BRH2100
BRH2110
125 #4 – 2/0 —
—
—
—
BR2125
BRH2125
Type BR Breakers, 1-Inch (25.4 mm) per Pole 120/240, 10,000, 22,000
One pole, 1-inch (25.4 mm) per pole circuit breakers are available with high magnetic setting for switching large tungsten
lamp loads.
3,000/ ,000 Interrupting Capacity
120/240-220/3 0-240/415 Volts AC
22 kAIC10 kAIC10 kAIC
Notes: All Type BR 1-, 2-, and 3-pole circuit breakers carry listing for HACR application.
a Available with high magnetic setting for switching large tungsten lamp loads. Add suffix H to catalogue number (e.g. BR115H).
b Switching duty rated.
c All Type BR 1, 2, and 3-pole circuit breakers carry listing for HACR application..
d Breaker shunt trips are available but only in 120VAC format. Addition of a shunt trip adds a 1” space width. For circuit breakers requiring a shunt trip add an ST suffix to the end of the catalogue number
(e.g. BR115ST).
e For subfeed applications in 200 or 400A loadcentres requiring a 125, 150, 175, or 200A subfeed circuit breaker a Type BJ circuit breaker can be used. Refer to page 62 for product space requirements and
selection.
BR120 BR215 BR320
Plug-In Circuit Breakers for CPM/CPL
Type BR Single and Multi-Pole
14 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Type DNPL a b
♦ 10,000 Amperes Interrupting Capacity at 120VAC, 120/240VAC, and 240VAC
Product Selection
Table 12. Duplex™ and Independent Trip Quadplex™ Plug-In Circuit Breakers
Duplex™ Quadplex™ Independent Trip Quadplex™ Independent Trip
Two Single Pole Circuits Two Single Pole Circuits and One Double Pole Circuit Two Double Pole Circuits
10 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton
120VAC
Catalogue Number
120VAC 120/240VAC 120VAC
Catalogue Number
120/240VAC
Catalogue Number
Wire Size Range
(Cu/AL 60ºC or 75ºC)
Ampere Rating
Ampere Rating Ampere Rating
Outer Left
(1 Pole)
Centre
(2 Poles)
Outer Right
(1 Pole)
Outer Left & Right
(2 Poles)
Centre
(2 Poles)
15-15 DNPL1515 15 15 15 DNPL151515 15 15 DNPL215215 #14 - 4 AWG
15-20 DNPL1520 15 20 15 DNPL152015 15 20 DNPL215220 #14 - 4 AWG
15-30 DNPL1530 15 25 15 DNPL152515 15 30 DNPL215230 #14 - 4 AWG
20-20 DNPL2020 15 30 15 DNPL153015 15 40 DNPL215240 #14 - 4 AWG
— — 15 40 15 DNPL154015 20 20 DNPL220220 #14 - 4 AWG
— — 15 50 15 DNPL155015 20 30 DNPL220230 #14 - 4 AWG
Requires One 1-Inch (25.4mm) Space
Independant Trip
Requires Two 1-Inch (25.4mm) Spaces
Independent Trip
Requires Two 1-Inch (25.4mm) Spaces
a All Type DNPL Duplex™ and Quadplex™ circuit breakers carry listing for HACR applications.
b All 15 and 20 ampere single poles are switch-duty rated.
Type BP (Circuit Breaker Packs)
♦ Single carton packaged
♦ Represents common household combinations
Product Selection
Table 13. Plug-in Circuit Breaker House Paks
Contents
Catalogue
Number Contents
Catalogue
Number
(3) DNPL151515, (1) DNPL153015, (1) DNPL154015 BP2 (16) BR115, (3) BR215, (1) BR230, (1) BR240 BP24
(10) BR115, (3) BR215, (1) BR230, (1) BR240 BP4 (14) BR115, (2) BR120, (1) BR230, (1) BR240 BP27
(2) DNPL1515, (1) DNPL215215, (1) DNPL152015, (1) DNPL153015, (1)
DNPL154015
BP16 5 of DNPL1515, 1 of DNPL2020, 1 of DNPL153015, 1 of DNPL154015 BP31
(6) DNPL1515, (2) DNPL151515, (1) DNPL153015, (1) DNPL154015 BP18 (1) BR120, (4) DNPL1515, (1) DNPL151515, (1) DNPL153015, (1) DNPL154015 BP32
(1) DNPL1515, (3) DNPL151515, (2) DNPL153015, (1) DNPL154015 BP21 (10) BR115, (2) BR120, (1) BR215, (1) BR220, (1) BR230, (1) BR240 BP41
(3) DNPL1515, (3) DNPL151515, (1) DNPL153015, (1) DNPL154015 BP23 (3) DNPL1515, (1) DNPL153015, (1) DNPL154015, (1) DNPL2020, (1) DNPL1520 BP54
DNPL2020 DNPL155015 DNPL230230
Plug-In Circuit Breakers for CPM/CPL
Type DNPL Duplex™, Independent Quadplex™, & Circuit Breaker Packs
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 15
Type BR 1- and 2-Pole
AFCI Circuit Breakers
a Common trip refers to 2-pole 240 volt load application sourced by 120/240 Vac (see Figure 3).
b Independent trip refers to 2-pole multi-wire, home run or shared neutral circuits (see Figure 2 and Figure 4).
c Will not fit into CPM112, CPL112, CPL116, CPL120, CPL220, CPL240, 3CPM112, 3CPL218, 3CPL224 or 3CPL230 prior to November 2004.
d Long style circuit breakers. Please speak to your local Eaton sales rep for proper application.
Type BR Arc Fault Circuit Interrupter Circuit Breakers
♦ 10,000 Amperes Interrupting Capacity at 120VAC, 120/240VAC, and 240VAC
Product Description
An arc fault circuit interrupter is a device intended to provide protection from the effects of arc faults by recognizing characteristics unique to arcing and
by functioning to de-energize the circuit when the arc fault is detected. As of January 1, 2002, the Canadian Electrical Code now requires that all branch
circuits that supply 125 Volt, single phase, 15 and 20 Ampere receptacle outlets installed in dwelling unit bedrooms shall be protected by an Arc Fault
Circuit Interrupter(s).
Product Selection
Table 14. Single and Two Pole Plug-In FIRE-GUARD™ AFCI Circuit Breakers
Ampere
Rating Configuration
1-Pole 120/240VAC 2-Pole a b 120/240VAC
Wire Size Range
(Cu/AL 60ºC or 75ºC
10 per Shelf Carton 5 per Shelf Carton
10kAIC 10kAIC
Catalogue Number Catalogue Number
15 Standard BR115AF c— #14 - 4 AWG
15 Compact BRC115AF — #14 - 4 AWG
15 Common Trip — BRL215AF d#14 - 4 AWG
15 Independent Trip — BRL215AFIT d#14 - 4 AWG
20 Standard BR120AF c— #14 - 4 AWG
20 Compact BRC120AF — #14 - 4 AWG
20 Common Trip — BRL220AF d#14 - 4 AWG
20 Independent Trip — BRL220AFIT d#14 - 4 AWG
Requires One 1-Inch (25.4mm)
Space
Requires Two 1-Inch (25.4mm)
Spaces
Type BR 1 and 2 Pole AFCI Circuit Breakers

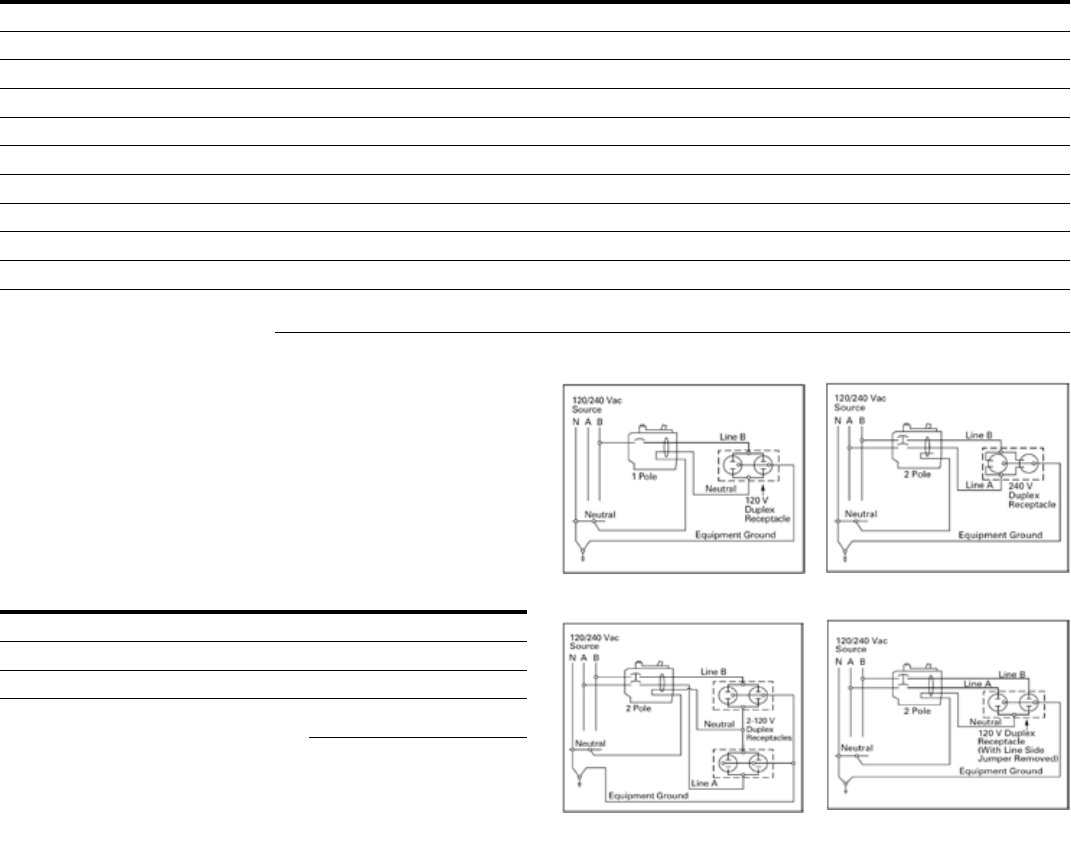

Figure 1. 1-Pole Single 120V Load
Application Sourced by 120/240VAC
Figure 4. 2-Pole Shared Neutral with
Duplex Receptacle Application
Figure 2. 2-Pole Shared Neutral with
Multi-Duplex Receptacle Application
Figure 3. 2-Pole 240V Load
Application Sourced by 120/240VAC
Plug-In Circuit Breakers for CPM/CPL
Type BR Arc Fault Circuit Interrupter
16 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Type GFCB and GFEP Ground Fault Circuit Breakers
♦ 10,000 / 22,000 Amperes Interrupting Capacity at 120VAC and 120/240VAC
♦ 5mA “People Protection” or 30mA Equipment Protectors
♦ Two pole version features common trip.
Product Selection
Table 15. 5mA Single and Two Pole Plug-In Ground Fault Circuit Breakers
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
1-Pole 120VAC 1-Pole 120VAC 2-Pole 120/240VAC 2-Pole 120/240VAC
1 per Shelf Carton 1 per Shelf Carton 1 per Shelf Carton 1 per Shelf Carton
10kAIC 22kAIC 10kAIC 22kAIC
Catalogue Number Catalogue Number Catalogue Number Catalogue Number
15 #14 - 4 GFCB115 aGFCBH115 GFCB215 GFCBH215
20 #14 - 4 GFCB120 aGFCBH120 GFCB220 GFCBH220
25 #14 - 4 GFCB125 aGFCBH125 GFCB225 GFCBH225
30 #14 - 4 GFCB130 aGFCBH130 GFCB230 GFCBH230
40 #14 - 4 GFCB140 a— GFCB240 —
50 #14 - 4 — — GFCB250 b—
60 #14 - 6 — — GFCB260 —
Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces
Table 16. 30mA Single and Two Pole Plug-In Ground Fault Circuit Breaker Equipment Protectors
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
1-Pole 120VAC 2-Pole 120/240VAC
1 per Shelf Carton 1 per Shelf Carton
10kAIC 10kAIC
Catalogue Number Catalogue Number
15 #14 - 4 GFEP115 GFEP215
20 #14 - 4 GFEP120 GFEP220
25 #14 - 4 GFEP125 GFEP225
30 #14 - 4 GFEP130 GFEP230
40 #14 - 4 — GFEP240
50 #14 - 4 — GFEP250 b
Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces
Loadcenters & Circuit Breakers
Type BR Loadcenters & Circuit Breakers
10,000/22,000 Amperes Interrupting Capacity
120 Vac and 120/240 Vac
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 10,000 AIC
Available with bell alarm or auxiliary switch. See circuit breaker accessories on Page 3-62.
For use with copper wire only.
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 22,000 AIC
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 10,000 AIC
For use with copper wire only.
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
1-Pole
120 Vac
Requires One
1-Inch
(25.4 mm)
Space
2-Pole
120/240 Vac
Common Trip
Requires Two
1-Inch
(25.4 mm)
Spaces
1 per Shelf Carton 1 per Shelf Carton
10,000 AIC 10,000 AIC
Catalog
Number
Catalog
Number
15
20
25
30
40
50
#14 – 4 GFCB115
GFCB120
GFCB125
GFCB130
GFCB140
—
GFCB215
GFCB220
GFCB225
GFCB230
GFCB240
GFCB250
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
1-Pole
120 Vac
Requires One
1-Inch
(25.4 mm)
Space
2-Pole
120/240 Vac
Common Trip
Requires Two
1-Inch
(25.4 mm)
Spaces
1 per Shelf Carton 1 per Shelf Carton
22,000 AIC 22,000 AIC
Catalog
Number
Catalog
Number
15
20
25
30
#14 – 4 GFCBH115
GFCBH120
GFCBH125
—
GFCBH215
GFCBH220
GFCBH225
GFCBH230
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
1-Pole
120 Vac
Requires One
1-Inch Space
2-Pole
120/240 Vac
Common Trip
Requires Two
1-Inch Spaces
1 per Shelf Carton 1 per Shelf Carton
10,000 AIC 10,000 AIC
Catalog
Number
Catalog
Number
15
20
25
30
40
50
#14 – 4 GFEP115
GFEP120
GFEP125
GFEP130
—
—
GFEP215
GFEP220
GFEP225
GFEP230
GFEP240
GFEP250

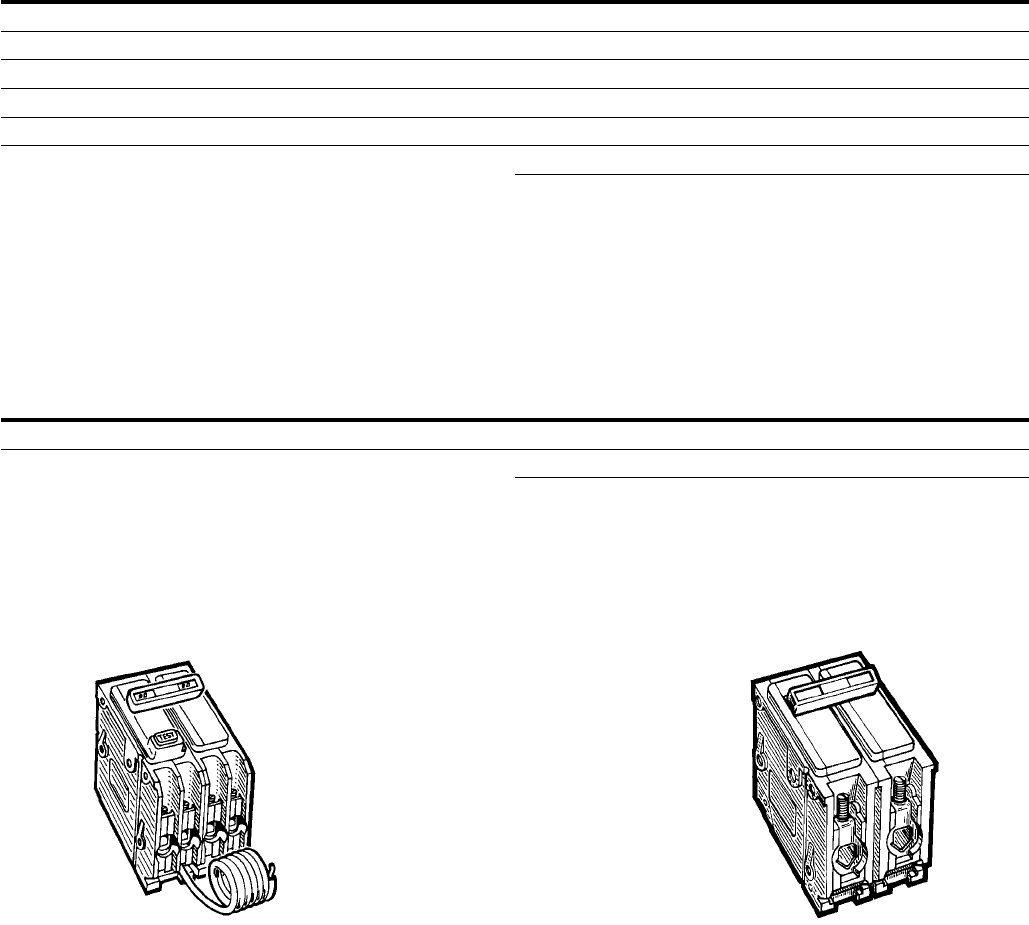

Type GFCB 1-Pole
Type GFCB 2-Pole
Type GFCB Ground Fault Circuit Breakers — 5 Milliampere —
Type GFCBH Ground Fault Breakers — 5 Milliampere —
Type GFEP Ground Fault Equipment Protectors (30 Milliampere),
Loadcenters & Circuit Breakers
Type BR Loadcenters & Circuit Breakers
10,000/22,000 Amperes Interrupting Capacity
120 Vac and 120/240 Vac
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 10,000 AIC
Available with bell alarm or auxiliary switch. See circuit breaker accessories on Page 3-62.
For use with copper wire only.
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 22,000 AIC
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 10,000 AIC
For use with copper wire only.
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
1-Pole
120 Vac
Requires One
1-Inch
(25.4 mm)
Space
2-Pole
120/240 Vac
Common Trip
Requires Two
1-Inch
(25.4 mm)
Spaces
1 per Shelf Carton 1 per Shelf Carton
10,000 AIC 10,000 AIC
Catalog
Number
Catalog
Number
15
20
25
30
40
50
#14 – 4 GFCB115
GFCB120
GFCB125
GFCB130
GFCB140
—
GFCB215
GFCB220
GFCB225
GFCB230
GFCB240
GFCB250
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
1-Pole
120 Vac
Requires One
1-Inch
(25.4 mm)
Space
2-Pole
120/240 Vac
Common Trip
Requires Two
1-Inch
(25.4 mm)
Spaces
1 per Shelf Carton 1 per Shelf Carton
22,000 AIC 22,000 AIC
Catalog
Number
Catalog
Number
15
20
25
30
#14 – 4 GFCBH115
GFCBH120
GFCBH125
—
GFCBH215
GFCBH220
GFCBH225
GFCBH230
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
1-Pole
120 Vac
Requires One
1-Inch Space
2-Pole
120/240 Vac
Common Trip
Requires Two
1-Inch Spaces
1 per Shelf Carton 1 per Shelf Carton
10,000 AIC 10,000 AIC
Catalog
Number
Catalog
Number
15
20
25
30
40
50
#14 – 4 GFEP115
GFEP120
GFEP125
GFEP130
—
—
GFEP215
GFEP220
GFEP225
GFEP230
GFEP240
GFEP250
Type GFCB 1-Pole
Type GFCB 2-Pole
Type GFCB Ground Fault Circuit Breakers — 5 Milliampere —
Type GFCBH Ground Fault Breakers — 5 Milliampere —
Type GFEP Ground Fault Equipment Protectors (30 Milliampere),
Figure 5. 1-Pole
Figure 7. 2-Pole
Figure 6. 2-Pole
Figure 8. 2-Pole
Ground Fault Application Note
Single-pole ground fault circuit breakers (GFCBs) are designed for use in 2-wire,
120VAC circuits. Figure 5 shows a typical wiring configuration.
Two-pole GFCBs are designed for use in 3-wire, 120/240VAC circuits, 120VAC multi-
wire circuits employing common, neutral and 2-wire, 240VAC circuits obtained from a
120/240VAC source.
Figures 6 and 7 illustrate typical wiring configurations for 120/240VAC multi-wire
circuits.
Figure 8 depicts a 240VAC, 2-wire circuit. Note the “panel neutral” conductor connects
to the neutral bar, even though the neutral is not included in the load circuit. This
connection is necessary to supply a 120VAC power source to the ground fault sensing
circuit.
The figures are shown with a 120/240VAC, single-phase, 3-wire power source, but
are also applicable to a 120/208VAC, 3-phase, 4-wire power supply. For all figures the
electrical operation of the GFCB is not affected by the equipment ground.
GFCB 1-Pole GFCB 2-Pole
a Auxiliary switches and bell alarms are available under special order. Add suffix W1 for alarm switch
and W2 for auxiliary switch.
b For use with copper wire only.
Plug-In Circuit Breakers for CPM/CPL
Types GFCB & GFEP Ground Fault
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 17
Type BR Internationally Rated Circuit Breakers
♦ 3,000 / 6,000 Amperes Interrupting Capacity at 240/415VAC
♦ Two and three pole versions feature common trip
Product Selection
Table 17. Single and Two Pole Plug-In Internationally Rated Circuit Breakers a b
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
1-Pole 240/415VAC 1-Pole 240/415VAC 2-Pole 240/415VAC 2-Pole 240/415VAC
10 per Shelf Carton 10 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton
3kAIC 6kAIC 3kAIC 6kAIC
Catalogue Number Catalogue Number Catalogue Number Catalogue Number
15 #14 - 4 BR115E BRH115E BR215E BRH215E
20 #14 - 4 BR120E BRH120E BR220E BRH220E
25 #14 - 4 BR125E BRH125E BR225E BRH225E
30 #14 - 4 BR130E BRH130E BR230E BRH230E
35 #14 - 4 BR135E BRH135E BR235E BRH235E
40 #14 - 4 BR140E BRH140E BR240E BRH240E
45 #14 - 4 — BRH145E BR245E BRH245E
50 #14 - 4 BR150E BRH150E BR250E BRH250E
60 #4 - 1/0 — BRH160E BR260E BRH260E
70 #4 - 1/0 — BRH170E BR270E BRH270E
80 #4 - 1/0 — — BR280E BRH280E
90 #4 - 1/0 — — BR290E BRH290E
100 #4 - 1/0 — — BR2100E BRH2100E
Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces
Table 18. Three Pole Plug-In Internationally Rated Circuit Breakers a b
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
3-Pole 240-415VAC 3-Pole 240-415VAC
5 per Shelf Carton 5 per Shelf Carton
3kAIC 6kAIC
Catalogue Number Catalogue Number
15 #14 - 4 BR315E BRH315E
20 #14 - 4 BR320E BRH320E
25 #14 - 4 BR325E BRH325E
30 #14 - 4 BR330E BRH330E
35 #14 - 4 BR335E BRH335E
40 #14 - 4 BR340E BRH340E
45 #14 - 4 BR345E BRH345E
50 #14 - 4 BR350E BRH350E
60 #4 - 1/0 BR360E BRH360E
70 #4 - 1/0 BR370E BRH370E
80 #4 - 1/0 BR380E BRH380E
90 #4 - 1/0 BR390E BRH390E
100 #4 - 1/0 BR3100E BRH3100E
Requires Three 1-Inch (25.4mm) Spaces
Loadcenters & Circuit Breakers
Type BR Loadcenters & Circuit Breakers
Circuit Breaker Product Selection
Plug-on Circuit Breakers, Types BR
BR120 BR215 BR320
Add suffix H to catalog number.
Switching duty rated.
 
For circuit breakers with a shunt trip, add ST suffix.
Ampere
Rating
Wire Size
Range
Cu/Al
60°C or
75°C
1-Pole 120/240 Vac
Requires One 1-Inch (25.4 mm) Space
2-Pole 120/240 Vac
Common Trip
Requires Two 1-Inch (25.4 mm) Spaces
10 per Shelf Carton 5 per Shelf Carton
22 kAIC
Catalog
Number
Catalog
Number
Catalog
Number
Catalog
Number
10
15
20
25
30
#14 – 4 BR110
BR115

BR120

BR125
BR130
—
BRH115
BRH120
BRH125
BRH130
BR210
BR215
BR220
BR225
BR230
—
BRH215
BRH220
BRH225
BRH230
35
40
45
50
#14 – 4 BR135
BR140
—
BR150
BRH135
BRH140
BRH145
BRH150
BR235
BR240
BR245
BR250
BRH235
BRH240
BRH245
BRH250
55 #14 – 3 BR150 BRH155 BR255 BRH255
60
70
80
90
100
110
#4 – 1/0 BR160
BR170
—
—
—
—
BRH160
BRH170
—
—
—
—
BR260
BR270
BR280
BR290
BR2100
BR2110
BRH260
BRH270
BRH280
BRH290
BRH2100
BRH2110
125 #4 – 2/0 —
—
—
—
BR2125
BRH2125
Type BR Breakers, 1-Inch (25.4 mm) per Pole 120/240, 10,000, 22,000
One pole, 1-inch (25.4 mm) per pole circuit breakers are available with high magnetic setting for switching large tungsten
lamp loads.
3,000/ ,000 Interrupting Capacity
120/240-220/3 0-240/415 Volts AC
22 kAIC10 kAIC10 kAIC
Notes: All Type BR 1-, 2-, and 3-pole circuit breakers carry listing for HACR application.
BR120E
BR215E
BR320E
Loadcenters & Circuit Breakers
Type BR Loadcenters & Circuit Breakers
Circuit Breaker Product Selection
Plug-on Circuit Breakers, Types BR
BR120 BR215 BR320
Add suffix H to catalog number.
Switching duty rated.
 
For circuit breakers with a shunt trip, add ST suffix.
Ampere
Rating
Wire Size
Range
Cu/Al
60°C or
75°C
1-Pole 120/240 Vac
Requires One 1-Inch (25.4 mm) Space
2-Pole 120/240 Vac
Common Trip
Requires Two 1-Inch (25.4 mm) Spaces
10 per Shelf Carton 5 per Shelf Carton
22 kAIC
Catalog
Number
Catalog
Number
Catalog
Number
Catalog
Number
10
15
20
25
30
#14 – 4 BR110
BR115

BR120

BR125
BR130
—
BRH115
BRH120
BRH125
BRH130
BR210
BR215
BR220
BR225
BR230
—
BRH215
BRH220
BRH225
BRH230
35
40
45
50
#14 – 4 BR135
BR140
—
BR150
BRH135
BRH140
BRH145
BRH150
BR235
BR240
BR245
BR250
BRH235
BRH240
BRH245
BRH250
55 #14 – 3 BR150 BRH155 BR255 BRH255
60
70
80
90
100
110
#4 – 1/0 BR160
BR170
—
—
—
—
BRH160
BRH170
—
—
—
—
BR260
BR270
BR280
BR290
BR2100
BR2110
BRH260
BRH270
BRH280
BRH290
BRH2100
BRH2110
125 #4 – 2/0 —
—
—
—
BR2125
BRH2125
Type BR Breakers, 1-Inch (25.4 mm) per Pole 120/240, 10,000, 22,000
One pole, 1-inch (25.4 mm) per pole circuit breakers are available with high magnetic setting for switching large tungsten
lamp loads.
3,000/ ,000 Interrupting Capacity
120/240-220/3 0-240/415 Volts AC
22 kAIC10 kAIC10 kAIC
Notes: All Type BR 1-, 2-, and 3-pole circuit breakers carry listing for HACR application.
Loadcenters & Circuit Breakers
Type BR Loadcenters & Circuit Breakers
Circuit Breaker Product Selection
Plug-on Circuit Breakers, Types BR
BR120 BR215 BR320
Add suffix H to catalog number.
Switching duty rated.
 
For circuit breakers with a shunt trip, add ST suffix.
Ampere
Rating
Wire Size
Range
Cu/Al
60°C or
75°C
1-Pole 120/240 Vac
Requires One 1-Inch (25.4 mm) Space
2-Pole 120/240 Vac
Common Trip
Requires Two 1-Inch (25.4 mm) Spaces
10 per Shelf Carton 5 per Shelf Carton
22 kAIC
Catalog
Number
Catalog
Number
Catalog
Number
Catalog
Number
10
15
20
25
30
#14 – 4 BR110
BR115

BR120

BR125
BR130
—
BRH115
BRH120
BRH125
BRH130
BR210
BR215
BR220
BR225
BR230
—
BRH215
BRH220
BRH225
BRH230
35
40
45
50
#14 – 4 BR135
BR140
—
BR150
BRH135
BRH140
BRH145
BRH150
BR235
BR240
BR245
BR250
BRH235
BRH240
BRH245
BRH250
55 #14 – 3 BR150 BRH155 BR255 BRH255
60
70
80
90
100
110
#4 – 1/0 BR160
BR170
—
—
—
—
BRH160
BRH170
—
—
—
—
BR260
BR270
BR280
BR290
BR2100
BR2110
BRH260
BRH270
BRH280
BRH290
BRH2100
BRH2110
125 #4 – 2/0 —
—
—
—
BR2125
BRH2125
Type BR Breakers, 1-Inch (25.4 mm) per Pole 120/240, 10,000, 22,000
One pole, 1-inch (25.4 mm) per pole circuit breakers are available with high magnetic setting for switching large tungsten
lamp loads.
3,000/ ,000 Interrupting Capacity
120/240-220/3 0-240/415 Volts AC
22 kAIC10 kAIC10 kAIC
Notes: All Type BR 1-, 2-, and 3-pole circuit breakers carry listing for HACR application.
Plug-In Circuit Breakers for CPM/CPL
Type BR Internationally Rated
a Built to British Standard BS3871.
b Non-stocked item requiring special order. Speak to your local Eaton sales rep for lead times.
18 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Type GFXB Internationally Rated Ground Fault Circuit Breakers
♦ 3,000 Amperes Interrupting Capacity at 120/240VAC, 220/380VAC, and 240/415VAC.
Product Selection
Table 19. 30mA Single Pole Plug-In Ground Fault Circuit Breakers a b c
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
1-Pole 120VAC
1 per Shelf Carton
3kAIC
Catalogue Number a
15 #14 - 4 GFXB115B2
20 #14 - 4 GFXB120B2
25 #14 - 4 GFXB125B2
30 #14 - 4 GFXB130B2
Requires One 1-Inch (25.4mm) Space
Type BR Non-Automatic Moulded Case Switches
Product Selection
Table 20. Two Pole Plug-In Non-Automatic Moulded Case Switches c
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
2-Pole 120/240VAC
5 per Shelf Carton
Catalogue Number c
50 #4 - 1/0 BR250NA
60 #4 - 1/0 BR260NA
100 #4 - 1/0 BR2100NA
Requires Two 1-Inch (25.4mm) Spaces
Loadcenters & Circuit Breakers
Type BR Loadcenters & Circuit Breakers
10,000/22,000 Amperes Interrupting Capacity
120 Vac and 120/240 Vac
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 10,000 AIC
Available with bell alarm or auxiliary switch. See circuit breaker accessories on Page 3-62.
For use with copper wire only.
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 22,000 AIC
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 10,000 AIC
For use with copper wire only.
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
1-Pole
120 Vac
Requires One
1-Inch
(25.4 mm)
Space
2-Pole
120/240 Vac
Common Trip
Requires Two
1-Inch
(25.4 mm)
Spaces
1 per Shelf Carton 1 per Shelf Carton
10,000 AIC 10,000 AIC
Catalog
Number
Catalog
Number
15
20
25
30
40
50
#14 – 4 GFCB115
GFCB120
GFCB125
GFCB130
GFCB140
—
GFCB215
GFCB220
GFCB225
GFCB230
GFCB240
GFCB250
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
1-Pole
120 Vac
Requires One
1-Inch
(25.4 mm)
Space
2-Pole
120/240 Vac
Common Trip
Requires Two
1-Inch
(25.4 mm)
Spaces
1 per Shelf Carton 1 per Shelf Carton
22,000 AIC 22,000 AIC
Catalog
Number
Catalog
Number
15
20
25
30
#14 – 4 GFCBH115
GFCBH120
GFCBH125
—
GFCBH215
GFCBH220
GFCBH225
GFCBH230
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
1-Pole
120 Vac
Requires One
1-Inch Space
2-Pole
120/240 Vac
Common Trip
Requires Two
1-Inch Spaces
1 per Shelf Carton 1 per Shelf Carton
10,000 AIC 10,000 AIC
Catalog
Number
Catalog
Number
15
20
25
30
40
50
#14 – 4 GFEP115
GFEP120
GFEP125
GFEP130
—
—
GFEP215
GFEP220
GFEP225
GFEP230
GFEP240
GFEP250
Type GFCB 1-Pole
Type GFCB 2-Pole
Type GFCB Ground Fault Circuit Breakers — 5 Milliampere —
Type GFCBH Ground Fault Breakers — 5 Milliampere —
Type GFEP Ground Fault Equipment Protectors (30 Milliampere),
Type GFXB
BR250NA
a Auxiliary switches and bell alarms are available under special order. Add suffix W1 for alarm switch and W2 for auxiliary switch.
b Meets requirements of BS3871 section 31C and BS4293.
c Non-stocked part requiring special ordering. Speak to your local Eaton sales rep for lead times.
Plug-In Circuit Breakers for CPM/CPL
Type GFXB Internationally Rated Ground Fault & Type BR Moulded Case Switches
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 19

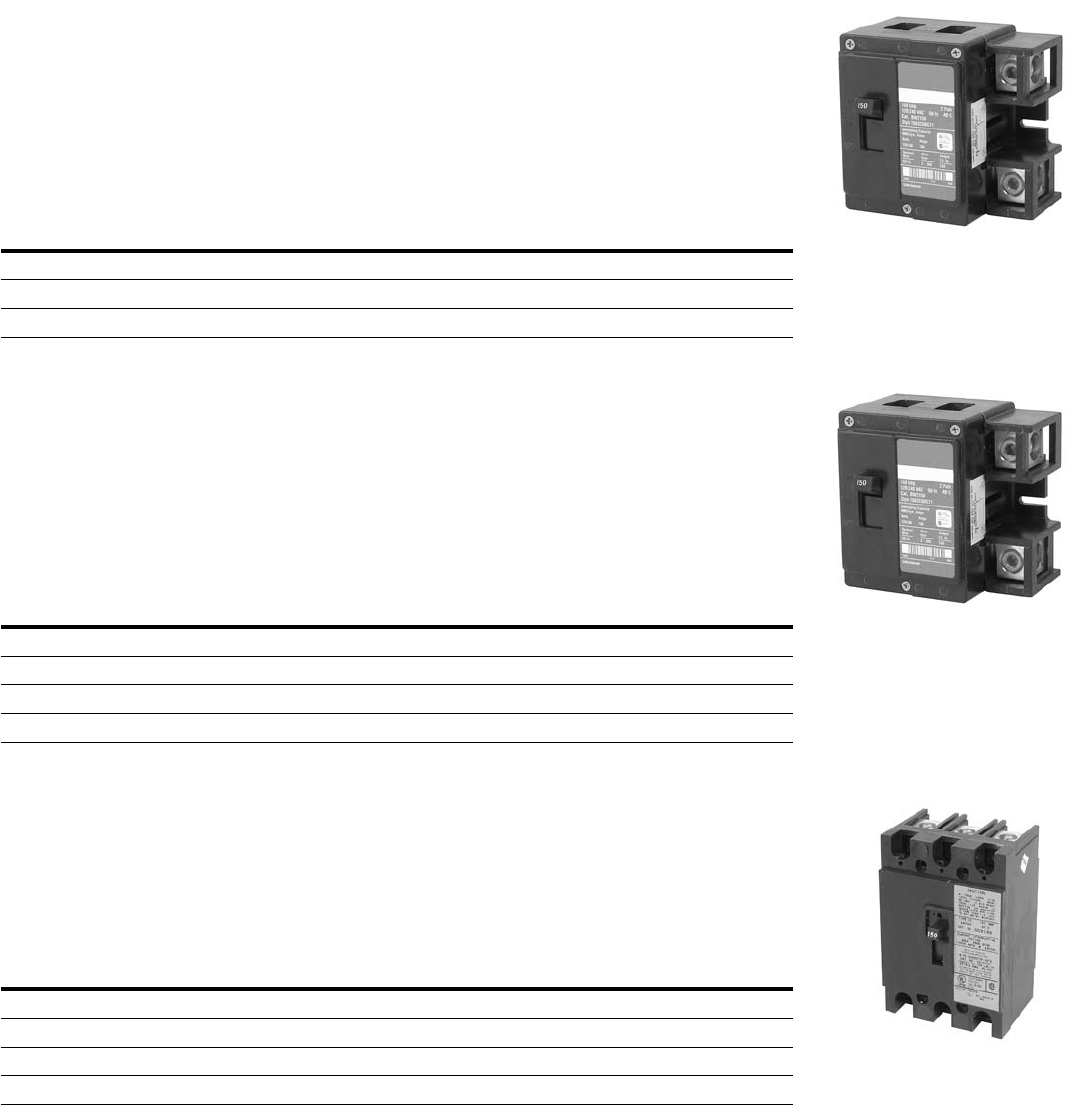

Type CSR Loadcentre Main Circuit Breaker Kit
♦ 25,000 Amperes Interrupting Capacity at 120/240VAC.
Product Selection
Table 21. Two Pole Main Circuit Breakers for Single Phase Plug-In Combination Loadcentres
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
2-Pole 120/240VAC
1 per Shelf Carton
25kAIC
Catalogue Number
125 #2AWG - 300kcmil CSR2125N
150 #2AWG - 300kcmil CSR2150N
200 #2AWG - 300kcmil CSR2200N
Type BWH Loadcentre Main Circuit Breaker Kit
♦ 25,000 Amperes Interrupting Capacity at 120/240VAC.
Product Selection
Table 22. Two Pole Main Circuit Breakers for Single Phase Plug-In Combination Loadcentres
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
2-Pole 120/240VAC
1 per Shelf Carton
25kAIC
Catalogue Number
125 #2AWG - 300kcmil BWH2125
150 #2AWG - 300kcmil BWH2150
175 #2AWG - 300kcmil BWH2175
200 #2AWG - 300kcmil BWH2200
Type CC Loadcentre Main Circuit Breaker Kit
Product Selection
Table 23. Three Pole Main Circuit Breakers for Three Phase Plug-In Combination Loadcentres
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
3-Pole 120/240VAC
1 per Shelf Carton
10kAIC
Catalogue Number
100 #4AWG - 4/0AWG CC3100
125 #2AWG - 300kcmil CC3125
150 #2AWG - 300kcmil CC3150
200 #2AWG - 300kcmil CC3200
CSR2150N
CC3150
BWH2150
Plug-In Loadcentre Main Circuit Breakers for CPM/CPL
Type CSR, BWH, & CC
20 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Plug-In Circuit Breaker Accessories
Product Selection

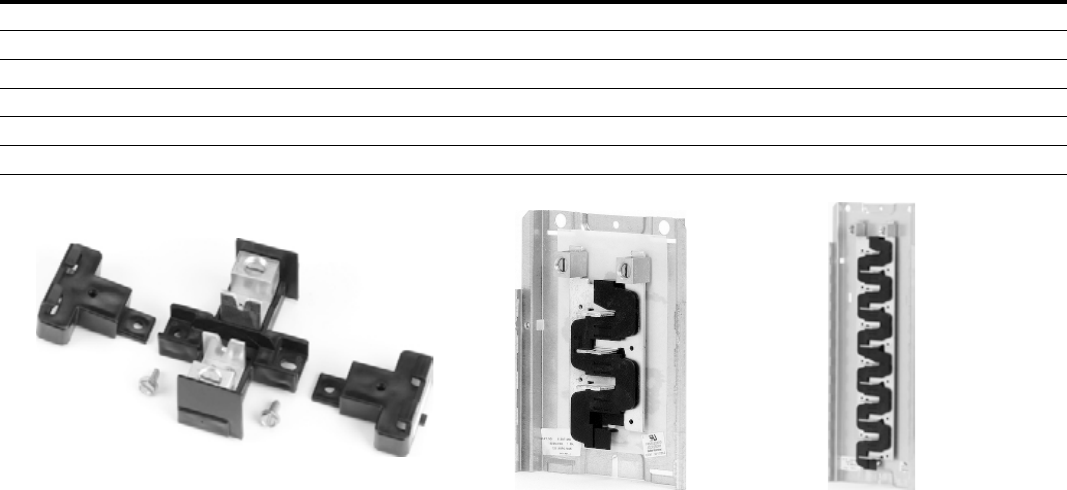

Table 24. Field Installation Kits and Parts for Plug-In Loadcentre Circuit Breakers
Description Ordering Qty. a
Catalogue
Number
Handle Tie for single pole Type BR circuit breakers. Joins handles on breakers mounted adjacent to each other via a clip-on mechanism. 1 BQHT-10
Handle Tie for Type DNPL circuit breakers. Joins the two outside independent poles on two adjacent Duplex or one Quadplex circuit breakers. 1 THOW-10
Handle Tie for Type DNPL circuit breakers. Joins the outside independent poles on adjacent Duplex or Quadplex circuit breakers. 1 THS1
Handle Lockoff (Escutcheon mounted). 1, 2, or 3-Pole Type BR; 1-pole of a Type DNPL Duplex or; one independent outside pole of a Type DNPL
Quadplex circuit breakers.
1 BRLW-10
Handle Lockoff b (Handle mounted). 1-Pole Type BR circuit breakers. 1 BRLW1-10
Handle Lockoff b (Handle mounted). 2 and 3-Pole Type BR circuit breakers. 1 BRLW2-10
Handle Lockoff b (Handle mounted). 1-Pole Type DNPL Quadplex circuit breakers. 1 BRDL1-10
Handle Lockoff b (Escutcheon mounted). 2 pole Type DNPL Quadplex circuit breakers. 1 BRQLW-10
Handle Lockoff b (Screw mounted). Locks the handle of main circuit breaker types CC and CHH in the OFF or ON position. 1 CCPL
Handle Lockoff b (Escutcheon mounted). Locks the handle of main circuit breaker type CSR and BWH in the OFF of ON position. 1 MCBPL
Handle Lockdog b (Escutcheon mounted). 1, 2, and 3-pole Type BR; 1-pole of a Type DNPL Duplex or; one independent pole of a Type DNPL
Quadplex circuit breaker. Secures handle in the ON or OFF position.
1 BHLW-10
Handle Lockdog b (Handle mounted). 1-pole Type BR circuit breakers. Secures handle in the ON or OFF position. 1 BHLW1-10
Handle Lockdog b (Handle mounted). 2, and 3-pole Type BR circuit breakers. Secures handle in the ON or OFF position. 1 BHLW2-10
Handle Lockdog b (Handle mounted). 1-pole Type GFCB ground fault circuit breakers. Secures handle in the ON or OFF position. 1 BHGW-10
Handle Lockdog b (Handle mounted). 1-pole Type DNPL Duplex or 1 outside independent pole of a Quadplex. Secures handle in the ON or OFF
position.
1 HLW1-10
Main Breaker Lug Kit. Types CC and CHH circuit breakers (2) 300kcmil 1 CCL300
Main Breaker Lug Kit. Types CSR, BW, and BWH circuit breakers (2) 300kcmil 1 MCBL300
Definitions
Handle Ties - devices used to join two similar independent single-pole circuit breakers to form a 2-pole non-common trip breaker.
Handle Lockoffs - devices that use a padlock to lock a circuit breaker’s handle in either the ON or OFF position.
Handle Lockdogs - devices used to secure a circuit breaker’s handle in the ON or OFF position. They are not padlockable devices.
Escutcheon Mounted - a semipermanent mounting to the face of the circuit breaker and secured by the loadcentre’s deadfront cover.
Handle Mounted - a mounting made directly to the handle of the circuit breaker by means of a set screw.
Screw Mounted - a permanent mounting to the face of the circuit breaker by means of a non-removable screw.
3
Circuit Breaker Accessories
BREQS125
BHLW2
THS1 BRLW2
BHLW
BRQLW BRHDK125
THOW (Installed) MCBPL (Installed)
BRML
THS1
3
Circuit Breaker Accessories
BREQS125
BHLW2
THS1 BRLW2
BHLW
BRQLW BRHDK125
THOW (Installed) MCBPL (Installed)
BRML
BHLW2-10
3
Circuit Breaker Accessories
BREQS125
BHLW2
THS1 BRLW2
BHLW
BRQLW BRHDK125
THOW (Installed) MCBPL (Installed)
BRML
BRLW2-10
3
Circuit Breaker Accessories
BREQS125
BHLW2
THS1 BRLW2
BHLW
BRQLW BRHDK125
THOW (Installed) MCBPL (Installed)
BRML
THOW-10
(Installed)
3
Circuit Breaker Accessories
BREQS125
BHLW2
THS1 BRLW2
BHLW
BRQLW BRHDK125
THOW (Installed) MCBPL (Installed)
BRML
MCBPL
(Installed)
3
Circuit Breaker Accessories
BREQS125
BHLW2
THS1 BRLW2
BHLW
BRQLW BRHDK125
THOW (Installed) MCBPL (Installed)
BRML
BRQLW-10
3
Circuit Breaker Accessories
BREQS125
BHLW2
THS1 BRLW2
BHLW
BRQLW BRHDK125
THOW (Installed) MCBPL (Installed)
BRML
BHLW-10
a Must be purchased in multiples of ordering quantities indicated.
b Refer to your local Eaton sales representative for handle position changeability chart.
Plug-In Circuit Breaker Accessories for CPM/CPL Loadcentres
Accessories for Types BR, DNPL, GFCB, GFEP, GFXB, CSR, BWH, & CC
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 21
Product Description
As a leader in the electrical
distribution equipment business,
Eaton has a unique product offering
for equipment manufacturers, panel
builders and virtually any OEM that
has a need for power distribution
within their equipment. The OEM
interior offering consists of a wide
variety of power distribution options
utilizing components from Eaton’s
Eaton BR Loadcentre product lines.
With high-volume, standardized
products, OEMs can expect to receive
high-quality products covering
configurations meeting virtually any
power distribution need.
Coupled with Eaton’s expertise
in circuit breaker design and
manufacturing, our OEM interiors
provide solid power distribution and
circuit protection in a compact, easy-
to-install package.
Product Offering
The BR interiors are manufactured of
formed, plated aluminum, and use the
Eaton Type BR 1-inch (25.4 mm) wide
circuit breaker by Eaton Corporation.
This design affords customers the
most circuit flexibility as many of
these interiors allow the installation
of standard 1-and 2-pole breakers as
well duplex (2 poles in a 1-inch (25.4
mm) space) or quadplex (4 poles in
a 2-inch (50.8 mm) space) breakers.
The stab rating of the BR interiors is
140 amperes maximum, meaning that
the handle rating of the breakers that
are mounted across from one another
may not exceed 140 amperes.
The interiors are designed for either
horizontal (single-row breaker
mounting), or vertical (double-row
breaker mounting). To comply with
National Electrical Code (NEC)
requirements if mounted horizontally,
when the breaker is ”ON,” the handle
should be in the UP position. When
mounted vertically, the handle toggles
from left to right, so this is not a
concern.
Standards and
Certifications
Canadian Standards Association
Listing
All 1-pole and 2-pole, 120/240 volt
breakers, both 1-inch (25.4 mm), 1/2-
inch (12.7 mm) and 3/4-inch (19.1 mm)
per pole, 225 ampere maximum, are
listed as Certified by the Canadian
Standards Association, Guide No. 69-
11.19, Class 1432, File 18328.
Underwriters Laboratories Listing
All grounding bars manufactured
comply with Underwriters
Laboratories standards and are listed
under Guide No. DHJR, File E31424,
Volume W, Section 17.
All circuit breakers 10 amperes and
larger comply with the Underwriters
Laboratories ”Standard for Branch
Circuit and Service Circuit-Breakers”
UL 489; Guide No. 60 10.2 File
E31424, and ”Requirements for Wire
Connectors and Soldering Lugs,”
UL486B, Guide No. 461 10-C File
E7830.
All Eaton breakers where marked,
are suitable for use with 60/75˚ rated
wire, unless otherwise specified.
All devices comply with the
22kAIC-10kAIC UL series connected
components File DKSY2 of the
Recognized Components Index.
Product Selection
Table 25. Plug-In OEM Loadcentre Interior Assemblies
Ampere Rating 1” Spaces ½” Spaces
Main Terminal Size
(Per Phase) Package Quantity Catalogue Number
125 4 8 (1) 2/0 - #14 AWG Cu/Al 20 48INT125B
125 8 16 (1) 2/0 - #14 AWG Cu/Al 20 816INT125B
125 12 24 (1) 2/0 - #14 AWG Cu/Al 20 1224INT125B
125 16 24 (1) 2/0 - #14 AWG Cu/Al 20 1624INT125B
125 20 24 (1) 2/0 - #14 AWG Cu/Al 10 2024INT125B
125 24 24 (1) 2/0 - #14 AWG Cu/Al 10 2424INT125B
Plug-In OEM Loadcentre Interior Assemblies
22 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Dimensions

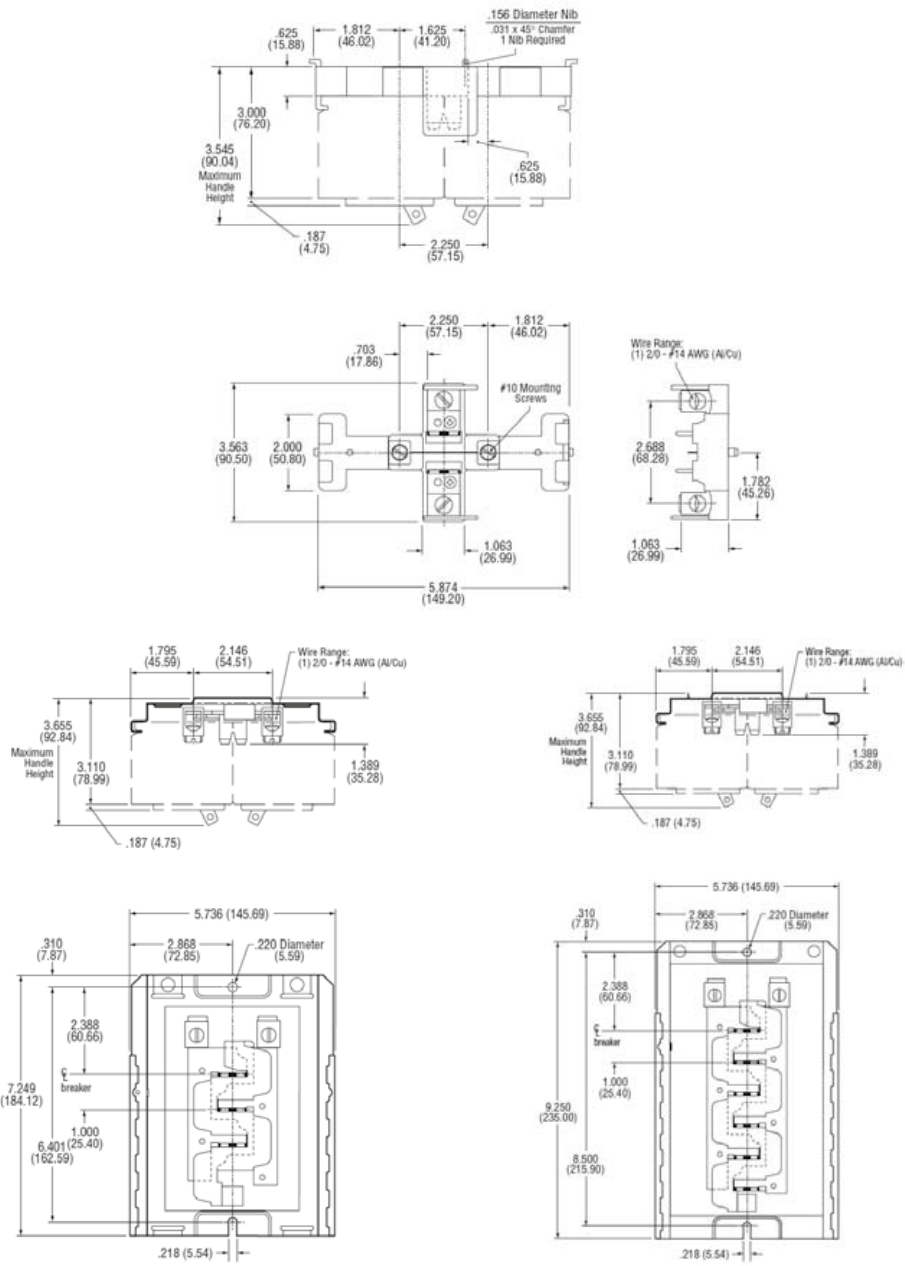

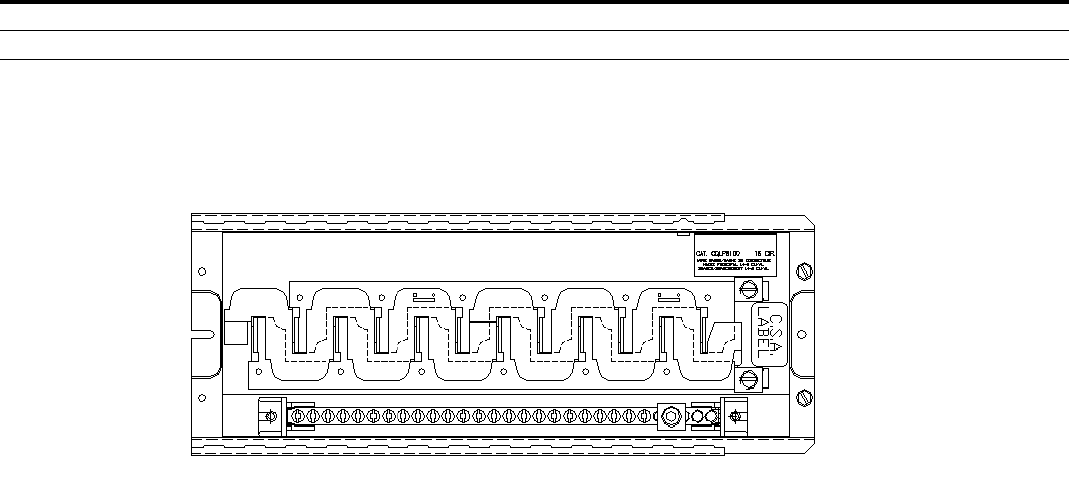

Figure 9. 48INT125B

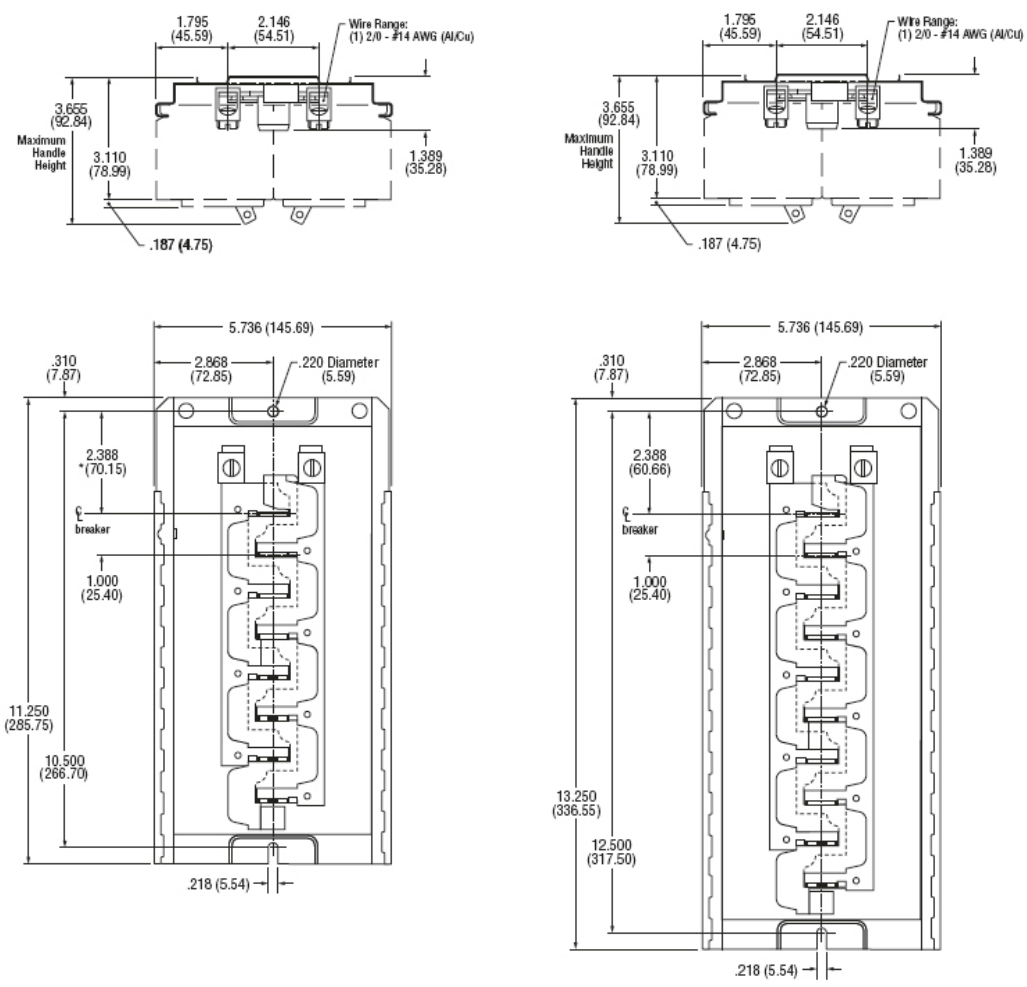

Figure 10. 816INT125B Figure 11. 1224INT125B
Plug-In OEM Loadcentre Interior Assemblies
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 23
Dimensions Continued

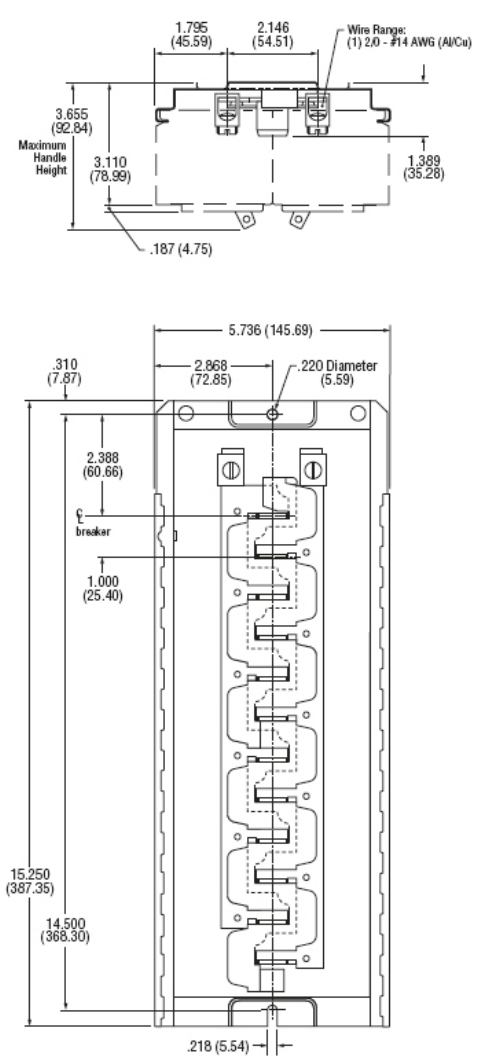

Figure 12. 1624INT125B Figure 13. 2024INT125B
Plug-In OEM Loadcentre Interior Assemblies
24 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Dimensions Continued
Figure 14. 2424INT125B
Plug-In OEM Loadcentre Interior Assemblies
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 25
Product Description
Loadcentres feature factory
installed main lugs or main
circuit breakers. The CH
interiors are manufactured
of formed, silver flash plated
copper. Eaton also supplies
a full line of Type CH branch
circuit breakers and accessories
for these loadcentres.
Product Application
Designed for the protection and
distribution of single and multi-
dwelling residential and light
commercial loads to 120/240
volts AC, such as lighting,
heating, appliance and small
motor branch circuits. All Main
Circuit Breaker Combination
Loadcentres are CSA listed
for use as service entrance
equipment.
Ratings
Single phase, 3 wire, 120/240
volts AC. Mains through 200
amperes. Available with up
to 120 branch circuits. Main
breakers on 100 & 200 Amp
panels are rated at 35,000 AIC.
Metal Enclosure
Specifications
Enclosures are made of 16
gauge galvanized sheet steel
powder coated sandalwood
beige. The galvanized coating
provides corrosion protection.
Trims are similarly scratch-
resistant powder coated a
sandalwood beige colour to
match the tub. A combination
surface/flush cover with integral
door is supplied.
All plug-in loadcentres are CSA
listed to file LL98266.
Warranty
Limited lifetime.
Type CH Plug-On Neutral Loadcentre Features and Benefits
Ample Cable Entry Knockouts
• Sidewall, endwall, and backplane locations.
• Standard sizing for service entrance and branch circuit
cabling.
Commercial Grade Main Circuit Breaker
• 35kAIC series rated main circuit breaker.
• Highest in the industry.
Attractive Sandalwood Finish
• Esthetically appealing, scratch-resistant powder coating.
• Both tub and trim are painted.
Silver Flash Plated Copper Bus
• Provides superior connectivity.
Patented Stab Design
• Unique design provides a tight connection to the bus.
• Prevents the misapplication of non-approved branch circuit
breakers.
Large Service Entrance Section
• Straight-in wiring saves labour and material.
• Large cable bending space.
Inboard Neutral Connections
• Provides direct neutral connection for plug-on style ground
fault and arc fault circuit breakers.
• Ample additional 2/0 lugs provided - no kits necessary.
Steel Backpan
• Reliable breaker mounting.
• One-piece design provides superior stability.
Drywall Marking on Enclosure
• Indicates proper mounting depth for flush mounting
applications.
Single Keyhole Mounting
• One keyhole at the top and bottom provides easier
mounting and leveling.
Type CH Plug-In Loadcentres
26 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
3 Wire 120/240VAC Plug-On Neutral Style Combination Service Entrance Type 1 (Indoor)
Product Selection
Table 26. Type CH Main Circuit Breaker Plug-On Neutral Indoor Type 1 Loadcentres
Maximum
Ampere
Rating
Main
Breaker
Rating Catalogue Number
Max.
No. 3/4”
Spaces Cover Style
Type of
Main Circuit
Breaker
Dimensions [in (mm)]
Wire Size Range for
Main CU/ALH W D
100 Amp 100 Amp CHM24PN100 24 Flush/Surface CSH 29-1/8 (739.8) 14-3/16 (360.4) 3-11/16 (93.7) #2 - 300 kcmil
100 Amp 100 Amp CHM32PN100 32 Flush/Surface CSH 34-1/8 (866.8) 14-3/16 (360.4) 3-11/16 (93.7) #2 - 300 kcmil
200 Amp 200 Amp CHM32PN200 32 Flush/Surface CSH 34-1/8 (866.8) 14-3/16 (360.4) 3-11/16 (93.7) #2 - 300 kcmil
200 Amp 200 Amp CHM42PN200 42 Flush/Surface CSH 37 (939.8) 14-3/16 (360.4) 3-11/16 (93.7) #2 - 300 kcmil
200 Amp 200 Amp CHM60PN200L 60 Flush/Surface CSH 39 (990.6) 14-3/16 (360.4) 3-11/16 (93.7) #2 - 300 kcmil
3 Wire 120/240VAC Plug-On Neutral Style Non-Combination Service Entrance Type 1 (Indoor)
Product Selection
Table 27. Type CH Main Lug Only Plug-On Neutral Indoor Type 1 Loadcentres
Maximum
Ampere
Rating Catalogue Number
Max. No. 3/4”
Spaces Cover Style
Dimensions [in (mm)]
Wire Size Range for
Main CU/ALH W D
125 Amp CHNL24PN125 24 Flush/Surface 29-1/8 (739.8) 14-3/16 (360.4) 3-11/16 (93.7) #2 - 300 kcmil
125 Amp CHNL32PN125 32 Flush/Surface 34-1/8 (866.8) 14-3/16 (360.4) 3-11/16 (93.7) #2 - 300 kcmil
225 Amp CHNL32PN225 32 Flush/Surface 34-1/8 (866.8) 14-3/16 (360.4) 3-11/16 (93.7) #2 - 300 kcmil
225 Amp CHNL42PN225 42 Flush/Surface 37 (939.8) 14-3/16 (360.4) 3-11/16 (93.7) #2 - 300 kcmil

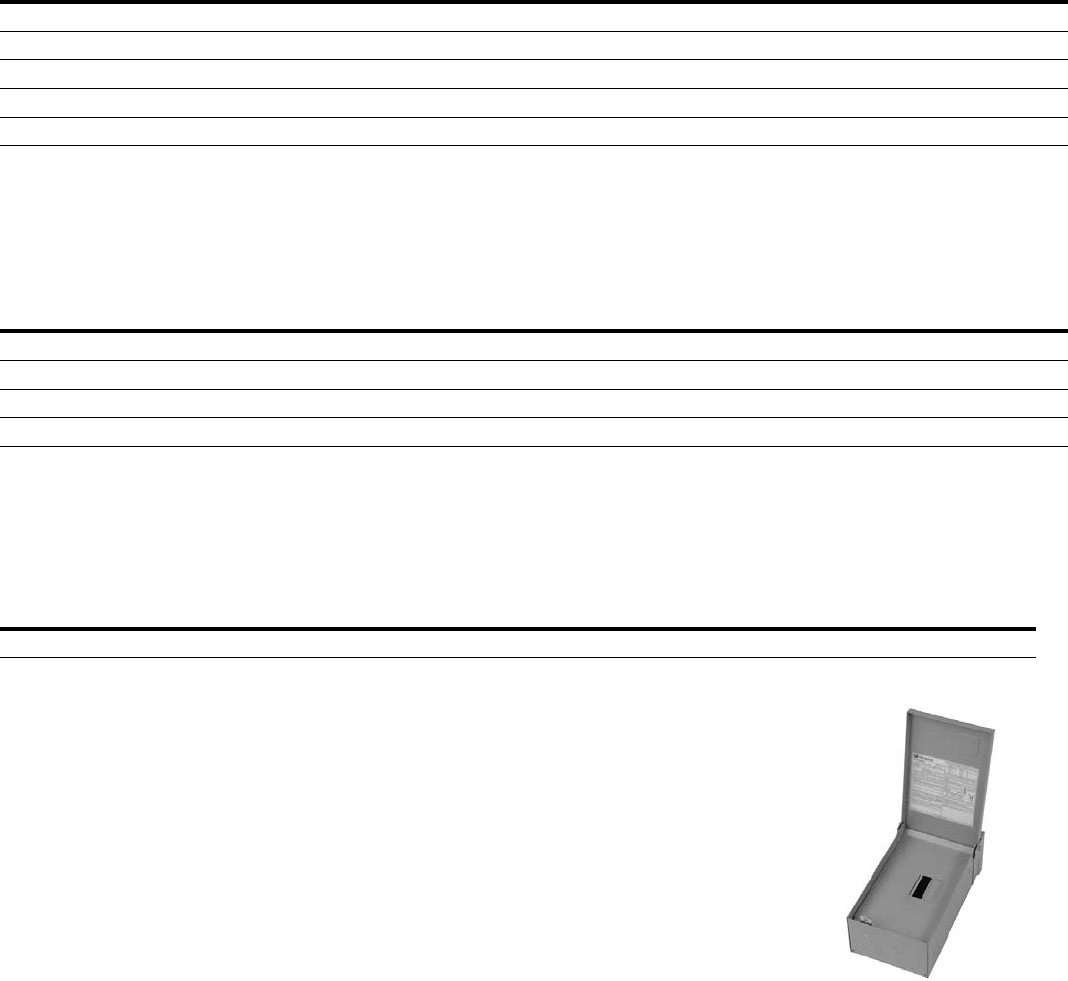

3 Wire 120/240VAC Standard Neutral Non-Combination Type 3R a b (Outdoor/Raintight)
Product Selection
Table 28. Type CH Main Lug Only Standard Neutral Outdoor/Raintight Type 3R a Loadcentres
Maximum
Ampere
Rating Catalogue Number
Maximum No. Maximum No.
Enclosure Style
Dimensions [in (mm)] Wire Size Range
for Main CU/AL
(AWG)¾” Spaces ³/8” Spaces H W D
100 Amp RCCHL102 2 4 Indoor/Outdoor Type 3R a c 12 (304.8) 6-7/8 (174.62) 4-3/8 #14-1/0
RCCHL102
a Outdoor Loadcentres accommodate Type DS conduit hubs. Hubs not included. See page 11 for selection.
b Does not accept plug-on neutral style of arc fault and ground fault circuit breakers. Uses standard type arc fault and ground fault circuit breakers.
c Enclosure assembly incoporates a swing out locking hasp for the cover.
Type CH Plug-In Loadcentres
Combination and Non-Combination Single Phase
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 27
Type CH Plug-In Circuit Breakers i
♦ 10,000 Amperes Interrupting Capacity at 120/240VAC
♦ Flag trip models provide visual indication of trip
Product Selection
Table 29. Single and Multi-Pole Plug-In Breakers
Amperes
Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1-Pole 120/240VAC 1-Pole 120/240VAC 2-Pole 120/240VAC 2-Pole 120/240VAC 3-Pole 240VAC
Standard Flag Trip Indication Standard Flag Trip Indication Standard
10 per Shelf Carton 10 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton
Catalogue Number Catalogue Number Catalogue Number Catalogue Number Catalogue Number
10 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCH110 — CH210 — CH310
15 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCH115 g h CHF115 CH215 hCHF215 CH315 h
20 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCH120 g h CHF120 CH220 hCHF220 CH320 h
25 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCH125 hCHF125 CH225 hCHF225 CH325 h
30 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCH130 hCHF130 CH230 hCHF230 CH330 h
35 #14-2 a, #14-6 cCH135 h— CH235 h— CH335 h
40 #10-1/0 d, #14-2 e, #3-0 fCH140 h— CH240 h— CH340 h
45 #10-1/0 d, #14-2 e, #3-0 fCH145 h— CH245 h— CH345 h
50 #10-1/0 d, #14-2 e, #3-0 fCH150 h— CH250 h— CH350 h
60 #10-1/0 d, #14-2 e, #3-0 fCH160 h— CH260 h— CH360 h
70 #10-1/0 d, #14-2 e, #3-0 fCH170 — CH270 h— CH370 h
80 #10-1/0 d, #14-2 e, #3-0 f— — CH280 — CH380
90 #10-1/0 d, #14-2 e, #3-0 f— — CH290 — CH390
100 #10-1/0 d, #14-2 e, #3-0 f— — CH2100 — CH3100
110 #10-1/0 d, #14-2 e, #3-0 f— — CH2110 — —
125 #10-1/0 d, #14-2 e, #3-0 f— — CH2125 — —
Requires One ¾-Inch (19.1mm) Space Requires Two ¾-Inch (19.1mm) Spaces Requires Three ¾-Inch (19.1mm) Spaces
a For 1- and 2-pole breakers.
b Solid and stranded wire can be used together.
c For 3-pole breakers.
d 1-Pole 60-70 amperes, 2-pole 80-125 amperes, 3-pole 40-100 amperes.
e 1-Pole 40-50 amperes, 2-pole 40-70 amperes.
f 2-Pole 150 amperes.
g Switching duty rated.
h HACR rated.
i Not for use in Type BR Loadcentres i.e. CPM or CPL prefixed catalogue numbers.
Type CH Twin Circuit Breakers g h i
♦ 10,000 Amperes Interrupting Capacity at 120/240VAC
♦ Provides 2 single-pole circuits in one ¾” space
Product Selection
Table 30. Twin Plug-In Circuit Breakers
Ampere Rating
Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1-Pole 120/240VAC
10 per Shelf Carton
Catalogue Number
15-15 #14 - 8 CHNT1515
15-20 #14 - 8 CHNT1520
20-20 #14 - 8 CHNT2020
Requires One ¾-Inch (19.1mm) Space
Plug-In Circuit Breakers for CH
Type CH Single, Multi-Pole, & Twin
28 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Type CHP Commercial Circuit Breakers h
♦ 10,000 Amperes Interrupting Capacity at 120VAC, 120/240VAC, and 240VAC
♦ 3 Position trip breakers for commercial applications when On-Off and Trip position is required.
Product Selection
Table 31. Commercial Plug-In Circuit Breakers
Amperes
Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1-Pole 120/240VAC 2-Pole 120/240VAC 3-Pole 240VAC
10 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton
Catalogue Number Catalogue Number Catalogue Number
10 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCHP110 CHP210 CHP310
15 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCHP115 f g CHP215 gCHP315 g
20 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCHP120 f g CHP220 gCHP320 g
25 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCHP125 gCHP225 gCHP325 g
30 (1) #14-8 a, (2) #14-10 a b, (1) #14-6 cCHP130 gCHP230 gCHP330 g
35 #14-2 a, #14-6 cCHP135 gCHP235 gCHP335 g
40 #10-1/0 d, #14-2 eCHP140 gCHP240 gCHP340 g
45 #10-1/0 d, #14-2 eCHP145 gCHP245 gCHP345 g
50 #10-1/0 d, #14-2 eCHP150 gCHP250 gCHP350 g
60 #10-1/0 d, #14-2 eCHP160 gCHP260 gCHP360 g
70 #10-1/0 d, #14-2 eCHP170 CHP270 CHP370
80 #10-1/0 d, #14-2 e— CHP280 —
90 #10-1/0 d, #14-2 e— CHP290 —
100 #10-1/0 d, #14-2 e— CHP2100 CHP3100
110 #10-1/0 d, #14-2 e— CHP2110 —
125 #10-1/0 d, #14-2 e— CHP2125 —
Requires One ¾-Inch (19.1mm) Space Requires Two ¾-Inch (19.1mm) Spaces Requires Three ¾-Inch (19.1mm) Spaces
.
a For 1- and 2-pole breakers.
b Solid and stranded wire can be used together.
c For 3-pole breakers.
d 1-Pole 60-70 amperes, 2-pole 80-125 amperes, 3-pole 40-100 amperes.
e 1-Pole 40-50 amperes, 2-pole 40-70 amperes.
f Switching duty rated.
g HACR rated.
h Not for use in Type BR Loadcentres i.e. CPM or CPL prefixed catalogue numbers.
Plug-In Circuit Breakers for CH
Type CHP Commercial
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 29
a Common trip refers to 2-pole 240 volt load application sourced by 120/240 Vac (see Figure 17).
b Independent trip refers to 2-pole multi-wire, home run or shared neutral circuits (see Figure 16 and Figure 18).
c Not for use in Type BR Loadcentres i.e. CPM or CPL prefixed catalogue numbers.
c Only for use in the Type CH Plug-On Neutral style of combination and non-combination loadcentres.
Type CH Arc Fault Circuit Interrupter Circuit Breakers c
♦ 10,000 Amperes Interrupting Capacity at 120VAC, and 120/240VAC
♦ Plug-On Neutral style for Plug-On Neutral type CH loadcentres
Product Description
A Branch Feeder Type Arc Fault Circuit Interrupter is a device intended to mitigate parallel arcing faults in the complete circuit, including connected cords.
Parallel arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all
arcing faults..
Product Selection
Table 32. Single and Two Pole Plug-In FIRE-GUARD™ AFCI Circuit Breakers
Ampere
Rating
Wire Size Range
(Cu/AL 60ºC or 75ºC)
(AWG) Configuration
1-Pole 120/240VAC 2-Pole 120/240VAC
10 per Shelf Carton 5 per Shelf Carton
10kAIC 10kAIC a b
Catalogue Number Catalogue Number
15 #14 - 4 Standard CH115AF —
15 #14 - 4 Common Trip — CH215AF
15 #14 - 4 Independent Trip — CH215AFIT
15 #14 - 4 Plug-On Neutral dCH115AFPN —
20 #14 - 4 Standard CH120AF
20 #14 - 4 Common Trip — CH220AF
20 #14 - 4 Independent Trip — CH220AFIT
20 #14 - 4 Plug-On Neutral dCH120AFPN —
Requires One ¾-Inch (19.1mm) Space Requires Two ¾-Inch (19.1mm) Spaces
Type CH 1-Pole AFCI Circuit Breaker
Figure 15 1-Pole Single 120V Load
Application Sourced by 120/240VAC
Figure 18 2-Pole Shared Neutral with
Duplex Receptacle Application
Figure 16 2-Pole Shared Neutral with
Multi-Duplex Receptacle Application
Figure 17 2-Pole 240V Load
Application Sourced by 120/240VAC
Plug-In Circuit Breakers for CH
Type CH Arc Fault Circuit Interrupter
30 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Type CH Ground Fault Circuit Breakers b
♦ 10,000 Amperes Interrupting Capacity at 120VAC and 120/240VAC
♦ 5mA “People Protection” or 30mA Equipment Protectors
♦ Two pole version features common trip.
Product Selection
Table 33. 5mA Single and Two Pole Plug-In Ground Fault Circuit Breakers
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
1-Pole 120VAC 1-Pole 120VAC 2-Pole 120/240VAC
Standard Plug-On Neutral cStandard
1 per Shelf Carton 1 per Shelf Carton 1 per Shelf Carton
10kAIC 10kAIC 10kAIC
Catalogue Number Catalogue Number Catalogue Number
15 #14 - 6 aCH115GF CH115GFPN cCH215GF
20 #14 - 6 aCH120GF CH120GFPN cCH220GF
25 #14 - 6 aCH125GF — CH225GF
30 #14 - 6 aCH130GF — CH230GF
35 #14 - 6 a— — CH235GF
40 #14 - 6 a— — CH240GF
45 #14 - 6 a— — CH245GF
50 #14 - 6 a— — CH250GF
60 #14 - 6 a— — CH260GF
Requires One ¾-Inch (19.1mm) Space Requires Two ¾-Inch (19.1mm) Spaces
Table 34. 30mA Single and Two Pole Plug-In Ground Fault Circuit Breaker Equipment Protectors
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
1-Pole 120VAC 2-Pole 120/240VAC
1 per Shelf Carton 1 per Shelf Carton
10kAIC 10kAIC
Catalogue Number Catalogue Number
15 #14 - 6 aCH115EPD CH215EPD
20 #14 - 6 aCH120EPD CH220EPD
25 #14 - 6 aCH125EPD —
30 #14 - 6 aCH130EPD CH230EPD
40 #14 - 6 a— CH240EPD
50 #14 - 6 a— CH250EPD
60 #14 - 6 a— CH260EPD
Requires One ¾-Inch (19.1mm) Space Requires Two ¾-Inch (19.1mm) Spaces
Ground Fault Application Note
Single-pole ground fault circuit breakers (Type CHGFIs) are designed for use in 2-wire, 120VAC circuits. Figure 19 shows a typical wiring configuration.
Two-pole ground fault circuit breakers (Type CHGFIs) are designed for use in 3-wire, 120/240VAC circuits, 120VAC multi-wire circuits employing common, neutral and 2-wire, 240VAC
circuits obtained from a 120/240VAC source.
Figures 20 and 21 illustrate typical wiring configurations for 120/240VAC multi-wire circuits.
Figure 22 depicts a 240VAC, 2-wire circuit. Note the “panel neutral” conductor connects to the neutral bar, even though the neutral is not included in the load circuit. This connection
is necessary to supply a 120VAC power source to the ground fault sensing circuit.
The figures are shown with a 120/240VAC, single-phase, 3-wire power source, but are also applicable to a 120/208VAC, 3-phase, 4-wire power supply. For all figures the electrical
operation of the Type CHGFI is not affected by the equipment ground.
Figure 19 1-Pole Single 120V
Duplex Receptacle Application
Figure 21 2-Pole 120V Duplex
Receptacle Application
Figure 20 2-Pole 120V Multi-
Duplex Receptacle Application
Figure 22 2-Pole 240V Duplex
Receptacle Application
Type CH 2-Pole
GFCI Circuit Breaker
a 60 Ampere breaker listed for 75°C Cu wire only
b Not for use in Type BR Loadcentres i.e. CPM or CPL prefixed catalogue numbers.
c Only for use in the Type CH Plug-On Neutral style of combination and non-combination loadcentres.
Plug-In Circuit Breakers for CH
Type CH Ground Fault
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 31
Plug-In Loadcentre Main Circuit Breakers for CH
Type CSH
Type CSH Loadcentre Main Circuit Breaker Kit
♦ 35,000 Amperes Interrupting Capacity at 120/240VAC.
Product Selection
Table 35. Two Pole Main Circuit Breakers for Single Phase Plug-In Combination Loadcentres
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
2-Pole 120/240VAC
1 per Shelf Carton
35kAIC
Catalogue Number
100 #2AWG - 300kcmil CSH2100N
150 #2AWG - 300kcmil CSH2150N
200 #2AWG - 300kcmil CSH2200N
CSH2150N
32 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Plug-In Loadcentre and Circuit Breaker Accessories for CH
Product Selection
Table 36. Field Installation Kits and Parts for Plug-In Loadcentres and Circuit Breakers
Description Ordering Qty. a
Catalogue
Number
Handle Tie for single pole Type CH circuit breakers. Joins handles on breakers mounted adjacent to each other via a moulded plastic handle
cover.
1 CHHT
Handle Lockoff (Escutcheon mounted). 1, or 2-Pole Type CH circuit breakers. 1 CHPL
Handle Lockoff (Escutcheon mounted). 1, or 2-Pole Type CHGFI circuit breakers. 1 CHPLGF
Handle Lockoff (Escutcheon mounted). Locks the handle of main circuit breaker type CSH in the OFF of ON position. 1 MCBPL
Handle Lockdog (Handle mounted). 1-pole Type CH circuit breakers. Secures handle in the ON or OFF position. 1 CHLO
Sub-feed kit for 125A Loadcentres. Requires Two 3/4” (19.1mm) spaces. 1 CHSF2125
3/4” (19.1mm) Filler plate kit a 1 CHFP a
Door lock for 24-60 circuit 100 and 200A (CH). 1 TDL b
Trim screw kit (CH) 1 LCCS c
Sandalwood plastic replacement door latch 1 CHRLS
Branch Circuit Numbering Strip Kit for CH 1 CHNS d
Definitions
Handle Ties - devices used to join two similar independent single-pole circuit breakers to form a 2-pole non-common trip breaker.
Handle Lockoffs - devices that use a padlock to lock a circuit breaker’s handle in either the ON or OFF position.
Handle Lockdogs - devices used to secure a circuit breaker’s handle in the ON or OFF position. They are not padlockable devices.
Escutcheon Mounted - a semipermanent mounting to the face of the circuit breaker and secured by the loadcentre’s deadfront cover.
Handle Mounted - a mounting made directly to the handle of the circuit breaker by means of a set screw.
Screw Mounted - a permanent mounting to the face of the circuit breaker by means of a non-removable screw.
a Kit includes 25 pieces.
b Comes with a set of keys.
c Kit includes 25 pieces.
d Kit includes 20 pieces.
Plug-In Loadcentres & Circuit Breaker Accessories for CH
Type CH Accessories
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 33
Single Phase 120/240VAC Type 1 (Indoor) Loadcentres
♦ CSA Certified only (Not UL Approved)
♦ Utilize Type BAB, QBHW, QBA, DNBA, or QBGF circuit breakers as branch circuit breakers.
Product Selection
Table 37. Single Phase 3 Wire 120/240VAC Aluminum Bus Loadcentres
Maximum
Ampere
Rating
Main
Breaker
Rating
Catalogue
Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (Inches / mm)
Wire Size Range for Main CU/ALH W D
125 100 CBM118 a18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
125 100 CBM130 a30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
125 100 CBM142 a42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
225 200 CBM218 b18 36 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #4 - 4/0
225 200 CBM230 b30 60 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #4 - 4/0
225 200 CBM242 b42 84 Flush/Surface 45 / 1143 14-1/4 / 361.9 3-3/4 / 95.3 #4 - 4/0
Three Phase 240VAC Type 1 (Indoor) Loadcentres
♦ CSA Certified only (Not UL Approved)
♦ Utilize Type BAB, QBHW, QBA, DNBA, or QBGF circuit breakers as branch circuit breakers.
Product Selection
Table 38. Three Phase 4 Wire 240VAC Maximum Aluminum Bus Loadcentres
Maximum
Ampere
Rating
Main
Breaker
Rating
Catalogue
Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (Inches / mm)
Wire Size Range for Main CU/ALH W D
125 100 3CBM118 c18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
125 100 3CBM130 c30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
125 100 3CBM142 c42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
225 200 3CBM218 d18 36 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #4 - 4/0
225 200 3CBM230 d30 60 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #4 - 4/0
225 200 3CBM242 d42 84 Flush/Surface 45 / 1143 14-1/4 / 361.9 3-3/4 / 95.3 #4 - 4/0
Type CBM Bolt-On Loadcentres
Combination (Main Circuit Breaker) Single & Three Phase Aluminum Bus
a BAB2100 Main circuit breaker factory installed.
b ED2200 Main circuit breaker factory installed.
c BAB3100H Main circuit breaker factory installed.
d ED3200 Main circuit breaker factory installed.
3CBM242
34 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Single Phase 120/240VAC Type 1 (Indoor) Loadcentres
♦ CSA Certified only (Not UL Approved)
♦ Utilize Type BAB, QBHW, QBA, DNBA, or QBGF circuit breakers as branch circuit breakers.
Product Selection
Table 39. Single Phase 3 Wire 120/240VAC Copper Bus Loadcentres
Maximum
Ampere
Rating
Main
Breaker
Rating
Catalogue
Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (Inches / mm)
Wire Size Range for Main CU/ALH W D
125 100 CBM118CU a18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
125 100 CBM130CU a30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
125 100 CBM142CU a42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
225 200 CBM218CU b18 36 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #4 - 4/0
225 200 CBM230CU b30 60 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #4 - 4/0
Three Phase 240VAC Type 1 (Indoor) Loadcentres
♦ CSA Certified only (Not UL Approved)
♦ Utilize Type BAB, QBHW, QBA, DNBA, or QBGF circuit breakers as branch circuit breakers.
Product Selection
Table 40. Three Phase 4 Wire 240VAC Maximum Copper Bus Loadcentres
Maximum
Ampere
Rating
Main
Breaker
Rating
Catalogue
Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (Inches / mm)
Wire Size Range for Main CU/ALH W D
125 100 3CBM118CU c18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
125 100 3CBM130CU c30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
125 100 3CBM142CU c42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #8 - #1 Cu / #8 - 1/0 Al
225 200 3CBM230CU d30 60 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #4 - 4/0
Type CBM Bolt-On Loadcentres
Combination (Main Circuit Breaker) Single & Three Phase Copper Bus
a BAB2100 Main circuit breaker factory installed.
b ED2200 Main circuit breaker factory installed.
c BAB3100H Main circuit breaker factory installed.
d ED3200 Main circuit breaker factory installed.
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 35
Single Phase 120/240VAC Type 1 (Indoor) Loadcentres
♦ CSA Certified only (Not UL Approved)
♦ Utilize Type BAB, QBHW, QBA, DNBA, or QBGF circuit breakers as branch circuit breakers.
Product Selection
Table 41. Single Phase 3 Wire 120/240VAC Aluminum Bus Loadcentres
Maximum Ampere
Rating Catalogue Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (Inches / mm) Wire Size Range for Main
Cu/AlH W D
125 CBL118 18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
125 CBL130 30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
125 CBL142 42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 CBL218 18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 CBL230 30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 CBL242 42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
Three Phase 240VAC Type 1 (Indoor) Loadcentres
♦ CSA Certified only (Not UL Approved)
♦ Utilize Type BAB, QBHW, QBA, DNBA, or QBGF circuit breakers as branch circuit breakers.
Product Selection
Table 42. Three Phase 4 Wire 240VAC Aluminum Bus Loadcentres
Maximum Ampere
Rating Catalogue Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (Inches / mm) Wire Size Range for Main
Cu/AlH W D
125 3CBL118 18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
125 3CBL130 30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
125 3CBL142 42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 3CBL218 18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 3CBL230 30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 3CBL242 42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
CBL130
Type CBL Bolt-On Loadcentres
Non-Combination (Main Lug Only) Single & Three Phase Aluminum Bus
36 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Single Phase 120/240VAC Type 1 (Indoor) Loadcentres
♦ CSA Certified only (Not UL Approved)
♦ Utilize Type BAB, QBHW, QBA, DNBA, or QBGF circuit breakers as branch circuit breakers.
Product Selection
Table 43. Single Phase 3 Wire 120/240VAC Copper Bus Loadcentres
Maximum Ampere
Rating Catalogue Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (Inches / mm) Wire Size Range for
Main Cu/AlH W D
125 CBL118CU 18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
125 CBL130CU 30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
125 CBL142CU 42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 CBL218CU 18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 CBL230CU 30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 CBL242CU 42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
Three Phase 240VAC Type 1 (Indoor) Loadcentres
♦ CSA Certified only (Not UL Approved)
♦ Utilize Type BAB, QBHW, QBA, DNBA, or QBGF circuit breakers as branch circuit breakers.
Product Selection
Table 44. Three Phase 4 Wire 240VAC Copper Bus Loadcentres
Maximum Ampere
Rating Catalogue Number
Max. No. 1”
Spaces
Max. No. 1/2”
Spaces Cover Style
Dimensions (Inches / mm) Wire Size Range for
Main Cu/AlH W D
125 3CBL118CU 18 36 Flush/Surface 27 / 685.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
125 3CBL130CU 30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
125 3CBL142CU 42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 3CBL230CU 30 60 Flush/Surface 34-1/8 / 866.8 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
225 3CBL242CU 42 84 Flush/Surface 39 / 990.6 14-1/4 / 361.9 3-3/4 / 95.3 #6-300MCM
Type CBL Bolt-On Loadcentres
Non-Combination (Main Lug Only) Single & Three Phase Copper Bus
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 37
Type BAB and QBHW
♦ 10,000 / 22,000 Amperes Interrupting Capacity at 120VAC, 120/240VAC, and 240VAC
Product Selection
Table 45. Single and Multi-Pole Bolt-On Circuit Breakers
Ampere Rating
Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1-Pole 120/240VAC 1-Pole 120/240VAC 2-Pole 120/240VAC 2-Pole 120/240VAC 3-Pole 120/240VAC 3-Pole 120/240VAC
10kAIC 22kAIC 10kAIC 22kAIC 10kAIC 22kAIC
Catalogue Number Catalogue Number Catalogue Number Catalogue Number Catalogue Number Catalogue Number
10 #14 - 4 BAB1010 — — — — —
15 #14 - 4 BAB1015 QBHW1015 BAB2015 QBHW2015 BAB3015H QBHW3015
20 #14 - 4 BAB1020 QBHW1020 BAB2020 QBHW2020 BAB3020H QBHW3020
25 #14 - 4 BAB1025 — — — — —
30 #14 - 4 BAB1030 QBHW1030 BAB2030 QBHW2030 BAB3030H QBHW3030
40 #14 - 4 BAB1040 QBHW1040 BAB2040 QBHW2040 BAB3040H QBHW3040
50 #14 - 4 BAB1050 QBHW1050 BAB2050 QBHW2050 BAB3050H QBHW3050
60 #8 - 1 CU, #8 - 1/0 AL BAB1060 QBHW1060 BAB2060 QBHW2060 BAB3060H QBHW3060
70 #8 - 1 CU, #8 - 1/0 AL BAB1070 QBHW1070 BAB2070 QBHW2070 BAB3070H QBHW3070
90 #8 - 1 CU, #8 - 1/0 AL — — BAB2090 QBHW2090 BAB3090H QBHW3090
100 #8 - 1 CU, #8 - 1/0 AL — — BAB2100 QBHW2100 BAB3100H QBHW3100
125 #8 - 1 CU, #8 - 1/0 AL — — BAB2125 QBHW2125 — —
Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces Requires Three 1-Inch (25.4mm) Spaces
Type BAB High Intensity Discharge (HID) Rated
♦ 10,000 Amperes Interrupting Capacity at 120VAC, 120/240VAC, and 240VAC
Product Selection
Table 46. Single-Pole HID Rated Bolt-On Circuit Breakers
Ampere Rating
Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1-Pole 120/240VAC
10kAIC
Catalogue Number
15 #14 - 4 BAB1015D
20 #14 - 4 BAB1020D
Requires One 1-Inch (25.4mm)
Space
Bolt-On Circuit Breakers for CBM/CBL
Type BAB & QBHW Single & Multi-Pole
38 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Type QBA Arc Fault Circuit Interrupter Circuit Breakers
♦ 10,000 / 22,000 Amperes Interrupting Capacity at 120VAC, 120/240VAC, and 240VAC
Product Selection
Table 47. Single and Two Pole Bolt-On FIRE-GUARD™ AFCI Circuit Breakers
Ampere Rating Configuration
1-Pole 120/240VAC 1-Pole 120/240VAC 2-Pole a b 120/240VAC 2-Pole a b 120/240VAC
Wire Size Range
(Cu/AL 60ºC or 75ºC)
(AWG)
10kAIC 22kAIC 10kAIC 22kAIC
Catalogue Number Catalogue Number Catalogue Number Catalogue Number
15 Standard QBAF1015 QBHAF1015 — — #14 - 4
15 with GFCI QBAG1015 QBHAG1015 — — #14 - 4
15 Common Trip — — QBAF2015 QBHAF2015 #14 - 4
15 Independent Trip — — QBAF2015IT QBHAF2015IT #14 - 4
15 Common Trip with GFCI — — QBAG2015 QBHAG2015 #14 - 4
20 Standard QBAF1020 QBHAF1020 — — #14 - 4
20 with GFCI QBAG1020 QBHAG1020 — — #14 - 4
20 Common Trip — — QBAF2020 QBHAF2020 #14 - 4
20 Independent Trip — — QBAF2020IT QBHAF2020IT #14 - 4
20 Common Trip with GFCI — — QBAG2020 QBHAG2020 #14 - 4
Requires One 1-Inch
(25.4mm) Space
Requires One 1-Inch
(25.4mm) Space
Requires Two 1-Inch
(25.4mm) Spaces
Requires Two 1-Inch
(25.4mm) Spaces
Type DNBA Duplex Circuit Breakers
♦ 10,000 Amperes Interrupting Capacity at 120/240VAC
♦ Provides 2 single-pole circuits in one 1” space
Product Selection
Table 48. Twin Plug-In Circuit Breakers
Ampere Rating
Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1-Pole 120/240VAC
10 per Shelf Carton
Catalogue Number
15-15 #14 - 4 DNBA1515
20-20 #14 - 4 DNBA2020
30-30 #14 - 4 DNBA3030
Requires One 1-Inch (25.4mm) Space
Figure 26. 2-Pole Shared Neutral with
Duplex Receptacle Application
Figure 25. 2-Pole 240V Load
Application Sourced by 120/240VAC
Figure 23. 1-Pole Single 120V Load
Application Sourced by 120/240VAC
Figure 24. 2-Pole Shared Neutral with
Multi-Duplex Receptacle Application
a Common trip refers to 2-pole 240 volt load application sourced by 120/240 Vac (see Figure 25).
b Independent trip refers to 2-pole multi-wire, home run or shared neutral circuits (see Figure 24 and Figure 26).
Bolt-On Circuit Breakers for CBM/CBL
Type QBA Arc Fault Circuit Interrupter & DNBA Duplex
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 39
Type QBGF and QBGFEP Ground Fault Circuit Breakers
♦ 10,000 / 22,000 Amperes Interrupting Capacity at 120VAC and 120/240VAC
♦ 5mA “People Protection” or 30mA Equipment Protectors
♦ Two pole version features common trip.
Product Selection
Table 49. 5mA Single and Two Pole Bolt-On Ground Fault Circuit Breakers
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C (AWG)
1-Pole 120VAC 2-Pole 120/240VAC
1 per Shelf Carton 1 per Shelf Carton
10kAIC 10kAIC
Catalogue Number Catalogue Number
15 #14 - 10 CU, #12 - 10 AL QBGF1015 QBGF2015
20 #14 - 10 CU, #12 - 10 AL QBGF1020 QBGF2020
30 #10 CU #8 AL QBGF1030 QBGF2030
40 #8 CU #8 - 6 AL QBGF1040 QBGF2040
50 #8 - 6 CU #6 - 4 AL — QBGF2050
Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces
Table 50. 30mA Single and Two Pole Bolt-On Ground Fault Circuit Breaker Equipment Protectors
Ampere
Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
1-Pole 120VAC 1-Pole 120VAC 2-Pole 120/240VAC 2-Pole 120/240VAC
1 per Shelf Carton 1 per Shelf Carton 1 per Shelf Carton 1 per Shelf Carton
10kAIC 22kAIC 10kAIC 22kAIC
Catalogue Number Catalogue Number Catalogue Number Catalogue Number
15 #14 - 4 QBGFEP1015 QBHGFEP1015 QBGFEP2015 QBHGFEP2015
20 #14 - 4 QBGFEP1020 QBHGFEP1020 QBGFEP2020 QBHGFEP2020
25 #14 - 4 QBGFEP1025 QBHGFEP1025 QBGFEP2025 QBHGFEP2025
30 #14 - 4 QBGFEP1030 QBHGFEP1030 QBGFEP2030 QBHGFEP2030
Requires One 1-Inch (25.4mm) Space Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces Requires Two 1-Inch (25.4mm) Spaces
Bolt-On Circuit Breakers for CBM/CBL
Type QBGF & QBGFEP Ground Fault
40 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Bolt-On Accessories
Product Selection
Table 51. Field Installation Kits and Parts for Bolt-On Loadcentres and Circuit Breaker
Description Ordering Qty. Catalogue Number
Handle Lockoff 1 Pole of Type DNBA Duplex Circuit Breakers (Package of 10). 1 BRDL1-10
Handle Lockoff Type BQL circuit breakers 1 BQL-10
Handle Lockoff Type BAB and QBHW circuit breakers 1 QL123PL
Handle Lockdog 1-pole Type BAB and QBHW circuit breakers 1 QL1NPL
Handle Lockdog 2 and 3-pole Type BAB and QBHW circuit breakers. 1 QL23NPL
Filler Plates 1” Space (Package of 24) 1 BRFP
Sub Feed Lug 100A (For Main Lug panel style) 1 CBSF100
Sub Feed Lug 225A (For Main Lug panel style) 1 CBSF225
Sub Feed Lug Kit 100A 3 Phase (For Main Lug panel style) 1 3CBSF100
Sub Feed Lug Kit 225A 3 Phase (For Main Lug panel style) 1 3CBSF225
Circuit Breaker Directory Card 1-42 (Package of 50) 1 DIRCARD42
Circuit Breaker Directory Sleeve (Package of 25) 1 DIRSLEEVE
Loadcentre Door Lock 1 TDL
Isolated Ground Kit 1 ISGRD
Definitions
Handle Lockoffs - devices that use a padlock to lock a circuit breaker’s handle in either the ON or OFF position.
Handle Lockdogs - devices used to secure a circuit breaker’s handle in the ON or OFF position. They are not padlockable devices.
Bolt-On Loadcentre & Circuit Breaker Accessories
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 41
Product Description
A Transfer Switch Panel is a
device that is mounted next to or
incorporated within the loadcentre
(distribution panel) in the home or
small business. The Transfer Switch
Panel is used in conjunction with
an emergency generator (usually
supplied by others) and serves the
purpose of turning selected circuits
on and off during a power outage.
The Transfer Switch Panel allows the
owner to start up a generator and
then restore power to critical circuits
when utility power is not available.
The owner designates which circuits
are critical such as their refrigerator,
furnace, and certain lighting loads.
Sometimes called Emergency Power
Panels, Emergency Generator Panels,
Gen. Panels, Transfer Switches or
Emergency Panels; Transfer Switch
Panels provide the homeowner or
small business owner with a safe and
easy way to continue using essential
electrical loads when utility power is
not available.
Application Description
Transfer Switch Panels are most
often used in residential, agricultural
and light commercial applications.
Comfort and safety are key concerns
of many homeowners who are
dependent on an uninterrupted supply
of electricity.
The increase in our dependence on
power is due in part to the popularity
of home business and in-home care.
In addition, various rural and urban
regions in North America experience
periodic power outages due to
extreme weather conditions such as
ice and snowstorms, heat waves,
tornadoes or hurricanes. Regions
such as Pacific, Atlantic, and Central
are the strongest markets for portable
generators and Transfer Switch
Panels.
Features, Functions,
and Benefits
Eaton offers two unique manual
transfer switch emergency power
solutions.
♦
Manual Transfer Switches or a
Generator sub-panel.
♦
Combination Service Entrance
Loadcentre with Generator Sub-
panel.
Important:
Before installation, consult
appropriate electrical codes.
Installation information is included in
the carton.
Manual Transfer
Switches/ Generator
Panels
CPL112GI3 (30A only)
♦
Main utility and emergency
(generator) breaker factory
installed.
♦
Available in 30 and 60 ampere
design.
♦
Utility breaker and generator
breakers are mechanically
interlocked to protect equipment
and personnel by preventing
dangerous dual-source feeding.
♦
Critical loads permanently
connected to allow for quick and
convenient switching from utility
power to stand-by generator
power.
♦
Designed for switched neutral
applications. Can be reconfigured
in field for non-switched neutral
applications.
♦
Sturdy and reliable 125A rated
aluminum bus design.
♦
Type BR/DNPL branch breakers sold
separately.
♦
Ideal for new and retrofit
installations.
♦
EEMAC 1 indoor enclosure design.
♦
CPL112GI3 special features
- NEMA L14-30 Inlet for generator
connection.
- Two Watt meters measure power
consumption on L1 and L2 to aid in
balancing
Standards and
Certifications
♦ CSA approved.
Product Specifications
♦ 10,000 AIC rating.
♦
Switching devices must be circuit
breakers.
♦
Transfer switch panel must be
supplied with neutral and ground.
Combination Service
Entrance Loadcentre
Generator Panel
CPM126GEN
♦
Single enclosure (EEMAC 1)
to house both loadcentre and
generator breakers
♦
Factory installed main breakers.
♦
Available in 100 and 200 ampere
designs.
♦
Utility and emergency transfer
switch breaker factory installed.
♦
Utility breaker and generator
breakers are mechanically
interlocked to protect equipment
and personnel by preventing
dangerous dual-source feeding.
♦
Critical loads permanently
connected to allow for quick and
convenient switching from utility
power to stand-by generator
power.
♦
Designed for switched neutral
applications. Can be reconfigured
in field for non-switched neutral
applications.
♦
Type BR/DNPL branch breakers sold
separately.
♦
Ideal for new and retrofit
installations.
♦
EEMAC 1 indoor enclosure design.
Standards and
Certifications
♦ CSA approved.
Product Specifications
♦ 10,000 AIC rating for CPM126GEN
♦
25,000 AIC rating for CPM236GEN
♦
Switching devices must be circuit
breakers.
♦
Transfer switch panel must be
supplied with neutral and ground.
Manual Transfer Switches / Generator Panels
42 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Product Selection
Table 52. Manual Transfer Switches/ Generator Panels
Catalogue
Number
Bus Rating
(A)
Generator
Breaker (A)
Switched
Neutral
Enclosure
Rating
Max. Total Branch
Circuits (1”/½”)
Inlet
Receptacle
Type
Height Branch Circuits
(Inches / mm)
Width
(Inches / mm)
Depth
(Inches / mm)
CPL112G3 125 30 Yes EEMAC 1 6 / 12 - 16.750 / 425.45 14.375 / 365.13 3.875 / 98.43
CPL112G6 125 60 Yes EEMAC 1 6 / 12 - 16.750 / 425.45 14.375 / 365.13 3.875 / 98.43
CPL120G6 125 60 Yes EEMAC 1 14 / 28 - 21.000 / 533.40 14.375 / 365.13 3.875 / 98.43
CPL130G6 125 60 Yes EEMAC 1 24 / 48 - 29.125 / 739.78 14.375 / 365.13 3.875 / 98.43
CPL112GI3 125 30 Yes EEMAC 1 6 / 12 L14-30 16.750 / 425.45 14.375 / 365.13 3.875 / 98.43
RCPL112GI3 125 30 Yes EEMAC 3 6 / 12 L14-30 16.50 / 419.10 14.375 / 365.13 5 / 127.00
Table 53. Combination Service Entrance Loadcentre Generator Panel
Catalogue Number
Bus Rating
(A)
Loadcentre Main
Breaker (A)
Max. Total Branch
Circuits (1”/½”)
Generator
Breaker (A)
Switched
Neutral
Max. Generator
Branch Circuits
Height
(Inches / mm)
Width
(Inches / mm)
Depth
(Inches / mm)
CPM126GEN 125 100 26/52 30 Yes 6/12 39.000 / 990.60 14.375 / 365.13 3.875 / 98.43
CPM236GEN 200 200 36/72 60 Yes 6/12 45.000 / 1143 14.375 / 365.13 3.875 / 98.43
Table 54. Portable Generator Power Inlet Box
Catalogue Number Ampere Rating (A) Inlet Receptacle Type Enclosure Rating
Height
(Inches / mm)
Width
(Inches / mm)
Depth
(Inches / mm)
CH10EGENPIB a30 L14-30 NEMA 3R 6-1/16 / 153.99 5-9/16 / 141.29 5-3/8 / 136.52
Figure 27. Typical Installation Diagram
Notes:
♦ Combination Service Entrance Loadcentre Generator Panels come complete with an integrated emergency generator
panel.
♦ Combination Service Entrance Loadcentre Generator Panels come complete with factory installed utility feeder
breaker for emergency generator panel section.
* Not Included
a Not CSA approved.
Manual Transfer Switches / Generator Panels
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 43
Single Phase 3-Wire 120/240VAC Ground Fault Circuit Interrupter Spa Panels
♦ Factory assembled, prewired, tested, and ready to install.
♦ Two-Pole 5mA “People Protection” type CH Ground fault circuit interrupter circuit breaker.
♦ Two additional one-pole circuits available.
♦ Test button provides a means of confirming proper GFCI circuit breaker operation.
♦ 10,000 amps interrupting capacity.
♦ 120/240VAC Single Phase 3-wire
♦ Pre installed neutral and ground bars.
♦ Type 3R enclosure good for indoor or outdoor mounting.
♦ Interior deadfront provides protection from energized parts.
♦ Padlockable cover provides added security and safety.
♦ Audible alarm option factory or field installable.
♦ Can be used as a disconnect to turn the spa pump on and off.
♦ Main lug connections will accomodate a single #14 - 1/0 AWG conductor. b
Product Description
CEC Rule 68-086 (1) and (6) requires that a Ground Fault Circuit Interrupter, of a Class A Type, be installed not closer than 3m (10 feet) to a pool or spa water. In cases where a spa is
installed some distance from your main loadcentre it is often more convenient to locate this protection device in a small panel closer to the spa. Excessive cable lengths required to
connect directly back to a protection device in your main loadcentre may be more susceptible to insulation breakage and result in nuisance tripping of the breaker. The reduced distance
the owner must travel to reset a tripped circuit breaker in a localized spa panel may also be an excellent selling point for the owner.
Product Selection
Table 55. Two Pole Plug-In Type 3R Spa Panels
Catalogue Number
Breaker
Amperage (A) Breaker Type Enclosure Style Audible Alarm
Height
(Inches / mm)
Width
(Inches / mm)
Depth
(Inches / mm)
CH30SPA 30 CH Indoor/Outdoor Type 3R aN 12 / 304.8 6.875 / 174.62 4.5 / 114.3
CH30SPALARM 30 CH Indoor/Outdoor Type 3R aY 12 / 304.8 6.875 / 174.62 4.5 / 114.3
CH40SPA 40 CH Indoor/Outdoor Type 3R aN 12 / 304.8 6.875 / 174.62 4.5 / 114.3
CH40SPALARM 40 CH Indoor/Outdoor Type 3R aY 12 / 304.8 6.875 / 174.62 4.5 / 114.3
CH50SPA 50 CH Indoor/Outdoor Type 3R aN 12 / 304.8 6.875 / 174.62 4.5 / 114.3
CH50SPALARM 50 CH Indoor/Outdoor Type 3R aY 12 / 304.8 6.875 / 174.62 4.5 / 114.3
CH60SPA 60 CH Indoor/Outdoor Type 3R aN 12 / 304.8 6.875 / 174.62 4.5 / 114.3
CH60SPALARM 60 CH Indoor/Outdoor Type 3R aY 12 / 304.8 6.875 / 174.62 4.5 / 114.3
Table 56. Spa Panel Accessories
Catalogue Number Description
CHSPALARM Field installable Audible Alarm Kit (breaker & panel not included)
10 Feet
(3048 mm)
Enclosure Hot Tub
Check national and local codes for compliance.
CEC Code Note
CEC Rule 68-086 (1) and (6) requires that a Ground Fault Circuit Interrupter, of a Class A Type, be installed not closer than 3m (10 feet) to a pool or spa water
a Outdoor Loadcentres accommodate Type DS conduit hubs. Hubs not included. See page 11 for selection.
b Refer to page 30 for Type CH ground fault circuit breaker accepted load conductor sizes.
Spa Panels
44 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Residential Surge Suppression Products
♦ Stage 1 and Stage 2 surge protection as well as Type 1 and Type 2 offering.
♦ Convenient in-panel mount unit for Type BR loadcentres.
♦ Knockout mount or surface mount CHSP design. DIN mount adapter for Type 1.
♦ Limited lifetime warranty on CHSP family.
♦ Dovetail clip together telephone and cable surge accessories for CHSPT2 design.
♦ Flush mount kit for CHSPT2 design knockout mounting.
♦ Type 1 & 2 surge supression product designed to meet UL 1449 3rd edition standard.
Product Description
Today’s homes are filled with increasing quantities of devices containing sensitive electronic components. These devices can easily be damaged by common power surges also some
times called line transients, spikes, or voltage impulses. Lighting strikes, utility grid switching, other users on the powerline, and internal surges from air conditioners and powers
tools are the most common sources these damaging line transients. To protect your investment it is recommended that a surge suppression device be installed. Surge protection can
be broken into two stages. Stage 1 protection is primary protection for your service entrance. This protection is typically installed inside or adjacent to a home’s service entrance
distribution panel. Stage 2 protection is secondary protection or protection at the point of use. For proper surge protection both a stage 1 and stage 2 device must be installed. Eaton
offers surge products to provide both levels of protection to your sensitive equipment as well as both Type 1 and Type 2 surge devices that meet the latest UL 1449 3rd standard. We
also offer surge protection devices for telephone, cable/satellite and ethernet protection since surges are not isolated to the utility lines only.
Product Selection
Table 57. Stage 1 (Point of service entrance) Residential Surge Suppression Products for Type BR Plug-In Loadcentres
Catalogue
Number Connection
Voltage
(Vac) Phase
Frequency
(Hz)
Maximum Continuous
Operating Voltage a (V)
Voltage
Protection
Rating b
Nominal
Discharge
Current c (A)
Short Circuit
Current Rating
d (A)
Surge Current
Capacity per
Phase e (A)
BRSURGE Plug-On to loadcentre bus in
Type BR loadcentres.
120/240 Single 60 200 Line to Neutral (L-N)
400 Line to Line (L-L)
600V L-N
1000V L-L
3,000 10,000 18,000
Table 58. Stage 1 Type 2 (Point of service entrance) Residential Surge Suppression Products for Any Loadcentre
Catalogue Number Connection
Voltage
(Vac) Phase
Frequency
(Hz)
Maximum Continuous
Operating Voltage a (V)
Voltage
Protection
Rating b
Nominal
Discharge
Current c (A)
Short Circuit
Current Rating
d (A)
Surge Current
Capacity per
Phase e (A)
CHSPT2MICRO Can be attached to the outside
of any manufacturer’s loadcentre
(breaker box). This product
should be connected on the
load side of the loadcentre main
service disconnect through a
dedicated circuit breaker (follow
CEC Guidelines).
120/240 Single 60 150 Line to Neutral (L-N)
300 Line to Line (L-L)
600V L-N
1000V L-L
800V N-G
600V L-G
5,000 22,000 36,000
CHSPT2MAX 120/240 Single 60 10,000 22,000 72,000
CHSPT2ULTRA 120/240 Single 60 20,000 f22,000 108,000
CHSPT23PACK g120/240 Single 60 20,000 f22,000 108,000
BRANCH
CIRCUITS
DEDICATED
BRANCH CIRCUIT
3
Stage 2 Protection
Point-of-Use (SurgeTrap)
Accessories
Incoming Telephone/Cable Lines
Stage 1 Protection
Breaker Panel (CHSP)
a Maximum Continuous Operating Voltage that may be applied to the device per mode.
b Voltage Protection Rating is the measured limiting voltage after a surge event.
c Nominal Discharge Current is the current that the device can withstand for 15 impulses.
d The amount of current the product can withstand under short circuit conditions.
e The maximum one time surge current rating per phase.
f When used with a 50A two-pole breaker, 10kA when used with a 15A two-pole breaker.
g CHSPT23PACK contains one each of CHSPT2ULTRA, CHSPCABLE, and CHSPTELE.
Surge Suppression Products
Stage 1 & Stage 1 Type 2
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 45
Installation
CHSP and accessories can be mounted on the side,
top, or bottom of a circuit breaker panel.
* CHSP MICRO, MAX, ULTRA or the 3 pack can
be used interchangeably depending on protection
required.
CHSP*
SurgeTel™
SurgeCable™

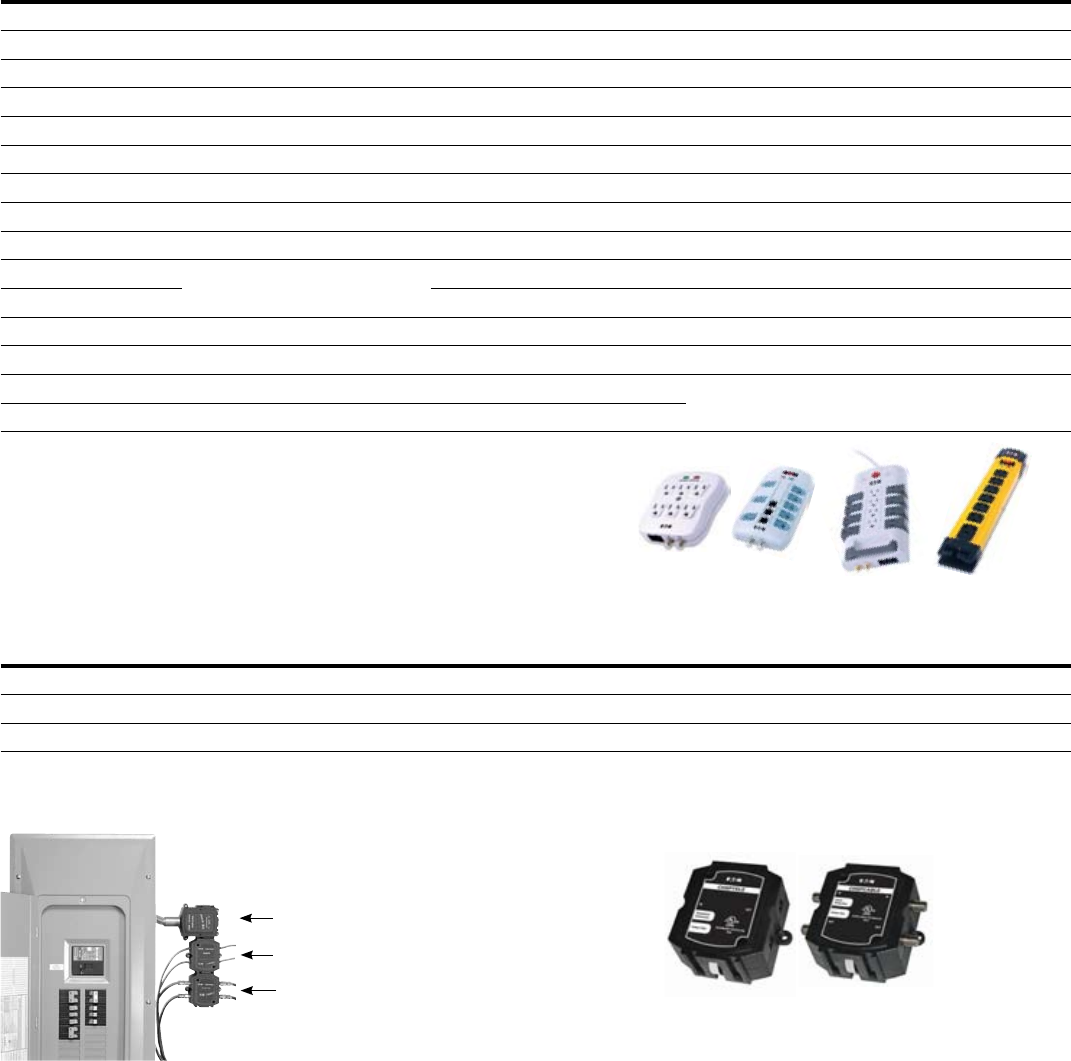

Residential Surge Suppression Products Continued
Table 59. Stage 2 (Point-of-use) Residential Surge Suppression Products
Catalogue
Number
Protection
Level Application
AC
Outlets
Telephone
Outlets
Cable
Outlets
Cord
Length
Product
Warranty
Connected
Equipment
Warranty
Maximum Surge
Current (A) a
Total Joules
(Joules)
SMICRO1T Entry Level AC Power, Telephone/Modem 1 1 — — Lifetime $50,000 36,000 540
SMICRO1C Entry Level AC Power, Cable TV 1 — 1 — Lifetime $50,000 36,000 540
SMICRO6T Entry Level AC Power, Telephone/Modem 6 1 — — Lifetime $50,000 36,000 540
SMICRO6TC Entry Level AC Power, Telephone/Modem, Cable TV 6 1 1 — Lifetime $50,000 36,000 540
SMICRO7 Entry Level AC Power 7 — — 6ft Lifetime $50,000 36,000 540
SMAX7 Mid Level AC Power 7 — — 6ft Lifetime $75,000 72,000 - 144,000 1,080 - 2,160
SMAX7T Mid Level AC Power, Telephone/Modem 7 1 — 6ft Lifetime $75,000 72,000 - 144,000 1,080 - 2,160
SMAX7C Mid Level AC Power, Cable TV 7 — 1 6ft Lifetime $75,000 72,000 - 144,000 1,080 - 2,160
SMAX8TC Mid Level AC Power, Telephone/Modem, Cable TV 8 1 1 6ft Lifetime $75,000 72,000 - 144,000 1,080 - 2,160
SULT10TC Advanced AC Power, Telephone/Modem, Cable TV,
DBS Satellite
10 1 1 6ft Lifetime $150,000 144,000 - 288,000 2,160 - 4,320
SULT12TC Advanced 12 1 1 6ft Lifetime $150,000 144,000 - 288,000 2,160 - 4,320
SULT8T Advanced AC Power, Telephone/Modem 8 1 — 6ft Lifetime $150,000 144,000 - 288,000 2,160 - 4,320
SCONST7 Heavy Duty AC Power 7 — — 6ft Lifetime N/A 72,000 1,080
POWER3 None Power Strips 36 — — 3ft — — — —
POWER5 None Power Strips 6 — — 5ft
Table 60. Residential Surge Suppression Accessories
Catalogue Number Description Application
Product
Warranty
Connected
Equipment
Warranty
Maximum Surge Current
(A) a
CHSPTELE SurgeTel™ Telephone, modem, and DSL (4 lines) Lifetime $10,000 80,000
CHSPCABLE SurgeCable™ Cable TV, satellite, cable modems (2 lines) Lifetime $10,000 20,000
CHSPFMKIT Flushmount Kit™ Flush mount kit for finished wall installations — N/A N/A
SurgeTel™ SurgeCable™
Micro Max Ultra Construction
a Maximum surge rating is the sum of all modes of protection.
Surge Suppression Products
Stage 2 & Accessories
46 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca

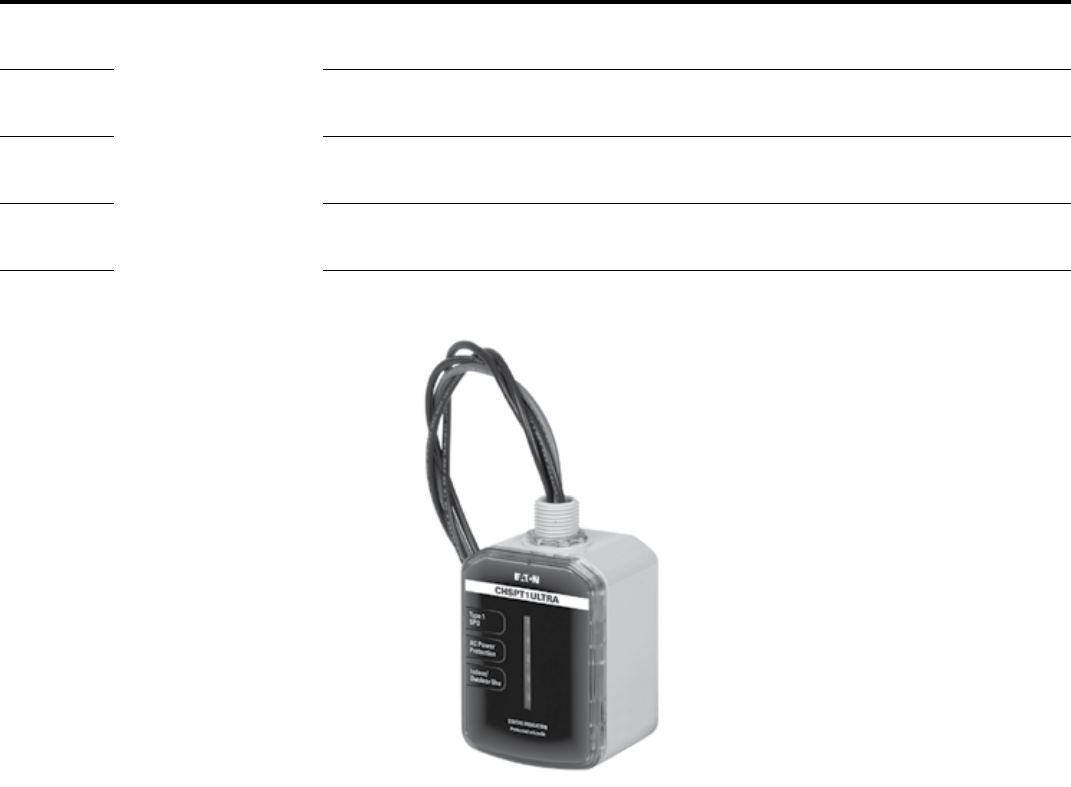

Type 1 Surge Protective Devices
♦ Commercial grade AC power protection.
♦ Type 1 surge device for installation before or after the main service disconnect.
♦ Universal fit to any manufacturer’s equipment.
♦ Clear visible LED indication displaying status of surge protector.
♦ Optional accessory kit enables wall or DIN-rail mounting (SP1DINRAILKIT).
♦ Suitable for indoor or outdoor applications.
♦ Can be used as a replacment for what was previously known as secondary surge arrestors or lightning arrestors.
Table 61. Type 1 Surge Protective Devices for Service Entrance Surge Protection of Any Loadcentre - UL 1449 3rd Edition
Compliant
Catalogue Number Connection
Voltage
(Vac) Phase
Frequency
(Hz)
Maximum Continuous
Operating Voltage a (V)
Voltage
Protection
Rating b
Nominal
Discharge
Current c (A)
Short Circuit
Current Rating
d (A)
Surge Current
Capacity per
Phase e (A)
CHSPT1MICRO Permanently connected device
installed before or after the
service disconnect overcurrent
device. (follow CEC Guidelines
for connection).
100/200
110/220
120/240
Single 50/60 150 Line to Neutral (L-N)
300 Line to Line (L-L)
600V L-N
1000V L-L
20,000 200,000 36,000
CHSPT1MAX 100/200
110/220
120/240
Single 50/60 150 Line to Neutral (L-N)
300 Line to Line (L-L)
600V L-N
1000V L-L
20,000 200,000 45,000
CHSPT1ULTRA 100/200
110/220
120/240
Single 50/60 150 Line to Neutral (L-N)
300 Line to Line (L-L)
600V L-N
1000V L-L
20,000 200,000 50,000
CHSPT1-208Y 100/200
110/220
120/240
Three-
Phase
WYE
50/60 150 Line to Neutral (L-N)
300 Line to Line (L-L)
600V L-N
1000V L-L
20,000 200,000 50,000
a Maximum Continuous Operating Voltage that may be applied to the device per mode.
b Voltage Protection Rating is the measured limiting voltage after a surge event.
c Nominal Discharge Current is the current that the device can withstand for 15 impulses.
d The amount of current the product can withstand under short circuit conditions.
e The maximum one time surge current rating per phase.
Surge Suppression Products
Type 1
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 47
Service Entrance Approved Street and Roadway Lighting Panels
♦ Compact in-pole panel fits into lighting pole hand well.
♦ Pole mount 3R (rain-tight) street lighting panels can be mounted right onto the pole.
♦ Pedestal mount 3R (rain-tight) street lighting panels feature a Eaton loadcentre housed in a Pencell enclosure.
Product Description
Since January 1, 2003 the Ontario Electric Safety Code requires that all roadway lighting shall meet the service entrance requirements of Rule 30-1002. Eaton has developed several
designs of approved products to suit the various installation points (pole mounted, within an enclosure etc). All products are CSA approved.
In-Pole Street Lighting Panels
♦ Fits into most pole manufacturers’ hand well.
♦ Service entrance approved.
♦ 3R Rain-tight.
♦ Pre-wired.
♦ Single pole or 2-pole 22kA 50A versions.
♦ Removable mounting plates accommodate multiple hand wells.
♦ CSA Approved.
♦ Approximate dimensions 9” x 2-1/4” x 4”.
♦ Line power connections via #6 AWG conductor pigtail.
♦ Load power connections via #14 AWG conductor pigtail.
♦ #6 AWG Conductor pigtail provided for daisy chaining of additional light poles.
Product Selection
Table 62. In-Pole Street Lighting Panels
Catalogue Number Voltage (V) Main Circuit Breaker
Interrupting
(kAIC)
1SL150PCO 120Vac In-Pole Compact Street Lighting Panel 120Vac Single Pole 15A 22
1SL300PCO 120V In-Pole Compact Street Lightning Panel 120Vac Single Pole 30A 22
1SL500PCO 120Vac In-Pole Compact Street Lighting Panel 120Vac Single Pole 50A 22
2SL150PCO 240Vac In-Pole Compact Street Lighting Panel 120/240Vac Two Pole 15A 22
2SL300PCO 240Vac In-Pole Compact Street Lighting Panel 120/240Vac Two Pole 30A 22
2SL500PCO 240Vac In-Pole Compact Street Lighting Panel 120/240Vac Two Pole 50A 22
Street Lighting Panels
In-Pole
48 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Service Entrance Approved Street and Roadway Lighting Panels Continued
On-Pole Street Lighting Panels
♦ Mounts directly onto the pole.
♦ Strap mount version includes slots in the enclosure back to allow for strap mounting.
♦ Two extra 1” breaker locations that accept type BR and DNPL plug-in circuit breakers for additional lighting loads.
♦ Service entrance approved.
♦ 3R Rain-tight.
♦ Single pole or 2-pole 22kA 50, 60, or 70A versions.
♦ CSA Approved.
♦ Approximate dimensions 13” x 11” x 4-1/2”.
♦ Bottom entry service entrance cabling only.
Product Selection
Table 63. On-Pole Street Lighting Panels Standard Mount
Catalogue Number Voltage (V) Main Circuit Breaker Interrupting (kAIC) Branch Circuits (1”/½”)
Main Circuit Breaker
Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1SL502 120 Single Pole 50A 22 2 / 4 #14 - 4
1SL602 120 Single Pole 60A 22 2 / 4 #4 - 1/0
1SL702 120 Single Pole 70A 22 2 / 4 #4 - 1/0
2SL502 120/240 Two Pole 50A 22 2 / 4 #14 - 4
2SL602 120/240 Two Pole 60A 22 2 / 4 #4 - 1/0
2SL702 120/240 Two Pole 70A 22 2 / 4 #4 - 1/0
Product Selection
Table 64. On-Pole Street Lighting Panels Strap Mount
Catalogue Number Voltage (V) Main Circuit Breaker Interrupting (kAIC) Branch Circuits (1”/½”)
Main Circuit Breaker
Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1SL502S 120 Single Pole 50A 22 2 / 4 #14 - 4
1SL602S 120 Single Pole 60A 22 2 / 4 #4 - 1/0
1SL702S 120 Single Pole 70A 22 2 / 4 #4 - 1/0
2SL502S 120/240 Two Pole 50A 22 2 / 4 #14 - 4
2SL602S 120/240 Two Pole 60A 22 2 / 4 #4 - 1/0
2SL702S 120/240 Two Pole 70A 22 2 / 4 #4 - 1/0
2SL706S 120/240 Two Pole 70A 22 6 / 12 #4 - 1/0
Street Lighting Panels
On-Pole
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 49
Service Entrance Approved Street and Roadway Lighting Panels Continued
Pedestal Mounted Street Lighting Panels
♦ Lightweight, stand-alone units mount on the ground.
♦ Polyethylene Pencell enclosure provides rugged, Low profile, rain-tight assembly.
♦ Penta head and key lock provision for security.
♦ Vented or non-vented enclosure styles..
♦ Two extra 1” breaker locations accept type BR and DNPL plug-in circuit breakers for additional lighting loads.
♦ Service entrance approved.
♦ 3R Rain-tight.
♦ Single pole or 2-pole 22kA 50, 60, or 70A versions.
♦ CSA Approved.
♦ Underground duct or direct burial cable accessible.
Product Selection
Table 65. Pedestal Mount Non-Vented Street Lighting Panels
Catalogue Number Voltage (V) Main Circuit Breaker Interrupting (kAIC) Branch Circuits (1”/½”) Extension
Main Circuit Breaker Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1SL502NV 120 Single Pole 50A 22 2 / 4 No #14 - 4
1SL602NV 120 Single Pole 60A 22 2 / 4 No #4 - 1/0
1SL702NV 120 Single Pole 70A 22 2 / 4 No #4 - 1/0
2SL502NV 120/240 Two Pole 50A 22 2 / 4 No #14 - 4
2SL602NV 120/240 Two Pole 60A 22 2 / 4 No #4 - 1/0
2SL702NV 120/240 Tow Pole 70A 22 2 / 4 No #4 - 1/0
1SL502NVE 120 Single Pole 50A 22 2 / 4 Yes #14 - 4
1SL602NVE 120 Single Pole 60A 22 2 / 4 Yes #4 - 1/0
1SL702NVE 120 Single Pole 70A 22 2 / 4 Yes #4 - 1/0
2SL502NVE 120/240 Two Pole 50A 22 2 / 4 Yes #14 - 4
2SL602NVE 120/240 Two Pole 60A 22 2 / 4 Yes #4 - 1/0
2SL702NVE 120/240 Tow Pole 70A 22 2 / 4 Yes #4 - 1/0
Product Selection
Table 66. Pedestal Mount Vented Street Lighting Panels
Catalogue Number Voltage (V) Main Circuit Breaker Interrupting (kAIC)
Branch
Circuits
(1”/½”) Extension
Main Circuit Breaker Wire Size Range
(Cu/AL 60ºC or 75ºC) (AWG)
1SL502VE 120 Single Pole 50A 22 2/4 Yes #14 - 4
1SL602VE 120 Single Pole 60A 22 2/4 Yes #4 - 1/0
1SL702VE 120 Single Pole 70A 22 2/4 Yes #4 - 1/0
2SL502VE 120/240 Two Pole 50A 22 2/4 Yes #14 - 4
2SL602VE 120/240 Two Pole 60A 22 2/4 Yes #4 - 1/0
2SL702VE 120/240 Tow Pole 70A 22 2/4 Yes #4 - 1/0
Vented
Non-Vented
Street Lighting Panels
Pedestal
50 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Combined Loadcentre and Meter Socket
♦ 4 Jaw, 100 and 200A, 120/240V 22kAIC.
♦ Service entrance rated with 100 or 200A main circuit breaker included.
♦ Suitable for underground or overhead service entrance.
♦ Meter socket mechanical lugs accommodate #6-250MCM Cu/Al line conductors and (2) #6-300MCM Cu/Al neutral conductors.
♦ Loadcentre mechanical lugs load and neutral (2) #6-300MCM Cu/Al.
♦ CSR circuit breaker mechanical load lugs #2-300MCM.
♦ Suitable for over head or under ground service entrance.
♦ Suitable applications include farming, temporary service, construction sites, trailers, and mobile homes.
♦ Hub opening and plate included. Hubs ordered separately (use DS type hubs)
♦ 3R Enclosure
♦ CSA Approved
Product Selection
Table 67. Combined Loadcentre and Meter Socket
Catalogue Number Enclosure Voltage
(V)
Amperage
(A)
Interrupting
(kAIC)
Entrance Type Branch
Circuits
(1”/½”)
Weight (lbs
/ kg)
Dimensions (In / mm)
RCPM108M Indoor/Outdoor Type 3R 120/240 100 22 Underground/Overhead 8/16 36.5 / 16.6 28-3/8 x 14-7/16 x 5-3/8
974.7 x 366.7 x 136.5
RCPM208M Indoor/Outdoor Type 3R 120/240 200 22 Underground/Overhead 8/16 36.5 / 16.6 28-3/8 x 14-7/16 x 5-3/8
974.7 x 366.7 x 136.5
Table 68. Knockout Legend
Location Knockout Size (Inches (mm)) Quantity
Bottom End Wall .50 (12.7) 7
Bottom End Wall .50, .75 (12.7, 19.1) 4
Bottom End Wall .50, .75, 1.00 (12.7, 19.1, 25.4) 1
Bottom End Wall 1.00, 1.25, 1.50, 2.00 (25.4, 31.8, 38.1, 50.8) 1
Bottom End Wall 1.25, 1.50, 2.00, 2.50, 3.00 (31.8, 38.1, 50.8, 63.5, 76.2) 1
Top End Wall Provision for Huba (e.g. DS200H2, DS250H2, DS300H2) 2
Backplane 1.25, 1.50, 2.00, 2.50 (31.8, 38.1, 50.8, 63.5) 1
Backplane 1.25, 1.50, 2.00 (31.8, 38.1, 50.8) 1
Right Sidewall 1.25, 1.50, 2.00, 2.50 (31.8, 38.1, 50.8, 63.5) 1
a Accommodate Type DS conduit hubs. Hubs not included. See Page 11 for selection.
Combined Loadcentre and Meter Socket
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 51
Metered Temporary Power Panel with Ground Fault Protection
♦ Combination loadcentre, meter socket, and electrical outlets for temporary work site installations.
♦ Single phase 3 wire
♦ 4 Jaw, 100 or 200A, 120/240V 22kAIC meter socket.
♦ Suitable for over head or under ground service entrance.
♦ CSA approved for service entrance.
♦ 3R Enclosure suitable for outdoor installations.
♦ Two different receptacle combinations 6X20A and 2X30A or 10X20A.
♦ Hub opening and plate included. Hubs ordered separately (uses DS type hubs).
♦ Meter socket mechanical lugs accommodate #6-250MCM Cu/Al line conductors and #6-300MCM Cu/Al neutral conductors.
Product Selection
Table 69. Metered Temporary Ground Fault Protected Power Panel
Catalogue Number Enclosure
Voltage
(V)
Amperage
(A)
Interrupting
(kAIC) Entrance Type
20A
Receptacles
30A
Receptacles Dimensions (In / mm)
RCPM1GF6H Indoor/Outdoor Type 3R 120/240 100 22 Underground/Overhead 6 2 34-3/8 x 22 x 5-3/8
873.1 x 558.8 x 136.5
RCPM1GF10 Indoor/Outdoor Type 3R 120/240 100 22 Underground/Overhead 10 0 34-3/8 x 22 x 5-3/8
873.1 x 558.8 x 136.5
RCPM2GF6H Indoor/Outdoor Type 3R 120/240 200 22 Underground/Overhead 6 2 34-3/8 x 22 x 5-3/8
873.1 x 558.8 x 136.5
RCPM2GF10 Indoor/Outdoor Type 3R 120/240 200 22 Underground/Overhead 10 0 34-3/8 x 22 x 5-3/8
873.1 x 558.8 x 136.5
Table 70. Knockout Legend
Catalogue Number Knockout Size (in) Quantity
Bottom Endwall 1/2, 3/4 6
Bottom Endwall 1/2, 3/4, 1, 1-1/4 2
Bottom Endwall 1, 1-1/4, 1-1/2, 2, 2-1/2 1
Bottom Endwall 1, 1-1/4, 1-1/2, 2, 2-1/2, 3 1
Top Endwall Provision for Huba (e.g. DS200H2, DS250H2, DS300H2) 1
a Accommodate Type DS conduit hubs. Hubs not included. See Page 11 for selection.
Metered Temporary Ground Fault Power Panel
52 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Fused
Switch
Load-
centre
15 kVA
3-Phase
Transformer
72" Wide
Mini-Power Centre
15kVA, Three-Phase
Normal Layout
15kVA, Three-Phase
a Time estimates are typical and will vary according to geographical area.

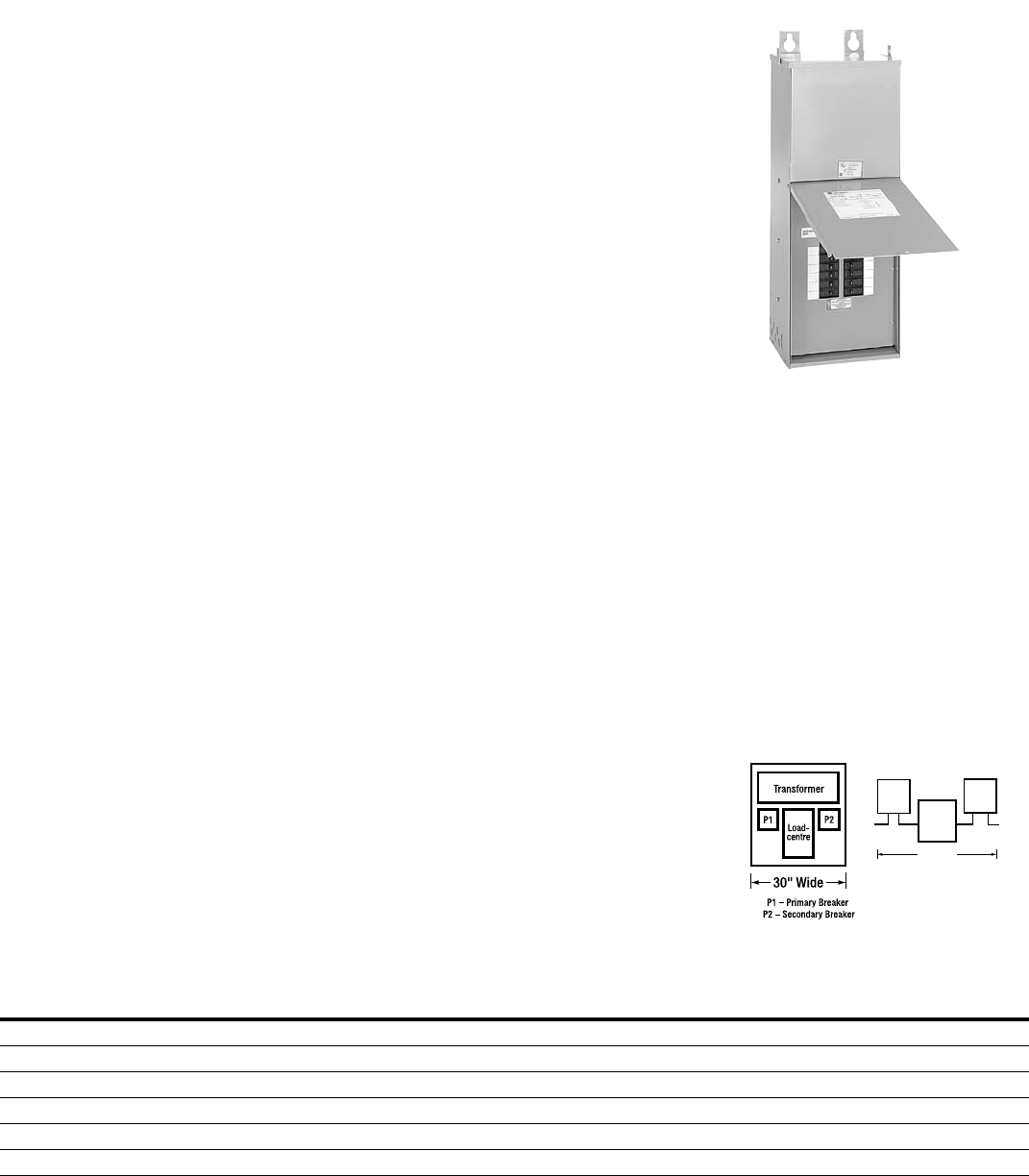

Mini-Power Centres
♦ Distribution transformer, breaker protection, and loadcentre all in one compact package.
♦ Primary and secondary breaker protection via factory installed EHD or FDB type MCCBs.
♦ 18, 25, or 35kAIC Interrupting capacity versions available on select models through special order.
♦ Two styles of interior; one for plug-in or bolt-on (breakers not included).
♦ Loadcentre accommodates up to 24 feeder circuit breakers. (Breakers purchased separately)
♦ Aluminum chassis on plug-in type, copper chassis on bolt-on type, standard ground bar, and enclosure grounded
neutral bar.
♦ All live parts are enclosed.
♦ Hinged, padlockable cover prevents removal.
♦ Enclosure includes grounding terminal.
♦ Type 3R enclosure with baked polymer polyester powder coating is good for indoor or outdoor mounting.
♦ Optional type 3R, 316 grade stainless steel enclosure.
♦ Main circuit breaker barrier provides CSA approval for service entrance applications.
♦ Electrical grade aluminum windings standard on the distribution transformer (copper optional).
♦ Copper windings standard on bolt-on style units.
♦ 185°C Insulation system.
♦ 115°C Winding temperature rise.
♦ Full capacity taps (FCBN) 2-5%.
♦ Resin encapsulated, core-coil assembly (cores grounded with copper lead).
Product Description
Contemporary electrical distribution systems are required to do more in less space while at the same time being cost-effective. Eaton provides a solution to these
requirements with the proven Mini-Power Centre. It occupies considerably less space and can save up to 31 percent of the installation costs normally required when
individual components are used. The solution is possible because a Mini-Power Centre combines three individual components into one NEMA Type 3R enclosure: a main
breaker, an encapsulated Type EP or EPT Dry-Type Transformer, and a secondary distribution loadcentre with main breaker. Interconnecting wiring is completed at the
factory. A Mini-Power Centre is delivered ready for installation. It’s suitable for use as service entrance equipment, too. Mini-Power Centres are used wherever there is a
480V or 600V distribution system and loads requiring 208Y/120V three-phase or 120/240V single-phase.
Typical installations include:
♦Industrial plant assembly lines ♦ Plant expansions ♦ Commercial buildings
♦Test equipment ♦ Temporary power at construction sites ♦ Sewage disposal plants
♦Warehouses ♦ Car washes ♦ Parking lots
The Mini-Power Centre saves you space, time, and money.
A Mini-Power Centre installation takes up only 42% of the space taken
up by a typical installation. A typical installation being comprised of
a separately mounted distribution transformer, disconnect switch,
loadcentre and all associated wiring and connectors.
The installation costs of a Mini-Power Centre are 31% less when compared
with the same typical installation.
Installation
Time To Perform Task(s) a (Hours)
15kVA 15kVA 25kVA 25kVA
Typical Installation Mini-Power Centre Installation Typical Installation Mini-Power Centre Installation
Switch & Fuse Mounting 5 0 5 0
Transformer Layout (remove knockout, etc.) 16 16 24 24
Fasten Transformer to wall 4 0 4 0
Layout Loadcentre, mount and connect source 4 4 6 4
Total Hours: 29 20 39 28
% Time Saved by using a Eaton Mini-Power Centre: 31% 28%
Mini-Power Centres
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 53
Product Selection
Table 71. Single Phase Plug-In Mini-Power Centres
kVA
Primary &
Secondary Voltage
(V) Catalogue Number a
Main Circuit Breaker c
Maximum Number of Feeder
Circuit Breakers Maximum
Amperage
Dimensions b (Inches / mm)
Weight (lbs
/ kg)Primary Secondary 1-Pole 2-Pole 3-Pole Height Width Depth
3 480 to 120/240 P48G11S03P EHD2015 BR215 8 4 - 12 27.5 / 699 12.6 / 320 105 / 47 105 / 47
5 480 to 120/240 P48G11S05P EHD2020 BR225 12 6 - 20 29.5 / 749 12.6 / 320 105 / 47 105 / 47
7.5 480 to 120/240 P48G11S07P EHD2030 BR230 12 6 - 30 29.5 / 749 12.6 / 320 125 / 56 125 / 56
10 480 to 120/240 P48G11S10P EHD2040 BR250 12 6 - 40 38.2 / 970 13.5 / 343 177 / 80 177 / 80
15 480 to 120/240 P48G11S15P EHD2060 BR270 20 10 - 60 38.2 / 970 13.5 / 343 212 / 96 212 / 96
25 480 to 120/240 P48G11S25P EHD2100 BR2125 26 13 - 100 43.9 / 1115 16.4 / 417 373 / 169 373 / 169
5 600 to 120/240 P60G11S05P FDB2015 BR225 12 6 - 20 29.5 / 749 12.6 / 320 105 / 47 105 / 47
7.5 600 to 120/240 P60G11S07P FDB2030 BR230 12 6 - 30 29.5 / 749 12.6 / 320 125 / 56 125 / 56
10 600 to 120/240 P60G11S10P FDB2040 BR250 12 6 - 40 38.2 / 970 13.5 / 343 177 / 80 177 / 80
15 600 to 120/240 P60G11S15P FDB2060 BR270 20 10 - 60 38.2 / 970 13.5 / 343 212 / 96 212 / 96
25 600 to 120/240 P60G11S25P FDB2100 BR2125 26 13 - 100 43.9 / 1115 16.4 / 417 373 / 169 373 / 169
Table 72. Three Phase Plug-In Mini-Power Centres
kVA
Primary &
Secondary Voltage
(V) Catalogue Number a
Main Circuit Breaker c
Maximum Number of Feeder
Circuit Breakers Maximum
Amperage
Dimensions b (Inches / mm)
Weight (lbs
/ kg)Primary Secondary 1-Pole 2-Pole 3-Pole Height Width Depth
15 480 to 120/208 P48G28T15P EHD3040 BR350 18 9 6 40 36.1 / 917 28.8 / 732 320 / 145 320 / 145
22.5 480 to 120/208 P48G28T21P EHD3070 BR370 18 9 6 60 40.9 / 1039 29.9 / 759 565 / 256 565 / 256
30 480 to 120/208 P48G28T30P EHD3090 BR3100 24 12 8 80 41.9 / 1064 29.9 / 759 635 / 288 635 / 288
15 600 to 120/208 P60G28T15P FDB3030 BR350 18 9 6 40 36.1 / 917 28.8 / 732 320 / 145 320 / 145
22.5 600 to 120/208 P60G28T21P FDB3050 BR370 18 9 6 60 40.9 / 1039 29.9 / 759 565 / 256 565 / 256
30 600 to 120/208 P60G28T30P FDB3070 BR3100 24 12 8 80 41.9 / 1064 29.9 / 759 635 / 288 635 / 288
a For a primary main circuit breaker interrupting capacity greater than 10kAIC add the following suffixes to the catalogue number; for 18kAIC add “F”, for 25kAIC add “H”, and for 35kAIC add “C”.
b Not for construction purposes.
c Main circuit breakers fixed only. No substitutes.
d Feeder circuit breakers not included. Uses Eaton Type BR circuit breakers.
Note: For price and delivery on a unit with copper transformer windings or 316 grade stainless steel enclosure contact your local Eaton sales representative or our Customer Service centre at 1-800-268-3578.
Plug-In Mini-Power Centres
Plug-In
54 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Product Selection
Table 73. Single Phase Bolt-On Mini-Power Centres
kVA
Primary &
Secondary Voltage
(V) Catalogue Number
Main Circuit Breaker b
Maximum Number of Feeder
Circuit Breakers c d
Maximum
Amperage
Dimensions a (Inches / mm) Weight (lbs
/ kg)Primary Secondary 1-Pole 2-Pole 3-Pole Height Width Depth
3 480 to 120/240 P48G11S03CUB EHD2015L BAB2015 12 6 - 12 33.2 / 845 12.6 / 320 9.7 / 245 105 / 47
5 480 to 120/240 P48G11S05CUB EHD2020L BAB2025 18 9 - 20 36.1 / 918 12.6 / 320 9.7 / 245 110 / 50
7.5 480 to 120/240 P48G11S07CUB EHD2030L BAB2030 18 9 - 30 36.1 / 918 12.6 / 320 9.7 / 245 110 / 50
10 480 to 120/240 P48G11S10CUB EHD2040L BAB2050 18 9 - 40 40.9 / 1038 13.5 / 343 11.8 / 300 180 / 82
15 480 to 120/240 P48G11S15CUB EHD2060L BAB2070 24 12 - 60 43.9 / 1115 15 / 380 11.8 / 300 215 / 98
25 480 to 120/240 P48G11S25CUB EHD2100L BAB2125 30 15 - 100 43.4 / 1102 20.4 / 518 14.6 / 370 385 / 175
3 600 to 120/240 P60G11S03CUB FDB2015L BAB2015 12 6 12 33.2 / 845 12.6 / 320 9.7 / 245 105 / 47
5 600 to 120/240 P60G11S05CUB FDB2020L BAB2025 18 9 - 20 36.1 / 918 12.6 / 320 9.7 / 245 110 / 50
7.5 600 to 120/240 P60G11S07CUB FDB2030L BAB2030 18 9 - 30 36.1 / 918 12.6 / 320 9.7 / 245 110 / 50
10 600 to 120/240 P60G11S10CUB FDB2040L BAB2050 18 9 - 40 40.9 / 1038 13.5 / 343 11.8 / 300 180 / 82
15 600 to 120/240 P60G11S15CUB FDB2060L BAB2070 24 12 - 60 43.9 / 1115 15 / 380 11.8 / 300 215 / 98
25 600 to 120/240 P60G11S25CUB FDB2100L BAB2125 30 15 - 100 43.4 / 1102 20.4 / 518 14.6 / 370 385 / 175
Table 74. Three Phase Bolt-On Mini-Power Centres
kVA
Primary &
Secondary Voltage
(V) Catalogue Number
Main Circuit Breaker b
Maximum Number of Feeder
Circuit Breakers c d
Maximum
Amperage
Dimensions a (Inches / mm) Weight (lbs
/ kg)Primary Secondary 1-Pole 2-Pole 3-Pole Height Width Depth
15 480 to 120/208 P48G28T15CUB EHD3040L BAB3050H 18 9 6 40 36.1 / 917 28.7 / 730 9.4 / 238 320 / 148
22.5 480 to 120/208 P48G28T21CUB EHD3070L BAB3070H 18 9 6 60 40.9 / 1038 29.9 / 759 13.6 / 346 565 / 257
30 480 to 120/208 P48G28T30CUB EHD3090L BAB3100H 24 12 8 80 41.9 / 1063 29.9 / 759 13.6 / 346 635 / 288
15 600 to 120/208 P60G28T15CUB FDB3030 BAB3050H 18 9 6 40 36.1 / 917 28.7 / 730 9.4 / 238 320 / 148
22.5 600 to 120/208 P60G28T21CUB FDB3050 BAB3070H 18 9 6 60 40.9 / 1038 29.9 / 759 13.6 / 346 565 / 257
30 600 to 120/208 P60G28T30CUB FDB3070 BAB3100H 24 12 8 80 41.9 / 1063 29.9 / 759 13.6 / 346 635 / 288
a Not for construction purposes.
b Main circuit breakers fixed only. No substitutes.
c Feeder circuit breakers not included. Uses Eaton Type BAB circuit breakers.
d Combinations can be selected.
Bolt-On Mini-Power Centres
Bolt-On
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 55
Residential Fuse Panel Inserts a
♦ Convenient and economical option to completely replacing an entire fuse panel assembly.
♦ Original fuse panel tub and wiring remains in place and only the fuse panel trim and interior is removed and replaced.
♦ 16 and 24 circuit breaker interiors designed to fit any manufacturers’ fuse panel or discontinued design circuit breaker panel.
♦ Custom trim and door oversized to ensure fit with existing tub.
♦ Circuit breaker interior replacement eliminates the possibility of improperly sized amperage protection.
♦ No more loose fuses causing arcing and damage to the panel or wiring.
♦ CSA certified to mount into any existing box under file LL264-222.
♦ Can be mounted in any orientation as defined by the existing fuse panel tub orientation.
♦ Accepts plug-in type BR, DNPL, or GFCB circuit breakers. (Circuit breakers sold separately. Refer to pages 13 - 16 for selection)
♦ Trim comes complete with hinged door, non-locking spring latch, clear plastic card holder, and circuit directory card.
♦ Tin plated aluminum bus bars.
Product Description
Fuses and Fuse Panels were designed decades ago, to prevent the overload of circuit wiring that could lead to fires caused by overloaded electrical circuit
connections and / or short circuits. Records show however, that problems of fire and smoke inhalation are the more serious causes of death or injury.
Since early 1960’s, technology has allowed a tremendous increase in the number and use of appliances, tools, and control systems, many of which are
automatically controlled and cycle on and off. We now know that a cycling load will actually cause a plug (screw-on-type) fuse to loosen in its holder (that explains
why you can always find one or two fuses that can be tightened a quarter turn). Loose connections such as these develop heat, and in turn increase the risk of fire.
Small overloads can be absorbed by the margin of safety built into CSA certified devices. However, prolonged overloads or loose fuses will cause arcing and
ultimately, melting of the connections in either the panel or wiring, wherever the weakest link may be.
Eaton has designed a low cost method of replacing Fuse Panels with modern Circuit Breaker Panels. This method eliminates the need for cutting, re-plastering and
repainting the walls around the old panel.
Another risk with the old fuse panel design was the ease with which incorrect fuses could be used or changed without realization of the risks involved.
To eliminate these potential hazards Eaton has a new circuit breaker interior and trim kit that will quickly upgrade the existing installation to today’s electrical
standards and needs. An average upgrade takes one hour and thus creates the minimum of inconvenience to the homeowner/occupant.
Sample Specification
• Supply and install a new circuit breaker interior to replace existing plug fuse panel interior or out of date circuit breaker interior in each apartment or
condominium.
• Interior to be 16 or 24 circuit, rated 100A and 120/240V, designed in a single row breaker arrangement for fitting into existing recessed electrical panels.
• Supply and install new Trim & Door Assembly slightly larger then discarded fuse trim to minimize any requirements for patching or repainting.
• Bus bars shall be tin plated aluminum suitable for plug-in circuit breakers.
• Supply and install a Trim and Door Assembly with latch, to protect the circuit breaker toggle handles.
• Inserts must be CSA certified for mounting in any position, for ease in connecting to existing wiring.
• Install circuit breakers with ratings as indicated in specifications or drawings.
• Interiors to be mounted with directions template and hardware supplied by Eaton.
• Inserts, Trim & Door Assembly and circuit breakers, shall be manufactured by Eaton.
• Provide a Circuit Identification Card, mounted under clear plastic on the inside of the door.
a Not for use as service entrance equipment..
Residential Fuse Panel Inserts
56 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Residential Fuse Panel Insert Interiors
♦ 100A Single phase 3 wire 120/240VAC.
♦ 16 and 24 circuit breaker capacity. c
♦ CSA certified to mount into any existing box under file LL264-222.
♦ Accepts plug-in type BR and DNPL circuit breakers. a c
♦ Tin plated aluminum bus bars.
♦ Neutral available with 16 or 24 Cu/Al terminals.
♦ Main and neutral lugs located at the same end.
♦ All terminals accept #14-3AWG cabling.
Product Selection
Table 75. 3 Wire 120/240VAC Fuse Panel Insert Interiors
Catalogue Number
Drilling Template
Catalogue Number b
Amperage Rating
(A) Voltage (V)
Number of Installable Circuit Breakers
Bus Material
Neutral
Material Wire Size Range Cu/Al1” Spaces 1/2” Spaces
CQLP8100 CSABP4683B 100 120/240 8 16 Aluminum Aluminum #14-3 AWG
CQLP12100 CSABP4734B 100 120/240 12 24 Aluminum Aluminum #14-3 AWG
a Refer to pages 13-16 for plug-in circuit breaker selection.
b We suggest the use of templates to ensure proper sizing for installation.
c Filler plates for unused fuse panel insert circuit breaker installation locations can be ordered as BRFP (package of 24).
Residential Fuse Panel Inserts
Insert Interiors
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 57
Residential Fuse Panel Insert Trims
♦ Doors are die formed with sloping sides and rounded corners and permanently mounted to the trim.
♦ Semi concealed hinges. a
♦ Includes circuit directory card and self adhesive clear plastic directory holder.
♦ Painted ASA61 light grey baked on enamel.
♦ Mounting hardware included. c
♦ Trims are custom sized larger than the existing trim and door.
♦ Mounting holes located to line up with existing box holes. b
Product Selection
Table 76. Fuse Panel Insert Trims
Original Manufacturer
Fuse Panel
Catalogue Number
Box Dimensions Replacement Trim
Catalogue Number
Trim Size (Inches) Replacement Interior
Catalogue Number
Trim Mounting Holes (Inches)
Height Width Depth Height Width Height Width
Amalgamated 4112 16-1/8 8-1/2 2-15/16 QLPT16D 18-1/4 9-3/4 CQLP8100 16-1/6 4
Amalgamated 4116 19-1/2 8-1/2 2-15/16 QLPT19D 20-7/8 9-3/4 CQLP8100 18-11/16 4
Amalgamated 4120 22-7/8 8-1/2 2-15/16 QLPT22AD 25 10-1/2 CQLP12100 d22-1/4 6
Amalgamated 4208 16-1/8 8-1/2 2-15/16 QLPT16AD 18-1/4 10-5/16 CQLP8100 15-1/2 6
Amalgamated 4212 19-1/2 8-1/2 2-15/16 QLPT20AD 20-7/8 9-3/4 CQLP8100 18-11/16 6
Amalgamated 4216 22-7/8 8-1/2 2-15/16 QLPT22AD 25 10-1/2 CQLP12100 d22-1/4 6
Amalgamated 4220 24-1/8 8-1/2 2-15/16 QLPT24D 26 9-3/4 CQLP12100 d23-13/16 4
Amalgamated 4312 22-7/8 8-1/2 2-15/16 QLPT22AD 25 10-1/2 CQLP12100 d22-1/4 6
CEB NHP10-636-3 e24 10 3 QLPT24LD 26 12 CQLP12100 d23-13/16 4
CEB NHP12-60 20 7-3/4 3 QLPT20D 21-3/4 9-3/4 CQLP12100 d19-9/16 4
CEB NHP12-633 23 7-3/4 3 QLPT24D 26 9-3/4 CQLP12100 d23-13/16 4
CEB NHP4-632 16-1/4 7-3/4 3 QLPT16D 18-1/4 9-3/4 CQLP8100 16-1/6 4
CEB NHP6-633 20 7-3/4 3 QLPT19D 20-7/8 9-3/4 CQLP8100 18-11/16 4
CEB NHP6-636-4 24 7-3/4 3 QLPT24D 26 9-3/4 CQLP12100 d23-13/16 4
CEB NHP8-60 16-1/8 7-3/4 3 QLPT16D 18-1/4 9-3/4 CQLP8100 16-1/6 4
CEB NHP8-635-3 23 7-3/4 3 QLPT24D 26 9-3/4 CQLP12100 d23-13/16 4
Taylor (CrouseHinds) NHP6-30-60 21 7-3/8 3 QLPT20D 21-3/4 9-3/4 CQLP12100 d19-9/16 4
Taylor (CrouseHinds) NHP20-1231 24-1/2 9-1/2 3 QLPT24D 26 9-3/4 CQLP12100 d23-13/16 4
Taylor (CrouseHinds) NHP20-0821-6 24-1/2 9-1/2 3 QLPT24D 26 9-3/4 CQLP12100 d23-13/16 4
Taylor (CrouseHinds) NHP12B-1000-2 17-1/8 9-1/2 3 QLPT16AD 18-1/8 10-5/16 CQLP8100 15-1/2 6
Taylor (CrouseHinds) NHP10-0401-4 17-1/8 9-1/2 3 QLPT16AD 18-1/8 10-5/16 CQLP8100 15-1/2 6
Taylor (CrouseHinds) NHP10-0601-2 17-1/8 9-1/2 3 QLPT16AD 18-1/8 10-5/16 CQLP8100 15-1/2 6
Taylor (CrouseHinds) NHP10-0611 17-1/8 9-1/2 3 QLPT16AD 18-1/8 10-5/16 CQLP8100 15-1/2 6
Taylor (CrouseHinds) NHP10-0801 17-1/8 9-1/2 3 QLPT16AD 18-1/8 10-5/16 CQLP8100 15-1/2 6
Taylor (CrouseHinds) NHP12-0811 19-1/4 9-1/2 3 QLPT22AD 25 10-1/2 CQLP12100 d22-1/4 6
Taylor (CrouseHinds) NHP14-0801-4 19-1/4 9-1/2 3 QLPT22AD 25 10-1/2 CQLP12100 d22-1/4 6
Taylor (CrouseHinds) NHP14-0621-2 19-1/4 9-1/2 3 QLPT22AD 25 10-1/2 CQLP12100 d22-1/4 6
a If the main service entrance is bottom entry the door hinges left. If it is top entry then the door hinges right.
b Measure the existing box holes locations as they may be part of the end walls, side walls, or tapped into a box flange.
c The hardware supplied will accommodate boxes that are mounted up to 1/2” too deep or equal to 3-1/2” net depth.
d Panel insert CQLP8100 can also be used with this size trim.
e For box sizes either 26” or 27-1/2” high no insert or trim is available..
Residential Fuse Panel Inserts
Trims
58 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Residential Fuse Panel Insert Data Information Form
(Required to replace a Plug Fuse Panel, with a Circuit Breaker Interior, and retain the existing Fuse Box).
Project _____________________________________________________________ Location __________________________________________________
Engineer ___________________________________________________________________Existing Catalogue Number _____________________________
Manufacturer
p Canadian Electric Box and Stamping
p CEB Ltd.
p Sylvania
p Amalgamated
p Taylor
p Crouse-Hinds
p ________________
Mains Capacity p 100A or ____________
Mains Cable Type p Copper p Aluminum
Main Cable Gauge #8 #6 #4 #3 #2 (if identifiable)
Branch Cable Type p Copper p Aluminum
Up Stream Protection
Circuit Breakers p 50A p 60A p 70A p 100A
Fused Switches p 60A p 100A
Every Floor p Every third floor

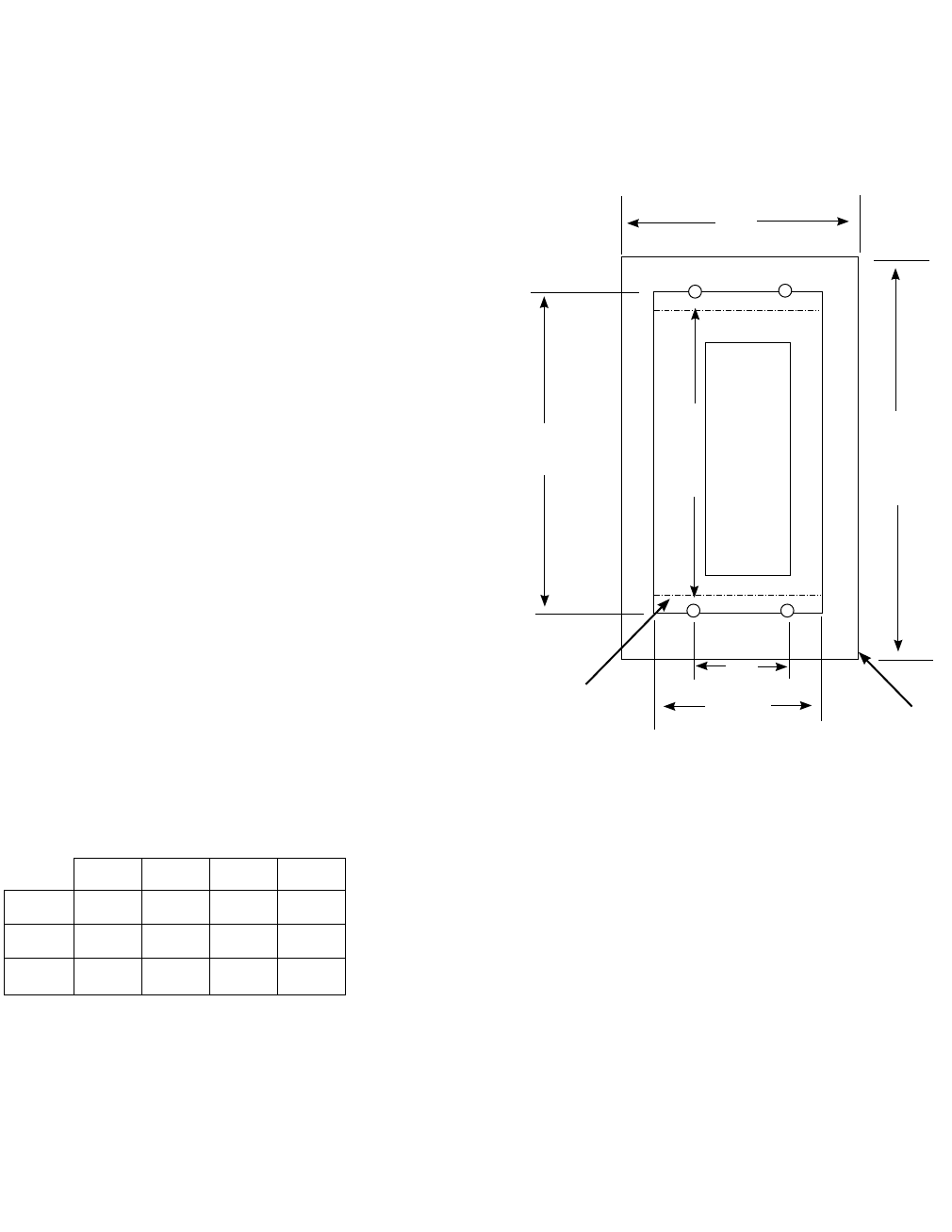

Box Depth
Inside Box
Flanged
Edge of Box?
Inside Box
Existing Fuse Panel Circuits
1 Pole 120 V Qty. _________
2 Pole Pullouts (30A max.)* Qty. _________
2 Pole Pullouts (60A max.) Qty. _________
* CEB has cartridge fuses, Amalgamated & Taylor have Plug fuses.
15A 20A 30A 40A
1 Pole
2 Pole
GFCB
Required Circuits in replacement breaker Interior.
Installation Problems Foreseen: _____________________________________________________________________________________________________
_____________________________________________________________________________________________________________________________
Information Supplied By: __________________________________________________________________________ Date: __________________________
Residential Fuse Panel Inserts
Data Information Form
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 59
Type BQL b
♦ 10,000 / 22,000 Amperes Interrupting Capacity at 120/240VAC.
♦ Captive line screw included (#2 Robertson/Slot).
Product Selection
Table 77. Single and Multi-Pole Bolt-On Classic Replacement Circuit Breakers
Ampere Rating
Wire Size Range
(Cu/AL 60ºC or 75ºC)
(AWG)
1-Pole 120/240VAC 1-Pole 120/240VAC 2-Pole 120/240VAC 3-Pole 120/240VAC 3-Pole 120/240VAC
10kAIC 22kAIC 10kAIC 10kAIC 22kAIC
Catalogue Number Catalogue Number Catalogue Number Catalogue Number Catalogue Number
15 #14 - 8 BQL15 aHBQL15 BQL215 BQL315 HBQL315
20 #14 - 8 BQL20 aHBQL20 BQL220 BQL320 —
25 #14 - 8 BQL25 HBQL25 BQL225 — —
30 #14 - 8 BQL30 HBQL30 BQL230 BQL330 HBQL330
40 #14 - 4 BQL40 HBQL40 BQL240 BQL340 —
50 #14 - 4 BQL50 HBQL50 BQL250 BQL350 HBQL350
60 #8 - 2/0 BQL60 HBQL60 BQL260 BQL360 HBQL360
70 #8 - 2/0 — — BQL270 BQL370 HBQL370
90 #8 - 2/0 — — BQL290 BQL390 HBQL390
100 #8 - 2/0 — — BQL2100 BQL3100 HBQL3100
125 #8 - 2/0 — — BQL2125 — —
135 #8 - 2/0 — — BQL2135 — —
Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces Requires Three 1-Inch (25.4mm) Spaces
Type BQL Duplex™ and Quadplex™ b
♦ 10,000 Amperes Interrupting Capacity at 120/240VAC.
♦ Captive line screw included (#2 Robertson/Slot).
Product Selection
Table 78. Type BQL Duplex™ and Quadplex™ Bolt-On Classic Replacement Circuit Breakers
Duplex™ Quadplex™ Independent Trip Quadplex™ Independent Trip
Two Single Pole Circuits Two Single Pole Circuits and One Double Pole Circuit Two Double Pole Circuits
120VAC
Catalogue Number
120VAC 120/240VAC 120VAC
Catalogue
Number
120/240VAC 120/240VAC
Catalogue
Number
Wire Size Range
(Cu/AL 60ºC or 75ºC)
(AWG)Ampere Rating
Ampere Rating Ampere Rating Ampere Rating Ampere Rating Ampere Rating
Outer Left (1 Pole) Centre (2 Poles) Outer Right (1 Pole)
Outer Left & Right
(2 Poles) Centre (2 Poles)
15-15 BQLT-15 a15 15 15 BQLT-15-215 15 15 BQLT-215-215 #14 - 4
20-20 BQLT-20 a15 20 15 BQLT-15-220 20 20 BQLT-220-220 #14 - 4
30-30 BQLT-30 a15 25 15 BQLT-15-225 15 30 BQLT-215-230 #14 - 4
— — 15 30 15 BQLT-15-230 15 40 BQLT-215-240 #14 - 4
— — 15 40 15 BQLT-15-240 — — — #14 - 4
Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces Requires Two 1-Inch (25.4mm) Spaces
a Switching duty rated (SWD).
b HACR rated.
c Internal common trip.
Replacement Classic Circuit Breakers
Bolt-On Type BQL Single, Multi-Pole, Duplex™, & Quadplex™
60 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Type BQL Ground Fault Circuit Breakers
♦ 10,000 Amperes Interrupting Capacity at 120/240VAC
♦ 5mA “People Protection”.
Product Selection
Table 79. 5mA Single and Two Pole Bolt-On Ground Fault Circuit Breakers
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
1-Pole 120VAC 2-Pole 120/240VAC
10kAIC 10kAIC
Catalogue Number Catalogue Number
15 #14 - 8 BQGF15 BQGF215
20 #14 - 8 BQGF20 BQGF220
30 #14 - 8 BQGF30 BQGF230
40 #14 - 8 — BQGF240
50 #14 - 8 — BQGF250
Requires One 1-Inch (25.4mm) Space Requires Two 1-Inch (25.4mm) Spaces
Type BQL Non-Automatic Circuit Breakers (Moulded Case Switches)
♦ 240VAC.
♦ Two pole and three pole versions.
Product Selection
Table 80. Two and Three Pole Bolt-On Non-Automatic Circuit Breakers (Moulded Case Switches)
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
2-Pole 240VAC 3-Pole 240VAC
Catalogue Number Catalogue Number
60 #8 - 1 Cu #8 - 1/0 Al BQL260NA BQL360NA
Requires Two 1-Inch (25.4mm) Spaces Requires Three 1-Inch (25.4mm) Spaces
Ground Fault Circuit Interrupter Non-Automatic Circuit Breaker (Moulded Case Switch)
a When the Canadian Electrical Code requires the use of an unfused disconnect device as a local isolation switch then a circuit breaker enclosure may be used in conjunction with a moulded case switch (a.k.a.
a non-automatic circuit breaker). For example with an airconditioning unit. The protective device for these applications is located upstream.
Replacement Classic Circuit Breakers
Bolt-On Type BQL Ground Fault & Moulded Case Switches
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 61
Type QBH
♦ 120/240VAC
♦ 3/4” Form factor.
♦ Designed to fit the classic CEB, Sylvania or Commander Electric design bolt-on loadcentres.
♦ Suitable for loadcentres, lighting & distribution panelboards, and meter centres.
♦ Silver Tungsten contacts with wiping action to prevent carbon buildup on the contact surface.
♦ Handle provides clear indication of ON/OFF/TRIPPED position.
♦ Quick-make / quick-break mechanism provides tease-proof operation.
♦ Internal common trip mechanism on two pole circuit breakers.
♦ Each breaker is electronically calibrated for 40°C.
♦ Compression moulded housing and handle for durability and service.
Product Selection
Table 81. Single and Two Pole Bolt-On Classic Replacement Circuit Breakers
Ampere Rating
Wire Size Range
60°C or 75°C (AWG)
1-Pole 120VAC 2-Pole 120/240VAC
10kAIC 10kAIC
Catalogue Number Catalogue Number
15 #14 - 10 CU, #12 - 10 AL QBH15 QBH215
20 #14 - 10 CU, #12 - 10 AL QBH20 QBH220
25 #14 - 10 CU, #12 - 10 AL QBH25 QBH225
30 #10 - 2 CU, #10 - 1 AL QBH30 QBH230
40 #10 - 2 CU, #10 - 1 AL QBH40 QBH240
50 #10 - 2 CU, #10 - 1 AL QBH50 QBH250
60 #10 - 2 CU, #10 - 1 AL QBH60 QBH260
70 #10 - 2 CU, #10 - 1 AL — QBH270
90 #10 - 2 CU, #10 - 1 AL — QBH290
100 #10 - 2 CU, #10 - 1 AL — QBH2100
125 #10 - 1 CU — QBH2125
Requires One 3/4-Inch (19.1mm) Space Requires Two 3/4-Inch (19.1mm) Spaces
Type QBH Accessories
Product Selection
Table 82. Type QBH Classic Bolt-On Circuit Breaker Accessories
Description Catalogue Number
Filler Plate (Package of 50) QBF
Handle Tie QBHT
Replacement Classic Circuit Breakers
Bolt-On Type QBH Single, Multi-Pole, & Accessories
62 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Type BJ b
♦ Main circuit breakers for classic Westinghouse NovaLine loadcentres
♦ 10,000 Amperes Interrupting Capacity at 120/240VAC
Product Selection
Table 83. Type BJ Two and Three Pole Plug-In Classic Replacement Circuit Breakers
Ampere Rating
Wire Size Range
Cu/Al 60°C or 75°C
(AWG)
2-Pole 120/240VAC 3-Pole 120/240VAC
1 per Shelf Carton 1 per Shelf Carton
10kAIC 10kAIC
Catalogue Number Catalogue Number
125 #2 - 300MCM BJ2125 BJ3125
150 #2 - 300MCM BJ2150 BJ3150
175 #2 - 300MCM BJ2175 BJ3175
200 #2 - 300MCM BJ2200 BJ3200
Requires Four a 1-Inch (25.4mm) Spaces Requires Six c 1-Inch (25.4mm) Spaces
a When mounted the type BJ circuit breakers span both sides of the bus bar occupying an equivalent number of pole spaces on both the left and right side of the loadcentre. For example a two pole type BJ
circuit breaker occupies 2 pole spaces on the left and the same number of spaces on the right thus requiring four 1-inch spaces.
b BJ breakers are also approved as branch circuit breakers on CPM/CPL panels 200A and greater.
c When mounted the type BJ circuit breakers span both sides of the bus bar occupying an equivalent number of pole spaces on both the left and right side of the loadcentre. For example a three pole type BJ
circuit breaker occupies 3 pole spaces on the left and the same number of spaces on the right thus requiring six 1-inch spaces.
Replacement Classic Circuit Breakers
Plug-In Type BJ Two & Three Pole
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 63

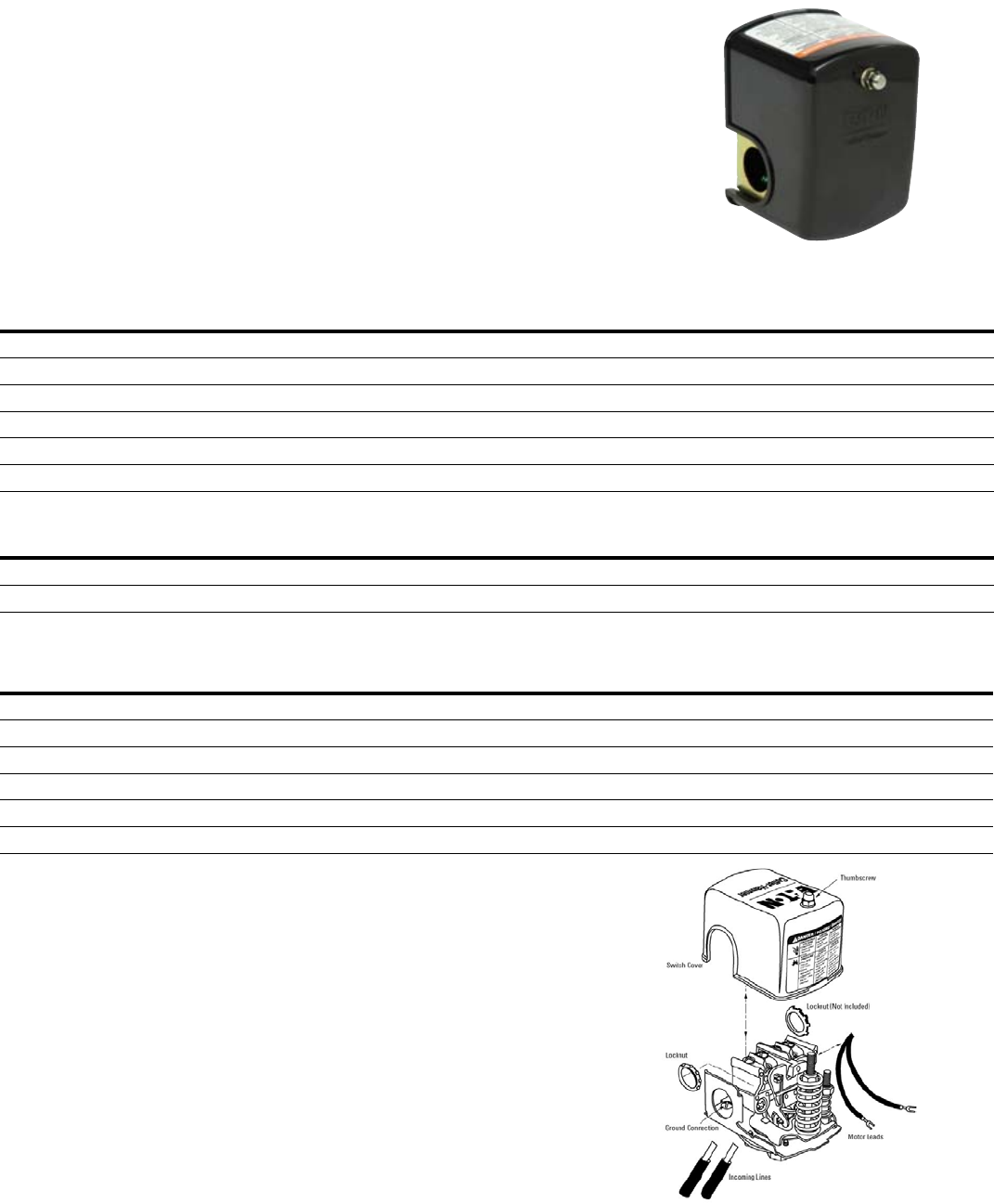

Pressure Switches
♦ Ensures smooth delivery of water into your home.
♦ Commercial, residential, or agricultural applications.
♦ Can be used on all types of pumps.
♦ Pressure ratings 20 - 40PSI, 30 - 50PSI, and 40 - 60PSI.
♦ Adjustable cut-in and cut-out pressure.
♦ Easy installation.
♦ CSA® certified and UL® listed.
♦ Pulsation plug models prevent pump cycling due to water surges.
♦ Low pressure cut-off models prevent pump burn out due to lack of well water (10PSI below turn on pressure).
♦ 3 Year product warranty.
Product Selection
Table 84. Pressure Switches
Description Enclosure Style Catalogue Number
20-40 PSI Pressure Switch NEMA® 1 CHWPS2040D
20-40 PSI Pressure Switch with Pulsation Plug NEMA® 1 CHWPS2040DP
20-40 PSI Pressure Switch with Low Pressure Cut-Off NEMA® 1 CHWPS2040DL
30-50 PSI Pressure Switch NEMA® 1 CHWPS3050D
30-50 PSI Pressure Switch with Low Pressure Cut-Off NEMA® 1 CHWPS3050DL
40-60 PSI Pressure Switch NEMA® 1 CHWPS4060D
Table 85. Pressure Switch Ratings
Phase Voltage (AC) Amperage Horsepower
Single 115 20 1.5
Handle Tie 230 12 2.0
Table 86. Pressure Switch Cross-Reference
Description
Eaton Catalogue
Number
Square D® Catalogue
Number
Flotec® Catalogue
Number
Water Ace® Catalogue
Number
Furnas® Catalogue
Number
20-40 PSI Pressure Switch CHWPS2040D 9013FSG2J20 — 15767A510 69WA4Z2040
20-40 PSI Pressure Switch with Pulsation Plug CHWPS2040DP 9013FSG2J20P — — 69WA4Z2040B
20-40 PSI Pressure Switch with Low Pressure Cut-Off CHWPS2040DL 9013FSG2J20M4 — — 69WEC
30-50 PSI Pressure Switch CHWPS3050D 9013FSG2J21 TC2151 15760A501 69WA4
30-50 PSI Pressure Switch with Low Pressure Cut-Off CHWPS3050DL 9013FSG2J21M4 FP217-1140 19180A501 —
40-60 PSI Pressure Switch CHWPS4060D 9013FSG2J24 TC2153 — 69WA4Z4060
Pressure Switch
CSA is a registered trademark of the Canadian Standards Association.
UL is a federally registered trademark of Underwriters Laboratories Inc.
NEMA Is the registered trademark and service mark of the National Electrical Manufacturers Association.
Square D is a federally registered trademark of Schneider Electric.
Flotec is a registered trademark of Flotec.
Furnas is a registered trademark of Siemens Energy and Automation, Inc.
Water Ace is a registered trademark of the Pentair Pump Group.
Pressure Switches
64 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
Index
Symbols
1224INT125B ............................... 21
1624INT125B ............................... 21
1SL150PCO .................................. 47
1SL300PCO .................................. 47
1SL500PCO .................................. 47
1SL502 ........................................ 48
1SL502NV .................................... 49
1SL502NVE .................................. 49
1SL502S ...................................... 48
1SL502VE .................................... 49
1SL602 ........................................ 48
1SL602NV .................................... 49
1SL602NVE .................................. 49
1SL602S ...................................... 48
1SL602VE .................................... 49
1SL702 ........................................ 48
1SL702NV .................................... 49
1SL702NVE .................................. 49
1SL702S ...................................... 48
1SL702VE .................................... 49
2024INT125B ............................... 21
2424INT125B ............................... 21
2SL150PCO .................................. 47
2SL300PCO .................................. 47
2SL500PCO .................................. 47
2SL502 ........................................ 48
2SL502NV .................................... 49
2SL502NVE .................................. 49
2SL502S ...................................... 48
2SL502VE .................................... 49
2SL602 ........................................ 48
2SL602NV .................................... 49
2SL602NVE .................................. 49
2SL602S ...................................... 48
2SL602VE .................................... 49
2SL702 ........................................ 48
2SL702NV .................................... 49
2SL702NVE .................................. 49
2SL702S ...................................... 48
2SL702VE .................................... 49
2SL706S ...................................... 48
3BRS225 ...................................... 11
3BRS400 ...................................... 11
3BRSF150 .................................... 11
3CBL118 ...................................... 35
3CBL118CU .................................. 36
3CBL130 ...................................... 35
3CBL130CU .................................. 36
3CBL142 ...................................... 35
3CBL142CU .................................. 36
3CBL218 ...................................... 35
3CBL230 ...................................... 35
3CBL230CU .................................. 36
3CBL242 ...................................... 35
3CBL242CU .................................. 36
3CBM118 ..................................... 33
3CBM118CU ................................ 34
3CBM130 ..................................... 33
3CBM130CU ................................ 34
3CBM142 ..................................... 33
3CBM142CU ................................ 34
3CBM218 ..................................... 33
3CBM230 ..................................... 33
3CBM230CU ................................ 34
3CBM242 ..................................... 33
3CBSF100 .................................... 40
3CBSF225 .................................... 40
3CCPL103 ...................................... 8
3CPL112 ......................................... 8
3CPL112COV ................................ 11
3CPL124 ......................................... 8
3CPL124COV ................................ 11
3CPL130 ......................................... 8
3CPL130COV ................................ 11
3CPL136 ......................................... 8
3CPL136COV ................................ 11
3CPL218 ......................................... 8
3CPL218COV ................................ 11
3CPL224 ......................................... 8
3CPL224COV ................................ 11
3CPL230 ......................................... 8
3CPL230COV ................................ 11
3CPL242 ......................................... 8
3CPL242COV ................................ 11
3CPL442 ......................................... 8
3CPM112 ....................................... 4
3CPM112COV .............................. 11
3CPM130 ....................................... 4
3CPM130COV .............................. 11
3CPM230 ....................................... 4
3CPM230COV .............................. 11
3CPM442 ....................................... 4
48INT125B ................................... 21
52-3125-5 .................................... 11
816INT125B ................................. 21
B
BAB1010 ...................................... 37
BAB1015 ...................................... 37
BAB1015D ................................... 37
BAB1020 ...................................... 37
BAB1020D ................................... 37
BAB1025 ...................................... 37
BAB1030 ...................................... 37
BAB1040 37
BAB1050 ...................................... 37
BAB1060 ...................................... 37
BAB1070 ...................................... 37
BAB2015 ...................................... 37
BAB2020 ...................................... 37
BAB2030 ...................................... 37
BAB2040 ...................................... 37
BAB2050 ...................................... 37
BAB2060 ...................................... 37
BAB2070 ...................................... 37
BAB2090 ...................................... 37
BAB2100 ...................................... 37
BAB2125 ...................................... 37
BAB3015H ................................... 37
BAB3020H ................................... 37
BAB3030H ................................... 37
BAB3040H ................................... 37
BAB3050H ................................... 37
BAB3060H ................................... 37
BAB3070H ................................... 37
BAB3090H ................................... 37
BAB3100H ................................... 37
BHGW-10 .................................... 20
BHLW-10 ..................................... 20
BHLW1-10 ................................... 20
BHLW2-10 ................................... 20
BJ2125 ........................................ 62
BJ2150 ........................................ 62
BJ2175 ........................................ 62
BJ2200 ........................................ 62
BJ3125 ........................................ 62
BJ3150 ........................................ 62
BJ3175 ........................................ 62
BJ3200 ........................................ 62
BP16 ........................................ 14
BP18 ........................................ 14
BP2 ........................................ 14
BP21 ........................................ 14
BP23 ........................................ 14
BP24 ........................................ 14
BP27 ........................................ 14
BP31 ........................................ 14
BP3110C ...................................... 11
BP32 ........................................ 14
BP4 ........................................ 14
BP41 ........................................ 14
BP54 ........................................ 14
BQGF15
........................................ 60
BQGF20
........................................ 60
BQGF215 ...................................... 60
BQGF220 ...................................... 60
BQGF230 ...................................... 60
BQGF240 ...................................... 60
BQGF250 ...................................... 60
BQGF30
........................................ 60
BQHT-10 ...................................... 20
BQL-10 ........................................ 40
BQL15 ........................................ 59
BQL20 ........................................ 59
BQL2100 ...................................... 59
BQL2125 ...................................... 59
BQL2135 ...................................... 59
BQL215 ........................................ 59
BQL220 ........................................ 59
BQL225 ........................................ 59
BQL230 ........................................ 59
BQL240 ........................................ 59
BQL25 ........................................ 59
BQL250 ........................................ 59
BQL260 ........................................ 59
BQL260NA ................................... 60
BQL270 ........................................ 59
BQL290 ........................................ 59
BQL30 ........................................ 59
BQL3100 ...................................... 59
BQL315 ........................................ 59
BQL320 ........................................ 59
BQL330 ........................................ 59
BQL340 ........................................ 59
BQL350 ........................................ 59
BQL360 ........................................ 59
BQL360NA ................................... 60
BQL370 ........................................ 59
BQL390 ........................................ 59
BQL40 ........................................ 59
BQL50 ........................................ 59
BQL60 ........................................ 59
BQLT-15 ....................................... 59
BQLT-15-215 ................................ 59
BQLT-15-220 ................................ 59
BQLT-15-225 ................................ 59
BQLT-15-230 ................................ 59
BQLT-15-240 ................................ 59
BQLT-20 ....................................... 59
BQLT-215-215 .............................. 59
BQLT-215-230 .............................. 59
BQLT-215-240 .............................. 59
BQLT-220-220 .............................. 59
BQLT-30 ....................................... 59
BR115 ........................................ 13
BR115AF ...................................... 15
BR115E ........................................ 17
BR120 ........................................ 13
BR120AF ...................................... 15
BR120E ........................................ 17
BR125 ........................................ 13
BR125E ........................................ 17
BR130 ........................................ 13
BR130E ........................................ 17
BR135 ........................................ 13
BR135E ........................................ 17
BR140 ........................................ 13
BR140E ........................................ 17
BR150 ........................................ 13
BR150E ........................................ 17
BR2100 ........................................ 13
BR2100E ...................................... 17
BR2100NA ................................... 18
BR2125 ........................................ 13
BR215 ........................................ 13
BR215E ........................................ 17
BR220 ........................................ 13
BR220E ........................................ 17
BR225 ........................................ 13
BR225E ........................................ 17
BR230 ........................................ 13
BR230E ........................................ 17
BR235 ........................................ 13
BR235E ........................................ 17
BR240 ........................................ 13
BR240E ........................................ 17
BR245 ........................................ 13
BR245E ........................................ 17
BR250 ........................................ 13
BR250E ........................................ 17
BR250NA ..................................... 18
BR260 ........................................ 13
BR260E ........................................ 17
BR260NA ..................................... 18
BR270 ........................................ 13
BR270E ........................................ 17
BR280 ........................................ 13
BR280E ........................................ 17
BR290 ........................................ 13
BR290E ........................................ 17
BR3100 ........................................ 13
BR3100E ...................................... 17
BR315 ........................................ 13
BR315E ........................................ 17
BR320 ........................................ 13
Catalogue Number Index
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 65
BR320E ........................................ 17
BR325 .......................................... 13
BR325E ........................................ 17
BR330 .......................................... 13
BR330E ........................................ 17
BR335 .......................................... 13
BR335E ........................................ 17
BR340 .......................................... 13
BR340E ........................................ 17
BR345 .......................................... 13
BR345E ........................................ 17
BR350 .......................................... 13
BR350E ........................................ 17
BR360 .......................................... 13
BR360E ........................................ 17
BR370 .......................................... 13
BR370E ........................................ 17
BR380 .......................................... 13
BR380E ........................................ 17
BR390 .......................................... 13
BR390E ........................................ 17
BRC115AF .................................... 15
BRC120AF .................................... 15
BRDL1-10 ............................... 20, 40
BRFP ..................................... 11, 40
BRH115 ........................................ 13
BRH115E ...................................... 17
BRH120 ........................................ 13
BRH120E ...................................... 17
BRH125 ........................................ 13
BRH125E ...................................... 17
BRH130 ........................................ 13
BRH130E ...................................... 17
BRH135 ........................................ 13
BRH135E ...................................... 17
BRH140 ........................................ 13
BRH140E ...................................... 17
BRH145 ........................................ 13
BRH145E ...................................... 17
BRH150 ........................................ 13
BRH150E ...................................... 17
BRH160 ........................................ 13
BRH160E ...................................... 17
BRH170 ........................................ 13
BRH170E ...................................... 17
BRH2100 ...................................... 13
BRH2100E .................................... 17
BRH215 ........................................ 13
BRH215E ...................................... 17
BRH220 ........................................ 13
BRH220E ...................................... 17
BRH225 ........................................ 13
BRH225E ...................................... 17
BRH230 ........................................ 13
BRH230E ...................................... 17
BRH235 ........................................ 13
BRH235E ...................................... 17
BRH240 ........................................ 13
BRH240E ...................................... 17
BRH245 ........................................ 13
BRH245E ...................................... 17
BRH250 ........................................ 13
BRH250E ...................................... 17
BRH260 ........................................ 13
BRH260E ...................................... 17
BRH270 ........................................ 13
BRH270E ...................................... 17
BRH280 ........................................ 13
BRH280E ...................................... 17
BRH290 ........................................ 13
BRH290E ...................................... 17
BRH3100 ...................................... 13
BRH3100E .................................... 17
BRH315 ........................................ 13
BRH315E ...................................... 17
BRH320 ........................................ 13
BRH320E ...................................... 17
BRH325 ........................................ 13
BRH325E ...................................... 17
BRH330 ........................................ 13
BRH330E ...................................... 17
BRH335 ........................................ 13
BRH335E ...................................... 17
BRH340 ........................................ 13
BRH340E ...................................... 17
BRH345 ........................................ 13
BRH345E ...................................... 17
BRH350 ........................................ 13
BRH350E ...................................... 17
BRH360 ........................................ 13
BRH360E ...................................... 17
BRH370 ........................................ 13
BRH370E ...................................... 17
BRH380 ........................................ 13
BRH380E ...................................... 17
BRH390 ........................................ 13
BRH390E ...................................... 17
BRL215AF .................................... 15
BRL215AFIT ................................. 15
BRL220AF .................................... 15
BRL220AFIT ................................. 15
BRLW-10 ...................................... 20
BRLW1-10 ................................... 20
BRLW2-10 ................................... 20
BRQLW-10 ................................... 20
BRS225 ........................................ 11
BRS400 ........................................ 11
BRSF125 ...................................... 11
BRSURGE ..................................... 44
BWH2125 .................................... 19
BWH2150 .................................... 19
BWH2175 .................................... 19
BWH2200 .................................... 19
C
CBL118 ........................................ 35
CBL118CU .................................... 36
CBL130 ........................................ 35
CBL130CU .................................... 36
CBL142 ........................................ 35
CBL142CU .................................... 36
CBL218 ........................................ 35
CBL218CU .................................... 36
CBL230 ........................................ 35
CBL230CU .................................... 36
CBL242 ........................................ 35
CBL242CU .................................... 36
CBM118 ....................................... 33
CBM118CU .................................. 34
CBM130 ....................................... 33
CBM130CU .................................. 34
CBM142 ....................................... 33
CBM142CU .................................. 34
CBM218 ....................................... 33
CBM218CU .................................. 34
CBM230 ....................................... 33
CBM230CU .................................. 34
CBM242 ....................................... 33
CBSF100 ...................................... 40
CBSF225 ...................................... 40
CC3100 ........................................ 19
CC3125 ........................................ 19
CC3150 ........................................ 19
CC3200 ........................................ 19
CCL300 ........................................ 20
CCPL .......................................... 20
CCPL102 ........................................ 6
CCPL104 ........................................ 6
CCPL108 ........................................ 6
CH110 .......................................... 27
CH115 .......................................... 27
CH115AF ...................................... 29
CH115AFPN ................................. 29
CH115EPD ................................... 30
CH115GF ...................................... 30
CH115GFPN ................................. 30
CH120 .......................................... 27
CH120AF ...................................... 29
CH120AFPN ................................. 29
CH120EPD ................................... 30
CH120GF ...................................... 30
CH120GFPN ................................. 30
CH125 .......................................... 27
CH125EPD ................................... 30
CH125GF ...................................... 30
CH130 .......................................... 27
CH130EPD ................................... 30
CH130GF ...................................... 30
CH135 .......................................... 27
CH140 .......................................... 27
CH145 .......................................... 27
CH150 .......................................... 27
CH160 .......................................... 27
CH170 .......................................... 27
CH210 .......................................... 27
CH2100 ........................................ 27
CH2110 ........................................ 27
CH2125 ........................................ 27
CH215 .......................................... 27
CH215AF ...................................... 29
CH215AFIT ................................... 29
CH215EPD ................................... 30
CH215GF ...................................... 30
CH220 .......................................... 27
CH220AF ...................................... 29
CH220AFIT ................................... 29
CH220EPD ................................... 30
CH220GF ...................................... 30
CH225 .......................................... 27
CH225GF ...................................... 30
CH230 .......................................... 27
CH230EPD ................................... 30
CH230GF ...................................... 30
CH235 .......................................... 27
CH235GF ...................................... 30
CH240 .......................................... 27
CH240EPD ................................... 30
CH240GF ...................................... 30
CH245 .......................................... 27
CH245GF ...................................... 30
CH250 .......................................... 27
CH250EPD ................................... 30
CH250GF ...................................... 30
CH260 .......................................... 27
CH260EPD ................................... 30
CH260GF ...................................... 30
CH270 .......................................... 27
CH280 .......................................... 27
CH290 .......................................... 27
CH30SPA ..................................... 43
CH30SPALARM ........................... 43
CH310 .......................................... 27
CH3100 ........................................ 27
CH315 .......................................... 27
CH320 .......................................... 27
CH325 .......................................... 27
CH330 .......................................... 27
CH335 .......................................... 27
CH340 .......................................... 27
CH345 .......................................... 27
CH350 .......................................... 27
CH360 .......................................... 27
CH370 .......................................... 27
CH380 .......................................... 27
CH390 .......................................... 27
CH40SPA ..................................... 43
CH40SPALARM ........................... 43
CH50SPA ..................................... 43
CH50SPALARM ........................... 43
CH60SPA ..................................... 43
CH60SPALARM ........................... 43
CH9FL .......................................... 11
CHF115 ........................................ 27
CHF120 ........................................ 27
CHF125 ........................................ 27
CHF130 ........................................ 27
CHF215 ........................................ 27
CHF220 ........................................ 27
CHF225 ........................................ 27
CHF230 ........................................ 27
CHFP ........................................... 32
CHHT ........................................... 32
CHLO ........................................... 32
CHM24PN100 .............................. 26
CHM32PN100 .............................. 26
CHM32PN200 .............................. 26
CHM42PN200 .............................. 26
CHM60PN200L ............................ 26
CHNL24PN125 ............................. 26
CHNL32PN125 ............................. 26
CHNL32PN225 ............................. 26
CHNL42PN225 ............................. 26
CHNS ........................................... 32
CHNT1515 ................................... 27
CHNT1520 ................................... 27
CHNT2020 ................................... 27
CHP110 ........................................ 28
CHP115 ........................................ 28
CHP120 ........................................ 28
CHP125 ........................................ 28
Catalogue Number Index
66 residential & light commerical distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca
CHP130 ........................................ 28
CHP135 ........................................ 28
CHP140 ........................................ 28
CHP145 ........................................ 28
CHP150 ........................................ 28
CHP160 ........................................ 28
CHP170 ........................................ 28
CHP210 ........................................ 28
CHP2100 ...................................... 28
CHP2110 ...................................... 28
CHP2125 ...................................... 28
CHP215 ........................................ 28
CHP220 ........................................ 28
CHP225 ........................................ 28
CHP230 ........................................ 28
CHP235 ........................................ 28
CHP240 ........................................ 28
CHP245 ........................................ 28
CHP250 ........................................ 28
CHP260 ........................................ 28
CHP270 ........................................ 28
CHP280 ........................................ 28
CHP290 ........................................ 28
CHP310 ........................................28
CHP3100 ...................................... 28
CHP315 ........................................ 28
CHP320 ........................................ 28
CHP325 ........................................ 28
CHP330 ........................................ 28
CHP335 ........................................ 28
CHP340 ........................................ 28
CHP345 ........................................ 28
CHP350 ........................................ 28
CHP360 ........................................ 28
CHP370 ........................................ 28
CHPL ........................................... 32
CHPLGF ........................................ 32
CHRLS .......................................... 32
CHSF2125 .................................... 32
CHSPALARM ............................... 43
CHSPCABLE ................................. 45
CHSPFMKIT ................................. 45
CHSPT1-208Y .............................. 46
CHSPT1MAX ............................... 46
CHSPT1MICRO ............................ 46
CHSPT1ULTRA ............................. 46
CHSPT23PACK ............................. 44
CHSPT2MAX ............................... 44
CHSPT2MICRO ............................ 44
CHSPT2ULTRA ............................. 44
CHSPTELE .................................... 45
CHWPS2040D ............................. 63
CHWPS2040DL ............................ 63
CHWPS2040DP ........................... 63
CHWPS3050D ............................. 63
CHWPS3050DL ............................ 63
CHWPS4060D ............................. 63
CPL072 ......................................... 10
CPL072FGP .................................. 10
CPL072R ...................................... 10
CPL072RGP .................................. 10
CPL072SGP .................................. 10
CPL112 ........................................... 6
CPL112COV .................................. 11
CPL112G3 .................................... 42
CPL112G6 .................................... 42
CPL112GI3 ................................... 42
CPL116 ........................................... 6
CPL116COV .................................. 11
CPL116W ....................................... 6
CPL120 ........................................... 6
CPL120COV .................................. 11
CPL120G6 .................................... 42
CPL120W ....................................... 6
CPL130 ........................................... 6
CPL130COV .................................. 11
CPL130G6 .................................... 42
CPL130W ....................................... 6
CPL220 ........................................... 6
CPL220COV .................................. 11
CPL220W ....................................... 6
CPL240 ........................................... 6
CPL240COV .................................. 11
CPL240W ....................................... 6
CPL400KIT ................................... 11
CPL442 ........................................... 6
CPM112 ......................................... 2
CPM112COV ................................ 11
CPM112LMB ................................. 2
CPM116 ......................................... 2
CPM116COV ................................ 11
CPM116LMB ................................. 2
CPM116Z ....................................... 2
CPM120 ......................................... 2
CPM120COV ................................ 11
CPM120H ...................................... 2
CPM120LMB ................................. 2
CPM120Z ....................................... 2
CPM126GEN ................................ 42
CPM130 ......................................... 2
CPM130COV ................................ 11
CPM130H ...................................... 2
CPM130Z ....................................... 2
CPM1520 ....................................... 2
CPM1530 ....................................... 2
CPM1540 ....................................... 2
CPM216 ......................................... 2
CPM216COV ................................ 11
CPM220 ......................................... 2
CPM220COV ................................ 11
CPM230 ......................................... 2
CPM230COV ................................ 11
CPM236GEN ................................ 42
CPM240 ......................................... 2
CPM240COV ................................ 11
CPM400KIT .................................. 11
CPM442 ......................................... 2
CQLP12100 .................................. 56
CQLP8100 .................................... 56
CSABP4683B ............................... 56
CSABP4734B ............................... 56
CSH2100N ................................... 31
CSH2150N ................................... 31
CSH2200N ................................... 31
CSR2125N ................................... 19
CSR2150N ................................... 19
CSR2200N ................................... 19
CVRSCRW ................................... 11
D
DIRCARD42 ................................. 40
DIRSLEEVE ................................... 40
DNBA1515 ................................... 38
DNBA2020 ................................... 38
DNBA3030 ................................... 38
DNPL1515 .................................... 14
DNPL151515 ................................ 14
DNPL1520 .................................... 14
DNPL152015 ................................ 14
DNPL152515 ................................ 14
DNPL1530 .................................... 14
DNPL153015 ................................ 14
DNPL154015 ................................ 14
DNPL155015 ................................ 14
DNPL2020 .................................... 14
DNPL215215 ................................ 14
DNPL215220 ................................ 14
DNPL215230 ................................ 14
DNPL215240 ................................ 14
DNPL220220 ................................ 14
DNPL220230 ................................ 14
DS075H1 ..................................... 11
DS100H1 ..................................... 11
DS125H1 ..................................... 11
DS150H1 ..................................... 11
DS200H1 ..................................... 11
DS200H2 ..................................... 11
DS250H2 ..................................... 11
DS300H2 ..................................... 11
G
GFCB115 ...................................... 16
GFCB120 ...................................... 16
GFCB125 ...................................... 16
GFCB130 ...................................... 16
GFCB140 ...................................... 16
GFCB215 ...................................... 16
GFCB220 ...................................... 16
GFCB225 ...................................... 16
GFCB230 ...................................... 16
GFCB240 ...................................... 16
GFCB250 ...................................... 16
GFCB260 ...................................... 16
GFCBH115 ................................... 16
GFCBH120 ................................... 16
GFCBH125 ................................... 16
GFCBH130 ................................... 16
GFCBH215 ................................... 16
GFCBH220 ................................... 16
GFCBH225 ................................... 16
GFCBH230 ................................... 16
GFEP115 ...................................... 16
GFEP120 ...................................... 16
GFEP125 ...................................... 16
GFEP130 ...................................... 16
GFEP215 ...................................... 16
GFEP220 ...................................... 16
GFEP225 ...................................... 16
GFEP230 ...................................... 16
GFEP240 ...................................... 16
GFEP250 ...................................... 16
GFXB115B2 .................................. 18
GFXB120B2 .................................. 18
GFXB125B2 .................................. 18
GFXB130B2 .................................. 18
H
HBQL15 ........................................ 59
HBQL20 ........................................ 59
HBQL25 ........................................ 59
HBQL30 ........................................ 59
HBQL3100 .................................... 59
HBQL315 ...................................... 59
HBQL330 ...................................... 59
HBQL350 ...................................... 59
HBQL360 ...................................... 59
HBQL370 ...................................... 59
HBQL390 ...................................... 59
HBQL40 ........................................ 59
HBQL50 ........................................ 59
HBQL60 ........................................ 59
HLW1-10 ..................................... 20
I
ISGRD .................................... 11, 40
L
LCCS ........................................... 32
M
MCBL300 ..................................... 20
MCBPL ................................... 20, 32
N
NL20 ........................................... 11
NL30 ........................................... 11
NL300 .......................................... 11
NSP42 .......................................... 11
P
P48G11S03CUB ........................... 54
P48G11S03P ................................ 53
P48G11S05CUB ........................... 54
P48G11S05P ................................ 53
P48G11S07CUB ........................... 54
P48G11S07P ................................ 53
P48G11S10CUB ........................... 54
P48G11S10P ................................ 53
P48G11S15CUB ........................... 54
P48G11S15P ................................ 53
P48G11S25CUB ........................... 54
P48G11S25P ................................ 53
P48G28T15CUB ........................... 54
P48G28T15P ................................ 53
P48G28T21CUB ........................... 54
P48G28T21P ................................ 53
P48G28T30CUB ........................... 54
P48G28T30P ................................ 53
P60G11S03CUB ........................... 54
P60G11S05CUB ........................... 54
P60G11S05P ................................ 53
P60G11S07CUB ........................... 54
P60G11S07P ................................ 53
P60G11S10CUB ........................... 54
P60G11S10P ................................ 53
P60G11S15CUB ........................... 54
P60G11S15P ................................ 53
P60G11S25CUB ........................... 54
Catalogue Number Index
residential & light commercial distribution products PG.31.02.P.K – September 2011 www.eatoncanada.ca 67
P60G11S25P ................................ 53
P60G28T15CUB ........................... 54
P60G28T15P ................................ 53
P60G28T21CUB ........................... 54
P60G28T21P ................................ 53
P60G28T30CUB ........................... 54
P60G28T30P ................................ 53
POWER3 ...................................... 45
POWER5 ...................................... 45
Q
QBAF1015 .................................... 38
QBAF1020 .................................... 38
QBAF2015 .................................... 38
QBAF2015IT ................................. 38
QBAF2020 .................................... 38
QBAF2020IT ................................. 38
QBAG1015 ................................... 38
QBAG1020 ................................... 38
QBAG2015 ................................... 38
QBAG2020 ................................... 38
QBF ........................................... 61
QBGF1015 .................................... 39
QBGF1020 .................................... 39
QBGF1030 .................................... 39
QBGF1040 .................................... 39
QBGF2015 .................................... 39
QBGF2020 .................................... 39
QBGF2030 .................................... 39
QBGF2040 .................................... 39
QBGF2050 .................................... 39
QBGFEP1015 ................................ 39
QBGFEP1020 ................................ 39
QBGFEP1025 ................................ 39
QBGFEP1030 ................................ 39
QBGFEP2015 ................................ 39
QBGFEP2020 ................................ 39
QBGFEP2025 ................................ 39
QBGFEP2030 ................................ 39
QBH15 ......................................... 61
QBH20 ......................................... 61
QBH2100 ..................................... 61
QBH2125 ..................................... 61
QBH215 ....................................... 61
QBH220 ....................................... 61
QBH225 ....................................... 61
QBH230 ....................................... 61
QBH240 ....................................... 61
QBH25 ......................................... 61
QBH250 ....................................... 61
QBH260 ....................................... 61
QBH270 ....................................... 61
QBH290 ....................................... 61
QBH30 ......................................... 61
QBH40 ......................................... 61
QBH50 ......................................... 61
QBH60 ......................................... 61
QBHAF1015 ................................. 38
QBHAF1020 ................................. 38
QBHAF2015 ................................. 38
QBHAF2015IT .............................. 38
QBHAF2020 ................................. 38
QBHAF2020IT .............................. 38
QBHAG1015 ................................ 38
QBHAG1020 ................................ 38
QBHAG2015 ................................ 38
QBHAG2020 ................................ 38
QBHGFEP1015 ............................. 39
QBHGFEP1020 ............................. 39
QBHGFEP1025 ............................. 39
QBHGFEP1030 ............................. 39
QBHGFEP2015 ............................. 39
QBHGFEP2020 ............................. 39
QBHGFEP2025 ............................. 39
QBHGFEP2030 ............................. 39
QBHT ........................................... 61
QBHW1015 .................................. 37
QBHW1020 .................................. 37
QBHW1030 .................................. 37
QBHW1040 .................................. 37
QBHW1050 .................................. 37
QBHW1060 .................................. 37
QBHW1070 .................................. 37
QBHW2015 .................................. 37
QBHW2020 .................................. 37
QBHW2030 .................................. 37
QBHW2040 .................................. 37
QBHW2050 .................................. 37
QBHW2060 .................................. 37
QBHW2070 .................................. 37
QBHW2090 .................................. 37
QBHW2100 .................................. 37
QBHW2125 .................................. 37
QBHW3015 .................................. 37
QBHW3020 .................................. 37
QBHW3030 .................................. 37
QBHW3040 .................................. 37
QBHW3050 .................................. 37
QBHW3060 .................................. 37
QBHW3070 .................................. 37
QBHW3090 .................................. 37
QBHW3100 .................................. 37
QL123PL ....................................... 40
QL1NPL ........................................40
QL23NPL ...................................... 40
QLPT16AD ................................... 57
QLPT16D ...................................... 57
QLPT19D ...................................... 57
QLPT20AD ................................... 57
QLPT22AD ................................... 57
QLPT24D ...................................... 57
R
R3CCPL103 .................................... 9
R3CPL112 ...................................... 9
R3CPL130 ...................................... 9
R3CPL136 ...................................... 9
R3CPL230 ...................................... 9
R3CPL242 ...................................... 9
R3CPM112 ..................................... 5
R3CPM130 ..................................... 5
R3CPM230 ..................................... 5
RCCHL102 .................................... 26
RCCPL102 ...................................... 7
RCCPL104 ...................................... 7
RCCPL108 ...................................... 7
RCPL112 ........................................ 7
RCPL112GI3 ................................. 42
RCPL120 ........................................ 7
RCPL130 ........................................ 7
RCPL220 ........................................ 7
RCPL240 ........................................ 7
RCPM108M ................................. 50
RCPM112 ....................................... 3
RCPM120 ....................................... 3
RCPM130 ....................................... 3
RCPM1530 ..................................... 3
RCPM1GF10 ................................ 51
RCPM1GF6H ................................ 51
RCPM208M ................................. 50
RCPM220 ....................................... 3
RCPM230 ....................................... 3
RCPM240 ....................................... 3
RCPM2GF10 ................................ 51
RCPM2GF6H ................................ 51
RH100P ........................................ 11
RH125P ........................................ 11
RH75P .......................................... 11
S
SCONST7 ..................................... 45
SMAX7 ........................................ 45
SMAX7C ...................................... 45
SMAX7T ...................................... 45
SMAX8TC .................................... 45
SMICRO1C ................................... 45
SMICRO1T ................................... 45
SMICRO6T ................................... 45
SMICRO6TC ................................. 45
SMICRO7 ..................................... 45
SP1DINRAILKIT ........................... 46
SULT10TC .................................... 45
SULT12TC .................................... 45
SULT8T ........................................ 45
T
TDL ............................... 11, 32, 40
THOW-10 ..................................... 20
THS1 ........................................... 20
Catalogue Number Index
Eaton is a registered trademark
of Eaton Corporation.
All trademarks are property of their
respective owners.
Eaton Corporation
Electrical Sector
1111 Superior Ave.
Cleveland, OH 44114
United States
877-ETN-CARE (877-386-2273)
Eaton.com
© 2011 Eaton Corporation
All Rights Reserved
Printed in USA
Publication No. BRXXXXXXXXE / XXX
Month 2011
Eaton is dedicated to ensuring that reliable, efficient and safe
power is available when it’s needed most. With unparalleled
knowledge of electrical power management across industries,
experts at Eaton deliver customized, integrated solutions to
solve our customers’ most critical challenges.
Our focus is on delivering the right solution for the application.
But, decision makers demand more than just innovative products.
They turn to Eaton for an unwavering commitment to personal
support that makes customer success a top priority. For more
information, visit www.eaton.com/electrical.
Eaton Corporation
5050 Mainway
Burlington, ON L7L 5Z1
tel: 1-800-268-3578
www.eatoncanada.ca
© 2009 Eaton Corporation
All Rights Reserved
Printed in Canada
Form No. PG.31.02.P.K
September 2011

Navigation menu
