Miniature
circuit breakers
S200
15 15
S200
UL 489 Series
Description
The S200 Series miniature circuit breaker offers
a compact solution for protection requirements.
The S200U AND S200UP devices are UL 489
tested current limiting and DIN rail mounted.
The S200U and S200UP is available with
application-specific trip characteristics to
provide maximum circuit protection.
The breakers offer thermal-magnetic trip
protection according to K and Z characteristics.
For the worldwide market, the breakers carry
UL, CSA, IEC, CE and many other agency
approvals and certifications.
Features
•
UL current limiting
•
Fast breaking time (2.3 – 2.5 ms)
•
Bus connection system
•
Wide range of accessories
•
Available with variable depth handle
mechanism
•
CE certified and marked
•
DIN rail mounting
•
Finger safe terminals
•
Multi-function terminals
•
Suitable for reverse feed but S200UDC has
polarity
•
UL 489 Listed - branch circuit protective
device. UL File #E212323
S200U S200UP SU200PR S200UDC
Amperage 0.2 – 63 0.2 – 25 0.2 – 35A ; 40 – 63A 1 – 63
Voltage 240 VAC 480Y/277VAC
480Y/277 VAC ; 240 VAC
60-125 VDC
Poles
1, 2, 3, 4 1, 2, 3, 4
1, 2, 3, 4
1, 2
Trip characteristics K, Z K, Z K K, Z
Interrupting ratings
Up to 25 kA : IEC 60947-2
10 kA : UL 489
10 kA : CSA 22.2 No. 5
Up to 25 kA : IEC
60947-2
10 kA : UL 489
10 kA : CSA 22.2 No. 5
10kA: UL489
10kA: CSA 22.2 No.5
14 kA : UL489
14 kA: CSA 22.2 No. 5
Auxiliary contacts Yes Yes Yes Yes
Bell alarm Yes Yes Yes Yes
Shunt trip Yes Yes Yes Yes
Bus bar Yes Yes No Yes
S200 UL 489 Series
Miniature circuit breakers
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
KNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.2 S201U-K0.2
3
0.2 S203U-K0.2
0.3 S201U-K0.3 0.3 S203U-K0.3
0.5 S201U-K0.5 0.5 S203U-K0.5
0.75 S201U-K0.75 0.75 S203U-K0.75
1 S201U-K1 1 S203U-K1
1.6 S201U-K1.6 1.6 S203U-K1.6
2 S201U-K2 2 S203U-K2
3 S201U-K3 3 S203U-K3
4 S201U-K4 4 S203U-K4
5 S201U-K5 5 S203U-K5
6 S201U-K6 6 S203U-K6
8 S201U-K8 8 S203U-K8
10 S201U-K10 10 S203U-K10
15 S201U-K15 15 S203U-K15
16 S201U-K16 16 S203U-K16
20 S201U-K20 20 S203U-K20
25 S201U-K25 25 S203U-K25
30 S201U-K30 30 S203U-K30
32 S201U-K32 32 S203U-K32
40 S201U-K40 40 S203U-K40
50 S201U-K50 50 S203U-K50
60 S201U-K60 60 S203U-K60
63 S201U-K63 63 S203U-K63
2
0.2 S202U-K0.2
4
0.2 S204U-K0.2
0.3 S202U-K0.3 0.3 S204U-K0.3
0.5 S202U-K0.5 0.5 S204U-K0.5
0.75 S202U-K0.75 0.75 S204U-K0.75
1 S202U-K1 1 S204U-K1
1.6 S202U-K1.6 1.6 S204U-K1.6
2 S202U-K2 2 S204U-K2
3 S202U-K3 3 S204U-K3
4 S202U-K4 4 S204U-K4
5 S202U-K5 5 S204U-K5
6 S202U-K6 6 S204U-K6
8 S202U-K8 8 S204U-K8
10 S202U-K10 10 S204U-K10
15 S202U-K15 15 S204U-K15
16 S202U-K16 16 S204U-K16
20 S202U-K20 20 S204U-K20
25 S202U-K25 25 S204U-K25
30 S202U-K30 30 S204U-K30
32 S202U-K32 32 S204U-K32
40 S202U-K40 40 S204U-K40
50 S202U-K50 50 S204U-K50
60 S202U-K60 60 S204U-K60
63 S202U-K63 63 S204U-K63

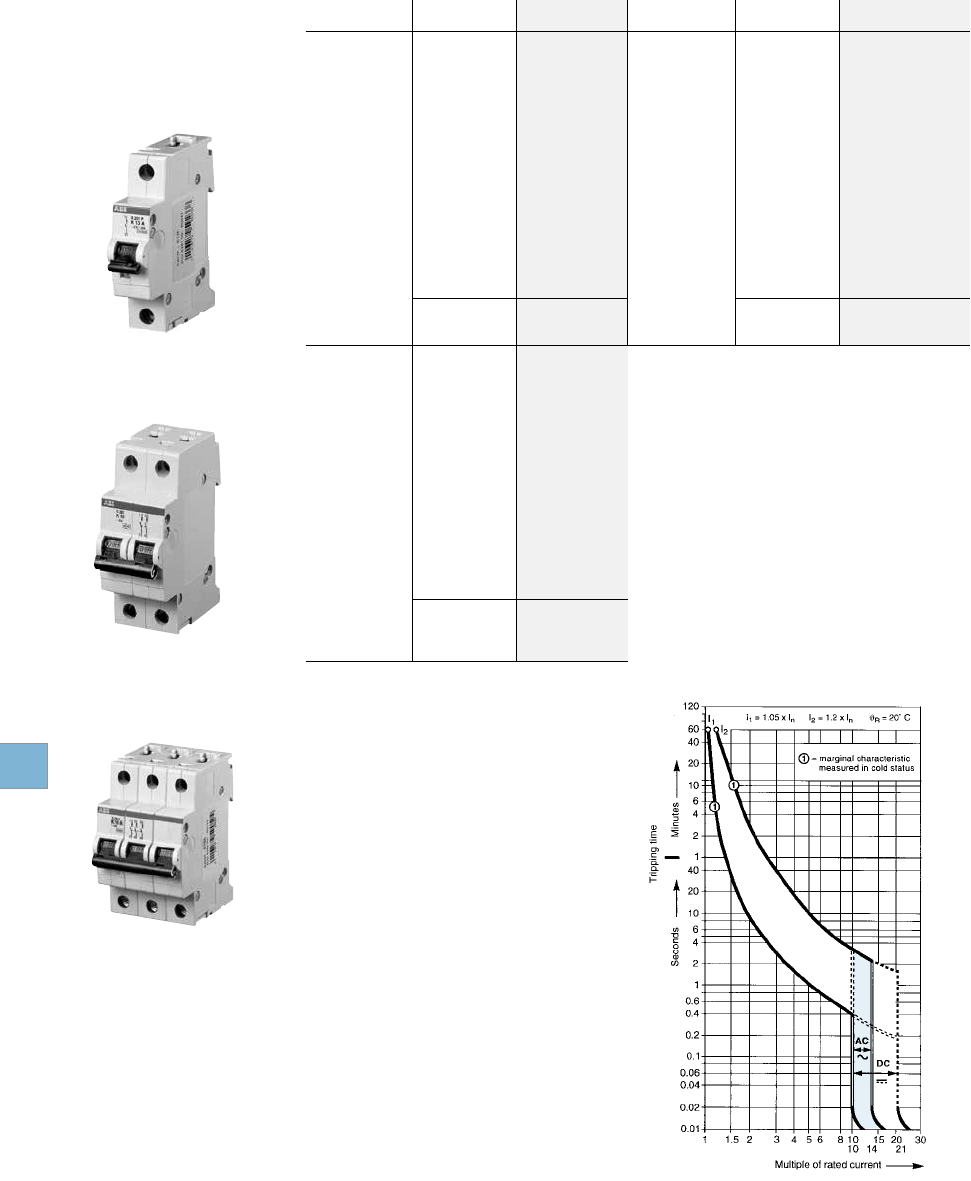

S201U-K
S202U-K
S203U-K
S204U-K

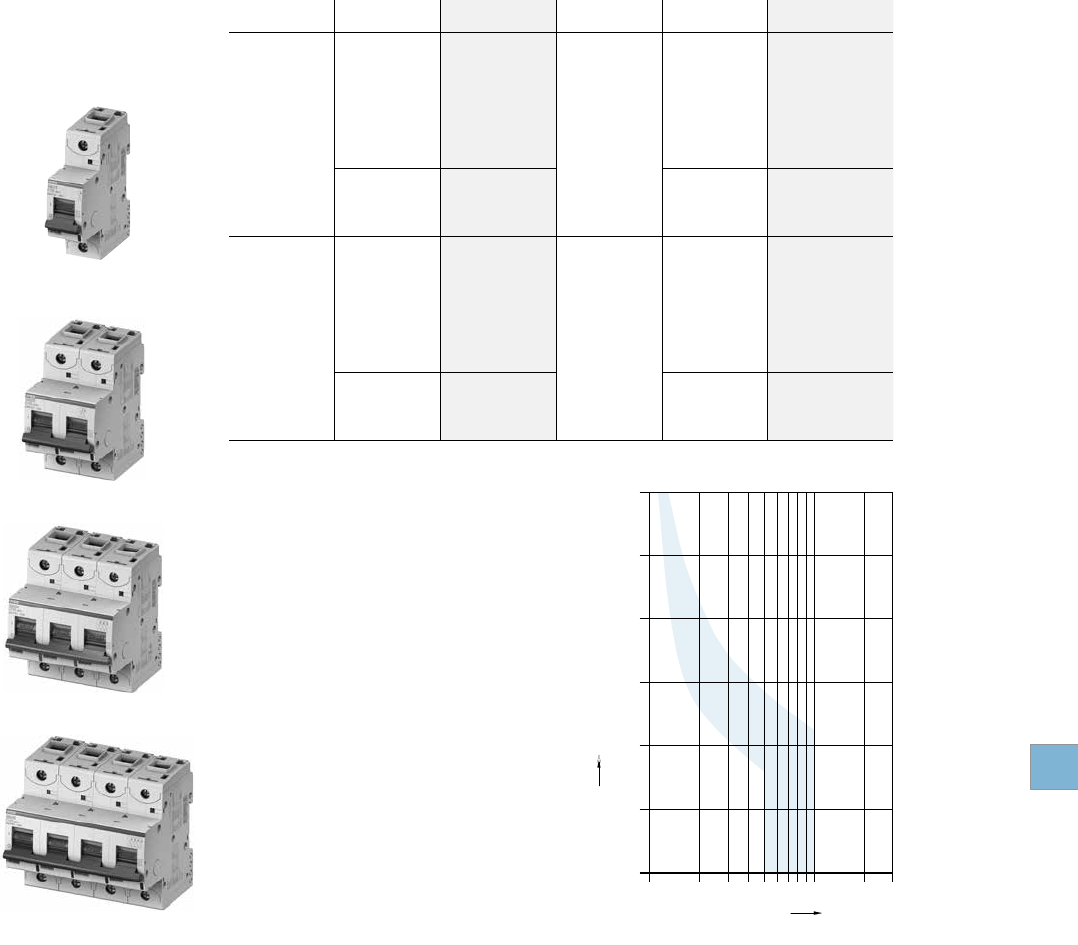

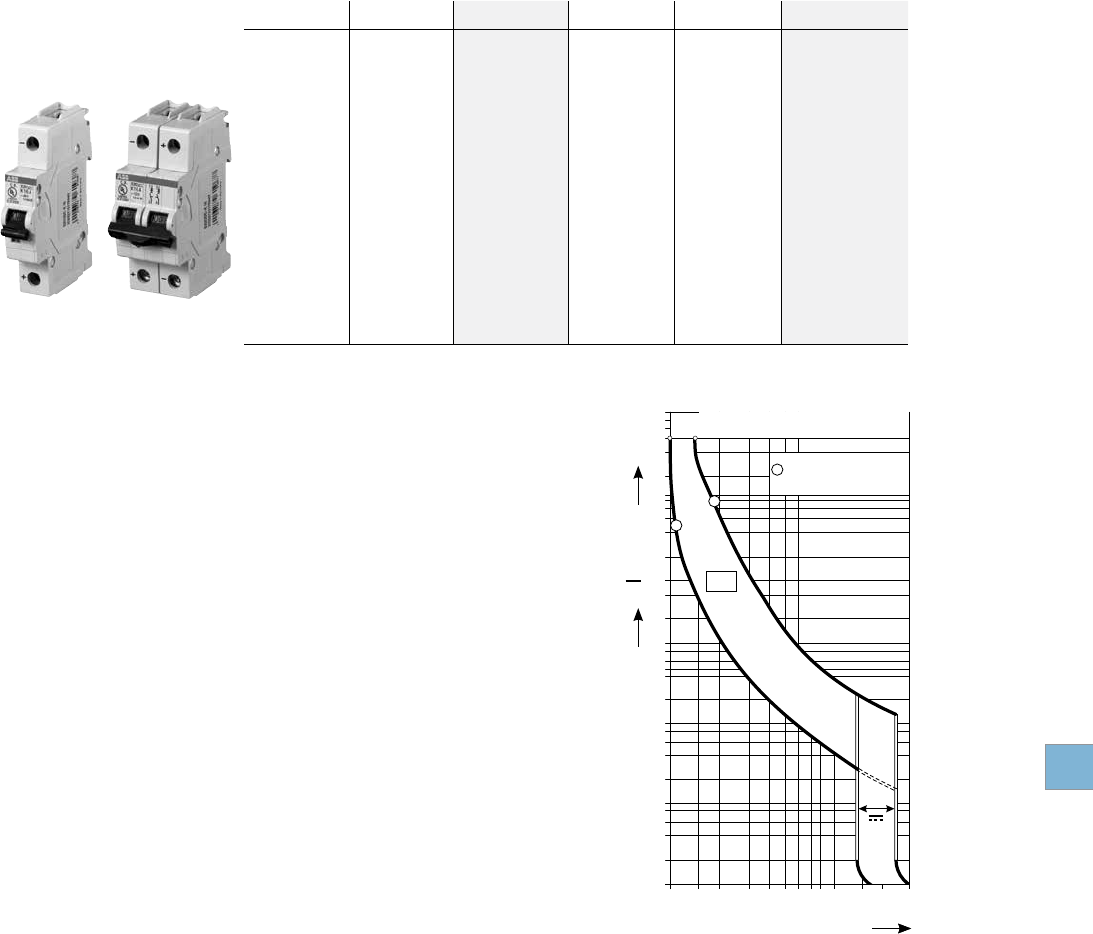

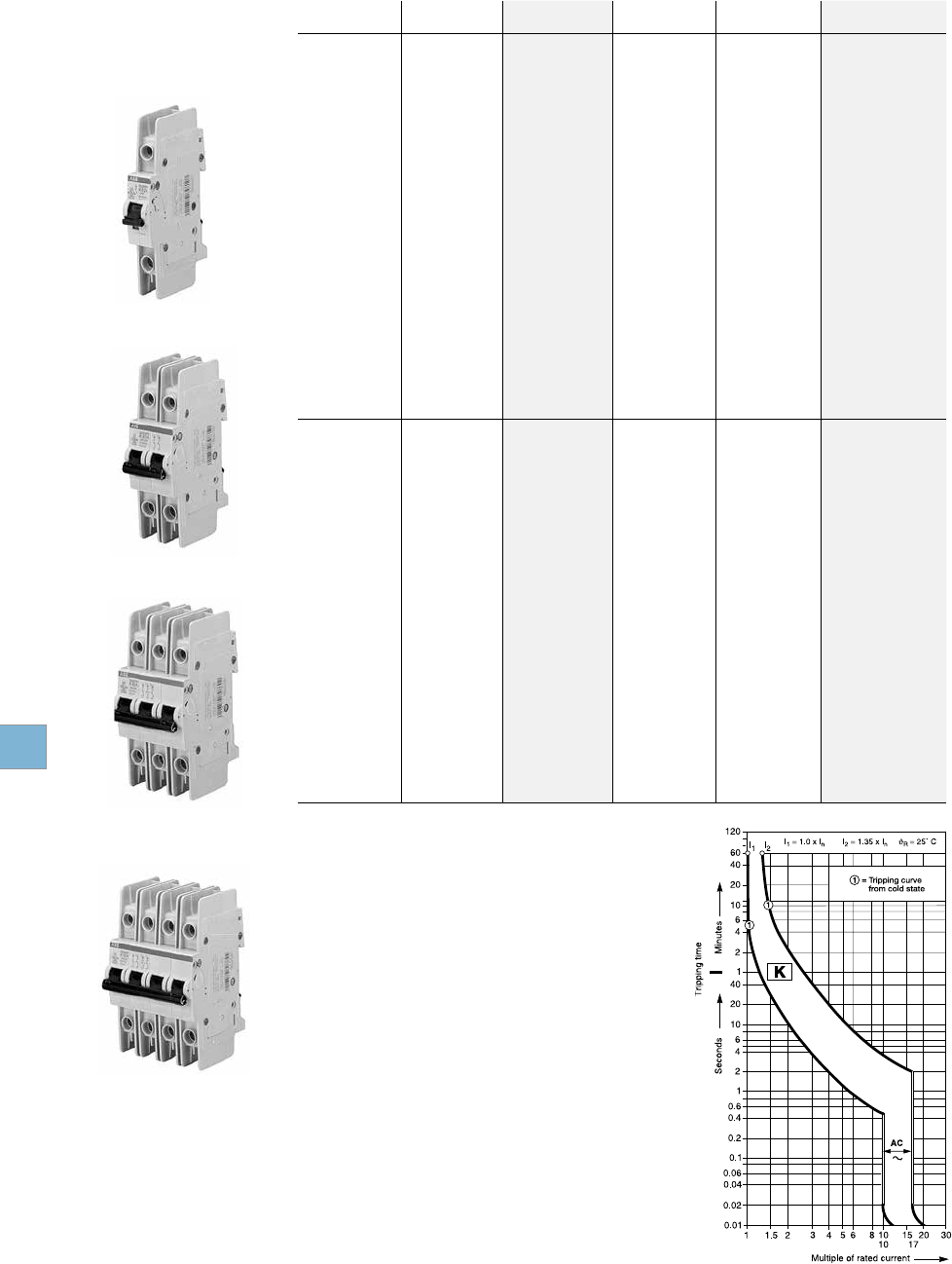

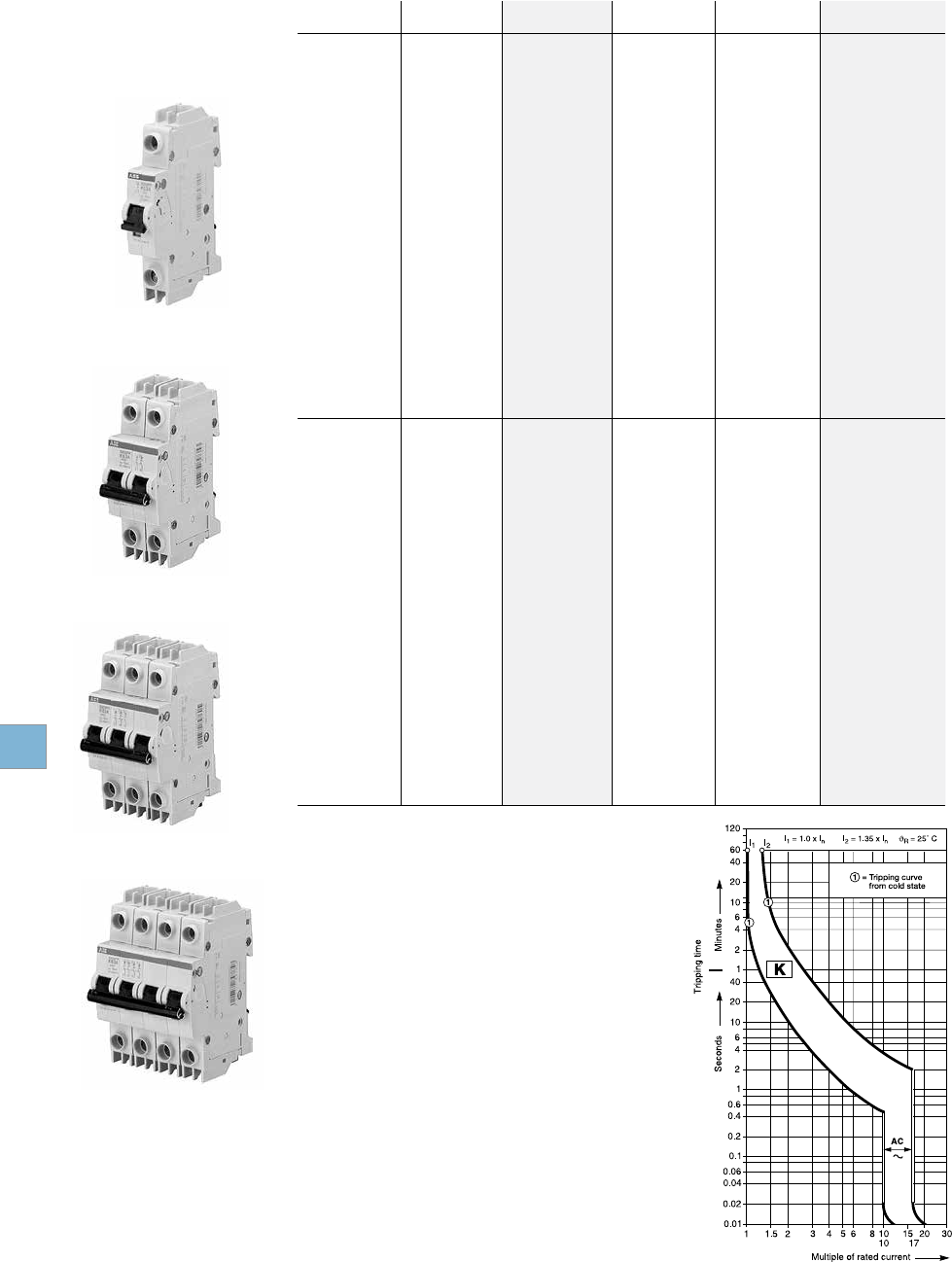

Tripping characteristic K
UL 489
240 VAC
10 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.9 - 15.13
Technical data – See page 15.14 -15.16
S200U-K, 240 VAC
Branch circuit protection
UL 489, CSA 22.2 No. 5
Note: This breaker for AC use only
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com

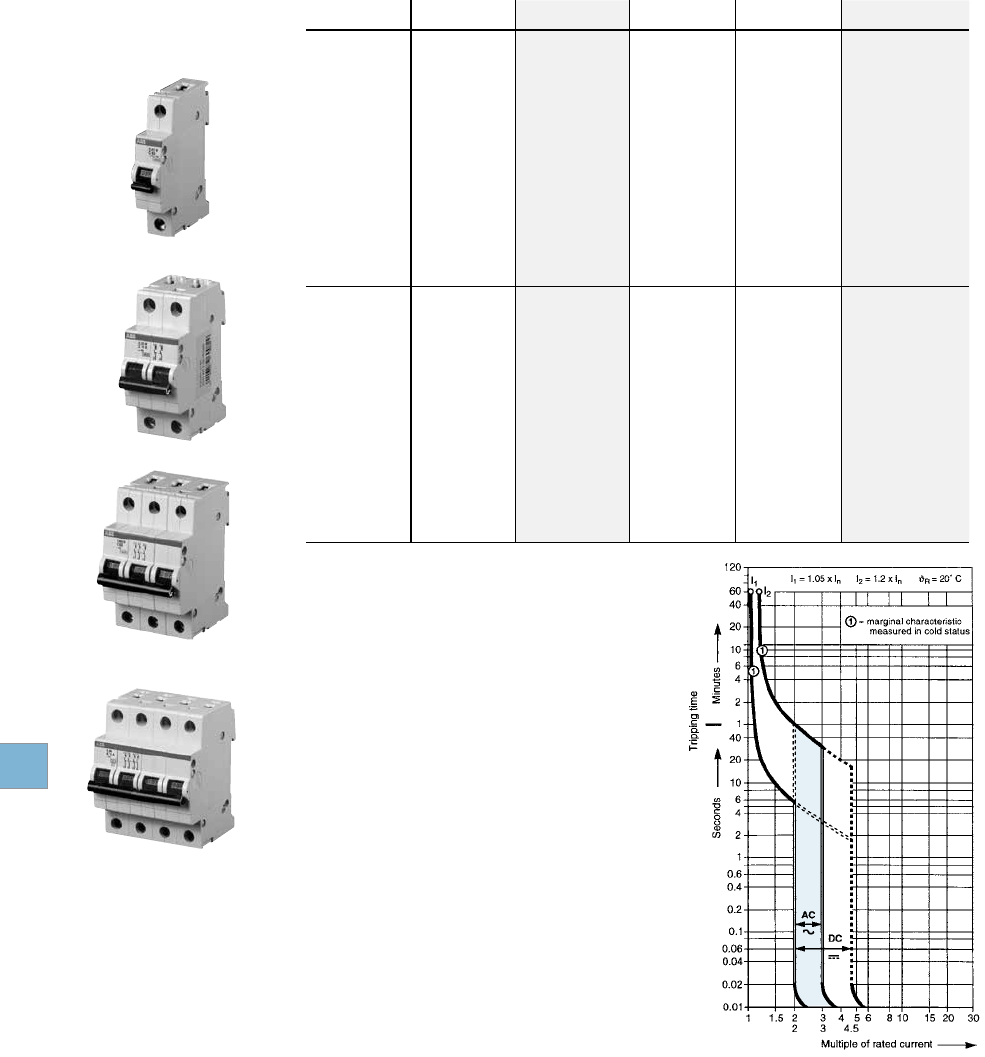

Miniature
circuit breakers
S200
15 15
ZNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S201U-Z0.5
3
0.5 S203U-Z0.5
1 S201U-Z1 1 S203U-Z1
1.6 S201U-Z1.6 1.6 S203U-Z1.6
2 S201U-Z2 2 S203U-Z2
3 S201U-Z3 3 S203U-Z3
4 S201U-Z4 4 S203U-Z4
5 S201U-Z5 5 S203U-Z5
6 S201U-Z6 6 S203U-Z6
8 S201U-Z8 8 S203U-Z8
10 S201U-Z10 10 S203U-Z10
15 S201U-Z15 15 S203U-Z15
16 S201U-Z16 16 S203U-Z16
20 S201U-Z20 20 S203U-Z20
25 S201U-Z25 25 S203U-Z25
30 S201U-Z30 30 S203U-Z30
32 S201U-Z32 32 S203U-Z32
40 S201U-Z40 40 S203U-Z40
50 S201U-Z50 50 S203U-Z50
60 S201U-Z60 60 S203U-Z60
63 S201U-Z63 63 S203U-Z63
2
0.5 S202U-Z0.5
4
0.5 S204U-Z0.5
1 S202U-Z1 1 S204U-Z1
1.6 S202U-Z1.6 1.6 S204U-Z1.6
2 S202U-Z2 2 S204U-Z2
3 S202U-Z3 3 S204U-Z3
4 S202U-Z4 4 S204U-Z4
5 S202U-Z5 5 S204U-Z5
6 S202U-Z6 6 S204U-Z6
8 S202U-Z8 8 S204U-Z8
10 S202U-Z10 10 S204U-Z10
15 S202U-Z15 15 S204U-Z15
16 S202U-Z16 16 S204U-Z16
20 S202U-Z20 20 S204U-Z20
25 S202U-Z25 25 S204U-Z25
30 S202U-Z30 30 S204U-Z30
32 S202U-Z32 32 S204U-Z32
40 S202U-Z40 40 S204U-Z40
50 S202U-Z50 50 S204U-Z50
60 S202U-Z60 60 S204U-Z60
63 S202U-Z63 63 S204U-Z63
S204U-Z
S203U-Z
S202U-Z
S201U-Z
S200U-Z, 240 VAC
Branch circuit protection
UL 489, CSA 22.2 No. 5
Tripping characteristic Z
UL 489
240 VAC
10 kA
Resistive loads
• Z Curve
• Designed to provide maximum protection with
a very low short
circuit trip setting
• Example: semiconductors, control circuits
Accessories & technical data
Accessories – See page 15.9 - 15.13
Technical data – See page 15.14 -15.16
Note: This breaker for AC use only
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
KNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.2 S201UP-K0.2
3
0.2 S203UP-K0.2
0.3 S201UP-K0.3 0.3 S203UP-K0.3
0.5 S201UP-K0.5 0.5 S203UP-K0.5
0.75 S201UP-K0.75 0.75 S203UP-K0.75
1 S201UP-K1 1 S203UP-K1
1.6 S201UP-K1.6 1.6 S203UP-K1.6
2 S201UP-K2 2 S203UP-K2
3 S201UP-K3 3 S203UP-K3
4 S201UP-K4 4 S203UP-K4
5 S201UP-K5 5 S203UP-K5
6 S201UP-K6 6 S203UP-K6
8 S201UP-K8 8 S203UP-K8
10 S201UP-K10 10 S203UP-K10
15 S201UP-K15 15 S203UP-K15
16 S201UP-K16 16 S203UP-K16
20 S201UP-K20 20 S203UP-K20
25 S201UP-K25 25 S203UP-K25
2
0.2 S202UP-K0.2
4
0.2 S204UP-K0.2
0.3 S202UP-K0.3 0.3 S204UP-K0.3
0.5 S202UP-K0.5 0.5 S204UP-K0.5
0.75 S202UP-K0.75 0.75 S204UP-K0.75
1 S202UP-K1 1 S204UP-K1
1.6 S202UP-K1.6 1.6 S204UP-K1.6
2 S202UP-K2 2 S204UP-K2
3 S202UP-K3 3 S204UP-K3
4 S202UP-K4 4 S204UP-K4
5 S202UP-K5 5 S204UP-K5
6 S202UP-K6 6 S204UP-K6
8 S202UP-K8 8 S204UP-K8
10 S202UP-K10 10 S204UP-K10
15 S202UP-K15 15 S204UP-K15
16 S202UP-K16 16 S204UP-K16
20 S202UP-K20 20 S204UP-K20
25 S202UP-K25 25 S204UP-K25
S204UP-K
S203UP-K
S202UP-K
S201UP-K
S200UP-K, 480Y/277 VAC
Branch circuit protection
UL 489, CSA 22.2 No. 5
Tripping characteristic K
UL 489
480Y/277 VAC
10 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush currents
during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.9 - 15.13
Technical data – See page 15.14 -15.16
Note: This breaker for AC use only
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com

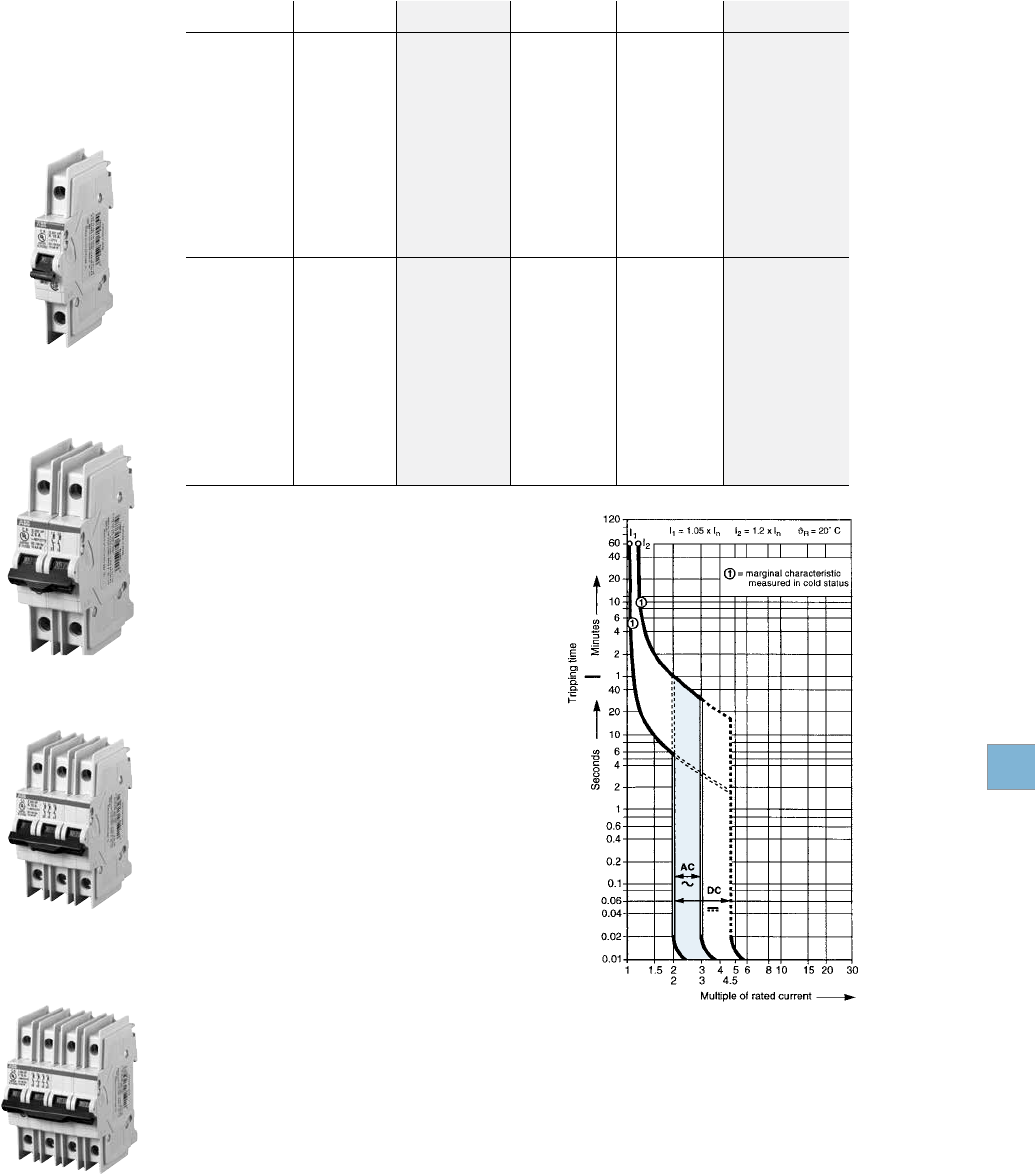

Miniature
circuit breakers
S200
15 15
ZNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S201UP-Z0.5
3
0.5 S203UP-Z0.5
1 S201UP-Z1 1 S203UP-Z1
1.6 S201UP-Z1.6 1.6 S203UP-Z1.6
2 S201UP-Z2 2 S203UP-Z2
3 S201UP-Z3 3 S203UP-Z3
4 S201UP-Z4 4 S203UP-Z4
5 S201UP-Z5 5 S203UP-Z5
6 S201UP-Z6 6 S203UP-Z6
8 S201UP-Z8 8 S203UP-Z8
10 S201UP-Z10 10 S203UP-Z10
15 S201UP-Z15 15 S203UP-Z15
16 S201UP-Z16 16 S203UP-Z16
20 S201UP-Z20 20 S203UP-Z20
25 S201UP-Z25 25 S203UP-Z25
2
0.5 S202UP-Z0.5
4
0.5 S204UP-Z0.5
1 S202UP-Z1 1 S204UP-Z1
1.6 S202UP-Z1.6 1.6 S204UP-Z1.6
2 S202UP-Z2 2 S204UP-Z2
3 S202UP-Z3 3 S204UP-Z3
4 S202UP-Z4 4 S204UP-Z4
5 S202UP-Z5 5 S204UP-Z5
6 S202UP-Z6 6 S204UP-Z6
8 S202UP-Z8 8 S204UP-Z8
10 S202UP-Z10 10 S204UP-Z10
15 S202UP-Z15 15 S204UP-Z15
16 S202UP-Z16 16 S204UP-Z16
20 S202UP-Z20 20 S204UP-Z20
25 S202UP-Z25 25 S204UP-Z25
S204UP-Z
S203UP-Z
S202UP-Z
S201UP-Z
S200UP-Z, 480Y/277 VAC
Branch circuit protection
UL 489, CSA 22.2 No. 5
Tripping characteristic Z
UL 489
480Y/277 VAC
10 kA
Resistive loads
• Z Curve
• Designed to provide maximum protection with
a very low short circuit trip setting
• Example: semiconductors, control circuits
Accessories & technical data
Accessories – See page 15.9 - 15.13
Technical data – See page 15.14 -15.16
Note: This breaker for AC use only
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

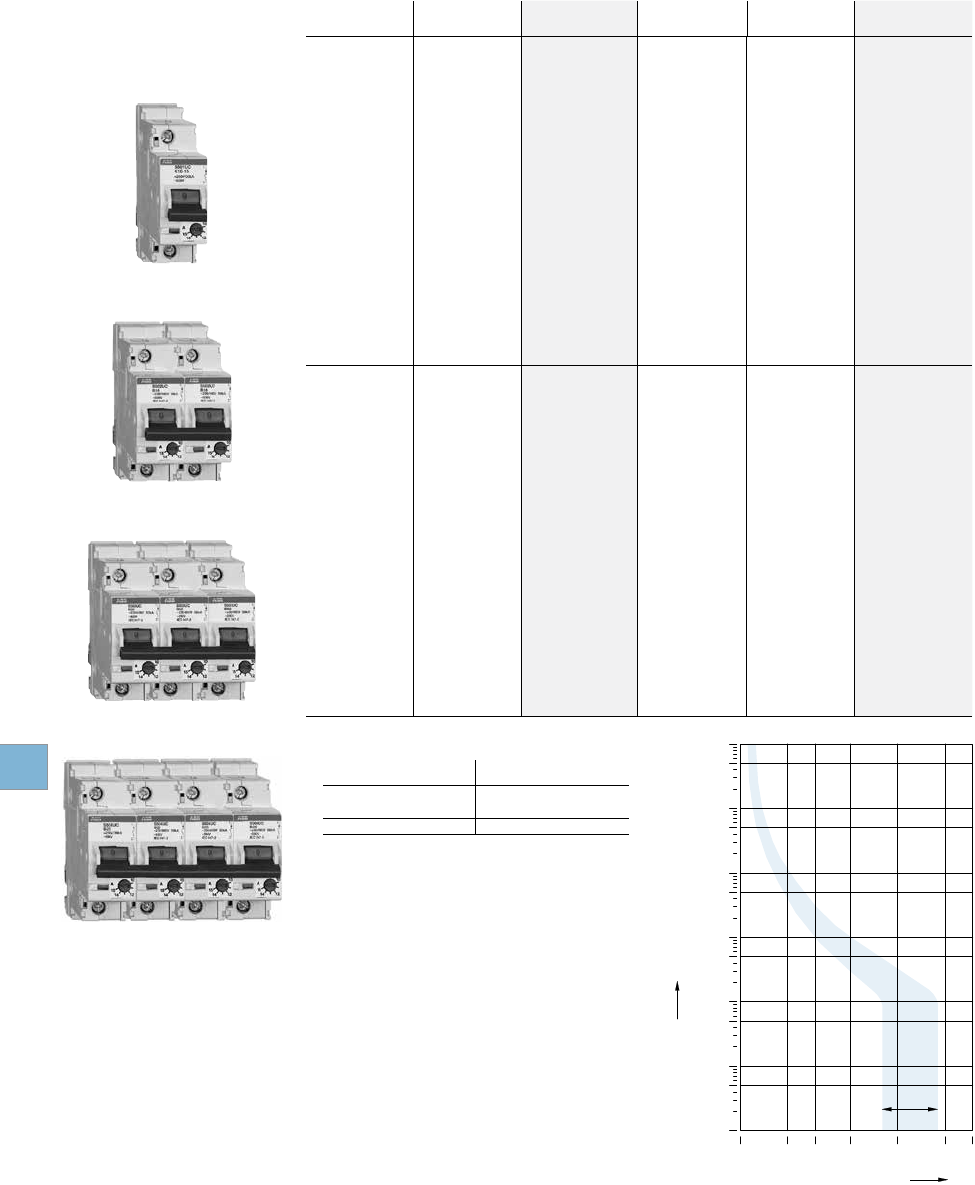

SU200PR-K, 480Y/277 VAC, Ring tongue
Branch circuit protection
UL489, CSA 22.2 No.5
KNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.2 SU201PR-K0.2
3
0.2 SU203PR-K0.2
0.3 SU201PR-K0.3 0.3 SU203PR-K0.3
0.5 SU201PR-K0.5 0.5 SU203PR-K0.5
0.75 SU201PR-K0.75 0.75 SU203PR-K0.75
1 SU201PR-K1 1 SU203PR-K1
1.6 SU201PR-K1.6 1.6 SU203PR-K1.6
2 SU201PR-K2 2 SU203PR-K2
3 SU201PR-K3 3 SU203PR-K3
4 SU201PR-K4 4 SU203PR-K4
5 SU201PR-K5 5 SU203PR-K5
6 SU201PR-K6 6 SU203PR-K6
8 SU201PR-K8 8 SU203PR-K8
10 SU201PR-K10 10 SU203PR-K10
13 SU201PR-K13 13 SU203PR-K13
15 SU201PR-K15 15 SU203PR-K15
16 SU201PR-K16 16 SU203PR-K16
20 SU201PR-K20 20 SU203PR-K20
25 SU201PR-K25 25 SU203PR-K25
30 SU201PR-K30 30 SU203PR-K30
32 SU201PR-K32 32 SU203PR-K32
35 SU201PR-K35 35 SU203PR-K35
40 SU201PR-K40 40 SU203PR-K40
50 SU201PR-K50 50 SU203PR-K50
60 SU201PR-K60 60 SU203PR-K60
63 SU201PR-K63 63 SU203PR-K63
2
0.2 SU202PR-K0.2
4
0.2 SU204PR-K0.2
0.3 SU202PR-K0.3 0.3 SU204PR-K0.3
0.5 SU202PR-K0.5 0.5 SU204PR-K0.5
0.75 SU202PR-K0.75 0.75 SU204PR-K0.75
1 SU202PR-K1 1 SU204PR-K1
1.6 SU202PR-K1.6 1.6 SU204PR-K1.6
2 SU202PR-K2 2 SU204PR-K2
3 SU202PR-K3 3 SU204PR-K3
4 SU202PR-K4 4 SU204PR-K4
5 SU202PR-K5 5 SU204PR-K5
6 SU202PR-K6 6 SU204PR-K6
8 SU202PR-K8 8 SU204PR-K8
10 SU202PR-K10 10 SU204PR-K10
13 SU202PR-K13 13 SU204PR-K13
15 SU202PR-K15 15 SU204PR-K15
16 SU202PR-K16 16 SU204PR-K16
20 SU202PR-K20 20 SU204PR-K20
25 SU202PR-K25 25 SU204PR-K25
30 SU202PR-K30 30 SU204PR-K30
32 SU202PR-K32 32 SU204PR-K32
35 SU202PR-K35 35 SU204PR-K35
40 SU202PR-K40 40 SU204PR-K40
50 SU202PR-K50 50 SU204PR-K50
60 SU202PR-K60 60 SU204PR-K60
63 SU202PR-K63 63 SU204PR-K63
Tripping characteristic K
UL 489
480Y/277 VAC
10 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush currents
during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.9 - 15.13
Technical data – See page 15.14 -15.16
SU201PR-K0.2
SU202PR-K0.2
SU203PR-K0.2
SU204PR-K0.2
K characteristic
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

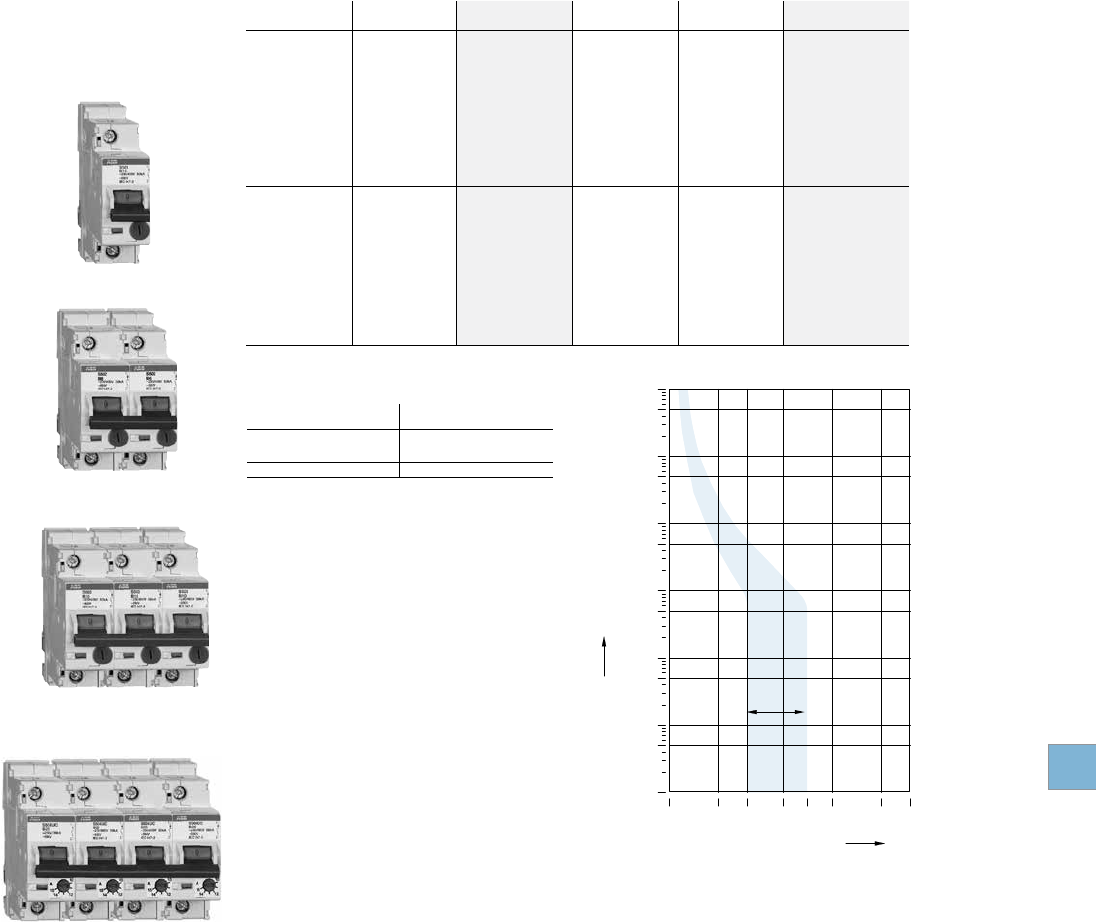

S200UDC-K, 1 pole 60 VDC, 2 pole 125 VDC
Branch circuit protection
UL 489, CSA 22.2 No. 5
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
1 S201UDC-K1
2
1 S202UDC-K1
1.6 S201UDC-K1.6 1.6 S202UDC-K1.6
2 S201UDC-K2 2 S202UDC-K2
3 S201UDC-K3 3 S202UDC-K3
4 S201UDC-K4 4 S202UDC-K4
5 S201UDC-K5 5 S202UDC-K5
6 S201UDC-K6 6 S202UDC-K6
8 S201UDC-K8 8 S202UDC-K8
10 S201UDC-K10 10 S202UDC-K10
13 S201UDC-K13 13 S202UDC-K13
15 S201UDC-K15 15 S202UDC-K15
16 S201UDC-K16 16 S202UDC-K16
20 S201UDC-K20 20 S202UDC-K20
25 S201UDC-K25 25 S202UDC-K25
30 S201UDC-K30 30 S202UDC-K30
32 S201UDC-K32 32 S202UDC-K32
40 S201UDC-K40 40 S202UDC-K40
50 S201UDC-K50 50 S202UDC-K50
60 S201UDC-K60 60 S202UDC-K60
63 S201UDC-K63 63 S202UDC-K63
NOTE: Standard UL 489 (only DC; please note polarity of device).
S201UDC-K1 S202UDC-K1
K
Tripping characteristic K
UL 489
480Y/277 VAC
14 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush currents
during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.9 - 15.13
Technical data – See page 15.14 -15.16

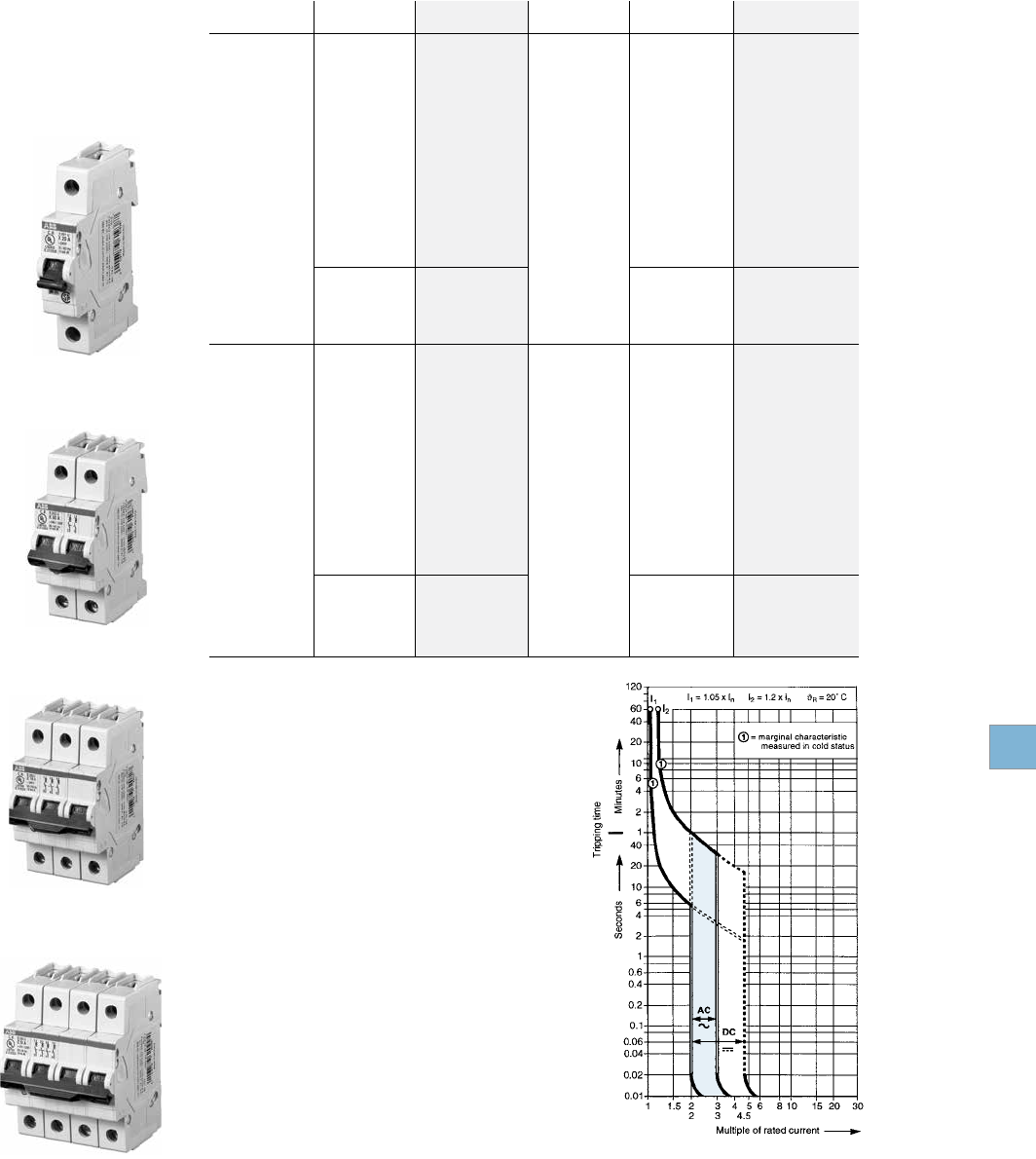

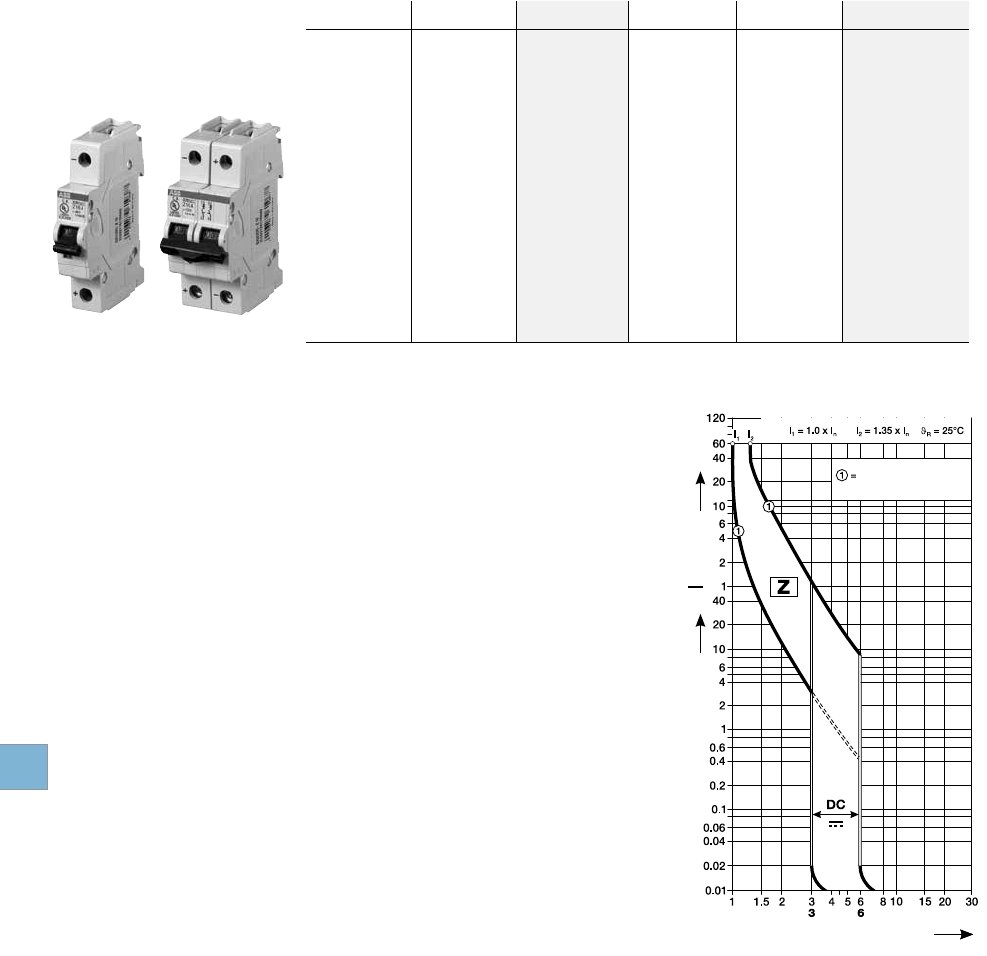

120
60
40
20
10
6
4
2
1
40
20
10
6
4
2
1
0.6
0.4
0.2
0.1
0.06
0.04
0.02
0.01 1 1.5 2 3 4 5 6 8 10 15 20 30
Multiple of rated current
Minutes
Seconds
= marginal characteristic
measured in cold status
1
I = 1.0 x I
1 n
I = 1.35 x I
2 n
ϑ = 25°C
R
1
1
K
14
I
2
I
1
DC
25
Tripping time
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
1 S201UDC-Z1
2
1 S202UDC-Z1
1.6 S201UDC-Z1.6 1.6 S202UDC-Z1.6
2 S201UDC-Z2 2 S202UDC-Z2
3 S201UDC-Z3 3 S202UDC-Z3
4 S201UDC-Z4 4 S202UDC-Z4
5 S201UDC-Z5 5 S202UDC-Z5
6 S201UDC-Z6 6 S202UDC-Z6
8 S201UDC-Z8 8 S202UDC-Z8
10 S201UDC-Z10 10 S202UDC-Z10
13 S201UDC-Z13 13 S202UDC-Z13
15 S201UDC-Z15 15 S202UDC-Z15
16 S201UDC-Z16 16 S202UDC-Z16
20 S201UDC-Z20 20 S202UDC-Z20
25 S201UDC-Z25 25 S202UDC-Z25
30 S201UDC-Z30 30 S202UDC-Z30
32 S201UDC-Z32 32 S202UDC-Z32
40 S201UDC-Z40 40 S202UDC-Z40
50 S201UDC-Z50 50 S202UDC-Z50
60 S201UDC-Z60 60 S202UDC-Z60
63 S201UDC-Z63 63 S202UDC-Z63
NOTE: Standard UL 489 (only DC; please note polarity of device).
S201UDC-K1 S202UDC-K1
Z
Tripping characteristic Z
UL 489
480Y/277 VAC
14 kA
Resistive loads
• Z Curve
• Designed to provide maximum protection with
a very low short circuit trip setting
• Example: semiconductors, control circuits
Accessories & technical data
Accessories – See page 15.9 - 15.13
Technical data – See page 15.14 -15.16
S200UDC-Z, 1 pole 60 VDC, 2 pole 125 VDC
Branch circuit protection
UL 489, CSA 22.2 No. 5
Z
Tripping time
Minutes
Seconds
marginal characteristic
measured in cold status
Multiple of rated current
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
S2C-H6RU
S2C-S6RU

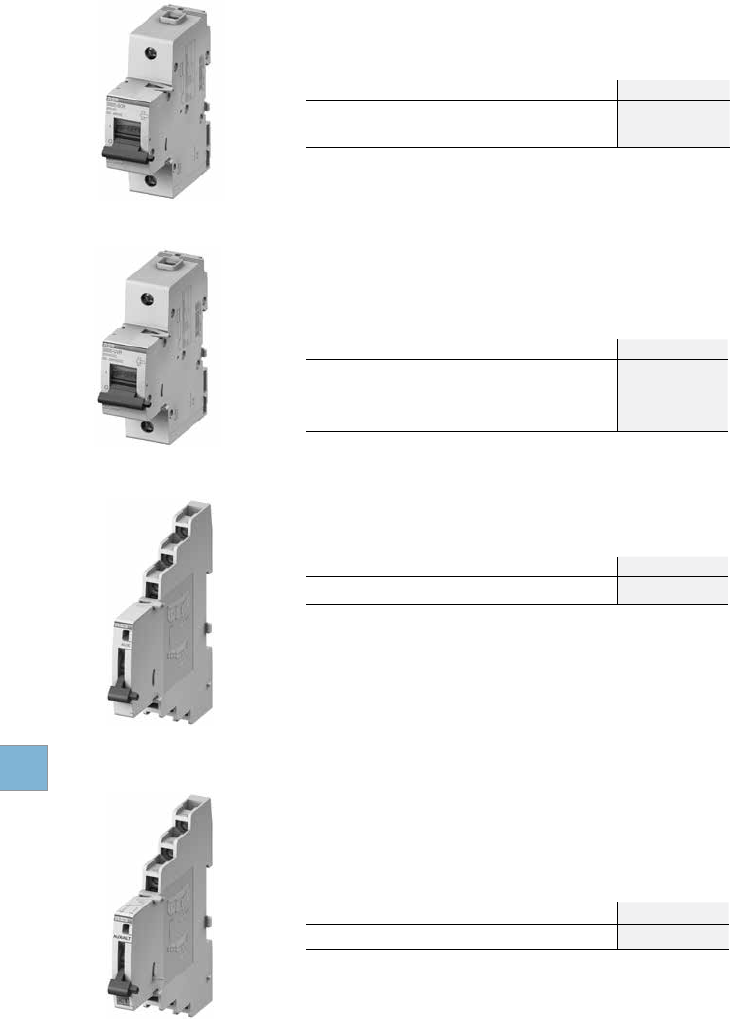

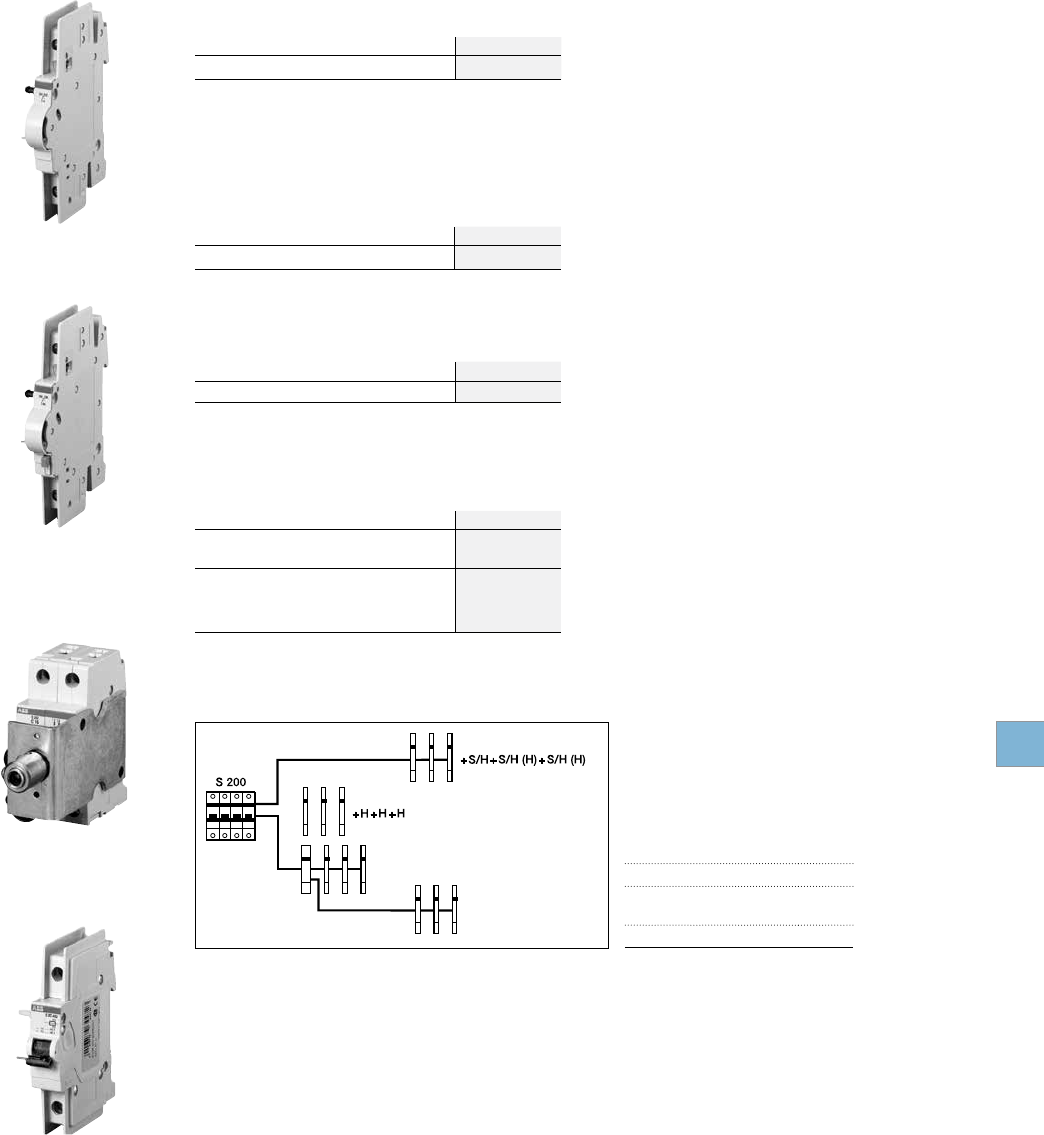

Auxiliary contacts
The auxiliary contacts will signal whether the breaker is in the ON or OFF position.
Description Catalog number
For field mounting: right side S2C-H6RU
Bell alarm
The bell alarm includes a set of contacts that will only signal when the breaker has tripped.
Typically the contacts would be connected to an alarm or bell to signal the operator that an overcurrent trip
has occurred. The bell alarm also includes a test button for testing the alarm contacts without opening the
breaker.
Description Catalog number
For field mounting: right side S2C-S6RU

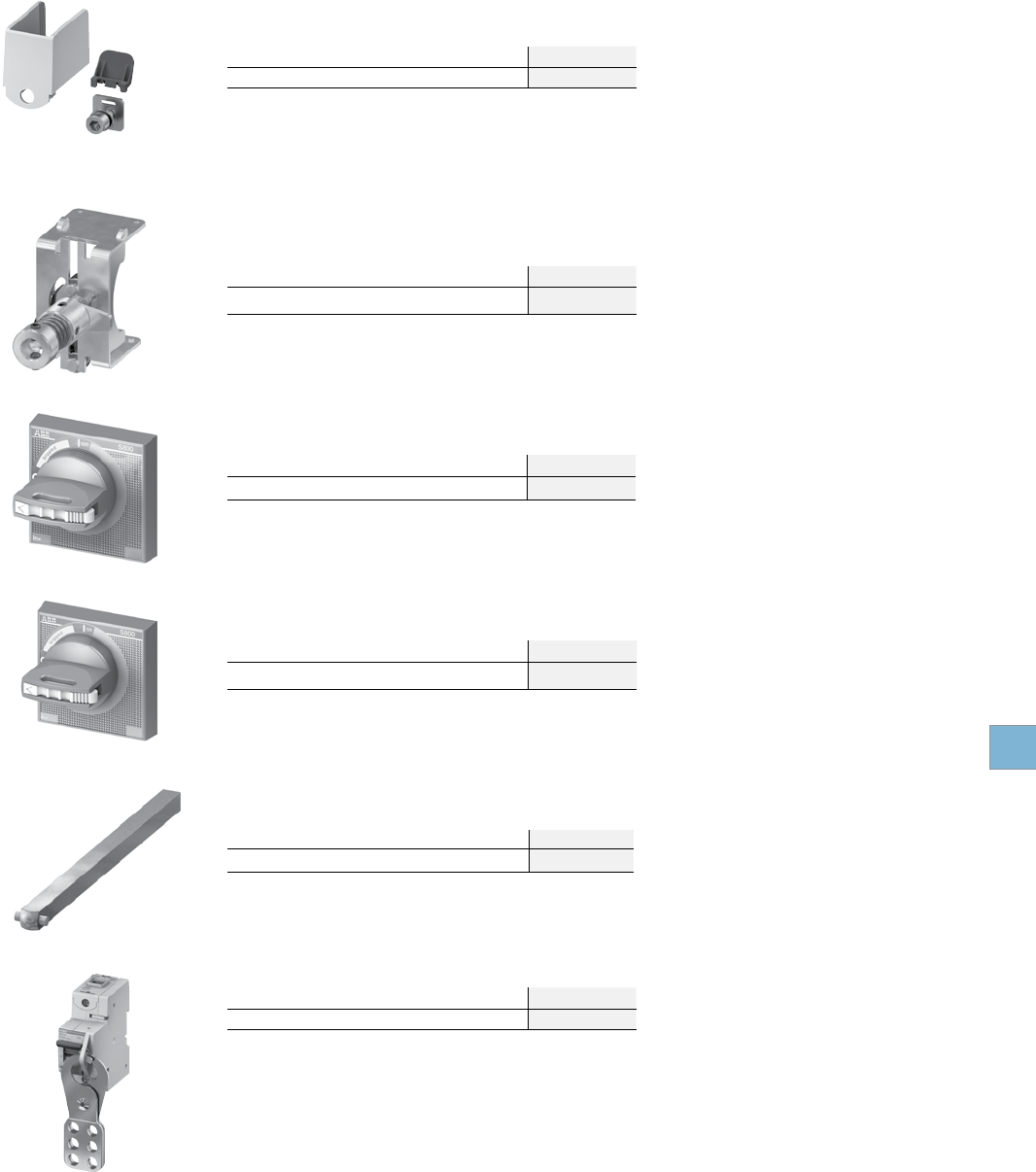

Rotary operating mechanism
Allows “through the door” operation.
Description Catalog number
Handle mechanism
S2C-DH
Shunt trip
For remote tripping of breaker, a shunt trip device can be added to the MCB. The solenoid device opens the
breaker after control voltage is applied.
Description Catalog number
For field mounting: right side
12…60 VAC/DC S2C-A1U
For field mounting: right side
110…415 VAC S2C-A2U
110…250 VDC
NOTE: For shafts and handles, refer to parts in the MCCB
section.
S2C-A1U
S2C-DH

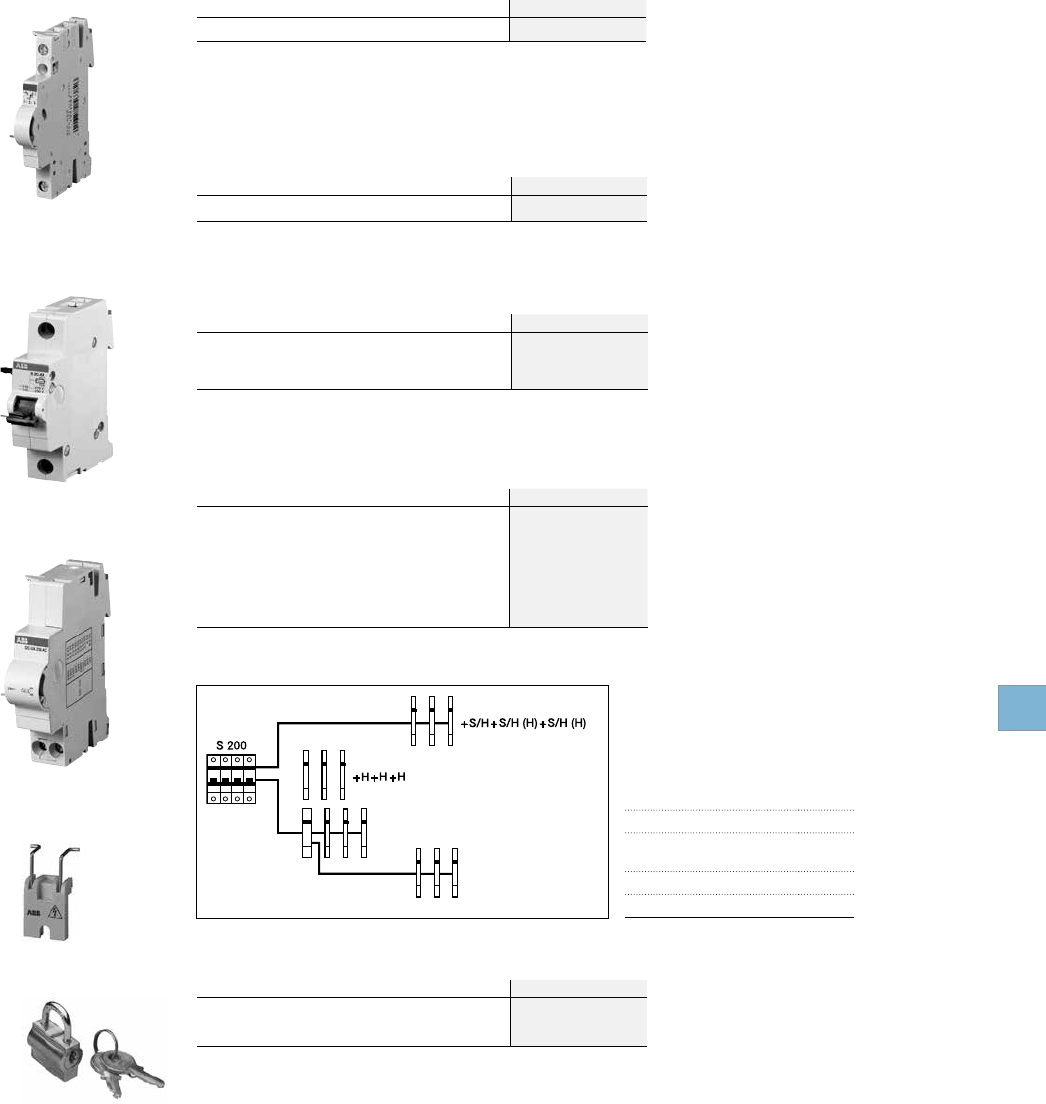

Possible mounting arrangements of MCB accessories
Accessories
S200U, S200UP, SU200PR & S200UDC
UL 489, CSA 22.2 No. 5
+ST+S/H+S/H (H)+S/H (H)
+ST+H+H+H)
Legend
Auxiliary contact H
Bell alarm/Auxiliary contact S/H
Bell alarm/Auxiliary contact
used as auxiliary contact
S/H (H)
Shunt trip ST
NOTE: Right hand mount accessories cannot be used in
conjunction with S2C-DH, Rotary operating mechanism.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Shunt trip
in OFF
position

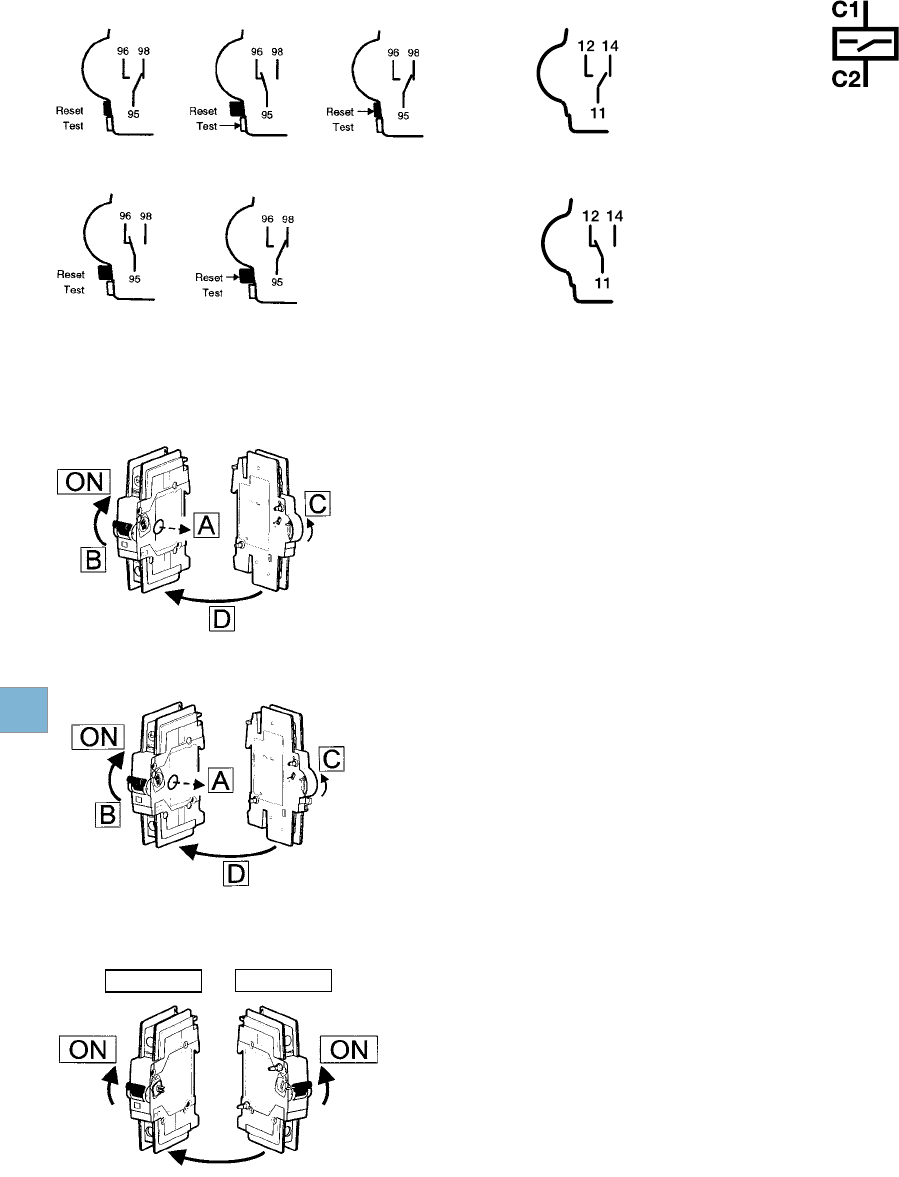

Connection drawings
Bell alarm S2C-S6RU
Auxiliary contact in ON position
Auxiliary contact in OFF position
Auxiliary contact S2C-H6RU Shunt trip S2C-A...U
In ON and OFF position after hand operation
S2C-A1U
S2C-A2U
In OFF position after tripping
Accessories
S200U, S200UP, S200UDC & SU200PR
UL 489, CSA 22.2 No. 5
S200U-UP S2C-A....U
Mounting
Addition of a S2C-H6RU auxiliary contact
Addition of a S2C-S6RU bell alarm contact
Addition of a S2C-A..U shunt trip
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
H
Auxiliary contact S2C-H6RU
S
Signal contact S2C-S6RU
ST
Shunt trip S2C-A...U

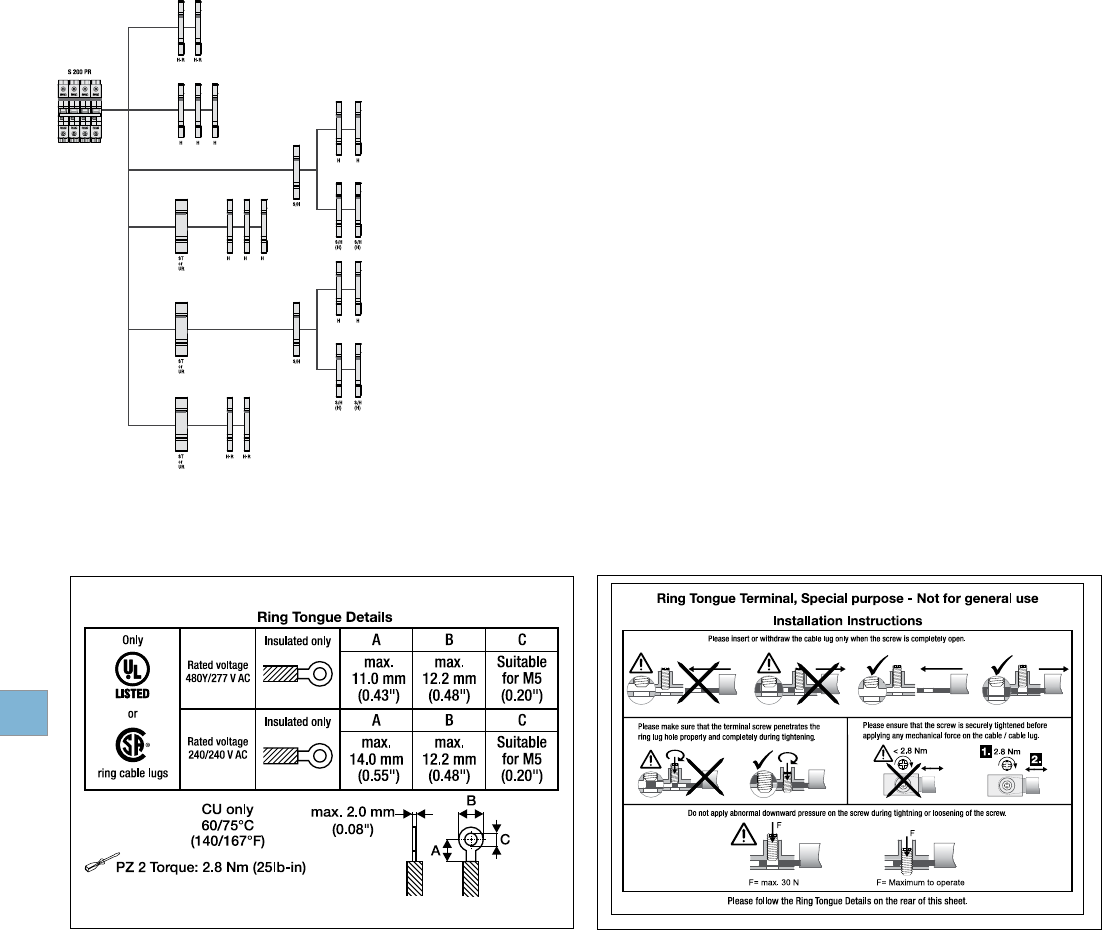

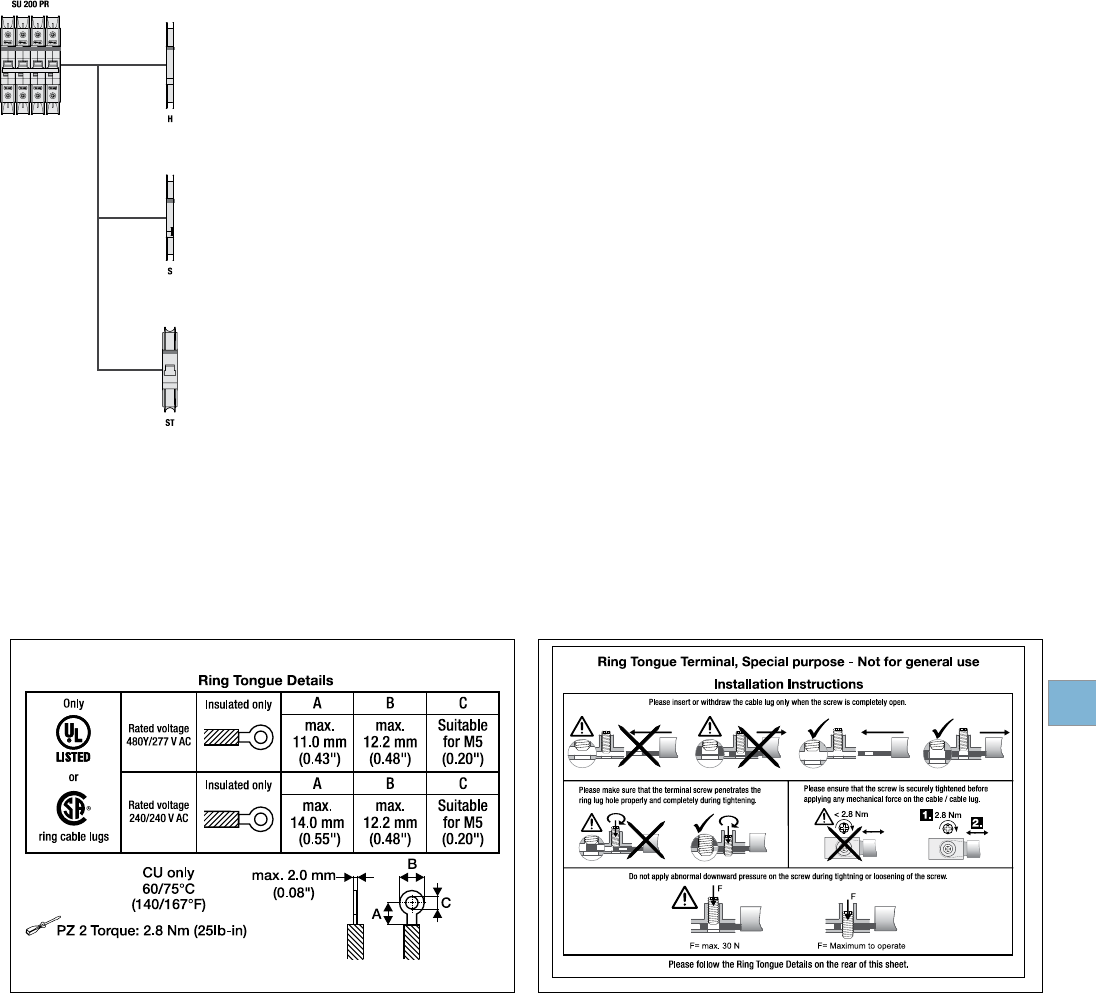

SU200PR Accessory overview
SU200PR Instructions for use
Accessories
SU200PR
UL 489, CSA 22.2 No. 5
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

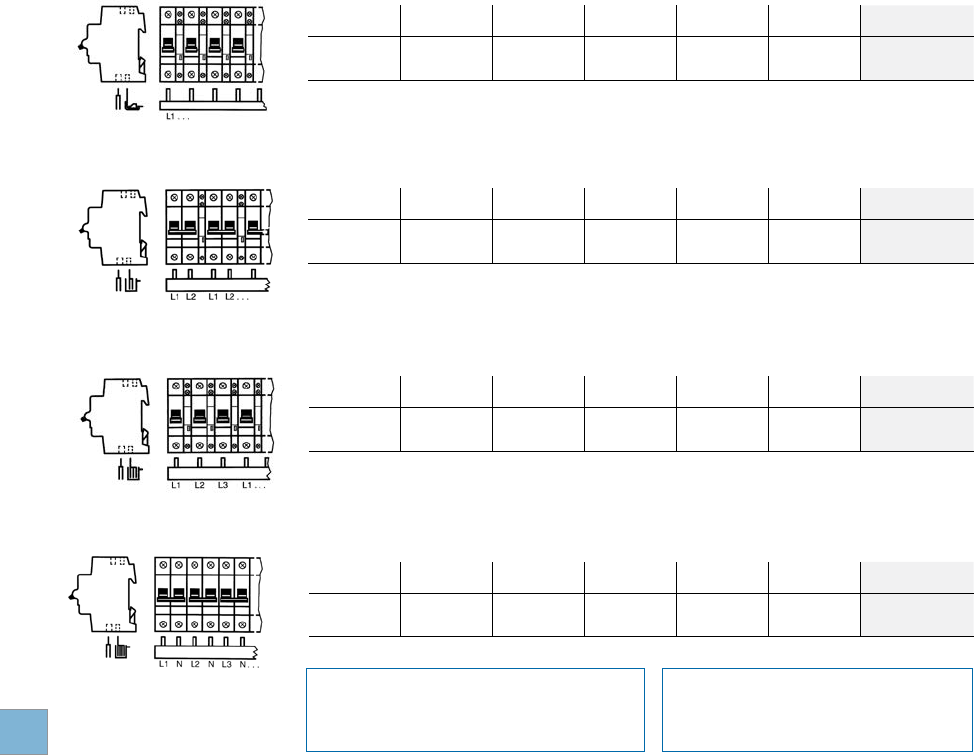

BSK-BP
For
use on: Amp
rating Number
of poles Phases Busbar length
(mm) Catalog
number
S200U
S200UP
S201UDC
80
6
12
18
1
1
1
103.2
208.8
314.4
PS 1/6/16BP
PS 1/12/16BP
PS 1/18/16BP
S200U
S200UP
S201UDC
80
6
12
18
2
2
2
103.2
208.8
314.4
PS 2/6/16BP
PS 2/12/16BP
PS 2/18/16BP
S200U
S200UP
S201UDC
80
6
12
18
3
3
3
103.2
208.8
314.4
PS 3/6/16BP
PS 3/12/16BP
PS 3/18/16BP
UL approved busbars UL file # E250145
UL 489 busbar cannot be cut.
Accessories
S200U, S200UP & S200UDC
UL 489, CSA 22.2 No. 5

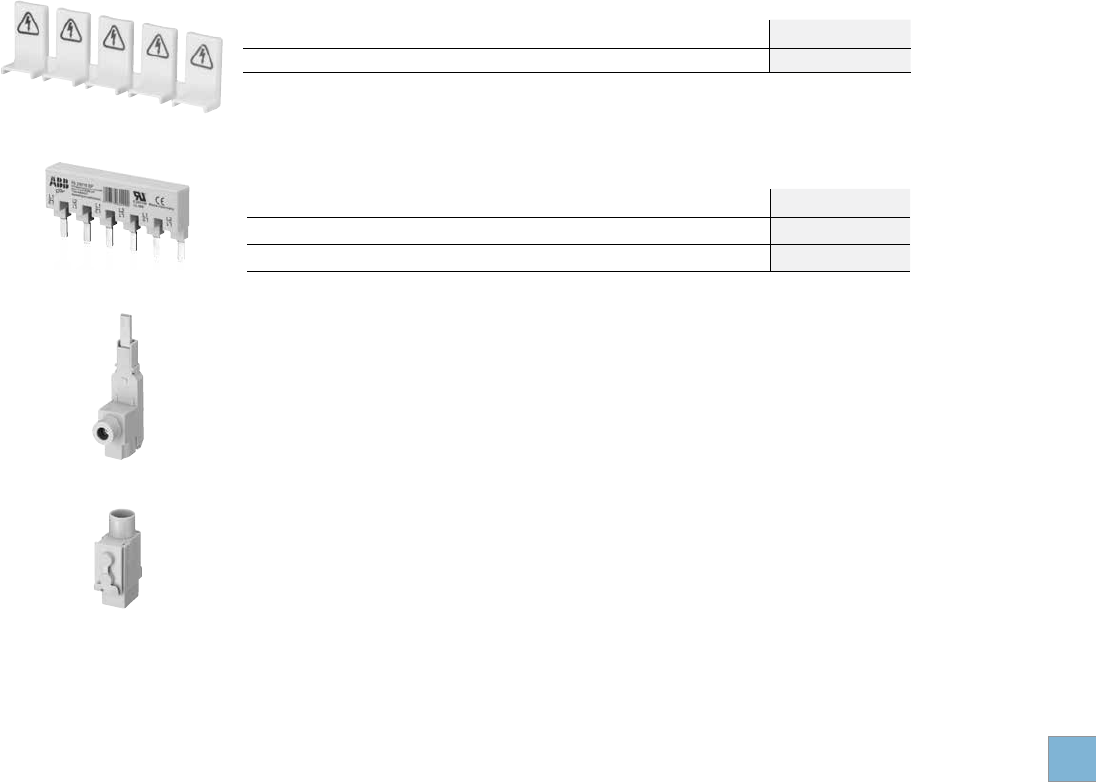

Busbar tooth covers for BS...BP (UL 489)
Description Catalog number
Covers three unused poles of busbar BSK-BP
1 Phase
PS2/6/16 BP
AST35/15BP SZ-ESPBP

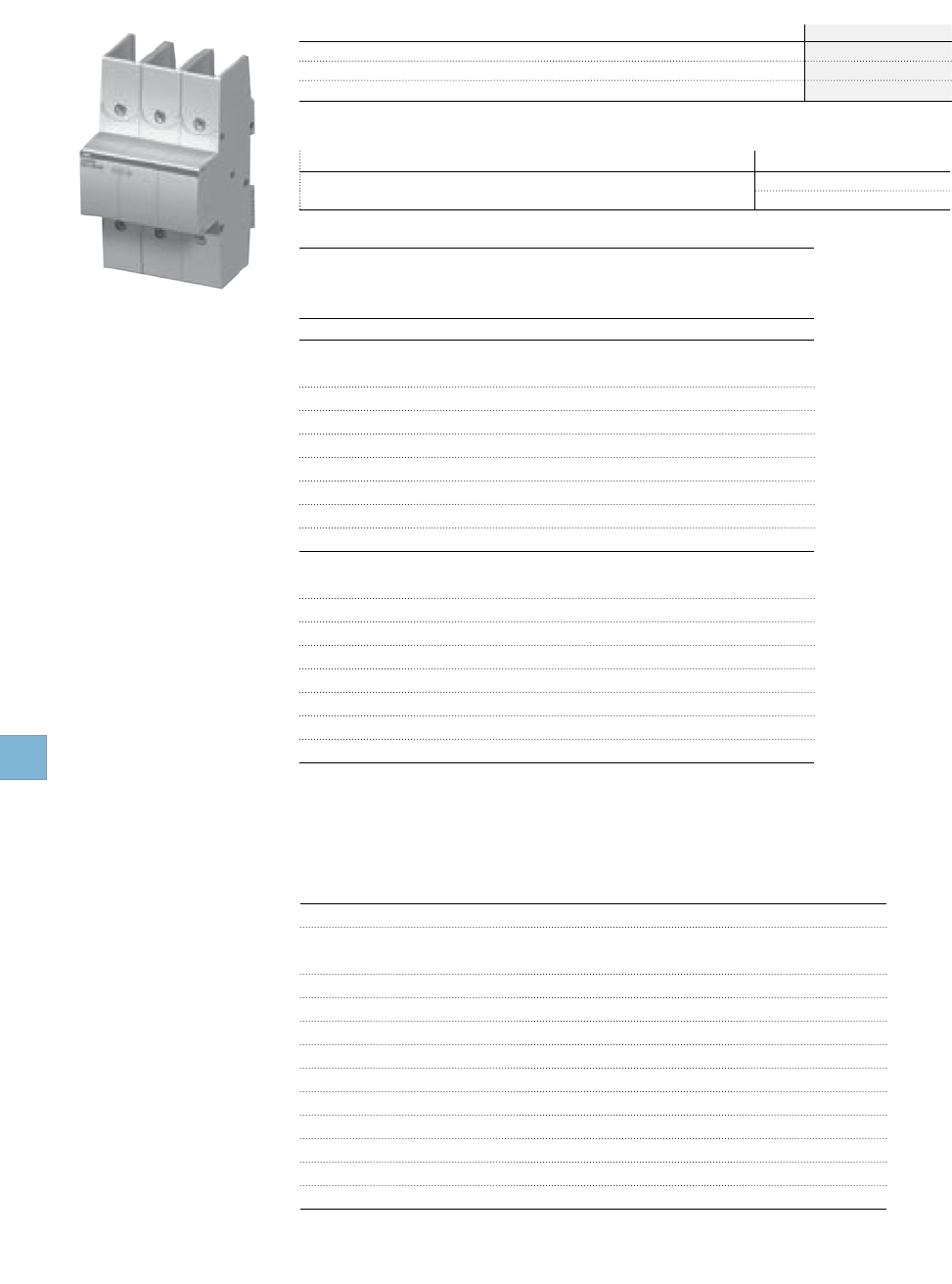

Feeder terminals for PS...BP (UL 489)

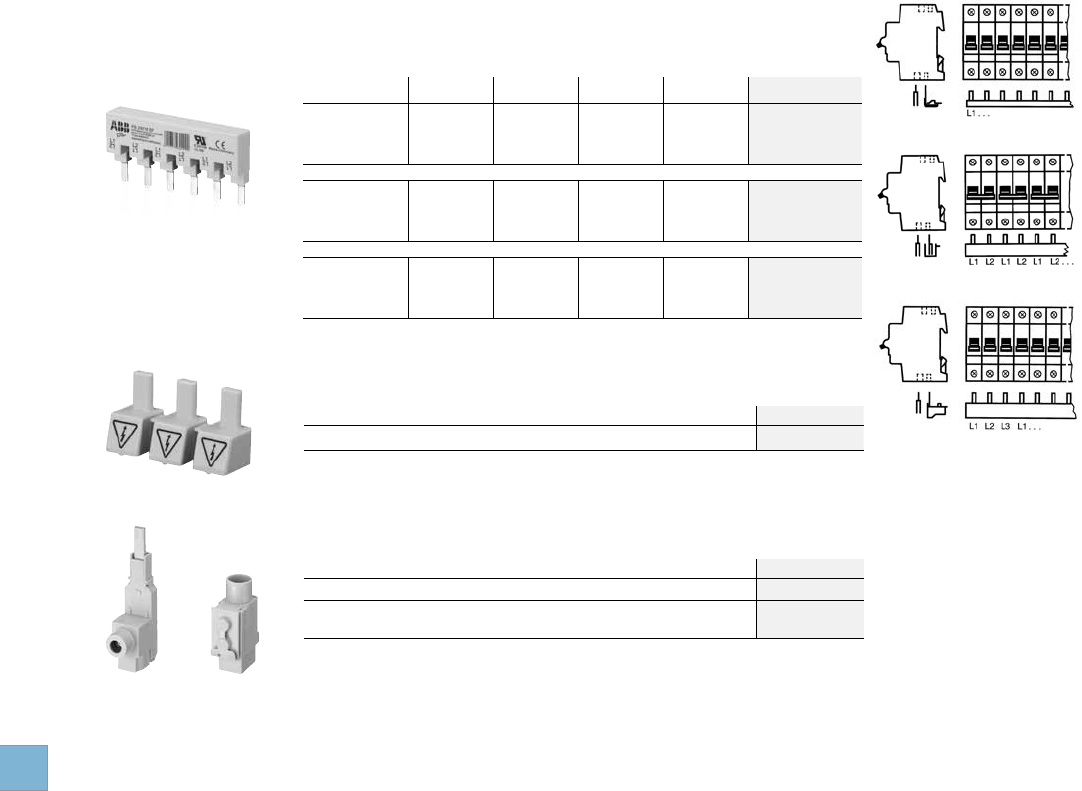

Description Catalog number
Terminal, insulated with pin contact AST35/15BP
Feeder Terminal, single-pole terminal, can be mounted side by side, feed
on the pin of the busbar SZ-ESK BP
2 Phase
3 Phase
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Technical data S200U S200UP SU200PR S200UDC
Specifications: UL 489, C 22.2 No. 5, IEC 60947-2 UL 489, VDE 0660
UL File-Number: E 212323, UL, Current limiting series ratings E212323, UL
No. of poles: 1, 2, 3 & 4 1, 2
Tripping characteristics: K, Z K K, Z
Rated current: 0.2 (K) 0.5 (Z) ... 63 A 0.2 (K) 0.5 (Z) ... 25 A 0.2 ... 63A 1 - 63 A
Rated voltage: Single pole: 240VAC
Multi pole: 240VAC
Single pole: 277VAC
Multi pole: 480Y/277VAC
Single pole: 277VAC (<=35A);
240VAC (>35A)
Multi pole: 480Y/277VAC (<=35A);
240VAC (>35A)
1P: 60 V DC
2P:125 V DC 1
Short circuit capacity: 10 kA 14 kA
Frequency: 50/60 Hz 50/60 Hz
Degree of protection: IP 20
IP20, IP40 in enclosure w/cover
IP 20
Mounting position: Vertical and horizontal Any Vertical and horizontal
Fixing: 35 mm DIN rail 35 mm DIN rail
Clamps only for Cu: 18-4 AWG (0.75 … 25 mm2) 18-4 AWG (0.75 … 25 mm2)
Service life, mech. and at rated
load: 20,000 operations 6000 operations (AC)
1 cycle (1s-ON, 9S-OFF) 20,000 operations
Tightening torque: 25 in. lbs (2.8 Nm) 25 in. lbs (2.8 Nm)
Ambient temperature: – 25 °C … + 55 °C/– 13 °F … + 131 °F – 25 °C … + 55 °C/– 13 °F …
+ 131 °F
Shock resistance: 30 g at least 2 impacts shock, duration 13 ms 25 g, 2 shocks - 13ms
30 g at least 2 impacts shock,
duration 13 ms
Auxiliary contact S2C-H6RU and S2C-S6RU
Rated current: 10
Rated voltage AC / DC: 24
Contact: 1 pole double throw
Connection capacity mm218 – 14 AWG (0.75…2.5 mm2)
Tightening torque: 11 in.Ibs (1.2 Nm)
Shock resistance acc. to DIN IEC 68-2-6: 5 g, 20 frequency cycles 5...150...5 Hz at 24 VAC/DC, 5 mA auto-reclosing < 10 ms
Mechanical service life: 10,000 operations
Shunt trip Type S2C-A1U S2C-A2U
Rated voltage AC
DC
V
V
12 ... 60
12 ... 60
110 ... 415
110 ... 250
Max. release duration ms < 10 < 10
Min. release voltage AC
DC
V
V
7
10
55
80
Consumption on release AC
DC
VA
VA
40 ... 200
40 ... 200
55 ... 210
55 ... 110
Coil resistance Ω3.7 225
Terminals AWG/mm218…6 / 0.75 – 16 18…6 / 0.75 – 16
Tightening torque in.Ibs/Nm 18 / 2 18 / 2
Technical data
S200U, S200UP, SU200PR & S200UDC
UL 489, CSA 22.2 No. 5
1 Poles connected in series.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Internal resistance and power loss
Internal resistance per pole in mz, power loss per pole in W.
Type Rated
current
Device series
K
Device series
Z
AmzWmzW
S200U
S200UP
0.2 42500 1.7 – –
0.3 20000 1.8 – –
0.5 6340 1.6 10100 2.5
0.75 2500 1.4 – –
1 1400 1.4 2270 2.3
1.6 625 1.6 1100 2.8
2 460 1.8 619 2.5
3 211 1.9 211 1.9
4 163 2.6 163 2.6
6 67 2.4 104 3.7
8 45 2.9 55 3.5
10 19 1.9 21 2.1
13 – – – –
16 8.2 2.1 10.9 2.8
20 7.3 2.9 7.3 2.9
25 5.6 3.5 5.6 3.5
32 4.1 4.2 4.1 4.2
40 4.0 6.4 4.0 6.4
50 1.2 3.0 1.8 4.4
63 1.3 5.2 1.3 5.2
Technical data
S200U, S200UP, SU200PR & S200UDC
UL 489, CSA 22.2 No. 5
Type Rated
current
Device series
K
Device series
Z
AmzWmzW
S200UDC
1 1400 1.4 2270 2.3
1.6 625 1.6 1100 2.8
2 460 1.8 619 2.5
3 211 1.9 211 1.9
4 153 2.6 163 2.5
6 67 2.4 104 3,7
8 45 2.9 55 3.5
10 19 1.9 21 2.1
13 – – – –
16 8.2 2.1 10.9 2.8
20 7.3 2.0 7.3 2.9
25 5.6 3.5 5.6 3.5
32 4.1 4.2 4.1 4.2
40 4.0 6.4 4.0 6.4
50 1.2 3.0 1.8 4.4
63 1.3 5.2 1.3 5.2
4) Internal resistances and power loss are subject to application-specific and environment-
specific conditions and are therefore to be considered as typical values.
SU200PR
Rated current Internal resistance per pole 1) Power loss per pole 1)
AmΩW
0.2 25300 1.01
0.3 13700 1.23
0.5 4740 1.19
0.75 2067 1.16
1 1270 1.27
1.5 610 1.56
2 442 1.77
3 140 1.26
4 109 1.75
5 50 1.26
6 54 1.94
8 22 1.41
10 18.2 1.82
13 14.8 2.50
15 8.1 1.83
16 11.1 2.83
20 8.5 3.40
25 5.5 3.43
30 3.8 3.39
32 4.6 4.70
35 3.9 4.76
40 2.8 4.40
50 1.7 4.25
60 1.7 6.18
63 1.9 7.56
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
K and Z Ambient temperature T (°C/°F)
In (A) – 40/– 40 – 30/– 22 – 20/– 4 – 10/14 0/32 10/50 20/68 30/86 40/104 50/122 60/140 70/158
0.5 0.66 0.64 0.61 0.59 0.56 0.53 0.50 0.47 0.43 0.40 0.35 0.31
1.0 1.32 1.27 1.22 1.17 1.12 1.06 1.00 0.94 0.87 0.79 0.71 0.61
1.6 2.12 2.04 1.96 1.88 1.79 1.70 1.60 1.50 1.39 1.26 1.13 0.98
2.0 2.65 2.55 2.45 2.35 2.24 2.12 2.00 1.87 1.73 1.58 1.41 1.22
3.0 4.0 3.8 3.7 3.5 3.4 3.2 3.0 2.8 2.6 2.4 2.1 1.8
4.0 5.3 5.1 4.9 4.7 4.5 4.2 4.0 3.7 3.5 3.2 2.8 2.4
6.0 7.9 7.6 7.3 7.0 6.7 6.4 6.0 5.6 5.2 4.7 4.2 3.7
8.0 10.8 10.2 9.8 9.4 8.9 8.5 8.0 7.5 6.9 6.3 5.7 4.9
10.0 13.2 12.7 12.2 11.7 11.2 10.6 10.0 9.4 8.7 7.9 7.1 6.1
13.0 17.2 16.6 15.9 15.2 14.5 13.8 13.0 12.2 11.3 10.3 9.2 8.0
16.0 21.2 20.4 19.6 18.8 17.9 17.0 16.0 15.0 13.9 12.6 11.3 9.8
20.0 26.5 25.5 24.5 23.5 22.4 21.2 20.0 18.7 17.3 15.8 14.1 12.2
25.0 33.1 31.9 30.6 29.3 28.0 26.5 25.0 23.4 21.7 19.8 17.7 15.3
32.0 42.3 40.8 39.2 37.5 35.8 33.9 32.0 29.9 27.7 25.3 22.6 19.6
40.0 52.9 51.0 49.0 46.9 44.7 42.4 40.0 37.4 34.6 31.6 28.3 24.5
50.0 66.1 63.7 61.2 58.6 55.9 53.0 50.0 46.8 43.3 39.5 35.4 30.6
63.0 83.3 80.3 77.2 73.9 70.4 66.8 63.0 58.9 54.6 49.8 44.5 38.6

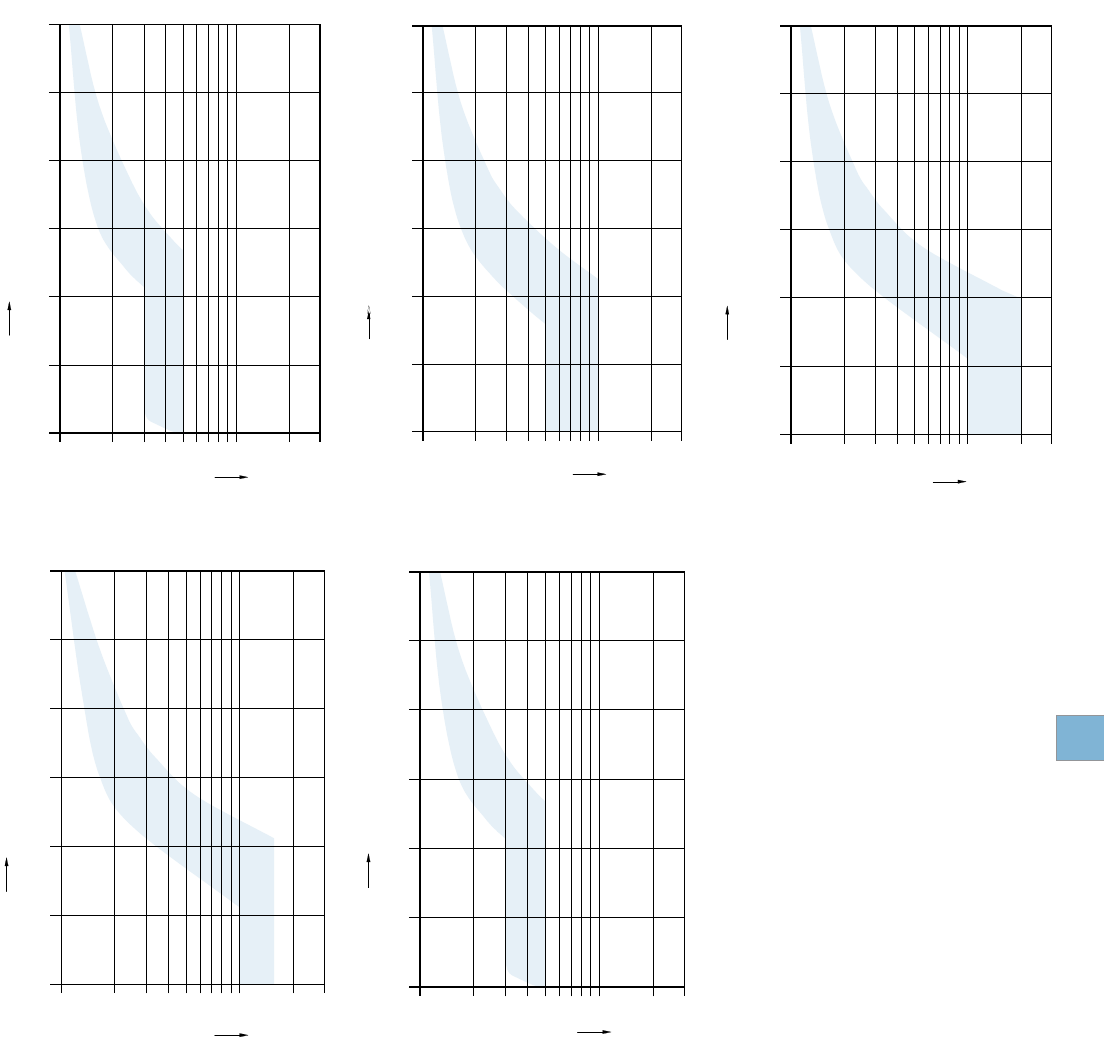

Temperature derating
Max. operating current values depending on the ambient temperature for a circuit-breaker of characteristics type K and Z

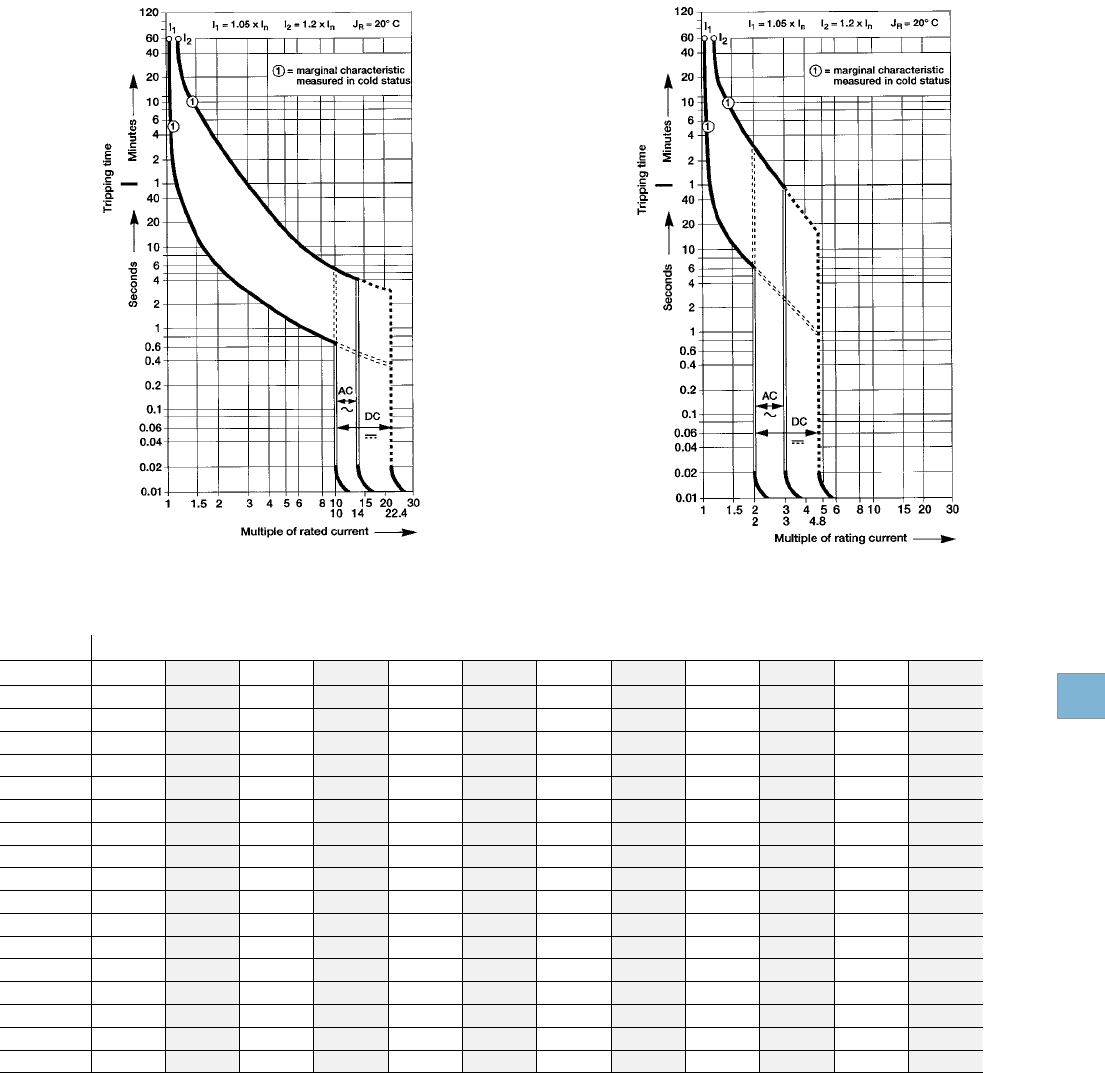

Tripping characteristic Z (68 °F)
Breaker calibration temperature 68°F
See chart below for temperature DeRating
Tripping characteristic K (68 °F)
Breaker calibration temperature 68°F
See chart below for temperature DeRating
Technical data
S200U, S200UP, SU200PR & S200UDC
UL 489, CSA 22.2 No. 5
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

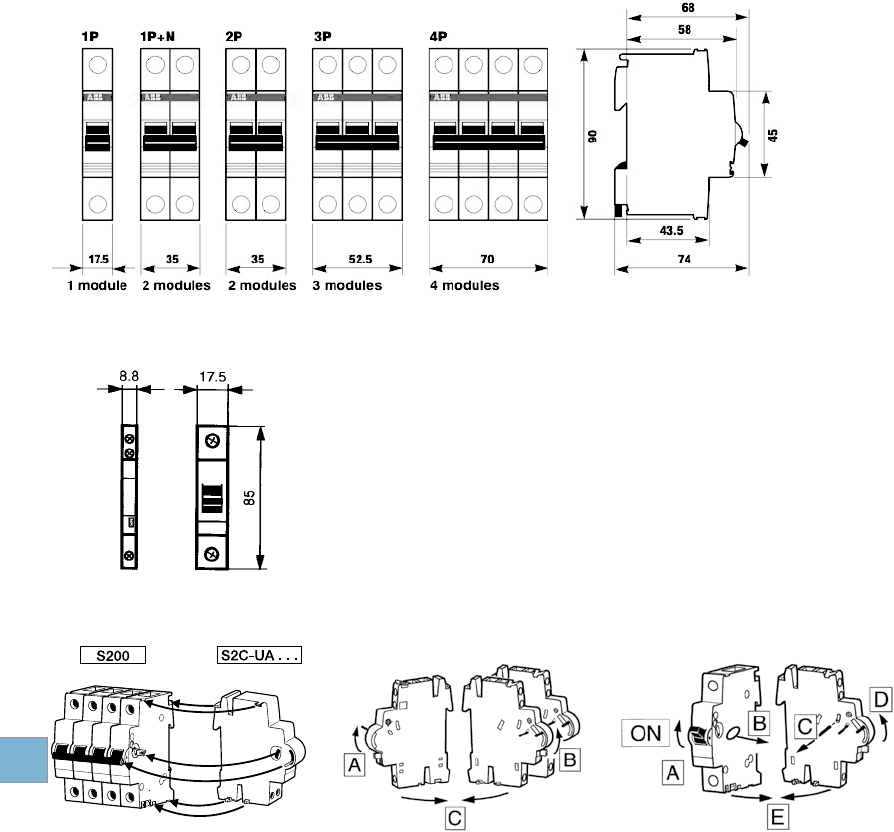

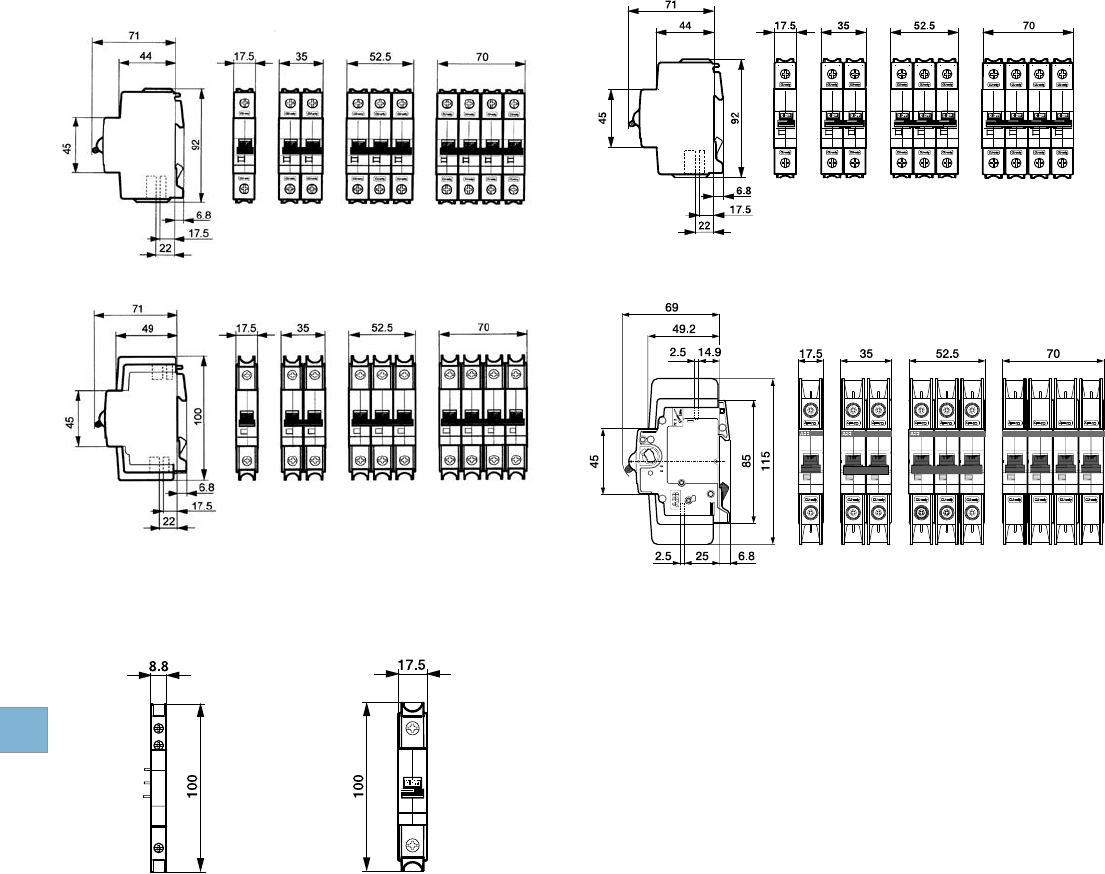

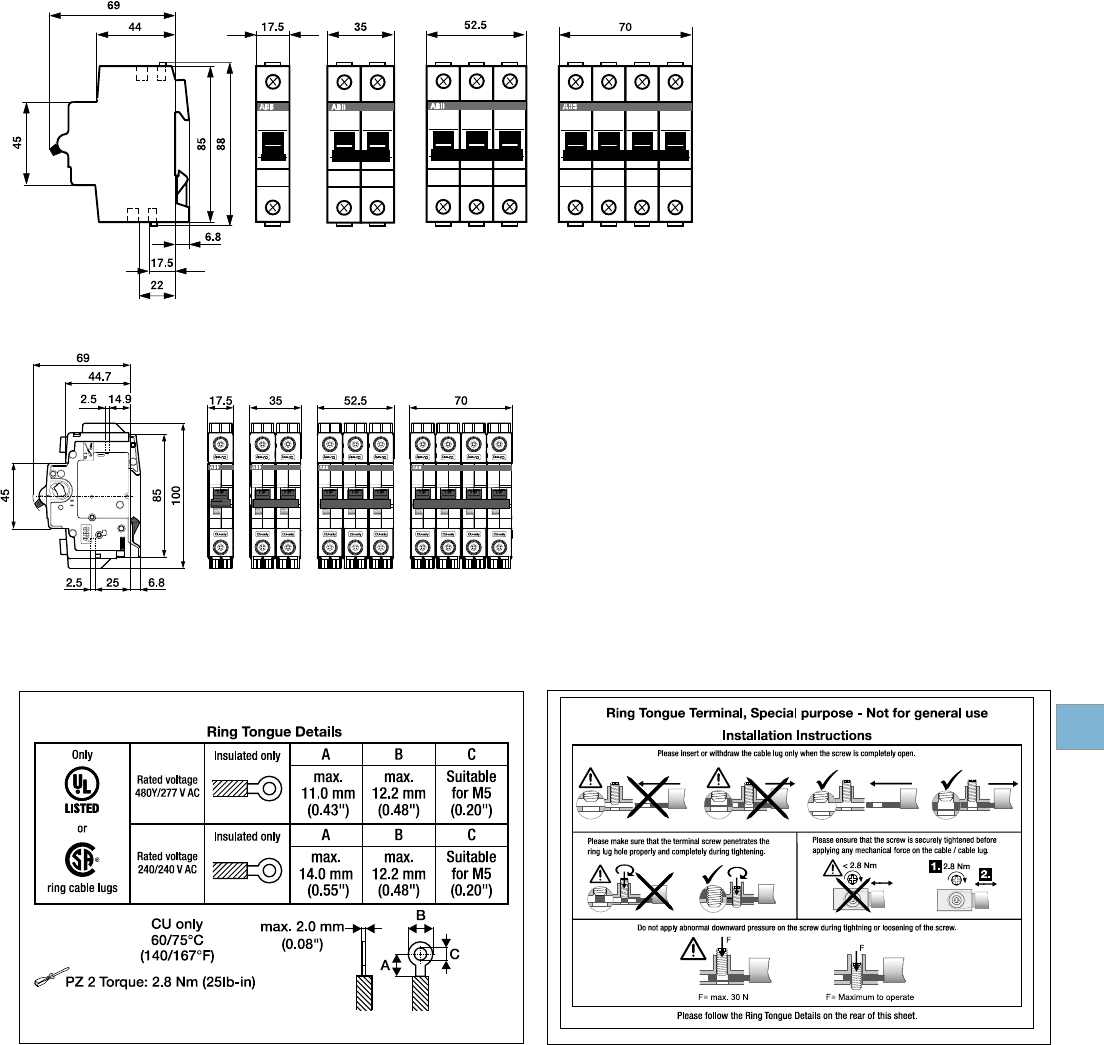

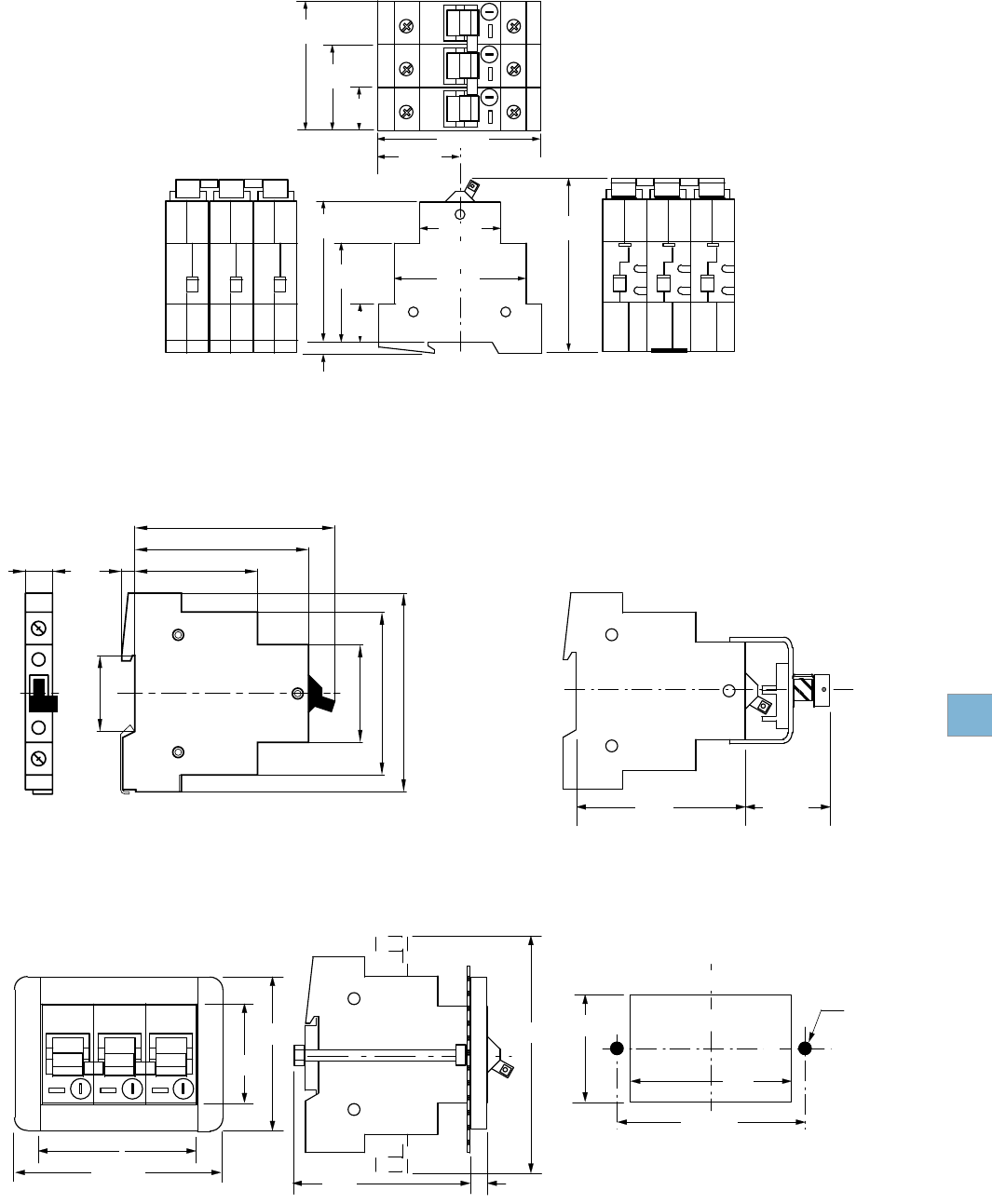

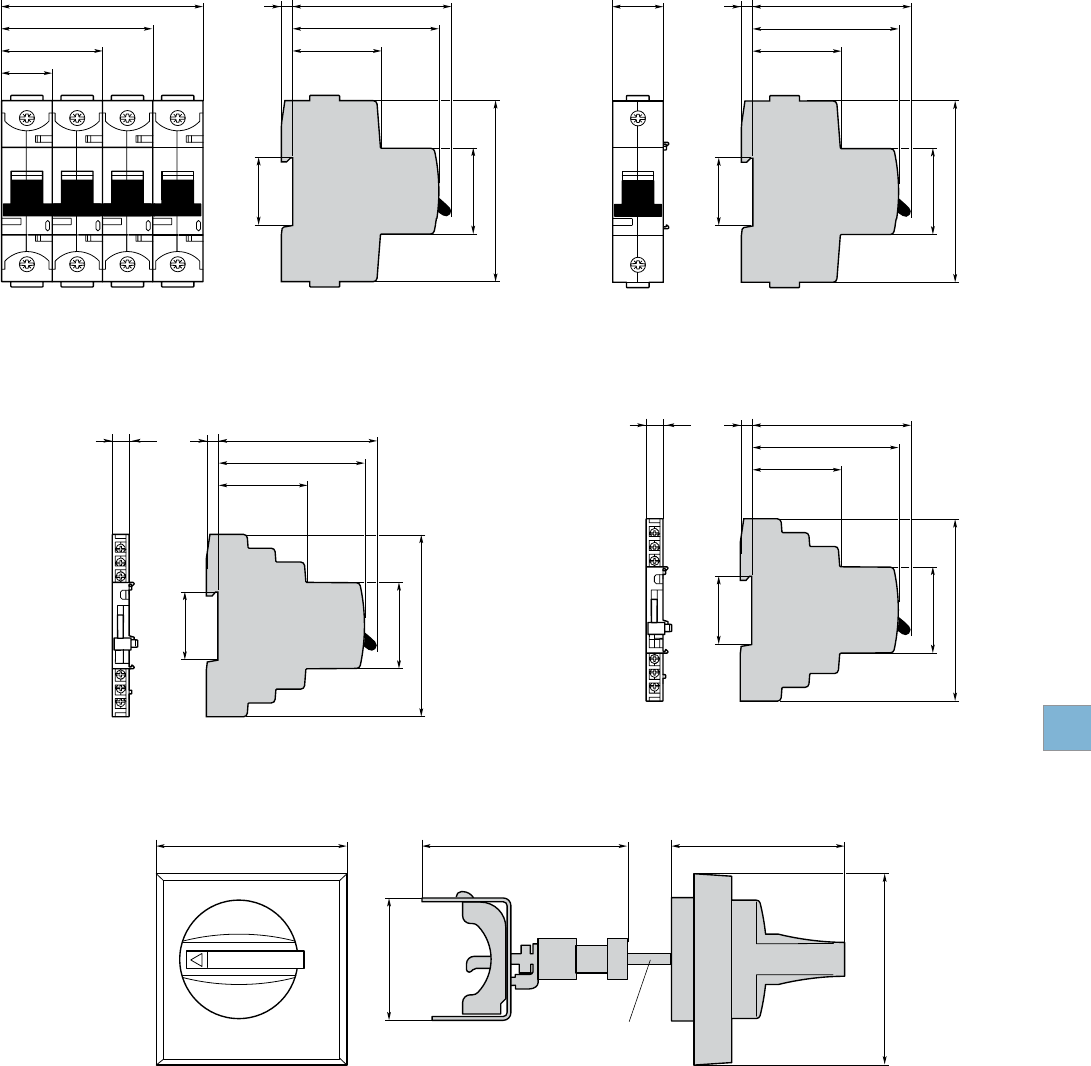

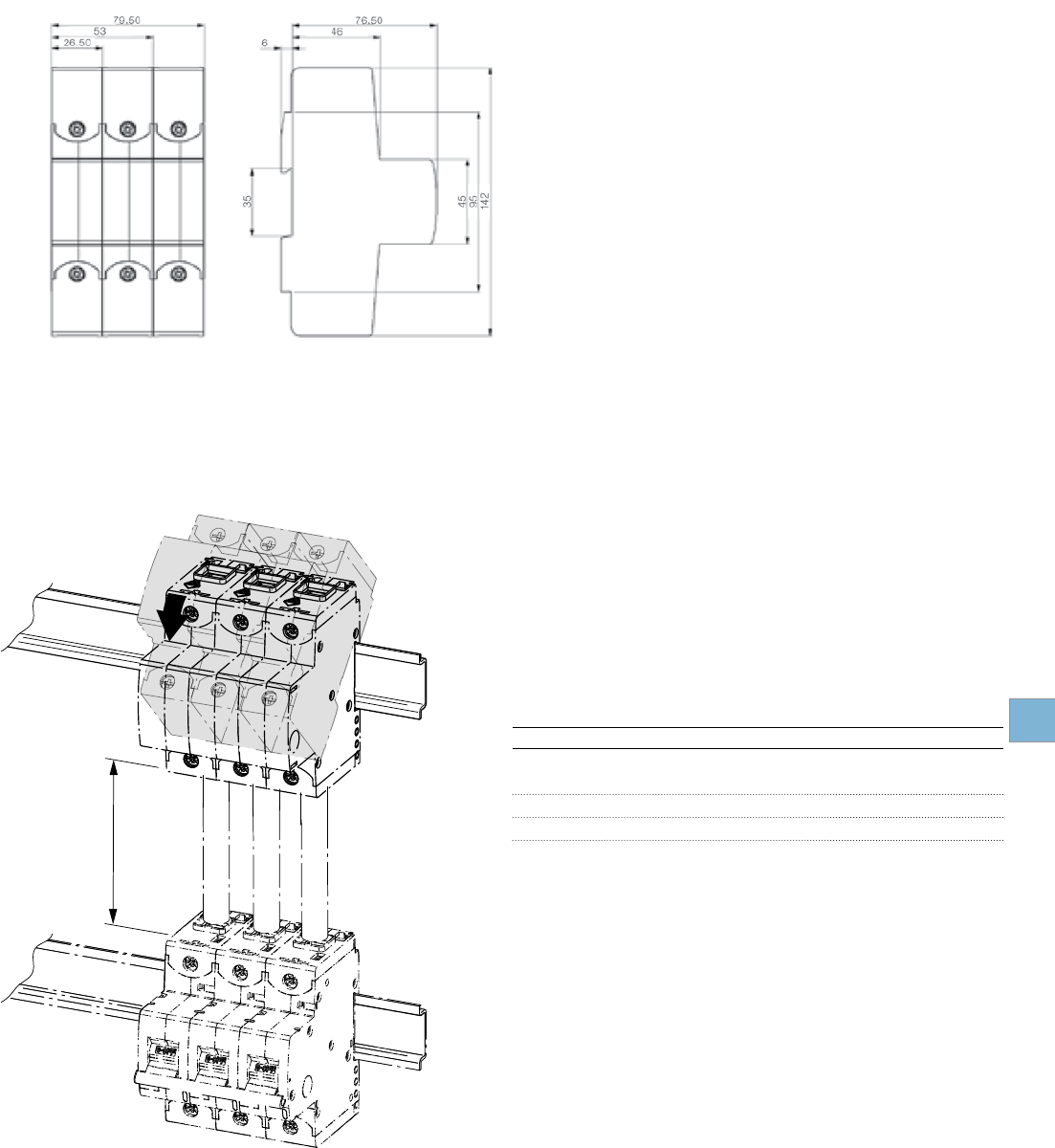

Approximate dimensions in mm
S200U
S2C-H6RU, S2C-S6RU S2C-A..U
S200UP
S200UDC
Approximate dimensions
S200U, S200UP, S200UDC & SU200PR
UL 489, CSA 22.2 No. 5
SU200PR
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

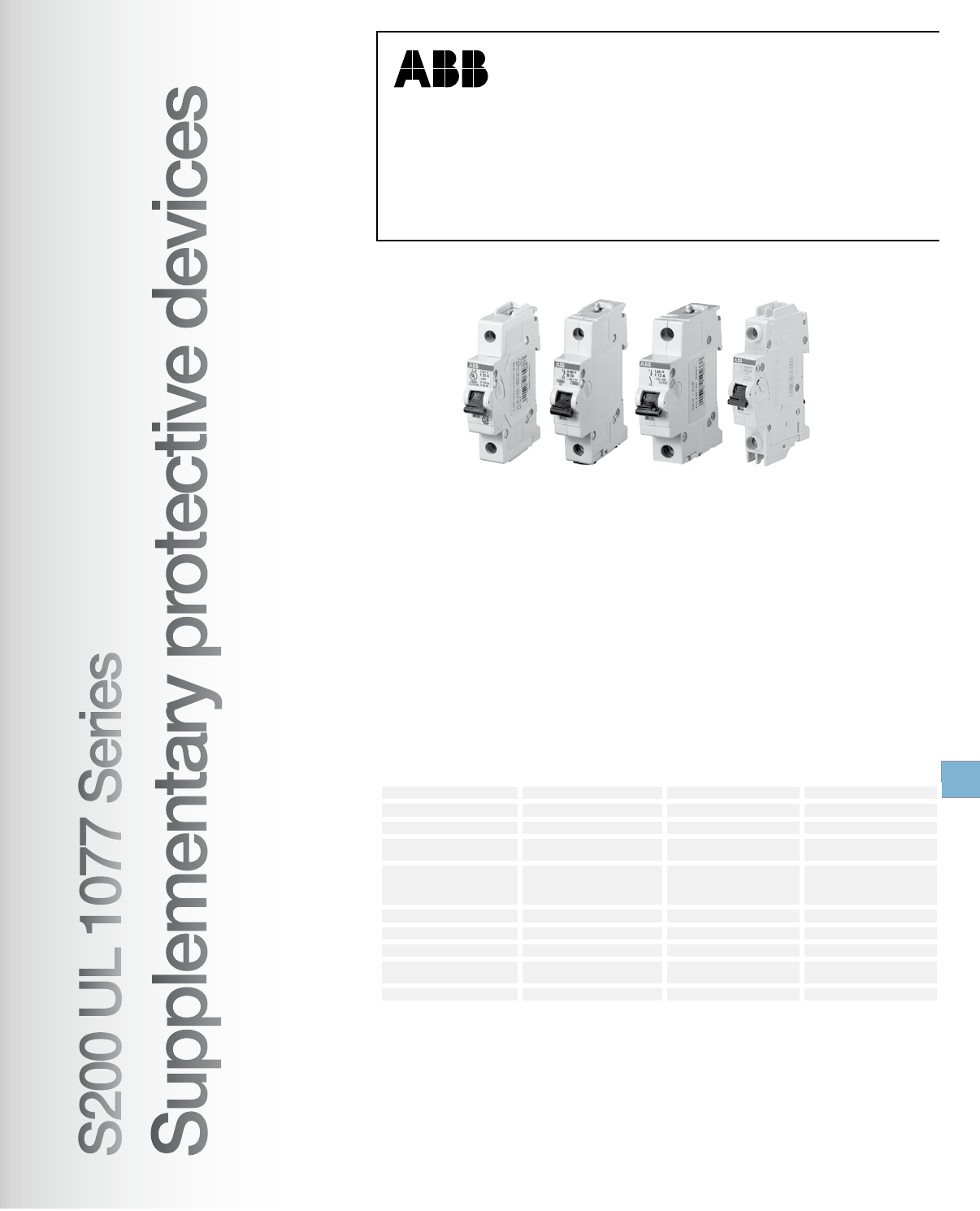

S200
Supplementary protective devices
UL 1077 Series
Description

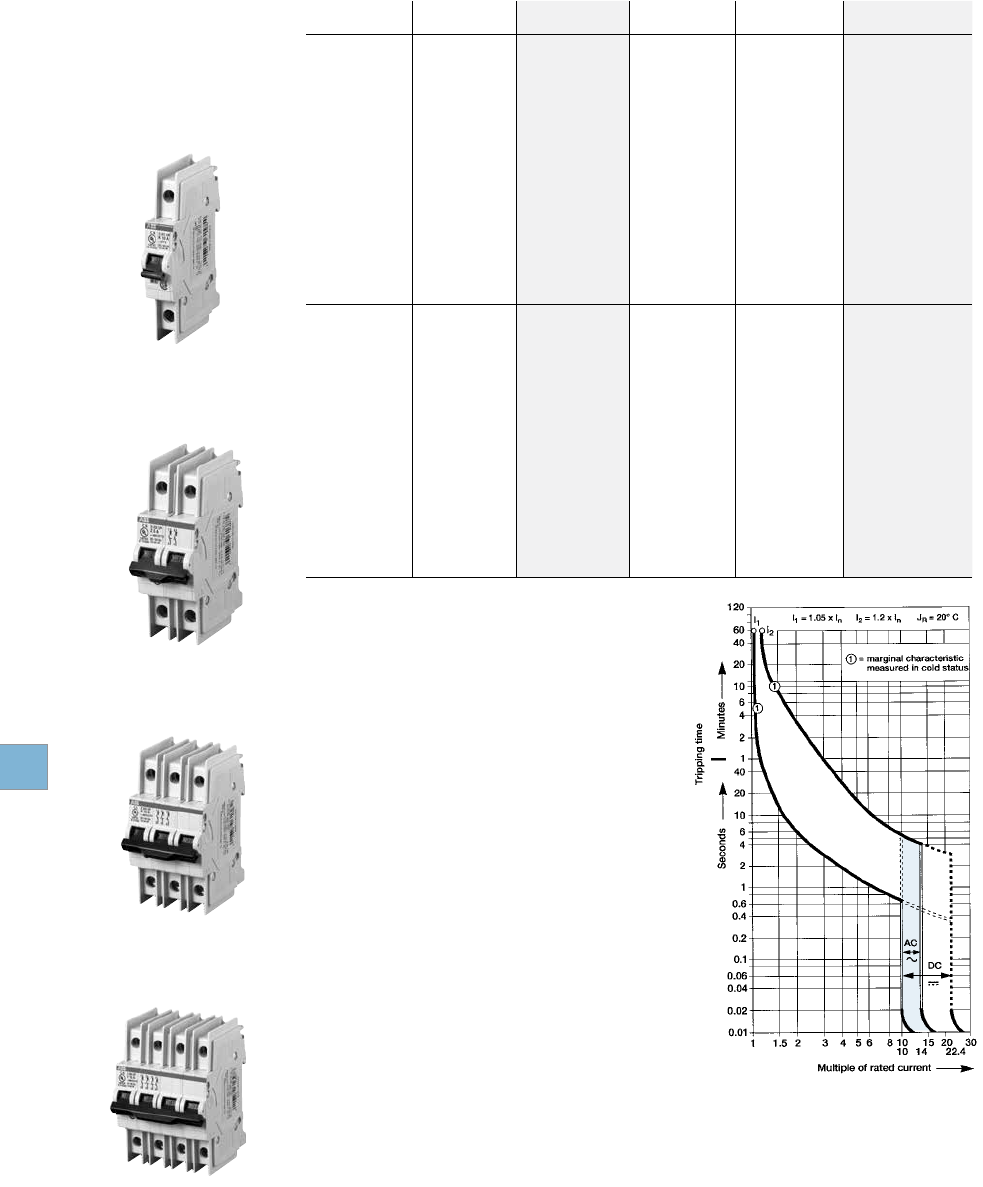

The S200 UL 1077 Series miniature
supplementary protector offers a compact
solution for protection requirements. The S200
devices are DIN rail mounted.
The S200 is available with application-specific
trip characteristics to provide maximum circuit
protection.
The supplementary protectors offer thermal-
magnetic trip protection according to B, C, D, K
and Z characteristics.
For the worldwide market, the breakers carry
UL, CSA, IEC, CE and many other agency
approvals and certifications.
Features
•
Energy limiting
•
Fast breaking time (2.3 – 2.5 ms)
•
Bus connection system
•
Wide range of accessories
•
Available with variable depth handle
mechanism
•
CE certified and marked
•
DIN rail mounting
•
Finger safe terminals
•
Multi-function terminals
•
Suitable for reverse feed
•
UL1077 Recognized supplemental protective
device. UL file # E76126
S200 UL 1077 Series
S200 S200P S200PR S280UC
Amperage 0.5 – 63 A 0.2 – 63 A 0.2 – 63A 0.2 – 63 A
Voltage 480Y/277 VAC 480Y/277 VAC 240 VAC 250/500 VDC
Poles
1, 2, 3, 4 1, 2, 3, 4
1, 2, 3, 4
1, 2, 3, 4
Trip
characteristics B, C, D, K B, C, D, K, Z K K, Z
Interrupting
ratings
6 kA : IEC 60898
6 kA : UL 1077
6 kA : CSA 22.2 No. 235
Up to 25kA : IEC 60947-2
10kA : UL 1077
10kA: UL1077
10kA: CSA 22.2 No.235
Up to 6kA : IEC 60947-2
10kA : UL 1077
6 kA : CSA 22.2 No. 235
Auxiliary contacts Yes Yes Yes Yes
Bell alarm Yes Yes Yes Yes
Shunt trip Yes Yes Yes Yes
Undervoltage
release Yes Yes Yes Yes
Bus bar Yes Yes No Yes
Supplementary protective devices
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

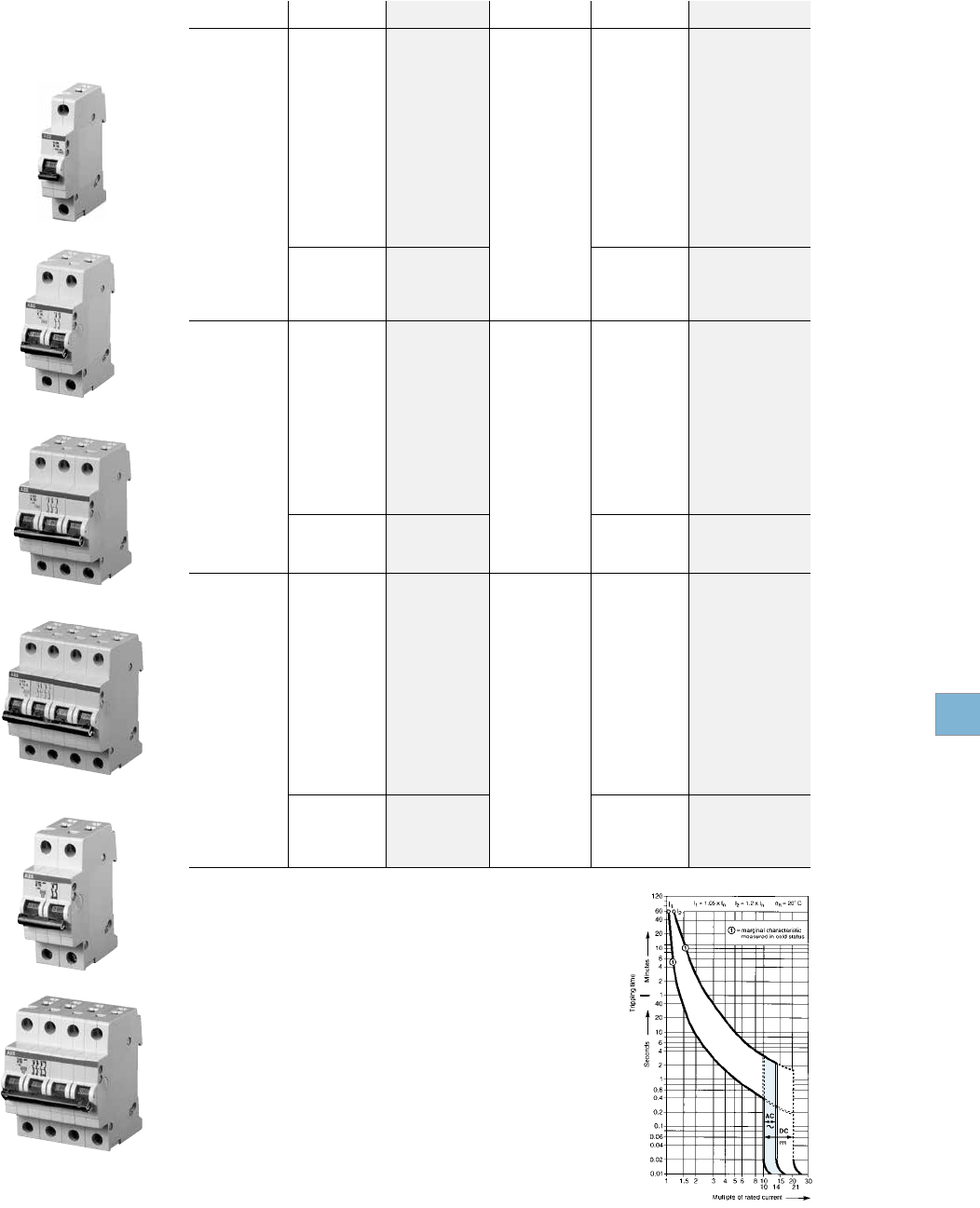

BNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
6 S201-B6
3
6 S203-B6
10 S201-B10 10 S203-B10
13 S201-B13 13 S203-B13
16 S201-B16 16 S203-B16
20 S201-B20 20 S203-B20
25 S201-B25 25 S203-B25
32 S201-B32 32 S203-B32
40 S201-B40 40 S203-B40
50 S201-B50 50 S203-B50
63 S201-B63 63 S203-B63
1
+
NA
6 S201-B6NA
3
+
NA
6 S203-B6NA
10 S201-B10NA 10 S203-B10NA
13 S201-B13NA 13 S203-B13NA
16 S201-B16NA 16 S203-B16NA
20 S201-B20NA 20 S203-B20NA
25 S201-B25NA 25 S203-B25NA
32 S201-B32NA 32 S203-B32NA
40 S201-B40NA 40 S203-B40NA
50 S201-B50NA 50 S203-B50NA
63 S201-B63NA 63 S203-B63NA
2
6 S202-B6
4
6 S204-B6
10 S202-B10 10 S204-B10
13 S202-B13 13 S204-B13
16 S202-B16 16 S204-B16
20 S202-B20 20 S204-B20
25 S202-B25 25 S204-B25
32 S202-B32 32 S204-B32
40 S202-B40 40 S204-B40
50 S202-B50 50 S204-B50
63 S202-B63 63 S204-B63
S201-B
S203-BNA
S201-BNA
S203-B
S204-B

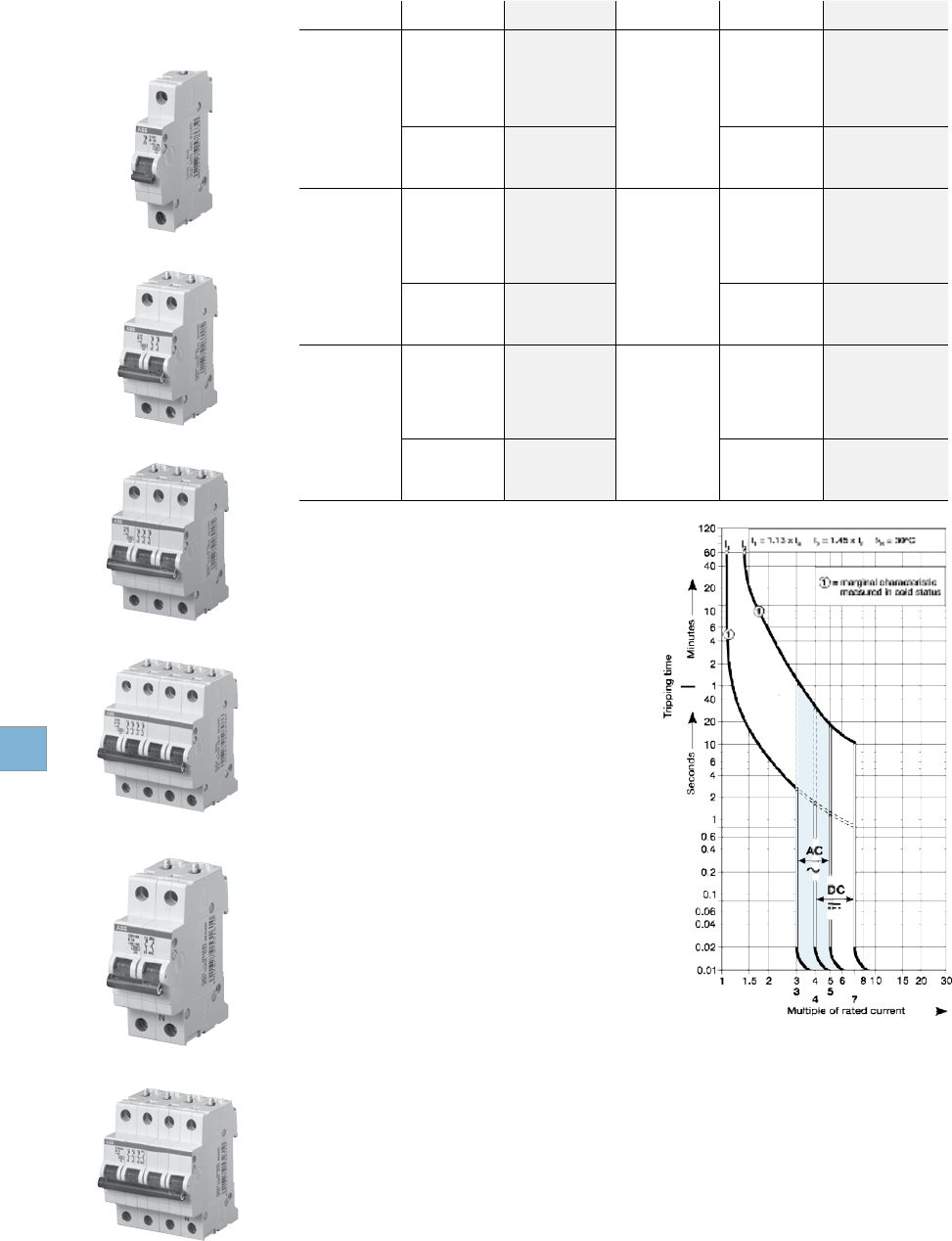

S200-B, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235

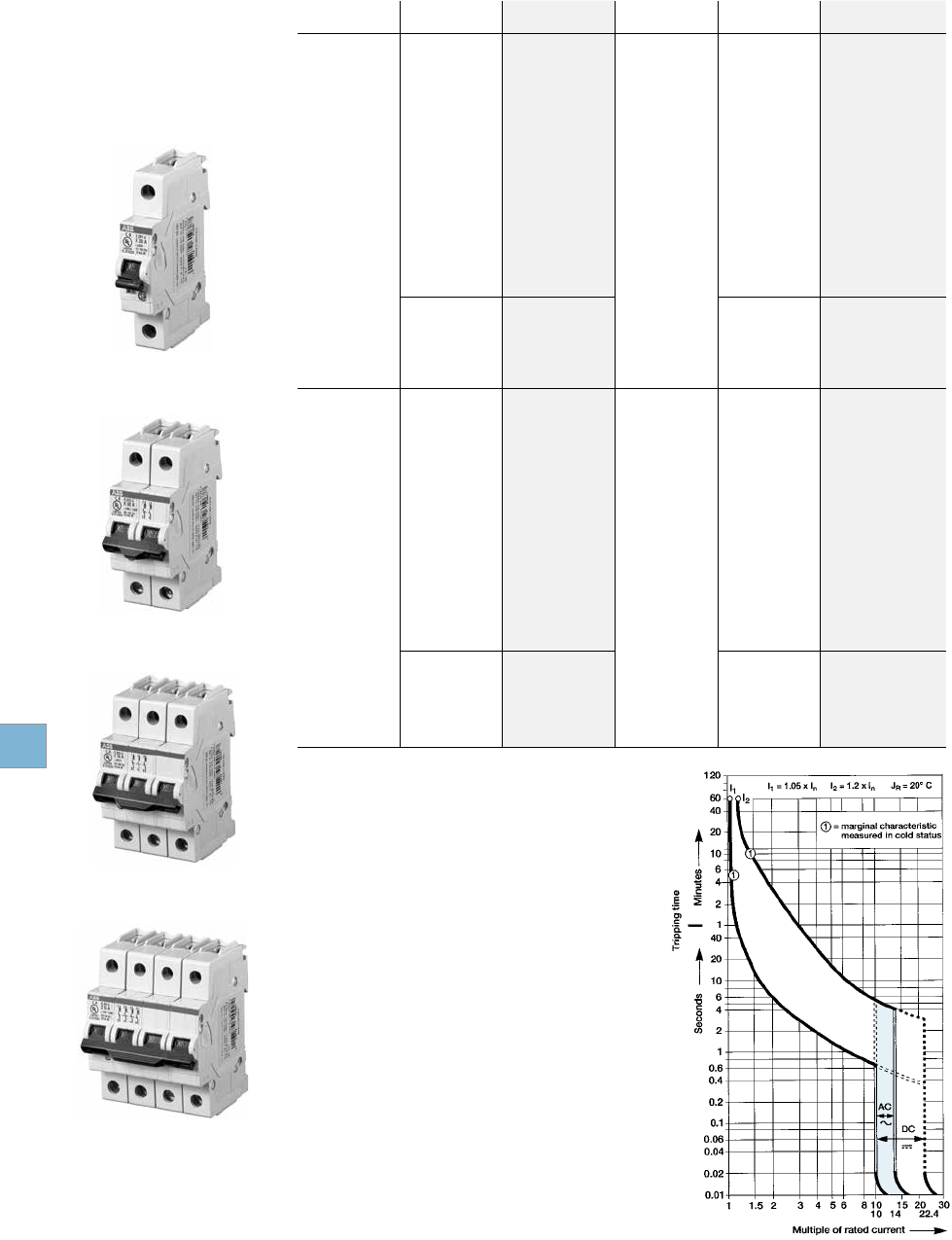

Tripping characteristic B
UL 1077
480Y/277VAC
6 kA
Resistive loads
• B Curve
• Designed for use in cable protection
applications
• Example: control circuits, lighting
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Note: Switching neutral is noted by “NA” in the catalog number.
S202-B
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
CNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S201-C0.5
3
0.5 S203-C0.5
1 S201-C1 1 S203-C1
1.6 S201-C1.6 1.6 S203-C1.6
2 S201-C2 2 S203-C2
3 S201-C3 3 S203-C3
4 S201-C4 4 S203-C4
6 S201-C6 6 S203-C6
8 S201-C8 8 S203-C8
10 S201-C10 10 S203-C10
13 S201-C13 13 S203-C13
16 S201-C16 16 S203-C16
20 S201-C20 20 S203-C20
25 S201-C25 25 S203-C25
32 S201-C32 32 S203-C32
40 S201-C40 40 S203-C40
50 S201-C50 50 S203-C50
63 S201-C63 63 S203-C63
1
+
NA
0.5 S201-C0.5NA
3
+
NA
0.5 S203-C0.5NA
1 S201-C1NA 1 S203-C1NA
1.6 S201-C1.6NA 1.6 S203-C1.6NA
2 S201-C2NA 2 S203-C2NA
3 S201-C3NA 3 S203-C3NA
4 S201-C4NA 4 S203-C4NA
6 S201-C6NA 6 S203-C6NA
8 S201-C8NA 8 S203-C8NA
10 S201-C10NA 10 S203-C10NA
13 S201-C13NA 13 S203-C13NA
16 S201-C16NA 16 S203-C16NA
20 S201-C20NA 20 S203-C20NA
25 S201-C25NA 25 S203-C25NA
32 S201-C32NA 32 S203-C32NA
40 S201-C40NA 40 S203-C40NA
50 S201-C50NA 50 S203-C50NA
63 S201-C63NA 63 S203-C63NA
2
0.5 S202-C0.5
4
0.5 S204-C0.5
1 S202-C1 1 S204-C1
1.6 S202-C1.6 1.6 S204-C1.6
2 S202-C2 2 S204-C2
3 S202-C3 3 S204-C3
4 S202-C4 4 S204-C4
6 S202-C6 6 S204-C6
8 S202-C8 8 S204-C8
10 S202-C10 10 S204-C10
13 S202-C13 13 S204-C13
16 S202-C16 16 S204-C16
20 S202-C20 20 S204-C20
25 S202-C25 25 S204-C25
32 S202-C32 32 S204-C32
40 S202-C40 40 S204-C40
50 S202-C50 50 S204-C50
63 S202-C63 63 S204-C63
S202-C
S204-C
S203-C
S201-C
S201-CNA
S203-CNA
S200-C, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
Tripping characteristic C
UL 1077
480Y/277 VAC
6 kA
Resistive loads
• C Curve
• Designed for use with medium magnetic
start up currents
• Example: lighting, control panels
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Note: Switching neutral is noted by “NA” in the catalog
number.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
DNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S201-D0.5
3
0.5 S203-D0.5
1 S201-D1 1 S203-D1
1.6 S201-D1.6 1.6 S203-D1.6
2 S201-D2 2 S203-D2
3 S201-D3 3 S203-D3
4 S201-D4 4 S203-D4
6 S201-D6 6 S203-D6
8 S201-D8 8 S203-D8
10 S201-D10 10 S203-D10
13 S201-D13 13 S203-D13
16 S201-D16 16 S203-D16
20 S201-D20 20 S203-D20
25 S201-D25 25 S203-D25
32 S201-D32 32 S203-D32
40 S201-D40 40 S203-D40
50 S201-D50 50 S203-D50
63 S201-D63 63 S203-D63
1
+
NA
0.5 S201-D0.5NA
3
+
NA
0.5 S203-D0.5NA
1 S201-D1NA 1 S203-D1NA
1.6 S201-D1.6NA 1.6 S203-D1.6NA
2 S201-D2NA 2 S203-D2NA
3 S201-D3NA 3 S203-D3NA
4 S201-D4NA 4 S203-D4NA
6 S201-D6NA 6 S203-D6NA
8 S201-D8NA 8 S203-D8NA
10 S201-D10NA 10 S203-D10NA
13 S201-D13NA 13 S203-D13NA
16 S201-D16NA 16 S203-D16NA
20 S201-D20NA 20 S203-D20NA
25 S201-D25NA 25 S203-D25NA
32 S201-D32NA 32 S203-D32NA
40 S201-D40NA 40 S203-D40NA
50 S201-D50NA 50 S203-D50NA
63 S201-D63NA 63 S203-D63NA
2
0.5 S202-D0.5
4
0.5 S204-D0.5
1 S202-D1 1 S204-D1
1.6 S202-D1.6 1.6 S204-D1.6
2 S202-D2 2 S204-D2
3 S202-D3 3 S204-D3
4 S202-D4 4 S204-D4
6 S202-D6 6 S204-D6
8 S202-D8 8 S204-D8
10 S202-D10 10 S204-D10
13 S202-D13 13 S204-D13
16 S202-D16 16 S204-D16
20 S202-D20 20 S204-D20
25 S202-D25 25 S204-D25
32 S202-D32 32 S204-D32
40 S202-D40 40 S204-D40
50 S202-D50 50 S204-D50
63 S202-D63 63 S204-D63
S202-D
S204-D
S203-D
S201-D
S201-DNA
S203-DNA
S200-D, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
Tripping characteristic D
UL 1077
480Y/277 VAC
6 kA
Inductive loads
• D Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Note: Switching neutral is noted by “NA” in the catalog
number.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

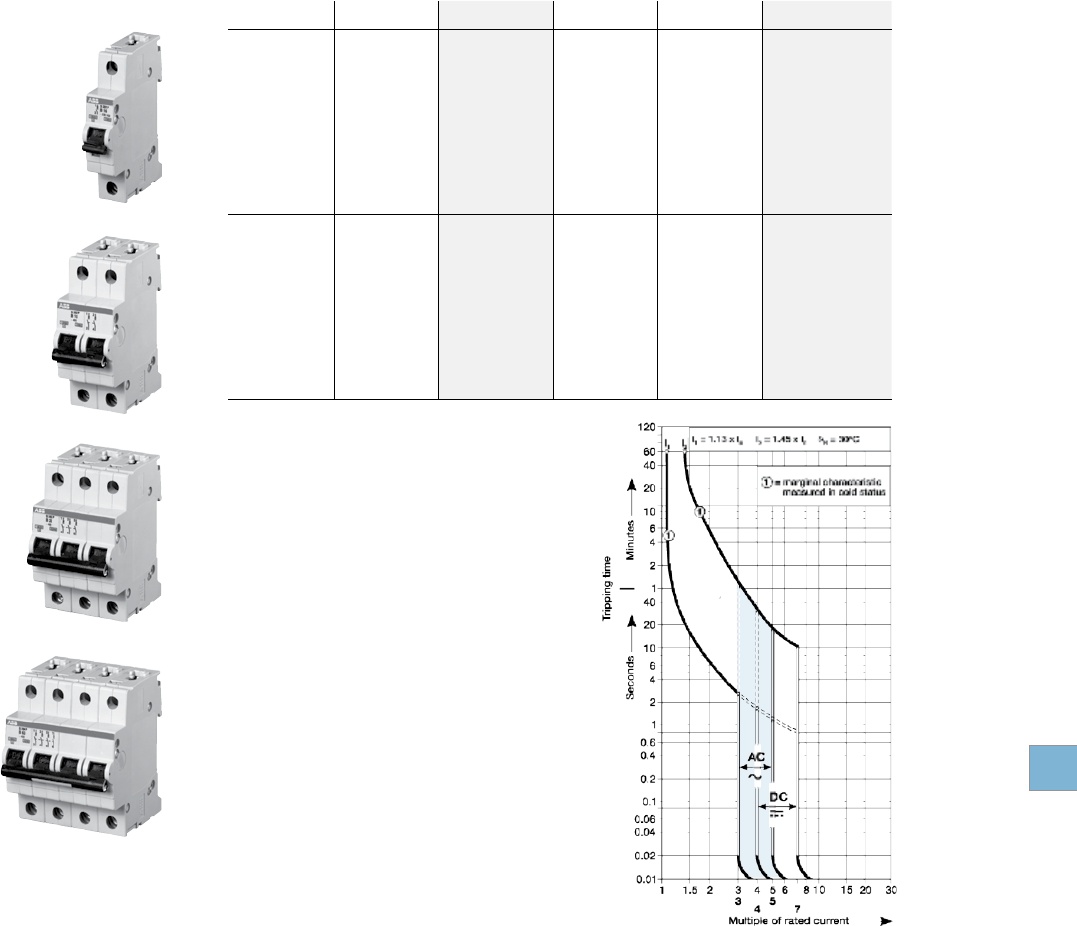

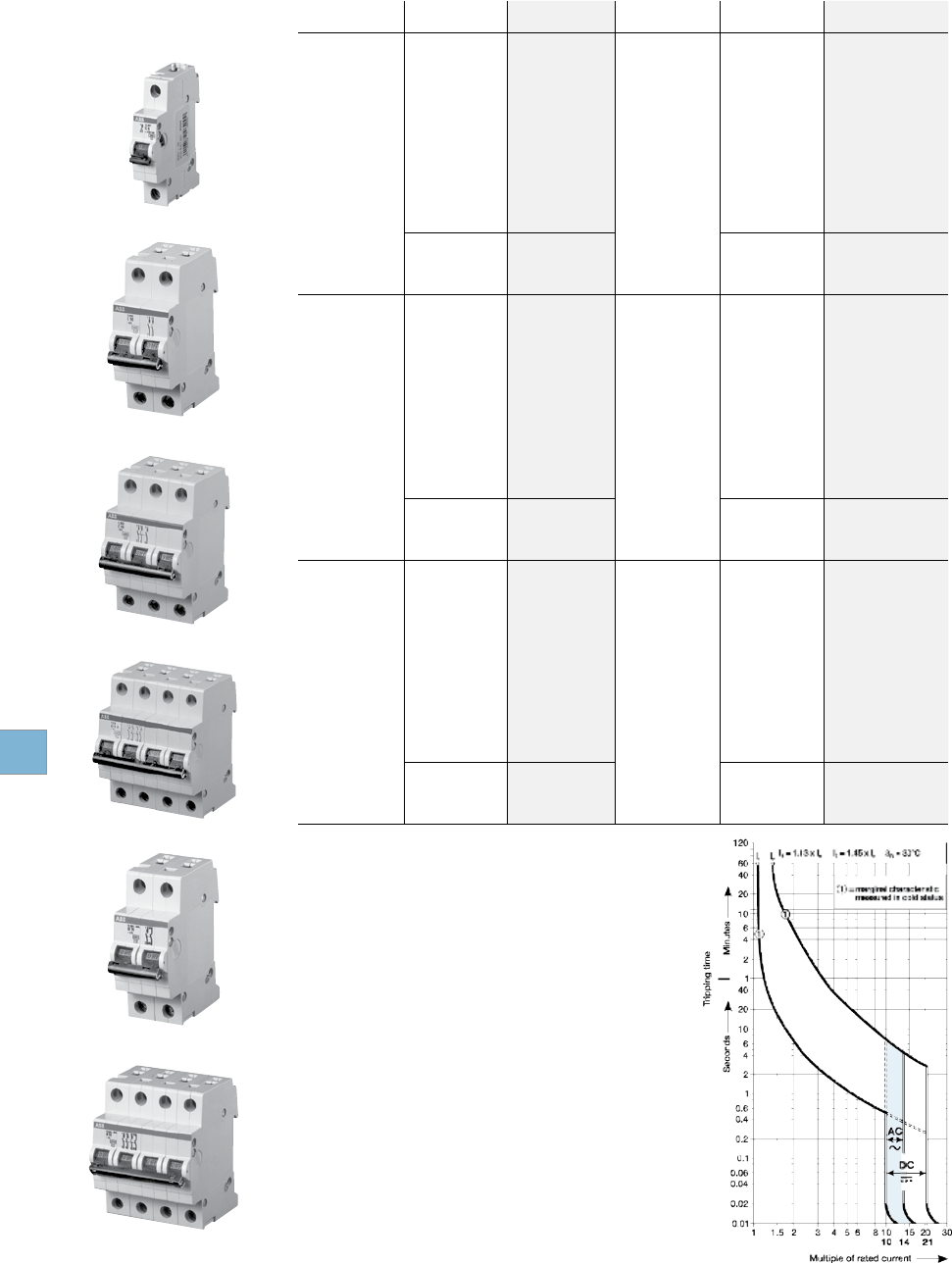

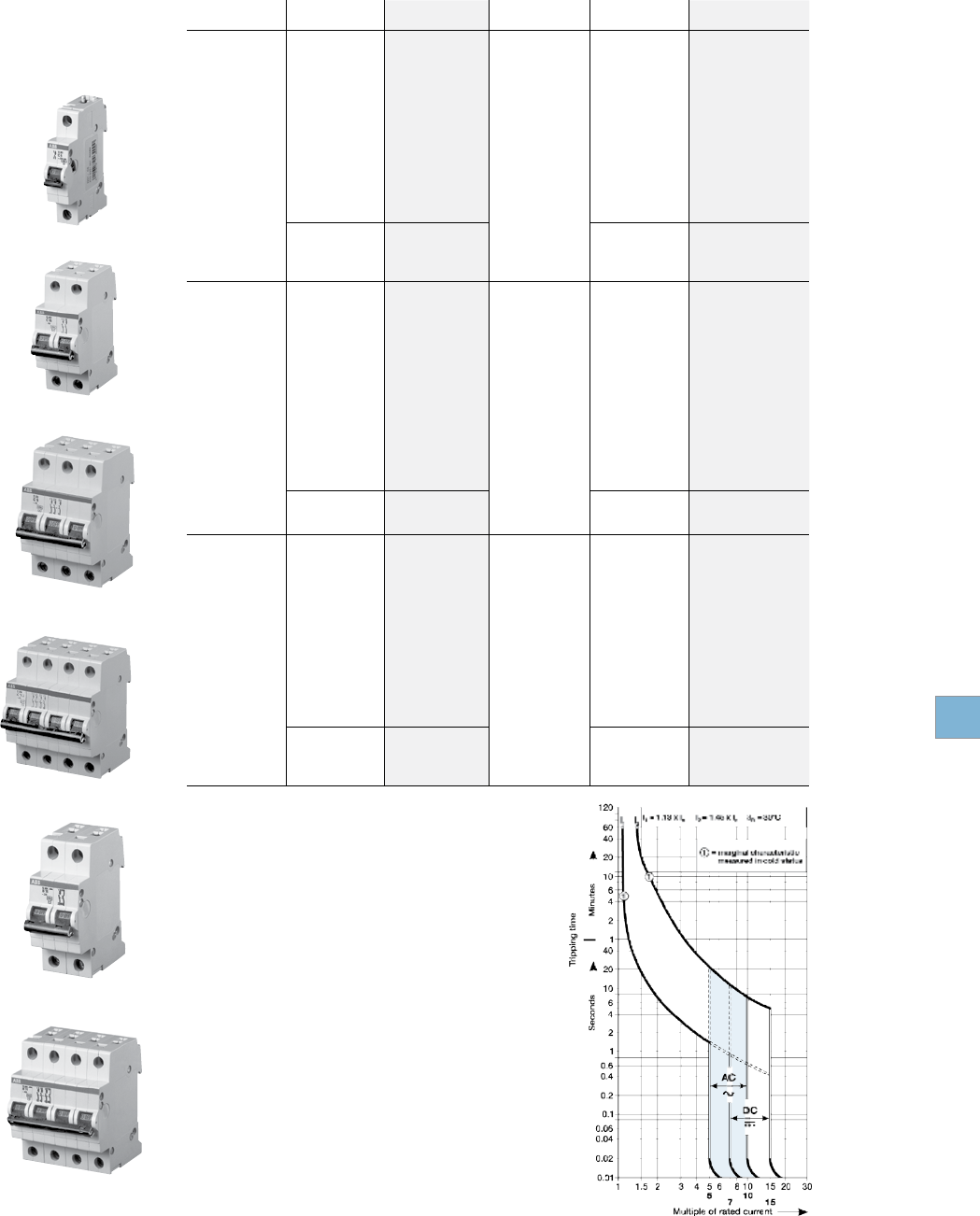

K
S201-K
S202-K
S203-K
S204-K
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S201-K0.5
3
0.5 S203-K0.5
1 S201-K1 1 S203-K1
1.6 S201-K1.6 1.6 S203-K1.6
2 S201-K2 2 S203-K2
3 S201-K3 3 S203-K3
4 S201-K4 4 S203-K4
5 S201-K5 5 S203-K5
6 S201-K6 6 S203-K6
8 S201-K8 8 S203-K8
10 S201-K10 10 S203-K10
13 S201-K13 13 S203-K13
15 S201-K15 15 S203-K15
16 S201-K16 16 S203-K16
20 S201-K20 20 S203-K20
25 S201-K25 25 S203-K25
32 S201-K32 32 S203-K32
40 S201-K40 40 S203-K40
50 S201-K50 50 S203-K50
60 S201-K60 60 S203-K60
63 S201-K63 63 S203-K63
1
+
NA
0.5 S201-K0.5NA
3
+
NA
0.5 S203-K0.5NA
1 S201-K1NA 1 S203-K1NA
1.6 S201-K1.6NA 1.6 S203-K1.6NA
2 S201-K2NA 2 S203-K2NA
3 S201-K3NA 3 S203-K3NA
4 S201-K4NA 4 S203-K4NA
6 S201-K6NA 6 S203-K6NA
8 S201-K8NA 8 S203-K8NA
10 S201-K10NA 10 S203-K10NA
13 S201-K13NA 13 S203-K13NA
16 S201-K16NA 16 S203-K16NA
20 S201-K20NA 20 S203-K20NA
25 S201-K25NA 25 S203-K25NA
32 S201-K32NA 32 S203-K32NA
40 S201-K40NA 40 S203-K40NA
50 S201-K50NA 50 S203-K50NA
63 S201-K63NA 63 S203-K63NA
2
0.5 S202-K0.5
4
0.5 S204-K0.5
1 S202-K1 1 S204-K1
1.6 S202-K1.6 1.6 S204-K1.6
2 S202-K2 2 S204-K2
3 S202-K3 3 S204-K3
4 S202-K4 4 S204-K4
5 S202-K5 5 S204-K5
6 S202-K6 6 S204-K6
8 S202-K8 8 S204-K8
10 S202-K10 10 S204-K10
13 S202-K13 13 S204-K13
15 S202-K15 15 S204-K15
16 S202-K16 16 S204-K16
20 S202-K20 20 S204-K20
25 S202-K25 25 S204-K25
32 S202-K32 32 S204-K32
40 S202-K40 40 S204-K40
50 S202-K50 50 S204-K50
60 S202-K60 60 S204-K60
63 S202-K63 63 S204-K63
S201-KNA
S203-KNA

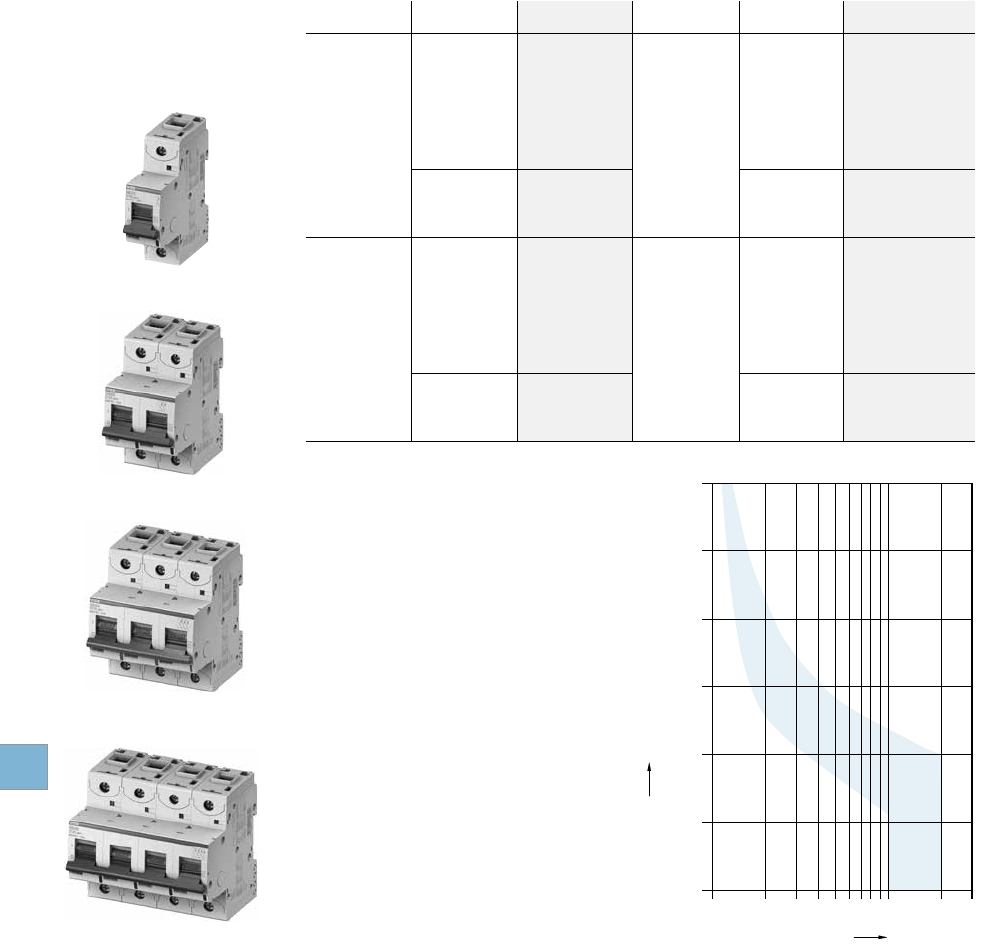

S200-K, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
Tripping characteristic K
UL 1077
480Y/277 VAC
6 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Note: Switching neutral is noted by “NA” in the catalog
number.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
S200-Z, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
ZNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S201-Z0.5
3
0.5 S203-Z0.5
1 S201-Z1 1 S203-Z1
1.6 S201-Z1.6 1.6 S203-Z1.6
2 S201-Z2 2 S203-Z2
3 S201-Z3 3 S203-Z3
4 S201-Z4 4 S203-Z4
6 S201-Z6 6 S203-Z6
10 S201-Z10 10 S203-Z10
13 S201-Z13 13 S203-Z13
16 S201-Z16 16 S203-Z16
20 S201-Z20 20 S203-Z20
25 S201-Z25 25 S203-Z25
32 S201-Z32 32 S203-Z32
40 S201-Z40 40 S203-Z40
50 S201-Z50 50 S203-Z50
63 S201-Z63 63 S203-Z63
2
0.5 S202-Z0.5
4
0.5 S204-Z0.5
1 S202-Z1 1 S204-Z1
1.6 S202-Z1.6 1.6 S204-Z1.6
2 S202-Z2 2 S204-Z2
3 S202-Z3 3 S204-Z3
4 S202-Z4 4 S204-Z4
6 S202-Z6 6 S204-Z6
10 S202-Z10 10 S204-Z10
13 S202-Z13 13 S204-Z13
16 S202-Z16 16 S204-Z16
20 S202-Z20 20 S204-Z20
25 S202-Z25 25 S204-Z25
32 S202-Z32 32 S204-Z32
40 S202-Z40 40 S204-Z40
50 S202-Z50 50 S204-Z50
63 S202-Z63 63 S204-Z63
Tripping characteristic Z
UL 1077
480Y/277VAC
6 kA
Resistive loads
• Z Curve
• Designed to provide maximum protection
with a very low shirt circuit trip setting
• Example: semiconductors
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
S201-Z0.5
S203-Z0.5
S204-Z0.5
S202-Z0.5
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

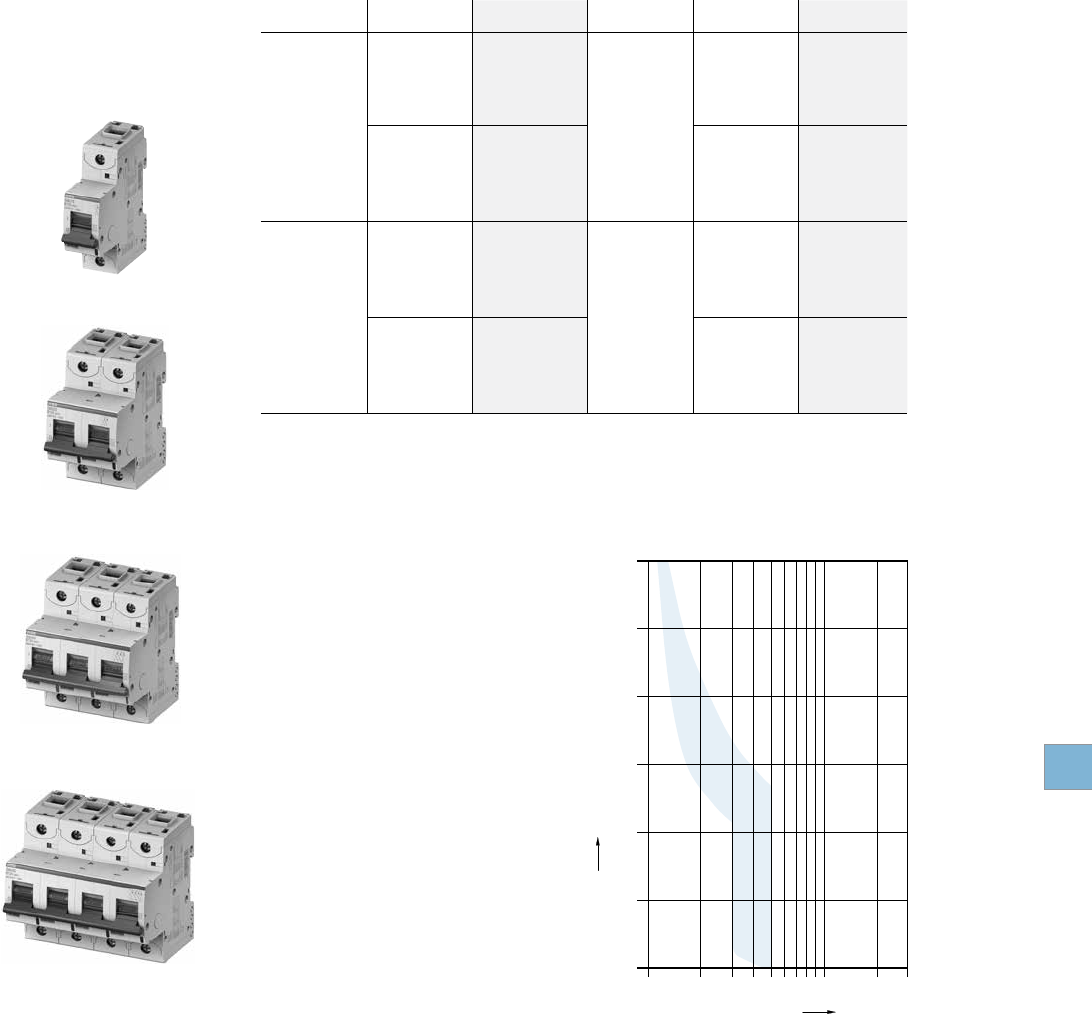

S200P-B, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
6 S201P-B6
3
6 S203P-B6
10 S201P-B10 10 S203P-B10
13 S201P-B13 13 S203P-B13
16 S201P-B16 16 S203P-B16
20 S201P-B20 20 S203P-B20
25 S201P-B25 25 S203P-B25
32 S201P-B32 32 S203P-B32
40 S201P-B40 40 S203P-B40
50 S201P-B50 50 S203P-B50
63 S201P-B63 63 S203P-B63
2
6 S202P-B6
4
6 S204P-B6
10 S202P-B10 10 S204P-B10
13 S202P-B13 13 S204P-B13
16 S202P-B16 16 S204P-B16
20 S202P-B20 20 S204P-B20
25 S202P-B25 25 S204P-B25
32 S202P-B32 32 S204P-B32
40 S202P-B40 40 S204P-B40
50 S202P-B50 50 S204P-B50
63 S202P-B63 63 S204P-B63
S210P-B6
S210P-B6
S210P-B6
S210P-B6
B
Tripping characteristic B
UL 1077
480Y/277 VAC
10 kA
Resistive loads
• B Curve
• Designed for use in cable protection
applications
• Example: Control circuits, lighting
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

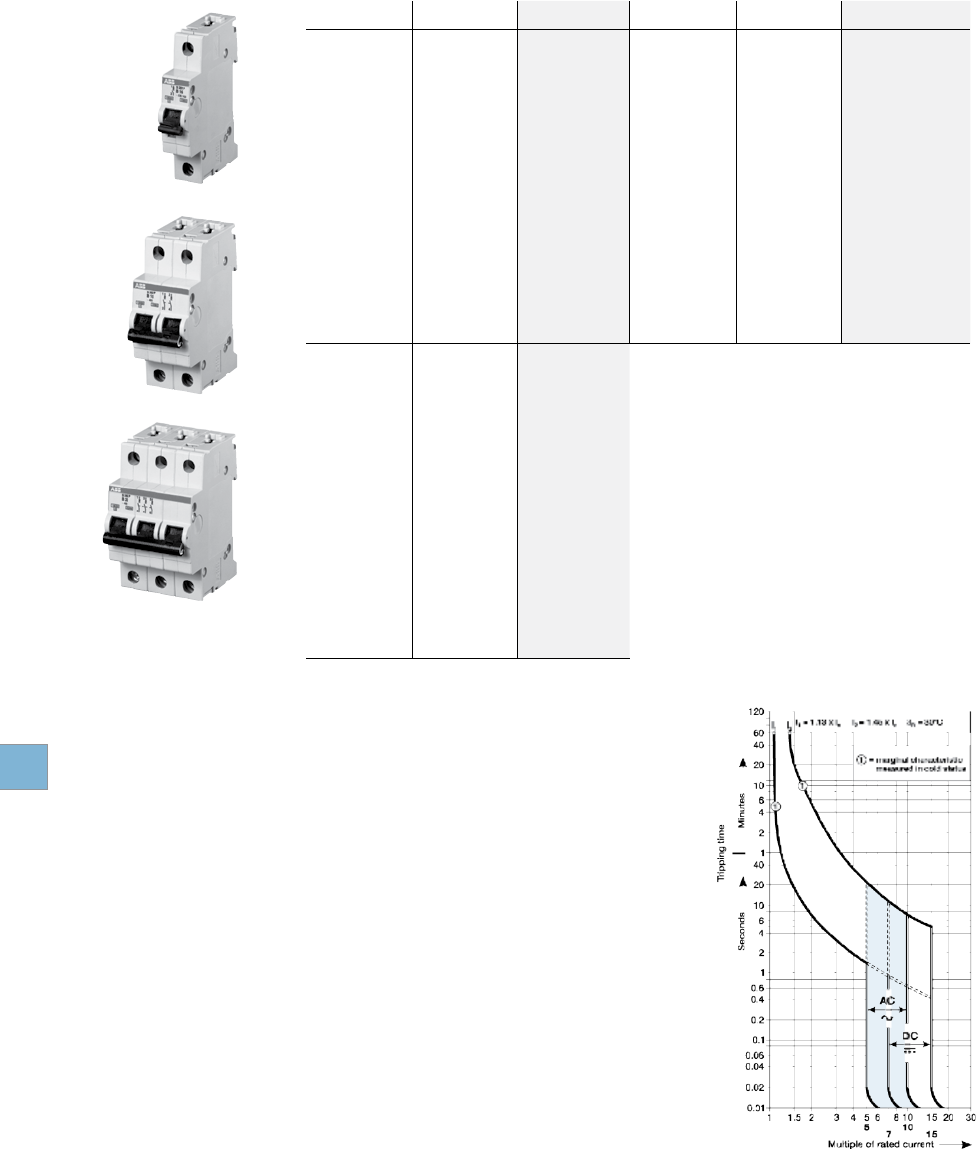

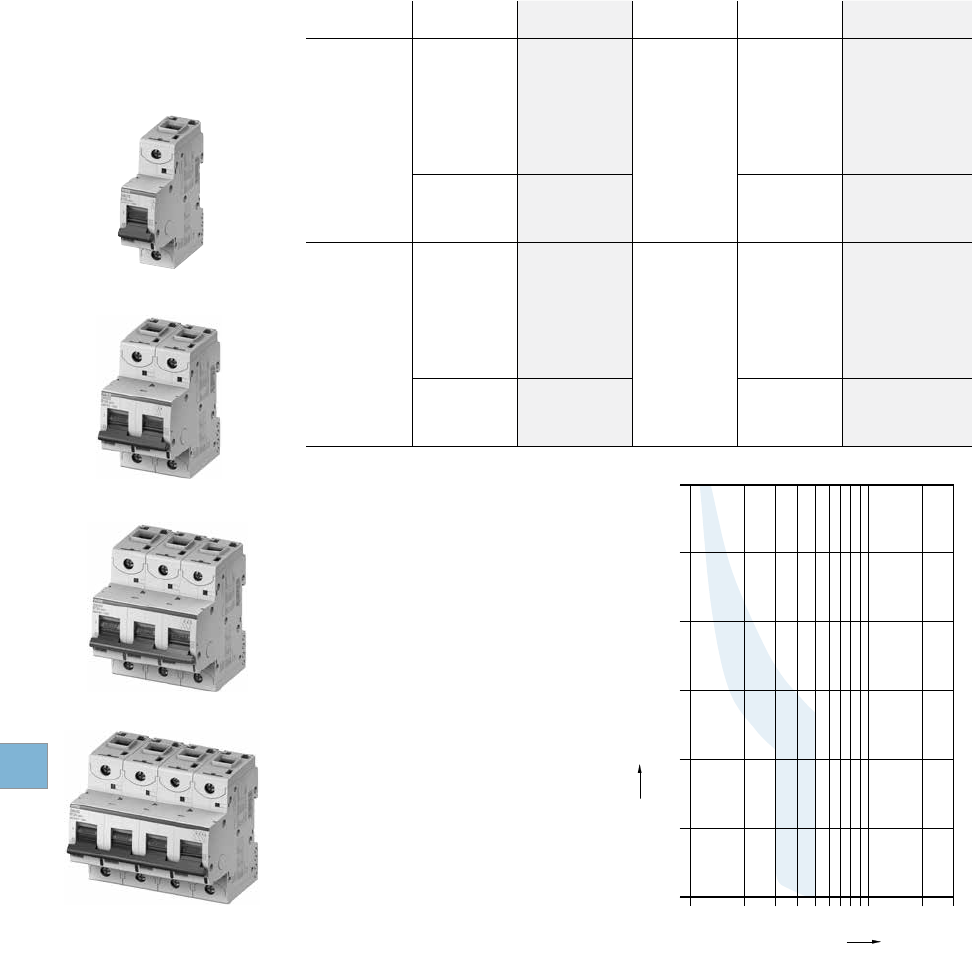

S200P-C, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S201P-C0.5
3
0.5 S203P-C0.5
1 S201P-C1 1 S203P-C1
1.6 S201P-C1.6 1.6 S203P-C1.6
2 S201P-C2 2 S203P-C2
3 S201P-C3 3 S203P-C3
4 S201P-C4 4 S203P-C4
6 S201P-C6 6 S203P-C6
8 S201P-C8 8 S203P-C8
10 S201P-C10 10 S203P-C10
13 S201P-C13 13 S203P-C13
16 S201P-C16 16 S203P-C16
20 S201P-C10 20 S203P-C10
25 S201P-C25 25 S203P-C25
32 S201P-C32 32 S203P-C32
40 S201P-C40 40 S203P-C40
50 S201P-C50 50 S203P-C50
63 S201P-C63 63 S203P-C63
2
0.5 S202P-C0.5
1 S202P-C1
1.6 S202P-C1.6
2 S202P-C2
3 S202P-C3
4 S202P-C4
6 S202P-C6
8 S202P-C8
10 S202P-C10
13 S202P-C13
16 S202P-C16
20 S202P-C10
25 S202P-C25
32 S202P-C32
40 S202P-C40
50 S202P-C50
63 S202P-C63
S210P-B6
S210P-B6
S210P-B6
C
Tripping characteristic C
UL 1077
480Y/277 VAC
10 kA
Resistive loads
• C Curve
• Designed for use with medium magnetic
start up currents
• Example: Lighting, control panels
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

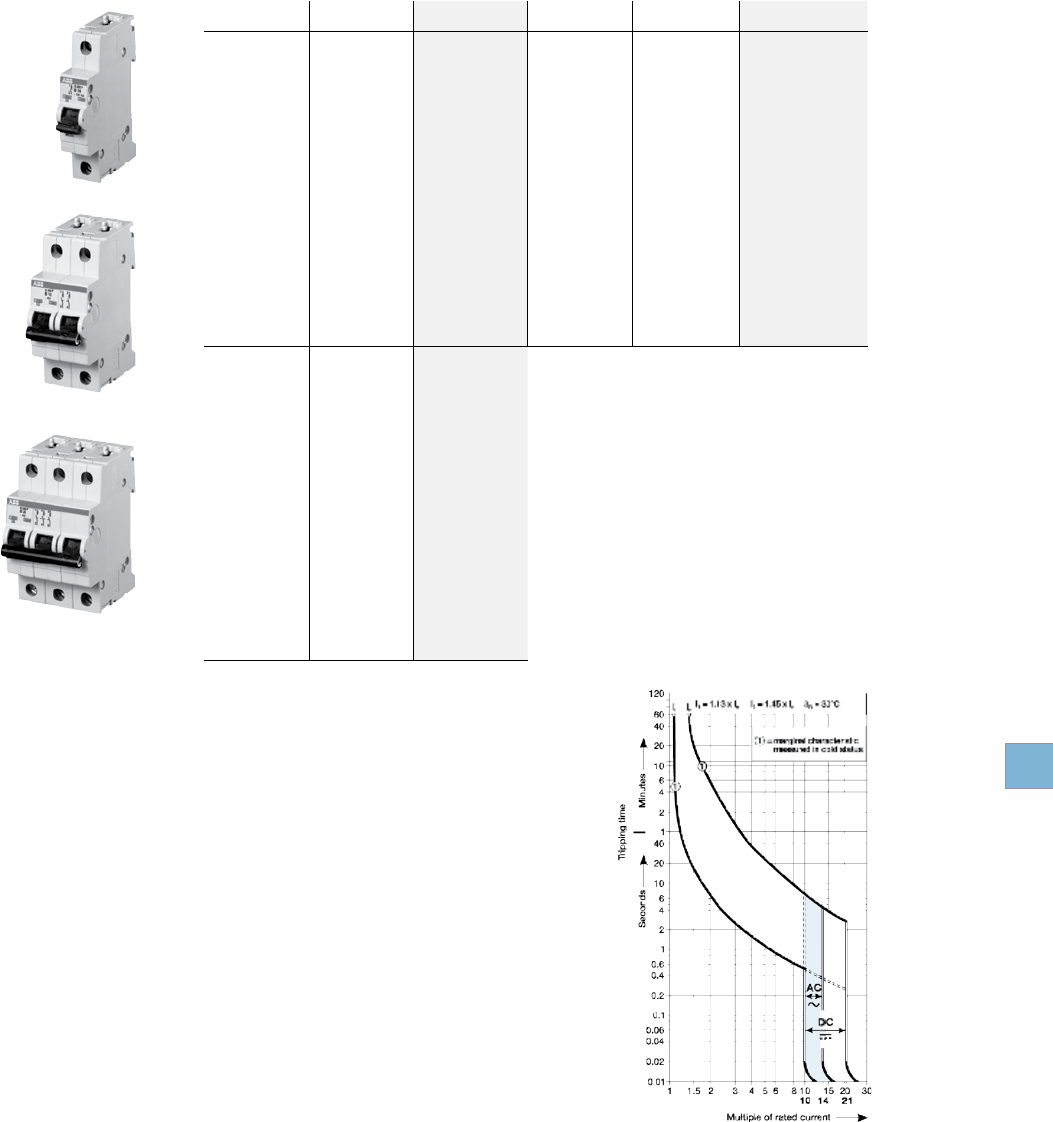

S200P-D, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S201P-D0.5
3
0.5 S203P-D0.5
1 S201P-D1 1 S203P-D1
1.6 S201P-D1.6 1.6 S203P-D1.6
2 S201P-D2 2 S203P-D2
3 S201P-D3 3 S203P-D3
4 S201P-D4 4 S203P-D4
6 S201P-D6 6 S203P-D6
8 S201P-D8 8 S203P-D8
10 S201P-D10 10 S203P-D10
13 S201P-D13 13 S203P-D13
16 S201P-D16 16 S203P-D16
20 S201P-D10 20 S203P-D10
25 S201P-D25 25 S203P-D25
32 S201P-D32 32 S203P-D32
40 S201P-D40 40 S203P-D40
50 S201P-D50 50 S203P-D50
63 S201P-D63 63 S203P-D63
2
0.5 S202P-D0.5
1 S202P-D1
1.6 S202P-D1.6
2 S202P-D2
3 S202P-D3
4 S202P-D4
6 S202P-D6
8 S202P-D8
10 S202P-D10
13 S202P-D13
16 S202P-D16
20 S202P-D10
25 S202P-D25
32 S202P-D32
40 S202P-D40
50 S202P-D50
63 S202P-D63
S201P-D0.5
S202P-D0.5
S203P-D0.5
D
Tripping characteristic D
UL 1077
480Y/277 VAC
10 kA
Inductive loads
• D Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

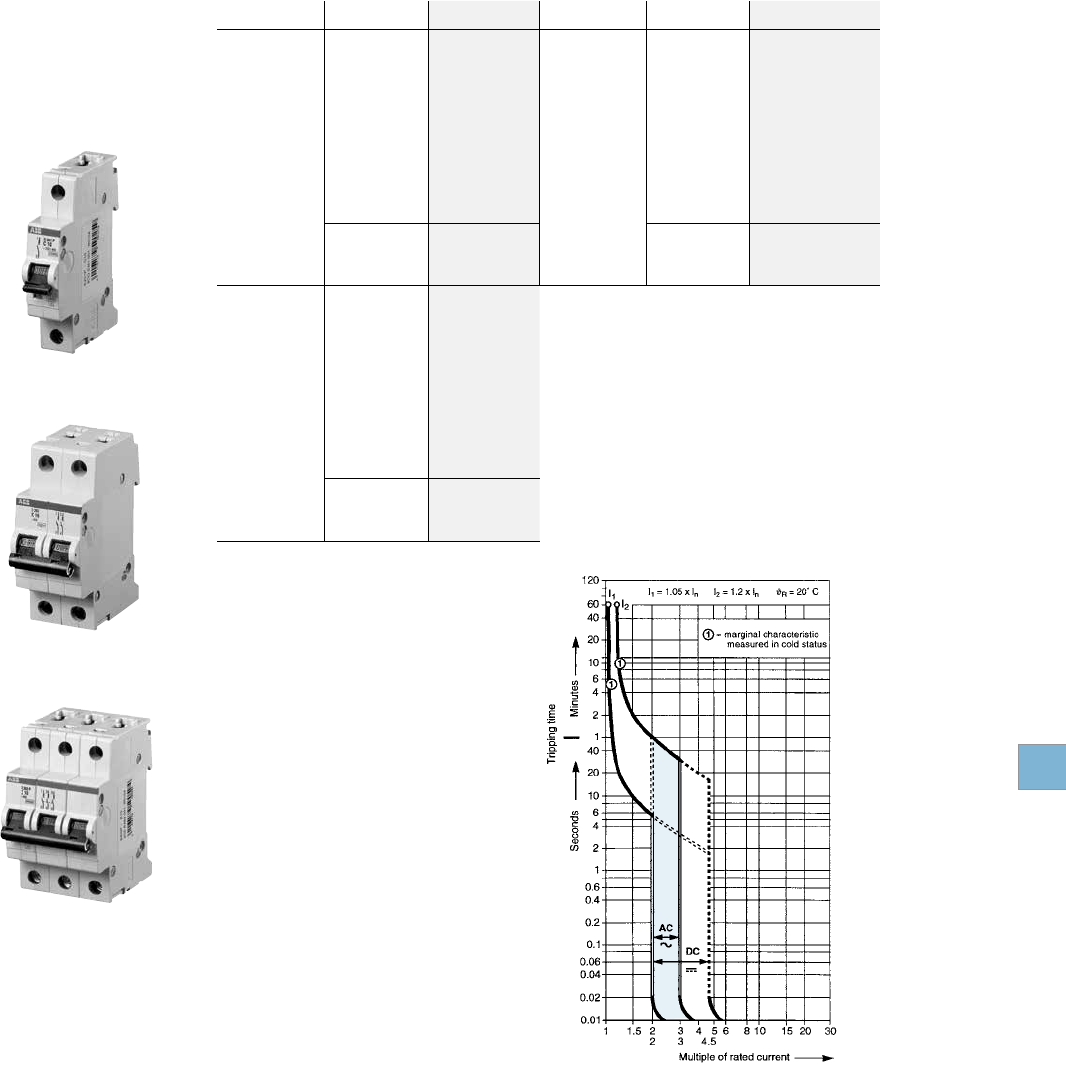

KNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.2 S201P-K0.2
3
0.2 S203P-K0.2
0.3 S201P-K0.3 0.3 S203P-K0.3
0.5 S201P-K0.5 0.5 S203P-K0.5
0.75 S201P-K0.75 0.75 S203P-K0.75
1 S201P-K1 1 S203P-K1
1.6 S201P-K1.6 1,6 S203P-K1,6
2 S201P-K2 2 S203P-K2
3 S201P-K3 3 S203P-K3
4 S201P-K4 4 S203P-K4
6 S201P-K6 6 S203P-K6
8 S201P-K8 8 S203P-K8
10 S201P-K10 10 S203P-K10
13 S201P-K13 13 S203P-K13
16 S201P-K16 16 S203P-K16
20 S201P-K20 20 S203P-K20
25 S201P-K25 25 S203P-K25
32 S201P-K32 32 S203P-K32
40 S201P-K40 40 S203P-K40
50 S201P-K50 50 S203P-K50
63 S201P-K63 63 S203P-K63
2
0.2 S202P-K0.2
0.3 S202P-K0.3
0.5 S202P-K0.5
0.75 S202P-K0.75
1 S202P-K1
1.6 S202P-K1,6
2 S202P-K2
3 S202P-K3
4 S202P-K4
6 S202P-K6
8 S202P-K8
10 S202P-K10
13 S202P-K13
16 S202P-K16
20 S202P-K20
25 S202P-K25
32 S202P-K32
40 S202P-K40
50 S202P-K50
63 S202P-K63
S203P-K
S200P-K, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
Tripping characteristic K
UL 1077
480Y/277 VAC
10 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
S201P-K
S202P-K
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
ZNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S201P-Z0.5
3
0.5 S203P-Z0.5
1 S201P-Z1 1 S203P-Z1
1.6 S201P-Z1.6 1.6 S203P-Z1.6
2 S201P-Z2 2 S203P-Z2
3 S201P-Z3 3 S203P-Z3
4 S201P-Z4 4 S203P-Z4
6 S201P-Z6 6 S203P-Z6
8 S201P-Z8 8 S203P-Z8
10 S201P-Z10 10 S203P-Z10
16 S201P-Z16 16 S203P-Z16
20 S201P-Z20 20 S203P-Z20
25 S201P-Z25 25 S203P-Z25
32 S201P-Z32 32 S203P-Z32
40 S201P-Z40 40 S203P-Z40
50 S201P-Z50 50 S203P-Z50
63 S201P-Z63 63 S203P-Z63
2
0.5 S202P-Z0.5
1 S202P-Z1
1.6 S202P-Z1.6
2 S202P-Z2
3 S202P-Z3
4 S202P-Z4
6 S202P-Z6
8 S202P-Z8
10 S202P-Z10
16 S202P-Z16
20 S202P-Z20
25 S202P-Z25
32 S202P-Z32
40 S202P-Z40
50 S202P-Z50
63 S202P-Z63
S201P-Z
S203P-Z
S200P-Z, 480Y/277 VAC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
S202P-Z
Tripping characteristic Z
UL 1077
480Y/277 VAC
10 kA
Resistive loads
• Z Curve
• Designed to provide maximum
protection with a very low short
circuit trip setting
• Example: semiconductors
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

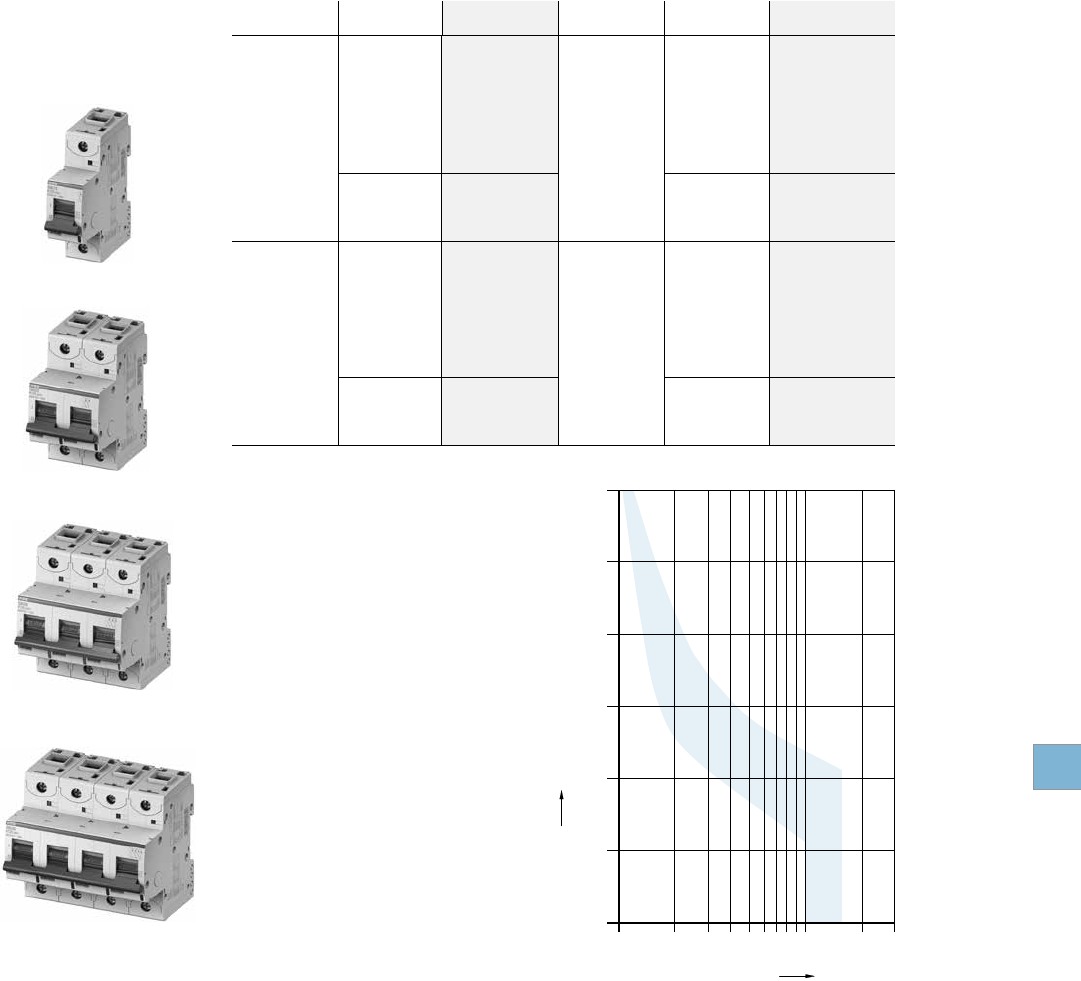

S200PR-K, 240 VAC, Ring tongue
Supplemental protectors
UL1077, CSA 22.2 No. 235
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.2 S201PR-K0.2
3
0.2 S203PR-K0.2
0.3 S201PR-K0.3 0.3 S203PR-K0.3
0.5 S201PR-K0.5 0.5 S203PR-K0.5
0.75 S201PR-K0.75 0.75 S203PR-K0.75
1 S201PR-K1 1 S203PR-K1
1.6 S201PR-K1.6 1.6 S203PR-K1.6
2 S201PR-K2 2 S203PR-K2
3 S201PR-K3 3 S203PR-K3
4 S201PR-K4 4 S203PR-K4
5 S201PR-K5 5 S203PR-K5
6 S201PR-K6 6 S203PR-K6
8 S201PR-K8 8 S203PR-K8
10 S201PR-K10 10 S203PR-K10
13 S201PR-K13 13 S203PR-K13
15 S201PR-K15 15 S203PR-K15
16 S201PR-K16 16 S203PR-K16
20 S201PR-K20 20 S203PR-K20
25 S201PR-K25 25 S203PR-K25
30 S201PR-K30 30 S203PR-K30
32 S201PR-K32 32 S203PR-K32
35 S201PR-K35 35 S203PR-K35
40 S201PR-K40 40 S203PR-K40
50 S201PR-K50 50 S203PR-K50
60 S201PR-K60 60 S203PR-K60
63 S201PR-K63 63 S203PR-K63
2
0.2 S202PR-K0.2
4
0.2 S204PR-K0.2
0.3 S202PR-K0.3 0.3 S204PR-K0.3
0.5 S202PR-K0.5 0.5 S204PR-K0.5
0.75 S202PR-K0.75 0.75 S204PR-K0.75
1 S202PR-K1 1 S204PR-K1
1.6 S202PR-K1.6 1.6 S204PR-K1.6
2 S202PR-K2 2 S204PR-K2
3 S202PR-K3 3 S204PR-K3
4 S202PR-K4 4 S204PR-K4
5 S202PR-K5 5 S204PR-K5
6 S202PR-K6 6 S204PR-K6
8 S202PR-K8 8 S204PR-K8
10 S202PR-K10 10 S204PR-K10
13 S202PR-K13 13 S204PR-K13
15 S202PR-K15 15 S204PR-K15
16 S202PR-K16 16 S204PR-K16
20 S202PR-K20 20 S204PR-K20
25 S202PR-K25 25 S204PR-K25
30 S202PR-K30 30 S204PR-K30
32 S202PR-K32 32 S204PR-K32
35 S202PR-K35 35 S204PR-K35
40 S202PR-K40 40 S204PR-K40
50 S202PR-K50 50 S204PR-K50
60 S202PR-K60 60 S204PR-K60
63 S202PR-K63 63 S204PR-K63
K
S201PR-K0.2
S202PR-K0.2
S203PR-K0.2
S203PR-K0.2
Tripping characteristic K
UL 1077
480Y/277 VAC
10 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush currents
during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

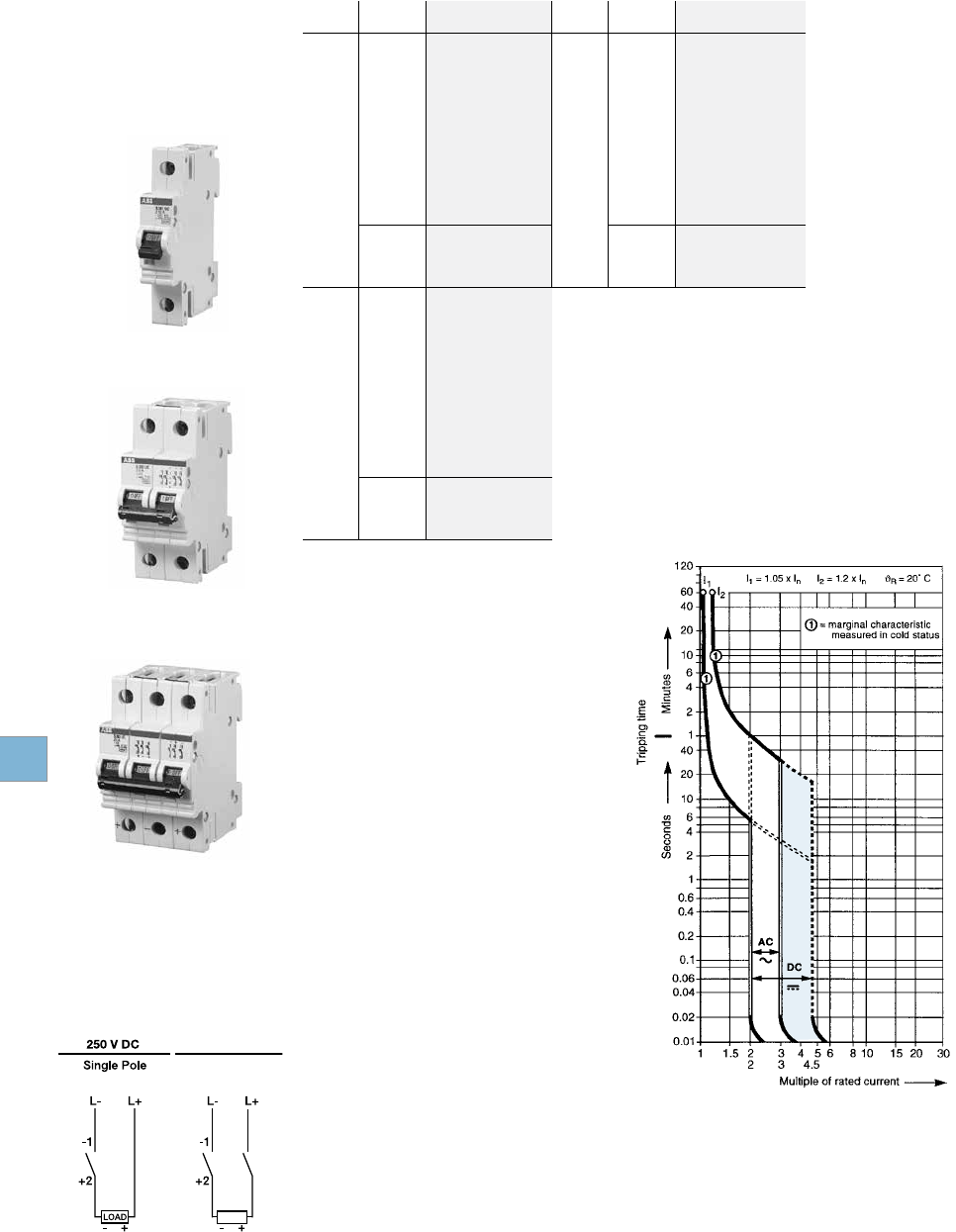

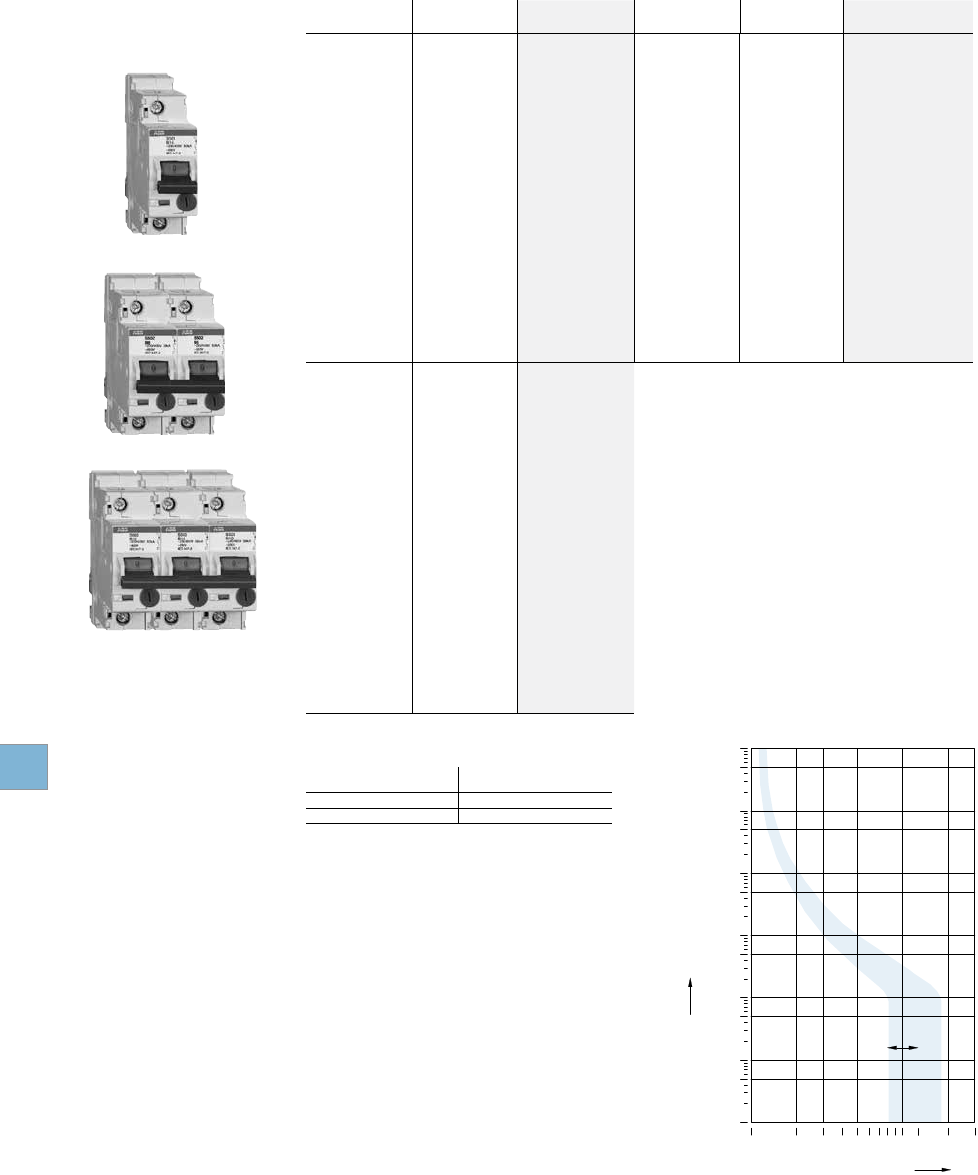

K
S281UC-K
S282UC-K
S283UC-K
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0,2 S281UC-K0.2
3
0.2 S283UC-K0.2
0,3 S281UC-K0.3 0.3 S283UC-K0.3
0,5 S281UC-K0.5 0.5 S283UC-K0.5
0,75 S281UC-K0.75 0.75 S283UC-K0.75
1 S281UC-K1 1 S283UC-K1
1,6 S281UC-K1.6 1.6 S283UC-K1.6
2 S281UC-K2 2 S283UC-K2
3 S281UC-K3 3 S283UC-K3
4 S281UC-K4 4 S283UC-K4
6 S281UC-K6 6 S283UC-K6
8 S281UC-K8 8 S283UC-K8
10 S281UC-K10 10 S283UC-K10
16 S281UC-K16 16 S283UC-K16
20 S281UC-K20 20 S283UC-K20
25 S281UC-K25 25 S283UC-K25
32 S281UC-K32 32 S283UC-K32
40 S281UC-K40 40 S283UC-K40
50 S281UC-K50 50 S283UC-K50
63 S281UC-K63 63 S283UC-K63
2
0,2 S282UC-K0.2
0,3 S282UC-K0.3
0,5 S282UC-K0.5
0,75 S282UC-K0.75
1 S282UC-K1
1,6 S282UC-K1.6
2 S282UC-K2
3 S282UC-K3
4 S282UC-K4
6 S282UC-K6
8 S282UC-K8
10 S282UC-K10
16 S282UC-K16
20 S282UC-K20
25 S282UC-K25
32 S282UC-K32
40 S282UC-K40
50 S282UC-K50
63 S282UC-K63
S201DC S282UC
500 VDC
Two Pole
LOAD
3+
4-

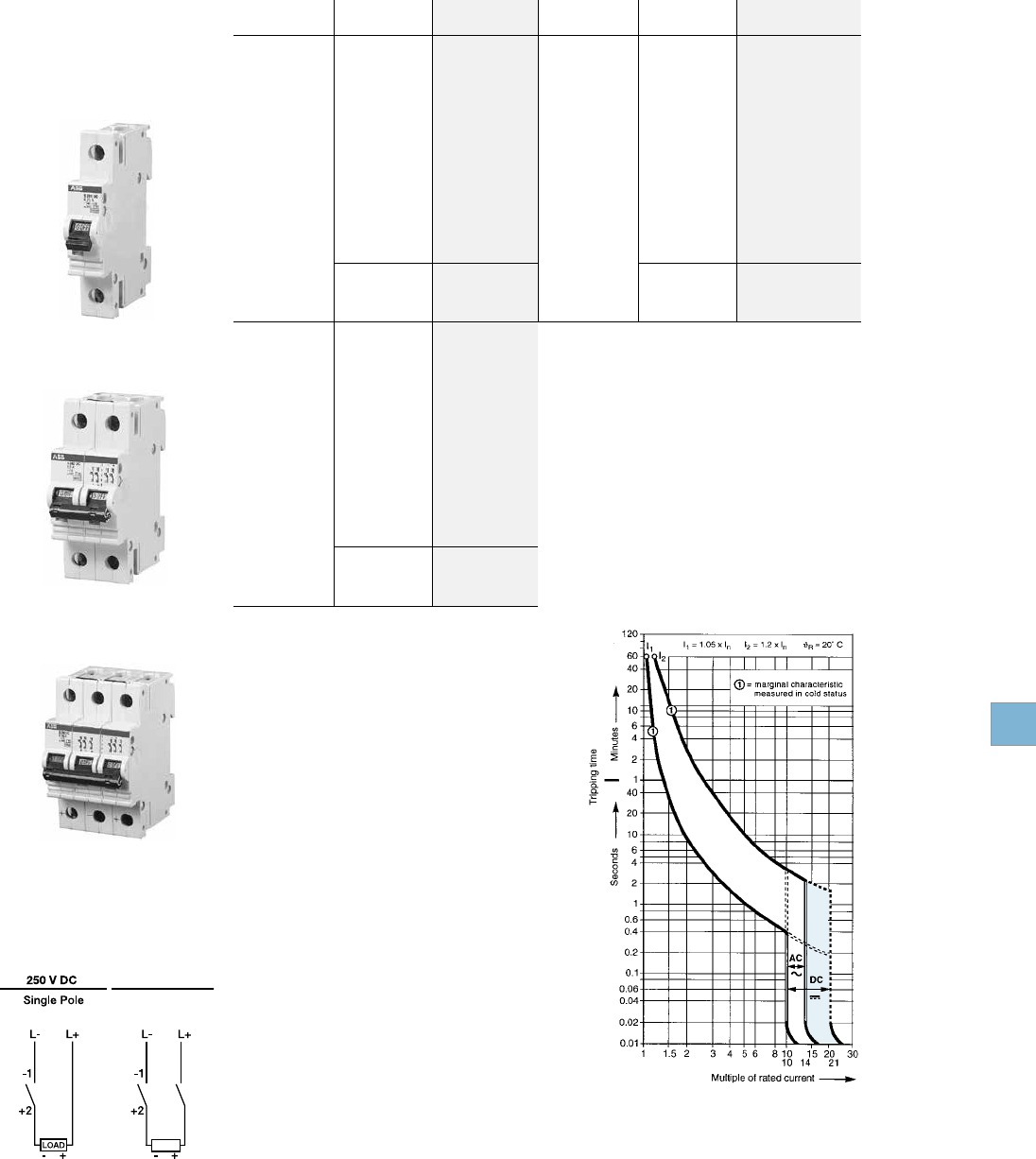

S280UC-K, 500 VDC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
Tripping characteristic K
UL 1077
250/500 VDC
10 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformer
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Direct current applications
The S280UC differs from standard minia-
ture circuit breakers in that the UC versions
include a permanent magnet which aids in the
extinguishing of the arc during medium and
high level faults. It is necessary to observe the
correct polarity and current direction when
connecting the UC breakers. Two examples of
correct connection are shown.
Termination points are marked on all UC type
MCBs, points one (1) and four (4) are negative
and points two (2) and three (3) are positive.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
ZNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.5 S281UC-Z0.5
3
0.5 S283UC-Z0.5
1 S281UC-Z1 1 S283UC-Z1
1.6 S281UC-Z1.6 1.6 S283UC-Z1.6
2 S281UC-Z2 2 S283UC-Z2
3 S281UC-Z3 3 S283UC-Z3
4 S281UC-Z4 4 S283UC-Z4
6 S281UC-Z6 6 S283UC-Z6
8 S281UC-Z8 8 S283UC-Z8
10 S281UC-Z10 10 S283UC-Z10
16 S281UC-Z16 16 S283UC-Z16
20 S281UC-Z20 20 S283UC-Z20
25 S281UC-Z25 25 S283UC-Z25
32 S281UC-Z32 32 S283UC-Z32
40 S281UC-Z40 40 S283UC-Z40
50 S281UC-Z50 50 S283UC-Z50
63 S281UC-Z63 63 S283UC-Z63
2
0.5 S282UC-Z0.5
1 S282UC-Z1
1.6 S282UC-Z1.6
2 S282UC-Z2
3 S282UC-Z3
4 S282UC-Z4
6 S282UC-Z6
8 S282UC-Z8
10 S282UC-Z10
16 S282UC-Z16
20 S282UC-Z20
25 S282UC-Z25
32 S282UC-Z32
40 S282UC-Z40
50 S282UC-Z50
63 S282UC-Z63
S281UC-Z
S282UC-Z
S283UC-Z
S280UC-Z, 500 VDC
Supplemental protectors
UL 1077, CSA 22.2, No. 235
S201DC S282UC
500 VDC
Two Pole
LOAD
3+
4-
Tripping characteristic Z
UL 1077
250/500 VDC
10 kA
Resistive loads
• Z Curve
• Designed to provide maximum
protection with a very low short
circuit trip setting
• Example: semiconductors
Accessories & technical data
Accessories – See page 15.31 - 15.34
Technical data – See page 15.35 - 15.36
Direct current applications
The S280UC differs from standard minia-
ture circuit breakers in that the UC versions
include a permanent magnet which aids in the
extinguishing of the arc during medium and
high level faults. It is necessary to observe the
correct polarity and current direction when
connecting the UC breakers. Two examples of
correct connection are shown.
Termination points are marked on all UC type
MCBs, points one (1) and four (4) are negative
and points two (2) and three (3) are positive.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

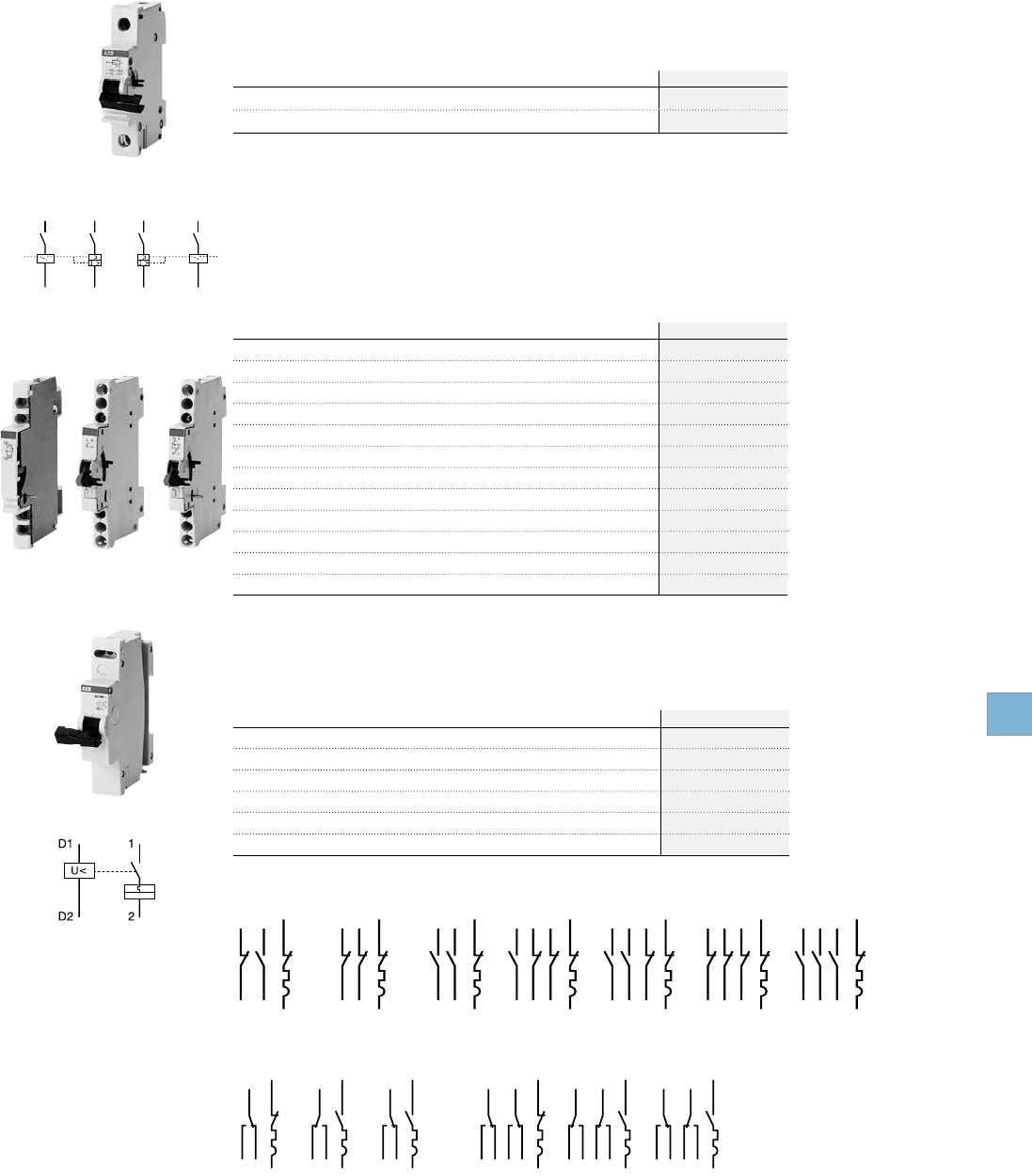

Auxiliary contacts
The auxiliary contacts will signal whether the breaker is in the ON or OFF position.
Description Catalog number
For field mounting: right side S2C-H6R
Bell alarm - signal contact
The bell alarm includes a set of contacts that will only signal when the breaker has tripped.
Typically the contacts would be connected to an alarm or bell to signal the operator that an overcurrent trip
has occurred. The bell alarm also includes a test button for testing the alarm contacts without opening the
breaker.
Description Catalog number
For field mounting: right side S2C-S/H6R 1
Shunt trip
For remote tripping of breaker, a shunt trip device can be added to the MCB. The solenoid device opens the
breaker after control voltage is applied.
Description Catalog number
For field mounting: right side
A1-12-60 VAC (12 – 60 VDC)
A2-110-415 VAC (110 – 250 VDC)
S2C-A1
S2C-A2
Undervoltage release
When control voltage drops below approximately 50 % of rated voltage, the UVR opens the breaker.
The breaker can not be operated unless proper control voltage is first applied to the UVR coil.
Description Catalog number
For field mounting: right side
12 VDC
24 VAC/VDC
48 VAC/VDC
110 VAC/VDC
220 VAC/VDC
380 VAC
S2C-UA 12
S2C-UA 24
S2C-UA 48
S2C-UA 110
S2C-UA 230
S2C-UA 400
S2C-H6R
S2C-A
S2C-UA
Accessories
S200, S200P & S200PR
UL 1077, CSA 22.2, No. 235
1 Combination bell alarm/auxiliary contact.
Possible mounting arrangements of MCB accessories
+ST+S/H+S/H (H)+S/H (H)
+ST+H+H+H)
Legend
Auxiliary contact H
Bell alarm/Auxiliary contact S/H
Bell alarm/Auxiliary contact
used as auxiliary contact
S/H (H)
Shunt trip ST
Undervoltage release UR
SA 1
SA 2
Locking devices
Description Catalog number
Locking devices, 3 mm SA1
Padlock with 2 keys SA2
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
H Auxiliary contact S2C-H6R
H-R Auxiliary contact S2C-H6-...R
S/H Signal/Auxiliary contact S2C-S/H6R
S/H (H) Signal/Auxiliary contact S2C-S/H6R
used as auxiliary contact
ST Shunt trip S2C-A...
UR Undervoltage release S2C-UA
S200PR Accessory overview
Accessories
S200PR
UL 1077, CSA 22.2, No. 235
S200PR Instructions for use
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Accessories
S280UC
UL 1077, CSA 22.2, No. 235
1
2
C1
C2
1
2
C1
C2
S2-A1 I
S2-A2 I
1
2
C1
C2
S 290 A1
S 290 A2
1
2
C1
C2
S9-T24, S9-T130, S9-T415
1
2
C1
C2
S5 AL
Installation only on left
11 21 31
12 22 32
1
2
13 23 33
14 24 34
1
2
11 21 33
12 22 34
1
2
11 23 33
12 24 34
1
2
11 21
12 22
1
2
13 23
14 24
1
2
13 21
14 22
1
2
S2-H11 S2-H20 S2-H02 S2-H21 S2-H12 S2-H30 S2-H03
S2-h11 X S2-H20 X S2-H02 X
95
96 98
1
2
95
96 98
1
2
95
96 98
1
2
11
12 14
1
2
95
96 98
11
12 14
1
2
95
96 98
11
12 14
1
2
95
96 98
Automatic
opening
Manual
opening
Automatic
opening
Manual
opening
S2-S
95
96 98
1
2
95
96 98
1
2
95
96 98
1
2
11
12 14
1
2
95
96 98
11
12 14
1
2
95
96 98
11
12 14
1
2
95
96 98
Automatic
opening
Manual
opening
Automatic
opening
Manual
opening
S2-S/H
Shunt trips
Function: remote opening of the device when a voltage is applied
Suitable for MCBs S 280 and S 280 UC series.
Description Catalog number
12-60 VAC/VDC shunt trip S2-A1
110-415 VAC and 110-250 VDC shunt trip S2-A2
Auxiliary contacts
Function: indication of the position of the device’s contacts
Suitable for MCBs S 280 and S 280 UC series
Signal contacts
Function: indication of the position of the device’s contacts only after the automatic release of the MCBs
and RCBOs due to an overload or a short-circuit
Suitable for MCBs S 280 and S 280 UC series
Description Catalog number
Auxiliary contact 1 NO + 1 NC (1/2 module) S2-H11
Auxiliary contact 2 NO (1/2 module) S2-H20
Auxiliary contact 2 NC (1/2 module) S2-H02
Auxiliary contact 1 NO + 1 NC (1/2 module) with Faston connections S2-H11X
Auxiliary contact 2 NO (1/2 module) with Faston connections S2-H20X
Auxiliary contact 2 NC (1/2 module) with Faston connections S2-H02X
Auxiliary contact 2 NO + 1 NC (1/2 module) S2-H21
Auxiliary contact 1 NO + 2 NC (1/2 module) S2-H12
Auxiliary contact 3 NO (1/2 module) S2-H30
Auxiliary contact 3 NC (1/2 module) S2-H03
Signal contact (1/2 module) S2-S
Signal contact + Auxiliary contact (1/2 module) S2-S/H
Undervoltage release
Function: protection of the load in the event of a voltage drop (between 70% and 35% of its rated value);
positive safety (device’s tripping when the voltage is disconnected) emergency stop by means of a button.
Suitable for MCBs S 280 and S 280 UC series.
Description Catalog number
Undervoltage release 12V DC (1 module) S2-UA12
Undervoltage release 24V AC/DC (1 module) S2-UA24
Undervoltage release 48V AC/DC (1 module) S2-UA48
Undervoltage release 110V AC/DC (1 module) S2-UA110
Undervoltage release 220V AC/DC (1 module) S2-UA220
Undervoltage release 380V AC (1 module) S2-UA380
S2-A1
S2-UA12
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Accessories
S280UC
UL 1077, CSA 22.2, No. 235
Hand operated neutral
The hand operated neutral has to be mounted to the left side of the MCB and be snapped on the DIN rail.
It is used for measuring duties where the neutral conductor must be in the open position. Due to the special
design of the handle - when switching ON the MCB – the neutral will make before the MCB is closed.
The S2C - Nt is not to switch with a tool (screw driver).
Description Catalog number
Hand operated neutral S2-NT
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
ST
UR
UR
ST
S/H
H
S
S 280
H
S
S/H
S
HAuxiliary contact
SSignal contact
UR Undervoltare release
ST Shunt trip
Combination between auxiliary elements and S 280
Technical characteristics of auxiliary and signal contacts
Type S2-H11 I S2-H20 I S2-H02 I S2-H21 S2-H12 S2-H30 S2-H03
S2-H11 X S2-H20 X S2-H02 X
Description 1NO+1NC 2NO 2NC 2NO+1NC 1NO+2NC 3NO 3NC
Alternating Ue [V] ••••••••••••••••••••••••••••••• 240 415
current Ie [A] ••••••••••••••••••••••••••••••• 6 2
Direct Ue [V] •••••••••••••••••••••••• 24 60 110 250
current Ie [A] •••••••••••••••••••••••• 4 2 1.5 1
Min.operating
voltage [V] 12 a.c.-12 d.c.
Min. operating
current [mA] 12
Terminals [mm2] up to 2x1.5
Dielectric strength [kV] 3
Resistance to short-circuit
at 240 V a.c. [A] 1000 (protected with S 2 breaker characteristic K - 6 A)
Impulse voltage withstand
capacity [kV] 4
Tightening torque [Nm] 0.7
Dimensions (WxDxH) [mm] 8.75x68x90
NB: the auxiliary contacts S2-H11 X, S2-H20 X, S2-H02 X differ from the contacts S2-H11, S2-H20, S2-H02 in that they do not have a terminal to tighten the cable
which is replaced by a bayonet for the Faston connection.
Schemes for combination and technical features
Auxiliary elements for MCBs S 280 series
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Technical characteristics of undervoltage releases
Type S2-UA 12 S2-UA 24 S2-UA 48 S2-UA 110 S2-UA 220 S2-UA 380
Standards VDE0660 part I - IEC EN 60947.1
Rated [V] a.c. - 24 48 110 220-240 380
voltage [V] d.c. 12 24 - 110 220-240 380
Frequency [Hz] 50...60
Release trip [V] 0.35 Un≤V≤0.7 Un
Terminals [mm2] 2 x 1.5
Consumption [mA] 10
Resistance to corrosion [°C/RH] const. climatic cond.: 23/83-40/93-55/20; var. climatic cond.: 25/95-40/93
Protection degree IP20
Tightening torque [Nm] 0.4
Dimensions (WxDxH) [mm] 17.5x68x90
Technical characteristics of shunt trips
Type S2-A1 S2-A2
Rated voltage [V]
a.c. 12 - 60 110 - 415
d.c. 12 - 60 110 - 250
Max. release duration [ms] <10 <10
Min. release [V]
voltage a.c. 7 55
d.c. 10 80
Consumption on release [VA]
12 V a.c. 35
12 V d.c. 30
24 V a.c. 140
24 V d.c. 100
48 V a.c. 600
48 V d.c. 330
110 V a.c. 40
110 V d.c. 40
220 V a.c. 180
220 V d.c. 170
Coil resistance [Ω] 3.7 225
Terminals [mm2] 25 25
Tightening torque [Nm] 2 2
Dimens.(WxDxH) [mm] 17.5x68x90
17.5x68x90
S2-S S2-SH
1 change over 2 change over
240 415
6 2
250 110 60 24
0.5 1 1 4
12 a.c.-12 d.c.
12
up to 2x1.5
3
1000 (protected with S 2 breaker characteristic K - 6 A)
4
0.7
8.75x68x90
Technical features
Auxiliary elements for MCBs S 280 series
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

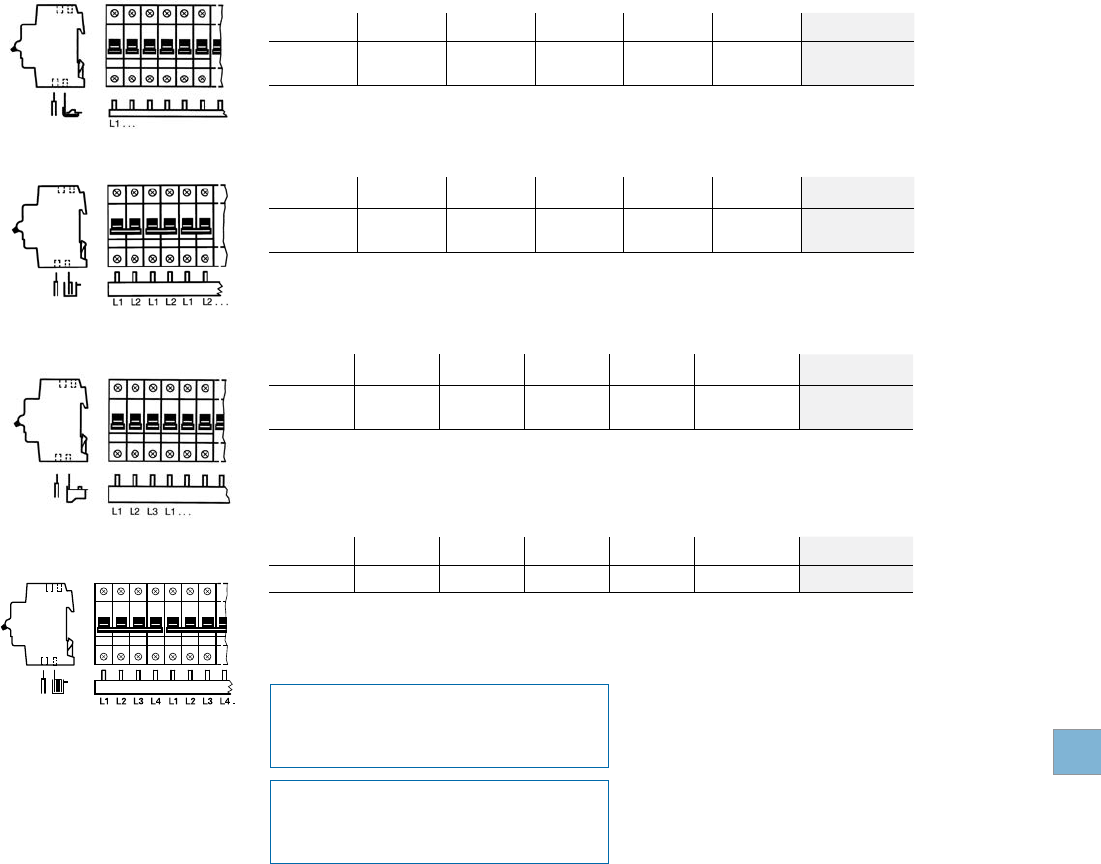

For
use on:
Amp
rating
Number
of poles Phases Busbar length
(mm)
End cap
catalog number
Catalog
number
S200
S200 P
63
80
60
60
1
1
986
986
PS-END0
PS-END0
PS1/60SP
PS1/60/16SP
For
use on:
Amp
rating
Number
of poles Phases Busbar length
(mm)
End cap
catalog number
Catalog
number
S200
S200 P
63
80
58
58
2
2
1035
1035
PS-ENDSP
PS-ENDSP
PS2/58SP
PS2/58/16SP
For
use on:
Amp
rating
Number
of poles Phases Busbar length
(mm)
End cap
catalog number
Catalog
number
S200
S200 P
63
80
60
60
3
3
1065
1065
PSB-ENDSP
PSB-ENDSP
PS3/60SP
PS3/60/16SP
For
use on:
Amp
rating
Number
of poles Phases Busbar length
(mm)
End cap
catalog number
Catalog
number
S200 80 60 4 1056 PS-END1 PS4/60/16SP
1 Phase
2 Phase
3 Phase
4 Phase
NOTE
ALL BUSBARS MAY BE CENTER FED IN ORDER
TO INCREASE AMPACITY UP TO 130 A.
NOTE
BUSBARS MAY BE USED ON LINE OR
LOAD SIDE OF MCBS
Accessories
S200 & S200P
UL 1077, CSA 22.2, No. 235 (suitable for cutting)
1 Phase
2 Phase
3 Phase
4 Phase
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
For
use on:
Amp
rating
Number
of poles Phases Busbar length
(mm)
End cap
catalog number
Catalog
number
S200 &
S200 P
63
80
38
38
1
1
1044
1044
–
–
PS1/38H
PS1/38/16H
For
use on:
Amp
rating
Number
of poles Phases Busbar length
(mm)
End cap
catalog number
Catalog
number
S200 &
S200 P 80 58 4 1048 PS-END1SP PS4/58/16NSP
1 Phase with 1 auxiliary
For
use on:
Amp
rating
Number
of poles Phases Busbar length
(mm)
End cap
catalog number
Catalog
number
S200 &
S200 P 80 48 2 1065 PS-ENDSP PS2/48/16SP
For
use on:
Amp
rating
Number
of poles Phases Busbar length
(mm)
End cap
catalog number
Catalog
number
S200 &
S200 P 80 39 3 980 PS-ENDSP PS3/39/16SP
3 Phase with 1 auxiliary
2 Phase with 1 auxiliary
3 Phase + N, for use with 2 pole-MCBs on 3 phase/4W system
Accessories
S200 & S200P
UL 1077, CSA 22.2, No. 235
NOTE
ALL BUSBARS MAY BE CENTER FED IN ORDER
TO INCREASE AMPACITY UP TO 130 A.
NOTE
BUSBARS MAY BE USED ON LINE OR
LOAD SIDE OF MCBS
1 Phase + Aux
2 Phase + Aux
3 Phase + Aux
3 Phase + N
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15

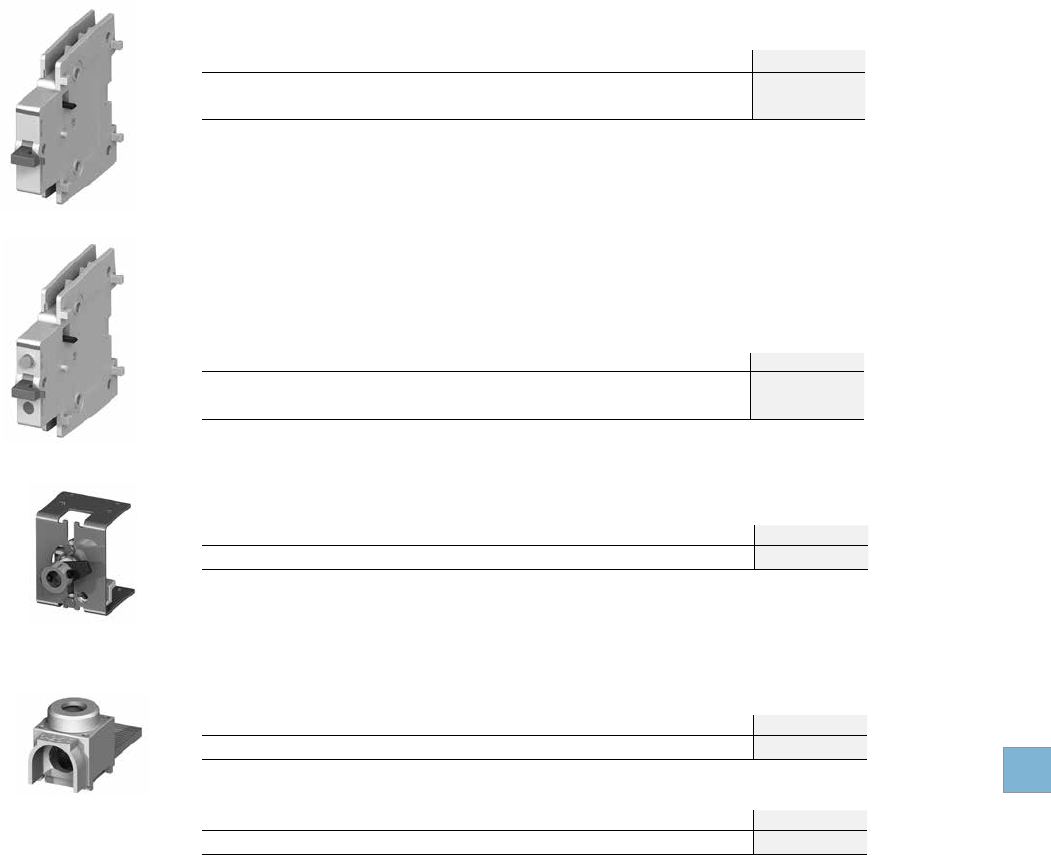

BSK-SP
Busbar tooth covers
Description Catalog
number
Covers five unused poles of busbar BSK-SP
AST35/15SP
PS2/6/16 SP
Accessories
S200 & S200P
UL 1077, CSA 22.2, No. 235
SZ-ESK SP
Feeder terminals
Description Catalog
number
Insulated with pin contact, 35mm sq. AST35/15SP
For side by side mounting; feed on pin of busbar, 50mm sq. SZ-ESKSP
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Technical data
S200, S200P, S200PR & S280UC
UL 1077, CSA 22.2, No. 235
Technical data S200 S200P S200PR S280UC
Specifications: UL 1077, CSA C 22.2, VDE 0660, 60898, 60947-2
UL1077, CSA 22.2 No. 235,
IEC 60947-2 UL1077, CSA 22.2, No. 235
UL File-Number: E 76126 UL CL E 76126 UL CL E 76126 UL CL –
No. of poles: 1, 2, 3 & 4 1, 2, 3 & 4 1, 2, 3 & 4 1, 2, 3
Tripping characteristics: B, C, D, K & Z B, C, D, K & Z K K, Z
Rated current: 0.5-63 A 0.2-63 A 0.2-63 A 0.2-63 A
Rated voltage: Multi pole, 480Y/277 VAC
1 pole, 277 VAC,
Multi pole, 480Y/277 VAC
1 pole, 250 VDC, 230 VAC,
Multipole, 500 VDC, 480 VAC
Short circuit capacity: S200 6kA; S200P 10 kA 10 kA
4.5 kA (10 kA, 60 VD 1P, 125 VDC, 2P
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz
Degree of protection: IP 20 IP 20, IP40 in enclosure w/cover IP 20
Mounting position: Vertical, horizontal Any Any
Fixing: 35mm DIN rail
Clamps only for Cu: 18-4 AWG
Service life, mech. and at rated load: 20,000 operations
6000 ops (AC),
1 cycle (1s -ON, 9s -OFF)
6000 ops (AC/DC),
1 cycle (1s -ON, 9s -OFF)
Tightening torque: 25 in. lbs (2.8 Nm) 17.5 in. lbs (2.5 Nm)
Ambient temperature: – 25°C … – 13°F / 70°C … 158°F -25°C ... +55°C -25°C ... +55°C
Shock resistance: 30 g at least 3 impacts, shock duration
of 11 ms 25g, 2 shocks, 13ms 30g, 3 shocks, 11ms
Auxiliary contact S2C-H6R and Signal contact S2C-S6R for S200, S200P & S200PR
Rated current: 10
Rated voltage AC / DC: 24
Contact: 1 pole, single throw
Connection capacity mm218 – 14 AWG (0.75…2.5)
Tightening torque: 11 in. Ibs (1.2 Nm)
Shock resistance acc. to DIN IEC 68-2-6: 5 g, 20 frequency cycles 5...150...5 Hz at 24 VAC/DC, 5 mA auto-reclosing < 10 ms
Mechanical service life: 10,000 operations
Shunt trip S2C-A1 S2C-A2
Rated voltage AC
DC
12 ... 60 V
12 ... 60 V
110 ... 415 V
110 ... 250 V
Max. release duration < 10 ms < 10 ms
Min. release voltage AC
DC
7 V
10 V
55 V
80 V
Consumption on release AD
DC
40 ... 200 VA
40 ... 200 VA
55 ... 210 VA
55 ... 110 VA
Coil resistance 3.7 Ω225 Ω
Terminals 18…6/0.75 – 16 AWG/mm218…6/0.75 – 16 AWG/mm2
Tightening torque 18/2 in.Ibs/Nm 18/2 in.Ibs/Nm
Undervoltage release
S2C-UA
12 DC
S2C-UA
24 AC
S2C-UA
24 DC
S2C-UA
48 AC
S2C-UA
48 DC
S2C-UA
110 AC
S2C-UA
110 DC
S2C-UA
230 AC
S2C-UA
230 DC
S2C-UA
400 AC
Standards IEC/EN 60947-1
Rated voltage AC
DC
12 V
24 V
24 V
48 V
48 V
110 V
110 V
230 V
230 V
400 V
Frequency 50 ... 60 Hz
Release trip 0.35 UnOVO 0.7 Un V
Terminals 2 x 16/2 x 1.5 AWG/mm2
Consumption 0.2 VA 3.6 VA 2 VA 3.6 VA 2.1 VA 3.5 VA 2.2 VA 3.7 VA 2.3 VA 2.4 VA
Resistance to corrosion constant atmosphere: 23/83 – 40/93 – 55/20; variable atmosphere: 25/95 – 40/93 °C/RH
Protection degree IPXXB / IP2X
Tightening torque 3.5/0.4 in.Ibs/Nm
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Internal resistance and power loss
Internal resistance per pole in mz, power loss per pole in W
Type Rated
current
Device series
B, C, D1
Device series
K
Device series
Z
AmzWmzWmzW
S200 &
S200P
0.5 5500 1.4 6340 1.6 10100 2.5
1 1440 1.4 1550 1.6 2270 2.3
1.6 630 1.6 695 1.8 1100 2.8
2 460 1.8 460 1.9 619 2.5
3 150 1.3 165 1.5 202 1.8
4 110 1.8 120 2.0 149 2.4
6 55 2.0 52 1.9 104 3.7
8 15 1.0 38 2.5 53.9 3.45
10 13.3 1.3 12.6 1.26 17.5 1.7
13 13.3 2.3 12.6 1.26 - -
16 7.0 1.8 7.7 2.0 10.9 2.8
20 6.25 2.5 6.7 2.7 6.0 2.4
25 5.0 3.2 4.6 2.9 4.1 2.6
32 3.6 3.7 3.5 3.6 2.8 2.9
40 3.0 4.8 2.8 4.5 2.5 4.1
50 1.3 3.25 1.25 2.9 1.8 4.4
63 1.2 4.8 0.7 5.2 1.3 5.2
1 Current intensities 0.5 - 4 apply exclusively to C-type trip characteristics
Technical data
S200, S200P & S200PR
UL 1077, CSA 22.2, No. 235
Temperature derating
Max operating current depending on the ambient temperature of a circuit breaker characteristics type B, C and D
B, C, D,
K, & Z Ambient Temperatures T (Cº/Fº)
Amps
-40/-40 -30/-22 -20/-4 -10/14 0/32 10/50 20/68 30/86 40/104 50/122 60/140 70/158
0.67 0.65 0.62 0.60 0.58 0.55 0.53 0.50 0.47 0.44 0.41 0.37
1.33 1.29 1.25 1.20 1.15 1.11 1.05 1.00 0.94 0.88 0.82 0.75
2.13 2.07 2.00 1.92 1.85 1.77 1.69 1.60 1.51 1.41 1.31 1.19
2.67 2.58 2.49 2.40 2.31 2.21 2.11 2.00 1.89 1.76 1.63 1.49
4.0 3.9 3.7 3.6 3.5 3.3 3.2 3.0 2.8 2.6 2.4 2.2
5.3 5.2 5.0 4.8 4.6 4.4 4.2 4.0 3.8 3.5 3.3 3.0
8.0 7.7 7.5 7.2 6.9 6.6 6.3 6.0 5.7 5.3 4.9 4.5
10.7 10.3 10.0 9.6 9.2 8.8 8.4 8.0 7.5 7.1 6.5 6.0
13.3 12.9 12.5 12.0 11.5 11.1 10.5 10.0 9.4 8.8 8.2 7.5
17.3 16.8 16.2 15.6 15.0 14.4 13.7 13.0 12.3 11.5 10.6 9.7
21.3 20.7 20.0 19.2 18.5 17.7 16.9 16.0 15.1 14.1 13.1 11.9
26.7 25.8 24.9 24.0 23.1 22.1 21.1 20.0 18.9 17.6 16.3 14.9
33.3 32.3 31.2 30.0 28.9 27.6 26.4 25.0 23.6 22.0 20.4 18.6
42.7 41.3 39.9 38.5 37.0 35.4 33.7 32.0 30.2 28.2 26.1 23.9
53.3 51.6 49.9 48.1 46.2 44.2 42.2 40.0 37.7 35.3 32.7 29.8
66.7 64.5 62.4 60.1 57.7 55.3 52.7 50.0 47.1 44.1 40.8 37.3
84.0 81.3 78.6 75.7 72.7 69.6 66.4 63.0 59.4 55.6 51.4 47.0
112.6 107.2 102.1 97.2 92.6 88.2 84.0 80.0 76.0 72.2 68.6 65.2
140.7 134.0 127.6 121.6 115.8 110.3 105.0 100.0 95.0 90.3 85.7 81.5
175.9 167.5 159.5 151.9 114.7 137.8 131.3 125.0 118.8 112.8 107.2 101.8
S200PR
Rated current Internal resistance
per pole 4)
Power loss
per pole 4)
A mΩ W
0.2 25300 1.01
0.3 13700 1.23
0.5 4740 1.19
0.75 2067 1.16
1 1270 1.27
1.5 610 1.56
2 442 1.77
3 140 1.26
4 109 1.75
5 50 1.26
6 54 1.94
8 22 1.41
10 18.2 1.82
13 14.8 2.50
15 8.1 1.83
16 11.1 2.83
20 8.5 3.40
25 5.5 3.43
30 3.8 3.39
32 4.6 4.70
35 3.9 4.76
40 2.8 4.40
50 1.7 4.25
60 1.7 6.18
63 1.9 7.56
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Technical data
S200 & S200P
UL 1077, CSA 22.2, No. 235

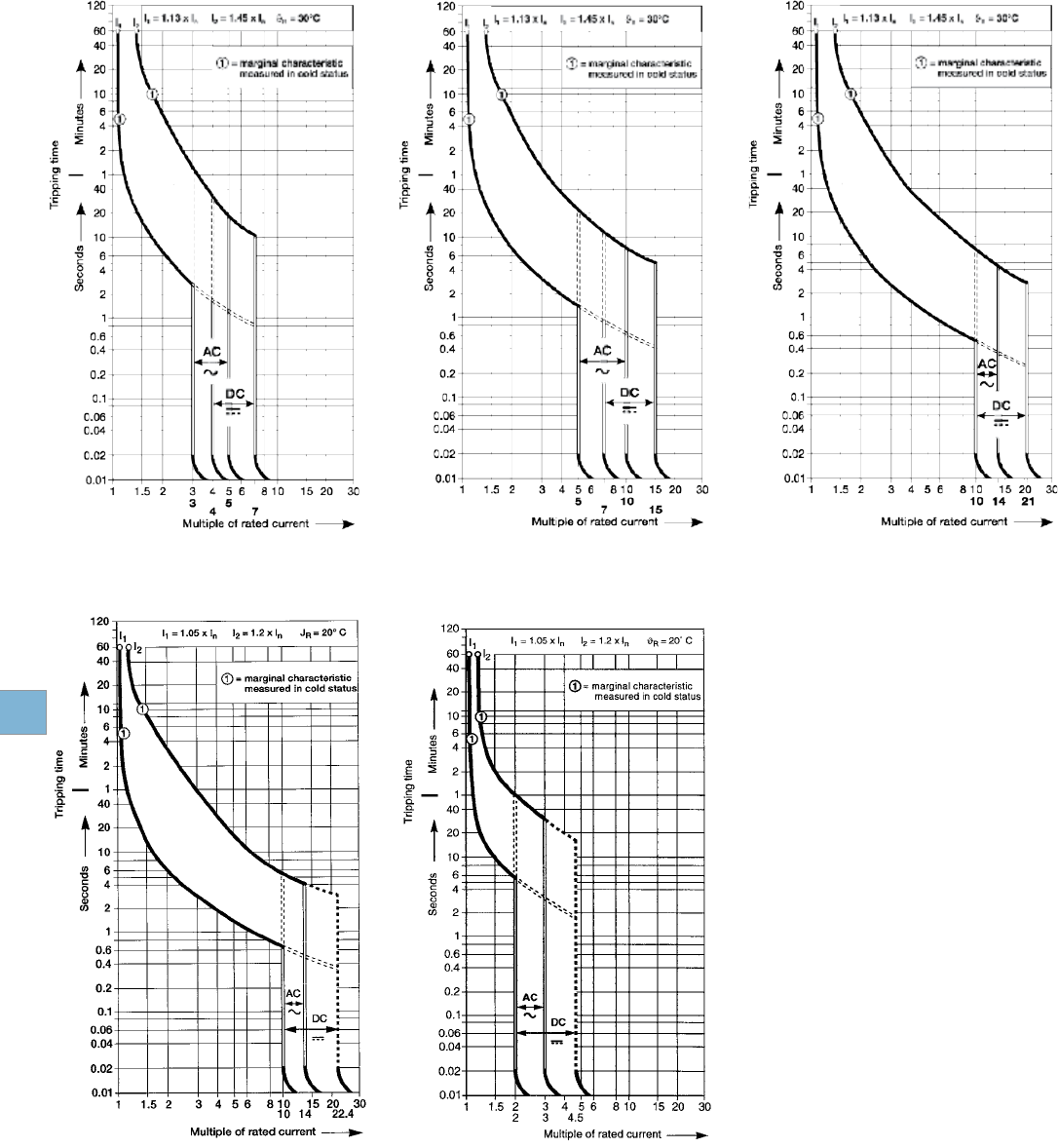

Tripping characteristic B Tripping characteristic C Tripping characteristic D
Tripping characteristic K Tripping characteristic Z
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Approximate dimensions
S200, S200P, S200PR
UL 1077, CSA 22.2, No. 235
S200, S200P
S200PR
SU200PR Instructions for use
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
LS
Addition of S2C-A...U
Approximate dimensions
S280UC, S2C-H6R, S2C-A...U
UL 1077, CSA 22.2, No. 235
S2C-H6R, S2C-A... S2C
S280UC
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Miniature
circuit breakers
Application guide
Miniature circuit breaker
Application guide
Introduction
The circuit breaker plays an important role in providing over-current
protection and a disconnect means in electrical networks. Recent
advancements in circuit breaker technology has increased breaker
performance and protection.
Overload
A slow and small overcurrent situation that causes the ampacity and
temperature of the circuit to gradually increase over time. This type of
event is characterized by a slight increase in the load (ampacity) on the
circuit and is interrupted by the thermal trip unit of the breaker.
Thermal Example
10A
Breaker
Light
15A
The light draws more than 10 amps for
an extended period of time creating a
thermal overload.
Short circuit
A rapid and intense overcurrent situation that causes the ampacity of
the circuit to increase. This type of event is characterized by a dramatic
increase in the load (ampacity) on the circuit and is interrupted by the
magnetic trip unit of the breaker.
Magnetic Example
10A
Breaker
Light
10A
The wire connected between the light and
breaker is cut and shorted to ground
creating a short circuit.
Breaker definition
A breaker is a device designed to isolate a circuit during an overcurrent
event without the use of a fusible element. A breaker is a resettable
protective device that protects against two types of overcurrent
situations; Overload and Short Circuit.

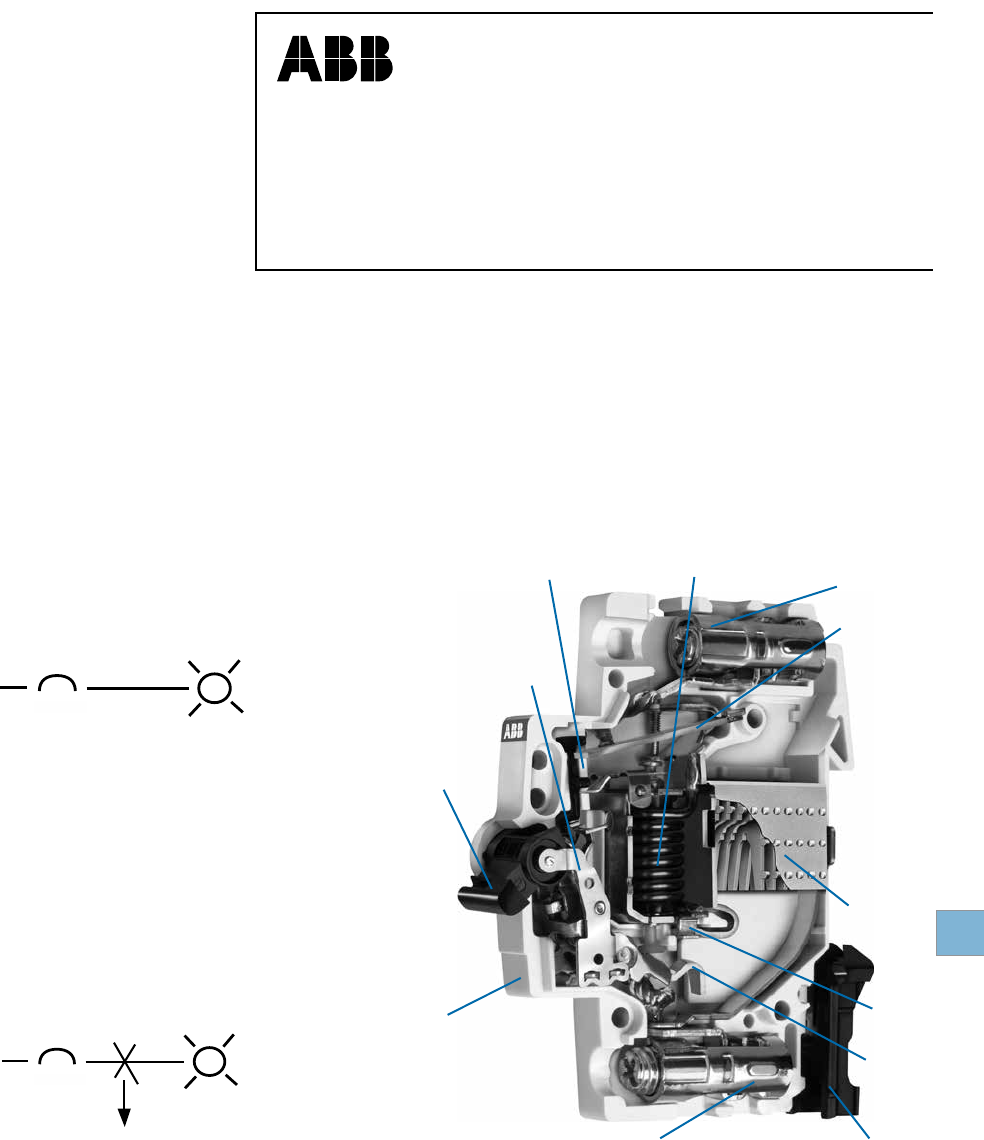

ABB current limiting breaker
Tripping lever
Operating
mechanism
Operator
Electro-magnetic protection Upper
terminal
Thermal
protection-
bimetal
Arc
chamber
Fixed
contact
Moving
contact
DIN rail holder
Lower terminal
Space for
identification
marker
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Miniature
circuit breakers
Application guide
Circuit breaker construction
Thermal / Magnetic trip units definition
ABB Current Limiting Breakers use an electromechanical (Thermal /
Magnetic) trip unit to open the breaker contacts during a overcurrent
event. The thermal trip unit is temperature sensitive and the magnetic trip
unit is current sensitive. Both units act independently and mechanically
with the breaker’s trip mechanism to open the breaker’s contacts.
Overload protection
The thermal trip unit protects against a continuous overload. The thermal
unit is comprised of a bimetal element located behind the circuit breaker
trip bar and is part of the breaker’s current carrying path. When there is
an overload, the increased current flow heats the bimetal causing it to
bend. As the bimetal bends it pulls the trip bar which opens the breaker’s
contacts.
The time required for the bimetal to bend and trip the breaker varies
inversely with the current. Because of this, the tripping time becomes
quicker as current increases in magnitude.
Overload protection is applicable to any installation, conductor, or
component which can be subjected to low-magnitude but long-time over-
currents. Low-magnitude, long-time over-currents can be dangerous
because they reduce the life of the electrical installation, conductor, and
components and if left unchecked could result in fire.

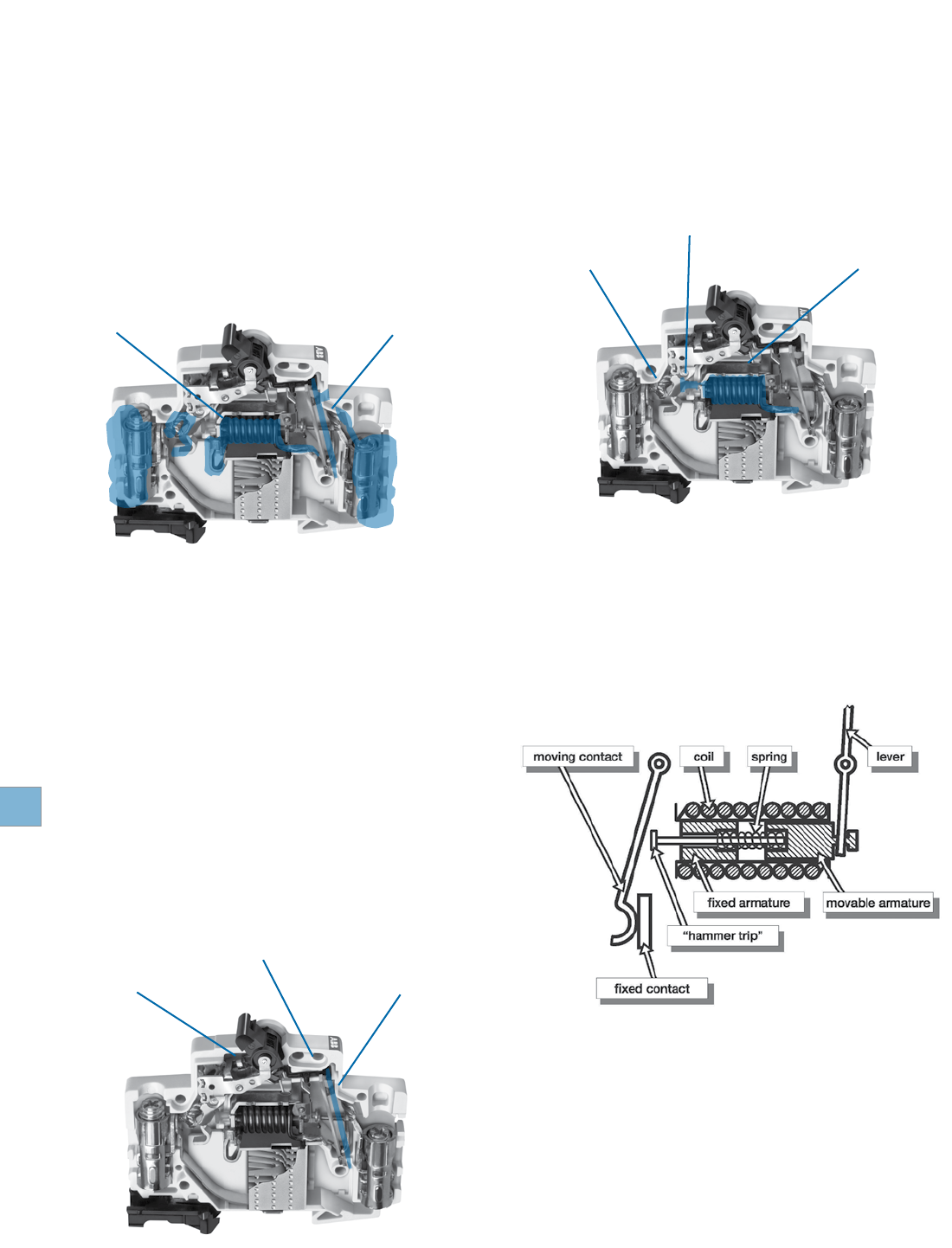

Magnetic trip units (short circuit protection)
The Magnetic trip unit protects against a short circuit. The magnetic trip
unit is comprised of an electromagnet and an armature.
Components of a magnetic trip unit
When there is a short circuit, a high magnitude of current passes through
the coils creating a magnetic field that attracts the movable armature
towards the fixed armature. The hammer trip is pushed against the
movable contact and the contacts are opened. The opening of the
breakers contacts during a short circuit is complete in .5 milli-seconds.
Current Flow During Operation
All highlighted components are energized during operation
Magnetic Trip Unit Thermal Trip Unit
Trip Bar
Operating Mechanism Thermal Trip Unit
Armature and Plunger
Movable Contact Magnet Trip Unit
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Miniature
circuit breakers
Application guide
Circuit breaker construction

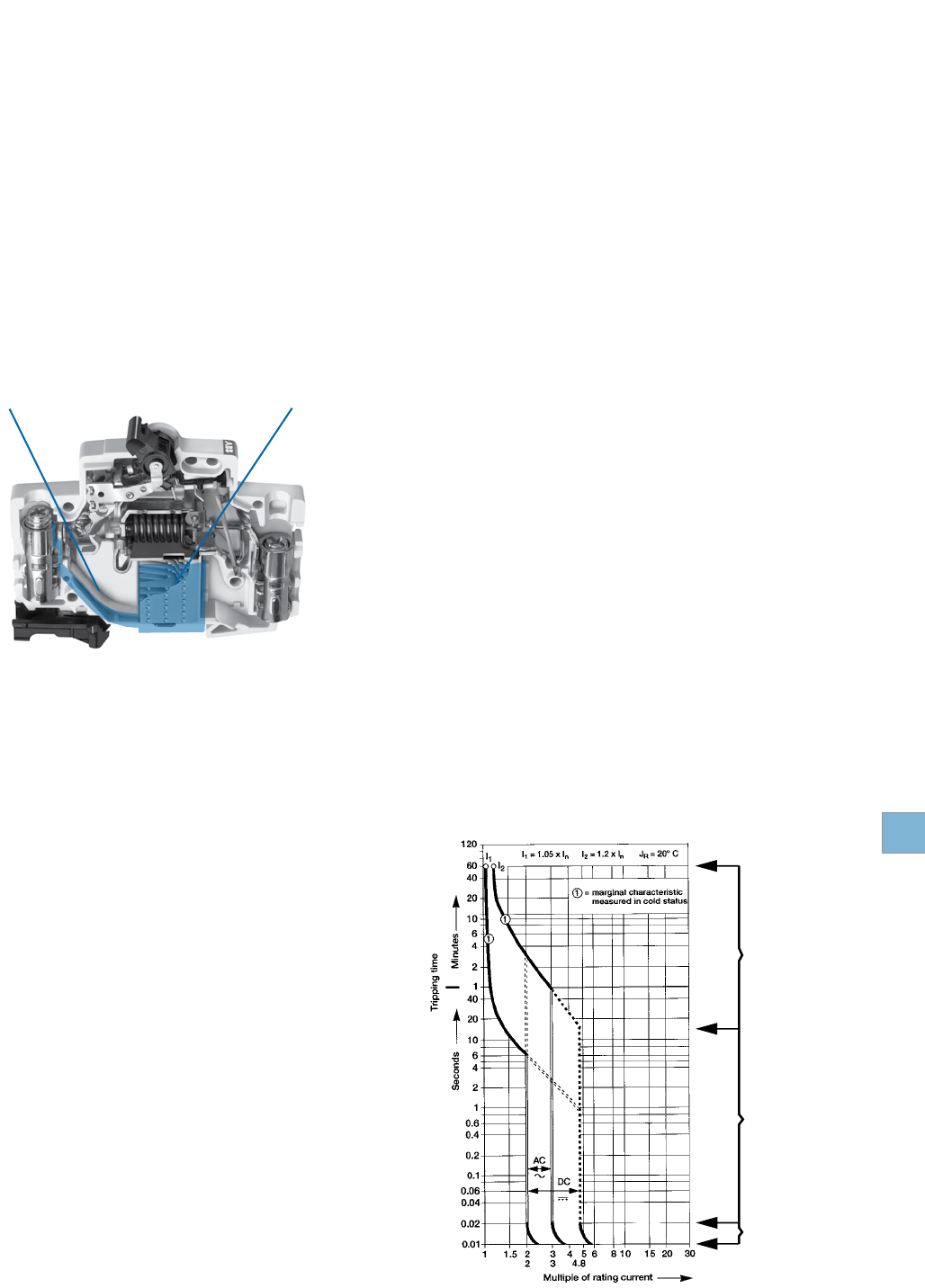

Arc runners / Arc chutes
The arc runner and arc chute limit and dissipate the arc energy during the
interruption of an overload or short circuit event.
During an overload or short circuit event, the contacts of the breaker
separate and an electrical arc is formed between the contacts through air.
The arc is moved into the arch chute by “running” the arc down the interior
of the breaker along the arc runner. When the arc reaches the arc chute
it is broken into small segmented arcs. The segmented arcs split the
overall energy level into segments less than 25V. Each 25V segment does
not have a high enough energy level to maintain an arc and all energy is
naturally dissipated.
Breaker curves
Thermal Trip Unit (region one)
The first sloping region of the breaker curve is a graphical representation
of the tripping characteristics of the thermal trip unit. This portion of the
curve is sloped due to the nature of the thermal trip unit. The trip unit
bends to trip the breaker’s trip bar in conjunction with a rise in amperage
(temperature) over time. As the current on the circuit increases, the
temperature rises, the faster the thermal element will trip.
Example using the curve below: If you had a 10A breaker and the circuit
was producing 30 amps of current, the breaker would trip between 2
seconds and 1 minute. In this example you would find the circuit current
on the bottom of the graph (Multiples of rated current). The first line is 10
amps (10 amp breaker x a multiple of one), the second line is 20 amps
(10 amp breaker x multiple of 2), and the third line is 30 amps (10amp
breaker x multiple of 3). Next you would trace the vertical 30A line up until
it intersects the red portion of the breaker thermal curve. If you follow the
horizontal lines, on both sides of the red curve, to the left you will see that
the breaker can trip as fast as 2 seconds and no slower than 1 minute.
Magnetic Trip Unit (region two)
This region of the breaker curve is the instantaneous trip unit. ABB’s
miniature circuit breaker’s instantaneous trip unit interrupts a short circuit
in 2.3 to 2.5 milliseconds. Because of this the curve has no slope and is
graphically represented as a vertical straight line.
Example using the curve above: If you had a 10 amp breaker the magnetic
trip element would interrupt a short circuit between 10 and 30 amps (10
amp breaker x multiple of 2 and 3) in 2.3 to 2.5 milliseconds.
Breaker Contacts (region three)
This region of the curve is the time required for the contacts of the breaker
to begin to separate. The contacts will open in less than .5 milliseconds
and is graphically represented by the bottom vertical portion of the curve.
Arc Runner Arc Chute
Magnetic Trip Unit
(Region Two)
Thermal Trip Unit
(Region One)
Moving Contacts
(Region Three)
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Miniature
circuit breakers
Application guide
Circuit breaker current limitation
Current limiting definitions
All ABB Miniature Circuit Breakers are UL tested and certified as current
limiting protective devices. Current limiting circuit breakers provide a
higher level of circuit protection than a typical zero point external breakers.
UL AC 60Hz cycle
UL defines an AC cycle as the potential energy of the wave form traveling
from Zero-to-Positive amplitude, Positive-to-Zero amplitude, Zero-to-
Negative amplitude, Negative-to-Zero amplitude 60 times in one second.
One cycle is completed every 16.6 milliseconds.
UL breaker current limiting
UL defines breaker current limitation as a breaker that interrupts and
isolates a fault in less than 1/2 of an AC cycle. 1/2 a cycle is completed in
8.3 milliseconds.
NEC240.2 current limiting
A device that, when interrupting current in its current-limiting range,
reduces the current flowing in the faulted circuit to a magnitude
substantially less than that obtainable in the same circuit if the device were
replaced with a solid conductor having comparable impedance.
IEC 60947-2 current limiting circuit breaker
A circuit breaker with sufficiently short trip time to prevent the short-circuit
current from reaching the peak value which would otherwise be reached.
ABB current limiting breakers
ABB current limiting breakers can interrupt and isolate a fault in 1/8 of
an AC cycle. The breaker fault interruption is completed in 2.3 to 2.5
milliseconds.
Zero point extinguishing breakers
A typical zero point extinguishing breaker interrupts a fault and does not
isolate the energy. The breaker allows an arc to be present between the
open contacts until the AC wave form crosses zero. When the wave
form crosses zero, the potential energy is zero and the arc (fault) naturally
extinguishes. The arc could be present for up to 8.3 milliseconds.

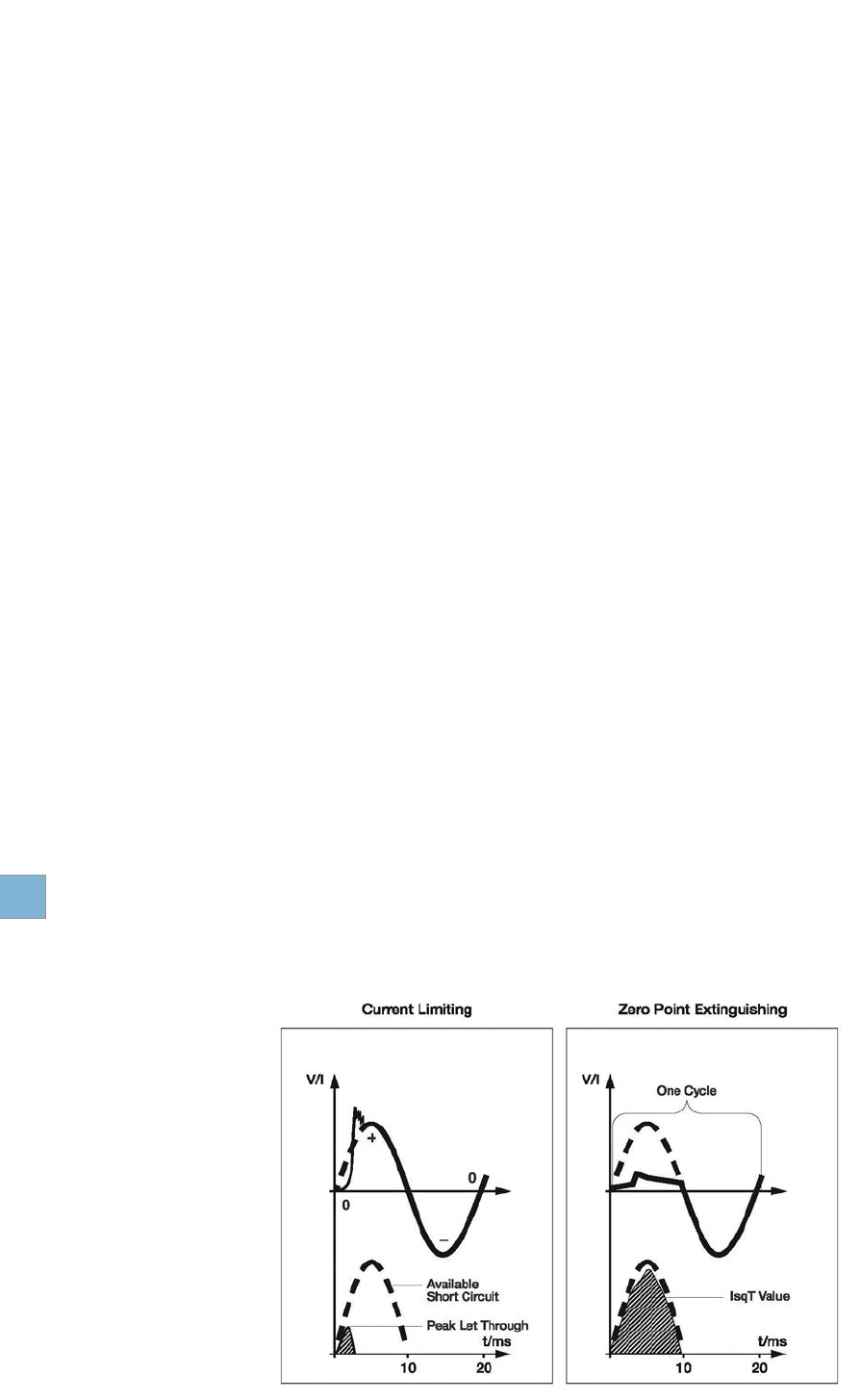

Current limiting breakers and electrical networks
Current Limitation
When a short-circuit condition occurs, the “ideal” current limiting circuit
breaker opens before the current waveform can reach its full potential
magnitude which occurs at ¼ cycle (4.17ms). ABB’s current limiting
breakers can interrupt a fault in about ½ cycle or 2.3ms to 2.5ms.
ABB’s current limiting breakers interrupt a short circuit in less than 1/8
cycle and limit the amount of current that can reach a circuit. Limiting
the available current on the circuit provides additional protection against
network, breaker, or bus damage and prevents the tripping of upstream
breakers (selective coordination).
IsqT
The true destructive nature of a short circuit is measured by the time
it is available combined with the peak value of the short circuit. The
IsqT (Amps Squared over Time) value represents the amount of energy
available on a network during a short circuit and is represented by the
shaded area on the graph below.
During a short circuit both magnetic forces and thermal energy combine
to damage devices on the electrical network. The level of thermal energy
and magnetic forces are directly proportional to the square of the current.
The magnetic forces vary as a square of the peak current available and the
thermal energy varies as a square of the RMS (root mean square) current
available. ABB’s current limiting breakers will limit the let-through energy
to a fraction (1/100th) of the value which is available from the network. By
comparison, a Zero Crossing breaker would let-through approximately 100
times as much destructive energy as the current limiting circuit breaker
[ (100,000A / 10,000A) squared – 100X].
ABB’s current limiting breakers limit the short circuit current to a relatively
small magnitude in a extremely short time, which dramatically limits a short
circuit’s destructive energy.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Miniature
circuit breakers
Application guide
Circuit breaker current limitation
Current limiting and zero crossing breakers
During the initial stages of a short circuit a breaker’s contacts open to
interrupt the circuit. After the contacts open an arc forms in the air
between the contacts on both the current limiting and zero crossing
breaker contacts. What distinguishes a current limiting breaker from a
zero crossing breaker is what each breaker does after an arc is formed
between the open contacts.
A current limiting breaker “runs” the arc down the breaker arc runner into
an arc chute that extinguishes the arc.
A zero crossing breaker does not attempt to extinguish the arc. The
breaker is designed to withstand the energy of the arc long enough for
the waveform to cross zero. When the wave form crosses zero the
potential energy is zero and the arc naturally extinguishes itself.
ABB’s current limiting breakers interrupt the arc energy in 2.3ms to 2.5ms
(1/8 cycle) and a zero crossing breaker allows the arc to be present for up
to 8.3ms (1/2 cycle). A zero crossing breaker will let through 100 times
as much energy as an ABB current limiting breaker.

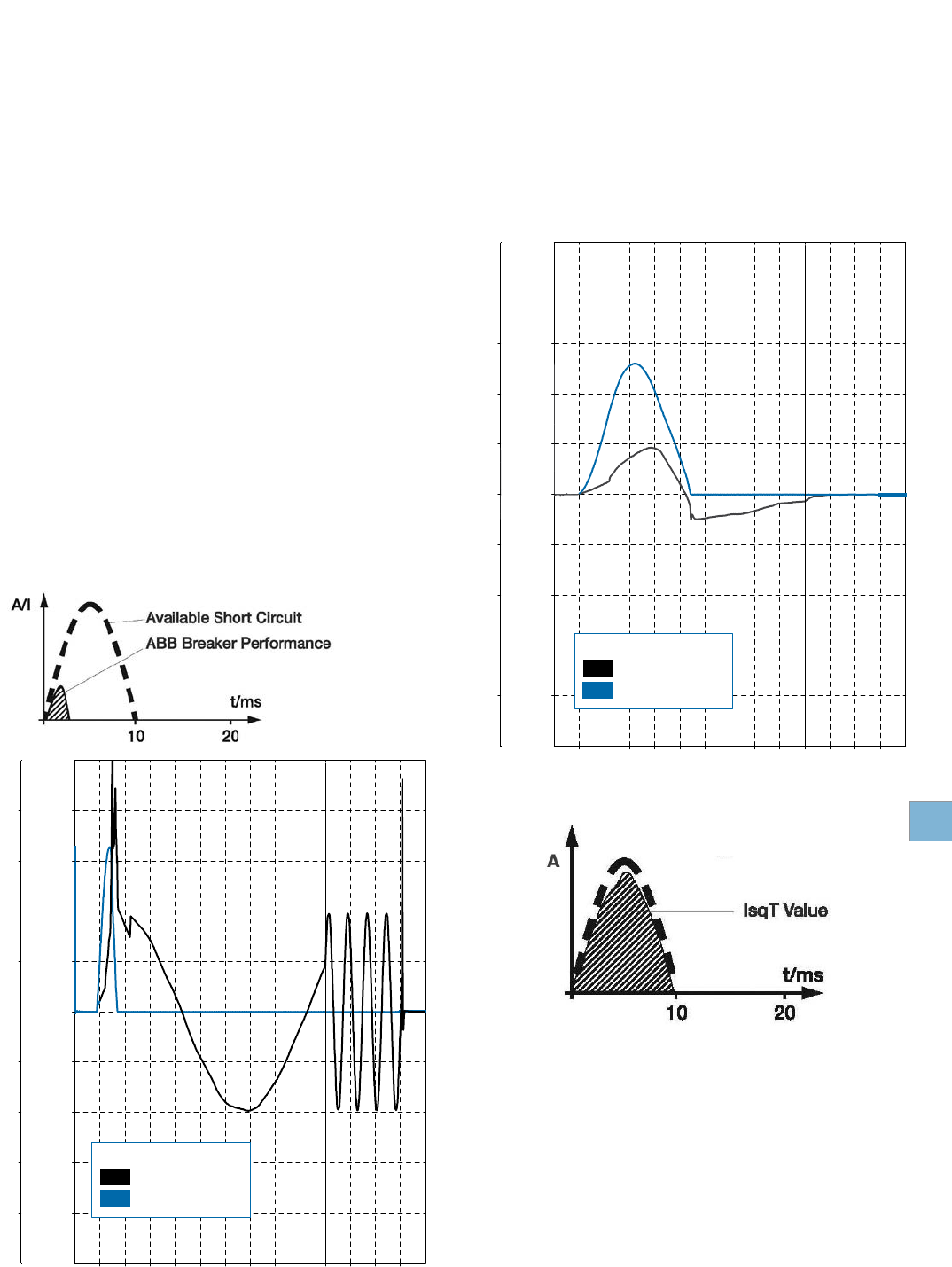

Current limiting example
The lab test report below details a 20A S200 series current limiting
breaker interrupting a 28kA fault in 1.7 milliseconds. The total “I Square
T” value is 32.0kA.
Zero crossing example
The test report below details a 20A Zero Point Extinguishing breaker
interrupting a 9kA fault in 9 milliseconds. The total "I Square T" value is
104.0kA.
500
-500
V
U-L2
100 /div
-400
-300
-200
-100
100
200
300
400
06.9990.99991.99972.99963.99944.99935.9991
kSample499.93 Sample/div
10
-10
kA
I-L2
2 k/div
-8
-6
-4
-2
2
4
6
8
Time A Time B
Legend
Voltage
Amps
500
-500
V
U-BCP L2
100 /div
-400
-300
-200
-100
100
200
300
400
06.9990.99991.99972.99963.99944.99935.9991
kSample499.93 Sample/div
10
-10
kA
I-L2
2 k/div
-8
-6
-4
-2
2
4
6
8
Time A Time B
Legend
Voltage
Amps
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Miniature
circuit breakers
Application guide
Selective coordination and series ratings
IEC 60497-1 selective coordination definition
Coordination between the operating characteristics of two or more over-
current protection devices, so that when an over-current within established
limits occurs, the device designated to operate within those limits trips
whereas the other do not trip.

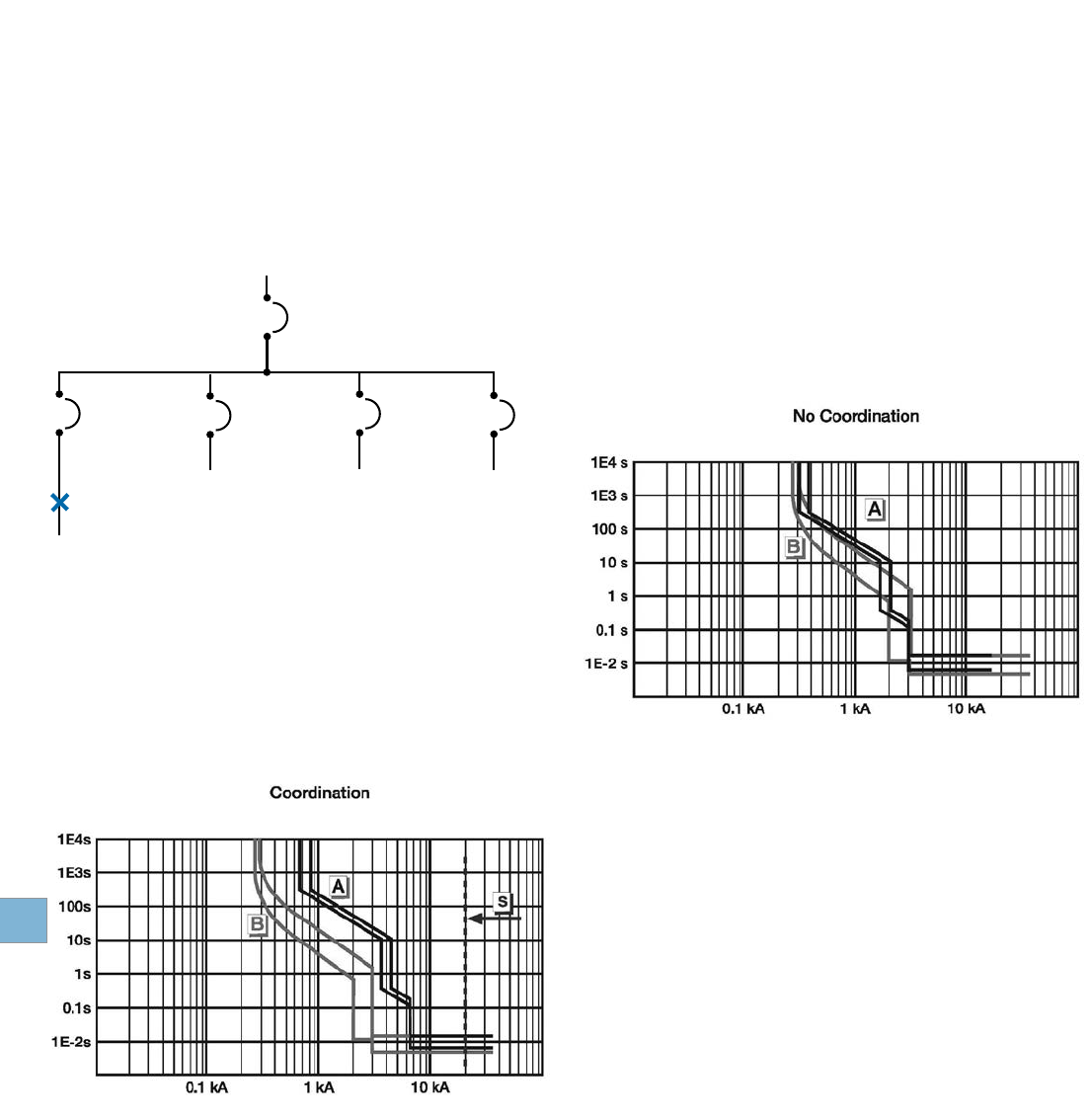

Example of breaker coordination
When an over-current event occurs at the branch breaker level (CB1), and
the event is within the operating characteristics of the breaker, then the
branch breaker should interrupt the circuit (open) and the main breaker
should remain closed and energized. The chart below gives a graphical
representation of a down stream branch breaker (B curve) and a main
breaker (A curve) with coordination. The separation between the curves
allows the branch breaker to react to the fault and the main breaker
remain closed and energized.
Example of no breaker coordination
Selective breaker coordination is not achieved when there is an overload
event at the branch breaker level (MCB1) and both the branch breaker
and main breaker interrupt the circuit (open). When there is no breaker
coordination several circuits lose power that should remain operational
during and after the overload event. The chart below gives a graphical
representation of a down stream branch breaker (B curve) and a main
breaker (A curve) without coordination. There is no separation between
the curves. The branch breaker will react to a fault and the main breaker
will open and de-energize all circuits down stream.
Problems in coordination occur when the branch breaker allows the "I
Square T" value of the short circuit to rise to a level that is in the operating
range of the up-stream main breaker. Proper breaker coordination is
easier to achieve with the use of current limiting breakers at the branch
level.
Selective coordination and current limiting breakers
Recent improvements in ABB circuit breaker technology has pushed the
performance of breakers to the same level as fuses. The reaction time
and tripping characteristics of current limiting breakers are now on par with
fuses. This allows ABB to provide a high level of coordination between
branch breakers and the main. A current limiting branch breaker will limit
the “I Square T” value well below the level of the operating range of the up-
stream main breaker.
ABB’s current limiting branch breakers can coordinate between the main
breaker up to 35kA.
Selective coordination and zero crossing breakers
Zero crossing breakers do not limit the “I Square T” value. They wait for
the wave form to cross zero and allow a high level of let-through energy
to pass through the system. The “I Square T” value of a zero crossing
breaker is high enough that the main breaker will likely trip during a short
circuit. With zero crossing breakers it is extremely difficult to coordinate
between branch and main breakers.
A typical zero crossing breaker’s coordination level is below 10kA. There
are a few manufactures that have achieved coordination between a
branch zero crossing breaker and the main by slowing the performance
(protection) of the main breaker.
Main
breaker
CB1 CB2 CB3 CB4
Short circuit
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Miniature
circuit breakers
Application guide
Selective coordination and series ratings
Series ratings –vs- selective coordination
Selective coordination
Selective coordination is achieved when there is a short circuit on a branch
circuit breaker, the branch breaker opens and isolates the fault, and the
main breaker remains closed. The rating is usually a value above the
“stand alone” interrupting rating of the branch breaker and the “stand
alone” rating of the main breaker.
Example:
65kA rated main breaker
10kA rated branch breaker
Coordination between the two breakers up to 35kA
There can be a short circuit on the branch breaker up to 35kA where the
branch will open (CB1) and the main breaker will remain closed. Although
the branch has a 10kA “stand alone” rating both the breakers work
together to limit the available short circuit to allow the branch (CB1) to
isolate the fault.
Series ratings
Series ratings are different from coordination ratings. Unlike coordination
ratings where the branch opens and the main remains closed, a series
rated combination is one where both the branch and main breakers open
and work together to isolate the fault.
The series rating combination of two breakers is equal to the “stand alone”
interrupting value of the main breaker. This is a result of the main breaker
let-through value being lower than the “stand alone” interrupting value
of the branch breaker. During a short circuit the main breaker will limit
the energy to a level that is below the “stand alone” value of the branch
breaker.
Example:
65kA rated main breaker
10kA rated branch breaker
Series combination rating between the two breakers up to 65kA
There can be a short circuit on the branch breaker up to 65kA where the
branch will open and the main breaker will open. Although the branch
breaker (CB1) has a 10kA “stand alone” rating the main breaker has a let-
through value below 10kA. If there is a fault up to 65kA on the network
the main breaker will limit the energy to a value less than the rating of the
branch breaker (CB1). Both breakers will trip (no coordination) but the
network can safely withstand a fault of 65kA.
Main
breaker
65 kA
CB1
10 kA
CB2
10 kA
CB3
10 kA
CB4
10 kA
35 kA or 65 kA short circuit
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S200
15 15
Miniature
circuit breakers
Application guide
Tripping lever
Operating
mechanism
Operator
Electro-magnetic protection
Upper terminal
Thermal
protection-bimetal
Arc chamber
Fixed contact
Moving contact
DIN rail clipLower terminal
Space for
identification marker
Miniature circuit breaker cutaway
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Amperage
Voltage
Poles
Trip characteristics
Interrupting ratings
Auxiliary contacts
Bell alarm
Shunt trip
Undervoltage release
Ring tongue
S800U
10 – 100 A
240 VAC
1, 2, 3, 4
poles
Z, K
30kA: UL 489, single pole
50kA: UL 489, multi-pole
Yes
Yes
Yes
Yes
Yes
S800
High performance circuit breakers
UL 489 Series
Description
The S800 high performance MCB offers a
compact solution to circuit protection. The
S800 devices are DIN rail mounted. The
S800 is available with application-specific trip
characteristics to provide maximum circuit
protection.
The breakers offer thermal-magnetic
trip protection according to Z and K
characteristics.
For the worldwide market, the breakers
carry CSA, IEC, CE and many other agency
approvals.
Features
•
Energy limiting
•
Fast breaking time (2.3 – 2.5 ms)
•
Wide range of accessories
•
DIN rail mounting
•
Finger safe terminals
•
Multi-function terminals
• Ring tongue compatible
• UL489 File # E312425
S800 UL 489 Series
High performance circuit breakers
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15

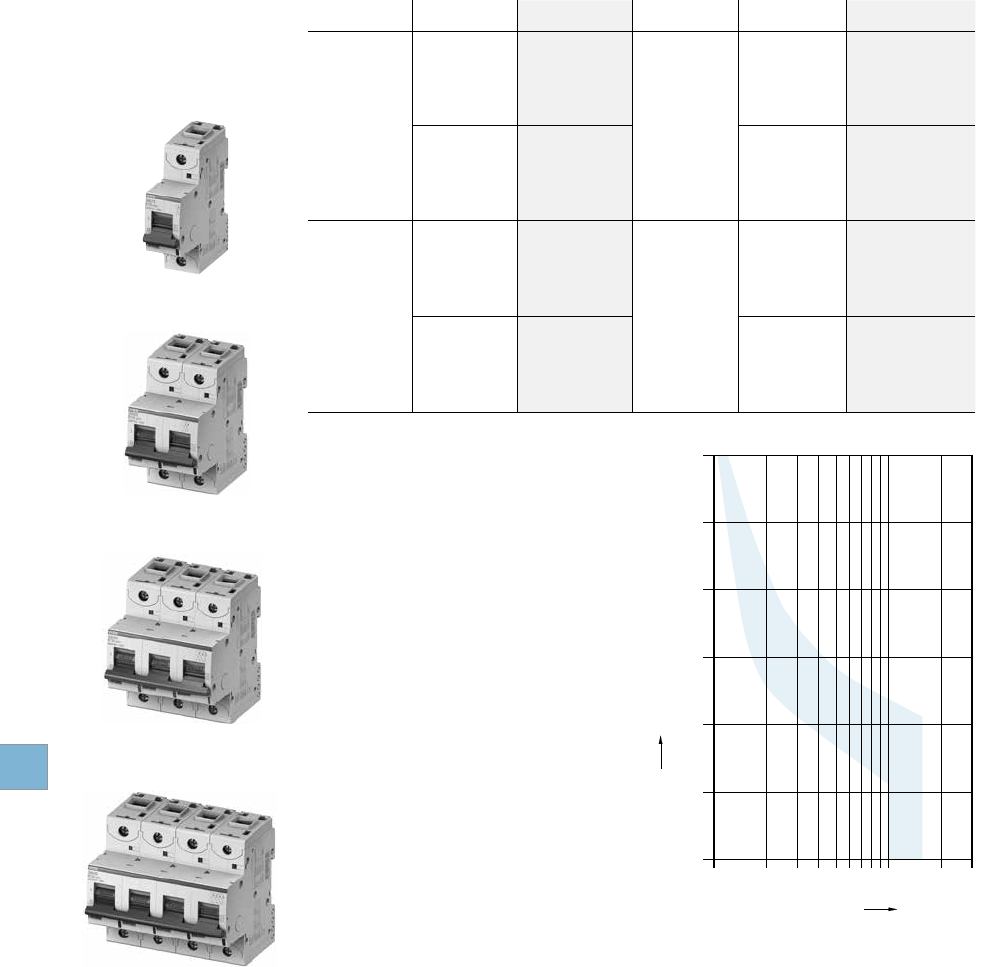

S800U-K, 240 VAC
Branch circuit protection
UL 489
KNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
10 S801U-K10
3
10 S803U-K10
15 S801U-K15 15 S803U-K15
20 S801U-K20 20 S803U-K20
25 S801U-K25 25 S803U-K25
30 S801U-K30 30 S803U-K30
40 S801U-K40 40 S803U-K40
50 S801U-K50 50 S803U-K50
60 S801U-K60 60 S803U-K60
70 S801U-K70 70 S803U-K70
80 S801U-K80 80 S803U-K80
90 S801U-K90 90 S803U-K90
100 S801U-K100 100 S803U-K100
2
10 S802U-K10
4
10 S804U-K10
15 S802U-K15 15 S804U-K15
20 S802U-K20 20 S804U-K20
25 S802U-K25 25 S804U-K25
30 S802U-K30 30 S804U-K30
40 S802U-K40 40 S804U-K40
50 S802U-K50 50 S804U-K50
60 S802U-K60 60 S804U-K60
70 S802U-K70 70 S804U-K70
80 S802U-K80 80 S804U-K80
90 S802U-K90 90 S804U-K90
100 S802U-K100 100 S804U-K100
S801U-K
S802U-K
S803U-K
S804U-K
Tripping characteristic K
UL 489
240 VAC
30 kA, single pole
50 kA, multi-pole
Resistive loads
• K Curve
• Designed for use in cable protection
applications
• Example: control circuits, lighting
Accessories & technical data
Accessories – See page 15.52
Technical data – See page 15.76 - 15.82
10 000
1000
100
10
2 10 20 301 3
1
0.1
0.01
seconds
multiple of rated current
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
ZNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
10 S801U-Z10
3
10 S803U-Z10
15 S801U-Z15 15 S803U-Z15
20 S801U-Z20 20 S803U-Z20
25 S801U-Z25 25 S803U-Z25
30 S801U-Z30 30 S803U-Z30
40 S801U-Z40 40 S803U-Z40
50 S801U-Z50 50 S803U-Z50
60 S801U-Z60 60 S803U-Z60
70 S801U-Z70 70 S803U-Z70
80 S801U-Z80 80 S803U-Z80
90 S801U-Z90 90 S803U-Z90
100 S801U-Z100 100 S803U-Z100
2
10 S802U-Z10
4
10 S804U-Z10
15 S802U-Z15 15 S804U-Z15
20 S802U-Z20 20 S804U-Z20
25 S802U-Z25 25 S804U-Z25
30 S802U-Z30 30 S804U-Z30
40 S802U-Z40 40 S804U-Z40
50 S802U-Z50 50 S804U-Z50
60 S802U-Z60 60 S804U-Z60
70 S802U-Z70 70 S804U-Z70
80 S802U-Z80 80 S804U-Z80
90 S802U-Z90 90 S804U-Z90
100 S802U-Z100 100 S804U-Z100
S801U-Z
S802U-Z
S803U-Z
S804U-Z
S800U-Z, 240 VAC
Branch circuit protection
UL 489
Tripping characteristic Z
UL 489
240 VAC
30 kA, single pole
50 kA, multi-pole
Resistive loads
• Z Curve
• Designed for use in cable protection
applications
• Example: control circuits, lighting
Accessories & technical data
Accessories – See page 15.52
Technical data – See page 15.76 - 15.82
10 000
1000
100
10
2 10 20 301 3 5
1
0.1
0.01
seconds
multiple of rated current
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
S803W-SCL-SR UL Short circuit current limiter
Self-resetting
S803W-SCL-SR
UL version short circuit current limiter, self resetting, 3 pole
Item Catalog number
32A Self resetting current limiter S803W-SCL32-SR
63A Self resetting current limiter S803W-SCL63-SR
100A Self resetting current limiter S803W-SCL100-SR
Approved combinations with motor starter
Downstream devices Upstream devices
S803W-SCL-SR
Self resetting short-circuit limiter
Rated current Ie [A] 32 63 100
MS/MO325
0.1–2.5 ■ ■ ■
4 ■ ■ ■
6.3 ■ ■ ■
9 ■ ■ ■
12.5 ■ ■ ■
16 ■ ■ ■
20 ■ ■
25 ■ ■
MS/MO132
0.1–2.5 ■ ■
4 ■ ■
6.3 ■ ■ ■
10 ■ ■ ■
16 ■ ■ ■
20 ■ ■
25 ■ ■
32 ■ ■
– Combinations with S500-K and S500-KM on request
■ Applies for all voltages according to the table below
S803W-SCL-SR
Rated ultimate short-circuit breaking capacity
Short-circuit rating according to UL 508, CSA 22.2
(AC) 50/60 Hz 480 V [kA] 65
(AC) 50/60 Hz 600 V [kA] 65
Icu = Ics according to IEC 60947-2
(AC) 50/60 Hz 240/415 V [kA] 100
(AC) 50/60 Hz 254/440 V [kA] 100
(AC) 50/60 Hz 277/480 V [kA] 65
(AC) 50/60 Hz 289/500 V [kA] 65
(AC) 50/60 Hz 346/600 V [kA] 65
(AC) 50/60 Hz 400/690 V [kA] 50
Technical data
Rated voltage 600 VAC per UL508
Short circuit current rating according to UL508, CSA 22.2 480 VAC 50/60 Hz, 65 kA
600 VAC 50/60 Hz, 65 kA
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
S803W-SCL-SR UL508 Short circuit current limiter
Approximate dimensions
x
Minimum cable length between S803W-SCL-SR and
downstream devices (Connection has to be short-circuit
proofed acc. to IEC 61439-1)
MS/M0325
MS/M0132
S800
S800-SCL-SR min. length X min. cross section
32 A 80 mm 6 mm2
63 A 80 mm 16 mm2
100/125 A 250 mm 35 mm2
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15

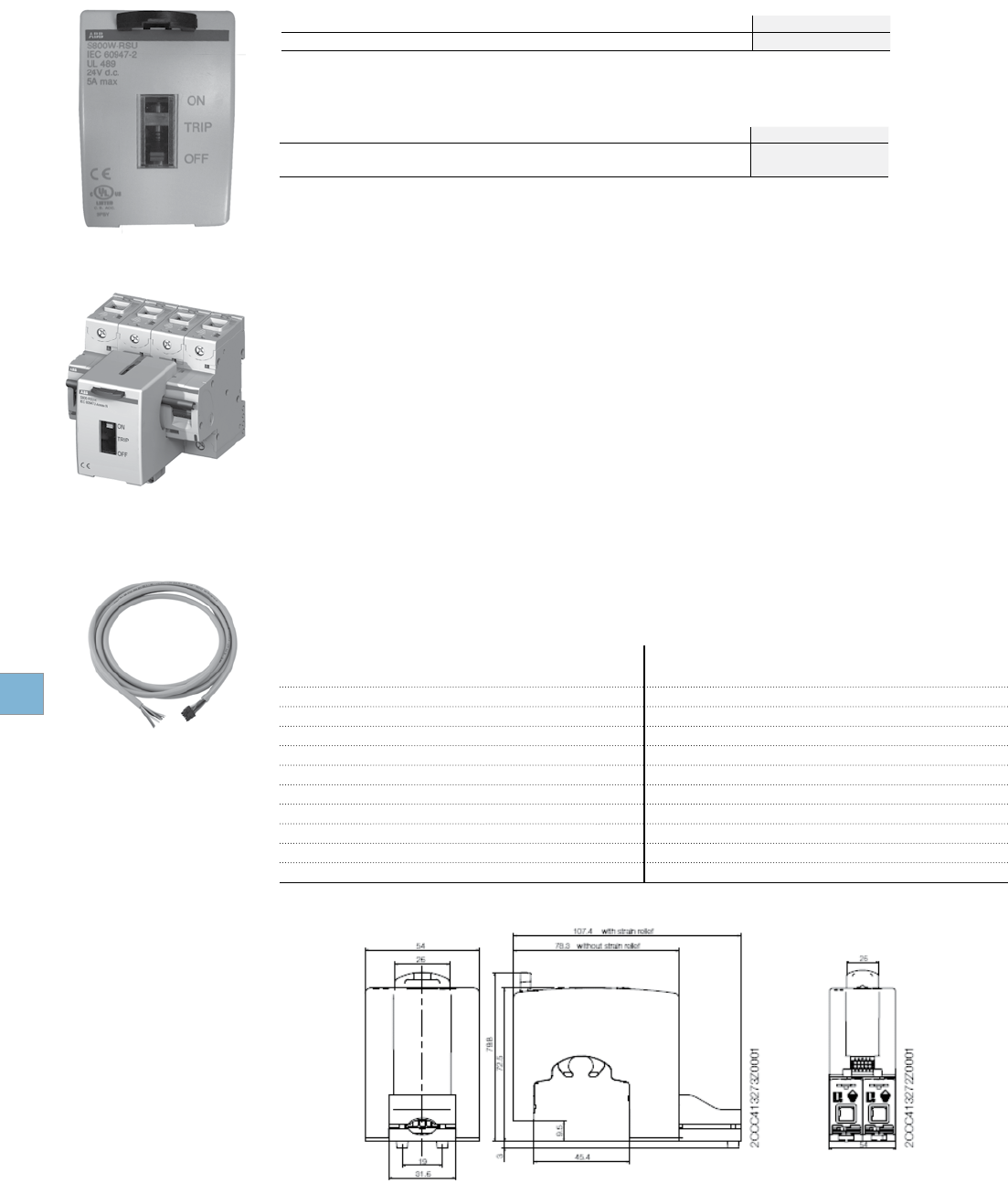

S800W-RSU Remote sensing unit
UL489
S800W-RSU
S800W-RSU mounted on MCB
Key Features
• The remote Switching unit S800W-RSU has a brushless high precision DC motor to ensure fast remote control operation.
• Low power consumption
• Short switching times
• The S800W-RSU is mounted on any multipole S800 High Performance MCB
• Installation and wiring can be field installable
• The connection is done by a 10-pole Micro Fit 3.0 (not included in delivery)
• The S800W-RSU can be operated by a standard pushbutton or drive by a PLC
Switching times
• OFF -> ON <<500ms
from signal to contact closing
• ON -> OFF <<250ms
from signal to contact opening
• TRIP -> OFF -> ON <<1500ms
from signal to contact closing
For differing requirements, please contact your local ABB partner
Safety intelligence
• Inputs are deactivated when detecting manual use
• All outputs become active when spindle is rotated more than 360 degrees
• S800W-RSU is locked for 5 minutes after three switching attempts leading to a trip
• Manual switch off possible for 3 & 4 pole devices
Remote switching unit
Item Catalog number
Remote switching unit S800W-RSU S800W-RSU
S800-RSU cable including plug
Item Catalog number
3 meter cable 0.5mm2 (AWG20)
inclusing 10 pole Micro Fit 3.0 plug S800-RSU-CP
S800-RSU-CP
Technical specifications
Operational voltage 24 VDC
Current consumption Irms 2,5
Standby current IStandby < 50mA
Switching time OFF-ON < 500 msec
Switching time ON-OFF <250 mse
Ambient operation temperature -25…+70°C
Number of switching operations 10.000
Maximum cable lengths(AWG20/ 0.5mm2) 10m
Degree of protection (mounted) IP2
Weight 300 gr
Connection 10 pole Micro Fit 3.0
Approximate dimensions
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
S800
High performance circuit breakers
IEC Series
Description
The S800 high performance MCB offers
a compact solution to circuit protection.
The S800 devices are IEC tested current
limiting and DIN rail mounted. The S800
is available with application-specific trip
characteristics to provide maximum circuit
protection.
The breakers offer thermal-magnetic
trip protection according to B, C, D & K
characteristics.
For the worldwide market, the breakers
carry CSA, IEC, CE and many other agency
approvals.
Features
•
Current limiting
•
Fast breaking time (2.3 – 2.5 ms)
•
Wide range of accessories
•
DIN rail mounting
•
Finger safe terminals
•
Multi-function terminals
•
Ring tongue compatible
S800 IEC Series
S800S
Amperage 10 – 125 A
Voltage 690 VAC
Poles
1, 2, 3, 4
Trip characteristics B, C, D, K
Interrupting ratings 50 kA : IEC
Auxiliary contacts Yes
Bell alarm Yes
Shunt trip Yes
Undervoltage release Yes
Ring tongue Yes
High performance circuit breakers
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
B
S804U-B
S803U-B
S802U-B
S801U-B
S800S-B, 690 VAC
IEC
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
10 S801S-B10
3
10 S803S-B10
13 S801S-B13 13 S803S-B13
16 S801S-B16 16 S803S-B16
20 S801S-B20 20 S803S-B20
25 S801S-B25 25 S803S-B25
32 S801S-B32 32 S803S-B32
40 S801S-B40 40 S803S-B40
50 S801S-B50 50 S803S-B50
63 S801S-B63 63 S803S-B63
80 S801S-B80 80 S803S-B80
100 S801S-B100 100 S803S-B100
125 S801S-B125 125 S803S-B125
2
10 S802S-B10
4
10 S804S-B10
13 S802S-B13 13 S804S-B13
16 S802S-B16 16 S804S-B16
20 S802S-B20 20 S804S-B20
25 S802S-B25 25 S804S-B25
32 S802S-B32 32 S804S-B32
40 S802S-B40 40 S804S-B40
50 S802S-B50 50 S804S-B50
63 S802S-B63 63 S804S-B63
80 S802S-B80 80 S804S-B80
100 S802S-B100 100 S804S-B100
125 S802S-B125 125 S804S-B125
Tripping characteristic B
IEC
690 VAC
50 kA
Resistive loads
• B Curve
• Designed for use in cable protection
applications
• Example: control circuits, lighting
Accessories & technical data
Accessories – See page 15.52
Technical data – See page 15.76 - 15.82
10 000
1000
100
10
2 10 20 301 3 5
1
0.1
0.01
seconds
multiple of rated current
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
C
S804S-C
S803S-C
S802S-C
S801S-C
S800S-C, 690 VAC
IEC
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
10 S801S-C10
3
10 S803S-C10
13 S801S-C13 13 S803S-C13
16 S801S-C16 16 S803S-C16
20 S801S-C20 20 S803S-C20
25 S801S-C25 25 S803S-C25
32 S801S-C32 32 S803S-C32
40 S801S-C40 40 S803S-C40
50 S801S-C50 50 S803S-C50
63 S801S-C63 63 S803S-C63
80 S801S-C80 80 S803S-C80
100 S801S-C100 100 S803S-C100
125 S801S-C125 125 S803S-C125
2
10 S802S-C10
4
10 S804S-C10
13 S802S-C13 13 S804S-C13
16 S802S-C16 16 S804S-C16
20 S802S-C20 20 S804S-C20
25 S802S-C25 25 S804S-C25
32 S802S-C32 32 S804S-C32
40 S802S-C40 40 S804S-C40
50 S802S-C50 50 S804S-C50
63 S802S-C63 63 S804S-C63
80 S802S-C80 80 S804S-C80
100 S802S-C100 100 S804S-C100
125 S802S-C125 125 S804S-C125
Tripping characteristic C
IEC
690 VAC
50 kA
Resistive loads
• C Curve
• Designed for use with medium magnetic
start up currents
• Example: lighting, control panels
Accessories & technical data
Accessories – See page 15.52
Technical data – See page 15.76 - 15.82
10 000
1000
100
10
2 10 20 301 3 5
1
0.1
0.01
seconds
multiple of rated current
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
S800S-D, 690 VAC
IEC
DNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
10 S801S-D10
3
10 S803S-D10
13 S801S-D13 13 S803S-D13
16 S801S-D16 16 S803S-D16
20 S801S-D20 20 S803S-D20
25 S801S-D25 25 S803S-D25
32 S801S-D32 32 S803S-D32
40 S801S-D40 40 S803S-D40
50 S801S-D50 50 S803S-D50
63 S801S-D63 63 S803S-D63
80 S801S-D80 80 S803S-D80
100 S801S-D100 100 S803S-D100
125 S801S-D125 125 S803S-D125
2
10 S802S-D10
4
10 S804S-D10
13 S802S-D13 13 S804S-D13
16 S802S-D16 16 S804S-D16
20 S802S-D20 20 S804S-D20
25 S802S-D25 25 S804S-D25
32 S802S-D32 32 S804S-D32
40 S802S-D40 40 S804S-D40
50 S802S-D50 50 S804S-D50
63 S802S-D63 63 S804S-D63
80 S802S-D80 80 S804S-D80
100 S802S-D100 100 S804S-D100
125 S802S-D125 125 S804S-D125
Tripping characteristic D
IEC
690 VAC
50 kA
Inductive loads
• D Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.52
Technical data – See page 15.76 - 15.82
S804S-D
S803S-D
S802S-D
S801S-D
10 000
1000
100
10
2 10 20 301 3
1
0.1
0.01
seconds
multiple of rated current
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
K
S800S-K, 690 VAC
IEC
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
10 S801S-K10
3
10 S803S-K10
13 S801S-K13 13 S803S-K13
16 S801S-K16 16 S803S-K16
20 S801S-K20 20 S803S-K20
25 S801S-K25 25 S803S-K25
32 S801S-K32 32 S803S-K32
40 S801S-K40 40 S803S-K40
50 S801S-K50 50 S803S-K50
63 S801S-K63 63 S803S-K63
80 S801S-K80 80 S803S-K80
100 S801S-K100 100 S803S-K100
125 S801S-K125 125 S803S-K125
2
10 S802S-K10
4
10 S804S-K10
13 S802S-K13 13 S804S-K13
16 S802S-K16 16 S804S-K16
20 S802S-K20 20 S804S-K20
25 S802S-K25 25 S804S-K25
32 S802S-K32 32 S804S-K32
40 S802S-K40 40 S804S-K40
50 S802S-K50 50 S804S-K50
63 S802S-K63 63 S804S-K63
80 S802S-K80 80 S804S-K80
100 S802S-K100 100 S804S-K100
125 S802S-K125 125 S804S-K125
S804S-K
S803S-K
S802S-K
S801S-K
Tripping characteristic K
IEC
690 VAC
50 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.52
Technical data – See page 15.76 - 15.82
10 000
1000
100
10
2 10 20 301 3
1
0.1
0.01
seconds
multiple of rated current
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
S800-SOR
S800-UVR
Shunt trip
For remote tripping of breaker, a shunt trip device can be added to the MCB. The device opens the breaker
after control voltage is applied.
Description (for field mounting, left side) Catalog number
Shunt operation release 24 VAC/DC S800-SOR24
Shunt operation release 48...130 VAC/DC S800-SOR130
Shunt operation release 110...250 VAC/DC S800-SOR250
Undervoltage release
When control voltage drops below approximately 50 % of rated voltage, the UVR opens the breaker.
The breaker can not be operated unless proper control voltage is first applied to the UVR coil.
Description Catalog number
Under voltage release 24...36 VAC/DC
Under voltage release 48...60 VAC/DC
Under voltage release 110...130 VAC/DC
Under voltage release 220...250 VAC/DC
S800-UVR36
S800-UVR60
S800-UVR130
S800-UVR250
Auxiliary contacts
The auxiliary contacts will signal whether the breaker is in the ON or OFF position.
Description Catalog number
Auxiliary contact S800-AUX
Bell alarm
The bell alarm includes a set of contacts that will only signal when the breaker has tripped.
Typically the contacts would be connected to an alarm or bell to signal the operator that an overcurrent trip
has occurred. The bell alarm also includes a test button for testing the alarm contacts without opening the
breaker.
Description Catalog number
Bell alarm S800-AUX/ALT
S800-AUX
S800-AUX/ALT
Accessories
S800U & S800S
UL & IEC
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Accessories
S800U & S800S
UL & IEC
S800-RD
S800-RHE-H
S800-RHE-EM
S800-RHE-S
Ring tongue adaptor
Description Catalog number
Ring terminal cable connection, 40-125A S800-RT2125
Rotary operating mechanism
Allows “through the door” operation.
Description Catalog number
Handle mechanism S800-RD
Description Catalog number
Grey rotary handle S800-RHE-H
Description Catalog number
Red rotary handle S800-RHE-EM
Description Catalog number
Shaft extension S800-RHE-S
S800-RT2125
UL Locking device
Description Catalog number
Padlock not included S800U-PLL
S800U-PLL
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
[A]
[V]
[kA]
[kA]
[V]
[kA]
[kA]
[kA]
[kA]
[Hz]
[Nm]
[°C]
S800U
K, Z
10...100
1...4
240
30
50
240/415
30
50
25
40
14–2 AWG
8–1 AWG
50/60
3,5 (31 in.lb.)
IP40
(actuating end only)
any
cadmium-free
–25...+60
UL 489
IEC 60947-2
CSA22.2 NO.5-02
cULus
File E312425
Characteristics
Rated operational current Ie
Pole
Rated operational voltage Ue compliant to UL 489
(AC) 50/60 Hz
Rated ultimate short-circuit breaking capacity compliant to UL489
(AC) 50/60 Hz 240 V Single-pole
(AC) 50/60 Hz 240 V Multipole
Rated operational voltage Ue compliant to IEC 60947-2
(AC)
Rated ultimate short-circuit breaking capacity Icu compliant to IEC 60947-2
(AC) 50/60 Hz 240/415 V Single-pole
(AC) 50/60 Hz 240/415 V Multipole
Rated service short-circuit breaking capacity Ics compliant to IEC 60947-2
(AC) 50/60 Hz 240/415 V Single-pole
(AC) 50/60 Hz 240/415 V Multipole
Connections Cu 10...30 A
40...100 A
Rated frequency
Tightening torque
Protection category
Mounting position
Contacts
Permissible ambient temperature
Standards
Approval
Technical data
S800U
UL
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
[A]
10
15
20
25
30
40
50
60
70
80
90
100
[W]
K, Z
1.5
2.7
3.5
4.2
2.8
3.7
4.3
5.8
4.9
6.4
6.5
8.3
Typical internal resistances
and power losses at 25°C
ambient temperature
Rated current InInternal resistance RiPower loss Pv
S800U-K, -Z
In [A]
10
15
20
25
30
40
50
60
70
80
90
100
10 °C
10.9
16.5
22.0
27.5
33.1
44.0
55.1
66.2
76.9
88.0
99.1
110.5
15 °C
10.7
16.0
21.4
26.8
32.1
42.8
53.5
64.2
74.9
85.6
96.3
107.0
20 °C
10.4
15.6
20.8
26.0
31.2
41.6
52.0
62.4
72.8
83.2
93.6
104.0
25 °C
10.0
15.0
20.0
25.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
30 °C
9.6
14.4
19.2
24.0
28.8
38.4
48.0
57.6
67.2
76.8
86.4
96.0
35 °C
9.3
14.0
18.6
23.3
27.9
37.2
46.5
55.8
65.1
74.4
83.7
93.0
40 °C
9.0
13.5
18.0
22.5
27.0
36.0
45.0
54.0
63.0
72.0
81.0
90.0
45 °C
8.7
13.0
17.4
21.8
26.1
34.8
43.5
52.2
60.9
69.6
78.3
87.0
50 °C
8.4
12.6
16.8
21.0
25.2
33.6
42.0
50.4
58.8
67.1
75.6
83.8
55 °C
8.0
12.0
16.0
20.0
24.0
32.0
40.0
48.0
56.0
64.0
72.0
80.0
60 °C
7.6
11.4
15.2
19.0
22.9
30.9
38.3
46.0
53.4
61.6
69.5
77.8
Influence of ambient
temperature
Devices mounted singly (specifications in A)
Technical data
S800U
UL
[mΩ]
K, Z
15.2
12.1
8.7
6.8
3.1
2.3
1.7
1.6
1.0
1.0
0.8
0.8
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Internal resistance and power loss
Internal resistance per pole in mz, power loss per pole in W
Type
Rated
current
A
Device series
B C D K
mz
Power loss
B C D K
W
S800S
10 15.2 1.5
13 12.1 2.0
16 12.1 3.1
20 8.7 3.5
25 6.8 4.2
32 3.1 3.1
40 2.3 3.7
50 1.7 4.3
63 1.6 6.2
80 1.0 6.4
100 0.8 8.3
125 0.6 9.4
Technical data
S800S
IEC
Temperature derating
Max. operating current values depending on the ambient temperature for a circuit-breaker in load circuit of type B, C, D, & K characteristics.
S800S-K Ambient temperature T (°C/°F)
In [A]
10
13
16
20
25
32
40
50
63
80
100
125
10/50
11.9
15.6
19.1
23.9
29.9
38.2
47.8
59.7
75.3
95.6
119.5
149.4
15/59
11.6
15.1
18.6
23.2
29.1
37.2
46.5
58.1
73.2
93.0
116.2
145.3
20/68
11.2
14.6
17.9
22.4
28.0
35.8
44.8
56.0
70.6
89.6
112.0
140.0
25/77
11.0
14.3
17.6
22.0
27.5
35.2
44.0
55.0
69.3
88.0
110.0
137.5
30/86
10.7
13.9
17.1
21.4
26.8
34.2
42.8
53.5
67.4
85.6
107.0
133.8
35/95
10.4
13.5
16.6
20.8
26.0
33.3
41.6
52.0
65.5
83.2
104.0
130.0
40/104
10.0
13.0
16.0
20.0
25.0
32.0
40.0
50.0
63.0
80.0
100.0
125.0
45/113
9.6
12.5
15.4
19.2
24.0
30.7
38.4
48.0
60.5
76.8
96.0
120.0
50/122
9.3
12.1
14.9
18.6
23.3
29.8
37.2
46.5
58.6
74.4
93
116.3
55/131
9.0
11.7
14.4
18.0
22.5
28.8
36.0
45.0
56.7
72.0
90.0
112.5
60/140
8.7
11.3
13.9
17.4
21.8
27.8
34.8
43.5
54.8
69.6
87.0
108.8
S800S-B, -C, -D Ambient temperature T (°C/°F)
In [A]
10
13
16
20
25
32
40
50
63
80
100
125
10/50
11.2
14.6
17.9
22.4
28.0
35.8
44.8
56.0
70.6
89.6
112.0
140.0
15/59
11.0
14.3
17.6
22.0
27.5
35.2
44.0
55.0
69.3
88.0
110.0
137.5
20/68
10.7
13.9
17.1
21.4
26.8
34.2
42.8
53.5
67.4
85.6
107.0
133.8
25/77
10.4
13.5
16.6
20.8
26.0
33.3
41.6
52.0
65.5
83.2
104.0
130.0
30/86
10.0
13.0
16.0
20.0
25.0
32.0
40.0
50.0
63.0
80.0
100.0
125.0
35/95
9.6
12.5
15.4
19.2
24.0
30.7
38.4
48.0
60.5
76.8
96.0
120.0
40/104
9.3
12.1
14.9
18.6
23.3
29.8
37.2
46.5
58.6
74.4
93.0
116.3
45/113
9.0
11.7
14.4
18.0
22.5
28.8
36.0
45.0
56.7
72.0
90.0
112.5
50/122
8.7
11.3
13.9
17.4
21.8
27.8
34.8
43.5
54.8
69.6
87.0
108.8
55/131
8.4
10.9
13.4
16.8
21.0
26.9
33.6
42.0
52.9
67.2
84.0
105.0
60/140
8.0
10.4
12.8
16.0
20.0
25.6
32.0
40.0
50.4
64.0
80.0
100.0
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Technical data
S800S
IEC
10 000
1000
100
10
2 10 20 301 3
1
0.1
0.01
seconds
multiple of rated current
10 000
1000
100
10
2 10 20
30
1 3
1
0.1
0.01
seconds
multiple of rated current
10 000
1000
100
10
2 10 20 301 3 5
1
0.1
0.01
seconds
multiple of rated current
10 000
1000
100
10
2 10 20 301 3 5
1
0.1
0.01
seconds
multiple of rated current
10 000
1000
100
10
2 10 20 301 3 5
1
0.1
0.01
seconds
multiple of rated current
Tripping Characteristic B Tripping Characteristic C Tripping Characteristic D
Tripping Characteristic ZTripping Characteristic K
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Technical data
S800U & S800S
Accessories
Auxiliary contact S800-AUX
S800-AUX
Usage category AC15 400/2 A-UL
AC15 240/ -UL
DC13 250/0.55 A125 V/1.1A-IEC
DC13 125 V/1.1A
DC13 60 V/2A
DC13 24 V/4A
Continuous thermal current In6 A
Rated insulation voltage Ui690 V
Number of contacts 2
Surge Utest (1.2/50µs) 6 kV
Degree of protection 3
Function of contact Changeover contacts
Connection Cu 1 x 2.5 mm2
2 x 1.5 mm2
Tightening torque 1 Nm
Ensured contacts during shake test 5g, 20 frequency cycle
acc. to IEC 68-2-6 at 24 VAC/DC, 5mA
brief interrupt
<10 ms
AC/DC supply any EN 60715
Mounting on DIN top hat rail EN 60715 IP20
Type of protection IP20
Permissible ambient temperature for operations -25...+60 °C; -13 °F... 140 °F
Storage temperature -40...+70 °C; -40 °F... 158 °F
Mechanical device service life 6000 switching cycles
Icu with S450E 1000 A
Resistance to vibration IEC 60068-2-27;
IEC 60068-2;
EN 61373 Cat.1/class B
Undervoltage release S800-UVR
S800-UVR36 S800-UVR60 S800-UVR130 S800-UVR250
Rated voltage Ue 24...36
VAC/DC
48...60
VAC/DC
110...130
VAC/DC
220...250
VAC/DC
Operating range
Operating opening 35...70% Ue
Operating clothing 85% Ue
Rated insulation voltage Ui690 V
Coil pull in consumption 1 W, 14 vA 1 W, 25 vA 1 W, 41 vA 1 W, 91 vA
Rated frequency DC; 50/60 Hz
Protection degree 3
Connection Cu 1...35 cable
Tightening torque min.3/ max.4 Nm
AC/DC supply any
DIN top hat rail EN 60715
Type of protection IP20
IP40 (only actuation side)
Permissible ambient temperature of operations -25...+60 °C; -13 °F... 140 °F
Storage temperature -40...+70 °C; -40 °F... 158 °F
Resistance to vibration IEC 60068-2-27; IEC 60068-2; EN61373 Cat.1/class B
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Technical data
S800U & S800S
Accessories
Combined auxiliary and bell alarm
Usage category AC15 400/2A-UL
AC15 240/6A-UL
DC13 250/0.55A125V/1.1A-IEC
DC13 125V/1.1A-IEC
DC13 60V/2A
DC13 24V/4A
Continuous thermal current In6 A
Rated insulation voltage Ui690 V
Number of contacts 2 (1x AUX, 1 x AUX/ALT)
Surge Utest (1.2/50µs) 6 kV
Degree of protection 3
Function of contact Changeover contacts
Connection Cu 1 x 2.5 mm2
2 x 1.5 mm2
Tightening torque 1 Nm
Ensured contacts during shake test 5g, 20 frequency cycle
acc. to IEC 68-2-6 5...150...5Hz
at 24VAC/DC, 5mA
brief interrupt
<10ms
AC/DC supply any EN 60715
Mounting on DIN top hat rail EN 60715
Type of protection IP20
Permissible ambient temperature for operations -25 °C... 60 °C; -13 °F... 140 °F
Storage temperature -40 °C... 70 °C; -40 °F... 150 °F
mech. Device service life 6000 switching cycles
Icu with S450E 1000 A
Resistance to vibration IEC 60068-2-27;
IEC 60068-2;
EN 61373 Cat.1/class B
Shunt operation release – S800-SOR
S800-SOR24 S800-SOR130 S800-SOR250 S800-SOR400
Rated voltage Ue 24 VAC/DC
48...130 VAC/DC
110...250 VAC/DC 220...250
Operating range 70... 110% Ue
Rated insulation voltage Ui690 V
Coil pull in consumption 19.2 W/vA On request
Rated frequency DC; 50/60 Hz
Degree of protection 3
Connection Cu 1...35 AWG
Tightening torque min.3/ max.4 Nm
AC/DC supply any
DIN top hat rail EN 60715
Type of protection IP20; IP40 (only actuation side)
Permissible ambient temperature of operations -25 °C... 60 °C; -13 °F... 140 °F
Storage temperature -40 °C... 70 °C; -40 °F... 158 °F
Resistance to vibration IEC 60068-2-27; IEC 60068-2; EN61373 Cat.1/class B
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Technical data
Backup
S800S - S200 @ 230/400 V
E. S800S
Char. B, C, D, K
L. Icu [kA] 50
In [A] 25 32 40 50 63 80 100 125
S200 B 6
6 50 50 50 50 50 50 50 50
10 50 50 50 50 50 50 50 50
13 50 50 50 50 50 50 50 50
16 50 50 50 50 50 50 50 50
20 50 50 50 50 50 50 50
25 50 50 50 50 50 50
32 50 50 50 50 50
40 50 50 50 50
50 50 50 50
63 50 50
E. S800S
Char. B, C, D, K
L. Icu [kA] 50
In [A] 25 32 40 50 63 80 100 125
S200 C 6
0.5…6 50 50 50 50 50 50 50 50
8 50 50 50 50 50 50 50 50
10 50 50 50 50 50 50 50 50
13 50 50 50 50 50 50 50 50
16 50 50 50 50 50 50 50 50
20 50 50 50 50 50 50 50
25 50 50 50 50 50 50
32 50 50 50 50 50
40 50 50 50 50
50 50 50 50
63 50 50
E. S800S
Char. B, C, D, K
L. Icu [kA] 50
In [A] 25 32 40 50 63 80 100 125
S200P B
25
6…16 50 50 50 50 50 50 50 50
20 50 50 50 50 50 50 50
25 50 50 50 50 50 50
15
32 50 50 50 50 50
40 50 50 50 50
50 50 50 50
63 50 50
E. S800S
Char. B, C, D, K
L. Icu [kA] 50
In [A] 25 32 40 50 63 80 100 125
S200P C
25
0.5…16 50 50 50 50 50 50 50 50
20 50 50 50 50 50 50 50
25 50 50 50 50 50 50
15
32 50 50 50 50 50
40 50 50 50 50
50 50 50 50
63 50 50
LEGEND
E. = supply side
L. = load side
Back-up limit values are specified in kA
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Technical data
Selectivity
S800S - S200 @ 230/400 V
E. S800S
Char. B
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 D 6
0.5 TTTTTTTT
1 0.8 4.5 T T T T T T
1.6 0.5 1 2.3 T T T T T
2 0.3 0.5 0.7 2.3 T T T T
3 0.4 0.5 0.7 1.2 2.5 T T
4 0.4 0.4 0.7 1 1.7 3 T
6 0.6 0.8 1.2 2 3.6
8 0.7 0.9 1.3 2
10 0.9 1.3 2
13 1 1.5
16 1.5
20
25
32
40
50
63
E. S800S
Char. B
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 K 6
0.5 TTTTTTTT
1 0.85TTTTTT
1.6 0.5 1 2.1 T T T T T
2 0.3 0.5 0.7 2.1 T T T T
3 0.4 0.5 0.7 1.2 2.5 T T
4 0.4 0.4 0.7 1 1.7 3 T
6 0.6 0.8 1.2 2 3.6
8 0.7 0.9 1.3 2
10 0.9 1.3 2
13 1 1.5
16 1.5
20
25
32
40
50
63
E. S800S
Char. B
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 B 6
6 0.4 0.5 0.7 1 1.5 2.6
10 0.4 0.6 0.7 1 1.4
13 0.5 0.7 0.9 1.3
16 0.7 0.9 1.3
20 0.9 1.3
25 0.9 1.3
32 0.8 1.1
40 0.8 1.1
50 1
63 0.9
E. S800S
Char. B
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 C 6
0.5 T T TTTTTT
13.3 T T TTTTT
1.6 0.6 1.3 T T TTTT
20.4 0.7 1.3 T T TTT
30.4 0.6 0.7 1.1 2.6 T T
40.4 0.6 0.7 1 1.7 3.1 T
60.4 0.5 0.7 1 1.5 2.6
80.4 0.6 0.7 1 1.4
10 0.4 0.6 0.7 1 1.4
13 0.5 0.7 0.9 1.3
16 0.7 0.9 1.3
20 0.9 1.3
25 0.9 1.3
32 0.8 1.1
40 0.8 1.1
50 1
63 0.9
LEGEND
E. = supply side
L. = load side
Back-up limit values are specified in kA
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
E. S800S
Char. C
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 D 6
0.5 TTTTTTTT
1 2.1TTTTTTT
1.6 0.8 2.3 T T T T T T
2 0.4 0.7 2.3 T T T T T
3 0.3 0.5 0.7 1.2 2.2 T T T
4 0.3 0.4 0.7 1 1.4 2.6 T T
6 0.4 0.6 0.8 1.1 1.8 3.2 T
8 0.5 0.7 0.9 1.2 1.8 2.8
10 0.7 0.9 1.2 1.8 2.8
13 0.7 1 1.4 2
16 1 1.4 2
20 1 1.4
25 1.4
32
40
50
63
E. S800S
Char. C
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 K 6
0.5 TTTTTTTT
1 2.1TTTTTTT
1.6 0.8 2.3 T T T T T T
2 0.4 0.7 2.3 T T T T T
3 0.3 0.5 0.7 1.2 2.2 T T T
4 0.3 0.4 0.7 1 1.4 2.6 T T
6 0.4 0.6 0.8 1.1 1.8 3.2 T
8 0.5 0.7 0.9 1.2 1.8 2.8
10 0.7 0.9 1.2 1.8 2.8
13 0.7 1 1.4 2
16 1 1.4 2
20 1 1.4
25 1.4
32
40
50
63
E. S800S
Char. C
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 B 6
6 0.4 0.5 0.7 0.9 1.4 2.4 4.8
10 0.3 0.4 0.5 0.7 0.9 1.3 2
13 0.3 0.4 0.5 0.7 0.9 1.3 1.9
16 0.3 0.4 0.5 0.7 0.9 1.3 1.9
20 0.4 0.5 0.7 0.9 1.2 1.8
25 0.4 0.5 0.7 0.9 1.2 1.8
32 0.5 0.6 0.8 1 1.4
40 0.6 0.8 1 1.4
50 0.7 0.9 1.3
63 0.9 1.2
E. S800S
Char. C
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 C 6
0.5 TTTTTTTT
1 TTTTTTTT
1.6 0.6 T T T T T T T
2 0.51TTTTTT
3 0.3 0.5 0.7 1.2 2.1 T T T
4 0.3 0.4 0.7 1 1.5 2.6 T T
6 0.4 0.5 0.7 0.9 1.4 2.4 4.8
8 0.3 0.4 0.5 0.7 0.9 1.3 2
10 0.3 0.4 0.5 0.7 0.9 1.3 2
13 0.3 0.4 0.5 0.7 0.9 1.3 1.9
16 0.3 0.4 0.5 0.7 0.9 1.3 1.9
20 0.4 0.5 0.7 0.9 1.2 1.8
25 0.4 0.5 0.7 0.9 1.2 1.8
32 0.5 0.6 0.8 1 1.4
40 0.6 0.8 1 1.4
50 0.7 0.9 1.3
63 0.9 1.2
Technical data
Selectivity
S800S - S200 @ 230/400 V
LEGEND
E. = supply side
L. = load side
Back-up limit values are specified in kA
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Technical data
Selectivity
S800S - S200 @ 230/400 V
LEGEND
E. = supply side
L. = load side
Back-up limit values are specified in kA
E. S800S
Char. D
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 D 6
0.5 TTTTTTTT
1 TTTTTTTT
1.6 TTTTTTTT
2 2.3TTTTTTT
3 0.7 1.3 4.4 T T T T T
4 0.7 1 2.2 4.4 T T T T
6 0.6 0.8 1.5 2.5 3.6 T T T
8 0.5 0.7 1.1 1.5 2 4 5.5 T
10 0.5 0.7 1.1 1.5 2 4 5.5 T
13 0.6 0.9 1.2 1.5 2.6 3.4 5.2
16 0.9 1.2 1.5 2.6 3.4 5.2
20 0.9 1.1 1.8 2.2 3.2
25 1.1 1.8 2.2 3.2
32 1.7 2 2.9
40 1.9 2.6
50 2.2
63
E. S800S
Char. D
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 K 6
0.5 TTTTTTTT
1 TTTTTTTT
1.6 TTTTTTTT
2 2.3TTTTTTT
3 0.7 1.3 4.4 T T T T T
4 0.7 1 2.2 4.4 T T T T
6 0.6 0.8 1.5 2.5 3.6 T T T
8 0.5 0.7 1.1 1.5 2 4 5.5 T
10 0.5 0.7 1.1 1.5 2 4 5.5 T
13 0.6 0.9 1.2 1.5 2.6 3.4 5.2
16 0.9 1.2 1.5 2.6 3.4 5.2
20 0.9 1.1 1.8 2.2 3.2
25 1.1 1.8 2.2 3.2
32 1.7 2 2.9
40 1.9 2.6
50 2.2
63
E. S800S
Char. D
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 B 6
6 0.5 1 1.2 2 2.8 T T T
10 0.4 0.6 0.8 1.1 1.4 2.8 3.9 T
13 0.4 0.6 0.8 1.1 1.4 2.5 3.3 T
16 0.6 0.8 1.1 1.4 2.5 3.3 5.6
20 0.8 1.1 1.3 2.3 3 4.7
25 0.8 1.1 1.3 2.3 3 4.7
32 0.9 1.1 1.9 2.4 3.7
40 1.1 1.9 2.4 3.7
50 1.5 1.9 2.3
63 1.7 2.3
E. S800S
Char. D
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200 C 6
0.5 TTTTTTTT
1 TTTTTTTT
1.6 TTTTTTTT
2 TTTTTTTT
3 0.7 2.2 4.4 T T T T T
4 0.7 1.3 2.2 4.4 T T T T
6 0.5 1 1.2 2 2.8 T T T
8 0.4 0.6 0.8 1.1 1.4 2.8 3.9 T
10 0.4 0.6 0.8 1.1 1.4 2.8 3.9 T
13 0.4 0.6 0.8 1.1 1.4 2.5 3.3 5.6
16 0.6 0.8 1.1 1.4 2.5 3.3 5.6
20 0.8 1.1 1.3 2.3 3 4.7
25 0.8 1.1 1.3 2.3 3 4.7
32 0.9 1.1 1.9 2.4 3.7
40 1.1 1.9 2.4 3.7
50 1.5 1.9 2.3
63 1.7 2.3
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Technical data
Selectivity
S800S - S200 @ 230/400 V
E. S800S
Char. B
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200P K
25
0.2 TTTTTTTT
0.3 TTTTTTTT
0.5 TTTTTTTT
0.75 TTTTTTTT
1 0.85TTTTTT
1.6 0.5 1 2.3 T T T T T
2 0.3 0.5 0.7 2.1 T T T T
3 0.4 0.5 0.7 1.2 2.5 8.6 T
4 0.4 0.4 0.7 1 1.7 3 7.7
6 0.6 0.8 1.2 2 3.6
8 0.7 0.9 1.3 2
10 0.9 1.3 2
13 1 1.5
16 1.5
20
25
15
32
40
50
63
E. S800S
Char. B
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200P B
25
6 0.4 0.5 0.7 1 1.5 2.6
10 0.4 0.6 0.7 1 1.4
13 0.5 0.7 0.9 1.3
16 0.7 0.9 1.3
20 0.9 1.3
25 0.9 1.3
15
32 0.8 1.1
40 0.8 1.1
50 1
63 0.9
E. S800S
Char. B
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200P C
25
0.5 TTTTTTTT
1 3.3TTTTTTT
1.6 0.6 1.3 T T T T T T
2 0.4 0.7 1.2 T T T T T
3 0.6 0.7 1.1 2.6 8.8 T
4 0.6 0.7 1 1.7 3.1 7
6 0.4 0.5 0.7 1 1.5 2.6
8 0.4 0.6 0.7 1 1.4
10 0.4 0.6 0.7 1 1.4
13 0.5 0.7 0.9 1.3
16 0.7 0.9 1.3
20 0.9 1.3
25 0.9 1.3
15
32 0.8 1.1
40 0.8 1.1
50 1
63 0.9
E. S800S
Char. C
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200P K
25
0.2 TTTTTTTT
0.3 TTTTTTTT
0.5 TTTTTTTT
0.75 TTTTTTTT
1 0.85TTTTTT
1.6 0.5 1 2.3 T T T T T
2 0.3 0.5 0.7 2.3 T T T T
3 0.4 0.5 0.7 1.2 2.5 8.6 T
4 0.4 0.4 0.7 1 1.7 3 7.7
6 0.6 0.8 1.2 2 3.6
8 0.7 0.9 1.3 2
10 0.9 1.3 2
13 1 1.5
16 1.5
20
25
15
32
40
50
63
E. S800S
Char. C
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200P B
25
6 0.4 0.5 0.7 1 1.5 2.6
10 0.4 0.6 0.7 1 1.4
13 0.5 0.7 0.9 1.3
16 0.7 0.9 1.3
20 0.9 1.3
25 0.9 1.3
15
32 0.8 1.1
40 0.8 1.1
50 1
63 0.9
E. S800S
Char. C
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200P C
25
0.5 TTTTTTTT
1 3.3TTTTTTT
1.6 0.6 1.3 T T T T T T
2 0.4 0.7 1.3 T T T T T
3 0.4 0.6 0.7 1.1 2.6 8.8 T
4 0.4 0.6 0.7 1 1.7 3.1 7
6 0.4 0.5 0.7 1 1.5 2.6
8 0.4 0.6 0.7 1 1.4
10 0.4 0.6 0.7 1 1.4
13 0.5 0.7 0.9 1.3
16 0.7 0.9 1.3
20 0.9 1.3
25 0.9 1.3
15
32 0.8 1.1
40 0.8 1.1
50 1
63 0.9
LEGEND
E. = supply side
L. = load side
Back-up limit values are specified in kA
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Technical data
Selectivity
S800S - S200P @ 230/400 V
E. S800S
Char. D
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200P K
25
0.2 TTTTTTTT
0.3 TTTTTTTT
0.5 TTTTTTTT
0.75 TTTTTTTT
1 TTTTTTTT
1.6 TTTTTTTT
2 2.3TTTTTTT
3 0.7 1.3 4.4 T T T T T
4 0.7 1 2.2 4.4 7.7 T T T
6 0.6 0.8 1.5 2.5 3.6 12.1 24.2 T
8 0.5 0.7 1.1 1.5 2 4 5.5 9.9
10 0.5 0.7 1.1 1.5 2 4 5.5 9.9
13 0.6 0.9 1.2 1.5 2.6 3.4 5.2
16 0.9 1.2 1.5 2.6 3.4 5.2
20 0.9 1.1 1.8 2.2 3.2
25 1.8 2.2 3.2
15
32 1.7 2 2.9
40 1.9 2.6
50 2.2
63
E. S800S
Char. D
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200P B
25
6 0.5 1 1.2 2 2.8 9.9 21.3 T
10 0.4 0.6 0.8 1.1 1.4 2.8 3.9 7.4
13 0.4 0.6 0.8 1.1 1.4 2.5 3.3 5.6
16 0.6 0.8 1.1 1.4 2.5 3.3 5.6
20 0.8 1.1 1.3 2.3 3 4.7
25 0.8 1.1 1.3 2.3 3 4.7
15
32 0.9 1.1 1.9 2.4 3.7
40 1.1 1.9 2.4 3.7
50 1.5 1.9 2.3
63 1.7 2.3
E. S800S
Char. D
L. Icu [kA]50
In [A] 25 32 40 50 63 80 100 125
S200P C
25
0.5 TTTTTTTT
1 TTTTTTTT
1.6 TTTTTTTT
2 TTTTTTTT
3 0.7 2.2 4.4 T T T T T
4 0.7 1.3 2.2 4.4 7.7 T T T
6 0.5 1 1.2 2 2.8 9.9 22 T
8 0.4 0.6 0.8 1.1 1.4 2.8 3.9 7.4
10 0.4 0.6 0.8 1.1 1.4 2.8 3.9 7.4
13 0.4 0.6 0.8 1.1 1.4 2.5 3.3 5.6
16 0.6 0.8 1.1 1.4 2.5 3.3 5.6
20 0.8 1.1 1.3 2.3 3 4.7
25 0.8 1.1 1.3 2.3 3 4.7
15
32 0.9 1.1 1.9 2.4 3.7
40 1.1 1.9 2.4 3.7
50 1.5 1.9 2.3
63 1.7 2.3
LEGEND
E. = supply side
L. = load side
Back-up limit values are specified in kA
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
E. S800S
Char. B, C, D, K
L. Icu [kA] 50
In [A] 25 32 40 50 63 80 100 125
S280 B
10 6 50 50 50 50 50 50 50 50
25
10 50 50 50 25 20 16 16 16
13 50 50 50 25 20 16 16 16
16 50 50 50 25 20 16 16 16
20 50 50 25 20 16 16 16
25 50 25 20 16 16 16
15 32 25 20 16 16 16
40 20 16 16 16
10 50 16 16 16
63 16 16
E. S800S
Char. B, C, D, K
L. Icu [kA] 50
In [A] 25 32 40 50 63 80 100 125
S280 C
10
3 50 50 50 50 50 50 50 50
4 50 50 50 50 50 50 50 50
6 50 50 50 50 50 50 50 50
8 50 50 50 25 20 16 16 16
25
10 50 50 50 25 20 16 16 16
13 50 50 50 25 20 16 16 16
16 50 50 50 25 20 16 16 16
20 50 50 25 20 16 16 16
25 50 25 20 16 16 16
15 32 25 20 16 16 16
40 20 16 16 16
10 50 16 16 16
63 16 16
E. S800S
Char. B, C, D, K
L. Icu [kA] 50
In [A] 25 32 40 50 63 80 100 125
S280 K, Z
10
3 50 50 50 50 50 50 50 50
4 50 50 50 50 50 50 50 50
6 50 50 50 50 50 50 50 50
8 50 50 50 25 20 16 16 16
25
10 50 50 50 25 20 16 16 16
13 50 50 50 25 20 16 16 16
16 50 50 50 25 20 16 16 16
20 50 50 25 20 16 16 16
25 50 25 20 16 16 16
15 32 25 20 16 16 16
10
40 20 16 16 16
50 16 16 16
63 16 16
E. S800S
Char. B, C, D, K
L. Icu [kA] 50
In [A] 25 32 40 50 63 80 100 125
S400E B 6
6 50 50 50 50 50 50 50 50
10 50 50 50 50 50 50 50 50
13 50 50 50 50 50 50 50 50
16 50 50 50 50 50 50 50 50
20 50 50 50 50 50 50 50
25 50 50 50 50 50 50
32 50 50 50 50 50
40 50 50 50 50
50 50 50 50
63 50 50
E. S800S
Char. B, C, D, K
L. Icu [kA] 50
In [A] 25 32 40 50 63 80 100 125
S400E C 6
0.5…6 50 50 50 50 50 50 50 50
8 50 50 50 50 50 50 50 50
10 50 50 50 50 50 50 50 50
13 50 50 50 50 50 50 50 50
16 50 50 50 50 50 50 50 50
20 50 50 50 50 50 50 50
25 50 50 50 50 50 50
32 50 50 50 50 50
40 50 50 50 50
50 50 50 50
63 50 50
Technical data
Selectivity
S800S - S280 @ 230/400 V
LEGEND
E. = supply side
L. = load side
Back-up limit values are specified in kA
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S800
15 15
Approximate dimensions
S800U & S800S
UL & IEC Dimension drawings in mm
S800S & S800U
S800-AUX S800-AUX/ALT
95
45
35
79.5
53
26.5
1P 2P 3P 4P
106
2CCC413010Z0001
76.5
46
82.56
T
95
45
35
2CCC413017Z0001
76.5
46
82.56
9
RT
T
95
45
35
2CCC413018Z0001
76.5
46
82.56
9
S800-RD & S800-RHE
S800-SOR & S800-UVR
95
45
35
26.5
76.5
46
82.56
76
48
76 6781
max. 500mm
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S500
15 15
S500 Series
UL 1077
S500 UL 1077 Series
Miniature circuit breakers
Description
The S500 high performance MCB offers
a compact solution to circuit protection.
The S500 devices are UL tested current
limiting and DIN rail mounted. The S500
is available with application-specific trip
characteristics to provide maximum circuit
protection.
The breakers offer thermal-magnetic
trip protection according to B and K
characteristics.
For the worldwide market, the breakers
carry CSA, IEC, CE and many other
agency approvals.
Features
• High breaking capacity
• Fast breaking time (2.3 - 2.5 ms)
• Adjustable trip unit
• DIN rail mounting
• Finger safe terminals
• Multi-functional terminals
• Wide range of accessories
• UL 1077 recognized 600 VAC and
600 VDC versions
• UL1077 AC adjustable K
• UL1077 DC adjustable B, K
• UL File # E167556
• IEC #E60497-2
S500 S500UC
Amperage 0.1 – 45 A 0.1 – 63 A
Voltage UL: 600Y/277 VAC
IEC: 690 VAC
UL: 250 VDC per pole (600 VDC for 4P)
IEC: 250 VDC per pole (750 VDC for 4P)
Poles
1, 2, 3 1, 2, 3, 4
Trip characteristics K B, K
Interrupting ratings Up to 30 kA : UL 1077
Up to 30 kA: CSA C22.2
30 kA : UL 1077
30 kA: CSA C22.2
Auxiliary contacts Yes Yes
Bell alarm Yes Yes
Shunt trip No No
Undervoltage release No No
Bus bar Yes Yes
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S500
15 15
S500-K, UL 600Y/277 VAC / IEC 690 VAC
Supplemental protection
UL 1077, CSA 22.2, IEC
S501-K
S502-K
S503-K
Tripping characteristic K
UL 1077 IEC
600 VAC 690 VAC
Up to 30 kA Up to 30 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.71
Technical data – See page 15.76 - 82
1 2 3 5 10 20 30
0.01
0.1
10
100
1000
10,000
1
0.05
0.5
50
500
5000
5
AC
seconds
multiple of rated current
12
8
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.1 – 0.15 S501-K0.15
3
0.1 – 0.15 S503-K0.15
0.14 – 0.21 S501-K0.21 0.14 – 0.21 S503-K0.21
0.2 – 0.3 S501-K0.3 0.2 – 0.3 S503-K0.3
0.28 – 0.42 S501-K0.42 0.28 – 0.42 S503-K0.42
0.38 – 0.58 S501-K0.58 0.38 – 0.58 S503-K0.58
0.53 – 0.8 S501-K0.8 0.53 – 0.8 S503-K0.8
0.73 – 1.1 S501-K1.1 0.73 – 1.1 S503-K1.1
1 – 1.5 S501-K1.5 1 – 1.5 S503-K1.5
1.4 – 2.1 S501-K2.1 1.4 – 2.1 S503-K2.1
2 – 3 S501-K3 2 – 3 S503-K3
2.8 – 4.2 S501-K4.2 2.8 – 4.2 S503-K4.2
3.8 – 5.8 S501-K5.8 3.8 – 5.8 S503-K5.8
5.3 – 8 S501-K8 5.3 – 8 S503-K8
7.3 – 11 S501-K11 7.3 – 11 S503-K11
10 – 15 S501-K15 10 – 15 S503-K15
14 – 20 S501-K20 14 – 20 S503-K20
18 – 26 S501-K26 18 – 26 S503-K26
23 – 32 S501-K32 23 – 32 S503-K32
29 – 37 S501-K37 29 – 37 S503-K37
34 – 41 S501-K41 34 – 41 S503-K41
38 – 45 S501-K45 38 – 45 S503-K45
2
0.1 – 0.15 S502-K0.15
0.14 – 0.21 S502-K0.21
0.2 – 0.3 S502-K0.3
0.28 – 0.42 S502-K0.42
0.38 – 0.58 S502-K0.58
0.53 – 0.8 S502-K0.8
0.73 – 1.1 S502-K1.1
1 – 1.5 S502-K1.5
1.4 – 2.1 S502-K2.1
2 – 3 S502-K3
2.8 – 4.2 S502-K4.2
3.8 – 5.8 S502-K5.8
5.3 – 8 S502-K8
7.3 – 11 S502-K11
10 – 15 S502-K15
14 – 20 S502-K20
18 – 26 S502-K26
23 – 32 S502-K32
29 – 37 S502-K37
34 – 41 S502-K41
38 – 45 S502-K45
K
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S500
15 15
S502UC-B
S501UC-B
S503UC-B
0.01
0.1
10
100
1000
10,000
1
1 2 3 5 10 20 30
0.05
0.5
50
500
5000
5
DC
7
seconds
multiple of rated current
S500UC-B, 250 VDC per pole (600 VDC 4P)
UL/IEC (750 VDC 4P)
Supplemental protectors, UL1077, CSA 22.2, IEC
Tripping characteristic B
UL 1077 IEC
250 VDC per pole
(600 VDC 4P)
250 VDC per pole
(750 VDC 4P)
30 kA 30 kA
Inductive loads
• B Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.71
Technical data – See page 15.76 - 82
BNo. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
6 S501UC-B6
3
6 S503UC-B6
10 S501UC-B10 10 S503UC-B10
13 S501UC-B13 13 S503UC-B13
16 S501UC-B16 16 S503UC-B16
20 S501UC-B20 20 S503UC-B20
25 S501UC-B25 25 S503UC-B25
32 S501UC-B32 32 S503UC-B32
40 S501UC-B40 40 S503UC-B40
50 S501UC-B50 50 S503UC-B50
63 S501UC-B63 63 S503UC-B63
2
6S502UC-B6
4
6S504UC-B6
10 S502UC-B10 10 S504UC-B10
13 S502UC-B13 13 S504UC-B13
16 S502UC-B16 16 S504UC-B16
20 S502UC-B20 20 S504UC-B20
25 S502UC-B25 25 S504UC-B25
32 S502UC-B32 32 S504UC-B32
40 S502UC-B40 40 S504UC-B40
50 S502UC-B50 50 S504UC-B50
63 S502UC-B63 63 S504UC-B63
S504UC-B
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S500
15 15
S500UC-K, 250 VDC per pole (600 VDC 4P)
UL/IEC (750 VDC 4P)
Supplemental protectors, UL1077, CSA 22.2, IEC
S501UC-K
S502UC-K
S503UC-K
S504UC-K
1 2 3 5 10 20 30
0.01
0.1
10
100
1000
10,000
1
0.05
0.5
50
500
5000
5
DC
seconds
multiple of rated current
Tripping characteristic K
UL 1077 IEC
250 VDC per pole
(600 VDC 4P)
250 VDC per pole
(750 VDC 4P)
30 kA 30 kA
Inductive loads
• K Curve
• Designed for allowing higher in-rush
currents during system start up
• Example: motors, transformers
Accessories & technical data
Accessories – See page 15.71
Technical data – See page 15.76 - 82
No. of
poles
Rated
current Catalog number No. of
poles
Rated
current Catalog number
1
0.1 – 0.15 S501UC-K0.15
3
0.1 – 0.15 S503UC-K0.15
0.14 – 0.21 S501UC-K0.21 0.14 – 0.21 S503UC-K0.21
0.2 – 0.3 S501UC-K0.3 0.2 – 0.3 S503UC-K0.3
0.28 – 0.42 S501UC-K0.42 0.28 – 0.42 S503UC-K0.42
0.38 – 0.58 S501UC-K0.58 0.38 – 0.58 S503UC-K0.58
0.53 – 0.8 S501UC-K0.8 0.53 – 0.8 S503UC-K0.8
0.73 – 1.1 S501UC-K1.1 0.73 – 1.1 S503UC-K1.1
1 – 1.5 S501UC-K1.5 1 – 1.5 S503UC-K1.5
1.4 – 2.1 S501UC-K2.1 1.4 – 2.1 S503UC-K2.1
2 – 3 S501UC-K3 2 – 3 S503UC-K3
2.8 – 4.2 S501UC-K4.2 2.8 – 4.2 S503UC-K4.2
3.8 – 5.8 S501UC-K5.8 3.8 – 5.8 S503UC-K5.8
5.3 – 8 S501UC-K8 5.3 – 8 S503UC-K8
7.3 – 11 S501UC-K11 7.3 – 11 S503UC-K11
10 – 15 S501UC-K15 10 – 15 S503UC-K15
14 – 20 S501UC-K20 14 – 20 S503UC-K20
18 – 26 S501UC-K26 18 – 26 S503UC-K26
23 – 32 S501UC-K32 23 – 32 S503UC-K32
29 – 37 S501UC-K37 29 – 37 S503UC-K37
34 – 41 S501UC-K41 34 – 41 S503UC-K41
38 – 45 S501UC-K45 38 – 45 S503UC-K45
2
0.1 – 0.15 S502UC-K0.15
4
0.1 – 0.15 S504UC-K0.15
0.14 – 0.21 S502UC-K0.21 0.14 – 0.21 S504UC-K0.21
0.2 – 0.3 S502UC-K0.3 0.2 – 0.3 S504UC-K0.3
0.28 – 0.42 S502UC-K0.42 0.28 – 0.42 S504UC-K0.42
0.38 – 0.58 S502UC-K0.58 0.38 – 0.58 S504UC-K0.58
0.53 – 0.8 S502UC-K0.8 0.53 – 0.8 S504UC-K0.8
0.73 – 1.1 S502UC-K1.1 0.73 – 1.1 S504UC-K1.1
1 – 1.5 S502UC-K1.5 1 – 1.5 S504UC-K1.5
1.4 – 2.1 S502UC-K2.1 1.4 – 2.1 S504UC-K2.1
2 – 3 S502UC-K3 2 – 3 S504UC-K3
2.8 – 4.2 S502UC-K4.2 2.8 – 4.2 S504UC-K4.2
3.8 – 5.8 S502UC-K5.8 3.8 – 5.8 S504UC-K5.8
5.3 – 8 S502UC-K8 5.3 – 8 S504UC-K8
7.3 – 11 S502UC-K11 7.3 – 11 S504UC-K11
10 – 15 S502UC-K15 10 – 15 S504UC-K15
14 – 20 S502UC-K20 14 – 20 S504UC-K20
18 – 26 S502UC-K26 18 – 26 S504UC-K26
23 – 32 S502UC-K32 23 – 32 S504UC-K32
29 – 37 S502UC-K37 29 – 37 S504UC-K37
34 – 41 S502UC-K41 34 – 41 S504UC-K41
38 – 45 S502UC-K45 38 – 45 S504UC-K45
K
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S500
15 15
Accessories
S500 UL1077
S500-H11, -H20
Auxiliary contacts
The auxiliary contacts will signal whether the breaker is in the ON or OFF position.
Description Catalog number
For field mounting: left side
1 N.O./1 N.C.
S500-H11
2 N.O. S500-H20
Bell alarm
The bell alarm includes a set of contacts that will only signal when the breaker has tripped.
Typically the contacts would be connected to an alarm or bell to signal the operator that an
overcurrent trip has occurred. The bell alarm also includes a test button for testing the alarm
contacts without opening the breaker.
Description Catalog number
For field mounting: left side
1 N.O./1 N.C. S500-S11
2 N.O. S500-S20
Handle mechanism
Description Catalog number
Handle mechanism S500-RD3
For use with 1-4 pole S500 MCBs and disconnect switch selector handles with 5mm shafts.
Power feed terminal - Accepts into 2/0 AWG
Description Catalog number
Rear mount terminal S500-K2
Rear mount terminal - Accepts into 2/0 AWG
Description Catalog number
Accepts 4AWG/25mm S500-K1
S500-S11, -S20
S500-RD3
S500-K1
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S500
15 15
Technical data
S500-K & S500UC-B, K
Tripping characteristic K Tripping characteristic B
Technical data S500-K S500UC-B, K
Approvals
UL 1077 1077
CSA C22.2 - No. 235 C22.2 - No. 235
Number of poles 1, 2, 3 1, 2, 3, 4
Tripping characteristic K B, K
Rated currents 0.1 to 45 A B: 6 - 63 A; K: 0.15 - 45 A
Rated voltage 480Y/277 VAC, 600Y/346 VAC 250 VDC per pole (600 VDC 4 pole)
Frequency 50/60 Hz 50/60 Hz
Mounting position vertical, horizontal vertical, horizontal
Standard mounting 35mm DIN rail 35mm DIN rail
Clamps only for CU 16 - 4 AWG 16 - 4 AWG
Service life, mechanical at rated load 20,000 20,000
Ambient temperature 40°C... 104°F 40°C... 104°F
1 2 3 5 10 20 30
0.01
0.1
10
100
1000
10,000
1
0.05
0.5
50
500
5000
5
AC
DC
seconds
multiple of rated current
12
8
0.01
0.1
10
100
1000
10,000
1
1 2 3 5 10 20 30
0.05
0.5
50
500
5000
5
DC
7
seconds
multiple of rated current
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
S500
15 15
Approximate dimensions
S500 & Accessories
S500
0.24
6
1.14
29
3.62
92
2.22
56.5
3.15
80
1.73
44
3.64
92.5
2.95
75
1.97
50
0.98
25
C
L
2.95
75
1.77
45
S500
S500-H11, S500-H20
S500-S11, S500-S20
35
45
75
91
12.5 6 56.5
80
92
S500-RD3 Handle mechanism
3.15 80 1.60 40.7
S500 handle mechanism
S500 Front mounting kit
S500 FRONT MOUNT
2.91
74
1.81
46
L
L + 1.02
26
0.31
8
3.31
84
4.41
112
" L "
2.00
51
C
L
C
L
CUT-OUT 0.24 D
6 D
L + 0.51
13
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
Technical data
15 15
Miniature circuit breakers
Technical data
Miniature circuit breakers
Technical data
S200
UL489
S200U-K ................................................ 15.90
S200U-Z ................................................ 15.90
S200UP-K .............................................. 15.90
S200UP-Z .............................................. 15.90
SU200PR-K ........................................... 15.91
S200UDC-K ........................................... 15.91
S200UDC-Z ........................................... 15.91
UL1077
S200-B ................................................... 15.92
S200-C, D .............................................. 15.92
S200-K ................................................... 15.92
S200-Z ................................................... 15.92
S200P-B ................................................ 15.93
S200P-C ................................................ 15.93
S200P-D ................................................ 15.93
S200P-K ................................................ 15.93
S200P-Z ................................................. 15.94
S200PR-K .............................................. 15.94
S280UC-K .............................................. 15.94
S280UC-Z .............................................. 15.94
S800
UL489
S800U-K, Z ............................................ 15.95
IEC
S800S-B ................................................ 15.95
S800S-C ................................................ 15.95
S800S-D ................................................ 15.95
S800S-K ................................................ 15.96
S500
UL1077
S500-K ................................................... 15.97
S500UC-B, K ......................................... 15.97
S201UP-K S201UP-K S201-B S201P-Z S201PR-K0.2 S201UDC-K1
S501-K S801U-B
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
Technical data
15 15
Technical data
S200U-K, S200U-Z, S200UP-K, S200UP-Z
Item S200U-K S200U-Z S200UP-K S200UP-Z
Approvals:
UL 489 489 489 489
CSA C22.2 No. 5 C22.2 No. 5 C22.2 No. 5 C22.2 No. 5
VDE 0660 0660 0660 0660
IEC 898, 60947-2 898, 60947-2 898, 60947-2 898
Number of Poles: 1,2,3,4 1,2,3,4 1,2,3,4 1,2,3,4
Tripping Characteristic: K Z K Z
Rated Currents: 0.2 to 63A 0.2 to 63A 0.2 to 25A 0.2 to 25A
Minimum Operating Voltage: 12V 12V 12V 12V
UL/CSA Rated Voltage
& Interrupting Capacity:
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
120VAC 10kA 10kA 10kA 10kA
240 VAC 10kA 10kA 10kA 10kA
277 VAC — — 10kA 10kA
277/480 VAC — — 10kA 10kA
60VDC 15kA 15kA 15kA 15kA
125VDC 15kA 15kA 15kA 15kA
250VDC — — — —
500VDC — — — —
IEC Rated Voltage
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Rated Voltage
IEC Single Pole 240/415VAC, 220VDC 240/415VAC, 60VDC 240/415VAC, 220VDC 240/415VAC, 220VDC
IEC Multi-Pole 415VAC, 440VDC 415VAC, 110VDC 415VAC, 440VDC 415VAC, 440VDC
Production Category: IP20 IP20 IP20 IP20
Depth of Unit Per DIN 43880: 68mm/ 2.68 in. 68mm/ 2.68 in. 68mm/ 2.68 in. 68mm/ 2.68 in.
Mounting Position: Vertical / horizontal Vertical / horizontal Vertical / horizontal Vertical / horizontal
Standard Mounting: 35mm DIN rail 35mm DIN rail 35mm DIN rail 35mm DIN rail
Main and Shunt Trip Terminals:
Wire Size 18-4 AWG/.82-21.2mm² 18-4 AWG/.82-21.2mm² 18-4 AWG/.82-21.2mm² 18-4 AWG/.82-21.2mm²
Torque 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm
Tool # 2 Posidrive # 2 Posidrive # 2 Posidrive # 2 Posidrive
Accessory Terminals
Wire Size 18-16 AWG/.82-1.3mm² 18-16 AWG/.82-1.3mm² 18-16 AWG/.82-1.3mm² 18-16 AWG/.82-1.3mm²
Torque 4.5 in-lbs./.51nm 4.5 in-lbs./.51nm 4.5 in-lbs./.51nm 4.5 in-lbs./.51nm
Tool # 1 Posidrive # 1 Posidrive # 1 Posidrive # 1 Posidrive
Service Life at Rated Load: No Load 20,000 operations No Load 20,000 operations
Full Load 10,000 operations
No Load 20,000 operations
Full Load 10,000 operations
No Load 20,000 operations
Full Load 10,000 operations
Ambient Temperatures:
Minimum -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF
Maximum 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF
Storage Temperatures:
Minimum -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF
Maximum 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF
Shock Resistance: 30g minimum of 2 impacts,
shock duration of 13ms
30g minimum of 2 impacts,
shock duration of 13ms
30g minimum of 2 impacts,
shock duration of 13ms
30g minimum of 2 impacts,
shock duration of 13ms
Vibration Resistance: 5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz
@ 0.8 ~ In
5g, 20 cycles, 5 Hz, 150 Hz
@ 0.8 ~ In
Disconnecting Neutral Rating: — — — —
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
Technical data
15 15
Technical data
SU200PR-K, S200UDC-K, S200UDC-Z
Item SU200PR-K S200UDC-K S200UDC-Z
Approvals:
UL 489 489 489
CSA CS22.2 No. 5 — —
VDE 0660 0660 0660
IEC 60947-2 — —
Number of Poles: 1,2,3,4 1, 2 1, 2
Tripping Characteristic: K K Z
Rated Currents: 0.2 to 63A 1 to 63A 1 to 63A
Minimum Operating Voltage: 12 VAC — —
UL/CSA Rated Voltage
& Interrupting Capacity:
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz
120VAC 10 kA — —
240 VAC 10 kA — —
277 VAC 10 kA — —
277/480 VAC 10 kA — —
60VDC — 14 kA 14 kA
125VDC — — —
250VDC — — —
500VDC — — —
IEC Rated Voltage
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz
Rated Voltage
IEC Single Pole 240 VAC — —
IEC Multi-Pole 400 VAC — —
Production Category: IP20 IP20 IP20
Depth of Unit Per DIN 43880: 68mm/ 2.68 in. 68mm/ 2.68 in. 68mm/ 2.68 in.
Mounting Position: Any Vertical / horizontal Vertical / horizontal
Standard Mounting: 35mm DIN rail 35mm DIN rail 35mm DIN rail
Main and Shunt Trip Terminals:
Wire Size 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm²
Torque 25 in-lbs. / 2.8 Nm 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm
Tool # 2 Posidrive # 2 Posidrive # 2 Posidrive
Accessory Terminals
Wire Size 18-16 AWG/.82-1.3mm218-16 AWG/.82-1.3mm218-16 AWG/.82-1.3mm2
Torque 4.5 in-lbs. / .51 Nm 4.5 in-lbs. / .51 Nm 4.5 in-lbs. / .51 Nm
Tool # 1 Posidrive # 1 Posidrive # 1 Posidrive
Service Life at Rated Load: 6000 operations (AC),
1 cycle (1s-ON, 9s-OFF) Full Load 10,000 operations Full Load 10,000 operations
Ambient Temperatures:
Minimum -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF
Maximum 55ºC 70ºC... 158ºF 70ºC... 158ºF
Storage Temperatures:
Minimum -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF
Maximum 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF
Shock Resistance: 25g minimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
Vibration Resistance: 5g, 20 cycles, 5-150, 5Hz
with load 0.8in
5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz
Disconnecting Neutral Rating: — — —
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
Technical data
15 15
Technical data
S200-B; S200-C, D; S200-K; S200-Z
Item S200-B S200-C, D S200-K S200-Z
Approvals:
UL 1077 1077 1077 1077
CSA C22.2 No. 235 C22.2 No. 235 C22.2 No. 235 C22.2 No. 235
VDE 0641, 0660 0660 0660 0660
IEC 898, 60947-2 898, 60947-2 898, 60947-2 898, 60947-2
Number of Poles: 1,2,3,4, 1+N, 3+N 1,2,3, 1+N, 3+N 1,2,3,4, 1+N, 3+N 1,2,3,4, 1+N, 3+N
Tripping Characteristic: B C, D K K
Rated Currents: 6 to 63A 0.5 to 63A 0.5 to 63A 0.5 to 63A
Minimum Operating Voltage: 12VAC 12VAC 12 V 12 V
UL/CSA Rated Voltage Single pole Multi pole Single pole Multi pole Single pole Multi pole Single pole Multi pole
& Interrupting Capacity:
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
120VAC 10 kA — 10 kA — 10 kA — 10 kA —
240 VAC 6 kA 10 kA 6 kA 10 kA 6 kA 10 kA 6 kA 10 kA
277 VAC 6 kA — 6 kA — 6 kA — 6 kA —
277/480 VAC — 6 kA — 6 kA — 6 kA — 6 kA
60VDC 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA
125VDC 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA
250VDC — — — — — — — —
500VDC — — — — — — — —
IEC Rated Voltage
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Rated Voltage
IEC Single Pole 240/415 VAC, 60 VDC 240/415 VAC, 60 VDC 240/415 VAC, 60 VDC 240/415 VAC, 60 VDC
IEC Multi-Pole 415 VAC, 110 VDC 415 VAC, 110 VDC 415 VAC, 110 VDC 415 VAC, 110 VDC
Production Category: IP20 IP20 IP20 IP20
Depth of Unit Per DIN 43880: 68mm/ 2.68 in. 68mm/ 2.68 in. 68mm/ 2.68 in. 68mm/ 2.68 in.
Mounting Position: Vertical / horizontal Vertical / horizontal Vertical / horizontal Vertical / horizontal
Standard Mounting: 35mm DIN rail 35mm DIN rail 35mm DIN rail 35mm DIN rail
Main and Shunt Trip Terminals:
Wire Size 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm²
Torque 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm
Tool # 2 Posidrive # 2 Posidrive # 2 Posidrive # 2 Posidrive
Accessory Terminals
Wire Size 18-16 AWG/.82-1.3 mm² 18-16 AWG/.82-1.3 mm² 18-16 AWG/.82-1.3 mm² 18-16 AWG/.82-1.3 mm²
Torque 4.5 in-lbs./.51 Nm 4.5 in-lbs./.51 Nm 4.5 in-lbs./.51 Nm 4.5 in-lbs./.51 Nm
Tool # 1 Posidrive # 1 Posidrive # 1 Posidrive # 1 Posidrive
Service Life at Rated Load: No Load 20,000 operations
Full Load 10,000 operations
No Load 20,000 operations
Full Load 10,000 operations
No Load 20,000 operations
Full Load 10,000 operations
No Load 20,000 operations
Full Load 10,000 operations
Ambient Temperatures:
Minimum -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF
Maximum 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF
Storage Temperatures:
Minimum -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF
Maximum 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF
Shock Resistance: 30g minimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
Vibration Resistance: 5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz
Disconnecting Neutral Rating:
6 kA switching 6 kA switching 6 kA switching 6 kA switching
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
Technical data
15 15
Item S200P-B S200P-C S200P-D S200P-K
Approvals:
UL 1077 1077 1077 1077
CSA C22.2 No. 235 C22.2 No. 235 C22.2 No. 235 —
VDE 0660 0660 0660 0660
IEC 898, 60947-2 898, 60947-2 898, 60947-2 898, 60947-2
Number of Poles: 1,2,3,4, 1+N, 3+N 1,2,3,4, 1+N, 3+N 1,2,3,4, 1+N, 3+N 1,2,3,4, 1+N, 3+N
Tripping Characteristic: K K K K
Rated Currents: 0.5 to 63A 0.5 to 63A 0.5 to 63A 0.2 to 63A
Minimum Operating Voltage: 12 V 12 V 12 V 12 V
UL/CSA Rated Voltage Single pole Multi pole Single pole Multi pole Single pole Multi pole Single pole Multi pole
& Interrupting Capacity:
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
120VAC 10 kA — 10 kA — 10 kA — 10 kA —
240 VAC 6 kA 10 kA 6 kA 10 kA 6 kA 10 kA 10 kA 10 kA
277 VAC 6 kA — 6 kA — 6 kA — 10 kA —
277/480 VAC — 6 kA — 6 kA — 6 kA — 10 kA
60VDC 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 15 kA 15 kA
125VDC 10 kA 10 kA 10 kA 10 kA 10 kA 10 kA 15 kA 15 kA
250VDC — — — — — — — —
500VDC — — — — — — — —
IEC Rated Voltage
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Rated Voltage
IEC Single Pole 240/415 VAC, 60 VDC 240/415 VAC, 60 VDC 240/415 VAC, 60 VDC 240/415 VAC, 60 VDC
IEC Multi-Pole 415 VAC, 110 VDC 415 VAC, 110 VDC 415 VAC, 110 VDC 415 VAC, 110 VDC
Production Category: IP20 IP20 IP20 IP20
Depth of Unit Per DIN 43880: 68mm/ 2.68 in. 68mm/ 2.68 in. 68mm/ 2.68 in. 68mm/ 2.68 in.
Mounting Position: Vertical / horizontal Vertical / horizontal Vertical / horizontal Vertical / horizontal
Standard Mounting: 35mm DIN rail 35mm DIN rail 35mm DIN rail 35mm DIN rail
Main and Shunt Trip Terminals:
Wire Size 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm²
Torque 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm
Tool # 2 Posidrive # 2 Posidrive # 2 Posidrive # 2 Posidrive
Accessory Terminals
Wire Size 18-16 AWG/.82-1.3 mm² 18-16 AWG/.82-1.3 mm² 18-16 AWG/.82-1.3 mm² 18-16 AWG/.82-1.3 mm²
Torque 4.5 in-lbs./.51 Nm 4.5 in-lbs./.51 Nm 4.5 in-lbs./.51 Nm 4.5 in-lbs./.51 Nm
Tool # 1 Posidrive # 1 Posidrive # 1 Posidrive # 1 Posidrive
Service Life at Rated Load: No Load 20,000 operations
Full Load 10,000 operations
No Load 20,000 operations
Full Load 10,000 operations
No Load 20,000 operations
Full Load 10,000 operations
No Load 20,000 operations
Full Load 10,000 operations
Ambient Temperatures:
Minimum -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF
Maximum 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF
Storage Temperatures:
Minimum -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF
Maximum 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF
Shock Resistance: 30g minimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
Vibration Resistance: 5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz
Disconnecting Neutral Rating: 6 kA switching 6 kA switching 6 kA switching —
Technical data
S200-P-B; S200P-C; S200P-D; S200P-K
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
Technical data
15 15
Technical data
S200P-Z; S200PR-K; S280UC-K; S280C-Z
Item S200P-Z S200PR-K S280UC-K S280UC-Z
Approvals:
UL 1077 489 1077 1077
CSA — CS22.2 No. 5 22.2, No. 235 22.2, No. 235
VDE 0660 0660 0660 0660
IEC 898, 60947-2 60947-2 898, 60947-2 898, 60947-2
Number of Poles: 1,2,3,4 1,2,3,4 1,2,3 1,2,3
Tripping Characteristic: Z K K Z
Rated Currents: 0.5 to 63A 0.2 to 63A 0.2 to 63A 0.5 to 63A
Minimum Operating Voltage: 12 V 12 VAC 12 V 12 V
UL/CSA Rated Voltage Single pole Multi pole Single pole Multi pole Single pole Multi pole
& Interrupting Capacity:
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
120VAC 10 kA — 10 kA 10 kA 10 kA 10 kA —
240 VAC 10 kA 10 kA 10 kA 10 kA 6 kA 10 kA 10 kA
277 VAC 10 kA — 10 kA 10 kA 6 kA 10 kA —
277/480 VAC — — 10 kA —
4.5 kA for 0.2-40 A
5 kA for 50-63 A
—
4.5 kA for 0.2-40 A
5 kA for 50-63 A
60VDC 15 kA 15 kA — 10 kA 10 kA 10 kA 10 kA
125VDC 15 kA 15 kA — 10 kA — 10 kA 10 kA
250VDC — — — 4.5 kA 4.5 kA 4.5 kA 4.5 kA
500VDC — — — — 4.5 kA — 4.5 kA
IEC Rated Voltage
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Rated Voltage
IEC Single Pole 240/415 VAC, 220 VDC 240 VAC 240/415VAC, 220VDC 240/415VAC, 220VDC
IEC Multi-Pole 415 VAC, 440 VDC 400 VAC 415VAC, 440VDC 415VAC, 440VDC
Production Category: IP20 IP20 IP20 IP20
Depth of Unit Per DIN 43880: 68mm/ 2.68 in. 68mm/ 2.68 in. 68mm/ 2.68 in. 68mm/ 2.68 in.
Mounting Position: Vertical / horizontal Any Vertical / horizontal Vertical / horizontal
Standard Mounting: 35mm DIN rail 35mm DIN rail 35mm DIN rail 35mm DIN rail
Main and Shunt Trip Terminals:
Wire Size 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm² 18-4 AWG/.82-21.2 mm² for
0.2 - 40A
18-2 AWG for 50 A & above
18-4 AWG/.82-21.2 mm² for
0.5 - 40A
18-2 AWG for 50 A & above
Torque 17.5 in-lbs. / 1.978 Nm 25 in-lbs. / 2.8 Nm 17.5 in-lbs. / 1.978 Nm 17.5 in-lbs. / 1.978 Nm
Tool # 2 Posidrive # 2 Posidrive # 2 Posidrive # 2 Posidrive
Accessory Terminals
Wire Size 18-16 AWG/.82-1.3 mm² 18-16 AWG/.82-1.3 mm² 18-16 AWG/.82-1.3 mm² 18-16 AWG/.82-1.3 mm²
Torque 4.5 in-lbs./.51 Nm 4.5 in-lbs./.51 Nm 4.5 in-lbs./.51 Nm 4.5 in-lbs./.51 Nm
Tool # 1 Posidrive # 1 Posidrive # 1 Posidrive # 1 Posidrive
Service Life at Rated Load: No Load 20,000 operations
Full Load 10,000 operations
6000 operations (AC),
1 cycle (1s-ON, 9s-OFF)
No Load 20,000 operations
Full Load 10,000 operations
No Load 20,000 operations
Full Load 10,000 operations
Ambient Temperatures:
Minimum -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF
Maximum 70ºC... 158ºF 55ºC 70ºC... 158ºF 70ºC... 158ºF
Storage Temperatures:
Minimum -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF
Maximum 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF
Shock Resistance: 30g minimum of 2 impacts,
shock duration of 13 ms
25gminimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
30g minimum of 2 impacts,
shock duration of 13 ms
Vibration Resistance: 5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5-150, 5Hz
with load 0.8in
5g, 20 cycles, 5 Hz, 150 Hz 5g, 20 cycles, 5 Hz, 150 Hz
Disconnecting Neutral Rating: — — — —
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
Technical data
15 15
Technical data
S800U-K, Z; S800S-B, S800S-C, S800S-D
Item S800U-K, Z S800S-B S800S-C S800S-D
Approvals:
UL 489, E312425 — — —
CSA 22.2 No. 5.1 — — —
VDE — — — —
IEC 60947-2 60947-2 60947-2 60947-2
Number of Poles: 1,2,3,4 1,2,3,4 1,2,3,4 1,2,3,4
Tripping Characteristic: K B C D
Rated Currents: 10 to 100A 10 to 125A 10 to 125A 10 to 125A
Minimum Operating Voltage: — 400/690VAC 400/690VAC 400/690VAC
UL/CSA Rated Voltage
& Interrupting Capacity:
Frequency: 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
120VAC — — — —
240 VAC 50 kA multi, 30 kA single 50 kA multi, 30 kA single; IEC 50 kA multi, 30 kA single; IEC 50 kA multi, 30 kA single; IEC
277 VAC — — — —
277/480 VAC — — — —
60VDC — — — —
125VDC — — — —
250VDC — — — —
500VDC — — — —
IEC Rated Voltage
Frequency: — 50/60 Hz 50/60 Hz 50/60 Hz
Rated Voltage
IEC Single Pole — 690 VAC 690 VAC 690 VAC
IEC Multi-Pole — — — —
Production Category: IP20 IP20 IP20 IP20
Depth of Unit Per DIN 43880: — — — —
Mounting Position: Vertical / horizontal Vertical / horizontal Vertical / horizontal Vertical / horizontal
Standard Mounting: 35mm DIN rail 35mm DIN rail 35mm DIN rail 35mm DIN rail
Main and Shunt Trip Terminals:
Wire Size 1... 25 1... 25 1... 25 1... 25
Torque 35 in-lbs. / 4 Nm 35 in-lbs. / 4 Nm 35 in-lbs. / 4 Nm 35 in-lbs. / 4 Nm
Tool — — — —
Accessory Terminals
Wire Size 1... 35 1... 35 1... 35 1... 35
Torque 35 in-lbs./4 Nm 35 in-lbs./4 Nm 35 in-lbs./4 Nm 35 in-lbs./4 Nm
Tool — — — —
Service Life at Rated Load: 6,000 operations 6,000 operations 6,000 operations 6,000 operations
Ambient Temperatures:
Minimum -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF -25ºC... -13ºF
Maximum 60ºC... 140ºF 60ºC... 140ºF 60ºC... 140ºF 60ºC... 140ºF
Storage Temperatures:
Minimum -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF -40ºC... -40ºF
Maximum 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF 70ºC... 158ºF
Shock Resistance: — — — —
Vibration Resistance: — — — —
Disconnecting Neutral Rating: — — — —
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
Technical data
15 15
Technical data
S800S-K
Item S800S-K
Approvals:
UL —
CSA —
VDE —
IEC 60947-2
Number of Poles: 1,2,3,4
Tripping Characteristic: K
Rated Currents: 10 to 125A
Minimum Operating Voltage: 400/690 VAC
UL/CSA Rated Voltage
& Interrupting Capacity:
Frequency: 50/60 Hz
120VAC —
240 VAC 50 kA multi; 30 kA single; IEC
277 VAC —
277/480 VAC —
60VDC —
125VDC —
250VDC —
500VDC —
IEC Rated Voltage
Frequency: 50/60 Hz
Rated Voltage
IEC Single Pole 690 VAC
IEC Multi-Pole —
Production Category: IP20
Depth of Unit Per DIN 43880: —
Mounting Position: Vertical / horizontal
Standard Mounting: 35mm DIN rail
Main and Shunt Trip Terminals:
Wire Size 1... 25
Torque 35 in-lbs. / 4 Nm
Tool —
Accessory Terminals
Wire Size 1... 35
Torque 35 in-lbs./4 Nm
Tool —
Service Life at Rated Load: 6,000 operations
Ambient Temperatures:
Minimum -25ºC... -13ºF
Maximum 60ºC... 140ºF
Storage Temperatures:
Minimum -40ºC... -40ºF
Maximum 70ºC... 158ºF
Shock Resistance: —
Vibration Resistance: —
Disconnecting Neutral Rating: —
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
Miniature
circuit breakers
Technical data
15 15
Technical data
S500-K, Z; S500UC-B, K
Approvals:
UL
CSA
VDE
No. of poles:
Tripping characteristic:
Rated currents:
Rated voltage:
UL single pole
UL multi pole
IEC multi pole
Rated interrupting capacity:
Frequency:
Mounting position:
Standard mounting:
Terminals:
Service life at rated load:
Approvals:
UL 1077
CSA C22.2 - No. 235
VDE 0641/6.78
IEC —
No. of poles: 1,2,3, +N, +NA
Tripping characteristic: K
Rated currents: 0.1 to 45A
Rated voltage:
UL/CSA single pole 277VAC
UL/CSA multi pole 600YVAC
IEC single pole 690VAC
Rated interrupting capacity:
Single pole 0.15-25A – 30KA/240VAC
14KA/277VAC
26-45A – 18KA/240VAC
14KA/277VAC
Multi-pole 0.15-45A – 14KA/480VAC
6KA/600VAC
Frequency: 50/60Hz
Mounting position: Vertical / horizontal
Standard mounting: 35mm DIN rail
Terminals: 16-4AWG / 1-25mm2
Service life at rated load: 20,000 operations
Calibration temperature: 40°C
Item S500-K, Z
Item S500UC-B, K
1077
C22.2
0660
1,2,3, 4
B, K
B: 6 to 63A
K: 0.15 to 45A
277VAC/250VDC
600VAC/600VDC
690VAC/750VDC
B single pole:
6 – 25A 18KA/240VAC 14KA/277VAC 30KA/250VDC
32 – 63A 30KA/240VAC 14KA/277VAC 30KA/250VDC
B two-pole:
6 – 63A 14KA/480VAC 6KA/600VAC 30KA/500VDC
B three-pole:
6 – 63A 14KA/480VAC 6KA/600VAC 30KA/600VDC
K single pole:
0.15 – 25A 30KA/240VAC 14KA/277VAC 30KA/250VDC
32 – 45A 18KA/240VAC 14KA/277VAC 30KA/250VDC
K two-pole:
0.15 – 45A 14KA/480VAC 6KA/600VAC 30KA/500VDC
K three-pole:
0.5 – 45A 14KA/480VAC 6KA/600VAC 30KA/600VDC
50/60Hz
Vertical / horizontal
35mm DIN-rail
16-4AWG / 1-25mm2
20,000 operations
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
