INTRODUCTION

SURE-LITES®

The TRUSTED name for emergency lighting

Offering a COMPREHENSIVE LINE of emergency lights, exit signs,

lighting inverters, and retrofit products. A full range of INNOVATIVE

SOLUTIONS are available from routine COMMERCIAL to upscale

ARCHITECTURAL to hazardous INDUSTRIAL locations.

ALL products are UL 924 LISTED and comply with

THE LIFE SAFETY CODE (NFPA 101).

In addition, a complete line of ENERGY EFFICIENT products are

available to significantly reduce energy consumption and exceed

conservation standards.

Thinking ahead, a DEDICATED engineering group

focuses on advanced technology to continue

developing more effective ways to provide

emergency lighting.

SURE-LITES®- RELIABILITY GUARANTEED.

INTRODUCTION

EMERGENCY

LIGHTS

INTRODUCTION

EXIT SIGNS

EMERGENCY LIGHTS

ARCHITECTURAL

CC2 Series CC3, 4, 5, 6 Series CC7 Series CC8 Series CC9, 10, 11, 12 Series CU1 Series CU2 Series

p. 21 p. 22 p. 23 p. 24 p. 25 p. 26 p. 27

COMMERCIAL

XR Series HR Series HS1R Series LM1 Series AA1 Series

p. 28 p. 29 p .30 p. 31 p. 32

AEL Series CHEL Series MML Series ML Series RD Series RLM Series GC Series

p. 8 p. 9 p. 10 p. 11 p. 12 p. 12 p. 13

SLC Series P4C Series RG Series C7213EEMSL H274EM StairLite StairLite 2

p. 14 p. 15 p. 16 p. 17 p. 18 p. 19 p. 20

REMOTE

6V, 12V Plastic 6V, 12V Plastic 6V, 12V Metal Head 6V, 12V Metal Head6V, 12V MR16 MR (Metrolite) CFR Series

p. 33 Weatherproof p. 34 Weatherproof p. 35 p. 35 p. 36

p. 33 p. 34

DR Series CU Series GFR Series R4C Series RFR Series Ultimate Remote HZB/HZP Series

p. 36 p. 36 p. 36 p. 37 p. 37 Head Series p. 37

p. 37

< TABLE OF CONTENTS >

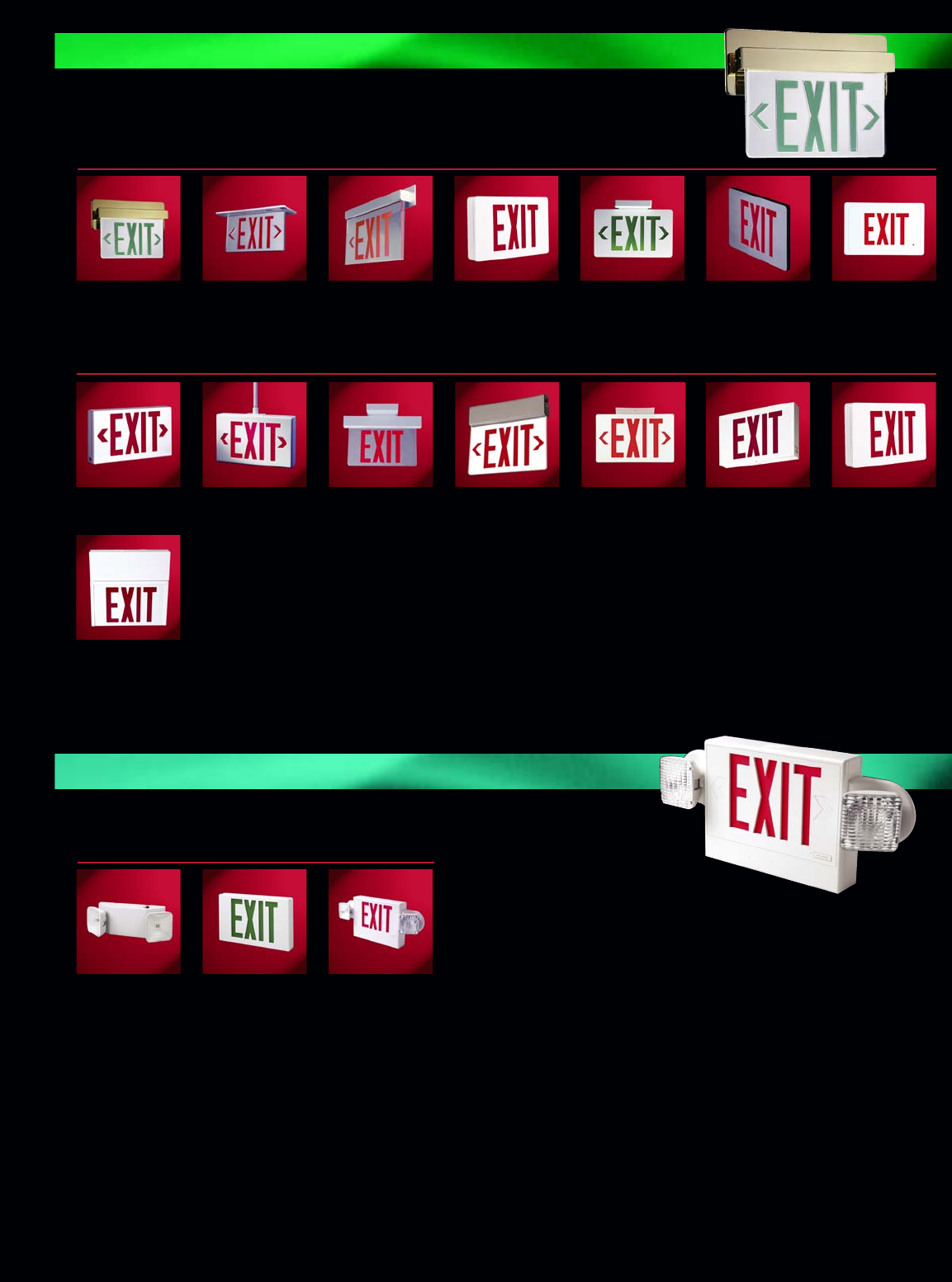

EXIT SIGNS

ARCHITECTURAL

LPX Series CCX Series EEX Series EU Series INCX Series SLX Series R/G/OF/PLX Series

p. 50 p. 52 p. 55 p. 56 p. 58 p. 59 p. 60

COMMERCIAL

UN/UNH/PLX Series

p. 61

ELX-AC Series ELX-SP Series ES Series CX Series CAX Series TPX Series CAR Series

p. 38 p. 39 p. 40 p. 41 p. 42 p. 46 p. 48

ALL PRO

APSSQ Series AP60/70 Series AP70..DH Series

p. 63 p. 64 p. 65

< TABLE OF CONTENTS >

UEL Series NCB Series UMB Series HZU1254 Series UX Series UMX Series VRX Series

p. 66 p. 67 p. 68 p. 69 p. 70 p. 71 p. 72

TRX Series PHL Series HZX Series

p. 73 Photoluminescent p. 75

p. 74

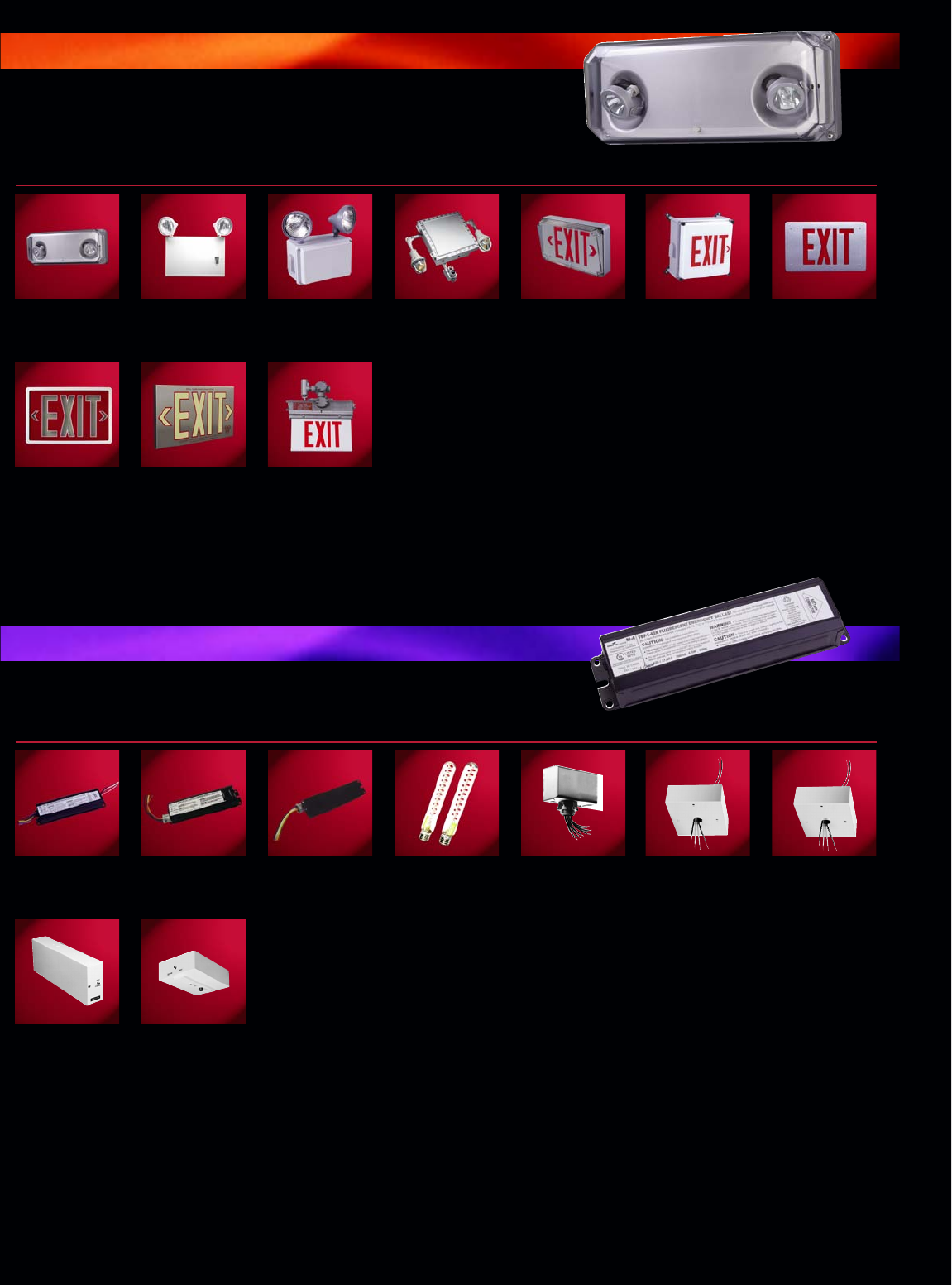

INDUSTRIAL &

HAZARDOUS LOCATIONS

FBP LTC LTC2 RKRC, RKRI REM, RBP 277 CONVERSION FTBR CONVERSION

p. 76 p. 77 p. 78 p. 79 p. 80 CANOPY CANOPY

p. 81 p. 81

EMERGENCY POWER CAX EMERGENCY

PACK POWER PACK

p. 82 p. 82

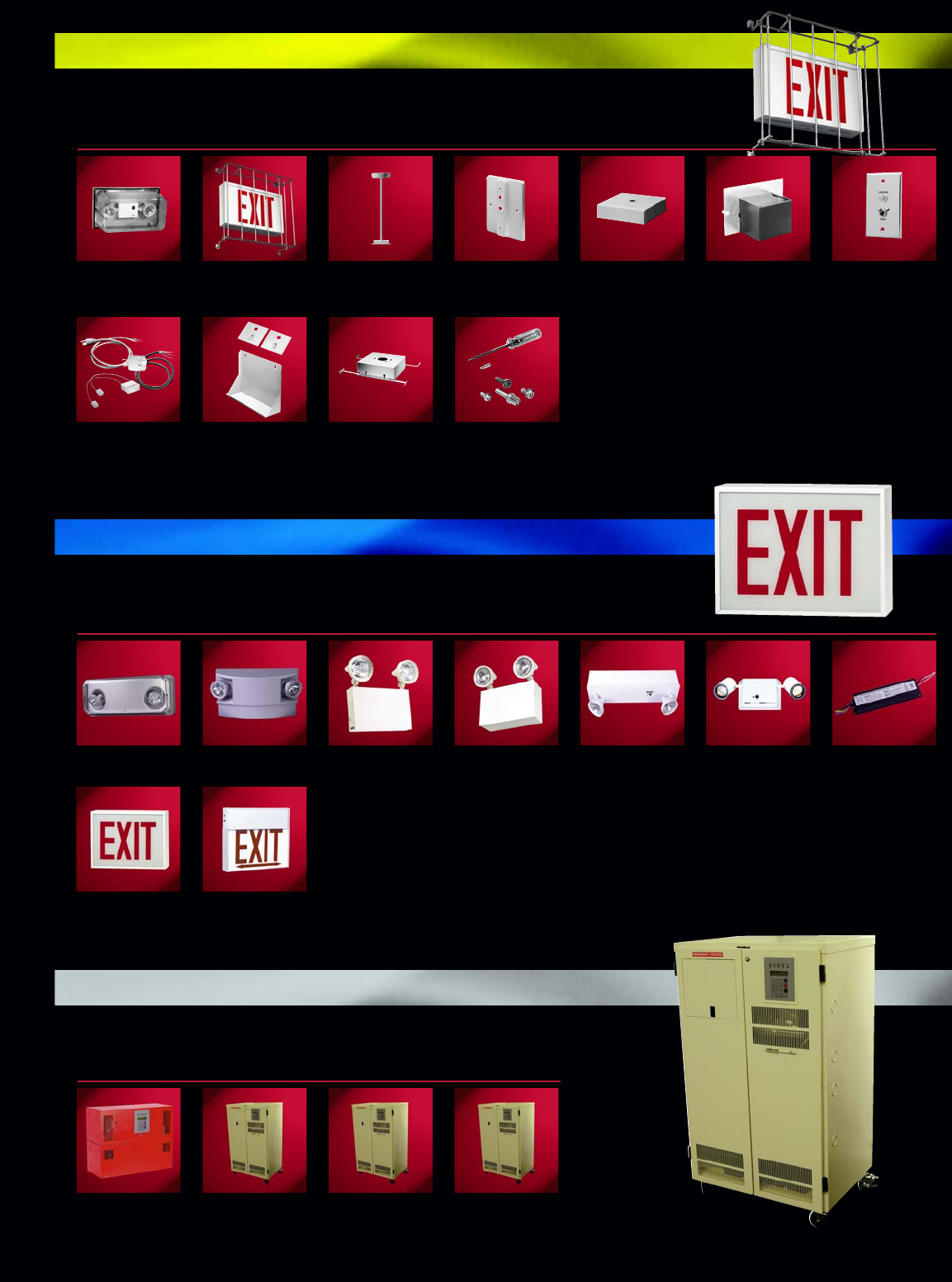

RETROFIT

< TABLE OF CONTENTS >

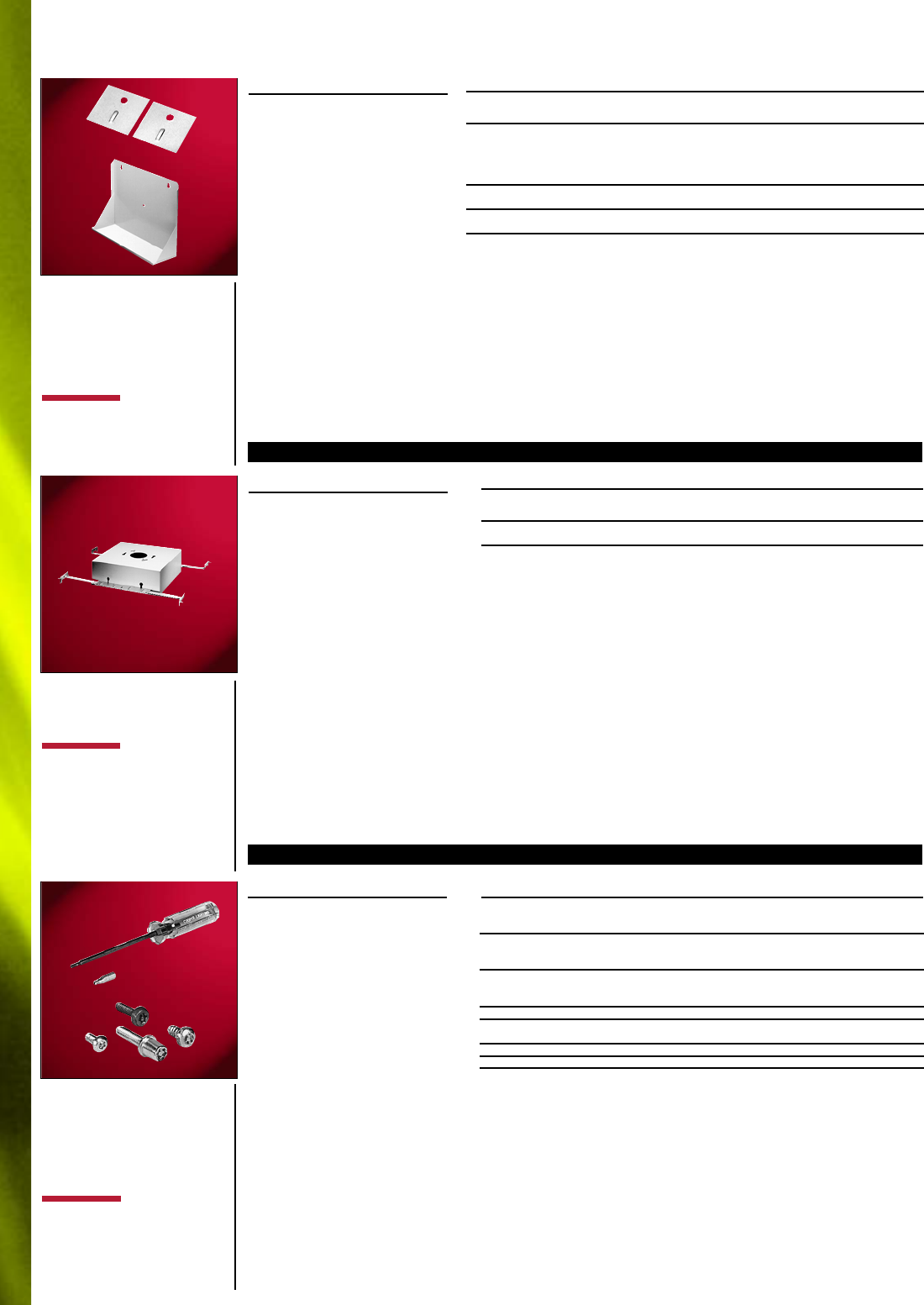

ACCESSORIES

Cord Sets Mounting Brackets, Recessing Kits Tamper Proof Screws

p. 85 Mounting Shelves p. 86 & Screwdriver Bits

p. 86 p. 86

Polycarbonate Wire Guards Pendant Kits Canopy Kits CAX Series Splice Switching Remote Test Swith

Shield p. 83 p. 83, 84 p. 84 Box Accessories & Pilot Light

p. 83 p. 84 p. 85 p. 85

< TABLE OF CONTENTS >

CHICAGO CODE

CHX Series EAC Series

p. 94 p. 96

UEL Series CHEL Series XR Series HR Series GC Series ST1 Series FBP Series

p. 87 p. 88 p. 89 p. 90 p. 91 p. 92 p. 93

LIGHTING INVERTERS

Micro Inverter SeriesLifeway II Single Lifeway II Single Lifeway II Three

p. 98 Phase IPS Series Phase C Series Phase Series

p. 99 p. 100 p. 101

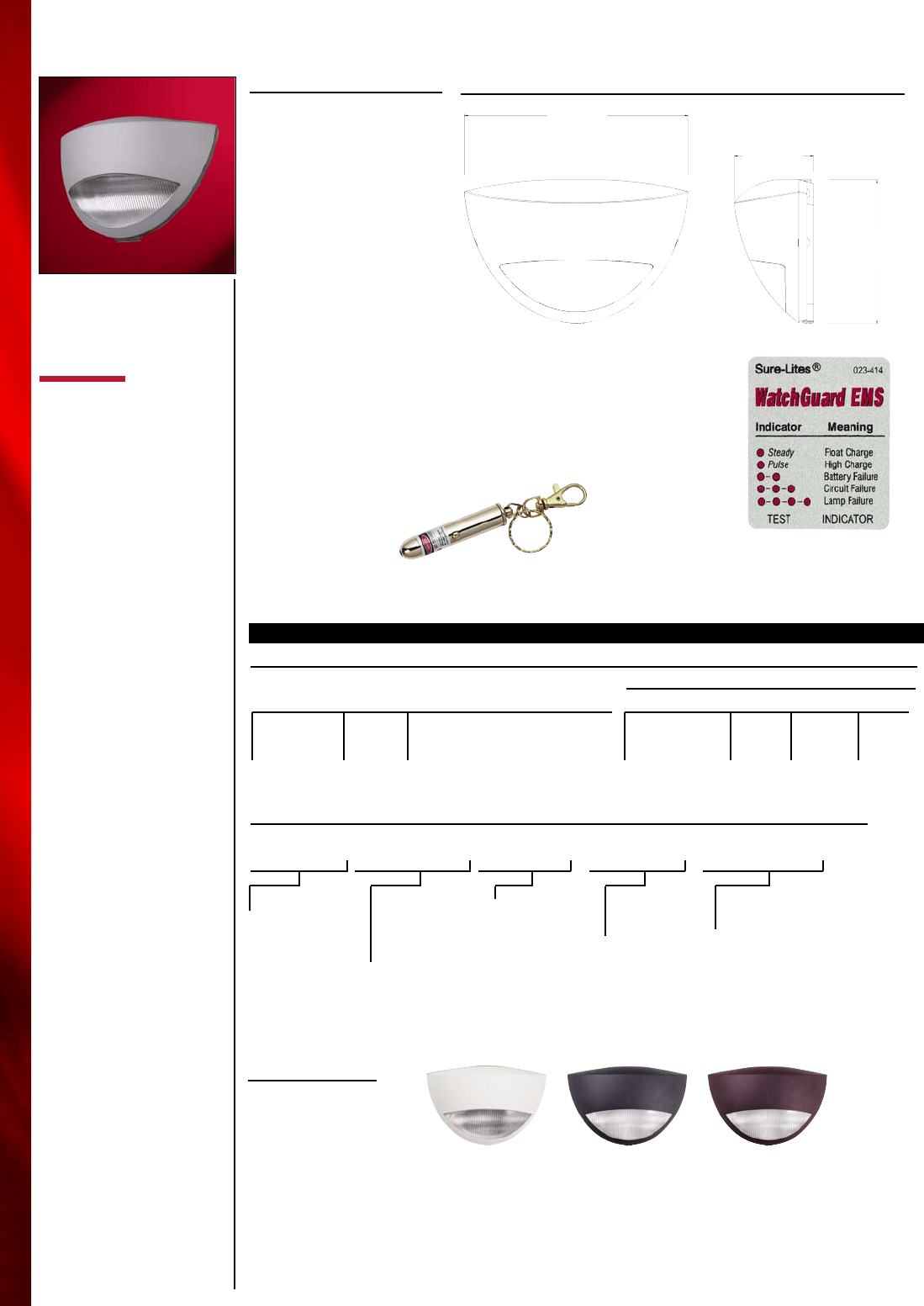

8

EMERGENCY LIGHTS > Architectural

SURE-LITES®

COOPER LIGHTING

ARCHITECTURAL

EMERGENCY

LIGHT SERIES

DIE CAST ALUMINUM

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> Die cast aluminum housing

with powder coat finish

> Three 6V, 6W High output

Xenon lamps

> Sealed Nickel Cadmium

Battery Maintenance Free,

Long Life, Full Recharge

time, 24 Hours

> Watchguard EMS

Self-Diagnostic System

> Photocell Test Switch

(requires accessory LASER

for activation)

> Universal Pattern

Knockouts on rear of

housing for direct

mounting to junction box

> UV Stable Polycarbonate

Lens

> Line-Latching, Solid-state

Voltage Limited Charger,

Low-Voltage Disconnect,

Brownout Circuit,

Overload/Short Circuit

Protection, Test

Switch/Power Indicator

Light

> UL Outdoor Wet/Damp

Location Listed

> UL 924 Listed Self-

Diagnostics, Life Safety

NFPA 101, NEC/OSHA, Most

State and Local Codes

E N E R G Y D ATA

AEL1SD

Input Current (Max.)

120V = .10A

277V = .07A

DIMENSIONS

DESCRIPTION

The Architectural Emergency

Light is designed to provide supe-

rior illumination while blending

into the surrounding space. The

housing is constructed of die cast

aluminum with an integral refrac-

tive polycarbonate lens. The

emergency light’s advanced opti-

cal design in conjunction with

high output Xenon lamps provide

maximum path of egress lighting

performance. The Sure-Lites

Architectural Emergency Light is

listed for temperatures between -

20°C and 40°C (-4°F and 104°F)

and has silicone gaskets that pro-

vide protection from moisture

and rain. [Remote unit tempera-

ture range: -40°C and 65°C (-40°F

and 149°F)] Standard features

include Watchguard EMS self-

diagnostic system which meets

NFPA 101 testing requirements

and a FasTest photocell which

enables remote testing of the

emergency light.

Family

AEL1=Architectural

Emergency

Light

ORDERING INFORMATION

SAMPLE NUMBER: AEL1SD

Housing

Finishes

Blank=Silver

BK=Black

BZ=Bronze

WH=White

SD=Self Diagnostics

(Standard)

SD

Options

TDM=Time Delay

Monitor

Remote=Remote

Unit

Accessories

(order separately)

LASER=Key Chain, Red Laser

Pointer (activation test-

ed at 15 feet)

10 7/8”

[276.23mm]

3 7/8”

[98.43mm]

7”

[177.8mm]

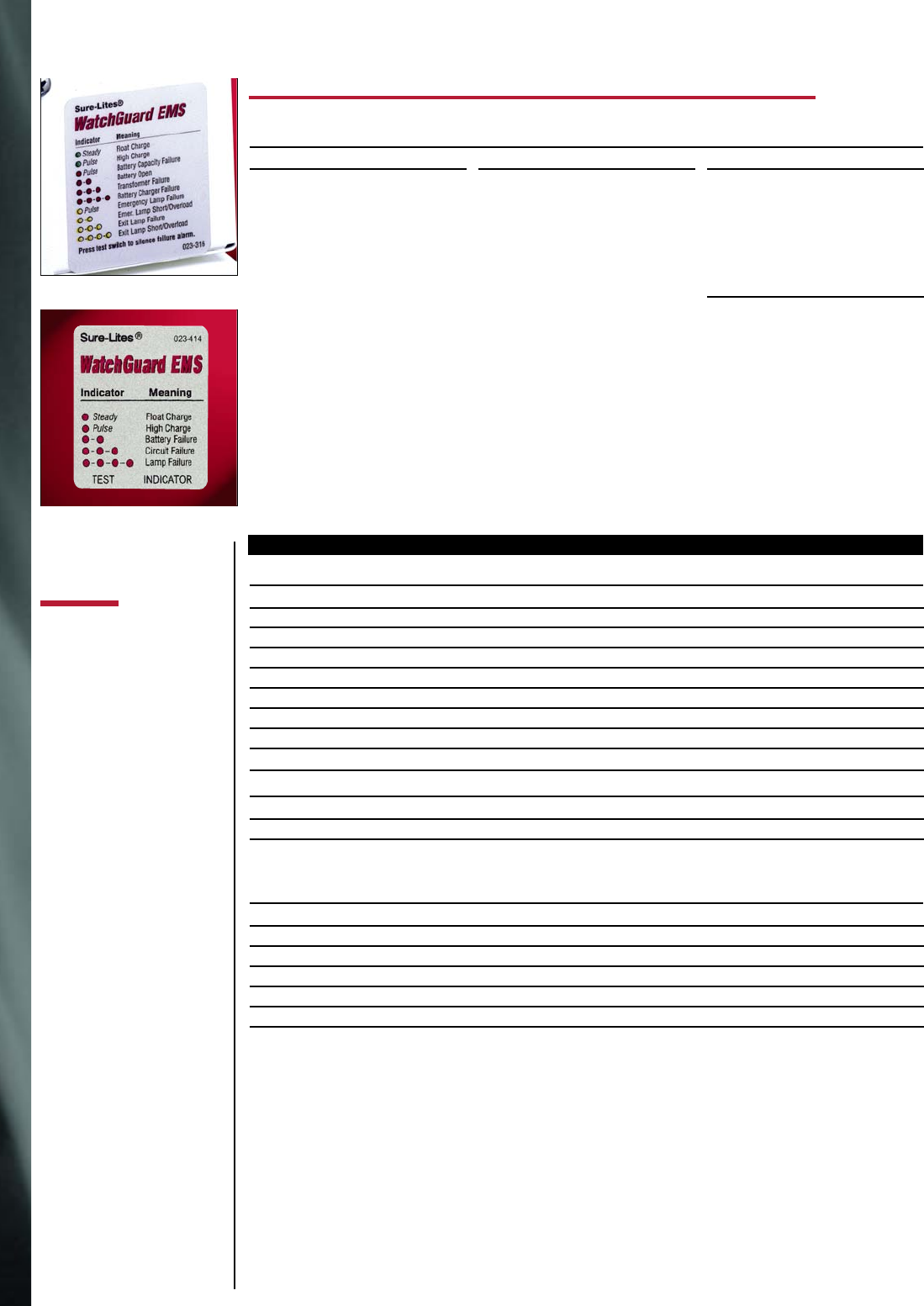

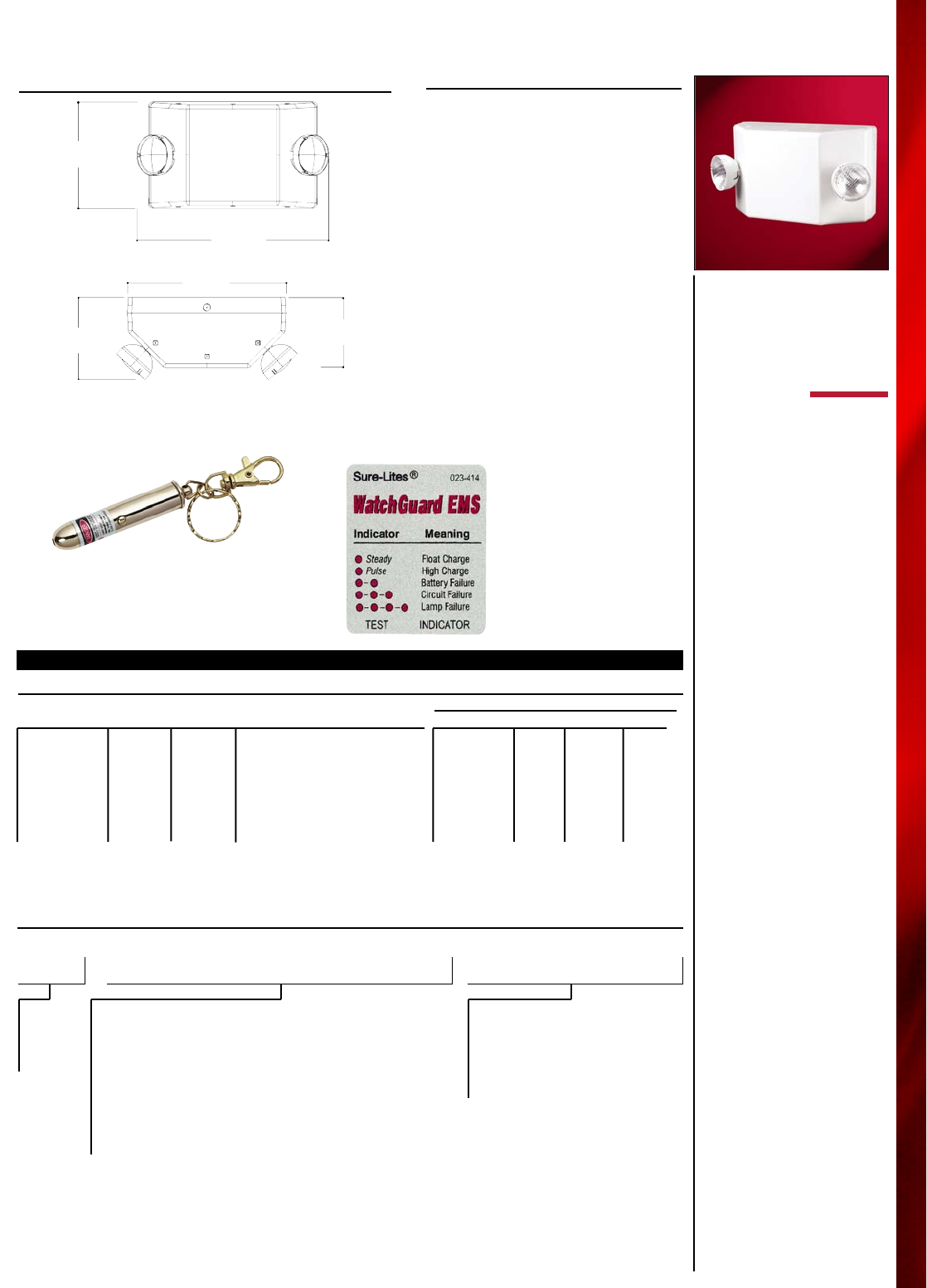

Self-Diagnostics

The self-diagnostic unit will automatically perform the

tests required by the NFPA 101 Life Safety Code. The

system indicates the status of the unit at all times using

an LED indicator that is located near the test switch.

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours

AEL1SD 6 18

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number Spacing1

Xenon 6 each 11549423 30.0'

1The "Rule of Thumb" spacing guidelines are designed to achieve 1 foot-candle average and 0.1 foot-candle minimum with a 40:1 maxi-

mum/minimum ratio. The corridor used is 100 feet long, 9 foot ceiling with a 6 foot wide walkway and 3 foot path of egress.

The reflectances are 80% ceiling, 50% walls and 20% floors. The fixture mounting height is 8.5 feet. Cooper Lighting assumes no responsibility

for local requirements or specific project variables. This is a guideline to be used as a design aid, not as guarantee of any code compliance.

AEL1WHSD AEL1BKSD AEL1BZSD

AEL1

Verify proper operation of the

transfer circuit and emergency

lamps with a convenient laser

pointer (sold as an accessory).

SURE-LITES®

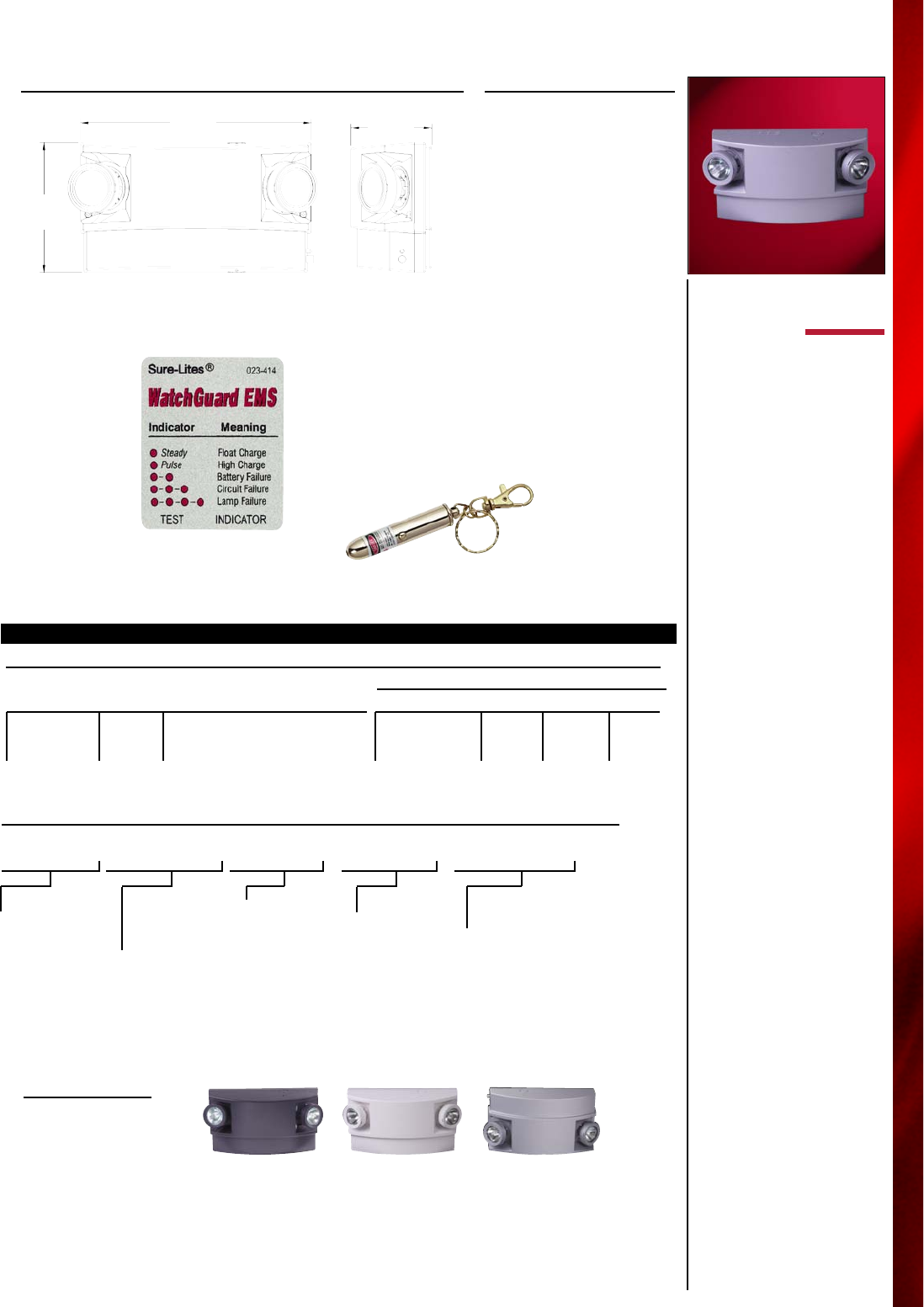

9

COOPER LIGHTING

EMERGENCY LIGHTS > Architectural

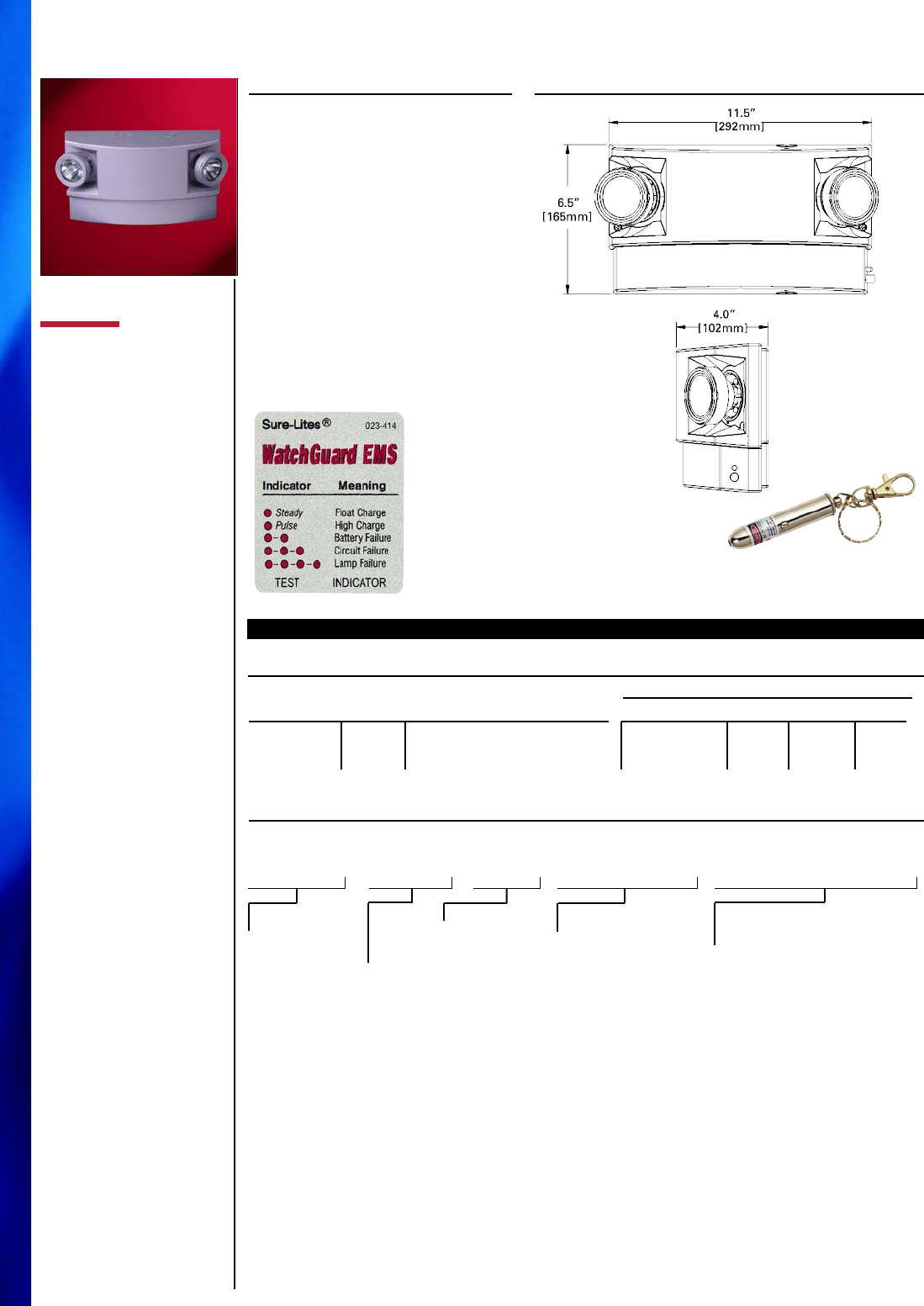

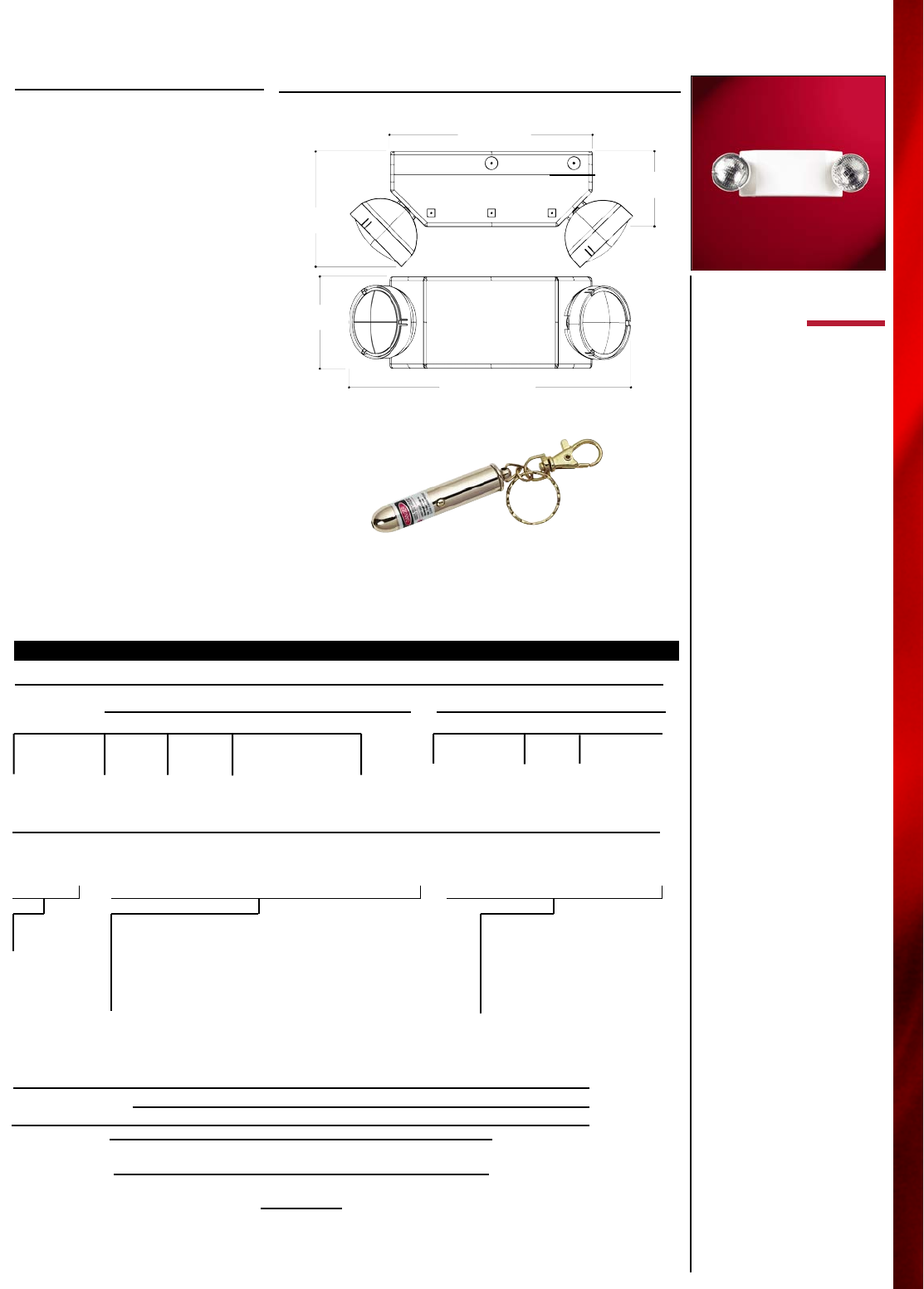

CHEL SERIES

DIE CAST ALUMINUM

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> Die cast aluminum

housing with powder

coat finish

> Two Fully adjustable heads

with 6V, 12W MR16 lamps

> Sealed Lead Calcium

Battery Maintenance Free,

Long Life, Full Recharge

time, 24 Hours

> Watchguard EMS Self-

Diagnostic System

> Remote Photocell Test

Switch (requires accessory

LASER for activation)

> Universal Pattern

Knockouts on rear of

housing for direct

mounting to junction box

> Snap Fit Design

> Reversible Mounting

> Line-Latching, Solid-state

Voltage Limited Charger,

Low-Voltage Disconnect,

Brownout Circuit,

Overload/Short Circuit

Protection, Test

Switch/Power Indicator

Light

> UL Damp Location Listed

> UL 924 Listed Self-

Diagnostics, Life Safety

NFPA 101, NEC/OSHA,

Most State and Local

Codes

Self-Diagnostics

The self-diagnostic unit will automatically perform the

tests required by the NFPA 101 Life Safety Code. The

system indicates the status of the unit at all times using

an LED indicator that is located near the test switch.

DESCRIPTION

The CHEL Emergency Light

provides a distinct solution

to any emergency lighting

application. Constructed of die

cast aluminum, the CHEL

presents not only a unique

shape and design but also

provides dependable strength

and durability. The two, fully

adjustable, high efficiency

12W, MR16 lamps provide

maximum path of egress

performance. The standard

Watchguard EMS self-diag-

nostic system meets NFPA 101

testing requirements provid-

ing assurance that the unit is

working properly at all times.

The Sure-Lites FASTEST

LASER test feature allows

remote, 30 second testing of

the emergency light.

DIMENSIONS

E N E R G Y D ATA

CHEL1SD

Input Current (Max.)

120V = .05A

277V = .02A

Family

CHEL1=Architectural

Emergency

Light

ORDERING INFORMATION

SAMPLE NUMBER: CHEL1SD

Housing

Finishes

Blank=Silver

BK=Black

WH=White

SD=Self Diagnostics

(Standard)

SD

Options

TDM=Time Delay

Monitor

Accessories

(order separately)

LASER=Key Chain, Red Laser

Pointer (activation test-

ed at 30 feet)

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours

CHEL1SD 6 24

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number Spacing1

MR16 12 29-140 50.0'

1The "Rule of Thumb" spacing guidelines are designed to achieve 1 foot-candle average and 0.1 foot-candle minimum with a 40:1 maxi-

mum/minimum ratio. The corridor used is 100 feet long, 9 foot ceiling with a 6 foot wide walkway and 3 foot path of egress.

The reflectances are 80% ceiling, 50% walls and 20% floors. The fixture mounting height is 7.5 feet. Cooper Lighting assumes no responsibility

for local requirements or specific project variables. This is a guideline to be used as a design aid, not as guarantee of any code compliance.

CHEL1BKSD CHEL1WHSD CHEL1SD

(Reverse Mounted)

6.5”

[165mm]

11.5”

[292mm]

4.0”

[102mm]

CHEL1

Verify proper operation of the

transfer circuit and emergency

lamps with a convenient laser

pointer (sold as an accessory).

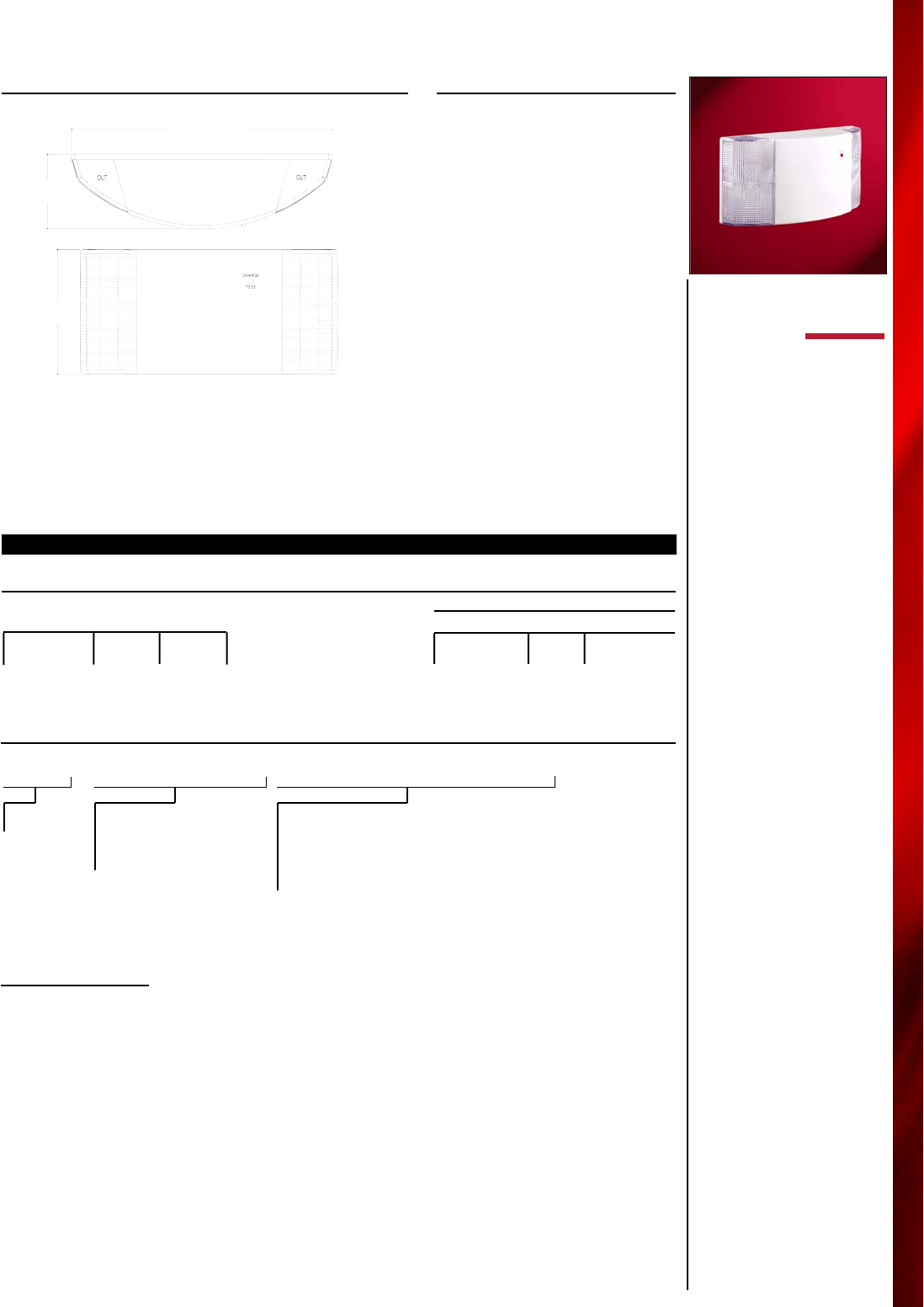

10

EMERGENCY LIGHTS > Architectural

SURE-LITES®

COOPER LIGHTING

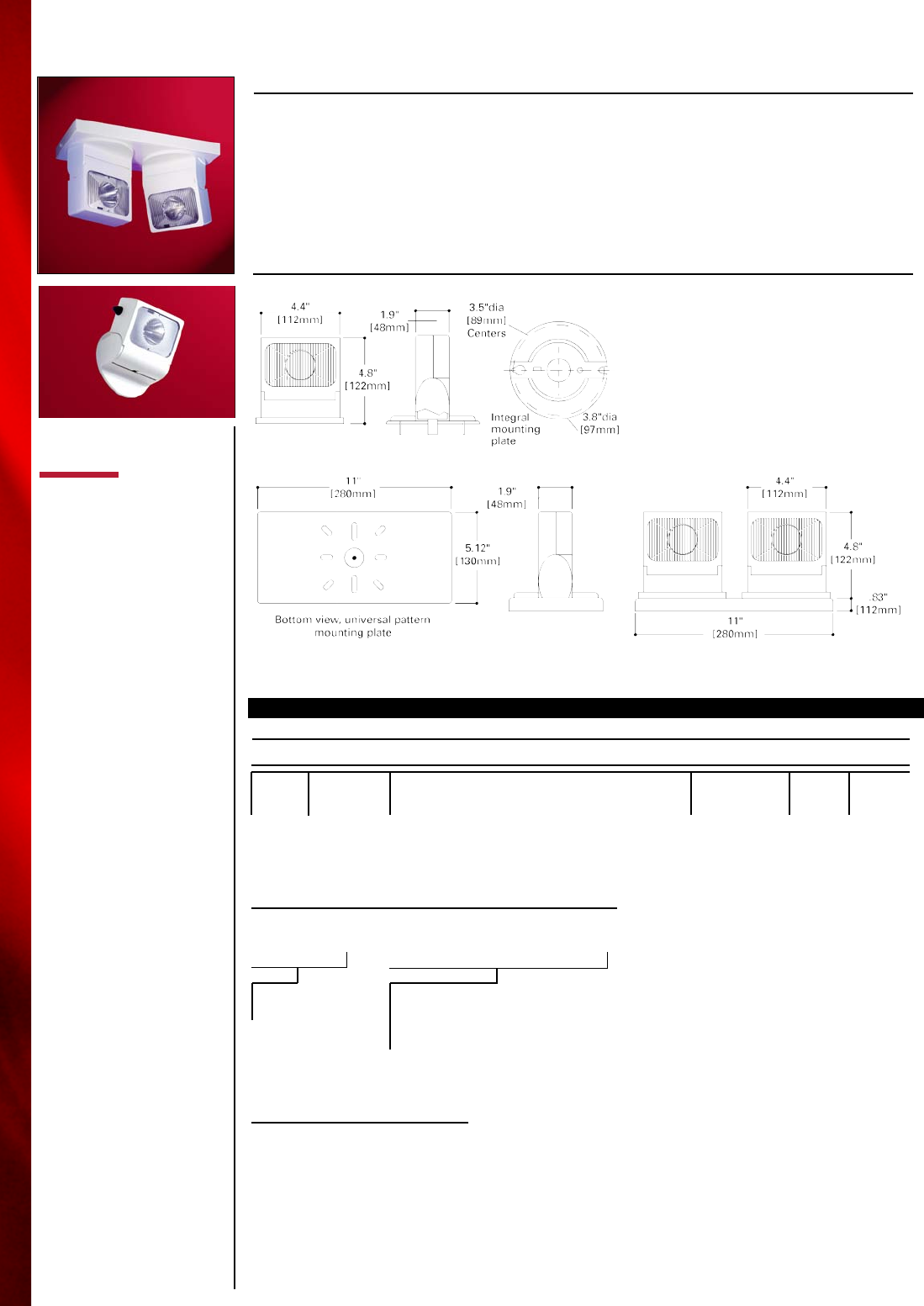

MML SERIES

METROLITE

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> Injection-Molded, High-

Impact, Thermoplastic

Housing, Rated UL 94-5VA,

Designer-White Textured

Finish, Integral Mounting

Plate

> Glare Free Lens, Fully

Adjustable, Halogen

Lamps

> Sealed Lead Calcium

Battery Maintenance Free,

Long Life, Full Recharge

time, 24 Hours (max.)

> Line-Latching,

Low-Voltage Disconnect,

Test Switch, AC Power

Indicator, Brownout Circuit

> UL 924, Life Safety NFPA

101, NEC/OSHA, Most

State and Local Codes

DIMENSIONS

DESCRIPTION

The Metrolite MML Series has a sculptured and compact appearance that makes it perfect for quality

interior applications. The self-contained, feature rich design packs a powerful punch with its super-

bright halogen lamp and precision optics. The integral mounting plate makes installation fast and

easy.

Rated Wattage to 87 1/2 % of Rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 Hours Type Wattage Number

MML1 4 4.8 Tungsten Halogen 4.8W L010777

MML2 4 9.6 Tungsten Halogen 4.8W ea L010777

ORDERING INFORMATION

ELECTRICAL RATINGS

Model Number

MML1

MML2

SAMPLE NUMBER: MML1

Accessories

(Order separately)

VS1 = Polycarbonate Vandal Shield

WG8 = Wire Guard MML1

WG9 = Wire Guard MML2

E N E R G Y D ATA

Input Current (Max.)

MML1

120V = .037A

277V = .019A

MML2

120V = .074A

277V = .038A

SURE-LITES®

11

COOPER LIGHTING

EMERGENCY LIGHTS > Architectural

ML SERIES

METROLITE

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> Injection-Molded, High-

Impact, Thermoplastic

Housing, Rated UL 94-5VA,

Designer-White Textured

Finish, Integral Mounting

Plate

> Glare Free Lens, Fully

Adjustable, Halogen

Lamps

> Sealed Lead Calcium or

Nickel Cadmium Battery

Maintenance Free, Long

Life, Full Recharge time,

24 Hours (max.)

> Line-Latching,

Low-Voltage Disconnect,

Test Switch, AC Power

Indicator, Brownout Circuit

> Red LED High Charge

Indicator, Amber LED AC

Power Indicator

> UL 924, Life Safety NFPA

101, NEC/OSHA, Most

State and Local Codes

DIMENSIONS

DESCRIPTION

The Metrolite ML Series is the right choice for installations where aesthetics are a priority. With its

white finish and sculptured compact design the product blends in with the surroundings. Matching

remotes are available to insure a consistent appearance. The pleasing look is accompanied by a fea-

ture rich design that provides fully adjustable heads with high efficiency halogen lamps making it

easy to direct ample light to the required areas. Each unit employs a quick mount universal back with

hinged access for hassle free installation.

Rated Wattage to 87 1/2 % of Rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 Hours Remote Wattage Available Type Wattage Number

ML1 6 25 0 Bi-Pin Halogen 12W ea 029-66

ML2 6 50 26 Bi-Pin Halogen 12W ea 029-66

ML3 12 50 26 Bi-Pin Halogen 12W ea 029-45

ML4NC 6 14 0 Bi-Pin Halogen 6W ea 029-12

ML5NC 12 28 0 Bi-Pin Halogen 12W ea 029-45

E N E R G Y D ATA

Input Current (Max.)

ML1, ML2, ML3

120V = .3A

277V = .1A

ML4NC, ML5NC

120V = .085A

277V = .035A

ORDERING INFORMATION

ELECTRICAL RATINGS

Model Number

ML1

ML2

ML3

ML4NC1

ML5NC1

Options (add as suffix)

V= Voltmeter

TDM= Time Delay Monitor

Alternate Lamps2

Accessories

(Order separately)

VS1 = Polycarbonate Vandal Shield

WG12 = Wire Guard

SAMPLE NUMBER: ML1

1NC = Nickel Cadmium Battery. 2Consult your Cooper Lighting Representative.

12

EMERGENCY LIGHTS > Architectural

SURE-LITES®

COOPER LIGHTING

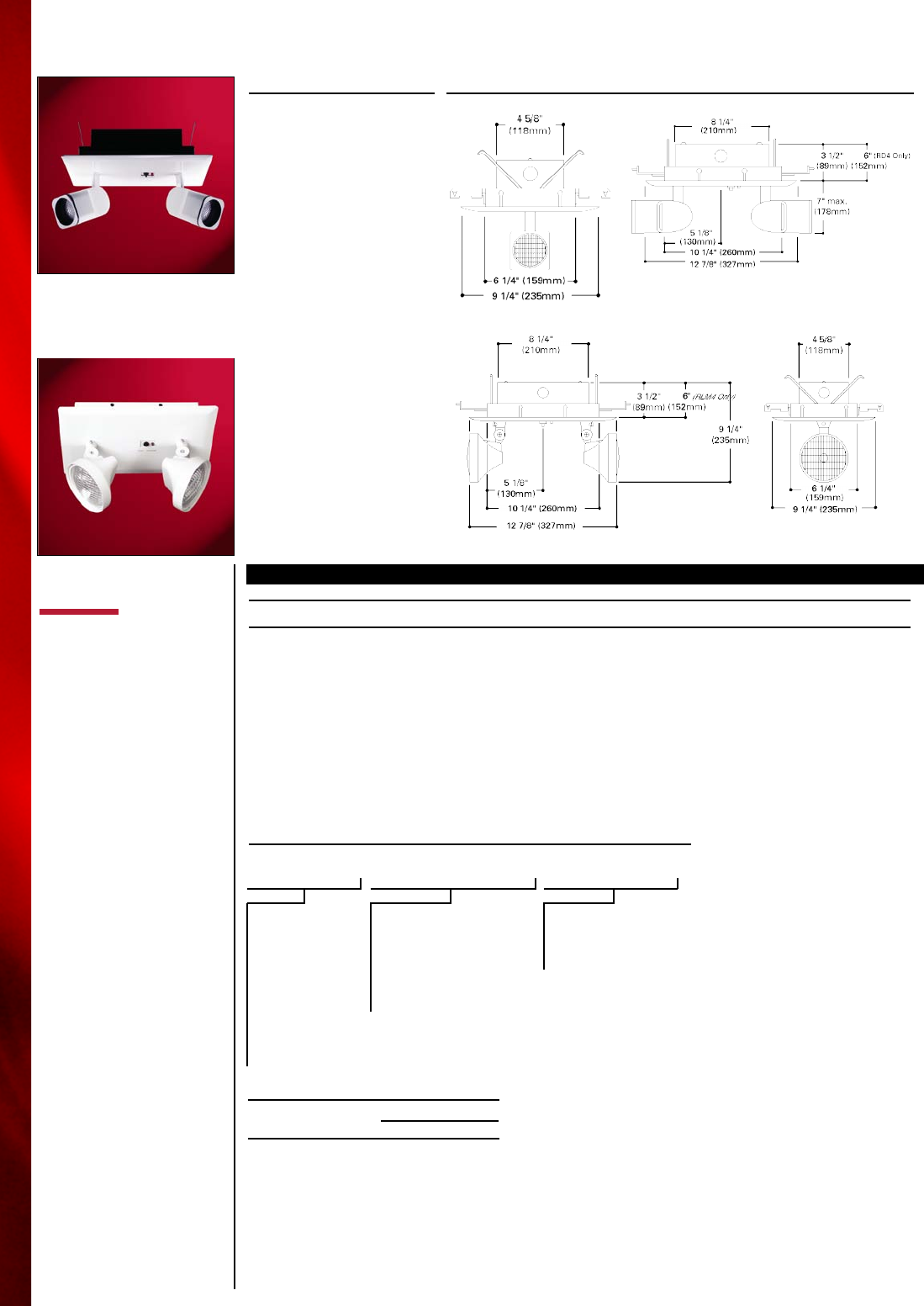

RD SERIES

Two Injection Molded

Thermoplastic Heads

RLM SERIES

Two High-Impact

Thermoplastic Heads

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> 20 gauge die-formed

steel housing with white

powder coat finish

> Heads match housing

finish

> Ceiling or wall mounting

> Supplied with hanger bars,

T-Bar clips

> Single modular electrical

connector

> Remote capability

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low- voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test switch/

power indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

1Provision for one meter only. 2Consult your Cooper Lighting Representative.

DIMENSIONS

DESCRIPTION

The RD Series is a recessed

emergency lighting system

designed for locations

where aesthetics are of

utmost importance. The

housing is fully recessed in

dry wall or grid ceiling

installations. Designer

pinchback heads rotate 358°

and swivel 90° to 0°. Ideal

for commercial and institu-

tional environments where

easy recessed installation

and minimal maintenance

are desired.

The RLM Series is a

recessed system packaged

in an attractive flame-resist-

ant metal housing. It is the

unit of choice for installa-

tions where a recessed

product is desired and the

size and cost of emergency

lighting must be kept to a

minimum without sacrificing

dependability or light out-

put.

RD1 SLC 6 18 15 10 8 Tungsten Halogen 6 29-12

RD3 SLC 6 27 24 18 14 Tungsten Halogen 12 29-66

RD4 SLC 12 54 - - - Incandescent 9 029-86

RD6 SNC 6 15 12 8 6 Tungsten Halogen 6 29-12

RD7 SNC 6 24 18 12 10 Tungsten Halogen 12 29-66

RLM1 SLC 6 10.8 7.2 - - Incandescent 5.4 29-121

RLM2 SLC 6 18 15 10 8 Incandescent 9 29-84

RLM3 SLC 6 27 24 18 14 Incandescent 9 29-84

RLM4 SLC 12 54 - - - Incandescent 9 029-86

RLM8 SNC 6 15 12 8 - Incandescent 7.2 29-88

RLM9 SNC 6 24 18 12 10 Incandescent 7.2 29-88

ORDERING INFORMATION

SAMPLE NUMBER: RD1V

Options

(Add as suffix)

A=Ammeter1

SD=Self-Diagnostics

TDM=Time Delay Monitor

V=Voltmeter1

Alternate Lamps2

Other Options2

Model Number

RD1

RD3

RD4

RD6

RD7

RLM1

RLM2

RLM3

RLM4

RLM8

RLM9

Accessories

(Order separately)

WG2 =Wire Guard

WG7 =Wire Guard

VS=Choose polycarbonate

vandal shield desired

from accessories

sheet

Energy Data

Input Current (Max.):

Model No. 120V 277V

RD1, RD3 .12A .05A

RD4, RLM4 .30A .13A

RD6 .06A .03A

RD7 .07A .04A

RLM1, RLM2, RLM3 .12A .05A

RLM8 .06A .03A

RLM9 .07A .04A

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model Battery DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage Number

SLC=Sealed Lead Calcium Battery

SNC=Sealed Nickel Cadmium Battery

SURE-LITES®

13

COOPER LIGHTING

EMERGENCY LIGHTS > Architectural

GC SERIES

Recessed Housing

Suspended Ceiling

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> 20 gauge die-formed

steel housing with white

powder coat finish

> Two high-impact, fully

adjustable thermoplastic

heads

> Flanged for mounting in

grid-type suspended

ceilings

> Above ceiling access

required for maintenance

> Single modular electrical

connector

> Remote Capability

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low- voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

DIMENSIONS

E n e rg y D a t a

Input Current (Max.):

Model No. 120V 277V

GC15012, GC15022, GC15032 .12A .05A

GC15042, GC15052 .30A .13A

GC15122 .06A .03A

GC15132 .07A .04A

GC15142 .08A .05A

GC15172 .13A .06A

GC15182 .15A .07A

Options

(Add as suffix)

A=Ammeter

CL=Cylinder Heads

DR=Halogen Pinchback Designer

Heads

SD=Self-Diagnostics (GC15012,

GC15042, GC15052,

GC15122, GC15132,

GC15172, GC15182, Only)

TDM=Time Delay Monitor

V=Voltmeter

Alternate Lamps1

Other Options1

GC15012 SLC 6 27 24 18 14 Incandescent 9 29-84

GC15022 SLC 6 54 48 36 28 Incandescent 9 29-84

GC15032 SLC 6 85 66 50 40 Incandescent 9 29-84

GC15042 SLC 12 36 30 20 16 Incandescent 9 29-86

GC15052 SLC 12 54 48 36 28 Incandescent 9 29-86

GC15122 SNC 6 15 12 8 6 Incandescent 7.2 29-88

GC15132 SNC 6 24 18 12 10 Incandescent 7.2 29-88

GC15142 SNC 6 48 36 24 20 Incandescent 7.2 29-88

GC15172 SNC 12 30 24 16 12 Incandescent 9 29-86

GC15182 SNC 12 48 36 24 20 Incandescent 9 29-86

ORDERING INFORMATION

SAMPLE NUMBER: GC15012CL

Model Number

GC15012

GC15022

GC15032

GC15042

GC15052

GC15122

GC15132

GC15142

GC15172

GC15182

Accessories

(Order separately)

VK1 =Voltmeter

WG12 =Wire Guard

WG17 =Wire Guard for use

with CL heads

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model Battery DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage Number

SLC=Sealed Lead Calcium Battery

SNC=Sealed Nickel Cadmium Battery

1Consult your Cooper Lighting Representative.

DESCRIPTION

The GC Series combines a

clean, sleek, contemporary

appearance with state-of-the-art

electronics. Specifically

designed for initial and retrofit

installations where a recessed

unit is desired to maximize aes-

thetics. The unit is ideal for

locations with limited wall

space and where panoramic

positioning is necessary for the

ceiling mounted lampholders to

provide proper light distribu-

tion. Ideal for stores, offices,

hospitals and school corridors.

14

EMERGENCY LIGHTS > Architectural

SURE-LITES®

COOPER LIGHTING

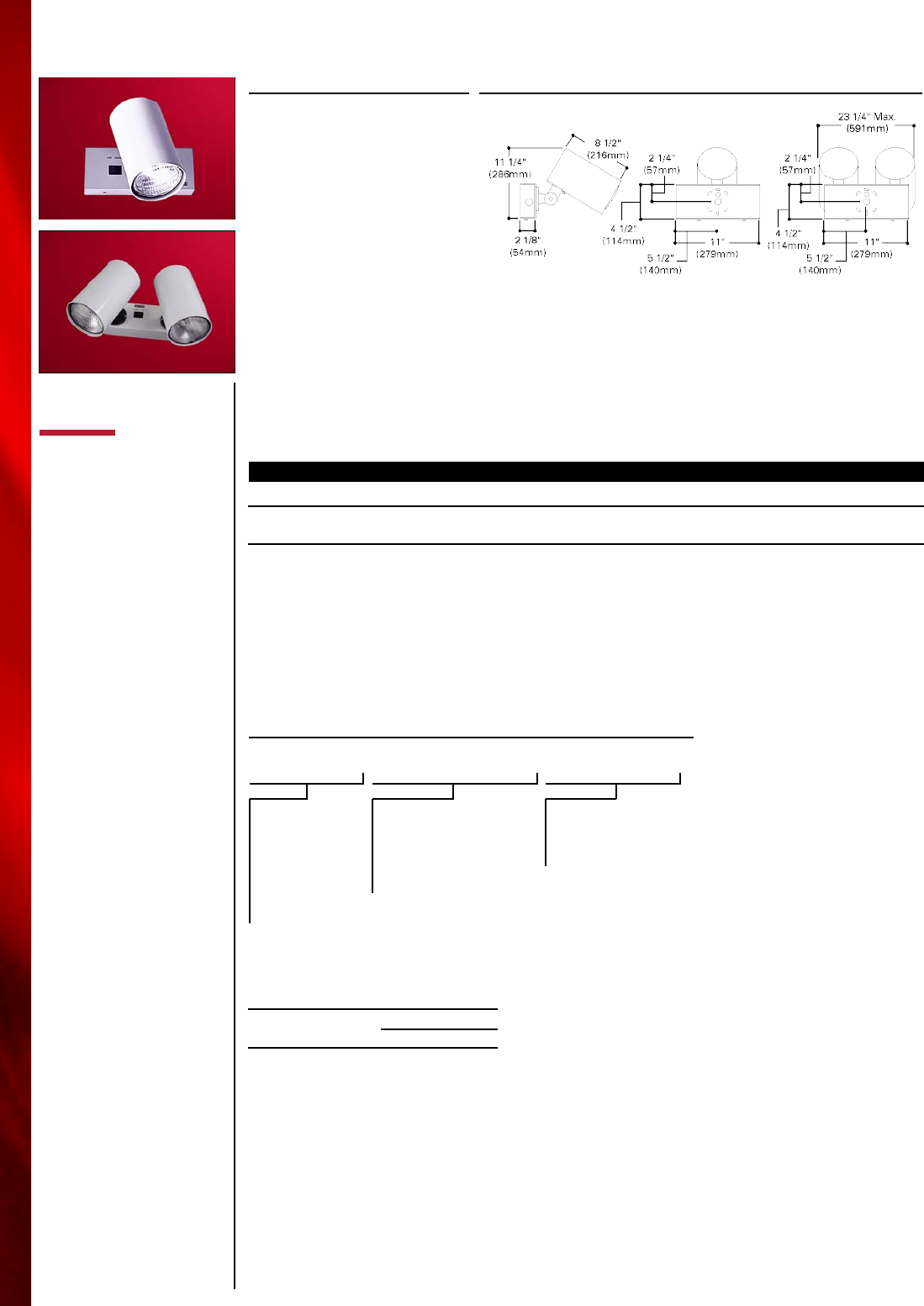

SLC SERIES

Large Cylinder Head(s)

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> 18 gauge die formed

steel housing with white

powder coat finish

> Single or double front

mounted white

thermoplastic fully

adjustable heads with

glare free lens

> Remote capability

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test

switch/power indicator

light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

1Consult your Cooper Lighting Representative. 2Provision for one meter only.

DIMENSIONS

DESCRIPTION

The SLC Series is a solid-state,

self-contained emergency lighting

system. The architecturally

designed heads blend perfectly

with the most sophisticated decor.

ORDERING INFORMATION

SAMPLE NUMBER: SLC1V

SLC1 SLC 1 6 10.8 7.2 - - Incandescent 9 29-84

SLC1H SLC 1 6 27 24 18 14 Incandescent 9 29-84

SLC2 SLC 2 6 18 15 10 8 Incandescent 9 29-84

SLC2H SLC 2 6 54 48 36 28 Incandescent 9 29-84

SLC120 SNC 1 6 8 - - - Incandescent 7.2 29-88

SLC120H SNC 1 6 24 18 14 10 Incandescent 7.2 29-88

SLC220 SNC 2 6 15 12 8 6 Incandescent 7.2 29-88

SLC220H SNC 2 6 48 36 28 20 Incandescent 7.2 29-88

ELECTRICAL RATINGS - SEALED LEAD CALCIUM BATTERY

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model Battery No. of Heads DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage Number

Energy Data

Input Current (Max.):

Model No. 120V 277V

SLC1 .08A .04A

SLC1H, SLC2, SLC2H .12A .05A

SLC120 .05A .03A

SLC120H .07A .04A

SLC220 .06A .03A

SLC220H .08A .05A

Model Number

SLC1

SLC1H

SLC2

SLC2H

SLC120

SLC120H

SLC220

SLC220H

Options

(Add as suffix)

A=Ammeter2

TDM=Time Delay Monitor

V=Voltmeter2

Alternate Lamps1

Other Options1

Accessories

(Order separately)

WG5=Wire Guard

(1 Head)

WG6=Wire Guard

(2 Heads)

SLC=Sealed Lead Calcium Battery

SNC=Sealed Nickel Cadmium Battery

SURE-LITES®

15

COOPER LIGHTING

EMERGENCY LIGHTS > Architectural

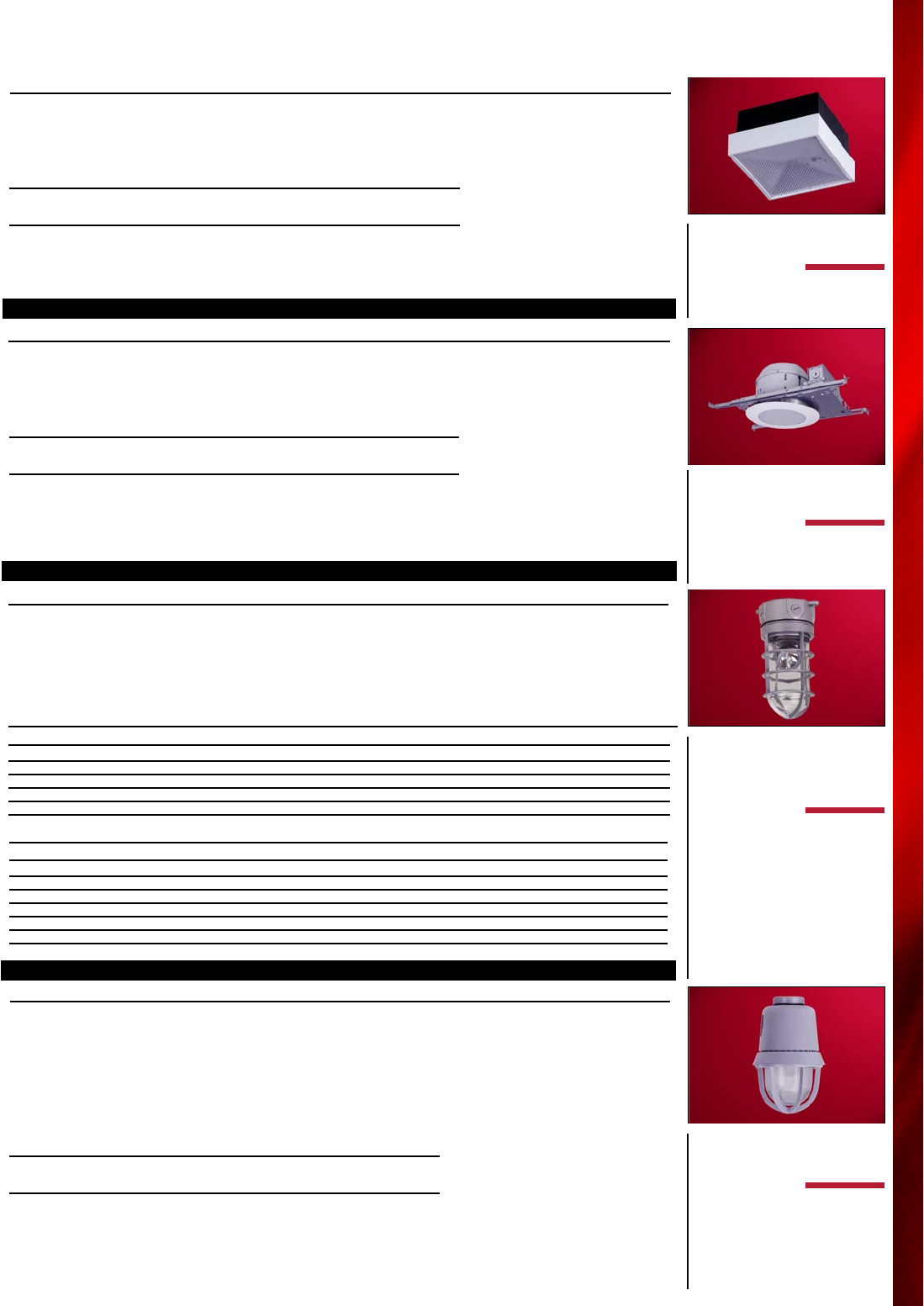

P4C SERIES

Decorative Square

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> Black thermoplastic body

with white plastic collar

and reflector

> High-impact acrylic lens

with test switch behind

flexible lens

> Universal J-Box mounting

pattern with 1/2” conduit

knockouts

> Surface mounting,

recessed or semi-recessed

> Wall or Ceiling mounting

> Remote capability

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching, low-

voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

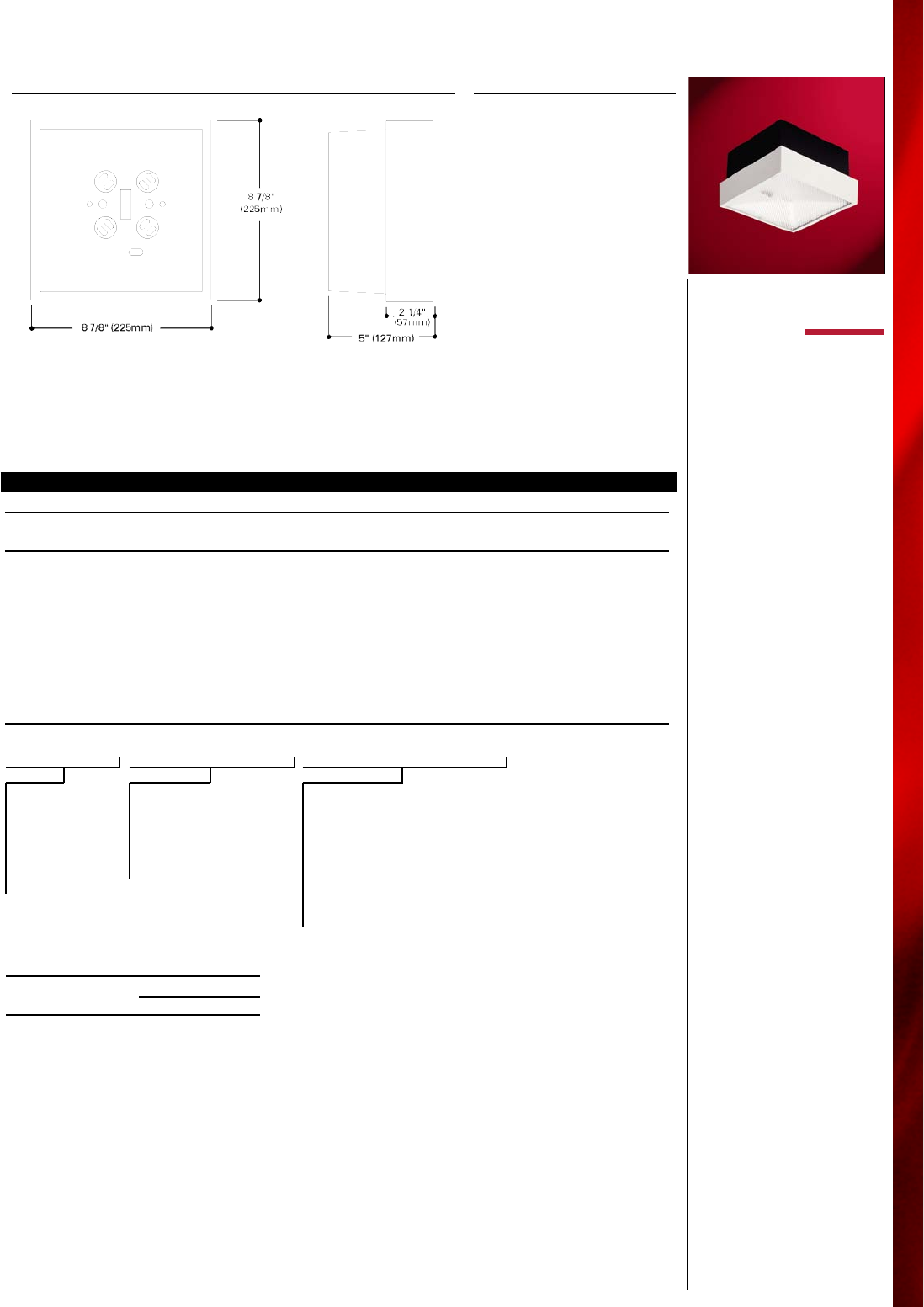

DIMENSIONS DESCRIPTION

The P4C Series is a decorative,

mini-system that features

solid-state electronics and a

long-life maintenance free

battery. It is designed for

surface mounting but may be

semi-recessed or fully recessed

by using a field-installed

recessed kit. The diffused

tungsten halogen light source

and reliable electronics make

the P4C Series ideal for

illuminating corridors, stair-

ways, doorways, and offices.

Options

(Add as suffix)

PCL=Polycarbonate Lens

TDM=Time Delay Monitor

V=Voltmeter2

A=Ammeter2

Other Options1

Model Number

P4C1

P4C2

P4C22

P4C3

P4C6

P4C7

P4C72

Accessories

(Order separately)

WG7 =Wire Guard

USF1=Rough-in Kit for semi-recessed

installation 8 1/4"L x 8 1/4"W x 2 7/8"D

(210mm x 210mm x 73mm)

FRK1=Rough-in Kit for fully recessed

installation 9 1/8"L x 9 1/8"W x 5 1/8"D

(232mm x 232mm x 130mm)

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield -

Weatherproof

E n e rg y D a t a

Input Current (Max.):

Model No. 120V 277V

P4C1, P4C2, P4C22, P4C3 .12A .05A

P4C6 .06A .03A

P4C7, P4C72 .07A .04A

P4C1 SLC 6 10.8 7.2 - - Bi-Pin Halogen 10 29-40

P4C2 SLC 6 27 24 18 14 Bi-Pin Halogen 10 29-40

P4C223 SLC 6 27 24 18 14 Bi-Pin Halogen 10 29-40

P4C3 SLC 6 54 48 36 28 Bi-Pin Halogen 10 29-40

P4C6 SNC 6 15 12 8 6 Bi-Pin Halogen 10 29-40

P4C7 SNC 6 24 18 12 10 Bi-Pin Halogen 10 29-40

P4C723 SNC 6 24 18 12 10 Bi-Pin Halogen 10 29-40

ORDERING INFORMATION

SAMPLE NUMBER: P4C1PCL

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model Battery DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage Number

SLC=Sealed Lead Calcium Battery

SNC=Sealed Nickel Cadmium Battery

1Consult your Cooper Lighting Representative. 2Only one meter - not compatible with FRK-1. 3Twin Lamps.

16

EMERGENCY LIGHTS > Architectural

SURE-LITES®

COOPER LIGHTING

RG SERIES

Recessed Gimbal

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> Fixture illuminates upon

loss of AC power

(normally off)

> 20 gauge die-stamped

steel housing

> Polycarbonate lens

included

> Adjustable aiming angle

30°

> Hanger bars accommodate

24" spans and can be

rotated 90° on plaster

frame

> Conduit knockouts, four

1/2" and two 3/4"

> Trim ring, with integral test

switch, held in place with

torsion springs

> Standard white trim ring/

black gimbal ring

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low- voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test switch/

power indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

CSA Certified, most state

and local codes

> IC Rated

DIMENSIONS

DESCRIPTION

Perfect for commercial or

architectural applications

where the aesthetics of a fully

recessed unit are essential.

The slim profile of the RG

Series is ideal for low ceilings

and blends inconspicuously

with existing recessed installa-

tions. The gimbal mounted

lamp provides directional aim-

ing (optional white gimbal ring

offers the perfect blend for

suspended ceilings). The RG

Series combines a high output

sealed beam type lamp, sealed

lead calcium battery and full

feature Sure-Lites electronics.

ORDERING INFORMATION

SAMPLE NUMBER: RG1WH

Energy Data

Input Current (Max.):

Model No. 120V 277V

RG1 .12A .05A

RG2 .12A .05A

ELECTRICAL RATINGS - SEALED LEAD CALCIUM BATTERY

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage Number

RG1 6 10.8 7.2 - - Incandescent 9 29-84

RG2 6 27 24 - - Incandescent 25 29-09

Options

(Add as suffix)

BK=Black Trim Ring/Black

Gimbal Ring

WH=White Trim Ring/White

Gimbal Ring

Alternate Lamps1

Other Options1

Model Number

RG1

RG2

Accessories

(Order separately)

WG1=Wire Guard

1Consult your Cooper Lighting Representative.

SURE-LITES®

17

COOPER LIGHTING

EMERGENCY LIGHTS > Architectural

C7213EEMSL

Recessed/Fluorescent

EMERGENCY LIGHT

> Dual voltage input 120V

through 277VAC, 50/60 Hz

> Die cast aluminum 1 1/2"

deep collar

> One piece Alzak reflector

with spun parabolic

contour provides 55° cutoff

to lamp and lamp image

> All finishes are low

iridescent to eliminate

rainbowing

> Sealed nickel cadmium

battery

> Exclusive universal

mounting bracket

adjusts 5" vertically

> Junction box with 1/2"

and 3/4" pryouts, listed

for eight #12g 90°C

conductors

> Electronic ballasts have

integral fuse, >99% power

factor and <10%THD.

Electronic ballasts have

current controlled preheat

starting and End of Life

protection standard.

> Solid state voltage limited

charger, overload short

circuit protection, test

switch/power indicator

light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

DESCRIPTION

The C7213EEMSL wide beam downlight features a completely self-contained battery-operated emer-

gency lighting system utilizing energy saving compact fluorescent lamps. This unit provides inconspicu-

ous emergency lighting by blending with Portfolio downlights. It’s designed to provide normal illumina-

tion with AC power and 90 minutes of emergency lighting. The fixture may be installed in switched cir-

cuits. The battery charge indicator light and test switch are prewired to a quick connect modular plug

which also makes the final battery connection for energizing the circuit.

1For White Painted Flange (on self flanged reflectors) add WF to Reflector Finish.

2Accessories should be ordered separately. For additional options please consult your Cooper Lighting Representative.

ORDER HOUSING, TRIM AND ACCESSORIES SEPARATELY, LAMP SUPPLIED BY OTHERS

DIMENSIONS

DESCRIPTION

Aperture Size:

Lamp: 13W 4 Pin Quad

Lamp and Lamp Image Cutoff: 55°

Housing

C7213EEMSL=7 3/8" 13W

(2) Lamp

120V through 277V

Aperture: 7 3/8" (187mm)

Cutout: 8 1/8" (206mm)

OD: 8 3/4" (222mm)

Trims

7250=Reflector

with Polymer

Trim

7251=Self Flanged

Reflector

Finish1

LI=Low Iridescent

H=Haze

S=Straw

WH=Wheat

BB=Black Baffle

(on 7250 only)

WB=White Baffle

(on 7250 only)

Accessories2

(Order separately)

Trim Rings

TRM7P=White Metal

TRM7MB=Black Metal

TRR7=Rimless

Slope Ceiling Adapter

HSA7XX=Specify Slope

1 1/2" C-Channel Bar

Hangers

HB26=26" Long

HB50=50" Long

C7213EEMSL

73/8

18

EMERGENCY LIGHTS > Architectural

SURE-LITES®

COOPER LIGHTING

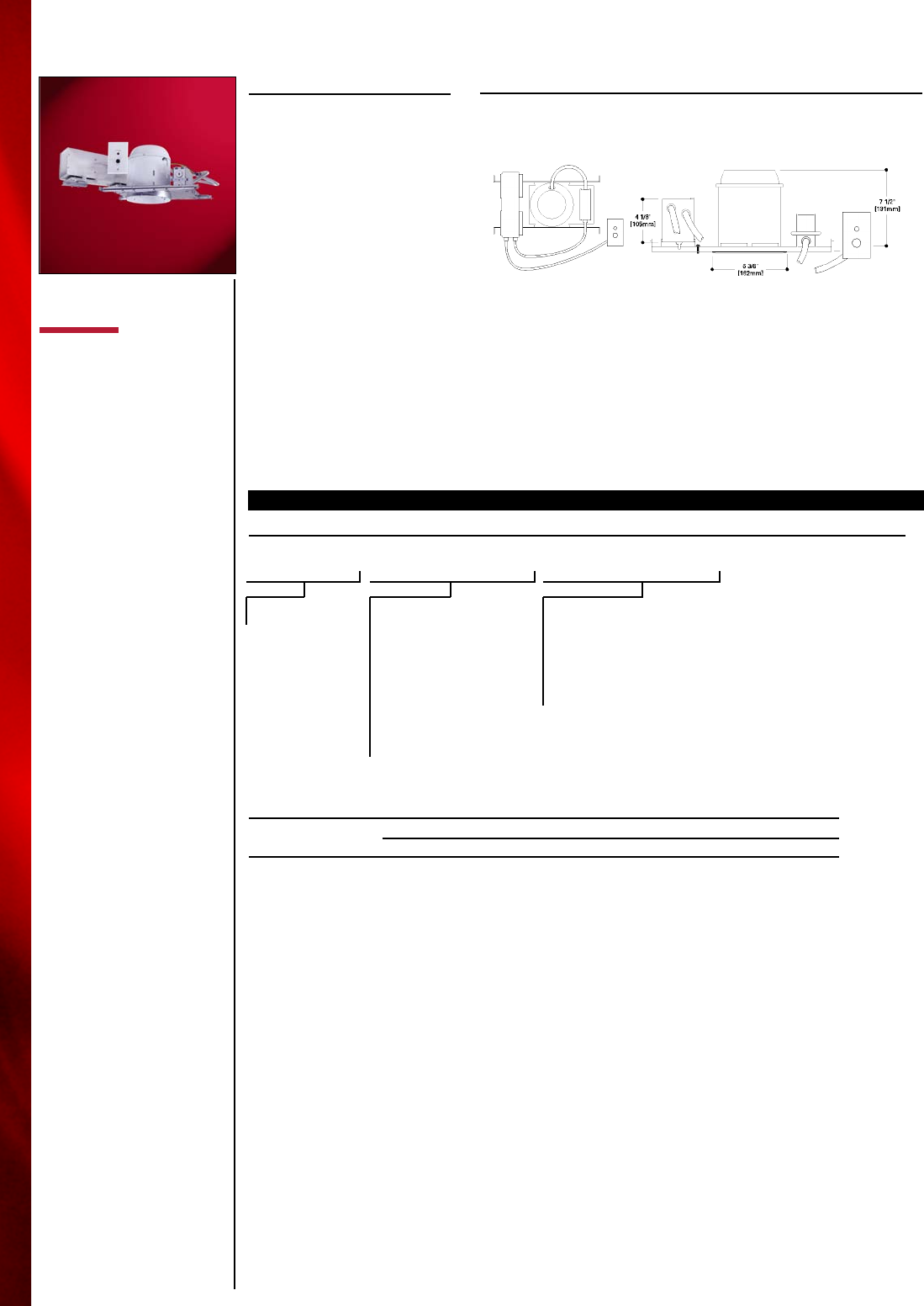

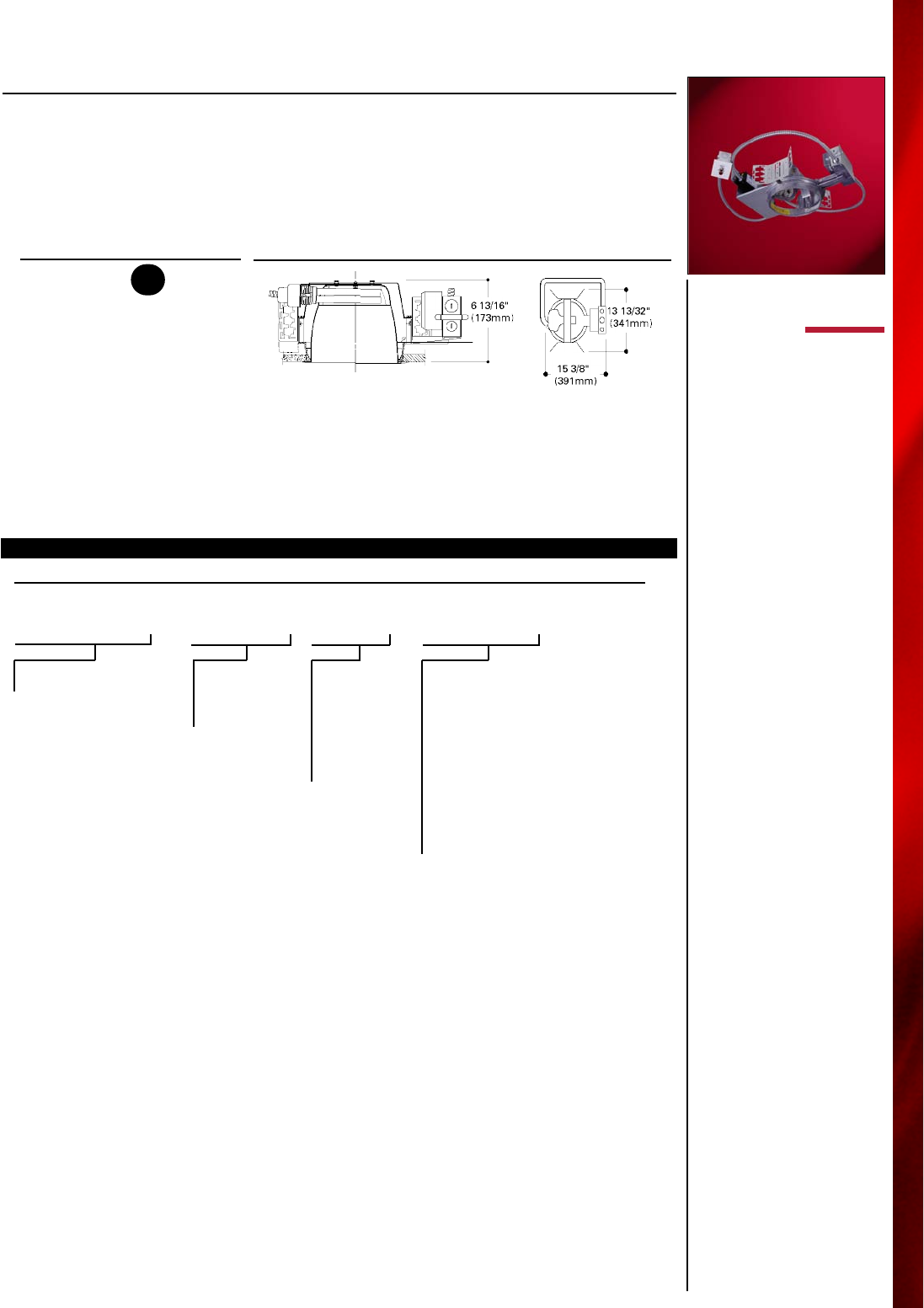

H274EM

Recessed/Fluorescent

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> 20 gauge die-stamped

steel housing with white

baked enamel finish

> Accommodates all

recommended trims

> Adjustable socket plate

> Initial 900 lumens in

emergency mode

> Hanger bars span 24"

and can be rotated 90°

on plaster frame

> Junction Box has five 1/2"

trade size knockouts with

true pry-out slots

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low- voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

DIMENSIONS

DESCRIPTION

The H274EM uses one 13W

compact fluorescent lamp

(DTT, 2-Pin) in a H274 fixture.

It matches the Halo H274

downlight in appearance and

will automatically provide 120

minutes of emergency power.

Typically, the H274EM would

be installed on a 24 hour cir-

cuit but can also be installed

on switched circuits (277V

unswitched circuits require the

EMS277 accessory). The bat-

tery charge indicator light and

test switch are prewired to a

quick connect modular plug

which also makes the final bat-

tery connection for energizing

the circuit.

Energy Data

Input Power Input Current (Max.) Power Factor T.H.D.:

Model No. 120V 277V 120V 277V 120V 277V 120V 277V

H274EM (Starting) 30W 34W .41A .19A >.62 >.66 <11% <11%

H274EM (Operating) 19W 21W .32A .15A >.49 >.50 <12% <12%

Model Number

H274EM

Trims

(Order separately)

400RG=Residential Gold Satin

Reflector

400SC=Specular Clear Finish

Reflector

405CG=Champagne Gold

Specular Reflector

405RG=Residential Gold

Specular Reflector

405SC=Clear Specular Reflector

409P=Reflector with Black

Coilex Baffle

Accessories

(Order separately)

EMS277=Accessory for 277V

Switching Applications

TRM7P=White Metal Trim Ring

TRM7MB=Black Metal Trim Ring

TRR7=Rimless Trim Ring

HB24=24" Bar Hangers

ORDERING INFORMATION

SAMPLE NUMBER: H274EM

Note: Lamp not included.

H274EM

SURE-LITES®

19

COOPER LIGHTING

EMERGENCY LIGHTS > Architectural

STL STAIRLITE

Stairwell Lighting

S y s t e m

EMERGENCY LIGHT

> Choice of Input Voltage,

120 or 277 VAC, 60Hz

> Formed 20 gauge steel

housing and cover plate

construction

> Durable white powder

coat finish

> T8 Fluorescent lamps in

17, 25 and 32 watts

(Lamps not included)

> Single-lamp electronic

ballast that is “0” Degree

rated

> Sealed, maintenance-free

nickel cadmium battery

> Fully automatic, self-test

ultrasonic motion detector

> Solid-state Status Indicator

Display System with an AC

power indicator

> Fully automatic emergency

charger is solid-state–no

mechanical relay

> Variety of electrical and

mounting knockouts for

a easy installation

> UL 924, Life Safety NFPA

101, NEC/OSHA, most

state and local codes

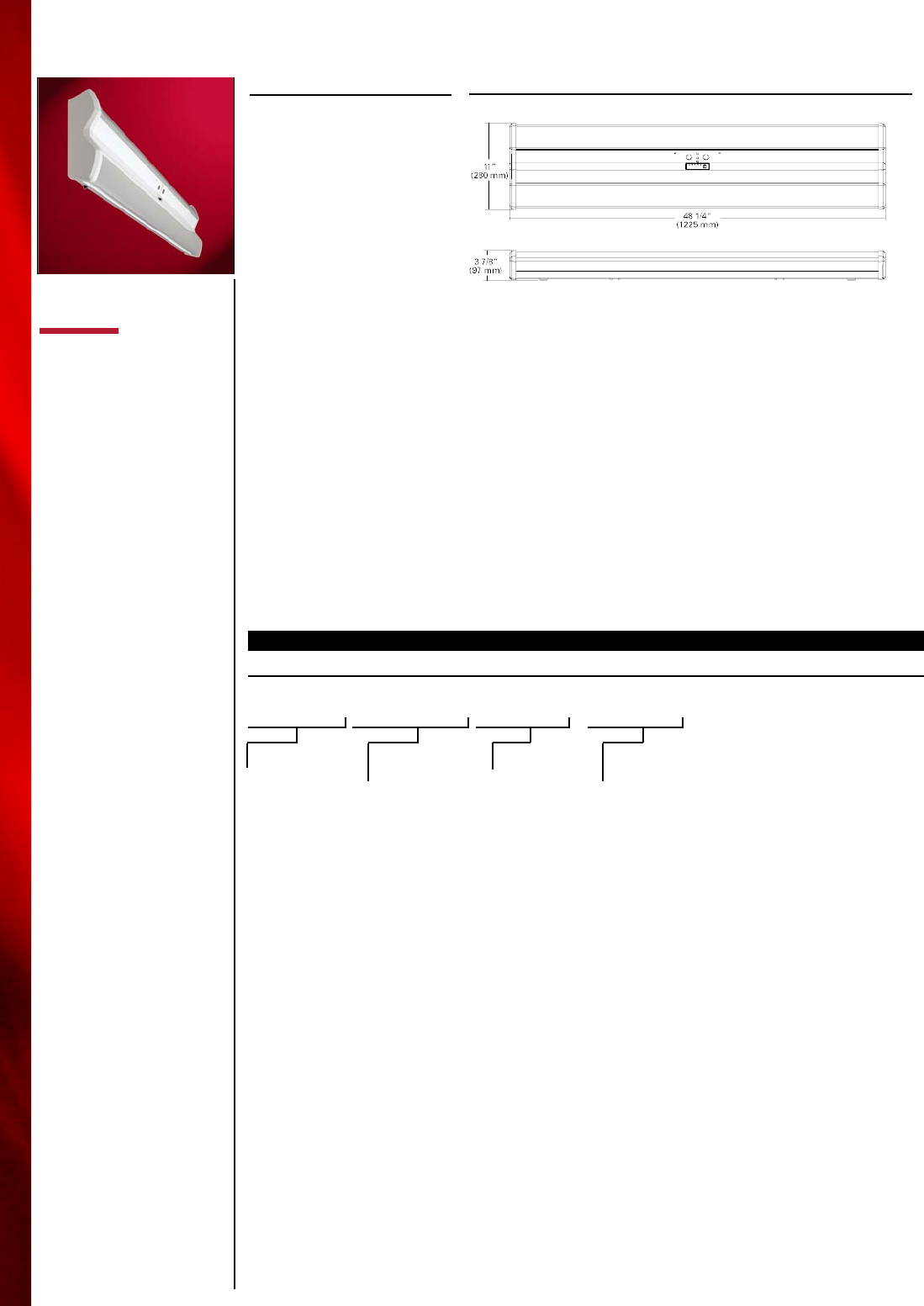

DIMENSIONS

Family

STL=StairLite

ORDERING INFORMATION

SAMPLE NUMBER: STL42F17

Operation

4=AC Only

54=Emergency

450 Lumens

57=Emergency

700 Lumens

59=Emergency

950 Lumens

Lamp

2F17=(2) FO17T8

(2' lamps)

2F25=(2) FO25T8

(3' lamps)

2F32=(2) FO32T8

(4' lamps)

Voltage

Blank=120 VAC

7=277 VAC

Accessories

(Order Separately)

VRSPD=#6 Spanner

Screw Driver

E n e rg y D a t a

Input Power; Input Current (Max.): Power Factor:

120V 277V 120V 277V 120V 277V

(2) 17W T8 31W 31W .29A .13A .8 .8

(2) 25W T8 42W 42W .36A .16A .8 .8

(2) 32W T8 52W 52W .44A .19A .9 .9

Lamps Off 4.3W 4.3W .04A .02A .7 .7

Lamp Dimension “A”

FO17T8 27" (686mm)

FO25T8 39" (991mm)

FO32T8 51" (1295mm)

DESCRIPTION

The StairLite System is

designed to satisfy all stair-

well lighting requirements in

one easy to install package.

StairLite consists of a surface

mounted, two lamp fluores-

cent lighting fixture that

incorporates an integrally

mounted ultrasonic motion

detector, a system display

panel, and an optional full

battery backup. The StairLite

System will deliver vastly

reduced operating and main-

tenance costs due to virtually

no power consumption. It will

enhance the usefulness, safe-

ty, and reliability of any emer-

gency lighting system. The

StairLite System is designed

for use in stairwells or any

other area of a building

where the occupancy level or

usage factor would be consid-

ered minimal.

STL

20

EMERGENCY LIGHTS > Architectural

SURE-LITES®

COOPER LIGHTING

STAIRLITE 2

Stairwell Lighting

S y s t e m

EMERGENCY LIGHT

> Choice of Input Voltage,

120 or 277 VAC, 60Hz

> Formed 20 gauge steel

housing and cover plate

construction

> Durable white powder

coat finish

> T8 32W Fluorescent lamps

(Lamps not included)

> Single-lamp electronic

ballast that is “0” Degree

rated

> Sealed, maintenance-free

nickel cadmium battery

> Fully automatic, self-test

ultrasonic motion detector

> Solid-state Status Indicator

Display System with an AC

power indicator

> Fully automatic emergency

charger is solid-state–no

mechanical relay

> Variety of electrical and

mounting knockouts for

a easy installation

> UL 924, Life Safety NFPA

101, NEC/OSHA, most

state and local codes

DIMENSIONS

Family

STL2=StairLite 2

ORDERING INFORMATION

SAMPLE NUMBER: STL24F032T87

Operation

4=AC Only

5=Self Powered

Lamp Type & Size

Blank=(2) 4’ Lamps

F032T8

Voltage

Blank=120 VAC

7=277 VAC

DESCRIPTION

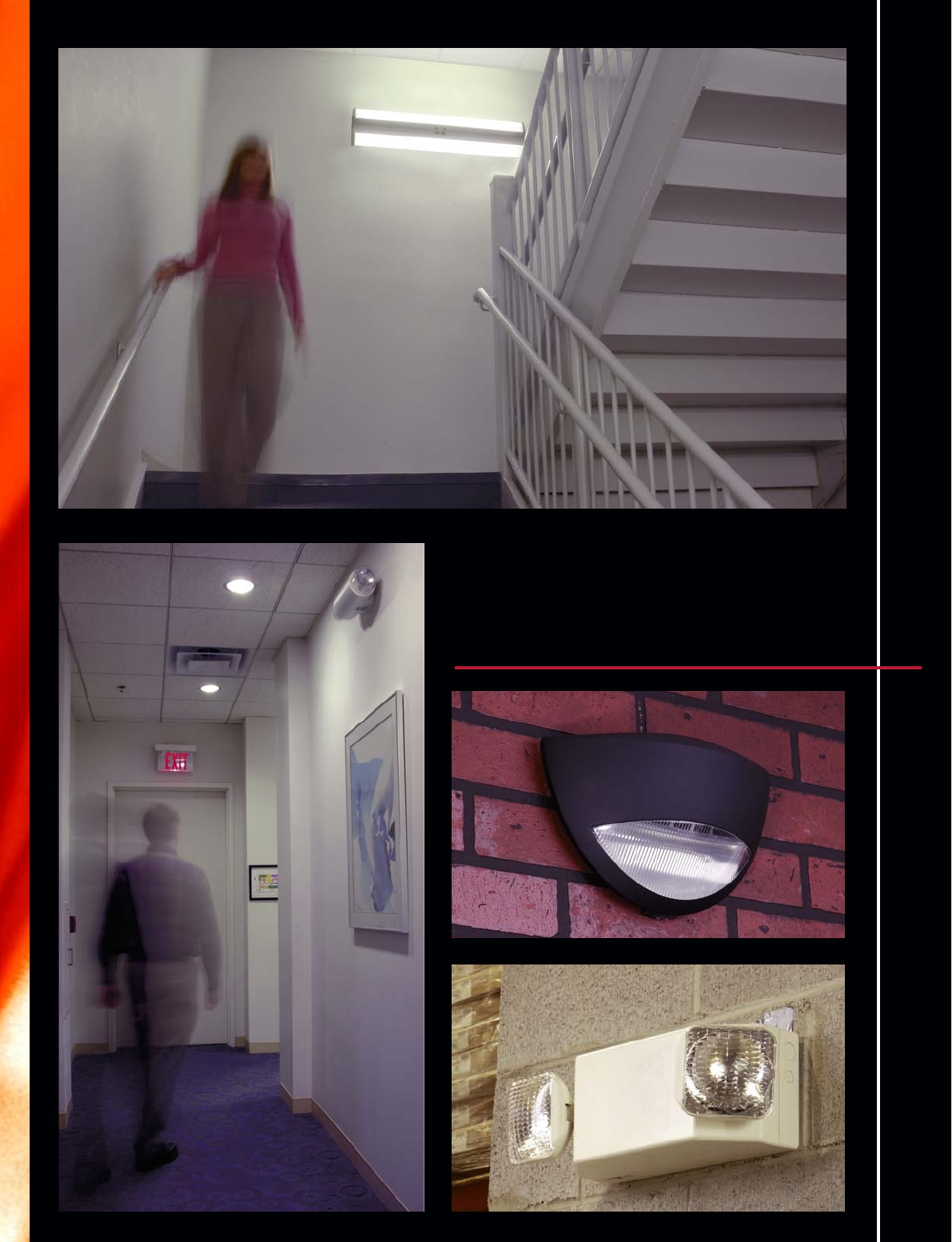

The StairLite System is

designed to satisfy all stairwell

lighting requirements in one

easy to install package. The

StairLite 2 is a surface mount-

ed, two lamp fluorescent light-

ing fixture that incorporates an

integrally mounted ultrasonic

motion detector, a system dis-

play panel, and an optional full

battery backup.

The StairLite 2 includes bi-level

lamp operation so that one

lamp remains on constantly

while the motion detector

activates the second lamp

when needed to significantly

reduce the operate costs.

The StairLite System is

designed for use in stairwells

or any other area of a building

where the occupancy level or

usage factor would be consid-

ered minimal.

STL2

SURE-LITES®

21

COOPER LIGHTING

EMERGENCY LIGHTS > Commercial

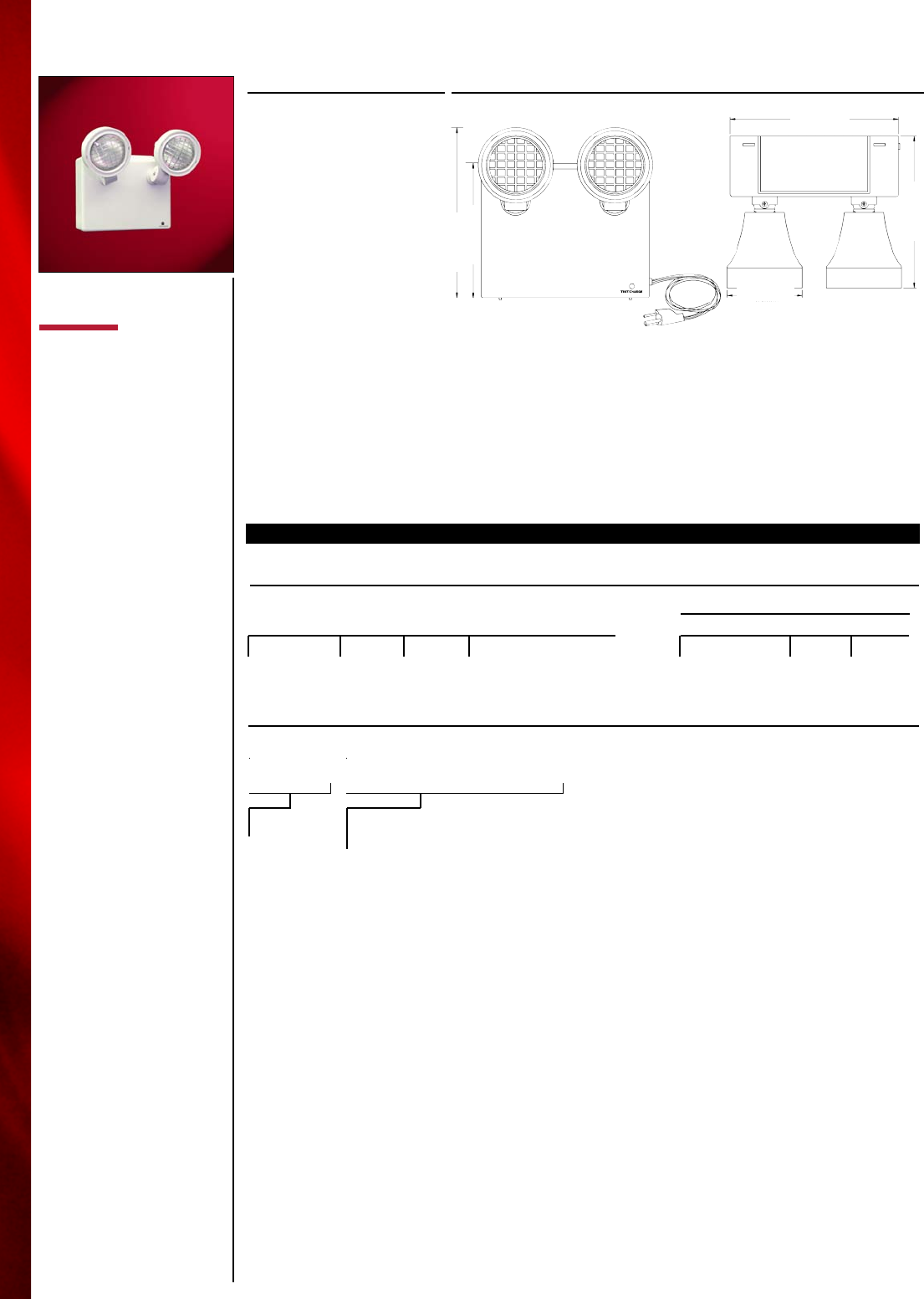

CC2

Contractor’s Choice

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz,

isolation transformer

> Injection-molded,

color- stable, high-impact

UL-94-5V rated polycar-

bonate housing

and mounting plate

(Housing is tethered to

mounting plate)

> Designer-white textured

finish

> Two PAR36 type lamps

in fully adjustable high-

impact polycarbonate

lampholders

> Maintenance Free Sealed

Lead Calcium Battery

> Cutouts provided for

surface conduit on top

> Universal J-box mounting

pattern, keyhole slots

> Line-Latching, Solid-State

Voltage Limited Charger,

Solid-State Switching,

Low- Voltage Disconnect,

Brownout Circuit,

Overload/Short Circuit

Protection, Test

switch/power Indicator

light

> UL Damp Location Listed

> UL 924 Listed, NOM

Certified, Life Safety NFPA

101, CSA Certified,

NEC/OSHA, most state

and local codes

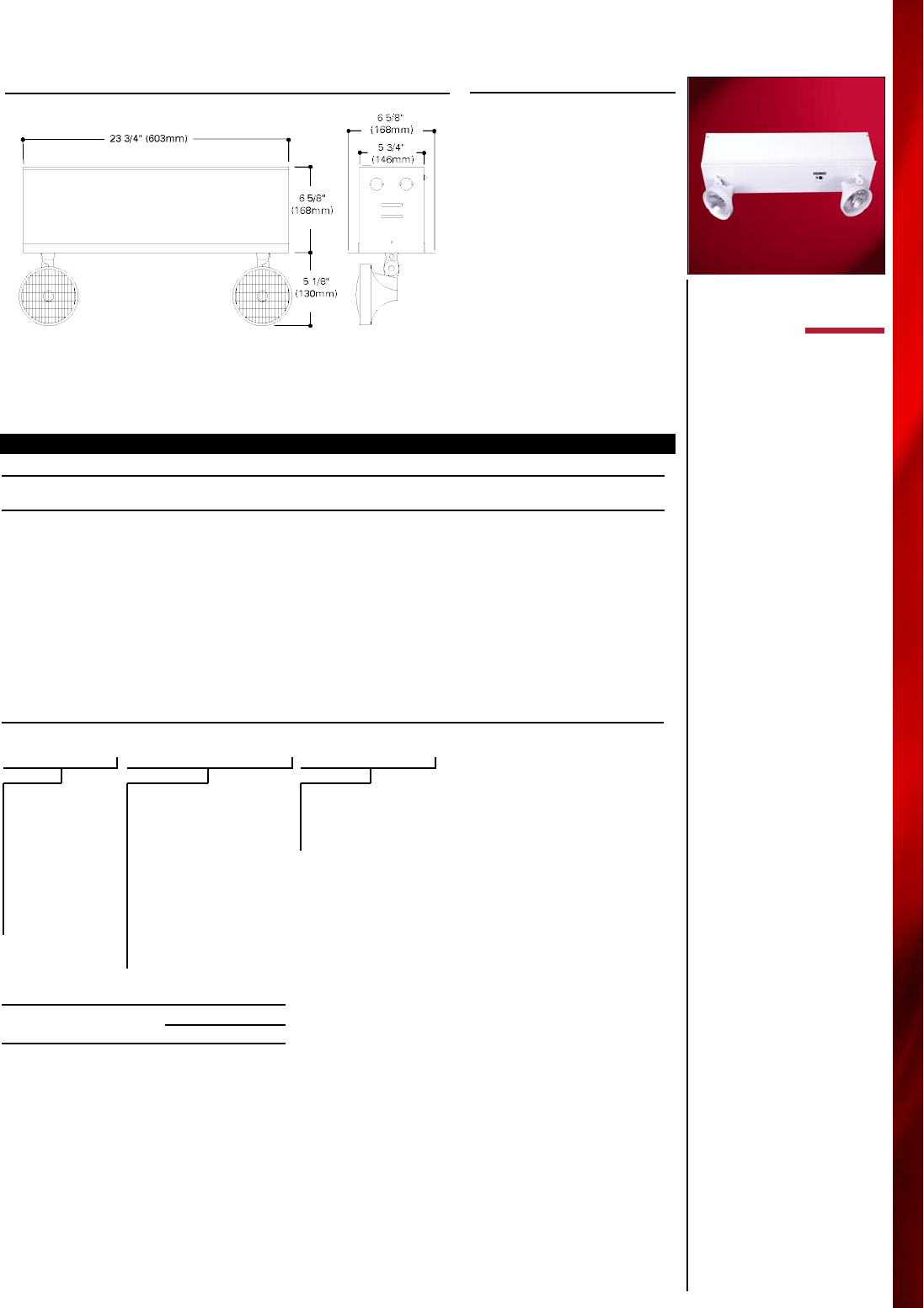

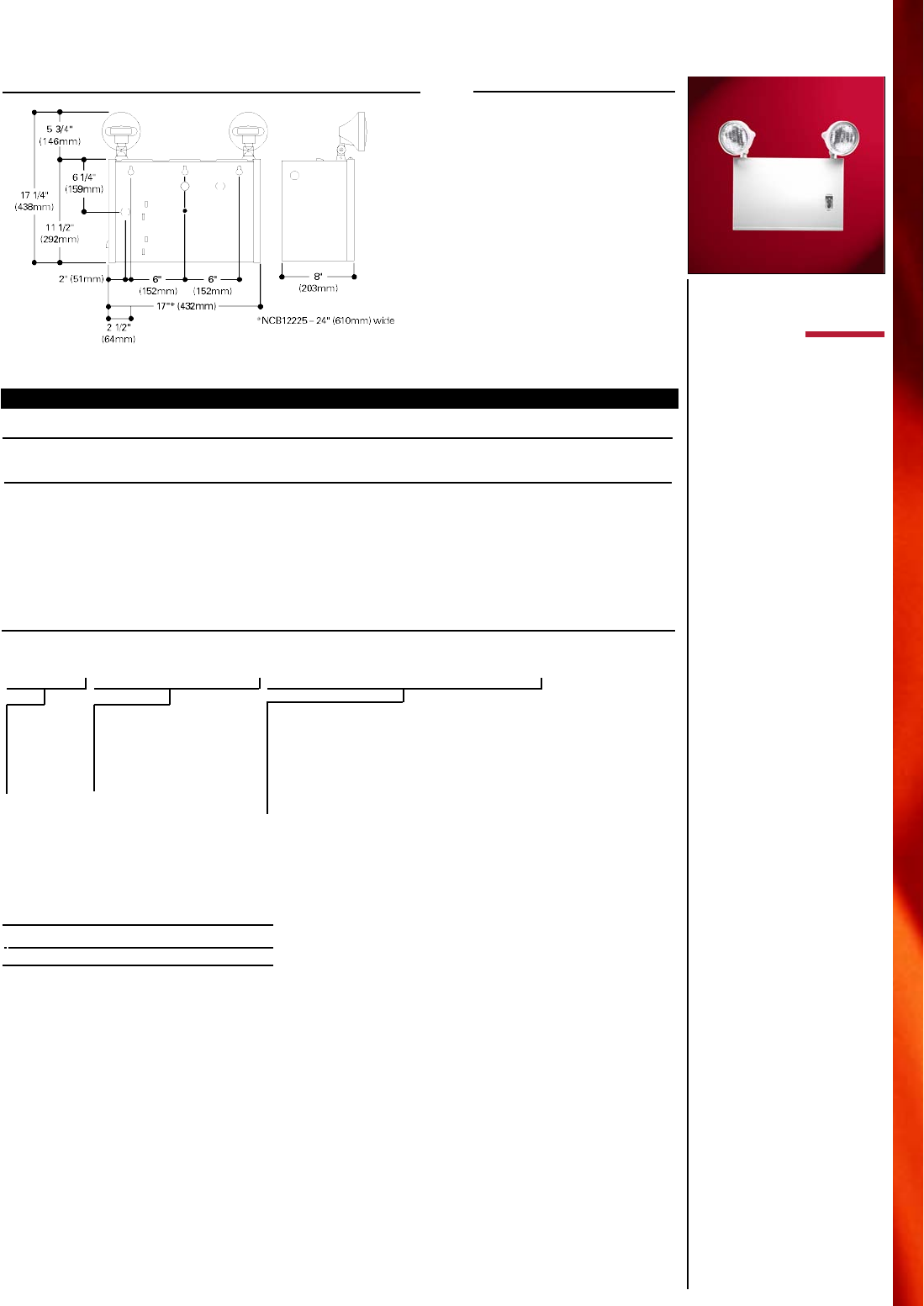

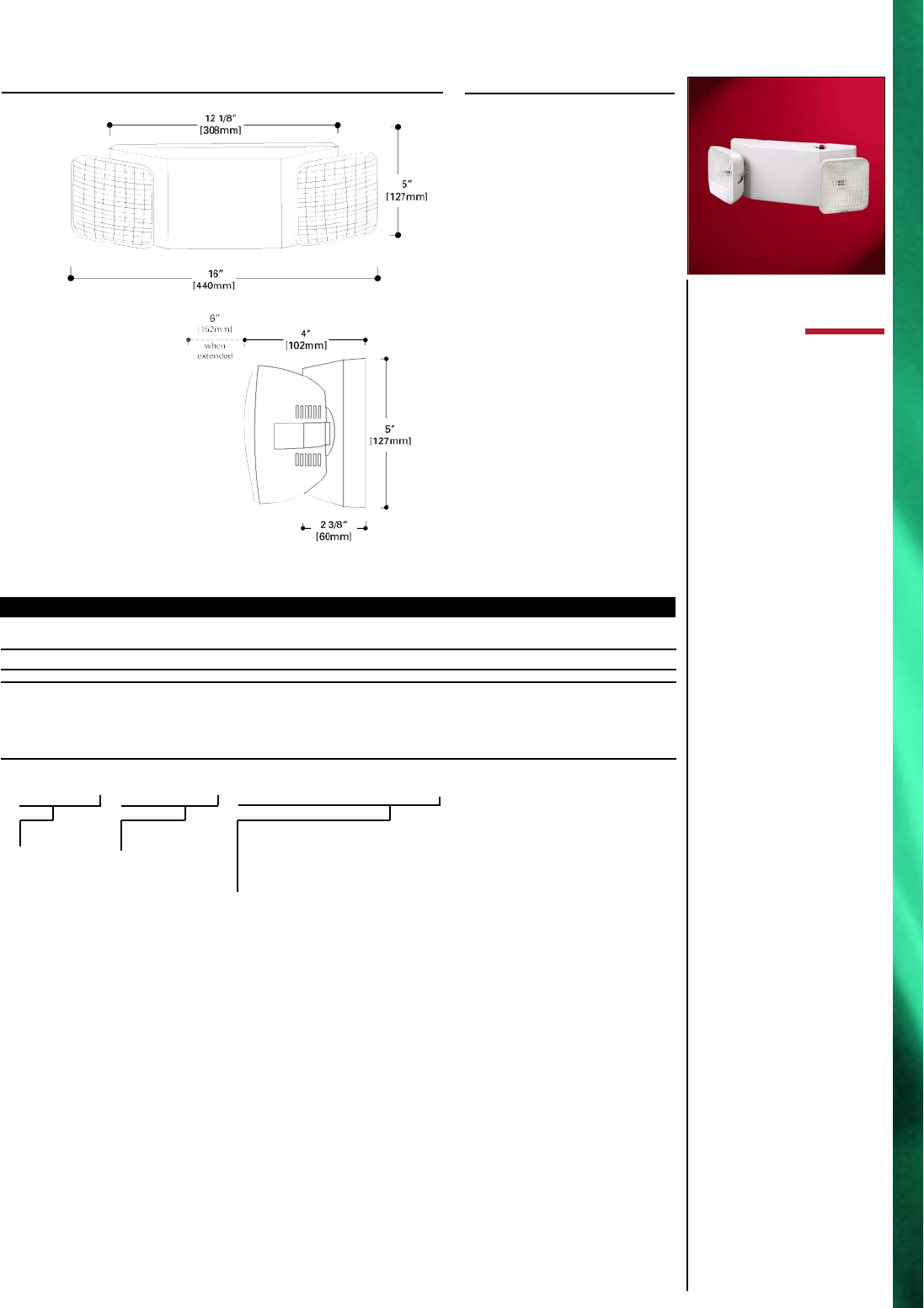

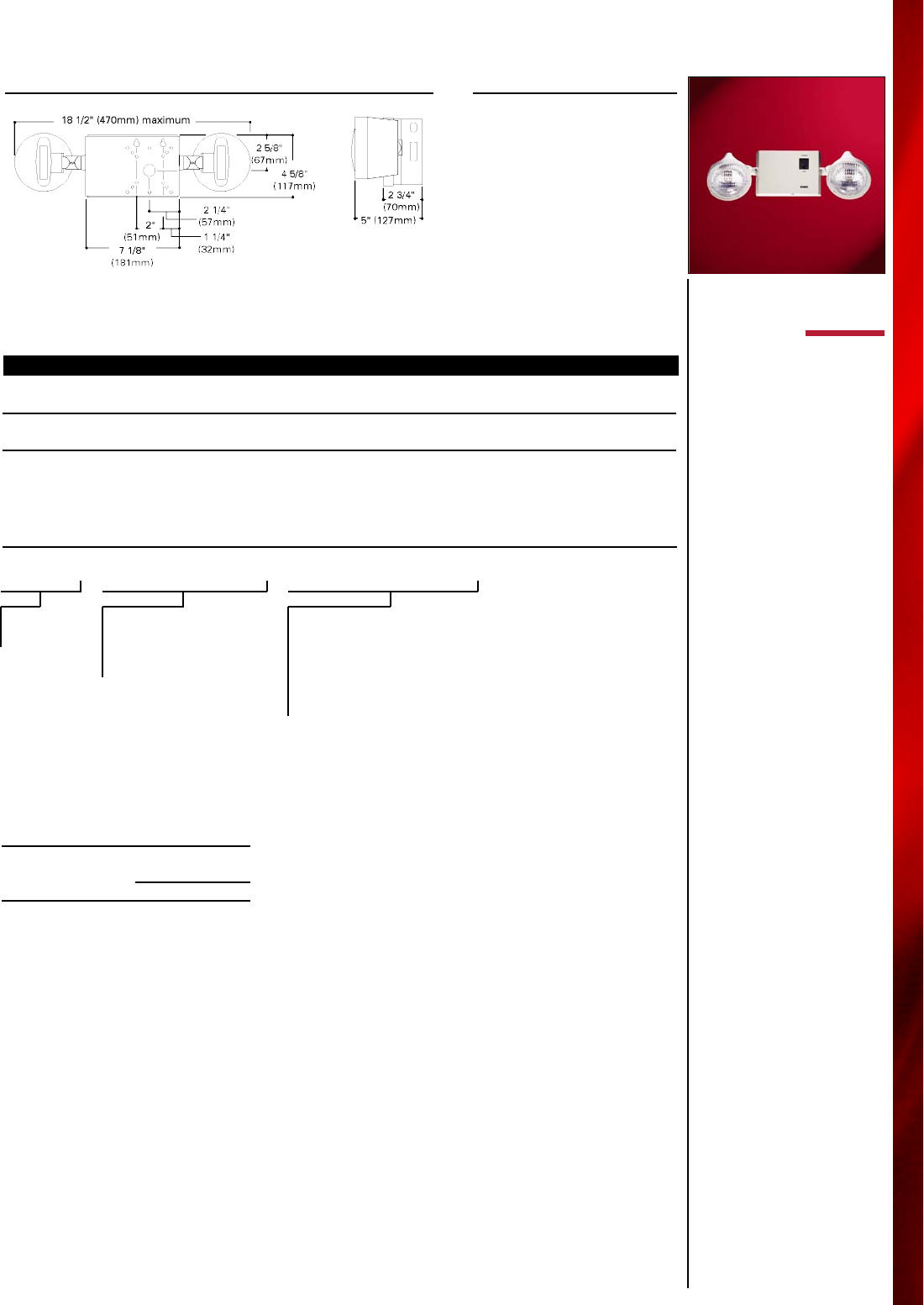

DIMENSIONS DESCRIPTION

The CC2 Contractor’s Choice

Emergency Lighting Unit is an

economic, yet attractive, alter-

native to standard two headed

emergency lighting units. All

components snap together to

facilitate installation in 2 min-

utes or less. Field adjustability

is not sacrificed for price, both

lighting heads have full hori-

zontal and vertical adjustabili-

ty. The Model CC2 Contractor’s

Choice is ideal for applications

which demand the minimum

product cost without sacrific-

ing adjustability, dependabili-

ty, or aesthetics.

E n e rg y D a t a

Input Current (Max.):

Model No. 120V 277V 347V

CC2 .12A .05A

CC2347 .12A — .01A

ORDERING INFORMATION

SAMPLE NUMBER: CC2

Model

Number

CC2

CC2347

(120/347VAC)

Options (Add as suffix)

MRT=MR16 Head (5W Standard)

SQ=Square Head (5.4W Standard)

V=Voltmeter

CSK120=Cord Set (120VAC)

BK=Black

Alternate Lamps1

Other Options1

Accessories (Order separately)

1BRWH=Mounting Brackets (2) White

WG1=Wire Guard

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield

Weather Resistant

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 hours Type Wattage Number

CC2 6 12 Incandescent 5.4 029121

CC22146 6 12 Krypton 5.4 029146

CC2MRT 6 12 MR16 5.0 029139

CC2SQ 6 12 Incandescent 5.4 029121

1Consult your Cooper Lighting Representative.

22

EMERGENCY LIGHTS > Commercial

SURE-LITES®

COOPER LIGHTING

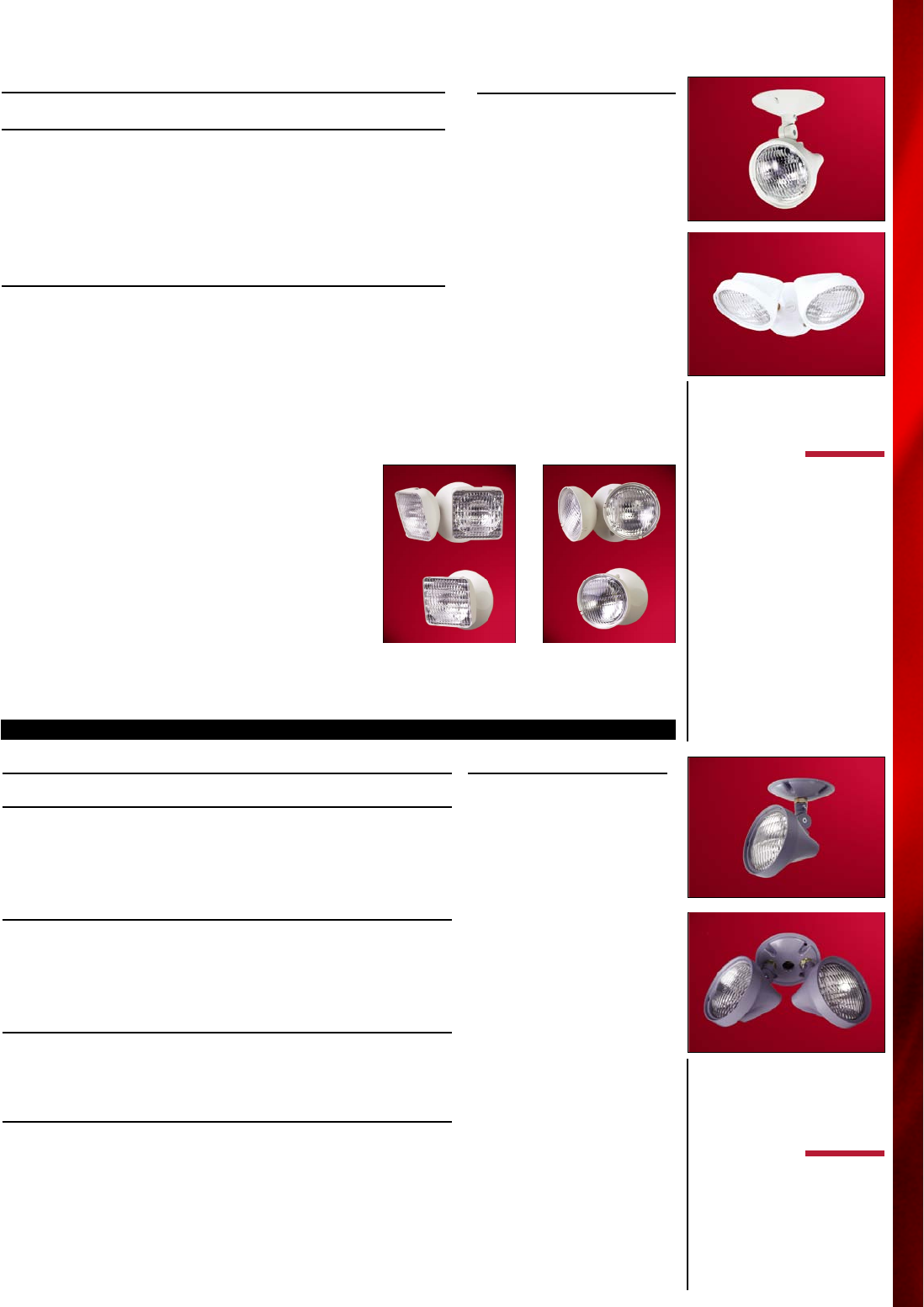

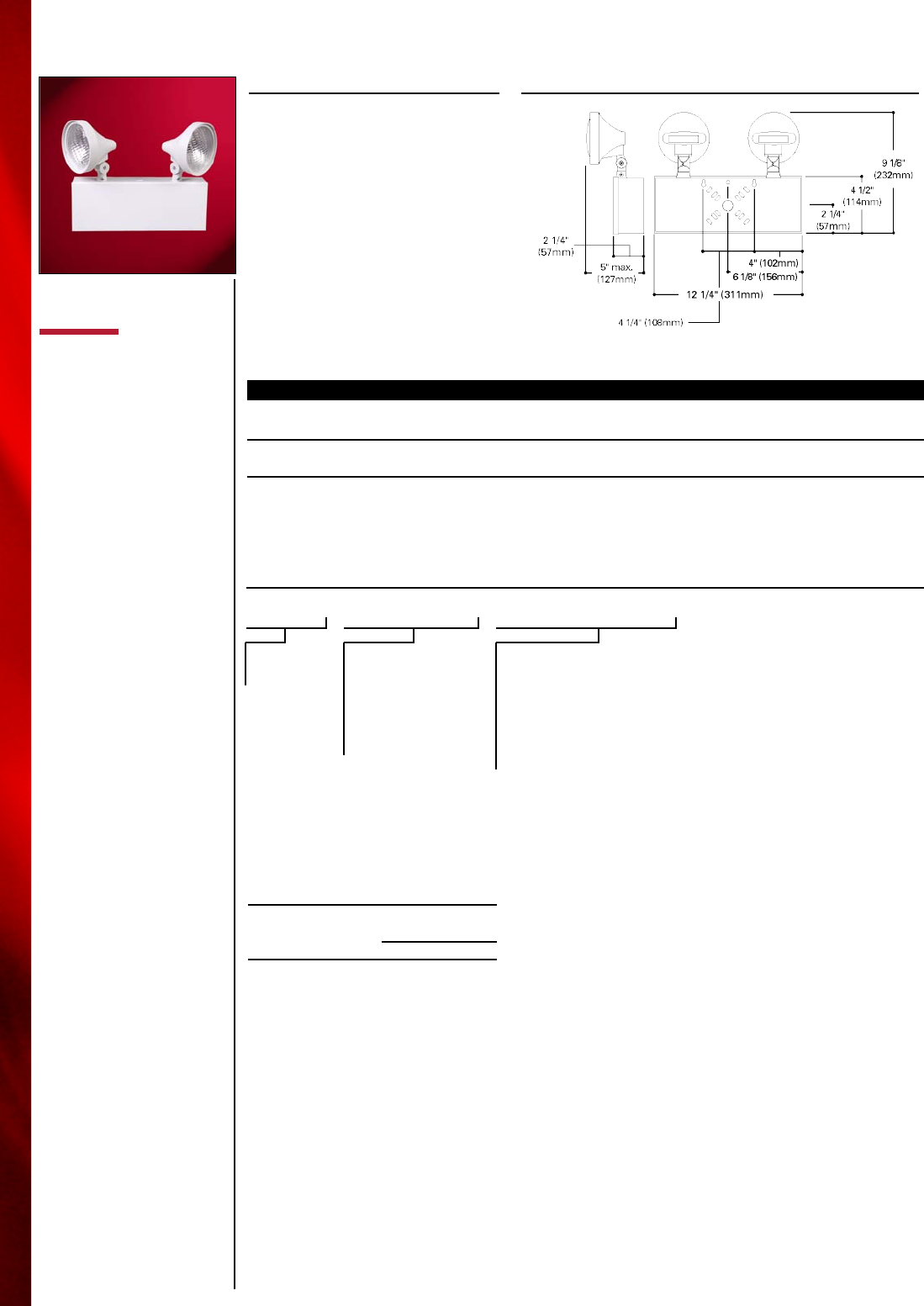

CC3

CC4

CC5

CC6

Contractor’s Choice

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz,

isolation transformer

> Injection-molded,

color-stable, high-impact

UL-94-5V rated

polycarbonate housing

and mounting plate

(Housing is tethered to

mounting plate)

> Designer-white textured

finish

> Two PAR36 type lamps in

fully adjustable high-impact

polycarbonate lampholders

> Sealed lead calcium

maintenance free battery

> Cutouts provided for

surface conduit on top

> Universal J-box mounting

pattern, keyhole slots

> Remote Capability

CC5, CC6

> Line-Latching, Solid-State

Voltage Limited Charger,

Solid-State Switching,

Low- Voltage Disconnect,

Brownout Circuit,

Overload/Short Circuit

Protection, Test

switch/power Indicator light

> UL Damp Location Listed

(CC5SD Only)

> UL 924 Listed, Life Safety

NFPA 101, CSA Certified,

NEC/OSHA, most state

and local codes

1Provision for one meter only. 2Consult your Cooper Lighting Representative. 3Not available w/CC6. 4NC=Nickel Cadmium Battery.

5CC5SD is damp location standard. 6CC4NC, CC5NC not available in SD.

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage Number

CC3 6 10.8 7.2 - - Incandescent 5.4 29-121

CC3 NC 6 16 - - - Incandescent 5.4 29-121

CC4 6 18 15 10 8 Incandescent 9 29-84

CC4 NC 6 18 Incandescent 9 29-84

CC5 6 27 24 18 14 Incandescent 9 29-84

CC5 NC 6 24 Incandescent 9 29-84

CC6 6 32 - - - Incandescent 9 29-84

Energy Data

Input Current (Max.):

Model No. 120V 277V 347V

CC3 .12A .05A .01A

CC4 .12A .05A .01A

CC5 .13A .06A .06A

CC6 .13A .06A .06A

Model

Number

CC3

CC3NC(4)

CC4

CC4NC4, 6

CC5

CC5NC4, 6

CC6

Options

(add as suffix)

MRT=MR16 Heads (5W Standard

CC3, CC3NC; 9W Standard

CC4, CC5, and CC6)

SQ=Square Head (5.4W Standard)

A=Ammeter1

SD=Self-Diagnostics3, 5, 6

V=Voltmeter1

TDM=Time Delay Monitor

Alternate Lamps2

Other Options2

Accessories (Order separately)

WG1 =Wire Guard

WG2 =Wire Guard (use for heads adjusted

at 45° or greater)

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield

Weather Resistant

CSK120=Cord Set 120V

Housing

Finish

(Must be

specified)

WH=White

BK=Black

Voltage

Blank=

120/277

347=120/347 VAC

DESCRIPTION

The CC Series Contractor’s Choice

Emergency Lighting Unit is the ideal

choice when a simple installation and

a reasonable cost are required. Its

contemporary round corner styling,

designer white finish, and consistent

family appearance enables it to blend

with any decor. The components are

injection molded from tough polycar-

bonate materials which resist discol-

oration due to age and ultraviolet

radiation.

ORDERING INFORMATION

SAMPLE NUMBER: CC5WHSD

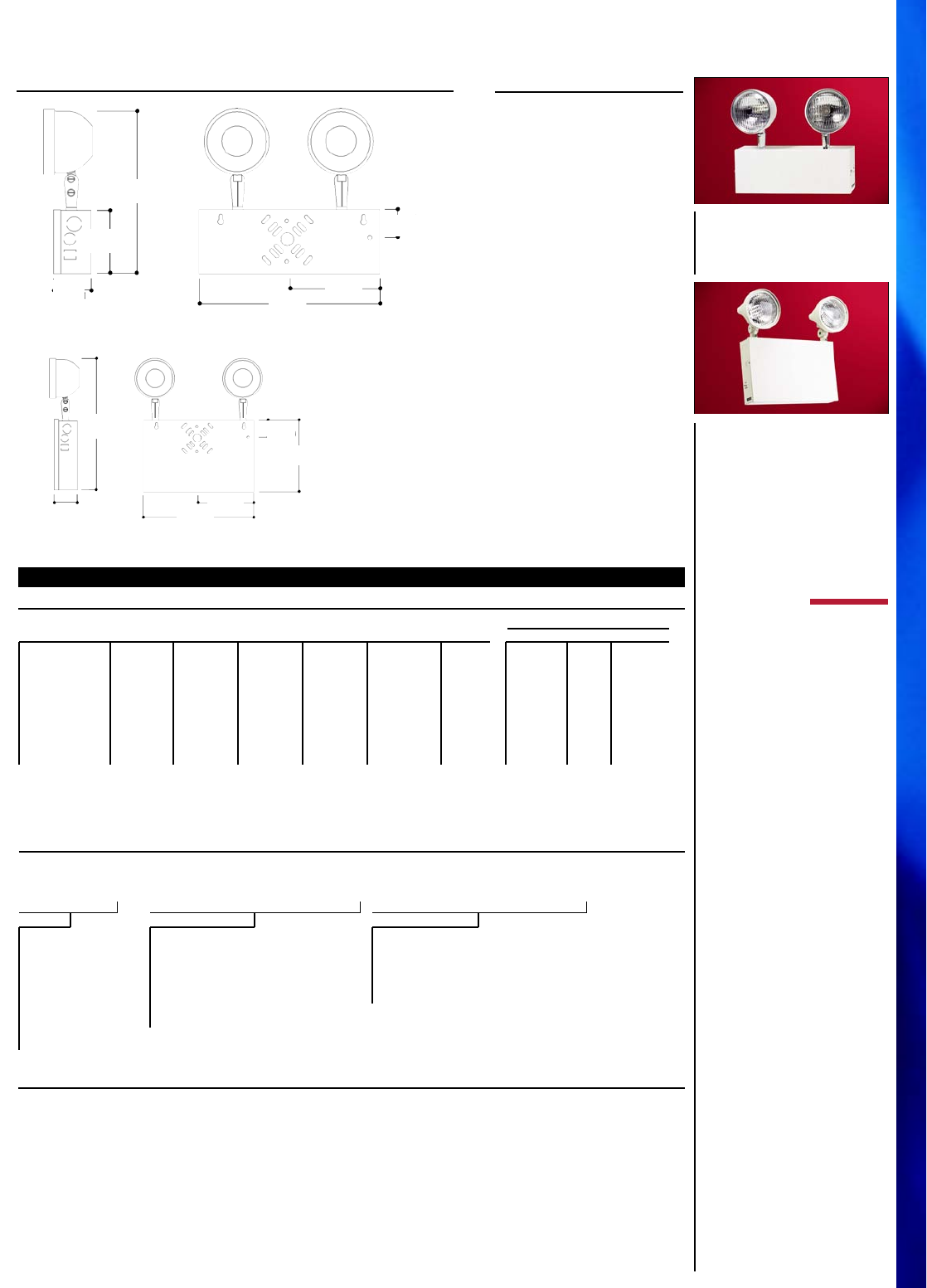

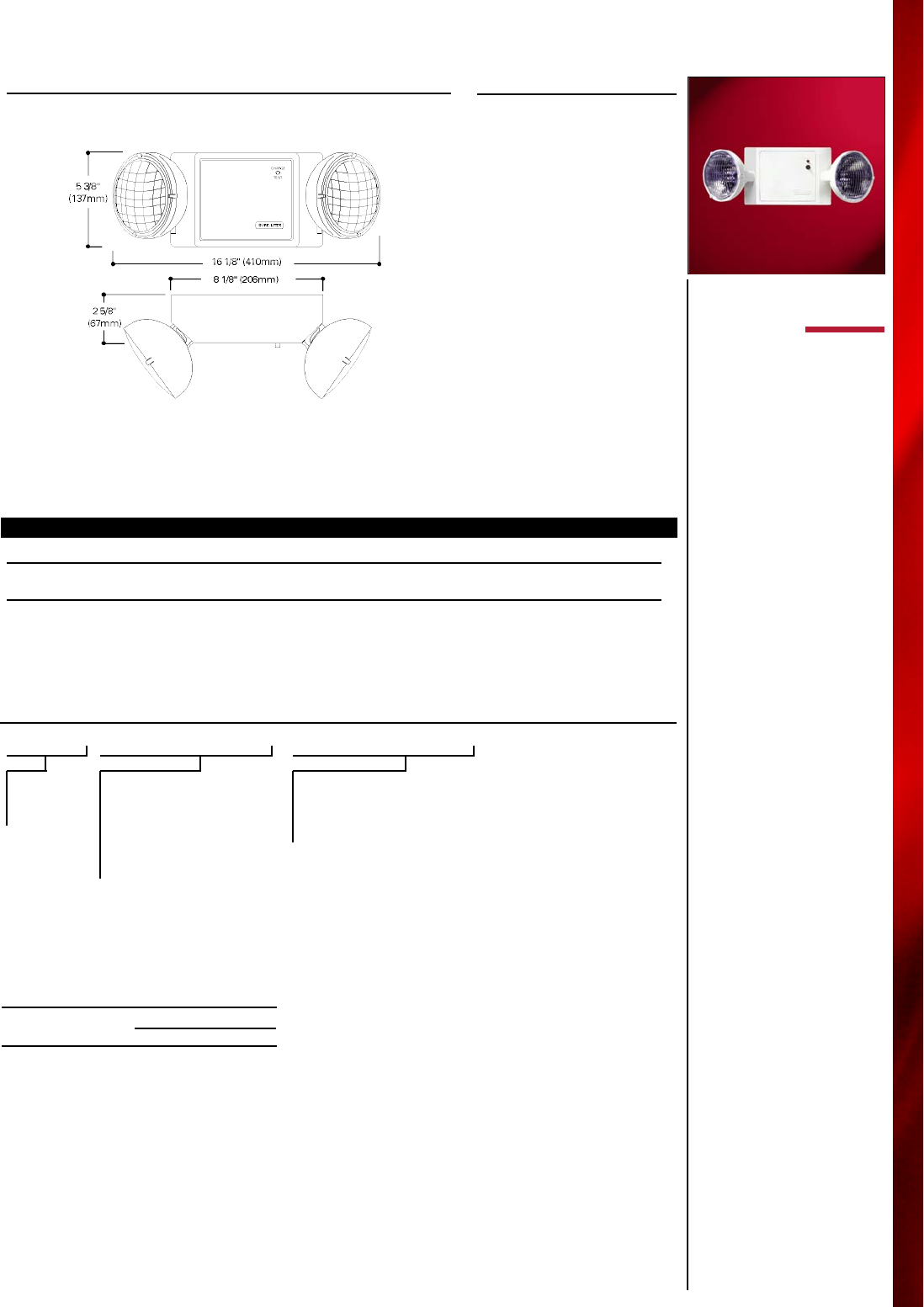

DIMENSIONS

SURE-LITES®

23

COOPER LIGHTING

EMERGENCY LIGHTS > Commercial

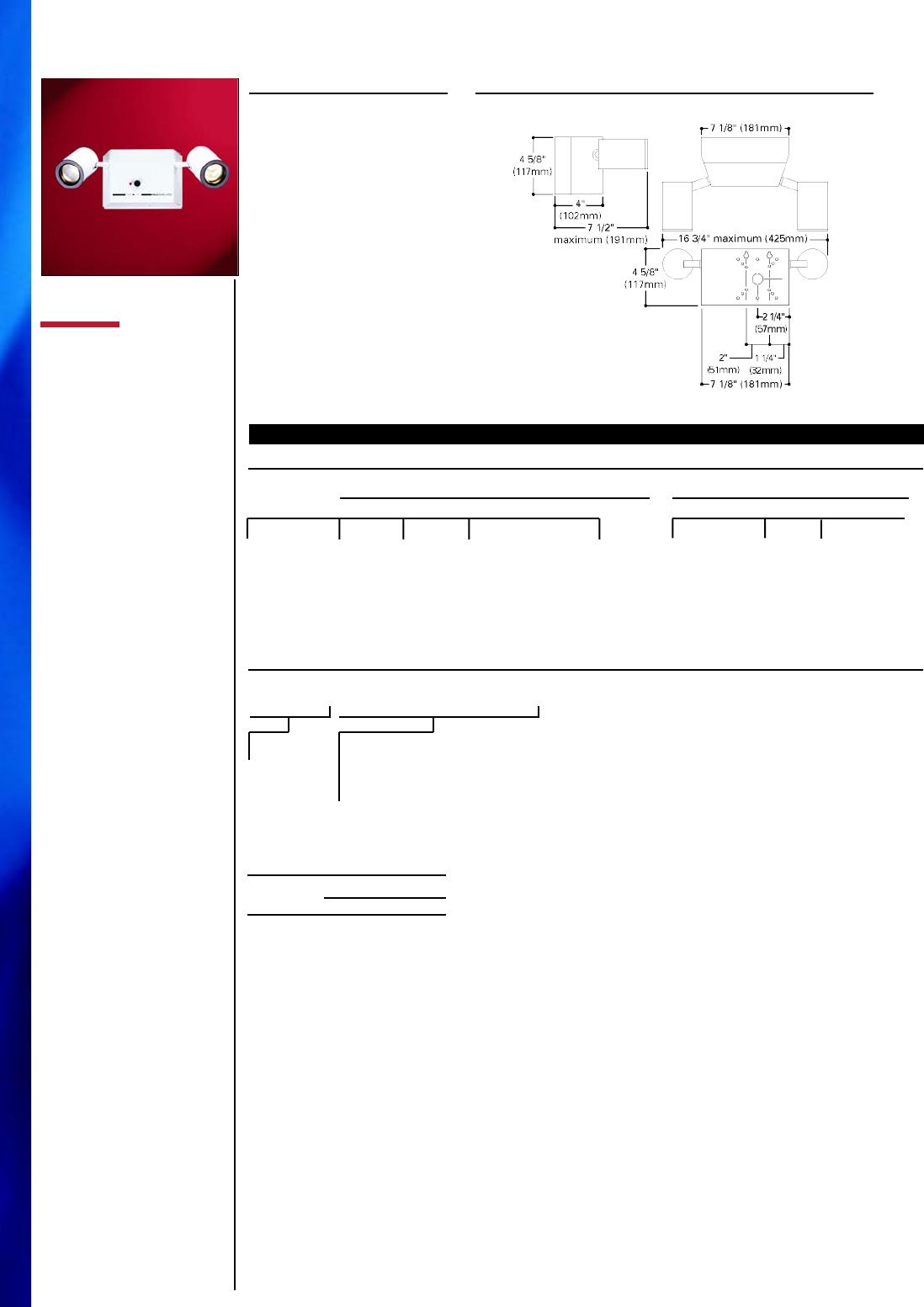

CC7

Contractor’s Choice

EMERGENCY LIGHT

> Dual-Voltage Input

120/277 VAC, 60 Hz

> Injection-Molded, Color-

Stable, High-Impact

UL 94-5V Rated

Polycarbonate Housing

and Mounting Plate

> Designer white textured

finish

> Maintenance Free Sealed

Lead Calcium Battery or

Premium Nickel Cadmium

battery (CC7NCSD version

only)

> Housing Has (8) Locations

for Mounting of Heads;

Consult Factory (3 optional

bottom-mount and 3

optional top- mount

locations)

> Knockouts/Cutouts

Provided in Housing

for Surface Conduit

Attachment

> Watchguard EMS self

diagnostic system

(CC7NCSD only)

> Remote Photocell Test

Switch with Automatic

30-Sec. Test Upon Switch

Activation

> Line-Latching, Solid-State

Voltage Limited Charger,

Solid-State Switching,

Low-Voltage Disconnect,

Brownout Circuit,

Overload/Short Circuit

Protection, Push-Button

Test Switch/Power

Indicator Light

> UL 924, Life Safety NFPA

101, NEC/OSHA, Most

State and Local Codes

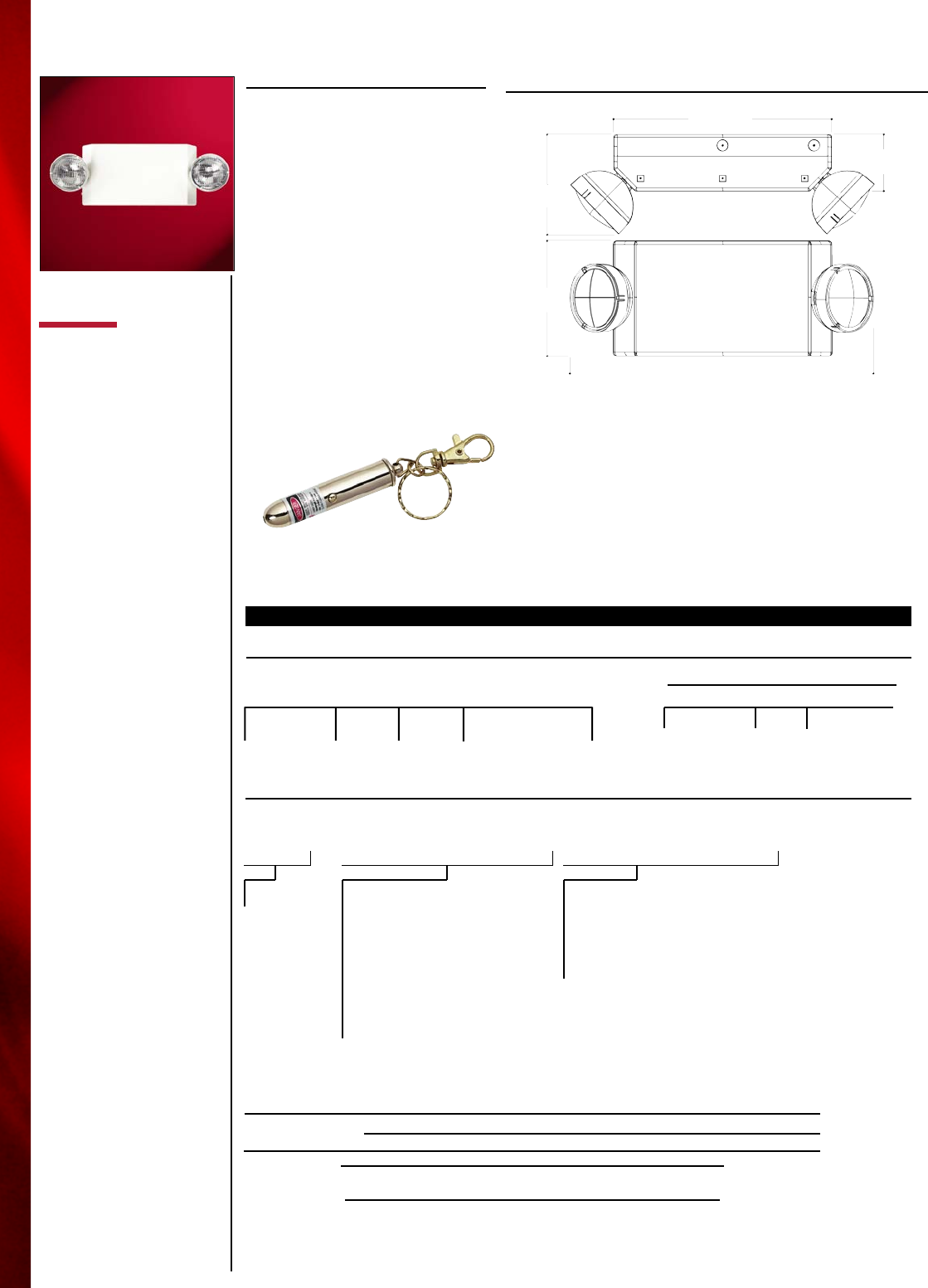

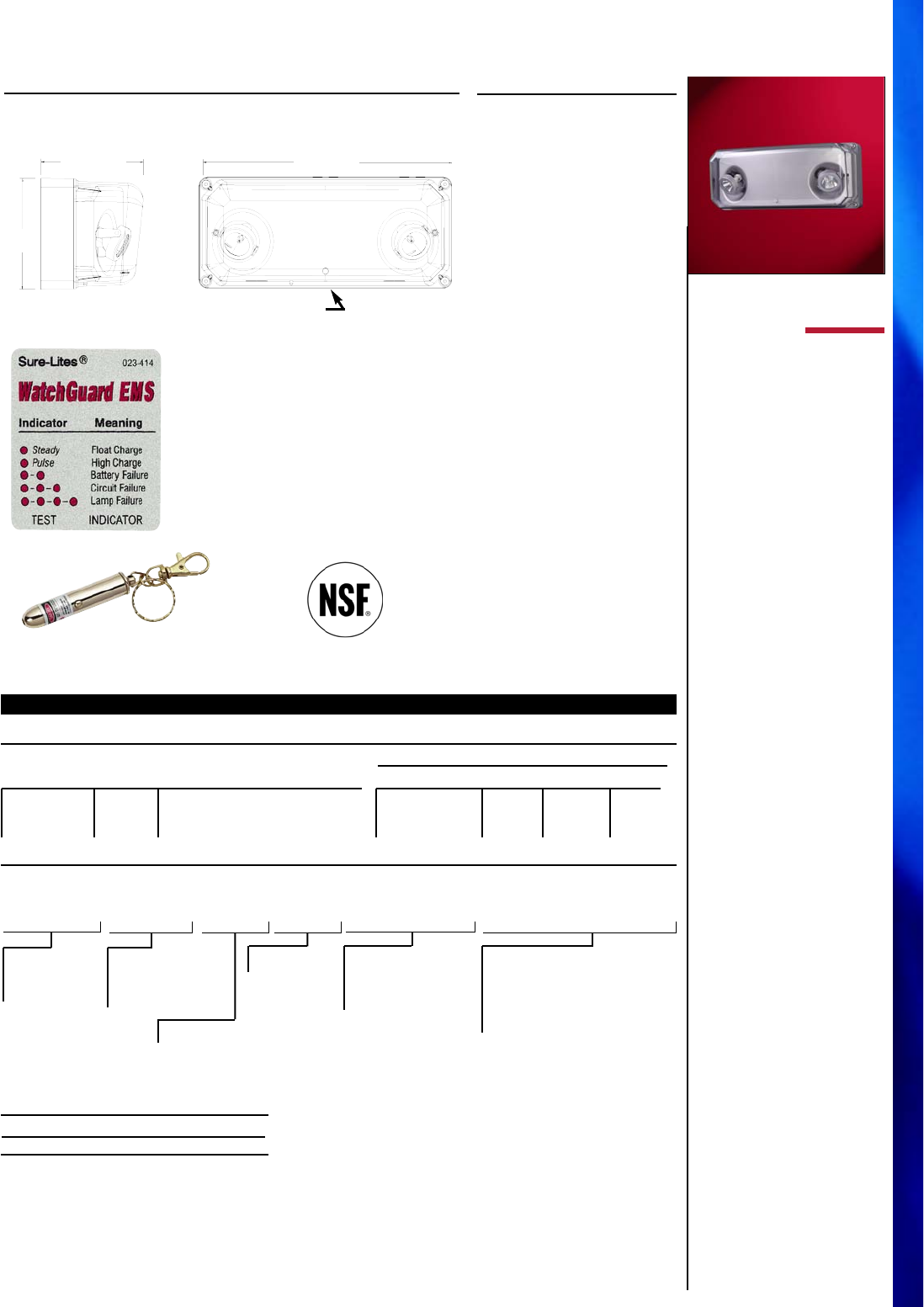

DESCRIPTION

The CC7 Contractor’s Choice FasTest™

High Capacity Emergency Lighting

Units are an affordable, yet attractive,

alternative to standard white two-

headed emergency lighting units. All

components snap together to facilitate

installation in 5 minutes or less. Field

versatility is not sacrificed for cost,

both lighting heads offer full horizontal

and vertical adjustability. Moreover,

proper operation of the transfer circuit

and emergency lamps can be quickly

and safely verified by using a

convenient laser pointer (sold as an

accessory). In addition, Watchguard

EMS self diagnostic system is standard

(CC7NCSD only).

The CC7 FasTest™ is ideal for

applications that demand the minimum

cost but also require maximum

flexibility, reliability and convenience in

an attractive unit.

Verify proper operation of the

transfer circuit and emergency

lamps with a convenient laser

pointer (sold as an accessory).

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours Remote Wattage*

CC7 12 60 36

CC7NCSD 12 50 26

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number

Incandescent 12W ea. 029-132

Accessories (Order separately)

LASER=Key Chain, Red Laser Pointer

(activation tested at 50 feet)

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield

Weather Resistant

WG3=Wire Guard

2MS=Mounting Shelf (Specify Color)

ORDERING INFORMATION

Model Number

CC7

CC7NCSD

SAMPLE NUMBER: CC7208BMTDM

Options (Add as suffix)

SQ=Square Head (12W Standard)

MRT=MR16 Heads (12W Standard)

A=Ammeter

V=Voltmeter

SD=Self-Diagnostics (CC7NC Only)

TDM=Time Delay Monitor

Cord Set=CSK-120, CSK-277

SM=Side Mount Heads

TM=Top Mount Heads

BM=Bottom Mount Heads

Alternate Lamps, Head Types,

No Head, Multiple Heads1

Other Options1

E n e rg y D a t a

Input Power Input Current (Max.) Power Factor T.H.D.

Model No. 120V 277V 120V 277V 120V 277V 120V 277V

Charge Mode (Fully Discharged Battery) Sealed Lead Calcium Battery

CC7 28W 28W .26A .11A >.91 >.91 <35% <39%

Standby Mode (Fully Charged Battery) Sealed Lead Calcium Battery

CC7 3.8W 3.7W .07A .03A >.50 >.50 <94% <99%

Standby Mode

CC7NCSD 7.8W 7.1W .08A .04A >.77 >.77 <53% <58%

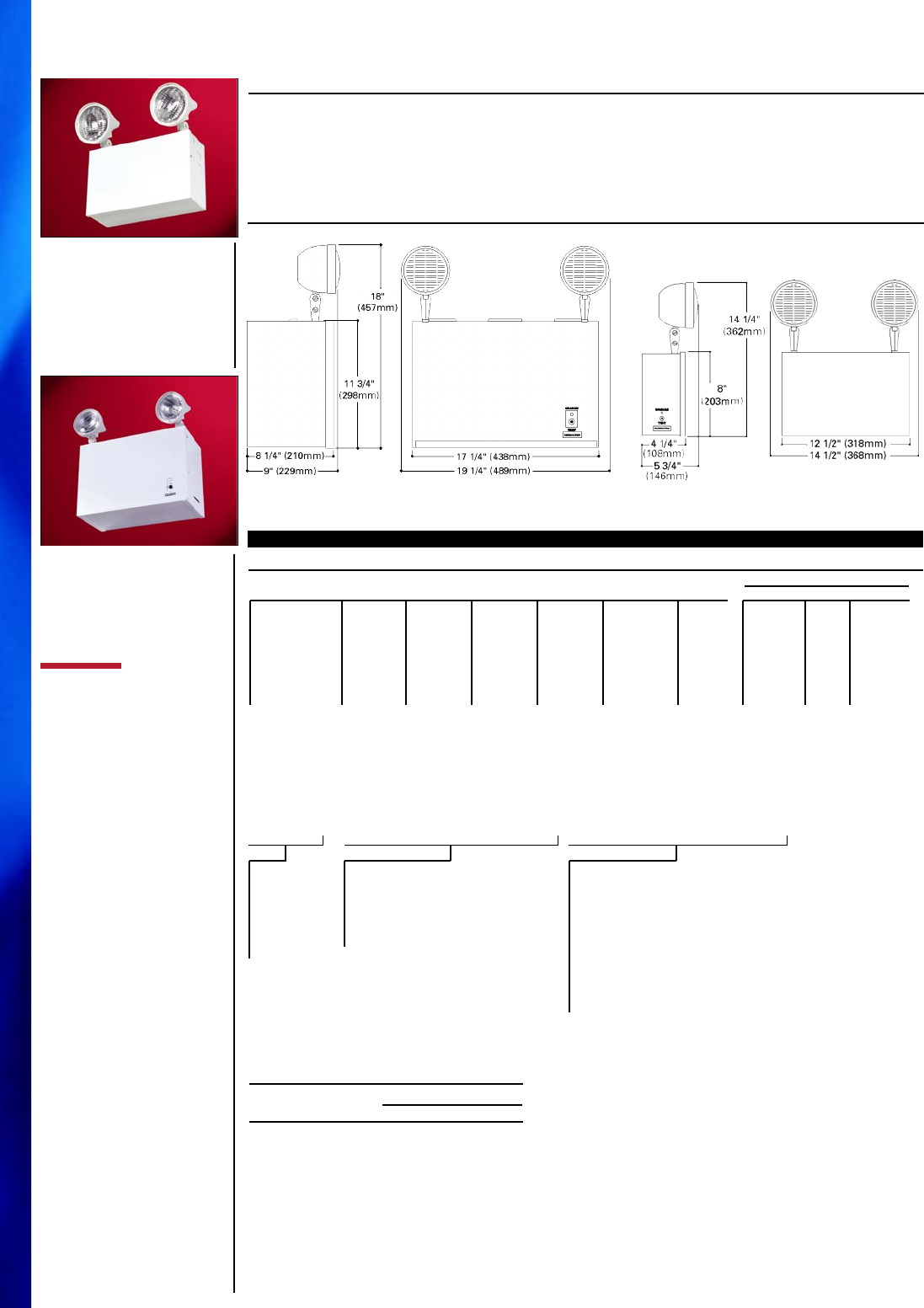

DIMENSIONS

7 15/16” MAX

[202mm]

13” [330mm]

5 3/4”

[146mm]

4 7/8”

[124mm]

19 1/4” MAX

[489mm]

1Consult your Cooper Lighting Representative.

24

EMERGENCY LIGHTS > Commercial

SURE-LITES®

COOPER LIGHTING

CC8

Contractor’s Choice

High Capacity

EMERGENCY LIGHT

> Dual-Voltage Input

120/277 VAC, 60 Hz

> Injection-Molded,

Color-Stable, High-Impact

UL 94-5V Rated

Polycarbonate Housing

and Mounting Plate

> Designer white textured

finish

> Maintenance Free Sealed

Lead Calcium Battery

> Housing Has (8)

Locations for Mounting

of Heads; Consult Factory

(3 optional bottom-

mount and 3 optional

top- mount locations)

> Knockouts/Cutouts

Provided in Housing

for Surface Conduit

Attachment

> Remote Photocell Test

Switch with Automatic

30-Sec. Test Upon

Switch Activation

> Line-Latching, Solid-State

Voltage Limited Charger,

Solid-State Switching,

Low-Voltage Disconnect,

Brownout Circuit,

Overload/Short Circuit

Protection, Push-Button

Test Switch/Power

Indicator Light

> UL 924, Life Safety NFPA

101, CSA Certified,

NEC/OSHA, Most State

and Local Codes

DESCRIPTION

The CC8 Contractor’s Choice

FasTest™ High Capacity Emergency

Lighting Units are an affordable, yet

attractive, alternative to standard

white two-headed emergency lighting

units. All components snap together

to facilitate installation in 5 minutes or

less. Field versatility is not sacrificed

for cost, both lighting heads offer

horizontal and vertical adjustability.

Moreover, proper operation of the

transfer circuit and emergency lamps

can be quickly and safely verified by

using a convenient laser pointer (sold

as an accessory).

The CC8 FasTest™ is ideal for

applications that demand the

minimum cost but also require

maximum flexibility, reliability and

convenience in an attractive unit.

Verify proper operation of the

transfer circuit and emergency

lamps with a convenient laser

pointer (sold as an accessory).

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours Remote Wattage*

CC8 12 100 76

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number

Incandescent 12W ea. 029-132

Accessories (Order separately)

LASER=Key Chain, Red Laser Pointer

(activation tested at 50 feet)

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield

Weather Resistant

WG3=Wire Guard

2MS=Mounting Shelf (Specify Color)

ORDERING INFORMATION

Model Number

CC8

SAMPLE NUMBER: CC8

Options (Add as suffix)

SQ=Square Head (12W Standard)

MRT=MR16 Heads (12W Standard)

A=Ammeter

V=Voltmeter

TDM=Time Delay Monitor

Cord Set=CSK-120, CSK-277

SM=Side Mount Heads

TM=Top Mount Heads

BM=Bottom Mount Heads

Alternate Lamps, Head Types,

No Head, Multiple Heads1

Other Options1

Energy Data

Input Power Input Current (Max.) Power Factor T.H.D.

Model No. 120V 277V 120V 277V 120V 277V 120V 277V

Charge Mode (Fully Discharged Battery) Sealed Lead Calcium Battery

CC8 28W 28W .26A .11A >.91 >.91 <35% <39%

Standby Mode (Fully Charged Battery) Sealed Lead Calcium Battery

CC8 4.1W 4.0W .07A .03A >.50 >.50 <94% <99%

DIMENSIONS

7 3/8” MAX

[187mm]

15” [381mm]

7 3/4”

[197mm]

3 15/16”

[100mm]

22” MAX

[559mm]

1Consult your Cooper Lighting Representative.

CC8

SURE-LITES®

25

COOPER LIGHTING

EMERGENCY LIGHTS > Commercial

CC9

CC10

CC11

CC12

Contractor’s Choice

Ultra High Capacity

EMERGENCY LIGHT

> Dual-Voltage Input

120/277 VAC, 60 Hz

> Injection-Molded,

Color-Stable, High-Impact

UL 94-5V Rated

Polycarbonate Housing

and Mounting Plate

> Designer white textured

finish

> Maintenance Free Sealed

Lead Calcium Battery

> Housing Has (8) Locations

for Mounting of Heads;

Consult Factory (3 optional

bottom-mount and 3

optional top- mount loca-

tions)

> Knockouts/Cutouts

Provided in Housing for

Surface Conduit

Attachment

> Watchguard EMS self

diagnostic system

> Remote Photocell Test

Switch with Automatic

30-Sec. Test Upon Switch

Activation

> Line-Latching, Solid-State

Voltage Limited Charger,

Solid-State Switching,

Low-Voltage Disconnect,

Brownout Circuit,

Overload/Short Circuit

Protection, Push-Button

Test Switch/Power

Indicator Light

> UL 924, Life Safety NFPA

101, NEC/OSHA, Most

State and Local Codes

DESCRIPTION

The Contractor’s Choice FasTest™ Ultra

High-Capacity Emergency Lighting Units

are an affordable, yet attractive,

alternative to standard two-headed

emergency lighting units. All

components snap together to facilitate

installation in 5 minutes or less. Field

versatility is not sacrificed for cost, both

lighting heads offer horizontal and

vertical adjustability. Moreover, proper

operation of the transfer circuit and

emergency lamps can be quickly and

safely verified by using a convenient

laser pointer (sold as an accessory). In

addition, Watchguard EMS self

diagnostic system is standard.

The CC Series Ultra High-Capacity

Emergency Lighting Units are ideal for

applications that demand the minimum

cost but also require maximum

flexibility, reliability and convenience in

an attractive unit.

Verify proper operation of the

transfer circuit and emergency

lamps with a convenient laser

pointer (sold as an accessory).

DIMENSIONS

9 7/8”

[250mm]

19”

[483mm]

8 7/16”

[214mm]

12”

[305mm]

21 11/16”

[551mm]

Accessories (Order separately)

LASER=Key Chain, Red Laser Pointer

(activation tested at 30 feet)

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield

Weather Resistant

WG3=Wire Guard

2MSWH=Mounting Shelf

ORDERING INFORMATION

Model

Number

CC9SD

CC10SD

CC11SD

CC12SD

SAMPLE NUMBER: CC9SDMRT2142SM

Options (Add as suffix)

SQ=Square Head (12W Standard)

MRT=MR16 Heads (12W Standard)

Alternate Lamps - Specify quantity,

lamp number (from Technical

Information section) and mounting

location (below), e.g.

CC9SD2134SM319TM219BM

SM=Side Mount Heads

(2 lamp max.)

TM=Top Mount Heads (3 lamp max.)

BM=Bottom Mount Heads

(3 lamp max.)

Electrical Options

A=Ammeter

V=Voltmeter

TDM- Time Daily Monitor

CSK120=120V Cord Set

CSK277= 277V Cord Set

Other Options: Consult Cooper

Lighting

Representative

1The "Rule of Thumb" spacing guidelines are designed to achieve 1 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum

ratio. The corridor used is 100 feet long, 9 feet ceiling with a 6 feet wide walkway and 3 feet path of egress. The reflectances are 80% ceiling, 50% walls

and 20% floors. The fixture mounting height is 7.0 feet with a lamp head angle of 45 degrees. Cooper Lighting assumes no responsibility for local

requirements or specific project variables. This is a guideline to be used as a design aid, not as guarantee of any code compliance.

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours Remote Capability

CC9SD 12 160 136W

CC10SD 12 200 176W

CC11SD 12 240 216W

CC12SD 12 300 276W

CC9SDMRT 12 160 136W

CC10SDMRT 12 200 176W

CC11SDMRT 12 240 216W

CC12SDMRT 12 300 276W

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number Spacing1

Incandescent 12 ea. 029-132 24'

MR16 12 ea. 029-141 50’

Self-Diagnostics

The self-diagnostic unit will

automatically perform the tests

required by the NFPA 101 Life

Safety Code. The system

indicates the status of the unit at

all times using an LED indicator

that is located near the test

switch.

26

EMERGENCY LIGHTS > Commercial

SURE-LITES®

COOPER LIGHTING

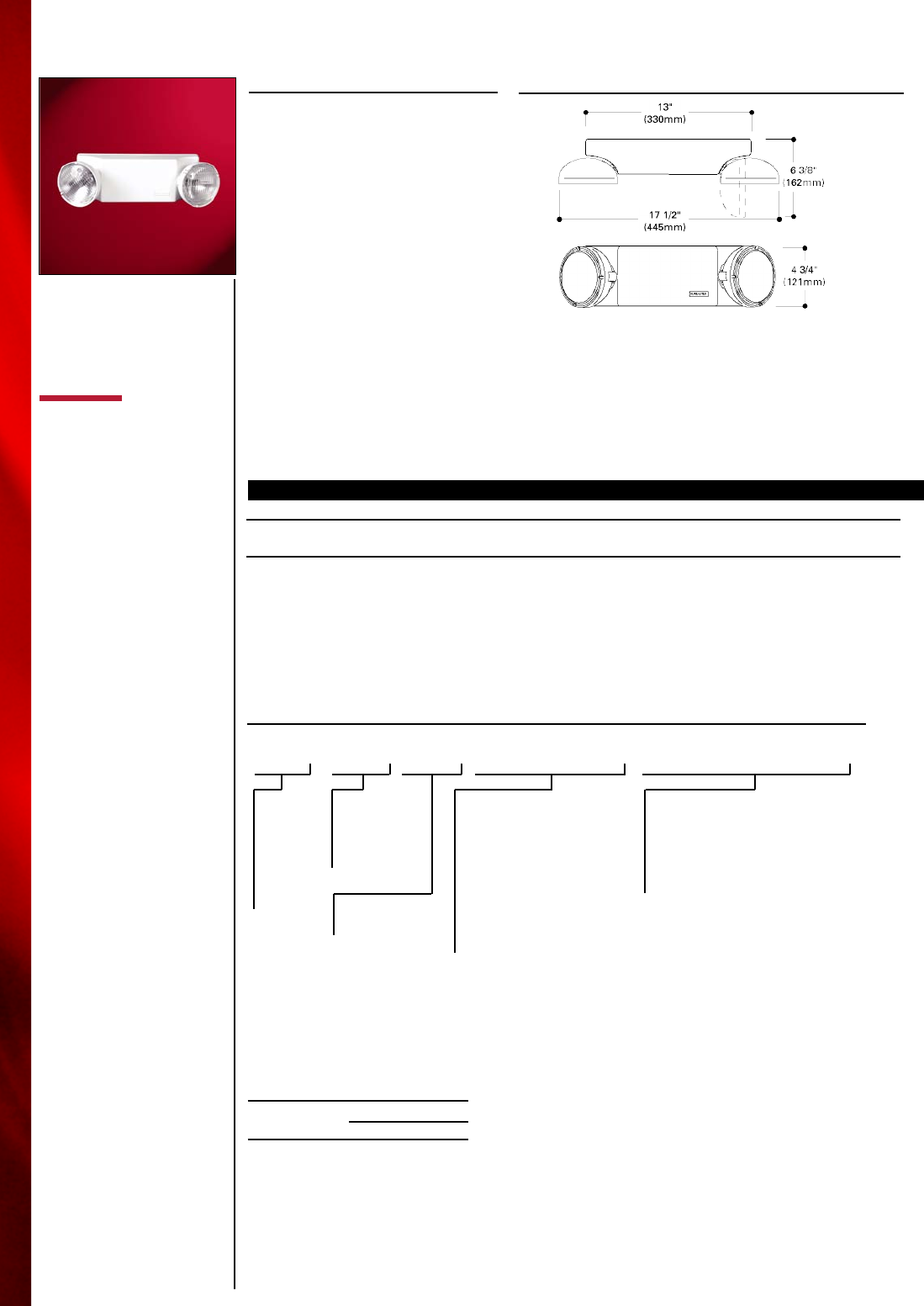

CU1

PRESTO™ Contemporary

Unit

EMERGENCY LIGHT

> Dual-Voltage Input

120/277 VAC, 60 Hz

Isolation Transformer

> Designer white textured

finish

> Maintenance Sealed

Lead Calcium Battery

> Suitable for Wall or Ceiling

Mount Applications.

> Universal J-Box Mounting

Pattern.

> Line-Latching, Solid-State

Voltage Limited Charger,

Solid-State Switching,

Low-Voltage Disconnect,

Brownout Circuit,

Overload/Short Circuit

Protection, Test Switch/

Power Indicator Light.

> UL 924, Life Safety NFPA

101, CSA Certified,

NEC/OSHA ,Most State

and Local Codes.

DIMENSIONS

DESCRIPTION

ORDERING INFORMATION

SAMPLE NUMBER: CU1PCL

Energy Data

Input Current (Max.):

Model No. 120V 277V 347V

CU1, CU1HD .12A .05A

CU1NC .06A .03A

CU13474 .14A .06A

CU1HD3474 .18A .07A

Model

Number

CU1

CU1HD

CU1NC

CU1347

CU1HD347

Options (Add as suffix)

A=Ammeter

B=Black Finish

PCL=Polycarbonate Domes

SD=Self-Diagnostics

TDM=Time Delay Monitor

V=Voltmeter

Alternate Lamps1(Wedge base & Krypton only)

Other Options1

Accessories (Order separately)

WG19 =Wire Guard

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield -

Weatherproof

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model Battery DC Voltage 1 1/2 hours 2 hours 3 hours Type Wattage Number

CU1 SLC2 6 10.8 7.2 - Incandescent 5.4 29-121

CU1HD SLC2 6 22 16 11 Incandescent 5.4 29-121

CU1NC SNC3 6 11 7.2 - Incandescent 5.4 29-121

CU1347 SLC2 6 10.8 7.2 - Incandescent 5.4 29-121

CU1HD347 SLC2 6 22 16 11 Incandescent 5.4 29-121

The Sure-Lites CU1 unit represents the next genera-

tion of emergency lighting. Sure-Lites has combined

dependable performance with a visually pleasing

design. The PRESTO™ unit is designed to harmonize

with today’s decor in commercial and public spaces.

Injection molded from high impact thermoplastic.

PRESTO™ is “contractor friendly.” The unique wiring

module makes installation a snap. All AC wiring con-

nections are made with the polarized wiring module

and there is no need to juggle the unit in place.

PRESTO™ may be ceiling or wall mounted, horizon-

tally or vertically, and may be installed to a standard

junction box or to surface mounted conduit.

Long life battery and solid-state engineering provide

trouble free operation. Two 5.4W wedge base incan-

descent lamps in locking specular reflectors appear to

float in clear acrylic domes for distortion free lighting.

Fully adjustable, locking lampheads with diffusing

lens cover.

1Consult your Cooper Lighting Representative. 2SLC=Sealed Lead Calcium 3SNC=Sealed Nickel Cadmium. 4347=347V for Canada.

SURE-LITES®

27

COOPER LIGHTING

EMERGENCY LIGHTS > Commercial

CU2

Contemporary Unit

EMERGENCY LIGHT

> Dual-Voltage Input

120/277 VAC, 60 Hz

Isolation Transformer

> High Impact polycarbonate

Housing and Mounting

Plate with Designer-White

Textured finish

> Maintenance Sealed

Lead Calcium Battery

> Suitable for Wall or Ceiling

Mount Applications

(including floor proximity

installations)

> Universal J-Box Mounting

Pattern.

> Line-Latching, Solid-State

Voltage Limited Charger,

Solid-State Switching,

Low-Voltage Disconnect,

Brownout Circuit,

Overload/Short Circuit

Protection, Test Switch/

Power Indicator Light.

> Damp Location Listed

Standard (CU-2 Only)

> UL 924, Life Safety NFPA

101, CSA Certified,

NEC/OSHA ,Most State

and Local Codes.

> ADA compliant

1Consult your Cooper Lighting Representative.

E n e rg y D a t a

Input Current (Max.):

120V=.12A

277V=.05A

11 1/8"

[283mm]

DESCRIPTION

The CU2 emergency light is an economic,

yet attractive, alternative to standard two

headed emergency lighting units. All

components snap together to facilitate

installation in 2 minutes or less.

The CU2 is ideal for applications which

demand the minimum product cost

without sacrificing dependability or

aesthetics.

Accessories (Order separately)

CAX18PKWH=18" Pendant Kit, White

CAX18PKHTWH=18" Hang True Pendant Kit, White

1MSWH=Mounting Shelf, White

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield Weather Resistant

WG1=Wire Guard

ORDERING INFORMATION

Model Number

CU2

Options (Add as suffix)

V=Voltmeter

CSK120=Cord Set (120 VAC)

Alternate Lamps1

Other Options1

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours

CU2 6 10.8

CU22146 6 10.8

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number

Incandescent 5.4 029-121

Krypton 5.4 029-146

3 3/16

[81mm]

11 1/8” [283mm]

5 3/8”

[137mm]

SAMPLE NUMBER: CU2

CU2

DIMENSIONS

28

EMERGENCY LIGHTS > Commercial

SURE-LITES®

COOPER LIGHTING

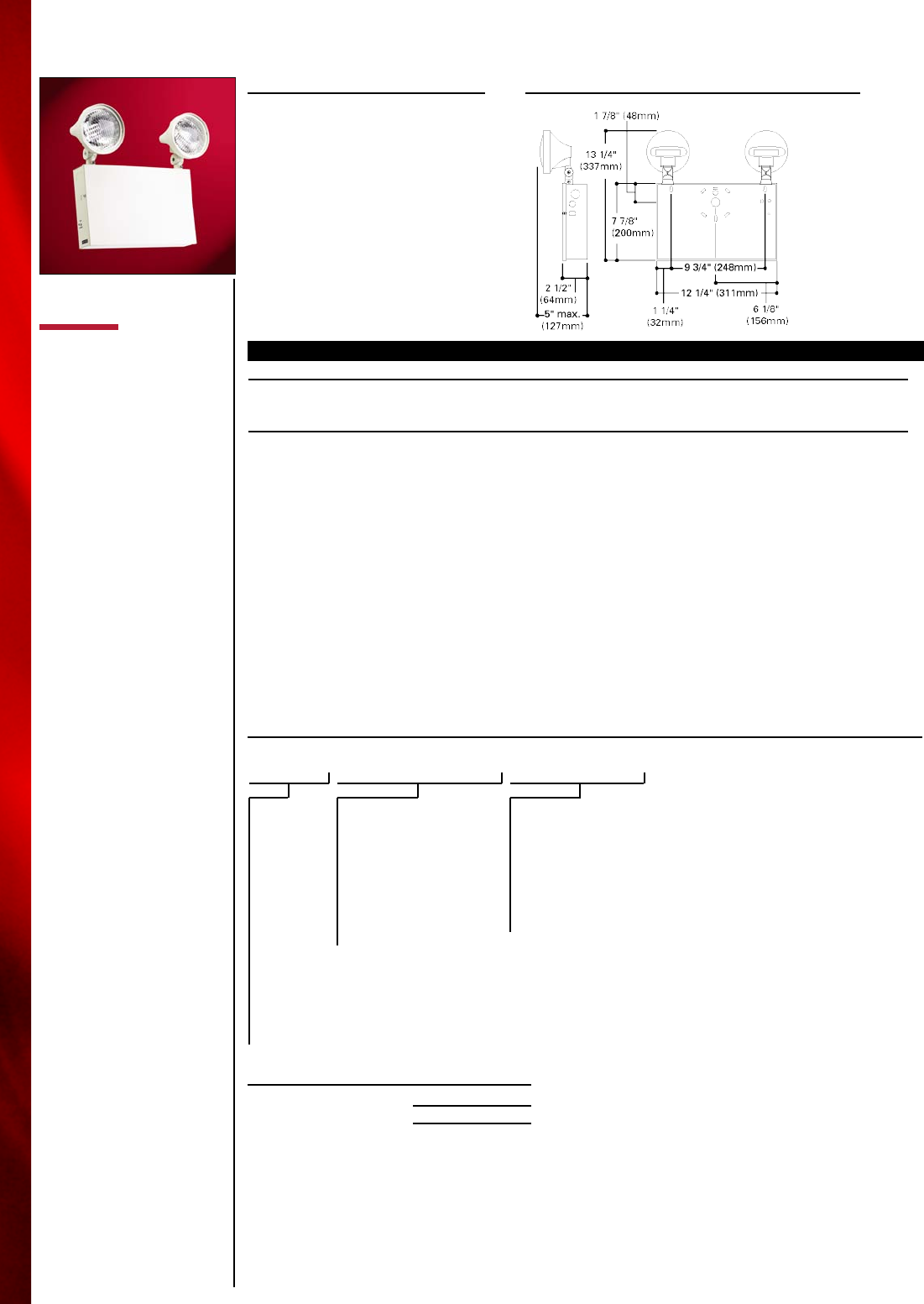

XR SERIES

Steel

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> 22 gauge die formed steel

housing

> White powder coat finish

> White, high impact,

thermoplastic

> (2) fully adjustable

thermoplastic heads - top

mounted (side mounting

optional)

> Knockout, conduit or cord

set

> Universal J-box mounting

pattern, keyhole slots

> Remote capability

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed, CSA

Certified, Life Safety NFPA

101, NEC/OSHA, most

state and local codes

DIMENSIONSDESCRIPTION

The XR Series is an efficient, rugged,

commercial grade emergency light.

The XR Series, in 6V and 12V models,

has the extra capacity to power remote

heads for added application flexibility.

ORDERING INFORMATION

SAMPLE NUMBER: XR3TDM

Energy Data

Input Current (Max.):

Model No. 120V 277V

XR3, XR5, XR7, XR9, XR11 .12A .05A

XR12206, XR12208 .30A .13A

XR15 .06A .03A

XR16 .07A .04A

XR17 .08A .05A

XR20 .13A .06A

XR21 .15A .07A

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model Battery DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage

Number

XR3 SLC 6 27 24 18 14 Incandescent 9 29-84

XR33471 SLC 6 27 24 16 14 Incandescent 9 29-84

XR5 SLC 6 27 24 18 14 Halogen Sealed Beam 6 29-37

XR7 SLC 6 36 30 20 16 Incandescent 9 29-84

XR9 SLC 6 54 48 36 28 Tungsten Halogen 6 29-12

XR11 SLC 6 54 48 36 28 Incandescent 9 29-84

XR113471 SLC 6 54 48 36 28 Incandescent 9 29-84

XR122063471 SLC 12 36 30 20 16 Incandescent 9 29-86

XR122083471 SLC 12 54 48 36 28 Incandescent 9 29-86

XR12206 SLC 12 36 30 20 16 Incandescent 9 29-86

XR12208 SLC 12 54 48 36 28 Incandescent 9 29-86

XR15 SNC 6 15 12 8 6 Incandescent 7.2 29-88

XR16 SNC 6 24 18 14 10 Incandescent 7.2 29-88

XR17 SNC 6 50 36 28 20 Incandescent 7.2 29-88

XR20 SNC 12 30 24 18 14 Incandescent 9 29-86

XR21 SNC 12 50 36 28 20 Incandescent 9 29-86

Model

Number

XR3

XR3347

XR5

XR7

XR9

XR11

XR11347

XR12206

XR12206347

XR12208

XR12208347

XR15

XR16

XR17

XR20

XR21

Options (Add as suffix)

A=Ammeter

MH=Metal Heads

SD=Self-Diagnostics (XR3, XR5,

XR12206, XR12208, XR15,

XR16, XR20, XR21 Only)

TDM=Time Delay Monitor

V=Voltmeter

Alternate Lamps2

Other Finishes2

Other Options2

Accessories (Order separately)

1BRWH =Mounting Brackets (2-White Finish)

1MSWH=Mounting Shelf (White Finish)

VK1 =Voltmeter

CSK120=Cord Set 120VAC

CSK277=Cord Set 277VAC

WG1=Wire Guard

VS2=Polycarbonate Vandal Shield

VS2WP=Polycarbonate Vandal Shield -

Weatherproof

Note: 0, 1, 3 & 4 Heads also available. Specify after catalog number [i.e., XR11484 = (XR11) with (4) 029-84 Lamps].

1347=120/347V 2Consult your Cooper Lighting Representative.

SLC=Sealed Lead Calcium Battery

SNC=Sealed Nickel Cadmium Battery

SURE-LITES®

29

COOPER LIGHTING

EMERGENCY LIGHTS > Commercial

HR SERIES

High Capacity,

8 7- 11 7 W a tt s

Ultra-High Capacity

170-360 Watts

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> 18 gauge die formed steel

housing and cover

> White powder coat finish

> Two top mounted, fully

adjustable, white, high-

Impact thermoplastic

heads

> Sealed lead-calcium

battery

> Knockout, conduit or cord

set

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test switch/

power indicator light

> UL 924 Listed, CSA

Certified, Life Safety NFPA

101, NEC/OSHA, most

state and local codes

DIMENSIONS DESCRIPTION

A real workhorse in emer-

gency lighting systems. These

durable, reliable units are

unparalleled in both perform-

ance and freedom from main-

tenance.

The HR Series provide a low

cost, solid-state lighting sys-

tem ideal for industrial, com-

mercial or multi-housing envi-

ronments. High capacity

makes the HR Series ideal for

installations where a large

number of heads/exits will be

remotely operated.

High Capacity Ultra High Capacity

A 12 1/4” (311mm) 17” (432mm)

B 13 1/4” (337mm) 16 7/8” (429mm)

C 7 7/8” (200mm) 11 1/2” (292mm)

D 4 1/4” (108mm) 8” (203mm)

E 4 3/4” (121mm) 6” (152mm)

F 1 3/8” (35mm) 2” (51mm)

G ----------------------- 5 3/4” (146mm)

H ----------------------- 2 1/2” (64mm)

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage Number

High Capacity

HR87* 6 87 65 43 32 Incandescent 9 29-84

HR117* 6 117 87 58 43 Incandescent 9 29-84

HR12117* 12 117 87 58 43 Incandescent 9 29-86

HR12117347*

1 12 117 87 58 43 Incandescent 9 29-86

Ultra High Capacity

HR180* 6 180 135 90 67 Incandescent 9 29-84

HR12170* 12 170 128 85 64 Incandescent 9 29-86

HR12210* 12 210 157 105 78 Incandescent 9 29-86

Energy Data

Input Current (Max.):

Model No. 120V 277V 347V

HR87 .50A .21A

HR117 .53A .22A

HR12117 .26A .13A

HR12117347 .25A — .60A

HR180 .98A .43A

HR12170 1.08A .45A

HR12210 1.02A .47A

HR12360 1.17A .54A

*Batteries may be shipped separately.

ORDERING INFORMATION

SAMPLE NUMBER: HR87TDM

Model

Number

HR87

HR117

HR12117

HR180

HR12170

HR12210

HR12360

Options (Add as suffix)

A=Ammeter

TDM=Time Delay Monitor

V=Voltmeter

Alternate Lamps2

Other Options2

Other finishes2

MH=Metal heads

Accessories (Order separately)

VK1 =Voltmeter

3BRWH =Mounting Brackets

2MSWH =Mounting Shelf (High Capacity)

3MSWH =Mounting Shelf (Ultra High Capacity)

WG3=Wire Guard (Ultra High Capacity)

WG7=Wire Guard (High Capacity)

CSK120=Cord Set (120VAC)

CSK277=Cord Set (277VAC)

VS2=Polycarbonate Vandal Shield

VS2WP=Polycarbonate Vandal Shield - Weatherproof

Note: 0, 1, 3 & 4 Heads also available. Specify after catalog number [i.e., HR12117379 = (HR12117) with (3) 29-79 Lamps].

1347=120/347V 2Consult your Cooper Lighting Representative.

30

EMERGENCY LIGHTS > Commercial

SURE-LITES®

COOPER LIGHTING

HS1R SERIES

Portable

EMERGENCY LIGHT

with 6’ Cord & Plug

> Quick installation

(2 minutes)

> 120VAC 60Hz

> Injection molded, color

stable, high impact

polycarbonate housing

> Designer white textured

finish

> Lamp Selection Switch for

1 or 2 lamp operation

> Suitable for wall mount

applications

> Keyhole mounting slots

> Solid State Voltage Limited

Charger, Brownout Circuit,

Test Switch/Power

Indicator Light

> UL 924 Listed, Auxiliary

Equipment, CSA Certified,

NEC/OSHA, Meets most

State and Local Codes

DIMENSIONSDESCRIPTION

The HS1R emergency lighting

unit provides emergency

lighting when you need it

most. The fixture’s unique

design makes it adaptable to

many applications.

The HS1R can be used as a

free standing unit or it can be

wall mounted using the

keyhole slots provided.

A 6-foot cord and plug are

provided for ease of AC power

hook-up. The integral handle

allows the HS1R to become

portable during power loss

when mobility is necessary.

Two PAR20 style heads allow

total horizontal and vertical

aiming adjustability. The lamp

head selection switch allows

the choice for 1 lamp

illumination for 4 hours or

2-lamp illumination for 2

hours.

3.0” [75mm]

6.5” [168mm]

6.0” [151mm]

7.0” [177mm]

5.0” [128mm]

Accessories (order separately)

1BRWH=Mounting Brackets (2-White Finish)

1MSWH=Mounting Shelf (White Finish)

ORDERING INFORMATION

Model Number

HS1R

SAMPLE NUMBER: HS1R

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours

HS1R 6 10.8

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number

Incandescent 5.4 029-121

HS1R

SURE-LITES®

31

COOPER LIGHTING

EMERGENCY LIGHTS > Commercial

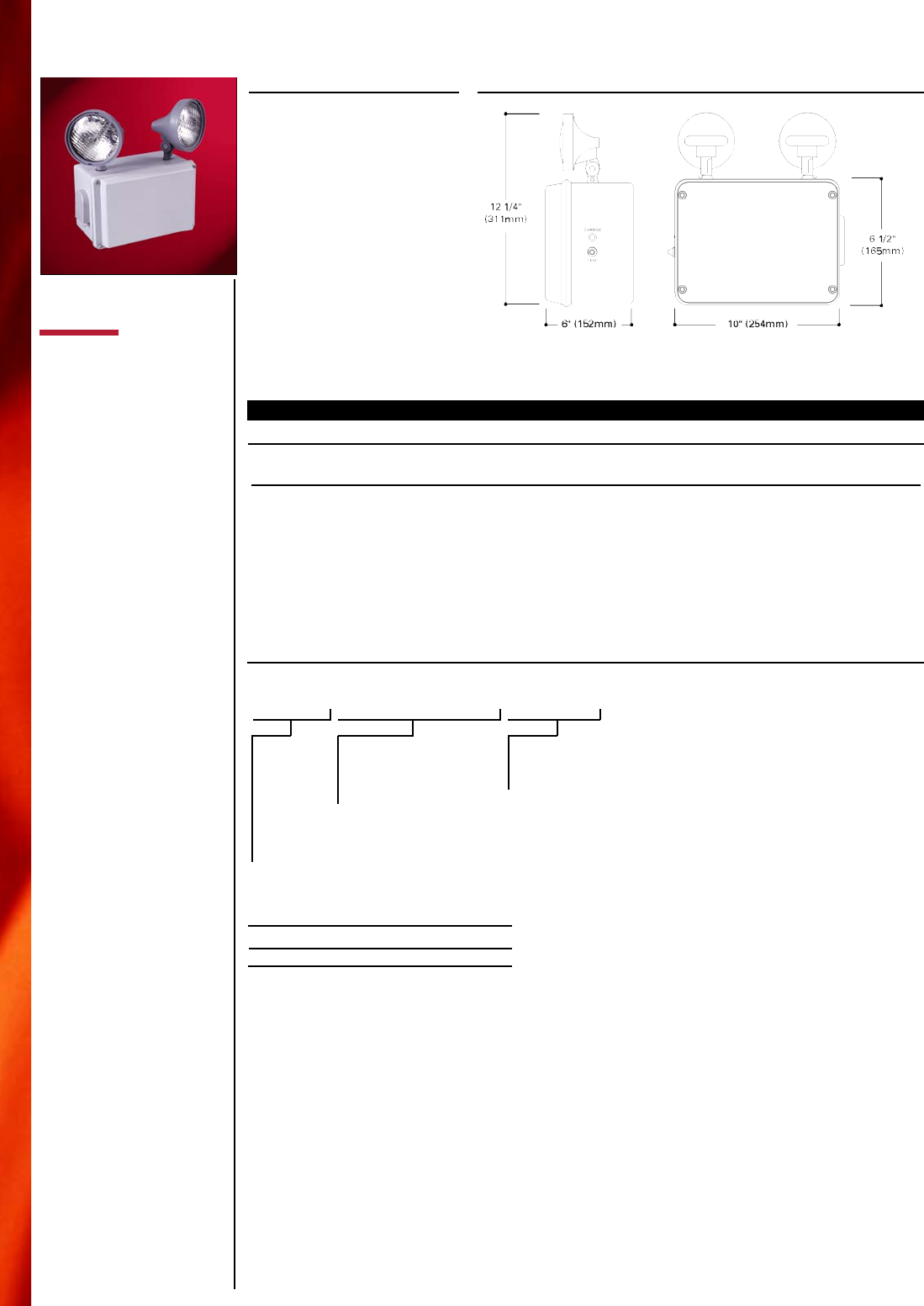

LM1 SERIES

Steel

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> 18 gauge die formed

steel housing

> White powder coat finish

> Two PAR36 type lamps

in fully adjustable, white,

high-impact thermoplastic

lampholders

> Sealed lead calcium

battery

> Knockout, conduit or cord

set

> Universal J-box mounting

pattern, keyhole slots

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

DIMENSIONS DESCRIPTION

The LM Series is an emergency

light packaged in an attractive,

flame-resistant metal housing.

High-impact thermoplastic PAR36

heads permit unrestricted unit

placement and easy beam position-

ing.

The unit of choice for installations

where the size and cost of emer-

gency lighting must be kept to a

minimum without sacrificing

dependability or light output.

ORDERING INFORMATION

SAMPLE NUMBER: LM1V

E n e rg y D a t a

Input Current

(Max.):

Model No. 120V 277V

LM1 .12A .05A

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 hours 2 hours Type Wattage Number

LM1 6 10.8 7.2 Incandescent 5.4 029-121

Model

Number

LM1

Options (Add as suffix)

V=Voltmeter

Alternate Lamps1

Other Finishes1

Other Options1

Accessories (Order separately)

1BRWH =Mounting Brackets (2) White

VK1=Voltmeter

CSK120=Cord Set 120VAC

CSK277=Cord Set 277VAC

WG2 =Wire Guard

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield -

Weatherproof

LM1

1Consult your Cooper Lighting Representative.

32

EMERGENCY LIGHTS > Commercial

SURE-LITES®

COOPER LIGHTING

AA1 SERIES

Steel

EMERGENCY LIGHT

> Dual-voltage input

120/277VAC, 60Hz

> 22 gauge die formed

steel housing

> White powder coat finish

> Two PAR36 type lamps in

fully adjustable, white,

high-impact thermoplastic

lampholders

> Sealed nickel cadmium

battery

> Knockout, conduit or cord

set

> Universal J-box mounting

pattern, keyhole slots

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

1Consult your Cooper Lighting Representative. 2Provision for one meter only. 3SLC=Sealed Lead Calcium 4SNC=Sealed Nickel Cadmium

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of rated D.C. Voltage Lamp Information

Model Battery DC Voltage 1 1/2 hours 2 hours 3 hours 4 hours Type Wattage Number

AA1 SLC3 6 18 15 10 8 Incandescent 9 29-84

AA8 SNC4 6 15 12 8 6 Incandescent 7.2 29-88

DESCRIPTION

A versatile “mini-system

” featuring

reliability, quality metal construction,

optimum illumination and an attractive

compact appearance.

The popular choice for commercial,

institutional and public facilities where

moderate loads, economy, ease of

installation, safety and reliability are

important.

Model Number

AA1

AA8

ORDERING INFORMATION

SAMPLE NUMBER: AA1SD

Energy Data

Input Current

(Max.):

Model No. 120V 277V

AA1 .12A .05A

AA8 .06A .03A

Options (Add as suffix)

A=Ammeter2

SD=Self-Diagnostics

TDM=Time Delay Monitor

V=Voltmeter2

Alternate Lamps1

Other Finishes 1

Other Options 1

Accessories (Order separately)

1BRWH =Mounting Brackets (2) White

1MSWH=Mounting Shelf, White

VK1=Voltmeter

WG1 =Wire Guard

CSK120=Cord Set (120VAC)

CSK277=Cord Set (277VAC)

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield -

Weatherproof

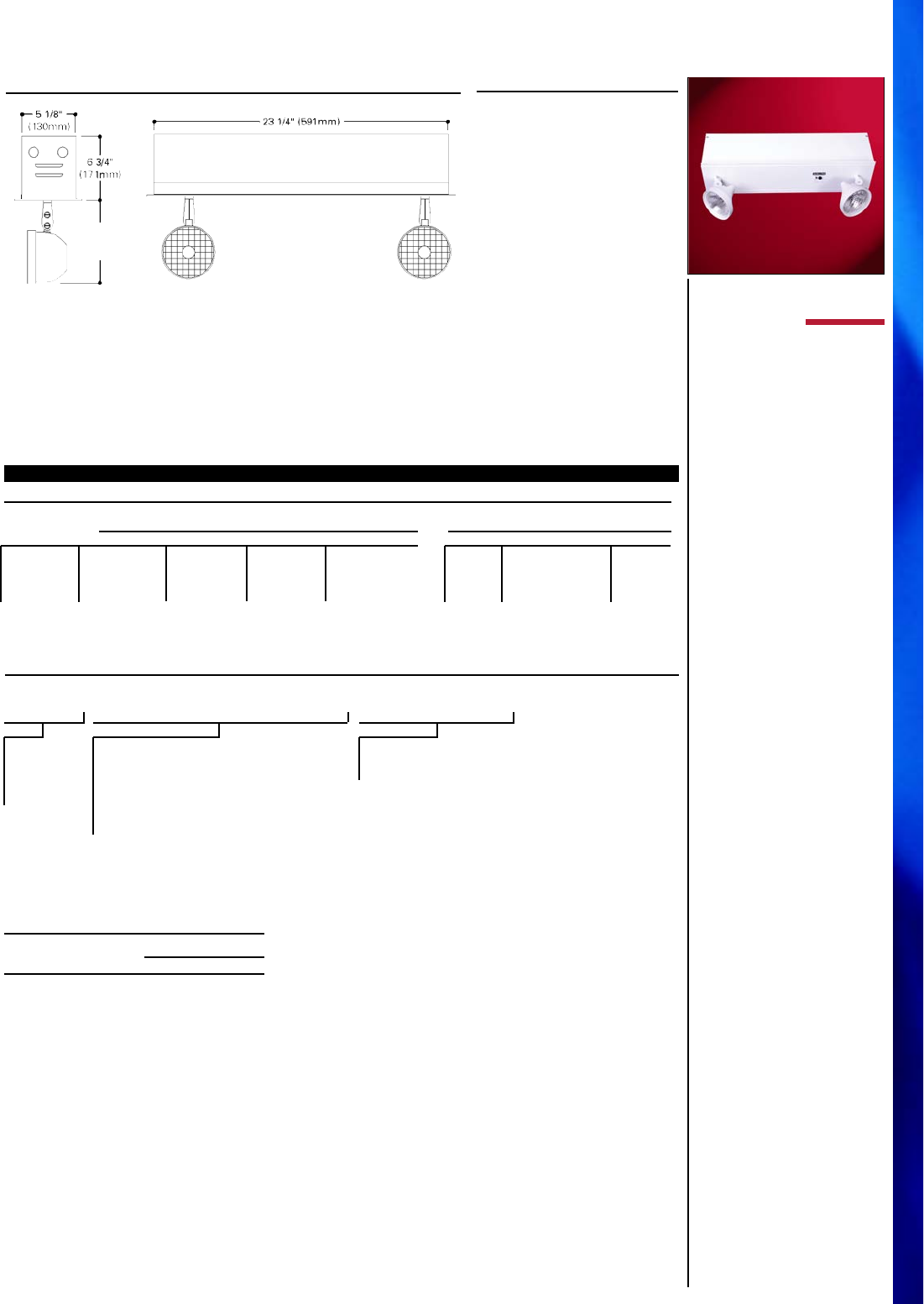

DIMENSIONS

SURE-LITES®

33

COOPER LIGHTING

EMERGENCY LIGHTS > Remote

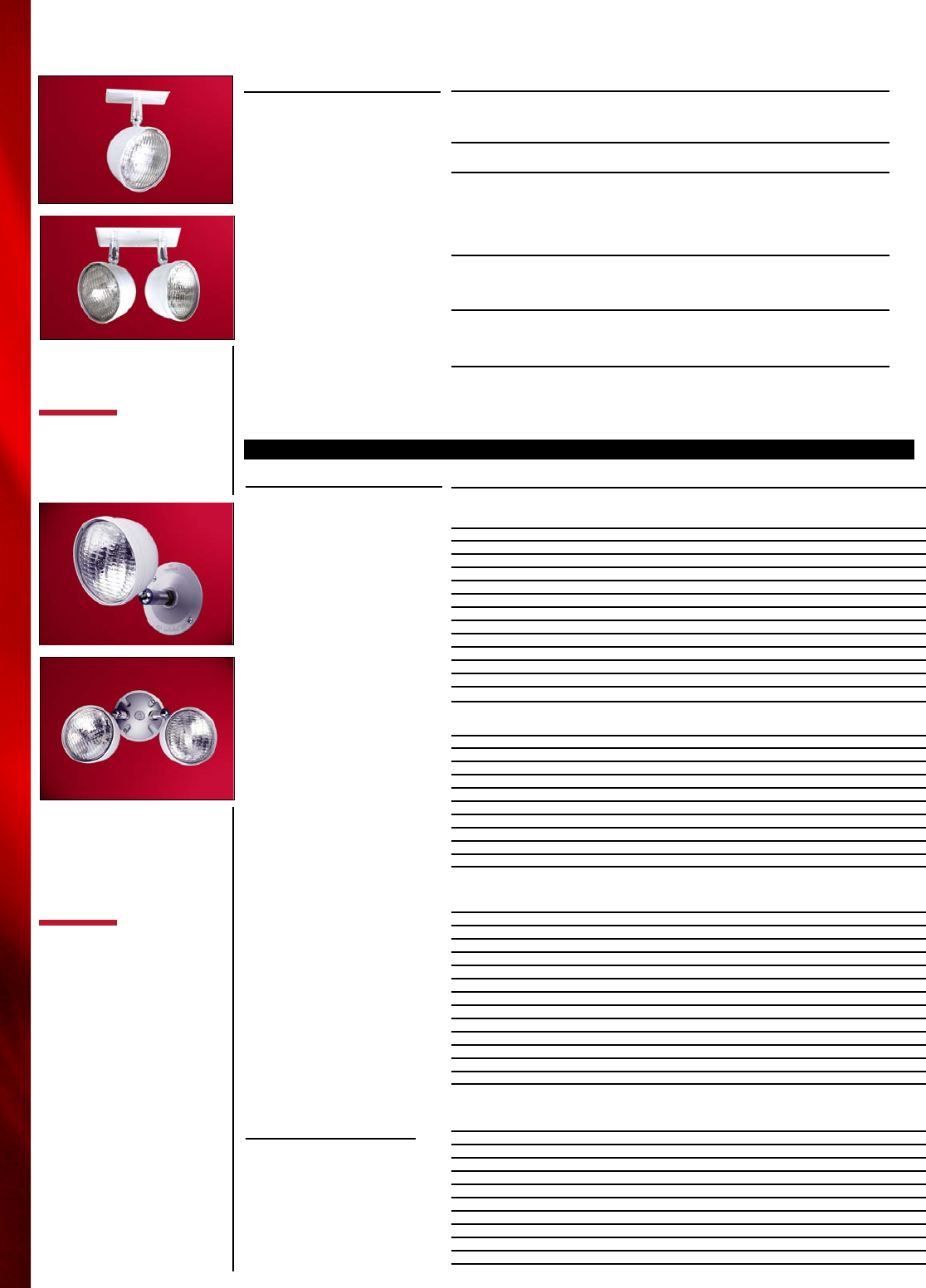

6V, 12V PLASTIC

REMOTES

Universal Remote Heads

6V, 12V PLASTIC

WEATHERPROOF

REMOTES

Single and Double

Remote Heads

RD Heads OptionSQ Heads Option

ORDERING INFORMATION

6 Volt Universal Remote Heads

Catalog No. Lamp Type Volts Watts Lamp No.

6T6XXU* Halogen Sealed Beam 6 6 029-37

6T8XXU* Halogen Sealed Beam 6 8 029-14

6T12XXU* Halogen Sealed Beam 6 12 029-15

6X54XXU* Incandescent Wedge Base 6 5.4 029-121

6X7XXU* Incandescent Wedge Base 6 7 029-88

6X9XXU* Incandescent Wedge Base 6 9 029-84

6X12XXU* Incandescent Sealed Beam 6 12 029-39

6X25XXU* Incandescent Sealed Beam 6 25 029-09

12 Volt Universal Heads

Catalog No. Lamp Type Volts Watts Lamp No.

12T8XXU* Halogen Sealed Beam 12 8 029-16

12T12XXU* Halogen Sealed Beam 12 12 029-79

12X9WHU* Incandescent Wedge Base 12 9 029-86

12X12XXU* Incandescent Sealed Beam 12 12 029-26

12X25XXU* Incandescent Sealed Beam 12 25 029-08

Finish Codes: WH-White, BK-Black, GY-Grey.

Replace “XX” with desired Finish Code when ordering. (Example: 6T12WHU, for double head: 6T12DWH).

Alternate Lamps 1

*Remove “U”, Add “RD” suffix for Roundback Heads; Add “SQ” suffix for Square Heads - RD & SQ Heads

available in white only; SQ Head only available in wedge base and bi-pin lamps. (Example: GX7WHSQ)

DESCRIPTION

Flame and impact resistant

injection molded thermoplas-

tic PAR36 type lampholders.

Available in White, Grey and

Black finishes (specify color

when ordering.) Heads adjust

80° from vertical with 358°

rotation. Supplied complete

with thermoplastic lampholder

housings, swivel, lamp and 5"

diameter mounting plate.

Universal mounting plate has

three knockouts for mounting

lampholders on either side or

in center position. For double

head remotes, specify two

Universal Remote Head

Assemblies. UL 924 Listed,

CSA certified.

DESCRIPTION

Designed to perform in wet

locations. Flame and impact

resistant injection molded

thermoplastic PAR36 lam-

pholders. Die cast, aluminum

gasketed mounting plate.

Sealed swivel and coated

lamp terminals resist oil, water

and dust. Available in standard

industrial white, grey and

black finishes (specify color

when ordering). Heads adjust

80° from vertical with 358°

rotation. Supplied complete

with thermoplastic lampholder

housings, swivel, lamp and 5"

diameter die cast, grey mount-

ing plate. UL 924 Listed, CSA

Certified. UL Wet Location

Listed.

ORDERING INFORMATION

6 Volt Single Head Weatherproof Remotes

Catalog No. Lamp Type Volts Watts Lamp No.

6T6WXX Halogen Sealed Beam 6 6 029-37

6T8WXX Halogen Sealed Beam 6 8 029-14

6X7WXX Incandescent Sealed Beam 6 7.2 029-75

6X9WXX Incandescent Sealed Beam 6 8 029-03

6XW54WXX Incandescent Wedge Base 6 5.4 XW029-121

6XW7WXX Incandescent Wedge Base 6 7.2 XW029-88

6XW9WXX Incandescent Wedge Base 6 9 XW029-84

6 Volt Double Head Weatherproof Remotes

Catalog No. Lamp Type Volts Watts Lamp No.

6T6DWXX Halogen Sealed Beam 6 6 029-37

6T8DWXX Halogen Sealed Beam 6 8 029-14

6X7DWXX Incandescent Sealed Beam 6 7.2 029-75

6X9DWXX Incandescent Sealed Beam 6 8 029-03

6XW54DWXX Incandescent Wedge Base 6 5.4 XW029-121

6XW7DWXX Incandescent Wedge Base 6 7.2 XW029-88

6XW9DWXX Incandescent Wedge Base 6 9 XW029-84

12 Volt Single Head Weatherproof Remotes

Catalog No. Lamp Type Volts Watts Lamp No.

12T8WXX Halogen Sealed Beam 12 8 029-16

12T12WXX Halogen Sealed Beam 12 12 029-79

12X25WXX Incandescent Sealed Beam 12 25 029-08

12XW9WXX Incandescent Wedge Base 12 9 XW029-86

12XW12WXX Incandescent Wedge Base 12 12 XW029-132

12 Volt Double Head Weatherproof Remotes

Catalog No. Lamp Type Volts Watts Lamp No.

12T8DWXX Halogen Sealed Beam 12 8 029-16

12T12DWXX Halogen Sealed Beam 12 12 029-79

12X25DWXX Incandescent Sealed Beam 12 25 029-08

12XW9DWXX Incandescent Wedge Base 12 9 XW029-86

12XW12DWXX Incandescent Wedge Base 12 12 XW029-132

Finish Codes: WH-White, GY-Grey , BK-Black.

Replace “XX” with desired Finish Code when ordering. (Example: 6T6DWWH).

Alternate Lamps 1

1Consult your Cooper Lighting Representative.

34

EMERGENCY LIGHTS > Remote

SURE-LITES®

COOPER LIGHTING

6V, 12V METAL

HEAD REMOTES

Single and Double

Remote Heads

6V, 12V

WEATHERPROOF

METAL HEAD

REMOTES

Single and Double

Remote Heads

ORDERING INFORMATION

Lamp Housing +

Mounting Plate

Catalog No. Finish Lamp Type Volts Watts Lamp No.

6 Volt Single Metal Head Remotes

6T6MHWH White Halogen Sealed Beam 6 6 029-37

6T12MHWH White Halogen Sealed Beam 6 12 029-15

6X7MHWH White Incandescent Sealed 6 7.2 029-75

Beam

6 Volt Double Metal Head Remotes

6T6DMHWH White Halogen Sealed Beam 6 6 029-37

6T12DMHWH White Halogen Sealed Beam 6 12 029-15

12 Volt Single Metal Head Remotes

12T12MHWH White Halogen Sealed Beam 12 12 029-79

12T50MHWH White Halogen Sealed Beam 12 50 029-135

12 Volt Double Metal Head Remotes

12T12DMHWH White Halogen Sealed Beam 12 12 029-79

12T50DMHWH White Halogen Sealed Beam 12 50 029-135

Alternate Lamps 1

Other Finishes 1

DESCRIPTION

Lamp housing is made of corro-

sion resistant 22 gauge die formed

spun aluminum with a powder

coat finish. Die cast aluminum

swivel assembly allows 80° adjust-

ment from vertical with 358° rota-

tion. Stainless steel mounting

plate mounts flush on wall or ceil-

ing and is designed for installation

on standard electrical box. (Single

head remotes are supplied with

single gang plate, double head

remotes are supplied with three

gang plate). UL 924 Listed, CSA

Certified.

1Consult your Cooper Lighting

Representative.

DESCRIPTION

Designed to perform in wet

locations. Lamp housing is

made of corrosion resistant 22

gauge die formed spun alu-

minum with a powder coat fin-

ish and a die cast aluminum,

gasketed mounting plate.

Sealed swivel and coated

lamp terminals resist oil, water

and dust. Available in standard

industrial white finish-specify

color when ordering; other fin-

ishes available. Heads adjust

80° from vertical with 358°

rotation. Supplied complete

with a 5" diameter die cast,

grey finished, gasketed mount-

ing plate. UL 924 Listed, CSA

Certified. City of Chicago Code

(see catalog numbers with*),

UL Wet Location Listed.

ORDERING INFORMATION

6 Volt Single Metal Weatherproof

Catalog Heads Lamp Type Volts Watts Lamp Number

6X7WMHWH One Incandescent - Sealed Beam 6 7 029-75

6X8WMHWH One Incandescent - Sealed Beam 6 8 029-03

6X12WMHWH One Incandescent - Sealed Beam 6 12 029-39

6X18WMHWH One Incandescent - Sealed Beam 6 18 029-13

6X25WMHWH* One Incandescent - Sealed Beam 6 25 029-09

6T6WMHWH One Halogen - Sealed Beam 6 6 029-37

6T8WMHWH One Halogen - Sealed Beam 6 8 029-14

6T10WMHWH One Halogen - Sealed Beam 6 10 029-36

6T12WMHWH* One Halogen - Sealed Beam 6 12 029-15

6T20WMHWH* One Halogen - Sealed Beam 6 20 029-18

6XW54WMHWH One Wedge Base - Incandescent 6 5.4 029121

6XW7WMHWH One Wedge Base - Incandescent 6 7.2 02988

6XW9WMHWH One Wedge Base - Incandescent 6 9 02984

12 Volt Single Metal Weatherproof

Catalog Heads Lamp Type Volts Watts Lamp Number

12X12WMHWH One Incandescent - Sealed Beam 12 12 029-26

12X18WMHWH One Incandescent - Sealed Beam 12 18 029-19

12X25WMHWH* One Incandescent - Sealed Beam 12 25 029-08

12X30WMHWH* One Incandescent - Sealed Beam 12 30 029-126

12T8WMHWH One Halogen - Sealed Beam 12 8 029-16

12T12WMHWH* One Halogen - Sealed Beam 12 12 029-79

12T37WMHWH* One Halogen - Sealed Beam 12 37.5 029-134

12T50WMHWH* One Halogen - Sealed Beam 12 50 029-135

12XW9WMHWH One Wedge Base - Incandescent 12 9 02986

12XW12WMHWH One Wedge Base - Incandescent 12 12 029132

6 Volt Double Metal Weatherproof

Catalog Heads Lamp Type Volts Watts Lamp Number

6X7DWMHWH Two Incandescent - Sealed Beam 6 7 029-75

6X8DWMHWH Two Incandescent - Sealed Beam 6 8 029-03

6X12DWMHWH Two Incandescent - Sealed Beam 6 12 029-39

6X18DWMHWH Two Incandescent - Sealed Beam 6 18 029-19

6X25DWMHWH* Two Incandescent - Sealed Beam 6 25 029-09

6T6DWMHWH Two Halogen - Sealed Beam 6 6 029-37

6T8DWMHWH Two Halogen - Sealed Beam 6 8 029-14

6T10DWMHWH Two Halogen - Sealed Beam 6 10 029-36

6T12DWMHWH* Two Halogen - Sealed Beam 6 12 029-15

6T20DWMHWH* Two Halogen - Sealed Beam 6 20 029-18

6XW54DWMHWH Two Wedge Base - Incandescent 6 5.4 029121

6XW7DWMHWH Two Wedge Base - Incandescent 6 7.2 02988

6XW9DWMHWH Two Wedge Base - Incandescent 6 9 02984

12 Volt Double Metal Weatherproof

Catalog Heads Lamp Type Volts Watts Lamp Number

12X12DWMHWH Two Incandescent - Sealed Beam 12 12 029-26

12X18DWMHWH Two Incandescent - Sealed Beam 12 18 029-19

12X25DWMHWH* Two Incandescent - Sealed Beam 12 25 029-08

12X30DWMHWH* Two Incandescent - Sealed Beam 12 30 029-126

12T8DWMHWH Two Halogen - Sealed Beam 12 8 029-16

12T12DWMHWH* Two Halogen - Sealed Beam 12 12 029-79

12T37DWMHWH* Two Halogen - Sealed Beam 12 37.5 029-134

12T50DWMHWH* Two Halogen - Sealed Beam 12 50 029-135

12XW9DWMHWH Two Wedge Base - Incandescent 12 9 02986

12XW12DWMHWH Two Wedge Base - Incandescent 12 12 029132

Catalog Notes:

WH – White (standard finish),

GY – Grey,

BK – Black

* Meets City of Chicago Code

SURE-LITES®

35

COOPER LIGHTING

EMERGENCY LIGHTS > Remote

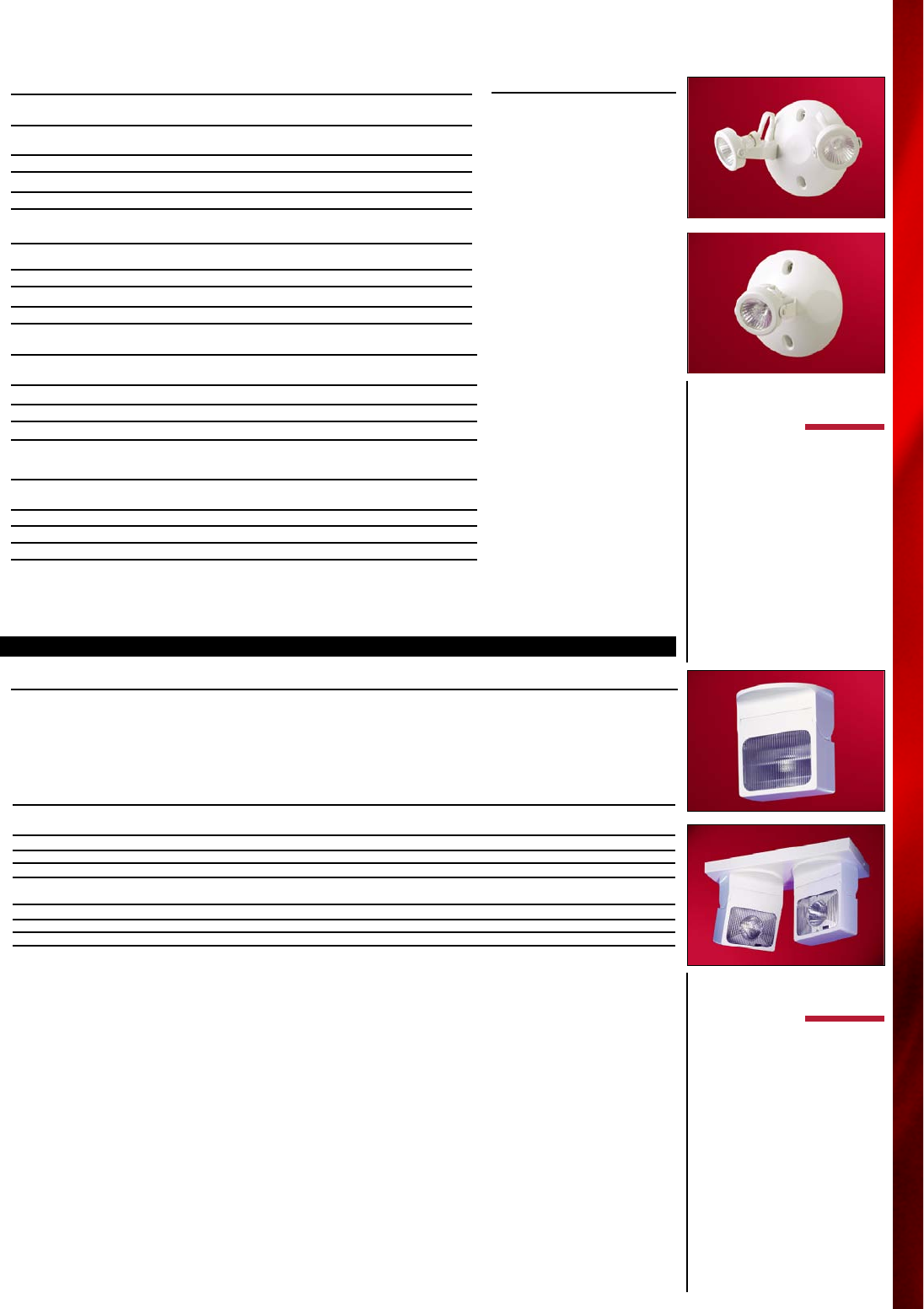

MR16 SERIES

Single and Double

Remote Heads

MR SERIES

Single and Double

Remote Heads

1Consult your Cooper Lighting Representative.

DESCRIPTION

The Metrolite MR Series are 6V or 12V DC remotes that provide continuity in style when used with the

ML Series. The MR Series sculptured and compact appearance makes it perfect for high quality interior

applications. The self-contained, feature rich design packs a powerful punch with its super-bright halo-

gen lamp and precision optics. The integral mounting plate makes installation fast and easy. UL listed.

ORDERING INFORMATION

Single Head Remotes

Catalog No. Lamp Type DC Voltage Watts Lamp No.

MR6T12 Bi-Pin Halogen 6 12 029-66

MR12T12 Bi-Pin Halogen 12 12 029-45

Double Head Remotes

Catalog No. Lamp Type DC Voltage Watts Lamp No.

MR6T12D Bi-Pin Halogen 6 12 029-66

MR12T12D Bi-Pin Halogen 12 12 029-45

Alternate Lamps 1

ORDERING INFORMATION

6 Volt Single Head MR16 Remote Heads

Catalog No. Lamp Type Volts Watts Lamp No.

MRT6T5 MR16 6 5 029-139

MRT6T9 MR16 6 9 029-143

MRT6T12 MR16 6 12 029-140

6 Volt Double Head MR16 Remote Heads

Catalog No. Lamp Type Volts Watts Lamp No.

MRT6T5D MR16 6 5 029-139

MRT6T9D MR16 6 9 029-143

MRT6T12D MR16 6 12 029-140

DESCRIPTION

The MR16 Remote includes a

steel gimbal ring and arm with

a glass lens and an injection

molded thermoplastic canopy.

Available in White only. Heads

adjust 80° from vertical with

358° rotation. Supplied com-

plete with gimbal ring assem-

bly, MR16 lamping, glass lens,

and 5” diameter mounting

plate. MR16 gimbal ring assem-

blies come pre-mounted to

canopy in single and double

head configurations. Use WG8

Wire Guard for single head

remotes; and WG9 Wire Guard

for double head remotes. UL

Listed, Life Safety NFPA 101.

12 Volt Single Head MR16 Remote Heads

Catalog No. Lamp Type Volts Watts Lamp No.

MRT12T12 MR16 12 12 029-141

MRT12T20 MR16 12 20 029-142

MRT12T50 MR16 12 50 029-144

12 Volt Double Head MR16 Remote Heads

Catalog No. Lamp Type Volts Watts Lamp No.

MRT12T12D MR16 12 12 029-141

MRT12T20D MR16 12 20 029-142

MRT12T50D MR16 12 50 029-144

36

EMERGENCY LIGHTS > Remote

SURE-LITES®

COOPER LIGHTING

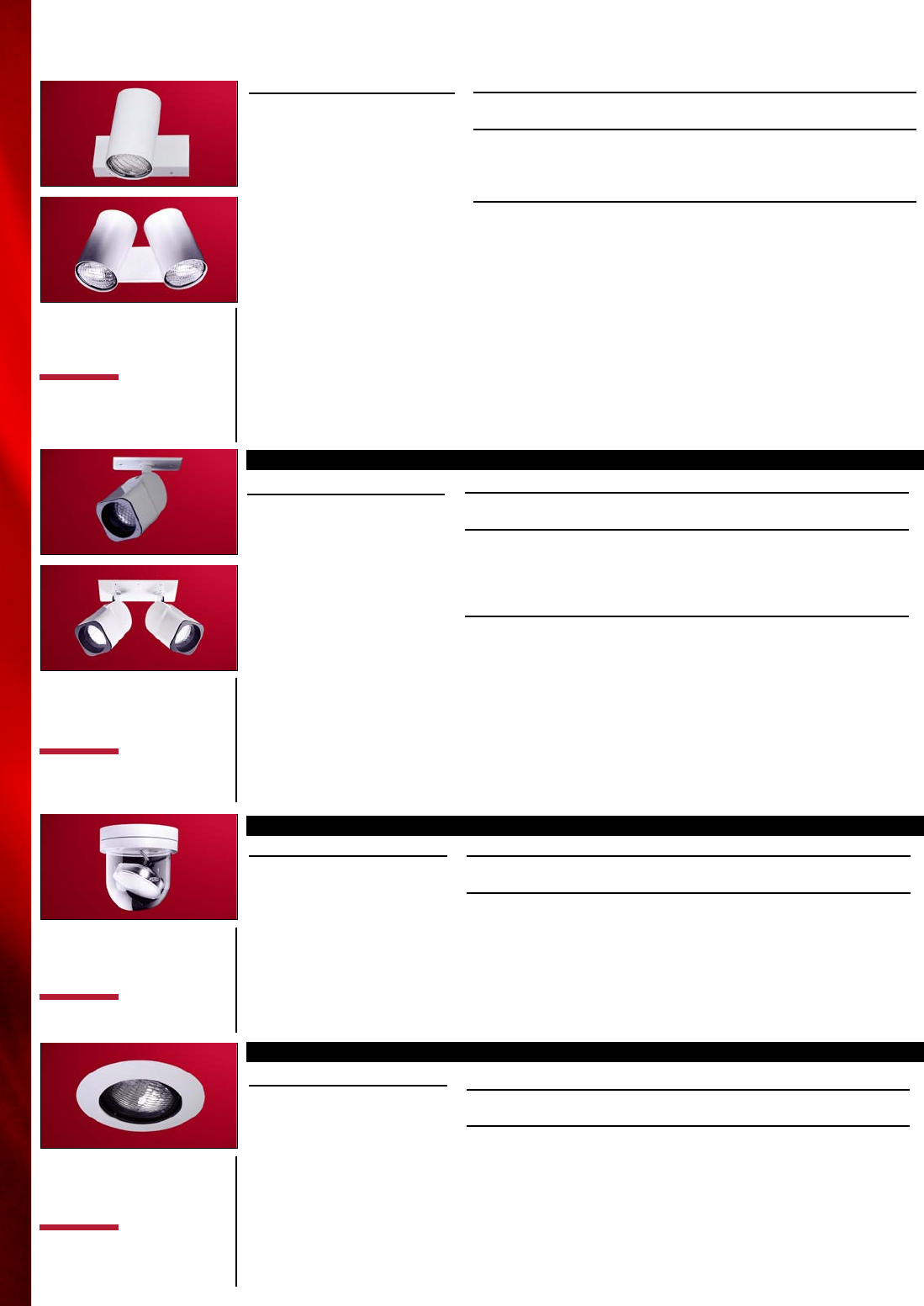

CFR SERIES

CYLINDER REMOTES

Single and Double

Head Remotes

DR SERIES

DESIGNER REMOTES

Single and Double

Head Remotes

CU1 SERIES

SPECIALTY REMOTES

Single Head Remotes

GFR SERIES

SPECIALTY REMOTES

Single Head Remotes

ORDERING INFORMATION

Single Head Remotes

Catalog No. Finish Lamp Type Volts Watts Lamp No.

DR112 White Halogen Bi-Pin T2 1/4 6 6 029-12

DR166 White Halogen Bi-Pin T2 1/4 6 12 029-66

DR145 White Halogen Bi-Pin T2 1/4 12 12 029-45

Double Head Remotes

Catalog No. Finish Lamp Type Volts Watts Lamp

DR212 White Halogen Bi-Pin T2 1/4 6 6 029-12

DR266 White Halogen Bi-Pin T2 1/4 6 12 029-66

DR245 White Halogen Bi-Pin T2 1/4 12 12 029-45

Alternate Lamps 1

ORDERING INFORMATION

Single Head Remotes

Catalog No. Lamp Type Volts Watts Lamp No.

CFR103 Incandescent Sealed Beam 6 8 029-03

CFR116 Halogen Sealed Beam 12 8 029-16

Double Head Remotes

Catalog No. Lamp Type Volts Watts Lamp No.

CFR203 Incandescent Sealed Beam 6 8 029-03

CFR216 Halogen Sealed Beam 12 8 029-16

Alternate Lamps 1

ORDERING INFORMATION

CU1R Series

Catalog No. Finish Lamp Type Volts Watts Lamp No.

CU1R White Incandescent Wedge Base 6 5.4 029-121

CU1RB Black Incandescent Wedge Base 6 5.4 029-121

Alternate Lamps 1

Other Finishes 1

ORDERING INFORMATION

GFR Series

Catalog No. Finish Lamp Type Volts Watts Lamp No.

GFR2703 White Trim Incandescent Sealed Beam 6 8 029-03

GFR2716 White Trim Halogen Sealed Beam 12 8 029-16

Alternate Lamps 1

Other Finishes 1

1Consult your Cooper Lighting Representative.

DESCRIPTION

CFR

Matches SLC Series emergency

lighting units. Lamp heads

adjust 80° from vertical with

358° rotation. Die-formed steel

faceplate has a white, corro-

sion-resistant finish. Cabinet

has side knockout for conduit

connection as well as universal

pattern mounting knockouts.

UL listed.

DESCRIPTION

DR

Matches RD Series emergency

lighting units. Heads are injec-

tion molded high gloss ther-

moplastic. Lamp heads adjust

80° from vertical with 358°

rotation. Single head remotes

supplied with single gang

mounting plate, double head

remotes supplied with three

gang mounting plate.

UL listed.

DESCRIPTION

CU1R

Matches CU1 Series

Emergency lighting units. For

use with CU1HD emergency

lighting unit or 6V DC Class 2

circuit. Clear acrylic dome (for

polycarbonate dome, add PCL

suffix to catalog number).

UL listed

DESCRIPTION

GFR

Matches RG1 Series emer-

gency lighting units. 20 gauge

die-stamped steel housing

with white baked-enamel fin-

ish. Available with 6 volt or 12

volt incandescent sealed beam

lamps. UL 924 damp location

listed.

SURE-LITES®

37

COOPER LIGHTING

EMERGENCY LIGHTS > Remote

R4C SERIES

Emergency Remotes

RFR SERIES

Emergency Remotes

ULTIMATE

REMOTE SERIES

Emergency Remotes

HZB/HZP SERIES

Emergency Remotes

ORDERING INFORMATION

HZ Series

Catalog No. Mounting Lamp Type Volts Watts Lamp No.

12X25HZP Pendant Incandescent 12 25 ZZ-13

12X25HZB Bracket Incandescent 12 25 ZZ-13

HZB/HZP

The Sure-Lites HZP Series and HZB Series explosion-proof, emergency lighting fixtures are designed for remote

mounting in Class I, Division 1, Group C, D and Class II, Division 1, Group E, F, G locations such as oil refineries, oil

and gasoline loading docks, chemical and petrochemical plants, paint manufacturing sites, pumping stations and

other process industry facilities where similar hazards exist. Body and globe guard are copper-free, corrosion resist-

ant light weight aluminum, with a heat and impact resistant glass globe. UL 924 Listed, Life Safety NFPA 101, NEC

Class I, division 1, Groups C, D and Class II, Division 1, Groups E, F, G, NEC/OSHA, most state and local codes. UL

Damp Location Listed.

DESCRIPTION

ORDERING INFORMATION

R4C Series

Catalog No. Lamp Type Volts Watts Lamp No.

R4C140 Halogen Bi-Pin T2 1/4 6 10 029-40

R4C145 Halogen Bi-Pin T2 1/4 12 12 029-45

Alternate Lamps 1

Other Finishes 1

R4C

Matches P4C Series emergency lighting units. Impact resistant thermoplastic housing is UL924 rated.

Black thermoplastic body with white plastic collar and reflector. For semi-recessed installation, order

USF1 accessory. For fully recessed installation, order FRK1 accessory.

DESCRIPTION

ORDERING INFORMATION

RFR Series

Catalog No. Finish Lamp Type Volts Watts Lamp No.

RFR130 White Trim Incandescent DC Bayonet Base 6 6.6 029-30

RFR153 White Trim Incandescent DC Bayonet Base 12 7.5 029-53

Alternate Lamps 1

Other Finishes 1

DESCRIPTION

RFR

20 gauge die-stamped steel housing with white baked enamel finish. 5 1/2" housing accommodates

2x6 joist construction. Available with 6 volt or 12 volt incandescent double contact bayonet base

lamps. UL Damp Location Listed.

1Consult your Cooper Lighting Representative.

Catalog Number Lamp Type Volts Watts Lamp No. T-Code Lamp Data

MRT6T5HAZ MR16 6 5 029-139 T3A ADX031520

MRT6T9HAZ MR16 6 9 029-143 T2C ADX031520

MRT6T12HAZ MR16 6 12 029-140 T2A ADX031520

MRT12T12HAZ MR16 12 12 029-141 T2A ADX031520

MRT12T20HAZ MR16 12 20 029-142 T1 ADX031520

O R D E R I N G I N F O R M AT I O N - C L A S S I , D I V I S I O N I I , G R O U P S A , B , C , D (U L 8 4 4 HA ZA R D OU S L I STED )

Catalog Number Lamp Type Volts Watts Lamp No. Lamp Data

MRT6T5W MR16 6 5 029-139 ADX031520

MRT6T9W MR16 6 9 029-143 ADX031520

MRT6T12W MR16 6 12 029-140 ADX031520

MRT12T12W MR16 12 12 029-141 ADX031520

MRT12T20W MR16 12 20 029-142 ADX031520

MRT12T50W MR16 12 50 029-144 ADX031520

O R D E R I N G I N F O R M AT I O N - W E T L O C AT I O N (UL 9 2 4 W E T LOC ATI O N LISTE D )

ULTIMATE REMOTE HEAD

The Sure-Lites Ultimate Series explosion-proof, emergency lighting fixtures are designed for remote mounting in

Class I, Division II Group A, B, C, and D locations such as oil refineries, oil and gasoline loading docks, chemical and

petrochemical plants, paint manufacturing sites, pumping stations and other process industry facilities where similar

hazards threaten. UL 844 listed. UL 924 wet location listed.

DESCRIPTION

ELX

38

EXIT SIGNS > Architectural

SURE-LITES®

COOPER LIGHTING

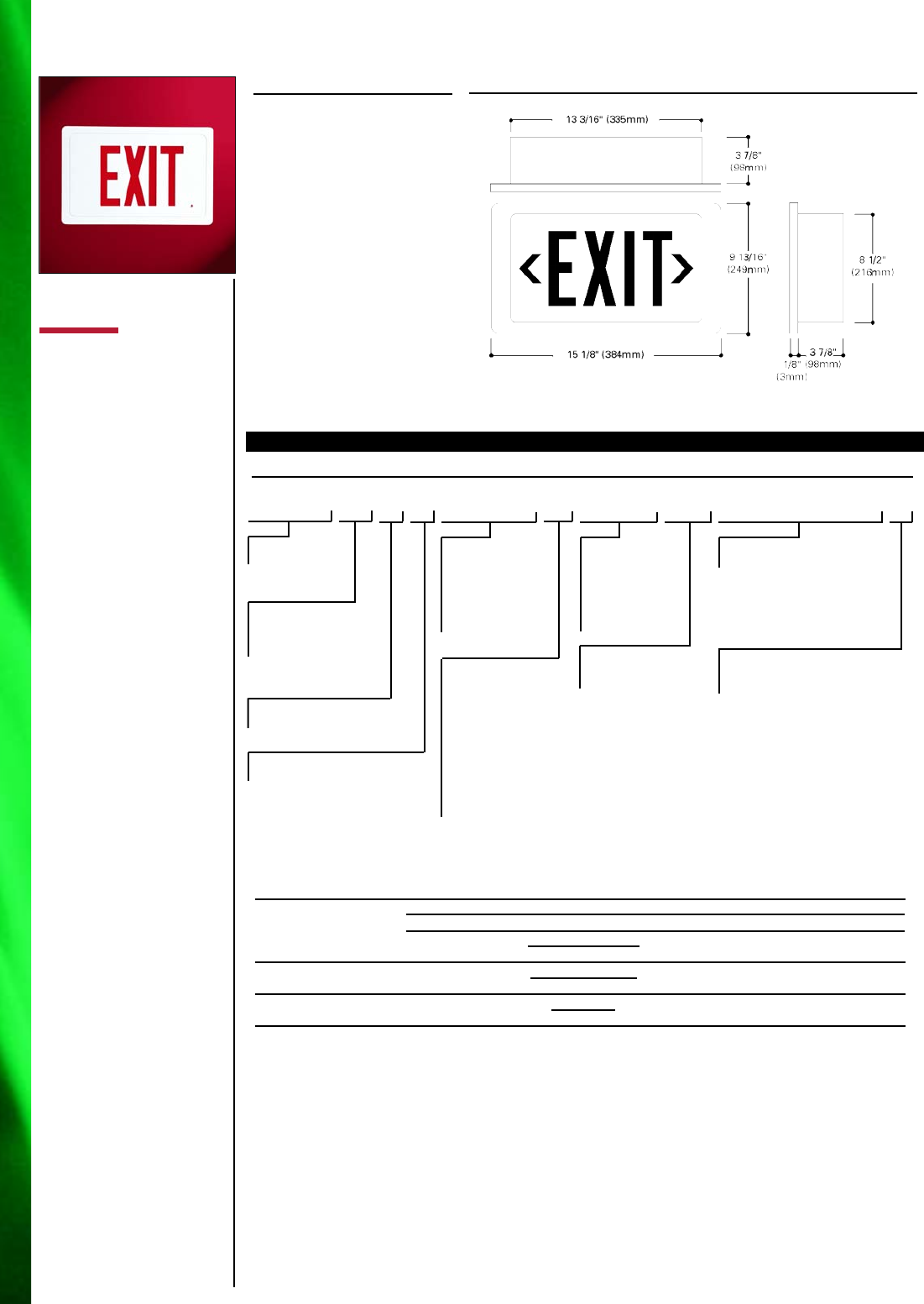

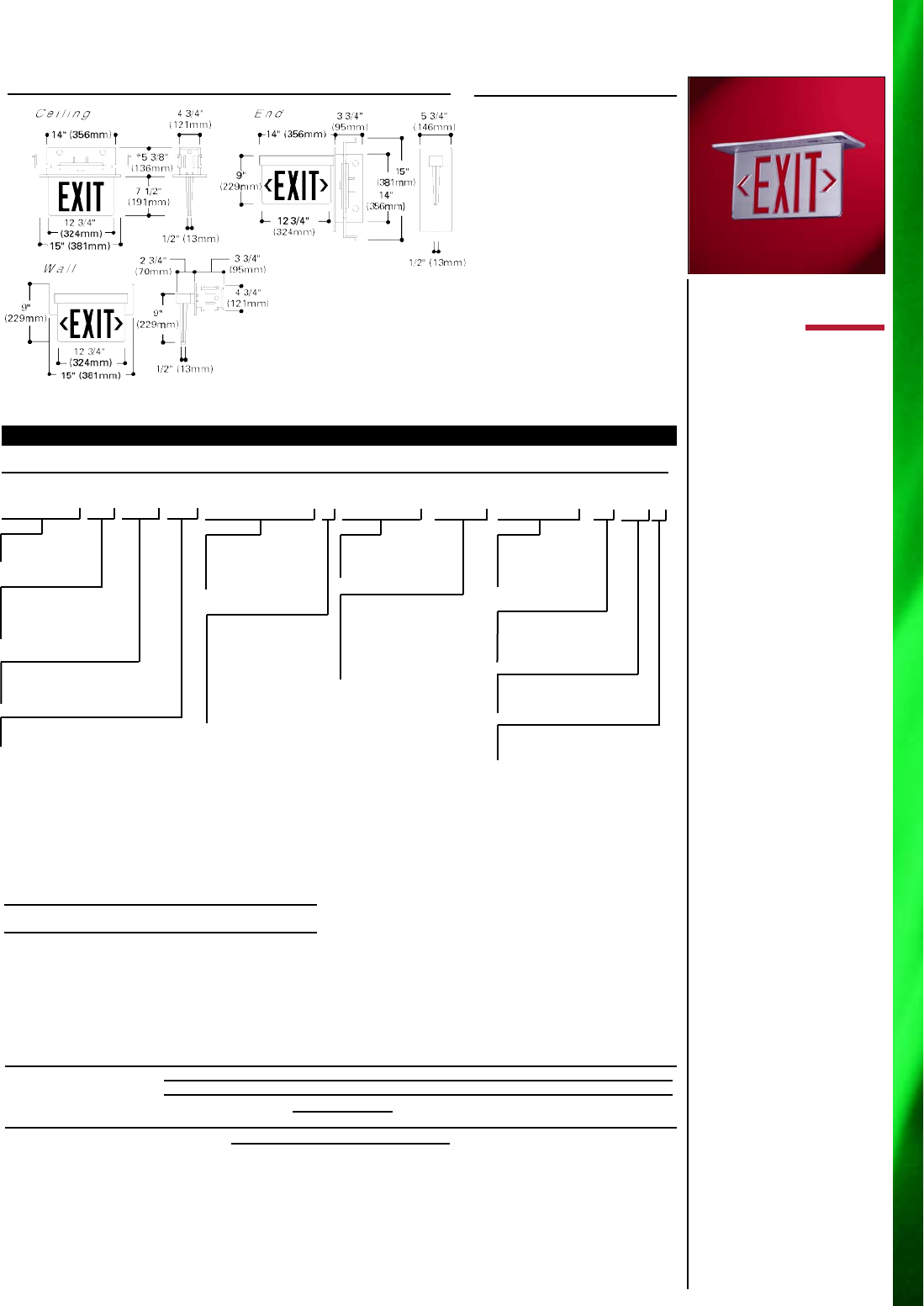

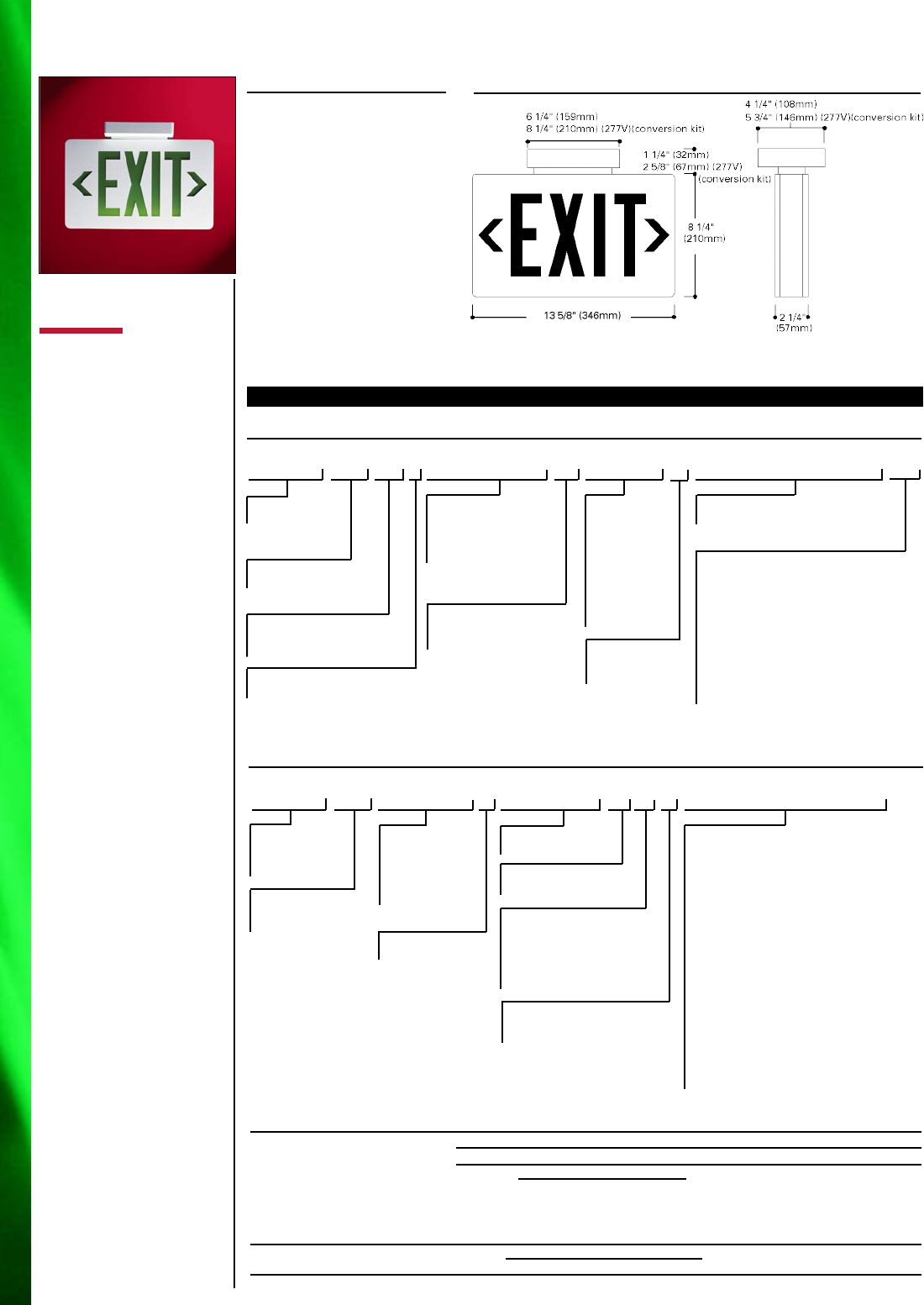

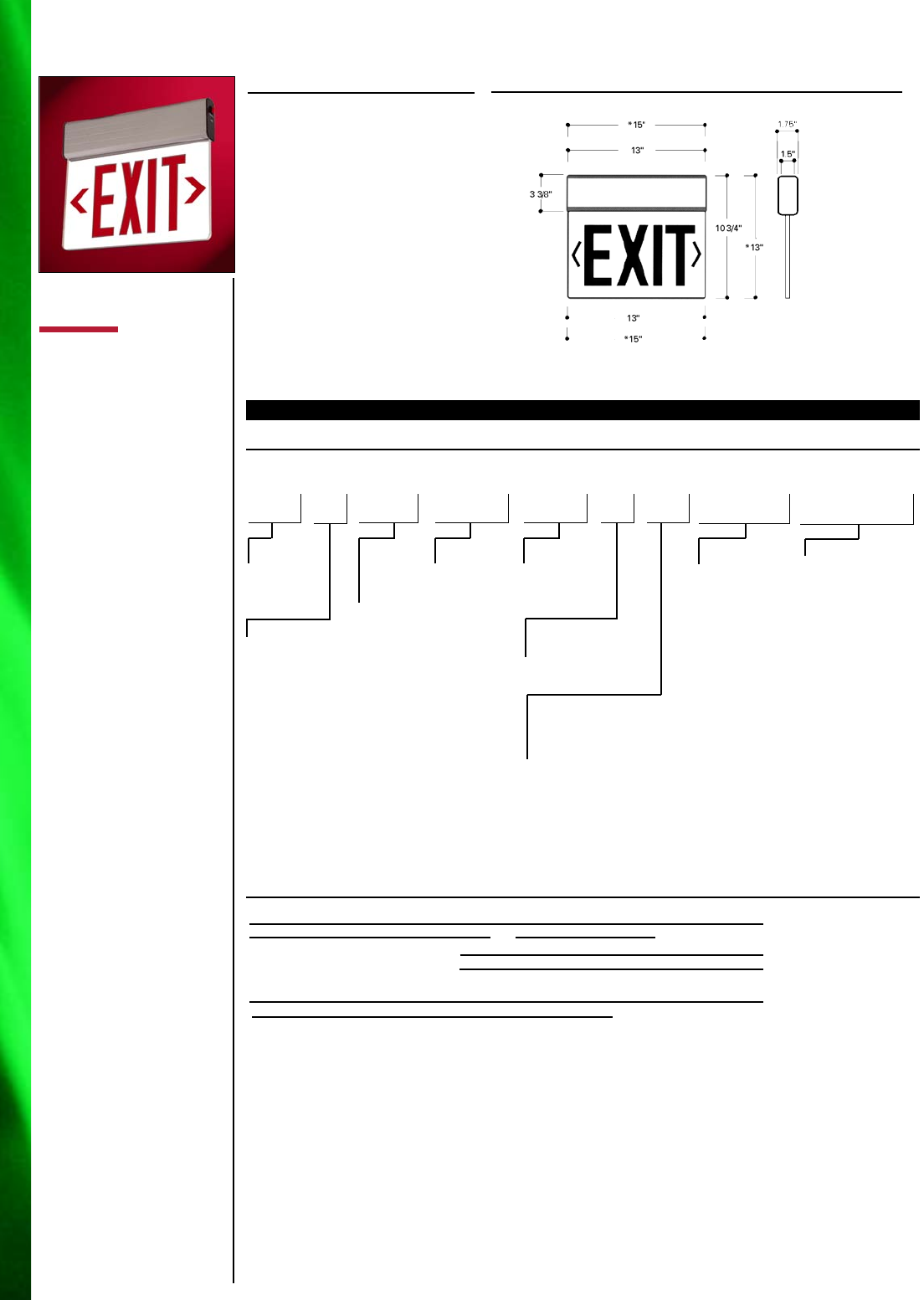

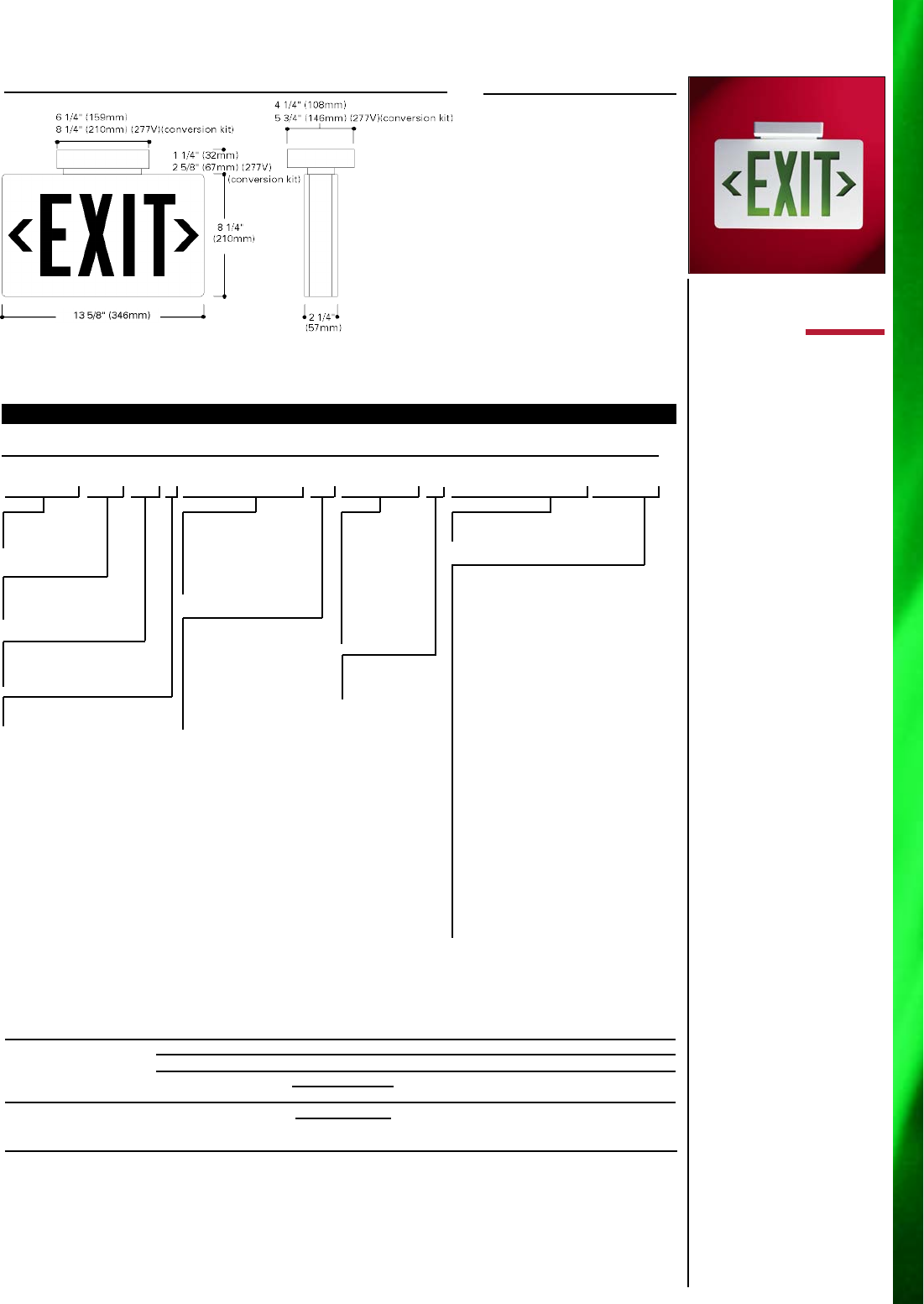

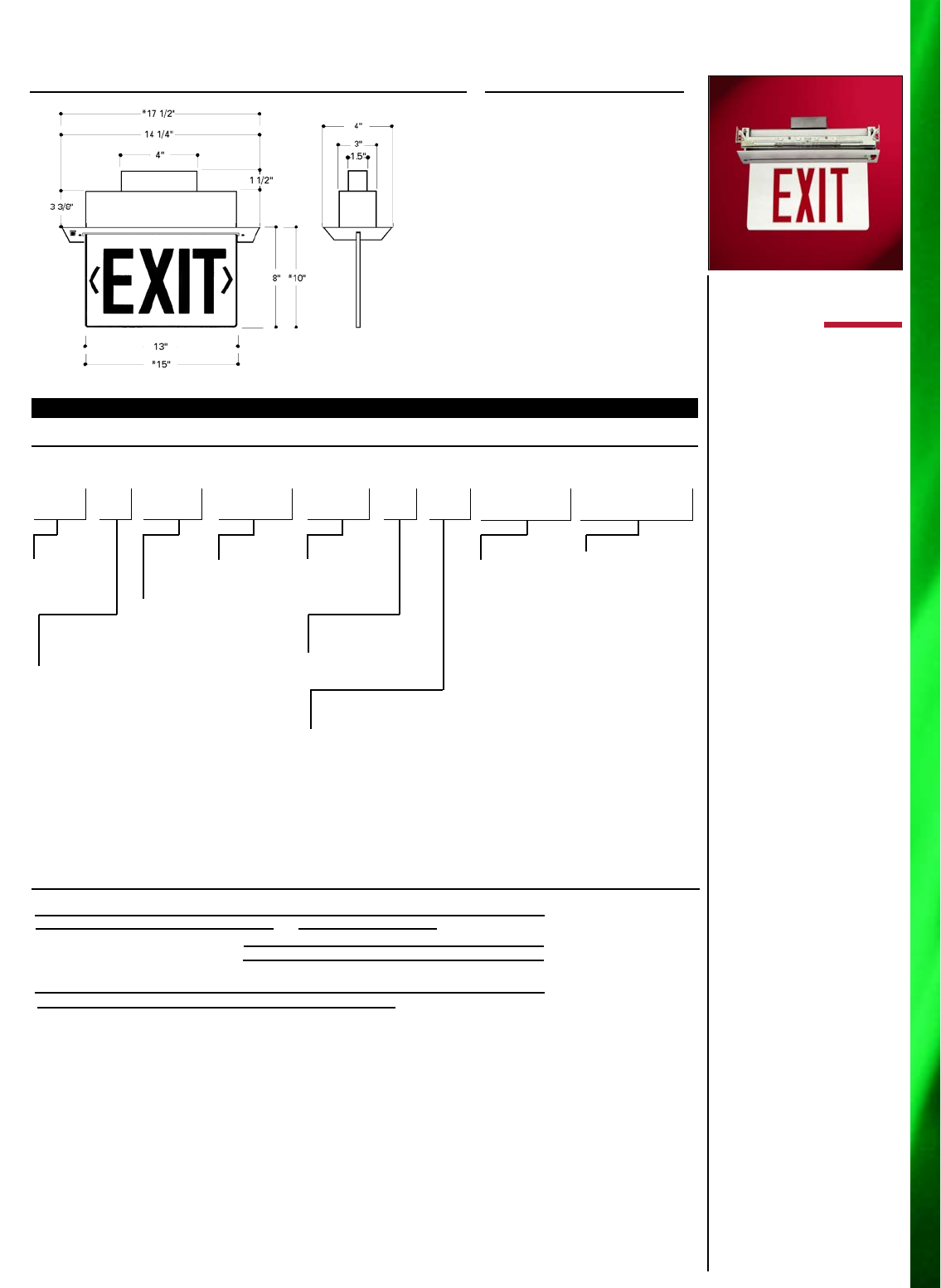

ELX SERIES

Edge-Lit

AC Only

Recessed

EXIT LIGHTING

> Dual Voltage Input

120/277 VAC or 120/347

VAC 60 Hz

> 20 gauge recessed steel

housing with nine conduit

knockouts

> Recessed housing may be

ordered separately2

> Injection molded high-

impact acrylic panel

> LED or Fluorescent

Lamping

> Fluorescent: Two F8T5

lamps wired for separate

circuits

> Universal Background

(Field selectable: clear,

mirror or white)

> Mirror and white inserts

provided standard with all

exits

> Molded letters and

chevrons improve

aesthetic appearance

and increase visibility

> Damp Location Listed

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

UL FTBR Listed - Standard

Fluorescent, LED with 2C

Option

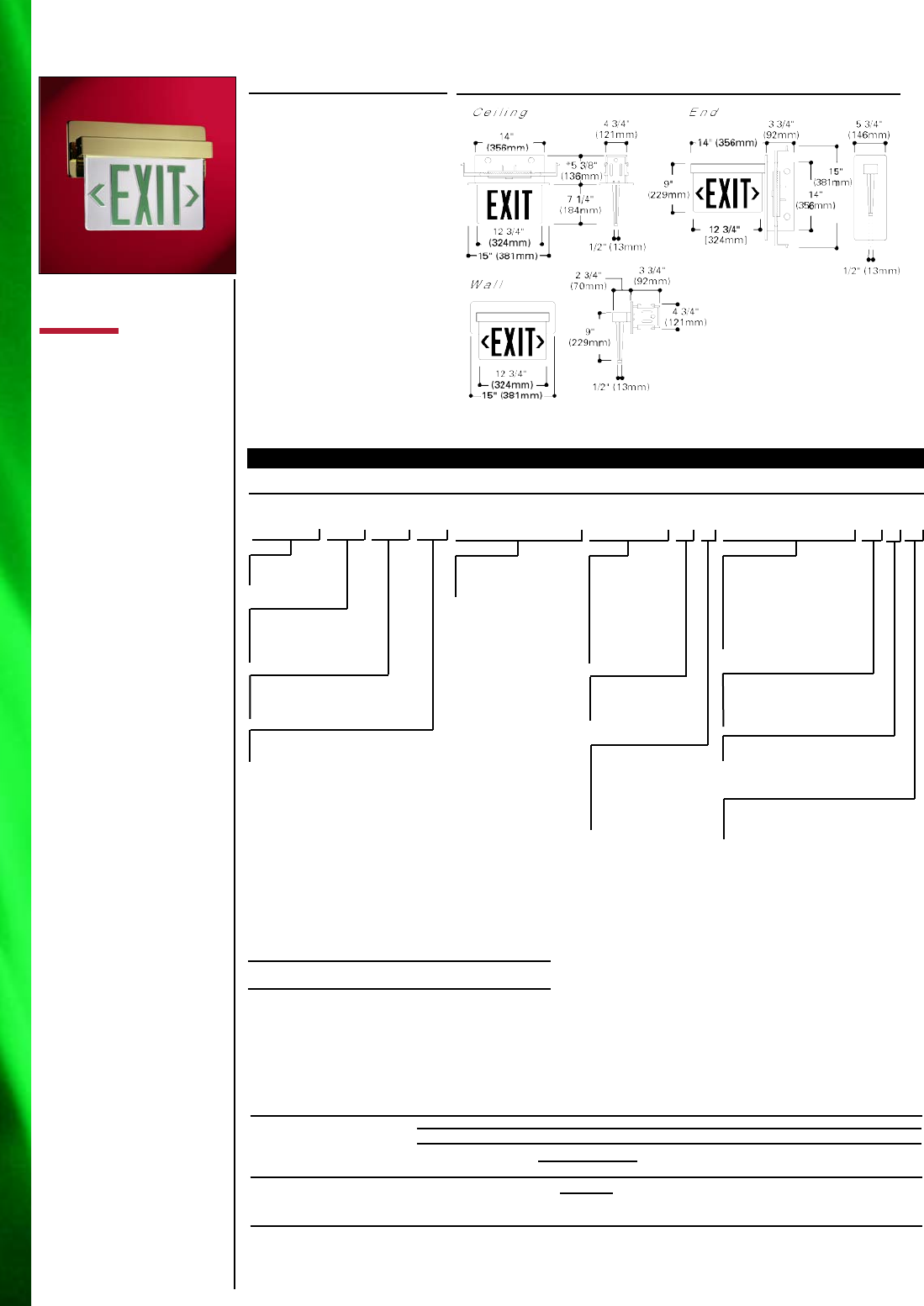

DIMENSIONS

Trim Finish

Blank=Brushed

Aluminum

WH=White

BL=Black

BZ=Bronze

BS=Brass

CR=Chrome

Letter Color1

R=Red

G=Green

Chevron Direction

Blank=No Chevron

AR=Right Chevron

AL=Left Chevron

DA=Double Chevron

ARL=Chevrons Right/Left

(Double Face Only)

ORDERING INFORMATION

SAMPLE NUMBER: ELX4100RMARE

Family

ELX=Edgelit

Exit Series

Series

4=AC Only,

Fluorescent

6=LED Lamps, AC Only

Face Options

1=Single Face

2=Double Face

Battery

00=No Battery

Factory Options

Blank=None

95=AC Only Fire

Alarm Interface

(LED ONLY)

Voltage

Blank=120V (fluorescent

only)

7=277V (fluorescent only)

Blank=Dual-voltage

120/277V (LED Only)

47=120/347V (LED Only)

Mounting Options

C=Ceiling

W=Wall

E=End

Options

2C=Two Circuit Option-FTBR (LED

Only)

Accessories (Order Separately)

277V Conversion Kit

CAN277ELX=277V Transformers,

Mounting Hardware

(fluorescent only)

Energy Data

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 347V 120V 277V 347V 120V 277V 347V 120V 277V 347V

Fluorescent Exits

Fluorescent Exits -8W Lamps 20W 26W — .30A .31A — >.56 >.30 — >10% >11% —

LED Exits

LED Exits -Red Letters 1.5W 2.1W 2.0W .04A .04A .04A >.34 >.19 >.15 <35% <19% <17%

LED Exits - Green Letters 3.0W 3.1W 3.2W .03A .03A .03A >.73 >.34 >.28 <50% <30% <26%

*Fluorescent Only (LED=3 3/4”)

DESCRIPTION

The Sure-Lites ELX Series

Recessed Exits are designed

for architectural excellence

and minimal presence. The

crystal clear wedge shaped

panel allows architectural

details to shine through while

providing excellent light

distribution and exit visibility.

Long life, energy-efficient LED

lamps reduce energy costs

and eliminate routine lamp

maintenance.

CHEVRON CONFIGURATION

FRONT BACK FACE

AR . . . . . . . . . . . . . . . . . . . EXIT> Blank Single

AL . . . . . . . . . . . . . . . . . . . <EXIT Blank Single

DA . . . . . . . . . . . . . . . . . . <EXIT> Blank Single

DA . . . . . . . . . . . . . . . . . . <EXIT> <EXIT> Double

ARL . . . . . . . . . . . . . . . . . EXIT> <EXIT Double

1Mirror insert installed standard. White insert shipped in carton. 2Consult your Cooper Lighting Representative.

SURE-LITES®

39

COOPER LIGHTING

EXIT SIGNS > Architectural

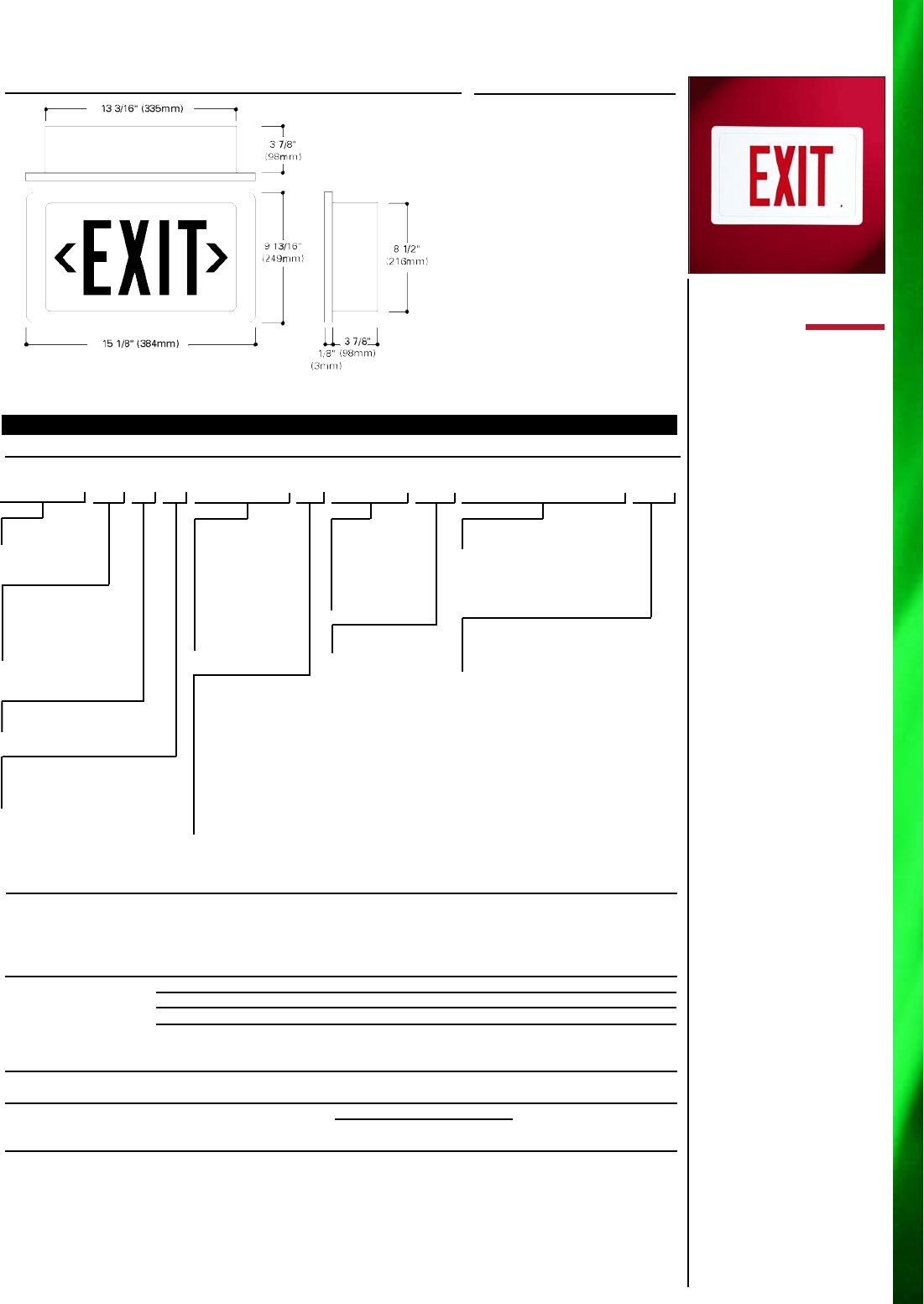

ELX SERIES

Edge-Lit

S e l f - P o w e r e d

Recessed

EXIT LIGHTING

> Dual-voltage input 120/277

VAC or 120/347 VAC 60Hz

> 20 gauge steel recessed

housing with nine conduit

knockouts

> Recessed housing may be

ordered separately2

> Injection molded high-

impact acrylic panel

> LED or Fluorescent

lamping

> Fluorescent: two F8T5

lamps wired for separate

circuits

> Premium Nickel Cadmium

battery

> Watchguard EMS

Self-Diagnostic System

(Standard)

> Universal Background

(Field selectable: clear,

mirror or white)

> Mirror and white inserts

provided standard with all

exits

> Molded letters and

chevrons improve

aesthetic appearance

and increase visibility

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test switch/

power indicator light.

> Damp Location Listed

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

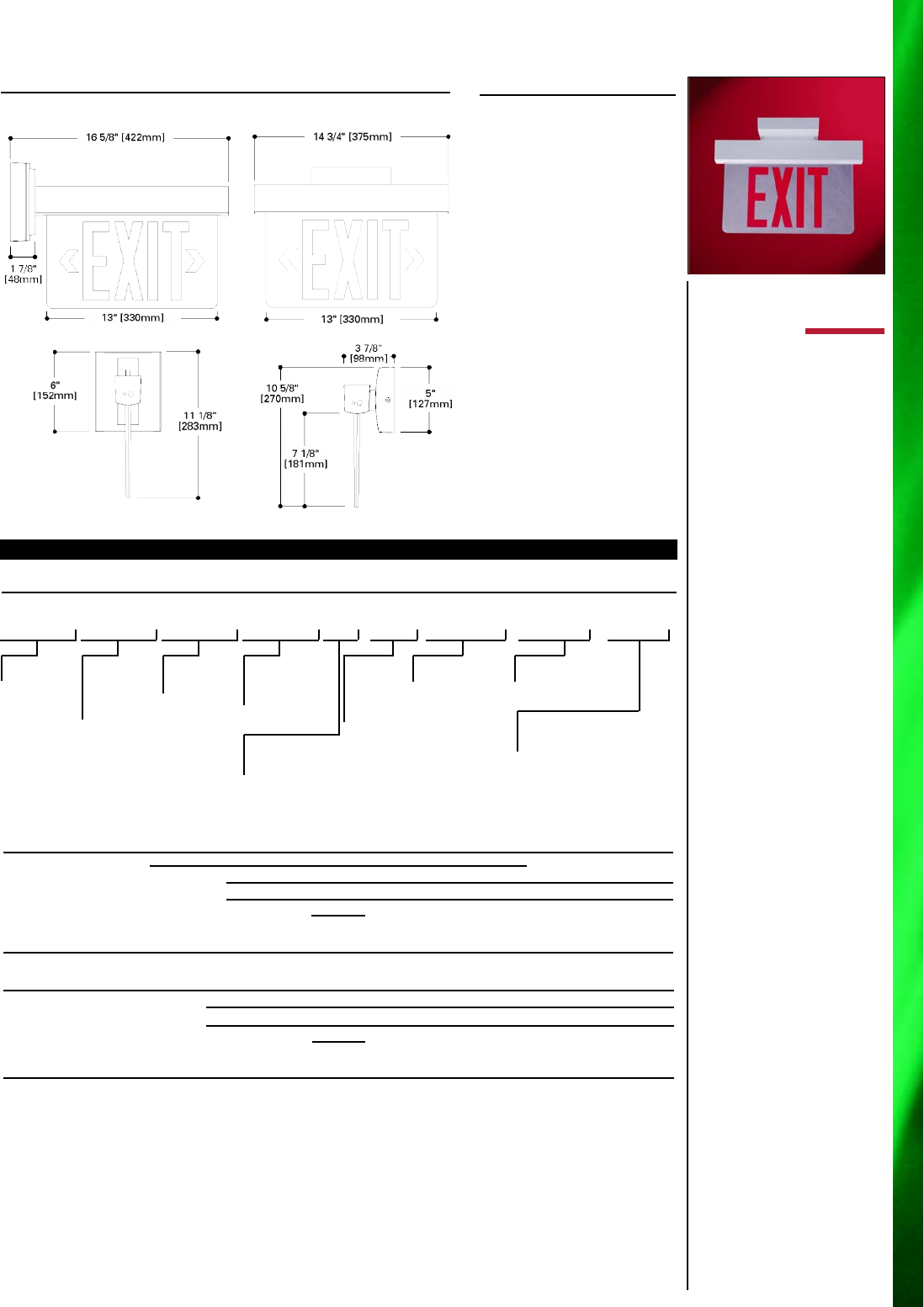

DIMENSIONS

Letter Color1

R=Red

G=Green

Chevron Direction

Blank=No Chevron

AR=Right Chevron

AL=Left Chevron

DA=Double Chevron

ARL=Chevrons Right/

Left (Double Face

Only)

ORDERING INFORMATION

SAMPLE NUMBER: ELX5170RARE

Family

ELX=Edgelit

Exit Series

Series

5=Self-Powered,

Fluorescent

7=Self-Powered,

LED Lamps

Face Options

1=Single Face

2=Double Face

Battery

70=Nickel Cadmium

Factory Options

(LED EXITS ONLY)

Blank=None

90=DC Only Fire

Alarm Interface

Trim Finish

Blank=Brushed

Aluminum

WH=White

BL=Black

BZ=Bronze

BS=Brass

CR=Chrome

Voltage

Blank=120/277V

Dual-voltage

47=120/347V

(LED Exits Only)

Mounting Options

C=Ceiling

W=Wall

E=End

SD=Self-Diagnostics

(LED EXITS ONLY)

Accessories (Order Separately)

(LED EXITS ONLY)

Laser=Key Chain, Red Laser

Pointer (activation test-

ed at 30 feet.

E n e rg y D a t a

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 347V 120V 277V 347V 120V 277V 347V 120V 277V 347V

Fluorescent Exits

Fluorescent Exits -8W Lamps 14W 14W - .21A .09A - >.56 >.58 - <12% <12% -

LED Exits with Self-Diagnostics Option

LED Exits -Red Letters 4.9W 4.8W - .05A .02A - >.90 >.87 - <25% <24% -

LED Exits - Green Letters 4.9W 4.7W - .05A .02A - >.85 >.82 - <25% <24% -

*Fluorescent Only (LED=3 3/4”)

CHEVRON CONFIGURATION

FRONT BACK FACE

AR . . . . . . . . . . . . . . . . . . . EXIT> Blank Single

AL . . . . . . . . . . . . . . . . . . . <EXIT Blank Single

DA . . . . . . . . . . . . . . . . . . <EXIT> Blank Single

DA . . . . . . . . . . . . . . . . . . <EXIT> <EXIT> Double

ARL . . . . . . . . . . . . . . . . . EXIT> <EXIT Double

DESCRIPTION

The Sure-Lites ELX Series

Recessed Exits are designed

for architectural excellence and

minimal presence. The crystal

clear wedge shaped panel

allows architectural details to

shine through while providing

excellent light distribution

and exit visibility.Long life,

energy-efficient LED lamps

reduce energy costs and elimi-

nate routine lamp mainte-

nance.

1Mirror insert installed standard. White insert shipped in carton. 2Consult your Cooper Lighting Representative.

ELX

40

EXIT SIGNS > Architectural

SURE-LITES®

COOPER LIGHTING

ES SERIES

Edge-Lit

AC Only

S e l f - P o w e r e d

Recessed and Surface

EXIT LIGHTING

> Dual-voltage Input,

120/277 VAC 60Hz

> 18 gauge steel housing

with conduit knockouts

> Extruded trim plate in

Brushed or Polished

Aluminum, Polished Brass,

White, Black and Bronze

> Injection molded high-

impact acrylic panel

> Clear, mirror, or white

background

> LED Lamping: Super-bright,

long life LEDs provide

uniform illumination

> Sealed nickel cadmium,

maintenance free, long life

battery (Self Powered only)

> Full Recharge Time,

24 hrs. (max.)

> Recessed housing available

for ceiling or wall mounting

> Convenient 1/2" knockouts

provided in top and end of

surface mounted housing

> Self-powered Exits feature

solid-state voltage charger,

solid-state switching,

brownout circuit, test

switch/power indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

DESCRIPTION

The Sure-Lites ES Series

Exits are designed for

architectural excellence and

minimal presence. The

crystal clear wedge shaped

panel allows architectural

details to shine through

while providing excellent

light distribution and exit

visibility. Long life, energy-

efficient LED lamps reduce

energy costs and eliminate

routine lamp maintenance.

ORDERING INFORMATION-COMPLETE UNITS RECESSED / SURFACE

SAMPLE NUMBER: ES7170WHRDAC

Family

ES=Edgelit

Exit Series

Series

6=LED Lamps,

AC Only

7=LED Lamps,

Self-Powered

Face Options

1=Single Face

2=Double Face

Battery

Blank=AC Unit

70=Nickel Cadmium

(Self-powered Only)

Trim Finish

Blank=Brushed

Aluminum

BL=Black

PS=Polished

Brass

BZ=Bronze

PA=Polished

Aluminum

WH=White

Letter/

Background Color

R=Red/Clear

(Single Face Only)

RM=Red/Mirror

RW=Red/White

G=Green/Clear

(Single Face Only)

GM=Green/Mirror

Chevron

Direction

Blank=No

Chevrons

AL=Chevron

Left

AR=Chevron

Right

DA=Double

Chevrons

ARL=Chevron

Right/Left

(Double

Face Only)

Mounting

Options

C=Ceiling

E=End (Surface Only)

W=Wall

P=Pendant (Surface Only)

Voltage

Blank=Dual-voltage,

120/277V

ORDERING INFORMATION - RECESSED TRIM

SAMPLE NUMBER: EST71WHRDAC

Family

EST=Trim and Panel

(Recessed Only)

Series

6=LED Lamps, AC Only

7=LED Lamps, Self-Powered

Face Options

1=Single Face

2=Double Face

Trim Finish

Blank=Brushed

Aluminum

BL=Black

PS=Polished

Brass

BZ=Bronze

PA=Polished

Aluminum

WH=White

Voltage

Blank=Dual

Voltage,

120/277V

Letter/

Background Color

R=Red/Clear

(Single Face Only)

RM=Red/Mirror

RW=Red/White

G=Green

GM=Green/Mirror

GW=Green/White

Chevron

Direction

Blank=No

Chevrons

AL=Chevron

Left

AR=Chevron

Right

DA=Double

Chevrons

ARL=Chevron Right/Left

(Double Face Only)

Mounting

Options

C=Ceiling

W=Wall

ORDERING INFORMATION - RECESSED HOUSING

SAMPLE NUMBER: ESH71

Family

ESH=Housing

(Recessed Only)

Series

6= AC Only

7=Self-Powered

Face Options

1=Single Face (Self-powered Only)

2=Double Face (Self-powered Only)

Energy Data

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

LED Exits

LED Exits, Red Letters, AC Only 6.7W 6.7W .06 .03 .8 .8 20% 20%

LED Exits, Red Letters, Self-Powered 7.0W 7.0W .06 .03 .8 .8 20% 20%

LED Exits, Green Letters, AC Only 1.6W 1.6W .02 .01 .6 .6 55% 82%

LED Exits, Green Letters, Self-Powered 2.0W 2.1W .02 .01 .7 .7 45% 68%

Mounting

Blank=Recessed

S=Surface Unit

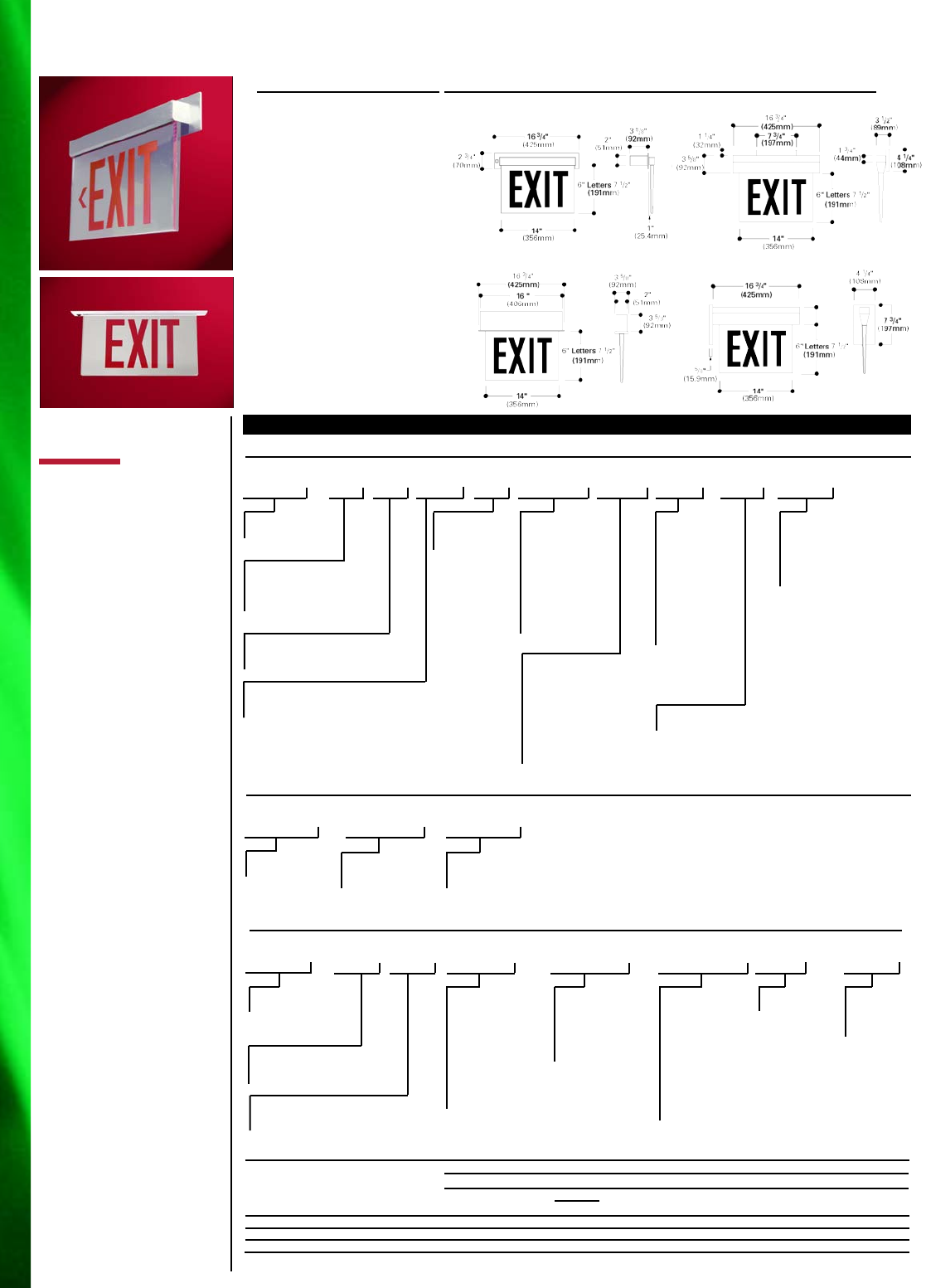

DIMENSIONS

CEILING MOUNT RECESSED

WALL MOUNT RECESSED

CEILING MOUNT SURFACE

WA L L M O U N T S U R F A C E

ES

SURE-LITES®

41

COOPER LIGHTING

EXIT SIGNS > Architectural

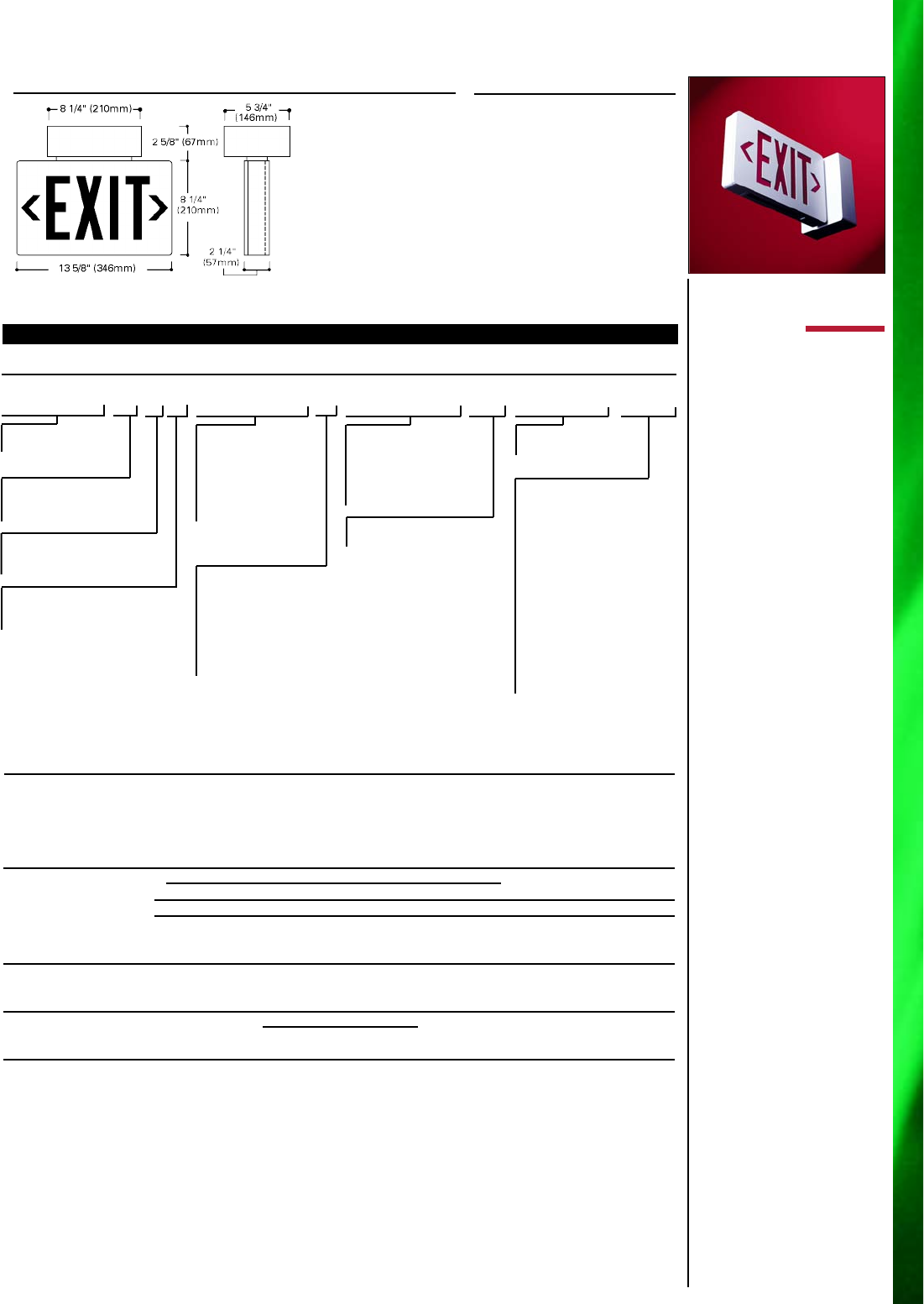

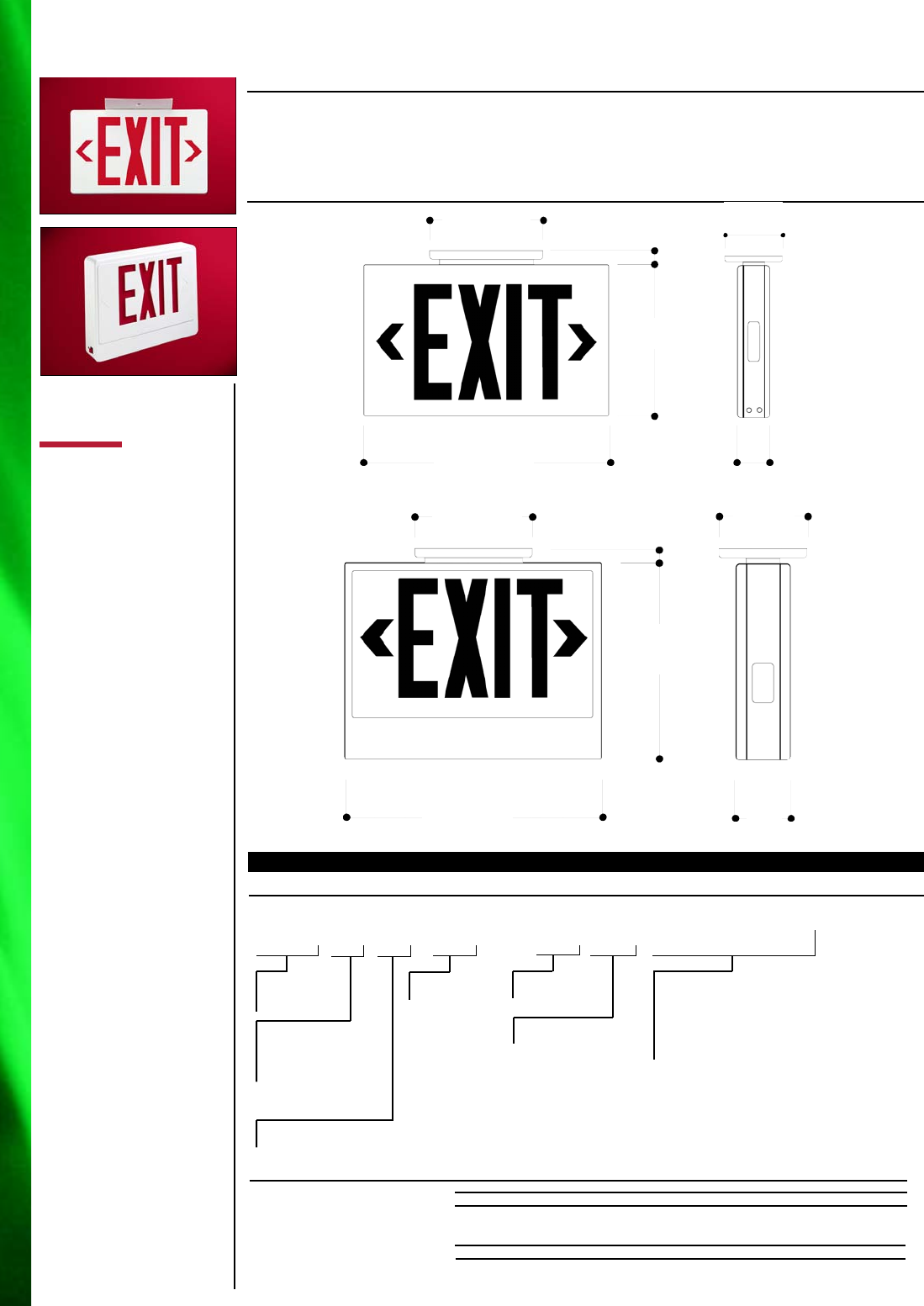

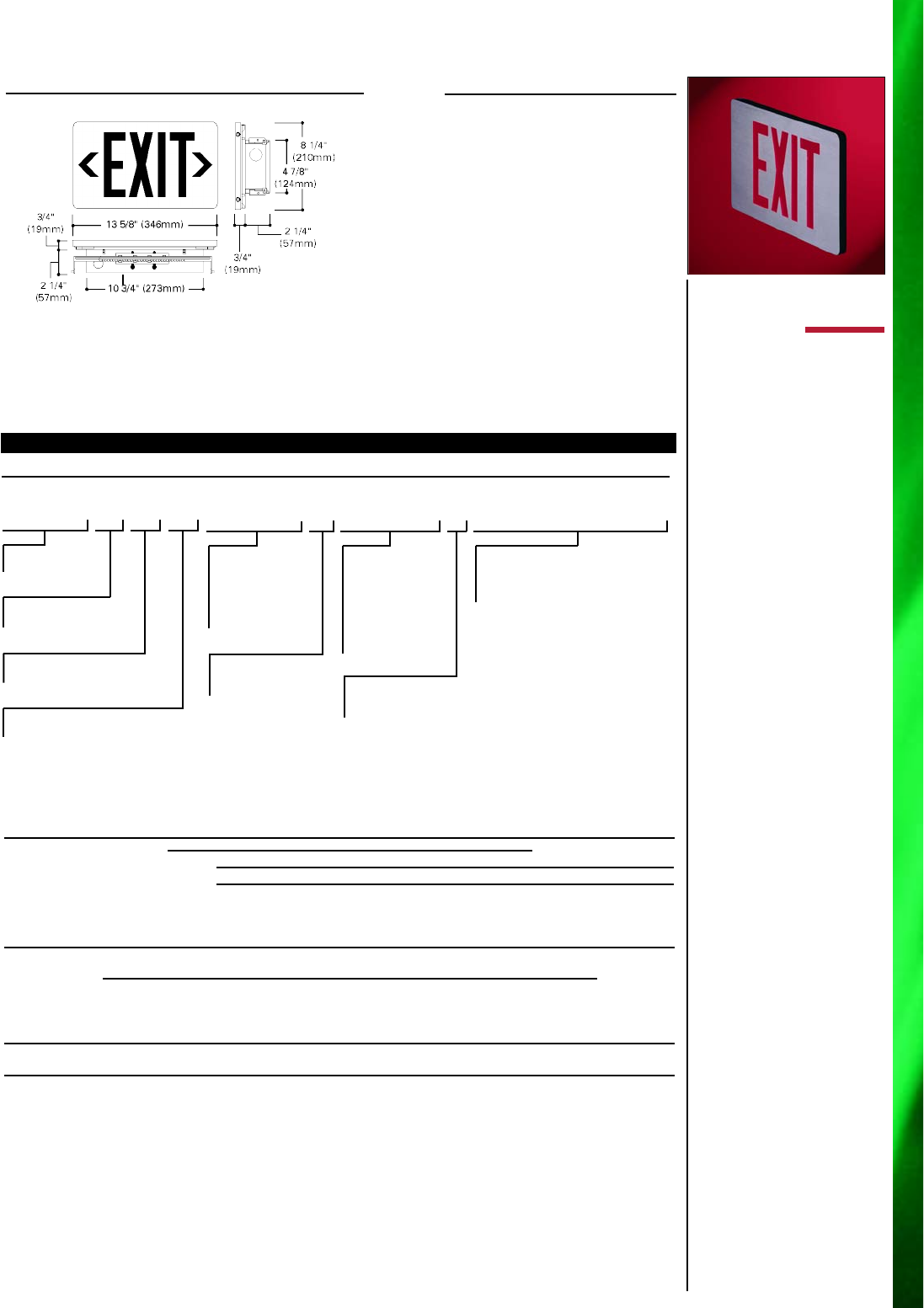

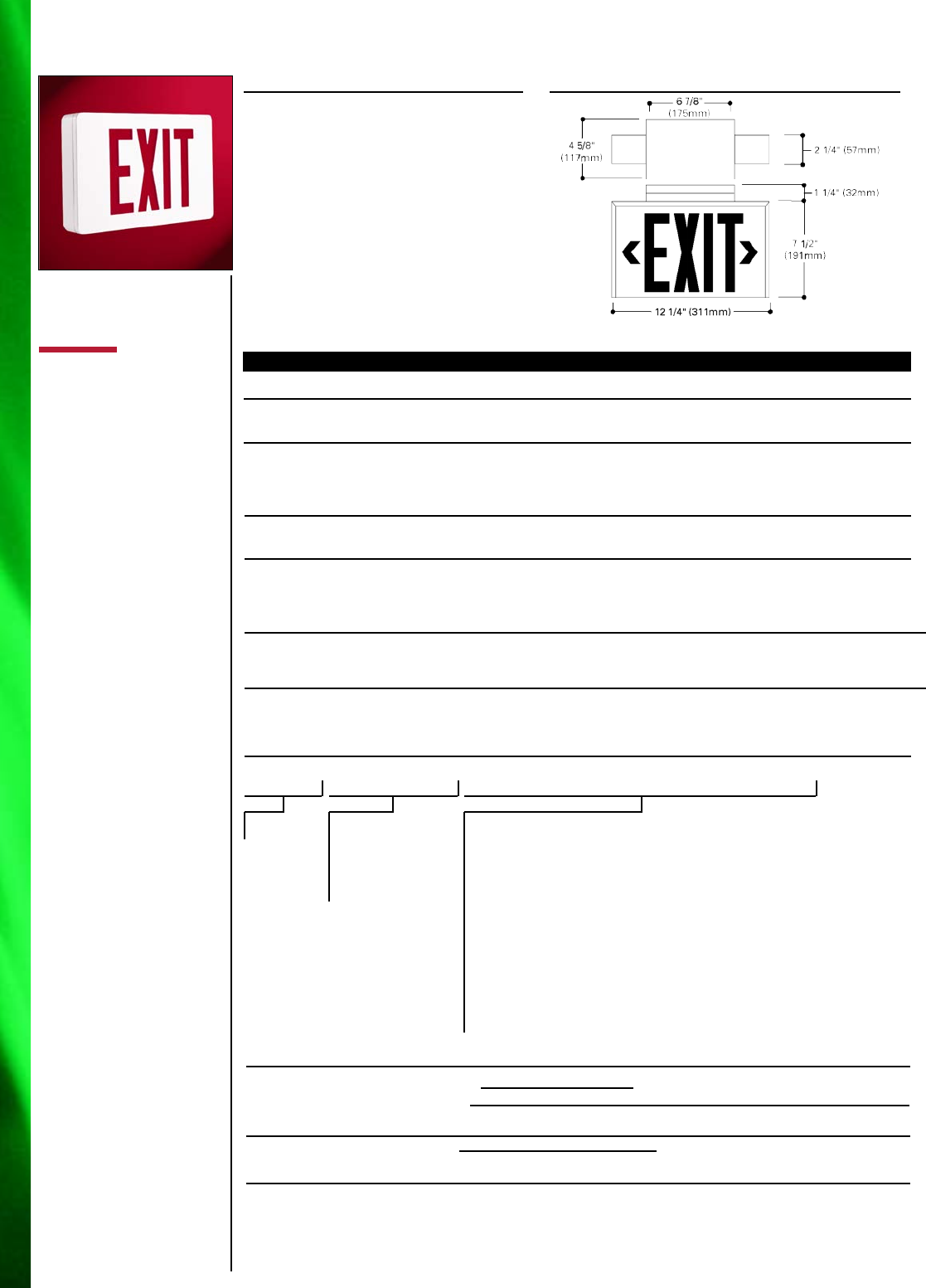

CX SERIES

Die Cast

A C O n l y

S e l f - P o w e r e d

EXIT LIGHTING

> Dual-voltage Input

120/277 VAC, 60 Hz,

isolation transformer

> Die cast aluminum

housing

> Die cast canopy included

> LED Lamping

> Watchguard EMS

Self-Diagnostic System

(CX7 Only)

> Exit can be universally

mounted: ceiling, wall

or end

> Universal pattern knock-

outs on rear of single

face housing for direct

mounting to junction box

> NFPA 101 compliant

knockout chevrons allow

quick conversion to

directional signs

> Self-powered Exits feature

line-latching, solid-state

voltage limited charger,

low-voltage disconnect,

brownout circuit,

over-load/short-circuit

protection, test switch/

power indicator light

> Damp Location Listed

(AC Only)

> UL 924 Listed, CSA

Certified, Life Safety NFPA

101, NEC/OSHA, Energy

Star Listed, AC Only-UL

FTBR when specified with

the “2C” option, most

state and local codes, suit-

able for floor proximity

installation.

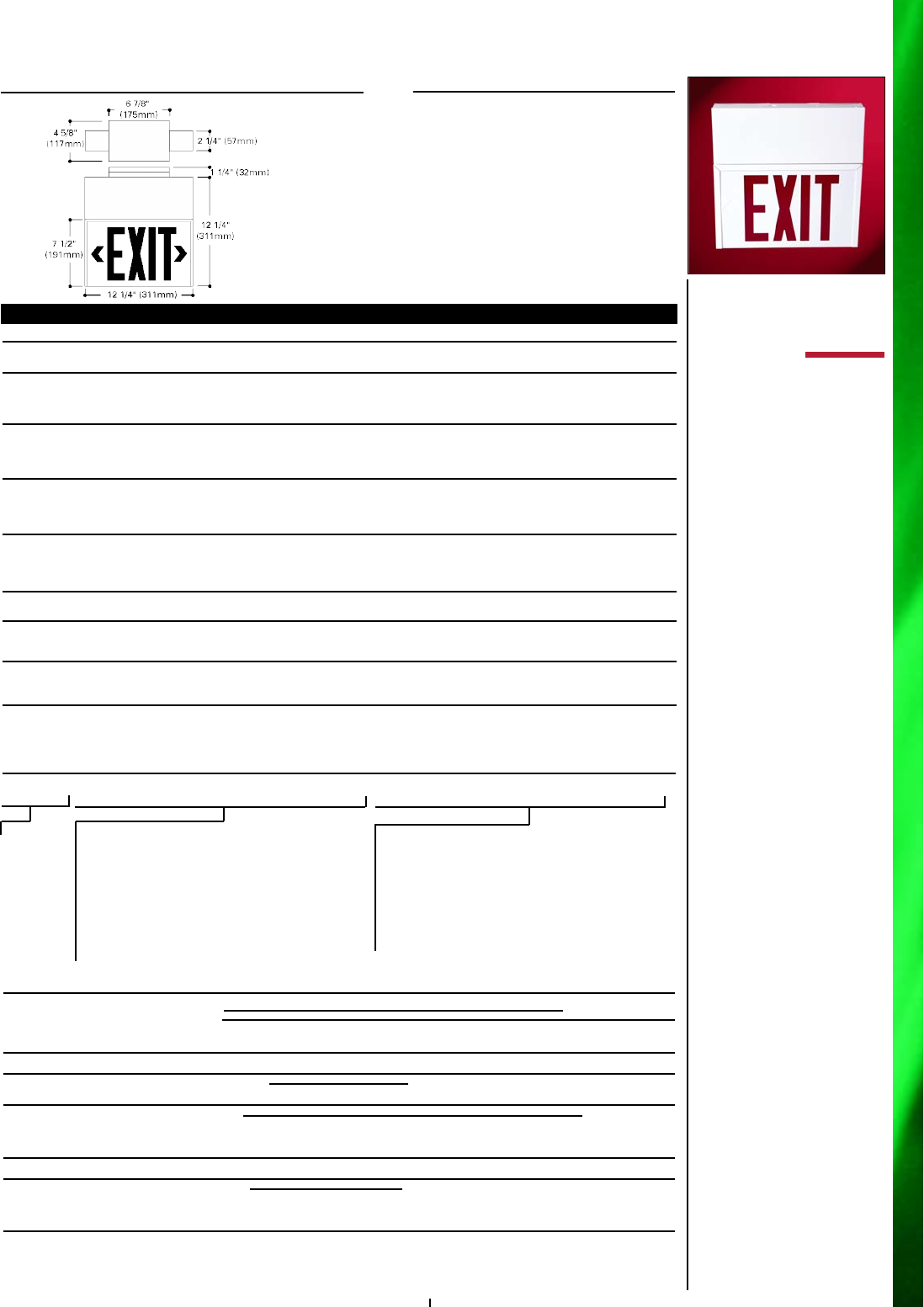

DIMENSIONS

Energy Data — Self-Powered Exits

Sealed Nickel Cadmium Battery

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

LED Exits

LED Exits -Red Letters 2.8W 2.9W .03A .02A > .81 > .77 < 32% < 46%

LED Exits -Green Letters 3.9W 3.6W .08A .04A > .41 > .43 < 48% < 49%

DESCRIPTION

The CX Surface Mounted Die

Cast Aluminum Exit combines

the strength and durability of

die casting with the bright

even illumination of LED lamp

sources. Unlike competitive

units that have a pronounced

dot effect from protruding

diodes, the CX LED offers

unequalled uniform

illumination and brightness.

The CX Self-Powered LED

comes standard with the

Watchguard EMS

self-diagnostic system insuring

fixture reliability and reducing

maintenance costs.

ORDERING INFORMATION

SAMPLE NUMBER: CX7170RSD

Family

CX=Die Cast

Aluminum

Exit

Series

6=AC Only, LED

7=Self-Powered,

LED

Face Options

1=Single

2=Double

Battery

Blank=No

Battery (CX6)

70=Nickel

Cadmium

Battery (CX7)

Letter Colors

R=Red

G=Green

Housing

Finishes

Blank=

Brushed

Aluminum

Face with

Black

Housing

W=White

B=Black

Accessories (Order Separately)

CAX18PKBK=18" Pendant Kit,

Black

CAX18PKWH=18" Pendant Kit,

White

CAX18PKHTBK=18” Hang-True

Pendant Kit, Black

CAX18PKHTWH=18” Hang-True

Pendant Kit, White

VS1=Polycarbonate Vandal Shield

(Wall Mount Only)

VS1WP=Weather Resistant

Polycarbonate Vandal

Shield (Wall Mount Only)

WG10=Wire Guard (Wall Mount

Only)

WGS11=Wire Guard (Ceiling or

End Mount Only)

Energy Data — AC Only Exits

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

LED Exits

LED Exits -Red Letters 2.4W 2.5W .03A .02A > .78 > .73 < 33% < 48%

LED Exits -Green Letters 3.2W 3.0W .08A .03A > .33 > .35 < 50% < 52%

Options

2C=Two Circuit

Operation,

FTBR

(CX6 Only)

SD=Self-

Diagnostic

*(CX7 only)

Self-Diagnostics

The self-diagnostic unit will automatically perform

the tests required by the NFPA 101 Life Safety Code.

The system indicates the status of the unit at all

times using an LED indicator that is located near the

test switch.

CX

42

EXIT SIGNS > Architectural

SURE-LITES®

COOPER LIGHTING

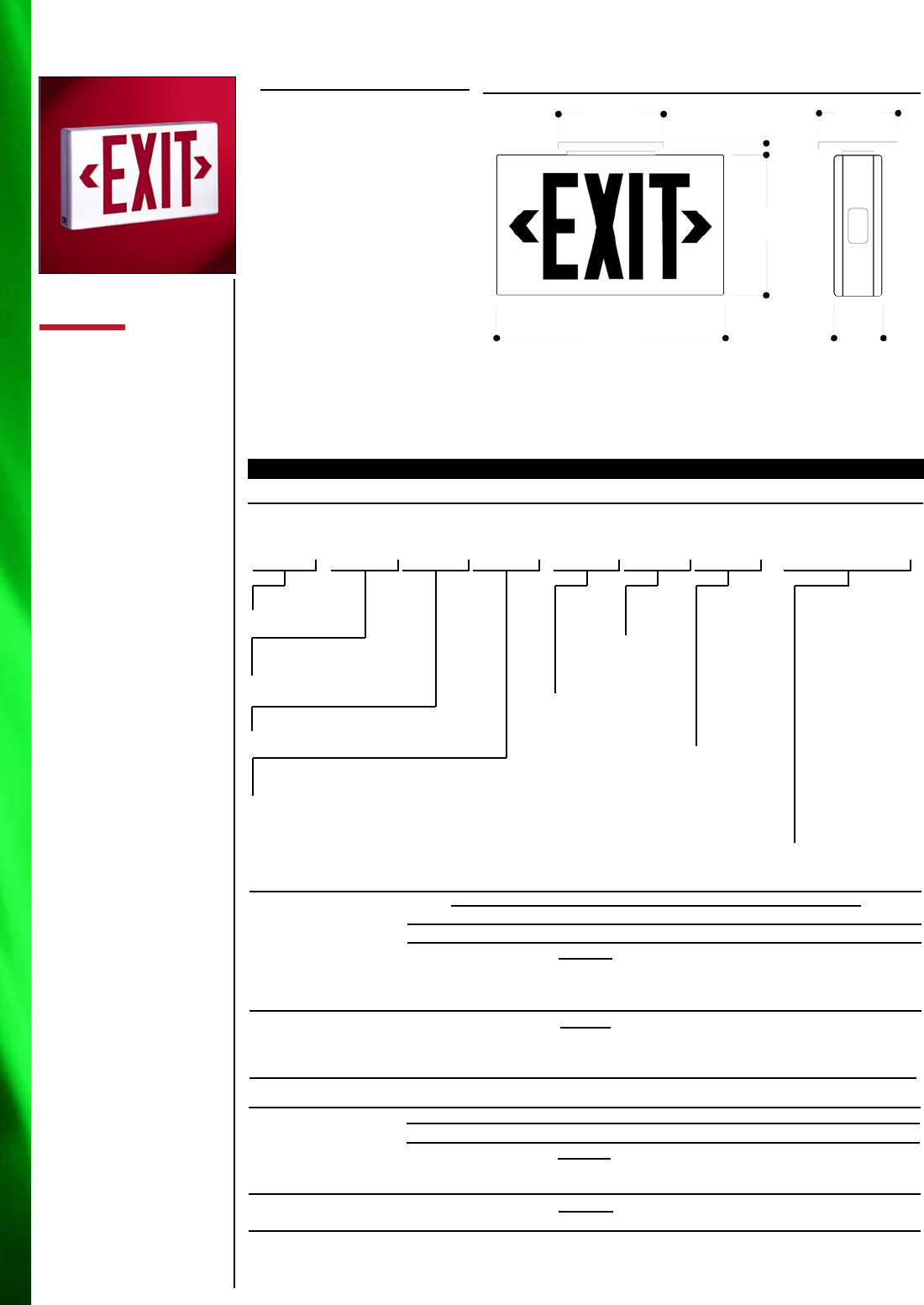

CAX SERIES

Die Cast

AC Only

LED Lamping

EXIT LIGHTING

> 120 VAC or 277 VAC Input

wattage

> Die cast aluminum

housing with hinged

face plate and die cast

canopy for ceiling or end

mounting

> Universal: ceiling, wall, or

end mounting

> Screw-In LED Lamps:

two 1W long life T6 1/2

intermediate base lamps

> Universal pattern knockouts

on rear of single face

housing for direct

mounting to junction box

> NFPA 101 compliant

knockout chevrons allow

quick conversion to

directional signs

> Damp Location Listed

(except exits with “2C”

Option)

> UL 924 Listed, Life Safety

NFPA 101, CSA certified,

NEC/OSHA, UL FTBR Listed

(consult your Cooper

Lighting Representative for

applicable fixture types),

most state and local codes

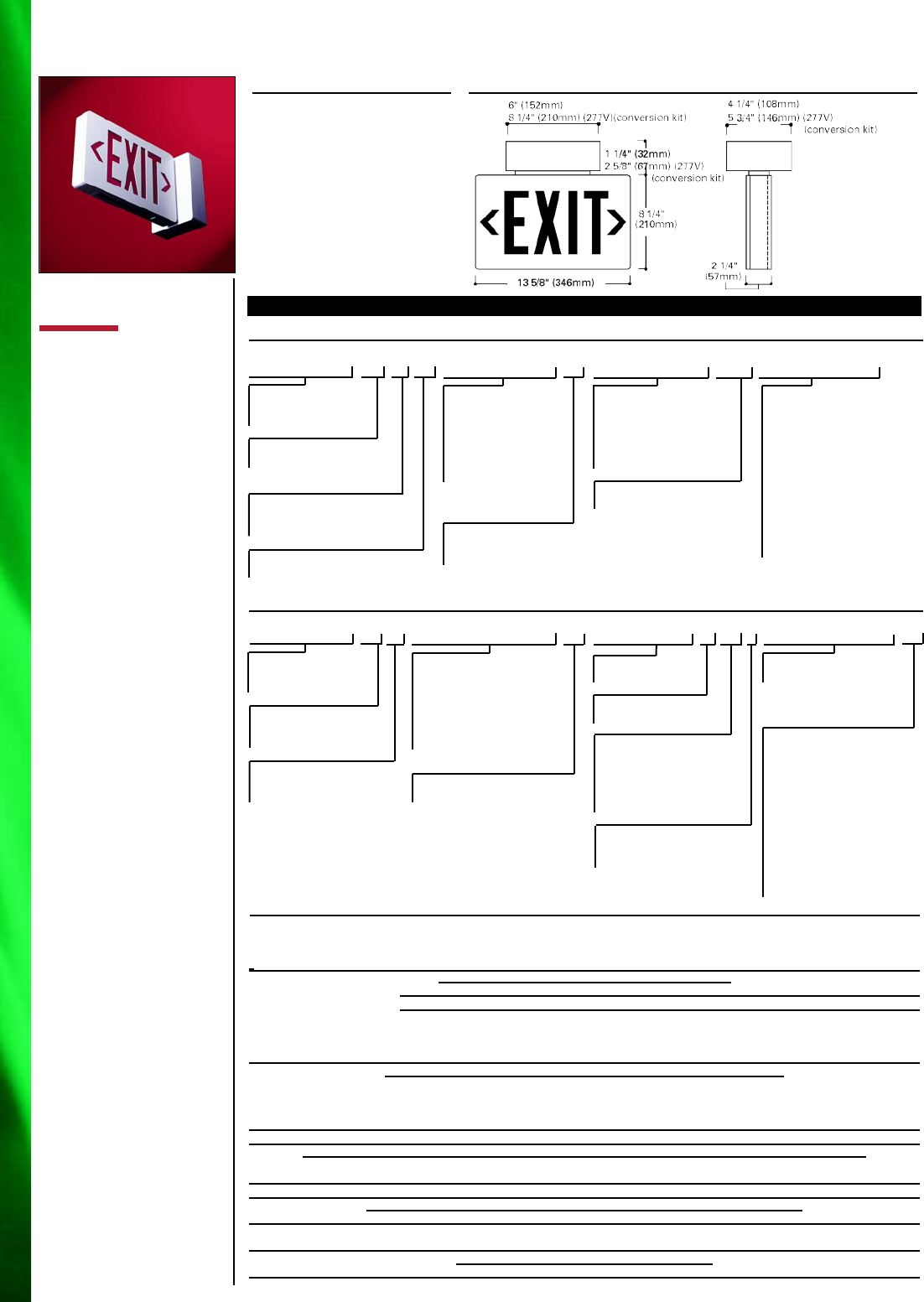

DIMENSIONS

DESCRIPTION

The Sure-Lites Pinnacle Family

of Surface Mounted Die Cast

Aluminum Exits combine

strength, durability and

aesthetics. The architecturally

compatible finishes will add a

new dimension to any design.

Energy Data

Input Power: Input Current(Max.): Power Factor: T.H.D.:

120V 277V 347V 120V 277V 347V 120V 277V 120V 277V

Standard Power - LED Exits

Red Letters Single Face 5.6W 5.7W 6.0W .07A .03A .02A >.71 >.71 <36% <36%

Red Letters Double Face 7.3W 7.5W 8.3W .07A .03A .03A >.83 >.83 <33% <34%

Green Letters Single Face 6.7W 6.8W 6.8W .07A .03A .02A >.79 >.79 <30% <31%

Green Letters Double Face 9.5W 9.7W 9.9W .09A .04A .03A >.90 >.90 <26% <27%

LED Lite-Stix™ Screw-In Lamps

Red Letters 2.0W 4.3W .09A .03A >.19 >.58 <19% <22%

Family

CAX=Die Cast

Aluminum Exit

Surface Mount

Series

6=AC Only,LED

Face Options

1=Single

2=Double

Battery

00=No Battery

Factory

Options

00=No Options

65=Tamperproof Screws

85=Vandal Shield

Letter Colors

R=Red

G=Green

Housing

Finishes

Blank=Brushed

Aluminum

Face with

Black

Housing

W=White

B=Black

BZ=Bronze

Voltage

Blank=120/277V

47=120/347V

ORDERING INFORMATION- LED LAMP EXITS

SAMPLE NUMBER: CAX610065RB

ORDERING INFORMATION-SCREW-IN LED EXITS

SAMPLE NUMBER: CAX1LEDACR

Factory Options

2C= Two Circuit Operation

Accessories (Order Separately)

Screwdrivers

059012SP=Tamperproof Screwdriver Bit

VRSD=Vandal Resistant Screwdriver

WG10=Surface, Mount Wire Guard

WGS11=Ceiling, End Mount Wire Guard

VS1=polycarbonate vandal shield

Pendant Kits

CAX18PK=Pendant Kit, white

CAX18PKHT=”Hang-true” Pendant Kit,

white

Family

CAX=Die Cast

Aluminum Exit

Surface Mount

Face Options

1=Single

2=Double

Factory

Options

65=Tamperproof

Screws

85=Vandal Shield

95=AC Only Fire

Alarm Interface

Lamp Type

LED=LED Lite Stix™

Screw-in LED

Lamps

Emergency Operation

AC=AC Only

Letter Color

R=Red

Housing Finishes

Blank=Brushed Aluminum

Face with Black Housing

W=White

B=Black

BZ=Bronze

Voltage

Blank=120V

77=277V

Accessories (Order Separately)

DC Socket Kit

PDC6=Two 6V, 3.6W DC lamps

PDC12=Two 12V, 3.6W DC lamps

Emergency Power Pack

CAX3PP=Black

CAX3PPW=White

CAX3PPBZ=Bronze

277V Conversion Kit

AD277CAX=Black

AD277CAXW=White

AD277CAXBZ=Bronze

Vandal Resistant Screwdrivers

059012SP=Tamperproof

Screwdriver Bit

VRSD=Vandal Resistant Screwdriver

WG10=Surface, Mount Wire Guard

WGS11=Ceiling, End Mount Wire Guard

VS1=Polycarbonate Vandal Shield

CAX

SURE-LITES®

43

COOPER LIGHTING

EXIT SIGNS > Architectural

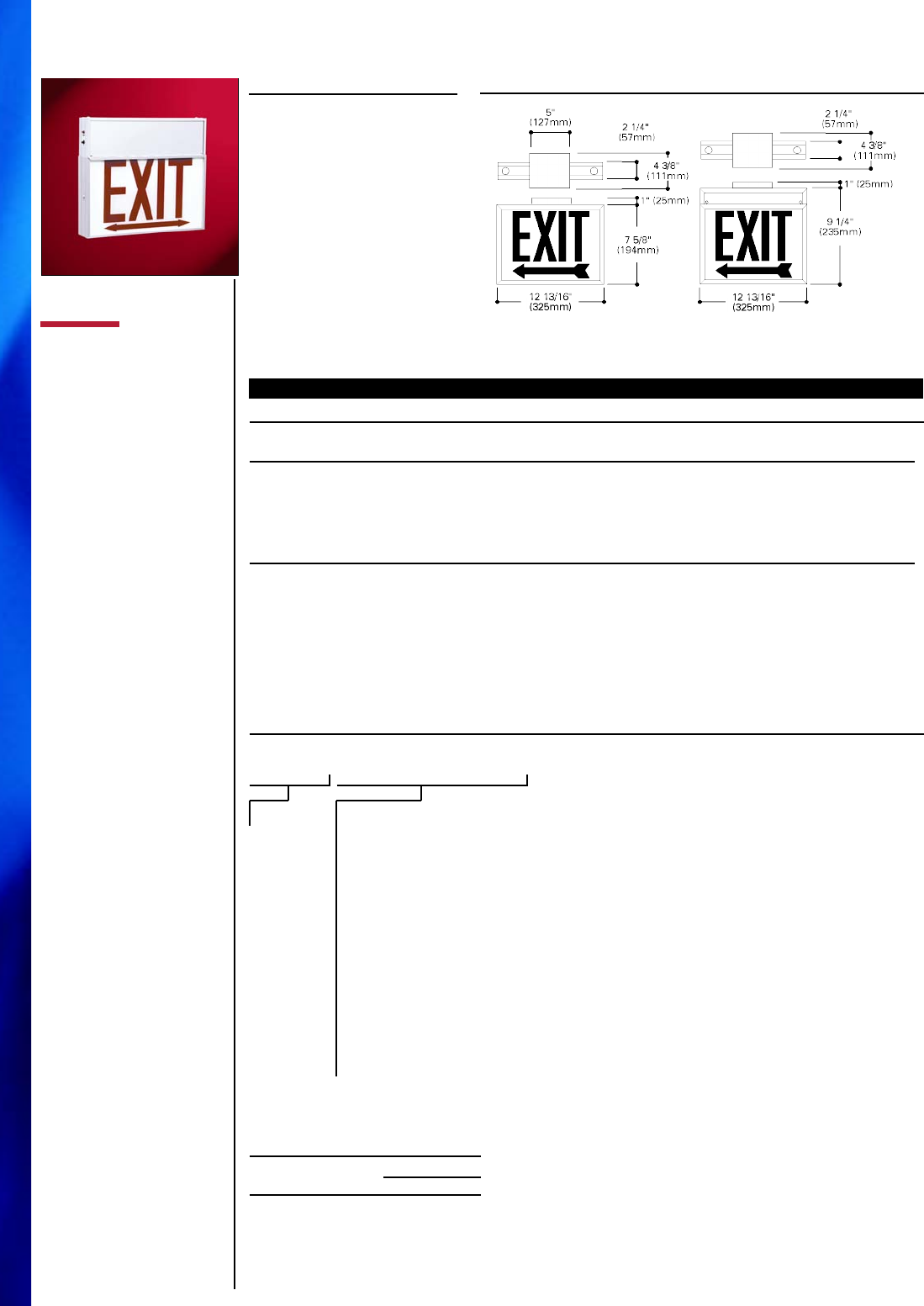

CAX SERIES

Die Cast

A C O n l y

Incandescent, Compact

Fluorescent Lamping

EXIT LIGHTING

> 120 VAC or 277 VAC

input voltage

> Die cast aluminum

housing with hinged face

plate and die-cast canopy

for ceiling or end

mounting

> Universal: ceiling, wall, or

end mounting

> AC incandescent: two 20W

T6 1/2 intermediate base

lamps

> AC fluorescent: two 5W

F5TT compact fluorescent

lamps

> Universal pattern

knockouts on rear of

single face housing for

direct mounting to

junction box

> NFPA 101 compliant

knockout chevrons allow

quick conversion to

directional signs

> Stencil and open face

signs available

> Downlight diffuser

> Damp Location Listed

> UL 924 Listed, Life Safety

NFPA 101, CSA certified,

NEC/OSHA, UL FTBR

Listed (consult your

Cooper Lighting

Representative for

applicable fixture types),

most state and local codes

DIMENSIONS

E n e r g y Da t a

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Incandescent Exits

Incandescent Exits 4.0W 4.2W .33A .16A - - - -

Fluorescent Exits

Fluorescent Exits - 5W Lamps 14W 21W .29A .32A >.40 >.24 <14% <11%

Fluorescent Exits - 7W Lamps 15W 23W .25A .30A >.50 >.27 <16% <12%

Family

CAX=Die Cast

Aluminum Exit

Series

2=AC Only, Incandescent

4=AC Only, Fluorescent

Face Options

1=Single

2=Double

Battery

00=No Battery

Factory

Options

00=No Options

65=Tamperproof Screws

85=Vandal Shield

95=AC Only Fire Alarm2

Interface

Letter Colors

R=Red

G=Green

RWO=Red on White1

GWO=Green on White1

WRO=White on Red1

WGO=White on Green1

O=Open Face1

Housing

Finishes

Blank=Brushed

Aluminum

Face with

Black

Housing

W=White

B=Black

BZ=Bronze

Voltage

Blank=120V

77=277V

ORDERING INFORMATION-INCANDESCENT, FLUORESCENT LAMP EXITS

SAMPLE NUMBER: CAX410065RB

Notes: AC compact fluorescent CAX Series Exits cannot be converted to self-powered emergency.

1RWO, GWO, WRO, and WGO are open face styles with “EXIT” legend. Use “O” option for ordering special wording-lenses ordered

separately (consult Cooper Lighting Representative). 2AC Only Fire Alarm Interface Option available on incandescent lamp exits only.

Factory Options

2C= Two Circuit Operation

Accessories (Order Separately)

DC Socket Kit (Incandescent only)

PDC6=Two 6V, 3.6W DC lamps

PDC12=Two 12V, 3.6W DC lamps

Emergency Power Pack

(Incandescent Only)

CAX3PP=Black

CAX3PPW=White

CAX3PPBZ=Bronze

277V Conversion Kit

AD277CAX=Black

AD277CAXW=White

AD277CAXBZ=Bronze

Screwdrivers

0590-12SP=Tamperproof Screwdriver Bit

VRSD=Vandal Resistant Screwdriver

Wire Guard

WG1=Surface, Wire Guard

WGS11=Ceiling, End Wire Guard

VS1=Polycarbonate Vandal Shield

Pendant Kits

CAX18PK=Pendant Kit, white

CAX18PKHT=”Hang-true” Pendant Kit, white

DESCRIPTION

The Sure-Lites Pinnacle

Family of Surface Mounted

Die cast Aluminum Exits

combine a strength, durability

and aesthetics. The

architecturally compatible

finishes will add a new

dimension to any design.

CAX

44

EXIT SIGNS > Architectural

SURE-LITES®

COOPER LIGHTING

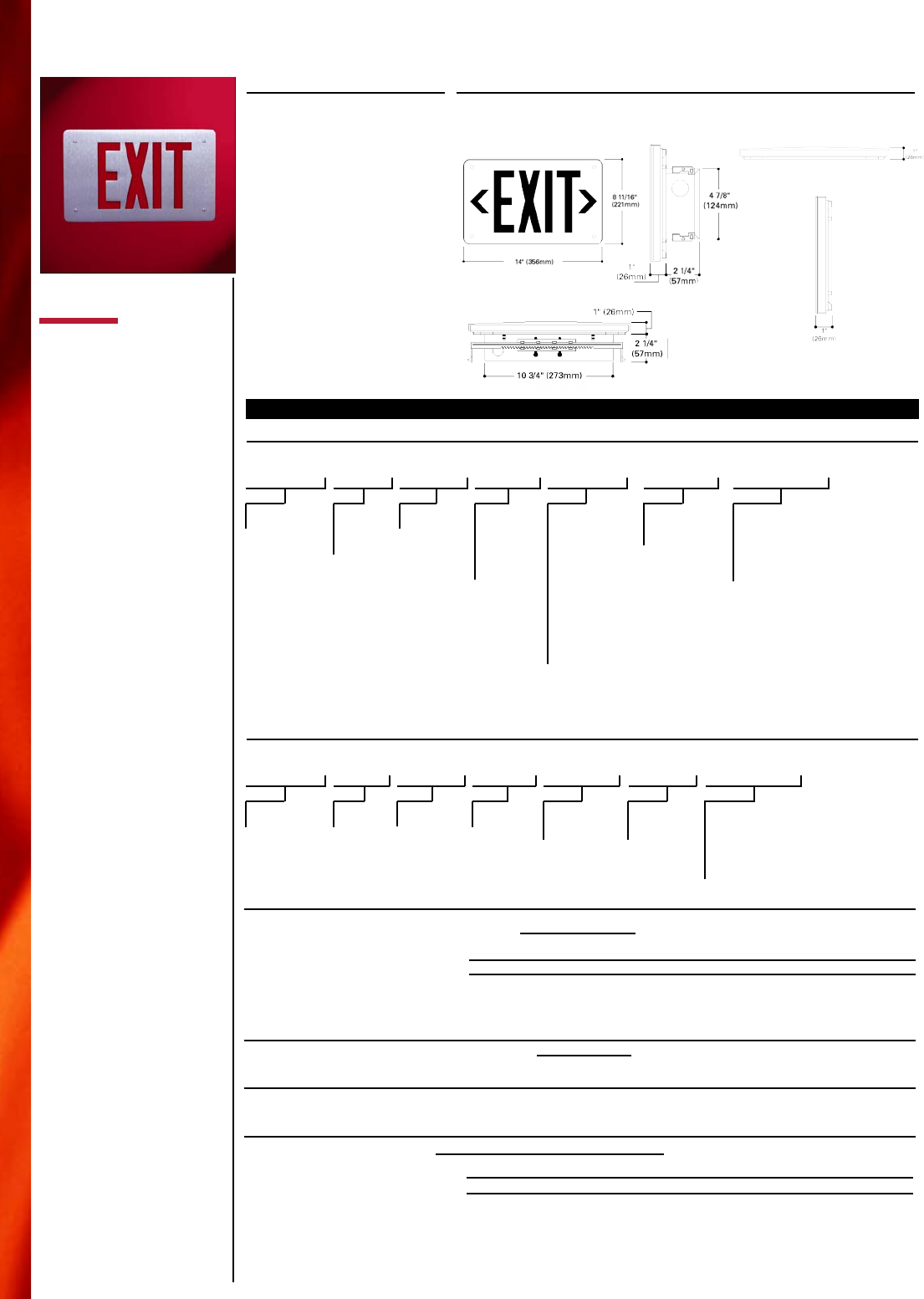

CAX SERIES

Die Cast

S e l f - P o w e r e d

LED Lamping

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> Die cast Aluminum

housing with hinged

faceplate and die cast

canopy for ceiling or

end mounting

> Universal: ceiling, wall, or

end mounting

> Screw-in LED lamps: two

1W long life T 6 1/2

intermediate base lamps

> Lead Calcium or Premium

Nickel Cadmium battery

> Universal pattern

knockouts on rear of

single face housing for

direct mounting to

junction box

> NFPA 101 compliant

knockout chevrons allow

quick conversion to

directional signs

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test switch/

power indicator light

> UL 924 Listed, Life Safety

NFPA 101, CSA certified,

NEC/OSHA, most state

and local codes

DIMENSIONS

Family

CAX=Die Cast Aluminum

Exit Surface Mount

Series

7=Self-Powered LED

Face Options

1=Single

2=Double

Battery

70=Nickel Cadmium

Factory Options

00=No Options

20=DC Flasher

30=DC Flasher/ Buzzer

65=Tamperproof Screws

85=Vandal Shield

90=DC Only Fire Alarm

Interface

Letter Colors

R=Red

G=Green

ORDERING INFORMATION-LED LAMP EXITS

SAMPLE NUMBER: CAX717020R

Wattage Ratings

Lead Calcium Battery=10.8W for 1 1/2 hrs., 7.2W for 2 hrs. Nickel Cadmium Battery=15.0W for 1 1/2 hrs.

Housing Finishes

Blank=Brushed Aluminum

Face with Black Housing

W=White

B=Black

BZ=Bronze

Factory Options

SD=Self Diagnostics

Accessories (Order Separately)

Screwdrivers

0590-12SP=Tamperproof

Screwdriver Bit

VRSD=Vandal Resistant

Screwdriver

VS1=polycarbonate vandal shield

Pendant Kits

CAX18PK=Pendant Kit, white

CAX18PKHT=”Hang-true”

Pendant Kit, white

WG10=Surface

WGS11=Ceiling, end

ORDERING INFORMATION-SCREW-IN LED LAMPS

SAMPLE NUMBER: CAX1LEDSPR

Family

CAX=Die Cast Aluminum

Exit Surface Mount

Face Options

1=Single

2=Double

Battery

Blank=Lead Calcium

70=Nickel Cadmium

Factory Options

Blank=None

20=DC Flasher

30=DC Flasher/ Buzzer

65=Tamperproof Screws

85=Vandal Shield

90=DC Fire Alarm Interface

Emergency Operation

SP=Self-Powered

Letter Color

R=Red

Housing Finishes

Blank=Brushed Aluminum

Face with Black Housing

W=White

B=Black

BZ=Bronze

Factory Options

SD= Self-Diagnostics

Accessories (Order Separately)

059012SP=Tamperproof

Screwdriver Bit

VRSD=Vandal Resistant

Screwdriver

VS1=polycarbonate vandal

shield

Pendant Kits

CAX18PK=Pendant Kit, white

CAX18PKHT=”Hang-true”

Pendant Kit, white

WG10=Surface

WGS11=Ceiling, end

Lamp Type

LED=LED Lite Stix™

Screw-in LED Lamps

Voltage

Blank=120V/277V

47=120/347V

DESCRIPTION

The Sure-Lites Pinnacle Family

of Surface Mounted Die cast

Aluminum Exits combine

strength, durability and

aesthetics. The architecturally

compatible finishes will add a

new dimension to any design.

E n e r g y D a t a

Standard Power - Sealed Nickel Cadmium Battery - LED Exits

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 347V 120V 277V 347V 120V 277V 120V 277V

Red Letters Single Face 7.4W 7.5W 7.6W .08A .04A .03A >.72 >.72 <34% <34%

Red Letters Double Face 9.3W 9.5W 9.6W .09A .04A .03A >.84 >.84 <31% <32%

Green Letters Single Face 8.5W 8.7W 8.4W .09A .04A .03A >.79 >.79 <30% <31%

Green Letters Double Face 11.4W 11.7W 11.2W .11A .05A .04A >.90 >.90 <26% <26%

Standard Power with Self Diagnostics Option (Fully Discharged Battery) - LED Exits

Red Letters Single Face 8.4W 8.5W 8.6W .08A .04A .03A >.82 >.82 <31% <31%

Red Letters Double Face 9.8W 9.5W 9.7W .09A .04A .03A >.86 >.84 <30% <30%

Green Letters Single Face 9.1W 9.0W 9.2W .09A .04A .03A >.86 >.85 <27% <27%

Green Letters Double Face 11.2W 10.5W 10.5W .10A .05A .03A >.90 >.88 <25% <26%

Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery Input Power consumption is reduced by approximately 1.5 Watts

Self Diagnostic Option with Low Power Option (Operating in Low Power Mode) (Fully Discharged Battery) - LED Exits

Red Letters Single Face 6.5W 6.7W .07A .03A >.75 >.72 <37% <37%

Red Letters Double Face 7.8W 8.1W .08A .04A >.80 >.80 <33% <33%

Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery Input Power consumption is reduced by approximately 4 Watts

Charge Mode, Fully Discharged Battery): Sealed Lead Calcium Battery Screw-in LED Lamps

Red Letters 16.6W 17.5W .15A .07A >.90 >.91 <28% <28%

Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery Input Power consumption is reduced by approximately 10 Watts in

the standby operating mode

Sealed Nickel Cadmium Battery: Screw-in LED Lamps

Red Letters 8.4W 8.3W .08A .03A >.92 >.92 <35% <34%

CAX

SURE-LITES®

45

COOPER LIGHTING

EXIT SIGNS > Architectural

CAX SERIES

Die Cast

S e l f - P o w e r e d

Incandescent, Compact

Fluorescent Lamping

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> Die cast aluminum

housing with hinged

faceplate and die-cast

canopy for ceiling or end

mounting

> Universal: ceiling, wall, or

end mounting

> AC incandescent: two 20W

T6 1/2 intermediate base

lamps

> AC fluorescent: two 5W

F5TT compact fluorescent

lamps

> Lead Calcium or Premium

Nickel Cadmium battery

> Universal pattern

knockouts on rear of

single face housing for

direct mounting to

junction box

> NFPA 101 compliant

knockout chevrons allow

quick conversion to

directional signs

> Stencil and open face

signs available

> Downlight diffuser

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, CSA Certified,

NEC/OSHA, UL FTBR

Listed, most state and

local codes

DIMENSIONS DESCRIPTION

The Sure-Lites Pinnacle Family

of Surface Mounted Die Cast

Aluminum Exits combine

strength, durability and aes-

thetics. The architecturally

compatible finishes will add a

new dimension to any design.

Family

CAX=Die Cast Aluminum

Exit Surface Mount

Series

3=Self-Powered, Incandescent

5=Self-Powered, Fluorescent

Face Options

1=Single

2=Double

Battery

00=Lead Calcium

70=Nickel Cadmium

Factory Options

00=No Options

20=DC Flasher1

30=DC Flasher/ Buzzer1

65=Tamperproof Screws

85=Vandal Shield

90=DC Only Fire Alarm

Interface1

Letter Colors

R=Red

G=Green

RWO=Red on White2

GWO=Green on White2

WRO=White on Red2

WGO=White on Green2

O=Open Face2

ORDERING INFORMATION-INCANDESCENT, FLUORESCENT EXITS

SAMPLE NUMBER: CAX310085R

1DC Flasher, DC Flasher/Buzzer and DC Fire Alarm Interface options available with Incandescent exits only. 2RWO, GWO, WRO, and WGO

are open face styles with “Exit” legend. Use “O” option for ordering special wording-lenses ordered separately (consult Cooper Lighting

Representative).

Wattage Ratings

Lead Calcium Battery=10.8W for 1 1/2 hrs., 7.2W for 2 hrs. Nickel Cadmium Battery=15.0W for 1 1/2 hrs.

E n e rg y D a t a

Charge Mode (Fully Discharged Battery): Sealed Lead Calcium Battery

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Incandescent Exits-20W Lamps 53W 51W .45A .19A >.99 >.98 <9% <10%

Fluorescent Exits-5W Lamps 29W 30W .40A .16A >.61 >.66 <12% <11%

Standby Mode (Fully Charged Battery) Sealed Lead Calcium Battery Input Power consumption is reduced by approximately 12 Watts in the

standby operating mode

Sealed Nickel Cadmium Battery

Incandescent Exits-20W Lamps 45W 43W .38A .16A >.99 >.99 <7% <7%

Fluorescent Exits - 5W Lamps 20W 21W .36A .15A >.48 >.52 <15% <14%

Housing Finishes

Blank=Brushed Aluminum

Face with Black Housing

W=White

B=Black

BZ=Bronze

Voltage

Blank=120V/277V

Factory Options

SD=Self-Diagnostic

(Incandescent Only)

Accessories (Order Separately)

Screwdrivers

059012SP=Tamperproof

Screwdriver Bit

VRSD=Vandal Resistant

Screwdriver

Wire Guard

WG1=Surface, Wire Guard

WGS11=Ceiling, End Wire

Guard

VS1=Polycarbonate Vandal

Shield

Pendant Kits

CAX18PK=Pendant Kit, white

CAX18PKHT=”Hang-true”

Pendant Kit, white

CAX

46

EXIT SIGNS > Architectural

SURE-LITES®

COOPER LIGHTING

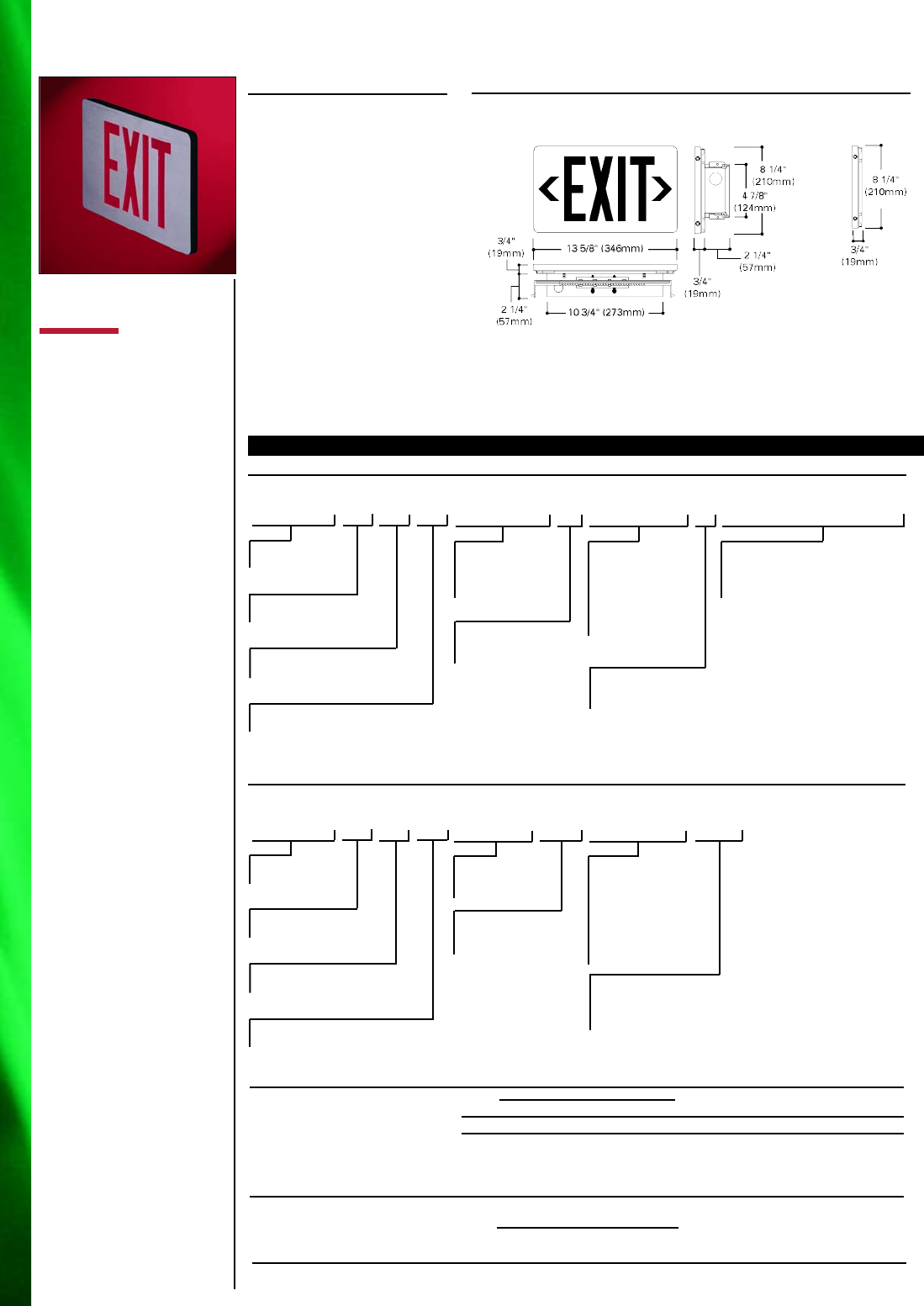

TPX SERIES

Die Cast

AC Only

Thin Profile

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> Die cast aluminum face-

plate

> Overall exposed exit thick-

ness is only 3/4"

> LED lamping

> 20 gauge steel recessed

housing fits in 2x4 con-

struction

> 18 gauge steel mounting

plate with universal

mounting pattern

> Adjustable hanger bars

> Centerpin Torx tamper

resistant screws on sides

of faceplate – no visible

mounting hardware on

front face

> NFPA compliant knockout

chevrons

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA, UL

FTBR Listed (with “2C”

option), UL Listed as suit-

able for floor proximity

installation, most state and

local codes

DIMENSIONS

DESCRIPTION

The TPX Thin Profile Exit

Series combines the strength

of die cast aluminum, the pro-

file of recessed design

and the superior aesthetics of

LED technology. The TPX

Series faceplate assembly is

only 3/4" thick, yielding a sign

with minimal off-wall protru-

sion without requiring the

large wall opening of a fully

recessed exit.

The TPX Series also includes

a Remote Powered Exit which

can be powered from a TPX

Series AC Only or Self-

Powered Exit.

ORDERING INFORMATION-AC ONLY EXITS

SAMPLE NUMBER: TPX610000RB

Energy Data

Standard Power - LED Exits

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Red Letters Single Face 5.6W 5.7W .07A .03A >.71 >.71 <36% <36%

Red Letters Single Face with Remote 7.3W 7.3W .07A .03A >.83 >.83 <33% <34%

Green Letters Single Face 6.7W 6.8W .07A .03A >.79 >.79 <30% <31%

Green Letters Single Face with Remote 9.5W 9.7W .09A .04A >.90 >.90 <26% <27%

Remote Powered - LED Exits

Red Letters Single Face Approximately 2.0 watts additional

Green Letters Single Face Approximately 2.5 watts additional

O R D E R I N G I N F O R M AT I O N - R E M O T E P O W E R E D E X I T S (Satellite, must be powered from another unit.)

SAMPLE NUMBER: TPX810000R

REMOTE

P O W E R E D

Faceplate Finishes

Blank=Brushed

Aluminum Face

with Black Trim

W=White

B=Black

BZ=Bronze

Factory

Options

2C= Two Circuit

Operation

Family

TPX=Thin Profile

Exit

Series

6=AC Only, LED

Face Options

1=Single

Battery

00=AC Only, 120/277 VAC

Factory

Options

00=No Options

95=AC Only Fire

Alarm Interface

Letter Colors

R=Red

G=Green

Accessories (Order Separately)

TPX61VS=Polycarbonate Vandal

Shield

0590A639SP=Tamper Resistant

Screwdriver Bit

Faceplate

Finishes

Blank=Brushed

Aluminum Face

with Black Trim

W=White

B=Black

BZ=Bronze

Accessories (Order Separately)

TPX61VS= Polycarbonate

Vandal Shield

0590A639SP= Tamper Resistant

Screwdriver Bit

Family

TPX=Thin Profile

Exit

Series

8=Remote, LED

Face Options

1=Single

Battery

00=Remote Powered

Factory

Options

00=No Options

Letter Colors

R=Red

G=Green

A C O N LY

TPX

SURE-LITES®

47

COOPER LIGHTING

EXIT SIGNS > Architectural

TPX SERIES

Die Cast

S e l f - P o w e r e d

Thin Profile

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> Die cast aluminum

faceplate

> Overall exposed exit

thickness is only 3/4"

> LED Lamping

> Premium Nickel Cadmium

battery

> 20 gauge steel recessed

housing fits in 2x4

construction

> 18 gauge steel mounting

plate with universal

mounting pattern

> Adjustable hanger bars

> Centerpin Torx tamper

resistant screws on sides

of faceplate

> NFPA compliant knockout

chevrons

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching, low-

voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/ power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA, UL

FTBR Listed (with “2C”

option), UL Listed as suit-

able for floor proximity

installation, most state and

local codes

DIMENSIONS

ORDERING INFORMATION

SAMPLE NUMBER: TPX717020RB

E n e rg y D a t a

Standard Power - Sealed Nickel Cadmium Battery - LED Exits

Input Power; Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Red Letters Single Face 7.4W 7.5W .08A .04A >.72 >.72 <34% <34%

Red Letters Single Face with Remote 9.3W 9.5W .09A .04A >.84 >.84 <31% <32%

Green Letters Single Face 8.5W 8.7W .09A .04A >.79 >.79 <30% <31%

Green Letters Single Face with Remote 11.4W 11.7W .11A .05A >.90 >.90 <26% <26%

Standard Power with Self-Diagnostics Option ( Fully Discharged Battery) - LED Exits

Red Letters Single Face 8.4W 8.5W .08A .04A >.82 >.82 <31% <31%

Red Letters Single Face with Remote 9.8W 9.5W .09A .04A >.86 >.84 <30% <30%

Green Letters Single Face 9.1W 9.0W .09A .04A >.86 >.85 <27% <27%

Green Letters Single Face with Remote 11.2W 10.5W .10A .05A >.90 >.88 <25% <26%

Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery Input Power consumption is reduced by approxi-

mately 1.5 Watts in the standby operating mode

Faceplate

Finishes

Blank=Brushed

Aluminum Face

with Black Trim

W=White

B=Black

BZ=Bronze

Factory

Options

SD= Self-Diagnostics

Family

TPX=Thin Profile

Exit

Series

7=Self-Powered

Face Options

1=Single

Battery

70=Nickel Cadmium Battery

Factory

Options

00=No Options

20=Flasher

30=Flasher/Buzzer

90=DC Fire Alarm

Interface

Letter Colors

R=Red

G=Green

Accessories (Order Separately)

TPX71VS=Polycarbonate Vandal

Shield

0590A639SP=Tamper Resistant

Screwdriver Bit

DESCRIPTION

The TPX Thin Profile Exit Series

combines the strength of die cast

aluminum, the profile of recessed

design and the superior aesthetics

of LED technology. The TPX Series

faceplate assembly is only 3/4"

thick, yielding a sign with minimal

off-wall protrusion without requir-

ing the large wall opening of a fully

recessed exit.

The TPX Series also includes

a Remote Powered Exit which can

be powered from a TPX Series AC

Only or Self-Powered Exit.

TPX

48

EXIT SIGNS > Architectural

SURE-LITES®

COOPER LIGHTING

CAR SERIES

Die Cast

AC Only

Recessed

EXIT LIGHTING

> Dual Voltage Input

120/277 VAC, 60 Hz

> Die cast aluminum face

plate

> LED, Compact Fluorescent,

or Incandescent lamping

> AC incandescent: two 20W

T6 1/2 intermediate base

lamps

> AC fluorescent: two 5W

F5TT compact fluorescent

lamps

> NFPA 101 compliant

knockout chevrons allow

quick conversion to

directional signs

> Rough-in back box for

recessed mounting

> Hanger bars supplied

standard for mounting

> Faceplate secures to

rough-in box with torsion

springs

> Stencil and open face

signs available

> Damp Location Listed

> UL 924 Listed, UL FTBR

Listed (consult Cooper

Lighting Representative

for applicable fixture

types), Life Safety NFPA

101, NEC/OSHA, most

state and local codes

> Suitable for floor proximity

installation

DIMENSIONS

Faceplate

Finishes

Blank=Brushed

Aluminum

W=White

B=Black

BZ=Bronze

Voltage

Blank=120V

77=277V (Incandescent

and Fluorescent only)

ORDERING INFORMATION

SAMPLE NUMBER: CAR210000GB

Notes: AC compact fluorescent CAR Series Exits cannot be converted to self-powered emergency.

1Available only for incandescent and fluorescent versions. RWO, GWO, WRO, and WGO are open face styles with “EXIT” legend.

Use “O” option for ordering special wording-lenses ordered separately (consult Cooper Lighting Representative).

2AC Only Fire Alarm Interface Option available on incandescent exits only.

Energy Data

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Incandescent Exits

Incandescent Exits - 20W Lamps 40W 42W .33A .16A - - - -

Fluorescent Exits

Fluorescent Exits - 5W Lamps 14W 21W .29A .32A >.40 >.24 <14% <11%

LED Exits

LED Exits - Single Face 6.7W 6.8W .07A .03A >.79 >.79 <30% <31%

Family

CAR=Die Cast

Aluminum Exit

Recessed Mount

Series

2=AC Only, Incandescent

4=AC Only, Fluorescent

6=AC Only, LED (120/277)

Face Options

1=Single

Battery

00=No Battery

Factory

Options

00=No Options

65=Tamperproof

Screws

85=Vandal Shield

95=AC Only Fire Alarm

Interface2

Letter Colors

R=Red

G=Green

RWO=Red on White1

(except LED)

GWO=Green on White1

(except LED)

WRO=White on Red1

(except LED)

WGO =White on Green1

(except LED)

O=Open Face1

(except LED)

Factory Options

2C= Two Circuit Operation

Accessories (Order Separately)

059012SP=Tamperproof Screwdriver Bit

VRSD=Vandal Resistant Screwdriver

DESCRIPTION

The Sure-Lites Pinnacle Family

of Die Cast Aluminum Exits

combine strength, durability

and aesthetics. The fully

recessed CAR Series offers a

very clean unobtrusive look.

The die cast faceplate is

offered in four finishes.

CAR

SURE-LITES®

49

COOPER LIGHTING

EXIT SIGNS > Architectural

CAR SERIES

Die Cast

Self-powered

Recessed

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> Die cast aluminum face

plate

> LED, Compact Fluorescent,

or Incandescent lamping

> AC Incandescent: two 20W

T6 1/2 intermediate base

lamps; DC Incandescent:

two 6V, 3.6W lamps

> AC and DC Fluorescent:

Two 5W F5TT compact

fluorescent lamps

> Lead Calcium or Premium

Nickel Cadmium battery

> NFPA 101 compliant

knockout chevrons allow

quick conversion to

directional signs

> Rough-in back box for

recessed mounting

> Faceplate secure to rough

in box with torsion springs

> Stencil and open face

signs available

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA, UL

FTBR Listed, most state

and local codes

> Suitable for floor proximity

installation

DESCRIPTION

The Sure-Lites Pinnacle Family

of Die Cast Aluminum Exits

combine strength, durability

and aesthetics. The fully

recessed CAR Series offers a

very clean unobtrusive look.

The die cast faceplate is

offered in four finishes.

1Available only for incandescent and fluorescent versions. RWO, GWO, WRO, and WGO are open face styles with “EXIT” legend. Use

“O” option for ordering special wording-lenses ordered separately (consult Cooper Lighting Representative).

2DC Flasher, DC Flasher/Buzzer, DC Only Fire Alarm Interface Options available on incandescent exits only.

Faceplate

Finishes

Blank=Brushed

Aluminum

W=White

B=Black

BZ=Bronze

Voltage

Blank=120/277V

Family

CAR=Die Cast

Aluminum Exit

Recessed Mount

Series

3=Self-Powered,

Incandescent

5=Self-Powered,

Fluorescent

7=Self-Powered, LED

Face Options

1=Single

Battery

00=Lead Calcium Battery

(CAR3 & CAR5 Only)

70=Nickel Cadmium Battery

Factory

Options

00=No Options

20=DC Flasher2

30=DC Flasher/

Buzzer2

65=Tamperproof

Screws

85=Vandal Shield

90=DC Only Fire

Alarm Interface2

Letter Colors

R=Red

G=Green

RWO=Red on White1

(except LED)

GWO=Green on White1

(except LED)

WRO=White on Red1

(except LED)

WGO=White on Green1

(except LED)

O=Open Face1

(except LED)

Factory Options

SD=Self Diagnostics

(Incandescent & LED Only)

Accessories (Order Separately)

059012SP=Tamperproof

Screwdriver Bit

VRSD=Vandal Resistant Screwdriver

Wattage Ratings

Lead Calcium Battery=10.8W for 1 1/2 hrs. Nickel Cadmium Battery=15.0W for 1 1/2 hrs.

ORDERING INFORMATION

SAMPLE NUMBER: CAR310020RW

E n e rg y D a t a

(Charge Mode, Fully Discharged Battery): Sealed Lead Calcium Battery

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Incandescent Exits - 20W lamps 53W 51W .45A .19A >.99 >.98 <9% <10%

Fluorescent Exits-5W Lamps 29W 30W .40A .16A >.61 >.66 <12% <11%

LED Exits 8.0W 8.0W .09A .04A >.75 >.75 <34% <34%

Standby Mode (Fully Charged Battery) Sealed Lead Calcium Battery Input Power consumption is reduced by

approximately 12 Watts in the standby operating mode

Sealed Nickel Cadmium Battery

Incandescent Exits - 20W Lamps 45W 43W .38A .16A >.99 >.99 <7% <7%

Fluorescent Exits - 5W Lamps 20W 21W .36A .15A >.48 >.52 <15% <14%

DIMENSIONS

CAR

50

EXIT SIGNS > Commercial

SURE-LITES®

COOPER LIGHTING

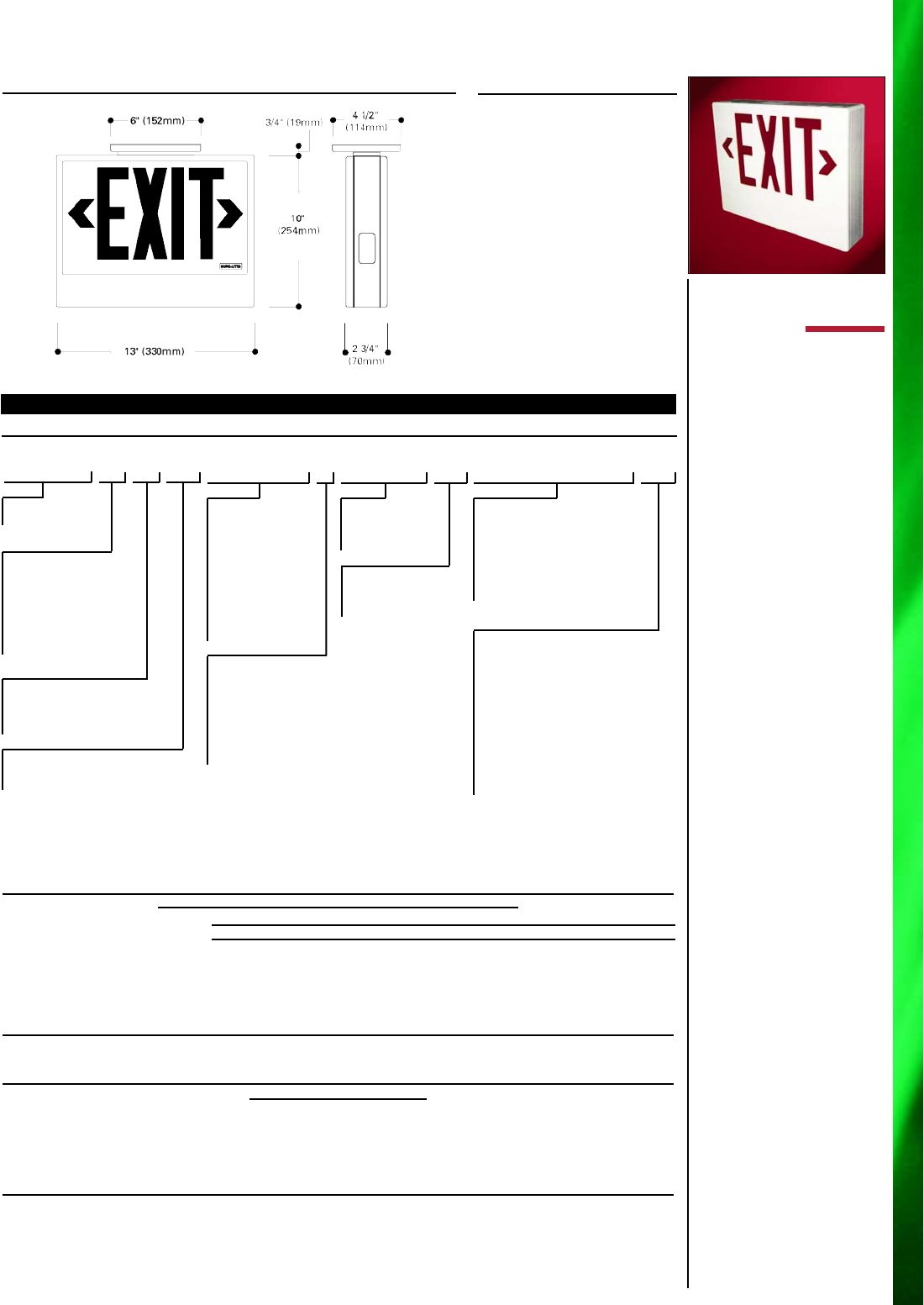

LPX SERIES

Polycarbonate

AC Only

Self-Powered

EXIT LIGHTING

> Dual-voltage Input 120/277 VAC,

60Hz, isolation transformer

> Injection molded polycarbonate

housing

> LED lamping

> Premium Nickel Cadmium

battery (Self Powered)

> Fully charged in 24 hours

(Self-Powered Exits)

> Snap-fit canopy included

> Snap-out or snap-in chevron

directional indicators

> Knockout provided on housing

for surface attachment

> Universal exits can be field

configured as single face or

double face (ceiling, wall, or end

mounting)

> Self-powered Exit features

line-latching, solid-state voltage

limited charger, solid-state

switching, brownout circuit,

low-voltage disconnect, over-

load/short-circuit protection,

test switch/power indicator light

> UL Damp Location Listed (AC

Only & Self-Diagnostic versions)

> Optional 2C (Two circuit, FTBR)

available in 120/277 VAC in

standard and emergency

operation (AC Only Exits)

> UL 924 Listed, Life Safety NFPA

101, CSA Certified, NEC/OSHA,

most state and local codes,

suitable for floor proximity

installation

> Patent No. 5,735,498 and

5,678,336

DIMENSIONS

Energy Data – Self-Powered Exits

Charge Mode (Fully Discharged Battery): Sealed Nickel Cadmium Battery

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

LED Exits

LED Exits -Red Letters 2.8W 2.9W .03A .02A > .81 > .77 < 32% < 46%

LED Exits Green 6.0W 6.4W .09A .04A > .58 > .56 < 42% < 45%

LED Exits-Red Letters SD 1.7W 1.7W .03A .01A >.63 >.64 <43% <48%

Premium

Premium Deep Green 4.0W 4.0W .08A .04A > .41 > .41 < 48% < 49%

Premium Deep Green SD 3.1W 3.0W .08A .04A >.34 >.36 <63% <67%

Face Options

0=Universal

Battery

Blank=No Battery (LPX6)

Blank=Nickel Cadmium Battery (LPX7)

ORDERING INFORMATION

SAMPLE NUMBER: LPX70RWH

Family

LPX=Polycarbonate

Exit

Series

6=AC only with LED

7=Self-Powered with

LED

Letter

Colors

R=Red

G=Green

(White

Only)

DG=Premium

Deep

Green

Housing

Finishes

WH=White

BK=Black

Options

2C=Two Circuit

Option

(FTBR)

(LPX6 Only)

SD=Self

Diagnostics

(Red and

Deep Green,

White

Housing

Only. LPX7

Only)

Accessories

(Order Separately)

CCX18PKWH=18”

Pendant Kit, White

CCX18PKHTWH=18”

Hang True Pendant Kit,

White

CCX18PKBK=18”

Pendant Kit, Black

CCX18PKHTBK=18”

Hang True Pendant Kit,

Black

WG10=Surface, Wire

Guard

WGS11=Ceiling, End

Wire Guard

VS1=Polycarbonate

Vandal Shield

VS1WP=Polycarbonate

Vandal Shield

Weather Proof

6" [152mm] 4 1/2"

[114mm]

13" [330mm]

7 1/2"

[190mm]

3/4"

[19mm]

2 1/8"

[54mm]

Energy Data – AC Only Exits

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

LED Exits

LED Exits -Red Letters 2.4W 2.5W .03A .02A > .78 > .73 < 33% < 48%

LED Exits -Green Letters 5.6W 5.9W .08A .04A > .55 > .53 < 43% < 45%

Premium

Premium Deep Green 2.6W 2.6W .08A .04A > .28 > .28 < 51% < 53%

DESCRIPTION

The LPX Series LED Exit is an

economical, yet attractive, alter-

native to metal exits. Its contem-

porary round corner styling,

designer white finish, and con-

sistent family appearance

enables it to blend with any

decor. The tough injection mold-

ed polycarbonate materials

resist discoloration.

The canopy and chevron direc-

tional indicators, are of snap-fit

construction to facilitate installa-

tion. The under 5-minute instal-

lation time makes it the fastest

installed exit on the market

today.

LPX

SURE-LITES®

51

COOPER LIGHTING

EXIT SIGNS > Commercial

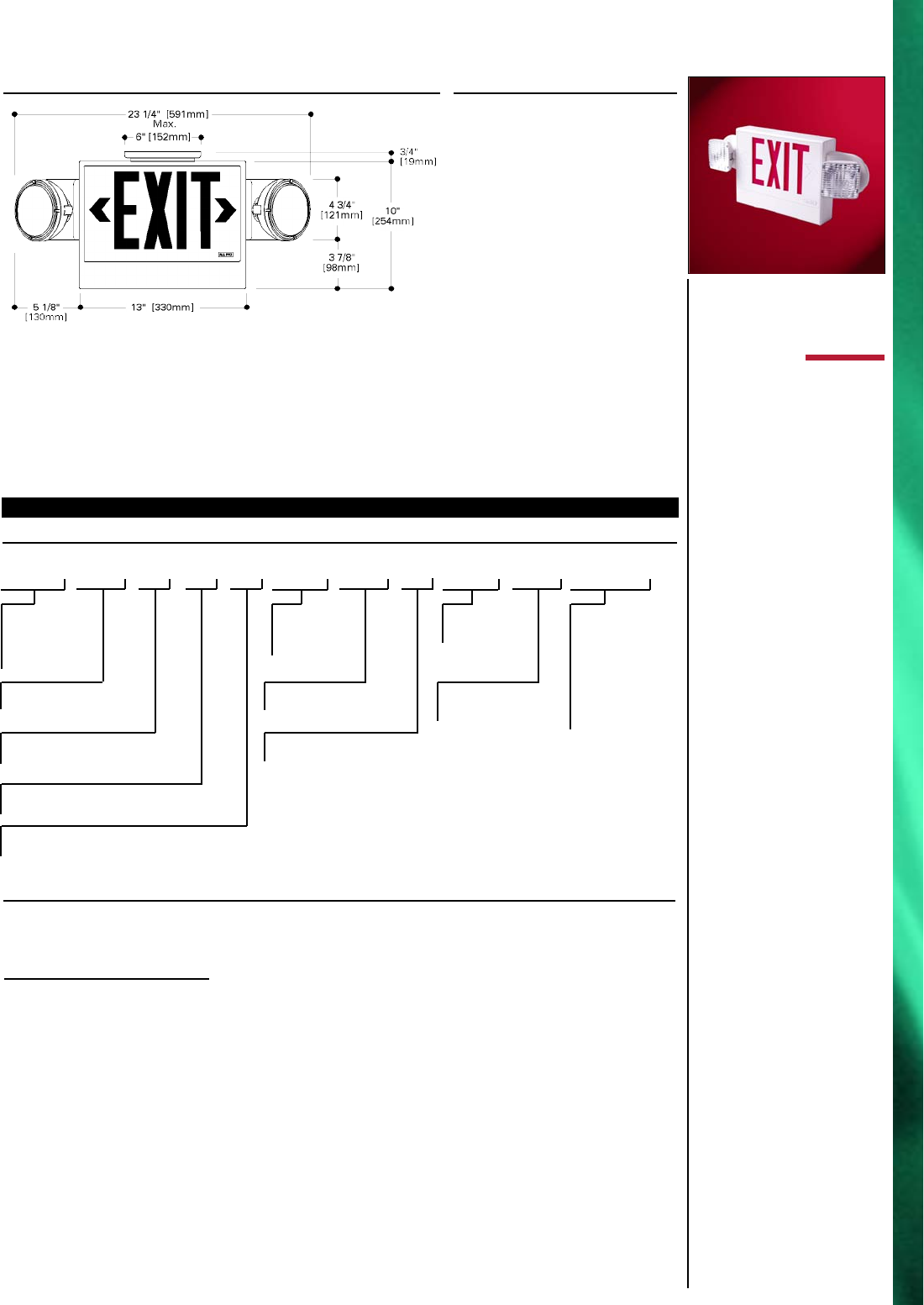

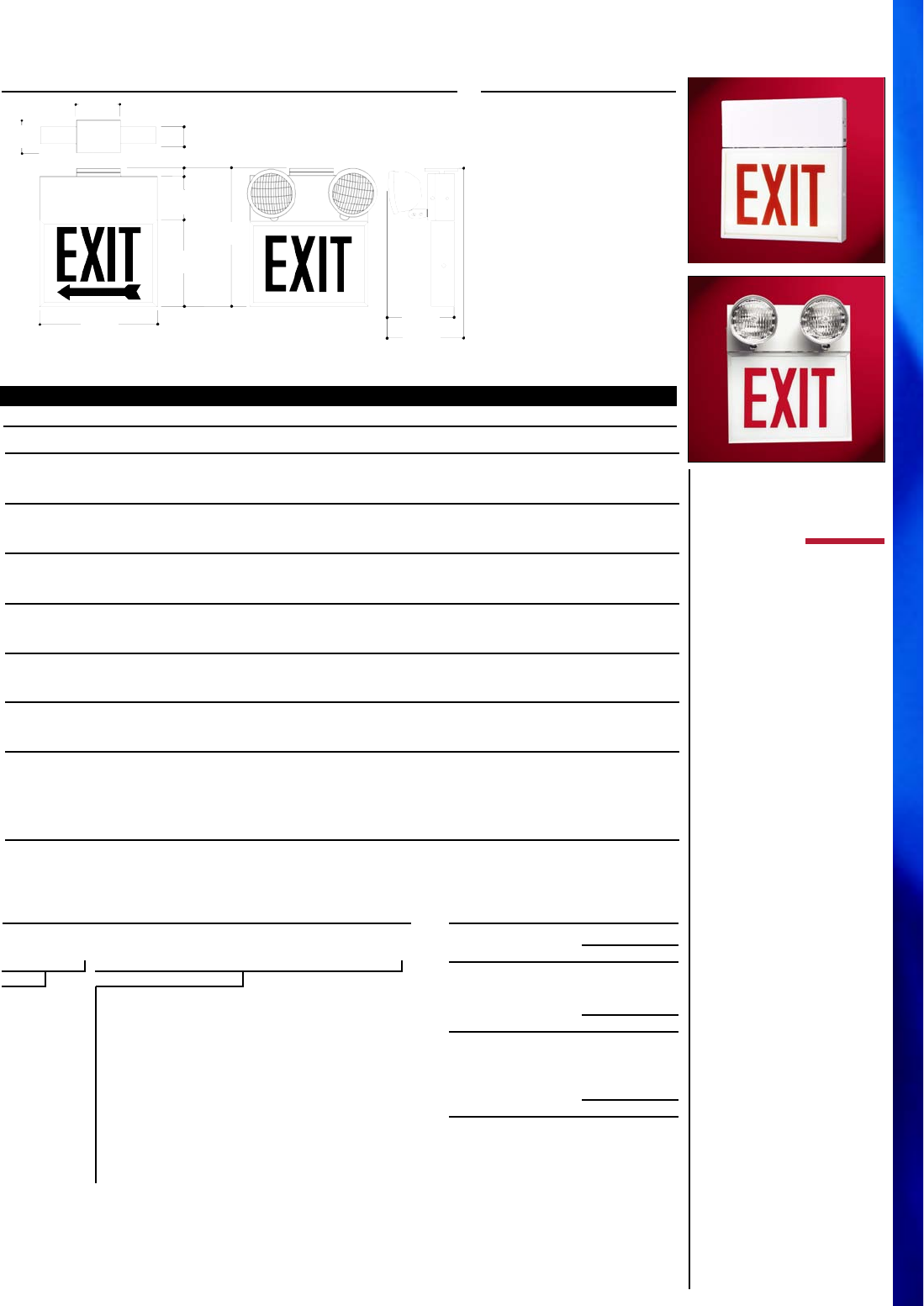

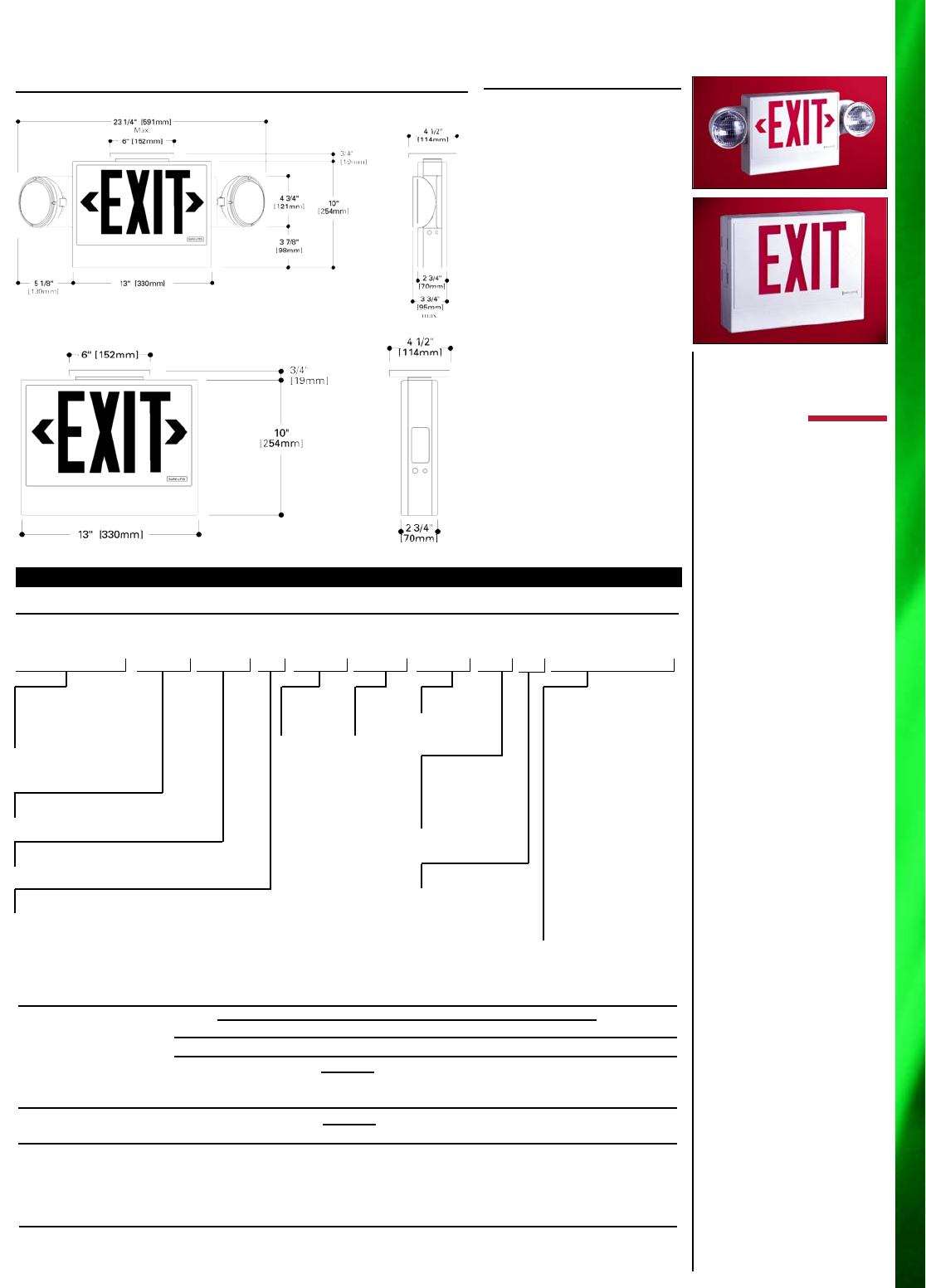

LPX(H) SERIES

EXITS

Polycarbonate

S e l f - P ow e r e d

H i g h P o w e r

(Remote Capacity)

Double Heads

EXIT LIGHTING

> Dual Voltage Input 120/277

VAC, 60Hz, isolation

transformer

> Injection molded, high impact,

polycarbonate housing

> LED lamping

> Heads DC: 6V, 5.4W

incandescent wedge base

lamps. PAR 36 Style

> Sealed Lead Calcium Battery,

Maintenance Free, Long Life,

Full Recharge Time, 24 hours

(max.); 48 hours (max.) for

LPXH units

> Universal exits can be field

configured as single face or

double face (ceiling, wall or

end mounting)

> Knockout provided on housing

for surface conduit attachment

> Snap-fit canopy with captive

mounting screws included

with all exits

> Line-Latching, Solid-State

Voltage Limited Charger,

Solid-State Switching,

Brownout Circuit, Low- Voltage

Disconnect, Overload/Short

Circuit Protection, Test Switch/

Power Indicator Light, Push-in

AC power connectors facilitate

installation

> Damp Location Listed

Standard

> UL 924, UL 924, 4 hour rated

(LPXH Units), Life Safety NFPA

101, CSA Certified, NEC/OSHA,

suitable for floor proximity

installation

Face Options

0=Universal

Battery

Blank=Lead Calcium

Family

LPX=Polycarbonate

Exit

LPXH=High Power*

(Remote

Capacity)

Series

7=Self-Powered with

LED

Letter

Colors

R=Red

DG=Premium

Deep

Green

Housing

Finishes

WH=White

BK=Black

(Red Only)

Voltage

Blank=120/277

VAC

Options

SD=Self-Diagnostics

(Red Only)

Heads

Blank=No

Heads

(LPXH

Only)

DH=Double

Heads

Accessories

(Order Separately)

CCX18PKWH=18” Pendant

Kit, White

CCX18PKHTWH=18”

Hang True Pendant Kit,

White

WG10=Wall Mount (without

heads)

WGS11=Ceiling or End

Mount (without

heads)

WG12=Wall Mount (with

heads)

WG17=Ceiling or Wall

Mount (with heads)

VS1=Polycarbonate Vandal

Shield (without heads)

VS2=Polycarbonate vandal

shield (with heads)

LPX1HWH=Head assembly,

White (LPXH

only)

E n e rg y D a t a

Standby Mode (Fully charged Battery): Sealed Lead Calcium Battery

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

LED Exits

LED Exits -Red Letters 4.9W 4.7W .07A .03A > .59 > .64 < 45% < 44%

LED Exits-Red Letters SD 4.0W 3.9W .06A .02A >.57 >.58 <40% <46%

Premium

Premium Deep Green 3.1W 2.9W .06A .02A > .41 > .44 < 49% < 53%

Charge Mode (Discharged Battery): Sealed Lead Calcium Battery

Input Power consumption is increased by approximately 2.7 watts in the charge operating mode for red units and 3.4

watts for green units

Wattage Ratings

LPXH* with double-heads (DH) has remote capacity of 11 watts for 1 1/2 hrs. No remote capacity for 4 hrs.

LPXH has Remote Capacity of 22 watts for 1 1/2 hrs. and 11 watts for 4 hrs.

DIMENSIONS DESCRIPTION

The LPX Series LED Exit is an

economical, yet attractive,

alternative to metal exits. Its

contemporary round corner

styling, designer white finish,

and consistent family appear-

ance enables it to blend with

any decor.

The tough injection molded

polycarbonate materials resist

discoloration due to age and

ultraviolet radiation. The

canopy and chevron direction-

al indicators are of snap-fit

construction to facilitate instal-

lation. Reliable and labor-sav-

ing push-in AC connectors are

standard to further improve

the installation time. The under

5-minute installation time

makes it the fastest installed

exit on the market today.

ORDERING INFORMATION

SAMPLE NUMBER: LPX70RWHDH

52

EXIT SIGNS > Commercial

SURE-LITES®

COOPER LIGHTING

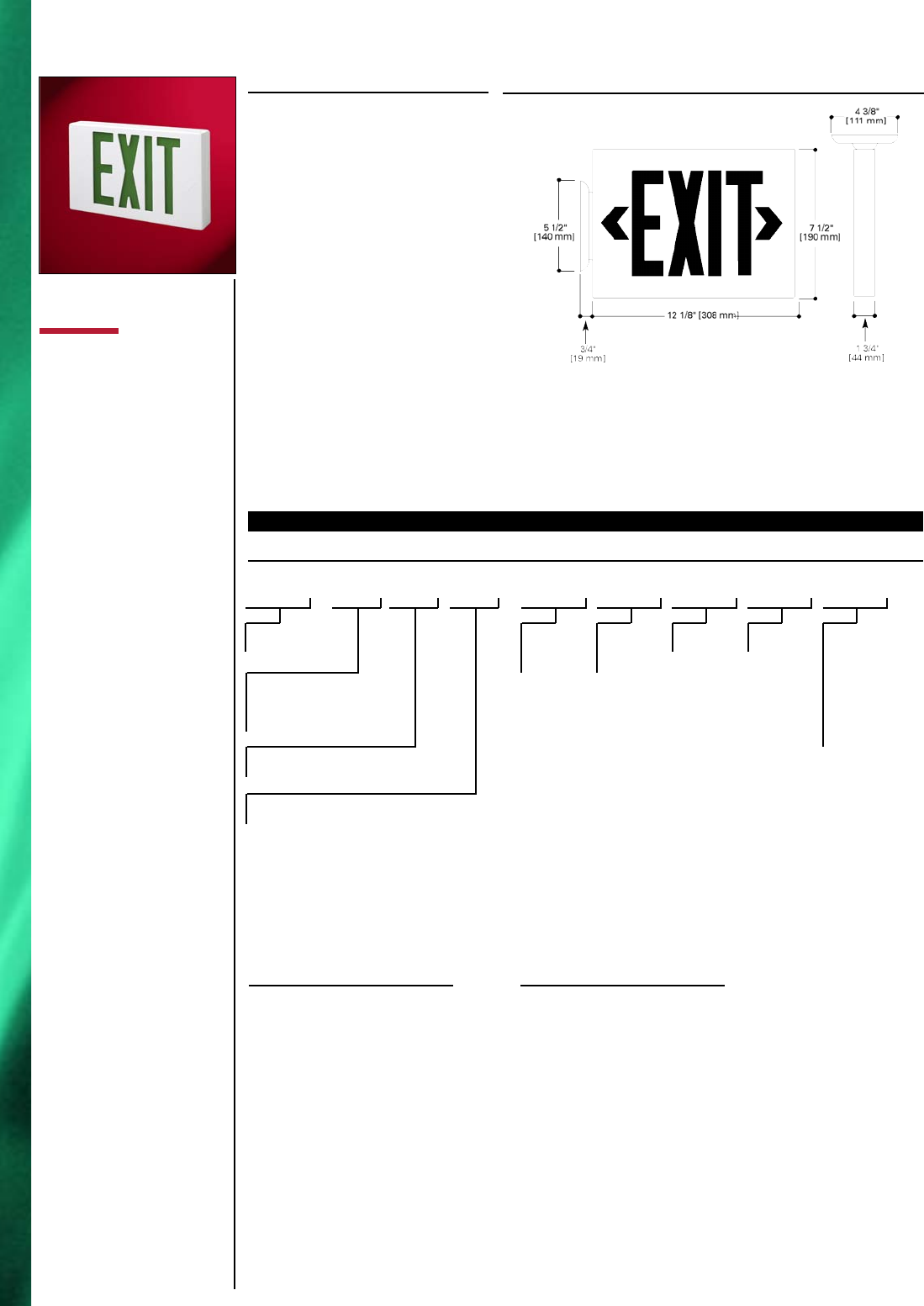

CCX SERIES

Polycarbonate

AC Only

EXIT LIGHTING

> Dual voltage input 120/277

VAC, 60 Hz

> Injection molded, high

impact, polycarbonate

housing

> Designer white textured

finish standard (Black

Available-Fluorescent Only)

> LED, Fluorescent or

Incandescent lamping

> LED: long life LED lamp

modules

> Fluorescent: two 5W F5TT

lamps

> Incandescent: two 145V,

15W T6 lamps

(candelabra base)

> Ceiling, wall or end

mounting

> Universal J-box mounting

pattern

> Push-in power connectors

facilitate installation

> Snap-fit canopy included

> Components are snap-fit

construction, reinforcing ribs

add strength

> Snap-out chevron directional

indicators

> UL FTBR Listed with 2C

option (7W Lamps Only.

Fluorescent Exits Only.)

> Damp Location Listed

>UL 924 Listed, Life Safety

NFPA 101, CSA Certified,

NEC/OSHA, most state and

local codes, suitable for floor

proximity installation

Family

CCX=Contractor’s

Choice Exit

Series

2=AC Only with 145V,

15W T-6 AC

Incandescent Lamps

4=AC Only with 5W F5TT

Compact Fluorescent

Lamps

6=AC only with

LED Lite Stix™

Face Options

0=Universal

1=Single Face

2=Double Face

Battery

Blank=No Battery

DIMENSIONS

DESCRIPTION

The CCX Series Contractor’s

Choice Exit is an economical,

attractive, alternative to metal

exits. Contemporary round cor-

ner styling, designer

finish, and consistent family

appearance enables it to blend

with any decor. The tough

injection molded polycarbon-

ate materials resist discol-

oration. The canopy and

chevron directional indicators

are of snap-fit construction to

facilitate installation.

Factory

Options

Blank=No Options

65=Tamperproof

Screws

95=AC Fire Alarm

Interface (for

Incandescent &

LED)

Letter Colors1

R=Red

G=Green

RWO=Red on White1

GWO=Green on White1

WRO=White on Red1

WGO=White on Green1

O=Open Face1

Housing Finishes

BK=Black

(Fluorescent Only)

WH=White

Voltage

Blank=120 VAC

7=120/277 VAC

(for Incandescent

& Fluorescent)

7=277 VAC

(LED only)

47=120/347 VAC

(Incandescent only)

ORDERING INFORMATION

SAMPLE NUMBER: CCX20RWH

Factory Options

2C=Two Circuit Operation -

includes 7W lamps

(Fluorescent Only)

C7=130V, 7W C-7 AC

Incandescent Lamps

(Incandescent Only)

7W=7W Compact Fluorescent

Lamps (Fluorescent Only)

Accessories (Order Separately)

CCX18PKBK=18” Pendant Kit, Black

CCX18PKWH=18” Pendant Kit, White

CCX18PKHTBK=18” Hang-True

Pendant Kit, Black

CCX18PKHTWH=18” Hang-True

Pendant Kit, White

CCX277=277V Conversion Kit

VRSD=Tamper Resistant Screwdriver

WG10=Surface, Wire Guard

WGS11=Ceiling, End Wire Guard

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield -

Weatherproof

Energy Data

Incandescent Exits

Input Power: Input Current(Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Incandescent Exits -15W Lamps 23.1W 30.0W .19A .19A

Incandescent Exits -7W Lamps 12.5W 19.6W .10A .17A

Fluorescent Exits

Fluorescent Exits -5W Lamps 16.3W 24.4W .14A .33A >.97 >.27 <20% <25%

Fluorescent Exits - 7W Lamps 18.0W 26.2W .15A .31A >.97 >.33 <23% <29%

Fluorescent Exits -7W Lamps (2C Option) 8.7W 13.3W .16A .14A >.45 >.34 <11% <28%

All ratings are per circuit

LED Exits

LED Exits- Red Letters 1.8W 2.6W .09A .11A >.17 >.09 <18% <10%

LED Exits - Green Letters 3.2W 4.5W .08A .10A >.33 >.15 <28% <16%

1Available only for incandescent and fluorescent versions. GWO, RWO, WGO, and WRO are open face style lenses with “EXIT” legend. Use “O”

option for ordering special wording-lenses ordered separately (consult your Cooper Lighting Representative).

CCX

SURE-LITES®

53

COOPER LIGHTING

EXIT SIGNS > Commercial

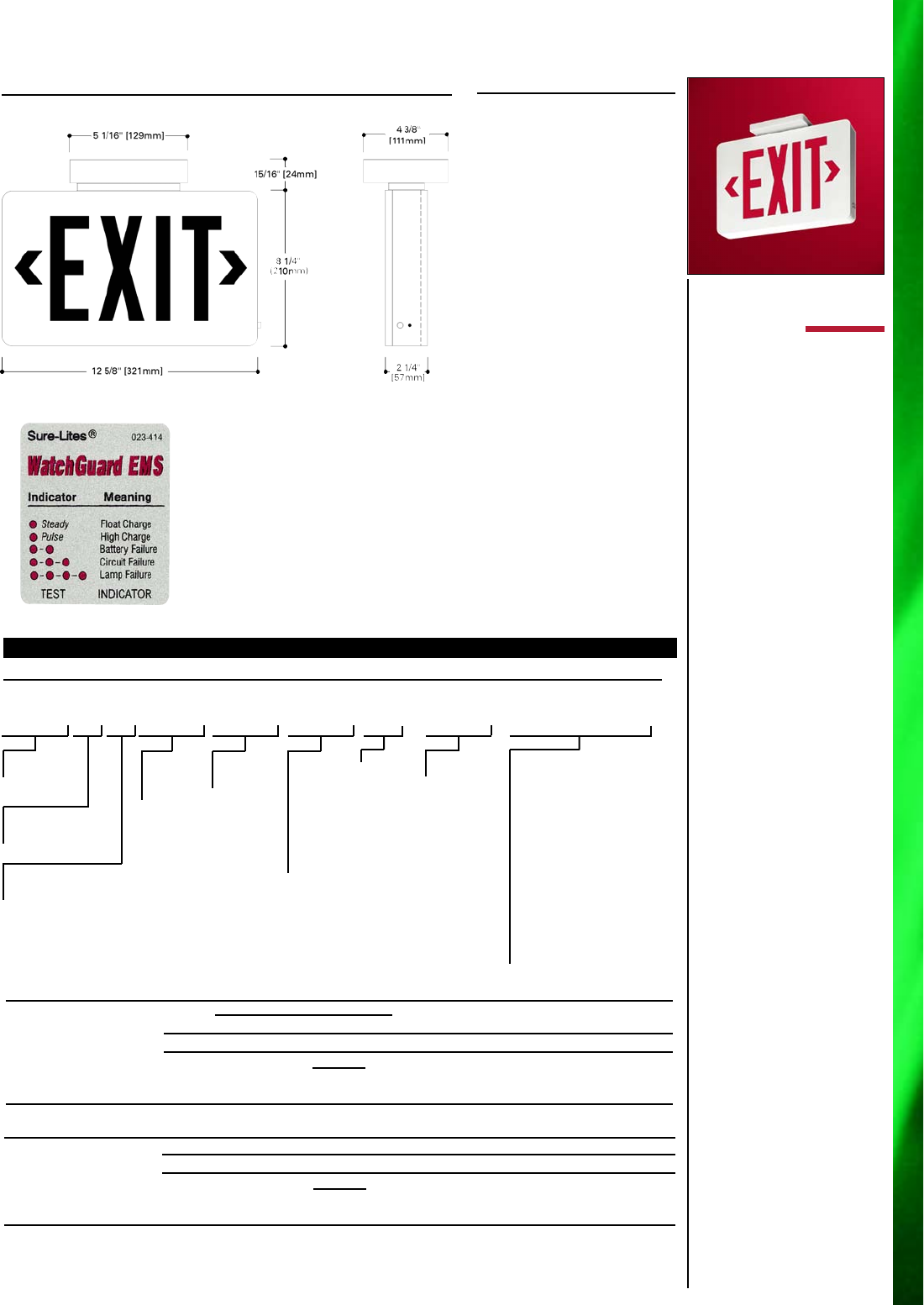

CCX SERIES

Polycarbonate

S e l f - P o w e r e d

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> Injection molded, high

impact, polycarbonate

housing

> Designer white textured finish

standard (black available-

fluorescent only)

> LED, Fluorescent, or

Incandescent lamping

> AC LED: long life LED lamp

modules

> AC fluorescent: two 5W

F5TT lamps

> AC incandescent: two

145V, 15W T6 lamps

(candelabra base)

> DC: two 6V, 3.6W lamps

(white housing); three 6V,

3.6W lamps (black housing)

> Lead Calcium or Premium

Nickel Cadmium battery

> Ceiling, wall or end

mounting

> Universal J-box mounting

pattern

> Components are snap-fit

construction, reinforcing

ribs add strength

> Snap-fit canopy included

> Suitable for floor proximity

installation

> Line-latching, Solid-State

voltage limited charger ,

Solid-State switching,

low-voltage disconnect,

brownout circuit, overload/

short-circuit protection, test

switch/power indicator light

> UL 924 Listed, life safety

NFPA 101, CSA Certified,

NEC/OSHA, most state and

local codes

DIMENSIONS DESCRIPTION

The CCX Series Contractor’s

Choice Exit is an economical,

attractive, alternative to metal

exits. Contemporary round

corner styling, designer

finish, and consistent family

appearance enables it to blend

with any decor. The tough

injection molded polycarbon-

ate materials resist discol-

oration. The canopy and

chevron directional indicators

are of snap-fit construction to

facilitate installation.

E n e rg y D a t a

Charge Mode (Discharged Battery): Sealed Lead Calcium Battery

Input Power: Input Current(Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Incandescent Exits -15W Lamps 32W 32W .28A .12A >.95 >.95 <17% <19%

Incandescent Exits -7W Lamps 22W 22W .20A .09A >.91 >.90 <24% <26%

Fluorescent Exits -5W Lamps 25W 25W .23A .10A >.90 >.90 <21% <23%

Fluorescent Exits - 7W Lamps 28W 28W .25A .11A >.93 >.92 <23% <23%

LED Exits- Red Letters 10.4W 10.8W .10A .04A >.89 >.88 <45% <48%

LED Exits - Green Letters 11.9W 12.3W .10A .05A >.96 >.94 <29% <33%

Standby Mode (Fully Charged Battery) Sealed Lead Calcium Battery Input Power consumption is reduced by

approximately 7.5 Watts in the standby operating mode

Sealed Nickel Cadmium Battery

Incandescent Exits -15W Lamps 26W 26W .24A .10A >.94 >.93 <17% <19%

Incandescent Exits -7W Lamps 15.8W 15.9W .15A .06A >.84 >.83 <29% <27%

Fluorescent Exits -5W Lamps 19.9W 19.6W .20A .08A >.85 >.84 <29% <31%

Fluorescent Exits - 7W Lamps 22W 21W .21A .09A >.89 >.89 <31% <31%

LED Exits- Red Letters 4.8W 4.7W .05A .02A >.76 >.73 <63% <68%

LED Exits - Green Letters 6.1W 6.0W .06A .03A >.88 >.85 <47% <52%

Family

CCX=Contractor’s

Choice Exit

Series

3=Self-Powered with

145V, 15W T-6 AC

Incandescent Lamps

5=Self-Powered with

5W F5TT Compact

Fluorescent Lamps

7=Self-Powered with

LED Lite Stix™

Face Options

0=Universal

1=Single Face

2=Double Face

Battery

Blank=Lead Calcium

70=Nickel Cadmium

Factory

Options

Blank=No Options

20=Flasher

30=Flasher / Buzzer

65=Tamperproof

Screws

90=Self-Powered

Fire Alarm

Interface (except

fluorescent)

Letter Colors 1

R=Red

G=Green

RWO=Red on White1

GWO=Green on White1

WRO=White on Red1

WGO=White on Green1

O=Open Face1

ORDERING INFORMATION

SAMPLE NUMBER: CCX30RWHSD

Housing Finishes

BK=Black

(Fluorescent Only)

WH=White

Voltage

Blank=120/277 VAC

47=120/347 VAC

(Series 3 and 7 only)

Factory Options

C7=130V, 7W C-7 AC

Incandescent Lamps

(Incandescent Only)

7W=7W Compact Fluorescent

Lamps (Compact fluorescent

Only)

SD=Self-Diagnostics

Accessories (Order Separately)

CCX18PKBK=18” Pendant Kit, Black

CCX18PKWH=18” Pendant Kit, White

CCX18PKHTBK=18” Hang-True

Pendant Kit, Black

CCX18PKHTWH=18” Hang-True

Pendant Kit, White

VRSD=Tamper Resistant Screwdriver

WG10=Surface, Wire Guard

WGS11=Ceiling, End Wire Guard

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield -

Weatherproof

1Available only for incandescent and fluorescent versions. GWO, RWO, WGO, and WRO are open face style lenses with “EXIT” legend.

Use “O” option for ordering special wording-lenses ordered separately (consult your Cooper Lighting Representative).

CCX

54

EXIT SIGNS > Commercial

SURE-LITES®

COOPER LIGHTING

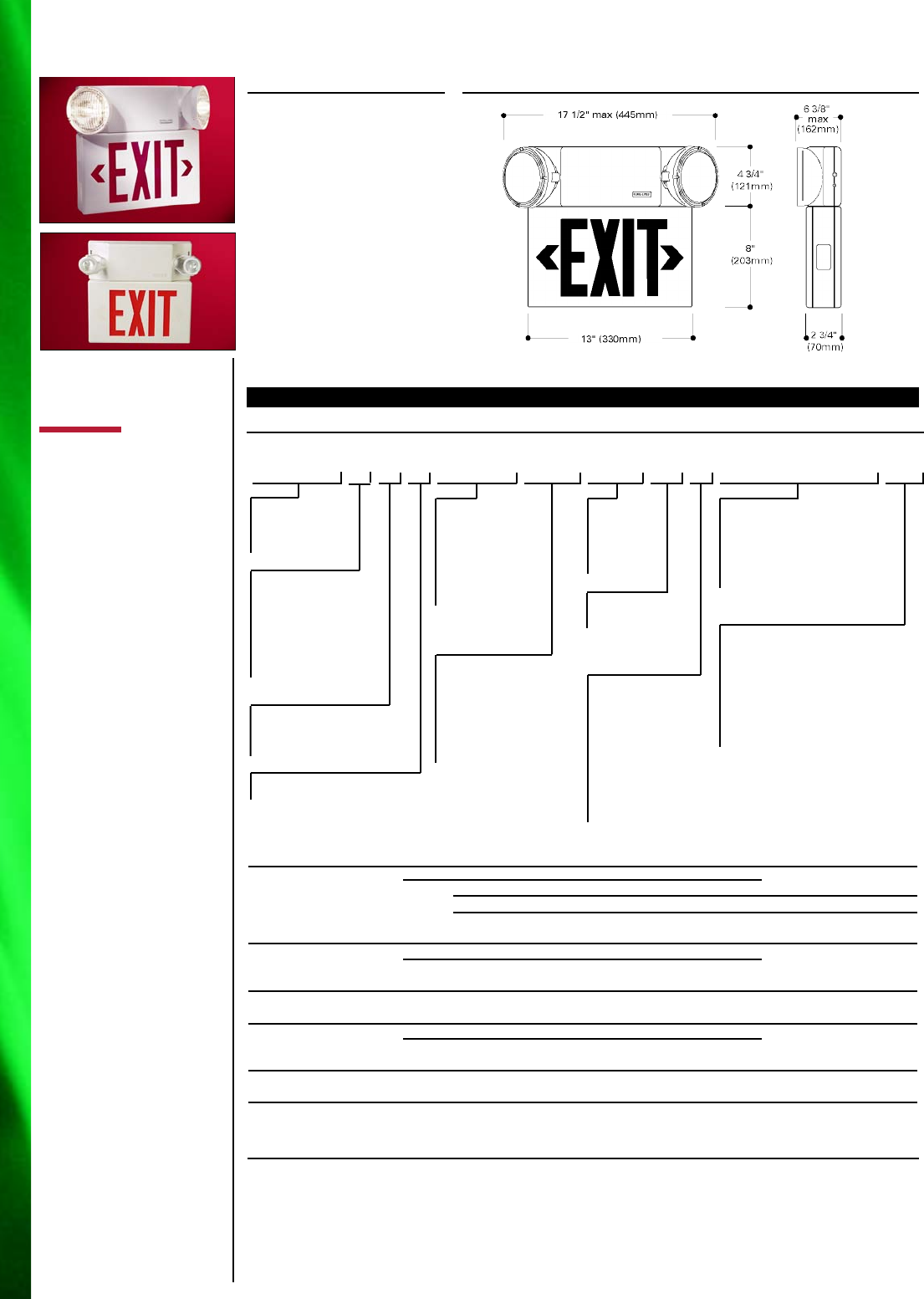

CCX SERIES

CCXH SERIES

Polycarbonate

S e l f - P o w e r e d

H i g h P o w e r

(Remote Capacity)

Double Heads

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> Injection molded, high impact,

polycarbonate housing

> Designer white textured finish

standard (black available-

fluorescent only)

> LED, Fluorescent, or

Incandescent lamping

> AC LED: long life LED lamp

modules

> AC fluorescent:

two 5W F5TT lamps

> AC Incandescent:

two 145V, 15W T6 lamps

(candelabra base)

> DC: two 6V, 3.6W lamps

(three for black housing)

> Heads: two 6V, 9W PAR36

style lamps (7.2W for black)

housing) (specify DH in

catalog number)

> Lead Calcium batteries

> Ceiling, wall or end

mounting

> Universal J-box mounting

pattern

> Components are Snap-fit

construction, reinforcing ribs

add strength

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, overload/

short-circuit protection, test

switch/ power indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA, most

state and local codes

DIMENSIONS

DESCRIPTION

The CCX Series Contractor’s

Choice Exit is an economical,

attractive, alternative to metal

exits. Contemporary round

corner styling, designer

finish, and consistent family

appearance enables it to blend

with any decor. The tough

injection molded polycarbon-

ate materials resist discol-

oration.

The canopy and chevron

directional indicators, are of

snap-fit construction to facili-

tate installation.

Heads

DH=Double Heads

DH0=Remote Capacity

No Heads

DH1L=Single Head Left

(near “E” in “EXIT”)

DH1R=Single Head Right

(near “T” in “EXIT”)

DHMRT=MR16 Heads

(5W Standard)

DHSQ=Square Heads

(5.4W Standard)

ORDERING INFORMATION

SAMPLE NUMBER: CCX31RWHDH

1Exits using two faces must also use CCXDHMB Mounting Bracket for ceiling mounting (included in Universal and Double Face configu-

rations). 2Available only for incandescent and fluorescent versions. GWO, RWO, WGO, and WRO are open face style lenses with “EXIT”

legend. Use “O” option for ordering special wording-lenses ordered separately (consult your Cooper Representative).

Energy Data

Charge Mode (Discharged Battery): Sealed Lead Calcium Battery

Input Power: Input Current(Max.): Power Factor: T.H.D.:

120V 277V 347V 120V 277V 347V 120V 277V 120V 277V

Incandescent Exits -15W Lamps 35W 34W 22W .30A .13A .13A >.96 >.95 <16% <18%

Incandescent Exits -7W Lamps 24W 25W 29.1W .22A .10A .14A >.93 >.92 <21% <23%

Charge Mode (Discharged Battery): Sealed Lead Calcium Battery

Fluorescent Exits -5W Lamps 28W 28W .25A .11A >.93 >.93 <19% <21%

Fluorescent Exits - 7W Lamps 30W 30W .26A .12A >.94 >.93 <21% <23%

Standby Mode (Fully Charged Battery) Sealed Lead Calcium Battery Input Power consumption is reduced by approxi-

mately 5 Watts in the standby operating mode

Charge Mode (Discharged Battery): Sealed Lead Calcium Battery

LED Exits- Red Letters 12.6W 13.2W 7.0W .11A .05A .09A >.91 >.91 <39% <42%

LED Exits - Green Letters 15.8W 15.4W 8.4W .14A .06A .09A >.97 >.96 <25% <29%

Standby Mode (Fully Charged Battery) Sealed Lead Calcium Battery Input Power consumption is reduced by approxi-

mately 5 Watts in the standby operating mode

Family

CCX=Contractor’s

Choice Exit

CCXH=High Output

Remote capacity

Series

3=Self-Powered with

145V, 15W T-6 AC

Incandescent Lamps

5=Self-Powered with

5W F5TT Compact

Fluorescent Lamps

7=Self-Powered with

LED Lite Stix™

Face Options1

0=Universal

1=Single Face

2=Double Face

Battery

Blank=Lead Calcium

Factory

Options

Blank=No Options

20=Flasher

30=Flasher / Buzzer

65=Tamperproof

Screws

90=Self-Powered Fire

Alarm Interface

(for Incandescent

& LED)

Letter Colors2

R=Red

G=Green

RWO=Red on White2

GWO=Green on White2

WRO=White on Red2

WGO=White on Green2

O=Open Face2

Housing

Finishes

BK=Black

(Fluorescent

Only)

WH=White

Voltage

Blank=120/277 VAC

47=120/347 VAC (for

Incandescent

& LED)

Factory Options

C7=130V, 7W C-7 AC

Incandescent Lamps

(Incandescent only)

7W=7W Compact Fluorescent

Lamps (Fluorescent only)

SD=Self-Diagnostics

Accessories (Order Separately)

CCXDHMBBK=CCX-DH Ceiling Mounting

Bracket, Black

CCXDHMBWH=CCX-DH Ceiling

Mounting Bracket, White

VRSD=Tamper Resistant Screwdriver

WG2=Wire Guard

VS2=Polycarbonate Vandal Shield

VS2WP=Polycarbonate Vandal Shield -

Weatherproof

WAT TA G E R AT I N G S

CCX-DH Lead Calcium Battery=27W for 1 1/2 hrs.; 24W for 2 hrs. CCXH-DH Lead Calcium Battery=32W for 1 1/2 hrs.

SURE-LITES®

55

COOPER LIGHTING

EXIT SIGNS > Commercial

EEX SERIES

Edge-Lit

Surface

A C O n l y

S e l f - P o w e r e d

EXIT LIGHTING

> Dual-voltage Input 120/277

VAC, 60Hz, optional 2C

(FTBR) available

(EEX6 only)

> Injection molded

polycarbonate housing

> Injection molded, high-

impact, clear acrylic panel

> LED lamping

> Sealed nickel cadmium,

maintenance free, long life

battery (EEX7 only)

> Full Recharge Time,

24 hrs. (max.)

> Components are snap-fit

construction to facilitate

under 5-minute installation

> Tri-mount system for ceiling,

wall or end mounting

> Universal, field installable

chevrons

> Universal background -

mirror and white inserts

included

> Universal J-box

mounting pattern

> Self-powered Exits feature

line-latching, solid-state

voltage limited charger,

solid-state switching,

brownout circuit, low-volt-

age disconnect, overload/

short-circuit protection, test

switch / power indicator light

> Damp Location Listed

(AC only)

> UL 924 Listed, UL Listed for

floor proximity, UL Listed for

Two Circuit (FTBR) (EEX6

only), Life Safety NFPA 101,

CSA Certified, NEC/OSHA,

most state and local codes

DESCRIPTION

The EEX Series Surface

Mounted Edge-lit Exit, with

the Tri-Mount™ System, pro-

vides an attractive yet easy to

install universal edge-lit exit

sign. The crystal clear wedge

shape lens panel provides

excellent light distribution,

exit visibility and quick snap-

in installation. Long life, ener-

gy-efficient LED lamps reduce

energy costs and eliminate

routine lamp maintenance.

The under-five-minute instal-

lation time makes it the

fastest installed edge-lit exit

on the market today.

Note: Special wording

available; consult

your Cooper Lighting

Representative.

DIMENSIONS

Wa l l M o u n t

End Mount

Energy Data — Self-Powered Exits

Charge Mode (Discharged Battery): Sealed Nickel Cadmium Battery

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

LED Exits

LED Exits Red Lights 6.5W 6.6W .08A .04A >.67 >.66 <41% <43%

LED Exits Green Lights 4.0W 4.1W .07A .03A >.47 >.47 <48% <50%

Family

EEX=Edgelit

Exit

Series

ORDERING INFORMATION–COMPLETE UNIT

SAMPLE NUMBER: EEX71R

Series

6=LED

Lamps,

AC Only

7=LED

Lamps,

Self-

Powered

Face Options

1=Single Face

2=Double

Face

Battery

Bla nk=No Battery

(EEX6)

Blank=Nickel

Cadmium

(EEX7)

Housing Trim

Finish

Blank=White Only

Letter/

Background

Color1

R=Red

G=Green

Chevron Direction

Blank=Universal

Stick-On

Chevrons

Options

2C2=Two Circuit Option -

FTBR (EEX6 only)

Accessories (Order Separately)

WG=Choose size of wire guard

desired from accessories

sheet

Energy Data — AC Only

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

LED Exits

LED Exits -Red Letters 5.9W 6.0W .08A .04A >.62 >.62 <43% <45%

LED Exits -Green Letters 3.2W 3.3W .07A .03A >.39 >.39 <51% <53%

1Universal background clear, white insert and mirror insert included. 2Universal 120/277V normal and 120/277V emergency.

EEX

56

EXIT SIGNS > Commercial

SURE-LITES®

COOPER LIGHTING

EUS SERIES

Edge-Lit

Surface

AC Only

S e l f P o w e r e d

EXIT LIGHTING

> Dual Voltage Input

120/277 VAC, 60 Hz

> Anodized Aluminum

housing, clear acrylic

panel or faceplate

> LED lamping

> Nickel Cadmium battery

(Self-Powered)

> Universal Surface Mount:

Ceiling, Wall or End

> Single and double face

panels standard

> Universal, Field Installable

Chevrons

> Mirror background

included with double

face exits

> Test Switch/Power

Indicator Light

(Self powered)

> UL 924 Listed, ETL Listed,

Life Safety NFPA 101,

most state and local codes

DIMENSIONS

DESCRIPTION

The EUS Series surface mounted

Edge-lit Exit provides an attractive

yet easy to install universal edgelit

exit sign. The crystal clear lens

panel provides excellent light dis-

tribution and exit visibility. Long

life, energy efficient LED lamps

reduce energy costs and eliminate

routine lamp maintenance.

All EUS Series Edge-lit Exits are pro-

vided with universal mounting capa-

bility (ceiling, wall or end), universal

exit lens (single and double face), and

universal, field installable chevrons.

The EUS is the most versatile edge-lit

exit in the market today.

ORDERING INFORMATION-COMPLETE UNIT

SAMPLE NUMBER: EUR70R

E N E R G Y D ATA

Family

EU=Universal

Edgelit

Exit

Series

EU

Series

60=LED

Lamps,

AC Only

70=LED

Lamps,

Self-

Powered

Face Options

Blank=Universal

Face (Single &

Double face)

Battery

Bla nk=Lead Acid

(Self-Powered

Only)

Housing Trim

Finish

Blank=Anodized

Aluminum

S=Surface Mount

S

Letter/

Background

Color1

R=Red

G=Green

Voltage Blank=Dual

Voltage,

120/277V

Chevron Direction

Blank=Universal

Stick-On

Chevrons

Charge Mode (Fully Charged Battery):

Sealed Lead Acid Battery

Input Power: Input Current(Max.):

120V 277V 120V 277V

LED Exits - Red 3.6W 3.1W .03A .02A

LED Exits - Green 2.9W 2.7W .02A .02A

AC Only

LED Exits - Red 3.9W 3.5W .03A .02A

LED Exits - Green 3.1W 2.8W .02A .02A

SURE-LITES®

57

COOPER LIGHTING

EXIT SIGNS > Commercial

EUR SERIES

Edge-Lit

Recessed

AC Only

Self-Powered

EXIT LIGHTING

> Dual Voltage Input

120/277 VAC, 60 Hz

> Anodized Aluminum

faceplate, clear acrylic

panel

> LED lamping

> Nickel Cadmium battery

(Self-Powered)

> Recessed ceiling mount

(accessible ceiling only)

> Single and double face

panels standard

> Universal, Field Installable

Chevrons

> Mirror background

included with double

face exits

> Test Switch/Power

Indicator Light

(Self powered)

> UL 924 Listed, ETL Listed,

Life Safety NFPA 101,

most state and local codes

DIMENSIONS DESCRIPTION

The EUR Series Recessed

Edgelit Exit provides an attrac-

tive yet easy to install universal

edgelit exit sign. The crystal

clear lens panel provides excel-

lent light distribution and exit

visibility. Long life, energy effi-

cient LED lamps reduce energy

costs and eliminate routine

lamp maintenance.

ORDERING INFORMATION-COMPLETE UNIT

SAMPLE NUMBER: EUR70R

Family

EU=Universal

Edgelit

Exit

Series

EU

Series

60=LED

Lamps,

AC Only

70=LED

Lamps,

Self-

Powered

Face Options

Blank=Universal

Face (Single &

Double face)

Battery

Bla nk=Lead Acid

(Self-Powered

Only)

Housing Trim Finish

Blank=Anodized

Aluminum

R=Recessed Mount

(Ceiling access

mount only)

R

Letter/Background Color1

R=Red

G=Green

Voltage Blank=

Dual Voltage, 120/277V

Chevron Direction

Blank=Universal

Stick-On

Chevrons

E N E R G Y D ATA

C h a rg e M o d e ( F u l l y C h a r ge d B a t t e r y ) :

Sealed Lead Acid Battery

Input Power: Input Current(Max.):

120V 277V 120V 277V

LED Exits - Red 3.6W 3.1W .03A .02A

LED Exits - Green 2.9W 2.7W .02A .02A

AC Only

LED Exits - Red 3.9W 3.5W .03A .02A

LED Exits - Green 3.1W 2.8W .02A .02A

58

EXIT SIGNS > Commercial

SURE-LITES®

COOPER LIGHTING

INCX SERIES

Thermoplastic

AC Only

S e l f - P o w e r e d

EXIT LIGHTING

> 120 VAC, 60Hz Input Voltage

(INCX20RGWH); 120/277 VAC,

60Hz (INCX30RGWH)

> Thermoplastic housing

> Designer white textured

finish

> Incandescent: Two 130V,

7W C-7 AC incandescent

lamps

> Lead Calcium battery

(Self-Powered)

> Ceiling, wall, or end

mounting

> Universal J-box mounting

pattern

> Universal exits can be field

configured as single face or

double face includes both

red and green lenses

> Components are of snap-fit

construction to facilitate

rapid installation

> Reinforcing ribs throughout

to provide maximum strength

> Snap-out chevron directional

indicators

> Snap-fit canopy with

mounting screws included

with all exits

> UL damp location listed

> UL 924, Life Safety NFPA 101,

NEC/OSHA, Most State and

Local Codes

DIMENSIONS

DESCRIPTION

The INCX Series Incandescent Exit is an economical, yet attractive, alternative to metal exits. The tough

injection molded white thermoplastic material resists discoloration due to age and ultraviolet radiation.

The structural components are made even stronger with reinforcing ribs throughout. All components,

including canopy and chevron directional indicators, are of snap-fit construction to facilitate installation.

4 13/16"

[122mm]

2 1/2"

[64mm]

11 3/4" [298mm]

7 3/4"

[196mm]

7/8"

[22mm]

Family

INCX=

Incandescent Exit

Series

2=AC Only with 130V,

7W C-7 AC

Incandescent Lamps

3=Self-Powered with

130V, 7W, C-7 AC

Incandescent Lamps

Letter Colors

RG=Red/Green

Housing Finishes

WH=White

INCX

Battery

Blank=Lead

Calcium

(INCX30)

Accessories (Order Separately)

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield,

Weather Resistant

WG10=Wire Guard for Surface Mount

Applications

WGS11=Wire Guard for Ceiling or End

Mount Applications

Energy Data

Input Power: Input Current(Max.):

120V 120V

INCX20RGWH 12W .10A

Input Power: Input Current(Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

INCX30RGWH 16.3W 14.2W .14A .05A >.97 >.97 <10% <14%

5 1/2" [140mm]

4 13/16"

[122mm]

2 3/4" [70mm]

13" [330mm]

10"

[254mm]

1"

[25mm]

INCX20RGWH

INCX30RGWH

Face Options

0=Universal

ORDERING INFORMATION

SAMPLE NUMBER: INCX20RGWH

SURE-LITES®

59

COOPER LIGHTING

EXIT SIGNS > Commercial

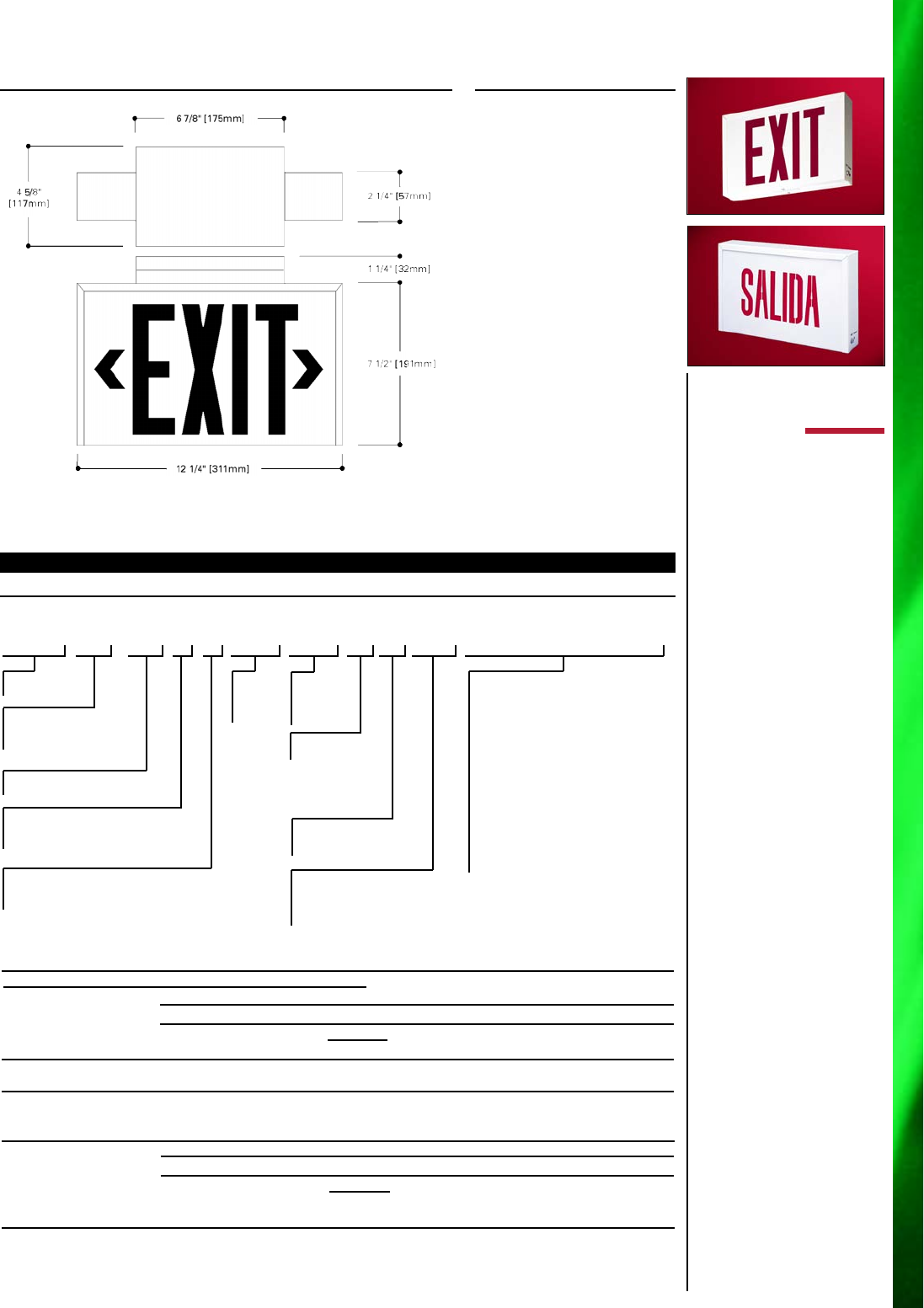

SLX SERIES

Steel

AC Only

S e l f - P o w e r e d

EXIT LIGHTING

> Dual-voltage Input 120/277

or 120/347 VAC, 60Hz

> 20 gauge steel housing

> Long life LED lamps

provide uniform diffused

illumination

> Premium Nickel Cadmium

battery (Self-Powered)

> Universal: Both single or

double face; ceiling, wall

or end mounting

> Knockouts for chevron

directional indicators

> Universal styles offer

complete installation

flexibility with canopy,

backplate, and two

stencil faces

> Self-powered Exit features

line-latching, solid-state

voltage limited charger,

solid-state switching,

brownout circuit, low-

voltage disconnect, test

switch, LED indicator light

> Energy Star Qualified

(SLX60RWH, SLX70RWH,

SLX70RWHSD)

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes,

CSA Certified, NOM

Certified

Family

SLX=Steel LED

Series

6=AC Only with LED Lamps

7=Self-Powered with LED

Lamps

Face Options

0=Universal

Battery

Blank=No Battery (SLX6)

Blank=Nickel Cadmium

Battery (SLX7)

Factory Options

90=Fire Alarm Interface

(available with SD option

only.) (SLX7 Only.)

SLX

Energy Data — Self-Powered Exits

Sealed Nickel Cadmium Battery

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 347V 120V 277V 347V 120V 277V 347V 120V 277V 347V

LED Exits

LED Exits -Red Letters 3.8W 3.9W 4.2W 035A .016A .014A >.90 > .90 > .88 <21% <21% <22%

LED Exits -Green Letters 6.3W 6.5W 6.1W .08A .04A .03A >.71 >.71 > .77 <36% <39% <39%

DIMENSIONS

Letter

Colors

R=Red

G=Green

Housing

Finishes

WH=White

BK=Black

Voltage

Blank=120/277V

47=120/347V

Option

SD=Self-Diagnostic

(Red LED,

White Housing

Only) (SLX7

Only)

ORDERING INFORMATION

SAMPLE NUMBER: SLX70RWH

Exit Face1

Blank=Exit Face, NOM

Certified

SAL=Salida Face, NOM

Certified (Not UL Listed)

Accessories (Order Separately)

Pendant Kit

PK18BK=Black, 18" Long

PK18WH=White, 18" Long

Hang-True Pendant Kit

PK18HTWH=White

PK18HTBK=Black

Other Accessories

WG10=Surface, Wire Guard

WGS11=Ceiling, End Wire Guard

VS1=Polycarbonate Vandal Shield

VS1WP=Polycarbonate Vandal Shield

Weather Resistant

PLC2CU=FTBR (2C) Conversion Canopy

(SLX6 Only)

Energy Data — AC Only Exits

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 347V 120V 277V 347V 120V 277V 347V 120V 277V 347V

LED Exits

LED Exits -Red Letters 3.3W 3.4W 3.8W .03A .01A .01A > .90 > .90 > .80 < 22% < 22% < 41%

LED Exits - Green Letters 5.0W 5.1W 5.1W .07A .03A .02A > .62 > .62 > .72 < 39% < 42% < 40%

DESCRIPTION

The SLX Series Steel LED Exit

is the ideal exit for general

purpose applications. With an

extensive range of field

installed accessories, choice of

faces, and the variety of

possible mounting

configurations, this exit can be

tailored to fit almost any

application. The Sure-Lites

Steel LED Exit offers low

energy consumption and

requires little maintenance due

to highly efficient, long life LED

lamps. Durable steel construc -

tion, attractive styling and high

efficiency illumination make

this series compatible in

commercial, institutional and

multi-housing applications.

1For use in Mexico, add the prefix MEX to the catalog number in addition to the face description (e.g.: MEX-SLX70RWHSAL).

60

EXIT SIGNS > Commercial

SURE-LITES®

COOPER LIGHTING

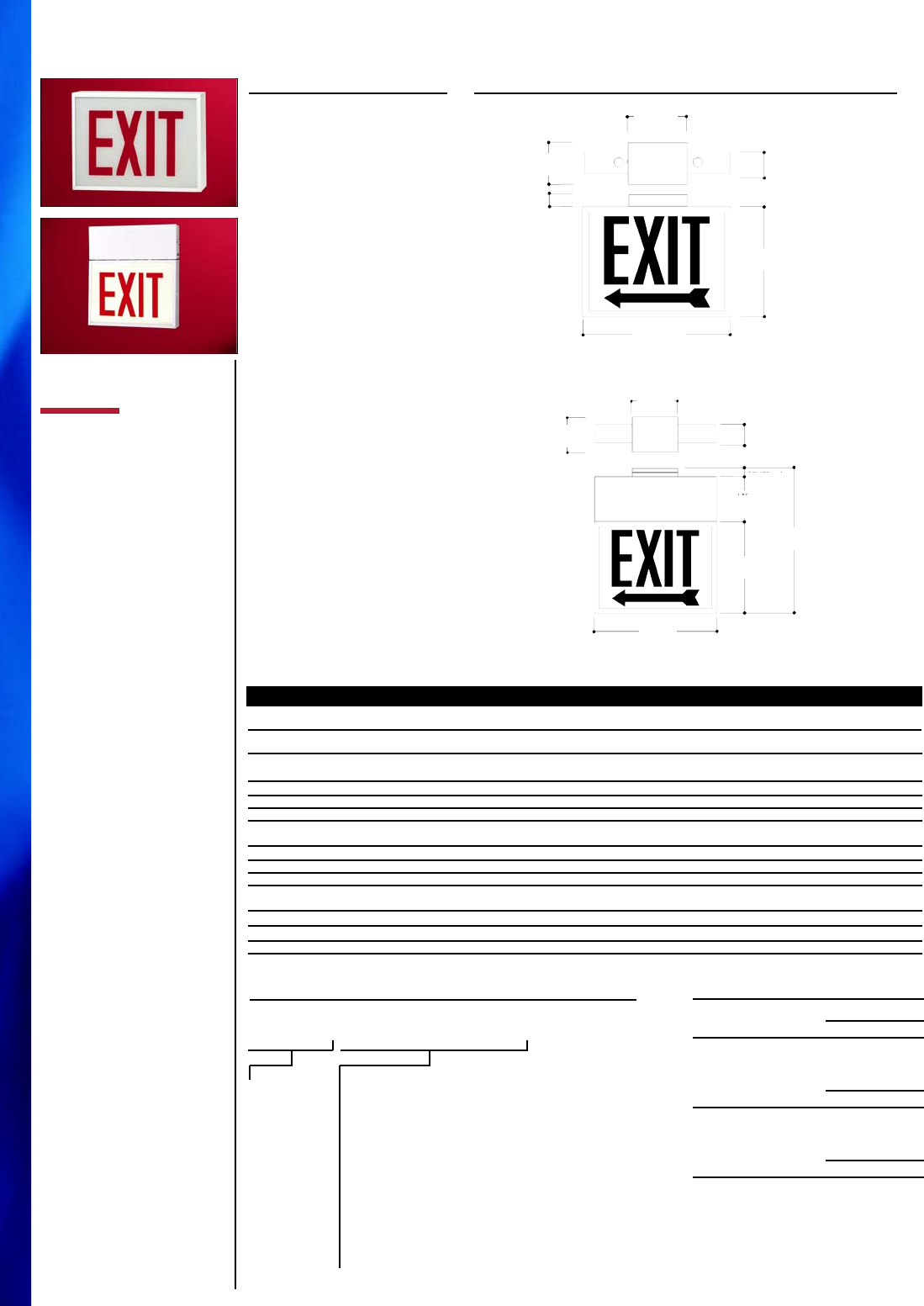

R/G/OF/PLX

SERIES

Steel

AC Only

EXIT LIGHTING

> 120 VAC input voltage

> 20 gauge steel housing

> LED, Fluorescent, or

Incandescent lamping

> LED: long life LED lamp

modules

> Fluorescent: two 5W

F5TT lamps

> Incandescent: two 20W

T6 1/2 intermediate base

lamps

> Universal: both single and

double face; ceiling, wall

or end mounting

> Knockouts for chevron

directional indicators

> Universal styles offer

installation flexibility with

canopy, backplate, and two

stencil faces

> Louvered downlight

> Suitable for floor proximity

installation

> UL FTBR Listed

> Damp Location Listed

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

ORDERING INFORMATION

SAMPLE NUMBER: CX395C

STEEL EXITS – AC ONLY INCANDESCENT

Type Mounting Stencil Face, White Finish Stencil Face, Black Finish Stencil Face, Black/Silver Finish

Red Green Red Green Red Green

Letters Letters Letters Letters Letters Letters

Universal1 Wall/Ceiling/End R2CX3 G2CX4 R2CXB3 G2CXB3 R2CXBS3 G2CXBS4

Universal Open Face2 Wall/Ceiling/End OF2CX (specify lens) OF2CXB (specify lens) OF2CXBS (specify lens)

Energy Data

AC-Only-Incandescent Exits

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Incandescent Exits 40W 42W .33A .16A

AC-Only-Compact Fluorescent Exits

Fluorescent Exits 5W Lamps 17W 22W .32A .18A >.43 >.44 <8% <9%

Fluorescent Exits 7W Lamps 17W 22W .28A .16A >.53 >.50 <9% <10%

Accessories (Order Separately)

Canopy Kit

CAN571=White

CAN578=Black

Power Pack

EPX5000B=Black

EPX5000P=White

277V Conversion Canopy

PLC277B=Black

PLC277P=White

Pendant Kit

PK18BK=Black, 18” Long

PK18WH=White, 18" Long

Tamperproof Accessories

TPK1CP=Tamperproof Screws

0590A638SP=Screwdriver bit for

TPK-1-CP Screws

Wire Guard

WG10=Surface Wire Guard

WGS11=Ceiling, End Wire Guard

VS1=Polycarbonate Vandal Shield

Model Number

See chart

Factory Options

95=AC Only Fire Alarm

Interface

(Incandescent. Add

option number after

series: e.g. OF295CX)

2C=Two Circuit Operation

(Incandescent &

Fluorescent. Add to

end of catalog num-

ber: e.g.

PLX5200OP2C)

STEEL EXITS – AC ONLY FLUORESCENT

Type Mounting Stencil Face, White Finish Stencil Face, Black Finish Stencil Face, Black/Silver Finish

Red Green Red Green Red Green

Letters Letters Letters Letters Letters Letters

Universal1 Wall/Ceiling/End PLX5200RP3 PLX5200GP PLX5200RB3 PLX5200GB PLX5200RBS3 PLX5200GBS

Universal Open Face2 Wall/Ceiling/End PLX5200OP (specify lens) PLX5200OB (specify lens) PLX5200OBS (specify lens)

STEEL EXITS – AC ONLY LED(6)

Type Mounting Stencil Face Stencil FaceStencil Face Stencil Face

White Finish, White Finish, Black Finish, Black Finish,

Red Letters Green Letters Red Letters Green Letters

120 VAC 277 VAC 120 VAC 277 VAC 120 VAC 277 VAC 120 VAC 277 VAC

Universal1 Wall/Ceiling/End R2CXLED R2277CXLED G2CXLED G2277CXLED R2CXBLED R2277CXBLED G2CXBLED G2277CXBLED

1Universal Face Exits include two stencil faces, canopy and backplate. 2For Open Face Exits, specify lens desired: 004346SP-red letters, white

background; 004347SP - green letters, white background; 004340SP -white letters, red background; 004341SP-white letters, green background;

Special wording, consult your Cooper Lighting Representative. Order Separately. 3Standard UL FTBR Listed. 4Standard FWBO; UL FTBR

Listed with “2C” Option.

DIMENSIONS

DESCRIPTION

The Sure-Lites Standard Steel Exit Series is

the ideal exit for general purpose applica-

tions. With an extensive range of field

installed accessories, choice of faces, and

the variety of possible mounting configura-

tions, this basic exit can be tailored to fit

almost any application.

SURE-LITES®

61

COOPER LIGHTING

EXIT SIGNS > Commercial

UN/UNH/PLX

SERIES

Steel

S e l f - P o w e r e d

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> 20 gauge steel housing

> LED, Fluorescent, or

Incandescent lamping

> AC LED: long life LED lamp

modules-DC: two 6V, 3.6W

DC lamps

> AC fluorescent: two 5W

F5TT lamps-DC: three 6V,

3.6W DC lamps

> AC incandescent: two 20W

T6 1/2 intermediate base

lamps-DC: two 6V, 3.6W DC

Lamps

> Lead Calcium or Premium

Nickel Cadmium battery

> Universal: both single and

double face; ceiling, wall

and end mounting

> Knockouts for chevron

directional indicators

> Universal styles offer

complete installation

flexibility with canopy,

backplate, and 2 stencil

faces

> Louvered downlight

> Suitable for floor proximity

installation

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/ power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

DIMENSIONS

ORDERING INFORMATION

SAMPLE NUMBER: UNH170SRWSD

E n e rg y D a t a

Charged Mode (Fully Discharged Battery) Sealed Lead Calcium Battery

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Incandescent Exits 20W Lamps 53W 51W .45A .19A >.99 >.98 <9% <10%

Fluorescent Exits 5W lamps 33W 33W .44A .18A >.62 >.65 <10% <8%

Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery Input Power consumption is reduced by approximately 7.5 Watts

in the standby operating mode

Sealed Lead Calcium Battery

Incandescent Exits 20W Lamps 47W 44W .40A .16A >.98 >.98 <8% <8%

Fluorescent Exits 5W lamps 26W 26W .41A .16A >.52 >.57 <11% <10%

Charged Mode (Fully Discharged Battery) Sealed Lead Calcium Battery

LED Exits Red Letters (UN) 10.4W 10.8W .10A .04A >.89 >.88 <45% <48%

LED Exits Red Letters (UNH) 12.6W 13.2W .10A .05A >.91 >.91 <39% <42%

LED Exits Green Letters (UN) 11.9W 12.3W .10A .05A >.96 >.94 <29% <33%

LED Exits Green Letters (UNH) 15.8W 15.4W .14A .06A >.97 >.96 <25% <29%

Standby Mode (Fully Charged Battery) Sealed Lead Calcium Battery Input Power consumption is reduced by approximately 7.5 Watts

in the standby operating mode

Sealed Nickel Cadmium Battery

LED Exits Red Letters (UN) 4.8W 4.7W .05A .02A >.76 >.73 <63% <68%

LED Exits Red Letters (UNH) 9.1W 9.1W .08A .04A >.90 >.89 <36% <40%

LED Exits Green Letters (UN) 6.1W 6.0W .06A .03A >.88 >.85 <47% <52%

LED Exits Green Letters (UNH) 10.3W 10.3W .09A .04A >.96 >.95 <24% <29%

STEEL EXITS – SELF-POWERED INCANDESCENT

Type Mounting Stencil Face, White Finish Stencil Face, Black Finish Stencil Face, Black/Silver Finish

Red Letters Green Letters Red Letters Green Letters Red Letters Green Letters

Universal1 Wall/Ceiling/End UN1SRW UN1SGW UN1SRB UN1SGB UN1SRBS UN1SGBS

Universal Open Face 2 Wall/Ceiling/End UN1OFW (specify lens) UN1OFB (specify lens) UN1OFBS (specify lens)

STEEL EXITS – SELF-POWERED INCANDESCENT WITH ADDITIONAL OUTPUT TO POWER REMOTES

Universal1 Wall/Ceiling/End UNH1SRW UNH1SGW UNH1SRB UNH1SGB UNH1SRBS UNH1SGBS

Universal Open Face 2 Wall/Ceiling/End UNH1OFW (specify lens) UNH1OFB (specify lens) UNH1OFBS (specify lens)

STEEL EXITS – SELF-POWERED FLUORESCENT

Universal1 Wall/Ceiling/End PLX6200RP PLX6200GP PLX6200RB PLX6200GB PLX6200RBS PLX6200GBS

Universal Open Face 2 Wall/Ceiling/End PLX6200OP (specify lens) PLX6200OB (specify lens) PLX6200OBS (specify lens)

STEEL EXITS – SELF POWERED FLUORESCENT WITH ADDITIONAL OUTPUT TO POWER REMOTES

Universal1 Wall/Ceiling/End PLX7200RP PLX7200GP PLX7200RB PLX7200GB PLX7200RBS PLX7200GBS

Universal Open Face 2 Wall/Ceiling/End PLX7200OP (specify lens) PLX7200OB (specify lens) PLX7200OBS (specify lens)

STEEL EXITS – SELF-POWERED LED

Type Mounting Stencil Face, White Stencil Face, White Stencil Face, Black Stencil Face, Black

Finish, Red Letters Finish, Green Letters Finish, Red Letters Finish, Green Letters

Universal1 Wall/Ceiling/End UN1SRWLED UN1SGWLED UN1SRBLED UN1SGBLED

STEEL EXITS – SELF POWERED LED WITH ADDITIONAL OUTPUT TO POWER REMOTES

Universal1 Wall/Ceiling/End UNH1SRWLED UNH1SGWBLED UNH1SRBLED UNH1SGBLEDL

WAT TA G E R AT I N G S

UN Lead Calcium=10.8W for 1 1/2 hrs., 7.2W for 2 hrs. Nickel Cadmium=15W for 1 1/2 hrs; 12W for 2 hrs.

UNH Lead Calcium=27W for 1 1/2 hrs.; 24W for 2 hrs. Nickel Cadmium=24W for 1 1/2 hrs.; 18W for 2 hrs.

PLX-6200 Lead Calcium = 10.8W for 1 1/2 hrs. Nickel Cadmium = 15W for 1 1/2 hrs.; 12W for 2 hrs.

PLX-7200 Lead Calcium = 27W for 1 1/2 hrs.; 24W for 2 hrs. Nickel Cadmium = 24W for 1 1/2 hrs.; 18W for 2 hrs.

Accessories

(Order Separately)

FL1=Flasher Kit

BZ1=Buzzer Kit

Pendant Kit:

PK18BK=Black, 18” long

PK18WH=White, 18” long

Canopy Kit:

CAN571=White

CAN578=Black

Tamperproof Accessories:

TPK1CP=Tamperproof

Screws

0590A638SP=Screwdriver

bit for TPK1CP Screws

Wire Guard

WG10=Surface Wire Guard

WGS11=Ceiling, End Wire

Guard

VS2=Polycarbonate Vandal

Shield

VS2WP=Polycarbonate

Vandal Shield -

Weatherproof

Model

Number

See chart

Factory Options

(For ordering with incandescent, add option numbers in

order listed after series; e.g. UNH170200FW. For ordering

with fluorescent, replace “00” with option numbers in

order listed; e.g. PLX6230RP. For ordering with LED, add

option numbers in order listed after series;

e.g.UN1702090SRWLED)

70=Nickel Cadmium Batteries

20=DC Flasher

30=DC Flasher/Buzzer

90=DC Fire Alarm Interface (Incandescent and LED Only)

SD=Self-Diagnostics (Add to end of catalog number:

e.g. UN130SRWSD)

1Universal Face Exits include two stencil faces, canopy and backplate. 2For Open Face Exits, specify lens desired: 004346SP-red letters, white background;

004347SP - green letters, white background; 004340SP - white letters, red background; 004341SP-white letters, green background; Special wording,consult your

Cooper Lighting Representative. Order Separately.

DESCRIPTION

The Sure-Lites Self-powered Standard

Steel Exit Series is the ideal exit for

general purpose applications. With an

extensive range of field installed

accessories, choice of faces and a

variety of mounting configurations, this

basic exit can be tailored to fit almost

any application.

62

EXIT SIGNS > Commercial

SURE-LITES®

COOPER LIGHTING

UNH/PLX SERIES

Steel

S e l f - P ow e r e d w i t h

Emergency Heads

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> 20 gauge steel housing

> LED, Fluorescent, or

Incandescent Lamping

> AC LED: long-life LED

lamp modules;

DC: two 6V, 3.6W DC lamps

> AC fluorescent: (2) 5W F5TT

lamps - DC: three 6V, 3.6W

DC lamps

> AC incandescent: (2) 20W

T6 1/2 intermediate base

lamps - DC: two 6V, 3.6W

DC lamps

> Two thermoplastic heads

with matching finish

> Heads: 6V, 9W wedge base

style lamps (7.2W nickel

cadmium exits)

> Lead Calcium or Premium

Nickel Cadmium batteries

> Universal: both single and

double face; ceiling, wall

and end mounting

> Knockouts for chevron

directional indicators

> Universal styles include

canopy, backplate, and two

stencil faces

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, overload/

short-circuit protection, test

switch/power indicator light

> UL 924 Listed, life safety

NFPA 101, NEC/OSHA,

most state and local codes

DIMENSIONS

DESCRIPTION

The Sure-Lites UNH/PLX Series Steel

Exits combine a self powered exit

sign with an emergency light. With

an extensive range of field installed

accessories, choice of faces and the

variety of mounting configurations,

this exit can be tailored to fit almost

any application.

ORDERING INFORMATION

SAMPLE NUMBER: UNH1SRWDHSD

INCANDESCENT EXITS

Type Mounting Stencil Face, White Finish Stencil Face, Black Finish Stencil Face, Blk/Silver Finish

Red Letters Green Letters Red Letters Green Letters Red Letters Green Letters

Universal1 Wall/Ceiling/End UNH1SRWDH UNH1SGWDH UNH1SRBDH UNH1SGBDH UNH1SRBSDH UNH1SGBSDH

Universal Open Face2 Wall/Ceiling/End UNH1OFWDH (specify lens) UNH1OFBDH (specify lens) UNH1OFBSDH (specify lens)

FLUORESCENT EXITS

Universal1 Wall/Ceiling/End PLX7202RP PLX7202GP PLX7202RB PLX7202GB PLX7202RBS PLX7202GBS

Universal Open Face2 Wall/Ceiling/End PLX7202OP (specify lens) PLX7202OB (specify lens) PLX7202OBS (specify lens)

LED EXITS

Type Mounting Stencil Face, White Stencil Face, White Stencil Face, Black Stencil Face, Black

Finish, Red Letters Finish, Green Letters Finish, Red Letters Finish, Green Letters

Universal Wall/Ceiling/End UNH1SRWDHL UNH1SGWDHL UNH1SRWBDHL UNH1SGWBDHL

WATTAGE RATINGS

PLX-7202 Lead Calcium=27W for 1 1/2 hrs.; 24W for 2 hrs. Nickel Cadmium=24W for 1 1/2 hrs.; 18W for 2 hrs.

UNH Lead Calcium=27W for 1 1/2 hrs.; 24W for 2 hrs. Nickel Cadmium=24W for 1 1/2 hrs.; 18W for 2 hrs.

Energy Data

Charge Mode (Fully Discharged Battery) Lead Calcium Battery

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Charged Mode (Fully Discharged Battery) Lead Calcium Battery

Incandescent Exits 20W Lamps 53W 51W .45A .19A >.99 >.98 <9% 10%

Fluorescent Exits 5W lamps 33W 33W .44A .18A >.62 >.65 <10% <10%

LED Exits Red 12.6W 13.2W .11A .05A >.91 >.91 <39% <42%

LED Exits Green 15.8W 15.4W .14A .06A >.97 >.96 <25% <29%

Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery Input Power consumption is reduced by approx-

imately 7.5 Watts in the standby operating mode

Sealed Lead Calcium Battery

Incandescent Exits 20W Lamps 47W 44W .40A .16A >.98 >.98 <8% <8%

Fluorescent Exits 5W lamps 26W 26W .41A .16A >.52 >.57 <11% <10%

LED Exits Red 9.1W 9.1W .08A .04A >.90 >.89 <36% <40%

LED Exits Green 10.3W 10.3W .09A .04A >.96 >.95 <24% <29%

Accessories

(Order Separately)

FL1=Flasher Kit

BZ1=Buzzer Kit

Pendant Kit

PK18-BK=Black, 18" long

PK18-WH=White, 18" long

Canopy Kit

CAN571=White

CAN578=Black

Tamperproof Accessories

TPK1CP=Tamperproof

Screws

0590A638SP=Screwdriver

bit for TPK1CP Screws

WG2=Wire Guard

VS2=Polycarbonate Vandal

Shield

VS2WP=Polycarbonate

Vandal Shield -

Weatherproof

Factory Options

(For ordering with incandescent and LED, add

option numbers in order listed after series;

e.g. UNH17090SRBDHL. For ordering with fluorescent

add option numbers in order listed after “PLX7202”;

e.g. PLX720270GP.)

70=Nickel Cadmium Batteries

20=DC Flasher

30=DC Flasher/Buzzer

90=DC Fire Alarm Interface (Incandescent & LED)

SD=Self-Diagnostics (Add to end of catalog number;

e.g. PLX7202RPSD)

Model Number

See chart

1Universal Face Exits include two stencil faces, canopy and backplate. 2For Open Face Exits, specify lens desired: 004346SP-red letters, white

background; 004347SP - green letters, white background; 004340SP - white letters, red background; 004341SP-white letters, green background;

Special wording,consult your Cooper Lighting Representative. Order Separately.

SURE-LITES®

63

COOPER LIGHTING

ALL PRO EMERGENCY

AP2SQ SERIES

All Pro

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> High impact white

thermoplastic housing

> Square, two head design

> Fully adjustable lamping

> Sealed Lead Calcium

battery

> Test Switch/Power

Indicator Light

> Quick connect AC power

connector facilitates

installation

> Suitable for wall or ceiling

mount applications

> ETL Indoor Damp Location

Listed

> UL 924 Listed, Life Safety

NFPA 101, CSA Certified,

NEC/OSHA, most state

and local codes

ORDERING INFORMATION

SAMPLE NUMBER: AP2SQ

Accessories

(Order Separately)

WG-1= Wire Guard

VS1= Polycarbonate Vandal Shield

VS1WP= Polycarbonate Vandal Shield

Weather Resistant

Housing Finish

Blank=White

Model Number

AP2SQ

DIMENSIONS DESCRIPTION

The All Pro Series emergency

light (AP2SQ) is the ideal choice

when an affordable thermoplas-

tic unit is required for general

purpose applications. Its styling

and designer finish enables it to

blend with any decor. The

housing and mounting plate

employ snap-fit construction to

further improve the installation

time. Both lighting heads are

fully adjustable, insuring that

light can be put where it is

needed.

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 Hours 2 Hours Type Wattage Number

AP2SQ 6 10.8 7.2 Incandescent 5.4 29-121

AP2SQ

64

ALL PRO EMERGENCY

SURE-LITES®

COOPER LIGHTING

AP SERIES

All Pro

AC Only

S e l f - P o w e r e d

EXIT LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> High impact white

thermoplastic housing

> AC LED: Long life LED

lamps provide uniform

diffused illumination

> DC: LED DC lamps

(Brighter in emergency

mode, AP70)

> Nickel Cadmium battery

(AP70)

> Ceiling, wall, or end

mounting

> Field selectable chevrons

> Universal exits can be

field configured as single

face or double face

> Test Switch/Power

Indicator Light (AP70)

> ETL Damp Location Listed

> UL 924 Listed, UL FTBR

Listed (2C Only), Life

Safety NFPA 101,

NEC/OSHA, most state and

local codes

ORDERING INFORMATION

SAMPLE NUMBER: AP-70R

Accessories

VS=Choose polycar-

bonate vandal

shield desired

from accessories

sheet

WG=Choose size of

wire guard

desired from

accessories sheet

Series

6=AC Only LED

7=Self-powered

with LED

Face Options

0=Universal

Battery

Blank=Nickel Cadmium (AP70)

Family

AP=All Pro Exit

Letter

Colors

R=Red

G=Green

Housing

Finish

Blank=White

BK=Black

Voltage

Blank=

120/277 VAC

2C=Two

Circuit

(AP60G Only)

DIMENSIONS

DESCRIPTION

The All Pro Series exit (AP60/70) is

the most economical LED exit for

general purpose applications. The

durable, injection molded, thermo-

plastic material resists discoloration

due to UV radiation and the energy

efficient, low maintenance LED's

provide bright illumination.

All AP series exits offer universal

configurations (single and double

face) and have universal mounting

capability (ceiling, wall, end).

AP 0- -

LED Exits - Red

Input Power:

120V = 3.0W

277V = 3.0W

Input Current

(Max.):

120V = .03A

277V = .02A

Power Factor:

120V = >.91

277V = >.90

T.H.D.:

120V = <29%

277V = <32%

LED Exits - Green

Input Power:

120V = 3.0W

277V = 3.0W

Input Current

(Max.):

120V = .03A

277V = .02A

Power Factor:

120V = > .92

277V = > .90

T.H.D.:

120V = < 30%

277V = < 35%

LED Exits - Red

Input Power:

120V = 2.0W

277V = 2.1W

Input Current

(Max.):

120V = .02A

277V = .01A

Power Factor:

120V = > .89

277V = > .88

T.H.D.:

120V = < 25%

277V = < 31%

LED Exits - Green

Input Power:

120V = 2.2W

277V = 2.1W

Input Current

(Max.):

120V = .02A

277V = .01A

Power Factor:

120V = > .88

277V = > .87

T.H.D.:

120V = < 26%

277V = < 32%

E N E R G Y D ATA

AC Only

E N E R G Y D ATA

Sealed Nickel Cadmium Battery

SURE-LITES®

65

COOPER LIGHTING

ALL PRO EMERGENCY

AP SERIES EXIT

WITH HEADS

All Pro

S e l f - P o w e r e d

with Double Heads

(Remote Capacity)

EXIT LIGHTING

> Dual Voltage 120/277 VAC,

60 Hz

> High impact, white,

thermoplastic housing

> AC LED: Long life LED

lamps provide uniform

diffused illumination

> DC: LED DC lamps

(Brighter in emergency

mode)

> Heads DC: 6V, 5.4W

incandescent wedge

base lamps

> Lead Calcium battery

(11W remote capacity:

APH only)

> Universal exits can be

field configured as single

face or double face

> Exit can be ceiling, wall or

end mounting

> Field selectable chevrons

> UL Damp Location Listed

> UL 924 Listed, Life Safety

NFPA 101, CSA Certified,

NEC/OSHA, most state and

local codes

DIMENSIONS DESCRIPTION

The All Pro Series exit with heads

(combo) is the most economical LED

exit available in the market for gen-

eral purpose applications. The

durable, injection molded, thermo-

plastic material resists discoloration

due to UV radiation and the energy

efficient, low maintenance LEDs pro-

vide bright illumination. The AP

Series combos are available in uni-

versal configurations (single and

double face) and have universal

mounting capability (ceiling, wall,

end).

ORDERING INFORMATION

SAMPLE NUMBER: AP70RWHDH

H=High Power (Remote

Capability, Red Only)

Blank = No Remote Capacity

Face Options

0=Universal

Series

7=Self-powered with LED

Battery

Blank=Lead Calcium

Family

AP=All Pro

Emergency

Exit/

Emergency

Letter Colors

R=Red

DG=Premium

Deep Green

Heads

DH=Double

Heads

Accessories

WG=Wire Guard

(Choose size of

wire guard from

accessories sheet)

VS=Choose polycar-

bonate vandal

shield desired

from accessories

sheet

Housing Finishes

WH=White

Voltage

Blank=120/277 VAC

Options

SQ=Square Heads

(5.4W Lamp)

AP 7 0 WH DH

WATTAGE RATINGS

APH with Double heads (DH) has remote capacity of 11 watts for 1 1/2 hrs.

LED Exits - Red

Input Power:

120V = 4.9W

277V = 4.7W

Input Current (Max.):

120V = .07A

277V = .03A

Power Factor:

120V = >.59

277V = >.64

T.H.D.:

120V = <45%

277V = <44%

LED Exits -

Premium Deep Green

Input Power:

120V = 3.1W

277V = 2.9W

Input Current (Max.):

120V = .06A

277V = .02A

Power Factor:

120V = >.41

277V = >.44

T.H.D.:

120V = <49%

277V = <53%

E N E R G Y D ATA

Standby Mode (Fully charged Battery):

Sealed Lead Calcium Battery

Charge Mode (Discharged Battery):

Sealed Lead Calcium Battery

Input Power consumption is increased by approximately

2.7 watts in the charge operating mode for red units and

3.4 watts for green units

66

INDUSTRIAL & HAZARDOUS LOCATION > Emergency Lights

SURE-LITES®

COOPER LIGHTING

UEL SERIES

U LT IM AT E E M E R G E N C Y

LIGHT

EMERGENCY LIGHTING

> NEMA 4X, UL50 Listed

> Dual-voltage input

120/277VAC, 60Hz,

Isolation Transformer

> Die cast aluminum housing

with powder coat finish

> UV stable, glass-clear

polycarbonate, vandal

resistant shield (.150” thick)

with Torx head tamperproof

screws, stainless steel

> (2) Adjustable 12W, MR16

lamps

> Nickel Cadmium Battery

> Fully recharged in 24 hours

> Vandal Proof

> Watchguard EMS

Self-Diagnostic System

> Photocell Test Switch

(requires accessory LASER

for activation)

> UL 924 Outdoor Wet

Location Listed (suitable for

wet and damp locations)

> T1 Haz Lamp Rating

> NSF, National Sanitation

Foundation/Splash Zone

(for Food Processing)

> IP66, Ingress Protection

from IEC (International

Electrical Commission)

> Cleanroom Class 10,000

> Patent Pending

SPLASH ZONE

DIMENSIONS

DESCRIPTION

The Sure-Lites UEL NEMA 4X

Emergency Light is designed for

those emergency lighting applica-

tions where ruggedness and

dependability are a must.

Designed for the most severe envi-

ronments, the UEL Emergency Light

will provide maximum performance

against rain, moisture, cold, corro-

sives and dust.

The UEL’s standard features include

die cast housing, nickel cadmium

battery, self-diagnostics, photocell

LASER test and MR16 lamps. In

addition, the injection molded,

polycarbonate shield provides

protection against moisture, rain,

and vandalism. (4) Torx head tam-

perproof screws with center-pin

reject provide additional vandal-

proof security.

The unique design and features

make the UEL Emergency Light

compatible in food processing

facilities, outdoor parking garages,

walk-in freezers and other indoor/

outdoor severe environments.

Self-Diagnostics

The self-diagnostic unit will automatically

perform the tests required by the NFPA 101 Life

Safety Code. The system indicates the status of

the unit at all times using an LED indicator that

is located near the test switch.

Family

UEL1=Nema 4X

Emergency

Light

Housing

Finishes

Blank=Silver

BK=Black

WH=White

Accessories (order separately)

LASER=Key Chain, Red Laser Pointer

(activation tested at 30 feet)

UXPKA=Pendant Kit Adapter (fitting adapts

to 1/2" NPT threaded pendant)

VRSD=#8 Centerpin Torx Screwdriver

SD=Self Diagnostics

(Standard)

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours

UEL1SD 12 24

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number Spacing1

MR16 12 29-141 50.0'

Options

A=Ammeter

V=Voltmeter

TDM=Time Delay Monitor

HAZ=Hazardous Locations

(Class I, Division 2,

Groups A, B, C, D)

1The "Rule of Thumb" spacing guidelines are designed to achieve 1 foot-candle average and 0.1 foot-candle minimum with a 40:1 maxi-

mum/minimum ratio. The corridor used is 100 feet long, 9 feet ceiling with a 6 feet wide walkway and 3 feet path of egress.

The reflectances are 80% ceiling, 50% walls and 20% floors. The fixture mounting height is 7.0 feet with a lamp head angle of 45 degrees.

Cooper Lighting assumes no responsibility for local requirements or specific project variables. This is a guideline to be used as a design aid, not

as guarantee of any code compliance.

Laser Test

6 3/16”

[157mm]

15 1/4”

[389mm]

6 11/16”

[169mm]

Energy Data

Input Current (Max.):

Model No. 120V 277V

UEL1SD .09A .03A

ORDERING INFORMATION

SAMPLE NUMBER: UEL1SD

Verify proper operation of the

transfer circuit and emergency

lamps with a convenient laser

pointer (sold as an accessory).

SURE-LITES®

67

COOPER LIGHTING

INDUSTRIAL & HAZARDOUS LOCATION > Emergency Lights

NCB SERIES

Serviceable Wet Cell

N i c ke l C a d m i u m B a t t e r y

High-Capacity

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> 18 gauge die-formed steel

housing and cover (white)

> Two fully adjustable,

high-impact thermoplastic

heads standard (white)

> Serviceable wet cell nickel

cadmium battery

> Line-latching, Solid-State

switching, low-voltage

disconnect, brownout

circuit, overload/short-

circuit protection, test

switch/power indicator

light

> Knockout, conduit or cord

set

> Keyhole mounting slots

> UL 924 Listed, Life Safety

NFPA 101, Listed

NEC/OSHA, most state

and local codes

DIMENSIONS

ORDERING INFORMATION

SAMPLE NUMBER: NCB45VTDM

Accessories (Order separately)

3MSWH=Mounting Shelf (not applicable for NCB12225)

(White Finish)

3BRWH=Mounting Brackets (3-White Finish)

WG3=Wire Guard (not applicable for NCB12225)

CSK120=Cord Set (120 VAC)

CSK277=Cord Set (277 VAC)

VS2=Polycarbonate Vandal Shield

VS2WP=Polycarbonate Vandal Shield - Weatherproof

Model Number

NCB45

NCB90

NCB110

NCB1290

NCB12180

NCB12225

Options (Add as Suffix)

MH=Metal Heads

A=Ammeter

TDM=Time Delay Monitor

V=Voltmeter

Alternate Lamps2

Other Options2

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 Hours 2 Hours 3 Hours 4 Hours Type Wattage Number

NCB451 6 45 33 22 16 Incandescent 9 29-84

NCB901 6 90 67 45 33 Incandescent 9 29-84

NCB1101 6 110 82 55 41 Incandescent 9 29-84

NCB12901 12 90 67 45 33 Incandescent 9 29-86

NCB121801 12 180 135 90 67 Incandescent 9 29-86

NCB122251 12 225 168 112 84 Incandescent 9 29-86

E n e rg y D a t a

Input Current (Max.):

Model No. 120V 277V

NCB45 .45A .17A

NCB90 .50A .20A

NCB110 .81A .34A

NCB1290 .84A .37A

NCB12180 .72A .30A

NCB12225 1.28A .55A

Note: 0, 1, 2, 3 and 4 Heads also available. Specify after catalog number (i.e., NCB12180408)

1Battery shipped separate but automatically included with unit

NCB45 - Qty. 1 02625 battery NCB1290 - Qty. 2 02625 battery

NCB90 - Qty. 1 02626 battery NCB12180 - Qty. 2 02626 battery

NCB110 - Qty. 2 026129 battery NCB12225 - Qty. 2 026129 battery

2Consult your Cooper Lighting Representative.

DESCRIPTION

The NCB Series is a premium

grade emergency lighting sys-

tem with all metal construction

that combines functional

styling and power performance

capability. These units contain

serviceable nickel cadmium

batteries and feature advanced

solid-state circuitry.

68

INDUSTRIAL & HAZARDOUS LOCATION > Emergency Lights

SURE-LITES®

COOPER LIGHTING

UMB SERIES

Wet Location

EMERGENCY LIGHTING

> NEMA 4X

> Dual-voltage input

120/277VAC, 60Hz

> Grey fiberglass housing

> Two top mounted,

fully adjustable, grey,

high-impact thermoplastic

heads standard

> Glare-free lens with PAR36

sealed beam lamps

> Watertight and corrosion

resistant

> UL Wet location listed

(32˚F or 0˚C and above)

> Gasketed, internally

hinged front cover

> Remote capability

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

DIMENSIONS

ORDERING INFORMATION

SAMPLE NUMBER: UMB6TH

Model Number

UMB1

UMB6

UMB7

UMB8

UMB9

UMB14

UMB15

UMB16

UMB17

Options (add as Suffix)

TDM=Time Delay Monitor

TH=Thermal Heater

Alternate Lamps1

Other Options1

Accessories

(Order separately)

WG7=Wire Guard

VS2WP=Polycarbonate

Vandal/Weather Shield

Energy Data

Input Current (Max.):

Model No. 120V 277V

UMB1, UMB6, UMB7 .12A .05A

UMB8, UMB9 .30A .13A

UMB14 .06A .03A

UMB15 .07A .04A

UMB16 .13A .06A

UMB17 .15A .07A

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Model DC Voltage Battery 1 1/2 Hours 2 Hours 3 Hours 4 Hours Type Wattage Number

UMB1 6 LC 18 15 10 8 Incandescent 8 29-03

UMB6 6 LC 27 24 18 14 Incandescent 8 29-03

UMB7 6 LC 54 48 36 28 Incandescent 8 29-03

UMB8 12 LC 36 30 20 16 Halogen 8 29-16

UMB9 12 LC 54 48 36 28 Halogen 8 29-16

UMB14 6 NC 15 12 8 6 Incandescent 7.2 29-75

UMB15 6 NC 24 18 12 10 Incandescent 7.2 29-75

UMB16 12 NC 30 24 16 12 Halogen 8 29-16

UMB17 12 NC 48 36 24 20 Halogen 8 29-16

DESCRIPTION

The ideal unit for wet environ-

ments where an emergency

lighting unit will be exposed to

water spray, penetrating steam,

or dampness. The UMB Series is

best suited for use in areas like

waste water treatment plants,

food processing facilities and

most industrial applications.

1Consult your Cooper Lighting Representative.

SURE-LITES®

69

COOPER LIGHTING

INDUSTRIAL & HAZARDOUS LOCATION > Emergency Lights

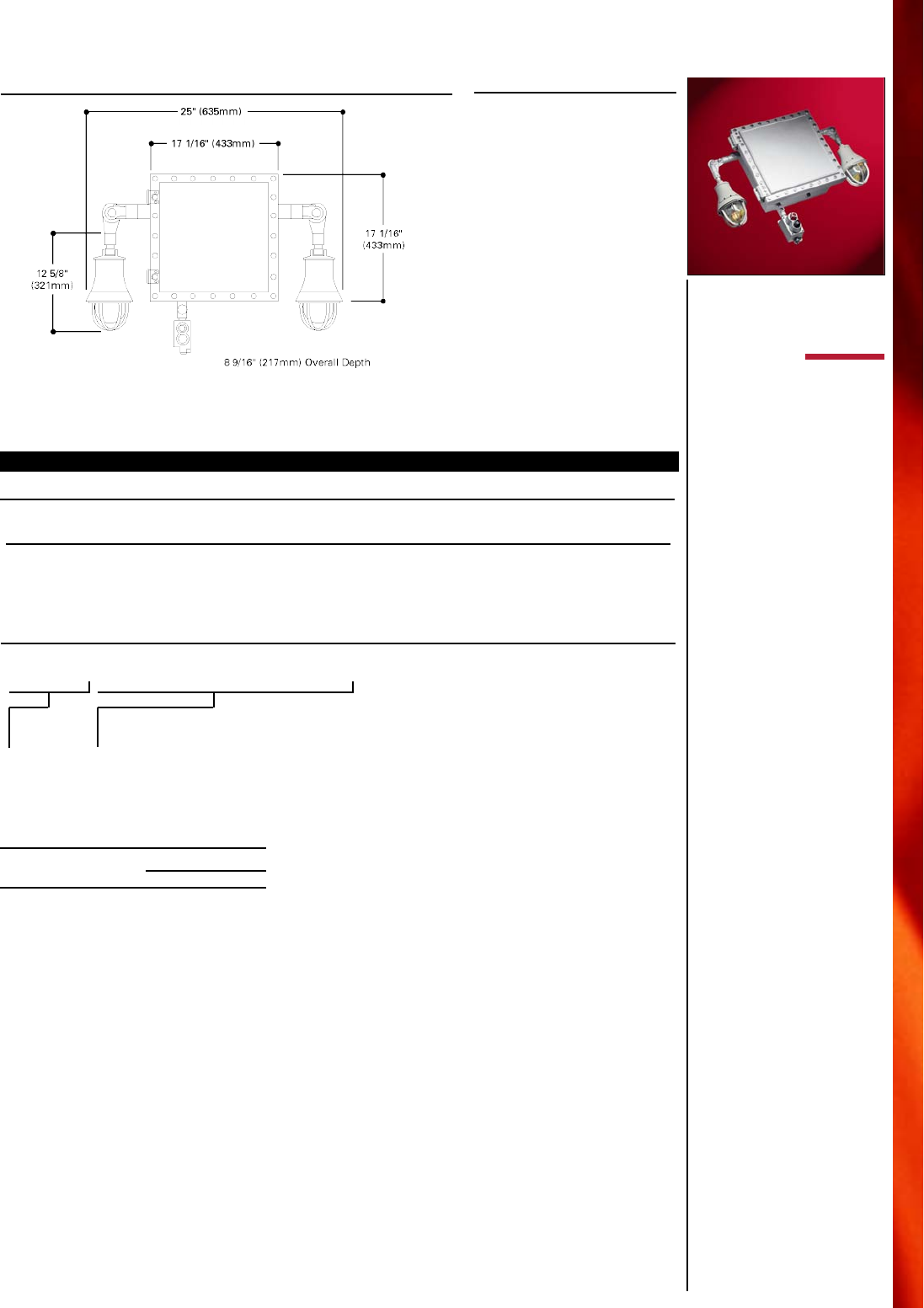

HZU1254

SERIES

Hazardous Location

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> NEMA 4, copper-free

aluminum housing and

natural, textured die cast

aluminum finish enclosure

> Lamp heads (two heads

standard) contains one

12V, 25W DC medium

base A-lamp

> Copper-free aluminum

lamp housing and guard

> Sealed Lead Calcium

Battery

> Watertight neoprene

gasketing

> One-way breather and

drain

> Explosion-proof

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/pilot light

> UL 924 Listed, Life Safety

NFPA 101, NEC Class I,

division 1, Groups C, D

and Class II, Division 1,

Groups E, F, G, OSHA,

most state and local codes

DESCRIPTION

Sure-Lites’ HZU1254 Series

self-contained, explosion-

proof, emergency lighting unit

is intended for operation in

NEC Class I, Division 1, Groups

C, D, and Class II, Division 1,

Groups E, F, G environments.

The unit includes (2) 12V, 25W

lamps and provides a solid-

state, emergency lighting sys-

tem for application in industrial

and heavy-duty commercial

facilities like petrochemical

plants, drilling rigs, offshore

platforms, coal mines and

preparation facilities, textile

mills, lumber yards, painting

booths and gasoline stations.

ORDERING INFORMATION

SAMPLE NUMBER: HZU125425

Model

Number

HZU125425

Accessories (Order separately)

12X25HZP=12V, 25W Pendant Mount Remote Head

12X25HZB=12V, 25W Bracket Mount Remote Head

E n e rg y D a t a

Input Current (Max.):

Model No. 120V 277V

HZU125425 .32A .15A

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Model DC Voltage 1 1/2 Hours 2 Hours 3 Hours 4 Hours Type Wattage Number

HZU125425 12 54 – – Incandescent 25 ZZ13

DIMENSIONS

Energy Data — AC Only Exits

Input Power: Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

LED Exits

LED Exits -Red Letters 2.7W 3.2W .07A .04A > .30 > .39 < 56% < 69%

LED Exits -Green Letters 2.3W 3.0W .08A .03A > .26 > .36 < 54% < 67%

Energy Data — Self-Powered Exits

LED Exits

LED Exits -Red Letters 3.4W 3.2W .07A .04A > .37 > .39 < 64% < 69%

LED Exits -Green Letters 3.1W 3.0W .08A .04A > .34 > .36 < 63% < 67%

70

INDUSTRIAL & HAZARDOUS LOCATION > Exit Lights

SURE-LITES®

COOPER LIGHTING

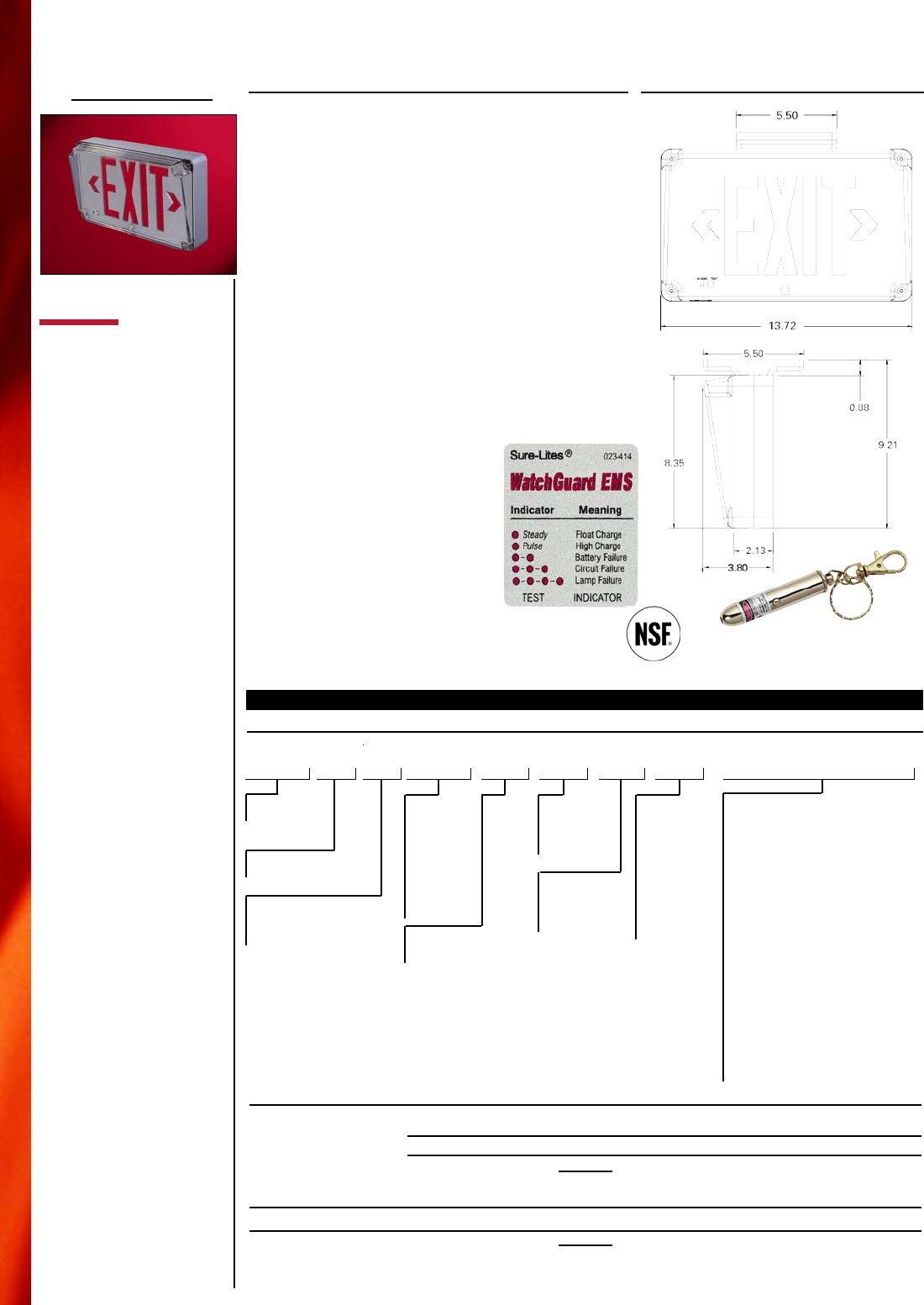

UX SERIES

Ultimate Exit

AC Only

Self-Powered

EXIT LIGHTING

> NEMA 4X Listed

> Operating temperature

-45°C (-49°F) to 60°C (+140°F)

> Dual voltage input 120/277

VAC, 60Hz Isolation

Transformer

> Die Cast aluminum housing

with powder coat finish

> LED Lamping

> Premium Nickel Cadmium

batteries

> Exit can be universally

mounted ceiling, wall or end

> Field selectable chevrons

> Universal pattern knockouts

on rear of single face

housing for direct mounting

to junction box

> Pendant mounting

> Watchguard EMS

Self-diagnostic system

> Laser Testing

> T6 HAZ lamp rating

> IP66, Ingress Protection

from IEC (International

Electrical Commission)

> UL844, Hazardous Locations

(Class 1, Division 2, Groups

A, B, C, D) with “HAZ”

option

> UL FTBR Listed when

specified with the “2C”

option

> Suitable for Floor Proximity

Installation, UL Listed, ADA

(American Disabilities Act)

> NSF National Sanitation

Foundation / Splash Zone

(for Food Processing)

> Cleanrooms Class 10,000

> UL 924 Wet Location

(Suitable for wet and damp

locations), Life Safety NFPA

101, Meets most state and

local codes

> Patents Pending

-49°F to +140°F DIMENSIONS

DESCRIPTION

The Sure-Lites UX NEMA 4X LED Exit combines the

strength and durability of die cast aluminum with architec-

turally pleasing aesthetics. Designed for the most severe

environments, the UX exit will provide maximum perform-

ance against rain, moisture, cold, corrosives and dust.

Universal configurations (single and double face) and uni-

versal mounting provide the ease of one product specify-

ing for any job. The injection molded, clear, polycarbonate

shield not only provides protection against moisture and

rain, but vandalism as well. (4) Torx®head tamperproof

screws with center-pin reject provide additional vandal-

proof security.

The unique design and features make the UX Exit compati-

ble in food processing facilities, outdoor parking garages,

walk-in freezers and other indoor/outdoor severe environ-

ments. The UX Exit is approved for ambient environments

rated from -45°C (-49°F) up to +60°C (+140°F).

Family

UX=Nema

4X Exit

Series

6=AC Only, LED

7=Self-powered

Face Options

0=Universal

(single and double face)1

1=Single Letter Colors

R=Red

G=Green

Housing

Finishes

Blank=Silver

BK=Black

WH=White

SD=Self-

Diagnostics

(Standard

for UX7

only)

Accessories (Order Separately)

UXUK=Converts single face exit to

double face exit. Contains (1) red lens,

(1) green lens, (1) Standard Silver Exit

Stencil, (1) Vandal Shield &

Tamperproof Screws

UXUKWH=Converts single face exit to

double face exit. Contains (1) red lens,

(1) green lens, (1) White Exit Stencil,

(1) Vandal Shield & Tamperproof

Screws

UXUKBK=Converts single face exit to

double face exit. Contains (1) red lens,

(1) green lens, (1) Black Exit Stencil,

(1) Vandal Shield & Tamperproof

Screws

UXPKA=Pendant Kit Adapter (fitting

adapts exit to 1/2" NPT threaded pen-

dant "supplied by others")

VRSD=Vandal Resistant Screwdriver

LASER=Key Chain, Laser pointer (UX7

only), (activated at 30 ft.)

Factory

Options

95=AC Only

Fire

Alarm

Interface

90=DC Only

Fire

Alarm

Interface

Options

2C=Two Circuit

Operation,

FTBR

HAZ=Hazardous

Locations

(Class 1,

Division 2,

Groups A,

B, C, D)

(Both can

be ordered)

Self-Diagnostics

The self-diagnostic unit will automatically

perform the tests required by the NFPA 101

Life Safety Code. The system indicates the

status of the unit at all times using an LED

indicator that is located near the test

switch.

SPLASH ZONE

Verify proper operation of the

transfer circuit and emergency

lamps with a convenient laser

pointer (sold as an accessory).

1Contains one single face exit and one UXUK.

ORDERING INFORMATION

SAMPLE NUMBER: UX61R

SURE-LITES®

71

COOPER LIGHTING

INDUSTRIAL & HAZARDOUS LOCATION > Exit Lights

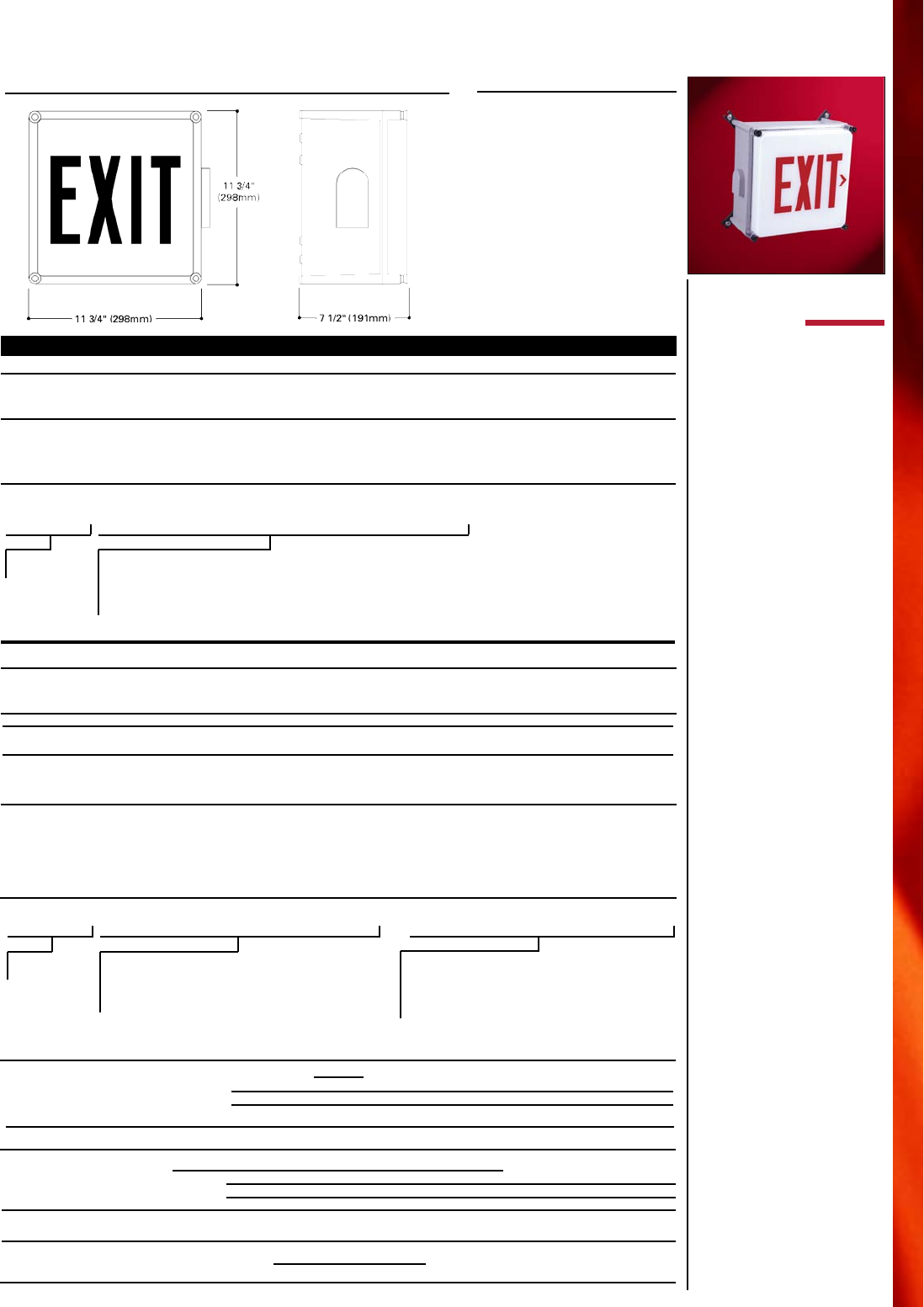

UMX SERIES

Wet Location

A C O n l y

S e l f - P o w e r e d

EXIT LIGHTING

> NEMA 4X Listed

> Dual-voltage input

120/277VAC, 60Hz

> Gray fiberglass housing

> Tough, high contrast

polycarbonate lens

> AC: two F6T5 fluorescent

lamps

> DC: two 6V, 6W DC lamps

> Available with emergency

lighting heads mounted on

enclosure

> For operation in ambient

temperatures above 32°F

> Self-powered Exits feature

line-latching, solid-state

voltage limited charger,

solid-state switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Wet Location

Listed

> Life Safety NFPA 101,

NEC/OSHA, most state

and local codes.

Factory Options

DH=Two 6V, 7.2W Weatherproof Heads

(UMX101 thru UMX108 only)

TDM=Time Delay Monitor (Exits with Heads only)

TH=Thermal Heater for Battery Compartment (For Use

w/Lead Calcium Exits)

DIMENSIONS DESCRIPTION

The UMX Series watertight

and corrosion-resistant exit

with tough polycarbonate lens

is designed for use where rain,

moisture, dust or corrosives

are present. Economical long

life fluorescent lamps provide

highly visible signage and

downlighting. The vibration

resistant lamps make the UMX

perfect for heavy industrial

applications (NEMA 4X Listed).

ORDERING INFORMATION

SAMPLE NUMBER: UMX7

Model Number

See chart

Accessories (Order Separately)

DC Socket Kit

UDC6=Two 6V, 6.6W DC Lamps

UDC12=Two 12V, 7.5W DC Lamps

WG7=Wire Guard

Vandal Shield -

VS2=Polycarbonate Vandal Shield

VS2WP=Polycarbonate Vandal

Shield/Weather Resistant

ORDERING INFORMATION — AC ONLY EXITS

Red Letters/White Background Green Letters/White Background

Voltage No Left Right Double No Left Right Double

Arrow Arrow Arrow Arrow Arrow Arrow Arrow Arrow

120 VAC UMX7 UMX6 UMX8 UMX5 UMX3 UMX2 UMX4 UMX1

277 VAC UMX71 UMX61 UMX81 UMX51 UMX31 UMX21 UMX41 UMX11

E n e rg y D a t a —AC Only Exits

UMX Exits

Input Power; Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Fluorescent Exits-6W Lamps 19W 23W .33A .32A >.47 >.26 <6% <9%

ORDERING INFORMATION

SAMPLE NUMBER: UMX207

ORDERING INFORMATION — SELF-POWERED EXITS

Red Letters/White Background Green Letters/White Background

Battery No Left Right Double No Left Right Double

Arrow Arrow Arrow Arrow Arrow Arrow Arrow Arrow

Lead Calcium UMX207 UMX206 UMX208 UMX205 UMX203 UMX202 UMX204 UMX201

Lead Calcium Battery

w/Remote Capability UMX107 UMX106 UMX108 UMX105 UMX103 UMX102 UMX104 UMX101

Nickel Cadmium UMX227 UMX226 UMX228 UMX225 UMX223 UMX222 UMX224 UMX221

WAT TA G E R AT I N G S

UMX201 – UMX208 Lead Calcium=18W for 1 1/2 hrs.; 15W for 2 hrs.

UMX101 – UMX108 Lead Calcium=27W for 1 1/2 hrs.; 24W for 2 hrs.

UMX221 – UMX228 Nickel Cadmium=15W for 1 1/2 hrs.; 12W for 2 hrs.

Model Number

See chart

E n e rg y D a t a — S e l f - P o w e r e d E x i t s

Charge Mode (Fully Discharged Battery) Sealed Lead Calcium Battery

Input Power; Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Fluorescent Exits - 6W Lamps 41W 43W .51A .22A >.66 >.69 <14% <14%

Standby Mode (Fully Charged Battery)

Sealed Lead Calcium Battery Input Power consumption is reduced by approximately 18 Watts in

the standby operating mode.

Sealed Nickel Cadmium Battery

Fluorescent Exits - 6W Lamps 29W 29W .42A .17A >.57 >.62 <9% <38%

Accessories (Order Separately)

WG7=Wire Guard

Vandal Shield -

VS2=Polycarbonate Vandal Shield

VS2WP=Polycarbonate Vandal Shield/Weather Resistant

72

INDUSTRIAL & HAZARDOUS LOCATION > Exit Lights

SURE-LITES®

COOPER LIGHTING

VRX SERIES

Thin Profile

High-Abuse

AC Only

S e l f - P o w e r e d

EXIT LIGHTING

> Dual-voltage input 120/277

VAC, 60 Hz

> Die cast aluminum

faceplate exposed unit

thickness is 1”

> 20 gauge recessed

housing fits in 2x4

construction

> 18 gauge mounting plate

with clearance holes for

1/4" fasteners

> LED lamp panel provides

uniform light output

> Convex .125" polycarbon-

ate Vandal Shield standard

> Centerpin Torx tamper

resistant screws

> NFPA compliant knockout

chevrons allow quick

conversion to directional

signs

> Adjustable hanger bars

> EPDM shock-absorbing

gasket between mounting

plate and wall

> Self-powered Exits feature

line-latching, solid-state

voltage limited charger,

solid-state switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/ power

indicator light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA, UL

Listed as suitable for floor

proximity installation,

most state and local codes

DIMENSIONS

DESCRIPTION

The VRX Thin Profile High-

Abuse Exit Series combines the

strength of die cast aluminum,

the profile of a recessed design

and the superior aesthetics of

Sure- Lites LED technology to

create an exit with optimum ver-

satility and aesthetics. The VRX

Series faceplate/mounting

plate/lens is only 1" thick, yield-

ing a sign with minimal

off-wall protrusion without

requiring the large wall opening

of a fully recessed exit. The VRX

Series also includes a Remote

Powered Exit which can be pow-

ered from a VRX Series AC Only

or Self Powered Exit.

ORDERING INFORMATION - AC ONLY EXITS / SELF-POWERED EXITS

SAMPLE NUMBER: VRX610000RB

Product Family

VRX=Thin

Profile,

High

Abuse

Series

6=AC Only,

LED

7=Self-

Powered,

LED

Battery

00=AC Only,

120/277

(VRX6

only)

70=Nickel

Cadmium

Battery

(VRX7

only)

Factory Options

00=No Options

20=Flasher

(VRX7 only)

30=Flasher/

Buzzer

(VRX7 only)

90=DC Fire

Alarm

Interface

(VRX7 only)

95=AC Only, Fire

Alarm Interface

(VRX6 only)

Face Options

1=Single

Letter Colors

R=Red

G=Green

Faceplate Finishes

Blank=Brushed

Aluminum Face

with Black Trim

W=White

B=Black

Energy Data

LED EXITS-AC ONLY

Input Power; Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Red Letters Single Face 5.6W 5.7W .07A .03A >.71 >.71 <36% <36%

Red Letters Single Face with Remote 7.3W 7.3W .07A .03A >.83 >.83 <33% <34%

Green Letters Single Face 6.7W 6.8W .07A .03A >.79 >.79 <30% <31%

Green Letters Single Face with Remote 9.5W 9.7W .09A .04A >.90 >.90 <26% <27%

Remote Powered

Red Letters Single Face 2.0 watts additional

Green Letters Single Face 2.5 watts additional

ORDERING INFORMATION - REMOTE POWERED LED EXITS

SAMPLE NUMBER: VRX810000RB

Product Family

VRX=Thin

Profile,

High-Abuse

Series

8=Remote,

LED

Battery

00=Remote

Powered

Factory

Options

00=No Options

Face Options

1=Single

Letter Colors

R=Red

G=Green

Faceplate Finishes

Blank=Brushed

Aluminum Face

with Black Trim

W=White

B=Black

AC ONLY/SELF-POWERED REMOTE POWERED

Energy Data

Sealed Nickel Cadmium Battery-LED Exit

Input Power; Input Current (Max.): Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Red Letters Single Face 7.4W 7.5W .08A .04A >.72 >.72 <34% <34%

Red Letters Single Face with Remote 9.3W 9.5W .08A .04A >.84 >.84 <31% <32%

Green Letters Single Face 8.5W 8.7W .09A .04A >.79 >.79 <30% <31%

Green Letters Single Face with Remote 11.4W 11.7W .11A .05A >.90 >.90 <26% <26%

SURE-LITES®

73

COOPER LIGHTING

INDUSTRIAL & HAZARDOUS LOCATION > Exit Lights

TRX1 SERIES

TRITIUM EXIT

TRITIUM

SELF-LUMINOUS

EXIT LIGHTING

> Institutional Impact

resistant, Flaw resistant

housing is comprised of

a 13 gauge steel frame

with a 3/8" (10mm) thick

polycarbonate face

> The plastic housing is

ultrasonically welded to

the prismatic diffuser,

encapsulating the sealed

tubes and reflector without

the use of glue

> The sealed tubes are

made from borosilicate

glass which makes the

tubes shock resistant

> Exit can be ceiling, wall,

pendant or end mounted

> Field selectable chevrons

> Cased in a high-impact

flame retardant plastic

housing

> Tamperproof and vandal

resistant

> UL 924 (approved to1998

and 2001 requirements).

Life Safety NFPA 101.

Suitable for Wet Locations.

Suitable for use in

Hazardous, Explosive,

Humid and other Harsh

environments. OSHA,

NRC. Council of American

Building Official (BOCA,

ICBO, SBCC1)

> Exits are guaranteed for

their rated life (10 or 20

years) to exceed minimum

illumination requirements,

0.15 foot lamberts

DIMENSIONS DESCRIPTION

Tritium self-luminous exits are

illuminated by unique phos-

phor-coated sealed tubes filled

with Tritium gas which excites

the phosphor causing it to emit

visible light. No electrical sup-

ply is necessary, thereby elimi-

nating costly electrical wiring,

energy and maintenance costs.

Note: Special wording

available; consult

your Cooper Lighting

Representative.

Face Options

1=Single

2=Double

ORDERING INFORMATION

SAMPLE NUMBER: TRX11RWH20

Family

TRX1=Tritium

Exit

Background

Colors

R =Red

G =Green

BK=Black

Special wording

available; consult

your Cooper

Lighting

Representative.

Housing and

Frame Finishes

WH=White

BK =Black

AL =Aluminum

anodized

frame and

gray housing

Rated Life

10=10 years

20=20 years

Accessories (Order Separately)

CAX18PKWH=18” Pendant Kit, White

CAX18PKHTWH=18” Hang True Pendant

Kit, White

CAX18PKBK=18” Pendant Kit, Black

CAX18PKHTBK=18” Hang True Pendant

Kit, Black

WG1=Surface, Wire Guard

VS1=Polycarbonate Vandal Shield

IFSP=Institutional impact resistant hous-

ing, wall mount only.

IMPORTANT

Each order placed must include the installation location name and full address for NRC registration purposes.

Tritium exits must not be abandoned or disposed of. Call your Cooper Lighting representative for recycling information.

74

INDUSTRIAL & HAZARDOUS LOCATION > Exit Lights

SURE-LITES®

COOPER LIGHTING

PHL SERIES

PHOTOLUMINESCENT

EXIT

Photoluminescent

Self-Luminous

EXIT LIGHTING

> Energizes from

Fluorescent Lighting

(Minimum 5 Ft-Candle of

Fluorescent Illumination

required during building

occupancy)

> 90 minutes of illumination

with a legible viewing dis-

tance of at least 50 feet

> Heavy duty aluminum

housing is impact resist-

ant, corrosion proof and

flame retardant

> High-brightness strontium

oxide aluminate photolu-

minescent pigment is

applied directly onto

housing

> Non-Radioactive and

Non-Toxic

> Ceiling, wall or end

mounting

> Field selectable chevrons

> UL 924 Listed, meets Life

Safety NFPA 101, ULC

Listed, most state and

local codes

> Rated Life: 25+ years

DIMENSIONS

DESCRIPTION

Photoluminescent “glow-in-the-

dark” exits are designed to

absorb and store energy from

existing light sources. The signs

do not require electricity and are

non-radioactive, non-toxic, and

fire-resistant. This energy effi-

cient exit is ideal for areas where

electrical wiring is either difficult

or unavailable. It is an excellent

choice when adding low level

exits. Possible applications

include: schools, offices, retail

stores and manufacturing plants.

The PHL Series exits do not

require regular maintenance and

have a life expectancy of at least

25 years.

ORDERING INFORMATION - AC ONLY EXITS / SELF-POWERED EXITS

SAMPLE NUMBER: PHL1RBA

Product Family

PHL=

Photoluminescent

Exit

Face Options

1=Single

2=Double

Letter Colors

(Outline)

R=Red

G=Green

Housing Color

Blank=Same as

Letter Color

BA=Brushed

Aluminum

Accessories

PHLS=Clear Acrylic

Shield

PHLJ=Large Canopy

(J-Box)

Brushed Aluminum, Red Brushed Aluminum, Green

Red Green

SURE-LITES®

75

COOPER LIGHTING

INDUSTRIAL & HAZARDOUS LOCATION > Exit Lights

75

COOPER LIGHTING

HZX SERIES

Hazardous Location Exit

EXIT LIGHTING

> 120 VAC input voltage

> Factory-sealed, explosion-

proof housing of copper-

free aluminum

> Impact-resistant white

acrylic edgelit face panel

with 6" high red letters

> Available in pendant-

mount, wall-mount, or

end-mount styles

> Two 60W, 60T10 clear

lamps wired in parallel

> No provisions for

battery operation

> Provides safe operation

in the presence of volatile

gases, vapor or dust

> Internal rectifier extends

lamp life

> Relamping tool provided

> Listed per UL 844 for

hazardous locations up to

and including NEC Class I,

Division 1, Groups C, D

and Class II, Division 1,

Groups E, F and G, Life

Safety NFPA 101,

NEC/OSHA, most state

and local codes

DIMENSIONS

ORDERING INFORMATION

Model Number Mounting Style Sign Panel

HZX21 Wall Single Face

HZX22 End Double Face

HZX23 Pendant Double Face

Class Division Group

I Gas 1 Hazard Exists – Always present AAcetylene

1 in atmosphere BHydrogen and Manufactured Gases containing Hydrogen

CPetrochemicals

DPetrochemicals

2 Potential Exists – May be present AAcetylene

1 in atmosphere BHydrogen and Manufactured Gases containing Hydrogen

CPetrochemicals

DPetrochemicals

II Dust 1 Hazard Exists EConductive and Combustible Metal Dust

2 Potential Exists FCombustible Carbon Dust

GNon-Conductive Combustible Dust

III Fibers 1 Production Areas Combustible

2 Handling/Storage Areas Combustible

The following chart summarizes these classifications:

NATIONAL ELECTRICAL CODE (NEC)

The National Electrical Code (NEC) defines a hazardous location as “a location where fire hazards or explosion

hazards may exist due to flammable gases or vapors, flammable liquids, combustible dust or ignitable fibers or

filings.

The Code further separates these hazardous locations into three classes:

Class I – locations containing gases and vapors

Class II – locations containing dust

Class III – locations containing fibers and filings.

Each of these classes is broken into divisions. These divisions are separated into groups according to characteristics.

E n e rg y D a t a

Input Current (Max.):

Model No. 120V 277V

HZX21, HZX22, HZX23 120W 1.0A

ZZ14=60T10 Halogen lamp 120V 60Watt

DESCRIPTION

The Sure-Lites HZX Series

Explosion-Proof Edgelit Exit

signs are designed for use

in locations classified as haz-

ardous due to the presence of

flammable vapors, gasses

or combustible dust. They

are suitable for use in Class I,

Division 1, Groups C and D,

and Class II, Division 1,

Groups E, F and G hazardous

locations as defined by the

National Electrical Code.

END

MOUNT

WALL

MOUNT

PENDANT

MOUNT

76

RETROFIT

SURE-LITES®

COOPER LIGHTING

76 COOPER LIGHTING

FBP SERIES

Fluorescent

B a t t e r y P a c k

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> Universal voltage 120 to

277 VAC, 50/60 Hz

(FBP240HU)

> Sealed nickel cadmium

batteries

> Solid-State charger,

overload/short-circuit

protection, test switch/

power indicator light

> Can be installed inside or

on top of fixture

> May be used with

switched or unswitched

fixtures

> Compatible with many

different lamp types

> Compatible with many

ballast types including

standard, rapid-start,

slimline, instant-start,

energy saving, dimming

and electronic AC ballasts -

consult your Cooper

Lighting Representative

regarding specific

applications

> Self Diagnostic

(FBP240HSD)

> Low Profile (FBP450LP)

> UL 924 Listed, UL Listed

for Retrofit/ Field

Installation, Chicago

Approved, Life Safety

NFPA 101, NEC/OSHA,

most state and local

codes

DESCRIPTION

When AC power fails,

the Sure-Lites FBP

Emergency Battery

Pack automatically

switches to emer-

gency mode. It main-

tains illumination of

one or two lamps for

a minimum of 90 min-

utes. UL924 Listed for

field retrofit installa-

tion.

DIMENSIONS

Model Dimensions

A B C

FBP140X 9.4” 2.4” 1.5”

FBP240U 9.4” 2.4” 1.5”

FBP240M 9.4” 2.4” 1.5”

FBP240H 13.3” 2.4” 1.5”

FBP240HU 13.3” 2.4” 1.5”

FBP240HSD 13.3” 2.4” 1.5”

FBP240C 9.4” 2.4” 1.5” (Flex=28”L)

FBP240D 9.4” 2.4” 1.5” (Flex=28”L)

FBP3500 16.3” 5.5” 1.7” (Flex=28”L)

FBP450LP 14.1” 1.5” 1.0”

ORDERING INFORMATION

SAMPLE NUMBER: FBP140X

ELECTRICAL RATINGS AND ORDERING INFORMATION

Number of Lamps

Model Lamp Type Operated in Emergency Mode Initial Lumens

FBP140X 20W-40W, 2'-4', T8-T12 U-shaped, circleline, One 350-450

2D, energy saving, rapid start (4-pin, 2G11)

long compact fluorescent

FBP240U 17W-215W, 2'-8', T8-T12 HO, VHO, U-shaped, One 600-700

circleline, 2D, energy saving, rapid start

(4-pin, 2G11) long compact fluorescent

FBP240M 17W-215W, 2’-8’, T8-T12 HO, VHO, U-shaped, One–20W to 215W (2'-8') 600-700

circleline, 2D, energy saving, rapid start One–20W to 39W long compact fluorescent

(4 pin, 2G11) long compact fluorescent One or Two–20W to 40W (2'-4')

FBP240H 17W-215W, 2'-8', T8-T12 HO, VHO, U-shaped, One or Two - 17W to 24W 1100-1400

circleline, energy saving, rapid start (4-pin, One or Two - 32W to 40W (2'-4') (700-1000 for long

2G11 or G24q) long compact fluorescent One - 40W to 215W (5'-8') compact fluorescent)

One or Two -18W to 39W

long compact fluorescent

One or Two - 18W to 32W

4-Pin compact fluorescent

FBP240HSD 17W-215W, 2’-8’, T8-T12 HO, VHO, U-shaped, One or Two-17W to 40W (2"-4") 1100-1400

circleline, energy saving, rapid start (4-pin, One-40W to 215W (5'-8') (700-1000 for long

2G11, G24q, or GX24q) twin, quad and triple One or Two-18W to 39W long compact fluorescent)

twin-tube compacts compact fluorescent

One-40W to 55W long

compact fluorescent

One or Two-18W to 42W 4-pin

compact fluorescent

FBP240HU 17W-215W, 2’-8’, T8-T12 HO, VHO, U-shaped, One or Two-17W to 40W (2"-4") 1100-1400

circleline, energy saving, rapid start (4-pin, One-40W to 215W (5'-8') (700-1000 for long

2G11, G24q, or GX24q) twin, quad and triple One or Two-18W to 39W long compact fluorescent)

twin-tube compacts compact fluorescent

One-40W to 55W long

compact fluorescent

One or Two-18W to 42W 4-pin

compact fluorescent

FBP240C 6W-28W tubular without integral starter, One or Two–6W to 28W tubular 300-750

13W-42W 4-pin twin, quad, or triple twin-tube One or Two–13W to 39W or

compact fluorescent without integral starters One–42W 4-pin compact fluorescent

FBP240D 18W-26W quad tube with integral starter in One-18W to 26W compact fluorescent 300-650

two pin base

FBP450LP 32W, 4’, T8 One 450

FBP3500 17W-215W, 2'-8', T-8-T12 HO, VHO, One or Two-17W to 40W (2"-4") 1450-3500

U-shaped circleline, energy saving and One-40W to 215W (5'-8')

(4-pin, 2G11, G24Q, or GX240) twin, One or Two-18W to 39W long

quad and triple twin-tube compacts compact fluorescent

One-40W to 55W long

compact fluorescent

One or Two-18W to 42W 4-pin

compact fluorescent

FBP140X

FBP240U

FBP240M

FBP240H

FBP240HSD

FBP240HU

FBP240C

FBP240D

FBP3500

FBP450LP

Accessories

(Order separately)

FBP1WBC=Wire Bundle Cover for

external mount applications

(2 required)

Energy Data

Input Power

Model No. 120V

FBP140X 4.5W

FBP240U 5.3W

FBP240M 5.3W

FBP240H 5.8W

FBP240HSD 4.0W

FBP240HU 6.0W

FBP240C 5.3W

FBP240D 3.5W

FBP3500 8.0W

FBP450LP 1.5W

SURE-LITES®

77

COOPER LIGHTING

RETROFIT

77

COOPER LIGHTING

LTC1 SERIES

Load Transfer Circuit

EMERGENCY LIGHTING

> 120VAC and 277VAC, 60Hz

available

> Test Switch/3 LED Indicator

Lights for: Utility Power,

Emergency Power, Test

Modes

> Operates incandescent,

fluorescent, HID and other

loads; 10 Amps Max

> Matte black painted steel

housing with conduit BX

connector standard

> Sized to fit inside ballast

channel

> Can be installed inside,

on top of fixture or remote

from fixture

> May be used with

switched fixtures

> Compatible with many

different lamp types

> Compatible with many

ballast types including

standard, rapid-start,

slimline, instant-start,

energy-saving, dimming

and electronic AC ballasts -

consult Cooper Lighting

Representative regarding

specific applications

> UL 924 Listed (dry loca-

tions), UL Listed for

Retrofit/ Field Installation,

Life Safety NFPA 101,

NEC/OSHA

DESCRIPTION

In the event of AC power

loss, the Sure-Lites LTC1,

Load Transfer Circuit,

automatically switches

normal light fixtures to

approved emergency

lights. The LTC1 in con-

junction with an auxiliary

emergency power genera-

tor, will provide emer-

gency power to lighting

fixtures regardless of the

room switch position. The

LTC1 will operate up to a

maximum10A load. The

LTC1 is UL924 listed for

field retrofit installation.

DIMENSIONS

Family

LTC1=Load Transfer

Circuit

LTC1

Voltage

120V=120VAC

277V=277VAC

ORDERING INFORMATION

SAMPLE NUMBER: LTC1120V

SURE-LITES®

78

RETROFIT

COOPER LIGHTING

78 COOPER LIGHTING

LTC2 SERIES

Load Transfer Circuit

EMERGENCY LIGHTING

> 120/277VAC, 60Hz avail-

able

> Operates incandescent,

fluorescent, HID and other

loads; 10 Amps Max

> Matte black painted steel

housing

> Sized to fit inside ballast

channel

> Can be installed inside or

on top of fixture

> May be used with

switched fixtures

> Compatible with many

different lamp types

> Compatible with many

ballast types including

standard, rapid-start,

slimline, instant-start,

energy-saving, dimming

and electronic AC ballasts-

consult Cooper Lighting

Representative regarding

specific applications

> UL 924 Listed (dry

locations), UL Listed for

Retrofit/ Field Installation,

Life Safety NFPA 101,

NEC/OSHA

DESCRIPTION

In the event of AC

power loss, the Sure-

Lites LTC2, Load

Transfer Circuit, auto-

matically switches nor-

mal light fixtures to

approved emergency

lights. The LTC2, in con-

junction with an auxil-

iary emergency power

generator or inverter,

will provide emergency

power to lighting fix-

tures regardless of the

room switch position.

The LTC2 will operate

up to a maximum10A

load. The LTC2 is UL924

listed for field retrofit

installation.

DIMENSIONS

Family

LTC2=Load Transfer

Circuit

LTC2

Voltage

Blank=120/277VAC

ORDERING INFORMATION

SAMPLE NUMBER: LTC2

SURE-LITES®

79

COOPER LIGHTING

RETROFIT

79

COOPER LIGHTING

RKRC SERIES

LED Lite Stix™

Exit Retrofit Kit

EXIT LIGHTING

RKRI SERIES

LED Lite Stix™

Exit Retrofit Kit

EXIT LIGHTING

DIMENSIONS DESCRIPTION

The Sure-Lites LED LITE STIX™LED

Retrofit Kit for Exits offers the latest

technology in exit lighting available

today. The Patent Pending design of

the LED LITE STIX™provides superi-

or illumination of exit lettering at a

fraction of the costs associated with

typical incandescent lamps. Each kit

is provided with two lamps which

come in two different base styles to

suit nearly every application.

Installation is easy since the lamps

simply screw into the existing incan-

descent lamp sockets. The long life

characteristic of the LEDs is protected

by an integral MOV (Metal Oxide

Varistor) surge protection device

which is designed to protect the lamp

in the event of an electrical surge.

Practically any stencil face incandes-

cent exit fixture can be retrofitted

with the Sure-Lites LED LITE STIX™

LED Retrofit Kit for Exits, yielding sig-

nificant energy savings and eliminat-

ing the lamp maintenance associated

with incandescent lamps. The kit is

suitable for use with either single or

double face exit fixtures.

• No special provisions required for

installation:

1. Disconnect AC power and open

exit fixture

2. Remove existing AC

incandescent lamps

3. Screw-in LED LITE STIX™

4. Close exit fixture and reconnect

AC power

• Damp Location Listed

• UL 924 Classified for Sure-Lites

Exits, Life Safety NFPA 101, CSA

Certified, NEC/OSHA, Most state

and local codes

• Suitable for use with single- or dou-

ble-face exit fixtures

• Eliminates lamp replacement costs

and maintenance labor

• Trilingual instructions included

(English, Spanish, and French)

• Diffuser can also be used to convert

green exits to red

ORDERING INFORMATION

SAMPLE NUMBER: RKRC

Family

RK=LED LITE

STIX™

LED

Retrofit Kit

Lamp Color

R=Red

Accessories (order separately)

RKLR=Diffuser - Red - 13" x 9"

Base Style

C=Candelabra

I=Intermediate

• 120 VAC, 60 Hz input voltage

• Long-life, high-output LEDs

• Consumes less than 1 watt per lamp (2W per

kit)

• MOV (Metal Oxide Varistor) surge protected

• Patent pending

• LEDs (Light Emitting Diodes) are encapsulated

in a standard T-6 1/2 glass lamp envelope

• Super-clear glass and super-bright LEDs com-

bine for optimum light output

• Available in two base styles: candelabra and

intermediate

• Simple screw-in installation - no special

adapters or messy rewiring

• Direct replacement for up to 20W incandes-

cent lamps

• Two lamps provided per kit

E n e rg y D a t a

RKRC, RKRI (per 2-lamp kit)

Input Power:

120V = 2.0W

Input Current (Max.):

120V = .09A

Power Factor:

120V = >.19

T.H.D.:

120V = <19%

RK

80

RETROFIT

SURE-LITES®

COOPER LIGHTING

80 COOPER LIGHTING

REM SERIES

Remote Emergency

Module

EMERGENCY LIGHTING

RBP SERIES

Remote Fluorescent

B a t t e r y P a c k

EMERGENCY LIGHTING

DIMENSIONS

ORDERING INFORMATION

SAMPLE NUMBER: RBP9

ELECTRICAL RATINGS AND ORDERING INFORMATION

Wattage Consumed

Model Battery Used With Rated Wattage in Emergency Mode*

REM240 None 12V DC Incandescent lamp 85W (Max.) Lamp Wattage plus 0.9W

* Lamp wattage included except where noted

ELECTRICAL RATINGS

Emergency Mode

Model Battery Used With Initial Lumen Output Illumination Time

RBP9 12V Sealed Lead Calcium 7W or 9W 2-Pin Compact Fluorescent Lamp (One lamp only) 98% of lamp rating 120 minutes

RBP9347 12V Sealed Lead Calcium 7W or 9W 2-Pin Compact Fluorescent Lamp (One lamp only) 98% of lamp rating 120 minutes

RBP13 12V Sealed Lead Calcium 13W 2-Pin Compact Fluorescent Lamp (One lamp only) 98% of lamp rating 120 minutes

RBP13347 12V Sealed Lead Calcium 13W 2-Pin Compact Fluorescent Lamp (One lamp only) 98% of lamp rating 120 minutes

RBP1826 12V Sealed Lead Calcium 18W or 26W 2-Pin Compact Fluorescent Lamp (One lamp only) 98% of lamp rating 120 minutes

RBP1826347 12V Sealed Lead Calcium 18W or 26W 2-Pin Compact Fluorescent Lamp (One lamp only) 98% of lamp rating 120 minutes

Model Number

RBP9

RBP13

RBP1826

Accessories

(Order separately)

EMS277=Accessory for 277V

Switching Applications

DESCRIPTION

The REM Series is used to con-

vert a non-emergency fixture

to an emergency fixture when

combined with a 12V DC emer-

gency power source.

Provides transfer capability

only - module does not contain

batteries. REM240 will operate

with 12V DC incandescent

lamps up to 85W maximum.

Each module operates one

lamp.

DIMENSIONS

DESCRIPTION

The Sure-Lites RBP Series

Remote Battery Pack enables

the conversion of nearly any

standard compact fluorescent

fixture into an emergency

lighting fixture. The RBP Series

is a complete conversion sys-

tem in that it contains every-

thing required for the conver-

sion including batteries, elec-

tronics and test switch. On two

lamp fixtures it illuminates one

lamp in emergency mode. It

may be wired to a switched or

unswitched fixture (277VAC

applications which use 120V

ballasted fixtures require the

EMS277 Switching Accessory).

SURE-LITES®

81

COOPER LIGHTING

RETROFIT

81

COOPER LIGHTING

ORDERING INFORMATION

277V Canopy Conversion Kit

Catalog Number Color For use with

PLC277P White R/G/CX/OF/PLX Series Steel Exits

PLC277B Black R/G/CX/OF/PLX Series Steel Exits

AD277CAX Black CAX Series Exits

AD277CAXW White CAX Series Exits

AD277CAXBZ Bronze CAX Series Exits

CAN277ELX N/A ELX Series Exits

CCX277 N/A CCX Series Exits

ORDERING INFORMATION

FTBR Conversion Canopy - CAX Series Incandescent Exits

(For use with CAX Series AC only, incandescent and screw-in LED exits with brushed alu-

minum, white or black housing finish)

Catalog Number Description For use with

AD2CUCAX Universal Input 120V or 277V CAX2100XXG, GB, GW, R, RB, RW and

AD2C120CAX 120V Input Only CAX2200XXG, GB, GW, R, RB, RW

AD2C1277CAX One 120V Input and one

277V Input

Finish Codes: B-Black, BZ-Bronze, W-White. Add suffix to Catalog Number when ordering.

FTBR Conversion Canopy - Steel Series LED Exits

(For use with R/G Series LED fixtures, SLX Series)

Catalog Number Description For use with

PLC2CU G1LED, G1CLED, G2CLED,

G2CXLED, G1277LED, G2277LED,

PLC2C120 G2277CLED, G2277CXLED, R1LED,

R1CLED, R2CLED, R2CXLED,

PLC2C1277 R1277LED, R2277LED, R2277CLED,

R2277CXLED

Finish Codes: B-Black, P-White. Add suffix to Catalog Number when ordering.

DESCRIPTION

PLC/AD Series FTBR Conversion

Canopies

Canopy used to field convert an

AC Only Exit which is UL Listed

in Category FWBO - Exit Fixtures

to an exit which is UL Listed in

category FTBR - Emergency

Lighting and Power Equipment.

Exits employing these canopies

are intended to be connected

simultaneously to normal and

emergency power circuits.

Three input voltage types are

available:

1) Universal:

120/277V Normal Power and

120/277V Emergency Power

2) 120V Normal Power and

120V Emergency Power

3) 120V Normal Power and

277V Emergency Power

or

277V Normal Power and

120V Emergency Power

Canopy housing made of 20 gauge steel (PLC Series) or die cast alu-

minum (AD Series). UL 924,Life Safety NFPA 101, UL FTBR Listed when

used with correlated Exit Lights.

DESCRIPTION

PLC/AD/CAN Series Canopy

Conversion Kit

• Kit for converting 120 VAC

Only Exits to 277V operation.

• 277 VAC Input, 120 VAC

Output

• Two transformers included

• Allows wiring of AC lamps

on separate circuits

• PLC Series – 20 gauge steel

canopy

• AD Series – Die cast canopy

• CAN277ELX installs inside

standard ELX housing

277V

CONVERSION

CANOPIES

FTBR

CONVERSION

CANOPIES

FLASHER/

BUZZER KIT

ORDERING INFORMATION

Catalog Number Suffix Description For use with

FL1 DC Flasher CCX, UN, UNH, EAX,

PLX, CAX (Incandescent only)

and CAR (Incandescent only)

BZ1 DC Buzzer UN, UNH, PLX,

CAX (Incandescent only) and

CAR (Incandescent only)

DESCRIPTION

Flasher Kit

Kit for flashing the DC lamps

of exits during the emergency

operation mode.

Buzzer Kit

Kit provides an audible signal

during the emergency

operation mode of exits.

82

RETROFIT

SURE-LITES®

COOPER LIGHTING

82 COOPER LIGHTING

EMERGENCY

POWER PACK

CAX

EMERGENCY

POWER PACK

DESCRIPTION

Standard Emergency Power

Pack for converting AC Only

incandescent or fluorescent

steel exits to self-powered

emergency exits (DC lamp kit

included).

Dual-voltage input 120/277 VAC,

60Hz, line-latching, Solid-state

voltage limited charger, Solid-

State switching, low-voltage

disconnect, brownout circuit,

overload/short-circuit protec-

tion, test switch/power indica-

tor light, may be specified with

self-diagnostics option (use

“SD” suffix).

ORDERING INFORMATION

Emergency Power Pack (Rated Wattage to 87 1/2% of Rated D.C. Voltage)

Catalog No. Color 1 1/2 Hours 2 Hours Comments

EPX5000P White 10.8 7.2 When used with PLX Series

Steel Exits, one additional DC

lamp is required (Total: 3 lamps)

– Order DCE6 or DCE63

EPX5000B Black 10.8 7.2 (Total: 3 lamps) – Order DCE6

or DCE63

ORDERING INFORMATION

Emergency Power Pack (Rated Wattage to 87 1/2% of Rated D.C. Voltage)

Catalog No. Color 1 1/2 Hours 2 Hours Comments

CAX3PP Black 10.8 7.2 CAX Series Incandescent

Exits and CAX/LED ACR

CAX3PPW White 10.8 7.2 CAX Series Incandescent

Exits Only

CAX3PPBZ Bronze 10.8 7.2 CAX Series Incandescent

Exits and CAX/LED ACR

DESCRIPTION

Emergency Power Pack

for converting AC Only

Incandescent CAX Series Exits

to Self-Powered Emergency

Exits (DC Lamp Kit included).

Dual-voltage input 120/277 VAC,

60Hz, line-latching, Solid-state

voltage limited charger, Solid-

State switching, low-voltage

disconnect, brownout circuit,

overload/short-circuit protec-

tion, test switch/power indicator

light.

• Die cast canopy with electronics package

• Choice of three finishes

• Sealed Lead Calcium Battery,

• Two 6V, 3.6W DC wedge base lamps included

• 22 gauge steel housing

• Choice of two finishes

• Sealed lead calcium battery

• Maintenance free, long life

• Full recharge time, 24 hrs. (max.)

• Polarized battery terminals

• Two 6V, 3.6W DC wedge base lamps included

SURE-LITES®

83

COOPER LIGHTING

ACCESSORIES

83

COOPER LIGHTING

POLYCARBONATE

VANDAL SHIELD/

WEATHER SHIELD

WIRE GUARDS

ORDERING INFORMATION

Cat. No. Length Height Depth For use with

VS1 21" (533mm) 11" (279mm) 10" (254mm)

AA, CAX, CC, CCX (AC only or Self-Powered),

CHX (AC only), CU, LM, P4C, PLX (AC only),

R/G/CX/OF, CX, LPX (without heads), ST Series;

Remote Heads

VS1WP 21" (533mm) 11" (279mm) 10" (254mm)

AA, CAX, CC, CCX (AC only or Self-Powered),

CHX (AC only), CU, LM, P4C, PLX (AC only),

R/G/CX/OF, CX, LPX (without heads), ST Series;

Remote Heads

VS2 21" (533mm) 19" (483mm) 11" (279mm)

CCX (with Heads), CHX (Self-Powered),

UN/UNH (Self-Powered or with Heads), HR,

NCB (except NCB12225), PLX (Self-Powered or

with Heads), LPX (with heads), UMB, XR

Series, CC7, CC8

VS2WP 21" (533mm) 19" (483mm) 11" (279mm)

CCX (with Heads), CHX (Self-Powered),

UN/UNH (Self-Powered or with Heads), HR,

NCB (except NCB12225), PLX (Self-Powered or

with Heads), LPX (with heads), UMB, XR Series

CC7, CC8

DESCRIPTION

• Made of durable, high-

impact, UV-resistant clear

polycarbonate material

• Self-adhesive closed-cell

neoprene gaskets provided

with “WP” weather resistant

versions

• “WP” weather resistant

versions are provided with

gasketed breather vent

UL 924 Rain Test (SD4.6), UL

924 Water Shield Impact

Test (SD4.10)

DESCRIPTION

Wire Guards

• All metal wire guard for exits

or emergency units

• .177" (5mm) diameter 7

gauge steel round wire

• Non reflective zinc plated fin-

ish

• Hinged sides hook in place

(except WGS11 which is not

hinged)

• Screw eyes provided

for mounting

ORDERING INFORMATION

Catalog No. Length Height Depth For use with

WG1 18" (457mm) 15" (381mm) 6" (152mm) CC, LM1, AA, XR, CU2, CAX

(Incandescent/

Fluorescent, Self- Powered,

Surface Mount) Series

WG2 18" (457mm) 15" (381mm) 10" (254mm) PLX (with heads),

UNH (with heads),

CCX (with heads) &

CHX (with heads)

WG3 23" (584mm) 20" (508mm) 12" (305mm) HR180, HR12170, HR12210,

HR12360, NCB45, NCB90,

NCB110, NCB1290,

NCB12180 Series, CC7, CC8

WG4 32" (812mm) 21" (533mm) 12" (305mm) NCB12225 Series

WG5 16" (406mm) 16" (406mm) 14" (356mm) SLC1, CFR1 Series

WG6 26" (660mm) 16" (406mm) 14" (356mm) SLC2, CFR2 Series

WG7 16" (406mm) 16" (406mm) 9" (229mm) P4C, RLM, RD, R4C, HR87,

HR117, HR12117, UMB,

UMX Series

WG8 8" (203mm) 8" (203mm) 8" (203mm) Single Head Remotes

WG9 16" (406mm) 8" (203mm) 8" (203mm) Double Head Remotes,

ST1

WG10 13 3⁄4" (349mm) 13 3⁄8" (340mm) 4 3⁄8" (111mm) R, G, CX, UN, UNH, PLX,

CCX, SLX, LPX/LPXH, INCX,

TRX, CAX (Incandescent/

Fluorescent, AC), CAX-LED

Series (Surface Mount

Only—CU2), CHX

WGS11 13 5⁄8" (346mm) 16 3⁄4" (425mm) 4" (102mm) R, G, CX, UN, UNH, PLX,

CCX, SLX, LPX/LPXH, CAX,

INCX, TRX Series (End or

Ceiling Mount Only), CHX

WG12 27 1⁄2" (698mm) 14" (356mm) 8" (203mm) GC Series,

LPX (with heads-wall)

WG17 27 1⁄2" (698mm) 12" (305mm) 14 1⁄2" (368mm) GC Series

LPX (with heads-ceiling or

wall)

WG19 21" (533mm) 15" (381mm) 6" (152mm) CU1 Series

ORDERING INFORMATION

Pendant Kits

Catalog No. Finish Length For use with

PK18WH White 18" R/G/CX/OF/SLX/UN/UNH/

PLX Series Steel Exits

PK18BK Black 18" R/G/CX/OF/SLX/UN/UNH/

PLX Series Steel Exits

CCX18PKWH White 18" CCX/LPX Series Exits

CCX18PKBK Black 18" CCX/LPX Series Exits

CAX18PKWH White 18" CAX Series Exits with

incandescent or compact

CAX18PKBK Black 18" fluorescent lamps which are

120/277VAC Only or are

self-powered emergency; all CAX

CAX18PKBZ Bronze 18" Series Exits with LED lamps,

CX6 & CX7 Series, HR Series and

CU2 Series

Note: Contact Cooper Lighting Representative for Custom Lengths

DESCRIPTION

Pendant Kit

• Pendant Kit for pendant

mounting of exits

• No electrical components

• Includes canopy, mounting

hardware, threaded stem

and attachment bracket

• CAX Series Pendant Kit may

require CAX Series Splice

Box

PENDANT KITS

SURE-LITES®

84

ACCESSORIES

COOPER LIGHTING

84 COOPER LIGHTING

HANG-TRUE

PENDANT KIT

CANOPY KITS

CAX SERIES

SPLICE BOX

ORDERING INFORMATION

Canopy Kits

Catalog No. Finish For use with

CAN571 White R/G/CX3/OF/UN/UNH/PLX/SLX Series Steel Exits

CAN578 Black R/G/CX3/OF/UN/UNH/PLX/SLX Series Steel Exits

DESCRIPTION

Canopy Kit

• Canopy for end or top

mounting of exits. No electri-

cal components

• CAN Series – Impact-resist-

ant, injection molded ther-

moplastic

• QE Series – Die cast 380

aluminum alloy

• Includes mounting plate and

mounting hardware

ORDERING INFORMATION

Hang-True Pendant Kits

PK18HTWH White 18" R/G/CX3/OF/UNH/PLX/SLX

Series Steel Exits

PK18HTBK Black 18" R/G/CX3/OFUNH/PLX/SLX

Series Steel Exits

CCX18PKHTWH White 18" CCX/LPX Series Exits

CCX18PKHTBK Black 18" CCX/LPX Series Exits

CAX18PKHTWH White 18" CAX Series Exits with

incandescent or compact

CAX18PKHTBK Black 18" fluorescent lamps which are

120/277VAC Only or are

self-powered emergency; all CAX

CAX18PKHTBZ Bronze 18" Series Exits with LED lamps,

CX6 & CX7 Series and CU2 Series

Note: Contact Cooper Lighting Representative for Custom Lengths

DESCRIPTION

Hang-True Pendant Kit

• Pendant Kit for mounting of

exit signs on sloped ceilings

up to 45°

• No electrical components

• Includes canopy, mounting

hardware, threaded stem

and attachment bracket

• CAX Series Hang-True

Pendant kit may require

CAX Series splice box

DESCRIPTION

CAX Series Splice Box

• Splice Box provides wire

splicing compartment for

CAX Series Exits with incan-

descent or compact fluores-

cent lamps which are 277V

AC Only or are self-powered

and employ a CAX Series

Pendant Kit.

Note: This accessory is not

required for CAX-LED Series

Exits

ORDERING INFORMATION

CAX Series Splice Box

Catalog No. Finish For use with

CAXSBOXWHSP White Required for CAX Series Exits with incandescent

or compact fluorescent lamps which are

CAXSBOXBKSP Black 277V AC Only or are self-powered and utilize any

CAX Series Pendant Kit

CAXSBOXBZSP Bronze 277V AC Only or are self-powered and utilize any

CAX Series Pendant Kit

SURE-LITES®

85

COOPER LIGHTING

ACCESSORIES

85

COOPER LIGHTING

SWITCHING

ACCESSORIES

REMOTE TEST

SWITCH &

PILOT LIGHT

CORDSETS

• No electrical components

• 18 gauge die formed steel

• Specify white, black, or bronze finish

• Installs directly to Pendant Kit stem and above 277V canopy or

self-powered power pack

DESCRIPTION

277V Switching Accessory

Switching Kit required for

277V installations with RBP

Series,

H274EM. Enables fixture to be

turned off without activating

the emergency mode while

maintaining a charge to the

batteries. If a power failure

occurs, the fixture switches to

emergency mode and illumi-

nates. 277 VAC operation.

Requires switched and

unswitched 277 VAC connec-

tions.One EMS-277 Switching

Accessory required per fixture

to be switched. Mounts to fix-

ture junction box.

ORDERING INFORMATION

Catalog No. Description For use with

EMS277 277V Switching Accessory H-274-EM, RBP Series

ORDERING INFORMATION

Remote Test Switch & Pilot Light

Catalog No. Description For use with

1RTPL Remote Test Switch & Pilot Light Almost any emergency unit or

self-powered exit

DESCRIPTION

Remote Test Switch

& Pilot Light

• Supplied with wiring pigtails

• Power indicator lamp

• Test switch allows battery

and lamp check from

remote location

• Wires to 120 VAC

• Check local codes for maxi-

mum fixture to test switch

distance

ORDERING INFORMATION

Cordsets

Catalog Number Description

CSK120 120V Cordset

CSK277 277V Cordset with standard NEMA L7-20P plug

Voltmeter

Catalog Number Description

VK1 Voltmeter (Range: 0-15 Volts)

DESCRIPTION

Cordsets

• Accessory Cordsets for use

with units and unswitched

24- hour supply outlets.120V

or 277V three prong

3' cordsets

• Field Installed Voltmeter

allows check of battery out-

put. Voltage range is 0-15

Volts. Provides convenient

indication of battery voltage

SURE-LITES®

86

ACCESSORIES

COOPER LIGHTING

86 COOPER LIGHTING

ORDERING INFORMATION

Mounting Brackets

Catalog No. Description For use with

1BR_ _* Mounting Brackets (set of 2) CC, LM1, AA Series, ST1, and XR Series

3BR_ _* Mounting Brackets (set of 3) HR Series and NCB Series

Mounting Shelves

Catalog No. Description Length Height Depth

1MS_ _* Mounting 14" 10" 4"

Shelf (356mm) (254mm) (102mm)

2MS_ _* Mounting 15 3/4" 12" 7 1/4"

Shelf (400mm) (305mm) (184mm)

3MS_ _* Mounting 17 3/4" 13 1/2" 8 3/4"

Shelf (451mm) (343mm) (222mm)

*Finish Codes: GY–Grey, BK–Black, WH–White – Add suffix to catalog number when ordering

(eg. 1MSGY)

DESCRIPTION

Mounting Brackets & Shelves

• Mounting Brackets and

Shelves simplify installation

of Emergency Lighting Units

• 18 gauge steel brackets, 20

Gauge steel Shelves

• Available in Grey, Black and

White finishes – specify color

when ordering

ORDERING INFORMATION

Recessing Kits for P4C Series

Catalog Number Description For use with

FRK1 Fully Recessing Kit P4C Series Emergency Unit, R4C

Series Remote

USF1 Semi-Recessing Kit P4C Series Emergency Unit, R4C

Series Remote

DESCRIPTION

Recessing Kits

• Recessing Kits allow fully

recessed or semi-recessed

installation of P4C Series

Emergency Unit and R4C

Series Remote. No electrical

components

• 20 gauge steel mounting box

• Two piece adjustable bar

hangers span up to 24"

ORDERING INFORMATION

Tamperproof Screws & Screwdriver Bits

Catalog No. Description For use with

TPK1CP Four #6 Centerpin Torx Zinc Plated R/G/CX/OF/EP/EPH/UN/UNH/PLX

Pan Head Sheet Metal Screws Series Steel Exits, XR, AA, HR

and NCB Series

0590A638SP One #6 Centerpin Torx Screwdriver Bit R/G/CX/OF/EP/EPH/UN/UNH/PLX

Series Steel Exits, XR, AA, HR

and NCB Series

059012SP One #8 Centerpin Torx Screwdriver Bit VP Series Exits

0590A639SP One #8 Heavy Duty Centerpin Torx TPX Series Exits

Screwdriver Bit

VRSD One #8 Centerpin Torx Screwdriver CAR, CAX, CCX, UX, UEL Series

VRSPD One #6 Spanner Screwdriver “STL” StairLite

DESCRIPTION

Tamperproof Screws &

Screwdriver Bits

• Tamperproof Screws and

Screwdriver Bit for use in

Steel Exits

• Restricts access to internal

exit or emergency lighting

unit compartments

• Ideally suited for use in

schools, hotels, public places

of assembly, etc

• Increases the likelihood that

the product will be function-

al in an emergency situation

MOUNTING

BRACKETS,

MOUNTING

SHELVES

RECESSING

KITS

TAMPERPROOF

SCREWS &

SCREWDRIVER

BITS

SURE-LITES®

87

COOPER LIGHTING

CHICAGO CODE

87

COOPER LIGHTING

UEL SERIES

Ultimate Emergency

Light

CHICAGO CODE

EMERGENCY LIGHTING

> NEMA 4X, UL50 Listed

> Dual-voltage input

120/277VAC, 60Hz,

Isolation Transformer

> Die cast aluminum

housing with powder

coat finish

> (2) Adjustable MR16 lamps

> Nickel Cadmium Battery

> Fully recharged in 24

hours

> Vandal Proof

> UV stable, glass-clear

polycarbonate, vandal

resistant shield (.150”

thick) with Torx head

tamperproof screws,

stainless steel

> T1 Haz Lamp Rating

> Watchguard EMS

Self-Diagnostic System

> Photocell Test Switch

(requires accessory LASER

for activation)

> UL 924 Outdoor Wet

Location Listed (suitable

for wet and damp loca-

tions)

> NSF, National Sanitation

Foundation/Splash Zone

(for Food Processing)

> IP66, Ingress Protection

from IEC (International

Electrical Commission)

> Cleanroom Class 10,000

> Patent Pending

> City of Chicago approved

DIMENSIONS DESCRIPTION

The Sure-Lites UEL NEMA 4X

Emergency Light is designed for

those emergency lighting applica-

tions where ruggedness and

dependability are a must. Designed

for the most severe environments,

the UEL Emergency Light will pro-

vide maximum performance

against rain, moisture, cold, corro-

sives and dust.

The UEL’s standard features

include a die cast housing, nickel

cadmium battery, self-diagnostics,

photocell LASER test and MR16

lamps. In addition, an injection

molded, polycarbonate shield

provides protection against mois-

ture, rain, and vandalism. (4) Torx

head tamperproof screws with

center-pin reject provide additional

vandal-proof security.

The unique design and features

make the UEL Emergency Light

compatible in food processing

facilities, outdoor parking garages,

walk-in freezers and other indoor/

outdoor severe environments.

ORDERING INFORMATION

SAMPLE NUMBER: UEL1SDC

Family

UEL1=Nema 4X

Emergency

Light

C=City of Chicago

Approved

UEL1

Housing

Finishes

Blank=Silver

BK=Black

WH=White

Accessories (order separately)

LASER=Key Chain, Red Laser Pointer

(activation tested at 30 feet)

0590-12SP=#8 Centerpin Torx

Screwdriver Bit

UXPKA=Pendant Kit Adapter (fitting

adapts to 1/2" NPT threaded

pendant)

SD

SD=Self Diagnostics

(Standard)

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours

UEL1SD 12 24

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number Spacing1

MR16 12 29-141 50.0'

Options

A=Ammeter

V=Voltmeter

TDM=Time Delay

Monitor

1The "Rule of Thumb" spacing guidelines are designed to achieve 1 foot-candle average and 0.1 foot-candle minimum with a 40:1 maxi-

mum/minimum ratio. The corridor used is 100 feet long, 9 feet ceiling with a 6 feet wide walkway and 3 feet path of egress.

The reflectances are 80% ceiling, 50% walls and 20% floors. The fixture mounting height is 7.0 feet with a lamp head angle of 45 degrees.

Cooper Lighting assumes no responsibility for local requirements or specific project variables. This is a guideline to be used as a design aid,

not as guarantee of any code compliance.

C

SPLASH ZONE

Laser Test

6 3/16”

[157mm]

15 1/4”

[389mm]

6 11/16”

[169mm]

E n e rg y D a t a

Input Current (Max.):

Model No. 120V 277V

UEL1SD .09A .03A

Self-Diagnostics

The self-diagnostic unit will automatically

perform the tests required by the NFPA 101 Life

Safety Code. The system indicates the status of

the unit at all times using an LED indicator that

is located near the test switch.

Verify proper operation of the

transfer circuit and emergency

lamps with a convenient laser

pointer (sold as an accessory).

SURE-LITES®

88

CHICAGO CODE

COOPER LIGHTING

88 COOPER LIGHTING

CHEL SERIES

Die Cast Aluminum

CHICAGO CODE

EMERGENCY LIGHTING

> Dual Voltage input,

120/277 VAC, 60 Hz

> Die cast aluminum

housing with powder coat

finish

> Two 6V 12W MR16 lamps

> Sealed Lead Calcium

Battery

> Watchguard EMS

Self-Diagnostic System

> Photocell Test Switch

(requires accessory LASER

for activation)

> UL924 Listed, Damp

location listed, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

> City of Chicago Approved

DIMENSIONS

DESCRIPTION

The Sure-Lites CHEL Emergency Light

provides a distinct solution to any

emergency lighting application.

Constructed of die cast aluminum, the

CHEL presents not only a unique shape

and design but also provides depend-

able strength and durability. The two,

fully adjustable, high efficiency 12W

MR16 lamps provide maximum path of

egress performance. The standard

Watchguard EMS self-diagnostic system

meets NFPA 101 testing requirements

providing assurance that the unit is

working properly at all times. The Sure-

Lites LASER test feature allows remote,

30 second confidence testing of the

emergency light upon demand.

ORDERING INFORMATION

SAMPLE NUMBER: 6CHEL1SD

Family

CHEL1=Architectural

Emergency

Light

CHEL1

Housing

Finishes

Blank=Silver

BK=Black

WH=White

Accessories (order separately)

LASER=Key Chain, Red Laser Pointer

(activation tested at 30 feet)

SD

SD=Self Diagnostics

(Standard)

ELECTRICAL RATINGS

Model DC Voltage 1 1/2 Hours

CHEL1SD 6 24

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number Spacing1

MR16 12 29-140 50'

Options

TDM=Time Delay Monitor

1The "Rule of Thumb" spacing guidelines are designed to achieve 1 foot-candle average and 0.1 foot-candle minimum with a 40:1 maxi-

mum/minimum ratio. The corridor used is 100 feet long, 9 foot ceiling with a 6 foot wide walkway and 3 foot path of egress.

The reflectances are 80% ceiling, 50% walls and 20% floors. The fixture mounting height is 7.5. Cooper Lighting assumes no responsibility for

local requirements or specific project variables. This is a guideline to be used as a design aid, not as guarantee of any code compliance.

Self-Diagnostics

The self-diagnostic unit will

automatically perform the tests

required by the NFPA 101 Life

Safety Code. The system

indicates the status of the unit at

all times using an LED indicator

that is located near the test

switch.

Verify proper operation of the

transfer circuit and emergency

lamps with a convenient laser

pointer (sold as an accessory).

SURE-LITES®

89

COOPER LIGHTING

CHICAGO CODE

89

COOPER LIGHTING

XR SERIES

Steel

CHICAGO CODE

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> 22 gauge die formed steel

> White finish

> Two fully adjustable metal

heads with die cast swivel -

top mounted

> Sealed Lead Calcium or

Premium Nickel Cadmium

batteries

> Knockout, conduit or

cord set

> Universal J-box mounting

pattern, keyhole slots

> Remote capability

> Line-latching, solid-state

voltage limited charger,

solid-state switching, low-

voltage disconnect,

brownout circuit, over-

load/short-circuit protection,

test switch/power indicator

light

> UL 924 Listed , Life Safety

NFPA 101, NEC/OSHA,

most state and local codes.

> City of Chicago approval

Number 3238

DESCRIPTION

The XR Series is an efficient,

rugged, commercial grade

emergency light.

Most units have the extra

capacity to power remote

heads for added application

flexibility.

DIMENSIONS

Figure 2

Figure 1

Accessories (order separately)

1BRWH=Mounting Brackets (2) - White

1MSWH=Mounting Shelf - White

VK1=Voltmeter

WG1=Wire Guard

ORDERING INFORMATION

Model Number

XR6C

XR1624C

XR16C

XR7C

XR9C

XR20C

XR21C

XR12206C

XR12208C

SAMPLE NUMBER: XR6C

Options (add as suffix)

Alternate Lamps1

A=Ammeter2

SD=Self Diagnostics3

TDM=Time Delay Monitor

V=Voltmeter2

Other Options1

E N E R G Y D ATA

Model No. Input Current (Max.):

XR6C 120V= .21A 277V= .10A

XR7C 120V= .20A 277V= .09A

XR9C 120V= .21A 277V= .10A

XR1624C 120V= .08A 277V= .03A

XR16C 120V= .08A 277V= .04A

Model No. Input Current (Max.):

XR20C 120V= .08A 277V= .03A

XR21C 120V= .11A 277V= .05A

XR12206C 120V= .29A 277V= .13A

XR12208C 120V= .28A 277V= .12A

11 1/4”

[286mm]

4 1/2”

[114mm]

12 1/4”

[311mm]

12 1/4”

[311mm]

14 1/2”

[368mm]

7 3/4”

[197mm]

2 1/2”

[64mm]

2 1/4”

[57mm]

2 1/4”

[57mm]

6 1/8”

[156mm]

6 1/8”

[156mm]

1 7/8”

[48mm]

Model Type DC Voltage 1 1/2 Hours Lamp Watts Remote Watts Figure

XR6C SLC 6 27 24 3 1

XR7C SLC 6 36 24 12 2

XR9C* SLC 6 54 24 30 2

XR1624C SNC 6 24 24 0 1

XR16C SNC 6 50 24 26 1

XR20C SNC 12 30 24 6 2

XR21C SNC 12 50 24 26 2

XR12206C SLC 12 36 24 12 2

XR12208C SLC 12 54 24 30 2

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number

Halogen 12 29-66

Halogen 12 29-45

*XR9C is UL Listed for 4 hours with 24 watt lamp load only – No remote load

SLC=Sealed Lead Calcium

SNC=Sealed Nickel Cadmium

1Consult Cooper Lighting Representative. 2XR6C, XR1624 and XR16C housings have provision for one meter only.

3XR7C, XR9C, XR16C not available with SD.

XR6C

XR1624C

XR16C

XR7C

XR9C

XR20C

XR21C

XR12206C

XR12208C

SURE-LITES®

90

CHICAGO CODE

COOPER LIGHTING

90 COOPER LIGHTING

HR180C

HR12170C

HR12210C

HR12360C

Steel

Ultra-High Capacity

CHICAGO CODE

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> 18 gauge die formed steel

housing and cover

> White finish

> Two top mounted, fully

adjustable, white, metal

heads with die-cast swivel

standard

> Sealed lead-calcium battery

> Knockout, conduit or cord set

> Remote capability

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit, over-

load/short-circuit protection,

test switch/power indicator

light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA, most

state and local codes

> City of Chicago approval

Number 3238

HR87C

HR117C

HR12117C

Steel

High Capacity

Model Type DC Voltage 1 1/2 Hours Lamp Watts Remote Watts Figure

HR87C SLC 6 87 24 63 1

HR117C SLC 6 117 24 93 1

HR12117C SLC 12 117 24 93 1

HR180C SLC 6 180 24 156 2

HR12170C SLC 12 170 24 146 2

HR12210C SLC 12 210 24 186 2

HR12360C SLC 12 360 24 336 2

DIMENSIONS

DESCRIPTION

The real workhorse in emergency lighting systems...these durable, reliable units are unparalleled in per-

formance and provide freedom from maintenance.

The HR Series units provide a low cost, solid-state lighting system for applications in industrial, commer-

cial, or multi-housing environments. High and Ultra High capacity makes them ideal for installations

where a large number of heads/exits will be remotely operated.

Accessories (order separately)

VK-1 =Voltmeter

3BRWH =Mounting Brackets, White Finish

2MSWH =Mounting Shelf, White Finish (For High Capacity Fixtures)

3MSWH=Mounting Shelf, White Finish (For Ultra High Capacity

Fixtures)

CSK120=Cord Set 120VAC

CSK277=Cord Set 277VAC

VS2=Polycarbonate Vandal Shield

WG7=Wire Guard, For High Capacity Fixtures

WG3=Wire Guard, For Ultra High Capacity Fixtures

ORDERING INFORMATION

Model Number

HR87C

HR117C

HR12117C

HR180C

HR12170C

HR12210C

HR12360C

SAMPLE NUMBER: HR87CTDM

Options (add as suffix)

Alternate Lamps1

A=Ammeter

V=Voltmeter

TDM=Time Delay Monitor

Other Option1

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number

Halogen 12 29-66

Halogen 12 29-45

Halogen 12 29-66

Halogen 12 29-45

*Batteries may be shipped separately.

SLC=Sealed Lead Calcium

Energy Data

Input Current (Max.):

Model No. 120V 277V

HR87C .50A .21A

HR117C .53A .22A

HR12117C .26A .13A

HR180C .98A .43A

HR12170C 1.08A .45A

HR12210C 1.02A .47A

HR12360C 1.17A .54A

Figure 1. Ultra High Capacity Figure 2. High Capacity

1Consult your Cooper Lighting Representative.

SURE-LITES®

91

COOPER LIGHTING

CHICAGO CODE

91

COOPER LIGHTING

GC SERIES

Steel

Recessed

CHICAGO CODE

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> 20 gauge die-formed steel

housing

> White finish

> Metal heads available in

round or cylinder styles

> Heads match housing

finish

> Knockout, conduit or cord

set

> Flanged for mounting

in grid type suspended

ceilings

> Single modular electrical

connector

> Line-latching, solid-state

voltage limited charger,

solid-state switching,

low-voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test switch/

power indicator light

> UL 924 Listed , Life Safety

NFPA 101, NEC/OSHA,

most state and local codes.

> City of Chicago approval

Number 3238

> Chicago Plenum mark

(CCEA - City of Chicago

Environmental Air)

DESCRIPTION

The GC Series combines a

clean, sleek, contemporary

appearance with state-of-the-

art electronics. Specifically

designed for initial and retrofit

installations where a recessed

unit is required to maximize

aesthetics. The unit is ideal for

locations with limited wall

space and where panoramic

positioning is necessary for the

ceiling mounted lampholders

to provide proper light distri-

bution. Ideal for stores, offices,

hospitals and school corridors.

DIMENSIONS

6 3/4”

(171mm)

ORDERING INFORMATION

SAMPLE NUMBER: GC15072V

Model Number

GC15072

GC15072CL1

GC15082

GC15082CL1

ELECTRICAL RATINGS

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Model DC Voltage 2 Hours 3 Hours 4 Hours Type Wattage Number

GC15072 6 24 18 14 Halogen 12 29-15

GC15072CL1 6 24 18 14 Halogen 12 29-15

GC15082 6 48 36 28 Halogen 12 29-15

GC15082CL1 6 48 36 28 Halogen 12 29-15

Options ( add as suffix)

Alternate Lamps2

A=Ammeter

SD=Self Diagnostics (GC15072, GC15072CL Only)

TDM=Time Delay Monitor

V=Voltmeter

Other Options 2

Accessories (Order Separately)

VK1=Voltmeter

WG12=Wire Guard

E N E R G Y D ATA

Input Current (Max.):

Model No. 120V 277V

GC15072, GC15072CL .12A .05A

GC15082, GC15082CL .12A .05A

1CL=Cylinder Type Heads. 2Consult your Cooper Lighting Representative.

SURE-LITES®

92

CHICAGO CODE

COOPER LIGHTING

92 COOPER LIGHTING

ST1 SERIES

Steel

CHICAGO CODE

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> 18 gauge die formed steel

housing

> Two side mounted fully

adjustable heads, glare

free lens

> White finish

> Knockout, conduit or cord

Set

> Universal J-box mounting

pattern, keyhole slots

> Line-latching, Solid-State

voltage limited charger,

Solid-State switching,

low-voltage disconnect,

brownout circuit,

overload/short-circuit

protection, test switch/

power indicator light

> UL 924 Listed , Life Safety

NFPA 101, NEC/OSHA,

most state and local codes.

> City of Chicago approval

Number 0590E

DESCRIPTION

An attractive, compact emer-

gency lighting unit, the ST1 is

a packaged in a flame-resist-

ant metal housing. It is ideal

for providing emergency light-

ing in commercial and institu-

tional environments where

appearance and ease of instal-

lation are critical.

DIMENSIONS

ELECTRICAL RATINGS

ORDERING INFORMATION

SAMPLE NUMBER: ST1

Model Number

ST1

Accessories (Order Separately)

1BRWH=Mounting Brackets (2) - White

1MSWH=Mounting Shelf - White

VK1=Voltmeter

WG9=Wire Guard

E N E R G Y D ATA

Input Current (Max.):

Model No. 120V 277V

ST1 .12A 05A

Rated Wattage to 87 1/2% of Rated D.C. Voltage Lamp Information

Type Wattage Number

Tungsten Halogen 12 29-66

Model DC Voltage 1 1/2 Hours 2 Hours

ST1 6 27 24

SURE-LITES®

93

COOPER LIGHTING

CHICAGO CODE

93

COOPER LIGHTING

FBP SERIES

Fluorescent

B a t t e r y P a c k

CHICAGO CODE

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> Compatible with many

different lamp types

> Sealed nickel cadmium

batteries

> Solid-State charger,

overload/short-circuit

protection, test switch/

power indicator light

> Can be installed inside or

on top of a fixture

> May be used with

switched or unswitched

fixtures

> Compatible with many

ballast types including

standard, rapid-start,

slimline, instant-start,

energy-saving, dimming

and electronic AC ballasts -

consult your Cooper

Lighting Representative

regarding specific applica-

tions

> UL 924 Listed, UL Listed

for Retrofit/ Field

Installation, Life Safety

NFPA 101, NEC/OSHA,

most state and local codes

> Chicago approved

DESCRIPTION

When AC power fails,

the Sure-Lites FBP

Emergency Battery

Pack automatically

switches on. It main-

tains illumination of

one or two lamps for

a minimum of 90 min-

utes. UL Listed for

field retrofit installa-

tion.

DIMENSIONS

Model Dimensions

A B C

FBP140X 9.4” 2.4” 1.5”

FBP240U 9.4” 2.4” 1.5”

FBP240M 9.4” 2.4” 1.5”

FBP240H 13.3” 2.4” 1.5”

FBP240C 9.4” 2.4” 1.5” (Flex=28”L)

FBP240D 9.4” 2.4” 1.5” (Flex=28”L)

FBP3500 16.3” 5.5” 1.7” (Flex=28”L)

ORDERING INFORMATION

SAMPLE NUMBER: FBP140X

ELECTRICAL RATINGS AND ORDERING INFORMATION

Number of Lamps

Model Lamp Type Operated in Emergency Mode Initial Lumens

FBP140X 20W-40W, 2'-4', T8-T12 U-shaped, circleline, One 350-450

2D, energy saving, rapid start (4-pin, 2G11)

long compact fluorescent

FBP240U 17W-215W, 2'-8', T8-T12 HO, VHO, U-shaped, One 600-700

circleline, 2D, energy saving, rapid start

(4-pin, 2G11) long compact fluorescent

FBP240M 17W-215W, 2’-8’, T8-T12 HO, VHO, U-shaped, One–20W to 215W (2'-8') 600-700

circleline, 2D, energy saving, rapid start One–20W to 39W long compact fluorescent

(4 pin, 2G11) long compact fluorescent One or Two–20W to 40W (2'-4')

FBP240H 17W-215W, 2'-8', T8-T12 HO, VHO, U-shaped, One or Two - 17W to 24W 1100-1400

circleline, energy saving, rapid start (4-pin, One or Two - 32W to 40W (2'-4') (700-1000 for long

2G11 or G24q) long compact fluorescent One - 40W to 215W (5'-8') compact fluorescent)

One or Two -18W to 39W

long compact fluorescent

One or Two - 18W to 28W

quad compact fluorescent

FBP240C 6W-28W tubular without integral starter, One or Two–6W to 28W tubular 300-750

13W-42W 4-pin twin, quad, or triple twin-tube One or Two–13W to 32W or

compact fluorescent without integral starters One–42W 4-pin compact fluorescent

FBP240D 18W-26W quad tube with integral starter in One–18W to 26W compact fluorescent 300-650

two pin base

FBP3500 17W-215W, 2'-8', T-8-T12 HO, VHO, One or Two-17W to 40W (2"-4") 1450-3500

U-shaped circleline, energy saving and One-40W to 215W (5'-8')

(4-pin, 2G11, G24Q, or GX240) twin, One or Two-18W to 49W long

quad and triple twin-tube compacts compact fluorescent

One-40W to 55W long

compact fluorescent

One or Two-18W to 42W 4-pin

compact fluorescent

FBP140X

FBP240U

FBP240M

FBP240H

FBP240C

FBP240D

FBP3500

Accessories

(Order separately)

FBP1WBC=Wire Bundle Cover for

external mount applications

(2 required)

E n e rg y D a t a

Input Power

Model No. 120V

FBP140X 4.5W

FBP240U 5.3W

FBP240M 5.3W

FBP240H 5.8W

FBP240C 5.3W

FBP240D 3.5W

FBP3500 8.0W

SURE-LITES®

94

CHICAGO CODE

COOPER LIGHTING

94 COOPER LIGHTING

CHX SERIES

Steel

AC Only

CHICAGO CODE

EXIT LIGHTING

> Dual 120/277 VAC input

voltage, LED only

> 120 VAC input voltage,

Incandescent and

Fluorescent only

> 20 gauge steel housing,

white finish

> LED, Incandescent, or

Fluorescent lamping

> Universal pattern knockouts

on rear for direct mounting

to junction box

> Steel canopy (where

supplied) allows ceiling or

end mounting

> Full length 3/4" stroke arrow

on directional exits

> Red silkscreened lettering

on white translucent, heat

tempered, Impact-resistant

glass lens

> Other open face lenses

available – consult Cooper

Lighting Representative

> Lens installs from side of

fixture for more convenient,

safe maintenance

> Louvered downlight

standard

> UL Damp Location Listed

> UL 924 Listed , Life Safety

NFPA 101, NEC/OSHA,

> City of Chicago Approved

AC LED SERIES ONLY

DESCRIPTION

The Sure-Lites CHX Series

Exits are the ideal exits for

general purpose applications.

An extensive range of field

installed accessories, choice

of faces, and the variety

of possible mounting

configurations permit the

tailoring of this exit to almost

any application. Durable steel

construction, attractive styling,

and high efficiency

illumination make this series

compatible in commercial,

institutional, and multi-

housing applications.

DIMENSIONS

Incandescent, Fluorescent, CHX4 and CHX2 Series

LED, CHX6 Series

6 3/4”

[171mm]

6 3/4”

[171mm]

4 1/2”

[114mm]

7/8”

[22mm]

9”

[229mm]

14 3/8”

[365mm]

4 1/2”

[114mm]

12 1/4”

[311mm]

4 1/2”

[114mm]

7/8”

[22mm]

2 5/16”

[59mm]

2 5/16”

[59mm]

9”

[229mm]

12 1/4”

[311mm]

E n e rg y D a t a

Input Power

Model No. 120V 277V

CHX - Incandescent 40W 44W

Input Power

Model No. 120V 277V

CHX - Fluorescent 14W 23W

Input Power

Model No. 120V 277V

CHX - LED 7W 7W

ORDERING INFORMATION

SAMPLE NUMBER: CHX203

Accessories (Order

Separately)

DC Socket Kit1

DCE6=Two 6V, 3.6W DC

Lamps

DCE12=Two 12V, 3.6W DC

Lamps

Canopy Kit

CHX1C=White

Power Pack1

CHX3500P=White

277V Conversion Canopy1

PLC277P=White

Pendant Kit

PK18WH=White, 18" Long

Wire Guard

Choose size of wire guard

desired from Accessories

sheet

“STAIR” Lens

004260SP=No Arrow

004261SP=Arrow Left

004262SP=Arrow Right

004263SP=Double Arrow

“EXIT” Lens

004213SP=No Arrow

004214SP=Arrow Left

004215SP=Arrow Right

004216SP=Double Arrow

Model Number

See chart

above

STEEL EXITS - AC ONLY

Type Mounting No Arrow Arrow Right Arrow Left Double Arrow

CHX Series Exits

AC Only Incandescent

Single Face Wall CHX203 CHX206 CHX209 CHX212

Single Face w/Canopy Wall/Ceiling/End CHX203C CHX206C CHX209C CHX212C

Double Face w/Canopy Ceiling/End CHX218C CHX221C CHX221C CHX224C

AC Only Fluorescent

Single Face Wall CHX403 CHX406 CHX409 CHX412

Single Face w/Canopy Wall/Ceiling/End CHX403C CHX406C CHX409C CHX412C

Double Face w/Canopy Ceiling/End CHX418C CHX421C CHX421C CHX424C

AC Only LED

Single Face Wall CHX603 CHX606 CHX609 CHX612

Single Face w/Canopy Wall/Ceiling/End CHX603C CHX606C CHX609C CHX612C

Double Face w/Canopy Ceiling/End CHX618C CHX621C CHX621C CHX624C

1Incandescent and Fluorescent Fixtures Only.

SURE-LITES®

Type Mounting No Arrow Arrow Right Arrow Left Double Arrow

Self Powered Incandescent

Single Face Wall CHX303 CHX306 CHX309 CHX312

Single Face w/Canopy Wall/Ceiling/End CHX303C CHX306C CHX309C CHX312C

Double Face w/Canopy Ceiling/End CHX318C CHX321C CHX321C CHX324C

Self Powered Incandescent – High Output

Single Face Wall CHXH303 CHXH306 CHXH309 CHXH312

Single Face w/Canopy Wall/Ceiling/End CHXH303C CHXH306C CHXH309C CHXH312C

Double Face w/Canopy Ceiling/End CHXH318C CHXH321C CHXH321C CHXH324C

Self Powered Incandescent With Double Heads

Single Face Wall CHX303DH CHX306DH CHX309DH CHX312DH

Single Face w/Canopy Wall/Ceiling/End CHX303DHC CHX306DHC CHX309DHC CHX312DHC

Double Face w/Canopy Ceiling/End CHX318DHC CHX321DHC CHX321DHC CHX324DHC

Self Powered Fluorescent

Single Face Wall CHX503 CHX506 CHX509 CHX512

Single Face w/Canopy Wall/Ceiling/End CHX503C CHX506C CHX509C CHX512C

Double Face w/Canopy Ceiling/End CHX518C CHX521C CHX521C CHX524C

Self Powered Fluorescent – High Output

Single Face Wall CHXH503 CHXH506 CHXH509 CHXH512

Single Face w/Canopy Wall/Ceiling/End CHXH503C CHXH506C CHXH509C CHXH512C

Double Face w/Canopy Ceiling/End CHXH518C CHXH521C CHXH521C CHXH524C

Self Powered Fluorescent With Double Heads

Single Face Wall CHX503DH CHX506DH CHX509DH CHX512DH

Single Face w/Canopy Wall/Ceiling/End CHX503DHC CHX506DHC CHX509DHC CHX512DHC

Double Face w/Canopy Ceiling/End CHX518DHC CHX521DHC CHX521DHC CHX524DHC

Self Powered LED2

Single Face Wall CHX703 CHX706 CHX709 CHX712

Single Face w/Canopy Wall/Ceiling/End CHX703C CHX706C CHX709C CHX712C

Double Face w/Canopy Ceiling/End CHX718C CHX721C CHX721C CHX724C

WAT TA G E R AT I N G

CHX Series=7.2W for 2 hrs.;CHXH Series=7.2W for 4 hrs., 32W for 1 1/2 hrs.(7.2W plus 24W Remote);CHX Double Head Series=32W for 1 1/2 hrs.

SAMPLE NUMBERS: CHX Series CHX303, High Output Series CHXH303, CHX Double Head Series CHX303DH

95

COOPER LIGHTING

CHICAGO CODE

95

COOPER LIGHTING

CHX/CHXH

SERIES

Steel

Self-Powered

CHICAGO CODE

EMERGENCY LIGHTING

> Dual-voltage input

120/277VAC, 60Hz

> 20 gauge steel housing,

white finish

> LED, Incandescent or

Fluorescent lamping

> Universal pattern knock-

outs on rear for direct

mounting to junction box

> Full length, 3/4" stroke

arrow on directional exits

> Red silkscreened lettering

on white phosphorescent,

heat tempered, Impact-

resistant glass lens

> Lens installs from side of

fixture

> Louvered downlight

> Line-latching, solid-state

voltage limited charger,

solid-state switching, low-

voltage disconnect,

brownout circuit, over-

load/short-circuit protec-

tion, test switch/power

indicator light

> UL 924 Listed , Life Safety

NFPA 101, NEC/OSHA

> City of Chicago Approved

DIMENSIONS DESCRIPTION

The Sure-Lites CHX Series

Exits are ideal exits for

general purpose applications.

An extensive range of field

installed accessories, choice

of faces and the variety of

possible mounting

configurations permit the

tailoring of this exit to almost

any application. Durable steel

construction, attractive styling

and high efficiency

illumination make this series

compatible in commercial,

institutional, and multi-

housing applications.

E n e rg y D a t a

Input Power

Model No. 120V 277V

CHX - Incandescent 52W 52W

Input Power

Model No. 120V 277V

CHX - Fluorescent 23W 23W

Input

Power

Model No. 120V 277V

CHX - LED2 11W 12W

Standby Mode (Fully Charged)

Sealed Lead Calcium Battery

Input Power consumption is reduced by

approximately 7 Watts in the standby

operating mode for incandescent and

fluorescent exits.

ORDERING INFORMATION

SAMPLE NUMBER: CHX303

Accessories (order separately)

Pendant Kit

PK18WH=White, 18" long

Canopy Kit

CHX1C=White

Wire Guard

Choose size of wire guard

desired from Accessories

sheet

“STAIR” Lens

004260SP=No Arrow

004261SP=Arrow Left

004262SP=Arrow Right

004263SP=Double Arrow

“EXIT” Lens

004213SP=No Arrow

004214SP=Arrow Left

004215SP=Arrow Right

004216SP=Double Arrow

Remote Head—6V, 12W Single

Head1

6T12MHWH—Two Maximum

Remote Head—6V, 12W Each

Double Head1

6T12DMHWH—One Maximum

Model Number

See chart above

1Incandescent and Fluorescent Fixtures Only. 2Chicago Approved LED Fixtures Uses Long Life NI-CD Batteries, Standard.

S T E E L E X I T S - S E L F - P OW E R E D

6 3/4”

[171mm]

4 1/2”

[114mm]

7/8”

[22mm]

9”

[229mm]

7 5/8”

[194mm]

6 1/2”

[165mm]

14 3/8”

[365mm]

4 1/2”

[114mm]

12 1/4”

[311mm]

2 5/16”

[59mm]

SURE-LITES®

96

CHICAGO CODE

COOPER LIGHTING

96 COOPER LIGHTING

EAC SERIES

Extruded Aluminum

AC Only

CHICAGO CODE

EXIT LIGHTING

> 120 VAC input voltage

> Extruded aluminum

housing with mitered

corners and a satin

anodized aluminum

finish

> AC incandescent: two 20W

T6 1/2 intermediate base

lamps

> AC fluorescent: two 7W

compact fluorescent lamps

> AC lamps on separate

circuits

> Universal pattern knock-

outs on rear for direct

mounting to junction box

> Canopy (where supplied)

allows ceiling or end

mounting

> Full length 3/4" stroke

arrow on directional exits

> Red silkscreened lettering

on white translucent, heat

tempered, impact resistant

glass lens

> Other open face lenses

available – consult factory

> Lens installs from side of

fixture

> Louvered downlight

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA

> City of Chicago Approved

DESCRIPTION

The Sure-Lites EAC Exit Series

combines clean, functional

styling with the design benefits

and durability of aluminum con-

struction. The EAC Exit is com-

patible with any decor for use in

ceiling, wall or end-mount appli-

cations.

DIMENSIONS

120V AC 277V AC

ORDERING INFORMATION

SAMPLE NUMBER: EAC10003

Accessories (Order Separately)

DC Socket Kit

DCE6=Two 6V, 3.6W DC Lamps

DCE12=Two 12V, 3.6W DC Lamps

Canopy Kit

QE1030SP=Aluminum Finish

Pendant Kit

H2639=Aluminum Finish, 15" Long

WG10=Wire Guard

WGS11=Wire Guard (for canopy mount without heads)

“STAIR” Lens

004380SP = Arrow Left

004381SP = Arrow Right

004382SP = Double Arrow

004383SP = No Arrow

Model

Number

See chart above

EXTRUDED ALUMINUM - AC ONLY

Type Mounting No Arrow Arrow Right Arrow Left Double Arrow

AC Only Incandescent

Single Face (120V) Wall EAC10003 EAC10006 EAC10009 EAC100012

Single Face (277V) Wall EAC10013 EAC10016 EAC10019 EAC100112

Single Face w/Canopy (120V) Wall/Ceiling/End EAC20003 EAC20006 EAC20009 EAC200012

Single Face w/Canopy (277V) Wall/Ceiling/End EAC20013 EAC20016 EAC20019 EAC200112

Double Face w/Canopy (120V) Ceiling/End EAC300018 EAC300021 EAC300021 EAC300024

Double Face w/Canopy (277V) Ceiling/End EAC300118 EAC300121 EAC300121 EAC300124

AC Only Fluorescent

Single Face (120V) Wall EAC12003 EAC12006 EAC12009 EAC120012

Single Face (277V) Wall EAC12013 EAC12016 EAC12019 EAC120112

Single Face w/Canopy (120V) Wall/Ceiling/End EAC22003 EAC22006 EAC22009 EAC220012

Single Face w/Canopy (277V) Wall/Ceiling/End EAC22013 EAC22016 EAC22019 EAC220112

Double Face w/Canopy (120V) Ceiling/End EAC320018 EAC320021 EAC320021 EAC320024

Double Face w/Canopy (277V) Ceiling/End EAC320118 EAC320121 EAC320121 EAC320124

Energy Data

Input Power

Model No. 120V 277V

Incandescent 40W 44W

Fluorescent 15W 23W

SURE-LITES®

97

COOPER LIGHTING

CHICAGO CODE

97

COOPER LIGHTING

EAC SERIES

Extruded Aluminum

S e l f - P o w e r e d

CHICAGO CODE

EXIT LIGHTING

> Dual voltage input

120/277VAC, 60Hz

> Extruded aluminum

housing with mitered

corners and a satin

anodized aluminum

finish

> AC incandescent: two 20W

T6 1/2 intermediate base

lamps

> AC fluorescent: two 7W

compact fluorescent lamps

> DC: two 6V, 3.6W DC

lamps

> Universal pattern knock-

outs on rear for direct

mounting to junction box

> Full length 3/4” stroke

arrow on directional exits

> Red silkscreened lettering

on white phosphorescent,

heat tempered, impact

resistant glass lens

> Lens installs from side of

fixture

> Louvered downlight

> Line latching, solid-state

voltage limited charger ,

solid-state switching, low

voltage disconnect,

brownout circuit, overload/

short circuit protection,

test switch/power indicator

light

> UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA,

> City of Chicago Approved

DIMENSIONS DESCRIPTION

The Sure-Lites EAC Exit Series

combines clean, functional

styling with the design benefits

and durability of aluminum con-

struction. The EAC Exit is com-

patible with any decor for use in

ceiling, wall or end-mount appli-

cations.

ORDERING INFORMATION

SAMPLE NUMBER: EAC40003

Accessories (order separately)

Pendant Kit

H2639=Aluminum Finish, 15" Long

Canopy Kit

QE1030SP=Aluminum Finish

WG10=Wire Guard

WGS11=Wire Guard (for canopy mount without heads)

“STAIR” Lens

004380PSSP = Arrow Left

004381PSSP = Arrow Right

004382PSSP = Double Arrow

004383PSSP = No Arrow

Model

Number

See chart above

EXTRUDED ALUMINUM - SELF-POWERED

Type Mounting No Arrow Arrow Right Arrow Left Double Arrow

Self-Powered Incandescent

Single Face Wall EAC40003 EAC40006 EAC40009 EAC400012

Single Face w/Canopy Wall/Ceiling/End EAC50003 EAC50006 EAC50009 EAC500012

Double Face w/Canopy Ceiling/End EAC600018 EAC600021 EAC600021 EAC600024

Self-Powered Fluorescent

Single Face Wall EAC42003 EAC42006 EAC42009 EAC420012

Single Face w/Canopy Wall/Ceiling/End EAC52003 EAC52006 EAC52009 EAC520012

Double Face w/Canopy Ceiling/End EAC620018 EAC620021 EAC620021 EAC620024

WAT TA G E R AT I N G

Lead Calcium Batteries: 7.2W for 2 Hrs.

E N E R G Y D ATA

Charge Mode (Fully Discharged Battery) Sealed Lead Calcium Battery

Input Power; Input Current (Max.):Power Factor: T.H.D.:

120V 277V 120V 277V 120V 277V 120V 277V

Incandescent Exits - 20W Lamps 52W 52W .44A .20A — — — —

Fluorescent Exits - 7W Lamps 30W 30W .44A .20A — — — —

Standby Mode (Fully Charged Battery)

Sealed Lead Calcium Battery Input Power consumption is reduced by approxi-

mately 7.5 Watts in the standby operating mode.

SURE-LITES®

98

LIGHTING INVERTERS

COOPER LIGHTING

98 COOPER LIGHTING

MICRO

INVERTER

SERIES

5 0 0 VA - 2 , 0 0 0 VA

HID, Fluorescent and

Incandescent

ON-LINE POWER

INVERTER SYSTEMS

> Choice of 120V or 277VAC,

60Hz; other voltages

available, Consult Cooper

Lighting Representative.

> Available from 500 to 2000

Watts (Field upgradeable)

> Single Phase

> Formed 16 gauge steel

housing is finished in a

durable powder coat finish

> Small footprint, light-

weight size allows for

wall and floor mounting

> Modular design for ease of

installation when space is

at a premium

> Self Testing and Diagnostic

with Event, Test and Alarm

logs

> User programmable with

password protection for

alarms and diagnostics

> 98% efficient in standby

mode - no fan needed for

cooling

> Battery, Input and Output

Protection Circuit Breakers

> Front circuit breaker and

fuse access panel for easy

routine maintenance

> Maintenance Free Sealed

Lead Calcium Batteries

> UL 924 Listed, Meets NFPA

101 Requirements

> City of Chicago approved

The Sure-Lites Micro Series

fast transfer inverter is a

lightweight, compact unit

that takes the place of larger

cabinets when space is at a

premium. The new modular

design allows the Micro

Series inverter to be config-

ured to meet varying KW

requirements from 500W to

2000W. The Micro can be

configured at the factory to

meet the specified job load

requirements or it can be

field configured at the job

site when an upgrade or

downgrade in load capacity

is needed. In addition, the

versatility of the modular

design allows the individual

inverter and battery cabinets

to be mounted on the floor

or wall, side by side, or

stacked when mounting

space is at a premium. The

Micro Series individual

inverter and individual bat-

tery cabinets are only 26"W

x 10"H x 10"D providing the

smallest inverter footprint in

the industry. The Micro

Series inverter is UL924 list-

ed and meets NFPA 101

requirements providing the

full 90 minutes of illumina-

tion for emergency egress

lighting.

DESCRIPTION DIMENSIONS

SPECIFICATION DATA

INVERTER MODULE

BATTERY MODULE

Input Voltage 120 or 277 VAC, Two wire plus ground, +10/-15%

Input Frequency 60Hz, ±3Hz

Synchronizing Slew Rate 1Hz per second

Input Protection Input Circuit Breaker

Output Voltage 120 or 277 VAC, Three Wire

Current Crest Factor 2.8 = peak/rms

Voltage THD <3% THD for Linear Load

Output Frequency 60 Hz. ±0.05Hz Crystal Controlled

Inverter Overload 115% for 5 minutes

Output Voltage Regulation ±3% for ±25% load step change

Output Protection (1) Output Circuit Breaker

Battery Sealed Lead Calcium VRLA

48 VDC for all models

Environmental

Altitude <10,000 feet without derating

Operating Temp. 20˚ to +30˚C

Storage Temp. -20° to 70°C (Electronics Only)

Relative Humidity <95% (non-condensing)

10”

[254mm]

10”

[254mm]

10”

[254mm]

26”

[660mm]

26”

[660mm]

LIFEWAY II MICRO SERIES SYSTEM PART NUMBER/ RATING/ MECHANICAL SPECIFICATIONS

Part Wattage VA Input Output Battery Weight System Weight Cabinet Cabinet

Number Rating Rating Voltage Voltage (lbs.) (lbs.) H" x W" x D" Qty

CMFT005 500 500 120 or 277 120 or 277 107 206 10x26x10 2

CMFT010 1000 1000 120 or 277 120 or 277 214 335 10x26x10 3

CMFT015 1500 1500 120 or 277 120 or 277 321 464 10x26x10 4

CMFT020 2000 2000 120 or 277 120 or 277 427 592 10x26x10 5

ORDERING INFORMATION

SAMPLE NUMBER: CMFT

Series

CMFT=Micro

Inverter

Voltage Input

120

277

CMFT

VA Rating

005=500

010=1000

015=1500

020=2000

Options

See page 102 for options

Voltage Output

120

277

SURE-LITES®

99

COOPER LIGHTING

LIGHTING INVERTERS

99

COOPER LIGHTING

LIFEWAY II

SINGLE PHASE

IPS SERIES

1. 5 - 1 6 . 7 K VA

Fluorescent and

Incandescent

ON-LINE POWER

I N V E R T E R SYS T E M S

> Input 120 or 277VAC

1 phase 2 wire

> Custom voltages available

> Electronic and magnetic

ballast compatible

> Generator compatibility

> Forced air cooling only

during emergency

operation, no filters required

> 90 minute runtime standard;

other runtimes available

upon request

> 98% efficient PWM/IGBT

technology with micro-

processor control

> User programmable with

password protection

> Self-Testing and Self-

Diagnostic with Event, Test

and Alarm Logs

> RS232 communications port

> UL 924 listed

DIMENSIONS DESCRIPTION

The Sure-Lites Lifeway II

Single Phase inverter is an

interruptible, PWM inverter

type utilizing IGBT technology

with 50ms transfer time.

Should utility power fail, the

Lifeway II Single Phase invert-

er takes over and provides out-

put power to the critical load.

Its sealed lead calcium batter-

ies will power emergency

lighting circuits for 90 minutes

(UL 924). Other run times and

voltages available.

Consult Cooper Lighting

Representative.

SPECIFICATION DATA

LIFEWAY II SINGLE PHASE IPS SYSTEM PART NUMBER / RATING / MECHANICAL SPECIFICATIONS

Part Pwr Rtg Pwr Rtg Effic. Audible Heat Loss UPS Cabinet Dimensions UPS Battery Battery Battery Battery Cabinet Dimensions No. of Total Total

Number kVA kW @ full load Noise BTU Width Height Depth Weight Voltage Current Run Width Height Depth Battery No. of System

% db@1m in/cm in/cm in/cm lb/kg VDC Amperes Minutes in/cm in/cm in/cm Cabinets Cabinets Weight (lb/

IC1 1.5 1.5 98 45 75 30/77 47/120 25/64 250/114 48 39 90 na2 na2 na2 na2 1 546/249

IC2 2.25 2.25 98 45 100 30/77 47/120 25/64 265/121 72 38 90 na2 na2 na2 na2 1 709/323

IC3 3.0 3.0 98 45 160 30/77 47/120 25/64 295/134 96 38 90 na2 na2 na2 na2 1 887/403

IC4 3.75 3.75 98 45 200 30/77 47/120 25/64 305/139 120 37 90 na2 na2 na2 na2 1 1045/475

IC5 5.0 5.0 98 45 245 30/77 47/120 25/64 315/143 144 40 90 na2 na2 na2 na2 1 1203/546

IC6 6.0 6.0 98 45 300 30/77 47/120 25/64 350/159 180 40 90 30/77 47/120 25/64 1 2 1670/759

IC7 8.0 8.0 98 45 400 30/77 47/120 25/64 375/171 240 39 90 30/77 47/120 25/64 1 2 2087/949

IC8 10.0 10.0 98 45 500 30/77 47/120 25/64 435/198 144 82 90 30/77 47/120 25/64 2 3 2631/1195

IC9 12.5 12.5 98 45 660 30/77 47/120 25/64 465/211 180 82 90 30/77 47/120 25/64 2 3 3105/1409

IC10 16.7 16.7 98 45 840 30/77 47/120 25/64 530/241 240 80 90 30/77 47/120 25/64 2 3 3954/1795

Input Voltage 120 or 277VAC 1-phase 2 wire +10%-15%. Contact factory for all other voltages.

Input Frequency 60Hz, ±3%, 50Hz available upon request

Input Protection Input Circuit Breaker

Input Harmonic Distortion <10%

Input Power Factor 0.5 lag/lead

Output Voltage 120 or 277VAC 1-phase 2 wire. Contact factory for all other voltages.

Static Voltage Load current change ±2%, battery discharge ±12.5%

Dynamic Voltage ±2% for ±25% load step change, ±3% for a 50% load step change, recovery within 3

cycles

Output Harmonic Distortion <3% THD for linear load

Output Frequency 60 Hz. ±0.05Hz during emergency mode

Load Power Factor 0.5 lag to 0.5 lead

Inverter Overload 125% for 5 minutes

Output Protection Optional Distribution Circuit Breakers

Battery 10 Year Valve-regulated Sealed Lead Calcium (standard)

Environmental

Altitude <10,000 feet without derating

Operating Temp. System operates safely from 0° to 40°C (32° to 104°F) up to 95% humidity. UL rating,

20° to 30°C (68° to 86°F), includes battery performance wich can be affected by

temperature. Contact factory for details.

Storage Temp. -20° to 70°C (Electronics Only)

Humidity <95% (non-condensing)

A

BC

Height Width Depth

A B C

47" 30" 25"

ORDERING INFORMATION

SAMPLE NUMBER: IC3120120

Series

IC=Single

Phase IPS

Voltage Input

120

277

IC

KVA Rating Voltage Output

120

277

1=1.5

2=2.25

3=3.0

4=3.75

5=5.0

6=6.0

7=8.0

8=10.0

9=12.5

10=16.7

Options

See page 102 for options

SURE-LITES®

ORDERING INFORMATION

SAMPLE NUMBER: ISC037120120

100

LIGHTING INVERTERS

COOPER LIGHTING

100 COOPER LIGHTING

LIFEWAY II

SINGLE PHASE

C SERIES

1.5-16.7 KVA

HID, Fluorescent and

Incandescent

ON-LINE POWER

INVERTER SYSTEMS

> Input 120 or 277VAC

1 phase 2 wire

> Custom voltages available

> Electronic and magnetic bal-

last compatible

> Generator compatibility

> Forced air cooling only dur-

ing emergency

operation, no filters

required

> 90 minute runtime standard;

other runtimes available

upon request

> 98% efficient PWM/IGBT

technology with micro-

processor control

> User programmable with

password protection

> Self-Testing and Self-

Diagnostic with Event, Test

and Alarm Logs

> RS232 communications port

> UL 924 listed

DESCRIPTION

The Sure-Lites Lifeway II C

Series is a single phase

inverter that provides uninter-

rupted power. This pulse

width modulated inverter uti-

lizes IGBT technology and has

a 2 millisecond transfer time.

The unit’s operating efficiency

is 98%, well above a typical

fast transfer inverter. The C

Series inverter is UL 924

Listed and meets NFPA 101

requirements by providing 90

minutes of illumination for

emergency egress lighting.

Other run times and voltages

are available. Please consult

your Cooper Lighting

Representative.

DIMENSIONS

A

BC

Height Width Depth

A B C

47" 30" 25"

SPECIFICATION DATA

Input Voltage 120 or 277VAC 1-phase 2 wire +10%-15%. Contact factory for all other voltages.

Input Frequency 60Hz, ±3%

Input Protection Input Circuit Breaker

Input Harmonic Distortion <10%

Input Power Factor 0.5 lag/lead

Output Voltage 120 or 277VAC 1-phase 2 wire. Contact factory for all other voltages.

Static Voltage Load current change ±2%, battery discharge ±12.5%

Dynamic Voltage ±2% for ±25% load step change, ±3% for a 50% load step change, recovery within 3

cycles

Output Harmonic Distortion <3% THD for linear load

Output Frequency 60 Hz. ±0.05Hz during emergency mode

Load Power Factor 0.5 lag to 0.5 lead

Inverter Overload 125% for 5 minutes

Output Protection Optional Distribution Circuit Breakers

Battery 10 Year Valve-regulated Sealed Lead Calcium (standard)

Environmental

Altitude <10,000 feet without derating

Operating Temp. System operates safely from 0° to 40°C (32° to 104°F) up to 95% humidity. UL rating,

20° to 30°C (68° to 86°F), includes battery performance wich can be affected by

temperature. Contact factory for details.

Storage Temp. -20° to 70°C (Electronics Only)

Humidity <95% (non-condensing)

LIFEWAY II SINGLE PHASE C SYSTEM PART NUMBER / RATING / MECHANICAL SPECIFICATIONS

Part Pwr Rtg Pwr Rtg Effic. Audible Heat Loss UPS Cabinet Dimensions UPS Battery Battery Battery Battery Cabinet Dimensions No. of Total Total

Number kVA kW @ full load Noise BTU Width Height Depth Weight Voltage Current Run Width Height Depth Battery No. of System

% db@1m in/cm in/cm in/cm lb/kg VDC Amperes Minutes in/cm in/cm in/cm Cabinets Cabinets Weight (lb/kg)

ISC015 1.5 1.5 98 45 75 30/77 47/120 25/64 250/114 48 39 90 na2 na2 na2 na2 1 546/249

ISC022 2.25 2.25 98 45 100 30/77 47/120 25/64 265/121 72 38 90 na2 na2 na2 na2 1 709/323

ISC030 3.0 3.0 98 45 160 30/77 47/120 25/64 295/134 96 38 90 na2 na2 na2 na2 1 887/403

ISC037 3.75 3.75 98 45 200 30/77 47/120 25/64 305/139 120 37 90 na2 na2 na2 na2 1 1045/475

ISC048 4.8 4.8 98 45 245 30/77 47/120 25/64 315/143 144 40 90 na2 na2 na2 na2 1 1203/546

ISC060 6.0 6.0 98 45 300 30/77 47/120 25/64 350/159 180 40 90 30/77 47/120 25/64 1 2 1670/759

ISC080 8.0 8.0 98 45 400 30/77 47/120 25/64 375/171 240 39 90 30/77 47/120 25/64 1 2 2087/949

ISC100 10.0 10.0 98 45 500 30/77 47/120 25/64 435/198 144 82 90 30/77 47/120 25/64 2 3 2631/1195

ISC125 12.5 12.5 98 45 660 30/77 47/120 25/64 465/211 180 82 90 30/77 47/120 25/64 2 3 3105/1409

ISC167 16.7 16.7 98 45 840 30/77 47/120 25/64 530/241 240 80 90 30/77 47/120 25/64 2 3 3954/1795

Series

ISC=Single

Phase C

Voltage Input

120

277

ISC

KVA Rating Voltage Output

120

277

015=1.5

022=2.25

030=3.0

037=3.75

048=4.8

060=6.0

080=8.0

100=10.0

125=12.5

167=16.7

Options

See page 102 for options

SURE-LITES®

101

COOPER LIGHTING

LIGHTING INVERTERS

101

COOPER LIGHTING

DIMENSIONS DESCRIPTION

The Sure-Lites Lifeway II Three

Phase represents the highest

performance in uninterruptible

technology while the transis-

torized inverter is providing

power protection. Ready for

virtually any emergency with

this stand by power system.

This pulse width modulated

inverter has 2 millisecond

transfer time. The AC in to AC

out operating efficiency is typi-

cally 98%, well above a typical

fast transfer inverter. The inter-

nal construction of each cabi-

net consists of an AC to DC

battery charger, DC to AC

inverter.

SPECIFICATION DATA

Input Voltage 120/208 or 277/480VAC 3-phase 4 wire +1%-15% (Wye configuration)

Input Frequency 60Hz, ±3%, 50Hz available upon request

Input Protection Input Circuit Breaker

Input Harmonic Distortion <10%

Input Power Factor .5 lag/lead

Output Voltage 120/208 or 277/480VAC 3-phase 4 wire (Wye or Delta configuration)

Static Voltage Load current change ±4%, battery discharge ±4%

Dynamic Voltage ±3% for ±25% load step change, ±6% for a 50% load step change, recovery within

3 cycles

Output Harmonic Distortion <3% THD for linear load

Output Frequency 60 Hz. ±0.05Hz during emergency mode

Load Power Factor .5 lag to .5 lead

Inverter Overload 115% for 5 minutes

Output Protection Output Circuit Breaker (Optional)

Battery 10 Year Valve Regulated Sealed Lead Calcium

Environmental

Altitude <10,000 feet without derating

Operating Temp. 20˚ to +30˚C

Storage Temp. -20° to 70°C (Electronics Only)

Humidity <95% (non-condensing)

A

BC

Height Width Depth

Models A B C

C3FT-004 thru 016 47" 30" 25"

C3FT-024 thru 050 72" 44" 31"

C3FT024 thru 050* 72” 48” 31”

LIFEWAY II

THREE PHASE

SERIES

4.8 - 50 kVA

HID, Fluorescent and

Incandescent

ON-LINE POWER

I N V E R T E R SYS T E M S

> Choice of 120/208 VAC or

277/480 VAC, 60 Hz; other

voltages available, consult

Cooper Lighting

Representative

> Three Phase, WYE or

DELTA configurations

> 98% efficiency

> Formed steel cabinet and

doors are finished in a

durable powder coat

> Acoustically Quiet

> PWM/GBT Technology

> Sine wave output

> 80db transverse mode

noise attenuation

> 120db common mode

noise attenuation

> Battery circuit breaker on

24 kVA and up

> RS-232 Communication

> UL 924 Listed

LIFEWAY II THREE PHASE SYSTEM PART NUMBER / RATING / MECHANICAL SPECIFICATIONS

Part Pwr Rtg Pwr Rtg Effic. Audible Heat Loss UPS Cabinet Dimensions UPS Battery Battery Battery Battery Cabinet Dimensions No. of Total Total

Number kVA kW @ full load Noise BTU Width Height Depth Weight Voltage Current Run Width Height Depth Battery No. of System

% db @/m in/cm in/cm in/cm lb/kg VDC Amperes Minutes in/cm in/cm in/cm Cabinets Cabinets Weight (lb/kg)

C3FT004 4.8 4.8 97 45 326 30/77 47/120 25/64 535/243 144 39 90 30/77 47/120 25/64 1 2 1633/741

C3FT006 6.0 6.0 97 45 408 30/77 47/120 25/64 535/243 180 39 90 30/77 47/120 25/64 1 2 1855/842

C3FT008 8.0 8.0 97 45 544 30/77 47/120 25/64 535/243 240 39 90 30/77 47/120 25/64 1 2 2247/1020

C3FT010 10.0 10.0 97 45 680 30/77 47/120 25/64 639/290 144 81 90 30/77 47/120 25/64 2 3 2835/1286

C3FT012 12.5 12.5 97 45 850 30/77 47/120 25/64 639/290 180 81 90 30/77 47/120 25/64 2 3 3279/1488

C3FT016 16.7 16.7 97 45 1136 30/77 47/120 25/64 639/290 240 81 90 30/77 47/120 25/64 2 3 4063/1843

C3FT024 24.0 24.0 97 45 1632 44/112 72/183 31/79 1250/567 240 117 90 48/122 72/183 31/79 1 2 6390/2899

C3FT033 33.0 33.0 97 45 2244 44/112 72/183 31/79 1250/567 240 160 90 48/122 72/183 31/79 2 3 8630/3915

C3FT040 40.0 40.0 97 45 2720 44/112 72/183 31/79 1450/658 240 194 90 48/122 72/183 31/79 2 3 10150/4604

C3FT050 50.0 50.0 97 45 3400 44/112 72/183 31/79 1450/658 240 243 90 48/122 72/183 31/79 2 3 11980/5434

ORDERING INFORMATION

SAMPLE NUMBER: C3FT004120120

Series

C3FT=Three

Phase

Voltage Input

120=120/208

277=277/480

C3FT

KVA Rating Voltage Output

120=120/208

277=277/480

004=4.8

006=6.0

008=8.0

010=10.0

012=12.5

016=16.7

024=24.0

033=33.0

040=40.0

050=50.0

Options

See page 102 for options

* Battery Cabinets

SURE-LITES®

102

LIGHTING INVERTERS

COOPER LIGHTING

102 COOPER LIGHTING

A Auto Dialer/Pager

C Normally Off Dry Contact (Inverter On)

D Dimmer Bypass Relay

FAX Fax/Modem (utility, inverter & output failure notification)

F Battery Charger Upgrade (12 Hour Recharge)

G 20 Year Premium Sealed Lead Calcium Battery

M Maintenance Bypass Switch (MB4B) (External or Internal)

R Remote Meter Panel

RSAP Remote Summary Alarm Panel

S Summary Dry Contacts (Form “C”)

T Output Circuit Breaker Trip Alarm

V Variable Time Delay Circuit

Z Zone Monitoring (16 amps Maximum)

IPS Series - IC

A Auto Dialer/Pager

F Battery Charger Upgrade (12 Hour Recharge)

FAX Fax/Modem (utility, inverter & output failure notification)

G 20 Year Premium Sealed Lead Calcium Battery

M Maintenance Bypass Switch (MB4B) (External or Internal)

N Normally-Off Output Circuit

RMP Remote Meter Panel

RSAP Remote Summary Alarm Panel

S Summary Dry Contacts (Form “C”)

T Output Circuit Breaker Trip Alarm

C Series - ISC

A Auto Dialer/Pager

F Battery Charger Upgrade (12 Hour Recharge)

FAX Fax/Modem (utility, inverter & output failure notification)

G 20 Year Premium Sealed Lead Calcium Battery

N1 Normally-Off Output Circuit, single phase

N3 Normally-Off Output Circuit, three phase

RMP Remote Meter Panel

RSAP Remote Summary Alarm Panel

S Summary Dry Contacts (Form “C”)

T Output Circuit Breaker Trip Alarm

- output trip alarm is not available on 24k-50k systems

NI-CAD Nickel-Cadmium Battery

* Consult factory for additional options and available accessories.

Three Phase Series - C3FT

T Circuit Breaker Trip Alarm

R RS-232 Diagnostic Interface (DB9)

S Summary Dry Contacts (Form “C”)

N Normally Off Output

A Remote Summary Alarm

M Remote Meter Panel

Micro Inverter Series-CMFT

W X YY ZZ

Output Circuit Breakers

W = Output - YY = Amp Rating (10, 20)

B = Normally On

N = Normally Off

X = Pole - ZZ = Qty 01-12 Micro Inverter = 3 max. without trip alarm

1 with trip alarm

A = 120 Volt

B = 208 Volt

C = 240 Volt

D = 277 Volt

INVERTERS - FACTORY OPTIONS

SURE-LITES®

103

COOPER LIGHTING

REFERENCE > Factory Options

103

COOPER LIGHTING

REFERENCE-FACTORY OPTIONS

PCL Polycarbonate Lens

MH Metal Heads

A Ammeter

TDM Time Delay Monitor

TH Thermal Heater

V Voltmeter

ORDERING INFORMATION – EMERGENCY LIGHTING

UNIT OPTIONS1

Ammeter provides an easily interpreted display of the

charger current level.

SPECIFICATION FEATURES – AMMETER

EMERGENCY LIGHTING OPTIONS

Factory installed voltmeter provides an easily interpreted

display of the battery voltage.

SPECIFICATION FEATURES – VOLTMETER

Impact-resistant lens provides high degree of protection

from breakage.

SPECIFICATION FEATURES – POLYCARBONATE LENS

Time delay monitor keeps the emergency lamps on after

AC power has been restored for a predetermined period

of time (15 minutes is standard); allows sufficient time for

HID fixtures to resume normal illumination.

SPECIFICATION FEATURES – TIME DELAY MONITOR

The metal housing is made of corrosion resistant, 22

gauge spun aluminum with a baked acrylic enamel finish

to match fixture color.

Die cast aluminum swivel assembly has 80° aiming

adjustment from vertical.

SPECIFICATION FEATURES – METAL HEADS

The 10 Watt Thermal Heater raises the temperature in the

battery compartment of the unit when used in extreme

cold conditions. The thermal heater operates at 110 VAC

and is UL Listed.

SPECIFICATION FEATURES – THERMAL HEATER

Flashes the DC lamps of exits in the emergency mode.

SPECIFICATION FEATURES – FLASHER

Flashes the DC lamps of exits in emergency mode in combination with an

audible signal.

SPECIFICATION FEATURES – FLASHER/BUZZER

#8-32 Button Head Stainless Steel Screws

Centerpin Torx tamper resistant type

Qty. 4 per fixture

Requires Sure-Lites No. VRSD Screwdriver

SPECIFICATION FEATURES – TAMPERPROOF SCREWS

1/8" thick clear polycarbonate

Vandal Shield is L-shaped on single face CAX Series Exits, U-shaped on

double face CAR Series Exits

(4) #6-32 Flat Head Stainless Steel Screws Centerpin Torx®tamper resistant

type

SPECIFICATION FEATURES –VANDAL SHIELD AND TAMPERPROOF

SCREWS

Fire Alarm Interface Option allows AC incandescent or LED lamps to flash

in non-emergency mode and the DC lamps to flash in an emergency mode

when a fire alarm signal is received by the exit fixture from a fire alarm

panel.

SPECIFICATION FEATURES – DC FIRE ALARM INTERFACE FOR

EXITS

Fire Alarm Interface Option allows AC incandescent or LED lamps to flash

when a fire alarm signal is received by the exit fixture from a fire alarm

panel.

SPECIFICATION FEATURES –AC ONLY FIRE ALARM INTERFACE

FOR EXITS

Catalog

Number

Suffix Description

70 Nickel Cadmium Battery

20 Flasher

30 Flasher/Buzzer

65 Tamperproof Screws

85 Vandal Shield with Tamperproof Screws

90 DC Fire Alarm Interface

95 AC Only Fire Alarm Interface

ORDERING INFORMATION – EXIT LIGHTING OPTIONS1

EXIT LIGHTING OPTIONS

Catalog

Number

Suffix Description

1See individual product ordering information for availability.

SURE-LITES®

104

TECHNICAL INFORMATION > Self Diagnostic

COOPER LIGHTING

104 COOPER LIGHTING

WatchGuard EMS SD

(Electronic Monitoring System)

Self Diagnostic

Factory Installed

Emergency Lighting

Exit Lighting

• The WatchGuard EMS

self-diagnostics option from

Sure-Lites sets the standard

for automatic stand-alone

testing of emergency

lighting units and battery

powered exits

• The Solid-State micro-

processor-based system

has the ability to accurately

diagnose failures to the

component level plus it

incorporates all of the

standard electronic features

that sets Sure-Lites apart

from its competition

• All testing required by the

NFPA 101 Life Safety Code

is performed automatically.

WatchGuard EMS even

automatically calibrates

itself in the field, reducing

installation labor and

eliminating manual

calibration errors

• Ultrasensitive detection

circuitry can sense lamp

failure in a circuit, as well

as slight variations in battery

and battery charger

performance

• UL 924 Listed, Life Safety

NFPA 101, NEC/OSHA, most

state and local codes

Version 1

Version 2

TECHNICAL INFORMATION - SELF DIAGNOSTIC

DESCRIPTION

DIAGNOSTIC INDICATORS - VERSION 1

Microprocessor Based System

ELECTRONIC

Checks battery charger, battery

voltage, lamps

A 30-second full functional test is

performed every 30 days

A 90-minute full function/battery

capacity test is performed every

6 months

System diagnoses failure to the

defective component level (bat-

tery, charger PC board, lamp) and

provides a visual diagnostic dis-

play through the LED indicator

light

Battery charge indicator differen-

tiates high charge and standby

charge mode

TEST PERFORMANCE

No special provisions required

for installation

Lamp loads are automatically

calibrated after battery initially

reaches a full charge.

INSTALLATION/OPERATION

UL 924 Listed

Life Safety NFPA 101

NEC/OSHA

Most State and Local Codes

CODE COMPLIANCE

INDICATOR COLOR MEANING ACTION

(STEADY) GREEN FLOAT CHARGE BATTERY FULLY CHARGED

(PULSE) GREEN HIGH CHARGE BATTERY BEING CHARGED AT HIGH RATE

(PULSE) RED BATTERY CAPACITY FAILURE TURN OFF AC, REPLACE BATTERY

-  RED BATTERY OPEN TURN OFF AC, CHECK BATTERY CONNECTIONS

- -  RED TRANSFORMER FAILURE TURN OFF AC, REPLACE TRANSFORMER

- - -  RED BATTERY CHARGER FAILURE TURN OFF AC, REPLACE PC BOARD

(PULSE) YELLOW EMERGENCY LAMP FAILURE REPLACE EMERGENCY LAMP

-  YELLOW EMER. LAMP SHORT/OVERLOAD CHECK LAMP LOAD, POSSIBLE SHORT

(ON EXITS WITH LIGHTING HEADS ONLY)

- -  YELLOW EXIT LAMP FAILURE REPLACE EXIT LAMP

- - -  YELLOW EXIT LAMP SHORT/OVERLOAD CHECK LAMP LOAD, POSSIBLE SHORT

DIAGNOSTIC INDICATORS - VERSION 2

INDICATOR COLOR MEANING ACTION

(STEADY) RED FLOAT CHARGE BATTERY FULLY CHARGED

(PULSE) RED HIGH CHARGE BATTERY BEING CHARGED AT HIGH RATE

-  RED BATTERY FAILURE TURN OFF AC, REPLACE BATTERY

- -  RED CIRCUIT FAILURE TURN OFF AC, REPLACE PC BOARD

- - -  RED LAMP FAILURE TURN OFF AC, REPLACE PC LAMP

SURE-LITES®

105

COOPER LIGHTING

TECHNICAL INFORMATION > Lamp Specifications

105

COOPER LIGHTING

TECHNICAL

INFORMATION

LAMP

SPECIFICATIONS

Lamp Initial

No. Volts Watts Type Lumens

L010777 4 4.8 Halogen Bi-Pin T21/4 69

29-139 6 5 MR16 Bi-Pin Base 45

29-146 6 5.4 Krypton Wedge Base 90

29-121 6 5.4 Incandescent Wedge Base 68

29-12 6 6 Halogen Bi-Pin T21/4 113

29-37 6 6 Halogen Sealed Beam 107

29-30 6 6.6 Incandescent DC Bayonet Base 75

29-75 6 7.2 Incandescent Sealed Beam 95

29-88 6 7.2 Incandescent Wedge Base 101

29-14 6 8 Halogen Sealed Beam 109

29-03 6 8 Incandescent Sealed Beam 108

29-114 6 8 Halogen Bi-Pin T21/4 163

29-143 6 9 MR16 Bi-Pin Base 90

29-84 6 9 Incandescent Wedge Base 151

29-40 6 10 Halogen Bi-Pin T21/4 201

29-36 6 10 Halogen Sealed Beam 191

29-140 6 12 MR16 Bi-Pin Base 145

29-15 6 12 Halogen Sealed Beam 302

29-66 6 12 Halogen Bi-Pin T21/4 234

29-39 6 12 Incandescent Sealed Beam 137

29-17 6 13 Incandescent DC Bayonet Base 189

29-13 6 18 Incandescent Sealed Beam 158

29-137 6 20 Halogen Bi-Pin T21/4 402

29-18 6 20 Halogen Sealed Beam 382

29-09 6 25 Incandescent Sealed Beam 318

29-53 12 7.5 Incandescent DC Bayonet Base 75

29-16 12 8 Halogen Sealed Beam 155

29-86 12 9 Incandescent Wedge Base 138

29-141 12 12 MR16 Bi-Pin Base 145

29-132 12 12 Incandescent Wedge Base 151

29-45 12 12 Halogen Bi-Pin T21/4 277

29-26 12 12 Incandescent Sealed Beam 177

29-79 12 12 Halogen Sealed Beam 266

29-24 12 13 Incandescent DC Bayonet Base 189

29-54 12 18 Incandescent DC Bayonet Base 264

29-19 12 18 Incandescent Sealed Beam 213

29-142 12 20 MR16 Bi-Pin Base 300

29-08 12 25 Incandescent Sealed Beam 327

29-55 12 28 Incandescent DC Bayonet Base 402

29-126 12 30 Incandescent Sealed Beam 390

29-134 12 37.5 Halogen Sealed Beam 825

29-144 12 50 MR16 Bi-Pin Base 850

29-135 12 50 Halogen Sealed Beam 1100

29-124 120 5 Compact Fluorescent Twin Tube, G23 Base 250

29-80 120 6 F6T5 Fluorescent Miniature Bi-Pin Cool White 295

Z-67 120 7 Compact Fluorescent Twin Tube, G23 Base 390

29-125 120 8 F8T5 Fluorescent Miniature Bi-Pin Cool White 400

29-130 130 7 Incandescent Candelabra Base, 7C7 46

29-129 145 15 Incandescent Candelabra Base, 15T6 102

Z-7 120 20 Incandescent Intermediate Base T6 1/2 92

DESCRIPTION

This information is provided

to help you select non-standard

lamps for specific applications. In

ordering Sure-Lites emergency

lighting units, a standard lamp will

be provided unless a particular

lamp is specified by Lamp No.

Make sure that the unit’s battery

wattage is sufficient for powering

non-standard lamps.

A standard XR11 is supplied with

two 6 volt, 9 watt incandescent

heads.

To order a modified XR11 unit with

three heads using 6 volt, 18 watt

incandescent sealed beam lamps,

the appropriate number of heads

and Lamp No. must be included as

an Order Suffix.

ORDERING INFORMATION NON - STANDARD LAMPS

Model Number No. of

Lamps/

Heads

Lamp No.

29-13

XR11 313

SAMPLE NUMBER: XR11313

SURE-LITES®

106

TECHNICAL INFORMATION > Wire Selection Chart

COOPER LIGHTING

106 COOPER LIGHTING

WIRE SELECTION CHART/VOLTAGE DROP TABLE

FORMULAS CIRCULAR MILL CHART

6 Volts Maximum Voltage Drop 5% as prescribed by National Electrical Code

Wiring Length

Wire Watts

Size 6 8 10 12 13 16 18 20 24 25 28 35 44 50 75 100 150 200 250

#12 89 67 53 45 41 33 30 27 22 21 19 15 12 11 8 6 4

#10 141 106 85 71 65 53 47 42 35 32 30 24 19 17 11 9 6

#8 225 169 135 113 110 84 75 68 56 54 48 39 31 27 18 14 9 7

#6 358 268 215 179 165 134 120 107 89 86 77 62 49 43 29 22 15 11 9

12 Volts Maximum Voltage Drop 5% as prescribed by National Electrical Code

Wiring Run Length

Wire Watts

Size 8 12 13 16 18 24 25 28 35 44 50 75 100 150 200 250 300 Constant Value

#12 267 178 165 134 110 89 85 76 61 49 42 29 21 14 10 8 2137

#10 425 283 260 212 190 142 136 121 97 77 68 45 34 23 17 14 11 3397

#8 675 450 415 338 300 225 215 193 154 123 108 72 54 36 27 21 18 5403

#6 1073 716 660 537 475 358 340 307 245 195 170 114 86 57 43 34 28 8590

CM=22xWxL L= CMx.05xE2

.05xE2 22xW

CM=Wire size in circular mils

W=Emergency loads in watts

L=Length of circuit in feet

E=Line voltage

.22=Formula Constant

.05=Factor for maximum

allowable voltage drop

AWG AMP CAPACITY CM

12 20 6,530

10 25 10,380

8 30 16,510

6 50 26,250

Constant Value

534

849

1350

2148

The above tables show maxi-

mum wire lengths based on

system voltage, wire size, and

total wattage on a given wire

run. To determine the maxi-

mum wire run length or total

wattage on a given wire run,

divide the known value into

the constant value shown on

the above charts for the

appropriate wire size and sys-

tem voltage specified.

Example: Four 9W remote

heads (36W total) are to be

operated on a 12V system

using a single #10 wire run.

The maximum wire run

length is:

Constant Value=3397= 94 ft.

known value 36

If loads are uniformly spaced

along a given wire run (equal

wattages, equal distances),

the determined wire length

can be increased by the fol-

lowing multipliers:

Example: In the system

described in the example (left),

the four 9W remote heads will

be uniformly spaced along the

wire run. The wire run can be

increased to:

94ft. x 1.6 (multiplier) = 150 ft.

Number of

Fixtures (n) 2 3 4 5+

Multiplier 1.33 1.5 1.6

2n

n +1

TECHNICAL INFORMATION - WIRE SELECTION CHART

SURE-LITES®

107

COOPER LIGHTING

TECHNICAL INFORMATION > Life Safety Code: National Fire Protection Association

107

COOPER LIGHTING

7.8 Illumination of Means of Egress.

7.8.1 General

7.8.1.1* Illumination of means of egress shall be provided in accor-

dance with Section 7.8 for every building and structure where

required in Chapter 11 through Chapter 42. For the purposes of this

requirement, exit access shall include only designated stairs, aisles,

corridors, ramps, escalators, and passageways leading to an exit. For

the purposes of this requirement, exit discharge shall include only

designated stairs, aisles, corridors, ramps, escalators, walkways, and

exit passage ways leading to a public way.

7.8.1.2 Illumination of means of egress shall be continuous during the

time that the conditions of occupancy require that the means of

egress be available for use, unless otherwise provided in 7.8.1.2.2.

7.8.1.2.1 Artificial lighting shall be employed at such locations and for

such periods of time as are necessary to maintain the illumination to

the minimum criteria values herein specified.

7.8.1.2.2 Automatic, motion sensor-type lighting switches shall be

permitted within the means of egress, provided that the switch con-

trollers are equipped for fail-safe operation, the illumination timers

are set for a minimum 15-minute duration, and the motion sensor is

activated by any occupant movement in the area served by the

lighting units.

7.8.1.3* The floors and other walking surfaces within an exit and

within the portions of the exit access and exit discharge designated

in 7.8.1.1 shall be illuminated as follows:

(1) During conditions of stair use, the minimum illumination for new

stairs shall be at least 10 ft-candle (108 lux), measured at the

walking surfaces.

(2) The minimum illumination for floors and walking surfaces, other

than new stairs during conditions of stair use, shall be to values

of at least 1 ft-candle (10.8 lux), measured at the floor.

(3) In assembly occupancies, the illumination of the floors of exit

access shall be at least 0.2 ft-candle (2.2 lux) during periods of

performances or projections involving directed light.

(4) * The minimum illumination requirements shall not apply where

operations or processes require low lighting levels.

7.8.1.4* Required illumination shall be arranged so that the failure of

any single lighting unit does not result in an illumination level of less

than 0.2 ft-candle (2.2 lux) in any designated area.

7.8.1.5 The equipment or units installed to meet the requirements of

Section 7.10 also shall be permitted to serve the function of illumina-

tion of means of egress, provided that all requirements of Section 7.8

for such illumination are met.

7.8.2 Sources of Illumination.

7.8.2.1* Illumination of means of egress shall be from a source

considered reliable by the authority having jurisdiction.

7.8.2.2 Battery-operated electric lights and other types of portable

lamps or lanterns shall not be used for primary illumination of means

of egress. Batteryoperated electric lights shall be permitted to be

used as an emergency source to the extent permitted under Section

7.9.

7.9 Emergency Lighting.

7.9.1 General.

7.9.1.1* Emergency lighting facilities for means of egress shall be

provided in accordance with Section 7.9 for the following:

(1) Buildings or structures where required in Chapter 11 through

Chapter 42

(2) Underground and limited access structures as addressed in

Section 11.7

(3) High-rise buildings as required by other sections of this Code

(4) Doors equipped with delayed-egress locks

(5) Stair shaft and vestibule of smokeproof enclosures, for which the

following also apply:

(a) The stair shaft and vestibule shall be permitted to include a

standby generator that is installed for the smokeproof

enclosure mechanical ventilation equipment.

(b) The standby generator shall be permitted to be used for the

stair shaft and vestibule emergency lighting power supply.

(6) New access-controlled egress doors in accordance with 7.2.1.6.2.

7.9.1.2 For the purposes of 7.9.1.1, exit access shall include only des-

ignated stairs, aisles, corridors, ramps, escalators, and passageways

leading to an exit. For the purposes of 7.9.1.1, exit discharge shall

include only designated stairs, ramps, aisles, walkways, and escala-

tors leading to a public way.

7.9.1.3 Where maintenance of illumination depends on changing

from one energy source to another, a delay of not more than 10 sec-

onds shall be permitted.

7.9.2 Performance of System.

7.9.2.1* Emergency illumination shall be provided for not less than 1

1/2 hours in the event of failure of normal lighting. Emergency light-

ing facilities shall be arranged to provide initial illumination that is

not less than an average of 1 ft-candle (10.8 lux) and, at any point, not

less than 0.1 ft-candle (1.1 lux), measured along the path of egress at

floor level. Illumination levels shall be permitted to decline to not less

than an average of 0.6 ft-candle (6.5 lux) and, at any point, not less

than 0.06 ft-candle (.65 lux) at the end of the 1 1/2 hours. A maxi-

mum-to-minimum illumination uniformity ratio of 40 to 1 shall not be

exceeded.

7.9.2.2 New emergency power systems for emergency lighting shall

be at least Type 10, Class 1.5, Level 1, in accordance with NFPA 110,

Standard for Emergency and Standby Power Systems.

7.9.2.3* The emergency lighting system shall be arranged to provide

the required illumination automatically in the event of any interrup-

tion of normal lighting due to any of the following:

(1) Failure of a public utility or other outside electrical power

supply

(2) Opening of a circuit breaker or fuse

(3) Manual act(s), including accidental opening of a switch

controlling normal lighting facilities

7.9.2.4 Emergency generators providing power to emergency lighting

systems shall be installed, tested, and maintained in accordance with

NFPA 110, Standard for Emergency and Standby Power Systems.

Stored electrical energy systems, where required in this Code, shall

be installed and tested in accordance with NFPA 111, Standard on

Stored Electrical Energy Emergency and Standby Power Systems.

7.9.2.5 Unit equipment and battery systems for emergency lumi-

naires shall be listed to UL 924, Standard for Emergency Lighting and

Power Equipment.

7.9.2.6* Existing battery-operated emergency lights shall use only

reliable types of rechargeable batteries provided with suitable facili-

ties for maintaining them in properly charged condition. Batteries

used in such lights or units shall be approved for their intended use

and shall comply with NFPA 70, National Electrical Code.

7.9.2.7 The emergency lighting system shall be either continuously in

operation or shall be capable of repeated automatic operation with-

out manual intervention.

7.9.3 Periodic Testing of Emergency Lighting Equipment.

7.9.3.1 Required emergency lighting systems shall be tested in accor-

dance with one of the three options offered by 7.9.3.1.1, 7.9.3.1.2, or

7.9.3.1.3.

7.9.3.1.1 Testing of required emergency lighting systems shall be

permitted to be conducted as follows:

(1) Functional testing shall be conducted at 30-day intervals for

not less than 30 seconds.

(2) Functional testing shall be conducted annually for not less

than 1 1/2 hours if the emergency lighting system is battery

powered.

(3) The emergency lighting equipment shall be fully operational

for the duration of the tests required by 7.9.3.1.1 (1) and

7.9.3.1.1 (2).

(4) Written records of visual inspections and tests shall be kept by

the owner for inspection by the authority having jurisdiction.

7.9.3.1.2 Testing of required emergency lighting systems shall be

permitted to be conducted as follows:

(1) Self-testing/self-diagnostic battery-operated emergency

lighting equipment shall be provided.

NFPA 101 (2006)

TECHNICAL INFORMATION -

LIFE SAFETY CODE®: NATIONAL FIRE PROTECTION ASSOC.

the complete and official position of the National Fire Protection Association on the reference subject which is represented only by the standard in its entirety.

SURE-LITES®

108

TECHNICAL INFORMATION > Life Safety Code: National Fire Protection Association

COOPER LIGHTING

108 COOPER LIGHTING

TECHNICAL INFORMATION -

LIFE SAFETY CODE®: NATIONAL FIRE PROTECTION ASSOC.

the complete and official position of the National Fire Protection Association on the reference subject which is represented only by the standard in its entirety.

(2) Self-testing/self-diagnostic battery-operated emergency

lighting equipment shall automatically perform not less than

once every 30 days a test for not less than 30 seconds and a

diagnostic routine.

(3) Self-testing/self-diagnostic battery-operated emergency

lighting equipment shall indicate failures by a status indicator.

(4) A visual inspection shall be performed at intervals not

exceeding 30 days.

(5) Functional testing shall be conducted annually for not less

than 1 1/2 hours.

(6) Self-testing/self-diagnostic battery-operated emergency

lighting equipment shall be fully operational for the duration

of the 1 1/2 hour test.

(7) Written records of visual inspections and tests shall be kept by

the owner for inspection by the authority having jurisdiction.

7.9.3.1.3 Testing of required emergency lighting systems shall be

permitted to be conducted as follows:

(1) Computer-based, self-testing/self-diagnostic battery-operated

emergency lighting equipment shall be provided.

(2) The emergency lighting equipment shall automatically per

form not less than once every 30 days a test for not less than

30 seconds and a diagnostic routine.

(3) The emergency lighting equipment shall automatically per

form annually a test for not less than 11/2 hours.

(4) The emergency lighting equipment shall be fully operational

for the duration of the tests required by 7.9.3.1.3(2) and

7.9.3.1.3(3).

(5) The computer-based system shall be capable of providing a

report of the history of tests and failures at all times.

7.10 Marking of Means of Egress.

7.10.1 General.

7.10.1.1 Where Required. Means of egress shall be marked in

accordance with Section 7.10 where required in Chapter 11 through

Chapter 42.

7.10.1.2* Exits. Exits, other than main exterior exit doors that obvi-

ously and clearly are identifiable as exits, shall be marked by an

approved sign that is readily visible from any direction of exit access.

7.10.1.3 Exit Stair Door Tactile Signage. Tactile signage shall be pro-

vided to meet the following criteria, unless otherwise provided in

7.10.1.4:

(1) Tactile signage shall be located at each exit door requiring an

exit sign.

(2) Tactile signage shall read as follows: EXIT

(3) Tactile signage shall comply with ICC/ANSI A117.1, American

National Standard for Accessible and Usable Buildings and

Facilities.

7.10.1.4 Existing Exemption. The requirements of 7.10.1.3 shall not

apply to existing buildings, provided that the occupancy classifica-

tion does not change.

7.10.1.5 Exit Access.

7.10.1.5.1 Access to exits shall be marked by approved, readily visible

signs in all cases where the exit or way to reach the exit is not readily

apparent to the occupants.

7.10.1.5.2* New sign placement shall be such that no point in an exit

access corridor is in excess of the rated viewing distance or 100 ft

(30 m), whichever is less, from the nearest sign.

7.10.1.6* Floor Proximity Exit Signs. Where floor proximity exit signs

are required in Chapter 11 through Chapter 42, such signs shall be

located near the floor level in addition to those signs required for

doors or corridors. The signs shall be illuminated in accordance with

7.10.5. Externally illuminated signs shall be sized in accordance with

7.10.6.1. The bottom of the sign shall be not less than 6 in. (150 mm),

but not more than 18 in. (455 mm), above the floor. For exit doors,

the sign shall be mounted on the door or adjacent to the door, with

the nearest edge of the sign within 4 in. (100 mm) of the door frame.

7.10.1.7* Floor Proximity Egress Path Marking. Where floor proximity

egress path marking is required in Chapter 11 through Chapter 42, a

listed and approved floor proximity egress path marking system that

is internally illuminated shall be installed within 18 in. (455 mm) of

the floor. The system shall provide a visible delineation of the path of

travel along the designated exit access and shall be essentially con-

tinuous, except as interrupted by doorways, hallways, corridors, or

other such architectural features. The system shall operate continu-

ously or at any time the building fire alarm system is activated. The

activation, duration, and continuity of operation of the system shall

be accordance with 7.9.2. The system shall be maintained in accor-

dance with the product manufacturing listing.

7.10.1.8* Visibility. Every sign required in Section 7.10 shall be located

and of such size, distinctive color, and design that it is readily visible

and shall provide contrast with decorations, interior finish, or other

signs. No decorations, furnishings, or equipment that impairs visibili-

ty of a sign shall be permitted. No brightly illuminated sign (for other

than exit purposes), display, or object in or near the line of vision of

the required exit sign that could detract attention from the exit sign

shall be permitted.

7.10.1.9 Mounting Location. The bottom of new egress markings shall

be located at a vertical distance of not more than 6 ft 8 in. (2030 mm)

above the top edge of the egress opening intended for designation

by that marking. Egress markings shall be located at a horizontal dis-

tance of not more than the required width of the egress opening, as

measured from the edge of the egress opening intended for designa-

tion by that marking to the nearest edge of the marking.

7.10.2* Directional Signs. A sign complying with 7.10.3 with a

directional indicator showing the direction of travel shall be placed in

every location where the direction of travel to reach the nearest exit

is not apparent.

7.10.3* Sign Legend.

7.10.3.1 Signs required by 7.10.1 and 7.10.2 shall read as follows in

plainly legible letters, or other appropriate wording shall be used:

EXIT

7.10.3.2* Where approved by the authority having jurisdiction, pic-

tograms shall be permitted.

7.10.4* Power Source. Where emergency lighting facilities are

required by the applicable provisions of Chapter 11 through Chapter

42 for individual occupancies, the signs, other than approved self-

luminous signs and listed photoluminescent signs in accordance

with 7.10.7.2, shall be illuminated by the emergency lighting facili-

ties. The level of illumination of the signs shall be in accordance with

7.10.6.3 or 7.10.7 for the required emergency lighting duration as

specified in 7.9.2.1. However, the level of illumination shall be permit-

ted to decline to 60 percent at the end of the emergency lighting

duration.

7.10.5 Illumination of Signs.

7.10.5.1* General. Every sign required by 7.10.1.2, 7.10.1.5, or

7.10.8.1, other than where operations or processes require low light-

ing levels, shall be suitably illuminated by a reliable light source.

Externally and internally illuminated signs shall be legible in both the

normal and emergency lighting mode.

7.10.5.2* Continuous Illumination.

7.10.5.2.1 Every sign required to be illuminated by 7.10.6.3, 7.10.7,

and 7.10.8.1 shall be continuously illuminated as required under the

provisions of Section 7.8, unless otherwise provided in 7.10.5.2.2.

7.10.5.2.2* Illumination for signs shall be permitted to flash on and off

upon activation of the fire alarm system.

7.10.6 Externally Illuminated Signs.

7.10.6.1* Size of Signs.

7.10.6.1.1 Externally illuminated signs required by 7.10.1 and 7.10.2,

other than approved existing signs, unless otherwise provided in

7.10.6.1.2, shall read EXIT, or shall use other appropriate wording in

plainly legible letters sized as follows:

(1) For new signs, the letters shall be not less than 6 in. (150 mm)

high, with the principal strokes of letters not less than 3/4 in.

(19 mm) wide.

(2) For existing signs, the required wording shall be permitted to

be in plainly legible letters not less than 4 in. (100 mm) high.

SURE-LITES®

109

COOPER LIGHTING

TECHNICAL INFORMATION > Life Safety Code: National Fire Protection Association

109

COOPER LIGHTING

(3) The word EXIT shall be in letters of a width not less than 2 in.

(51 mm), except the letter I, and the minimum spacing

between letters shall be not less than 3/8 in. (9.5 mm).

(4) Sign legend elements larger than the minimum established in

7.10.6.1.1(1) through 7.10.6.1.1(3) shall use letter widths,

strokes, and spacing in proportion to their height.

7.10.6.1.2 The requirements of 7.10.6.1.1 shall not apply to marking

required by 7.10.1.3 and 7.10.1.6.

7.10.6.2* Size and Location of Directional Indicator.

7.10.6.2.1 Directional indicators, unless otherwise provided in

7.10.6.2.2, shall comply with the following:

(1) The directional indicator shall be located outside of the EXIT

legend, not less than 3/8 in. (9.5 mm) from any letter.

(2) The directional indicator shall be of a chevron type, as shown

in Figure 7.10.6.2.1.

(3) The directional indicator shall be identifiable as a directional

indicator at a distance of 40 ft (12m).

(4) A directional indicator larger than the minimum established

for compliance with 7.10.6.2.1(3) shall be proportionately

increased in height, width and stroke.

(5) The directional indicator shall be located at the end of the sign

for the direction indicated.

FIGURE 7.10.6.2.1 Chevron-Type Indicator.

7.10.6.2.2 The requirements of 7.10.6.2.1 shall not apply to approved

existing signs.

7.10.6.3* Level of Illumination. Externally illuminated signs shall be

illuminated by not less than 5 ft-candles (54 lux) at the illuminated

surface and shall have a contrast ratio of not less than 0.5.

7.10.7 Internally Illuminated Signs.

7.10.7.1 Listing. Internally illuminated signs shall be listed in accor-

dance with UL 924, Standard for Emergency Lighting and Power

Equipment, unless they meet one of the following criteria:

(1) They are approved existing signs.

(2) They are existing signs having the required wording in legible

letters not less than 4 in. (100mm) high.

(3) They are signs that are in accordance with 7.10.1.3 and

7.10.1.6.

7.10.7.2* Photoluminescent Signs.

The face of a photoluminescent sign shall be continually illuminated

while the building is occupied. The illumination levels on the face of

the photoluminescent sign shall be in accordance with its listing. The

charging illumination shall be a reliable light source as determined

by the authority having jurisdiction. The charging

light source shall be of a type specified in the product markings.

7.10.8 Special Signs.

7.10.8.1 Sign Illumination.

7.10.8.1.1 Where required by other provisions of this Code, special

signs shall be illuminated in accordance with 7.10.5, 7.10.6.3, and

7.10.7.

7.10.8.1.2 Where emergency lighting facilities are required by the

applicable provisions of Chapter 12 through Chapter 42, the required

illumination of special signs shall additionally be provided under

emergency lighting conditions.

7.10.8.2 Characters. Special signs, where required by other provisions

of this Code, shall comply with the visual character requirements of

ICC/ANSI A117.1, American National Standard for Accessible and

Usable Buildings and Facilities.

7.10.8.3* No Exit.

7.10.8.3.1 Any door, passage, or stairway that is neither an exit nor a

way of exit access and that is located or arranged so that it is likely to

be mistaken for an exit shall be identified by a sign that reads as

follows:

NO

EXIT

7.10.8.3.2 The NO EXIT sign shall have the word NO in letters 2 in. (51

mm) high, with a stroke width of 3/8 in. (9.5 mm), and the word EXIT

in letters 1 in. (25 mm) high, with the word EXIT below the word NO,

unless such sign is an approved existing sign.

7.10.8.4 Elevator Signs. Elevators that are a part of a means of egress

(see 7.2.13.1) shall have the following signs with a minimum letter

height of 5/8 in. (16 mm) posted in every elevator lobby:

(1) *Signs that indicate that the elevator can be used for egress,

including any restrictions on use

(2) *Signs that indicate the operational status of elevators

7.10.9 Testing and Maintenance.

7.10.9.1 Inspection. Exit signs shall be visually inspected for operation

of the illumination sources at intervals not to exceed 30 days or shall

be periodically monitored in accordance with 7.9.3.1.3.

7.10.9.2 Testing.

Exit signs connected to or provided with a battery-operated emer-

gency illumination source, where required in 7.10.4, shall be tested

and maintained in accordance with 7.9.3.

TECHNICAL INFORMATION -

LIFE SAFETY CODE®: NATIONAL FIRE PROTECTION ASSOC.

the complete and official position of the National Fire Protection Association on the reference subject which is represented only by the standard in its entirety.

SURE-LITES®

110

INDEX

COOPER LIGHTING

110 COOPER LIGHTING

110

059012SP 86

0590A638SP 86

0590A639SP 86

12T12DMHWH 34

12T12DWMHWH 34

12T12DWXX 33

12T12MHWH 34

12T12WMHWH 34

12T12WXX 33

12T12XXU 33

12T37DWMHWH 34

12T37WMHWH 34

12T50DMHWH 34

12T50DWMHWH 34

12T50MHWH 34

12T50WMHWH 34

12T8DWMHWH 34

12T8DWXX 33

12T8WMHWH 34

12T8WXX 33

12T8XXU 33

12X12DWMHWH 34

12X12WMHWH 34

12X12XXU 33

12X18DWMHWH 34

12X18WMHWH 34

12X25DWMHWH 34

12X25DWXX 33

12X25HZB 37

12X25HZP 37

12X25WMHWH 34

12X25WXX 33

12X25XXU 33

12X30DWMHWH 34

12X30WMHWH 34

12X9WHU 33

12XW12DWMHWH 34

12XW12DWXX 33

12XW12WMHWH 34

12XW12WXX 33

12XW9DWMHWH 34

12XW9DWXX 33

12XW9WMHWH 34

12XW9WXX 33

1BR 86

1MS 86

1RTPL 85

20 103

29-03 105

29-08 105

29-09 105

29-114 105

29-12 105

29-121 105

29-124 105

29-125 105

29-126 105

29-129 105

29-13 105

29-130 105

29-132 105

29-134 105

29-135 105

29-137 105

29-139 105

29-14 105

29-140 105

29-141 105

29-142 105

29-143 105

29-144 105

29-146 105

29-15 105

29-16 105

29-17 105

29-18 105

29-19 105

29-24 105

29-26 105

29-30 105

29-36 105

29-37 105

29-39 105

29-40 105

29-45 105

29-53 105

29-54 105

29-55 105

29-66 105

29-75 105

29-79 105

29-80 105

29-84 105

29-86 105

29-88 105

2M 86

30 103

3BR 86

3M 86

65 103

6T10DWMHWH 34

6T10WMHWH 34

6T12DMHWH 34

6T12DWMHWH 34

6T12MHWH 34

6T12WMHWH 34

6T12XXU 33

6T20DWMHWH 34

6T20WMHWH 34

6T6DMHWH 34

6T6DWMHWH 34

6T6DWXX 33

6T6MHWH 34

6T6WMHWH 34

6T6WXX 33

6T6XXU 33

6T8DWMHWH 34

6T8DWXX 33

6T8WMHWH 34

6T8WXX 33

6T8XXU 33

6X12DWMHWH 34

6X12WMHWH 34

6X12XXU 33

6X18DWMHWH 34

6X18WMHWH 34

6X25DWMHWH 34

6X25WMHWH 34

6X25XXU 33

6X54XXU 33

6X7DWMHWH 34

6X7DWXX 33

6X7MHWH 34

6X7WMHWH 34

6X7WXX 33

6X7XXU 33

6X8DWMHWH 34

6X8WMHWH 34

6X9DWXX 33

6X9WXX 33

6X9XXU 33

6XW54DWMHWH 34

6XW54DWXX 33

6XW54WMHWH 34

6XW54WXX 33

6XW7DWMHWH 34

6XW7DWXX 33

6XW7WMHWH 34

6XW7WXX 33

6XW9DWMHWH 34

6XW9DWXX 33

6XW9WMHWH 34

6XW9WXX 33

70 103

85 103

90 103

95 103

A 103

AA1 32

AA8 32

AD277CAX 81

AD277CAXBZ 81

AD277CAXW 81

AD2C120CAX 81

AD2C1277CAX 81

AD2CUCAX 81

AEL1BKSD 8

AEL1BZSD 8

AEL1WHSD 8

AP series 64, 65

AP2SQ 63

BZ1 81

C3FT004 101

C3FT006 101

C3FT008 101

C3FT010 101

C3FT012 101

C3FT016 101

C3FT024 101

C3FT033 101

C3FT040 101

C3FT050 101

C7213EEMSL 17

CAN277ELX 81

CAN571 84

CAN578 84

CAR Series 48, 49

CAX Series 42, 43, 44, 45

CAX18PKBK 83

CAX18PKBZ 83

CAX18PKHTBK 84

CAX18PKHTBZ 84

CAX18PKHTWH 84

CAX18PKWH 83

CAX3PP 82

CAX3PPBZ 82

CAX3PPW 82

CAXSBOXBKSP 84

CAXSBOXBZSP 84

CAXSBOXWHSP 84

CC10SD 25

CC11SD 25

CC12SD 25

CC2 21

CC2347 21

CC3 22

CC3NC 22

CC4 22

CC4NC 22

CC5 22

CC5NC 22

CC6 22

CC7 23

CC7NCSD 23

CC8 24

CC9SD 25

CCX Series 52, 53, 54

CCX18PKBK 83

CCX18PKHTBK 84

CCX18PKHTWH 84

CCX18PKWH 83

CCX277 81

CCXH SERIES 54

CFR103 36

CFR116 36

CFR203 36

CFR216 36

CHEL Series 9, 88

CHEL1BKSD 9

CHEL1SD 9

CHEL1WHSD 9

CHX203 94

CHX203C 94

CHX206 94

CHX206C 94

CHX209 94

CHX209C 94

CHX212 94

CHX212C 94

CHX218C 94

CHX221C 94

CHX224C 94

CHX303 95

CHX303C 95

CHX303DH 95

CHX303DHC 95

CHX306 95

CHX306C 95

CHX306DH 95

CHX306DHC 95

CHX309 95

CHX309C 95

CHX309DH 95

CHX309DHC 95

CHX312 95

CHX312C 95

CHX312DH 95

CHX312DHC 95

CHX318C 95

CHX318DHC 95

CHX321C 95

CHX321DHC 95

CHX324C 95

CHX324DHC 95

CHX403 94

CHX403C 94

CHX406 94

CHX406C 94

NUMERICAL INDEX

PRODUCT NO. PAGE NO. PRODUCT NO. PAGE NO. PRODUCT NO. PAGE NO. PRODUCT NO. PAGE NO.

SURE-LITES®

111

COOPER LIGHTING

INDEX

111

COOPER LIGHTING

CHX409 94

CHX409C 94

CHX412 94

CHX412C 94

CHX418C 94

CHX421C 94

CHX424C 94

CHX503 95

CHX503C 95

CHX503DH 95

CHX503DHC 95

CHX506 95

CHX506C 95

CHX506DH 95

CHX506DHC 95

CHX509 95

CHX509C 95

CHX509DH 95

CHX509DHC 95

CHX512 95

CHX512C 95

CHX512DH 95

CHX512DHC 95

CHX518C 95

CHX518DHC 95

CHX521C 95

CHX521DHC 95

CHX524C 95

CHX524DHC 95

CHX603 94

CHX603C 94

CHX606 94

CHX606C 94

CHX609 94

CHX609C 94

CHX612 94

CHX612C 94

CHX618C 94

CHX621C 94

CHX624C 94

CHX703 95

CHX703C 95

CHX706 95

CHX706C 95

CHX709 95

CHX709C 95

CHX712 95

CHX712C 95

CHX718C 95

CHX721C 95

CHX724C 95

CHXH303 95

CHXH303C 95

CHXH306 95

CHXH306C 95

CHXH309 95

CHXH309C 95

CHXH312 95

CHXH312C 95

CHXH318C 95

CHXH321C 95

CHXH324C 95

CHXH503 95

CHXH503C 95

CHXH506 95

CHXH506C 95

CHXH509 95

CHXH509C 95

CHXH512 95

CHXH512C 95

CHXH518C 95

CHXH521C 95

CHXH524C 95

CMFT005 98

CMFT010 98

CMFT015 98

CMFT020 98

CSK120 85

CSK277 85

CU1 26

CU1347 26

CU1HD 26

CU1HD347 26

CU1NC 26

CU1R 36

CU1RB 36

CU2 27

CX Series 41

DR112 36

DR145 36

DR166 36

DR212 36

DR245 36

DR266 36

EAC100012 96

EAC10003 96

EAC10006 96

EAC10009 96

EAC100112 96

EAC10013 96

EAC10016 96

EAC10019 96

EAC120012 96

EAC12003 96

EAC12006 96

EAC12009 96

EAC120112 96

EAC12013 96

EAC12016 96

EAC12019 96

EAC200012 96

EAC20003 96

EAC20006 96

EAC20009 96

EAC200112 96

EAC20013 96

EAC20016 96

EAC20019 96

EAC220012 96

EAC22003 96

EAC22006 96

EAC22009 96

EAC220112 96

EAC22013 96

EAC22016 96

EAC22019 96

EAC300018 96

EAC300021 96

EAC300024 96

EAC300118 96

EAC300121 96

EAC300124 96

EAC320018 96

EAC320021 96

EAC320024 96

EAC320118 96

EAC320121 96

EAC320124 96

EAC400012 97

EAC40003 97

EAC40006 97

EAC40009 97

EAC420012 97

EAC42003 97

EAC42006 97

EAC42009 97

EAC500012 97

EAC50003 97

EAC50006 97

EAC50009 97

EAC520012 97

EAC52003 97

EAC52006 97

EAC52009 97

EAC600018 97

EAC600021 97

EAC600024 97

EAC620018 97

EAC620021 97

EAC620024 97

EEX Series 55

ELX Series 38

EMS277 85

EPX5000B 82

EPX5000P 82

ES Series 40

EUR Series 57

EUS Series 56

FBP140X 76, 93

FBP240C 76, 93

FBP240D 76, 93

FBP240H 76, 93

FBP240HSD 76

FBP240HU 76

FBP240M 76, 93

FBP240U 6, 93

FBP3500 76, 93

FBP450LP 76

FL1 81

FRK1 86

G2277CXBLED 60

G2277CXLED 60

G2CX 60

G2CXB 60

G2CXBLED 60

G2CXBS 60

G2CXLED 60

GC15012 13

GC15022 13

GC15032 13

GC15042 13

GC15052 13

GC15072 91

GC15072CL 91

GC15082 91

GC15082CL 91

GC15122 13

GC15132 13

GC15142 13

GC15172 13

GC15182 13

GFR2703 36

GFR2716 36

H274EM 18

HR117 29

HR117C 90

HR12117 29

HR12117C 90

HR12170 29

HR12170C 90

HR12210 29

HR12210C 90

HR12360 29

HR12360C 90

HR180 29

HR180C 90

HR87 29

HR87C 90

HS1R 30

HZU125425 69

HZX21 75

HZX22 75

HZX23 75

IC1 99

IC10 99

IC2 99

IC3 99

IC4 99

IC5 99

IC6 99

IC7 99

IC8 99

IC9 99

INCX Series 58

ISC015 100

ISC022 100

ISC030 100

ISC037 100

ISC048 100

ISC060 100

ISC080 100

ISC100 100

ISC125 100

ISC167 100

L010777 105

LM1 31

LPX Series 50

LPX(H) Series 51

LTC1 77

LTC2 78

MH 103

ML1 11

ML2 11

ML3 11

ML4NC 11

ML5NC 11

MML1 10

MML2 10

MR12T12 35

MR12T12D 35

MR6T12 35

MR6T12D 35

MRT12T12 35

MRT12T12D 35

MRT12T12HAZ 37

MRT12T12W 37

MRT12T20 35

MRT12T20D 35

NUMERICAL INDEX

PRODUCT NO. PAGE NO. PRODUCT NO. PAGE NO. PRODUCT NO. PAGE NO. PRODUCT NO. PAGE NO.

SURE-LITES®

112

INDEX

COOPER LIGHTING

112 COOPER LIGHTING

112

MRT12T20HAZ 37

MRT12T20W 37

MRT12T50 35

MRT12T50D 35

MRT12T50W 37

MRT6T12 35

MRT6T12D 35

MRT6T12HAZ 37

MRT6T12W 37

MRT6T5 35

MRT6T5D 35

MRT6T5HAZ 37

MRT6T5W 37

MRT6T9 35

MRT6T9D 35

MRT6T9HAZ 37

MRT6T9W 37

NCB110 67

NCB12180 67

NCB12225 67

NCB1290 67

NCB45 67

NCB9 67

OF2CX 60

OF2CXB 60

OF2CXBS 60

P4C1 15

P4C2 15

P4C22 15

P4C3 15

P4C6 15

P4C7 15

P4C72 15

PCL 103

PHL Series 74

PK18BK 83

PK18HTBK 84

PK18HTWH 84

PK18WH 83

PLC277B 81

PLC277P 81

PLC2C120 81

PLC2C1277 81

PLC2CU 81

PLX5200GB 60

PLX5200GBS 60

PLX5200GP 60

PLX5200OB 60

PLX5200OBS 60

PLX5200OP 60

PLX5200RB 60

PLX5200RBS 60

PLX5200RP 60

PLX6200GB 61

PLX6200GBS 61

PLX6200GP 61

PLX6200OB 61

PLX6200OBS 61

PLX6200OP 61

PLX6200RB 61

PLX6200RBS 61

PLX6200RP 61

PLX7200GB 61

PLX7200GBS 61

PLX7200GP 61

PLX7200OB 61

PLX7200OBS 61

PLX7200OP 61

PLX7200RB 61

PLX7200RBS 61

PLX7200RP 61

PLX7202GB 62

PLX7202GBS 62

PLX7202GP 62

PLX7202OB 62

PLX7202OBS 62

PLX7202OP 62

PLX7202RB 62

PLX7202RBS 62

PLX7202RP 62

R2277CXBLED 60

R2277CXLED 60

R2CX 60

R2CXB 60

R2CXBLED 60

R2CXBS 60

R2CXLED 60

R4C14 37

R4C145 37

RBP13 80

RBP13347 80

RBP1826 80

RBP1826347 80

RBP 80

RBP9347 80

RD1 12

RD3 12

RD4 12

RD6 12

RD7 12

REM240 80

RFR130 37

RFR153 37

RG1 16

RG2 16

RKRC Series 79

RKRI Series 79

RLM1 12

RLM2 12

RLM3 12

RLM4 12

RLM8 12

RLM9 12

SLC1 14

SLC120 14

SLC120H 14

SLC1H 14

SLC2 14

SLC220 14

SLC220H 14

SLC2H 14

SLX Series 59

ST1 92

STL 19

STL2 20

TDM 103

TH 103

TPK1CP 86

TPX Series 46, 47

TRX1 Series 73

UEL Series 66, 87

UMB1 68

UMB14 68

UMB15 68

UMB16 68

UMB17 68

UMB6 68

UMB7 68

UMB8 68

UMB9 68

UMX Series 71

UN1OFB 61

UN1OFBS 61

UN1OFW 61

UN1SGB 61

UN1SGBLED 61

UN1SGBS 61

UN1SGW 61

UN1SGWLED 61

UN1SRB 61

UN1SRBLED 61

UN1SRBS 61

UN1SRW 61

UN1SRWLED 61

UNH1OFB 61

UNH1OFBDH 62

UNH1OFBS 61

UNH1OFBSDH 62

UNH1OFW 61

UNH1OFWDH 62

UNH1SGB 61

UNH1SGBDH 62

UNH1SGBLEDL 61

UNH1SGBS 61

UNH1SGBSDH 62

UNH1SGW 61

UNH1SGWBDHL 62

UNH1SGWBLED 61

UNH1SGWDH 62

UNH1SGWDHL 62

UNH1SRB 61

UNH1SRBDH 62

UNH1SRBLED 61

UNH1SRBS 61

UNH1SRBSDH 62

UNH1SRW 61

UNH1SRWBDHL 62

UNH1SRWDH 62

UNH1SRWDHL 62

UNH1SRWLED 61

USF1 86

UX Series 70

V 103

VK1 85

VRSD 86

VRSPD 86

VRX Series 72

VS1 83

VS1WP 83

VS2 83

VS2WP 83

WatchGuard EMS SD 104

WG1 83

WG10 83

WG12 83

WG17 83

WG19 83

WG2 83

WG3 83

WG4 83

WG5 83

WG6 83

WG7 83

WG8 83

WG9 83

WGS11 83

XR11 28

XR11347 28

XR12206 28

XR12206347 28

XR12206C 89

XR12208 28

XR12208347 28

XR12208C 89

XR15 28

XR16 28

XR1624C 89

XR16 89

XR17 28

XR20 28

XR20C 89

XR21 28

XR21C 89

XR3 28

XR3347 28

XR5 28

XR6C 89

XR7 28

XR7C 89

XR9 28

XR9C 89

Z-67 105

Z-7 105

NUMERICAL INDEX

PRODUCT NO. PAGE NO. PRODUCT NO. PAGE NO. PRODUCT NO. PAGE NO. PRODUCT NO. PAGE NO.

AMETRIX

A complete vocabulary of point source

indirect luminaires including ceiling,

suspended, semi-recessed and cove

versions available with compact

fluorescent, tungsten-halogen, and

metal halide light sources.

HALO

Quality recessed, track and surface

products serve a wide range of

commercial, residential, institutional

and industrial applications.

NEO-RAY

If yours is a never-ending quest to

transform architectural spaces into

dynamic environments, look to Neo-Ray

for lighting products that offer a

distinctive combination of high quality

and aesthetics.

METALUX

Single source fluorescent lighting for

commercial, industrial, institutional, retail

and residential markets.

LUMARK

A full-line of quality commercial and

industrial products to satisfy virtually

every indoor or outdoor HID lighting

need.

CORELITE

Corelite offers a unique line of affordable

architectural fluorescent luminaires

perfectly suited to the creation of task-

friendly environments.

RSA

RSA is recognized as the leader in the

development of cutting-edge, architectur-

al lighting systems. As innovators in the

design and manufacture of multi-lamp

recessed, track and linear lighting, RSA

products emphasize unique and func-

tional design.

MCGRAW-EDISON

Durable, efficient HID fixtures

illuminate a complete range of

outdoor industrial utility and

commercial applications.

PORTFOLIO

Developing the visual design concept

with lighting employs an intelligent

ballance of art and science. Portfolio

applies a similar approach to the

design of luminaires with the con-

trolled balance of visual comfort and

efficiency.

INVUE

Establishing a new benchmark in

specification grade architectural site

lighting, INVUE Lighting Systems

bring together leading edge form and

unmatched performance.

FAIL-SAFE

Security fixtures, control systems and

specialty hardware built to withstand

the rigors of correctional facilities,

clean rooms, public access areas,

hospitals and other high abuse

environments.

IRIS

Aesthetics and performance combine

for highly flexible architectural,

residential and commercial lighting

designs.

LUMIERE

Innovative solutions for complex

landscape, area/accent and special

application illumination.

SHAPER

Shaper's standard product line

includes interior ceiling mounted and

pendant luminaires, interior and exte-

rior, wet listed wall mounted fixtures,

a selection of exterior bollard designs

and the

“

Starter Collection

,"

geared to

budget oriented projects.

The Power Behind The Brands.

COOPER LIGHTING BRAND FAMILY

www.cooperlighting.com ADX070284

Customer First Center

1121 Highway 74 South

Peachtree City, Georgia 30269

770 486 4800

Fax 770 486 4801

Domestic Facilities, USA

Cranbury, New Jersey

Elk Grove Village, Illinois

Irving, Texas

Ontario, California

Peachtree City, Georgia

International Sales, USA

Cooper Lighting

1121 Highway 74 South

Peachtree City, Georgia 30269

770 486 4800

Fax 770 486 4801

Canada

Cooper Lighting

5925 McLaughlin Road

Mississauga, Ontario L5R 1B8

905 507 4000

FAX 905 568 7049

Domestic Facilities, Canada

Calgary, Alberta T2E 7V9

Chomedey, Laval P.Q.

Cooper Lighting, Inc.

Printed in USA

Dimensions and specifications are subject

to change without notice.

The Cooper Lighting Family

Halo

Metalux

Lumark

Sure-Lites

Neo-Ray

Corelite

Portfolio

Iris

Shaper

Lumière

Invue

McGraw-Edison

Streetworks

Fail-Safe

MWS

DLS

RSA

Ametrix

SureLites_wpc:Surelites

Navigation menu

Versions of this User Manual:

Views

Navigation
