2
TPI Industrial Assembled Maximum Duty Circulators
HDM-W
WALL MOUNT
HDM-I
I-BEAM MOUNT
HDM-C
CEILING MOUNT
OPTIONAL
WHEEL KIT
• Easy access hinged guard
• Drop down 2-Speed switch
• Cord options are shown below
• Steel hub/spider aluminum paddle blades
• Powder coated steel guards
• Meets OSHA standards
• 5 year limited warranty
• 2-Speed
• 1-Phase, 120V
• Permanent split capacitor
• Frame size: 48
• 1/2 HP
• Ball bearing
• Totally enclosed, permanently lubricated
• 1/2” Shaft
• Pedestal pole adjusts the center
of the fan from 52 to 78 inches.
• Pedestal steel dome base is 27” in
diameter and has 5 carriage bolts.
Features
Motor Specications
Pedestal Specications
DIMENSIONS
24” 27” Diameter x 14.5” Depth
30” 33.5” Diameter x 14.5” Depth
Accessories
Standard Models
Factory Assembled and Tested Fan Heads, Mounts, and Wheel Kits
ASSEMBLED FAN HEAD
COLOR BLADE
SIZE HP
CFM / RPM
AMPS SHIPPING
WT. (LBS)
HEAD
LIST
UPC#
686334 MODEL HIGH LOW
874441 HDH 24-JR Yellow 24”
1/2
8600 / 1100 6500 / 800 3.5 44 611
874465 HDH 30-JR Yellow 30” 9850 / 1100 7500 / 800 4 48 627
874502 HDH 24-GJR Gray 24” 8600 / 1100 6500 / 800 3.5 44 611
874519 HDH 30-GJR Gray 30” 9850 / 1100 7500 / 800 4 48 627
UPC#
686334 MODEL COLOR DESCRIPTION SHIPPING WT.
(LBS) LIST
796095 HDM-P Yellow Heavy Duty Pedestal Mount 34 lbs. 169
796101 HDM-W Yellow Heavy Duty Wall Mount 3 lbs. 66
796118 HDM-I Yellow Heavy Duty I-Beam Mount 9 lbs. 127
796125 HDM-C Yellow Heavy Duty Ceiling Mount 3 lbs. 73
796187 ACM-P Gray Pedestal Mount 34 lbs. 162
796194 ACM-W Gray Wall Mount 3 lbs. 61
796200 ACM-I Gray I-Beam Mount 9 lbs. 120
796217 ACM-C Gray Ceiling Mount 3 lbs. 66
796224 ACM-S Gray Suspension Mount 2 lbs. 54
874724 RS 06-EC Yellow 6’ Extension Cord with Power Switch 1 lbs. 21
874731 RS 09-EC Yellow 9’ Extension Cord with Power Switch 1.5 lbs. 23
874748 RS 12-EC Yellow 12’ Extension Cord with Power Switch 2 lbs. 25
874755 SCK-12 ---- 12’ Safety Cable with Clamps .5 lbs. 23
874762 R1-MOT Yellow 1/2 HP Remote Switch 1 lbs. 81
868181 ACM-PM Standard Black Pole Mount 5 lbs 85
868136 ACM-WK Standard Black Optional Wheel Kit 4 lbs. 78
3
TPI Industrial Unassembled Maximum Duty Circulators
Features
Note: Motor, blades, guard, and mount are packed and shipped in a single UPS-able carton.
Note: 1/3 and 1/4 HP fans come
with 3 paddle blades.
WALL
MOUNT
I-BEAM
MOUNT
SUSPENSION
MOUNT
CEILING
MOUNT OPTIONAL
WHEEL KIT
• 2-Speed
• 1-Phase, 120V
• Ball bearing
• Frame size: 48
• Totally enclosed
• Permanent split capacitor
• Permanently lubricated
• 1/2” Shaft
• Pedestal pole adjusts the center
of the fan from 52 to 70 inches.
• Pedestal steel dome base is 27” in
diameter and has 5 carriage bolts.
• Easy access hinged guard
• Drop down 2-Speed switch
• Cord options are shown below
• Steel hub/spider aluminum paddle blades
• Coated steel guards
• Meets OSHA standards
Standard Models
Motor Specications
Product Specications
TPI Industrial Mounts
DIMENSIONS
24” 27” Diameter x 14.5” Depth
30” 33.5” Diameter x 14.5” Depth
Accessories
UPC#
686334 MODEL COLOR DESCRIPTION SHIPPING WT.
(LBS) LIST
874724 RS 06-EC Yellow 6’ Extension Cord with Power Switch 1 lbs. 21
874731 RS 09-EC Yellow 9’ Extension Cord with Power Switch 1.5 lbs. 23
874748 RS 12-EC Yellow 12’ Extension Cord with Power Switch 2 lbs. 25
874755 SCK-12 ---- 12’ Safety Cable with Clamps .5 lbs. 23
874779 R2-MOT Yellow Remote Switch for 1/3 HP Motor 1 lbs. 75
874786 R3-MOT Yellow Remote Switch for 1/4 HP Motor 1 lbs. 70
FAN TYPE HIGH PERFORMANCE MAX
AMPS STANDARD INDUSTRIAL MAX
AMPS
MOTOR HP 1/3 1/4
SPEEDS 2 2
CFM / RPM
24” 7000 / 5200
1100 / 800 2.8 6800 / 5000
1100 / 800 2.5
30” 8200 / 6200
1100 / 800 3.0 7900 / 6000
1100 / 800 2.7
COLOR GRAY GRAY
POLE ADJUSTMENT 52” to 82” 43” to 60”
WARRANTY 3 YEARS 1 YEAR
SIZE TYPE of MOUNT UPC#
686334 MODEL WT.
(lbs.) LIST UPC#
686334 MODEL WT.
(lbs.) LIST
24”
Pedestal Mount 874526 UHP 24-PJR 75 663 874625 ACU 24-PJR 75 521
Wall Mount 874540 UHP 24-WJR 45 560 874649 ACU 24-WJR 45 452
I-Beam Mount 874564 UHP 24-IJR 50 621 874663 ACU 24-IJR 50 513
Ceiling Mount 874588 UHP 24-CJR 45 567 874687 ACU 24-CJR 45 459
Suspension Mount 874601 UHP 24-SJR 43 555 874700 ACU 24-SJR 43 446
30”
Pedestal Mount 874533 UHP 30-PJR 78 680 874632 ACU 30-PJR 78 532
Wall Mount 874557 UHP 30-WJR 48 579 874656 ACU 30-WJR 48 464
I-Beam Mount 874571 UHP 30-IJR 53 638 874670 ACU 30-IJR 53 525
Ceiling Mount 874595 UHP 30-CJR 48 584 874694 ACU 30-CJR 48 471
Suspension Mount 874618 UHP 30-SJR 46 572 874717 ACU 30-SJR 46 459
4
TPI Industrial Heavy Duty Yellow Air Circulator
Features
• Pull chain switch
• Cord-SJT type 3 conductor, 12’ long
• Steel hub/spider aluminum paddle blades
• Powder coated steel guards
• Meets OSHA standards
• 5 year limited warranty
• 2-Speed
• 1 Phase, 120V
• Permanent split capacitor
• Frame size: 48
Motor Specications
• 1/2 HP
• Ball bearing
• Totally enclosed, permanently lubricated
• 1/2” Shaft
Standard Models
• Pedestal pole adjusts the center
of the fan from 52 to 78 inches.
Pedestal Specications
• Pedestal steel dome base is 27” in.
diameter and has 5 carriage bolts.
Factory Assembled and Tested Fan Heads, Mounts, and Wheel Kits
WITH HDM-P
PEDESTAL MOUNT
HDH-30 FAN HEAD
HDM-W
WALL MOUNT
HDM-I
I-BEAM MOUNT
HDM-C
CEILING MOUNT
OPTIONAL
WHEEL KIT
DIMENSIONS
24” 27” Diameter x 14.5” Depth
30” 33.5” Diameter x 14.5” Depth
STYLE
NUMBER SIZE
CFM / RPM
AMPS
HIGH FAN TYPE
FAN HEAD MOUNT
SHIPPING
WT. (LBS)
HEAD
LIST
MOUNT
LIST
TOTAL
LIST
HIGH LOW UPC#
686334 MODEL UPC#
686334 MODEL
-----
24” 8600 /
1100
6500 /
800 3.5
Fan Head
796071
HDH 24 ----- ----- 44 559 ----- 559
HD 24-P Pedestal Fan HDH 24 796095 HDM-P 78 558 169 728
HD 24-W Wall Mount Fan HDH 24 796101 HDM-W 47 558 66 624
HD 24-I I-Beam Mount Fan HDH 24 796118 HDM-I 53 558 127 686
HD 24-C Ceiling Mount Fan HDH 24 796125 HDM-C 47 558 73 632
-----
30” 9850 /
1100
7500 /
800 4
Fan Head
796088
HDH 30 ----- ----- 48 571 ----- 571
HD 30-P Pedestal Fan HDH 30 796095 HDM-P 82 570 169 740
HD 30-W Wall Mount Fan HDH 30 796101 HDM-W 51 570 66 636
HD 30-I I-Beam Mount Fan HDH 30 796118 HDM-I 57 570 127 698
HD 30-C Ceiling Mount Fan HDH 30 796125 HDM-C 51 570 73 644
Optional Wheel Kit 868136 ACM-WK 4---- ---- 78
5

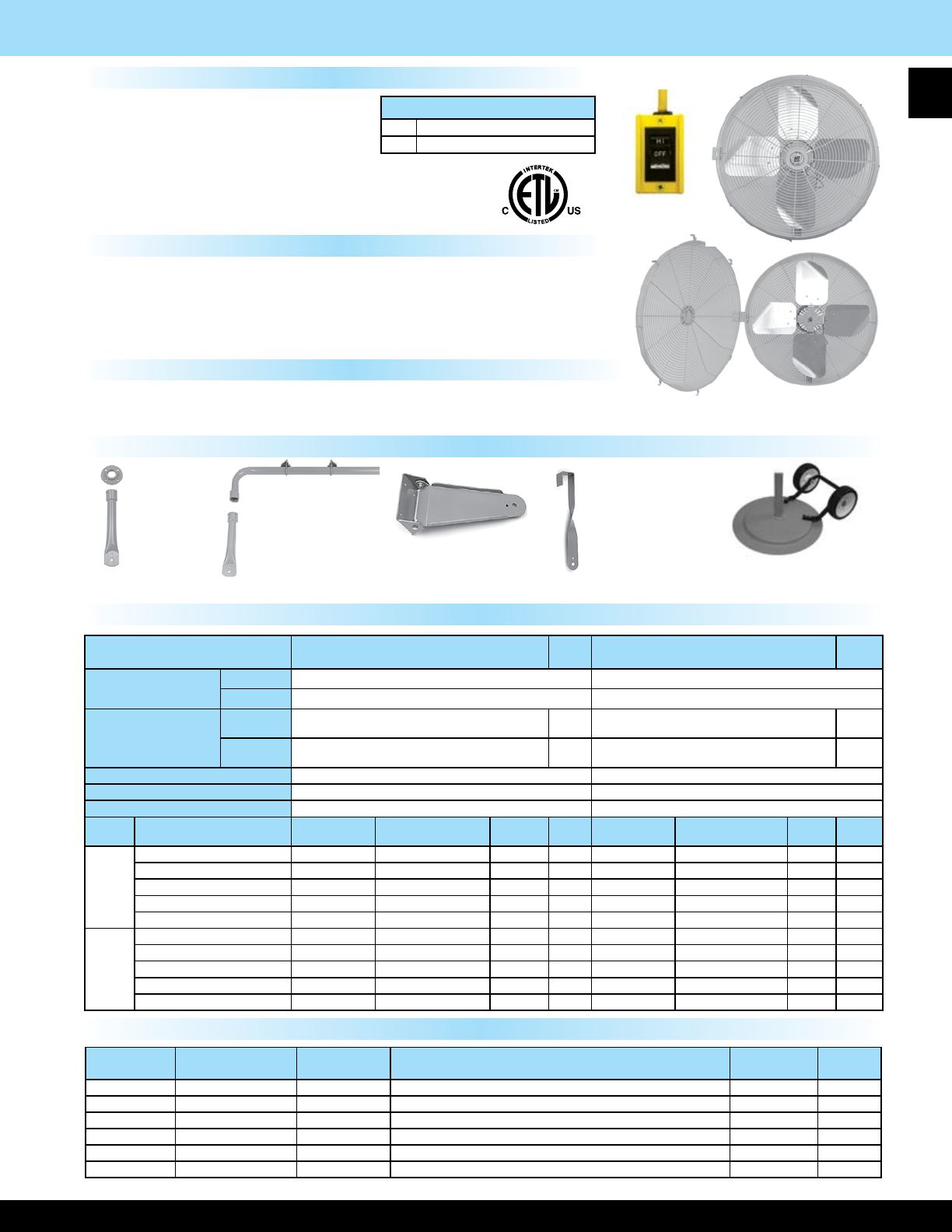

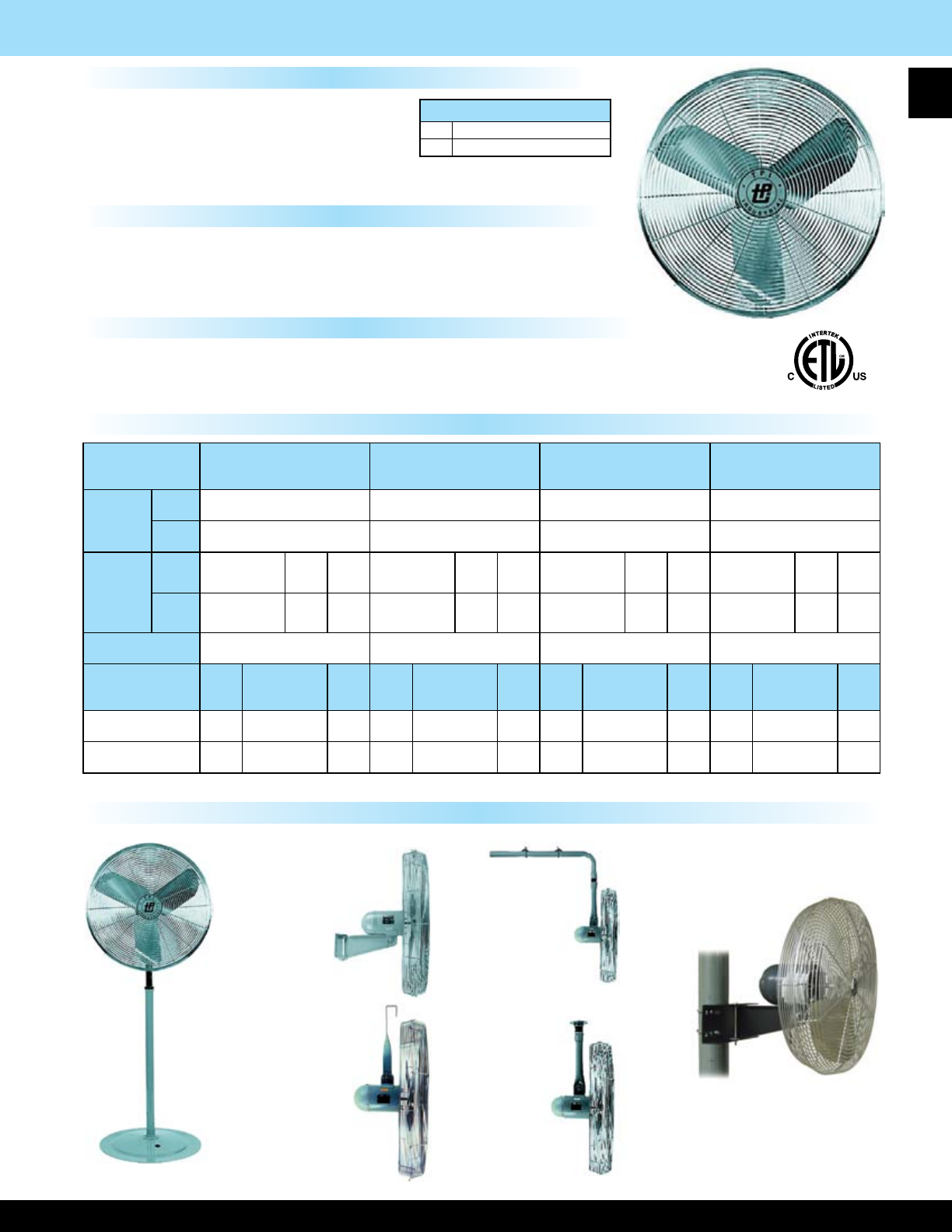

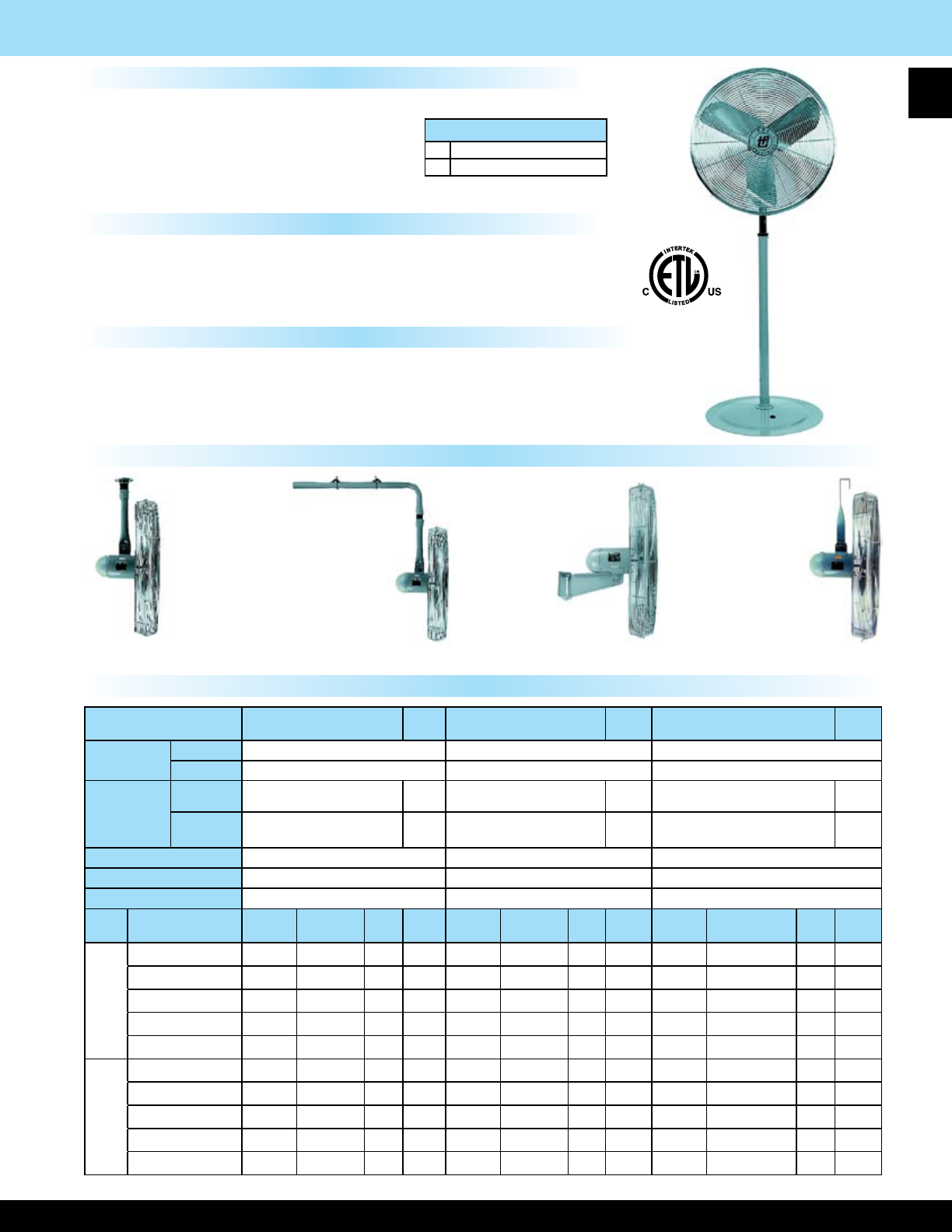

TPI Industrial Assembled Circulator Heads and Mounts
Features
Motor Specications
• Pull chain switch
• SJT type 3 conductor, 12’ long cord
• Steel hub/spider aluminum paddle blades
• Coated steel guards
• Meets OSHA standards
• 2-Speed
• 1 Phase, 120V
• Ball bearing
• Frame size: 48
• Totally enclosed
• Permanent split capacitor
• Permanently lubricated
• 1/2” Shaft
Product Specications
• Oscillating model oscillates in a
90° arc or can be locked in a xed
position
• Metal gears in the oscillating
mechanism allow the fan to operate at
a maximum 30° downward tilt
Standard Models
Six factory assembled and tested fan mounts that can be used with any of the non-oscillating TPI Industrial heads.
Industrial Mounts
PEDESTAL
WALL
MOUNT
CEILING
MOUNT
I-BEAM
MOUNT
SUSPENSION
MOUNT
POLE MOUNT
Attaches to
4”, 6”, or 8” poles.
DIMENSIONS
24” 27” Diameter x 14.5” Depth
30” 33.5” Diameter x 14.5” Depth
FAN TYPE HEAVY DUTY HIGH PERFORMANCE STANDARD INDUSTRIAL OSCILLATING
FAN
HEAD
HP 1/2 1/3 1/4 1/4
TYPE STATIONARY STATIONARY STATIONARY OSCILLATING
CFM / RPM
WEIGHT
AMPS
24” 8600 / 7100
1100 / 800 44 lbs. 3.5 7000 / 5200
1100 / 800 40 lbs. 2.8 6800 / 5000
1100 / 800 40 lbs. 2.5 6800 / 5000
1100 / 800 44 lbs. 2.5
30” 9850 / 8100
1100 / 800 48 lbs. 4 8200 / 6200
1100 / 800 44 lbs. 3.0 7900 / 6000
1100 / 800 44 lbs. 2.7 7900 / 6000
1100 / 800 48 lbs. 2.7
WARRANTY 5 YEARS 3 YEARS 1 YEAR 1 YEAR
SIZE UPC#
686334 MODEL LIST UPC#
686334 MODEL LIST UPC#
686334 MODEL LIST UPC#
686334 MODEL LIST
24” 853927 HDH-24G 535 798983 IHP 24-H 409 796163 ACH 24 319 796361 ACH 24-O 493
30” 852869 HDH-30G 553 798990 IHP 30-H 427 796170 ACH 30 331 796378 ACH 30-O 511
6
WALL
MOUNT
I-BEAM
MOUNT
SUSPENSION
MOUNT

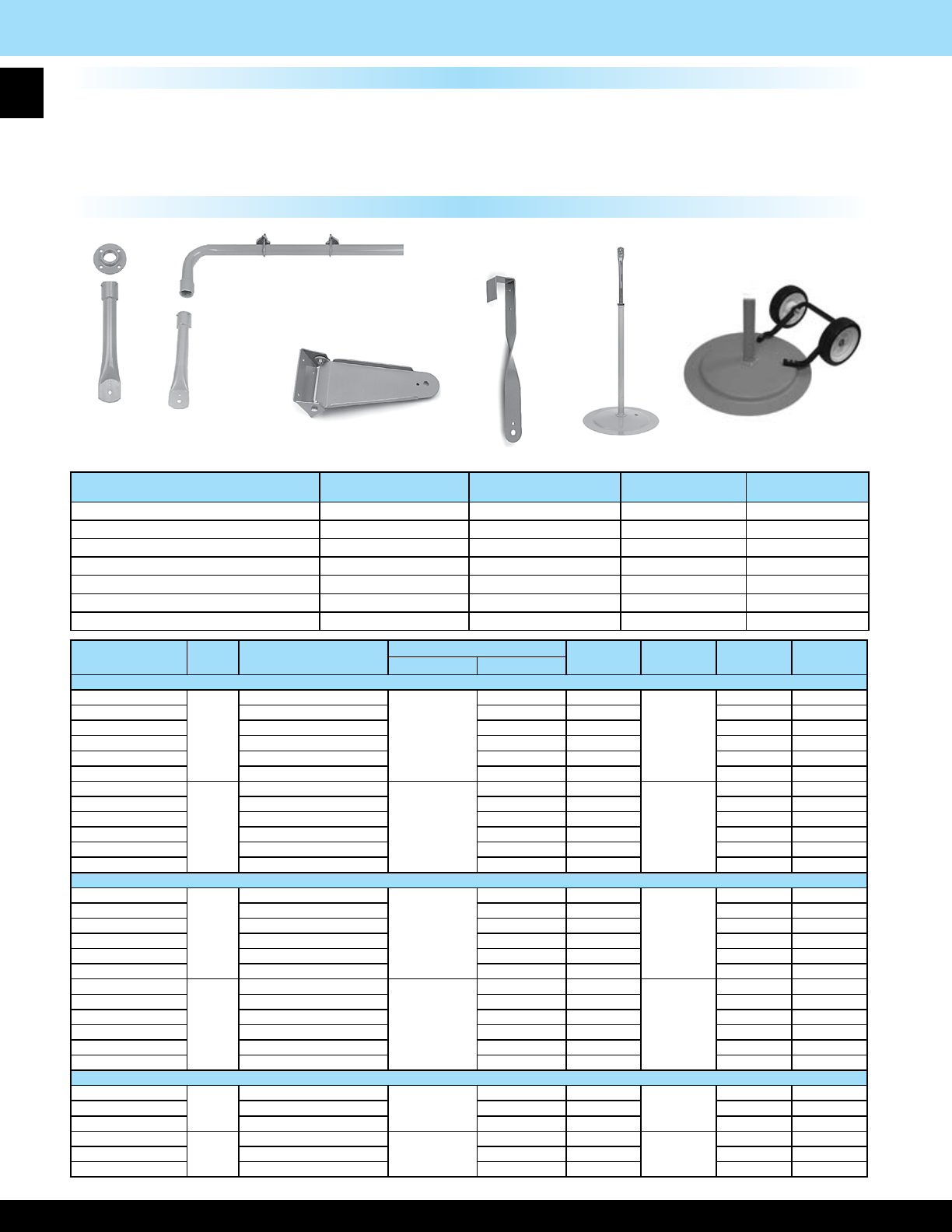

TPI Industrial Assembled Circulator Heads and Mounts
Product Specications
• Pedestal pole adjusts the center of fan from 52” to 78” and bolts to 27" diameter steel dome base with 5
carriage bolts
• I-beam mount & ceiling mount require 1 1/2” or longer pipe nipple for assembly (not supplied)
• Pole mount attaches to 4”, 6”, or 8” with U-bolts (not supplied)
• Oscillating motors can only be used with any mount when motor can be mounted in the upright position
Standard Models
CEILING
MOUNT PEDESTAL OPTIONAL
WHEEL KIT
STYLE
NUMBER SIZE FAN TYPE MODEL NUMBER SHIPPING
WT. (LBS.)
HEAD
LIST
MOUNT
LIST
TOTAL
LIST
FAN HEAD MOUNT
1/3 HP INDUSTRIAL HIGH PERFORMANCE
IHP 24-P
24”
Pedestal Fan
IHP 24-H
ACM-P 75
409
162 570
IHP 24-W Wall Mount Fan ACM-W 45 61 470
IHP 24-I I-Beam Mount Fan ACM-I 50 120 528
IHP 24-C Ceiling Mount Fan ACM-C 45 66 474
IHP 24-S Suspension Mount ACM-S 43 54 462
IHP 24-PM Pole Mount ACM-PM 46 85 492
IHP 30-P
30”
Pedestal Fan
IHP 30-H
ACM-P 78
427
162 589
IHP 30-W Wall Mount Fan ACM-W 48 60 487
IHP 30-I I-Beam Mount Fan ACM-I 53 120 546
IHP 30-C Ceiling Mount Fan ACM-C 48 66 492
IHP 30-S Suspension Mount ACM-S 46 54 481
IHP 30-PM Pole Mount ACM-PM 49 85 512
1/4 HP STANDARD INDUSTRIAL
AC 24-P
24”
Pedestal Fan
ACH 24
ACM-P 75
319
162 481
AC 24-W Wall Mount Fan ACM-W 45 61 380
AC 24-I I-Beam Mount Fan ACM-I 50 120 438
AC 24-C Ceiling Mount Fan ACM-C 45 66 384
AC 24-S Suspension Mount ACM-S 43 54 373
AC 24-PM Pole Mount ACM-PM 46 85 404
AC 30-P
30”
Pedestal Fan
ACH 30
ACM-P 78
331
162 492
AC 30-W Wall Mount Fan ACM-W 48 61 392
AC 30-I I-Beam Mount Fan ACM-I 53 120 450
AC 30-C Ceiling Mount Fan ACM-C 48 66 396
AC 30-S Suspension Mount ACM-S 46 54 384
AC 30-PM Pole Mount ACM-PM 49 85 416
1/4 HP OSCILLATING INDUSTRIAL
AC 24-PO
24”
Pedestal Fan
ACH 24-O
ACM-P 79
493
162 654
AC 24-WO Wall Mount Fan ACM-W 49 61 554
AC 24-PMO Pole Mount ACM-PM 52 84 577
AC 30-PO
30”
Pedestal Fan
ACH 30-O
ACM-P 82
511
162 673
AC 30-WO Wall Mount Fan ACM-W 52 60 571
AC 30-PMO Pole Mount ACM-PM 55 85 596
CIRCULATOR MOUNT MODEL UPC#
686334
SHIPPING
WT. (LBS) LIST
Pedestal ACM-P 796187 34 lbs. 162
Wall Mount ACM-W 796194 3 lbs. 60
I-Beam Mount ACM-I 796200 9 lbs. 120
Ceiling Mount ACM-C 796217 3 lbs. 66
Suspension Mount ACM-S 796224 2 lbs. 54
Pole Mount ACM-PM 868181 5 lbs 84
Optional Wheel Kit ACM-WK 868136 4 lbs. 78
7
Standard Models
TPI Industrial Unassembled Circulators
CEILING
MOUNT
Features
Motor Specications
• Pull chain switch
• SJT type 3 conductor, 12’ long cord
• Steel hub/spider aluminum paddle blades
• Coated steel guards
• Meets OSHA standards
• 2-speed
• 1-Phase, 120V
• Ball bearing
• Frame size: 48
• Totally enclosed
• Permanent split capacitor
• Permanently lubricated
• 1/2” Shaft
Product Specications
• Oscillating model oscillates in a
90° arc or can be locked in a xed
position
• Metal gears in the oscillating
mechanism allow the fan to operate
at a maximum 30° downward tilt
I-BEAM
MOUNT
WALL
MOUNT
SUSPENSION
MOUNT
TPI Industrial Mounts
PEDESTAL
Note: Motor, blades, guard, and mount are packed and shipped in a single UPS-able carton.
DIMENSIONS
24” 27” Diameter x 14.5” Depth
30” 33.5” Diameter x 14.5” Depth
FAN TYPE HIGH PERFORMANCE MAX
AMPS STANDARD INDUSTRIAL MAX
AMPS OSCILLATING MAX
AMPS
MOTOR HP 1/3 1/4 1/4
SPEEDS 2 2 2
CFM / RPM
24” 7000 / 5200
1100 / 800 2.8 6800 / 5000
1100 / 800 2.5 6800 / 5000
1100 / 800 2.5
30” 8200 / 6200
1100 / 800 3.0 7900 / 6000
1100 / 800 2.7 7900 / 6000
1100 / 800 2.7
COLOR GRAY GRAY GRAY
POLE ADJUSTMENT 52” to 74” 43” to 60” 52” to 74”
WARRANTY 3 YEARS 1 YEAR 1 YEAR
SIZE TYPE of
MOUNT
UPC#
686334 MODEL WT.
(lbs.) LIST UPC#
686334 MODEL WT.
(lbs.) LIST UPC#
686334 MODEL WT.
(lbs.) LIST
24”
Pedestal Mount 799003 UHP 24-P 75 553 796231 ACU 24-P 75 412 796408 ACU 24-PO 79 625
Wall Mount 799027 UHP 24-W 45 450 796248 ACU 24-W 45 343 796415 ACU 24-WO 49 523
I-Beam Mount 799034 UHP 24-I 50 511 796255 ACU 24-I 50 403 ----- ---
Ceiling Mount 799041 UHP 24-C 45 457 796262 ACU 24-C 45 349 ----- ---
Suspension Mount 799058 UHP 24-S 43 445 796279 ACU 24-S 43 336 ----- ---
30”
Pedestal Mount 799010 UHP 30-P 78 570 796286 ACU 30-P 78 423 796422 ACU 30-PO 82 638
Wall Mount 799065 UHP 30-W 48 469 796293 ACU 30-W 48 355 796439 ACU 30-WO 52 535
I-Beam Mount 799072 UHP 30-I 53 528 796309 ACU 30-I 53 415 ----- ---
Ceiling Mount 799089 UHP 30-C 48 474 796316 ACU 30-C 48 361 ----- ---
Suspension Mount 799096 UHP 30-S 46 462 796323 ACU 30-S 46 349 ----- ---
8

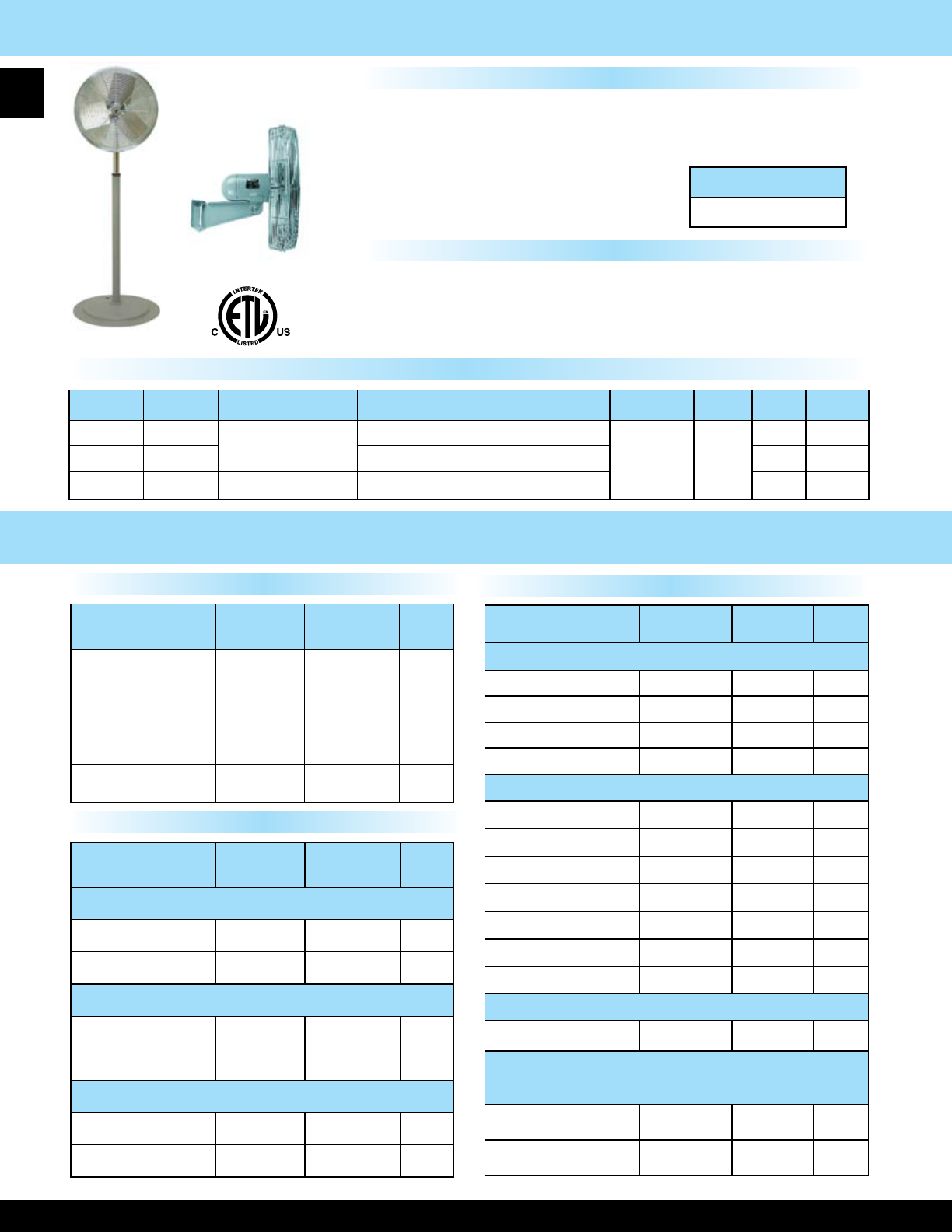

TPI Industrial 20” Circulators
Features
Motor Specications
• Pull chain switch
• SJT type 3 conductor, 12’ long cord
• Steel hub/spider aluminum paddle blades
• Coated steel guards
• Meets OSHA standards
• 1 Year limited warranty
• 2-Speed
• 1-Phase, 120V
• Ball bearing
• Frame size: 48
• 1/4 HP
• Permanent split capacitor
• Totally enclosed, permanently lubricated
• 1/2” Shaft
PEDESTAL
WALL
MOUNT
Standard Models
TPI Industrial Circulator Components
Motors
Guards & Blades
Mounts
DIMENSIONS
22” Diameter x 14.5” Depth
UPC#
686334 MODEL STYLE MOUNT TYPE CFM / RPM AMPS
(High)
WT.
(lbs.) LIST
868143 ACU 20-P Unassembled all
components and mount in
one box
Pedestal Mount
5600 / 4100
1100 / 900 2.4
72 378
868150 ACU 20-W Wall Mount 42 285
868471 ACH 20 Assembled Fan Head None - use with any TPI “ACM” or “CACM”
Mount 39 273
TYPE UPC#
686334 MODEL LIST
HEAVY DUTY 796132 HD-MOT 343
HIGH PERFORMANCE 799515 IHP-MOT 240
INDUSTRIAL 796330 AC-MOT 139
OSCILLATING 796446 AC-MOT-O 324
TYPE UPC#
686334 MODEL LIST
YELLOW MOUNTS
PEDESTAL POLE & BASE 796095 HDM-P 169
WALL MOUNT 796101 HDM-W 66
I-BEAM MOUNT 796118 HDM-I 127
CEILING MOUNT 796125 HDM-C 73
GRAY MOUNTS
PEDESTAL POLE & BASE 796187 ACM-P 162
WALL MOUNT 796194 ACM-W 61
I-BEAM MOUNT 796200 ACM-I 120
CEILING MOUNT 796217 ACM-C 66
SUSPENSION MOUNT 796224 ACM-S 54
POLE MOUNT 868181 ACMPM 85
WHEEL KIT 868136 ACM-WK 78
COMMERCIAL MOUNTS
PEDESTAL POLE & BASE 869751 CACM-P 137
FDA WHITE MOUNTS
(FOR USE WITH WASHDOWN FAN HEADS IN FOOD SERVICE
APPLICATIONS)
PEDESTAL POLE & BASE 868259 WACM-P 172
WALL MOUNT 868266 WACM-W 67
TYPE UPC#
686334 MODEL LIST
YELLOW GUARD & BLADE FOR 1/2 HP MOTOR
24” 796149 HD-24GB 193
30” 796156 HD-30GB 211
SILVER GUARD & BLADE FOR 1/2 HP (HD) MOTOR
24” 796453 HD-24GB-C 169
30” 796460 HD-30GB-C 186
SILVER GUARD & BLADE FOR 1/3HP & 1/4HP MOTORS
24” 796347 AC-24GB 144
30” 796354 AC-30GB 162
9
TPI Industrial Specialty Circulator Heads
Product Specications
• Pedestal pole adjusts the center of fan from 52” to 78” and bolts to 27” diameter steel dome base with 5
carriage bolts
• I-beam mount & ceiling mount require 1 1/2” or longer pipe nipple for assembly (not supplied)
• Pole mount attaches to 4”, 6”, or 8” with U-bolts (not supplied)
I-BEAM
MOUNT
SUSPENSION
MOUNT
PEDESTAL
OPTIONAL
WHEEL KIT
WALL
MOUNT
CEILING
MOUNT
Standard Models
• No cord-junction box provided for hard wiring
• Steel hub/spider aluminum paddle blades
• Coated steel guards
• Meets OSHA standards
• 1 year limited warranty
Features
Motor Specications
• All 1 Speed except 277V is 2 Speed
• Totally enclosed, permanently lubricated
• Ball bearing
Standard Models
NOTE: Wash down rated fan heads have heavy zinc coated guards - Use FDA white coated mounts shown on page 18 for food service applications.
CIRCULATOR MOUNT MODEL UPC#
686334
SHIPPING
WT. (LBS) LIST
Pedestal ACM-P 796187 34 lbs. 162
Wall Mount ACM-W 796194 3 lbs. 61
I-Beam Mount ACM-I 796200 9 lbs. 120
Ceiling Mount ACM-C 796217 3 lbs. 66
Suspension Mount ACM-S 796224 2 lbs. 54
Pole Mount ACM-PM 868181 5 lbs 85
Optional Wheel Kit ACM-WK 868136 4 lbs. 78
GENERAL
DESCRIPTION MODEL UPC#
686334 SIZE
MOTOR CFM AMPS (HIGH) WT.
(LBS) LIST
HP RPM VOLTS HIGH LOW 1 2 0 v
1 ph
2 4 0 v
1 ph
2 7 7 v
1 ph
2 4 0 v
3 ph
4 8 0 v
3 ph
Hazardous Location
Class I Group D
Class II Group F & G
Unassembled Head
ACH 24-EX1 855198 24”
1/4 1725
1 2 0 o r 2 4 0
1-phase
8000 5 2.6 ---- ---- ---- 66 992
ACH 30-EX1 855204 30” 9200 69 1076
ACH 24-EX3 855211 24” 240 or 480
3-phase
8000 ---- ---- ---- 1.4 0.7 66 1058
ACH 30-EX3 855228 30” 9200 69 1159
240V / 480V 3-Phase
Unassembled Head
ACH-24-TE3 855235 24” 1/4 1725 240 or 480
3-phase
8000 ---- ---- 1.4 0.7 45 625
ACH-30-TE3 855242 30” 9200 48 685
277 Volt
Assembled Head
IHP 24-H-277 854139 24” 1/3 1125 2 7 7
1-phase
7000 5200 ---- ---- 1---- ---- 40 481
IHP 30-H-277 854221 30” 8200 6200 44 511
Wash down rated
120V / 240V 1-Phase
Assembled Head
IHP 20-H-WD 872195 20”
1/3 1725 1 2 0 o r 2 4 0
1-phase
7150
4.5 2.2 ---- ----
46 914
IHP 24-H-WD 854184 24” 8200 48 947
IHP 30-H-WD 854191 30” 9350 52 979
10

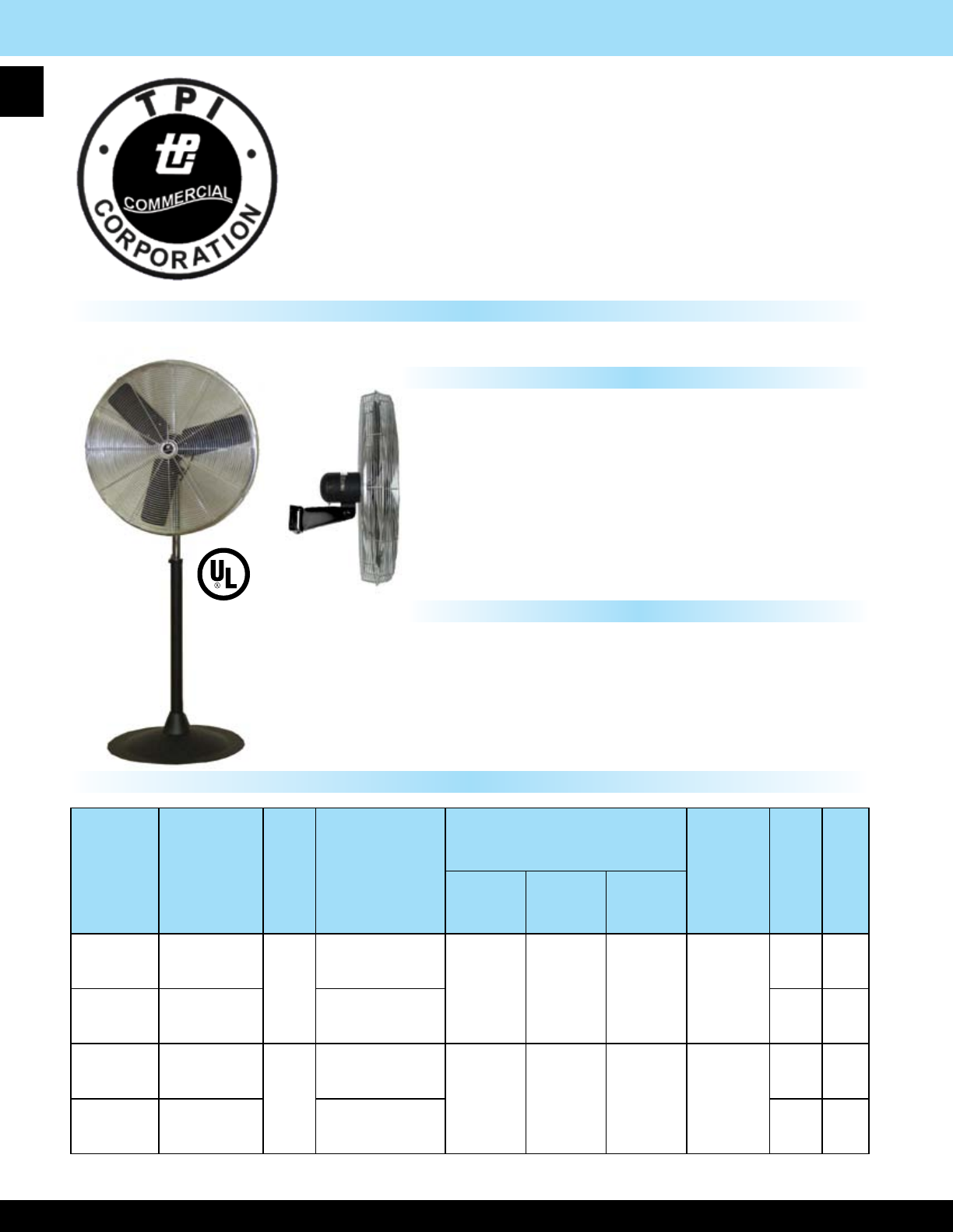

TPI Commercial Circulators
These circulators should be used in clean and dry commercial
applications - such as schools, shops, ofces or warehouses.
Motor Specications
• 1-Phase
• 1/4 HP
• Ball bearing
• Open ventilated
• 120V
• 2-Speed
• Permanently lubricated
• Permanent split capacitor
• Pull chain switch.
• SJT type 3 conductor, 9’ long cord.
• Coated steel guards with retaining clips.
• Steel hub/spider aluminum paddle blades.
• Pole adjusts center of fan from 43” to 60”.
• Meets OSHA standards.
• 1 Year limited warranty.
Features
Motor, blades, guards, and mount are packed and shipped in a single UPS-able carton.
Commercial Circulator
WALL
MOUNT
PEDESTAL
MOUNT
Standard Models
Note: Stocked models may differ in appearance from photograph
UPC#
686334 MODEL SIZE MOUNT TYPE
CFM
AMPS HIGH WT.
(LBS.) LIST
HIGH MED LOW
870627 CACU 24-P
24”
Pedestal Mount
5400 4900 4300 2.3
63 340
870641 CACU 24-W Wall Mount 43 290
869744 CACU 30-P
30”
Pedestal Mount
6000 5500 4800 2.4
66 351
870634 CACU 30-W Wall Mount 46 301
11

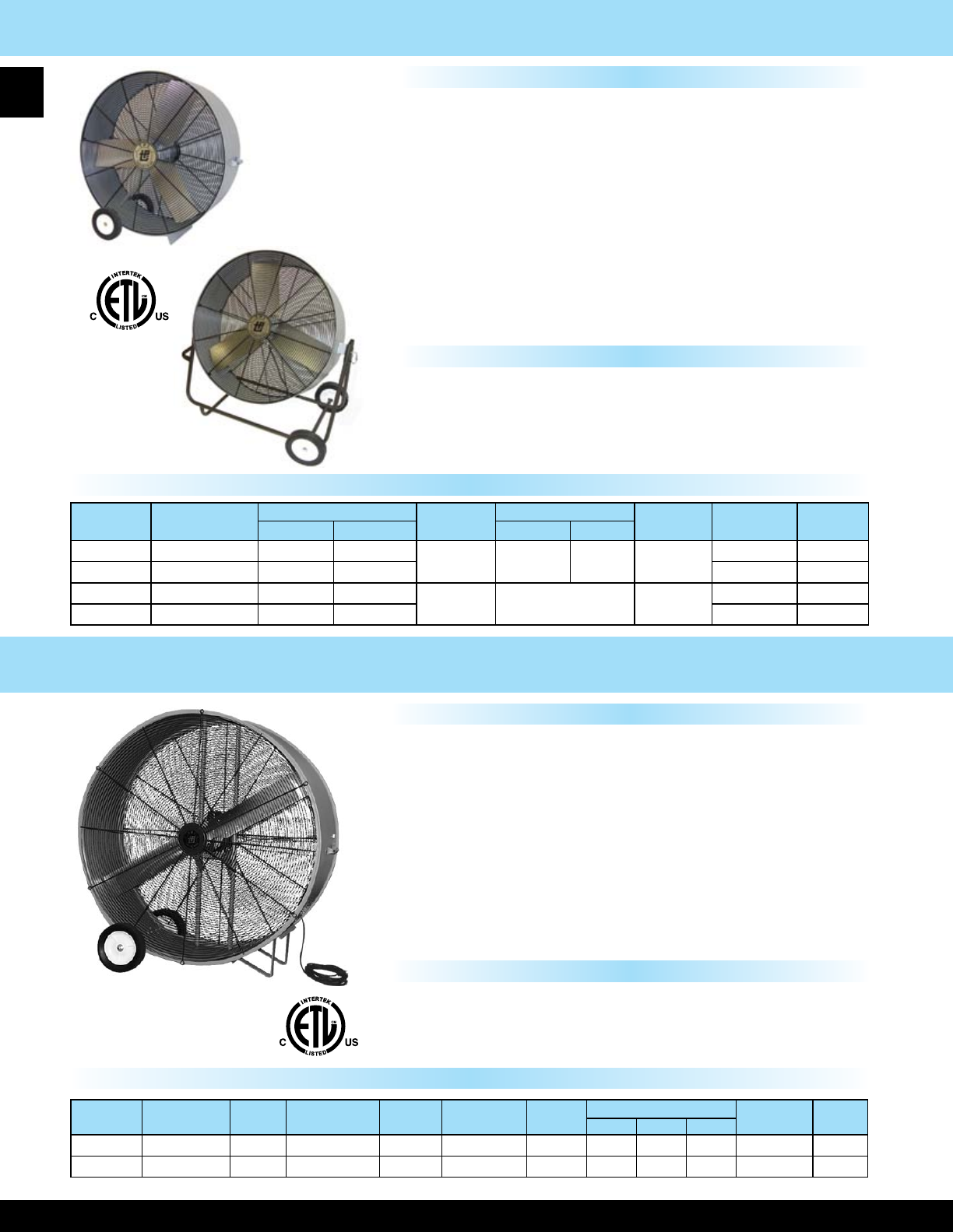

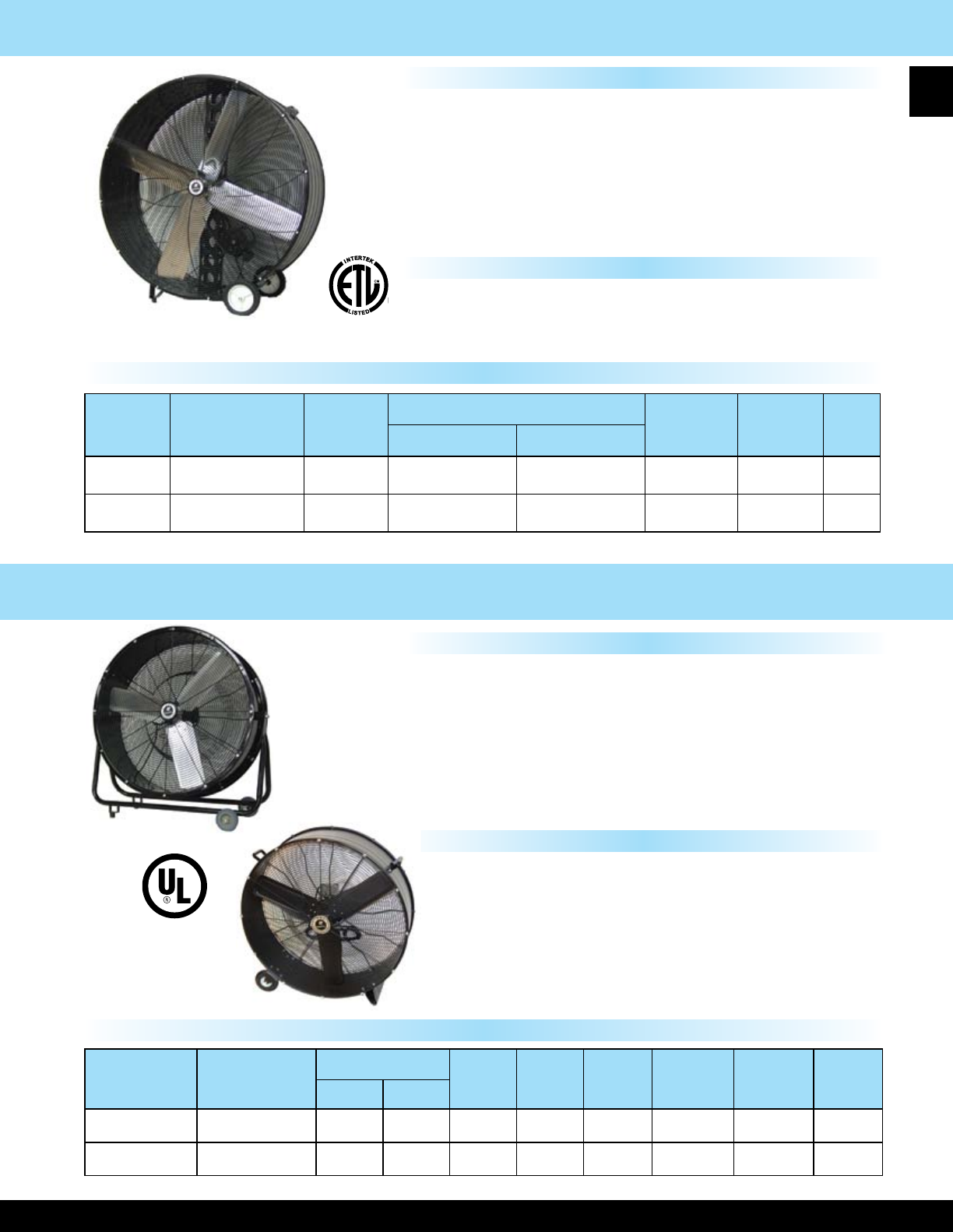

36” TPI Commercial Direct Drive Portable Blowers
• 2-Speed
• 120 Volt, 1/3HP
• Ball bearing
• 1-Phase
• Open ventilated
• Permanently lubricated
Motor Specication
• Rocker switch
• SJT type cord - 3 conductor - 6’ long
• Spiral wire front and rear guards
• Powder coated 20 gauge steel housing
• 5” rubber wheels
• Meets OSHA standards
• 1 Year limited warranty
Feaures
Standard Models
• 2-Speed
• 120V
• Ball bearing
• 1-Phase
• ODP type
• Permanently lubricated
Motor Specication
• Rocker switch
• SJT type cord - 3 conductor - 8’ long
• Aluminum blade
• Spiral wire front and rear guards
• Powder coated 20 gauge steel housing
• 8” rubber wheels
• Meets OSHA standards / 1 Year limited warranty
Feaures
Standard Models
CPBS 30-D
CPB 36-D
SWIVEL
36”, 42”, & 48” TPI Commercial Belt Drive Portable Blowers
*Photograph may not accurately represent stocked models
UPC#
686334 MODEL
CFM MAX
AMPS
CORD
LENGTH SWITCH BLADES WT.
(LBS.) LIST
HIGH LOW
871037 CPBS 30-D 6,300 5,500 3.6 6’ ROCKER ALUMINUM 60 512
872263 CPB 36-D 8,200 7,000 3.6 10’ ROTARY STEEL 70 557
UPC#
686334 MODEL MOTOR HP
CFM MAX
AMPS
WT.
(LBS.) LIST
HIGH LOW
870665 CPB 42-B 1/2 13,500 11,000 6.5 93 779
872270 CPB 48-B 3/4 15,000 12,000 9.0 129 1053
12
36” & 42” TPI Industrial Direct Drive Portable Blowers
• Comes in sizes 36" & 42"
• Rocker switch
• SJT type 3 conductor, 12’ long cord
• Aluminum, 3 paddle blade
• Spiral, wire front and rear guards
•
Corrosion and dent proof high density polyethylene housing
• 8” wheels
• 36” & 42” swivel model rotates 360° in 12 1/2° increments
and locks in place with a steel locking pin
• Meets OSHA standards
• 1 Year limited warranty
Features
Motor Specications
• 120V, 1-Phase
• 36”-1/3HP 42”-1/2HP
• Ball bearing
• Permanent split capacitor
• 2-Speed on 36” model
• 1-Speed on 42” model
• Permanently lubricated
STANDARD
MODEL
SWIVEL
MODEL
Standard Models
48” TPI Industrial Direct Drive Portable Blowers
• Corrosion and dent proof high density polyethylene housing
• Rocker switch
• SJT type 3 conductor, 12’ long cord
• Steel, 2 paddle blade
• Spiral, wire front and rear guards
• 10” wheels
• Swivel model rotates 360° in 12 1/2° increments and locks in
place with a steel locking pin
• Meets OSHA standards
• 1 Year limited warranty
Features
Motor Specications
• 1-Phase
• 3/4 HP
• Ball bearing
• Permanent split capacitor
• 120V
• 1-Speed
• Permanently lubricated
Features
UPC#
686334 MODEL FAN MOTOR
HP
CFM / RPM AMPS
(HIGH)
SHIPPING
WT.(LBS.) LIST
SIZE TYPE HIGH LOW
873048 PB 36-D 36” STANDARD 1/3 12500 / 1040 9000 / 730 5.5 82 661
873055 PBS 36-D 36” SWIVEL 110 901
873079 PB 42-D 42” STANDARD 1/2 15,600 / 1040 6.0 102 931
873086 PBS 42-D 42” SWIVEL 128 1142
UPC#
686334 MODEL SIZE FAN TYPE MOTOR
HP
CFM
\ RPM
AMPS
(High)
DIMENSIONS SHIPPING
WT.(LBS.) LIST
“H” “D” “W”
799782 PB 48-D-OP 48” STANDARD 3/4 17,300 / 824 10.3 58.5 29 55.5 117 1412
799805 PBS 48-D-OP 48” SWIVEL 3/4 17,300 / 824 10.3 ---- ---- ---- 142 1611
13

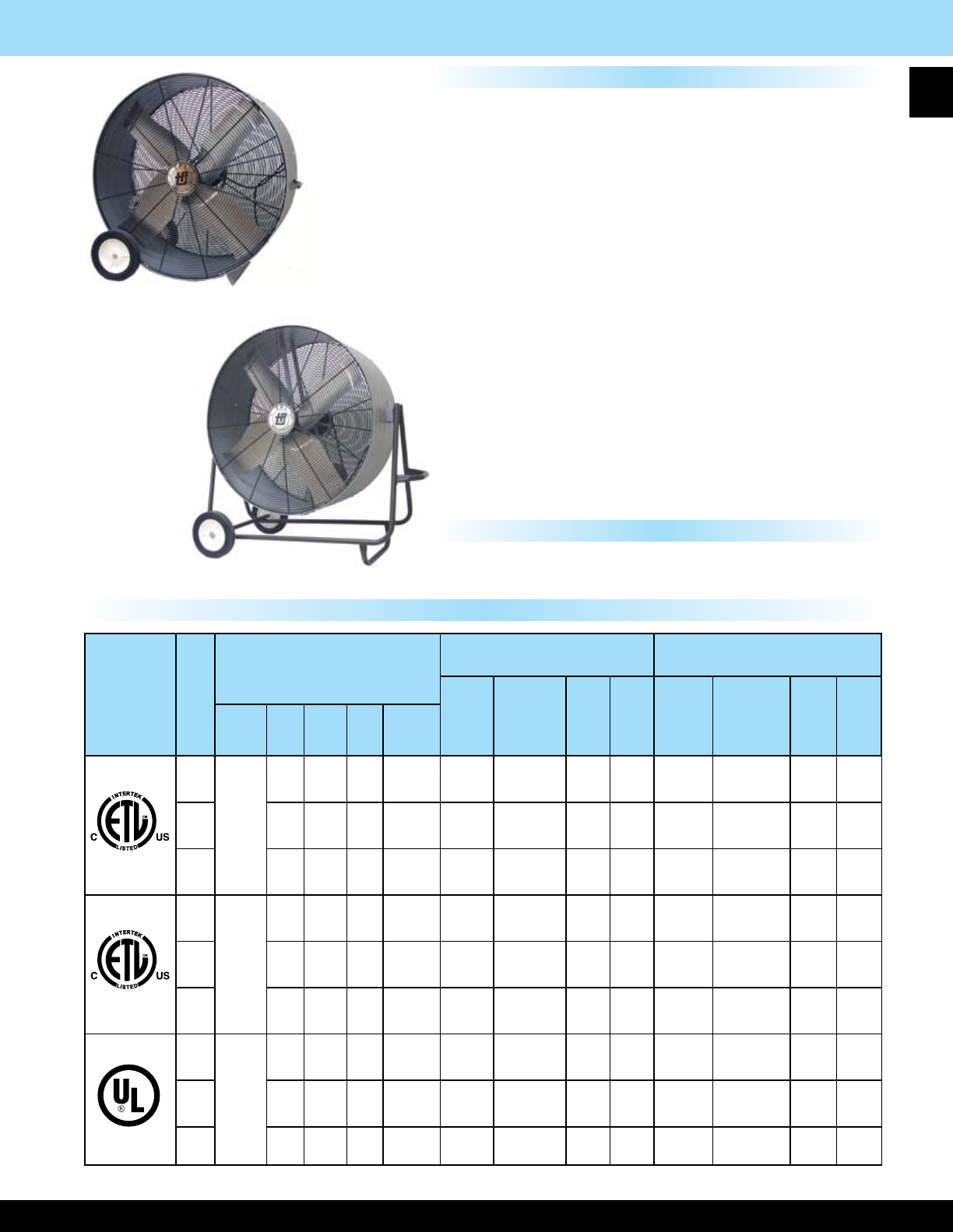

36”, 42”, & 48” TPI Industrial Belt Drive Portable Blowers
Features
• Comes in sizes 36”, 42”, and 48”
• Rocker switch on 120V, Single Phase models
• SJT type 3 conductor, 12’ long cord on 120V, Single Phase
models / no cord on dual voltage models
• Aluminum, 4 paddle blade
• Spiral, wire front and rear guards
•
Corrosion and dent proof high density polyethylene housing
• 10” wheels
• Swivel model rotates 360° in 12 1/2° increments and locks
in place with a steel locking pin
• External junction boxes on dual voltage models allow units
to be wired for either voltage without removing guards
• Hazardous location models have explosion proof motors,
metal housings, and external junction boxes rated for Class
I, Group D and Class II, Groups E, F, & G, UL Listed
• Meets OSHA standards • 1 year limited warranty
• 1-Speed
• Permanently lubricated
Motor Specications
• Ball bearing
STANDARD
MODEL
SWIVEL
MODEL
Standard Models
MOTOR
LISTING SIZE
MOTOR
STANDARD MODEL SWIVEL MODEL
UPC#
686334 MODEL WT.
(LBS.) LIST UPC#
686334 MODEL WT.
(LBS.) LIST
TYPE HP CFM RPM AMPS
36”
120 V
1 PH
ODP
1/2 14,500 500 8.0 796477 PB 36-B 120 985 796507 PBS 36-B 145 1159
42” 3/4 18,200 430 11.0 796484 PB 42-B 135 1124 796514 PBS 42-B 160 1334
48” 1 22,700 390 15.0 796491 PB 48-B 155 1262 796521 PBS 48-B 180 1503
36”
240/480
V
3 PH
ODP
1/2 14,500 500 2.3 / 1.1 850865 PB 36-B-3 127 1316 850926 PBS 36-B-3 152 1550
42” 3/4 18,200 430 3.3 / 1.5 850872 PB 42-B-3 143 1474 850933 PBS 42-B-3 168 1839
48” 1 22,700 390 3.4 / 1.7 850889 PB 48-B-3 164 1677 850940 PBS 48-B-3 189 1935
36”
120/240
V
1 PH
EXP
1/2 14,500 500 7.8 / 3.9 850896 PB 36-B-HL 135 1982 850957 PBS 36-B-HL 160 2187
42” 3/4 18,200 430 10.8 / 5.4 850902 PB 42-B-HL 150 2086 850964 PBS 42-B-HL 175 2493
48” 1 22,700 390 13.2 / 6.6 850919 PB 48-B-HL 173 2446 850971 PBS 48-B-HL 198 2697
14
TPI Industrial Direct Drive Suspension Blower
Features
• On-Off rocker switch
• SJT type 3 conductor, 12’ long cord
• Aluminum blade
• Powder coated spiral wire front and rear guards
• Corrosion and dent proof high density polyethylene housing
• Spiral wire front and rear guards
• Meets OSHA standards
• 1 year limited warranty
Motor Specications
• 120V., 1-Phase
• Ball bearing
• Permanent split capacitor
• 2-Speed on 30” & 36” model
• 1-Speed on 42” model
• Permanently lubricated
Standard Models
TPI Industrial Belt Drive Suspension Blower
Features
• On-Off rocker switch on 120V, 1 phase models
•
SJT type 3 conductor, 12’ long cord on 120V, 1 phase models
• No cord on dual voltage models
• Aluminum blade
• Powder coated front and rear guards
•
Corrosion and dent proof high density polyethylene housing
• Powder coated spiral wire front and rear guards
• Meets OSHA standards
• 1 year limited warranty
Motor Specications
• 120V., 1-Phase
• Ball bearing
• Permanent split capacitor
• 2-Speed on 30” & 36” model
• 1-Speed on 42” model
• Permanently lubricated
Standard Models
HL MODELS
HAVE UL
LISTED
MOTOR
SIZE MOTOR
HP
UPC#
686334 MODEL CFM RPM
HIGH
AMPS
HIGH
SHIPPING WT.
(LBS.) LIST
HIGH LOW
30” 1/4 874885 SB 30-D 7800 6000 1050 2.5 58 571
36” 1/3 873062 SB 36-D 12500 9000 1050 5.6 70 661
42” 1/2 873093 SB 42-D 16200 825 7.9 99 931
External junction boxes on dual voltage models allow units to be wired for either voltage without removing guards.
Hazardous Location models have explosion proof motors and external junction boxes rated for Class I, Group D, & Class II,
Groups E, F & G,. (Metal housing and no switch.)
UPC#
686334 MODEL SIZE MOTOR CFM RPM AMPS SHIP WT.
(LBS.) LIST
TYPE HP
796552 SB 36-B 36” 115 V 1/2 14,500 500 8 120 985
796569 SB 42-B 42” 1 PH 3/4 18,200 430 11 135 1124
796576 SB 48-B 48” ODP 1 22,700 390 15 155 1262
850988 SB 36-B-3 36” 230 / 460 V 1/2 14,500 500 2.3 / 1.1 127 1316
850995 SB 42-B-3 42” 3 PH 3/4 18,200 430 3.3 / 1.5 143 1592
851008 SB 48-B-3 48” ODP 1 22,700 390 3.8 / 1.9 164 1677
851015 SB 36-B-HL 36” 115 / 230 V 1/2 14,500 500 7.8 / 3.9 135 1982
851022 SB 42-B-HL 42” 1 PH 3/4 18,200 430 10.8 / 5.4 150 2253
851039 SB 48-B-HL 48” EXP 1 22,700 390 13.2 / 6.6 173 2446
15

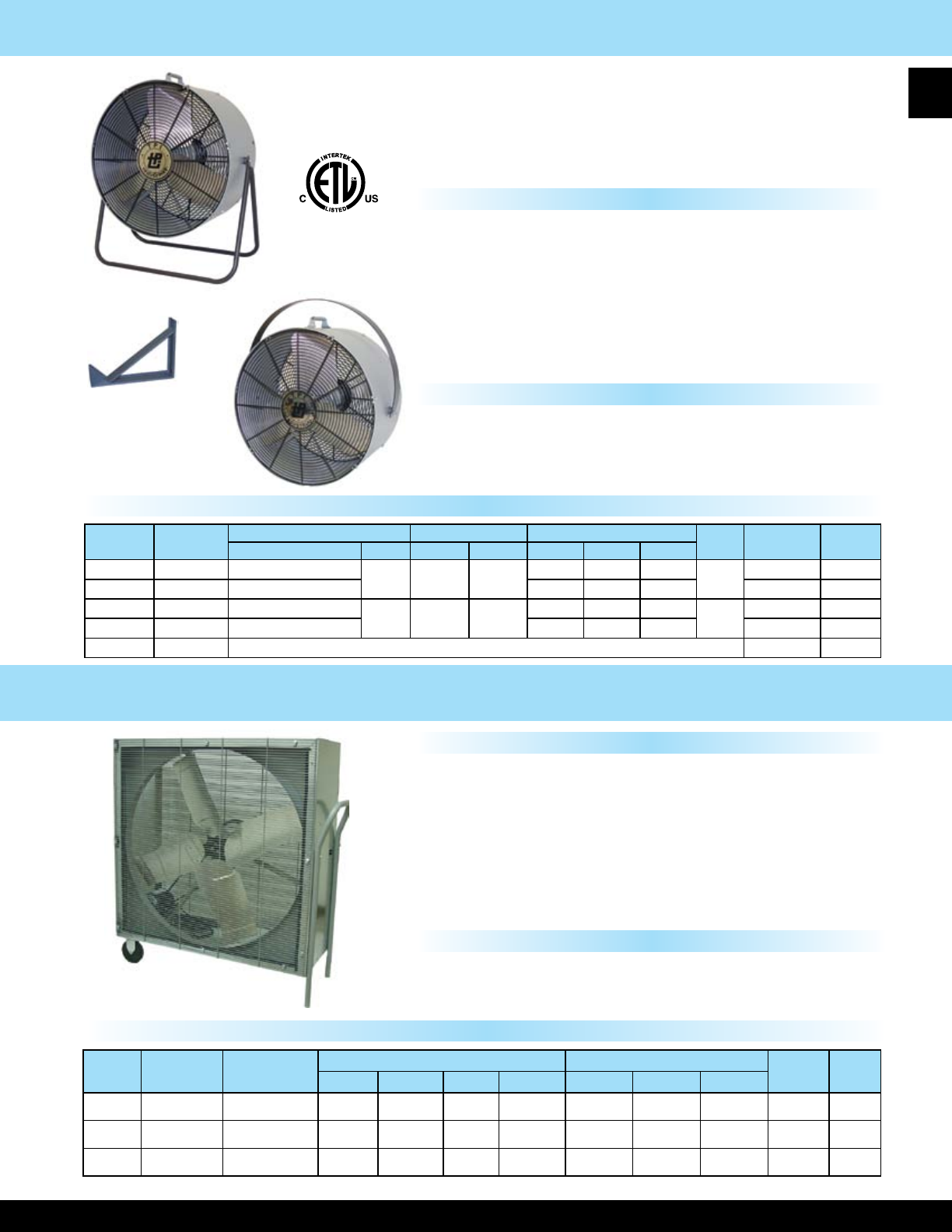

TPI Industrial Mini-Blowers
• Floor models have rotary switch
• Yoke mounted models have pull chain switch
• SJT type 3 conductor, 10’ long cord
• Aluminum blade
• Spiral, wire front and rear guards
•
Corrosion and dent proof high density polyethylene housing
• Meets OSHA standards
• 1 year limited warranty
Features
Motor Specications
• 1-Phase
• 1/4 HP
• Ball bearing
• Totally enclosed
• 120V
• 2-Speed
• Permanently lubricated
• Permanent split capacitor
TOTALLY ENCLOSED MOTOR ALLOWS MINI-BLOWER
TO BE USED IN DIRTY OR DUSTY ENVIRONMENTS.
AVAILABLE AS FLOOR MODEL OR YOKE MOUNTED
MODEL THAT CAN BE DIRECTLY BOLTED TO ANY
SURFACE OR USED WITH
OPTIONAL WALL/CEILING MOUNT.
YOKE MOUNTED
MODEL
FLOOR
MODEL
Standard Models
Heavy Duty Square Belt Drive Portable Blowers
Features
• On-Off rocker switch
• SJT type 3 conductor, 12’ long cord
• Aluminum blade
• Permanently lubricated bearings on blade drive shaft
• Powder coated front and rear guards
• Powder coated 20 gauge venturi
• 18 gauge galvanized steel housing
• Meets OSHA standards
• 1 Year limited warranty
Motor Specications
• 1-Phase
• Ball bearing
• Drip proof motor
• 120V
• 1-Speed
• Permanently lubricated
Standard Models
4” CASTERS
MBM-W
• 1/2 Shaft
SIZE UPC#
686334 MODEL MOTOR DIMENSIONS WT.
(LBS.) LIST
HP CFM RPM AMPS “H” “W” “D”
36” 868365 PCBT 36-B 1/2 10,850 500 8.0 48 1/4” 28 1/4” 22 1/2” 120 1532
42” 868372 PCBT 42-B 3/4 16,300 430 11.0 56 1/2” 34 1/4” 22 1/2” 140 1991
48” 868389 PCBT 48-B 1 22,700 390 15.0 62 1/2” 40 1/4” 18 1/2” 185 2420
UPC#
686334 MODEL FAN CFM / RPM DIMENSIONS AMPS
(High)
SHIPPING
WT.(LBS.) LIST
TYPE SIZE HIGH LOW “H” “W” “D”
874359 MB 24-DF FLOOR STYLE 24” 6800 /
1140
5000 /
1070
29 1/2” 28 1/2” 14 1/4” 2.2 52 571
374366 MB 24-DY YOKE STYLE 29” 28 1/2” 14 1/4” 52 571
874373 MB 30-DF FLOOR STYLE 30” 7800 /
1040 6000 / 730 38 1/2” 37 1/2” 14 1/2” 2.5 58 631
874380 MB 30-DY YOKE STYLE 38” 37 1/2” 14 1/2” 58 631
798907 MBM-W OPTIONAL WALL/CEILING MOUNT FOR YOKE STYLE MINI-BLOWER 4 115
16

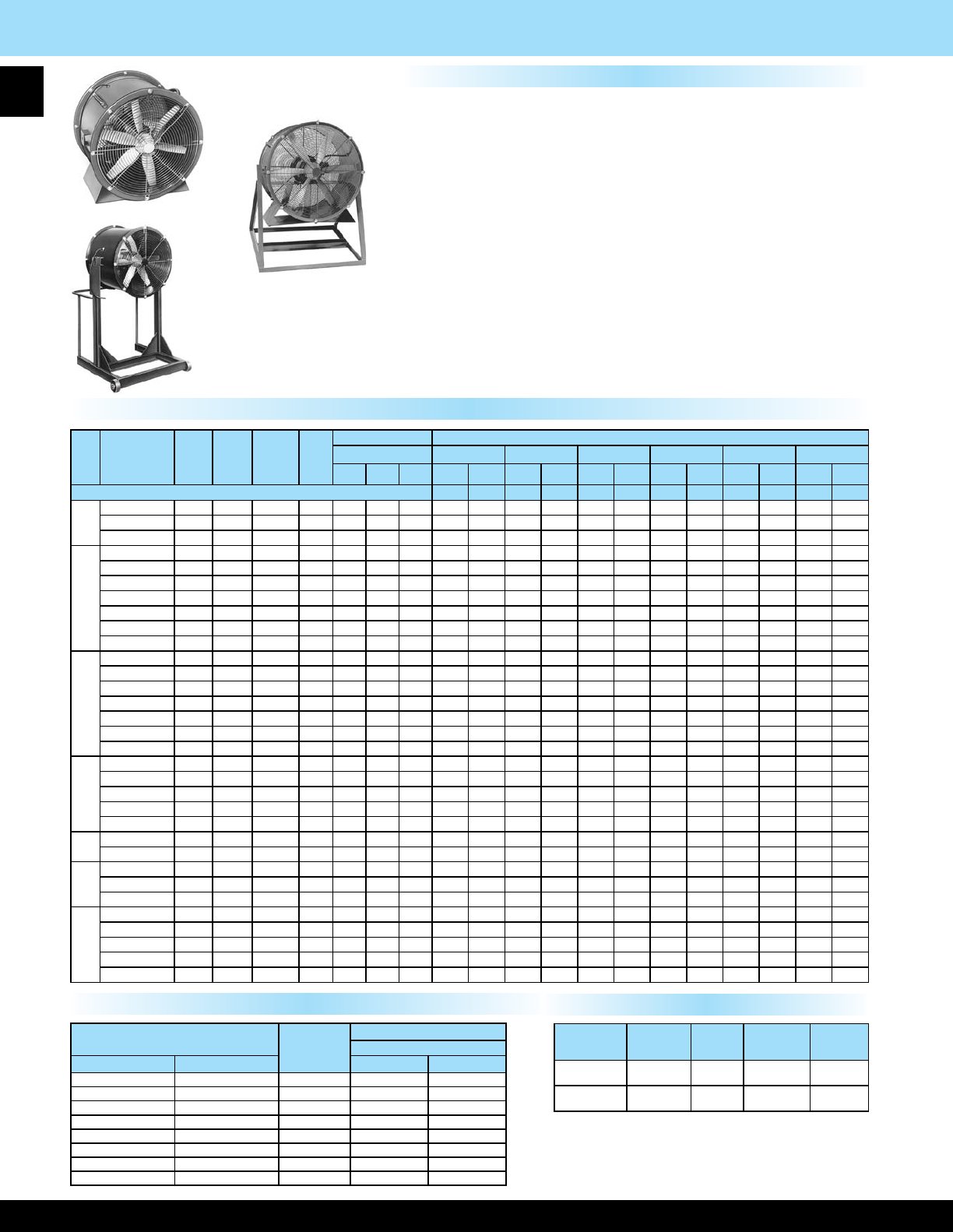

TPI Industrial Heavy Duty Direct Drive Blowers
Features
• Totally enclosed and explosion proof motors
• Explosion proof motors are Class 1, Div 1, Group D and
Class 2, Div 1, Groups F & G
• Cast aluminum props
• 14 Gauge steel body and stand
• Acid resistant coating available
• Baked enamel coating
• 360° Swivel on high and medium stand units
• Meets federal OSHA requirements
• 1 year limited warranty
LOW STAND
HIGH STAND
MEDIUM STAND
NOTE:
Single phase motors are eld convertible 115V / 230V
Three phase motors are eld convertible 230V / 460V
Motors are set to lower voltage at the factory unless a request is
made at time of order to set to the higher voltage
Standard Models
Manual Starter Switches Polyolin Casters
(FOR LOW & MEDIUM STAND)
4 CASTERS - 2 LOCKING
SIZE MODEL HP RPM CFM D B ’ s
@ 10’
SHIPPING WT. LIST
STAND TEC EXP TEC EXP TEC EXP
LOW MED HIGH 1PH 3PH 1PH 3PH 1PH 3PH 1PH 3PH 1PH 3PH 1PH 3PH
MODEL NUMBER SUFFIX’S -L -L-3 -L -L-3 -M -M-3 -M -M-3 -H -H-3 -H -H-3
18”
MCD18-1/4 1/4 1725 3050 74 103 145 210 2499 2488 2877 2937 3080 3069 3453 3522 3362 3351 3741 7573
MCD18-1/3 1/3 1725 3450 76 105 150 215 2584 2606 3075 3202 3165 3182 3656 3789 3447 3464 3943 7136
MCD18-1 1 1725 4600 77 117 165 230 2915 2808 3458 3522 3501 3389 4034 4103 3783 3672 4321 4386
24”
MCD24-1/4 1/4 1725 5200 80 115 165 230 2557 2547 2926 3000 3213 3208 3581 3656 3442 3288 3810 3885
MCD24-1/3 1/3 1140 5300 74 126 175 250 2968 3000 3772 3816 3623 3656 4428 4471 3852 3736 4657 4700
MCD24-1/2 1/2 1725 6000 80 120 170 240 2771 2782 3347 3288 3427 3437 4001 3943 3656 3522 4231 4172
MCD24-3/4 3/4 1140 6900 74 140 190 260 3538 3202 4012 3901 4194 3863 4668 4557 4423 3943 4897 4785
MCD24-1 1 1725 7400 82 130 180 250 3006 2899 3543 3607 3661 3554 4199 4263 3890 3634 4428 4492
MCD24-1 1/2 1.5 1725 8200 84 137 190 255 3176 3037 4695 3858 3832 3698 5350 4513 4061 3778 5579 4742
MCD24-3 31725 10500 87 160 210 270 ---- 3315 ---- 4194 ---- 3970 ---- 4855 ---- 4055 ---- 5078
30”
MCD30-1/3 1/3 1140 6900 80 150 205 260 3256 3288 4061 4103 3975 4007 4780 4828 4263 4295 5062 5111
MCD30-1/2 1/2 1725 8900 86 141 195 250 3064 3075 3640 3581 3789 3799 4364 4306 4072 4081 4646 4588
MCD30-3/4 3/4 1140 10400 80 210 260 320 3747 3416 4215 4108 4466 4135 4940 4833 4748 4417 5222 5116
MCD30-1 1 1140 11200 81 200 260 310 4492 3602 5356 4263 5216 4326 6080 4982 5499 4609 6362 5265
MCD30-1 1/2 1.5 1725 12000 92 200 250 310 3458 3320 4977 4141 4177 4045 5701 4865 4460 4326 5984 5147
MCD30-2 2 1140 14000 84 225 270 330 ---- 3852 ---- 4796 ---- 4577 ---- 5521 ---- 4860 ---- 5803
MCD30-3 31725 16000 94 220 265 325 ---- 3527 ---- 4406 ---- 4252 ---- 5131 ---- 4535 ---- 5409
36”
MCD36-1 1 1140 13000 82 250 320 375 5073 4183 5936 4838 5963 5078 6831 5734 6150 5260 7012 5915
MCD36-1 1/2 1.5 1725 14850 88 250 320 375 4012 3874 5531 4695 4902 4764 6421 5585 5089 4951 6607 5772
MCD36-2 2 1140 17500 82 255 325 380 ---- 4279 ---- 5227 ---- 5174 ---- 6117 ---- 5356 ---- 6304
MCD36-3 3 1725 18500 90 260 330 390 ---- 4087 ---- 4966 ---- 4977 ---- 5861 ---- 5163 ---- 6043
MCD36-5 5 1725 23000 94 260 330 390 ---- 4157 ---- 5121 ---- 5046 ---- 6011 ---- 5227 ---- 6192
42” MCD42-2 2 1140 19500 85 315 415 565 ---- 4913 ---- 5861 ---- 5861 ---- 6805 ---- 6235 ---- 7183
MCD42-5 5 1725 27000 98 320 420 570 ---- 4785 ---- 5755 ---- 5734 ---- 6698 ---- 6112 ---- 7082
48”
MCD48-5 5 1140 32000 92 500 620 710 ---- 6491 ---- 8084 ---- 7535 ---- 9128 ---- 8200 ---- 9795
MCD48-7 1/2 7.5 1140 37000 105 625 745 835 ---- 7535 ---- 10173 ---- 8580 ---- 11217 ---- 9245 ---- 11878
MCD48-10 10 1140 41000 105 682 800 890 ---- 8819 ---- 11169 ---- 9864 ---- 12208 ---- 10525 ---- 12875
60”
MCD60-3 3690 35000 87 690 855 965 ---- 13834 ---- ---- ---- 15805 ---- ---- ---- 16258 ---- ----
MCD60-5 5 690 45000 87 730 895 1005 ---- 15560 ---- ---- ---- 17526 ---- ---- ---- 17984 ---- ----
MCD60-7 1/2 7.5 870 47000 90 945 1110 1220 ---- 13039 ---- ---- ---- 15006 ---- ---- ---- 15459 ---- ----
MCD60-10 10 870 57200 91 1035 1200 1310 ---- 16231 ---- ---- ---- 18198 ---- ---- ---- 18656 ---- ----
MCD60-15 15 870 60750 92 1080 1245 1355 ---- 21230 ---- ---- ---- 23196 ---- ---- ---- 23654 ---- ----
MODEL H.P.
RATING
LIST PRICE
TEC
1 PH 3 PH 1 PH 3 PH
SW-1/4 SW-1/4-3 1/4-1/3 481 1149
SW-1/2 SW-1/2-3 1/2-3/4 481 1149
SW-1 SW-1-3 1 481 1149
SW-1 1/2 SW-1 1/2-3 1.5 1131 1149
----- SW-2-3 2 ---- 1149
----- SW-3-3 3 ---- 1149
----- SW-5-3 5 ---- 1149
----- SW-7 1/2-3 7.5 ---- 1091
MODEL FAN SIZE WHEEL
SIZE
SHIPPING
WT. (LBS) LIST
CAS - 18 18” - 30” 4” 10 461
CAS - 48 36” - 48” 6” 14 649
17

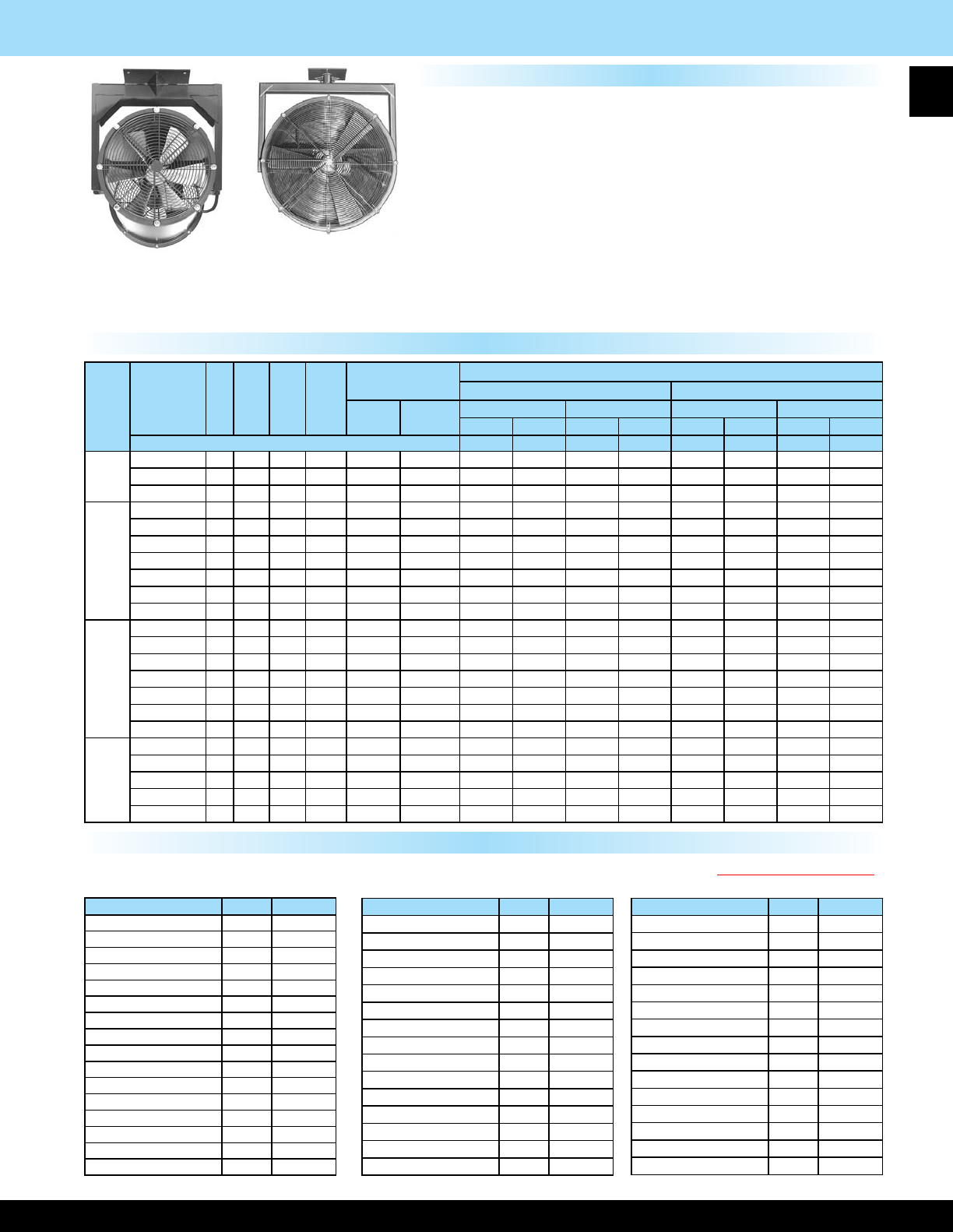

TPI Industrial Heavy Duty Permanent Mount Direct Drive Blowers
Features
• Front and rear spiral guards
• Explosion proof motors are Class 1, Div 1, Group D and
Class 2, Div 1, Groups F & G
• Cast aluminum props
• 14 gauge steel body and stand
• Meets federal OSHA requirements
• 1 year limited warranty
NOTE:
Single Phase motors are eld convertible 115V / 230V
Three Phase motors are eld convertible 230V / 460V
Motors are set to lower voltage at the factory unless a request is
made at time of order to set to the higher voltage
1-WAY
SWIVEL
2-WAY
SWIVEL
Standard Models
Place Typical Range
Assembly (6) 2-10
Auditoriums (6) 1-20
Bakeries (2) 1-3
Banks (6) 3-10
Bars (4) 2-5
Barns (15) 10-20
Boiler Rooms (2) 1-3
Bowling Alley (3) 1-5
Cafeteria (4) 3-5
Churches (6) 2-10
Classrooms (6) 4-8
Compressor Rooms (2) 1-3
Dance Halls (6) 2-10
Dairies (4) 2-5
Dormitories (6) 4-8
Dry Cleaning Plant (3) 1-5
Place Typical Range
Engine Rooms (3) 1-5
Factories (7) 4-10
Foundries (5) 2-8
Garages (7) 4-10
Generating Plants (4) 2-5
Glass Plants (2) 1-3
Gymnasiums (6) 2-10
Hallways (8) 4-12
Kitchens (Comm.) (3) 1-5
Laboratories (3) 1-5
Libraries (4) 2-5
Laundries (2) 1-3
Locker Rooms (6) 2-10
Machine Shops (4) 2-5
Markets (6) 2-10
Place Typical Range
Mills (4) 2-5
Packing Houses (4) 3-5
Plants (7) 4-10
Plating Plants (4) 2-5
Print Shops (7) 4-10
Restaurants (6) 2-10
Rest Rooms (7) 4-10
Schools (7) 4-10
Stores (7) 4-10
Theaters (6) 4-8
Transformer Rooms (3) 1-5
Turbine Rooms (4) 2-5
Waiting Rooms (12) 10-15
Warehouses (7) 4-10
Welding Rooms (3) 1-4
Exhaust Ventilation Guide
Minute air change chart for
Commercial and Industrial Applications. Building Cubic Feet
Minutes Per Air Change
CFM Required for Ventilation =
BLADE
SIZE
MODEL HP RPM CFM D B ’ S
@ 10’
SHIPPING WT. LIST PRICE
1-WAY SWIVEL 2-WAY SWIVEL
1-WAY
SWIVEL
2-WAY
SWIVEL
TEC EXP TEC EXP
1PH 3PH 1PH 3PH 1PH 3PH 1PH 3PH
MODEL NUMBER SUFFIX’S -T -T-3 -T -T-3 -S -S-3 -S -S-3
18”
MCD18-1/4 1/4 1725 3050 74 130 140 3315 3304 3687 3752 4161 4152 4540 4604
MCD18-1/3 1/3 1725 3450 76 135 145 3400 3416 3890 4018 4247 4263 4742 4871
MCD18-1 1 1725 4600 77 145 155 3730 3623 4268 4337 4582 4471 5121 5185
24”
MCD24-1/4 1/4 1725 5200 80 145 155 3416 3400 3783 3858 4306 4290 4668 4742
MCD24-1/3 1/3 1140 5300 74 155 165 3826 3858 4631 4673 4711 4742 5516 5558
MCD24-1/2 1/2 1725 6000 80 150 160 3629 3640 4204 4146 4513 4530 5089 5031
MCD24-3/4 3/4 1140 6900 74 170 180 4397 4066 4871 4758 5281 4951 5755 5648
MCD24-1 1 1725 7400 82 160 170 3863 3756 4401 4466 4748 4642 5287 5350
MCD24-1 1/2 1.5 1725 8200 84 165 175 4028 3896 5552 4716 4918 4780 6437 5601
MCD24-3 31725 10500 87 190 200 ---- 4172 ---- 5051 ---- 5057 ---- 5936
30”
MCD30-1/3 1/3 1140 6900 80 180 190 4146 4177 4951 4993 5127 5158 5926 5973
MCD30-1/2 1/2 1725 8900 86 170 180 3954 3965 4535 4471 4935 4945 5510 5451
MCD30-3/4 3/4 1140 10400 80 240 250 4636 4301 5111 4998 5612 5281 6086 5979
MCD30-1 1 1140 11200 81 230 240 5382 4492 6251 5153 6362 5472 7226 6128
MCD30-1 1/2 1.5 1725 12000 92 230 240 4348 4210 5867 5031 5329 5190 6847 6011
MCD30-2 2 1140 14000 84 255 265 ---- 4742 ---- 5686 ---- 5723 ---- 6666
MCD30-3 31725 16000 94 250 260 ---- 4417 ---- 5302 ---- 5392 ---- 6277
36”
MCD36-1 1 1140 13000 82 295 305 6181 5287 7045 5941 7396 6501 8260 7161
MCD36-1 1/2 1.5 1725 14850 88 295 305 5111 4977 6634 5797 6331 6192 7849 7012
MCD36-2 2 1140 17500 82 300 310 ---- 5382 ---- 6331 ---- 6602 ---- 7546
MCD36-3 3 1725 18500 90 315 325 ---- 5190 ---- 6070 ---- 6405 ---- 7285
MCD36-5 5 1725 23000 94 305 315 ---- 5254 ---- 6224 ---- 6475 ---- 7439
18
Features
• Powder coated steel housing with 10 gauge steel base
• Vibration absorbing spring mounted feet
• 8” inlet and outlet
• Uses standard 8” exible duct
• Length: 18” - Width: 16” - Height: 29”
• 2 year limited warranty
Standard Models

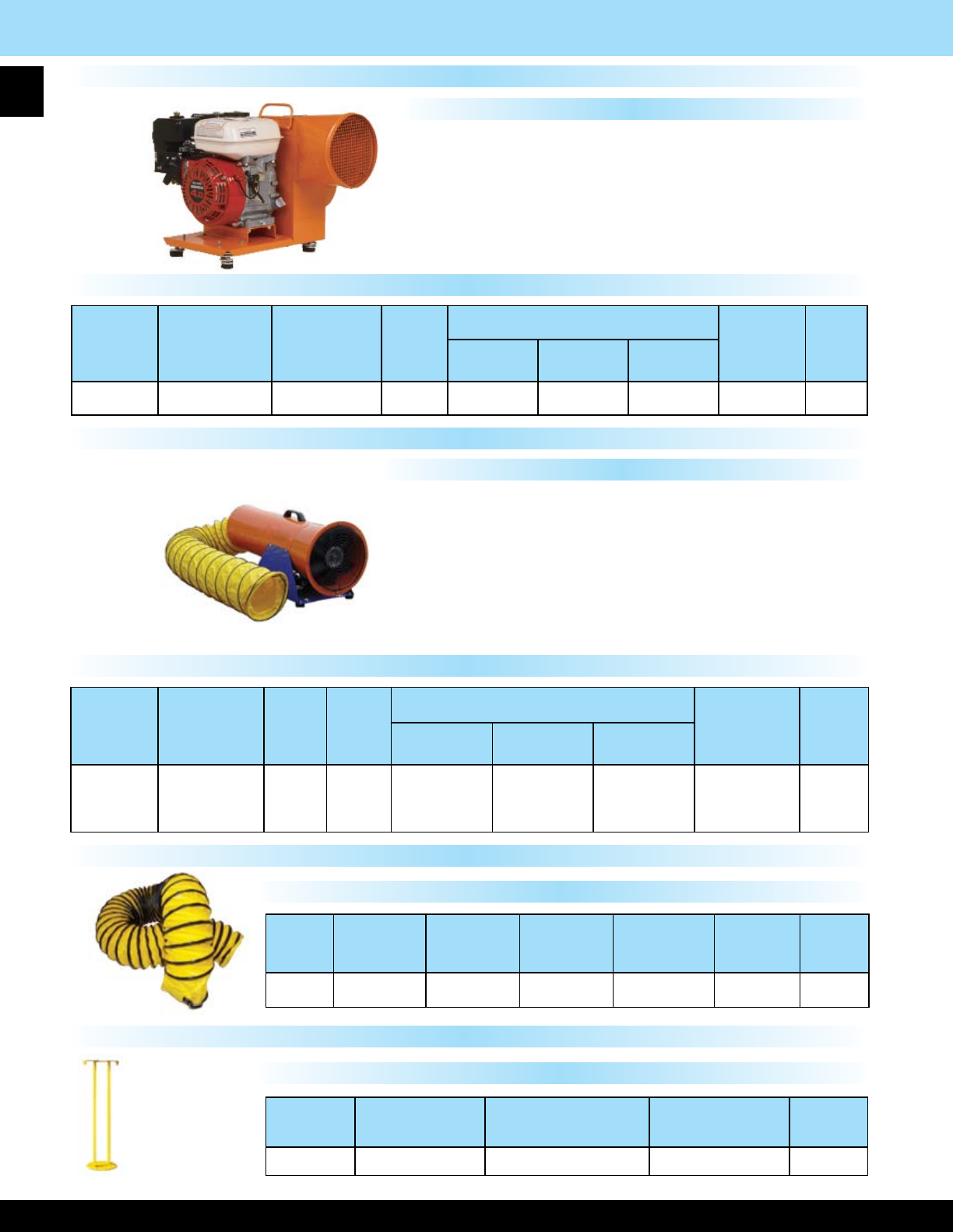

Gasoline Powered Centrifugal Blower
May be used in Exhaust Air or Supply Air applications.
Conned Space Blowers
Electric Powered Axial Blower With Built-In Hose Canister
Features
• Rugged plastic housing
• Single speed, 115V, totally enclosed motor
• 15” inlet and 8” outlet
• Uses standard 8” exible duct
• Length: 17” - Width: 16” - Height: 17”
• 1 year limited warranty
Standard Models
May be used in Supply Air applications.
Accessories - Hoses
Standard Models
Accessories-Carriers
Standard Models
CSB-8AE-MC
UPC#
686334 MODEL GASOLINE
ENGINE HP
CFM
WEIGHT
(LBS) LIST
OUTLET One 90o Bend Two 90o Bends
867962 CSB-8CG-H HONDA 4 1350 1050 775 53 lbs. 2211
UPC#
686334 MODEL HP AMPS
CFM
WEIGHT
(LBS.) LIST
OUTLET ONE 90o BEND TWO 90o BENDS
868006 CSB-8AE-MC 1/3 3.0 1373 740 630 33 lbs. 1421
UPC#
686334 MODEL DIAMETER LENGTH FABRIC WT. WEIGHT
(LBS) LIST
868044 DUCT-8-25 8” 25’ 13 oz./ yd. 10 313
UPC#
6 8 6 3 3 4 MODEL HOSE LENGTH HOSE WIDTH LIST
868013 HC-8A UP TO 25’ 8”-10” 135
19

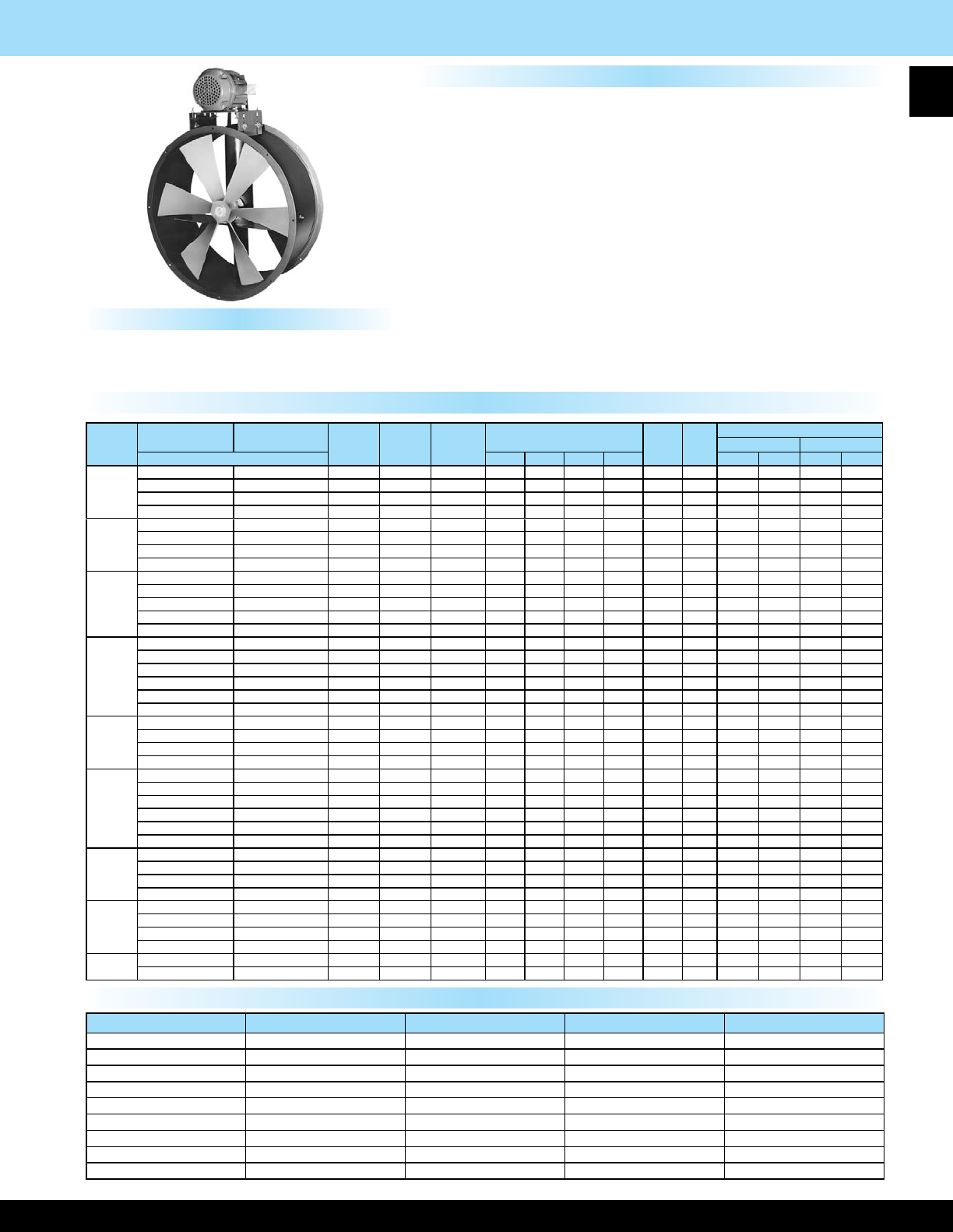

Tubeaxial Belt Drive Duct Fans
Features
• Eliminates fumes and vapors from paint spray booths and other
hazardous areas
• Totally enclosed and explosion proof motors
• 1-Phase motors are eld convertible 115V/230V
• 3-Phase motors are eld convertible 230V/460V
• Motors are set to lower voltage at the factory unless a request is
made at time of order to set them to the higher voltage
• Explosion proof motors are Class 1, Div 1, Group D and Class 2,
Div 1, Groups F & G
• Recommended for most paint spray applications because motor is
out of air
• 14 gauge steel drum including mounting anges at each end
• Completely enclosed belt and ball bearing housing
• Adjustable motor base for proper belt tension
• Rugged cast aluminum blade, non-sparking
• Fan can be mounted to operate in any position
• 1 year limited warranty
Options
• Companion anges
• Protective coating
• Access doors
• Belt guards
• Motor covers
• Fan guards
Standard Models
Dimensions
SIZE HOUSING INNER DIMENSION HOUSING OUTER DIMENSION BOLT HOLE CENTERS HOUSING DEPTH
12” 12” 14” 13 1/8” 12”
15” 15” 17” 16 1/8” 12”
18” 18” 20” 19 1/8” 12”
24” 24” 27” 25 3/4 “ 12” & 16”
27” 27” 30” 28 3/4” 16”
30” 30” 33” 31 3/4” 16”
34” 34” 37” 35 3/4” 16”
42” 42” 45” 43 9/16” 18”
48” 48” 51” 49 5/8” 24”
BLADE
SIZE
1-PHASE
115/230V-60Hz
3-PHASE
230/460v-60Hz HP RPM BLADES C.F.M - STATIC PRESSURE Db’s
@10’
WT
(LBS)
LIST
TEC EXP
MODEL 0” 1/4” 1/2” 3/4” 1 PH 3 PH 1 PH 3 PH
12”
TXB12-1/4 TXB12-1/4-3 1/4 2625 4 1444 1033 380 ---- 77 62 2046 2035 2431 2494
TXB12-1/3 TXB12-1/3-3 1/3 2875 4 1586 1135 415 ---- 78 65 2088 2109 2589 2721
TXB12-1/2 TXB12-1/2-3 1/2 3450 4 1875 1400 1250 1100 83 65 2088 2088 2573 2790
TXB12-3/4 TXB12-3/4-3 3/4 3450 62044 1920 1650 1500 83 67 2272 2272 2748 2947
15”
TXB15-1/4 TXB15-1/4-3 1/4 2000 62600 1700 ---- 77 67 2252 2241 2636 2700
TXB15-1/3 TXB15-1/3-3 1/3 2200 62950 2100 1000 ---- 78 69 2320 2336 2816 2947
TXB15-1/2 TXB15-1/2-3 1/2 1890 63350 2650 1500 ---- 76 75 2389 2399 2979 2916
TXB15-3/4 TXB15-3/4-3 3/4 2200 63900 3400 2700 1150 78 85 2600 2462 3190 3042
18”
TXB18-1/4 TXB18-1/4-3 1/4 1600 63050 2000 ---- 76 80 2378 2367 2763 2826
TXB18-1/3 TXB18-1/3-3 1/3 1725 63375 2600 1400 ---- 77 85 2404 2441 2921 3053
TXB18-1/2 TXB18-1/2-3 1/2 1890 63850 3100 2000 ---- 78 95 2494 2505 3084 3021
TXB18-1 TXB18-1-3 1 1725 64600 4080 3000 2100 77 105 2847 2715 3390 3443
TXB18-1 1/2 TXB18-1 1/2-3 1.5 1990 65350 4830 3950 3000 80 105 2979 2841 4535 3681
24”
TXB24-1/2 TXB24-1/2-3 1/2 1298 65643 4826 3500 ---- 78 120 2704 2715 3295 3232
TXB24-3/4 TXB24-3/4-3 3/4 1600 66906 5900 4650 2750 80 130 2953 2816 3543 3396
TXB24-1 TXB24-1-3 1 1725 67425 6350 5000 3300 84 140 2979 2863 3543 3596
TXB24-1 1/2 TXB24-1 1/2-3 1.5 1540 68200 7650 6850 5500 81 145 3622 3485 5172 4323
TXB24-2 TXB24-2-3 2 1600 69760 8830 8090 7000 82 170 4118 3675 5298 4513
------ TXB24-3-3 31725 610500 9500 8700 7800 86 190 ---- 3791 ---- 4693
27”
TXB27-3/4 TXB27-3/4-3 3/4 1250 68330 7550 6500 4650 78 150 3617 3474 4202 4060
TXB27-1 TXB27-1-3 1 1400 69400 8480 7300 5200 82 155 3639 3527 4202 4250
TXB27-1 1/2 TXB27-1 1/2-3 1.5 1600 610700 9700 8375 6000 84 170 3802 3664 5351 4497
TXB27-2 TXB27-2-3 2 1350 611500 10700 9300 8000 81 210 4239 3796 5426 4640
30”
TXB30-1/2 TXB30-1/2-3 1/2 1140 4 8900 6660 2300 ---- 79 140 3421 3438 4012 3955
TXB30-1 TXB30-1-3 1 1298 69867 7980 4120 ---- 82 150 3796 3686 4360 4413
TXB30-1 1/2 TXB30-1 1/2-3 1.5 1035 611100 9700 7500 3500 78 165 3959 3822 5510 4661
TXB30-2 TXB30-2-3 2 1176 612100 11000 9322 6700 81 215 4334 3891 5520 4735
------ TXB30-3-3 31350 613480 12498 11465 10380 84 215 ---- 4149 ---- 5046
------ TXB30-5-3 5 1650 616440 15242 13982 12659 88 230 ---- 4197 ---- 5178
34”
TXB34-1 1/2 TXB34-1 1/2-3 1.5 1170 613695 11100 6000 1015 82 190 4577 4440 6127 5273
TXB34-2 TXB34-2-3 2 1027 614657 12590 10000 8000 81 240 5099 4656 6279 5499
------ TXB34-3-3 31175 617580 15896 14095 12000 85 260 ---- 4777 ---- 5673
------ TXB34-5-3 5 1416 620500 19000 17500 16000 88 305 ---- 4808 ---- 5800
42”
TXB42-1 1/2 TXB42-1 1/2-3 1.5 750 4 18960 14662 7200 ---- 78 250 5589 5452 7139 6285
TXB42-2 TXB42-2-3 2 820 4 20700 17002 11400 4000 80 260 5984 5541 7171 6380
------ TXB42-3-3 3890 4 23700 20200 16970 9950 82 260 ---- 5657 ---- 6553
------ TXB42-5-3 5 850 626900 24403 22250 18400 82 270 ---- 5953 ---- 6939
48” ------ TXB48-5-3 5 800 633000 29000 25600 20000 85 375 ---- 8826 ---- 9812
------ TXB48-7 1/2-3 7.5 900 637000 34500 31000 27000 87 520 ---- 9374 ---- 11035
20
Tubeaxial Direct Drive Duct Fans
Features
• Totally enclosed and explosion proof motors
• 1-Phase motors are eld convertible 115V/230V
• 3-Phase motors are eld convertible 230V/460V
• Motors are set to lower voltage at the factory unless a request is
made at time of order to set them to the higher voltage
• Explosion proof motors are Class 1, Div 1, Group D and Class 2,
Div 1, Groups F & G
• 14 Gauge steel drum including mounting anges
• Fan can be mounted to operate in any position
• Rugged cast aluminum blade, non-sparking
• Fan can be mounted to operate in any position
• 1 year limited warranty
• Companion anges
• Protective coating
Options
Standard Models
Dimensions
SIZE
HOUSING
I.NNER
DIM.
HOUSING
OUTER
DIM.
BOLT HOLE
CENTERS
HOUSING
DEPTH
12” 12” 14” 13 1/8” 14”
18” 18” 20” 19 1/8” 14”
24” 24” 27” 25 3/4 “ 18”
27” 27” 30” 28 3/4” 18”
30” 30” 33” 31 3/4” 18”
34” 34” 37” 35 3/4” 18”
42” 42” 45” 43 9/16” 18”
48” 48” 51” 49 5/8” 18”

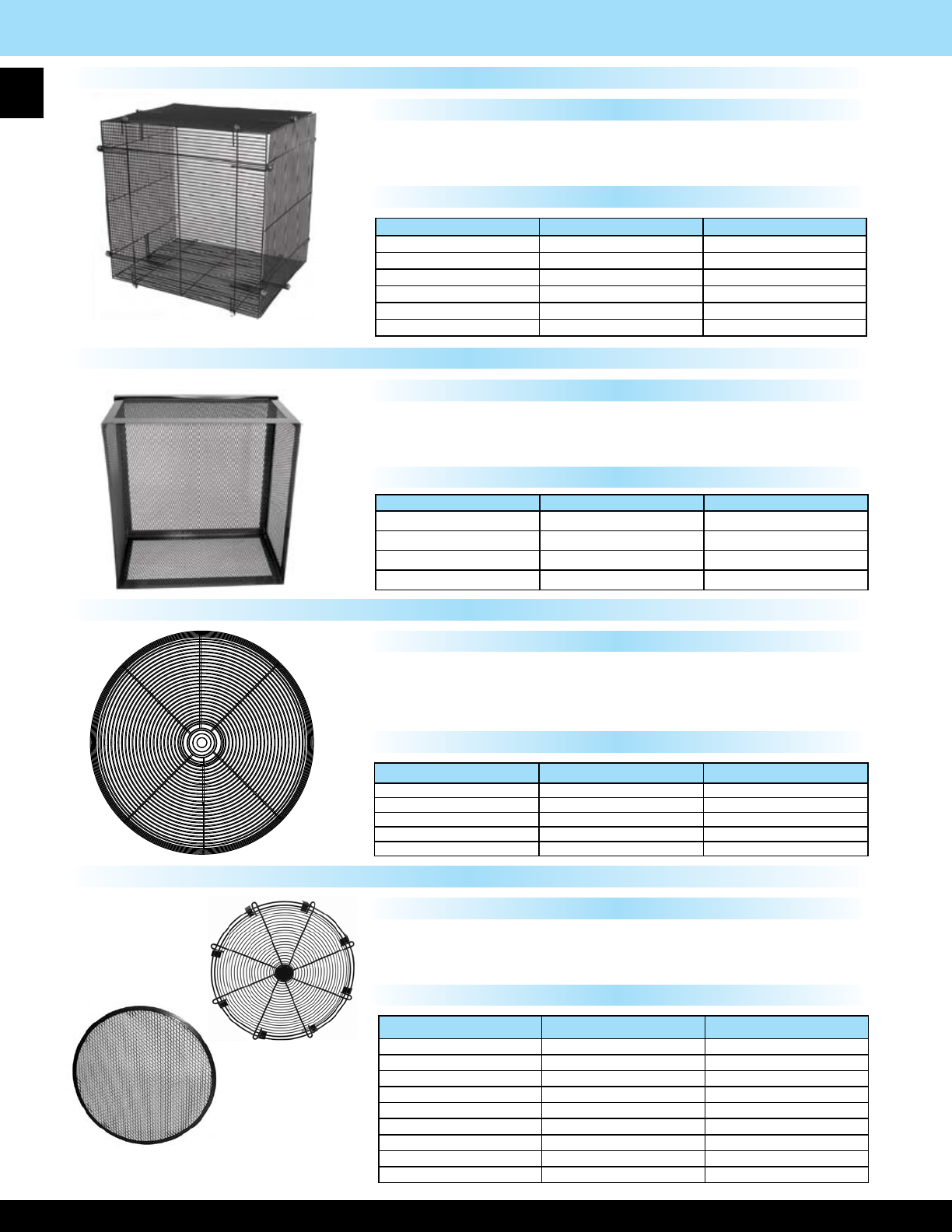

Duct Fan Guards
• Enamel nish
• Can be used as front or rear
guards. (Rear guard for
TXD models must be
ordered with fan)
Features Standard Models
• Fan guards
• Access doors
BLADE
SIZE
1-PHASE
115/230V
3-PHASE
230/460v HP RPM BLADES C.F.M - STATIC PRESSURE Db’s
@ 10’
WT.
Lbs.
LIST
TEC EXP
MODEL 0” 1/4” 1/2” 3/4” 1 PH 3 PH 1 PH 3 PH
12”
TXD12-1/4 TXD12-1/4-3 1/4 1725 4 1180 520 ---- ---- 77 40 1517 1502 1887 1950
TXD12-1/2 TXD12-1/2-3 1/2 3450 4 1875 1400 1250 1100 82 45 1560 1555 2108 2346
TXD12-3/4 TXD12-3/4-3 3/4 3450 62044 1920 1650 1500 83 45 1618 1618 2251 2425
18”
TXD18-1/4 TXD18-1/4-3 1/4 1725 4 3450 2500 ---- ---- 74 55 1792 1777 2161 2224
TXD18-1/3 TXD18-1/3-3 1/3 1725 63375 2600 1400 ---- 75 65 1881 1898 2361 2493
TXD18-1/2 TXD18-1/2-3 1/2 1725 64150 3150 1700 ---- 77 65 1955 1966 2525 2467
TXD18-1 TXD18-1-3 1 1725 64600 4080 3000 2100 80 70 2203 2097 2751 2798
24”
TXD24-1/4 TXD24-1/4-3 1/4 1725 2 5200 2820 ---- ---- 80 95 1966 1955 2335 2350
TXD24-1/3 TXD24-1/3-3 1/3 1140 64975 4250 2850 ---- 74 110 2366 2403 3162 3210
TXD24-1/2 TXD24-1/2-3 1/2 1725 4 6510 5200 3100 1800 80 115 2172 2182 2741 2683
TXD24-3/4 TXD24-3/4-3 3/4 1140 66900 6265 3300 ---- 74 125 2935 2609 3400 3294
TXD24-1 TXD24-1-3 1 1725 67425 6350 5000 3300 82 120 2408 2298 2957 3005
TXD24-2 TXD24-2-3 2 1725 69525 8810 7980 6960 84 120 2915 2482 4063 3299
------ TXD24-3-3 31725 610500 9500 8700 7800 86 130 ---- 2699 ---- 3568
27”
TXD27-1/2 TXD27-1/2-3 1/2 1725 4 7550 6000 4000 2000 86 125 2372 2377 2935 2877
TXD27-1 TXD27-1-3 1 1725 4 9600 8400 7050 4800 86 155 2571 2467 3120 3168
TXD27-2 TXD27-2-3 2 1725 611500 10700 9300 8000 86 165 3136 2703 4284 3521
30”
TXD30-1/2 TXD30-1/2-3 1/2 1725 4 8980 6300 4350 2300 86 130 2467 2478 3036 2978
TXD30-3/4 TXD30-3/4-3 3/4 1140 610440 8750 6000 ---- 80 150 3316 2988 3784 3689
TXD30-2 TXD30-2-3 2 1725 612000 10450 8700 6000 89 155 3226 2793 4374 3610
------ TXD30-3-3 31725 616000 14700 12900 10200 89 175 ---- 2920 ---- 3795
34”
TXD34-1 1/2 TXD34-1 1/2-3 1.5 1725 4 13350 10000 7300 ---- 88 175 3316 3178 4822 3990
TXD34-2 TXD34-2-3 2 1725 4 14850 12100 8800 4000 89 200 3673 3241 4822 4059
------ TXD34-3-3 31140 319300 17230 14800 11614 86 250 ---- 4200 ---- 5302
------ TXD34-5-3 5 1725 621000 18900 17500 14850 91 220 ---- 3452 ---- 4412
36” TXD36-2 TXD36-2-3 2 1140 617620 15200 12300 8500 84 210 ---- 3600 ---- 4538
------ TXD36-3-3 3 1725 4 18500 15700 13900 11500 89 230 ---- 4006 ---- 5107
42”
------ TXD42-1-3 1 870 4 15800 13480 5800 900 81 270 ---- 4353 ---- ----
TXD42-2 TXD42-2-3 2 1140 4 17964 15326 12351 7600 87 260 ---- 4101 ---- 5033
------ TXD42-3-3 31140 4 24500 23000 19650 14000 87 260 ---- 4595 ---- 5697
------ TXD42-5-3 5 1140 4 28970 26840 24200 19500 87 300 ---- 4765 ---- 6341
48” ------ TXD48-3-3 31140 4 28600 24400 20000 15900 94 290 ---- 5729 ---- 6830
------ TXD48-5-3 5 870 4 33000 29750 25300 18000 86 500 ---- 7284 ---- ----
FAN SIZE MODEL LIST
30” TXG-30 181
34” TXG-34 231
36” TXG-36 238
42” TXG-42 262
48” TXG-48 343
FAN SIZE MODEL LIST
12” TXG-12 132
15” TXG-15 132
18” TXG-18 132
24” TXG-24 144
27” TXG-27 181
21

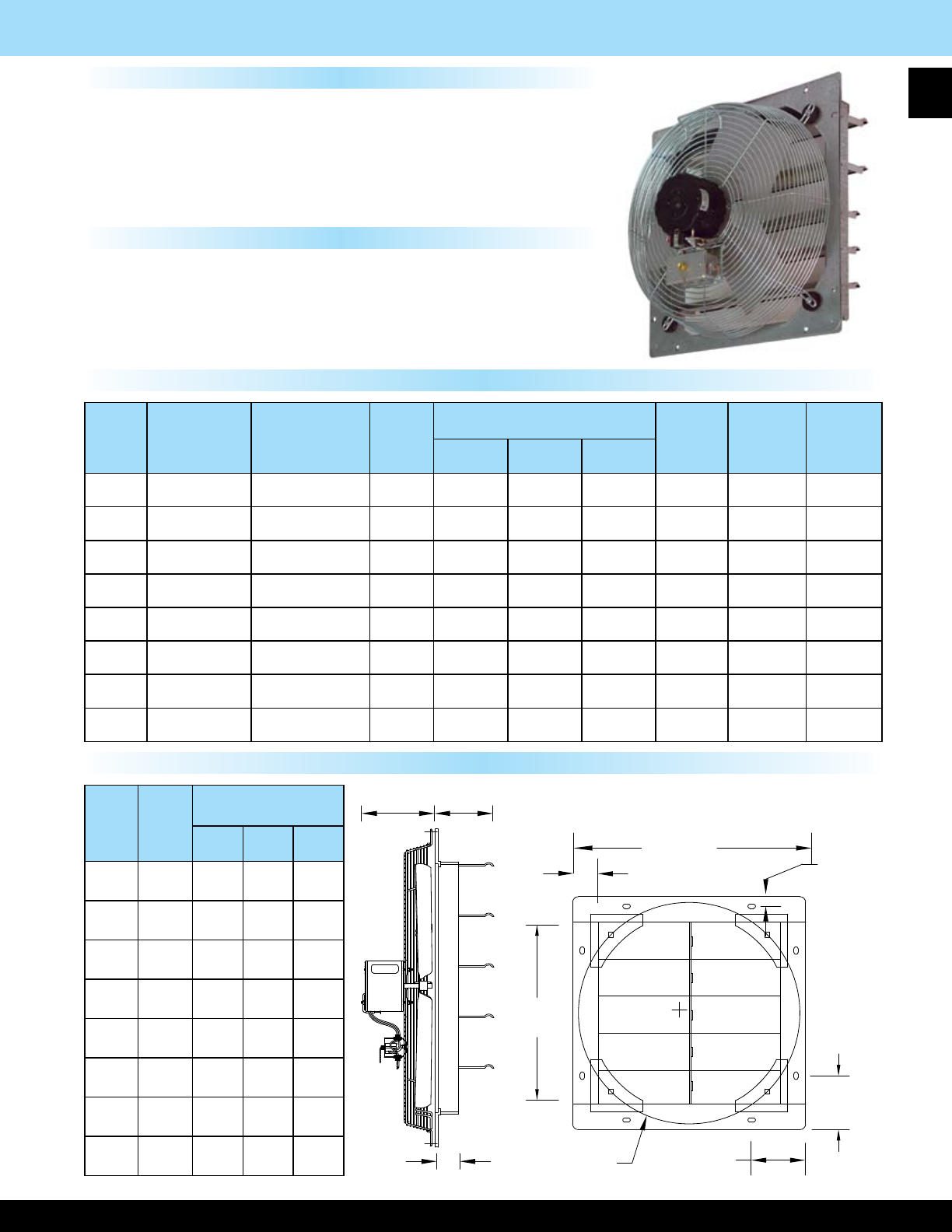

Shutter Mounted Direct Drive Exhaust Fans
Features
• Can be installed from inside wall
• Eliminates need for external framing and shutter
• Pull chain switch
• No Cord-Junction box provided for direct wiring
• Aluminum blade
• Steel spiral wire guards
• 120V, 1 phase, totally enclosed, permanently lubricated
• 1/12 HP motor is 3-Speed sleeve bearing shaded pole type
• 1/8 HP motor is 3-Speed sleeve bearing permanent split capacitor
• 1/4 HP motor is 2-Speed ball bearing permanent split capacitor
Motor Specications
Standard Models
Dimensions (Inches)
Note: Rough-in hole size is 1/2” inch larger than fan blade size
SIZE DEPTH
DIMENSIONS
“A” “B” “C”
10” 5.81” 13.125” 10” 12.375”
12” 7.18” 15.125” 12” 14.375”
14” 7.18” 17.125” 14” 16.375”
16” 7.18” 19.125” 16” 18.250”
18” 7.18” 21.125” 18” 21.750”
20” 7.18” 23.125” 20” 2.686”
24” 7.18” 27.125” 24” 27.750”
30” 7.18” 33.125” 30” 33.750”
CE SHUTTER REAR
VIEW
"C"
3.500TYP.
+/-.03125
"A" +/-.3125
1.563 .785 TYP
+/-.03125
2.375
+/-.03125
6.125 MAX
OPEN
"B"
+/-.03125
3.500 TYP.
+/-.03125
0.312 SQUARE 4 PLS.
SPACED 90 DEGREES APART
DEPTH
FAN
SIZE
UPC#
686334 MODEL HP
CFM / RPM A M P S
HIGH
WT.
(LBS) LIST
HIGH MED LOW
10” 868990 CE 10-DS 1/12 680 / 1560 540 / 1250 460 / 1080 1 11 277
12” 798624 CE 12-DS 1/12 825 / 1560 710 / 1250 560 / 1080 1.1 16 313
14” 869003 CE 14-DS 1/8 1520 / 1660 1400 / 1550 1250 / 1370 2 17 397
16” 869010 CE 16-DS 1/8 2100 / 1660 1900 / 1550 1700 / 1370 2.1 18 415
18” 798631 CE 18-DS 1/8 2300 / 1660 2100 / 1050 1850 / 1370 2.2 25 451
20” 869027 CE 20-DS 1/4 2925 / 1140 -2380 / 1070 2.3 34 535
24” 798648 CE 24-DS 1/4 3400 / 1140 -2770 / 1070 2.5 47 596
30” 798655 CE 30-DS 1/4 3950 / 1140 -3080 / 1070 2.7 54 746
22
Guard Mounted Direct Drive Exhaust Fans
Features
• Bolts directly to the wall
• Can be used with or without external shutter
• Pull chain switch
• No Cord-Junction box provided for direct wiring
• Aluminum blade
• Steel spiral wire guards
Note: Rough-in hole size is 1/2” inch larger than fan blade size
• 120V, 1-Phase, totally enclosed, permanently lubricated
• 1/12 HP motor is 3-Speed sleeve bearing shaded pole type
• 1/8 HP motor is 3-Speed sleeve bearing permanent split capacitor
• 1/4 HP motor is 2-Speed ball bearing permanent split capacitor
Motor Specications
Standard Models
Dimensions (Inches)
Optional Wall Shutters
BOLT HOLE CENTER WIDTH DEPTH
SIZE BOLT HOLE
CENTER WIDTH DEPTH
10” 14.14” 5.81”
12” 16.46” 7.18”
14” 18.30” 7.18”
16” 20.34” 7.18”
18” 22.64” 7.18”
20” 25.46” 7.18”
24” 29.08” 7.18”
30” 34.89” 7.18”
FAN
SIZE
UPC#
686334 MODEL HP CFM / RPM A M P S
HIGH
WT.
(LBS) LIST
HIGH MED LOW
10” 868952 CE 10-D 1/12 680 / 1560 540 / 1250 460 / 1080 1 11 235
12” 798501 CE 12-D 1/12 825 / 1560 710 / 1250 560 / 1080 1.1 12 265
14” 868969 CE 14-D 1/8 1520 / 1660 1400 / 1550 1250 / 1370 2 17 282
16” 868976 CE 16-D 1/8 2100 / 1660 1900 / 1550 1700 / 1370 2.1 18 295
18” 798495 CE 18-D 1/8 2300 / 1660 2100 / 1050 1850 / 1370 2.2 19 324
20” 868983 CE 20-D 1/4 2925 / 1140 -2380 / 1070 2.3 34 421
24” 798488 CE 24-D 1/4 3400 / 1140 -2770 / 1070 2.5 38 469
30” 798471 CE 30-D 1/4 3950 / 1140 -3080 / 1070 2.7 42 547
FAN SIZE UPC#
686334 MODEL WT.
(LBS) LIST
10” 868433 CES-10G 5 61
12” 798556 CES-12G 5.5 85
14” 868457 CES-14G 6.5 103
16” 851473 CES-16G 8 120
18” 798563 CES-18G 9145
20” 797528 CES-20G 10 162
24” 798570 CES-24G 13 181
30” 798587 CES-30G 19 211
23

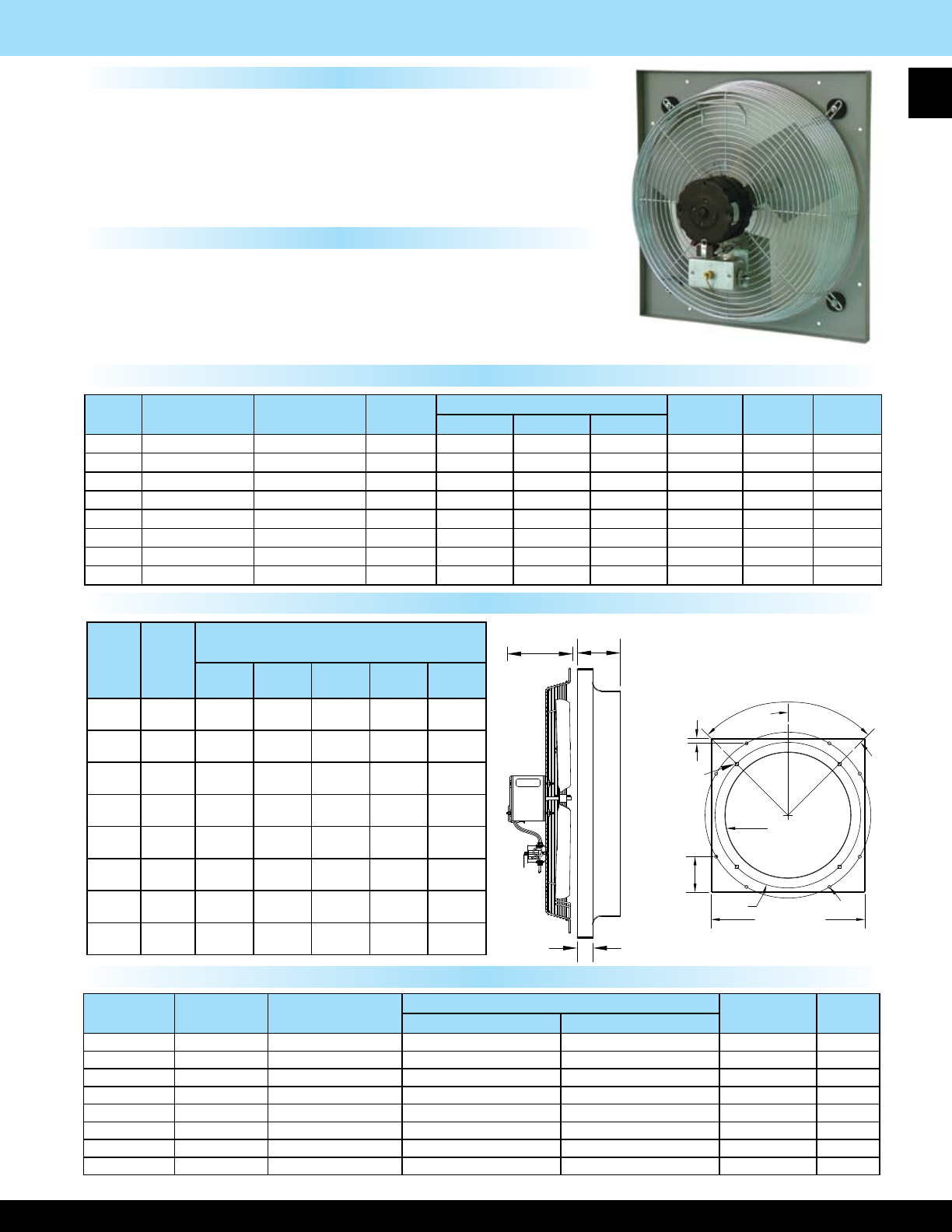

Venturi Mounted Direct Drive Exhaust Fans
Features
• Can be installed from inside wall
• Can be used with external shutter
• Pull chain switch
• No Cord-Junction box provided for direct wiring
• Aluminum blade
• Steel spiral wire guards
• 120V, 1-Phase, totally enclosed, permanently lubricated
• 1/12 HP motor is 3-Speed sleeve bearing shaded pole type
• 1/8 HP motor is 3-Speed sleeve bearing permanent split capacitor
• 1/4 HP motor is 2-Speed ball bearing permanent split capacitor
Motor Specications
Standard Models
Optional Wall Shutters
Note: Rough-in hole size is 1/2” inch larger than fan blade size
Dimensions (Inches)
REAR VIEW
(FAN REMOVED)
"E" B.H.C.
"A" I.D.
"C"
"B" SQUARE
°
45.0
90.0
4.375 TYP
8EA
0.828 TYP
8EA
0.312 SQ 4EA
SPACED
90*APART
°
0.2073
"D"
FAN
DEPTH
SIZE DEPTH
DIMENSIONS
“A” “B” “C” “D” “E”
10” 5.81” 10.250” 12.63” 12.375” 2.000” 12.875”
12” 7.18” 12.250” 14.50” 14.375” 2.000” 14.625”
14” 7.18” 14.250” 17.13” 16.375” 2.500” 17.375”
16” 7.18” 16.250” 19.13” 18.250” 2.875” 20.000”
18” 7.18” 18.125” 21.00” 21.750” 2.750” 22.875”
20” 7.18” 20.250” 23.13” 23.686” 2.750” 25.625”
24” 7.18” 24.250” 29.50” 27.750” 2.875” 27.875”
30” 7.18” 30.250” 33.50” 33.750” 2.875” 33.875”
FAN
SIZE
UPC#
686334 MODEL HP CFM / RPM A M P S
HIGH
WT.
(LBS) LIST
HIGH MED LOW
10” 869034 CE 10-DV 1/12 680 / 1560 540 / 1250 460 / 1080 1 11 277
12” 798662 CE 12-DV 1/12 825 / 1560 710 / 1250 560 / 1080 1.1 17 313
14” 869041 CE 14-DV 1/8 1520 / 1660 1400 / 1550 1250 / 1370 2 17 397
16” 869058 CE 16-DV 1/8 2100 / 1660 1900 / 1550 1700 / 1370 2.1 18 415
18” 798679 CE 18-DV 1/8 2300 / 1660 2100 / 1050 1850 / 1370 2.2 26 451
20” 869065 CE 20-DV 1/4 2925 / 1140 -2380 / 1070 2.3 34 535
24” 798686 CE 24-DV 1/4 3400 / 1140 -2770 / 1070 2.5 48 596
30” 798693 CE 30-DV 1/4 3950 / 1140 -3080 / 1070 2.7 55 746
FAN
SIZE
UPC#
686334 MODEL DIMENSIONS WT.
(LBS) LIST
WIDTH LENGTH
10” 868433 CES-10G 13.13” 13.13” 5.0 61
12” 798556 CES-12G 15.13” 15.13” 5.5 85
14” 868457 CES-14G 17.13” 17.13” 6.5 103
16” 851473 CES-16G 19.00” 19.00” 8.0 120
18” 798563 CES-18G 21.13” 21.13” 9.0 145
20” 797528 CES-20G 23.13” 23.13” 10.0 162
24” 798570 CES-24G 27.13” 27.13” 13.0 181
30” 798587 CES-30G 33.13” 33.13” 19.0 211
24
A
BC
A
BCD

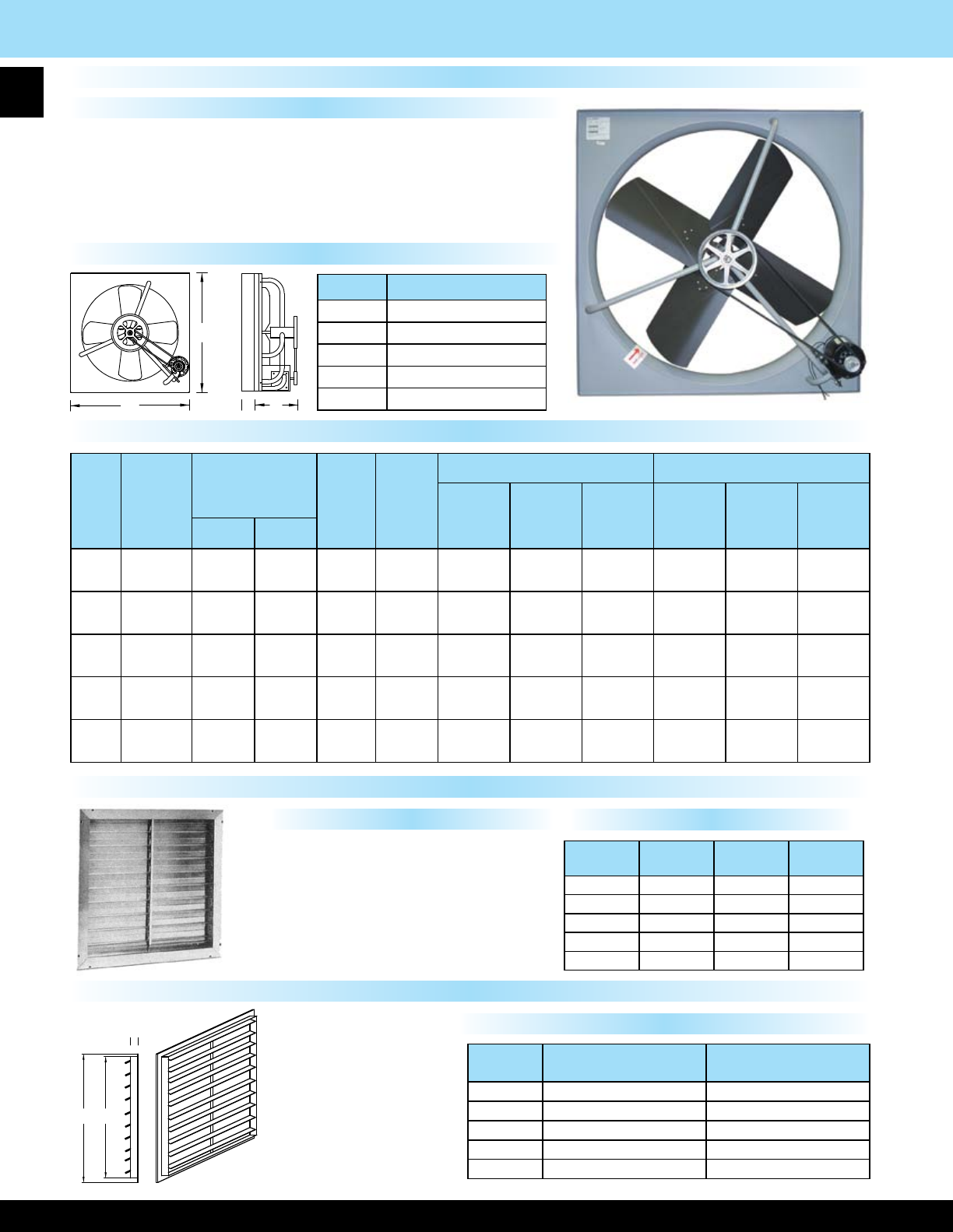

Commercial Exhaust Fans & Shutters
Belt-Drive Exhaust Fan
Features
• 120V, 1 phase or 230 / 460V, 3-Pphase, ball bearing, permanently
lubricated, drip proof motor
• Permanently lubricated bearings on blade drive shaft
• Aluminum blade
• Powder coated venturi and blade
• 1725 RPM • Motor frame size 56 • 5/8” shaft • 1 year warranty
Dimensions (Inches)
MODEL DIMENSIONS A x B x C x D
CE-24B 29.5” x 28” x .75” x 17”
CE-30B 35.5” x 34” x .75” x 17”
CE-36B 41.5” x 40” x .75” x 17”
CE-42B 48” x 48” x .75” x 17”
CE-48B 54” x 54” x .75” x 17”
Standard Models
Features
• Air open - gravity close
• Aluminum frame
• Aluminum blade
• Weather stripping for tighter seal
Optional Exhaust Shutters
Shutter Dimensions (Inches)
Standard Models
(A) Thickness
(B) Blade Housing Size
(C) Overall Size
MODEL OVERALL DIMENSIONS
A x C x C
WALL HOLE SIZE
B x B
CES-24 3” x 27” x 27” 25” x 25”
CES-30 3” x 33” x 33” 31” x 31”
CES-36 3” x 39” x 39” 37” x 37”
CES-42 3” x 45” x 45” 43” x 43”
CES-48 3” x 51” x 51” 49” x 49”
Standard Models
SIZE MOTOR HP
AMPS
CFM WT. (LBS)
115V 1Ph 230/460V 3Ph
UPC#
686334 MODEL LIST UPC#
686334 MODEL LIST
115V 230/460V
24 1/3 5 1.9 / .9 3270 50 796705 CE-24B 673 851046 CE-24B-3 775
30 1/3 61.9 / .9 7730 60 796712 CE-30B 758 851053 CE-30B-3 866
36 1/2 8 2.3 / 1.1 9870 65 796729 CE-36B 877 851060 CE-36B-3 980
42 3/4 11 3.3 / 1.5 14800 75 796736 CE-42B 1100 851077 CE-42-B-3 1365
48 1 15 3.8 / 1.9 21500 98 796743 CE-48B 1376 851084 CE-48-B-3 1454
UPC#
686334 MODEL SHIPPING
WT.(LBS.) LIST
796750 CES-24 20 228
796767 CES-30 28 279
796774 CES-36 34 491
796781 CES-42 55 620
796798 CES-48 64 718
25

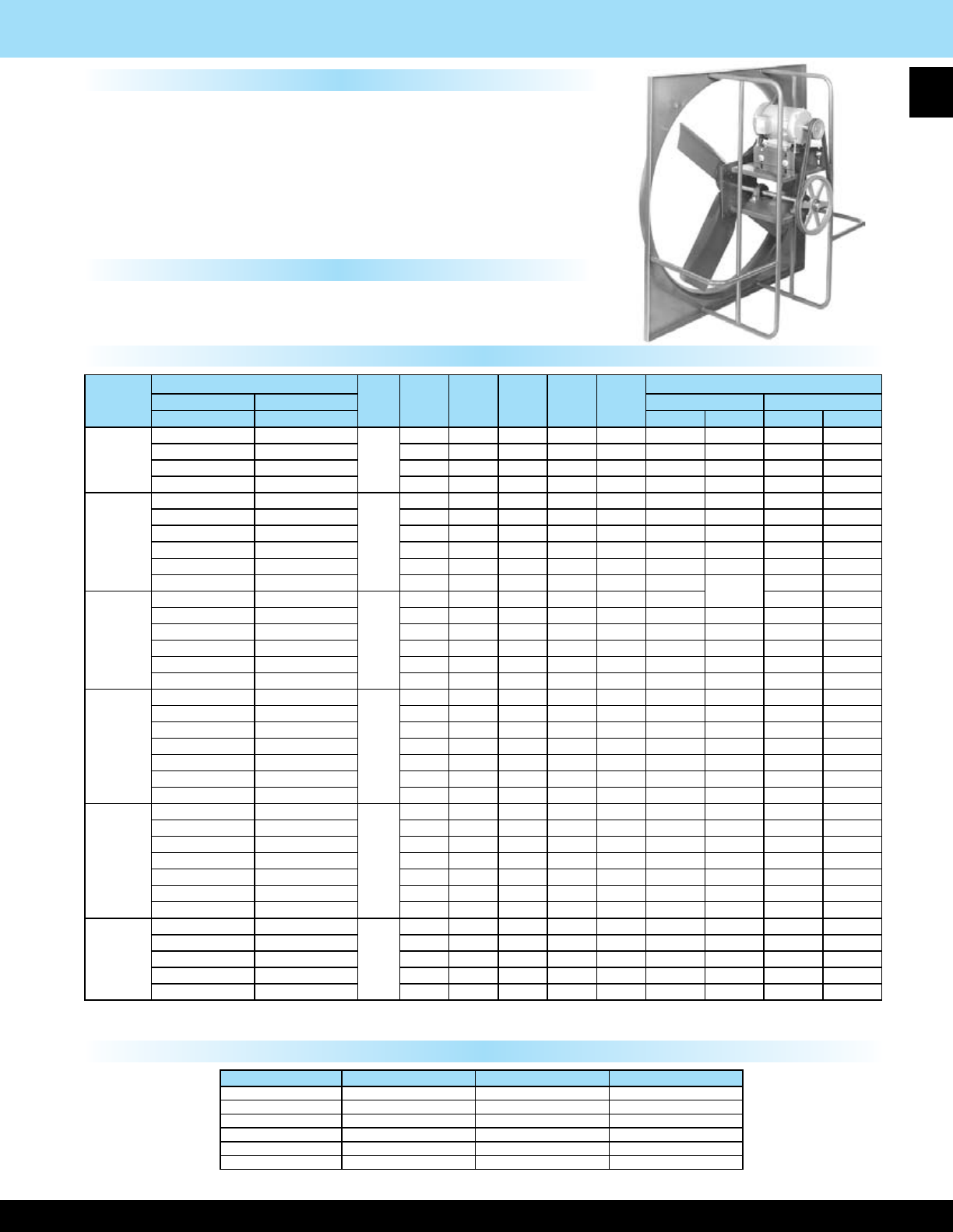

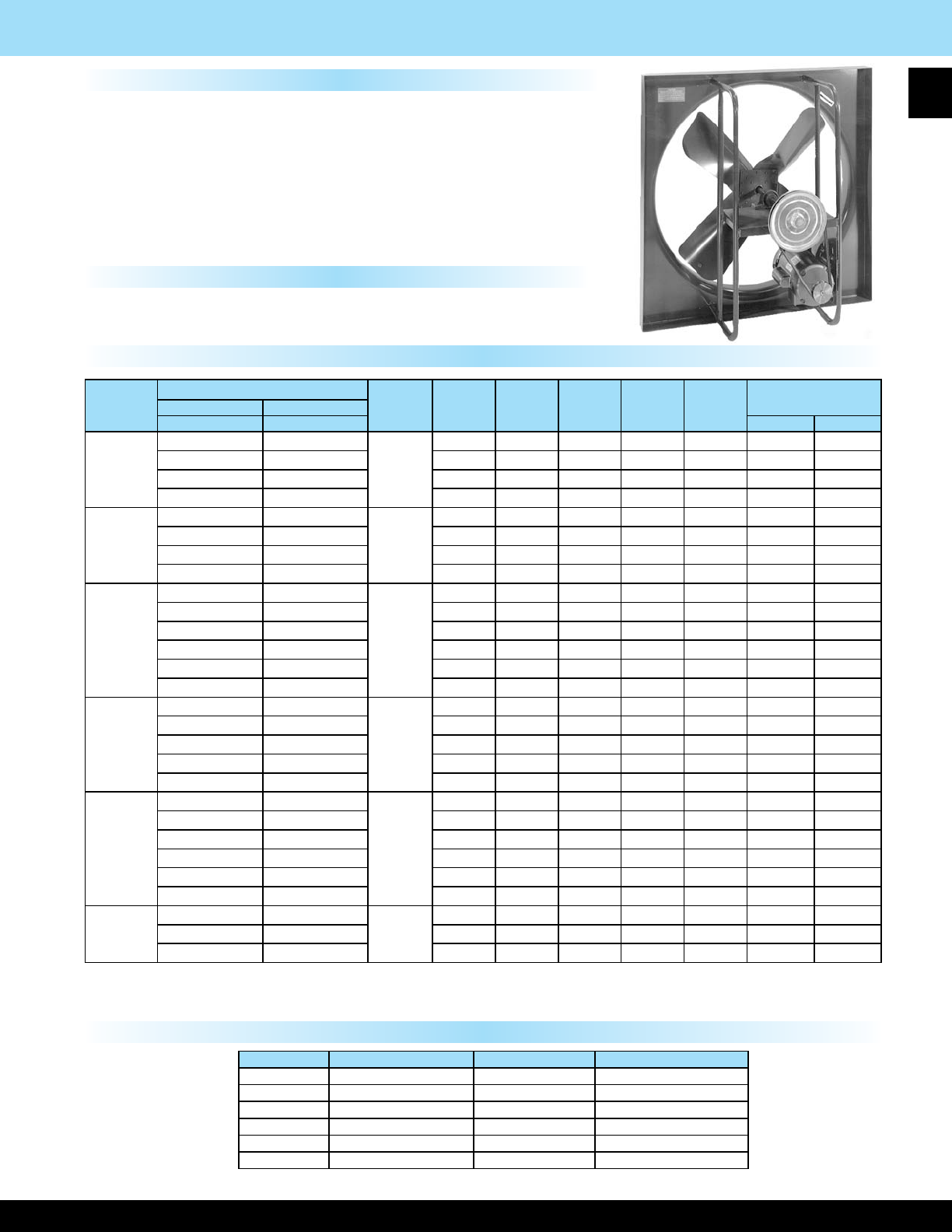

Heavy Duty Belt Drive Exhaust Fans
Features
• Totally enclosed and explosion proof motors
- Explosion proof motors are Class 1, Div 1
Group D and Class 2, Div 1, Groups F & G
• Fans are shipped completely assembled
• Heavy gauge steel blades on TEC models
• Cast aluminum blades on EXP explosion proof models
• 14 gauge steel panel with welded steel pipe bracing
• 1 year limited warranty
Options
• CES Shutters
• EMF Front Guards
• IBG Rear Guards
• Acid Resistant Coating
• Reversed Air Flow
• Flat Front Venturi
Single Phase motors are eld convertible 115V/230V. Three phase motors are eld convertible 230V/460V.
Motors are set to lower voltage at the factory, unless a request is made at time of order to set to the higher voltage.
Note: Depth dimension varies with motor selection.
Dimensions
Standard Models
SIZE BLADE DIAMETER PANEL SIZE DEPTH DIMENSION
24” 24” 30” 16”
30” 30” 36” 16”
36” 36” 42” 18”
42” 42” 48” 20”
48” 48” 54” 21”
60” 60” 66” 26”
BLADE
SIZE
MODEL PANEL
SIZE
(Sq.)
HP RPM CFM
0” SP
db’s
@ 10”
WT.
(LBS)
LIST
1-PHASE 3-PHASE TEC EXP
115/230V-60Hz 230/460v-60Hz 1 PH 3 PH 1 PH 3 PH
24”
EHB24-1/4 EHB24-1/4-3
30”
1/4 780 4900 60 100 2484 2473 3374 3438
EHB24-1/2 EHB24-1/2-3 1/2 980 6219 66 130 2628 2638 3715 3683
EHB24-3/4 EHB24-3/4-3 3/4 1140 7090 71 140 2809 2665 3901 3757
EHB24-1 EHB24-1-3 1 1250 7180 73 140 2991 2878 3944 3997
30”
EHB30-1/4 EHB30-1/4-3
36”
1/4 540 7178 61 140 2649 2638 3710 3774
EHB30-1/3 EHB30-1/3-3 1/3 595 7909 63 150 2697 2713 3870 4002
EHB30-1/2 EHB30-1/2-3 1/2 640 8507 64 155 2766 2777 4046 4019
EHB30-3/4 EHB30-3/4-3 3/4 770 10235 66 165 3006 2862 4291 4146
EHB30-1 EHB30-1-3 1 975 10668 70 170 3160 3049 4328 4382
EHB30-1 1/2 EHB30-1 1/2-3 1 1/2 1140 12473 77 180 3299 3150 5463 4605
36”
EHB36-1/3 EHB36-1/3-3
42”
1/3 460 9113 64 160 3134 4211 4344
EHB36-1/2 EHB36-1/2-3 1/2 530 10500 66 180 3209 3219 4482 4451
EHB36-3/4 EHB36-3/4-3 3/4 605 11985 68 200 3416 3278 4690 4547
EHB36-1 EHB36-1-3 1 665 13174 70 200 3438 3325 4696 4743
EHB36-1 1/2 EHB36-1 1/2-3 1 1/2 720 13660 72 210 3875 3736 5953 5090
EHB36-2 EHB36-2-3 2 870 16554 74 215 4280 3832 ---- 5277
42”
EHB42-1/3 EHB42-1/3-3
48”
1/3 335 10614 64 205 3262 3278 4605 4738
EHB42-1/2 EHB42-1/2-3 1/2 390 12343 65 210 3331 3342 4765 4743
EHB42-3/4 EHB42-3/4-3 3/4 435 14040 67 225 3550 3411 5043 4892
EHB42-1 EHB42-1-3 1 490 15429 69 230 3597 3485 5047 5090
EHB42-1 1/2 EHB42-1 1/2-3 1 1/2 550 17420 71 240 3741 3603 6198 5335
EHB42-2 EHB42-2-3 2 725 20653 74 245 4434 3986 ---- 5570
---- EHB42-3-3 3830 23645 79 250 ---- 4115 ---- 5746
48”
EHB48-1/2 EHB48-1/2-3
54”
1/2 330 15230 69 190 4120 4131 5729 5702
EHB48-3/4 EHB48-3/4-3 3/4 370 17339 70 195 4322 4184 6076 5932
EHB48-1 EHB48-1-3 1 410 19188 71 235 4349 4237 6081 6134
EHB48-1 1/2 EHB48-1 1/2-3 1 1/2 465 21731 72 245 4525 4387 7222 6358
EHB48-2 EHB48-2-3 2 520 24274 74 250 5250 4802 ---- 6566
---- EHB48-3-3 3680 28150 80 270 ---- 4941 ---- 6759
---- EHB48-5-3 5 800 33160 83 285 ---- 4999 ---- 6891
60”
EHB60-1 EHB60-1-3
66”
1 280 23090 76 380 6065 5953 8219 8272
EHB60-1 1/2 EHB60-1 1/2-3 1 1/2 340 28068 77 390 6209 6071 9365 8506
EHB60-2 EHB60-2-3 2 390 32200 78 395 6577 6129 ---- 8618
---- EHB60-3-3 3450 37183 84 410 ---- 6428 ---- 8900
---- EHB60-5-3 5 540 44600 86 420 ---- 6476 ---- 9029
26

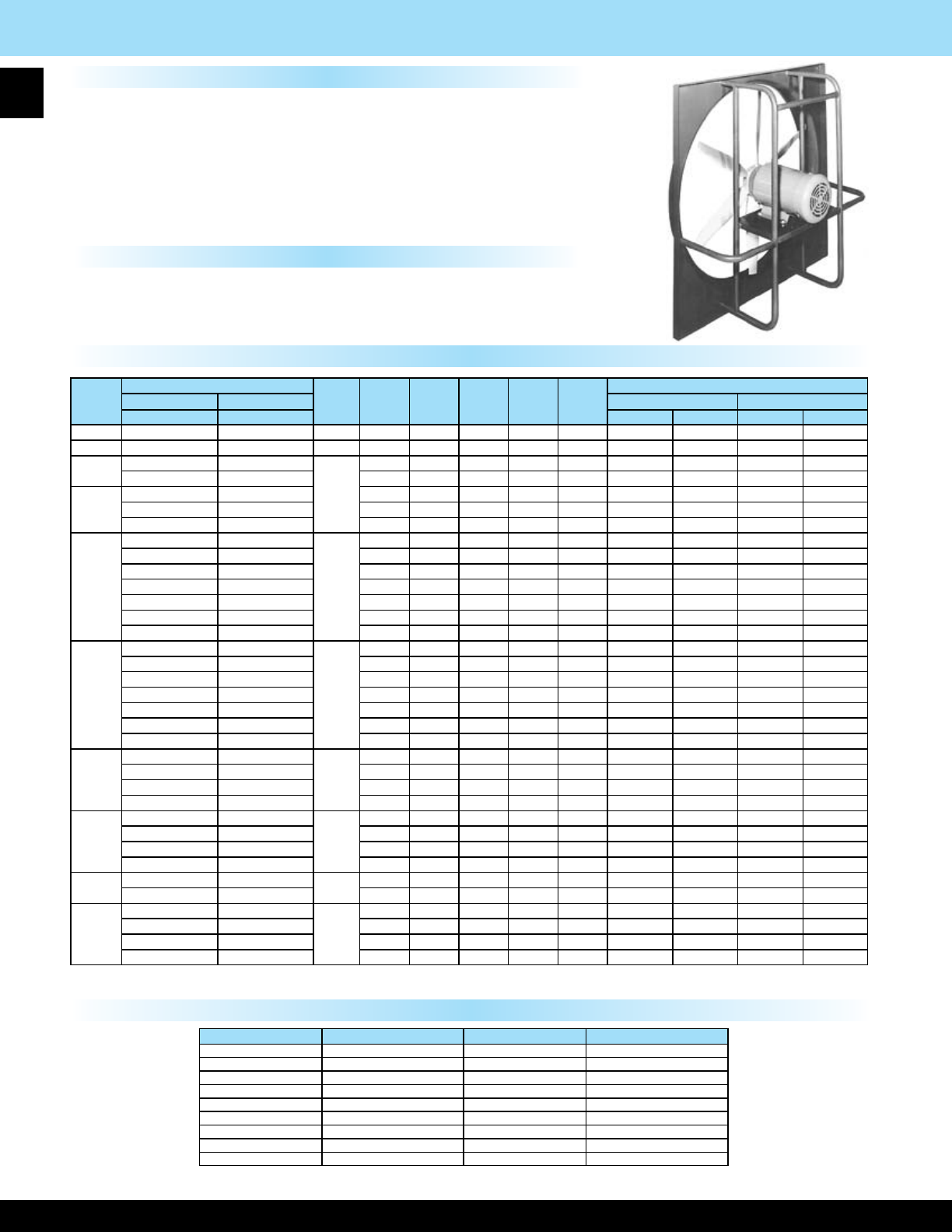

Heavy Duty Direct Drive Exhaust Fans
Features
Options
• Totally enclosed and explosion proof motors.
- Explosion proof motors are Class 1, Div 1
Group D and Class 2, Div 1, Groups F & G
• Fans are shipped completely assembled
• Cast aluminum blades
• 14 gauge steel panel with welded steel pipe bracing
• 1 year limited warranty
• CES Shutters
• EMF Front Guards
• IBG Rear Guards
• Acid Resistant Coating
• Reversed Air Flow
• Flat Front Venturi
Single Phase motors are eld convertible 115V/230V. Three phase motors are eld convertible 230V/460V.
Motors are set to lower voltage at the factory, unless a request is made at time of order to set to the higher voltage.
Note: Depth dimension varies with motor selection.
Dimensions
Standard Models
SIZE BLADE DIAMETER PANEL SIZE DEPTH DIMENSION
12” 12” 16” 11”
16” 16” 20” 11”
20” 20” 24” 13”
24” 24” 30” 15”
30” 30” 36” 15”
36” 36” 42” 18”
42” 42” 48” 18”
48” 48” 54” 20”
60” 60” 66” 22”
BLADE
SIZE
MODEL PANEL
SIZE
(Sq.)
HP RPM C F M
0” SP
db’s @
10’
WT
lbs.
LIST
1-PHASE 3-PHASE TEC EXP
115/230V-60Hz 230/460v-60Hz 1 PH 3 PH 1 PH 3 PH
12” EHD12-1/4 EHD12-1/4-3 16” 1/4 1725 1180 74 35 1502 1493 1881 1945
16” EHD16-1/4 EHD16-1/4-3 20” 1/4 1725 2800 75 45 1833 1844 2212 2276
18” EHD18-1/3 EHD18-1/3-3
24”
1/3 1725 3375 75 60 1945 1961 2441 2574
EHD18-1/2 EHD18-1/2-3 1/2 1725 4150 76 60 2029 2041 2611 2584
20”
EHD20-1/4 EHD20-1/4-3 1/4 1725 3720 75 60 1859 1849 2243 2301
EHD20-1/2 EHD20-1/2-3 1/2 1725 4800 76 65 2003 2020 2589 2563
EHD20-1 EHD20-1-3 1 1725 6900 77 70 2238 2132 2797 2846
24”
EHD24-1/4 EHD24-1/4-3
30”
1/4 1725 5200 82 135 1972 1961 2355 2419
EHD24-1/3 EHD24-1/3-3 1/3 1150 4975 75 145 2387 2419 3197 3240
EHD24-1/2 EHD24-1/2-3 1/2 1725 6510 82 140 2184 2195 2766 2739
EHD24-3/4 EHD24-3/4-3 3/4 1725 6900 83 145 2360 2227 2947 2803
EHD24-1 EHD24-1-3 1 1725 7425 83 155 2424 2312 2984 3032
EHD24-2 EHD24-2-3 2 1725 9525 83 165 3059 2510 ---- 3347
------ EHD24-3-3 31725 10500 85 170 ---- 2728 ---- 3623
30”
EHD30-1/3 EHD30-1/3-3
36”
1/3 1150 6950 79 145 2611 2643 3421 3469
EHD30-1/2 EHD30-1/2-3 1/2 1725 8980 89 135 2430 2441 3011 2984
EHD30-3/4 EHD30-3/4-3 3/4 1150 10440 79 175 3111 2777 3587 3480
------ EHD30-1-3 1 870 10640 74 215 ---- 3431 ---- ----
EHD30-1 1/2 EHD30-1 1/2-3 1 1/2 1725 12000 89 165 2830 2691 4370 3522
EHD30-2 EHD30-2-3 2 1150 14000 82 215 ---- 3208 ---- 4161
------ EHD30-3-3 31725 16000 89 190 ---- 2883 ---- 3772
36”
EHD36-1 EHD36-1-3
42”
1 1150 13600 84 225 4481 3581 5382 4247
EHD36-2 EHD36-2-3 2 1150 17620 84 250 ---- 3687 ---- 4642
------ EHD36-3-3 3 1150 20500 85 255 ---- 4237 ---- 5361
------ EHD36-5-3 5 1725 28000 94 250 ---- 3554 ---- 4530
42”
------ EHD42-1-3
48”
1 870 15800 82 300 ---- 4161 ---- ----
EHD42-2 EHD42-2-3 2 1150 17964 88 260 ---- 3921 ---- 4876
------ EHD42-3-3 31150 24500 88 270 ---- 4406 ---- 5531
------ EHD42-5-3 5 1150 28970 88 285 ---- 4582 ---- 6186
48” ------ EHD48-3-3 54” 31150 28600 92 290 ---- 5318 ---- 6442
------ EHD48-5-3 5 1150 32000 94 305 ---- 5568 ---- 7178
60”
------ EHD60-3-3
66”
31150 40000 97 700 ---- 6602 ---- 7726
------ EHD60-5-5 5 1150 45000 97 730 ---- 7226 ---- 8835
------ EHD60-7 1/2-3 7 1/2 870 47000 92 740 ---- 9490 ---- ----
------ EHD60-10-3 10 870 57200 93 750 ---- 12719 ---- ----
27
Industrial Belt Drive Exhaust Fans
Features
• Totally enclosed motors:
- 1-Phase motors are eld convertible 115V / 230V
- 3-Phase motors are eld convertible 230V / 460V
- Motors are set to lower voltage at the factory, unless a
request is made at time of order to set to the higher voltage
• 16 Gauge steel venturi with steel pipe bracing
• Steel blades
• Double pillow block bearing shaft support
• 1 year limited warranty
Options
• CES Shutters
• EMF Front Guard
• IBG Rear Guards
SIZE BLADE DIAMETER PANEL SIZE DEPTH DIMENSION
24” 24” 30” 18”
30” 30” 36” 18”
36” 36” 42” 20”
42” 42” 48” 20”
48” 48” 54” 22”
60” 60” 66” 28”
Note: Depth dimension varies with motor selection.
Dimensions
Standard Models
BLADE SIZE
MODEL PANEL
SIZE (Sq.) HP RPM CFM db’s @ 10’ WT.
(LBS)
LIST
1-PHASE 3-PHASE
115/230V-60Hz 230/460v-60Hz 1 PH 3PH
24”
IE24-1/3 IE24-1/3-3
30”
1/3 825 5300 61 70 2061 2077
IE24-1/2 IE24-1/2-3 1/2 925 6200 66 75 2130 2139
IE24-3/4 IE24-3/4-3 3/4 1050 7000 71 82 2304 2165
IE24-1 IE24-1-3 1 1175 7800 73 90 2330 2218
30”
IE30-1/3 IE30-1/3-3
36”
1/3 570 7500 62 95 2156 2171
IE30-1/2 IE30-1/2-3 1/2 625 8500 64 95 2403 2240
IE30-3/4 IE30-3/4-3 3/4 725 10000 66 105 2408 2271
IE30-1 IE30-1-3 1 825 11000 70 115 2461 2350
36”
IE36-1/3 IE36-1/3-3
42”
1/3 425 9000 64 103 2372 2387
IE36-1/2 IE36-1/2-3 1/2 500 10500 66 105 2445 2461
IE36-3/4 IE36-3/4-3 3/4 575 11900 68 110 2624 2487
IE36-1 IE36-1-3 1 650 13100 70 120 2646 2535
IE36-1 1/2 IE36-1 1/2-3 1 1/2 750 15000 72 155 3025 2888
IE36-2 IE36-2-3 2 830 16500 74 165 ---- 2946
42”
IE42-3/4 IE42-3/4-3
48”
3/4 430 14000 67 175 2967 2831
IE42-1 IE42-1-3 1 490 15400 69 180 2988 2883
IE42-1 1/2 IE42-1 1/2-3 1 1/2 550 17200 71 185 3131 2999
IE42-2 IE42-2-3 2 620 19400 74 200 ---- 3420
------ IE42-3-3 3700 22000 79 225 ---- 3536
48”
IE48-3/4 IE48-3/4-3
54”
3/4 350 17000 70 185 3246 3109
IE48-1 IE48-1-3 1 400 19100 71 190 3268 3162
IE48-1 1/2 IE48-1 1/2-3 1 1/2 460 22000 72 200 3404 3272
IE48-2 IE48-2-3 2 520 24000 74 250 ---- 3810
------ IE48-3-3 3590 27500 80 260 ---- 3927
------ IE48-5-3 5 660 30500 83 280 ---- 3958
60”
IE60-2 IE60-2-3
66”
2 320 31000 77 320 ---- 5302
------ IE60-3-3 3370 35000 84 330 ---- 5418
------ IE60-5-3 5 420 39000 86 350 ---- 5466
28

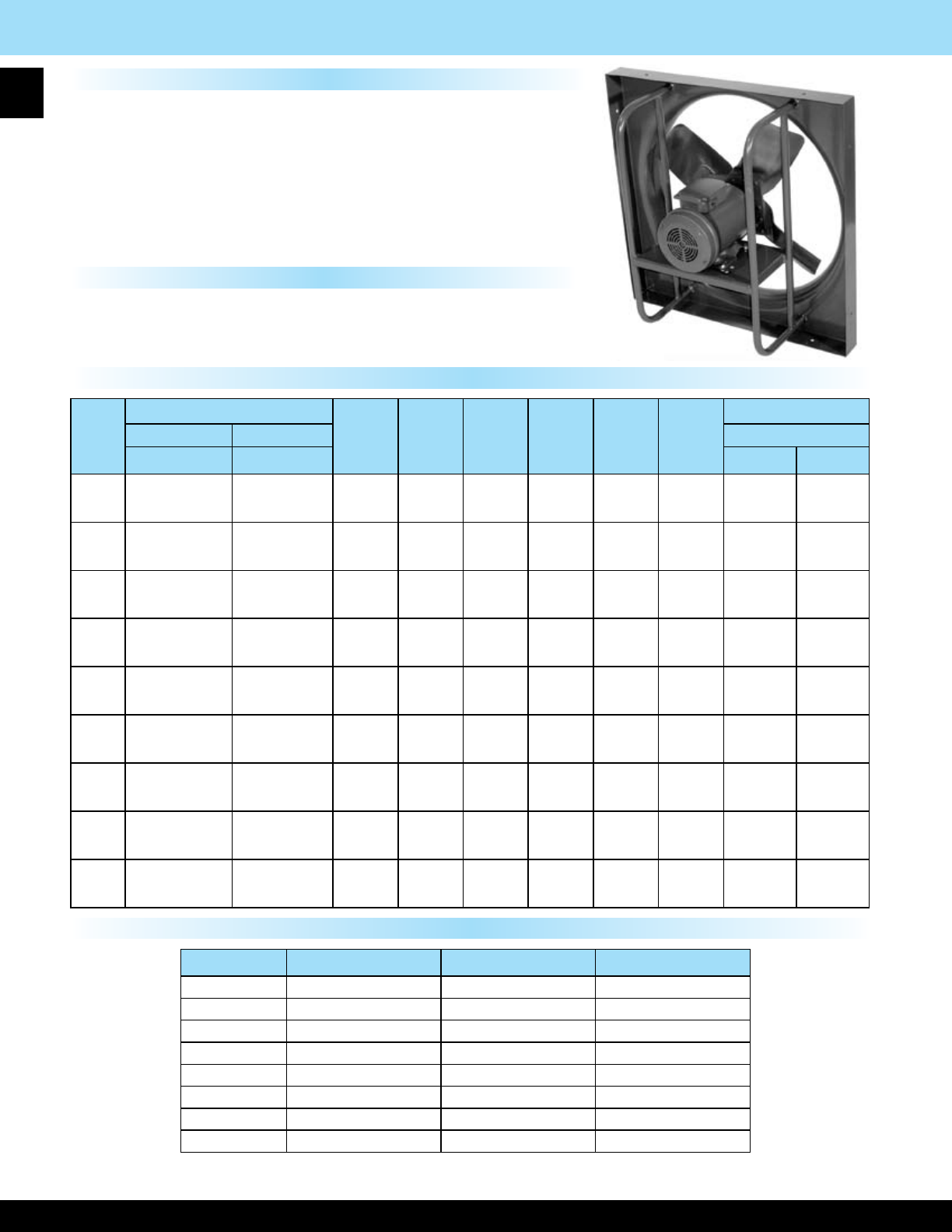

Industrial Direct Drive Exhaust Fans
Features
• Totally enclosed motors:
- 1-Phase motors are eld convertible 115V / 230V
- 3-Phase motors are eld convertible 230V / 460V
- Motors are set to lower voltage at the factory, unless a
request is made at time of order to set to the higher voltage
• 14 Gauge steel venturi with steel pipe bracing
• 4-blade steel propeller
• 1 year limited warranty
Options
• CES Shutters
• EMF Front Guards
• IBG Rear Guards
Note: Depth dimension varies with motor selection.
Dimensions
Standard Models
SIZE BLADE DIAMETER PANEL SIZE DEPTH DIMENSION
12” 12” 16” 11”
16” 16” 20” 11”
20” 20” 24” 13”
24” 24” 30” 15”
30” 30” 36” 15”
36” 36” 42” 18”
42” 42” 48” 18”
48” 48” 54” 20”
BLADE
SIZE
MODEL
PANEL
SIZE (Sq.) HP RPM C F M
0” SP db’s @ 10’ WT.
(LBS)
LIST
1-PHASE 3-PHASE TEC
115/230V-60Hz 230/460v-60Hz 1 PH 3 PH
12” IED12-1/4 IED12-1/4-3 16” 1/4 1725 1480 64 30 1186 1191
16” IED16-1/3 IED16-1/3-3 20” 1/3 1725 2834 73 40 1420 1448
18” IED18-1/2 IED18-1/2-3 24” 1/2 1725 3890 74 55 1596 1608
20” IED20-3/4 IED20-3/4-3 24” 3/4 1725 4574 77 65 1853 1853
24” IED24-1 IED24-1-3 30” 1 1725 6632 81 155 2138 2024
30” IED30-1 IED30-1-3 36” 1 1150 8600 79 185 4190 2424
36” IED36-1 1/2 IED36-1 1/2-3 42” 1.5 1150 12103 82 260 5280 3244
42” ------ IED42-2-3 48” 2 1150 17315 87 280 -- 3478
48” ------ IED48-3-3 54” 3850 24280 86 360 -- 4875
29

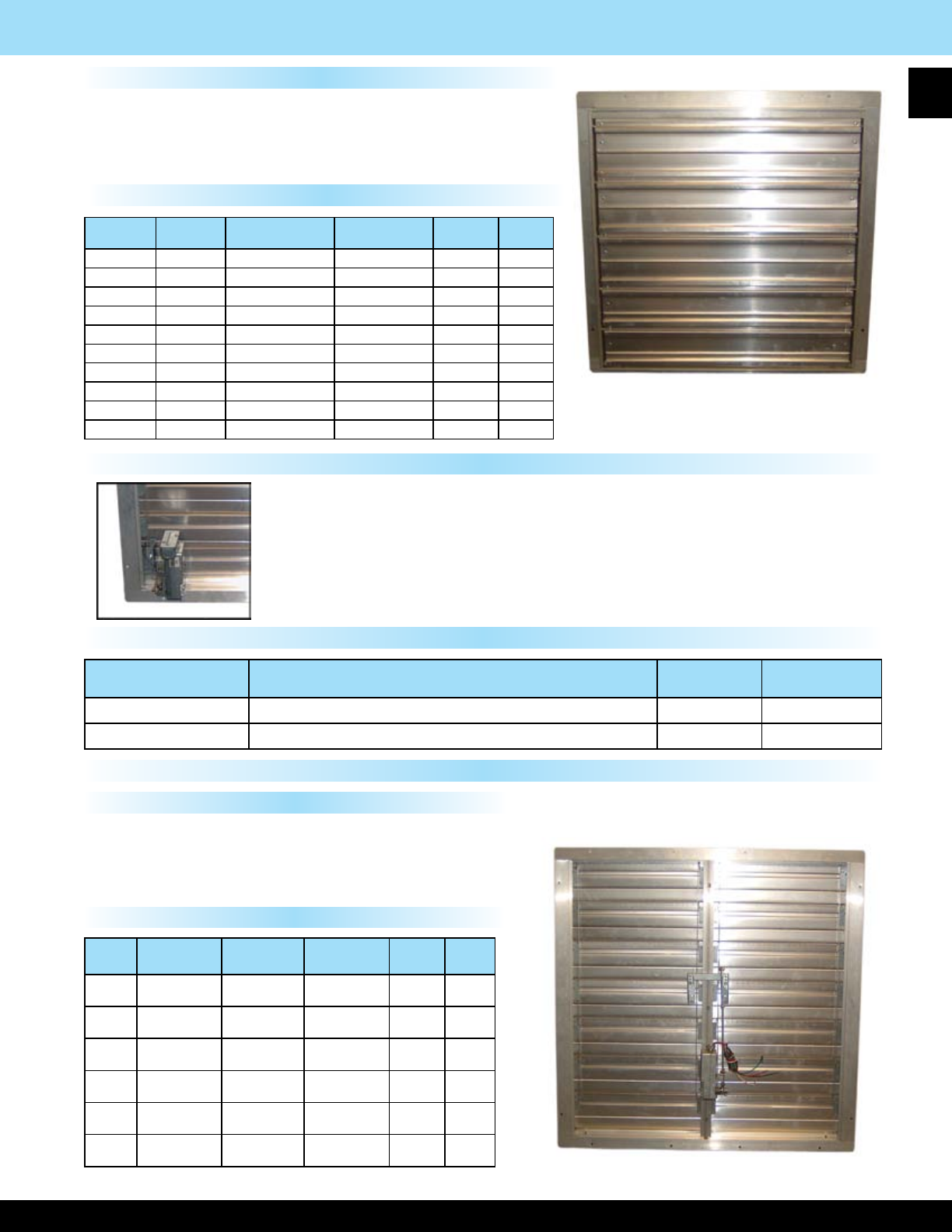

Exhaust Fan Accessories-Heavy Duty Exhaust Shutter
Features
• Air open - Gravity close
• Aluminum construction
• Heavy duty blades
• Weather stripping for tighter seal
Standard Models
Heavy Duty Shutter Motor Kit Features
• Used to open shutter when shutter is used to provide make-up air
(Shutter should be one size larger than exhaust fan size and should be located on
opposite wall)
• Used for positive closure of exhaust shutter
• 115V or 230V, 60 HZ, 1Ø
Standard Models
Motorized Supply Air Intake Shutter
• Inward opening blades for use with intake fans when
shutter is located directly in air stream
• Galvanized construction
• 115V or 230V, 60 HZ, 1-Phase
Features
Standard Models
FAN SIZE MODEL ROUGH OPENING OVERALL SIZE WT.
(LBS) LIST
12” CES 12 12” x 12” 14” x 15” 4 134
16” CES 16 16” x 16” 19” x 19” 5 162
18” CES 18 18” x 18” 21” x 21” 7 187
20” CES 20 20” x 20” 23” x 23” 8 191
24” CES 24 24” x 24” 27” x 27” 9232
30” CES 30 30” x 30” 33” x 33” 12 285
36” CES 36 36” x 36” 39” x 39” 12 500
42” CES 42 42” x 42” 45” x 45” 22 634
48” CES 48 48” x 48” 51” x 51” 25 732
60” CES 60 60” x 60” 63” x 63” 31 1016
MODEL DESCRIPTION WT.
(LBS) LIST
MK-1 For shutter sizes 12” thru 30” 5 377
MK-2 For shutter sizes 36” thru 60” 8 500
FAN
SIZE MODEL ROUGH
OPENING
OVERALL
SIZE
WT.
(LBS) LIST
24” CESM-24 24” x 24” 27” x 27” 15 966
30” CESM-30 30” x 30” 33” x 33” 18 1128
36” CESM-36 36” x 36” 39” x 39” 21 1232
42” CESM-42 42” x 42” 45” x 45” 35 2012
48” CESM-48 48” x 48” 51” x 51” 42 2844
60” CESM-60 60” x 60” 63” x 63” 56 3354
30

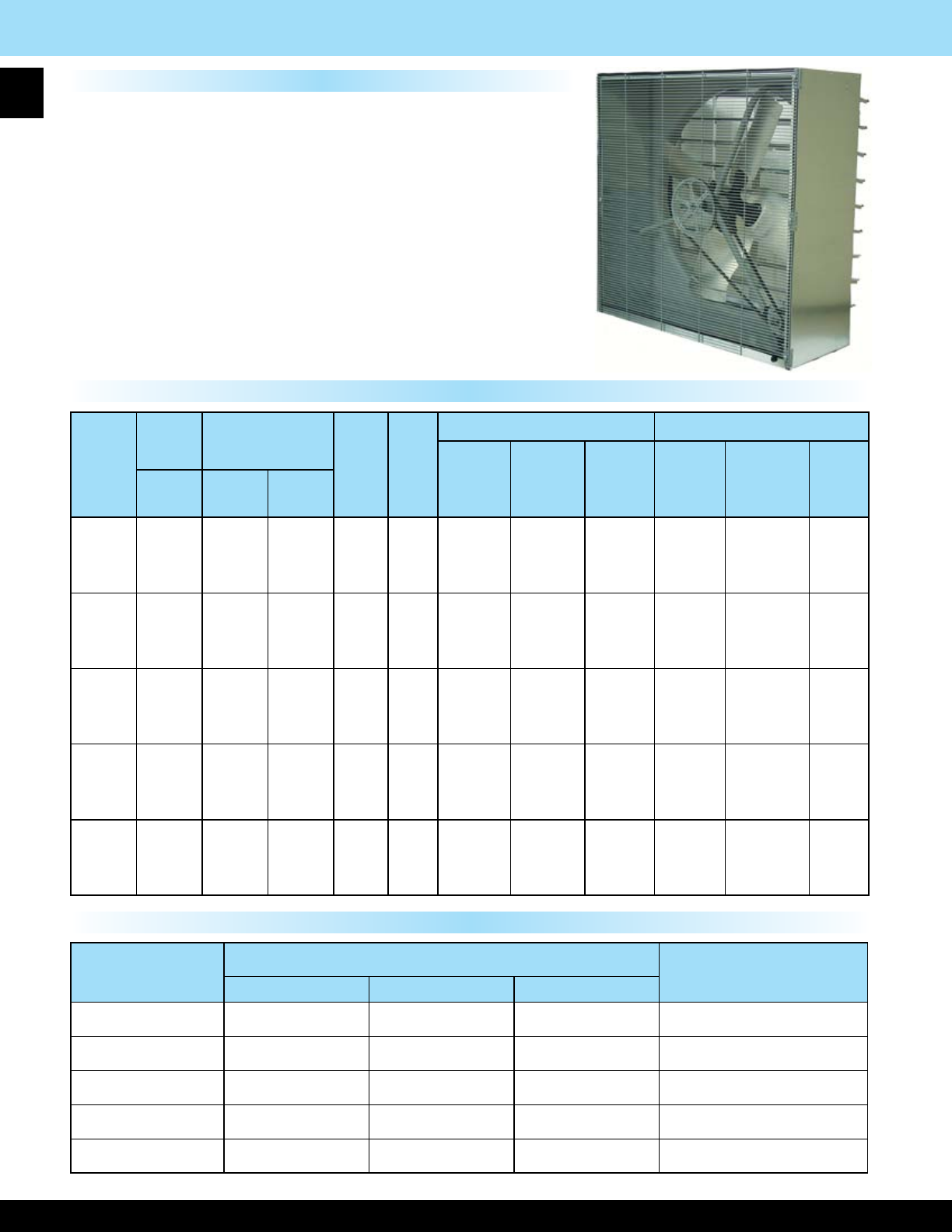

Cabinet Exhaust Fans With Shutters
Dimensions
Standard Models
Features
• 120V, 1-Phase or 230 / 460V, 3-Phase, ball bearing,
permanently lubricated, drip proof motor - UL listed
• Permanently lubricated bearings on blade drive shaft
• Aluminum blade
• Aluminum shutter
• 20 Gauge powder coated venturi
• 18 Gauge galvanized steel housing
• 1725 RPM
• Motor frame size 56 / Shaft: 5/8”
• Ships fully assembled
• Meets OSHA Standards • 1 year warranty
SIZE
OUTSIDE DIMENSIONS MAXIMUM REQUIRED INSIDE
WALL OPENING
HEIGHT WIDTH DEPTH
24” 28 1/4” 28 1/4” 22 1/2” 28 3/4” x 28 3/4”
30” 34 1/4” 34 1/4” 22 1/2” 34 1/2” x 34 1/2”
36” 40 1/4” 40 1/4” 18 1/2” 40 1/2” x 40 1/2”
42” 48 1/2” 48 1/2” 18 1/2” 48 3/4” x 48 3/4”
48” 54 1/2” 54 1/2” 21 1/2” 54 3/4” x 54 3/4”
SIZE
MOTOR AMPS
CFM WT.
(LBS)
115V 1Ph 230 / 460V 3Ph
UPC#
686334 MODEL LIST UPC#
686334 MODEL LIST
HP 115V 230/460V
24 1/3 5 1.9 / .9 3270 100 868396 CBT-24B 1470 868525 CBT-24B-3 1562
30 1/3 61.9 / .9 7730 120 868402 CBT-30B 1654 868532 CBT-30B-3 1776
36 1/2 8 2.3 / 1.1 9870 135 868419 CBT-36B 1868 868549 CBT-36B-3 2021
42 3/4 11 3.3 / 1.5 14800 155 868426 CBT-42B 2297 868556 CBT-42B-3 2480
48 1 15 3.8 / 1.9 21500 200 868518 CBT-48B 2848 868501 CBT-48B-3 3032
31
Package Includes

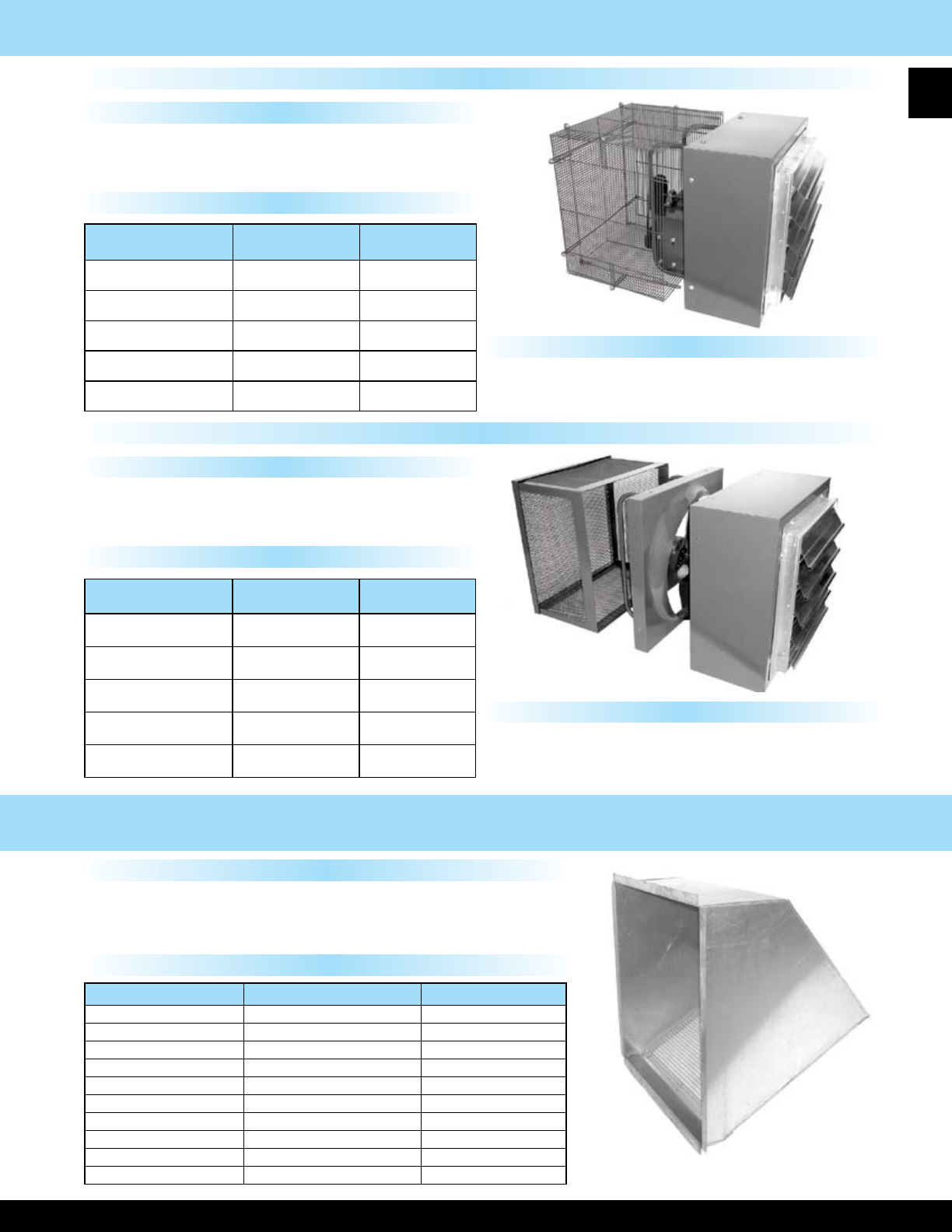

Cabinet Exhaust Fan Package Option
With Bolt Together Rear Guard
Features
Package Includes
Exterior Weather Hood Option
• Wall collar
• Automatic shutter
• Rear box guard
Standard Models
With Expanded Metal Rear Guard
Standard Models
Features
• For IE, IED, EHB and EHD models.
• Wall collar OD is 1/4" larger than "B" dimension of fan
• Meets OSHA requirements
• Wall collar
• Automatic shutter
• Rear box guard
• For IE, IED, EHB and EHD models.
• Wall collar OD is 1/4" larger than "B" dimension of fan
• Meets OSHA requirements
Standard Models
Features
• For IE, IED, EHB and EHD models.
• Galvanized housing with 1/2 - 16 expanded metal bird screen
• Can be used for intake or exhaust
• Meets OSHA requirements
MODEL FAN SIZE LIST
CEFP-24 24” 1496
CEFP-30 30” 1688
CEFP-36 36” 2098
CEFP-42 42” 2412
CEFP-48 48” 2877
MODEL FAN SIZE LIST
CEFP-12 12” 936
CEFP-16 16” 1000
CEFP-18 18” 1129
CEFP-20 20” 1169
CEFP-60 60” 4322
MODEL FAN SIZE LIST
WH-12 12” 939
WH-16 16” 981
WH-18 18” 1001
WH-20 20” 1017
WH-24 24” 1449
WH-30 30” 1508
WH-36 36” 1871
WH-42 42” 1945
WH-48 48” 2251
WH-60 60” 3009
32
Exhaust Fan Accessories - Fan Guards
Rear Box Guard Bolt Together With Wire Guards
Features
• For IE, IED, EHB and EHD models
• 1/4" Smaller than the panel size of the fan
• Meets OSHA requirements
Standard Models
Rear Expanded Metal Box Guard
• For IE, IED, EHB and EHD models
• 1/4" Smaller than the panel size of the fan
• Meets OSHA requirements
Standard Models
Features
Spiral Rear Guard
• For EHD models only
• Fits between motor and blade
• Rear guard installed at factory only
• Meets OSHA requirements
Standard Models
Features
Front Guard
• For EHB, EHD, IE, & IED models
• 1” Larger than blade size
• Meets OSHA requirements
Standard Models
Features
Expanded metal guard
- 60”
Spiral wire guards
12” - 48”
MODEL FAN SIZE LIST
IBG-24 24” 837
IBG-30 30” 881
IBG-36 36” 1062
IBG-42 42” 1113
IBG-48 48” 1364
IBG-60 60” 2104
MODEL FAN SIZE LIST
IBG-12 12” 513
IBG-16 16” 513
IBG-18 18” 567
IBG-20 20” 567
MODEL FAN SIZE LIST
SR-12 12” 291
SR-16 16” 310
SR-18 18” 343
SR-20 20” 354
SR-24 24” 380
MODEL FAN LIST
EMF-12 12” 335
EMF-16 16” 348
EMF-20 20” 367
EMF-24 24” 387
EMF-30 30” 489
EMF-36 36” 605
EMF-42 42” 637
EMF-48 48” 696
EMF-60 60” 1049
33

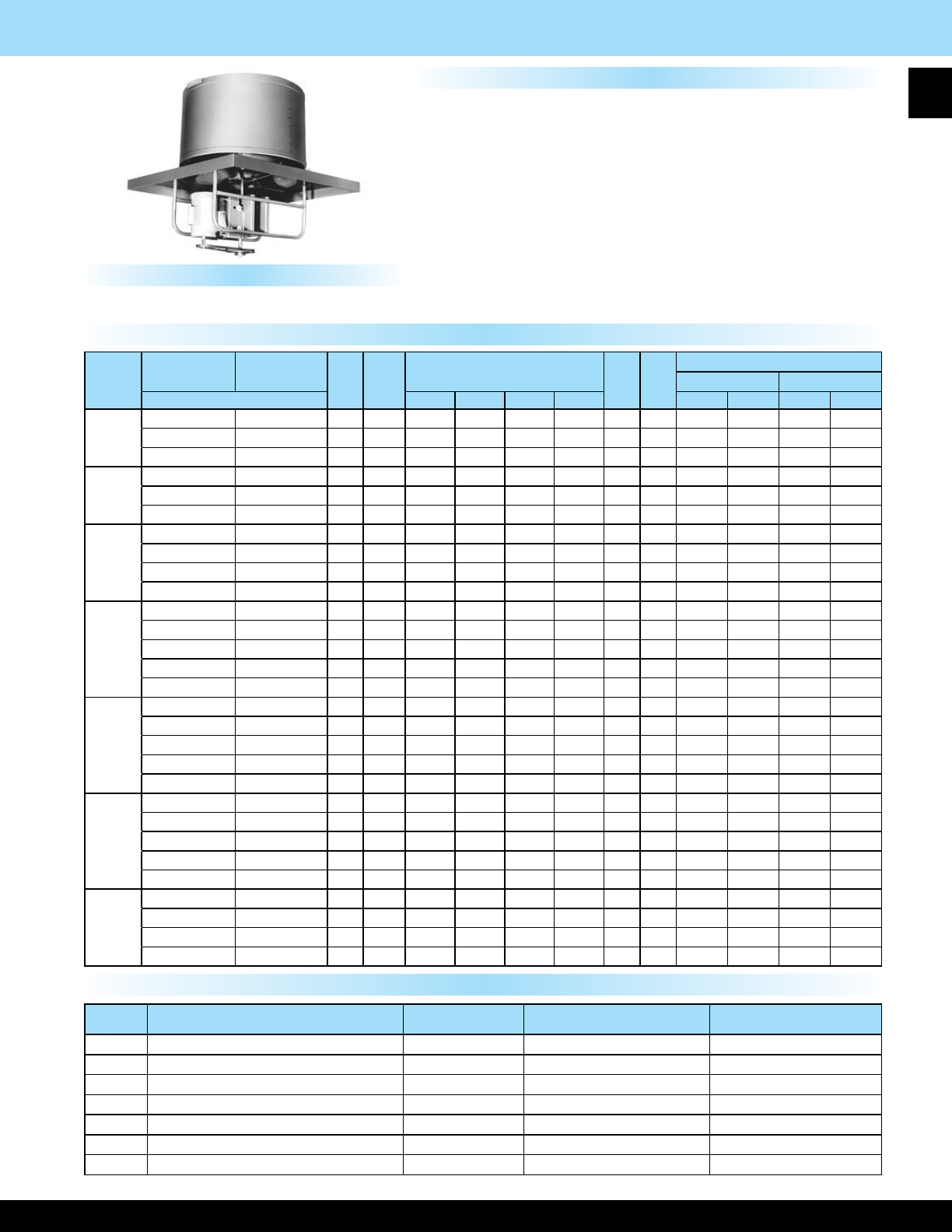

Belt Drive Roof Ventilators
• Standard blades are heavy gauge steel
• Totally enclosed motors.
• 1-Phase motors are eld convertible 115V/230V
• 3-Phase motors are eld convertible 230V/460V
• Motors are set to lower voltage at factory unless a request is made
at time of order to set them to the higher voltage
• Wind band is 18 gauge galvanized steel
• Galvanized steel buttery damper with rubber stops and seals
• Size of the roof opening to be 6” larger than fan size (Wind Band
O.D.) dimension
• 1 year limited warranty.
Options
Features
Standard Models
Dimensions
SIZE MINIMUM ROOF
HOLE SIZE (SQUARE)
WIND BAND
OUTER DIMENSION
ROOF CURB
OUTER DIMENSION (SQUARE) WIND BAND HEIGHT
24” 34” 30” 39” 19”
30” 40” 36” 45” 22”
36” 46” 42” 51” 25”
42” 52” 48” 57” 27”
48” 58” 54” 63” 30”
54” 64” 60” 69” 36”
60” 70” 66” 75” 42”
• Protective coating.
• Prefabricated curbs
• Disconnect switch
BLADE
SIZE
1-PHASE
115/230V
3-PHASE
230/460v HP RPM C.F.M - STATIC PRESSURE Db’s
@ 10’
WT.
(LBS)
LIST
ODP TEC
MODEL 0” 1/8” 1/4” 1/2” 1 PH 3 PH 1 PH 3 PH
24”
UEB24-1/3 UEB24-1/3-3 1/3 780 4900 4222 2807 800 64 300 4763 4733 4769 4763
UEB24-1/2 UEB24-1/2-3 1/2 980 6219 5716 5661 2600 66 305 4901 4865 4913 4895
UEB24-3/4 UEB24-3/4-3 3/4 1140 7090 6648 6144 4413 71 310 5068 4955 5080 4991
30”
UEB30-1/2 UEB30-1/2-3 1/2 640 8507 7170 4486 1373 64 350 5129 5099 5141 5122
UEB30-3/4 UEB30-3/4-3 3/4 770 10235 9192 7657 3833 66 360 5398 5290 5416 5320
UEB30-1 UEB30-1-3 1 975 10668 9959 8626 5184 70 370 5769 5680 5769 5715
36”
UEB36-1/2 UEB36-1/2-3 1/2 530 10500 8821 5985 2084 66 360 6057 6021 6075 6057
UEB36-3/4 UEB36-3/4-3 3/4 605 11985 10583 8563 4017 68 370 6404 6291 6416 6321
UEB36-1 UEB36-1-3 1 665 13174 11932 10299 5729 70 390 6656 6590 6656 6632
UEB36-1 1/2 UEB36-1 1/2-3 1.5 720 13660 12012 9579 5000 72 395 6920 6794 6931 6818
42”
UEB42-3/4 UEB42-3/4-3 3/4 435 14040 11530 7633 3311 67 455 6974 6866 6992 6896
UEB42-1 UEB42-1-3 1 490 15429 13194 10438 4668 69 465 7286 7244 7286 7274
UEB42-1 1/2 UEB42-1 1/2-3 1.5 550 17420 15421 13117 7289 71 470 7698 7573 7717 7603
UEB42-2 UEB42-2-3 2 725 20653 19128 17503 11319 74 485 8202 7938 8267 7963
------ UEB42-3-3 3830 23645 22296 20984 17290 79 495 ---- 8041 ---- 8076
48”
UEB48-3/4 UEB48-3/4-3 3/4 370 17339 13700 7389 2244 70 505 8076 7963 8088 7998
UEB48-1 UEB48-1-3 1 410 19188 16078 10903 4037 71 520 8321 8232 8333 8274
UEB48-1 1/2 UEB48-1 1/2-3 1.5 465 21731 19010 14991 7081 72 535 8460 8352 8478 8387
UEB48-2 UEB48-2-3 2 520 24274 21943 19080 10125 74 545 9196 8963 9269 8987
------ UEB48-3-3 3680 28150 25683 23615 16930 80 560 ---- 9101 ---- 9137
54”
UEB54-1 UEB54-1-3 1 410 23130 20588 17500 9600 73 870 11299 11209 11312 11216
UEB54-1 1/2 UEB54-1 1/2-3 1.5 450 25400 22600 19300 10316 75 880 11539 11437 11569 11467
UEB54-2 UEB54-2-3 2 480 27200 24312 20660 11010 76 890 11827 11605 11893 11629
------ UEB54-3-3 3550 31213 28722 25830 15420 80 900 ---- 12006 ---- 12042
------ UEB54-5-3 5 660 37458 35238 32843 26538 82 920 ---- 12162 ---- 12174
60”
UEB60-1 1/2 UEB60-1 1/2-3 1.5 340 28068 23203 15624 8000 78 940 12294 12180 12312 12210
UEB60-2 UEB60-2-3 2 390 32200 26710 17924 9380 80 960 12522 12300 12582 12324
------ UEB60-3-3 3450 37183 32356 25324 15013 84 985 ---- 12935 ---- 12965
------ UEB60-5-3 5 540 44600 41232 35819 23237 86 1000 ---- 13037 ---- 13085
34
Direct Drive Roof Ventilators
• Cast aluminum blades on most models
• Totally enclosed and explosion proof motors
• 1-Phase motors are eld convertible 115V/230V
• 3-Phase motors are eld convertible 230V/460V
• Motors are set to lower voltage at the factory unless a request is
made at time of order to set them to the higher voltage
• Explosion proof motors are Class 1, Div 1, Group D and Class 2,
Div 1, Groups F & G
• Wind band is 18 Gauge galvanized steel
• Rubber shim under dampers for better seal
• Size of roof opening to be 6” larger than fan size (B dimensions)
•
Some models available with low R.P.M. motor for quieter operation
• 1 year limited warranty
Features
• Protective coating.
• Prefabricated curbs
• Disconnect switch
Options
Standard Models
Dimensions
SIZE MINIMUM ROOF
HOLE SIZE (SQUARE)
WIND BAND
OUTER DIMENSION
ROOF CURB
OUTER DIMENSION (SQUARE) WIND BAND HEIGHT
18” 28” 24” 33” 16”
24” 34” 30” 39” 19”
30” 40” 36” 45” 22”
36” 46” 42” 51” 25”
42” 52” 48” 57” 27”
48” 58” 54” 63” 30”
60” 70” 66” 75” 42”
BLADE
SIZE
1-PHASE
115/230V
3-PHASE
230/460v HP RPM C.F.M - STATIC PRESSURE D b ’s
@ 10’
W T.
(LBS)
LIST
TEC EXP
MODEL 0” 1/8” 1/4” 1/2” 1 PH 3 PH 1 PH 3 PH
18”
UED18-1/4 UED18-1/4-3 1/4 1140 2570 2263 1673 854 66 170 4242 4260 4530 4775
UED18-1/3 UED18-1/3-3 1/3 1725 3375 3000 2600 1400 75 175 3925 3918 4535 4667
UED18-1/2 UED18-1/2-3 1/2 1725 4133 3938 3724 3132 76 180 4032 4014 4649 4763
UED18-1 UED18-1-3 1 1725 4600 4375 4080 3000 77 190 4494 4398 5122 5170
24”
UED24-1/4 UED24-1/4-3 1/4 1725 5200 4200 2820 ---- 75 240 4391 4410 4680 4925
UED24-3/4 UED24-3/4-3 3/4 1140 6900 6450 6265 3300 76 260 5315 5099 5925 5877
UED24-1 UED24-1-3 1 1725 7425 7000 6350 5000 83 280 4793 4709 5428 5487
------ UED24-3-3 31725 10500 9800 9500 8700 85 295 ---- 5057 ---- 6009
30”
UED30-3/4 UED30-3/4-3 3/4 1140 10440 9750 8750 6000 79 310 5566 5200 6177 6135
------ UED30-1-3 1 870 10800 10100 9100 6360 74 330 ---- 6045 ---- ----
UED30-1 1/2 UED30-1 1/2-3 1.5 1140 10410 9686 8834 6420 81 325 7698 5698 ---- 6489
UED30-2 UED30-2-3 2 1140 14000 13750 12900 10450 82 335 9280 5835 ---- 6680
------ UED30-3-3 31725 16000 15350 14700 12900 89 335 ---- 5327 ---- 6285
36”
UED36-2 UED36-2-3 2 1140 17620 16500 15200 12300 84 430 10323 6914 ---- 7759
------ UED36-3-3 3 1140 20500 19500 18500 15850 85 455 ---- 7333 ---- 8718
------ UED36-5-3 5 1140 22600 21700 20500 19000 87 465 ---- 7825 ---- 9388
42” UED42-2 UED42-2-3 2 1140 17964 17277 15326 12351 88 500 11024 7632 ---- 8472
------ UED42-5-3 5 1140 28970 27960 26840 24200 89 500 ---- 8507 ---- 10066
48”
------ UED48-3-3 31140 28600 26500 24400 20000 92 550 ---- 9184 ---- 10113
------ UED48-5-3 5 870 33000 31500 29750 25300 86 665 ---- 10964 ---- ----
------ UED48-7 1/2-3 7.5 1140 37000 35100 32800 28000 94 740 ---- 11012 ---- 13001
------ UED48-10-3 10 1140 41000 39200 38300 35400 95 875 ---- 11593 ---- 13708
60”
------ UED60-5-3 5 870 45200 41500 37000 26000 90 940 ---- 14487 ---- ----
------ UED60-7 1/2-3 7.5 870 47000 45500 43600 38700 92 950 ---- 15499 ---- ----
------ UED60-10-3 10 690 54000 51900 49000 43200 87 960 ---- 26205 ---- ----
35

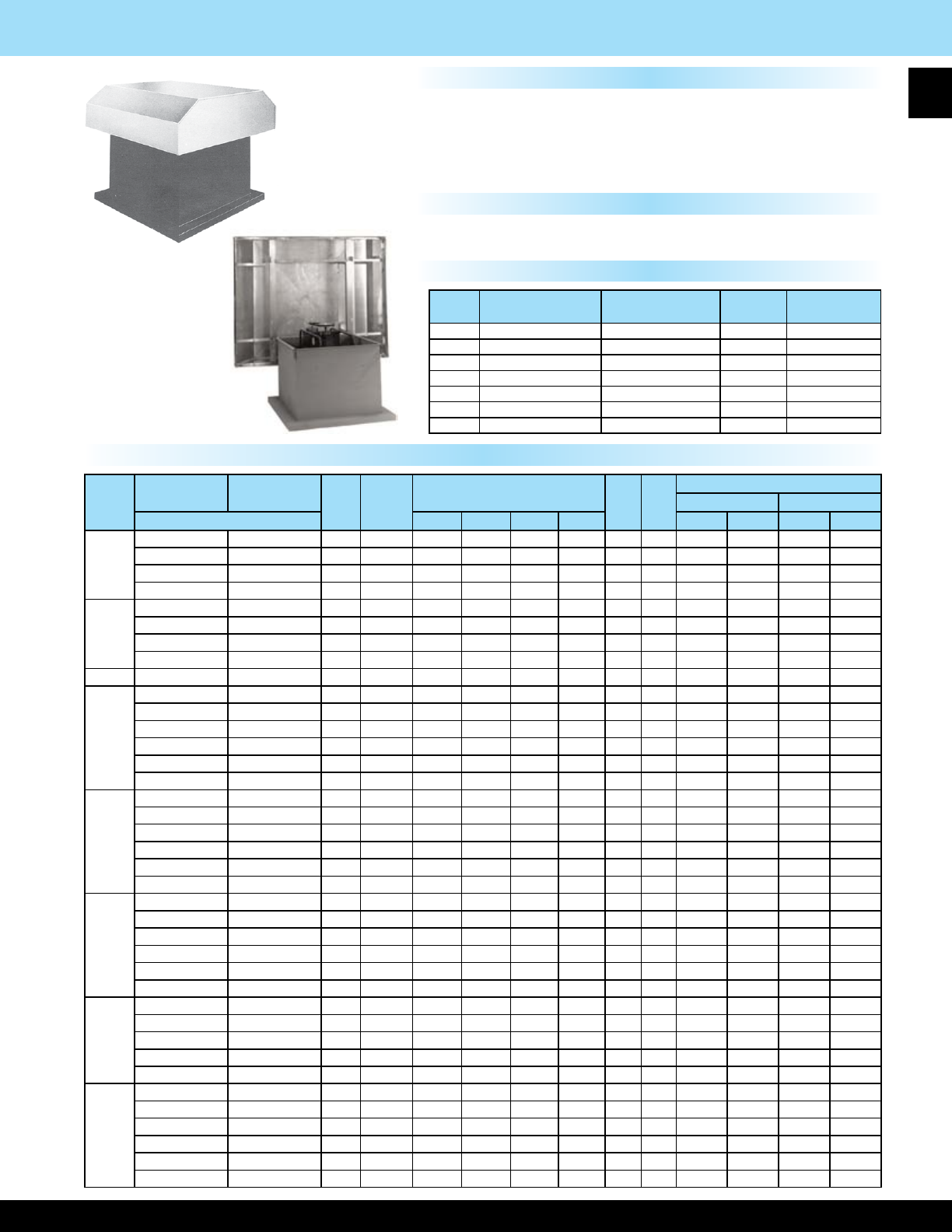

Belt Drive Hooded Roof Ventilators
Features
• Used for exhaust or intake
• Heavy industrial steel base with aluminum hood
• Steel blades
• Bird screen included
• 1 year limited warranty
Options
• Roof curb
• Filters
Dimensions
SIZE MINIMUM ROOF
HOLE (SQUARE)
HOLE
LENGTH x WIDTH
HOOD
HEIGHT
ROOF CURB
O.D. (SQUARE)
24” 30” 54” x 64” 30” 39”
30” 36” 60” x 76” 36” 45”
36” 42” 72” x 82” 40” 51”
42” 48” 80” x 89” 43” 57”
48” 54” 87” x 95” 46” 63”
54” 60” 92” x 98” 54” 69”
60” 66” 90” x 107” 56” 75”
OPEN
CLOSED
Standard Models
• Direct drive
• Protective coatings, explosion proof.
BLADE
SIZE
1-PHASE
115/230V
3-PHASE
230/460v HP RPM C.F.M - STATIC PRESSURE Db’s
@ 10’
WT.
Lbs.
LIST
EXHAUST INTAKE
MODEL 0” 1/8” 1/4” 1/2” 1 PH 3 PH 1 PH 3 PH
24”
RE24-1/4 RE24-1/4-3 1/4 780 4900 4222 2807 800 60 340 5697 5673 5697 5673
RE24-1/2 RE24-1/2-3 1/2 980 6219 5716 5061 2600 66 350 5903 5843 5903 5843
RE24-3/4 RE24-3/4-3 3/4 1140 7090 6648 6144 4413 71 360 6031 5934 6031 5934
RE24-1 RE24-1-3 1 1250 7180 6696 6271 4464 73 365 6358 6177 6358 6177
30”
RE30-1/3 RE30-1/3-3 1/3 595 7909 6380 3617 767 60 385 6613 6576 6613 6576
RE30-1/2 RE30-1/2-3 1/2 640 8507 7170 4486 1373 64 385 6715 6655 6715 6655
RE30-3/4 RE30-3/4-3 3/4 770 10235 9192 7657 3833 66 400 6945 6849 6945 6849
RE30-1 RE30-1-3 1 975 10668 9959 8626 5184 70 400 7177 6994 7177 6994
RE30-1 1/2 RE30-1 1/2-3 1.5 1140 12473 11867 11112 8135 77 410 7321 7049 7321 7049
36”
RE36-1/3 RE36-1/3-3 1/3 460 9113 6992 3722 486 64 425 8013 7976 8013 7976
RE36-1/2 RE36-1/2-3 1/2 530 10500 8821 5985 2084 66 425 8110 8049 8110 8049
RE36-3/4 RE36-3/4-3 3/4 605 11985 10583 8563 4017 68 435 8273 8177 8273 8177
RE36-1 RE36-1-3 1 665 13174 11932 10299 5729 70 440 8461 8279 8461 8279
RE36-1 1/2 RE36-1 1/2-3 1.5 720 13660 12012 9579 5000 72 440 8794 8491 8794 8491
RE36-2 RE36-2-3 2 870 16554 15376 14088 9691 74 455 9449 8934 9449 8934
42”
RE42-1/2 RE42-1/2-3 1/2 390 12343 9352 4957 1642 65 540 8989 8927 8989 8927
RE42-3/4 RE42-3/4-3 3/4 435 14040 11530 7633 3311 67 545 9303 9207 9303 9207
RE42-1 RE42-1-3 1 490 15429 13194 10438 4668 69 555 9491 9310 9491 9310
RE42-1 1/2 RE42-1 1/2-3 1.5 550 17420 15421 13117 7289 71 560 9558 9377 9679 9377
RE42-2 RE42-2-3 2 725 20653 19128 17503 11319 74 570 10268 9758 10268 9758
------ RE42-3-3 3830 23645 22296 20984 17290 79 585 ---- 9880 ---- 9880
48”
RE48-3/4 RE48-3/4-3 3/4 370 17339 13700 7389 2244 70 650 10910 10813 10910 10813
RE48-1 RE48-1-3 1 410 19188 16078 10903 4037 71 660 11103 10922 11103 10922
RE48-1 1/2 RE48-1 1/2-3 1.5 465 21731 19010 14991 7081 72 665 11273 10971 11273 10971
RE48-2 RE48-2-3 2 520 24274 21943 19080 10125 74 680 11922 11407 11922 11407
------ RE48-3-3 3680 28150 25683 23615 16930 80 700 ---- 11552 ---- 11552
------ RE48-5-3 5 800 33160 30900 29290 25000 83 720 ---- 11643 ---- 11643
54”
RE54-1 RE54-1-3 1 410 23130 20588 17500 9600 73 910 13213 13031 13213 13031
RE54-1 1/2 RE54-1 1/2-3 1.5 450 25400 22600 19300 10316 75 920 13479 13176 13479 13176
RE54-2 RE54-2-3 2 480 27200 24312 20660 11010 76 930 13819 13303 13819 13303
------ RE54-3-3 3550 31213 28722 25830 15420 77 940 ---- 13546 ---- 13546
------ RE54-5-3 5 660 37458 35238 32893 26538 80 960 ---- 13649 ---- 13649
60”
RE60-1 RE60-1-3 1 250 23090 19161 12850 ---- 76 1150 13904 13722 13904 13722
RE60-1 1/2 RE60-1 1/2-3 1.5 340 28068 23283 15624 8000 77 1150 14437 14134 14437 14134
RE60-2 RE60-2-3 2 390 32200 26710 17924 9380 78 1200 14753 14238 14753 14238
----- RE60-3-3 3450 37183 32356 25324 15013 84 1220 ---- 14486 ---- 14486
----- RE60-5-3 5 540 44600 41232 35819 23237 86 1240 ---- 14577 ---- 14577
----- RE60-7 1/2-3 7.5 620 50184 47603 43981 32880 89 1285 ---- 15092 ---- 15092
36
Insulated Roof Curbs
Features
• Used with UEB, UED, and RE roof ventilators
• For at, single slope or ridge style roofs
• Galvanized steel construction
• 1 1/2” insulated thickness, 3 pounds density
• 8” height overall
• Not for corrugated roofs
Standard Models
Back Draft Dampers to Fit in Curb
UEB and UED models require higher curb height when used with back draft damper-consult factory.
Motor Kit
115V or 230V, 60Hz, 1-Phase. (Specify Voltage)
FAN
MODEL BASE
DIMENSION
OVERALL
DIMENSION
LIST
FLAT SLOPE RIDGE FLAT SLOPE RIDGE
18” FLS-18 SLS-18 RDS-18 32” x 32” 44” x 44” 446 863 1017
24” FLS-24 SLS-24 RDS-24 38” x 38” 50” x 50” 517 988 1160
30” FLS-30 SLS-30 RDS-30 44” x 44” 56” x 56” 583 1107 1309
36” FLS-36 SLS-36 RDS-36 50” x 50” 62” x 62” 637 1214 1399
42” FLS-42 SLS-42 RDS-42 56” x 56” 68” x 68” 702 1333 1577
48” FLS-48 SLS-48 RDS-48 62” x 62” 74” x 74” 946 1791 2124
54” FLS-54 SLS-54 RDS-54 68” x 68” 80” x 80” 1024 1946 2303
60” FLS-60 SLS-60 RDS-60 74” x 74” 86” x 86” 1119 2118 2506
FAN SIZE MODEL SHUTTER SIZE LIST
18” CD-18 28” x 28” 593
24” CD-24 34” x 34” 691
30” CD-30 40” x 40” 953
36” CD-36 46” x 46” 1179
42” CD-42 52” x 52” 1301
48” CD-48 58” x 58” 1580
54” CD-54 64” x 64” 1981
60” CD-60 70” x 70” 2155
MODEL DESCRIPTION SHIPPING WT. (LBS) LIST
DMKP1 For shutter sizes 18” thru 36” 5 540
DMKP2 For shutter sizes 42” thru 60” 8 644
37
A
B
C

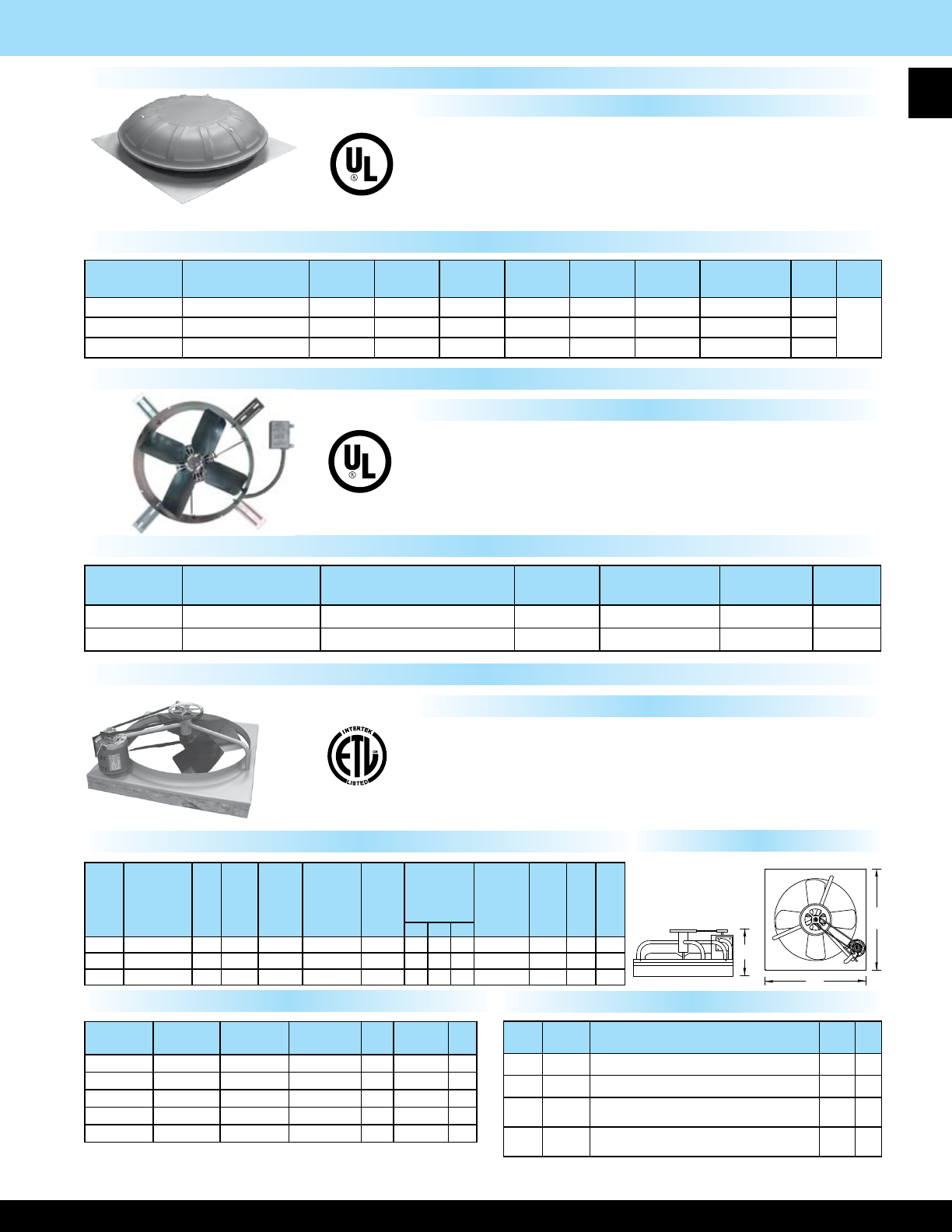

Attic Fans
• 2-Speed motors
• Shutters automatically open when fan is turned on and
close tightly when fan is turned off
• 120V, 1-Phase
Features
Belt Drive Wholehouse Fans
Standard Models
NOTE: Belt Drive Fan with “No Joist Cut” Shutter.
Ceiling Shutters Control Options
“Joist out style” (For replacement only)
• 120V motor / 1-Phase
• Safety re link protected
• Automatic adjustable thermostat
• Partially assembled (mounting tabs must be assembled)
• 15” diameter x 6” depth
• 4 mounting tabs on 16” centers
Gable Exhaust Fan
Features
Standard Models
Power Attic Mount Dome Ventilator
• 120V Motor / 1-Phase
• Safety re link protected
• Automatic thermostat (90°-130°F)
• Insect and bird screen installed
• Powder coated metal dome and base
Features
Standard Models
Fan Dimensions
Note: Product may differ in appearance from image.
UPC#
686334 MODEL DESCRIPTION CFM .03 SP ATTIC SIZE/ ST. FT. SHIPPING WT.
(LBS) LIST
866378 GV-405-2B Gable Mount Ventilator 1300 average/2000 11 105
866521 AGD-1416B Alum Damper for GV-405-2 ---- ---- 3 64
UPC#
686334 MODEL FIT HOLE
SIZE (I.D.)
OUTSIDE
SIZE (O.D.)
FAN
SIZE
SHIPPING
WT. (LBS) LIST
794480 CS-10-W 26X26 28X28 24” 8 129
794466 CS-13-W 32X34 34X36 30” 10 135
794534 CS-14-W 34X34 36X36 30” 10 141
794473 CS-18-W 32X43 34X45 36” 11 154
794527 CS-19-W 34X43 36X45 36” 11 166
UPC#
686334 MODEL DESCRIPTION WGHT.
LBS. LIST
792707 2-SW 2 Speed wall switch & plate 1 37
500081 1A22-7 SP Close on rise (Attic Thermostat) (90°-130°F) 1 44
500036 1A22-8 SP Close on rise (IvoryWhole House Thermostat)
(50°-90°F) 1.5 44
500005 1A22-8W SP Close on rise (White Whole House Thermostat)
(50°-90°F) 1.5 44
UPC#
686334 MODEL SIZE SPEED MOTOR
HP
CFM @ .1
IN. H2O
PRESSURE
DROP w/
SHUTTER
FAN
SPEED
RPM
FAN
MOUNTING
DIMENSIONS
(IN)
EXHAUST
SQ. FT.
REQ’D
AMPS WT.
(LBS) LIST
A B C
793629 BD24-2-WHS 24” 2 1/3 4500/2700 612/410 28 29.5 14.5 7 5.7/4.8 40 674
793636 BD30-2-WHS 30” 2 1/3 7600/5800 520/350 34 35.5 14.5 97.5/4.4 50 723
793643 BD36-2-WHS 36” 2 1/3 9675/6400 395/265 40 41.5 14.5 12 6.3/3.1 64 796
UPC#
686334 MODEL DOME
COLOR SPEED CFM .03 SP VOLTS HP RPM ATTIC SIZE /
SQ. FT.
WT
LBS LIST
866422 PDV-305-1MB-Gy Gray 1 1080 120 1/12 1050 average/1600 18
135866439 PDV-305-1MB-Br Brown 1 1080 120 1/12 1050 average/1600 18
866446 PDV-305-1MB-Blk Black 1 1080 120 1/12 1050 average/1600 18
38

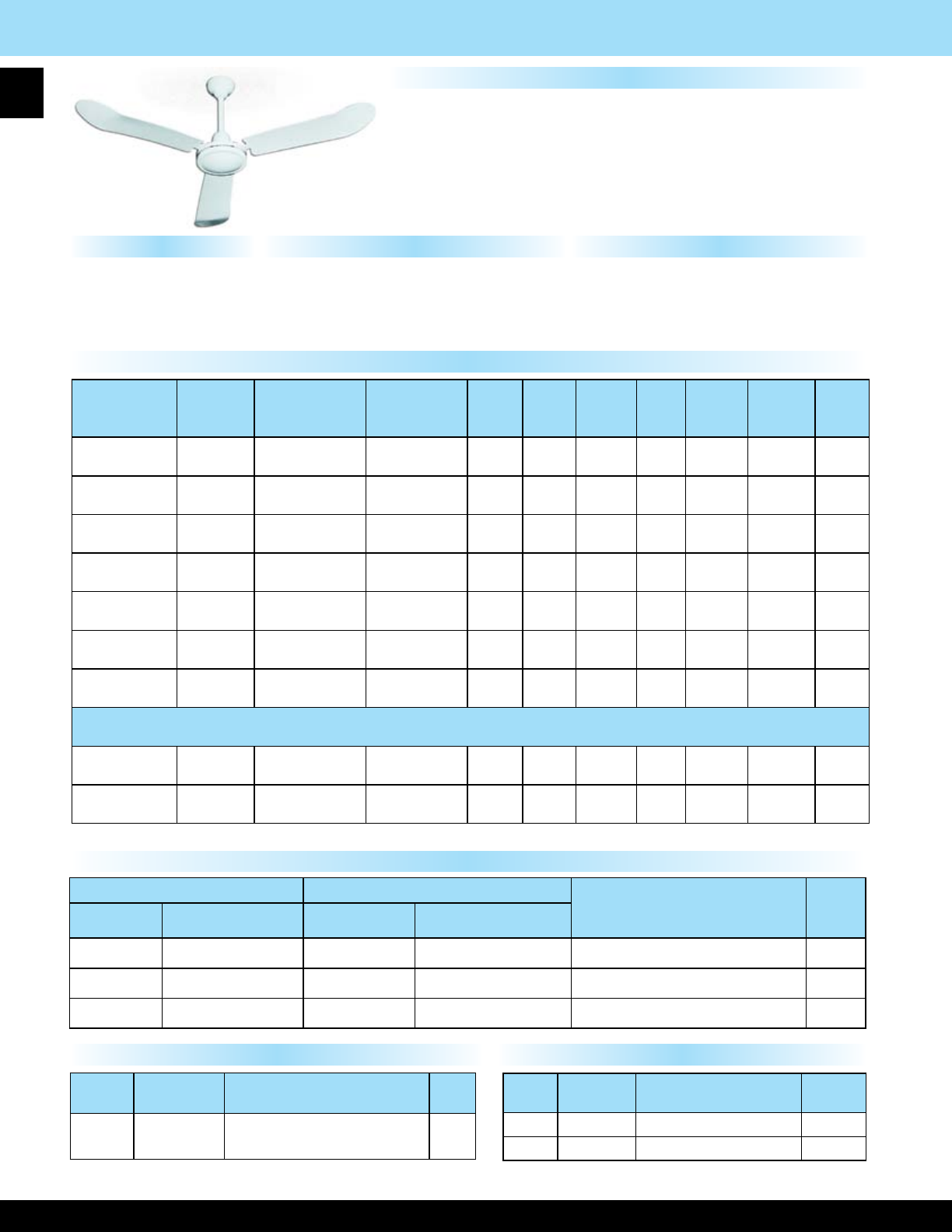

Industrial Ceiling Fans
18” Fan & Pump Lid for Existing 10 Gallon Igloo Coolers
Commercial Grade Industrial Grade Heavy Duty Grade
• Assembly required
• 30” lead wires
• 1 year limited warranty
• Fully assembled except blade bolt down
• 3 conductor cord, 30” long with plug
• Permanently lubricated
• 3 year limited warranty
• Fully assembled except blade bolt down
• 3 conductor cord, 30” long with plug
• Permanently lubricated
• 6 year limited warranty
• All metal construction. White epoxy nish
• 24” Down rod with safety cable
• Mounts to 3/8” diameter steel J-hook
• 18 pole, 115V, 1-Phase, Capacitor type, impedance protected
motor with sealed ball bearings
• Optional or other down rod length available
Features
Standard Models
Solid State Controls (120 & 277V Units)
Solid State Controls & Reversing Switch for IHR-56R
Options
* 277 volt, commercial, and reversing models have lead wires instead of cordset.
UPC#
686334 MODEL TYPE LIST
866682 HR-RSS-3 1-3 FANS REVERSING SWITCH
and SPEED CONTROL 138
120V 277V
TYPE LIST
UPC#
686334 MODEL UPC#
686334 MODEL
797634 HR-SS-2 ----- ----- 1-2 FANS SPEED CONTROL 43
797641 HR-SS-5 853392 HR-SS-5-277 3-5 FANS SPEED CONTROL 103
799416 HR-SS-10 852654 HR-SS-10-277 6-10 FANS SPEED CONTROL 151
UPC#
686334 MODEL TYPE LIST
851220 HR-GUARD FOR 56” MODELS 596
850421 Sufx - X3 36” DOWN ROD OPTION +40 Adder
GRADE UPC#
686334 MODEL TYPE SIZE VOLTS CFM RPM AMPS WEIGHT
(LBS.) LIST
Commercial 852968 CHR-56 Down Draft 56” 120 19000 320 0.6 15 162
Industrial 797993 IHR-48 Down Draft 48” 120 17100 320 0.53 14 223
Industrial 797153 IHR-56 Down Draft 56” 120 21000 310 0.6 15 235
Industrial 798006 IHR-56R Reversible 56” 120 21000 310 0.55 14 240
Industrial 800891 IHR-56-277V* Down Draft 56” 277 21000 310 0.3 16 240
Heavy Duty 851527 HDHR-56 Down Draft 56” 120 27500 320 0.75 18 306
Heavy Duty 799393 HDHR-60 Down Draft 60” 120 47000 320 0.8 21 348
Water and Dust Resistant Models
Heavy Duty 854085 HDHR-56WR Down Draft 56” 120 27500 320 1.1 17 330
Heavy Duty 854092 HDHR-60WR Down Draft 60” 129 47000 320 0.8 21 373
39

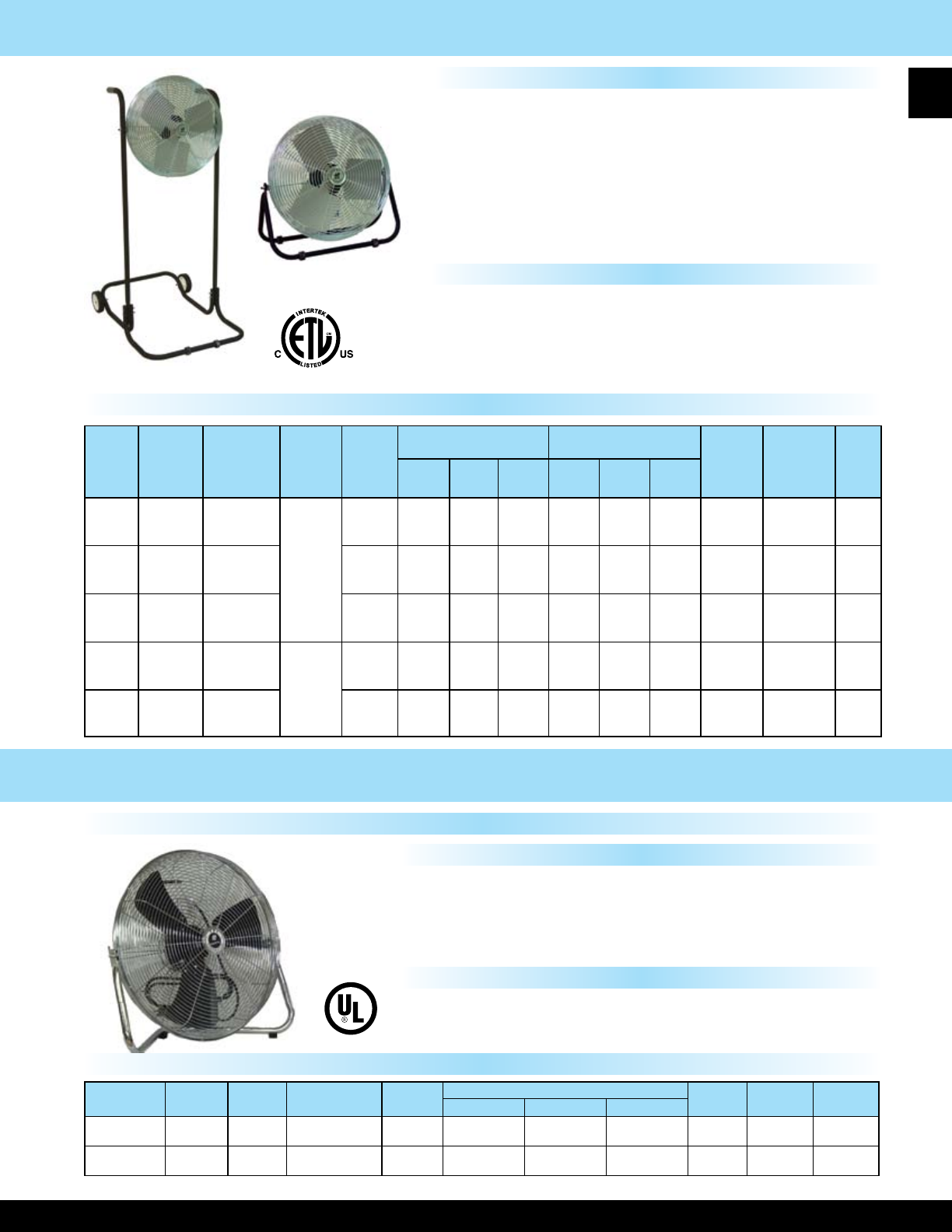

Industrial Workstation Floor Fans
Features
• Rotary switch
• Head tilts 360°
• Coated steel guards
• SJT type 3 conductor, 10’ long cord
• Steel hub/spider aluminum paddle blades
• Meets OSHA standards
• 1 Year limited warranty
Motor Specications
HIGH STAND
FLOOR
MODEL • Sleeve bearing
• Totally enclosed
• 1-Phase, 120V
• 3-Speed
Standard Models
Overall
height
of stand
is 53”
• Permanently lubricated
• Frame size: 42
• 5/16 Shaft
• 3-Speed
• 120V, 1/5HP
• Sleeve bearing
• 1-Phase
• Open ventilated
• Permanently lubricated
Standard Models
Motor Specication
• Rotary switch
• SJT type cord - 3 conductor - 7’ long
• Aluminum blade
• Coated steel guards with retaining clips
• Meets OSHA standards / 1 year limited warranty
Feaures
20” Commercial Floor Fan
TPI Commercial Workstation Floor Fans
SIZE UPC#
686334 MODEL FAN
TYPE
MOTOR
HP
CFM / RPM DIMENSIONS
MAX
AMPS
SHIPPING
WT. (LBS) LIST
HIGH MED LOW “H” “W” “D”
12” 798617 F-12-TE
FLOOR
MODEL
1/12 1650 /
1590
1420 /
1380
1120 /
1080 15 1/4” 14 1/2” 9 1/2” 1.1 13 134
18” 797290 F-18-TE 1/8 4600 /
1660
4200 /
1550
3200 /
1370 20 1/2” 20 1/2” 10 1/2” 1.5 20 168
24” 852852 F-24-TE 1/8 5850 /
1634
5200 /
1484
3600 /
1200 26” 26” 10 1/2” 2.4 23 313
18” 797306 F-18H-TE
HIGH
STAND
1/8 4600 /
1660
4200 /
1550
3200 /
1370 53” 25” 27” 2.2 27 223
24” 854061 F-24H-TE 1/8 5850 /
1634
5200 /
1484
3600 /
1200 53” 30” 27” 2.4 30 391
UPC#
686334 MODEL SIZE TYPE MOTOR
HP
CFM MAX
AMPS
WT.
(LBS.) LIST
HIGH MED LOW
870658 CF-20 20” FLOOR 1/5 3450 3100 2950 1.9 18 134
523332 CU-20 20” WORKSTATION 1/5 3450 3100 2950 1.9 18 161
40

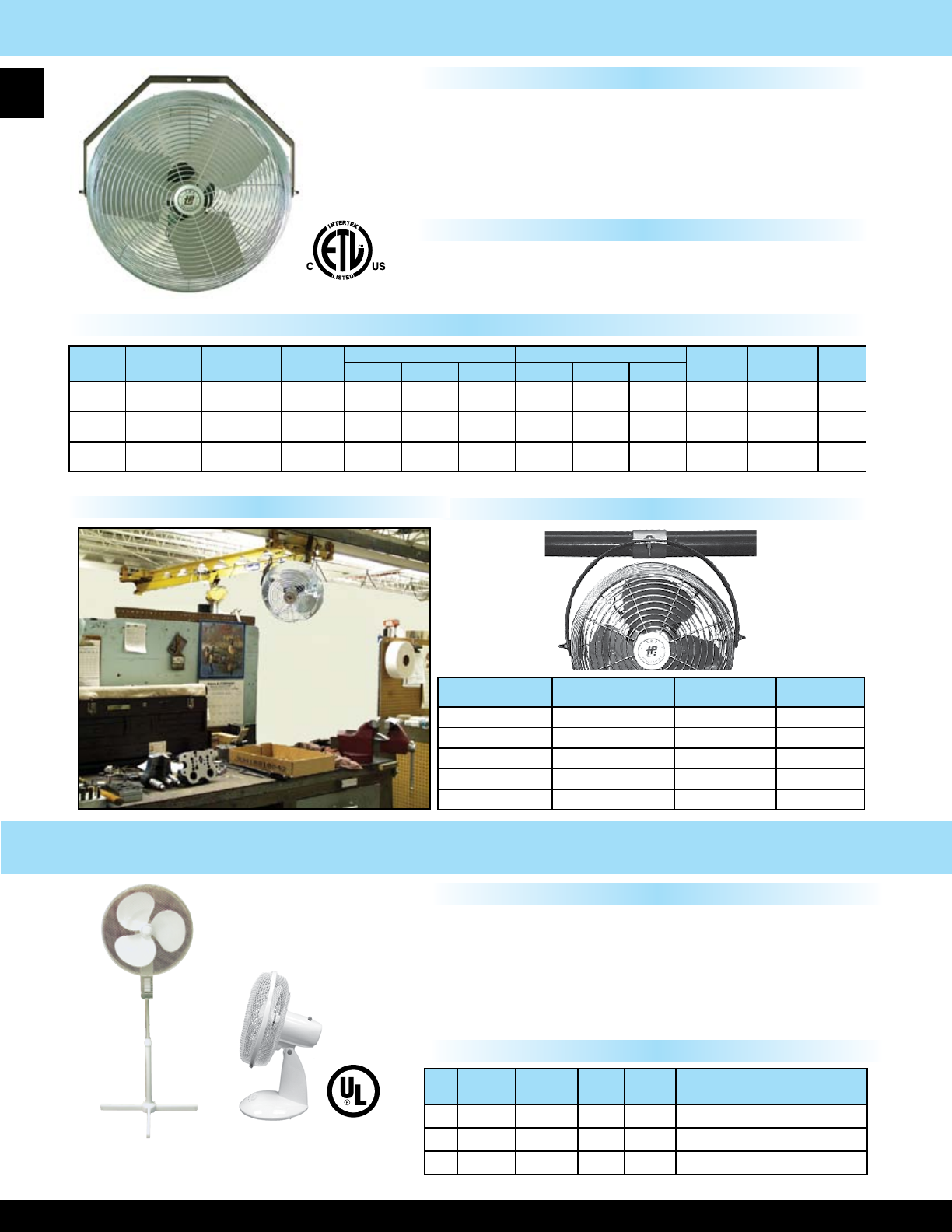

Industrial Mounted Workstation Fans
Features
• Pull chain switch
• Head rotates 360° vertical and horizontal direction
• Coated steel guards
• SJT type 3 conductor, 10’ long cord
• Steel hub/spider aluminum paddle blades
• Meets OSHA standards • 1 Year limited warranty
Motor Specications
•3-Speed
•1-Phase, 120V
•5/16 Shaft
• Sleeve bearing
• Totally enclosed, permanently lubricated
• Frame size: 42
NOTE: Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface.
Standard Models
Pipe Mount Adaptor
Application Photos
Workstation Oscillating Ofce Fans
• 3-speed oscillating fans with push button controls
• 3 conductor SPT cord & plug
• White powder coated wire mesh guards
• White plastic housing and blade
• Stand fan extends to 40” height
• Meets OSHA standards
• 1 Year limited warranty
Standard Models
Features
STAND FAN DESK FAN
FAN
SIZE
UPC#
686334 MODEL MOTOR
HP
CFM / RPM DIMENSIONS MAX
AMPS
SHIPPING
WT (LBS) LIST
HIGH MED LOW “H” “W” “D”
12” 798600 U-12-TE 1/12 1650 /
1590
1420 /
1380
1120 /
1080 15 1/4” 14 1/2” 9 1/2” 1.1 13 140
18” 797283 U-18-TE 1/8 4600 /
1660
4200 /
1550
3200 /
1370 21 1/2” 20 1/2” 10 1/2” 2.2 20 173
24” 854078 U-24-TE 1/8 5850 /
1634
5200 /
1484
3600 /
1200 27” 26” 10 1/2” 2.4 23 324
PIPE
DIAMETER
UPC#
686334 MODEL LIST
1” 851244 PM-1 47
1 1/2” 851251 PM-1.5 51
2” 851268 PM-2 57
2 1/2” 851275 PM-2.5 62
3” 851282 PM-3 67
SIZE UPC#
686334 MODEL FAN
TYPE SPEEDS CFM
HIGH
AMPS
HIGH
SHIPPING
WT. (LBS.) LIST
12” 851305 ODF-12 DESK 31200 0.4 5.4 66
16” 851312 ODF-16 DESK 32100 0.5 8.5 78
16” 851329 OSF-16 STAND 32100 0.5 15.5 98
41

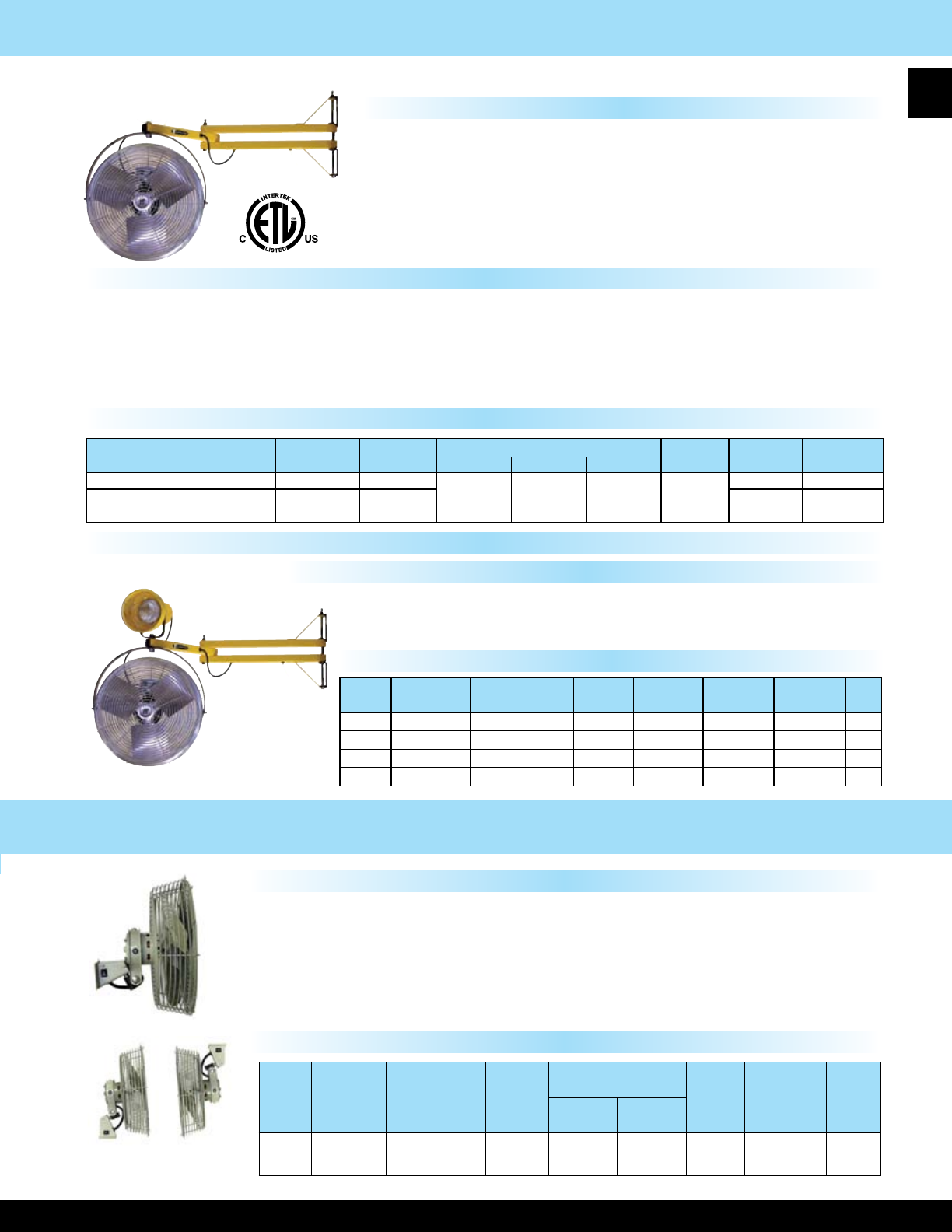

18” HIGH VELOCITY FAN MOUNTED ON 24”, 40” or 60” PIVOTING ARMS
Workstation Wall Mount Fan With Pivoting Arm
• 1-1/2" square, 14 gauge, steel tubing
• 3" x 5" x 3/16” mounting plate attaches with (4) 3/8" bolts
• 5' long., 18/3 SJTW conductor cord and NEMA 5-15
grounded plug
• Dual electrical outlets embedded in arm to allow connection
of modular fan and optional light
Mounting Arm Features
Standard Models
• 18" high velocity circulator, with 3 speed, 1/8 HP, 115V,
1-Phase permanently lubricated, totally enclosed, PSC motor
• Modular fan plugs into electrical outlet on arm
• Coated steel guards / Aluminum blades
• Meets OSHA standards / 1 year limited warranty
Use on loading docks to
cool off workers entering
hot truck trailers.
Use at factory
workstations to cool off
people or the machines.
Optional Modular Lights
Modular Fan Features
Light Features
• Plugs into embedded outlet in arm
• On/Off switch and wire guard included
• Bulb included with DKL-QH and DKL-FL
Standard Models
Low Velocity “Navy Style” Workstation Fan
Features
• 12” all metal, gray powder coated fan that
can be wall, ceiling or bench mounted
• Direct wire electrical connection
• Toggle switch
• Fan head tilts 90° in horizontal and
vertical plane
• Meets OSHA standards
• 1 year limited warranty
Designed to circulate air in conned spaces aboard US Navy ships
Navy spec “MIL-F-68F”
Standard Models
BENCH
MOUNT
CEILING
MOUNT
WALL MOUNT
UPC#
686334 MODEL FAN
SIZE
ARM
LENGTH
FAN CFM MAX
AMPS
SHIPPING
WT (LBS) LIST
HIGH MED LOW
800914 24-LDF-TE 18” 24”
5750 4700 3200 2.2
31 lbs. 274
800921 40-LDF-TE 18” 40” 38 lbs. 341
800938 60-LDF-TE 18” 60” 44 lbs. 366
UPC#
686334 MODEL LIGHT HEAD
TYPE
MAX
WATT S
MAX
LUMENS
AVE. BULB
LIFE (HRS)
SHIPPING
WT (LBS) LIST
446563 DKL-INC Incandescent 300 3,700 2,000 5 lbs. 74
446570 DKL-QH Quartz Halogen 500 11,000 2,000 6 lbs. 111
484336 DKL-FL Florescent 55 3,000 10,000 7 lbs. 129
470865 DKL-LED LED 12 960 50,000 5 lbs. 412
SIZE UPC#
686334 MODEL MOTOR
HP
CFM / RPM AMPS
HIGH
SHIPPING
WT. (LBS) LIST
HIGH LOW
12” 870894 N-12 1/12 1540 / 1350 930 / 750 0.6 12 295
42

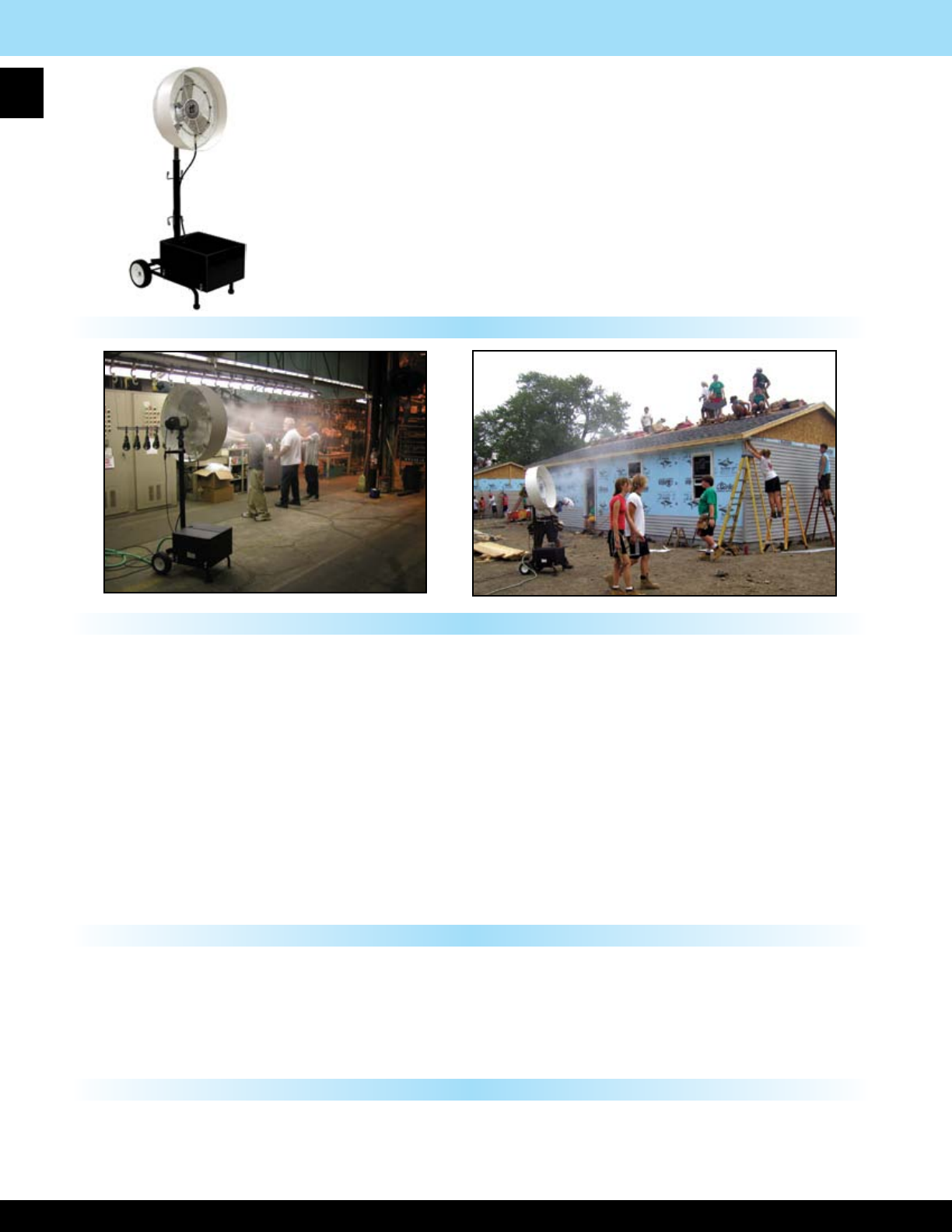

• 120 Volt, 11-Amp, 1/2 HP motor and CAT (brand) triplex plunger pump that delivers ½ of a gallon
of water per minute at 1000 psi. Pump has onboard, adjustable, regulating un-loader for pressure
control and pump protection; oil level sight glass and bypass system
• Pressure gauge installed near the regulator for easy pressure adjustment for variable nozzle set-ups
(more or less mist can be produced with up to 24 anti-drip nozzles, nozzles are .008")
• 5 micron canister water lter
• Automatic low water pressure shut-off
• Female coupler for standard 5/8" water hose (water input supply)
• Three male quick disconnects for water supply to master unit and two additional satellite fans.
• 3-position DPDT switch (fan only, off, fan & pump)
• GFCI integral to cordset protects total system from leakage current
• Pump box lid hinged for easy access with 2 stainless steel latches for lock-down
High Pressure Pump System
Master Pump Cart (HPM-PCT)
• Black powder-coated cart with 10" all-terrain non-pneumatic wheels
• Permanently mounted pump container
• Cord wraps and support handle included on the column upright assembly
• Pump cart unit comes with stainless steel closed-loop misting ring ported for 8 nozzles (shipped
with 8 -.008" anti-drip nozzles and 4 plugs) for the master fan.
Satellite Pedestal Base (HPM-P)
• Black powder-coated column and base with 10" all-terrain non-pneumatic wheels
• Satellite fan pedestal base comes with 25’ of 2500 psi rated hose and stainless steel closed-loop
misting ring ported for 8 nozzles (shipped with 8 - .008" anti-drip nozzles and 4 plugs)
1000 psi pump system designed to run one master fan and up to
two satellite fans.
Modular system components can be combined to construct a
portable misting system using 24” or 30”, oscillating or non-
oscillating fans.
Fans can be operated with or without misting.
Generates a ne water vapor or “fog” mist that can reduce air
temperatures up to 30°F.
Application Shots
Portable High Pressure Misters
43

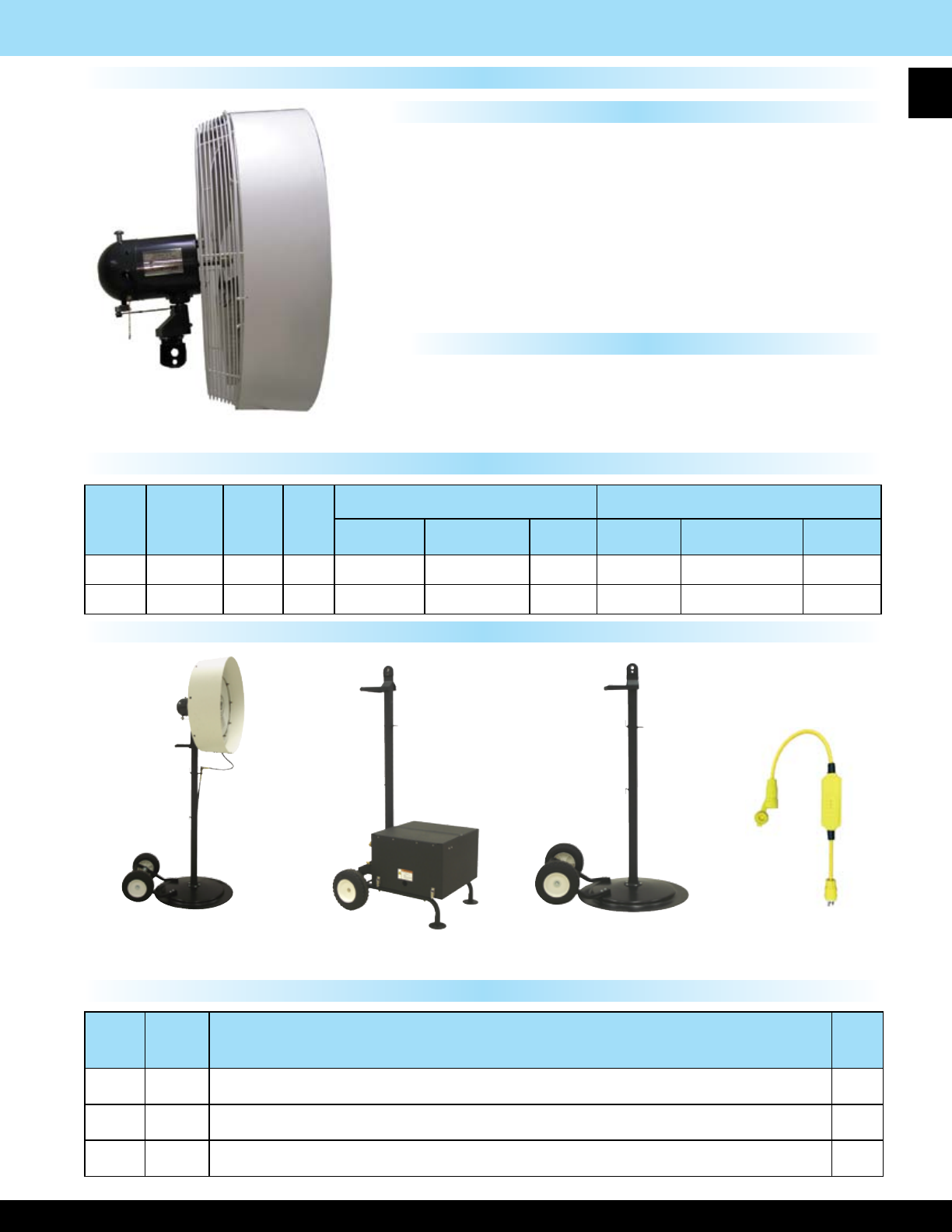

Oscillating & Non-Oscillating Misting Fan Heads for Master & Satellite Units
Features
Motor Specications
• 24” and 30” - oscillating and non-oscillating
• Pull chain switch
• White powder coated steel guards with 9” plastic shroud
• Steel hub/spider & aluminum paddle blades
• Meets all OSHA standards
• 1 year limited warranty
• Oscillating model oscillates in a 90° arc or can be locked
in a xed position
• Metal gears in the oscillating mechanism allow the fan to
operate at a maximum 30° downward tilt
• 1-Phase
• 1/4 HP
• Ball bearing
• Totally enclosed
• 120V
• 2-Speed
• Permanently lubricated
• Permanent split capacitor
Standard Models
Master Pump Cart & Satellite Fan Mount
Standard Models
HPM-P SATELLITE PEDESTAL
BASE WITH 10” WHEELS
(Shown with 24” Fan Head)
HPM-PCT MASTER CART
MISTING PUMP SYSTEM
HPM-P SATELLITE
PEDESTAL BASE
Portable High Pressure Misters
GCFI PLUG FOR
SATELLITE MISTING
HEADS
SIZE CFM WT. AMPS
NON-OSCILLATING OSCILLATING
UPC#
686334 MODEL LIST UPC#
686334 MODEL LIST
24” 6800 / 5000 44 lbs. 3.0 867108 HPM 24H 436 867122 HPM 24H-O 606
30” 7900 / 6000 48 lbs. 3.4 867115 HPM 30H 459 867139 HPM 30H-O 631
UPC#
686334 MODEL DESCRIPTION LIST
867146 HPM-PCT Master Cart Misting Pump System with 10” Wheels, Cart Base Stand & Upright Column, and (1) 8-Nozzle Misting Ring 3613
868228 HPM-P Satellite Pedestal Base with 10” Wheels, Pedestal Base & Upright Column, (1) 8-Nozzle Misting Ring, and 25’ of High
Pressure Water Hose to connect to Master Pump Cart 876
874878 HPM-GFCI GFCI for Satellite Misting Heads 150
44
Permanent Mount High Pressure Misters
Generates a ne water vapor or “fog” mist, that can
reduce air temperatures up to 50°F
1000 psi pump system designed to run one master
fan and up to two satellite fans
Modular system components can be combined to
construct a portable misting system using 24” or 30”
oscillating or non-oscillating fans
Fans can be operated with or without misting (HPM-W)
(HPM-PU)
High Pressure Pump System
Master Pump Unit (HPM-PU)
• 120 Volt, 11-Amp,
1/2
HP motor and CAT (brand) triplex plunger pump that delivers
1/2
of a
gallon of water per minute at 1000 psi. Pump has onboard, adjustable, regulating un-loader
for pressure control and pump protection; oil level sight glass and bypass system
•
Pressure gauge installed near the regulator for easy pressure adjustment for variable nozzle
set-ups (more or less mist can be produced with up to 24 anti-drip nozzles, nozzles are .008”)
• 5 micron canister water lter
• Automatic low water pressure shut-off
• Female coupler for standard 5/8" water hose (water input supply)
• Three male quick disconnects for water supply to master unit and two additional satellite
fans
• 3-position DPDT switch (fan only, off, fan & pump)
• GFCI integral to cordset protects total system from leakage current
• Pump box lid hinged for easy access with 2 stainless steel latches for lock-down
• Black powder-coated pump container
• Pump unit can be mounted to a wall or pole (4” to 8” diameter) with optional wall/pole
mounting kit (HPM-PUM) or on a user supplied table or shelf
Cut-Away Shots
UNIT
POWER
SWITCH
UNIT
POWER
CORD
MAIN WATER
HOSE INLET
SATELLITE
FAN WATER
HOSE QUICK
CONNECTS
PUMP BACK PANEL
PUMP INSIDE CUT-AWAY VIEW
45

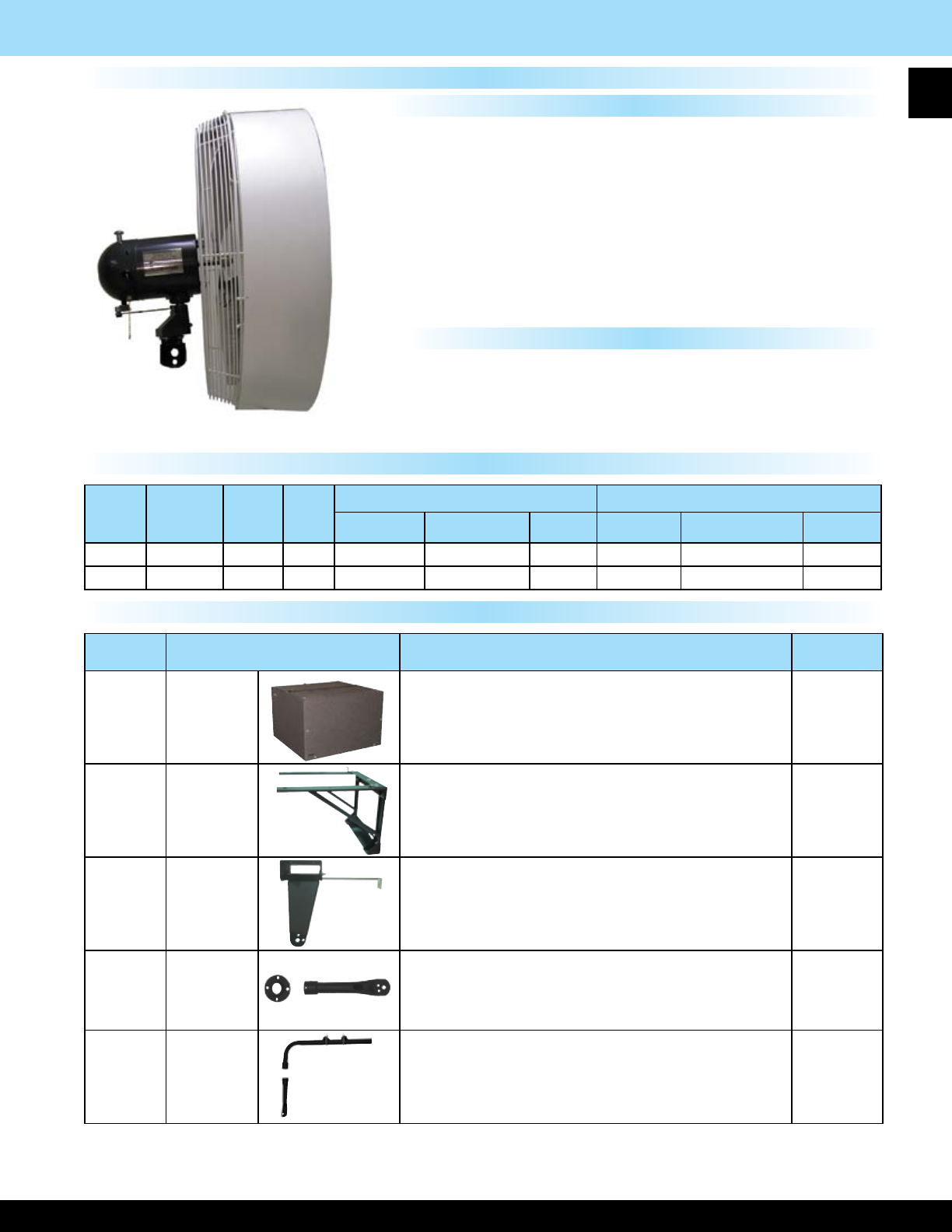

Permanent Mount High Pressure Misters
Oscillating & Non-Oscillating Misting Fan Heads for Master & Satellite Units
Features
Motor Specications
• 24” and 30” oscillating and non-oscillating
• Pull chain switch
• White powder coated steel guards with 9” plastic shroud
• Steel hub/spider & aluminum paddle blades
• Meets all OSHA standards
• 1 year limited warranty
• Oscillating model oscillates in a 90° arc or can be locked
in a xed position
• Metal gears in the oscillating mechanism allow the fan to
operate at a maximum 30° downward tilt
• 1-Phase
• 1/4 HP
• Ball bearing
• Totally enclosed
• 120V
• 2-Speed
• Permanently lubricated
• Permanent split capacitor
Standard Models
Master Pump & Mount Components
Note: • Wall mount (HPM-W) and master pump wall mounting bracket (HPM-PUM) can bolt to a wall or mount
to a 4”, 6” or 8” pole with U-bolts (not supplied). I-beam & ceiling mount requires 1-1/2” or longer pipe nipples for
assembly (not supplied).
SIZE CFM WT. AMPS
NON-OSCILLATING OSCILLATING
UPC#
686334 MODEL LIST UPC#
686334 MODEL LIST
24” 6800 / 5000 44 lbs. 3.0 867108 HPM 24H 436 867122 HPM 24H-O 606
30” 7900 / 6000 48 lbs. 3.4 867115 HPM 30H 459 867139 HPM 30H-O 631
UPC#
686334 MODEL DESCRIPTION LIST
868204 HPM-PU Master Pump Unit
(For use with up to three fan heads) 3014
868211 HPM-PUM Master Pump Wall Mounting Bracket
(For use with Master Pump Misting Unit) 184
867177 HPM-W
Wall / Pole Mounting Bracket
(Includes One 8-Nozzle Misting Ring and 25’ of High Pressure Water Hose to
connect to Master Pump Misting Unit)
601
867191 HPM-C
Ceiling / Bench Mounting Bracket
(Includes One 8-Nozzle Misting Ring and 25’ of High Pressure Water Hose to
connect to Master Pump Misting Unit)
570
867184 HPM-I
I-Beam Mounting Bracket
(Includes One 8-Nozzle Misting Ring and 25’ of High Pressure Water Hose to
connect to Master Pump Misting Unit)
606
46

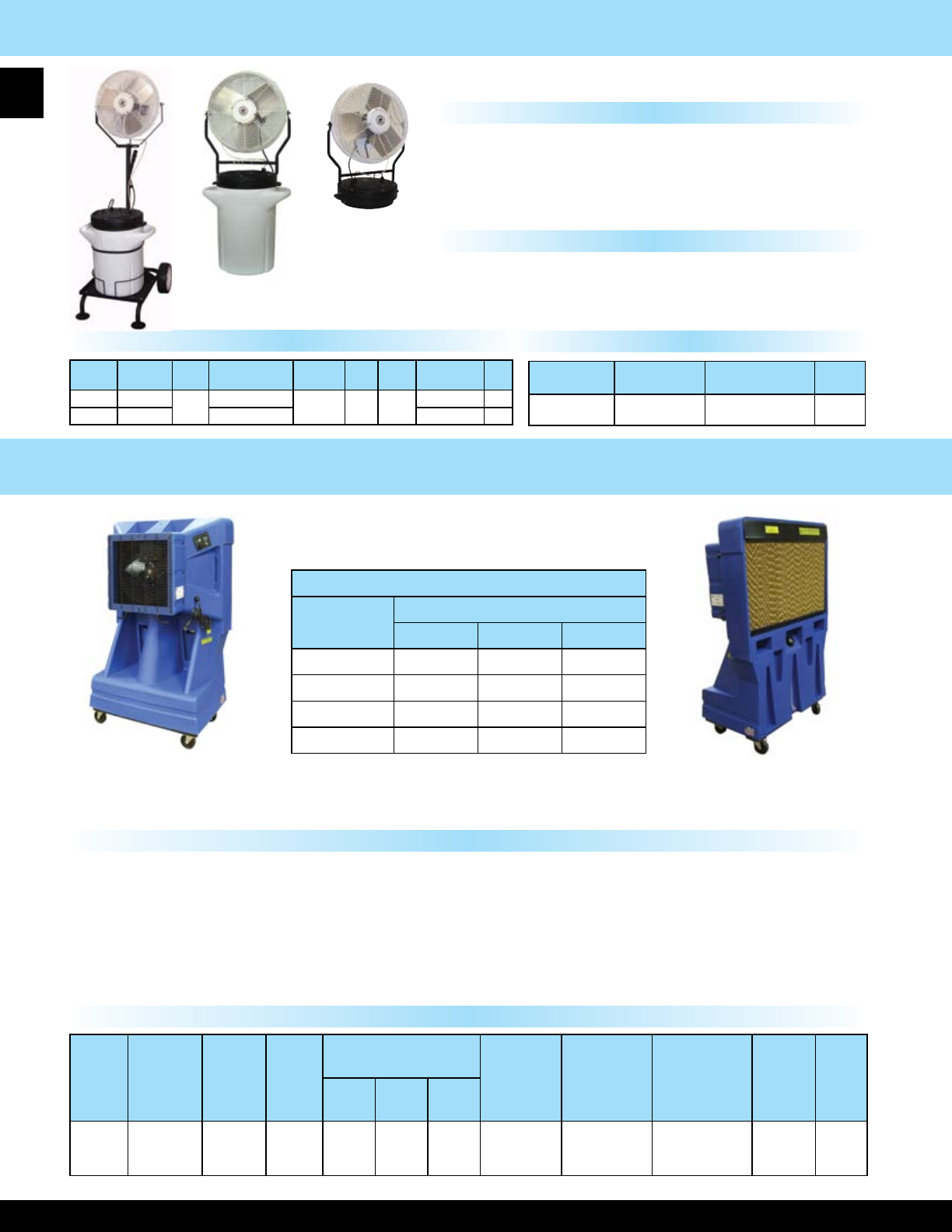

Features
Stardard Models
15°F - 25°F OF EVAPORATIVE COOLING
- PLUS -
6°F - 8°F OF WIND CHILL COOLING
PROVIDES COOLING UP TO A 900 SQ. FT. AREA
FRONT BACK
16” Portable Workstation Evaporative Cooler
EVAPORATIVE COOLING TEMPERATURE DROPS
AIR
TEMPERATURE
RELATIVE HUMIDITY
10% 30% 50%
80o -22o-16o-10o
90o -25o-18o-12o
100o -29o-21o-14o
110o -32o-23o-15o
42 Gallon internal water reservoir that allows the unit to operate approximately 8
hours without being connected to an external water source
Motor Specication
• 1-Phase, 120 Volt
• Totally enclosed
• Permanent split capacitor
• 1-Speed, 1/8 HP
• Sleeve bearing
• Permanently lubricated
• Toggle Switch - fan only or fan & mist
• SJT type cord - 3 conductor - 18’ long with GFCI plug
• 18” Aluminum blade
• Spiral front and rear wire guards
• 85 psi diaphragm pump
• Meets OSHA standards / 1 year limited warranty.
Features
Power cutoff tip switch and GFCI plug for extra safety.
SELF CONTAINED MISTING SYSTEM WITH WATER
PUMPED FROM A 10 GALLON COOLER.
Standard Features
Portable 18” Self Contained Power Mister
18” Fan & Pump Lid for 10gal Igloo Cooler
PM-18FO
PM-18S
PM-18C Note: Cooler lid not included.
• Durable polyethylene housing features leakproof, one piece construction
• Lowers temperatures 15-25 °F depending on climate conditions
• Easy rolling poly on poly casters (EVAP16-3)
• Shipped completely assembled, ready to use
• Water level sight tube located on front of unit to indicate water level in tank
• Manufactured in USA
Patented
Patented
UPC#
686334 MODEL MOTOR
HP
UNIT
AMPS
CFM
EFFECTIVE
SQ. FT.
INTERNAL
WATE R
(Gallons)
DIMENSIONS
L x W x H
(Inches)
SHIPPING
WEIGHT
(LB)
LIST
HIGH MED LOW
874809 EVAP16-3 1/2 4.6 2500 3500 3900 900 42 23 x 37.5 x 59 145 2455
UPC#
686334 MODEL SHIPPING
WT. (LBS.) LIST
855525 PM-18FO 28 871
UPC#
686334 MODEL FAN
SIZE TYPE MOTOR
HP CFM AMPS SHIPPING
WT (LBS) LIST
855471 PM-18S 18” HAND CARRY 1/8 5750 2.2 30 1016
855495 PM-18C CART 38 1292
47

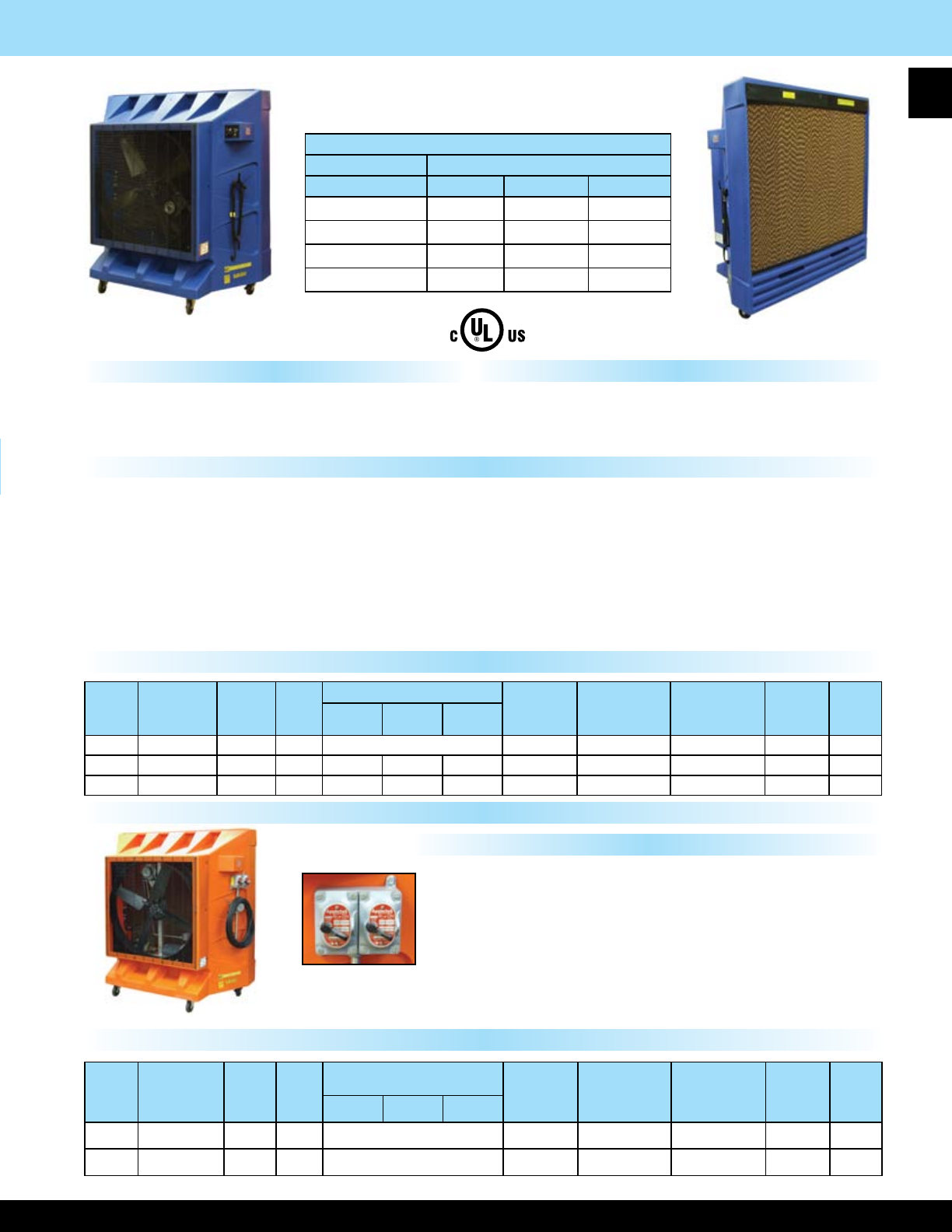

Hazardous Location - Specic Features
48” Two Speed
36” Single or Three Speed
(EVAP36-1 or EVAP36-3) provides cooling up to
2500 sq. ft. area. 32 Gallon reservoir capacity.
(EVAP48-2) provides cooling up to 4,000 sq. ft.
area. 40 Gallon reservoir capacity.
Features
15°F - 25°F OF EVAPORATIVE COOLING
- PLUS -
6°F - 8°F OF WIND CHILL COOLING
36” UNIT IS THIN ENOUGH TO FIT THROUGH A STANDARD DOOR.
Standard Models
FRONT BACK
36” & 48” Portable Evaporative Coolers
EVAPORATIVE COOLING TEMPERATURE DROPS
AIR RELATIVE HUMIDITY
TEMPERATURE 10% 30% 50%
80o -22o-16o-10o
90o -25o-18o-12o
100o -29o-21o-14o
110o -32o-23o-15o
• 3
6" and 48" non hazardous location models feature 3/4" garden hose connections for longer operating times.
• Durable polyethylene housing features leakproof, one piece construction
• Lowers temperatures 15-25 °F depending on climate conditions
• Heavy Duty, polyolen casters on EVAP48-2 evaporative coolers
• New 3 blade fan blade for quieter operation.
• 120V operation
• Manufactured in USA. Shipped completely assembled, ready to use
Hazardous Location - Standard Models
FRONT
CONTROL
• All switches, motors, and cord connections
are sealed to prevent sparking in combustible
locations.
• Shipped completely assembled, ready to use
• 120/240V operation
• Manufactured in USA
Hazardous Location - Standard Models
Patented Patented
Patented
Patented
UPC#
686334 MODEL MOTOR
HP
UNIT
AMPS
CFM EFFECTIVE
SQ. FT.
INTERNAL
WATE R
(Gallons)
DIMENSIONS
L x W x H
(Inches)
SHIPPING
WEIGHT
(LB)
LIST
HIGH MED LOW
874816 EVAP36-1 1/2 12.4 9600 2500 32 32 x 62 x 67 235 4000
874823 EVAP36-3 1/2 11.5 9600 6600 4800 2500 32 32 x 62 x 67 245 4375
874847 EVAP48-2 1 13.7 22000 ---- 11000 4000 40 36 x 74 x 86 405 6200
UPC#
686334 MODEL MOTOR
HP
UNIT
AMPS
CFM EFFECTIVE
SQ. FT.
INTERNAL
WATE R
(Gallons)
DIMENSIONS
L x W x H
(Inches)
SHIPPING
WEIGHT
(LB)
LIST
HIGH MED LOW
874830 EVAP36-HAZ 1/2 13.4 9600 2500 32 32 x 62 x 67 330 12924
874854 EVAP48-HAZ 1 18 20000 4000 40 36 x 74 x 86 460 15640
48

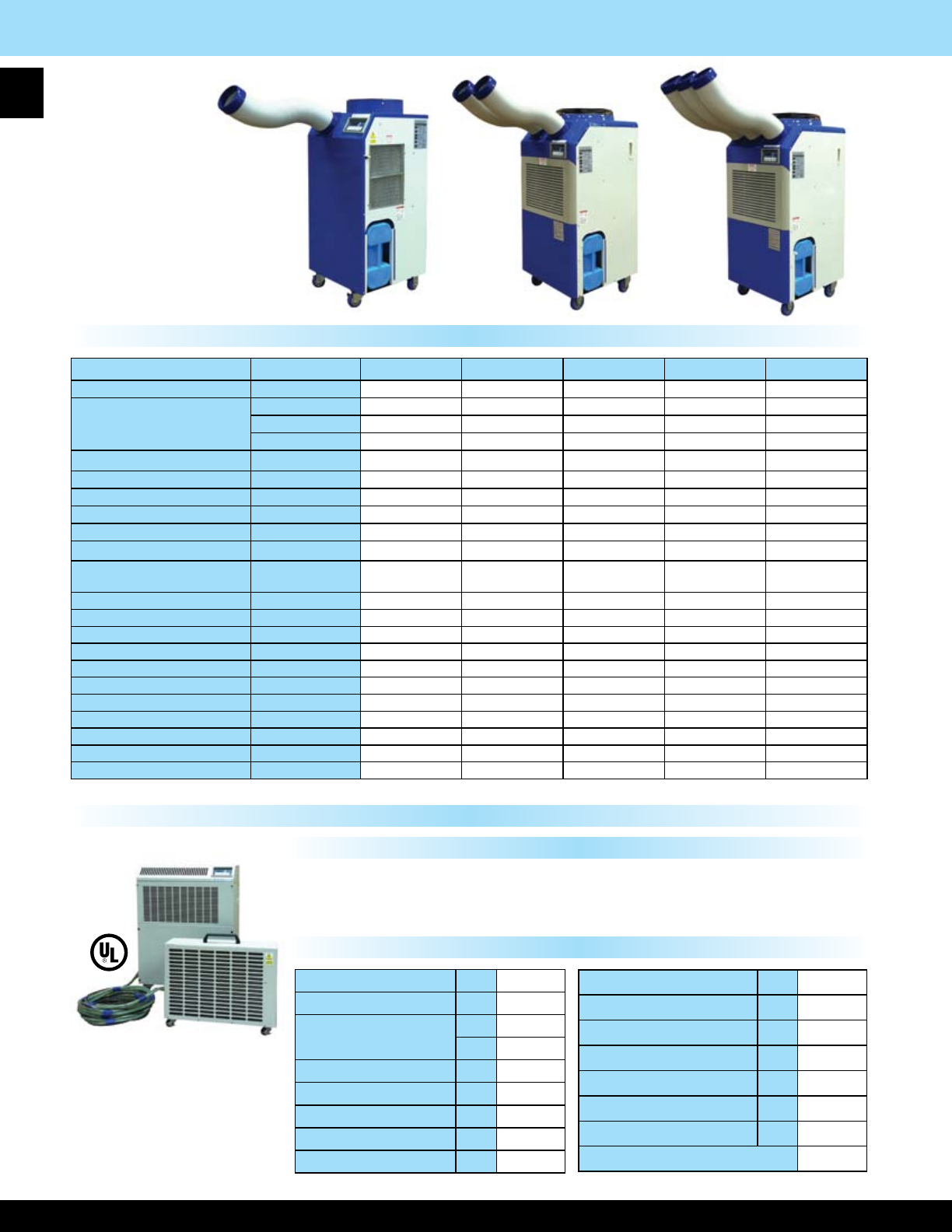

Portable Air Conditioning Units
Standard Models
Portable Water Cooled Split Air Conditioning
• Compressor time delay
• Compressor overload protection
• Thermostat
• Self-diagnostic
• Defrost cycle
• Off-timer
• Condensate pump
• Washable lter
Features
Standard Models and Specications
SPECIFICATIONS Model PACWS-22
COOLING CAPACITY BTU 22,000 BTU
POWER SUPPLY Volts 240
Phase 1
REFRIGERANT ---- R-410A
AMP RATING AMP 12.4 AMP
POWER CONSUMPTION KW 2.6 KW
TEMPERATURE RANGE F 64-113 F
MAXIMUM HOSE LENGTH Feet 100 FT.
INDOOR UNIT DIMENSION Inches 28 x 14 x 31
OUTDOOR UNIT DIMENSION Inches 26 x 11 x 20
INDOOR UNIT WEIGHT LBS 198
OUTDOOR UNIT WEIGHT LBS 44
FAN SPEEDS ---- 2
AIRFLOW HIGH/LOW CFM 671/530
DB RATING HIGH/LOW(3’) ---- 58/54
LIST 14,300
PACWS-22
PAC-13 PAC-21 & 29 PAC-37
*Image for PAC-60 not shown.
SPECIFICATIONS MODEL PAC-13 PAC-21 PAC-29 PAC-37 PAC-60*
COOLING CAPACITY BTU 13,200 19,500/21,000 28,000/29,000 36,000/37,000 60,000
POWER SUPPLY
VOLTS 120 208/240 208/240 208/240 208/240
PHASE 1 1 1 1 1
HZ 60 60 60 60 60
DIMENSION (WXDXH) INCHES 17.5 x 19.9 x 43.3 22 x 24.4 x 50.4 22 x 24.4 x 50.4 26 x 33.3 x 52.4 28.9 x 51.5 x 59.8
WEIGHT LB 132 198 209 254 661
CURRENT AMP 11.5 11/10 15/14 20/19 30/29
BREAKER SIZE AMP 15 15 20 30 50
POWER CONSUMPTION KW 1.4 2.3 3.1 4.4 7
COMPRESSOR INPUT KW 1.2 2 2.4 3.5 4.8
EVAPORATOR AIR FLOW
(HIGH/LOW) CFM 357/285 464/393 571/500 882/776 2000/1870
CONDENSER AIR FLOW CFM 610 857 1142 1660 3600
AIR FILTER ---- Alum. Alum/Vinyl Alum/Vinyl Alum/Vinyl Alum/Vinyl
NEMA PLUG TYPE 5-15P 12AWG 6-15P 6-20P 6-30P 6-50P
POWER CORD GAUGE AWG 12 14 12 10 6
POWER CORD LENGTH FT. 66610 10
REFRIGERANT ---- R410A R410A R410A R410A R410A
OPERATING TEMP. F 64-113 64-113 64-113 64-113 64-113
EXHAUST DUCT DIAM. INCHES 12 16 16 16 16
MAXIMUM DUCT LGTH. FT. 16 25 25 60 100
CONDENSATE TANK GAL. 3.17 3.17 3.17 3.17 3.17
LIST PRICE ---- 5,640 7,480 8,600 11,490 22,600
49

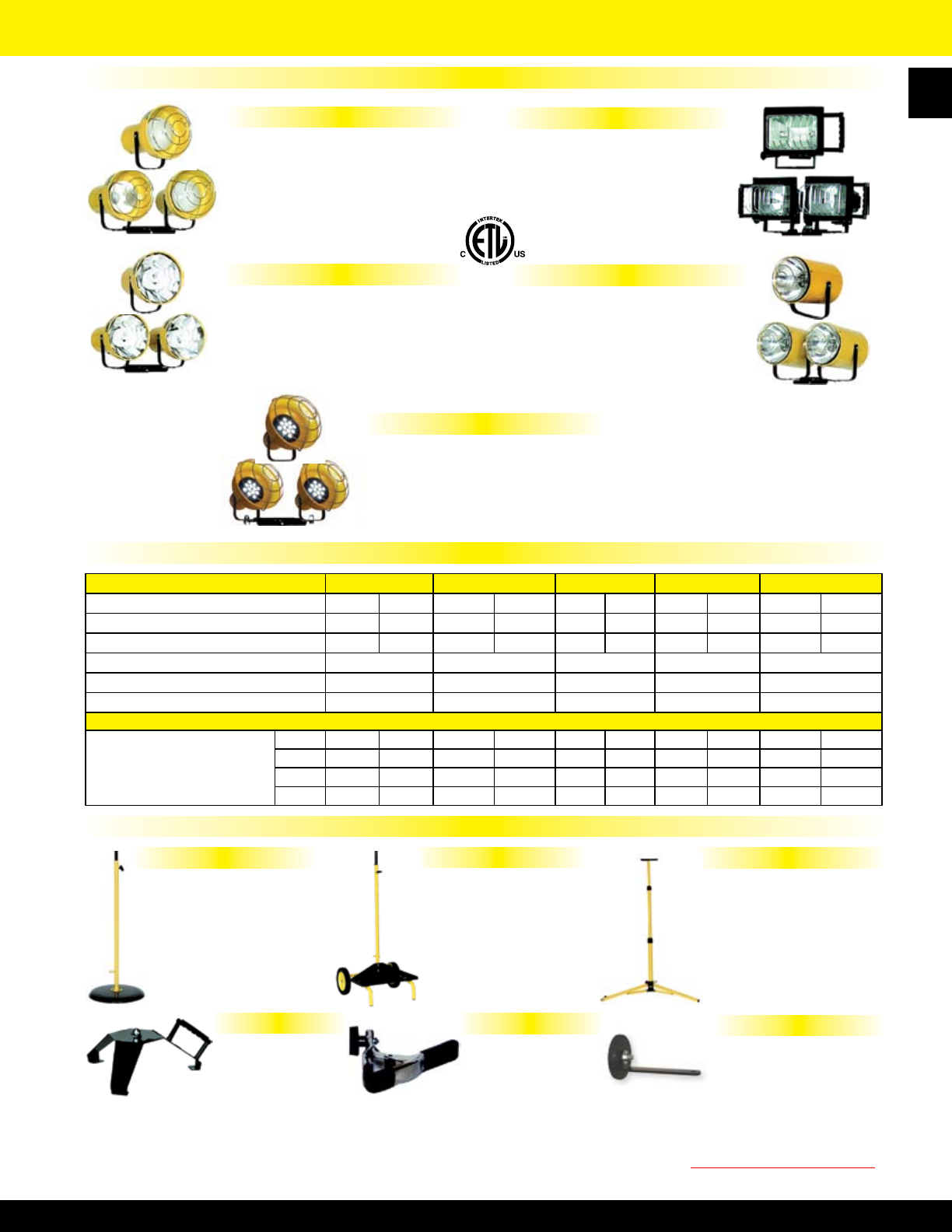

Portable Utility Lights
5 Types of Light Sources
Uses commonly available and
inexpensive, standard (R-40 or
PAR) incandescent bulbs up to
300 Watt ood lights.
High light output from
weatherproof aluminum
die-cast light heads - uses
500 Watt bulbs (included).
Uses compact, low energy use,
long life 55 Watt Florescent
bulb(included) - shade remains
Cool-to-the-Touch.
Long lamp life - high light
output - low energy usage per
lumens produced -uses 100
Watt metal halide HID lamp
(included).
Light Selection Chart & Illumination Levels
6 Types of Bases and Mounts
Pedestal Base
• 16 gauge round steel tube
construction
• Height adjustable from
5’-6” to 8’-6” high
• 18” heavy duty steel base
Cart Base
• 16 gauge round steel
tube construction
• Height adjustable from
5’ to 8’ high
• 10” diameter wheels
Floor Base
• 12 ga. steel base
• Handle included
• Base covers 16”
diameter area
Clamp-On Mount
• Clamp secures
light head to most
surfaces up to 3”
Magnet Mount
• 210 lb. magnetic strength
• 1/4” steel arm
• Extends 6” from
mounting surface
Tripod Base
• 20 gauge round steel tube
construction
• Height adjustable from 3’ to
6’-6” high
• Base covers 46” diameter
area
ATTENTION
Florescent and HID lamps contain mercury. Dispose of these lamps according to local, state, or federal laws. For further
information on local, state, or other requirements for disposal of mercury-containing lamps, see http://www.lamprecycle.com.
Metal Halide
Quartz Halogen
Incandescent
Florescent
Longest Lamp Life
Lowest energy usage per lumens
produced.
bulb(included) - shade remains
Cool-to-the-Touch.
LED
INDOOR UNIT DIMENSION Inches 28 x 14 x 31
OUTDOOR UNIT DIMENSION Inches 26 x 11 x 20
INDOOR UNIT WEIGHT LBS 198
OUTDOOR UNIT WEIGHT LBS 44
FAN SPEEDS ---- 2
AIRFLOW HIGH/LOW CFM 671/530
DB RATING HIGH/LOW(3’) ---- 58/54
LIST 14,300
LIGHT SOURCE: INCANDESCENT QUARTZ HALOGEN Florescent METAL HALIDE LED
# OF LIGHT HEADS 1 2 1 2 1 2 1 2 1 2
MAX. WATTAGE 300 600 500 1,000 55 110 100 200 12 24
MAX. LUMENS 3,700 7,400 11,000 22,000 3,000 6,000 9000 18000 960 1,920
AVG. BULB LIFE (HRS.) 2,000 2,000 10,000 15000 50,000
WIRE GUARD INCLUDED Yes Yes Ye s Ye s Ye s
BULB INCLUDED No Yes Yes Ye s Ye s
LIGHT SOURCE ILLUMINATION LEVELS
Measured Footcandles & Distance
from Light Source (open area)
5’ ft. 44.9 82.6 74.4 137.3 20.0 35.8 562 890 224.5 456.8
10’ ft. 20.8 38.9 36.1 65.9 8.7 14.8 148.1 244.1 121.4 258.8
20’ ft. 7.8 14.3 13.2 24.6 3.1 5.1 66.5 113.3 29.0 64.0
30’ ft. 4.0 6.9 6.6 12.3 1.7 2.5 47.1 68.7 14.2 31.4
50
Portable Utility Lights
Features
• Chip resistant safety yellow & black powder coating nish for high
visibility and durability
• 15’ long 18/3 SJT, 120V cordset with NEMA 15-5 grounded plug
• Aluminum shade is 9-3/8” long with 7-3/4” diameter opening and
will swivel 300° horizontally and 210° vertically
• On/Off switch & wire guard included on each light head
• ETL C/US Listed for indoor applications only
• INC models do not include an incandescent bulb.
• FL models include a 55w spiral Florescent bulb and internal reector
for maximum illumination at shorter distances.
• LED models are designed with an acrylic lens cover over each of
the 12 single Watt LED emitters. Constructed with narrow 15° angle
beam generating 960 lumens per bulb.
Standard Models
Lamp Specications
Florescent
P-FL-2
LED
T-LED-2
Incandescent
C-INC-2
Incandescent
M-INC-1
Florescent
CP-FL-1
LED
F-LED-1
Incandescent, Florescent, and LED Series
Note: All above models are shipped in ONE Carton
Individual Portable Light Components - Replacement Bulbs
UPC#
686334 MODEL LAMP SOURCE BASE TYPE TOTAL MAX
WATT S
# OF LIGHT
HEADS
WT.
(LBS.) LIST
479967 P-INC-1
INCANDESCENT
PEDESTAL 300 1 35 246
479974 P-INC-2 600 2 39 319
479899 C-INC-1 CART 300 1 31 319
479905 C-INC-2 600 2 35 392
480024 T-INC-1 TRIPOD 300 1 13 135
480031 T-INC-2 600 2 17 209
480109 F-INC-1 FLOOR 300 1 8 141
480147 CP-INC-1 CLAMP 300 1 7 111
480185 M-INC-1 MAGNET 300 1 6123
479981 P-FL-1
Florescent
PEDESTAL 55 1 35 324
479998 P-FL-2 110 239 466
479929 C-FL-1 CART 55 1 31 399
479936 C-FL-2 110 2 35 539
480062 T-FL-1 TRIPOD 55 1 13 214
480079 T-FL-2 110 2 17 356
480123 F-FL-1 FLOOR 55 1 8 221
480161 CP-FL-1 CLAMP 55 1 7 189
480208 M-FL-1 MAGNET 55 1 6202
487245 P-LED-1
LED
PEDESTAL 12 1 37 526
487252 P-LED-2 24 2 42 881
487269 C-LED-1 CART 12 1 33 600
487276 C-LED-2 24 2 38 954
487283 T-LED-1 TRIPOD 12 1 15 416
487290 T-LED-2 24 2 20 771
487306 F-LED-1 FLOOR 12 1 10 422
487313 CP-LED-1 CLAMP 12 1 9391
487320 M-LED-1 MAGNET 12 1 8 403
UPC#
686334 MODEL DESCRIPTION Watts USED WITH WT.
(LBS.) LIST
485050 SSE-55 Florescent Bulb 55 ALL FL Light heads 1 50
470858 LED-12 LED Bulb 12 ALL LED Light heads 1 281
310598 QHL-500 Quartz Halogen Lamp 500 ALL QH Light heads 1 15
310680 MH-100 Metal Halide Bulb 100 ALL MH Light heads 1 92
51
Quartz Halogen
P-QH-2
Portable Utility Lights
• Chip resistant safety yellow & black powder coating nish for high
visibility and durability
• 15’ long 18/3 SJT, 120V cordset with NEMA 15-5 grounded plug
• Shade will swivel 300° horizontally and 210° vertically
• On/Off switch, bulb, & wire guard included on each light head
• QH models include a 500W Quartz Halogen bulb and weatherproof
die cast aluminum light head with impact resistant lens. Each shade
size is 9” wide x 7-1/4” high x 9-3/4” deep. ETL C/US listed for
semi-protected outdoor use.
• MH models include a 100W Metal Halide bulb and are designed
with an aluminum shade measuring 11-3/4 long with a 7-3/4”
opening. Constructed with interior electronic ballast and polished
aluminum reector for the highest lumen output of all the portable
light series. ETL C/US listed for indoor use.
Features
Lamp Specications
Quartz Halogen
T-QH-2 Metal Halide
C-MH-2
Quartz Halogen
M-QH-1
Quartz Halogen
CP-QH-1
Metal Halide
F-MH-1
Standard Models
Quartz Halogen and Metal Halide Series
Individual Portable Light Components - Light heads and Bases
UPC#
686334 MODEL LAMP SOURCE BASE TYPE TOTAL MAX
WATT S
# OF LIGHT
HEADS
WT.
(LBS.) LIST
479868 P-QH-1
QUARTZ HALOGEN
PEDESTAL 500 1 36 251
479875 P-QH-2 1000 2 41 313
479912 C-QH-1 CART 500 1 32 324
479882 C-QH-2 1000 2 37 386
480048 T-QH-1 TRIPOD 500 1 14 141
480055 T-QH-2 1000 2 19 202
480116 F-QH-1 FLOOR 500 1 9148
480154 CP-QH-1 CLAMP 500 1 8 117
480192 M-QH-1 MAGNET 500 1 7 129
480000 P-MH-1
METAL HALIDE
PEDESTAL 100 1 38 710
480017 P-MH-2 200 2 45 1182
479943 C-MH-1 CART 100 1 34 785
479950 C-MH-2 200 2 41 1255
480086 T-MH-1 TRIPOD 100 1 16 600
480093 T-MH-2 200 2 23 1072
480130 F-MH-1 FLOOR 100 1 11 607
480178 CP-MH-1 CLAMP 100 1 10 576
480215 M-MH-1 MAGNET 100 1 9588
UPC#
686334 MODEL TYPE DESCRIPTION TOTAL MAX
WATT S
# OF LIGHT
HEADS
WT.
(LBS.) LIST
480222 INC-1
LIGHTHEAD
INCANDESCENT 300 1 4 77
480321 INC-2 600 2 7 175
480307 FL-1 Florescent 55 1 5 159
480345 FL-2 110 2 8 319
487368 LED-1 LED 12 1 6410
487375 LED-2 24 2 9811
480291 QH-1 QUARTZ HALOGEN 500 1 5 111
480338 QH-2 1000 2 10 186
480314 MH-1 METAL HALIDE 100 1 7 540
480352 MH-2 200 2 14 1025
480277 PED
BASE
PEDESTAL - - 31 196
480284 CRT CART - - 27 221
480239 TRI TRIPOD - - 9 93
480260 FLR FLOOR - - 4 74
480246 CLP CLAMP - - 2 37
480253 MAG MAGNET - - 3 49
52

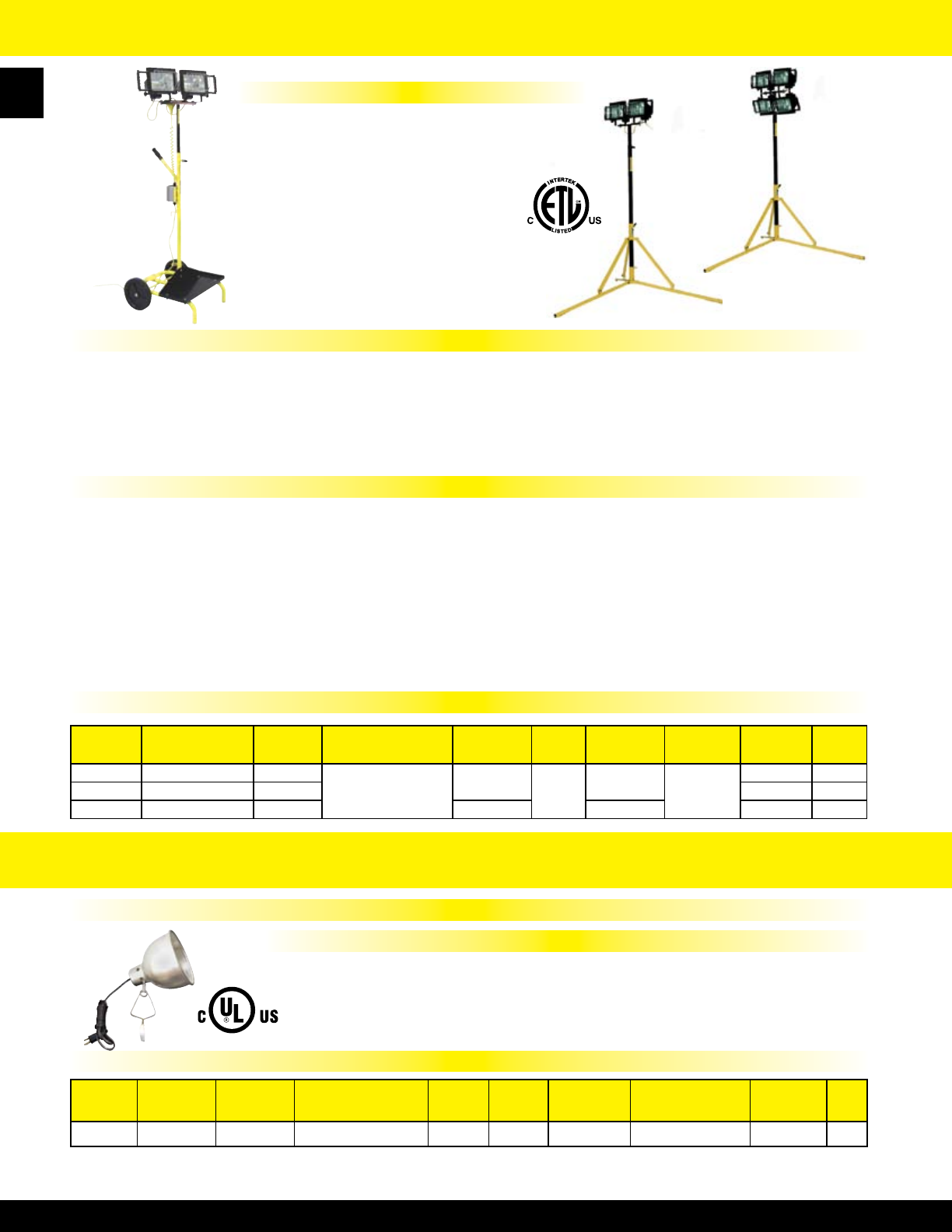

Heavy Duty Portable Utility Lights
Tripod Light Stand Features
Cart Light Stand With GFCI Features
All models are shipped in ONE carton. Bulb not included.
• Upright adjust from 5’ to 8’ high
• 10" diameter rubber wheels
• 15' all-weather, water and oil resistant SJTW 18/3 cordset and molded NEMA 5-15 plug
• Weatherproof electrical box with a 15 Amp GFCI duplex receptacle
• (2) 500 Watt weatherproof die cast
aluminum light heads with 15’ long,
3-conductor cord, and plug
• Quartz halogen lamps
• Impact resistant lens
• On-Off switch
• OSHA approved wire guards and bulb
included with each light head
• Square 12 gauge steel tubing construction
• Adjustable legs fold up for storage, fold at for sand bagging or can be set and locked at 6”,
12”, 18” or 24” ground clearances
• Height adjustable from 5’ to 11’ high
• Safety stop mechanism, at full extension, prevents the mast from being pulled out of the base
• 15' all-weather, water and oil resistant SJTW 18/3 cordset and molded NEMA 5-15 plug
Standard Models
CART
LIGHT
STAND
WITH GFCI
TRIPOD
LIGHT
STAND
Commercial Duty Portable Utility Lights
CL 300 (Incandescent - Clamp on Model)
Features
Standard Models
• Ceramic socket will accept incandescent bulbs A-19, R-40 or PAR bulbs
up to 300 Watt. Fixture will also accept infrared heat lamps up to 250
Watt
• 8’ long - 18/3 SPT cordset with NEMA 5-15 plug
Quartz Halogen Light Heads
PUL-1000Q-TC
PUL-2000Q-TC
UPC#
686334 MODEL BASE TYPE BULBS WAT T S VOLTS MAX
LUMENS
AVE. BULB
LIFE (HRS)
SHIPPING
WT. (LBS) LIST
446785 PUL-1000Q-CD CART
500W Quartz Halogen 1000 120 22,000 2,000
50 650
446839 PUL-1000Q-TC TRIPOD 41 686
446846 PUL-2000Q-TC TRIPOD 2000 44,000 45 927
UPC#
686334 MODEL BASE TYPE BULBS MAX.
WATT S VOLTS MAX
LUMENS
AVE. BULB LIFE
HOURS
SHIPPING
WT. (LBS) LIST
445078 CL-300 CLIP-ON 300W Incandescent 300 120 11000 2000 352
53

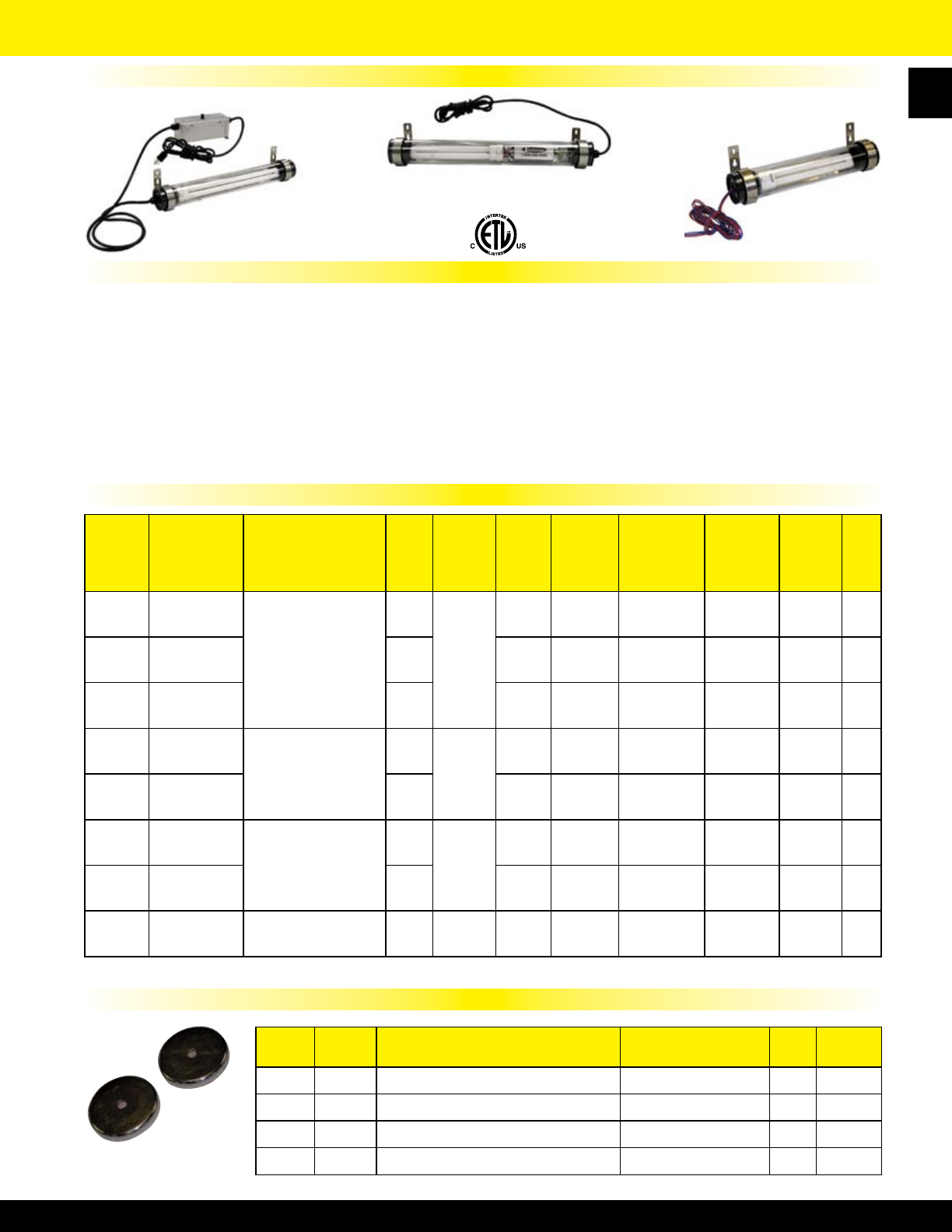

Machine Tool Lights
Water Resistant Florescent Tube Lights
Remote Ballast
with Cordset
Internal Ballast
with Cordset
Remote Ballast
Features
• ETL C/US Listed for NEMA Type 13 applications - oil / water / coolant spray areas (not submersible)
and dusty atmospheres.
• Available with a durable, lightweight, economical, shatter resistant polycarbonate tube housing
• Model 21-TLB-IB-C includes a borosillicate (or glass) lens for greater scratch & chemical resistance
• Stainless steel mounting hardware and Florescent bulb are included
• 8’ long, 18/3 SJTOW cord with NEMA 5-15 plug on models with cords
• EOB units with internal ballast are factory wired for 120V w/ 8’ long cordset. Units can be eld
converted for direct wiring for 90V to 277V. Terminal block provided for easy wire installation.
Standard Models
Accessories - Magnetic Base and Replacement Lamps
MAGNETIC BASE
* Includes 2 ft. lead wires
UPC#
686334 MODEL # MODEL SERIES WAT T S VOLTS LUMENS OVERALL
LENGTH
TUBE
MATERIAL
BALLAST
INCLUDED
SHIIPPING
WT. (LBS) LIST
282345 15-TLP-IB-C
REMOTE BALLAST
WITH CORDSET
18
120V
1250 15” Polycarbonate Ye s 9459
282130 21-TLB-IB-C 36 2900 21” Glass Ye s 10 526
282321 21-TLP-IB-C 36 2900 21” Polycarbonate Ye s 10 491
482943 23-TLP-EOB-C
INTERNAL BALLAST
WITH CORDSET
18
90 to 277V
1250 23” Polycarbonate Ye s 6 393
482950 29-TLP-EOB-C 36 2900 29” Polycarbonate Yes 7 416
484343 29-TLP-A
REMOTE BALLAST
50
120V
4300 29” Polycarbonate Ye s 7 441
282499 52-TLP-A 100 8400 52” Polycarbonate Yes 12 607
482936 23-TLP-24VDC INTERNAL BALLAST 18 24VDC* 1250 23” Polycarbonate Ye s 6386
UPC#
686334 MODEL DESCRIPTION USED WITH WT.
(LBS.) LIST
445757 TL-MB Magnetic Bases & Fasteners (Pair) ALL Tube Lights 1 56
310338 TL-RB-18 Florescent Replacement Bulb, 18W, PL-L All 18 Watt Models 1 58
310086 TL-RB-36 Florescent Replacement Bulb, 36W, PL-L All 36 Watt Models 1 62
310826 TL-RB-50 Florescent Replacement Bulb, 50W, PL-L All 50 & 100 Watt Models 1 68
54

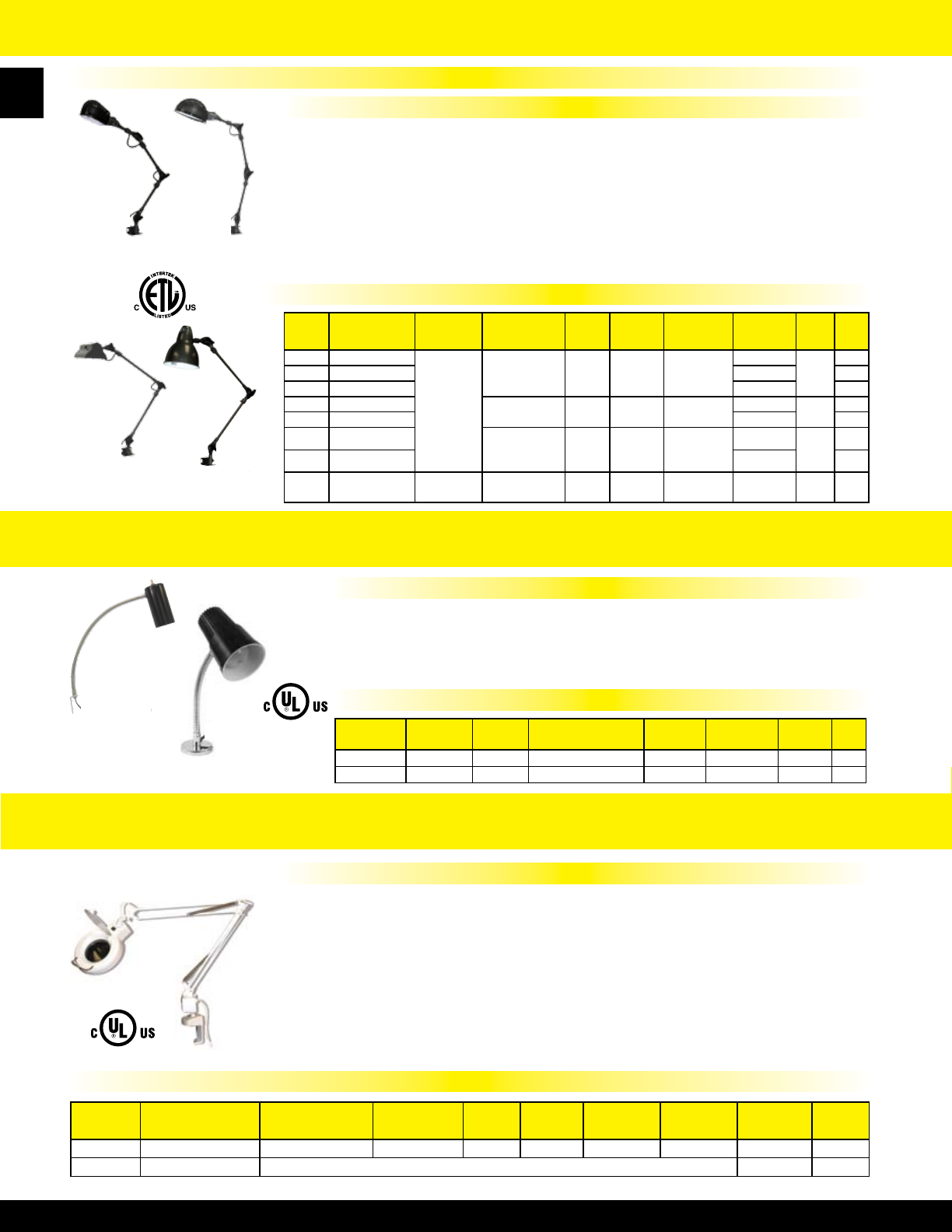

Heavy Duty Machine Tool Lights
BH TYPE BP TYPE
VCX TYPE
Features
Standard Models
Illuminated Florescent Magniers
• 5", 8-diopter (3X power) magnifying clear lens for 200% magnication of an
object with a focal length of 5"
• Suspension spring balanced arm assembly allowing up to 45" reach, with nger
tighten control knobs to lock arms and shade into position
• 18/3-wire, grounded, 6’ cordset & molded NEMA 15-5 plug
• Housing consists of a sturdy white plastic 8-1/2” shade with an on-off rocker
switch and glare protection cover located on the top of the shade
• Includes die-cast clamp-on base to attach to a at surface up to 2-1/2” thick
• Factory installed 22W, 120V, T-9 deluxe cool white circline Florescent lamp and
protective lens
Features
Standard Models
Incandescent
Features
• Chrome plated, exible arm
• 8’ 18/3 or 18/2 SPT cordset with molded plug
• Turn knob on-off switch
• Phenolic shade with spun Aluminum inner reector on R - Series
• Bulb not included
Standard Models
15-MC-901
12-R-M-3
FTT TYPE
• Patented disc and collar swivel joints with adjustable bar knobs for securing arms into a variety of
positions
• Shades constructed of a 22 Gauge steel and arms made of 5/8" steel tubing, with reach from 25"
to 44"
• Charcoal gray powder coated nish
• Horizontal or vertical bolt down mounting bracket
• 10 amp rocker type on-off switch and lamp socket
• Includes an 8' 18/3 SJTO Cordset with NEMA 5-15 molded grounded plug for 120V operation
• FTT Model includes (2) 13-Watt Florescent twin tubes, internal white reector, and protective
acrylic lens
• Bulb not included with BH, BP, or VCX Models
Medium Duty, Flexible Arm, Incandescent, Machine Tool Lights
UPC#
686334 MODEL BULB
TYPE
BULB
DESCRIPTION WATT S MAX
LUMENS
AVE. BULB
LIFE (HRS)
OVER-ALL
REACH
WT.
(LBS.) LIST
381871 5-BH-701A
Incandescent
60W medium
base A-19 60 870 1,000
25”
5
154
381895 55-BH-701A 35” 165
381925 66-BH-701A 44” 169
381956 55-BP-701A 75W medium
base A-19 75 1220 750 35” 6179
442887 66-BP-701A 44” 184
381215 55-VCX-701B 100W medium
base A-19, R-30
or PAR 38
100 1470 750 29” 6189
381314 66-VCX-701B 38” 197
283632 66-FTT26-701B Florescent (2) 13W Twin
Tubes 26 1800 10,000 38” 9349
UPC#
686334 MODEL BULB BASE MAX
LUMEN
OVER-ALL
REACH
WT.
(LBS) LIST
445764 15-MC-901 25 Watt Vertical Bolt-on Base 180 15” 2 74
442305 12-R-M-3 60 Watt Magnetic Base 865 12” 3129
UPC#
686334 MODEL MAGNIFICATION
POWER BULB WATT S MAX
LUMENS
AVE. BULB
LIFE (HRS)
OVER-ALL
REACH
SHIPPING
WT. (LBS.) LIST
485159 45-MAG-W 3X 22W. Circline 22 1800 16,000 45” 10 222
312035 MAG-22W 22W., 120V., T-9 deluxe cool white circline replacement lamp 1 29
55

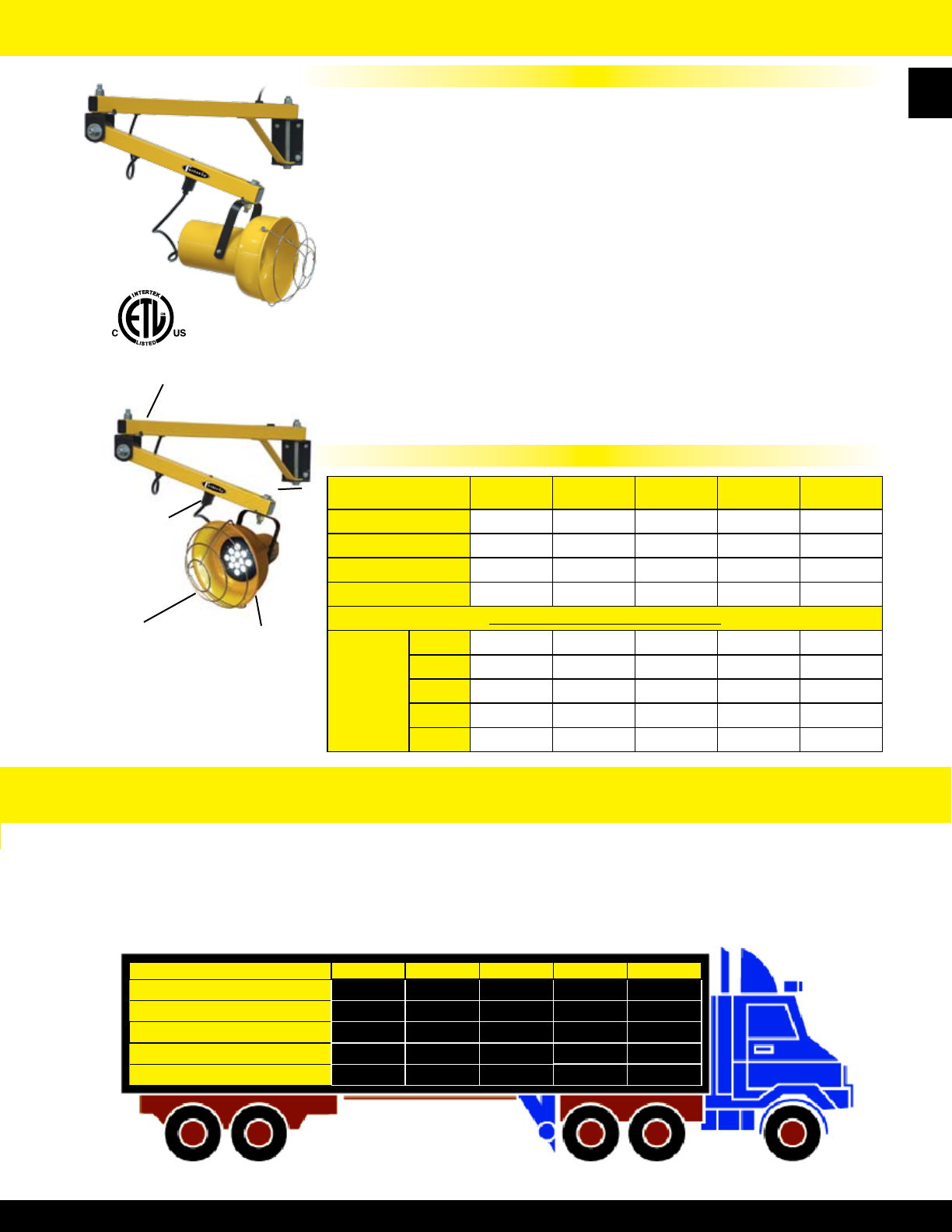

Loading Dock Lights - LED Dock Light, Fully Assembled & Modular
Light Head Features
Light Selection Chart & Illumination Levels
Dock Light Performance Testing
• Chip resistant safety yellow & black powder coating nish for high
visibility and durability
• 5’ long 18/3 SJT, 120V cordset with NEMA 15-5 grounded plug
• On/Off switch & wire guard included on each light head
• 1-1/2” square, 14-gauge, steel tubing
• 3” x 5” x 3/16” mounting plate attached with (4) 3/8” bolts (not
supplied)
• (5) Lighting Sources to select from: Incandescent, Quartz Halogen,
LED, Metal Halide, or Florescent
• (3) Arms Lengths:
24”, 40”, or 60” (plus 25” Flex Arm, incandescent only)
• VA models include (2) dock arms with a Vertical Adjustment bracket
allowing outer arm to adjust from 300° horizontally and 210° vertically
• All light heads will swivel 300°
• Bulbs included with all light heads, except Incandescent models
• ETL C/US Listed for indoor applications only, except QH models are
semi-protected outdoor
DESCRIPTION Incandescent Quartz Halogen LED Metal Halide Florescent
MAX. WATTAGE 300 500 12 100 55
MAX. LUMENS 3,700 11,000 960 9,000 3,000
AVG. BULB LIFE (HRS.) 2,000 2,000 50,000 15,000 10,000
BULB INCLUDED No Yes Yes Ye s Ye s
LIGHT SOURCE ILLUMINATION LEVELS
Measured
Footcandles &
Distance from
Light Source
(inside trailer)
10’ ft. 15 28 121 142 9
20’ ft. 5 14 29 55 3
30’ ft. 38 14 18 2
40’ ft. 2 5 4 9 ---
50’ ft. --- 3 3 7---
We measured light levels (in footcandles) inside a 8' x 9' x 53' trailer with a wooden oor and ceiling and white berglass walls.
A matrix of nine measurements were taken at ve work plains inside the trailer. Averages were gured along the center work
plane of the trailer.
These charts measure the overall quality of truck trailer illumination from a selection of light sources. Many other factors such
as: cost of energy, safety, availability of xtures, cost of labor and replacement lamps should gure into your nal decision.
Light Source and Color Characteristics 10 ft. 20 ft. 30 ft. 40 ft. 50. ft
100W Metal Halide (Bright White) 142 55 18 9.1 7.3
12W LED (Cool White) 121 29 14 3.7 3.2
500W Quartz Halogen (Bright White) 28 14 8 5.3 3.1
300W Incandescent (Off White) 15 5 3 2.1 ----
55W Florescent (Bright White) 9 3 2 ---- ----
Electrical outlet
embedded in the
arm for direct plug
connection from
the shade
On/Off switch & high
temperature
porcelain socket with
a nickel plated
copper screw shell
Dock arm made of 1-1/2”
square steel tubing
Steel mounting bracket
Lamp contains NO
Glass Material, each
lens protected by an
acrylic cap
over each 1-watt
emitter
Note: Above measurements are
measured in footcandles
56

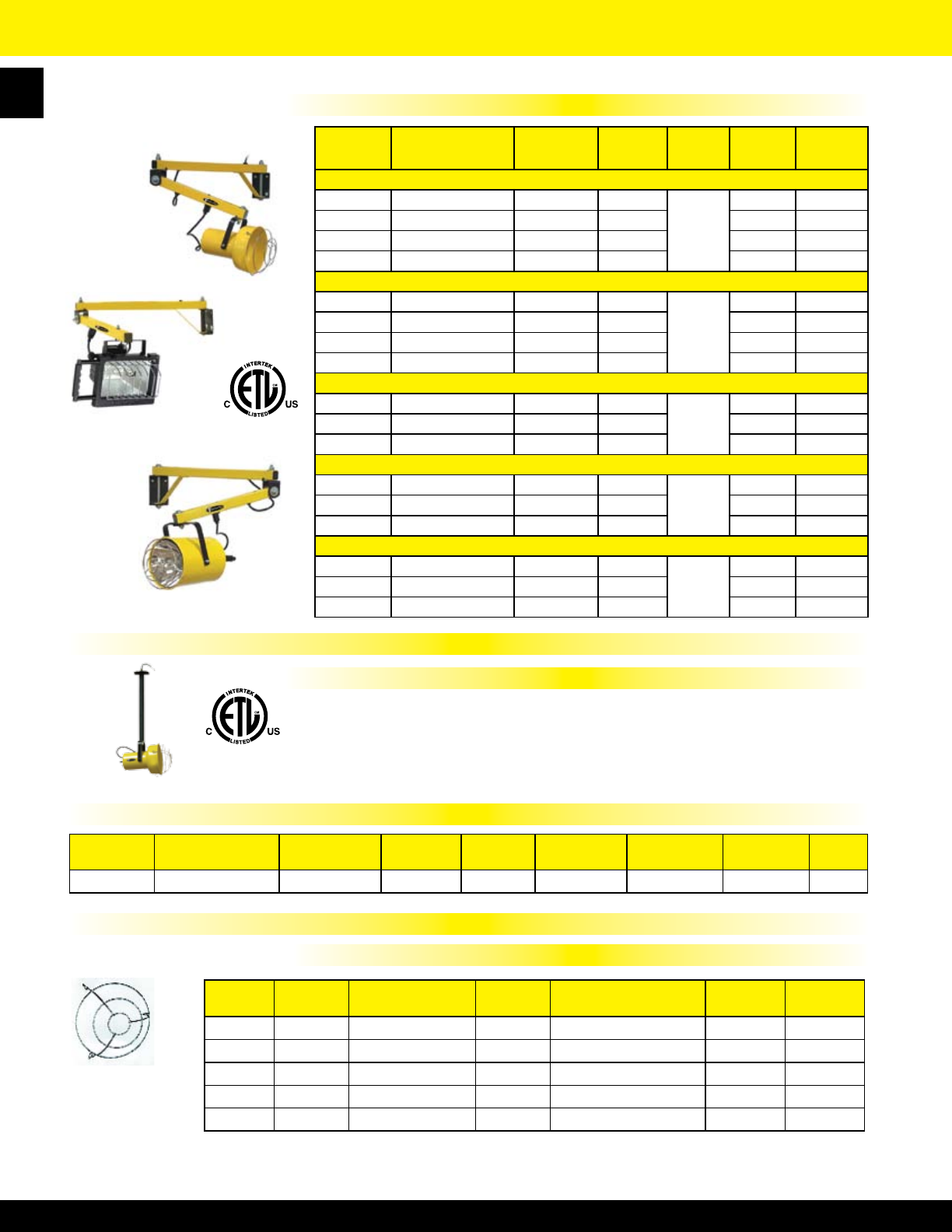

Loading Dock Lights - Fully Assembled Standard Duty Loading Dock Arms
(Light Head and Arm Bolted Together and Shipped in One Carton)
Standard Models
Ceiling Mounted Incandescent Flex Arm
• Flexible elastomer arm moves when hit and then returns light to original
position
• Ceramic socket will accept incandescent bulbs, R-40 or PAR bulbs up to 300W
• On-off toggle switch on light head
Features
Standard Models
Light Head Accessories
LG-1
Standard Models
Note: Lamp guards are included with every dock light xture.
*Bulb not included.
Incandescent
Quartz
Metal Halide
UPC#
686334 MODEL ARM
LENGTH
# OF
ARMS
MAX
WATT S
WT.
(LBS.) LIST
INCANDESCENT
446648 DKL-24-A 24” 1
300
10 172
385404 DKL-25-FLX 25” 1 19 179
446655 DKL-40VA-A 40” 2 14 189
446662 DKL-60VA-A 60” 2 17 227
QUARTZ HALOGEN
446709 DKL-24-QH-A 24” 1
500
11 202
446716 DKL-40VA-QH-A 40” 2 15 227
459587 DKL-40VA-SQH-B 40” 2 7 353
446723 DKL-60VA-QH-A 60” 2 18 264
LED
470827 DKL-24-LED 24” 1
12
11 447
470834 DKL-40VA-LED 40” 2 15 464
470841 DKL-60VA-LED 60” 2 18 502
METAL HALIDE
446730 DKL-24-MH-A 24” 1
100
13 583
446747 DKL-40VA-MH-A 40” 2 17 613
446754 DKL-60VA-MH-A 60” 2 21 650
Florescent
470797 DKL-24-FL-A 24” 1
55
11 221
470803 DKL-40VA-FL-A 40” 2 15 246
470810 DKL-60VA-FL-A 60” 2 18 282
UPC#
686334 MODEL ARM LENGTH WAT TS VOLTS MAX LUMENS AVE. BULB
LIFE (HRS)
WT.
(LBS.) LIST
385404 DKL-25-FLX 25” 300 120 3,700 2000 7 179
UPC#
686334 MODEL DESCRIPTION WATT S USED WITH WT.
(LBS.) LIST
331326 LG-1 Lamp Guard -INC, LED, or FL Fixtures 2 35
485050 SSE-55 Florescent Bulb 55 ALL FL Light heads 1 50
470858 LED-12 LED Bulb 12 ALL LED Light heads 1 281
310598 QHL-500 Quartz Halogen Lamp 500 ALL QH Light heads 1 15
310680 MH-100 Metal Halide Bulb 100 ALL MH Light heads 1 92
57

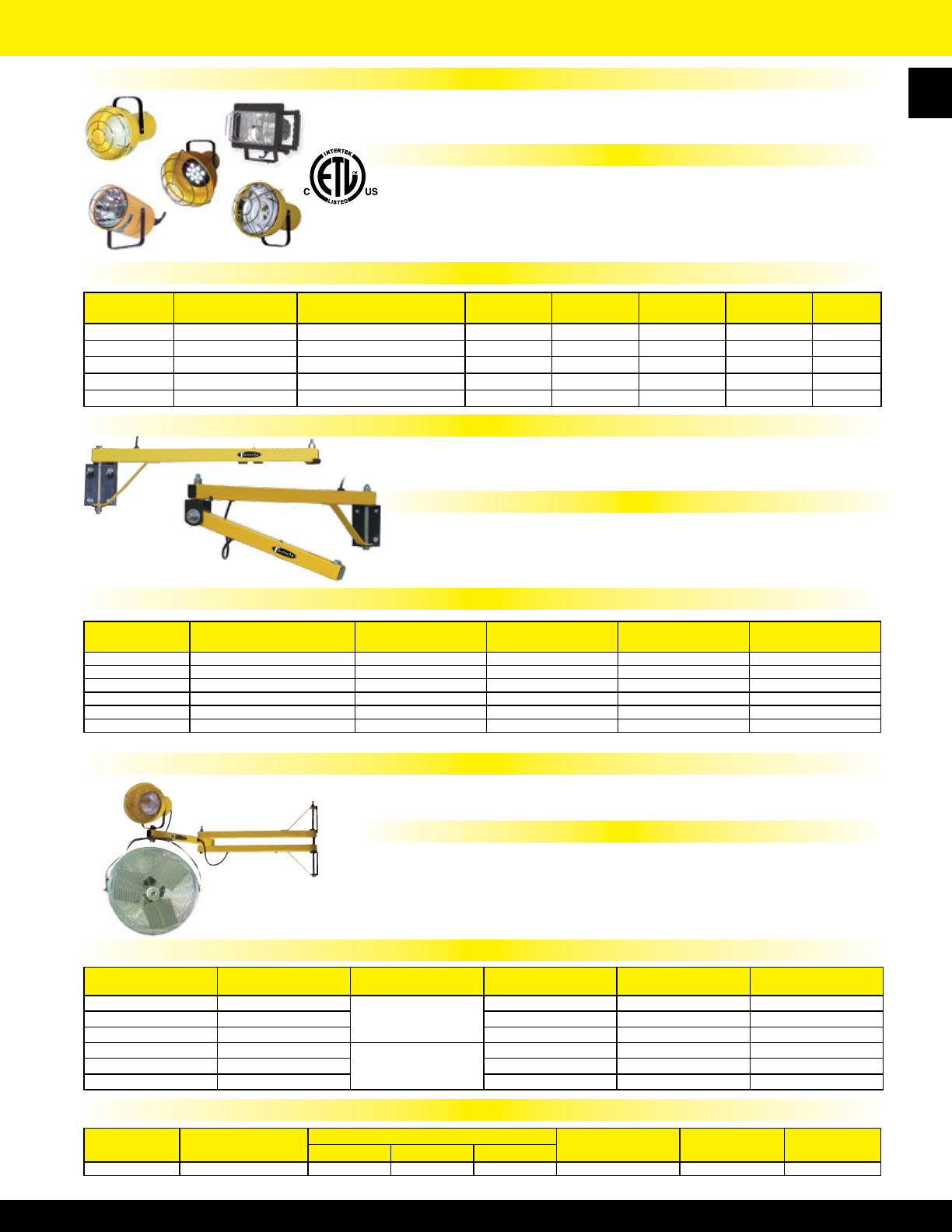

Modular Loading Dock Lights
The outer arm on 40” & 60” arms will swing 300° in
horizontal plane & 210° in vertical plane
Features
• 14” long, 18/3 conductor cord plugs into electrical junction box
on arm
• On/Off switch & wire guard included with each light head
• Bulb included with all light heads except DKL-INC
Mounting Arms
• 1-1/2" square, 14 Gauge, steel tubing
• 3" x 5" x 3/16” mounting plate attaches with (4) 3/8" bolts
•
5' long, 18/3 SJTW conductor cord and NEMA 5-15 grounded plug
Loading Dock Arm, Fan, & Light Head
24” ARM
40” & 60” ARM
24” / 40” / 60” arms that can be used with one of
5 light heads & optional fan.
Standard Models
Modular Lights
Features
Standard Models
The outer arm on 40” & 60” arms will swing 300° in
horizontal plane & 210° in vertical plane
• 18” high velocity circulator, with 3 speed, 1/8 HP, 115V, 1phase
permanently lubricated, totally enclosed, PSC motor
• Modular fan plugs into electrical outlet on arm
• Coated steel guards and aluminum blades.
Features
Heavy Duty Models (Dock Arm & Light)
Fan Head Only
**Indicates heavy duty dock arms.
*Bulb not included.
UPC#
686334 MODEL LIGHT HEAD TYPE MAX
WATT S
MAX
LUMENS
AVE. BULB
LIFE (HRS)
SHIP
WT. (LBS) LIST
446563 DKL-INC Incandescent 300 3,700 2,000 5 lbs. 74
446570 DKL-QH Quartz Halogen 500 11,000 2,000 6 lbs. 111
470865 DKL-LED LED 12 960 50,000 7 lbs. 412
446600 DKL-MH Metal Halide 100 9,000 15,000 10 lbs. 534
484336 DKL-FL Florescent 55 3,000 10,000 7 lbs. 129
UPC#
686334
MODEL
NUMBER
ARM
LENGTH TOTAL # OF ARMS SHIPPING
WT. (LBS) LIST
446532 DKL-24-ARM 24” 1 11 lbs. 92
446549 DKL-40VA-ARM 40” 2 18 lbs. 117
446556 DKL-60VA-ARM 60” 2 24 lbs. 148
446532 24-LDA** 24” 1 11 lbs. 92
446617 40-LDA** 40” 318 lbs. 159
446624 60-LDA** 60” 324 lbs. 184
STYLES ARM
LENGTH
LIGHT
TYPE TOTAL # OF ARMS SHIPPING
WT. (LBS) LIST
HDL-24-INC 24”
Incandescent
1 16 166
HDL-40-INC 40” 324 233
HDL-60-INC 60” 330 258
HDL-24-QH 24”
Quartz Halogen
1 17 202
HDL-40-QH 40” 325 270
HDL-60-QH 60” 331 294
UPC#
686334
MODEL
NUMBER
CFM AMPS
HIGH
SHIP
WT. LIST
HIGH MED LOW
797184 LDF-18-TE 5750 4700 3200 2.2 20 lbs. 182
58
Heavy Duty Modular Loading Dock Lights
24” / 40” / 60” arms
that come with
incandescent or quartz
halogen light heads
and can be used with
an optional fan.
Mounting Arms Features
• 3" x 5" x 3/16” mounting plate attaches with (4) 3/8" bolts • 1-1/2” square, 14 Gauge, steel tubing
• 5' long., 18/3 SJTW conductor cord and NEMA 5-15 grounded plug
Light Head Features
• 18” long, 18/3 conductor cord plugs into electrical junction box on arm
• On/Off switch & wire guard included with each light head
• Bulb included with all light heads except DKL-INC
Modular Fan Features
• 18" high velocity circulator, with 3 speed, 1/8 HP, 115V,
1 phase, permanently lubricated, totally enclosed, PSC motor
• Modular fan plugs into electrical outlet on arm
• Coated metal guard. Aluminum blades
Modular Loading Dock Lights
DESCRIPTION
LIGHT SOURCE TYPE
Incandescent Quartz Halogen Metal Halide Florescent LED
MAX. WATTAGE 300 500 100 55 12
MAX. LUMENS 3,700 11,000 9000 3000 960
AVG. BULB LIFE (HRS.) 2,000 2,000 15,000 10,000 50,000
BULB INCLUDED No Yes Ye s Ye s Ye s
LIGHT SOURCE ILLUMINATION LEVELS
Measured Footcandles &
Distance from Light Source
(inside trailer)
10’ ft. 15 28 142 9121
20’ ft. 5 14 55 329
30’ ft. 38 18 2 14
40’ ft. 2 5 9 --- 4
50’ ft. --- 3 7--- 3
Standard Models
STYLES ARM LENGTH LIGHT TYPE SHIP WT. (LBS) LIST
HDL-24-INC 24”
Incandescent
16 lbs. 166
HDL-40-INC 40” 24 lbs. 233
HDL-60-INC 60” 30 lbs. 258
HDL-24-QH 24”
Quartz Halogen
17 lbs. 202
HDL-40-QH 40” 25 lbs. 270
HDL-60-QH 60” 60 lbs. 294
