CADWELD®Welded
Electrical Connections
Metric
CADWELD
®PLUS
The Standard by which all others are measured
CADWELD PLUS is the
ultimate exothermic
welded connection
Space-saving packaging
ships and stores easily
Reliable – CADWELD®connections
consistently perform the best in
independent IEEE®837 tests.
Innovative – CADWELD PLUS offers
easy ignition and increases flexibility
in hard-to-reach areas.
Easy to Use – CADWELD PLUS
connections require fewer parts, no
starting material and no cumbersome
tools.
Most Experienced – ERICO®
, the
recognized leader in grounding and
bonding.

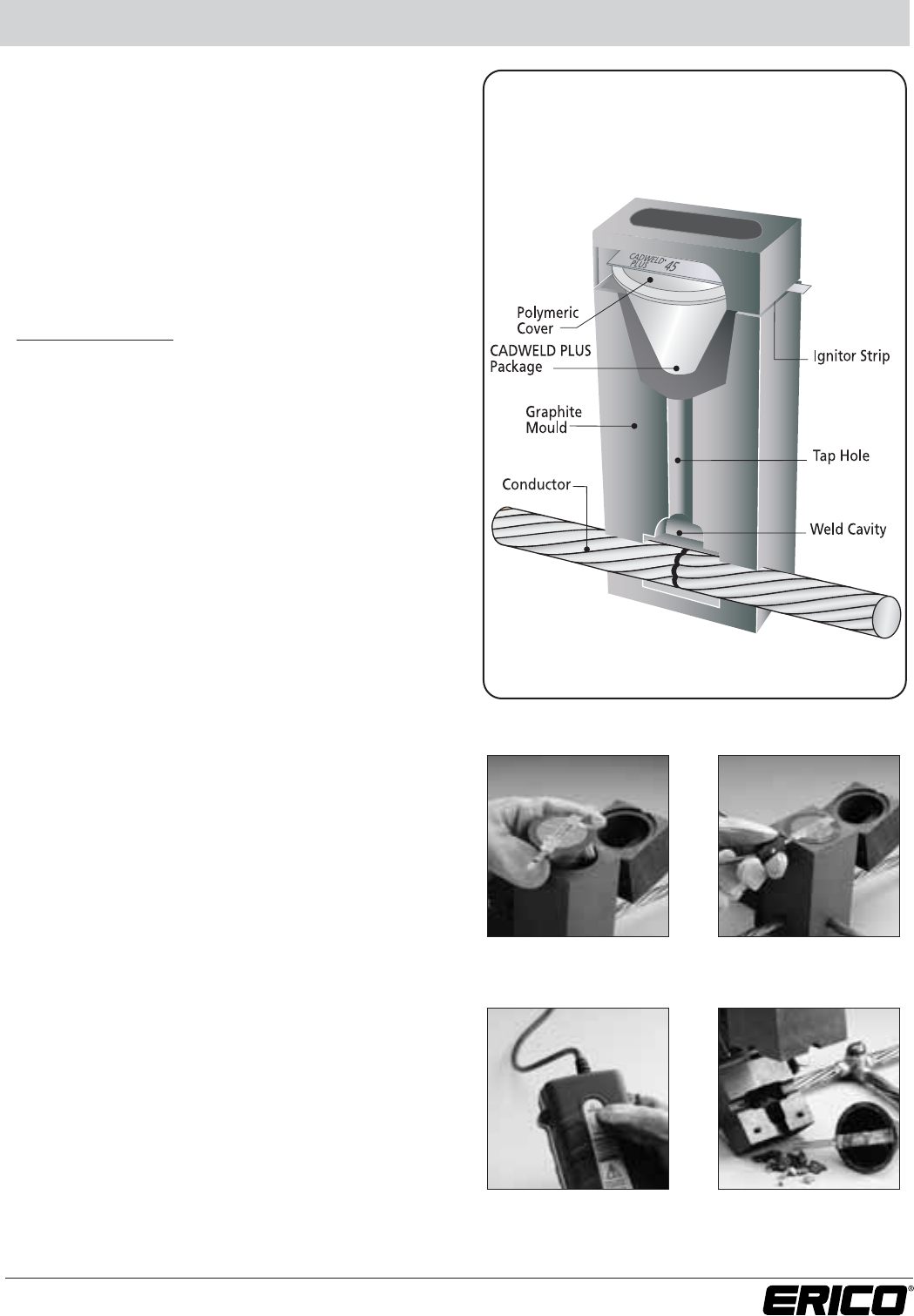

CADWELD®PLUS is a revolutionary
system that simplifies the process
for exothermically welded
connections.
IEEE is a registered trademark of The Institute of Electrical and Electronics Engineers, Incorporated
www.erico.com
Table of Contents
How to Order CADWELD Products
Ordering Information . . . . . . . . . . . . . . . . . . . . . . 1
The CADWELD®Mould Numbering System . . . . 2-3
Metric to Imperial Conversion Chart . . . . . . . . . . . 4
CADWELD – Technical Advantages . . . . . . . . . . 5-6
Technical Information . . . . . . . . . . . . . . . . . . . . . . 7

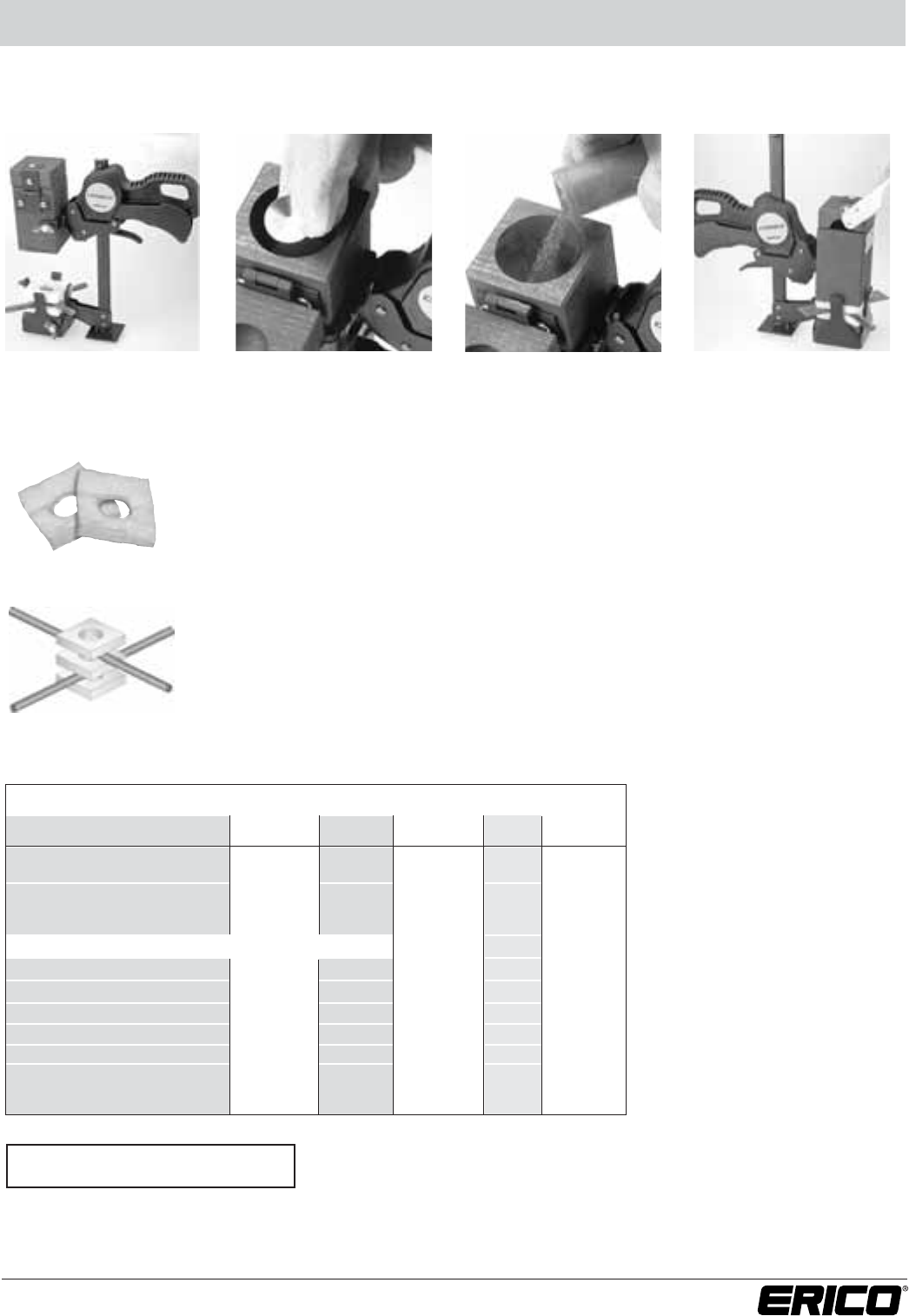

CADWELD®PLUS . . . . . . . . . . . . . . . . . . . . . . . . . 8
CADWELD®MULTI . . . . . . . . . . . . . . . . . . . . . . 9-10
Horizontal Connection – SS. . . . . . . . . . . . . . . . . 11

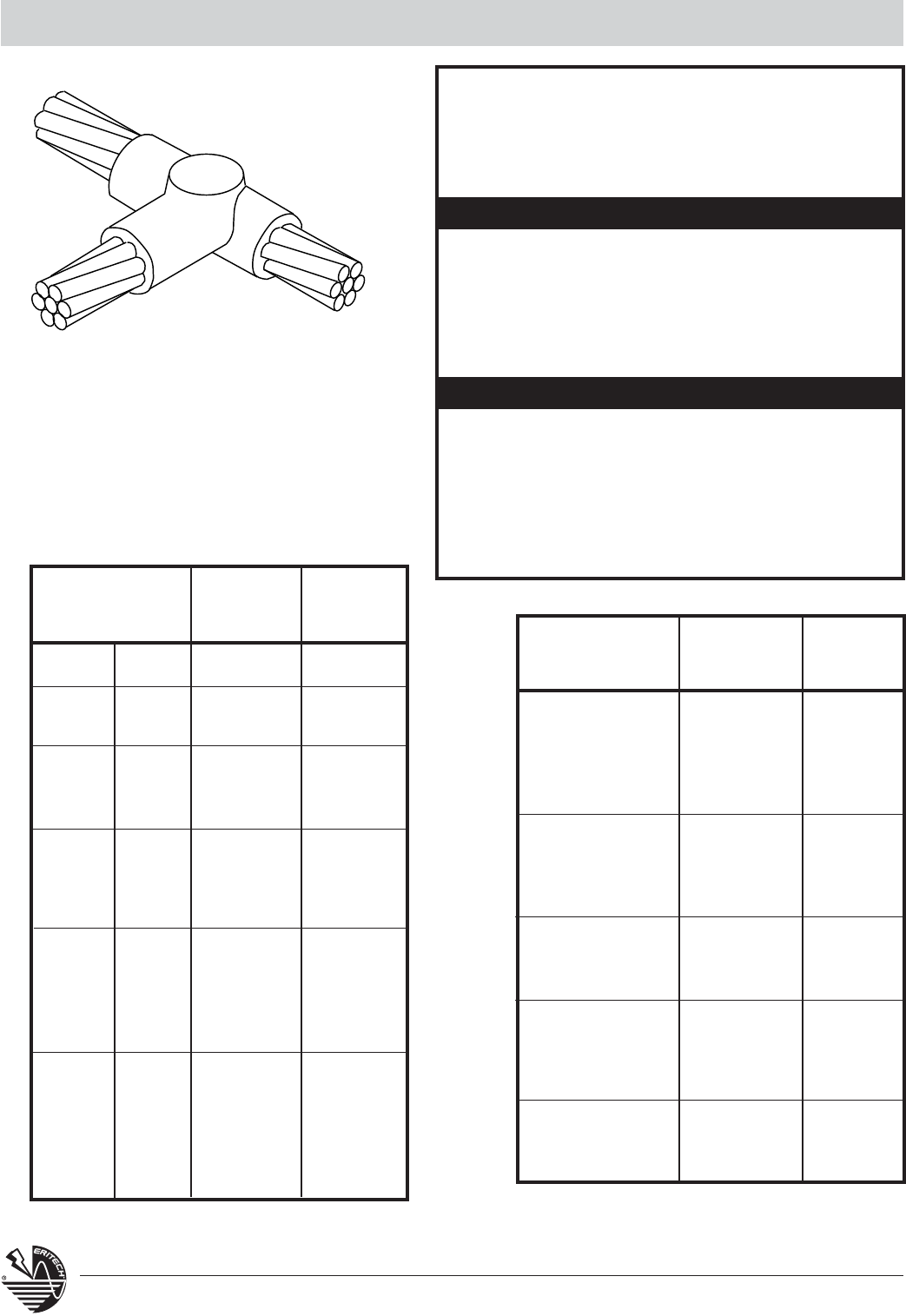

Horizontal Tee – TA . . . . . . . . . . . . . . . . . . . . . . . 12

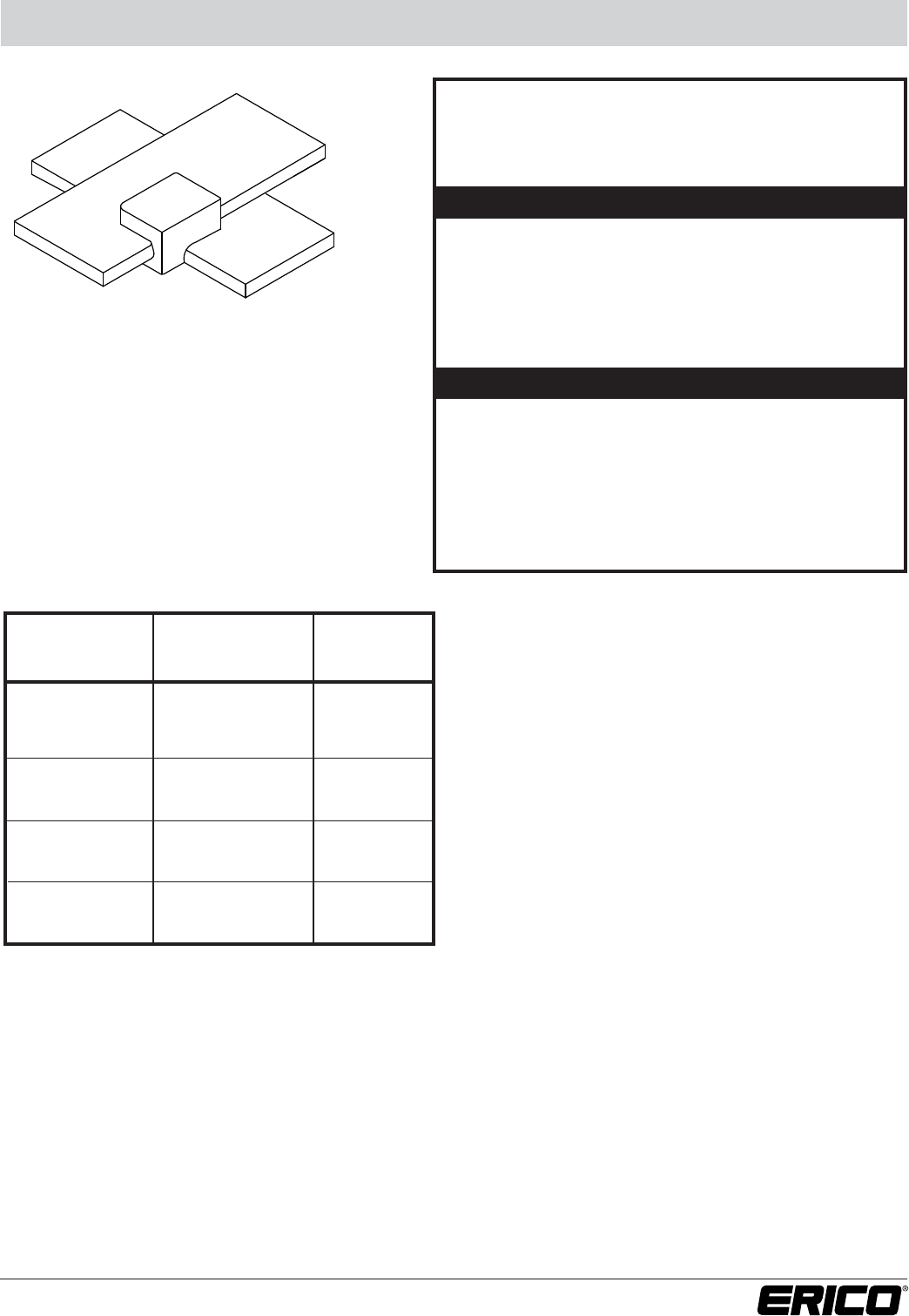

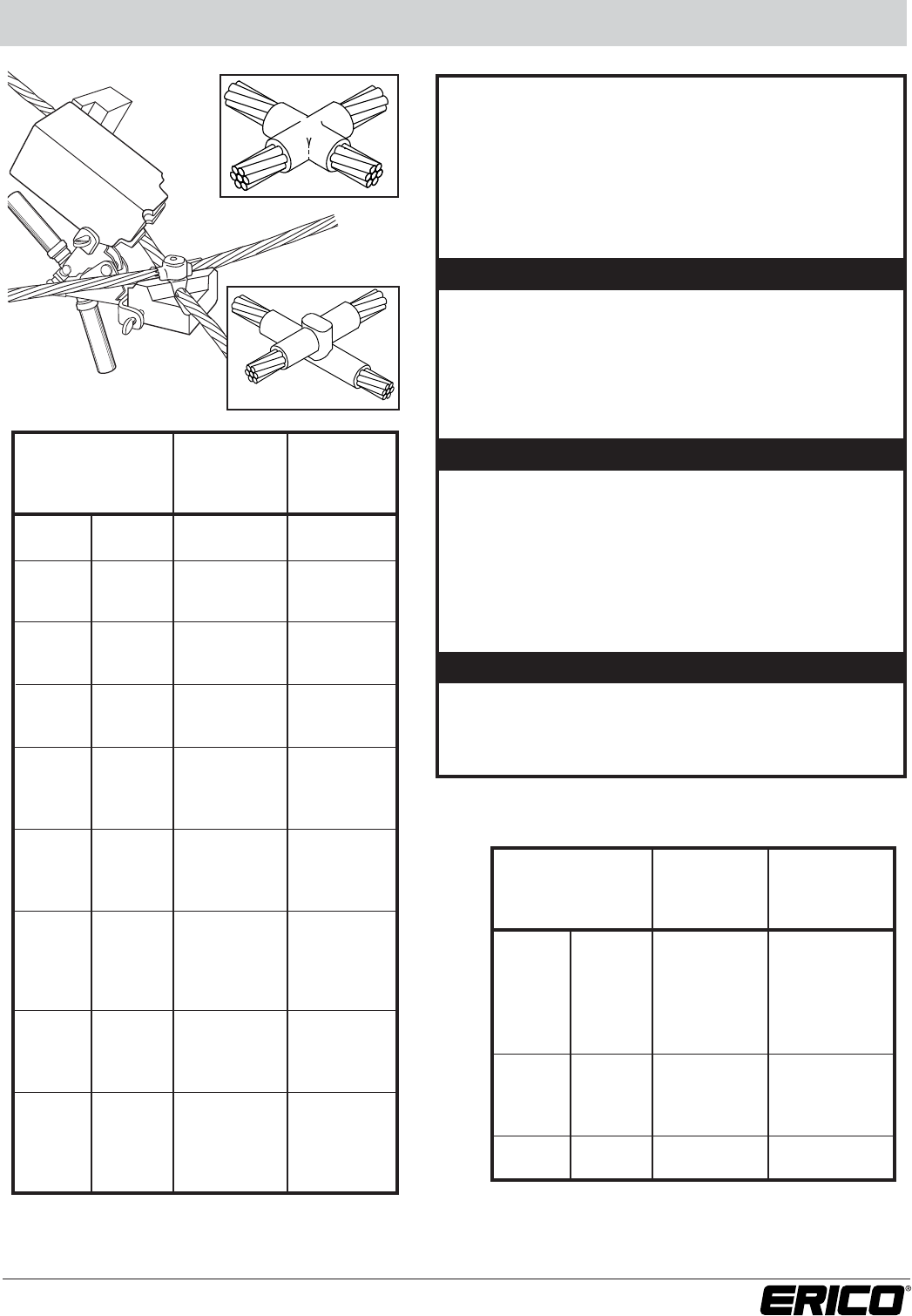

Horizontal X – XA/XB . . . . . . . . . . . . . . . . . . . . . 13

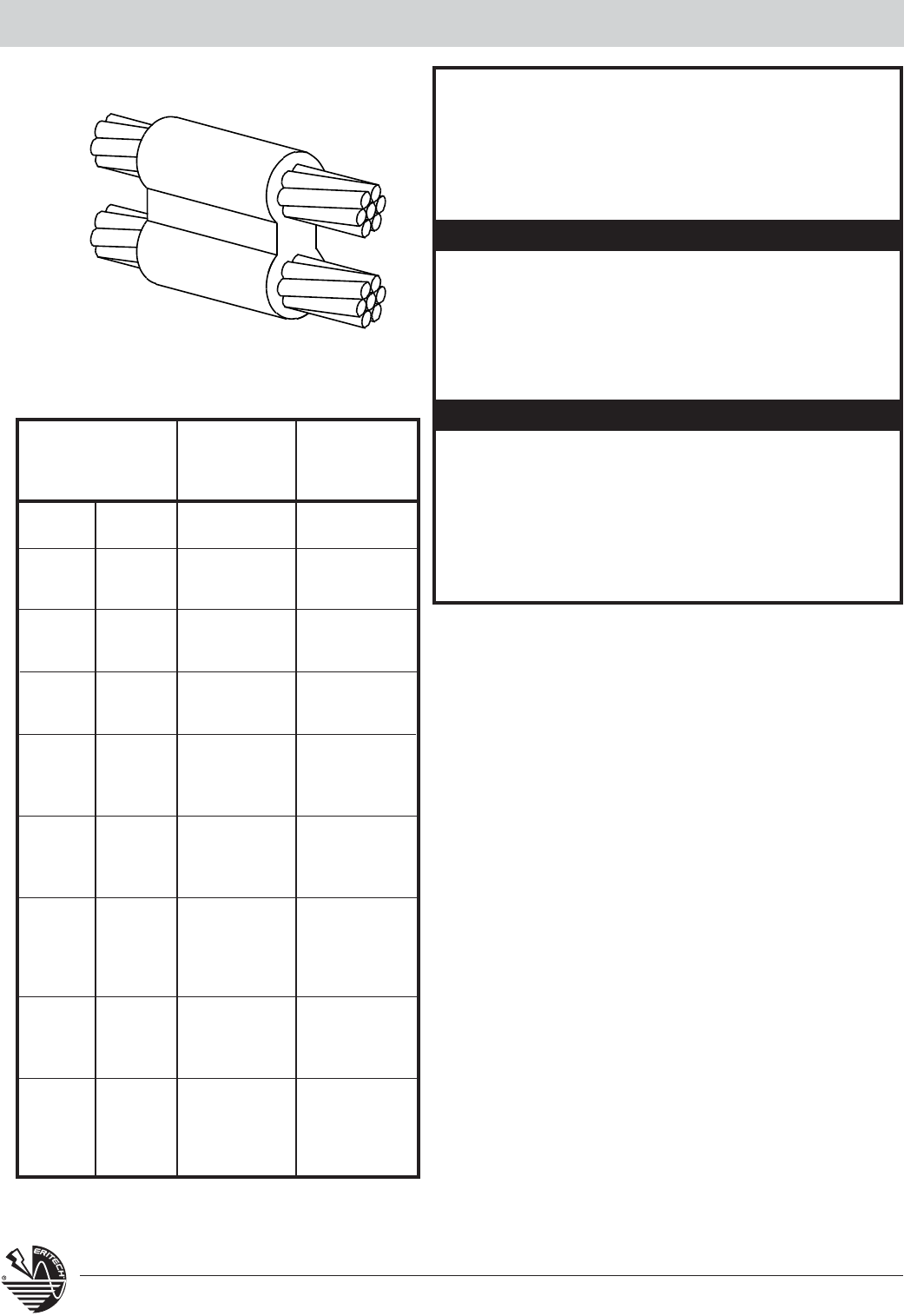

Parallel Horizontal – PT . . . . . . . . . . . . . . . . . . . . 14

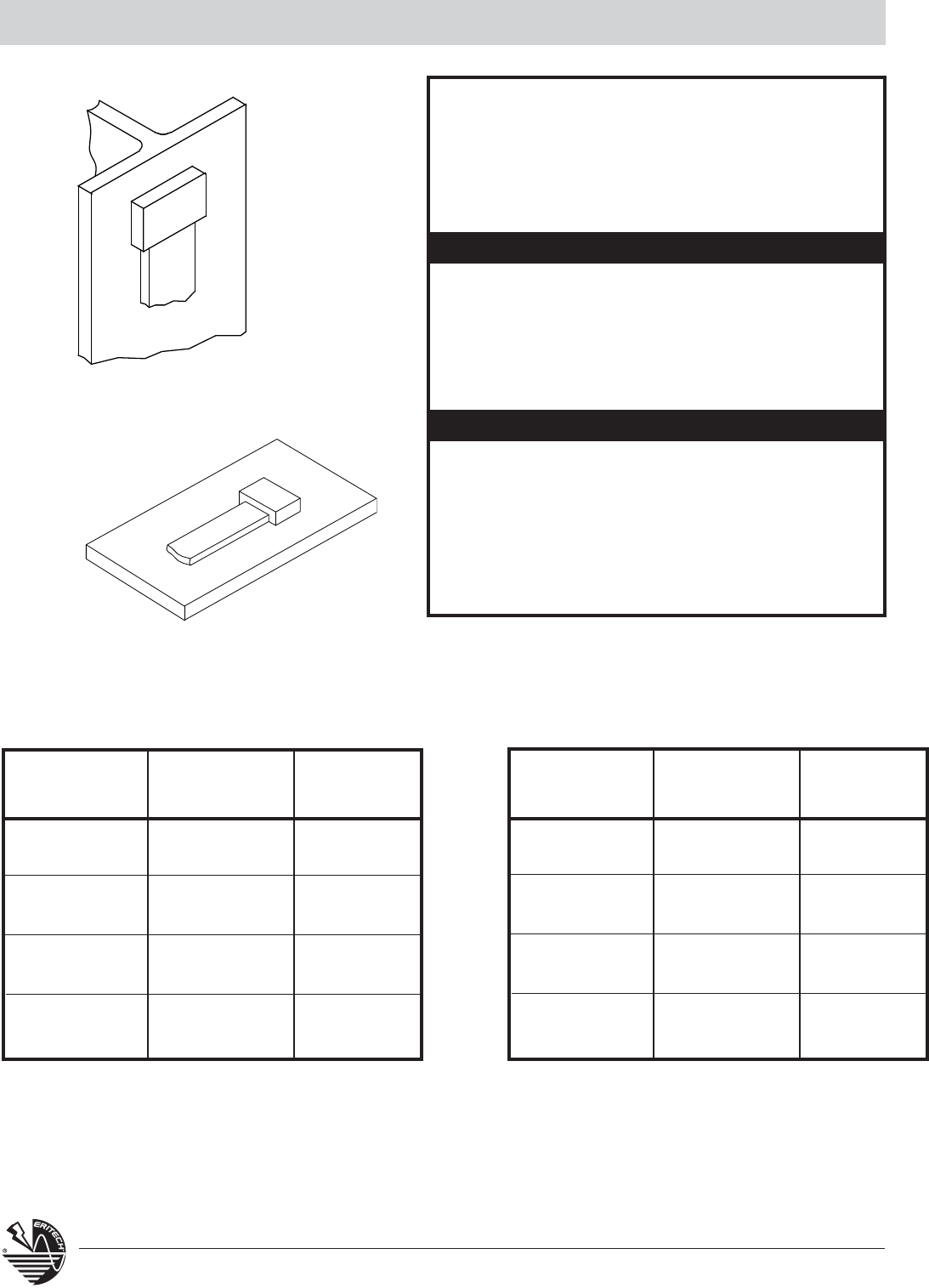

Horizontal Steel Surface – HA/HS . . . . . . . . . . . . 15
Vertical Steel Surface – VS. . . . . . . . . . . . . . . . . . 16

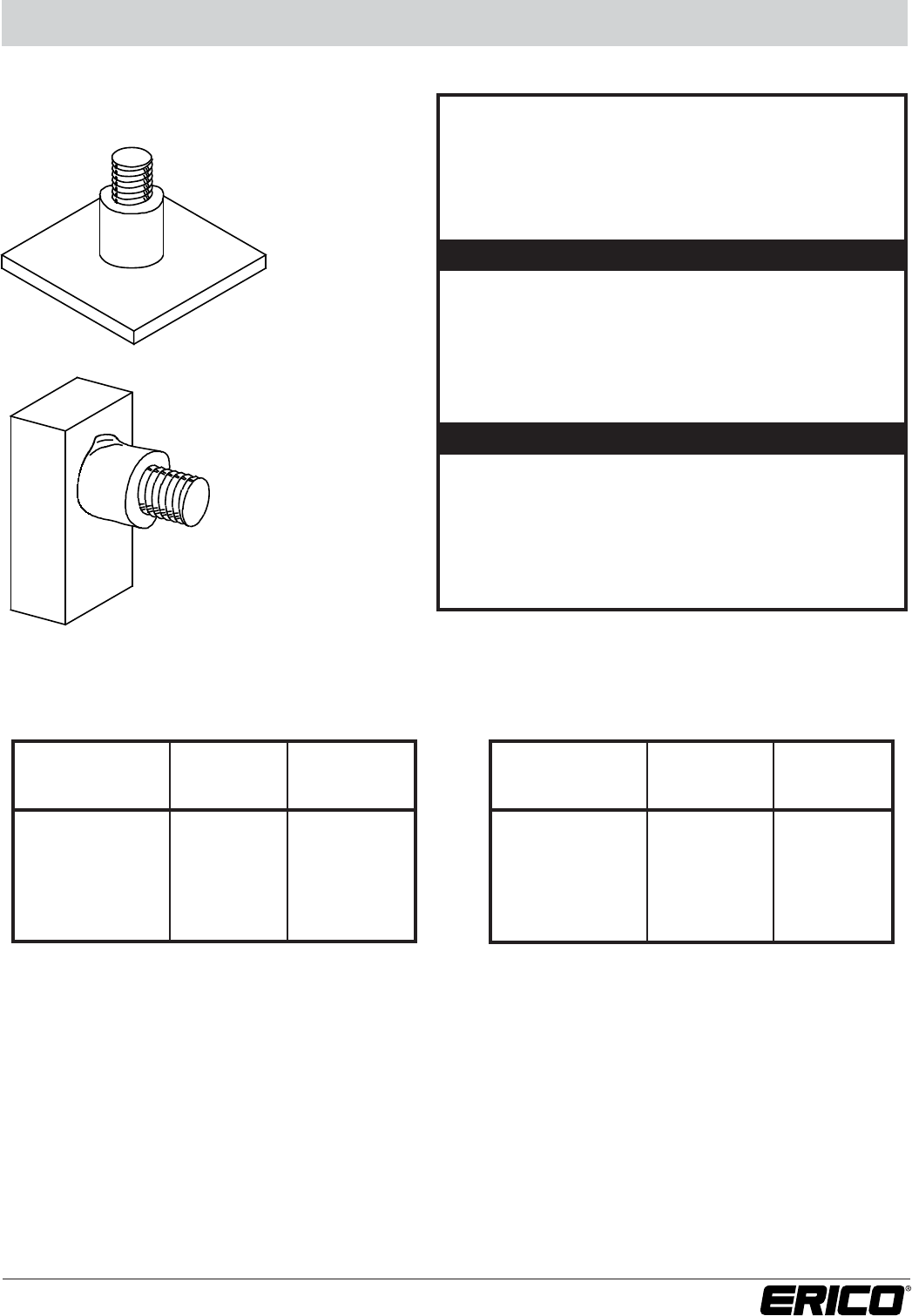

Studs – HX/HV . . . . . . . . . . . . . . . . . . . . . . . . . . 17

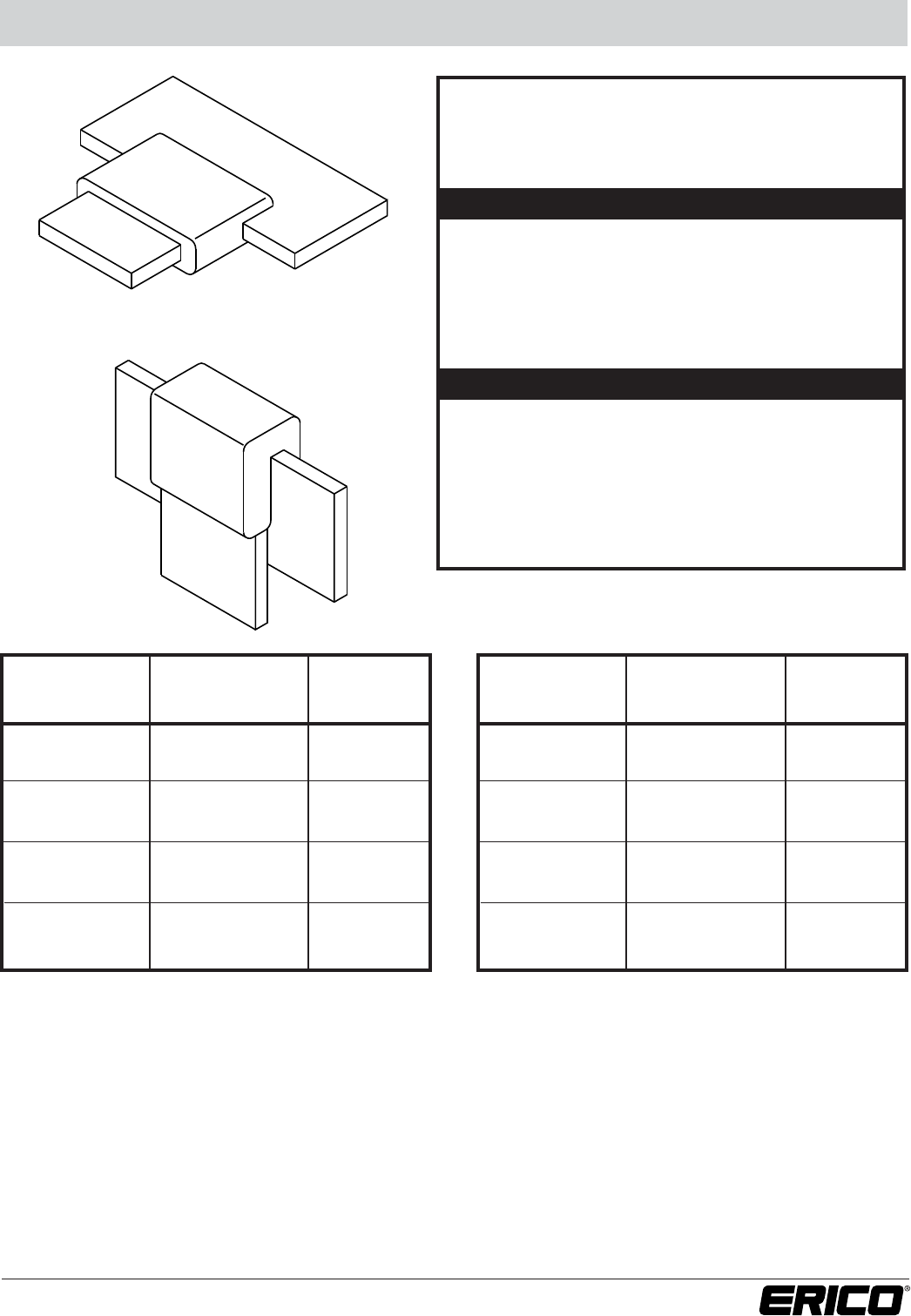

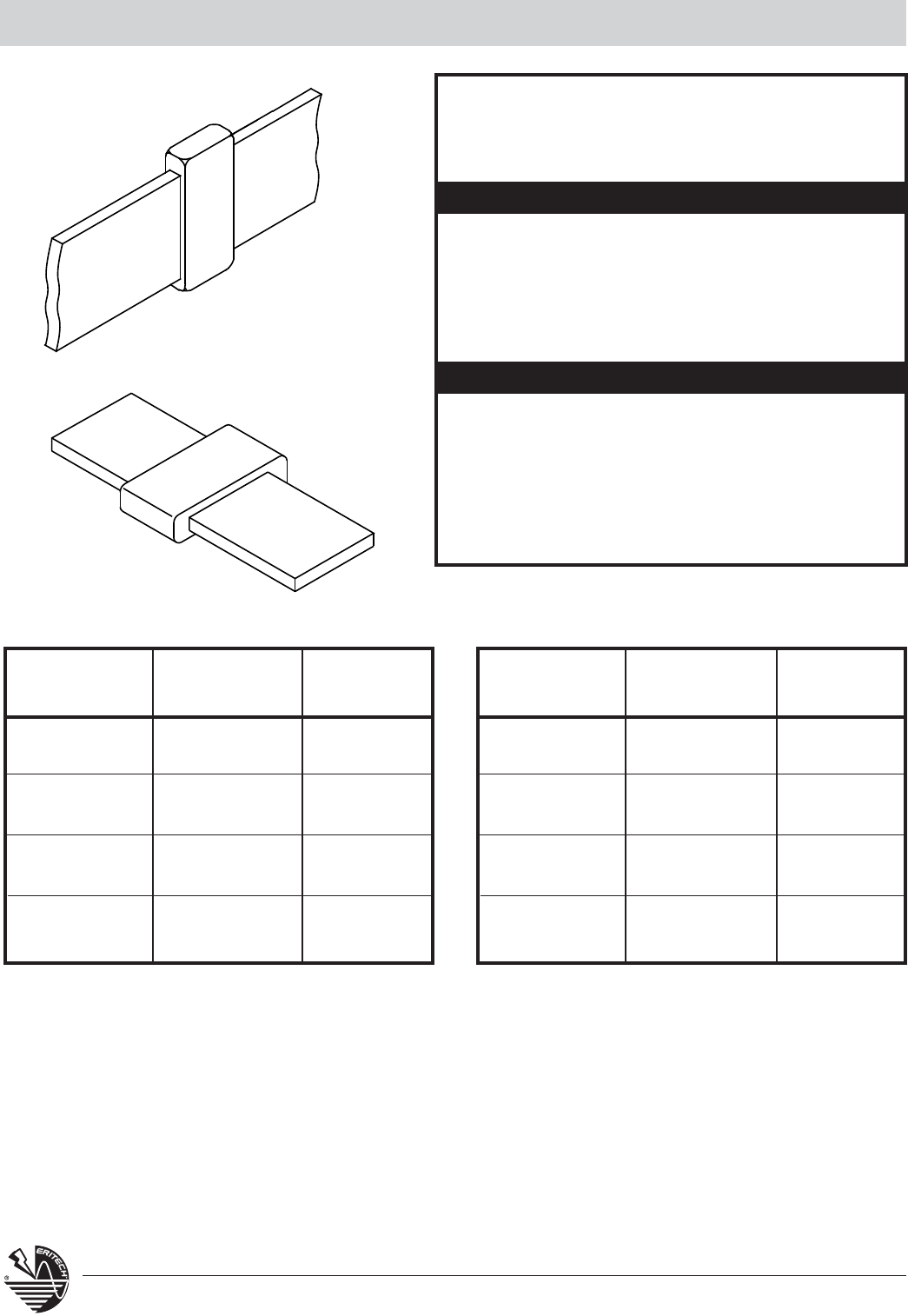

Busbar Tape – BA/BB . . . . . . . . . . . . . . . . . . . . . . 18
Busbar Tape – BM/BQ . . . . . . . . . . . . . . . . . . . . . 19

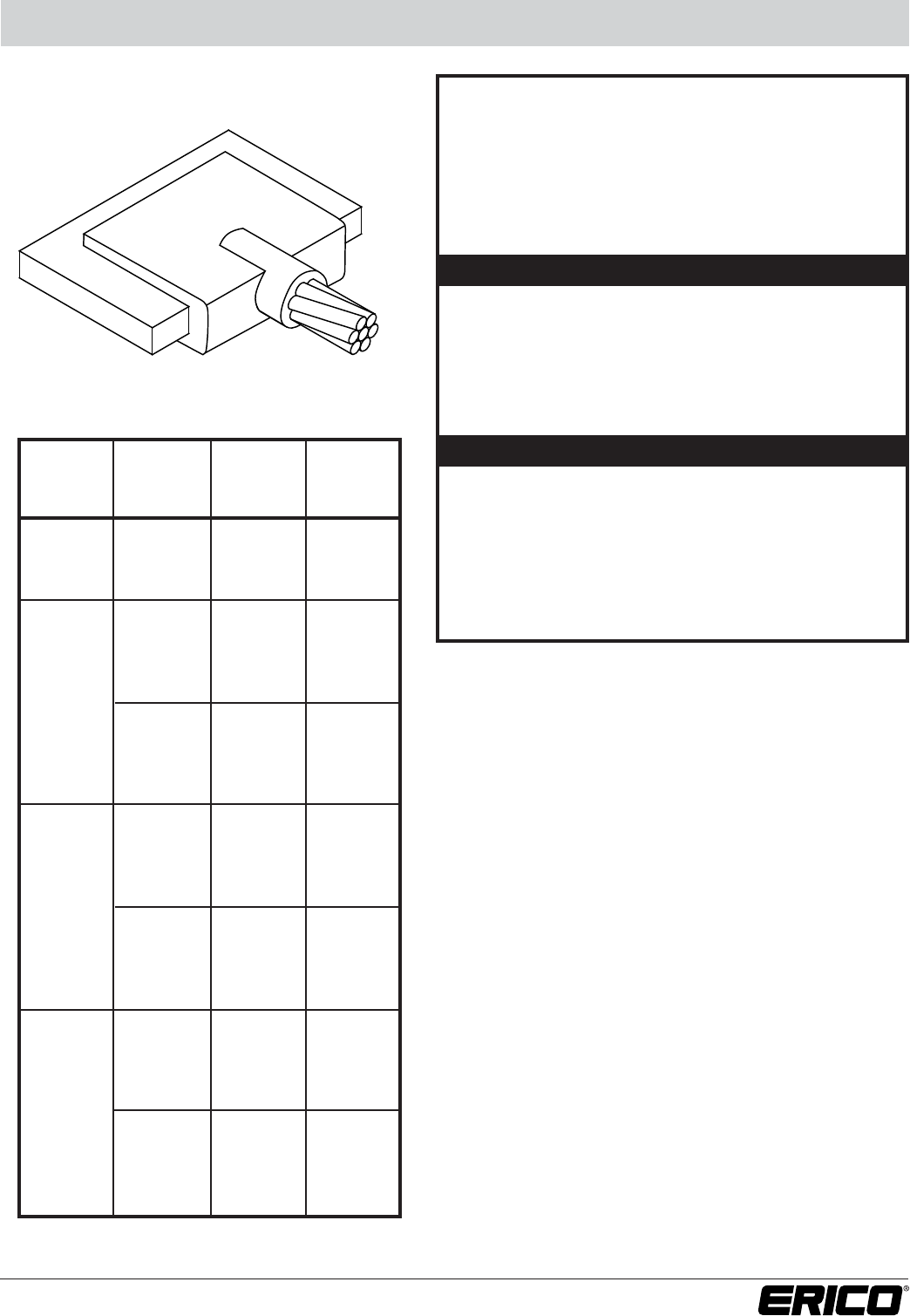

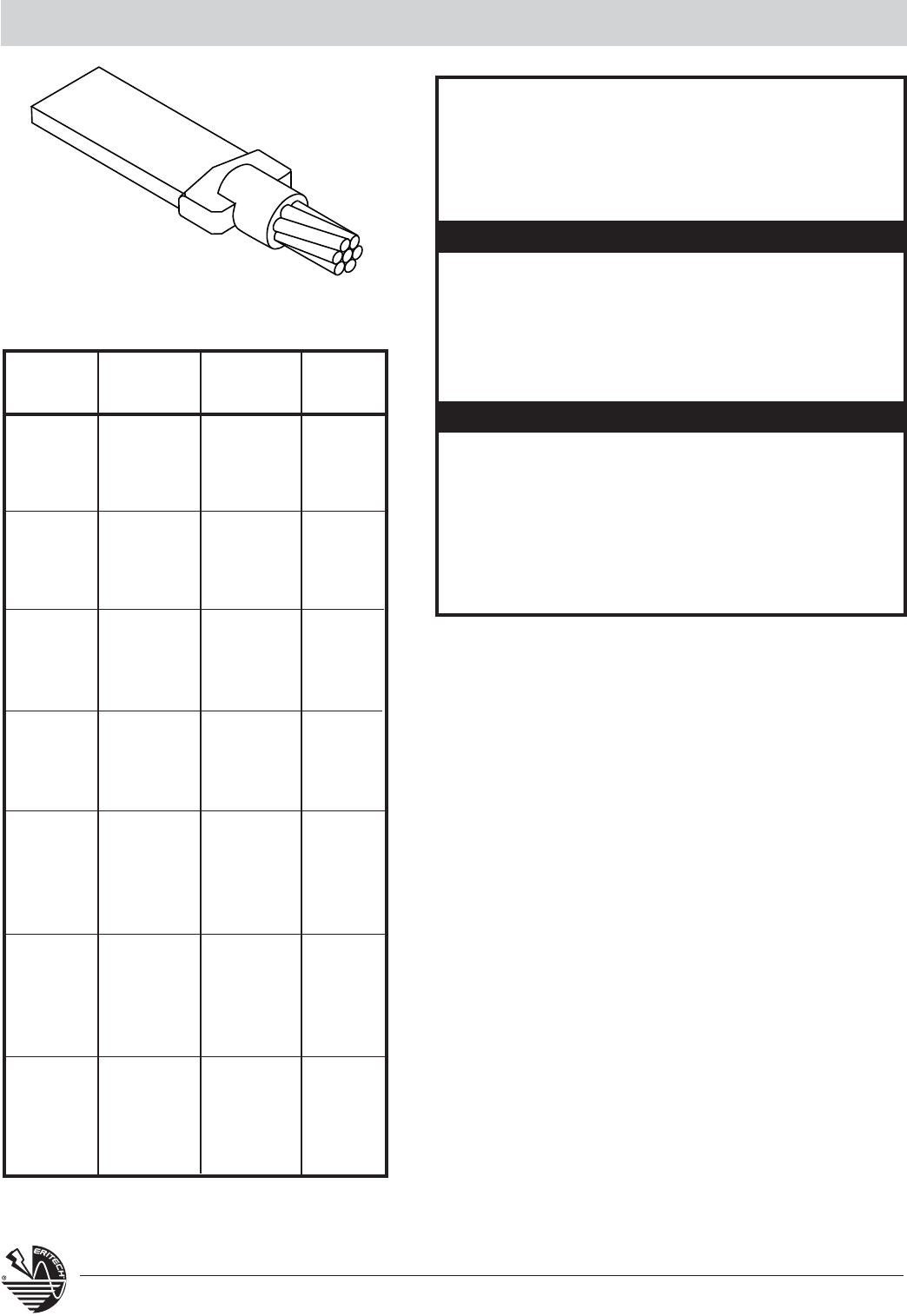

Cable to Busbar Tape – LE . . . . . . . . . . . . . . . . . 20
Busbar Tape – EB . . . . . . . . . . . . . . . . . . . . . . . . 21
Busbar Tape – BW/CG . . . . . . . . . . . . . . . . . . . . . 22
Cable to Busbar Tape – L J. . . . . . . . . . . . . . . . . . 23

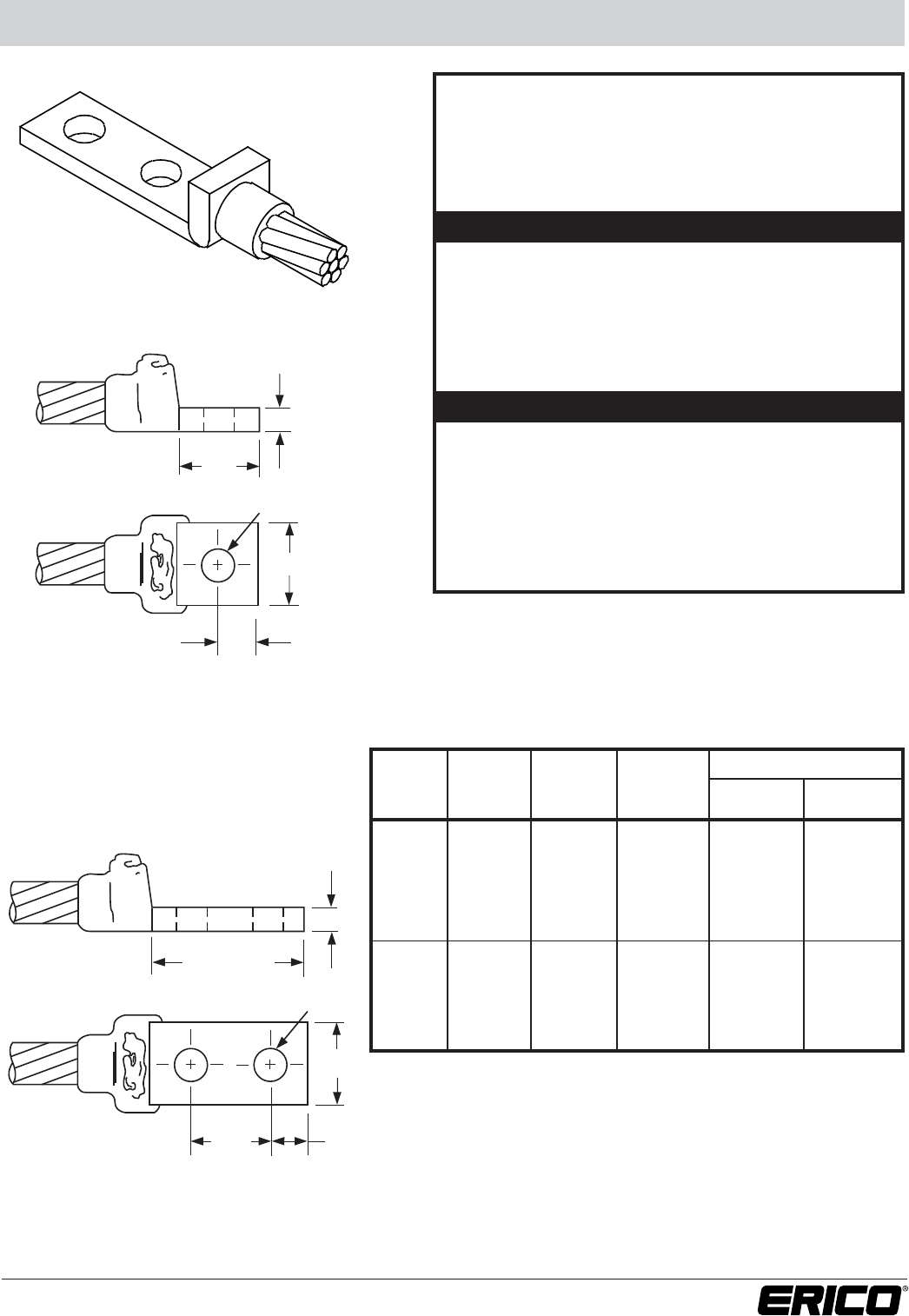

Copper Lugs – LA . . . . . . . . . . . . . . . . . . . . . . . . 24
Copper Lugs – GL . . . . . . . . . . . . . . . . . . . . . . . . 25

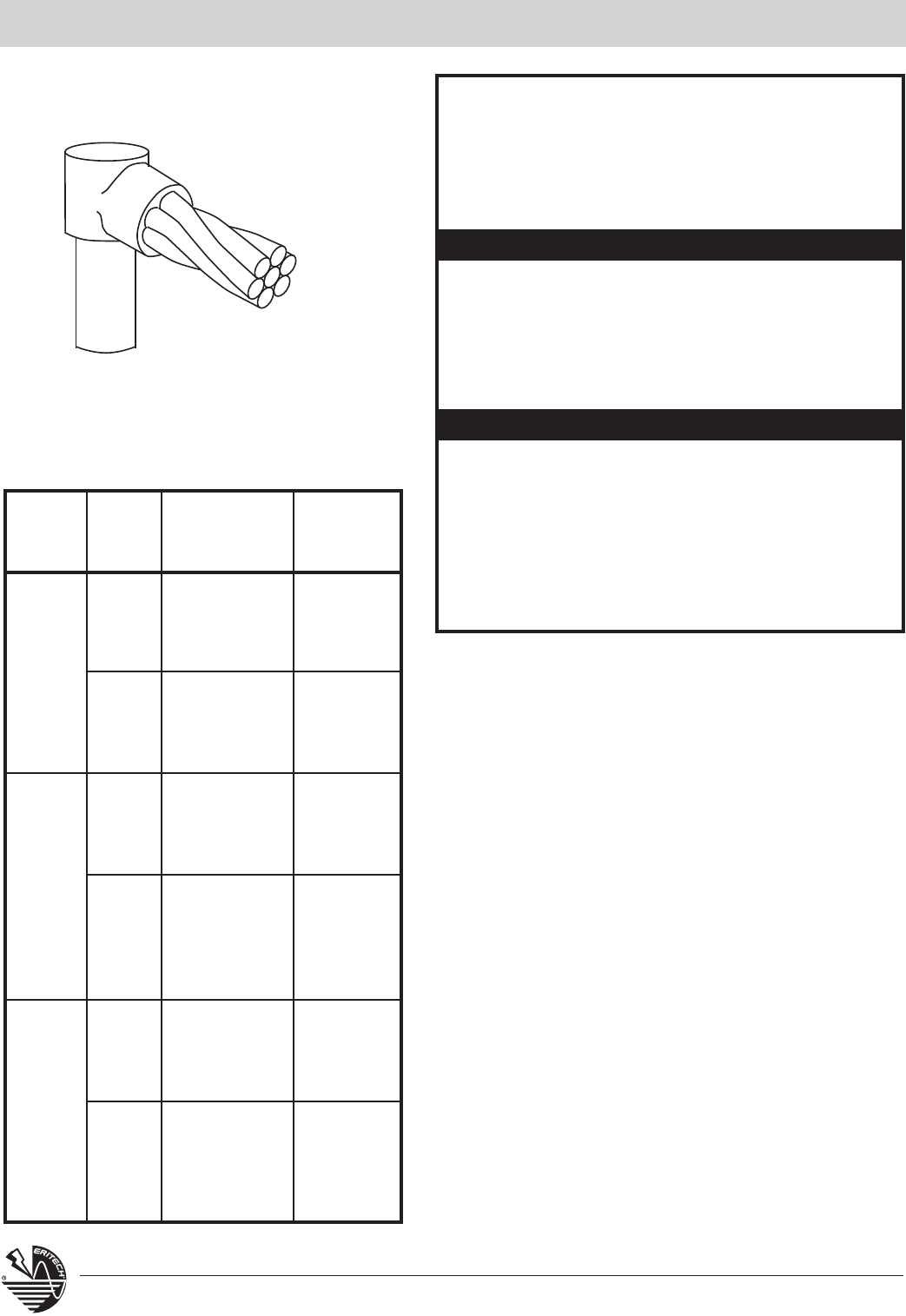

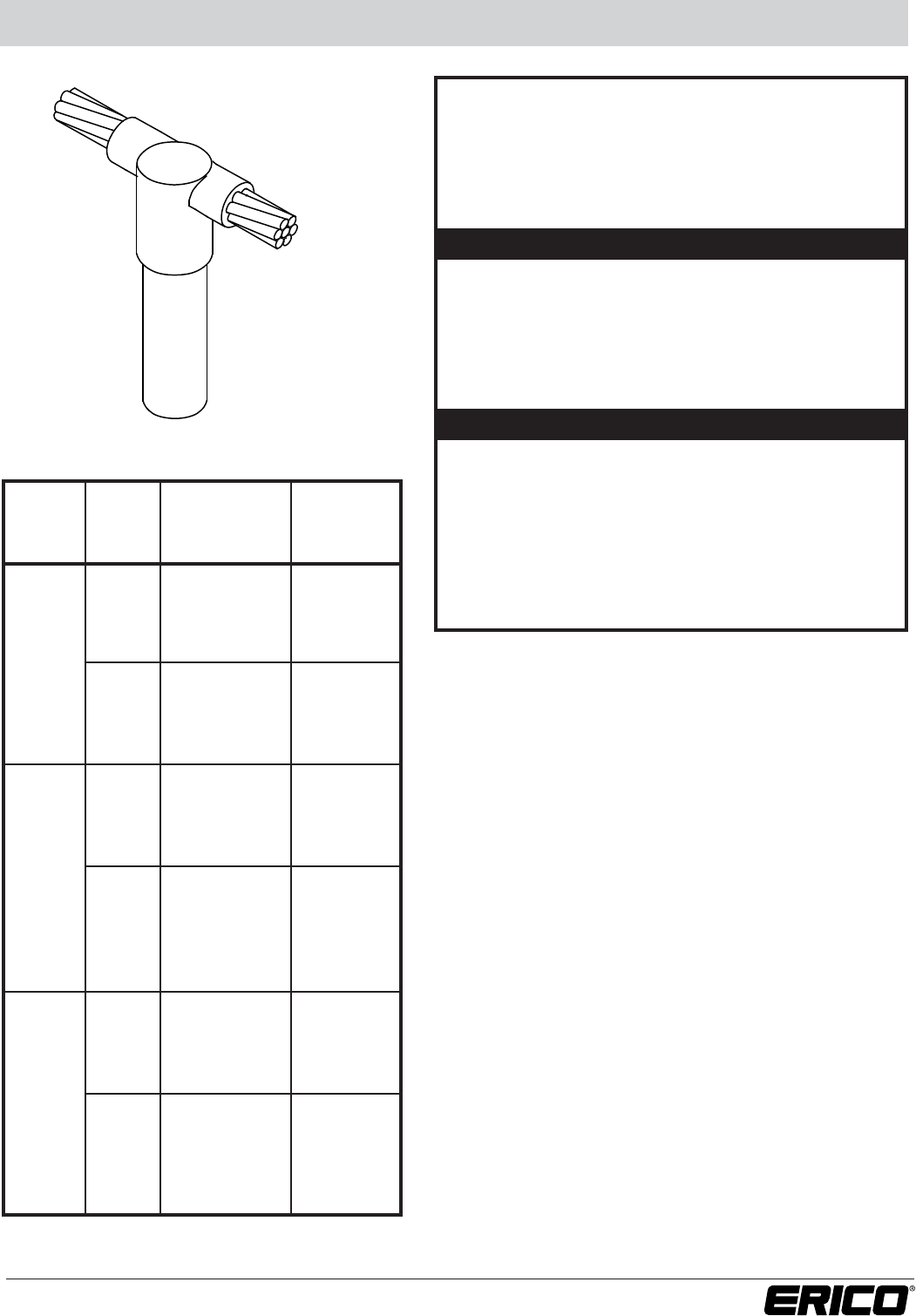

Cable to Ground Rod – GR . . . . . . . . . . . . . . . . . 26

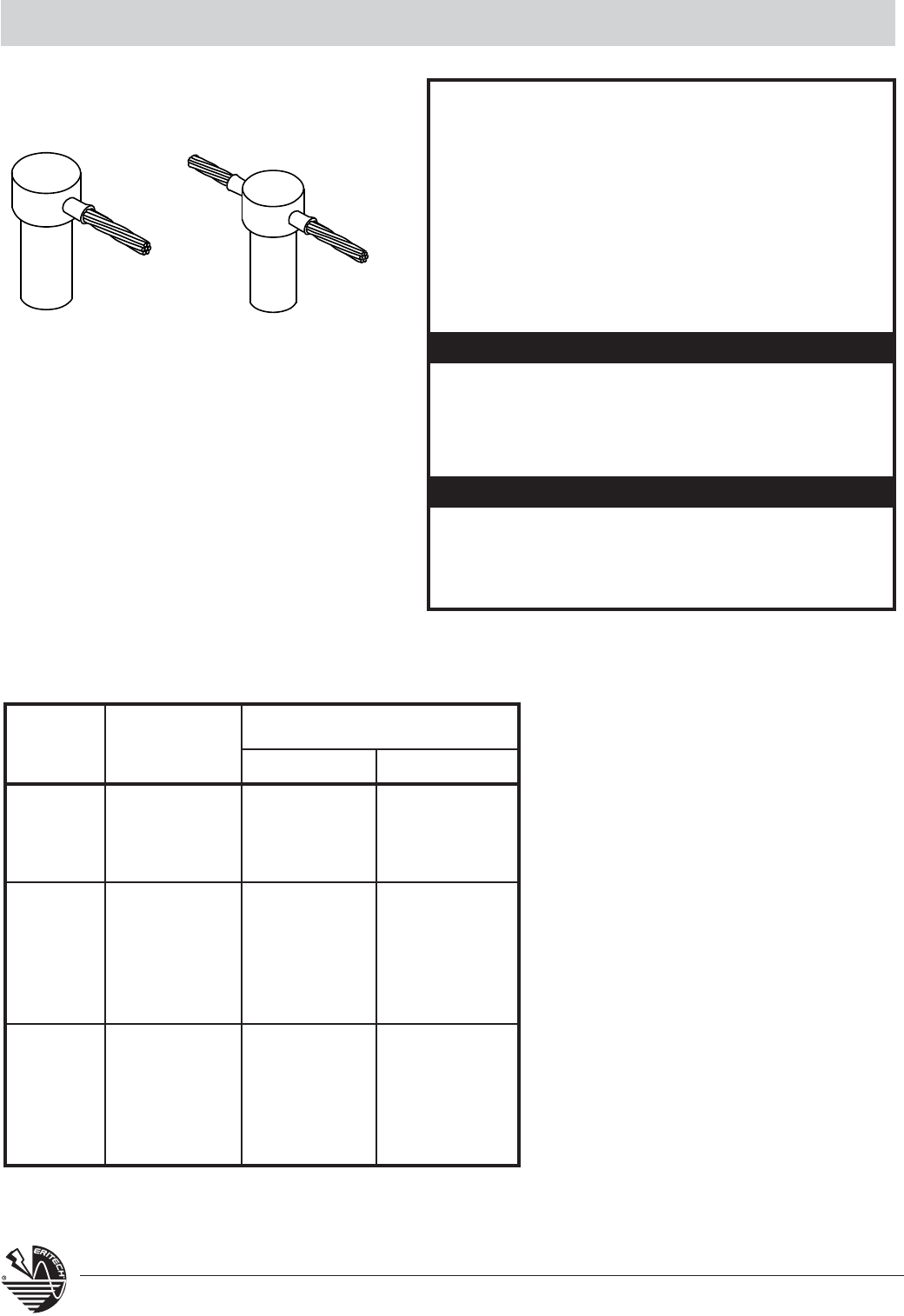

Cable to Ground Rod – GT . . . . . . . . . . . . . . . . . 27
Cable/Tape to Ground Rod – GY/LQ . . . . . . . . . . 28
Tape to Ground Rod – CP/CN . . . . . . . . . . . . . . . 29
Cable to Ground Rod
CADWELD®ONE SHOT – GR/GT . . . . . . . . . . . . . 30

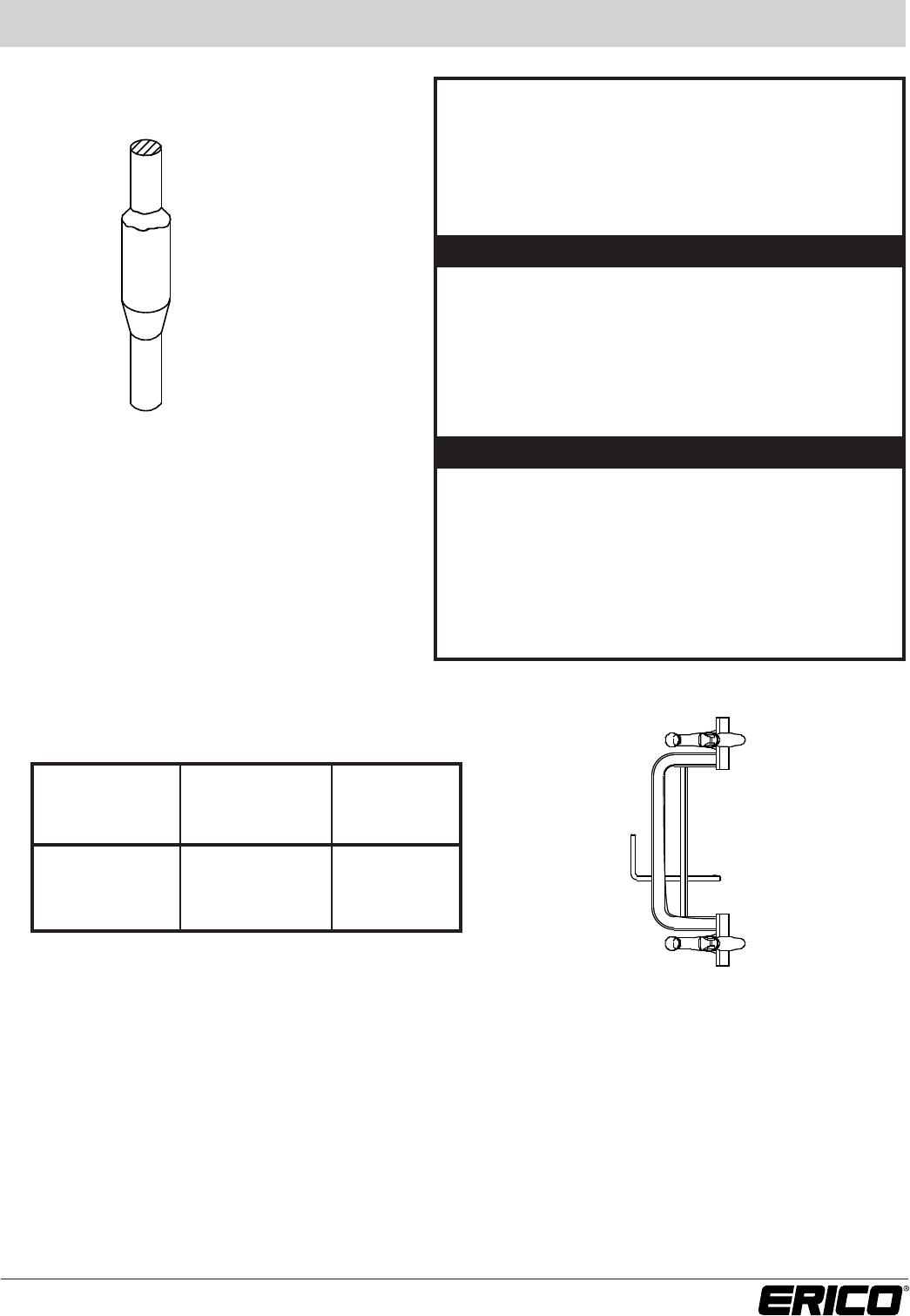

Ground Rod Splice – GB. . . . . . . . . . . . . . . . . . . . . . . . . . 31

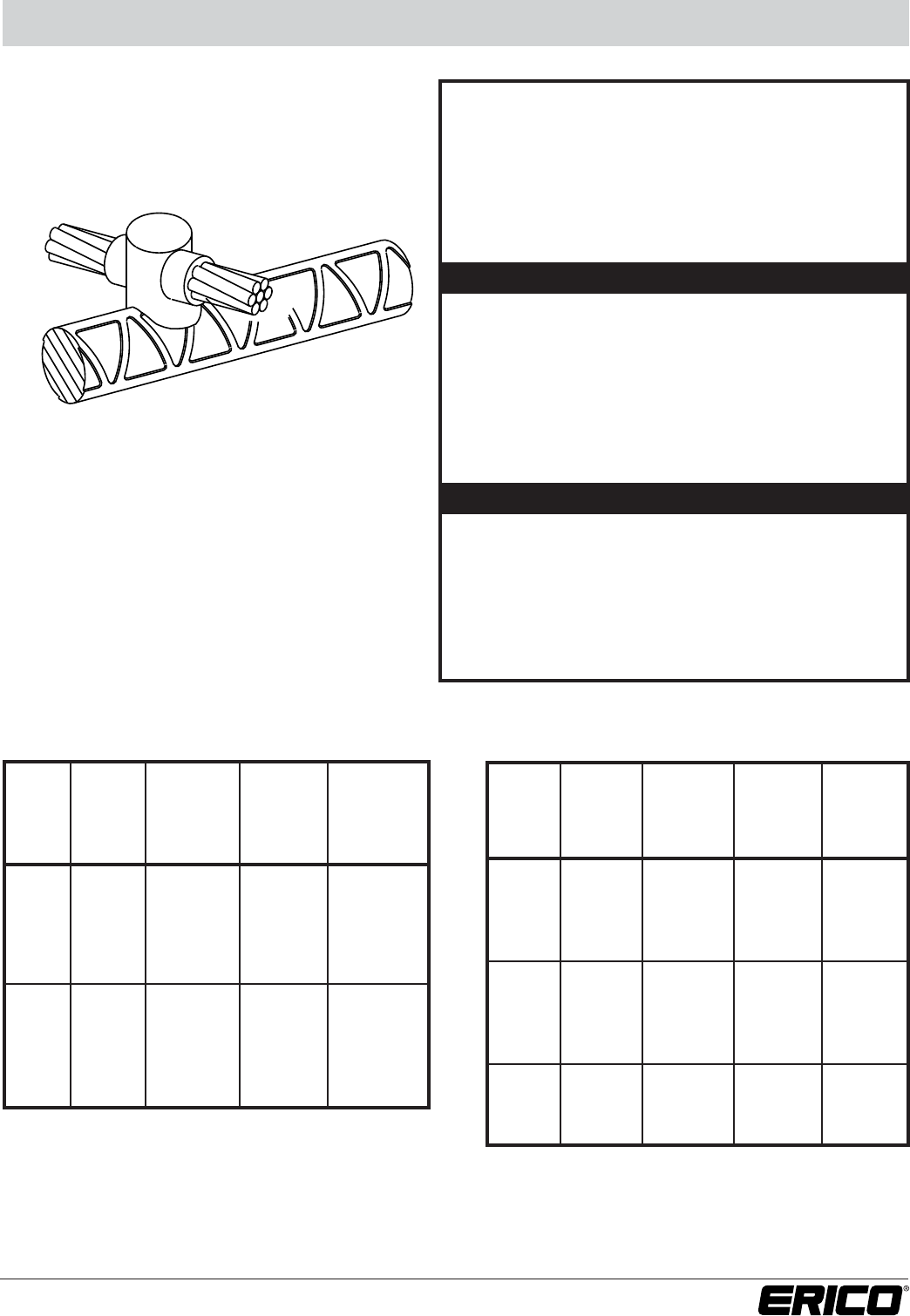

Cable to Rebar – RR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cable to Rebar – RD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

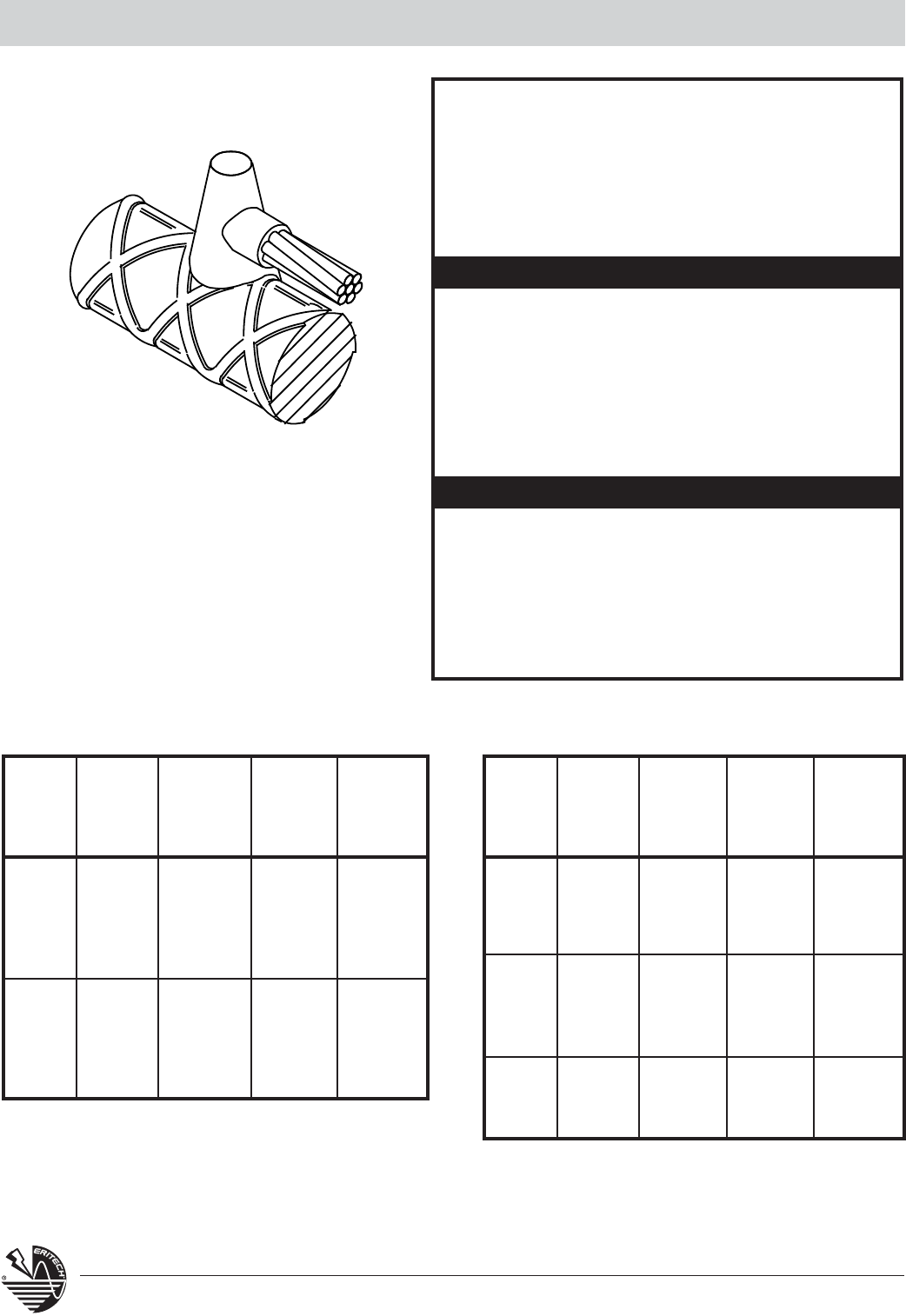

Cable/Busbar Tape to Rebar – RJ . . . . . . . . . . . . . . . . . . . 34

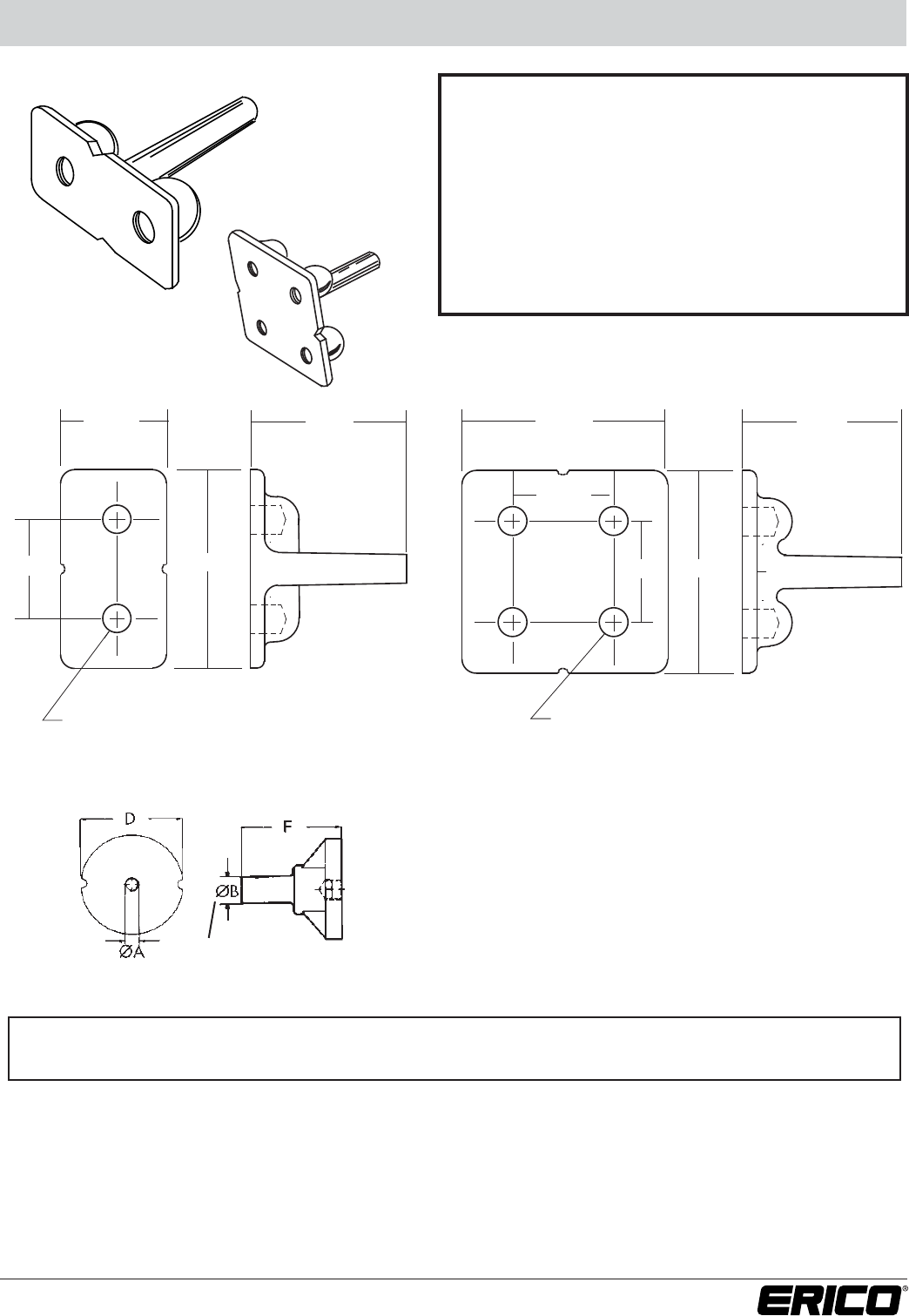

CADWELD Cast Ground Plates. . . . . . . . . . . . . . . . . . . . . 35
Aircraft Grounding Receptacles . . . . . . . . . . . . . . . . . . . . 36

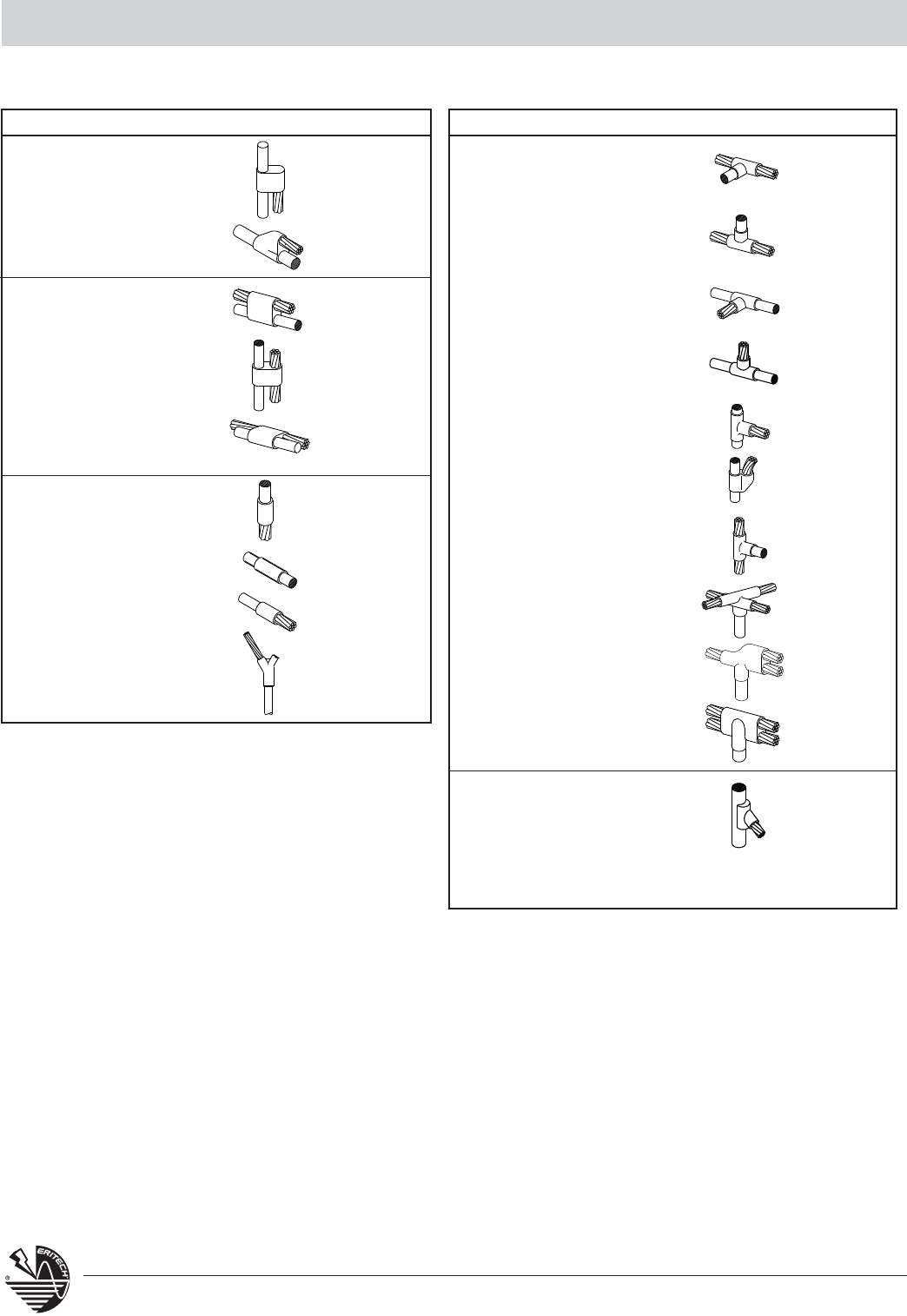

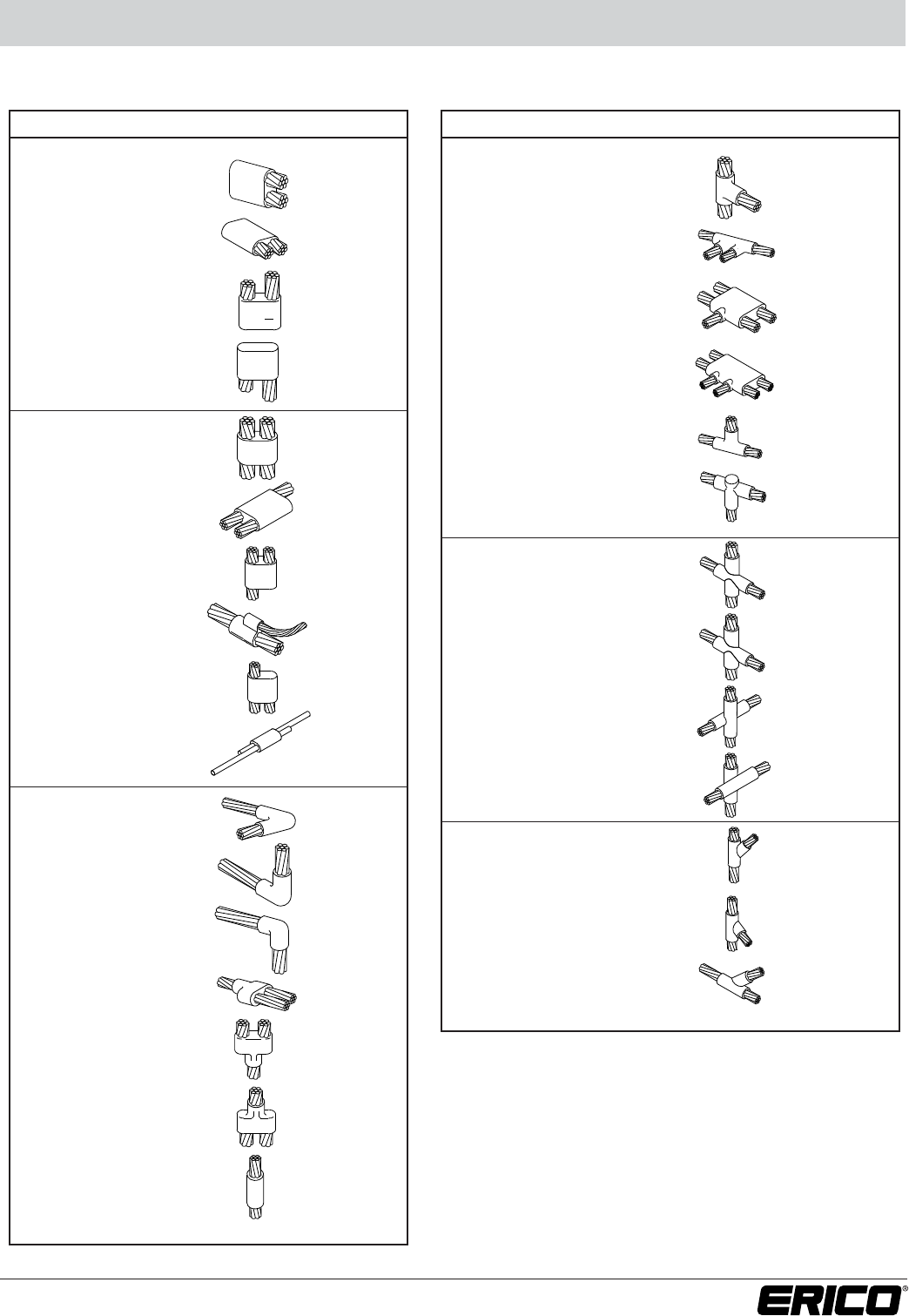

Other Cable to Cable Connections . . . . . . . . . . . . . . . . . 37
Other Cable to Ground Rods or Other Connections. . . . . 38

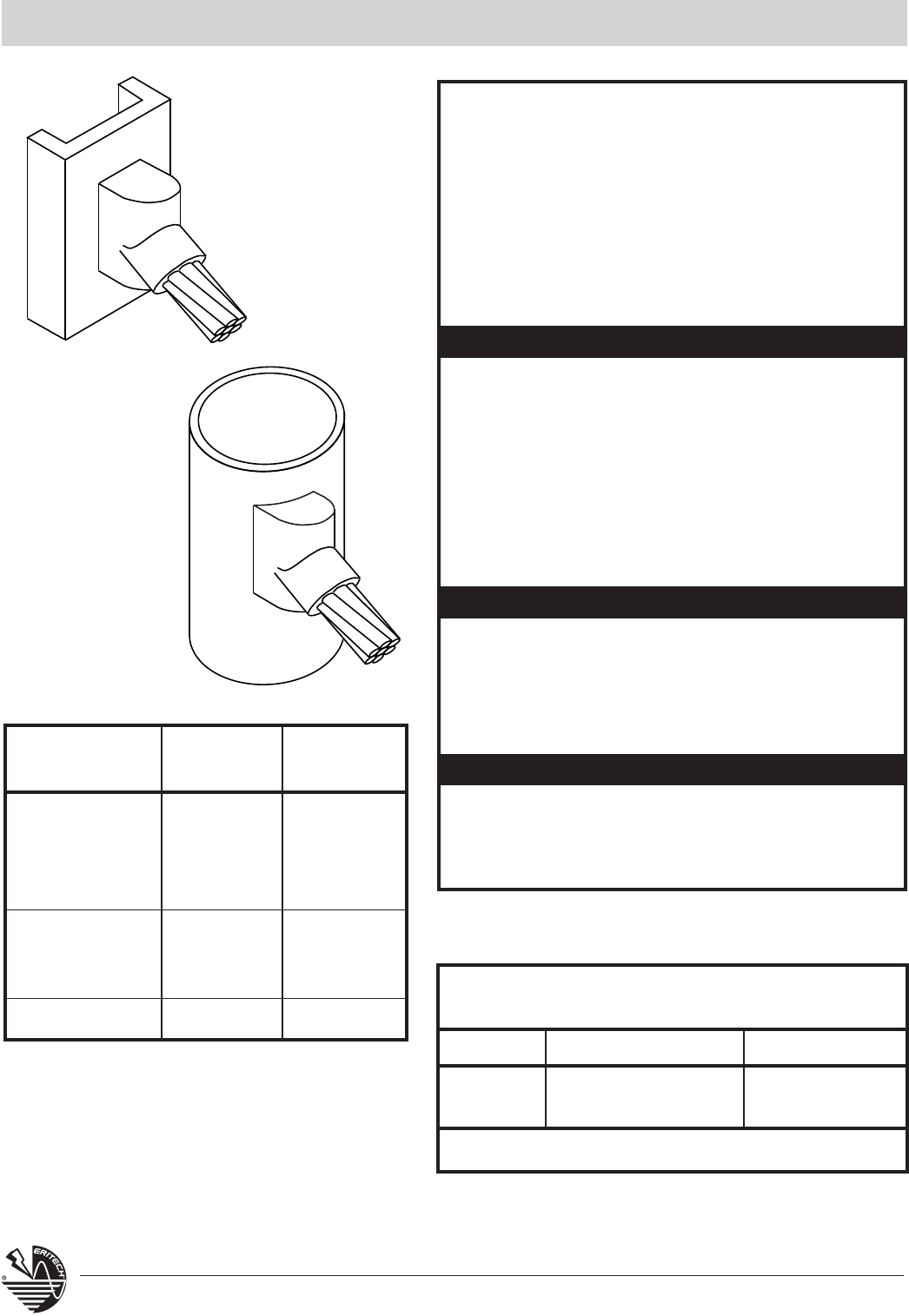

Other Cable to Steel or Cast Iron Connections. . . . . . . . . 39
Other Cable to Busbar or Lug Connections . . . . . . . . . . . 40

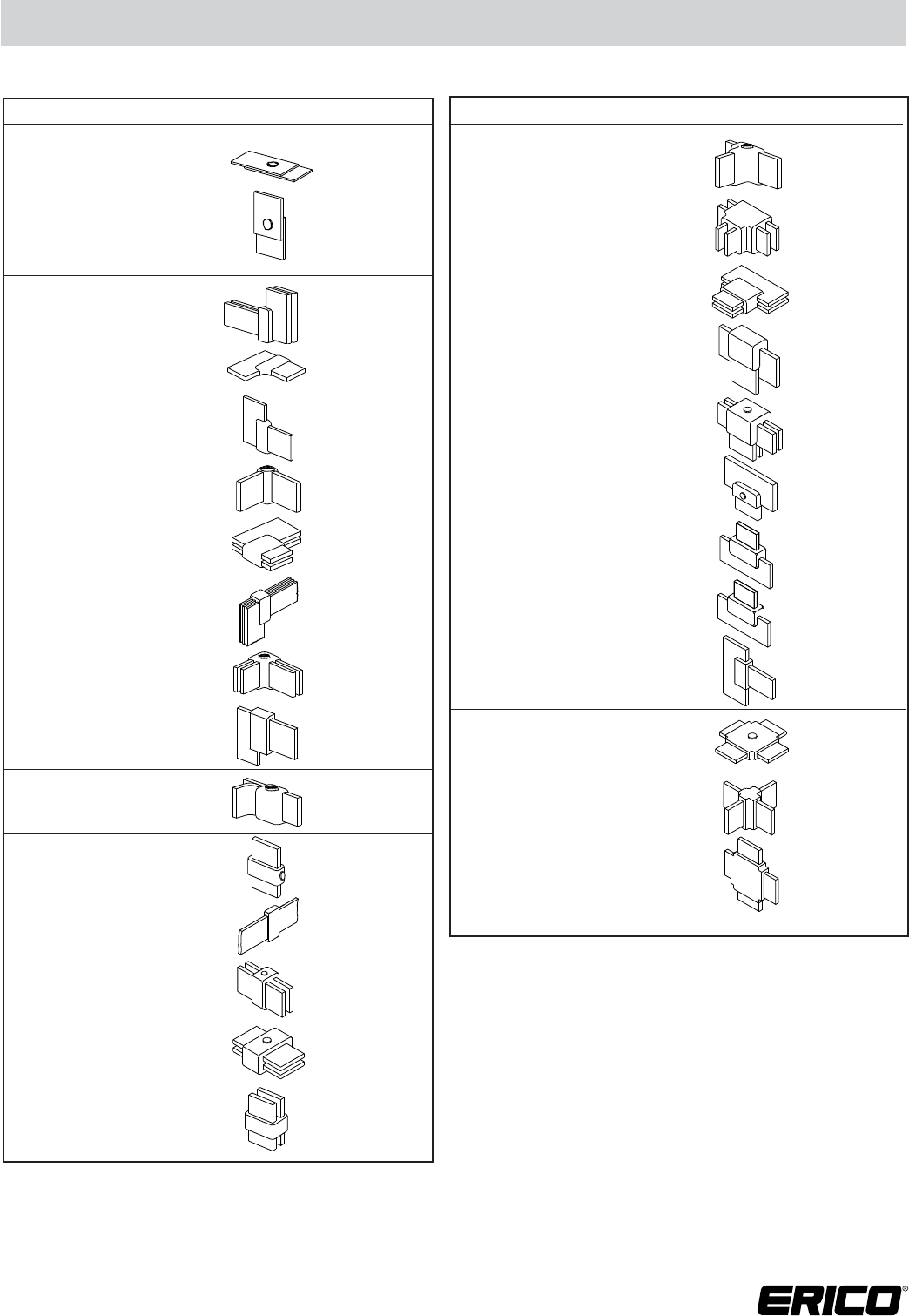

Other Busbar to Busbar Connections . . . . . . . . . . . . . . . . 41
Other Busbar Connections . . . . . . . . . . . . . . . . . . . . . . . 42
Other Rebar Connections. . . . . . . . . . . . . . . . . . . . . . . . . 42
Cable to Copper Tube Connections . . . . . . . . . . . . . . . . . 43
Busbar to Ground Rods Connections . . . . . . . . . . . . . . . . 43
Copper Tube to Ground Rods Connections . . . . . . . . . . . 44
Copper Tube to Copper Tube Connections . . . . . . . . . . . 44
Copper Tube to Busbar or Lugs Connections . . . . . . . . . . 44
Material, Tools and Accessories
Adapting Moulds to Fit Conductors . . . . . . . . . . . . . . . . . 45

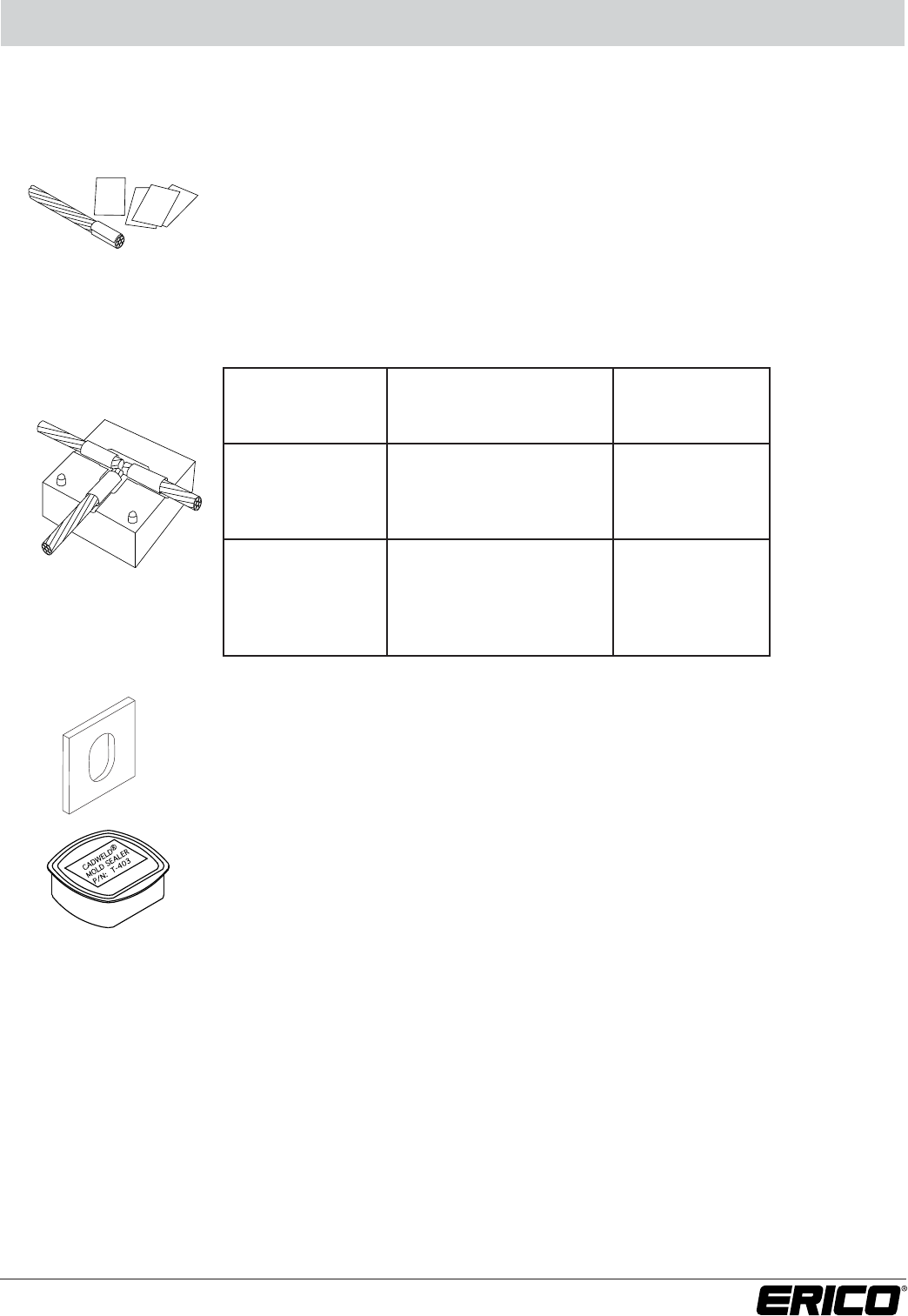

Cable and Work Surface Preparation . . . . . . . . . . . . . . . . 46
Mould Care and Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Mould Fastening and Mounting . . . . . . . . . . . . . . . . . 48-49
Ground Rod Specialty Tools . . . . . . . . . . . . . . . . . . . . . . . 50

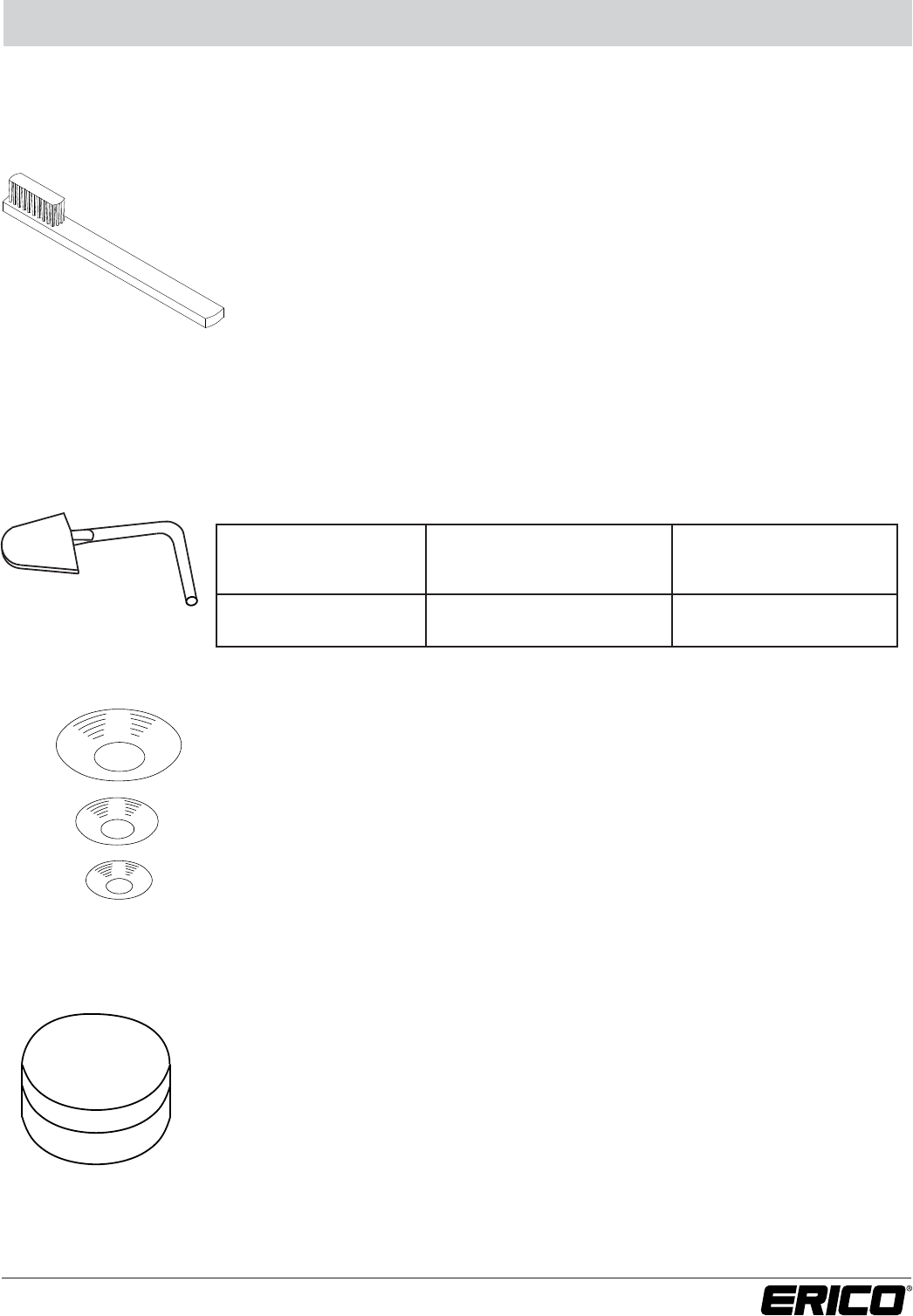

Other Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-51

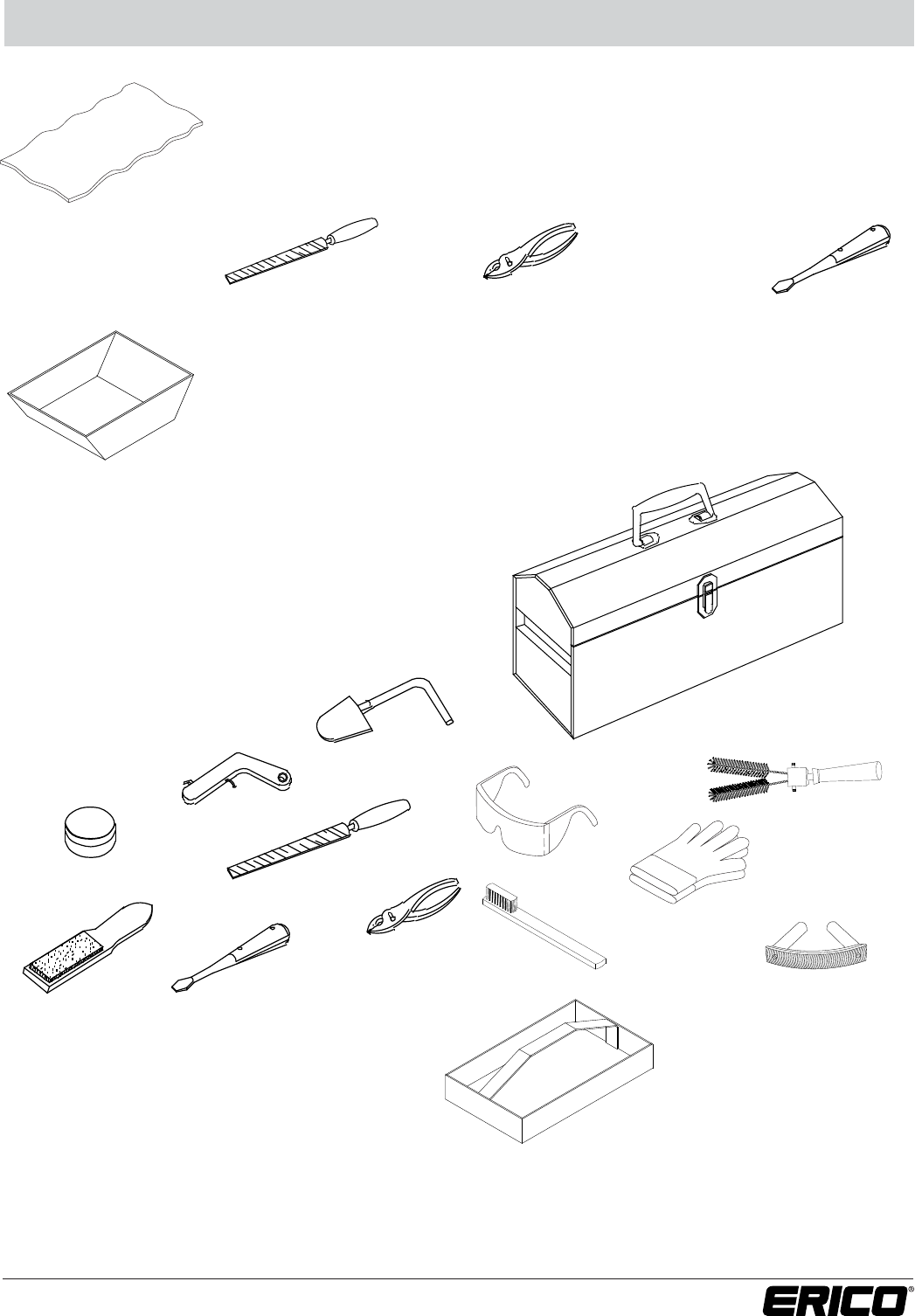

Tool Kits / Tool Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Reference Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
This catalog lists popular CADWELD connections. Look in the index for the connection you need. If
you cannot find the connection you need, contact ERICO®or your local distributor or agent. Only the
most popular CADWELD connections are listed in this catalog. We have designed over 45,000
connections and “specials” are designed every day.
1. What connection do you require?

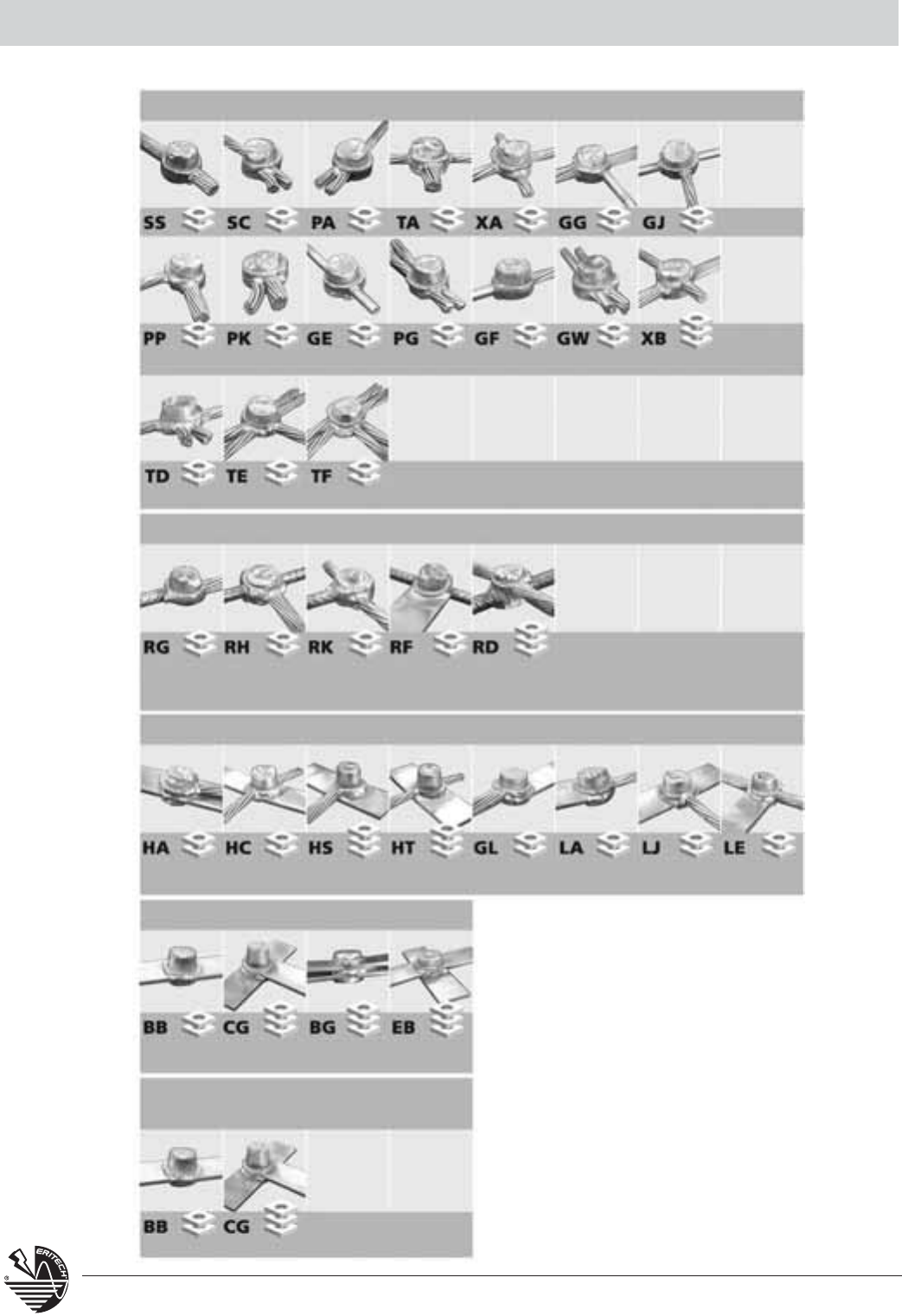

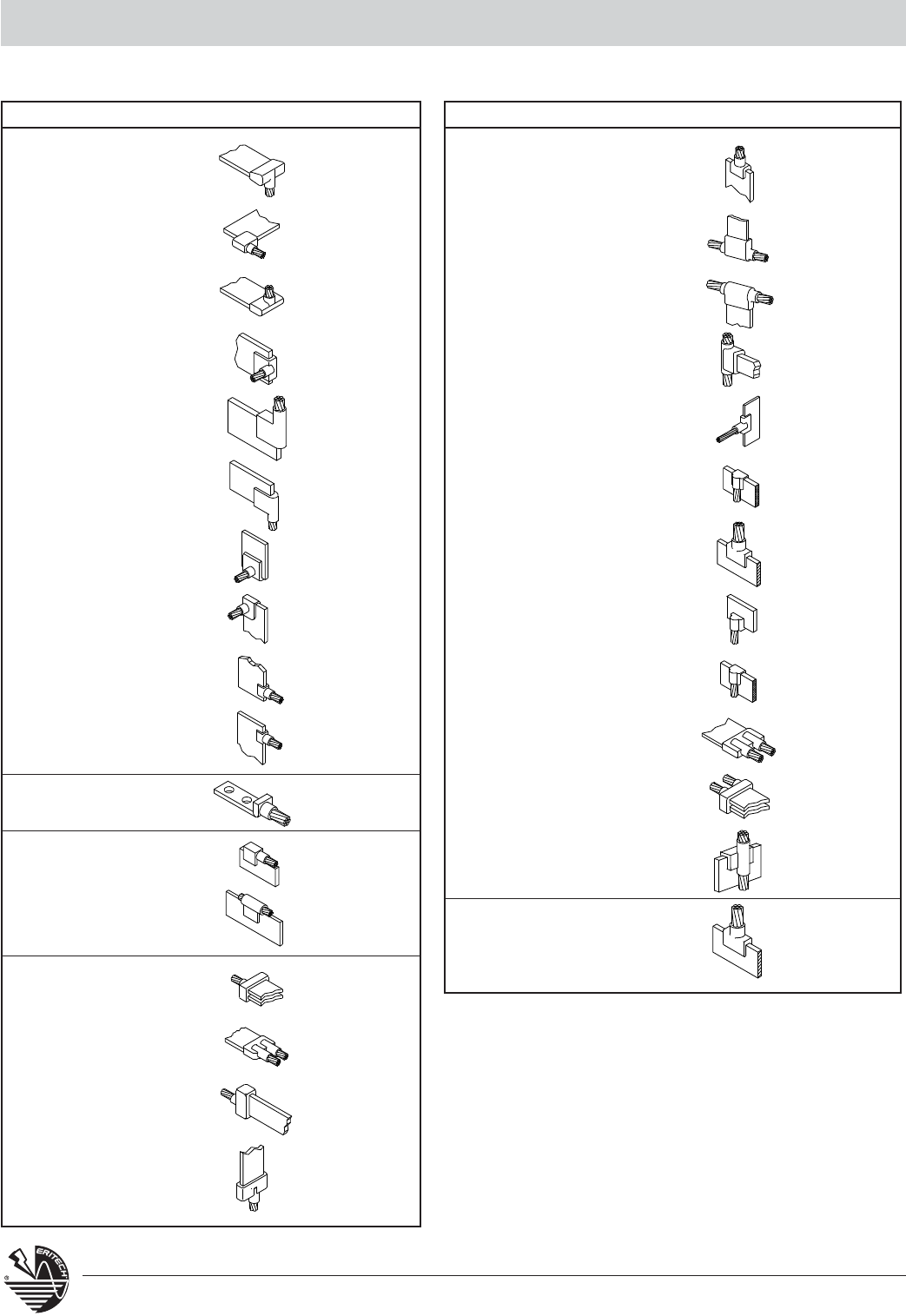

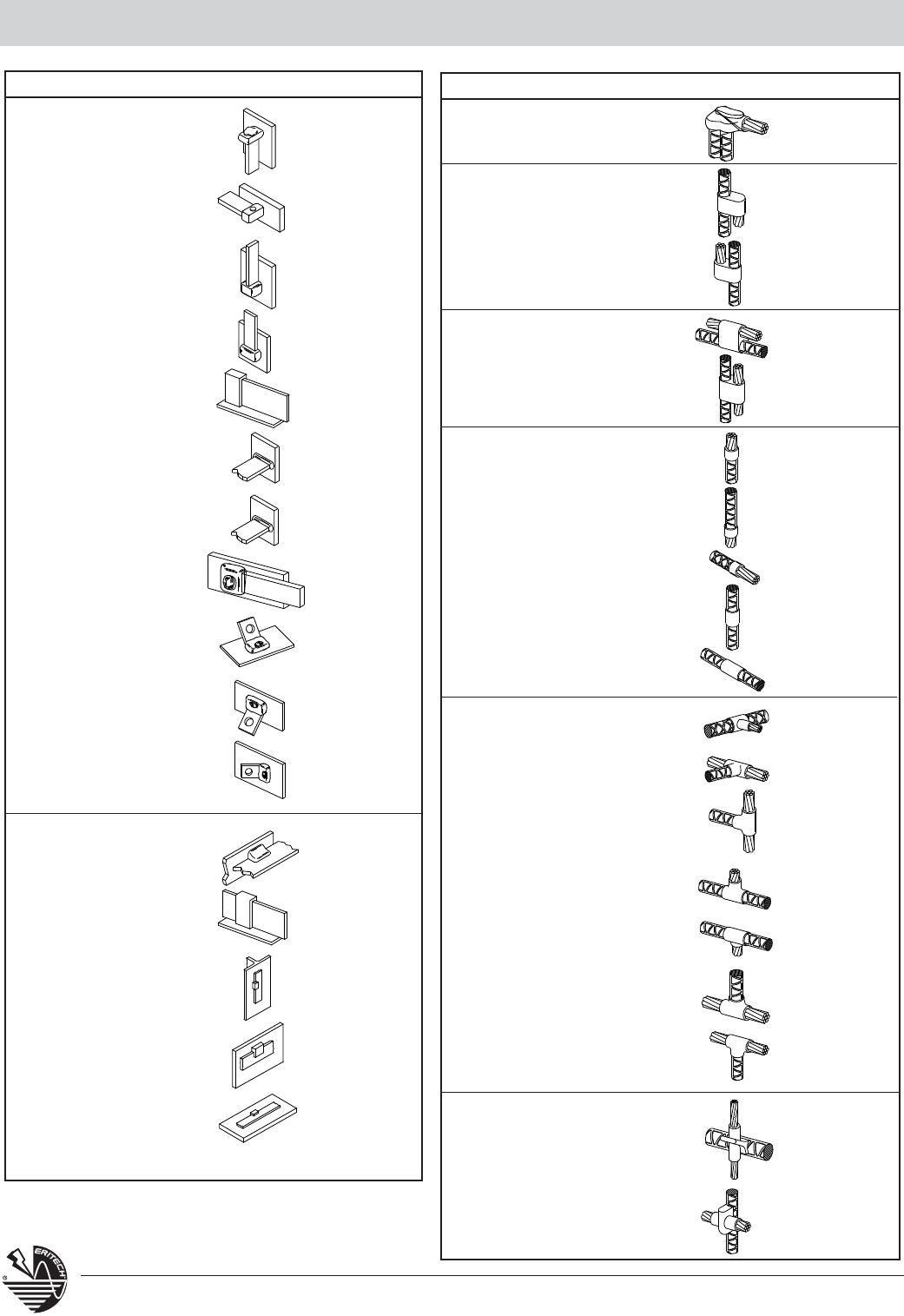

Available connections are listed in the pictorial index which also shows the degree of difficulty
in making the connection, and ease of mould cleaning. We strongly recommend that
wherever possible you use moulds listed in this catalog. After selecting the connection, turn to
the appropriate page and select the mould, welding material and tools you need.
2. What are the conductor sizes?
This catalog covers connections between solid or concentric stranded copper conductors,
and busbars to each other, to lugs, to ground rods, to rebar, to rail and to special grounding
accessories. For sizes not listed, contact your local CADWELD distributor, agent, or ERICO.
Note: Other publications describe connections to conductors of copperclad, high voltage
copper, aluminium, busbar, lightning protection cable, steel cable, etc.
3. You must have the following to make a weld:
1. Mould to fit your conductors.
2. Welding material required by your mould.
3. Handle clamps or frame.
4. CADWELD®PLUS Control Unit or Flint Ignitor.
5. Lugs, sleeves, packing material listed on the page with the mould.
1
www.erico.com
2www.erico.com
The CADWELD®Mould Numbering System
Code for
Tap Conductor
The CADWELD®Mould Part Number gives, in code, the complete information of the mould
– type of connection, mould price key, and conductor size(s).
XXX-XXXX
TAC-Y6Y4 GTC-P143Y6
EXAMPLES
SSC-Y4 VSC-Y2-V76
Mould
Type
Type
TA
Price
Key
C
120 mm2
Run
70 mm2
Tap
Type
GT
Price
Key
C
14.2 mm
Copper Clad
Ground Rod
120 mm2
Tap
Type
VS
Price
Key
C
Vertical
Pipe
Cable
35 mm2
76 mm
Diameter
Pipe
Type
SS
Price
Key
C
70 mm2
Tap
Mould Price
Key
Code for
Main or Run
Conductor
Certain tools may be required for various connections.
If required, these tools are listed on the same page as the connection and in Section A.
• Some tools listed in Section A can save you a lot of time.
• Also refer to A9E, Contractor Tips, to make your job easier, and learn about labor saving ideas.

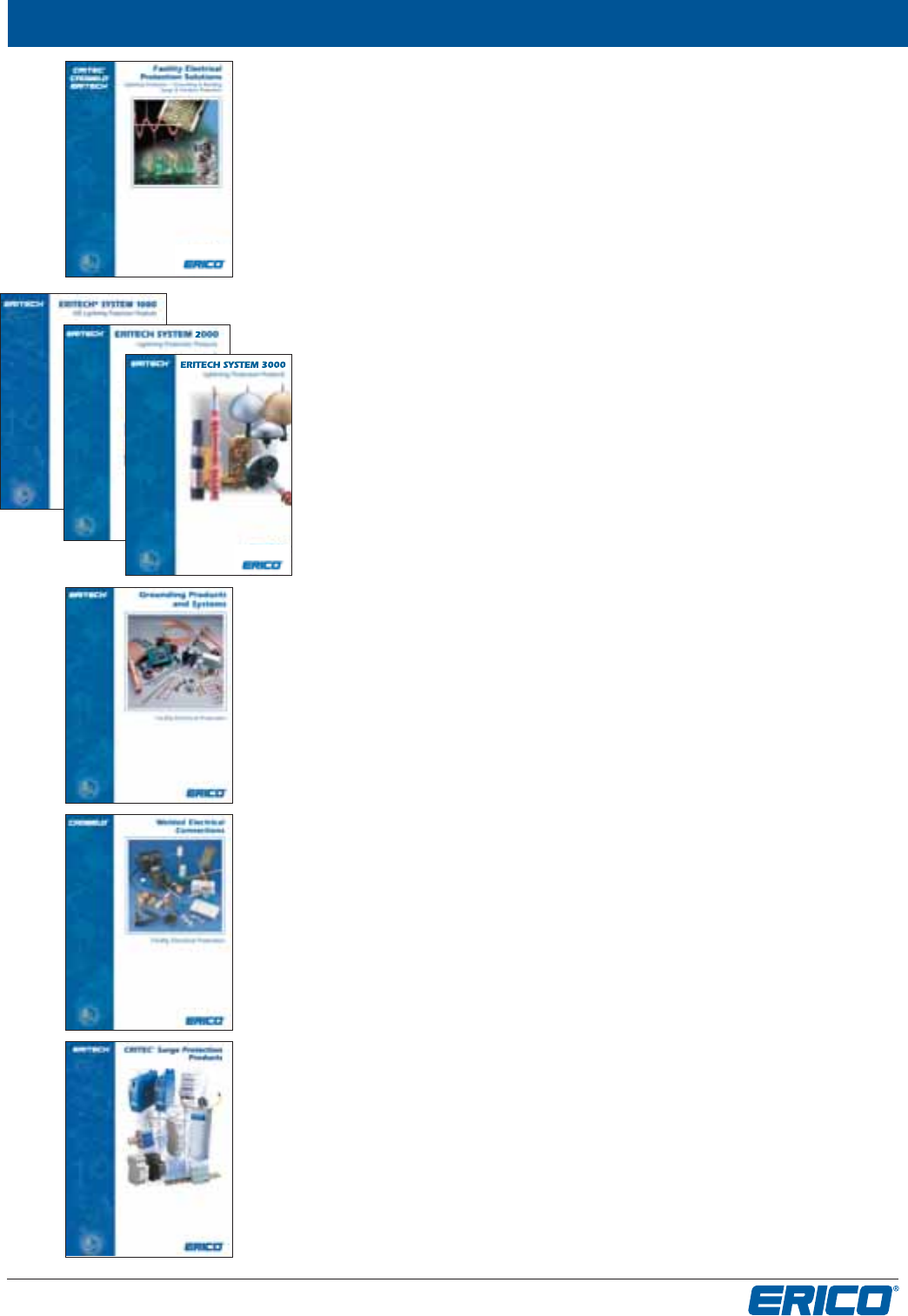

For other CADWELD literature, videos and software, See Page 50.
For all your connection needs – we’re only a phone call away. See back cover for a
complete listing of ERICO®offices or call your local CADWELD distributor or agent.
REQUIRED TOOLS SUMMARY
Required tools are listed with each mould. For your reference, handle clamps and/or frame are summarized below.
MOULD REQUIRED
A* Includes frame with handle
C, Q & R Requires L160
D, F & Z Requires L159
E* Includes frame but also requires L160
J* Includes frame but also requires L159
K*, M* & V* Includes frame with handles
* To order mould only - without handles or frame - add suffix “M” to mould part number.
3
www.erico.com
The CADWELD®Mould Numbering System
COMMON REFERENCE FOR CABLE DIAMETERS
Nominal Area Concentric Cable
(mm2) Strand Diameter Range (mm) Cable Size Code
6 7/1.07 3,21 A7
10 7/1.37 4,12 W2
16 7/1.73 5,18 W3
25 7/2.16 6,48 Y1
25 19/1.32 6,60 Y1
35 7/2.54 7,62 Y2
35 19/1.55 7,75 Y2
50 19/1.85 9,27 Y3
70 19/2.18 10,90 Y4
95 19/2.57 12,80 Y5
95 37/1.83 12,80 Y5
120 37/2.03 14,21 Y6
120 19/2.84 14,20 Y6
150 37/2.29 16,00 Y7
185 37/2.54 19.80 Y8
240 37/2.90 20,30 Y9
300 61/2.51 22,60 Y0
For other cable sizes or different stranding, please contact your local CADWELD
®
distributor, agent or ERICO
®
.
BUSBAR / TAPE KEY
Thickness (mm) CADWELD Code Width (mm) CADWELD Code
2BA20H
3CA25 J
3,5 DA 30 K
4EA35V
5FA40L
6PA50M
8GA60N
10 HA 80 P
100 Q
Ground Rods
Size CADWELD Code
7 mm P070
10 mm P100
12.7 mm P128
14 mm P140
14.2 mm P143
15 mm P150
16 mm P160
17.2 mm P172
19 mm P190
20 mm P200
Rebar
Size CADWELD Code
10 mm 51
12 mm 52
16 mm 53
20 mm 92
22 mm 55
25 mm 56
32 mm 58
36 mm 59
40 mm 83
4www.erico.com
Metric to Imperial Conversion Chart
Metric Cables US Equivalent
Area Metric AWG/MCM AWG/MCM
Cross sectional area Cable Diameter Size Cable Code Diameter
mm2(SQMM) Code mm Inch Inch mm
2.0 Concentric –1.8 0.071 #14 Concentric –0.0726 1.84
3.5 Concentric G8 2.4 0.095 #12 Concentric –0.0915 2.3
w/B1331H sleeve (0.106 ID) - (2.69 mm) ––––
4 Solid G9 2.5 0.0984 #10 Solid 1A 0.102 2.6
6 Solid H5 3.1 0.122 #8 Solid 1D 0.128 3.25
5.5 Concentric B5 3.0 0.118 #10 Concentric 1B 0.116 2.95
w/B1331K sleeve (0.140 ID) - (3.56 mm) ––––
8.0 Concentric E0 3.6 0.142 #8 Concentric 1E 0.146 3.7
10 Solid –3.8 0.150 #6 Solid 1G 0.162 4.1
10 Concentric W2 4.2 0.162 #7 Concentric 7L 0.164 4.2
14 Concentric B0 4.8 0.189 #6 Concentric 1H 0.184 4.7
w/B1331H sleeve (0.106 ID) - (5.38 mm) ––––
16 Solid 4.5 0.177 #4 Solid 1K 0.204 5.2
16 Concentric W3 5.2 0.204 #5 Concentric 3Y 0.205 5.2
22 Concentric A8 6.0 0.236 #4 Concentric 1L 0.232 5.9
25 Solid W5 5.6 0.220 #3 Solid 1P 0.229 5.8
25 Concentric Y1 6.4 0.260 #3 Concentric 1Q 0.260 6.6
25 Ropelay X1 –– – – ––
30 Concentric A6 6.9 0.276 #2 Concentric 1V 0.292 7.4
35 Solid W7 6.7 0.264 #2 Solid 1T 0.258 6.6
35 Concentric Y2 7.7 0.305 #2 Concentric 1V 0.292 7.4
35 Ropelay X2 –– – – ––
38 Concentric D5 7.8 0.315 #2 Concentric 1V 0.292 7.4
40 Concentric E5 8.4 0.331 #1 Concentric 1Y 0.332 8.4
50 Solid W6 8.0 0.315 1/0 Solid 2B 0.325 8.3
50 Concentric Y3 9.0 0.354 1/0 Concentric 2C 0.373 9.5
50 Ropelay X3 –– – – ––
55 Concentric G5 9.6 0.378 1/0 Concentric 2C 0.373 9.5
60 Concentric L9 10.0 0.394 2/0 Concentric 2G 0.419 10.6
70 Solid W8 10.0 0.394 3/0 Solid 2K 0.410 10.4
70 Concentric Y4 10.9 0.430 2/0 Concentric 2G 0.419 10.6
70 Ropelay –––– – ––
80 Concentric R4 11.5 0.453 3/0 Concentric 2L 0.470 12.0
95 Concentric Y5 12.6 0.505 4/0 Concentric 2Q 0.528 13.4
95 Ropelay X5 –– – – ––
100 Concentric X4 13.0 0.512 4/0 Concentric 2Q 0.528 13.4
120 Concentric Y6 14.2 0.567 250MCM 2V 0.575 14.6
120 Ropelay X6 –– – – ––
125 Concentric R6 14.5 0.571 250MCM 2V 0.575 14.6
150 Concentric Y7 16.1 0.634 300MCM 3A 0.630 16.0
150 Ropelay X7 –– – – ––
160 Concentric V7 –– – – ––
185 Concentric Y8 17.7 0.700 350MCM 3D 0.681 17.3
185 Ropelay X8 –– – – ––
200 Concentric D7 18.2 0.717 400MCM 3H 0.728 18.5
240 Concentric Y9 20.3 0.801 500MCM 3Q 0.813 20.7
240 Ropelay X9 –– – – ––
250 Concentric V9 20.7 0.815 500MCM 3Q 0.813 20.7
300 Concentric Y0 22.5 0.891 600MCM 3X 0.893 22.7
300 Ropelay X0 –– – – ––
315 Concentric V0 –– – – ––
325 Concentric S4 23.4 0.922 700MCM 4G 0.964 24.5
400 Concentric V1 26.2 1.03 800MCM 4Q 1.031 26.2
400 Ropelay V6 –– – – ––
500 Concentric P9 28.8 1.13 1000MCM 4Y 1.152 29.3
500 Ropelay W4 –– – – ––
600 Concentric R9 31.9 1.26 1200MCM 5G 1.263 32.1
625 Concentric W9 32.8 1.29 1250MCM 5J 1.289 32.7
625 Ropelay W0 –– – – ––
725 Concentric R0 35.2 1.39 1400MCM 5Q 1.364 34.6
800 Concentric X8 36.8 1.45 1600MCM 5X 1.459 37.1
800 Ropelay V2 –– – – ––
850 Concentric Q1 37.6 1.48 1700MCM 7G 1.506 38.2
1000 Concentric V3 41.6 1.64 2000MCM 7G 1.632 41.5
1000 Ropelay V4 –– – – ––
F.1 - Metric Cable Sizes and Code, in Square Millimeters (MM2), abbrev. (QMM)
5
www.erico.com
CADWELD®- Technical Advantages
THE CADWELD®WELD
• Has a current-carrying capacity equal to that
of the conductor
• Creates a permanent bond that withstands
repeated fault currents and will not loosen,
deteriorate or increase in resistance
• Consistently performs the best in
independent IEEE®837 tests
• Is easy to check visibly for quality
RELIABILITY
As the molecular bond eliminates the concept
of surface contact, an electrolyte cannot penetrate
between the conductors and cause oxidation
and
deterioration in the course of time.
CORROSIVE ENVIRONMENTS
This reliability is of particular interest for humid
or chemical environments or for bonds directly
buried in the ground.
ABILITY TO WITHSTAND HIGH
CURRENT
The melting temperature of CADWELD
connection is higher than the melting temperature
of copper (1082°C). For this reason, in the
event of abnormal heating due to a high fault
current, the conductor is destroyed before the
connection.
CONDUCTIVITY
The CADWELD connections form a solid bond
around the conductors assuring continuity. The
cross sectional area of the weld has greater
current carrying capacity than the conductors.
PERFORMANCE
Standard CADWELD welds have a cross
section greater than that of the conductors
to be joined, which compensates for the
difference in resistivity between the
conductor and the welding material.
Consequently, under fault conditions the
weld will always remain cooler than the
conductor.
If special applications do not allow for the
required increase in cross section to be
employed, the use of the formula:
R = p x l and V= R x l
S
will make it possible to define precisely the
resistance of the CADWELD®weld.
CORROSION TEST
This accelerated ageing test, carried out
in a saline environment at a controlled
temperature, demonstrates that
CADWELD®welds retain all their elec-
trical properties during the period of
the test whereas the resistance of
mechanical connections increase with
time and this alters their conductive
properties.
CADWELD's exceptional performance
is due to its reliability resulting from
the molecular bond.

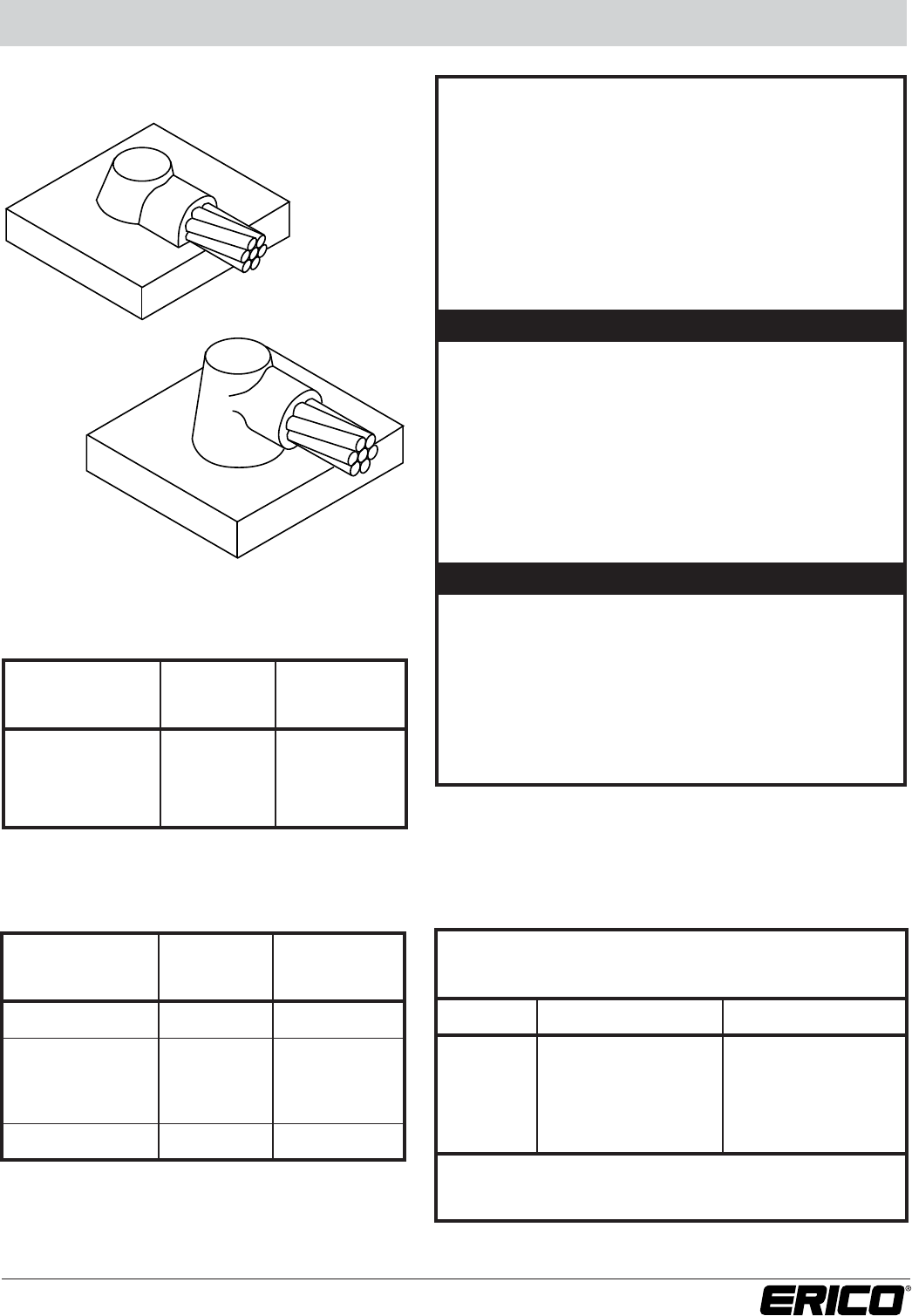

Comparison between CADWELD
Bonded Connection and Mechanical
Connection CADWELD Weld (Metal A)
(Metal B).
The CADWELD bonded connection provides permanent conductivity over the
whole of the section due to molecular bonding between the metal surfaces.
SET CABLE/CABLE
2 SAMPLES
MECHANICAL
2 SAMPLES
SET
CABLE/CABLE
4 SAMPLES
CABLE/CABLE
3 SAMPLES
CADWELD
END 4 SAMPLES CADWELD
RELATIVE RESISTANCE
TIME IN YEARS
Comparison between CADWELD®Bonded Connection and Mechanical Connection
CADWELD WELD MECHANICAL
CRIMPED CONNECTION
Line of current
(Metal A)
(Metal B) Actual Contact Surface
The CADWELD bonded connection provides
conductivity over the whole of the
section due to molecular bonding
between the metal surfaces.
The mechanical connection presents a significant
difference between the apparent contact surface
and the actual surface.
6www.erico.com
CADWELD®- Technical Advantages
The grounding conductor size is based on the
maximum magnitude and duration of available
fault current, and on the type of connections
being used in the grounding system.
GROUNDING SYSTEM – CONDUCTORS AND CONNECTORS
This formula can be simplified to the following:
CONSTANT K FOR ABOVE FORMULA
MAXCOPPER COPPERWELD®COPPERWELD
TEMP(Soft Drawn) (Dead Soft Annealed) (Dead Soft Annealed)
40% 30%
1083º C 3.55 5.30 6.10
450º C 4.65 6.96 8.04
350º C 5.12 7.67 8.85
250º C 5.90 8.85 10.22
The temperatures listed above for each material are specified in IEEE Std. 80-1986 to be used for different
types of connecting means;
Pressure type connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250º to 350º C*
Brazed connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450º C
Exothermic welded connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1083º C
*Except those that have been tested to and passed the requirements of IEEE Std. 837-1989.
RELATIVE SIZES
+31 +41 +66
Cable
Only
CADWELD®
Connections
Brazed
Connections
Pressure Type
Connections
350°
Pressure Type
Connections
250°
EXAMPLE – 25,000 Ampere, 2 second fault:
CADWELD Electrical 126 mm2- use 150 mm2
Brazed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164 mm2- use 185 mm2
Pressure Type (at 350º C) . . . . . . . . . . . . . . . . . . .181 mm2- use 185 mm2
Pressure Type (at 250º C) . . . . . . . . . . . . . . . . . . .209 mm2- use 240 mm2
IEEE®Std. 80-1986, Guide for Safety in
Substation Grounding, uses a fusing formula
as the basis for selecting minimum
conductor size to avoid fusing (melting)
under fault conditions.
Where: A= Conductor size in mm2
K= Constant from the following table
A = K • I S I= RMS fault current in amperes
S= Fault time in seconds
Based on the standard ambient temperature of 40º C.
CONNECTION TYPE CONDUCTOR SIZE
Technical Information
CADWELD®
THE MOLECULAR BOND
CADWELD®EXOTHERMIC CONNECTION
A welding process that eliminates the
connection by forming a molecular bond.
Connections are the weak point of all electrical circuits and especially
earthing circuits subjected to aging and corrosion. The capacity of an
earthing circuit to protect the safety of personnel depends on the quality of
the connections made.
BS 6651 (1992) STATES :
"Any joint other than welded represents a discontinuity in the current
conducting system and is susceptible to variation and failure.”
CADWELD®– The
Molecular Bond
The CADWELD®process provides a way to produce copper/copper,
copper/galvanized or plain steel, copper/copper clad steel, cop-
per/bronze/brass/stainless steel, steel/steel, molecular bonds with no
external energy or heat source.
The principle consists of bringing together a welding materials and
ignition agent in a suitable graphite mould.
The reduction of copper oxide by aluminium produces molten copper
and aluminium oxide slag at extremely high temperatures.
The shape of the mould, its dimensions, and the size of the welding
material, are all dependent on the items to be welded.
THE CADWELD®MOULD
USING CADWELD PLUS
Installation Is Easy!
4 Simple Steps For Permanently Welded
Electrical Connections
1
12
2
3
3
4
4
Insert CADWELD PLUS
package into mould
Press and hold
operating switch and
wait for the ignition
Attach control unit
termination clip to
ignition strip
Open the mould and
remove the expended
steel cup – no special
disposal required
The CADWELD PLUS Control Unit initiates the reaction of
the metal crucible. The standard unit includes a 1.8 meter
(6-foot)
high
temperature control unit lead. The lead attaches
to the ignition strip using a custom made, purpose-designed
termination clip.
After the termination clip is installed on the ignition strip, the
installer pushes and holds the ignition button to start a charging
and discharging sequence. Within
a few seconds the control
unit sends a predetermined
voltage to the ignition strip and the
reaction is initiated.
7
www.erico.com
8www.erico.com
CADWELD®PLUS
Article
Number
165700
165701
165702
165703
165704
165705
165706
165707
165708
165709
165710
165711
165712
Size Indentification
Ring Color
Black
Red
White
Light Blue
Dark Green
Gray
Orange
Dark Blue
Yellow
Purple
Light Green
Brown
Light Brown
Traditional Welding
Material Part Number
(Clear Cap)
15
25
32
45
65
90
115
150
200
250
use 2 x 150
use 2 x 200
500
Box
Qty.
20
20
20
20
20
10
10
10
10
10
10
10
10
Box
Qty.
20
20
20
20
CADWELD PLUS
Part Number
15PLUSF20
25PLUSF20
32PLUSF20
45PLUSF20
65PLUSF20
90PLUSF20
115PLUSF20
150PLUSF20
200PLUSF20
250PLUSF20
300PLUSF20
400PLUSF20
500PLUSF20
CADWELD PLUS for Grounding Applications
Traditional Welding
Material Part Number
(Orange Cap)
25XF19
32XF19
45XF19
65XF19
Article
Number
165718
165719
165720
165721
CADWELD PLUS
Part Number
25PLUSXF19
32PLUSXF19
45PLUSXF19
65PLUSXF19

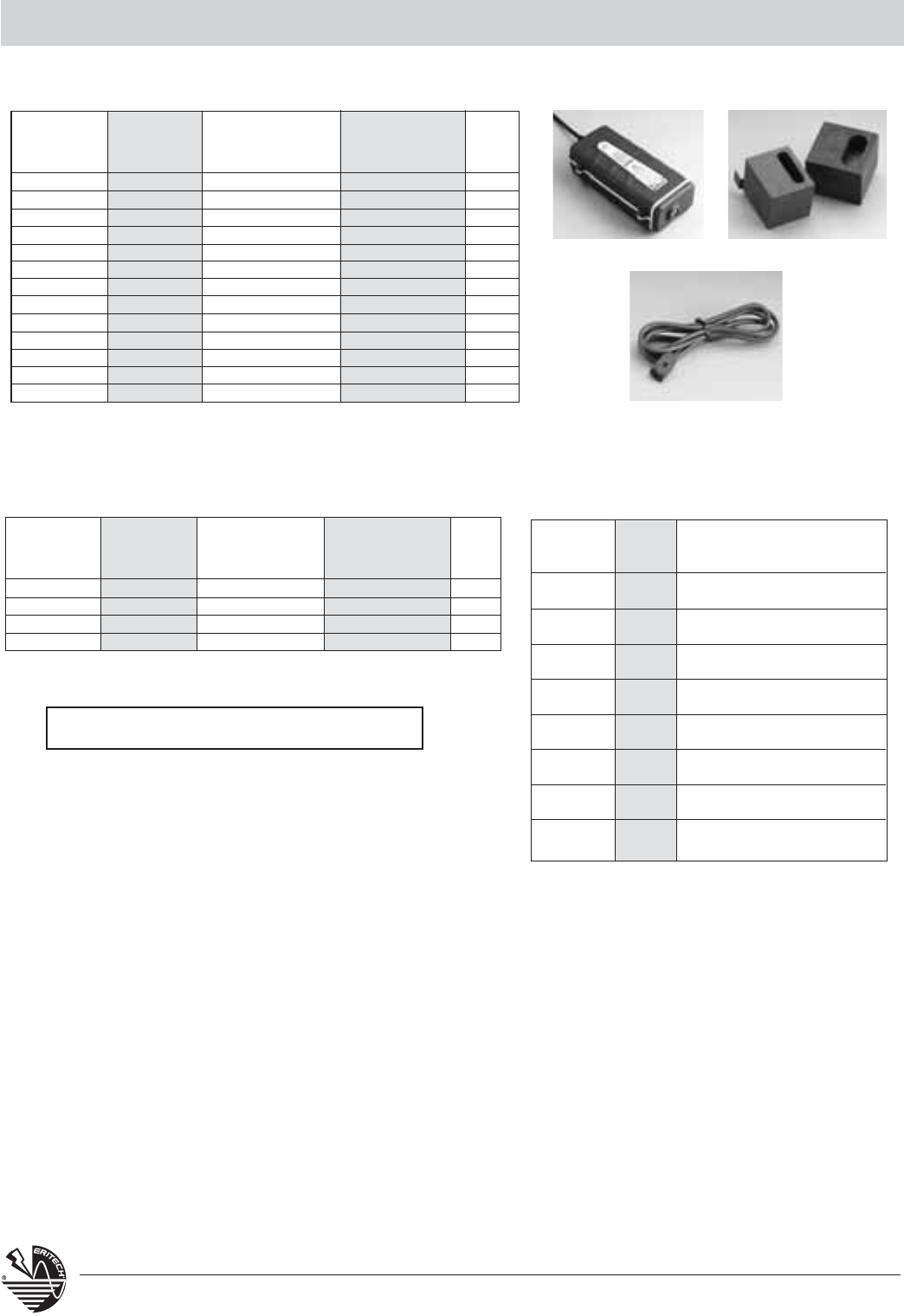

CADWELD PLUS for Cast Iron Applications Accessories
PLUSCU Baffle Cover Kit
PLUSCULD
Gram weight PLUS welding material type i.e. 45PLUSF20
CADWELD PLUS Patent Numbers 6,553,911 6,835,910 6,703,578
Part Number Article
Description
Number
PLUSCU 165738 CADWELD PLUS Control Unit
PLUSCU15L 165745
CADWELD PLUS Control Unit with
4.6 meters (15 ft.) Lead
PLUSCULD 165739
CONTROL UNIT Replacement Lead )
1.8 meters (6 ft.)
PLUSCULD15 165746
CONTROL UNIT Replacement Lead
4.6 meters (15 ft.)
MC2X2KIT 165740 Kit, Baffle Cover, Graphite -
51 mm X 51 mm (2” X 2”) Mould
MC25X3KIT 165744 Kit, Baffle Cover, Graphite -
64 mm X 76 mm (2
1
⁄
2
” X 3”) Mould
MC3X3KIT 165741 Kit, Baffle Cover, Graphite -
76 mm X 76 mm (3” X 3”) Mould
MC4X4KIT 165742 Kit, Baffle Cover, Graphite -
102 mm X 102 mm (4” X 4”) Mould
Size Indentification
Ring Color
Red
White
Light Blue
Dark Green
9
www.erico.com

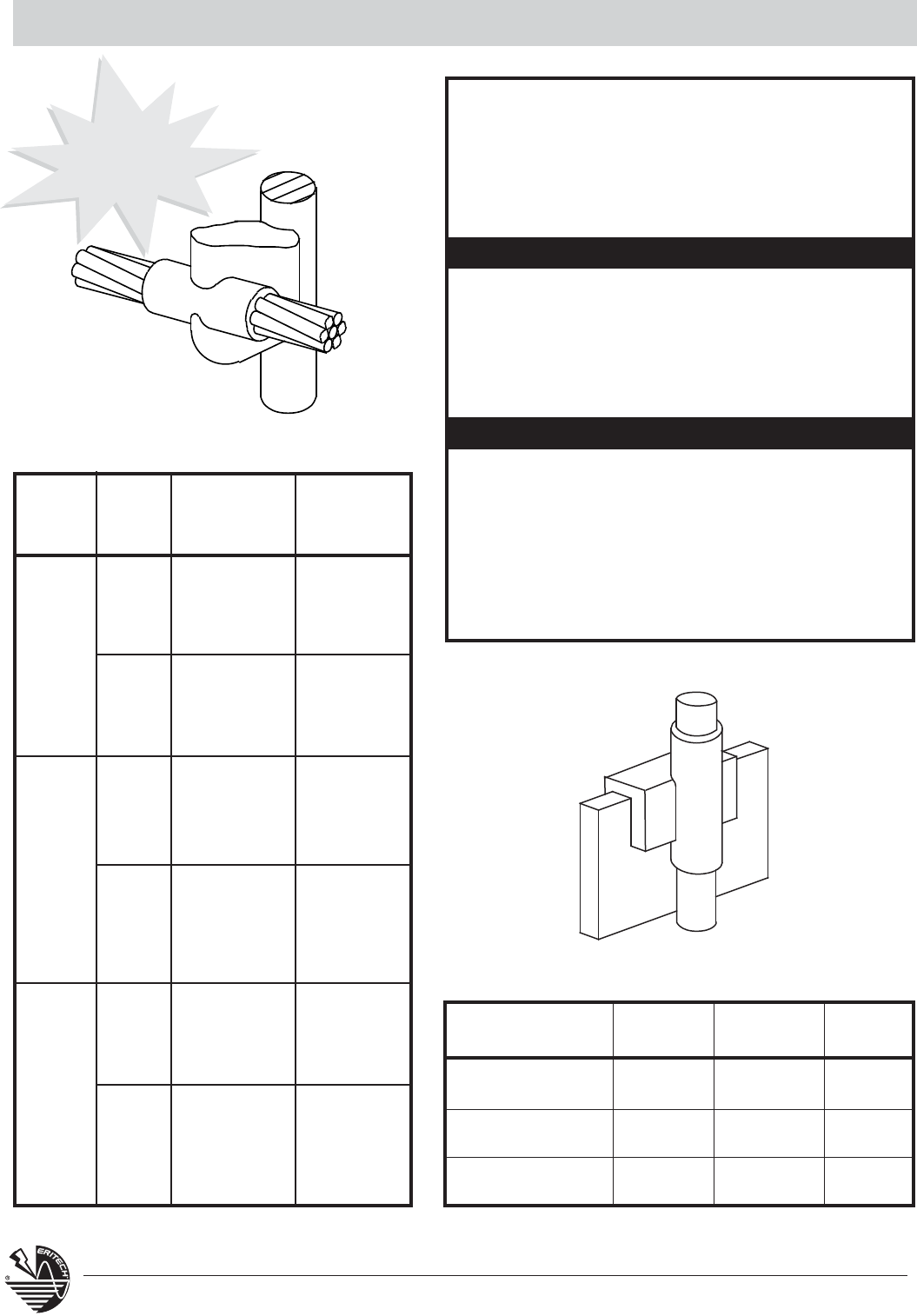

CADWELD®MULTI
CADWELD MULTI Available Items
Easy steps for multiple, permanently
welded, electrical connections
Step
1
Layer batting and variable
conductor sizes to be
welded into dry mould
Dump welding material
and tap bottom of
container to release
starting material
Close the cover and ignite
with flint ignitor. Open the
mould after 10 seconds
Close mould and drop
metal disk in place
Step
2Step
4
Step
3
4
The CADWELD®MULTI combines a versatile mould block and a
range of gaskets (batting) to allow numerous different welded
connections to be produced without the need to change the
mould for each connection type.
The process is similar to the traditional CADWELD®with one distinct
difference... there is no need to change the mould for different
connection types.
The whole process is complete in about one minute. The connection table
details the gasket quantities required for each weld.
* in KITCDM01 = Traditional CADWELD MULTI Kit
** in KITCDM01PLUS = CADWELD PLUS MULTI Kit
Box Unit
Description Part No.
Article No. Qty.
Weight
(kg)
Kit for 20 welds, in metallic box
KITCDM01 167780 1 10.00
14” x 13” x 6”
(360 x 330 x 160 mm)
Kit for 20 welds using CADWELD PLUS,
KITCDM01 167781 1 11.50
in metallic box (Control Unit sold separately)
PLUS
14” x 13” x 11”
(360 x 330 x 280 mm)
Made from the following items which can be ordered separately:
Qty. in Kit
Mould CDM01 234720 1 1 1.000
Handle Clamp FMCDM01 120882 1 1 1.100
Set of 33 battings/gaskets SCDM01 120886 2 1 0.200
Welding material 90* 90 163040 2 boxes of 10 10 0.090
CADWELD PLUS Welding Material** 90PLUSF20 165705 2 boxes of 10 10 0.158
Toolset TS-6A, including: TS6A 169930 1 1 0.490
• gloves • cardcloth brush
• soft brush • flint ignitor
10 www.erico.com
CADWELD®MULTI
CADWELD®MULTI Connection Capabilities
Copper Cable/Solid to Copper Cable/Solid
• Copper cable/solid sizes up to 1/0 (50 mm2) stranded or .40” (10 mm) diameter
• Copper cable/solid sizes up to #3 (25 mm2) stranded or .26” (6,5 mm) diameter
• Copper conductor sizes up to 1/0 (50 mm2) stranded or .40” (10 mm) diameter
• Copper or steel strip/lug sizes up to 1” x .138” (30 x 3,5 mm)
• Rebar sizes up to #3 (10 mm)
• Copper conductor sizes up to 1/0 (50 mm2) stranded or .40” (10 mm) diameter
• Copper or steel strip/lug sizes up to 1” x .138” (30 x 3,5 mm)
• BB and CG 1” x (.020” - .118”), (30 x 3,5 mm)
• BG and EB 1” x (.020” - .079”), (30 x 3 mm)
•
Galvanized steel strip sizes up to 1” x .138” (30 x 3,5 mm)
Copper Cable/Solid/Strip to Rebar
Copper Strip to Copper Strip
Galvanized Steel Strip
to Galvanized Steel Strip
Copper Cable/Solid to Copper or Steel Strip/Lug
11
www.erico.com
Horizontal Connection SS

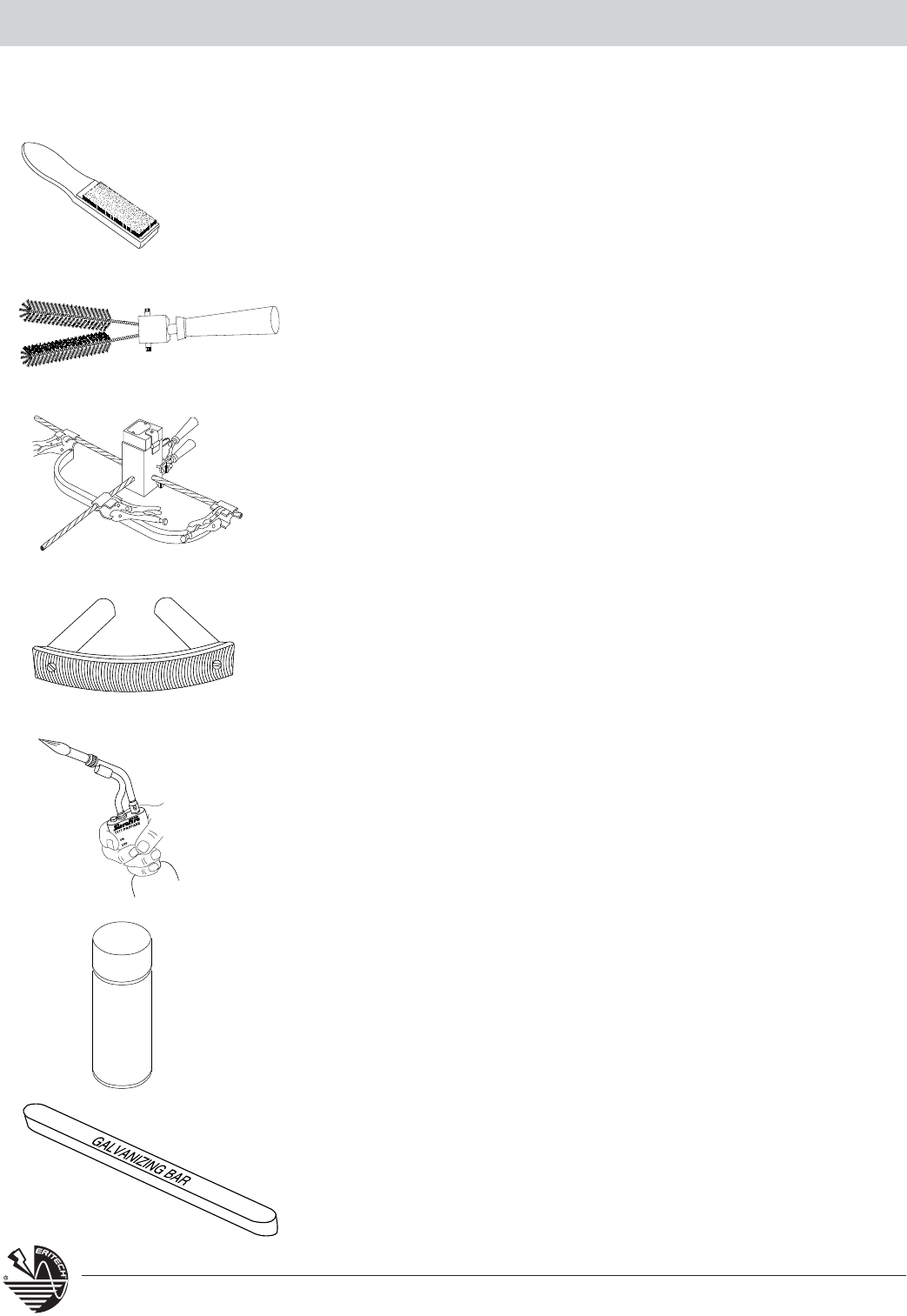

SUGGESTED TOOLS
REQUIRED TOOLS
CABLE SIZE MOULD WELDING
(sq mm) PART NO. MATERIAL1
16* SSCW3* 25
25 SSCY1 32
35 SSCY2 32
50 SSCY3 45
70 SSCY4 65
95 SSCY5 90
120 SSCY6 115
150 SSCY7 115
185 SSCY8 150
240 SSCY9 200
300 SSCY0 2 x 150**
8 mm Ø SSCW6 45
10 mm Ø SSCW8 65
*Packing: B112, sleeve
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
**For CADWELD PLUS use 300PLUSF20

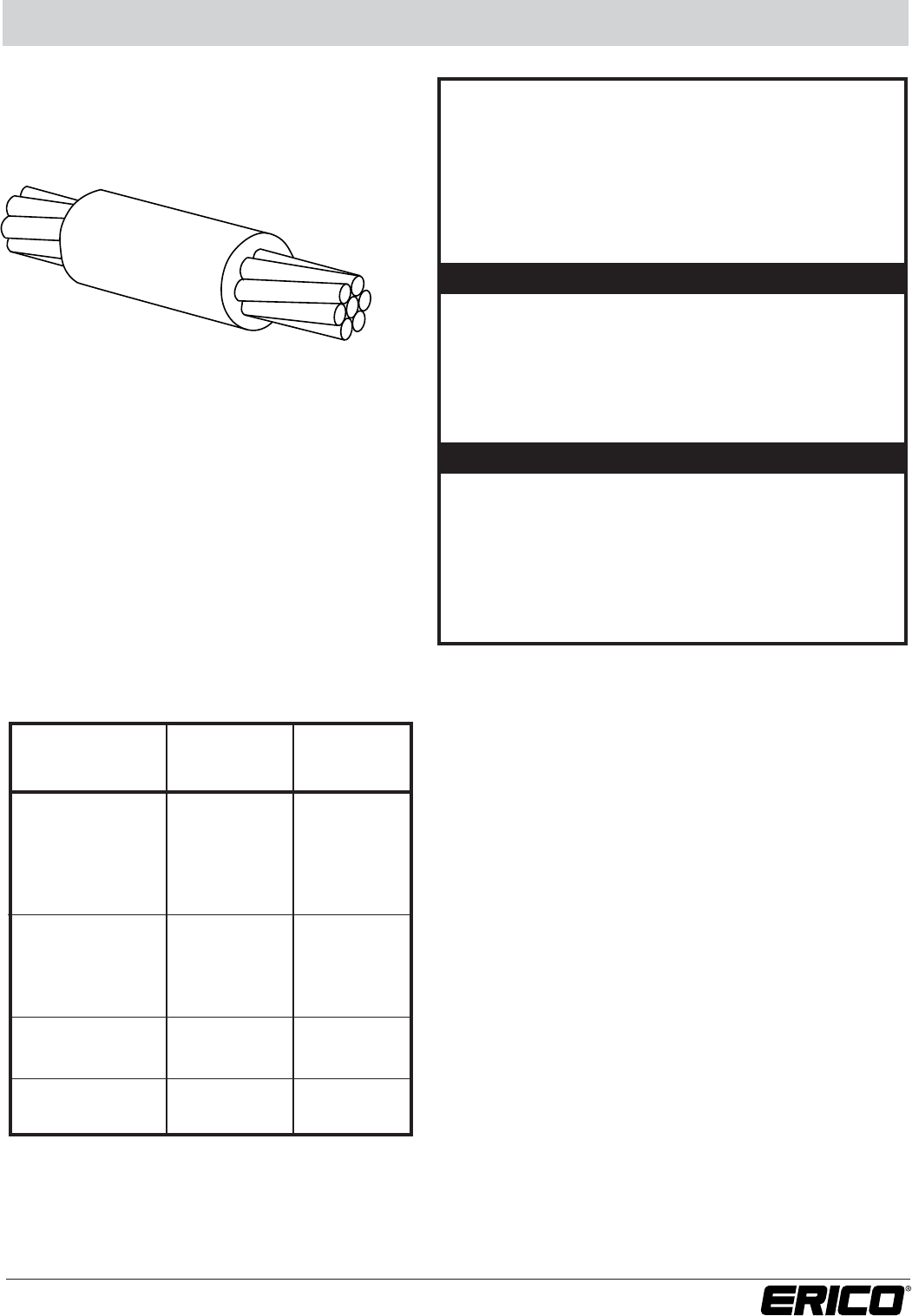

HORIZONTAL SPLICE
Splice of horizontal cables.
• Concentric stranded copper cable unless otherwise noted.
• Solid conductor may be copper or Copperweld®.
• Also available are splices of different and mixed cable
sizes. For Copperweld DSA cables, contact ERICO®.
•Bold letter in mould part number is the price key.
SS
SS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
12 www.erico.com
Horizontal Tee TA
TA
CABLE SIZE MOULD WELDING
(sq mm) PART NO. MATERIAL1
run tap
HORIZONTAL TEE CONNECTIONS
Tee of horizontal run and tap cables.
• Concentric stranded copper cable unless otherwise noted.
• Solid conductor can be copper or Copperweld®.
•Bold letter in mould part number is the price key.
CABLE SIZE MOULD WELDING
(sq mm) PART NO. MATERIAL1
run tap
16* 16* TACW3W3 32
25 25 TACY1Y1 32
25 16* TACY1W3 45
35 35 TACY2Y2 45
35 25 TACY2Y1 45
35 16* TACY2W3 45
50 50 TACY3Y3 90
50 35 TACY3Y2 45
50 25 TACY3Y1 45
50 16* TACY3W3 45
70 70 TACY4Y4 90
70 50 TACY4Y3 90
70 35 TACY4Y2 45
70 25 TACY4Y1 45
70 16* TACY4W3 45
95 95 TACY5Y5 115
95 70 TACY5Y4 90
95 50 TACY5Y3 90
95 35 TACY5Y2 90
95 25 TACY5Y1 90
95 16* TACY5W3 90
120 120 TACY6Y6 150
120 95 TACY6Y5 150
120 70 TACY6Y4 90
120 50 TACY6Y3 90
120 35 TACY6Y2 90
150 150 TACY7Y7 200
150 120 TACY7Y6 150
150 95 TACY7Y5 150
150 70 TACY7Y4 90
185 185 TACY8Y8 200
185 150 TACY8Y7 200
185 120 TACY8Y6 200
240 240 TACY9Y9 2 x 150**
240 185 TACY9Y8 200
240 150 TACY9Y7 200
240 120 TACY9Y6 200
8 mm Ø 8 mm Ø TACW6W6 90
10 mm Ø 8 mm Ø TACW8W6 90
10 mm Ø 10 mm Ø TACW8W8 90
TA
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 181225 B136A
#90 w/m & larger 181230 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
*Packing: B112, sleeve
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
**For CADWELD PLUS use 300PLUSF20
13
www.erico.com
Horizontal X XA/XB
HORIZONTAL X CONNECTIONS
XA – Cross of horizontal cables, tap cable cut –
cables in same plane.
XB – Cross of horizontal cables, lapped and not cut.
• Concentric stranded copper cable unless otherwise noted
• Solid conductor may be copper or Copperweld®.
•Bold letter in mould part number is the price key.
• B136C cleaning tool supplied with each XB mould.
• All Q price moulds require L160 handle clamp.
• All Z price moulds require L159 handle clamp.
XA
CABLE SIZE MOULD WELDING
(sq mm) PART NO. MATERIAL1
run tap
25 25 XACY1Y1 45
35 35 XACY2Y2 65
35 25 XACY2Y1 65
50 50 XACY3Y3 90
50 35 XACY3Y2 90
70 70 XACY4Y4 115
70 50 XACY4Y3 115
95 95 XACY5Y5 200
95 70 XACY5Y4 150
95 50 XACY5Y3 150
120 120 XACY6Y6 200
120 95 XACY6Y5 200
120 70 XACY6Y4 200
150 150 XACY7Y7 250
150 120 XACY7Y6 250
150 95 XACY7Y5 200
150 70 XACY7Y4 200
185 185 XACY8Y8 250
185 150 XACY8Y7 250
185 120 XACY8Y6 250
240 240 XADY9Y9 500
240 185 XADY9Y8 2 x 200*
240 150 XADY9Y7 2 x 200*
240 120 XADY9Y6 2 x 150**
XB
CABLE SIZE MOULD WELDING
(sq mm) PART NO. MATERIAL1
run tap
25 25 XBCY1Y1 65
35 35 XBCY2Y2 90
50 50 XBQY3Y3 150
70 70 XBQY4Y4 200
95 95 XBQY5Y5 250
120 120 XBQY6Y6 2 x 150**
150 150 XBZY7Y7 2 x 200*
185 185 XBZY8Y8 500
240 240 XBZY9Y9 3 x 250***
ADDITIONAL NOTES
XB
XA
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
*For CADWELD PLUS use 400PLUSF20
**For CADWELD PLUS use 300PLUSF20
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
*For CADWELD PLUS use 400PLUSF20
**For CADWELD PLUS use 300PLUSF20
***For CADWELD PLUS use 750PLUSF20
14 www.erico.com
Parallel Horizontal PT
CABLE SIZE MOULD WELDING
(sq mm) PART NO. MATERIAL1
run tap
25 25 PTCY1Y1 45
35 35 PTCY2Y2 65
35 25 PTCY2Y1 65
50 50 PTCY3Y3 90
50 35 PTCY3Y2 65
70 70 PTCY4Y4 115
70 50 PTCY4Y3 115
95 95 PTCY5Y5 200
95 70 PTCY5Y4 150
95 50 PTCY5Y3 150
120 120 PTCY6Y6 250
120 95 PTCY6Y5 200
120 70 PTCY6Y4 150
150 150 PTDY7Y7 2 x 150*
150 120 PTCY7Y6 250
150 95 PTCY7Y5 200
150 70 PTCY7Y4 150
185 185 PTDY8Y8 2 x 150*
185 150 PTDY8Y7 2 x 150*
185 120 PTCY8Y6 250
240 240 PTDY9Y9 2 x 200**
240 185 PTDY9Y8 2 x 150*
240 150 PTDY9Y7 2 x 150*
240 120 PTCY9Y6 250
PARALLEL HORIZONTAL CONDUCTORS
Parallel through connection of horizontal cables.
• Run conductor is on the bottom of type PT moulds.
• Concentric strand copper cable unless otherwise noted.
• Solid conductor may be copper or Copperweld®.
•Bold letter in mould part number is the price key.
PT
PT SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
*For CADWELD PLUS use 300PLUSF20
**For CADWELD PLUS use 400PLUSF20
15
www.erico.com
Horizontal Steel Surface HA/HS
HS
Cable off surface
HA
CABLE SIZE MOULD WELDING
(sq mm) PART NO. MATERIAL1
25 HAAY1 45
35 HAAY2 45
50 HAAY3 45
70 HAAY4 65
HS
CABLE SIZE MOULD WELDING
(sq mm) PART NO. MATERIAL1
95 HSCY5 115
120 HSCY6 115
150 HSCY7 150
185 HSCY8 200
240 HSCY9 200
Cable to Steel Pipe (Types HA and HS) –
Use flat surface mould part number with suffix.
Cable
Nominal Pipe Diameter
Suffix
35 mm2and Less than 350 mm Nominal Diameter (mm)
Smaller Greater than 350 mm None
50 mm2thru Less than 760 mm Nominal Diameter (mm)
120 mm2Greater than 762 mm None
Example: 35 mm2cable, on 100 mm diameter pipe HAA-Y2-100
95 mm2cable on 250 mm diameter pipe HSC-Y5-250
HA
Cable on surface
HORIZONTAL STEEL SURFACE
Horizontal concentric copper conductor to flat steel surface
or top of horizontal pipe
• CADWELD®also has a complete product line for cathodic
protection connections. See catalogue CA1A.
• A test weld should be made to check the possibility of
burn-through on thin sections or thin wall pipe.
• Concentric stranded copper cable listed.
•Bold letter in mould part number is the price key.
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps*
Flat Surface for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
Pipe
(curved surface)
for C Price Key Moulds
B160V
for D Price Key Moulds
B159V
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165030 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
Rasp 162420 T321
*Handles are included with A Price Key Moulds.
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
16 www.erico.com
Vertical Steel Surface VS
VS
CABLE SIZE MOULD WELDING
sq mm PART NO. MATERIAL1
25 VSCY1 45
35 VSCY2 45
50 VSCY3 90
70 VSCY4 90
95 VSCY5 115
120 VSCY6 115
150 VSCY7 150
185 VSCY8 200
240 VSCY9 200
VS
VERTICAL STEEL SURFACE
Cable down at 45° to vertical steel surface including pipe.
Cable to vertical flat steel surface; cable to side of vertical
or horizontal steel pipe.
• CADWELD®also has a complete product line for cathodic
protection connections.
• Concentric stranded copper cable listed.
•A test weld should be made to check the possibility of
burn through on thin sections or thin wall pipe.
•Bold letter in mould part number is the price key.
Cable to Vertical Steel Pipe –
Use flat surface mould part number; add Vand suffix.
Cable Nominal Pipe Diameter Suffix
25 mm2thru Less than 80 mm Nominal Pipe Diameter
120 mm2812.8 mm and larger None
Example: 70 mm2to 102 mm pipe, VSC-Y4-102V
SUGGESTED TOOLS
ADDITIONAL NOTES
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
Flat Surface
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
Pipe
for C Price Key Moulds
B160V
(to 100 mm dia.)
for D Price Key Moulds
B159V
(Pipes 10ø-250 mm dia. add B158)
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165030 T313
Slag Removal Spade See CADWELD Table
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
Rasp 162420 T321

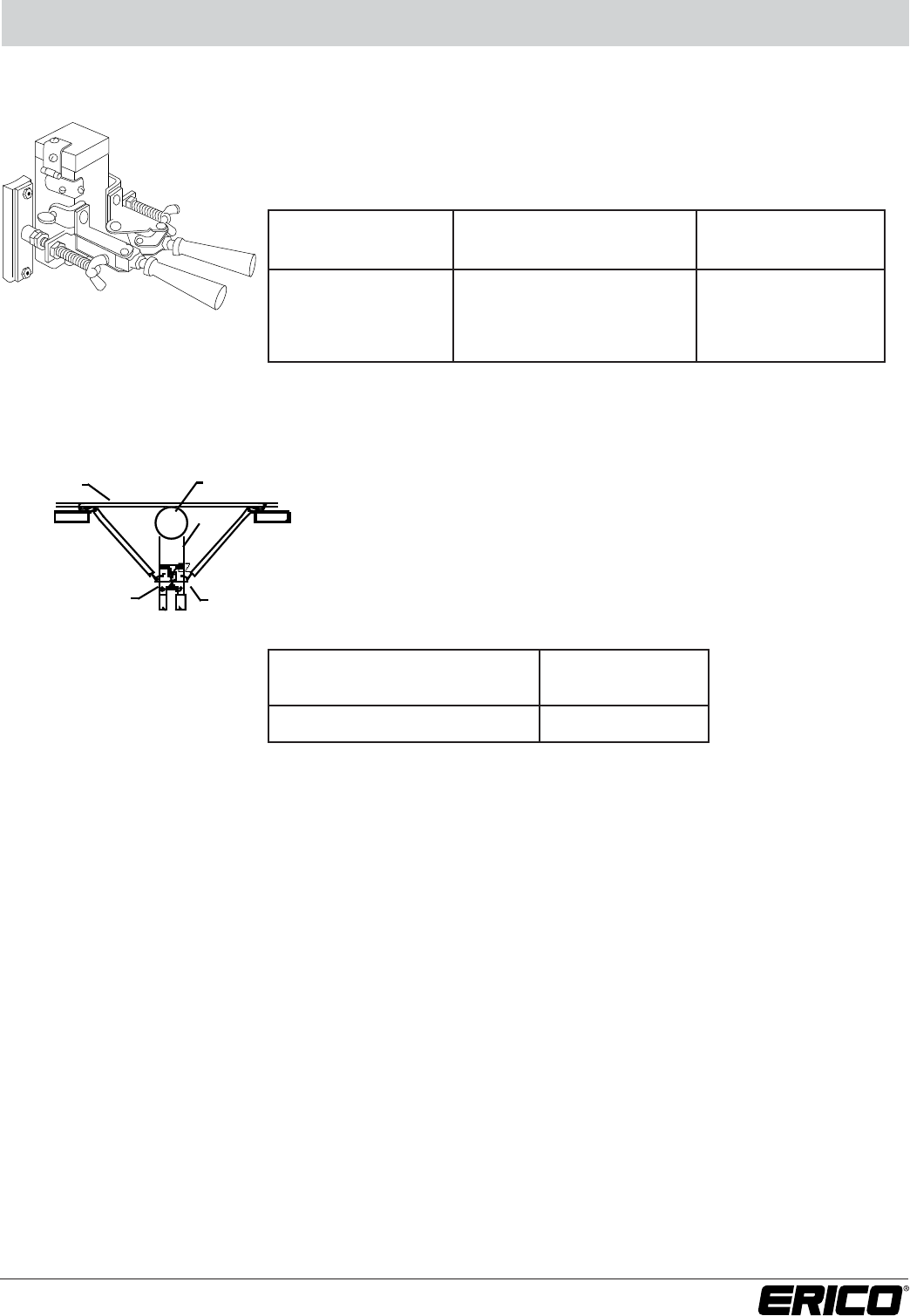

For flat vertical surfaces, on an H column or angle, the
following attachment can be used to secure the mould.
for use with L160 B134
for use with L159 B135
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
17
www.erico.com
Studs HX/HV
SUGGESTED TOOLS
REQUIRED TOOLS
STEEL STUDS
Connections of steel studs to steel surfaces. Studs on
grounded structures provide a convenient point of
attachment of temporary protective ground clamps.
• Bold letter in mould part number is the price key.
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Mould Cleaning Brush 165260 T394
Rasp 162420 T321
Torch Head 140160 T111
Mould Scraper Tool
#65 w/m & smaller B136A
#90 w/m & larger B136B
HX
THREAD MOULD WELDING
DESCRIPTION PART NO. MATERIAL1
M6 HXC-6 25
M8 HXC-8 32
M10 HXC-10 45
M12 HXC-12 45
M16 HXC-16 90
HV
THREAD MOULD WELDING
DESCRIPTION PART NO. MATERIAL1
M6 HVC-6 25
M10 HVC-P100 45
M12 HVC-P120 65
M16 HVC-P160 115
HX
Vertical stud to
horizontal steel surface
HV
Horizontal stud to
horizontal steel surface
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8) 1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
18 www.erico.com
Busbar Tape BA/BB
BB
BUSBAR MOULD WELDING
SIZE PART NO. MATERIAL1
3X25 BBCCAJ 90
3X50 BBRCAM 150
4X40 BBCEAL 150
4X50 BBREAM 150
5X40 BBCFAL 150
5X50 BBRFAM 200
6X25 BBCPAJ 115
6X50 BBRPAM 250
BA
BUSBAR MOULD WELDING
SIZE PART NO. MATERIAL1
3X25 BACCAJ 65
3X50 BACCAM 90
4X40 BACEAL 115
4X50 BACEAM 115
5X40 BACFAL 150
5X50 BACFAM 200
6X25 BACPAJ 115
6X50 BACPAM 150
COPPER BUSBAR SPLICE
TYPE BA – Horizontal, on-edge, busbar.
TYPE BB – Horizontal busbars.
•Bold letter in mould part number is the price key.
BA
BB
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8) 1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
19
www.erico.com
Busbar Tape BM/BQ
BM
BUSBAR MOULD WELDING
SIZE PART NO. MATERIAL1
3X25 BMCCAJCAJ 90
3X50 BMDCAMCAM 250
4X40 BMCEALEAL 150
4X50 BMDEAMEAM 200
5X40 BMCFALFAL 150
5X50 BMDFAMFAM 200
6X25 BMCPAJPAJ 115
6X50 BMDPAMPAM 250
BQ
BUSBAR MOULD WELDING
SIZE PART NO. MATERIAL1
3X25 BQCCAJCAJ 90
3X50 BQCCAMCAM 200
4X40 BQCEALEAL 150
4X50 BQCEAMEAM 200
5X40 BQCFALFAL 150
5X50 BQCFAMFAM 200
6X25 BQCPAJPAJ 150
6X50 BQDPAMPAM 2 x 250*
COPPER BUSBAR
TYPE BM – Tee tap – horizontal busbars.
TYPE BQ – Tee tap down – horizontal, on-edge, busbars.
•Bold letter in mould part number is the price key.
BQ
BM
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8) 1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
*For CADWELD PLUS use 500PLUSF20
20 www.erico.com
Cable to Busbar Tape LE
LE
CABLE SIZE BUSBAR MOULD WELDING
(sq mm) (mm) PART NO. MATERIAL1
16 2x20 LECW3BAH* 45
2x25 LECW3BAJ* 65
3x20 LECW3CAH* 65
3x25 LECW3CAJ* 65
25 2x20 LECY1BAH 45
2x25 LECY1BAJ 45
3x20 LECY1CAH 45
3x25 LECY1CAJ 45
4x25 LECY1EAJ 65
35 2x25 LECY2BAJ 45
3x20 LECY2CAH 45
3x25 LECY2CAJ 45
4x25 LECY2EAJ 65
50 2x25 LECY3BAJ 65
3x20 LECY3CAH 65
3x25 LECY3CAJ 65
4x25 LECY3EAJ 90
70 3x25 LECY4CAJ 90
3x30 LECY4CAK 90
4x25 LECY4EAJ 115
4x30 LECY4EAK 115
5x30 LECY4FAK 115
95 3x25 LECY5CAJ 90
3x30 LECY5CAK 90
4x25 LECY5EAJ 150
4x30 LECY5EAK 150
5x30 LECY5FAK 150
6x40 LECY5PAL 200
120 3x25 LECY6CAJ 115
3x30 LECY6CAK 115
4x25 LECY6EAJ 150
4x30 LECY6EAK 150
5x30 LECY6FAK 200
6x40 LECY6PAL 200
LE
CABLE TO BUSBAR
Horizontal tee - tap of copper busbar to cable run
• Concentric stranded copper cable as listed
•Bold letter in mould part number is the price key.
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
* Requires B112 Sleeve
21
www.erico.com
Busbar Tape EB
EB
BUSBAR TO BUSBAR
Horizontal X - bars flat and in same plane
•Bold letter in mould part number is the price key.
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
EB
BUSBAR MOULD WELDING
(mm) PART NO. MATERIAL1
3X25 EBCCAJ 115
3X30 EBCCAK 115
3X50 EBCCAM 200
4X40 EBCEAL 200
4X50 EBCEAM 250
5X40 EBCFAL 250
5X50 EBCFAM 250
6X25 EBCPAJ 200
6X50 EBCPAM 200
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
22 www.erico.com
Busbar Tape BW/CG
BW
BUSBAR MOULD WELDING
SIZE PART NO. MATERIAL1
3X25 BWCCAJ 90
3X50 BWCCAM 150
4X40 BWCEAL 200
4X50 BWCEAM 250
5X40 BWCFAL 200
5X50 BWDFAM 250
6X25 BWCPAJ 150
6X50 BWDPAM 2 x 150*
BUSBAR TO BUSBAR
BW - Vertical rising copper busbar to a flat, vertical steel surface
CG - Horizontal tee - tap of copper busbar to busbar run
• A test weld should be made to check the possibility
of burn through when intended for use on thin
sections or thin wall pipe.
•Bold letter in mould part number is the price key.
BW
CG
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
Rasp 162420 T321
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
*For CADWELD PLUS use 300PLUSF20
CG
BUSBAR MOULD WELDING
SIZE PART NO. MATERIAL1
3X25 CGCCAJ 115
3X50 CGCCAM 200
4X25 CGCEAJ 150
4X50 CGCEAM 250
5X40 CGCFAL 200
5X50 CGCFAM 250
6X25 CGCPAJ 150
6X50 CGCPAM 300
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
23
www.erico.com
Cable to Busbar Tape LJ
LJ
BUSBAR CABLE MOULD WELDING
(mm) SIZE PART NO. MATERIAL1
(sq mm)
35 LJCCAJY2 45
3 x 25 50 LJCCAJY3 90
70 LJCCAJY4 90
35 LJCEALY2 45
50 LJCEALY3 90
70 LJCEALY4 90
4 x 40 & 95 LJCEALY5 90
WIDER
120 LJCEALY6 90
150 LJCEALY7 115
185 LJCEALY8 150
240 LJCEALY9 150
35 LJCFALY2 65
50 LJCFALY3 90
70 LJCFALY4 90
5 x 40 & 95 LJCFALY5 90
WIDER
120 LJCFALY6 115
150 LJCFALY7 115
185 LJCFALY8 150
240 LJCFALY9 200
35 LJCPALY2 65
50 LJCPALY3 90
70 LJCPALY4 90
6 x 40 & 95 LJCPALY5 90
WIDER
120 LJCPALY6 115
150 LJCPALY7 115
185 LJCPALY8 150
240 LJCPALY9 200

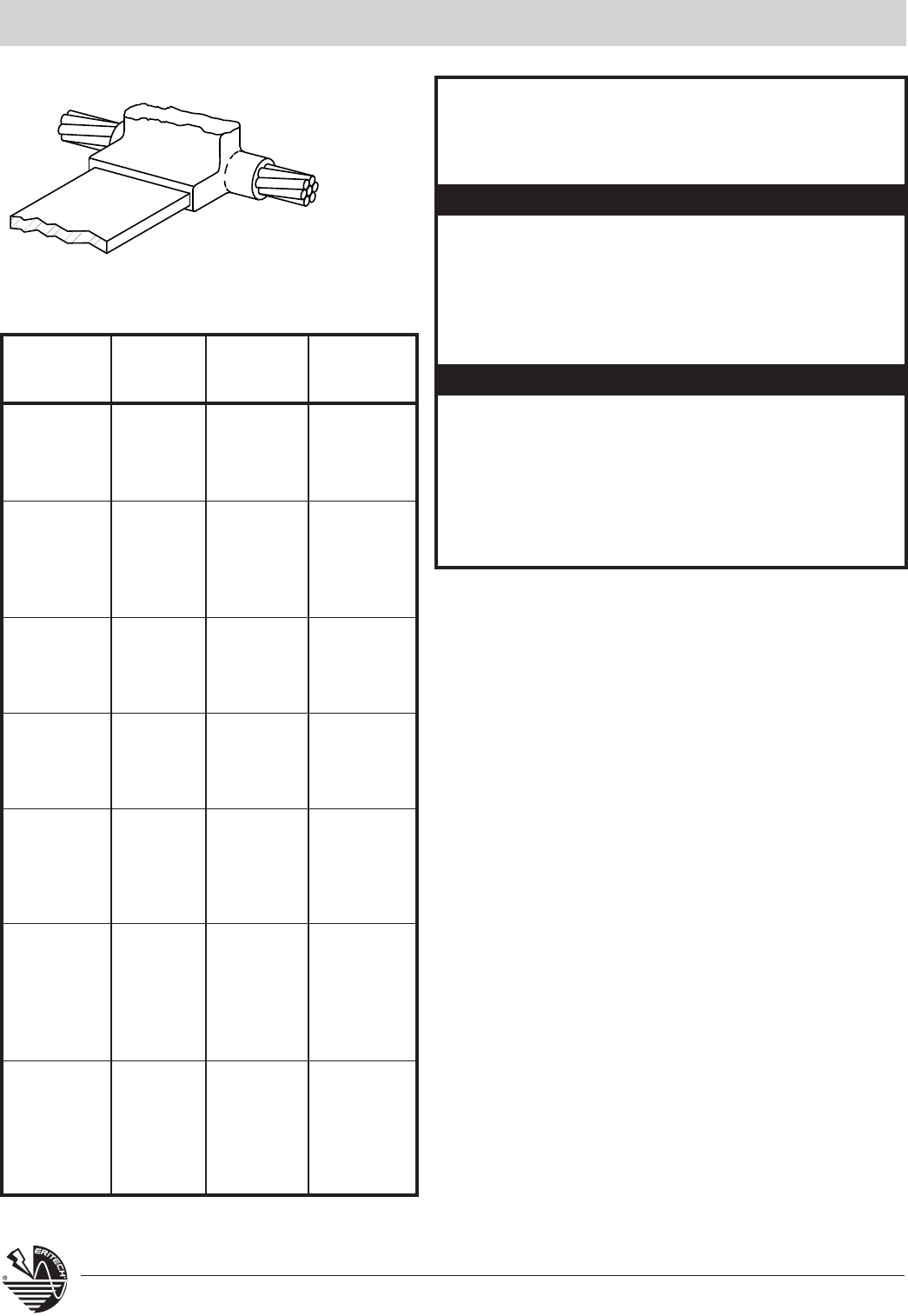

CABLE TO BUSBAR
Tap of horizontal cable to edge of horizontal, flat busbar.
• Concentric stranded copper cable is listed.
• The minimum distance between adjacent welds is
indicated as “C” dimension.
•Bold letter in mould part number is the price key.
LJ
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
24 www.erico.com
Copper Lugs LA
LA
CABLE SIZE BUS OR LUG MOULD WELDING
(sq mm) SIZE (mm) PART NO. MATERIAL1
16 2 x 20 LAC-W3-BAH 32
2 x 25 LAC-W3-BAJ 32
3 x 20 LAC-W3-CAH 45
3 x 25 LAC-W3-CAJ 45
25 2 x 25 LAC-Y1-BAJ 45
3 x 20 LACY1-CAH 45
3 x 25 LAC-Y1-CAJ 45
4 x 25 LAC-Y1-EAJ 65
35 2 x 25 LAC-Y2-BAJ 45
3 x 20 LACY2-CAH 45
3 x 25 LAC-Y2-CAJ 45
4 x 25 LAC-Y2-EAJ 45
50 2 x 25 LAC-Y3-BAJ 45
3 x 20 LAC-Y3-CAH 45
3 x 25 LAC-Y3-CAJ 45
4 x 25 LAC-Y3-EAJ 65
70 3 x 25 LAC-Y4-CAJ 65
3 x 30 LAC-Y4-CAK 65
4 x 25 LAC-Y4-EAJ 65
4 x 30 LAC-Y4-EAK 65
5 x 30 LAC-Y4-FAK 90
95 3 x 25 LAC-Y5-CAJ 65
3 x 30 LAC-Y5-CAK 90
4 x 25 LAC-Y5-EAJ 90
4 x 30 LAC-Y5-EAK 90
5 x 30 LAC-Y5-FAK 90
120 3 x 25 LAC-Y6-CAJ 90
3 x 30 LAC-Y6-CAK 90
4 x 25 LAC-Y6-EAJ 90
4 x 30 LAC-Y6-EAK 90
5 x 30 LAC-Y6-FAK 90
COPPER LUGS (METRIC)
• Lugs and connections for equipment and structures.
Ideal for power utility applications.
• Concentric stranded copper cable is listed.
• Bold letter in mould part number is the price key.
LA
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
25
www.erico.com
Copper Lugs GL
GL
CABLE MOULD WELDING LUG SIZE GL LUG NUMBER
SIZE PART NO. MATERIAL1T X W 1 HOLE 2 HOLE
(sq mm) (mm)
25 GLCCEY1 32 3.18 x 25.4 B-121-CE B-122-CE
35 GLCCEY2 32 3.18 x 25.4 B-121-CE B-122-CE
50 GLCCEY3 45 3.18 x 25.4 B-121-CE B-122-CE
70 GLCCEY4 45 3.18 x 25.4 B-121-CE B-122-CE
95 GLCDEY5 65 4.76 x 25.4 B-121-DE B-122-DE
120 GLCDEY6 65 4.76 x 25.4 B-121-DE B-122-DE
150 GLCEEY7 90 6.35 x 25.4 B-121-EE B-122-EE
185 GLCEEY8 90 6.35 x 25.4 B-121-EE B-122-EE
240 GLCEGY9 150 6.35 x 38.1 B-121-EG B-122-EG
NEMA® Drilled Lugs-B-121 Series
1-HOLE
31.75
mm
min.
14.29 mm D.
W
15.875
mm
T
NEMA Drilled Lugs-B-122 Series
2-HOLE
76.2 mm min.
14.29 mm D.
W
15.875 mm
T
44.45
mm
COPPER LUGS
• Lugs and connections for equipment and structures.
Ideal for power applications.
• Concentric stranded copper cable is listed.
•Bold letter in mould part number is the price key.
GL
All lugs are tin plated copper.
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
26 www.erico.com
Cable to Ground Rod GR
CABLE TO GROUND ROD
• Single cable to top of ground rod. Concentric strand
copper cable unless otherwise noted. For copperclad,
galvanized, stainless clad or stainless steel ground rods.
•Bold letter in mould part number is the price key.
GR
GROUND
CABLE
ROD SIZE SIZE MOULD WELDING
Dia. (mm) (sq mm) PART NO. MATERIAL1
25 GRCP128Y1 65
35 GRCP128Y2 65
50 GRCP128Y3 65
70 GRCP128Y4 90
12.7
95 GRCP128Y5 90
120 GRCP128Y6 90
150 GRCP128Y7 115
185 GRCP128Y8 115
25 GRCP143Y1 65
35 GRCP143Y2 90
50 GRCP143Y3 90
70 GRCP143Y4 90
14.2
95 GRCP143Y5 90
120 GRCP143Y6 90
150 GRCP143Y7 115
185 GRCP143Y8 150
240 GRCP143Y9 250
25 GRCP173Y1 90
35 GRCP173Y2 90
50 GRCP173Y3 90
70 GRCP173Y4 90
17.2
95 GRCP173Y5 90
120 GRCP173Y6 90
150 GRCP173Y7 115
185 GRCP173Y8 115
240 GRCP173Y9 150
GR
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
File 165260 T329
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
27
www.erico.com
Cable to Ground Rod GT
CABLE TO GROUND ROD
• Through cable to top of ground rod. Connections are for
concentric strand copper cable unless otherwise noted.
For copperclad, galvanized, stainless clad or stainless
steel ground rods.
•Bold letter in mould part number is the price key.
GT
GROUND
CABLE
ROD SIZE SIZE MOULD WELDING
Dia. (mm)
(sq mm) PART NO. MATERIAL1
25 GTCP128Y1 90
35 GTCP128Y2 90
50 GTCP128Y3 90
70 GTCP128Y4 90
12.7
95 GTCP128Y5 115
120 GTCP128Y6 150
150 GTCP128Y7 150
185 GTCP128Y8 200
25 GTCP143Y1 90
35 GTCP143Y2 90
50 GTCP143Y3 90
70 GTCP143Y4 115
14.2
95 GTCP143Y5 115
120 GTCP143Y6 150
150 GTCP143Y7 200
185 GTCP143Y8 200
240 GTCP143Y9 250
25 GTCP173Y1 90
35 GTCP173Y2 90
50 GTCP173Y3 90
70 GTCP173Y4 115
17.2
95 GTCP173Y5 115
120 GTCP173Y6 150
150 GTCP173Y7 200
185 GTCP173Y8 200
240 GTCP173Y9 250
GT
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
File 165260 T329
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
28 www.erico.com
Cable/Tape to Ground Rod GY/LQ
CABLE TO GROUND ROD
• Through cable to side of ground rod.
• Concentric strand copper cable unless otherwise noted.
• Ground rods can be copperclad, galvanized, stainless
clad or stainless steel.
•Bold letter in mould part number is the price key.
GROUND
CABLE
ROD SIZE SIZE MOULD WELDING
Dia. (mm)
(sq mm) PART NO. MATERIAL1
25 GYRP128Y1 90
35 GYRP128Y2 90
50 GYRP128Y3 115
70 GYRP128Y4 115
12.7
95 GYRP128Y5 150
120 GYRP128Y6 150
150 GYRP128Y7 200
185 GYRP128Y8 200
25 GYRP143Y1 90
35 GYRP143Y2 90
50 GYRP143Y3 115
70 GYRP143Y4 115
14.2
95 GYRP143Y5 150
120 GYRP143Y6 150
150 GYRP143Y7 200
185 GYRP143Y8 250
240 GYFP143Y9 2 x 200*
25 GYRP173Y1 90
35 GYRP173Y2 90
50 GYRP173Y3 115
70 GYRP173Y4 150
17.2
95 GYRP173Y5 150
120 GYRP173Y6 250
150 GYRP173Y7 250
185 GYFP173Y8 2 x 200*
240 GYFP173Y9 2 x 200*
GROUND ROD SIZE BUSBAR MOULD WELDING
Diam. (mm) SIZE (mm) PART NO. MATERIAL1
12.7 3 x 25 LQE-P128-CAJ 200
14.2 3 x 25 LQE-P143-CAJ 200
17.2 3 x 25 LQE-P173-CAJ 2 x 200*
LQ
LQ
GY SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
File 165260 T329
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
*For CADWELD PLUS use 400PLUSF20
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
*For CADWELD PLUS use 400PLUSF20
GY
NEW
Two-piece
mould
29
www.erico.com

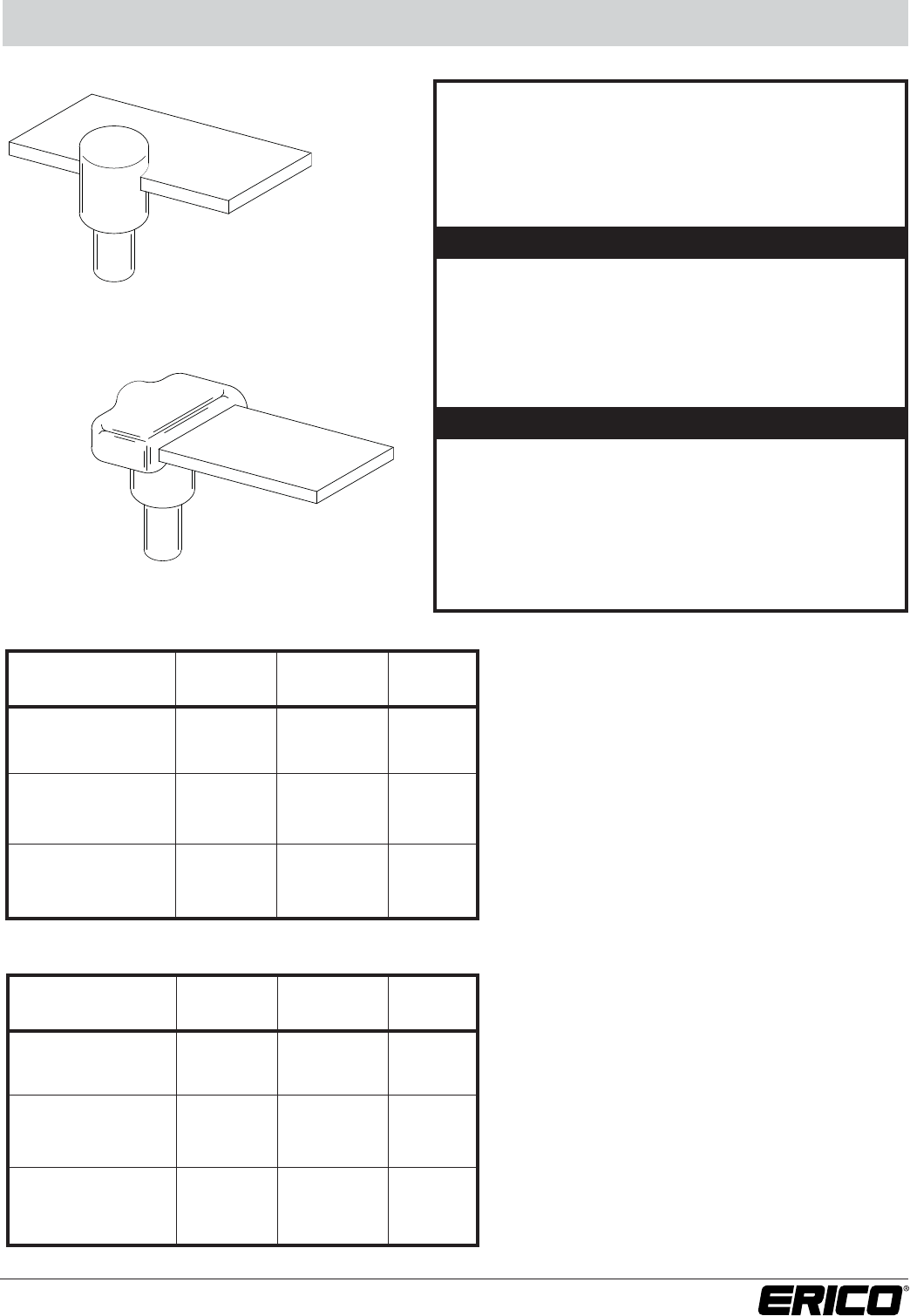

Tape to Ground Rod CP/CN
GROUND ROD SIZE BUSBAR MOULD WELDING
(sq mm dia) (mm) PART NO. MATERIAL
12.7 CPCP128BAK 115
14.2 2 x 30 CPCP148BAK 115
17.2 CPCP178BAK 115
12.7 CPCP128CAJ 150
14.2 3 x 25 CPCP142CAJ 115
17.2 CPCP172CAJ 200
12.7 CPCP128PAM 150
14.2 6 x 50 CPCP142PAM 200
17.2 (or wider) CPCP172PAM 250
CP
GROUND ROD SIZE BUSBAR MOULD WELDING
(sq mm dia) (mm) PART NO. MATERIAL
12.7 CNCP128BAK 115
14.2 2 x 30 CNCP148BAK 115
17.2 CNCP178BAK 150
12.7 CNCP128CAJ 90
14.2 3 x 25 CNCP142CAJ 150
17.2 CNCP172CAJ 150
12.7 CNCP128PAM 200
14.2 6 x 50 CNCP142PAM 250
17.2 (or wider) CNCP172PAM 2 x 150*
CN
CP
CN
BUSBAR TO GROUND ROD
TYPE CP - Through busbar to top of ground rod.
TYPE CN - Busbar tap to top of ground rod.
• Ground rods can be copperbonded, copperclad,
galvanized, stainless steel or stainless steel clad.
•Bold letter in mould part number is the price key.
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
Torch Head 140160 T111
* For CADWELD PLUS use 300PLUSF20
30 www.erico.com
Cable to Ground Rod CADWELD®ONE SHOT
GR/GT
CABLE TO GROUND ROD
USING
CADWELD ONE SHOT CONNECTIONS
For both plain or threaded copperclad and galvanized
steel or stainless steel rods. The CADWELD ONE SHOT
case is a ceramic disposable body replacing the familiar
semi-permanent graphite mould and associated handle
clamp. Everything required is included except control unit.
Meets NEC®requirements
GR GT
CADWELD®ONE SHOT connections are
available in standard packages of 6 each.
GROUND PART NUMBER
ROD SIZE CONDUCTOR
Dia. (mm)
SIZE (mm2) TYPE GR1TYPE GT1
8-10 GR1-141G GT1 -141G
12.7 14-22 GR1-141L GT1 -141L
25 GR1-141Q GT1-141Q
30-38 GR1-141V GT1 -141V
8-10 GR1-161G GT1-161G
14-22 GR1-161L GT1-161L
14.2 25 GR1-161Q GT1-161Q
30-38 GR1-161V GT1-161V
50-60 GR1-162C GT1-162C
70 sq mm GR1-162G
8-10 GR1-181G GT1-181G
14-22 GR1-181L GT1-181L
17.2 25 GR1-181Q GT1-181Q
30-38 GR1-181V GT1-181V
50-60 GR1-182C GT1-182C
70 sq mm GR1-182G
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Cable Cleaning Brush 165030 T313
File 165260 T329
Torch Head 140160 T111
1 For CADWELD PLUS ONE SHOT add suffix “PLUS” following the above
part number
31
www.erico.com
Ground Rod Splice GB
GROUND ROD SPLICE
• CADWELD®ground rod splices are very strong and use
the proven corrosion resistant CADWELD connection.
• CADWELD ground rod splices are available for
copperclad, galvanized or stainless ground rods.
•Bold letter in mould part number is the price key.
GB
GROUND
ROD SIZE MOULD WELDING
Dia. (mm)
PART NO. MATERIAL
12.7 HDGBC14 250*
14.2 HDGBC16 2 x 150**
17.2 HDGBC18 2 x 200***
*For CADWELD PLUS use 250PLUSF20
**For CADWELD PLUS use 300PLUSF20
***For CADWELD PLUS use 400PLUSF20
GB
Ground Rod Splice Clamp
The B120 Ground Rod Splice Clamp must be used to support the upper rod and provide a method of correctly
positioning the rods and mould while splicing the rods. (Type HDGB Connection).
B120
161750
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Ground Rod Splice Clamp B120
Conductor Cleaning Brush 165130 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
Cable Clamp 165020 B265
File 165260 T329
Torch Head 140160 T111
32 www.erico.com
Cable to Rebar RR
RR
REBAR CABLE MOULD WELDING PACKING
SIZE SIZE PART NO. MATERIAL1MATERIAL
Diam (sq mm)
(mm)
25 RRA52Y1 45 B143A
35 RRA52Y2 45 B143A
12 50 RRC52Y3 90 B141A
70 RRC52Y4 90 B141A
95 RRC52Y5 115 B141A
25 RRA53Y1 45 B143A
35 RRA53Y2 45 B143A
16 50 RRC53Y3 90 B141A
70 RRC53Y4 90 B141A
95 RRC53Y5 115 B141A
REBAR CABLE MOULD WELDING PACKING
SIZE SIZE PART NO. MATERIAL1MATERIAL
Diam
(mm) (sq mm)
35 RRA55Y2 45 B143B
22 50 RRH55Y3 90 B144C
70 RRH55Y4 90 B144C
95 RRH55Y5 115 B144A
35 RRA56Y2 45 B143B
25 50 RRH56Y3 90 B144C
70 RRH56Y4 90 B144C
95 RRH56Y5 115 B144A
50 RRH58Y3 90 B144C
32 70 RRH58Y4 90 B144C
95 RRH58Y5 115 B144A
CABLE TO REBAR
Horizontal cable tap to horizontal rebar.
• Rebar material characteristics and location of weld
must be considered when selecting connections to rebar.
• Concentric stranded copper cable is listed.
•Bold letter in mould part number is the price key.
RR
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Packing Material One required for each connection -
see tables below
Cable Cleaning Brush 165030 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
File 165260 T329
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
33
www.erico.com
Cable to Rebar RD
RD
REBAR CABLE MOULD WELDING PACKING
SIZE SIZE PART NO. MATERIAL1MATERIAL
Diam (sq mm)
(mm)
25 RDC52Y1 65 B141A
35 RDC52Y2 90 B141A
12 50 RDM52Y3 115 B141A
70 RDM52Y4 115 B141A
95 RDM52Y5 150 B141A
25 RDC53Y1 65 B141A
35 RDC53Y2 90 B141A
16 50 RDM53Y3 115 B141A
70 RDM53Y4 115 B141A
95 RDM53Y5 150 B141A
REBAR CABLE MOULD WELDING PACKING
SIZE SIZE PART NO. MATERIAL1MATERIAL
Diam (sq mm)
(mm)
35 RDH55Y2 90 B144C
22 50 RDH55Y3 115 B144C
70 RDH55Y4 115 B144C
95 RDH55Y5 150 B144A
35 RDH56Y2 90 B144C
25 50 RDH56Y3 115 B144C
70 RDH56Y4 115 B144C
95 RDH56Y5 150 B144A
50 RDH58Y3 115 B144C
32 70 RDH58Y4 115 B144C
95 RDH58Y5 150 B144A
CABLE TO REBAR
X-connection horizontal cable to horizontal rebar.
• Rebar material characteristics and location of weld
must be considered when selecting connections to rebar.
• Concentric stranded copper cable is listed.
•Bold letter in mould part number is the price key.
RD
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Packing Material
One required for each connection -
see tables below
Cable Cleaning Brush 165030 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
File 165260 T329
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
34 www.erico.com

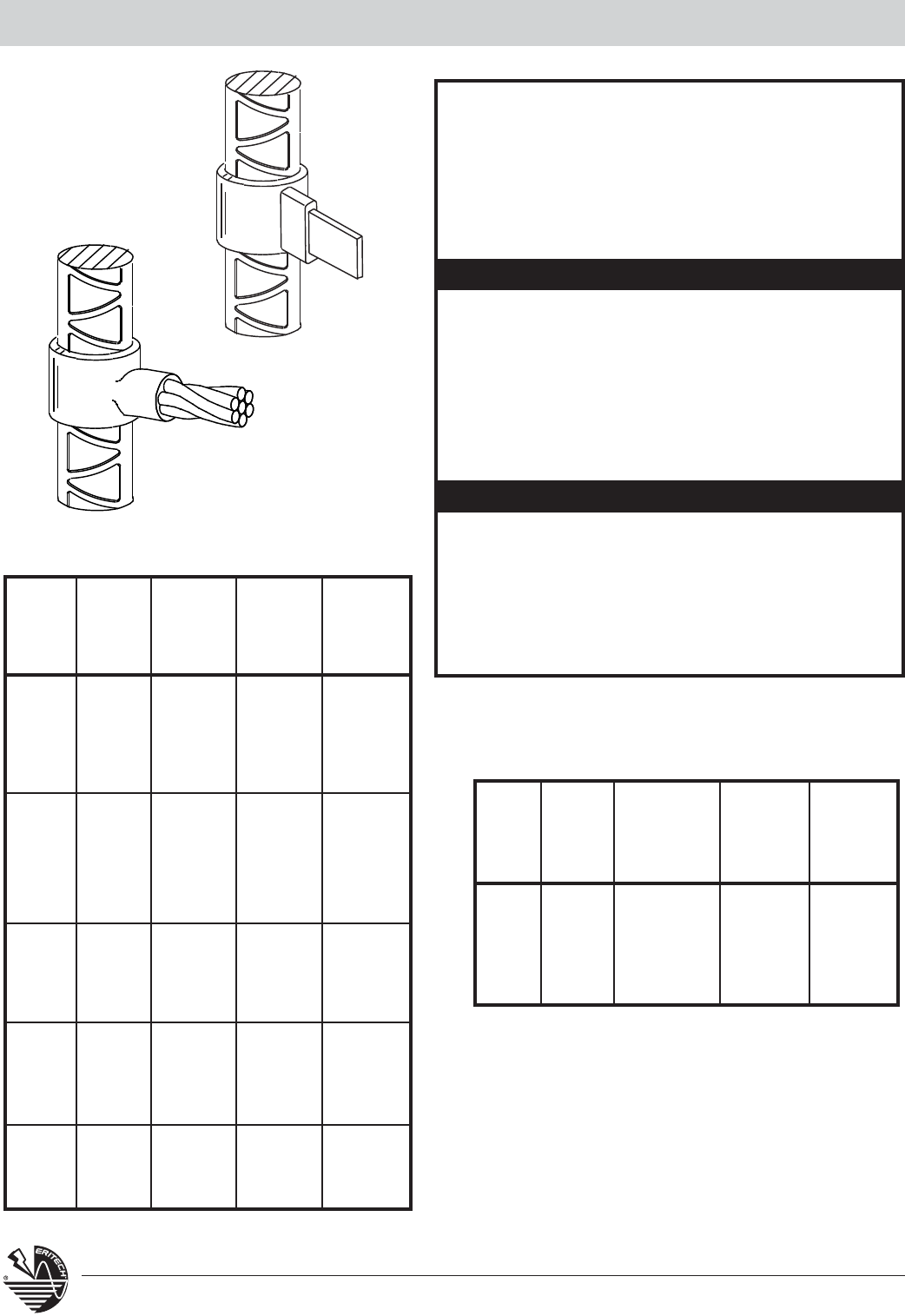

Cable / Busbar Tape to Rebar RJ
RJ
REBAR CABLE
MOULD WELDING PACKING
SIZE SIZE
PART NO. MATERIAL
1
MATERIAL
Diam (sq mm)
(mm)
25 RJC52Y1 65 B140A
35 RJC52Y2 65 B140A
12 50 RJC52Y3 115 B140A
70 RJC52Y4 115 B140A
95 RJC52Y5 150 B140A
25 RJC53Y1 65 B140A
35 RJC53Y2 65 B140A
16 50 RJC53Y3 115 B140A
70 RJC53Y4 115 B140A
95 RJC53Y5 150 B140A
35 RJE55Y2 65 B144E
22 50 RJE55Y3 115 B144B
70 RJE55Y4 115 B144B
95 RJE55Y5 150 B144B
35 RJE93Y2 65 B144A
25 50 RJE93Y3 115 B144B
70 RJE93Y4 115 B144B
95 RJE93Y5 150 B144B
50 RJE58Y3 115 B144B
32 70 RJE58Y4 115 B144B
95 RJE58Y5 150 B144E
ACCESSORIES
CABLE / BUSBAR TO REBAR
Horizontal tee - tap of cable or busbar to vertical rebar.
• Rebar material characteristics and location of weld
must be considered when selecting connections to rebar.
• Concentric stranded copper cable is listed.
•Bold letter in mould part number is the price key.
RJ
SUGGESTED TOOLS
REQUIRED TOOLS
Article Part
No. No.
Handle Clamps
for C&E Price Key Moulds
161000 L160
for D Price Key Moulds
161020 L159
CADWELD®PLUS Control Unit or 165738 PLUSCU
Flint Ignitor 165000 T320
Packing Material
One required for each v connection -
see tables below
Cable Cleaning Brush 165030 T313
Slag Removal Spade
#65 w/m & smaller 182125 B136A
#90 w/m & larger 182130 B136B
Mould Cleaning Brush 165260 T394
File 165260 T329
Torch Head 140160 T111
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
1 For CADWELD PLUS add suffix “PLUSF20” (refer page 8)
Note: All welds to rebar requiring larger than 150 g of welding
material will be sold only after review by ERICO®.
REBAR BUSBAR MOULD WELDING PACKING
SIZE (mm) PART NO. MATERIAL1MATERIAL
Diam
(mm)
12 RJC52CAJ 200 B140A
16 RJC53CAJ 200 B140A
22 3 x 25 RJE55CAJ 250 B144B
25 RJE56CAJ 250 B144B
32 RJE58CAJ 250 B144B
35
www.erico.com
CADWELD®Cast Ground Plates
CADWELD CAST GROUND PLATES
CADWELD ground plates used in concrete structures
offer convenient ground system connection points.
These ground points are used for equipment,
machinery and structure grounding after completion of
the concrete work.
The castings are made from a copper alloy ...
CADWELD ground plate connections result in current
carrying capacity equal to that of the conductor or stud
and cannot loosen or corrode.
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
Use only CADWELD cast ground plates. Other similar plates may be available that do not meet
the strength requirements necessary. They may crack or break during installation.
Use a CADWELD Type TA or Type SS mould when connecting the CADWELD
cast ground plate to the ground conductor. The cast ground plate stud size
noted above fits the mould opening for a cable of the same size.
Example: Tee connection of 120 mm2cable to B164-2Q
(4/0 AWG stud size), use mould TACY62Q.
Splice connection of 120 mm2cable to B164-2Q,
use mould SSC-2QY6.
B162-2Q With stud to suit moulds for
conductor 4/0 AWG (120 mm2)
DB12A (Article No. 166150) complete with M12 Stud
B164-2Q With stud to suit moulds for conductor
4/0 AWG (120 mm2)
CAUTION:
41.28 mm
50 mm 55 mm
16 mm
44.48 mm 82.55 mm
1/2” thread, 12.7 mm deep - 2 holes 1/2” thread, 12.7 mm deep - 4 holes
76.2 mm 82.55 mm
82.55 mm
44.45 mm
44.45 mm
76.2 mm
36 www.erico.com

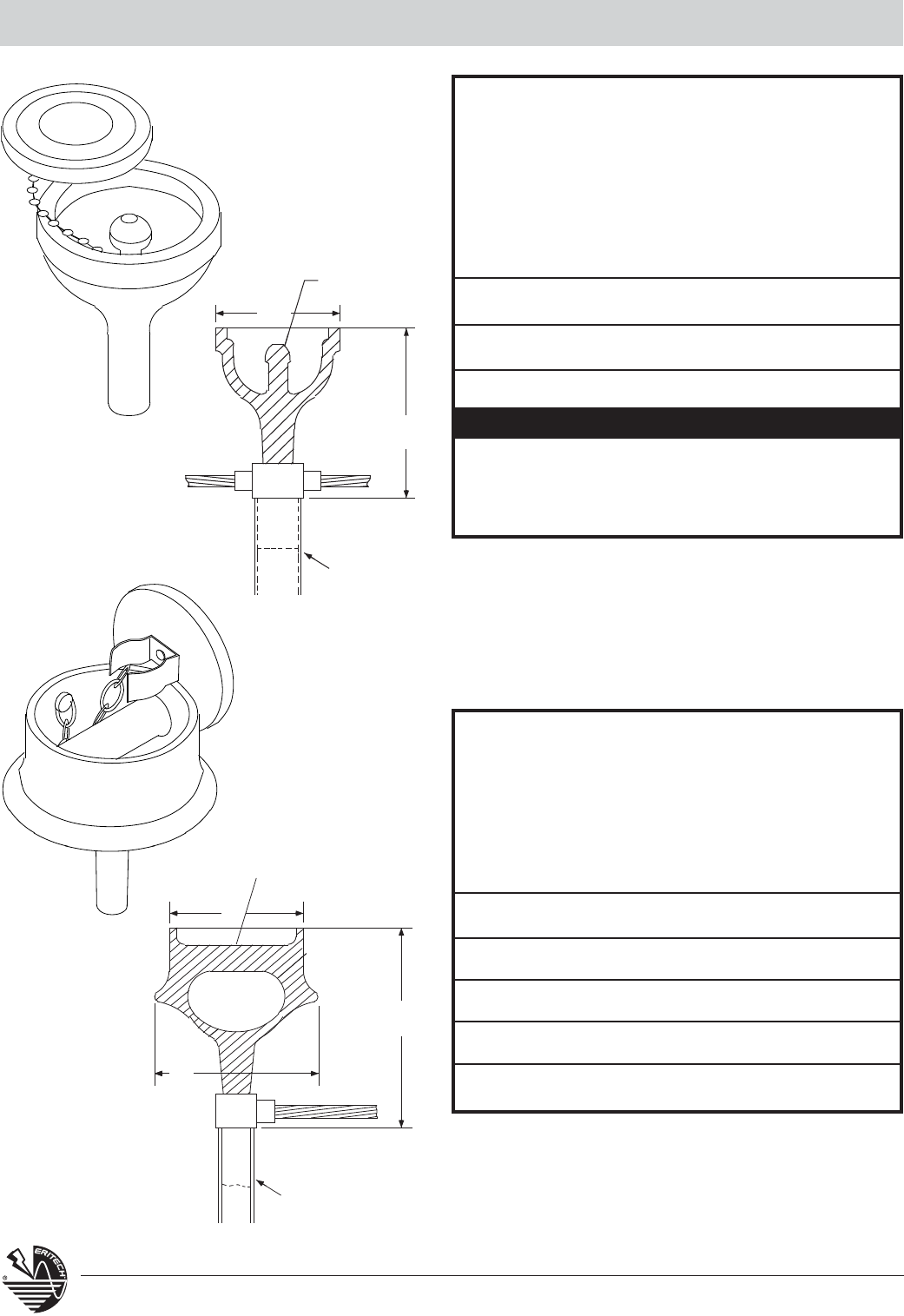

Aircraft Grounding Receptacles
RECEPTACLE B-165 and B-165R
Depth A, Grade Level to Support. 114 mm
Diameter C, at Grade Level 70 mm
B-165 and B-165R
The B-165 and B-165R Grounding Receptacles are copper
alloy castings intended for use in static grounding systems
of aircraft refueling areas. They are easily connected to
the grounding system conductor and/or ground rods with
CADWELD®connections. Designed for simple installation
flush with the paved surface. The attachment point
(19.05mm ball) is an integral part of the casting on the
B-165 and is removable on the B-165R.
ERICO®Aircraft Static Grounding Clamp
B2617A can be used to connect to
B-166 and B-167
B-166 and B-167
The B-166 and B-167 Combination Tie-down and Static
Grounding Receptacles are copper alloy castings. They are
easily connected to the grounding system conductor with
CADWELD connections. Designed for simple installation
flush with the paved surface. The attachment bar (19.05
mm diameter on the B-166 and 38.1 mm on the B-167) is
an integral part of the casting.
RECEPTACLE B-166 B-167
Depth A, Grade Level to Support 159 185
Diameter B, Maximum Ring Size 121 165
Diameter C, at Grade Level 98 121
B165/B165R
B166/B167
For assemblies using B-166 and B-167, contact ERICO.
SPECIAL NOTE
BALL, 19.05 mm DIA.
ATTACHMENT BAR
12.7 mm PIPE to
locate when TYPE
RA & RB
Connections
12.7 mm PIPE to
locate when TYPE
RA & RB
Connections
C
C
B
A
A
37
www.erico.com
Other Cable to Cable Connections
The connections shown below are for use only where connections shown in this catalog are not suitable.
PJ 1 V
PK 2 *
PM 3 V
PN 3 V
PH 3 V
PA 2 *
PB 3 V
PC 1 V
PD 3 V
PG 1 V
PP 1 *
PQ 3 V
PR 2 V
SC 1 *
SD 3 V
SE 3 V
SV 3 V
NAME TYPE EASE SPLIT
Parallel dead
end
Parallel Tap
Splice
TC 3 V
TD 3 *
TE 3 *
TF 3 V
TL 3 V
TV 3 V
XC 3 V
XD 3 V
XF 3 *
XG 3 *
YC 3 V
YD 3 V
YE 3 V
NAME TYPE EASE SPLIT
Tee
X vertical
(horizontal cable
uncut)
X vertical
(vertical cable uncut)
X vertical
(neither cable cut)
X vertical
(neither cable cut)
X - 45° tap
38 www.erico.com
Other Cable to Ground Rods or Other Connections
GQ 3 V
GS 1 V
DQ 1 V
GP 3 V
GW 1 V
GD 3 V
GE 1 V
GF 1 V
GV 1 V
GG 1 *
GH 3 V
GJ 1 *
GK 3 V
GM 2 V
GN 2 V
GX 3 V
NB 4 *
NC 1 V
ND 1 V
VW 2 V
NAME TYPE EASE SPLIT
Parallel tap
Parallel thru
Splice
Tee
NAME TYPE EASE SPLIT
Y - 45° tap
The connections shown below are for use only where connections shown in this catalog are not suitable.
39
www.erico.com

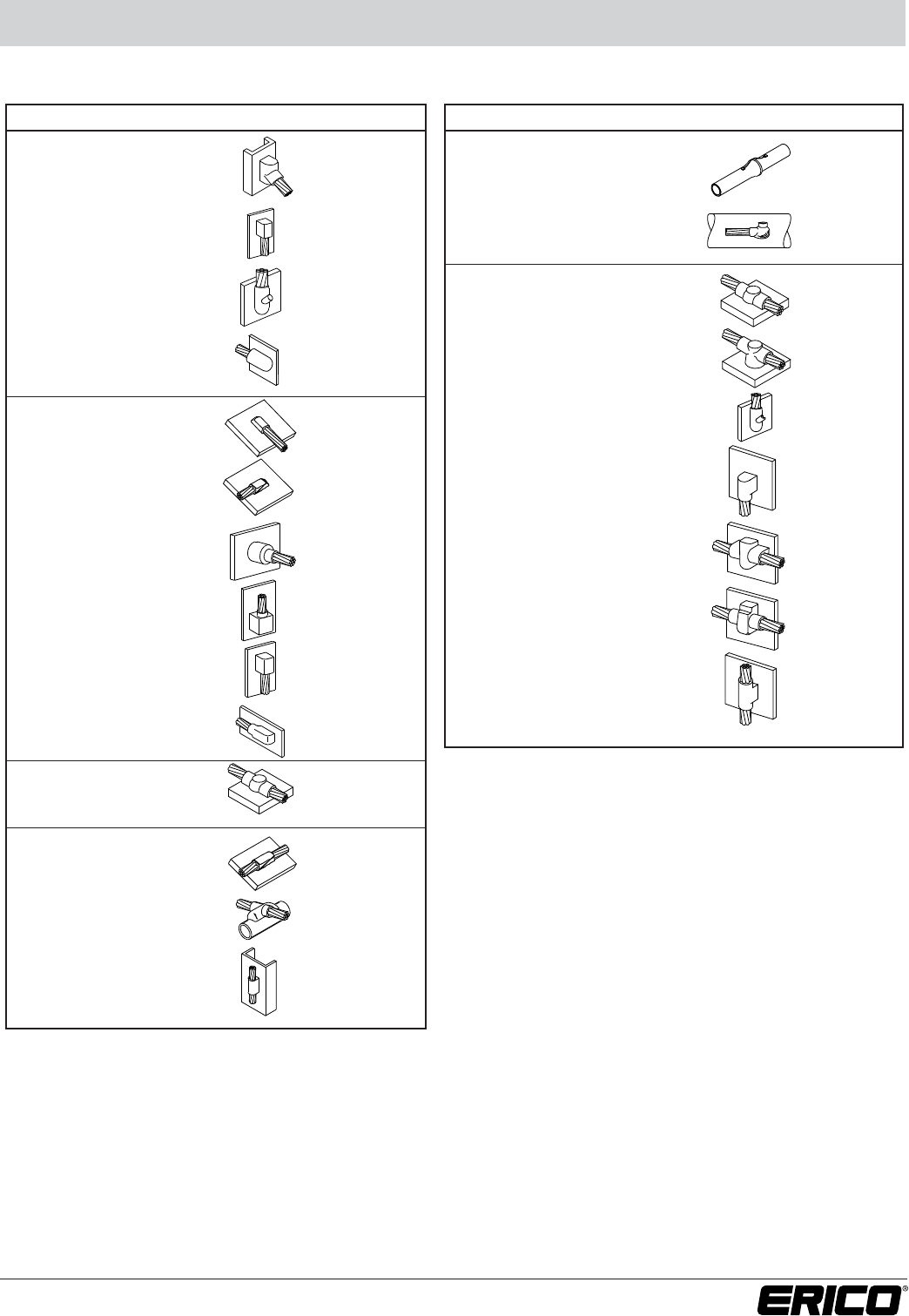

Other Cable to Steel or Cast Iron Connections
The connections shown below are for use only where connections shown in this catalog are not suitable.
VH 1 V
VJ 1 V
VK 1 V
VR 1 V
HF 1 *
HG 2 *
VA 1 V
VC 1 V
VE 2 V
VL 1 V
HE 1 *
HJ 2 *
HK 1 V
VX 2 V
HB 1 *
VN 1 *
HC 1 *
HT 1 V
VF 1 V
VB 2 V
VG 1 V
VT 1
VV 1 V
NAME TYPE EASE SPLIT
Tap cast iron
Tap steel
Thru cast iron
Thru steel
NAME TYPE EASE SPLIT
Pipe
Other connections
to steel
40 www.erico.com
Other Cable to Busbar or Lug Connections
DN 2 V
LX 2 *
LY 3 *
MA 2 *
MB 3 *
MC 3 *
MD 3 *
ME 2 *
MF 3 *
MG 2 V
PL 1 V
LV 1 V
LW 1 V
DM 2 *
DS 2 *
LB 1 V
LC 3 V
NAME TYPE EASE SPLIT
Ell
Lug
Parallel tap
Parallel thru
Splice
Tee
LD 3 V
LF 3 *
LG 3 V
LH 3 *
LK 2 V
LL 1 V
LM 1 V
LN 4 *
LP 2 *
LS 2 *
LT 2 *
LQ 2 V
LR 2 *
NAME TYPE EASE SPLIT
Splice
The connections shown below are for use only where connections shown in this catalog are not suitable.
41
www.erico.com
TW 1 *
TX 1 V
DJ 4 V
EN 2 *
EQ 4 V
ER 2 *
ES 3 *
ET 2 V
EV 3 *
EP 1 V
BJ 2 V
BC 3 V
BD 3 *
BF 2 *
BG 2 *
BH 4 V
NAME TYPE EASE SPLIT
Button-weld
Ell
Parallel tap
X
Splice
BK 2 *
BL 3 *
BN 3 *
BR 2 V
BS 2 V
BT 4 *
BV 3 *
DE 3 V
EE 3 V
EA 4 V
EC 4 *
ED 4 V
NAME TYPE EASE SPLIT
Tee
Other Busbar to Busbar Connections
The connections shown below are for use only where connections shown in this catalog are not suitable.
42 www.erico.com

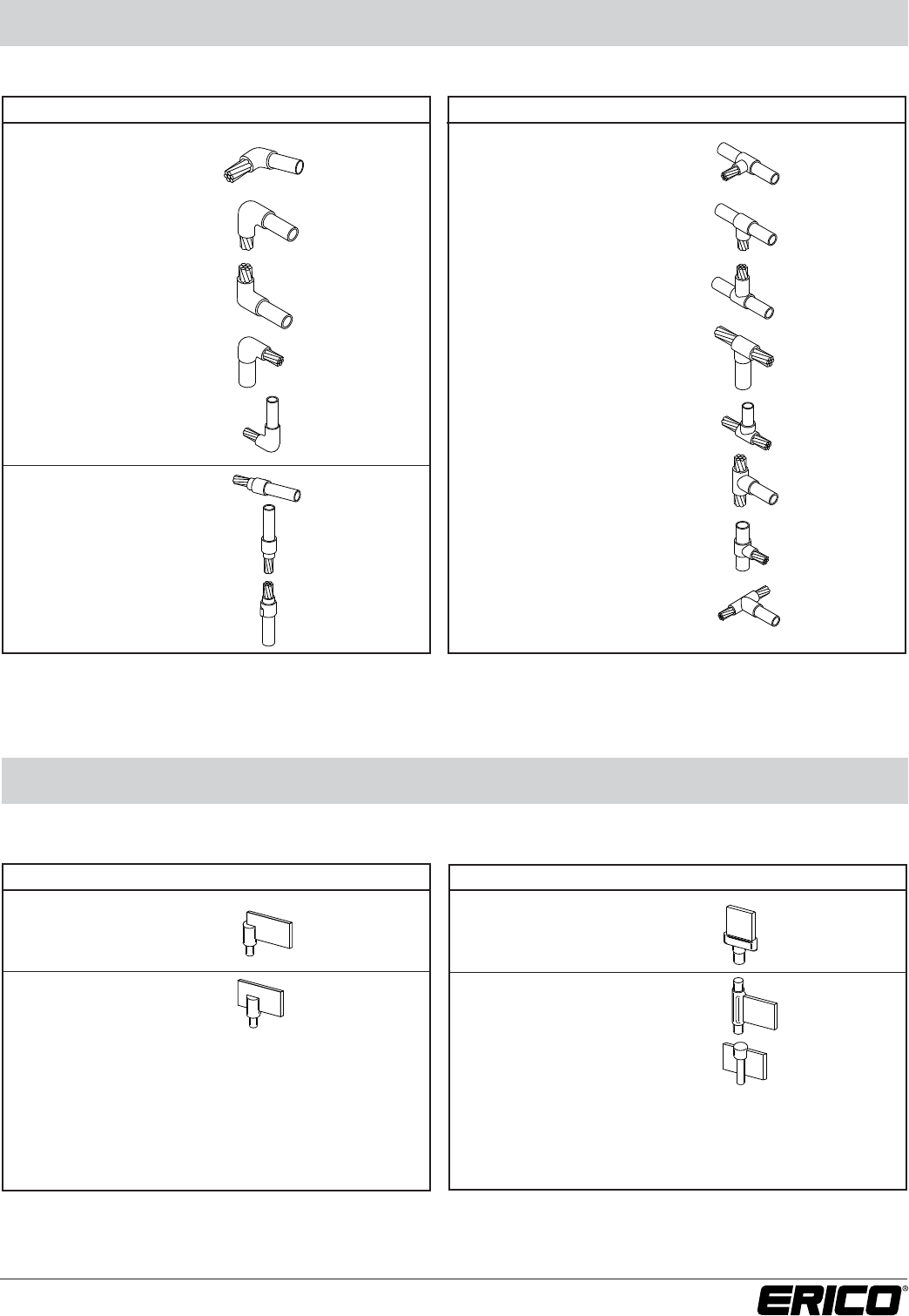

Other Busbar Connections / Other Rebar Connections
CD 3 V
CK 2 V
CF 1 V
CC 1 V
CH 1 V
BX 3 V
BY 3 V
CA 3 V
CB 2 V
CJ 2 V
DC 3 *
DD 3 V
DF 2 V
HL 1 V
HM 1 V
HN 1 *
NAME TYPE EASE SPLIT
Tap
Thru
RK 1 *
RL 2 V
RM 2 V
RN 2 V
RP 2 V
RQ 2 V
XJ 1 *
RC 1 V
DT 2 V
DR 2 V
RV 2 V
RT 2 V
RW 2 V
RE 2 V
RF 2 V
RG 1 V
SF 2 V
SR 1 V
RH 1 *
NAME TYPE EASE SPLIT
Ell
Parallel tap
Parallel thru
X
Splice
Tee
43
www.erico.com
Cable to Copper Tube Connections
DP 1 *
MV 2 V
MW 3 V
MX 2 V
MY 3 V
MH 1 V
MJ 3 V
MK 3 V
NAME TYPE EASE SPLIT
Ell Tee ML 1 *
MM 3 *
MP 3 *
MQ
MR 3 *
MS 3 *
MT 3 *
NA 1 *
NAME TYPE EASE SPLIT
Splice
CL 1 V
CM 3 V
Ell
Tee Tee
Splice CS 3 V
CQ 3 V
CR 1 V
NAME TYPE EASE SPLIT NAME TYPE EASE SPLIT
BUS BAR TO GROUND RODS
The connections shown below are for use only where connections shown in this catalogue are not suitable
The connections shown below are for use only where connections shown in this catalog are not suitable.
Busbar to Ground Rods Connections
The connections shown below are for use only where connections shown in this catalog are not suitable.
44 www.erico.com

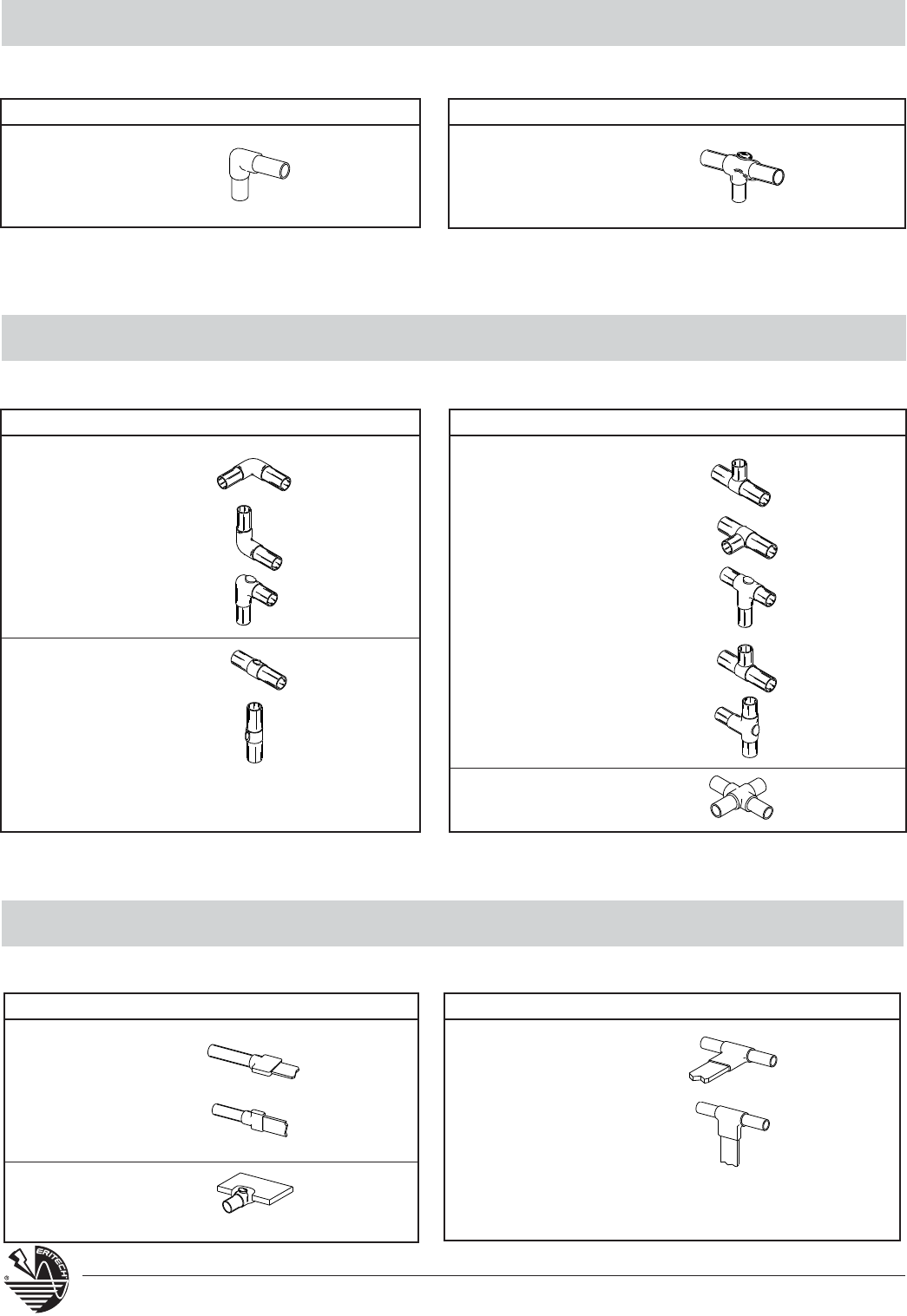

Copper Tube to Ground Rods Connections
The connections shown below are for use only where connections shown in this catalog are not suitable.
Copper Tube to Copper Tube Connections
The connections shown below are for use only where connections shown in this catalog are not suitable.
Copper Tube to Busbar or Lugs Connections
The connections shown below are for use only where connections shown in this catalog are not suitable.
FT 1 V
NAME TYPE EASE SPLIT
Ell FV 1 V
NAME TYPE EASE SPLIT
Tee
FK 1 *
FL 3 V
FM 2 V
FD1 V
FE 3 V
Ell Tee
X
Splice
FH 3 V
FF 1 *
FG 2 V
FH 3 V
FJ 3 V
XT 4 *
NAME TYPE EASE SPLIT NAME TYPE EASE SPLIT
FN 1 *
FP 1 V
EW 2 V
Tee
Tee
Splice FR 2 *
FS 1 V
NAME TYPE EASE SPLIT NAME TYPE EASE SPLIT
45
www.erico.com
Material, Tools and Accessories
ADAPTING MOULDS TO FIT CONDUCTORS
CADWELD®Wrap Sleeve B140A
CADWELD Wrap Sleeve is wrapped around the cable until the diameter is about
the same as the cable opening in the mould.
CADWELD Adapter Sleeves
CADWELD Adapter Sleeves are used to adapt a limited range of smaller
size cables to a larger size CADWELD Mould.
CABLE SIZE
Concentric Adapter Sleeve Use in Mould
Strand Part No. for Stranded
4 B-133-1H 10
10 B-133-1L 25
16 B-112 25
16 B-133-1V 35
25* B-133-1Y 35
35 B-133-2C 50
35 B-133-2G 70
50 B-133-2L 70
70 B-133-2Q 95
*Substitute for 7/2.14 only
Packing
Packing consists of either preformed ceramic packing or sometimes B140A
or B141A copper wrap shim. Packing is required on all rebar connections.
CADWELD Mould Sealer
T403 CADWELD Mould Sealer is ideal for sealing hot or cold moulds to retard
leakage from large stranded conductors. It is required on certain moulds such as
Types HA, HB, HC, VG and VN. It prolongs useful mould life when the cable opening
becomes worn.
It is available in a convenient 0.9 kg package.
B140A
T403
Cables smaller than indicated on mould tag can be welded by using either Wrap Sleeve or Adapter Sleeves.
46 www.erico.com
T111
T372A
T319
Surefire®Torch Head
T111 Self igniting propane torch head. Squeeze the control knob for an instant flame.
Release and it’s out. No flame adjusting. The burn tip remains cool during normal use.
Operates on its side or upside down. Can withstand 60 MPH winds without flareout.
Fits all standard 14 and 16 oz. propane cylinders.
Galvanizing Touch-Up
Easy to use galvanizing paint in a spray can is used to touch up heat affected areas on
galvanized steel surfaces after welding. The damage to the galvanizing is often minimal
so the repair is often cosmetic. T372A galvanizing compound available in 12 ounce
aerosol can.
Galvanizing Bar
T319 Galvanizing Bar is used to repair a galvanized surface that has been
damaged by welding or drilling. This is a low temperature,
self-fluxing material. Often there is sufficient heat after making the
CADWELD®Connection to melt the bar or a small torch may be used.
Material, Tools and Accessories
CABLE AND WORK SURFACE PREPARATION
Cable Cleaning Brushes
Two types of brushes are available to aid in removing oxides and cleaning copper
surfaces. T313 Card Cloth Brush with short stiff bristles is generally preferred for cleaning
concentric conductors and busbars, which are not heavily oxidized.
T314 Cable Cleaning Brush cleans any conductor and is especially useful
for coarse or very dirty conductors. The brushes can be rotated to provide
new cleaning bristles and are replaceable.
T313
T314
B265
T321
Cable Clamp B265
The B265 Cable clamp should be used with hard drawn copper cable,
Copperweld®DSA conductor or any cable under tension. Use of the clamp aids
in preventing cable movement and prolongs mould life.
Rasp
T321 rasp is used to remove rust from any steel surface or galvanizing from hot
dipped galvanized steel to expose the bare steel for welding. The curved blade
makes it an efficient tool for flat surfaces. T321A Replacement blades are
also available.
Material, Tools and Accessories
Mould Cleaning Brush
Mould cleaning brush T394 is very useful for removing slag from moulds – especially
vertically split moulds.
Slag Removal Spades
Slag Removal Spades are useful for removing the slag after making a CADWELD®
Connection – especially useful with horizontally split moulds.
Disks
Each time a weld is made, a new disk is required. The disk sits on the bottom of the
crucible. Its purpose is to hold the welding material until the reaction takes place. The
slag produced by the reaction rises to the surface and the molten copper settles to the
bottom of the crucible where it melts the disk and melts through the conductors to
produce a permanent molecular bond.
Disks are available in three sizes:
B117A used in moulds using #15 thru #32 welding material (3/4" diameter).
B117B used in moulds using #45 thru #115 welding material (1" diameter).
B117C used in moulds using #150 thru #500 welding material (1-1/2" diameter).
Disks are included with Welding Material.
Disk Kit
A disk container (T328) which includes 20 of each of the three sizes of steel disks is
available for your convenience. Kit P/N T328D.
MOULD CARE AND USE
T394
B136A
B136B
T328D
Slag Spade Use With Using
Part No. Mould Price Welding Material
Size
B-136-A A,C, & R #65 & Smaller
B-136-B C,D,F & R #90 & Larger
47
www.erico.com

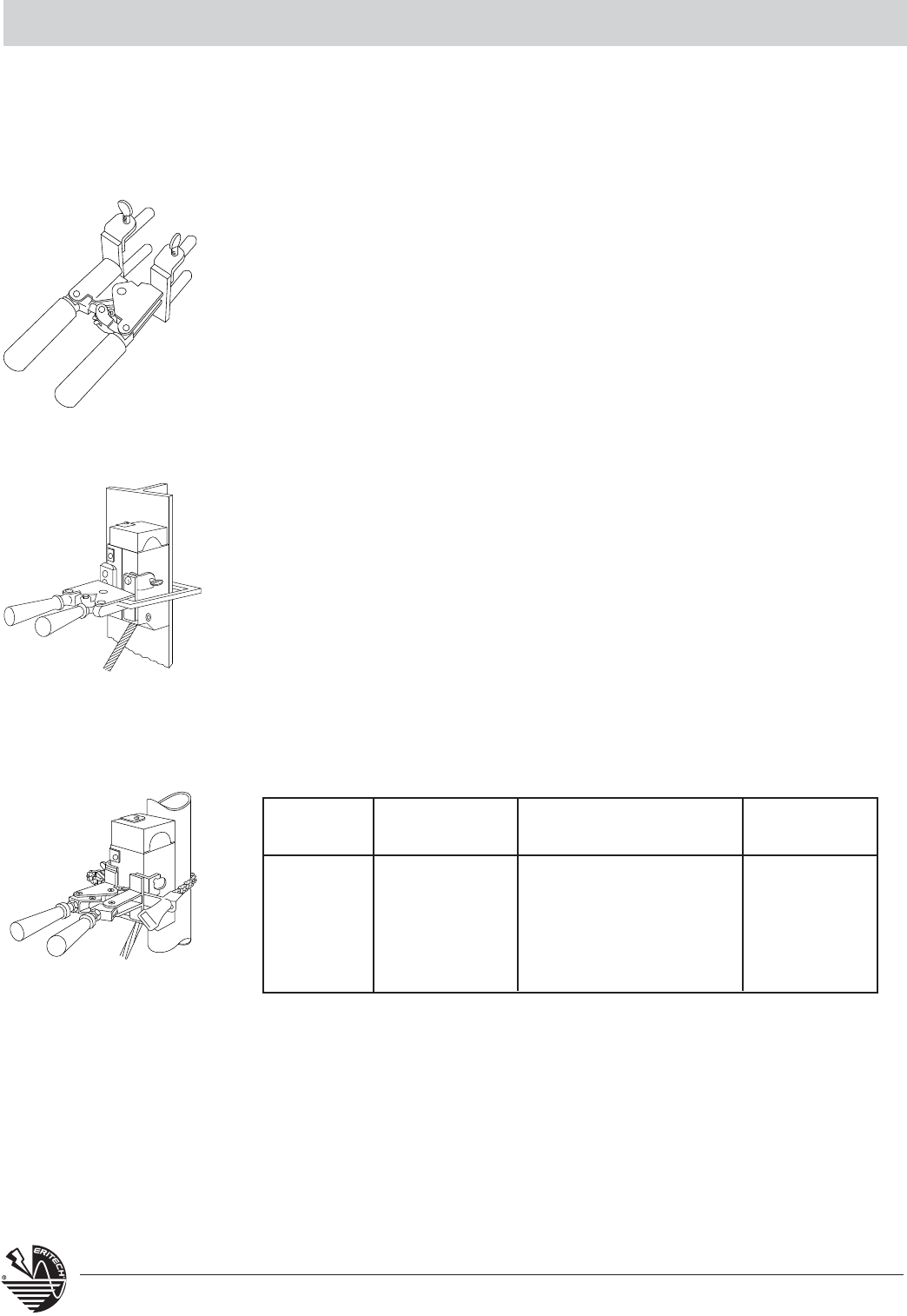

Material, Tools and Accessories
CADWELD®Handle Clamps
Handle Clamps such as the one shown are required for most moulds. Specialized frames
with handles are used on some moulds. Flint ignitors are included with all Handle
Clamps.
The following Handle Clamps are most widely used.
1. L160 for all moulds having a "C", "E", "Q", or "R" mould price key.
(3" wide moulds)
2. L159 for all moulds having a "D", "F", "J" or "Z" mould price key.
(4" wide moulds)
Vertical Surface Mould Support
A CADWELD mould can be securely held to a vertical "H" column or angle by using the
Vertical Surface Mould Support. It is easily attached to an existing L159 or L160 Handle
Clamp. For use with Types VB, VG, VN, and VS moulds, fits steel up to 1” thick, for Type
VF mould, 3/4” thick.
B134: For use with L160 E-Z CHANGE Handle Clamp
B135: For use with L159 E-Z CHANGE Handle Clamp
Chain Support Handle Clamps
A CADWELD mould can be securely held to a pipe using the clamp assembly consisting
of a modified L159 or L160 Handle Clamp with built-in pipe attachment.
Clamp Fits For Following
Part No. Mould Price Connection Types Pipe
B159V D & F VS,VF,VB, & VV Vertical
B160V C & R VS,VF,VB, & VV Vertical
B159VT D & F VT Vertical
B160VT C & R VT Vertical
B159H D & F HA,HS,HC, & HT Horizontal
B160H C & R HA,HS,HC, & HT Horizontal
The above clamps are equipped with 500 mm length of chain which will fit up to 100
mm pipes. Extra 500 mm length of chain, B158, is available to fit up to 250 mm pipes.
MOULD FASTENING AND MOUNTING
48 www.erico.com
Material, Tools and Accessories
Magnetic Handle Clamps
A CADWELD®mould can be securely held to a large flat or slightly curved
vertical surface using the Handle Clamp with Magnetic Support. Used on
vertically split moulds.
Fence Fabric Attachment Assembly
An easy to use, labor saving, Fence Fabric Attachment Assembly fastens
to your existing L159 or L160 Handle Clamp to firmly hold your mould
to the fence post after the fence fabric has been attached. Ideal for
retrofit jobs.
FENCE FABRIC FENCE POST
MOULD
EZ HANDLE FENCE FABRIC
ATTACHMENT
ASSEMBLY
Clamp Fits Mould Minimum Width
Part No. Price Key Required*
B396 C & R Price Key 8”
B159M D & F Price Key 10-1/2”
B399AM T Price Key 6”
B399BM P & N Price Key 7”
*Width will vary slightly depending upon the type of connection being made.
Fence Fabric Attachment Fits
Part No. Handles
B827A L160, L159
49
www.erico.com

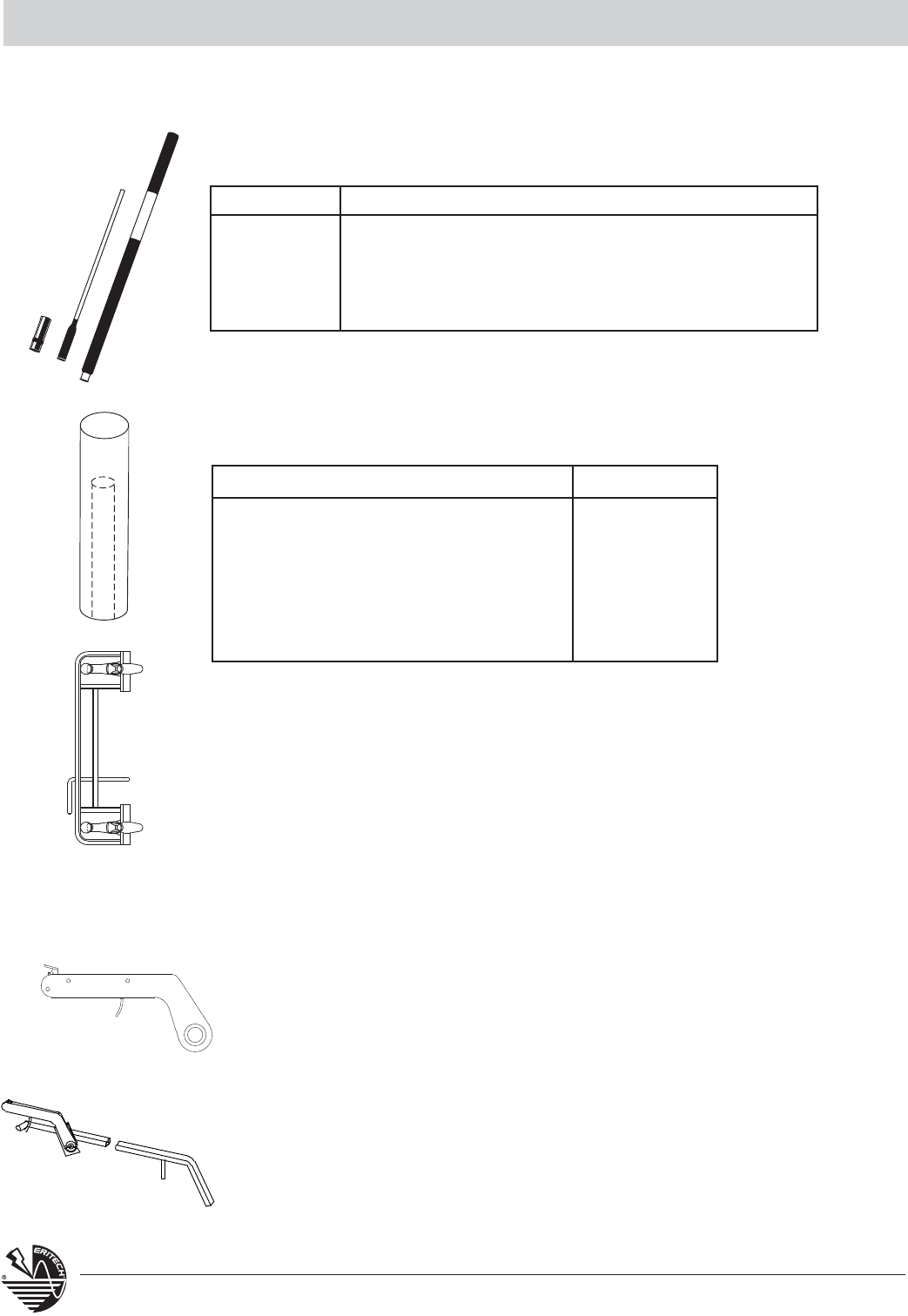

Material, Tools and Accessories
Ground Rod Driving Sleeves**
Use a CADWELD®ground rod driving sleeve to prevent mushrooming top of ground rod.
Ground Rod Size Part No.
1/2” Copper Bonded or Steel Rod B137-14
5/8” Copper Bonded (.563” diameter) B137-16
5/8” Steel (.625” diameter) B137-31
3/4” Copper Bonded (.682” diameter) B137-18
3/4” Steel (.750” diameter) B137-33
1” Copper Bonded (.914” diameter) B137-22
1” Steel (1.00” diameter) B137-37
** For plain (unthreaded) ground rods only.
Ground Rod Splice Clamp
The B120 Ground Rod Splice Clamp must be used to support the upper rod and provide
a method of correctly positioning the rods and mould while splicing the rods. (Type
HDGB and GB Connection).
GROUND ROD SPECIALTY TOOLS
B120
T320
B321-30
ERITECH®Ground Rod Drivers
Product # Description
EGRD58 5' Driver body with insert for up to 5/8" ground rods
EGRD58I* Replacement insert for 5/8" ground rods
EGRD34 5' Driver body with insert for up to 3/4" ground rods
EGRD34I* Replacement insert for 3/4" ground rods
*Both 5/8" and 3/4" inserts fit standard body of EGRD58 or EGRD34.
OTHER TOOLS
Flint Ignitors
T320 CADWELD Flint Ignitors are used to ignite the starting material when making a
CADWELD Connection. An ignitor is included with each Handle Clamp or frame.
T320A Replacement Flints are also available.
Flint Ignitor Extension
B321-30 Flint Ignitor Extension attaches to the T320 Flint Ignitor and allows the
installer to be about 30” from the mould. Ideal for such operations where the mould
is in a narrow trench and the installer is at ground level.
50 www.erico.com
Material, Tools and Accessories
Ceramic Blanket
The woven Ceramic Blanket (Part T306) can be used to hold a hot mould or keep the
work surface free of slag when cleaning the mould.
File
T329
T306
T328D
T320
B136A
T329
T313 T305
T304
T393
T378L
T394
T321
T314
T396
XLB974-B2
Pliers
T304
Screwdriver
T305
Welding Tray
The Welding Tray (Part No. XLB974-B2) can contain a spill of molten welding material.
It is for personnel safety. Recommended when working overhead or over expensive
equipment.
TOOL KITS
TOOL TRAY
Tool Box T396
A tool box is highly recommended to carry tools,
moulds, welding material and a propane torch.
Tool Kit T315A
Other Tool Kits can be made
for your particular
requirements.
Tool Tray Only: T331
Ideal for carrying one or two moulds,
welding material, propane torch and tools.
Tool Box T396 is
included in Tool Kit T315A
T331
Tool Tray T331 is not
included in Tool Kit T315A
51
www.erico.com
Reference Material
WARNING
ERICO products shall be installed and used only as indicated in ERICO's product instruction sheets and training materials. Instruction sheets are available at www.erico.com and from your ERICO customer service representative. Improper
installation, misuse, misapplication or other failure to completely follow ERICO's instructions and warnings may cause product malfunction, property damage, serious bodily injury and death.
WARRANTY
ERICO products are warranted to be free from defects in material and workmanship at the time of shipment. NO OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED (INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE), SHALL EXIST IN CONNECTION WITH THE SALE OR USE OF ANY ERICO PRODUCTS. Claims for errors, shortages, defects or nonconformities ascertainable upon inspection must be made in writing within 5 days after
Buyer's receipt of products. All other claims must be made in writing to ERICO within 6 months from the date of shipment or transport. Products claimed to be nonconforming or defective must, upon ERICO's prior written approval in
accordance with its standard terms and procedures governing returns, promptly be returned to ERICO for inspection. Claims not made as provided above and within the applicable time period will be barred. ERICO shall in no event be
responsible if the products have not been stored or used in accordance with its specifications and recommended procedures. ERICO will, at its option, either repair or replace nonconforming or defective products for which it is responsible or
return the purchase price to the Buyer. THE FOREGOING STATES BUYER'S EXCLUSIVE REMEDY FOR ANY BREACH OF ERICO WARRANTY AND FOR ANY CLAIM, WHETHER SOUNDING IN CONTRACT, TORT OR NEGLIGENCE, FOR LOSS OR
INJURY CAUSED BY THE SALE OR USE OF ANY PRODUCT.
LIMITATION OF LIABILITY
ERICO excludes all liability except such liability that is directly attributable to the willful or gross negligence of ERICO's employees. Should ERICO be held liable its liability shall in no event exceed the total purchase price under the contract. ERICO
SHALL IN NO EVENT BE RESPONSIBLE FOR ANY LOSS OF BUSINESS OR PROFITS, DOWNTIME OR DELAY, LABOR, REPAIR OR MATERIAL COSTS OR ANY SIMILAR OR DISSIMILAR CONSEQUENTIAL LOSS OR DAMAGE INCURRED BY BUYER.
OTHER SPECIALIZED APPLICATION CATALOGS, APPLICATIONS, BULLETINS AND
TECHNICAL INFORMATION
A1L ERITECH®STATIC GROUNDING CONNECTIONS
A4G CADWELD®SUBSTATION GROUNDING
Numerous applications and guidelines for grounding electrical supply station (substations).
A7D CADWELD INSTALLERS AND INSPECTORS GUIDE
A guide for installation and inspection of CADWELD®exothermically welded connections.
A9E CADWELD CONTRACTOR TIPS
Ideal for contractors – How to save time and make the installation easy.
CA1A CADWELD CATHODIC PROTECTION CONNECTIONS CATALOG
TRAINING VIDEOS
E469D CADWELD®/CADWELD®PLUS CD
Product # Description
G157LT99 Practical Guide to Electrical Grounding
52 www.erico.com
ERICO
®
Facility Electrical Protection Literature
Facility Electrical Protection Solutions Brochure
Discusses effective facility electrical protection. The catalog details the ERICO®Six Point
Plan of Protection and goes on to cover lightning protection, grounding, bonding and
surge protection in depth. Products and detailed drawings are included, as are industries
to which the technologies are most applicable.
ERITECH®Lightning Protection Catalogs
ERITECH®SYSTEM 1000 Lightning Protection Products catalog highlights the ERITECH®
INTERCEPTOR SI System and Components. This is an Early Streamer Emissions (ESE) Air
Terminal Design including air terminals, masts, bases and accessories.
ERITECH®SYSTEM 2000 Lightning Protection Products catalog highlights products used
in conventional lightning protection. Products detailed include conductors, ground rods
and plates, clamps, splices, points and accessories.
ERITECH®SYSTEM 3000 Lightning Protection Products catalog details the active
lightning protection process. Information on air terminals, downconductors and design
software is included.
ERITECH®Grounding Products Catalog
Details ERICO’s extensive offering of ground rods and accessories, ground mesh and
mats, signal reference grids, ground bars, ground receptacles, transient earth clamps,
ground enhancement materials, and other grounding materials.
CADWELD®Welded Electrical Connections Catalog
Covers the range of hardware required to make a CADWELD connection as well as
detailed ordering information for molds, weld materials, fence and gate jumpers and the
smokeless CADWELD®EXOLON process.
CRITEC
®
Surge Protection Products Catalog
Details the extensive range of CRITEC Surge Protection Devices for industries such as
commercial & industrial, process control & automation and telecommunications. It
includes information on AC protection products, data control and signal protection
products, as well as point-of-use protection products.
53
www.erico.com
AutoCad is a registered trademark of Autodesk, Inc.
Copperweld is a registered trademark of Copperweld Corporation
IEEE is a registered trademark of The Institute of Electrical and Electronics Engineers, Inc.
NEC is a registered trademark of National Fire Protection Association, Inc.
NEMA is a registered trademark of National Electrical Manufacturers Association
Surefire is a registered trademark of Newell-Rubbermade Company
Copyright ©2009 ERICO International Corporation. All rights reserved.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation. E524C-ASEN E981CT09ASEN 0065M9
AUSTRALIA
Phone 1800-263-508
Fax 1800-423-091
BELGIUM
Phone 0800-757-48
Fax 0800-757-60
CANADA
Phone +1-800-677-9089
Fax +1-800-677-8131
CHILE
Phone +56-2-370-2908
Fax +56-2-369-5657
DENMARK
Phone 808-89-373
Fax 808-89-372
FRANCE
Phone 0800-901-793
Fax 0800-902-024
GERMANY
Phone 0-800-189-0272
Fax 0-800-189-0274
HONG KONG
Phone +852-2764-8808
Fax +852-2764-4486
HUNGARY
Phone 06-800-16538
Fax +31-13-583-5406
INDONESIA
Phone +62-21-575-0941
Fax +62-21-575-0942
ITALY
Phone 800-870-938
Fax 800-873-935
MEXICO
Phone +52-55-5260-5991
Fax +52-55-5260-3310
NETHERLANDS
Phone +31-13-583-5400
Fax +31-13-583-5499
NORWAY
Phone 800-100-73
Fax 800-100-66
SINGAPORE
Phone +65-6-268-3433
Fax +65-6-268-1389
SPAIN
Phone 900-993-154
Fax 900-993-106
SWEDEN
Phone 020-790-908
Fax 020-798-964
SWITZERLAND
Phone 0800-55-86-97
Fax 0800-55-96-15
THAILAND
Phone +66-2-267-5776
Fax +66-2-636-6988
UNITED KINGDOM
Phone +0808-2344-670
Fax +0808-2344-676
UNITED STATES
Phone +1-440-248-0100
Fax +1-440-248-0723
POLAND
Phone +48-71-349-04-60
Fax +48-71-349-04-61
BRAZIL
Phone +55-11-3623-4333
Fax +55-11-3621-4066
www.erico.com
CHINA
Phone +86-21-3430-4878
Fax +86-21-5831-8177
UNITED ARAB
EMIRATES
Phone +971-4-881-7250
Fax +971-4-881-7270
