COMMERCIAL AND INDUSTRIAL LIGHTING

Highbay

Lowbay

Commercial and retail

Parking and canopy

Area lighting

Security lighting

Floodlighting

Specialty

AccuLite’s revolutionary new low and medium wattage

electronic H.I.D. luminaires offer many advantages over

traditional magnetic ballast luminaires. Electronic H.I.D.

luminaires from AccuLite reduce energy consumption,

operating and maintenance costs. AccuLite’s electronic

H.I.D. luminaires achieve higher light levels with fewer

luminaires because of the improved lumen maintenance of

the lamp. Lighting designers can specify lower wattage

lamps, yet easily reach the required minimum light levels at

the end of lamp life.

Best of all, when combining electronic H.I.D. technology with

superior AccuLite luminaire optics, even greater savings are

achieved.

AccuLite Advantage

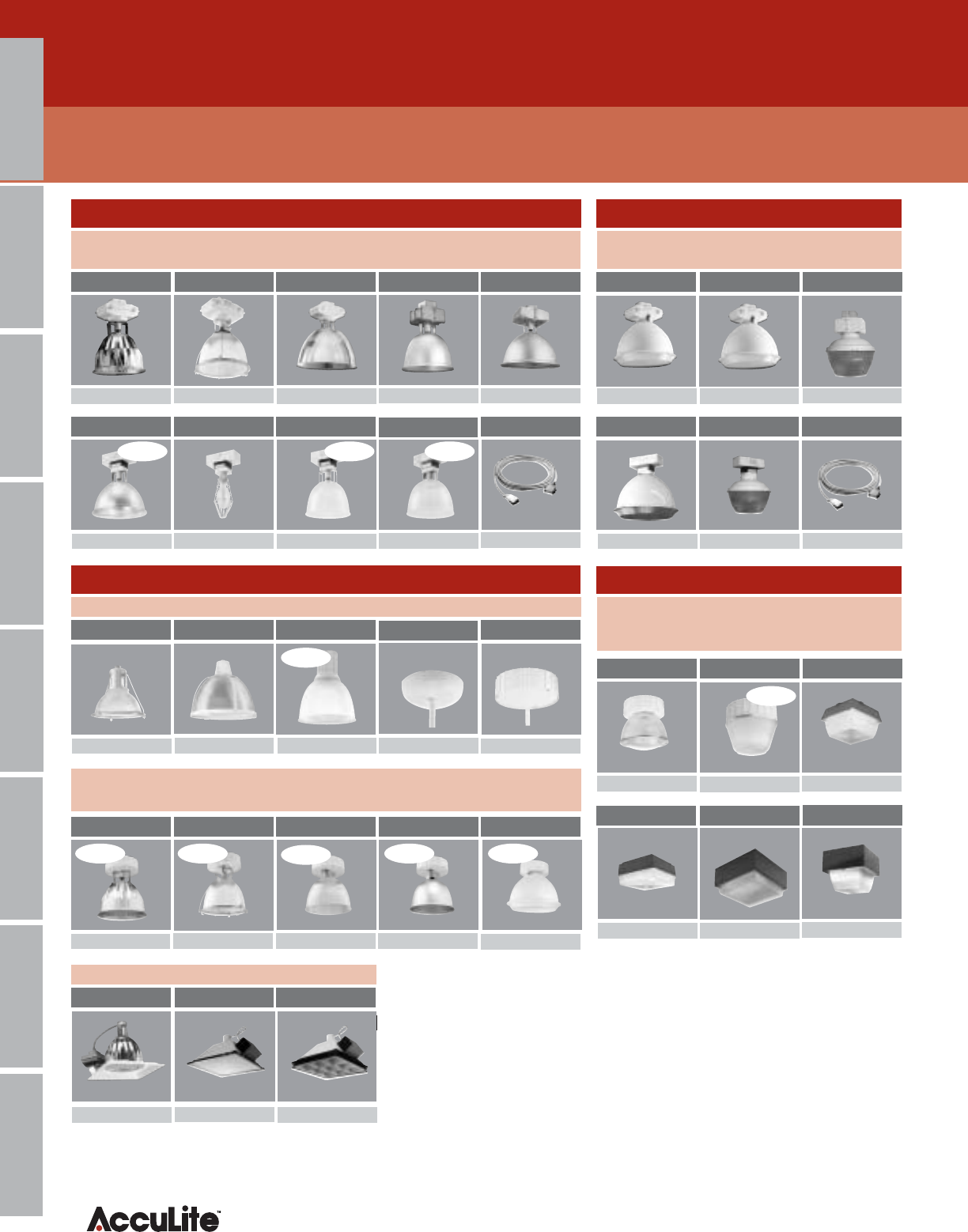

FOR GENERAL INDOOR DOWNLIGHTING OF INDUSTRIAL,

COMMERCIAL, RETAIL, RECREATION

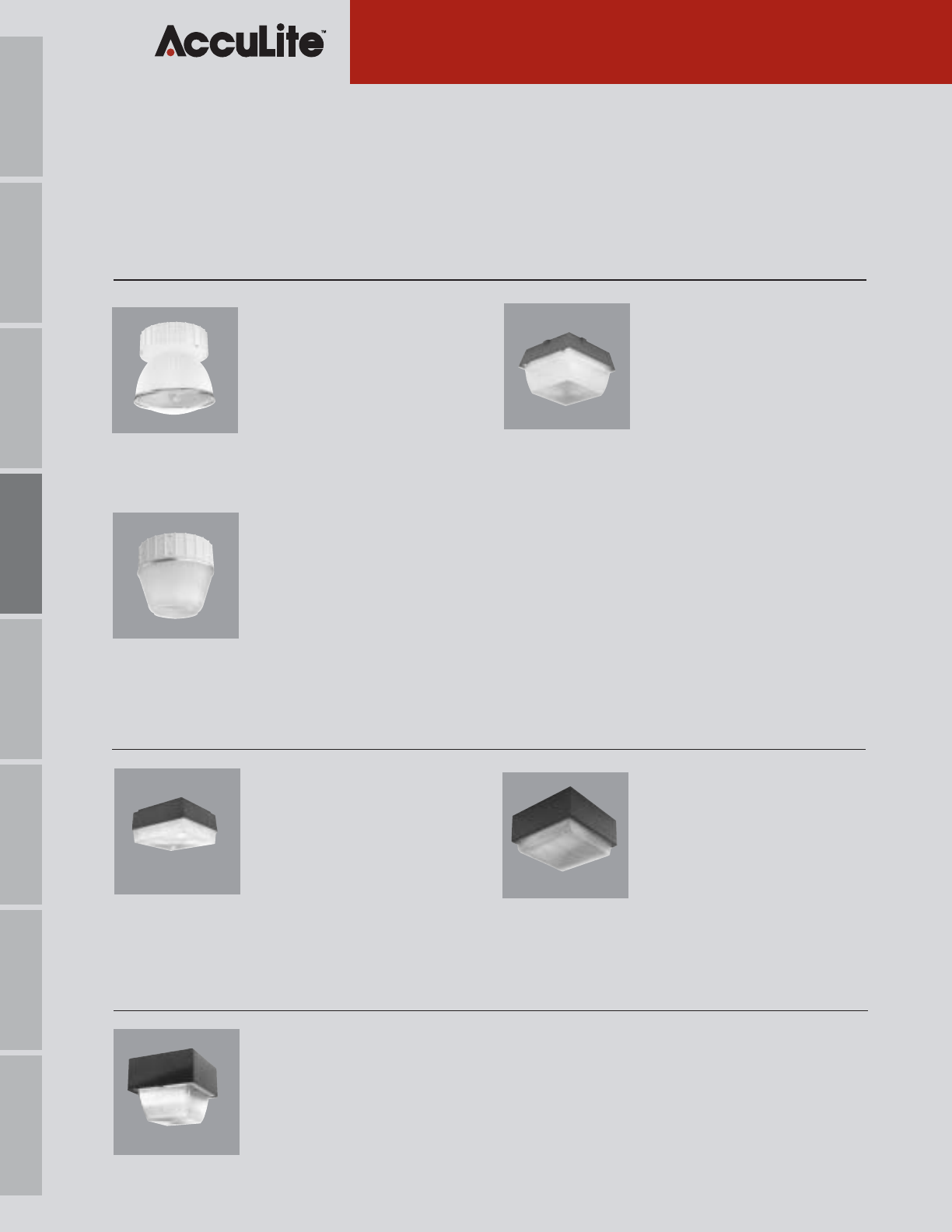

COMMERCIAL & RETAIL PARKING GARAGE & CANOPY

LOWBAYHIGHBAY

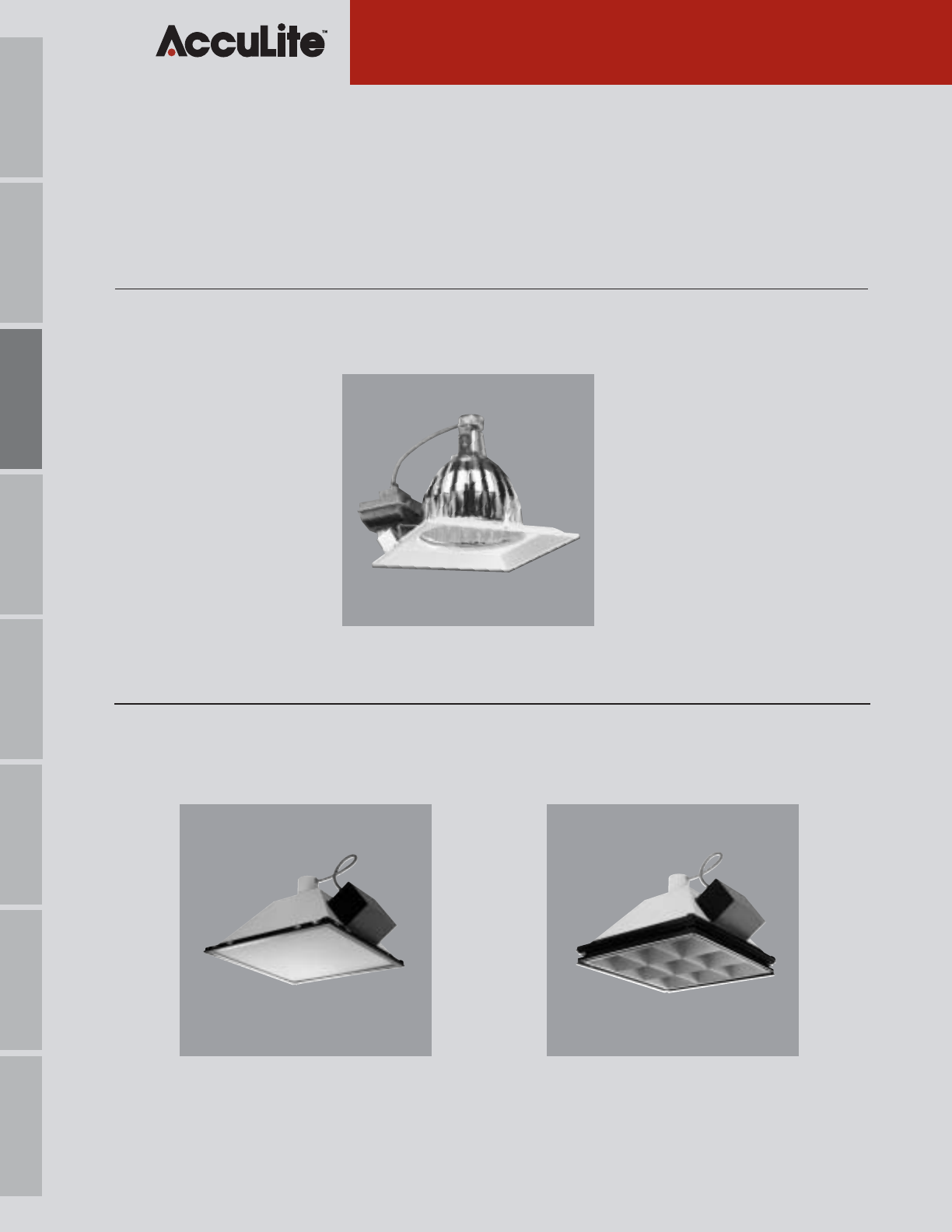

RECESSED LIGHTING

FOR GENERAL INDOOR DOWNLIGHTING OF INDUSTRIAL,

COMMERCIAL, RETAIL, RECREATION AND SPORTS FACILITIES

FOR INDOOR AND OUTDOOR LOCATIONS:

PARKING GARAGES, OUTDOOR CANOPIES,

STAIRWELLS AND INDOOR LOW CEILINGS

COUNTY COLLECTION

ELECTRONIC H.I.D. LOW AND MEDIUM WATTAGE FOR GENERAL INDOOR DOWNLIGHTING OF

COMMERCIAL, RETAIL, INDUSTRIAL, RECREATION AND SPORTS FACILITIES

PARALUME™PARALUME™

DURALUME™

ACCUSQUARE™ACCUPARK™

ACCUSQUARE™

ACCUGLO™

ECONOBAY™

ACCUGLASS™ACCULUME™

DURALYTE™

NITELYTE™ II TITAN™

ORION™

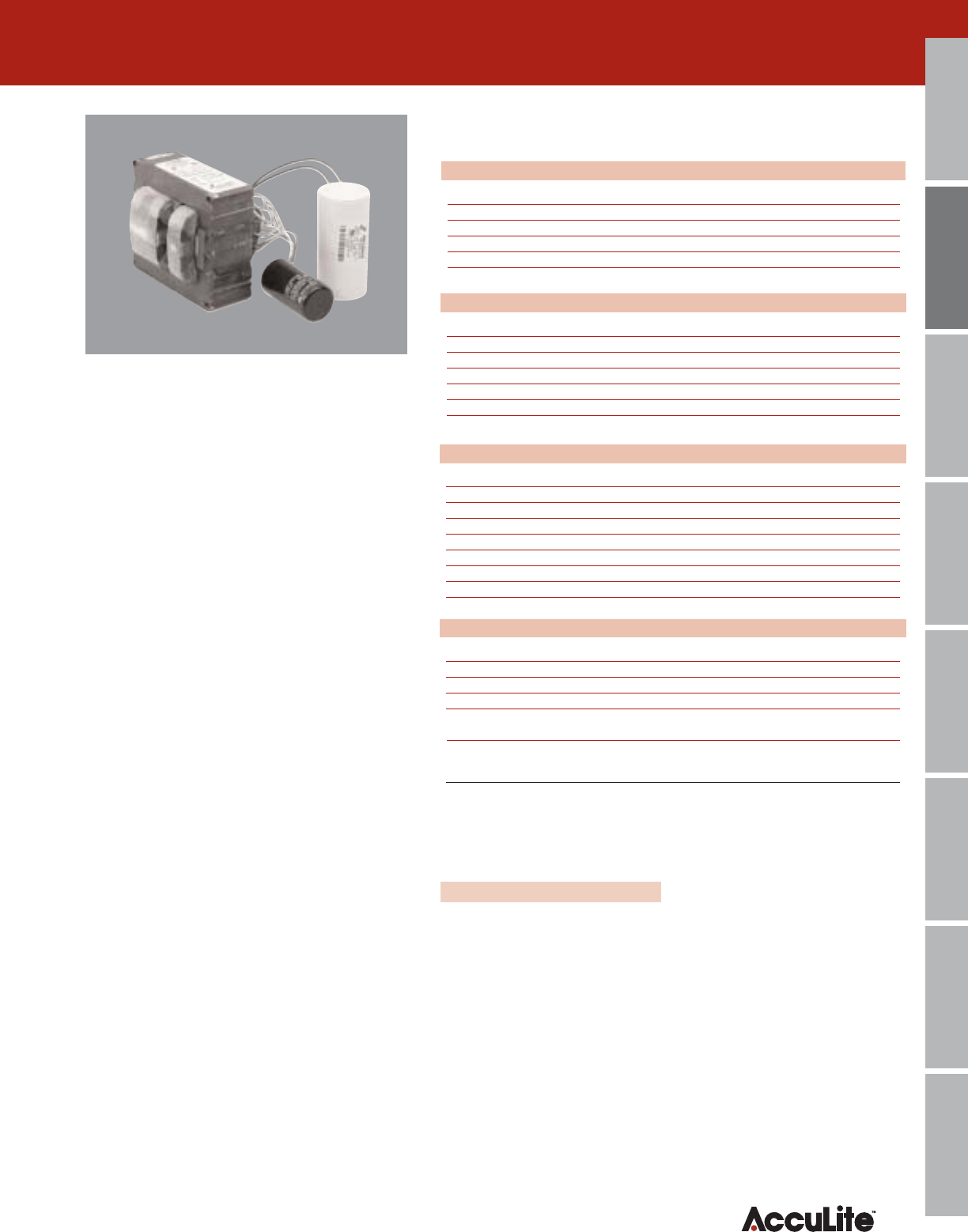

BALLASTS

CARLETON™EXETER™

SIMCOE™

VERTI-LUX™ACCESSORIES

LO-LUX™

ACCESSORIES

PRISMA-LUX™

TEMPORARY MERCHANDISER™

HI-LUX™

ACCUGLO™VERTIBAY™

ACCUGLO™

ECONOBAY™

ACCUGLASS™ACCULUME™

DURALYTE™

RL RLDLR

ECG / OR EHB / OR EHB / OR EAG / OR

EDL / OR MCL CL MPG

OR NL CPL

CE1 / E2 RFB RBR

ALX ALX ALX AF / HI-LO / DRB ALX ALX AF / HI-LO / DRB

ALX

ACG HB1 HB3 & HB4 HB5 AG & MAG EGA & MEGA HB3

45 46-47 48-49 50-51

The AccuLite

FOR GENERAL INDOOR DOWNLIGHTING

INDUSTRIAL, COMMERCIAL, RETAIL, RECREATION

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

910 11 12

13 14 15

21-22 23 24

25 26

33 34-36 37-39 40-41 42-43

36-37

59 60 61

16 27-29

55 56

NEW

NEW NEW

52-53

NEW

17-19

NEW NEW NEW

NEW

VC / VP / VW ML

FSL EWF & WP SLC & SLS

MINELITERVAPOURLUME

MINE LIGHTINGINDOOR / OUTDOOR

WEATHERPROOF HIGH ABUSE

SIGNLUME™

SPECIALTY LIGHTING

FLUORESCENT INDOOR & OUTDOOR APPLICATIONS

107 108 109

105 111

NEW

AP SSS, RTS, STS RTH/RD/RDP/ULG

ASM1

ASA1 ASA2 ASA3

CSB / FT

AVS AVP BRACKETS

AVR

JJ TWEWM

DR (UP/DOWN) DT AL

SP - INTEGRAL SP - REMOTE SSS, RTS, STS

FLC CF Q

SFL NF FLM

RBF FLS EFM

WLS WP / WMLM / WLL DW

MWP

PARKLUME™

POLES POLES

MAIN STREET™

ABERDEEN™

ABERDEEN™ABERDEEN™

QUASAR™

FOR PARKING LOTS, ROADWAYS, LARGE OUTDOOR AREA

AND DECORATIVE WALKWAYS

ARIES™

ARIES™ARIES™

ARIES™

SECUR-LUX™TWI-LITER ™

WALL-LUX™

ARCHITECTURAL

POLARIS™POLARIS™

POLARIS™

SPORT-PRO™POLES

SPORT-PRO™

FLOOD-LUX™QUARTZ-LUX™

ACCUFLOOD™

ACCUFLOOD™ACCUFLOOD™™

ACCUFLOOD™

ACCUFLOOD™ACCUFLOOD™™

CARIBE™

DARK SKY

ACCUPAK™ACCUPAK™

ACCUPAK™

FOR OUTDOOR WALL MOUNTING

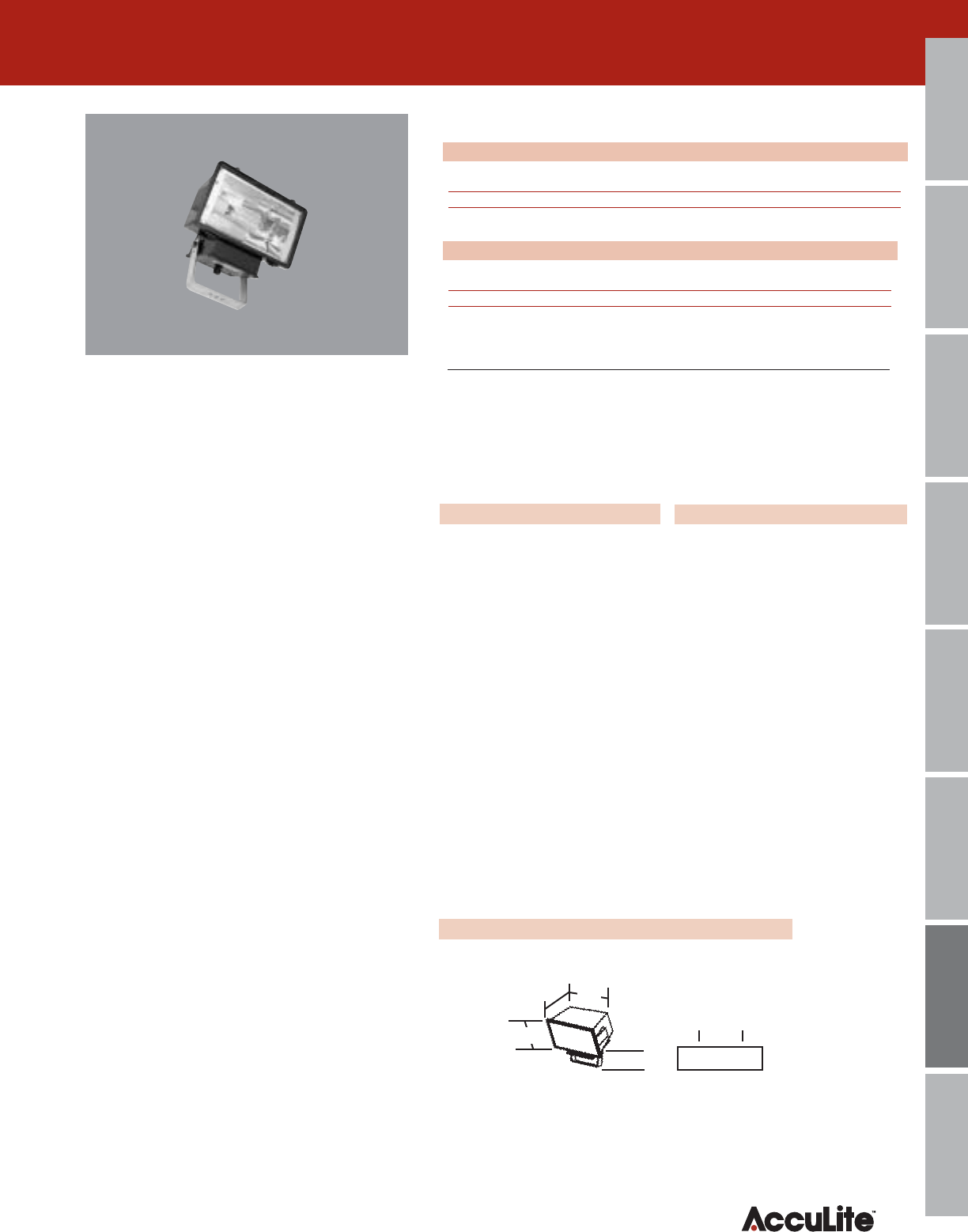

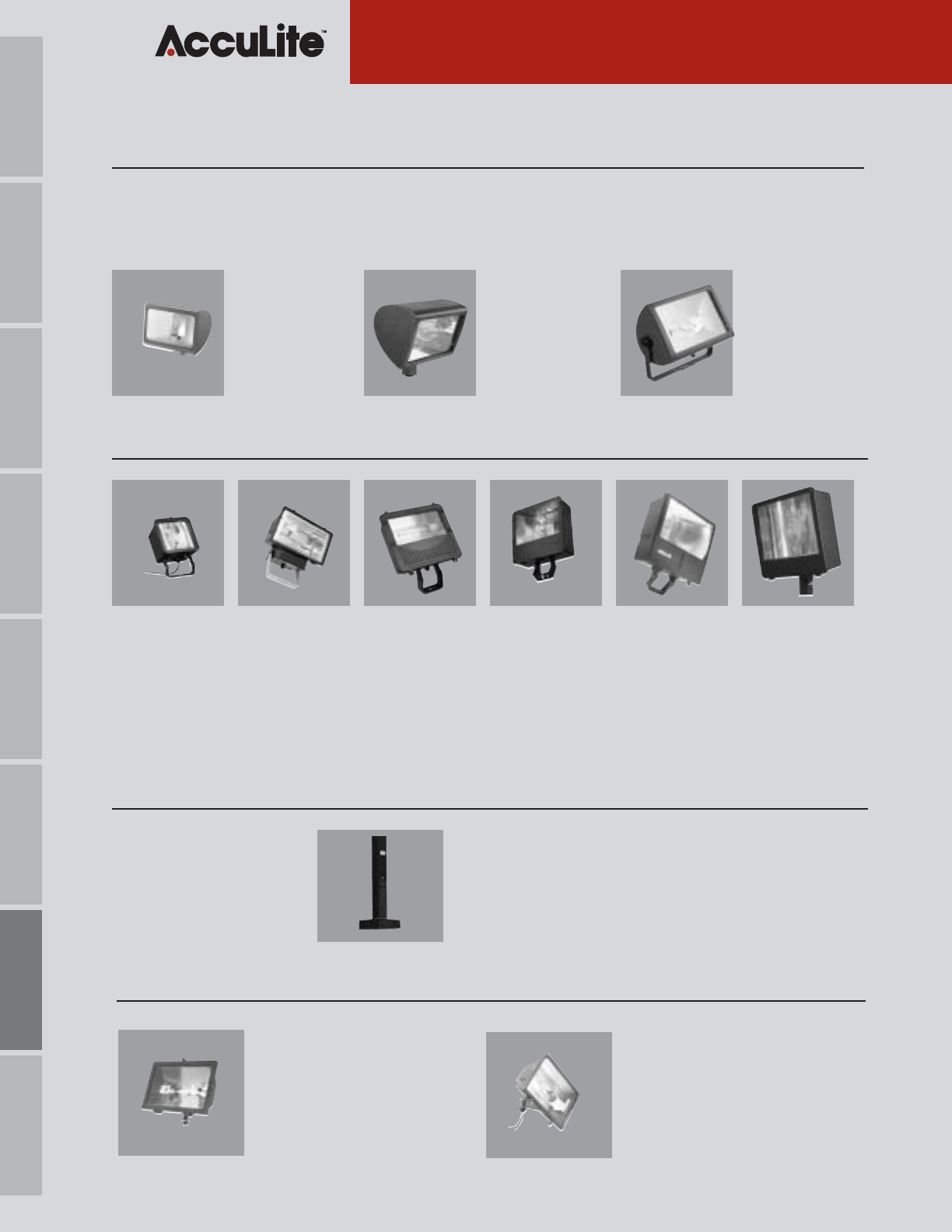

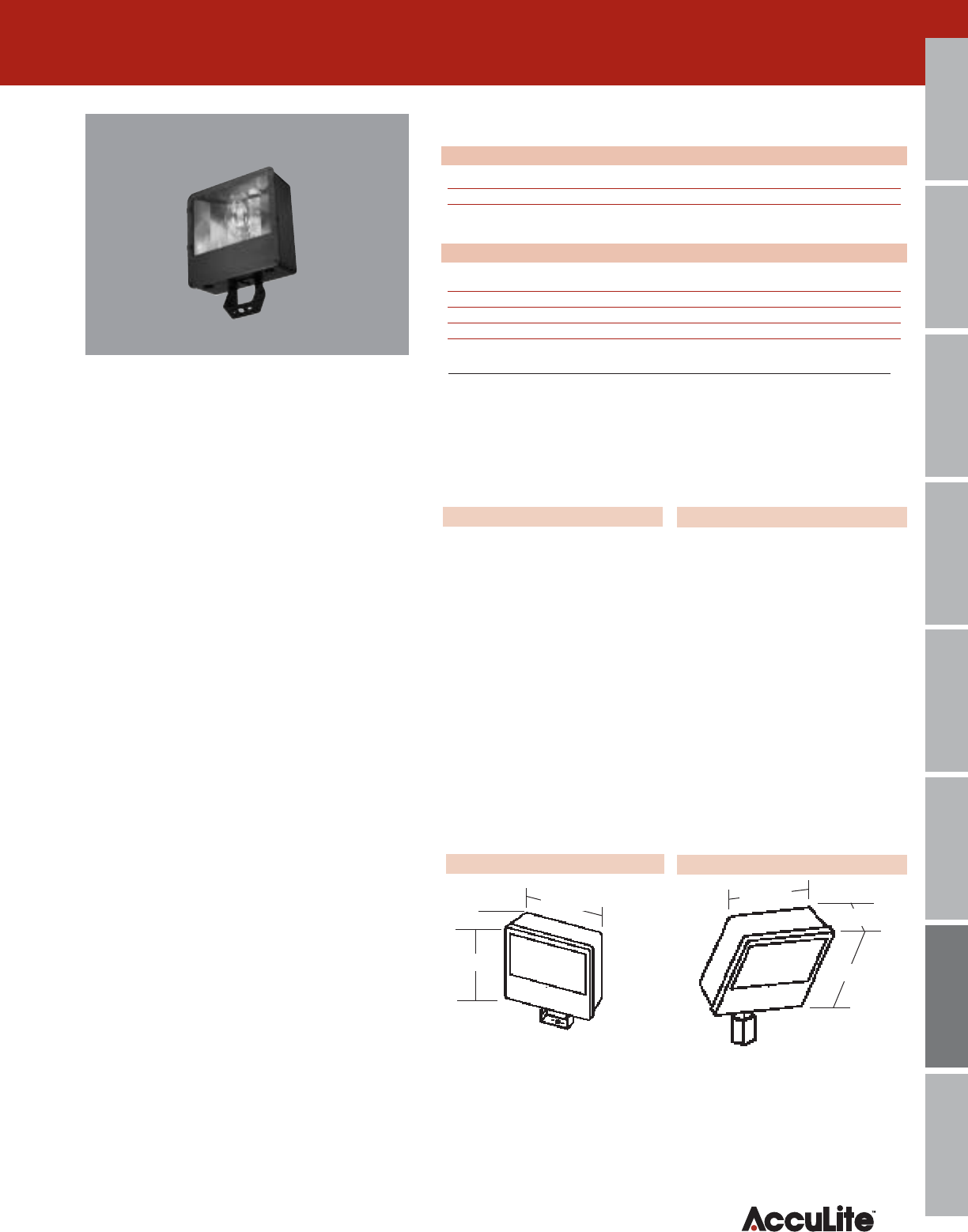

FLOODLIGHTING

SECURITY LIGHTING

88-90

Advantage

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

FLOODLIGHTING OF BUILDING FACADES,

SIGNAGE AND LARGE AREAS

99 100 101

96 97 98

93 94 95

103 103

65 67-68

AREA LIGHTING

77 78 79 80-81

82-83 84 85 85

86 87 88-90 91

DUSK TO DAWN

NEW

7473

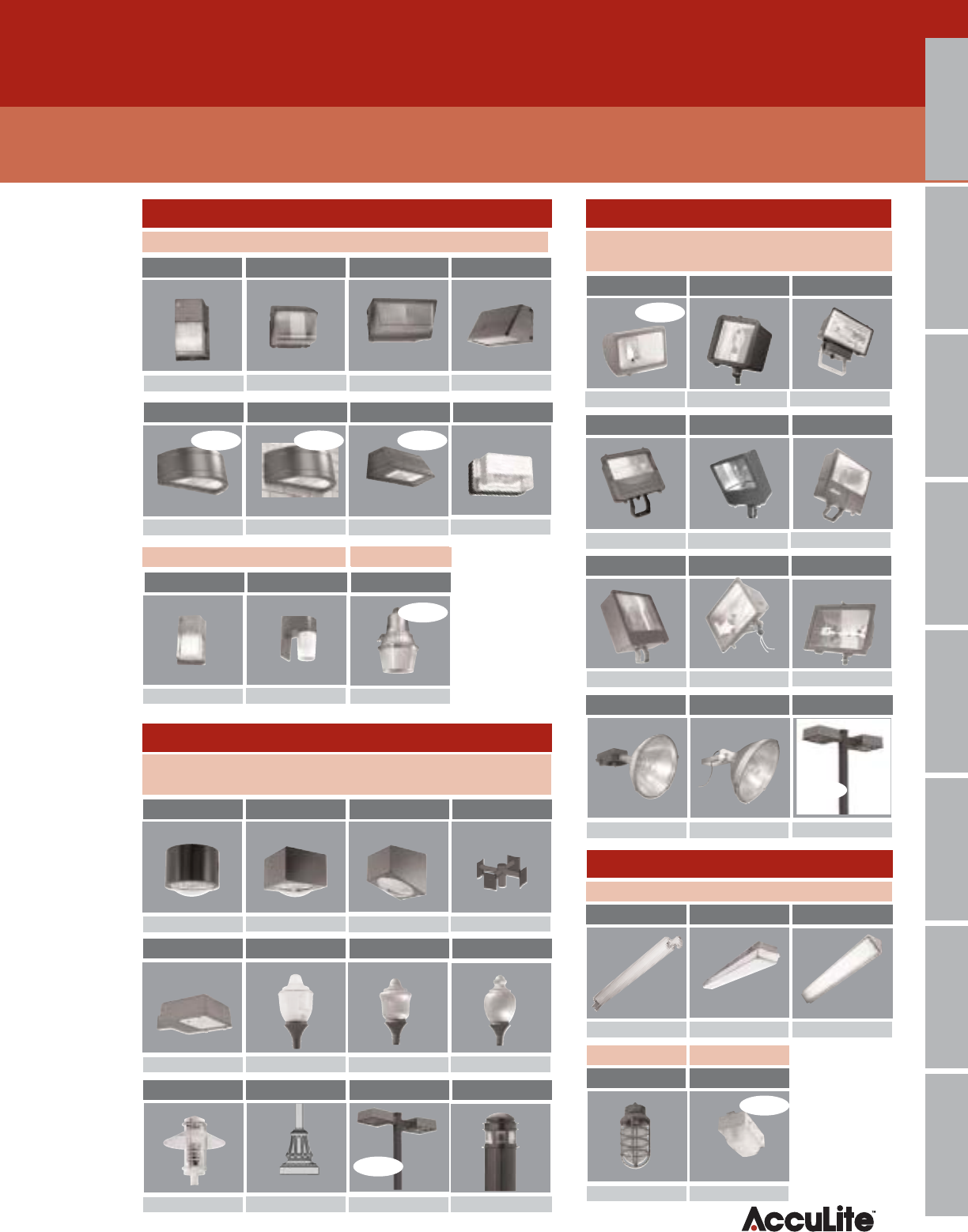

OUTDOOR SECURITY, AREA AND FLOODLIGHTING

INDOOR/OUTDOOR SPECIALTY PRODUCTS

NEW NEW NEW

NEW

DUSK TO DAWN

NEW

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

The Luminaire Makes the Difference

AccuLite Electronic H.I.D. Delivers Improved Lumen Maintenance

The Ultimate Lighting System

Extraordinary lighting systems such as AccuLite’s Duralyte™and Accuglo™are engineered to put up to

20%* more light on the seeing task. Specify AccuLite lighting systems today.

Increase Maintained Lumen Output

Electronic ballasts and pulse start metal halide lamps can increase lumen output from 30% to

more than 50% compared to probe start metal halide lighting systems.

High Performance Lamps

Dramatic savings accrue when the lamp life of a pulse start metal halide lamp in increased

by up to 50%. A 12,000 hour useful lamp life will increase to 18,000 hours useful average

life. Relamping a 12 hour/day operation goes from 32 months to 49 months.

The AccuLite Advantage – AccuLite Performance Luminaires

Independent photometric testing demonstrates the true ability of a luminaire to perform as

advertised. Duralyte™and Accuglo™luminaires have been shown to reduce the number of

fixtures in an installation. When compared to ordinary fixtures, lighting installations fea-

turing high performance AccuLite luminaires with electronic ballast allows you to install

fewer luminaires, often with lower wattages .

As electricity rates rise, this outstanding performance and the lower wattage option will

become even more valuable.

Electronic H.I.D. Delivers Improved Lumen Maintenance

With most medium wattage (250W - 400W) metal halide

lamps, the published average lamp life is 20,000 hours.

“Mean” light output is defined as 40% of rated life, or 8,000

hours for a 20,000 hour lamp.

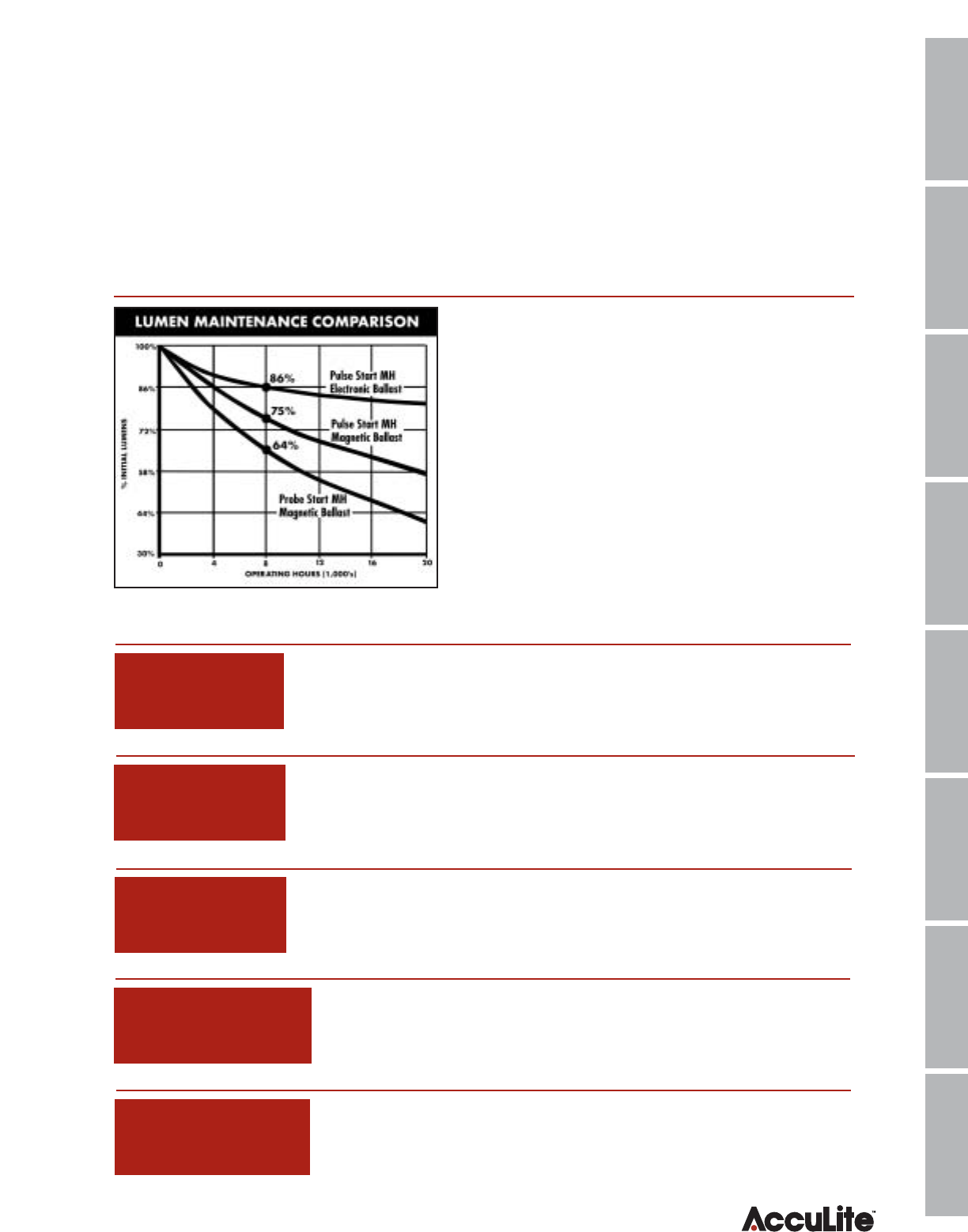

The chart compares standard probe start (magnetically

ballasted), pulse start (magnetically ballasted) and pulse start

(electronically ballasted) metal halide lamps. To design for the

same mean light levels requires 25% more probe start and 13%

more pulse start (magnetic ballast) than pulse start luminaires

with an electronic ballast.

Architects generally consider end of life light levels* (i.e. they

design to mean lumens, not initial lumens) in their designs. As

can be seen from the chart, an electronic system can be

designed for lower initial levels yet still have more light at end

of life.

* End of life Probe start @ 12,000 hours, pulse start @ 18,000 hours)

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

AccuLite’s Breakthrough Electronic Technology

AccuLite’s revolutionary new low and medium wattage electronic H.I.D. luminaires offer advantages over traditional

magnetically ballasted luminaires. With improved lumen maintenance, electronically ballasted luminaires can be

specified with lower wattage lamps, yet easily reach the required minimum light levels at the end of lamp life.

Electronic H.I.D. can achieve higher light levels with fewer luminaires than luminaires using magnetic ballast

technology.

Electronic ballast technology extends average lamp life, thereby reducing maintenance. Best of all, electronic H.I.D.

from AccuLite reduces energy consumption and operating costs.

20% higher luminaire performance = Even fewer fixtures

While benefits can be obtained using any lighting fixture, AccuLite offers luminaires

with high performance optics. Performance tested by independent laboratories,

AccuLite’s Duralyte and Accuglo allow installation of up to 20% fewer fixtures in an

installation. One to one lighting upgrades can use lower lamp wattages for added

benefits.

3High

Performance

Luminaires

Fewer fixtures = Increases energy savings

Reducing energy consumption can be achieved by lowering the fixture wattage and

reducing the the number of luminaires. The chart on the next page illustrates how a

high performance luminaire, the AccuLite Duralyte, achieves the desired savings.

4Fewer Luminaires

and

Lower Wattage

30 – 50% lumen maintenance improvement = Up to 50% less lamp maintenance

Good lighting systems are designed based on the mean (“average”) light output. Mean

is defined as the output at 40% of the lamps rated life (i.e.: 20,000 hour rated lamp -

40% of 20,000 = 8000 hours). For most medium wattage lamps operating with

magnetic ballasts, relamping occurs at 12,000 hours. With electronic ballasts,

AccuLite’s lumen depreciation curve flattens out extending relamping to 18,000 hours.

1Improved

Lumen

Maintenance

56% more maintained lumens = Up to 36% fewer fixtures

With an improvement of up to 56% more mean lumens (compared to conventional

probe start MH lighting) the overall fixture count can be reduced by up to 36% while

maintaining similar light levels. Fewer fixtures can have a dramatic impact on

installation, maintenance and operating costs.

2More

Lumens

Maintained

Improved Lumens per Square Foot

Comparing watts/square foot§, AccuLite’s high performance Duralyte at 1.0W/sq.ft

is the clear winner over both spun aluminum highbays (1.8W/sq/ft.) and T5HO

fluorescents (1.3 to 1.4W/sq.ft.).

§ Actual comparison- 300’ X 300’ building lit to 75fc.

- T5HO results vary depending on ambient temperature.

5Out performs

T5HO Fluorescent

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

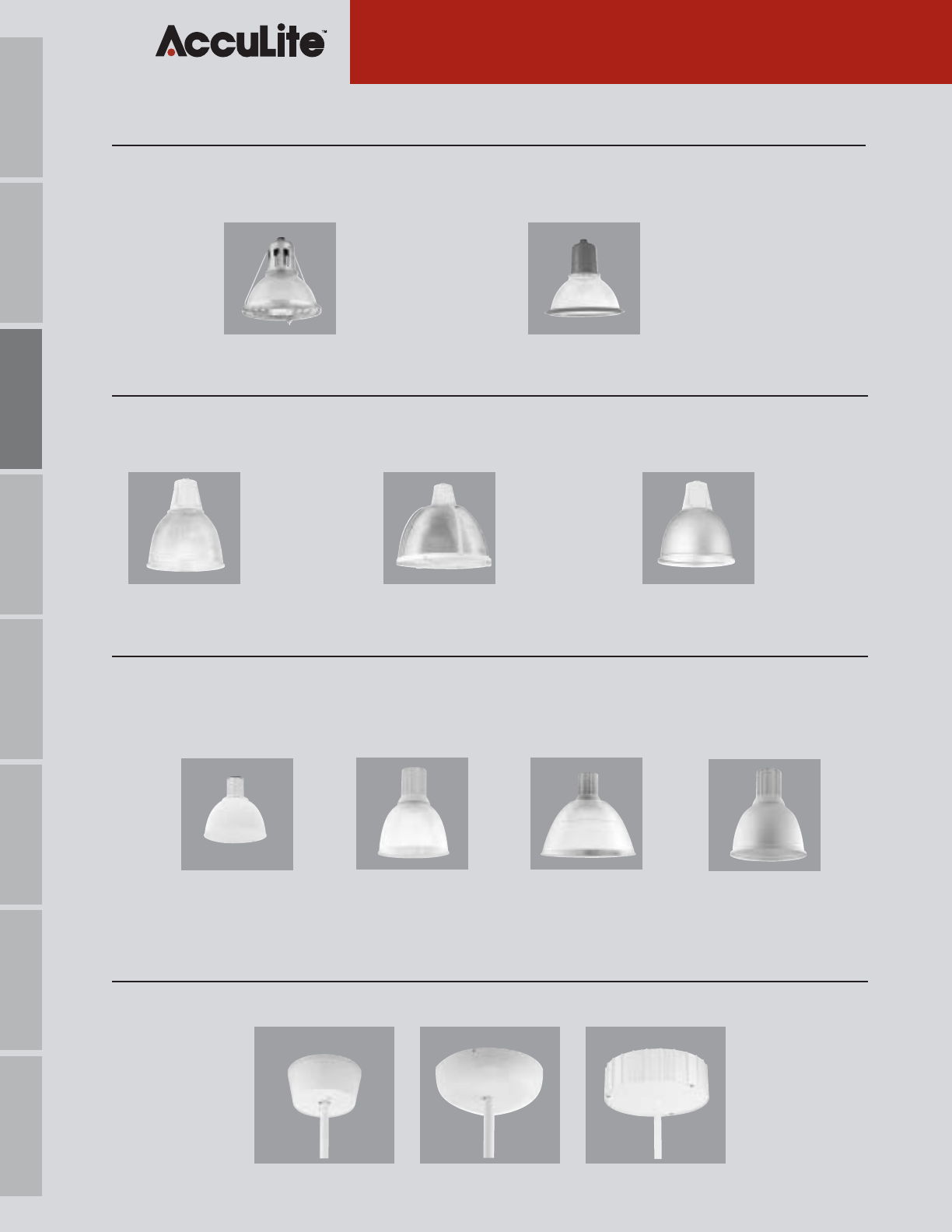

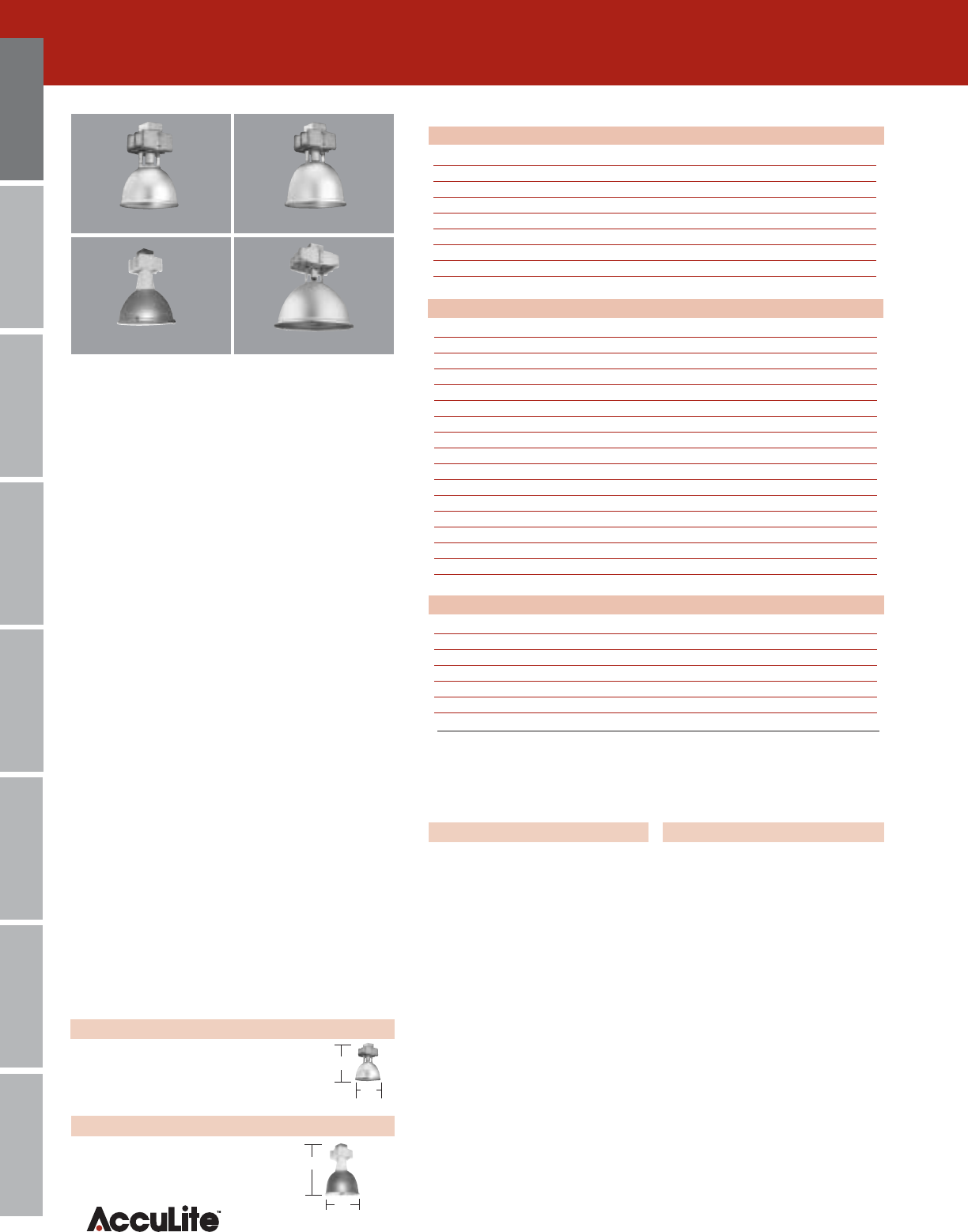

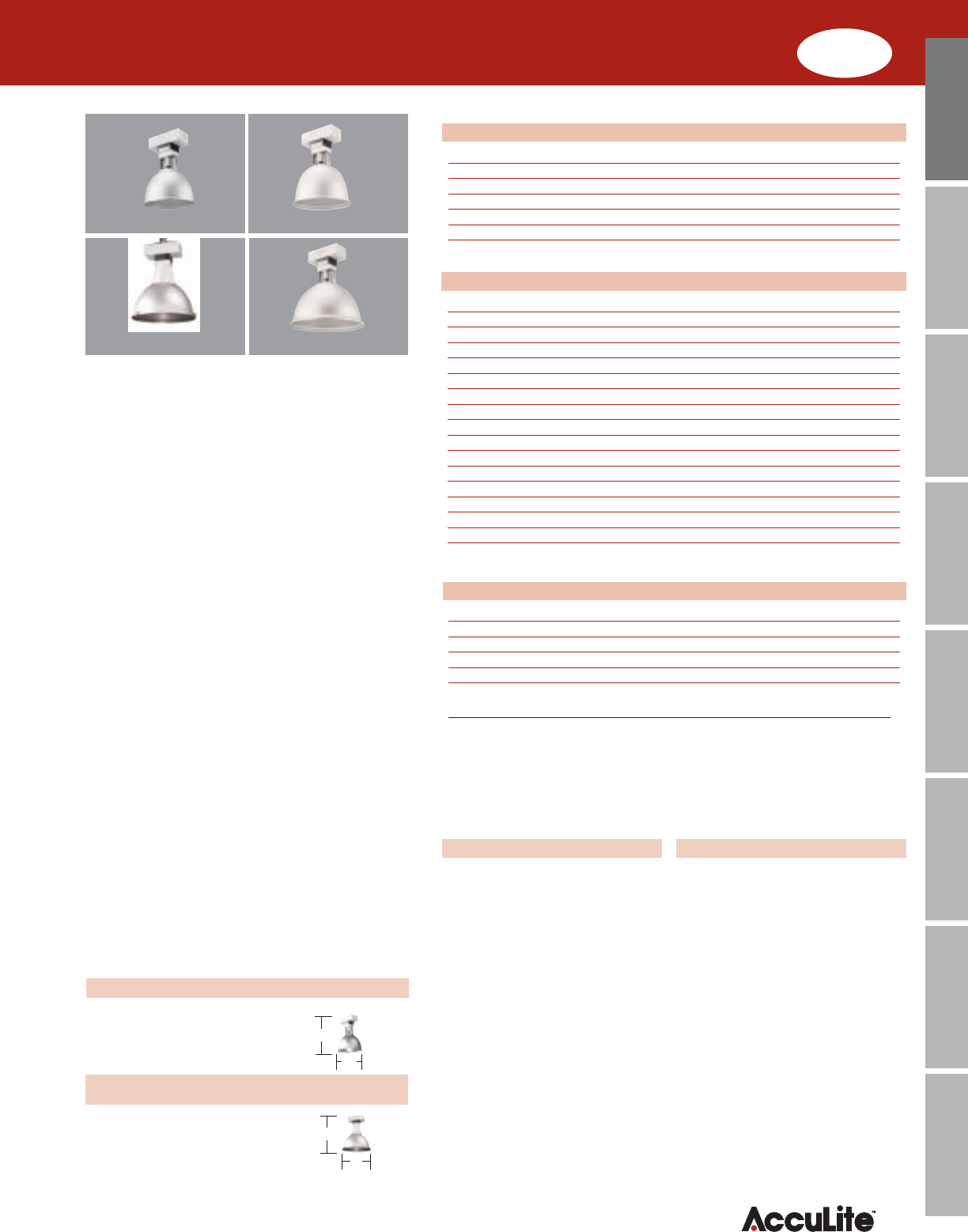

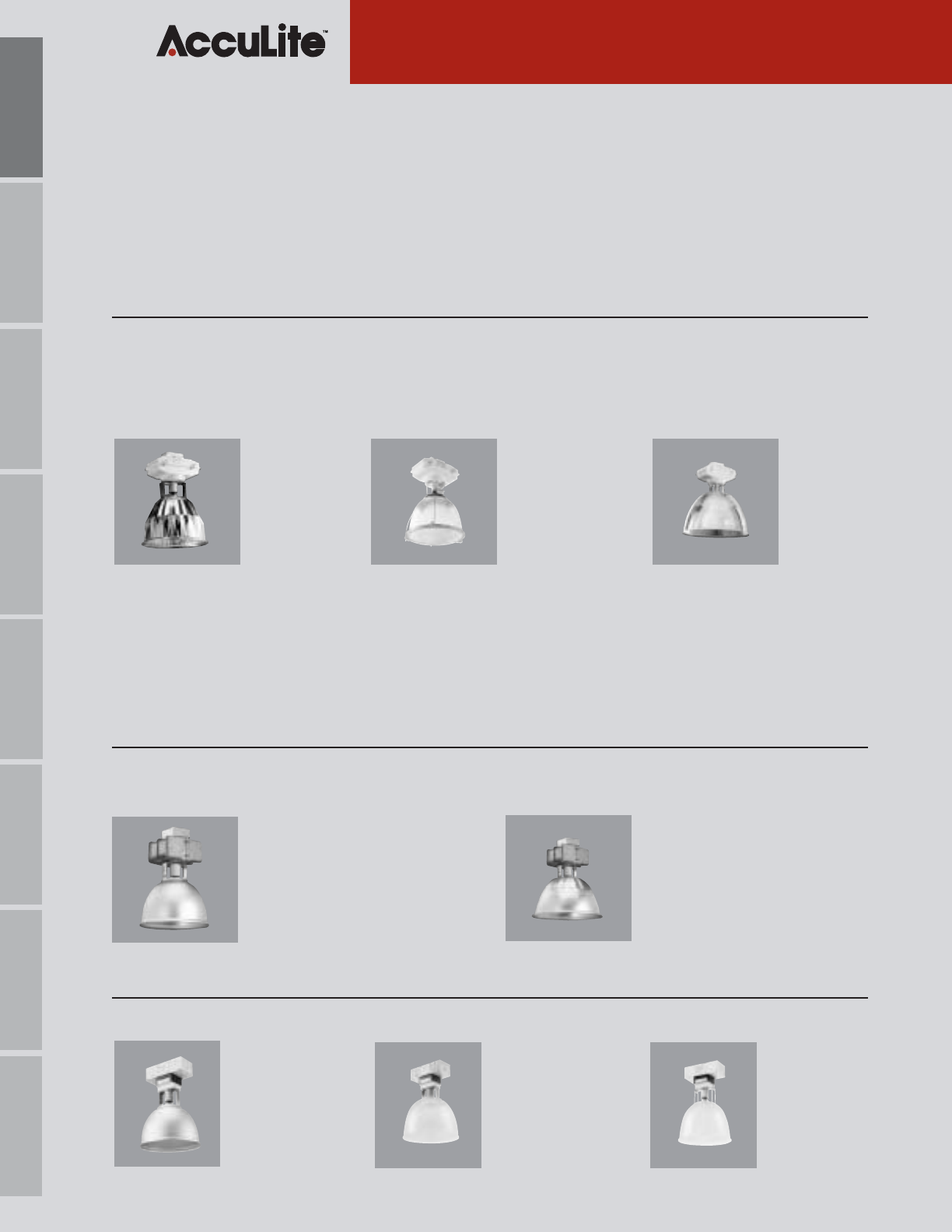

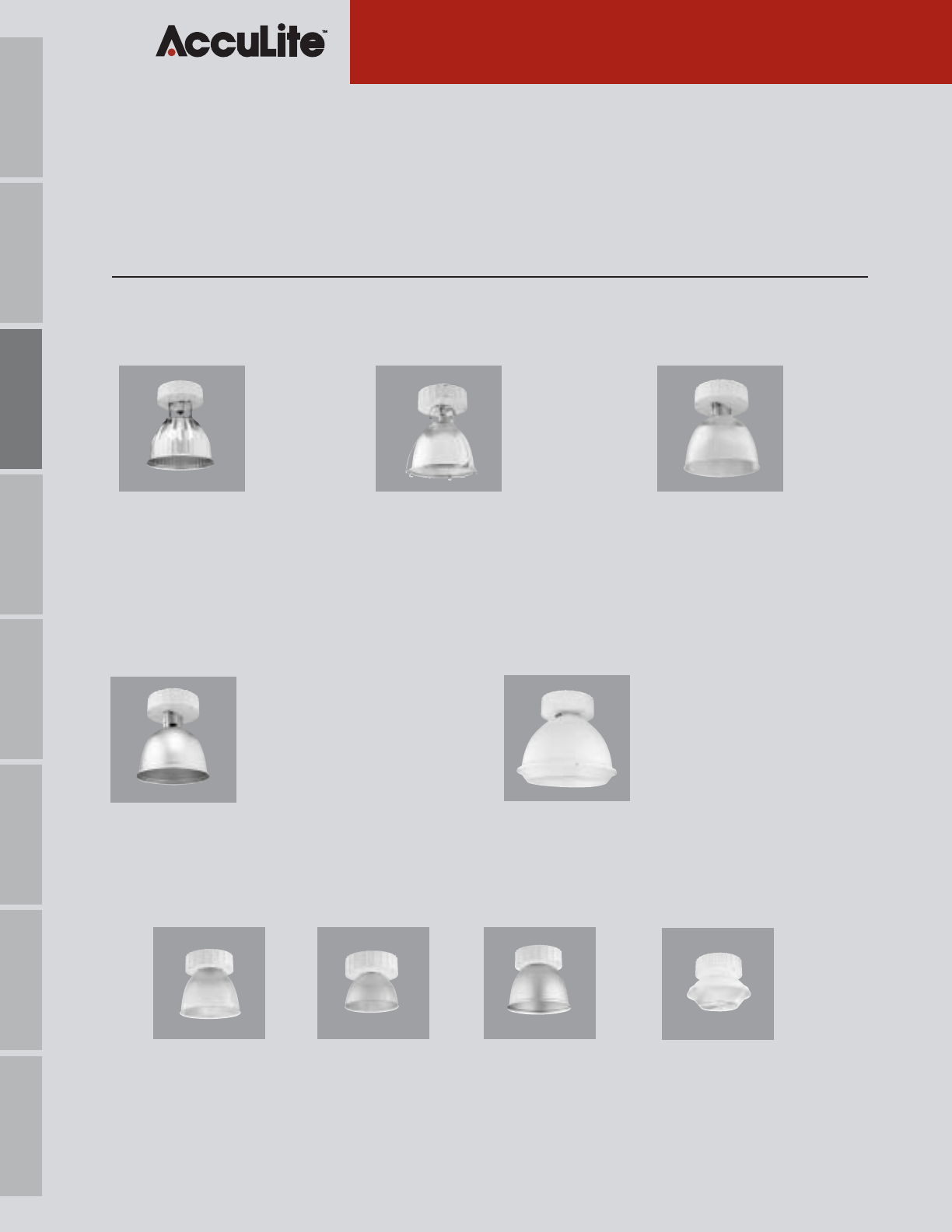

Highbays

General Indoor Downlighting of Industrial, Commercial,

Retail, Recreation and Sports Facilities with Ceiling Heights over 16 Feet

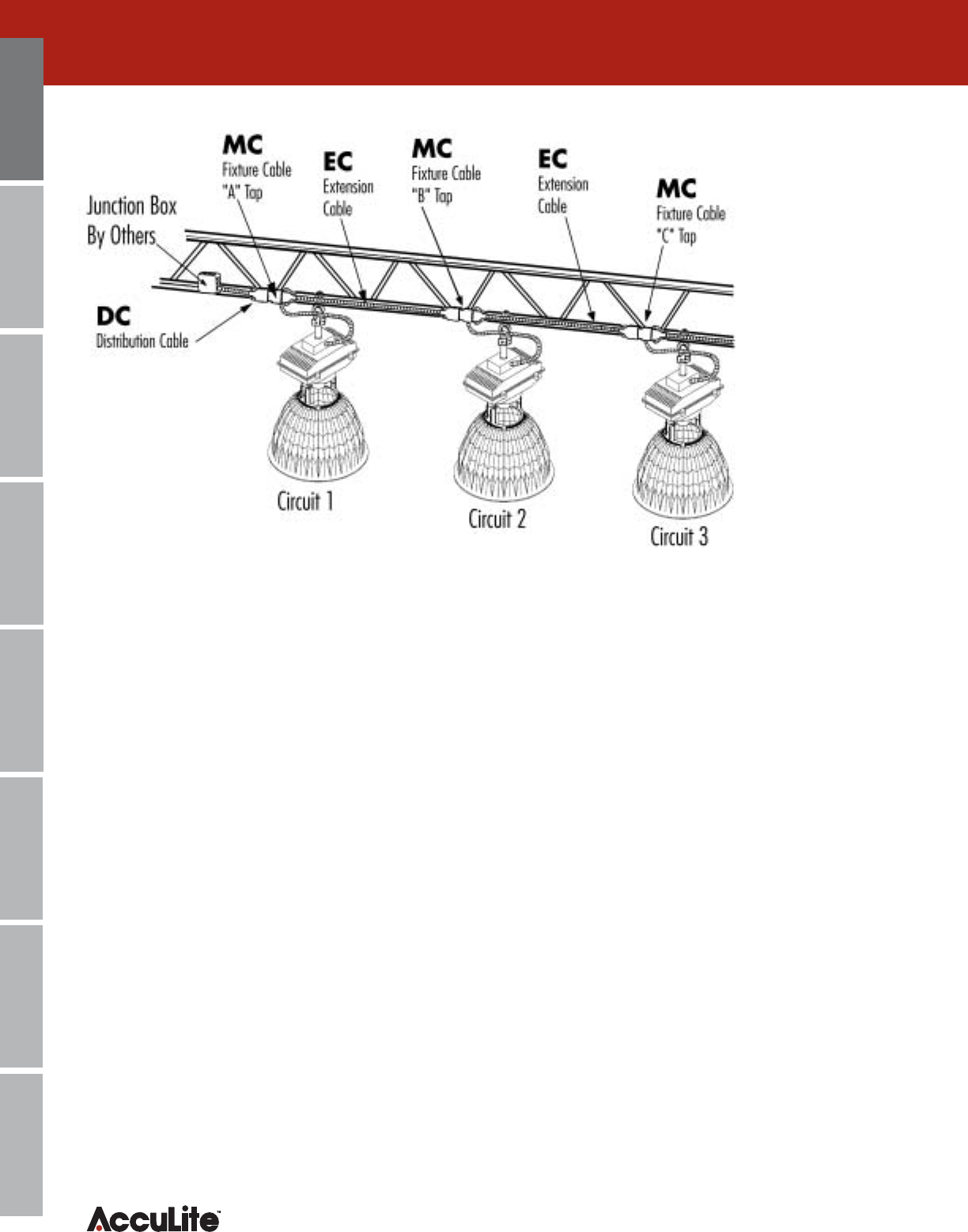

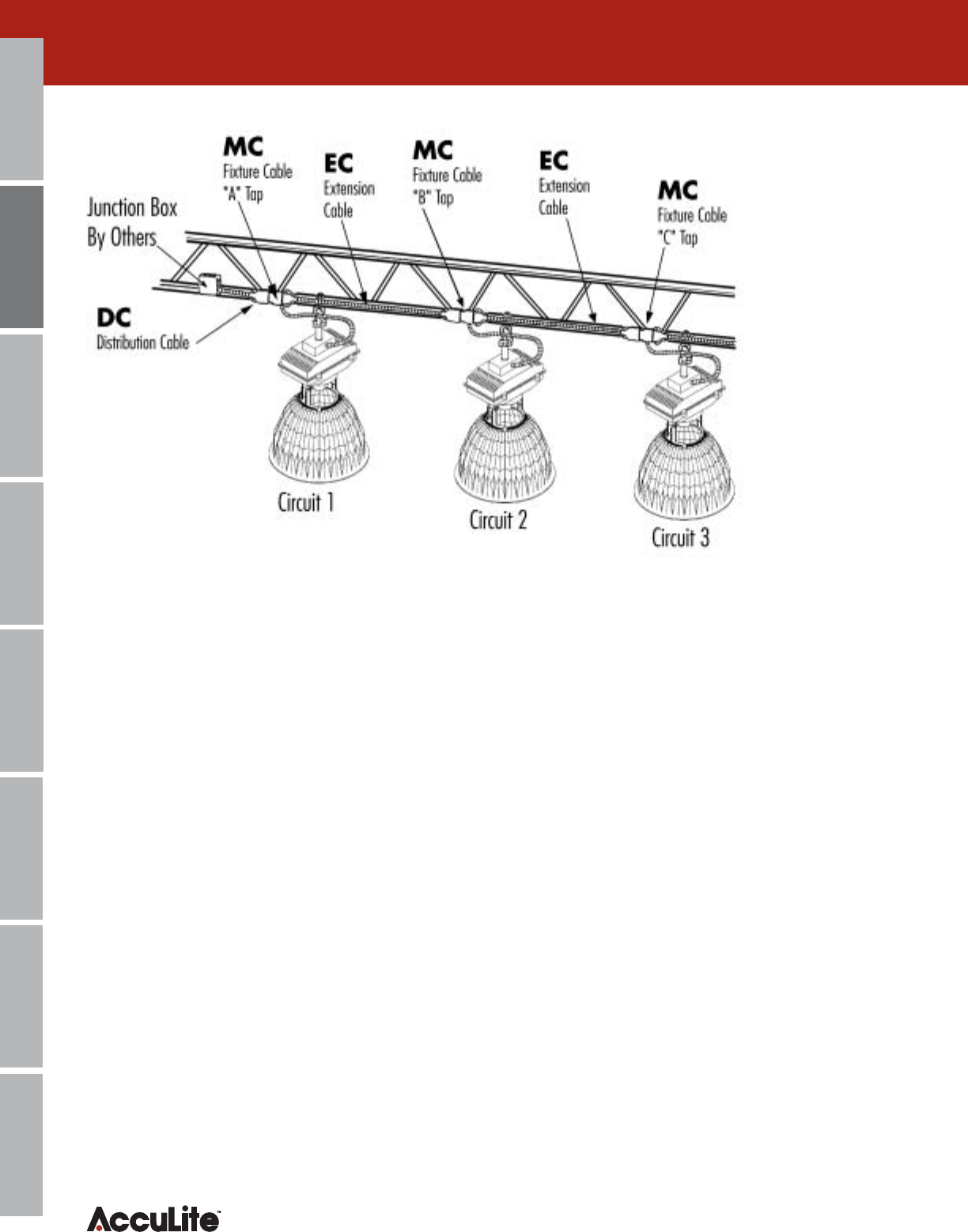

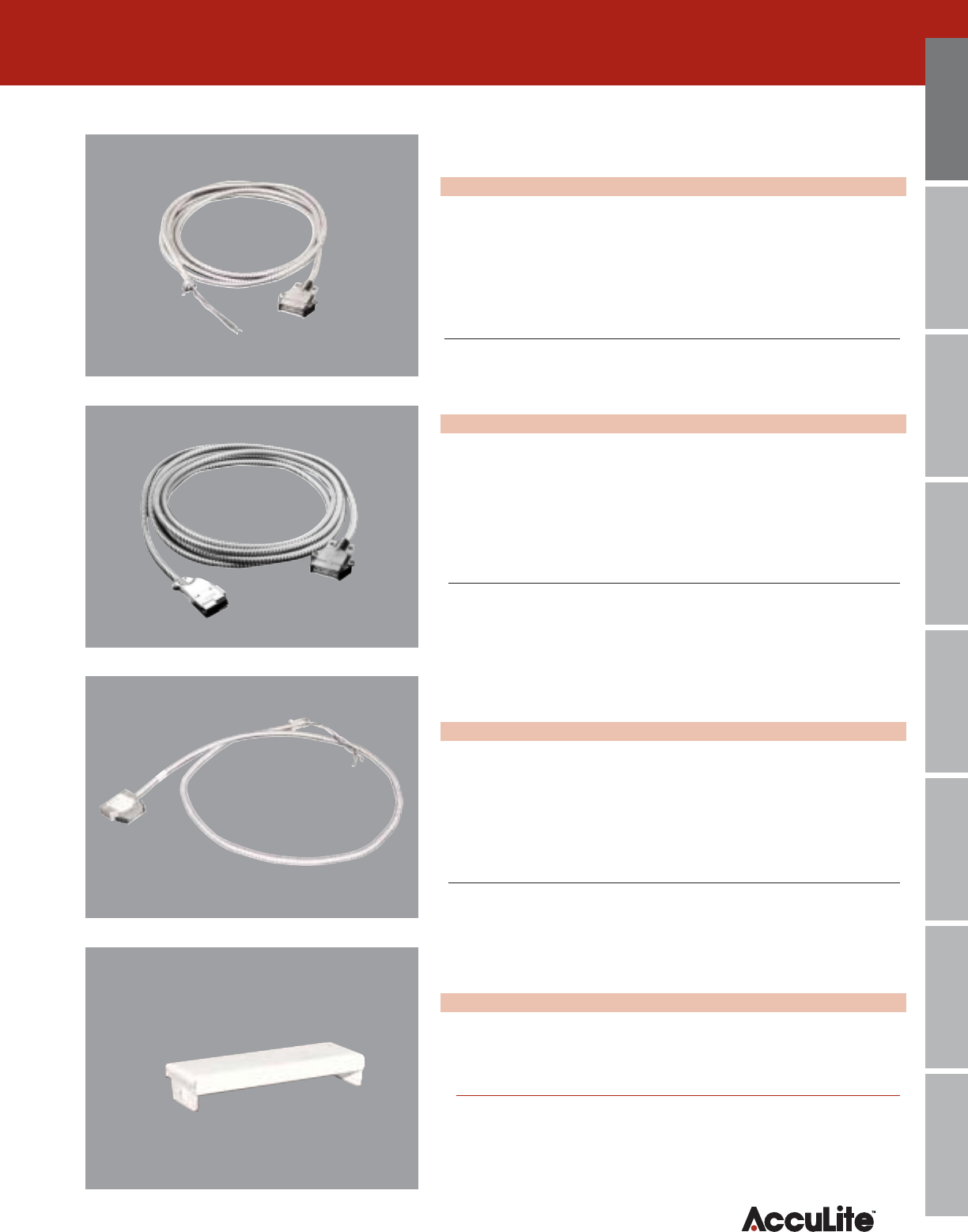

Accessories: Hi/Lo Switching, Remote Ballasts and Accuflex Modular Wiring System

Best Product

Better Product

Die-cast ballast housing

Diffuse spun aluminum reflector for industry standard photometric performance

Good Product

Economy grade with sheet metal ballast housing

Duralyte

High

Performance,

Low Brightness

Fully Faceted

Reflector

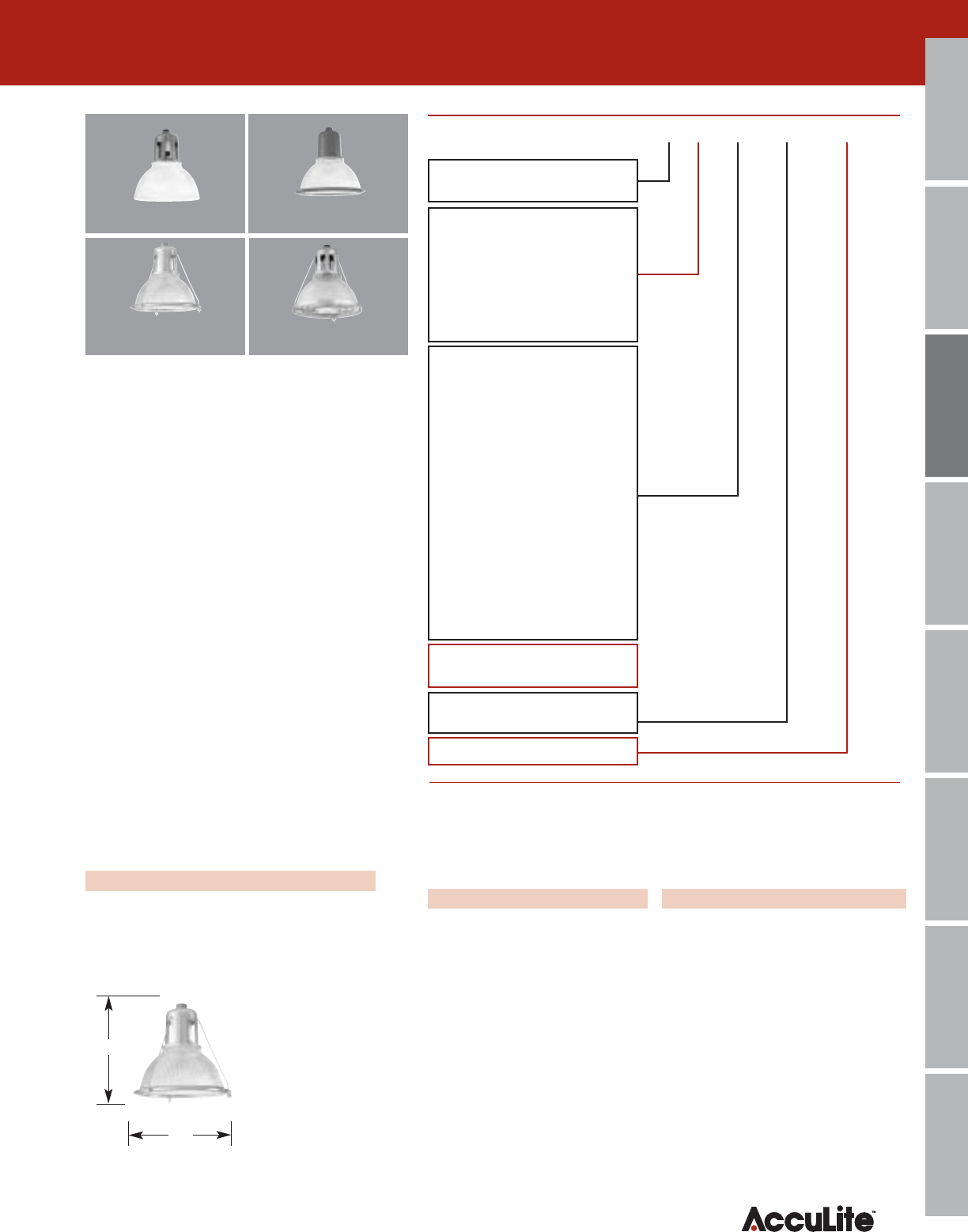

Accuglass

High Performance,

Precision Molded

Borosilicate Glass

Reflector

•Lightweight reflector for simplified

installation

•Uplight illuminates ceiling to

eliminate “cavern” effect

•12”, 16”, 22” and 25” reflectors

Gemini

•18” and 22” Aluminum Reflectors

•175W-1000W MH

150W-1000W HPS

EconoBay

•15” and 16” Aluminum Reflectors

•175W-450W MH

250W-400W HPS

Hi-Lux

15”, 16” and 18”

Aluminum

Reflectors

Max. 1000W

Merchandiser

16” and 22”

Prismatic Glass

Reflectors

Max. 1000W

High performance optics reduces number of fixtures required, lowering installation and operating cost

Heavy duty, finned/compartmentalized die-cast aluminum ballast housing

maximizes ballast life and results in exceptionally quiet operation

Lamp wattages up to 1000 watts

•Up to 20% more efficient vs.

standard spun reflectors

•Low glare maximizes visual

comfort/acuity

•17” and 22” fully faceted reflectors

•Reflector will last indefinitely...

not affected by UV

•Uplight illuminates ceiling to

eliminate “cavern” effect

•16” and 22” glass reflectors

Acculume

Lightweight

Molded

Acrylic

Reflector

Prisma-Lux

16”, 22” and 25”

Prismatic Acrylic

Reflectors

Max. 1000W

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

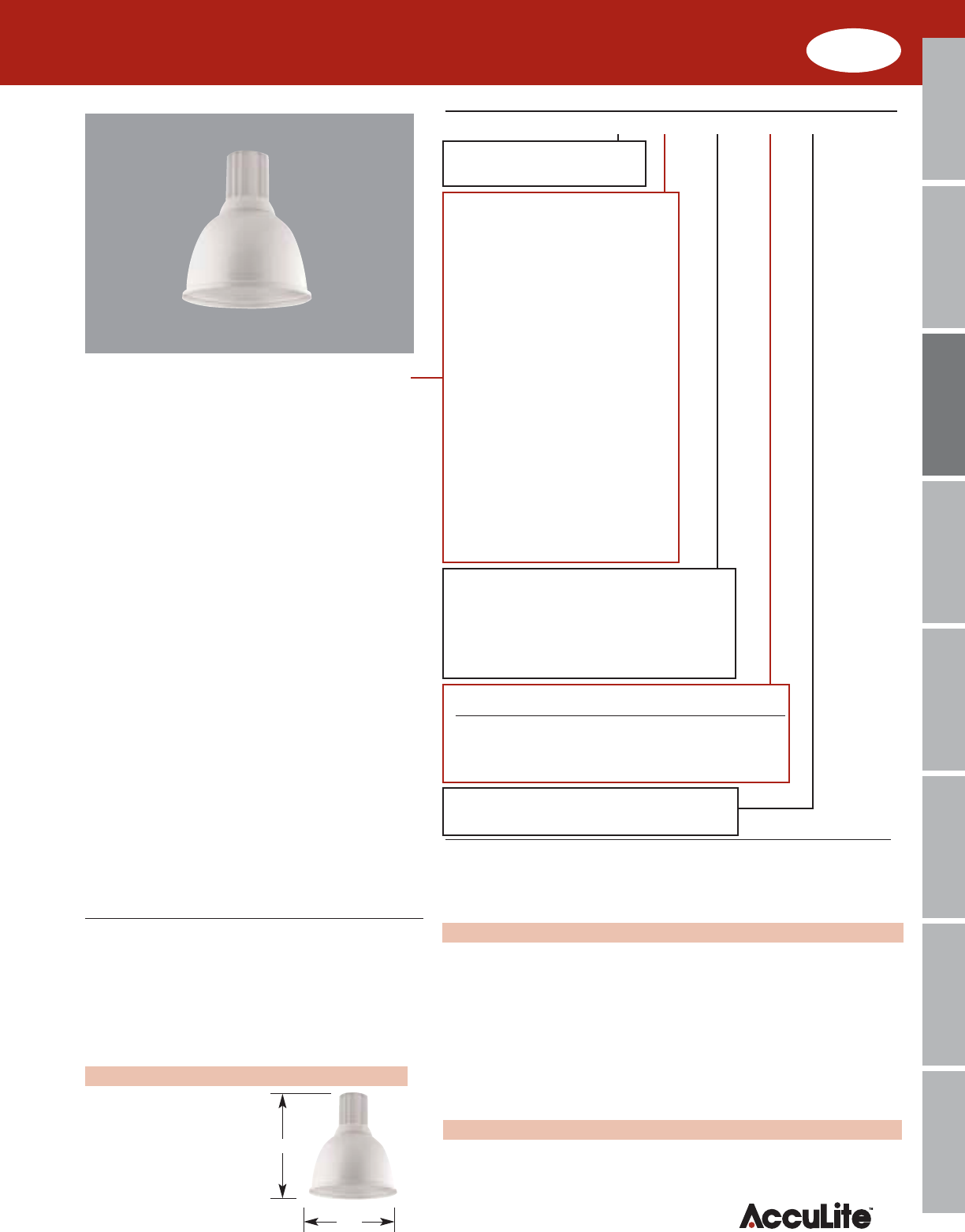

175 Mogul 17” DL175MH-volts-PSB-17‡

200 ” ” DL200MH-volts-PSB-17*

250 ” ” DL250MH-volts-PSB-17*

320 ” ” DL320MH-volts-PSB-17*

350 ” ” DL350MH-volts-PSB-17*

400 ” ” DL400MH-volts-PSB-17

450 ” ” DL450MH-volts-PSB-17

875 Mogul 22” HB5-875MH-volts-PSB-22

1000 “ ” HB5-1000MH-volts-PSB-22

175 Mogul 17” DL175MH-volts-17*

250 ” ” DL250MH-volts-17*

400 ” ” DL400MH-volts-17

1000 Mogul 22” HB5-1000MH-volts-22

Safety Hook - 3/4”NPT Male HK75SS

Female HF75SS

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ∆DL-BSC3

Optical Assembly Safety Cable DL-RSC

Wire Guard

For 17” reflector DL-17WG

For 22” reflector DL-22WG

Top Shroud DL-SS

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level switching See page 17

Accuflex Modular Wiring See page 18

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

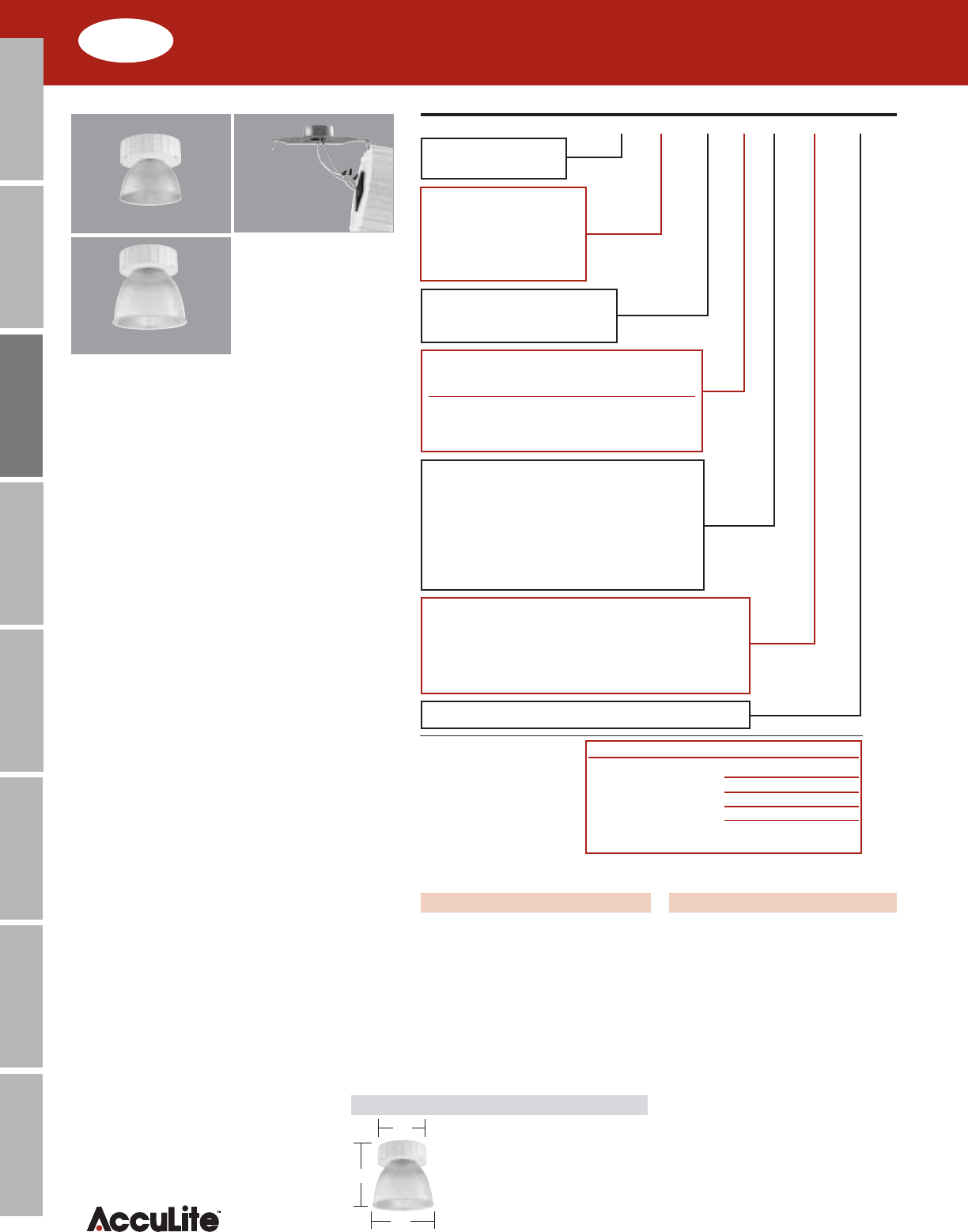

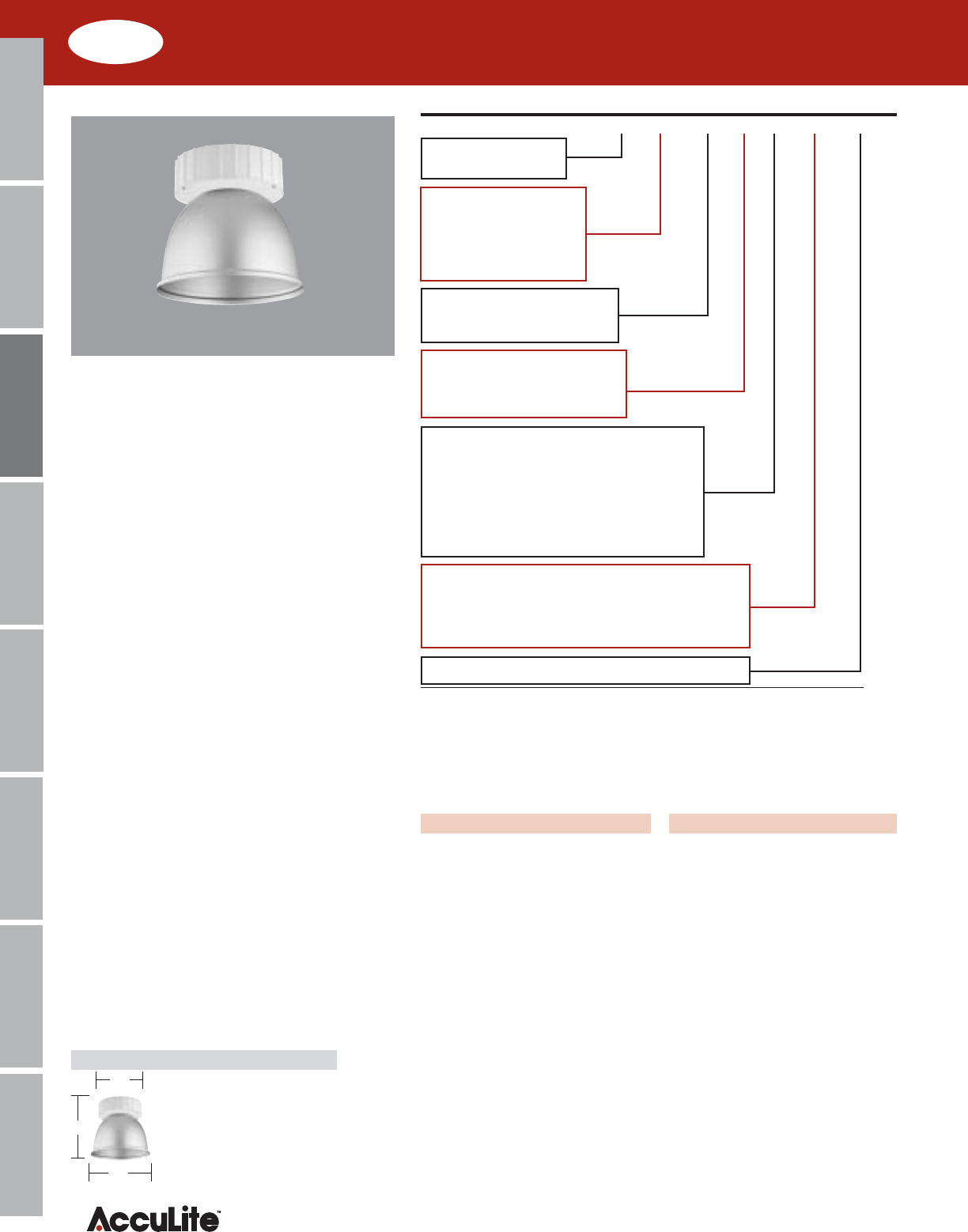

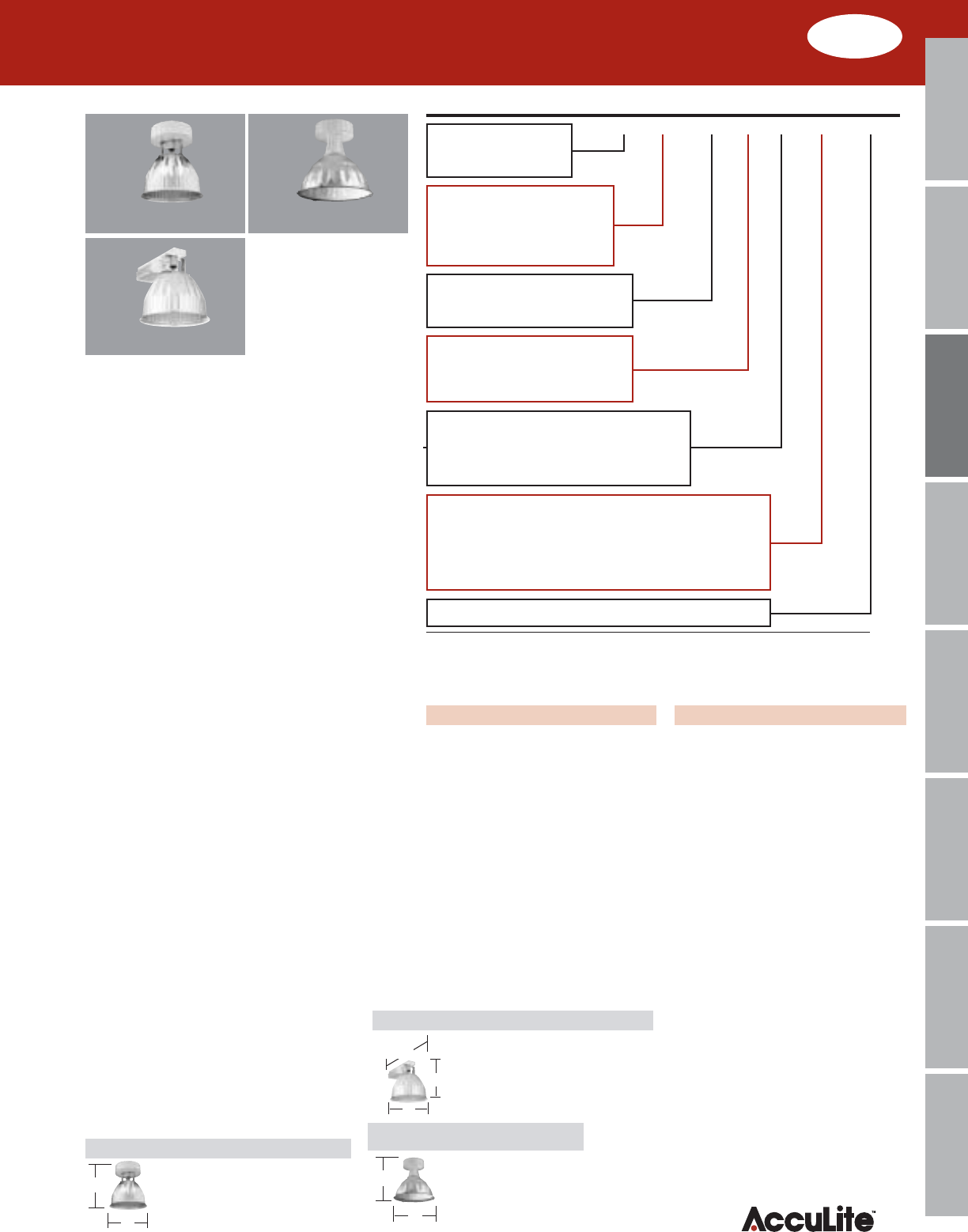

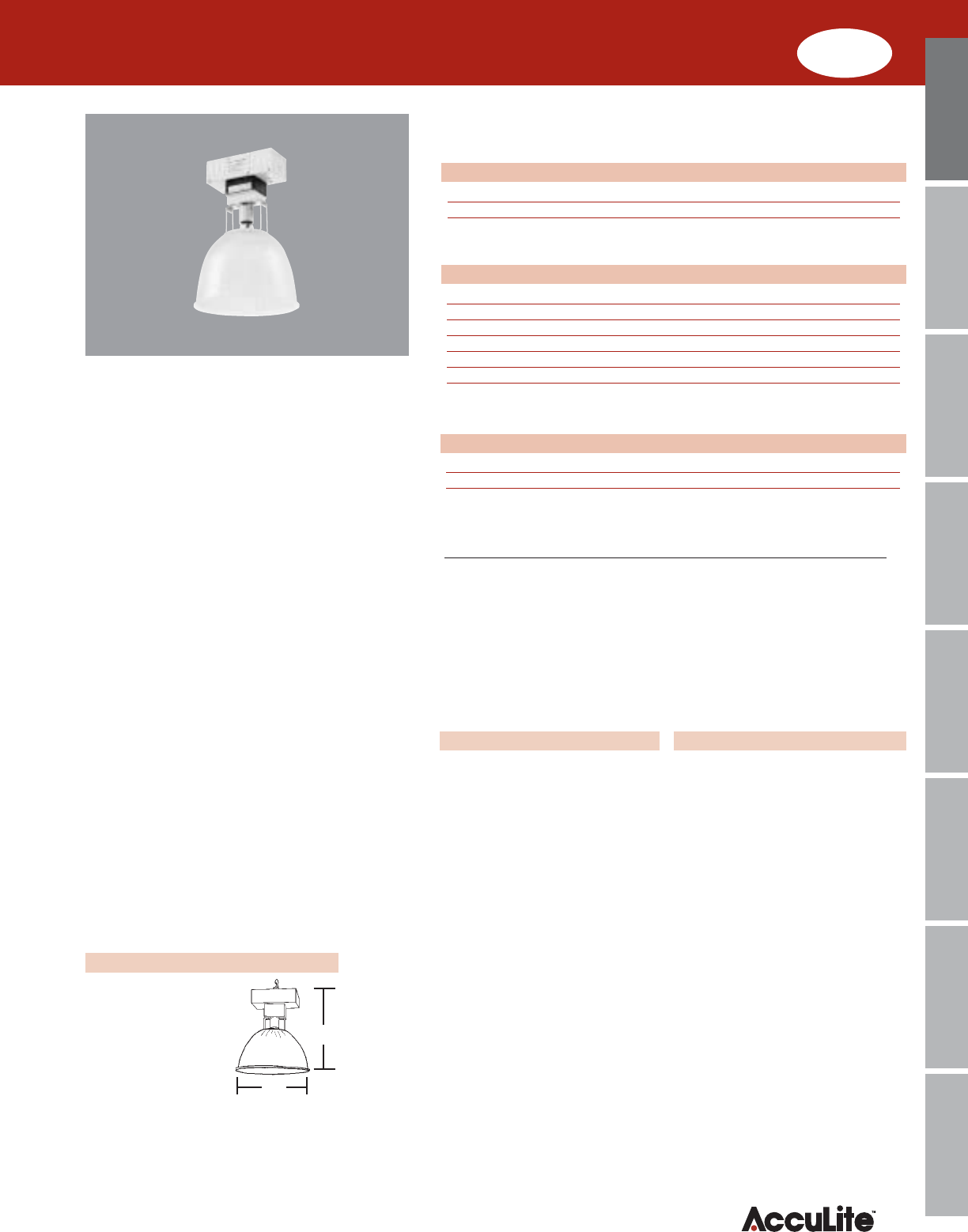

Duralyte™ High Performance Highbay

High Performance Fully Faceted Optics

•Fully faceted aluminum reflector ensures highest

luminaire performance allowing fewer fixtures per

installation vs. spun aluminum.

•Field adjustable eleven position reflector for better light

control.

Cool Operating

•Heavy duty die cast aluminum ballast housing.

Finish

•White polyester powder coat finish.

Enclosed Optical Assembly

•Prevents dirt from accumulating on reflector.

•Heat resistant hinged glass lens, three stainless steel lens

clips and silicone rubber gaskets.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

High Performance Luminaire

with Fully Faceted Optical Assembly 150 Mogul 17” DL150HP-volts-17

250 ” ” DL250HP-volts-17

400 ” ” DL400HP-volts-17

1000 Mogul 22” HB5-1000HP-volts-22

Metal Halide

Lamp Lamp Reflector 3/4” Pendant Mount

Watts Base (Diameter) Standard Profile

Lamp

Items marked ”*“ or “‡” – See note above

Coated Lamp (Recommended for MH) - CL

Clear Lamp - L

Ballast

Luminaires with magnetic ballast – see above

Luminaires with electronic ballast – see page 45

Bottom Closure - BC

Lampholder For Protected Lamp -PLS

(Order Lamp Separately)

Potted Ballasts For low noise requirements

Not available with HB5 and LPDL models - POT

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter HPS Only - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Remote Optical Assembly

Replace the Voltage with - RB

Reflector Substitution

Change reflector from 17”dia to 22” dia

Replace -17 with - 22

Enclosed Optical Assembly

Fully gasketed optical assembly -EOA

Low Profile Luminaires

Change DL to LPDL (450W Max)

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Standard D H (min) H (Max) 3/4” Hub

450 Watt 17-1/8” 23-5/16” 25-13/16”

450 Watt 22-5/8” 23-9/16” 26-1/16”

1000Watt 22-5/8” 23” 25-1/2”

Dimensions

Max 450W

LPDL

Low Profile

HB5

For 1000W

Enclosed Optical Assembly

Enclosed Optical Assembly D H 3/4” Hub

450 Watt 17-1/8” 27-1/8”

450 Watt 22-5/8” 26-7/8”

1000Watt 22-5/8” 26-3/4”

450 Watt 17-1/8” 17-1/4” 19-3/4” 26-5/16”

450 Watt 22-5/8” 17-1/2” 19-1/2” 29-1/16

Low Profile D H (Min) H (Max) L 3/4” Hub

* Must use a bottom closure or a protected lamp (See “Options - Lamp”)

‡ Must use bottom closure, protected lamp not available

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

Pulse Start Metal Halide

High Pressure Sodium

Accessories

Options

Description Suffix Description Catalog No.

175 Mogul 16” ACG175MH-volts-PSB-A‡

200 ” ” ACG200MH-volts-PSB-A*

250 ” ” ACG250MH-volts-PSB-A*

320 ” ” ACG320MH-volts-PSB-A*

350 ” ” ACG350MH-volts-PSB-A*

400 ” ” ACG400MH-volts-PSB-A

450 ” ” ACG450MH-volts-PSB-A

175 Mogul 22” ACG175MH-volts-PSB-C‡

200 ” ” ACG200MH-volts-PSB-C*

250 ” ” ACG250MH-volts-PSB-C*

320 ” ” ACG320MH-volts-PSB-C*

350 ” ” ACG350MH-volts-PSB-C*

400 ” ” ACG400MH-volts-PSB-C

450 ” ” ACG450MH-volts-PSB-C

875 ” ” ACG875MH-volts-PSB-C

1000 ” ” ACG1000MH-volts-PSB-C∆

175 Mogul 16” ACG175MH-volts-A*

250 ” ” ACG250MH-volts-A*

400 ” ” ACG400MH-volts-A

175 Mogul 22” ACG175MH-volts-C*

250 ” ” ACG250MH-volts-C*

400 ” ” ACG400MH-volts-C

1000 ” ” ACG1000MH-volts-C∆

* Must use a bottom closure or a protected lamp (See “Options - Lamp”)

‡ Must use bottom closure, protected lamp not available

∆Uses HB5 housing illustrated 1000W Duralyte (see page 9)

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

Safety Hook - 3/4”NPT Male HK75SS

Female HF75SS

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain 3’ long ∆ACG-BSC3

Optical Assembly Safety Cable ACG-RSC

Wire Guard

For 17” reflector ACG-A-WG

For 23” reflector ACG-C-WG

Top Shroud ACG-SS

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level Switching See page 17

Accuflex Modular Wiring See page 18

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

Lamp

Items marked ”*“ or “‡” – See note above

Coated Lamp (Recommended for MH) - CL

Clear Lamp - L

Ballast

Luminaires with magnetic ballast – see above

Luminaires with electronic ballast – see page 47

Bottom Closure - BC

Lamp holder For Protected Lamp -PLS

(Order Lamp Separately)

Potted Ballasts For low noise requirements

Not available with 750W, 1000W or LPACG models - POT

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter for HPS Luminaires - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Remote Optical Assembly - RB

Low Profile Luminaires

Change ACG to LPACG (450W Max)

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

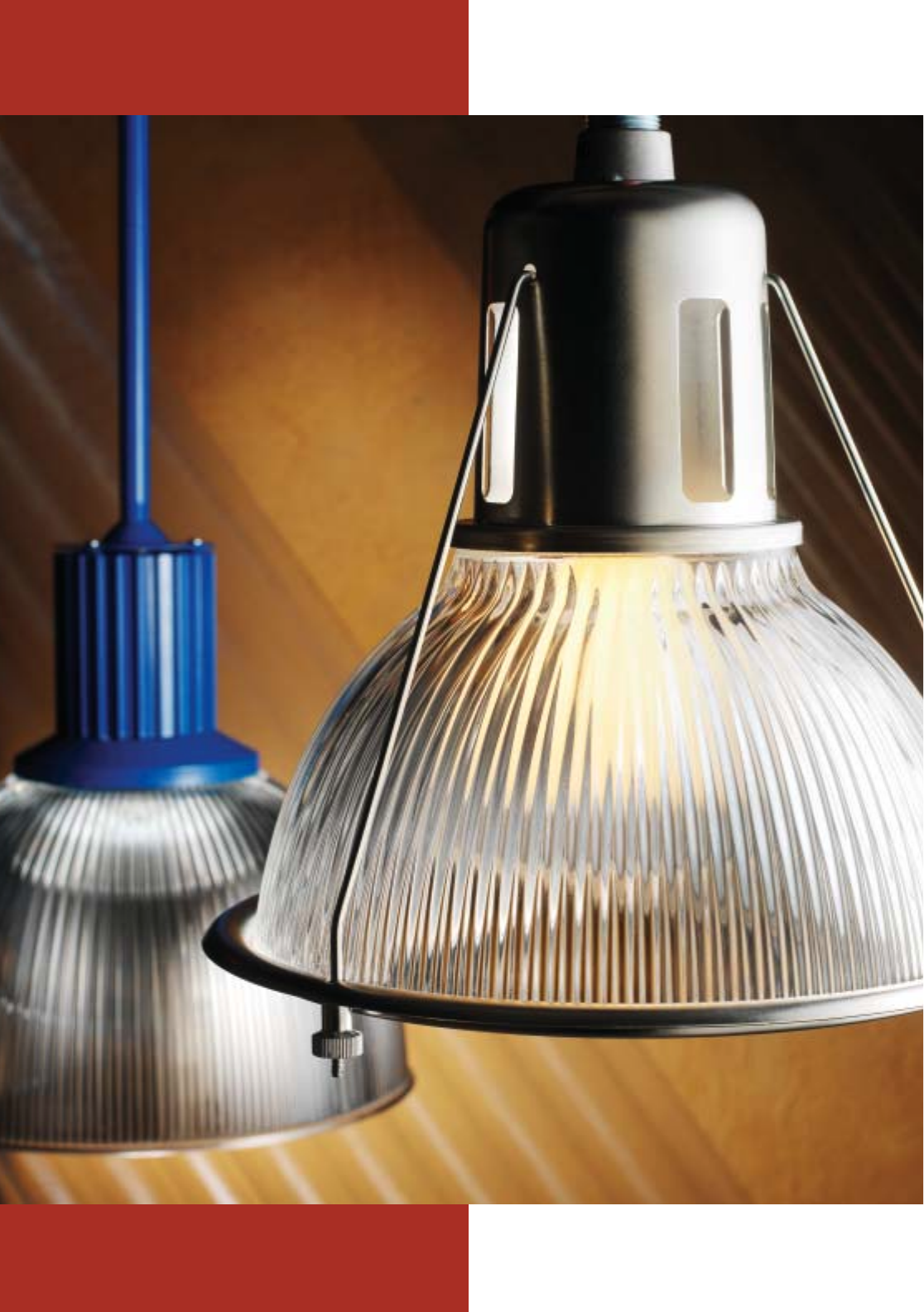

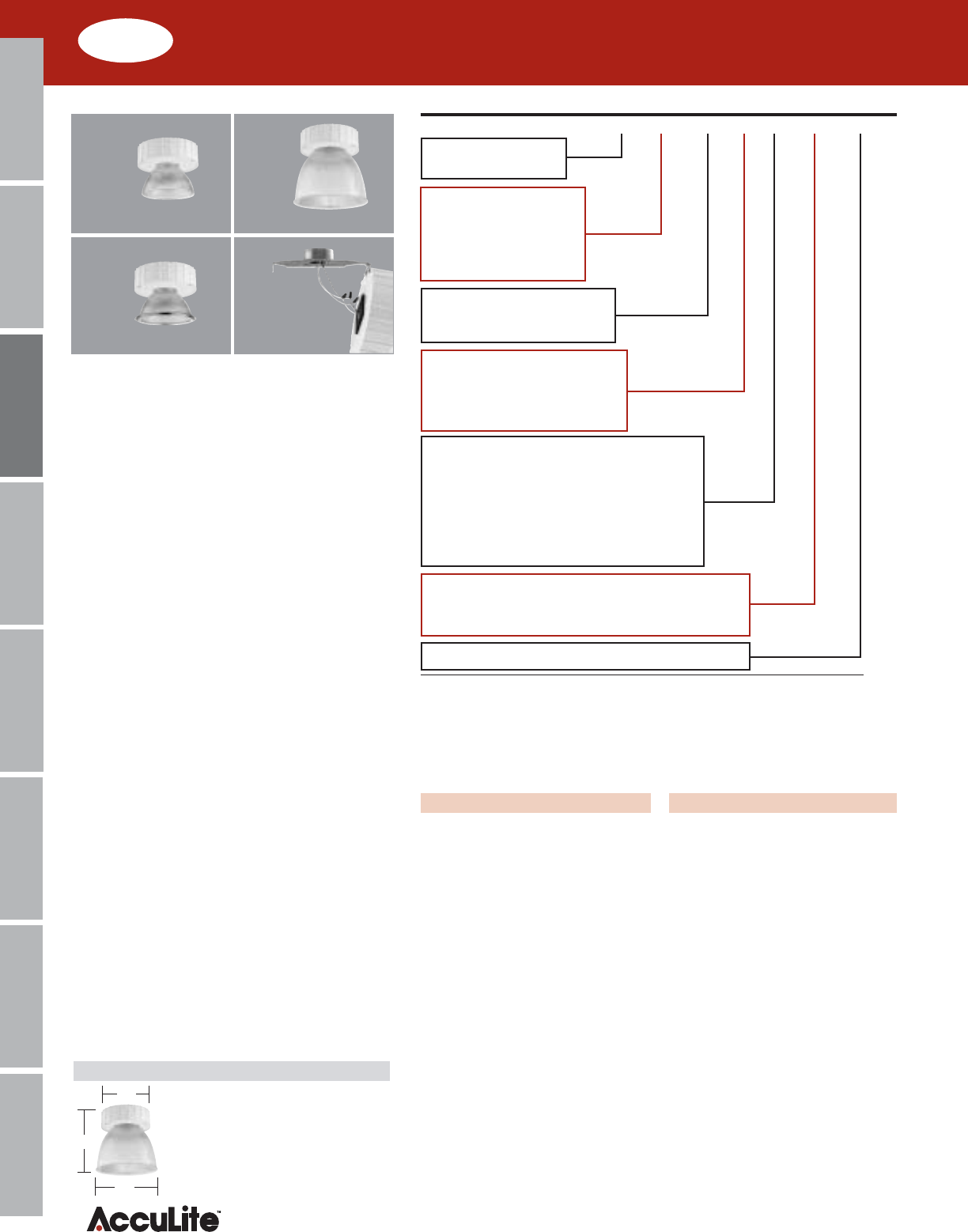

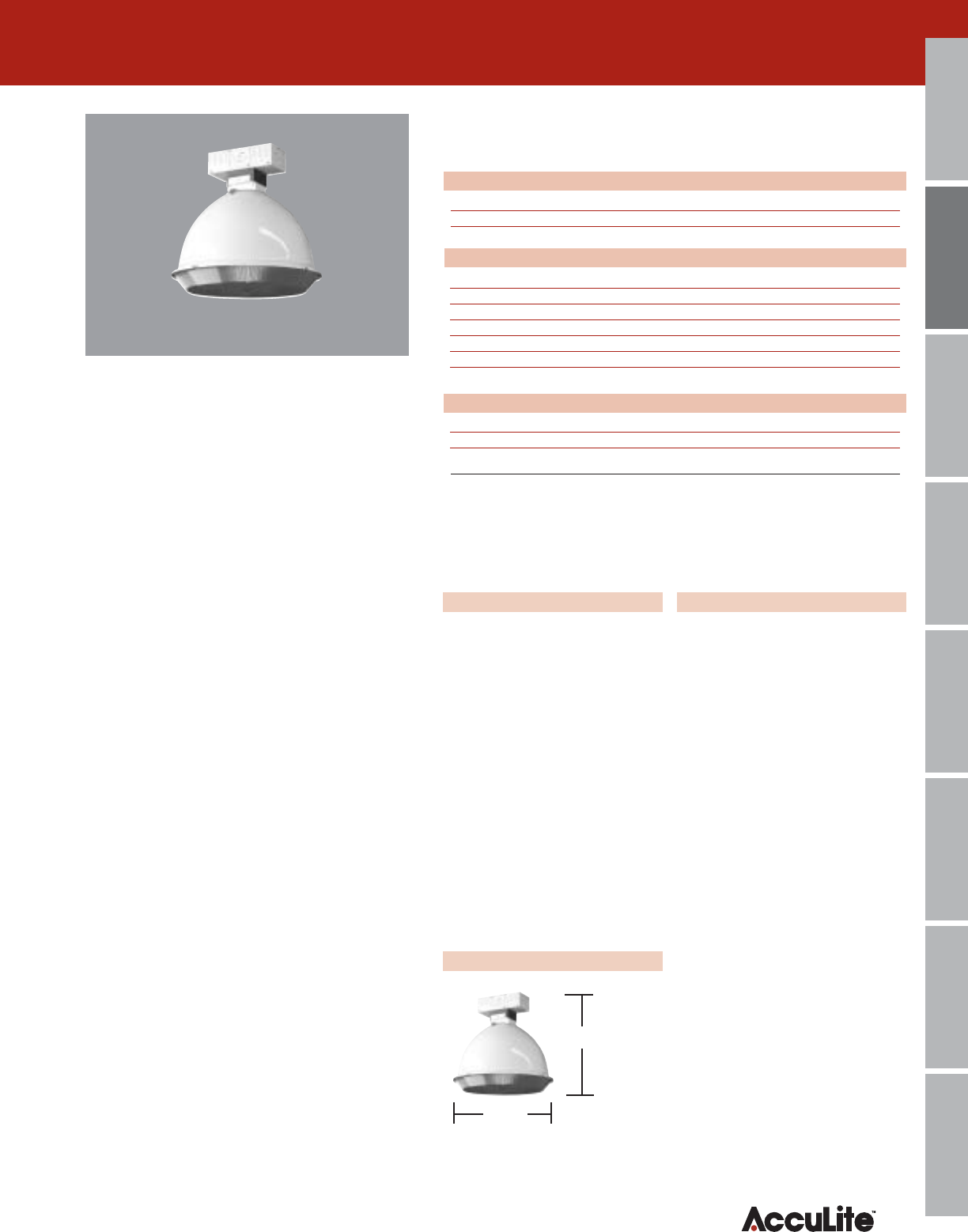

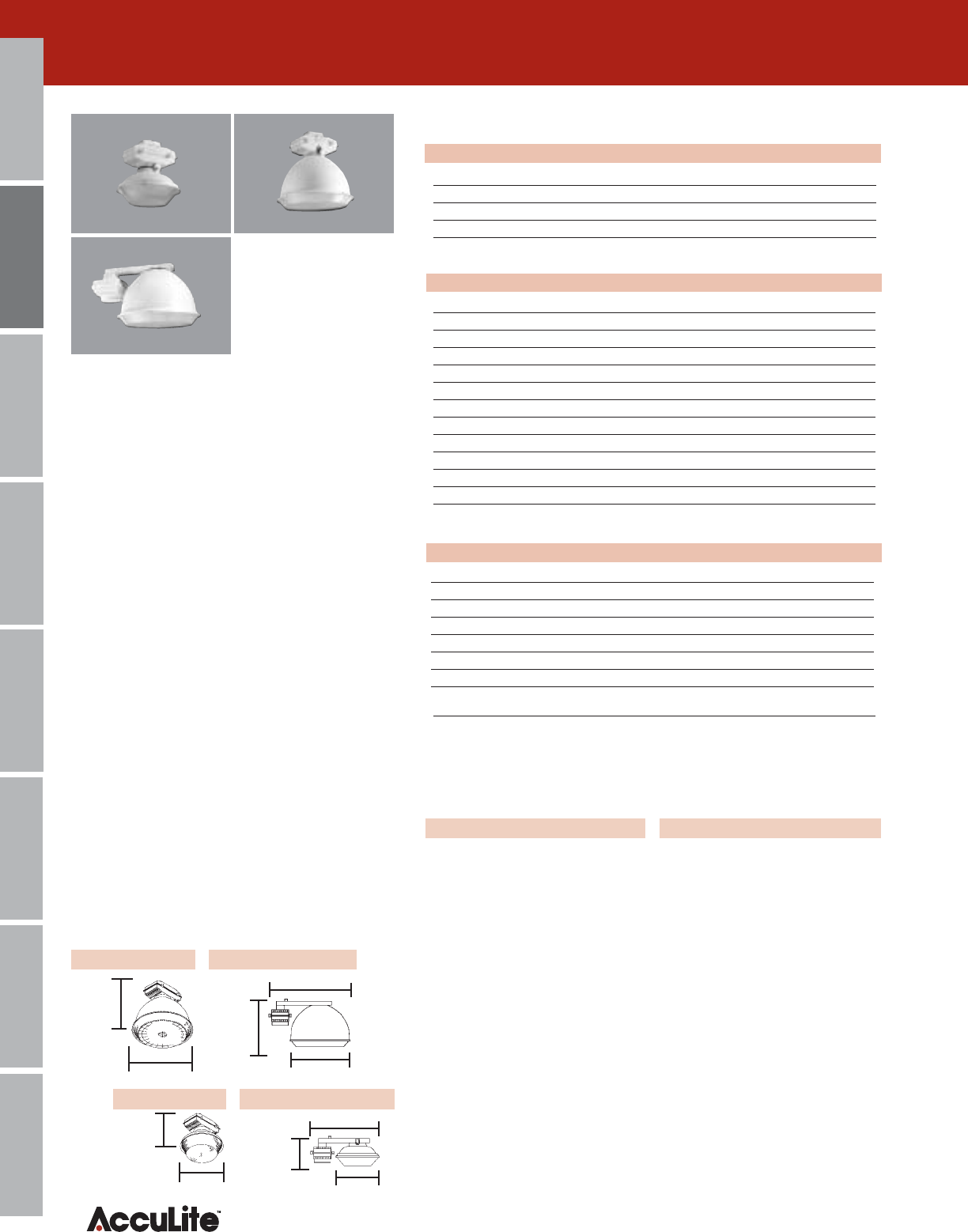

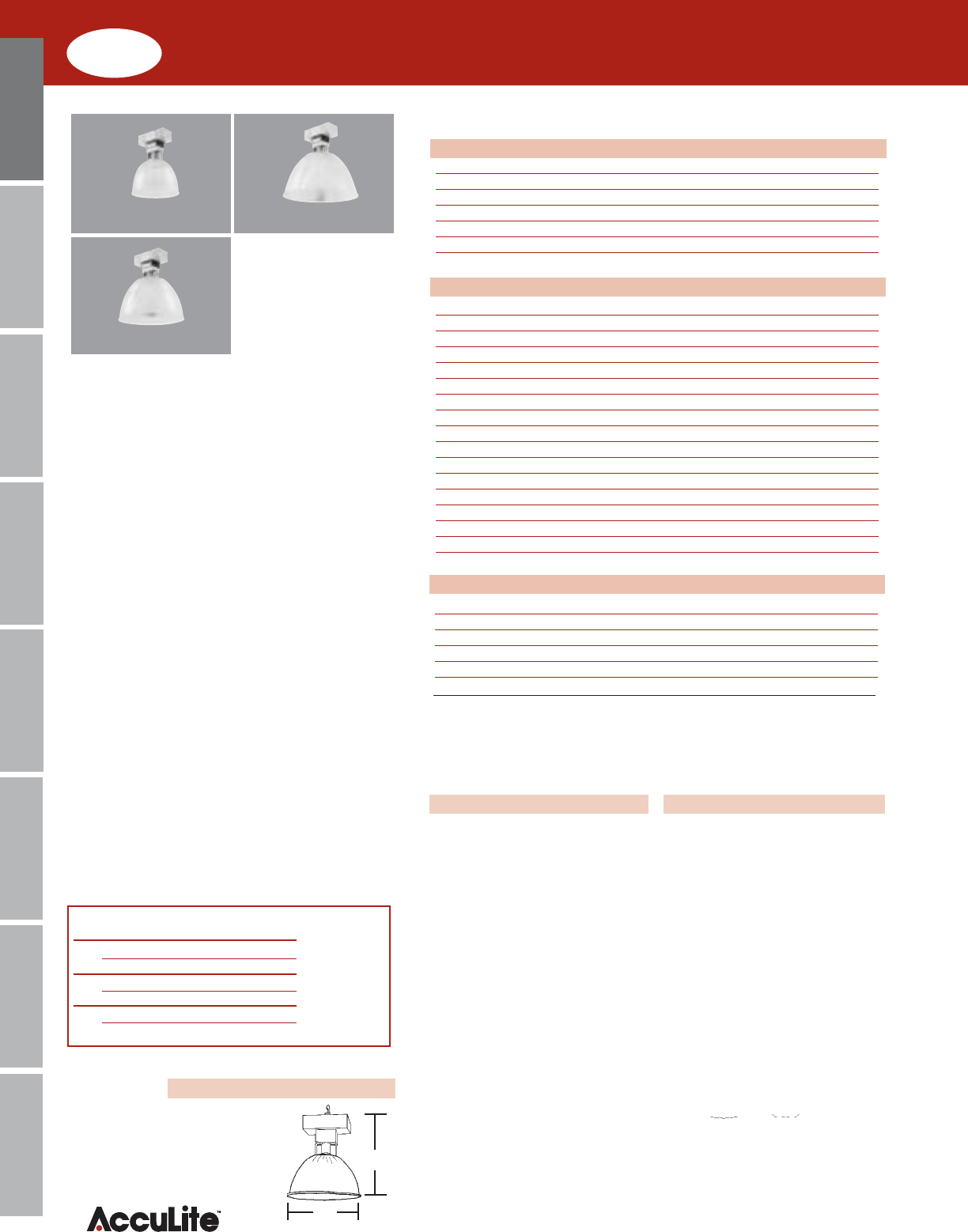

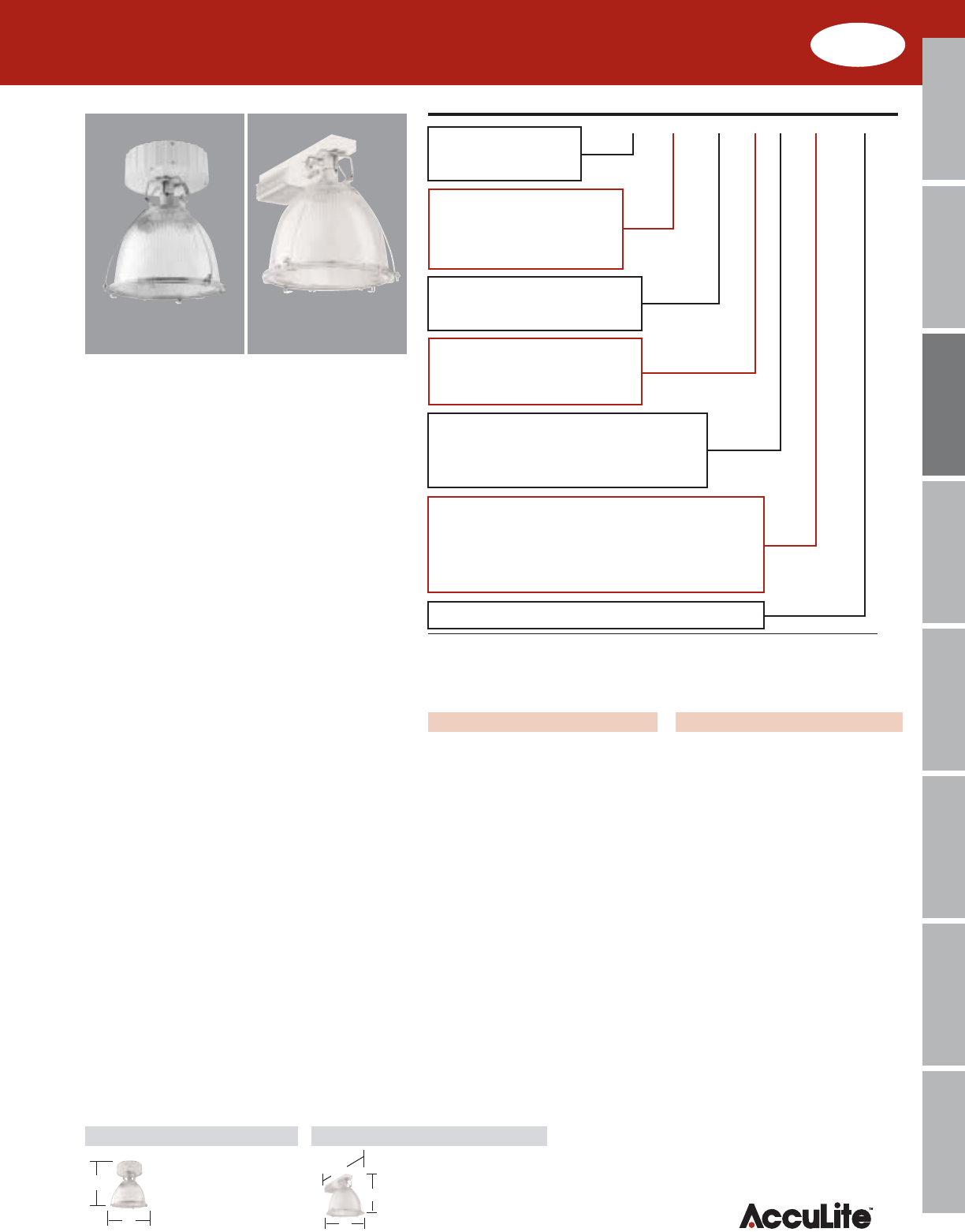

Accuglass™ Prismatic Glass Highbay Reflector

ACG

Industrial and Commercial

Highbay Lighting

Glass Reflector

•Borosilicate glass reflector with three heavy duty rods

and locking device secure the reflector.

•Available with 16” and 22” reflectors.

Uplight Component

•Clear glass, open topped reflector eliminates cavern

effect.

Cool Operating

•Heavy duty die cast aluminum ballast housing.

Finish

•White polyester powder coat finish.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

150 Mogul 16” ACG150HP-volts-A

250 ” ” ACG250HP-volts-A

400 ” ” ACG400HP-volts-A

150 Mogul 22” ACG150HP-volts-C

250 ” ” ACG250HP-volts-C

400 ” ” ACG400HP-volts-C

1000 ” ” ACG1000HP-volts-C∆

Lamp Lamp Reflector 3/4” Pendant Mount

Watts Base (Diameter) Standard Profile*

DH 3/4” Hub

400 Watt 15-3/4” 25”

450 Watt 21-1/2” 23-3/4”

1000 Watt 21-1/2” 26-3/4”

Low Profile D H L 3/4” Hub

450 Watt 15-3/4” 19-1/4” 25-1/2”

450 Watt 21-1/2” 18” 28-1/4”

ACG

22” Reflector - 450W

LPACG

Low Profile

ACG

16” Reflector - 450W

Dimensions

ACG

22” Reflector - 1000W

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

Accessories

Options

Description Suffix Description Catalog No.

HB1

16” Reflector

LPHB1

Low Profile

HB1

16” Reflector

Lamp

Items marked ”*“, “†” or “‡” (See note above)

Coated Lamp (Recommended for MH) - CL

Clear Lamp - L

Ballast

Luminaires with magnetic ballast – see above

Luminaires with electronic ballast – see page 49

Lampholder For Protected Lamp -PLS

(Order Lamp Separately)

Potted Ballasts For low noise requirements

Not available with HB5 and LPHB1 models - POT

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter HPSOnly - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Decorative Rings Consult Factory

Low Profile Luminaires

Change HB1 to LPHB1 (450W Max)

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Safety Hook - 3/4”NPT Male HK75SS

Female HF75SS

Cord Set - 3’ long **

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug ◊3C-TLP-(volts)-(amps)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ** HB1-BSC3

Optical Assembly Safety Cable HB1-RSC

Wire Guard 16” dia reflector PR-16WG

22” dia reflector PR-22WG

25” dia reflector PR-25WG

Top Shroud HB1-SS

Bottom Closure

See Reflector Application Guide on Left for Max Watt

Dia. Domed Conical Drop Flat

Acrylic Acrylic Acrylic Glass

12” PR-12DL PR-12CL ––

16” – PR-16CL PR-16DL PR-16BL

22” – PR-22CL PR-22DL PR-22BL

25” – PR-25CL ––

Power Hook Receptacle, hook and box HBPH-volts

HI/LO Systems Bi-Level switching See page 17

Accuflex Modular Wiring See page 18

Accessories

Options

Description Suffix

50 Medium 12” HB1-50MH-120-PR12 *§

70 ” ” HB1-70MH-volts-PR12 *

100 ” ” HB1-100MH-volts-PR12 *

150 ” ” HB1-150MH-volts-PSB-PR12 ∆†

150 Mogul 16” HB1-150MH-volts-PSB-PR16 ∆†

175 ” ” HB1-175MH-volts-PSB-PR16 ‡

200 ” ” HB1-200MH-volts-PSB-PR16 *

250 ” ” HB1-250MH-volts-PSB-PR16 *

320 ” ” HB1-320MH-volts-PSB-PR16 ∆†

350 ” ” HB1-350MH-volts-PSB-PR16 ∆†

400 ” ” HB1-400MH-volts-PSB-PR16 ∆

400 Mogul 22” HB1-400MH-volts-PSB-PR22

450 ” ” HB1-450MH-volts-PSB-PR22 ∆

875 ” ” HB5-875MH-volts-PSB-PR22 ∆

1000 Mogul 25” HB5-1000MH-volts-PSB-PR25 ∆

175 Medium 12” HB1-175MH-volts-PR12 †

175 Mogul 16” HB1-175MH-volts-PR16 *

250 ” ” HB1-250MH-volts-PR16 *

400 ” ” HB1-400MH-volts-PR16 ∆

400 Mogul 22” HB1-400MH-volts-PR22

1000 Mogul 25” HB5-1000MH-volts-PR25 ∆

* Must use a bottom closure (See “Reflector Application Guide” below for

maximum wattage) or a protected lamp (See “Options - Lamp”)

† Must use protected lampholder and protected lamp

‡ Must use bottom closure, protected lamp not available

∆Not available with bottom closure

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

§ 277V available – change “-120” to “- 277”

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Reflector Application Guide With Acrylic Parts (Ambient 25°C)

Dia. Watts 100 175 250 400 1000

12” Open Bottom ❶❶———

Closed Bottom ✔✘———

16” Open Bottom ❶❶ ❶✔—

Closed Bottom ✔✔✔✘ —

22” Open Bottom ✘❶❶✔—

Closed Bottom ✘✔✔✔—

25” Open Bottom ———✔✔

Closed Bottom ———✔✘

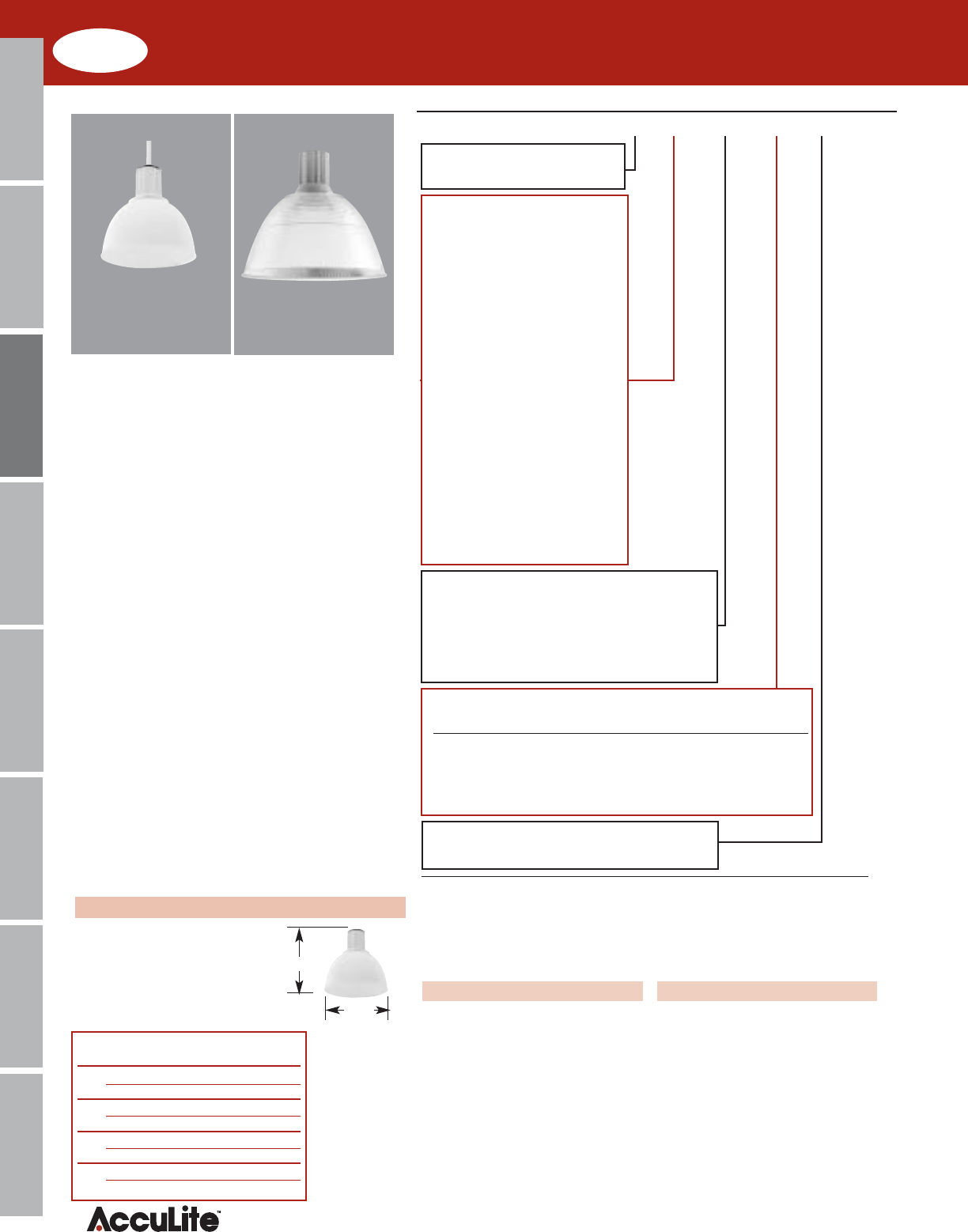

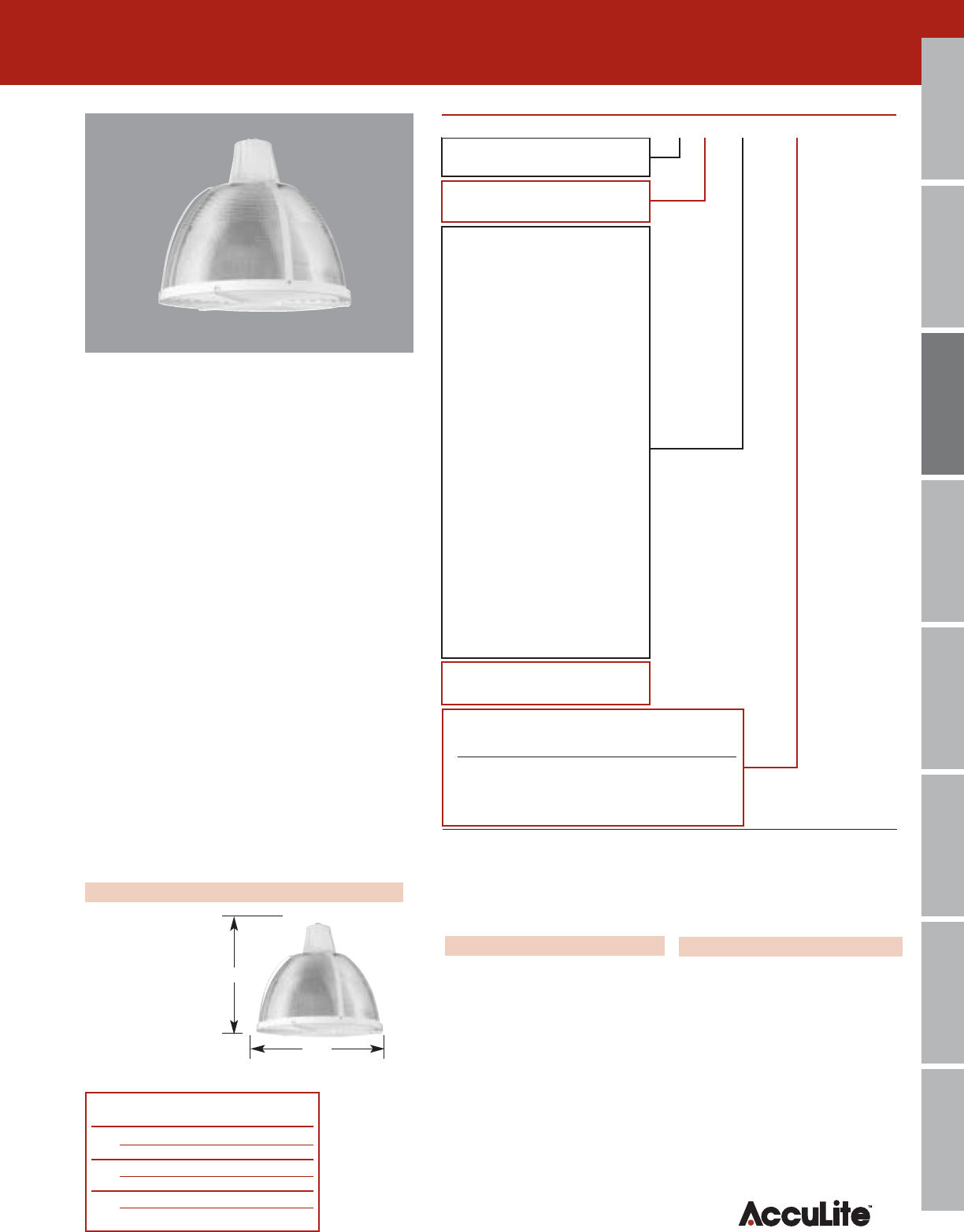

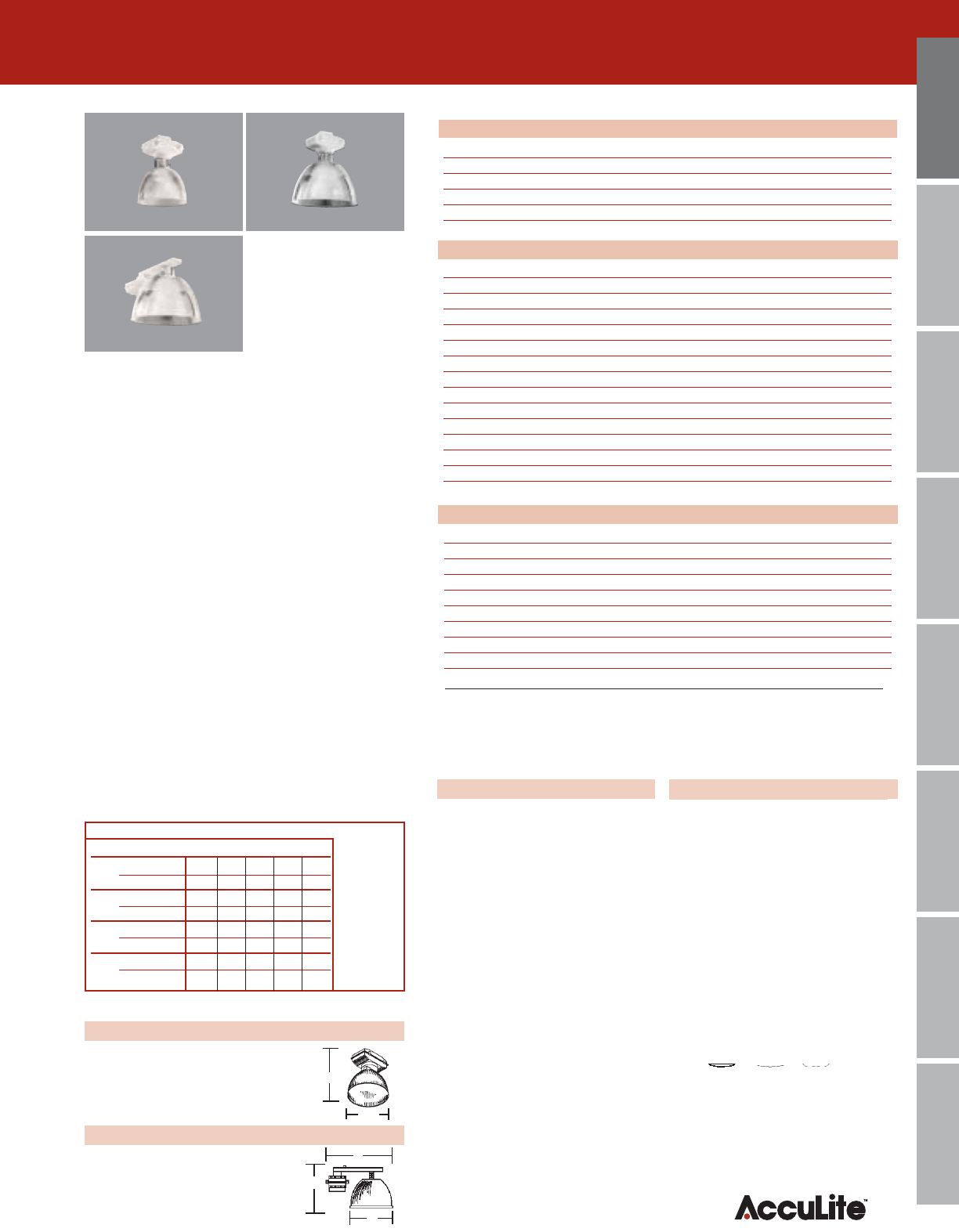

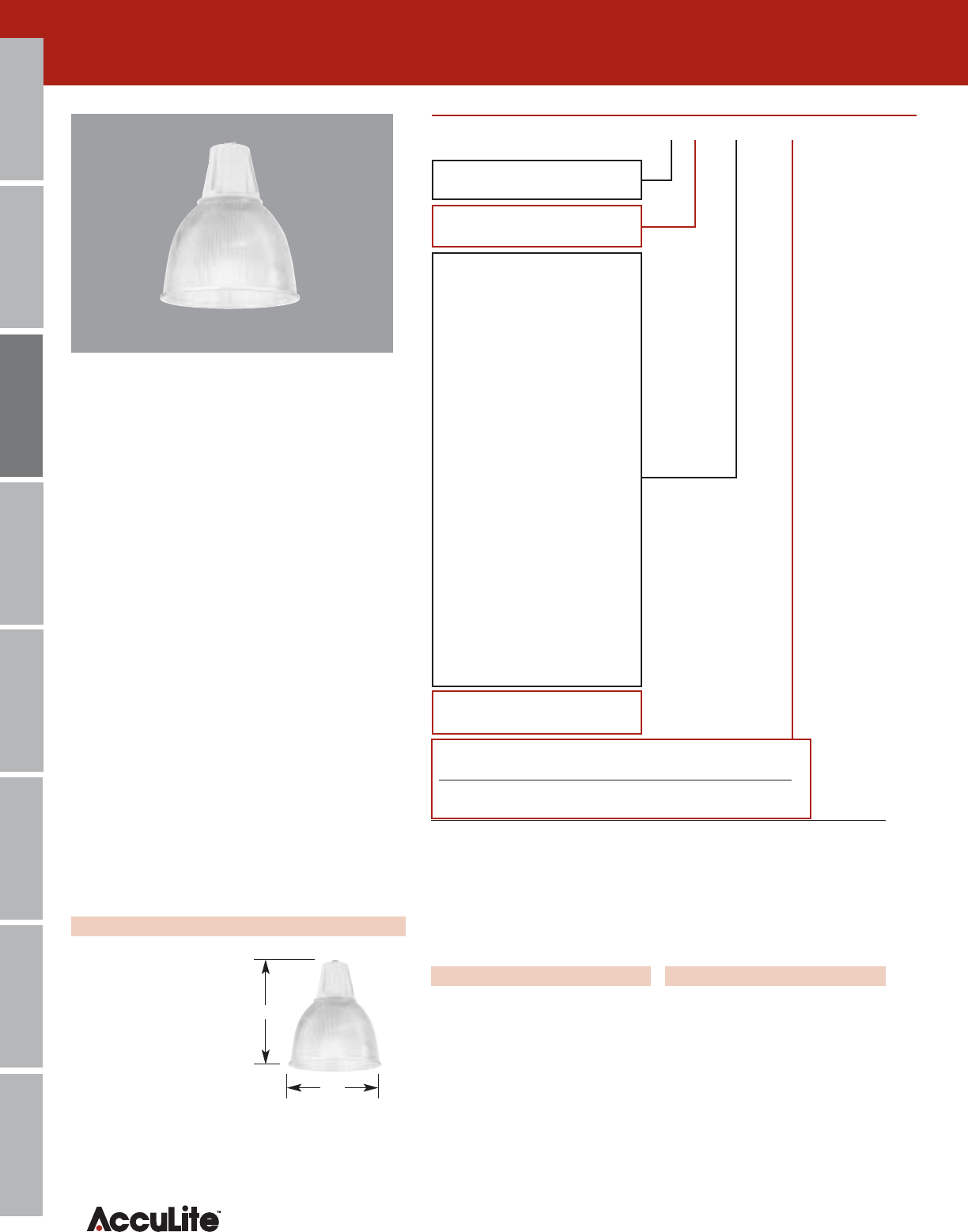

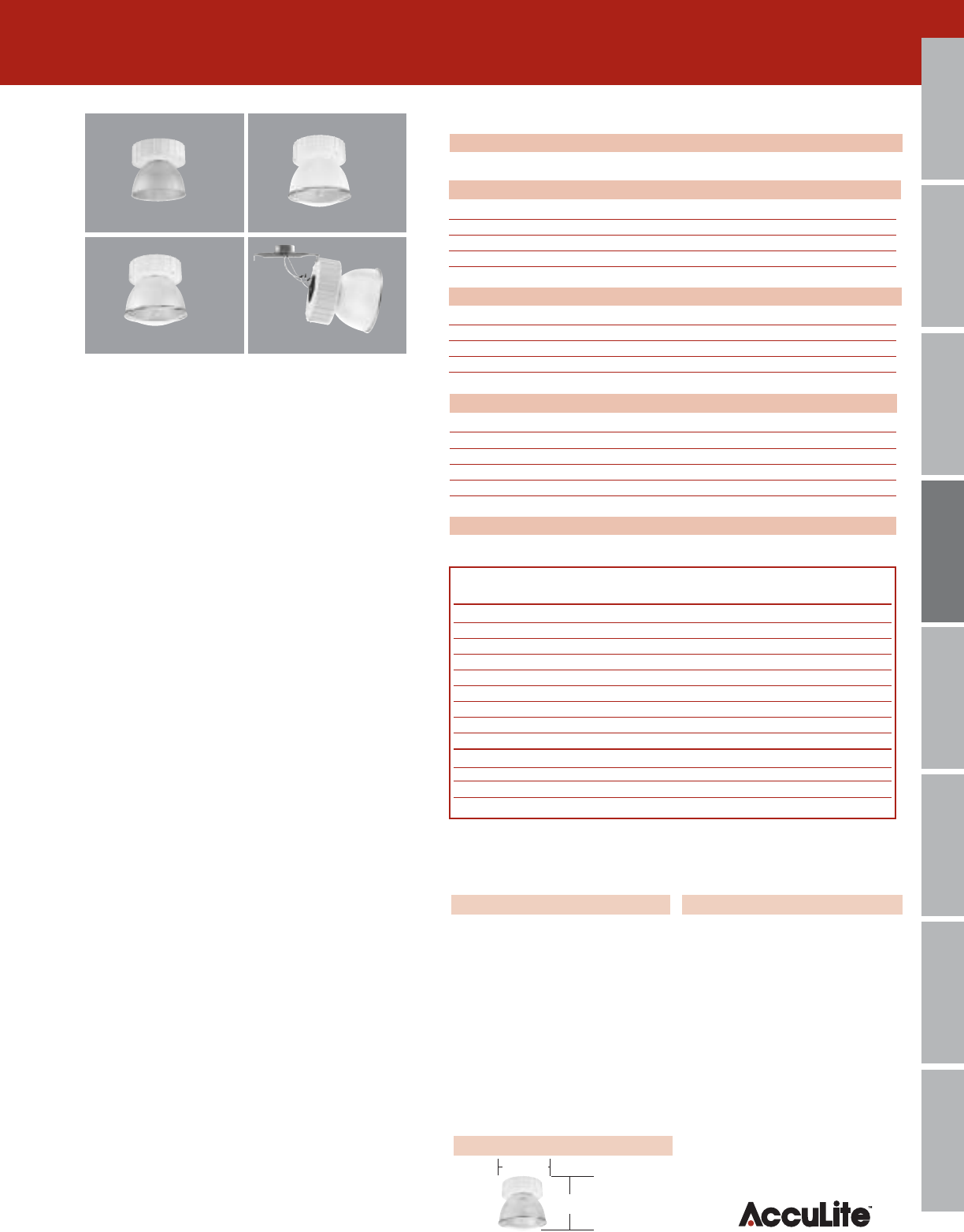

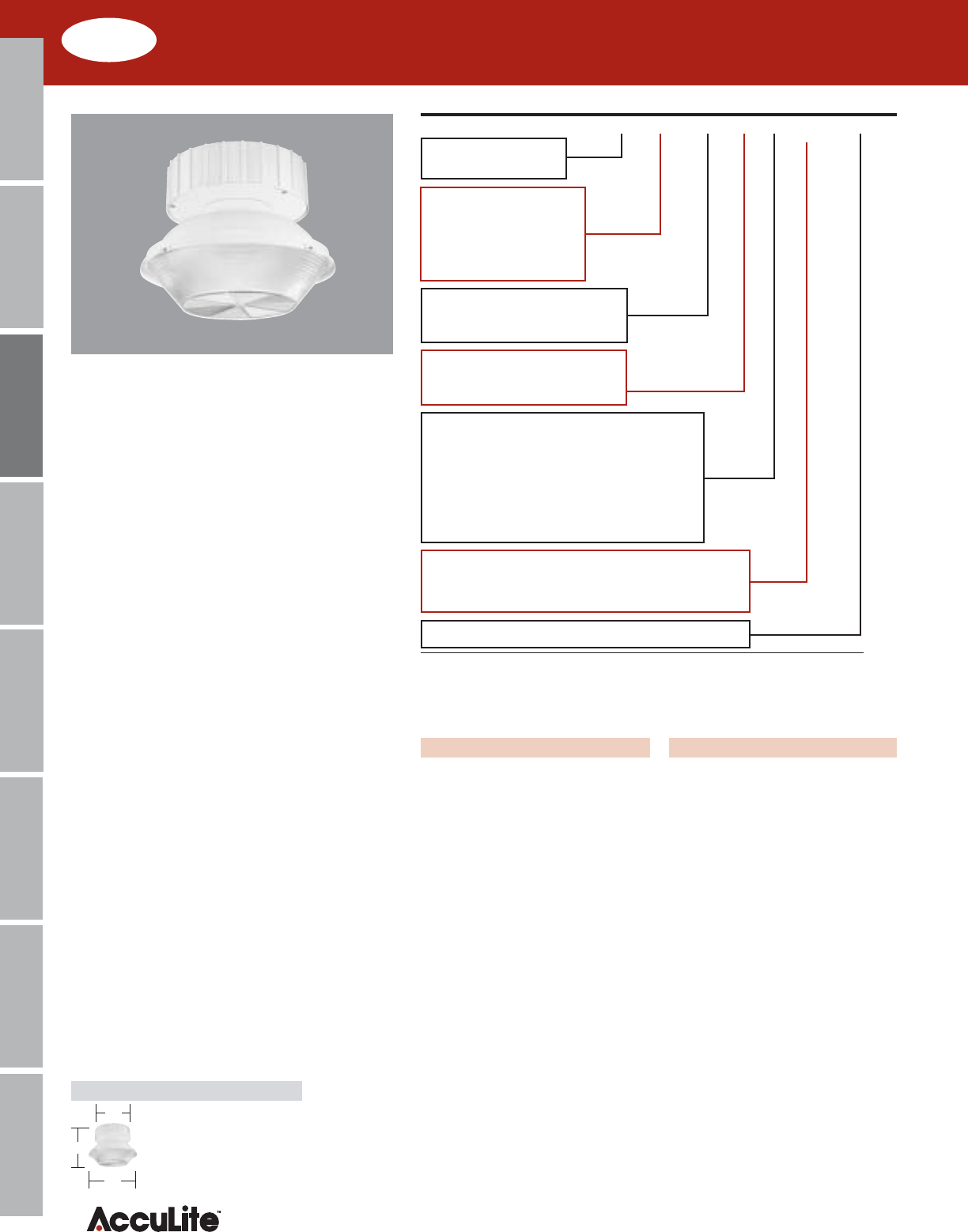

Acculume™ Prismatic Acrylic Highbay Reflector

❶Available

– requires

lampholder for

protected lamp

See Options

✔Available with

indicated wattage

✘NOT

available

Full Range of Lightweight High Grade Acrylic Reflectors

•Clear non-yellowing acrylic, open topped reflectors.

Available 12”, 16”, 22”, and 25” reflectors. Light weight

acrylic is ideal for locations where glass is too heavy.

Decorative Accessories

•Available in designer colors with decorative rings and bands.

Cool Operating

•Heavy duty die cast aluminum ballast housing.

Finish

•White polyester powder coat finish.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

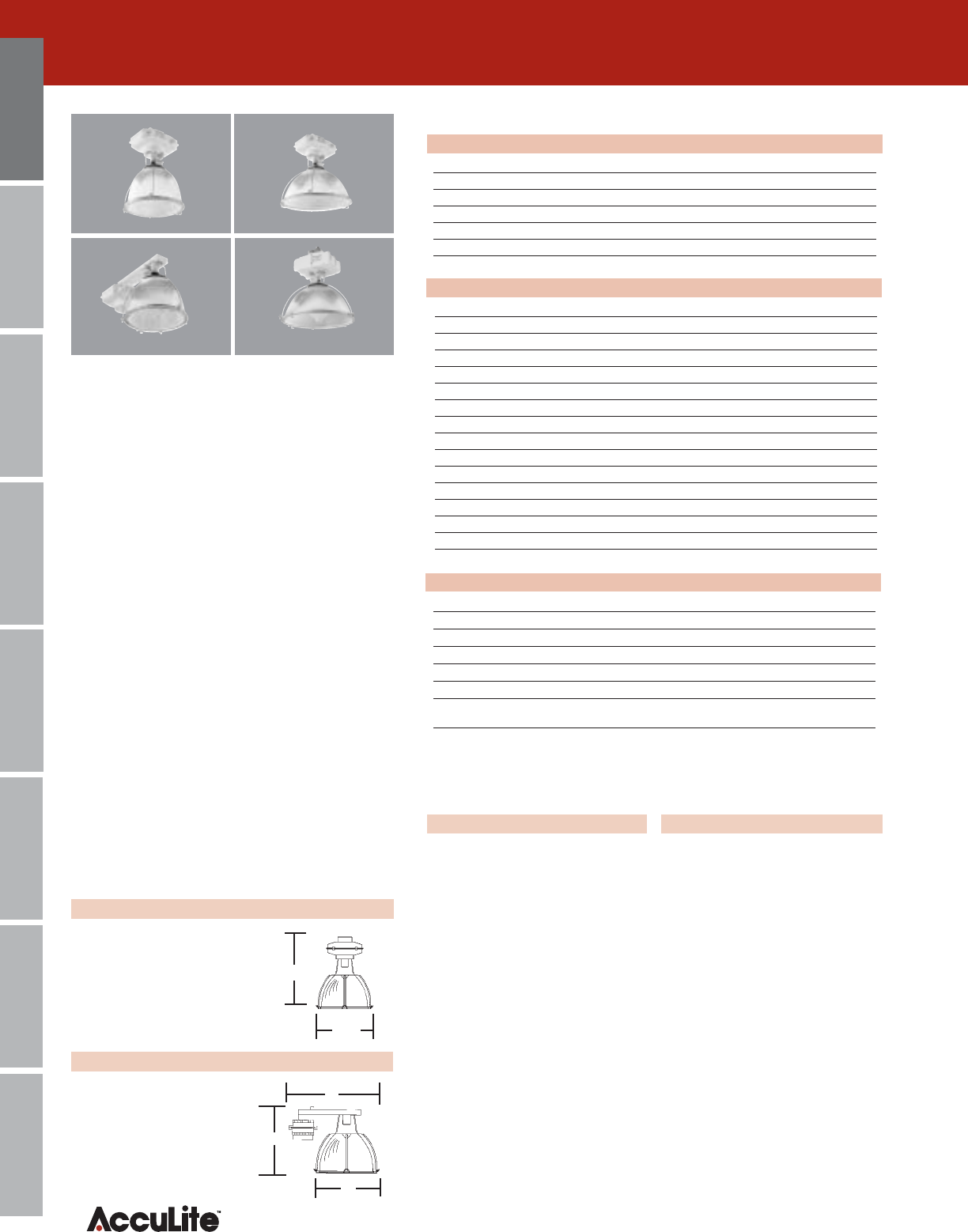

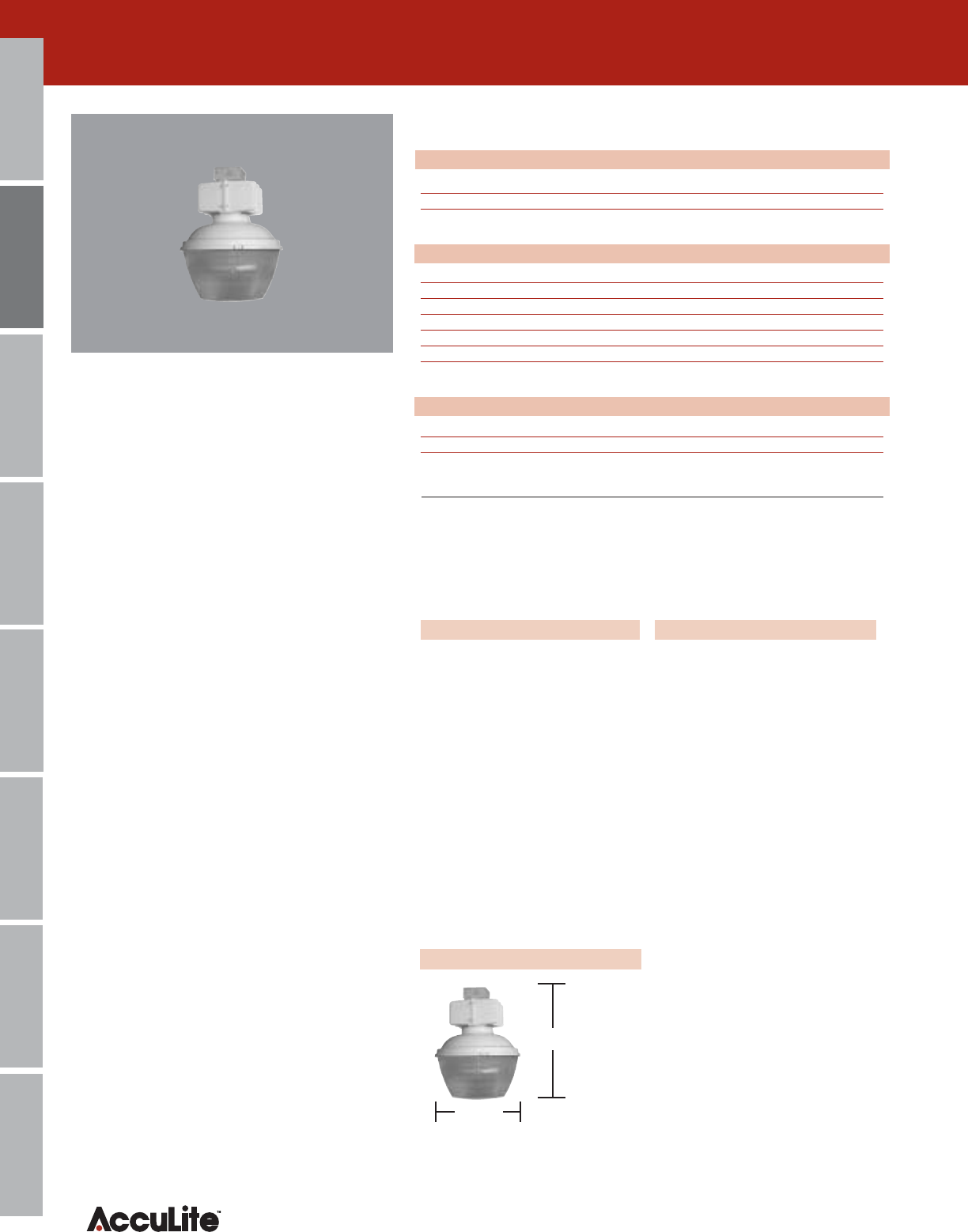

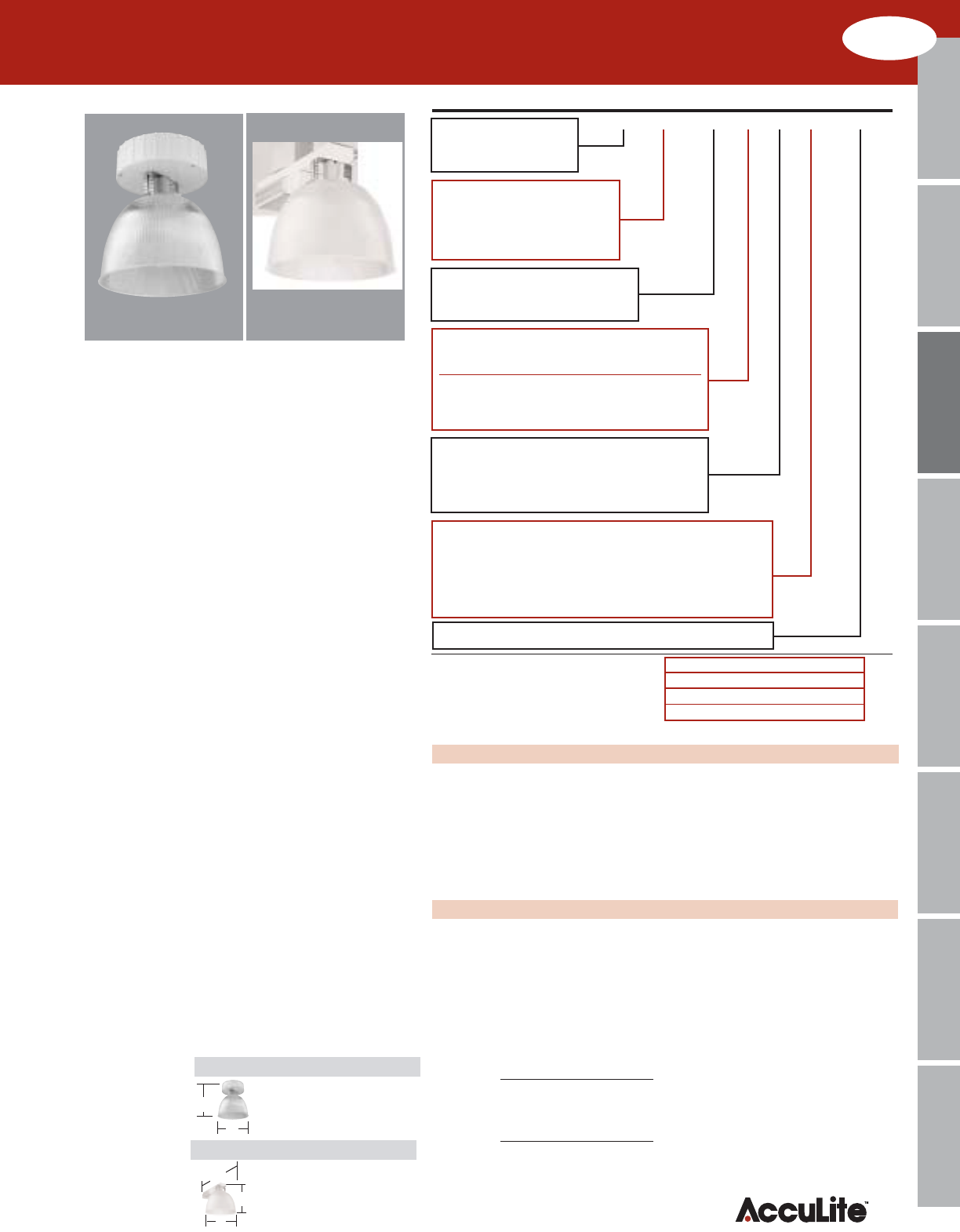

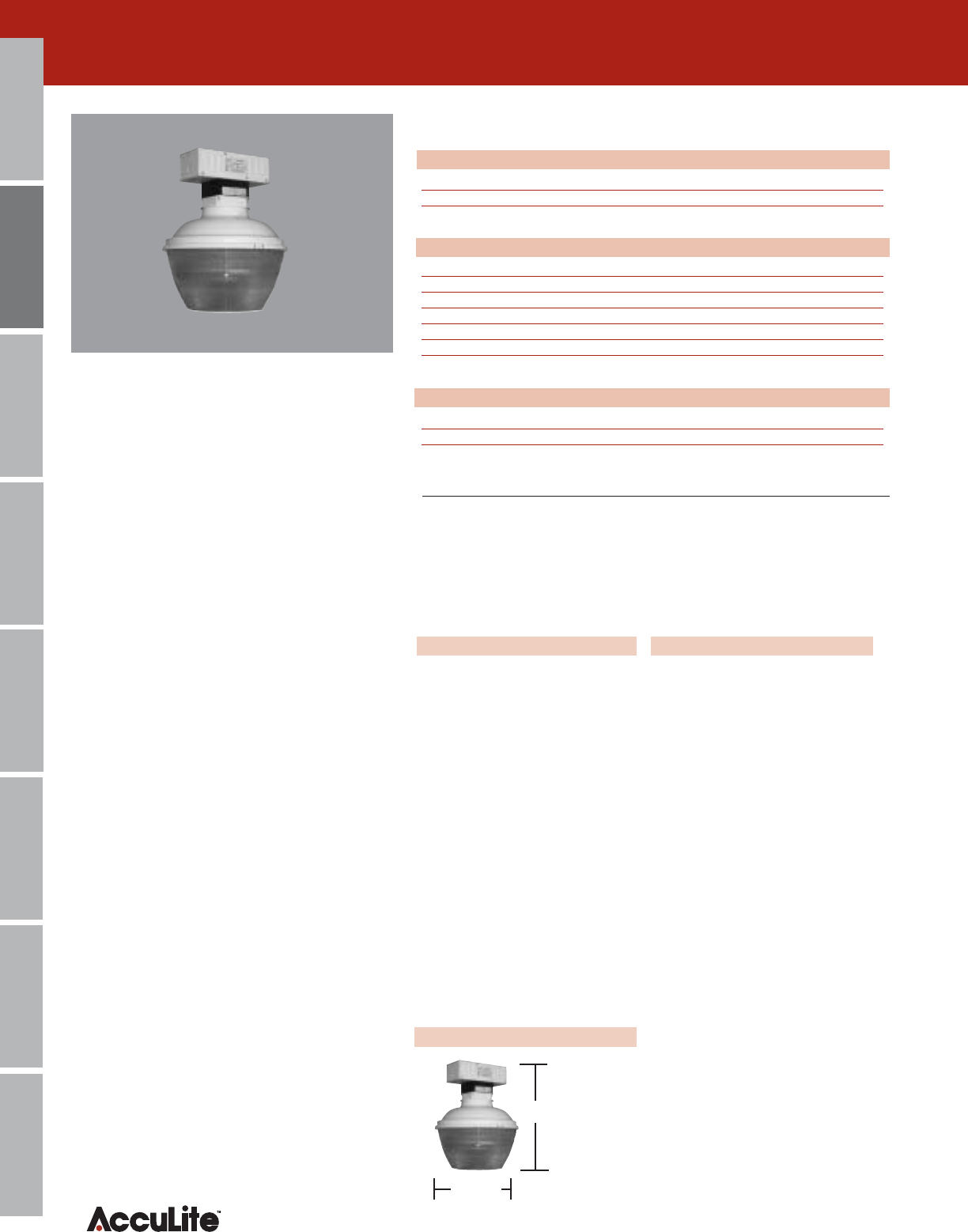

HB1

Industrial and Commercial

Highbay Lighting

Lamp Lamp Refractor 3/4” Pendant Mount

Watts Base (Diameter) Standard Profile

35 Medium 12” HB1-35HP-120-PR12§

50 ” ” HB1-50HP-120-PR12§

70 ” ” HB1-70HP-volts-PR12

100 ” ” HB1-100HP-volts-PR12

150 ” ” HB1-150HP-volts-PR12∆

150 Mogul 16” HB1-150HP-volts-PR16

250 ” ” HB1-250HP-volts-PR16

400 ” ” HB1-400HP-volts-PR16∆

400 Mogul 22” HB1-400HP-volts-PR22

1000 Mogul 25” HB5-1000HP-volts-PR25∆

DH 3/4” Hub

12” Reflector 12” 17”

16” Reflector 16” 21-7/8”

22” Reflector 22-3/8” 23-7/8”

25” Reflector 25” 28-7/8”

Dimensions

Low Profile D H L 3/4” Hub

16” Reflector 16” 16-7/8” 25-1/2”

22” Reflector 22-3/8” 18-7/8” 28-1/4”

Description Catalog No.

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

** For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

◊Cords with plug are available for 15A or 20A service.

Lamp Items marked ”*“ or “‡” – See note above

Coated Lamp - CL

Clear Lamp - L

Ballast

Luminaires with magnetic ballast – see above

Luminaires with electronic ballast – see page 51

Bottom Closure

To order with bottom closure - See Accessories

Lampholder For Protected Lamp -PLS

(Order Lamp Separately)

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter HPSOnly - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Enclosed Optical Assembly

Fully gasketed optical assembly with hinged lens

(Available with 16”, 18” and 22” reflectors ) -EOA

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

Safety Hook - 3/4”NPT Male HK75SSB

Female HF75SSB

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ∆HB3-BSC3

Optical Assembly Safety Cable HB3-RSC

Wire Guard For 15” reflector HB4-WG

For 16” reflector HB3-WG

For 18” reflector HB5-WG18

For 22” reflector HB5-WG22

Top Shroud HB3-SS

Bottom Closure For 16” reflector HB3-BL

Bottom closure for 15” For 18” reflector HB5-BL18

reflector is not available, For 22” reflector HB5-BL22

use HB3 model

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level switching See page 17

Accuflex Modular Wiring See page 18

* Must use a bottom closure or protected lamp (See “Options — Lamp”)

‡ Must use bottom closure, protected lamp not available

∆Bottom closure not available

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

250 Mogul 15” Aluminum HB4-250HP-volts∆

400 “ ” HB4-400HP-volts∆

250 “ 16” Aluminum HB3-250HP-volts

400 “ ” HB3-400HP-volts

250 “ 16” Aluminum HB5-250HP-volts

400 “ ” HB5-400HP-volts

1000 “ ” HB5-1000HP-volts

175 thru 350 Mogul 15” Aluminum Consult Factory∆

400 “ ” HB4-400MH-PSB-volts∆

450 “ ” HB4-450MH-volts-PSB∆

175 “ 16” Aluminum HB3-175MH-volts-PSB‡

200 “ ” HB3-200MH-volts-PSB*

250 “ ” HB3-250MH-volts-PSB*

320 “ ” HB3-320MH-volts-PSB*

350 “ ” HB3-350MH-volts-PSB*

400 “ ” HB3-400MH-volts-PSB

450 “ ” HB3-450MH-volts-PSB*

175 “ 18” Aluminum HB5-175MH-volts-PSB‡

200 “ ” HB5-200MH-volts-PSB*

250 “ ” HB5-250MH-volts-PSB*

320 “ ” HB5-320MH-volts-PSB*

350 “ ” HB5-350MH-volts-PSB*

400 “ ” HB5-400MH-volts-PSB

450 “ ” HB5-450MH-volts-PSB*

175 & 250 Mogul 15” Aluminum Consult Factory∆

400 “ ” HB4-400MH-volts∆

175 “ 16” Aluminum HB3-175MH-volts*

250 “ ” HB3-250MH-volts*

400 “ ” HB3-400MH-volts

175 “ 18” Aluminum HB5-175MH-volts*

250 “ ” HB5-250MH-volts*

400 “ ” HB5-400MH-volts

1000 “ ” HB5-1000MH-volts

HB3 400W 16” 25-3/8”

HB5 400W 18-7/16” 24-7/8”

HB5 1000W 22-1/4” 27-3/8”

Enclosed Optical Assembly D H 3/4” Hub

HB3 400W 16” 21-1/8” 23-1/8”

HB4 400W 14-3/4”” 19-3/4” 21-3/4”

HB5 400W 18-7/16” 20-3/4” 22-3/4”

HB5 1000W 22-1/4” 23-3/4” 25-3/4”

Field Adjustable Beam Spread

•Four diffused aluminum reflectors are adjustable for

narrow, medium and wide beam spreads.

•15”, 16”, 18” and 22” nominal reflectors are offered.

Cast Housing

•Economical die cast aluminum ballast, not sheet metal.

Natural finish.

Enclosed Optical Assembly

•Optional fully enclosed optical assembly is available for

16”, 18” and 22” reflectors.

•With heat resistant hinged glass lens, three stainless

steel lens clips and silicone rubber gaskets.

Easy Install Mounting

•Extra large junction box with slide top adapter.

Full Range of Accessories

•Econobay is available with most common accessories

including fusing, quartz auxiliary lights, hooks, lens

(16”, 18” and 22” reflectors only) and guards.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature

starting.MH-30°C, Pulse Start MH -40°C, HPS -40°C

Dimensions

Standard Lamp D H (min) H (Max) 3/4” Hub

Accessories

Options

Description Suffix Description Catalog No.

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

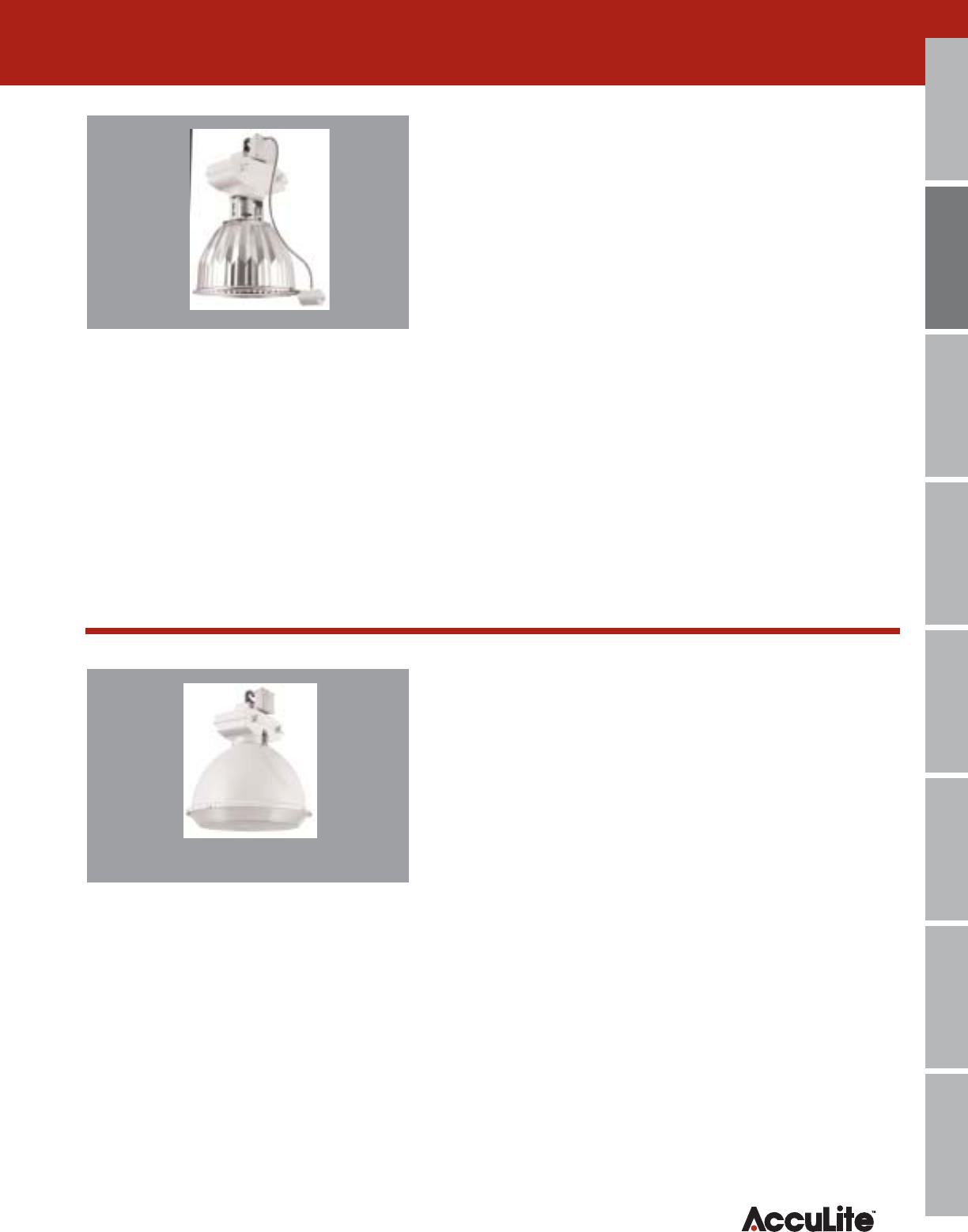

Econobay™ Highbay Luminaire

HB3 & HB4

Economical Cast Fixtures with 15” ,

16” 18’ and 22” Aluminum Reflectors

Lamp Lamp Reflector 3/4” Pendant Mount

Watts Base (Diameter) Standard Profile

HB3

16” Reflector

HB4

14” Reflector

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

HB5

22” Reflector (Max 1000W)

HB5

18” Reflector

Enclosed Optical Assembly

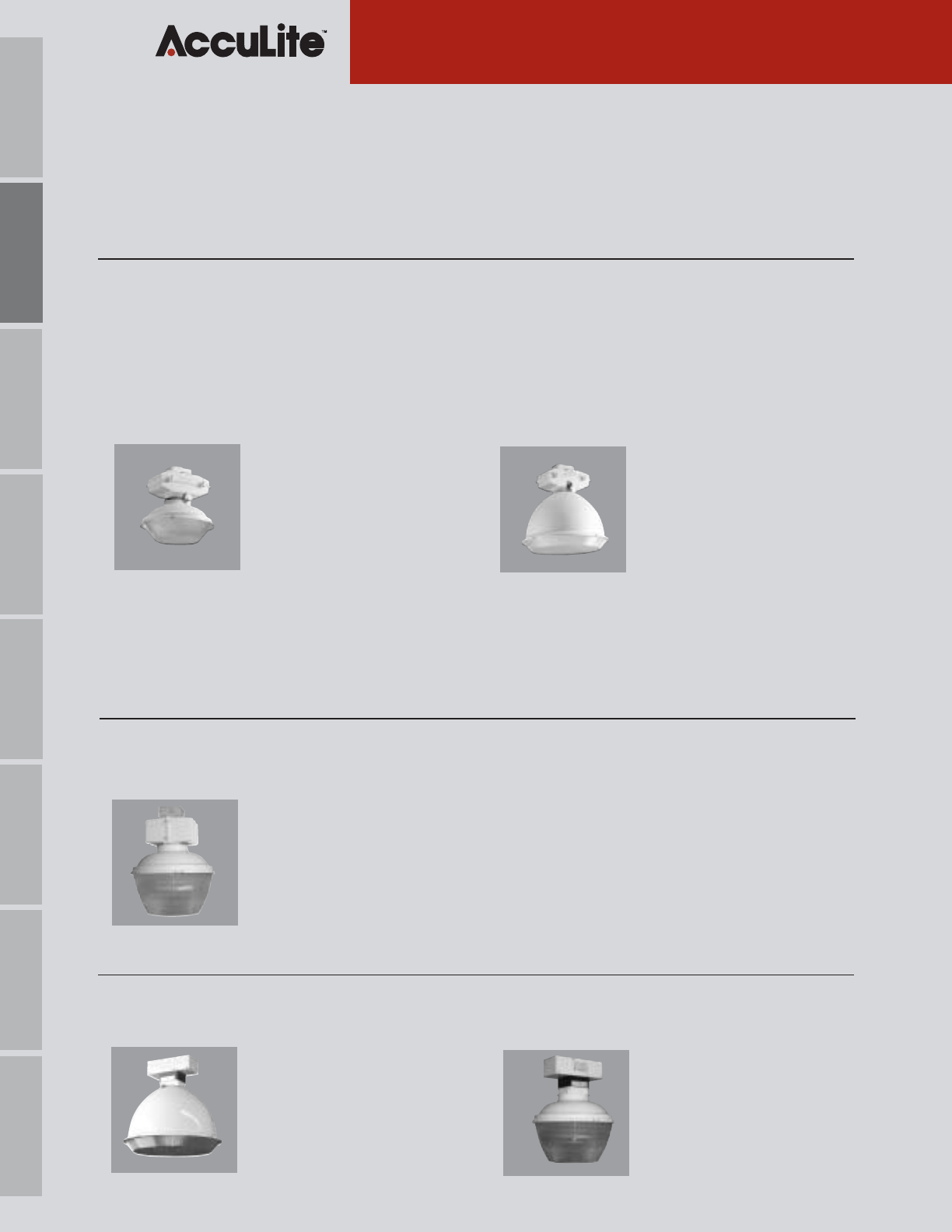

ALX™ Economy Highbay Luminaire

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Hi-Lux

14” Reflector (Max 450W)

Hi-Lux

18” Enclosed Optical Assembly

(Max 450W)

Hi-Lux

16” Reflector (Max 450W)

Aluminum Reflectors

•Three sizes of economical spun aluminum reflectors –

16”, 18” and 22”.

Enclosed Optical Assembly

•Optional fully enclosed optical assembly is available.

•With heat resistant hinged glass lens, three stainless

steel lens clips and silicone rubber gaskets.

Plumb Mounting

•The fixture is designed to hang plumb without extra

work for the contractor.

Full Range of Accessories

•Hi-lux™ is available with most common accessories

including fusing, quartz auxiliary lights, hooks, lenses

and guards.

Finish

•White ballast housing

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

HI-LUX

Aluminum Highbay Reflectors

Standard D H (min) H (Max) 3/4” Hub

15 14-3/4” 20-1/4” 22-1/4”

16 16” 21-1/4” 23-1/4”

18 18-1/2” 20-1/2” 22-1/2”

22 22-1/4” 23-1/2” 25-1/2”

Dimensions

15 14-3/4” 25-3/8”

16 16” 26-3/8”

18 18-1/2” 25-5/8”

22 22-1/4” 28-1/8” D

NEW

750 - 1000W

Hi-Lux

22” Reflector (Max 1000W)

Enclosed Optical Assembly

DH 3/4” Hub

175 Mogul 16” Aluminum ALX175MH-volts-PSB-16 ‡

200 “ “ ALX200MH-volts-PSB-16 *

250 “ “ ALX250MH-volts-PSB-16 *

320 “ “ ALX320MH-volts-PSB-16 *

350 “ “ ALX350MH-volts-PSB-16 *

400 “ “ ALX400MH-volts-PSB-16

450 “ “ ALX450MH-volts-PSB-16

175 Mogul 18” Aluminum ALX175MH-volts-PSB-18 ‡

200 “ “ ALX200MH-volts-PSB-18 *

250 “ “ ALX250MH-volts-PSB-18 *

320 “ “ ALX320MH-volts-PSB-18 *

350 “ “ ALX350MH-volts-PSB-18 *

400 “ “ ALX400MH-volts-PSB-18

450 “ “ ALX450MH-volts-PSB-18 *

750 “ 22“ Aluminum ALX750MH-volts-PSB-22 *‡

875 “ “ ALX875MH-volts-PSB-22 *

1000 “ “ ALX1000MH-volts-PSB-22*‡

175 Mogul 16” Aluminum ALX175MH-volts-16 *

250 “ “ ALX250MH-volts-16 *

400 “ “ ALX400MH-volts-16

175 Mogul 18” Aluminum ALX175MH-volts-18 *

250 “ “ ALX250MH-volts-18 *

400 “ “ ALX400MH-volts-18

1000 “ 22“ Aluminum ALX1000MH-volts-22 *

150 Mogul 16” Aluminum ALX150HP-volts-16

250 “ “ ALX250HP-volts-16

400 “ “ ALX400HP-volts-16

150 Mogul 18” Aluminum ALX150HP-volts-18

250 “ “ ALX250HP-volts-18

400 “ “ ALX400HP-volts-18

High Pressure Sodium

*Must use a bottom closure or a protected lamp

‡Protected lamp not available

∆Not available with bottom closure

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V (150 to 450W )

“- 480”480V (150 to 450W )

“- H2”347V / 480V (750W to 1000W)

Lamp Lamp Reflector Cat. No.

Watts Base (Nom. Dia.) 3/4” Pendant Mount

Safety Hook - 3/4”NPT Male HK75SSB

Female HF75SSB

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ∆ALX-BSC3

Optical Assembly Safety Cable ALX-RSC

Wire Guard 15” reflector ALX-WG14

16” reflector ALX-WG16

18” reflector ALX-WG18

22” reflector ALX-WG22

Top Shroud ALX-SS

Bottom Closure 16” reflector ALX-BL16

18” reflector ALX-BL18

22” reflector ALX-BL22

Power Hook Receptacle, hook and box HBPH-volts

HI/LO Systems Bi-Level switching See page 17

Accuflex Modular Wiring See page 18

Lamp Coated Lamp - CL

Items marked ”*“ or “‡” Clear Lamp - L

Bottom Closure - See Accessories

Factory pre-wired Cord only - C

Hook & cord - HC

Lampholder For Protected Lamp

(Order Lamp Separately) - PLS

Quartz Auxiliary Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter For HPS Luminaires - PI

Fuse Holder Single fuse - F1

Supplied with fuse Two fuses - F2

On multi-tap ballasts indicate line voltage

Enclosed Optical Assembly

Fully gasketed optical assembly with hinged lens

(Not available with 15” reflector) -EOA

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

Accessories

Options

Description Suffix Description Catalog No.

Metal Halide

Pulse Start Metal Halide

DH3/4” Hub

Nom. Dia.

11” 16”

400 Mogul None - Guard only ALX400MH-volts-TL

* Must use a bottom closure or a protected lamp (See “Options - Lamp”)

‡ Must use bottom closure, protected lamp not available

∆Not available with bottom closure

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

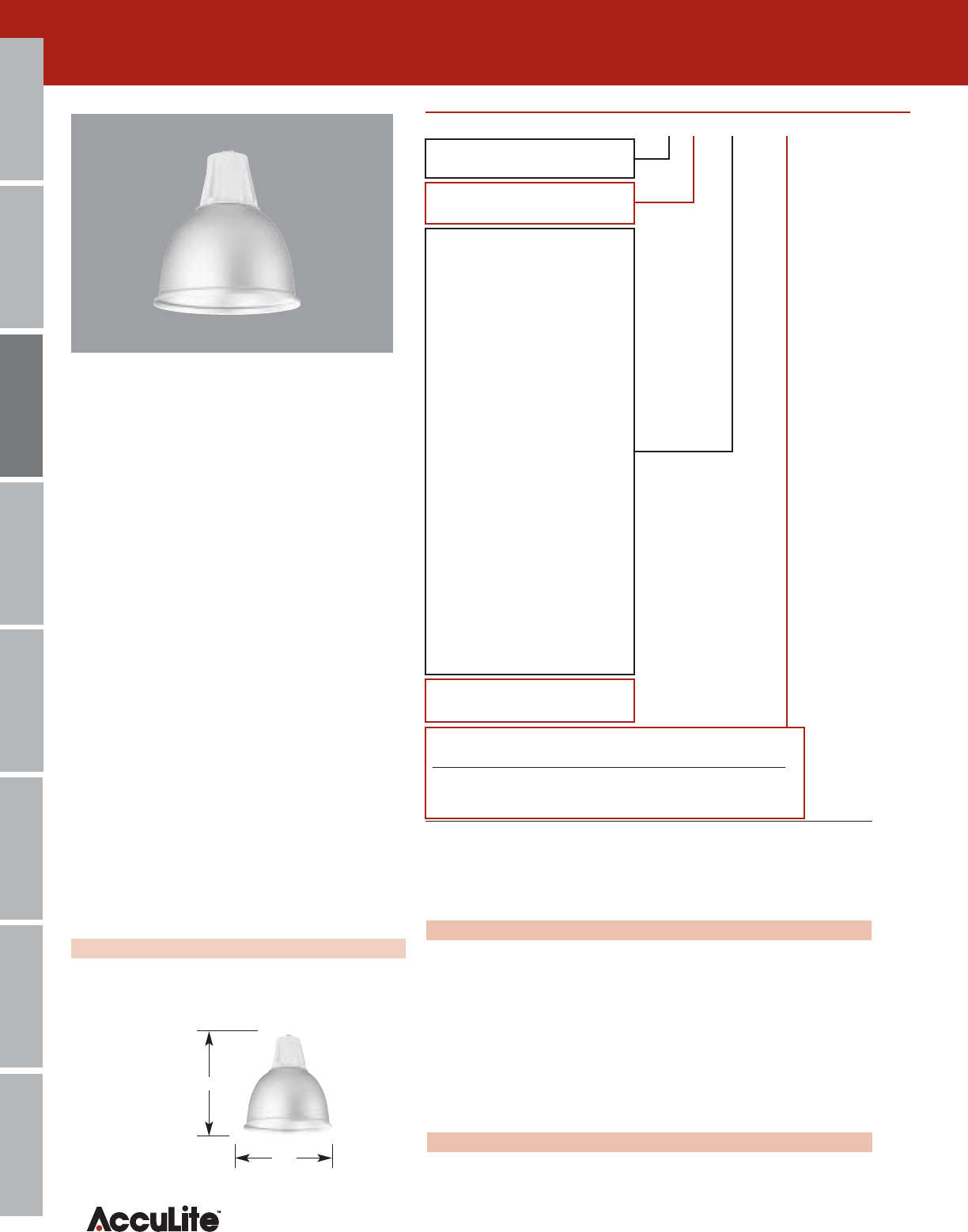

ALX™ Economy Highbay Luminaire

Plumb Mounting

•The fixture is designed to hang plumb without extra

work for the contractor.

Finish

•White ballast housing

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

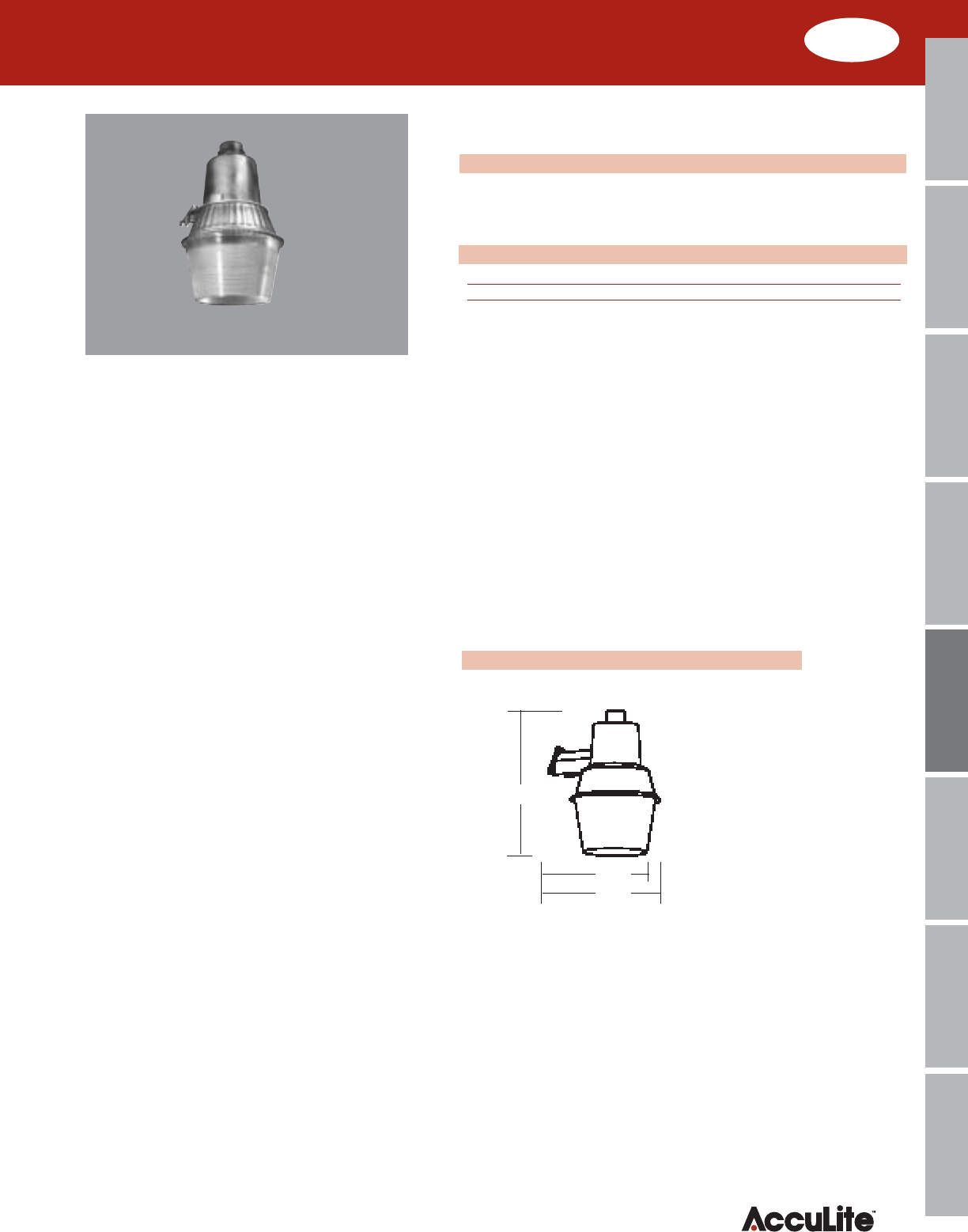

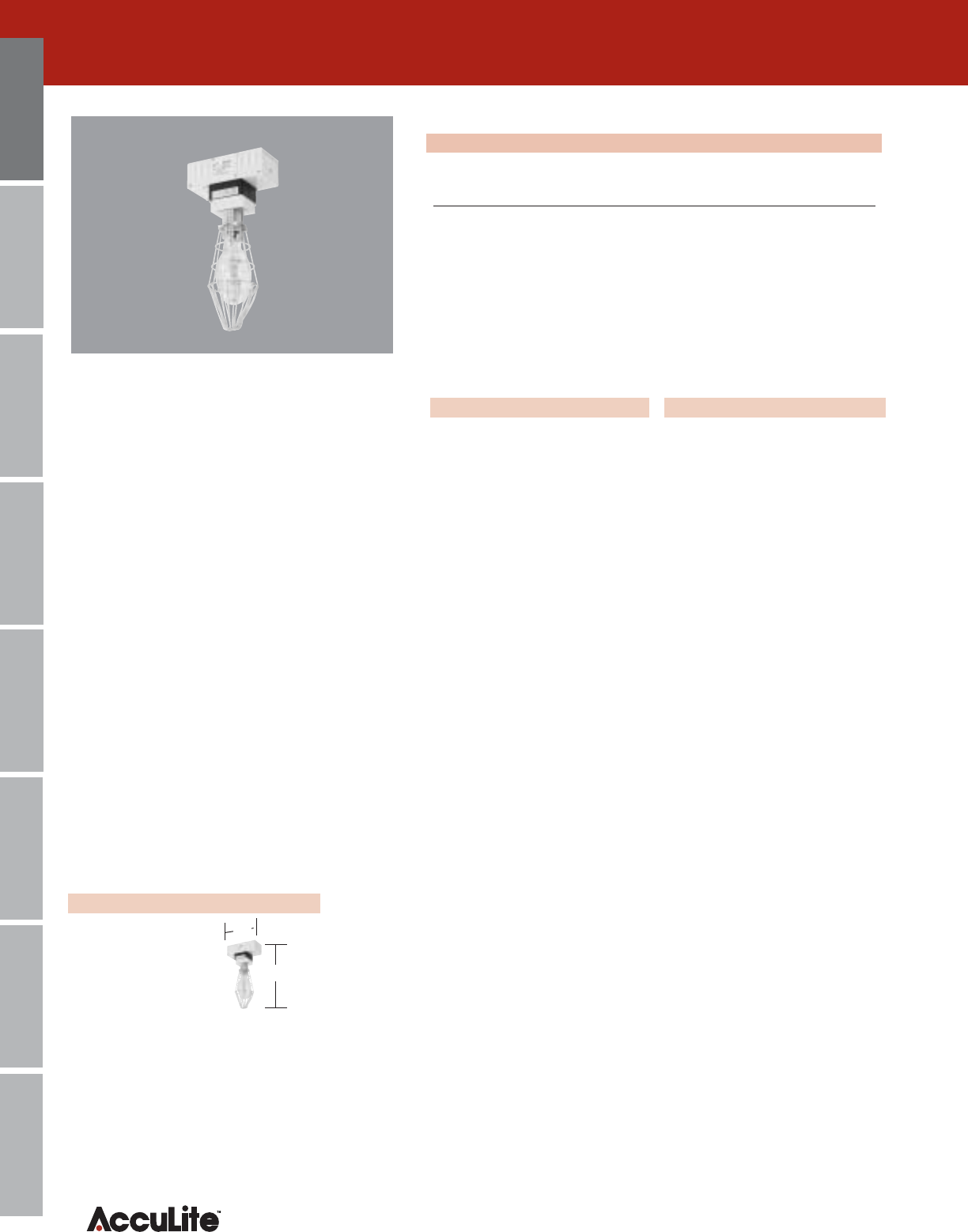

Temporary Lighting

With Wire Guard

Lamp Lamp Reflector Cat. No.

Watts Base (Nom. Dia.) 3/4” Pendant Mount

Hi-Lux

Temporary Lighting

Temporary Lighting - Metal Halide

Dimensions

Safety Hook - 3/4”NPT Male HK75SSB

Female HF75SSB

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ∆ALX-BSC3

Power Hook Receptacle, hook and box HBPH-volts

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

Lamp

Clear Lamp - L

Lampholder For Protected Lamp

(Order Lamp Separately) - PLS

Protected Igniter For HPS Luminaires - PI

Fuse Holder Single fuse - F1

Supplied with fuse Two fuses - F2

On multi-tap ballasts indicate line voltage

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Accessories

Options

Description Suffix Description Catalog No.

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

ALX™ Economy Highbay Luminaire NEW

750 - 1000W

175 Mogul 16” Glass ALX175MH-volts-A-PLS *

250 “ “ ALX250MH-volts-A-PLS *

400 “ “ ALX400MH-volts-A †

Merchandiser

16” Reflector (Max 450W)

175 Mogul 16” Glass ALX175MH-volts-PSB-A-PLS ‡

200 “ “ ALX200MH-volts-PSB-A-PLS *

250 “ “ ALX250MH-volts-PSB-A-PLS *

320 “ “ ALX320MH-volts-PSB-A-PLS *

350 “ “ ALX350MH-volts-PSB-A-PLS *

400 “ “ ALX400MH-volts-PSB-A-PLS †

450 “ “ ALX450MH-volts-PSB-A-PLS *

Safety Hook - 3/4”NPT Male HK75SSB

Female HF75SSB

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ** ALX-BSC3

Optical Assembly Safety Cable ALX-RSC

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level switching See page 17

Accuflex Modular Wiring See page 18

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

150 Mogul 16” Glass ALX150HP-volts-A

250 “ “ ALX250HP-volts-A

400 “ “ ALX400HP-volts-A

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

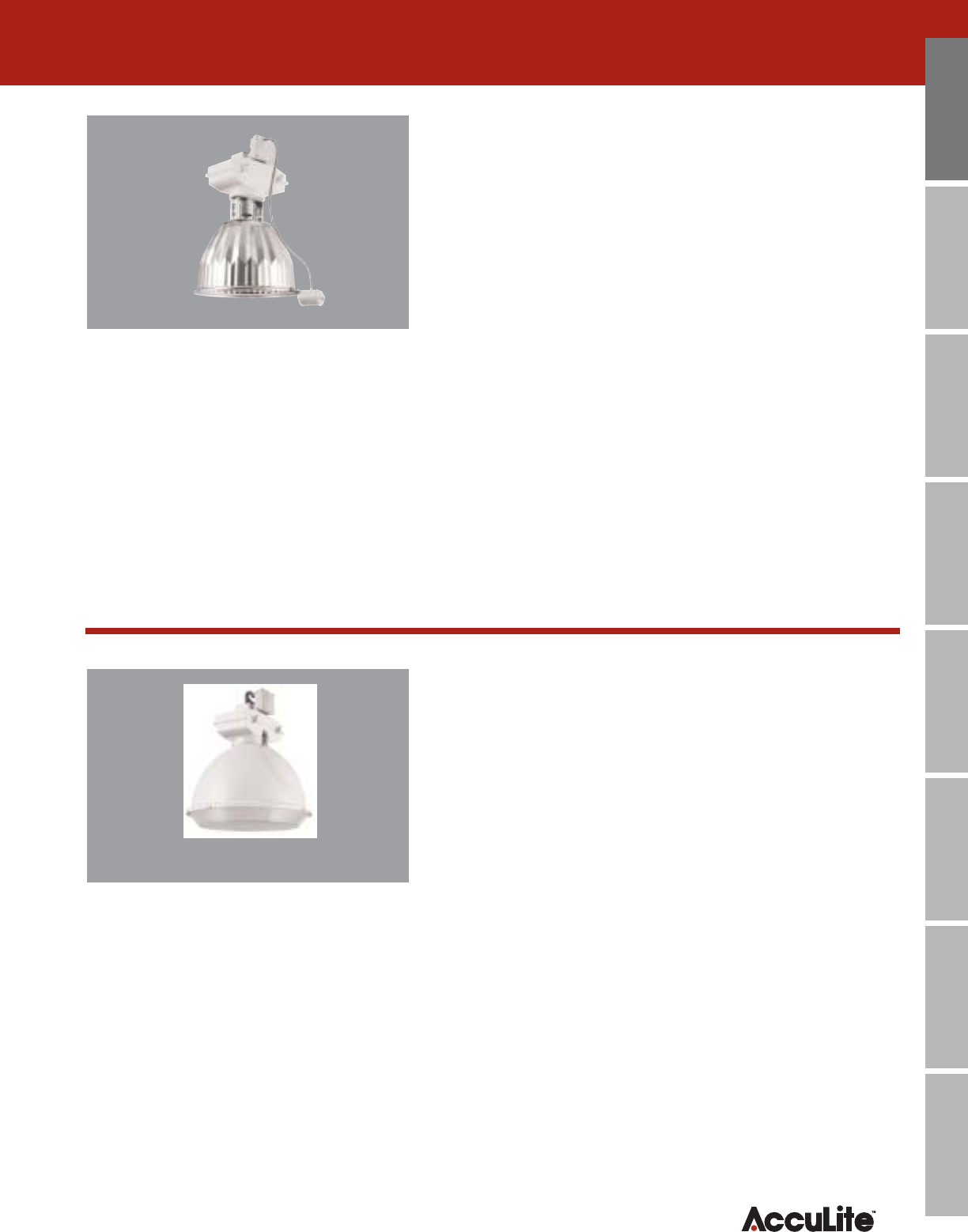

Merchandiser™

Glass Highbay Reflector

Cat. No.

Lamp Lamp Reflector (No Hook / No Cord)

Watts Base (Nom. Dia.) 3/4” Pendant Mount

Dimensions

DH3/4” Hub

Nom. Dia.

16 16” 22-3/4”

22 22-3⁄8” 28-3/4”

Glass Reflectors

•With 16” Glass reflector

Plumb Mounting

•The fixture is designed to hang plumb without extra

work for the contractor.

Full Range of Accessories

•Merchandiser™ is available with most common

accessories including fusing, quartz auxiliary lights,

hooks, lenses and guards.

Finish

•White ballast housing

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

Lamp

Items marked ”*“, “†” or “‡” (See note above)

Coated Lamp - CL

Clear Lamp - L

Factory pre-wired Cord only - C

Hook & cord - HC

Lampholder For Protected Lamp

(Order Lamp Separately) - PLS

Pulse Start Luminaires

High Performance Metal Halide See above

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter For HPS Luminaires - PI

Fuse Holder Single fuse - F1

Supplied with fuse Two fuses - F2

On multi-tap ballasts indicate line voltage

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

* Furnished with a lampholder for a protected lamp

‡ Protected lamp not available

† To order 400W metal halide and pulse start metal halide for use with a

protected lamp add suffix “-PLS”

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

Accessories

Options

Description Suffix Description Catalog No.

175 Mogul 16” Acrylic ALX175MH-volts-PSB-PR16 ‡

200 “ “ ALX200MH-volts-PSB-PR16 *

250 “ “ ALX250MH-volts-PSB-PR16 *

320 “ “ ALX320MH-volts-PSB-PR16 †∆

350 “ “ ALX350MH-volts-PSB-PR16 †∆

400 “ “ ALX400MH-volts-PSB-PR16 †∆

450 “ “ ALX450MH-volts-PSB-PR16 †∆

175 Mogul 22” Acrylic ALX175MH-volts-PSB-PR22 *

200 “ “ ALX200MH-volts-PSB-PR22 *

250 “ “ ALX250MH-volts-PSB-PR22 *

320 “ “ ALX320MH-volts-PSB-PR22 *

350 “ “ ALX350MH-volts-PSB-PR22 *

400 “ “ ALX400MH-volts-PSB-PR22

450 “ “ ALX450MH-volts-PSB-PR22 †∆

750 “ 25” Acrylic ALX750MH-volts-PSB-PR25 ‡∆

875 “ “ ALX875MH-volts-PSB-PR25 ∆

1000 “ “ ALX1000MH-volts-PSB-PR25 ‡∆

150 Mogul 16” Acrylic ALX150HP-volts-PR16

250 “ “ ALX250HP-volts-PR16

400 “ “ ALX400HP-volts-PR16

150 “ 22” Acrylic ALX150HP-volts-PR22

250 “ “ ALX250HP-volts-PR22

400 “ “ ALX400HP-volts-PR22

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

Safety Hook - 3/4”NPT Male HK75SSB

Female HF75SSB

Cord Set - 3’ long **

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ** ALX-BSC3

Optical Assembly Safety Cable ALX-RSC

Wire Guard 16” dia reflector PR-16WG

22” dia reflector PR-22WG

25” dia reflector PR-25WG

Top Shroud ALX-SS

Bottom Closure

See Reflector Application Guide for Max Watt

Conical Drop Flat

Acrylic Acrylic Glass

16” PR-16CL PR-16DL PR-16BL

22” PR-22CL PR-22DL PR-22BL

25” PR-25CL ––

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level Switching See page 17

Accuflex Modular Wiring See page 18

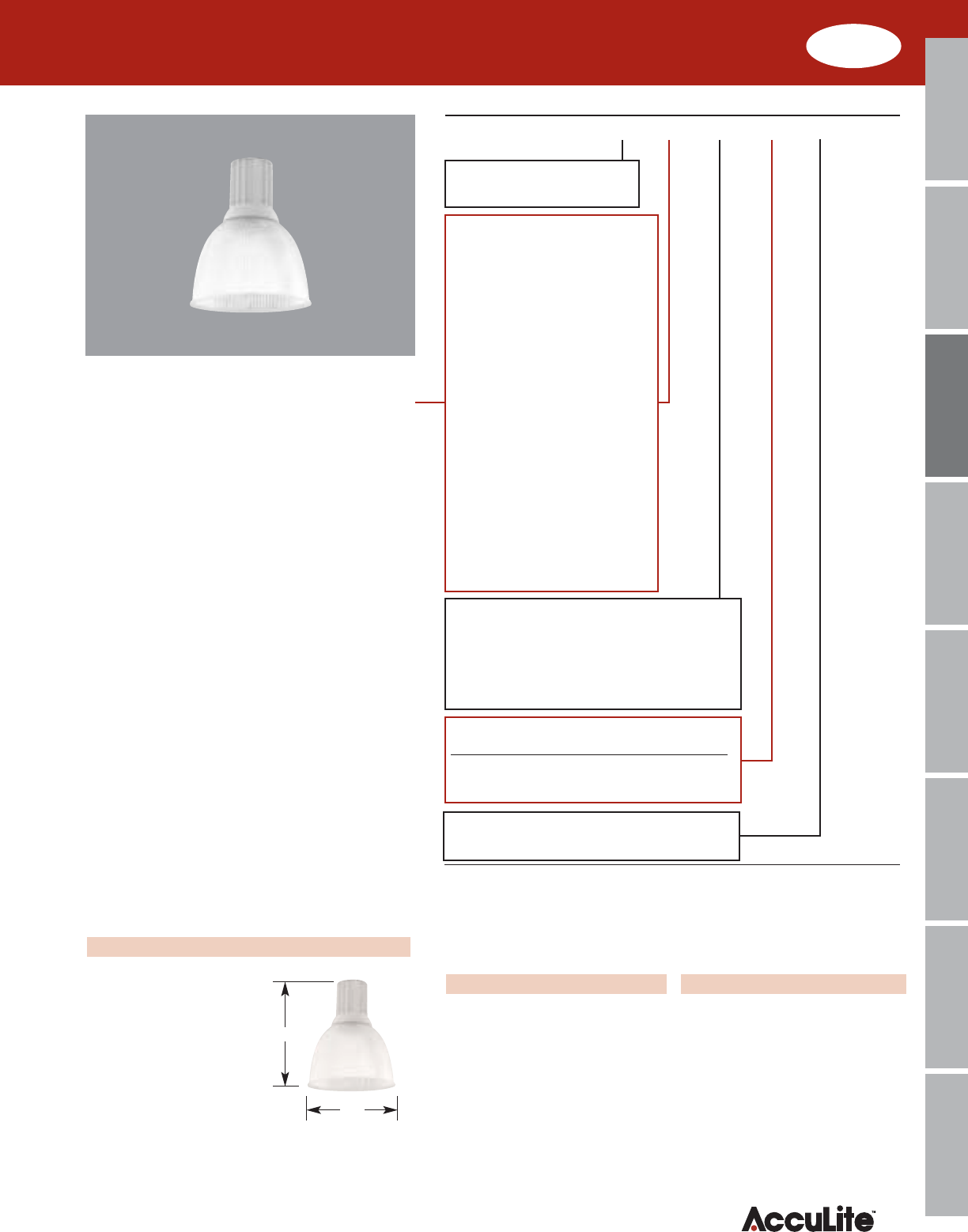

PRISMA-LUX

Acrylic Highbay Reflectors

Cat. No.

Lamp Lamp Reflector (No Hook / No Cord)

Watts Base (Nom. Dia.) 3/4” Pendant Mount

Dimensions

DH 3/4” Hub

Nom. Dia.

16 16” 20-3⁄8”

22 22-3⁄8” 23-3⁄8”

25 25” 25-3/8” H

Acrylic Reflectors

•With 16”, 22” or 25” acrylic reflectors

Plumb Mounting

•The fixture is designed to hang plumb without extra

work for the contractor.

Full Range of Accessories

•Prisma-lux™ is available with most common accessories

including fusing, quartz auxiliary lights, hooks, lenses

and guards.

Finish

•White ballast housing

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

Prisma-Lux

16” Reflector (Max 450W)

Accessories

Options

Description Suffix Description Catalog No.

** For lengths other than 3 feet, revise the 3

in the catalog number to the length in feet.

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

ALX™ Economy Highbay Luminaire

175 Mogul 16” Acrylic ALX175MH-volts-PR16 *

250 “ “ ALX250MH-volts-PR16 *

400 “ “ ALX400MH-volts-PR16

175 Mogul 22” Acrylic ALX175MH-volts-PR22 *

250 “ “ ALX250MH-volts-PR22 *

400 “ “ ALX400MH-volts-PR22

1000 “ 25” Acrylic ALX1000MH-volts-PR25 ‡∆

NEW

750 - 1000W

Prisma-Lux

22” Reflector (Max 450W)

Prisma-Lux

25” Reflector (Max 1000W)

Reflector Application Guide With Acrylic Parts (Ambient 25°C)

Dia. Watts 175 250 400 1000

16” Open Bottom ❶❶✔—

Closed Bottom ✔✔ ✘—

22” Open Bottom ❶❶✔—

Closed Bottom ✔✔✔—

25” Open Bottom ——✔✔

Closed Bottom ——✔✘

❶Available – requires

lampholder for protected

lamp - See Options

✔Available with

indicated wattage

✘NOT available

Lamp Coated Lamp - CL

Clear Lamp - L

Bottom Closure

To order with bottom closure - See Accessories

Factory pre-wired Cord only - C

Hook & cord - HC

Lampholder For Protected Lamp

(Order Lamp Separately) - PLS

Pulse Start Luminaires

High Performance Metal Halide See above

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter For HPS Luminaires - PI

Fuse Holder Single fuse - F1

Supplied with fuse Two fuses - F2

On multi-tap ballasts indicate line voltage

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

* Must use a bottom closure (See “Reflector Application Guide” below for

maximum wattage) or a protected lamp (See “Options - Lampholder”)

† Must use protected lampholder and protected lamp

‡ Protected lamp not available

∆Not available with bottom closure

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V (150 to 450W )

“- 480”480V (150 to 450W )

“- H2”347V / 480V (750W to 1000W)

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

HI/LO Systems™ Bi-Level Switching, Individual or Groups

Integral

Switches Individual Luminaires

•Individual Bi-Level Switching:

Luminaire is installed anywhere

individual fixtures can be allowed to

switch from high to low

independently and where remote

control is not required (now or in the

future).

•The individual luminaire b--level

control system allows one to adjust

the time the luminaire stays at full

brightness after motion ceases.

Adjustment from one to fifteen

minutes (approx.).

The System:

•The system for bi-level switching

individual luminaires consists of an

infrared motion detector and a

switching module mounted on each

luminaire.

•The system warms the lamps up to

full brightness for 15 minutes

ensuring maximum lamp life and

lamp warranty. After warm up it

automatically switches to “LO”

energy saving mode. When motion

is sensed at the transmitter, the

lighting automatically comes up to

full brightness.

Moveable Aisles:

•Single luminaire bi-level switching is

used for warehouse areas where

aisle architecture is not preset (ie.

where aisles shift location as stock is

moved or replenished). Entire aisles

do not switch to “HI” mode, only

those luminaires which sense motion

do so.

Cross Aisles:

•When used at warehouse cross aisles

the entire aisle is not activated when

a person or a fork lift passes at 90°

to the aisle. Only the luminaire at

the intersection goes to full

brightness.

Small Areas:

•For small areas using only a few

luminaires, it is not necessary to buy

and install separate transmitters and

control cables, so equipment and

installation costs are reduced.

Periodic Additions:

•Install individually controlled

luminaires when periodic additions

are made to a complete HI/LO

system.

Control Wire

Bi-Level, For Groups of Luminaires

•Control Wire HI/LO systems from

AccuLite™are the value approach to

achieving energy savings. This bi-

level system increases the energy

savings of high performance

luminaires, lamps and ballasts.

The System:

•The system consists of an infrared

motion detector placed near the ends

of the aisles and a switching module

mounted on each luminaire. A

general purpose transmitter/ override

device can control the switching

modules. Installed in a two gang

box it can be used with a photocell,

time clock, or manual switch.

•The system warms the lamps up to

full brightness for 15 minutes

ensuring maximum lamp life and

lamp warranty. After warm up it

automatically switches to “LO”

energy saving mode. When motion

is sensed at the transmitter, the

lighting automatically comes up to

full brightness. After 5 minutes of no

activity, the system returns to “LO”.

Components – Control Wire System

•HI/LO Receiver: All AccuLite™ Metal

Halide, Pulse Start Metal Halide or

High Pressure Sodium indoor

luminaires can be equipped with an

electronic receiver and HI/LO

ballast.

•Infrared Motion Detector: Passive

infrared detector detects motion in

the controlled area and signals the

luminaire to go to full brightness.

•Manual Overrides/ General Purpose

Transmitter: Converts an on/off

signal to a HI/LO signal, then sends

the signal to the luminaire. Signals

are converted from many devices

including time clocks, switches,

photocontrols and integral key

switches.

•Control Wire: The system uses a high

voltage control wire to connect the

transmitters to the luminaires to be

switched from high to low.

•Long Aisles: When long aisles

require installation of a third sensor,

it is a viable option to install from

one to five individually controlled

luminaires in the midsection of the

aisle.

Ordering Information

Bi-Level Switching For Individual Luminaires

Lamp: All HID lamps from 150W thru 1000W

Ballast: 120V thru 277V

UL Listed: For dry locations

Luminaires: Suitable for use on all AccuLite™ highbay

and lowbay luminaires.

Ambient: Maximum 65˚C .

Integral HI/LO Bi-Level Switching Control:

To order add suffix to luminaire catalog number - HI/LO

Ordering Information

Bi-Level Switching For Groups of Luminaires

Lamp: All HID lamps from 150W thru 1000W

Ballast:120V thru 277V Luminaires:

Suitable for use on all AccuLite highbay and lowbay

luminaires.

Maximum: 30 luminaires per sensor module.

Ambient: Maximum 55˚C

UL Listed: For dry or damp locations.

Luminaire with HI/LO Switch Module:

To order add suffix to luminaire catalog number - CWSM

Occupancy Detector: Sensor for aisle lighting. (Non -

adjustable, not suitable for area sensing applications.)

Order catalog number HI/LO-IRMS

Manual Override: Order catalog number HI/LO-MO

Hi/Lo Bi-Level Switching

of Individual Luminaires

Hi/Lo Bi-Level Switching

of Groups of Luminaires

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Accuflex™ Modular Wiring System

Modular Wiring Benefits

•Reduces installed cost.

•Fixtures are portable.

•Potential tax benefits.

•UL certified for make and break under load.

•Meets NEC article 604.

•Meets or exceeds UL standard for safety #183.

Design Features

•Metal encased.

•5 wire capability for three circuits plus ground.

•Fully grounded.

•Voltage specific pin and socket contacts.

Distribution Cable

•Starting point of the modular wiring system.

•Mounts through 1/2” knockout to junction box.

•Prewired female connector - maximum 20 amps per circuit.

•Wiring - two, three or four #12 AWG THHN stranded copper,

600V plus one bare #12 AWG solid copper ground wire, pre-

wired for the distribution of one, two or three circuits.

•Color coded

120V: white, black, red, blue, green.

277V: White, orange, brown, yellow, green.

120V power isolated ground: black, red, green,

green with yellow stripes.

Extension Cable

•Provides feed through power-in / power-out connection for the

continuation of three circuit power .

•Male power-in head and female power--out head - maximum 20

amps per circuit.

•Extension cables can plug into each other in tandem when longer

lengths are required.

•Wiring - two, three or four #12 AWG THHN stranded copper,

600V plus one bare #12 AWG solid copper ground wire, pre-

wired for the distribution of one, two or three circuits.

•Head is 18 gauge steel, zinc plated.

•Die cast housing with zinc plated steel cover plate.

•Male cable head has positive acting steel spring latches which

provide grounding of non-current carrying metal equipment.

Fixture Cable

•Provides feed through power-in/power out connection for the

fixture, plus supplying “A”, ”B” or “C” phase circuit to the fixture.

•Can be factory pre-wired or field installed.

•Male power-in head uses type MC cable.

•6” leads for wiring ease.

•Head is 18 gauge steel, zinc plated.

•Die cast housing with zinc plated steel cover plate.

•Male cable head has positive acting steel spring latches which

provide grounding of non-current carrying metal equipment.

Phase Splitter

•Phase splitters have power-in / power-out connectors for the

continuation of three circuit power to the next fixture and a power

out connector for supplying an “A”, “B” or “C” phase circuit to

phase tap on H.I.D. luminaires.

•Phase Splitters allow a fixture to be removed without interrupting

the circuit to the other luminaires

•Low profile 5-1-8” X 3-1/8” X 12/16”.

•Thru-wired for three circuits.

•Die cast housing with zinc plated steel cover plate.

•Internal Wires: #12 AWG THHN stranded copper, 600V plus

one bare #12 AWG solid tinned copper ground conductor.

Accuflex

Modular Wiring System

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

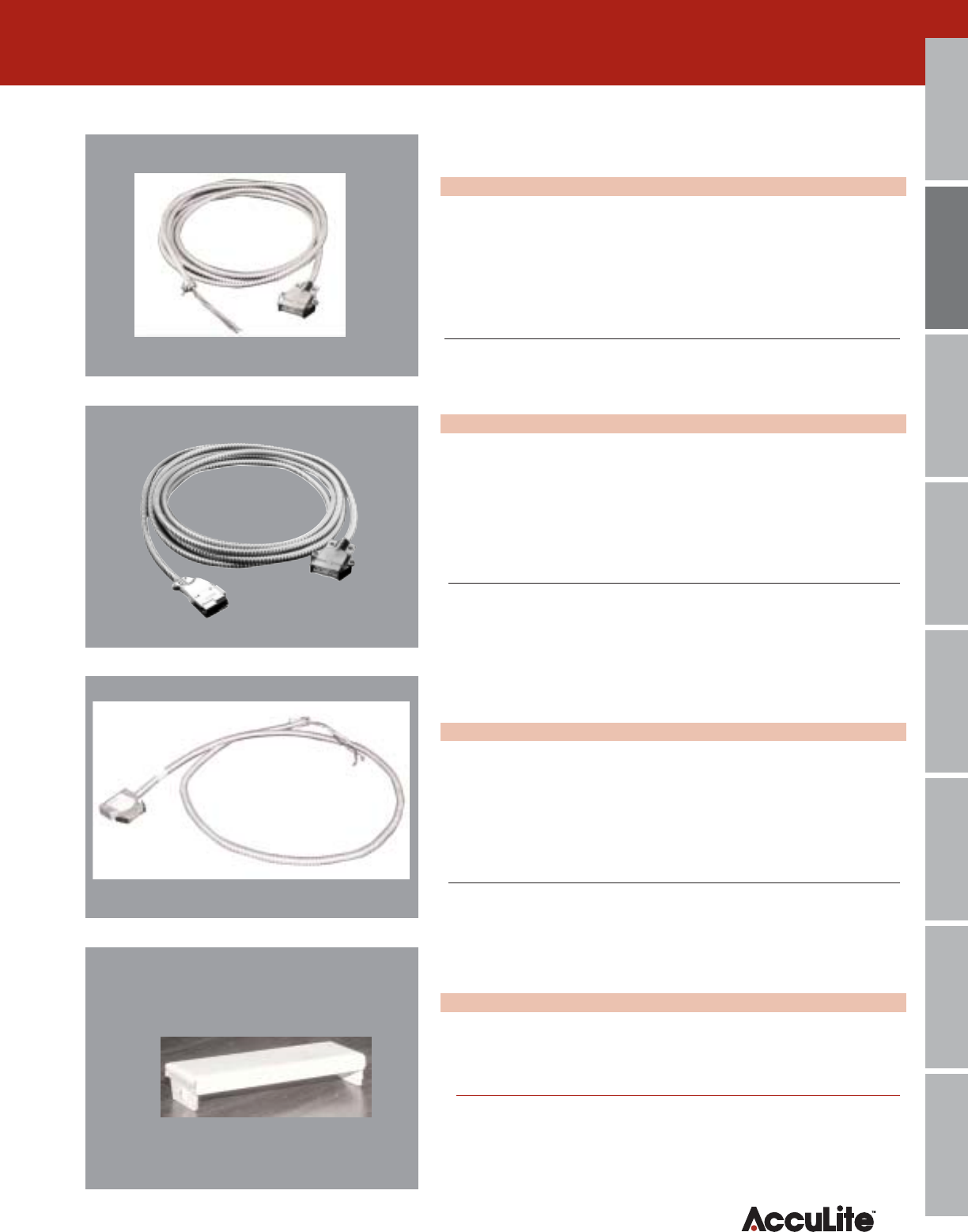

Accuflex™ Modular Wiring System

Metal Halide

Product Cable Number Cable Length

Code Volts Function of Circuits (Specify - in feet)

Distribution Cable

Metal Halide

Product Cable Cable Length

Code Volts Function Circuit (Specify - in feet)

Fixture Cable

Metal HalideExtension Cable

Metal HalideBlanking Cover

Product

Code Function

Accuflex

Distribution Cable

Accuflex

Extension Cable

Accuflex

Fixture Cable

Accuflex

Blanking Cover

Sample catalog number (277V, Distribution Cable, 2 circuits, 10 feet long): AF-27DC-B-10

AF -27 DC -B -10

AF = Accu-Flex™ 12 =120V DC =Distribution A=Single Circuit XX =Indicates

20 =208V Cable Two wires plus ground cable length

24 =240V B=Two Circuits (specify required

27 =277V Three wires plus ground length in feet)

34 =347V C= Three Circuits

48 =480V Four wires plus ground

Sample catalog number (277V, Fixture Cable, MC Cable, Circuit B, 10 feet long): AF-27MC-B-10

AF -27 MC -B -10

AF = Accu-Flex™ 12 = 120V MC =MC Fixture Cable A=Circuit A XX =Indicates

20 = 208V B=Circuit B cable length

24 = 240V C= Circuit C

27 = 277V

34 = 347V

48 = 480V

Sample catalog number (277V, Extension Cable, 2 circuits, 10 feet long): AF-27EC-B-10

AF -27 EC -B -10

AF = Accu-Flex™ 12 =120V EC =Extension A=Single Circuit XX =Indicates

20=208V Cable Two wires plus ground cable length

24 =240V B=Two Circuits (specify required

27 =277V Three wires plus ground length in feet)

34 =347V C= Three Circuits

48 =480V Four wires plus ground

Sample catalog number AF-BC

AF -BC

AF = Accu-Flex™ BC =Blanking Cover

Required to close any end cable with exposed pins

Consult factory

for cabtire or

“SO” cord drops

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Indoor and Outdoor General Lighting of Industrial, Commercial,

Retail Store, Recreation and Sports Facilities with Ceiling Heights under 25 Feet

Accessories: Hi/Lo Switching, Remote Ballasts and Accuflex Modular Wiring System

Accuglo (AG/MAG)

Standard Optical Assembly

•Enclosed luminaire for lowbay

applications

Gasketed Optical Assembly

•Gasketed at lens and ballast for

use in dusty/dirty environments

Accuglo (EGA/MEGA)

Totally Enclosed and Gasketed

Optical and Ballast Assemblies

•Approved for wet locations

such as wash down applications

in food plants

•Supplied with “breather” assembly

to keep optical assembly clean and

prevent internal condensation

Lo-Lux

•22” Aluminum Reflector

•Acrylic Lens

Vertibay - Better Product

Die-cast ballast housing

High reflectance white reflector for optimum photometric performance

Vertibay

•16” White Reflector

•Acrylic Refractor

•175W-450W MH

250W-400W HPS

Verti-Lux

•16” Aluminum Reflector

•Acrylic Refractor

Lowbays

Lo-Lux - Good Product

Economy sheet metal ballast housing

Lamp wattages up to 450 watts

Accuglo - Best Product

High performance optics reduces number of fixtures required, lowering installation and operating costs

Choice of three different models to solve application-specific needs

Low Profile models available for height-constrained applications

Heavy duty, finned/compartmentalized die-cast aluminum ballast housing

maximizes ballast life and results in exceptionally quiet operation

Lamp wattages up to 450 watts

LPAG

Low Profile

22” (Max 450W)

50 Medium 16” MAG50MH-120‡

70 ” ” MAG70MH-volts

100 ” ” MAG100MH-volts

150 ” ” MAG150MH-volts

175 ” ” MAG175MH-volts-PSB

200 ” ” MAG200MH-volts-PSB

175 Mogul 22” AG175MH-volts-PSB

200 ” ” AG200MH-volts-PSB

250 ” ” AG250MH-volts-PSB

320 ” ” AG320MH-volts-PSB

350 ” ” AG350MH-volts-PSB

400 ” ” AG400MH-volts-PSB

450 ” ” AG450MH-volts-PSB

175 Medium 16” MAG175MH-volts

250 Mogul 16” MAG250MH-120*

175 Mogul 22” AG175MH-volts

250 ” ” AG250MH-volts

400 ” ” AG400MH-volts

35 Medium 16” MAG35HP-120‡

50 ” ” MAG50HP-120‡

70 ” ” MAG70HP-volts

100 ” ” MAG100HP-volts

150 ” ” MAG150HP-volts

150 Mogul 22” AG150HP-volts

250 ” ” AG250HP-volts

400 ” ” AG400HP-volts

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

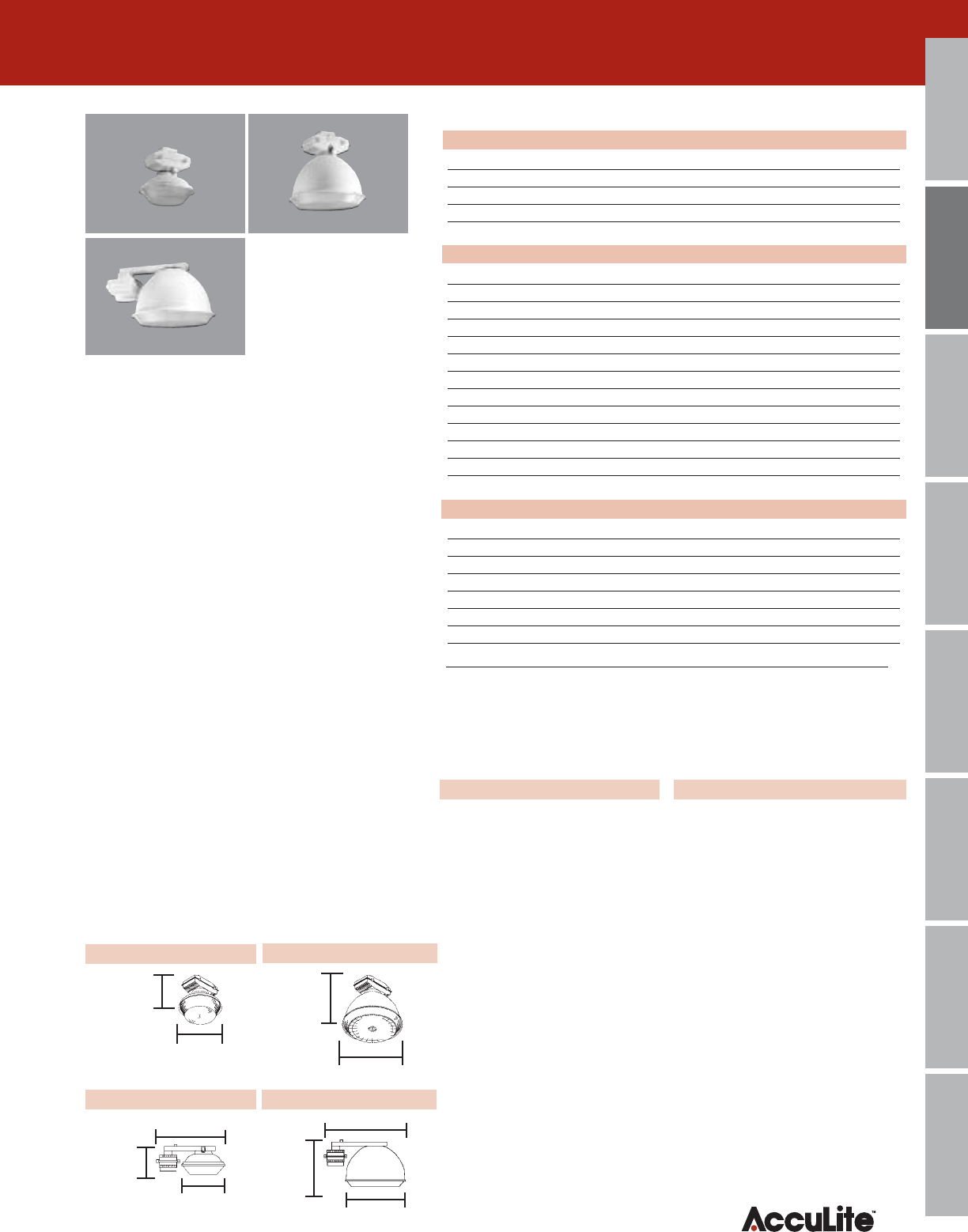

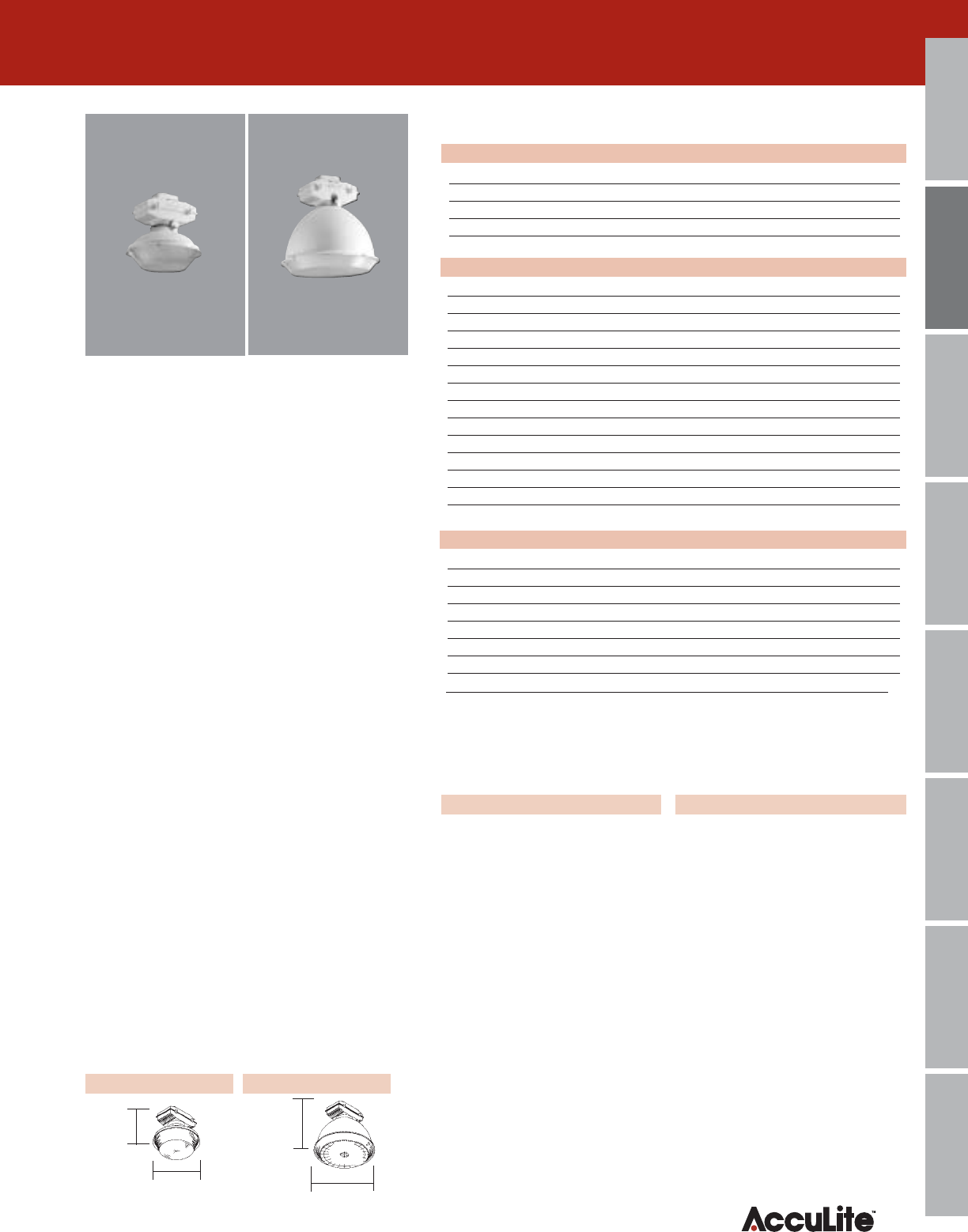

Accuglo™ Lowbay Luminaire

High Performance Optical Assembly

•Low surface brightness luminaire with high reflectance

(95%) white polyester powder coat finish (inside and

outside surfaces) and acrylic lens.

Easy Installation

•Heavy duty spring tension latches secure the reflector.

Cool Operating

•Heavy duty die cast aluminum ballast housing.

Finish

•White polyester powder coat finish.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

•Gasket between the ballast and reflector.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

AG & MAG

Low Surface Brightness

High Performance Lowbay Luminaire

Lamp

Coated Lamp - CL

Clear Lamp - L

Ballast

Luminaires with magnetic ballast – see above

Luminaires with electronic ballast – see page 53

Pulse Start Luminaires

High Performance Metal Halide See above

250W Series MAG not available

Potted Ballasts For low noise requirements - POT

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter for HPS Luminaires - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Low Profile Luminaires

Change AG to LPAG

MAG (200W Max) to LPMAG

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Safety Hook 3/4”NPT Male HK75SS

Female HF75SS

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ∆

For AG Series AG-BSC3

For MAG Series MAG-BSC3

Optical Assembly Safety Cable

For AG Series AG-RSC

For MAG Series MAG-RSC

Wire Guard White For AG Series AG-WG

For MAG Series MAG-WG

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level switching See page 27

Accuflex Modular Wiring See page 28

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

Lamp Lamp Reflector Enclosed

Watts Base (Diameter) Optical Assembly

‡ 277V available – change “-120” to “-277”

* 250W Series MAG: Available 120V or 347V – change “120” to “347”

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

22-1/2”

17-1/2”

28-1/4”

Dimensions

MAG 3/4” Hub AG 3/4” Hub

LPMAG (Low profile) 3/4” Hub LPAG (Low profile) 3/4” Hub

16-9/32”

16-1/2”

22-1/2”

16-9/32”

11-5/16”

25-1/2”

Accessories

Options

Description Suffix Description Catalog No.

MAG

16” (Max 250W)

35 Medium 16” MAG35HP-120-RG‡

50 ” ” MAG50HP-120-RG‡

70 ” ” MAG70HP-volts-RG

100 ” ” MAG100HP-volts-RG

150 ” ” MAG150HP-volts-RG

150 Mogul 22” AG1AG150HP-volts-RG

250 ” ” AG250HP-volts-RG

400 ” ” AG400HP-volts-RG

50 Medium 16” MAG50MH-120-RG‡

70 ” ” MAG70MH-volts-RG

100 ” ” MAG100MH-volts-RG

150 ” ” MAG150MH-volts-RG

175 ” ” MAG175MH-volts-PSB-RG

200 ” ” MAG200MH-volts-PSB-RG

175 Mogul 22” AG175MH-volts-PSB-RG

200 ” ” AG200MH-volts-PSB-RG

250 ” ” AG250MH-volts-PSB-RG

320 ” ” AG320MH-volts-PSB-RG

350 ” ” AG350MH-volts-PSB-RG

400 ” ” AG400MH-volts-PSB-RG

450 ” ” AG450MH-volts-PSB-RG

175 Medium 16” MAG175MH-volts-RG

250 Mogul 16” MAG250MH-volts-RG*

175 Mogul 22” AG175MH-volts-RG

250 ” ” AG250MH-volts-RG

400 ” ” AG400MH-volts-RG

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Accuglo™ Enclosed Lowbay Luminaire -w/Gasketed Optical Assembly

High Performance Optical Assembly

•Low surface brightness luminaire with high reflectance

(95%) white polyester powder coat finish ( inside and

outside surfaces) and acrylic lens.

Enclosed Luminaires

•Gasketed Optical Assembly for applications where a

totally enclosed and gasketed luminaire is not

necessary.

•Gasketed between the ballast & reflector and between

the reflector & lens.

Easy Installation

•Heavy duty spring tension latches secure the reflector.

Cool Operating

•Heavy duty die cast aluminum ballast housing.

Finish

•White polyester powder coat finish.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

AG & MAG

Low Surface Brightness

High Performance Lowbay Luminaire

Lamp

Coated Lamp - CL

Clear Lamp - L

Ballast

Luminaires with magnetic ballast – see above

Luminaires with electronic ballast – see page 53

Pulse Start Luminaires

High Performance Metal Halide See above

250W Series MAG not available

Potted Ballasts For low noise requirements - POT

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter for HPS Luminaires - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Low Profile Luminaires

Change AG to LPAG

MAG(200W Max) to LPMAG

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Safety Hook 3/4”NPT Male HK75SS

Female HF75SS

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain -

3’ long ∆For AG Series AG-BSC3

For MAG Series MAG-BSC3

Optical Assembly Safety Cable

For AG Series AG-RSC

For MAG Series MAG-RSC

Wire Guard White For AG Series AG-WG

For MAG Series MAG-WG

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level switching See page 27

Accuflex Modular Wiring See page 28

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

MAG

16” (Max 250W)

LPAG

Low Profile

22” (Max 450W)

Lamp Lamp Reflector Gasketed

Watts Base (Diameter) Optical Assembly

‡ 277V available – change “-120” to “-277”

* 250W Series MAG: Available 120V or 347V – change “120” to “347”

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

Dimensions

22-1/2”

17-1/2”

28-1/4”

22-1/2”

16-9/32”

11-5/16”

25-1/2”

AG 3/4” Hub

LPMAG (Low profile) 3/4” Hub

LPAG (Low profile) 3/4” Hub

MAG 3/4” Hub

16-9/32”

16-1/2”

Accessories

Options

Description Suffix Description Catalog No.

MEGA

16” Reflector (Max 250W) EGA

22” Reflector (Max 450W)

35 Medium 16” MEGA35HP-120‡

50 ” ” MEGA50HP-120‡

70 ” ” MEGA70HP-volts

100 ” ” MEGA100HP-volts

150 ” ” MEGA150HP-volts

150 Mogul 22” EGA150HP-volts

250 ” ” EGA250HP-volts

400 ” ” EGA400HP-volts

50 Medium 16” MEGA50MH-120‡

70 ” ” MEGA70MH-volts

100 ” ” MEGA100MH-volts

150 ” ” MEGA150MH-volts

175 ” ” MEGA175MH-volts-PSB

200 ” ” MEGA200MH-volts-PSB

175 Mogul 22” EGA175MH-volts

175 “ ” EGA175MH-volts-PSB

200 ” ” EGA200MH-volts-PSB

250 ” ” EGA250MH-volts-PSB

320 ” ” EGA320MH-volts-PSB

350 ” ” EGA350MH-volts-PSB

400 ” ” EGA400MH-volts-PSB

450 ” ” EGA450MH-volts-PSB

175 Medium 16” MEGA175MH-volts

250 Mogul 16” MEGA250MH-120*

175 Mogul 22” EGA175MH-volts

250 ” ” EGA250MH-volts

400 ” ” EGA400MH-volts

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Accuglo™ Totally Enclosed & Gasketed Lowbay Luminaire

EGA & MEGA

Low Surface Brightness

High Performance Lowbay Luminaire

High Performance Optical Assembly

•Low surface brightness luminaire with high reflectance

(95%) white polyester powder coat finish ( inside and

outside surfaces) and acrylic lens.

Totally Enclosed and Gasketed

•Certified for enclosed and gasketed applications.

•Gasketed at the junction box, ballast assembly and

optical assembly.

•Furnished with a charcoal filtered breather to prevent

the build up of moisture in the fixture and keep it clean.

Standard 2 Food Equipment (Washdown)

•Certified to NSF Criteria C2, enclosed and gasketed

Accuglo™ fixtures are suitable for washdown

application. Suitable for 1000 PSI. Add suffix “-NF”.

Easy Installation

•Heavy duty spring tension latches secure the reflector.

Cool Operating

•Heavy duty die cast aluminum ballast housing.

Finish

•White polyester powder coat finish.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

Lamp Lamp Reflector 3/4” Pendant Mount

Watts Base (Diameter) Standard Profile

Lamp

Coated Lamp - CL

Clear Lamp - L

Pulse Start Luminaires

High Performance Metal Halide See above

2250W Series MEGA not available

Potted Ballasts For low noise requirements - POT

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter for HPS Luminaires - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

NSF Certification

Standard 2 Food Equipment

Manufactured to NSF Criteria C2 - NF

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Safety Hook – Enclosed & Gasketed

- 3/4”NPT Male EHK75SS

Female EHF75SS

Cord Set - 3’ long ∆

3 conductor, Type ST105. Cord only 3C-SOW

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain -

3’ long ∆For EGA Series AG-BSC3

For MEGA Series MAG-BSC3

Optical Assembly Safety Cable

For EGA Series AG-RSC

For MEGA Series MAG-RSC

Wire Guard White For EGA Series AG-WG

For MEGA Series MAG-WG

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

‡ 277V available – change “-120” to “-277”

* 250W Series MEGA: Available 120V or 347V – change “120” to “347”

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

MEGA 3/4” Hub EGA 3/4” Hub

Dimensions

22-1/2”

16-9/32”

16-1/2”

22-1/2”

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

Accessories

Options

Description Suffix Description Catalog No.

Lamp

Coated Lamp - CL

Clear Lamp - L

Pulse Start Luminaires

High Performance Metal Halide - See above

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter For HPS Luminaires - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Safety Hook - 3/4”NPT Male HK75SSB

Female HF75SSB

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ∆HB3-BSC3

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level switching See page 27

Accuflex Modular Wiring See page 28

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

150 Mogul Open HB3-150HP-volts-AL2 HB3-150HP-volts-AL5

250 “ “ HB3-250HP-volts-AL2 HB3-250HP-volts-AL5

400 “ “ HB3-400HP-volts-AL2 HB3-400HP-volts-AL5

175 Mogul Open HB3-175MH-volts-PSB-AL2† HB3-175MH-volts-PSB-AL5†

200 “ “ HB3-200MH-volts-PSB-AL2 † HB3-200MH-volts-PSB-AL5†

250 “ “ HB3-250MH-volts-PSB-AL2† HB3-250MH-volts-PSB-AL5†

320 “ “ HB3-320MH-volts-PSB-AL2† HB3-320MH-volts-PSB-AL5†

350 “ “ HB3-350MH-volts-PSB-AL2† HB3-350MH-volts-PSB-AL5†

400 “ “ HB3-400MH-volts-PSB-AL2§ HB3-400MH-volts-PSB-AL5§

450 “ “ HB3-450MH-volts-PSB-AL2† HB3-450MH-volts-PSB-AL5†

Accessories

Options

Description Suffix Description Catalog No.

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Optical Assembly

•16” acrylic open refractor standard.

•Two distributions, long and narrow or symmetrical.

•White polyester powder coat aluminum upper reflector.

Cast Housing

•Die cast aluminum ballast housing.

•White polyester power coat finish.

Easy Install Mounting

•Extra large junction box with slide top adapter.

Junction box has feed-thru1/2” knockouts.

Full Range of Accessories

•Vertibay is available with most common accessories

including fusing, quartz auxiliary lights and hooks.

Finish

•White polyester powder coat finish.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

HB3

Economical Cast Fixtures

with Open 16” Acrylic Refractors

Vertibay

16” Open Lens (Max 450W)

Vertibay™ Aisle Lighting Luminaire

Lamp Lamp Cat. No. Type II Cat. No. Type V

Watts Base Refractor 3/4” Pendant Mount 3/4” Pendant Mount

16-1/4”

20-3/4”

Dimensions

3/4” Hub

175 Mogul Open HB3-175MH-volts-AC2† HB3-175MH-volts-AC5†

250 “ “ HB3-250MH-volts-AC2 † HB3-250MH-volts-AC5†

400 “ “ HB3-400MH-volts-AL2§ HB3-400MH-volts-AL5§

† Supplied with lampholder for protected lamp.

§ Supplied with lampholder for standard lamp – to order lampholder for

protected lamp add suffix -PLS

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

Lo-Lux

22” Reflector (Max 450W)

175 Mogul 22” Aluminum/Acrylic ALX175MH-volts-PSB-LB

200 “ “ ALX200MH-volts-PSB-LB

250 “ “ ALX250MH-volts-PSB-LB

320 “ “ ALX320MH-volts-PSB-LB

350 “ “ ALX350MH-volts-PSB-LB

400 “ “ ALX400MH-volts-PSB-LB

450 “ “ ALX450MH-volts-PSB-LB

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

ALX™ Economy Lowbay Luminaire

LO-LUX

Aluminum Lowbay Reflectors 150 Mogul 22” Aluminum/Acrylic ALX150HP-volts-LB

250 “ “ ALX250HP-volts-LB

400 “ “ ALX400HP-volts-LB

Cat. No.

Lamp Lamp Reflector (No Hook / No Cord)

Watts Base (Nom. Dia.) 3/4” Pendant Mount

22-1⁄2”

Dimensions

3/4” Hub

Enclosed Aluminum Reflectors

•22” reflector with acrylic lens.

Enclosed Optical Assembly

•With heat resistant hinged glass lens, three stainless

steel lens clips and silicone rubber gaskets.

Plumb Mounting

•The fixture is designed to hang plumb without extra

work for the contractor.

Full Range of Accessories

•Lo-lux™ is available with most common accessories

including fusing, quartz auxiliary lights, hooks and

guards.

Finish

•White ballast housing

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

Lamp

Coated Lamp - CL

Clear Lamp - L

Pulse Start Luminaires

High Performance Metal Halide See above

Factory pre-wired Cord only - C

Hook & cord - HC

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter For HPS Luminaires - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Enclosed Optical Assembly

Fully gasketed optical assembly -RG

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Safety Hook - 3/4”NPT Male HK75SSB

Female HF75SSB

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ∆ALX-BSC3

Optical Assembly Safety Cable ALX-RSC

Wire Guard for 22” reflector ALX-WG22

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level Switching See page 27

Accuflex Modular Wiring See page 28

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

175 Mogul 22” Aluminum/Acrylic ALX175MH-volts-LB

250 “ “ ALX250MH-volts-LB

400 “ “ ALX400MH-volts-LB

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

Accessories

Options

Description Suffix Description Catalog No.

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Verti-Lux

16” Open Lens (Max 450W)

ALX™ Economy Aisle Lighting Luminaire

VERTI-LUX

Aisle Lighter

16-1/4”

21”

Dimensions

3/4” Hub

Open Optical Assembly

•16” acrylic open refractor standard.

•Two distributions, long and narrow or symmetrical.

•White polyester powder coat aluminum upper reflector.

Plumb Mounting

•The fixture is designed to hang plumb without extra work for the contractor.

Full Range of Accessories

•Verti-lux™ is available with most common accessories including fusing,

quartz auxiliary lights and hooks.

Hook and Cord

•Furnished with a factory wired hook and 3’ cord.

Finish

•White ballast housing

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting. MH-30°C, Pulse

Start MH -40°C, HPS -40°C

Lamp

Items noted ”*“ above must have either a

bottom closure and standard lamp or

protected lampholder and protected lamp.

Coated Lamp - CL

Clear Lamp - L

Pulse Start Luminaires

High Performance Metal Halide See above

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter For HPS Luminaires - PI

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Factory pre-wired Cord only - C

Hook & cord - HC

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Safety Hook - 3/4”NPT Male HK75SSB

Female HF75SSB

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & Twist Lock Plug 3C-TLP-(volts)-(amps)

(15A or 20A available)

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Ballast Safety Chain - 3’ long ∆ALX-BSC3

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Systems Bi-Level Switching See page 27

Accuflex Modular Wiring See page 28

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

150 Mogul Open ALX150HP-volts-AL2 ALX150HP-volts-AL5

250 “ “ ALX250HP-volts-AL2 ALX250HP-volts-AL5

400 “ “ ALX400HP-volts-AL2 ALX400HP-volts-AL5

Lamp Lamp Cat. No. Type II Cat. No. Type V

Watts Base Refractor 3/4” Pendant Mount 3/4” Pendant Mount

175 Mogul Open ALX175MH-volts-AL2† ALX175MH-volts-AL5†

250 “ “ ALX250MH-volts-AL2 † ALX250MH-volts-AL5†

400 “ “ ALX400MH-volts-AL2§ ALX400MH-volts-AL5§

175 Mogul Open ALX175MH-volts-PSB-AL2† ALX175MH-volts-PSB-AL5†

200 “ “ ALX200MH-volts-PSB-AL2† ALX200MH-volts-PSB-AL5†

250 “ “ ALX250MH-volts-PSB-AL2† ALX250MH-volts-PSB-AL5†

320 “ “ ALX320MH-volts-PSB-AL2† ALX320MH-volts-PSB-AL5†

350 “ “ ALX350MH-volts-PSB-AL2† ALX350MH-volts-PSB-AL5†

400 “ “ ALX400MH-volts-PSB-AL2§ ALX400MH-volts-PSB-AL5§

450 “ “ ALX450MH-volts-PSB-AL2† ALX450MH-volts-PSB-AL5†

† Supplied with lampholder for protected lamp.

§ Supplied with lampholder for standard lamp – to order lampholder for

protected lamp add suffix -PLS

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

Accessories

Options

Description Suffix Description Catalog No.

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

HI/LO Systems™ Bi-Level Switching, Individual or Groups

Integral

Switches Individual Luminaires

•Individual Bi-Level Switching:

Luminaire is installed anywhere

individual fixtures can be allowed to

switch from high to low

independently and where remote

control is not required (now or in the

future).

•The individual luminaire b--level

control system allows one to adjust

the time the luminaire stays at full

brightness after motion ceases.

Adjustment from one to fifteen

minutes (approx.).

The System:

•The system for bi-level switching

individual luminaires consists of an

infrared motion detector and a

switching module mounted on each

luminaire.

•The system warms the lamps up to

full brightness for 15 minutes

ensuring maximum lamp life and

lamp warranty. After warm up it

automatically switches to “LO”

energy saving mode. When motion

is sensed at the transmitter, the

lighting automatically comes up to

full brightness.

Moveable Aisles:

•Single luminaire bi-level switching is

used for warehouse areas where

aisle architecture is not preset (ie.

where aisles shift location as stock is

moved or replenished). Entire aisles

do not switch to “HI” mode, only

those luminaires which sense motion

do so.

Cross Aisles:

•When used at warehouse cross aisles

the entire aisle is not activated when

a person or a fork lift passes at 90°

to the aisle. Only the luminaire at

the intersection goes to full

brightness.

Small Areas:

•For small areas using only a few

luminaires, it is not necessary to buy

and install separate transmitters and

control cables, so equipment and

installation costs are reduced.

Periodic Additions:

•Install individually controlled

luminaires when periodic additions

are made to a complete HI/LO

system.

Control Wire

Bi-Level, For Groups of Luminaires

•Control Wire HI/LO systems from

AccuLite™are the value approach to

achieving energy savings. This bi-

level system increases the energy

savings of high performance

luminaires, lamps and ballasts.

The System:

•The system consists of an infrared

motion detector placed near the ends

of the aisles and a switching module

mounted on each luminaire. A

general purpose transmitter/ override

device can control the switching

modules. Installed in a two gang

box it can be used with a photocell,

time clock, or manual switch.

•The system warms the lamps up to

full brightness for 15 minutes

ensuring maximum lamp life and

lamp warranty. After warm up it

automatically switches to “LO”

energy saving mode. When motion

is sensed at the transmitter, the

lighting automatically comes up to

full brightness. After 5 minutes of no

activity, the system returns to “LO”.

Components – Control Wire System

•HI/LO Receiver: All AccuLite™ Metal

Halide, Pulse Start Metal Halide or

High Pressure Sodium indoor

luminaires can be equipped with an

electronic receiver and HI/LO

ballast.

•Infrared Motion Detector: Passive

infrared detector detects motion in

the controlled area and signals the

luminaire to go to full brightness.

•Manual Overrides/ General Purpose

Transmitter: Converts an on/off

signal to a HI/LO signal, then sends

the signal to the luminaire. Signals

are converted from many devices

including time clocks, switches,

photocontrols and integral key

switches.

•Control Wire: The system uses a high

voltage control wire to connect the

transmitters to the luminaires to be

switched from high to low.

•Long Aisles: When long aisles

require installation of a third sensor,

it is a viable option to install from

one to five individually controlled

luminaires in the midsection of the

aisle.

Ordering Information

Bi-Level Switching For Individual Luminaires

Lamp: All HID lamps from 150W thru 1000W

Ballast: 120V thru 277V

UL Listed: For dry locations

Luminaires: Suitable for use on all AccuLite™ highbay

and lowbay luminaires.

Ambient: Maximum 65˚C .

Integral HI/LO Bi-Level Switching Control:

To order add suffix to luminaire catalog number - HI/LO

Ordering Information

Bi-Level Switching For Groups of Luminaires

Lamp: All HID lamps from 150W thru 1000W

Ballast:120V thru 277V Luminaires:

Suitable for use on all AccuLite highbay and lowbay

luminaires.

Maximum: 30 luminaires per sensor module.

Ambient: Maximum 55˚C

UL Listed: For dry or damp locations.

Luminaire with HI/LO Switch Module:

To order add suffix to luminaire catalog number - CWSM

Occupancy Detector: Sensor for aisle lighting. (Non -

adjustable, not suitable for area sensing applications.)

Order catalog number HI/LO-IRMS

Manual Override: Order catalog number HI/LO-MO

Hi/Lo Bi-Level Switching

of Individual Luminaires

Hi/Lo Bi-Level Switching

of Groups of Luminaires

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Accuflex™ Modular Wiring System

Modular Wiring Benefits

•Reduces installed cost.

•Fixtures are portable.

•Potential tax benefits.

•UL certified for make and break under load.

•Meets NEC article 604.

•Meets or exceeds UL standard for safety #183.

Design Features

•Metal encased.

•5 wire capability for three circuits plus ground.

•Fully grounded.

•Voltage specific pin and socket contacts.

Distribution Cable

•Starting point of the modular wiring system.

•Mounts through 1/2” knockout to junction box.

•Prewired female connector - maximum 20 amps per circuit.

•Wiring - two, three or four #12 AWG THHN stranded copper,

600V plus one bare #12 AWG solid copper ground wire, pre-

wired for the distribution of one, two or three circuits.

•Color coded

120V: white, black, red, blue, green.

277V: White, orange, brown, yellow, green.

120V power isolated ground: black, red, green,

green with yellow stripes.

Extension Cable

•Provides feed through power-in / power-out connection for the

continuation of three circuit power .

•Male power-in head and female power--out head - maximum 20

amps per circuit.

•Extension cables can plug into each other in tandem when longer

lengths are required.

•Wiring - two, three or four #12 AWG THHN stranded copper,

600V plus one bare #12 AWG solid copper ground wire, pre-

wired for the distribution of one, two or three circuits.

•Head is 18 gauge steel, zinc plated.

•Die cast housing with zinc plated steel cover plate.

•Male cable head has positive acting steel spring latches which

provide grounding of non-current carrying metal equipment.

Fixture Cable

•Provides feed through power-in/power out connection for the

fixture, plus supplying “A”, ”B” or “C” phase circuit to the fixture.

•Can be factory pre-wired or field installed.

•Male power-in head uses type MC cable.

•6” leads for wiring ease.

•Head is 18 gauge steel, zinc plated.

•Die cast housing with zinc plated steel cover plate.

•Male cable head has positive acting steel spring latches which

provide grounding of non-current carrying metal equipment.

Phase Splitter

•Phase splitters have power-in / power-out connectors for the

continuation of three circuit power to the next fixture and a power

out connector for supplying an “A”, “B” or “C” phase circuit to

phase tap on H.I.D. luminaires.

•Phase Splitters allow a fixture to be removed without interrupting

the circuit to the other luminaires

•Low profile 5-1-8” X 3-1/8” X 12/16”.

•Thru-wired for three circuits.

•Die cast housing with zinc plated steel cover plate.

•Internal Wires: #12 AWG THHN stranded copper, 600V plus

one bare #12 AWG solid tinned copper ground conductor.

Accuflex

Modular Wiring System

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

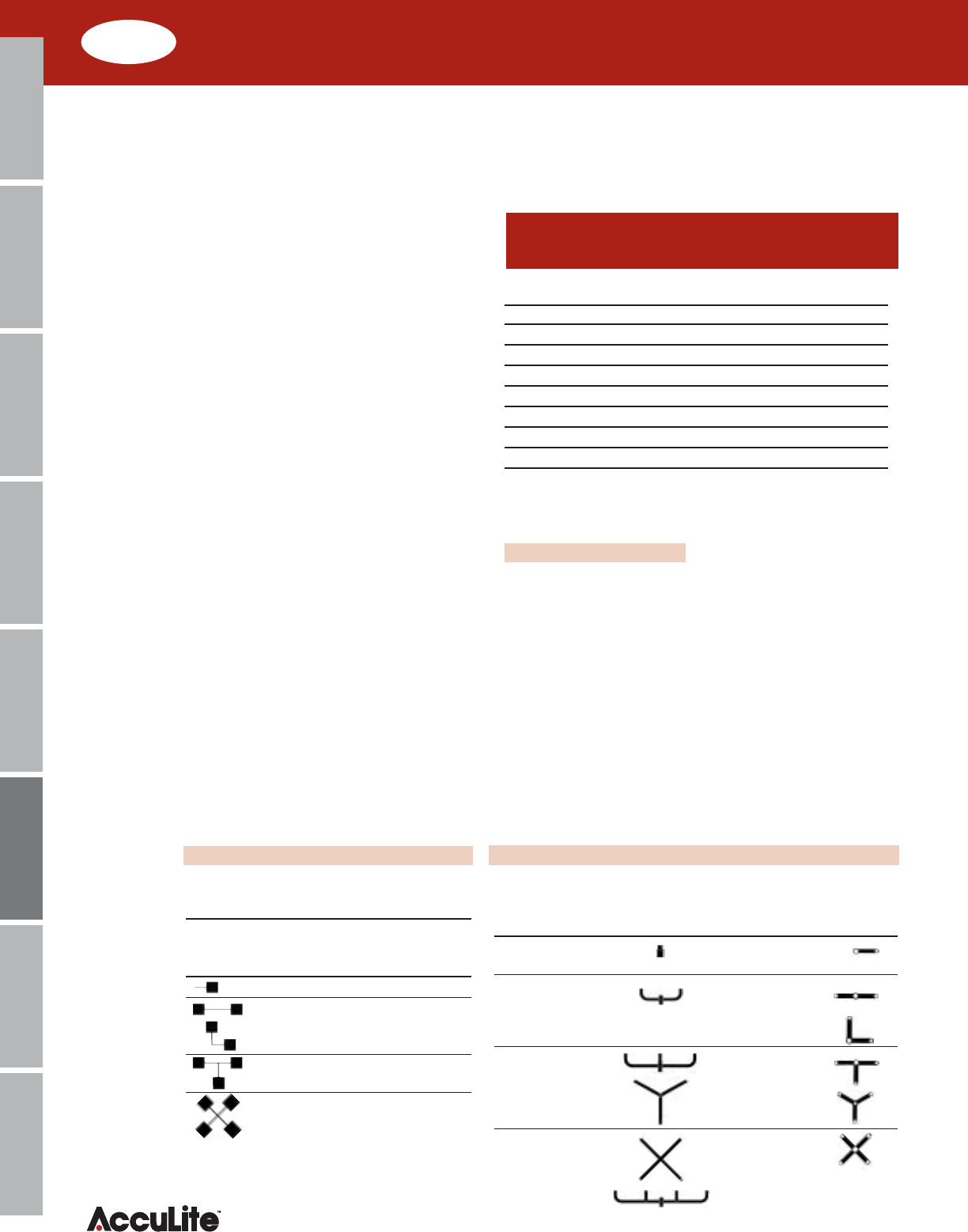

Accuflex™ Modular Wiring System

Metal Halide

Product Cable Number Cable Length

Code Volts Function of Circuits (Specify - in feet)

Distribution Cable

Metal Halide

Product Cable Cable Length

Code Volts Function Circuit (Specify - in feet)

Fixture Cable

Metal HalideExtension Cable

Metal HalideBlanking Cover

Product

Code Function

Accuflex

Distribution Cable

Accuflex

Extension Cable

Accuflex

Fixture Cable

Accuflex

Blanking Cover

Sample catalog number (277V, Distribution Cable, 2 circuits, 10 feet long): AF-27DC-B-10

AF -27 DC -B -10

AF = Accu-Flex™ 12 =120V DC =Distribution A=Single Circuit XX =Indicates

20 =208V Cable Two wires plus ground cable length

24 =240V B=Two Circuits (specify required

27 =277V Three wires plus ground length in feet)

34 =347V C= Three Circuits

48 =480V Four wires plus ground

Sample catalog number (277V, Fixture Cable, MC Cable, Circuit B, 10 feet long): AF-27MC-B-10

AF -27 MC -B -10

AF = Accu-Flex™ 12 = 120V MC =MC Fixture Cable A=Circuit A XX =Indicates

20 = 208V B=Circuit B cable length

24 = 240V C= Circuit C

27 = 277V

34 = 347V

48 = 480V

Sample catalog number (277V, Extension Cable, 2 circuits, 10 feet long): AF-27EC-B-10

AF -27 EC -B -10

AF = Accu-Flex™ 12 =120V EC =Extension A=Single Circuit XX =Indicates

20=208V Cable Two wires plus ground cable length

24 =240V B=Two Circuits (specify required

27 =277V Three wires plus ground length in feet)

34 =347V C= Three Circuits

48 =480V Four wires plus ground

Sample catalog number AF-BC

AF -BC

AF = Accu-Flex™ BC =Blanking Cover

Required to close any end cable with exposed pins

Consult factory

for cabtire or

“SO” cord drops

*Two lamp metal halide ballast are wired for parallel lamp operation.

†Pulse Start Metal Halide ballasts are supplied with extended range starter.

Maximum distance from starter to the lamp is 50 feet.

‡High Pressure Sodium remote mounted indoor ballasts are designed for

mounting adjacent to the luminaire. To order consult factory.

∆Two lamp 1000W Metal Halide ballast is supplied potted as standard.

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

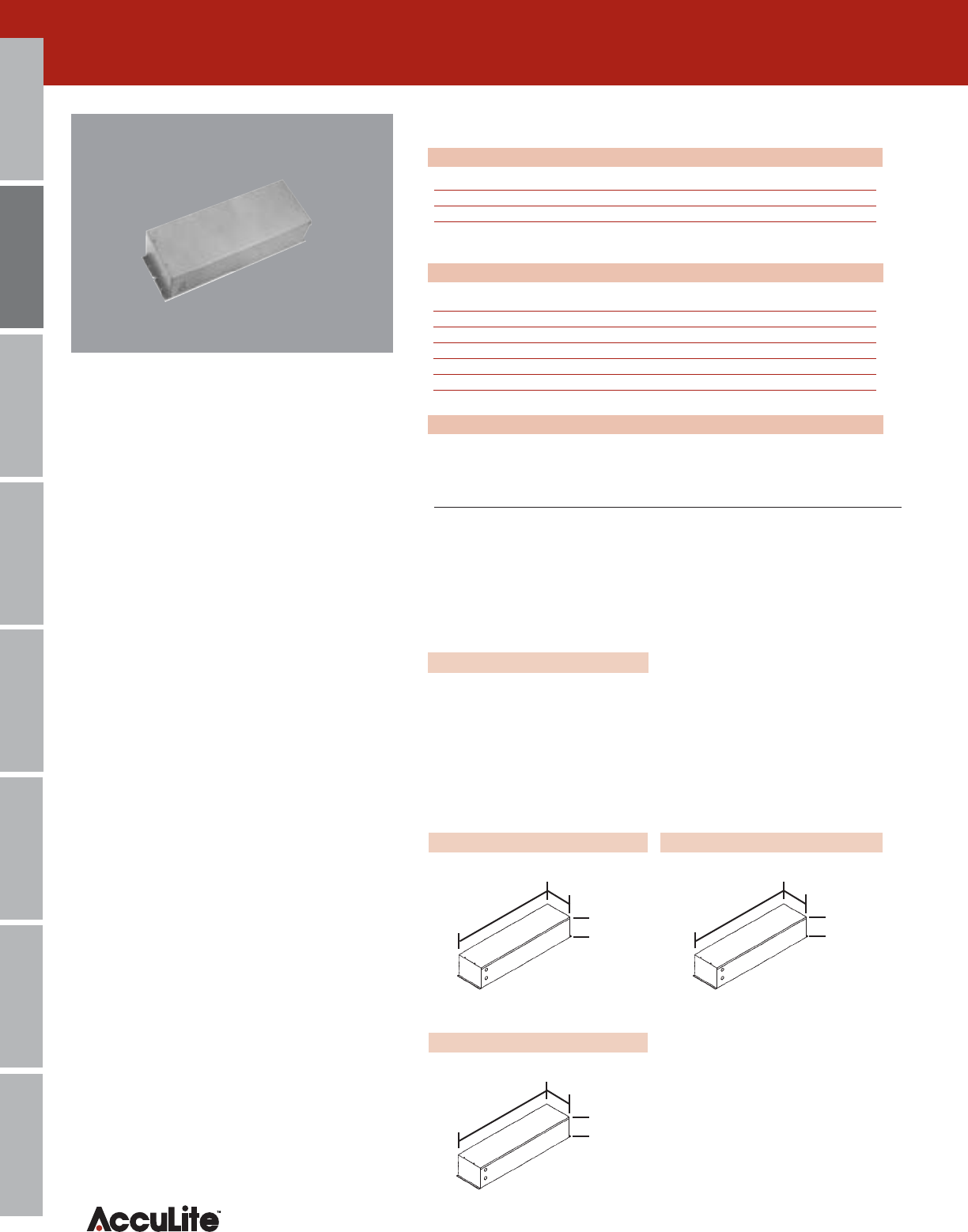

Indoor Remote Ballasts Single Lamp & Two Lamp Parallel

SRB & DRB

One Lamp and Two Lamp Parallel

Remote Ballasts

Segregated Wiring Compartment

•For installer safety and wiring convenience.

Heavy Duty Construction

•18 gauge steel, grey finish, with mounting feet.

Knockouts

•One 1/2” and one 1/2” – 3/4” combination conduit

knock-out on each side of the ballast assembly adjacent

to the wiring compartment.

Ballasts

•Standard HPF ballasts have a minimum starting

temperature – HPS-40°C MH-30°C.

Group Mounted Ballasts

•Group mounted ballasts should be separated by a

space barrier of 6” (minimum horizontal and vertical) to

allow air flow for cooling.

175 A SRB175MH-volts ADRB175MH-volts

250 A SRB250MH-volts BDRB250MH-volts

400 A SRB400MH-volts BDRB400MH-volts

1000 A SRB1000MH-volts CDRB1000MH-volts-POT∆

Metal Halide

High Pressure Sodium

‡Consult factory

Lamp Single Lamp Double Lamp

Watts Dim. Catalog Number Dim. Catalog Number*

Options

Description Suffix

Potted Ballasts

For low noise requirements - POT

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

“A” “B”

Dimensions

“C”

SRB & DRB

6 7/16”

8”

17 1/2”

6-7/16”

8”

22-1/2”

6-7/16”

8”

28-1/2”

Pulse Start Metal Halide

175 A SRB175MH-volts-PSB-LRS† ADRB175MH-volts-PSB-LRS†

200 A SRB250MH-volts-PSB-LRS† BDRB250MH-volts-PSB-LRS†

250 A SRB200MH-volts-PSB-LRS† BDRB200MH-volts-PSB-LRS†

320 A SRB320MH-volts-PSB-LRS† BDRB320MH-volts-PSB-LRS†

350 A SRB350MH-volts-PSB-LRS† BDRB350MH-volts-PSB-LRS†

400 A SRB400MH-volts-PSB-LRS† BDRB400MH-volts-PSB-LRS†

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Replacement Ballasts

Ballasts

Features

•Easy installation

•Energy saving

•Long life

•High temperature rating

•UL and CSA certified

•Multi-voltage (on selected ballasts)

•Fits all AccuLite luminaires and most competitors HID

(Consult factory for dimensions)

Ballasts

50W AB50MH-120∆250W AB250MH-volts

70W AB70MH-volts 400W AB400MH-volts

100W AB100MH-volts 1000W AB1000MH-volts

150W AB150MH-volts 1500W AB1500MH-volts

175W AB175MH-volts

Metal Halide

Options

Description Suffix

Isolated Secondary Ballast -IS

HPS Reactor Ballast See Above

Protected Igniter HPS only -PI

Potted Ballasts -POT

Consult factory for availability of 875W, 1000W & 1500W

Lamp Catalog Lamp Catalog

Watts Number Watts Number

50W AB50MH-PSB-120∆350W AB350MH-PSB-volts

70W AB70MH-PSB-volts 400W AB400MH-PSB-volts

100W AB100MH-PSB-volts 450W AB450MH-PSB-volts

150W AB150MH-PSB-volts 875W AB875MH-PSB-volts

175W AB175MH-PSB-volts 1000W AB1000MH-PSB-volts

250W AB250MH-PSB-volts 1500W AB1500MH-PSB-volts

320W AB320MH-PSB-volts

Pulse Start Metal Halide

35W AB35HP-120∆

50W AB50HP-120∆

70W AB70HP-volts

100W AB100HP-volts

150W AB150HP-volts

250W AB250HP-volts

400W AB400HP-volts

1000W AB1000HP-volts

High Pressure Sodium

35W HPF AB35HP-120-R* 70W NPF AB70HP-120-R-NP*

35W NPF AB35HP-120-R-NP* 100W HPF AB100HP-120-R*

50W HPF AB50HP-120-R* 100W NPF AB100HP-120-R-NP*

50W NPF AB50HP-120-R-NP* 150W HPF AB150HP-120-R*

70W HPF AB70HP-120-R* 150W NPF AB150HP-120-R-NP*

High Pressure Sodium (Reactor)

Voltage Suffix: “- QT” Quad Tap: 120V, 208V, 240V, 277V “- 480” 480V: change “-QT” to “-480”

*Available 120V only

∆Also available 277V - change “-120” to “-277”

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

RBRRFB2

RFB1

Simcoe

Glass

Open Top Housing

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

County Collection

Simcoe (10” Glass Pendant Luminaires)

Indoor Lighting of Retail Stores, Restaurants and Commercial Facilities

Lamp wattages up to 175W HID and 57W Compact Fluorescent for use with Remote Ballast or 300 W Incandescent

Carleton (Glass, Acrylic and Aluminum Pendant Luminaires)

Indoor Lighting for Retail Stores, Atria, Concourses, Banks, and Commercial Facilities

Lamp wattages up to 450W HID and 70W Compact Fluorescent for use with Remote Ballast or 300 W Incandescent

Carleton

Glass Carleton

Acrylic

Simcoe

Glass

Closed Top Housing

Exeter (Glass, Acrylic and Aluminum Pendant Luminaires)

Indoor Lighting for Retail Stores, Atria, Concourses, Banks, and Commercial Facilities

Lamp wattages up to 100W HID and 42W Compact Fluorescent with Integral Ballast

450W HID and 70W Compact Fluorescent for use with Remote Ballast, or 300 W Incandescent

Exeter E1

Glass (Acrylic

and Aluminum also

available)

Exeter E2

Acrylic Exeter E2

Aluminum

Remote Ballasts

Lamp wattages up to 450 Watts

Exeter E2

Acrylic

Carleton

Aluminum

Open Top Housing

SOR

Open Top Housing

– with rods & ring

Closed Top Housing – with ring

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

SCR

Open Top Housing

–with rods & louver

Functional

•Retro-look for applications with functional decor.

• Customize the look with color and accessories.

Mount

•Chain or stem.

Construction

•Steel housing.

Optics

•Prismatic borosilicate glass reflector.

Electrical

•Lamp: Max 150W pulse start metal halide, 175W

standard metal halide, 57W compact fluorescent, 300W

incandescent

•Ballast ordered separately.

Finish

•Standard - bright plate finish.

•Optional - decorator colors.

County Collection Luminaire

Retro Look — Functional & Attractive

Dimensions

SimcoeTM Options

Description Suffix

Lamp Clear HID - L

Coated HID - CL

Compact Fluorescent By Others

Incandescent By Others

Louvers

For SOR & SCRmodels only Aluminum - V-(Color)

Housing Color

Brite-Plate Finish Standard

Polyester powder coat Grey - GY

White - WH

Black - BL

Bronze - BZ

Designer Colors Consult Factory

Decorative Trim Consult Factory

Louvers See Options

Hang Straight Pendant

Mounts on 4” octagonal box.

White canopy/white stem/hang straight mechanism/wire.

Designer colors – Specify (replace -WH with color).

3/8” stem,18” Long H38-18-WH

“24” Long H38-24-WH

“36” Long H38-36-WH

Description Catalog No.

Watts

Pulse Start Metal Halide *§

Medium Base

50W ED17 50PS§

70W ED17 70PS§

100W ED17 100PS§

150W ED17 150PS§

Metal Halide * §

Medium Base

175W ED17 175MH§

Compact Fluorescent *

4 pin lamp

26W CFTR26W/GX24Q 26PL

32W CFTR32W/GX24Q 32PL

42W CFTR42W/GX24Q 42PL

57W CFTR57W/GX24Q 57PL

Incandescent

Medium Base

150W Type A 150IN

300W Type PS 300IN

Options: See Below

Optics

Prismatic Glass Reflector 10” - G10

Accessories

Series Dia H

SO/SC 10-1/2” 11”

SOL/SOR 12” 11-1/2”

SCL/SCR 12” 11-1/2”

Dia

Simcoe

With glass reflector S

Housing Style

Open Top Housing

With glass reflector only O

With ring & glass reflector OL

With rods ring & glass reflector OR

Closed Top Housing

With glass reflector only C

With ring & glass reflector CL

With rods, ring & glass reflector CR

*Ballast must be of a type suitable for remote operation of the lamp (ballast ordered separately). For recommended maximum distance

from lamp to ballast see pages 40 - 43.

§Open luminaires are furnished with a lampholder for protected lamp.

Simcoe™ Decorative Luminaires with Glass Reflectors

Ballast – Ordered separately

Use RFB or RBR – See pages 40 - 43

To order, construct the catalog number as follows

S OR 26PL -G10 –(Options)

*Ballast must be of a type suitable for remote operation of the lamp

(ballast ordered separately). For recommended maximum

distance from lamp to ballast see pages 40 - 43.

§Open luminaires are furnished with lampholder for protected lamp

‡ Must use bottom closure, protected lamp not available

†400W MH: supplied with lampholder for standard lamp

◊Indicate the number of lamps:

16” reflectors: 1 lamp / luminaire – 26 - 57W

22” reflectors: 1, 2 or 4 lamps / luminaire – 26 - 70W,

6 or 8 lamps / luminaire – 26 - 42W

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Carleton

With Cast Housing C

Hub Size 1/2” hub 50

3/4” hub 75

With Glass Reflector

Mount

•Chain or stem.

Construction

•Cast aluminum housing.

•Reflector - borosilicate glass.

Optics

•16” & 22” prismatic glass reflectors.

Lamp

•Metal halide: 175 - 400W.

•Pulse start metal halide: 50 - 450W. Pulse Start technology

provides longer lamp life, more lumens per watt, better lumen

maintenance, superior color rendition, faster lamp warm up

and faster hot restrike.

•Compact fluorescent: 26 - 42W (max 8 lamps), 57W &

70W (max 4 lamps)

•Max 500W incandescent.

Electrical

•Ballast ordered separately.

Finish

•Housing - white polyester powder coat.

•Optional - decorator colors.

County Collection

Luminaire with Glass Reflector

Options

Description Suffix

Lamp Clear HID - L

Coated HID - CL

Compact Fluorescent By Others

Incandescent By Others

Lampholder For Protected Lamp

(Order Lamp Separately) - PLS

Decorative Trim

Includes bottom ring - T-(color)

Decorative Bottom Ring - B-(Color)

Glass Bottom Lens Flat Glass - G

Housing Color White Standard

Polyester Powder Coat Grey - GY

Black - BL

Bronze - BZ

Designer Colors Consult Factory

Louvers

Steel, white polyester powder coat

for 16” reflector LV16G-WH

for 22” reflector LV22G-WH

Hang Straight Pendant

Mounts on 4” octagonal box.

White canopy/white stem/hang straight mechanism/wire.

Designer colors – Specify (replace -WH with color).

3/8” stem,18” Long H38-18-WH

“24” Long H38-24-WH

“36” Long H38-36-WH

Description Catalog No.

Accessories

Dimensions

Model Dia H 3/4” Hub

-G16 15-3/8” 18-1/8”

-G22 21-1/2” 17/5/8”

Dia.

Optics

Dia Description Max Lamp Suffix

16” Borosilicate glass 450W HID / 70W CF / 500WInc. -G16

22” “ “ - G22

Carleton™ Decorative Luminaires with Glass Reflectors

Lamp

Pulse Start Metal Halide * § †

50W ED17 - 50PS§

70W ED17 - 70PS§

100W ED17 - 100PS§

150W ED17 - 150PS§

175W ED28 - 175PS‡

200W ED28 - 200PS§

250W ED28 - 250PS§

320W ED37 - 320PS§

350W ED37 - 350PS§

400W ED37 - 400PS†

450W ED37 - 450PS§

Metal Halide * §

150W ED17 - 150MH§

175W ED28 - 175MH§

250W ED28 - 250MH§

400W ED37 - 400MH†

Compact Fluorescent *

4 pin lamp

26W CFTR26W/GX24Q - ◊26CF

32W CFTR32W/GX24Q - ◊32CF

42W CFTR42W/GX24Q - ◊42CF

57W CFTR57W/GX24Q - ◊57CF

70W CFTR70W/GX24Q - ◊70CF

Incandescent

Max 300W Medium - 300IN

Max 500W Mogul - 500IN

Ballast – Ordered separately

Use RFB or RBR – See pages 40 - 43

To order, construct the catalog number as follows

C75 250PS –G22 –Options

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

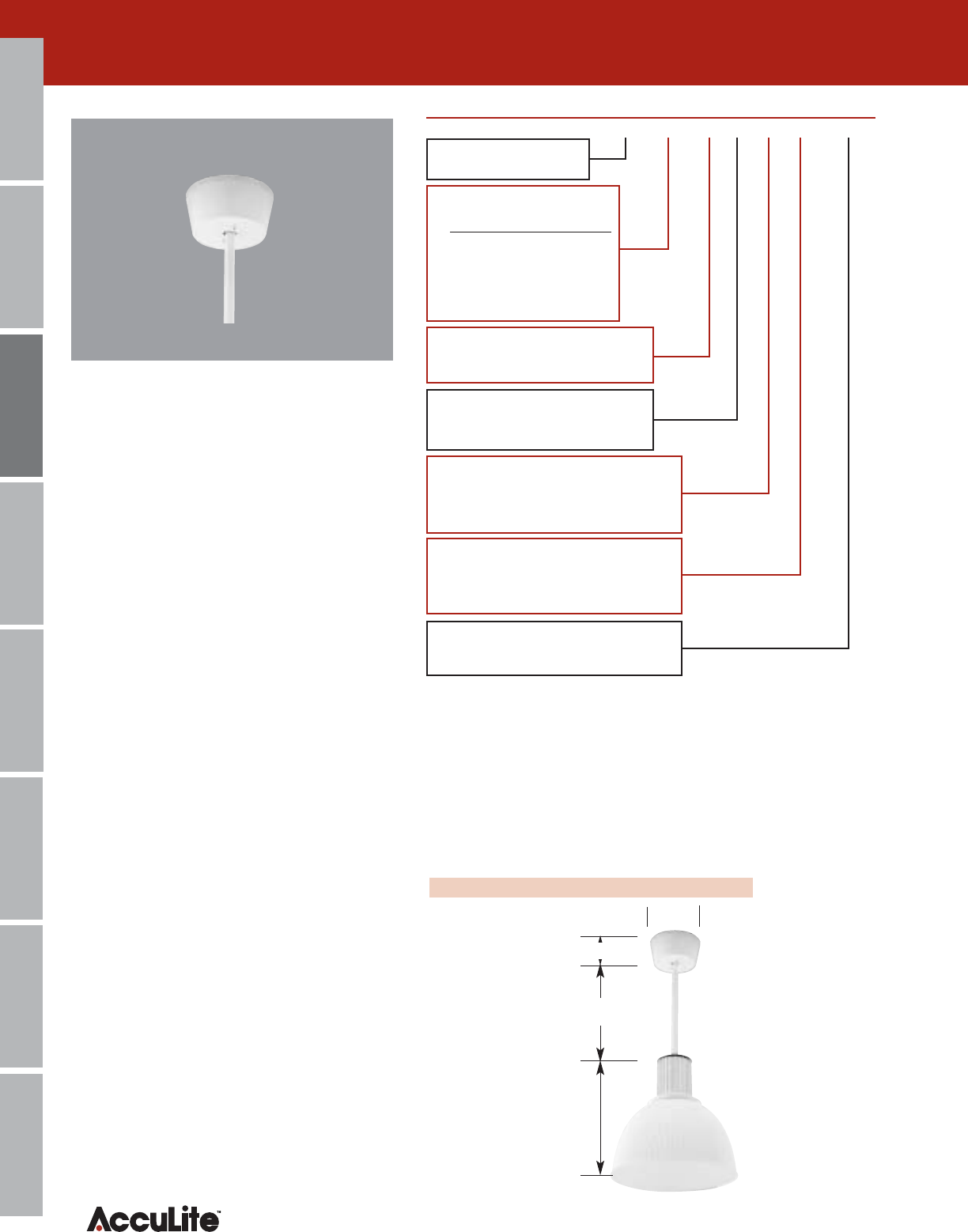

Carleton

With Cast Housing C

Hub Size 1/2” hub 50

3/4” hub 75

With Acrylic Reflector, Louver & Decorative

Mount

•Chain or stem.

Construction

•Cast aluminum housing.

•Reflector - acrylic.

Optics

•16”, 22” & 25” acrylic reflectors.

Lamp

•Metal halide: 175 - 400W.

•Pulse start metal halide: 50 - 450W. Pulse Start technology

provides longer lamp life, more lumens per watt, better lumen

maintenance, superior color rendition, faster lamp warm up

and faster hot restrike.

•Compact fluorescent: 26 - 42W (max 8 lamps), 57W &

70W (max 4 lamps)

•Max 500W incandescent.

Electrical

•Ballast ordered separately.

Finish

•Housing - white polyester powder coat.

•Optional - decorator colors.

County Collection Luminaire

with Acrylic Reflector

Dimensions

Model Dia H 3/4” Hub

-A16 16” 17-7/8”

-A22 22” 20-1/2”

-A25 25” 21-1/8”

Dia.

Carleton™ Decorative Luminaires with Acrylic Reflectors

Lamp

Pulse Start Metal Halide * § †

50W ED17 - 50PS§

70W ED17 - 70PS§

100W ED17 - 100PS§

150W ED17 - 150PS§

175W ED28 - 175PS‡

200W ED28 - 200PS§

250W ED28 - 250PS§

320W ED37 - 320PS§

350W ED37 - 350PS§

400W ED37 - 400PS†

450W ED37 - 450PS§

Metal Halide * §

150W ED17 - 150MH§

175W ED28 - 175MH§

250W ED28 - 250MH§

400W ED37 - 400MH†

Compact Fluorescent *

4 pin (3 or 4 tube)

26W CFTR26W/GX24Q - ◊26CF

32W CFTR32W/GX24Q - ◊32CF

42W CFTR42W/GX24Q - ◊42CF

57W CFTR57W/GX24Q - ◊57CF

70W CFTR70W/GX24Q - ◊70CF

Incandescent

Max 300W Medium - 300IN

Max 500W Mogul - 500IN

Ballast – Ordered separately

Use RFB or RBR – See pages 40 - 43

To order, construct the catalog number as follows

C75 250PS –A22 –Options

HIGHBAY

Reflector Application Guide With Acrylic Parts (Ambient 25°C)

Dia. Watts 100 175 250 400

16” Open Bottom ❶❶ ❶✔

Closed Bottom ✔✔✔✘

22” Open Bottom ✘❶❶✔

Closed Bottom ✘✔✔✔

25” Open Bottom ———✔

Closed Bottom ———✔

Optics - Acrylic

Consult “Reflector Application Guide” below for reflector suitability

Dia Clear Opaque Translucent

16” - A16 - O16W - T16W

22” - A22 - O22W - T22W

25” - A25 — - T25W

* White reflector, for other colors consult factory

*Ballast must be of a type suitable for remote operation of the lamp

(ballast ordered separately). For recommended maximum

distance from lamp to ballast see pages 40 - 43.

§Open luminaires are furnished with lampholder for protected lamp

‡ Must use bottom closure, protected lamp not available

†400W MH: supplied with lampholder for standard lamp

◊Indicate the number of lamps:

16” reflectors: 1 lamp / luminaire – 26 - 57W

22” & 25” reflectors: 1, 2 or 4 lamps / luminaire – 26 - 70W,

6 or 8 lamps / luminaire – 26 - 42W

Lamp Clear HID - L

Coated HID - CL

Compact Fluorescent By Others

Incandescent By Others

Lampholder For Protected Lamp

(Order Lamp Separately) - PLS

Decorative Trim

Includes bottom ring - T-(color)

Glass Bottom Lens Flat - G

Acrylic Bottom Lens Conical** - C

16” reflector – 250W Max Dome** - D

22” reflector – 400W Max Drop** - D

Housing Color White Standard

Polyester Powder Coat Grey - GY

Black - BL

Bronze - BZ

Designer Colors Consult Factory

Louvers

Steel, white polyester powder coat

for 16” reflector LV16A-WH

for 22” reflector LV22A-WH

for 25” reflector LV25A-WH

Hang Straight Pendant

Mounts on 4” octagonal box.

White canopy/white stem/hang straight mechanism/wire.

Designer colors – Specify (replace -WH with color).

3/8” stem,18” Long H38-18-WH

“24” Long H38-24-WH

“36” Long H38-36-WH

**Acrylic Lens Drop Lens - for 16”& 22” reflectors

Conical lens - 25” is “inverted conical”

Dome Lens - 12” reflector only

Options

Description Suffix Description Catalog No.

Accessories

Louvers

Steel, white polyester power coat

for 16” reflector LV16S-S

for 18” reflector LV18S-S

for 22” reflector LV22S-S

*Ballast must be of a type suitable for remote operation of the

lamp (ballast ordered separately). For recommended

maximum distance from lamp to ballast see pages 40 - 43.

§Open luminaires are furnished with lampholder for protected lamp

‡ Must use bottom closure, protected lamp not available

†400W MH: supplied with lampholder for standard lamp

◊Indicate the number of lamps:

16” & 18” reflectors:1, 2, or 4 lamps / luminaire – 26 - 70W

22” reflectors: 1, 2 or 4 lamps / luminaire – 26 - 70W,

6 or 8 lamps / luminaire – 26 - 42W

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

With spun aluminum reflector

Mount

•Chain or stem.

Construction

•Cast aluminum housing.

•Reflector - anodized aluminum.

Optics

•16”, 18” & 22” spun aluminum reflectors.

Lamp

•Metal halide: 175 - 400W.

•Pulse start metal halide: 50 - 450W. Pulse Start technology

provides longer lamp life, more lumens per watt, better lumen

maintenance, superior color rendition, faster lamp warm up

and faster hot restrike.

•Compact fluorescent: 26 - 42W (max 8 lamps), 57W &

70W max 4 lamps)

•Max 500W incandescent.

Electrical

•Ballast ordered separately.

Finish

•Housing - white polyester powder coat.

•Optional - decorator colors.

County Collection Luminaire

with Spun Aluminum Reflector

Hub Size 1/2” hub 50

3/4” hub 75

Dimensions

Model Dia H 3/4” Hub

Optics

Dia Description Max Lamp Suffix

16” Aluminum 450W HID / 70WCF / 500WInc. -S16

18” Aluminum (Semi-Faceted) “ -S18

22” Aluminum “ -S22

-S16 16-1/8” 17-7/8”

-S18 18-5/8” 17-1/4”

-S22 22-1/4” 19-5/8”

Dia.

Carleton™ Decorative Luminaires with Aluminum Reflectors

Lamp

Pulse Start Metal Halide * § †

50W ED17 - 50PS§

70W ED17 - 70PS§

100W ED17 - 100PS§

150W ED17 - 150PS§

175W ED28 - 175PS‡

200W ED28 - 200PS§

250W ED28 - 250PS§

320W ED37 - 320PS§

350W ED37 - 350PS§

400W ED37 - 400PS†

450W ED37 - 450PS§

Metal Halide * §

150W ED17 - 150MH§

175W ED28 - 175MH§

250W ED28 - 250MH§

400W ED37 - 400MH†

Compact Fluorescent *

4 pin lamp

26W CFTR26W/GX24Q - ◊26CF

32W CFTR32W/GX24Q - ◊32CF

42W CFTR42W/GX24Q - ◊42CF

57W CFTR57W/GX24Q - ◊57CF

70W CFTR70W/GX24Q - ◊70CF

Incandescent

Max 300W Medium - 300IN

Max 500W Mogul - 500IN

Ballast – Ordered separately

Use RFB or RBR – See pages 40 - 43

To order, construct the catalog number as follows

C75 250PS –S22 –Options

Carleton

With Cast Housing C

Options

Lamp Clear HID - L

Coated HID - CL

Compact Fluorescent By Others

Incandescent By Others

Louver - Circular See Accessories

use with all lamps listed

Louver - Cross Baffle Factory Installed - X-color

H.I.D. - use ED17 or ED28 lamp

Compact Fluorescent - max 42W lamp

Lampholder For Protected Lamp

(Order Lamp Separately) - PLS

Glass Bottom Lens Flat - G

Housing Color White Standard

Polyester Powder Coat Grey -GY

Black -BL

Bronze -BZ

Designer Colors Consult Factory

Reflector Color Anodized Standard

To order reflector with the same

color as the housing -R

Hang Straight Pendant White canopy/white stem/hang straight mechanism

Mounts on 4” octagonal box. 3/8” stem, 18” Long H38-18-WH

“24” Long H38-24-WH

Designer colors – Consult Factory “ 36” Long H38-36-WH

Accessories

Description Suffix Description Suffix

Description Catalog No. Description Catalog No.

Exeter™ Decorative Luminaires with Glass Reflectors

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

*Maximum distance from lamp to ballast – See ages 40 - 43.

§Open luminaires are furnished with lampholder for protected lamp

‡ Must use bottom closure, protected lamp not available

†400W MH: supplied with lampholder for standard lamp

◊Indicate the number of compact fluorescent lamps:

10” reflectors: 1 lamp / luminaire – 26 - 57W

16” reflectors: 1, 2, or 4 lamps / luminaire – 26 - 70W

22” reflectors: 1, 2 or 4 lamps / luminaire – 26 - 70W,

6 or 8 lamps / luminaire – 26 - 42W

Options

Description Suffix

Lamp Clear HID - L

Coated HID - CL

Compact Fluorescent By Others

Incandescent By Others

Lampholder For Protected Lamp

(Order Lamp Separately) - PLS

Decorative Trim

Includes bottom ring - T-(color)

Decorative Bottom Ring - B-(Color)

Glass Bottom Lens Flat Glass - G

Housing Color Black - BL

Polyester Powder Coat Bronze - BZ

Designer Colors Consult Factory

Louvers

Steel, white polyester power coat

for 16” reflector LV16G-WH

for 22” reflector LV22G-WH

Hang Straight Pendant

Mounts on 4” octagonal box.

White canopy/white stem/hang straight mechanism/wire.

Designer colors – Specify (replace -WH with color).

3/8” stem,18” Long H38-18-WH

“24” Long H38-24-WH

“36” Long H38-36-WH

Description Catalog No.

Accessories

With Glass Reflector

Mount

•Stem: E1 - 3/8”; E2 - 3/8”, 1/2” & 3/4”

Construction

•Housing - extruded aluminum.

•Reflector - borosilicate glass.

Optics

•10”, 16” & 22” prismatic glass reflectors.

Electrical

•Metal halide: 175 - 400W.

•Pulse start metal halide: 50 - 450W. Pulse Start technology

provides longer lamp life, more lumens per watt, better lumen

maintenance, superior color rendition, faster lamp warm up

and faster hot restrike.

•Compact fluorescent: 26 - 42W (max 8 lamps), 57W &

70W (max 4 lamps)

•Max 500W incandescent.

•Remote ballast – ordered separately.

•Integral ballast – E2 series only electronic -- max 4 X 42W

compact fluorescent, 100W pulse start metal halide.

Finish

•Housing - standard colors are white or silver.

•Optional - decorator colors.

E1 / E2

County Collection Luminaire

with Glass Reflector

Lamp

Metal Halide Lamp § †

Pulse Start Probe Start

Metal Halide Metal Halide

50W ED17 - 50PS §–

70W ED17 - 70PS §–

100W ED17 - 100PS § –

150W ED17 - 150PS §–

175W ED28 - 175PS ‡- 175MH §

200W ED28 - 200PS §–

250W ED28 - 250PS §- 250MH §

320W ED37 - 320PS §–

350W ED37 - 350PS §–

400W ED37 - 400PS †- 400MH †

450W ED37 - 450PS §–

Compact Fluorescent ◊*

4 pin lamp

26W CFTR26W/GX24Q - ◊26CF

32W CFTR32W/GX24Q - ◊32CF

42W CFTR42W/GX24Q - ◊42CF

57W CFTR57W/GX24Q - ◊57CF

70W CFTR70W/GX24Q - ◊70CF

Incandescent

Max 150W Medium, Type A - 150IN

Max 300W Medium, Type PS - 300IN

Max 500W Mogul - 500IN

To order, construct the catalog number as follows

E2 –250PS Ballast –G16 –Color –Options

Dimensions

E1 -G10 10-1/2” 10-3/8”

E2 -G16 15-3/8” 19-3/4”

“-G22 21-1/2” 19”

Dia.

Model Dia H 3/4” Hub

Exeter

Small Housing - Stem 3/8” 10” reflector E1

Large Housing - Hub 3/4” All reflectors E2

Optics – Borosilicate Glass

Dia Model Max Lamp Suffix

10” E1 & E2 100W HID / 57W CF / 150W Inc. - G10

16” “ 450W HID / 70W CF / 500WInc. - G16

22” “ “ - G22

Remote Ballast *

Available with all Exeter models, order remote ballast separatelyNo suffix

Use RFB or RBR – See pages 40 - 43

Integral Ballast

Available – E2 Series Exeter - Electronic Ballast 120 thru 277V - UN

H.I.D: 1 lamp 50W, 70W or 100W

CF: 1, 2 or 4 lamps - 26W, 32W or 42W 347V - E34

NEW

Housing Color White No Suffix

Silver - SR

Other color combinations See Options

*Maximum distance from lamp to ballast – See ages 40 - 43.

§Open luminaires are furnished with lampholder for protected lamp

‡ Must use bottom closure, protected lamp not available

†400W MH fixtures are supplied with lampholder for standard

lamp – to order for protected lamp add suffix “-PLS”

◊Indicate the number of compact fluorescent lamps:

12” reflectors: 1 lamp / luminaire – 26 - 57W

16” reflectors: 1, 2, or 4 lamps / luminaire – 26 - 70W

22” & 25” reflectors:1, 2 or 4 lamps / luminaire – 26 - 70W,

6 or 8 lamps / luminaire – 26 - 42W

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Mount

•Stem: E1 - 3/8”; E2 - 3/8”, 1/2” & 3/4”

Construction

•Housing - extruded aluminum.

•Reflector - borosilicate glass.

Optics

•12”, 16”, 18” & 22” prismatic acrylic reflectors.

Electrical

•Metal halide: 175 - 400W.

•Pulse start metal halide: 50 - 450W. Pulse Start technology

provides longer lamp life, more lumens per watt, better lumen

maintenance, superior color rendition, faster lamp warm up

and faster hot restrike.

•Compact fluorescent: 26 - 42W (max 8 lamps), 57W &

70W (max 4 lamps)

•Max 500W incandescent.

•Remote ballast – ordered separately.

•Integral ballast – E2 series only electronic -- max 4 X 42W

compact fluorescent, 100W pulse start metal halide.

Finish

•Housing - white polyester powder coat.

•Optional - decorator colors.

E1 / E2

County Collection Luminaire

with Acrylic Reflector

Exeter™ Decorative Luminaires with Acrylic Reflectors

12” Opaque White Reflector

Dimensions

E1 -A12 12-3/8” 12-1/4”

E2 -A16 16” 19-1/2”

“-A22 22” 21-3/4”

“-A25 25” 22-5/8”

Dia.

Model Dia H 3/4” Hub

25” Clear Reflector

To order, construct the catalog number as follows

E2 –250PS –Ballast –A22 –Color –Options

Optics - Acrylic

Consult “Reflector Application Guide” below for reflector suitability

Dia Model Clear Opaque Translucent

12” E1 & E2 - A12 - O12W* - T12W*

16” E2 - A16 - O16W* - T16W*

22” E2 - A22 - O22W* - T22W*

25” E2 - A25 –-T25W*

* White reflector, for other colors consult factory

Lamp

Metal Halide Lamp § †

Pulse Start Probe Start

Metal Halide Metal Halide

50W ED17 - 50PS §–

70W ED17 - 70PS §–

100W ED17 - 100PS § –

150W ED17 - 150PS §–

175W ED28 - 175PS ‡- 175MH §

200W ED28 - 200PS §–

250W ED28 - 250PS §- 250MH §

320W ED37 - 320PS §–

350W ED37 - 350PS §–

400W ED37 - 400PS †- 400MH †

450W ED37 - 450PS §–

Compact Fluorescent ◊*

4 pin lamp

26W CFTR26W/GX24Q - ◊26CF

32W CFTR32W/GX24Q - ◊32CF

42W CFTR42W/GX24Q - ◊42CF

57W CFTR57W/GX24Q - ◊57CF

70W CFTR70W/GX24Q - ◊70CF

Incandescent

Max 150W Medium, Type A - 150IN

Max 300W Medium, Type PS - 300IN

Max 500W Mogul - 500IN

Exeter

Small Housing - Stem 3/8” 10” reflector E1

Large Housing - Hub 3/4” All reflectors E2

Remote Ballast *

Available with all Exeter models, order remote ballast separatelyNo suffix

Use RFB or RBR – See pages 40 - 43

Integral Ballast

Available – E2 Series Exeter - Electronic Ballast 120 thru 277V - UN

H.I.D: 1 lamp 50W, 70W or 100W

CF: 1, 2 or 4 lamps - 26W, 32W or 42W 347V - E34

NEW

Reflector Application Guide With Acrylic Parts (Ambient 25°C)

Dia. Watts 100 175 250 400

12” Open Bottom ❶❶——

Closed Bottom ✔✘——

16” Open Bottom ❶❶ ❶✔

Closed Bottom ✔✔✔✘

22” Open Bottom ✘❶❶✔

Closed Bottom ✘✔✔✔

25” Open Bottom ———✔

Closed Bottom ———✔

Lamp Clear HID - L

Coated HID - CL

Compact Fluorescent By Others

Incandescent By Others

Decorative Trim

Includes bottom ring - T-(color)

Glass Bottom Lens Flat - G

Acrylic Bottom Lens Conical** - C

16” reflector – 250W Max Dome** - D

22” reflector – 400W Max Drop** - D

Housing Color Black - BL

Polyester Powder Coat Bronze - BZ

Designer Colors Consult Factory

Louvers

Steel, white polyester power coat

for 16” reflector LV16A-WH

for 22” reflector LV22A-WH

for 25” reflector LV25A-WH

Hang Straight Pendant

Mounts on 4” octagonal box.

White canopy/white stem/hang straight mechanism/wire.

Designer colors – Specify (replace -WH with color).

3/8” stem,18” Long H38-18-WH

“24” Long H38-24-WH

“36” Long H38-36-WH

**Acrylic Lens Drop Lens - for 16”& 22” reflectors

Conical lens - 25” is “inverted conical”

Dome Lens - 12” reflector only

Options

Description Suffix Description Catalog No.

Accessories

Housing Color White No Suffix

Silver - SR

Other color combinations See Options

*Maximum distance from lamp to ballast – See ages 40 - 43.

§Open luminaires are furnished with lampholder for protected lamp

‡ Must use bottom closure, protected lamp not available

†400W MH: supplied with lampholder for standard lamp

◊Indicate the number of compact fluorescent lamps:

12” reflectors: 1 lamp / luminaire – 26 - 57W

16” & 18” reflectors:1, 2, or 4 lamps / luminaire – 26 - 70W

22” reflectors: 1, 2 or 4 lamps / luminaire – 26 - 70W,

6 or 8 lamps / luminaire – 26 - 42W

Lamp Clear HID - L

Coated HID - CL

Compact Fluorescent By Others

Incandescent By Others

Louver - Circular See Accessories

use with all lamps listed

Louver - Cross Baffle Factory Installed - X-color

H.I.D. - use ED17 or ED28 lamp

Compact Fluorescent - max 42W lamp

Lampholder For Protected Lamp

(Order Lamp Separately) - PLS

Glass Bottom Lens Flat - G

Housing Color Black - BL

Polyester Powder Coat Bronze - BZ

Designer Colors Consult Factory

Reflector Color Anodized Standard

To order reflector with the same

color as the housing - R

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

With 16” Aluminum Reflector

Mount

•Stem: E1 - 3/8”; E2 - 3/8”, 1/2” & 3/4”

Construction

•Housing - extruded aluminum.

•Reflector - borosilicate glass.

Optics

•10”, 16” & 22” aluminum reflectors.

Electrical

•Metal halide: 175 - 400W.

•Pulse start metal halide: 50 - 450W. Pulse Start technology

provides longer lamp life, more lumens per watt, better lumen

maintenance, superior color rendition, faster lamp warm up

and faster hot restrike.

•Compact fluorescent: 26 - 42W (max 8 lamps), 57W &

70W (max 4 lamps)

•Max 500W incandescent.

•Remote ballast – ordered separately.

•Integral ballast – E2 series only electronic -- max 4 X 42W

compact fluorescent, 100W pulse start metal halide.

Finish

•Housing - standard colors are white or silver.

•Optional - decorator colors.

E1 / E2

County Collection Luminaire

with Aluminum Reflector

Exeter™ Decorative Luminaires with Aluminum Reflectors

To order, construct the catalog number as follows

E2 –250PS Ballast –S22 –Color –Options

*Consult ballast data for recommended maximum distance from lamp to ballast.

§Open luminaires are furnished with a lampholder for protected lamp

‡ Must use bottom closure, protected lamp not available

†400W MH fixtures are supplied with lampholder for standard lamp – to order for protected lamp add

suffix “-PLS”

◊Indicate the number of lamps: 16” & 18” reflectors – 1, 2, or 4 lamps / luminaire – 26 - 70W

22” reflectors – 1, 2 or 4 lamps / luminaire – 26 - 70W,

6 or 8 lamps / luminaire – 26 - 42W

Optics

Dia Model Clear

12” E1 & E2 100W HID / 57WCF / 150W Inc. - S12

16” E2 450W HID / 70W CF / 500W Inc. - S16

18” E2 “ - S18

22” E2 “ - S22

Lamp

Metal Halide Lamp § †

Pulse Start Probe Start

Metal Halide Metal Halide

50W ED17 - 50PS §–

70W ED17 - 70PS §–

100W ED17 - 100PS § –

150W ED17 - 150PS §–

175W ED28 - 175PS ‡- 175MH §

200W ED28 - 200PS §–

250W ED28 - 250PS §- 250MH §

320W ED37 - 320PS §–

350W ED37 - 350PS §–

400W ED37 - 400PS †- 400MH †

450W ED37 - 450PS §–

Compact Fluorescent ◊*

4 pin lamp

26W CFTR26W/GX24Q - ◊26CF

32W CFTR32W/GX24Q - ◊32CF

42W CFTR42W/GX24Q - ◊42CF

57W CFTR57W/GX24Q - ◊57CF

70W CFTR70W/GX24Q - ◊70CF

Incandescent

Max 150W Medium, Type A - 150IN

Max 300W Medium, Type PS - 300IN

Max 500W Mogul - 500IN

Exeter

Small Housing - Stem 3/8” 10” reflector E1

Large Housing - Hub 3/4” All reflectors E2

Remote Ballast *

Available with all Exeter models, order remote ballast separatelyNo suffix

Use RFB or RBR – See pages 40 - 43

Integral Ballast

Available – E2 Series Exeter - Electronic Ballast 120 thru 277V - UN

H.I.D: 1 lamp 50W, 70W or 100W

CF: 1, 2 or 4 lamps - 26W, 32W or 42W 347V - E34

NEW

Louvers

Steel, white polyester power coat

for 16” reflector LV16S-S

for 18” reflector LV18S-S

for 22” reflector LV22S-S

Options

Hang Straight Pendant White canopy/white stem/hang straight mechanism

Mounts on 4” octagonal box. 3/8” stem, 18” Long H38-18-WH

“24” Long H38-24-WH

Designer colors – Consult Factory “ 36” Long H38-36-WH

Accessories

Description Suffix Description Suffix

Description Catalog No. Description Catalog No.

Dimensions

E1 - S12 12-3/8” 12-1/4”

E2 - S16 16-1/8” 19-1/2”

“- S18 18-5/8” 18-3/4”

“- S22 22-1/4” 22-1/4”

Dia.

Model Dia H 3/4” Hub

Housing Color White No Suffix

Silver - SR

Other color combinations See Options

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

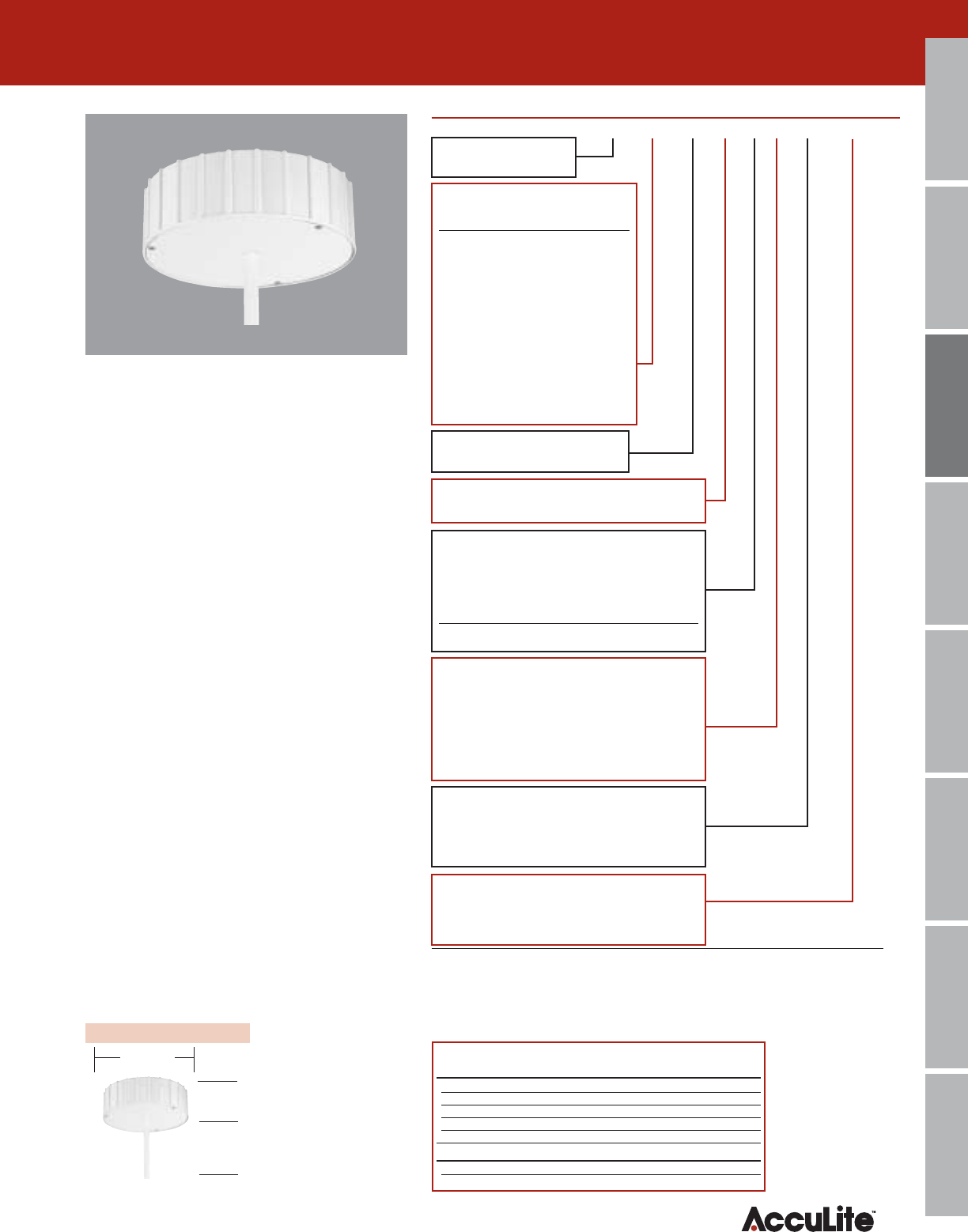

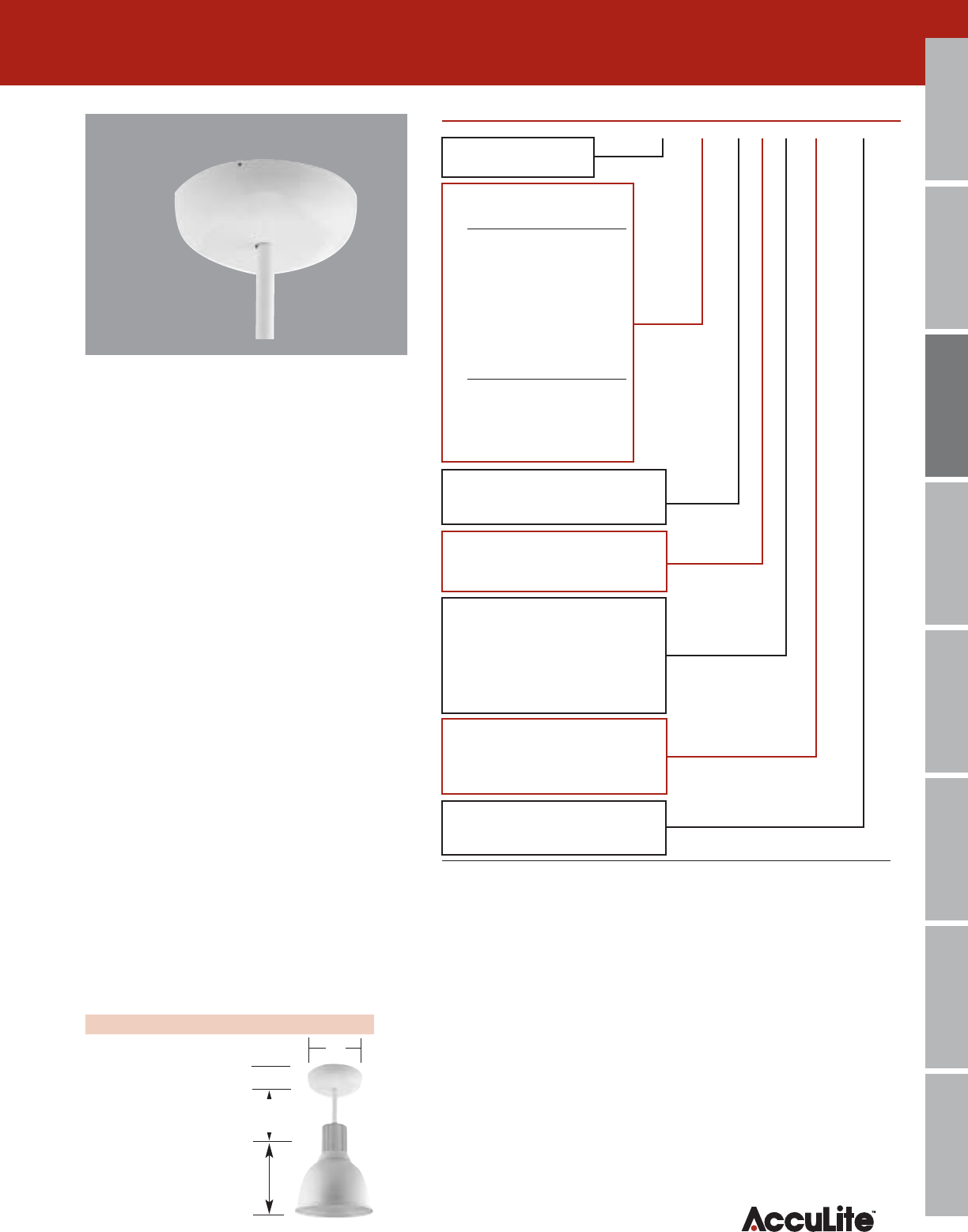

RFB1

Low Wattage Electronic Remote Ballast

Heavy Duty Construction

•Aluminum housing.

•Steel mounting plate.

Mounting

•Mount on a standard 4” junction box.

Fixture Suspension

•Fixtures are stem mounted through the ballast cover

plate.

•The ballast is offered with a 3/8” hang straight stem in

a choice of lengths. Order stem separately.

Finish

•White polyester powder coat finish.

Compact Fluorescent Electronic Ballasts

•Single lamp ballast for 26W, 32W or 42W lamps.

•Electronic ballasts for use with four pin compact

fluorescent lamps.

•Available with single and multiple lamp ballasts.

Ballasts

•Minimum starting temperature – CF -18°C

Dimensions

Volts

Electronic ballast 120V thru 277V - UN

Maximum 10 feet from lamp 347V - E34

“RFB1”

RFB1 Indoor Remote Ballast

5-1/2”

2-3/4”

Specify

Stem Length

Stem

Order separately

Minimum: 6 inches

Maximum: 9 feet

Luminaire

See luminaire data sheet

Illustrated – Simcoe

Remote Ballast

With spun housing RFB1

To order, construct the catalog number as follows

RFB1 142CF -UN -KH3 -24 -Options

Stem White finish 12” long - 12

18” long - 18

24” long - 24

36” long - 36

RFB1

Furnished with Stem

Fixture Suspension

Hang Straight Pendant

Flexible mounting of fixture to ballast, white finish, 10° Swivel

3/8” dia. stem - H3

Mounting

Ceiling

Mounts on 4” recessed junction box - K

LampLamp Max Distance Suffix

Watts Lamp to Ballast Indicate # of Lamps

Compact Fluorescent *

Electronic, 4 pin lamp

26W 10 feet * - 126CF

32W 10 feet * - 132CF

42W 10 feet * - 142CF

Options

Color White Standard

Designer Colors Consult Factory

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

RFB2

Low Wattage Electronic Remote Ballast

Heavy Duty Construction

•Aluminum housing.

•Steel mounting plate.

Mounting

•Mount on a standard 4” junction box.

Fixture Suspension

•Fixtures are stem mounted through the ballast cover

plate.

•Single lamp ballasts are offered with either a 3/8”

hang straight or a 3/4” rigid stem in a choice of

lengths. Order stem separately.

•Multiple lamp ballasts are offered with a 3/4” rigid

stem in a choice of lengths. Order stem separately.

Finish

•White polyester powder coat finish.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color

rendition.

Compact Fluorescent Lamps & Electronic Ballasts

•Electronic ballasts for use with four pin compact

fluorescent lamps.

•Available with single and multiple lamp ballasts.

Ballasts

•Minimum starting temperature – PS -40°C.

– MH -30°C

– CF -18°C

RFB2

Furnished with Stem

RFB2 Indoor Remote Ballast

Dimensions

“RFB2”

3 - 1/32”

12”

Specify

Stem Length

Stem

Order separately

Minimum: 8 inches

Maximum 9 feet

Stem White finish 12” long - 12

18” long - 18

24” long - 24

36” long - 36

Fixture Suspension

Rigid Pendant

Rigid mounting of fixture to ballast

3/4” dia. stem - R7

Hang Straight Pendant

Flexible mounting of fixture to ballast, 30° Swivel

3/8” dia. stem - H3

Mounting

Ceiling

Mounts on 4” recessed junction box - K

Volts

Electronic ballast 120V thru 277V - UN

Maximum 10 feet from lamp 347V - E34

Lamp

Lamp Max Distance

Watts Lamp to Ballast Suffix

Pulse Start Metal Halide *

Electronic, Single lamp only

50W 10 feet * - 50PS

70W 10 feet * - 70PS

100W 10 feet * - 100PS

150W 10 feet * - 150PS

Compact Fluorescent *

Electronic, 4 pin lamp

Lamp Max Distance Suffix

Watts Lamp to Ballast Indicate # of Lamps

26W 10 feet * - ◊26CF

32W 10 feet * - ◊32CF

42W 10 feet * - ◊42CF

57W 10 feet * - † 57CF

70W 10 feet * - † 70CF

Options

Color White Standard

Designer Colors Consult Factory

To order, construct the catalog number as follows

RFB2 142CF -UN -KH-318 -Options

Remote Ballast

With spun housing RFB2

Luminaire

See luminaire data sheet

Illustrated – Carleton

*Luminaires with electronic ballast – long range starter is not available.

◊Replace symbol “◊” to indicate number of lamps (available for 1, 2, 4, 6 or 8 lamps)

†Replace symbol “†” to indicate number of lamps (available for 1, 2or 4 lamps)

Dimensions

“RBR”

4 - 1/4”

12 - 1/4”

Specify

Stem Length

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Volts

Electronic ballast 120V thru 277V - UN

Maximum 10 feet from lamp 347V - E34

Ballast Mounting

Ceiling Quick Install Not for use on sloped ceiling

Mounts on 4” octagonal box - K

Surface Mount Bolts directly to the ceiling - C

Side Entry Two 1/2” side entries - S

Pendant Rigid Mount 3/4” top entry - P

Stem

White finish 18” long -18

24” long -24

36” long -36

Not required for remote fixture (suffix ‘-E’)

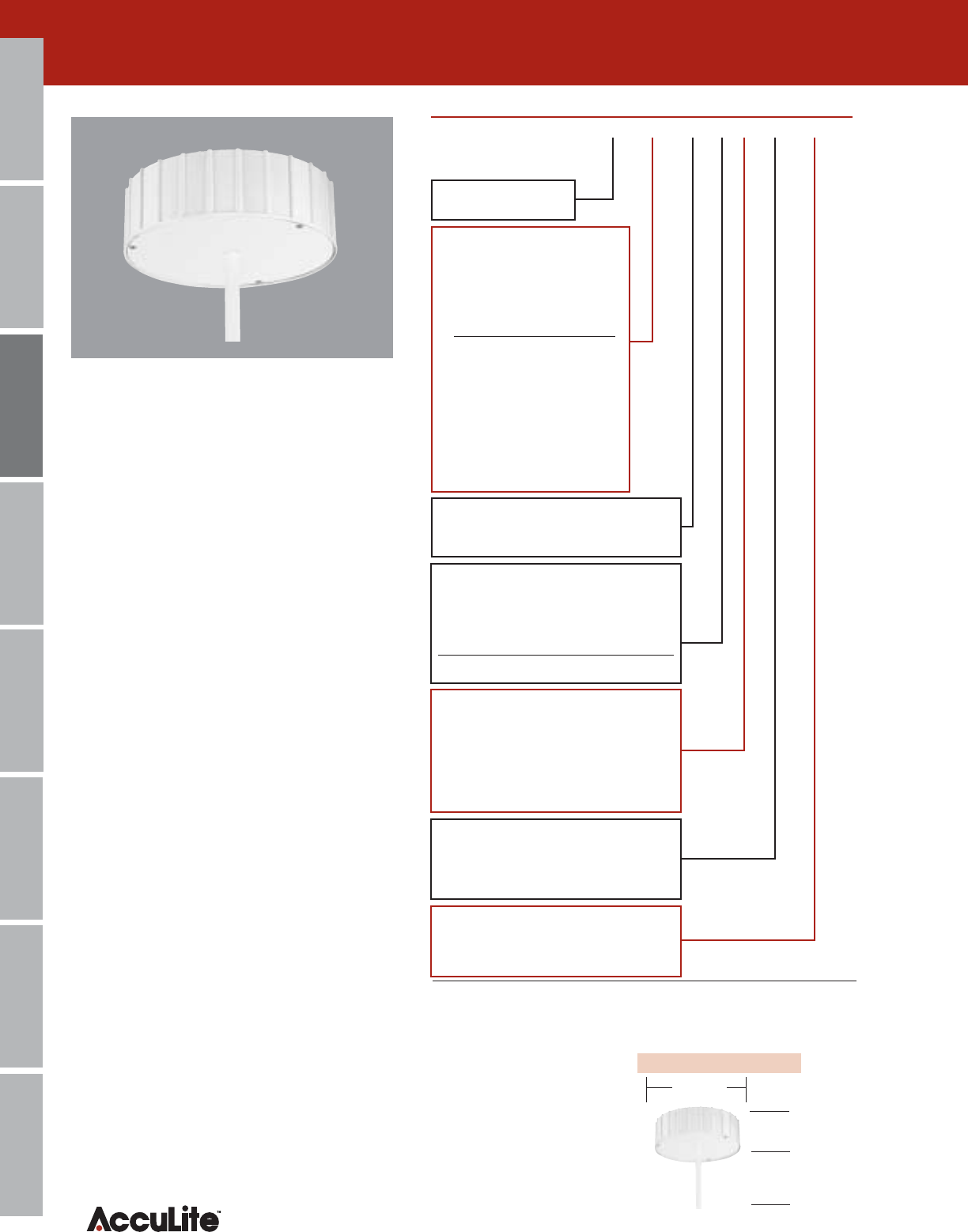

RBR Indoor Remote Ballast

RBR

Electronic Compact Fluorescent

Remote Ballasts

Heavy Duty Construction

•Die cast aluminum housing.

•Heavy gauge cover plate.

Mounting

•Ceiling – Surface Mount – Factory drilled, bolts directly to

the ceiling over a recessed junction box.

•“Quick Install” - Ceiling – Mount the adapter plate on a

standard 4” junction box, hang the ballast, wire and

close. Secures with a set single screw.

•Ceiling Side Entry – Two 3/4” side entries, one plug.

•Pendant – Rigid mount, 3/4” top entry.

Fixture Suspension

•Fixture can be mounted independently of the ballast or

mounted to the ballast through the cover plate.

•Fixtures mounted through the ballast cover plate can be

supplied with either a hang straight or rigid stem.

Finish

•White polyester powder coat finish.

Compact Fluorescent Lamps & Electronic Ballasts

•Electronic ballasts for use with four pin compact

fluorescent lamps.

•Available with single and multiple lamp ballasts.

Ballasts

•Minimum starting temperature – CF -18°C

RBR

Furnished with Stem

Lamp

Compact Fluorescent

Electronic, 4 pin lamp

Replace symbol “◊” to indicate number of lamps

(available for 1, 2, 4, 6 or 8 lamps)

Lamp Max Distance Suffix

Watts Lamp to Ballast Indicate # of Lamps

26W 10 feet * ◊26CF

32W “ ◊32CF

42W “ ◊42CF

Symbol “†” indicates number of lamps

(available for 1, 2 or 4 lamps)

57W 10 feet * † 57CF

70W “ † 70CF

H.I.D. Lamp

See next page

Fixture Suspension

Hang Straight Pendant

30° Swivel, 3/8” dia Suspends from ballast cover - H3

Rigid Pendant

3/4” dia., Suspends from ballast cover - R7

Remote Fixture

Fixture is suspended independently from ballast - E

To order, construct the catalog number as follows

RBR 442CF -UN -KR7 -36 -Options

Remote Ballast

With cast housing RBR

Options

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

*Compact Fluorescent luminaires with electronic ballast

– Maximum distance, lamp to ballast is 10 feet. Long range starter is not available.

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Volts

See chart for availability and suffix

Ballast Mounting

Ceiling Quick Install Not for use on sloped ceiling

Mounts on 4” octagonal box - K

Surface Mount Bolts directly to the ceiling - C

Side Entry Two 1/2” side entries - S

Pendant Rigid Mount 3/4” top entry - P

Long Range Starter

Pulse Start - Magnetic ballast only max 50 feet from lamp - LRS

Stem

White finish 18” long -18

24” long -24

36” long -36

Not required for remote fixture (suffix ‘-E’)

RBR Indoor Remote Ballast

RBR

Electronic & Magnetic

H.I.D. Remote Ballasts

Heavy Duty Construction

•Die cast aluminum housing.

•Heavy gauge cover plate.

Mounting

•Ceiling – Surface Mount – Factory drilled, bolts directly to

the ceiling over a recessed junction box.

•“Quick Install” - Ceiling – Mount the adapter plate on a

standard 4” junction box, hang the ballast, wire and

close. Secures with a set single screw.

•Ceiling Side Entry – Two 3/4” side entries, one plug.

•Pendant – Rigid mount, 3/4” top entry.

Fixture Suspension

•Fixture can be mounted independently of the ballast or

mounted to the ballast through the cover plate.

•Fixtures mounted through the ballast cover plate can be

supplied with either a hang straight or rigid stem.

Finish

•White polyester powder coat finish.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Ballasts

•Minimum starting temperature – PS -40°C.

– MH -30°C

Lamp

Watts Max Distance - Lamp to Ballast * Suffix

Pulse Start Metal Halide

50W 2’ magnetic 10’ electronic 50PS

70W 15’magnetic 10’ electronic 70PS

100W 20’magnetic 10’ electronic 100PS

150W 10’magnetic 10’ electronic 150PS

175W 2’magnetic 10’ electronic 175PS

200W 2’magnetic 10’ electronic 200PS

Probe Start Metal Halide

175W § 175MH

250W § 250MH

Compact Fluorescent

See previous page

Fixture Suspension

Hang Straight Pendant

30° Swivel, 3/8” dia Suspends from ballast cover - H3

Rigid Pendant 3/4” dia., Suspends from ballast cover - R7

Remote Fixture

Fixture is suspended independently from ballast - E

To order, construct the catalog number as follows

RBR 200PS -QT -LRS -KR7 -36 -Options

Remote Ballast

With cast housing RBR

Dimensions

“RBR”

4 - 1/4”

12 - 1/4” Primary Voltage Availability – Insert suffix below.

Magnetic Ballast Volts Suffix 50W 70W 100W 150W 175W 200W 250W

120V - 120 PS PS – – – – –

277V - 277 PS PS – – – – –

120/208/240/277V - QT ––PS PS PS PS MH

120/277/347V - TT ––PS PS PS PS MH

480V - 480 ––PS PS PS/MH PS MH

Electronic Ballast Volts Suffix 50W 70W 100W 150W 175W 200W 250W

120/208/240/277V - UN PS PS PS PS PS – –

347V - E34 PS PS PS PS – – –

RBR

Furnished with Stem

†Pulse start luminaires with magnetic ballast – for distances beyond that listed above, use a long range starter.

*Pulse start luminaires with electronic ballast – Maximum distance, lamp to ballast is 10 feet. Long range starter is not

available.

§Probe start luminaires with magnetic ballast – the lamp to ballast distance is determined by the wire size.

Options

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Specify

Stem Length

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Electronic H.I.D. Luminaires

General Indoor Downlighting

Including Industrial, Commercial, Retail, Recreation and Sports

Accessories: Hi/Lo Dimming is standard

Best Product

Heavy duty die-cast aluminum ballast housing

Medium wattage lamps – 320, 350 or 400 watt

Duralyte

High

Performance,

Low Brightness

Fully Faceted

Reflector

Accuglass

High Performance,

Precision Molded

Borosilicate Glass

Reflector

•Lightweight reflector for simplified

installation

•Uplight illuminates ceiling to

eliminate “cavern” effect

•12”, 16”, 22” and 25” reflectors

•Standard & Low Profile models

Accuglo

•16” and 22” Aluminum Reflectors

with high reflectance white finish

•Standard & Low Profile models

Econobay

•15” and 16” Aluminum Reflectors

•Standard & Low Profile models

•Up to 20% more efficient vs.

standard spun reflectors

•Low glare maximizes visual

comfort/acuity

•17” and 22” fully faceted reflectors

•Standard & Low Profile models

•Glass reflector is inert and is

not affected by UV deterioration

•Uplight illuminates ceiling to

eliminate “cavern” effect

•16” and 22” glass reflectors

•Standard & Low Profile models

Acculume

Lightweight

Molded

Acrylic

Reflector

Heavy duty die-cast aluminum ballast housing

Low wattage lamps – 50, 70, 100, 150 and 175 watt

Accuglass

•10” and 16” glass

reflectors

Econobay

•12”, 14” and 16”

acrylic reflectors

Accuglo

•16” Aluminum Reflector

with high reflectance

white finish

Acculume

•12”, 16” and 22”

acrylic reflectors

Lamp Coated Lamp (Recommended) - CL

Clear Lamp - L

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Enclosed Optical Assembly

Fully gasketed optical assembly -EOA

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Dimming

Standard - Order controls separately - see right

Safety Hook - 3/4”NPT Male HK75SS

Female HF75SS

Cord Set - 3’ long ∆

3 conductor, Type ST105 Cord only 3C

Cord & 15A, 277V Twist Lock Plug 3C-15TLP-277

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Wire Guard For 17” reflector DL-17WG

For 22” reflector DL-22WG

Ballast Safety Chain Standard profile OR-BSC3

3’ long ∆Low profile LPOR-BSC3

Optical Assembly Safety Cable OR-RSC

Top Shroud DL-SS

Power Hook HBPH-volts

Receptacle, hook and box

Dimming - Occupancy Sensors:

Detects infrared activity, with mounting bracket

Sensor mounting Maximum 8’ OS-8

8’ through 20’ OS-20

People 20’ through 35 OS-45

Large objects* 20’ through 45 OS-45

Dimming - Daylight Harvesting

Indoor Photosensor, with mounting bracket

Hi/Lo dimming DH-1

Dimming - Control

0 – 10V Slider dimming control DIM-0/10S

Accuflex Modular Wiring See page 28

Accessories

Options

Description Suffix Description Catalog No.

EDL

Standard Profile

- Faceted Aluminum

LPEDL

Low Profile - Faceted Aluminum

LPEDL

Low Profile - Faceted

Aluminum

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Duralyte™ Electronic, Medium Wattage, Faceted

3/4”Hub

17” 17-1/8” 21-3/8” 23-7/8”

22” 23-3/4” 21-5/8” 24-1/8”

3/4”Hub

17” 17-1/8” 22-1/4”

22” 23-3/4” 22-1/2”

3/4”Hub

17” 17-1/8” 21-3/8” 23-7/8” 28-1/8”

22” 23-3/4” 21-5/8” 24-1/8” 30-7/8”

Dimensions

Ballast

Electronic - Variable Voltage

200V thru 277V, 50/60 Hz - U27†

Standard Reflector D H (min) H (Max)

Improved Lumen Maintenance means Fewer

Luminaires per Installation

•Electronic ballasts improve lumen maintenance,

requiring fewer luminaires to maintain light levels.

•High performance AccuLite luminaires provide more

useable light to the seeing task, further reducing the

fixture count for even greater savings.

Electronic Ballast

•Intelligent ballast for 200V thru 277V, 50/60Hz

•Multi-watt ballast, 320W, 350W or 400W. Preset at

the factory - field adjustable.

Control

•Depending on the controls selected, standard control

can be either continuous dimming or Hi/Lo switching.

Construction

•Standard profile housing - die cast aluminum housing,

steel cover plate.

•Low profile housing - extruded aluminum housing.

•Reflector - Fully faceted aluminum reflector ensures

highest luminaire performance allowing fewer fixtures

per installation vs. spun aluminum. Field adjustable,

eleven positions for better light control.

•Lampholder - specification grade porcelain.

Mounting

•Pendant or Quick-Install ceiling mount.

Finish

•White polyester powder coat finish.

Enclosed Optical Assembly

•Optional, prevents dirt from accumulating on the inside of

the reflector.

Pulse Start Metal Halide Lamps

•Pulse Start technology provides longer lamp

life, more lumens per watt, better lumen

maintenance, faster lamp warm up, faster hot

restrike and superior color rendition.

Low Temperature Starting

•Electronic ballasts are suitable for low

temperature starting, –30˚C (–20˚F)

EDL, LPEDL

High Performance Electronic Luminaire

with Fully Faceted Optical Assembly

†Voltage Suffix: “- U27”Suitable for 200 thru 277V, 50/60Hz When required by local certifying bodies, use Lamp Socket

Protector on line to line circuits. To order add suffix - LSP

*Must use a bottom closure or a protected lamp (See above)

Low Profile Reflector D H (min) H (Max) W

Protected Lamp / Bottom Closure

Either a protected lamp or a bottom closure is required by Code for 320W & 350W

Optional for 400W

Lampholder for Protected Lamp Use protected (ANSI Type ‘O’) lamp - PLS

Bottom Closure Glass Lens Use with standard (ANSI Type ‘S:) lamp lamp - BC

Luminaire Mounting

Pendant 3/4” hub No suffix

Ceiling – Quick-Install

Mounts on 3-1/2” or 4” junction box - K

Lamp Watts

Pulse Start Metal Halide

320W Mogul ED37 320PS *

350W “ “ 350PS *

400W “ “ 400PS

Optical Assembly

Fully Faceted Aluminum

17” nominal dia. - 17

22” “ - 22

To order, construct the catalog number as follows

EDL 400PS –U27 –17 –K –PLS –Options

Electronic Duralyte

Standard Profile EDL

Low Profile LPEDL

Options: See Below

Enclosed

Optical Assembly Reflector D H

NEW

Quick Install

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Safety Hook

Use with “Flexible Pendant” mounting only

- 3/4”NPT Male HK75SS

Female HF75SS

Cord Set 3 conductor, 3’ long Type ST105

For lengths other than 3 feet, revise the 3

in the catalog number to the length Cord only 3C

in feet. Cord & 15A, 277V

Twist Lock Plug 3C-15TLP-277

Wire Guard 10” reflector Not available

16” reflector ACG-16WG

Ballast Safety Chain - 3’ long ∆OR-BSC3

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Dimming Systems See page 27

Accuflex Modular Wiring See page 28

3/4”Hub

-G10 10-1/2” 12-1/2” 10-1/4”

-G10R 12” 12-1/2” 10-1/4”

-G16 15-3/8” 12-1/2” 15-1/4”

Flexible Pendant - Add 2-1/2”

10” dia. Glass

Dimensions

Ballast

Electronic - Variable Voltage

120V thru 277V, 50/60 Hz -UN †

Standard Reflector D D2 H

AccuGlass™ Electronic, Low Wattage, Glass

Fewer Luminaires per Installation

•Electronic ballasts improve lumen maintenance. Fewer

luminaires are required to maintain light levels.

•High performance AccuLite luminaires provide more

useable light to the seeing task, further reducing the

fixture count for even greater savings.

Electronic Ballast

•Intelligent ballast for 120V thru 277V, 50/60Hz

Construction

•Standard profile housing - die cast aluminum housing,

steel cover plate.

•Low Profile - extruded aluminum housing.

•Reflector - Borosilicate glass, precision molded prisms.

Unlike acrylic, glass is does not deteriorate when

exposed to ultra-violet light.

•Lampholder - specification grade porcelain.

Three Step Quick-Install Mount

•Step 1: Open the box and mount the ‘Quick-Install’

plate on a standard 3-1/2” or 4” junction box.

•Step 2: Hang the luminaire on the “Quick Install” plate.

Connection is easy, the 80˚ hinge design provides

ample room to connect the three wires.

•Step 3: Swing closed and secure the set screw.

Finish

•White polyester powder coat finish.

Pulse Start Metal Halide Lamps

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color

rendition.

High Performance Electronic Luminaire

with Glass Optical Assembly

Lamp Coated Lamp (Recommended) - CL

Clear Lamp - L

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

10” dia. Glass, Bottom Ring

† Voltage Suffix:“- UN”Suitable for 120 thru 277V, 50/60Hz

Consult local code for use on line to line circuits.

* Must use a bottom closure or a protected lamp (See “Options”)

Accessories

Options

Description Suffix Description Catalog No.

Protected Lamp

Protected Lamp is required by Code

Lampholder for Protected Lamp Requires protected lamp - PLS

Luminaire Mounting

Ceiling

Quick-Install - Mounts on 3-1/2” or 4” junction box No suffix

Surface Mount - Drilled for bolting to the ceiling

With two 1/2” plugged side entries - CE

Pendant

Rigid Mount - 3/4” hub, threads directly to the housing - PD

Flexible Mount - 3/4” hub, includes balancing junction box - PF

Lamp Watts

Pulse Start Metal Halide

50W Mogul ED17 50*

70W “ “ 70 *

100W “ “ 100*

150W “ “ 150*

Optical Assembly

Borosilicate Glass10” nominal dia. -G10

10“ (with bottom ring) “ -G10R

16” “ -G16

To order, construct the catalog number as follows

OR 150PS –UN –10 –K –PLS –Options

Electronic AccuGlass

Standard Profile OR

Options: See Below

With 16” dia. Glass Reflector

NEW

Safety Hook - 3/4”NPT Male HK75SS

Female HF75SS

Cord Set

3’ long ∆, 3 conductor, Type ST105 Cord only 3C

Cord & 15A, 277V Twist Lock Plug 3C-15TLP-277

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Wire Guard For 16” reflector ACG-16WG

For 22” reflector ACG-22WG

Ballast Safety Chain Standard profile OR-BSC3

3’ long ∆Low profile LPOR-BSC3

Optical Assembly Safety Cable ACG-RSC

Top Shroud ACG-SS

Power Hook HBPH-volts

Receptacle, hook and box

Dimming - Occupancy Sensors:

Detects infrared activity, with mounting bracket

Sensor mounting Maximum 8’ OS-8

8’ through 20’ OS-20

People 20’ through 35 OS-45

Large objects* 20’ through 45 OS-45

Dimming - Daylight Harvesting Hi/Lo dimming

Indoor Photosensor, with mounting bracket DH-1

Dimming - Control

0 – 10V Slider dimming control DIM-0/10S

Accuflex Modular Wiring See page 28

Lamp Coated Lamp (Recommended) - CL

Clear Lamp - L

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Dimming

Standard - Order controls separately - see right

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

Accessories

Options

Description Suffix Description Catalog No.

Improved Lumen Maintenance means Fewer

Luminaires per Installation

•Electronic ballasts improve lumen maintenance,

requiring fewer luminaires to maintain light levels.

•High performance AccuLite luminaires provide more

useable light to the seeing task, further reducing the

fixture count for even greater savings.

Electronic Ballast

•Intelligent ballast for 200V thru 277V, 50/60Hz

•Multi-watt ballast, 320W, 350W or 400W. Preset at

the factory - field adjustable.

Control

•Depending on the controls selected, standard control

can be either continuous dimming or Hi/Lo switching.

Construction

•Standard profile housing - die cast aluminum housing,

steel cover plate.

•Low profile housing - extruded aluminum housing.

•Reflector - Borosilicate glass, precision molded prisms.

Unlike acrylic, glass is does not deteriorate when

exposed to ultra-violet light.

•Lampholder - specification grade porcelain.

Mounting

•Pendant or Quick-Install ceiling mount.

Finish

•White polyester powder coat finish.

Pulse Start Metal Halide Lamps

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color

rendition.

Low Temperature Starting

•Low temperature starting, –30˚C (–20˚F)

ECG, LPECG

High Performance Electronic Luminaire

with Glass Optical Assembly

ECG

Standard Profile - Glass LPECG

Low Profile - Glass

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

NEW

Ballast

Electronic - Variable Voltage

200V thru 277V, 50/60 Hz -U27†

AccuGlass™ Electronic, Medium Wattage, Glass

†Voltage Suffix: “- U27”Suitable for 200 thru 277V, 50/60Hz When required by local certifying bodies, use Lamp Socket

Protector on line to line circuits. To order add suffix - LSP

*Must use a bottom closure or a protected lamp (See above)

Protected Lamp / Bottom Closure

Either a protected lamp or a bottom closure is required by Code for 320W & 350W

Optional for 400W

Lampholder for Protected Lamp Use protected (ANSI Type ‘O’) lamp - PLS

Bottom Closure Glass Lens Use with standard (ANSI Type ‘S:) lamp lamp - BC

Luminaire Mounting

Pendant 3/4” hub No suffix

Ceiling – Quick-Install

Mounts on 3-1/2” or 4” junction box - K

Lamp Watts

Pulse Start Metal Halide

320W Mogul ED37 320PS *

350W “ “ 350PS *

400W “ “ 400PS

Optical Assembly

Fully Faceted Aluminum

16” nominal dia. - A

22” “ - C

To order, construct the catalog number as follows

ECG 400PS –U27 –C –K –PLS –Options

Electronic AccuGlass

Standard Profile ECG

Low Profile LPECG

Options: See Below

3/4”Hub

16” 15-3/8” 22-1/4”

22” 21-1/2” 21-1/2”

3/4”Hub

16” 15-3/8” 17” 27-1/8”

22” 21-1/2” 16-1/4” 30-1/4”

Dimensions

Standard Reflector D H Low Profile Reflector D H W

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

3/4”Hub

12” Nom Dia 12-7/16” 12-1/2” 11-3/4”

16” Nom Dia 16” 12-1/2” 15-3/8”

22” Nom Dia 22” 12-1/2” 15-3/8”

Flexible Pendant - Add 2-1/2”

Dimensions

Standard Reflector D D2 H

Safety Hook

Use with “Flexible Pendant” mounting only

- 3/4”NPT Male HK75SS

Female HF75SS

Cord Set 3 conductor, 3’ long Type ST105

For lengths other than 3 feet, revise the 3

in the catalog number to the length Cord only 3C

in feet. Cord & 15A, 277V

Twist Lock Plug 3C-15TLP-277

Wire Guard For 12” reflector Not available

For 16” reflector PR-16WG

For 22” reflector PR-22WG

Ballast Safety Chain - 3’ long ∆OR-BSC3

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Dimming Systems See page 27

Accuflex Modular Wiring See page 28

Acculume™ Electronic, Low Wattage, Acrylic

Fewer Luminaires per Installation

•Electronic ballasts improve lumen maintenance. Fewer

luminaires are required to maintain light levels.

•High performance AccuLite luminaires provide more

useable light to the seeing task, further reducing the

fixture count for even greater savings.

Electronic Ballast

•Intelligent ballast for 120V thru 277V, 50/60Hz

Construction

•Standard profile housing - die cast aluminum housing,

steel cover plate.

•Reflector - Up to 94% efficient, with excellent uplight

characteristics. Light weight, up top 5 kg (11 lbs.)

lighter than glass. Field adjustable, five positions for

better light control. Ten year limited warranty against

yellowing. Available with clear, translucent and

opaque finish.

•Specification grade porcelain lampholder.

Three Step Quick-Install Mount

•Step 1: Open the box and mount the ‘Quick-Install’

plate on a standard 3-1/2” or 4” junction box.

•Step 2: Hang the luminaire on the “Quick Install” plate.

Connection is easy, the 80˚ hinge design provides

ample room to connect the three wires.

•Step 3: Swing closed and secure the set screw.

Finish

•White polyester powder coat finish.

Pulse Start Metal Halide Lamps

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color

rendition.

High Performance Electronic Luminaire

with Acrylic Optical Assembly

Lamp Coated Lamp (Recommended) - CL

Clear Lamp - L

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Accessories

Options

Description Suffix Description Catalog No.

Ballast

Electronic - Variable Voltage

120V thru 277V, 50/60 Hz -UN †

Protected Lamp

Protected Lamp or a Bottom Closure is required by Code

Lampholder for Protected Lamp Requires protected lamp - PLS

Bottom Closure Glass Lens Use with standard lamp lamp

See Reflector Application Guide - BC

Luminaire Mounting

Ceiling

Quick-Install - Mounts on 3-1/2” or 4” junction box No suffix

Surface Mount - Drilled for bolting to the ceiling

With two 1/2” plugged side entries - CE

Pendant

Rigid Mount - 3/4” hub, threads directly to the housing - PD

Flexible Mount - 3/4” hub, includes balancing junction box - PF

Lamp Watts

Pulse Start Metal Halide

50W Mogul ED17 50*

70W “ “ 70 *

100W “ “ 100*

150W “ “ 150*

Optical Assembly

Acrylic Translucent Opaque

Clear White White

12” nominal dia. -A12 -T12W -O12W

16” “ -A16 -T16W -O16W

22” “ -A22 -T22W -O22W

To order, construct the catalog number as follows

OR 150PS –UN–A16 –K –PLS –Options

Electronic Acculume

Standard Profile OR

Options: See Below

12” dia. Acrylic

16” dia. Acrylic

Quick Install

† Voltage Suffix:“- UN”

Suitable for 120 thru 277V, 50/60Hz

Consult local code for use on line to line circuits.

* Must use a bottom closure or a protected

lamp (See “Options”)

Reflector Application Guide* 100W 150W

12” Open bottom ❶❶

Closed bottom ✔✘

16” Open bottom ❶❶

Closed Bottom ✔✔

22” Open bottom ❶❶

Closed Bottom ✔✔

❶Available, requires protected lamp

lampholder & protected lamp

✔Available with indicated wattage

✘NOT available

* With Acrylic Parts Ambient 25°C

NEW

Safety Hook - 3/4”NPT Male HK75SS

Female HF75SS

Cord Set

3’ long ∆, 3 conductor, Type ST105 Cord only 3C

Cord & 15A, 277V Twist Lock Plug 3C-15TLP-277

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Bottom Closure

See Reflector Application Guide on Left for Max Watt

16” 22” 25”

Drop PR-16DL PR-22DL –

Conical PR-16CL PR-22CL PR-25CL

Flat PR-16BL PR-22BL –

Wire Guard 16” 22” 25”

PR-16WG PR-22WG PR-25WG

Power Hook HBPH-volts

Receptacle, hook and box

Optical Assembly Safety Cable OR-RSC

Ballast Safety Chain Standard profile OR-BSC3

- 3’ long ∆Low profile LPOR-BSC3

Top Shroud DL-SS

Dimming - Occupancy Sensors:

Detects infrared activity, with mounting bracket

Sensor mounting Maximum 8’ OS-8

8’ through 20’ OS-20

People 20’ through 35 OS-45

Large objects* 20’ through 45 OS-45

Dimming - Daylight Harvesting Hi/Lo dimming

Indoor Photosensor, with mounting bracket DH-1

Dimming - Control

0 – 10V Slider dimming control DIM-0/10S

Accuflex Modular Wiring See page 28

Accessories

Description Catalog No. Description Catalog No.

Improved Lumen Maintenance means Fewer

Luminaires per Installation

•Electronic ballasts improve lumen maintenance,

requiring fewer luminaires to maintain light levels.

•High performance AccuLite luminaires provide more

useable light to the seeing task, further reducing the

fixture count for even greater savings.

Electronic Ballast

•Intelligent ballast for 200V thru 277V, 50/60Hz

•Multi-watt ballast, 320W, 350W or 400W. Preset at

the factory - field adjustable.

Control

•Depending on the controls selected, standard control

can be either continuous dimming or Hi/Lo switching.

Construction

•Standard profile housing - die cast aluminum housing,

steel cover plate.

•Low profile housing - extruded aluminum housing.

•Reflector - Up to 94% efficient, with excellent uplight

characteristics. Light weight, up top 5 kg (11 lbs.)

lighter than glass. Field adjustable, five positions for

better light control. Ten year limited warranty against

yellowing. Available with clear, translucent and

opaque finish.

•Lampholder - specification grade porcelain.

Mounting

•Pendant or Quick-Install ceiling mount.

Finish

•White polyester powder coat finish.

Pulse Start Metal Halide Lamps

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color

rendition.

Low

Temperature

Starting

•Low

temperature

starting, –30˚C

(–20˚F)

LPEHB

Standard Profile - Acrylic

HB5

For 1000W

Dimensions

†Voltage Suffix: “- U27”Suitable for 200 thru 277V,

50/60Hz When required by local certifying bodies, use Lamp Socket

Protector on line to line circuits. To order add suffix - LSP

* Must use a bottom closure or a protected lamp (See above)

.Lamp Coated Lamp (Recommended) - CL

Clear Lamp - L

Quartz Auxiliary

Double contact bayonet base, lamp not included - Q

Dimming

Standard - Order controls separately - see right

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Protected Lamp / Bottom Closure

Either a protected lamp or a bottom closure is required by Code for 320W & 350W

Optional for 400W

Lampholder for Protected Lamp Use protected (ANSI Type ‘O’) lamp - PLS

Bottom Closure Glass Lens Use with standard (ANSI Type ‘S:) lamp lamp - BC

Ballast

Electronic - Variable Voltage

200V thru 277V, 50/60 Hz -U27†

Acculume™ Electronic Electronic, Medium Wattage, Acrylic

EHB, LPEHB

High Performance Electronic Luminaire

with Acrylic Optical Assembly

EHB

Low Profile - Acrylic

Options

Description Suffix Description Suffix

Luminaire Mounting

Pendant 3/4” hub No suffix

Ceiling – Quick-Install

Mounts on 3-1/2” or 4” junction box - K

Lamp Watts

Pulse Start Metal Halide

320W Mogul ED37 320PS *

350W “ “ 350PS *

400W “ “ 400PS

Optical Assembly

Acrylic Translucent Opaque

Clear White White

16” nominal dia. -A16 -T16W -O16W

22” “ -A22 -T22W -O2 2W

25” “ -A25 -T25W -O25W

To order, construct the catalog number as follows

EHB 400PS –U27–A16 –K –PLS –Options

Electronic Acculume

Standard Profile EHB

Low Profile LPEHB

Options: See Below

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

NEW

With acrylic parts, ambient 25˚C ✔Available ✘ Not Available

Reflector Application Guide

Dia. 16” 22” 25”

Open bottom ✔✔✔

Closed Bottom ✘✔✔

3/4”Hub

16” 15-5/8” 17-5/8” 27-1/2”

22” 17-7/8” 19-7/8” 30-1/2”

25” 18-3/8” 20-3/8” 32”

3/4”Hub

16” 20-7/8” 22-7/8”

22” 23-1/8” 25-1/8”

25” 23-5/8” 25-5/8”

Standard D H (min) H (Max)

Low Profile D H (min) H (Max) W

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

3/4”Hub

‘-12’ 12-3/8” 12-1/2” 11-7/8”

‘-14’ 14-3/4” 12-1/2” 14-1/8”

‘-16’ 161/8” 12-1/2” 15”

Flexible Pendant - Add 2-1/2”

Dimensions

Ballast

Electronic - Variable Voltage

120V thru 277V, 50/60 Hz -UN †

Standard Reflector D1 D2 H

Safety Hook

Use with “Flexible Pendant” mounting only

- 3/4”NPT Male HK75SS

Female HF75SS

Cord Set 3 conductor, 3’ long Type ST105

For lengths other than 3 feet, revise the 3

in the catalog number to the length Cord only 3C

in feet. Cord & 15A, 277V

Twist Lock Plug 3C-15TLP-277

Wire Guard For ‘-12’ reflector Not available

For ‘-14’ reflector HB4-WG

For ‘-16’ reflector HB3-WG

Ballast Safety Chain - 3’ long ∆OR-BSC3

Optical Assembly Safety Cable OR-RSC

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Dimming Systems See page 27

Accuflex Modular Wiring See page 28

Econobay™ Electronic, Low Wattage, Aluminum

Fewer Luminaires per Installation

•Electronic ballasts improve lumen maintenance. Fewer

luminaires are required to maintain light levels.

•High performance AccuLite luminaires provide more

useable light to the seeing task, further reducing the

fixture count for even greater savings.

Electronic Ballast

•Intelligent ballast for 120V thru 277V, 50/60Hz

Construction

•Standard profile housing - die cast aluminum housing,

steel cover plate.

•Reflector - Spun aluminum , three sizes - 12-3/8”,

14-3/4” and 16-1/8” nominal diameter.

•Specification grade porcelain lampholder.

Three Step Quick-Install Mount

•Step 1: Open the box and mount the ‘Quick-Install’

plate on a standard 3-1/2” or 4” junction box.

•Step 2: Hang the luminaire on the “Quick Install” plate.

Connection is easy, the 80˚ hinge design provides

ample room to connect the three wires.

•Step 3: Swing closed and secure the set screw.

Finish

•White polyester powder coat finish.

Pulse Start Metal Halide Lamps

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color

rendition.

High Performance Electronic Luminaire

with Aluminum Optical Assembly

Lamp Coated Lamp (Recommended) - CL

Clear Lamp - L

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Enclosed Optical Assembly

Fully gasketed optical assembly -EOA

16” dia. Spun Aluminum

† Voltage Suffix:“- UN”Suitable for 120 thru 277V, 50/60Hz

Consult local code for use on line to line circuits.

* Must use a bottom closure or a protected lamp (See “Options”)

Accessories

Options

Description Suffix Description Catalog No.

Protected Lamp

Protected Lamp or a Bottom Closure is required by Code

Lampholder for Protected Lamp Requires protected lamp - PLS

Bottom Closure Glass Lens Use with standard lamp lamp - BC

Luminaire Mounting

Ceiling

Quick-Install - Mounts on 3-1/2” or 4” junction box No suffix

Surface Mount - Drilled for bolting to the ceiling

With two 1/2” plugged side entries - CE

Pendant

Rigid Mount - 3/4” hub, threads directly to the housing - PD

Flexible Mount - 3/4” hub, includes balancing junction box - PF

Lamp Watts

Pulse Start Metal Halide

50W Mogul ED17 50*

70W “ “ 70 *

100W “ “ 100*

150W “ “ 150*

Optical Assembly

Spun Aluminum 12-3/8” dia. -S12

14-3/4” dia. -S14

16-1/8” dia. -S16

To order, construct the catalog number as follows

OR 150PS –UN –10 –K –PLS –Options

Electronic Econobay

Standard Profile OR

Options: See Below

NEW

Safety Hook - 3/4”NPT Male HK75SS

Female HF75SS

Cord Set

3’ long ∆, 3 conductor, Type ST105 Cord only 3C

Cord & 15A, 277V Twist Lock Plug 3C-15TLP-277

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Wire Guard For ‘-14’ reflector HB4-WG

For ‘-16’ reflector HB3-WG

For ‘-18’ reflector HB5-WG18

Ballast Safety Chain Standard profile OR-BSC3

3’ long ∆Low profile LPOR-BSC3

Optical Assembly Safety Cable OR-RSC

Top Shroud DL-SS

Power Hook HBPH-volts

Receptacle, hook and box

Dimming - Occupancy Sensors:

Detects infrared activity, with mounting bracket

Sensor mounting Maximum 8’ OS-8

8’ through 20’ OS-20

People 20’ through 35 OS-45

Large objects* 20’ through 45 OS-45

Dimming - Daylight Harvesting Hi/Lo dimming

Indoor Photosensor, with mounting bracket DH-1

Dimming - Control

0 – 10V Slider dimming control DIM-0/10S

Accuflex Modular Wiring See page 28

Improved Lumen Maintenance means Fewer

Luminaires per Installation

•Electronic ballasts improve lumen maintenance,

requiring fewer luminaires to maintain light levels.

•High performance AccuLite luminaires provide more

useable light to the seeing task, further reducing the

fixture count for even greater savings.

Electronic Ballast

•Intelligent ballast for 200V thru 277V, 50/60Hz

•Multi-watt ballast, 320W, 350W or 400W. Preset at

the factory - field adjustable.

Control

•Depending on the controls selected, standard control

can be either continuous dimming or Hi/Lo switching.

Construction

•Standard profile housing - die cast aluminum housing,

steel cover plate.

•Low profile housing - extruded aluminum housing.

•Reflector - Spun aluminum , three sizes 14-3/4”,

16-1/8” and 18-5/8” nominal diameter. Field

adjustable, five positions for light control.

•Lampholder - specification grade porcelain.

Mounting

•Pendant or Quick-Install ceiling mount.

Finish

•White polyester powder coat finish.

Enclosed Optical Assembly

•Optional, prevents dirt from accumulating on reflector.

Pulse Start Metal Halide Lamps

•Pulse Start technology provides longer lamp life,

more lumens per watt, better lumen

maintenance, faster lamp warm up, faster hot

restrike and superior color rendition.

Low Temperature Starting

•Low temperature starting, –30˚C (–20˚F)

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Ballast

Electronic - Variable Voltage

200V thru 277V, 50/60 Hz - U27†

Econobay™ Electronic, Medium Wattage, Aluminum

EHB, LPEHB

High Performance Electronic Luminaire

with Aluminum Optical Assembly

Lamp

Coated Lamp (Recommended for 18” reflector) - CL

Clear Lamp - L

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Enclosed Optical Assembly

Fully gasketed optical assembly -EOA

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Dimming

Standard - Order controls separately - see right

†Voltage Suffix: “- U27”Suitable for 200 thru 277V, 50/60Hz When required by local certifying bodies, use Lamp Socket Protector

on line to line circuits. To order add suffix - LSP

*Must use a bottom closure or a protected lamp (See above) Accessories

Options

Description Suffix Description Catalog No.

Protected Lamp / Bottom Closure

Either a protected lamp or a bottom closure is required by Code for 320W & 350W

Optional for 400W

Lampholder for Protected Lamp Use protected (ANSI Type ‘O’) lamp - PLS

Bottom Closure Glass Lens Use with standard (ANSI Type ‘S:) lamp lamp - BC

Luminaire Mounting

Pendant 3/4” hub No suffix

Ceiling – Quick-Install

Mounts on 3-1/2” or 4” junction box - K

Lamp Watts

Pulse Start Metal Halide

320W Mogul ED37 320PS *

350W “ “ 350PS *

400W “ “ 400PS

Optical Assembly

Aluminum 14-3/4” dia. - 14

16-1/8” dia. - 16

18-5/8“ dia. - 18

To order, construct the catalog number as follows

EHB 400PS –U27 –16 –K –PLS –Options

Electronic Econobay

Standard Profile EHB

Low Profile LPEHB

Options: See Below

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

3/4”Hub ‘-14’ 14-3/4” 20-1/2”

‘-16’ 16-1/8” 21-3/8”

‘-18’ 18-5/8” 28-7/8”

Dimensions

Enclosed Optical Assembly Reflector D H

3/4”Hub

‘-14’ 14-3/4” 14-3/8” 16-3/8” 26-7/8”

‘-16’ 16-1/8” 15-1/4” 17-1/4” 27-5/8”

‘-18’ 18-5/8” 14-1/2” 16-1/2” 28-7/8”

Low Profile Reflector D H (min) H (Max) W

3/4”Hub ‘-14’ 14-3/4” 19-5/8” 21-5/8”

‘-16’ 16-1/8” 20-1/2” 22-1/2”

‘-18’ 18-5/8” 19-3/4” 21-3/4”

Standard Reflector D H (min) H (Max)

NEW

EHB

Standard Profile

LPEHB

Low Profile - Spun Aluminum

EHB

Enclosed Optical Assembly

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

3/4”Hub

-LB16 16-9/32” 12-1/2” 10-1/4”

Flexible Pendant - Add 2-1/2”

Dimensions

Ballast

Electronic - Variable Voltage

120V thru 277V, 50/60 Hz -UN †

Standard Reflector D H (min) H (Max)

Safety Hook - 3/4”NPT Male HK75SS

Female HF75SS

Cord Set

3’ long ∆, 3 conductor, Type ST105 Cord only 3C

Cord & 15A, 277V Twist Lock Plug 3C-15TLP-277

Wire Guard For 16” reflector MAG-WG

Ballast Safety Chain - 3’ long ∆OR-BSC3

Optical Assembly Safety Cable OR-RSC

Power Hook HBPH-volts

Receptacle, hook and box

HI/LO Dimming Systems See page 27

Accuflex Modular Wiring See page 28

Accuglo™ Electronic, Low Wattage, Enclosed

Fewer Luminaires per Installation

•Electronic ballasts improve lumen maintenance. Fewer

luminaires are required to maintain light levels.

•High performance AccuLite luminaires provide more

useable light to the seeing task, further reducing the

fixture count for even greater savings.

Electronic Ballast

•Intelligent ballast for 120V thru 277V, 50/60Hz

Construction

•Standard profile housing - die cast aluminum housing,

steel cover plate.

•Reflector - Aluminum lowbay reflector with high

reflectance white finish and virgin acrylic bottom lens

for superior brightness control.

•Enclosed Optical Assembly - Optional fully gasketed

lens and reflector.

•Specification grade porcelain lampholder.

Three Step Quick-Install Mount

•Step 1: Open the box and mount the ‘Quick-Install’

plate on a standard 3-1/2” or 4” junction box.

•Step 2: Hang the luminaire on the “Quick Install” plate.

Connection is easy, the 80˚ hinge design provides

ample room to connect the three wires.

•Step 3: Swing closed and secure the set screw.

Finish

•White polyester powder coat finish.

Pulse Start Metal Halide Lamps

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color

rendition.

High Performance Electronic Luminaire

with Lowbay Reflector and Lens

Lamp Coated Lamp (Recommended) - CL

Clear Lamp - L

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Enclosed Optical Assembly

Fully gasketed optical assembly -RG

Lampholder for Protected Lamp

Requires Protected Lamp -PLS

Standard Profile

† Voltage Suffix:“- UN”Suitable for 120 thru 277V, 50/60Hz

Consult local code for use on line to line circuits.

Accessories

Options

Description Suffix Description Catalog No.

Protected Lamp

Optional

Lampholder for Protected Lamp Requires protected lamp - PLS

Luminaire Mounting

Ceiling

Quick-Install - Mounts on 3-1/2” or 4” junction box No suffix

Surface Mount - Drilled for bolting to the ceiling

With two 1/2” plugged side entries - CE

Pendant

Rigid Mount - 3/4” hub, threads directly to the housing - PD

Flexible Mount - 3/4” hub, includes balancing junction box - PF

Lamp Watts

Pulse Start Metal Halide

50W Mogul ED17 50

70W “ “ 70

100W “ “ 100

150W “ “ 150

Optical Assembly

Aluminum - White Finish & Drop Lens

16” nominal dia. -LB16

To order, construct the catalog number as follows

OR 150PS –UN –10 –K –Options

Electronic Accuglo

Standard Profile MA

Options: See Below

Optional

Not required

∆For lengths other than 3 feet,

revise the 3 in the catalog number

to the length in feet.

NEW

Improved Lumen Maintenance means Fewer

Luminaires per Installation

•Electronic ballasts improve lumen maintenance,

requiring fewer luminaires to maintain light levels.

•High performance AccuLite luminaires provide more

useable light to the seeing task, further reducing the

fixture count for even greater savings.

Electronic Ballast

•Intelligent ballast for 200V thru 277V, 50/60Hz

•Multi-watt ballast, 320W, 350W or 400W. Preset at

the factory - field adjustable.

Control

•Depending on the controls selected, standard control

can be either continuous dimming or Hi/Lo switching.

Construction

•Standard profile housing - die cast aluminum housing,

steel cover plate.

•Low profile housing - extruded aluminum housing.

•Reflector - Aluminum lowbay reflector with high

reflectance white finish and virgin acrylic bottom lens

for superior brightness control.

•Enclosed Optical Assembly - Optional fully gasketed

lens and reflector.

•Lampholder - specification grade porcelain.

Mounting

•Pendant or Quick-Install ceiling mount.

Finish

•White polyester powder coat finish.

Enclosed Optical Assembly

•Optional, prevents dirt from accumulating on reflector.

Pulse Start Metal Halide Lamps

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color

rendition.

Low Temperature Starting

•Low temperature starting, –30˚C (–20˚F)

Dimensions

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Ballast

Electronic - Variable Voltage

200V thru 277V, 50/60 Hz -U27†

Safety Hook - 3/4”NPT Male HK75SS

Female HF75SS

Cord Set

3’ long ∆, 3 conductor, Type ST105 Cord only 3C

Cord & 15A, 277V Twist Lock Plug 3C-15TLP-277

Q-Deck Plate For quick mounting Q-DECK

(Mounting screws not included)

Wire Guard For 22” reflector AG-WG

Ballast Safety Chain - 3’ long ∆

Standard profile OR-BSC3

Low profile LPOR-BSC3

Optical Assembly Safety Cable AG-RSC

Power Hook HBPH-volts

Receptacle, hook and box

Dimming - Occupancy Sensors:

Detects infrared activity, with mounting bracket

Sensor mounting Maximum 8’ OS-8

8’ through 20’ OS-20

People 20’ through 35 OS-45

Large objects* 20’ through 45 OS-45

Dimming - Daylight Harvesting

Indoor Photosensor, with mounting bracket

Hi/Lo dimming DH-1

Dimming - Control

0 – 10V Slider dimming control DIM-0/10S

Accuflex Modular Wiring See page 28

Accuglo™ Electronic, Medium Wattage, Enclosed

EAG, LPEAG

High Performance Electronic Luminaire

with Lowbay Reflector and Lens

Lamp Coated Lamp - CL

Clear Lamp - L

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Enclosed Optical Assembly

Fully gasketed optical assembly -RG

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Dimming

Standard - Order controls separately - see right

EAG

Standard Profile

LPEAG

Low Profile

EAG

Enclosed Optical Assembly

†Voltage Suffix: “- U27”Suitable for 200 thru 277V, 50/60Hz When required by local certifying bodies, use Lamp Socket

Protector on line to line circuits. To order add suffix - LSP

Accessories

Options

Description Suffix Description Catalog No.

Protected Lamp / Bottom Closure

Optional

Lampholder for Protected Lamp Use protected (ANSI Type ‘O’) lamp - PLS

Luminaire Mounting

Pendant 3/4” hub No suffix

Ceiling – Quick-Install

Mounts on 3-1/2” or 4” junction box - K

Lamp Watts

Pulse Start Metal Halide

320W Mogul ED37 320PS

350W “ “ 350PS

400W “ “ 400PS

Optical Assembly

Aluminum - White Finish & Drop Lens

22” nominal dia. - 22

To order, construct the catalog number as follows

EAG 400PS –U27 –22 –K –Options

Electronic Accuglo

Standard Profile EAG

Low Profile LPEAG

Options: See Below

3/4”Hub

22” 22-1/2” 19-1/2”

Standard Profile & Enclosed Optical Assembly

Reflector D H

∆For lengths other than 3 feet, revise the 3 in

the catalog number to the length in feet.

NEW

3/4”Hub

22” 22-1/2” 16-3/4” 34-1/2”

Low Profile Reflector D H W

Regressed Luminaires

Accessories: Accuflex Modular Wiring System

General lighting of Indoor Commercial and Retail Stores

Lamp wattages up to 450 Watts

Duralume (Open 2 x 2 Regressed Downlight for Non-Insulated Suspended Ceilings)

Paralume (Enclosed 2 x 2 Regressed Downlight for Non-Insulated Suspended Ceilings)

General lighting of Indoor Commercial and Retail Stores

Lamp wattages up to 450 Watts

Prismatic glass lens for good brightness control Parabolic louver for maximum brightness control

and narrower light distribution

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

With Side Mounted Ballast and Pan

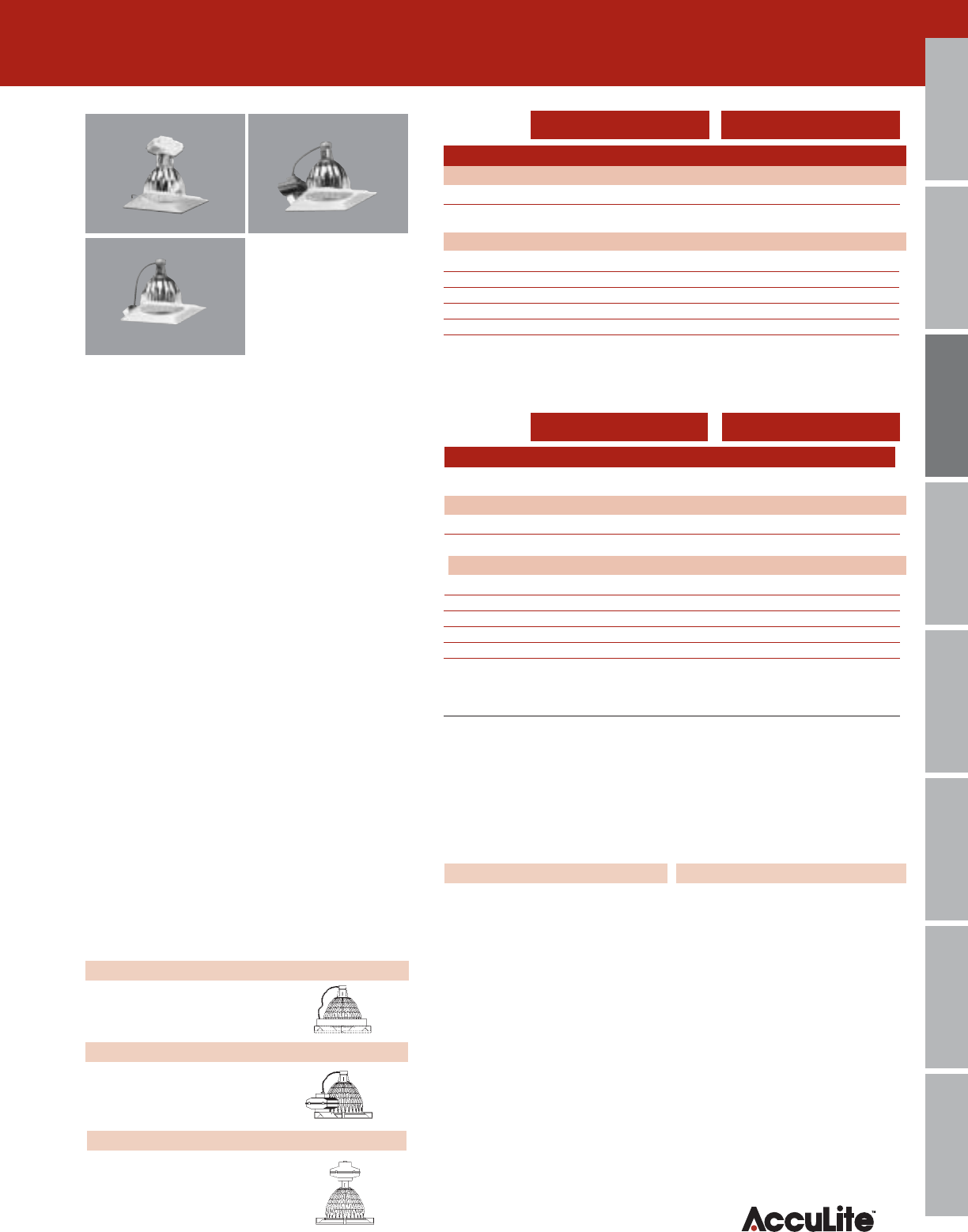

Duralume™ Regressed Luminaire

Height Overall: 21”

Pan Length: 23-3/4”

Width: 23-3/4”

DLRP With Side Mounted F-Can Ballast

DL Top Mounted Cast Ballast and Pan - Only Available in Canada

High Performance Optical Assembly

with 2’ X 2’ Regressed Pan

•Fully faceted aluminum reflector ensures high performance.

•Eleven position reflector.

•Mounts in standard 2’ X 2’ T-bar ceiling openings.

•Regressed pan mounts the reflector a full 2” above the

ceiling plane.

Pre-wired

•Pre-wired flexible conduit protects wiring from ballast to

the junction box.

Cool Operating Cast Ballast

•Side and top mounted ballasts are heavy duty die cast

aluminum ballast.

Thermal Cut-Out Ballasts

•‘F-Can’ ballast types feature a thermal cut out.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, superior color

rendition, faster lamp warm up and faster hot restrike.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

DLR

Fully Faceted Optical Assembly

for Inverted T-Bar Ceilings

For Top Mounted Ballast

DLRP

Side Mounted F-Can Ballast

DLRC

Side Mounted Cast Ballast

DLRC With Side Mounted Cast Ballast - Only Available in Canada

Height Min.: 26-1/2”

Max.: 28”

Pan Length: 23-3/4”

Width: 23-3/4”

Height Overall: 21”

Pan Length: 23-3/4”

Width: 23-3/4”

Dimensions

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

250 Mogul DL-250MH-volts-17-PLS∆+DL-2424-REC-PAN

400 “ DL-400MH-volts-17 + DL-2424-REC-PAN

Metal Halide

200 Mogul –DLRC-200MH-volts-PSB-PLS ∆

250 “ DLRP-250MH-volts-PSB-PLS ∆†DLRC-250MH-volts-PSB-PLS ∆

320 “ DLRP-320MH-volts-PSB-PLS ∆†DLRC-320MH-volts-PSB-PLS ∆

350 “ DLRP-350MH-volts-PSB-PLS ∆†DLRC-350MH-volts-PSB-PLS ∆

400 “ DLRP-400MH-volts-PSB †DLRC-400MH-volts-PSB

450 “ – DLRC-450MH-volts-PSB

250 Mogul –DLRC-250MH-volts-PLS ∆

400 “ DLRP-400MH-volts †DLRC-400MH-volts

Metal Halide

Lamp

Coated MH lamp (recommended) - CL

Clear lamp - L

Lampholder for Protected Lamp - PLS

(Order Lamp Separately)

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Potted Ballasts

For low noise requirements DLRP models Standard

DLRC models - POT

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Remote Optical Assembly

Replace the Voltage with - RB

Lamp Socket Protector

Use on line to line circuits

when required by local certifying bodies - LSP

Top Shroud - DL-SS

Ballast Safety Chain - 3’ long ∆- DLRP-3SC

HI/LO Switching Systems

Group Switching only

DL &DLRCModels only

(Not available with DLRP Models) See page 17

Accuflex Modular Wiring

Flexible Wiring System See page 18

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

With Top Mounted Cast Ballast

Voltage Suffix: change “volts” to – “- 120”120V “- 277”277V

“- 208”208V † “- 347”347V †

“- 240”240V † “- 480”480V †

∆Requires protected lamp (Order Separately)

†DLRP Models available with 120V or 277V ballasts only. (208V, 240V, 347V and 480V not available)

Options Accessories

Description Suffix Description Catalog No.

Pulse Start Metal Halide

200 Mogul DL-200MH-volts-PSB-17-PLS∆+DL-2424-REC-PAN

250 “ DL-250MH-volts-PSB-17-PLS∆+DL-2424-REC-PAN

320 “ DL-320MH-volts-PSB-17-PLS∆+DL-2424-REC-PAN

350 “ DL-350MH-volts-PSB-17-PLS∆+DL-2424-REC-PAN

400 “ DL-400MH-volts-PSB-17 + DL-2424-REC-PAN

450 “ DL-450MH-volts-PSB-17-PLS + DL-2424-REC-PAN

Pulse Start Metal Halide

Order pan separately

Lamp Lamp U. S. A. CANADA

Watts Base Catalog Number (Luminaire) Catalog Number (Regressed Pan)

Lamp Lamp U. S. A. CANADA

Watts Base Catalog Number (F-CAN) Catalog Number (Cast Ballast)

23-3/4”

With Side Mounted Ballast

175 Mogul RL175MH-volts-PSB

200 “ RL200MH-volts-PSB

250 “ RL250MH-volts-PSB

320 “ RL320MH-volts-PSB

350 “ RL350MH-volts-PSB

400 “ RL400MH-volts-PSB

450 “ RL450MH-volts-PSB

With Side Mounted Ballast

175 Mogul RL175MH-volts

250 “ RL250MH-volts

400 “ RL400MH-volts

Metal Halide

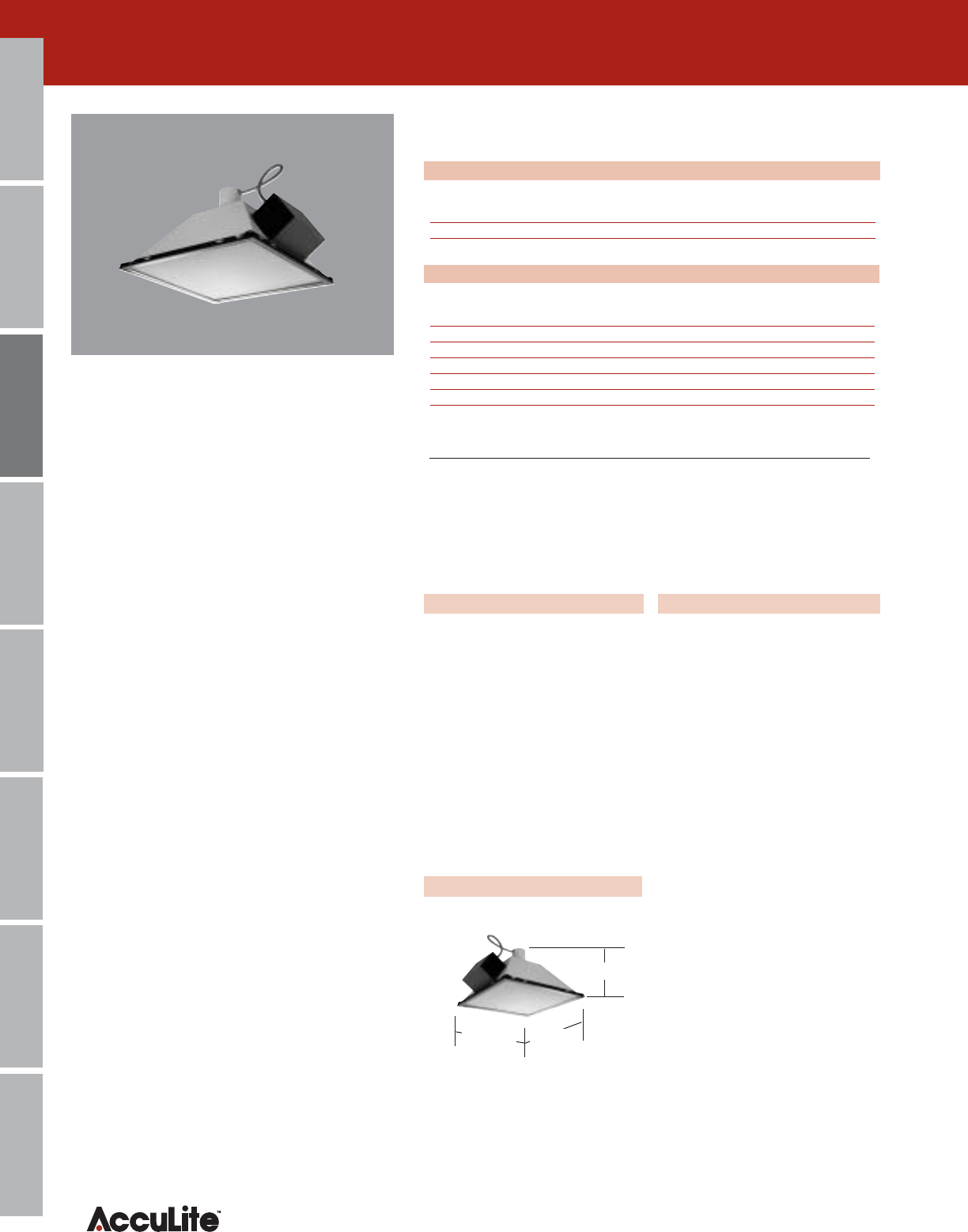

Paralume™ Regressed Luminaire

Prismatic Glass

•Paralume™ luminaires are furnished with a low

brightness tempered prismatic glass lens.

•Mounts in 2’ X 2’ T-bar ceiling.

Vertical Lamp

•Mounting the lamp with vertical orientation ensures

maximum light output, minimum lamp depreciation and

longest life in metal halide lamps.

Easy Servicing – Swing Down Door

•With an easy access swing down door, relamping

Paralume™ is a simple tool free task.

Rugged Construction

•Heavy duty extruded aluminum frame. Side mounted,

the ballast housing is manufactured from heavy duty sheet

steel.

•Flexible conduit protects wiring from ballast to the

lamp socket.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color rendition.

Finish

•Optical assembly is finished with a highly reflective

white polyester powder coat for improved

optical performance.

•Ballast is painted black for maximum heat dissipation.

Socket

Specification grade porcelain lampholder.

Thermal Cut-Out Ballasts

•Ballasts feature a thermal cut out.

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

For Inverted T-Bar Ceilings

Lamp

Coated MH lamp recommended - CL

Pulse Start Luminaires

High Performance Metal Halide

For 175W, 250W, 400W MH - PSB

For 200W, 320W, 350W, 450W Standard

Potted Ballasts For low noise requirements - POT

Quartz Auxiliary

Quartz lamp not included - Q

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Ballast Safety Chain - 3’ long ∆RL-3SC

HI/LO Switching Systems

Group Switching only See page 17

Accuflex Modular Wiring

Flexible Wiring System See page 18

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

Lamp Lamp Prismatic

Watts Base Glass Lens

14-1/2”

23-3/4”

Luminaire with Prismatic Lens

Dimensions

Prismatic Glass Lens

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Voltage Suffix: change “volts” to – “- 120”120V “- 277”277V

“- 208”208V “- 347”347V

“- 240”240V “- 480”480V

Accessories

Options

Description Suffix Description Catalog No.

Pulse Start Metal Halide

Voltage Suffix: change “volts” to – “- 120”120V “- 277”277V

“- 208”208V “- 347”347V

“- 240”240V “- 480”480V

With Side Mounted Ballast

175 Mogul RL175MH-volts-PSB-9C3 RL175MH-volts-PSB-16C3

200 “ RL200MH-volts-PSB-9C3 RL200MH-volts-PSB-16C3

250 “ RL250MH-volts-PSB-9C3 RL250MH-volts-PSB-16C3

320 “ RL320MH-volts-PSB-9C3 RL320MH-volts-PSB-16C3

350 “ RL350MH-volts-PSB-9C3 RL350MH-volts-PSB-16C3

400 “ RL400MH-volts-PSB-9C3 RL400MH-volts-PSB-16C3

450 “ RL450MH-volts-PSB-9C3 RL450MH-volts-PSB-16C3

With Side Mounted Ballast

175 Mogul RL175MH-volts-9C3 RL175MH-volts-16C3

250 “ RL250MH-volts-9C3 RL250MH-volts-16C3

400 “ RL400MH-volts-9C3 RL400MH-volts-16C3

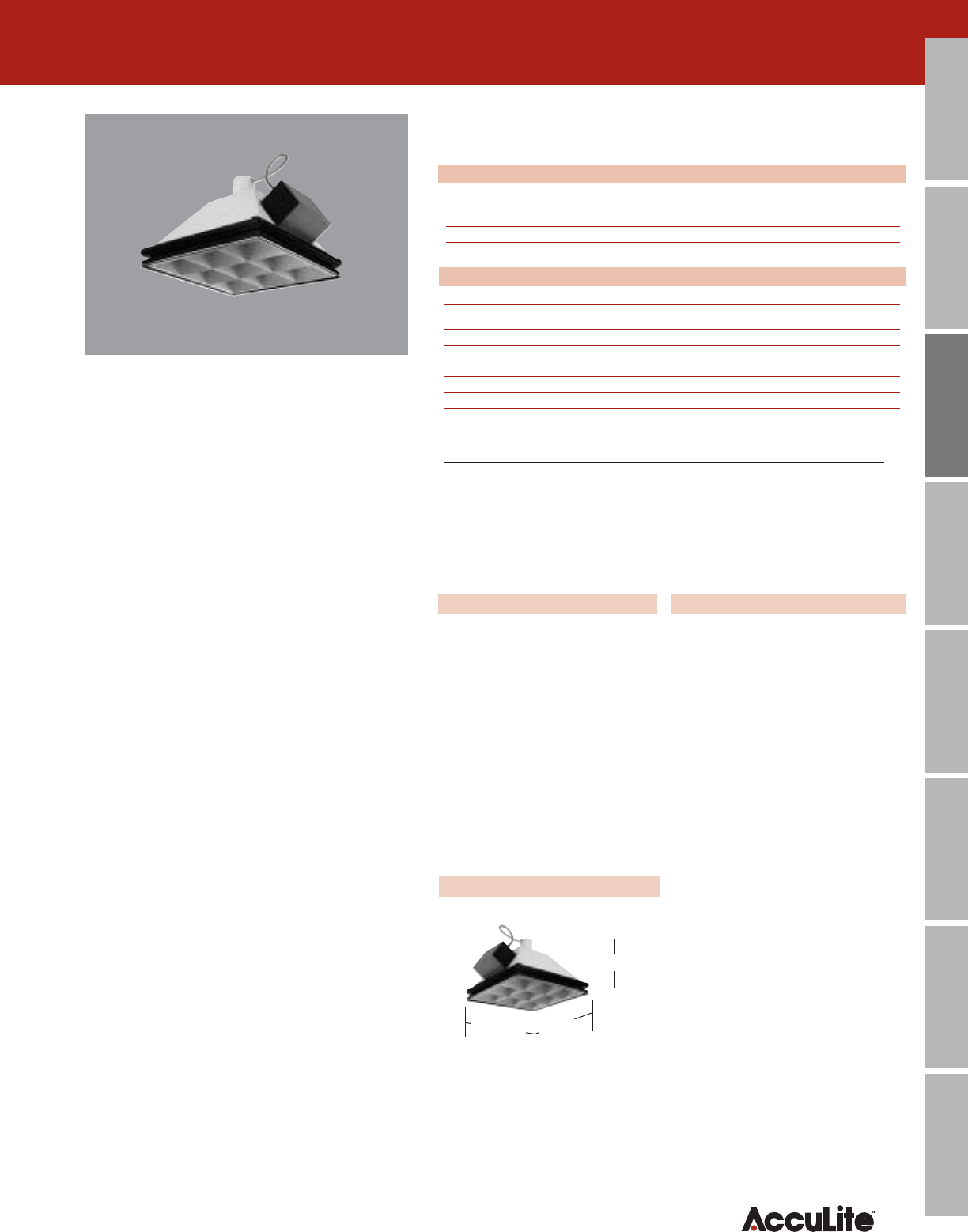

Paralume™ Regressed Luminaire

Louvered Models with Glass Lens

•Paralume™ luminaires are furnished with a low

brightness tempered prismatic glass lens.

•3” semi-specular parabolic louvers are standard.

Louvers are available with either 9 or 16 cells. All

Paralume™ louvers are furnished with a glass lens.

•Mounts in 2’ X 2’ T-bar ceiling.

Vertical Lamp

•Mounting the lamp with vertical orientation ensures

maximum light output, minimum lamp depreciation and

longest life in metal halide lamps.

Easy Servicing – Swing Down Door

•With an easy access swing down door, relamping

Paralume™ is a simple tool free task.

Rugged Construction

•Heavy duty extruded aluminum frame. Side mounted,

the ballast housing is manufactured from heavy duty sheet

steel.

•Flexible conduit protects wiring from ballast to the

lamp socket.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color rendition.

Finish

•Optical assembly is finished with a highly reflective

white polyester powder coat for improved

optical performance.

•Ballast is painted black for maximum heat dissipation.

•Louvers are semi-specular silver.

Socket

Specification grade porcelain lampholder.

Thermal Cut-Out Ballasts

•Ballasts feature a thermal cut out.

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

For Inverted T-Bar Ceilings

Lamp

Coated MH lamp recommended - CL

Pulse Start Luminaires

High Performance Metal Halide

For 175W, 250W, 400W MH - PSB

For 200W, 320W, 350W, 450W Standard

Potted Ballasts For low noise requirements - POT

Quartz Auxiliary

Quartz lamp not included - Q

Fuse Holder Single pole - F1

Supplied with fuse Two pole - F2

On multi-tap ballasts indicate line voltage

Louver

9 Cell - Silver 4” deep Consult Factory

16 Cell - Silver 4” deep

Ballast Safety Chain - 3’ long ∆RL-3SC

HI/LO Switching Systems

Group Switching only See page 17

Accuflex Modular Wiring

Flexible Wiring System See page 18

∆For lengths other than 3 feet, revise the 3 in the catalog

number to the length in feet.

With Louver & With Louver &

Lamp Lamp Glass Lens Glass Lens

Watts Base (9 cell 3” deep) (16 cell 3” deep)

Luminaire with Lens and 3” Louver

Dimensions

Louvered with Prismatic Glass Lens

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

Accessories

Options

Description Suffix Description Catalog No.

Metal Halide

Pulse Start Metal Halide

23-3/4”

16-5/8”

23-3/4”

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Parking Garage & Canopy

Best Products

Better Products

Good Products

Indoor and Outdoor Locations

Parking Garages, Outdoor Canopies, Stairwells and Indoor Low Ceilings

For Ceiling, Wall or Pole Mounting

Accusquare CL

High wattage canopy light with

lamp wattages up to 400 watts

•Heavy gauge die-formed steel

housing

•Choice of injection molded

one-piece dropped prismatic

acrylic diffuser or tempered

prismatic flat glass lens

Accusquare MCL

Low wattage canopy light for HPS

lamps up to 50 watts. Designed for

lower 8-12 foot mounting heights

•Injection molded one-piece

polycarbonate housing

Accupark

Low wattage vertical lamp parking

garage luminaire.

•HPS lamp wattages up

to 150 watts

•Metal Halide lamp wattages

up to 100 watts

Nitelyte II (Indoor)

Optimized vertical lamp parking

garage optics with wattages

up to 175 watts

•One piece ballast housing for

ceiling j-box or pendant mounting

•6:1 spacing ratio allows widest

spacing using fewer fixtures

Titan (Indoor/Outdoor)

Vandal proof vertical lamp luminaire

for use in parking garages,

canopies, stairwells and hallways

with wattages up to 175 watts

•Heavy wall die-cast housing with

ceiling j-box, surface conduit, pole

mount or post top mounting options

Orion (Indoor)

Optimized vertical lamp parking

garage optics with wattages

up to 175 watts

•Die cast ballast housing with quick

install mounting mounting

•Prismatic acrylic reflector for excel-

lent vertical and horizontal lighting

Lamp Ceiling - with Quick Install Kit

Watts Base Clear Acrylic Reflector

§Indicates available ballasts:

CF – Compact Fluorescent, HP – High Pressure Sodium,

MH – Metal Halide, PS – Pulse Start Metal Halide

*For luminaires supplied with “Quick-Install” specify

voltage

Lamp With clear HID lamp - L

With coated HID lamp - CL

Compact Fluorescent Lamp By others

Induction Lamp Consult Factory

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter HPS Only - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Tamper Proof - TP

Reflector - 12” Acrylic

Replace “-A12” with Opaque white finish - O12W

12” - Translucent white finish - T12W

Reflector - 12” Polycarbonate

Replace “-A12” with – 12” Clear - P12

Mounting

Ceiling – Quick Install

Mounts on 4” junction box See above

–Surface

Drilled for bolting to the ceiling - CE

–Side Entry

Two 1/2” side entries, two plugs - SE

Pendant – 3/4” top entry - PD

Color White Standard

Other Colors Consult Factory

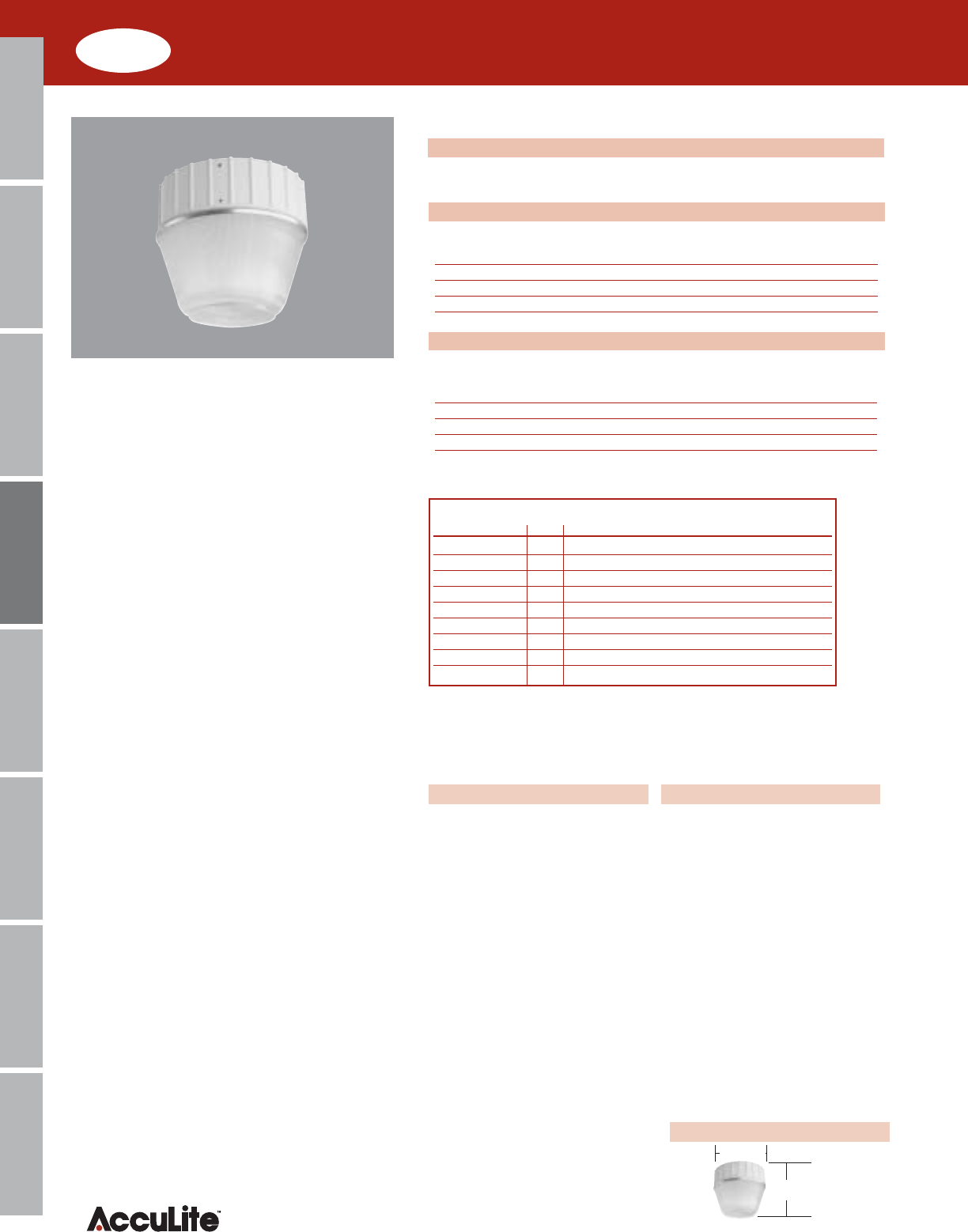

Orion™ Parking Garage Luminaire

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Dimensions

Triple or quad tube lamp

26 CFTR26W/GX24Q OR26CF-volts-A12

32 CFTR32W/GX24Q OR32CF-volts-A12

42 CFTR42W/GX24Q OR42CF-volts-A12

57 CFTR57W/GX24Q OR57CF-volts-A12

70 CFTR70W/GX24Q OR70CF-volts-A12

35 Medium OR35HP-volts-A12

50 “ OR50HP-volts-A12

70 “ OR70HP-volts-A12

100 “ OR100HP-volts-A12

150 “ OR150HP-volts-A12

50 Medium OR50PS-volts-A12

70 “ OR70PS-volts-A12

100 “ OR100PS-volts-A12

150 “ OR150PS-volts-A12

175 “ OR175PS-volts-A12

175 Medium OR175MH-volts-A12

High Pressure Sodium

Metal Halide

Pulse Start Metal Halide

13-1/2”

12-1/2”

Optics

•Acrylic 12” reflector with prisms arranged to provide

good vertical and horizontal illumination, comfortable

ceiling illumination.

•Choice of three reflectors – clear, translucent white or

opaque white.

•Clear acrylic dome permanently attached to the

reflector.

Relamping

•Fast and easy with a twist off lens assembly.

Vertical Lamp Position

•Metal halide lamps when mounted base up, give

10% to 20% more light than fixtures with

horizontal positioned metal halide lamps.

•Lamp life for base up MH lamps is up to 25% longer

than the same lamp mounted horizontally.

Aluminum Housing

•Heavy wall die cast aluminum housing for quiet, cool

operation.

Mounting

•Ceiling – With Quick Install kit – Mount the adapter

plate on a standard 4” octagonal junction box, hang the

luminaire on the built in hook, wire the luminaire then

secure a set screw.

•Pendant – Rigid mount with 3⁄4” conduit.

•Ceiling, Surface Mount – Ballast is drilled to mount

directly to the ceiling over a recessed junction box.

•Ceiling, Side Entry – With two 1/2” tapped side entries

and two plugs.

•Single concealed set screw secures optical assembly in

place. A tamper proof option is available.

Finish

•White polyester powder coat finish.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

Pulse Start MH -40°C, HPS -40°C, CF -18˚C

Wide Distribution—

Install Fewer Luminaires

With A12 Reflector

With T12W Reflector

With O12W Reflector

Quick Install Assembly

Options

Description Suffix

Compact Fluorescent

Consult Factory

Induction Lamp

Description Suffix

Primary Voltage Availability § – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 26W 32W 35W 42W 50W 57W 70W 100W 150W 175W

Magnetic Ballast

120V - 120 ––HP – HP/PS – – – – –

208V - 208 ––––––HP/PS HP/PS HP/PS MH/PS

240V - 240 ––––––HP/PS HP/PS HP/PS MH/PS

277V - 277 ––HP – HP/PS – – – – –

347V - 347 ––––––HP/PS HP/PS HP/PS MH/PS

120/208/240/277V - QT * ––––––HP/PS HP/PS HP/PS MH/PS

120/277/347V - TT * ––––––HP/PS HP/PS HP/PS MH/PS

480V - 480 –––––– – PSPSMH/PS

Electronic Ballast

Consult lamp manufacturer for lamp/ ballast compatibility when specifying pulse start metal halide lamp with electronic ballasts.

120 thru 277V - UN CF CF – CF PS CF CF/PS PS PS PS

347V - 347 CF CF – CF PS CF CF/PS PS PS –

§Indicates available ballasts:

HP – High Pressure Sodium, MH – Metal Halide, PS – Pulse Start Metal Halide

*For luminaires supplied with “Quick-Install” specify voltage

Primary Voltage Availability § – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 35W 50W 70W 100W 150W 175W

Magnetic Ballast

120V - 120 HP HP/PS – – – –

208V - 208 ––HP/PS HP/PS HP/PS MH/PS

240V - 240 ––HP/PS HP/PS HP/PS MH/PS

277V - 277 HP HP/PS – – – –

347V - 347 ––HP/PS HP/PS HP/PS MH/PS

120/208/240/277V - QT * ––HP/PS HP/PS HP/PS MH/PS

120/277/347V - TT * ––HP/PS HP/PS HP/PS MH/PS

480V - 480 –––PSPSMH/PS

Uses Vertical Lamp

50 Medium NL2-50PS-volts

70 “ NL2-70PS-volts

100 “ NL2-100PS-volts

150 “ NL2-150PS-volts

175 “ NL2-175PS-volts

Uses Vertical Lamp

175 Medium NL2-175MH-volts

Metal Halide

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Nitelyte™ II Parking Garage Luminaire

Optics

•Acrylic 12” refractor with prisms arranged to provide

good vertical and horizontal illumination, comfortable

low level ceiling illumination while eliminating hot spots

under the fixture.

Relamping

•Fast and easy with a hinged lens assembly.

Vertical Lamp Position

•Metal halide lamps when mounted base up, give

10% to 20% more light than fixtures with

horizontal positioned metal halide lamps.

•Lamp life for base up MH lamps is up to 25% longer

than the same lamp mounted horizontally.

Aluminum Housing

•Heavy wall die cast aluminum housing for quiet, cool

operation.

Mounting

•Ceiling – With Quick Install kit – Mount the adapter

plate on a standard 4” octagonal junction box, hang the

luminaire on the built in hook, wire the luminaire then

secure a set screw.

•Pendant – Rigid mount with 3⁄4” conduit.

•Ceiling, Surface Mount – Ballast is drilled to mount

directly to the ceiling over a recessed junction box.

Furnished with two 1/2” tapped side entries and two

plugs.

•Single concealed set screw secures optical assembly in

place. A tamper proof option is available.

Finish

•White polyester powder coat finish.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

Pulse Start MH -40°C, HPS -40°C, CF -18˚C

Lamp Ceiling - with Quick Install Kit

Watts Base Clear Acrylic Reflector -NEMA V

Uses Vertical Lamp

35 Medium NL2-35HP-volts

50 “ NL2-50HP-volts

70 “ NL2-70HP-volts

100 “ NL2-100HP-volts

150 “ NL2-150HP-volts

NL2

Wide Distribution—

Install Fewer Luminaires

NL2 With vertical metal

halide lamp

Pulse Start Metal Halide

High Pressure Sodium

Dimensions

13-1/2”

12-1/2”

NL2

Lamp With clear HID lamp - L

With coated HID lamp - CL

Compact Fluorescent Lamp By others

Induction Lamp Consult Factory

Quartz Auxiliary

Double contact bayonet base - Q

Quartz lamp not included

Protected Igniter HPS Only - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Tamper Proof - TP

Reflector - 12” Polycarbonate 12” Clear - P12

Reflector - NEMA II Consult Factory

Color White Standard

Other Colors Consult Factory

Mounting

Ceiling – Quick Install

Mounts on 4” junction box See above

–Surface

Two 1/2” side entries, two plugs

Drilled for bolting to the ceiling - CE

Two 1/2” side entries, two plugs

Pendant – 3/4” top entry - PD

Options

Description SuffixDescription Suffix

NEW

Wall Mount

Kit adapts ceiling mounted fixture

for wall mounting. (Includes internal

reflector and bracket) CPL-WM

Pole Mounting

Mounts to square pole -PM

Post Top Mounting

Adapts Titan™ luminaire for pole top

Tenon 2”IPS (2-3/8” OD) CPL-SFCA

Lamp With Clear Lamp - L

Pulse Start Ballast

150W only - PSB

50W, 70W, 100W MH Standard

Lamp Orientation

Vertical lamp (MH & HPS) See Above

Horizontal lamp (HPS Only) Change -VL to - HL

Protected Igniter

For HPS Luminaires - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Tamper Proof - TP

Color Bronze - Standard

White - WH

Black - BL

Lens Polycarbonate Standard

Acrylic (Max 100W) - AC

With Vertical Lamp (See options for horizontal lamp)

35 CPL35HP-volts-VL CPL35HP-volts-VL-PM

50 CPL50HP-volts-VL CPL50HP-volts-VL-PM

70 CPL70HP-volts-VL CPL70HP-volts-VL-PM

100 CPL100HP-volts-VL CPL100HP-volts-VL-PM

150 CPL150HP-volts-VL CPL150HP-volts-VL-PM

With Vertical Lamp

50 CPL50MH-volts-VL CPL50MH-volts-VL-PM

70 CPL70MH-volts-VL CPL70MH-volts-VL-PM

100 CPL100MH-volts-VL CPL100MH-volts-VL-PM

150 CPL150MH-volts-PSB-VL CPL150MH-volts-PSB-VL-PM

175 CPL175MH-volts-PSB-VL CPL175MH-volts-PSB-VL-PM

With Vertical Lamp

175 CPL175MH-volts-VL CPL175MH-volts-VL-PM

Metal Halide

Pulse Start Metal Halide

Accessories

Options

Description Suffix Description Catalog No.

Note: Indicates available ballasts: HP – High Pressure Sodium, MH – Metal Halide, PS– Pulse Start Metal Halide

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 35W 50W 70W 100W 150W 175W

120V - 120 HP HP/PS – – – –

120V Reactor NPF - 120NP HP HP HP HP HP –

120V Reactor HPF - 120R HP HP HP HP HP –

277V - 277 HP HP/PS – – – –

120/208/240/277V - QT ––HP/PS HP/PS HP/PS MH/PS

120/277/347V - TT ––HP/PS HP/PS HP/PS MH/PS

480V - 480 –––HP/PS HP/PS MH/PS

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

CPL

Pole Mount CPL

Post Top Mounting Bracket

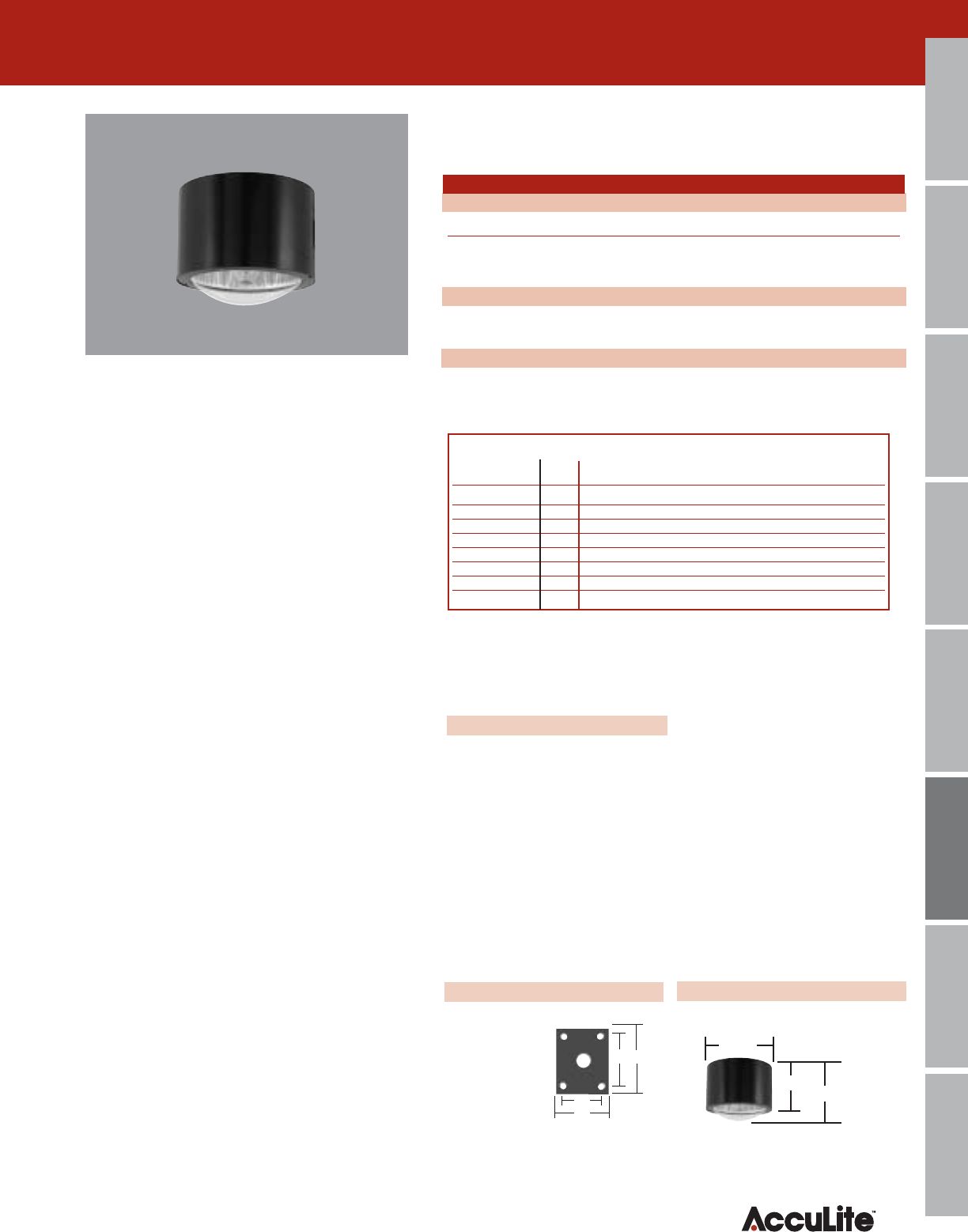

Titan™ Parking Garage and Canopy Lighting

8-5/8”

12-3/8”

1-1/4”

Optics

•Choice of standard polycarbonate or optional acrylic

lens. The internal prisms internal stay cleaner for better

maintained light levels.

Vertical Lamp Position

•Metal halide lamps when mounted base up, give

10% to 20% more light than fixtures with

horizontal positioned metal halide lamps.

•Lamp life for base up MH lamps is up to 25%

longer

Aluminum Housing

•Heavy wall die cast aluminum housing.

•Four plugged 1/2” entries for feed-thru or “T” wiring

plus provision for outlet box mounting.

Mounting

•Wall, ceiling, pendant, outlet box and pole mounting.

•Post top mounting. Adapts Titan™ for use in locations

such as walkways, gardens and any other area with

low mounting poles.

Finish

•Bronze polyester powder coat finish.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

CPL

Indoor/Outdoor

Vertical Metal Halide Lamp

Ceiling, Wall or Pole Mounting

Lamp Ceiling & Pole Mount

Watts Pendant Mount* Includes 6” Arm

CPL

Dimensions

Threaded Pole Bracket

Use 5/16 Bolt

12-3/8”

CPL

High Pressure Sodium

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

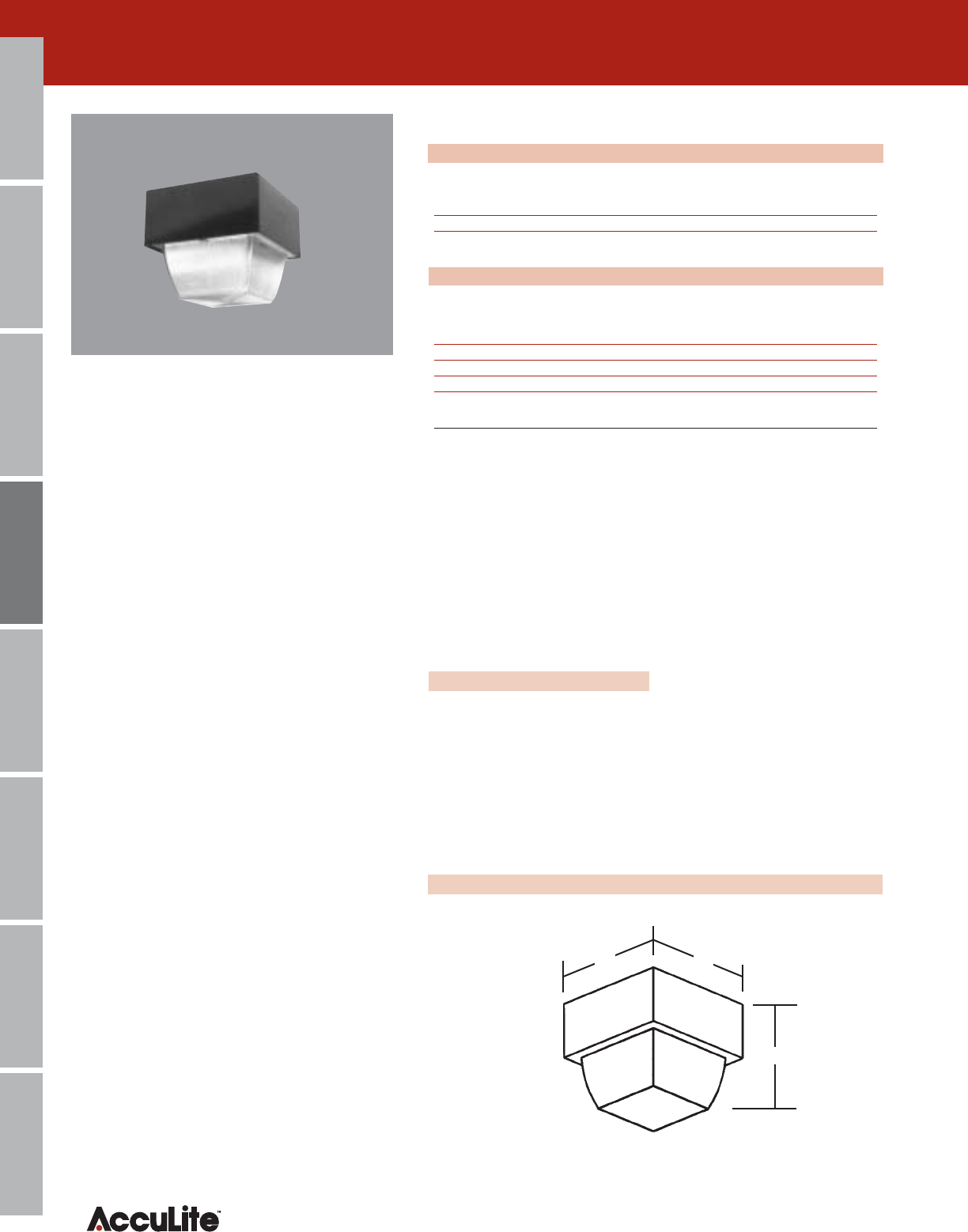

Accupark™ Parking Garage Luminaire

9” 9”

8-1/4”

Optics

•Designed for vertical, base up lamps. Prismatic U.V.

stabilized polycarbonate with low brightness and even

light characteristics. Anodized aluminum reflector.

Housing

•High strength steel housing. Gasketed lens.

Mounting

•Knockouts for ceiling and side entry.

Finish

•Bronze polyester powder coat finish.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

With Vertical Lamp

50 Medium 120 MPG50MH-120

70 ” “ MPG70MH-120

100 ” “ MPG100MH-120

Metal Halide

High Pressure Sodium

Lamp Lamp Ceiling Mount

Watts Base Ballast Catalog Number

With Vertical Lamp

35 Medium 120NPF MPG35HP-120NP

50 “ “ MPG50HP-120NP

70 ” “ MPG70HP-120NP

100 ” “ MPG100HP-120NP

150 ” “ MPG150HP-120NP

Options

Description Suffix

Lamp With clear lamp - L

Tamper Proof - TP

Color Bronze - Standard

White - WH

Black - BL

MPG

Rugged Steel Construction Select Voltage Suffix:

35-150W HPS Reactor NPF See Above 120V Only

Reactor HPF “-120R” 120V Only

50-100W MH 50-100W See Above 120V Only

MPG

Dimensions

MPG

8”

21-1/2”

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

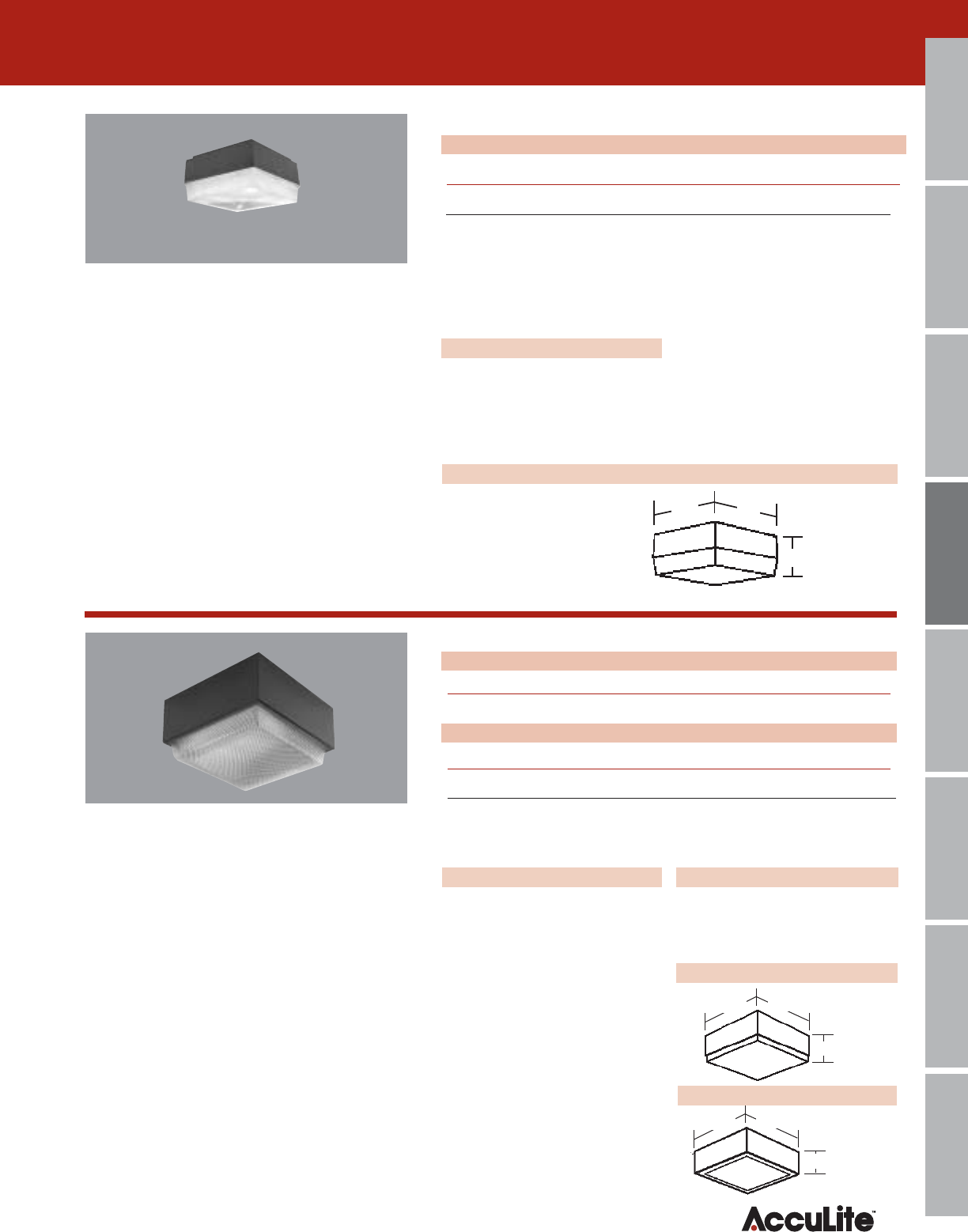

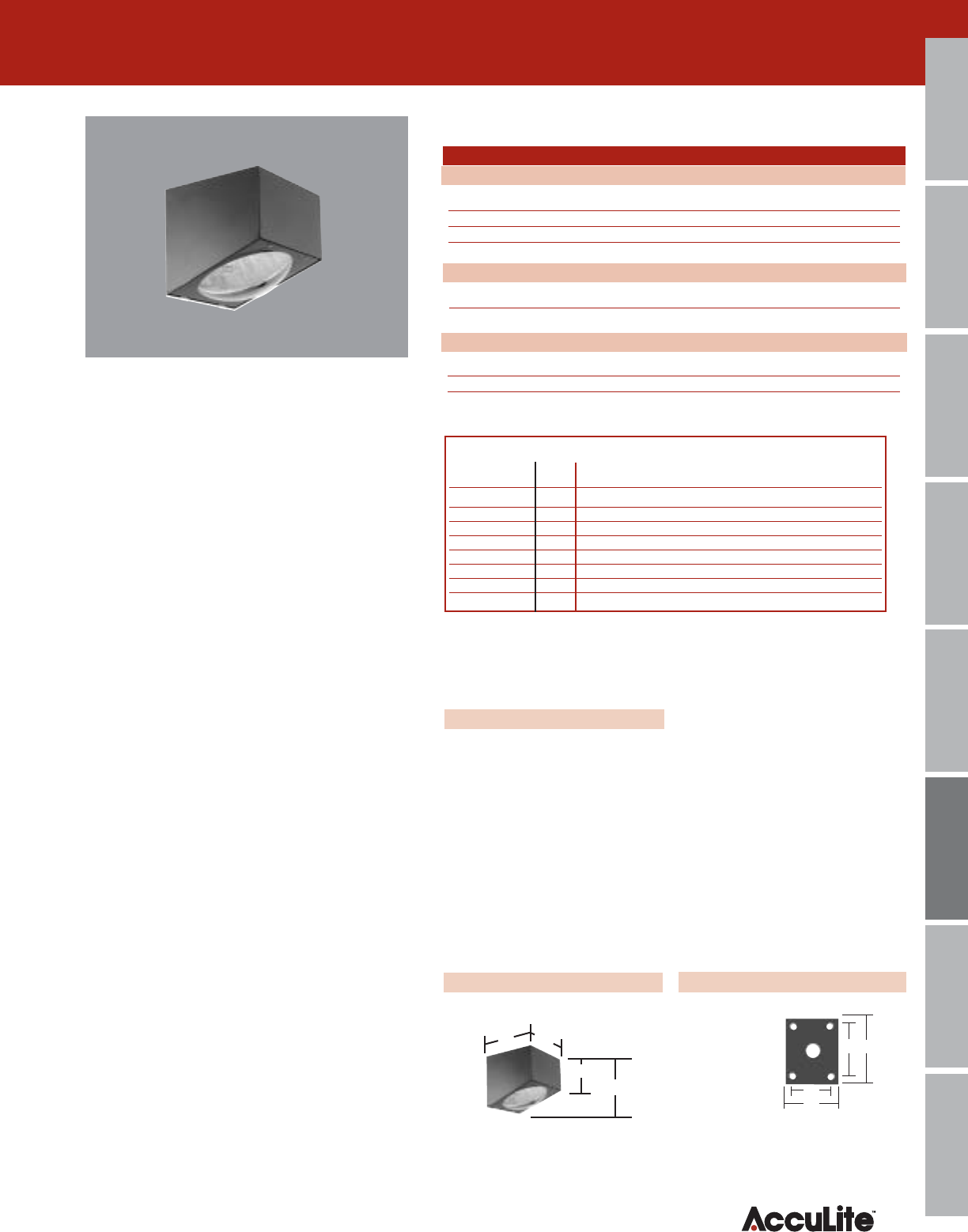

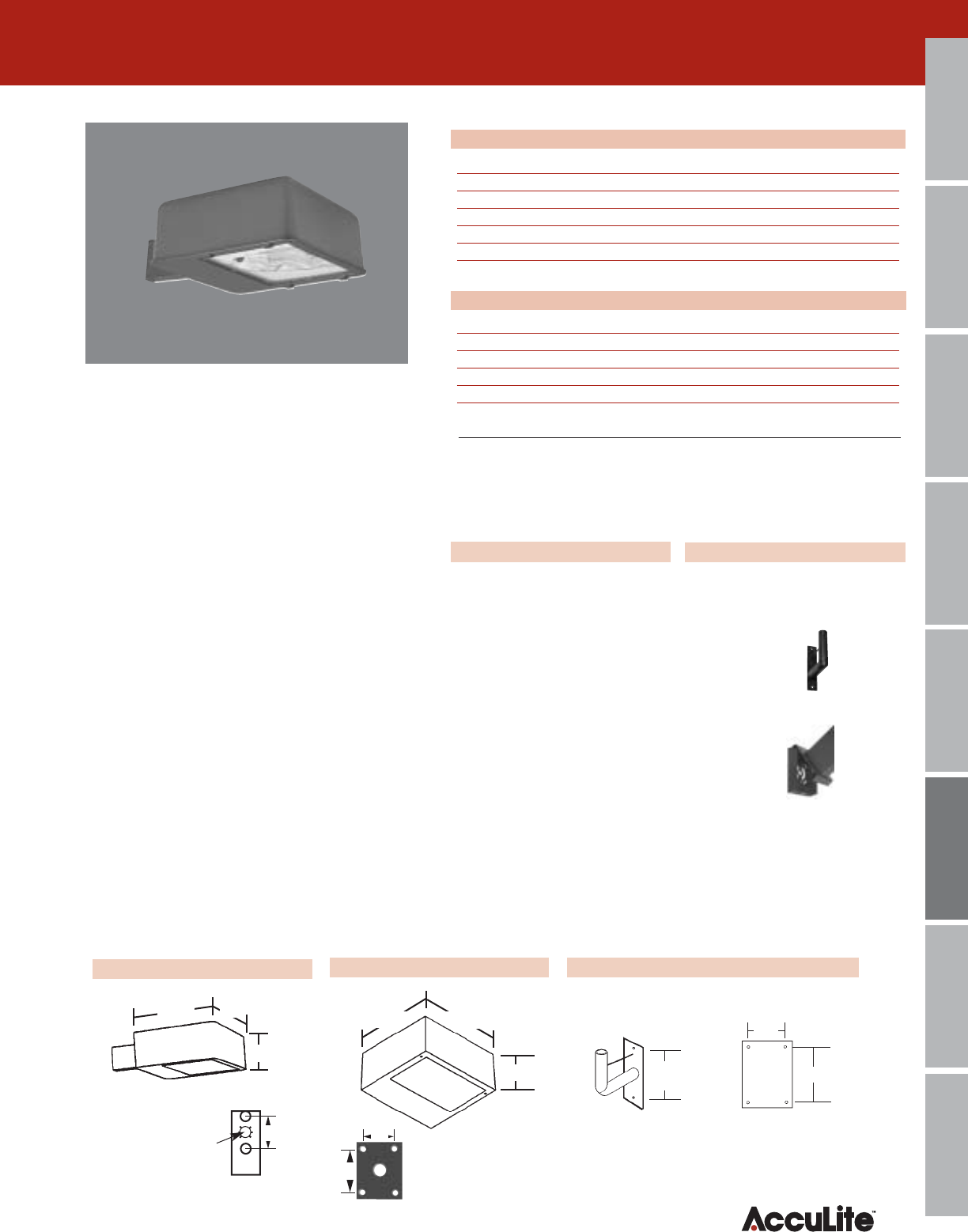

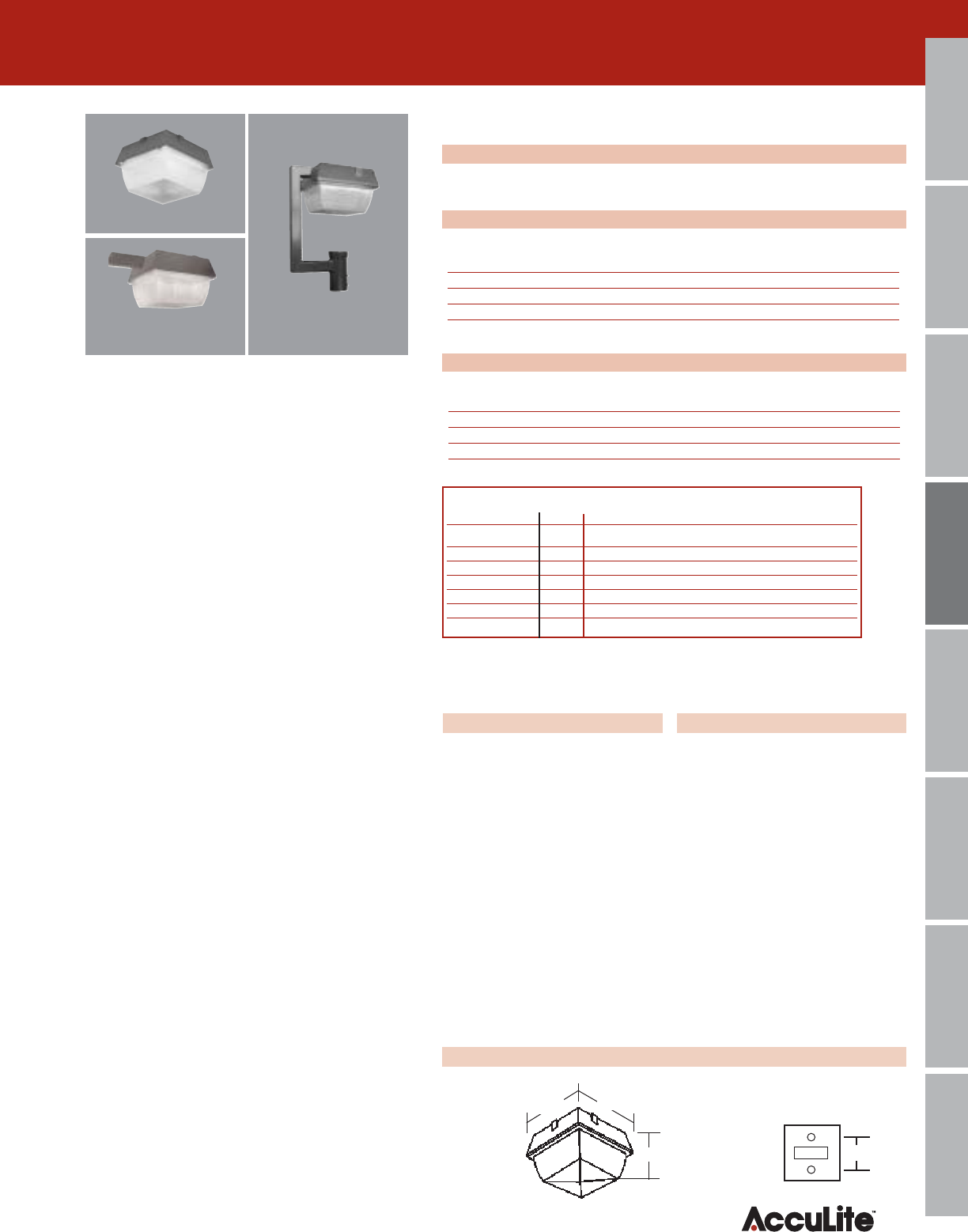

Accusquare™ Canopy Luminaires

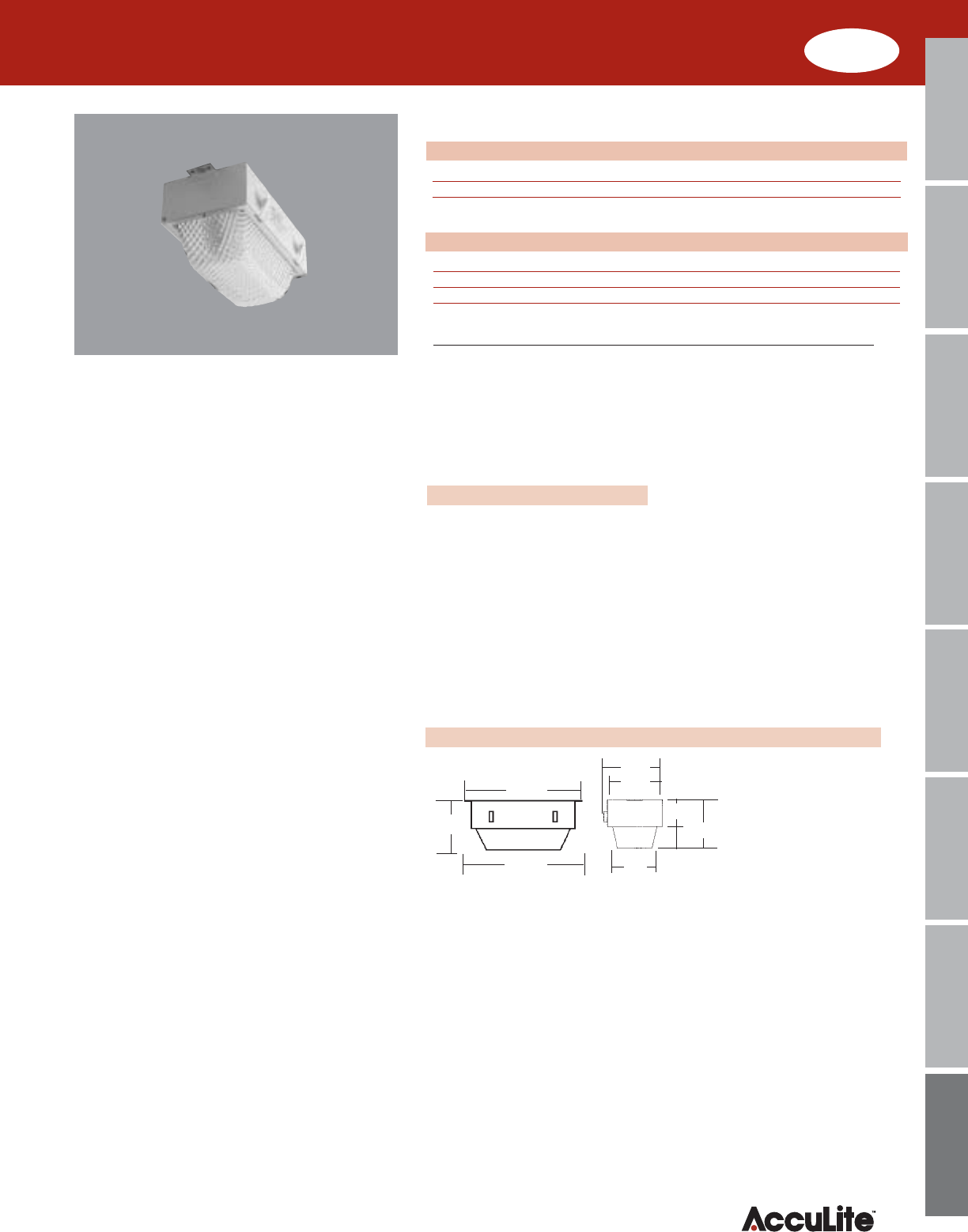

MCL

Low Wattage Canopy Lighting

5”

10”

Options

Description Suffix

Lamp With clear lamp - L

Tamper Resistant Hardware - TP

High Pressure Sodium

35 Medium MCL35HP-120NP MCL35HP-120

50 “ MCL50HP-120NP MCL50HP-120

Lamp Lamp

Watts Base 120V Normal Power Factor 120V High Power Factor

Optics

•Standard drop lens is injection molded acrylic.

Optional tempered prismatic flat glass or molded

polycarbonate drop lens.

Choice of Mounting

•Order with no external holes and drill on site to match

the existing installation, order predrilled for ceiling

mount or order for pole mounting.

Rugged Construction

•Heavy duty steel construction. Bronze polyester powder

coat finish.

Indoor or Outdoor Use

•Certified for both indoor and outdoor use CL series is

gasketed to keep out moisture and dirt.

Ballasts

•Tray mounted.

•Standard HPF ballasts have a minimum starting temp-

erature – HPS-40°C MH-30°C.

Low Mounting Heights

•Designed for canopies from 8 to 12 feet high.

Housing

•Injection molded one piece polycarbonate housing.

Optics

•I.E.S. Type V prismatic lens, molded from UV

stabilized polycarbonate and hydro-formed aluminum

reflector.

Indoor or Outdoor Use

•Certified for both indoor and outdoor use.

Mounting

•Mounts to a standard 4” box.

Ballasts

•Standard high pressure sodium high power factor

ballasts. Optional normal power factor ballast.

High Wattage Canopy Lighting

MCL

Dimensions

* Furnished with North American lamp and North American 120V NPF ballast.

Bronze Finish. Optional White add suffix -WH

Note: Only available for 120V.

250 Mogul CL250MH-volts CL250MH-volts-CE CL250MH-volts-PM

400 “ CL400MH-volts CL400MH-volts-CE CL400MH-volts-PM

Metal Halide

High Pressure Sodium

Lamp Lamp No Ceiling Pole Mounting (Order

Watts Base External Holes Mount Mounting Arm Separately)

250 Mogul CL250HP-volts CL250HP-volts-CE CL250HP-volts-PM

400 “ CL400HP-volts CL400HP-volts-CE CL400HP-volts-PM

Voltage Suffix: change “volts” to – “- QT” Quad Tap: 120V, 208V, 240V, 277V ,

“- TT” Tri Tap: 120V, 277V, 347V ,

“- 480” 480V

Lamp With Clear Lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Photocontrol Receptacle

480V photocontrol receptacle only

Photocontrol supplied by others - PCR

Lens

Flat tempered prismatic glass - TPG

Polycarbonate Drop Lens - PDL

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Color Bronze - Standard

White - WH

Black - BL

Mounting Arm

8” extension

Bronze CL-8AM-BZ

11”

21-1/2”

Accessories

Options

Description Suffix Description Catalog No.

Dimensions

CL - Standard Drop Lens

CL - Optional Flat Prismatic Lens

MCL

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

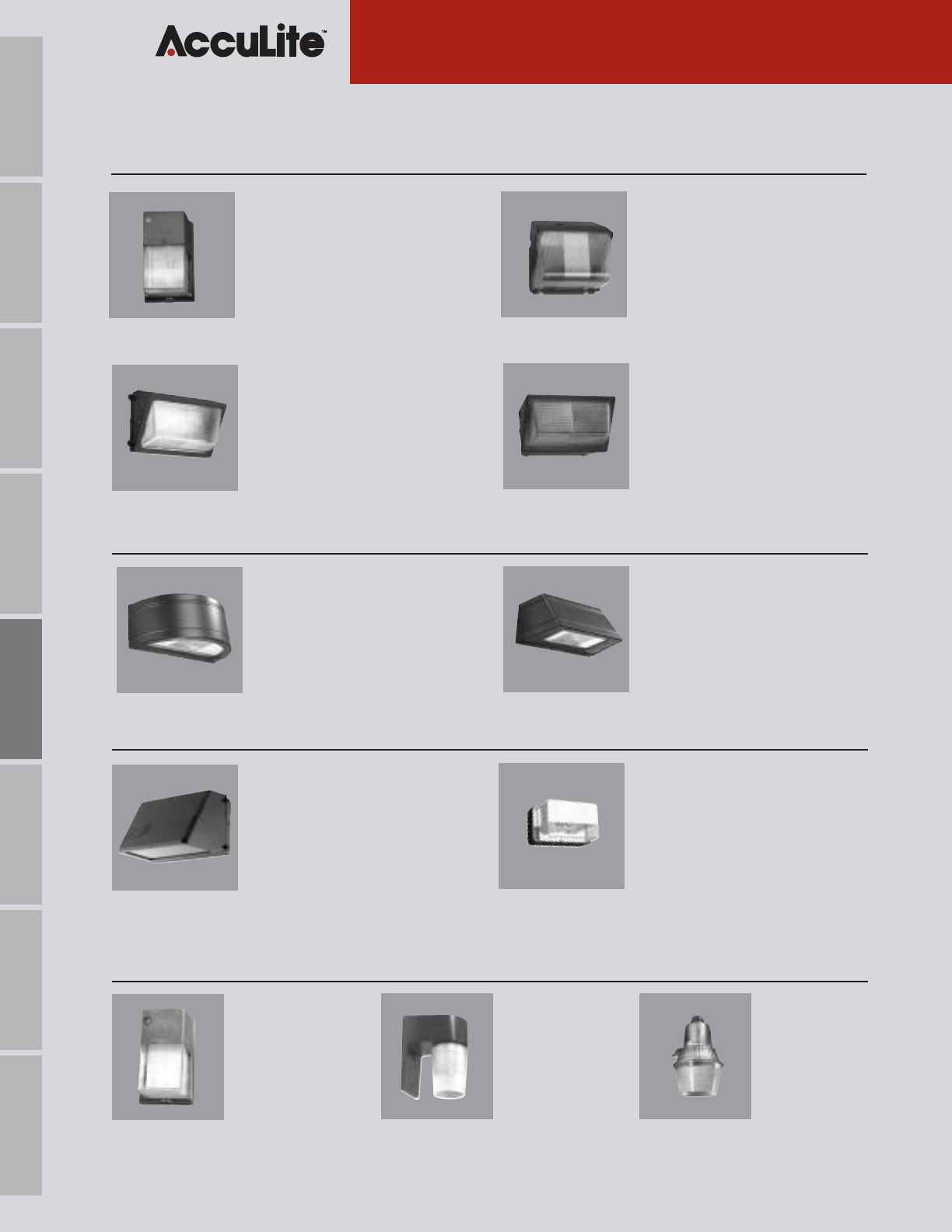

Security Lighting

Standard Wall Mounted Security Lighting

Controlled Cut-Off Wall Mounted Security Lighting

Economy Wall Mounted Security Lighting

Outdoor Wall Mounting

Accupak MWP

Low wattage wall pack for MH

lamps up to 100 watts and HPS

lamps up to 150 watts

•Die cast aluminum back plate with

injection molded one-piece vandal

resistant lens/cover

Accupak WLS

Low wattage wall pack for HPS

lamps up to 100 watts

•Die cast housing with injection

molded one-piece polycarbonate

lens/cover

Decorative Dark Sky Wall Pack

For Full Cut-Off Applications

Medium wattage model for lamps up

to 175 watts and high wattage models

for 250 watt and 400 watt

•Die cast aluminum construction with

tempered glass lens

Perimeter and Horizontal

Cut-Off Wall Packs

Low brightness, cut-off with lateral

distribution for perimeter applica-

tions

•Die cast back aluminum housing

with one-piece polycarbonate lens

and internal light shroud

Wall-Lux

Low wattage

economy wall pack

for HPS lamps up to

70 watts

•Die cast back alu-

minum back plate

with one-piece

polycarbonate lens

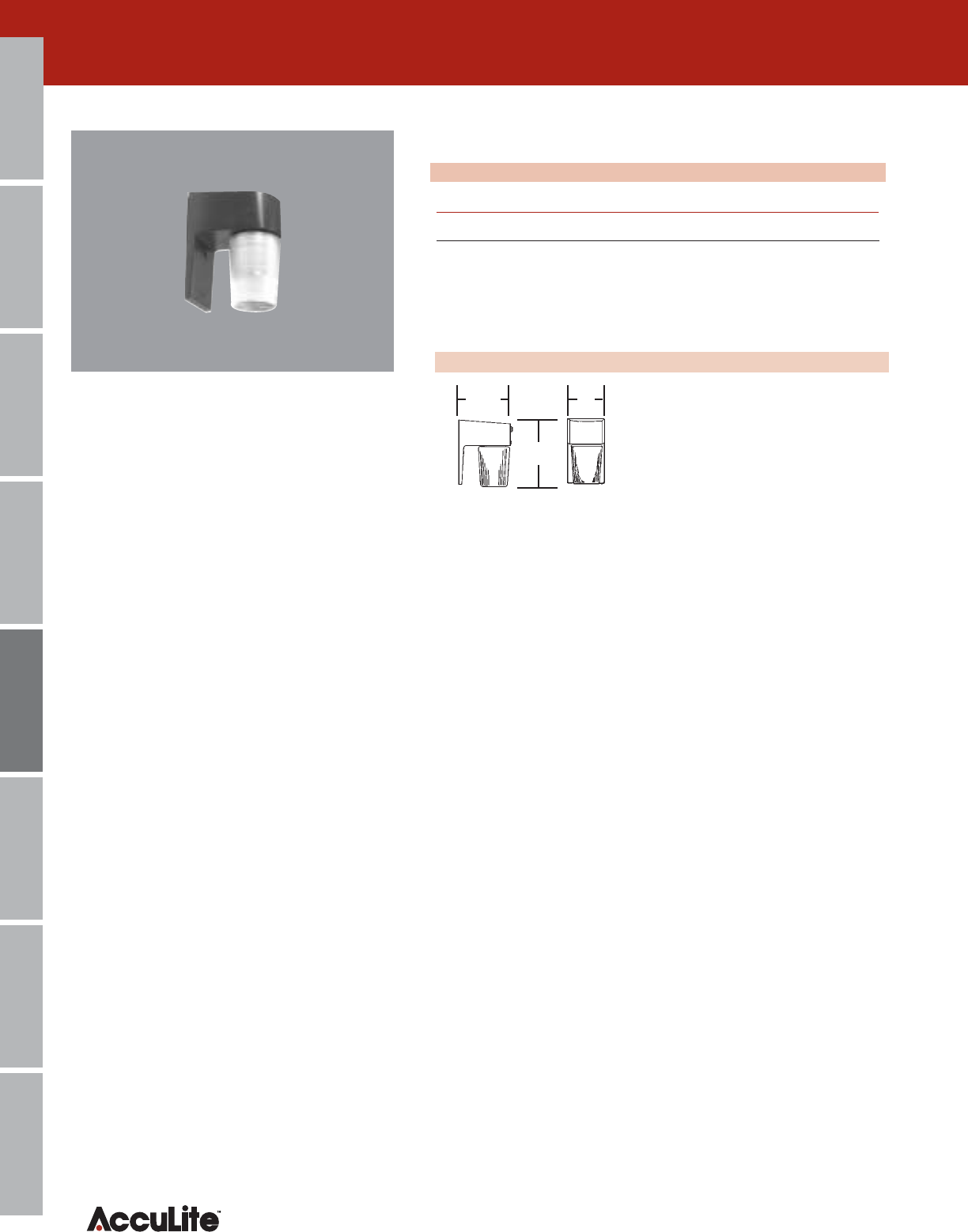

Secure-Lux

Low wattage cylin-

drical style security

light for HPS lamps

up to 50 watts.

•Polycarbonate

luminaire with

cylindrical lens

Accupak WP

Medium wattage wall pack for MH

lamps up to 175 watts and HPS

lamps up to 150 watts

•Die cast aluminum housing and

door with borosilicate glass lens

Accupak WMLM & WLL

High wattage wall pack for lamps up

to 400 watts

•Die cast aluminum housing and

door with borosilicate glass lens

Architectural Cut-Off Wall Mounted Security Lighting

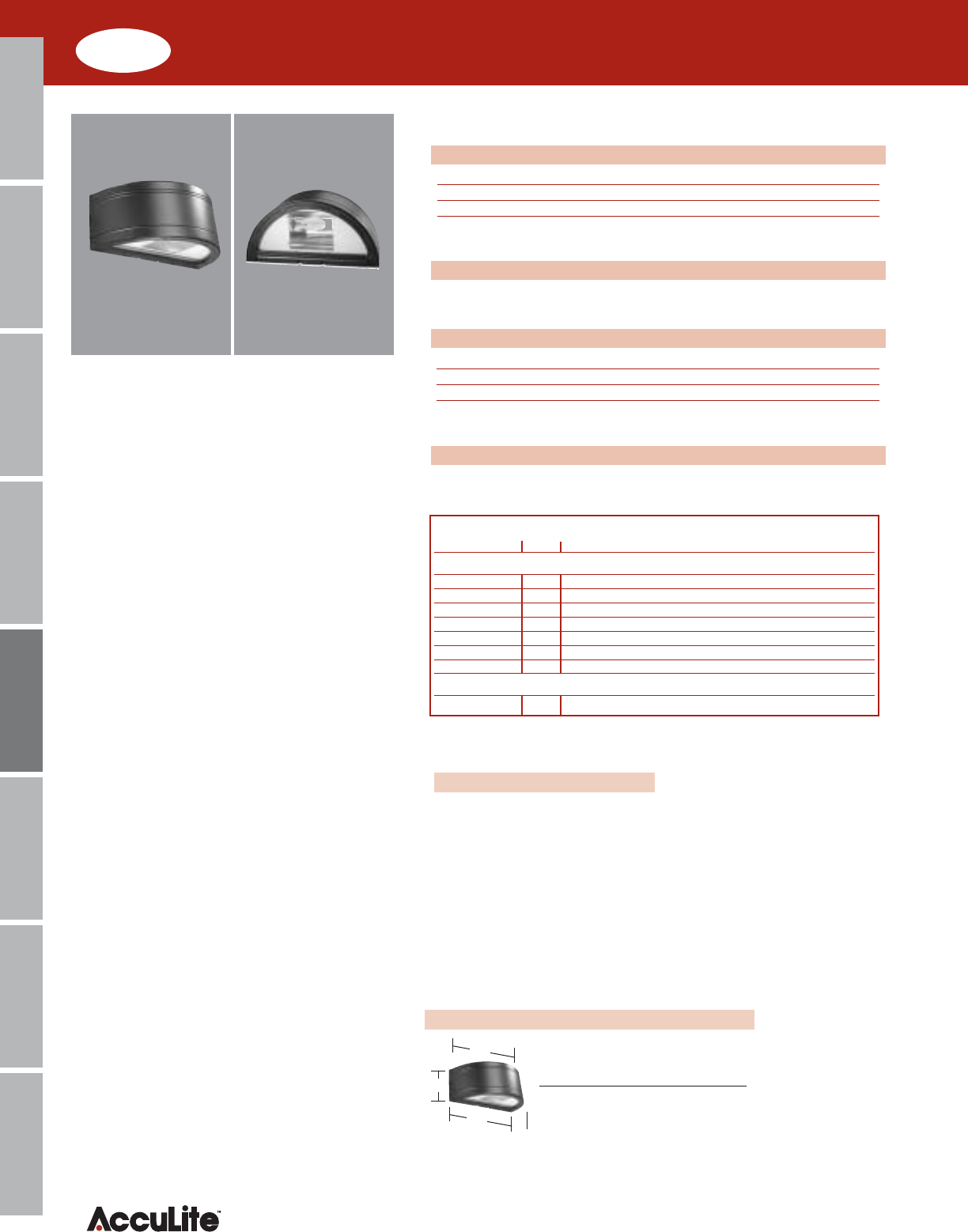

Polaris - Half Sphere

Low wattage wall pack for MH

lamps up to 175 watts and HPS

lamps up to 150 watts

•Specification grade die cast alu-

minum with “Easy Install mounting

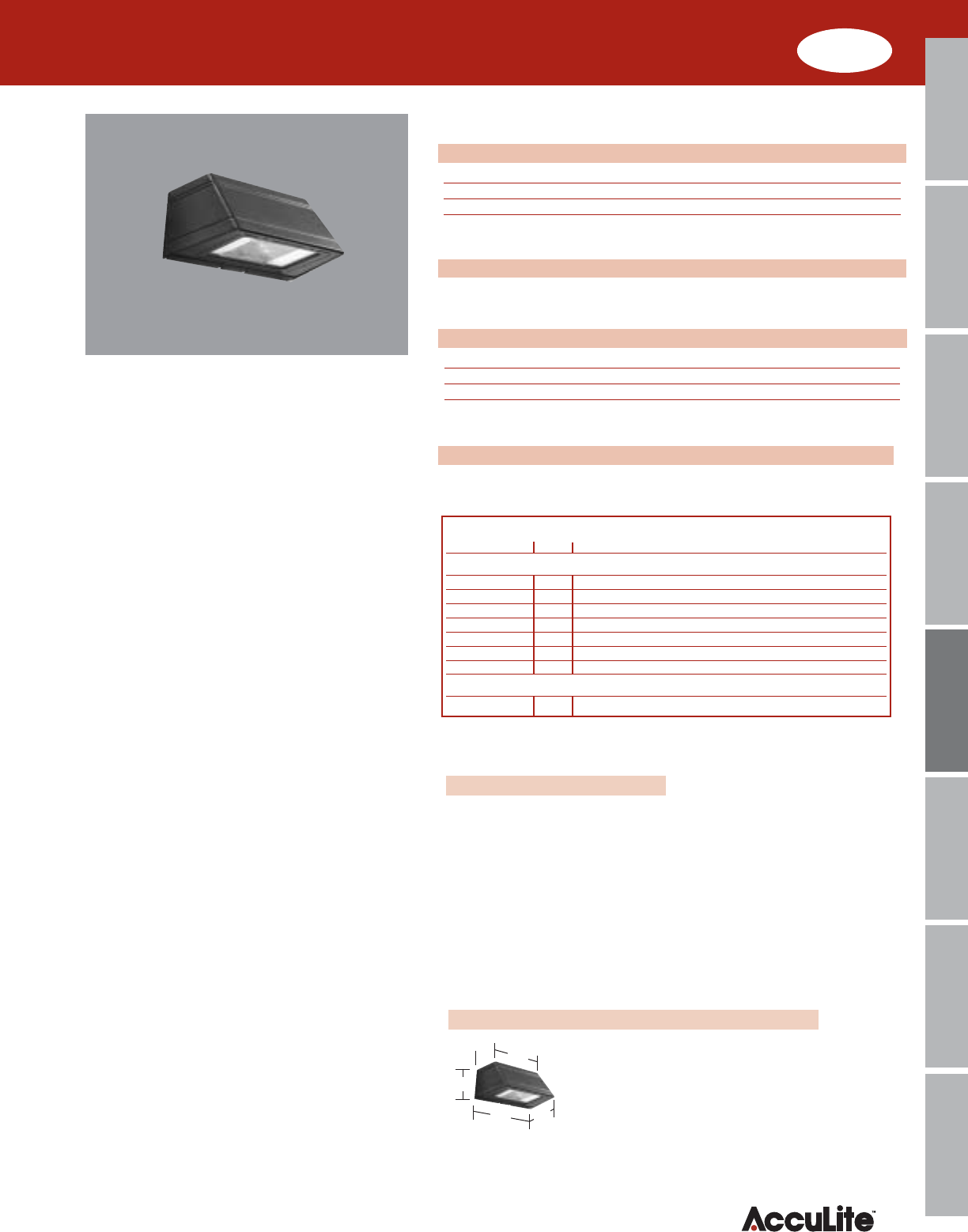

Polaris - Trapezoid

Low wattage wall pack for MH

lamps up to 175 watts and HPS

lamps up to 150 watts

•Specification grade die cast alu-

minum with “Easy Install mounting

TwiLiter

Dusk to dawn

lighting

•With high pressure

sodium or mercury

vapor lamps

Note: Indicates available ballasts: HP – High Pressure Sodium, MH – Metal Halide

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

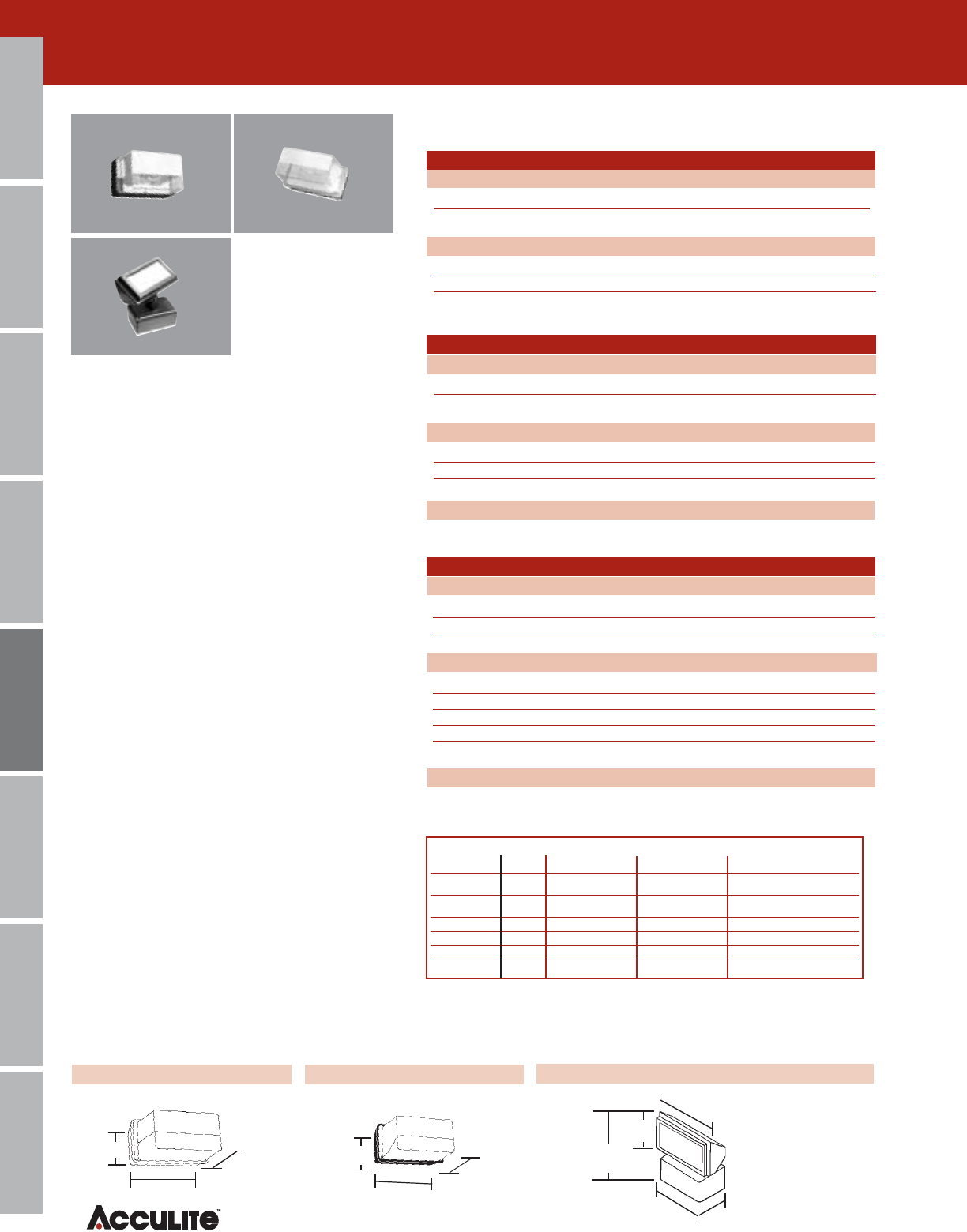

Accupak™ Wall Mounted Security Lighting

14”

5-1/2”

8-1/2”

MWP

Cast Mounting Plate

One Piece Cover

Wide Lamp Range Available

•Available with medium based lamps – 50 thru 100 watt

Metal Halide and 35 thru 150 watt High Pressure

Sodium lamps.

Cool Operating

•Larger housing and one piece cast mounting plate

dissipates heat more quickly.

Easy Installation

•Installation is simplified with both cast in bosses for

3-1/2” or 4” outlet boxes and a 1/2” bottom entry for

conduit.

One Piece Cover

•Vandal resistant lens/cover assembly with a

combination of internal and external prisms for

light control.

•HPS – Polycarbonate.

•MH – Acrylic.

•Gasketed at both the lens and junction box.

Photocontrol

•Mounted inside the fixture.

Finish

•Standard bronze.

•Optional black and white.

•External hardware is stainless steel.

Ballasts

•Available with reactor (NPF and HPF) and

CWA ballasts.

50 Medium MWP50MH-volts-KA

70 ” MWP70MH-volts-KA

100 ” MWP100MH-volts-KA

Metal Halide

High Pressure Sodium

Lamp Lamp

Watts Base Catalog Number

35 Medium MWP35HP-volts

50 ” MWP50HP-volts

70 ” MWP70HP-volts

100 ” MWP100HP-volts

150✩”MWP150HP120NP✩

✩ Available with reactor ballast only.

Options

Description Suffix

Lamp With clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage - PC (volts)

Tamper Resistant Hardware - TP

Color

MWP Series Only White - WH

Black - BL

MWP

Dimensions

MWP

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 35W 50W 70W 100W 150W

120V - 120 HP HP/MH – – –

120V Reactor NPF - 120NP HP HP HP HP HP

120V Reactor HPF - 120R HP HP HP HP HP

277V - 277 HP HP/MH – – –

120/208/240/277V - QT ––HP/MH HP/MH –

120/277/347V - TT ––HP/MH HP/MH –

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Accupak™ Wall Mounted Security Lighting

9-3/8”

7”

8-1/2”

WLS

Polycarbonate Lens

Cast Mounting Plate

Cool Operating Die Cast Housing

•One piece die cast mounting plate dissipates heat

quickly. Standard bronze finish.

Easy Installation

•Cast in bosses for 3-1/2” or 4” outlet box and a 1/2”

bottom entry for conduit.

One Piece Polycarbonate Cover

•One piece polycarbonate hinged lens / cover

assembly.

•Internal prisms stay clean.

•Gasketed lens and junction box.

Medium Based Lamps

•Available with 35 thru 100W medium based HPS

lamps.

Socket

•Specification grade porcelain lampholder.

Ballasts

•Select 120V high or normal power factor

reactor ballast.

High Pressure Sodium

Lamp Lamp Normal Power High Power

Watts Base Factor Factor

35 Medium WLS35HP-120NP WLS35HP-120R

50 ” WLS50HP-120NP WLS50HP-120R

70 ” WLS70HP-120NP WLS70HP-120R

100 ” WLS100HP-120NP WLS100HP-120R

Options

Description Suffix

Lamp With clear lamp - L

Photocontrol - PC

Tamper Resistant Hardware - TP

WLS

Dimensions

WLS

Note: Indicates available ballasts: HP – High Pressure Sodium, MH – Metal Halide

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

175W WP

with Full Cut-Off Shield

Accupak™ Wall Mounted Security Lighting

9 ”

7-1/2”

13”

Gasketed Glass Lens

•Ideal for areas of high vandalism. The glass lens is

gasketed and secured mechanically eliminating silicone

sealants.

•Lens replacement is easy, just remove four screws and

insert a new lens.

“Dark Sky” Cut-Off Visor

•Optional visor meets IES Full Cut-Off requirements.

Side Hinged Door

•Side hinged to free up both hands during relamping, the

door is keyed to prevent accidental removal.

Construction

•Die cast aluminum, bronze polyester powder coat finish,

borosilicate glass lens.

•Silicone rubber gaskets.

•External hardware is stainless steel.

Easy Installation

•Bosses for 3-1/2” or 4” outlet boxes, three 1/2” conduit

entries.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

50 Medium WP50MH-volts

70 ” WP70MH-volts

100 ” WP100MH-volts

150 “ WP150MH-volts

175 Mogul WP175MH-volts

Metal Halide

High Pressure Sodium

Lamp Lamp

Watts Base Catalog Number

70 Medium WP70HP-volts

100 ” WP100HP-volts

150 ” WP150HP-volts

Options

Description Suffix

Lamp With clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Tamper Resistant Hardware - TP

Accessories

Description Catalog No.

Guard

Wire M-WG

Polycarbonate M-PG

Visor

IES Classification:Full Cut-Off WP-FC

Gasketed Glass Lens

Cast Aluminum Body

Dimensions

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 35W 50W 70W 100W 150W 175W

120V - 120 HP HP/MH – – – –

120V Reactor NPF - 120NP HP HP HP HP HP –

120V Reactor HPF - 120R HP HP HP HP HP –

277V - 277 HP HP/MH – – – –

120/208/240/277V - QT ––HP/MH HP/MH HP/MH MH

120/277/347V - TT ––HP/MH HP/MH HP/MH MH

480V - 480 –––HP/MH HP/MH MH

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Accupak™ Wall Mounted Security Lighting

9”

12-3/4”

18”

9”

9-3/4”

18”

“Dark Sky” Cut-Off Visor

•Optional visor meets IES Full Cut-Off requirements.

Hinged Door

•Hinged to free up both hands during relamping, the

door is keyed to prevent accidental removal.

Construction

•Die cast aluminum, bronze polyester powder coat finish,

borosilicate glass lens.

•Silicone rubber gaskets.

•External hardware is stainless steel.

Easy Installation

•Installation is simplified with both cast in bosses for

3-1⁄2” or 4” outlet boxes and plugged entries for

1⁄2” conduit.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting

MH-30°C, HPS -40°C

250 Mogul WMLM250MH-volts

400 ” WLL400MH-volts

Metal Halide

High Pressure Sodium

Lamp Lamp

Watts Base Catalog Number

250 Mogul WMLM250HP-volts

400 ” WLL400HP-volts

Options

Description Suffix

Lamp With clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Tamper Resistant Hardware - TP

Accessories

Description Catalog No.

Guard

Wire L-WG

Polycarbonate L-PG

Visor

IES Classification:Full Cut-Off WLL-FC

WMLM & WLL

Gasketed Glass Lens

Cast Aluminum Body

WLL WMLM

Dimensions

WMLM

250W WLL

400W

WLL

with Full Cut-Off Shield Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

50W - 175W 9” 13-1/4” 11-1/2”

250W -400W 9 13-3/4 17-1/2

50 Medium DW50MH-volts

70 ” DW70MH-volts

100 ” DW100MH-volts

150 “ DW150MH-volts

175 Mogul DW175MH-volts

250 “ DW250MH-volts

400 “ DW400MH-volts

Dark SkyFull Cut-Off Security Lighting

Note: Indicates available ballasts: HP – High Pressure Sodium, MH – Metal Halide

175W DW

250W

“Dark Sky” Cut-Off

•Meets IES Full Cut-Off requirements. Designed for use

where dark sky requirements are in force.

Sculptured Profile

•Sculptured housing features molded highlights for an

aesthetically pleasing appearance.

Gasketed Glass Lens

•Ideal for areas of high vandalism. The tempered glass

lens is gasketed and secured mechanically eliminating

silicone sealants.

Side Hinged Door

•Side hinged to free up both hands during relamping, the

door is keyed to prevent accidental removal.

Construction

•Die cast aluminum, bronze polyester powder coat finish,

tempered glass lens.

•Silicone rubber gaskets.

•External hardware is stainless steel.

Easy Installation

•Bosses for 3-1/2” or 4” outlet boxes, three 1/2” conduit

entries.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

Metal Halide

High Pressure Sodium

Lamp Lamp

Watts Base Catalog Number

70 Medium DW70HP-volts

100 ” DW100HP-volts

150 ” DW150HP-volts

250 Mogul DW250HP-volts

400 ” DW400HP-volts

Options

Description Suffix

Lamp With clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Tamper Resistant Hardware - TP

Full Cut-Off Security Lighting

for Dark Sky Applications Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 35W 50W 70W 100W 150W 175W 250W 400W

120V - 120 HP HP/MH – – – – HP/MH HP/MH

120V Reactor NPF - 120NP HP HP HP HP HP – – –

120V Reactor HPF - 120R HP HP HP HP HP – – –

277V - 277 HP HP/MH – – – – HP/MH HP/MH

120/208/240/277V - QT –MHHP/MH HP/MH HP/MH MH HP/MH HP/MH

120/277/347V - TT –MHHP/MH HP/MH HP/MH MH HP/MH HP/MH

480V - 480 –– –HP/MH HP/MH MH HP/MH HP/MH

DW H D W

Dimensions

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Dimensions

Full Cut-Off

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

PolarisFull Cut-Off Security Lighting

Width Width

@ Bottom @ Top Diameter Height

18-1/8” 17-3/4” 9-1/4” 7-1/8”

“Dark Sky” Half Sphere Styling

•Half round luminaire with downlight optics meets IES

Full Cut-Off standards.

“Up-Down” Optics

•Optional Up/Down optics are available to accent

facade and highlight the buildings features.

“Easy-Install” Mounting

•Mount the bracket to a standard 3-1/2” or 4” junction

box. Using the built-in level, align the bracket and

secure it. Hang the luminaire and secure with two heavy

duty set screws

Construction

•Heavy duty die cast aluminum housing, bronze

polyester powder coat finish, borosilicate glass lens.

•Concealed cover screws secure the door assembly.

•Silicone rubber gaskets.

•External hardware is stainless steel.

Socket

•Specification grade medium base porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting

MH-30°C, HPS -40°C

Decorative Security

and Accent Lighting

DR W1 W2 D H

Up / Down Style (bottom view)

NEW

Note: Indicates available ballasts: HP – High Pressure Sodium, MH – Metal Halide, CF – Compact Fluorescent

Lamp Lamp Catalog Number Catalog Number Catalog Number

Watts Base Wide Beam Forward Throw Up / Down

175 Medium DR175MH-volts DR175MH-volts-FT DR175MH-volts-UD

50 Medium DR50MH-volts DR50MH-volts-FT DR50MH-volts-UD

70 Medium DR70MH-volts DR70MH-volts-FT DR70MH-volts-UD

100 Medium DR100MH-volts DR100MH-volts-FT DR100MH-volts-UD

150 Medium DR150MH-volts DR150MH-volts-FT DR150MH-volts-UD

50 Medium DR50HP-volts DR50HP-volts-FT DR50HP-volts-UD

70 Medium DR70HP-volts DR70HP-volts-FT DR70HP-volts-UD

100 Medium DR100HP-volts DR100HP-volts-FT DR100HP-volts-UD

150 Medium DR150HP-volts DR150HP-volts-FT DR150HP-volts-UD

Pulse Start Metal Halide

Options

Description Suffix

Lamp With clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Tamper Resistant Hardware - TP

Color Standard Bronze No Suffix

Optional Black - BL

White - WH

Designer Colors Consult Factory

Metal Halide

42 GX24q DR42CF-UN DR42CF-UN-FT DR42CF-UN-UD

Compact Flourescent

High Pressure Sodium

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 26W 32W 42W 35W 50W 70W 100W 150W 175W

Magnetic Ballast

120V - 120 ––– HP HP/MH – – – –

120V Reactor NPF - 120NP ––– HP HP HP HP HP –

120V Reactor HPF - 120R ––– HP HP HP HP HP –

277V - 277 ––– HP HP/MH – – – –

120/208/240/277V - QT ––– – MH HP/MH HP/MH HP/MH MH

120/277/347V - TT ––– – MH HP/MH HP/MH HP/MH MH

480V - 480 ––– – – – HP/MH HP/MH MH

Electronic Ballast

120V through 277V - UN CF CF CF – – – – – –

Options

Description Suffix

Lamp With clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Tamper Resistant Hardware - TP

Color Standard Bronze No Suffix

Optional Black - BL

White - WH

Designer Colors Consult Factory

Note: Indicates available ballasts: HP – High Pressure Sodium, MH – Metal Halide, CF – Compact Fluorescent

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 26W 32W 42W 35W 50W 70W 100W 150W 175W

Magnetic Ballast

120V - 120 ––– HP HP/MH – – – –

120V Reactor NPF - 120NP ––– HP HP HP HP HP –

120V Reactor HPF - 120R ––– HP HP HP HP HP –

277V - 277 ––– HP HP/MH – – – –

120/208/240/277V - QT ––– – MH HP/MH HP/MH HP/MH MH

120/277/347V - TT ––– – MH HP/MH HP/MH HP/MH MH

480V - 480 ––– – – – HP/MH HP/MH MH

Electronic Ballast

120V through 277V - UN CF CF CF – – – – – –

Lamp Lamp Catalog Number Catalog Number

Watts Base Wide Beam Forward Throw

175 Medium DT175MH-volts DT175MH-volts-FT

50 Medium DT50MH-volts DT50MH-volts-FT

70 Medium DT70MH-volts DT70MH-volts-FT

100 Medium DT100MH-volts DT100MH-voltS-FT

150 Medium DT150MH-volts DT150MH-volts-FT

50 Medium DT50HP-volts DT50HP-volts-FT

70 Medium DT70HP-volts DT70HP-volts-FT

100 Medium DT100HP-volts DT100HP-voltS-FT

150 Medium DT150HP-volts DT150HP-volts-FT

Pulse Start Metal Halide

Metal Halide

High Pressure Sodium

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

PolarisFull Cut-Off Security Lighting

Trapezoidal

“Dark Sky” Trapezoidal Styling

•Trapezoidal luminaire with downlight optics meets IES

Full Cut-Off standards.

“Easy-Install” Mounting

•Mount the bracket to a standard 3-1/2” or 4” junction

box. Using the built-in level, align the bracket and

secure it. Hang the luminaire and secure with two heavy

duty set screws

Construction

•Heavy duty die cast aluminum housing, bronze polyester

powder coat finish, borosilicate glass lens.

•Concealed cover screws secure the door assembly.

•Silicone rubber gaskets.

•External hardware is stainless steel.

Socket

•Specification grade medium base porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting

MH-30°C, HPS -40°C

Decorative Security

and Accent Lighting

Dimensions

16-3/4” 14-3/4” 9-1/4” 5-1/2” 7-1/8”

DR W1 W2 D1 D2 H

NEW

42 GX24q DR42CF-UN DR42CF-UN-FT

Compact Flourescent

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

1 X 13W CFT13W/GX23 AL113PL-120-FL

Compact Fluorescent

35 Medium AL35HP-volts-HC

50 ” AL50HP-volts-HC

70 ” AL70HP-volts-HC

50 Medium AL50MH-volts-HC

70 ” AL70MH-volts-HC

Metal Halide

35 Medium AL35HP-volts-PK

50 ” AL50HP-volts-PK

70 ” AL70HP-volts-PK

High Pressure Sodium

50 Medium AL50MH-volts-PK

70 ” AL70MH-volts-PK

Metal Halide

Architectural Luminaires™ Perimeter/Horizontal Cut-Off, Floodlight

7-3⁄8”

11”

(Max.)

10-1⁄8”

Two 1⁄2” entries

(front & bottom)

and pattern for

outlet box

6-1⁄8”

5-5⁄8”

4-7⁄8”

10-3⁄16”

10-5⁄16”

8-1⁄4” 5-9⁄16”

Versatile

•Models for building perimeter security lighting, facade

floodlighting, sign lighting, wall washing, accent,

walkway lighting and a multitude of other uses.

•Standard bronze or choose custom designer colors.

•Specification grade lampholder, medium base lamps,

metal halide, high pressure sodium or compact fluorescent.

Cut-Off Models

•Choose Perimeter Cut-Off or Horizontal Cut-Off models.

•Die cast aluminum housing, a molded polycarbonate

lens. Mounts over recessed junction box with closed cell

neoprene gasket.

Aiming

•Internal light shields control down light distribution pattern,

prevent light spill, minimize glare. Internal reflectors

assure positive light control. Shrouds eliminate unwanted

spill light. Shield protects the polycarbonate lens.

Ballasts

•Thermal barrier separates the ballast which reduces the

operating temperature for longer component life.

•Perimeter Cut-Off:available with 120V MH or 120V

reactor HPS ballasts only.

•Horizontal Cut-Off: available with 120V or 277V

single voltage ballasts.

Floodlight

•Mount indoors or outdoors. Die cast aluminum housing,

micro stipple heat resistant glass lens, head swivels to aim

in both the horizontal and vertical orientations.

Ballast

•Mounted in separate housing for very cool operation and

longer component life.

•35W-100W HPS & 50-100W MH: available with 120V

or 277V ballasts.

•150W HPS: available with reactor ballasts.

50 Medium AL50MH-volts-FL

70 ” AL70MH-volts-FL

100 ” AL100MH-volts-FL

Lamp

Watts Base Catalog Number

35 Medium AL35HP-volts-FL

50 ” AL50HP-volts-FL

70 ” AL70HP-volts-FL

100 ” AL100HP-volts-FL

150 ” AL150HP-volts-FL

Perimeter Cut-Off

Horizontal Cut-Off

Perimeter Cut-Off

Dimensions

Floodlight

Horizontal Cut-Off

Perimeter Cut-Off

Floodlight

35 to 150 Watt

Architectural Floodlight

6”

1 X 13W CFT13W/GX23 AL113PL-volts-HC

Compact Fluorescent

High Pressure Sodium

Horizontal Cut-Off

Metal Halide

High Pressure Sodium

Note: Indicates available ballasts: HP – High Pressure Sodium, MH – Metal Halide, CF Compact Fluorescent

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix Perimeter Cut-Off Horizontal Cut-Off Floodlight

13W 35-70W 13W 35-70W 13W 35-100W 150W

120V - 120 CF MH CF MH/HP CF MH/HP –

120V Reactor NPF - 120NP –HP– HP–HP HP

120V Reactor HPF - 120R –HP– HP–HP HP

277V - 277 –––MH/HP – MH/HP –

347V - 347 –––MH/HP – MH/HP –

EWM Series™ Economy Security Lighting

Color Bronze Standard

White - WH

42 120 thru 277 EWM42CF-UN-L †EWM42CF-UN-L-PC †

35 120 EWM35HP-120NP-L ‡EWM35HP-120NP-L-PC ‡

50 120 EWM50HP-120NP-L ‡EWM50HP-120NP-L-PC ‡

70 120 EWM70HP-120NP-L ‡EWM70HP-120NP-L-PC ‡

High Pressure Sodium

Compact Fluorescent

Construction

•Polycarbonate lens/cover.

•Cast aluminum mounting plate.

•Bronze finish. Optional White

EWM

Wall-LuxTM

Wall Mounted Security Lighting

High Pressure Sodium

Lamp Catalog Number Catalog Number

Watts Volts with Lamp* with Lamp & Photocontrol*

* Furnished with North American lamp and North American ballast.

‡ Suffix “-120NP” = 120V NPF magnetic ballast

† Suffix “-UN” = Compact Fluorescent only – Universal 120 thru 277V electronic ballast

EWM

11”

6-7⁄8”

5-3⁄16”

EWM

Dimensions

Options

Description Suffix

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

North American Components

•Superior quality and reliability of a North American

lamp and ballast.

Construction

•Polycarbonate cylindrical lens/cover. Cast aluminum

mounting plate. Bronze finish.

Secur-LuxTM

Wall Mounted Security Lighting

High Pressure Sodium

Lamp Catalog Number Catalog Number

Watts with Lamp* with Lamp & Photocontrol*

35 JJ35HP-120NP-L JJ35HP-120NP-L-PC

50 JJ50HP-120NP-L JJ50HP-120NP-L-PC

* Furnished with North American lamp and North American 120V NPF ballast.

6-7⁄8” 5”

8-3⁄4”

Dimensions

EWM Series™ Economy Security Lighting

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Dusk to Dawn Operation

•Security lighting for farm, home, retail, commercial and

industrial applications. Automatic, switches on at dusk,

shuts off at dawn.

Energy Efficient, Economical

•Available with energy efficient high pressure sodium

lamps for low operating costs or inexpensive mercury

vapor for low initial costs.

Security

•Welcomes visitors, discourages intruders for a safer,

more secure environment.

Durable

•One piece die cast aluminum body will not rust.

Furnished with a natural finish.

Easy Installation

•Mounts on structurally sound material or clamps to

conduit.

Dusk to Dawn Lighting

Dusk to Dawn

Dimensions

14-5⁄8”

10”

12-3⁄4”

175 Mogul TW175MV-120-L-PC

Lamp Catalog Number

Watts Base With Photocontrol

70 Mogul TW70HP-120NP-L-PC

100 “ TW100HP-120NP-L-PC

150 “ TW150HP-120NP-L-PC

High Pressure Sodium

Mercury Vapor

TwiLiter Economy Security Lighting NEW

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Area Lighting

Parking Lots, Roadways, Large Outdoor Area and Decorative Walkways

Parklume - Decorative Walkway Bollards

Quasar - Horizontal Lamp “Shoe Box”

NEMA Type II Roadway, Type III Asymmetric, Type IV, and Forward Throw Distributions

Available with bracket, yoke or slipfitter mountings

Four styles and choice of designer colors. Optional side louver with second lamp for higher illumination requirements

Aberdeen & Main Street - Decorative Street Lighting

Four styles and choice of designer colors. Optional side louver with second lamp for higher illumination requirements

Aries - Vertical Lamp Downlight

High efficiency vertical lamp optics reduces number of fixtures required by producing high levels of uniform illumination and

wide fixture spacings. IES Type V Symmetric and Type IV Forward Throw Distributions

Available with full range of mounting brackets for existing or new poles

AVP

ASA1

Poles

AVS

AVR

ASA1

ASA3

ASA2 ASA1

Poles

CSB / FT

PL8

Catalog Number

Lamp ANSI Lamp Order Mounting Bracket Separately

Watts Type Shape See Page 80

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

14”

21-1⁄4”

17-1⁄2”

EPA: 2.15

plus mounting

bracket

Aries™ Parking Lot, Roadway and Area Lighting

For “bolt-on”

brackets listed

on page 56

4 holes 7⁄16”

Lhole 1”

AVR

Area Downlighting

IES Type V, Cut-Off

Vertical Lamp

•Aries™ luminaires are designed to take advantage of

the performance benefits of vertical metal halide lamps.

Standard probe start and pulse start metal halide lamps

are designed for optimum performance in specific

operating positions. Published data shows that vertical

burning lamps have higher initial lumens, higher mean

light levels and longer lamp life than the same lamp

operating in a non-vertical position.

Construction

•Heavy gauge rolled aluminum.

•All Aries™ luminaires feature continuous welded seams

and internal reinforcing splines for ballast and mounting

bracket attachment.

Lens Assembly

•High heat tolerant sag glass lens exceeds ANSI Spec

Z91.1 making it four times stronger than annealed glass.

•Lens is attached with heavy duty torsion springs.

Reflector Assembly

•One piece fully faceted reflector for rigidity, vibration

resistance and overall luminaire efficiency.

Mounting

•A complete range of mounting brackets is available for

new or existing poles.

Finish

•Baked polyester powder coat. Standard dark bronze.

Corporate colors, pin striping and decorative detailing

effects are available.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

•MH -30°C, Pulse Start MH -40, HPS -40°C

Pulse Start Metal Halide

400 M135 ED37/BT37 AVR400MH-(volts)-PSB-R5

450 M144 ED37/BT37 AVR450MH-(volts)-PSB-R5

AVR Series IES Type V, Cut-Off

Metal Halide

400 M59 ED37/BT37 AVR400MH-(volts)-R5

High Pressure Sodium

400 S51 ED18 AVR400HP-(volts)-R5

Dimensions

AVR

Pole Drilling Pattern

3”

4”

4” 5”

AVR

Options

Description Suffix

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Photocontrol Receptacle

480V photocontrol receptacle only

Photocontrol supplied by others - PCR

Flat Glass Lens - FG

House Side Shield - HS

Color Bronze Standard

Black - BL

White - WH

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Suffix 400W 400W 450W 750W 875W 1000W 1000W

Volts M-135 M-59/S-51 M-144 S-111 M166 M-47/S-52 M141

120/208/240/277V - QT PS † HP/MH PS † – PS † HP/MH –

120/277/347V - TT PS † HP/MH PS † – PS † HP/MH –

Single Voltage 120 - 120 –– –HP– –PS

“208 - 208 –– –HP † – – PS †

“240 - 240 –– –HP † – – PS †

“277 - 277 –– –HP– –PS

“347 - 347 –– –HP– –PS

“480 - 480 PS † – PS † HP † PS † – PS †

Note: Indicates available ballasts: HP – High Pressure Sodium, PS – Pulse Start Metal Halide∆, MH – Metal Halide

120, 277, 347line to ground voltages recommended,

∆Pulse Start CWA only

† 208V, 240V & 480V CWA only

Catalog Number

Lamp ANSI Lamp Order Mounting Bracket Separately

Watts Type Shape See Page 81

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Aries™ Parking Lot, Roadway and Area Lighting

For “bolt-on”

brackets listed

on page 56

4 holes 7⁄16”

Lhole 1” 171⁄2”

20” 20”

14”

EPA: 2.20

plus mounting

bracket

AVS

Area Downlighting

IES Type V, Cut-Off

Vertical Lamp

•Aries™ luminaires are designed to take advantage of

the performance benefits of vertical metal halide lamps.

Standard probe start and pulse start metal halide lamps

are designed for optimum performance in specific

operating positions. Published data shows that vertical

burning lamps have higher initial lumens, higher mean

light levels and longer lamp life than the same lamp

operating in a non-vertical position.

Construction

•Heavy gauge die formed aluminum.

•All Aries™ luminaires feature continuous welded seams

and internal reinforcing splines for ballast and mounting

bracket attachment.

Lens Assembly

•High heat tolerant sag glass lens exceeds ANSI Spec

Z91.1 making it four times stronger than annealed glass.

•Hinged and gasketed lens assembly.

Reflector Assembly

•One piece fully faceted reflector for rigidity, vibration

resistance and overall luminaire efficiency.

Mounting

•A complete range of mounting brackets is available for

new or existing poles.

Finish

•Baked polyester powder coat. Standard dark bronze.

Corporate colors, pin striping and decorative detailing

effects are available.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

•MH -30°C, Pulse Start MH -40, HPS -40°C

AVS Series IES Type V, Cut-Off

Pulse Start Metal Halide

400 M135 ED37/BT37 AVS400MH-(volts)-PSB-R5

450 M144 ED37/BT37 AVS450MH-(volts)-PSB-R5

875 M166 ED37/BT37 AVS875MH-(volts)-PSB-R5

1000 M141 ED37/BT37 AVS1000MH-(volts)-PSB-R5

Metal Halide

400 M59 ED37/BT37 AVS400MH-(volts)-R5

1000 M47 ED37/BT37 AVS1000MH-(volts)-R5

High Pressure Sodium

400 S51 ED18 AVS400HP-(volts)-R5

750 S111 ED37/BT37 AVS750HP-(volts)-R5

1000 S52 ED37/BT37 AVS1000HP-(volts)-R5

Dimensions

AVS

Pole Drilling Pattern

3”

4”

4” 5”

AVS

Options

Description Suffix

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Photocontrol Receptacle

480V photocontrol receptacle only

Photocontrol supplied by others - PCR

Flat Glass Lens - FG

House Side Shield - HS

Color Bronze Standard

Black - BL

White - WH

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Suffix 400W 450W 750W† 875W 1000W† 1000W†

Volts M-135/M-59/S-51 M-144 S-111 M166 M-47/S-52 M141

120/208/240/277V - QT HP/MH/PS PS – PS HP/MH –

120/277/347V - TT HP/MH/PS PS – PS HP/MH –

Single Voltage 120 - 120 ––HP––PS

“208 - 208 ––HP––PS

“240 - 240 ––HP––PS

“277 - 277 ––HP––PS

“347 - 347 ––HP––PS

“480 - 480 ––HPPS – PS

Note: Indicates available ballasts: HP – High Pressure Sodium, PS – Pulse Start Metal Halide∆, MH – Metal Halide

120, 277, 347line to ground voltages recommended,

∆Pulse Start CWA only

† 750W &1000W – 208V, 240V & 480V CWA only

Catalog Number

Lamp ANSI Lamp Order Mounting Bracket Separately

Watts Type Shape See Page 81

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Aries™ Parking Lot, Roadway and Area Lighting

EPA: 2.65

plus mounting

bracket

12” 18-1⁄2”

19” 20”

Pulse Start Metal Halide

400 M135 ED37/BT37 AVP400MH-(volts)-PSB-FT

450 M144 ED37/BT37 AVP450MH-(volts)-PSB-FT

875 M166 ED37/BT37 AVP875MH-(volts)-PSB-FT

1000 M141 ED37/BT37 AVP1000MH-(volts)-PSB-FT

Metal Halide

400 M59 ED37/BT37 AVP400MH-(volts)-FT

1000 M47 ED37/BT37 AVP1000MH-(volts)-FT

High Pressure Sodium

400 S51 ED18 AVP400HP-(volts)-FT

750 S111 ED37/BT37 AVP750HP-(volts)-FT

1000 S52 ED37/BT37 AVP1000HP-(volts)-FT

AVP

Area Perimeter Lighting

Nema IV

Vertical Lamp

•Aries™ luminaires are designed to take advantage of

the performance benefits of vertical metal halide lamps.

Standard probe start and pulse start metal halide lamps

are designed for optimum performance in specific

operating positions. Published data shows that vertical

burning lamps have higher initial lumens, higher mean

light levels and longer lamp life than the same lamp

operating in a non-vertical position.

Construction

•Heavy gauge die formed aluminum.

•All Aries™ luminaires feature continuous welded seams

and internal reinforcing splines for ballast and mounting

bracket attachment.

Lens Assembly

•High heat tolerant sag glass lens exceeds ANSI Spec

Z91.1 making it four times stronger than annealed glass.

•Hinged and gasketed lens assembly.

Reflector Assembly

•One piece fully faceted reflector for rigidity, vibration

resistance and overall luminaire efficiency.

Mounting

•A complete range of mounting brackets is available for

new or existing poles.

Finish

•Baked polyester powder coat. Standard dark bronze.

Corporate colors, pin striping and decorative detailing

effects are available.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

•MH -30°C, Pulse Start MH -40, HPS -40°C

Dimensions

Pole Drilling Pattern

AVP

AVP Series IES Type IV

For “bolt-on”

brackets listed

on page 56

4 holes 7⁄16”

Lhole 1” 3”

4”

4” 5”

Options

Description Suffix

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Photocontrol Receptacle

480V photocontrol receptacle only

Photocontrol supplied by others - PCR

Flat Glass Lens - FG

House Side Shield - HS

Color Bronze Standard

Black - BL

White - WH

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Suffix 400W 450W 750W† 875W 1000W† 1000W†

Volts M-135/M-59/S-51 M-144 S-111 M166 M-47/S-52 M141

120/208/240/277V - QT HP/MH/PS PS – PS HP/MH –

120/277/347V - TT HP/MH/PS PS – PS HP/MH –

Single Voltage 120 - 120 ––HP––PS

“208 - 208 ––HP––PS

“240 - 240 ––HP––PS

“277 - 277 ––HP––PS

“347 - 347 ––HP––PS

“480 - 480 ––HPPS – PS

Note: Indicates available ballasts: HP – High Pressure Sodium, PS – Pulse Start Metal Halide∆, MH – Metal Halide

120, 277, 347line to ground voltages recommended,

∆Pulse Start CWA only

† 750W &1000W – 208V, 240V & 480V CWA only

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Aries™ Mounting Brackets

Color

Bronze No suffix(Standard)

Black-BL White-WH

Designer Color

Consult Factory

Note: Coordinate

luminaire and

bracket color

Quadruple – Tenon

Model: AVR

E.P.A.: 0.80

Arms: 12”

Tenon: 2-1/2”

Weight: 31.0 lb

AVR-T25-Q12-color

Triple – Tenon

Model: AVR

E.P.A.: 0.65

Arms: 12”

Tenon: 2-1/2”

Weight: 25.0 lb

AVR-T25-T12-color

Double – Tenon

Model: AVR

E.P.A.: 0.45

Arms: 8”

Tenon: 2-1/2”

Weight: 19.0 lb

AVR-T25-D8-color

Single – Tenon

Model: AVR

E.P.A.: 0.30

Arm: 8”

Tenon: 2-1/2”

Weight: 12.0 lb

AVR-T25-S8-color

Tenon Mount for AVR

Single – Direct to Pole

Model: AVR

E.P.A.: 0.20

Arm: 8”

Pole: Square

Weight: 4.5 lb

AVR-S-AM-8-color

“Z” Bracket

– Direct to Pole

Models: AVS & AVP

E.P.A.: 0.70

Pole: 4”, 5”,

6” Square

Weight: 10.3 lb

AVS-S-Z-color

‘Y’ Bracket

– Direct

to Pole

Model: AVS

E.P.A.: 2.50

Pole: 4” Square

Weight: 41.0 lb

AVS-4S-Y-color

Pole: 5” Square

Weight: 40.0 lb

AVS-5S-Y-color

Pole: 6” Square

Weight: 39.0 lb

AVS-6S-Y-color

Uni-Directional Twin

– Direct to Pole

Model: AVP

E.P.A.:

0.80 (pair)

Arms: 8”

Pole: 4” Square

5” Square

6” Square

Weight: 21.0 lb (pair)

AVP-S-CL90-color

Left & Right Bracket included

Single – Direct to Pole

Models: AVS & AVP

E.P.A.: 0.20

Arm: 8”

Pole: Square

Weight: 4.5 lb

AVS-S-AM8-color

Direct to Pole

Mounting Flexibility

•Aries™ luminaires are designed for a wide range of

mounting configurations. Aries™ is suitable for both

new and existing pole locations. Aries™ uses rigid four

point luminaire attachments for maximum strength in

both tenon and direct to pole mounting arrangements.

Aries™ Pole Selection Guide

•While there are many factors to consider in the

selection of new or in the use of existing poles to mount

luminaires such as the Aries™, some factors for

maximum safety:

•Ensure that the total luminaire and accessory weight

and the E.P.A. loading requirement for each lighting

standard is compatible with the pole manufacturers

recommendations. Consult your pole supplier.

•Consider the maximum anticipated wind velocities at

the site of the proposed installation. Coordinate with

the pole manufacturers specifications to ensure that

the selected pole complete with luminaires and

brackets have the design capability to withstand the

effects of the projected wind velocities.

•The size, depth and construction of the pole

foundation plays a critical role in the safety of outdoor

lighting installations. For maximum safety, a qualified

professional engineer should be consulted to review

the proposed pole locations, conduct a soil evaluation

and design a base suitable for the pole and lumin-

aires to be installed.

•In areas where poles may be subject to damage from

vehicular traffic, maintenance vehicles and normal

parking errors, the pole base should be protected with

concrete piers or other protective barriers.

Mounting Brackets

•Mounting brackets for Aries™ luminaires are ordered

and shipped separately.

•Direct to Pole: Square pole brackets fit 4” X 4” or

larger square poles.

•Tenon Mounting: Tenon mounting brackets are ordered

to suit the pole top tenon size of new or existing poles.

•For new installations, consider luminaire quantities,

overall weight, and total EPA requirements when

selecting the pole tenon size. This catalog lists the two

most common tenon sizes, 2” and 2-1/2”.

•The 2-1/2” tenon is suggested for three and four light

clusters.

•Larger tenon sizes are available. Consult factory

to order.

AVR

Mounting Flexibility

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Aries™ Mounting Brackets

Single – Direct to Pole

Model: AVR

E.P.A.: 0.20

Arm: 8”

Pole: Square

Weight: 4.5 lb

AVR-S-AM-8-color

“Z” Bracket

– Direct to Pole

Models: AVS & AVP

E.P.A.: 0.70

Pole: 4”, 5”,

6” Square

Weight: 10.3 lb

AVS-S-Z-color

‘Y’ Bracket

– Direct

to Pole

Model: AVS

E.P.A.: 2.50

Pole: 4” Square

Weight: 41.0 lb

AVS-4S-Y-color

Pole: 5” Square

Weight: 40.0 lb

AVS-5S-Y-color

Pole: 6” Square

Weight: 39.0 lb

AVS-6S-Y-color

Uni-Directional Twin

– Direct to Pole

Model: AVP

E.P.A.:

0.80 (pair)

Arms: 8”

Pole: 4” Square

5” Square

6” Square

Weight: 21.0 lb (pair)

AVP-S-CL90-color

Left & Right Bracket included

Uni-Directional Twin

– Tenon

Model: AVP

E.P.A.: 0.80

Arms: 8”

Tenon: 2-1/2”

Weight: 25.0 lb

AVP-T25-CL90-color

Quadruple – Tenon

Models: AVS & AVP

E.P.A.: 0.80

Arms: 12”

Tenon: 2-1/2”

Weight: 31.0 lb

AVS-T25-Q12-color

Triple – Tenon

Models: AVS & AVP

E.P.A.: 0.65

Arms: 12”

Tenon: 2-1/2”

Weight: 25.0 lb

AVS-T25-T12-color

Double – Tenon

Models: AVS & AVP

E.P.A.: 0.45

Arms: 8”

Tenon: 2-1/2”

Weight: 19.0 lb

AVS-T25-D8-color

Single – Direct to Pole

Models: AVS & AVP

E.P.A.: 0.20

Arm: 8”

Pole: Square

Weight: 4.5 lb

AVS-S-AM8-color

Single – Tenon

Models: AVS & AVP

E.P.A.: 0.30

Arm: 8”

Tenon: 2-1/2”

Weight: 12.0 lb

AVS-T25-S8-color

Mounting Flexibility

•Aries™ luminaires are designed for a wide range of

mounting configurations. Aries™ is suitable for both

new and existing pole locations. Aries™ uses rigid four

point luminaire attachments for maximum strength in

both tenon and direct to pole mounting arrangements.

Aries™ Pole Selection Guide

•While there are many factors to consider in the

selection of new or in the use of existing poles to mount

luminaires such as the Aries™, some factors for

maximum safety:

•Ensure that the total luminaire and accessory weight

and the E.P.A. loading requirement for each lighting

standard is compatible with the pole manufacturers

recommendations. Consult your pole supplier.

•Consider the maximum anticipated wind velocities at

the site of the proposed installation. Coordinate with

the pole manufacturers specifications to ensure that

the selected pole complete with luminaires and

brackets have the design capability to withstand the

effects of the projected wind velocities.

•The size, depth and construction of the pole

foundation plays a critical role in the safety of outdoor

lighting installations. For maximum safety, a qualified

professional engineer should be consulted to review

the proposed pole locations, conduct a soil evaluation

and design a base suitable for the pole and lumin-

aires to be installed.

•In areas where poles may be subject to damage from

vehicular traffic, maintenance vehicles and normal

parking errors, the pole base should be protected with

concrete piers or other protective barriers.

Mounting Brackets

•Mounting brackets for Aries™ luminaires are ordered

and shipped separately.

•Direct to Pole: Square pole brackets fit 4” X 4” or

larger square poles.

•Tenon Mounting: Tenon mounting brackets are ordered

to suit the pole top tenon size of new or existing poles.

•For new installations, consider luminaire quantities,

overall weight, and total EPA requirements when

selecting the pole tenon size. This catalog lists the two

most common tenon sizes, 2” and 2-1/2”.

•The 2-1/2” tenon is suggested for three and four light

clusters.

•Larger tenon sizes are available. Consult factory

to order.

AVS, AVP

Mounting Flexibility Tenon Mount for AVS/AVP Direct to Pole

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

CSB – Max 1000W

CSB – Max 400W

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

* 70-400W: To select other NEMA Distributions see below (70W thru

400W only)

∆400W metal halide — use ED28 lamp

Quasar™ Parking Lot, Roadway and Area Lighting

Construction

•CSB: One piece die cast aluminum housing.

•Permanently attached hinged door is secured for

maximum weatherproof integrity.

Cool Operating

•Ballast is mounted directly to the cast housing for

maximum heat dissipation.

Optical Assembly

•Formed optical assembly available for NEMA II, III and

IV distributions.

Tempered Glass Lens

•Available with clear flat glass lenses.

Mounting

•Fixtures up to 400 watt are available with bracket, yoke

and slipfitter mounting.

•1000 watt fixtures are available with bracket and

slipfitter mounting .

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

CSB

IES II, III and IV

70 III CSB3-70MH-QT CSB3-70MH-QT-SF CSB3-70MH-QT-TR

100 III CSB3-100MH-QT CSB3-100MH-QT-SF CSB3-100MH-QT-TR

150 III CSB3-150MH-QT CSB3-150MH-QT-SF CSB3-150MH-QT-TR

175 III CSB3-175MH-QT CSB3-175MH-QT-SF CSB3-175MH-QT-TR

250 III CSB3-250MH-QT CSB3-250MH-QT-SF CSB3-250MH-QT-TR

400∆III CSB3-400MH-QT∆CSB3-400MH-QT-SF∆CSB3-400MH-QT-TR∆

1000 III CSB3-1000MH-QT CSB3-1000MH-QT-SF CSB3-1000MH-QT-TR

Metal Halide

Lamp

Watts NEMA* Bracket Mount Slipfitter Mount Yoke Mount

70 III CSB3-70HP-QT CSB3-70HP-QT-SF CSB3-70HP-QT-TR

100 III CSB3-100HP-QT CSB3-100HP-QT-SF CSB3-100HP-QT-TR

150 III CSB3-150HP-QT CSB3-150HP-QT-SF CSB3-150HP-QT-TR

250 III CSB3-250HP-QT CSB3-250HP-QT-SF CSB3-250HP-QT-TR

400 III CSB3-400HP-QT CSB3-400HP-QT-SF CSB3-400HP-QT-TR

1000 III CSB3-1000HP-QT CSB3-1000HP-QT-SF CSB3-1000HP-QT-TR

High Pressure Sodium

Options Accessories

Description Suffix Description Catalog No.

IES Distribution

Catalog numbers with the prefix “CSB3-” have a NEMA

Type III distribution.

For alternate distributions (max. 400W)

change CSB3 to... Type II CSB2-

Type IV CSB4-

Lamp With clear lamp - L

Pulse Start Luminaires

High Performance Metal Halide

For 250W, 400W, 1000W MH - PSB

For 50W, 70W, 100W, 150W Standard

200W, 320W, 350W, 750W

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Protected Igniter

for HPS Luminaires - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Color

Bronze (Standard) - BZ

Black - BL

White - WH

Designer Colors - Consult factory ‡

Vandal Shield

Lexan, with offset mounting kit

Max 400W models CSB-LS400

1000W models CSB-LS1000

Wall Mounting

For slipfitter mounting fixtures

2” IPS (2 3/8) OD) WB-1-BZ‡

For bracket mounting fixtures

Bolts to wall over outlet box

Arm is supplied with luminaire CSB-WB-BZ‡

Max. 400W

CSB

400W

16-3/8”

Dimensions

16-3/8”

7-3/8”

EPA: 1.28*

*Includes 1.2 drag factor

23-3/4”

10-1/4”

EPA: 2.70*

3”

2”

Wireway

Bracket Mount

Thru holes for 3/8” bolts

4”

Bracket

Mount

Wall Brackets

CSB-WB-BZ

Mounting centers – 3” X4-1/8”

3”

4-1/8”

CWB1-BZ

Mounting centers 12”

Slipfitter – 2” IPS (2-3/8”OD)

12”

Mtg. Ctr.

‡ Note: When ordering optional colors, you must

specify the separate brackets with the special color.

ie CSB-WB-BZ and WB-1-BZ are bronze. Change

the “BZ” to indicate the new color.

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

∆400W metal halide — use ED28 lamp

Quasar™ Parking Lot, Roadway and Area Lighting

Construction

•FT: One piece die cast aluminum housing.

•Permanently attached hinged door is secured for

maximum weatherproof integrity.

Cool Operating

•Ballast is mounted directly to the cast housing for

maximum heat dissipation.

Optical Assembly

•Formed optical assembly for forward throw distribution.

Tempered Glass Lens

•Available with flat glass lenses.

Mounting

•Fixtures up to 400 watt are available with bracket, yoke

and slipfitter mounting.

•1000 watt fixtures are available with bracket and

slipfitter mounting .

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

Forward Throw Area Lighting

70 FT70MH-QT FT70MH-QT-SF FT70MH-QT-TR

100 FT100MH-QT FT100MH-QT-SF FT100MH-QT-TR

150 FT150MH-QT FT150MH-QT-SF FT150MH-QT-TR

175 FT175MH-QT FT175MH-QT-SF FT175MH-QT-TR

250 FT250MH-QT FT250MH-QT-SF FT250MH-QT-TR

400∆FT400MH-QT∆FT400MH-QT-SF∆FT400MH-QT-TR∆

1000 FT1000MH-QT FT1000MH-QT-SF FT1000MH-QT-TR

Metal Halide

High Pressure Sodium

Lamp

Watts Bracket Mount Slipfitter Mount Yoke Mount

70 FT70HP-QT FT70HP-QT-SF FT70HP-QT-TR

100 FT100HP-QT FT100HP-QT-SF FT100HP-QT-TR

150 FT150HP-QT FT150HP-QT-SF FT150HP-QT-TR

250 FT250HP-QT FT250HP-QT-SF FT250HP-QT-TR

400 FT400HP-QT FT400HP-QT-SF FT400HP-QT-TR

1000 FT1000HP-QT FT1000HP-QT-SF FT1000HP-QT-TR

Options Accessories

Description Suffix Description Catalog No.

Lamp With clear lamp - L

Pulse Start Luminaires

High Performance Metal Halide

For 250W, 400W, 1000W MH - PSB

For 50W, 70W, 100W, 150W Standard

200W, 320W, 350W, 750W

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Protected Igniter

for HPS Luminaires - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Color

Bronze (Standard) - BZ

Black - BL

White - WH

Designer Colors - Consult factory ‡

Vandal Shield

Lexan, with offset mounting kit

Max 400W models CSB-LS400

1000W models CSB-LS1000

Wall Mounting

For slipfitter mounting fixtures

2” IPS (2 3/8) OD) WB-1-BZ‡

For bracket mounting fixtures

Bolts to wall over outlet box

Arm is supplied with luminaire CSB-WB-BZ‡

Max. 400W

400W

CSB – Max 1000W

CSB – Max 400W

16-3/8” 16-3/8”

7-3/8”

EPA: 1.28*

*Includes 1.2 drag factor

23-3/4”

10-1/4”

EPA: 2.70*

3”

2”

Wireway

Bracket Mount

Thru holes for 3/8” bolts

4”

Wall Brackets

CSB-WB-BZ

Mounting centers – 3” X4-1/8”

3”

4-1/8”

CWB1-BZ

Mounting centers 12”

Slipfitter – 2” IPS (2-3/8”OD)

Dimensions

12”

Mtg. Ctr.

‡ Note: When ordering optional colors, you must specify

the separate brackets with the special color.

ie CSB-WB-BZ and WB-1-BZ are bronze. Change the

“BZ” to indicate the new color.

Series

Pulse Start Metal Halide

Medium Base

70W ED17 -70PS

100W ED17 -100PS

150W ED17 -150PS

Mogul Base

175W ED23.5 -175PS

200W ED28 -200PS

250W ED28 -250PS

Metal Halide

Mogul Base

175W ED28 175MH

250W ED28 250MH

High Pressure Sodium

Mogul Base

70W ED23.5 -70HP

100W ED23.5 -100HP

150W ED23.5 -150HP

250W ED18 -250HP

Series

Aberdeen A1

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Aberdeen™Decorative Street & Area Lighting

ASA1

To order construct the catalog number as follows

AS A1 –175MH –QT –AN3 –(Options)

Mount

•Tenon: 2-1/2” (2-7/8” OD) .

•Wall Bracket: 2-1/2” (2-7/8” OD) tenon.

Construction

•Cast housing.

•Base-down, mogul base lamp

Optics

•Prismatic acrylic globe.

•Prismatic polycarbonate globe.

•Optional internal aluminum top reflector minimizes

uplight.

•IES Types III and V distribution.

Electrical

•Available lamps:

150, 175 & 250 watt metal halide.

70, 100, 150, 200 & 250 watt pulse start metal halide.

70, 100, 150, 200 & 250 watt high pressure sodium.

Standard voltage:

•Quad Tap (USA) – 120V, 208V, 240V & 277V.

•Tri-Tap (Canada)– 120V, 277V & 347V.

•Optional: Single voltage – consult factory for availability.

Finish

•Polyester powder coat.

ASA1

With Fluted Cast Base

Maximum 250W

Dimensions

Aberdeen - Series A1

Options

Description Suffix

Lamp Clear -L

Internal Top Reflector -TR

Color White -WH

Black -BL

Bronze -BZ

Designer Colors Consult Factory

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Fuse Single - 120V, 277V & 347V -F1

Double - 208V & 240V -F2

On multi-tap ballasts indicate line voltage

Poles See page 64

Wall Brackets

2-1/2” Tenon SA-WB1-25-(colour)

Finial FINIAL1-(colour)

Description Catalog No.

Options: See Below

Optics

Acrylic NEMA III - AN3

NEMA V - AN5

Polycarbonate NEMA III - PN3

NEMA V - PN5

Accessories

Architectural Street

&Area Lighting AS

Volts

Quad Tap – 120V, 208V, 240V & 277V -QT

Tri Tap – 120/277/347V -TT

480V -480

22-1/8”

16”

11-1/8”

11-7/8”

Series

Aberdeen Max 175W A2

Max 250W A3

To order construct the catalog number as follows

AS A2 –175MH –QT –(Options)

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Aberdeen™Decorative Street & Area Lighting

ASA2

Mount

•Tenon: 2-1/2” (2-7/8” OD).

•Wall Bracket: 2-1/2” (2-7/8” OD) tenon.

Construction

•Cast housing.

•Base-down, mogul base lamp

Optics

•Polycarbonate globe.

•Optional internal glass refractors or louver.

•Standard distribution is IES Type V. Optional internal

glass refractor is available for IES Types III and V

distribution.

Electrical

•Available lamps:

150 & 175 watt metal halide.

70, 100 & 150 watt pulse start metal halide.

70, 100 & 150 watt high pressure sodium.

Standard voltage:

•Quad Tap (USA) – 120V, 208V, 240V & 277V.

•Tri-Tap (Canada)– 120V, 277V & 347V.

•Optional: Single voltage – consult factory for availability.

Finish

•Polyester powder coat.

ASA2 & ASA3

With Fluted Cast Base

Maximum 175W & 250W

Dimensions

Aberdeen - Series A2 & A3

Options

Description Suffix

Lamp Clear -L

Optics Glass Refractor NEMAIII -GR3

NEMA V -GR5

Louver -LV

Color White -WH

Black -BL

Bronze -BZ

Designer Colors Consult Factory

Photocontrol Receptacle

480V photocontrol receptacle only

Photocontrol supplied by others - PCR

Fuse Single - 120V, 277V & 347V -F1

Double - 208V & 240V -F2

On multi-tap ballasts indicate line voltage

Poles See page 64

Wall Brackets

2-1/2” Tenon SA-WB1-25-(colour)

Finial FINIAL1-(colour)

Description Catalog No.

Accessories

20”

15-7/8”

11-1/8”

11-7/8”

Series

Pulse Start Metal Halide

Medium Base

70W ED17 ASA2 &ASA3 -70PS

100W ED17 ASA2 & ASA3 -100PS

150W ED17 ASA2 &ASA3 -150PS

Metal Halide

Mogul Base

175W ED28 ASA2 &ASA3 -175MH

250W ED28 ASA3 -250MH

High Pressure Sodium

Mogul Base

70W ED23.5 ASA2 &ASA3 -70HP

100W ED23.5 ASA2 & ASA3 -100HP

150W ED23.5 ASA2 &ASA3 -150HP

250W ED18 ASA2 &ASA3 -250HP

Options: See Below

Architectural Street

&Area Lighting AS

Volts

Quad Tap – 120V, 208V, 240V & 277V -QT

Tri Tap – 120/277/347V -TT

480V -480

ASA3

23-3/4”

16-1/2”

11-1/8”

11-7/8”

ASA2 ASA3

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Main Street™Decorative Street & Area Lighting

To order construct the catalog number as follows

AS M1 –175MH –QT –LV –(Options)

Mount

•Tenon: 2” (2-3/8” OD).

•Wall Bracket: 2” ( 2-3/8” OD) tenon.

Construction

•Spun aluminum reflector.

•Cast top and bottom housing.

•Stainless steel connecting rods.

•Fully gasketed.

Optics

•Clear acrylic cylindrical lens.

•Must be ordered with either specular internal louver or

glass refractor – see options.

•Standard distribution with louver is IES Type V. Optional

internal glass refractor is available for IES Types III and V

distribution.

Electrical

•Available lamps:

150 & 175 watt metal halide.

70, 100 & 150 watt pulse start metal halide.

70, 100 & 150 watt high pressure sodium.

Standard voltage:

•Quad Tap (USA) – 120V, 208V, 240V & 277V.

•Tri-Tap (Canada)– 120V, 277V & 347V.

•Optional: Single voltage – consult factory for availability.

Finish

•Polyester powder coat.

ASM1

With Plain Cast Base

Maximum 175W

Dimensions

Main Street - Series M1

Options

Description Suffix

Lamp Clear -L

Color White -WH

Black -BL

Bronze -BZ

Designer Colors Consult Factory

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Fuse Single - 120V, 277V & 347V -F1

Double - 208V & 240V -F2

On multi-tap ballasts indicate line voltage

Poles See page 64

Wall Brackets

2” Tenon SA-WB1-20-(colour)

Description Catalog No.

Options: See Below

Optics

Glass Refractor NEMA III -GR3

NEMA V -GR5

Louver -LV

Accessories

Architectural Street

&Area Lighting AS

Series

Main Street M1

Volts

Quad Tap – 120V, 208V, 240V & 277V -QT

Tri Tap – 120/277/347V -TT

480V -480

26-3/4”

23-1/2”

Series

Pulse Start Metal Halide

Medium Base

70W ED17 -70PS

100W ED17 -100PS

150W ED17 -150PS

Metal Halide

Medium Base

150W BD17 -150MH

175W BD17 -175MH

High Pressure Sodium

Medium Base

70W B17 -70HP

100W B17 -100HP

150W B17 -150HP

ASM1

Post Top Mounted ASM1

Wall Mounted

Paris APP 3-1/2” 8’-0” 10’ 12’ – – –

Alma APA 4” 8’-0” 10’-0” 12’-0” 15’-0” 18’-0” 20’0”

Fergus APF 3-1/2” 8’-0” 10’-8” 11’-8” 12’-8”

Elora APE 3-1/2” 8’-0” 10’-8” 11’-8” 12’-8” – –

Dundee APD 4” 8’-0” 10’-0” 12’-0” 15’-0” 18’-0” 20’0”

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

To order construct the catalog number as follows

AP D–25 –A 1 –8-0 –WH- Options

AP Poles

Standard Poles From 8’ to 20’ Dimensions

Tenon Size

2” (2-3/8” OD) - 20

2-1/2” (2-7/8” OD) - 25

Options: See Below

Colour White - WH

Black - BL

Bronze - BZ

Architectural

Series Pole AP

Base Style Paris P

Alma A

Fergus F

Elora E

Dundee D

Pole Height

See Dimensions chart below

Paris APP 1/2” 9-1/2”

Alma APA 3/4” 7-1/2”

Fergus APF 5/8” 12-1/2”

Elora APE 5/8” 12-1/2”

Dundee APD 3/4” 7-1/2”

Paris

Elora

Alma

Dundee

Fergus

30”

20”

39”

26”

25”

Construction

•Round aluminum pole.

•Tenon: 2” (2-3/8” OD)

2-1/2” (2-7/8” OD).

•Anchor bolts included.

•Dundee & Alma styles include straight pole & shroud.

Finish

•Polyester powder coat

Options

Description Suffix

Colour White -WH

Black -BL

Bronze -BZ

Designer Colors Consult Factory

Poles Decorative Street & Area Lighting

25”

Number of luminaires

One luminaire 1

Two luminaires 2

Pole Material Aluminum --A

Model Pole Dia. Standard Pole Heights

Anchor Bolt & Bolt Circle Dia. (BCD)

Anchor Bolt Circle

Model Bolt Dia. Dia.

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Mounting

Construct catalog number as follows

Catalog Number Indicate Drilling Pattern or Tenon Finish Options

SSS4-20 -4U -BZ -DUP

See full brochure for EPA and weight requirements

Shaft

•Pole shafts are supplied in 11 gauge - 0.1196” (SSS: 10’ - 20’;

STS: 20 - 30’) or 7 gauge - 0.1793” (SSS: 25’ - 40’; STS: 30’HD -

39’) thickness having a minimum yield strength of 55,000 psi and

conforms to ASTM A595 Grade A.

•Shafts are of one piece construction with a full length longitudinal

high frequency electric resistance weld.

•SSS Series (square) pole shafts are uniformly square in cross section

with flat sides, rounded corners (0.75” per corner) and no taper.

•STS Series (square tapered) pole shafts are square in cross section

with flat sides, rounded corners (0.75” per corner) and a uniform

taper of 0.11 inches per foot of length.

Hand hole

•The reinforcing hand hole rim consists of a rectangular shaped

tubing. The opening is 2-1/2” X 5” (nominal).

•Hand holes are furnished with a steel attachment bar, steel cover

and one round head machine screw.

•Hand holes, located 18” above the base, are welded in the pole shaft.

Electrical Ground

•A nut holder is provided near the hand hole and includes a 1/2”-

13 UNC hex head bolt and nut.

Base Plate

•Fabricated from structural quality hot rolled carbon steel plate

conforming to ASTM A36.

•Circumferentially welded top and bottom, the base plate telescopes

the pole shaft.

•The pole chart information lists the bolt circle ranges for each pole.

Base Cover

•A full base cover is standard with SSS Series poles.

Anchor Bolts

•Fabricated from carbon steel bar conforming to AASHTO M314

Grade 55 or ASTM F1554 Grade-55.

•Bolts have an “L” bend on one end.

•Bolts are galvanized a minimum of 12” on the threaded end.

•Four anchor bolts are furnished per pole. Each anchor bolt is

furnished with two hex nuts and two flat washers.

Poles Square Steel

Mtg. Ht. Square Straight Steel Pole Square Tapered Steel Pole

(Nom.) Square Catalog No.* Square @ Base Catalog No.*

10 4” SSS4-10- * – –

12 4” SSS4-12- * – –

14 4” SSS4-14- * – –

16 4” SSS4-16- * – –

18 4” SSS4-18- * – –

20 4” SSS4-20- * 5.25 STS20- *

5” SSS5-20- * – –

25 4” SSS4-25- * 6.00 STS25-

5” SSS5-25- * – –

30 5” SSS5-30- * 6.41 STS30- *

6” SSS6-30- * 6.41 STS30-HD- *

35 –– 6.81 STS35- *

–– 7.13 STS35-HD- *

39 –– 7.13 STS39- *

–– 8.75 STS39-HD- *

40 6” SSS6-40- * – –

*Indicate Tenon or Drilling Pattern

Finish Galvanized - GAL

Bronze (Powder) - BZ

Black (Powder) - BL

White (Powder) - WH

Receptacle

Provision for a Duplex Receptacle - DUP

Receptacle not included

Options

Description Suffix

SSS, STS

Square Straight and

Square Tapered Steel Poles

Caution Pole Base/Anchor Bolts: When the customer uses his own template to install anchor

bolts, he assumes all responsibility for the installation of those anchor bolts.

The data found in these sheets is for reference only and is subject to change.

Add suffix to order mounting bracket. All brackets are 2” Tenon

NOTE: EPA of Bracket and Luminaire(s) must be considered when calculating pole load.

Bullhorn Spoke Arm

Description Suffix Suffix

1 Luminaire - 1U - SA1

EPA 0.3 – 8 LB

2 Luminaires - 2U - SA2C

EPA 1.0 – 21 LB. EPA 0.4 –11

2 Luminaires - SA2L

EPA 0.4 –11

3 Luminaires - 3U - SA3T

EPA1.6 – 32 LB. EPA 0.5 – 11 LB

- 3Y - SA3Y

EPA 1.3 - 34 LB. EPA 0.5 – 11 LB

4 Luminaires - 4X - SA4X

(@ 90°) EPA 1.6 - 44 LB. EPA .6 – 18

4 Luminaires - 4U

(in line) EPA 2.3 – 44LB.

Slipfitter Mounting

Drilling Pattern - for Luminaires Bolted Direct to the Pole- Includes Top Cap

NOTE: EPA of Bracket and Luminaire(s) must be considered

when calculating pole load.

Luminaire bolts to pole

To order pole drilling Aries (All Lamps)

add suffix Quasar (to 400W) Quasar (1000W)

1 luminaire -1E2 -1E34

2 Luminaires -2C2 - 2C34

-2L2 - 2L34

3 Luminaires -3T2 - 3T34

4 Luminaires -4X2 - 4X34

Area Lighting Mounting

NEW

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Mounting

Poles Round Steel

Shaft

•Pole shafts are supplied in 11 gauge - 0.1196” (20’ - 30’) or 7

gauge - 0.1793” ( 25’ HD - 50’) thickness having a minimum yield

strength of 55,000 psi and conforms to ASTM A595 Grade A.

•Shafts are of one piece construction with a full length longitudinal

high frequency electric resistance weld.

•RTS Series (round tapered) pole shafts are round in cross section

with a uniform taper of 0.14 inches per foot of length.

Hand hole

•The reinforcing hand hole rim consists of a rectangular shaped

tubing. The opening is 2-1/2” X 5” (nominal).

•Hand holes are furnished with a steel attachment bar, steel cover

and one round head machine screw.

•Hand holes are welded in the pole shaft and is located 18” above

the base.

Electrical Ground

•A nut holder is provided near the hand hole and includes a 1/2”-

13 UNC hex head bolt and nut.

Base Plate

•Fabricated from structural quality hot rolled carbon steel plate

conforming to ASTM A36.

•Circumferentially welded top and bottom, the base plate telescopes

the pole shaft.

•The pole chart information lists the bolt circle ranges for each pole.

Nut Covers

•Nut covers are die cast zinc and are fastened to the and are

fastened to the shaft by 1/4” self tapping screw.

Anchor Bolts

•Fabricated from carbon steel bar conforming to AASHTO M314

Grade 55 or ASTM F1554 Grade-55.

•Bolts have an “L” bend on one end.

•Bolts are galvanized a minimum of 12” on the threaded end.

•Four anchor bolts are furnished per pole. Each anchor bolt is

furnished with two hex nuts and two flat washers.

RTS

Round Tapered Steel Poles Construct catalog number as follows

Catalog Number Indicate Drilling Pattern or Tenon Finish Options

RTS25-HD- -1U-SA2C -BZ -DUP

See full brochure for EPA and weight requirements

Mtg. Ht. Round Straight Steel Pole

(Nom.) Dia. @ Base Catalog No.*

20 6.5 RTS20- *

25 7.0 RTS25- *

7.0 RTS25-HD- *

30 8.0 RTS30- *

8.0 RTS30-HD- *

35 8.5 RTS35- *

9.5 RTS35-HD- *

39 9.0 RTS39- *

9.0 RTS39-HD- *

45 10.0 RTS45- *

11.0 RTS45-HD- *

50 10.0 RTS50- *

11.0 RTS50-HD- *

Finish Galvanized - GAL

Bronze (Powder) - BZ

Black (Powder) - BL

White (Powder) - WH

Receptacle

Provision for a Duplex Receptacle - DUP

Receptacle not included

Options

Description Suffix

Caution Pole Base/Anchor Bolts: When the customer uses his own template to install anchor bolts, he

assumes all responsibility for the installation of those anchor bolts.

The data found in these sheets is for reference only and is subject to change.

Add suffix to order mounting bracket. All brackets are 2” Tenon

NOTE: EPA of Bracket and Luminaire(s) must be considered when calculating pole load.

Bullhorn Spoke Arm

Description Suffix Suffix

1 Luminaire - 1U - SA1

EPA 0.3 – 8 LB

2 Luminaires - 2U - SA2C

EPA 1.0 – 21 LB. EPA 0.4 –11

2 Luminaires - SA2L

EPA 0.4 –11

3 Luminaires - 3U - SA3T

EPA1.6 – 32 LB. EPA 0.5 – 11 LB

- 3Y - SA3Y

EPA 1.3 - 34 LB. EPA 0.5 – 11 LB

4 Luminaires - 4X - SA4X

(@ 90°) EPA 1.6 - 44 LB. EPA .6 – 18

4 Luminaires - 4U

(in line) EPA 2.3 – 44LB.

Slipfitter Mounting

Drilling Pattern - for Luminaires Bolted Direct to the Pole- Includes Top Cap

NOTE: EPA of Bracket and Luminaire(s) must be considered

when calculating pole load.

Luminaire bolts to pole

To order pole drilling Aries (All Lamps)

add suffix Quasar (to 400W) Quasar (1000W)

1 luminaire -1E2 -1E34

2 Luminaires -2C2 - 2C34

-2L2 - 2L34

3 Luminaires -3T2 - 3T34

4 Luminaires -4X2 - 4X34

Area Lighting Mounting

NEW

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Poles Square Aluminum

Construct catalog number as follows

Catalog Number Indicate Drilling Pattern or Tenon Finish Options

SSA5-20 -4U -BZ -DUP

See full brochure for EPA and weight requirements

Pole Shaft

•Series SSA pole shafts are constructed of seamless extruded

tube of 6063 aluminum alloy per ASTM B221. They are full-

length heat treated after welding on the base flange to T-6

temper. The shaft shall be free of longitudinal welds.

Hand hole

•4” and 5” poles have a 2” X 4” hand hole.

•6” and 6.625” poles have a 3” X 5” hand hole.

•The aluminum cover is secured with two stainless steel

screws.

Electrical Ground

•An internal ground lug with a 3/8” hole is provided

opposite the hand hole .

Base Plate

•One piece cast socket of aluminum alloy 356 per ASTM B26

or B108. he base flange shall be joined to the pole shaft by

complete circumfrential welds, externally at the top of the

flange and internally at the bottom of the shaft tube.

Base Covers

•Two piece base covers are supplied.

•Stainless steel screws are provided.

Anchor Bolts

•Fabricated from carbon steel bar conforming to AASHTO

M314-90.

•Bolts have an “L” bend on one end.

•The threaded ends of the anchor bolts are galvanized per

ASTM A153.

•Each anchor bolt is furnished with one hex nut and one flat

washer also galvanized per ASTM A153.

Mtg. Ht. Square Straight Aluminum Pole

(Nom.) Square Catalog No.*

10 4.000 SSA4-10- *

12 4.000 SSA4-12- *

14 4.000 SSA4-14- *

16 5.000 SSA5-16- *

18 4.000 SSA5-18- *

20 5.000 SSA5-20- *

25 6.000 SSA5-25- *

30 6.625 SSA6-30- *

*Indicate Tenon or Drilling Pattern

SSA

Square Straight Aluminum Poles

Finish Galvanized - GAL

Bronze (Powder) - BZ

Black (Powder) - BL

White (Powder) - WH

Receptacle

Provision for a Duplex Receptacle - DUP

Receptacle not included

Options

Description Suffix

Caution Pole Base/Anchor Bolts: When the customer uses his own template to install anchor

bolts, he assumes all responsibility for the installation of those anchor bolts.

The data found in these sheets is for reference only and is subject to change.

Add suffix to order mounting bracket. All brackets are 2” Tenon

NOTE: EPA of Bracket and Luminaire(s) must be considered when calculating pole load.

Bullhorn Spoke Arm

Description Suffix Suffix

1 Luminaire - 1U - SA1

EPA 0.3 – 8 LB

2 Luminaires - 2U - SA2C

EPA 1.0 – 21 LB. EPA 0.4 –11

2 Luminaires - SA2L

EPA 0.4 –11

3 Luminaires - 3U - SA3T

EPA1.6 – 32 LB. EPA 0.5 – 11 LB

- 3Y - SA3Y

EPA 1.3 - 34 LB. EPA 0.5 – 11 LB

4 Luminaires - 4X - SA4X

(@ 90°) EPA 1.6 - 44 LB. EPA .6 – 18

4 Luminaires - 4U

(in line) EPA 2.3 – 44LB.

Slipfitter Mounting

Mounting

Drilling Pattern - for Luminaires Bolted Direct to the Pole- Includes Top Cap

NOTE: EPA of Bracket and Luminaire(s) must be considered

when calculating pole load.

Luminaire bolts to pole

To order pole drilling Aries (All Lamps)

add suffix Quasar (to 400W) Quasar (1000W)

1 luminaire -1E2 -1E34

2 Luminaires -2C2 - 2C34

-2L2 - 2L34

3 Luminaires -3T2 - 3T34

4 Luminaires -4X2 - 4X34

Area Lighting Mounting

NEW

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Parklume™ Bollards

Four Attractive Styles

•With the choice of designer colors and four distinct styles,

there is a Parklume™ model to enhance most architecture.

One and Two Lamp Models

•All Parklume™ bollards can be supplied with a unique

side louver for applications where the walkway is uneven

or stairs require a higher level of illumination.

Cast Aluminum – 8” Diameter

•Heavy wall fluted body offers an attractive profile with

added strength.

•All two lamp Parklume™ bollards feature a vandal

resistant heavy duty cast aluminum grill and polycarbonate

lens on the bottom lamp.

Optics

•Chaplin™ features a polycarbonate top lens.

•Skylighter™ models are furnished with a heat resistant

glass top lens.

•Cromwell™ and Kaiser™ models feature a polycarbonate

top lens with optional louver.

Anchor Bolts

•Three heavy duty anchor bolts are provided.

Finish

•Polyester powder coat finish. Decorator colors are

available.

Socket

•Specification grade porcelain lampholder.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

PL8

Four Attractive Models

— One and Two Lamp

To order construct the catalog number as follows

PL8 -70 MH -RD -QT -BZ -options

Parklume™ Bollards by Acculite: PL8

Watts

Single Lamp Models

MH: 50, 70, 100

HPS: 35, 50, 70, 100, 150

Two Lamp Models

(Top Lamp / Bottom Lamp)

MH: 50/50, 70/50, 100/50

HPS: 35/35,

50/35, 50/50

70/35, 70/50

100/35, 100/50

150/35, 150/50, 150/70

Options: See Below

Color: See Below

Volts

Quad Tap – 120V, 208V, 240V & 277V -QT

Tri Tap – 120/277/347V -TT

480V -480

BCD: 5-3/4”

KaiserTM

39-1/2”

8”

15”

34”

Bolt Circle

Lamp With clear lamp - L

Pulse Start Ballast

150W MH (Standard on 50, 70, 100W) - PSB

Louver

For Top lamp - LV

Standard Colors

Bronze - BZ

Black - BL

White - WH

Designer Colors Consult Factory

Lamp Metal Halide: MH

High Pressure Sodium: HP

Model Chaplin™: RTH

Skyliter™: ULG

Cromwell™: RD

Kaiser™: RDP

Options

Description Suffix

CromwellTM

39”

8”

15”

34”

SkyliterTM

36-1/2”

8”

15”

32”

Cromwell™

Kaiser™

Chaplin™ Skyliter™

39-1/4”

9-1/2”

8”

15”

34”

Dimensions

ChaplinTM

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Floodlighting

Floodlighting of Building Facades, Signage and Large Areas

Accuflood - High Performance Floodlights

Quartz-Lux / Flood-Lux - Economy Floodlights

aFLS

Compact

Floodlight

Narrow, Medium

or Wide Beam

Reflectors

Up to 175 Watts

EFM

Compact

Floodlight

Horizontal Lamp

Up to 400 Watts

SFL

Traditional

Floodlight

Horizontal Lamp

Up to 400 Watts

FLM

High Performance

Floodlight

Up to 400 Watts

FLC

High Wattage

Floodlight

1000 Watts

Quartz-Lux

Economical 500 Watt and

1500-Watt compact

quartz floodlight

Flood-Lux

Economical 35-150 Watt High

Pressure Sodium miniature floodlight

Caribe - Architectural Floodlight

Compact, elliptical shape compliments landscape design

Narrow or medium spot, or wide beam reflector

Lamps up to 400 watts

Traditional

Floodlight

Vertical Lamp

Up to 400 Watts

Poles

Steel & Aluminum Poles

Square Straight , Square Tapered

and Round Tapered Steel

Square Straight Aluminum

Pages 88 - 90

RBF

Narrow, Medium

or Wide Beam

Stem and Slipfitter

Mounting

Up to 175 Watts

RBF

Narrow, Medium

or Wide Beam

Trunion and

Slipfitter Mounting

Up to 400 Watts

RBF

Narrow, Medium

or Wide Beam

Trunion and

Slipfitter Mounting

Up to 400 Watts

Hinged Lens

250W- 400W

Stem Mount

Max 175W

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Caribe Architectural Floodlight NEW

MAX 400W

Slipfitter Mount

50W thru 400W

Trunion Mount

50W thru 400W

18”

50 ED17 RBF50MH-(Volts) – RBF50MH-(Volts)-SF

70 “ RBF70MH-(Volts) – RBF70MH-(Volts)-SF

100 “ RBF100MH-(Volts) – RBF100MH-(Volts)-SF

150 “ RBF150MH-(Volts) – RBF150MH-(Volts)-SF

250 ED28 –RBF250MH-(Volts)-PSB RBF250MH-(Volts)-PSB-SF

400 “ –RBF400MH-(Volts)-PSB RBF400MH-(Volts)-PSB-SF

Note: Indicates available ballasts: HP – High Pressure Sodium,

MH – Probe Start Metal Halide

PS – Pulse Start Metal Halide

Architectural Profile

•The elliptical shape is designed to blend with and

compliment the architects landscape design.

•Excellent for illumination of facades, monuments,

building perimeters, signs, security lighting, accent,

walkway lighting and a many of other uses.

Specification Grade Construction

•Cast construction has deep ribbed housing, beveled

edge door frame with full width concealed hinge,

recessed cover screws, heavy duty degree marked cast

aluminum stem.

NEMA Beam Distribution

•Narrow spot: Max 175W: 3H X 2V.

250W - 400W: 2H X 2V

•Medium spot: Max 175W: 4H X 3V

250W - 400W: 6H X 3V

•Wide beam: Max 175W: 7H X 6W

250W - 400W: 6H X 6V

Gasketed Lens Assembly

•Both the lens and door are gasketed.

Specification Grade Lampholder

•4kv rated medium base lampholder.

New Technology Pulse Start

Metal Halide Lamps & Ballasts

•Pulse Start technology provides longer lamp life, more

lumens per watt, better lumen maintenance, faster lamp

warm up, faster hot restrike and superior color rendition.

Finish

•Standard colors are bronze, black, white

•Optional designer colors are available.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

RBF

Wide Beam, Medium Spot

and Narrow Spot

175 ED17 RBF175MH-(Volts) – RBF175MH-(Volts)-SF

250 ED28 –RBF250MH-(Volts) RBF250MH-(Volts)-SF

400 “ –RBF400MH-(Volts) RBF400MH-(Volts)-SF

Lamp

Watts Stem Mount Trunion Mount Slipfitter Mount

35 ED23.5 RBF35HP-(Volts) – RBF35HP-(Volts)-SF

50 “ RBF50HP-(Volts) – RBF50HP-(Volts)-SF

70 “ RBF70HP-(Volts) – RBF70HP-(Volts)-SF

100 “ RBF100HP-(Volts) – RBF100HP-(Volts)-SF

150 ED25 RBF150HP-(Volts) – RBF150HP-(Volts)-SF

250 ED18 –RBF250HP-(Volts) RBF250HP-(Volts)-SF

400 “ –RBF400HP-(Volts) RBF400HP-(Volts)-SF

Slipfitter Adapter

Converts stem to slipfitter

Fits tenons from 2” - 3”IPS

(2 3/8” - 3 1/2” OD) RBF-PTF

Converts trunion to slipfitter

Fits 2” IPS (2-3/8”) OD tenon RBF-TA

Lexan Shield Max 175W RBF-S-LS

250 - 400W RBF-M-LS

Top Visor Max 175W RBF-S-TV

Black 250 - 400W RBF-M-TV

Side Visor Max 175W RBF-S-SV

Black 250 - 400W RBF-M-SV

Horizontal

Louver Max 175W RBF-S-HLV

Black 250 - 400W RBF-M-HLV

Stanchion

For 1/2” Stem mount

Bronze RBF-STANCHION-BZ

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 35W 50W 70W 100W 150W 175W 250W 400W

120V - 120 HP HP/PS – – – – – –

120V Reactor NPF - 120NP HP HP HP HP HP – – –

120V Reactor HPF - 120R HP HP HP HP HP – – –

277V - 277 HP HP/PS – – – – – –

120/208/240/277V - QT –PSHP/PS HP/PS HP/PS MH HP/MH/PS HP/MH/PS

120/277/347V - TT –PSHP/PS HP/PS HP/PS MH HP/MH/PS HP/MH/PS

480V - 480 –– –HP/PS HP/PS MH HP/MH/PS HP/MH/PS

4”

3”

Metal Halide

Pulse Start Metal Halide

High Pressure Sodium

Options

Description Suffix

Accessories

Description Catalog No.

Dimensions

RBF Stanchion

DW H

175W Max 8-5/8” 11” 8-3/4”

250W - 400W 13” 17-5/8” 13-1/2”

Lamp Clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Color Bronze See Above

White - WH

Black - BL

Distribution

Narrow Max 175W: 3H X 2V.

250W - 400W: 2H X 2V - N

Medium Max 175W: 4H X 3V

250W - 400W: 6H X 3V - M

Wide Max 175W: 7H X 6W

250W - 400W: 6H X 6V Standard

See Above

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Note: Indicates available ballasts: HP – High Pressure Sodium, MH – Metal Halide

Accuflood™ High Performance Floodlighting

EPA

0.71 ft2

Includes 1.2 drag factor

9-1/4”

6-3/4” 6-3/4” 9-1/4”

1-3/4” 4-3/8”

Three beam spreads for Metal Halide and High

Pressure Sodium Lamps

•This compact low wattage floodlight is available for

wide, medium or narrow beam spreads.

Construction

•Heavy wall die cast aluminum housing.

•Die cast aluminum hinged cover is secured with a single

heavy duty 1/4”-20 cover bolt.

•Flat tempered gasketed glass lens.

•Gasketing is long life silicone rubber.

NEMA Beam Distribution

•Wide beam: MH & HPS - 7H X 7V.

•Medium beam: MH - 6H X 5V, HPS - 6H X 6V.

•Narrow beam: MH - 4H X 3V, HPS - 4H X 4V

Mounting

•Choice of yoke, stem and stem with slipfitter mounting.

Socket

•Specification grade porcelain lampholder.

Finish

•Bronze polyester powder coat finish.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

FLS

35 Watt

thru 175 Watt Floodlight

50 Medium FLS50MH-(volts) FLS50MH-(volts)-TRN

70 “ FLS70MH-(volts) FLS70MH-(volts)-TRN

100 “ FLS100MH-(volts) FLS100MH-(volts)-TRN

150 “ FLS150MH-(volts) FLS150MH-(volts)-TRN

175 “ FLS175MH-(volts) FLS175MH-(volts)-TRN

Metal Halide

High Pressure Sodium

Lamp

Watts Base 1/2” Stem Mount Yoke Mount

Options Accessories

Description Suffix Description Catalog No.

Lamp With Clear Lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage - PC (volts)

NEMA Distribution MH HPS

Narrow 4 X 3 4 X 4 - N

Medium 6 X 5 6 X 6 - M

Wide 7 X 7 7 X 7 Standard

See Above

Slipfitter Adapter

Converts stem to slipfitter

Tenon 2” - 3”IPS

2 3/8” - 3 1/2” OD FLS-PTF

Vandal Shield Lexan FLS-LS

Wire Guard FLS-WG

Stanchion

Bronze FLS-STANCHION-BZ

35 Medium FLS35HP-(volts) FLS35HP-(volts)-TRN

50 “ FLS50HP-(volts) FLS50HP-(volts)-TRN

70 “ FLS70HP-(volts) FLS70HP-(volts)-TRN

100 “ FLS100HP-(volts) FLS100HP-(volts)-TRN

150 “ FLS150HP-(volts) FLS150HP-(volts)-TRN

Dimensions

Stem Mount Yoke Mount

ooo

4-5/16”

2”

9-1/4”

FLS

Yoke Mount

9 1/4”

FLS

Stem Mount

Primary Voltage Availability – Replace “-volts” in catalog number with required voltage suffix listed below.

Volts Suffix 35W 50W 70W 100W 150W 175W

120V - 120 HP HP/MH ––––

120V Reactor NPF - 120NP HP HP HP HP HP –

120V Reactor HPF - 120R HP HP HP HP HP –

277V - 277 HP HP/MH ––––

120/208/240/277V - QT ––HP/MH HP/MH HP/MH MH

120/277/347V - TT ––HP/MH HP/MH HP/MH MH

480V - 480 –––HP/MH HP/MH MH

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

∆400W metal halide — use ED28 lamp

Accuflood™ High Performance Floodlighting

4-7/8”

1-3/4”

EPA

1.2 ft2Includes 1.2 drag factor

Compact Size

•The smallest 400 watt floodlight available.

Construction

•Heavy wall die cast aluminum housing with separate

compartment to thermally isolate the capacitor.

•Heavy duty plated steel yoke.

•Hinged cover is secured with two heavy duty 1/4”-20

cover bolts. Gasketing is long life silicone rubber.

•Three piece precision anodized reflector.

•Flat tempered glass lens.

Mounting

•Optional tenon adapter for slipfitter mounting.

NEMA Beam Distribution

•Wide beam: MH & HPS - 7H X 7V.

Socket

•Specification grade porcelain lampholder.

Finish

•Bronze polyester powder coat finish.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

EFM

150 Watt

thru 400 Watt Floodlight

Metal Halide

175 Mogul EFM175MH-volts

250 “ EFM250MH-volts

400 “ EFM400MH-volts∆

Lamp Yoke

Watts Base Mount

Metal Halide

150 Mogul EFM150HP-volts

250 “ EFM250HP-volts

400 “ EFM400HP-volts

Options Accessories

Description Suffix Description Catalog No.

Lamp With Clear Lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Protected Igniter

For HPS Luminaires - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Vandal Shield Factory Installed Lexan - LS

Tenon Adapter

Converts yoke to slipfitter

Tenon 2”IPS (2-3/8” OD) EFM-TA

Cross Arm Adapter

For horizontal aiming EFM-CA

Vandal Shield Lexan Factory Installed

Top Visor EFM-TV

Wall Bracket

Use with slipfitter or tenon adapter

tenon 2” IPS (2-3/8” OD) WB-1-BZ

Dimensions

Yoke Mount

ooo

8-1/2”

EFM

Yoke Mount

14”

8-1/2”

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

∆400W metal halide — use ED28 lamp

Accuflood™ High Performance Floodlighting

3”

EPA

1.9 ft2Includes 1.2 drag factor

14”

6” 15-7/8”

7-1/16”

5-3/4”

Versatile

•This compact floodlight with traditional floodlight styling

for applications up to 400 watt.

Construction

•Heavy wall die cast aluminum.

•Hinged cover with two heavy duty cover bolts.

•One piece anodized reflector.

•Flat tempered glass lens is gasketed (no RTV).

Mounting

•Choice of yoke or slipfitter mounting.

NEMA Beam Distribution

•Wide beam: 175W MH - 6H X 7W,

250W & 400W MH - 7H X 7W.

400W HPS - 6H X 7W,

Socket

•Specification grade porcelain lampholder.

Finish

•Bronze polyester powder coat finish.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

175 Mogul SFL175MH-volts SFL175MH-volts-SF

250 “ SFL250MH-volts SFL250MH-volts-SF

400 “ SFL400MH-volts∆SFL400MH-volts-SF∆

Metal Halide

High Pressure Sodium

Lamp Slipfitter

Watts Base Yoke Mount Tenon 2” IPS (2-3/8”OD)

70 Mogul SFL70HP-volts SFL70HP-volts-SF

100 “ SFL100HP-volts SFL100HP-volts-SF

150 “ SFL150HP-volts SFL150HP-volts-SF

250 “ SFL250HP-volts SFL250HP-volts-SF

400 “ SFL400HP-volts SFL400HP-volts-SF

Options Accessories

Description Suffix Description Catalog No.

Lamp

with clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Protected Igniter

for HPS Luminaires - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Tenon Adapter

Converts yoke to slipfitter

Tenon 2”IPS (2-3/8” OD) SFL-TA

Cross Arm Adapter

For horizontal aiming SFL-CA

Vandal Shield Lexan SFL-LS

Top Visor SFL-TV

Wall Bracket

Use with slipfitter or tenon adapter

Tenon 2” IPS (2-3/8” OD) WB-1-BZ

SFL

70 Watt

thru 400 Watt Floodlight

Dimensions

Slipfitter

Yoke Mount

ooo

SFL

Yoke Mount SFL

Slipfitter

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

7-3/8”

Accuflood™ High Performance Floodlighting

Versatile

•This compact floodlight with traditional floodlight styling

for applications up to 400 watt.

Construction

•Heavy wall die cast aluminum.

•Hinged cover with four heavy duty cover bolts.

•One piece anodized reflector.

•Flat tempered glass lens is gasketed (no RTV).

Mounting

•Choice of yoke or slipfitter mounting.

NEMA Beam Distribution

•Wide beam: MH & HPS - 7H X 6V.

Socket

•Specification grade porcelain lampholder.

Finish

•Bronze polyester powder coat finish.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

175 Mogul NF175MH-volts NF175MH-volts-SF

250 “ NF250MH-volts NF250MH-volts-SF

400 “ NF400MH-volts NF400MH-volts-SF

Metal Halide

High Pressure Sodium

Lamp Slipfitter

Watts Base Yoke Mount Tenon 2” IPS (2-3/8”OD)

70 Mogul NF70HP-volts NF70HP-volts-SF

100 “ NF100HP-volts NF100HP-volts-SF

150 “ NF150HP-volts NF150HP-volts-SF

250 “ NF250HP-volts NF250HP-volts-SF

400 “ NF400HP-volts NF400HP-volts-SF

Options Accessories

Description Suffix Description Catalog No.

Lamp

with clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Photocontrol Receptacle

480V photocontrol receptacle only

Photocontrol supplied by others - PCR

Protected Igniter

for HPS Luminaires - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Tenon Adapter

Converts yoke to slipfitter

Tenon 2”IPS (2-3/8” OD) NF-TA

Cross Arm Adapter

For horizontal aiming NF-CA

Vandal Shield Lexan NF-LS

Top Visor NF-TV

Wall Bracket

Use with slipfitter or tenon adapter

Tenon 2” IPS (2-3/8” OD) WB-1-BZ

70 Watt

thru 400 Watt Floodlight

Dimensions

Slipfitter

Yoke Mount

16-3/8”

16-3/8” 16-3/8”

16-3/8”

7-3/8”

EPA

2.23 ft2(Includes 1.2 drag factor).

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

3-1/2”

1-3/4”

Accuflood™ High Performance Floodlighting

5-1/8”

16”

EPA

2.3 ft2

Includes 1.2 drag factor

Efficient Optics

•Use fewer luminaires to obtain the required light levels

with FLM high performance optics.

Hazardous Locations

•Available for Class I, Division 2, Groups B, C, D.

Construction

•Heavy wall die cast aluminum.

•Hinged door secured with 1⁄4”-20 cover bolts. Keyed

interlocking hinge secures the door during servicing.

•Flat tempered glass lens.

Mounting

•Choice of yoke or slipfitter mounting.

NEMA Beam Distribution

•Wide beam: MH & HPS - 5H X 7V.

Socket

•Specification grade porcelain lampholder.

Finish

•Bronze polyester powder coat finish.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, HPS -40°C

Options Accessories

Description Suffix Description Catalog No.

Lamp

with clear lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Photocontrol Receptacle

480V photocontrol receptacle only

Photocontrol supplied by others - PCR

Protected Igniter

for HPS Luminaires - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Hazardous Locations

Class 1, Div. 2, Groups B, C, D - C1

Ambient 25˚C 40˚C

400W HPS 360˚C 375˚C

400W MH 328˚C 343˚C

Tenon Adapter

Converts yoke to slipfitter

Tenon 2”IPS (2-3/8” OD) FLM-TA

Cross Arm Adapter

For horizontal aiming FLM-CA

Vandal Shield Lexan FLM-LS

Top Visor FLM-TV

Wall Bracket

Use with slipfitter or tenon adapter

tenon 2” IPS (2-3/8” OD) WB-1-BZ

250 Mogul FLM250MH-volts FLM250MH-volts-SF

400 “ FLM400MH-volts FLM400MH-volts-SF

Metal Halide

High Pressure Sodium

Lamp Slipfitter

Watts Base Yoke Mount Tenon 2” IPS (2-3/8”OD)

250 Mogul FLM250HP-volts FLM250HP-volts-SF

400 “ FLM400HP-volts FLM400HP-volts-SF

FLM

250 Watt and 400 Watt Floodlight

Dimensions

Yoke

ooo

16”

7-1/16”

8-3/16”

Slipfitter

17-1/16”

7-1/16” 17-1/16”

FLM

Slipfitter

FLM

Yoke mount

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

Accuflood™ High Performance Floodlighting

Applications

•Precisely engineered to provide durable, efficient

controlled illumination of parking lots, sports facilities,

storage areas, building facades, industrial facilities or

any other outdoor location where an energy efficient

weatherproof floodlight is appropriate.

•Well suited to automotive sales lots and other outdoor

product display areas where the combination of high

light levels and even distribution enhances the end users

product presentation.

Construction

•Heavy wall die cast aluminum housing and door.

•Hinged door secured with two #10-24 cover bolts.

•Steel yoke or die cast 2” slipfitter (2-3/8”).

•Flat tempered glass lens.

Optical Assembly

•Anodized reflector for optimum long term performance.

•This reflector assembly provides an effective wide beam

spread and excellent uniformity for superior lighting

performance.

NEMA Beam Distribution

•Wide beam: MH & HPS - 6H X 6V.

Ballasts

•A full range of ballasts is available.

Finish

•Finished with a pleasing dark bronze polyester powder

coat with excellent corrosion resistant characteristics.

EPA

•4.7 ft2 (includes 1.2 drag factor)

Options Accessories

Description Suffix Description Catalog No.

Lamp With clear Lamp - L

Photocontrol

On multi-tap ballasts indicate line voltage

Available 120/208/240/277/347V - PC (volts)

Photocontrol Receptacle

480V photocontrol receptacle only

Photocontrol supplied by others - PCR

Protected Igniter

for HPS Luminaires - PI

Fuse Holder Supplied with fuse Single pole - F1

On multi-tap ballasts indicate line voltage

Tenon Adapter

Converts yoke to slipfitter

Tenon 2”IPS (2-3/8” OD) FLC-TA

Cross Arm Adapter

For horizontal aiming FLC-CA

Vandal Shield Lexan FLC-LS

Top Visor FLC-TV

Wall Bracket

Use with slipfitter or tenon adapter

Tenon 2” IPS (2-3/8” OD) WB-1-BZ

1000 Mogul FLC1000MH-volts FLC1000MH-volts-SF

Metal Halide

High Pressure Sodium

Lamp Slipfitter

Watts Base Yoke Mount Tenon 2” IPS (2-3/8”OD)

1000 Mogul FLC1000HP-volts FLC1000HP-volts-SF

FLC

1000 Watt

Dimensions

Slipfitter

Yoke Mount

FLC

Slipfitter

FLC

Yoke mount

23-3/4”

10-1/4”

Slipfitter:

2”IPS (2-3⁄8” OD)

23-3/4”

6”

EPA

4.7 ft2(Includes 1.2 drag factor).

7-1/2”

10-1/4”

23-3/4”

5-3/8”

3”

2-1/2”

2 holes for 3/8” bolt

1 hole 1/2”” dia

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

100

Flood-Lux Series Economy Floodlighting

North American Components

•The superior quality and reliability of a North American

lamp and ballast.

Construction

•Glass lens.

•Cast aluminum housing and lens frame.

•Snap action lens clips.

Hinged Door

•With heavy duty captive hinged door assembly for easy

relamping and superior weatherproof seal.

Supplied with Lamp

•Superior quality North American HPS lamp.

Flood-Lux TM Floodlighting

High Pressure Sodium

35 CF35HP-120NP-L CF35HP-120NP-L-PC

50 CF50HP-120NP-L CF50HP-120NP-L-PC

70 CF70HP-120NP-L CF70HP-120NP-L-PC

100 CF100HP-120NP-L CF100HP-120NP-L-PC

150 CF150HP-120NP-L CF150HP-120NP-L-PC

Lamp Catalog Number Catalog Number with

Watts with Lamp* Lamp and Photocontrol*

* Furnished with North American lamp and North American 120V NPF ballast.

Bronze Finish. Optional White add suffix -WH

Note: Only available for 120V.

9”

6-1⁄4”

7-1⁄2”

Dimensions

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

101

Quartz-Lux Series Economy Floodlighting

Hinged Door

•With heavy duty captive hinged door assembly for easy

relamping and superior weatherproof seal.

Construction

•Cast aluminum body and door.

•Fully gasketed

Supplied with Lamp

•Double-ended quartz lamp

Quartz-Lux TM

Quartz Halogen

500 120 Q500-L

1500 240 Q1500-L

Lamp Catalog No.

Watts Volts with Lamp

Quartz Halogen Lamp

6-3/8”

Q500

Dimensions

Q1500

3-3/4”

9”

9-3/8”

5/1/2”

14-3/8”

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

102

Sports Lighting

Sports Pro - Sports Lighting Luminaire

Large 22” reflector for maximum performance

Heavy duty construction with simple mounting and aiming

Available with integral ballast or use with optional remote ballast

400, 1000 and 1500 Watts

Sports arenas and stadiums which require highly controlled beam spreads

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

103

Voltage Suffix: change “volts” to –

“- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

“- 480”480V

103

Sport-Pro™ High Performance Sports Lighting

High Performance Optical Assemblies

•Large 22 inch spun aluminum Sport-Pro™ reflector

assemblies for maximum performance.

•Heat and impact resistant tempered glass lens.

Heavy Duty Construction

•Rugged construction combines a corrosion resistant cast

aluminum socket and ballast housing with aluminum

cover and precision spun aluminum optical assembly.

•Remote ballasted Sport-Pro™ luminaires feature a cast

socket housing and heavy duty zinc plated steel yoke.

Easy Installation and Maintenance

•Mounted directly to the cross arm, the ballast assembly

is secured with a single bolt for fast installation and

easy horizontal aiming. Vertical aiming is just as quick,

with single bolt securing the toothed knuckle.

•The water-tight cord connector provides easy and

reliable supply cable installation.

•Stainless steel latches and a dedicated hinge assembly

ensure that the lens gasket is evenly compressed. Hand

activated, these latches make servicing a fast and easy task.

Finish

•Corrosion resistant polyester finish protects the ballast

assembly and lamp socket assemblies.

•Exposed hardware is stainless steel.

•The heavy duty yoke is zinc plated.

Ballasts

•HPF ballasts are suitable for low temperature starting.

MH-30°C, Pulse Start MH -40°C, HPS -40°C

•Consult factory for remote ballast

400 Type II SP402MH-QT SP402MH-RB

400 Type III SP403MH-QT SP403MH-RB

400 Type IV SP404MH-QT SP404MH-RB

400 Type V SP405MH-QT SP405MH-RB

400 Type VI SP406MH-QT SP406MH-RB

1000 Type II SP1002MH-QT SP1002MH-RB

1000 Type III SP1003MH-QT SP1003MH-RB

1000 Type IV SP1004MH-QT SP1004MH-RB

1000 Type V SP1005MH-QT SP1005MH-RB

1000 Type VI SP1006MH-QT SP1006MH-RB

1500 Type II SP1502MH-QT –

1500 Type III SP1503MH-QT –

1500 Type IV SP1504MH-QT –

1500 Type V SP1505MH-QT –

1500 Type VI SP1506MH-QT –

Metal Halide

High Pressure Sodium

Lamp NEMA Integral Ballast Remote Luminaire

Watts Beam Spread Cross arm Mount Yoke Mount

Options Accessories

Description Suffix Description Catalog No.

Lamp With clear lamp - L

Fuse Holder

On multi-tap ballasts indicate line voltage

Single pole, with fuse - F1

Two Pole, with fuses - F2

Pre-Wired

3’ SOW Cord - 3C-PW

6’ SOW Cord - 6C-PW

12’ SOW Cord - 12C-PW

Integral Ballast SlipFitter

Tenon 2” IPS

(2-3/8” OD) SP-SF

Remote Luminaire Tenon Adapter

Converts yoke to slipfitter

Tenon 2” IPS (2-3/8” OD) SP-TA

Cross Arm Angle iron

2 luminaire SP-CA-2

3 luminaire SP-CA-3

4 luminaire SP-CA-4

Cross Arm Adapter

For horizontal aiming of remote luminaire SP-CA

Top Visor SP-TV

Wall Bracket

For 2” IPS (2-3/8” OD) Slipfitter SP-WB1

400 Type II SP402HP-QT SP402HP-RB

400 Type III SP403HP-QT SP403HP-RB

400 Type IV SP404HP-QT SP404HP-RB

400 Type V SP405HP-QT SP405HP-RB

400 Type VI SP406HP-QT SP406HP-RB

1000 Type II SP1002HP-QT SP1002HP-RB

1000 Type III SP1003HP-QT SP1003HP-RB

1000 Type IV SP1004HP-QT SP1004HP-RB

1000 Type V SP1005HP-QT SP1005HP-RB

1000 Type VI SP1006HP-QT SP1006HP-RB

400W, 1000W and 1500W

Sports Lighting Luminaire

For Remote Ballast

Integral Ballast

Dimensions

SP: Integral Ballast

SP: Remote Ballast

EPA: 2.80*

Max

35-1⁄4”

Ø 22-3⁄4”

Max

30-1⁄8”

Ø 22-3⁄4”

2 holes 3⁄8” dia

Centre hole 1⁄2” dia

71⁄2”

31⁄8”

oo o

145˚ Max

10˚

Min

0˚

Nadir

Aiming

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

104

Vapourtight Lighting

Vapourlume

Enclosed and gasketed design for both indoor and outdoor use

Rugged cast aluminum housing and guards

Up to 200-watt Incandescent A-lamp

Damp location listed for use in indoor/outdoor rugged service areas

or in “retro” style interiors.

For wall, ceiling or pendant mounting

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

105

Vapourlume™ Incandescent

Pendant D H

VP100G 4-1⁄4” 10-1⁄4”

VP200G 5-5⁄8” 11-15⁄16”

Wall D H1 H2

VW100G 6-13⁄16” 5-3⁄16” 12-3⁄4”

VW200G 7-5⁄8” 6” 14-1⁄4”

Ceiling D H1 H2

VC100G 4-1⁄4” 9-5⁄8” 7-3⁄4”

VC200G 5-5⁄8” 11-1⁄2” 9-7⁄8”

415⁄16”

59⁄16”

41⁄4”

Enclosed and Gasketed

•Enclosed and gasketed for industrial applications, these

rugged vaportight luminaires are suitable for use both

outdoors or indoors.

•Retro-look for applications with functional decor.

Construction

•Cast aluminum housings and guards.

•Globe: Standard– clear glass.

Mounting

•Ceiling – junction box with five 3⁄4” hubs

•Pendant – 3⁄4” hubs

•Wall – junction box with five 3⁄4” hubs

Finish

•Standard – Color Metallic Grey

•Optional – Designer colors to customer specification

Certification

•Suitable for indoor and outdoor use

100W 3/4” VP100G

200W 3/4” VP200G

Pendant

With Clear Glass Globe

Wattage Hub With Guard

Options

Description Suffix

Color Natural Aluminum Standard

White - WH

Black - BL

Designer Colors Consult factory

Furnished with 5 entries and 4 plugs

100W 3/4” VC100G

200W 3/4” VC200G

Ceiling - With Junction Box

Furnished with 5 entries and 4 plugs

100W 3/4” VC100G

200W 3/4” VC200G

Wall - With Junction Box

VC, VP, VW

100 and 200 Watt

Vaportight Incandescent Fixtures

Ceiling VP

Pendant VW

Wall

Pendant Mount

Dimensions

Ceiling Mount Wall Mount

Replacement Globes

Clear Glass 100W - V100

200W - V200

Description Suffix

Cast Box

Five hubs (3⁄4”) and 4 plugs

Box depth =1-5⁄8”

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

106

Specialty Fluorescent

Signlume - Aiming Adjustable Fluorescent Sign Lighting

Specialty indoor and outdoor fluorescent lighting

EWF / EWP - Enclosed and Gasketed Fluorescent

SLC / SLS High Abuse Fluorescent

For environments where moisture and corrosive materials are present such as underground parking,

food processing plants, refrigeration units, industrial processing and car washes

Heavy gauge steel housings and polycarbonate lens for high abuse environments

Surface mount or corner mount models available

For outdoor illumination of signs

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

107

Signlume™ Facade and Sign Lighting

When two lamp ballasts are used, both lamps in both luminaires must be identical

T12 - High Output - 800MA - 120V - Electromagnetic

4 foot FSL-B248HO-120 ‡+ FSL148 (Order 2 luminaires)

6 foot FSL-B272HO-120 ‡+ FSL172 (Order 2 luminaires)

8 foot FSL-B296HO-120 ‡+FSL196 (Order 2 luminaires)

T12 - Very High Output - 1500MA - 120V - Electromagnetic

4 foot FSL-B248VHO-120 ‡+ FSL148 (Order 2 luminaires)

6 foot FSL-B272VHO-120 ‡+ FSL172 (Order 2 luminaires)

8 foot FSL-B296VHO-120 ‡+FSL196 (Order 2 luminaires)

Two Lamp Remote Ballast + Remote Luminaire (Single Lamp)

Order Separately: 1 Two Lamp Ballast & 2 Single Lamp Luminaires

T12 - High Output - 800MA - 120V - Electromagnetic

4 foot FSL-B148HO-120 †+FSL148 (Order 1 luminaire)

6 foot FSL-B172HO-120 †+FSL172 (Order 1 luminaire)

8 foot FSL-B196HO-120 †+FSL196 (Order 1 luminaire)

T12 - Very High Output - 1500MA - 120V - Electromagnetic

4 foot FSL-B148VHO-120 †+FSL148 (Order 1 luminaire)

6 foot FSL-B172VHO-120 †+FSL172 (Order 1 luminaire)

8 foot FSL-B196VHO-120 †+FSL196 (Order 1 luminaire)

Single Lamp Remote Ballast + Remote Luminaire

Dimensions

Signlume Remote Ballast

Applications

•For outdoor illumination of signs and facades when

even illumination across the entire length of a facade or

sign is required. Most sign lengths can be

accommodated by combining the available lengths (4,

6, and 8 foot).

Construction

•Luminaire features a rugged extruded aluminum body

with baked white finish and clear acrylic lens.

•External hardware is stainless steel. Heavy duty cast

aluminum wiring box with gasketed cover.

•Ballast housing is steel.

Minimum Starting Temperatures / Rating

•High Output -30°C (-20˚F) 800 MA

•Very High Output -30°C (-20˚F)1500 MA

Signlume: Mounting Instructions

1: Spacing “S” should not exceed overhang “OH”

2: Minimum Overhang,

“OH” – not less than 0.4 X height “H”

3: Overhang “OH – should be as large as practical

4: For outdoor applications aim

the luminaire below horizontal.

FSL

Weatherproof

Lamp Length Catalog No. - Ballast + Catalog No. - Luminaire

FSL

Max 45˚

0˚

3-–3⁄16”

Mtg. Ctr: 21–57⁄64”

Overall: 23–7⁄32”

Mtg. Ctr.

4 49⁄64”

3⁄4” Straight pipe thread bushings

Junction box

this end

5–33⁄64”

Outdoor

Aiming

ABCD

Lamp Single (o/a) Double (o/a) Mtg Ctr Box

4’ 4’ 8-1⁄8” 9’ 7⁄8” 4’ 4-3⁄4” 2-3⁄8”

6’ 6’ 8-1⁄8” 13’ 7⁄8” 6’ 4-3⁄4” 2-3⁄8”

8’ 8’ 8-1⁄8” 17’ 7⁄8” 8’ 4-3⁄4” 2-3⁄8”

Mounts on 3⁄4” rigid conduit. (not included)

OH D

Remote Ballast Support Kit

(Recommended when ballast is

only supported by the conduit.)

For Mounting to 3/4” conduit RB-CMK

Conduit Arms

3/4” conduit arms, threaded both

ends, white finish. 18” long FSL-18-ARM

24” long FSL-24-ARM

36” long FSL-36-ARM

48” long FSL-48-ARM

Tandem Mount

Coupling for Tandem mount Standard

Accessories

Description Catalog No.

† Ballasts noted operate one lamp, order one luminaire per ballast

‡ Ballasts noted operate two lamps, order two luminaires per ballast

* For voltages other than 120V consult factory for availability

Signlume Luminaire

Order Separately: 1 Single Lamp Ballast & 1 Single Lamp Luminaire

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

108

Fluorescent Specialty Fluorescent Lighting

Non-Metallic

•Exterior components are non-metallic and chemical

resistant.

Moist and Corrosive Areas

•Designed for installations such as food processing plants,

refrigeration units, industrial processing, car washes etc.

Construction

•Polyester reinforced fiberglass housing and high impact

DR (85-15) acrylic diffuser. Celcon snap action clips to

secure the lens are standard.

•WP: Ballast tray and reflector are combined as a one

piece drop-in assembly.

•EWF: Commercial interior fluorescent mounted in a

fiberglass housing.

EWF & WP

Weatherproof

EWF & WP

24” 1x20 10°C —1EWF120RS-120

24” 2x20 10°C —1EWF224RS-120

Trigger Start

Minimum Dim WP Series Dim EWF Series

Lamp Watts Start Temp Ref∆Catalog Number* Ref∆Catalog Number*

Options Accessories

Description Suffix Description WP EWF

Tamper Proof Hardware - TP

Polycarbonate Lens - PC

Energy Saving Ballast See above

Electronic Ballast

For “232” or “432” models (T8 lamp) only

Replace “ESB” with - ETB

Pendant Mounting - PD

Acrylic Lens

4 Foot P-AL4 E-AL4

8 Foot P-AL8 E-AL8

Polycarbonate Lens

4 Foot P-AL4-PC E-AL4-PC

8 Foot P-AL8-PC E-AL8-PC

Latches

Standard Celcon P-LC P-LC

Polycarbonate P-LC-PC P-LC-PC

Stainless Steel P-LC-SS P-LC-SS

48” 2x32 10°C 6 WP232RS-120ESB 2EWF232RS-120ESB

48” 4x32 10°C 8 WP432RS-120ESB 4EWF432RS-120ESB

48” 1x40 10°C —1EWF140RS-120

48” 2x34 10°C 6 WP240RS-120ESB 2EWF240RS-120ESB

Rapid Start

48” 2x40 -18°C 7 WP240LT-120 3EWF240LT-120

Low Temperature

High Output

96” 2x60 10°C 9 WP296SL-120ESB 5EWF296SL-120ESB

Slimline

* 277V replace -120 with -277

EWF & WP

Dimensions

48” 2x60 -29°C 7 WP248HO-120 3EWF248HO-120

96” 2x95 -29°C 7 WP296HO-120 3EWF296HO-120

∆Dimension

Reference A B C

EWF Models

17”5”25-13/16”

27-5/8” 4-1/2” 49-13/16”

37-5/8” 5-5/8” 49-13/16”

47-5/8” 4-1/2” 97-13/16”

57-5/8” 5-5/8” 97-13/16”

WP Models

67-5/8” 4-1/2” 52”

77-5/8” 5-5/8” 52”

87-5/8” 4-1/2” 102”

97-5/8” 5-5/8” 102”

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

109

Fluorescent Specialty Fluorescent Lighting

For Medium Security Facilities

•One and two lamp fluorescent in a housing designed to

withstand severe abuse.

Construction

•16 gauge steel housing is standard,

•14 gauge and stainless steel housings are optional.

•U.V. stabilized polycarbonate lens, with an optional

acrylic lens for light duty applications.

•Baked epoxy finish.

•Closed cell neoprene gasket.

48” 1x40 Magnetic SLS140RS-120 SLC140RS-120

48” 1x32 Electronic SLS132RS-120-ESB SLC132RS-120-ESB

48” 2x32 Magnetic SLS240RS-120 SLC240RS-120

48” 2x32 Electronic SLS232RS-120-ESB SLC232RS-120-ESB

Rapid Start

Surface Mount* Corner Mount*

Size Watts Ballast Catalog No. Catalog No.

Options

Description Suffix Description Suffix

Tamper Proof Hardware - TP

Acrylic Lens - ACY

Energy Saving Ballast See above

Electronic Ballast

For “232” or “432” models (T8 lamp) only

Replace “ESB” with - ETB

Housing Stainless Steel - SS

14 Gauge Steel - 14

Night Light 120 Volt Only - NL

48” 1x40 Magnetic SLS140LT-120 SLC140LT-120

48” 1x40 Magnetic SLS240LT-120 SLC240LT-120

Low Temperature

SLC & SLS

Correctional Facility Luminaire

for High Abuse Environments

* 277V replace -120 with -277

SLC

Corner Mount

SLS

Surface Mount

50-3⁄16”

5-1⁄4”

7-5⁄16”

4-1⁄2” 50-3⁄16”

SLC

SLS

2-1⁄4”

7-5⁄16”

5-1⁄4”

Dimensions

Mine and Process Facility Lighting

MineLiter

Designed for the diversified environmental conditions associated with underground mining

and processing facilities where low illuminance levels are required

For wall, ceiling or pendant mounting

Enclosed design for drifts, drill stations, conveyor systems, ramps and storage areas

Standard steel or optional stainless steel housing for corrosive areas

Up to 100-watt H.I.D. lamp

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

110

Cord & U-Ground Plug 3 foot cord - 3C-MP

Stainless Steel Construction - SS

Lens With metal halide lamps Acrylic

With high pressure sodium lamps Polycarbonate

MineLighter Mine & Process Facility Luminaire

Applications

•MineLighter is specifically designed for the diversified

environmental conditions associated with underground

mining and processing facilities including such areas as

drifts, drill stations, conveyor systems, ramps and storage

areas.

Optics

•Lens is up to 85% efficient. Acrylic for metal halide

lamps and polycarbonate for high pressure sodium.

•MineLighter has approximately 10% uplight for improved

visibility and visual comfort.

•Hinging for easy access to the lamp and wiring

compartment.

Construction

•Heavy duty steel or stainless steel continuous seam

welded construction. Stainless steel is available for

corrosive environments

•Hinged lens with snap action clips for access to the lamp

and wiring compartment for easy relamping and

installation.

•A 1⁄2” conduit or cable entry is provided for wiring.

Mounting

•Low 73⁄8” profile requires minimal ceiling space.

•Mounting bracket allows flush ceiling mounting

•“U” clamp the MineLighter to a messenger cable.

Finish

•White epoxy powder paint, for corrosion resistance.

Ballasts

•High power factor ballast.

Weatherproof

Options

Description Suffix

Dimensions

Minelighter Voltage Suffix: change “volts” to – 35 & 50W “- 277”277V

70 & 100W “- QT”Quad Tap: 120V, 208V, 240V, 277V

“- TT”Tri Tap: 120V, 277V, 347V

50 Medium ML50MH-volts

70 “ ML70MH-volts

100 “ ML100MH-volts

Lamp Ceiling or

Watts Base Messenger Cable Mount

35 Medium ML35HP-volts

50 “ ML500HP-volts

70 “ ML70HP-volts

100 “ ML100HP-volts

High Pressure Sodium

Metal Halide

8-3⁄8”

7-7⁄8”

14-9⁄16”

7-3⁄8”

16-9⁄16”

5”

7-3⁄8”

4”

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAY

HIGHBAY

111

NEW

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

112

112112112

SPECIALTYFLOODLIGHTINGAREA

SECURITY

PARKING&CANOPY

COMMERCIAL & RETAIL

LOWBAYHIGHBAY

113

1. Project Information

Job Name: ________________________________

Architect: ________________________________ Tel: ______________

Engineer: ________________________________ Tel: ______________

Distributor: ________________________________ Tel: ______________

Contractor: ________________________________ Tel: ______________

Sales Rep: ________________________________ Tel: ______________

2A. ❑ Outdoor: About the space

____________________________________________________________

2B. ❑ Indoor: About the space

Room :

Length: ______ Width: ______ Ceiling Height: _______

Installation Details

Ceiling Mounting Work

Height: ______ Height: ______ Plane: ______

Reflectances

Ceiling: ______ Walls: ______ Floors: ______

Color

Ceiling: ______ Walls: ______ Floors: ______

Rate area as Clean: 12345 Dirty

Required Light Level: Footcandles: __________ Lux: __________

Obstructions

ie: Aisles, machinery on floor / Ducts, pipes,

A-C in ceiling / other

______________________________________________________________

3. About the Existing Luminaire

Existing Fixture ____________________ Manufacturer _________________

Lamps Per Fixture ______ Mounting Height ______ Light Levels ______

Light Source ❑Metal Halide ❑High Pressure Sodium

❑Other _________________________

4. About the Acculite Luminaire

Preferred Luminaire ______________________________

❑Rigid Mount ❑Flexible Mount

Light Source

❑Metal Halide ❑High Pressure Sodium ❑Other __________________

5. Drawings Supplied

Format ❑ “.DXF” __________________________________________

❑ “.DWG” __________________________________________

email productservices@junoltg.com Fax 847 813 8200

6. For Layout Assistance

Tel 888 387 2212

7. Notes

_________________________________

Work Plane

Ceiling

Height

Luminaire

Mounting

Height

AccuLite Lighting Layout

❑Initial ❑Maintained

SPECIALTY FLOODLIGHTING AREA SECURITY PARKING&CANOPY COMMERCIAL & RETAIL LOWBAY HIGHBAY

114

USA

1300 S. Wolf Road • P.O. Box 5065 • Des Plaines, IL 60017-5065

AccuLite Customer Service • PHONE (847) 827-9880 • FAX (847) 827-2925

Regional Offices & Warehouses: Atlanta, Dallas, Los Angeles, Philadelphia, Toronto

Visit us at www.junolightinggroup.com

Canada

219 Shoemaker Street • Kitchener, ON • Canada N2E 3B3

PHONE (800) 265-7844 • FAX (800) 594-5173 • Visit us at www.acculiteltg.com

Juno and Acculite are registered trademarks of Juno Lighting, Inc.

Products shown in this brochure are covered by U.S. and

international patents and patents pending.

Specifications subject to change without notice.

Printed in U.S.A. LIT-ACCU-CI Rev.02/05

PRDGD ACCULITE USA 3/27/02 2 Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
