304

Article 314 of the National Electrical Code®(NEC®) covers the installation and use of boxes. The article includes table references that guide the

electrician in the selection of the proper size box necessary to safely accommodate electrical service requirements. The box capacity table is

reproduced in part from NEC as a quick reference and guide. The NEC should be consulted for complete details.

Eaton's Crouse-Hinds products are produced in accordance with the requirements of UL-514-A, UL-514-B, UL-514-C and are classified for

fire resistance according to the standard, Fire Tests of Building Construction and Materials, ANSI/UL 263, ASTM E 119 and NFPA 251. This

listing is based on products when used in a fire rated (2 HR) wall or ceiling. Eaton's Crouse-Hinds steel boxes are listed with U.L. File

#E23156 and Eaton's Crouse-Hinds non-metallic boxes are listed with U.L. File #E102328 and U.L. (2 HR. fire rated) File #R9933.

Eaton's Crouse-Hinds switch and outlet boxes comply with the requirements of NEMA standard OS-1, NFPA 70-370 and Federal Spec.

#W-J-800E.

Under File #E23156, Eaton's Crouse-Hinds concentric and "Moon" KO style boxes, the following is stated "Suitable for bonding without any

additional bonding means around concentric (or Eccentric) knockouts where used in circuits above or below 250V."

Wall thickness on all steel boxes is 0.0625" with minimum galvanization thickness of G60.

Table 314.16(A) Metal Boxes

Min. Maximum Number of Conductors (arranged by AWG size)

Box Dimension, Inches Cu. In.

Trade Size or Type Cap.

No.

4 x 11/4Round or Octagonal 12.5 8765542

4 x 11/2Round or Octagonal 15.5 10 876653

4 x 21/8Round or Octagonal 21.5 14 12 10 9874

4 x 11/4Square 18.0 12 10 98763

4 x 11/2Square 21.0 14 12 10 9874

4 x 21/8Square 30.3 20 17 15 13 12 10 6

411/16 x 11/4Square 25.5 17 14 12 11 10 8 5

411/16 x 21/2Square 29.5 19 16 14 13 11 9 5

411/16 x 21/8Square 42.0 28 24 21 18 16 14 8

3 x 2 x 11/2Device 7.5 5433321

3 x 2 x 2 Device 10.0 6554432

3 x 2 x 21/4Device 10.5 7654432

3 x 2 x 21/2Device 12.5 8765542

3 x 2 x 23/4Device 14.0 9876542

3 x 2 x 31/2Device 18.0 12 10 98763

4 x 21/8x 11/2Device 10.3 6554432

4 x 21/8x 17/8Device 13.0 8765542

4 x 21/8x 21/8Device 14.5 9876542

33/4x 2 x 21/2Masonry Box/Gang 14.0 9876542

33/4x 2 x 31/2Masonry Box/Gang 21.0 14 12 10 9874

FS-Minimum Internal Depth 13/4Single Cover Gang 13.5 9766542

FD-Minimum Internal Depth 23/8Single Cover Gang 18.0 12 10 98763

FS-Minimum Internal Depth 13/4Single Cover Gang 18.0 12 10 98763

FD-Minimum Internal Depth 23/8Multiple Cover Gang 24.0 16 13 12 10 9 8 4

Table 314.16(B) Volume

Required per Conductor

Size of

Conductor

Free Space

Within Box for

Each Conductor

No. 18 1.5 cubic inches

No. 16 1.75 cubic inches

No. 14 2 cubic inches

No. 12 2.25 cubic inches

No. 10 2.5 cubic inches

No. 8 3 cubic inches

No. 6 5 cubic inches

For SI units: one cubic inch = 16.4 cm3.

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005 National Fire Protection Association, Quincy MA 02269. This reprinted material is not the

complete and official position of the National Fire Protection Asociation, on the referenced subject which is represented only by the standard in its entirety.

National Electrical Code®and NEC®are registered trademarks of the National Fire Protection Association, Inc., Quincy, MA 02269.

Switch & Outlet Boxes – Technical Data

301-314.qxp 12/23/2013 3:48 PM Page 304

305

Switch & Outlet Boxes – Technical Data

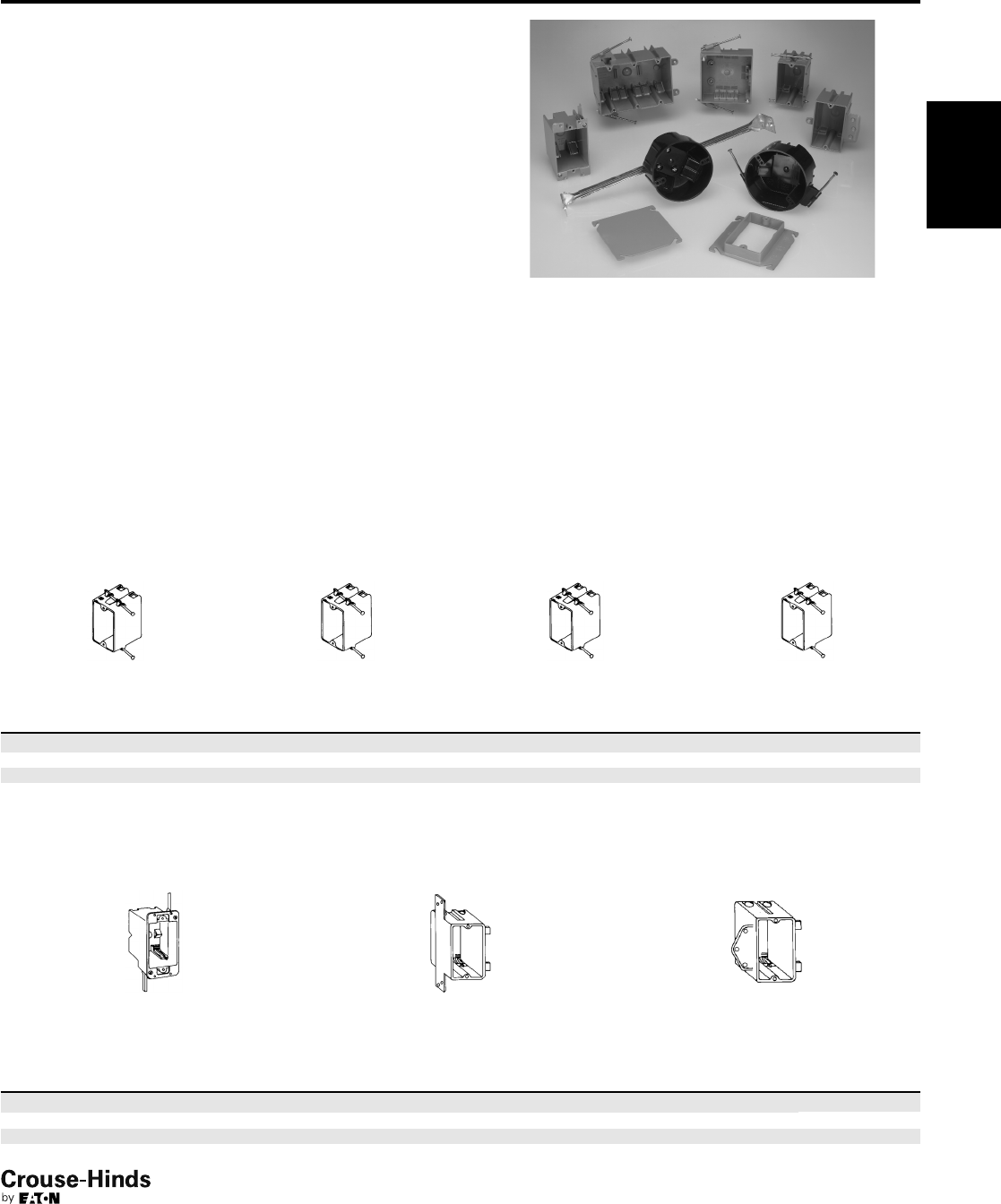

EATON'S CROUSE-HINDS OUTLET BOXES & COVERS

Eaton's Crouse-Hinds has assembled one of the most complete outlet box products

lines in the business. We’ve been leading in quality and selection for decades and

throughout the Eaton's Crouse-Hinds Steel Outlet Box offering, you will find innovative

products and solutions that save labor, cut material costs and increase productivity.

We have a complete offering of:

• 4" and 411/16" square drawn and welded boxes

• 4" square and 411/16", switch, masonry, utility, outlet, ceiling, fan and gangable boxes

• Drawn boxes available with concentric knockouts, combining 1/2" and 3/4" knockout

• Complete line of covers, partitions, extension rings and accessories

• Uni-Mount™ covers

• PRE-formance™ products

• Pre-assembled boxes which includes Uni-Mount cover attached to 4" square box

• Pre-fabricated boxes which includes Uni-Mount cover attached to 4" square box with

ground screw and lead installed

• Fire alarm boxes and covers

Standard Materials - Steel Covers, Outlet, and Switch Boxes:

• Steel boxes and covers are made of .0625 inch thick pre-galvanized sheet steel

• Handy box covers are made of .030 inch thick galvanized sheet steel

BRACKETS USED ON EATON'S CROUSE–HINDS BOXES

"F" BRACKET "D" BRACKET "S" BRACKET "C" BRACKET

Mounts on face of stud. See

catalog number for set back. For

wood studs.

Side mount bracket with set up

hook & guide tabs for automatic

positioning. Standard bracket set

back is 5/8". For wood and metal

studs.

Side mount brackets with set up

hook for wood or metal studs.

Standard bracket set back is 5/8".

Ceiling box bracket for wood

studs.

"VS" BRACKET "VMS" BRACKET "VP" BRACKET "SSB" BRACKET

Plain flat mounted bracket for use

on wood or metal studs. No set

back.

Side bracket for use with wood or

metal studs. Provides set up tabs

to position on face of stud.

Side bracket with set up hooks for

wood studs.

Positions box on either side of a

steel stud.

"MSB" BRACKET

Position box on either side of

steel stud.

301-314.qxp 12/23/2013 3:48 PM Page 305

306

MOUNTING EARS

Cat. # TP901 Cat. # TP902

ONE SCREW EAR TWO SCREW EAR

Mounting ears are available on many of our switch boxes. They are set forward in 1/16" the "old way" position. Two-screw ears are

generally used on shallow boxes and one-screw ears on deep boxes.

Switch & Outlet Boxes – Technical Data

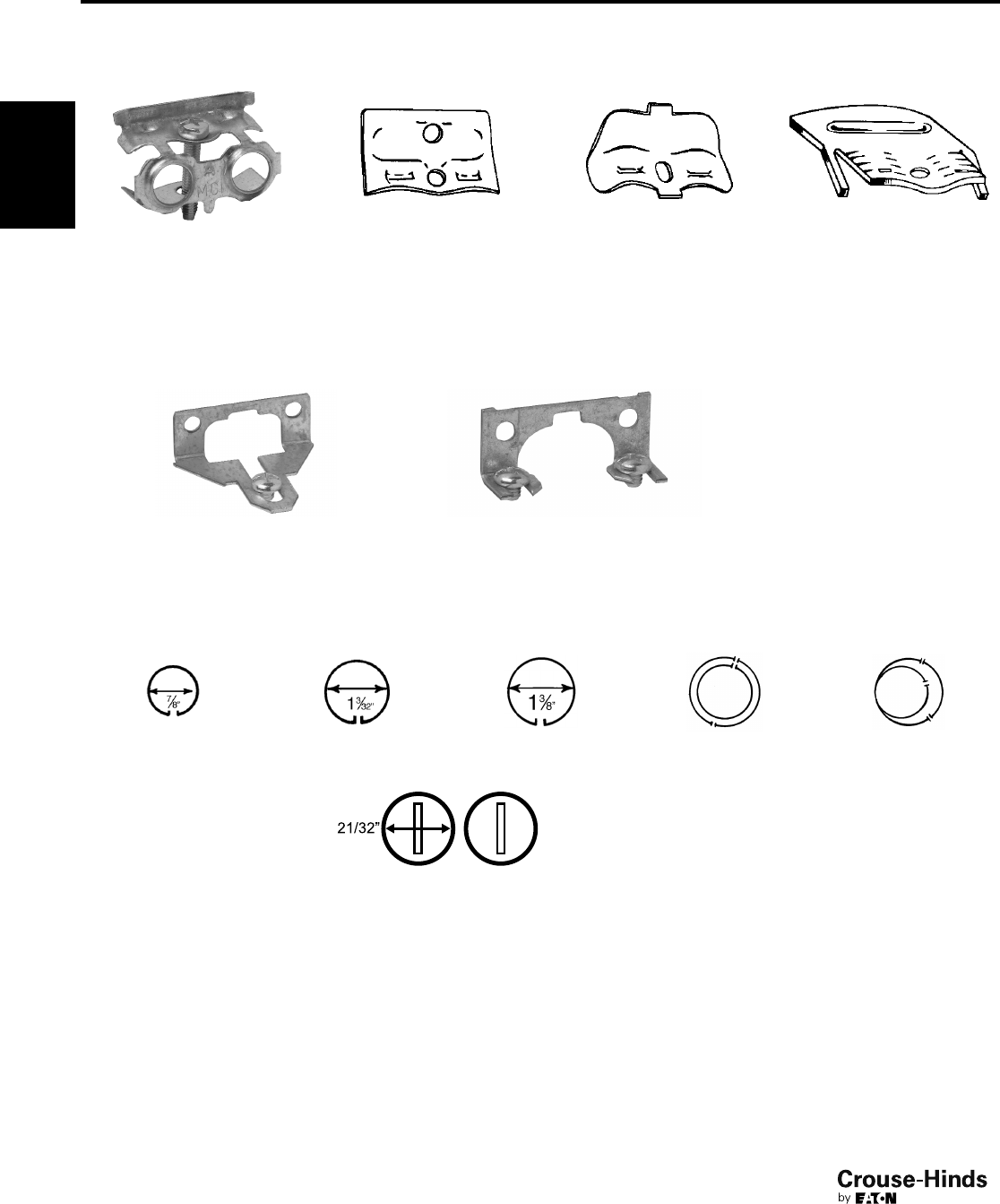

EATON'S CROUSE-HINDS BOX ENTRY DETAILS

1/2" Conduit KO 3/4" Conduit KO 1" Conduit KO Concentric 1/2" and 3/4" KO Eccentric 1/2" and 3/4" KO

Cable Pry-outs Always in Pairs.

Knockouts and Pry-outs

Eaton's Crouse-Hinds conduit KOs have standard trade size dimensions. KOs are uniform and true for attachment of cable or conduit

connectors. Pry-outs for cable entrance are slotted – a twist with screwdriver removes them. KOs and pry-outs are precision stamped to

permit easy removal, but remain sufficiently strong and sturdy when not removed.

Eaton's Crouse-Hinds 4" square drawn boxes feature a 1/2" and 3/4" "inverted" concentric KO – easily removed. Our 4" square welded feature

our 1/2" eccentric KO which also features easy removability of both the 1/2" and 3/4" KOs.

Note: These KOs are suitable for bonding without bonding jumpers around concentric (or eccentric) knockouts where used in circuits above or below 250V.

CLAMPS USED ON EATON'S CROUSE-HINDS BOXES

Cat. # TP900

MC-BX NM-1 NM-2 NM-4

FOR ARMORED & METAL CLAD

(MCI) CABLE

FOR NONMETALLIC CABLE

301-314.qxp 12/23/2013 3:48 PM Page 306

307

Steel Square Boxes

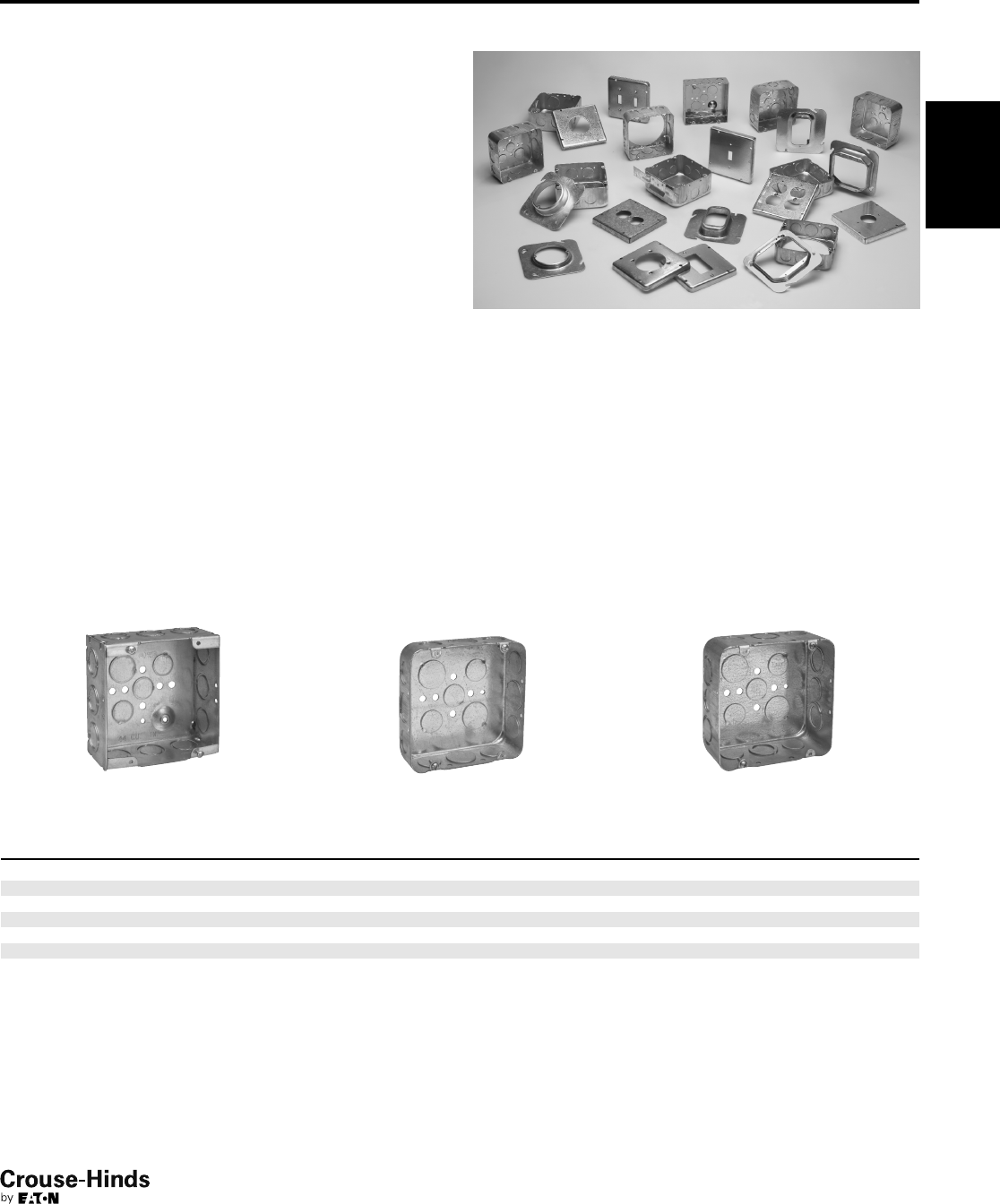

4" SQUARE OUTLET BOXES AND COVERS Features:

• Ideal for exposed work applications, providing an easy method for

the installation of electrical devices (switches, receptacles, fans,

lights, etc.)

• Raised ground screw location in the welded boxes saves time in

installation

• Available with pre-installed ground screws and pigtails for

increased labor savings

• Knockouts are suitable for use without a bonding jumper in circuits

above or below 250 volts

• Available in two depths for differing cubic capacity requirements

• Welded or drawn construction to match customer preference

• Extensive cover offering to meet various customer applications

and needs

Certifications and Compliances:

• UL Listed

4" SQUARE OUTLET BOXES – 18.0 CUBIC INCH CAPACITY

11/4" DEEP – FOR CONDUIT

UL LISTED

TP408

KNOCKOUTS

Cat. # Bracket

Description Sides

Bottom

Unit Qty.

Wt. Lbs. Per 100

TP408 —Drawn 12 – 1/2"5–1/2"50 61

Applications:

• For use with conduit

• Available in red for fire alarm applications

301-314.qxp 12/23/2013 3:48 PM Page 307

308

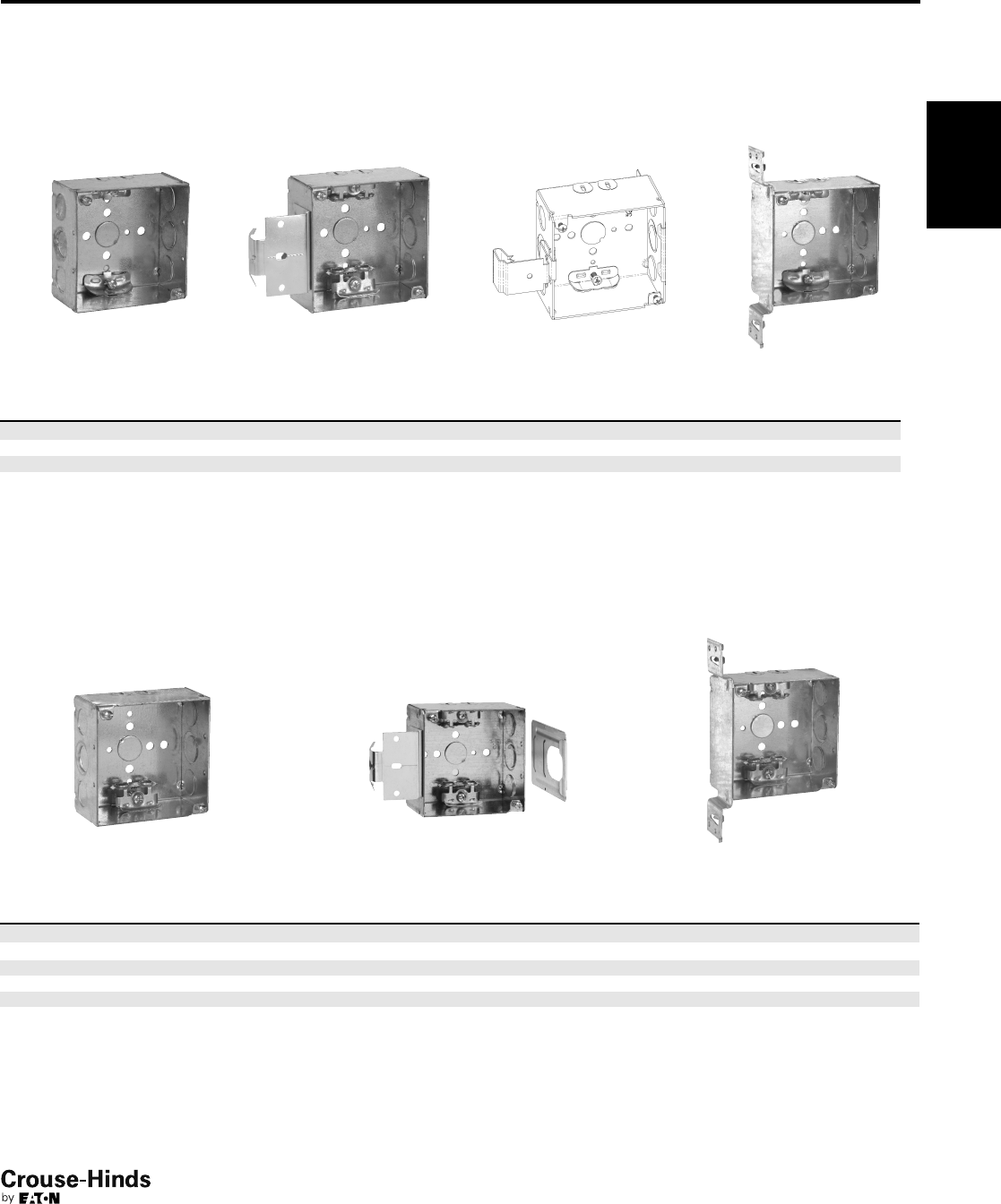

Steel Square Boxes

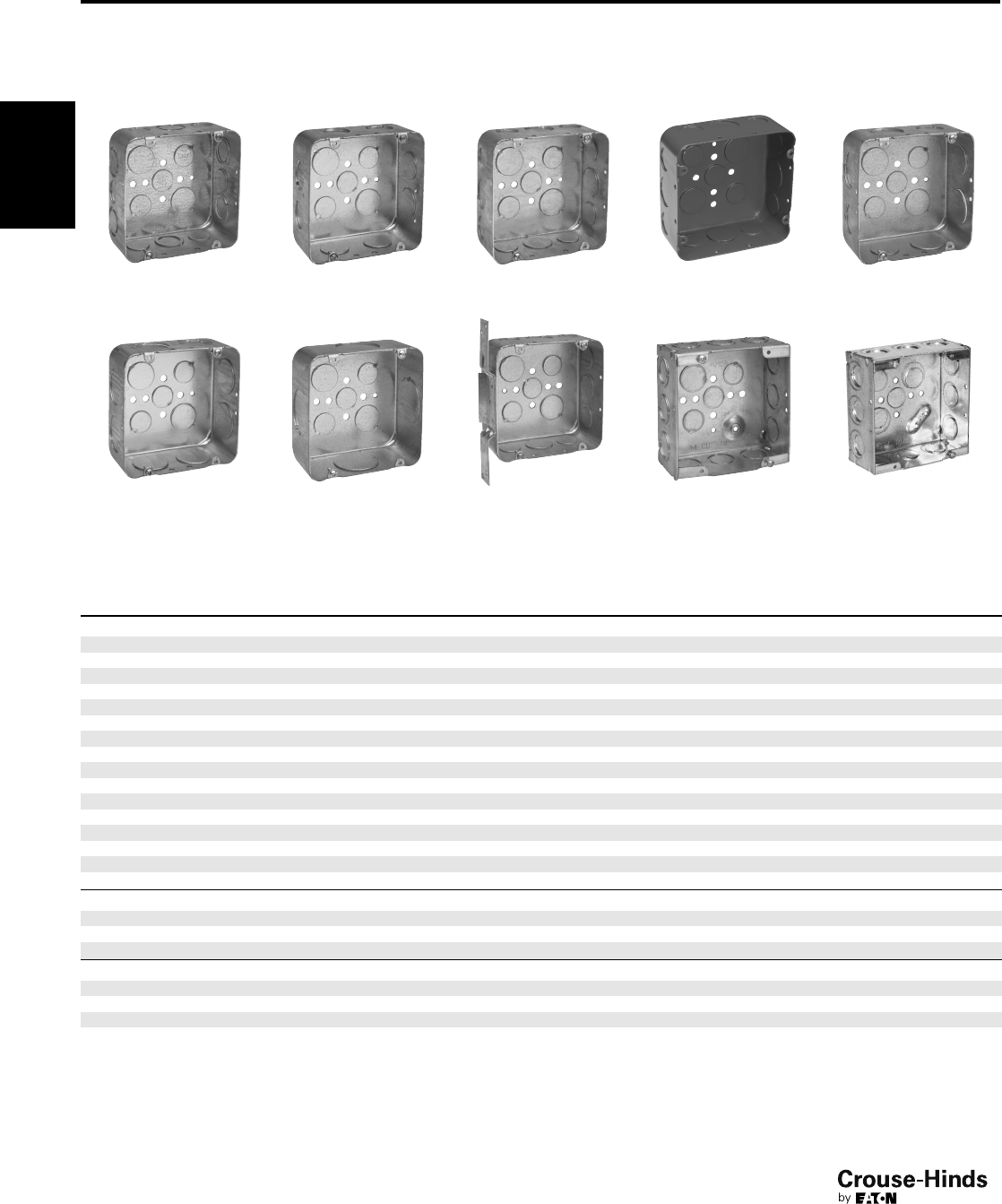

4" SQUARE OUTLET BOXES – 22.0 CUBIC INCH CAPACITY (WELDED)†

21.0 CUBIC INCH CAPACITY (DRAWN)

11/2" DEEP – FOR CONDUIT

UL LISTED

TP404/TP404PF TP404SSB TP404MSB TP404RED TP423

TP469 TP830* TP405 TP412

TP839*

TP410

TP414RED TP414 TP418 TP423RED TP40SPF

KNOCKOUTS

Cat. #

Metal Stud

Sizes Bracket Description Sides Bottom

Unit

Qty.

Wt. Lbs.

Per 100

TP40SMSB —MSB Welded 8–1/2", 4 – 1/2" + 3/4" E 2–1/2", 2 – 1/2" + 3/4" E 25 102

TP40SMSBPF*† — MSB Welded/Open Back 8 – 1/2", 4 – 1/2" + 3/4" E 2 – 1/2", 2 – 1/2" + 3/4" E 25 102

TP40SPF§ — — Welded/Open Back 8–1/2", 4 – 1/2" + 3/4" E 2–1/2", 2 – 1/2" + 3/4" E 25 104

TP404** — — Welded 8 – 1/2", 4 – 1/2" + 3/4" E 2 – 1/2", 2 – 1/2" + 3/4" E 50 72

TP404MSB —MSB Welded 8–1/2", 4 – 1/2" + 3/4" E 2–1/2", 2 – 1/2" + 3/4" E 25 83

TP404RED — — Welded 8 – 1/2", 4 – 1/2" + 3/4" E 2 – 1/2", 2 – 1/2" + 3/4" E 50 72

TP404REDMSB —MSB Welded 8–1/2", 4 – 1/2" + 3/4" E 2–1/2", 2 – 1/2" + 3/4" E 25 83

TP404PF‡** — — Welded 8 – 1/2", 4 – 1/2" + 3/4" E 2 – 1/2", 2 – 1/2" + 3/4" E 50 72

TP404SSB —SSB Welded 8–1/2", 4 – 1/2" + 3/4" E 2–1/2", 2 – 1/2" + 3/4" E 50 83

TP425** All "VP" Welded 6 – 1/2", 3 – 1/2" + 3/4" E 2 – 1/2", 2 – 1/2" + 3/4" E 25 82

TP423** All "VMS" Welded 6–1/2", 3 – 1/2" + 3/4" E 2–1/2", 2 – 1/2" + 3/4" E 25 81

TP423RED All "VMS" Welded 6 – 1/2", 3 – 1/2" + 3/4" E 2 – 1/2", 2 – 1/2" + 3/4" E 25 81

TP405 — — Drawn 4–1/2", 6 – 1/2" & 3/4" C 3–1/2", 2 – 3/4"50 67

TP405MSB — MSB Drawn 4 – 1/2", 6 – 1/2" & 3/4" C 3 – 1/2", 2 – 3/4"2578

TP410 — — Drawn 12 – 1/2"5–1/2"50 67

TP410MSB — MSB Drawn 12 – 1/2"5–

1/2"5067

TP412 — — Drawn 8–3/4"3–1/2", 2 – 3/4"50 67

TP412MSB — MSB Drawn 8 – 3/4"3–

1/2", 2 – 3/4"2578

TP414 — — Drawn 8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"50 67

TP414MSB — MSB Drawn 8 – 1/2", 4 – 3/4"3–

1/2", 2 – 3/4"2578

TP414RED — — Drawn 8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"50 67

TP414REDMSB — MSB Drawn 8 – 1/2", 4 – 3/4"3–

1/2", 2 – 3/4"2583

TP418 —"F", Set Flush Welded 6–1/2", 3 – 1/2" + 3/4" E 2–1/2", 2 – 1/2" + 3/4" E 25 84

TP467 — — Welded 8 – 3/4"2–

1/2", 2 – 1/2" + 3/4" E 50 72

TP467MSB —MSB Welded 8–3/4"2–1/2", 2 – 1/2" + 3/4" E 25 78

TP469 ALL "VMS" Welded 6 – 3/4"2–

1/2", 2 – 1/2" + 3/4" E 25 81

Air Plenum

TP830* — — Drawn 8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"50 72

TP839* — — Drawn 8 – 3/4" C 3 – 1/2", 2 – 3/4"5072

*For Air Plenum (No Mounting Holes) - Not UL Listed

**cUL Listed

†All welded 4" square outlet boxes have a raised dimple for ground screw

‡TP404PF includes ground screw with pigtail lead

§TP40SPF supplied with factory installed pigtail leads and TP472 flat back cover

301-314.qxp 12/23/2013 3:48 PM Page 308

309

4" SQUARE OUTLET BOXES – 22.0 CUBIC INCH CAPACITY

11/2" DEEP

FOR NONMETALLIC CABLE – CLAMPS IN EACH END

UL LISTED

TP444 TP449 TP446

4" SQUARE OUTLET BOXES – 22.0 CUBIC INCH CAPACITY

11/2" DEEP

FOR ARMORED & METAL CLAD (MCI) CABLE – CLAMPS IN EACH END

UL LISTED

TP454 TP454MSB TP456 TP459

Steel Square Boxes

*UL approved for use with aluminum interlocking grounding metal clad cable, Type MCIA (Southwire MCAP™)

MCAP™ is a registered trademark of Southwire Company.

KNOCKOUTS

Cat. # Bracket Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP444 —Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1–1/2"50 77

TP444MSB MSB Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1 – 1/2"25 81

TP444SSB SSB Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1–1/2"50 88

TP446 "F", Set Flush Welded 4 – Cable, 2 – 1/2", 1 – 1/2" & 3/4" E 1 – 1/2"25 88

TP449 "VMS" Welded 4 – Cable, 2 – 1/2", 1 – 1/2" & 3/4" E 1–1/2"25 85

KNOCKOUTS

Cat. # Bracket Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP459 "VMS" Welded 4 – Cable, 2 – 1/2", 1 – 1/2" & 3/4" E 1–1/2"25 89

TP454* — Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1 – 1/2"50 81

TP454MSB MSB Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1–1/2"25 91

TP454PF† — Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1 – 1/2"50 81

TP454SSB* SSB Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1–1/2"25 82

TP456* "F", Set Flush Welded 4 – Cable, 2 – 1/2", 1 – 1/2" & 3/4" E 1 – 1/2"25 92

TP456PF† "F", Set Flush Welded 4 – Cable, 2 – 1/2", 1 – 1/2" & 3/4" E 1–1/2"25 92

†TP catalog numbers ending in PF includes ground screw with pigtail lead

TP444MSB

301-314.qxp 12/23/2013 3:48 PM Page 309

310

4" SQUARE OUTLET BOXES – 30.3 CUBIC INCH CAPACITY

21/8" DEEP WITH CONDUIT KOs

UL LISTED

TP403/TP403PF TP403SSB

TP432 TP432VMS

TP403RED TP434RED TP451RED

Steel Square Boxes

TP403MSB

TP438

TP831*

TP451

TP434

TP40DPF

KNOCKOUTS

Cat. # Bracket Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP40DMSB MSB Welded 8–1/2", 4 – 1/2" & 3/4" E 2–1/2", 2 – 1/2" & 3/4" E 25 91

TP40DMSBPF MSB Welded 8 – 1/2", 4 – 1/2" & 3/4" E 2 – 1/2", 2 – 1/2" & 3/4" E 25 112

TP40DPF§ —Welded/Open Back 8–1/2", 4 – 1/2" & 3/4" E 2–1/2", 2 – 1/2" & 3/4" E 25 92

TP403** — Welded 8 – 1/2", 4 – 1/2" & 3/4" E 2 – 1/2", 2 – 1/2" & 3/4" E 25 84

TP403MSB MSB Welded 8–1/2", 4 – 1/2" & 3/4" E 2–1/2", 2 – 1/2" & 3/4" E 25 95

TP403RED — Welded 8 – 1/2", 4 – 1/2" & 3/4" E 2 – 1/2", 2 – 1/2" & 3/4" E 25 84

TP403REDMSB MSB Welded 8–1/2", 4 – 1/2" & 3/4" E 2–1/2", 2 – 1/2" & 3/4" E 25 95

TP403PF†** — Welded 8 – 1/2", 4 – 1/2" & 3/4" E 2 – 1/2", 2 – 1/2" & 3/4" E 25 84

TP403SSB SSB Welded 8–1/2", 4 – 1/2" & 3/4" E 2–1/2", 2 – 1/2" & 3/4" E 25 95

TP432** — Welded 8 – 3/4"2–

1/2", 2 – 1/2" & 3/4" E 25 84

TP432MSB MSB Welded 8–3/4"2–1/2", 2 – 1/2" & 3/4" E 25 95

TP432REDMSB MSB Welded 8 – 3/4"2–

1/2", 2 – 1/2" & 3/4" E 25 95

TP432VMS "VMS" Welded 6–3/4"2–1/2", 2 – 1/2" & 3/4" E 25 99

TP436 — Welded 8 – 1" 2 – 1/2", 2 – 1/2" & 3/4" E 25 84

TP436MSB MSB Welded 8–1" 2–1/2", 2 – 1/2" & 3/4" E 25 95

TP434 — Drawn 8 – 1/2", 4 – 3/4"3–

1/2", 2 – 3/4"2584

TP434MSB MSB Drawn 8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"25 95

TP434RED — Drawn 8 – 1/2", 4 – 3/4"3–

1/2", 2 – 3/4"2584

TP434REDMSB MSB Drawn 8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"25 95

TP438 — Drawn 4 – 1/2", 6 – 1/2" & 3/4" C 3 – 1/2", 2 – 3/4"2584

TP438MSB MSB Drawn 4–1/2", 6 – 1/2" & 3/4" C 3–1/2", 2 – 3/4"25 95

TP438PF† — Drawn 4 – 1/2", 6 – 1/2" & 3/4" C 3 – 1/2", 2 – 3/4"2584

TP451 "VMS" Welded 6–1/2", 3 – 1/2" & 3/4" E 2–1/2", 2 – 1/2" & 3/4" E 25 96

TP451PF† "VMS" Welded 6 – 1/2", 3 – 1/2" & 3/4" E 2 – 1/2", 2 – 1/2" & 3/4" E 25 96

TP451RED "VMS" Welded 6–1/2", 3 – 1/2" & 3/4" E 2–1/2", 2 – 1/2" & 3/4" E 25 96

Air Plenum

TP831* —Drawn 8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"25 90

*For Air Plenum (No Mounting Holes) - Not UL Listed

†TP catalog numbers ending in PF includes ground screw with pigtail lead

**cUL Listed

§TP40DPF supplied with factory installed pigtail leads and TP472 flat back cover

TP437 "VMS" Welded 6 – 1/2", 3 – 1/2" & 3/4" E 2 – 1/2", 2 – 1/2" & 3/4" E 25 98

301-314.qxp 12/23/2013 3:49 PM Page 310

311

4" SQUARE OUTLET BOXES – 30.3 CUBIC INCH CAPACITY

21/8" DEEP

FOR ARMORED & METAL CLAD (MCI) CABLE – CLAMPS IN EACH END

UL LISTED

TP431 TP440

Steel Square Boxes

4" SQUARE OUTLET BOXES – 30.3 CUBIC INCH CAPACITY

21/8" DEEP

FOR NONMETALLIC CABLE – CLAMPS IN EACH END

UL LISTED

*UL approved for use with aluminum interlocking grounding metal clad cable, Type MCIA (Southwire MCAP™)

MCAP™ is a registered trademark of Southwire Company.

KNOCKOUTS

Cat. # Bracket Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP450 —Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1–1/2"25 90

TP450MSB MSB Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1 – 1/2"25 101

TP450SSB SSB Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1–1/2"25 101

TP452 "VMS" Welded 4 – Cable, 2 – 1/2", 1 – 1/2" & 3/4" E 1 – 1/2"25 104

KNOCKOUTS

Cat. # Metal Stud Sizes Bracket Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP431* — — Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1–1/2"25 91

TP431PF† — — Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1 – 1/2"25 91

TP431MSB —MSB Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1–1/2"25 91

TP431SSB* — SSB Welded 4 – Cable, 4 – 1/2", 2 – 1/2" & 3/4" E 1 – 1/2"25 102

TP440* All "VMS" Welded 4 – Cable, 2 – 1/2", 1 – 1/2" & 3/4" E 1–1/2"25 103

†TP catalog numbers ending in PF includes ground screw with pigtail lead

TP450 TP450MSB TP450SSB TP452

TP431MSB

301-314.qxp 12/23/2013 3:49 PM Page 311

312

KNOCKOUTS

Cat. # Bracket Description Sides Bottom Std. Unit Pkg. Wt. Lbs. Per 100

TP391 "VS", Set 7/8"Drawn 6–1/2", 3 – 3/4"3–1/2", 2 – 3/4"25 95

TP395 — Drawn 8–1/2", 4 – 3/4"3–

1/2", 2 – 3/4"25 84

4" SQUARE TWO–DEVICE BOXES – 30.3 CUBIC INCH CAPACITY

21/8" DEEP

UL LISTED

TP391 TP395

Steel Square Boxes & Covers

4" SQUARE EXTENSION RINGS

11/2" DEEP WITH CONDUIT KNOCKOUTS – 21.0 CUBIC INCH CAPACITY

21/8" DEEP WITH CONDUIT KNOCKOUTS – 30.3 CUBIC INCH CAPACITY

UL LISTED

TP424 TP426 TP428RED TP443 (21/8" Deep) TP428, TP833*

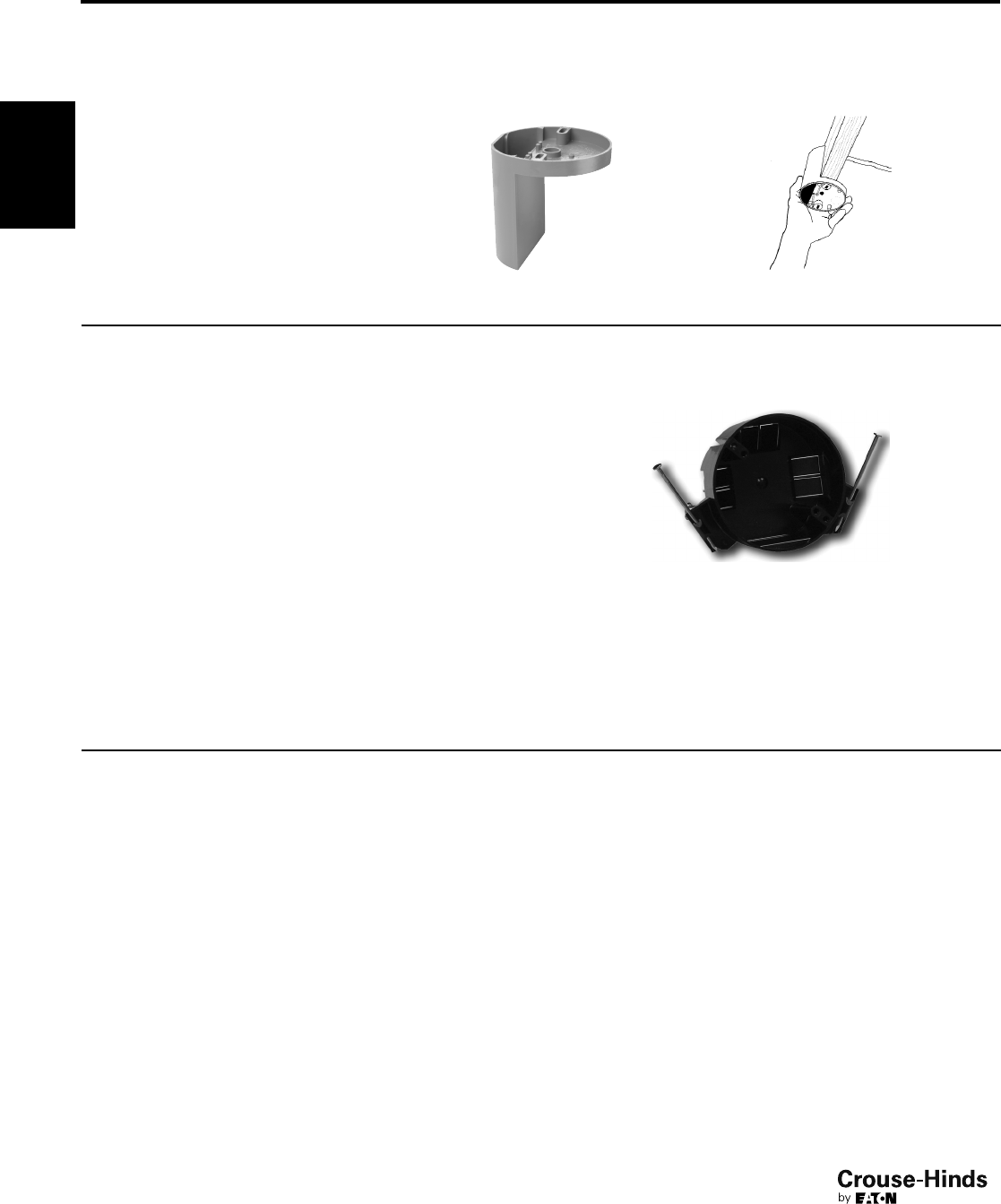

Eaton's Crouse-Hinds TPSFH square flexible fixture hangers are used in

commercial or light industrial applications where HID high bay and low

bay lighting fixtures are used. Specific applications include storage

facilities, shipping warehouses, retail and DIY facilities.

Features and Benefits:

• Suitable for use with 1/2" or 3/4" fixture conduit stems these hangers

allow the conduit stem of the fixture (luminaire) to swing in any

direction. Maximum swing angle is 26° from vertical max slope

angles 221/2°

• Available for attachment to 4" square steel boxes.

• Quickly and easily attached by two screws.

• Hangers are drilled and tapped for use with 3/4" conduit stem as

standard and come supplied with a 3/4"–1/2" reducer for 1/2"

conduit stem applications.

Certifications and Compliances:

• UL Listed – UL 1598

• CSA C22.2 No. 250

• Suitable for Damp Locations

Standard Materials and Finishes:

• Material: Sheet Steel

• Finish: Zinc Chromate for corrosion resistance

Description

Support

Wt. (lbs) Cat. #

For use with

4" Square

boxes

50 TPSFH12

FLEXIBLE FIXTURE HANGERS

KNOCKOUTS

Cat. # Sides Bottom Unit Qty. Wt. Lbs. Per 100

11/2" DEEP

TP424 12 – 1/2"—50 46

TP422 8–1/2", 4 – 1/2" + 3/4" E —50 50

TP426 8–3/4"—50 46

TP428 8–1/2", 4 – 3/4"—50 46

TP428RED 8–1/2", 4 – 3/4"—50 46

TP833* 8–1/2", 4 – 3/4"—50 48

21/8" DEEP

TP443 8–1/2", 4 – 3/4"—25 66

TP465 8–1" — 25 60

*For Air Plenum (No Mounting Holes). Requires the use of TP854, purchase separately - Not UL Listed

†For use as extension with switch box, not four square box

TP422†

301-314.qxp 12/23/2013 3:49 PM Page 312

313

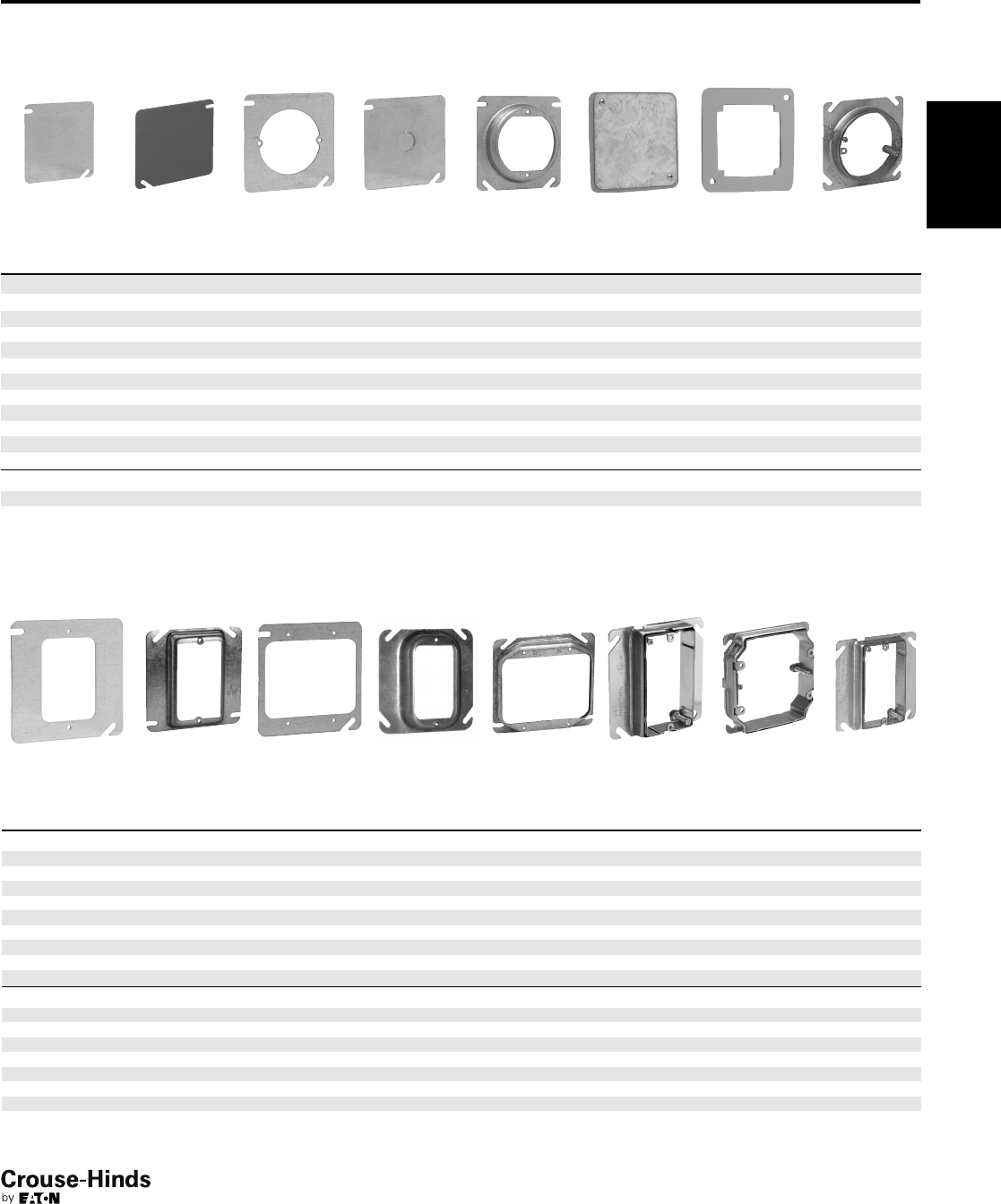

Steel Square Covers

Cat. # Description Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

TP472† Flat Blank 50 31 —

TP472RED Flat Blank 50 31 —

TP474† Flat Blank, Open With Ears 23/4"50 21 —

TP478† Flat with 1/2" ko 50 31 —

TP487† Flat with 3/4" ko 50 29 —

TP473† Raised 1/4", Open With Ears 23/4"50 23 1.3

TP476† Raised 1/2", Open With Ears 23/4"50 26 4.0

TP477† Raised 5/8", Open With Ears 23/4"50 27 5.0

TP475† Raised 3/4", Open With Ears 23/4"25 31 6.0

TP479† Raised 1", Open With Ears 23/4"25 34 7.0

TP483† Raised 11/4", Open With Ears 23/4"25 37 8.5

AMR0** 3/4" - 11/2" Round Adjustable Mud Ring 25 44 6.1

Air Plenum

TP850* Flat Blank Gasketed With Captive Screws 25 31 —

TP854* Flat Ring Double Gasketed 25 12 —

*For Air Plenum (No Mounting Holes) - Not UL Listed

†CSA Certified

**ETL Listed

COVERS FOR 4" SQUARE BOXES – CUBIC INCH CAPACITY (SEE BELOW)

UL LISTED

#8-32 screw used on covers

TP472 TP472RED TP474 TP478

TP487

TP473, TP475,

TP476, TP477,

TP479, TP483

TP850* TP854* AMR0

MUD RINGS FOR 4" SQUARE STEEL OUTLET BOXES

UL LISTED

TP480 TP482, TP484,

TP486, TP489

TP494 TP488, TP490 TP496, TP499,

TP500, TP501,

TP502

AMR1 AMR2 AMR158

Cat. # Description Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

ONE DEVICE

TP480† Flat 50 20 —

TP482† 1/4" Raised 50 21 1.8

TP484† 1/2" Raised 50 23 3.8

TP489† 5/8" Raised 50 26 4.3

TP486† 3/4" Raised 50 30 5.5

TP488 1" Raised 50 34 6.8

TP490 11/4" Raised 25 39 8.5

AMR1** 3/4" - 11/2" Raised Adjustable 25 47 -

AMR158** 5/8" - 11/4" Raised Adjustable 25 44 6.0

TWO DEVICE

TP494† Flat 50 12 —

TP496†‡ 1/4" Raised 50 13 3.0

TP498†‡ 1/2" Raised 50 18 6.0

TP499†‡ 5/8" Raised 50 22 8.0

TP500†‡ 3/4" Raised 50 24 9.0

TP501 11/4" Raised 25 31 14.0

TP502 1" Raised 25 30 11.7

AMR2** 5/8" - 11/2" Raised Adjustable 25 50 11.3

‡ Slotted design for use with 4" square box partitions

†CSA Certified

**ETL Listed

301-314.qxp 12/23/2013 3:49 PM Page 313

314

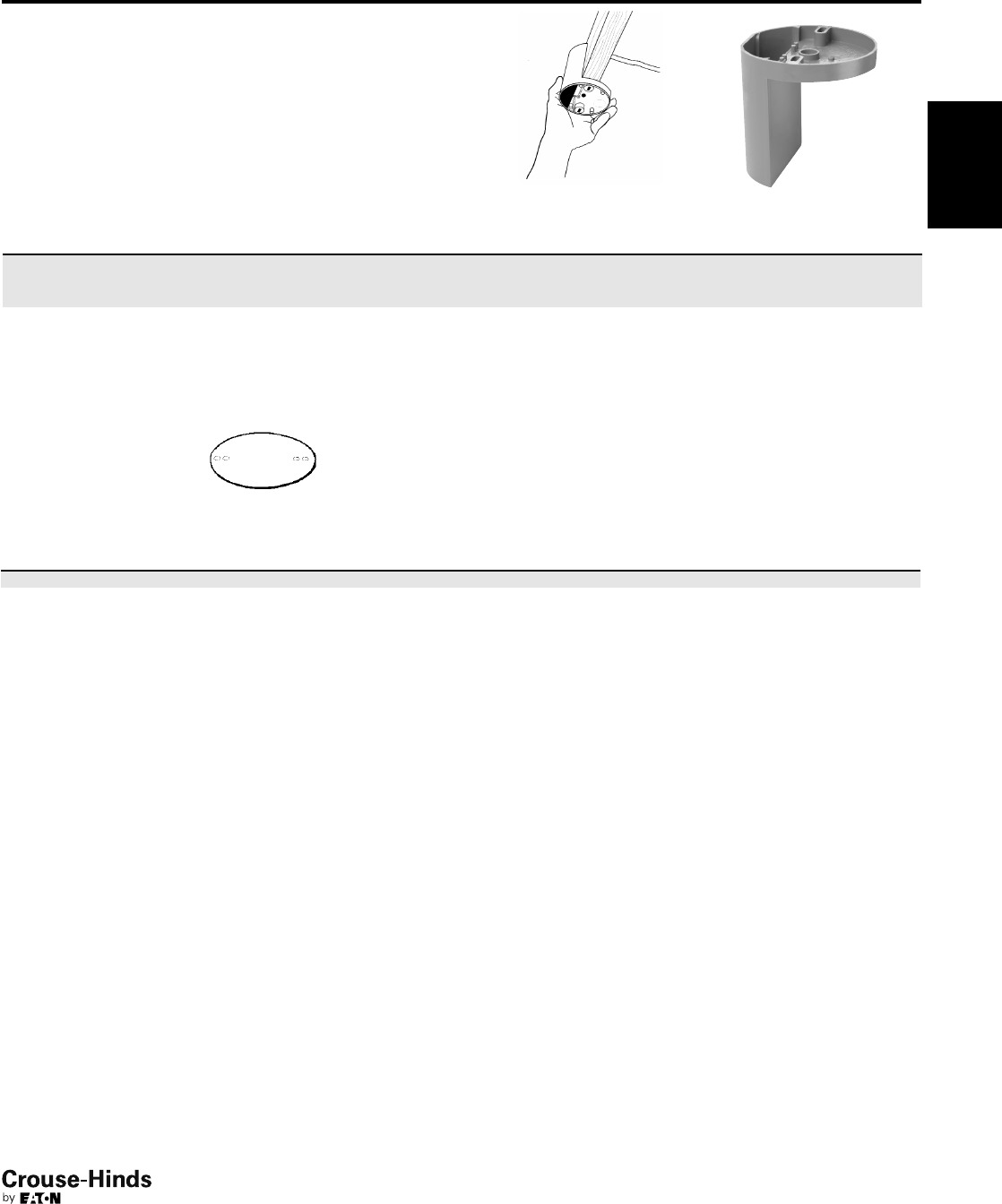

METALGUARD™PROTECTIVE PLATES

Applications:

• For use with single-, two-, three- and four-gang commercial or residential

boxes/plaster rings; with or without devices, switches, GFCI, etc. installed

• Commercial or residential ceiling boxes

Features and Benefits:

• Seals out sheetrock mud, sanding dust and paint overspray to keep the electrical

box and its wiring free from contaminants

• Heavy duty reusable metallic plate provides mechanical protection to box and

wiring and speeds up trim process

• Easy to install. All you have to do is push them in! They come out easy—just put a

screwdriver into the slot in front, turn and pull them out

• Reduces risk of call backs and expense of rework because of wire and box damage

• MetalGuard serves as a guide for router in cutting out boxes

Material & Finish:

• 18 gauge steel

• Natural finish

Cat. #

Description

Pre-Fabricated Box, Cover, Ground Screw and Lead Assembly

Std. Unit

Pkg.

Wt. Lbs.

Per 100

MGRK Contractor Kit (120-1G, 40-2G, 20-3G, 5-4G, and 20-Rnd) 1 -

MGR1 1G Residential Wire Protector 60 -

MGR2 2G Residential Wire Protector 20 -

MGR3 3G Residential Wire Protector 20 -

MGR4 4G Residential Wire Protector 5 -

MGR0 Rnd Residential Wire Protector 20 -

MGMR1 1G Wire Protector for Commercial MR 50 -

MGMR2 2G Wire Protector for Commercial MR 50 -

MGMR0 Rnd Wire Protector for Commercial MR 50 -

MGS1 Gangable Spacer Wire Protector 100 -

Cat. # Description Unit Qty. Wt. Lbs. Per 100

TP503† Raised Blank 50 35

TP504† For One Toggle Switch, One Single Receptacle 113/32" Dia. 50 31

TP506† For One Toggle Switch, One Duplex Receptacle 50 31

TP508† For Two Toggle Switches 50 35

TP510† For Two Duplex Receptacles 50 26

TP512† For One Toggle Switch 50 35

TP507† For One 20 Amp, Single Receptacle 119/32" Dia. 50 37

TP514† For One Single Receptacle 113/32" Dia. 50 34

TP519† For One 30 Amp. Twist-Lock Single Receptacle 123/32" Dia. 50 37

TP516† For One Duplex Receptacle 50 31

TP509† For One 30 – 60 Amp. Receptacle (4-wire) 27/16" Dia. 50 23

TP518† For One 30 – 50 Amp. Receptacle 29/64" Dia. 50 34

TP513† For One GFCI Receptacle 50 31

TP511† For Two GFCI Receptacles 50 26

TP515† For One Toggle Switch, One GFCI Receptacle 50 31

TP517† For One Duplex Receptacle, One GFCI Receptacle 50 26

† CSA Certified

Steel Square Covers

4" SQUARE SURFACE COVERS – 5.5 CUBIC INCH CAPACITY

RAISED 1/2"

UL LISTED

TP503 TP504 TP506 TP508 TP510 TP512 TP507, TP514

TP519

TP516 TP509 (4 Screws)

TP518 (2 Screws)

TP513 TP511 TP515 TP517

301-314.qxp 12/23/2013 3:50 PM Page 314

315

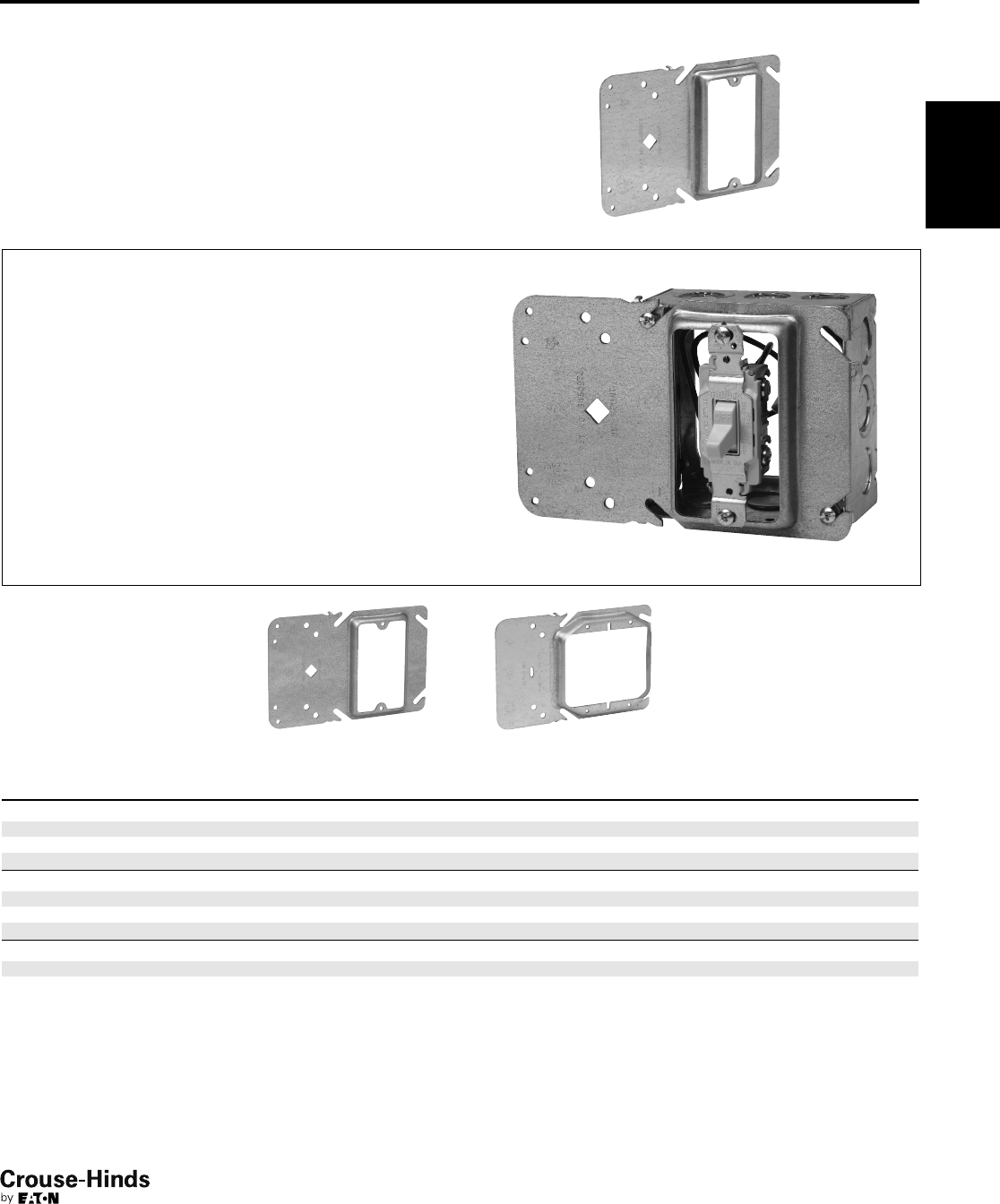

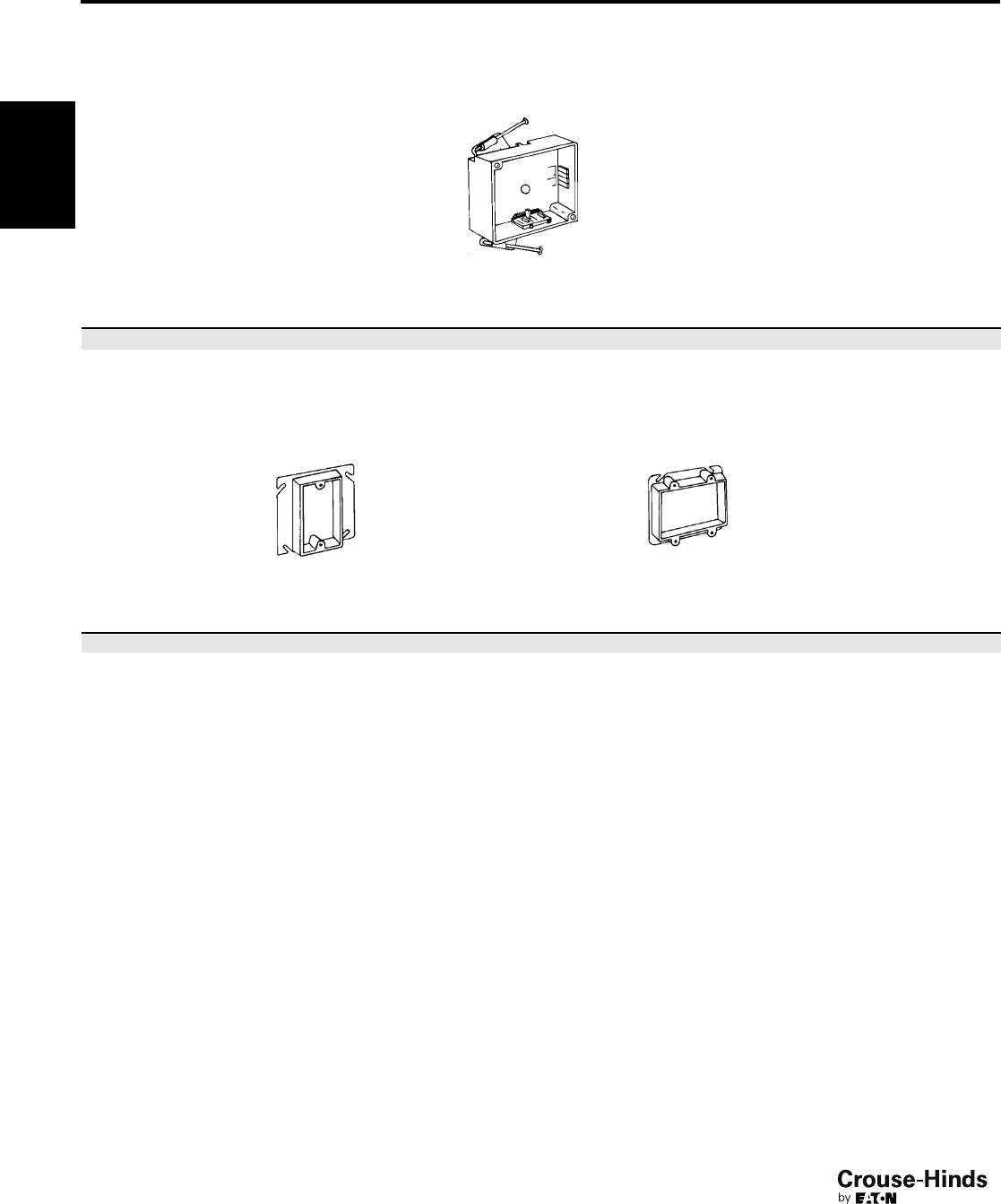

UNI-MOUNT™COVERS

The Unimount combines the features of a mounting device plate with those

of a box support; giving you one universal plate for all of your needs.

Specifically designed for use with metal or wood studs:

The new and improved version incorporates four small holes on the left side

(support side) of the bracket. These holes allow for the attachment of box

mounting brackets to allow for use of both sides of the stud. The holes are

strategically located to accept either the B-Line BB423 bracket or the

Caddy H23 bracket. Additionally, the viewing hole has been significantly

enlarged (and is now diamond shaped) to make it even easier to find mark

lines on the stud.

Single Gang Two Gang

Cat. # Description Capacity Cu. In. Unit Qty. Wt. Lbs. Per 100

SINGLE GANG

TP30000 1/2" Raised 3.8 50 43

TP31000 5/8" Raised 4.3 50 46

TP32000 3/4" Raised 5.5 50 50

TWO GANG

TP35000 1/2" Raised 650 38

TP36000 5/8" Raised 85052

TP37000 3/4" Raised 950 54

LOW PROFILE SCREWS - REDUCES RISK OF SHEETROCK BULGE

TP710 L.P. Screws —1000 .5

Steel Square Boxes

* CSA requires a far side support.

• Guide tabs ensure consistent alignment on stud

• Stud alignment hole ensures consistent mounting height

• Rigid bracket design eliminates the need for far side support

• Available as a single or two device cover

• Universal design fits all 4" square boxes

• Available in 1/2", 5/8" and 3/4" raised

• Can be ordered preassembled to popular 4" square boxes

• Fast and easy installation

• Can be used in multiple applications, resulting in less items to

stock

• Less labor intensive

• Less material handling

• No multiple assemblies to handle

• Can be used in Class II communications outlets for low voltage

without a box

• UL Listed and CSA certified*

• UL File No. E-23156

315-321.qxp 12/16/2013 4:18 PM Page 315

316

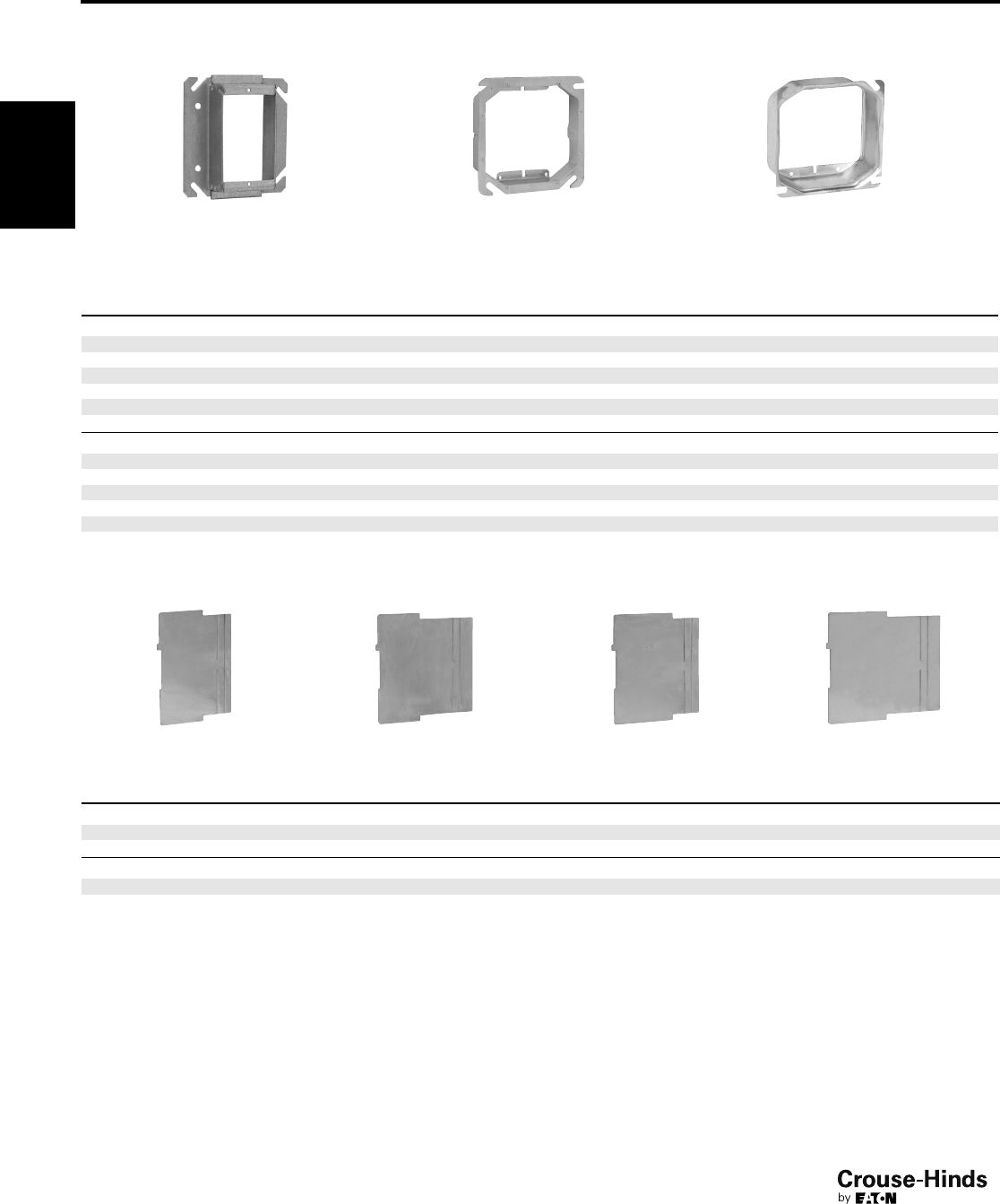

Steel Square Boxes

Applications:

• Typically used with tile or brick

Cat. # Description Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

ONE DEVICE

TP520 1/2" Raised 50 30 3.7

TP522 3/4" Raised 50 36 5.5

TP524 1" Raised 50 40 7.4

TP526 11/4" Raised 25 46 9.3

TP528 11/2" Raised 25 50 11.0

TP530 2" Raised 25 62 14.8

TWO DEVICE

TP532 1/2" Raised 10 24 5

TP534 3/4" Raised 10 30 7.8

TP536 1" Raised 10 36 10.3

TP538 11/4" Raised 10 44 13

TP540 11/2" Raised 10 50 15.5

TP542 2" Raised 10 66 20.8

Cat. # Description Unit Qty. Wt. Lbs. Per 100

FOR 11/2" DEEP BOX WITH SQUARE CUT TILE WALL TWO-GANG COVERS

TP860 For 1/2", 3/4", 1" Raised Covers 25 13

TP861 For 11/4", 11/2", 2" Raised Covers 25 18

FOR 21/8" DEEP BOX WITH SQUARE CUT TILE WALL TWO-GANG COVERS

TP862 For 1/2", 3/4", 1" Raised Covers 25 16

TP863 For 11/4", 11/2", 2" Raised Covers 25 21

TILE WALL COVERS FOR 4" SQUARE BOXES – CUBIC INCH CAPACITY (SEE BELOW)

UL LISTED

TP524 TP534

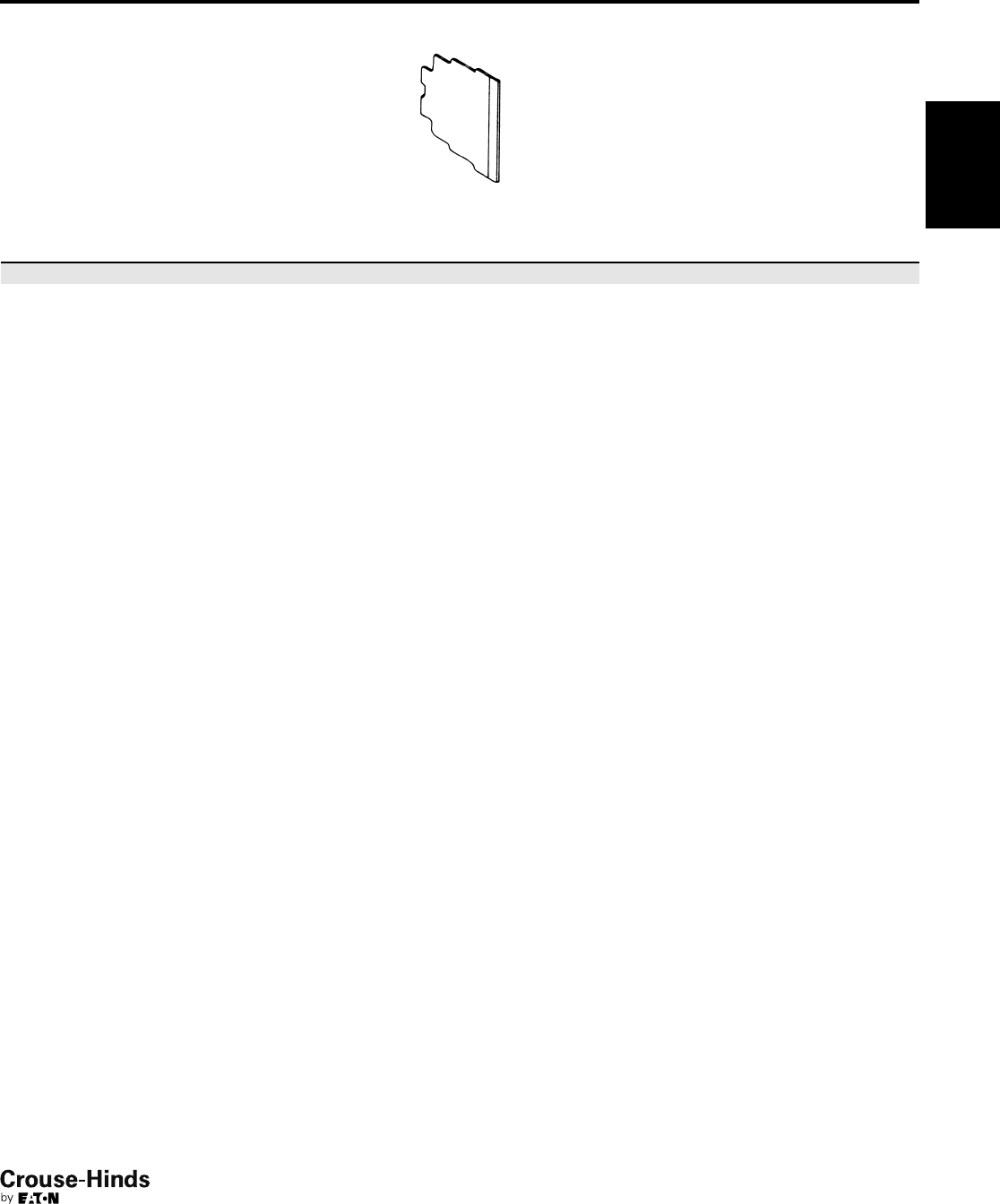

4" SQUARE BOX PARTITIONS

TP860 TP861 TP862 TP863

TP540

315-321.qxp 12/16/2013 4:19 PM Page 316

317

Features:

• Ideal for exposed work applications, providing an easy method for

the installation of electrical devices (switches, receptacles, fans,

lights, etc.)

• Raised ground screw location in the welded boxes saves time in

installation

• Concentric knockouts have a 1/2" and 3/4" knockout in the same

location for customer flexibility

• Knockouts are suitable for use without a bonding jumper in circuits

above or below 250 volts

• Available in two depths for differing cubic capacity requirements

• Welded or drawn construction to match customer preference

• Extensive cover offering to meet various customer applications

and needs

Certifications and Compliances:

• UL Listed

411/16" SQUARE OUTLET BOXES – 29.5 CUBIC INCH CAPACITY

11/2" DEEP WITH CONDUIT KOs

UL LISTED

TP523 TP548 TP549

Steel Square Boxes

KNOCKOUTS

Cat. # Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

29.5 CUBIC INCH CAPACITY

TP523 Welded 12 – 1/2" & 3/4" C 2–1/2", 2 – 3/4"25 99

TP523PF† Welded 12 – 1/2" & 3/4" C 2 – 1/2", 2 – 3/4"25 99

TP548 Drawn 8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"25 84

TP548MSB Drawn 8–1/2", 4 – 3/4"3–

1/2", 2 – 3/4"25 95

TP549 Drawn 6–1/2", 6 – 1/2" & 3/4" C 3–1/2", 2 – 3/4"25 84

TP549MSB Drawn 6–1/2", 6 – 1/2" & 3/4" C 3 – 1/2", 2 – 3/4"25 95

†TP catalog numbers ending in PF includes ground screw with pigtail lead

411/16" SQUARE OUTLET BOXES AND COVERS

Applications:

• For use with conduit

• For use in commercial and industrial applications, where larger

sized conductor or wiring devices are needed and additional

volume is required

• Available in red for fire alarm applications

315-321.qxp 12/16/2013 4:19 PM Page 317

318

411/16" SQUARE OUTLET BOXES – 42.0 AND 44.0 CUBIC INCH CAPACITY

21/8" DEEP WITH CONDUIT KOs

UL LISTED

TP563 TP554

TP842*

TP556

TP832*

TP556RED TP558

TP835*

TP560

TP836*

TP562 TP557 TP521 TP525

Steel Square Boxes

KNOCKOUTS

Cat. # Description Brackets Sides Bottom Unit Qty. Wt. Lbs. Per 100

42.0 CUBIC INCH CAPACITY

TP563 Drawn —6–1/2", 6 – 1/2" & 3/4" C 3–1/2", 2 – 3/4"25 104

TP563MSB Drawn MSB 6–1/2", 6 – 1/2" & 3/4" C 3 – 1/2", 2 – 3/4"25 115

TP554 Drawn —8–3/4"3–1/2", 2 – 3/4"25 104

TP554MSB Drawn MSB 8–3/4"3–

1/2", 2 – 3/4"25 115

TP556 Drawn —8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"25 104

TP556PF† Drawn — 8–1/2", 4 – 3/4"3–

1/2", 2 – 3/4"25 104

TP556MSB Drawn MSB 8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"25 115

TP556RED Drawn — 8–1

/2", 4 – 3/4"3–

1/2", 2 – 3/4"25 104

TP556REDMSB Drawn MSB 8–1/2", 4 – 3/4"3–1/2", 2 – 3/4"25 115

TP558 Drawn — 4–3/4", 4 – 1" 3 – 1/2", 2 – 3/4"25 104

TP558MSB Drawn —4–3/4", 4 – 1" 3–1/2", 2 – 3/4"25 104

TP558REDMSB Drawn MSB 4–3/4", 4 – 1" 3 – 1/2", 2 – 3/4"25 115

TP560 Drawn —8–1" 3–1/2", 2 – 3/4"25 104

TP560MSB Drawn — 8 – 1" 3–1/2", 2 – 3/4"25 115

TP562‡ Drawn —4–1

1/4"3–1/2", 2 – 3/4"25 104

TP557 Drawn "VS" 5 – 1/2", 4 – 1/2" & 3/4" C 3–1/2", 2 – 3/4"25 120

44.0 CUBIC INCH CAPACITY

TP521 Welded —12 – 1/2" & 3/4" C 2–1/2", 2 – 3/4"25 115

TP521PF† Welded — 12 – 1/2" & 3/4" C 2 – 1/2", 2 – 3/4"25 115

TP525** Welded —12 – 1/2" & 3/4" E 2–1/2", 2 – 1/2", 3/4" E 25 115

Air Plenum

TP835* —4–3/4", 4 – 1" 3–1/2", 2 – 3/4"25 115

TP836* —8–1" 3–1/2", 2 – 3/4"25 115

TP842* —12 – 3/4"3–1/2", 2 – 3/4"25 115

TP832* —8–1/2", 4 – 3/4"3–

1/2", 2 – 3/4"25 115

*For Air Plenum (No Mounting Holes) - Not UL Listed

**Raised ground bump contains holes for 2 ground screws

†TP catalog numbers ending in PF includes ground screw with pigtail lead

‡Not UL Listed

315-321.qxp 12/16/2013 4:19 PM Page 318

319

411/16" SQUARE EXTENSION RINGS

11/2" DEEP WITH CONDUIT KOs - 29.5 CUBIC INCH CAPACITY

21/8" DEEP WITH CONDUIT KOs - 42.0 CUBIC INCH CAPACITY

UL LISTED

TP550 TP564

TP837* TP564RED

Steel Square Covers

KNOCKOUTS

Cat. # Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

29.5 INCH CUBIC CAPACITY

TP550 8–1/2", 4 – 3/4" — 25 66

TP551 8–1/2", 4 – 3/4" — 25 104

42 INCH CUBIC CAPACITY

TP564 8–1/2", 4 – 3/4"—25 84

TP564RED 8–1/2", 4 – 3/4" — 25 84

TP565 8–1/2", 4 – 3/4"—25 104

TP566 8–1" — 25 78

Air Plenum

TP837* 21/8" Deep 8–1/2", 4 – 3/4" — 25 115

Note: *For Air Plenum (No Mounting Holes) - Not UL Listed

TP837 requires the use of TP852, purchased separately.

315-321.qxp 12/16/2013 4:19 PM Page 319

320

Cat. # Description Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

FLAT AND RAISED

TP568† Flat Blank 25 40 —

TP568RED Flat Blank 25 40 —

TP569‡ 1/2" Raised, With Ears 23/4"25 36 3.3

TP570 Raised 5/8", With Ears 23/4"25 38 3.8

TP571‡ 3/4" Raised, With Ears 23/4"25 40 5.0

TP572† Flat, With 1/2" KO 25 40 —

TP573‡ 1" Raised, With Ears 23/4"25 44 7.0

TP575‡ 11/4" Raised, With Ears 23/4"25 48 9.0

AIR PLENUM

TP851* Flat Blank Gasketed Captive Screws 50 42 —

TP852* Flat Ring Double Gasketed 25 20 —

ONE DEVICE

TP574 1/4" Raised 25 32 1.8

TP576 1/2" Raised 25 36 3.3

TP578 3/4" Raised 25 42 5.0

TP579 5/8" Raised 25 39 4.5

TP580 1" Raised 25 46 6.8

TP582 11/4" Raised 25 52 8.5

TP529 11/2" Raised 25 64 11.3

TP531 2" Raised 25 76 15.0

TWO DEVICE

TP590‡ Flat 25 21 —

TP583‡ 1/4" Raised 25 26 3.0

TP584 1/2" Raised 25 30 6.0

TP587 5/8" Raised 25 32 8.0

TP586 3/4" Raised 25 34 8.8

TP589 1" Raised 25 38 11.7

TP593 11/4" Raised 25 42 14.0

TP541 11/2" Raised 25 63 18.8

TP543 2" Raised 25 79 24.5

*For Air Plenum (No Mounting Holes)

†CSA Certified

‡ Not UL Listed

Steel Square Covers

411/16" SQUARE COVERS – CUBIC INCH CAPACITY (SEE BELOW)

UL LISTED

TP568

TP568RED

TP569, TP570, TP571,

TP573, TP575

TP572

TP574 – TP582,

TP529, TP531

TP584, TP586, TP589,

TP593, TP541, TP543

TP851* TP852*

315-321.qxp 12/16/2013 4:19 PM Page 320

321

Cat. # Description Unit Qty. Wt. Lbs. Per 100

TP720 For One Toggle Switch 10 52

TP722 For One Duplex Receptacle 10 49

TP724 For One Single Receptacle 113/32" Dia. 10 53

TP730 For One 20 Amp Single Receptacle 1.620" Dia. 10 50

TP736 For One 1.730" Dia. Power Outlet 10 51

TP726 For Two Toggle Switches 10 52

TP728 For Two Duplex Receptacles 10 44

TP732 For One 2.125" Dia. Range/Dryer Receptacle 10 48

TP734 For One 2.480" Dia. Power Outlet 10 45

TP738 For One Ground Fault Interrupter 10 45

TP740 For One GFI Receptacle & One Toggle 25 45

TP741 For Two GFI Receptacles 10 43

411/16" SQUARE SURFACE COVERS – 9.0 CUBIC INCH CAPACITY

1/2" RAISED

TP720 TP722 TP724

TP730

TP736

TP726

TP728 TP732 TP734 TP738 TP740

Steel Square Covers

315-321.qxp 12/16/2013 4:19 PM Page 321

322

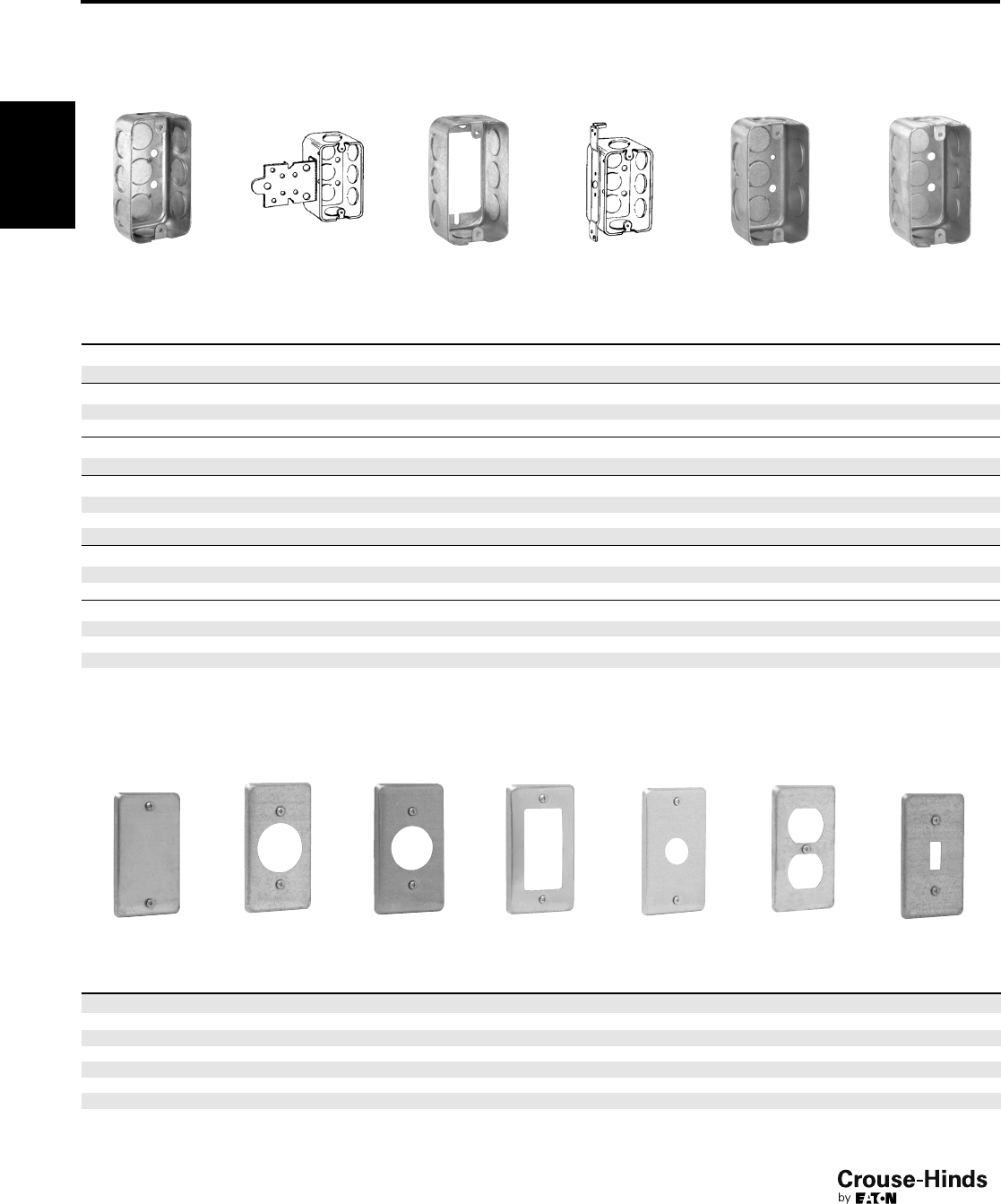

Steel Utility Boxes & Covers

UTILITY BOXES – CUBIC INCH CAPACITY (SEE BELOW)

4" LONG x 21/8" WIDE

UL LISTED

KNOCKOUTS

Cat. # Bracket Sides Bottom Unit Qty. Wt. Lbs. Per 100

11/4" DEEP – 8.5 CUBIC INCH CAPACITY

TP647 —8–1/2"3–1/2"50 40

11/2" DEEP – 10.3 CUBIC INCH CAPACITY

TP588 —8–1/2"3–1/2"50 42

TP591 "F", Set 1/4"5–1/2"3–

1/2"50 51

11/2" DEEP EXTENSION RINGS – 10.3 CUBIC INCH CAPACITY

TP592 —8–1/2"—50 36

17/8" DEEP – 13.0 CUBIC INCH CAPACITY

TP594 —8–1/2"3–1/2"50 50

TP596 —6–3/4"3–

1/2"50 50

TP598 "S", SET 1/2"5–1/2"3–1/2"50 60

17/8" DEEP EXTENSION RINGS – 13.0 CUBIC INCH CAPACITY

TP600 —8–1/2"—50 41

TP602 —6–3/4"—5041

21/8" DEEP – 14.5 CUBIC INCH CAPACITY

TP604 —8–1/2"3–1/2"50 56

TP606 —6–3/4"3–

1/2"50 56

TP605 "S", Set 1/2"5–1/2"3–1/2"50 66

Cat. # Description Unit Qty. Wt. Lbs. Per 100

TP608* Blank 100 10

TP610* For 20 and 30 AMP, Twist Lock, 119/32" Diameter 100 9

TP612* Single Receptacle, 113/32" Diameter 100 9

TP613* For GFCI Device 100 7

TP614* 1/2" KO 100 10

TP616* Duplex Receptacle 100 8

TP618* One Toggle Switch 100 10

*CSA Certified

UTILITY BOX COVERS

UL LISTED

TP608 TP610 TP612 TP613 TP614 TP616 TP618

TP591 TP592, TP600,

TP602

TP598

TP605

TP594, TP596 TP604, TP606

TP588, TP647

322-333.qxp 12/16/2013 4:21 PM Page 322

323

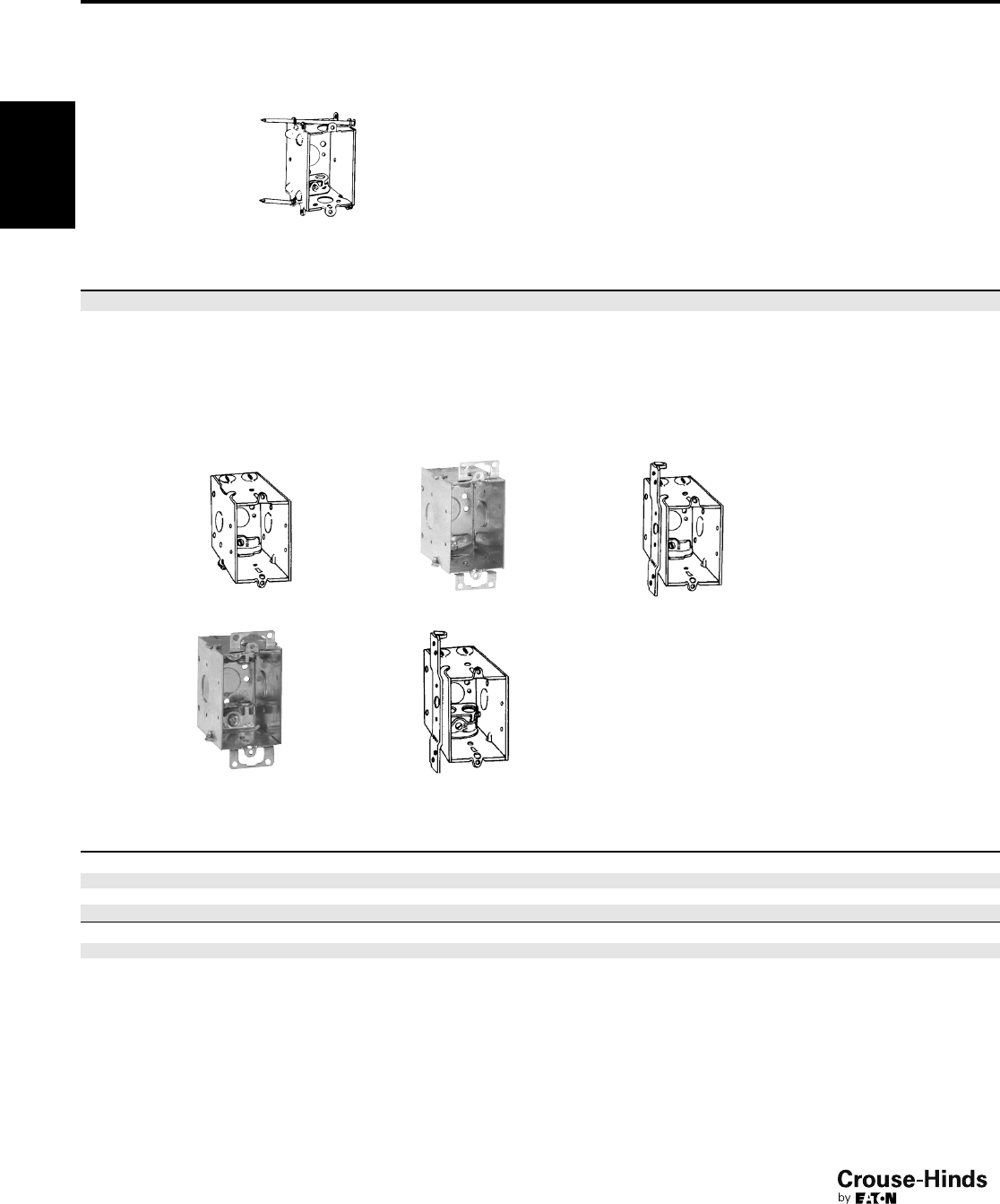

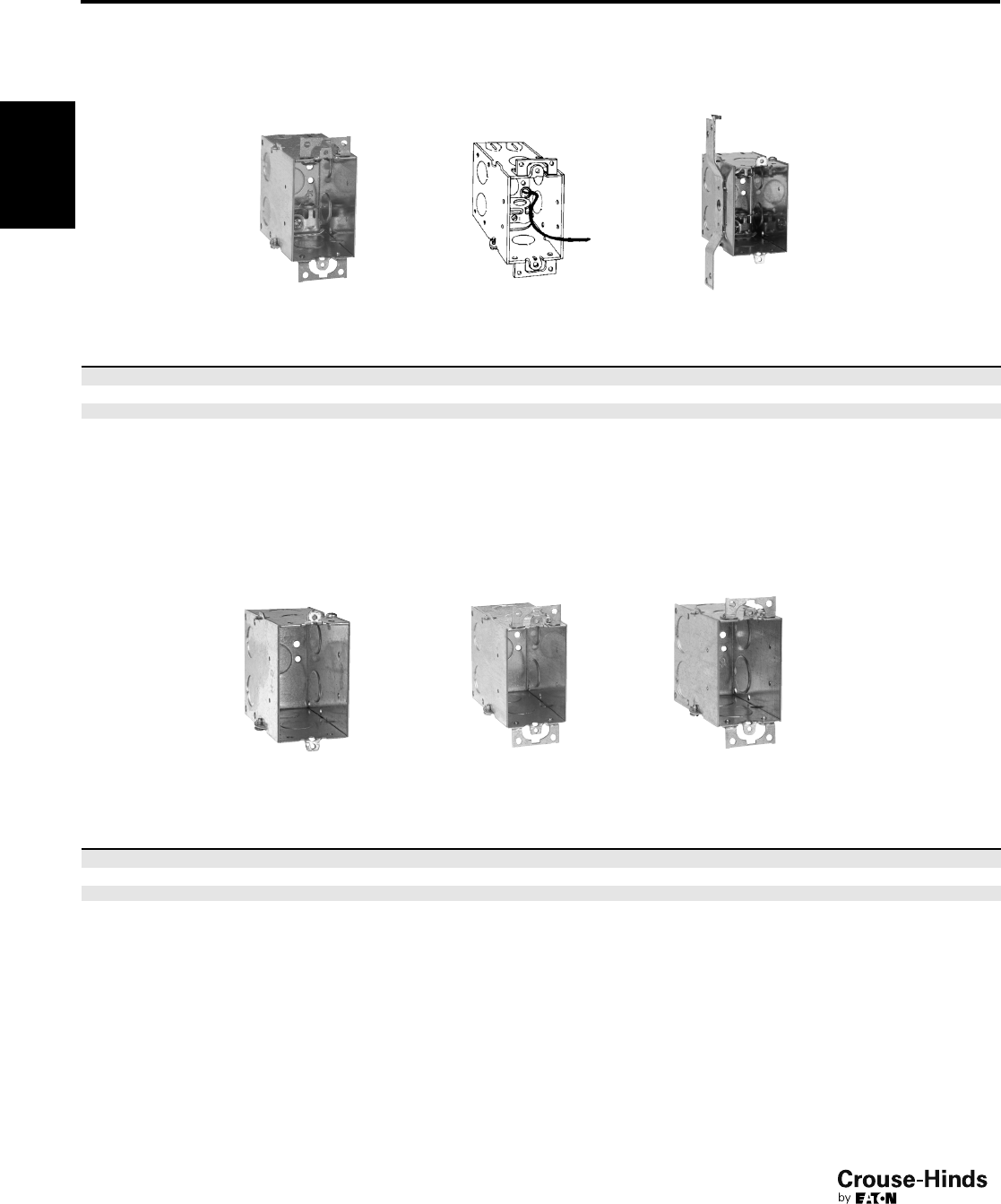

Steel Switch Boxes

1" DEEP - NON-GANGABLE - 6.5 CUBIC INCH CAPACITY

115/16" WIDE x 33/4" LONG

TP101 TP103

KNOCKOUTS

Cat. # Bracket Plastic Clamp Conduit Cable Unit Qty. Wt. Lbs. Per 100

TP101 "S" No 1–1/2"225 38

TP103 "S" Yes 1–1/2"22539

11/2" DEEP - NON-GANGABLE - 7.5 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

UL LISTED

TP100 TP104 TP106 TP114

KNOCKOUTS

Cat. # Bracket Ears Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

FOR NONMETALLIC CABLE – CLAMPS IN EACH END

TP100 —Yes 2 – Cable —1–1/2"50 43

TP104 "S", set 1/2"— 2 – Cable — 1–1/2"50 50

FOR ARMORED & METAL CLAD (MCI) CABLE – CLAMPS IN EACH END

TP106* —Yes 2 – Cable —1–1/2"50 44

FOR CONDUIT – NO CLAMPS, FLUSH DEVICE

TP114 —Yes 1–1/2"—1–1/2"50 39

*UL approved for use with aluminum interlocking grounding metal clad cable, Type MCIA (Southwire MCAP™)

MCAP™ is a registered trademark of Southwire Company.

322-333.qxp 12/16/2013 4:21 PM Page 323

324

Steel Switch Boxes

2" DEEP – GANGABLE – 10.0 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

UL LISTED

TP116 TP118

TP120 TP123 TP124

TP126 TP132 TP131

Hold-Tite

KNOCKOUTS

Cat. # Bracket Ears Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

FOR NONMETALLIC CABLE – CLAMPS IN EACH END

TP116 —Yes 2 – Cable —1–1/2"50 53

TP118 "S", Set 5/8"— 2 – Cable — 1–1/2"50 60

FOR ARMORED & METAL CLAD (MCI) CABLE – CLAMPS IN EACH END

TP120* —Yes 2 – Cable —1–1/2"50 54

TP123* "F", Set 1/2"— 2 – Cable — 1–1/2"50 63

TP124* "S", Set 5/8"—2 – Cable —1–1/2"50 61

FOR CONDUIT – NO CLAMPS, FLUSH DEVICE

TP126 — — 1–1/2"2–1/2"1–1/2"50 47

TP130 — Yes 1–1/2"2–

1/2"1–

1/2"50 48

TP132 "S", Set 5/8"—1–1/2"2–1/2", 1 Side 1–1/2"50 58

TP131 Hold-Tite Yes 1–1/2"–T —1–1/2"50 52

*UL approved for use with aluminum interlocking grounding metal clad cable, Type MCIA (Southwire MCAP™)

MCAP™ is a registered trademark of Southwire Company.

TP130

322-333.qxp 12/16/2013 4:21 PM Page 324

325

KNOCKOUTS

Cat. # Description Ears Bumps Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

CLAMP SCREWS THROUGH BEVELED CORNERS

TP134 Gangable —Yes 2 – Cable —1–1/2"50 51

TP137 Gangable Yes — 2 – Cable — 1–1/2"50 57

TP138 Gangable Yes —2 – Cable —1–1/2"50 55

21/4" DEEP – GANGABLE – BEVELED CORNERS 10.5 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

UL LISTED

TP134 TP137 Hold-Tite TP138

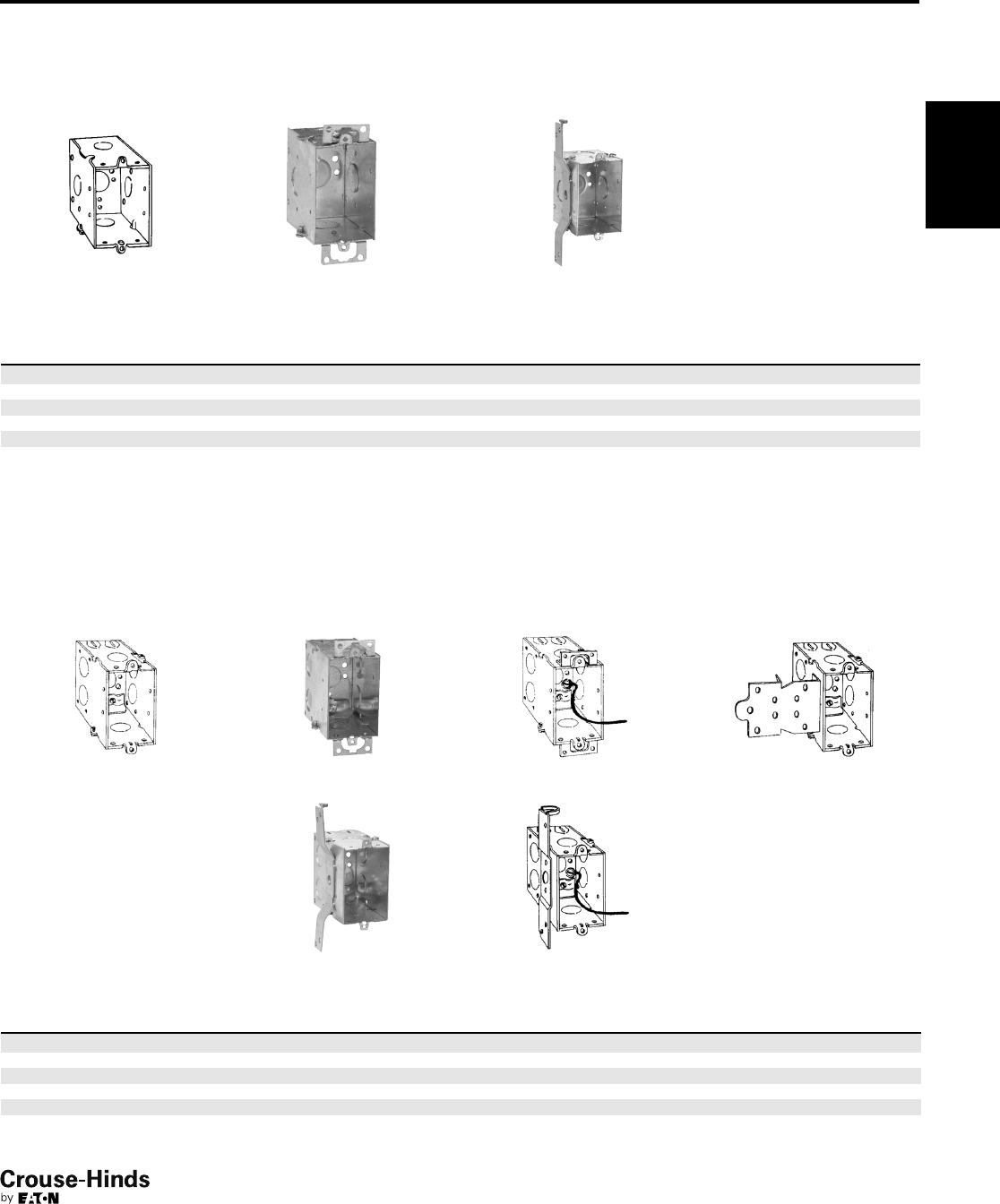

Steel Switch Boxes

21/2" DEEP – GANGABLE – 12.5 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

UL LISTED

TP158 TP162 TP163 TP164

TP168

TP170 TP161 TP172 TP174 TP171

KNOCKOUTS

Cat. # Bracket Ears Ground Pigtail Leveling Bumps Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

FOR NONMETALLIC CABLE - CLAMPS IN EACH END

TP158 — — — Yes 2 – Cable, 1 – 1/2"—1–1/2"50 59

TP115* — Yes Yes — 2 – Cable 1–1/2"1–

1/2"50 63

TP161 Snap-In Yes — — 2 – Cable 1–1/2"—50 73

TP162 — Yes — — 2 – Cable 1–1/2"1–

1/2"50 62

TP163 Hold-Tite Yes — — 2 – Cable —1–1/2"50 65

TP164 "F", Set 1/2"—— — 2 – Cable, 1 – 1/2"1–

1/2"1–

1/2"50 71

TP168 "F", Set 1/4"— — — 2 – Cable, 1 – 1/2"1–1/2"1–1/2"50 71

TP170 "S", Set 5/8"—— — 2 – Cable, 1 – 1/2"1–

1/2"1–

1/2"50 69

TP172 "D", Set 5/8"— — — 2 – Cable, 1 – 1/2"1–1/2"1–1/2"50 70

TP174 "D", Set 5/8"— Yes — 2 – Cable, 1 – 1/2"1–

1/2"1–

1/2"50 71

TP171 "VP", Set 1/2"— — — 2 – Cable, 1 – 1/2"1–1/2"1–1/2"50 73

*Not UL Listed

322-333.qxp 12/16/2013 4:21 PM Page 325

326

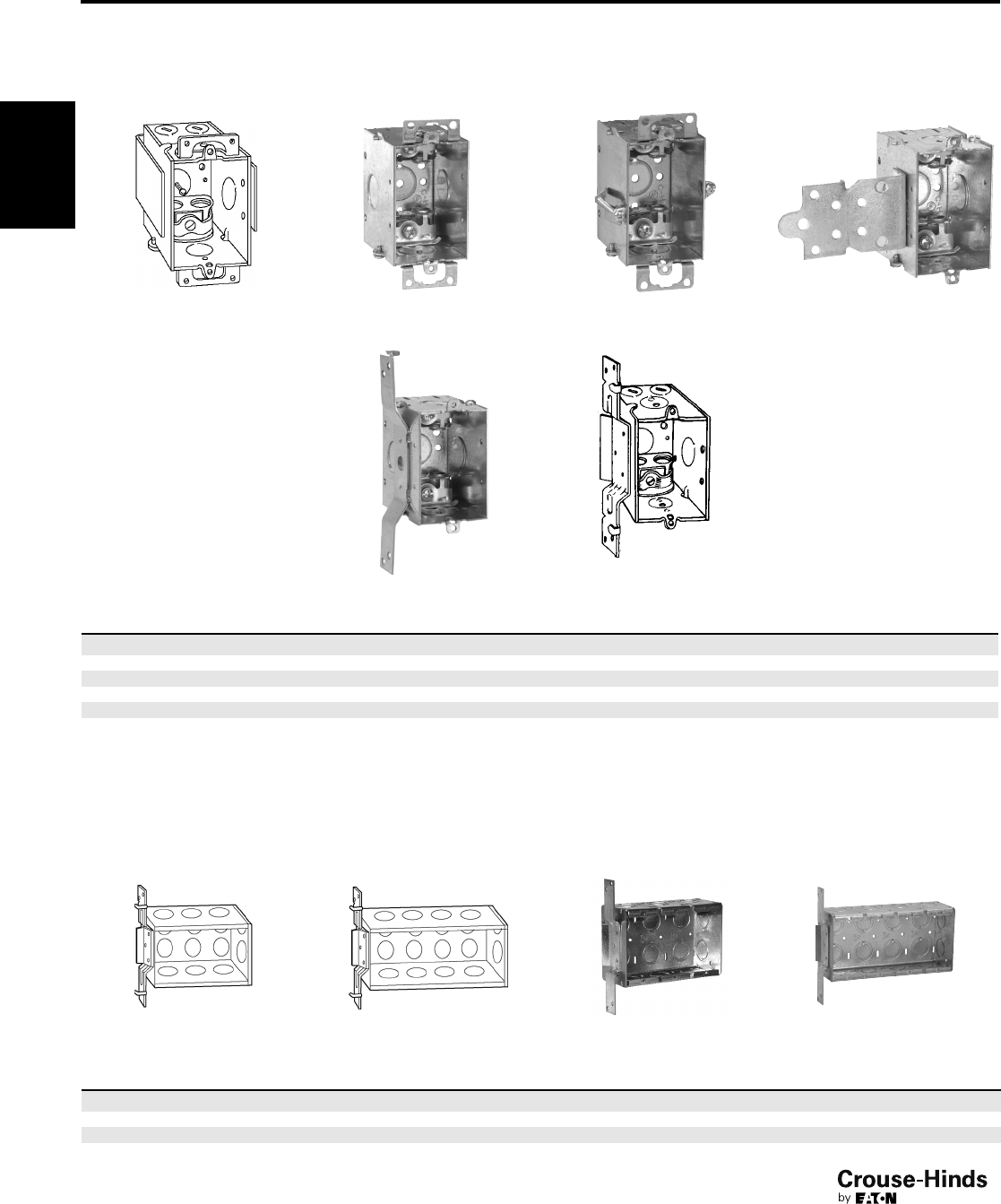

21/2" DEEP – GANGABLE – 12.5 CUBIC INCH CAPACITY

2" WIDE x 3" LONG FOR ARMORED & METAL CLAD (MCI) CABLE – CLAMPS IN EACH END

UL LISTED

TP177 TP178 TP179 TP180

Hold-Tite

TP184 TP185

KNOCKOUTS

Cat. # Bracket Ears Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

TP177* Snap-In Yes 2 – Cable 1–1/2"—50 74

TP178* — Yes 2 – Cable 1–1/2"1–

1/2"50 63

TP179* Hold-Tite Yes 2 – Cable —1–1/2"50 66

TP180* "F", Set 1/2"—2 – Cable, 1 – 1/2"1–

1/2"1–

1/2"50 72

TP184* "S", Set 5/8"—2 – Cable, 1 – 1/2"1–1/2"1–1/2"50 70

TP185* "VP", Set 1/2"—2 – Cable, 1 – 1/2"1–

1/2"1–

1/2"50 74

21/2" DEEP – 33/4" HIGH – 1/2" AND 3/4" CONCENTRIC KOs

UL LISTED

TP632 TP633 TP637 TP638

KNOCKOUTS

Cat. # Gang Bracket Width Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

TP632 3VP 59/16"2 3 6 5 143 46.5

TP633 4VP 73/8"2 4 8 5 179 62.0

TP637 3VS 59/16"2 3 6 5 143 46.5

TP638 4VS 73/8"2 4 8 5 179 62.0

Steel Switch Boxes

GANG BOXES SET BACK 1/2"

*UL approved for use with aluminum interlocking grounding metal clad cable, Type MCIA (Southwire MCAP™)

MCAP™ is a registered trademark of Southwire Company.

322-333.qxp 12/16/2013 4:21 PM Page 326

327

Note: The cubic capacity of any of our new work 21/2" Deep Switch Boxes can be increased to 18 cubic inches simply by adding our "EC" Extender to the sides of the box. This provides

5.5 extra cubic inches of space necessary to conform to revisions in the National Electrical Code. "EC" boxes are stocked factory assembled in popular styles; however, the "EC" Extender

can be ordered separately for "Instant-On" assembly on the job with Eaton's Crouse-Hinds Switch Boxes.

KNOCKOUTS

Cat. # Bracket Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

TP188 — — — — 50 32 5.5

FOR NONMETALLIC CABLE

TP190 "D", Set 5/8"2 – Cable, 1 – 1/2"—1–1/2"25 89 18.0

TP196 "S", Set 5/8" 2 – Cable, 1 – 1/2"—1–1/2"25 89 18.0

21/2" DEEP – GANGABLE – 12.5 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

FOR CONDUIT – NO CLAMPS

UL LISTED

TP214 TP216 TP217 TP218

TP220 TP222 TP224

KNOCKOUTS

Cat. # Bracket Ears Leveling Bumps Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

TP214 — — Yes 1–1/2"—1–1/2"50 55

TP216 Snap-In Yes — 1–1/2"1–

1/2"—50 69

TP217 —Yes —1–1/2"—1–1/2"50 64

TP218 — Yes — 1–1/2"1–

1/2"1–

1/2"50 58

TP220 "F", Set 1/2"— — 1–1/2"1–1/2", 1 Side 1–1/2"50 66

TP222 "S", Set 5/8"—— 1–1/2"1–

1/2", 1 Side 1 – 1/2"50 65

TP224 Hold-Tite Yes —1–1/2"—1–1/2"50 61

Steel Switch Boxes

21/2" DEEP "EC" BOXES – GANGABLE – CUBIC INCH CAPACITY (SEE BELOW)

2" WIDE ××3" LONG

CLAMPS IN EACH END

UL LISTED

TP188 TP190 TP196

322-333.qxp 12/16/2013 4:21 PM Page 327

328

23/4" DEEP – GANGABLE – 14.0 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

UL LISTED

TP660 TP662 TP664

TP668 TP670

Steel Switch Boxes

KNOCKOUTS

Cat. # Bracket Ears Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

FOR NONMETALLIC CABLE – CLAMPS IN EACH END

TP660 — — 2 – Cable 1–1/2"1–1/2"50 62

TP662 — Yes 2 – Cable 1 – 1/2"1–

1/2"50 67

TP664 "S", Set 5/8" — 2 – Cable 1–1/2"1–1/2"50 70

FOR ARMORED & METAL CLAD (MCI) CABLE – CLAMPS IN EACH END

TP668* —Yes 2 – Cable 1–1/2"1–1/2"50 68

TP670* "S", Set 5/8" — 2 – Cable 1 – 1/2"1–

1/2"50 71

21/2" DEEP SWITCH BOXES – "INSTANT ON" – 12.5 CUBIC INCH CAPACITY

2" WIDE ××3" LONG

WITH BUMPS – CLAMPS IN EACH END (BUMPS LEVEL THE BOX AGAINST THE SIDE OF STUD, TOP TO

BOTTOM, FRONT TO BACK)

TP213

KNOCKOUTS

Cat. # Clamps Nails Each End Each Side Bottom Std. Unit Pkg. Wt. Lbs. Per 100

TP213 Armored Cable Angle 2 – Cable, 1 – 1/2"—1–1/2"50 66

*UL approved for use with aluminum interlocking grounding metal clad cable, Type MCIA (Southwire MCAP™)

MCAP™ is a registered trademark of Southwire Company.

322-333.qxp 12/16/2013 4:21 PM Page 328

329

23/4" DEEP – GANGABLE – 14.0 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

FOR CONDUIT – NO CLAMPS

UL LISTED

TP672

TP674

(TP676 – 1 screw ear)

(TP678 – 2 screw ear)

TP680

TP677

KNOCKOUTS

Cat. # Bracket Ears Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

TP672 — — 1–1/2"1–1/2"1–1/2"50 59

TP674 ——

1–3/4"1–

3/4"1–

1/2"50 59

TP676 —Yes 1–1/2"1–1/2"1–1/2"50 61

TP678 — Yes 1–3/4"1–

3/4"1–

1/2"50 61

TP680 "S", Set 5/8"—1–1/2"1–1/2", 1 Side 1–1/2"50 70

TP677 "S", Set 5/8"—1–3/4"1–

3/4", 1 Side 1 – 1/2"50 70

31/2" DEEP – GANGABLE – 18.0 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

FOR NONMETALLIC CABLE – CLAMPS IN EACH END

UL LISTED

TP236 TP238 TP239 TP240

TP242 TP243

KNOCKOUTS

Cat. # Bracket Ground Pigtail Ears Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

TP236 — — — 2 – Cable, 1 – 1/2"2–1/2"1–1/2"25 78

TP238 — — Yes 2 – Cable, 1 – 1/2"2–

1/2"1–

1/2"25 80

TP239 —Yes Yes 2 – Cable, 1 – 1/2"2–1/2"1–1/2"25 81

TP240 "F", Set 1/2"——

2 – Cable, 1 – 1/2"2–

1/2"1–

1/2"25 88

TP242 "S", Set 7/8"— — 2 – Cable, 1 – 1/2"2–1/2"1–1/2"25 87

TP243 "S", Set 7/8"Yes — 2 – Cable, 1 – 1/2"2–

1/2"1–

1/2"25 88

Steel Switch Boxes

322-333.qxp 12/16/2013 4:21 PM Page 329

330

31/2" DEEP – GANGABLE – 18.0 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

FOR ARMORED & METAL CLAD (MCI) CABLE – CLAMPS IN EACH END

UL LISTED

31/2" DEEP – GANGABLE – 18.0 CUBIC INCH CAPACITY

2" WIDE x 3" LONG

TP244 TP249 TP246

KNOCKOUTS

Cat. # Bracket Ground Pigtail Ears Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

TP244* — — Yes 2 – Cable, 1 – 1/2"2–1/2"1–1/2"25 81

TP249* — Yes Yes 2 – Cable, 1 – 1/2"2–

1/2"1–

1/2"25 82

TP246* "S", Set 7/8"— — 2 – Cable, 1 – 1/2"2–1/2"1–1/2"25 88

FOR CONDUIT – NO CLAMPS

UL LISTED

TP248

TP250

TP252 TP254

KNOCKOUTS

Cat. # Bracket Ears Each End Each Side Bottom Unit Qty. Wt. Lbs. Per 100

TP248 — — 2–1/2"2–1/2"1–1/2"25 74

TP250 ——

2–3/4"2–

3/4"1–

1/2"25 74

TP252 —Yes 2–1/2"2–1/2"1–1/2"25 76

TP254 — Yes 2–3/4"2–

3/4"1–

1/2"25 76

Steel Switch Boxes

*UL approved for use with aluminum interlocking grounding metal clad cable, Type MCIA (Southwire MCAP™)

MCAP™ is a registered trademark of Southwire Company.

322-333.qxp 12/16/2013 4:21 PM Page 330

331

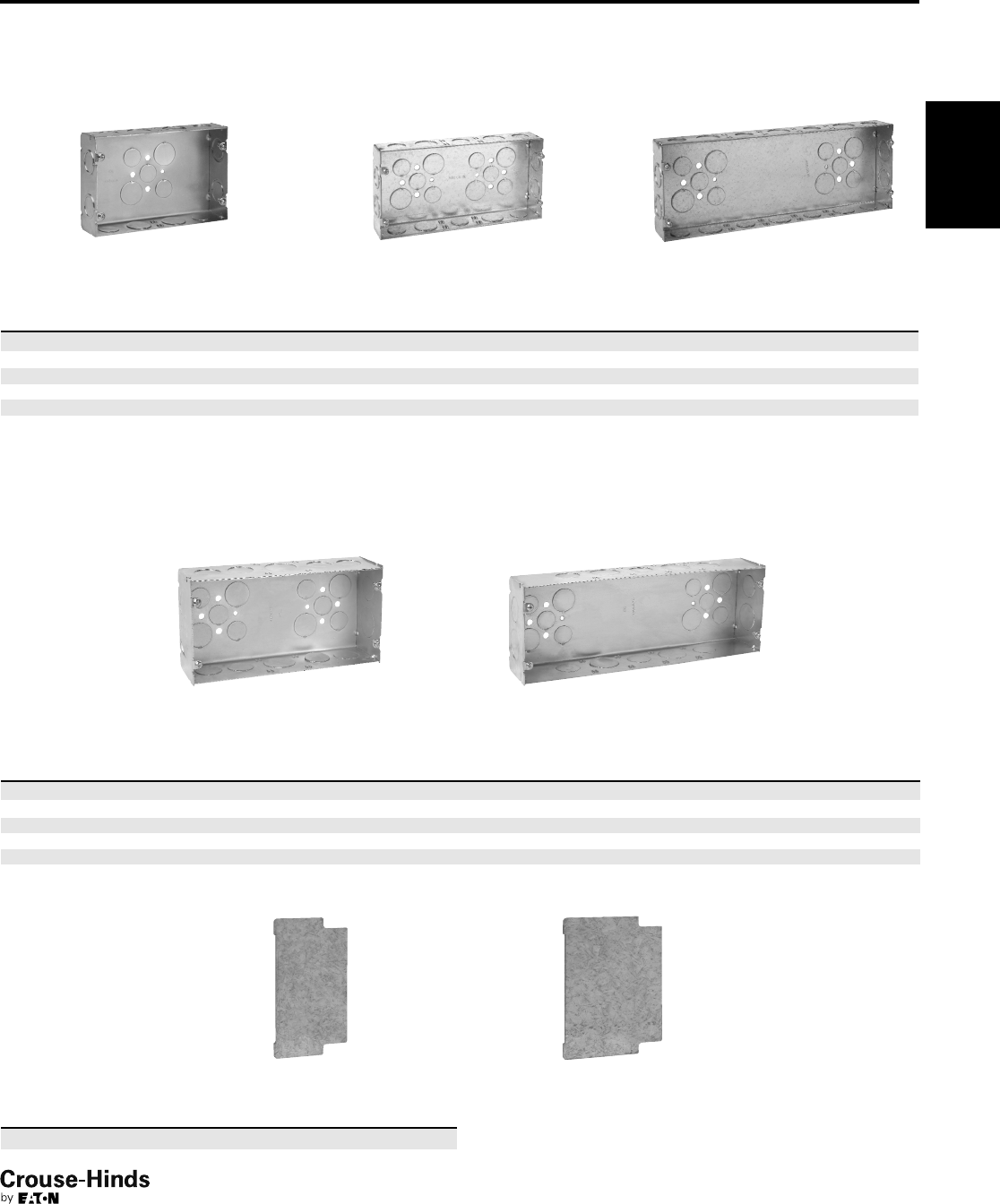

Steel Gang Boxes

GANG BOXES

15/8" DEEP x 41/2" HIGH

1/2" & 3/4" KOs

UL LISTED

KNOCKOUTS

Cat. # Gang

Cubic

Inches Width Each Side Each End Bottom Unit Qty.

Wt. Lbs.

Per 100

TP629 245 613/16"2–1/2", 2 – 3/4"1–1/2", 1 – 3/4"3–1/2", 2 – 3/4"545

TP630 358

85/8"3–

1/2", 2 – 3/4"1–

1/2", 1 – 3/4"6–

1/2", 4 – 3/4"558

TP631 470 107/16"3–1/2", 3 – 3/4"1–1/2", 1 – 3/4"6–1/2", 4 – 3/4"570

TP640 585

121/4"4–

1/2", 3 – 3/4"1–

1/2", 1 – 3/4"6–

1/2", 4 – 3/4"185

TP641 695 141/16"4–1/2" 4 – 3/4"1–1/2", 1 – 3/4"6–1/2", 4 – 3/4"195

GANG BOXES

21/2" DEEP x 41/2" HIGH

3/4" & 1" KOs

UL LISTED

TP871 TP873

KNOCKOUTS

Cat. # Gang

Cubic

Inches Width Each Side Each End Bottom Unit Qty.

Wt. Lbs.

Per 100

TP870 271 613/16"2–3/4", 1 – 1" 1–3/4", 1 – 1" 3–1/2", 2 – 3/4"10 147

TP871 39085/8"4–

3/4", 1 – 1" 1 – 3/4", 1 – 1" 6 – 1/2", 4 – 3/4"10 183

TP872 4110 107/16"2–3/4", 2 – 1" 1–3/4", 1 – 1" 6–1/2", 4 – 3/4"5216

TP873 5 132 121/4"3–

3/4", 2 – 1" 1 – 3/4", 1 – 1" 6 – 1/2", 4 – 3/4"5 263

TP874 6150 141/16"3–3/4", 3 – 1" 1–3/4", 1 – 1" 6–1/2", 4 – 3/4"5282

Cat. # Description Unit Qty.

Wt. Lbs.

Per 100

TP876 For 15/8" Deep Box 25 19

TP877 For 21/2" Deep Box 50 24

GANG BOX PARTITIONS

TP876 TP877

TP629 TP630 TP640

322-333.qxp 12/16/2013 4:21 PM Page 331

332

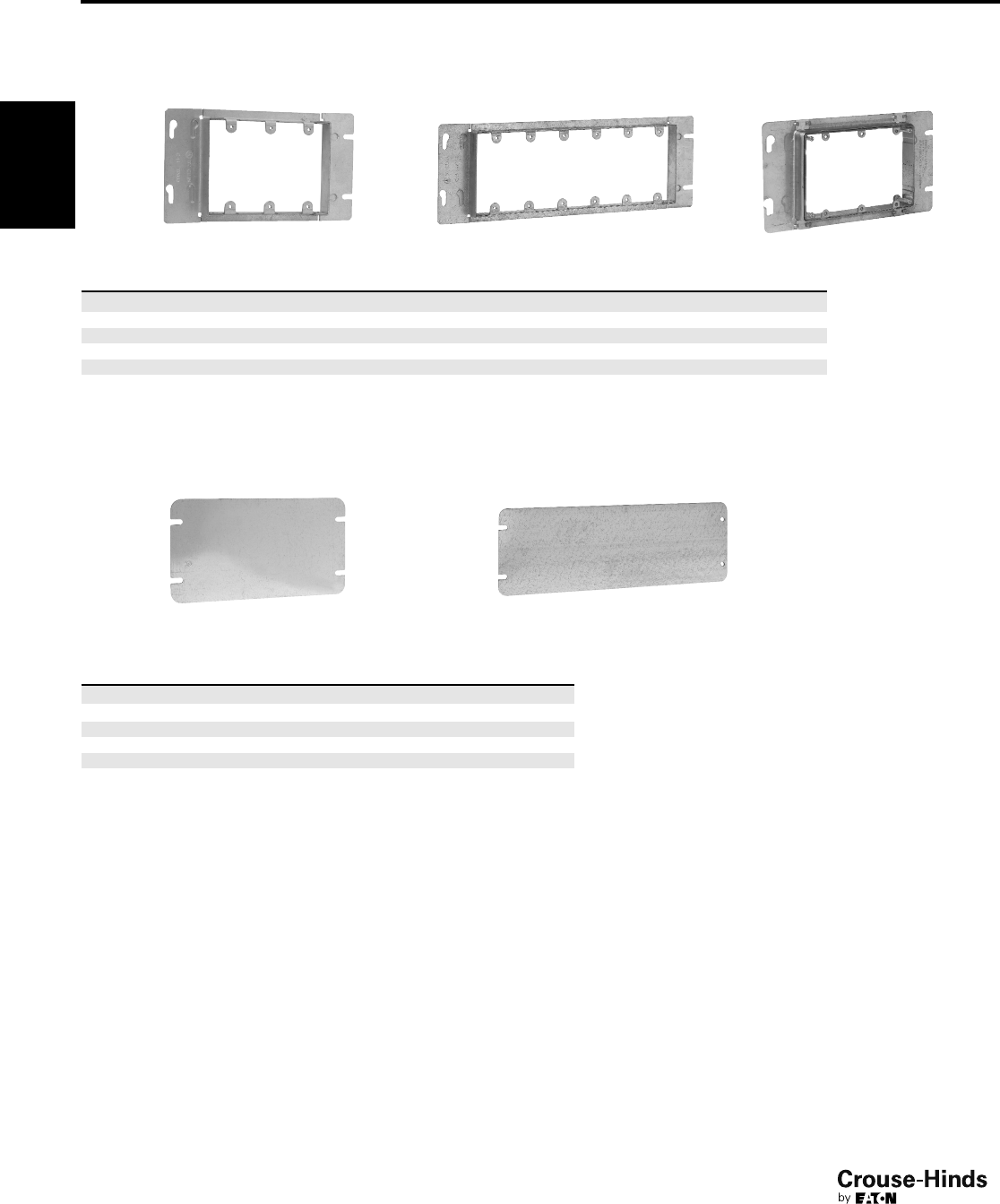

Steel Gang Box Covers

GANG BOX COVERS

RAISED 13/16" FOR PLASTER

UL LISTED

Cat. # Gang Length Unit Qty. Wt. Lbs. Per 100

TP802 27" 566

TP803 3813/16"585

TP804 4105/8"594

TP805 5127/16"1 122

TP806 6141/4"1132

AMR3

Cat. # Gang Length Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

TP657 27" 553 8.5

TP653 3813/16"5 60 13.5

AMR3** 33/4"-1-1/2" Raised Adjustable 25 78 10.4

TP655 4105/8"5 66 18.3

TP661 5127/16"575 23.0

TP667 6141/4"5 85 28.3

**ETL Listed

GANG BOX COVERS, FLAT, BLANK

UL LISTED

TP803 TP806

TP653 TP667

322-333.qxp 12/16/2013 4:22 PM Page 332

333

Steel Masonry Boxes

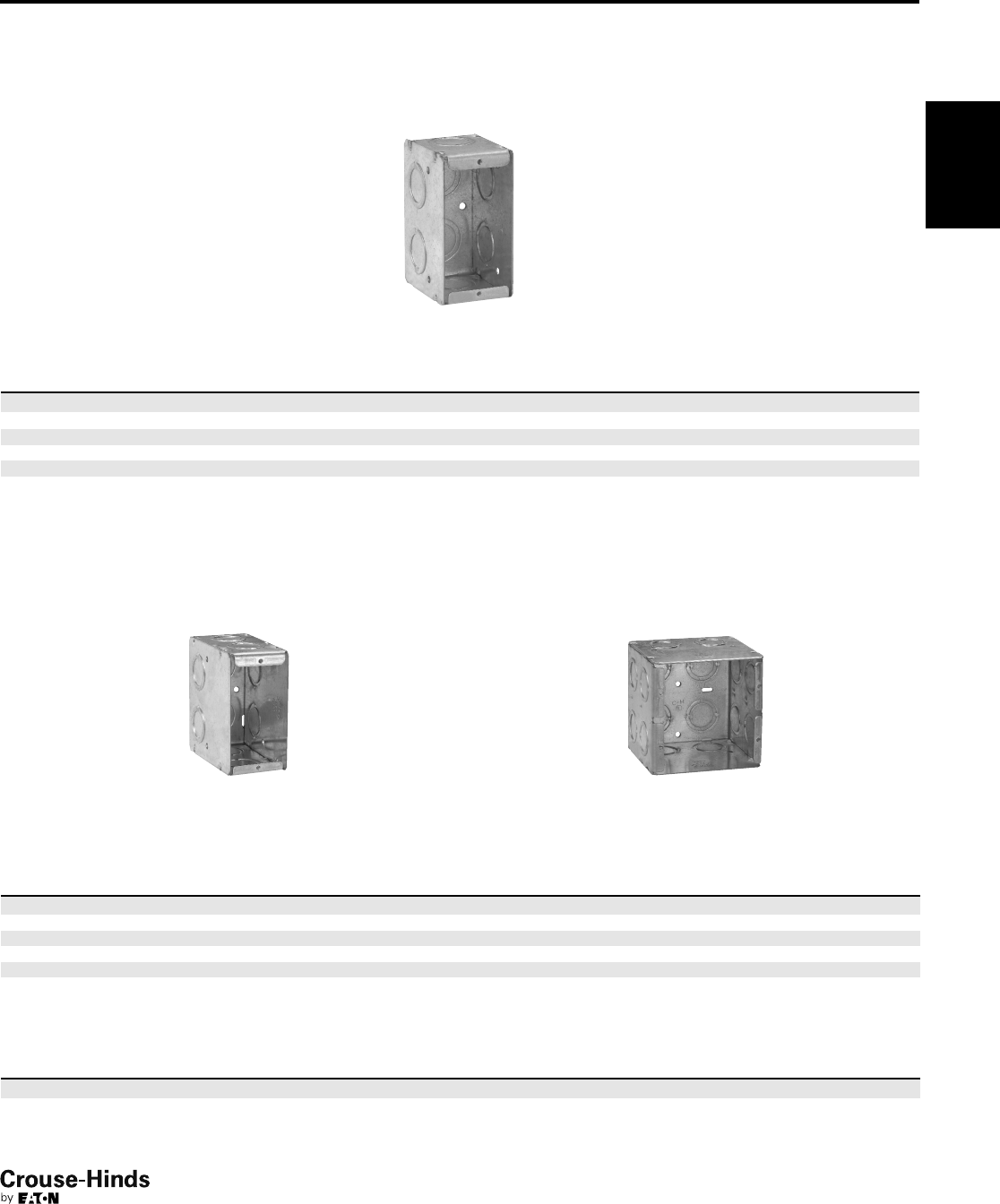

MASONRY BOXES

21/2" DEEP ××33/4" HIGH

1/2" AND 3/4" CONCENTRIC KOs

UL LISTED

TP682

KNOCKOUTS

Cat. # Gang Width Each Side Each End Bottom Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

TP682 1115/16"21220 70 15.5

TP683 233/4"2 2 4 10 103 31.0

TP684 359/16"2 3 6 5 129 46.5

TP685 473/8"2 4 8 5 165 62.0

TP686 593/16"2510 5189 77.5

TP687 6 11" 2 6 12 1 230 93.0

MASONRY BOXES

31/2" DEEP ××33/4" HIGH

1/2" AND 3/4" CONCENTRIC KOs

UL LISTED

TP690 TP691

KNOCKOUTS

Cat. # Gang Width Each Side Each End Bottom Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

TP690 1115/16"22220 84 22.0

TP691 233/4"2 4 4 10 120 44.0

TP692 359/16"26610 155 66.5

TP693 473/8"2 8 8 5 207 88.0

TP694 593/16"210 10 5235 110.0

TP695 6 11" 2 12 12 1 287 132.0

MASONRY BOX PARTITIONS

Cat. # Description Unit Qty.

Wt. Lbs.

Per 100

TP820 Nonmetallic Partition for 21/2" Deep Masonry Boxes 25 3

TP821 Nonmetallic Partition for 31/2" Deep Masonry Boxes 25 4

322-333.qxp 12/16/2013 4:22 PM Page 333

334

Steel Masonry Boxes

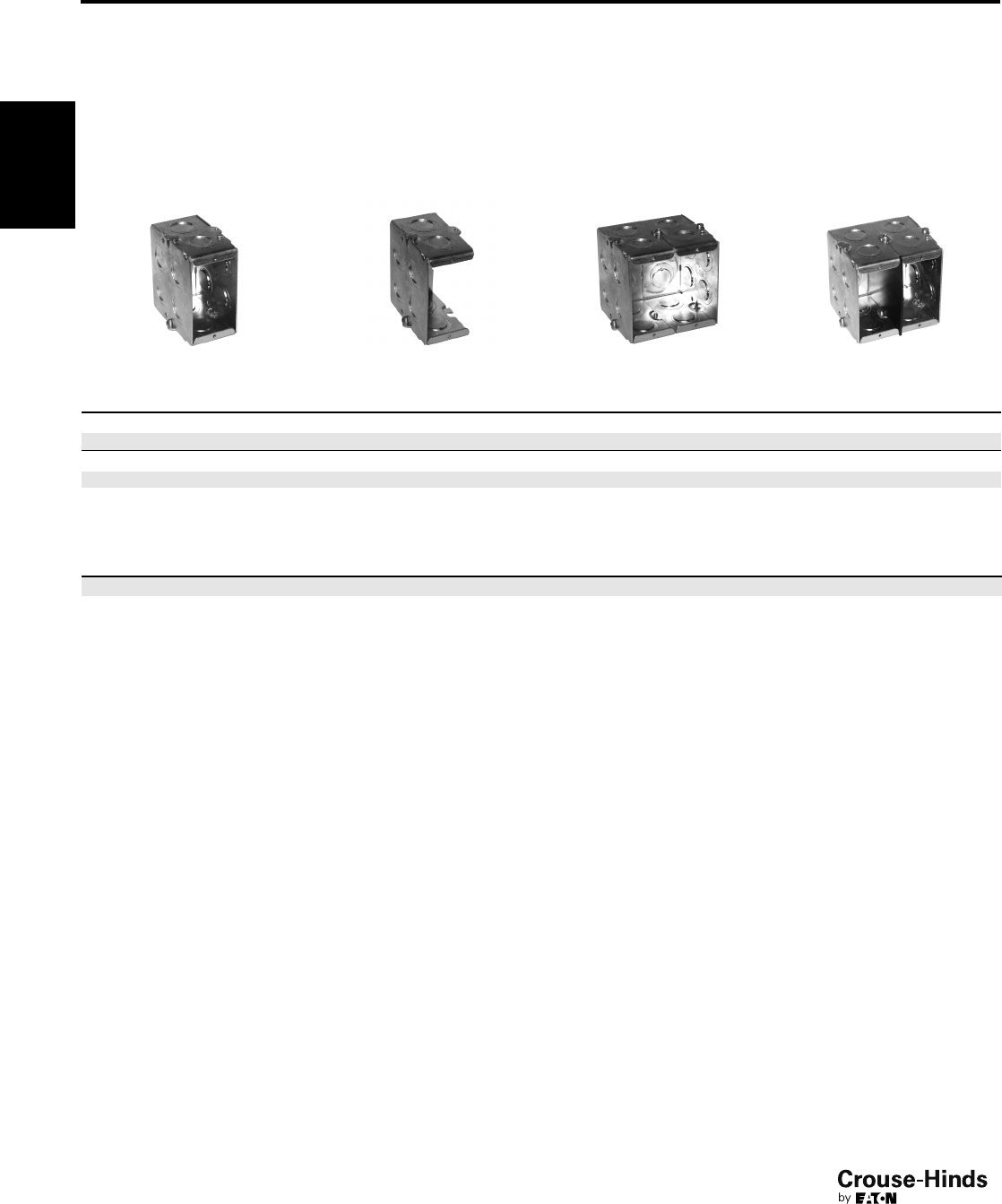

GANGABLE MASONRY BOXES

UL LISTED

Features:

• The gangable feature allows the option of creating a multiple gang box from a single gang box by simply removing the combo head screw

holding the side with a #2 bit and connecting the two (or more) boxes together re-using the screws

• Non-metallic partitions (ordered separately) install quickly and easily without tools in multi-gang boxes and are used to separate power and

control circuits within the same box, as required by the National Electrical Code®

KNOCKOUTS

Cat. # Width Each Side Each End Bottom Unit Qty. Wt. Lbs. Per 100 Capacity Cu. In.

21/2" DEEP ××33/4" HIGH, 1/2" AND 3/4" CONCENTRIC KOs

TP671 115/16"22220 63 15.5

31/2" DEEP ××33/4" HIGH, 1/2" AND 3/4" CONCENTRIC KOs

TP675 115/16"42220 82 22.0

GANGABLE MASONRY BOX PARTITIONS

Cat. # Description Unit Qty.

Wt. Lbs.

Per 100

TP654 Nonmetallic Partition for 21/2" Deep Gangable Masonry Boxes 25 4

TP656 Nonmetallic Partition for 31/2" Deep Gangable Masonry Boxes 25 6

334-345.qxp 12/16/2013 4:22 PM Page 334

335

31/4" OCTAGON OUTLET BOXES† – 9.0 CUBIC INCH CAPACITY

11/2" DEEP

FIXTURE RATED

UL LISTED

TP256 TP258 TP259 TP260 TP264

KNOCKOUTS

Cat. # Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

FOR CONDUIT – NO CLAMPS

TP256 —4–1/2"1–1/2"50 41

TP258 Extension Ring 4–1/2"—50 31

FOR NONMETALLIC CABLE WITH CLAMPS

TP259 "S" Bracket, Set 1/2"4 – Cable, 1 – 1/2"1–1/2"50 53

TP260 —4 – Cable, 2 – 1/2"1–

1/2"50 44

TP264 Two Screw Ears 4 – Cable, 2 – 1/2"1–1/2"50 47

†Weight limit for 31/4" and 4" octagon outlet boxes and ceiling pans is 50 lbs. for fixture/luminaire. Not suitable for fans.

Steel Octagon Boxes & Ceiling Pans

31/4" ROUND CEILING PAN† – 4.0 CUBIC INCH CAPACITY

1/2" DEEP

CLAMPS IN BOTTOM

FIXTURE RATED

UL LISTED

TP266

KNOCKOUTS

Cat. # Cable Conduit Unit Qty. Wt. Lbs. Per 100

TP266 4 – Cable 1–1/2"50 30

31/4" ROUND CEILING COVERS

UL LISTED

TP270 TP272

KNOCKOUTS

Cat. # Cable Unit Qty. Wt. Lbs. Per 100

TP270 Flat Blank 100 18

TP272 Flat, 1/2" KO in Center 100 18

334-345.qxp 12/16/2013 4:22 PM Page 335

336

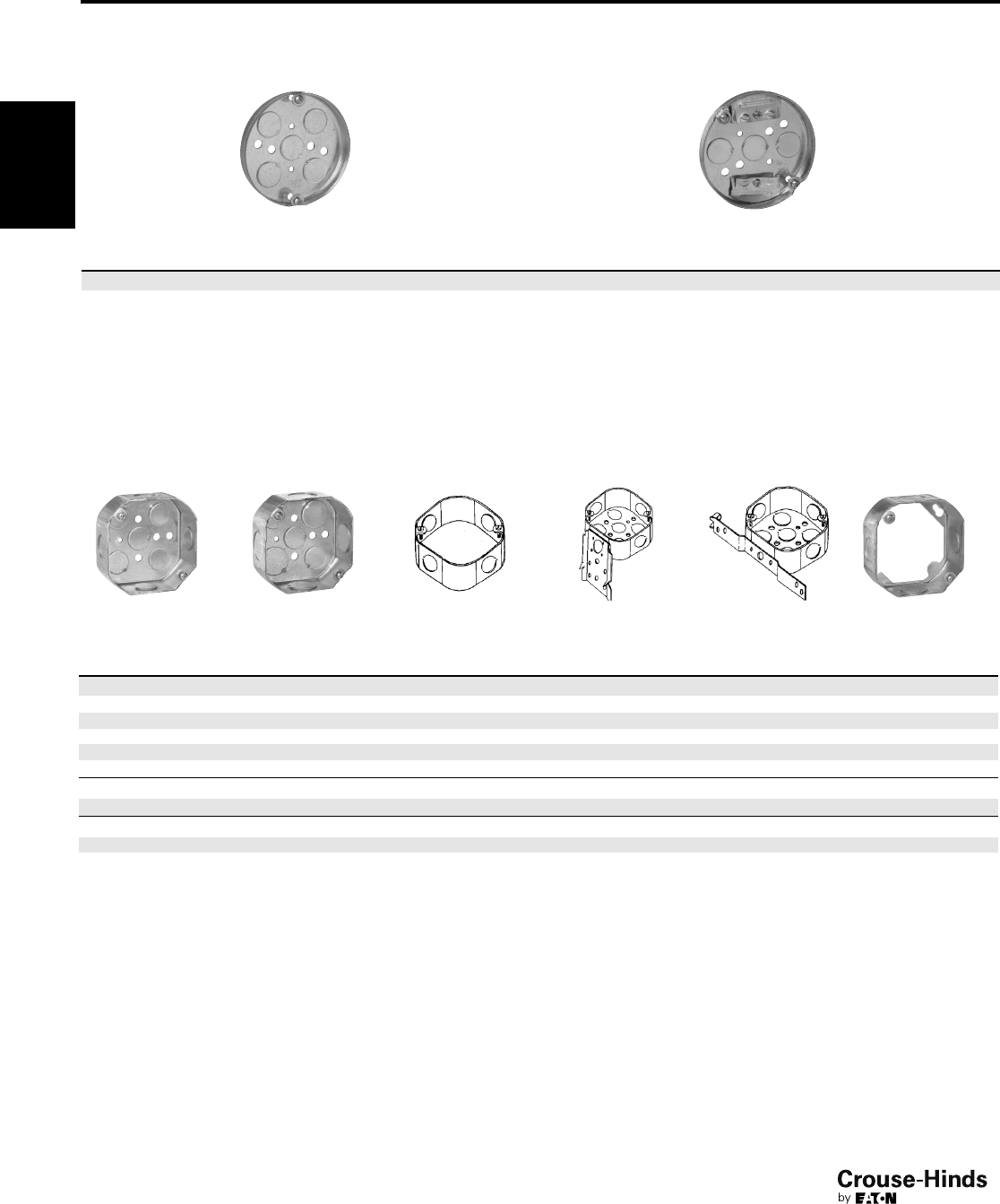

Steel Octagon Boxes & Ceiling Pans

4" OCTAGON OUTLET BOXES† – 15.5 CUBIC INCH CAPACITY

11/2" DEEP

FOR CONDUIT – NO CLAMPS

FIXTURE RATED

UL LISTED

KNOCKOUTS

Cat. # Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP274 —4–1/2"5–1/2"50 50

TP273 Blank Bottom 4–1/2"—5051

TP276 —4–3/4"3–1/2", 2 – 3/4" 50 50

TP278 —2–1/2", 2 – 3/4"3–

1/2", 2 – 3/4"50 50

TP280 "C" Bracket 4–1/2"5–1/2"50 60

TP282 "S" Bracket, Set 1/2"3–

1/2"5–

1/2"50 58

Air Plenum

TP834* For Air Plenum 4–1/2"5–1/2"50 52

OCTAGON EXTENSION RINGS – (SLOT & KEY PERMIT MOUNTING WITHOUT REMOVING BOX SCREWS)

TP284‡ —4–1/2"—50 36

TP286‡ —2–1/2", 2 – 3/4"—5036

*For Air Plenum (No Mounting Holes) - Not UL Listed.

†Weight limit for 31/4" and 4" octagon outlet boxes and ceiling pans is 50 lbs for fixture/luminaire. Not suitable for fans.

‡CSA Certified.

TP274, TP278,

TP834*

TP276 TP273 TP280 TP282 TP284, TP286

4" ROUND CEILING PANS* – 6.0 CUBIC INCH CAPACITY

1/2" DEEP

FIXTURE RATED

UL LISTED

TP269 TP267

KNOCKOUTS

Cat. # Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP269 KOs Only —5–1/2"50 35

TP267 KOs and Clamps — 4 – Cable, 3 – 1/2"50 39

*Weight limit for 31/4" and 4" octagon outlet boxes and ceiling pans is 50lbs for fixture.

Not suitable for fans.

334-345.qxp 12/16/2013 4:22 PM Page 336

337

4" OCTAGON OUTLET BOXES† – 15.5 CUBIC INCH CAPACITY

11/2" DEEP

FOR NONMETALLIC CABLE – WITH CLAMPS

FIXTURE RATED

UL LISTED

TP298 TP300 TP302 TP304 TP306 TP308

11/2" DEEP

FOR ARMORED & METAL CLAD (MCI) CABLE – CLAMPS IN EACH END

FIXTURE RATED

UL LISTED

TP310 TP312 TP314

Steel Octagon Boxes & Ceiling Pans

4" OCTAGON OUTLET BOXES† – 15.5 CUBIC INCH CAPACITY

KNOCKOUTS

Cat. # Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP310* —4 – Cable, 2 – 1/2"1–1/2"50 57

TP312* "C" Bracket 4 – Cable, 2 – 1/2"1–

1/2"50 66

TP314* "S" Bracket, Set 1/2"4 – Cable, 1 – 1/2"1–1/2"50 64

*UL approved for use with aluminum interlocking grounding metal clad cable, Type MCIA (Southwire MCAP™)

MCAP™ is a registered trademark of Southwire Company.

† Weight limit for 31/4" and 4" octagon outlet boxes and ceiling pans is 50lbs for fixture/luminaire. Not suitable for fans

KNOCKOUTS

Cat. # Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP298 —4 – Cable, 2 – 1/2"1–1/2"50 56

TP300 With Side Nail Holes 4 – Cable, 2 – 1/2"1–

1/2"50 55

TP302 "C" Bracket 4 – Cable, 2 – 1/2"1–1/2"50 65

TP304 "S" Bracket, Set 1/2" 4 – Cable, 1 – 1/2"1–

1/2"50 64

TP306 Two Screw Ears 4 – Cable, 2 – 1/2"1–1/2"50 58

TP308 "F" Bracket, Set 1/2" 4 – Cable, 1 – 1/2"1–

1/2"50 64

† Weight limit for 31/4" and 4" octagon outlet boxes and ceiling pans is 50lbs for fixture/luminaire. Not suitable for fans

334-345.qxp 12/16/2013 4:22 PM Page 337

338

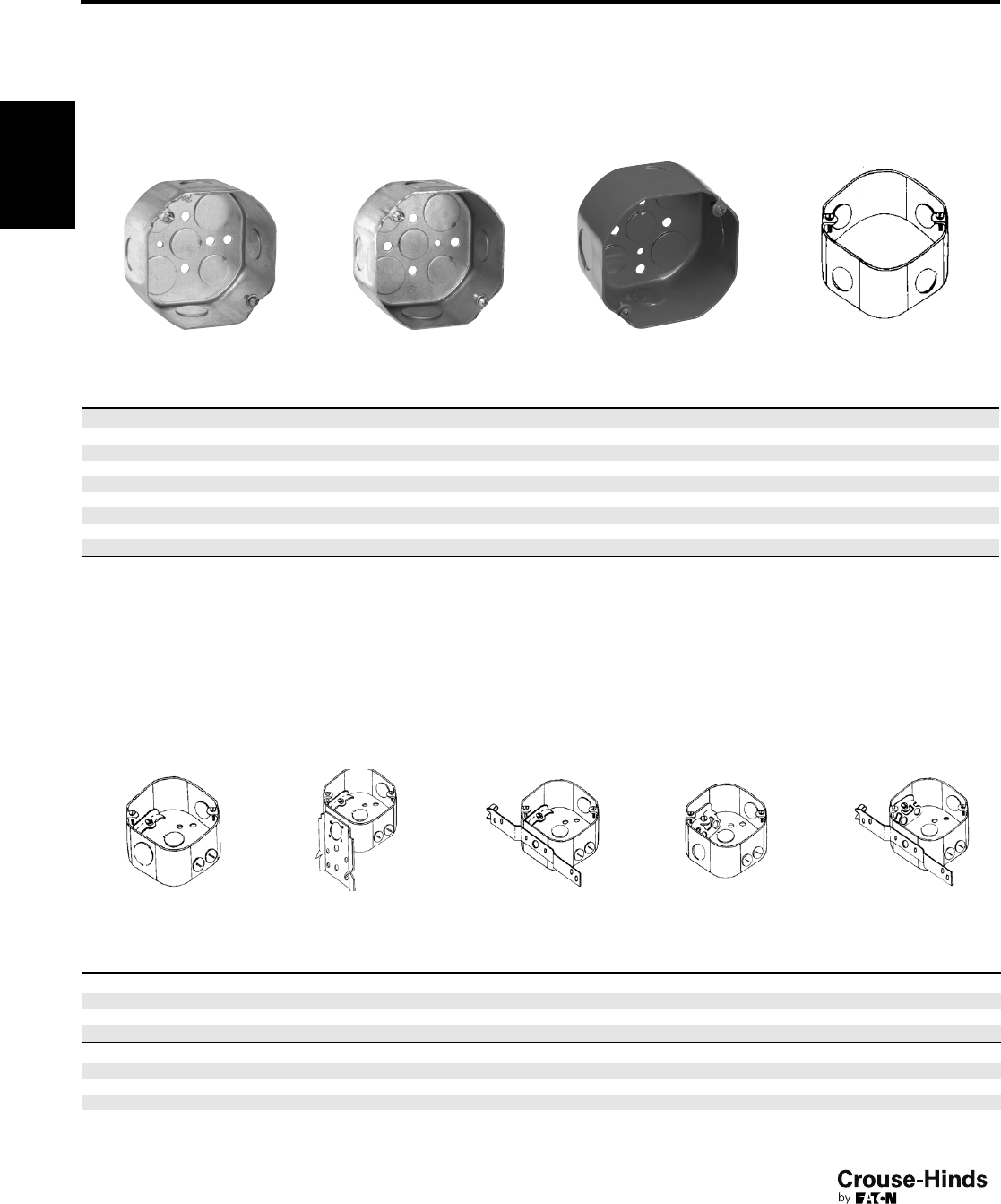

4" OCTAGON OUTLET BOXES† – 21.5 CUBIC INCH CAPACITY

21/8" DEEP

FOR CONDUIT – NO CLAMPS

FIXTURE RATED

UL LISTED

TP288, TP290, TP294 TP292, TP838* TP292RED TP339

4" OCTAGON OUTLET BOXES† – 21.5 CUBIC INCH CAPACITY

21/8" DEEP – WITH CABLE CLAMPS

FIXTURE RATED

UL LISTED

TP316 TP318 TP320 TP317 TP338

Steel Octagon Boxes & Ceiling Pans

KNOCKOUTS

Cat. # Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

TP288 —4–1/2"3–1/2", 2 – 3/4"25 64

TP288PF‡ —4–1/2"3–

1/2", 2 – 3/4"25 64

TP290 —4–3/4"3–1/2", 2 – 3/4"25 64

TP290PF‡ —4–3/4"3–

1/2", 2 – 3/4"25 64

TP292 —2–1/2", 2 – 3/4"3–1/2", 2 – 3/4"25 64

TP292PF‡ —2–1/2", 2 – 3/4"3–

1/2", 2 – 3/4"25 64

TP292RED —2–1/2", 2 – 3/4"3–1/2", 2 – 3/4"25 64

TP294 —4–1"

3–1/2", 2 – 3/4"25 64

TP339 Blank Bottom 4–1/2"—25 65

Air Plenum

TP838* Plenum 2–1/2", 2 – 3/4"3–

1/2", 2 – 3/4"25 62

*For Air Plenum (No Mounting Holes) - Not UL Listed

‡TP catalog numbers ending in PF includes ground screw with pigtail lead

† Weight limit for 31/4" and 4" octagon outlet boxes and ceiling pans is 50lbs for fixture/luminaire. Not suitable for fans

KNOCKOUTS

Cat. # Description Sides Bottom Unit Qty. Wt. Lbs. Per 100

FOR NONMETALLIC CABLE

TP316 —4 – Cable, 2 – 1/2"1–1/2"25 68

TP318 "C" Bracket 4 – Cable, 2 – 1/2"1–

1/2"25 88

TP320 "S" Bracket, Set 1/2"4 – Cable, 1 – 1/2"1–1/2"25 81

FOR ARMORED & METAL CLAD (MCI) – CABLE-CLAMPS IN EACH END

TP317* —4 – Cable, 2 – 1/2"1–1/2"25 69

TP338* "S" Bracket, Set 1/2" 4 – Cable, 1 – 1/2"1–

1/2"25 82

TP338PF‡ "S" Bracket, Set 1/2"4 – Cable, 1 – 1/2"1–1/2"25 82

*UL approved for use with aluminum interlocking grounding metal clad cable, Type MCIA (Southwire MCAP™)

MCAP™ is a registered trademark of Southwire Company.

‡TP catalog numbers ending in PF includes ground screw with pigtail lead

† Weight limit for 31/4" and 4" octagon outlet boxes and ceiling pans is 50lbs for fixture/luminaire. Not suitable for fans

334-345.qxp 12/16/2013 4:23 PM Page 338

339

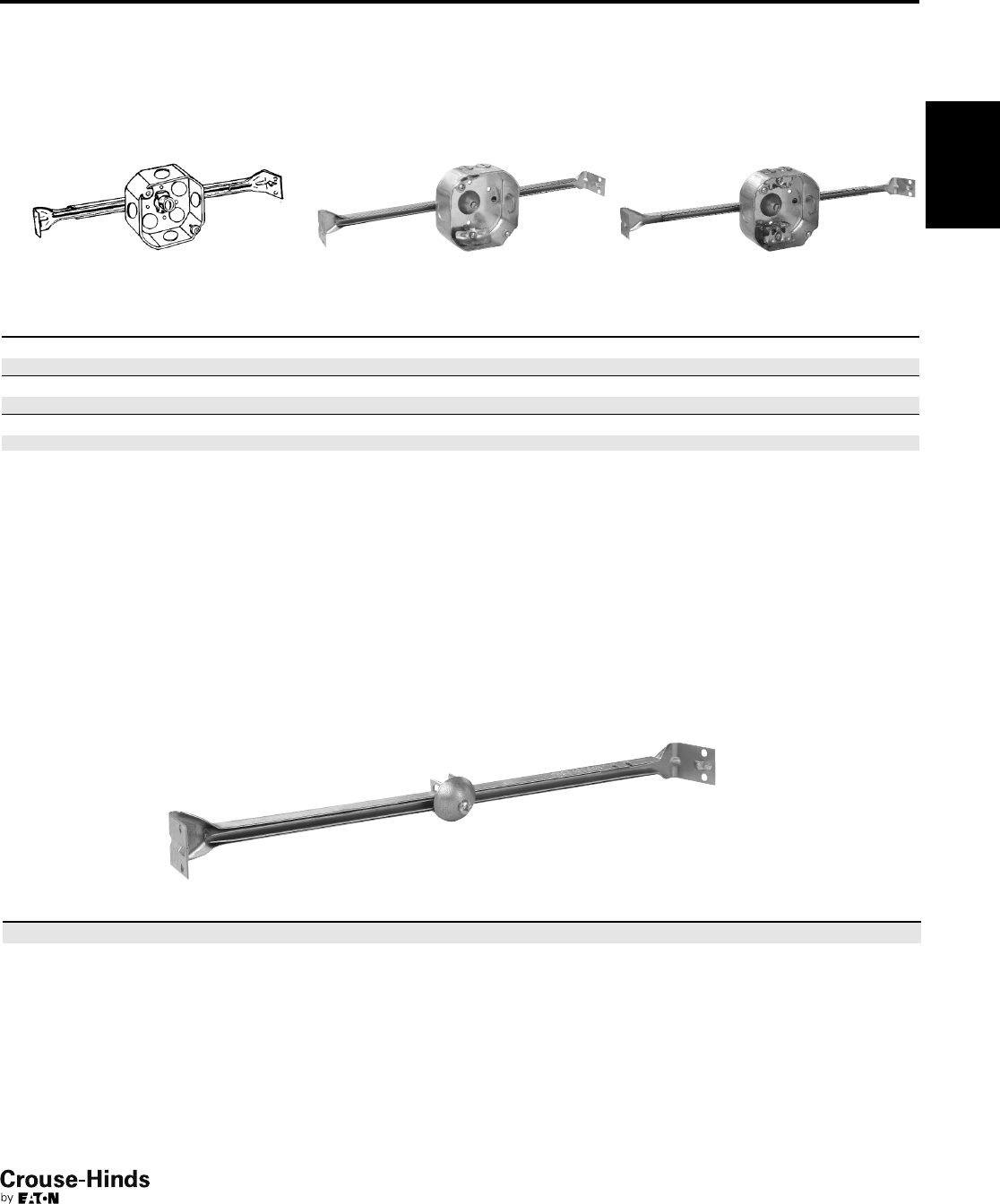

4" OCTAGON BOX AND ADJUSTABLE BAR SETS – 15.5 CUBIC INCH CAPACITY

11/2" DEEP BOX SETS

FIXTURE RATED

UL LISTED

Weight Limits: 35 lbs. at 16", 15 lbs. at 24"

TP372 TP377 TP367

Cat. # Stud Spacing Stud Unit Qty. Wt. Lbs. Per 100

FOR CONDUIT – NO CLAMPS

TP372* 16" – 24" Yes 25 85

FOR NONMETALLIC CABLE – WITH CLAMPS

TP377 16" – 24" —25 102

FOR ARMORED & METAL CLAD (MCI) CABLE – CLAMPS IN EACH END

TP367 16" – 24" —25 100

TP367PF† 16" – 24" — 25 100

*4" Octagon Box and Adjustable Bar Sets have 1/2" KOs for conduit

†TP catalog numbers ending in PF includes ground screw with pigtail lead

TP356

Cat. # Stud Spacing Length Stud Unit Qty. Wt. Lbs. Per 100

TP356 16" & 24" 14" – 221/2"—50 41

Steel Octagon Covers & Accessories

Features:

• Holding prong holds box in place for nailing

• Design resists bending and twisting

• Locking tabs to hold bar in position

• Weight Limits: 50 lbs. at 16"; 21 lbs. at 24"

ADJUSTABLE BAR HANGERS

UL LISTED

334-345.qxp 12/16/2013 4:23 PM Page 339

340

4" OCTAGON BOX COVERS – CUBIC CAPACITY (SEE BELOW)

UL LISTED

TP322

TP853*

TP323 TP326, TP331,

TP332, TP333

TP328 TP330

TP329 TP335 TP334 TP336

Steel Octagon Covers & Accessories

FLEXIBLE FIXTURE HANGERS

Eaton's Crouse-Hinds TPRFH flexible fixture hangers are used in

commercial or light industrial applications where HID high bay and

low bay lighting fixtures are used. Specific applications include

storage facilities, shipping warehouses, retail and DIY facilities.

Features and Benefits:

• Suitable for use with 1/2" or 3/4" fixture conduit stems these hangers

allow the conduit stem of the fixture (luminaire) to swing in any

direction. Maximum swing angle is 26° from vertical max slope

angles 221/2°

• Available for attachment to round or octagonal steel boxes.

• Quickly and easily attached by two screws.

• Hangers are drilled and tapped for use with 3/4" conduit stem as

standard and come supplied with a 3/4"–1/2" reducer for 1/2" conduit

stem applications.

Certifications and Compliances:

• UL Listed – UL 1598

• CSA C22.2 No. 250

• Suitable for Damp Locations

Standard Materials and Finishes:

• Material: Sheet Steel

• Finish: Zinc Chromate for corrosion resistance

Description Support Wt. (lbs) Cat. #

For use with 4" Round or

Octagon Boxes 50 TPRFH12

Cat. # Description Capacity Cu. In. Unit Qty. Wt. Lbs. Per 100

TP322† Flat Blank – Octagon Shape —50 22

TP322RED† Flat Blank – Octagon Shape — 50 22

TP323† Flat Blank – Round Shape —50 24

TP333 Raised 1", Open With Ears 23/4" 7.0 25 30

TP332 Raised 1/2", Open With Ears 23/4"3.3 50 22

TP326 Raised 5/8", Open With Ears 23/4" 3.8 50 20

TP331 Raised 3/4", Open With Ears 23/4"5.0 50 26

TP328† Flat With 1/2" KO – Octagon Shape — 50 22

TP330 Raised 5/8", With 1/2" KO 3.8 50 31

TP329† Flat With 1/2" KO – Round Shape — 50 24

TP335 Flat, For Toggle Switch —50 23

TP334‡ Flat, Single Receptacle 113/32" — 50 21

TP336 Flat, For Duplex Receptacle —50 18

Air Plenum

TP853*‡ Flat, Blank With PVC Gasket —50 24

*For Air Plenum (No Mounting Holes)

†CSA Certified

‡ Not UL Listed

334-345.qxp 12/16/2013 4:23 PM Page 340

341

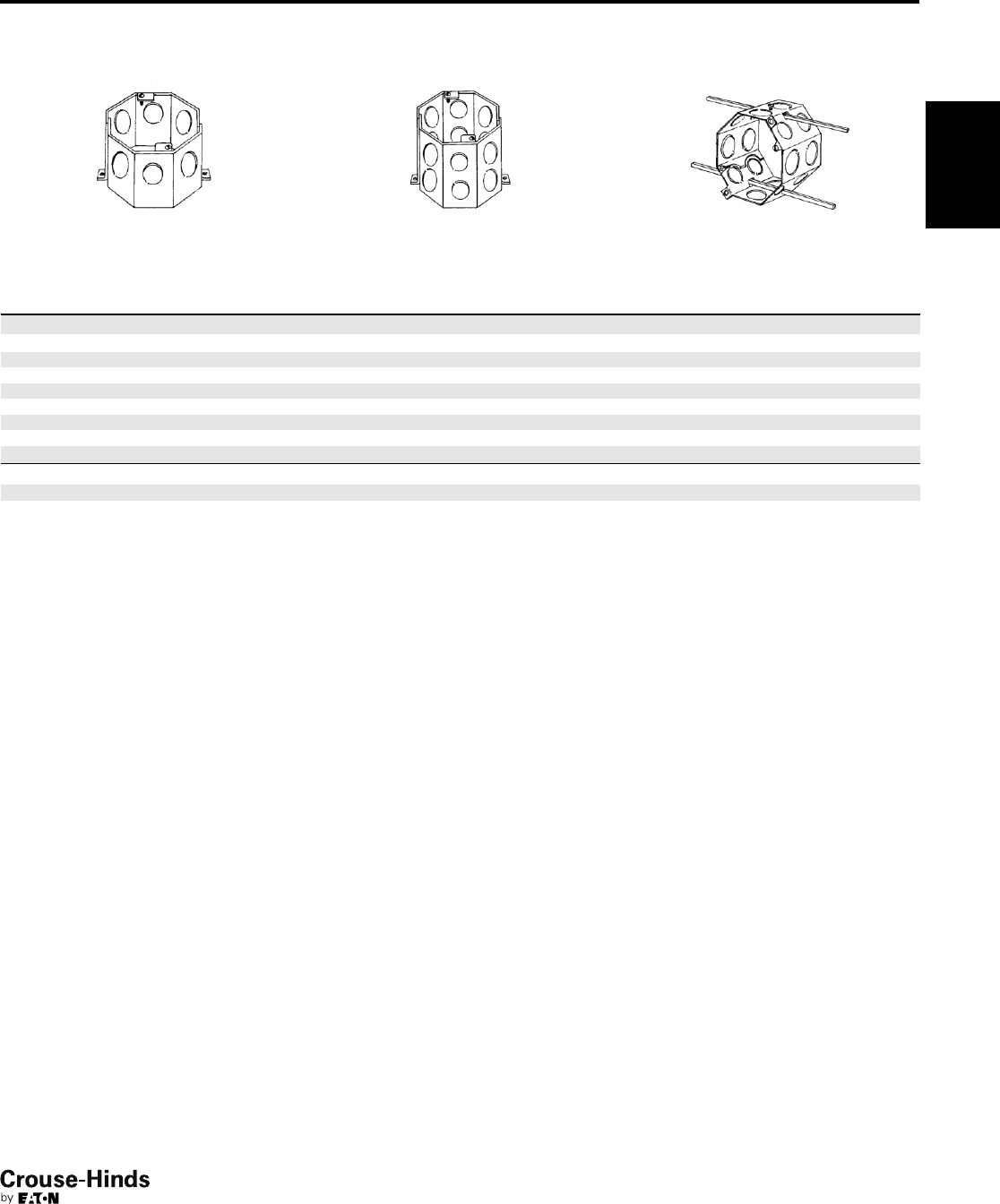

Steel Specialty Boxes

4" OCTAGON CONCRETE BOXES AND HUNG CEILING BOXES*

UL LISTED

TP620, TP622, TP628 TP635, TP636, TP644 TP623, TP624

(bars not included)

Cat. # Depth KNOCKOUTS Unit Qty.

Wt. Lbs.

Per 100

Capacity

Cu. In.

TP620 2" 1/2" & 3/4" Single Row 25 60 23.0

TP622 21/2"1/2" & 3/4" Single Row 25 72 29.0

TP628 3" 1/2" & 3/4" Single Row 20 85 35.0

TP634 3" 1" & 3/4" Single Row 20 77 30.3

TP635 31/2"1/2" Double Row 20 93 43.0

TP636 31/2"1/2" & 3/4" Double Row 20 93 43.0

TP639 31/2"1" & 3/4" Double Row 20 89 41.0

TP642 4" 1" & 3/4" Double Row 20 106 47.0

TP644 4" 1/2" & 3/4" Double Row 20 113 47.0

HUNG CEILING BOXES (WITH TP650 COVER, BARS NOT INCLUDED)

TP623 31/2"1/2" Double Row 20 93 43.0

TP624 31/2"1/2" & 3/4" Double Row 20 93 43.0

*Weight limit for 4" octagon concrete boxes is 50lbs. Not suitable for fans.

†Not UL Listed

334-345.qxp 12/16/2013 4:23 PM Page 341

342

Steel Specialty Boxes

Cat. # Depth KNOCKOUTS Unit Qty.

Wt. Lbs.

Per 100

Capacity

Cu. In.

TP643 4" 1/2" & 3/4"20 102 46.0

CONCRETE BOX PLATES

UL LISTED

Cat. # Description Unit Qty. Wt. Lbs. Per 100

TP648 No Stud 3 – 1/2" & 2 – 3/4" KOs 50 28

TP649 Flat, Blank 50 28

TP650 3/8" Stud 2 – 1/2" & 2 – 3/4" KOs 50 33

TP652 Single Receptacle 50 24

4" FAN RATED OCTAGON CONCRETE BOX

UL LISTED

TP643

Applications:

• Octagon concrete boxes are used in poured deck applications.

• Typical construction includes high-rises, apartments,

condominiums and restaurants with outdoor dining areas.

• They are installed on wooden or steel forms and concrete poured

around.

• Upon removal of the forms the box is flush with the concrete.

• It is common, and continuing to become even more so, to have

ceiling fans mounted to these boxes. Because of the additional

mounting support boss this new box is suitable for use with fans of

up to 70 pounds and fixtures up to 90 pounds.

Features:

1. The TP643 fan rated concrete box is made from two piece welded

construction and is supplied with two rows of ½ & ¾” dedicated

KO’s.

2. The box is also supplied with two external mounting ears which

are used to secure the box to the forms.

3. The fan (or fixture) is held securely in place by the two 10-32 x 1

½” long pan head screws and lock washers. The screws attach

to the specially designed boss.

4. There are two 8-32 x ½” screws provided for attachment of a box

plate/cover (TP648, TP649, or TP650 – ordered separately).

5. Mounting support boss & locknuts allows the TP643 box to be

used with fans of up to 70 pounds and fixtures up to 90 pounds.

TP648 TP649 TP650 TP652

334-345.qxp 12/16/2013 4:23 PM Page 342

343

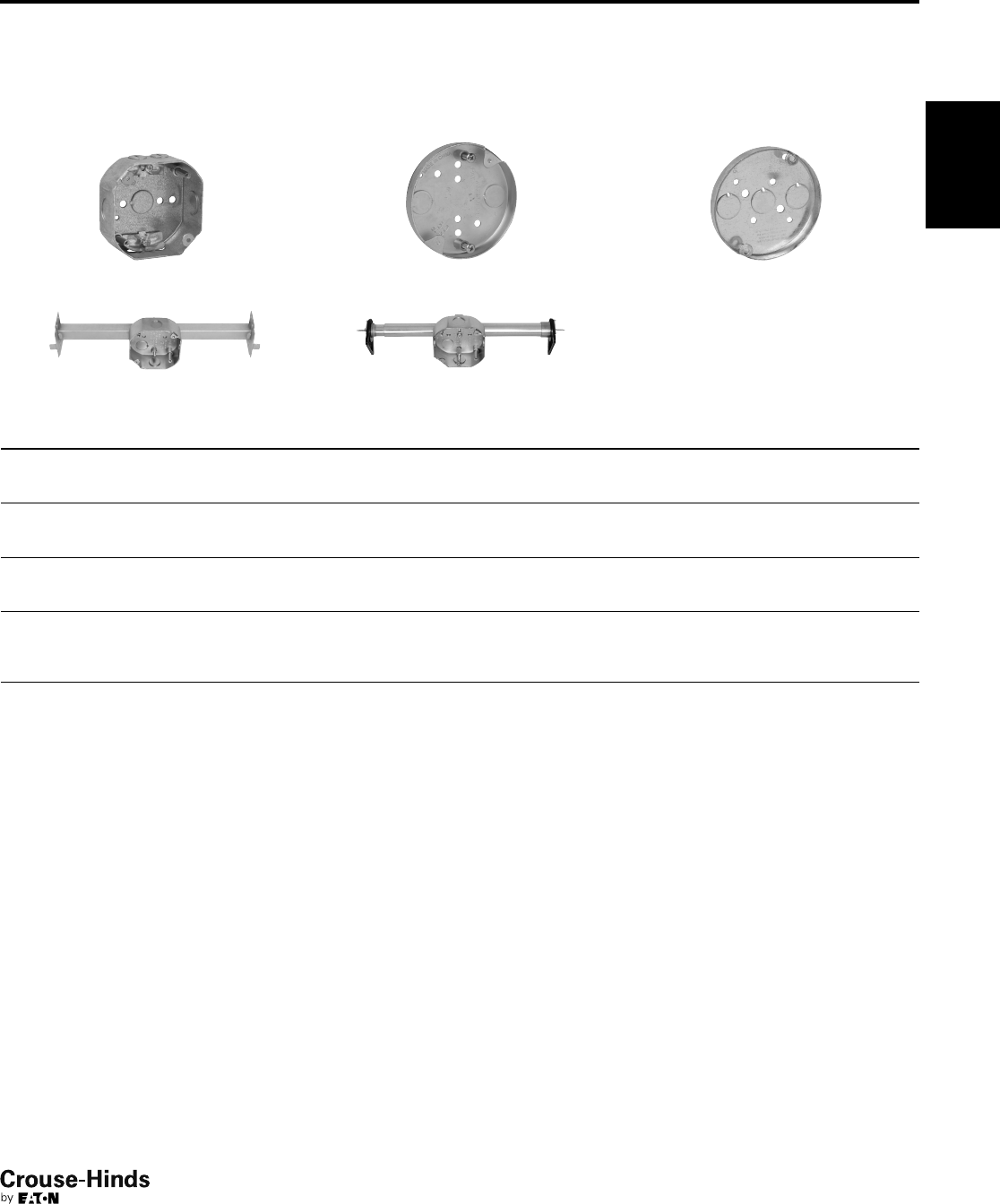

Ceiling Fan Box And Supports

CEILING FAN BOXES AND SUPPORTS–

CUBIC INCH CAPACITY (SEE BELOW)

UL LISTED

Weight Limits: TP261 – 35 lbs. max. for fans, 50 lbs. max. for fixture. TP301 – Fan is supported independent of outlet box, mounting screws go through

box and into joist. Box will support fans up to 70 lbs. and fixtures up to 90 lbs. TP275 – 70 lbs, max. for fans, 90 lbs. max for fixtures.

TP275 TP261 TP301

TP315 TP379

KNOCKOUTS WEIGHT LIMITS

Cat. # Description Stud Spacing Cubic In. Capacity Sides Bottom Unit Qty. Wt. Lbs. Per 100 Fans Fixtures

TP275

11/2" Deep, Clamps

and Mounting

Screws (polybagged)

— 15.5 4 – Cable,

2–1/2"1–1/2" 20 66.6 70 lbs. 90 lbs.

TP315†

11/2" Deep Octagon,

Fan Box with New

Work Bar Hanger

16" – 24" 15.5 2 – 1/2"2–

1/2" 12 192 35 lbs. 50 lbs.

TP379

11/2" Deep with Fan

Brace Old Work Bar

Hanger

16" – 24" 15.5 4 – 1/2"2–

1/2" 12 207 35 lbs. 50 lbs.

TP261

5/8" Deep with

External Clamp and

Mounting Screws

(polybagged)

— 8.0 — 2 – 1/2" 20 50 35 lbs. 50 lbs.

TP301*

1/2" Deep, 4" Round,

with NM Snap-In

Connector, Mtg.

Screws, Protective

Cover (no bag)

6.8 — 3 – 1/2" 20 51 70 lbs.* 90 lbs.*

*TP301 fan is supported independent of outlet box.

†TP315 comes with Romex clamp installed on one side. The other 3 sides have a 1/2" KO, a bagged MC clamp and screw and a bagged plastic NM connector.

334-345.qxp 12/16/2013 4:23 PM Page 343

344

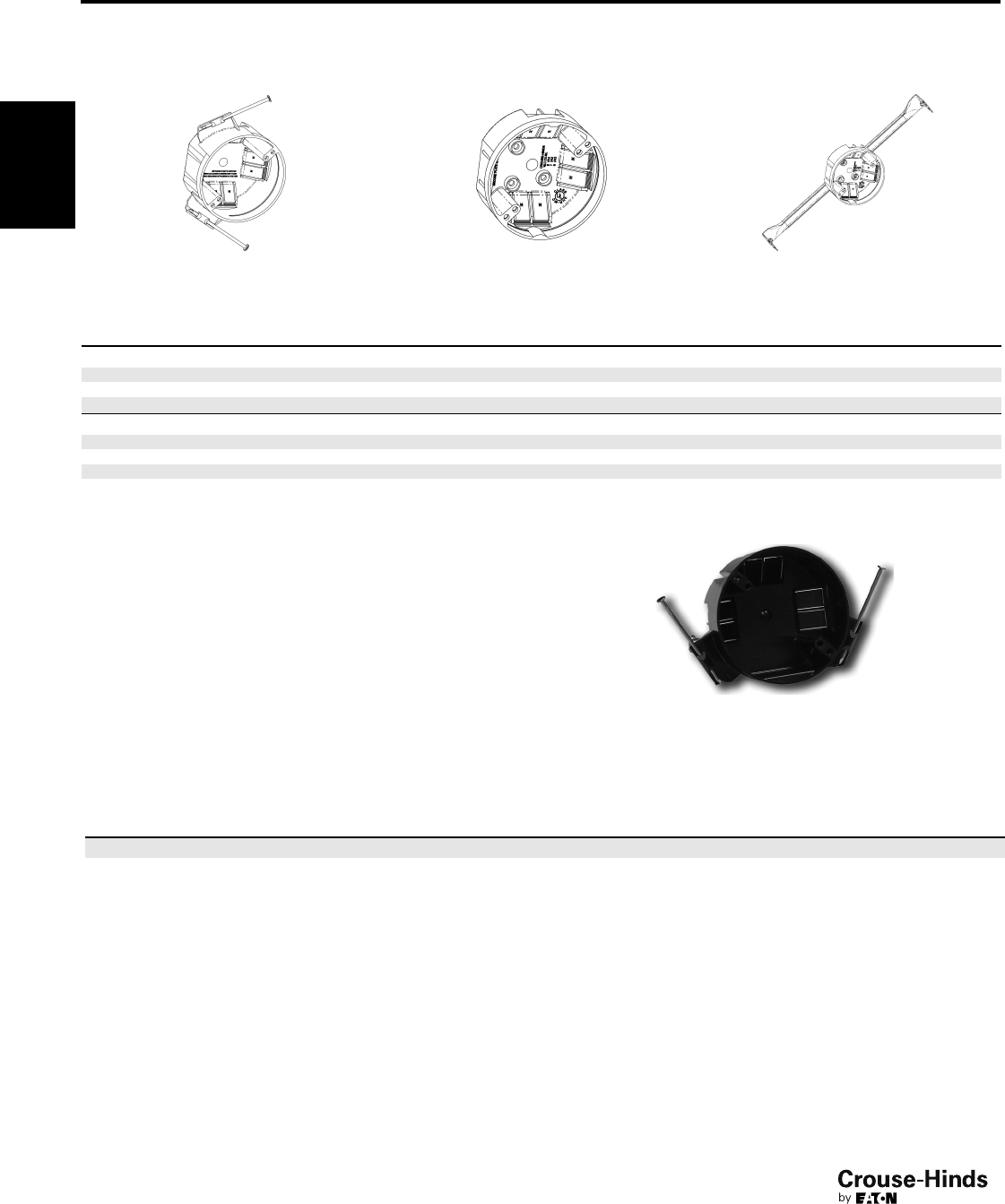

CEILING FAN BOXES – PVC

UL LISTED

Weight Limits: Fans and fixtures are supported independent of outlet box. Mounting screws go through box and into joist.

Box will support up to 70 lbs. for fans and 90 lbs. for fixtures. Provided with Romex connector

TP1300

Cat. # Description Capacity Cu. In. Knockouts Integral Clamp Unit Qty. Wt. Lbs. Per 100

TP1300

41/16" diam., 1/2" deep pan section, 4" deep

overall – with mtg. hardware & external

clamp, protective cover

14.0 3–1/2"12434

NONMETALLIC CEILING FAN BOXES

23/16" DEEP

UL LISTED

With clamps for nonmetallic cable.

All mounting hardware supplied, suitable for support of

fans weighing up to 35 lbs.

TP16511

Features:

• Made of heavy-duty, engineered thermoplastic material

• Offers the labor-saving feature of quick entry

and integral clamping

• Eliminates the need to use a screwdriver to break open pry-outs

• The easy access entry-point serves as a wire clamp, eliminating

time required to mechanically secure the wire to the box

Cat. # Diameter Mounting Method Capacity Cu. In. No. of Clamp Openings Unit Qty. Wt. Lbs. Per 100

TP16511 4" Nails only 22.5 6 25 21

Ceiling Fan Box And Supports

TP1300

334-345.qxp 12/16/2013 4:23 PM Page 344

345

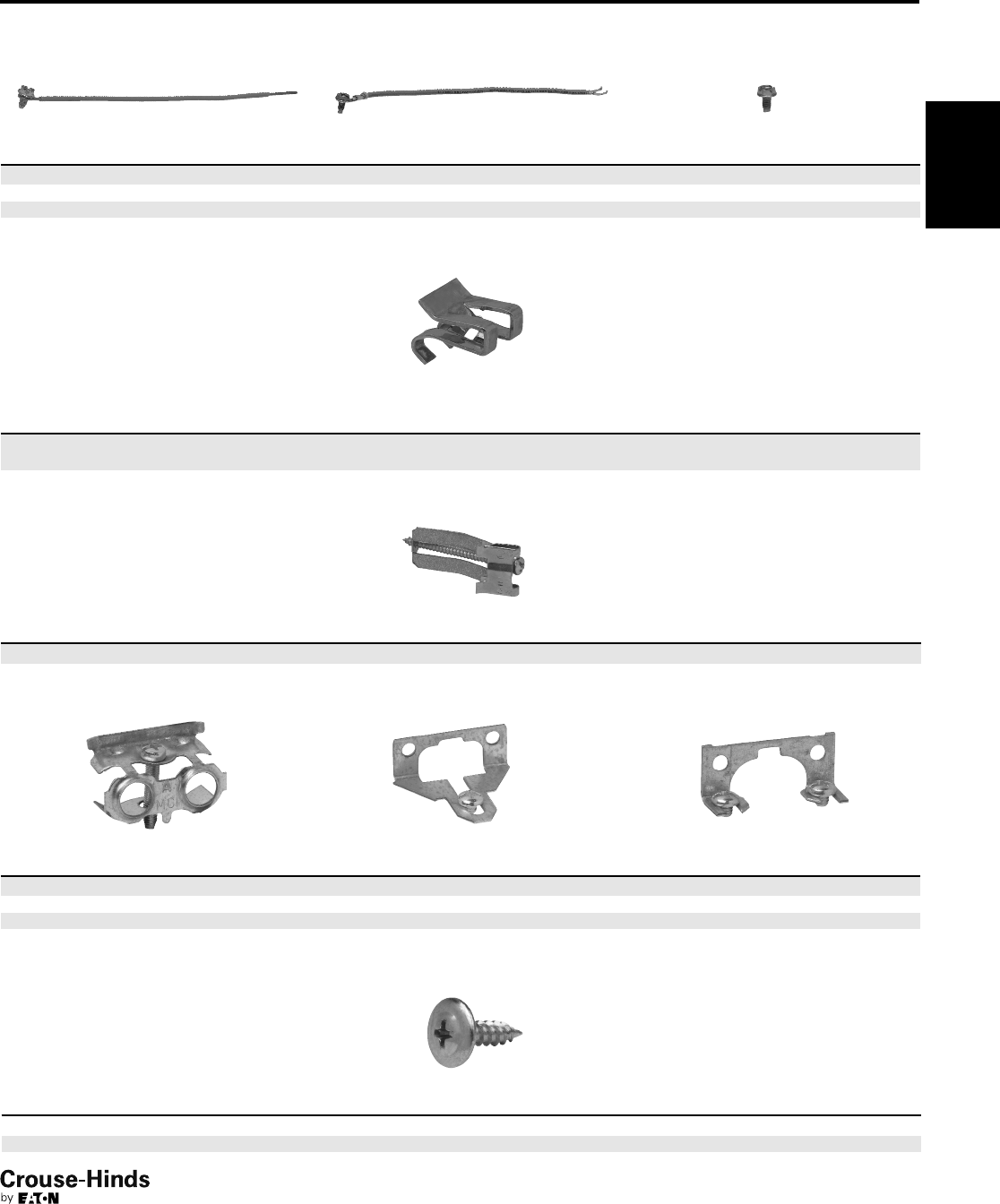

Steel Box Accessories

GROUNDING DEVICES

GROUNDING SCREW AND PIGTAIL

TP711 TP701 TP704

Cat. # Description Std. Pkg. Unit Qty. Wt. Lbs. Per 100

TP701 Grounding Screw with 8" Insulated No. 12 Stranded Wire 1000 1000 2

TP711 Grounding Screw with 8" Insulated No. 12 Copper Wire 1000 1000 2

TP704 #10-32 x 3/8" Grounding Screw 1000 1000 .5

GROUNDING CLIP

TP706

Cat. # Description Std. Pkg. Unit Qty. Wt. Lbs. Per 100

TP706 For Grounding Switch & Outlet Boxes Using Nonmetallic Sheathed

Cables No. 14 & No. 12, with Grounding Wire 1000 100 .5

OLD WORK CLIP

TP651

Cat. # Description Std. Pkg. Unit Qty. Wt. Lbs. Per 100

TP651 Clips lock old-work steel switch boxes tightly to wall. Two required per box. 250 sets 25 sets 4

REPLACEMENT PARTS

TP900 TP901 TP902

Cat. # Description Unit Qty. Wt. Lbs. Per 100

TP900 MC-BX Clamp with Screws 200 17.3

TP901 One Screw Mounting Ear with Screws 200 3.2

TP902 Two Screw Mounting Ear with Screws 200 2.7

Cat. # Description Capacity Cu. In. Unit Qty. Wt. Lbs. Per 100

LOW PROFILE SCREWS - REDUCES RISK OF SHEETROCK BULGE

TP710 L.P. Screws —1000 .5

LOW PROFILE MOUNTING SCREWS

TP710

334-345.qxp 12/16/2013 4:23 PM Page 345

346

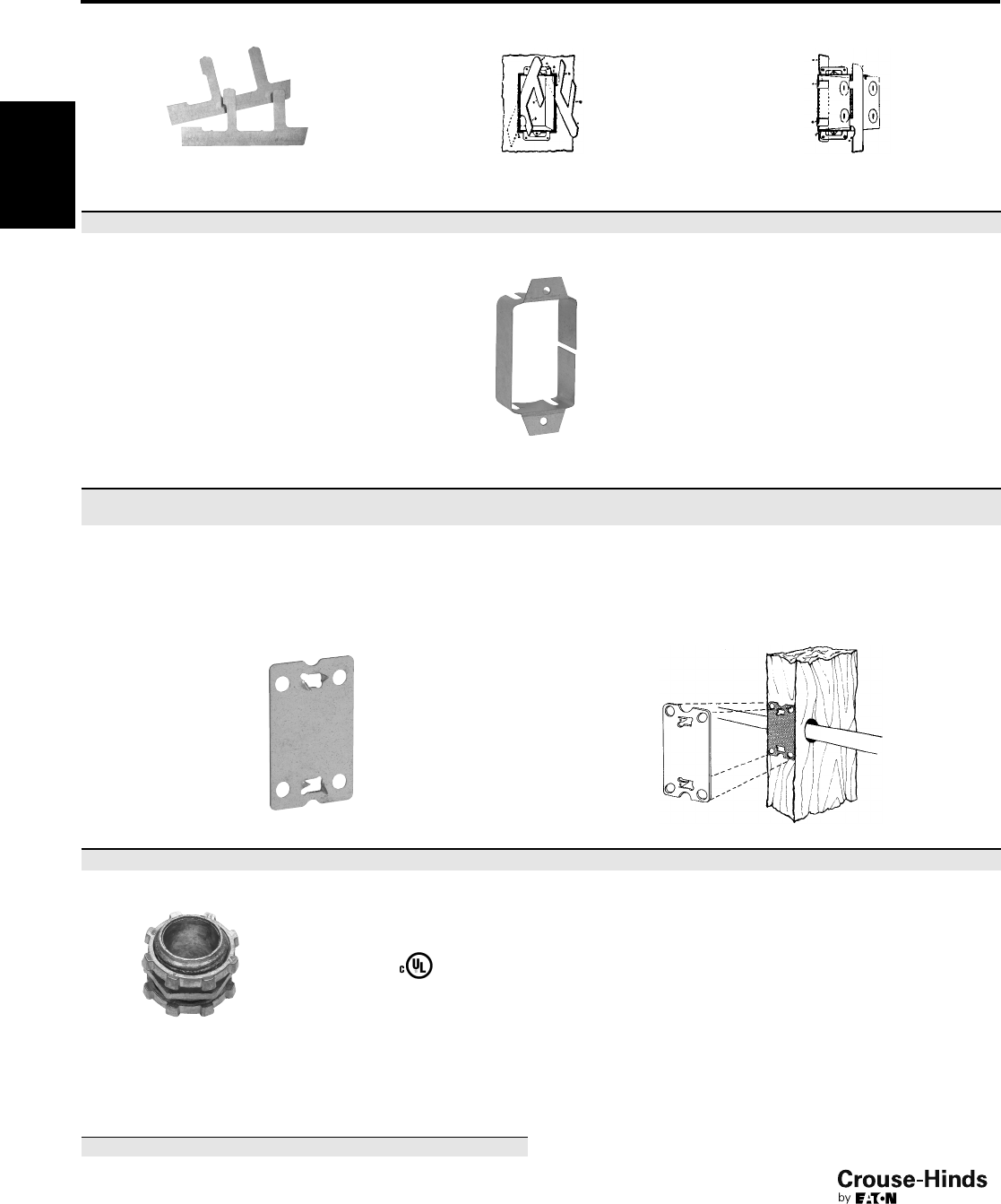

HOLD-IT SWITCH BOX SUPPORTS

FIG. 1 FIG. 2 FIG. 3

Cat. # Description Unit Qty. Wt. Lbs. Per 100

TP708 Two metal holders for mounting old-work switch boxes in all types of wall materials 500 Sets 5

SWITCH BOX EXTENSION

TP709

Cat. # Description Unit Qty. Capacity Cu. In. Wt. Lbs. Per 100

TP709* Fits snugly inside all 3" x 2" width boxes. Maximum adjustable depth 7.8".

Furnished with mounting screws. 50 3.5 13

*Not UL Listed

STEEL STUD SAFETY PLATE

• Meets requirement of National Electric Code

• Same size as face of stud

• No nails required

• Protects electrical cable and copper water pipes

Cat. # Description Unit Qty. Wt. Lbs. Per 100

TP659 2" x 31/8" Steel Plate 100 11

"BACK TO BACK" BOX CONNECTOR – ZINC DIE CAST

Applications:

For use as a short raceway between two boxes

Cat. # Size Unit Qty.

Wt. Lbs.

Per 100

5050 1/2"25 8

Steel Box Accessories

Width 1.00", Length 1.12"

346-353.qxp 12/16/2013 4:24 PM Page 346

347

PVC Switch Boxes

Applications:

Eaton's Crouse-Hinds non-metallic switch and outlet boxes are

used:

• In branch circuit wiring as a splice point

• To mount wiring devices such as switches and receptacles

• To provide mechanical protection for wiring systems and

electrical devices

Features:

• Available for use with wood or metal studs to meet any

construction preference.

• Quick entry feature on all non-metallic boxes offers labor savings –

no need to break out knockouts – simply push the non-metallic

cable into the box. No tools are required. No need to remove

knockouts.

• Unique configuration of this quick entry feature on single gang

boxes provides a self-feeding feature that eliminates the need to

reach inside the box to pull the wire out.

• Integral labor saving clamping feature on two, three and four gang

boxes. The multiple gang box unique entry also serves as a clamp,

eliminating the need to mechanically secure the cable inside the

box. There are no separate clamps or screws to install or tighten.

Each entry into the multiple gang boxes has the quick entry

feature allowing the installer to simply push the cable into the box

without the need for tools or removal of knockouts, so the cable

can be inserted where it is required.

Certifications and Compliances:

• UL Listed File No. E102328

• Classified for use in fire rated (2 HR) wall or ceiling.

Fire Rating No. R9933.

SWITCH BOXES – ANGLED NAILS

UL LISTED

TP1600 TP1800 TP2000 TP2300

SWITCH BOXES – INTEGRAL CLAMPS

UL LISTED

TP1690 TP2020 TP2030

(Old Work) (For Wood or Metal Studs) (For Wood or Metal Studs)

Standard Materials:

• PVC-Polyvinyl Chloride Compound

Cat. #

Bracket

or Nails

Capacity

Cu. In. H W D Unit Qty.

Wt. Lbs.

Per 100

TP1600 Nails 16.0 33/4" 21/4" 21/2"100 21

TP1800 Nails 18.0 33/4"2

1/4"2

3/4" 100 23

TP2000 Nails 20.3 33/4" 21/4" 33/16"100 25

TP2300 Nails 22.5 33/4"2

1/4"3

7/16"50 27

Cat. #

Bracket

or Nails

Capacity

Cu. In. H W D Unit Qty.

Wt. Lbs.

Per 100

TP1690 Swing Clips & Integral Clamps 16.0 35/8"25/16"23/4"50 20

TP2020 Side Bracket (5/8" offset) 20.3 311/16"2

1/4"3

3/16"50 24

TP2030 Face Bracket (1/2" offset) 20.3 311/16" 21/4" 33/16"50 24

346-353.qxp 12/16/2013 4:24 PM Page 347

348

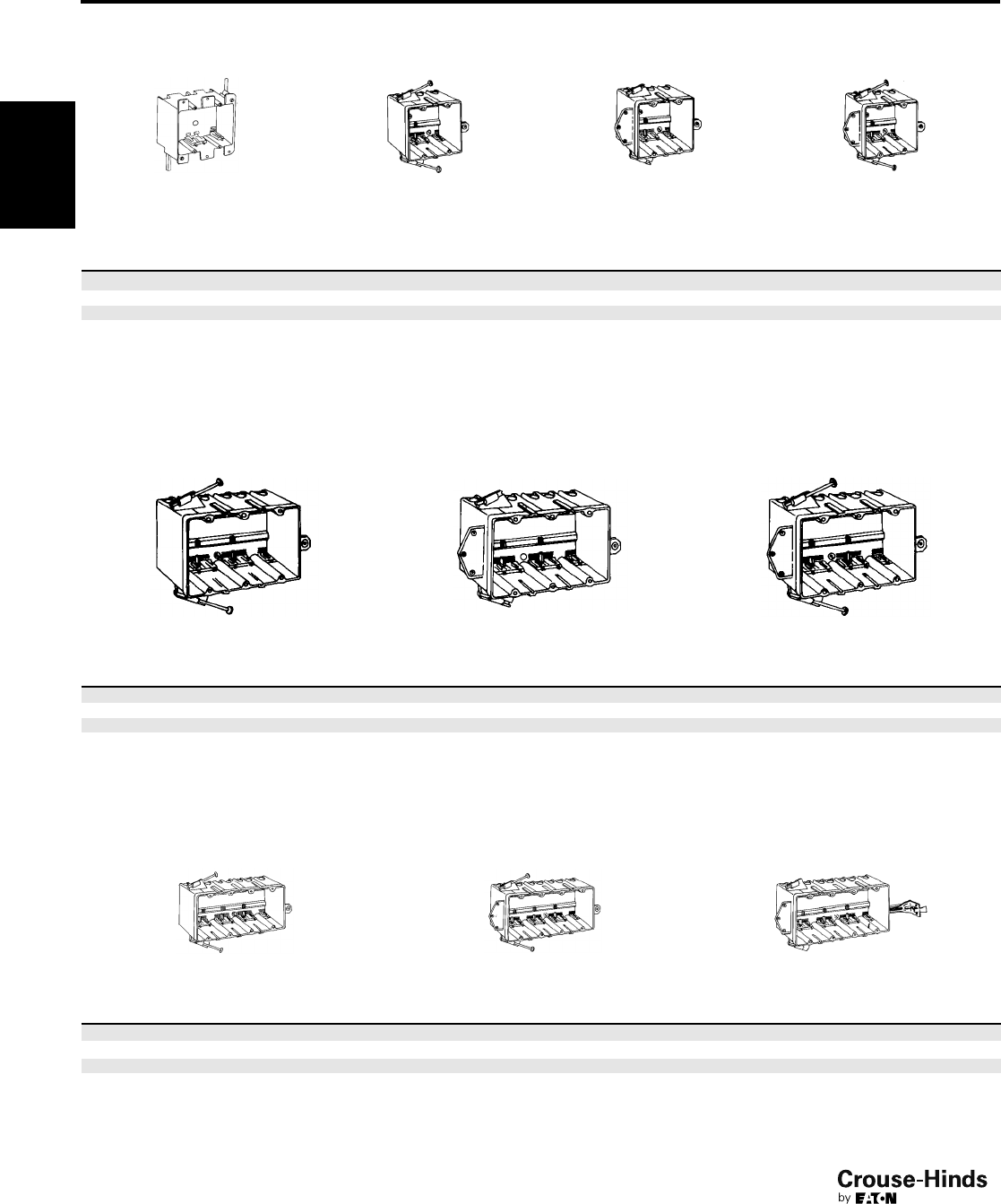

PVC Switch Boxes

3" DEEP SWITCH BOXES – TWO GANG

UL LISTED

TP3490 TP3600 TP3630 TP3635

(Old Work)

211/16" DEEP SWITCH BOXES – THREE GANG

UL LISTED

TP4600 TP4630 TP4635

211/16" DEEP SWITCH BOXES – FOUR GANG

UL LISTED

TP6100 TP6135 TP6180

Cat. #

Bracket

or Nails

Capacity

Cu. In. H W D Unit Qty.

Wt. Lbs.

Per 100

TP3490 Swing Clips 34.0 39/16"4" 33/16"25 29

TP3600 Nails 36.0 33/4"4"3" 25 37

TP3630* Brackets 36.0 33/4"4" 3" 25 37

TP3635* Brackets & Nails 36.0 33/4"4"3" 25 39

*Face Bracket on PVC Boxes are offset 1/2" unless stated otherwise

Cat. #

Bracket

or Nails

Capacity

Cu. In. Unit Qty.

Wt. Lbs.

Per 100

TP4600 Nails 46.0 20 45

TP4630* Brackets 46.0 20 43

TP4635* Brackets & Nails 46.0 20 46

Cat. #

Bracket

or Nails

Capacity

Cu. In. Unit Qty.

Wt. Lbs.

Per 100

TP6100† Nails 61.0 465

TP6135*† Nails & Brackets 61.0 4 66

TP6180*† Nails, Brackets & Bar Support 61.0 487

*Face Bracket on PVC Boxes are offset 1/2" unless otherwise stated

†Not 2-Hour Fire Rated

346-353.qxp 12/16/2013 4:24 PM Page 348

349

LOW VOLTAGE PARTITION – TWO, THREE OR FOUR GANG PVC

TP1000

Cat. #

Bracket

or Nails

Capacity

Cu. In. Unit Qty.

Wt. Lbs.

Per 100

TP1000 — — 20 3

PVC Switch Boxes

346-353.qxp 12/16/2013 4:24 PM Page 349

350

4" SQUARE WITH INTEGRAL CLAMPS – 20.3 CUBIC INCH CAPACITY

15/8" DEEP

UL LISTED

TP1900

Cat. # Bracket

Capacity

Cu. In. Unit Qty.

Wt. Lbs.

Per 100

TP1900 —20.3 50 26

4" SQUARE PVC DEVICE COVERS

UL LISTED

TP1013 TP1023

PVC Switch Boxes

Cat. # Raised

Capacity

Cu. In. Unit Qty.

Wt. Lbs.

Per 100

TP1013 1/2"3.8 50 8

TP1023 1/2" 5.8 50 8

346-353.qxp 12/16/2013 4:24 PM Page 350

351

Ceiling Boxes

31/2" NONMETALLIC CEILING BOXES - PVC

27/8" DEEP

UL LISTED

Weight limit is 50 lbs for fixture except where indicated.

Fan support or fixture support

TP16200,

(TP16201 – 21/8" Deep)

TP16310

TP16311

TP16307

TP16308

TP16317

TP16318

Old Work

Cat. # Clamps

Ground

Plate Bracket/Bar Hgr.

Capacity

Cu. In.

No. of Clamp

Openings

Std. Unit

Pkg.

Wt. Lbs.

Per 100

TP16200† Yes —Snap 16.0 450 27

TP16201† Yes Yes Snap 16.0 4 50 29

TP16310* Yes —Nails 19.3 450 18

TP16311* Yes Yes Nails 19.3 4 50 20

TP16307* Yes —14"–22-1/2" 19.3 425 57

TP16308* Yes Yes 14"–22-1/2" 19.3 4 25 59

*Nail Bracket is set 19/16" back from the face of the box.

† Weight limit 15lbs for ceiling mounted fixtures and 6lbs for wall mounted fixtures.

LAMPHOLDER

TP16099

Standard Materials:

• Plastic molded of heat and impact resistant material that prevents

discoloring and reduces breakage

Cat. # Description Std. Unit Pkg. Wt. Lbs. Per 100

TP16099 Lampholder, Keyless, feed thru 50 23

346-353.qxp 12/16/2013 4:24 PM Page 351

352

Ceiling Boxes

NONMETALLIC CEILING FAN BOXES

23/16" DEEP

UL LISTED

With clamps for nonmetallic cable.

All mounting hardware supplied, suitable for support of fans weighing

up to 35 lbs.

Made of heavy-duty, engineered thermoplastic material

Offers the labor-saving feature of quick entry and integral clamping

Eliminates the need to use a screwdriver to break open pry-outs

The easy access entry-point serves as a wire clamp, eliminating time

required to mechanically secure the wire to the box

TP16511

Cat. # Diameter Mounting Method Capacity Cu. In. No. of Clamp Openings Unit Qty. Wt. Lbs. Per 100

TP16511 4" Nails only 22.5 625 21

4" NONMETALLIC CEILING BOXES - PVC

UL LISTED

Weight limit is 50 lbs for fixture except where indicated

TP16111, TP16110 TP16002 TP16022, TP16023

Cat. # Clamps

Ground

Plate Bracket/Bar Hgr.

Capacity

Cu. In.

No. of Cable

Pry-outs

Std. Unit

Pkg.

Wt. Lbs.

Per 100

11/2" DEEP

TP16002 Yes — — 14.8 450 12

TP16022 Yes — 14"–16" 14.8 4 25 56

TP16023 Yes Yes 14"–16" 14.8 425 58

21/4" DEEP

TP16111 Yes —Nails 20.3 450 19

TP16110 Yes Yes Nails 22.5 4 50 21

TP16122 Yes —14"–16" 20.8 420 59

TP16123 Yes Yes 14"–16" 20.8 4 20 61

346-353.qxp 12/16/2013 4:24 PM Page 352

353

Cat. # Description Capacity Cu. In. Knockouts Integral Clamp Std. Unit Pkg. Wt. Lbs. Per 100

TP1300

41/16" diam., 1/2" deep pan section, 4" deep

overall – with mtg. hardware & external

clamp, protective cover

14.0 3–1/2"124 34

ROUND BLANK COVER – PVC

43/4" DIA.

(FOR 31/2" AND 4" ROUND CEILING BOXES)

TP1040, TP1045

Cat. # Color Screws

Std. Unit

Pkg.

Wt. Lbs.

Per 100

TP1040 Gray —100 10

TP1045* White White 100 12

*TP1045 includes two white-headed wood and two #8-32" machine screws.

CEILING FAN BOXES – PVC

UL LISTED

Weight Limits: Fans and fixtures are supported independent of outlet

box. Mounting screws go through box and into joist. Box will support

up to 70 lbs. for fans and 90 lbs. for fixtures. Provided with Romex

connector

TP1300

Ceiling Boxes

TP1300

346-353.qxp 12/16/2013 4:24 PM Page 353

480484 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
