TM
Use 14.4V or 18V power!
1
1
4
.
4
V
/
1
8
V
S
e
r
i
e
s
w
i
t
h
D
u
a
l
V
o
l
t
a
g
e
1
8
V
1
4
.
4
V
3
.
6
V
2
8
.
8
V
1
4
.
4
V
/
1
8
V
/
2
1
.
6
V
CONTENTS
PROFESSIONAL POWER TOOLS
Product Line-Up 2-3
Tough IP Technology 4-7
Battery Technology 8-9
Dual Voltage Technology 10-11
Impact Driver 12
Impact Wrench 13
High Torque Impact Wrench 14
Multi-Impact & Drill Driver 15

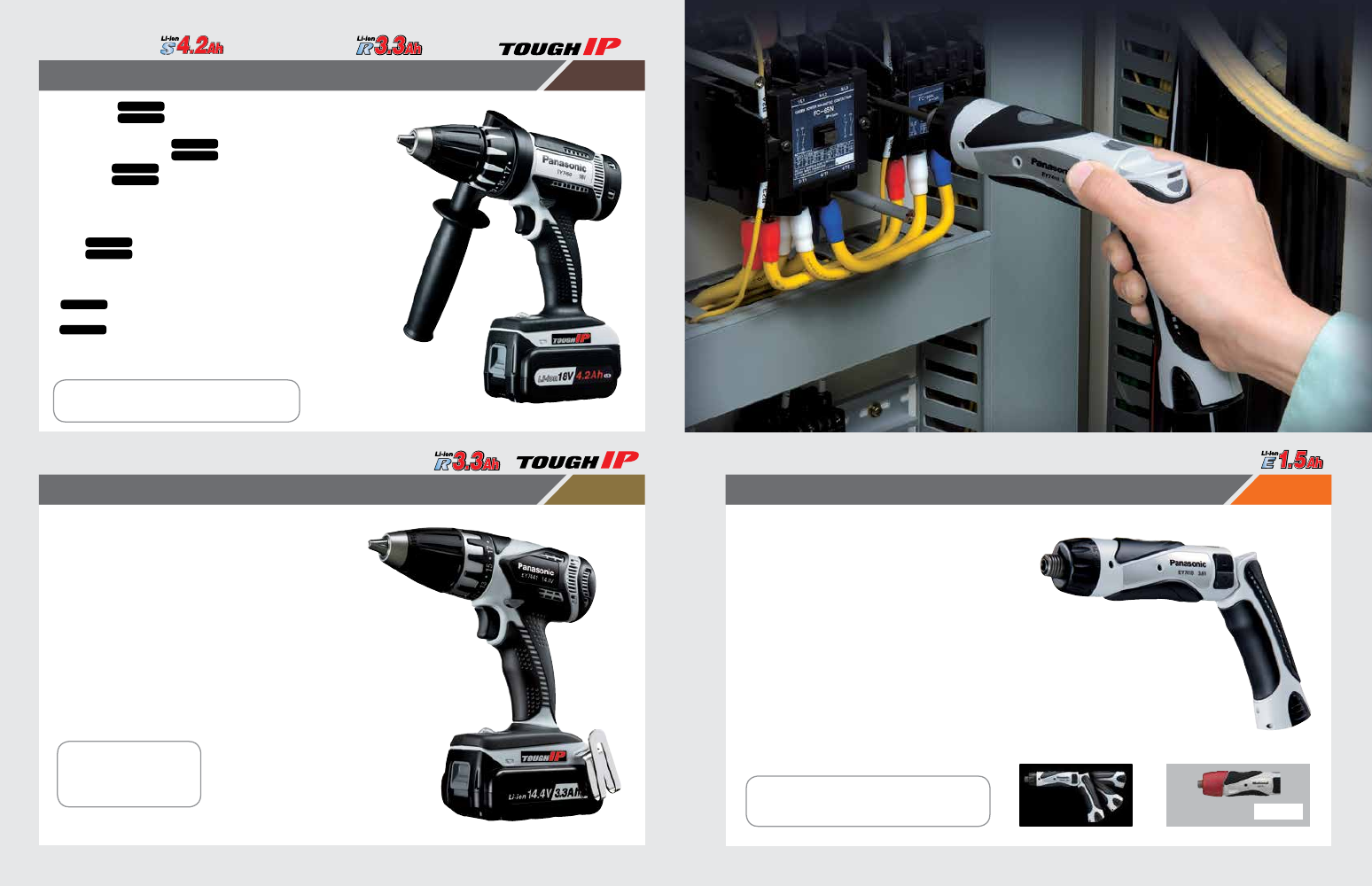

Drill & Driver 16-19
Hammer Drill & Driver 20-21

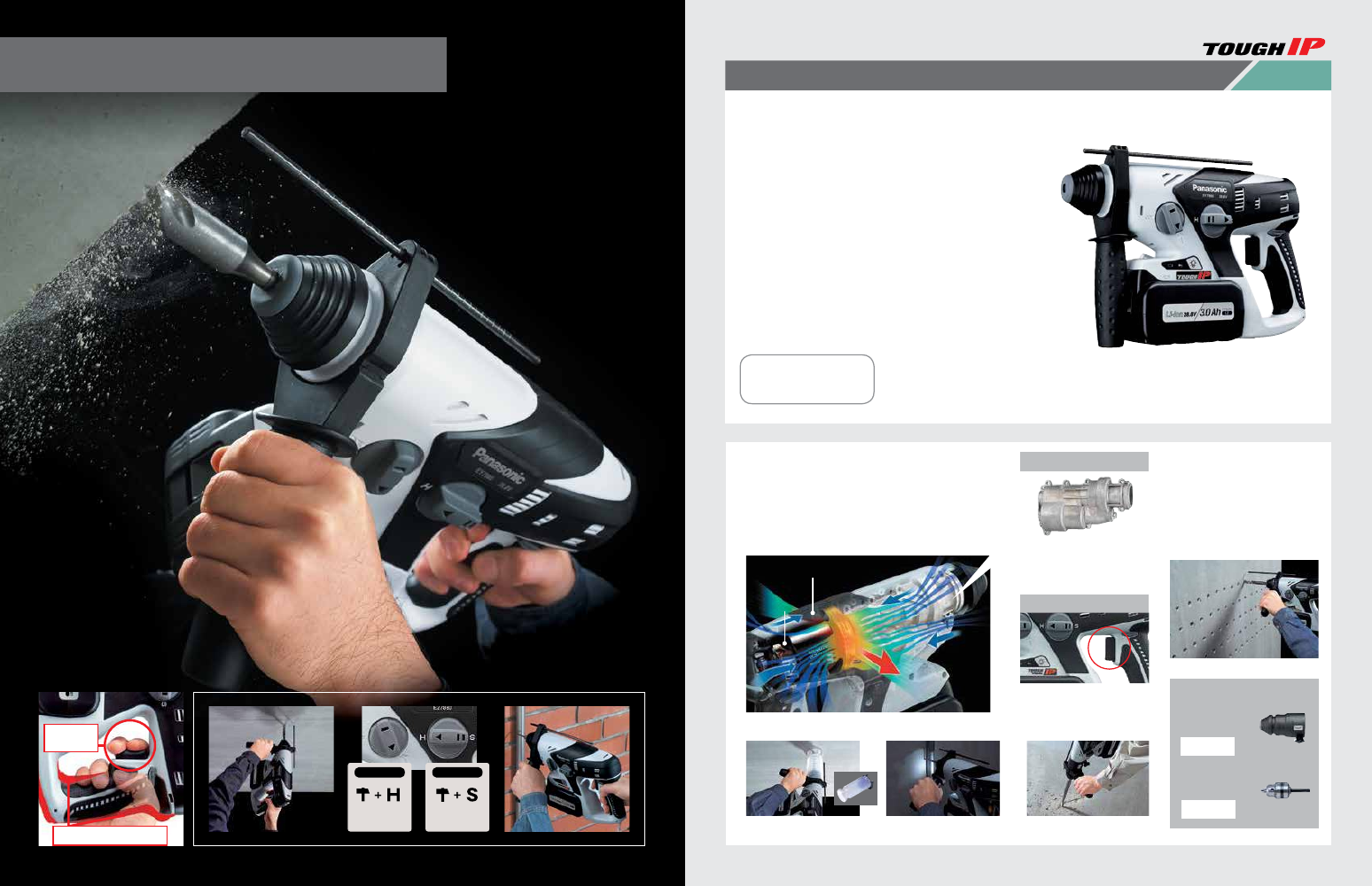

SDS-Plus Rotary Hammer 22-23
Reciprocating Saw 24-25
Multi-Purpose Metal Cutter 26-27

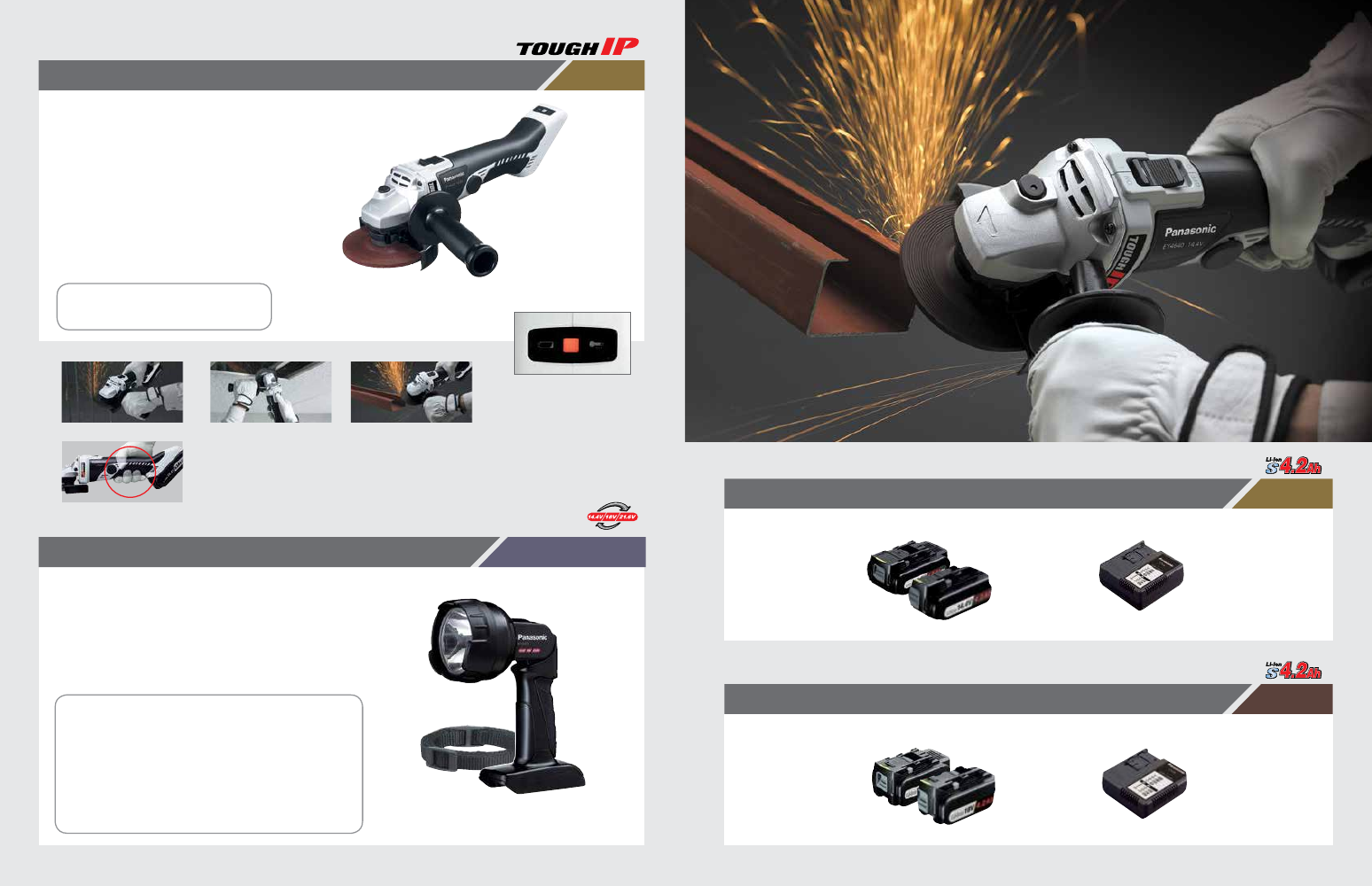

Angle Grinder & Flashlight 28

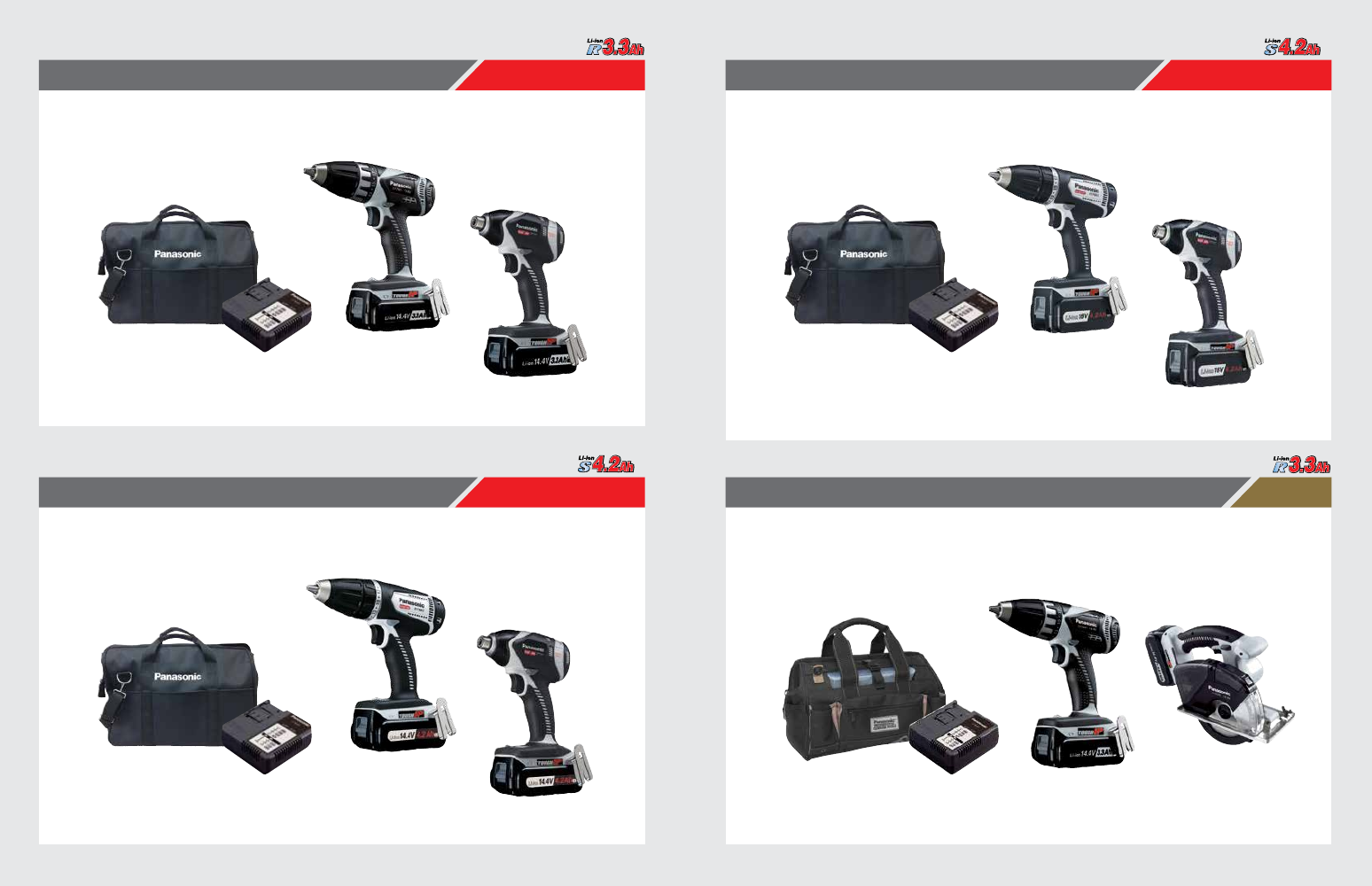

Power Supply & Combo Kits 29-31
NI-MH POWER TOOLS
Drill & Driver Kits 32-33
Metal Cutter Kit 33
Combo Kit 33
Battery Chargers 34
Battery Compatibility Table 35
Li-ion / Ni-MH Capacity Tables 36-37
Power Tool Accessories Chart 38-39
EY7552X
Impact Wrench
EY7450LS2S
Drill & Driver
EY7410LA2S
Drill & Driver
EY7880LP2S
SDS-Plus Rotary
Hammer
EY7950LR2S
Hammer Drill & Driver
EY7450LR2S
Drill & Driver
EY7950LS2S
Hammer Drill & Driver
NEW
NEW
NEW
Professional Power Tool Line-Up
EY45A1LS1S
Reciprocating Saw
EY7441LR2S
Drill & Driver
EY7940LR2S
Hammer Drill & Driver
EY4542LR2M
Multi Purpose
Metal Cutter
EY4640X
Angle Grinder
EY7840LR2S
Rotary Hammer
Drill & Driver
EY7549X
Multi-Impact & Drill Driver
EY74A1LS2G
Drill & Driver
EY75A1LS2G
Drill & Driver
EY75A2X
Impact Wrench
EY37C1B
Flashlight
NEW
NEW
NEW
NEW
NEW
Panasonic introduces the latest
technology in digital cordless tools.
Li-ion Power Tool
Line-up
32
Conditions
Many things can happen at a job site; such as unexpected
incidents, water contact, or exposure to dust, which can
cause a tool to malfunction. Also, with more electronics in
power tools, its important to protect them from dust and
moisture.
By incorporating the Tough IP technology, it reassures that
Panasonic cordless tools perform at their best in most
difficult situations.
Results
Panasonic cordless tools are designed with protection features and have attained level
IP56. These results show Panasonic’s on-going commitment to the industry by providing
customers with innovative products that work in the toughest job conditions.
Dust Resistance Level indicates the degree of
protection provided against the intrusion of solid
foreign objects using a scale of six levels.
Water Resistance Level Indicates the degree of protection
provided against the intrusion of water associated with
harmful effects using a scale of eight levels.
International Protection Code classifies the degree
of protection provided against intrusion of solid
foreign objects and liquids in electrical machinery
and fixtures as defined by IEC standards.
for Tough Conditions
Level Brief description
1Protected against solid foreign objects of 50mm Ø and greater
2Protected against solid foreign objects of 12.5mm Ø and greater
3Protected against solid foreign objects of 2.5mm Ø and greater
4Protected against solid foreign objects of 1.0mm Ø and greater
5Dust protected
6Dust-tight
Level Brief description
1Protected against vertically falling water drops
2Protected against vertically falling water drops
when enclosure tilted up to 15°
3Protected against spraying water
4Protected against splashing water
5Protected against water jets
6Protected against powerful water jets
7Protected against the effects of temporary immersion in water
8Protected against the effects of continuous immersion in water
The IP standard test is
administered by the International
Electrotechnical Commission (IEC),
to test the level of protection that
a product offers against water and
dust. The products are subjected to
a very thorough examination to test
their capabilities in the toughest
conditions imaginable before they
are allowed to carry the IP rating.
Dust Protection
Level 5
Water Protection
Level 6
Dust Protection Test
The tool is subjected
to heavy dust and then
checked to ensure it
continues to function
properly.
Water Protection Test
The tool is subjected to
powerful water jets and
then checked to ensure
it continues to function
properly.
Tested not in motion in accordance with IP56 of
International Standard, IEC 60529. The rating of IP56
qualifies this tool for the minimum impact of water or
dust, but not for the assurance of performance in such
conditions. See Safety and Operating Instructions for
further details for proper operation.
Tough Tools
Test
4 5
High power/high speed drilling/cutting
Easy-to-hold, ergonomic design
Long-lasting, Brushless Motor
Multi-task with a single tool
Electronic switch
The switch only
requires the amount
of electrical current
used for controlling
speed and brake.
Separate
wiring
system
No Brushes! Replacement
is not necessary.
Panasonic has developed intelligent power tools to increase task efficiency as
well as operate in tough conditions of various jobsites. Panasonic continues to
evolve its technology and provide tools that meet any type of job requirements.
Switch
An additional rubber
cap seals the switch and
protects it against dust
and water.
Electronic Circuit
The electronic circuits
and battery pack are
protected to withstand
water and dust.
Battery
The battery cells are
designed to protect
against moisture and keep
performing at their best.
Tough. Durable. Innovative.
Cordless Tools with high-end features.
Tough
Environmental
Conditions
• Dust Resistance
• Water Resistance
IP56
As a result of dust and water resistant
technologies, these tools comply with
International Protection standards.
Task
Efficiency
Innovation
• Work Speed
• Comfortable
• Convenience
Tough Usage
• High Durability
• Long Life
• High Capacity
Impact mode
Drill & Driver mode
Drill & Driver mode
6 7
Durable, Lightweight and Extended Run Time.
The new battery packs offer protection, durability and are long lasting.
Monitoring of Individual Battery Cells
Each 3.6V segment is monitored by a sensor to ensure
optimal discharge control, preventing overcharging and
overdischarging.
Overdischarge Prevention Sensor
A sensor works to prevent overdischarging (discharge of
the battery until voltage falls below a minimum threshold),
a disadvantage inherent to lithium ion cells.
Battery Overheat Protection Sensor
A temperature sensor cuts off power
to the motor before the battery
temperature rises to a harmful level
and flashes a warning lamp on the
tool’s control panel to notify the user.
Total Performance
(Index comparison.14.4V N type battery at 100%)
18V EY9L51B Li-ion S type
14.4V EY9L45B Li-ion S type
18V EY9L50B Li-ion R type
14.4V EY9L44B Li-ion R type
14.4V EY9L41B Li-ion Z type
14.4V EY9L40B Li-ion N type
205
170
167
133
125
100
Panasonic’s Lithium Nickel 4.2Ah Battery Pack!
Battery
Flashing lamp indicates
low battery.
Flashing lamp indicates
overheating battery.
Battery is automatically
reactivated when the
temperature drops.
Battery
Cell Sensor
Cell Case
Battery
Cell
4.2Ah Li-ion Battery = Longer Battery Capacity
Holes in Yellow Pine dia. 11/16" x t=4-3/4" *Drill & Driver 18V EY74A1
18V EY9L51B
Li-ion S type
18V EY9L50B
Li-ion S type
Driving 340 pcs
(Spax screw dia. 5/16" x 3-5/32")
*Drill & Driver 18V EY74A1
Bolting 350 pcs
(M12 x 1 t=3/8")
*Impact Wrench 18V EY75A2
Cutting yellow pine 80 pcs
*Reciprocating Saw 18V EY45A1
Approx. 27%
More working capacity per charge
8 9
14.4V 18V
It’s easier to use,
lightweight and compact
Increases application speed
and working capacity

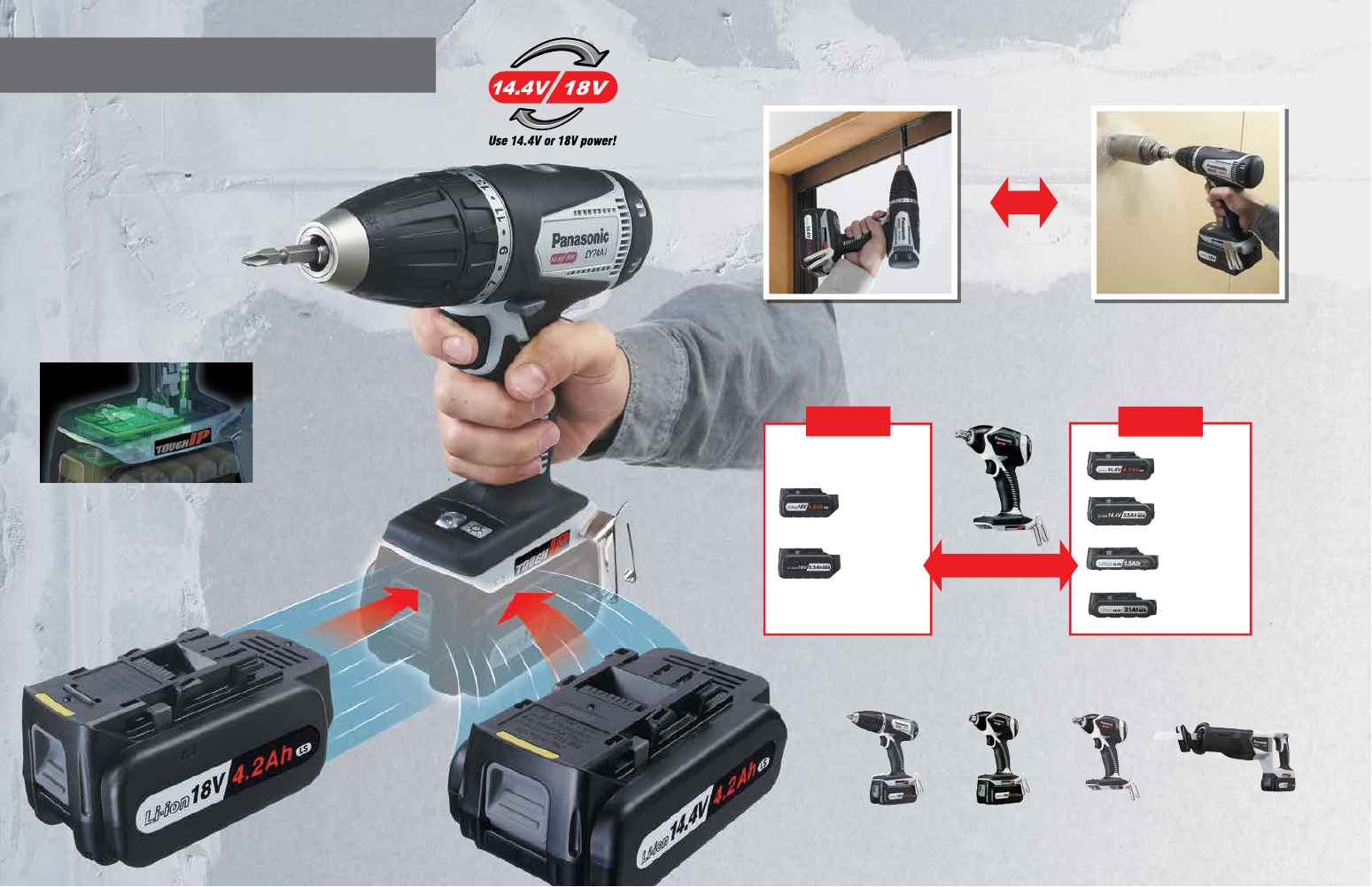

The new series with Dual Voltage Technology is compatible
with current 18V and 14.4V Li-ion battery packs.
The new series with dual voltage line up
EY74A1LS2G
Drill & Driver
EY75A1LS2G
Impact Driver
EY75A2X
Impact Wrench
EY45A1LS1G
Reciprocating Saw
14.4V
4.2Ah S type
EY9L45B
3.3Ah R type
EY9L44B
1.5Ah E type
EY9L42B
3.1Ah Z type
EY9L41B
18V
4.2Ah S type
EY9L51B
3.3Ah R type
EY9L50B
Dual Voltage Circuit
The circuit detects battery voltage,
controls the proper current and
delivers the correct voltage flow to
the tool for best performance
Dual Voltage Technology
Versatility, High Performance
and Extreme Run Time!
10 11

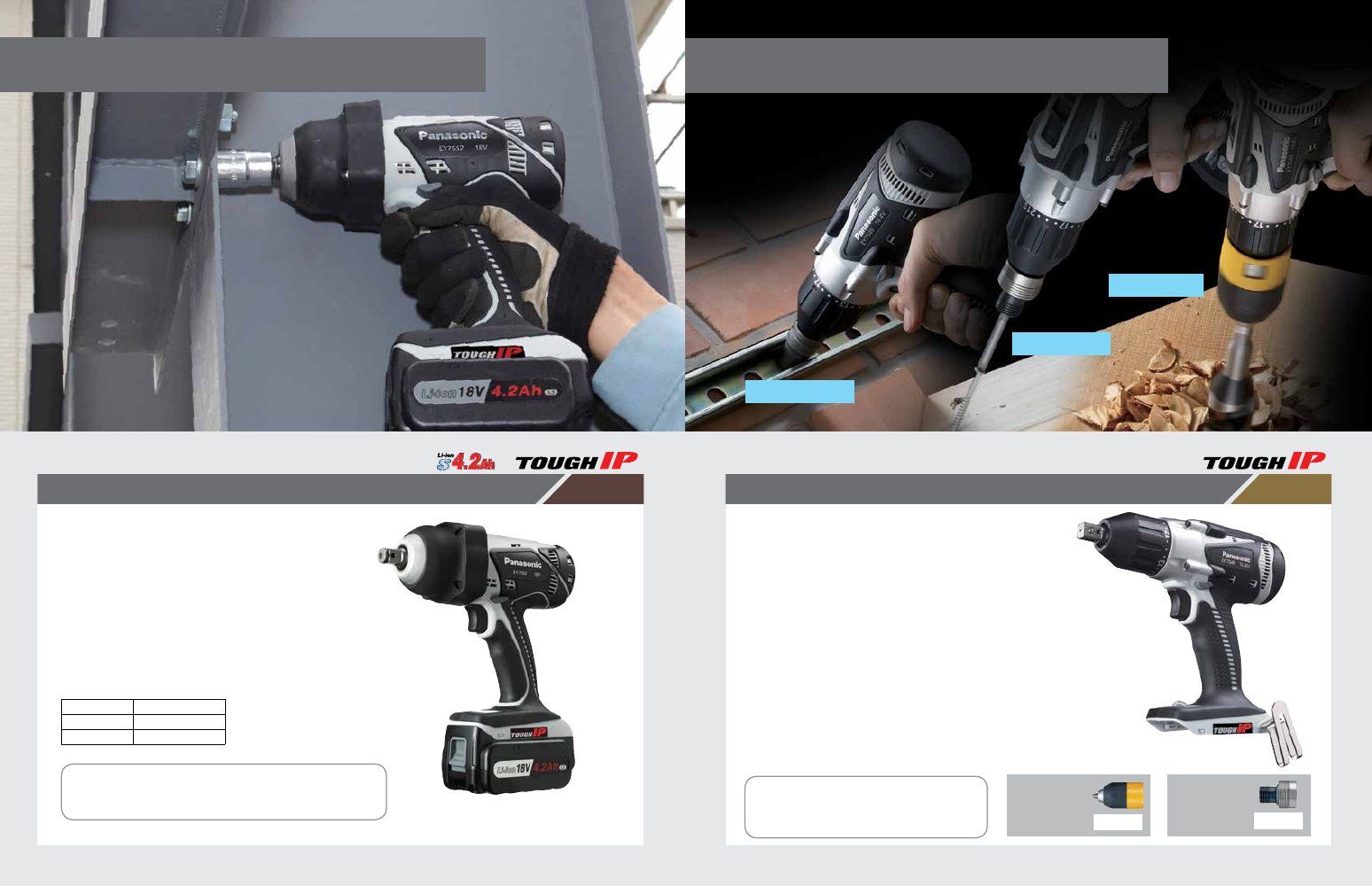

Cordless Impact Wrench
EY75A2X
Brushless
Motor
• Dual voltage ready
• Compact size (L x H x W): 6-1/8" x 9-17/32" x 2-13/32"
• Light weight (incl. Battery): 3.75 lbs.
• High power: 1,815 in. lbs.
• Variable speed/reversible
• Brushless motor and hybrid switch
• 3 Speeds (High/Medium/Low)
• 1/2" Square chuck
• Charging Time (using EY0L82B charger)*: Usable: 55 minutes Full: 70 minutes
• Electronic performance monitoring system
• Electric brake
• LED work light
• Belt hook
• Accepts Panasonic 18V and 14.4V Li-ion packs
TM
*Charging times are approximate and may be slightly longer depending on conditions.
Impact Wrench
Brushless Motor with 3-Speed Ranges, 1/2" Square Drive with
1/4" Quick Change Adapter
Faster and long lasting
Standard Accessory
1/4" hex quick
change chuck
EY9HX111E
TYPICAL APPLICATION
• Bolt + Nut fastening
• Long Wood Screw/Lag Screw Fastening
• Assemble and Disassemble Scaffolding EY75A2X: Battery pack and
battery charger are not included.
Dual Voltage Technology
Cordless Impact Driver Kit
EY75A1LS2G / EY75A1X Brushless
Motor
• Dual voltage ready
• High capacity 4.2Ah Li-ion battery
• Compact size (L x H x W): 5-5/8" x 9-17/32" x 2-13/32"
• Light weight (incl. Battery): 3.53 lbs.
• High power: 1,370 in. lbs.
• Variable speed/reversible
• Brushless motor and hybrid switch
• 3 Speeds (High/Medium/Low)
• 1/4" Hex quick connect chuck
• Charging Time (using EY0L82B charger)*: Usable: 55 minutes Full: 70 minutes
• Electric brake
• LED work light
• Belt hook
• Kit includes 1 - EY75A1, 2 - (EY9L51B) 4.2Ah 18V Li-ion Batteries, 1 - (EY0L82B) Charger, and Case
TM
Tool Specs
High/Hard Mode Medium Mode Low/Soft Mode
Max. Torque 1,370 in. lbs.*
1
1,150 in. lbs.*
1
230 in. lbs.*
2
Speed at No Load 0 - 2,500 rpm 0 - 1,400 rpm 0 - 1,000 rpm
Impact/min. 0 - 3,000 ipm 0 - 2,800 ipm 0 - 2,000 ipm
Tool Specs
High/Hard Mode Medium Mode Low/Soft Mode
Max. Torque 1,810 in. lbs.*
1
1,240 in. lbs.*
2
440 in. lbs.*
3
Speed at No Load 0 - 2,300 rpm 0 - 1,400 rpm 0 - 1,000 rpm
Impact/min. 0 - 3,500 ipm 0 - 2,800 ipm 0 - 2,000 ipm
*Charging times are approximate and may be slightly longer depending on conditions.
Impact Driver
Brushless Motor with
3-Speed Ranges for
Increased Control
Easier to handle in
narrow space Easier to handle
Faster and long lasting
EY75A1X: Battery pack and
battery charger are not included.
*
1
M14 High tensile bolt tightening for 3 sec. *
2
M10 High tensile bolt tightening for 3 sec. *
1
M16 High tensile bolt tightening for 3 sec. *
2
M14 High tensile bolt tightening for 3 sec.
*
3
M10 High tensile bolt tightening for 3 sec.
Dual Voltage Technology
TYPICAL APPLICATION
• Air Conditioning Installation
• Automotive Repair and Maintenance
• Assemble and Disassemble Scaffolding
• Long Wood Screw/Lag Screw Fastening
12 13
Multi-Impact & Drill Driver
From driving to drilling holes... A single tool can do it all.
Cordless Multi-Tool Impact & Drill Driver
EY7549X
• Multi-function tool
• 1/4" Hex Impact Driver
• 1/2" Impact Wrench
• 2 Speed Drill Driver
• High capacity 14.4V 4.2Ah Li-ion battery (optional)
• 1/2" Square drive with ball detent
• 1/2" Detachable keyless chuck (EY9X003E (included))
• 1/4" hex quick change adapter (EY9HX111E (included))
• 2 Speed variable speed drill with 21 stage adjustable clutch
(Approx.): 6.2 in. lbs. - 38.9 in. lbs.
• High power: Impact Mode: 1327 in. lbs. Drill & Driver Mode: 230 in. lbs.
• Variable Speed/Reversible:
• Impact Mode: 0-2,350 rpm
• Drill & Driver Mode: High 180-1,200 rpm Low: 60-380 rpm
• Impact/min.: 0-3,200 ipm in Impact Mode
• Electric brake
• LED work light
• Belt hook
• Low battery indicator
• Compact size (L x H x W): 8-9/32" x 9-3/16" x 2-1/16" (square drive)
• Light weight (incl. Battery): 4.07 lbs. (square drive) 4.52 lbs. (with keyless chuck)
• Charging Time (using EY0L82B charger): Usable: 50 minutes Full: 60 minutes
TM
*Charging times are approximate and may be slightly longer depending on conditions.
Impact Wrench
Drill & Driver
Impact Driver
14.4V
Standard Accessory
1/2" Detachable
keyless chuck
EY9X003E
Standard Accessory
1/2" Square drive
to 1/4" hex quick
change adapter EY9HX111E
EY7549X: Battery pack
and battery charger
are not included.
TYPICAL APPLICATION
• Construction
• General Industry
• Heavy Equipment/Off Road
• Automotive Repair and Maintenance
• HVAC
• Maintenance
• Recreational Vehicles
Cordless High Torque Impact Wrench Kit
EY7552LS2S / EY7552X
• High torque output 470 Nm (346 ft. lbs.)
• Twin Hammer design for durability, speed & size
• Faster working speed than single hammer designs
• 1/2" Square drive with friction ring and through hole design
• Low vibration and noise level
• Variable speed trigger/reversible
• Electric brake
• Battery level indicator
• 4.2Ah High capacity 18V Li-ion battery
• Compact size (L x H x W): 8-7/16" x 9-15/16" x 3-1/16"
• Light weight (incl. Battery): 5.7 lbs.
• Charging Time (using EY0L82B charger): Usable: 55 minutes Full: 70 minutes
• Kit includes 1 - EY7552, 2 - (EY9L51B) 4.2Ah 18V Li-ion Batteries, 1 - (EY0L82B) Charger
TM
Tool Specs
Max. Torque 470 Nm (346 ft. lbs.)
Speed at No Load 0 - 1,550 rpm
Impact/min. 0 - 2,400 ipm
*Charging times are approximate and may be slightly longer depending on conditions.
High Torque Impact Wrench
470 Nm (346 ft. lbs.) High Torque Impact,
1/2" Square Drive, Compact & Light Weight
EY7552X: Battery pack and
battery charger are not included.
TYPICAL APPLICATION
• Construction
• General Industry
• Automotive/Truck Repair and Maintenance
• HVAC
• Maintenance
• Recreational Vehicles
18V
14 15
Dual Voltage Technology
Cordless 1/2" Drill & Driver Kit
EY74A1LS2G / EY74A1X
• Dual voltage – accepts either 14.4V or 18V Panasonic Li-ion batteries
• High capacity 4.2Ah Li-ion battery
• Compact size (L x H x W): 8" x 9-13/32" x 2-5/16"
• Light weight (incl. battery): 4.30 lbs.
• Variable speed/reversible: Low: 80-600 rpm High: 220-1,750 rpm
• Clutch Torque (Approx.): 4.3-39 in. lbs. (2.0 in. lbs. per stage, total 18 stage)
• 1/2" Heavy duty keyless chuck
• Charging Time (using EY0L82B charger)*: Usable: 55 minutes Full: 70 minutes
• Electric brake
• LED work light
• Low battery indicator
• Kit includes 1 - EY74A1, 2 - (EY9L51B) 4.2Ah 18V Li-ion Batteries,
1 - (EY0L82B) Charger, and Case
• Max. Drill Diameter: in Wood: dia. 1-3/8" in Metal: dia. 1/2"
• Max. Screws Driving: Wood screw: dia. 9/32" Self-drilling screw: dia. 1/4"
TM
EY74A1X: Battery pack and
battery charger are not included.
TYPICAL APPLICATION
• General Construction
• Plumbing
• Finishing Carpentry
• Electric Installation Work
Drill & Driver
High Speed Performance, Compact and Lightweight
Increases application speed
and working capacity
Easy to use, lightweight and compact
High speed drilling and more working capacity with 18V power!
*Comparison of application speed. dia.11/16" x 4-3/4" (wood drilling with high mode)
Compact, Easy-to-use
*The reference above shows value based on internal test, and there may be some difference
on conditions and so on.
(Approx. 20% less time)
Faster!!
LED Light
EY74A1 8"
NEW EY74A1LR (18V)
EY7441LR (14.4V)
EY7450 8-9/16"
Belt Hook Ergonomic design reduces fatigue
*Charging times are approximate and may be slightly longer depending on conditions.
16 17
Cordless Drill & Driver Kit
EY7410LA2S / EY7410LA1C
• 1.5Ah Li-ion battery
• Compact size (L x H x W): 10-7/8" x 5-9/32" x 1-13/16"
in straight format
• Light weight (incl. battery): 1.10 lbs.
• Powerful: Low: 39.0 in. lbs. High: 13.3 in. lbs.
• 2 Speed reversible: Low: 200 rpm High: 600 rpm
• Clutch Torque (Approx.): 2.7-25.7 in. lbs. (0.9 in. lbs. per stage,
total 21 stage)
• 21 Stage clutch with auto shut off
• 1/4" Hex quick change chuck
• Cap for clutch lock out
• Charging Time (using EY0L11B charger)*: Usable: 15 minutes Full: 30 minutes
• LED work light
• Low battery indicator
• Kit includes 1 - EY7410, 2 - (EY9L10B) 1.5Ah 3.6V Li-ion Batteries,
1 - (EY0L11B) Charger, and Case
• Max. Drill Diameter: in Metal dia. 3/16" (spc t=1/16")
• Max. Screws Driving: Wood screw dia. 5/32” x 1-1/2"
EY7410LA1C:
1 Battery pack is included.
Charger not included.
*Charging times are approximate and may be slightly longer depending on conditions.
3.6V
Optional Accessory
Clutch lock cover EY9X007E
TYPICAL APPLICATION
• Rack/Cabinet installers
• Electricians
• Electronics Assembly
• Service engineers
EY7450LS2S EY7450LR2S
• High capacity 4.2Ah Li-ion battery
3.3Ah Li-ion battery
• Compact size (L x H x W): 8-9/16" x 9-3/4" x 2-1/2"
• Light weight (incl. battery): 4.70 lbs.
4.70 lbs.
• High power: 505 in. lbs.
505 in. lbs.
• Variable speed/reversible: Low: 50-430 rpm High: 160-1,650 rpm
• Clutch Torque (Approx.): 8.8-61.0 in. lbs. (3.0 in. lbs. per stage, total 18 stage)
• 1/2" Heavy duty keyless chuck
• Charging Time (using EY0L82B charger)*:
Usable: 55 minutes Full: 70 minutes
Usable: 40 minutes Full: 55 minutes
• Electric brake
• LED work light
• Low battery indicator
• Kit includes 1 - EY7450, 2 - (EY9L51B) 4.2Ah 18V Li-ion Batteries,
1 - (EY0L82B) Charger, and Case.
Kit includes 1 - EY7450, 2 - (EY9L50B) 3.3Ah 18V Li-ion Batteries,
1 - (EY0L82B) Charger, and Case.
• Max. Drill Diameter: in Wood: dia. 1-7/16" in Metal: dia. 1/2"
• Max. Screws Driving: Wood screw: dia. 5/16" Self-drilling screw: dia. 1/4"
TM
TYPICAL APPLICATION
• General Construction
• Plumbing
• Finishing Carpentry
• Electric Installation Work
EY7450LS2S
EY7450LS2S
EY7450LS2S
EY7450LS2S
EY7450LS2S
EY7450LR2S
EY7450LR2S
EY7450LR2S
EY7450LR2S
EY7450LR2S
Cordless 1/2" Drill & Driver Kit 18V
TM
Cordless 1/2" Drill & Driver Kit
EY7441LR2S
• High capacity 3.3Ah Li-ion battery
• Compact size (L x H x W): 7-5/8" x 9-1/8" x 2-3/8"
• Light weight (incl. battery): 3.85 lbs.
• High power: 370 in. lbs.
• Variable speed/reversible: Low: 70-400 rpm High: 200-1,400 rpm
• Clutch Torque (Approx.): 4.4-39.0 in. lbs. (2.0 in. lbs. per stage, total 18 stage)
• 1/2" Heavy duty keyless chuck
• Charging Time (using EY0L82B charger)*: Usable: 40 minutes Full: 55 minutes
• Electric brake
• LED work light
• Low battery indicator
• Belt hook
• Kit includes 1 - EY7441, 2 - (EY9L44B) 3.3Ah 14.4V Li-ion Batteries,
1 - (EY0L82B) Charger, and Case
• Max. Drill Diameter: in Wood: dia. 1-3/8" in Metal: dia. 1/2"
• Max. Screws Driving: Machine screw: M5 Wood screw: dia. 1/4"
Self-drilling screw: dia. 1/4"
14.4V
TYPICAL APPLICATION
• General Construction
• Plumbing
• Finishing Carpentry
• Electric Installation Work
18 19
Cordless Hammer Drill & Driver Kit
EY7940LR2S
• High capacity 3.3Ah Li-ion battery
• Compact size (L x H x W): 7-7/8" x 9-1/8" x 2-3/8"
• Light weight (incl. battery): 3.96 lbs.
• High performance as regular drill: Max. Torque: 370 in. lbs.
• Variable speed control/reversible: Low: 70-400 rpm High: 200-1,400 rpm
• Clutch Torque (approx.): 8.8-39 in. lbs. (1.8 in. lbs. per stage, total 18 stage)
(Max. Torque at drilling position–stage 16)
• High speed masonry drilling: Max.1,400 rpm / 25,200 bpm
• Blows Rate per Minute: Low: 1,260-7,200 bpm High: 3,600-25,200 bpm
• 1/2" Heavy duty keyless chuck
• Charging Time (using EY0L82B charger)*: Usable: 40 minutes Full: 55 minutes
• Electric brake
• LED work light
• Low battery indicator
• Kit includes 1 - EY7940, 2 - (EY9L44B) 3.3Ah 14.4V Li-ion Batteries, 1 - (EY0L82B) Charger, and Case
• Max. Drill Diameter: in Metal dia. 1/2" in Wood dia. 1-3/8" in Mortar/Brick dia. 1/2"
• Max. Screws Driving: Machine screw: M5 Wood screw: dia. 1/4" Self-drilling screw: dia. 1/4"
TM
*Charging times are approximate and may be slightly longer depending on conditions.
14.4V
TYPICAL APPLICATION
• Electricians
• General construction
• Interior installation
• Masonry drilling
• Masonry/wood fastening
• Wood/metal drilling
• Heating, water & sanitation technicians
Hammer Drill & Driver
High power drilling in masonry, wood, metal.
Cordless Hammer Drill & Driver Kit
EY7950LS2S EY7950LR2S
• High capacity 4.2Ah Li-ion battery
3.3Ah Li-ion battery
• Compact size (L x H x W): 9-1/4" x 9-3/4" x 2-1/2"
• Light weight (incl. battery): 5.00 lbs.
5.00 lbs.
• High performance as regular drill: Max. Torque: 505 in. lbs.
505 in. lbs.
• Variable speed control/reversible: Low: 50-430 rpm High: 160-1,650 rpm
• Clutch Torque (approx): 8.8-61.0 in. lbs. (3.0 in. lbs. per stage, total 18 stage)
(Max. Torque at drilling position–stage 16)
• Blows Rate per Minute: Low: 900-7,740 bpm High: 2,880-29,700 bpm
• 1/2" Heavy duty keyless chuck
• Charging Time (using EY0L82B charger)*:
Usable: 55 minutes Full: 70 minutes
Usable: 40 minutes Full: 55 minutes
• Electric brake
• LED work light
• Low battery indicator
• Kit includes 1 - EY7950, 2 - (EY9L51B) 4.2Ah 18V Li-ion Batteries,
1 - (EY0L82B) Charger, and Case.
Kit includes 1 - EY7950, 2 - (EY9L50B) 3.3Ah 18V Li-ion Batteries,
1 - (EY0L82B) Charger, and Case.
• Max. Drill Diameter: in Wood: dia. 1-7/16" in Metal: dia. 1/2" in Mortar/Brick: dia. 1/2"
• Max. Screws Driving: Wood screw: dia. 5/16" Self-drilling screw: dia. 1/4"
TM
TYPICAL APPLICATION
Electricians
General construction
Interior installation
Masonry drilling
Masonry/wood fastening
Wood/metal drilling
Heating, water & sanitation technicians
18V
EY7950LS2S
EY7950LS2S
EY7950LS2S
EY7950LS2S
EY7950LS2S
EY7950LR2S
EY7950LR2S
EY7950LR2S
EY7950LR2S
EY7950LR2S
*Charging times are approximate and may be slightly longer depending on conditions.
20 21
Cordless SDS-Plus Rotary Hammer Kit
EY7880LP2S
• High capacity 3.0Ah Li-ion battery
• Compact size (L x H x W): 12-9/16" x 8" x 3-1/16"
• Light weight (incl. battery): 8.49 lbs.
• Two speed hammering selection: High: 0 - 4,500 bpm Low: 0 - 2,800 bpm
• Two speed drilling selection variable speed/reversible:
High: 0 - 920 rpm Low: 0 - 500 rpm
• Dual function: Rotary hammer or drill
• Slow start two-finger switch for accurate drilling with a clean finish
• Ergonomic soft rubber grip for stress reduction
• Dust collection cup as standard equipment
• 3/4" SDS-Plus bit system
• Hammering force: 23.6 kN
• 360° auxiliary side handle with built-in depth gauge
• Charging Time (using EY0L82B charger)*:
Usable: 60 minutes Full: 80 minutes
• LED work light
• Low battery indicator
• Kit includes 1 - EY7880, 2 - (EY9L82B) 3.0Ah 28.8V Li-ion Batteries,
1 - (EY0L82B) Charger, and Case
TM
*Charging times are approximate and may be slightly longer depending on conditions.
Rigorous continuous use is made possible by the flow of air through
a space between the gear case and the main unit housing. This acts
to cool the gear case, containing the hammer and gears, which can
become hot during extended use. Large cooling fan drivers exhaust
system helps prevent dust build-up.
Cooling and dust proof performance have
been improved and this serial drilling
display of 180 holes (dia. 1/2" x 1-9/16")
demonstrates the toughness of the hammer
to handle rigorous continuous work
conditions (equivalent to 3 battery packs).
The gear case is made from magnesium
which is light and excellent for dispersing
heat. The hammer and gears are covered
to prevent fine particles of dust from
entering the tool and grease from leaking.
The dust-proof switch prevents fine
particles of dust from entering the tool
and causing problems with the motor.
Standard Accessory
Dust collection cup
White LED light For light chiseling
Excellent cooling/dust-proof design
supports continuous use
Carefully designed for ease of use. Supported functions.
Serial drilling of 180
holes (1/2" in diameter)!
SDS-Plus Chiseling
Attachment
For light chiseling
SDS-Plus Drill Chuck
For 1/16" dia. –
1/2" dia. bit
EY9HX402E
EY9HX400E
Optional Accessories
Magnesium metal gear case
28.8V
Large cooling fan
Built-in motor
Air intake
Emission
Dust-proof switch
TYPICAL APPLICATION
• Concrete drilling
• Masonry drilling
SDS-Plus Rotary Hammer
Powerful, light and tough for continuous use!
Easy to hold, resists fatigue!
Two-Speed Selection
23.6 kN
[2,400 kgf]
ø5- ø20
HammerH ard
12.7 kN
[1,300 kgf]
ø3.2- ø5
Hammer Soft
Grip width of our EY6813
Two-finger
switch
22 23
Cordless Reciprocating Saw Kit
EY45A1LS1G/EY45A1X
• Dual voltage – accepts either 14.4V or 18V Panasonic Li-ion batteries
• High capacity 4.2Ah Li-ion battery
• Powerful Cutting (stroke length 1-1/8mm, 0-2,800spm)
• Compact Size (L x H x W): 18-1/8" x 8-1/4" x 3-7/16"
• Light weight: 7.50 lbs.
• Max. Cutting Size in metal pipe dia. 5-1/8", in wood 9-1/4" thickness
• Easy blade replacement
• Safety switch lock lever
• Low battery indicator
• Charging Time (using EY0L82B charger)*: Usable: 55 minutes Full: 70 minutes
• Kit includes 1 - EY45A1, 1 - (EY9L51B) 4.2Ah 18V Li-ion Battery,
1 - (EY0L82B) Charger, and Case
TM
*Charging times are approximate and may be slightly longer depending on conditions.
Cutting
Long strong length and high stroke speed
enables cutting through thick materials.
Demolition
High voltage reciprocating saw
offers powerful cutting performance.
Long Lasting
High battery capacity enables
tool to last longer.
Anti vibration
Spring inside tool absorbs shock
for less fatigue
Blade Replacement
Blade replacement made easy by
using the blade clamping system.
Blade is easily secured by inserting
and pushing into tool. Blade can
be easily removed by turning the
holder collar.
Metal Blade
Standard
• Bi-metal blade
• 14 teeth per inch
• Blade length: 5-7/8"
• carbon tool steels
• 5 teeth per inch
• Blade length: 9-7/16"
• Blade length for cutting: 5-1/8"
• Blade width: 1/16"
• Cutting range: ø2-3/4"
• Blade length for cutting: 8-11/16"
• Blade width: 1/16"
• Cutting range: ø5-7/8"
Wood Blade
Standard
Replacement Blade *Not available as an accessory
Dual Voltage Technology
TYPICAL APPLICATION
• Carpentry
• Plumbing
• Electrician
• Installation
• Demolition
EY45A1X: Battery pack and battery
charger are not included.
Reciprocating Saw
Long Lasting for continuous use
Powerful cutting
through thick
metal pipe
Fast cutting through
thin metal pipe
24 25
Cordless Multi Purpose Metal Cutter Kit
EY4542LR2M
• High capacity 3.3Ah Li-ion battery
• Compact size (L x H x W): 13-1/4" x 9" x 6-5/16"
• Light weight (incl. battery): 5.84 lbs.
• Rotating Speed: 3,600 rpm
• Blade Size: Outer diameter 5-3/8" Arbor size 13/16"
• Cutting Depth: Max. 1-13/16"
• Electric brake
• Cutting edge is easily seen through transparent window
• In-line ergonomic design for comfortable cutting
• Safety switch lock lever
• Shaft lock button for easy blade replacement
• Charging Time (using EY0L82B charger)*:
Usable: 40 minutes Full: 55 minutes
• LED work light
• Low battery indicator
• Kit includes 1 - EY4542, 2 - (EY9L44B) 3.3Ah 14.4V Li-ion Batteries,
1 - (EY0L82B) Charger, and Case
TM
*Charging times are approximate and may be slightly longer depending on conditions.
Metal Cutting Blade Standard
Cutting depth adjustment Cutting edge is easily seen through window
• C-6 tungsten carbide-tipped
blade for metal cutting
• 30 teeth
• Kerf (in.): 1/16" (.055)
• C-6 tungsten carbide-tipped
blade for wood cutting
• 30 teeth
• Kerf (in.): 3/64" (.047)
Wood Cutting Blade Optional
1 Use with vacuum cleaner to collect dust 2 Collects dust in the dust case 3 Eject dust to the rear of the machine
14.4V
EY9PM13C EY9PW13A
TYPICAL APPLICATION
• Metal construction
• Plumbing
• General construction
• Electric installation work
3-way Dust Control
Multi-Purpose Metal Cutter
Made for cutting various materials
26 27
Cordless Angle Grinder
EY4640X
• Compact size (L x H x W): 14-3/8" x 4-1/8" x 2-15/16"
• Light weight (incl. battery): 4.85 lbs.
• Speed at No Load: 9,500 rpm
• Wheel diameter: 4-1/2"
• Slim grip
• On lock warning lamp function
• Low battery indicator
• Replaceable carbon brushes
• Charging Time (using EY0L82B charger)*:
Usable: 40 minutes Full: 55 minutes
• Electronic Performance Monitoring System
• Accepts Panasonic 14.4V Li-ion battery packs.
TM
*Charging times are approximate and may be slightly longer depending on conditions.
* Charging time, weight and size:
case of using the battery pack (EY9L44B)
Slim grip design
Slim grip is designed so that you can hold it securely with five
fingers, reducing fatigue and making the grinder easy to use both
above your head and facing to the side.
Indicator lamp for on lock
warning lamp function
The grinder will not start
when the switch is at the
ON position, or even when
the battery pack is inserted.
The warning lamp will flash to
indicate that the on lock start
prevention has started.
Reinforcement bar cutting Metal Cutting Metal Grinding
EY4640X: Battery, battery charger
and grinding wheel are not included.
TYPICAL APPLICATION
• Metal construction
• Plumbing
• General construction
• Electric installation work
14.4V
Cordless Flashlight
EY37C1B
• Triple voltage – accepts either 14.4V, 18V or 21.6V Panasonic Li-ion batteries
• Brightness of approx. 4,000 Lux
• Adjustable head angle (Four steps)
• Low battery indicator
• Bulb: Xenon 0.55A
• Size (L x H x W) (excluding battery): 10-63/64" x 4-7/8" x 3-35/64"
• Weight (excluding battery): 0.75 lbs.
• Shoulder strap
• Accepts Panasonic 14.4V, 18V, 21.6V Li-ion battery packs.
Acceptable Battery Packs and Hours of Use
• With 21.6V Li-ion battery pack EY9L61B: Approx. 6 hours 20 minutes
• With 18V Li-ion battery pack EY9L51B: Approx. 6 hours 15 minutes
• With 18V Li-ion battery pack EY9L50B: Approx. 5 hours 30 minutes
• With 14.4V Li-ion battery pack EY9L45B: Approx. 5 hours 10 minutes
• With 14.4V Li-ion battery pack EY9L44B: Approx. 4 hours 35 minutes
• With 14.4V Li-ion battery pack EY9L41B: Approx. 4 hours 20 minutes
• With 14.4V Li-ion battery pack EY9L42B: Approx. 2 hours
14.4V / 18V / 21.6V
EY37C1B: Battery pack and battery
charger are not included.
14.4V Power Supply Kit
18V Power Supply Kit
EYC941B
EYC950B
• 2 - EY9L45B: 14.4V 4.2Ah Li-ion battery pack
• 1 - EY0L82B: Charger
• 2 - EY9L51B: 18V 4.2Ah Li-ion battery pack
• 1 - EY0L82B: Charger
14.4V
18V
28 29
3.3Ah Lithium Combo Kit
EYC194LR
• 1 - EY7441 (Body): 14.4V Drill & Driver
• 1 - EY4542 (Body): 14.4V Multi Purpose Metal Cutter
• 2 - EY9L44B: 14.4V 3.3Ah Li-ion battery pack
• 1 - EY0L82B: Charger
• 1 - Panasonic Tool Bag
• Standard/Optional Accessories: See page 41
14.4V
EYC18DV42
• 1 - EY74A1X(Body): Dual Voltage Drill & Driver
• 1 - EY75A1X (Body): Dual Voltage Impact Driver
• 2 - EY9L51B: 4.2Ah 18V Li-ion Battery Packs
• 1 - EY0L82B: Charger
EYC144V33
EYC144DV42
• 1 - EY7441X (Body): 14.4V Drill & Driver
• 1 - EY75A1X (Body): Dual Voltage Impact Driver
• 2 - EY9L44B: 3.3Ah 14.4V Li-ion Battery Packs
• 1 - EY0L82B: Charger
• 1 - EY74A1X(Body): Dual Voltage Drill & Driver
• 1 - EY75A1X (Body): Dual Voltage Impact Driver
• 2 - EY9L45B: 4.2Ah 14.4V Li-ion Battery Packs
• 1 - EY0L82B: Charger
4.2Ah Lithium Combo Kit3.3Ah Lithium Combo Kit
4.2Ah Lithium Combo Kit
Dual Voltage TechnologyDual Voltage Technology
Dual Voltage Technology
30 31
Cordless Drill & Driver Kit
Cordless Metal Cutter Kit
Metal Combo Kit
EY6220NQ
EY3530NQMKW
EYC136NQKW
• Compact size (L x H x W): 9-3/8" x 5" x 1-7/16" in straight format
• Light weight (incl. battery): 0.90 lbs.
• Max. Torque: Low: 26 in. lbs. High: 13 in. lbs.
• Speed at No Load: Low: 200 rpm High: 400 rpm
• Clutch Torque (approx.): 3.5, 6.3, 9.1, 11.9, 14.7, 17.5 in. lbs.
(multi-stage) (Max. Torque at 6 position)
• Easily converts from straight to pistol form
• 2-speed gear box
• 1/4" hex drive
• Multi-stage clutch plus drill
• Reversible
• Gear lock mechanism for manual tightening
• Charging Time (using EY0L11B charger)*: 45 minutes
• Kit includes 1 - EY6220, 1 - (EY9221B) 2.8Ah 2.4V Ni-MH Battery,
and 1 - (EY0L11B) Charger
• 2.8Ah Ni-MH battery
• Compact size (L x H x W): 13-25/32" x 7-1/8" x 7-13/16"
• Light weight (incl. battery): 6.70 lbs.
• Rotating Speed: 3,100 rpm
• Blade Size: Outer diameter 5-3/8" Arbor size 13/16"
• Cutting Depth: Min. 1/8" Max. 1-13/16"
• Electric brake
• Cutting edge is easily seen through transparent window
• In-line ergonomic design for comfortable cutting
• Safety switch lock lever
• Spindle lock button for easy blade replacement
• Charging Time (using EY0110B charger)*: 45 minutes
•
Kit includes 1 - EY3530, 2 - (EY9230B) 2.8Ah 15.6V Ni-MH Batteries,
1 - (EY0110B) Charger, and Case
EY9PM13C Standard
• C-6 tungsten carbide-tipped
blade for metal cutting
• 30 teeth
• Kerf (in.): 1/16" (.055)
• 1 - EY3530 (Body): 15.6V Metal Cutter + Standard metal cutter blade
• 1 - EY6432 (Body): 15.6V Drill & Driver
• 1 - EY0110: Charger for Ni-MH battery pack
• 2 - EY9230: 2.8Ah Ni-MH battery pack
• 1 - Carrying Case
*Charging times are approximate and may be slightly longer depending on conditions.
EY6220N: 1 Battery pack is included. Charger not included.
Replacement Blades Blade size: dia. 5-5/16"
2.4V
15.6V
15.6V
TYPICAL APPLICATION
• Appliance Repair
• Production line, assembly work
• Circuit board assembly (of small equipment)
TYPICAL APPLICATION
• General construction
• Electric installation work
• Metal construction
• Plumbing
Cordless 1/2" Drill & Driver Kit
Cordless 1/2" Drill & Driver Kit
EY6432NQKW
EY6409NQKW
• 2.8Ah Ni-MH battery
• Compact size (L x H x W): 8-3/16" x 9" x 2-9/32"
• Light weight (incl. battery): 4.50 lbs.
• High power: 370 in. lbs.
• Variable speed control/reversible: Low: 65 - 450 rpm High: 200 -1,450 rpm
• Clutch Torque (approx.): 9-61 in. lbs. (3.0 in. lbs. per stage, total 18 stage)
(Max. Torque at drilling position–stage 19)
• 1/2" heavy-duty keyless chuck
• 2-speed gear box
• Spindle Thread: 3/8" - 24
• Charging Time (using EY0110B charger)*: 45 minutes
• Electric brake
• New ergonomic design
• Kit includes 1 - EY6432, 2 - (EY9230B) 2.8Ah 15.6V Ni-MH Batteries,
1 - (EY0110B) Charger, and Case
• 2.8Ah Ni-MH battery
• Compact size (L x H x W): 8-3/16" x 8-31/32" x 2-9/32"
• Light weight (incl. battery): 4.20 lbs.
• High power: 292 in. lbs.
• Variable speed control/reversible: Low: 50-400 rpm High: 180-1,300 rpm
• Clutch Torque (approx.): 9-50 in. lbs. (2.4 in. lbs. per stage, total 18 stage)
(Max. Torque at drilling position–stage 19)
• 1/2" heavy-duty keyless chuck
• 2-speed gear box
• Spindle Thread: 3/8" - 24
• Charging Time (using EY0110B charger)*: 45 minutes
• Electric brake
• New ergonomic design
• Kit includes 1 - EY6409, 2 - (EY9200B) 2.8Ah 12V Ni-MH Batteries,
1 - (EY0110B) Charger, and Case
Ni-MH Series
15.6V
12V
TYPICAL APPLICATION
• General construction
• Finishing carpentry
• Electric installation work
• Plumbing
TYPICAL APPLICATION
• General construction
• Finishing carpentry
• Electric installation work
• Plumbing
32 33
*1 Available X type (bare tool) *2 Usable Charge (80%)
Battery Pack / Battery Charger - Compatibility Chart
*Charging times are approximate and may be slightly longer depending on conditions.
Charger for Li-ion Batteries
Charger for Li-ion Batteries & Ni-MH Batteries
Charger for Ni-MH Batteries & Ni-Cd Batteries
EYOL82B
EYOL11B
EY0110B
• Accepts Panasonic’s 10.8V-28.8V Battery Packs (See below for details)
• Equipped with a lamp system that indicates the status of the 6 charging functions at a glance
*Usable Charge (80%)
• Accepts Panasonic’s 2.4V-3.6V Battery Packs (See below for details)
• Accepts Panasonic’s 7.2V-24V Battery Packs (See below for details)
• Equipped with a lamp system that indicates the status of the 5 charging functions at a glance
TYPE OF BATTERY
Li-ion
LS TYPE LR TYPE LZ TYPE LE TYPE LP TYPE
28.8V EY9L81B EY9L82B
21.6V EY9L62B
18V EY9L51B EY9L50B
14.4V EY9L45B EY9L44B EY9L41B EY9L42B
Charging
Time
EY9L51B: 55 min.* 7O min.
EY9L45B: 55 min.* 7O min. 4O min.* 55 min.
EY9L81B: 65 min.* 75 min.
EY9L61B: 50 min.* 60 min.
EY9L41B: 35 min.* 50 min.
EY9L62B: 65min.* 85min.
EY9L42B: 30min.* 35min. 60 min.* 80 min.
TYPE OF BATTERY
Li-ion Ni-MH
LA TYPE N TYPE
3.6V EY9L10B
2.4V EY9221B
Charging
Time 15 min.* • 30 min. 45 min.
TYPE OF BATTERY
Ni-MH Ni-Cd
G TYPE N TYPE V TYPE F TYPE E TYPE C TYPE D TYPE
24V EY9210B EY9117B EY9116B
18V EY9251B
15.6V EY9231B EY9230B EY9136B
12V EY9201B EY9200B EY9106B EY9101B EY9006B EY9001B
9.6V EY9182B/9180B EY9086B EY9080B
7.2V EY9166B EY9066B
Charging
Time 65 min. 55 min. 90 min. 45 min. 60 min. 30 min. 25 min. 20 min. 20 min.
Voltage Model Battery
Charging Time
Charger
15 30 35 40 50 55 60 65 70 75 80 85
28.8V EY7880
EY9L82B
*2
EY0L82B
21.6V
EY37C1B
EY7460
EY7960
EY9L62B
*2
18V
EY74A1
EY45A1
EY75A4
EY75A5
EY7450
EY7950
EY7552
EY9L51B
*2
EY9L50B
*2
14.4V
EY7441
EY7940
EY7840
EY4542
EY4640
EY7549
EY9L45B
*2
*2
EY9L44B
*2
3.6V EY7410
EY7411
EY9L10B
*2 EY0L11B
15.6V EY6432
EY3530
EY9230B
EY0110B
12V EY6409
EY9200B
2.4V EY6220
EY9221B
EY0L11B
34 35
* The above table shows average values. There may be some difference depending on the battery condition, the sharpness of the drill bit, the material hardness, etc.
* t=thickness of material *At concrete strength of medium hardness.
Hammer Drill & Driver
Voltage 18V 14.4V
Model No. EY7950LS2S EY7950LR2S EY7940LR2S
Battery Type EY9L51B (LS) EY9L50B (LR) EY9L44B (LR)
Fastening
Wood Screws in Yellow Pine [High Mode] dia. 3/16" x 2-15/16" – – –
Wood Screws in Yellow Pine [High Mode] dia. 1/4" x 3-5/32" 300 pcs 240 pcs –
Wood Screws in Yellow Pine [Low Mode] dia. 5/16" x 3-5/32" 190 pcs 150 pcs –
Self-drilling Screws in SPC [High Mode] dia. 1/8" x 1/2" t=1/16" – – –
Self-drilling Screws in SPC [High Mode] dia. 5/32" x 1/2" t=1/16" 640 pcs 500 pcs 590 pcs
Drilling
Holes in Plaster Board + PlyWood
(Wooding Core) [High Mode]
Plaster Board 1/2"+ PlyWood 15/32"
dia. 2-11/16" t=15/16" 75 pcs 60 pcs –
Holes in Plaster Board + PlyWood
[Low Mode]
Plaster Board 1/2"+PlyWood 15/32"
dia. 4-29/32" x 15/16" 30 pcs 25 pcs –
Holes in SPC [High Mode] dia. 1/2" t=1/16" 300 pcs 240 pcs –
Holes in SPC (Hole saw) [High Mode] dia. 13/16" x t=1/16" 45 pcs 35 pcs 19 pcs
Holes in SPC (Hole saw) [Low Mode] dia. 1-5/16" t=1/16" 45 pcs 35 pcs 16 pcs
Holes in mortar [High Mode] dia. 1/4" x 1-3/16" depth 180 pcs 140 pcs 85 pcs
Holes in mortar [High Mode] dia. 3/8" x 1-3/16" depth 140 pcs 110 pcs –
Holes in masonry [High Mode] dia. 3/16" x 1-9/16" depth 150 pcs 120 pcs –
Holes in Yellow Pine [High Mode] dia. 11/16" t=4-3/4" 130 pcs 100 pcs 75 pcs
Rotary Hammer Drill & Driver
Metal Cutter
Multi-Purpose Metal Cutter
Angle Grinder*
SDS-Plus Rotary Hammer
Reciprocating Saw
Voltage 18V
Model No. EY75A4X
Battery Type EY9L51B (LS)
Drilling +
Fastening
Concrete Screw Holes in Concrete
and Screws Fastened
dia. 1/8" x 1-3/16" 120 pcs/charge
dia. 1/4" x 1-3/16" 100 pcs/charge
Plastic Anchor
Fastening Application
Holes in Concrete
and Screws Fastened
dia. 1/4" x 1-3/16"
100 pcs/charge
dia. 3/16" x 1"
Drilling Holes in Concrete
dia. 1/8" x 1-3/16" 140 holes/charge
dia. 1/4" x 1-3/16" 110 holes/charge
dia. 3/8" x 1-9/16" 50 holes/charge
dia. 1/2" x 1-9/16" 30 holes/charge
Voltage 15.6V 12V 2.4V
Model No. EY6432NQKW EY6409NQKW EY6220NQ
Wood Screws in Yellow Pine
dia. 5/32" x 1" — 525 pcs —
dia. 1/4" x 2-1/2" 480 pcs — —
dia. 1/8" x 25/32" — — 280 pcs
Self-Drilling Screws in SPC dia. 1/8" x 1/2", *t=1/16" — 730 pcs —
Holes in Yellow Pine dia. 1-7/16", *t=1-1/2" 120 pcs — —
Voltage 15.6V
Model No. EY3530NQMKW
Hanger Rail
W: 1-5/8" H: 1-5/8" t=1/8" Metal EY9PM13C 35 pcs/charge
W: 1-5/8" H: 1-3/16" t=1/16" Metal EY9PM13C 75 pcs/charge
Conduit Pipe Outer / 1" EMT dia. 1-5/32" Metal EY9PM13C 105 pcs/charge
Voltage 14.4V
Model No. EY4542LR2M
Battery Type EY9L44B (LR)
Conduit Pipe ø1" t=1/16" 170 pcs/charge
SPC 17-11/16" t=1/16" 14 pcs/charge
Plywood 35-7/16" t=1/2" 55 pcs/charge
PVC Pipe dia. 1-1/2" t=1/8" 120 pcs/charge
Voltage 14.4V
Model No. EY4640X
Reinforcing Bar dia. 3/8" 30 pcs/charge
Voltage 28.8V
Model No. EY7880LP2S
Battery Type EY9L82B (LZ)
Concrete*
dia. 1/4" x 1-3/16" 150 holes /charge
dia. 5/16" x 3-15/16" 30 holes /charge
dia. 1/2" x 1-9/16" 70 holes /charge
dia. 9/16" x 3-17/32" 20 holes /charge
dia. 25/32" x 1-9/16" 30 holes /charge
Voltage 18V
Model No. EY45A1LS1G
Battery Type EY9L51B (LS)
Steel Pipe
for Ordinary
Piping
outer diameter 1-11/32" (t=1/8") 45 pcs/charge
outer diameter 1-29/32" (t=1/8") 30 pcs/charge
outer diameter 3-1/16" (t=5/32") 10 pcs/charge
Yellow Pine
2 x 4 (1-1/16" x 3-1/16") 80 pcs/charge
2 x 10 (1-1/16" x 9-1/32") 50 pcs/charge
Ni-MH Capacity Table
Drill & Driver
Multi-Impact & Drill Driver
Voltage 18V 14.4V
Model No. EY7450LS2S EY7450LR2S EY74A1LS2G EY7441LR2S
Battery Type EY9L51B (LS) EY9L50B (LR) EY9L51B (LS) EY9L44B (LR)
Fastening
Wood Screws in Yellow Pine
[High Mode] dia. 3/16" x 2-15/16" – – – –
Wood Screws in Yellow Pine
[High Mode] dia. 5/32" x 1" – – 1,300 pcs 930 pcs
Wood Screws in Yellow Pine
[Low Mode] dia. 5/16" x 3-5/32" – – 340 pcs –
Self-drilling Screws in SPC
[High Mode] dia. 1/8" x 1/2” t=1/16" – – – –
Self-drilling Screws in SPC
[High Mode] dia. 5/32" x 1/2" t=1/16" 640 pcs 500 pcs 1,050 pcs 590 pcs
Drilling
Holes in Plaster Board + PlyWood
(Wooding Core) [High Mode]
Plaster Board 1/2" + PlyWood 15/32"
dia. 2-11/16" t=15/16" 75 pcs 60 pcs 80 pcs –
Holes in SPC [High Mode] dia. 1/2" t=1/16" 300 pcs 240 pcs – –
Holes in SPC
(Hole saw) [High Mode] dia. 13/16" x t=1/16" 45 pcs 35 pcs 40 pcs 19 pcs
Holes in SPC
(Hole saw) [Low Mode] dia. 1-5/16" t=1/16" 45 pcs 35 pcs 60 pcs 16 pcs
Holes in Yellow Pine [High Mode] dia. 11/16" x t=4-3/4" 130 pcs 100 pcs 120 pcs 75 pcs
Holes in Yellow Pine [Low Mode] dia. 1-3/16" t=1-9/16" – – 220 pcs 120 pcs
Voltage 14.4V
Model No. EY7549X
Battery Type EY9L45B (LS)
Drill Driver
Mode
Holes in SPC dia. 13/16", t=1/16" 19 pcs
Holes in SPC dia. 1-5/16", t=1/16" 16 pcs
Holes in Yellow Pine dia. 11/16", t=4-3/4" 90 pcs
Holes in Yellow Pine dia. 1-3/16", t=1-9/16" 120 pcs
Impact
Mode
Coach Screws in Yellow Pine dia. 11/32" x 1-31/32" 55 pcs
Self Drilling Screws in SPC dia. 5/32" x 1/2", t=3/32" 450 pcs
High Tensile Bolt M12 x 1", t=3/8" 200 pcs
Impact Driver
Impact Wrench
Voltage 18V
Model No. EY75A4X
Battery Type EY9L51B (LS)
Fastening
Wood Screws in Yellow Pine dia. 3/16" x 2-15/16" 610 pcs
Self-Drilling Screws in SPC dia. 5/32" x 1/2” t=1/16" 990 pcs
Bolting
Standard Tensil Bolt M16 x 1" t=3/8" 1,150 pcs
Standard Tensil Bolt M12 x 1" t=3/8" 2,700 pcs
High Tensil Bolt M12 x 1" t=3/8" 340 pcs
Voltage 18V
Model No. EY75A5X
Battery Type EY9L51B (LS)
Fastening
Wood Screws in Yellow Pine dia. 3/16" x 2-15/16" 550 pcs
Wood Screws in Yellow Pine dia. 3/16" x 4-3/4" 120 pcs
Self-Drilling Screws in SPC dia. 5/32" x 1/2" t=1/16" 950 pcs
Bolting
Standard Tensil Bolt M16 x 1" t=3/8" 1,000 pcs
Standard Tensil Bolt M14 x 1" t=3/8" 1,090 pcs
High Tensil Bolt M12 x 1" t=3/8" 350 pcs
Voltage 3.6V 3.6V
Model No. EY7410LA2S EY7411LA1S
Battery Type EY9L10B (LA) EY9L10B (LA)
Wood Screws dia. 1/8" x 1/2" 600 pcs 600 pcs
Screws in M5 x 5/16" 1,000 pcs 1,000 pcs
Holes in SPC dia. 1/16", *t=1/16" 85 pcs 85 pcs
High Torque Impact Wrench
Voltage 18V
Model No. EY7552LS2S
Battery Type EY9L51B (LS)
Fastening SPAX screws in yellow pine dia. 8mm x 80mm 210 pcs
Bolting
standard tensile bolt M16 x 25mm, t=10mm 2 sec. 300 pcs
M16 x 25mm, t=10mm 2 sec.
*with extension 180 pcs
M12 x 25mm, t=10mm 1 sec. 640 pcs
high tensile bolt M24 x 25mm, t=10mm 3 sec. 220 pcs
M20 x 25mm, t=10mm 2.5 sec. 250 pcs
M16 x 25mm, t=10mm 2 sec. 300 pcs
Li-ion Capacity Table
*Capacity if using EY9L44B battery pack
36 37
28.8V 18V 14.4V 3.6V 15.6V 12V 2.4V
EY7880LP2S
EY7450LS2S
EY7450LR2S
EY7552X
EY7950LS2S
EY7950LR2S
EY7441LR2S
EY7940LR2S
EY7549X
EY7840LR2S
EY4542LR2M
EYC194LR
EY7410LA2S
EY7410LA1C
EY6432NQKW
EY3530NQMKW
EYC136NQKW
EY6409NQKW
EY6220NQ
EY6220N
STANDARD
OPTIONAL
Voltage 14.4V/18V 14.4V/18V/21.6V
Model No.
EY74A1LS2G
EY74A1X
EY75A1LS2G
EY75A2X
EY45A1LS1G
EY45A1X
EY37C1
28.8V Battery Pack (3.0Ah Li-ion Battery Type Z) EY9L82B
21.6V Battery Pack (4.2Ah Li-ion Battery Type Z) EY9L62B
18V Battery Pack (3.3Ah Li-ion Battery Type R) EY9L50B
18V Battery Pack (4.2Ah Li-ion Battery Type S) EY9L51B
15.6V Battery Pack (2.8Ah Ni-MH Battery Type N) EY9230B
14.4V Battery Pack (3.3Ah Li-ion Battery Type R) EY9L44B
14.4V Battery Pack (4.2Ah Li-ion Battery Type S) EY9L45B
12V Battery Pack (2.8Ah Ni-MH Battery Type N) EY9200B
3.6V Battery Pack (1.2Ah Li-ion Battery Type L) EY9L10B
2.4V Battery Pack (2.8Ah Ni-MH Battery Type N) EY9221B
Power Supply Kit EYC941B
Power Supply Kit EYC950B
Charger for Li-ion EY0L82B
Charger for Ni-MH & Ni-Cd Battery (7.2-24V) EY0110B
Charger for Li-ion, Ni-MH & Ni-Cd Battery EY0L11B
Attachable 1/2" to 1/4" Quick Change Adapter EY9HX111E
Attachable 1/2" Keyless Drill Chuck for EY7549 EY9X003E
1/2" Keyless Chuck for 18V and 21.6V Drills EY9HX410E
1/2" Keyless Chuck for EY7441 and EY7940 EY9HX411E
1/2" Keyless Drill Chuck for EY7950 EY9HX412E
Carbide-Tipped Blade for Metal EY9PM13C
Carbide-Tipped Blade for Wood EY9PW13A
Rip Fence EY3500B7727
Dust collection cup EY9X004E
Clutch Lock Cover EY9X007E
Standard / Optional Accessory Chart
38 39
Panasonic Eco Solutions North America
Power Tool Division
2 Riverfront Plaza, 5th Floor
Newark, NJ 07102
For more information, visit our website at
us.panasonic.com/cordlesstools
or call 1-800-338-0552
Design and specifications are subject to change without notice.
