CATALOG CUSTOM

TAG QTY. NUMBER SIZE VOLTS WATTS FEATURES

CP SERIES - ELECTRIC RADIANT CEILING PANELS

SUBMITTAL SHEET

CP SERIES

ELECTRIC RADIANT

CEILING PANELS

470 Beauty Spot Rd. E, Bennettsville, SC 29512

TAG QTY. CAT. NO. DESCRIPTION

ACCESSORIES

AND

CONTROLS

(03-02)

ZSS-QCPOO Printed in U.S.A.

DATE:

PROJECT:

ARCHITECT:

ENGINEER:

CONTRACTOR:

SUBMITTED BY:

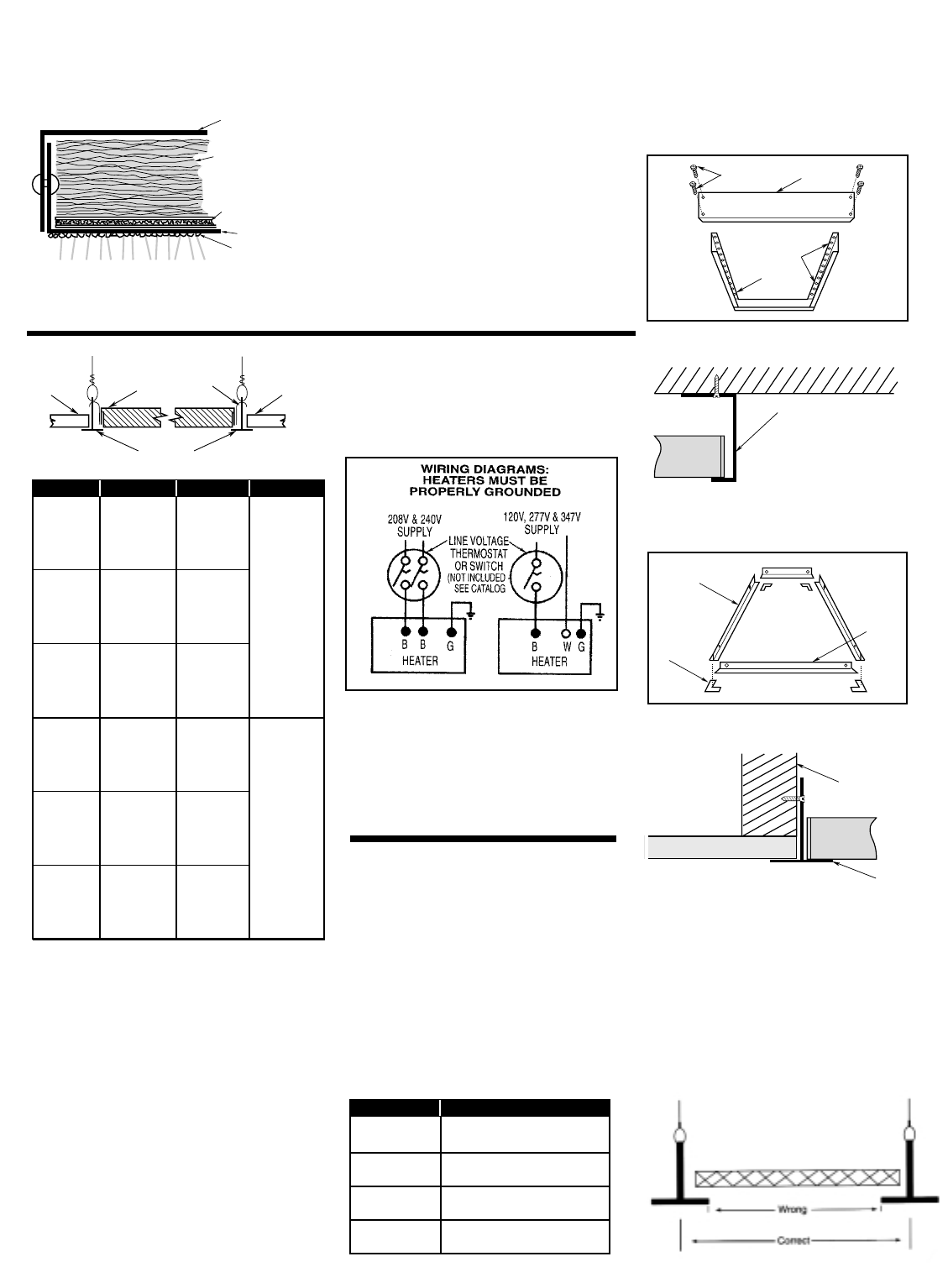

CEILING PANELS

HEATING PANEL

Recess Mounting Kit Surface Mounting Kit

SIDE

FRAME

END

FRAME

CORNER

END FRAME SCREWS

SIDE

FRAME

MOUNTING

HOLES

File # E21609

2

RADIANT

HEATER

EXTRUDED ALUMINUM

FRAME

METAL: Extruded Aluminum.

Decorative Frame:

.062" thick, 3" deep.

WOOD:

Heaters can be framed in wood

Consult your factory representative for specifics.

FRAME CONSTRUCTION FOR

SURFACE MOUNT PANELS

T-BAR GRID

CEILING TILE

UNIVERSAL

MOUNTING

CLIP

RADIANT

HEATING PANEL CEILING TILE

T-BAR SYSTEM

STANDARD FEATURES

CUTAWAY DRAWING OF A HEATING PANEL

CRYSTALLINE SURFACE - The panel’s

unique crystalline surface greatly

enhances the radiant characteristics of the

heating panel.

Radiant output is in the 8-10 micron

wavelength. This is ideal for comfort.

Human skin will absorb 99% of the radiant

energy in these wavelengths. Humans

themselves radiate heat predominately in

that micron range. Without the panel’s

crystalline surface a panel will be less

radiant, operate at higher temperature and

produce energy at shorter wavelengths.

ELEMENT - Encapsulated cassette

heating element assures uniform

temperatures and long life.

WIRING - For connection to the main power

supply, the heater is completely prewired

including green ground wire, with the lead

wires housed in a 48-inch length of flexible

metal conduit and connector for J-Box

mounting.

UNIVERSAL HANGING CLIPS - All

radiant ceiling panels are supplied with

COMBINATION EARTHQUAKE/T-BAR

GRIP CLIPS as a standard feature. These

clips have holes for support chains or can

be folded over the T-BAR to reduce lateral

movement.

CERTIFICATION AND SAFETY

FIRE RATING - Heating panels do not

have a fire rating, but construction is of fire

retardant materials. Panels normally are

treated like light fixtures. If necessary,

acoustical tile can be placed on top of the

panels.

HAZARDOUS AREAS - Heating panels

do not have a hazardous rating.

ACCESSORIES

PRODUCT DESCRIPTION

QSF2424

QSF2448

QRF2424

QRF2448

Surface Mounting Frame for

24” x 24” Panels

Surface Mounting Frame for

24” x 48” Panels

Recess Mounting Frame for

24” x 24” Panels

Recess Mounting Frame for

24” x 48” Panels

SIDE

FRAME

END FRAME

SCREWS

MOUNTING

HOLES

SIDE

FRAME

CORNER

END

FRAME

RADIANT

HEATER

CEILING

JOIST

FRAME

METAL: Extruded aluminum inverted "T".

"T" .125 thick by 1.432 wide by 1.875" high.

FRAME CONSTRUCTION FOR

RECESSED PANELS

STANDARD FINISH - Standard mounting

kits finished white to blend with standard

panel birch white finish.

24 GAUGE STEEL

BACK OF UNIT

MIN. 1 INCH, 1 POUND DENSITY

HIGH TEMPERATURE

FIBERGLASS INSULATION

ENCAPSULATED CASSETTE

22 GAUGE STEEL

FRONT OF UNIT

CRYSTALLINE SURFACE

METAL:

Back - 24 Gauge Galvanized or Aluminized Steel.

Front - 22 Gauge Galvanized or Aluminized Steel.

Sides - Overlapping Front and Back.

WIRE:

Internal - 200°C, 14 Gauge, Teflon insulated.

External - Pig Tails with 48" of 1/2" flexible conduit

and connector for J-Box.

ELEMENT:

The encapsulated cassette element delivers a

uniform temperature distribution over entire panel

surface.

INSULATION:

Minimum 1 inch, 1 pound density, high temperature

fiberglass.

SURFACE:

All ceiling and wall mounted panels are coated with

unique crystalline surface. Birch white finish.

* Measuring for Custom Ceiling Panels:

• Panels are built to fit inside the

dimensions given.

• Measurements must be from “T” Bar

0Center Line to “T” Bar Center Line

• Do Not Measure Opening

CAT. NO. VOLTS WATTS DIM. (IN.)

CP251 120

CP258 208

CP252 240 250

CP257 277

CP253 347

CP311 120 24

CP318 208 x

CP312 240 310 24

CP317 277 x

CP313 347 1

CP371 120

CP378 208

CP372 240 375

CP377 277

CP373 347

CP501 120

CP508 208

CP502 240 500

CP507 277

CP503 347

CP621 120 24

CP628 208 x

CP622 240 625 48

CP627 277 x

CP623 347 1

CP751 120

CP758 208

CP752 240 750

CP757 277

CP753 347

3

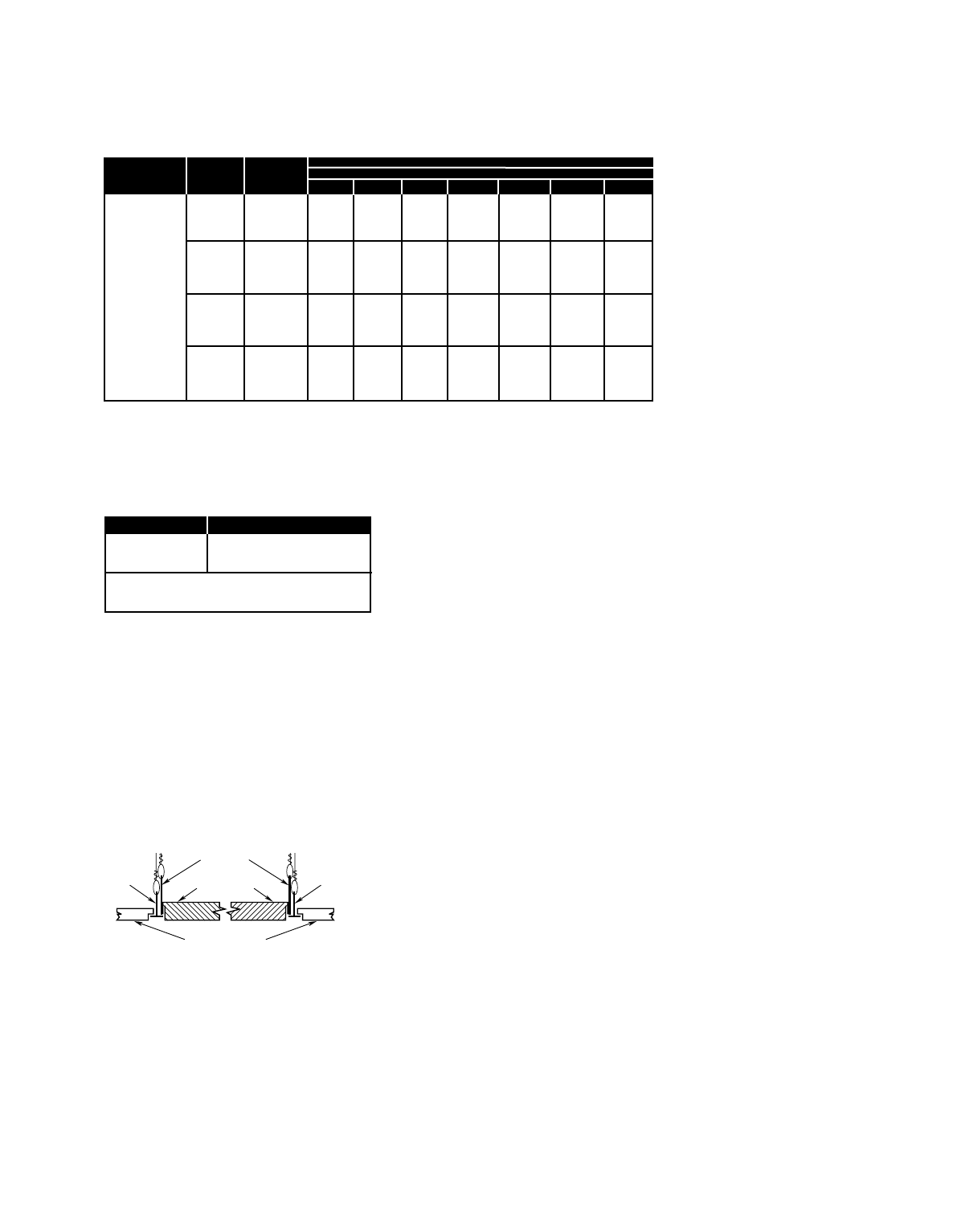

CUSTOM FEATURES

1. CUSTOM SIZE PANELS

While a wide variety of panel sizes are listed as standard, the factory produces thousands

of panels each year of varying widths and lengths to order.

SELECTION CHART

WATTS PER PANEL

CATALOG PANEL WATT NOMINAL PANEL LENGTH

NUMBER WIDTH DENSITY 24”-35” 36”-47” 48”-59” 60”-71” 72”-83” 84”-95” 96”

QT+**@@#

10-13

14-17

18-21

22-28

High

Med.

Low

High

Med.

Low

High

Med.

Low

High

Med.

Low

LEGEND: + Watt Density: H = High, M = Medium, L = Low ^ Maximum Panel Length = 60 inches

**Width of Panel ^^ Maximum Panel Length = 72 Inches.

@@Length of Panel # Voltage Designation: 1 = 120, 8 = 208,

2 = 240, 7 = 277, 3 = 347

2. CUSTOM SIZE FRAMES

ACCESSORIES 4.CONCEALED SPLINE SYSTEMS

These systems utilize ceiling tiles

notched to hide the T-bar grid. heating

panels will be treated in a manner

similar to the lights in such a system. We

will build a custom recessed frame and

panel to fit inside the grid opening. The

recessed frame will be suspended

independently from the T-bar grid. The

result is a flush-mounted panel with an

exposed trim finishing off the adjacent

tiles and supporting the panel.

5. SILKSCREEN

Radiant heating panels can be silk

screened to provide an architectural

blend with leading acoustical tiles. For T-

bar, concealed spline and tegular ceiling

systems.

6. CUSTOM COLORS

Radiant heating panels can be painted

any color desired with high temperature

acrylic paints without affecting panel

performance.

Radiant energy is emitted from heating

panels in the 8-10 micron wavelength

range. One of the principal

characteristics of this wavelength is that

it is not color selective as are shorter

wavelengths. Consequently, the surface

color of the panel is unimportant to

heating efficiency and can be

considered solely in the light of

aesthetics.

7. PANEL FRONTS FOR A CONTINUOUS

CEILING LINE

To provide a continuous ceiling line around

the perimeter of a building, the factory can

provide panel fronts to be interspersed

between the functioning heating panels.

Field-trimmable filler panels also are

available.

8.SEAL TIGHT FLEXIBLE CONDUIT AND

CONNECTORS

Radiant ceiling panels come with 1/2"

Greenfield flexible conduit and straight

connectors as standard equipment. Seal

tight connectors and conduit can be

substituted at the factory if panels are to be

used in high moisture areas or if required

by local electrical codes.

9. FACTORY SILICONE SEALED

PANELS FOR USE IN HIGH MOISTURE

AREAS - Exterior moisture and

condensation do not affect heating panel

performance, but water inside the unit can

cause the panel to fail. Panels being used

in locker rooms and swimming pool areas

should be totally sealed with silicone at the

factory before shipment. If there is a

chance of moisture above the ceiling, then

seal tight conduit and seal tight connectors

also should be used.

10. LONGER FLEXIBLE CONDUIT

Panels will replace the standard 48”

Greenfield with up to 11’ of 1/2” flexible

conduit.

11. CONTROLS

P/E Switches - factory prewired to heaters.

20 amps - 120V, 240V, 208V and 277V.

Power Relay - factory prewired to heaters.

30 amps single pole, 120 volt holding coil.

12. HEAVIER DUTY PANELS

For special installations the factory can use

heavier gauge steel in the construction of

the panels.

13. STAINLESS STEEL CONSTRUCTION

PANELS FOR CHLORINE STORAGE

AREAS - Special stainless steel panels are

available for chlorine storage areas.

Panels will be equipped with seal tight

connectors and silicone sealed.

14. MODULAR WIRING SYSTEMS

For specific jobs, the factory can substitute

modular connectors for the straight

connectors and pig tails that are standard

equipment.

CATALOG NO. DESCRIPTION

QSF**@@

QRF**@@

Surface Mounting Frame

Recess Mounting Frame

** Width of Heater (10” to 28”)

@@Length of Heater (10” to 96”)

3. TEGULAR (revealed edge)

Tegular systems may utilize a standard

grid with a 15/16” cross-T or a "fine line"

grid with a 9/16" cross-T. The acoustical

tile is notched to hang below the grid

creating the revealed edge. Tegular

panels are built with a support angle on

all four sides to allow the panel front to

drop flush with the finished ceiling.

Tegular and Fine line Tegular panels are

supplied standard with universal

mounting clips installed for support

chain.

RADIANT

HEATING PANEL

TEGULAR CEILING TILE

REVEALED EDGE CEILING SYSTEM

TEGULAR

FINELINE TEGULAR

FINELINE -

9/16" GRID

UNIVERSAL

MOUNTING

CLIPS TEGULAR -

15/16" GRID

155

130

105

235

195

155

315

260

210

375

310

250

235

195

155

350

295

235

470

390

315

565

470

375

315

260

210

470

390

315

625

520

415

750

625

500

390^

325^

260^

585^

490^

390^

780

650

520

940

785

625

N/A

N/A

N/A

N/A

N/A

N/A

940^

780^

625^

1125

940

750

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

1315

1095

875

N/A

N/A

N/A

N/A

N/A.

N/A

N/A

N/A

N/A

1500

1250

1000

4

CP SERIES

SIDE

FRAME

END

FRAME

CORNER

END FRAME SCREWS

SIDE

FRAME

MOUNTING

HOLES

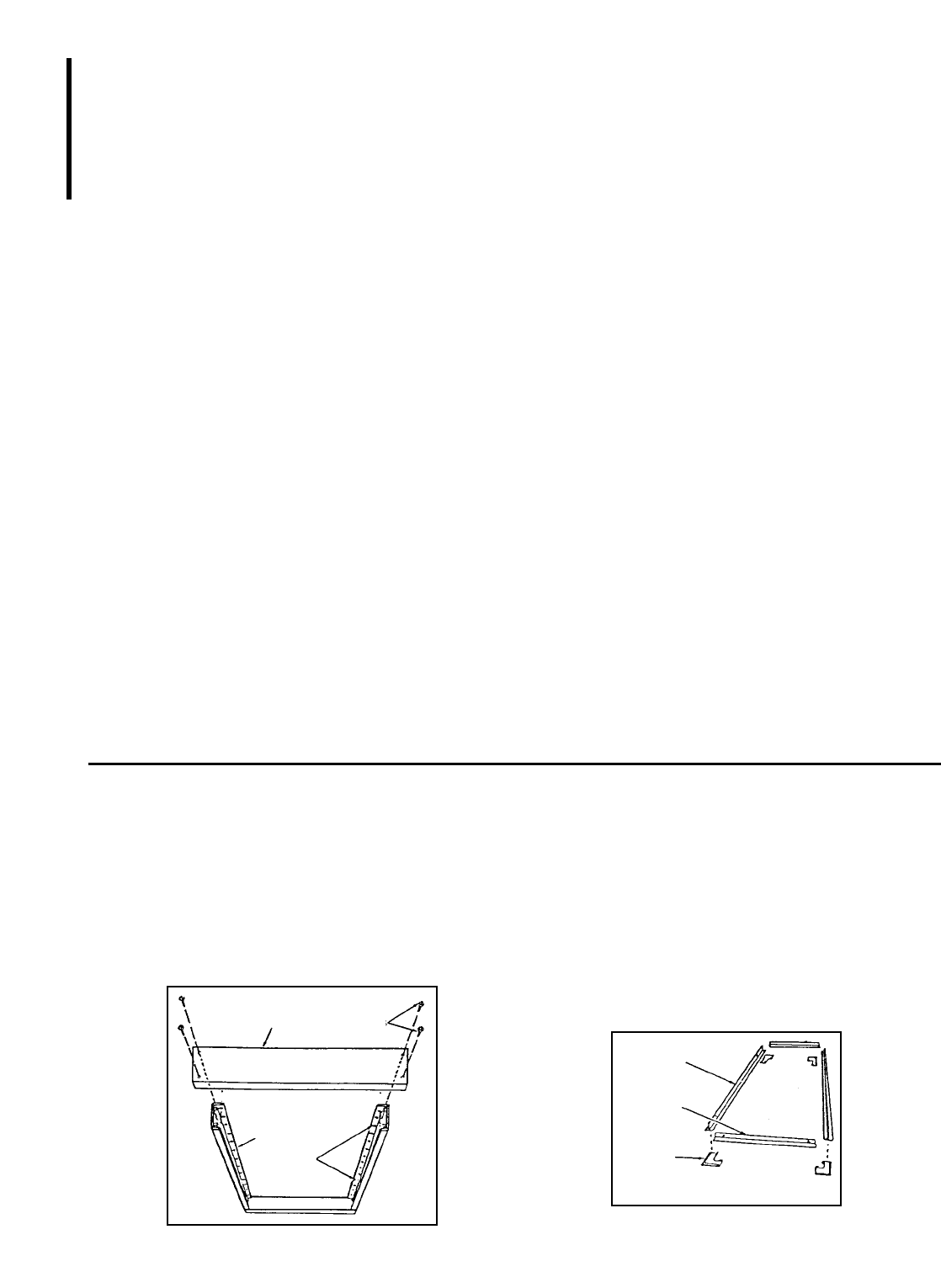

SURFACE MOUNTING

Surface Mounting Kit shall come in a separate carton which

contains: two side frames, two end frames and eight assembly

screws.

Frame shall be field assembled before installing on ceiling.

RECESS MOUNTING

Recess Mounting Kit shall come in a separate carton which

contains: four frame sections and four corner pieces.

Recess mounting shall requires a:

(Panel Length + 3/8”) X (Panel Width + 3/8”) cutout in the ceiling

and a secure method of support.

The electric ceiling heating panel shall be

as manufactured by QMark, A Division of

Marley Engineered Products,

Bennettsville, SC. The construction and

design shall permit it to be: recessed

ceiling mounted with the use of Recessed

Mounting Kit, fit into standard or custom

designed modules of a T-bar suspended

ceiling, or surface mounted with the use of

a Surface Mounting Kit. Panels shall

include the custom features listed below.

HEATING ASSEMBLY: The heating

assembly shall be UL Listed and CSA

Certified and shall consist of powdered

graphite encapsulated in a plastic

laminate with heavy duty copper buss

bars running the entire length, backed by

1 inch, 1 pound density high temperature

fiberglass insulation to insulate against

heat loss to the ceiling and separated

from the inside of the panel by a dielectric

insulation to assure uniform heat transfer

throughout the entire radiating surface of

the heater. The rated input shall be:

(62.5 watts/sq. ft. with an average

temperature of not more than 165 degree

F.) or (95 watts/sq. ft. with an average

surface temperature of 200 degree F.), to

assure long trouble free life.

The panel voltage shall be __________,

(120, 208, 240, 277)

WIRING: For connection to the main

power supply, the heater shall be

completely prewired, with the lead wires

housed in a 48 inch length of flexible

metal conduit and connector for J-Box

mounting. Appropriate wiring diagrams

shall appear on the back of the panel.

PANEL ASSEMBLY: The metal heating

panel, containing the completely prewired

heating assembly, shall be of 22 gauge

formed galvanized steel front and 24

gauge formed galvanized steel back.

Sides are overlapping front and back

panels riveted together.

FINISH: The front of the heating panel

shall be QMark’s unique multi-faceted

crystalline type surface finished with high

temperature silicone paint.

CUSTOM FEATURES: Radiant heating

panels shall be provided with the following

custom features:

____CUSTOM SIZE

_____in. Length, _____ in Width.

____SILK SCREENING to blend with

acoustical tile.

____TEGULAR (Revealed edge)

____CUSTOM COLOR to match

architectural samples.

____PAINTED FRAME to match heater

(Surface or Recess only)

____FACTORY SILICONE SEALED

____SEAL TIGHT FLEXIBLE CONDUIT

and CONNECTORS

____LONGER FLEXIBLE CONDUIT

Total length ___ in. by 1/2”

(Max Length 132”)

____HEAVY DUTY CONSTRUCTION

___Gauge front

___Gauge back

___STAINLESS STEEL

CONSTRUCTION

___Panel

___Frame

____EARTHQUAKE CLIPS

SURFACE MOUNTING

Surface Mounting Kit shall come in a

separate carton which contains: two side

frames, two end frames and eight

assembly screws.

Frame shall be field assembled before

installing on ceiling.

RECESS MOUNTING

Recess Mounting Kit shall come in a

separate carton which contains: four

frame sections and four corner pieces.

Recess mounting shall require a: (Panel

Length + 3/8”) X (Panel Width + 3/8”)

cutout in the ceiling and a secure method

of support.

*QMark reserves the right to change specifications

without prior notice.

ARCHITECT’S & ENGINEER’S SPECIFICATIONS *
