561419 IEC 60950 1

2019-01-16

: Pdf 561419-Iec-60950-1 561419-IEC-60950-1 CertsReports 561419 ProductFiles

Open the PDF directly: View PDF .
Page Count: 84

Report No.: ACSS1811066

Page 2 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

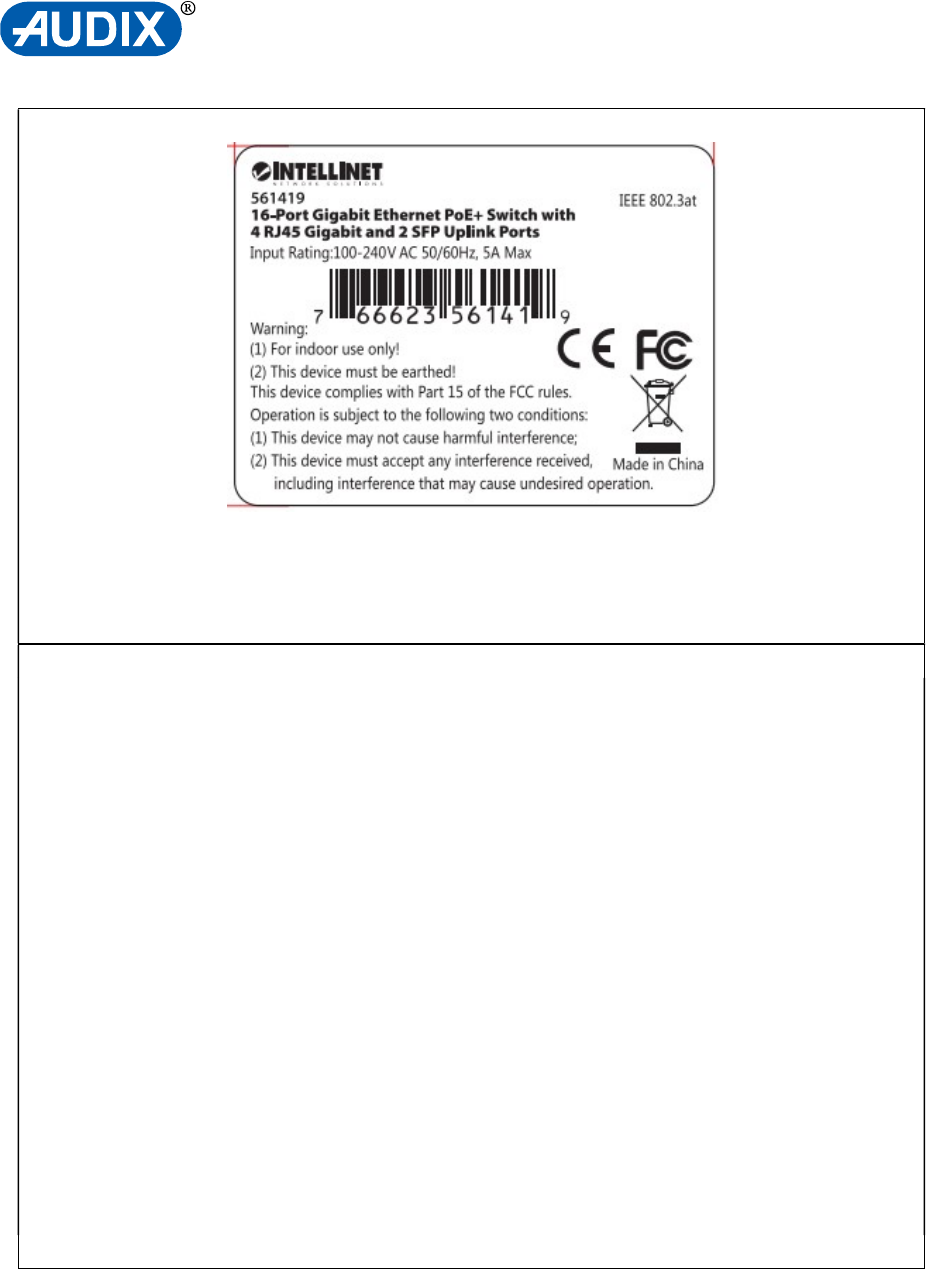

Copy of marking plate

(Remark: Above label stuck on the outside of enclosure)

Note(s):

- The marking plate(s) artwork appended to this report may be only a draft. The use of certification

marks on a product must be authorized by the respective NCBs that own these marks.)

- The height of CE symbol should be 5.0 mm Min.

Summary of testing:

Following symbols and abbreviations may be used in this test report.

F= Function Insulation

B= Basic Insulation

S= Supplementary Insulation

D/R= Double or Reinforced Insulation

S/C= Short-Circuit

O/C= Open-Circuit

O/L= Over-Load

B/L= Block

IP= Internal protection operated (list component)

CT= Constant temperatures were obtained

CD= Components damaged (list damaged components)

NB= No indication of dielectric breakdown

NC= Cheesecloth remained intact

NT= Tissue paper remained intact

NH= No hazard occured

Pri.= Primary

Sec.= Secondary

PCB= Printed Circuit Board

PSU= Power Supply Unit

EUT= Equipment Under Test

EPS= External Power Supply

Report No.: ACSS1811066

Page 3 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Test item particulars:

Equipment mobility……… ........................................ …: [x] movable [] hand-held [] transportable

[] stationary [] for building-in [] direct plug-in

[] rack-mounted

Connection to the mains ………………………..………: [x] pluggable equipment: [x] type A [] type B

[] permanent connection

[x] detachable power supply cord

[] non-detachable power supply cord

[] not directly connected to the mains

Operation condition …………………………………..…: [x] continuous

[] rated operating / resting time:

Access location ......................................................... : [x] operator accessible

[] restricted access location

Over voltage category (OVC) ................................... : [] OVC I [x] OVC II [] OVC III [] OVC IV

[] other:

Mains supply tolerance (%) or absolute mains supply

values ........................................................................ :

+10%, -10%

Tested for IT power systems .................................... : [] Yes [x] No

IT testing, phase-phase voltage (V) .......................... : N/A

Class of equipment ................................................... : [x] Class I [] Class II [] Class III

[] Not classified

Pollution degree (PD) ............................................... : [] PD 1 [x] PD 2 [] PD 3

IP protection class .................................................... : IPX0

Altitude during operation (m) .................................... : Up to 2000m

Altitude of test laboratory (m) .................................... : Up to 2000m

Mass of equipment (kg) ………………………………..: 3.4kg

Maximum operation ambient …………………...……..: 50C

Possible test case verdicts:

- Test case does not apply to the test object ………….: N (Not Applicable)

- Test object does meet the requirement………………: P (Pass)

- Test object does not meet the requirement………….: F (Fail)

Testing:

Date of receipt of test item……………………………...: N/A

Date of receipt of test sample ....................................... : N/A

Status of test sample .................................................... : N/A

Date(s) of performance of tests ………………………..: N/A

General remarks:

The test results presented in this report relate only to the object tested.

This report shall not be reproduced, except in full, without the written approval of the Issuing testing

laboratory.

"(See Attachment #)" refers to additional information appended to the report.

"(See appended table)" refers to a table appended to the report.

Throughout this report, a point is used as the decimal separator.

List of test equipment must be kept on file and available for review.

Report No.: ACSS1811066

Page 4 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

General product information:

1. The EUT is a 16-Port Gigabit Ethernet PoE+ Switch with 4 RJ45 Gigabit and 2 SFP Uplink Ports.

2. This amendment report shall be read in conjunction with original test report (ACSS1703016).

3. The updates concerned in this test report are as follows:

1). Revise applicant’s company name and address;

2). Revise manufacturer’s company name and address;

3). Revise product’s name and model;

4). The RJ45 ports 1-20 must be available, 21-24 can be optional.

4. After technical review, no test is necessary. All the test data were fully reproduced from original report

(ACSS1703016).

Report modify history

No. Report No. / issue date Modification to the appliances:

1 ACSS1703016/ April 6, 2017 Original test report

Additional information:

N/A

Attached enclosure(s):

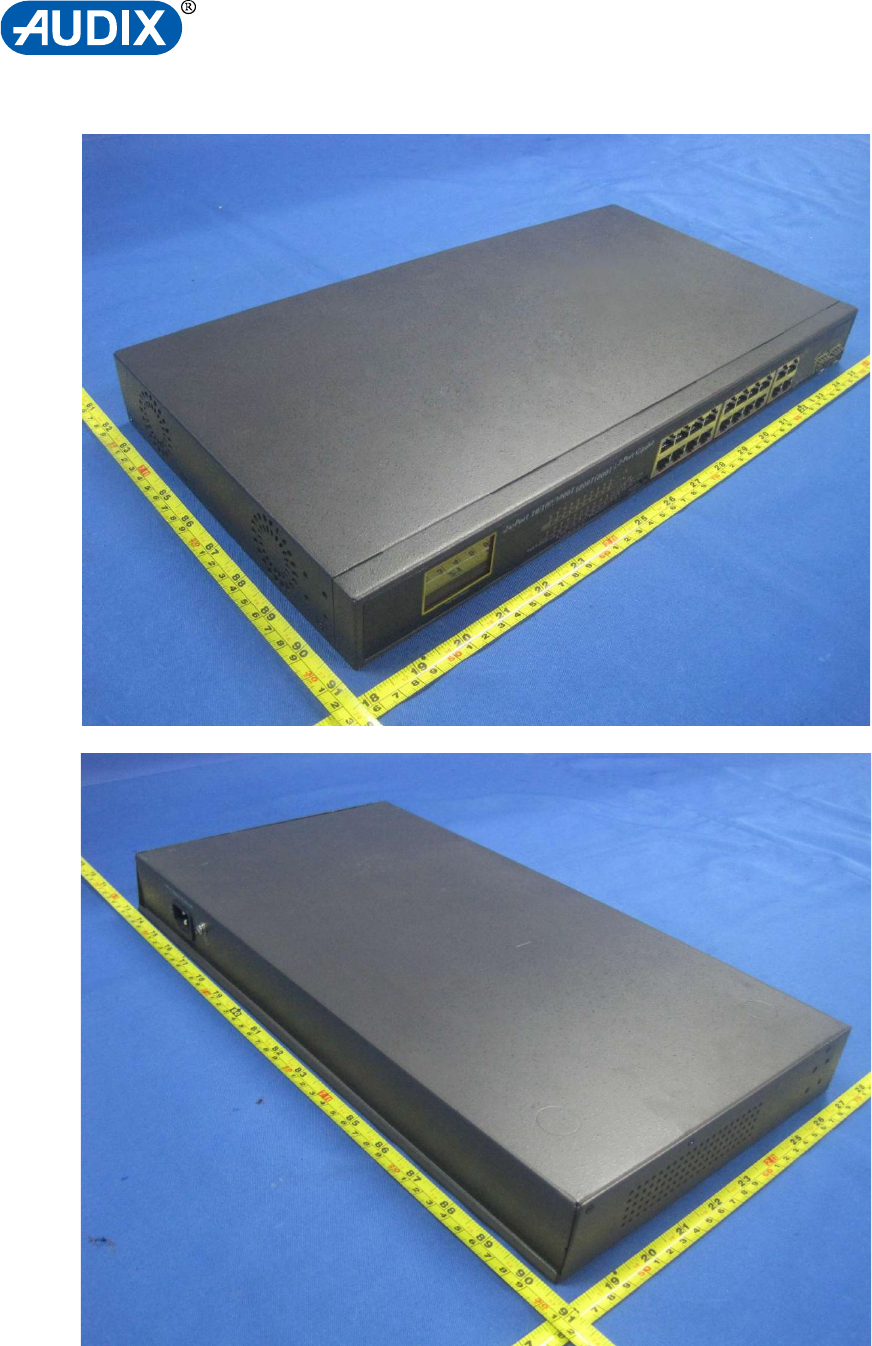

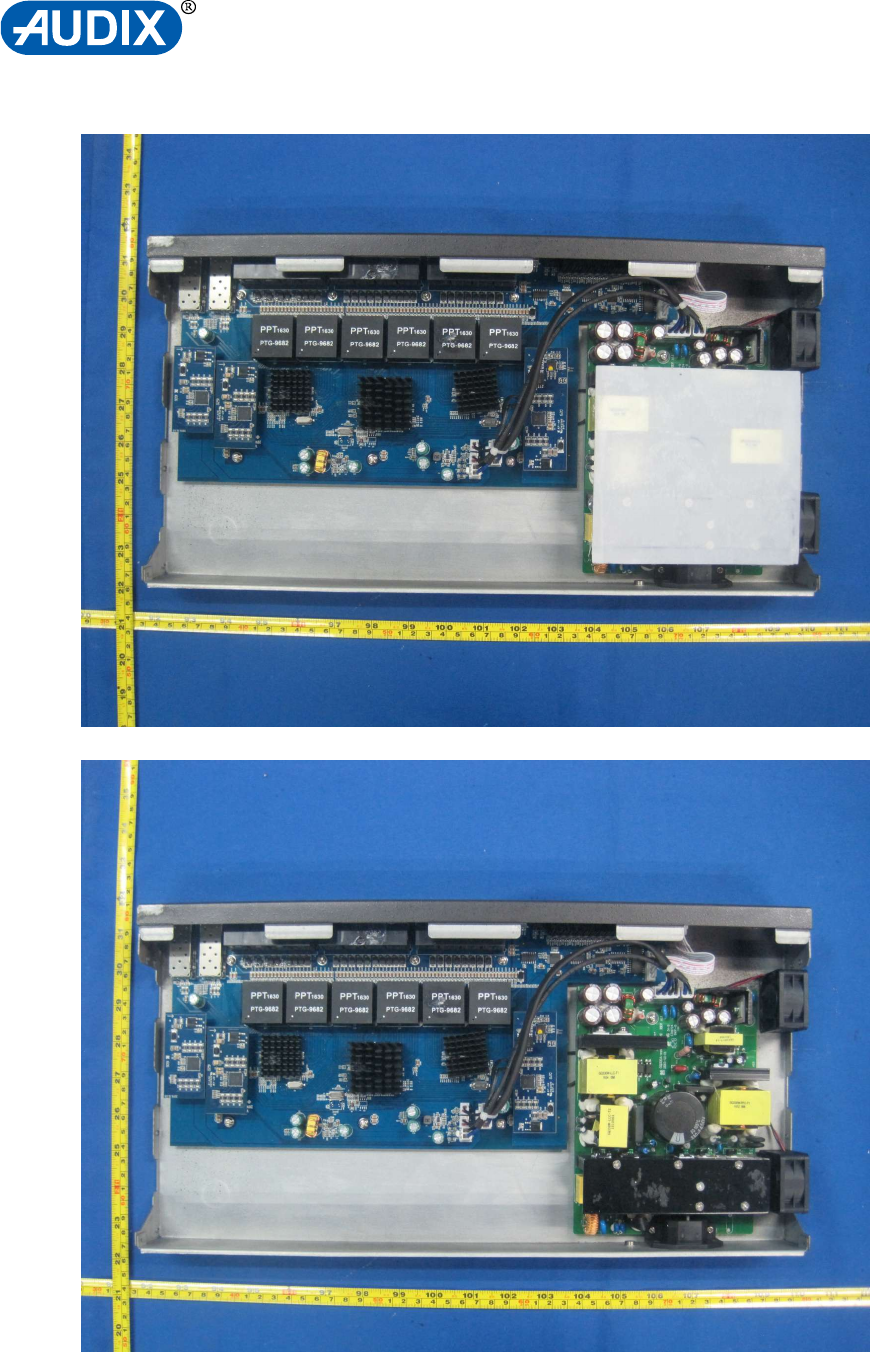

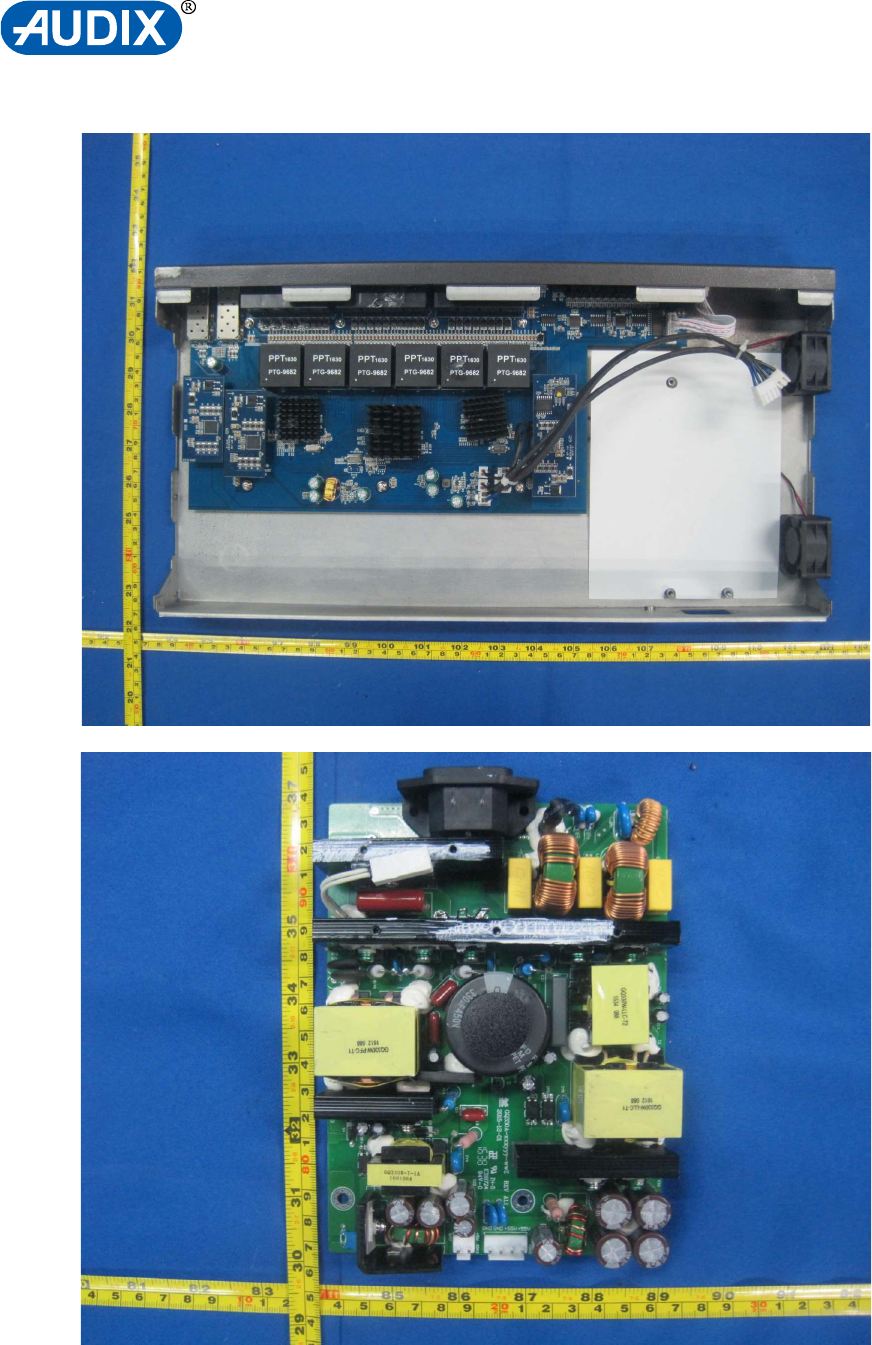

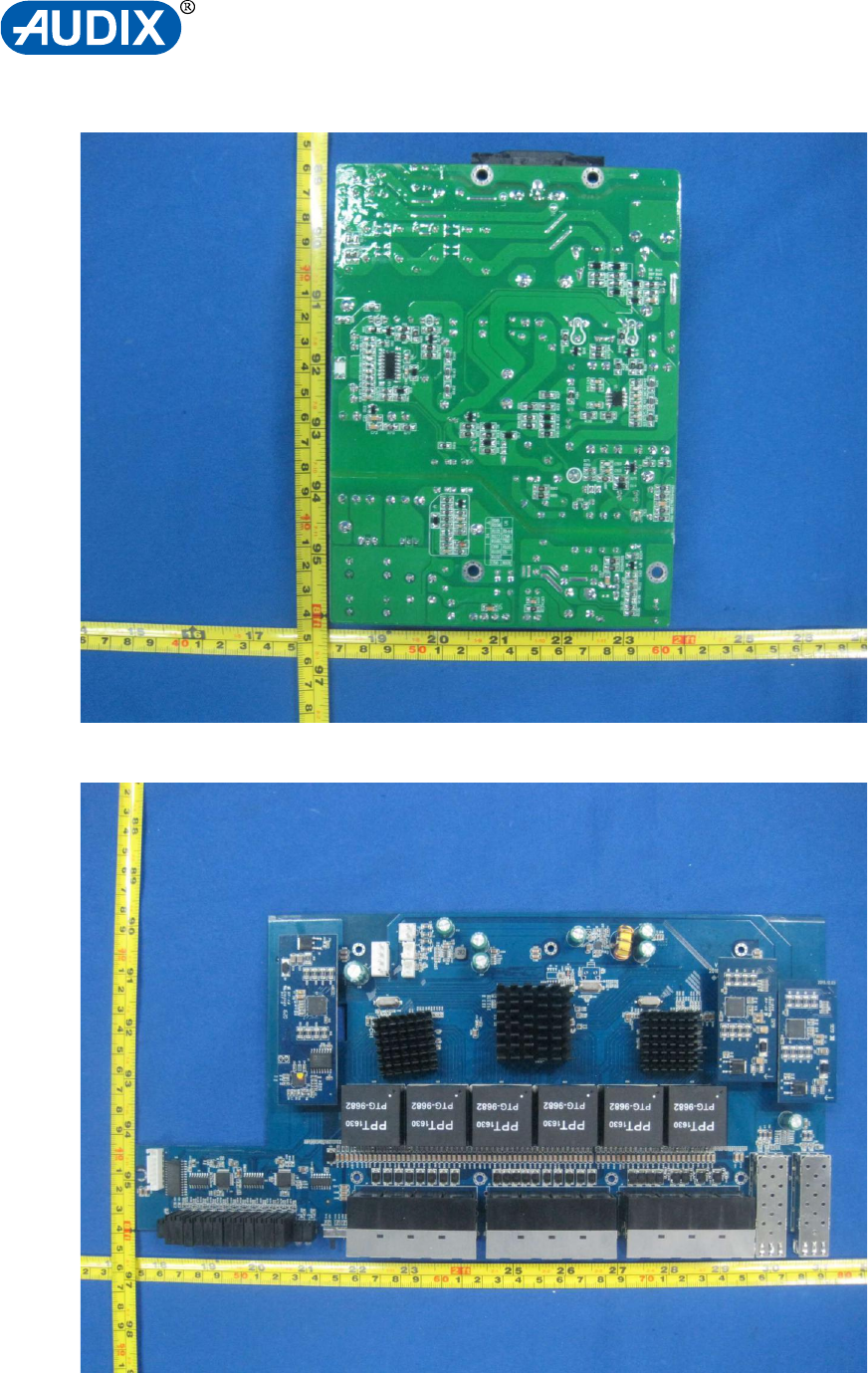

Attachment A: 5 pages of Photo-Documentation.

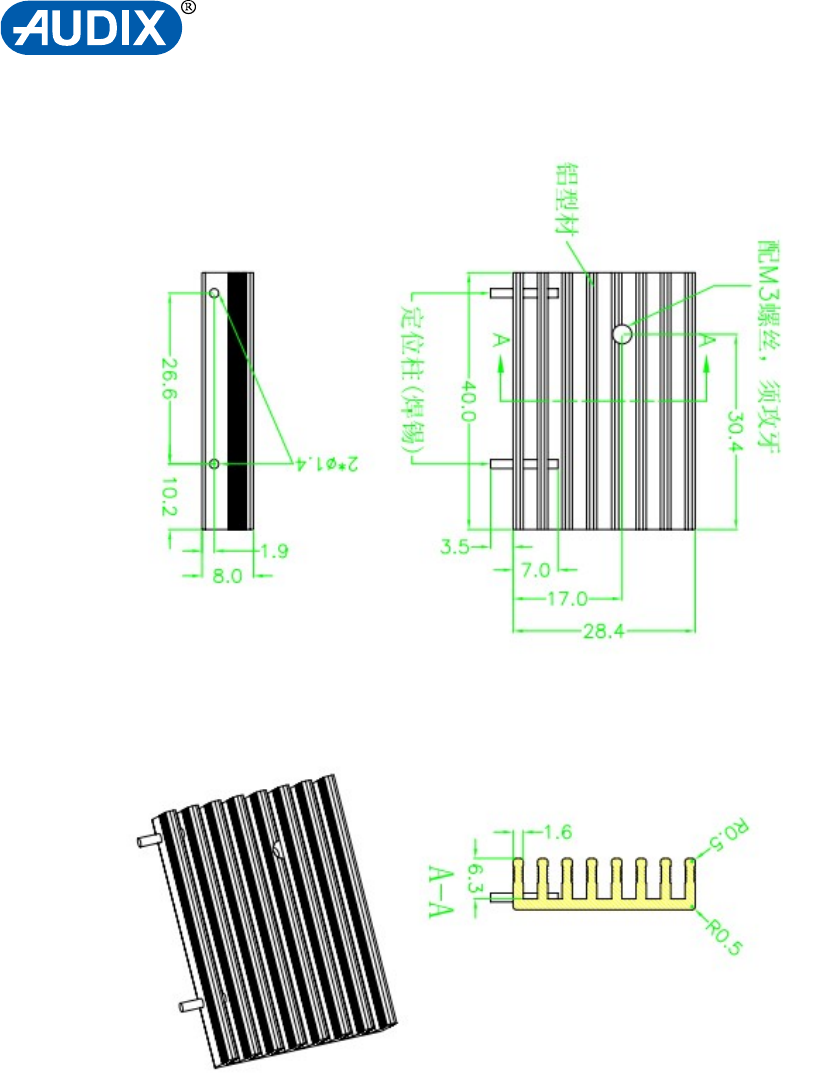

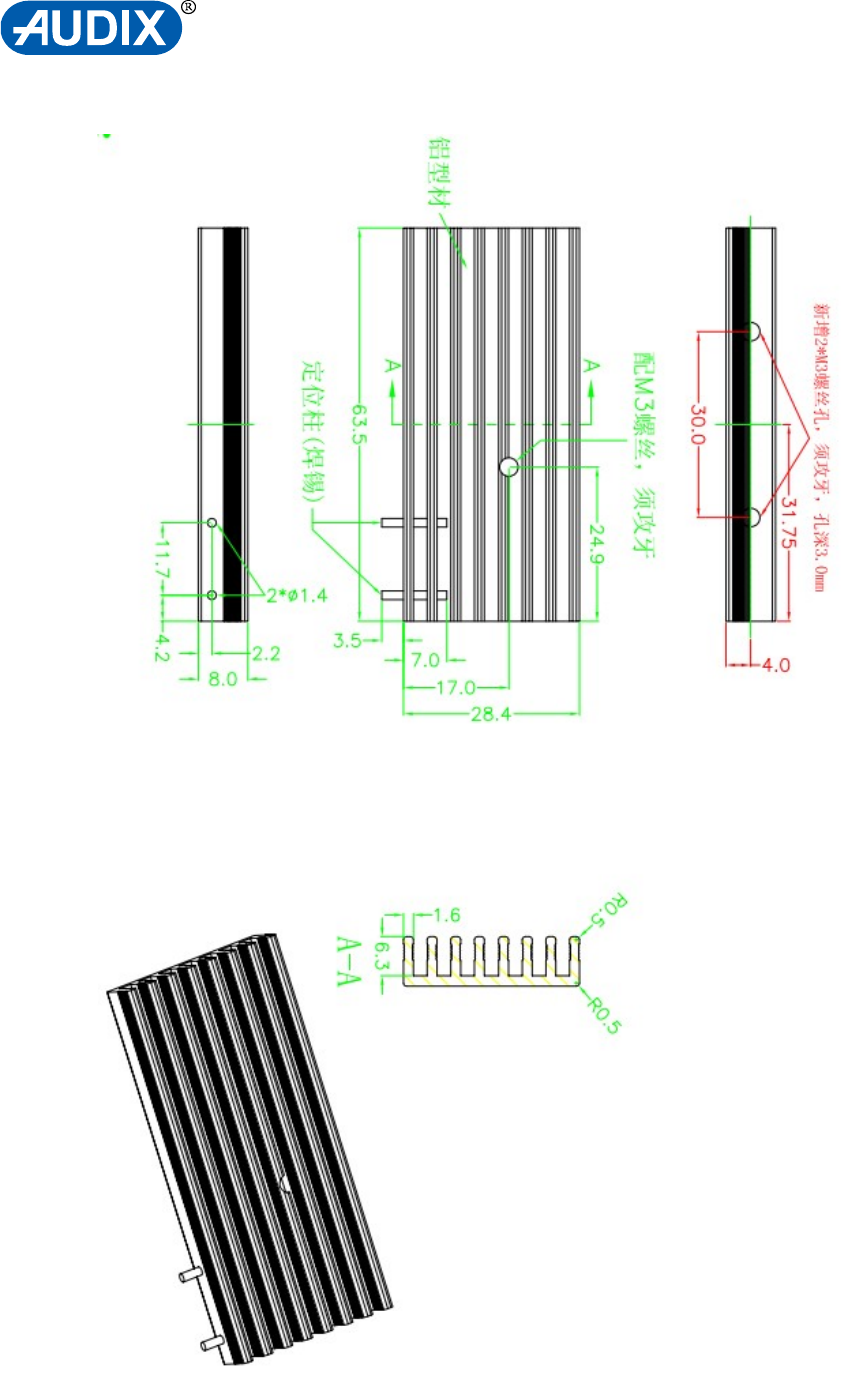

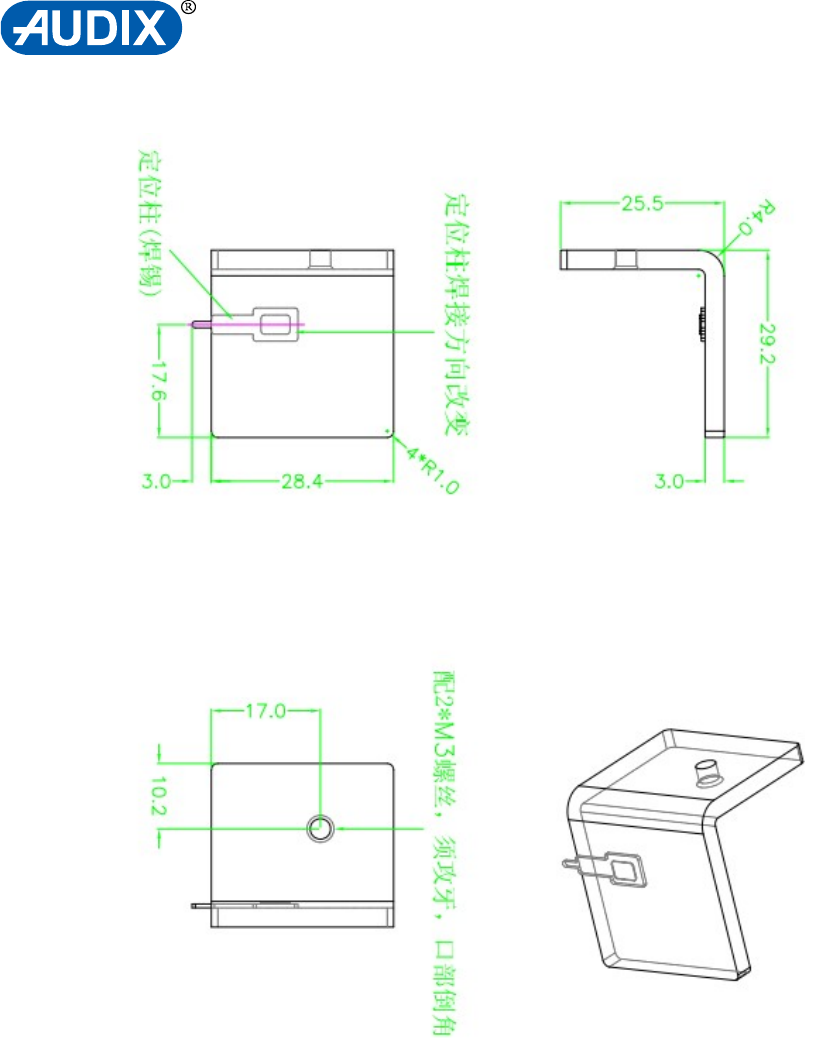

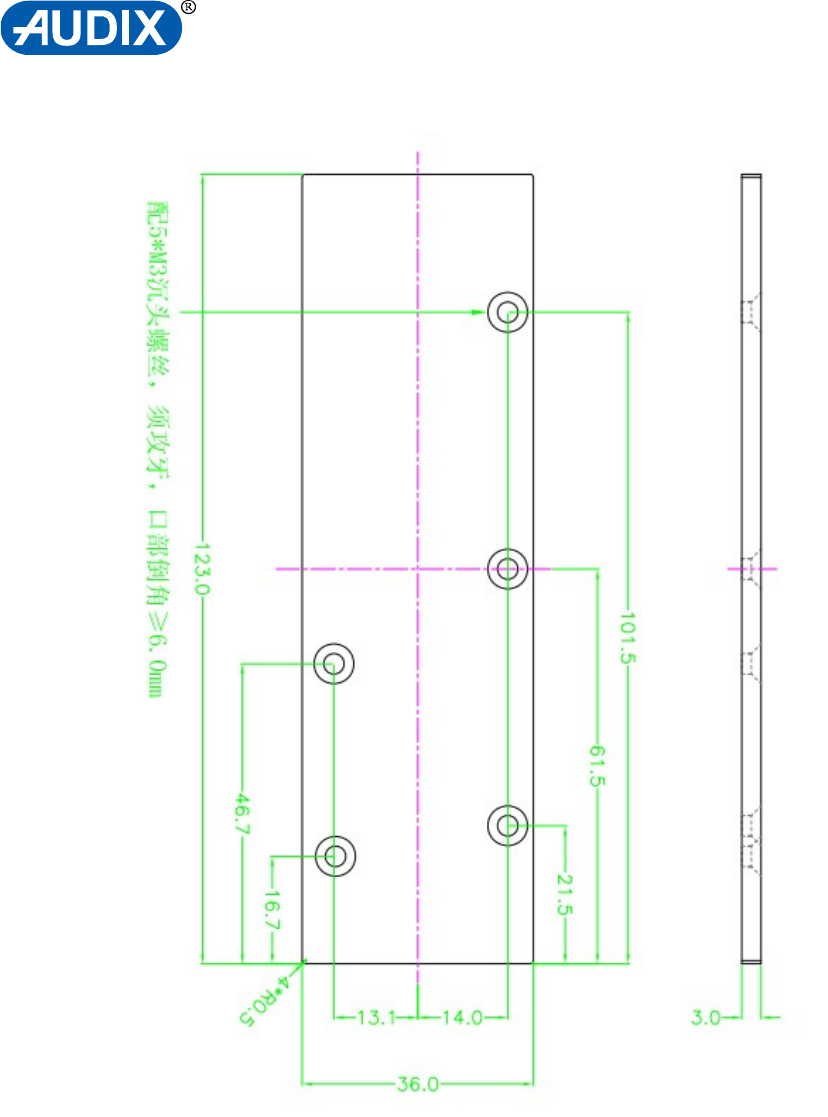

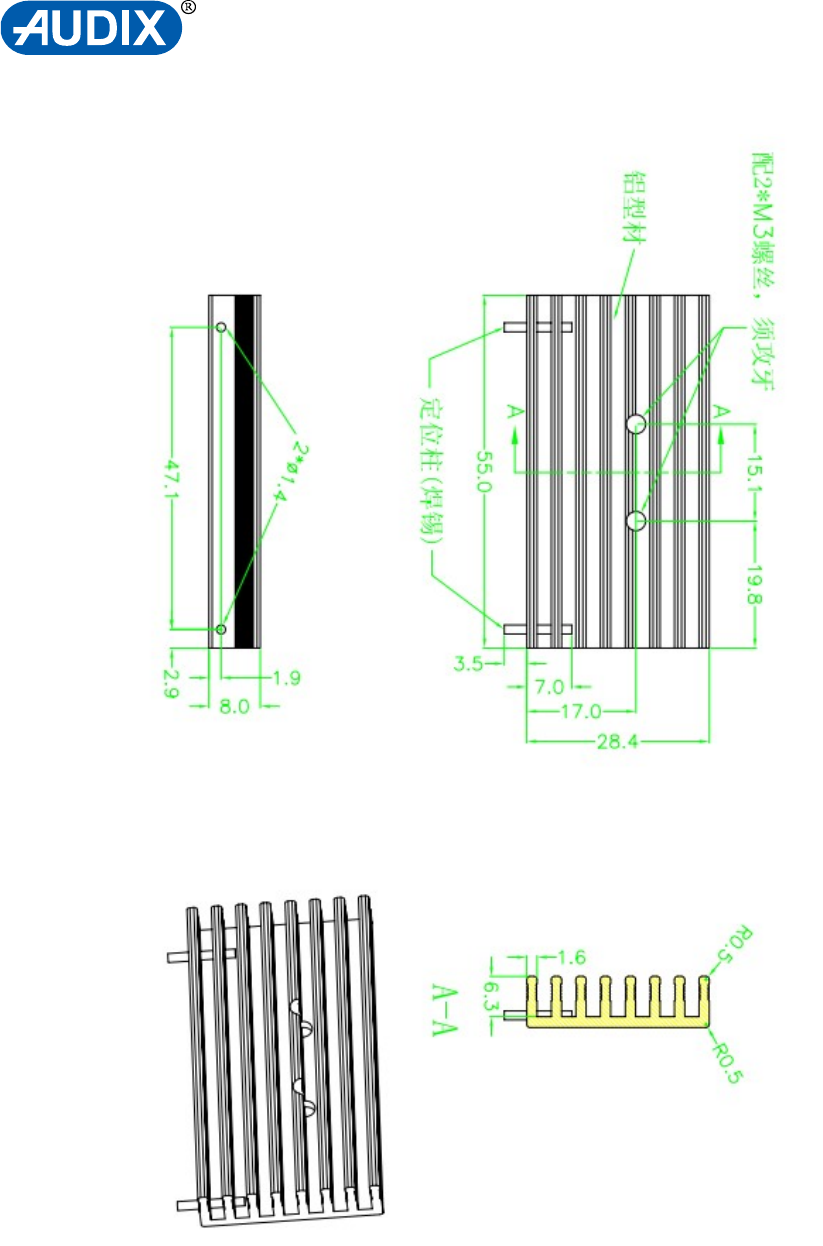

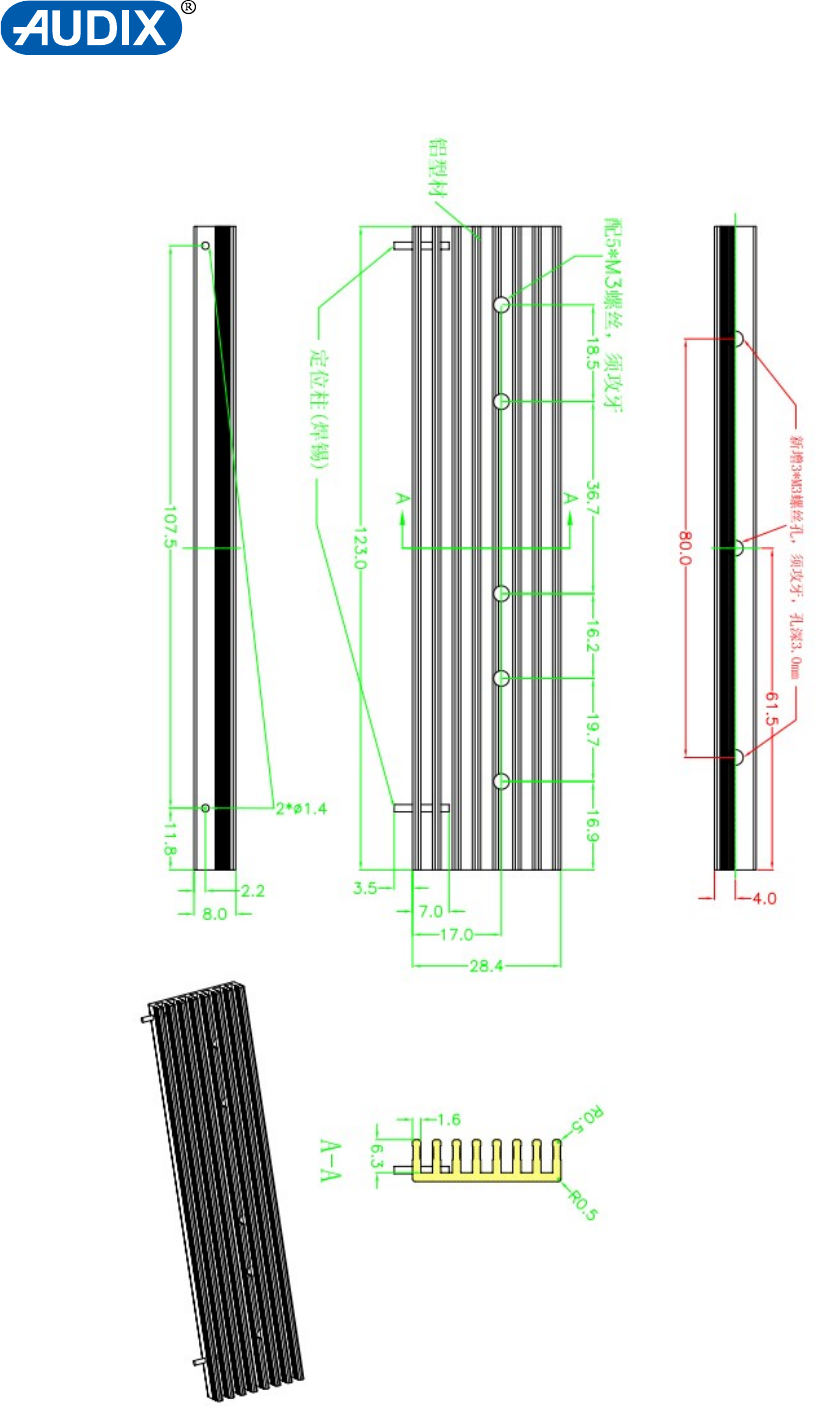

Attachment B: 6 pages of Heatsink-Drawing.

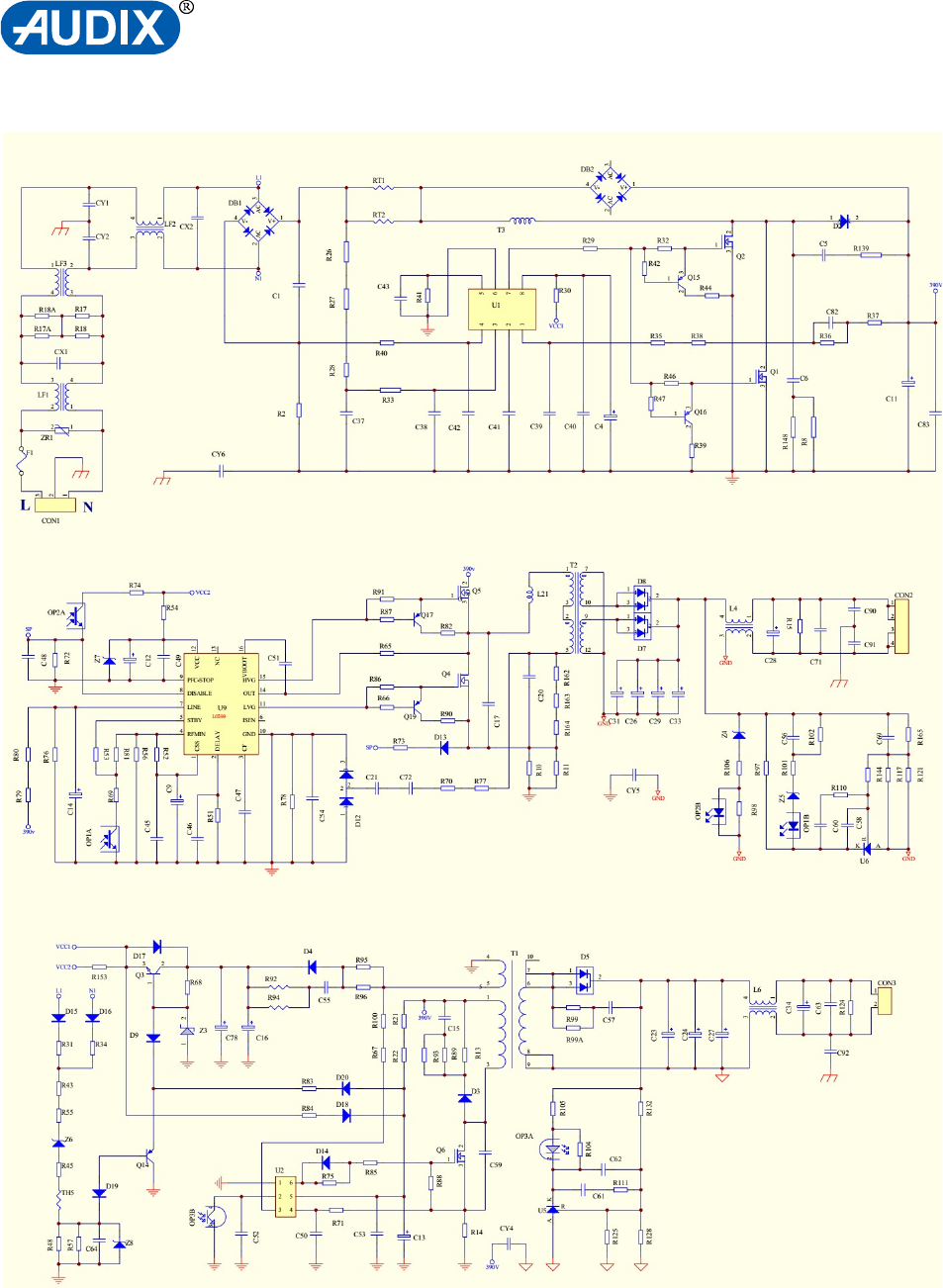

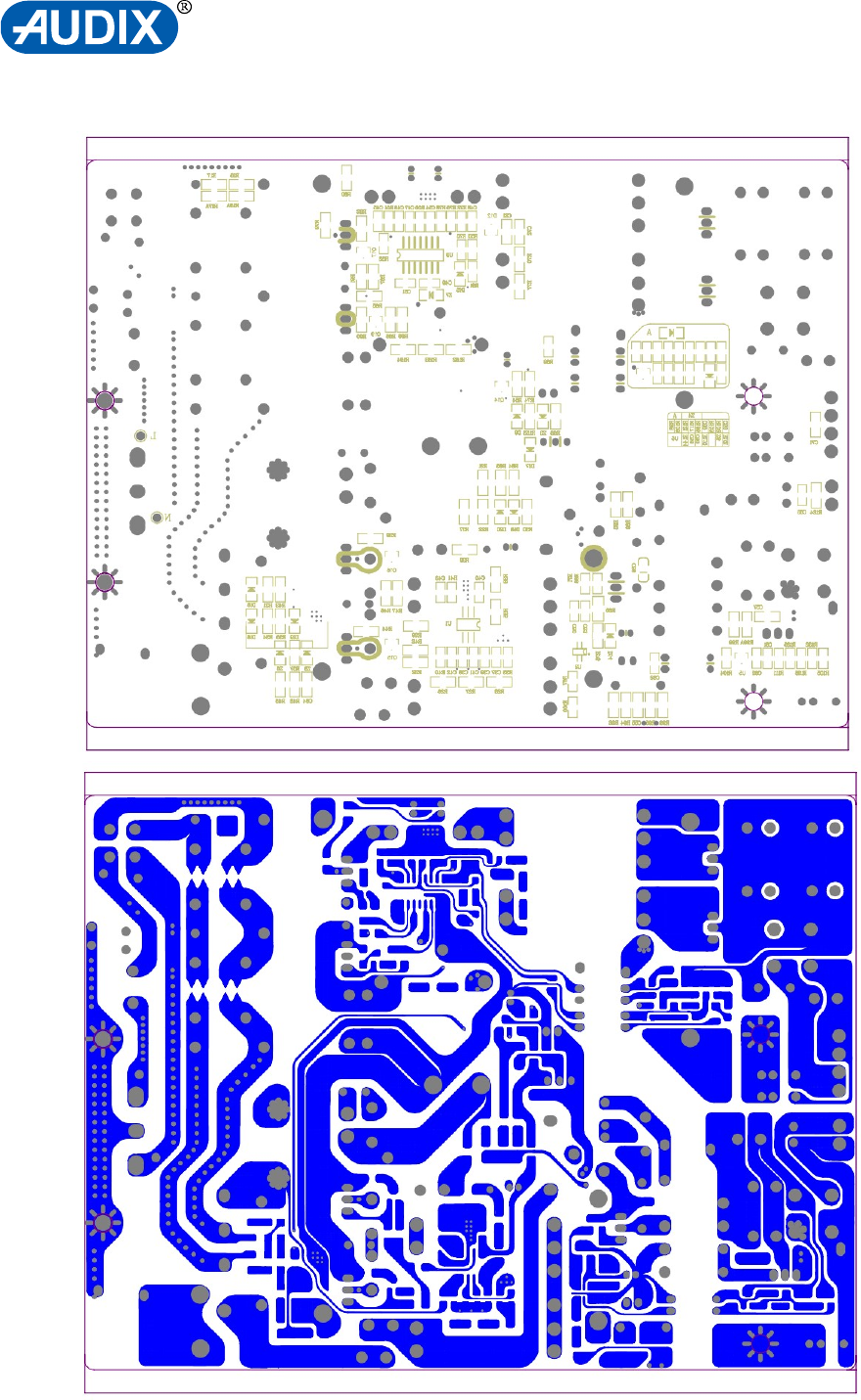

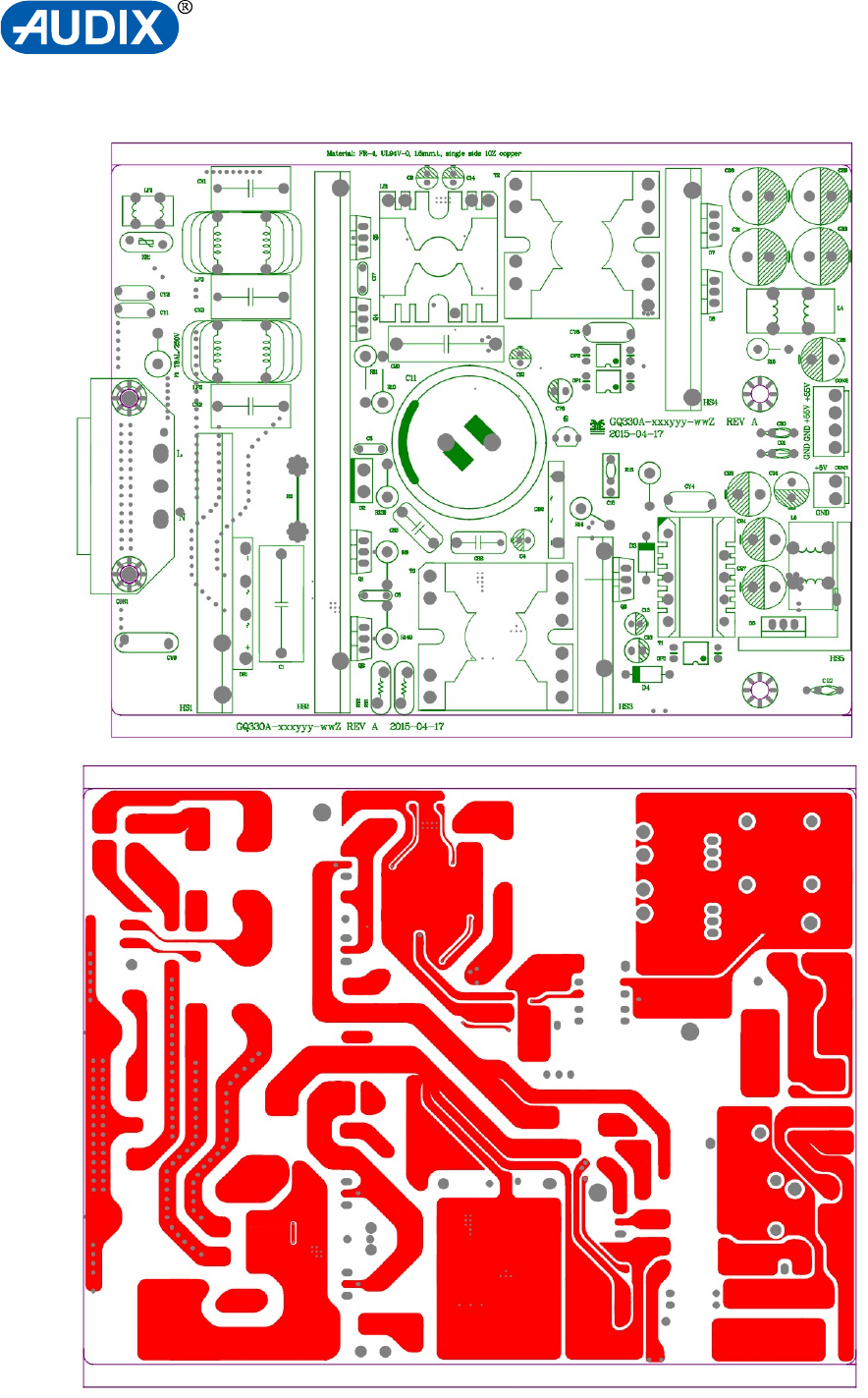

Attachment C: 3 pages of Schematic and layout for power board.

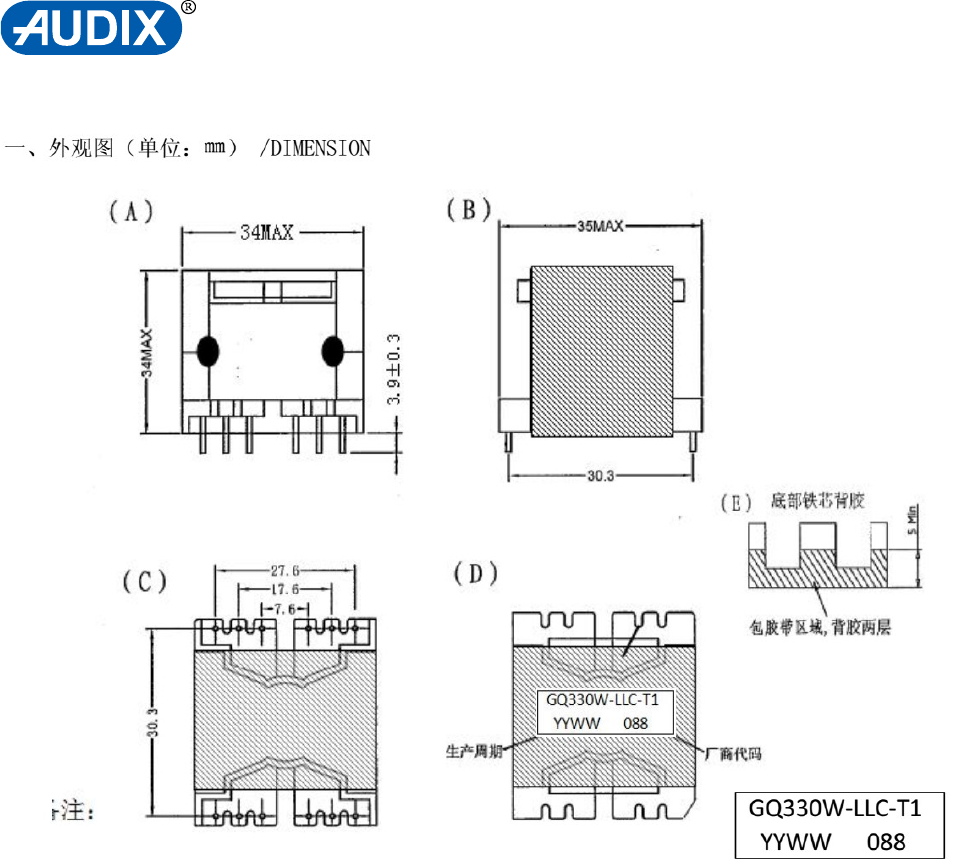

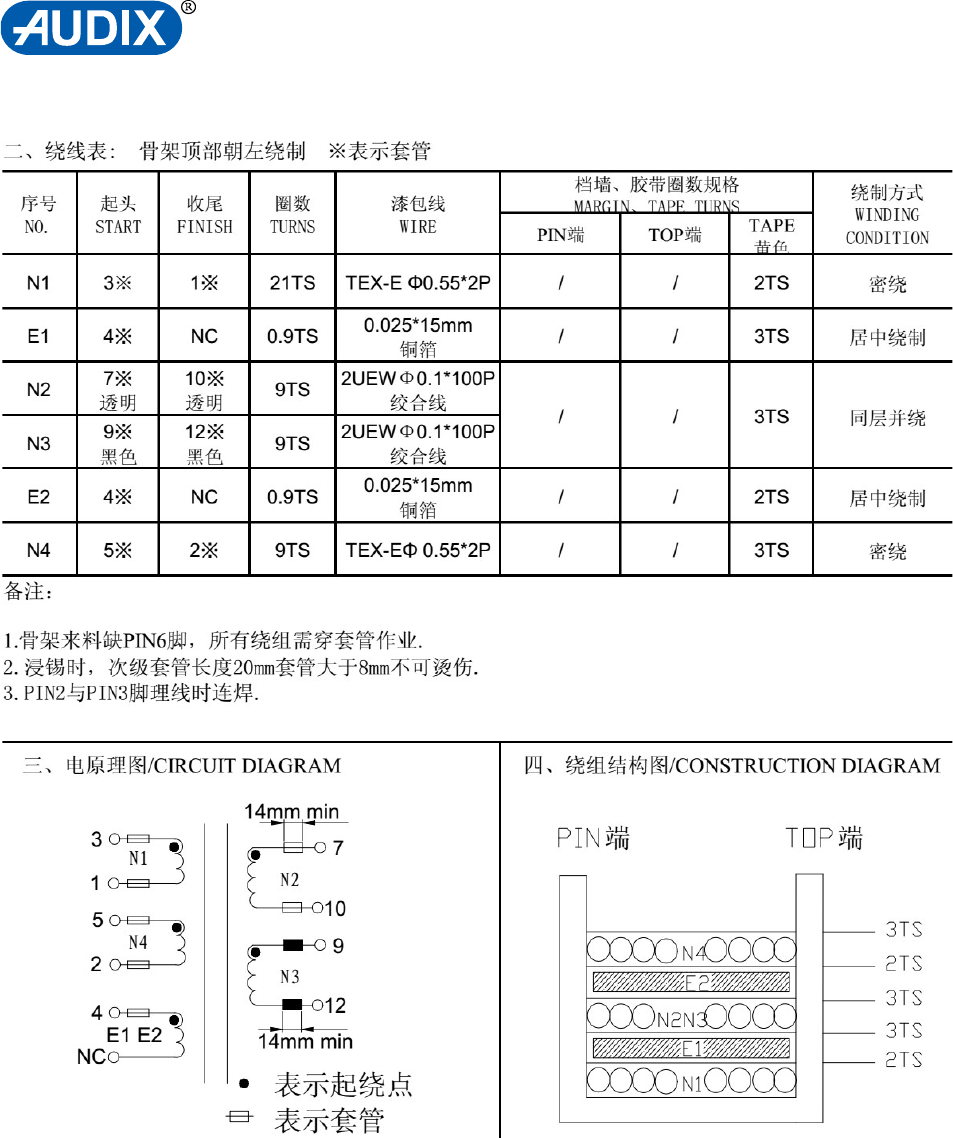

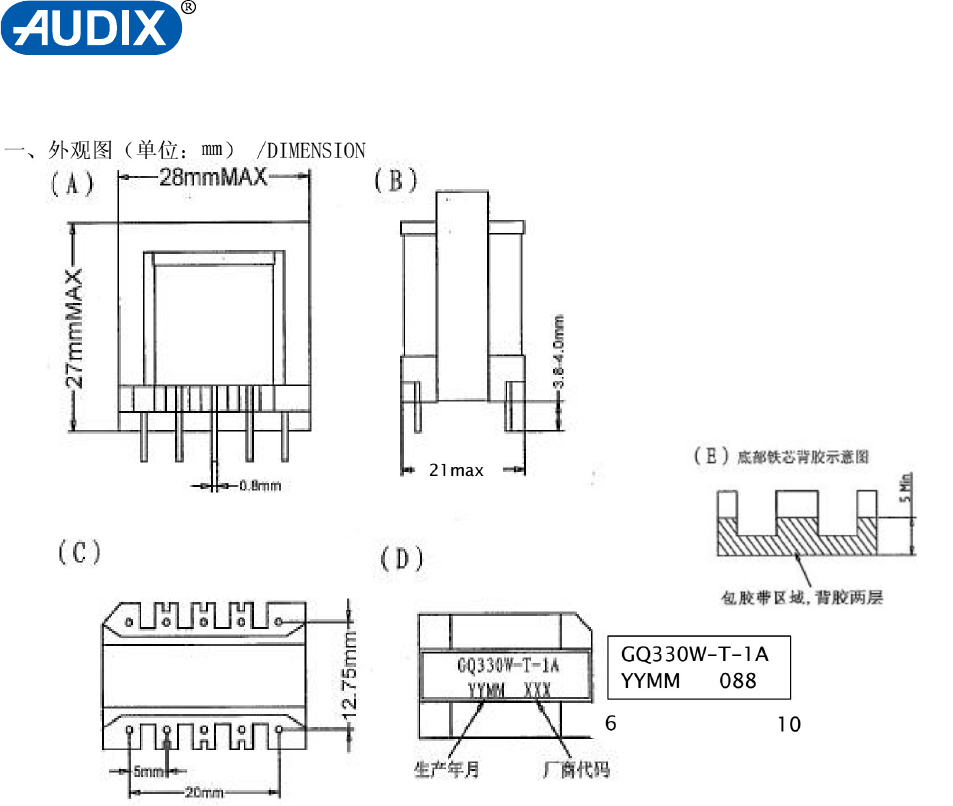

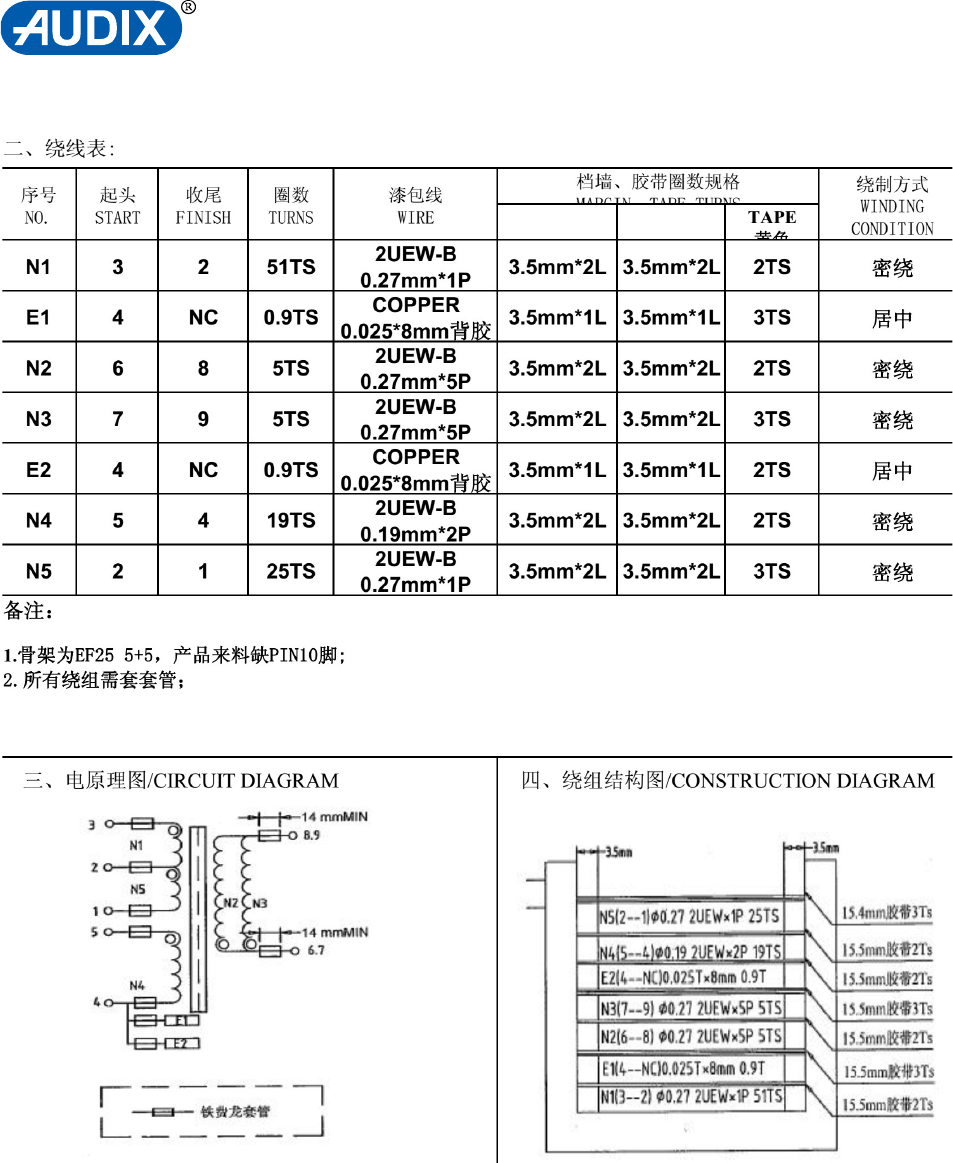

Attachment D: 2 pages of Transformer T1 specification.

Attachment E: 2 pages of Transformer T2 specification.

Report No.: ACSS1811066

Page 5 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

1 GENERAL P

1.5 Components P

1.5.1 General P

Comply with IEC 60950-1 or relevant component

standard

(See appended table 1.5.1) P

1.5.2 Evaluation and testing of components Certified components are

used in accordance with their

ratings, certifications and they

comply with applicable parts

of this standard.

Components not certified are

used in accordance with their

ratings and they comply with

applicable parts of IEC 60950-

1 and the relevant component

standard.

Components, for which no

relevant IEC-standard exists,

have been tested under the

conditions occurring in the

equipment, using applicable

parts of IEC 60950-1.

1.5.3 Thermal controls Thermal controller (TH5) meet

the standard EN 60730-1.

1.5.4 Transformers Comply with annex C P

1.5.5 Interconnecting cables Interconnection cables do not

present a hazard.

1.5.6 Capacitors bridging insulation X2 capacitors and Y1

capacitors are used to be

according to IEC 60384-14.

1.5.7 Resistors bridging insulation Refer to below: P

1.5.7.1 Resistors bridging functional, basic or

supplementary

insulation Bleeder resistors are bridging

function insulation. P

1.5.7.2 Resistors bridging double or reinforced insulation

between a.c. mains and other circuits

1.5.7.3 Resistors bridging double or reinforced insulation

between a.c. mains and antenna or coaxial cable N

1.5.8 Components in equipment for IT power systems N

1.5.9 Surge suppressors Approved surge suppressors. P

1.5.9.1 General Comply with annex Q P

1.5.9.2 Protection of VDRs A fuse is connected in series

with VDR.

1.5.9.3 Bridging of functional insulation by a VDR Varistor(ZR1) located in line to

neutral after fuse(F1)

Report No.: ACSS1811066

Page 6 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

1.5.9.4 Bridging of basic insulation by a VDR N

1.5.9.5 Bridging of supplementary, double or reinforced

insulation by a VDR

1.6 Power interface P

1.6.1 AC power distribution systems TN power systems. P

1.6.2 Input current (See appended table 1.6.2) P

1.6.3 Voltage limit of hand-held equipment This appliance is not hand-

held equipment.

1.6.4 Neutral conductor P

1.7 Marking and instructions P

1.7.1 Power rating P

Rated voltage(s) or voltage range(s) (V) ................. : 100-240V P

Symbol for nature of supply, for d.c. only .............. : N

Rated frequency or rated frequency range (Hz) ... : 50/60Hz P

Rated current (mA or A) ........................................ : 5A max P

Manufacturer’s name or trade-mark or identification

mark ...................................................................... :

Model identification or type reference ................... : 561419 P

Symbol for Class II equipment only ......................... : Class I equipment. N

Other markings and symbols ................................... : Other symbols do not affect

safety.

1.7.2 Safety instructions and marking Refer to below: P

1.7.2.1 General P

1.7.2.2 Disconnect devices Appliance inlet provided. N

1.7.2.3 Overcurrent protective device The unit is not pluggable

equipment type B or

permanently connected

equipment.

1.7.2.4 IT power distribution systems N

1.7.2.5 Operator access with a tool All areas containing hazard(s)

are inaccessible to the

operator.

1.7.2.6 Ozone The equipment not containing

Ozone N

1.7.3 Short duty cycles The equipment is intended for

continuous operation.

1.7.4 Supply voltage adjustment ................................... : No voltage selector. N

Methods and means of adjustment; reference to

installation instructions ......................................... : N

Report No.: ACSS1811066

Page 7 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

1.7.5 Power outlets on the equipment .......................... : No standard power outlet. N

1.7.6 Fuse identification (marking, special fusing

characteristics, cross-reference) .......................... :

“T8AL/250V” near F1 P

1.7.7 Wiring terminals Refer to below P

1.7.7.1 Protective earthing and bonding terminals .......... : Appliance inlet was used P

1.7.7.2 Terminals for a.c. mains supply conductors The equipment power

connection is detachable

power supply cord.

1.7.7.3 Terminals for d.c. mains supply conductors N

1.7.8 Controls and indicators See below: P

1.7.8.1 Identification, location and marking ..................... : The function of indicators

affecting safety is obvious

without knowledge of

language.

1.7.8.2 Colours ................................................................ : Colors are used for functional

indications, not involved

safety.

1.7.8.3 Symbols according to IEC 60417 ........................ : N

1.7.8.4 Markings using figures ....................................... : No controls use figures. N

1.7.9 Isolation of multiple power sources .................... : Only one connection supplying

hazardous voltages and

energy levels to the

equipment.

1.7.10 Thermostats and other regulating devices ......... : No thermostats or other

regulating devices. N

1.7.11 Durability The marking withstands

required tests. P

1.7.12 Removable parts No removable parts. N

1.7.13 Replaceable batteries ......................................... : No battery in the equipment. N

Language(s) ......................................................... : —

1.7.14 Equipment for restricted access locations ........... : Equipment not intended for

installation in RAL.

2 PROTECTION FROM HAZARDS P

2.1 Protection from electric shock and energy hazards P

2.1.1 Protection in operator access areas No operator access to

energized parts. P

2.1.1.1 Access to energized parts P

Test by inspection .................................................... : Operator access areas are

protected from electric shock

and energy hazards

Report No.: ACSS1811066

Page 8 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Test with test finger (Figure 2A) ............................ : Not touched to hazardous

parts

Test with test pin (Figure 2B) ................................ : Not touched to hazardous

parts

Test with test probe (Figure 2C) ........................... : No TNV circuits in the

equipment.

2.1.1.2 Battery compartments No battery compartments. N

2.1.1.3 Access to ELV wiring No internal wiring at ELV

accessible to the operator. N

Working voltage (Vpeak or Vrms); minimum

distance through insulation (mm)

—

2.1.1.4 Access to hazardous voltage circuit wiring No hazardous voltage wiring in

operator accessible area. P

2.1.1.5 Energy hazards ........................................................ : (see appended table 2.1.1.5) P

2.1.1.6 Manual controls No shafts of knobs etc. N

2.1.1.7 Discharge of capacitors in equipment P

Measured voltage (V); time-constant (s) .................. : (see appended table 2.1.1.7) —

2.1.1.8 Energy hazards – d.c. mains supply N

a) Capacitor connected to the d.c. mains supply .... : N

b) Internal battery connected to the d.c. mains supply

................................................................................... : N

2.1.1.9 Audio amplifiers ........................................................ : N

2.1.2 Protection in service access areas No unexpected hazards inside

the unit and no unintentional

contact to hazardous areas

likely during service operations

as considering the equipment

disconnected from mains

when servicing.

2.1.3 Protection in restricted access locations Equipment not intended for

installation in RAL. N

2.2 SELV circuits P

2.2.1 General requirements P

2.2.2 Voltages under normal conditions (V) .................. : (see appended table 2.2.2) P

2.2.3 Voltages under fault conditions (V) ....................... : (see appended table 2.2.3) P

2.2.4 Connection of SELV circuits to other circuits ...... : Connected to other SELV

circuits.

2.3 TNV circuits

No TNV circuit.

2.3.1 Limits N

Report No.: ACSS1811066

Page 9 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Type of TNV circuits .................................................. : —

2.3.2 Separation from other circuits and from accessible

parts

2.3.2.1 General requirements N

2.3.2.2 Protection by basic insulation N

2.3.2.3 Protection by earthing N

2.3.2.4 Protection by other constructions ......................... : N

2.3.3 Separation from hazardous voltages N

Insulation employed ............................................... : —

2.3.4 Connection of TNV circuits to other circuits N

Insulation employed ............................................... : —

2.3.5 Test for operating voltages generated externally N

2.4 Limited current circuits P

2.4.1 General requirements P

2.4.2 Limit values (see appended table 2.4) P

Frequency (Hz) .......................................................... : —

Measured current (mA) ............................................. : —

Measured voltage (V) ................................................ : —

Measured circuit capacitance (nF or µF) ............... : —

2.4.3 Connection of limited current circuits to other

circuits

Connected to SELV P

2.5 Limited power sources P

a) Inherently limited output (see appended table 2.5) P

b) Impedance limited output N

c) Regulating network limited output under normal

operating and single fault condition

(see appended table 2.5) P

d) Overcurrent protective device limited output N

Max. output voltage (V), max. output current (A),

max. apparent power (VA) ..................................... :

(see appended table 2.5) —

Current rating of overcurrent protective device (A) .: —

2.6 Provisions for earthing and bonding P

2.6.1 Protective earthing Accessible conductive parts

are reliably connected to

protective earth.

Report No.: ACSS1811066

Page 10 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

2.6.2 Functional earthing Secondary functional earthing

is separated to primary by

reinforced or double

insulation.

2.6.3 Protective earthing and protective bonding

conductors

See below P

2.6.3.1 General P

2.6.3.2 Size of protective earthing conductors Power supply cord was not

provided N

Rated current (A), cross-sectional area (mm2),

AWG ...................................................................... :

—

2.6.3.3 Size of protective bonding conductors Protective bonding conductor

which connects to inlet ground

pin. See cl. 2.6.3.4 for ground

continue test.

Rated current (A), cross-sectional area (mm2),

AWG ...................................................................... : —

Protective current rating (A), cross-sectional area

(mm2), AWG ........................................................... :

—

2.6.3.4 Resistance of earthing conductors and their

terminations; resistance (), voltage drop (V), test

current (A), duration (min) ......................................... :

(See appended table 2.6.3.4) P

2.6.3.5 Colour of insulation.................................................... : N

2.6.4 Terminals See below P

2.6.4.1 General P

2.6.4.2 Protective earthing and bonding terminals The earthing terminal in the

appliance inlet is regarded as

the main protective earthing

terminal. The test of sub-

clause 2.6.3.4 was performed

for protective bonding

conductor and their terminals.

Rated current (A), type, nominal thread diameter

(mm)........................................................................... : The test of cl. 2.6.3.4 is

complied.



2.6.4.3 Separation of the protective earthing conductor

from protective bonding conductors The equipment is provided

with an appliance inlet.

2.6.5 Integrity of protective earthing See below P

2.6.5.1 Interconnection of equipment No interconnection of

equipment.

2.6.5.2 Components in protective earthing conductors and

protective bonding conductors There are no switches or

overcurrent protective devices

in the protective earthing /

bonding conductor.

Report No.: ACSS1811066

Page 11 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

2.6.5.3 Disconnection of protective earth It is not possible to disconnect

protective earth without

disconnecting mains; an

appliance coupler will be used

as disconnect device.

2.6.5.4 Parts that can be removed by an operator Appliance couplers provided

for the protective earthing

connection is made before

and broken after the

hazardous voltage. No other

operator removable parts.

2.6.5.5 Parts removed during servicing Protective earthed parts

cannot be removed in a way

which impair safety.

2.6.5.6 Corrosion resistance No risk of corrosion P

2.6.5.7 Screws for protective bonding Adequate connection of

protective bonding.

2.6.5.8 Reliance on telecommunication network or cable

distribution system Neither TNV circuits nor cable

distribution system in the

equipment.

2.7 Overcurrent and earth fault protection in primary circuits P

2.7.1 Basic requirements Pluggable equipment type A

primary fuse is used for

protective device.

Instructions when protection relies on building

installation N

2.7.2 Faults not simulated in 5.3.7 Considered P

2.7.3 Short-circuit backup protection The building installation is

considered as providing short-

circuit backup protection.

2.7.4 Number and location of protective devices ............. : Number: 1

Location: line

2.7.5 Protection by several devices N

2.7.6 Warning to service personnel ................................... : 

2.8 Safety interlocks

No safety interlocks provided.

2.8.1 General principles N

2.8.2 Protection requirements

2.8.3 Inadvertent reactivation N

2.8.4 Fail-safe operation N

2.8.5 Moving parts N

Report No.: ACSS1811066

Page 12 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

2.8.6 Overriding N

2.8.7 Switches, relays and their related circuits N

2.8.7.1 Separation distances for contact gaps and their

related circuits (mm) ........................................... :



2.8.7.2 Overload test N

2.8.7.3 Endurance test N

2.8.7.4 Electric strength test N

2.8.8 Mechanical actuators N

2.9 Electrical insulation P

2.9.1 Properties of insulating materials Neither natural rubber,

materials containing

asbestos or hygroscopic

materials are used as

insulation. No driving belts or

couplings used.

2.9.2 Humidity conditioning 120Hours P

Relative humidity (%), temperature (°C) ............... : 96% RH, 40 degree C. —

2.9.3 Grade of insulation Refer to cl.2.10 and

appended table 5.2

2.9.4 Separation from hazardous voltages For metal enclosure, basic

insulation used; For output

terminals, double or

reinforced insulation used.

Method(s) used ..................................................... : Method 1and method 2 —

2.10 Clearances, creepage distances and distances through insulation P

2.10.1 General P

2.10.1.1 Frequency .............................................................. : Considered —

2.10.1.2 Pollution degrees ................................................... : 2 —

2.10.1.3 Reduced values for functional insualtion The function insulation

complied with clause 5.3.4C P

2.10.1.4 Intervening unconnected conductive parts P

2.10.1.5 Insulation with varying dimensions N

2.10.1.6 Special separation requirements N

2.10.1.7 Insulation in circuits generating starting pulses N

2.10.2 Determination of working voltage See appended table 2.10.2 P

2.10.2.1 General P

2.10.2.2 RMS working voltage See appended table 2.10.2 P

2.10.2.3 Peak working voltage See appended table 2.10.2 P

Report No.: ACSS1811066

Page 13 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

2.10.3 Clearances P

2.10.3.1 General Refer to below P

2.10.3.2 Mains transient voltages Considered P

a) AC mains supply ............................................... : Over voltage category II for

primary circuit and transient

voltage 2500Vpeak.

—

b) Earthed d.c. mains supplies .............................. : —

c) Unearthed d.c. mains supplies .......................... : —

d) Battery operation ............................................... : —

2.10.3.3 Clearances in primary circuits See appended table 2.10.3

and 2.10.4 P

2.10.3.4 Clearances in secondary circuits Function insulation, meet

5.3.4 method c). P

2.10.3.5 Clearances in circuits having starting pulses The circuit will not generate

starting pulse. N

2.10.3.6 Transients from a.c. mains supply ........................ : —

2.10.3.7 Transients from d.c. mains supply ........................ : —

2.10.3.8 Transients from telecommunication networks and

cable distribution systems ..................................... :

—

2.10.3.9 Measurement of transient voltage levels N

a) Transients from a mains suplply N

For an a.c. mains supply ....................................... : —

For a d.c. mains supply ......................................... : —

b) Transients from a telecommunication network : N

2.10.4 Creepage distances P

2.10.4.1 General Refer to below: P

2.10.4.2 Material group and comparative tracking index Material group IIIb is

assumed. P

CTI tests .................................................................... : —

2.10.4.3 Minimum creepage distances See appended table 2.10.3

and 2.10.4 P

2.10.5 Solid insulation P

2.10.5.1 General P

2.10.5.2 Distances through insulation See appended table 2.10.5 P

2.10.5.3 Insulating compound as solid insulation See appended table 1.5.1 P

2.10.5.4 Semiconductor devices See appended table 1.5.1 P

2.10.5.5 Cemented joints N

2.10.5.6 Thin sheet material – General P

Report No.: ACSS1811066

Page 14 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

2.10.5.7 Separable thin sheet material Insulation tape used wrapped

on the transformer. P

Number of layers (pcs) ........................................... : 2 layers as reinforced

insulation.

—

2.10.5.8 Non-separable thin sheet material N

2.10.5.9 Thin sheet material – standard test procedure N

Electric strength test —

2.10.5.10 Thin sheet material – alternative test procedure P

Electric strength test See appended table 5.2 —

2.10.5.11 Insulation in wound components N

2.10.5.12 Wire in wound components Primary winding on the

transformer T2 in power

board was used triple

insulated wire.

Working voltage ..................................................... : —

a) Basic insulation not under stress ...................... : —

b) Basic, supplemetary, reinforced insulation ....... : Wire complies to Annex U,

three layers as reinforced

insulation. —

c) Compliance with Annex U ................................. : —

Two wires in contact inside wound component;

angle between 45 and 90 ................................... :

Protection against

mechanical stress is provided

by tube and insulation tape.

—

2.10.5.13 Wire with solvent-based enamel in wound

components N

Electric strength test —

Routine test N

2.10.5.14 Additional insulation in wound components N

Working voltage ..................................................... : —

- Basic insulation not under stress ........................ : —

- Supplemetary, reinforced insulation .................... : —

2.10.6 Construction of printed boards Refer to below: P

2.10.6.1 Uncoated printed boards (See appended table 2.10.3

and 2.10.4) P

2.10.6.2 Coated printed boards N

2.10.6.3 Insulation between conductors on the same inner

surface of a printed board N

2.10.6.4 Insulation between conductors on different layers of

a printed board

Refer to below P

Distance through insulation 1.6mm P

Report No.: ACSS1811066

Page 15 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Number of insulation layers (pcs) ............................. : 1 —

2.10.7 Component external terminations (See appended table 2.10.3

and 2.10.4) P

2.10.8 Tests on coated printed boards and coated

components

2.10.8.1 Sample preparation and preliminary inspection N

2.10.8.2 Thermal conditioning N

2.10.8.3 Electric strength test N

2.10.8.4 Abrasion resistance test N

2.10.9 Thermal cycling Optical isolators approved

See appended table 1.5.1

2.10.10 Test for Pollution Degree 1 environment and

insulating compound

2.10.11 Tests for semiconductor devices and cemented joints

Optical isolators approved

See appended table 1.5.1

2.10.12 Enclosed and sealed parts N

3 WIRING, CONNECTIONS AND SUPPLY P

3.1 General P

3.1.1 Current rating and overcurrent protection Adequate cross sectional

areas on internal wiring. P

3.1.2 Protection against mechanical damage Wireways are smooth and

free from edges. Wires are

adequetely fixed to present

excessive strain on wire and

terminals and avoiding

damage to the insulation of

the conductors.

3.1.3 Securing of internal wiring Wireways are smooth and

free from edges. Wires are

adequately fixed to prevent

excessive strain on wire and

terminals and avoiding

damage to the insulation of

the conductors.

3.1.4 Insulation of conductors Insulation on terminal

conductors is considered to

be of adequate quality and

suitable for the application

and the working voltage

involved.

3.1.5 Beads and ceramic insulators Not provided. N

3.1.6 Screws for electrical contact pressure At least two complete threads

into the metal plate.

Report No.: ACSS1811066

Page 16 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

3.1.7 Insulating materials in electrical connections All connections are metal to

metal, or where contact

pressure is transmitted

through PCB material for

earthing purposes a

combination of screw.

3.1.8 Self-tapping and spaced thread screws Not use self-tapping and

spaced thread screws

3.1.9 Termination of conductors Terminations cannot become

displaced so that clearances

and creepage distances can

be reduced.

10 N pull test Considered P

3.1.10 Sleeving on wiring Sleeving could not slip P

3.2 Connection to a mains supply P

3.2.1 Means of connection Appliance inlet P

3.2.1.1 Connection to an a.c. mains supply P

3.2.1.2 Connection to a d.c. mains supply The equipment is not for

connection to a d.c. mains

supply.

3.2.2 Multiple supply connections Single phase supply. N

3.2.3 Permanently connected equipment Not permanently connected

equipment.

Number of conductors, diameter of cable and

conduits (mm) ........................................................:



3.2.4 Appliance inlets The appliance inlet complies

with IEC 60320-1 and is

properly placed to avoid

hazards after insertion of the

appliance coupler.

3.2.5 Power supply cords No power cord provided. N

3.2.5.1 AC power supply cords N

Type .......................................................................: —

Rated current (A), cross-sectional area (mm2),

AWG ......................................................................: —

3.2.5.2 DC power supply cords Not connected to DC supply. N

3.2.6 Cord anchorages and strain relief Equipment provided with an

appliance inlet.

Mass of equipment (kg), pull (N) ..........................: —

Longitudinal displacement (mm) ...........................: —

3.2.7 Protection against mechanical damage No sharp points of cutting

edges on the equipment

surfaces.

Report No.: ACSS1811066

Page 17 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

3.2.8 Cord guards N

Diameter or minor dimension D (mm); test mass (g)

................................................................................: —

Radius of curvature of cord (mm) ...........................: —

3.2.9 Supply wiring space N

3.3 Wiring terminals for connection of external conductors N

3.3.1 Wiring terminals No wiring terminals. N

3.3.2 Connection of non-detachable power supply cords N

3.3.3 Screw terminals N

3.3.4 Conductor sizes to be connected N

Rated current (A), cord/cable type, cross-sectional

area (mm2) ..............................................................:

—

3.3.5 Wiring terminal sizes N

Rated current (A), type, nominal thread diameter

(mm) ......................................................................:

—

3.3.6 Wiring terminal design N

3.3.7 Grouping of wiring terminals N

3.3.8 Stranded wire N

3.4 Disconnection from the mains supply P

3.4.1 General requirement P

3.4.2 Disconnect devices Appliance coupler P

3.4.3 Permanently connected equipment N

3.4.4 Parts which remain energized N

3.4.5 Switches in flexible cords No such switches used. N

3.4.6 Number of poles - single-phase and d.c. equipment Disconnect device

disconnects all poles

simultaneously.

3.4.7 Number of poles - three-phase equipment Single phase equipment. N

3.4.8 Switches as disconnect devices No such switches used. N

3.4.9 Plugs as disconnect devices The appliance coupler will be

regarded as disconnect

device, no warning is

required.

3.4.10 Interconnected equipment No interconnection of

hazardous voltages or energy

levels.

3.4.11 Multiple power sources One power source only. N

Report No.: ACSS1811066

Page 18 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

3.5 Interconnection of equipment P

3.5.1 General requirements Considered. P

3.5.2 Types of interconnection circuits ............................. : SELV circuits. P

3.5.3 ELV circuits as interconnection circuits No ELV interconnection. N

3.5.4 Data ports for additional equipment (see appended table 2.5) P

4 PHYSICAL REQUIREMENTS P

4.1 Stability N

Angle of 10 ≤7kg N

Test force (N) ........................................................ : The unit is not floor-standing.

—

4.2 Mechanical strength P

4.2.1 General P

4.2.2 Steady force test, 10 N No hazard as a result of the

10N test.

4.2.3 Steady force test, 30 N N

4.2.4 Steady force test, 250 N No hazard. The test is

performed at top, bottom and

sides of metal enclosure.

4.2.5 Impact test Carried out to top side,

lateral-sides and bottom side

of Enclosure.

Fall test No hazard as result of the

impact test.

Swing test N

4.2.6 Drop test; height (mm) .......................................... : N

4.2.7 Stress relief test Metal enclosure. N

4.2.8 Cathode ray tubes No CRT provided. N

Picture tube separately certified ........................... : N

4.2.9 High pressure lamps No high pressure lamp

provided.

4.2.10 Wall or ceiling mounted equipment; force (N) ....... : N

4.2.11 Rotating solid media N

Test to cover on the door………………………….: —

4.3 Design and construction P

4.3.1 Edges and corners All edges and corners are

rounded and/or smoothed.

Report No.: ACSS1811066

Page 19 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

4.3.2 Handles and manual controls; force (N) ............. : No knobs, grips, handles,

lever etc.

4.3.3 Adjustable controls No hazardous adjustable

controls.

4.3.4 Securing of parts All hazardous parts are fixed

to retain position in event of

termination failure.

4.3.5 Connection by plugs and sockets SELV connector does not

comply with IEC 60320 or

IEC 60083.

4.3.6 Direct plug-in equipment Not direct plug-in equipment.

Torque .................................................................. : —

Compliance with the relevant mains plug standard

.............................................................................. :

4.3.7 Heating elements in earthed equipment No heating elements

provided.

4.3.8 Batteries N

- Overcharging of a rechargeable battery N

- Unintentional charging of a non-rechargeable

battery N

- Reverse charging of a rechargeable battery N

- Excessive discharging rate for any battery N

4.3.9 Oil and grease Insulation is not exposed to

oil, grease etc. N

4.3.10 Dust, powders, liquids and gases The equipment does not

contain flammable liquids or

gases.

4.3.11 Containers for liquids or gases No containers for liquids or

gases in the equipment. N

4.3.12 Flammable liquids ................................................ : The equipment does not

contain flammable liquid.

Quantity of liquid (l) .............................................. : N

Flash point (C) .................................................... : N

4.3.13 Radiation See below P

4.3.13.1 General P

4.3.13.2 Ionizing radiation The equipment does not

generate ionizing radiation.

Measured radiation (pA/kg) .................................. : —

Measured high-voltage (kV) ................................. : —

Measured focus voltage (kV) ............................... : —

CRT markings ...................................................... : —

Report No.: ACSS1811066

Page 20 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

4.3.13.3 Effect of ultraviolet (UV) radiation on materials The equipment does not

produce significant UV

radiation.

Part, property, retention after test, flammability

classification ......................................................... : N

4.3.13.4 Human exposure to ultraviolet (UV) radiation ...... : The equipment does not

produce significant UV

radiation.

4.3.13.5 Lasers (including laser diodes) and LEDs P

4.3.13.5.1 Lasers (including laser laser diodes) N

Laser class ........................................................... : 

4.3.13.5.2 Light emitting diodes (LEDs) Diffusive LED only, the

energy of the indicator LED

is far below the limit for class

I LED products.

4.3.13.6 Other types .......................................................... : The equipment does not

generate other types of

radiation.

4.4 Protection against hazardous moving parts P

4.4.1 General Approved DC fan. P

4.4.2 Protection in operator access areas .................... : No possible to access the

DC fan blades through the

openings on right cover.

4.4.3 Protection in restricted access locations .............. : No such locations. N

4.4.4 Protection in service access areas N

4.4.5 Protection against moving fan blades See below P

4.4.5.1 General m=0.008kg, r=20mm,

N=5500r/min

Not considered to cause pain or injury. a)………….: Complied. (See appended

table 4.4.5)



Is considered to cause pain, not injury. b) …………: 

Considered to cause injury. c) …………:



4.4.5.2 Protection for users N

Use of symbol or warning ……………………...……: 

4.4.5.3 Protection for service persons N

Use of symbol or warning ………………...…………: 

4.5 Thermal requirements P

4.5.1 General P

4.5.2 Temperature tests (See appended table 4.5.2) P

Normal load condition per Annex L .........................: —

4.5.3 Temperature limits for materials Not exceed the values. P

Report No.: ACSS1811066

Page 21 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

4.5.4 Touch temperature limits Not exceed the values. P

4.5.5 Resistance to abnormal heat ............................... : Complying.

(See appended table 1.5.1) P

4.6 Openings in enclosures P

4.6.1 Top and side openings P

Dimensions (mm) ................................................. : See appended table

4.6.1,4.6.2 —

4.6.2 Bottoms of fire enclosures No opening P

Construction of the bottomm, dimensions (mm) ....: —

4.6.3 Doors or covers in fire enclosures N

4.6.4 Openings in transportable equipment Not transportable equipment N

4.6.4.1 Constructional design measures N

Dimensions (mm) ....................................................: —

4.6.4.2 Evaluation measures for larger openings N

4.6.4.3 Use of metallized parts N

4.6.5 Adhesives for constructional purposes Adhesives not used. N

Conditioning temperature (C), time (weeks) ........ : —

4.7 Resistance to fire P

4.7.1 Reducing the risk of ignition and spread of flame In accordance with method 1.

Method 1, selection and application of components

wiring and materials

Materials with the required

flammability classes are

used.

Method 2, application of all of simulated fault

condition tests Method 1 used. N

4.7.2 Conditions for a fire enclosure Refer to below: P

4.7.2.1 Parts requiring a fire enclosure The fire enclosure is required

to cover all parts.

4.7.2.2 Parts not requiring a fire enclosure The fire enclosure is required

to cover all parts.

4.7.3 Materials Refer to below: P

4.7.3.1 General Components and material

have adequate flammability

classification.

(See appended table 1.5.1)

4.7.3.2 Materials for fire enclosures Metallic P

4.7.3.3 Materials for components and other parts outside

fire enclosures Fire enclosures cover all

parts

Report No.: ACSS1811066

Page 22 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

4.7.3.4 Materials for components and other parts inside fire

enclosures

Internal components and

other parts inside fire

enclosure are rated min. V-2.

4.7.3.5 Materials for air filter assemblies No air filters in the

equipment. N

4.7.3.6 Materials used in high-voltage components No high-voltage components.

5 ELECTRICAL REQUIREMENTS AND SIMULATED ABNORMAL CONDITIONS P

5.1 Touch current and protective conductor current P

5.1.1 General Test conducted in

accordance with cl.5.1.2 to

cl.5.1.7

5.1.2 Configuration of equipment under test (EUT) No interconnected equipment

or multiple power sources N

5.1.2.1 Single connection to an a.c. mains supply P

5.1.2.2 Redundant multiple connections to an a.c. mains

supply

5.1.2.3 Simultaneous multiple connections to an a.c. mains

supply N

5.1.3 Test circuit Figure 5A used P

5.1.4 Application of measuring instrument Measuring circuit in annex

D.1 used P

5.1.5 Test procedure P

5.1.6 Test measurements See below P

Supply voltage (V) ................................................ : 264Vac, 60Hz —

Measured touch current (mA) .............................. : See appended table 5.1.6 —

Max. allowed touch current (mA) ......................... : Unearthed accessible parts:

0.25mA;

Earthed accessible parts:

3.5mA

—

Measured protective conductor current (mA) ...... : —

Max. allowed protective conductor current (mA) .. : —

5.1.7 Equipment with touch current exceeding 3,5 mA The touch current does not

exceed 3.5mA N

5.1.7.1 General ................................................................ : N

5.1.7.2 Simultaneous multiple connections to the supply N

5.1.8 Touch currents to telecommunication networks and

cable distribution systems and from

telecommunication networks

Not connected to a

telecommunication network

or cable distribution systems

5.1.8.1 Limitation of the touch current to a

telecommunication network or to a cable distribution

system

Report No.: ACSS1811066

Page 23 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Supply voltage (V) ................................................ : —

Measured touch current (mA) .............................. : —

Max. allowed touch current (mA) ......................... : —

5.1.8.2 Summation of touch currents from

telecommunication networks

a) EUT with earthed telecommunication ports ..... : N

b) EUT whose telecommunication ports have no

reference to protective earth

5.2 Electric strength P

5.2.1 General See appended table 5.2 P

5.2.2 Test procedure P

5.3 Abnormal operating and fault conditions P

5.3.1 Protection against overload and abnormal operation

See appended table 5.3 P

5.3.2 Motors See appended annex B P

5.3.3 Transformers See appended annex C P

5.3.4 Functional insulation .............................................. : Complies with method c). P

5.3.5 Electromechanical components No electromechanical

components in secondary

circuits.

5.3.6 Audio amplifiers in ITE ......................................... : The equipment does not

contain audio amplifies. N

5.3.7 Simulation of faults (see appended table 5.3) P

5.3.8 Unattended equipment No thermostats, temperature

limiters or thermal cut-outs N

5.3.9 Compliance criteria for abnormal operating and fault

conditions

Refer to below: P

5.3.9.1 During the tests No fire propagated beyond

the equipment. No molten

metal was emitted. No any

hazard.

5.3.9.2 After the tests Not reduction of clearance

and creepage distances.

Electric Strength tests

performed after abnormal

and fault tests.

6 CONNECTION TO TELECOMMUNICATION NETWORKS

The equipment is not connected to a TELECOMMUNICATION NETWORKS

6.1 Protection of telecommunication network service persons, and users of other

equipment connected to the network, from hazards in the equipment

Report No.: ACSS1811066

Page 24 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

6.1.1 Protection from hazardous voltages N

6.1.2 Separation of the telecommunication network from earth N

6.1.2.1 Requirements N

Supply voltage (V) ................................................ : —

Current in the test circuit (mA) ............................ : —

6.1.2.2 Exclusions ............................................................ : N

6.2 Protection of equipment users from overvoltages on telecommunication networks N

6.2.1 Separation requirements N

6.2.2 Electric strength test procedure N

6.2.2.1 Impulse test N

6.2.2.2 Steady-state test N

6.2.2.3 Compliance criteria N

6.3 Protection of the telecommunication wiring system from overheating N

Max. Output current (A) ........................................ : —

Current limiting method ........................................ : —

7 CONNECTION TO CABLE DISTRIBUTION SYSTEMS

The equipment is not connected to a CABLE DISTRIBUTION SYSTEMS.

7.1 General N

7.2 Protection of cable distribution system service

persons, and users of other equipment connected to

the system, from hazardous voltages in the

equipment

7.3 Protection of equipment users from overvoltages on

the cable distribution system

7.4 Insulation between primary circuits and cable

distribution systems N

7.4.1 General N

7.4.2 Voltage surge test N

7.4.3 Impulse test N

A ANNEX A, TESTS FOR RESISTANCE TO HEAT AND FIRE N

A.1 Flammability test for fire enclosures of movable

equipment having a total mass exceeding 18 kg, and

of stationary equipment (see 4.7.3.2)

A.1.1 Samples ................................................................ : —

Wall thickness (mm) .............................................. : —

Report No.: ACSS1811066

Page 25 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

A.1.2 Conditioning of samples; temperature (C) .......... : N

A.1.3 Mounting of samples ............................................ : N

A.1.4 Test flame (see IEC 60695-11-3) N

Flame A, B, C or D ............................................... : —

A.1.5 Test procedure N

A.1.6 Compliance criteria N

Sample 1 burning time (s) ..................................... : —

Sample 2 burning time (s) ..................................... : —

Sample 3 burning time (s) ..................................... : —

A.2 Flammability test for fire enclosures of movable equipment having a total mass not

exceeding 18 kg, and for material and components located inside fire enclosures

(see 4.7.3.2 and 4.7.3.4)

A.2.1 Samples, material ................................................. : —

Wall thickness (mm) .............................................. : —

A.2.2 Conditioning of samples; temperature (°C) .......... : N

A.2.3 Mounting of samples ............................................ : N

A.2.4 Test flame (see IEC 60695-11-4) N

Flame A, B or C .................................................... : —

A.2.5 Test procedure N

A.2.6 Compliance criteria N

Sample 1 burning time (s) ..................................... : —

Sample 2 burning time (s) ..................................... : —

Sample 3 burning time (s) ..................................... : —

A.2.7 Alternative test acc. to IEC 60695-11-5, cl. 5 and 9 N

Sample 1 burning time (s) ..................................... : —

Sample 2 burning time (s) ..................................... : —

Sample 3 burning time (s) ..................................... : —

A.3 Hot flaming oil test (see 4.6.2) N

A.3.1 Mounting of samples N

A.3.2 Test procedure N

A.3.3 Compliance criterion N

B ANNEX B, MOTOR TESTS UNDER ABNORMAL CONDITIONS (see 4.7.2.2 and

5.3.2)

B.1 General requirements N

Position ................................................................ : —

Manufacturer ........................................................ : —

Type ..................................................................... : —

Report No.: ACSS1811066

Page 26 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Rated values ....................................................... : —

B.2 Test conditions N

B.3 Maximum temperatures N

B.4 Running overload test N

B.5 Locked-rotor overload test N

Test duration (days) ............................................. : —

Electric strength test: test voltage (V) .................. : —

B.6 Running overload test for d.c. motors in secondary

circuits

B.6.1 General N

B.6.2 Test procedure N

B.6.3 Alternative test procedure N

B.6.4 Electric strength test; test voltage (V) .................. : N

B.7 Locked-rotor overload test for d.c. motors in

secondary circuits

B.7.1 General N

B.7.2 Test procedure N

B.7.3 Alternative test procedure N

B.7.4 Electric strength test; test voltage (V) ................. : N

B.8 Test for motors with capacitors N

B.9 Test for three-phase motors N

B.10 Test for series motors N

Operating voltage (V) ........................................... : —

C ANNEX C, TRANSFORMERS (see 1.5.4 and 5.3.3) P

Position ................................................................ : See appended table 1.5.1 —

Manufacturer ........................................................ : See appended table 1.5.1 —

Type ..................................................................... : See appended table 1.5.1 —

Rated values ....................................................... : See appended table 1.5.1 —

Method of protection ............................................. : —

C.1 Overload test See appended table 5.3 P

C.2 Insulation See appended table 5.2 P

Protection from displacement of windings ............ : Fixed by insulation tape and

tube. P

D ANNEX D, MEASURING INSTRUMENTS FOR TOUCH-CURRENT TESTS

(see 5.1.4)

D.1 Measuring instrument P

Report No.: ACSS1811066

Page 27 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

D.2 Alternative measuring instrument N

E ANNEX E, TEMPERATURE RISE OF A WINDING (see 1.4.13) N

F ANNEX F, MEASUREMENT OF CLEARANCES AND CREEPAGE DISTANCES

(see 2.10 and Annex G)

G ANNEX G, ALTERNATIVE METHOD FOR DETERMINING MINIMUM

CLEARANCES

G.1 Clearances N

G.1.1 General N

G.1.2 Summary of the procedure for determining

minimum clearances

G.2 Determination of mains transient voltage (V) N

G.2.1 AC mains supply .................................................. : N

G.2.2 Earthed d.c. mains supplies ................................. : N

G.2.3 Unearthed d.c. mains supplies ............................. : N

G.2.4 Battery operation .................................................. : N

G.3 Determination of telecommunication network

transient voltage (V) ............................................. :

G.4 Determination of required withstand voltage (V) N

G.4.1 Mains transients and internal repetitive peaks ..... : N

G.4.2 Transients from telecommunication networks ..... : N

G.4.3 Combination of transients N

G.4.4 Transients from cable distribution systems N

G.5 Measurement of transient voltages (V) N

a) Transients from a mains supply N

For an a.c. mains supply N

For a d.c. mains supply N

b) Transients from a telecommunication network N

G.6 Determination of minimum clearances ................ : N

H ANNEX H, IONIZING RADIATION (see 4.3.13) N

J ANNEX J, TABLE OF ELECTROCHEMICAL POTENTIALS (see 2.6.5.6) N

Metal(s) used ....................................................... : —

K ANNEX K, THERMAL CONTROLS (see 1.5.3 and 5.3.8) N

Report No.: ACSS1811066

Page 28 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

K.1 Making and breaking capacity N

K.2 Thermostat reliability; operating voltage (V) ......... : 

K.3 Thermostat endurance test; operating voltage (V)

............................................................................... :



K.4 Temperature limiter endurance; operating voltage

(V) ......................................................................... :



K.5 Thermal cut-out reliability N

K.6 Stability of operation N

L ANNEX L, NORMAL LOAD CONDITIONS FOR SOME TYPES OF ELECTRICAL

BUSINESS EQUIPMENT (see 1.2.2.1 and 4.5.2)

L.1 Typewriters N

L.2 Adding machines and cash registers N

L.3 Erasers N

L.4 Pencil sharpeners N

L.5 Duplicators and copy machines N

L.6 Motor-operated files N

L.7 Other business equipment P

M ANNEX M, CRITERIA FOR TELEPHONE RINGING SIGNALS (see 2.3.1) N

M.1 Introduction N

M.2 Method A N

M.3 Method B N

M.3.1 Ringing signal N

M.3.1.1 Frequency (Hz) .................................................... : —

M.3.1.2 Voltage (V) ........................................................... : —

M.3.1.3 Cadence; time (s), voltage (V) ............................. : —

M.3.1.4 Single fault current (mA) ...................................... : —

M.3.2 Tripping device and monitoring voltage ............... : N

M.3.2.1 Conditions for use of a tripping device or a

monitoring voltage

M.3.2.2 Tripping device N

M.3.2.3 Monitoring voltage (V) .......................................... : —

N ANNEX N, IMPULSE TEST GENERATORS (see 1.5.7.2, 1.5.7.3, 2.10.3.9, 6.2.2.1,

7.3.2, 7.4.3 and Clause G.5)

N.1 ITU-T impulse test generators N

N.2 IEC 60065 impulse test generator N

Report No.: ACSS1811066

Page 29 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

P ANNEX P, NORMATIVE REFERENCES —

Q ANNEX Q, Voltage dependent resistors (VDRs) (see 1.5.9.1) P

a) Preferred climatic categories ........................... : —

b) Maximum continuous voltage .......................... : —

c) Pulse current .................................................... : —

R ANNEX R, EXAMPLES OF REQUIREMENTS FOR QUALITY CONTROL

PROGRAMMES

R.1 Minimum separation distances for unpopulated

coated printed boards (see 2.10.6.2)

R.2 Reduced clearances (see 2.10.3) N

S ANNEX S, PROCEDURE FOR IMPULSE TESTING (see 6.2.2.3) N

S.1 Test equipment N

S.2 Test procedure N

S.3 Examples of waveforms during impulse testing N

T ANNEX T, GUIDANCE ON PROTECTION AGAINST INGRESS OF WATER

(see 1.1.2)

Not protected against ingress of water. —

U ANNEX U, INSULATED WINDING WIRES FOR USE WITHOUT INTERLEAVED

INSULATION (see 2.10.5.4)

Triple insulation wire was used. (See appended table 1.5.1) —

V ANNEX V, AC POWER DISTRIBUTION SYSTEMS (see 1.6.1) P

V.1 Introduction P

V.2 TN power distribution systems Single-phase. TN power

system considered and used

for testing

V.3 TT power distribution systems N

V.4 IT power distribution systems N

W ANNEX W, SUMMATION OF TOUCH CURRENTS N

W.1 Touch current from electronic circuits N

W.1.1 Floating circuits N

W.1.2 Earthed circuits N

W.2 Interconnection of several equipments N

W.2.1 Isolation N

Report No.: ACSS1811066

Page 30 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

W.2.2 Common return, isolated from earth N

W.2.3 Common return, connected to protective earth N

X ANNEX X, MAXIMUM HEATING EFFECT IN TRANSFORMER TESTS

(see clause C.1)

X.1 Determination of maximum input current See annex C.1 P

X.2 Overload test procedure Electronic protection mode is

used. P

Y ANNEX Y, ULTRAVIOLET LIGHT CONDITIONING TEST (see 4.3.13.3) N

Y.1 Test apparatus ..................................................... : N

Y.2 Mounting of test samples ..................................... : N

Y.3 Carbon-arc light-exposure apparatus ................... : N

Y.4 Xenon-arc light exposure apparatus .................... : N

Z ANNEX Z, OVERVOLTAGE CATEGORIES (see 2.10.3.2 and Clause G.2) N

AA ANNEX AA, MANDREL TEST (see 2.10.5.8) N

BB ANNEX BB, CHANGES IN THE SECOND EDITION —

CC ANNEX CC, Evaluation of integrated circuit (IC) current limiters N

CC.1 General N

CC.2 Test program 1…………………………………….: —

CC.3 Test program 2…………………………………….: —

DD ANNEX DD, Requirements for the mounting means of rack-mounted

equipment

DD.1 General N

DD.2 Mechanical strength test, variable N…………..: —

DD.3 Mechanical strength test, 250N, including end

stops…………………………………………………: —

DD.4 Compliance…………………………………………: —

EE ANNEX EE, Household and home/office document/media shredders N

EE.1 General N

EE.2 Markings and instructions N

Use of markings or symbols………….…………: —

Report No.: ACSS1811066

Page 31 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Information of user instructions, maintenance

and/or servicing instructions……………………:

—

EE.3 Inadvertent reactivation test………………….…: —

EE.4 Disconnection of power to hazardous moving parts:

Use of markings or symbols……………………: —

EE.5 Protection against hazardous moving parts N

Test with test finger (Figure 2A) ………...……: —

Test with wedge probe (Figure EE1 and EE2) : —

Report No.: ACSS1811066

Page 32 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013 – CENELEC COMMON MODIFICATIONS

Clause Requirement + Test Result - Remark Verdict

Clauses, subclauses, notes, tables and figures which are additional to those in

IEC60950-1 and it´s amendmets are prefixed “Z”

—

Contents

(A2:2013)

Add the following annexes:

Annex ZA (normative) Normative references to international

publications with their corresponding

European publications

Annex ZB (normative) Special national conditions

Annex ZD (informative) IEC and CENELEC code designations for

flexible cords

—

General Delete all the “country” notes in the reference document (IEC 60950-1:2005)

according to the following list:

1.4.8 Note 2 1.5.1 Note 2 & 3 1.5.7.1 Note

1.5.8 Note 2 1.5.9.4 Note 1.7.2.1 Note 4, 5 & 6

2.2.3 Note 2.2.4 Note 2.3.2 Note

2.3.2.1 Note 2 2.3.4 Note 2 2.6.3.3 Note 2 & 3

2.7.1 Note 2.10.3.2 Note 2 2.10.5.13 Note 3

3.2.1.1 Note 3.2.4 Note 3. 5.1 Note 2

4.3.6 Note 1 & 2 4.7 Note 4 4.7.2.2 Note

4.7.3.1 Note 2 5.1.7.1 Note 3 & 4 5.3.7 Note 1

6 Note 2 & 5 6.1.2.1 Note 2 6.1.2.2 Note

6.2.2 Note 6.2.2.1 Note 2 6.2.2.2 Note

7.1 Note 3 7.2 Note 7.3 Note 1 & 2

G.2.1 Note 2 Annex H Note 2

—

General

(A1:2010) Delete all the “country” notes in the reference document (IEC 60950-

1:2005/A1:2010) according to the following list:

1.5.7.1 Note 6.1.2.1 Note 2

6.2.2.1 Note 2 EE.3 Note

—

General

(A2:2013) Delete all the “country” notes in the reference document (IEC 60950-

1:2005/A2:2013) according to the following list:

2.7.1 Note * 2.10.3.1 Note 2

6.2.2. Note

* Note of secretary: Text of Common Modification remains unchanged.

—

1.1.1

(A1:2010)

Replace

the text of NOTE 3 by the following.

NOTE 3 The requirements of EN 60065 may also be used to meet safety requirements for multimedia

equipment. See IEC Guide 112, Guide on the safety of multimedia equipment. For television sets EN

60065 applies.

Report No.: ACSS1811066

Page 33 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

1.3.Z1 Add the following subclause:

1.3.Z1 Exposure to excessive sound pressure

The apparatus shall be so designed and constructed

as to present no danger when used for its intended

purpose, either in normal operating conditions or

under fault conditions, particularly providing

protection against exposure to excessive sound

pressures from headphones or earphones.

NOTE Z1 A new method of measurement is described in

EN 50332-1, Sound system equipment:

Headphones and earphones associated with portable

audio equipment - Maximum sound pressure level

measurement methodology and limit considerations - Part

1: General method for “one package equipment”, and in

EN 50332-2, Sound system equipment: Headphones and

earphones associated with portable audio equipment -

Maximum sound pressure level measurement

methodology and limit considerations - Part 2: Guidelines

to associate sets with headphones coming from different

manufacturers.

(A12:2011)

In EN 60950-1:2006/A12:2011

Delete the addition of 1.3.Z1 / EN 60950-1:2006

Delete the definition 1.2.3.Z1 / EN 60950-1:2006

/A1:2010

1.5.1

(Added

info*)

Add the following NOTE:

NOTE Z1 The use of certain substances in electrical and

electronic equipment is restricted within the EU: see

Directive 2002/95/EC.

New Directive 2011/65/11 *

1.7.2.1

(A1:2010)

In addition, for a PORTABLE SOUND SYSTEM, the

instructions shall include a warning that excessive

sound pressure from earphones and headphones can

cause hearing loss.

1.7.2.1

(A12.2011) In EN 60950-1:2006/A12:2011

Delete NOTE Z1 and the addition for Portable Sound

System.

Add the following clause and annex to the existing

standard and amendments.

Zx Protection against excessive sound pressure from personal music

players

Report No.: ACSS1811066

Page 34 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Zx.1 General

This sub-clause specifies requirements for protection

against excessive sound pressure from personal

music players that are closely coupled to the ear. It

also specifies requirements for earphones and

headphones intended for use with personal music

players.

A personal music player is a portable equipment

for personal use, that:

is designed to allow the user to listen to recorded

or broadcast sound or video; and

primarily uses headphones or earphones that can

be worn in or on or around the ears; and

allows the user to walk around while in use.

NOTE 1 Examples are hand-held or body-worn portable CD

players, MP3 audio players, mobile phones with MP3 type

features, PDA’s or similar equipment.

A personal music player and earphones or

headphones intended to be used with personal

music players shall comply with the requirements of

this sub-clause.

The requirements in this sub-clause are valid for

music or video mode only.

The requirements do not apply:

while the personal music player is connected to an

external amplifier; or



while the headphones or earphones are not used.

NOTE 2 An external amplifier is an amplifier which is not part of

the personal music player or the listening device, but which is

intended to play the music as a standalone music player.

The requirements do not apply to:

hearing aid equipment and professional equipment;

NOTE 3 Professional equipment is equipment sold through

special sales channels. All products sold through normal

electronics stores are considered not to be professional

equipment.

Not personal music player N

analogue personal music players (personal music

players without any kind of digital processing of the

sound signal) that are brought to the market before

the end of 2015.

NOTE 4 This exemption has been allowed because this

technology is falling out of use and it is expected that within a few

years it will no longer exist. This exemption will not be extended to

other technologies.

For equipment which is clearly designed or intended

for use by young children, the limits of EN 71-1

apply.

Report No.: ACSS1811066

Page 35 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Zx.2 Equipment requirements

No safety provision is required for equipment that

complies with the following:



equipment provided as a package (personal music

player with its listening device), where

the acoustic output LAeq,T is ≤ 85 dBA measured

while playing the fixed “programme simulation noise”

as described in EN 50332-1; and

a personal music player provided with an

analogue electrical output socket for a listening

device, where the electrical output is ≤ 27 mV

measured as described in EN 50332-2, while

playing the fixed “programme simulation noise” as

described in EN 50332-1.

NOTE 1 Wherever the term acoustic output is used in this clause,

the 30 s A-weighted equivalent sound pressure level LAeq,T is

meant. See also Zx.5 and Annex Zx.

All other equipment shall:

a) protect the user from unintentional acoustic

outputs exceeding those mentioned above; and

b) have a standard acoustic output level not

exceeding those mentioned above, and

automatically return to an output level not

exceeding those mentioned above when the

power is switched off; and

c) provide a means to actively inform the user of the

increased sound pressure when the equipment is

operated with an acoustic output exceeding those

mentioned above. Any means used shall be

acknowledged by the user before activating a

mode of operation which allows for an acoustic

output exceeding those mentioned above. The

acknowledgement does not need to be repeated

more than once every 20 h of cumulative listening

time; and

NOTE 2 Examples of means include visual or audible signals.

Action from the user is always required.

NOTE 3 The 20 h listening time is the accumulative listening time,

independent how often and how long the personal music player

has been switched off.

d) have a warning as specified in Zx.3; and

e) not exceed the following:

1) equipment provided as a package (player with

Its listening device), the acoustic output shall be ≤

100 dBA measured while playing the fixed

“programme simulation noise” described in EN

50332-1; and

2) a personal music player provided with an

analogue electrical output socket for a listening

device, the electrical output shall be ≤ 150 mV

measured as described in EN 50332-2, while

playing the fixed “programme simulation noise”

described in EN 50332-1.

Report No.: ACSS1811066

Page 36 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

For music where the average sound pressure (long

term LAeq,T) measured over the duration of the song

is lower than the average produced by the

programme simulation noise, the warning does not

need to be given as long as the average sound

pressure of the song is below the basic limit of 85

dBA. In this case T becomes the duration of the

song.

NOTE 4 Classical music typically has an average sound pressure

(long term LAeq,T) which is much lower than the average

programme simulation noise. Therefore, if the player is capable to

analyse the song and compare it with the programme simulation

noise, the warning does not need to be given as long as the

average sound pressure of the song is below the basic limit of 85

dBA.

For example, if the player is set with the programme simulation

noise to 85 dBA, but the average music level of the song is only

65 dBA, there is no need to give a warning or ask an

acknowledgement as long as the average sound level of the song

is not above the basic limit of 85 dBA.

Zx.3 Warning

The warning shall be placed on the equipment, or on

the packaging, or in the instruction manual and shall

consist of the following:

the symbol of Figure 1 with a minimum height of 5

mm; and

the following wording, or similar:

“To prevent possible hearing damage, do not listen

at high volume levels for long periods.”

Figure 1 – Warning label (IEC 60417-6044)

Alternatively, the entire warning may be given

through the equipment display during use, when the

user is asked to acknowledge activation of the higher

level.

Zx.4 Requirements for listening devices (headphones and earphones) N

Zx.4.1 Wired

listening devices with analogue

input

With 94 dBA sound pressure output LAeq,T, the input

voltage of the fixed “programme simulation noise”

described in EN 50332-2 shall be ≥ 75 mV.

This requirement is applicable in any mode where

the headphones can operate (active or

passive), including any available setting (for example

built-in volume level control).

NOTE The values of 94 dBA – 75 mV correspond with 85dBA –

27 mV and 100 dBA – 150 mV.

Report No.: ACSS1811066

Page 37 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Zx.4.2 Wired listening devices with digital input

With any playing device playing the fixed

“programme simulation noise” described in EN

50332-1 (and respecting the digital interface

standards, where a digital interface standard exists

that specifies the equivalent acoustic level), the

acoustic output LAeq,T of the listening device shall be

≤ 100 dBA.

This requirement is applicable in any mode where

the headphones can operate, including any available

setting (for example built-in volume level control,

additional sound feature like equalization, etc.).

NOTE An example of a wired listening device with digital input is a

USB headphone.

Zx.4.3 Wireless listening devices

In wireless mode:

with any playing and transmitting device playing

the fixed programme simulation noise described in

EN 50332-1; and

respecting the wireless transmission standards,

where an air interface standard exists that specifies

the equivalent acoustic level; and

with volume and sound settings in the listening

device (for example built-in volume level control,

additional sound feature like equalization, etc.) set to

the combination of positions that maximize the

measured acoustic output for the abovementioned

programme simulation noise, the acoustic output

LAeq,T of the listening device shall be ≤ 100 dBA.

NOTE An example of a wireless listening device is a Bluetooth

headphone.

Zx.5 Measurement methods

Measurements shall be made in accordance with EN

50332-1 or EN 50332-2 as applicable. Unless stated

otherwise, the time interval T shall be 30 s.

NOTE Test method for wireless equipment provided without

listening device should be defined.

2.7.1 Replace the subclause as follows:

Basic requirements

To protect against excessive current, short-circuits

and earth faults in PRIMARY CIRCUITS, protective

devices shall be included either as integral parts of

the equipment or as parts of the building installation,

subject to the following, a), b) and c):

a) except as detailed in b) and c), protective devices

necessary to comply with the requirements of 5.3

shall be included as parts of the equipment;

b) for components in series with the mains input to

the equipment such as the supply cord, appliance

coupler, r.f.i. filter and switch, short-circuit and

earth fault protection may be provided by

protective devices in the building installation;

Report No.: ACSS1811066

Page 38 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

c) it is permitted for PLUGGABLE EQUIPMENT

TYPE B or PERMANENTLY CONNECTED

EQUIPMENT, to rely on dedicated overcurrent

and short-circuit protection in the building

installation, provided that the means of

protection, e.g. fuses or circuit breakers, is fully

specified in the installation instructions.

If reliance is placed on protection in the building

installation, the installation instructions shall so state,

except that for PLUGGABLE EQUIPMENT TYPE A

the building installation shall be regarded as

providing protection in accordance with the rating of

the wall socket outlet.

2.7.2 This subclause has been declared ‘void’. N

3.2.3 Delete the NOTE in Table 3A, and delete also in this

table the conduit sizes in parentheses.

3.2.5.1 Replace “60245 IEC 53” by “H05 RR-F”;

“60227 IEC 52” by “H03 VV-F or

H03 VVH2-F”;

“60227 IEC 53” by “H05 VV-F or

H05 VVH2-F2”.

In Table 3B, replace the first four lines by the

following:

Up to and including 6 | 0,75 a) |

Over 6 up to and including 10| (0,75) b) 1,0 |

Over 10 up to and including 16| (1,0) c) 1,5 |

In the conditions applicable to Table 3B delete the

words “in some countries” in condition a).

In NOTE 1, applicable to Table 3B, delete the

second sentence.

3.2.5.1

(A2:2013)

NOTE Z1 The harmonized code designations corresponding to

the IEC cord types are given in Annex ZD N

3.3.4 In Table 3D, delete the fourth line: conductor sizes

for 10 to 13 A, and replace with the following:

Over 10 up to and including 16 | 1,5 to 2,5 | 1,5 to 4

Delete the fifth line: conductor sizes for 13 to 16 A

4.3.13.6

(A1:2010) Replace the existing NOTE by the following:

NOTE Z1 Attention is drawn to:

1999/519/EC: Council Recommendation on the limitation

of exposure of the general public to electromagnetic fields

0 Hz to 300 GHz, and

2006/25/EC: Directive on the minimum health and safety

requirements regarding the exposure of workers to risks

arising from physical agents (artifical optical radiation).

Standards taking into account mentioned

Recommendation and Directive which demonstrate

compliance with the applicable EU Directive are indicated

in the OJEC.

Report No.: ACSS1811066

Page 39 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Annex H Replace the last paragraph of this annex by:

At any point 10 cm from the surface of the

OPERATOR ACCESS AREA, the dose rate shall not

exceed 1 μSv/h (0,1 mR/h) (see NOTE). Account is

taken of the background level.

Replace the notes as follows:

NOTE These values appear in Directive 96/29/Euratom.

Delete NOTE 2.

Bibliograp

Additional EN standards. 

ZA NORMATIVE REFERENCES TO INTERNATIONAL PUBLICATIONS WITH THEIR

CORRESPONDING EUROPEAN PUBLICATIONS



ZB ANNEX

(normative)

SPECIAL NATIONAL CONDITIONS (EN)

Clause Requirement + Test Result - Remark Verdict

1.2.4.1 In

Denmark

, certain types of Class I appliances (see

3.2.1.1) may be provided with a plug not establishing

earthing conditions when inserted into Danish

socket-outlets.

1.2.13.14

(A11:2009)

Norway

and

Sweden

, for requirements see

1.7.2.1 and 7.3 of this annex.

1.5.7.1

(A11:2009) In

Finland, Norway

and

Sweden

, resistors bridging

BASIC INSULATION in CLASS I PLUGGABLE EQUIPMENT

TYPE A must comply with the requirements in 1.5.7.1.

In addition when a single resistor is used, the

resistor must withstand the resistor test in 1.5.7.2.

1.5.8 In

Norway

, due to the IT power system used (see

annex V, Figure V.7), capacitors are required to be

rated for the applicable line-to-line voltage (230 V).

1.5.9.4 In

Finland

Norway

and

Sweden

, the third dashed

sentence is applicable only to equipment as defined

in 6.1.2.2 of this annex.

No such construction. N

1.7.2.1 In Finland, Norway and Sweden, CLASS I

PLUGGABLE EQUIPMENT TYPE A intended for

connection to other equipment or a network shall, if

safety relies on connection to protective earth or if

surge suppressors are connected between the

network terminals and accessible parts, have a

marking stating that the equipment must be

connected to an earthed mains socket-outlet.

The marking text in the applicable countries shall be

as follows:

In Finland: "Laite on liitettävä suojakoskettimilla

varustettuun pistorasiaan"

In Norway: “Apparatet må tilkoples jordet

stikkontakt”

In Sweden: “Apparaten skall anslutas till jordat

uttag”

Report No.: ACSS1811066

Page 40 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

1.7.2.1

(A11:2009) In Norway and Sweden, the screen of the cable

distribution system is normally not earthed at the

entrance of the building and there is normally no

equipotential bonding system within the building.

Therefore the protective earthing of the building

installation need to be isolated from the screen of a

cable distribution system.

It is however accepted to provide the insulation

external to the equipment by an adapter or an

interconnection cable with galvanic isolator, which

may be provided by e.g. a retailer.

The user manual shall then have the following or

similar information in Norwegian and Swedish

language respectively, depending on in what country

the equipment is intended to be used in:

“Equipment connected to the protective earthing of

the building installation through the mains

connection or through other equipment with a

connection to protective earthing – and to a cable

distribution system using coaxial cable, may in some

circumstances create a fire hazard. Connection to a

cable distribution system has therefore to be

provided through a device providing electrical

isolation below a certain frequency range (galvanic

isolator, see EN 60728-11).”

NOTE In Norway, due to regulation for installations of cable

distribution systems, and in Sweden, a galvanic isolator shall

provide electrical insulation below 5 MHz. The insulation shall

withstand a dielectric strength of 1,5 kV r.m.s., 50 Hz or 60 Hz, for

1 min.

Translation to Norwegian (the Swedish text will also

be accepted in Norway):

“Utstyr som er koplet til beskyttelsesjord via

nettplugg og/eller via annet jordtilkoplet

utstyr – og er tilkoplet et kabel-TV nett, kan forårsake

brannfare. For å unngå dette skal det ved tilkopling

av utstyret til kabel-TV nettet installeres en galvanisk

isolator mellom utstyret og kabel- TV nettet.”

Translation to Swedish:

”Utrustning som är kopplad till skyddsjord via jordat

vägguttag och/eller via annan

utrustning och samtidigt är kopplad till kabel-TV nät

kan i vissa fall medfőra risk főr

brand. Főr att undvika detta skall vid anslutning av

utrustningen till kabel-TV nät

galvanisk isolator finnas mellan utrustningen och

kabel-TV nätet.”

Report No.: ACSS1811066

Page 41 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

1.7.2.1

(A2:2013) In Denmark, CLASS I PLUGGABLE EQUIPMENT

TYPE A intended for connection to other equipment

or a network shall, if safety relies on connection to

protective earth or if surge suppressors are

connected between the network terminals and

accessible parts, have a marking stating that the

equipment must be connected to an earthed mains

socket-outlet.

The marking text in Denmark shall be as follows:

In Denmark: “Apparatets stikprop skal tilsluttes en

stikkontakt med jord, som giver forbindelse til

stikproppens jord.”

1.7.5 In Denmark, socket-outlets for providing power to

other equipment shall be in accordance with the

Heavy Current Regulations, Section 107-2-D1,

Standard Sheet DK 1-3a, DK 1-5a or DK 1-7a, when

used on Class I equipment. For STATIONARY

EQUIPMENT the socket-outlet shall be in

accordance with Standard Sheet DK 1-1b or DK 1-

5a.

1.7.5

(A11:2009) For CLASS II EQUIPMENT the socket outlet shall be in

accordance with Standard Sheet DKA 1-4a.

1.7.5

(A2:2013) In

Denmark

, socket-outlets for providing power to

other equipment shall be in accordance with the DS

60884-2-D1:2011.

For class I equipment the following Standard Sheets

are applicable: DK 1-3a, DK 1-1c,

DK 1-1d, DK 1-5a or DK 1-7a, with the exception for

STATIONARY EQUIPMENT where the socket-

outlets shall be in accordance with Standard Sheet

DK 1-1b, DK 1-1c, DK 1-1d or DK 1-5a.

Socket outlets intended for providing power to Class

II apparatus with a rated current of 2,5 A shall be in

accordance with DS 60884-2-D1 standard sheet

DKA 1-4a. Other current rating socket outlets shall

be in compliance with by DS 60884-2-D1 Standard

Sheet DKA 1-3a or DKA 1-3b.

Justification

the Heavy Current Regulations, 6c

2.2.4 In

Norway

, for requirements see 1.7.2.1, 6.1.2.1 and

6.1.2.2 of this annex.

2.3.2 In

Finland

Norway

and

Sweden

there are

additional requirements for the insulation. See

6.1.2.1 and 6.1.2.2 of this annex.

2.3.4 In

Norway

, for requirements see 1.7.2.1, 6.1.2.1 and

6.1.2.2 of this annex.

2.6.3.3 In the

United Kingdom

, the current rating of the

circuit shall be taken as 13 A, not 16 A.

2.7.1 In the

United Kingdom

, to protect against excessive

currents and short-circuits in the PRIMARY CIRCUIT

of DIRECT PLUG-IN EQUIPMENT, tests according

to 5.3 shall be conducted, using an external

protective device rated 30 A or 32 A. If these tests

fail, suitable protective devices shall be included as

integral parts of the DIRECT PLUG-IN EQUIPMENT,

so that the requirements of 5.3 are met.

Report No.: ACSS1811066

Page 42 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

2.10.5.13 In

Finland

Norway

and

Sweden

, there are

additional requirements for the insulation, see

6.1.2.1 and 6.1.2.2 of this annex.

3.2.1.1 In Switzerland, supply cords of equipment having a

RATED CURRENT not exceeding 10 A shall be

provided with a plug complying with SEV 1011 or

IEC 60884-1 and one of the following dimension

sheets:

SEV 6532-2.1991 Plug Type 15, 3P+N+PE, 250/400

V, 10 A

SEV 6533-2.1991 Plug Type 11, L+N,

250 V, 10 A

SEV 6534-2.1991 Plug Type 12, L+N+PE, 250 V,

10A

In general, EN 60309 applies for plugs for currents

exceeding 10 A. However, a 16 A plug and socket-

outlet system is being introduced in Switzerland, the

plugs of which are according to the following

dimension sheets, published in February 1998:

SEV 5932-2.1998: Plug Type 25 , 3L+N+PE 230/400

V, 16 A

SEV 5933-2.1998:Plug Type 21, L+N, 250 V, 16A

SEV 5934-2.1998: Plug Type 23, L+N+PE 250 V, 16

3.2.1.1 In Denmark, supply cords of single-phase

equipment having a rated current not exceeding13 A

shall be provided with a plug according to the Heavy

Current Regulations, Section 107-2-D1.

CLASS I EQUIPMENT provided with socket-outlets

with earth contacts or which are intended to be used

in locations where protection against indirect contact

is required according to the wiring rules shall be

provided with a plug in accordance with standard

sheet DK 2-1a or DK 2-5a.

If poly-phase equipment and single-phase

equipment having a RATED CURRENT exceeding

13 A is provided with a supply cord with a plug, this

plug shall be in accordance with the Heavy Current

Regulations, Section 107-2-D1 or EN 60309-2.

Report No.: ACSS1811066

Page 43 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

3.2.1.1

(A2:2013) In

Denmark

, supply cords of single-phase

equipment having a rated current not exceeding 13

A shall be provided with a plug according to DS

60884-2-D1.

CLASS I EQUIPMENT provided with socket-outlets

with earth contacts or which are intended to be used

in locations where protection against indirect contact

is required according to the wiring rules shall be

provided with a plug in accordance with standard

sheet DK 2-1a or DK 2-5a.

If a single-phase equipment having a RATED

CURRENT exceeding 13 A or if a poly-phase

equipment is provided with a supply cord with a plug,

this plug shall be in accordance with the standard

sheets DK 6-1a in DS 60884-2-D1 or EN 60309-2.

Justification

the Heavy Current Regulations, 6c

3.2.1.1 In Spain, supply cords of single-phase equipment

having a rated current not exceeding 10 A shall be

provided with a plug according to UNE 20315:1994.

Supply cords of single-phase equipment having a

rated current not exceeding 2,5 A shall be provided

with a plug according to UNE-EN 50075:1993.

CLASS I EQUIPMENT provided with socket-outlets

with earth contacts or which are intended to be used

in locations where protection against indirect contact

is required according to the wiring rules, shall be

provided with a plug in accordance with standard

UNE 20315:1994.

If poly-phase equipment is provided with a supply

cord with a plug, this plug shall be in accordance

with UNE-EN 60309-2.

3.2.1.1 In the United Kingdom, apparatus which is fitted

with a flexible cable or cord and is designed to be

connected to a mains socket conforming to BS 1363

by means of that flexible cable or cord and plug,

shall be fitted with a ‘standard plug’ in accordance

with Statutory Instrument 1768:1994 - The Plugs and

Sockets etc. (Safety) Regulations 1994, unless

exempted by those regulations.

NOTE ‘Standard plug’ is defined in SI 1768:1994 and

essentially means an approved plug conforming to BS

1363 or an approved conversion plug.

3.2.1.1 In Ireland, apparatus which is fitted with a flexible

cable or cord and is designed to be connected to a

mains socket conforming to I.S. 411 by means of

that flexible cable or cord and plug, shall be fitted

with a 13 A plug in accordance with Statutory

Instrument 525:1997 - National Standards Authority

of Ireland (section 28) (13 A Plugs and Conversion

Adaptors for Domestic Use) Regulations 1997.

3.2.4 In Switzerland, for requirements see 3.2.1.1 of this

annex.

Report No.: ACSS1811066

Page 44 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

3.2.5.1 In the United Kingdom, a power supply cord with

conductor of 1,25 mm2 is allowed for equipment with

a rated current over 10 A and up to and including 13

3.3.4 In the United Kingdom, the range of conductor

sizes of flexible cords to be accepted by terminals for

equipment with a RATED CURRENT of over 10 A up

to and including 13 A is:

• 1,25 mm2 to 1,5 mm2 nominal cross-sectional area.

4.3.6 In the United Kingdom, the torque test is performed

using a socket outlet complying with BS 1363 part

1:1995, including Amendment 1:1997 and

Amendment 2:2003 and the plug part of DIRECT

PLUG-IN EQUIPMENT shall be assessed to BS

1363: Part 1, 12.1, 12.2, 12.3, 12.9, 12.11, 12.12,

12.13, 12.16 and 12.17, except that the test of 12.17

is performed at not less than 125 °C. Where the

metal earth pin is replaced by an Insulated Shutter

Opening Device (ISOD), the requirements of clauses

22.2 and 23 also apply.

4.3.6 In Ireland, DIRECT PLUG-IN EQUIPMENT is known

as plug similar devices. Such devices shall comply

with Statutory Instrument 526:1997 - National

Standards Authority of Ireland (Section 28)

(Electrical plugs, plug similar devices and sockets for

domestic use) Regulations, 1997.

5.1.7.1 In Finland, Norway and Sweden TOUCH

CURRENT measurement results exceeding 3,5 mA

r.m.s. are permitted only for the following equipment:

• STATIONARY PLUGGABLE EQUIPMENT TYPE

A that is intended to be used in a RESTRICTED

ACCESS LOCATION where equipotential bonding

has been applied, for example, in a

telecommunication centre; and has provision for a

permanently connected PROTECTIVE EARTHING

CONDUCTOR; and is provided with instructions for

the installation of that conductor by a SERVICE

PERSON;

• STATIONARY PLUGGABLE EQUIPMENT TYPE

• STATIONARY PERMANENTLY CONNECTED

EQUIPMENT.

Report No.: ACSS1811066

Page 45 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

6.1.2.1

(A1:2010) In Finland, Norway and Sweden, add the following

text between the first and second paragraph of the

compliance clause:

If this insulation is solid, including insulation forming

part of a component, it shall at least consist of either

- two layers of thin sheet material, each of which

shall pass the electric strength test below, or

- one layer having a distance through insulation of at

least 0,4 mm, which shall pass the electric strength

test below.

Alternatively for components, there is no distance

through insulation requirements for the insulation

consisting of an insulating compound completely

filling the casing, so that CLEARANCES and

CREEPAGE DISTANCES do not exist, if the

component passes the electric strength test in

accordance with the compliance clause below and in

addition

- passes the tests and inspection criteria of 2.10.11

with an electric strength test of 1,5 kV multiplied by

1,6 (the electric strength test of

2.10.10 shall be performed using 1,5 kV), and

- is subject to ROUTINE TESTING for electric

strength during manufacturing, using a test voltage

of 1,5 kV.

It is permitted to bridge this insulation with an

optocoupler complying with 2.10.5.4 b).

It is permitted to bridge this insulation with a

capacitor complying with EN 60384-14:2005,

subclass Y2.

A capacitor classified Y3 according to EN 60384-

14:2005, may bridge this insulation under the

following conditions:

- the insulation requirements are satisfied by having

a capacitor classified Y3 as defined by EN 60384-

14, which in addition to the Y3 testing, is tested with

an impulse test of 2,5 kV defined in EN 60950-

1:2006, 6.2.2.1;

- the additional testing shall be performed on all the

test specimens as described in EN 60384-14:

- the impulse test of 2,5 kV is to be performed before

the endurance test in EN 60384-14, in the

sequence of tests as described in EN 60384-14.

Report No.: ACSS1811066

Page 46 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

6.1.2.2 In Finland, Norway and Sweden, the exclusions are

applicable for PERMANENTLY CONNECTED

EQUIPMENT, PLUGGABLE EQUIPMENT TYPE B

and equipment intended to be used in a

RESTRICTED ACCESS LOCATION where

equipotential bonding has been applied, e.g. in a

telecommunication centre, and which has provision

for a permanently connected PROTECTIVE

EARTHING CONDUCTOR and is provided with

instructions for the installation of that conductor by a

SERVICE PERSON.

7.2 In Finland, Norway and Sweden, for requirements

see 6.1.2.1 and 6.1.2.2 of this annex.

The term TELECOMMUNICATION NETWORK in

6.1.2 being replaced by the term CABLE

DISTRIBUTION SYSTEM.

7.3

(A11:2009) In Norway and Sweden, for requirements see

1.2.13.14 and 1.7.2.1 of this annex.

Report No.: ACSS1811066

Page 47 of 83

IEC/EN 60950-1

Clause Requirement + Test Result - Remark Verdict

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Annex ZD

(informative)

IEC and CENELEC code designations for flexible cords

Type of flexible cord Code designations

IEC CENELEC

PVC insulated cords

Flat twin tinsel cord 60227 IEC 41 H03VH-Y

Light polyvinyl chloride sheathed flexible cord 60227 IEC 52 H03VV-F

H03VVH2-F

Ordinary polyvinyl chloride sheathed flexible cord 60277 IEC 53 H05VV-F

H05VVH2-F

Rubber insulated cords

Braided cord 60245 IEC 51 H03RT-F

Ordinary tough rubber sheathed flexible cord 60245 IEC 53 H05RR-F

Ordinary polychloroprene sheathed flexible cord 60245 IEC 57 H05RN-F

Heavy polychloroprene sheathed flexible cord 60245 IEC 66 H07RN-F

Cords having high flexibility

Rubber insulated and sheathed cord 60245 IEC 86 H03RR-H

Rubber insulated, crosslinked PVC sheathed cord 60245 IEC 87 H03RV4-H

Crosslinked PVC insulated and sheathed cord 60245 IEC 88 H03V4V4-H

Report No.: ACSS1811066

Page 48 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

1.5.1 TABLE: list of critical components P

object/part No.

manufacturer/

trademark

type/model technical data standard mark(s) of

conformity1)

PCB Interchangeable Interchangeable V-0, Min. 130C

UL 796 UL

Metal

enclosure

Interchangeable Interchangeable Min. 1.0mm -- --

AC inlet

(CON1)

Zhe Jiang Bei Er

Jia Electronic

Co., Ltd.

ST-A01-001L AC 250V ,10A EN60320-1 VDE

40013388

(Alternative) TECX-UNIONS

TECHNOLOGY

CORP

TU-301-AL AC 250V ,10A EN60320-1 ENEC-

00647-A1

UL E220004

Fuse F1 Dongguan Better

Electronics

Technology Co.,

Ltd.

522 T8AL, AC250V IEC/EN 60127-1

IEC/EN 60127-3

VDE

40019022

(Alternative)

Dongguan

Hongda

Electronic

Technology Co.,

Ltd.

52FD

52FDP

T8AL, AC250V IEC/EN 60127-1

IEC/EN 60127-3

VDE

40034179

(Alternative)

Zhongshan

Lanbao Electrical

Appliances Co.,

Ltd.

RTI-20 T8AL, AC250V IEC/EN 60127-1

IEC/EN 60127-3

VDE

40012120

(Alternative)

Suzhou Littelfuse

OVS Ltd.

218-series T8AL, AC250V IEC/EN 60127-1

IEC/EN 60127-3

VDE

40013496

(Alternative)

XC Electronics

(Shen Zhen)

Corp. Ltd.

5F-Series T8AL, AC250V IEC/EN 60127-1

IEC/EN 60127-3

VDE

40009609

Heat

shrinkable

Tube used on

DONGGUAN

QUANTAI

INDUSTRIAL CO

LTD

T-2 VW-1, 600V,

125°C

UL224 UL E227336

(Alternative)

CHANGYUAN

ELECTRONICS

(SHENZHEN)

CO LTD

CB-HFT,

CB-HFT(XY),

CYG-MT

VW-1, 600V,

125°C

UL224 UL E180908

(Alternative)

DONG GUAN

HUANG FENG

INSULATION

MATERIAL CO

LTD

HFT-2 VW-1, 600V,

125°C

UL224 UL E236485

(Alternative)

DONGGUAN

GINO PLASTIC

PRODUCTS CO

LTD

GINO S-901-600 600V 125 UL224 UL E472166

Varistor (ZR1)

(optional)

Joyin Co., Ltd. 14N471K

14N821K

Min. AC 300V,

Min. 85C

Min. 3000A

IEC/EN 61051-1

IEC/EN 61051-2

IEC/EN 61051-2-2

VDE 005937

(Alternative)

Joyin Co., Ltd. 10S471K

10S821K

14S471K

14S821K

Min. AC 300V,

Min. 85C

Min. 3000A

IEC/EN 61051-1

IEC/EN 61051-2

IEC/EN 61051-2-2

VDE

40004658

Report No.: ACSS1811066

Page 49 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

(Alternative)

JYA-NAY Co.,

Ltd.

10D471K

10D821K

14D471K

14D821K

Min. AC 300V,

Min. 105C

Min. 3000A

IEC/EN 61051-1

IEC/EN 61051-2

IEC/EN 61051-2-2

VDE

40023949

(Alternative)

Centra Science

Corp.

CNR-14D471K

CNR-14D821K

Min. AC 300V,

Min. 105C

Min. 3000A

IEC/EN 61051-1

IEC/EN 61051-2

IEC/EN 61051-2-2

VDE

40008220

(Alternative)

Shantou High-

New Technology

Dev. Zone

Songtian

Enterprise Co.,

Ltd.

14D471K

14D821K

Min. AC 300V,

Min. 105C

Min. 3000A

IEC/EN 61051-1

IEC/EN 61051-2

IEC/EN 61051-2-2

VDE

40023049

(Alternative)

Lien Shun

Electronics Co.,

Ltd.

10D471K

10D821K

14D471K

14D821K

Min. AC 300V,

Min. 105C

Min. 3000A

IEC/EN 61051-1

IEC/EN 61051-2

IEC/EN 61051-2-2

VDE

40005858

(Alternative)

Success

Electronics Co.,

Ltd.

SVR10D471K

SVR10D821K

SVR14D471K

SVR14D821K

Min. AC 300V,

Min. 105C

Min. 3000A

IEC/EN 61051-1

IEC/EN 61051-2

IEC/EN 61051-2-2

VDE

40030401

Y1-cap:

(CY4, CY5)

(optional)

Dongguan Easy-

gather

Electronic Co.,

Ltd.

DCF Max.2200pF.

Min AC 400

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40022942

(Alternative)

Haohua

Electronic Co.,

CT7 Max.2200pF.

Min AC 400

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40003902

(Alternative)

Welson Industrial

Co., Ltd. WD Max.2200pF.

Min AC 250

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40016157

(Alternative)

Shantou High-

New Technology

Dev. Zone

Songtian

Enterprise Co.,

Ltd.

CD-Series Max.2200pF.

Min AC 250

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40025754

(Alternative)

GUANGDONG

SOUTH

HONGMING

ELECTRONIC

SCIENCE &

TECHNOLOGY

CO LTD

F Max.2200pF.

Min AC 250

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40036393

(Alternative)

Hsuan Tai

Electronic Co.

Ltd.

CY Max.2200pF.

Min AC 400

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40008912

(Alternative)

JYA-NAY Co.,

Ltd. JN Max.2200pF.

AC 400 Vac,

125°C,

subclass Y1

EN 60384-14 TUV

R50232059

(Alternative)

Success

Electronics Co.,

Ltd.

Max.2200pF.

Min AC 250

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40020001

VDE

40020002

Report No.: ACSS1811066

Page 50 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

(Alternative)

Shenzhen

Teruixiang

Electronic Co.,

Ltd.

TY-Series Max.2200pF.

Min AC 400

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40031733

(Alternative)

DongGuan City

Jiankun

Electronics

Technology Co.

Ltd

JT-Series Max.2200pF.

Min AC 250

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40041534

(Alternative)

Kunshan Micro

Capacitors

Electronic Co.,

Ltd.

B-Series,

E-Series

Max.2200pF.

Min AC 250

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

40016537

(Alternative)

Yinan Don's

Electronic

Component Co.,

Ltd.

CT81 Max.2200pF.

Min AC 250

Vac, 125°C,

subclass Y1

IEC 60384-14 VDE

135256

Y2-cap:

(CY1, CY2)

(optional)

Dongguan Easy-

gather

Electronic Co.,

Ltd.

DCF Max.1000pF.

Min AC 250

Vac, 125°C,

subclass Y2

UL 60384-14 UL

E252221

(Alternative)

HAOHUA

ELECTRONIC

CT7 Max.1000pF.

Min AC 250

Vac, 125°C,

subclass Y2

IEC 60384-14 VDE

40013601

(Alternative)

Hongzhi

Enterprises Ltd.

Y Max.1000pF.

Min AC 250

Vac, 125°C,

subclass Y2

IEC 60384-14 VDE

40038461

(Alternative)

Jyh Chung

Electronic Co.,

Ltd.

JY Max.1000pF.

Min AC 300

Vac, 125°C,

subclass Y2

IEC 60384-14 VDE

123326

(Alternative)

JYA-NAY Co.,Ltd

JY Max.1000pF.

Min AC 250

Vac, 125°C,

subclass Y2

IEC 60384-14 TUV

R50232061

(Alternative)

Shantou High-

New Technology

Dev. Zone

Songtian

Enterprise Co.,

Ltd.

CE Series Max.1000pF.

Min AC 250

Vac, 125°C,

subclass Y2

IEC 60384-14 VDE

40025748

(Alternative)

Kunshan Micro

Capacitors

Electronic Co.,

Ltd.

F-Series Max.1000pF.

Min AC 250

Vac, 125°C,

subclass Y2

IEC 60384-14 VDE

40016130

(Alternative)

Hsuan Tai

Electronic Co.

Ltd.

CY Max.1000pF.

Min AC 250

Vac, 125°C,

subclass Y2

IEC 60384-14 VDE

118413

(Alternative)

DongGuan City

Jiankun

Electronics

Technology Co.

Ltd

JK series Max.1000pF.

Min AC 250

Vac, 125°C,

subclass Y2

IEC 60384-14 VDE

40041536

X-cap:

(CX1, CX2,

CX3)

(optional)

Dain Electronics

Co., Ltd.

MPX AC 275 Vac;

Max.0.47uF;

Min.100°C,

subclass X2

EN 60384-14 VDE

40018798

Report No.: ACSS1811066

Page 51 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

(Alternative)

Carli Electronics

Co., Ltd.

MPX AC 275 Vac;

Max.0.47uF;

Min.100°C,

subclass X2

EN 60384-14 VDE

40008520

(Alternative)

Dongguan Easy-

gather

Electronic Co.,

Ltd.

MKP AC 300 Vac;

Max.0.47uF;

Min.105°C,

subclass X2

EN 60384-14 VDE

40022258

(Alternative)

Joey Electronics

(Dong Guan)

Co., Ltd.

MPX AC 275 Vac;

Max.0.47uF;

Min.105°C,

subclass X2

EN 60384-14 VDE

40032481

(Alternative)

Hongzhi

Enterprises Ltd.

MPX AC 275 Vac;

Max.0.47uF;

Min.100°C,

subclass X2

EN 60384-14 VDE

40023936

(Alternative)

SHANTOU

HIGH-NEW

TECHNOLOGY

DEVELOPMNT

ZONE

SONGTIAN

ENTERPRISE

CO LTD

MPX AC 275 Vac;

Max.0.47uF;

Min.85°C,

subclass X2

EN 60384-14 TUV R

50136379

(Alternative)

Shenzhen Su

Rong Capacitors

Co., Ltd.

MKP/MPX AC 280 Vac;

Max.0.47uF;

Min.100°C,

subclass X2

EN 60384-14 VDE

40008924

(Alternative)

Xiamen

Wanming

Electronics Co.,

Ltd.

WPX/ MPX/

HQX/ UTX

AC 275 Vac;

Max.0.47uF;

Min.110°C,

subclass X2

EN 60384-14 VDE

40023119

(Alternative)

SURETOP

TECHNOLOGY

Co. Ltd.

MPX AC 275 Vac;

Max.0.47uF;

Min.105°C,

subclass X2

EN 60384-14 VDE

40034508

(Alternative)

Jenn Fu

Electronics

Corporation

MPX AC 275 Vac;

Max.0.47uF;

Min.110°C,

subclass X2

EN 60384-14 VDE

40023085

(Alternative)

ACEWIN Electric

Industrial

Co. Ltd.

MEX AC 275 Vac;

Max.0.47uF;

Min.100°C,

subclass X2

EN 60384-14 VDE

40008614

Resistor(R17,

R17A, R18,

R18A)

Interchangeable Interchangeable 1M ohm, 1/4W EN 60950-1 Test with

appliance

Electrolytic

capacitor

(C11)

Interchangeable Interchangeable 330uFmax；

450V,105

-- Test with

appliance

DB1 Bridge

diode

Interchangeable Interchangeable Min600V; Min

-- Test with

appliance

Line Filter

(LF1)

Dongguanshi

PuHang

Electronic

Co.,Ltd.

T14*9*5C Min105°C -- Test with

appliance

-Magnet wire

Interchangeable Interchangeable Copper wire,

min130°C UL1446 UL

-Core

-- -- Ferrite -- --

Report No.: ACSS1811066

Page 52 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

-Triple wire

GREAT leoflon

industrial co ltd

TRW(B) Copper wire,

Min.130C

UL2353 UL E211989

-Varnish

Interchangeable Interchangeable Minimum

130°C.

UL1446 UL

- Alt. -

Line Filter

(LF1)

Dongguan Ju

Rong Electronics

Co., Ltd.

T14*9*5C Min105°C -- Test with

appliance

-Magnet wire

Interchangeable Interchangeable Copper wire,

min130°C

UL1446 UL

-Core

-- -- Ferrite -- --

-Triple wire

Young Chang

Silicone Co., Ltd

STW-B Copper wire,

Min.130C

UL2353 UL E242198

-Varnish

Interchangeable Interchangeable Minimum

130°C.

UL1446 UL

Line Filter

(LF2, LF3)

Dongguanshi

PuHang

Electronic

Co.,Ltd.

T25*15*10C Min105°C -- Test with

appliance

-Magnet wire

Interchangeable Interchangeable Copper wire,

min130°C

UL1446 UL

-Core

-- -- Ferrite -- --

-Clapboard

Interchangeable Interchangeable PBT, V-0,

130°C

UL 94 UL

-Varnish

Interchangeable Interchangeable

Minimum

130°C.

UL1446 UL

- Alt. -

Line Filter

(LF2, LF3)

Dongguan Ju

Rong Electronics

Co., Ltd.

T20*12*8C Min105°C -- Test with

appliance

-Magnet wire

Interchangeable Interchangeable

Copper wire,

min130°C UL1446 UL

-Core

-- --

Ferrite -- --

-Clapboard

Interchangeable Interchangeable

PBT, V-0,

130°C

UL 94 UL

-Varnish

Interchangeable Interchangeable

Minimum

130°C.

UL1446 UL

Q1, Q2, Q4,

Q5, Q6

Interchangeable Interchangeable Min500V. Q1,

Q2, Q4, Q5 is

min10A, Q6 is

min2A

-- --

Optocoupler

(OP1, OP2,

OP3)

SHARP CORP

ELECTRONIC

COMPONENTS

AND DEVICES

GROUP

PC817/PC123 double

isolation,

100C, dTi

measured>0.4

mm minimum

IEC 60747-5-5：

2011

VDE

40008087

(Alternative)

Everlight

Electronics Co.,

Ltd.

EL817 double

isolation,

100C, dTi

measured>0.4

mm minimum

IEC 60747-5-5：

2011

VDE 132249

(Alternative)

Bright Led

Electronics Corp.

BPC817 double

isolation,

100C, dTi

measured>0.4

mm minimum

EN 60747-5-5 ：

2011

VDE

40007240

Report No.: ACSS1811066

Page 53 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

(Alternative)

Lite-On

Technology

Corporation

LTV-817 double

isolation,

100C, dTi

measured>0.4

mm minimum

EN 60747-5-5:

2011

VDE

40015248

(Alternative)

COSMO

Electronics

Corporation

C1010 double

isolation,

100C, dTi

measured>0.4

mm minimum

EN 60747-5-5:

2011

VDE

40010469

(Alternative)

COSMO

Electronics

Corporation

KPC817 double

isolation,

100C, dTi

measured>0.4

mm minimum

EN 60747-5-5:

2011

VDE 101347

(Alternative)

China Resources

Semiconductor

(ShenZhen) Ltd.

PC817 double

isolation,

100C, dTi

measured>0.4

mm minimum

EN 60747-5-5:

2011 VDE

40039266

(Alternative)

Fairchild

Semiconductor

Pte Ltd

H11A817 double

isolation,

100C, dTi

measured>0.4

mm minimum

EN 60747-5-5:

2011

VDE

40026857

Transformer

(T1)

SHENZHEN

FORD

ELECTRONIC

CO LTD

GQ330W-T-1A Class B EN 60950-1 Tested with

appliance

-Wire

Interchangeable Interchangeable Copper wire,

Min.130°C.

UL1446 UL

-Bobbin

CHANG CHUN

PLASTICS

CO.,LTD

T200NA, Phenolic, V-0,

Min.150°C

thickness:

0.8mm

UL94

UL746C

E59481

-Insulation

Tape

JINGJIANG

YAHUA

PRESSURE

SENSITIVE

GLUE CO LTD

PZ, CT Polyethy lene

tercphthalate

film tape.

Min.130°C

UL510 UL E165111

-Varnish

Interchangeable Interchangeable Minimum

130°C. UL1446 UL

-Tube

Interchangeable Interchangeable Minimum

150°C.

UL 224 UL

Transformer

(T2)

SHENZHEN

FORD

ELECTRONIC

CO LTD

GQ330W-LLC-

Class B EN 60950-1 Tested with

appliance

-Bobbin

Chang chun

plastics Co Ltd

T200NA, Phenolic, V-0,

Min.150°C

thickness:

0.8mm

UL94 UL E59481

-Insulation

Tape

JINGJIANG

YAHUA

PRESSURE

SENSITIVE

GLUE CO LTD

CT280 Flame retardant

film insulating

tape.

Min.130°C

UL510 UL E165111

-Varnish

Interchangeable Interchangeable Minimum

130°C. UL1446 UL

Report No.: ACSS1811066

Page 54 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

-Triple

insulated wire

SHENZHEN

KAIZHONG

HEDONG NEW

MATERIAL CO

LTD

TIW- B Triple insulated

wire, Min.130C

UL2353 UL E357240

-Wire

Interchangeable Interchangeable Copper wire,

Min.130°C.

UL1446 UL

-Tube

Interchangeable Interchangeable Minimum

150°C.

UL 224 UL

Inductance

(L21)

SHENZHEN

FORD

ELECTRONIC

CO LTD

GQ330W-LLC-

T2 Min.130



C EN 60950-1 Tested with

appliance

-Wire

Interchangeable Interchangeable Copper wire,

Min.130°C.

UL1446 UL

-varnish

Interchangeable Interchangeable Min.130°C. UL1446 UL

-bobbin

CHANG CHUN

PLASTICS

CO.,LTD

T200NA Phenolic, V-0,

Min.150°C

UL94

UL746C

(E59481)

-insulation

tape

JINGJIANG

YAHUA

PRESSURE

SENSITIVE

GLUE CO LTD

CT-280 Min.130°C UL510 UL

(E165111)

-tube

Interchangeable Interchangeable Min.150 °C,

VW-1

UL 224 UL

Inductance

(T3)

SHENZHEN

FORD

ELECTRONIC

CO LTD

GQ330W-PFC-

T1 Min.130



C EN 60950-1 Tested with

appliance

-Wire

Interchangeable Interchangeable Copper wire,

Min.130°C.

UL1446 UL

-varnish

Interchangeable Interchangeable Min.130°C. UL1446 UL

-bobbin

CHANG CHUN

PLASTICS

CO.,LTD

T200NA Phenolic, V-0,

Min.150°C UL94

UL746C UL

(E59481)

-insulation

tape

JINGJIANG

YAHUA

PRESSURE

SENSITIVE

GLUE CO LTD

CT-280 Min.130°C UL510 UL

(E165111)

-tube

Interchangeable Interchangeable Min.150 °C,

VW-1 UL 224 UL

Insulation

sheet

Between plug

pin and PCB

trace

Interchangeable Interchangeable V-0, 125



Min.thickness

0.25mm

UL 94 UL

Report No.: ACSS1811066

Page 55 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

DC fan (two

provide)

DONGGUAN

YIN HAI

PLASTIC

ELECTRONICS

CO.,LTD

YH4020L05L-

CF50N

DC5V, 0.13A EN 60950-1:

2006/A2:2013

CE by

Shenzhen

Tian Hai test

technology

Co.,Ltd

(Report No.:

TH16FR-

392S.

Certificate

No.:

TH16FR-

392S.)

Heat

shrinkable

tubing for

Internal Wiring

SHENZHEN

WOLIDA

TRADING CO

LTD

RSFR-H Min.125 °C,

0.4mm. Rated

VW-1.

UL 224 UL

E329530

Thermal

controller

(TH5)

Changzhou

Ainuo Electronics

Technical Co.,

Ltd.

KW-*** 250Vac,

0~165°C EN 60730-1,

EN 60730-2 VDE

40030067

Heatsink(HS1)

-- -- Metal, see

attachment B

for details

-- --

Heatsink(HS2)

-- -- Metal, see

attachment B

for details

-- --

Heatsink(HS3)

-- -- Metal, see

attachment B

for details

-- --

Heatsink(HS4)

-- -- Metal, see

attachment B

for details

-- --

Heatsink(HS5)

-- -- Metal, see

attachment B

for details

-- --

Heatsink(HS6)

-- -- Metal, see

attachment B

for details

-- --

Heatsink for

U3 on the

mainboard

-- -- Metal, 34.6mm

x 35.0mm x

20mm

-- --

Heatsink for

U7 and U8 on

the mainboard

-- -- Metal, 28.0mm

x 28.0mm x

11.0mm

-- --

supplementary information:--

Report No.: ACSS1811066

Page 56 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

1.7.11 TABLE: Marking durability test P

Marking type Checked by Duration Result

stick on EUT

printed on EUT

molded on EUT

Water 15s Curling: Yes No; Legibility: Yes No

Petroleum spirit 15s Curling: Yes No; Legibility: Yes No

Note(s): --

1.6.2 TABLE: Input test P

Fuse # Irated (A)

U (V) F (Hz) I (A) P (W) Condition/status

F1 -- 90 50/60 3.632/3.631 325.29/325.21 Max normal load

F1 5.0 100 50/60 3.237/3.229 322.83/322.79 Max normal load

F1 5.0 240 50/60 1.323/1.334 307.30/307.23 Max normal load

F1 -- 264 50/60 1.254/1.260 306.54/306.44 Max normal load

Note(s): The measured steady input current at rated supply voltage shall not exceed the rated current by

more than 10% under normal load.

Max. normal load: All the output ports pull load to maximum rating.

2.1.1.5 TABLE: Max. V, A, VA measurement P

Output tested

Output current

(rated) (A) Voltage (max.)

(V) Current (max.)

(A) VA (max.)

(VA) HAZ/EL

(Yes / No )

POE port #1

55Vdc

-- 53.64 0.221 11.69 Yes No

Note(s): Input voltage: 264 V/ 60 Hz

Output which exceeds 240 VA is considered to be at hazardous energy level (HAZ/EL).

2.1.1.7 TABLE: Discharge test P

Location

Condition V peak 37% V peak

V peak at tc Comment

L-N Standby 370 136.9 705ms Pluggable equipment type A

Note(s):

Input voltage: 264 V/ 60 Hz; X capacitor: X capacitor: CX1= CX2= CX3=0.47uF,

discharge resistor(s): R17=R17A=R18=R18A=1M ohm

The voltage at the external point of disconnection shall decay to less than 37% of its original value in

1.0 second.

2.2.2 TABLE: Hazardous voltage measurement P

Component Location Max. voltage (V)

(normal operation)

Voltage Limiting

Components

V peak V d.c.

T1 Pin 5– GND 26.6 -- --

T2 Pin 7–GND 5.3 -- --

Report No.: ACSS1811066

Page 57 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Pin 9–GND 55 -- --

Pin 10–GND 55 -- --

After D6 -- 55.8 D7

After D7 -- 55.8 D8

Note(s):

Input voltage: 264 V/ 60 Hz

2.2.3 TABLE: SELV reliability test P

Accessible Part

From - To

Component Fault Max. voltage (V)

(fault condition)

Comment

V peak V d.c.

After D7 -GND D7 S/C -- 0 Shutdown

After D8 -GND D8 S/C -- 0 Shutdown

Note(s):

Input voltage: 264 V/ 60 Hz

2.4 TABLE: Limited current circuits test P

Location Voltage

(V)

Current

(mA)

Freq.

(kHz)

Limit

(mA)

CY4 secondary Pin to “GND” 3.56 1.78 64.7 45.29

CY5 secondary Pin to “GND” 4.82 2.41 64.1 44.87

Note(s):

Input voltage: 264 V/ 60 Hz; Y Capacitor: CY4=CY5=2200pF

2.5 TABLE: Limited power sources test P

Output

tested

Location Single fault

Measured Maximum Limited

From To Uoc (V) Isc (A) VA Isc (A) VA

POE ports

#1 Pins(3,6)

Pin (7,8) Normal 53.64 0.221 11.69 2.79 100

POE ports

#1 Pins(3,6)

Pin (7,8) D7 S/C 53.66 0.221 11.69 2.79 100

POE ports

#1 Pins(3,6)

Pin (7,8) J7 (1-7)

S/C 0 0 0 8 100

RJ45 ports All pins GND Normal 0 0 0 8 100

SFP ports Pins

(15,16) GND Normal 3.30 0 0 8 100

Note(s):

Input voltage: 264 V/ 60 Hz

2.6.3.4 TABLE: Earthing test P

Test point

between

Current (A) Duration (min)

Measured resistance or

voltage drops (ohms or V)

Limited resistance or

voltage drops (ohms or V)

Report No.: ACSS1811066

Page 58 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

AC inlet earth pin

to furthest metal

enclosure

32 2 0.003 ohms 0.1ohms

AC inlet earth pin

to CY1 secondary

32 2 0.003 ohms 0.1ohms

AC inlet earth pin

to CY2 secondary

32 2 0.004 ohms 0.1ohms

Note(s):--

2.9.2 TABLE: Humidity conditioning test P

Test condition Actural condition After humidity conditioning

20-30°C at 90-96% R.H. for 48h

40±2°C at 90-96%R.H. for 120h (tropical)

40°C at 96% R.H. for

120h

Unit DID DID NOT no

breakdown

See table 5.2

Note(s):

2.10.2 TABLE: Working voltage measurement

Component Location Peak Voltage (Vac)

RMS Voltage (Vac) Comments

From To

Pin 1 Pin 6, 7 200 117 --

Pin 8, 9 158 117 --

Pin 3 Pin 6, 7 250 124 --

Pin 8, 9 241 124 --

Pin 4 Pin 6, 7 550 162 *

Pin 8, 9 533 155 --

Pin 5 Pin 6, 7 191 117 --

Pin 8, 9 200 117 --

Pin 1

Pin 7 250 154 --

Pin 8, 9 283 157 --

Pin 10, 11 300 168 --

Pin 12 283 163 --

Pin 5

Pin 7 400 214 --

Pin 8, 9 458 251 *

Pin 10, 11 358 189 --

Pin 12 416 213 --

Report No.: ACSS1811066

Page 59 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

OP1

Pin 1 Pin 3 300 145 --

Pin 4 300 144 --

Pin 2 Pin 3 300 145 --

Pin 4 300 145 --

OP2

Pin 1 Pin 3 275 139 --

Pin 4 275 140 --

Pin 2 Pin 3 275 139 --

Pin 4 275 139 --

OP3

Pin 1 Pin 3 241 172 --

Pin 4 241 171 --

Pin 2 Pin 3 241 172 --

Pin 4 241 171 --

CY1 Pri Sec 350 240 --

CY2 Pri Sec 350 240 --

CY4 Pri Sec 200 121 --

CY5 Pri Sec 287 140 --

Note(s): Input: 240 V/ 60 Hz.

The * indicate the maximum Peak voltage or RMS voltage.

2.10.3 and

2.10.4

TABLE: Clearances and creepage distances measurement P

Rated supply voltage: 100-240V Pollution degree: 2 Material Group: IIIb

Location Operating Voltage Clearance (mm) Creepage (mm) CTI

V peak V rms Min Actual Min Actual --

Between primary and protective earth

near ac inlet, as basic <420 <250 2.0 3.3 2.5 3.3 < 175

Opposite pattern traces before fuse

(F1) on PCB, as basic <420 <250 2.0 3.6 2.5 3.6 < 175

Primary fuse (F1), pattern traces on

PCB, as basic <420 <250 2.0 4.5 2.5 4.5 < 175

Pattern traces, between Primary and

Secondary (OP3) on PCB, as

reinforced <420 <250 4.0 6.7 5.0 6.7 < 175

Pattern traces, between Primary and

Secondary (CY4) on PCB, as

reinforced <420 <250 4.0 7.5 5.0 7.5 < 175

Between primary and secondary (T1)

on traces side, as reinforced 550 240 4.4 7.5 4.8 7.5 < 175

Report No.: ACSS1811066

Page 60 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

2.10.5 TABLE: Distance through insulation measurement P

Distance through insulation (DTI) at/of: U peak

(V) U rms

(V) Test

voltage (V)

Required

dti

(mm)

dti

(mm)

1. Insulation tape wrapped on transformer (T1),

Reinforced, 2 layers (one layer tested) 550 240 3000Vac At least 2

layers 2layers

2. Insulation tape wrapped on transformer (T2),

Reinforced, 2 layers (one layers tested) 458 251 3000Vac At least 2

layers 2layers

3. Mylar sheet (for power board) 550 240 1820Vac -- 0.25mm

4. Heat shrinkable tubing for Internal Wiring 550 240 3000Vac -- 0.40mm

Note(s):--

4.2.2,

4.2.3, 4.2.4

TABLE: Steady force test P

Location Force duration Result

Components 10N±1N 5 s Unit DID DID NOT show damage

Unit DID DID NOT breakdown

Location Force duration Result

-- 30N±1N -- Unit DID DID NOT show damage

Unit DID DID NOT breakdown

Location Force duration Result

Metal enclosure 250N±10N 5 s Unit DID DID NOT show damage

Unit DID DID NOT breakdown

Note(s): --

4.2.5 TABLE: Impact test P

Between primary and secondary (T1),

as reinforced 550 240 4.4 7.5 4.8 7.5 < 175

Between primary and core(T1), as

basic 550 240 2.2 3.9 2.4 3.9 < 175

Between secondary and core (T1), as

basic 550 240 2.2 3.9 2.4 3.9 < 175

Between primary and secondary (T2)

on traces side, as reinforced 458 251 4.0 20.9 4.8 20.9 < 175

Between primary and secondary (T2),

as reinforced 458 251 4.0 10.8 4.8 10.8 < 175

Between primary and core(T2), as

reinforced 458 251 2.0 12.8 2.4 14.1 < 175

Note(s):

B=Basic insulation, D/R= double insulation or reinforce insulation.

- No components reduce distance after 10N steady force applied.

- One Mylar sheet is cover power board both sides to isolate metal enclosure.

- T2 primary wire used triple insulation wire, core as secondary.

Report No.: ACSS1811066

Page 61 of 83

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Location Vertical distance Result

Metal enclosure outside, top and

sides of power supply 1.3 m Unit DID DID NOT show damage

Unit DID DID NOT breakdown

Note(s): --

4.4.5 TABLE: protection against moving fan blades P

Fan location Mass of fan

assembly (m) (kg)

Radius of fan

blade (r) (mm)

Rotational speed

(N) (r/min)

K factor

calculated

Left side of enclosure 0.008 20 5500 58.08

Classification of fan **) Result

a). not likely to cause pain or injury

b). likely to cause pain, but not likely to cause injury

c). does not comply with a) or b), likely to cause injury

fan of classification a): 0.39

fan of classification b):

fan of classification c):

Note(s):

*) K factor calculation: K = 6 x 10

-7

(mr

)

**) classification of fan calculation:

classification a): classification b):

4.5.2 TABLE: Thermal requirements P

Supply voltage (V) ....................................... : 90V, 60Hz 264V, 60Hz 

Test times .................................................... : 3hrs 07mins 1hr 50mins --

Tam a1(C) ................................................. : See below See below --

Tam a2(C) .................................................. : See below See below --

Maximum measured temperature T of

part/at:

Measured

T (C)

Calculate

T (50C)

Measured

(C)

Calculated

T (50C)

Allowed

Tmax (C)

1. AC inlet, inside 40.7 66.1 32.0 57.0 70

2. CY2 body 37.0 62.4 31.1 56.1 125

3. ZR1 body 40.2 65.6 31.5 56.5 85

4. LF1 winding 47.0 72.4 32.5 57.5 105

5. LF3 winding 51.7 77.1 36.2 61.2 105

6. LF2 winding 53.9 79.3 36.7 61.7 105

7. CX3 body 48.7 74.1 35.7 60.7 85

8. PCB near BD1 61.3 86.7 40.7 65.7 130

9. PCB near Q1 87.1 112.5 55.5 80.5 130

10. PCB near Q2 82.5 107.9 52.2 77.2 130

PCB near Q4

69.6

95.0

52.1

77.1

130

Report No.: ACSS1811066

Page 62 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

12. PCB near Q5 60.5 85.9 47.4 72.4 130

13. PCB near D2 81.9 107.3 54.9 79.9 130

14. L21 winding 55.3 80.7 48.9 73.9 105

15. T3 winding 71.1 96.5 48.4 73.4 105

16. T2 winding 61.7 87.1 58.6 83.6 110

17. RT1 body 83.0 108.4 52.2 77.2 130

18. CY5 body 61.5 86.9 57.0 82.0 125

19. DP2 body 59.7 85.1 55.6 80.6 100

20. C11 body 51.7 77.1 42.4 67.4 85

21. T1 winding 52.2 77.6 50.1 75.1 110

22. PCB near D3 56.8 82.2 49.9 74.9 130

23. PCB near D7 63.5 88.9 61.8 86.8 130

24. PCB near D8 63.9 89.3 62.6 87.6 130

25. PCB near D5 49.9 75.3 47.8 72.8 130

26. Mylar sheet bottom under T2 51.5 76.9 49.6 74.6 125

27. Mylar sheet top under T2 54.1 79.5 51.7 76.7 125

28. Heat sink for U7 47.4 72.8 47.4 72.4 130

29. Heat sink for U3 53.0 78.4 53.7 78.7 130

30. U21 body 42.7 68.1 43.0 68.0 130

31. J4 body 30.9 56.3 31.3 56.3 130

32. Fan body 53.0 78.4 40.4 65.4 --

33. Panel 32.3 57.7 31.8 56.8 80

34. BD2 body 57.7 83.1 48.2 73.2 130

35. Metal enclosure outside top of T2 35.7 61.1 31.7 56.7 70

36. Heat sink for U8 52.2 77.6 52.6 77.6 130

37. Ambient 24.6 50.0 25.0 50.0 --

Note(s): --

4.6.1, 4.6.2 TABLE: opening in enclosure P

Opening

position dimension(mm) remark

Front --

No openings.

Top --

No openings.

Left

Height: 3.85mm

Length: 2.85mm, 2.45mm

Height: 3.85mm

Length: 2.05mm, 1.70mm

Trapezoid. Cover three circle areas for DC fan: φ37.85mm;

φ37.85mm; φ37.85mm.

Right φ2.25mm

Circle. Cover a rectangular area: 22.4mm x 102.4mm.

Rear --

No openings.

Report No.: ACSS1811066

Page 63 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Bottom --

No openings.

5.1.6 – 5.1.8

TABLE: Touch current measurement P

Measured between: Measured

(mA)

Limit

(mA)

Comments/conditions

Line & neutral and output terminal 0.105 0.25 Fuse in, “e” closed

Line & neutral and metal enclosure 0.630 3.5 Fuse in, “e” opened

Note(s): --

5.2 TABLE: Electric strength test P

Test voltage applied between: Test voltage (V) Breakdown

- Unit: Between main poles (Pri.fuse-link disconnected) 1500Vac No

Between parts separated by basic or supplementary insulation -- --

- Unit: Primary to metal enclosure 1820Vac No

- T1: Primary to Core 1820Vac No

- T1: Secondary to Core 1820Vac No

Between parts separated by double or reinforced insulation -- --

- T1: Primary to Secondary 3000Vac No

- T2: Core to Primary 3000Vac No

- T2: Primary to Secondary 3000Vac No

- Unit: Primary to Secondary output terminals 3000Vac No

Note(s):

5.3 TABLE: Fault condition test P

Ambient temperature (C) ................................... :

See below —

Power source for EUT: Manufacturer, model/type,

output rating ......................................................... :

-- —

No. Component Fault Test

voltage

(V/Hz)

Test

time

Fuse #

Fuse.

current

(A)

Result

1 Ventilation

openings

Blocked 240V/

60Hz

2hours

24mins

F1 1.334 Unit operated normally,

Max temperature measured on:

T1 winding:52.1℃;

T2 winding: 70.0℃;

Ambient: 25.0℃.

Recoverable when fault removed,

NCD, NC, NT, NB, NH.

Report No.: ACSS1811066

Page 64 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

2 System Fan

(1&2)

Stalled 240V/

60Hz

2hour

37mins

F1 1.334 Unit operated normally,

Max temperature measured on:

T1 winding:54.3℃;

T2 winding: 78.6℃;

Ambient: 23.7℃.

Recoverable when fault removed,

NCD, NC, NT, NB, NH.

3 (After D5）

O/L 240V/

60Hz

3hours

33mins

F1 1.390→

1.440→

1.473→

0.3

Unit shut down when overloaded to

5.4A.No damaged,nohazardous.

T1 winding:75.7℃;

T2 winding: 65.3℃;

Ambient: 24.0℃..

Recoverable when fault removed,

NCD, NC, NT, NB, NH.

4 (After

D6,D7）55V

O/L 240V/

60Hz

3hours

21mins

F1 1.797→

1.847→

1.870→

0.34

Unit shut down when overloaded to

2.4A.No damaged,nohazardous.

T1 winding:57.2℃;

T2 winding:75.2℃;

Ambient: 25.6℃..

Recoverable when fault removed,

NCD, NC, NT, NB, NH.

5 DB1 S/C 240V/

60Hz

1 Sec F1 0 Unit shutdown immediately, Fuse

F1opened. NB, NH, NT,NC.

6 C11 S/C 240V/

60Hz

1 Sec F1 0 Unit shutdown immediately, Fuse F1

opened. NB, NH,NT,NC.

7 U9

Pin12 –pin14

S/C 240V/

60Hz

10mins

F1 0.105 Unit shutdown immediately, CD(U9),

NT,NC,NB,NH.

8 U9

Pin12 –Pin10

S/C 240V/

60Hz

10mins

F1 0.133 Unit shutdown immediately.

Recoverable when fault removed,

NCD, NC, NT, NB, NH.

9 Q1

PinG- PinS

S/C 240V/

60Hz 10mins F1 1.323 Normal operation, NCD, NC, NT,

NB, NH.

10 Q1

PinG- PinD

S/C 240V/

60Hz 1 Sec F1 0 Unit shutdown immediately, F1

opened

CD(Q2,Q1) NB, NH NC,NT.

11 Q1

PinS- PinD

S/C 240V/

60Hz 1 Sec F1 0 Unit shutdown immediately, Fuse F1

opened. NB, NH NT,NC.

12 Q2

PinG- PinS

S/C 240V/

60Hz 10mins F1 1.323 Normal operation, NCD, NC, NT,

NB, NH.

13 Q2

PinG- PinD

S/C 240V/

60Hz 1 Sec F1 0 Unit shutdown immediately, Fuse F1

opened. NB, NH NT,NC.

14 Q2

PinS- PinD

S/C 240V/

60Hz 1 Sec F1 0 Ditto.

15 Q4

PinG- PinS

S/C 240V/

60Hz 10mins

F1 0.140 Unit shutdown immediately.

Recoverable when fault removed,

NCD, NC, NT, NB, NH.

16 Q4

PinG- PinD

S/C 240V/

60Hz 10mins

F1 0.140 Ditto.

Report No.: ACSS1811066

Page 65 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

17 Q4

PinS- PinD

S/C 240V/

60Hz 10mins

F1 0.152 Ditto.

18 Q5

PinG- PinS

S/C 240V/

60Hz 10mins

F1 0.149 Ditto.

19 Q5

PinG- PinD

S/C 240V/

60Hz 10mins

F1 0.152 Ditto.

20 Q5

PinS- PinD

S/C 240V/

60Hz 10mins

F1 0.152 Ditto.

21 OP1

Pin1- Pin 2

S/C 240V/

60Hz 10mins

F1 0.126 Ditto.

22 OP1

Pin3- Pin 4

S/C 240V/

60Hz 10mins

F1 0.127 Ditto.

23 OP1 Pin1 O/C 240V/

60Hz 10mins

F1 0.126 Ditto.

24 OP1 Pin3 O/C 240V/

60Hz 10mins

F1 0.126 Ditto.

25 OP2

Pin1- Pin 2

S/C 240V/

60Hz 10mins

F1 1.323 Normal operation,

NCD,NT,NC,NB, NH.

26 OP2

Pin3- Pin 4

S/C 240V/

60Hz 10mins

F1 0.127 Unit shutdown immediately.

Recoverable when fault removed,

NCD, NC, NT, NB, NH.

27 OP2 Pin1 O/C 240V/

60Hz 10mins

F1 1.320 Normal operation,

NCD,NT,NC,NB, NH.

28 OP2 Pin3 O/C 240V/

60Hz 10mins

F1 0.127 Unit shutdown immediately.

Recoverable when fault removed,

NCD, NC, NT, NB, NH.

29 OP3

Pin1- Pin 2

S/C 240V/

60Hz 10mins

F1 0.107↔

0.243

Unit shut down and cycle,

0.14W↔10.89W, Recoverable

NCD, NH

30 OP3

Pin3- Pin 4

S/C 240V/

60Hz 10mins

F1 0.107 Unit shutdown immediately.

Recoverable when fault removed,

NCD, NC, NT, NB, NH.

31 OP3 Pin1 O/C 240V/

60Hz 10mins

F1 0.107↔

0.243

Unit shut down and cycle,

0.14W↔10.89W, Recoverable

NCD, NH

32 OP3 Pin3 O/C 240V/

60Hz 10mins

F1 0.107↔

0.243

Unit shut down and cycle,

0.14W↔10.89W, Recoverable

NCD, NH

Note(s):--

Report No.: ACSS1811066

Page 66 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment A: Photo-documentation Page 1 of 5

Fig. 1 - Overview (1)

Fig. 2 - Overview (2)

Report No.: ACSS1811066

Page 67 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment A: Photo-documentation Page 2 of 5

Fig. 3 - Internal view (1)

Fig. 4 - Internal view (2)

Report No.: ACSS1811066

Page 68 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment A: Photo-documentation Page 3 of 5

Fig. 5 - Internal view (3)

Fig. 6 - Power board overview 1

Report No.: ACSS1811066

Page 69 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment A: Photo-documentation Page 4 of 5

Fig. 7 - Power board overview 2

Fig. 8 - Main board overview 1

Report No.: ACSS1811066

Page 70 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment A: Photo-documentation Page 5 of 5

Fig. 9 –Main board overview 2

Fig. 10 –terminals

Report No.: ACSS1811066

Page 71 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment B: Drawing of Heatsink(HS1) Page 1 of 6

Report No.: ACSS1811066

Page 72 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment B: Drawing of Heatsink(HS2) Page 2 of 6

Report No.: ACSS1811066

Page 73 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment B: Drawing of Heatsink(HS3) Page 3 of 6

Report No.: ACSS1811066

Page 74 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment B: Drawing of Heatsink(HS4) Page 4 of 6

Report No.: ACSS1811066

Page 75 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment B: Drawing of Heatsink(HS5) Page 5 of 6

Report No.: ACSS1811066

Page 76 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment B: Drawing of Heatsink on the Power board Page 6 of 6

Report No.: ACSS1811066

Page 77 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment C: Schematic diagram and layout for power board Page 1 of 3

Report No.: ACSS1811066

Page 78 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment C: Schematic diagram and layout for power board Page 2 of 3

Report No.: ACSS1811066

Page 79 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment C: Schematic diagram and layout for power board Page 3 of 3

Report No.: ACSS1811066

Page 80 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment D: Transformer T1 specification Page 1 of 2

Report No.: ACSS1811066

Page 81 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment D: Transformer T1 specification Page 2 of 2

Report No.: ACSS1811066

Page 82 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment E: Transformer T2 specification Page 1 of 2

Report No.: ACSS1811066

Page 83 of 83

TRF No. SRENAV-01V1.4

AUDIX TECHNOLOGY (SHENZHEN) CO., LTD

Attachment E: Transformer T2 specification Page 2 of 2

--- End of this page ---

561419 IEC 60950 1

Navigation menu

Versions of this User Manual:

Views

Navigation
