Hazardous Location Conduit Outlet Boxes
Hazardous Location Outlet Boxes — Cable
Hazardous Location Junction Boxes: Explosionproof
Ordinary Location Junction Boxes
- W Series Cast Boxes Options

ENCLOSURES AND

JUNCTION BOXES

When one spark makes the difference

between a normal day and a big problem,

Appleton enclosures are an absolute

necessity. Designed to fully contain and

conﬁ ne an explosive force within the

enclosure, they are strong enough to

withstand the effects of corrosion and time.

ENCLOSURES

AND JUNCTION

BOXES

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

497

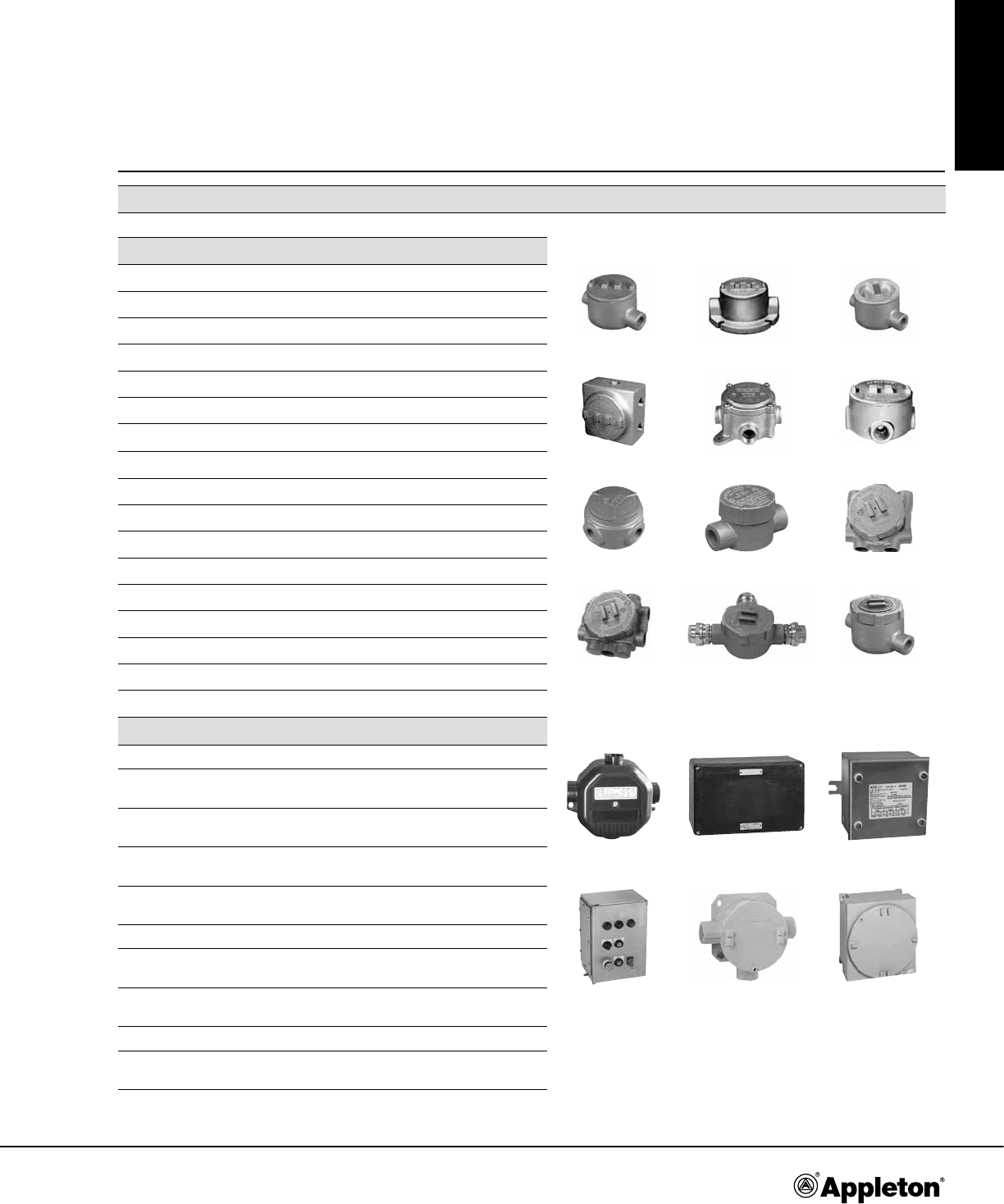

Enclosures and Junction Boxes

Hazardous Location and Ordinary Location

Description Page

Hazardous Location Conduit Outlet Boxes

GR and GRF Conduit Outlet Boxes 499

GRH Conduit Outlet Boxes 504

GRSS Conduit Outlet Boxes with Multiple Hubs 505

CPU Universal Conduit Outlet Boxes and Covers 506 GR GRF GRH

CPU Universal Conduit Outlet Boxes and Covers 507 V

GRU Universal Conduit Outlet Boxes 508

GRUE Universal Conduit Outlet Boxes 509

GRUE Universal Conduit Outlet Boxes 510 VGRSS CPU GRU/GRUE

GRJS Universal Conduit Outlet Box 512

GRJS Universal Conduit Outlet Boxes 513 V

GRJ Conduit Outlet Boxes 514

GRJ Conduit Outlet Boxes 515 VGRJS GRJ GRUO

GRUO with Multiple Hubs Conduit Outlet Boxes 516

GRUJ Conduit Outlet Boxes with Multiple Hubs 517

GRU Conduit Outlet Boxes with Union Hubs 518

GU Conduit Outlet Boxes 520 GRUJ GRU GU

Hazardous Location Outlet Boxes — Cable

BJE Series Polycarbonate Junction Boxes 521

ATX JBEL and JBEP Series Polycarbonate and

Polyester Junction Boxes 523

ATX JBEP Series Pre-Drilled Fiberglass Reinforced

Polyester Junction Boxes 528

PJB Series Fiberglass Reinforced Polyester

Enclosures 536 BJE, JBEL and JBEP PJB, JBEP and ECEP SJB/JBES

ATX JBEP and ECEP Series Undrilled Fiberglass

Reinforced Polyester Enclosures 543

ATX SJB Series 316L Stainless Steel Junction Box 551

ATX JBES Series Pre-Drilled 316L Stainless Steel

Junction Boxes 557

ATX JBES and ECES Series 316L Stainless Steel

Enclosures 561 JBES and ECES JBDR JBDA/JBDF – ECDA, ECDF

ATX JBDR Series Pre-Drilled Round Junction Boxes 571

ATX JBDA and JBDF – ECDA, ECDF and ACSEW

Series Customized Enclosures 574

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

498

Enclosures and Junction Boxes

Hazardous Location and Ordinary Location

Description Page

Hazardous Location Junction Boxes: Explosionproof

GUBB, GUBBD and GUBBM Cast Junction Boxes 580

DER, GUB and GUBM Cast Junction Boxes 587 V

AGUB Instrument and Meter Enclosures 593

AJBEW Cast Junction Boxes 599 GUBB, GUBB. GUBBM,

DER, GUB and GUBM AGUB AJBEW

EXB Cast Iron Junction Boxes 606

DTX Series Junction Boxes 611

XP Series Junction Boxes 620 V

EXB DTX XP — V

Ordinary Location Junction Boxes

W Series Cast Boxes Options 623

• WYS Type Unflanged Junction or Pull Boxes 633

• WYL Type Overlapping Cover Boxes 635

• WYW Type Hinged Cover Boxes 637 WYS Type WYR Type

• WYF Type Flat Flanged Boxes 639

• WYU Type Inside Flanged Recessed Cover Boxes 641

• WYR Outside Flanged Recessed Cover Boxes 642

• WYT Type Checkered Cover Sidewalk Boxes 644 WYL Type WYT Type WYW Type

• WYC Type Box with Hinged Door and Trim

Cabinet 645

• WY58E Type Checkered Cover Sidewalk Topping

Box 646

• WYNY Type Checkered Cover Roadway Topping

Box 647 WY58E Type WYF Type WYC Type

WYU Type WYNY Type

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 4

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

499

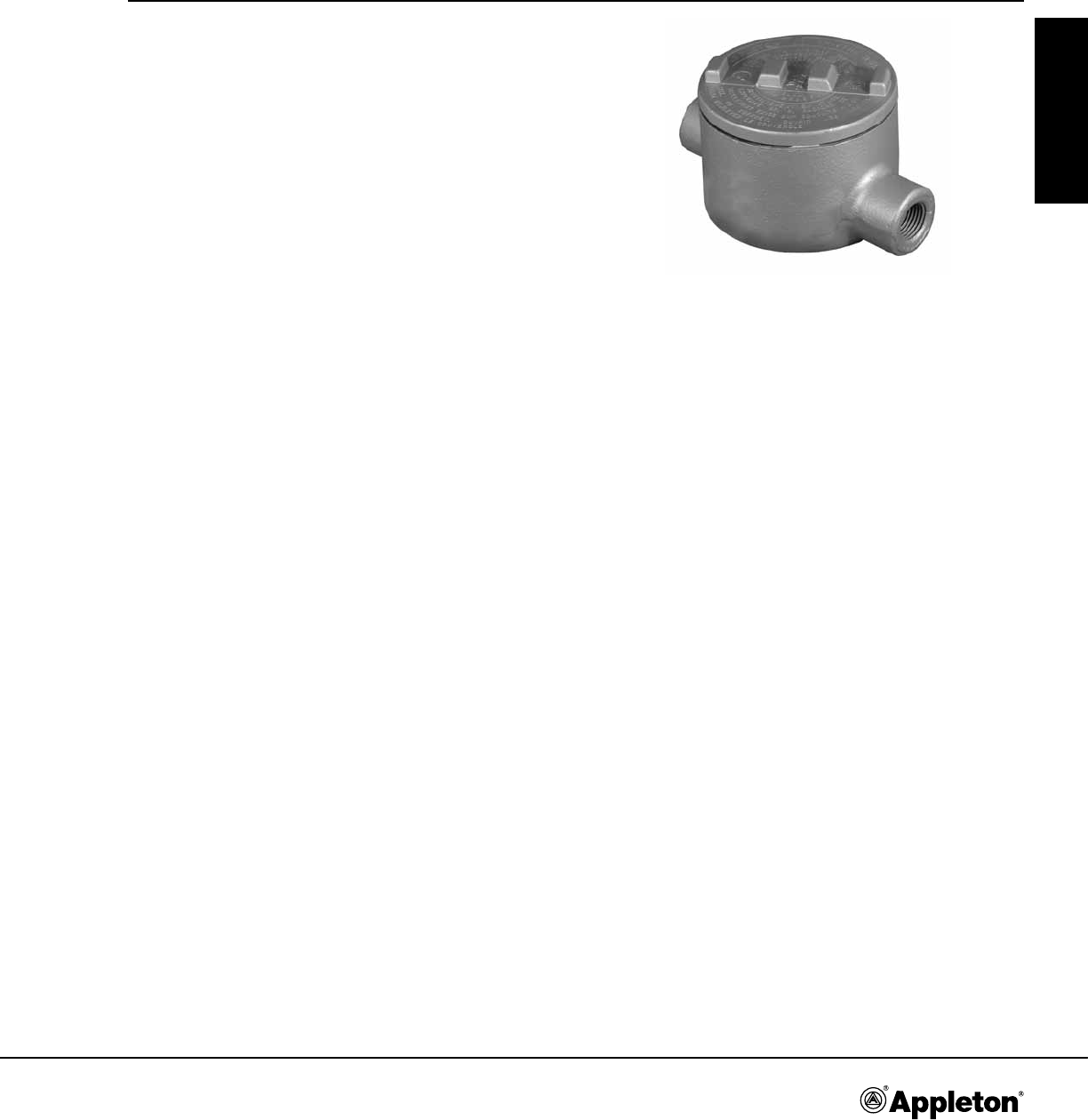

GR and GRF Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw and O-Ring.

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• GR boxes offers ten hub arrangements.

• GRF boxes have integral mounting ange.

• Malleable iron bodies have high tensile strength, ductility and

provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints

and ground continuity.

• Furnished with covers.

• General purpose wiring.

• Function as sealing ttings when used with sealing covers (see

NEC for restrictions).

• Internally threaded body with externally threaded cover.

• Covers have pry notches for bar or wrench.

• Accommodate sealing, dome, hub and union hub covers, and

canopies.

• Standard O-rings provide raintight t. NEMA 3, 4.

• Internal ground screw standard.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Body: malleable iron or copperfree (4/10 of 1% max.) aluminum

• Cover: copperfree (4/10 of 1% max.) aluminum

Standard Finishes

• Malleable iron bodies and covers: triple-coat — (1) zinc

electroplate, (2) chromate, and (3) epoxy powder coat

• Aluminum bodies and covers: epoxy powder coat

Options

• To order body without cover, add sufx -LC to catalog number.

• For malleable iron body and cover, add sufx -M.

• PVC coating available on specied products. Add sufx -PVC

to catalog number. To add PVC coating to items not specied,

contact your local sales representative.

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 013017

 In Class I, Division 1, Group B atmospheres, all conduit runs must have a sealing fitting (not supplied) field-installed adjacent to the enclosure.

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 4

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

500

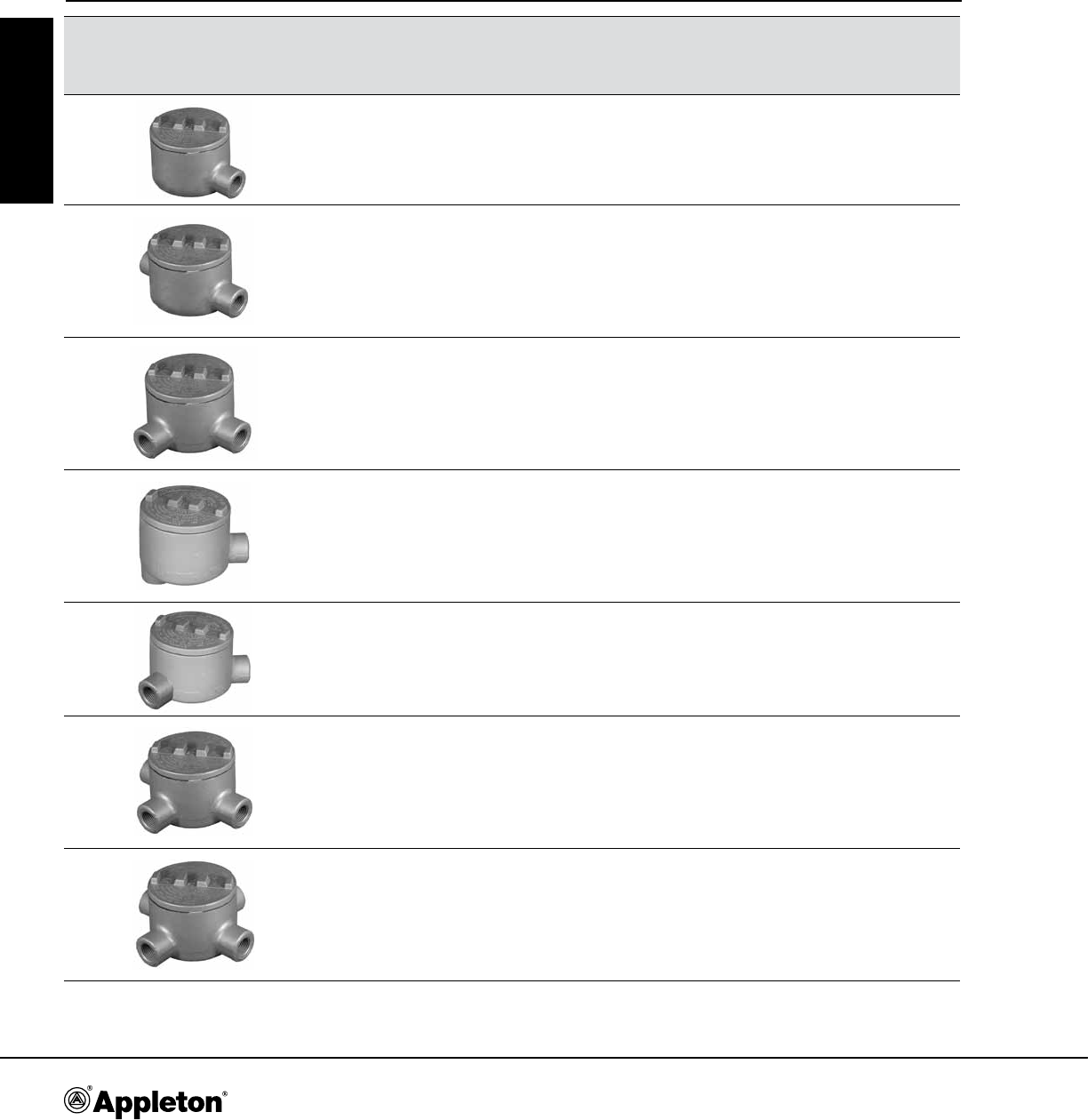

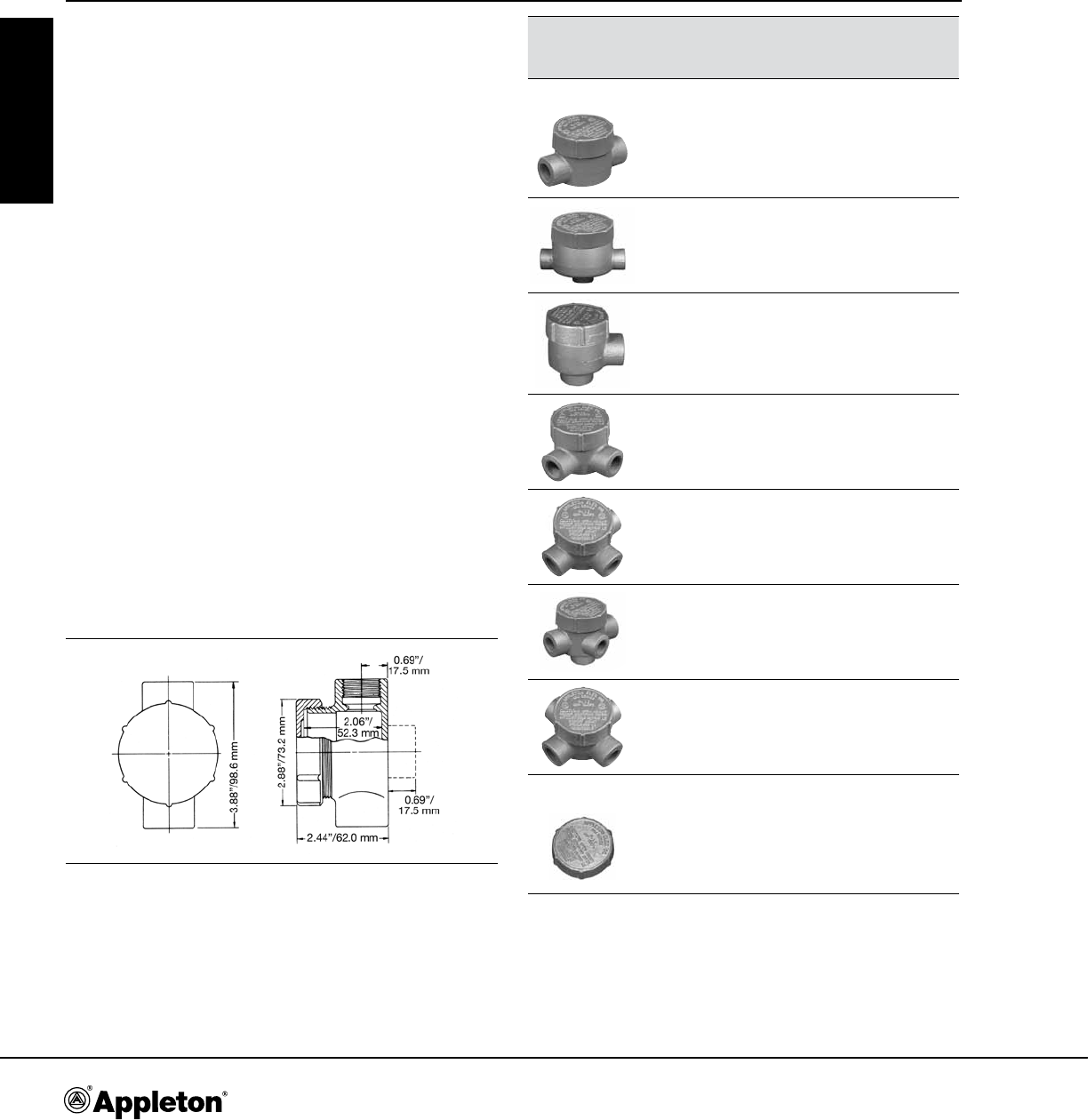

GR Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw and O-Ring.

Hub Type

Conduit Size

(Inches)

Cover Opening

Inches/Millimeters

Capacity

in3/dm3

Form

Number 

Catalog Number 

Malleable Iron 

Body With

Aluminum Cover

Aluminum

Body with

Aluminum Cover

GRE

1/2 3.38/85.9 18.0/.29 1 GRE50 GRE50-A

3/4 3.38/85.9 18.0/.29 1 GRE75 GRE75-A

1 3.38/85.9 18.0/.29 1 GRE100 GRE100-A

1-1/4 3.94/100.1 31.0/.51 2 GRE125 GRE125-A

1-1/2 4.88/124.0 72.0/1.18 3 GRE150 GRE150-A

GRC 

1/2 3.38/85.9 18.0/.29 1 GRC50 GRC50-A

3/4 3.38/85.9 18.0/.29 1 GRC75 GRC75-A

1 3.38/85.9 18.0/.29 1 GRC100 GRC100-A

1-1/4 3.94/100.1 31.0/.51 2 GRC125 GRC125-A

1-1/2 4.88/124.0 72.0/1.18 3 GRC150 GRC150-A

2 4.88/124.0 76.0/1.25 3 GRC200 GRC200-A

GRL 

1/2 3.38/85.9 18.0/.29 1 GRL50 GRL50-A

3/4 3.38/85.9 18.0/.29 1 GRL75 GRL75-A

1 3.38/85.9 18.0/.29 1 GRL100 GRL100-A

1-1/4 3.94/100.1 31.0/.51 2 GRL125 GRL125-A

1-1/2 4.88/124.0 72.0/1.18 3 GRL150 GRL150-A

2 4.88/124.0 76.0/1.25 3 GRL200 GRL200-A

GRLB 

1/2 3.38/85.9 18.0/.29 1 GRLB50 GRLB50-A

3/4 3.38/85.9 18.0/.29 1 GRLB75 GRLB75-A

1 3.38/85.9 18.0/.29 1 GRLB100 GRLB100-A

1-1/4 3.94/100.1 31.0/.51 2 GRLB125 GRLB125-A

1-1/2 4.88/124.0 72.0/1.18 3 GRLB150 GRLB150-A

2 4.88/124.0 76.0/1.25 3 GRLB200 GRLB200-A

GRN 

1/2 3.38/85.9 18.0/.29 1 GRN50 GRN50-A

3/4 3.38/85.9 18.0/.29 1 GRN75 GRN75-A

1 3.38/85.9 18.0/.29 1 GRN100 GRN100-A

1-1/4 3.94/100.1 31.0/.51 2 GRN125 GRN125-A

1-1/2 4.88/124.0 72.0/1.18 3 GRN150 GRN150-A

GRT 

1/2 3.38/85.9 18.0/.29 1 GRT50 GRT50-A

3/4 3.38/85.9 18.0/.29 1 GRT75 GRT75-A

1 3.38/85.9 18.0/.29 1 GRT100 GRT100-A

1-1/4 3.94/100.1 31.0/.51 2 GRT125 GRT125-A

1-1/2 4.88/124.0 72.0/1.18 3 GRT150 GRT150-A

2 4.88/124.0 76.0/1.25 3 GRT200 GRT200-A

GRX 

1/2 3.38/85.9 18.0/.29 1 GRX50 GRX50-A

3/4 3.38/85.9 18.0/.29 1 GRX75 GRX75-A

1 3.38/85.9 18.0/.29 1 GRX100 GRX100-A

1-1/4 3.94/100.1 31.0/.51 2 GRX125 GRX125-A

1-1/2 4.88/124.0 72.0/1.18 3 GRX150 GRX150-A

2 4.88/124.0 76.0/1.25 3 GRX200 GRX200-A

 In Class I, Division 1, Group B atmospheres, all conduit runs must have a sealing fitting (not supplied) field-installed adjacent to the enclosure.

① Other covers available—see GR and GRF Conduit Outlet Box Covers page. Order separately.

 For malleable iron body and cover, add suffix -M.

 Form number designates body and matching cover sizes. To order body without cover, add suffix -LC to catalog number.

 PVC coating available, add suffix -PVC to catalog number.

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 4

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

501

GR Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw and O-Ring.

Hub Type

Conduit Size

(Inches)

Cover Opening

Inches/Millimeters

Capacity

in3/dm3

Form

Number 

Catalog Number 

Malleable Iron 

Body With

Aluminum Cover

Aluminum

Body with

Aluminum Cover

GRCA

1/2 3.38/85.9 18.0/0.29 1 GRCA50 GRCA50-A

3/4 3.38/85.9 18.0/0.29 1 GRCA75 GRCA75-A

GRLA

1/2 3.38/85.9 18.0/0.29 1 GRLA50 GRLA50-A

3/4 3.38/85.9 18.0/0.29 1 GRLA75 GRLA75-A

GRTA

1/2 3.38/85.9 18.0/0.29 1 GRTA50 GRTA50-A

3/4 3.38/85.9 18.0/0.29 1 GRTA75 GRTA75-A

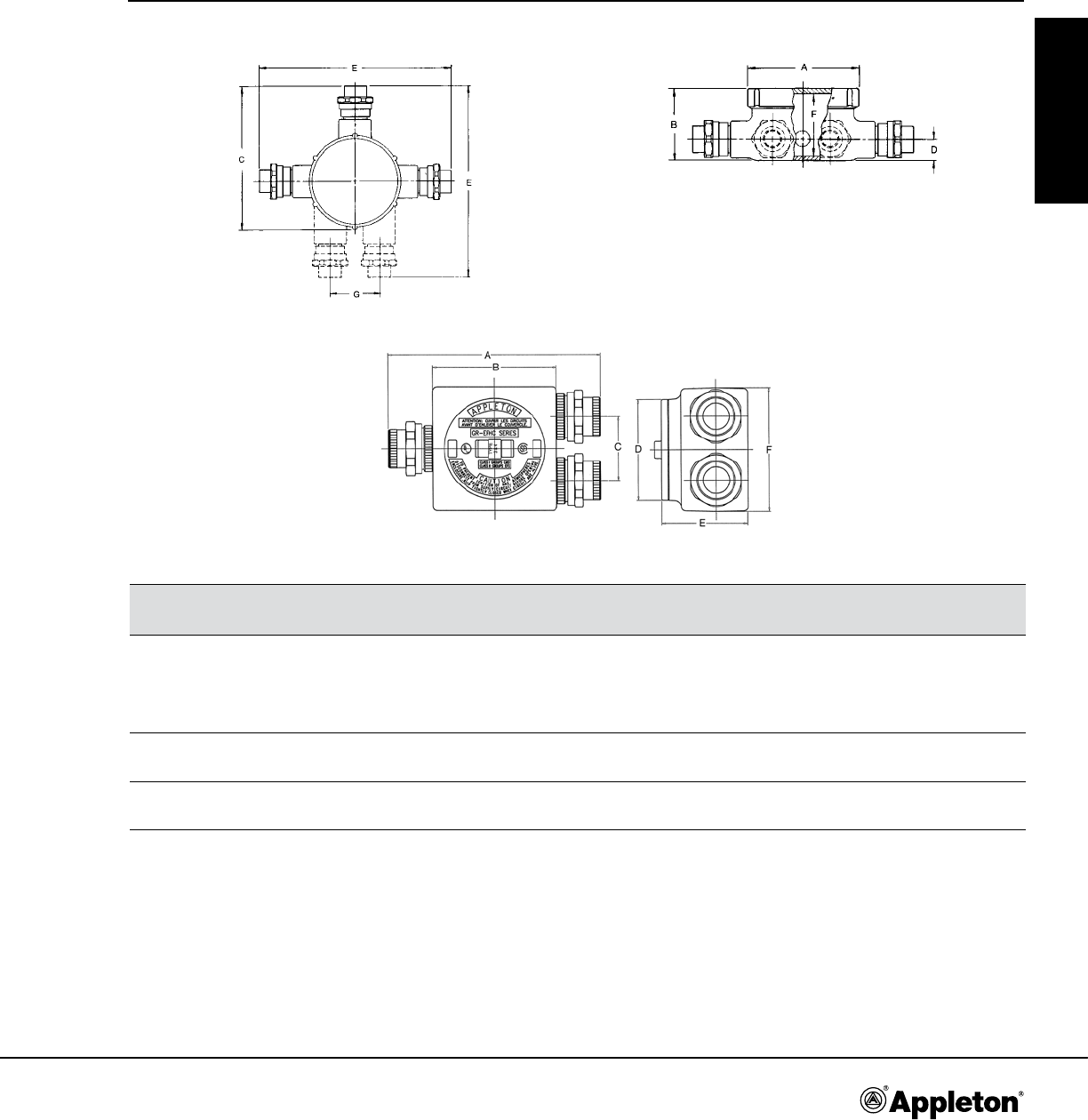

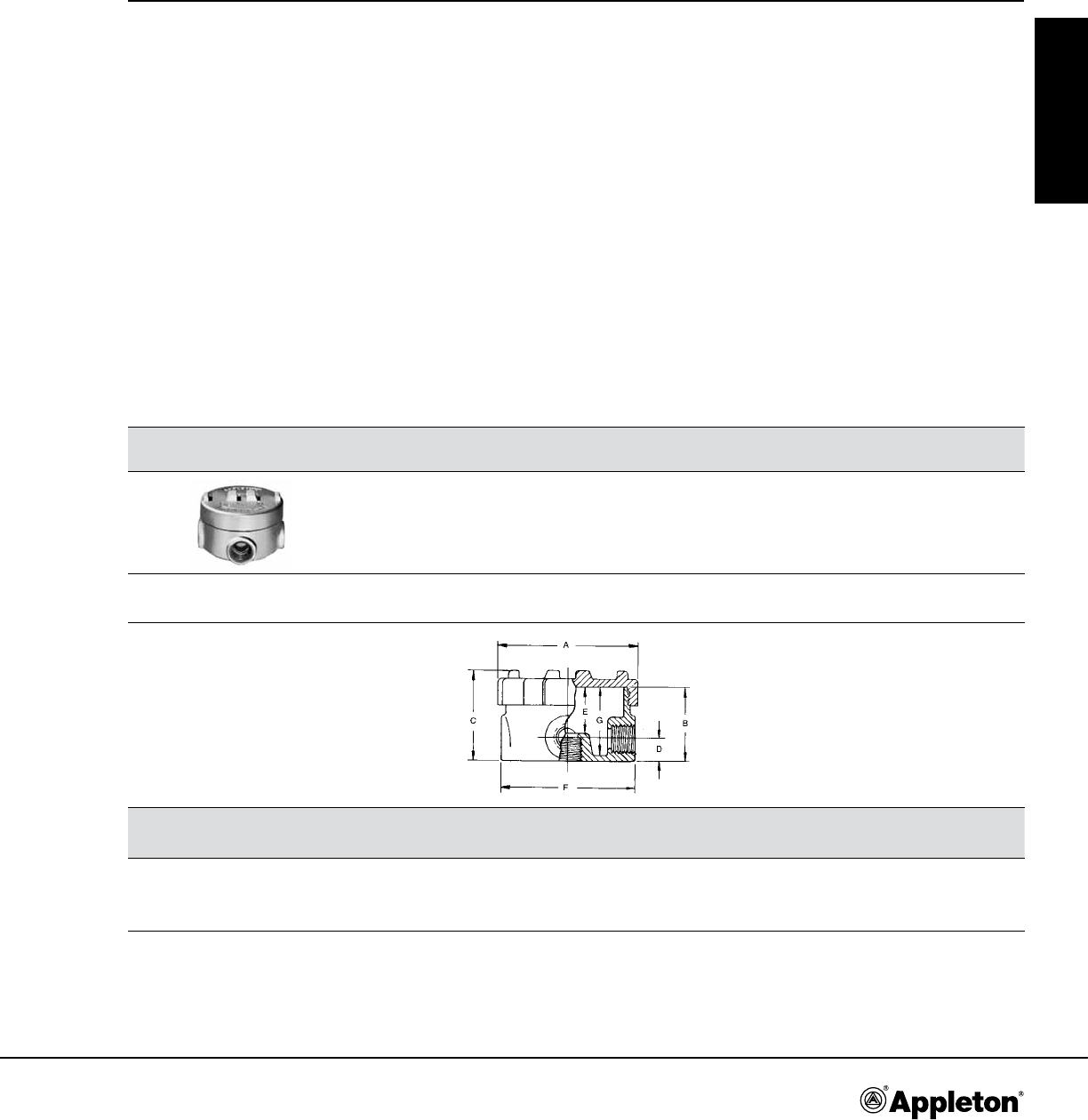

Dimensions

Hub Size

(Inches)

Dimensions in Inches/Millimeters

A B C D E F G

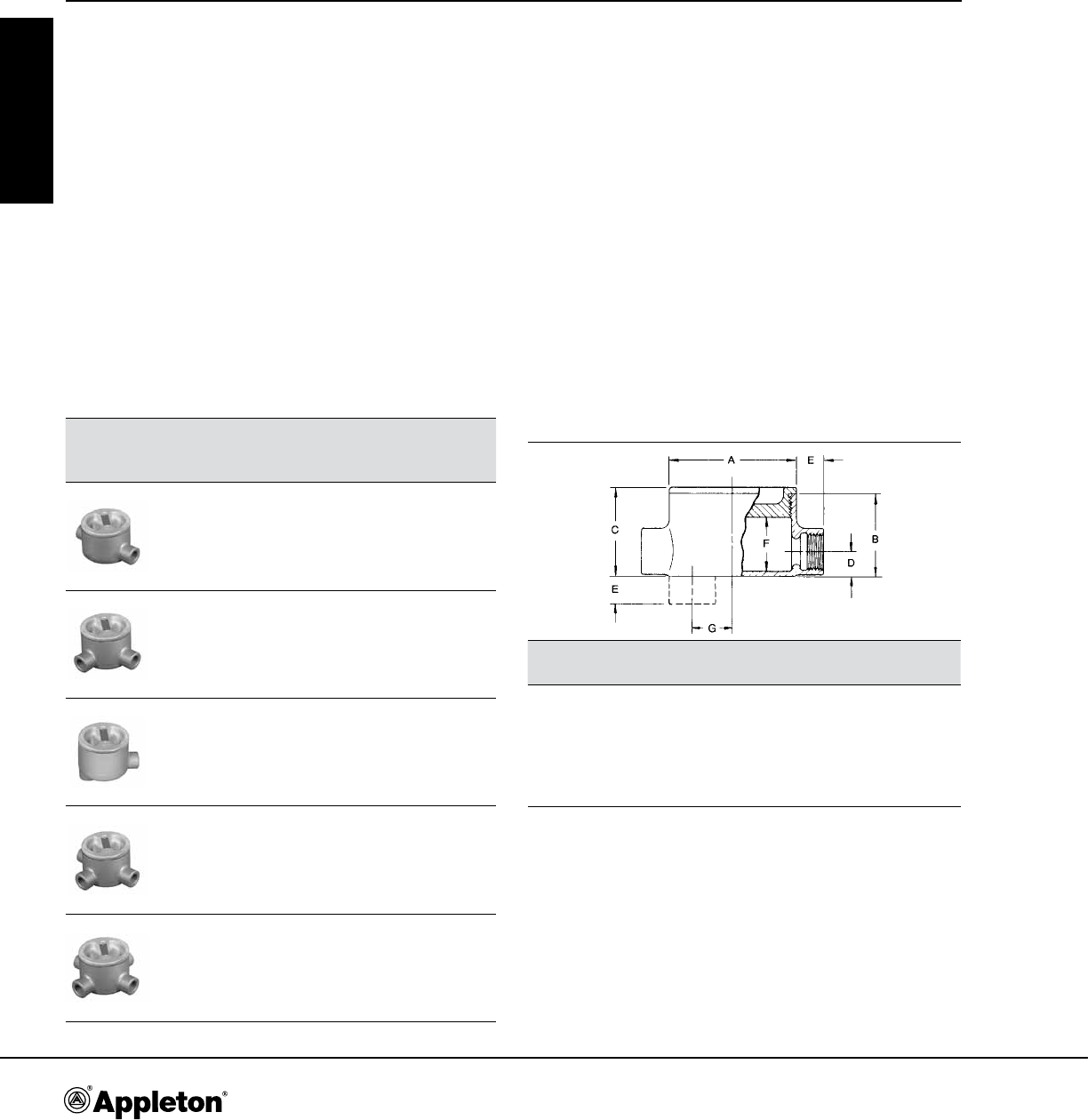

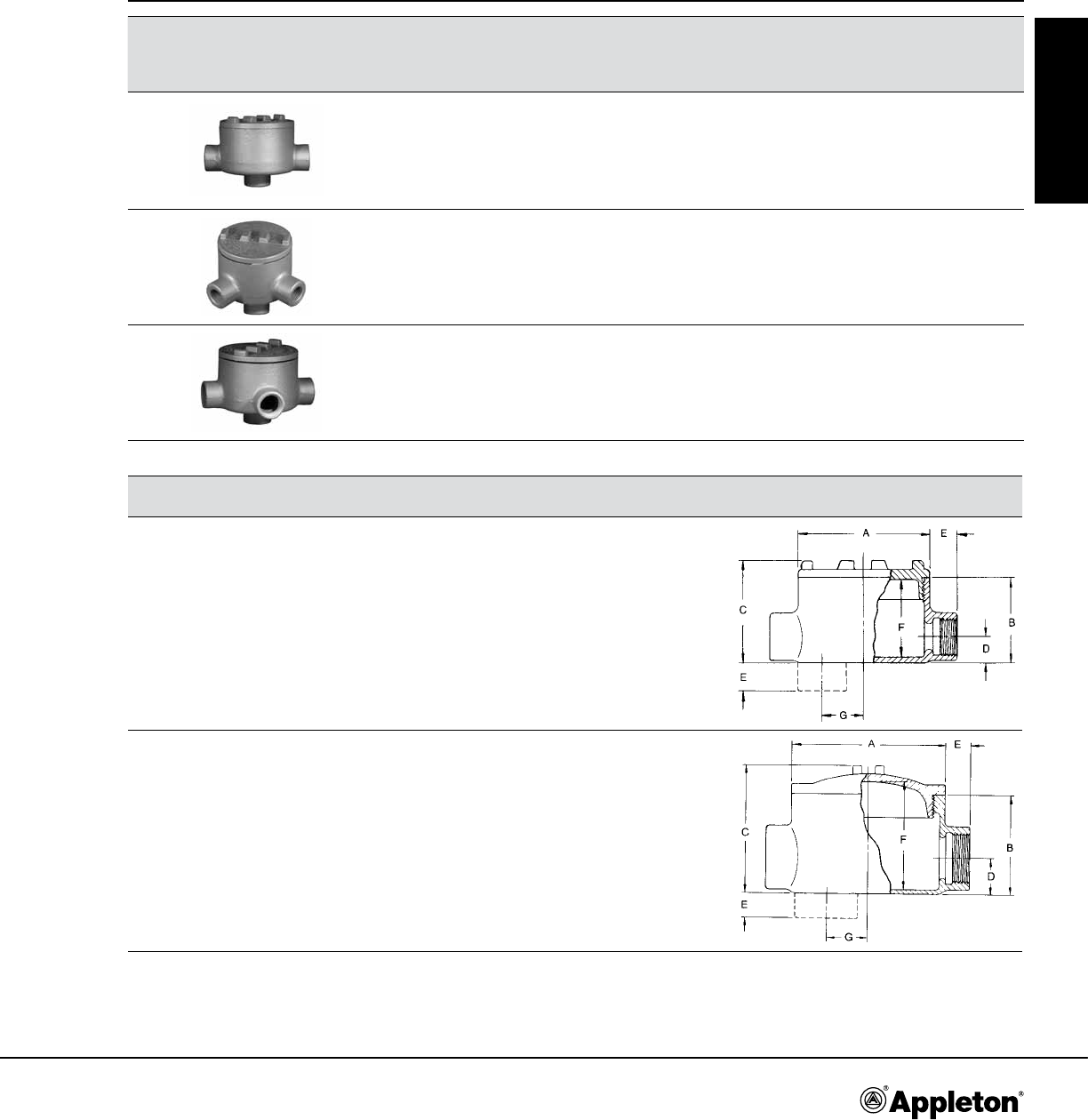

GR Series, Form 1

1/2 3.75/95.3 2.44/62 2.88/73.2 0.75/19.1 0.81/20.6 2.25/57.2 1.25/31.8

3/4 3.75/95.3 2.44/62 2.88/73.2 0.75/19.1 0.81/20.6 2.25/57.2 1.25/31.8

1 3.75/95.3 2.44/62 2.88/73.2 0.94/23.9 0.94/23.9 2.25/57.2 1.06/26.9

GR Series, Forms 2 and 3

1-1/4 4.50/114.3 2.69/68.3 3.56/90.4 1.19/30.2 0.88/22.4 2.75/69.9 1.13/28.7

1-1/2 5.75/146.1 3.75/95.3 4.81/122.2 1.38/35.1 0.94/23.9 4.06/103.1 1.50/38.1

2 5.75/146.1 4.00/101.6 5.06/128.5 1.63/41.4 1/25.4 4.25/108.0 1.25/31.8

 In Class I, Division 1, Group B atmospheres, all conduit runs must have a sealing fitting (not supplied) field-installed adjacent to the enclosure.

 Other covers available—see GR and GRF Conduit Outlet Box Covers page. Order separately.

 For malleable iron body and cover, add suffix -M.

 Form number designates body and matching cover sizes. To order body without cover, add suffix -LC to catalog number.

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 4

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

502

Hub Type

Conduit Size

(Inches)

Cover Opening

Inches/Millimeters

Capacity

in3/dm3

Form

Number 

Catalog Number 

Malleable Iron 

Body With

Aluminum Cover

Aluminum

Body with

Aluminum Cover

GRFC

1/2 3.38/85.9 18.0/0.29 1 GRFC50 GRFC50-A

3/4 3.38/85.9 18.0/0.29 1 GRFC75 GRFC75-A

1 3.38/85.9 18.0/0.29 1 GRFC100 GRFC100-A

GRFL

1/2 3.38/85.9 18.0/0.29 1 GRFL50 GRFL50-A

3/4 3.38/85.9 18.0/0.29 1 GRFL75 GRFL75-A

1 3.38/85.9 18.0/0.29 1 GRFL100 GRFL100-A

GRFT

1/2 3.38/85.9 18.0/0.29 1 GRFT50 GRFT50-A

3/4 3.38/85.9 18.0/0.29 1 GRFT75 GRFT75-A

1 3.38/85.9 18.0/0.29 1 GRFT100 GRFT100-A

GRFX

1/2 3.38/85.9 18.0/0.29 1 GRFX50 GRFX50-A

3/4 3.38/85.9 18.0/0.29 1 GRFX75 GRFX75-A

1 3.38/85.9 18.0/0.29 1 GRFX100 GRFX100-A

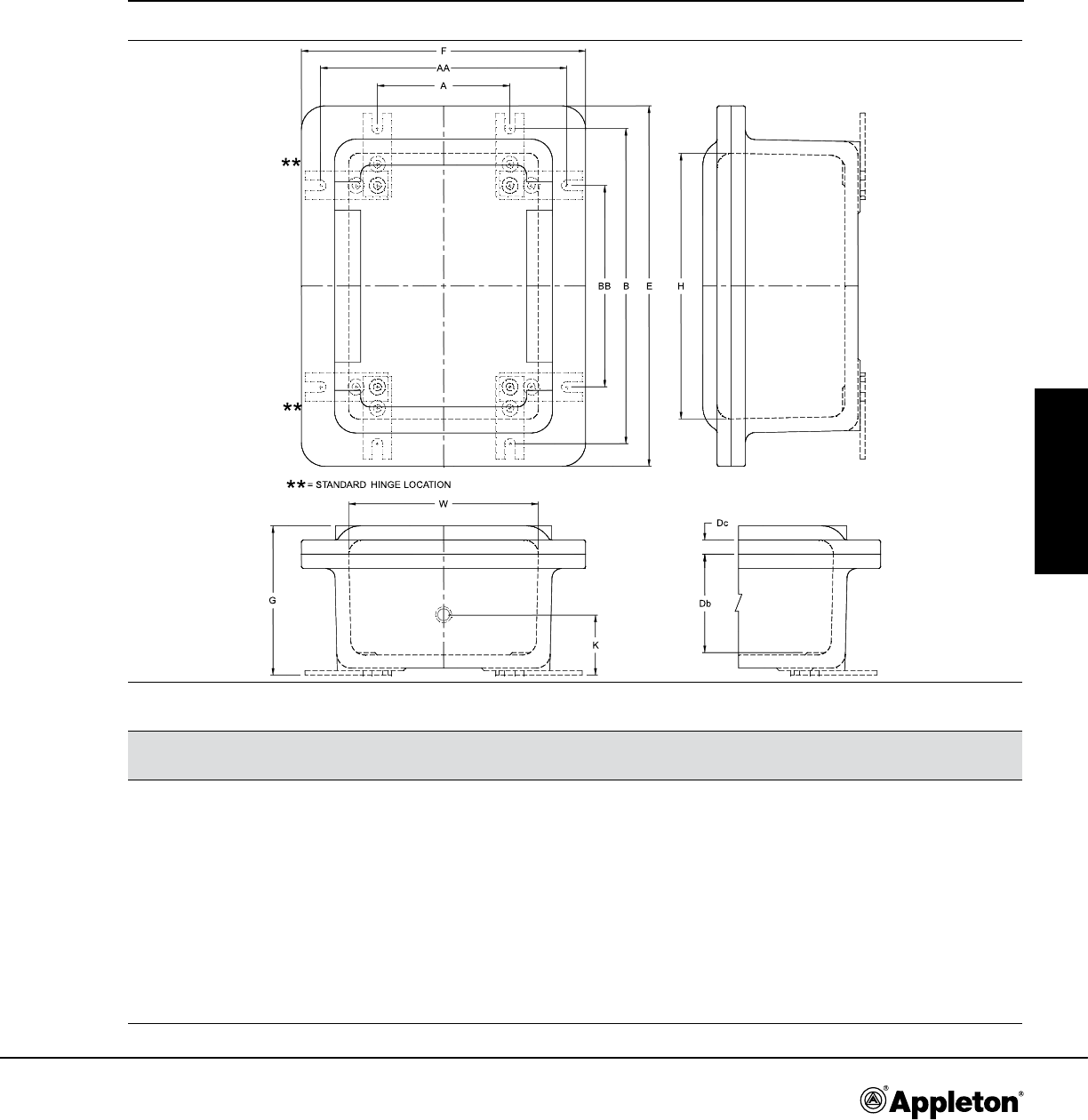

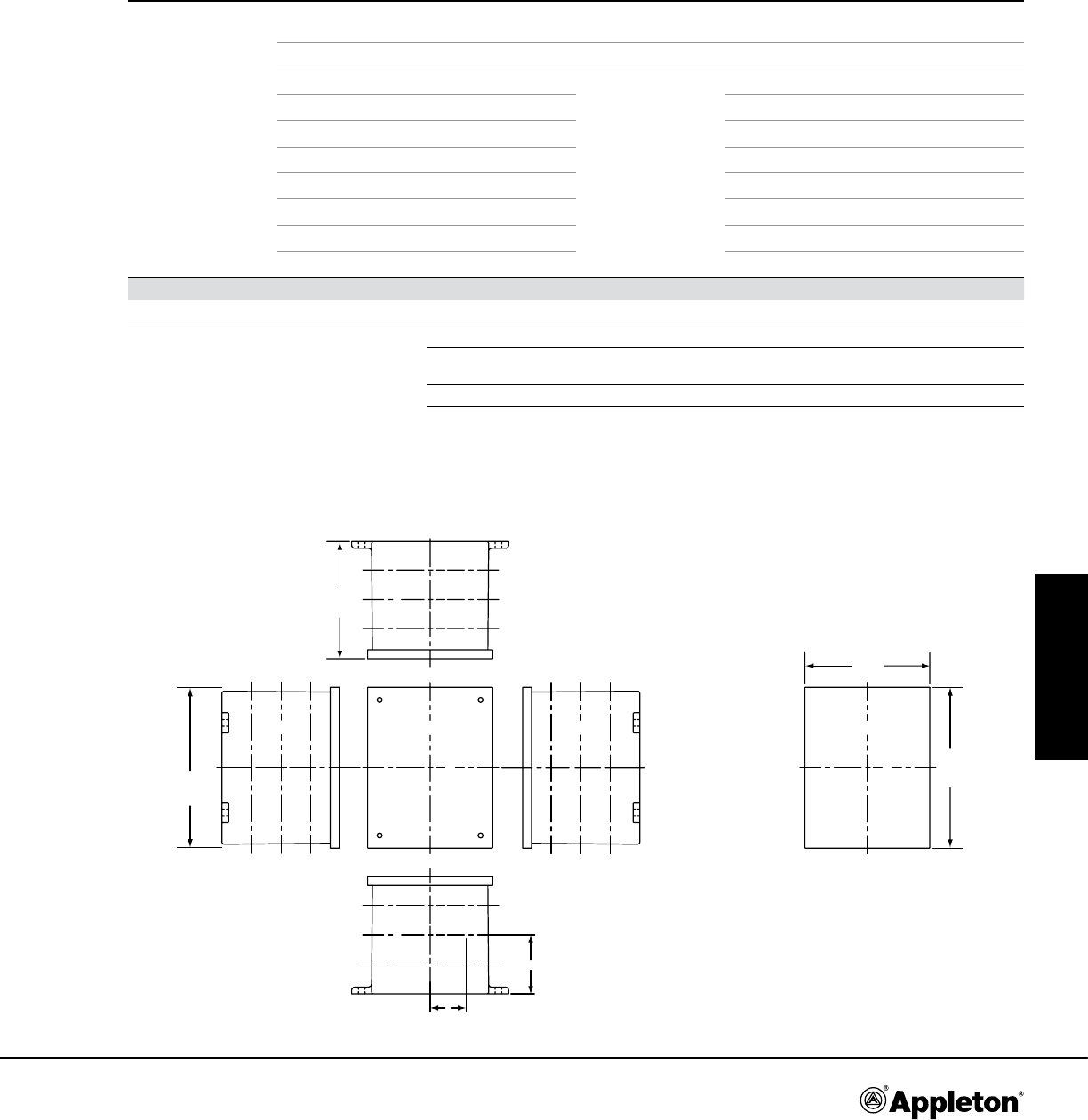

Dimensions

 In Class I, Division 1, Group B atmospheres, all conduit runs must have a sealing fitting (not supplied) field-installed adjacent to the enclosure.

 Other covers available—see GR and GRF Conduit Outlet Box Covers page. Order separately

 For malleable iron body and cover, add suffix -M.

 Form number designates body and matching cover sizes. To order body without cover, add suffix -LC to catalog number.

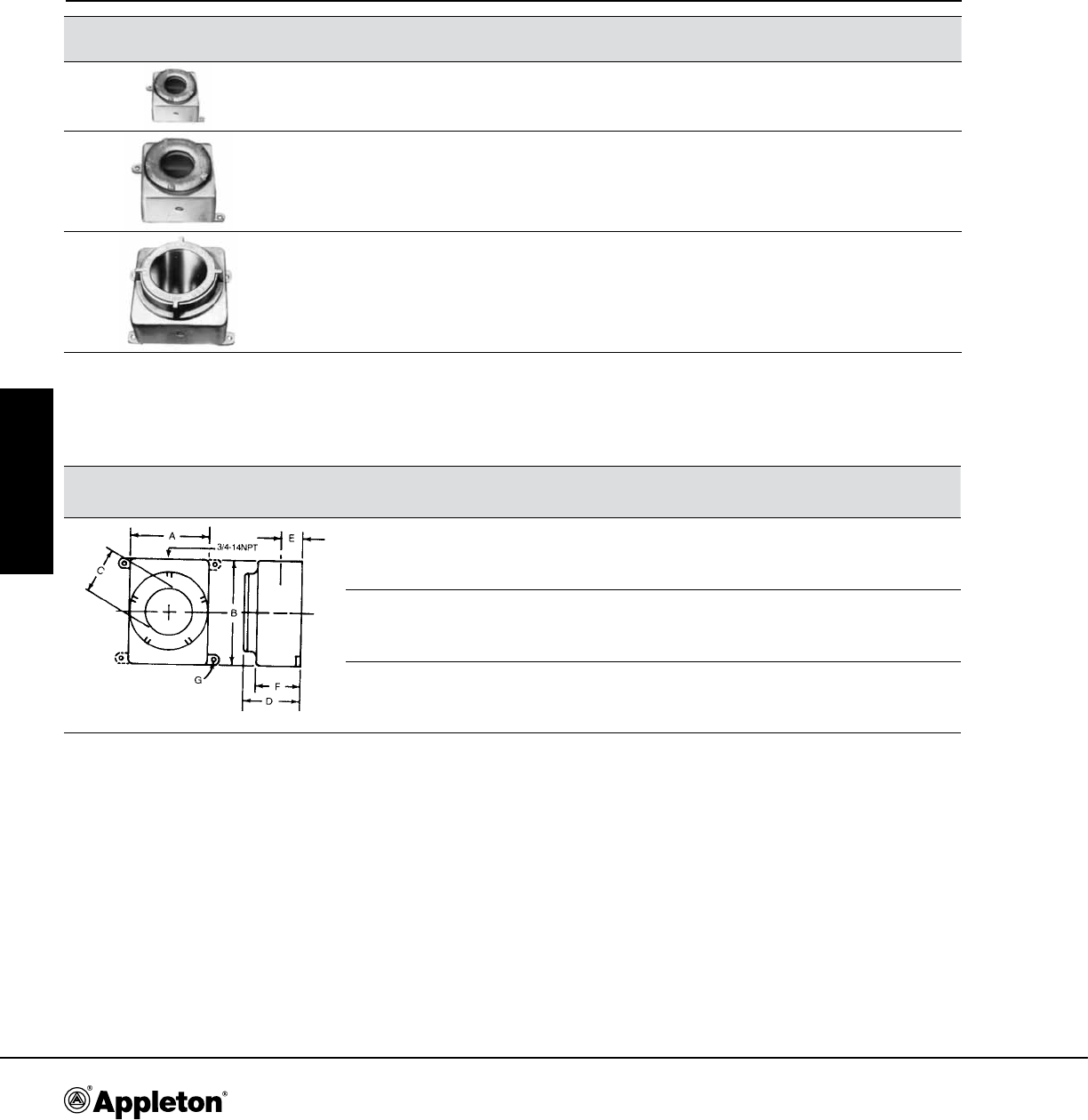

GRF Flanged Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw and O-Ring.

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 4

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

503

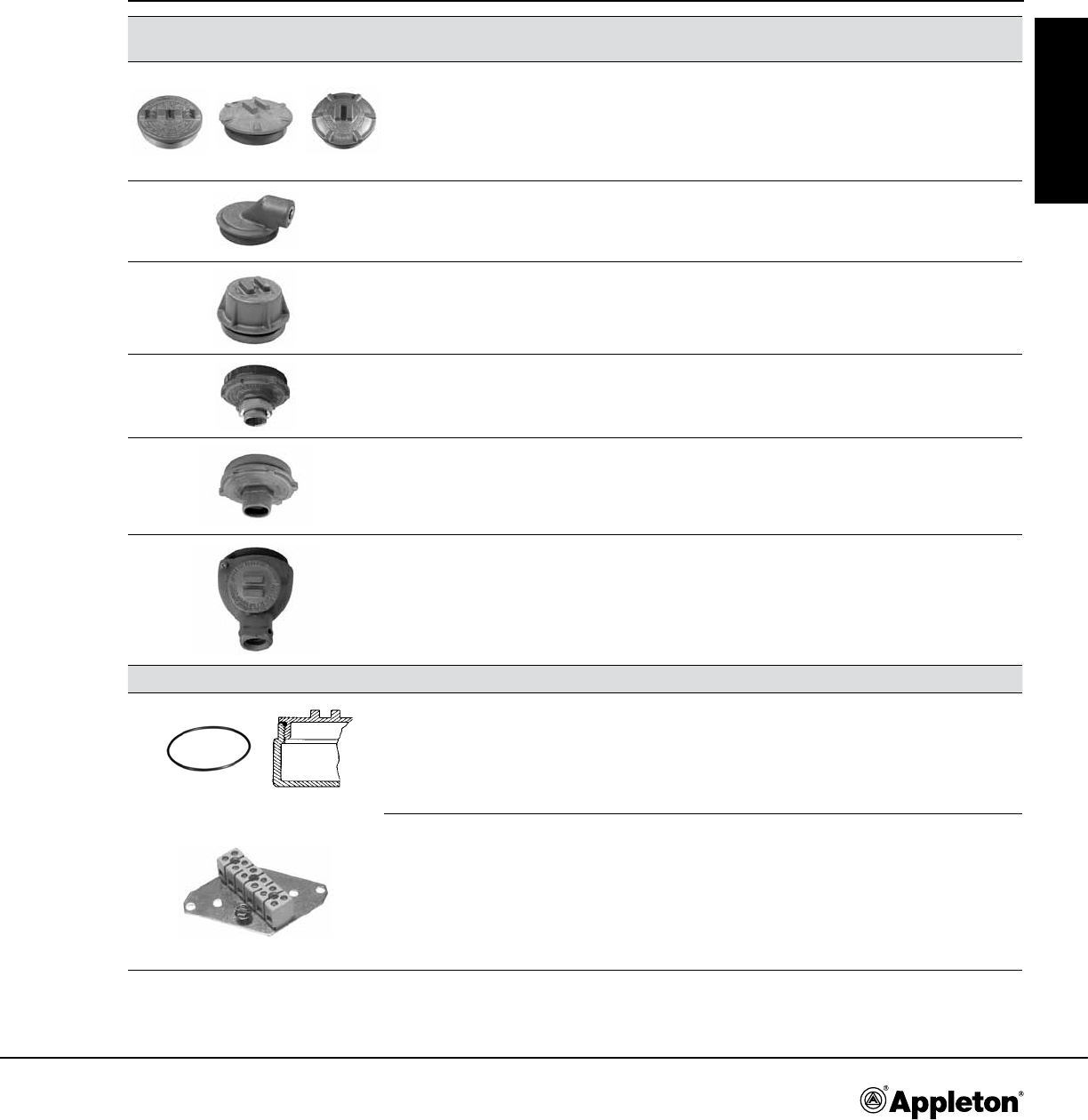

GR and GRF Conduit Outlet Box Covers

Explosionproof, Dust-Ignitionproof

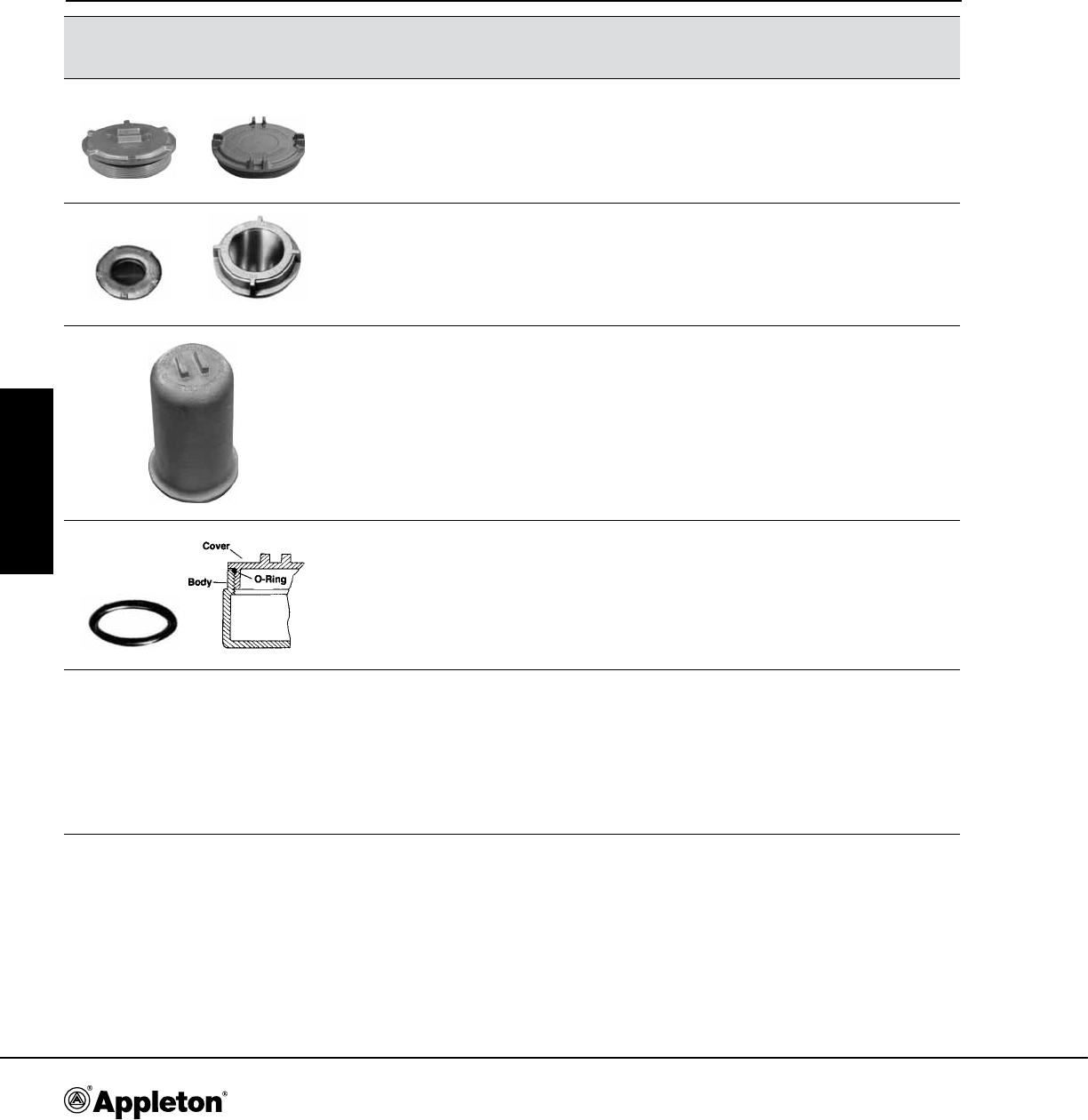

Covers and O-rings Fit Bodies with Corresponding Form Numbers.

Hub Type

Cover Opening

Inches/Millimeters

Fixture Stem Size

Inches/Millimeters

Form

Number 

Catalog Number

Malleable Iron Aluminum

Surface 

3.38/85.9 1 GRK-1M GRK-1

3.94/100.1 2 GRK-2M GRK-2

4.88/124.0 3 GRK-3M GRK-3

Sealing 

3.38/85.9 1 GRK-1SC GRK-1SC-A

3.94/100.1 2 GRK-2SC GRK-2SC-A

4.88/124.0 3 GRK-3SC GRK-3SC-A

2” Deep Dome

UL Listed: E185964 3.38/85.9 1 — GRK-1DC

Union Hub 3.38/85.9 0.75/19.1 1 GRK-75U GRK-75UA

Hub

3.38/85.9 0.50/12.7 1 GRK-50 GRK50-A

3.38/85.9 0.75/19.1 1 GRK-75 GRK75-A

Canopy

Length 4-1/2”

3.38/85.9 0.50/12.7 1 GRK-50C —

3.38/85.9 0.75/19.1 1 GRK-75C —

3.38/85.9 1.00/25.4 1 GRK-100C —

Catalog Number

O-Rings — Buna-N

Provide Raintight fit when used on following series:

GR (Forms 1, 2 and 3), GRF (Form 1), GRH, and GRU

(Form 1).

1GRG-1

2GRG-2

3GRG-3

GRTB Terminal Strip

For use in standard GR series boxes Weidmuller type MK terminal block  with wire range of #22-#12 AWG.

Mounts on 2 predrilled and tapped standard holes (furnished in internal GR boxes).

6 position terminal block kit 1+2 GRTB6-12

6 position terminal block kit 3 GRTB6-3

12 position terminal block kit 3 GRTB12-3

 In Class I, Division 1, Group B atmospheres, all conduit runs must have a sealing fitting (not supplied) field-installed adjacent to the enclosure.

 Form numbers designate cover and matching body sizes.

 PVC coating available, add suffix -PVC to catalog number.

 Terminal block is UL listed for 300 Volt, 25 Amp. CSA certified for 300 Volt, 13 Amp.

Class I, Division 1 and 2, Groups A, B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 4

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

504

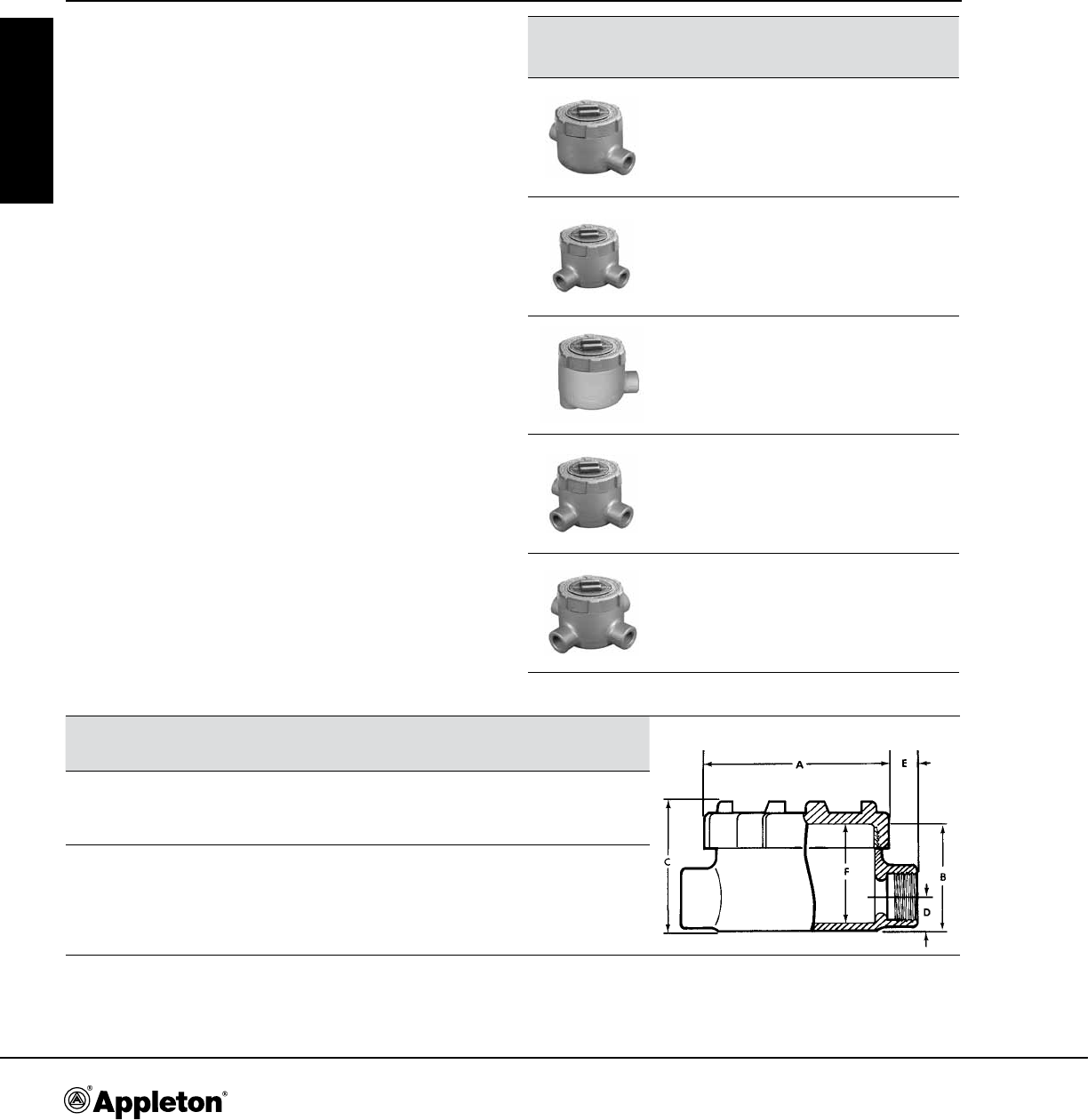

GRH Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw and O-Ring.

Hub

Type

Conduit

Size

(Inches)

Cover Opening

Inches/

Millimeters

Capacity

in3/dm3

Catalog

Number

Malleable Iron

GRHC

1/2 3.38/85.9 13.8/0.23 GRHC50

3/4 3.38/85.9 13.8/0.23 GRHC75

1 3.38/85.9 13.8/0.23 GRHC100

GRHL

1/2 3.38/85.9 13.8/0.23 GRHL50

3/4 3.38/85.9 13.8/0.23 GRHL75

1 3.38/85.9 13.8/0.23 GRHL100

GRHLB

1/2 3.38/85.9 13.8/0.23 GRHLB50

3/4 3.38/85.9 13.8/0.23 GRHLB75

1 3.38/85.9 13.8/0.23 GRHLB100

GRHT

1/2 3.38/85.9 13.8/0.23 GRHT50

3/4 3.38/85.9 13.8/0.23 GRHT75

1 3.38/85.9 13.8/0.23 GRHT100

GRHX

1/2 3.38/85.9 13.8/0.23 GRHX50

3/4 3.38/85.9 13.8/0.23 GRHX75

1 3.38/85.9 13.8/0.23 GRHX100

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints

and ground continuity.

• Furnished with covers.

• General purpose wiring.

• Designed for use in Class I, Groups A, B, C, and D; Class II,

Groups E, F, and G; and Class III.

• Internally threaded body with externally threaded covers.

• Standard O-rings provide raintight t. NEMA 3, 4.

• Internal ground screw standard.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Body: malleable iron

• Cover: copperfree (4/10 of 1% max.) aluminum

Standard Finishes

• Body: triple-coat — (1) zinc electroplate, (2) chromate, and (3)

epoxy powder coat

• Cover: epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 013017

Dimensions in Inches/Millimeters

Hub Size

(Inches) A B C D E F G

1/2 3.75/

95.3

2.44/

2.63/

66.8

0.75/

19.1

0.81/

20.6

1.63/

41.4

1.25/

31.8

3/4 3.75/

95.3

2.44/

2.63/

66.8

0.75/

19.1

0.81/

20.6

1.63/

41.4

1.25/

31.8

13.75/

95.3

2.44/

2.63/

66.8

0.94/

23.9

0.94/

23.9

1.63/

41.4

1.06/

26.9

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

505

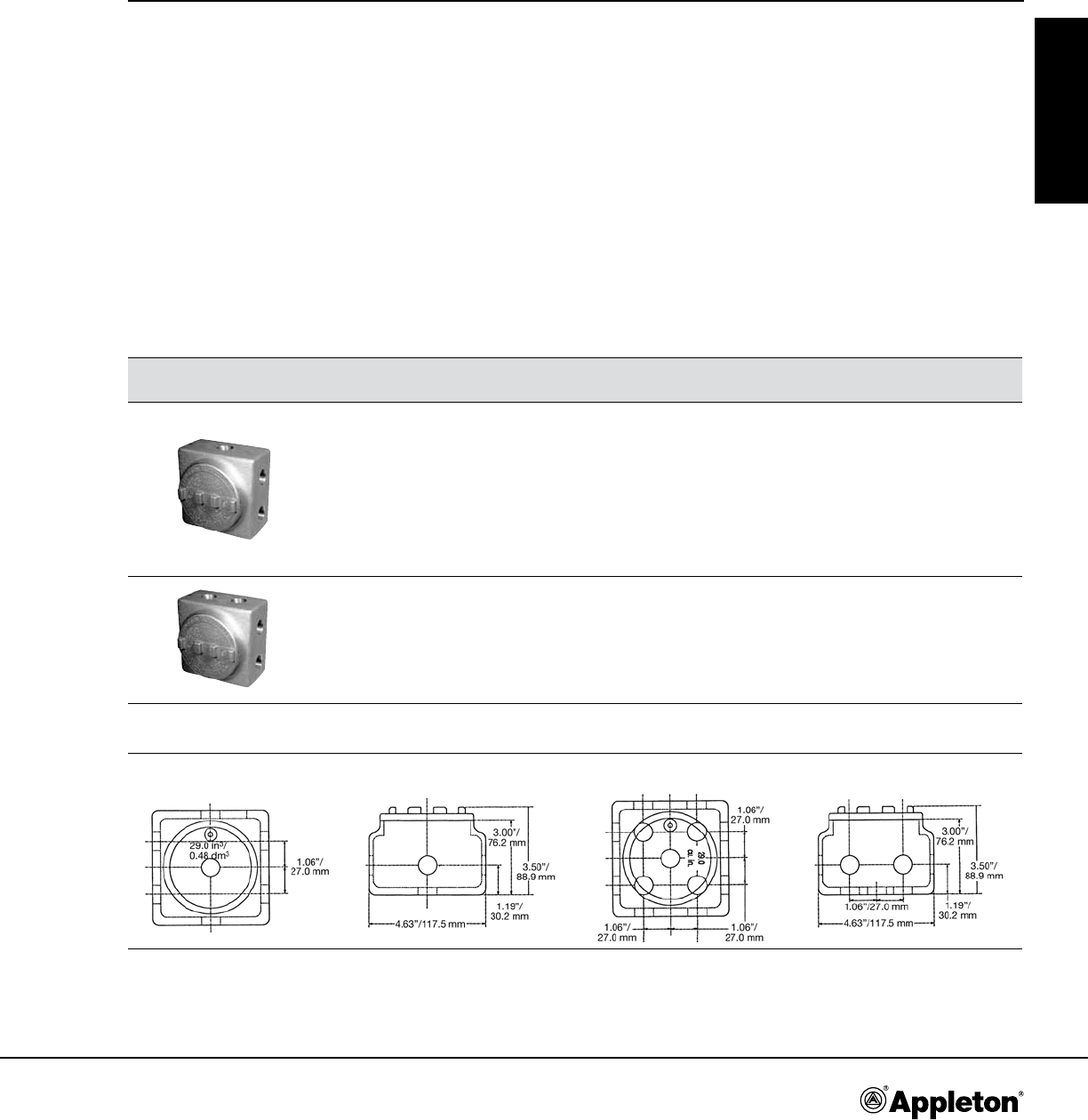

GRSS Conduit Outlet Boxes with Multiple Hubs

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw and O-Ring gasket.

Box Type

Conduit Size

(Inches)

Cover Opening

Inches/Millimeters Hubs Plugs

Capacity

in3/dm3

Catalog

Number 

GRSS Outlet Box with Cover

Internally threaded aluminum bodies with externally threaded aluminum form 1 covers.

Has 7 hubs; 2 on each of the sides, 1 on the top, 1 on the bottom and 1 on the center in the back.

Furnished with 4 close-up plugs and O-Ring.

GRSS

1/2 3.38/85.9 7 4 29.0/0.48 GRSS50

3/4 3.38/85.9 7 4 29.0/0.48 GRSS75

1 3.38/85.9 7 4 29.0/0.48 GRSS100

GRSSA Outlet Box with Cover

Internally threaded aluminum bodies with externally threaded aluminum form 1 covers.

Has 13 hubs; 2 on each side, 2 each on top and bottom and 5 in the back.

Furnished with 5 close-up plugs and O-Ring.

GRSSA 1/2 3.38/85.9 13 5 29.0/0.48 GRSSA50

3/4 3.38/85.9 13 5 29.0/0.48 GRSSA75

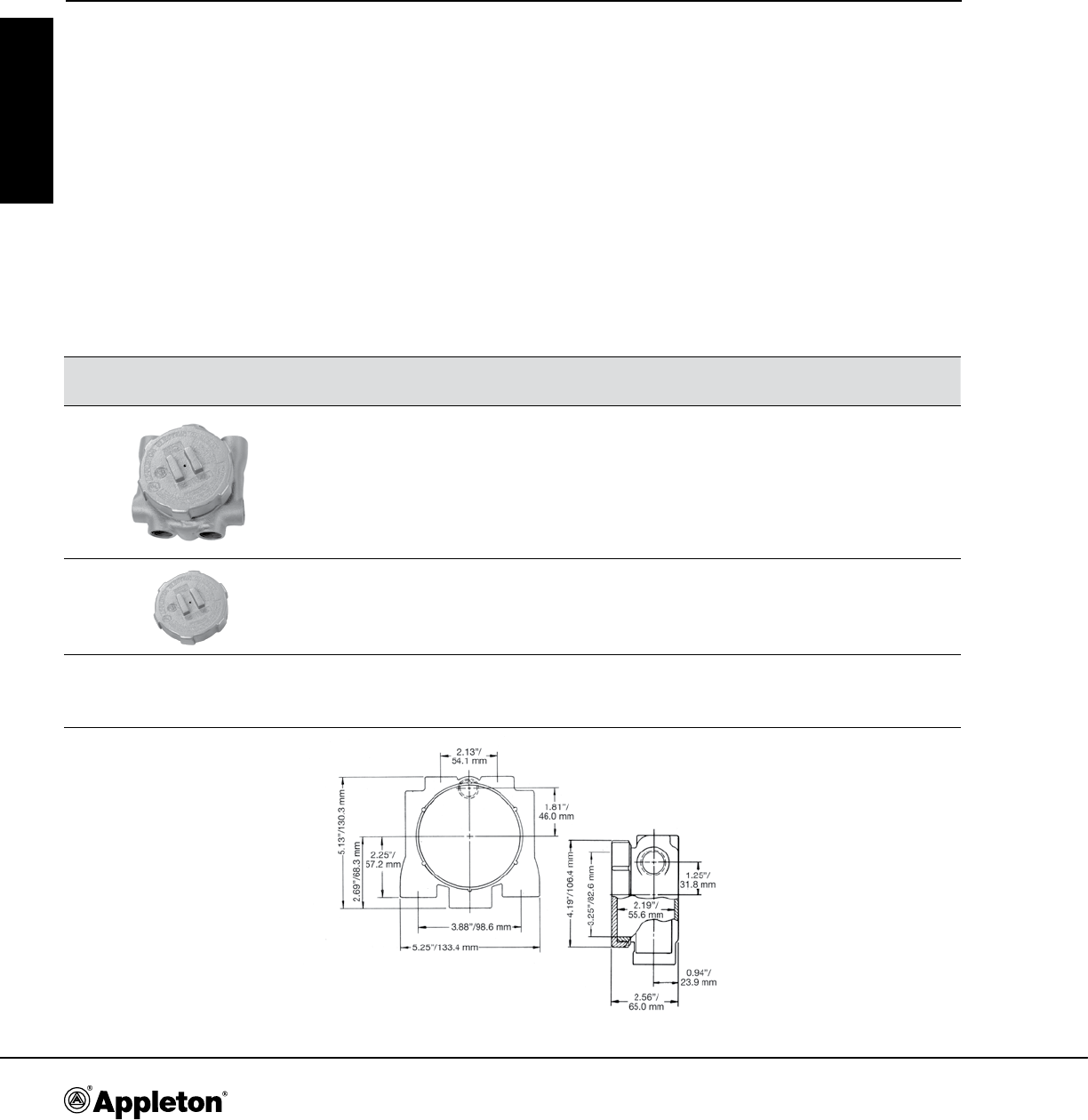

Dimensions

GRSS GRSSA

 In Class I, Division 1, Group B atmospheres, all conduit runs must have a sealing fitting (not supplied) field-installed adjacent to the enclosure.

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Multiple hubs permit exibility.

• Copperfree aluminum body and cover provide superior

corrosion resistance.

• Internal ground screw standard.

Standard Materials

• Bodies and covers: copperfree (4/10 of 1% max.) aluminum

Standard Finishes

• Epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 025875

Class I, Division 1 and 2, Groups C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

506

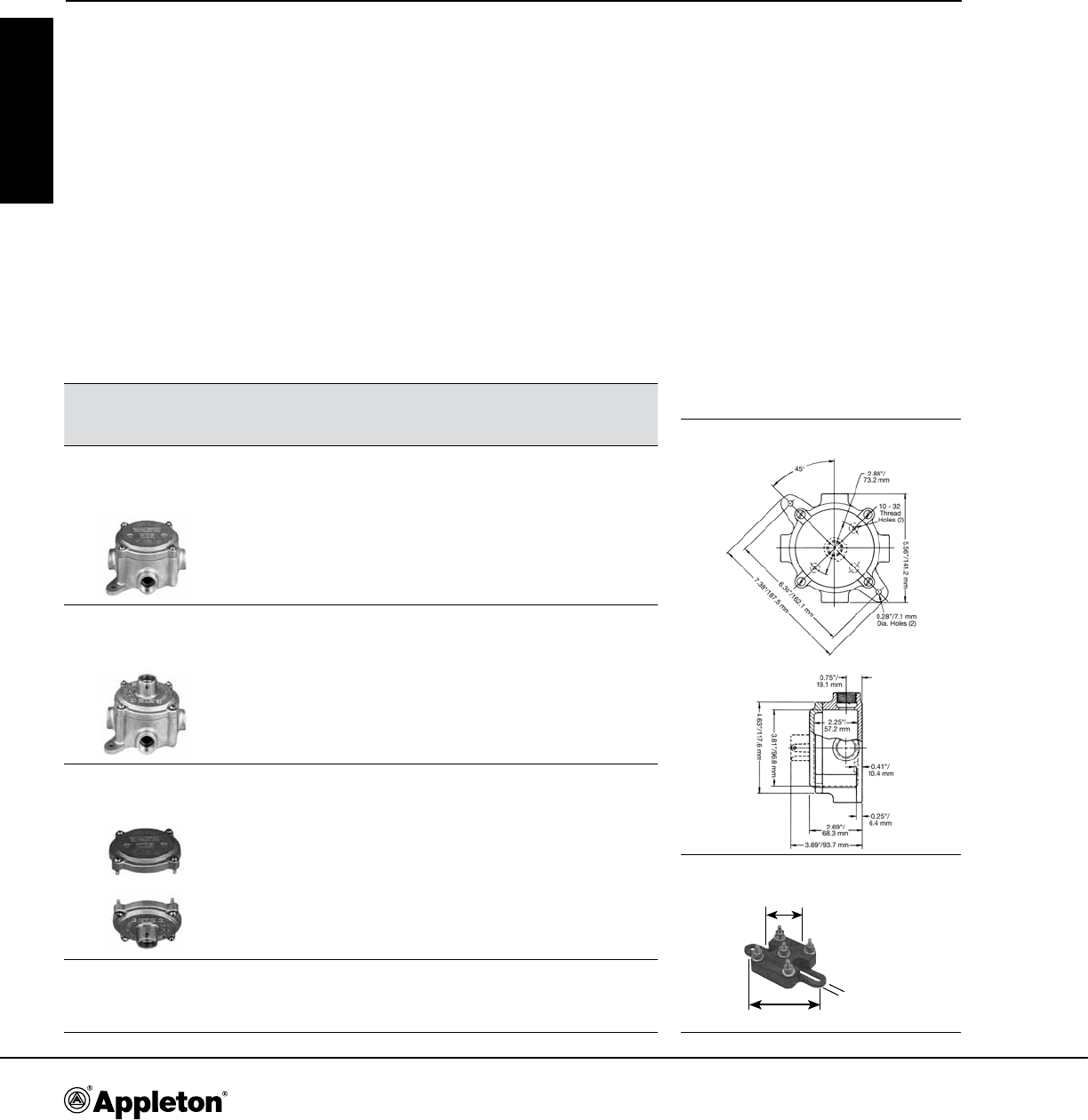

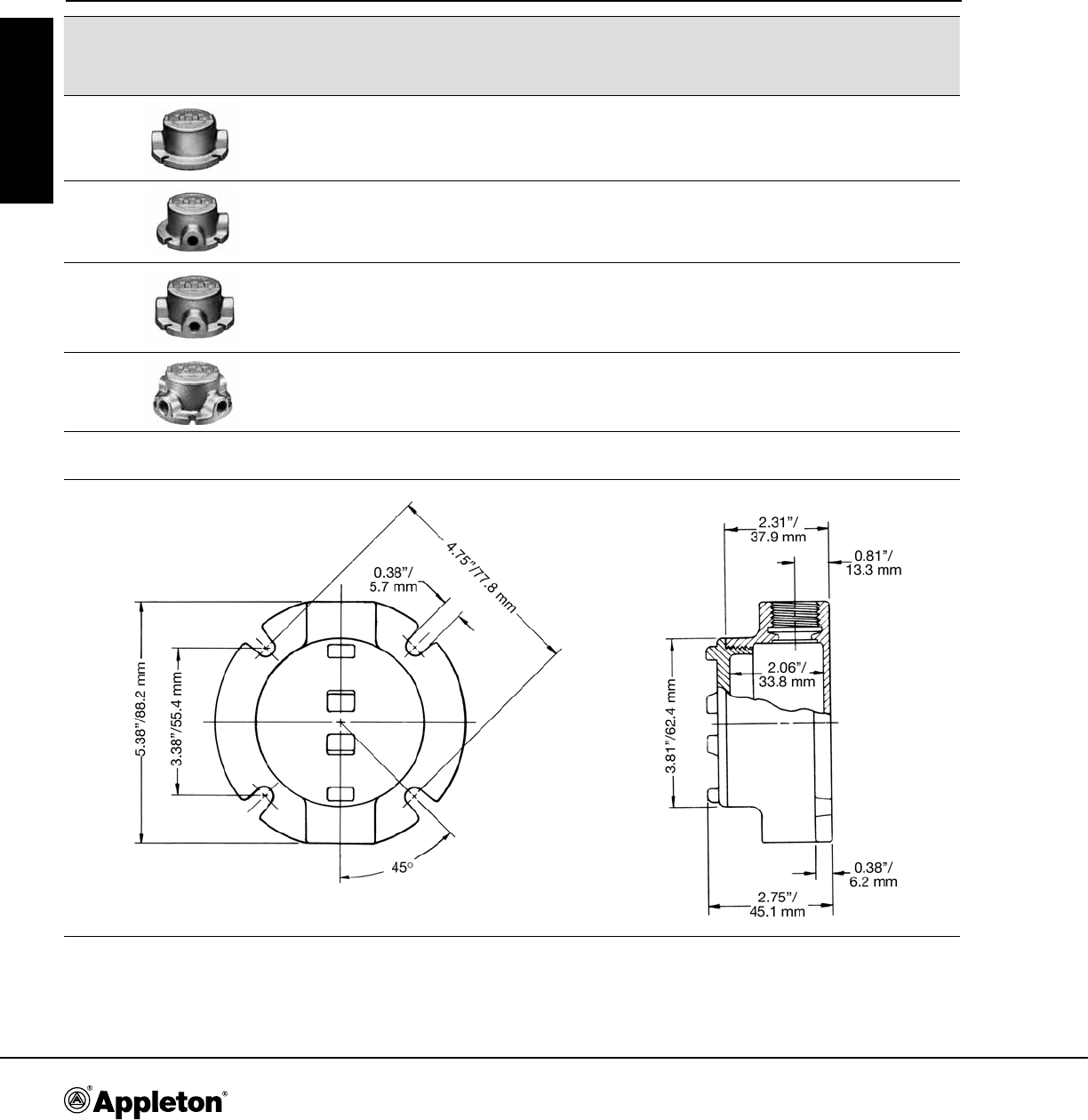

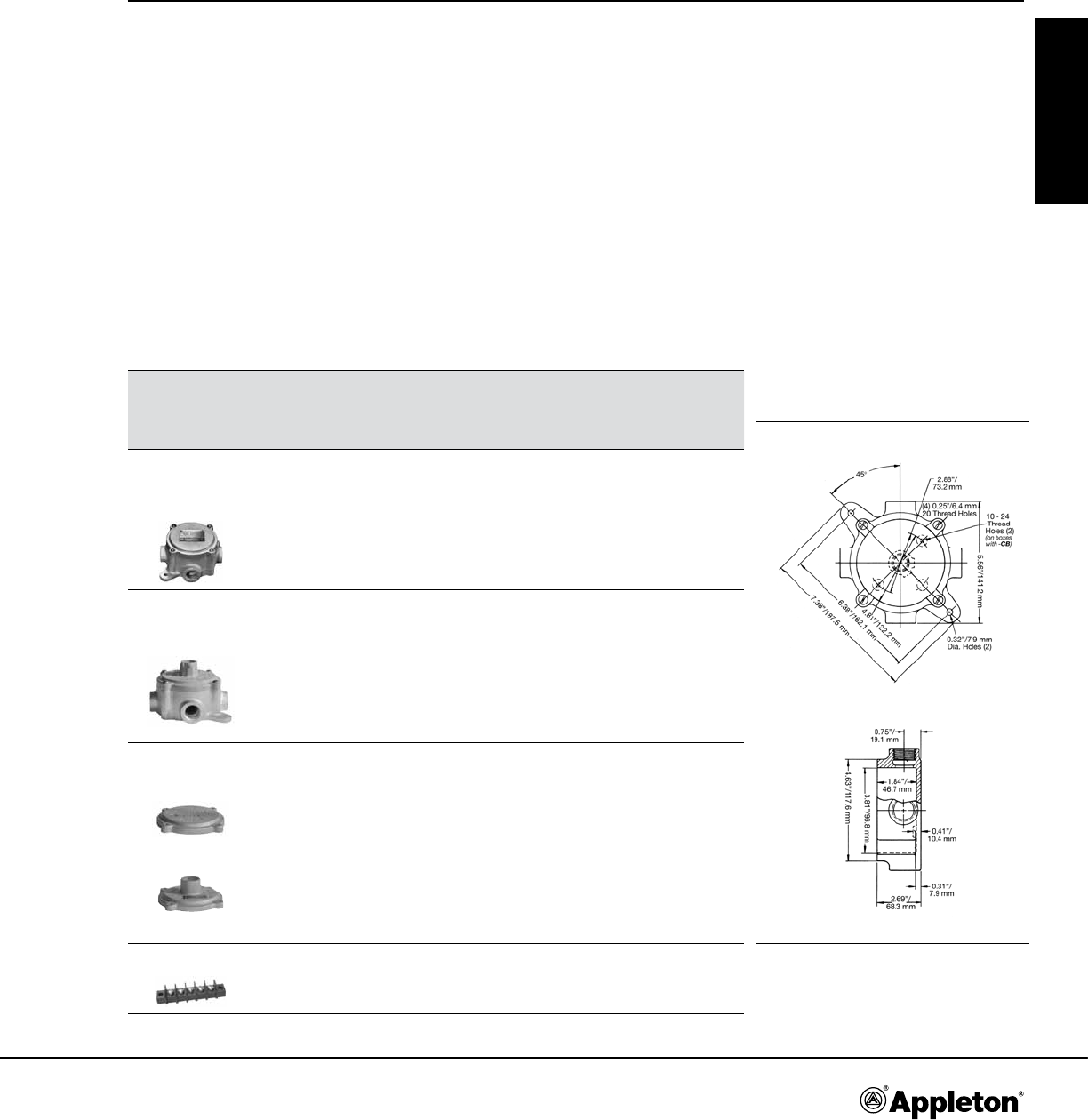

CPU Universal Conduit Outlet Boxes and Covers

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit.

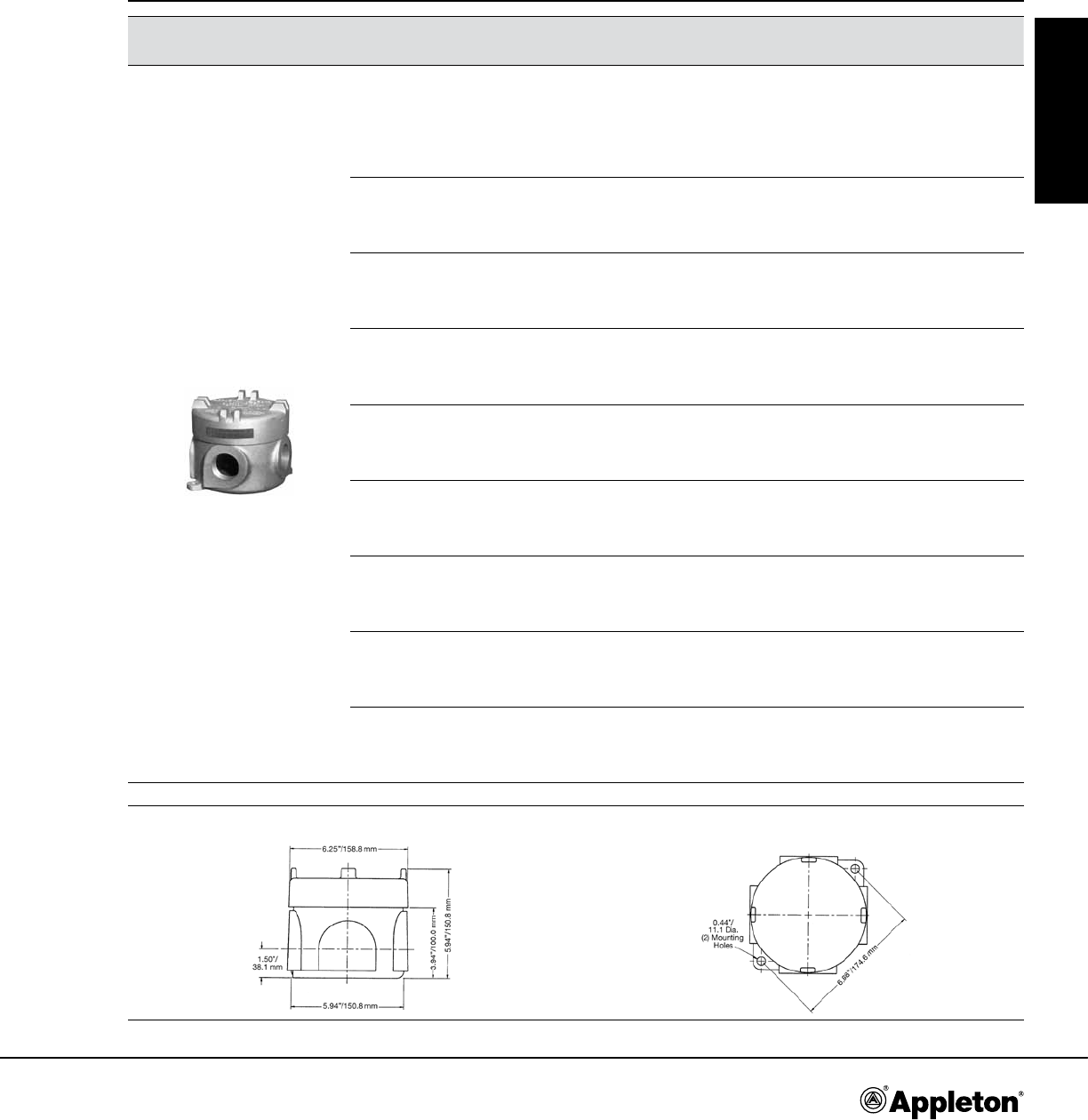

Box Type

Conduit

Size

(Inches)

Fixture

Stem Size

Inches

Cover

Opening

Inches/Millimeters

Capacity

in3/dm3

Catalog

Number

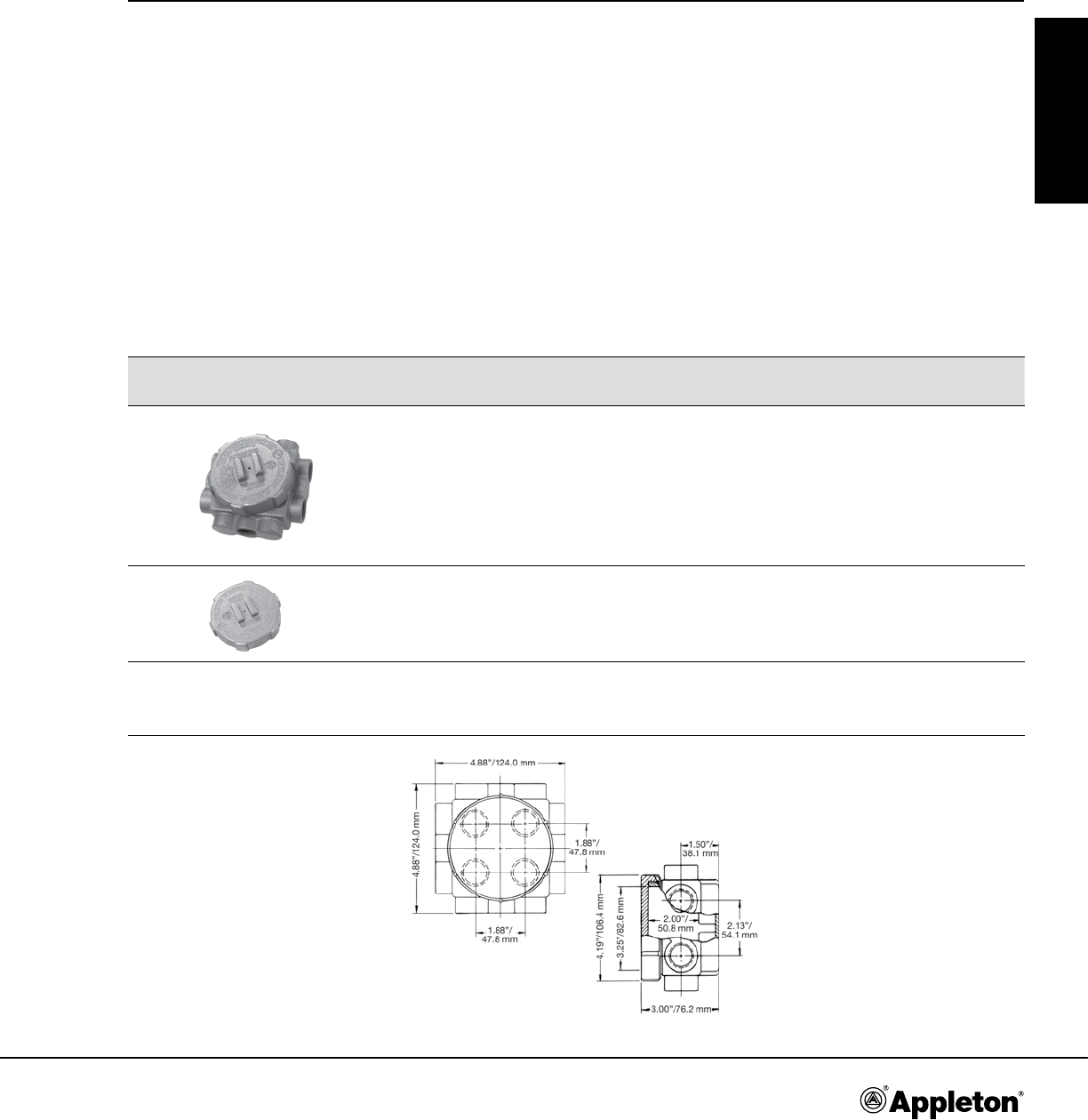

Dimensions

CPU Box with Cover

CPU Box with Blank Cover

Furnished with four threaded universal 3/4” hubs, four 3/4” to 1/2” reducers, and three 1/2” close-up

plugs.

1/2 or 3/4 Blank 3.81/96.8 21.0/0.34 CPU20

CPU Box with Hub Cover

(Supports lbs – 112.5 kg. Furnished with four threaded universal 3/4” hubs, four 3/4” to 1/2” reducers,

and three 1/2” close-up plugs.

1/2 or 3/4 1/2 3.81/96.8 21.0/0.34 CPU20-50

1/2 or 3/4 3/4 3.81/96.8 21.0/0.34 CPU20-75

CPU Covers only

Furnished with fastening screws.

Cover Blank 3.81/96.8 21.0/0.34 CPSK20B

Connection Block

Hub

Covers

1/2 3.81/96.8 21.0/0.34 CPSK20-50

0.22”/5.6 mm

2.88”/73.0 mm

1.31”/

33.3 mm

➤

3/4 3.81/96.8 21.0/0.34 CPSK20-75

CPU Connection Block

Phenolic. With fastening strap and two mounting screws.

5-Wire, 20 Amp, 300 Volt CB205

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Universal design with four threaded universal hubs and three

close-up plugs.

• Serve as mounting outlets for lighting xtures when used with

hub cover.

• Wide, accurately ground explosion-proof mating surfaces.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies and covers : malleable iron

• Connection block: phenolic

Standard Finishes

• Bodies and covers: triple-coat — (1) zinc electroplate,

(2) chromate, and (3) epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

Class I, Division 1 and 2, Groups C, D

Class I, Zone 1 and 2, IIB T6

Class II, Division 1 and 2, Groups E, F, G

Class III, Enclosure 3

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

507

CPU Universal Conduit Outlet Boxes and Covers V

CSA Certification Only. Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit.

Box Type

Conduit

Size

(Inches)

Fixture

Stem

Size

Inches

Cover

Opening

Inches/

Millimeters

Capacity

in3/dm3

Catalog Number Dimensions

Malleable Iron Aluminum CPU Box with Cover

CPU Box with Blank Cover

Furnished with four threaded universal 3/4” hubs, four 3/4” to 1/2” reducers, and three 1/2” close-up plugs. To

order with CB205 connection block installed add suffix -CB.

1/2 or 3/4 Blank 3.81/96.8 21.0/0.34 CPU20CN CPU20ACN

CPU Box with Hub Cover

(Supports lbs – 112.5 kg. Furnished with four threaded universal 3/4” hubs, four 3/4” to 1/2” reducers, and

three 1/2” close-up plugs. To order with CB205 connection block installed add suffix -CB.

1/2 or 3/4 1/2 3.81/96.8 21.0/0.34 CPU20-50CN CPU20-50ACN

1/2 or 3/4 3/4 3.81/96.8 21.0/0.34 CPU20-75CN CPU20-75ACN

CPU Covers only

Furnished with fastening screws.

Cover Blank 3.81/96.8 21.0/0.34 CPSK20BCN CPSK20B-ACN

Hub

Covers

1/2 3.81/96.8 21.0/0.34 CPSK20-50CN CPSK20-50ACN

3/4 3.81/96.8 21.0/0.34 CPSK20-75CN CPSK20-75ACN

CPU Connection Block — With fastening strap and two mounting screws

5-Wire, 20 Amp, 300 Volt CB205CN

V CSA Certification Only.

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Universal design with four threaded universal hubs and three

close-up plugs.

• Serve as mounting outlets for lighting xtures when used with

hub cover.

• Wide, accurately ground explosion-proof mating surfaces.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies and covers : malleable iron or copperfree (4/10 of 1%

max.) aluminum

• Connection block: phenolic

Standard Finishes

• Bodies and covers: triple-coat — (1) zinc electroplate, (2)

chromate, and (3) epoxy powder coat

Options

• To order with CB205 connection block installed add sufx -CB.

Certifications and Compliances

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 013017

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

508

Class I, Division 1 and 2, Groups C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

GRU Universal Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw. Furnished with O-Ring.

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Universal design with ve threaded universal hubs and three

close-up plugs.

• Copperfree aluminum body and cover provide resistance to

corrosive atmospheres.

• Internally threaded body and externally threaded cover with

O-ring for raintight t, NEMA 3, 4.

• Covers have pry notches for bar or wrench.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies and covers: copperfree (4/10 of 1% max.) aluminum

Standard Finishes

• Bodies and covers: epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 025875

Furnished with externally threaded aluminum surface cover, O-Ring, five threaded hubs, and three close-up plugs.

For Form numbers designate body and matching cover sizes.

Conduit Size

(Inches)

Cover Body Opening

Inches/Millimeters

Capacity

in3/dm3

Form

Number

Catalog

Number

1/2 3.38/85.9 13.5/0.22 1 GRU50-A

3/4 3.38/85.9 13.5/0.22 1 GRU75-A

1 3.38/85.9 17.5/0.29 1 GRU100-A *

Dimensions

Hub Size Inches

Dimensions in Inches/Millimeters

A B C D E F G

1/2 3.75/95.3 2.25/57.2 2.69/68.3 0.69/17.5 1.38/35.1 4.06/103.1 2.00/50.8

3/4 3.75/95.3 2.25/57.2 2.69/68.3 0.69/17.5 1.38/35.1 4.06/103.1 2.00/50.8

1 3.75/95.3 2.44/62.0 2.88/73.2 0.94/23.9 1.44/36.6 5.44/138.2 2.19/55.6

* Not CSA Certified.

Class I, Division 1 and 2, Groups C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

509

GRUE Universal Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw.

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Universal design with ve threaded universal hubs and three

close-up plugs.

• Copperfree aluminum body and cover provide resistance to

corrosive atmospheres.

• Covers have pry notches for bar or wrench.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies and covers: copperfree (4/10 of 1% max.) aluminum

Standard Finishes

• Bodies and covers: epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

Furnished with internally threaded aluminum surface cover, five threaded hubs, and three close-up plugs.

For Form numbers designate body and matching cover sizes.

Conduit Size

(Inches)

Cover Body Opening

Inches/Millimeters

Capacity

in3/dm3

Catalog

Number

1/2 3.38/85.9 13.5/0.22 GRUE50-A

3/4 3.38/85.9 13.5/0.22 GRUE75-A

1 3.38/85.9 17.5/0.29 GRUE100-A *

Dimensions

Hub Size

Inches

Dimensions in Inches/Millimeters

A B C D E F G

1/2 4.25/108.0 2.25/57.2 2.75/69.9 0.69/17.5 1.44/36.6 4.06/103.1 2.06/52.3

3/4 4.25/108.0 2.25/57.2 2.75/69.9 0.69/17.5 1.44/36.6 4.06/103.1 2.06/52.3

1 4.25/108.0 2.44/62.0 3.00/76.2 0.94/23.9 1.50/38.1 5.44/138.2 2.25/57.2

* Not CSA Certified.

Class I, Division 1 and 2, Groups B, C, D

Class I, Zone 1 and 2, IIB + H2 T6

Class II, Division 1 and 2, Groups E, F, G

Class III, Enclosure 3

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

510

GRUE Universal Conduit Outlet Boxes V

CSA Certification Only. Explosionproof, Dust-Ignitionproof

GRUE-100 Series UNILETS® for 1/2", 3/4" and 1" threaded metal conduit. GRUE-200 Series UNILETS® for 1-1/4", 1-1/2" and 2" threaded metal conduit.

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Universal design with ve threaded universal hubs and three

close-up plugs.

• Copperfree aluminum body and cover provide resistance to

corrosive atmospheres.

• GRUE-100 Series functions as sealing ttings when used with

sealing covers (see CEC for restrictions).

• Covers have pry notches for bar or wrench.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies and covers : malleable iron or copperfree (4/10 of 1%

max.) aluminum

Standard Finishes

• Bodies and covers: triple-coat — (1) zinc electroplate, (2)

chromate, and (3) epoxy powder coat

Options

• GRUE-100 Series

— To order GRUE-100 Series universal junction box complete

with sealing cover add sufx -SC.

Certifications and Compliances

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 013017

Conduit Size

(Inches)

Hub

Configuration

Catalog Number

Malleable Iron Aluminum

GRUE-100 Series Universal Junction Box

Furnished with internally threaded surface cover, five threaded hubs and three close-up plugs. To order GRUE-100 Series junction box complete with sealing

cover add suffix -SC.

1/2

GRUE50CN GRUE50-ACN

3/4 GRUE75CN GRUE75-ACN

1GRUE100CN GRUE100-ACN

GRUE-100 Series Sealing Cover

Sealing cover for GRUE-100 Series junction boxes listed above.

GRUC-SC-F GRUC-SC

GRUE-100 Dimensions

Hub Size

Inches

Dimensions in Inches/Millimeters Body Cover

1/2 0.75/19.1

3/4 0.75/19.1

1 0.88/22.2

V CSA Certification Only.

Conduit Size

(Inches)

Hub

Configuration

Catalog Number

Malleable Iron Aluminum

GRUE-200 Series

Furnished with internally threaded surface cover. Entries are supplied as listed.

1-1/4

GRUE-125C GRUE-125C-A

1-1/2 GRUE-150C GRUE-150C-A

2GRUE-200C GRUE-200C-A

1-1/4

GRUE-125CB GRUE-125CB-A

1-1/2 GRUE-150CB GRUE-150CB-A

2GRUE-200CB GRUE-200CB-A

1-1/4

GRUE-125E GRUE-125E-A

1-1/2 GRUE-150E GRUE-150E-A

2GRUE-200E GRUE-200E-A

1-1/4

GRUE-125L GRUE-125L-A

1-1/2 GRUE-150L GRUE-150L-A

2GRUE-200L GRUE-200L-A

1-1/4

GRUE-125LB GRUE-125LB-A

1-1/2 GRUE-150LB GRUE-150LB-A

2GRUE-200LB GRUE-200LB-A

1-1/4

GRUE-125T GRUE-125T-A

1-1/2 GRUE-150T GRUE-150T-A

2GRUE-200T GRUE-200T-A

1-1/4

GRUE-125TB GRUE-125TB-A

1-1/2 GRUE-150TB GRUE-150TB-A

2GRUE-200TB GRUE-200TB-A

1-1/4

GRUE-125X GRUE-125X-A

1-1/2 GRUE-150X GRUE-150X-A

2GRUE-200X GRUE-200X-A

1-1/4

GRUE-125XB GRUE-125XB-A

1-1/2 GRUE-150XB GRUE-150XB-A

2GRUE-200XB GRUE-200XB-A

GRUE-200 Dimensions

Body Cover

V CSA Certification Only.

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

511

Class I, Division 1 and 2, Groups B, C, D

Class I, Zone 1 and 2, IIB + H2 T6

Class II, Division 1 and 2, Groups E, F, G

Class III, Enclosure 3

GRUE Universal Conduit Outlet Boxes V

CSA Certification Only. Explosionproof, Dust-Ignitionproof

GRUE-200 Series UNILETS® for 1-1/4", 1-1/2" and 2" threaded metal conduit.

Class I, Division 1 and 2, Groups C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

Raintight

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

512

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Universal design with ve threaded openings and three close-

up plugs.

• Compact round box for use where space is limited.

• Serve as mounting means for lighting xtures when used with

hub cover.

• Internally threaded body with externally threaded cover.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies: malleable iron

• Covers: copperfree (4/10 of 1% max.) aluminum

Standard Finishes

• Bodies: triple-coat — (1) zinc electroplate, (2) chromate, and (3)

epoxy powder coat

• Covers: epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

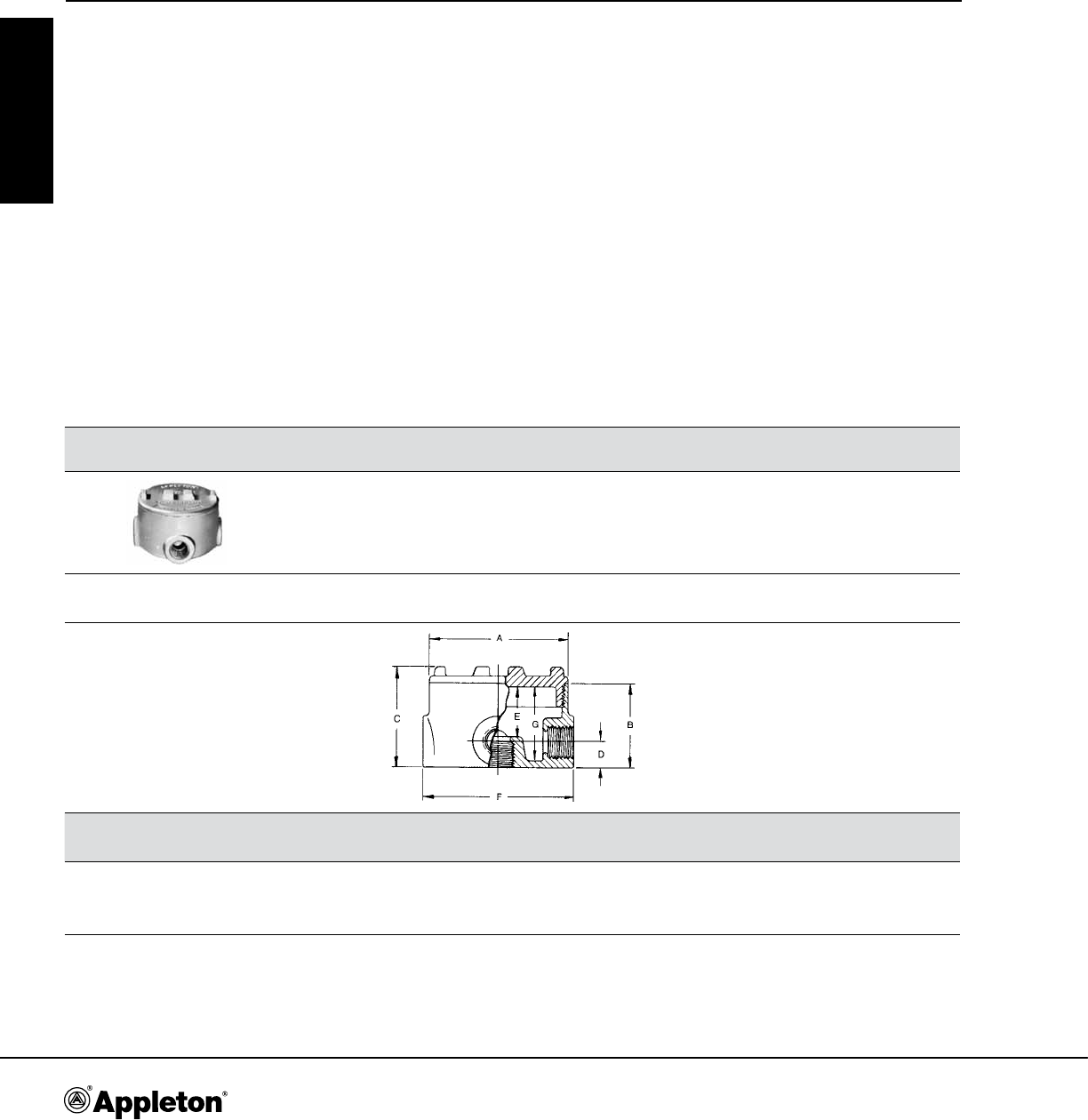

GRJS Universal Conduit Outlet Box

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit.

Box Type

Conduit

Size

(Inches)

Cover

Opening

Inches/Millimeters

Capacity

in3/dm3

Catalog

Number

Dimensions

Top

GRJS Universal Box with Cover

Internally threaded malleable iron body with externally threaded aluminum surface cover.

Complete with five threaded universal openings and three close-up plugs.

1/2 2.56/65.0 7.3/0.12 GRJS50

3/4 2.56/65.0 7.3/0.12 GRJS75

1 2.56/65.0 7.3/0.12 GRJS100

GRJS Aluminum Covers

Surface 2.56/65.0 7.3/0.12 GRJSK

Side

Hub 1/2 2.56/65.0 7.3/0.12 GRJSK-50

Class I, Division 1 and 2, Groups C, D

Class I, Zone 1 and 2, IIB T6

Class II, Division 1 and 2, Groups E, F, G

Class III, Enclosure 3

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Universal design with ve threaded openings and three close-

up plugs.

• Compact round box for use where space is limited.

• Serve as mounting means for lighting xtures when used with

hub cover.

• Function as sealing ttings when used with sealing covers (see

CEC for restrictions).

• Internally threaded body with externally threaded cover.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies: malleable iron or copperfree (4/10 of 1% max.)

aluminum

• Covers: copperfree (4/10 of 1% max.) aluminum

Standard Finishes

• Bodies: triple-coat — (1) zinc electroplate, (2) chromate, and (3)

epoxy powder coat

• Covers: epoxy powder coat

Certifications and Compliances

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 013017

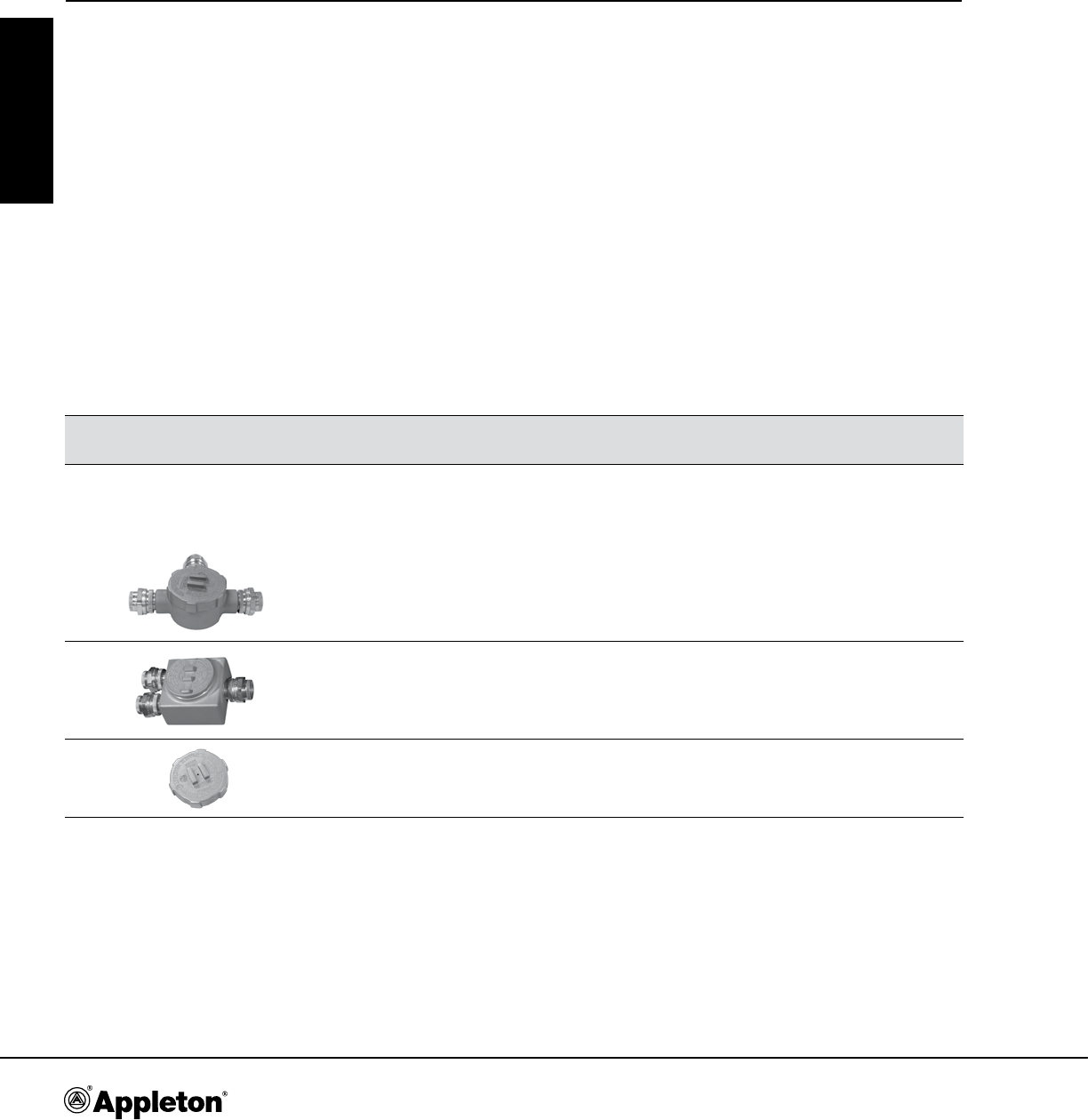

GRJS Universal Conduit Outlet Boxes V

CSA Certification Only. Explosionproof, Dust-Ignitionproof, Weather Resistant (Raintight)

UNILETS® for use with Threaded Metal Conduit.

Conduit Size

(Inches)

Catalog Number Dimensions

Malleable Iron Aluminum Top

GRJS Universal Box with Cover

The Unilet has five threaded hubs, one in each of four sides and one in bottom. Three close-up plugs are

furnished. Unilet opening is 2-9/16". Furnished with externally threaded blank surface cover and three close-up

plugs. Supplied with O-Ring.

1/2 GRJS50CN GRJS50-ACN

3/4 GRJS75CN GRJS75-ACN

1GRJS100CN GRJS100-ACN

GRJS Aluminum Covers

Furnished with internal threads.

Surface Cover GRJSKCN

Side

Sealing Cover GRJSK-SCCN

1/2" Hub Cover GRJSK-50CN

V CSA Certification Only.

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

513

Class I, Division 1 and 2, Groups C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

GRJ Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw.

Dimensions

Box Type

Conduit

Size

(Inches)

Cover

Opening

in/mm

Capacity

in3/dm3

Catalog

Number

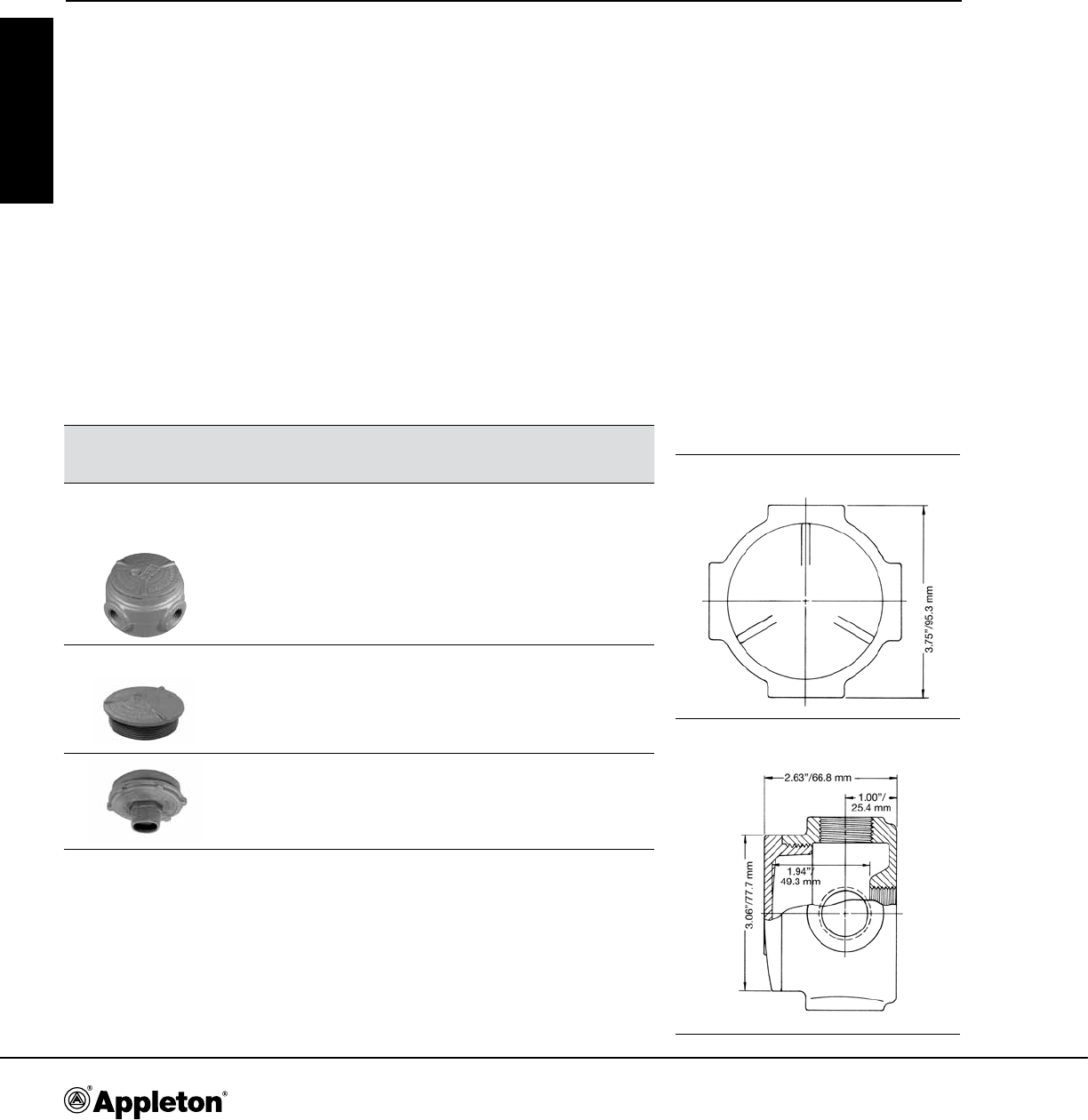

GRJ Box with Cover

GRJC

1/2 2.13/

54.1

7.3/

0.12 GRJC50

3/4 2.13/

54.1

7.3/

0.12 GRJC75

GRJCA

1/2 2.13/

54.1

7.3/

0.12 GRJCA50

3/4 2.13/

54.1

7.3/

0.12 GRJCA75

GRJEA

1/2 2.13/

54.1

7.3/

0.12 GRJEA50

3/4 2.13/

54.1

7.3/

0.12 GRJEA75

GRJL

1/2 2.13/

54.1

7.3/

0.12 GRJL50

3/4 2.13/

54.1

7.3/

0.12 GRJL75

GRJT

1/2 2.13/

54.1

7.3/

0.12 GRJT50

3/4 2.13/

54.1

7.3/

0.12 GRJT75

GRJTA

1/2 2.13/

54.1

7.3/

0.12 GRJTA50

3/4 2.13/

54.1

7.3/

0.12 GRJTA75

GRJX

1/2 2.13/

54.1

7.3/

0.12 GRJX50

3/4 2.13/

54.1

7.3/

0.12 GRJX75

GRJ Covers

GRJ Surface

Covers

2.13/

54.1 GRJK-S

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints

and ground continuity.

• Furnished with covers.

• General purpose wiring.

• Small, round conduit outlet boxes.

• Externally threaded body with internally threaded cover.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies and covers: malleable iron

Standard Finishes

• Bodies and covers: triple-coat — (1) zinc electroplate, (2)

chromate, and (3) epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

514

Class I, Division 1 and 2, Groups C, D

Class I, Zone 1 and 2, IIB T6

Class II, Division 1 and 2, Groups E, F, G

Class III, Enclosure 3

GRJ Conduit Outlet Boxes V

CSA Certification Only. Explosionproof, Dust-Ignitionproof, Weather Resistant (Raintight)

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw.

Dimensions

V CSA Certification Only.

Box Type

Conduit Size

(Inches) Catalog Number

GRJ Box with Cover

Furnished with internally threaded surface cover.

GRJC

1/2 GRJC50CN

3/4 GRJC75CN

GRJCA

Includes a

rear hub.

1/2 GRJCA50CN

3/4 GRJCA75CN

GRJEA

Includes a

rear hub.

1/2 GRJEA50CN

3/4 GRJEA75CN

GRJL

1/2 GRJL50CN

3/4 GRJL75CN

GRJT

1/2 GRJT50CN

3/4 GRJT75CN

GRJTA

Includes a

rear hub.

1/2 GRJTA50CN

3/4 GRJTA75CN

GRJX

1/2 GRJX50CN

3/4 GRJX75CN

GRJ Covers

Furnished with internal threads.

GRJK-SCN

Surface Cover GRJK-SCN

Sealing Cover GRJK-SCCN

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints

and ground continuity.

• Furnished with covers.

• General purpose wiring.

• Small, round conduit outlet boxes.

• Bodies have external threads around cover opening, and the

covers are threaded internally. Unilet opening is 2-1/8".

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

• Function as sealing ttings when used with sealing covers (see

CEC for restrictions).

Standard Materials

• Bodies and covers: malleable iron

Standard Finishes

• Bodies and covers: zinc electroplate

Certifications and Compliances

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 013017

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

515

Class I, Division 1 and 2, Groups C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

Number and Size of Hubs Capacity

in3/dm3

Catalog

NumberEach Side Top Bottom Back

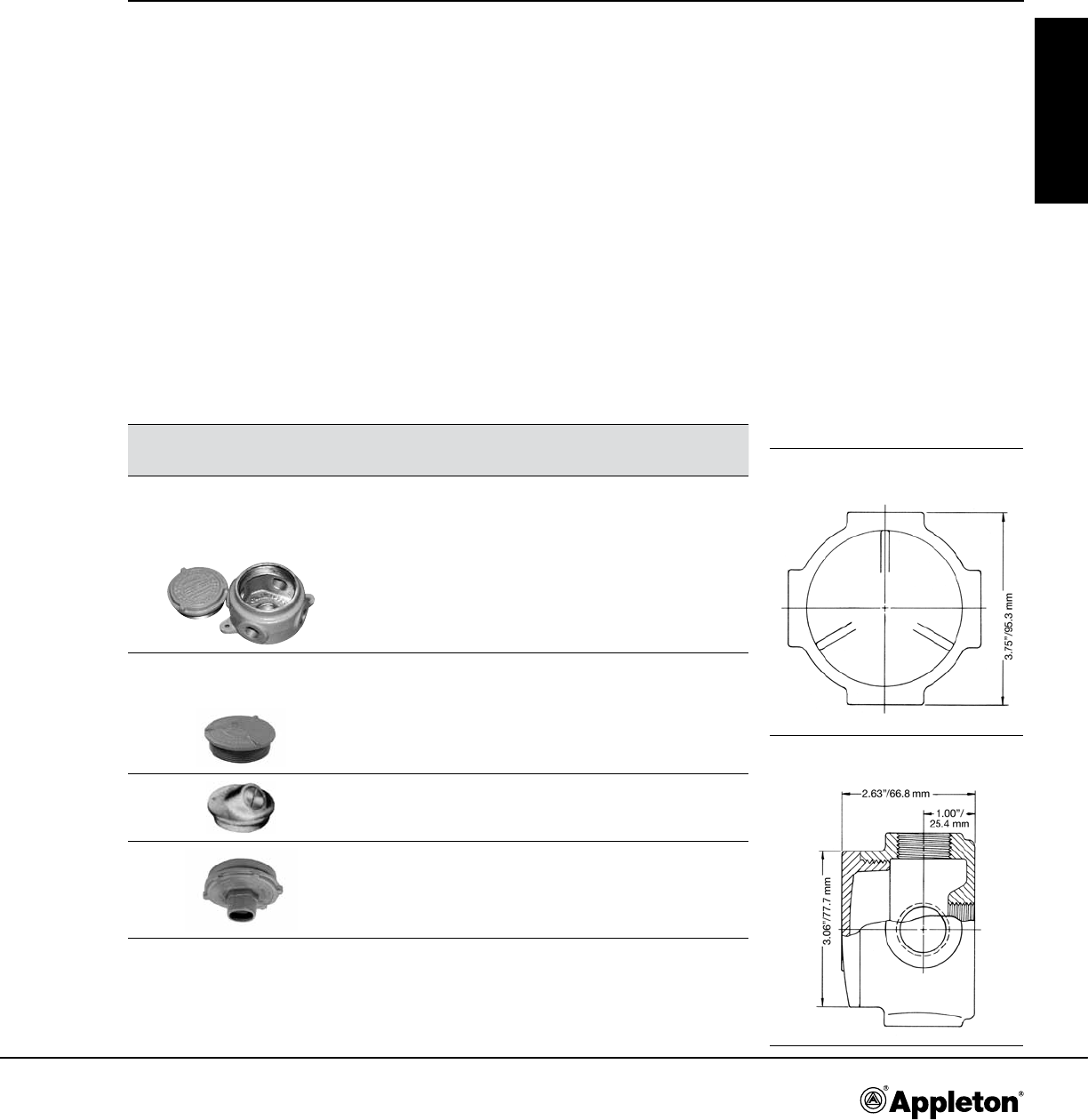

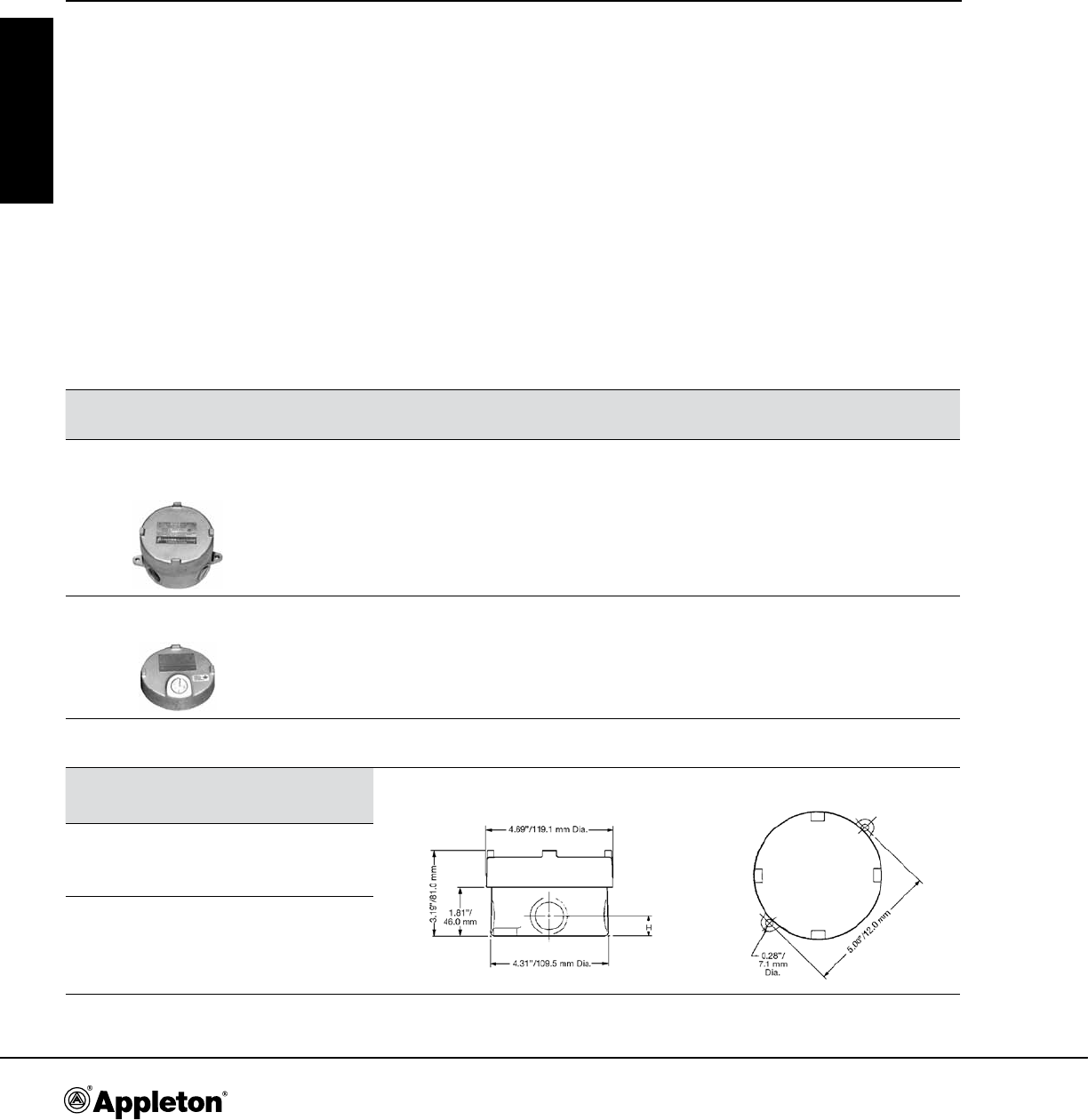

GRUO Box with Cover

Externally threaded malleable iron body complete with internally threaded malleable iron surface cover;

eight conduit hubs and close-up plugs for all but three 3/4” hubs. Cover opening — 3.25”/82.6 mm

1 — 3/4” 2 — 3/4” 2 — 3/4” 1 — 3/4” 25.0/0.41 GRUO-2

1 — 1” 25.0/0.41

GRU Covers

Malleable iron with internal threads. Cover opening — 3.25”/82.6 mm

Surface GRUK-S

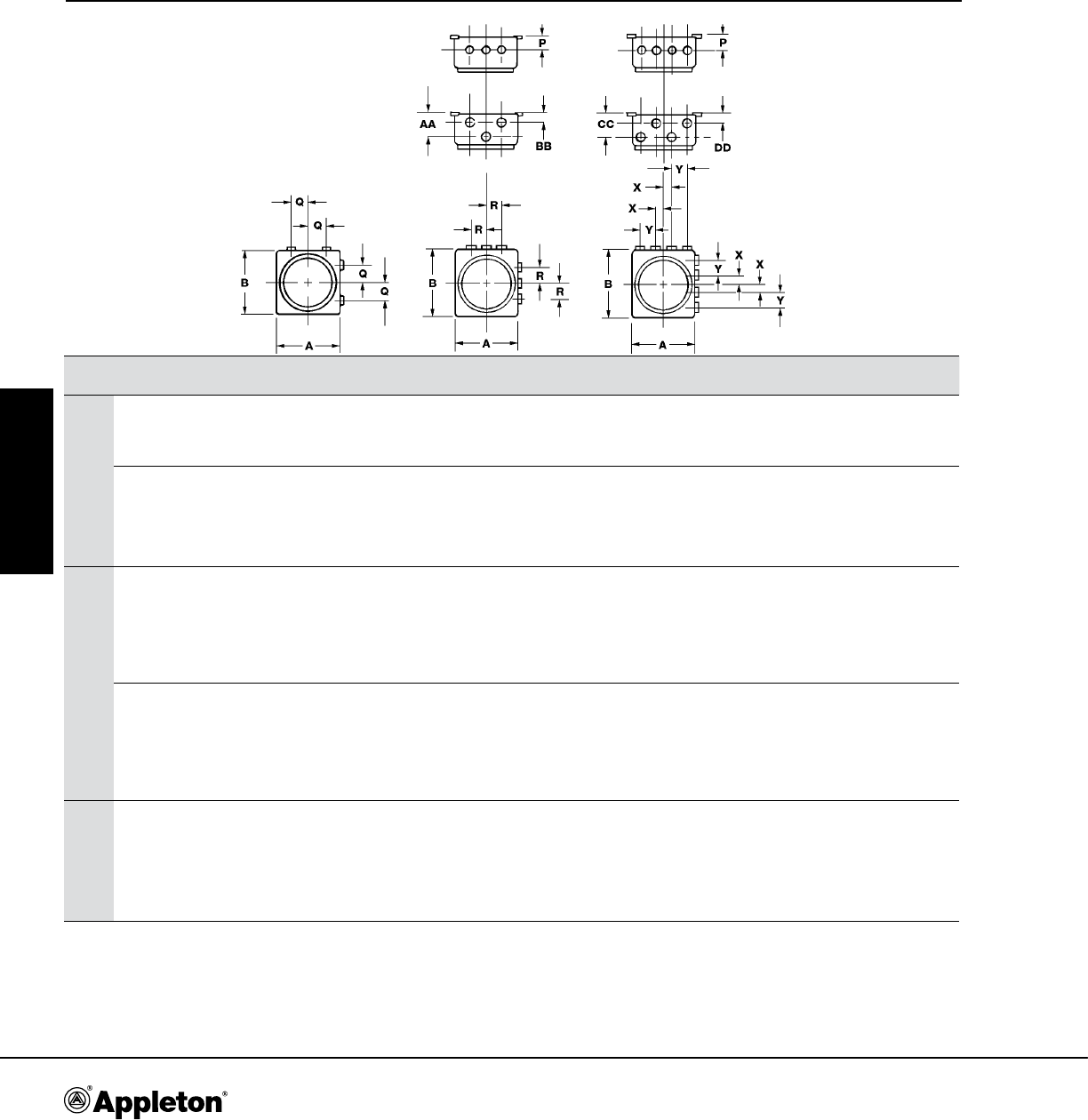

Dimensions

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

516

GRUO with Multiple Hubs Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit.

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Union hubs permit easy wiring.

• Externally threaded body with internally threaded cover.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies and covers: malleable iron

Standard Finishes

• Bodies and covers: triple-coat — (1) zinc electroplate, (2)

chromate, and (3) epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

• CSA Standard: C22.2 No. 25, C22.2 No. 25

• CSA Certied: 013017, 025875

Class I, Division 1 and 2, Groups C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

517

GRUJ Conduit Outlet Boxes with Multiple Hubs

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit.

Number and Size of Hubs Capacity

in3/dm3

Catalog

NumberEach Side Top Bottom Back

GRUJ Box with Cover

Externally threaded malleable iron body complete with internally threaded malleable iron surface cover; choice of

hub arrangements, furnished with close-up plugs for all but three 3/4” hubs. Cover opening—3.25”/82.6 mm

2 — 3/4” 2 — 3/4” 1 — 3/4” None 25.0/0.41 GRUJ-1P

2 — 3/4” 2 — 3/4” 1 — 3/4” 4 — 3/4” 25.0/0.41 GRUJ-2P

2 — 3/4” 2 — 3/4” 1 — 3/4” 4 — 1” 25.0/0.41 GRUJ-3P

GRU Covers

Malleable iron with internal threads. Cover opening—3.25”/82.6 mm.

Surface GRUK-S

Dimensions

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Union hubs permit easy wiring.

• Externally threaded body with internally threaded cover.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

Standard Materials

• Bodies and covers: malleable iron

Standard Finishes

• Bodies and covers: triple-coat — (1) zinc electroplate, (2)

chromate, and (3) epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

Class I, Division 1 and 2, Groups C ,D

Class II, Division 1 and 2, Groups E, F, G

Class III

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

518

GRU Conduit Outlet Boxes with Union Hubs

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw.

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints and

ground continuity.

• Furnished with covers.

• General purpose wiring.

• Union hubs permit easy wiring.

• Externally threaded body with internally threaded cover.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation

Standard Materials

• GRUT and GRUSE bodies and covers: malleable iron

• GRUSE body and cover: copper free (4/10 of 1% max)

aluminum.

Standard Finishes

• Bodies and covers: triple-coat — (1) zinc electroplate, (2)

chromate, and (3) epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

Box Type

Conduit Size

(Inches)

Cover Opening

Inches/Millimeters

Capacity

in3/dm3

Catalog Number

Malleable Iron Aluminum

GRU with Union Hubs

GRUT 1/2” thru 1” and GRUSE 1/2” thru 3/4” — Malleable iron externally threaded body complete with internally

threaded malleable iron surface cover.

GRUSE 1” — Copper free aluminum cover and body with externally threaded cover.

GRUT

1/2 3.25/82.6 19.0/0.31 GRUT50 —

3/4 3.25/82.6 19.0/0.31 GRUT75 —

1 3.25/82.6 19.0/0.31 GRUT100 —

GRUSE

1/2 3.25/82.6 19.0/0.31 GRUSE50 —

3/4 3.25/82.6 19.0/0.31 GRUSE75 —

1 3.75/95.3 29.0/0.48 — GRUSE100

GRU Covers

Malleable iron with internal threads. For GRUT and GRUSE listed above. Do not use with GRUSE100.

Surface 3.25/0.05 GRUK-S —

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

519

GRU Conduit Outlet Boxes with Union Hubs Dimensions

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw.

GRUT GRUSE50 and GRUSE75

GRUSE100

Hub Size

(Inches)

Dimensions in Inches/Millimeters

A B C D E F G

GRUT

1/2 4.19/106.4 2.69/68.3 6.25/158.8 0.75/19.1 8.25/209.6 2.31/58.7 –

3/4 4.19/106.4 2.69/68.3 6.25/158.8 0.75/19.1 8.25/209.6 2.31/58.7 –

1 4.19/106.4 2.69/68.3 6.50/165.1 0.94/23.9 8.75/222.3 2.31/58.7 –

GRUSE50 and GRUSE75

1/2 and 3/4 4.19/106.4 2.56/65.0 6.13/155.7 0.94/23.9 8/203.2 2.19/55.6 2.13/54.1

GRUSE100

— 8.00/203.2 4.63117.6 2.38/60.5 3.75/95.3 3.48/88.4 4.63/117.6 –

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location conduit outlEt BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

520

GU Conduit Outlet Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for use with Threaded Metal Conduit. Furnished with Internal Ground Screw.

Hub

Type

Conduit

Size

(Inches)

Cover

Opening

in/mm

Capacity

in3/dm3

Catalog

Number 

GUC

1/2 3.38/

98.6

19.0/

0.31 GUC50

3/4 3.38/

98.6

19.0/

0.31 GUC75

13.38/

98.6

19.0/

0.31 GUC100

GUL

1/2 3.38/

98.6

19.0/

0.31 GUL50

3/4 3.38/

98.6

19.0/

0.31 GUL75

13.38/

98.6

19.0/

0.31 GUL100

GULB

1/2 3.38/

98.6

19.0/

0.31 GULB50

3/4 3.38/

98.6

19.0/

0.31 GULB75

13.38/

98.6

19.0/

0.31 GULB100

GUT

1/2 3.38/

98.6

19.0/

0.31 GUT50

3/4 3.38/

98.6

19.0/

0.31 GUT75

13.38/

98.6

19.0/

0.31 GUT100

GUX

1/2 3.38/

98.6

19.0/

0.31 GUX50

3/4 3.38/

98.6

19.0/

0.31 GUX75

13.38/

98.6

19.0/

0.31 GUX100

Applications

• Complies with a wide range of classied area requirements.

• Corrosion-resistant: ideal indoors or out.

• For pulling of wires.

• Connect conduit lengths and change direction of conduit runs.

• Provide access for maintenance.

Features

• Malleable iron bodies have high tensile strength and ductility.

Provides great resistance to corrosion, impact, and shock.

• Accurately tapped, tapered hub threads for tight, rigid joints

and ground continuity.

• Furnished with covers.

• General purpose wiring.

• Designed for Class I, Groups B, C, D; Class II, Groups E, F, G;

and Class III.

• Externally threaded body with internally threaded cover.

• Smooth, rounded integral bushing in each hub type box

protects conductor insulation.

• Internal ground screw standard.

Standard Materials

• Bodies and covers: malleable iron

Standard Finishes

• Bodies and covers: triple-coat — (1) zinc electroplate, (2)

chromate, and (3) epoxy powder coat

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 025875

Dimensions

Hub Size

(Inches)

Dimensions in Inches/Millimeters Body and Cover

A B C D E F

1/2 4.28/108.7 2.44/62.0 2.97/75.4 0.75/19.1 0.81/20.6 2.25/57.2

3/4 4.28/108.7 2.44/62.0 2.97/75.4 0.75/19.1 0.81/20.6 2.25/57.2

1 4.28/108.7 2.44/62.0 2.97/75.4 0.94/23.9 0.94/23.9 2.25/57.2

 In Class I, Division 1, Group B atmospheres, all conduit runs must have a sealing fitting (not supplied) field-installed adjacent to the enclosure.

CEC/NEC:

Zone 1 and 2 A/Exe II T6

Enclosure: IP66

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

521

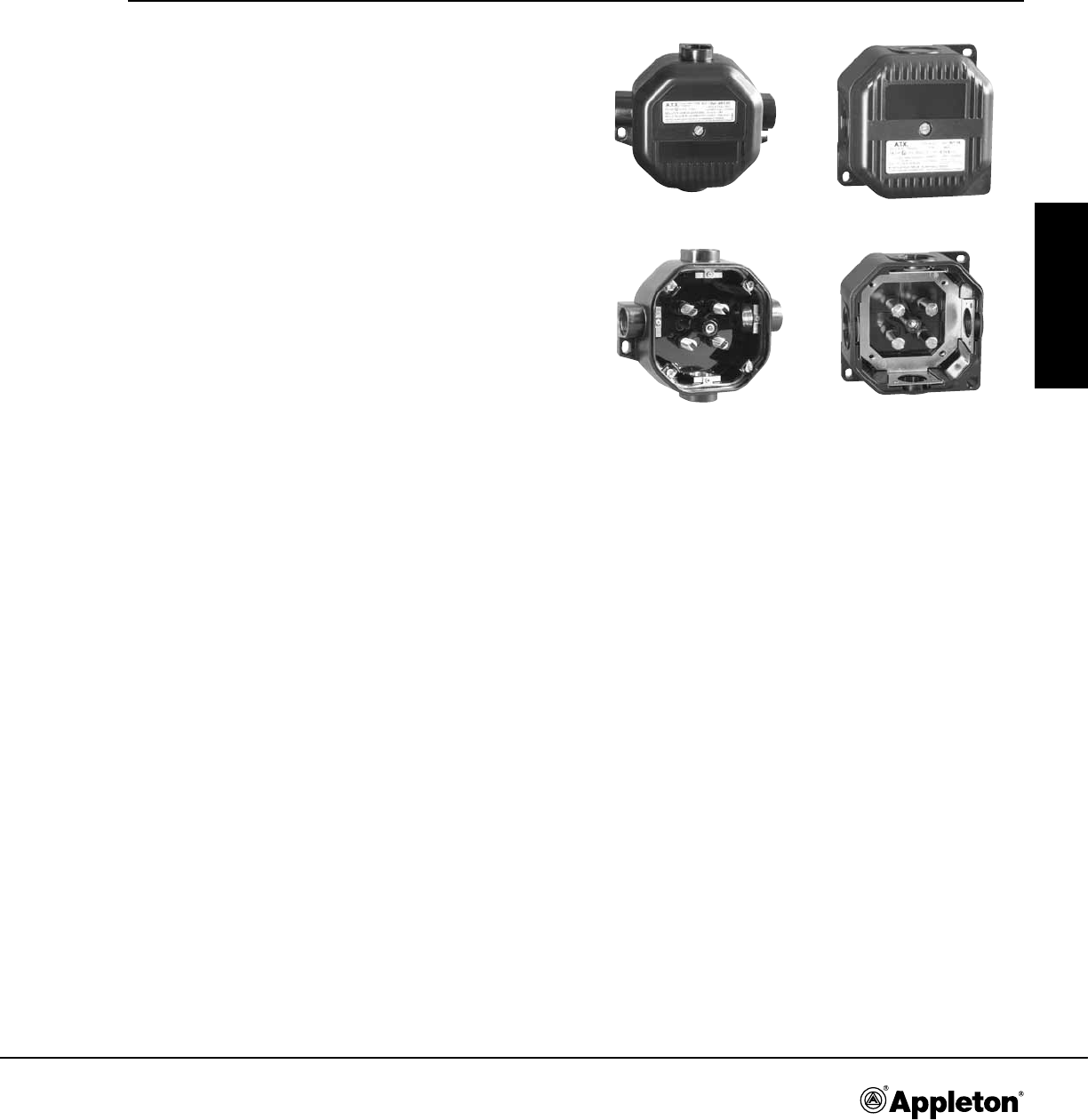

BJE1 BJE2

BJE1 for Armored Cable BJE2 for Armored Cable

BJE Series Octagonal Polycarbonate Junction Boxes

cCSAus Certification

Applications

• Small terminal/junction box enclosure for various electrical

connections in hazardous areas.

• Designed for use in Zone 1 or 2 areas, where ammable gases

or vapors are present either continuously or intermittently, such

as:

— Petroleum reneries

— Chemical reneries

— Other industrial process facilities

• Ideal for wet or corrosive atmospheres.

• Designed for use in Zone 21 or 22 areas (international),

where ammable dusts are present either continuously or

intermittently, such as:

— Food processing

— Dairy

— Brewing

— Other commercial facilities

Features

• High impact resistant black polycarbonate enclosure.

• Choose from two versions; external or internal hubs.

• BJE1: Supplied with 4 interconnected earth terminals.

Maximum capacity per terminal: 0.002 x 0.006 in2/1 x 4 mm2.

• BJE1 is supplied with 4 connection terminals. Maximum

capacity per terminal: 0.006 x 0.004 in2/ 4 x 2.5 mm2 or 0.003 x

0.006 in2/2 x 4 mm2 + 0.003 x 0.004 in2/2 x 2.5 mm2.

Minimum capacity per terminal: 0.003 x 0.002 in2/2 x 1.5 mm2.

Available in three depths, 7.87"/200 mm, 9.84"/250 mm and

11.81"/300 mm.

• BJE2: Supplied with 4 interconnected earth terminals. Maximum

capacity per terminal: 0.002 x 0.016 in2/1 x 10 mm2.

• BJE2 is supplied with 4 connection terminals. Maximum

capacity per terminal: 0.006 x 0.009 in2/4 x 6mm2 or 0.005 x

0.016 in2/3 x 10 mm2 + 0.006 in2/4 mm2.

• BJE2 has telescopic cover retaining ring which can be

unclipped.

• All hardware 316 Stainless Steel.

• Available for non-armored or armored cable. Armored cable

version supplied with ground continuity plate.

• Several entry options available.

• Operating temperature:

— BJE1: -58 °F/-50 °C to +131 °F/+55 °C

— BJE2: -40 °F/-40 °C to +131 °F/+55 °C

• Poured in place polyurethane door gasket.

Standard Materials

• Enclosure: static and impact resistant polycarbonate

• Hardware: 316L stainless steel

Certifications and Compliances

• North American

— CEC/NEC

— cCSAus Approved

— Zone 1 and 2 A/Exe II T6

— Enclosure IP66

• International

— CENELEC

— ATEX O2 6069 /99 6003

— EEx e II G/D T6

— IEC 60049-0/7

— Ex e II T6

— IP66 to EN60529 and IEC 60529

— IK10 to EN 50102

— CE Declaration of Conformity: No. 50226/50209

— Combustible Dust: EN 50281-1-1/IEC

— 61241-1-1

— Zone 1, 2, 21, 22

CEC/NEC:

Zone 1 and 2 A/Exe II T6

Enclosure: IP66

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

522

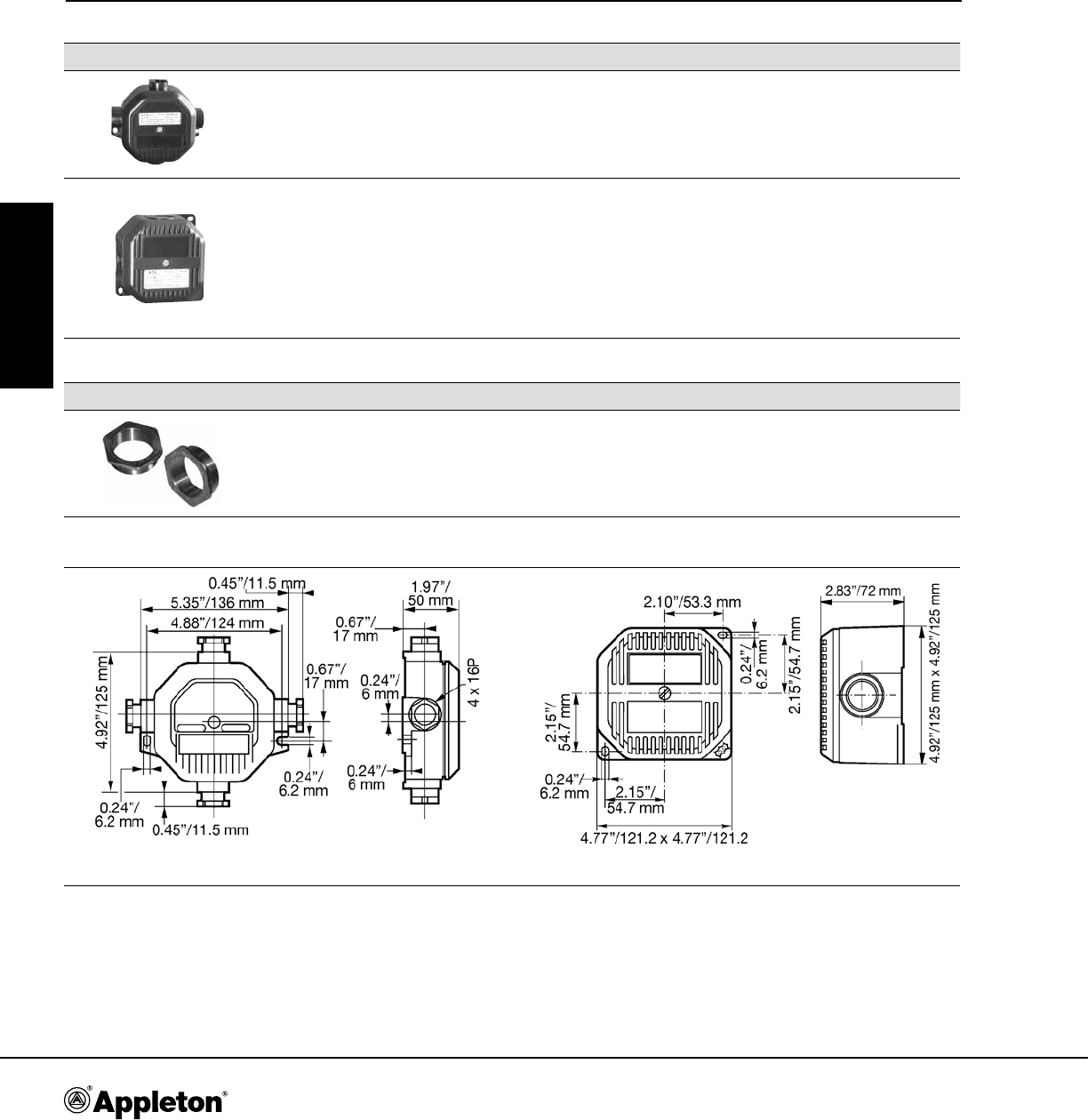

BJE Series Octagonal Polycarbonate Junction Boxes

cCSAus Certification

Armored Enclosures — Supplied with Two Plugs

Entry Entries Size Plug Weight lb/kg Volume Catalog Number

No 4 PG16 Knockouts 0.88/0.4 122.04/2.0 BJE1TN4P16

Yes 4 M20 2-M20 1.10/0.5 122.04/2.0 BJE1TA4M20

No 3 M20 No 1.32/0.6 274.60/4.5 BJE2TN3M20

No 4 M20 No 1.32/0.6 274.60/4.5 BJE2TN4M20

No 3 M25 No 1.32/0.6 274.60/4.5 BJE2TN3M25

No 4 M25 No 1.32/0.6 274.60/4.5 BJE2TN4M25

Yes 4 M20 2-M20 1.32/0.6 274.60/4.5 BJE2TA4M20

Yes 4 M25 2-M25 1.32/0.6 274.60/4.5 BJE2TA4M25

Nickel Plated Adapters

Description Catalog Number

M20 to 1/2” NPT adapter for armored box 737EM2T15

M20 to 3/4” NPT adapter for armored box 737EM2T25

M25 to 3/4” NPT adapter for armored box 737EM3T25

M25 to 1” NPT adapter for armored box 737EM3T35

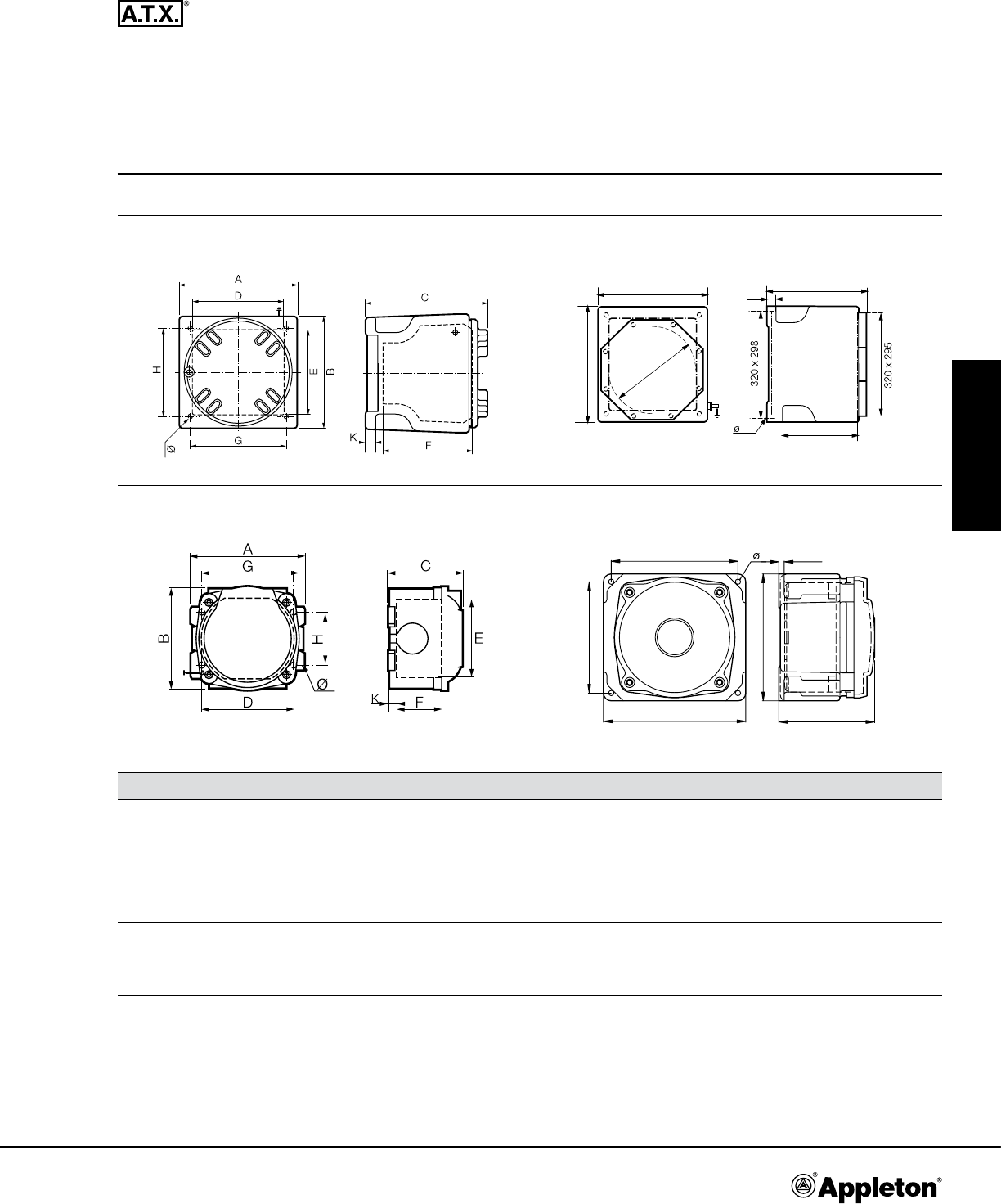

Dimensions in Inches/Millimeters

BJE1TA4M20 BJE2TA4M20

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

523

JBEL and JBEP Series P

olycarbonate and Polyester Junction Boxes

Increased Safety

Furnished complete with Terminals.

Applications

• Small terminal junction boxes designed to facilitate electrical

connections in hazardous areas.

• Designed for use in Zone 1 or 2 areas, where ammable gases or

vapors are present either continuously or intermittently such as:

— Petroleum

— Chemical

— Reneries

— Other industrial process facilities

• Ideal for wet or corrosive atmospheres.

• Designed for use in Zone 21 or 22 areas where ammable dusts

are present either continuously or intermittently such as:

— Food processing

— Dairy

— Brewing

— Other commercial facilities

Features

• Pillar type terminal block for easy connection.

• Available in two sizes: 0.006 in2/4 mm2 or 0.016 in2/10 mm2 for

polycarbonate version and up to 0.009 in2/6 mm2 for polyester

version.

• Unarmored or armored versions with earth continuity brass

device.

• Operating temperature -40 °F/-40 °C to 131 °F/55 °C for

polycarbonate version and -67 °F/-55 °C to 140 °F/60 °C for

polyester version.

Standard Materials

• JBEL Series

— Enclosure: static and impact resistant polycarbonate

— Cover gasket: polyurethane

— Hardware: stainless steel

• JBEP Series

— Enclosure: static resistant carbon lled berglass reinforced

polyester (FRP)

— Hardware: stainless steel

Certifications and Compliances

• Certication Type BJe1

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II

– T Rating: T6

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T75 °C

— Ambient Temperature: -40 °F/-40 °C to 131 °F/55 °C

— CE Declaration of Conformity: 50226

— ATEX Certicate: LCIE 02 ATEX 6069

— IECEx Certicate: LCIE Ex 02.008

• Certication Type BJe2

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II

– T Rating: T6

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T80 °C

— Ambient Temperature: -40 °F/-40 °C to 131 °F/55 °C

— CE Declaration of Conformity: 50209

— ATEX Certicate: LCIE 99 ATEX 6003

— IECEx Certicate: LCIE Ex 99.005

• Certication Type CSPe

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II, Ex ia IIC, Ex ib IIC, EX de IIC,

Ex demb IIC

– T Rating: T6

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T75 °C

— Ambient Temperature: -67 °F/-55 °C to 140 °F/60 °C

— CE Declaration of Conformity: 50284

— ATEX Certicate: LCIE 09 ATEX 3032X

— IECEx Certicate: IECx LCI 09.0016X

• Other Certications: GOST

• Ingress Protection (solid and liquid): IP66

• Impact Resistance (shock): IK10

• Ex Standards: EN/IEC 60079-0; 60079-7; 61241-0, 61241-1

• Other Standards: EN/IEC 60529 (IP), 62262 (IK)

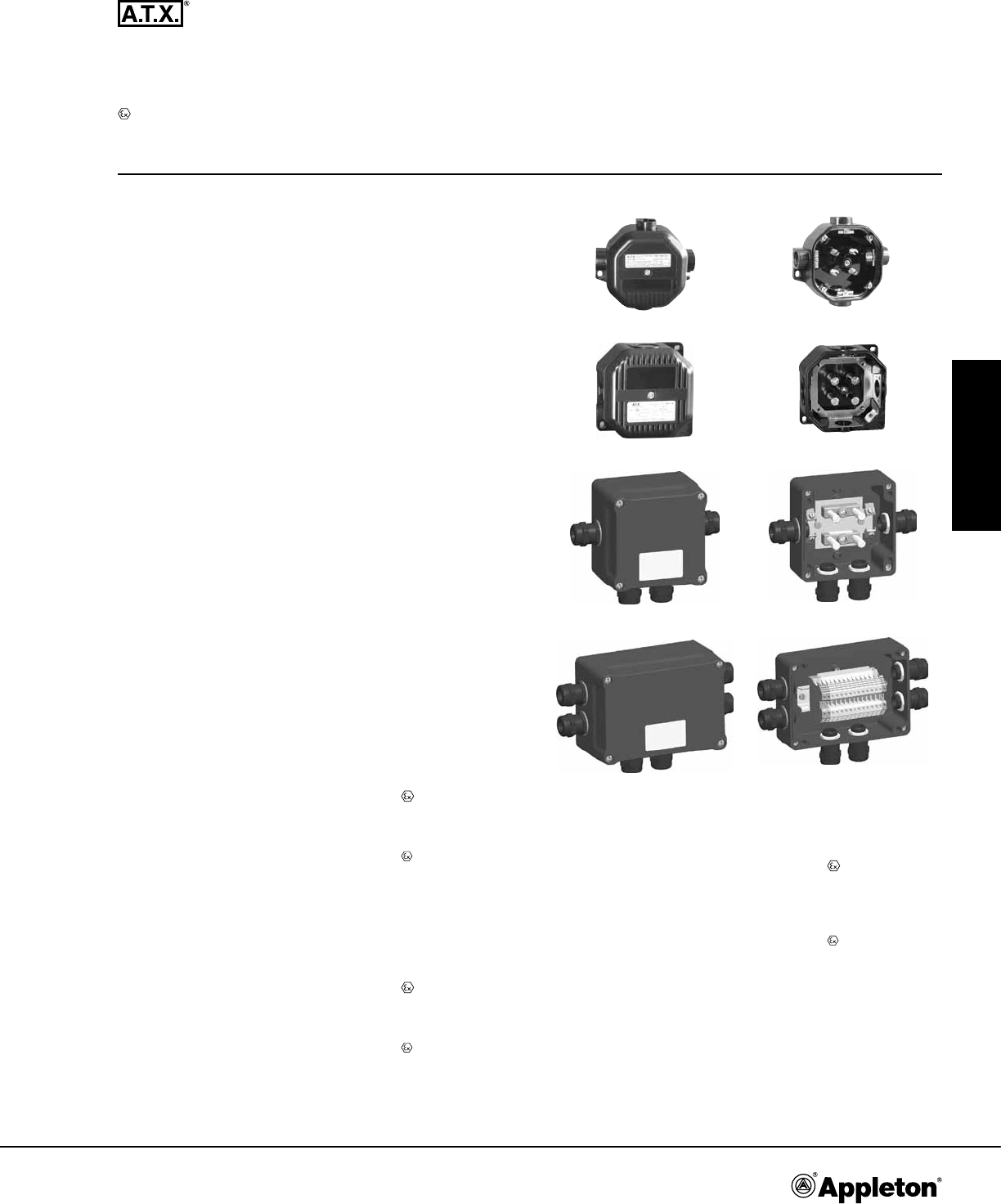

JBEL for Unarmored Cable

JBEL for Armored Cable

JBEP with Pillar Terminals

JBEP with Screw Terminals

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

JBEL Series

Type Equipment

Rating

(Amps)

Weight

lb/kg

Volume

in3/dm3Catalog Number Packs

For Unarmored Cables 0.004/0.006 in2 / 2.5/4 mm2 660 V

Supplied with 4 connection terminals. Maximum capacity per terminal:

0.006 x 0.004 in2 / 4 x 2.5 mm2 or 0.003 x 0.004 in2 / 2 x 4 mm2 + 0.003 x 0.004 in2 / 2 x 2.5 mm and 4 interconnected earth terminals.

Maximum capacity per earth terminal: 0.001 x 0.004 in2 / 1 x 4 mm2

BJe1

4 x PG16 entries with knock-out caps †

4 x Integrated cable glands for unarmored

cable (diameter 0.31" to 0.69"/8 to 16 mm)

Important: Cables must be secured to structure

close to box entries

28 A/

0.004 in2/2.5 mm2

38 A/

0.006 in2/4 mm2

0.88/0.4 103.74/1.7 JBEL1N4P16G 1

For Armored Cables 0.004/0.006 in2 / 2.5/4 mm2 660 V

Supplied with 4 connection terminals. Maximum capacity per terminal:

0.006 x 0.004 in2 / 4 x 2.5 mm2 or 0.003 x 0.004 in2 / 2 x 4 mm2 + 0.003 x 0.004 in2 / 2 x 2.5 mm and 4 interconnected earth terminals.

Maximum capacity per earth terminal: 0.001 x 0.004 in2 / 1 x 4 mm2

BJe1

4 x M20 entries with earth brass continuity

device

2 x blanking plugs

28 A/

0.004 in2/2.5 mm2

38 A/

0.006 in2/4 mm2

0.88/0.4 103.74/1.7 JBEL1A4M20 1

For Unarmored Cables 0.009/0.016 in2 / 6/10 mm2 690 V

Supplied with 4 connection terminals. Maximum capacity per terminal:

0.004 x 0.009 in2 / 4 x 6 mm2 or 0.005 x 0.016 in2 / 3 x 10 mm2 + 0.004 / 4 mm2 and 4 interconnected earth terminals.

Maximum capacity per earth terminal: 0.001 x 0.016 in2 / 1 x 10 mm2

BJe2

3 x M20 entries

3 x cable glands for unarmored cable

(diameter 0.26" to 0.57"/6.5 to 14.5 mm)

42 A/

0.016 in2/10 mm2

30 A/

0.009 in2/6 mm2

18 A/

0.006 in2/4 mm2

1.54/0.7 274.60/4.5 JBEL2N3M20G 1

BJe2

4 x M20 entries

4 x cable glands for unarmored cable

(diameter 0.26" to 0.57"/6.5 to 14.5 mm)

1.54/0.7 274.60/4.5 JBEL2N4M20G 1

BJe2

3 x M25 entries

3 x cable glands for unarmored cable

(diameter 0.31" to 0.73"/8 to 18.5 mm)

1.54/0.7 274.60/4.5 JBEL2N3M25G 1

BJe2

4 x M25 entries

4 x cable glands for unarmored cable

(diameter 0.31" to 0.73"/8 to 18.5 mm)

1.54/0.7 274.60/4.5 JBEL2N4M25G 1

For Armored Cables 0.009/0.016 in2 / 6/10 mm2 690 V

Supplied with 4 connection terminals. Maximum capacity per terminal:

0.004 x 0.009 in2 / 4 x 6 mm2 or 0.005 x 0.016 in2 / 3 x 10 mm2 + 0.004 / 4 mm2 and 4 interconnected earth terminals.

Maximum capacity per earth terminal: 0.001 x 0.016 in2 / 1 x 10 mm2

BJe2

4 x M20 entries with earth brass continuity

device.

2 x M20 blanking plugs

42 A/

0.016 in2/10 mm2

30 A/

0.009 in2/6 mm2

18 A/

0.006 in2/4 mm2

1.54/0.7 274.60/4.5 JBEL2A4M20 1

BJe2

4 x M25 entries with earth brass continuity

device.

2 x M25 blanking plugs

1.54/0.7 274.60/4.5 JBEL2A4M25 1

BJe2

2 x M25 + 2 x M20 entries with earth brass

continuity device.

1 x M25 + 1 x M20 blanking plugs

1.54/0.7 274.60/4.5 JBEL2A4M05 1

BJe2

3 x M25 + 1 x M20 entries with earth brass

continuity device.

1 x M25 + 1 x M20 blanking plugs

1.54/0.7 274.60/4.5 JBEL2A4M06 1

† Knock-out caps can be used as plugs.

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

524

JBEL and JBEP Series P

olycarbonate and Polyester Junction Boxes

Increased Safety

Furnished complete with Terminals.

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

525

JBEL and JBEP Series P

olycarbonate and Polyester Junction Boxes

Increased Safety

Furnished complete with Terminals.

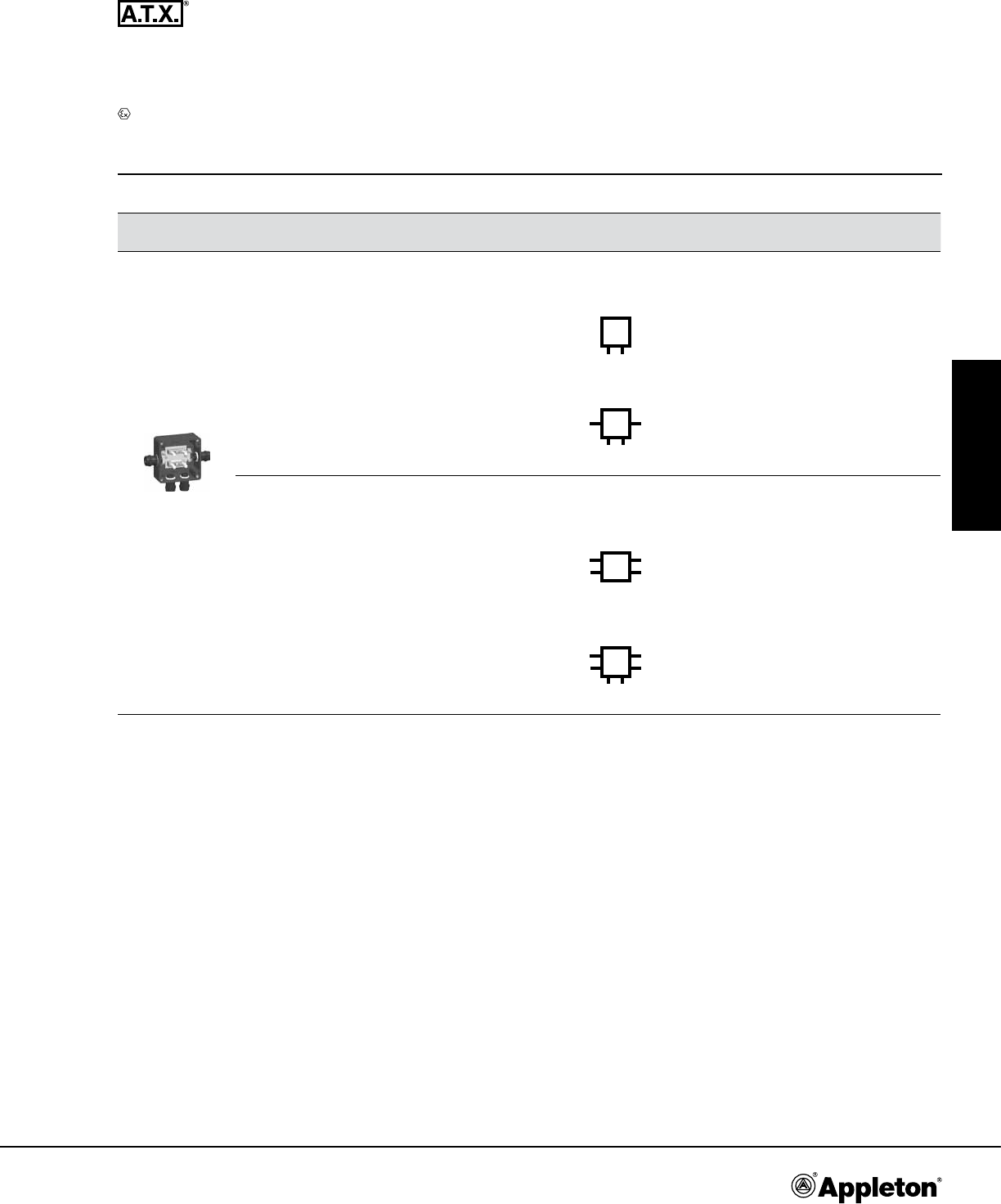

JBEP Series With Pillar Terminals

Type Equipment

Entry

Layout

Weight

lb/kg

Volume

in3/dm3Catalog Number Pack

Supplied with 4 connection terminals. Maximum capacity per terminal:

0.006 x 0.009 in2 / 4 x 6 mm2 – Rating 30 Amps

CSPe1 2 x M20 at bottom with earth continuity device 2.20/1.0 244.09/4.0 JBEP3A2M20 1

CSPe1

2 x M20 at bottom with two cable glands for

unarmored cable

(diameter 0.26" to 0.57"/6.5 to 14.5 mm)

2.65/1.2 244.09/4.0 JBEP3N2M20G 1

CSPe1 4 x M20 with earth continuity device and two

blanking plugs 2.65/1.2 244.09/4.0 JBEP3A4M20 1

CSPe1

4 x M20 with four cable glands for

unarmoured cable

(diameter 0.26" to 0.57"/6.5 to 14.5 mm)

2.65/1.2 244.09/4.0 JBEP3N4M20G 1

Supplied with 8 connection terminals. Maximum capacity per terminal:

0.006 x 0.009 in2 / 4 x 6 mm2 – Rating 30 Amps

CSPe2 4 x M20 with earth continuity device and two

blanking plugs 3.09/1.4 244.09/4.0 JBEP4A4M20 1

CSPe2

4 x M20 with four cable glands for

unarmoured cable

(diameter 0.26" to 0.57"/6.5 to 14.5 mm)

3.09/1.4 244.09/4.0 JBEP4N4M20G 1

CSPe2 6 x M20 with earth continuity device and two

blanking plugs 3.09/1.4 244.09/4.0 JBEP4A6M20 1

CSPe2

6 x M20 with six cable glands for

unarmoured cable

(diameter 0.26" to 0.57"/6.5 to 14.5 mm)

3.09/1.4 244.09/4.0 JBEP4N6M20G 1

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

526

JBEL and JBEP Series P

olycarbonate and Polyester Junction Boxes

Increased Safety

Furnished complete with Terminals.

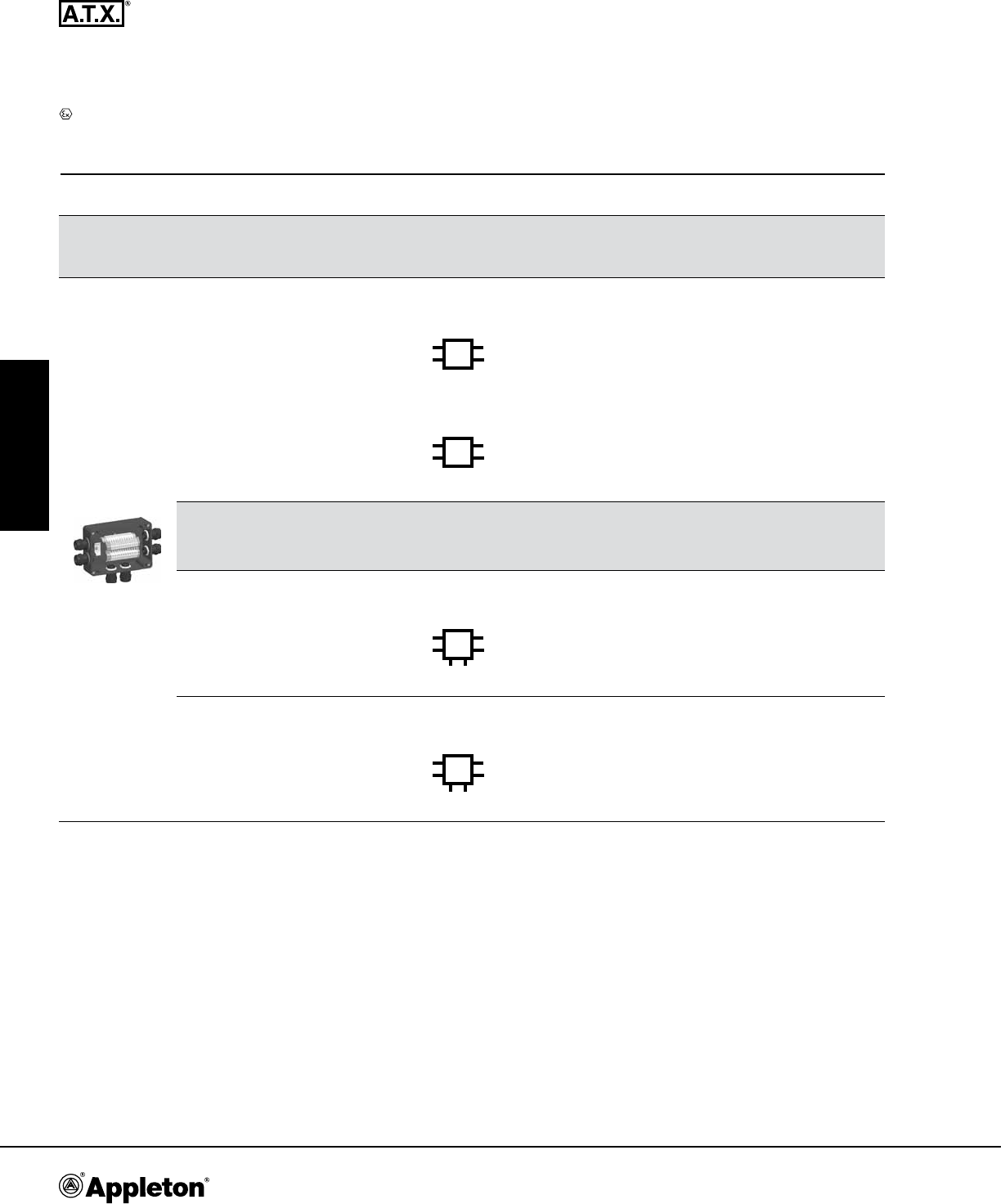

JBEP Series With Screw Terminals

Type Equipment

Entry

Layout

Weight

lb/kg

Volume

in3/dm3

Catalog Number

Pack

Standard

Terminal

Terminals Jumped

2 by 2

Supplied with 4 terminals and 2 earth terminals

CSPe1 4 x M20 with earth continuity

device and two blanking plugs

2.20/

1.0

244.09/

4.0 JBEP3A4M206 JBEP3A4M206J 1

CSPe1

4 x M20 with 4 cable glands for

unarmored cable (diameter

0.26" to 0.57"/6.5 to 14.5 mm)

2.65/

1.2

244.09/

4.0 JBEP3N4M206G JBEP3N4M206JG 1

CSPe1 4 x M20 with earth continuity

device and two blanking plugs

2.20/

1.0

244.09/

4.0 JBEP3A4M2011 JBEP3A4M2011J 1

CSPe1

4 x M20 with 4 cable glands for

unarmored cable (diameter

0.26" to 0.57"/6.5 to 14.5 mm)

2.65/

1.2

244.09/

4.0 JBEP3N4M2011G JBEP3N4M2011JG 1

Type Equipment

Entry

Layout

Weight

lb/kg

Volume

in3/dm3

Catalog Number

Pack

Standard

Terminal

Terminals Jumped

3 by 3

Supplied with 6 terminals and 3 earth terminals

CSPe2 6 x M20 with earth continuity

device and two blanking plugs

3.09/

1.4

244.09/

4.0 JBEP4A6M208 JBEP4A6M208J 1

CSPe2

6 x M20 with 4 cable glands for

unarmored cable (diameter

0.26" to 0.57"/6.5 to 14.5 mm)

3.09/

1.4

244.09/

4.0 JBEP4N6M208G JBEP4N6M208JG 1

Supplied with 12 terminals and 3 earth terminals

CSPe2 6 x M20 with earth continuity

device and two blanking plugs

3.09/

1.4

244.09/

4.0 JBEP4A6M2015 JBEP4A6M2015J

CSPe2

6 x M20 with 4 cable glands for

unarmored cable (diameter

0.26" to 0.57"/6.5 to 14.5 mm)

3.09/

1.4

244.09/

4.0 JBEP4N6M2015G JBEP4N6M2015JG

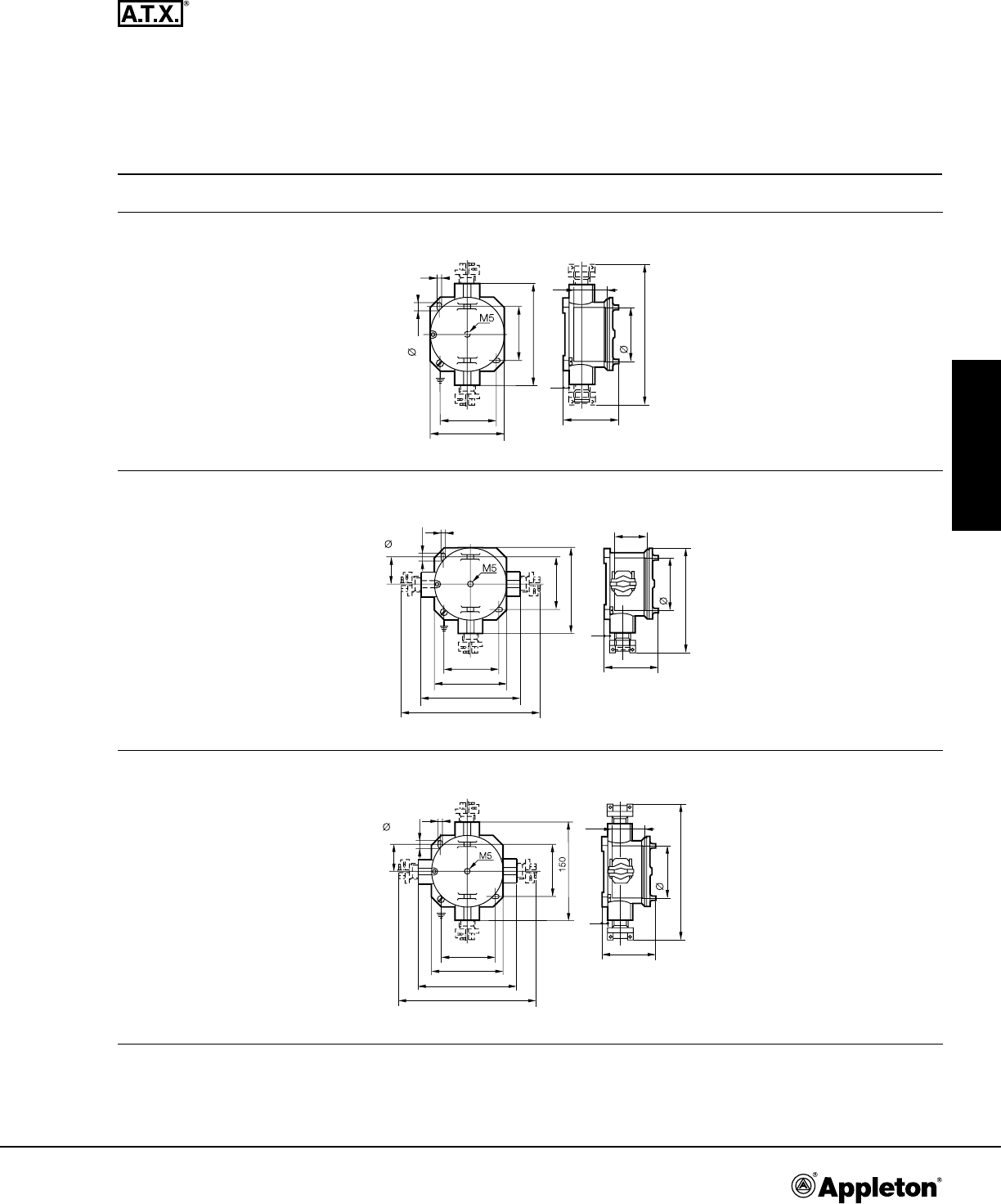

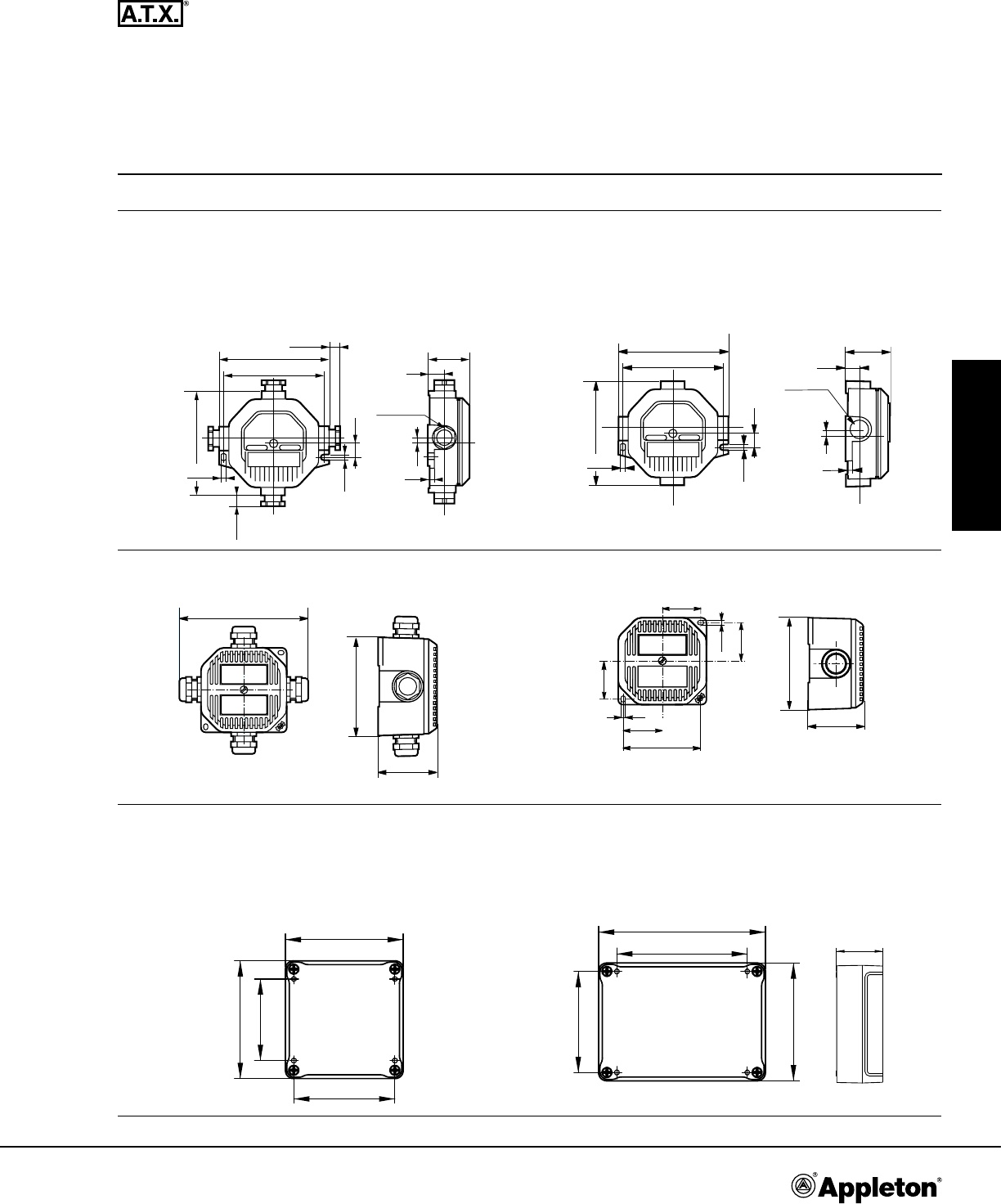

Dimensions in Inches/Millimeters

JBEL Series

BJe1 with Cable Glands for Unarmored Cables BJe1 without Cable Glands for Armored Cables

Fix. 4.88/124

0.24/6.2

0.24/6.2 0.67/17

0.67/

1.97/

0.45/

11.5

0.45/

11.5

4 x PG16

5.35/136

4.92/125

0.23/

4 x M20

Fix. 4.88/124

0.24/6.2

0.24/6.2 0.67/17

0.67/

1.97/

5.35/136

4.92/125

0.23/

BJe2 with Cable Glands for Unarmored Cables BJe2 without Cable Glands for Armored Cables

4.92 x 4.92 /

125 x 125

7.28 x 7.28 / 185 x 185

2.83/72

2.10/

53.3

4.25 x 108

0.24/

6.2

0.24/

6.2

4.92 x 4.92 /

125 x 125

2.83/72

2.15/

54.7

2.15/54.7

JBEP Series

CSPe1 CSPe2

Fix. 5.24/133

Fix. 83

Fix. 4.06/103

Fix. 7.60/193

3.58/91

4.72/120

6.69/170

9.06/230

4.72/120

Fix. 5.24/133

Fix. 83

Fix. 4.06/103 Fix. 4.06/103

Fix. 4.06/103

Fix. 7.60/193

3.58/91

4.72/120

6.69/170

9.06/230

4.72/120

Fix. 5.24/133

Fix. 83

Fix. 4.06/103 Fix. 4.06/103

Fix. 4.06/103

Fix. 7.60/193

3.58/91

4.72/120

6.69/170

9.06/230

4.72/120

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

527

JBEL and JBEP Series P

olycarbonate and Polyester Junction Box Dimensions

Increased Safety

Furnished complete with Terminals.

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

528

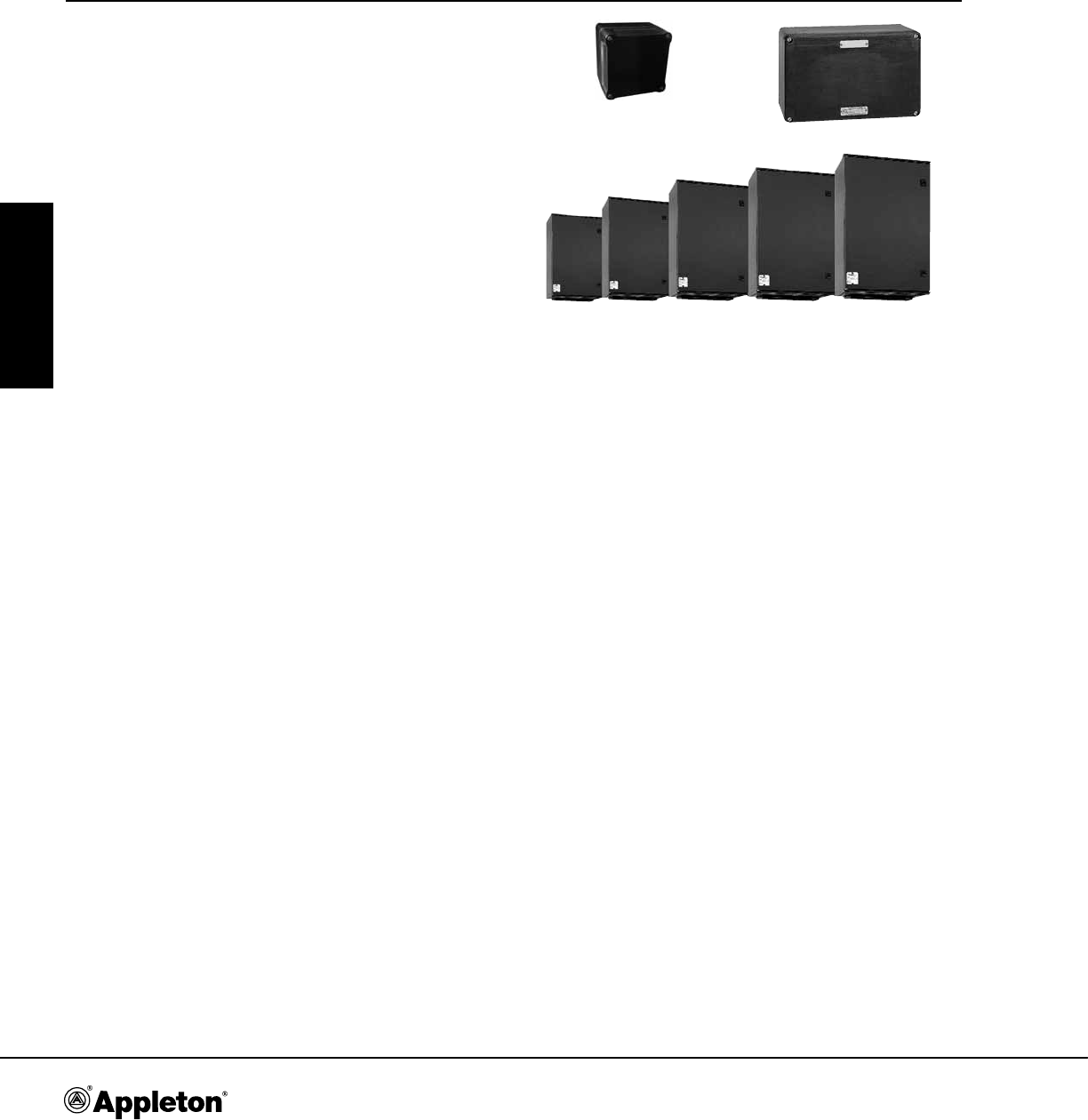

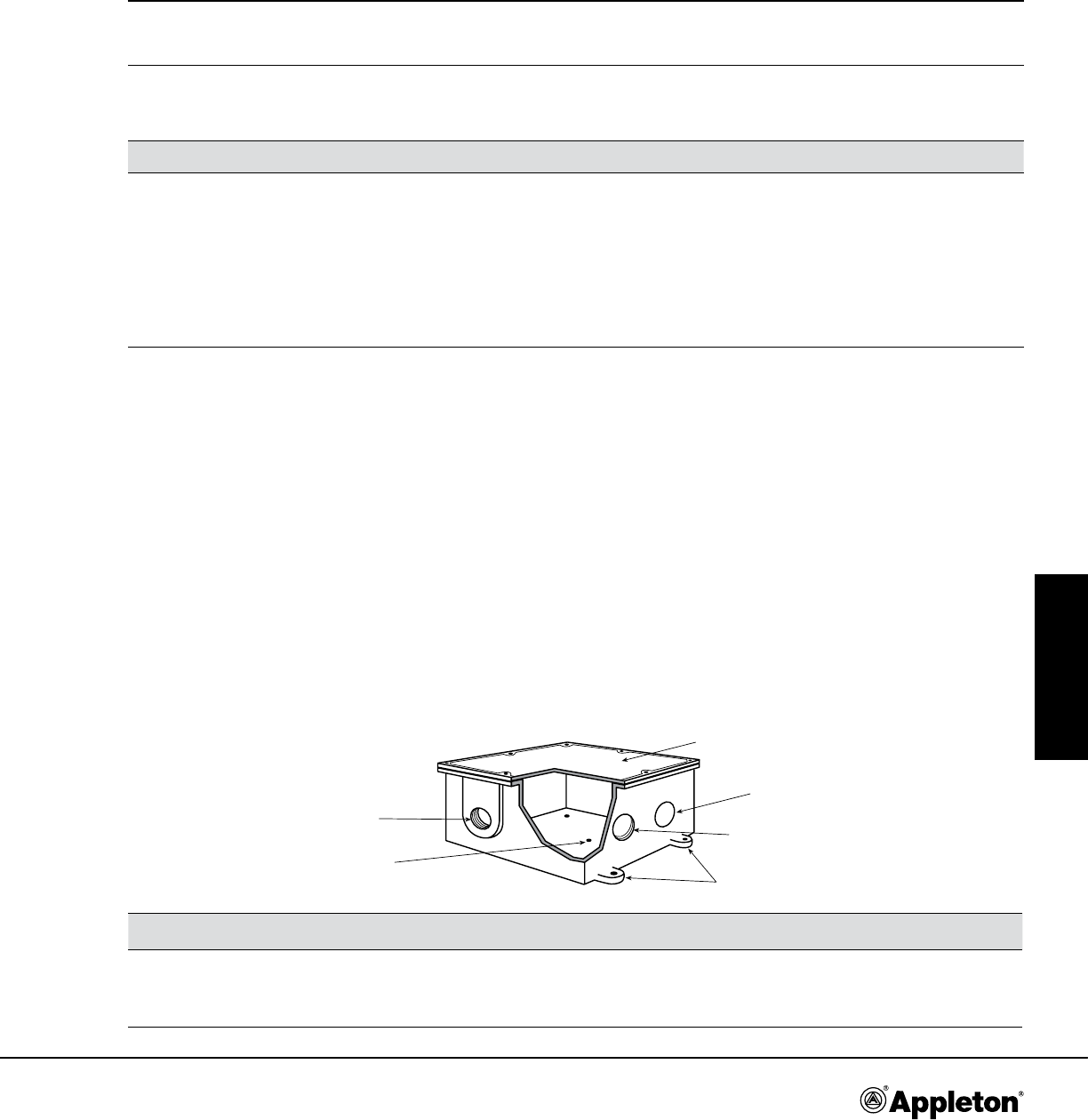

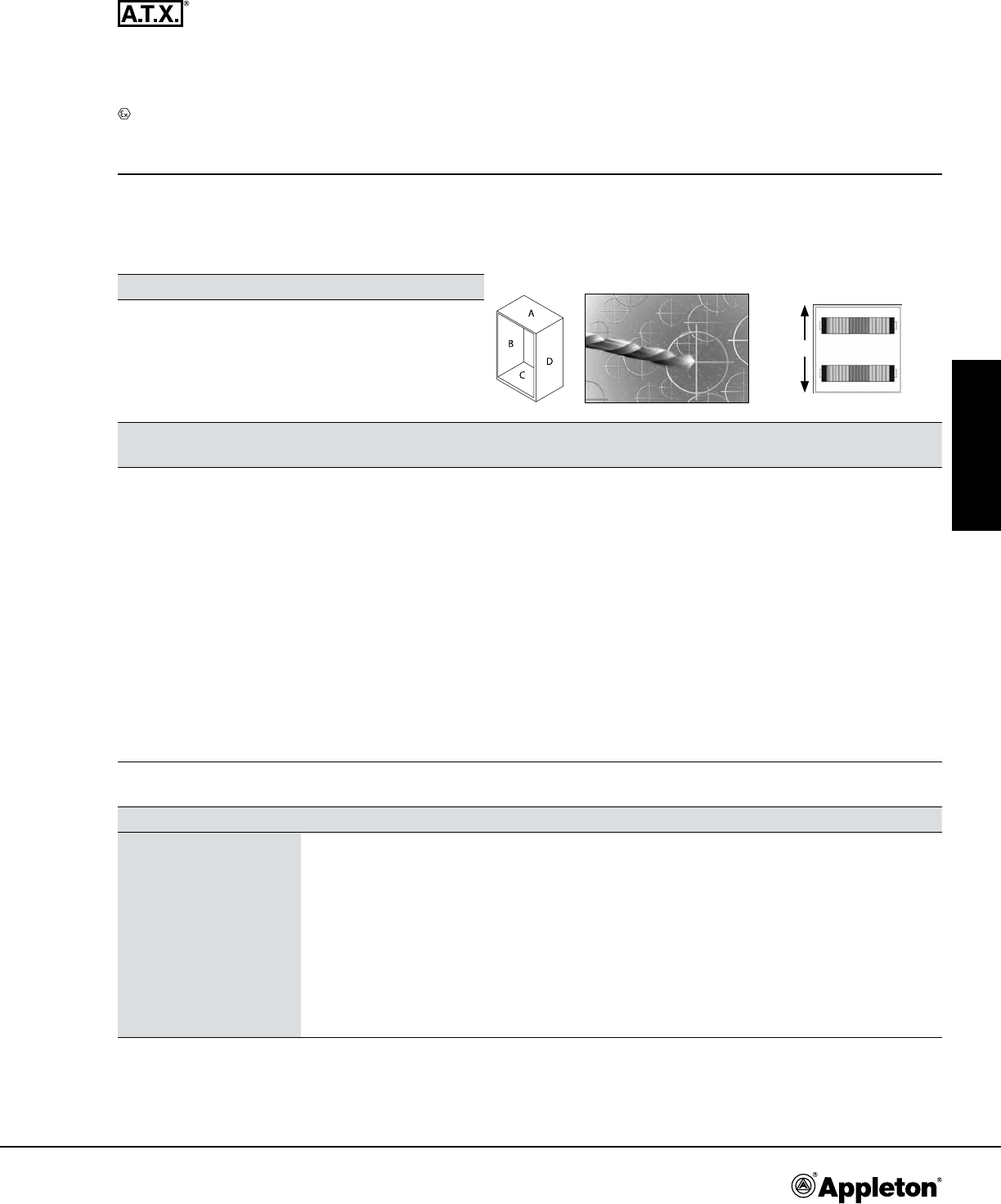

JBEP Series Pre-Drilled Fiberglass Reinforced Polyester Junction Boxes

Increased Safety

Applications

• Terminal junction boxes designed to facilitate electrical

connections in hazardous areas.

• Designed for use in Zone 1 or 2 areas, where ammable gases or

vapors are present either continuously or intermittently such as:

— Petroleum

— Chemical

— Reneries

— Other industrial process facilities

• Ideal for wet or corrosive atmospheres.

• Designed for use in Zone 21 or 22 areas where ammable dusts

are present either continuously or intermittently such as:

— Food processing

— Dairy

— Brewing

— Other commercial facilities

Features

• Operating temperature -67 °F/-55 °C to 140 °F/60 °C (CSPe

type) and -40 °F/-40 °C to 131 °F/55 °C (CAe type).

• For use only with Ex certied terminal blocks.

• Factory drilled and equipped.

Standard Materials

• Enclosure: static resistant carbon lled berglass reinforced

polyester (FRP)

• Hardware: stainless steel

• Label: yellow laminated plastic with black lettering

Options

• For use with other equipment than Ex terminal blocks, see

ECEP Series.

Certifications and Compliances

• Certication Type CSPe

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II, Ex eia IIC, Ex eib IIC

– T Rating: T6

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T167 °F/T75 °C

— Ambient Temperature: -67 °F/-55 °C to 140 °F/60 °C

— CE Declaration of Conformity: 50284

— ATEX Certicate: LCIE 09 ATEX 3032X

— IECEx Certicate: IECEx LCI 09.0016X

• Certication Type CAe

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II, Ex eia IIC, Ex eib IIC

– T Rating: T6 for Ta ≤ 104 °F /40 °C, T5 for 104 °F /40 °C

≤ Ta 131 °F /55 °C

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T176 °F to T203 °F / T80 °C to T95 °C

— Ambient Temperature: -40 °F/-40 °C to 131 °F/55 °C

— CE Declaration of Conformity: 50235

— ATEX Certicate: LCIE 02 ATEX 6248X

— IECEx Certicate: IECEx LCI 04.0016

• Other Certications: GOST

• Ingress Protection (solid and liquid): IP66

• Impact Resistance (shock): IK10

• Ex Standards: EN/IEC 60079-0; 60079-7; 60079-11; 61241-0;

61241-1; 61241-11

• Other Standards: EN/IEC 60529 (IP), 62262 (IK)

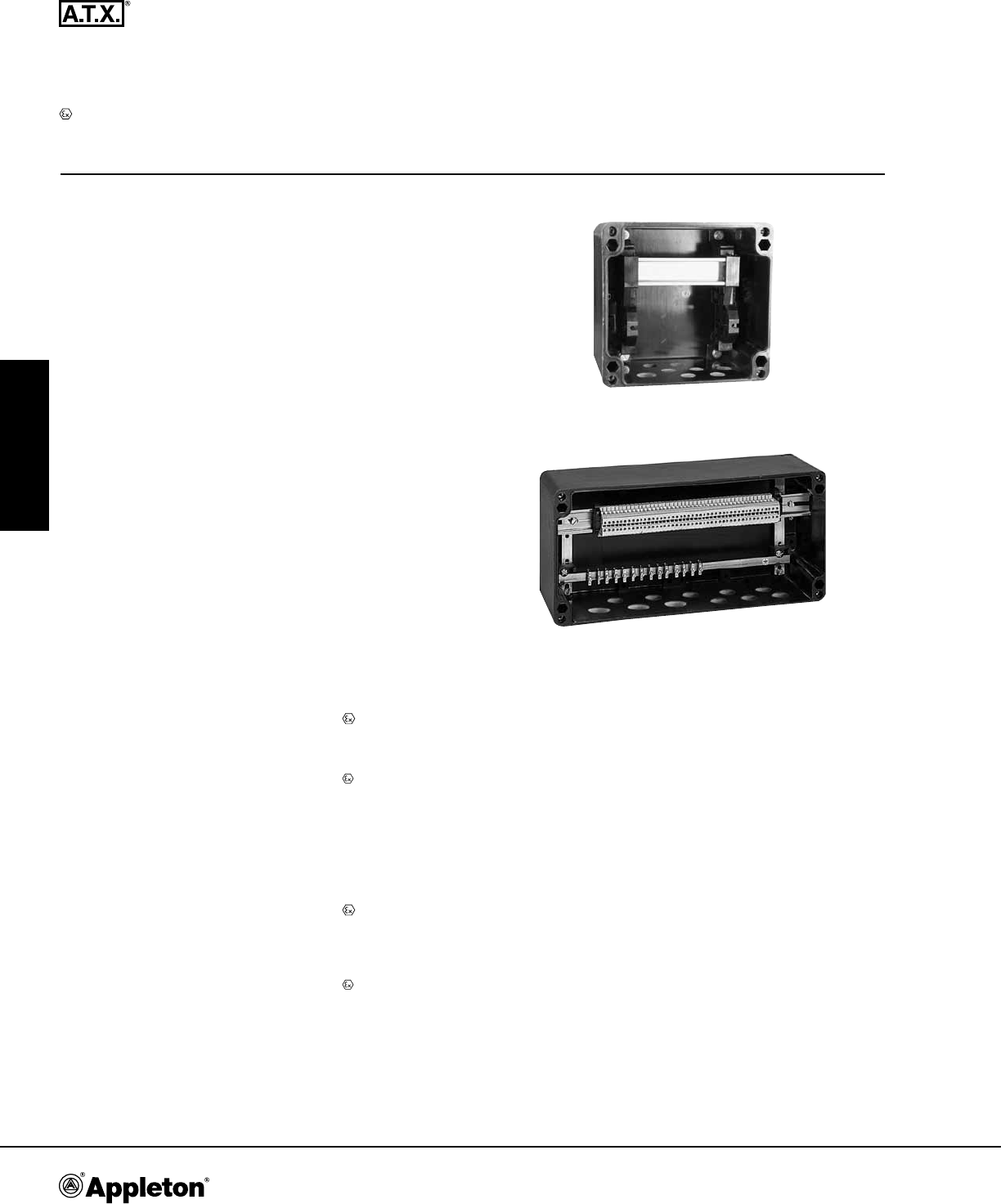

Pre-Drilled Junction Box without Terminals

Pre-Drilled Junction Box Equipped with Terminals

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

529

JBEP Series Pre-Drilled Fiberglass Reinforced Polyester Junction Boxes

Increased Safety

Catalog Numbering Guide

JBEP 12 12 09 D1

Series

ATEX/IEC Certified:

JB - Junction Box

E - Increased Safety

I - Intrinsic Safety

P - Polyester

Depth Dimensions in/mm:

09 - 3.58/91.0

15 - 5.91/150.0

Length Dimensions in/mm:

12 - 4.72/120.0

17 - 6.69/170.0

21 - 8.27/210.0

23 - 9.06/230.0

32 - 12.60/320.0

42 - 16.73/425.0

57 - 22.64/575.0

Options:

D1 - 5 x M20

D2 - 4 x M20 + 1 x M25

D3 - 7 x M20 + 1 x M25

D5 - 7 x M20 + 1 x M25

D6 - 12 x M20 + 1 x M32

D7 - 19 x M20 + 1 x M32

D8 - 27 x M20 + 1 x M40

P _ _ - Unarmored Cable

A _ _ - Armored Cable

L _ _ - Lead Sheath Armored Cable

E - Earth Continuity Brass Plate

# - Customized Enclosure (6 Digit

number will be assigned

at time of order placement.)

Width Dimensions in/mm:

12 - 4.72/120.0

20 - 7.87/200.0

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

530

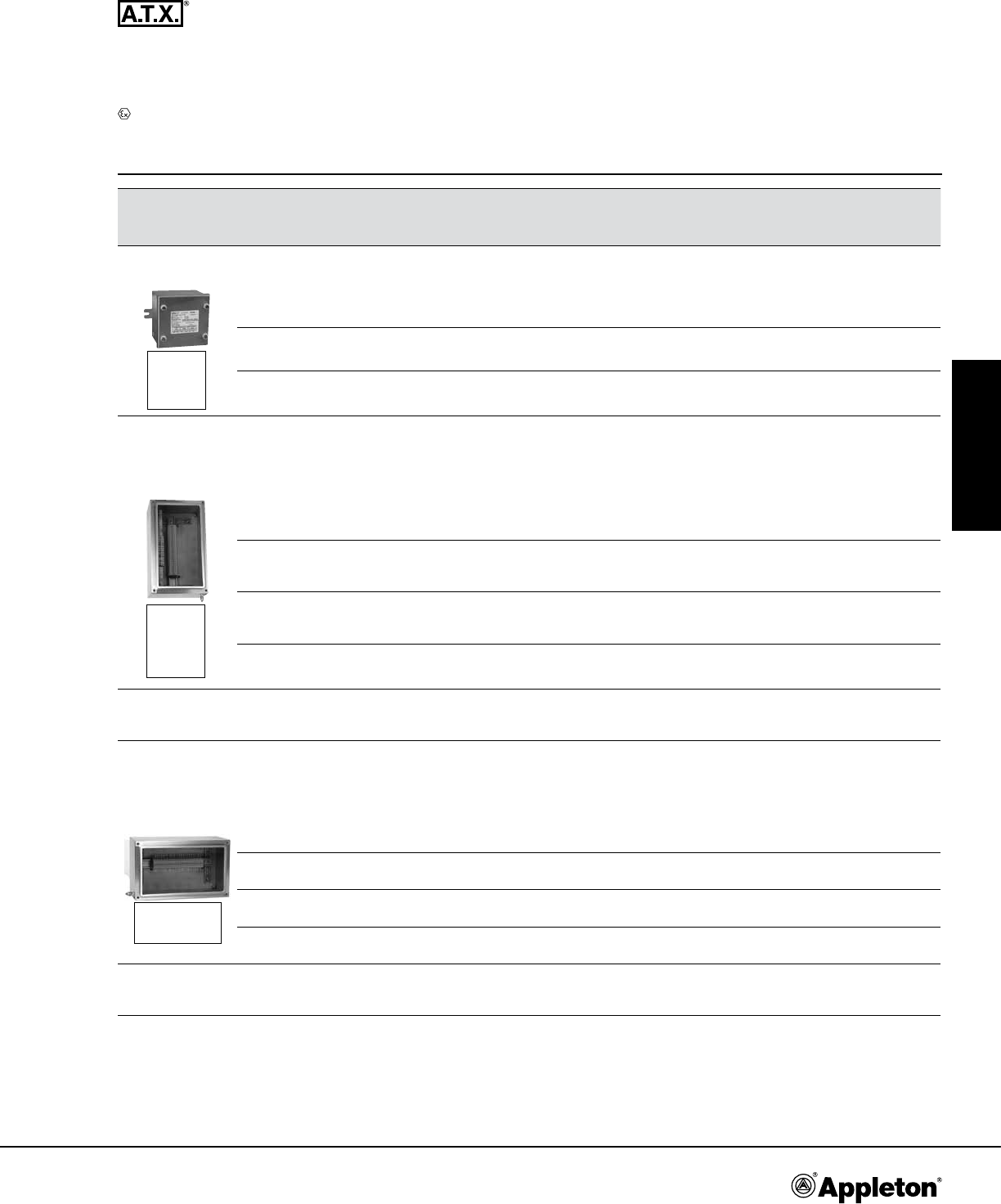

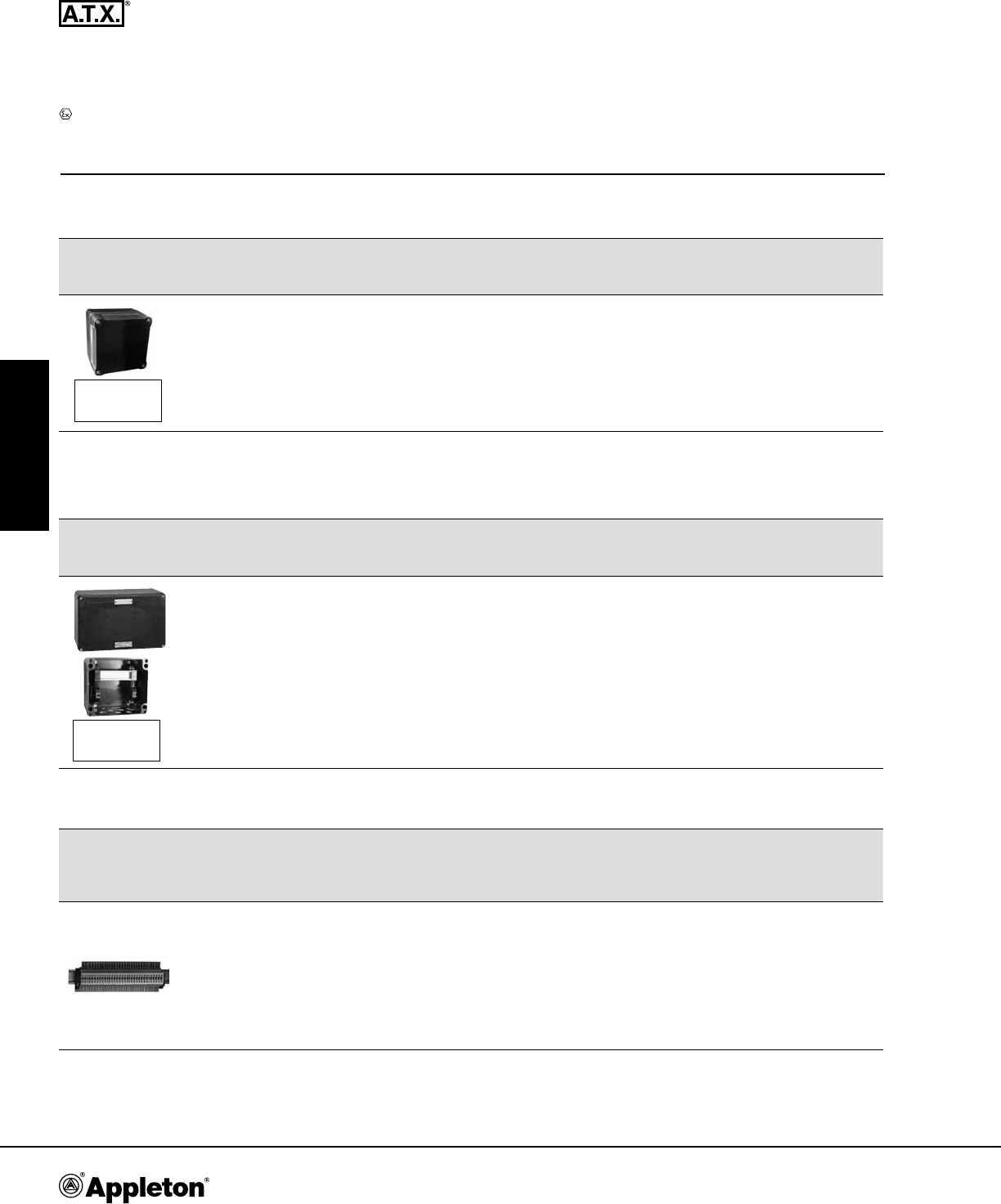

JBEP Series Pre-Drilled Fiberglass Reinforced Polyester Junction Boxes

Increased Safety

Factory Drilled Ex e II Polyester Junction Boxes

Fitted with: one horizontal symmetrical zinc plated rail. For use with EX terminals only (not supplied). Yellow laminated plastic label with black lettering. Internal

earth terminal. Cable glands and plugs ordered separately.

Type

Dimension

L x W x D in/mm

Rail Length

Capacity

in/mm

Clearance Holes Per Side

Weight

lb/kg

Volume

in3/dm3

Catalog

NumberA B C D

D B

CSPe1 4.72 x 4.72 x 3.58/

120 x 120 x 91 2.44/62.0 1 x M20 1 x M20 2 x M20 1 x M20 1.76/0.8 244/4 JBEP121209D1

CSPe2 6.69 x 4.72 x 3.58/

170 x 120 x 91 4.41/112.0 –1 x M20 2 x M20

1 x M25 1 x M20 2.20/1.0 244/4 JBEP171209D2

CSPe3 9.06 x 4.72 x 3.58/

230 x 120 x 91 6.77/172.0 –2 x M20 3 x M20

1 x M25 2 x M20 2.65/1.2 244/4 JBEP231209D3

Factory Drilled Exe II Instrumentation Polyester Junction Boxes

Fitted with: yellow laminated plastic label with black lettering. Set of two insulated side supports (096115). One horizontal symmetrical zinc plated rail. For use

with Ex terminals only (not supplied). Also available for use with copper bar 12 x 2 mm or 12 x 4 mm. 2 x 10 mm2 internal earth terminals. Cable glands and plugs

ordered separately.

Type

Dimension

L x W x D in/mm

Rail Length

Capacity

in/mm Cable

Threaded Holes

Weight

lb/kg

Volume

in3/dm3

Catalog

NumberSide C

D B

CAe1 8.46 x 7.87 x 5.91/

215 x 200 x 150 4.13/105.0 7 Pairs 1 x M25 7 x M20 7.50/3.4 976/16 JBEP212015D5

CAe2 12.60 x 7.87 x 5.91/

320 x 200 x 150 8.11/206.0 12 Pairs 1 x M32 12 x M20 9.26/4.2 1403/23 JBEP322015D6

CAe3 16.73 x 7.87 x 5.91/

425 x 200 x 150 12.20/310.0 19 Pairs 1 x M32 19 x M20 11.46/5.2 1586/26 JBEP422015D7

CAe4 22.64 x 7.87 x 5.91/

575 x 200 x 150 12.40/315.0 27 Pairs 1 x M40 †27 x M20 15.00/6.8 2013/33 JBEP572015D8

Factory Assembled Ex Terminal Block for Junction Boxes Shown Above

Screwed/screwed terminal block fitted with continuity shield.

For Junction Boxes

L x W x D in/mm Cable

Terminals

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Continuity

Shield Qty.

Weight

lb/kg

Volume

in3/dm3

Catalog

Number

8.46 x 7.87 x 5.91/

215 x 200 x 150 7 Pairs 14 7 0.66/0.3 30.5/0.5 096039

12.60 x 7.87 x 5.91/

320 x 200 x 150 12 Pairs 24 12 0.88/0.4 67.1/1.1 096041

16.73 x 7.87 x 5.91/

425 x 200 x 150 19 Pairs 38 19 1.10/0.5 79.3/1.3 096043

22.64 x 7.87 x 5.91/

575 x 200 x 150 27 Pairs 54 27 1.32/0.6 103.7/1.7 096044

† Clearance hole.

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

531

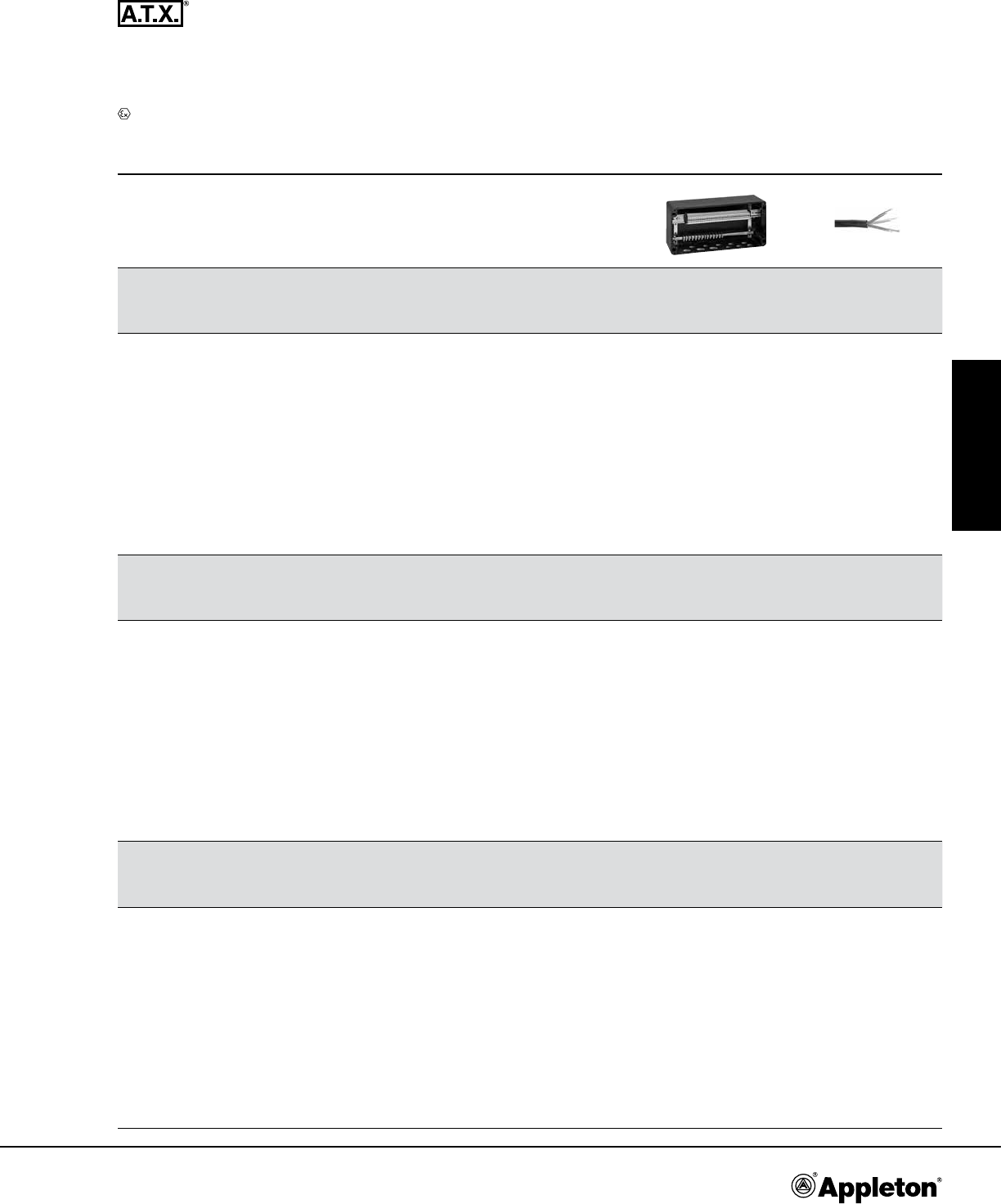

JBEP Series Pre-Drilled Fiberglass Reinforced Polyester Junction Boxes

Increased Safety

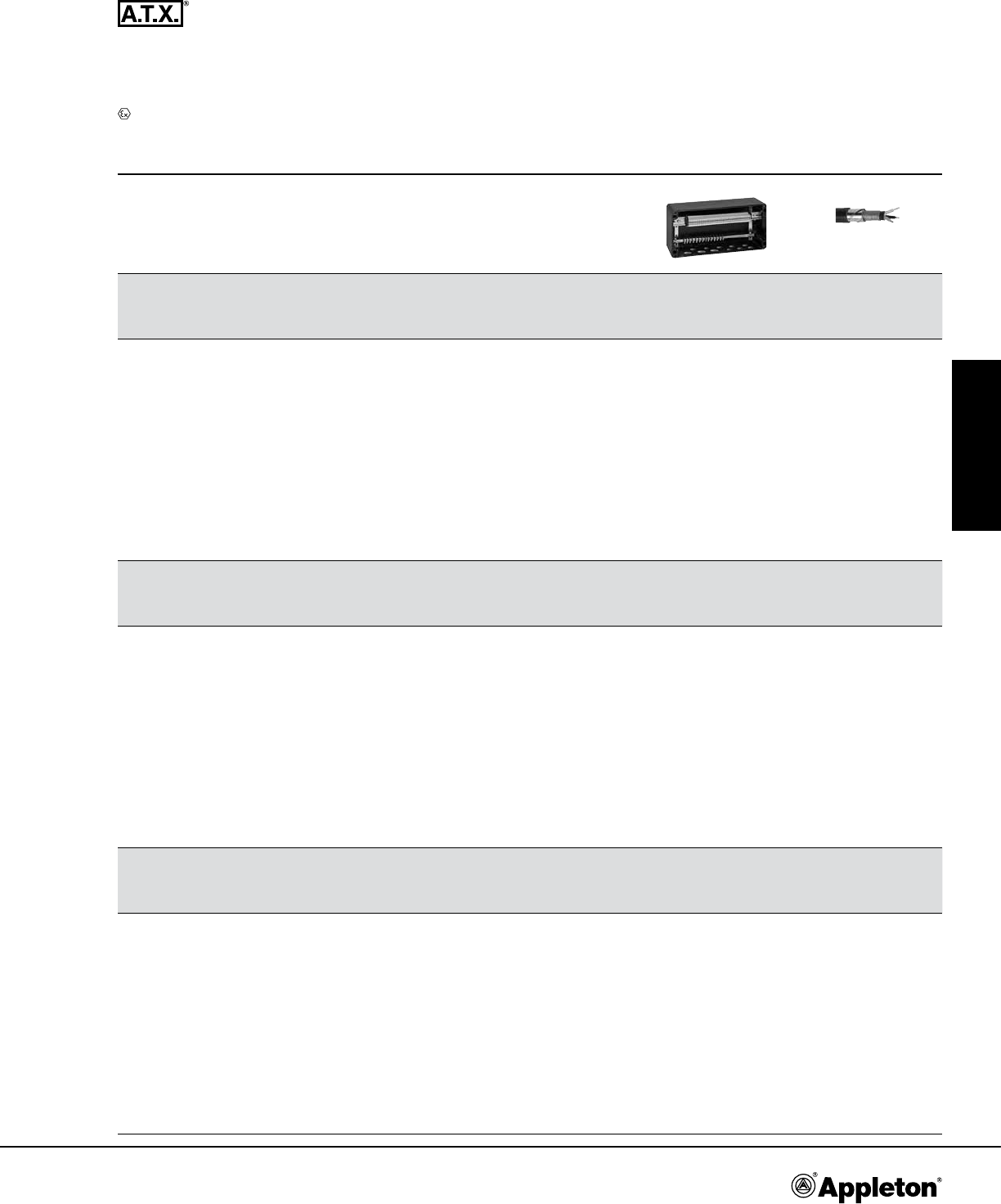

Factory Drilled and Equipped with Terminals Ex e II Polyester Junction Boxes for

Instrumentation Applications with Unarmored Cables

Unarmored Cables

Fitted with: horizontal beige terminal block. Copper bar with cable clamps or continuity shields. Yellow

laminated plastic label with black lettering. M16 to M32 threaded entries. M40 to M50 clearance holes.

Cable glands and plugs ordered separately.

Type

For

Cable

U1000

RO2V

Terminal Block

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Earth Terminal

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Copper Bar

0.39 x 0.12 in

10 x 3 mm

Qty.

Cable Clamp

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Multi-cable

Cable

Entry

Qty. 1

Single Cable

Entries

M20

Qty.

Catalog

Number

CAe1 07G1.5 7 1 1 5 M20 3 JBEP212015P01

CAe1 12G1.5 12 1 1 8 M25 6 JBEP212015P02

CAe2 19G1.5 19 1 1 11 M25 9 JBEP322015P03

CAe2 24G1.5 24 1 1 14 M32 12 JBEP322015P04

CAe2 27G1.5 27 1 1 15 M32 13 JBEP322015P05

CAe3 37G1.5 37 1 1 20 M32 18 JBEP422015P06

CAe1 07G2.5 7 1 1 5 M20 3 JBEP212015P07

CAe1 12G2.5 12 1 1 8 M25 6 JBEP212015P08

CAe2 19G2.5 19 1 1 11 M32 9 JBEP322015P09

CAe2 24G2.5 24 1 1 14 M32 12 JBEP322015P10

CAe2 27G2.5 27 1 1 15 M32 13 JBEP322015P11

CAe3 37G2.5 37 1 1 20 M40 18 JBEP422015P12

Type

For

Cable

EGSF

Terminal Block

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Continuity

Shield

Qty.

Multi-cable

Cable

Entry

Qty. 1

Single Cable

Entries

M16

Qty.

Catalog

Number

CAe1 07IP05 14 7 M20 7 JBEP212015P21

CAe1 07IT05 21 7 M20 7 JBEP212015P22

CAe2 12IP05 24 12 M25 12 JBEP322015P23

CAe2 12IT05 36 12 M25 12 JBEP322015P24

CAe3 19IP05 38 19 M32 19 JBEP422015P25

CAe4 27IP05 54 27 M32 27 JBEP572015P26

CAe1 07IP09 14 7 M25 7 JBEP212015P27

CAe1 07IT09 21 7 M25 7 JBEP212015P28

CAe2 12IP09 24 12 M32 12 JBEP322015P29

CAe2 12IT09 36 12 M32 12 JBEP322015P30

CAe3 19IP09 38 19 M32 19 JBEP422015P31

CAe4 27IP09 54 27 M40 27 JBEP572015P32

Type

For

Cable

EISF

Terminal Block

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Continuity

Shield

Qty.

Multi-cable

Cable

Entry

Qty. 1

Single Cable

Entries

M16

Qty.

Catalog

Number

CAe1 07IP05 15 8 M25 7 JBEP212015P41

CAe1 07IT05 22 8 M32 7 JBEP212015P42

CAe2 12IP05 25 13 M32 12 JBEP322015P43

CAe2 12IT05 37 13 M32 12 JBEP322015P44

CAe3 19IP05 39 20 M40 19 JBEP422015P45

CAe4 27IP05 55 28 M40 27 JBEP572015P46

CAe1 07IP09 15 8 M32 7 JBEP212015P47

CAe1 07IT09 22 8 M32 7 JBEP212015P48

CAe2 12IP09 25 13 M40 12 JBEP322015P49

CAe2 12IT09 37 13 M40 12 JBEP322015P50

CAe3 19IP09 29 20 M50 19 JBEP422015P51

CAe4 27IP09 55 28 M50 27 JBEP572015P52

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

532

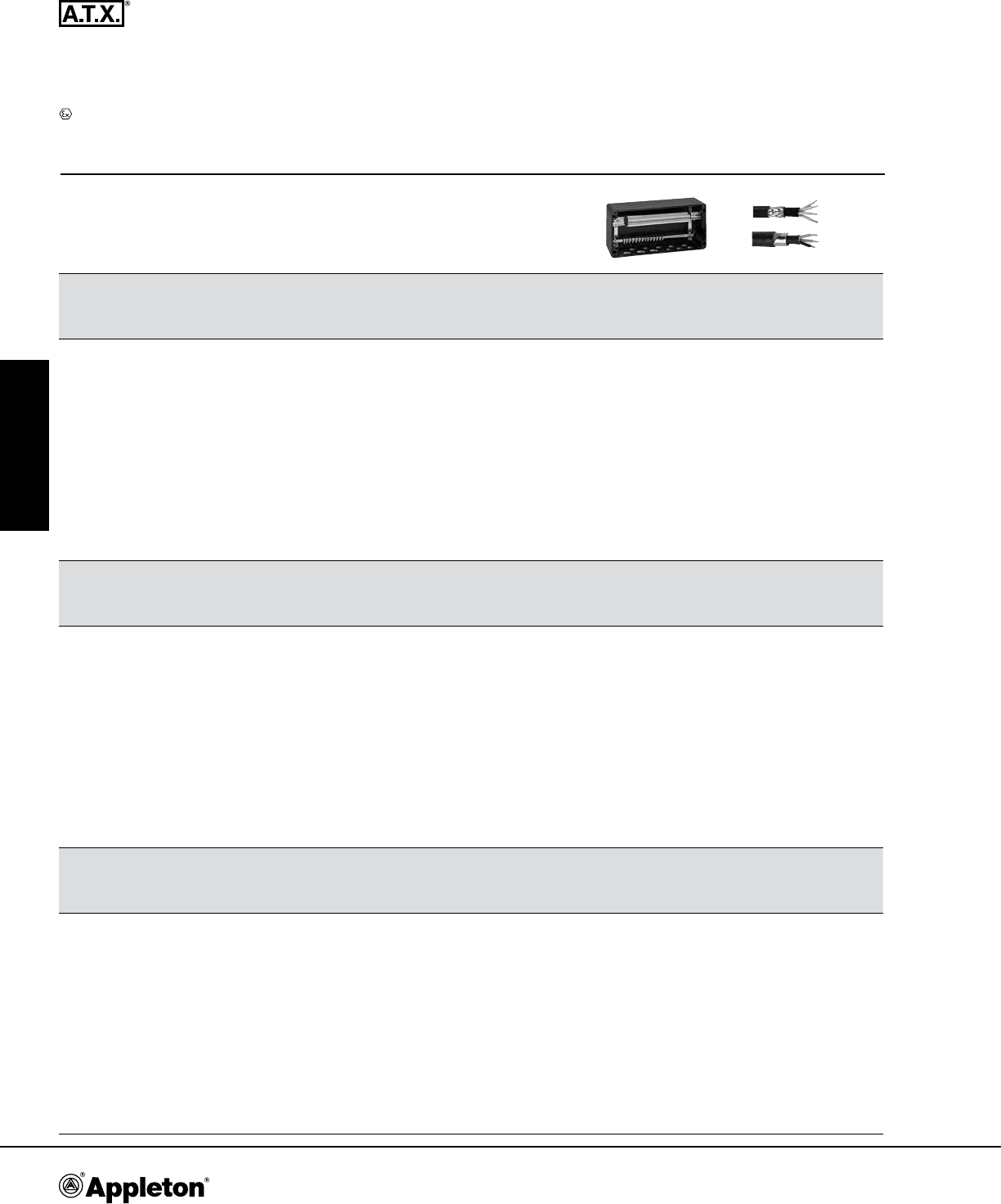

JBEP Series Pre-Drilled Fiberglass Reinforced Polyester Junction Boxes

Increased Safety

Factory Drilled and Equipped with Terminals Ex e II Polyester Junction Boxes for

Instrumentation Applications with Armored Cables

Armored

Cables

Fitted with: horizontal beige terminal block. Copper bar with cable clamps or continuity shields. Yellow

laminated plastic label with black lettering. Earth continuity brass plate. M8 external earth crossing

terminal. M20 to M32 threaded entries. M40 to M50 clearance holes. Cable glands and plugs ordered

separately.

Type

For

Cable

U1000

RVFV

Terminal Block

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Earth Terminal

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Copper Bar

0.39 x 0.12"

10 x 3 mm

Qty.

Cable Clamp

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Multi-cable

Cable

Entry

Qty. 1

Single Cable

Entries

M20

Qty.

Catalog

Number

CAe1 07G1.5 7 1 1 5 M20 3 JBEP212015A01E

CAe1 12G1.5 12 1 1 8 M20 6 JBEP212015A02E

CAe2 19G1.5 19 1 1 11 M25 9 JBEP322015A03E

CAe2 24G1.5 24 1 1 14 M25 12 JBEP322015A04E

CAe2 27G1.5 27 1 1 15 M25 13 JBEP322015A05E

CAe3 37G1.5 37 1 1 20 M32 18 JBEP422015A06E

CAe1 07G2.5 7 1 1 5 M20 3 JBEP212015A07E

CAe1 12G2.5 12 1 1 8 M25 6 JBEP212015A08E

CAe2 19G2.5 19 1 1 11 M25 9 JBEP322015A09E

CAe2 24G2.5 24 1 1 14 M32 12 JBEP322015A10E

CAe2 27G2.5 27 1 1 15 M32 13 JBEP322015A11E

CAe3 37G2.5 37 1 1 20 M32 18 JBEP422015A12E

Type

For

Cable

EGFA

Terminal Block

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Continuity

Shield

Qty.

Multi-cable

Cable

Entry

Qty. 1

Single Cable

Entries

M20

Qty.

Catalog

Number

CAe1 07IP05 14 7 M20 7 JBEP212015A21E

CAe1 07IT05 21 7 M20 7 JBEP212015A22E

CAe2 12IP05 24 12 M25 12 JBEP322015A23E

CAe2 12IT05 36 12 M25 12 JBEP322015A24E

CAe3 19IP05 38 19 M25 19 JBEP422015A25E

CAe4 27IP05 54 27 M32 27 JBEP572015A26E

CAe1 07IP09 14 7 M25 7 JBEP212015A27E

CAe1 07IT09 21 7 M25 7 JBEP212015A28E

CAe2 12IP09 24 12 M25 12 JBEP322015A29E

CAe2 12IT09 36 12 M32 12 JBEP322015A30E

CAe3 19IP09 38 19 M32 19 JBEP422015A31E

CAe4 27IP09 54 27 M40 27 JBEP572015A32E

Type

For

Cable

EIFA

Terminal Block

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Continuity

Shield

Qty.

Multi-cable

Cable

Entry

Qty. 1

Single Cable

Entries

M20

Qty.

Catalog

Number

CAe1 07IP05 15 8 M25 7 JBEP212015A41E

CAe1 07IT05 22 8 M25 7 JBEP212015A42E

CAe2 12IP05 25 13 M32 12 JBEP322015A43E

CAe2 12IT05 37 13 M32 12 JBEP322015A44E

CAe3 19IP05 39 20 M32 19 JBEP422015A45E

CAe4 27IP05 55 28 M40 27 JBEP572015A46E

CAe1 07IP09 15 8 M32 7 JBEP212015A47E

CAe1 07IT09 22 8 M32 7 JBEP212015A48E

CAe2 12IP09 25 13 M40 12 JBEP322015A49E

CAe2 12IT09 37 13 M40 12 JBEP322015A50E

CAe3 19IP09 39 20 M40 19 JBEP422015A51E

CAe4 27IP09 55 28 M50 27 JBEP572015A52E

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

533

JBEP Series Pre-Drilled Fiberglass Reinforced Polyester Junction Boxes

Increased Safety

Factory Drilled and Equipped with Terminals Ex e II Polyester Junction Boxes for

Instrumentation Applications with Lead Sheath Armored Cables

Armored Cables

With lead sheath

Fitted with: horizontal beige terminal block. Copper bar with cable clamps or continuity shields. Yellow

laminated plastic label with black lettering. Earth continuity brass plate. M8 external earth crossing

terminal. M20 to M32 threaded entries. M40 to M50 clearance holes. Cable glands and plugs ordered

separately.

Type

For

Cable

U1000

RGPFV

Terminal Block

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Earth Terminal

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Copper Bar

0.39 x 0.12"

10 x 3 mm

Qty.

Cable Clamp

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Multi-cable

Cable

Entry

Qty. 1

Single Cable

Entries

M20

Qty.

Catalog

Number

CAe1 07 x 1.5 7 1 1 5 M20 3 JBEP212015L01E

CAe1 12 x 1.5 12 1 1 8 M25 6 JBEP212015L02E

CAe2 19 x 1.5 19 1 1 11 M25 9 JBEP322015L03E

CAe2 24 x 1.5 24 1 1 14 M32 12 JBEP322015L04E

CAe2 27 x 1.5 27 1 1 15 M32 13 JBEP322015L05E

CAe3 37 x 1.5 37 1 1 20 M32 18 JBEP422015L06E

CAe1 07 x 2.5 7 1 1 5 M20 3 JBEP212015L07E

CAe1 12 x 2.5 12 1 1 8 M25 6 JBEP212015L08E

CAe2 19 x 2.5 19 1 1 11 M32 9 JBEP322015L09E

CAe2 24 x 2.5 24 1 1 14 M32 12 JBEP322015L10E

CAe2 27 x 2.5 27 1 1 15 M32 13 JBEP322015L11E

CAe3 37 x 2.5 37 1 1 20 M40 18 JBEP422015L12E

Type

For

Cable

EGPF

Terminal Block

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Continuity

Shield

Qty.

Multi-cable

Cable

Entry

Qty. 1

Single Cable

Entries

M20

Qty.

Catalog

Number

CAe1 07IP05 14 7 M20 7 JBEP212015L21E

CAe1 07IT05 21 7 M20 7 JBEP212015L22E

CAe2 12IP05 24 12 M25 12 JBEP322015L23E

CAe2 12IT05 36 12 M25 12 JBEP322015L24E

CAe3 19IP05 38 19 M25 19 JBEP422015L25E

CAe4 27IP05 54 27 M32 27 JBEP572015L26E

CAe1 07IP09 14 7 M25 7 JBEP212015L27E

CAe1 07IT09 21 7 M25 7 JBEP212015L28E

CAe2 12IP09 24 12 M32 12 JBEP322015L29E

CAe2 12IT09 36 12 M32 12 JBEP322015L30E

CAe3 19IP09 38 19 M40 19 JBEP422015L31E

CAe4 27IP09 54 27 M40 27 JBEP572015L32E

Type

For

Cable

EIPF

Terminal Block

0.0008/0.004 in2

0.5/2.5 mm2

Qty.

Continuity

Shield

Qty.

Multi-cable

Cable

Entry

Qty. 1

Single Cable

Entries

M20

Qty.

Catalog

Number

CAe1 07IP05 15 8 M25 7 JBEP212015L41E

CAe1 07IT05 22 8 M32 7 JBEP212015L42E

CAe2 12IP05 25 13 M32 12 JBEP322015L43E

CAe2 12IT05 37 13 M32 12 JBEP322015L44E

CAe3 19IP05 39 20 M40 19 JBEP422015L45E

CAe4 27IP05 55 28 M50 27 JBEP572015L46E

CAe1 07IP09 15 8 M32 7 JBEP212015L47E

CAe1 07IT09 22 8 M32 7 JBEP212015L48E

CAe2 12IP09 25 13 M40 12 JBEP322015L49E

CAe2 12IT09 37 13 M40 12 JBEP322015L50E

CAe3 19IP09 39 20 M50 19 JBEP422015L51E

CAe4 27IP09 55 28 M50 27 JBEP572015L52E

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

534

JBEP Series Pre-Drilled Fiberglass Reinforced Polyester Junction Boxes

Increased Safety

Defining maximum terminal block quantity according to power dissipation:

• Junction boxes used for instrumentation applications carry very low current levels. Therefore there is no risk of overheating whatever the

number of terminals inside the box.

• For applications other than instrumentation, the following tables allow you to dene your junction box depending on the number of terminals

and the maximum authorized current being carried.

For other terminal block configurations, please consult our drilling guide available online at: www.egsatx.com.

T Rating:

Type

T Rating:

T6 @ Ta 104 °F/40 °C

T5 @ Ta 131 °F/55° C

Type

CSPe1

5 x 5 x 4"/

120 x 120 x

91 mm

CSPe2

7 x 5 x 4"/

120 x 170 x

91 mm

CSPe3

9 x 5 x 4"/

120 x 230 x

91 mm

CAe1

8 x 9 x 6"/

200 x 215 x

150 mm

CAe2

8 x 13 x 6"/

200 x 320 x

150 mm

CAe3

8 x 17 x 6"/

200 x 425 x

150 mm

CAe4

8 x 23 x 6"/

200 x 575 x

150 mm

0.004 in2/

2.5 mm2

Qty.

1 max.

15 A

13 A

12 A

0.004 in2/

2.5 mm2

Qty.

1 max.

16 A

14 A

0.006 in2/

4 mm2

Qty.

1 max.

20 A

19 A

16 A

0.006 in2/

4 mm2

Qty.

1 max.

20 A

16 A

0.009 in2/

6 mm2

Qty.

1 max.

32 A

27 A

24 A

0.009 in2/

6 mm2

Qty.

1 max.

32 A

28 A

0.016 in2/

10 mm2

Qty.

1 max.

50 A

0.016 in2/

10 mm2

Qty.

1 max.

40 A

32 A

28 A

0.024 in2/

16 mm2

Qty.

1 max.

28 A

27 A

25 A

26 A

0.039 in2/

25 mm2

Qty.

1 max.

67 A

73 A

69 A

70 A

0.054 in2/

35 mm2

Qty.

1 max.

79 A

86 A

80 A

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

535

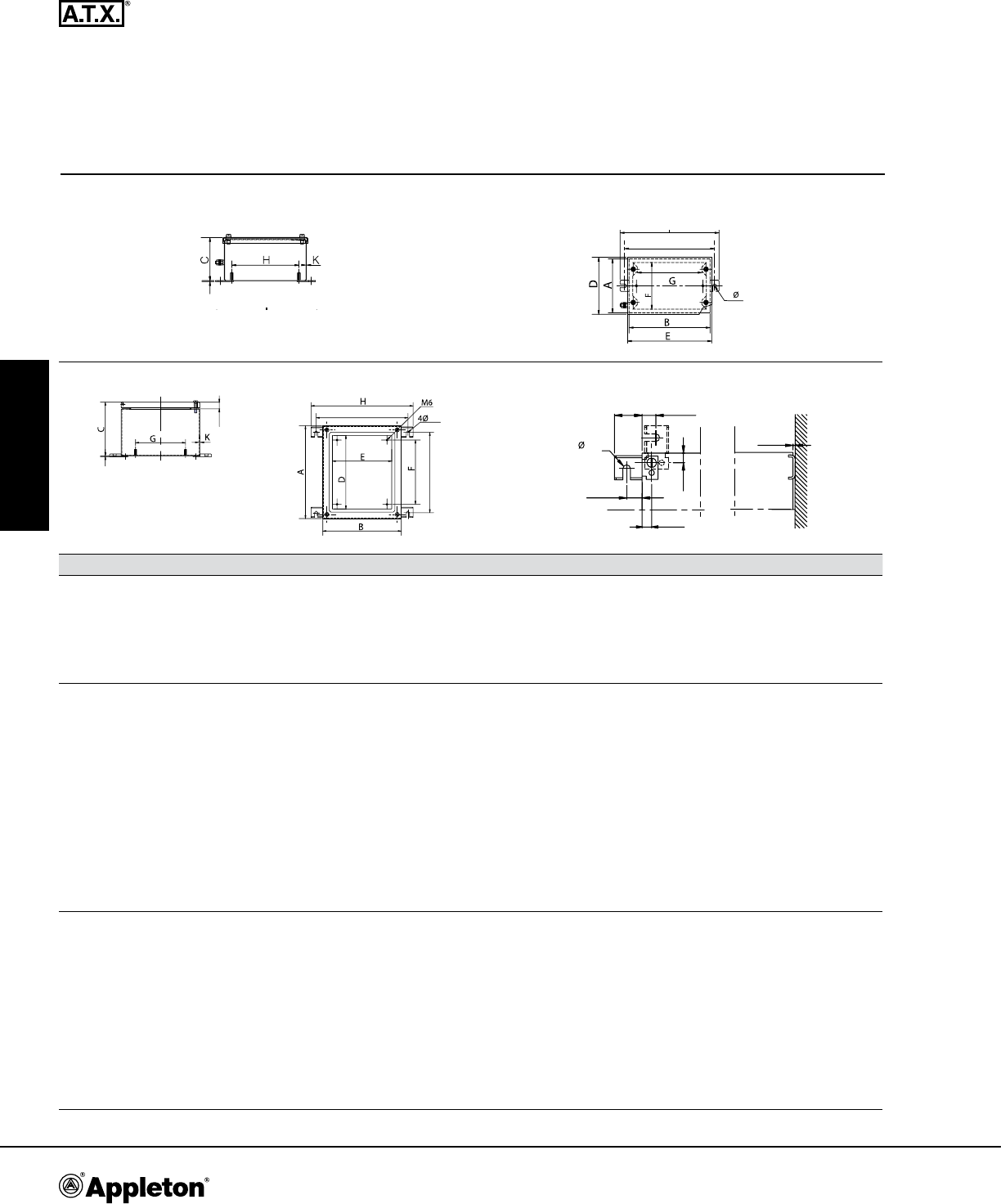

JBEP Series Pre-Drilled Fiberglass Reinforced Polyester Junction Boxes

Increased Safety

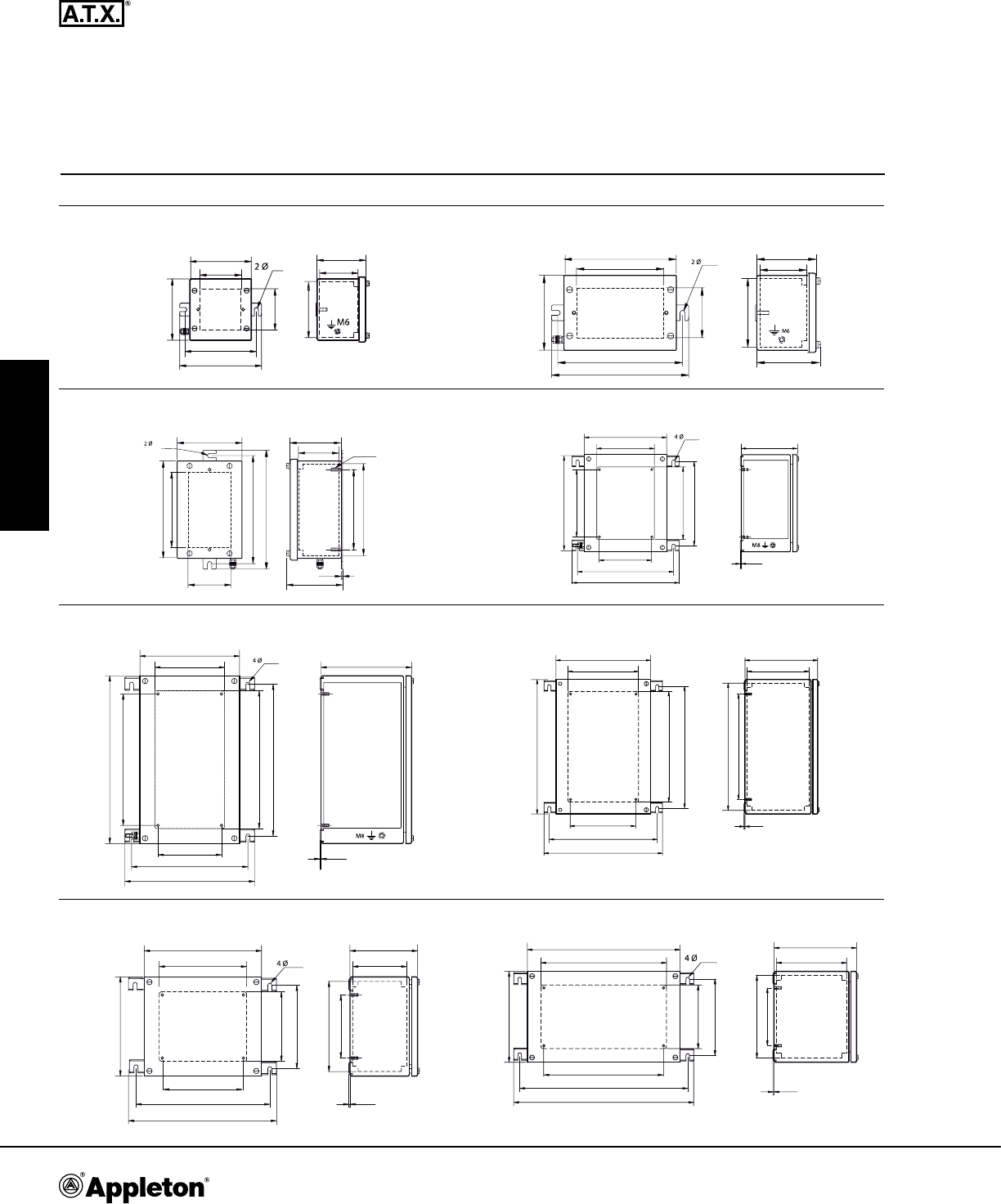

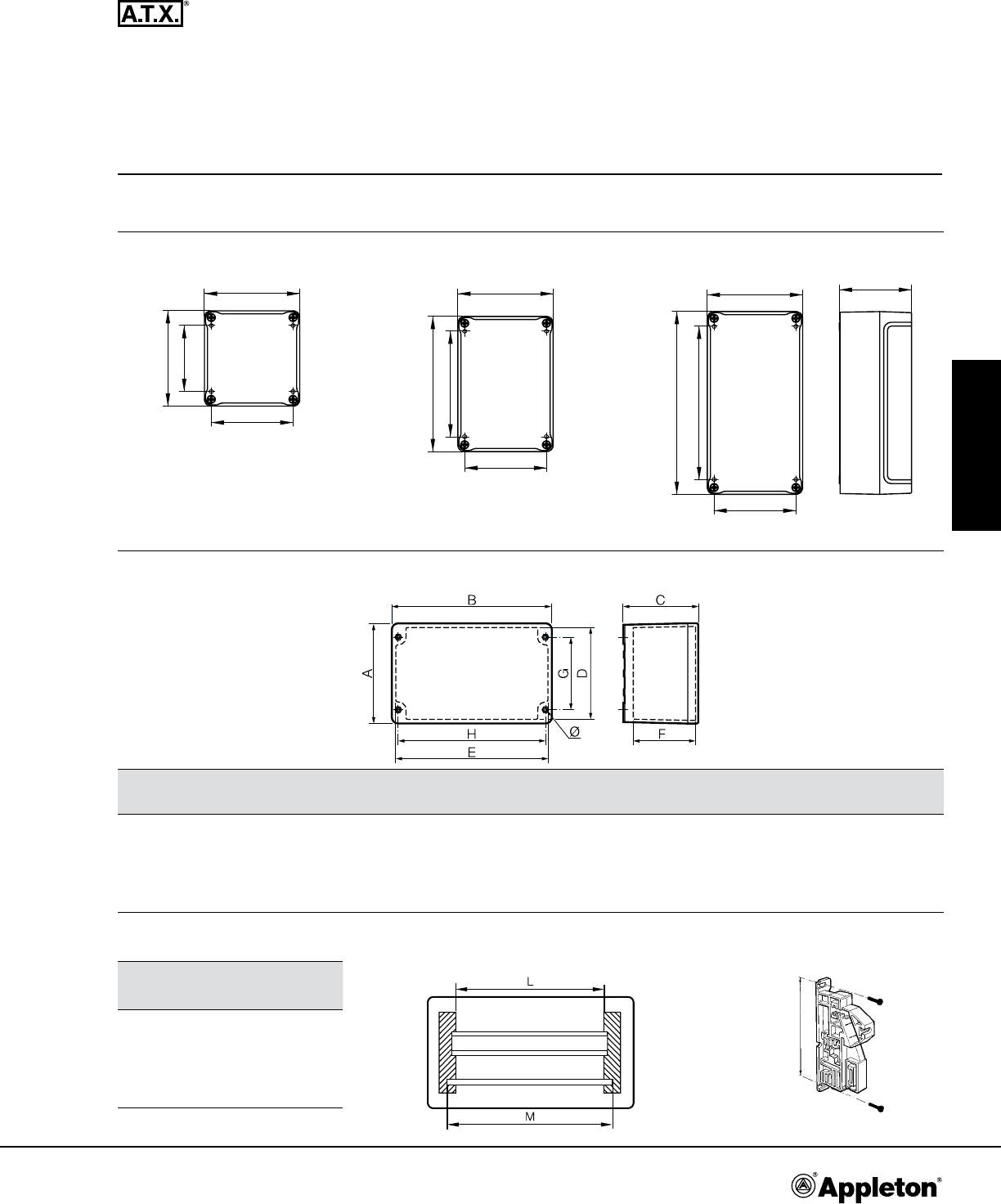

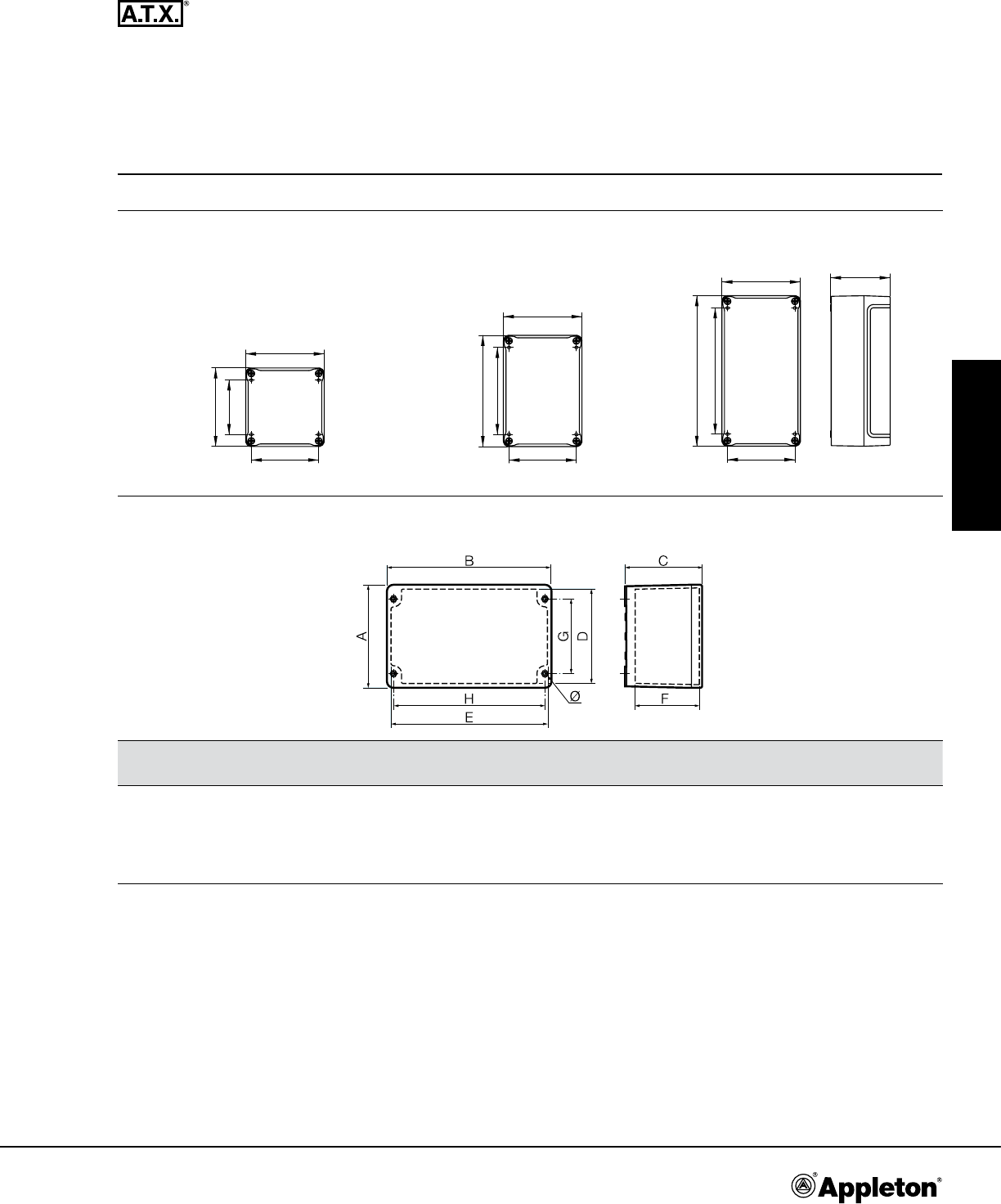

Dimension in Inches/Millimeters *

CSPe1 CSPe2 CSPe3

Fix. 5.24/133

Fix. 83

Fix. 4.06/103

Fix. 7.60/193

3.58/91

4.72/120

6.69/170

9.06/230

4.72/120

Fix. 5.24/133

Fix. 83

Fix. 4.06/103 Fix. 4.06/103

Fix. 4.06/103

Fix. 7.60/193

3.58/91

4.72/120

6.69/170

9.06/230

4.72/120

Fix. 5.24/133

Fix. 83

Fix. 4.06/103

Fix. 7.60/193

3.58/91

4.72/120

6.69/170

9.06/230

4.72/120

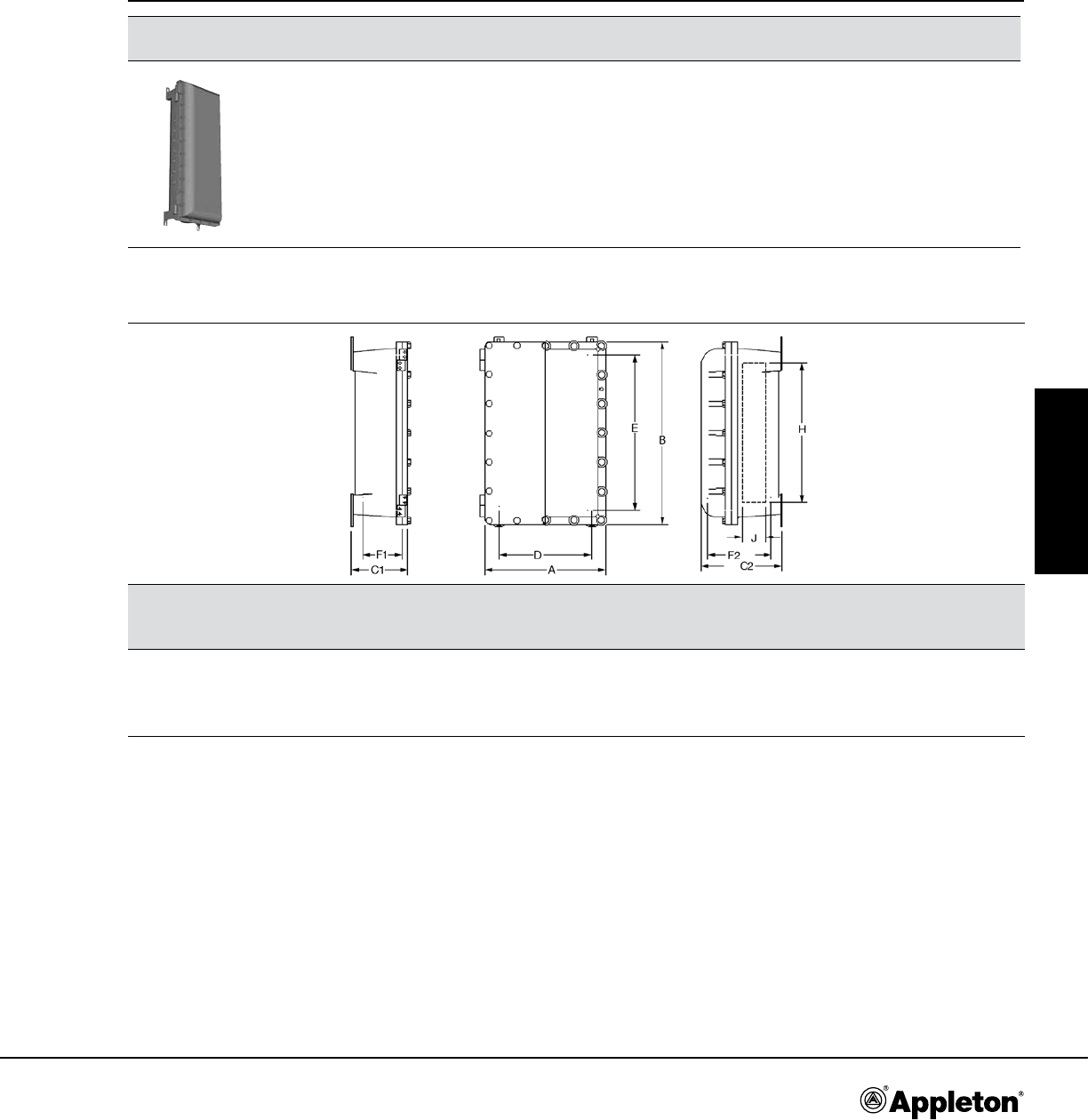

CAe1 to CAe4

Type

External Internal Fixings

A B C D E F G H Thick

CAe1 7.87/200 8.46/215 5.91/150 7.28/185 7.87/200 4.92/125 5.75/146 7.44/189 0.24/6 0.28/7

CAe2 7.87/200 12.60/320 5.91/150 7.28/185 12.01/305 4.92/125 5.75/146 11.57/294 0.24/6 0.28/7

CAe3 7.87/200 425/16.73 5.91/150 7.28/185 16.14/410 4.92/125 5.75/146 15.71/399 0.24/6 0.28/7

CAe4 7.87/200 22.64/575 5.91/150 7.28/185 22.05/560 4.92/125 5.75/146 21.57/548 0.24/6 0.28/7

* Fixing details for all types: four holes Ø 0.20"/5 mm.

CEC/NEC:

Zone 1 and 2 A/Exe IIC T6 to T3

Enclosure: IP66

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

536

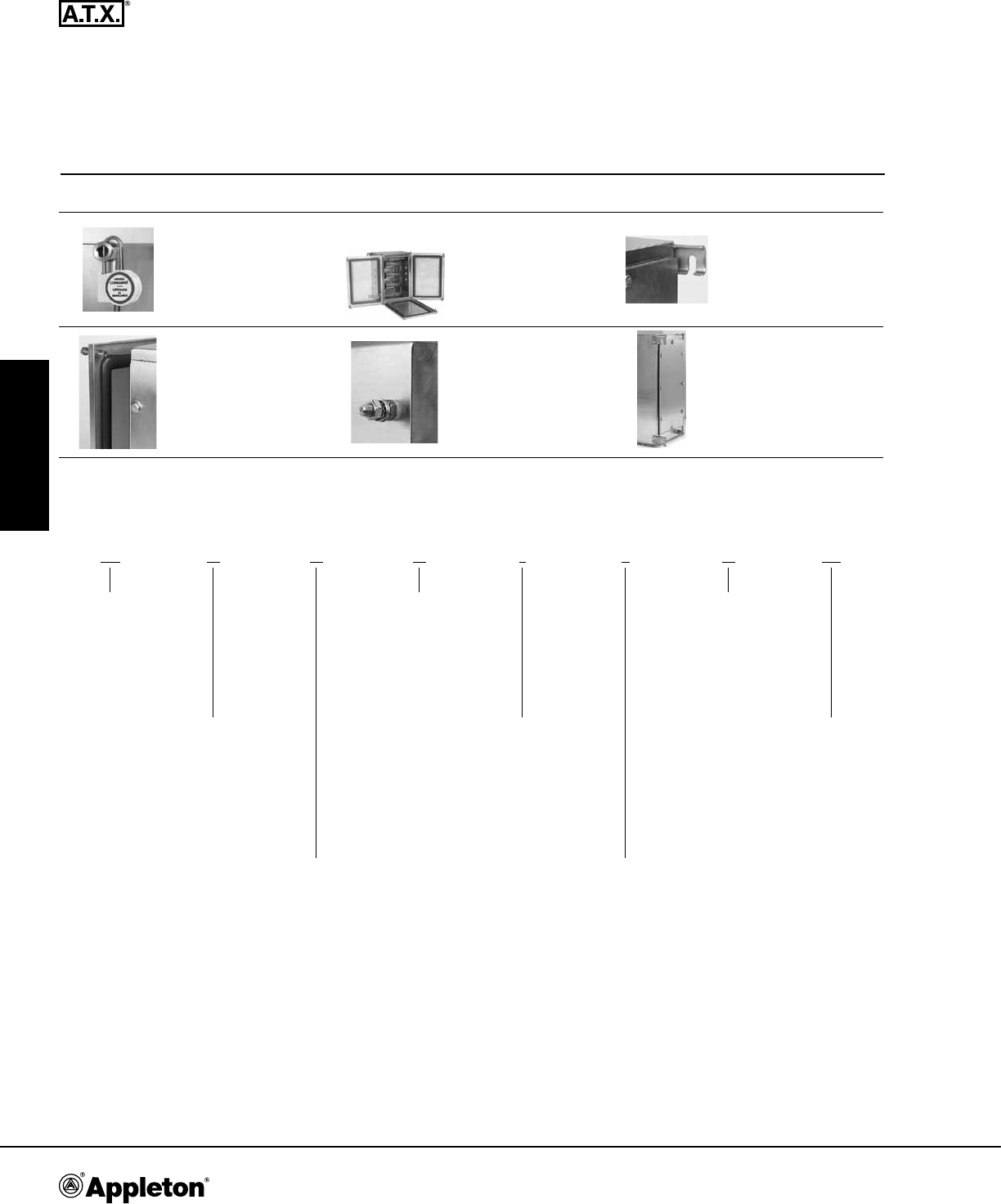

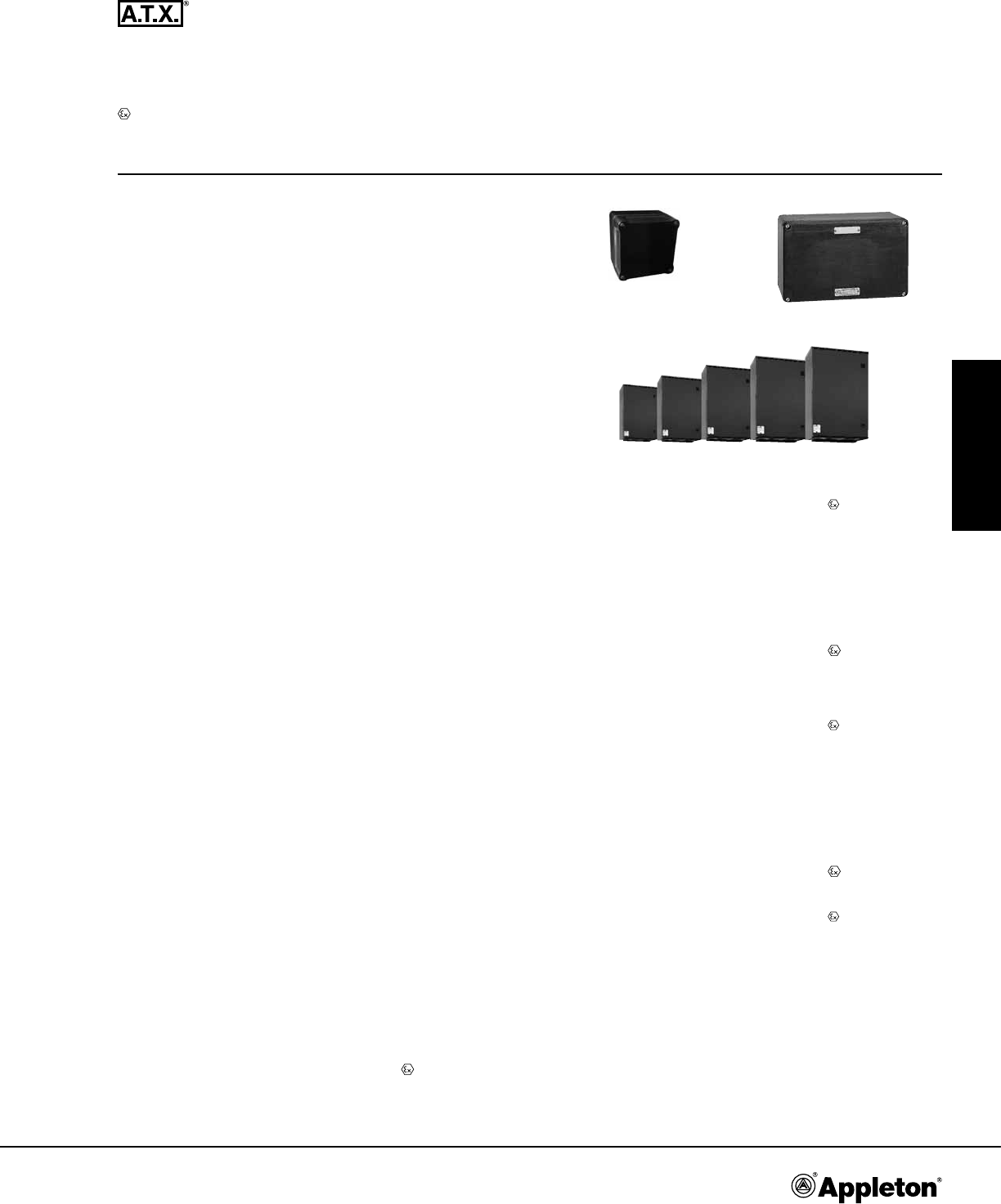

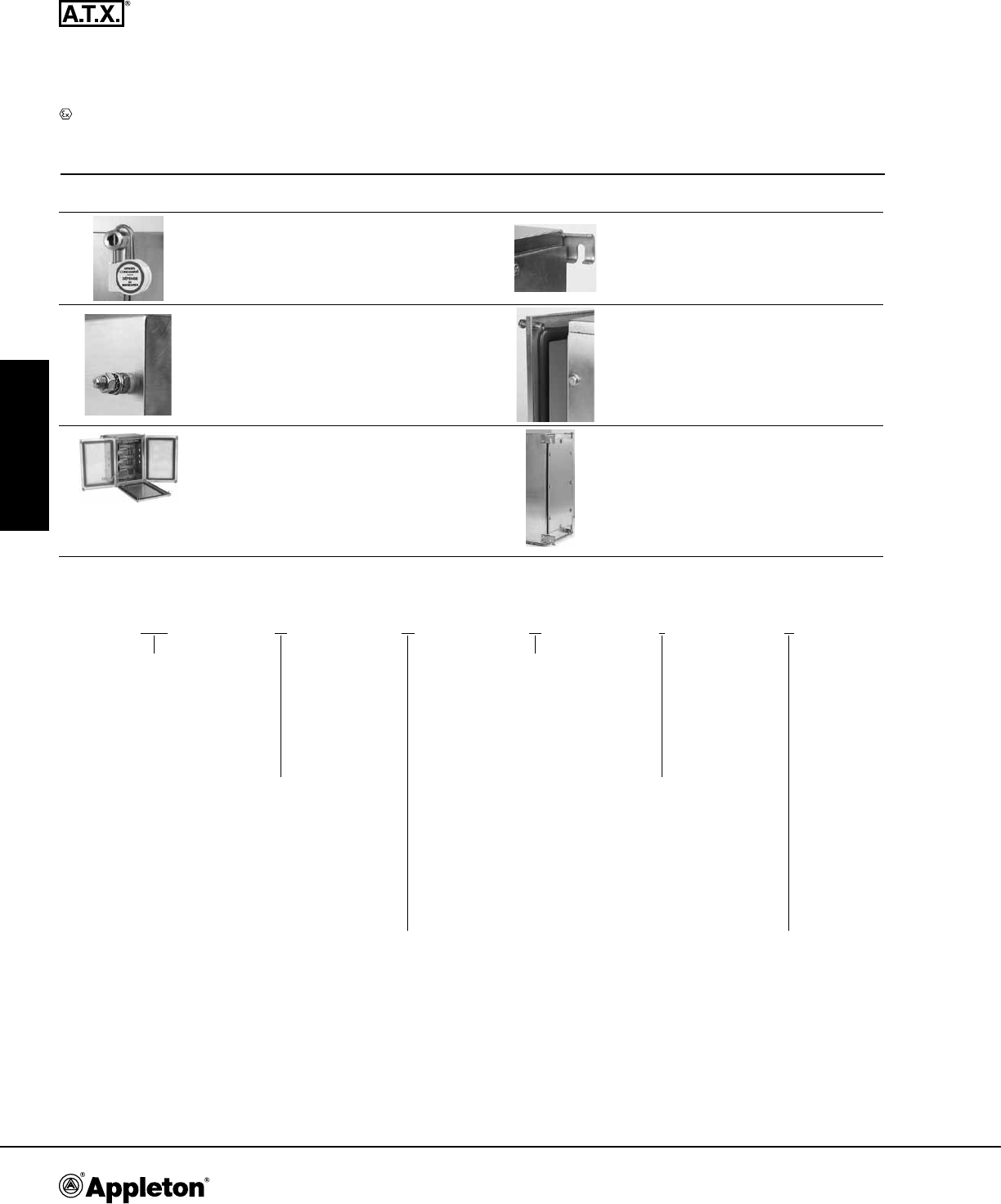

PJB Series Polyester Nonmetallic Enclosures

cCSAus Certification

Applications

• Terminal, junction box enclosure for various electrical devices.

• Designed for use in Zone 1 or 2 areas, where ammable gases

or vapors are present either continuously or intermittently, such

as:

— Petroleum reneries

— Chemical reneries

— Other industrial process facilities

• Ideal for wet or corrosive atmospheres.

• Designed for use in Zone 21 or 22 areas (international),

where ammable dusts are present either continuously or

intermittently, such as:

— Food processing

— Dairy

— Brewing

— Other commercial facilities

Features

• Static resistant black berglass reinforced polyester enclosure.

• Five different sizes to choose from

• Available in three depths, 7.87"/200 mm, 9.84"/250 mm and

11.81"/300 mm.

• Enclosures can be coupled together for added space.

• Protective Flange at top and bottom.

• Pad lockable double bar locks, Key supplied.

• Operating temperature -40 °F/-40 °C to +131 °F/+55 °C.

• Poured in place polyurethane door gasket.

• Many optional accessories.

Standard Materials

• Enclosure: static resistant carbon lled berglass reinforced

polyester (FRP)

• Hardware: 316L stainless steel

Options or Accessories

• Mounting Pan.

• Gland Plates.

• Interior side rails.

• Din Rails.

• Side Rail and Din rail assembly.

• See table for several terminal block options and limitations.

Supplied installed in enclosure. Other terminal block

congurations available. Contact your local sales representative.

• Ground bars.

• Terminals for Ground bar.

• Terminal spacers, 3.94"/100 mm or 1.97"/50 mm.

• Padlocking Device.

• Factory drilled entries.

• Earth Continuity Plate.

• Terminal Blocks, see following pages for a guide. Many other

congurations and combinations available, contact your local

sales representative.

• Enclosure coupling kit, contact your local sales representative.

Certifications and Compliances

• North America

— CEC/NEC

— cCSAus Approved

— Zone 1 and 2 A/Exe IIC T6 to T3 depending on equipment.

— Enclosure IP66

— 600 Vac/400 Amp Max

• International

— EEx e II/EEx ei

— Type CAe

— CENELEC LCIE 02 ATEX 6248X

— IEC LCIE Ex 02.032X

— IP66 to EN60529 and IEC 60529

— IK10 to EN 50102

— Combustible Dust EN 50281-1-1

— CE Declaration of Conformity No. 50201

— Zone 1, 2, 21, 22

CEC/NEC:

Zone 1 and 2 A/Exe IIC T6 to T3

Enclosure: IP66

Catalog Numbering Guide

Confirm size and gland plate availability in below table.

PJB 40 30 20 0 N N 25 010

Series Depth Dimensions in/mm:

09 - 3.58/91.0

15 - 5.91/150.0

20 - 7.87/200.0

25 - 9.84/250.0

30 - 11.81/300.0

Earth Continuity Plate:

N - None

E - Supplied

Length Dimensions in/mm:

12 - 4.72/120.0

17 - 6.69/170.0

21 - 8.27/210.0

23 - 9.06/230.0

32 - 12.60/320.0

40 - 15.75/400.0

42 - 16.75/425.0

50 - 19.68/500.0

57 - 22.50/575.0

60 - 23.62/600.0

80 - 31.50/800.0

10 - 39.37/1000.0

Gland Plates:

0 - none

1 - one bottom

3 - two sides and bottom

Terminal Block

Size in/mm:

25 - 0.10/2.5

04 - 0.16/4.0

06 - 0.24/6.0

10 - 0.39/10.0

16 - 0.63/16.0

35 - 1.378/35.0

Width Dimensions in/mm:

12 - 4.72/120.0

20 - 7.87/200.0

30 - 11.81/300.0

40 - 15.75/400.0

60 - 23.62/600.0

80 - 31.50/800.0

Mounting Pan:

N - None

P - Mounting pan

Terminal Block

Quantity:

010 - 10

050 - 50

100 - 100

Confirm Size and Gland Plate Availability

Possible Gland Plates Dimensions in Inches/Millimeters Volume

in3/dm3

Weight

lb/kg

Catalog

Number0 1 3 Height Width Depth

x x x 15.78/400 11.81/300 7.87/200 1526/25 10.58/4.8 PJB403020

x x x 19.68/500 15.78/400 7.87/200 3112/51 13.67/6.2 PJB504020

x x x 23.62/600 15.78/400 9.84/250 4882/80 16.98/7.7 PJB604025

x x x 31.50/800 23.62/600 11.81/300 11595/190 40.34/18.3 PJB806030

x x x 39.37/1000 31.50/800 11.81/300 19100/313 52.03/23.6 PJB108030

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

537

PJB Series Polyester Nonmetallic Enclosures

cCSAus Certification

CEC/NEC:

Zone 1 and 2 A/Exe IIC T6 to T3

Enclosure: IP66

Maximum Terminal Block Information

Number

Rails

Terminal

Size in/mm

Qty Max *

Physical

Terminal

Amp

Qty Max

At Max. Amps

Terminal

Amp

Catalog

Number

3 0.10/2.5 100 5 22 15 PJB403020

3 0.16/4 75 10 20 20 PJB403020

2 0.24/6 36 15 12 30 PJB403020

4 0.16/4 100 10 30 20 PJB504020

4 0.24/6 76 15 18 30 PJB504020

3 0.39/10 64 20 18 40 PJB504020

4 0.24/6 136 12 27 30 PJB604025

4 0.39/10 112 16 25 40 PJB604025

4 0.63/16 88 20 24 50 PJB604025

6 0.39/10 190 14 27 40 PJB806030

5 0.63/16 190 15 24 50 PJB806030

4 1.38/35 124 30 16 90 PJB806030

7 0.63/16 364 12 28 50 PJB108030

5 1.38/35 218 20 20 90 PJB108030

3 2.76/70 84 40 9 145 PJB108030

Small Junction Boxes

Type Quantity Maximum Amps

PJB121209

5 x 5 x 4”/120 x 120 x 91 mm

12 15 A

10 20 A

7 32 A

4 50 A

PJB171209

7 x 5 x 4”/120 x 170 x 91 mm

22 13 A

18 19 A

14 27 A

6 50 A

PJB231209

9 x 5 x 4”/120 x 230 x 91 mm

33 12 A

28 16 A

21 24 A

8 50 A

* Maximum physical at amperage indicated, capable of accepting more terminals at lower amperage. Contact your local sales representative.

To order terminal blocks: Use nomenclature above. Supplied installed on a mounting pan. Can be installed on uprights and rails. Contact your local sales

representative.

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

538

PJB Series Polyester Nonmetallic Enclosure Terminal Blocks

cCSAus Certification

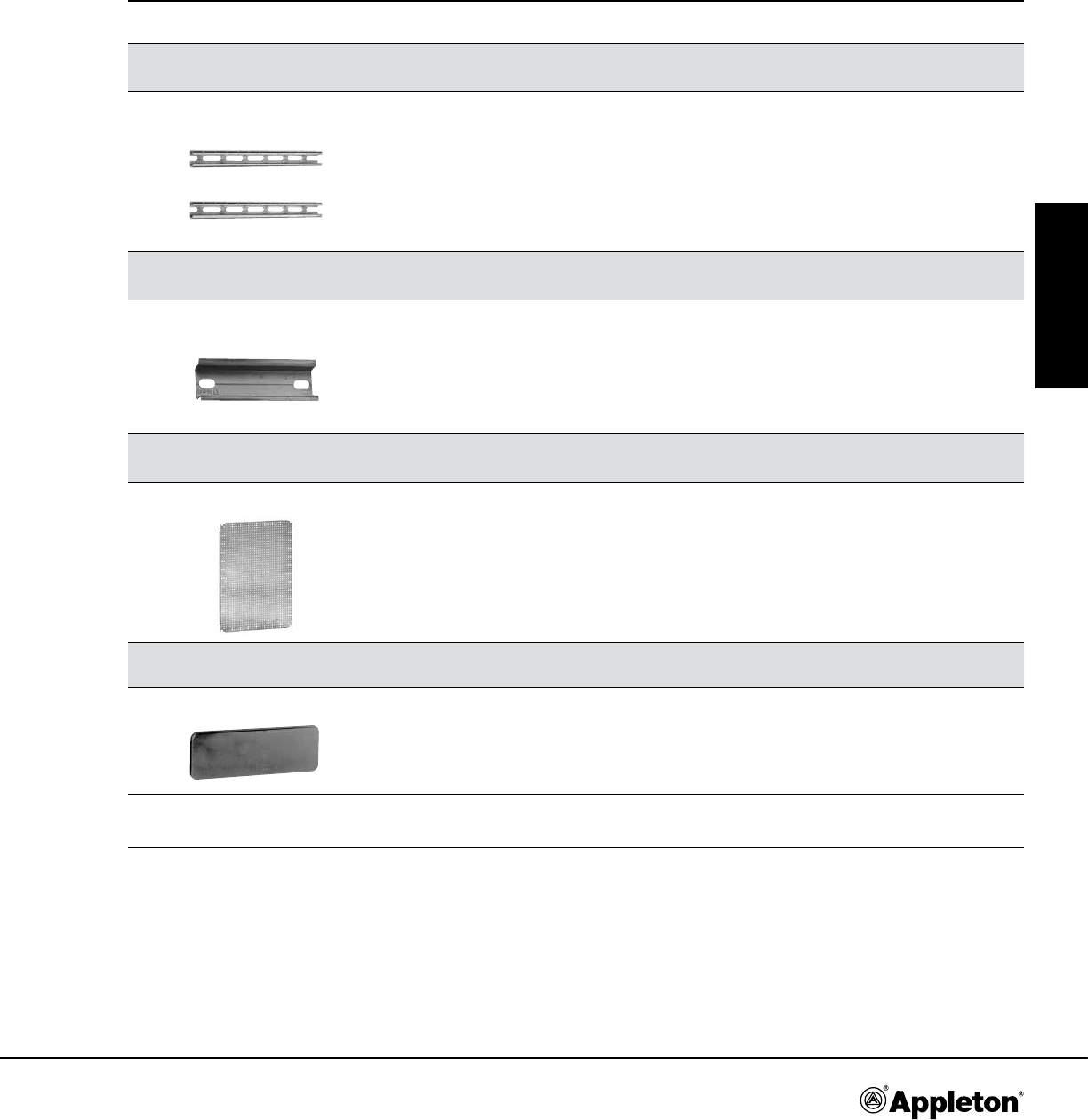

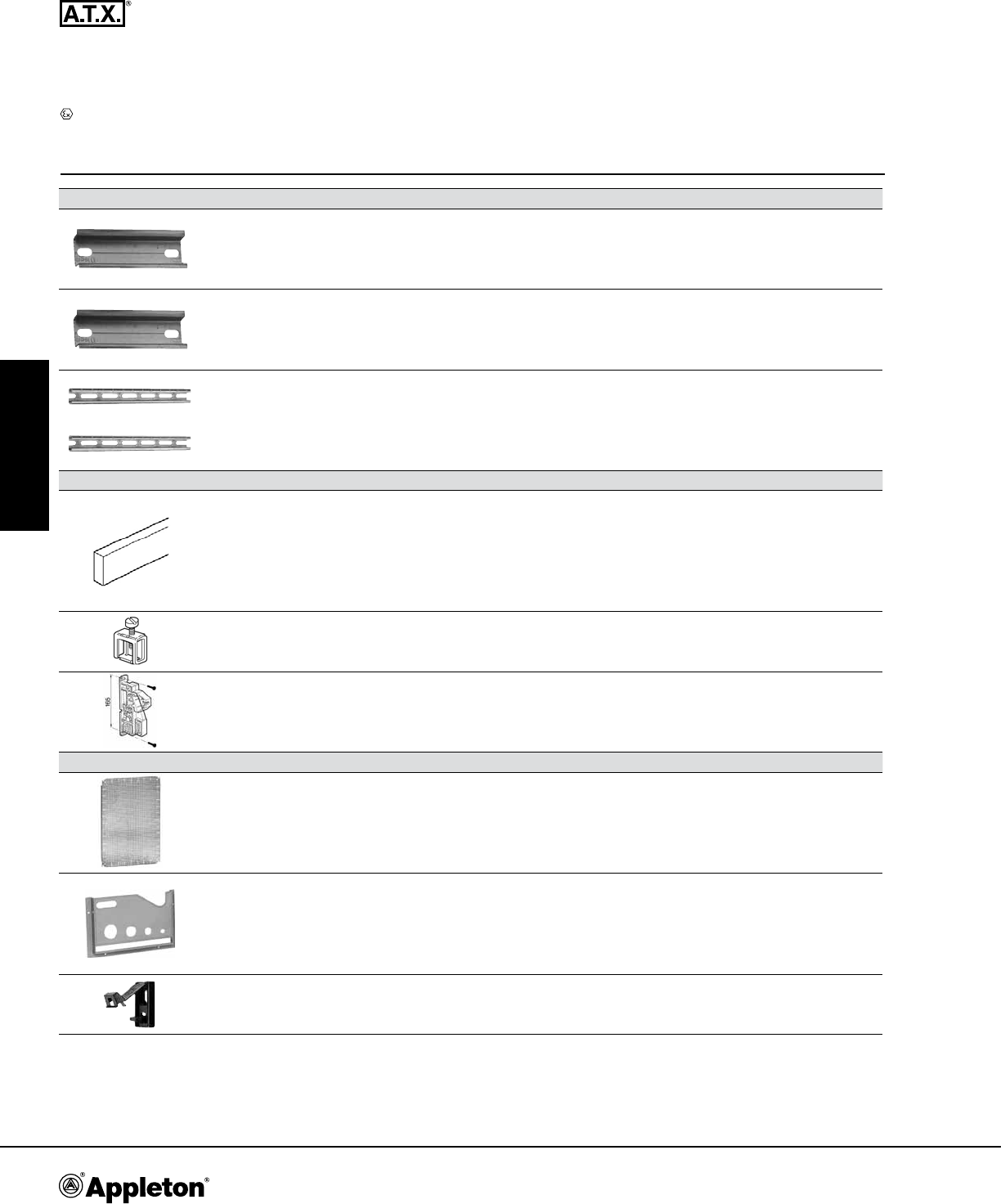

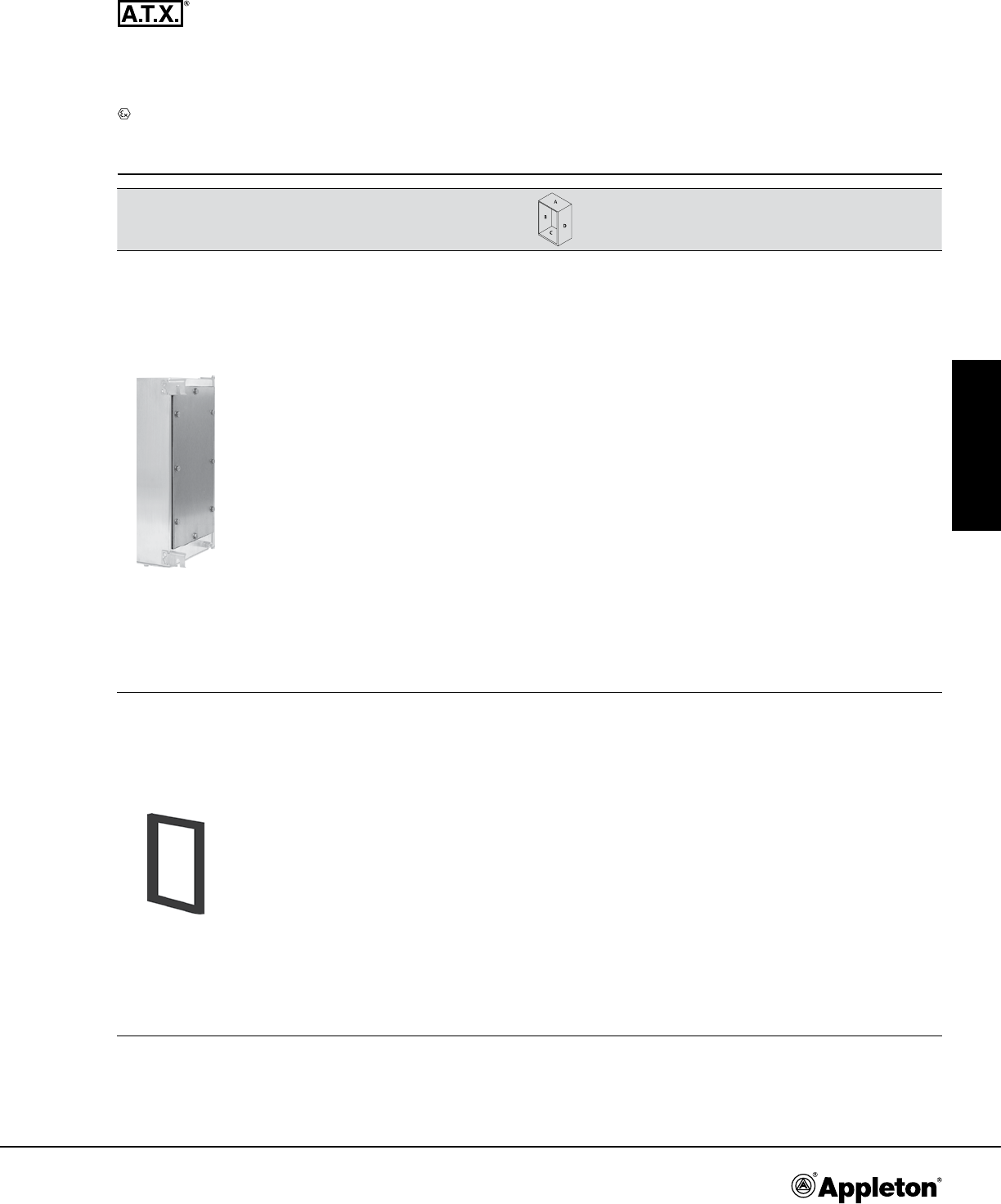

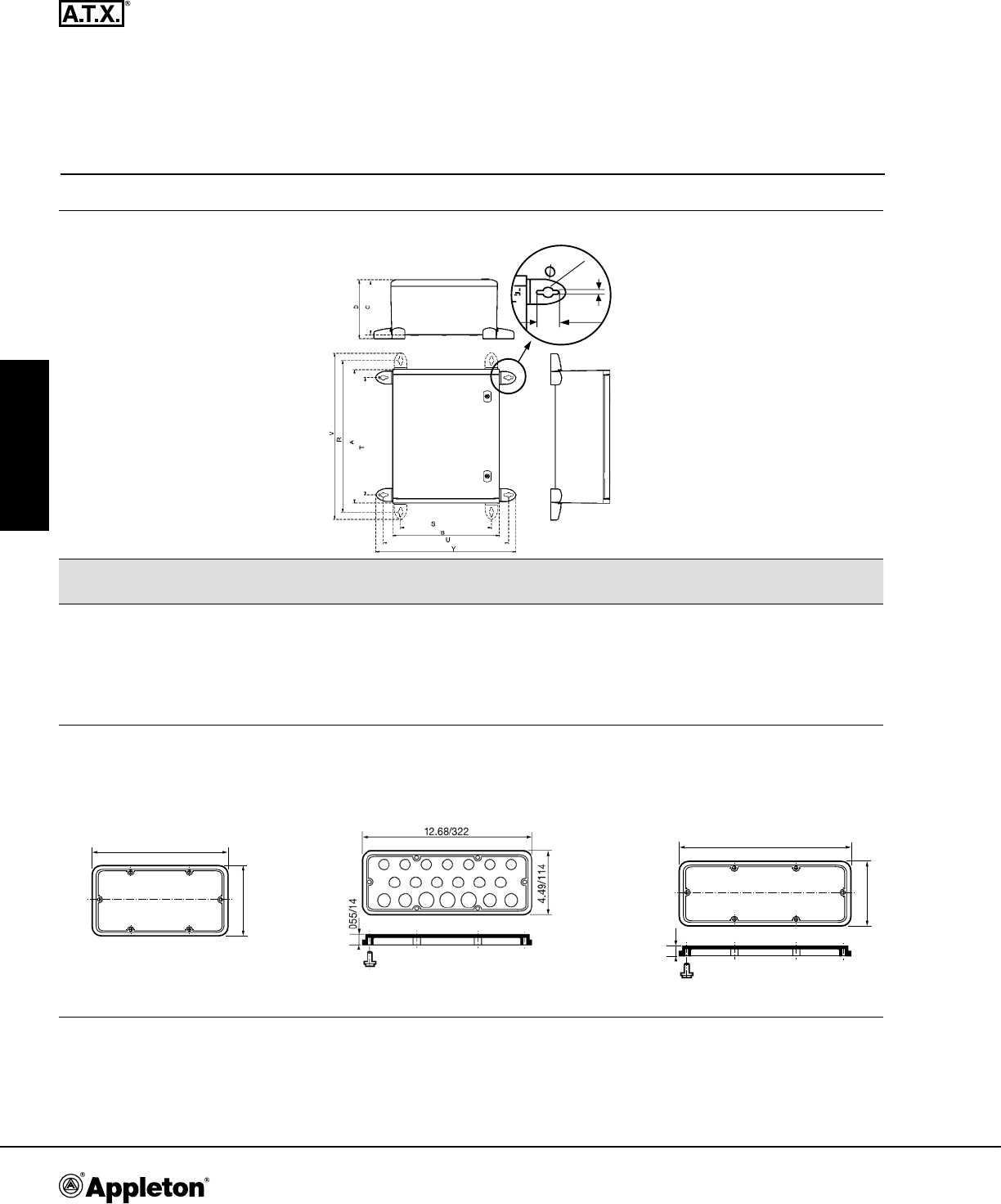

Accessories and Options — Order as follows for field installed

Dimensions in Inches/Millimeters Catalog

NumberHeight Length

Interior Side Rails/Uprights — Set of 2 — Supplied in Packages of 5

15.78/400 13.27/337 PJBSR400

19.68/500 17.20/437 PJBSR500

23.62/600 21.14/537 PJBSR600

31.50/800 29.02/737 PJBSR800

39.37/1000 36.89/937 PJBSR100

Width in Inches/Millimeters Catalog

NumberFor Enclosure Crosspiece

Cross Piece Din Rails — Set of 10

11.81/300 9.57/243 PJBDR300

15.78/400 13.50/343 PJBDR400

23.62/600 21.38/543 PJBDR600

31.50/800 29.25/743 PJBDR800

Dimensions in Inches/Millimeters Weight

lb/kg

Catalog

NumberEnclosure H x W H x W

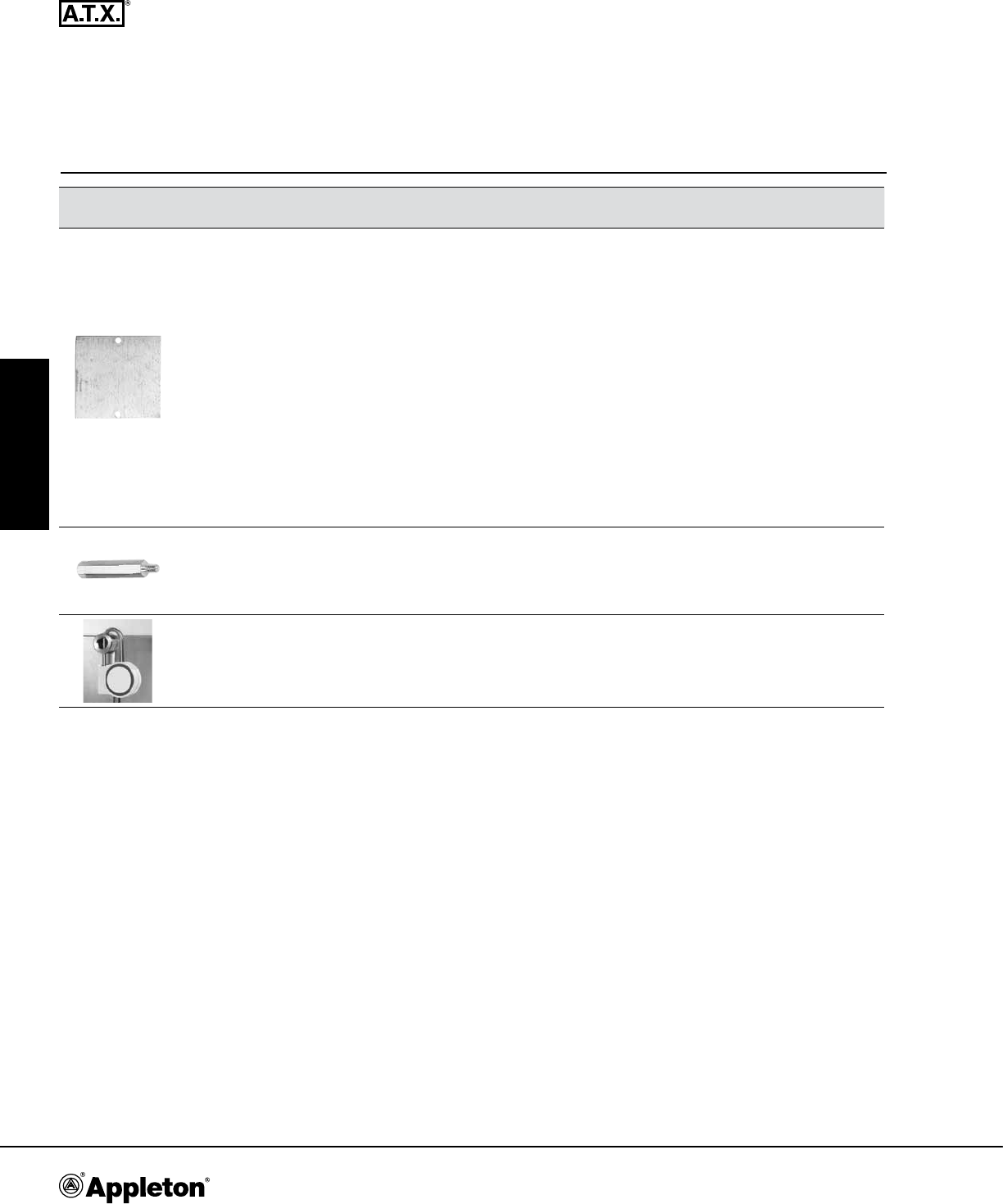

Perforated Mounting Plate — To Order Separately

15.78/400 x 300 13.78/350 x 9.84/250 2.65/1.2 PJBMP400

19.68/500 x 15.75/400 17.72/450 x 13.78/350 2.43/1.1 PJBMP500

23.62/600 x 15.75/400 21.65/550 x 13.78/350 3.31/1.5 PJBMP600

31.50/800 x 23.62/600 29.53/750 x 21.65/550 6.61/3.0 PJBMP800

39.37/1000 x 31.50/800 37.40950 x 29.53/750 12.13/5.5 PJBMP100

Dimension

H x W in/mm

Volume

in3/dm3

Weight

lb/kg

Catalog

Number

Gland Plates — To Order Separately

5.12/130 x 10.39/264 79/1.3 0.66/0.3 PJBGP130

4.49/114 x 12.68/322 85/1.4 0.88/0.4 PJBGP114

Door Padlocking Device

PJBPL

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

539

PJB Series Polyester Nonmetallic Enclosure Accessories

cCSAus Certification

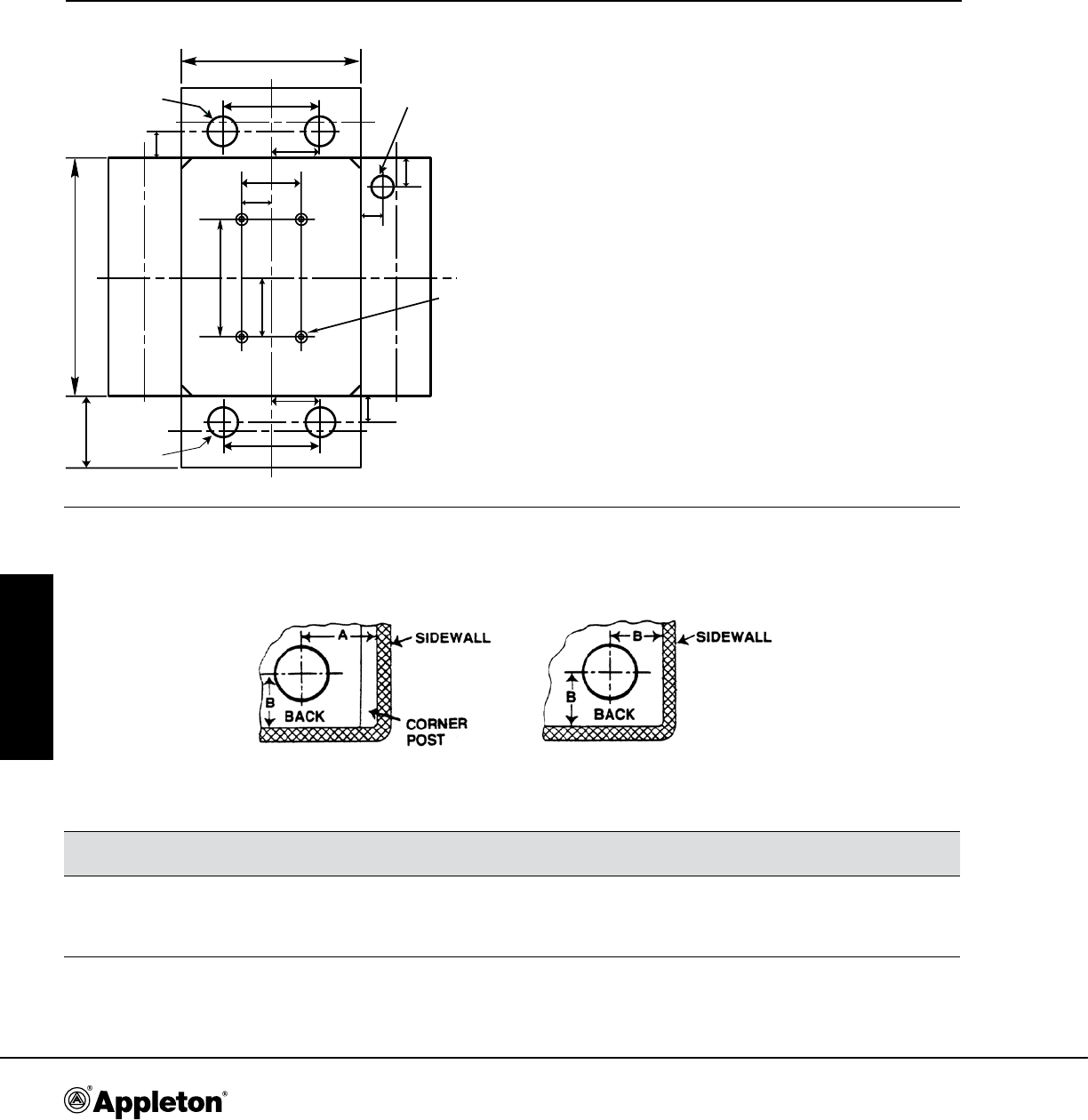

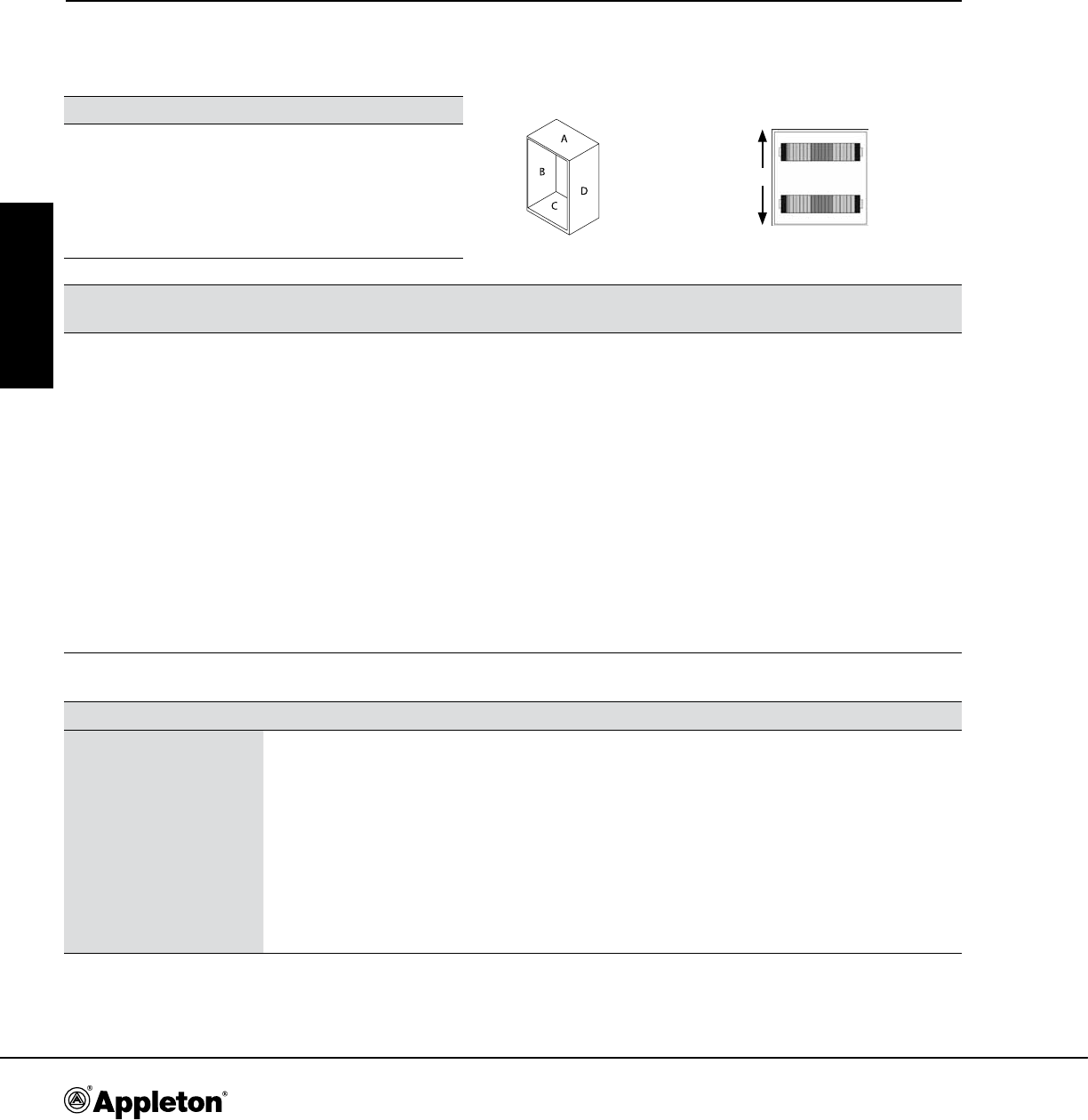

JBEP Series for Terminal Junction Box Application Only.

The size of the junction box needed to meet your requirements can be selected based on the table shown below.

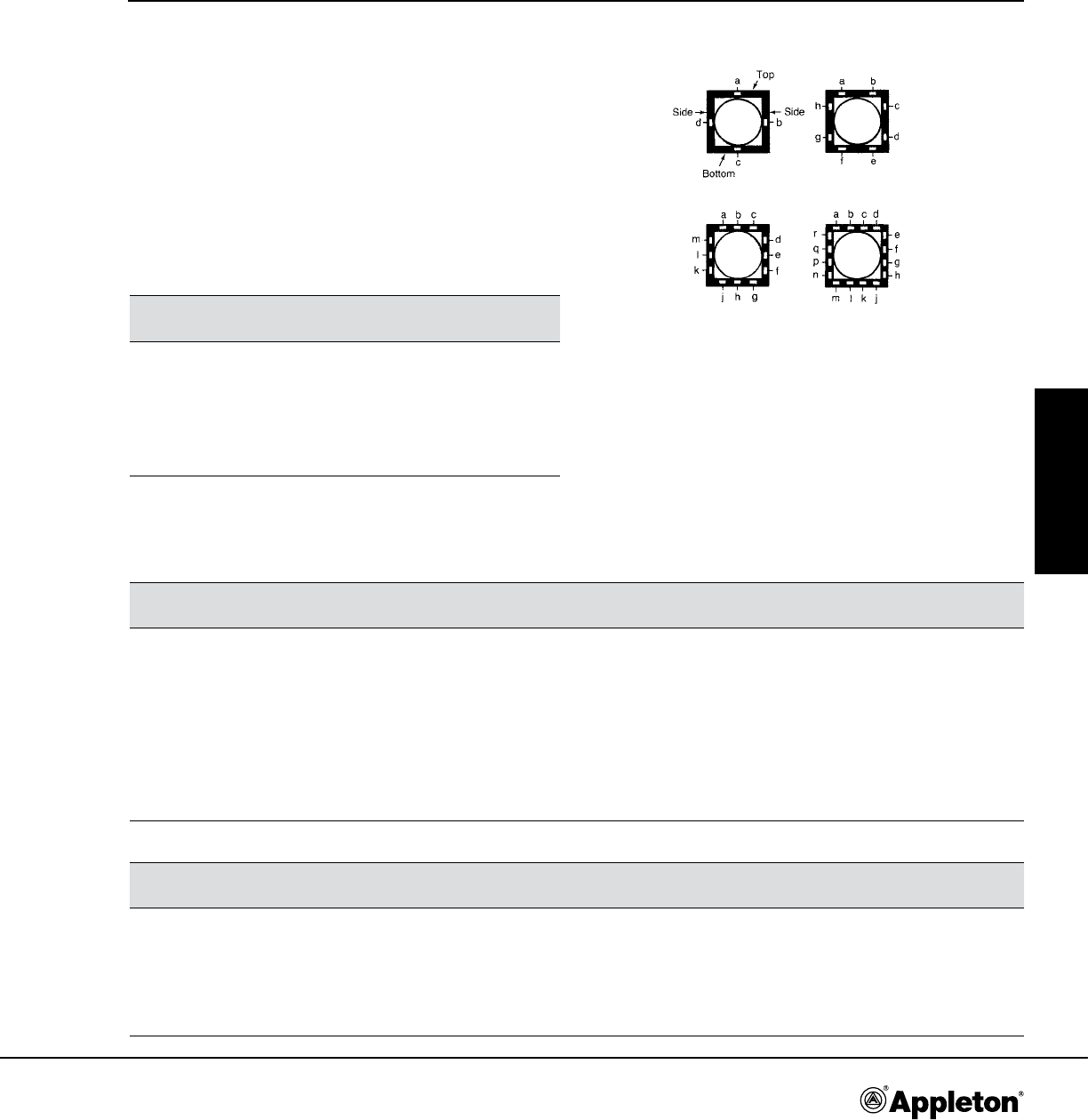

1. Define maximum cable entries according to number of modules available per side.

Cable Entry Metric Thread Number of Modules

M20 1

M25 1

M32 1

M40 2

M50 3

Type

Dimensions in/mm Number of Modules Allowable

Max. Size

Terminal Dim.

H — in/mmLength Width Depth B/D A/C A’/C’ (1)

PJB121209 4.72/120 4.72/120 3.58/91 2 2 –M25 4.72/120

PJB171209 6.69/170 4.72/120 3.58/91 3 2 –M32 4.72/120

PJB231209 9.06/230 4.72/120 3.58/91 4 2 –M32 4.72/120

PJB212015 8.46/215 7.87/200 5.91/150 11 8 –M50 7.87/200

PJB322015 12.60/320 7.87/200 5.91/150 18 8 –M50 7.87/200

PJB422015 16.73/425 7.87/200 5.91/150 26 8 –M50 7.87/200

PJB572015 22.64/575 7.87/200 5.91/150 38 8 –M50 7.87/200

PJB403020 15.75/400 11.81/300 8.11/206 18 18 –M50 15.75/400

PJB504020 19.68/500 15.75/400 8.11/206 24 10 10 M50 19.68/500

PJB604025 24.02/610 15.75/400 10.12/257 48 10 10 M75 24.02/610

PJB806030 32.28/820 24.02/610 11.81/300 72 54 –M100 32.28/820

PJB108030 40.16/1020 31.89/810 11.81/300 96 78 –M100 40.16/1020

2. Maximum rail arrangement according to physical dimensions.

Maximum Quantity of Horizontal Rails Per Quantity

Terminal Capacity (in2/mm2)0.004/2.5 0.006/4 0.009/6 0.016/10 0.025/16 0.054/35 0.078/50

PJB 12/17/23 1209 1111000

PJB 21/32/42/57 2015 1111110

PJB403020 3332221

PJB504020 4433321

PJB604025 4444332

PJB806030 6655543

PJB108030 8877653

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

540

CEC/NEC:

Zone 1 and 2 A/Exe IIC T6 to T3

Enclosure: IP66

PJB Series Polyester Nonmetallic Enclosures

cCSAus Certification

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

541

CEC/NEC:

Zone 1 and 2 A/Exe IIC T6 to T3

Enclosure: IP66

PJB Series Polyester Nonmetallic Enclosures

cCSAus Certification

3. Defining maximum terminal block quantity according to power dissipation:

• Junction boxes used for instrumentation applications have very low current levels, therefore there is no risk of overheating whatever the

number of terminals inside the box.

• For applications other than instrumentation, the following tables allow you to dene your junction box depending on the number of terminals

and the maximum authorized current being carried with feed-through terminals.

• For single feed terminals using cross connection, please consult your local representative for a calculation.

For other terminal block configurations, please consult our drilling guide available online at: www.appletonelec.com.

Small Junction Boxes Non-Hinged Junction Boxes

T Rating:

Type

T Rating:

T6 @ Ta 104 °F/40 °C

T5 @ Ta 131 °F/55° C

Type

PJB121209

5 x 5 x 4"/

120 x 120 x 91

PJB171209

7 x 5 x 4"/

120 x 170 x 91

PJB231209

9 x 5 x 4"/

120 x 230 x 91

PJB212015

8 x 9 x 6"/

200 x 215 x

150 mm

PJB322015

8 x 13 x 6"/

200 x 320 x

150 mm

PJB422015

8 x 17 x 6"/

200 x 425 x

150 mm

PJB572015

8 x 23 x 6"/

200 x 575 x

150 mm

0.004 in2/

2.5 mm2

Qty.

1 max.

15 A

13 A

12 A

0.004 in2/

2.5 mm2

Qty.

1 max.

16 A

14 A

0.006 in2/

4 mm2

Qty.

1 max.

20 A

19 A

16 A

0.006 in2/

4 mm2

Qty.

1 max.

20 A

16 A

0.009 in2/

6 mm2

Qty.

1 max.

32 A

27 A

24 A

0.009 in2/

6 mm2

Qty.

1 max.

32 A

28 A

0.016 in2/

10 mm2

Qty.

1 max.

50 A

0.016 in2/

10 mm2

Qty.

1 max.

40 A

32 A

28 A

0.024 in2/

16 mm2

Qty.

1 max.

28 A

27 A

25 A

26 A

0.039 in2/

25 mm2

Qty.

1 max.

67 A

73 A

69 A

70 A

0.054 in2/

35 mm2

Qty.

1 max.

79 A

86 A

80 A

Hinged Junction Boxes

T Rating:

T6 @ Ta 104 °F/40 °C

T5 @ Ta 131 °F/55° C

Type

PJB403020

16 x 12 x 8"/

400 x 300 x

206 mm

PJB504020

20 x 16 x 8"/

500 x 400 x

206 mm

PJB604025

24 x 16 x 10"/

610 x 400 x

257 mm

PJB806030

32 x 24 x 12"/

820 x 610 x

300 mm

PJB108030

40 x 32 x 12"/

1020 x 810 x

300 mm

0.054 in2/

35 mm2

Qty.

1 Max.

100 A

100 A — —

0.078 in2/

50 mm2

Qty.

1 Max.

125 A

125 A — —

0.109 in2/

70 mm2

Qty.

1 Max.

160 A

160 A — —

0.147 in2/

95 mm2

Qty.

1 Max.

200 A

200 A — —

0.186 in2/

120 mm2

Qty.

1 Max. —8

250 A

200 A

150 A

0.233 in2/

150 mm2

Qty.

1 Max. — — 6

250 A

190 A

0.287 in2/

185 mm2

Qty.

1 Max. ——— 8

300 A

240 A

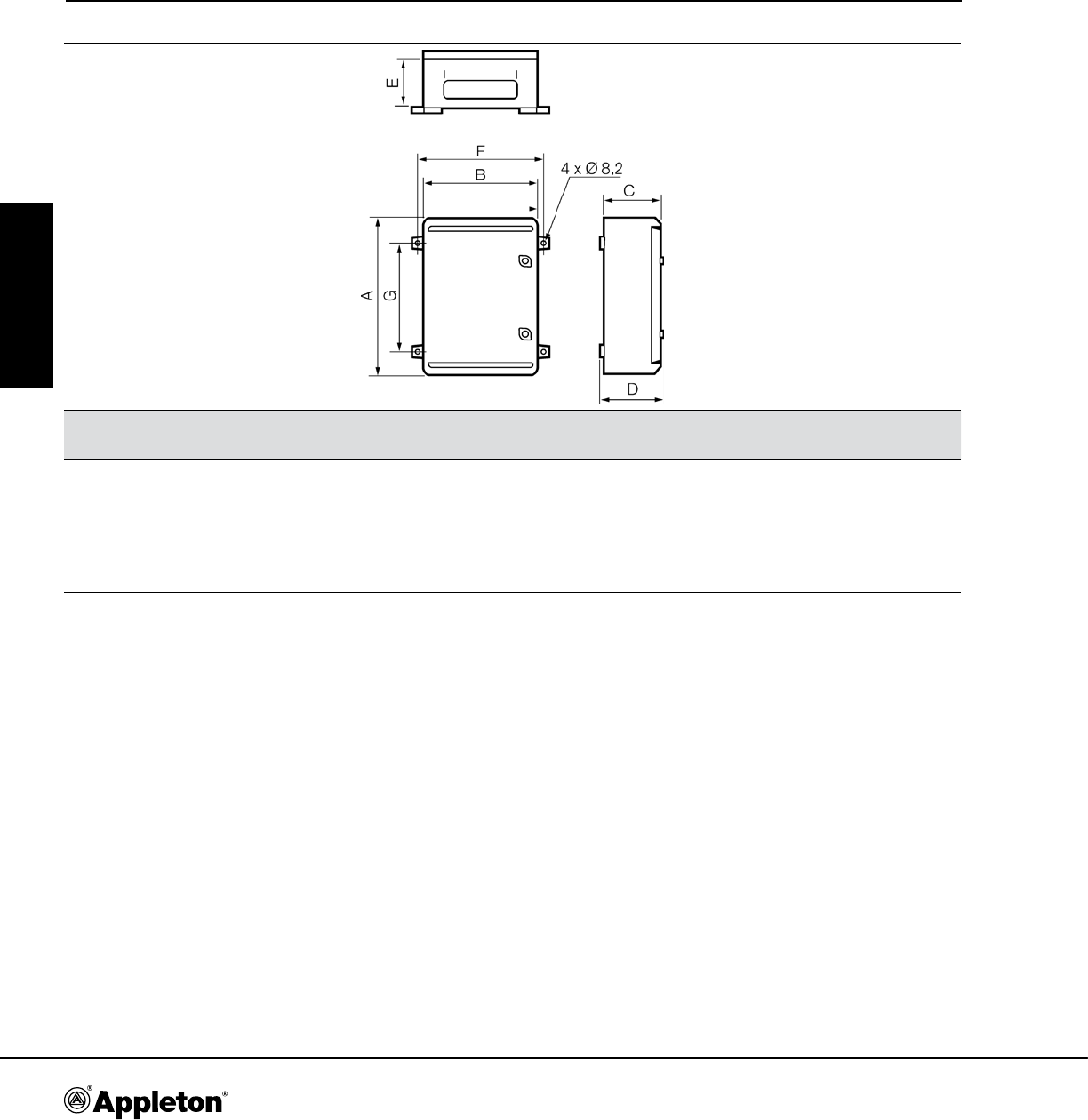

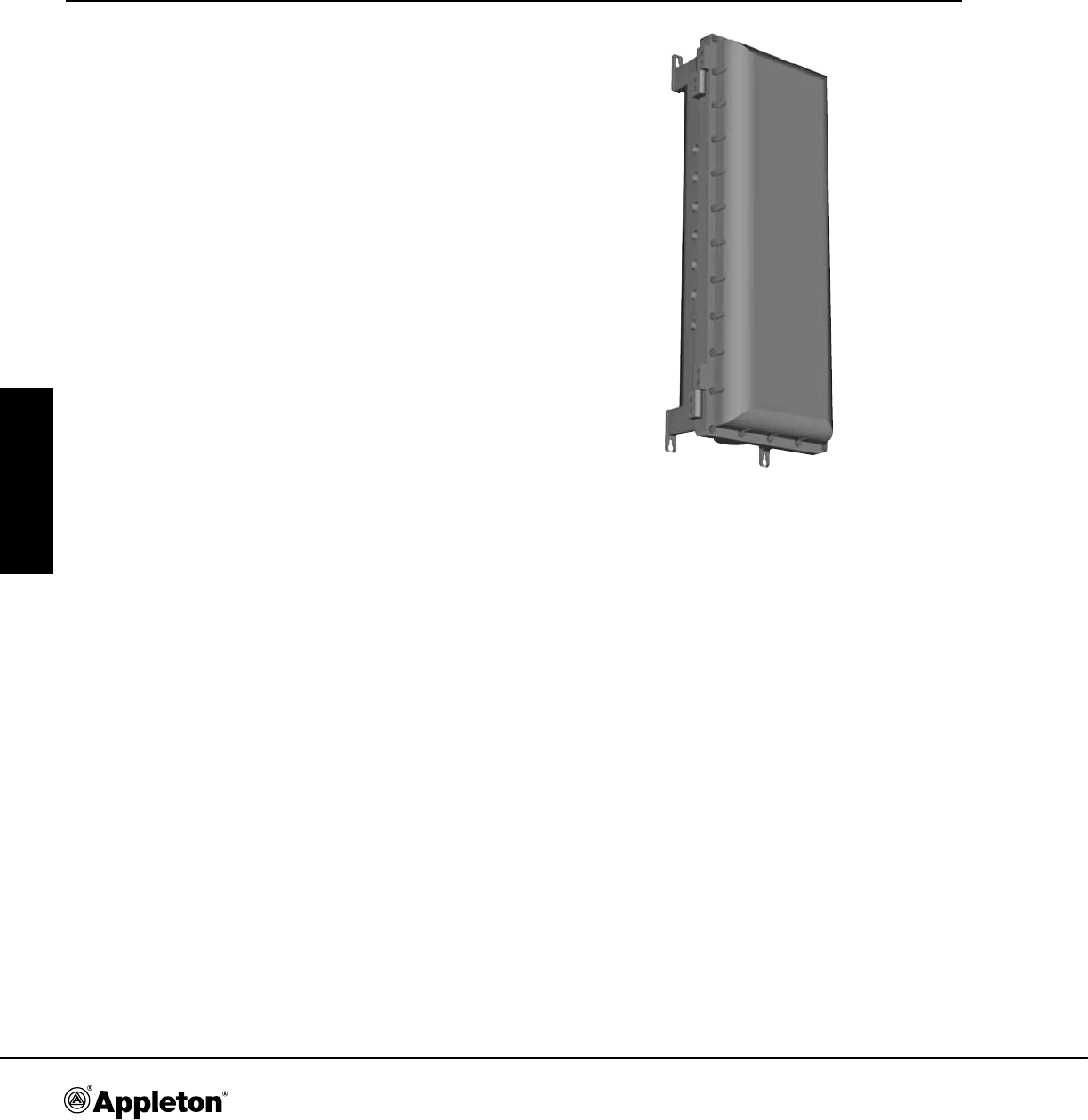

Dimensions in Inches/Millimeters

Catalog

Number

External Fitting

A B C D E F G

PJB403020 15.94/405 12.01/305 7.87/200 8.46/215 7.09/180 12.83/326 13.23/336

PJB504020 19.68/500 15.78/400 7.87/200 8.46/215 7.09/180 16.73/425 18.31/465

PJB604025 23.62/600 15.78/400 9.84/250 10.43/265 9.06/230 16.73/425 22.28/566

PJB806030 32.60/828 24.33/618 11.81/300 12.40/315 11.02/280 25.91/658 30.24/768

PJB108030 40.47/1028 32.20/818 11.81/300 12.40/315 11.02/280 33.78/858 38.11/968

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

542

PJB Series Polyester Nonmetallic Enclosure Dimensions

cCSAus Certification

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

543

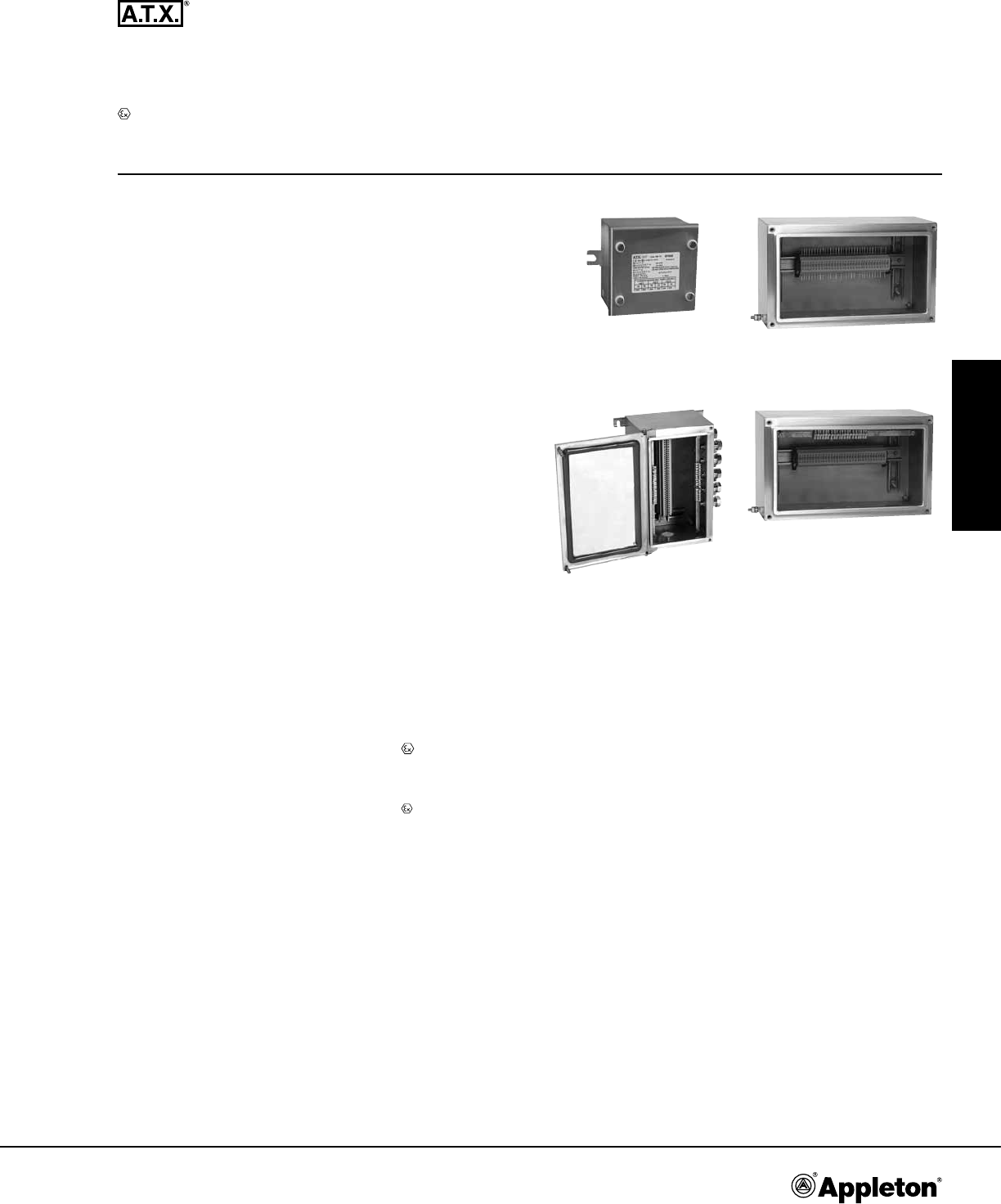

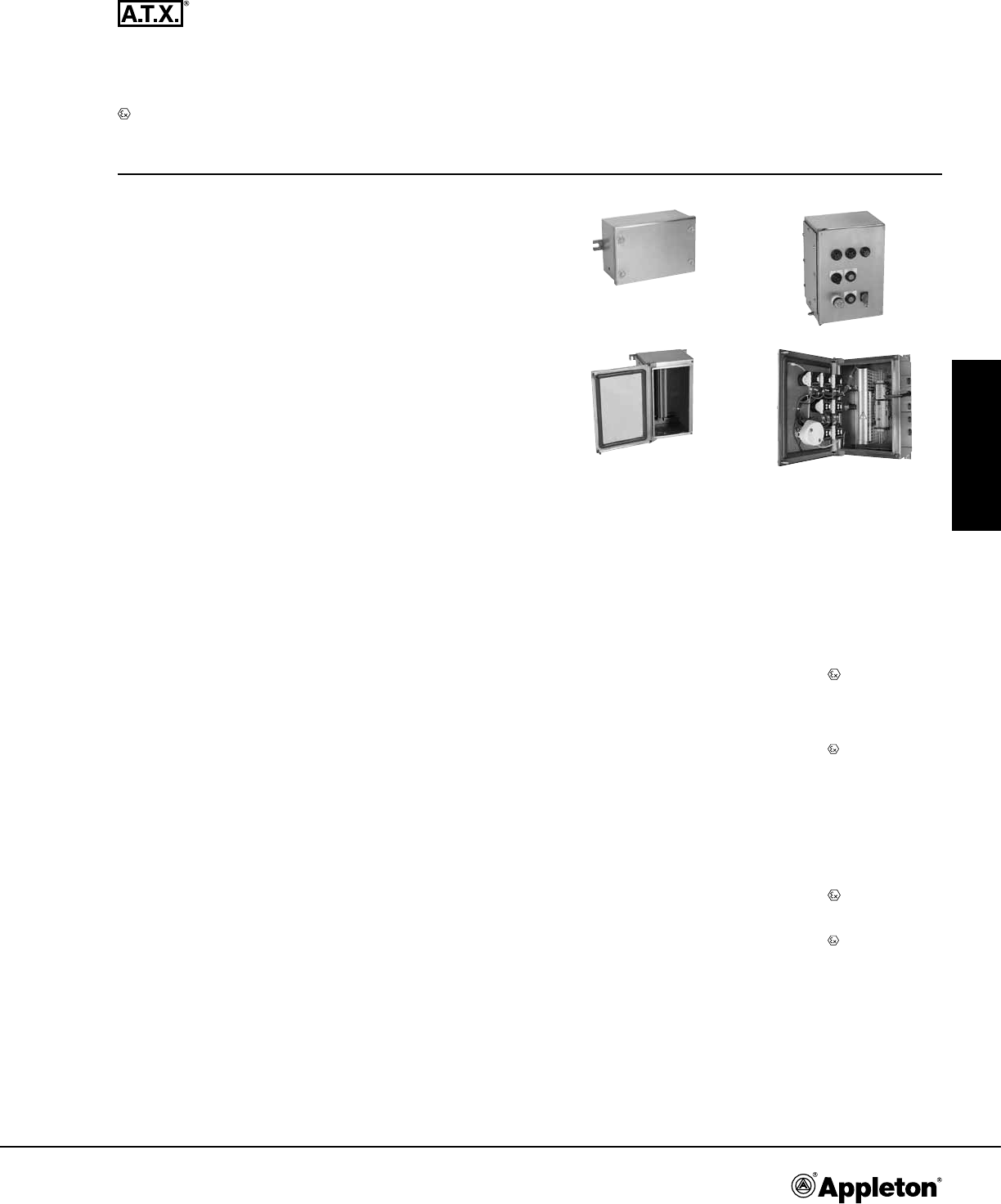

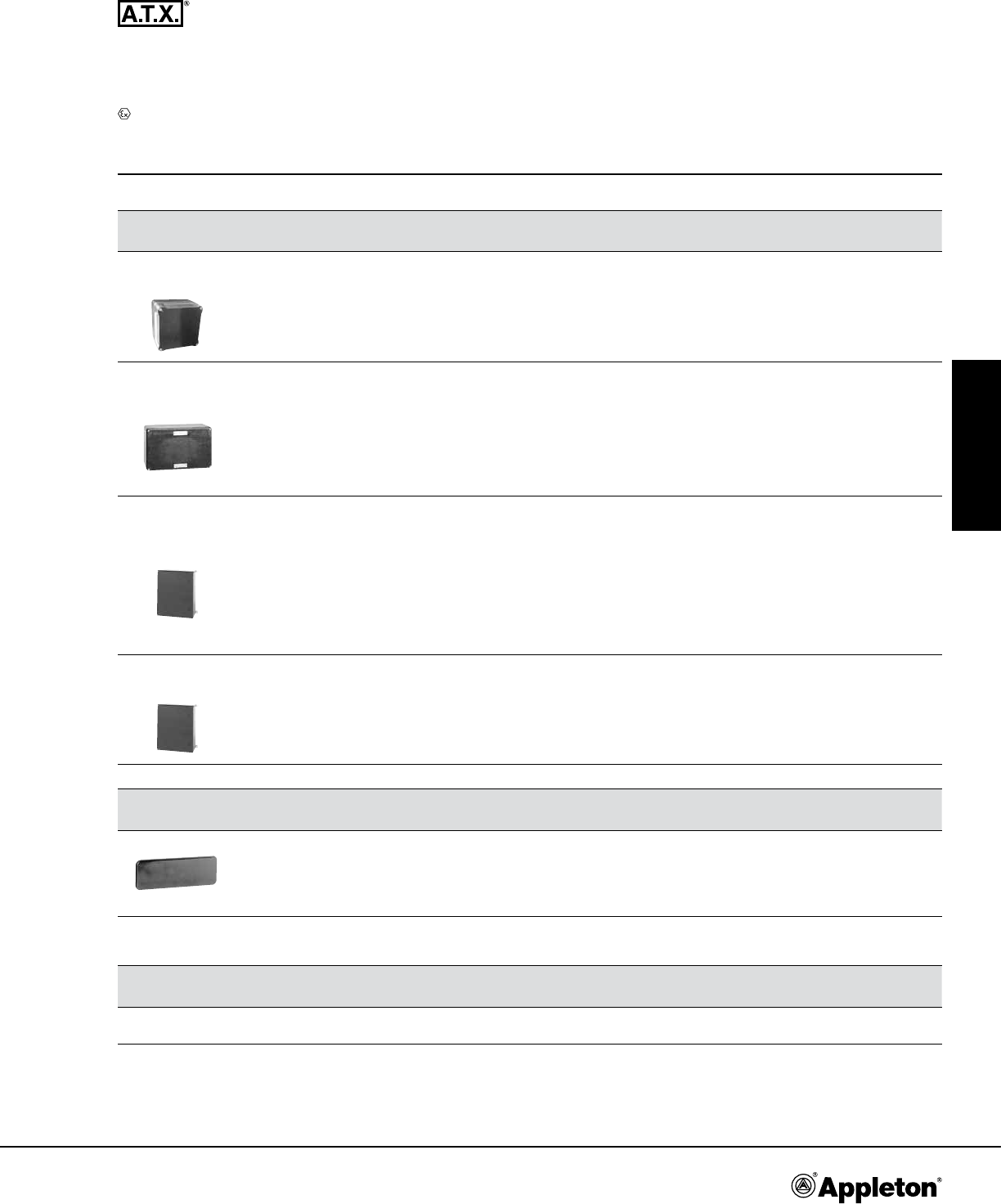

JBEP and ECEP Series Undrilled Fiberglass Reinforced Polyester Enclosures

Increased Safety

Applications

• Designed for use in Zone 1 or 2 areas, where ammable gases or

vapors are present either continuously or intermittently such as:

— Petroleum

— Chemical

— Reneries

— Other industrial process facilities

• Ideal for wet or corrosive atmospheres.

• Designed for use in Zone 21 or 22 areas where ammable dusts

are present either continuously or intermittently such as:

— Food processing

— Dairy

— Brewing

— Other commercial facilities

• JBEP Series

— Terminal junction boxes for electrical low voltage and

instrumentation connections in hazardous areas.

— Refer to technical data to dene permitted number of

terminal blocks and cable entries on selected junction boxes.

• ECEP Series

— Enclosure for distribution and control applications. Can

be modied at our manufacturing facility to house a large

range of components; i.e. control units, switches, breakers,

transformers, meters, etc.

Features

• Available in a wide range of sizes.

• Operating temperature -67 °F/-55 °C to 140 °F/60 °C (CSPe)

and -40 °F/-40 °C to 131 °F/55 °C (CAe).

• Hinges standard on all sizes above

15.75 x 11.81" / 400 x 300 mm.

• Hinged enclosures:

— Reversible door opening 180°.

— Door with double bar lock.

— Key locking facility.

— Protective ange at top and bottom.

Standard Materials

• Enclosures: static resistant carbon lled berglass reinforced

polyester (FRP)

• Hardware: stainless steel

Accessories

• Mounting pan.

• Rail mounting.

• Padlocking device.

• Inside pocket for documents.

• Refer to technical data to dene permitted number and size of

terminals and cable entries.

Options

• Removable gland plates.

• Nameplates.

• Consult factory for custom drilling and assembly requirements.

• Empty enclosure with Ex “U” component marking for

re-certication by notied body for CAe type.

Certifications and Compliances

• Certication Type CSPe

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II, Ex ia IIC, Ex ib IIC, Ex de IIC,

Ex demb IIC

– T Rating: T6

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T167 °F/T75 °C

— Ambient Temperature: -67 °F/-55 °C to 140 °F/60 °C

— CE Declaration of Conformity: 50284

— ATEX Certicate: LCIE 09 ATEX 3032X

— IECEx Certicate: IECEx LCI 09.0016X

— Other Certications: GOST

• Certication Type CAe

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II, Ex ia IIC, Ex ib IIC, Ex de IIC,

Ex demb IIC

– T Rating: T6 to T2

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T176 °F to T203 °F / T80 °C to T95 °C

— Ambient Temperature: -40 °F/-40 °C to 131 °F/55 °C

— CE Declaration of Conformity: 50235

— ATEX Certicate: LCIE 02 ATEX 6248X

— IECEx Certicate: IECEx LCI 04.0016

— Other Certications: GOST

• Certication Type CAe U

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II,

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

— Ambient Temperature: -40 °F/-40 °C to 131 °F/55 °C

— CE Declaration of Conformity: 5C241

— ATEX Certicate: LCIE 09 ATEX 3036 U

— IEC Certicate: LCIE Ex 09.002 U

• Ingress Protection (solid and liquid): IP66

• Impact Resistance (shock): IK10

• Ex Standards: EN/IEC 60079-0; 60079-1; 60079-7; 60079-11,

61241-0; 61241-1; 61241-11

• Other Standards: EN/IEC 60529 (IP), 62262 (IK)

CSPe Type – Small Version CAe Type – Non-Hinged Version

CAe Type – Hinged Versions

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

544

JBEP and ECEP Series Undrilled Fiberglass Reinforced Polyester Enclosures

Increased Safety

Catalog Numbering Guide

JBEP 12 12 09 0 0

Series

ATEX/IEC Certified:

EC - Enclosure and Controls

JB - Junction Box

E - Increased Safety

I - Intrinsic Safety

P - Polyester

Depth Dimensions in/mm:

09 - 3.58/91.0

15 - 5.91/150.0

20 - 7.87/200.0

25 - 9.84/250.0

30 - 11.81/300.0

Length Dimensions in/mm:

12 - 4.72/120.0

17 - 6.69/170.0

21 - 8.27 /210.0

23 - 9.06 /230.0

32 - 12.60 /320.0

40 - 15.75 /400.0

42 - 16.73 /425.0

50 - 19.68 /500.0

57 - 22.64 /575.0

60 - 23.62 /600.0

80 - 31.50 /800.0

10 - 39.37 /1000.0

Gland plate for

hinged enclosures only:

0 - None

1 - One Bottom

2 - One Top and Bottom

3 - Two Sides and Bottom

4 - All Sides

Width Dimensions in/mm:

12 - 4.72/120.0

20 - 7.87/200.0

30 - 11.81/300.0

40 - 15.75/400.0

60 - 23.62/600.0

80 - 31.50/800.0

Options:

(options must be listed

alphabetically)

E - Earth Continuity Brass Plate

M - Mounting Pan

U - Component Certification “U”

# - Customized Enclosure

(6 Digit number will be assigned

at time of order placement.)

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

545

JBEP Series Undrilled Fiberglass Reinforced Polyester Enclosures

Increased Safety

JBEP Series

Type

Dimension

L x W x D in/mm

Rail Length

Capacity in/mm

Weight

lb/kg

Volume

in3/dm3

Catalog

Number

Exe II Small Polyester Junction Boxes

For use with Ex certified terminals only (not supplied). Mounting rails supplied. Yellow laminated plastic label with black lettering.

CSPe1 4.72 x 4.72 x 3.58 / 120 x 120 x 91 2.44/62.0 1.76/0.8 244/4 JBEP1212090

CSPe2 6.69 x 4.72 x 3.58 / 170 x 120 x 91 4.41/112.0 2.20/1.0 244/4 JBEP1712090

CSPe3 9.06 x 4.72 x 3.58 / 230 x 120 x 91 6.77/172.0 2.65/1.2 244/4 JBEP2312090

Exe II Non-Hinged Junction Boxes

For use with Ex terminals only (not supplied). Mounting rails to be ordered separately. Yellow laminated plastic label with black lettering.

CAe1 8.47 x 7.87 x 5.91 / 215 x 200 x 150 7.52/191.0 6.61/3.0 793/13 JBEP2120150

CAe2 12.60 x 7.87 x 5.91 / 320 x 200 x 150 11.54/293.0 8.38/3.8 1404/23 JBEP3220150

CAe3 16.73 x 7.87 x 5.91 / 425 x 200 x 150 15.75/400.0 10.80/4.9 1587/26 JBEP4220150

CAe4 22.64 x 7.87 x 5.91 / 575 x 200 x 150 21.81/554.0 13.67/6.2 2014/33 JBEP5720150

Exe II Hinged Junction Boxes without Gland Plate

For use with Ex terminals only (not supplied). Mounting pan and rails to be ordered separately.

CAe6 15.75 x 11.81 x 8.11 / 400 x 300 x 206 9.57/243.0 9.70/4.4 2014/33 JBEP4030200

CAe7 19.68 x 15.75 x 8.11 / 500 x 400 x 206 13.50/343.0 11.68/5.3 2868/47 JBEP5040200

CAe8 24.02 x 15.75 x 10.12 / 610 x 400 x 257 13.50/343.0 17.00/7.7 5126/8.4 JBEP6040250

CAe10 32.28 x 24.02 x 11.81 / 820 x 610 x 300 21.38/543.0 40.34/18.3 11595/190 JBEP8060300

CAe11 40.16 x 31.89 x 11.81 / 1020 x 810 x 300 29.25/743.0 52.03/23.6 19100/313 JBEP1080300

Exe II Hinged Junction Boxes with Bottom Opening for Gland Plate

For use with Ex terminals only (not supplied). Opening at bottom 4.49 x 12.68 in / 114 x 322 mm. Mounting pan, rails and gland plate to be ordered separately.

CAe7 19.68 x 15.75 x 8.11 / 500 x 400 x 206 13.50/343.0 11.68/5.3 2868/47 JBEP5040201

CAe8 24.02 x 15.75 x 10.12 / 610 x 400 x 257 13.50/343.0 17.00/7.7 5126/84 JBEP6040251

Removable Gland Plate

Description Size in/mm Drilling

Weight

lb/kg

Volume

in3/dm3

Catalog

Number

Gland Plate 4.49 x 12.68 / 114 x 322 Blank 3.09/1.4 24.41/0.4 JBEPGP400

Gland Plate 4.49 x 12.68 / 114 x 322 Clearance holes for

17 x M20 + 3 x M25 3.09/1.4 24.41/0.4 JBEPGP400D12

Gland Plate 5.12 x 10.39 / 130 x 264 †Blank 2.87/1.3 18.31/0.3 JBEPGP300

Coupling Flange

Description Size in/mm

Weight

lb/kg

Volume

in3/dm3

Catalog

Number

Coupling

Flange 4.49 x 12.68 / 114 x 322 2.87/1.3 12.20/0.2 JBEP CF1

† To be used with customized enclosure CAe6.

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

546

ECEP Series Undrilled Fiberglass Reinforced Polyester Enclosure Accessories

Increased Safety

Enclosure Type Rail Length in/mm Catalog Number Pack

Zinc Plated Symetrical Steel Rail

For direct fixing. Set of two 2.36"/60 mm height

spacers supplied.

CAe1 7.52/191 JBEPDR215 1

CAe2 11.54/293 JBEPDR320 1

CAe3 15.75/400 JBEPDR425 1

CAe4 21.81/554 JBEPDR575 1

Zinc Plated Symetrical Steel Rail

For fixing onto uprights with clip nut supplied.

CAe6 9.57/243 JBEPDR300 1

CAe7 / CAe8 13.50/343 JBEPDR400 1

CAe10 21.38/543 JBEPDR600 1

CAe11 29.25/743 JBEPDR800 1

Zinc Plated Steel Uprights — Set of Two CAe6 13.27/337 JBEPSR400 1

CAe7 17.20/437 JBEPSR500 1

CAe8 21.14/537 JBEPSR600 1

CAe10 29.02/737 JBEPSR800 1

CAe11 36.89/937 JBEPSR100 1

Bar Length in/mm Catalog Number Pack

Copper Bar (0.47 x 0.16" / 12 x 4 mm)

Copper bar not perforated for cable clamps.

6.30/160 097270 1

7.87/200 097271 1

12.20/310 097272 1

19.68/500 097273 1

27.17/690 097274 1

42.13/1070 097275 1

Cable Clamp for Copper Bar (0.47 x 0.16" / 12 x 4 mm)

0.002 to 0.006 in2 / 1.5 mm2 to 4 mm2 capacity. 097203 1

0.009 to 0.025 in2 / 6 mm2 to 16 mm2 capacity. 097204 1

Insulated Side Support – Set of Two

For mounting symmetrical, asymmetrical rails and copper bar

0.47 x 0.08" / 12 x 2 mm or 0.47 x 0.16" / 12 x 4 mm.

See dimensional data page for more details.

096115 1

Enclosure Type Dimensions in/mm Catalog Number Pack

Mounting Pan CAe6 13.78 x 9.84 / 350 x 250 JBEPMP400 1

Perforated mounting pan “Telequick”. CAe7 17.72 x 13.78 / 450 x 350 JBEPMP500 1

CAe8 21.65 x 13.78 / 550 x 350 JBEPMP600 1

CAe10 29.53 x 21.65 / 750 x 550 JBEPMP800 1

CAe11 37.40 x 29.53 / 950 x 750 JBEPMP100 1

Self Adhesive Pocket for Drawings

External dimensions: 10 x 6" / 260 x 165 mm.

Internal dimensions: 9 x 5 x 1" / 230 x 130 x 18 mm. 097263 1

External dimensions: 13 x 9" / 340 x 235 mm.

Internal dimensions: 12 x 8 x 1" / 310 x 200 x 18 mm. 097264 1

Padlocking Device.

Takes 3 safety padlocks shackle dia.

0.24" / 6 mm maximum.

JBEPPL 1

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

547

JBEP Series Undrilled Fiberglass Reinforced Polyester Enclosures

Increased Safety

JBEP Series for Terminal Junction Box Application Only.

The size of the junction box needed to meet your requirements can be selected based on the table shown below. We also offer you the

possibility to drill and equip, please consult our drilling guide available online at: www.egsatx.com

1. Define maximum cable entries according to number of modules available per side.

Cable Entry Metric Thread Number of Modules

M20 1

M25 1

M32 1

M40 2

M50 3

Type

Dimensions in/mm Number of Modules Allowable

Max. Size

Terminal Dim.

H — in/mmLength Width Depth B/D A/C A’/C’ (1)

CSPe1 4.72/120 4.72/120 3.58/91 2 2 –M25 4.72/120

CSPe2 6.69/170 4.72/120 3.58/91 3 2 –M32 4.72/120

CSPe3 9.06/230 4.72/120 3.58/91 4 2 –M32 4.72/120

CAe1 8.46/215 7.87/200 5.91/150 11 8 –M50 7.87/200

CAe2 12.60/320 7.87/200 5.91/150 18 8 –M50 7.87/200

CAe3 16.73/425 7.87/200 5.91/150 26 8 –M50 7.87/200

CAe4 22.64/575 7.87/200 5.91/150 38 8 –M50 7.87/200

CAe6 15.75/400 11.81/300 8.11/206 18 18 –M50 15.75/400

CAe7 19.68/500 15.75/400 8.11/206 24 10 10 M50 19.68/500

CAe8 24.02/610 15.75/400 10.12/257 48 10 10 M75 24.02/610

CAe10 32.28/820 24.02/610 11.81/300 72 54 –M100 32.28/820

CAe11 40.16/1020 31.89/810 11.81/300 96 78 –M100 40.16/1020

2. Maximum rail arrangement according to physical dimensions.

Maximum Quantity of Horizontal Rails Per Quantity

Terminal Capacity (in2/mm2)0.004/2.5 0.006/4 0.009/6 0.016/10 0.025/16 0.054/35 0.078/50

CSPe1/2/3 1111000

CAe1/2/3/4 1111110

CAe6 3332221

CAe7 4433321

CAe8 4444332

CAe10 6655543

CAe11 8877653

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IECEx

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

548

JBEP Series Undrilled Fiberglass Reinforced Polyester Enclosures

Increased Safety

3. Defining maximum terminal block quantity according to power dissipation:

• Junction boxes used for instrumentation applications have very low current levels, therefore there is no risk of overheating whatever the

number of terminals inside the box.

• For applications other than instrumentation, the following tables allow you to dene your junction box depending on the number of terminals

and the maximum authorized current being carried with feed-through terminals.

• For single feed terminals using cross connection, please consult your local representative for a calculation.

For other terminal block configurations, please consult our drilling guide available online at: www.appletonelec.com

Small Junction Boxes Non-Hinged Junction Boxes

T Rating:

Type

T Rating:

T6 @ Ta 104 °F/40 °C

T5 @ Ta 131 °F/55° C

Type

CSPe1

5 x 5 x 4"/

120 x 120 x 91

CSPe2

7 x 5 x 4"/

120 x 170 x 91

CSPe3

9 x 5 x 4"/

120 x 230 x 91

CAe1

8 x 9 x 6"/

200 x 215 x

150 mm

CAe2

8 x 13 x 6"/

200 x 320 x

150 mm

CAe3

8 x 17 x 6"/

200 x 425 x

150 mm

CAe4

8 x 23 x 6"/

200 x 575 x

150 mm

0.004 in2/

2.5 mm2

Qty.

1 max.

15 A

13 A

12 A

0.004 in2/

2.5 mm2

Qty.

1 max.

16 A

14 A

0.006 in2/

4 mm2

Qty.

1 max.

20 A

19 A

16 A

0.006 in2/

4 mm2

Qty.

1 max.

20 A

16 A

0.009 in2/

6 mm2

Qty.

1 max.

32 A

27 A

24 A

0.009 in2/

6 mm2

Qty.

1 max.

32 A

28 A

0.016 in2/

10 mm2

Qty.

1 max.

50 A

0.016 in2/

10 mm2

Qty.

1 max.

40 A

32 A

28 A

0.024 in2/

16 mm2

Qty.

1 max.

28 A

27 A

25 A

26 A

0.039 in2/

25 mm2

Qty.

1 max.

67 A

73 A

69 A

70 A

0.054 in2/

35 mm2

Qty.

1 max.

79 A

86 A

80 A

Hinged Junction Boxes

T Rating:

T6 @ Ta 104 °F/40 °C

T5 @ Ta 131 °F/55° C

Type

CAe6

16 x 12 x 8"/

400 x 300 x

206 mm

CAe7

20 x 16 x 8"/

500 x 400 x

206 mm

CAe8

24 x 16 x 10"/

610 x 400 x

257 mm

CAe10

32 x 24 x 12"/

820 x 610 x

300 mm

CAe11

40 x 32 x 12"/

1020 x 810 x

300 mm

0.054 in2/

35 mm2

Qty.

1 Max.

100 A

100 A — —

0.078 in2/

50 mm2

Qty.

1 Max.

125 A

125 A — —

0.109 in2/

70 mm2

Qty.

1 Max.

160 A

160 A — —

0.147 in2/

95 mm2

Qty.

1 Max.

200 A

200 A — —

0.186 in2/

120 mm2

Qty.

1 Max. —8

250 A

200 A

150 A

0.233 in2/

150 mm2

Qty.

1 Max. — — 6

250 A

190 A

0.287 in2/

185 mm2

Qty.

1 Max. ——— 8

300 A

240 A

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

549

JBEP and ECEP Series Undrilled Fiberglass Reinforced Polyester Enclosure

Dimensions

Increased Safety

Dimensions in Inches/Millimeters

Fixing details for below boxes: four holes Ø 0.20"/5 mm.

CSPe1 CSPe2 CSPe3

Fix. 5.24/133

Fix. 83

Fix. 4.06/103

Fix. 7.60/193

4.72/120

3.58/91

4.72/120

6.69/170

9.06/230

4.72/120

Fix. 5.24/133

Fix. 83

Fix. 4.06/103 Fix. 4.06/103

Fix. 4.06/103

Fix. 7.60/193

4.72/120

3.58/91

4.72/120

6.69/170

9.06/230

4.72/120

Fix. 5.24/133

Fix. 83

Fix. 4.06/103

Fix. 7.60/193

4.72/120

3.58/91

4.72/120

6.69/170

9.06/230

4.72/120

CAe1 to CAe4

Type

External Internal Fixings

A B C D E F G H Thick Ø

CAe1 7.87/200.0 8.46/215.0 5.91/150.0 7.28/185.0 7.87/200.0 4.92/125.0 5.75/146.0 7.44/189.0 0.24/6.0 0.26/6.5

CAe2 7.87/200.0 12.60/320.0 5.91/150.0 7.28/185.0 12.01/305.0 4.92/125.0 5.75/146.0 11.57/294.0 0.24/6.0 0.26/6.5

CAe3 7.87/200.0 16.73/425.0 5.91/150.0 7.28/185.0 16.14/410.0 4.92/125.0 5.75/146.0 15.71/399.0 0.24/6.0 0.26/6.5

CAe4 7.87/200.0 22.64/575.0 5.91/150.0 7.28/185.0 22.05/560.0 4.92/125.0 5.75/146.0 21.57/548.0 0.24/6.0 0.26/6.5

Insulated Side Support (Rail Holder) 096115

Equipment Capacity

DIN rail depth 0.59”/15 mm

Earth bar

6.50/165

Type L M

CAe1 4.13/105.0 5.08/129.0

CAe2 8.11/206.0 9.21/234.0

CAe3 12.20/310.0 13.35/339.0

CAe4 12.40/315.0 13.58/345.0

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

550

JBEP and ECEP Series Undrilled Fiberglass Reinforced Polyester Enclosures

Dimensions

Increased Safety

Dimensions in Inches/Millimeters

CAe6 to CAe11

0.31/8

0.71/18

1.08/27.5

Type

External Fixing With horizontal lug Fixing With vertical lug

A B C D T U Y R S V

CAe6 15.75/400.0 11.81/300.0 8.11/206.0 8.74/222.0 13.43/341.0 14.57/370.0 16.73/425.0 18.50/470.0 9.50/241.0 20.67/525.0

CAe7 19.68/500.0 15.75/400.0 8.11/206.0 8.74/222.0 17.36/441.0 18.50/470.0 20.67/525.0 22.44/570.0 13.43/341.0 24.61/625.0

CAe8 24.02/610.0 15.75/400.0 10.12/257.0 10.75/273.0 21.69/551.0 18.50/470.0 20.67/525.0 26.77/680.0 13.43/341.0 28.94/735.0

CAe10 32.28/820.0 24.02/610.0 11.81/300.0 12.44/316.0 29.84/758.0 26.65/677.0 28.82/732.0 34.92/887.0 21.57/548.0 37.09/942.0

CAe11 40.16/1020.0 31.89/810.0 11.81/300.0 12.44/316.0 37.72/958.0 34.53/877.0 36.69/932.0 42.80/1087.0 29.45/748.0 44.96/1142.0

Gland Plates

JBEPGP300 JBEPGP400D12 JBEPGP400

10.39/264

5.11/130

12.68/322

0.55/14

4.49/114

cCSAus Approved

CEC/NEC

Class I Zone 1

Exe/AExe II, T5 or T6

Enclosure: IP66

CSA Approved

CSA Type 4X

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

551

SJB Series 316L Stainless Steel Junction Boxes

Explosion Protected Terminal Enclosure

Applications

• Terminal, junction box enclosure for various electrical devices.

• Designed for use in areas designed for Zone 1, where

ammable gases or vapors are present either continuously or

intermittently such as:

— Petroleum

— Chemical

— Reneries

— Other industrial process facilities.

— Food processing

— Dairy

— Brewing

— Other commercial facilities.

• Ideal for wet or corrosive atmospheres.

Features

• Austenitic stainless steel contains at least 10.5% Chrome (Cr).

Chrome is a protective layer that shields the material from

humidity in the air.

• 316L stainless steel contains Molybdenum (Mo), which provides

excellent corrosion resistance especially against chlorides.

• Smooth, continuos welded seams.

• Many different sizes and depths to choose from.

• Available in three depths, 3.74"/95 mm, 7.87"/200 mm and

11.81"/300 mm.

• Can be supplied with 1, 2, 3 or even 4 neoprene sealed gland

plates for ease of cable installation.

• 316L Stainless steel captive screws.

• Hinges standard on all sizes above 14.57" x 10.24" /

370 mm x 260 mm.

• Poured in place polyurethane door gasket.

• M8 feed-thru earth/ground stud.

• Patented reversible door, opens 210 degrees, from any location

Top/bottom, left or right, by means of removable hinges that can

be installed in any position.

• Patented reversible anti vibration mounting brackets, on the top,

bottom or side positions.

• Optional patented removable pad locking device.

• Numerous optional accessories.

Standard Materials

• Enclosure: 316L chrome plated Molybdenum stainless steel

with natural brushed nish

• Hardware: 316L stainless steel

Options

• Mounting pan

• Gland plates

• Interior side rails

• DIN rails

• Side rail and DIN rail assembly

• Terminal Blocks (Enclosure size varies, based on # terminals

blocks, cross section or terminal block, current, ambient

temperature and desired T rating, contact your local sales

representative.)

• Ground bars

• Terminals for Ground bar

• Terminal spacers: 3.94"/100 mm or 1.97"/50 mm

• Padlocking device

• Locking hinge

• Factory drilled entries

• Enclosure coupling kit available, contact your local sales

representative.

Certifications and Compliances

• North American

— cCSAus Approved

• CEC/NEC

— Class 1 Zone 1, Exe/AExe II, T5 or T6

— Enclosure rating: IP66

— 600 Volt Max, 400 Amp Max

— Maximum Dissipated Power: 489 Amp

— CSA Listed: 0130170000

— CSA Type 4X

• International

— CENELEC LCIE 02 ATEX 6118X

— IEC LCIE Ex 02.010X

— EEx ed/ EEx « i « IIC, T3 to T6

— IP66, IK10

— CE Declaration of Conformity

— Standards: EN 50281-1-1 and IEC 61241-1-1

Without Terminals

Equipped with Terminals

cCSAus Approved

CEC/NEC

Class I Zone 1

Exe/AExe II, T5 or T6

Enclosure: IP66

CSA Approved

CSA Type 4X

Catalog Numbering Guide

Confirm size and gland plate availability in below table.

SJB 12 12 95 0 N 25 010

SJB Series Depth Dimensions in/mm:

95 - 3.74/95

15 - 5.91/150

20 - 7.87/200

30 - 11.81/300

Terminal Block

Size in/mm:

25 - 0.10/2.5

04 - 0.16/4.0

06 - 0.24/6.0

10 - 0.39/10.0

16 - 0.63/16.0

35 - 1.378/35.0

Height Dimensions in/mm:

12 - 4.72/120

18 - 7.09/180

22 - 8.66/220

26 - 10.24/260

37 - 14.57/370

56 - 22.05/560

75 - 29.58/750

11 - 44.49/1130

Gland Plates:

0 - none

1 - one bottom

3 - two sides and bottom

4 - All sides

Terminal Block

Quantity:

010 - 10

050 - 50

100 - 100

Width Dimensions in/mm:

12 - 4.72/120

18 - 7.09/180

22 - 8.66/220

26 - 10.24/260

37 - 14.57/370

56 - 22.05/560

75 - 29.58/750

Mounting Pan:

N - None

P - Mounting pan

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

552

SJB Series 316L Stainless Steel Junction Boxes

Explosion Protected Terminal Enclosure

Illustrated Features

Optional Patented

Removable Locking

Device.

Part Number 097209.

Patented Reversible

Door. Opens to 210°,

top, bottom, left or

right, by moving the

location of the hinges.

Patented Reversible

Anti-vibration mounting

brackets, can be

mounted in top, side or

bottom positions.

Polyurethane Poured in

Place Door Gasket and

Stainless Steel Captive

Screws.

M8 Feed-thru Earth/

Ground Terminal.

Optional Removable

Gland Plate.

cCSAus Approved

CEC/NEC

Class I Zone 1

Exe/AExe II, T5 or T6

Enclosure: IP66

CSA Approved

CSA Type 4X

SJB Series 316L Stainless Steel Junction Boxes

Explosion Protected Terminal Enclosure

Dimension in Inches/Millimeters Possible Gland Plates

Catalog NumberHeight Width Depth 0 1 2 3 4

4.72/120 4.72/120 3.74/95 ———— SJB121295

4.72/120 7.09/180 3.74/96 ———— SJB121895

7.09/180 4.72/120 3.74/97 ———— SJB181295

7.09/180 7.09/180 3.74/98 ———— SJB181895

8.66/220 10.24/260 5.91/150  SJB222615

10.24/260 8.66/220 5.91/151  SJB262215

8.66/220 14.57/370 7.87/200  SJB223720 †

14.57/370 8.66/220 7.87/201  SJB372220

10.24/260 14.57/370 7.87/202  SJB263720

14.57/370 10.24/260 7.87/203  SJB372620 †

14.57/370 14.57/370 7.87/204  SJB373720 †

14.57/370 22.05/560 7.87/205  SJB375620

22.05/560 14.57/370 7.87/206  SJB563720 †

14.57/370 29.53/750 7.87/207  SJB377520

29.53/750 14.57/370 7.87/208  SJB753720

22.05/560 22.05/560 7.87/209  SJB565620 ‡

22.05/560 29.53/750 7.87/210  SJB567520

14.57/370 14.57/370 11.81/300  SJB373730

14.57/370 22.05/560 11.81/301  SJB375630

22.05/560 14.57/370 11.81/302  SJB563730

14.57/370 29.53/750 11.81/303  SJB377530

29.53/750 14.57/370 11.81/304  SJB753730

22.05/560 22.05/560 11.81/305  SJB565630

22.05/560 29.53/750 11.81/306  SJB567530

29.53/750 22.05/560 11.81/307  SJB755630

44.49/1130 29.53/750 11.81/308 — — — — — SJB117530

† No gland plates.

‡ One gland plate.

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

553

cCSAus Approved

CEC/NEC

Class I Zone 1

Exe/AExe II, T5 or T6

Enclosure: IP66

CSA Approved

CSA Type 4X

SJB Series 316L Stainless Steel Junction Boxes

Explosion Protected Terminal Enclosure

Maximum Terminal Block Information

To order terminal blocks: Use nomenclature below. Supplied installed on a mounting pan. Can be installed on uprights and rails. Contact your local sales

representative.

Catalog

Number

Rails

Hori-

zontal

Terminal Size

in/mm

Qty.

Max.

Physi-

cal

Terminal

Amp

Qty.

Max.

at Max.

Amps

Terminal

Amp

Catalog

Number

Rails

Hori-

zontal

Terminal Size

in/mm

Qty.

Max.

Physi-

cal

Terminal

Amp

Qty.

Max.

at Max.

Amps

Terminal

Amp

SJB121295 1 0.10/2.5 10 10 4 15 SJB377520 6 0.39/10.0 150 15 30 40

SJB121295 1 0.16/4.0 8 10 5 20 SJB377520 5 0.63/16.0 100 20 30 50

SJB121895 1 0.10/2.5 20 10 9 15 SJB753720 3 0.39/10.0 189 15 33 40

SJB121895 1 0.16/4.0 18 10 10 20 SJB753720 2 0.63/16.0 104 20 32 50

SJB181295 1 0.10/2.5 10 10 4 15 SJB565620 4 0.39/10.0 176 15 36 40

SJB181295 1 0.16/4.0 8 10 5 20 SJB565620 4 0.63/16.0 104 30 36 50

SJB181895 1 0.10/2.5 21 10 10 15 SJB567520 5 0.63/16.0 180 20 45 50

SJB181895 1 0.16/4.0 18 15 11 20 SJB567520 4 1.38/35.0 116 40 32 90

SJB222615 2 0.10/2.5 40 10 18 15 SJB373730 3 0.27/6.0 93 15 27 30

SJB222615 2 0.16/4.0 30 15 18 20 SJB373730 2 0.39/10.0 74 20 26 40

SJB262215 1 0.16/4.0 23 10 15 20 SJB375630 4 0.27/6.0 124 15 36 30

SJB262215 1 0.27/6.0 17 20 12 30 SJB375630 4 0.39/10.0 100 20 32 40

SJB223720 3 0.16/4.0 48 10 27 20 SJB563730 3 0.27/6.0 165 10 36 30

SJB223720 3 0.27/6.0 36 20 15 30 SJB563730 3 0.39/10.0 132 20 33 40

SJB372220 1 0.16/4.0 41 15 27 20 SJB377530 6 0.39/10.0 150 20 42 40

SJB372220 1 0.27/6.0 31 20 15 30 SJB377530 5 0.63/16.0 100 30 40 50

SJB263720 3 0.16/4.0 69 10 30 20 SJB753730 3 0.39/10.0 189 15 42 40

SJB263720 2 0.27/6.0 32 20 18 30 SJB753730 2 0.63/16.0 104 30 42 50

SJB372620 2 0.16/4.0 82 10 30 20 SJB565630 4 0.39/10.0 176 20 44 40

SJB372620 2 0.27/6.0 62 15 18 30 SJB565630 4 0.63/16.0 104 30 44 50

SJB373720 3 0.27/6.0 93 10 21 30 SJB567530 5 0.63/16.0 180 20 55 50

SJB373720 2 0.39/10.0 74 20 21 40 SJB567530 4 1.38/35.0 116 40 36 90

SJB375620 4 0.27/6.0 124 15 30 30 SJB755630 3 0.63/16.0 104 30 54 50

SJB375620 4 0.39/10.0 100 20 28 40 SJB755630 3 1.38/35.0 84 50 36 90

SJB563720 3 0.27/6.0 165 10 30 30 SJB117530 6 1.38/35.0 252 40 60 90

SJB563720 3 0.39/10.0 132 15 27 40 SJB117530 4 2.76/70.0 112 80 36 145

* Maximum physical at amperage indicated, capable of accepting more terminals at lower amperage. Contact your local sales representative.

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

554

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

555

cCSAus Approved

CEC/NEC

Class I Zone 1

Exe/AExe II, T5 or T6

Enclosure: IP66

CSA Approved

CSA Type 4X

SJB Series 316L Stainless Steel Junction Boxes

Explosion Protected Terminal Enclosure

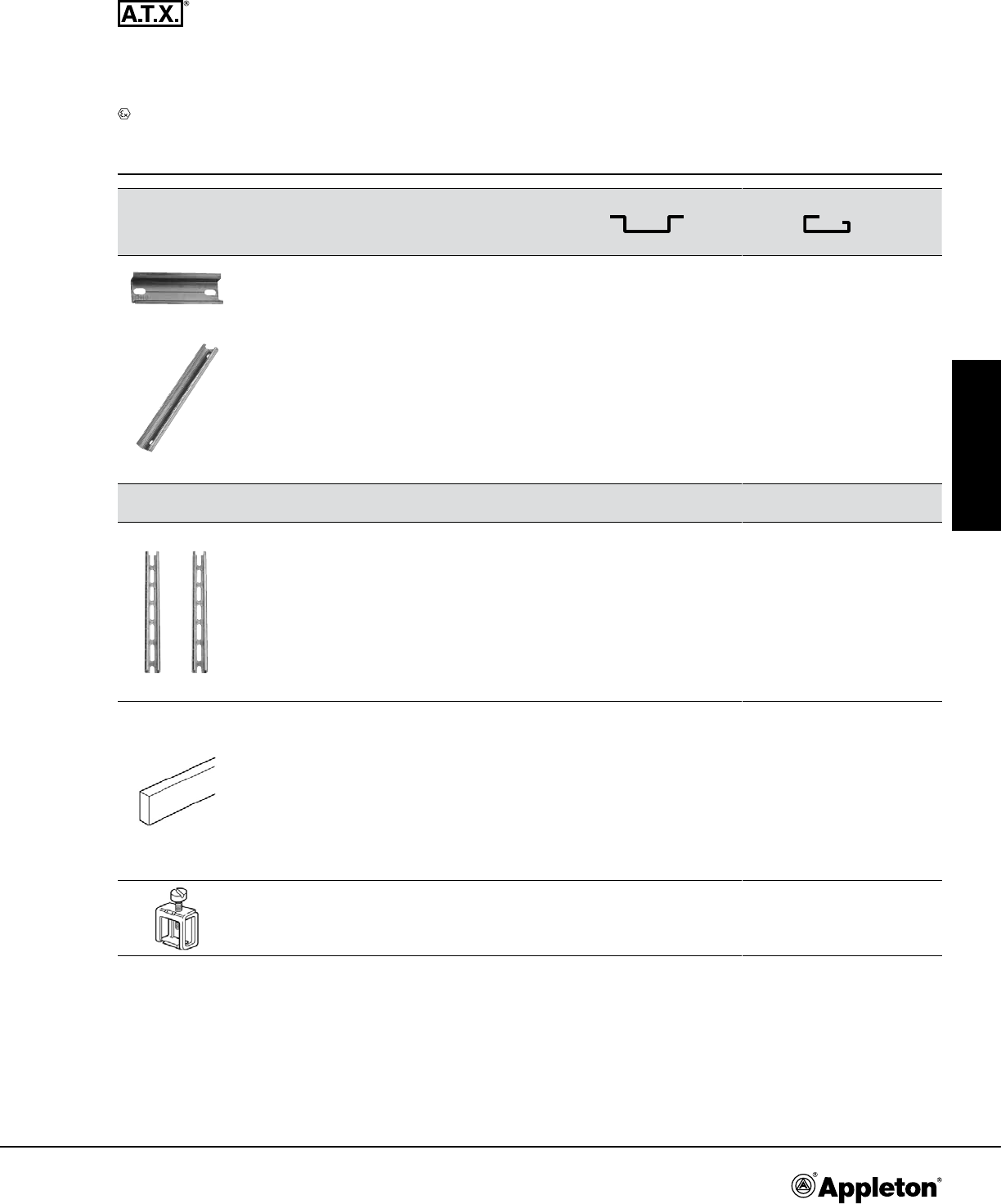

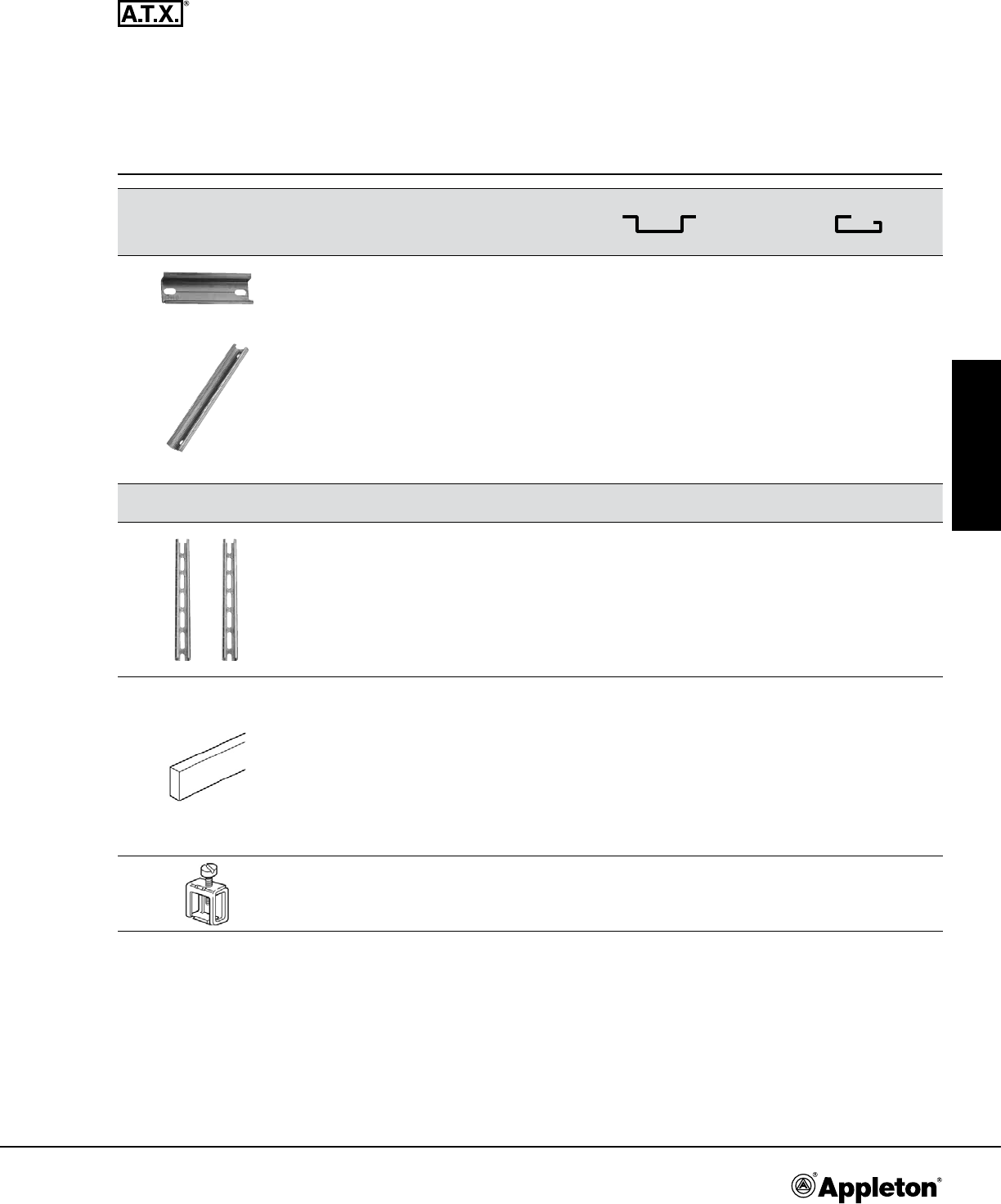

Rail Length in/mm

Catalog Number

Symmetrical Depth = 0.59"/15 mm Asymmetrical

Symmetrical

Asymmetrical

Zinc Plated Steel Rail

For fixing onto uprights with clip nut supplied.

3.93/100 SJBSCP100 —

6.30/160 SJBSCP160 —

6.69/170 SJBSCP170 SJBACP170

7.87/200 SJBSCP200 SJBACP200

12.60/320 SJBSCP320 SJBACP320

20.08/510 SJBSCP510 SJBACP510

27.56/700 SJBSCP700 SJBACP700

42.52/1080 SJBSCP1080 SJBACP1080

Bar Length

in/mm

Catalog

Number

Zinc Plated Steel Uprights

Set of two.

7.87/200 SJBSR200

12.20/310 SJBSR310

19.68/500 SJBSR500

27.17/690 SJBSR690

42.13/1070 SJBSR1070

Copper Bar (.47 x .16" / 12 x 4 mm)

Copper bar not perforated for cable clamps.

6.30/160 SJBCGB160

7.87/200 SJBCGB200

12.20/310 SJBCGB310

19.68/500 SJBCGB500

27.17/690 SJBCGB690

42.13/1070 SJBCGB1070

Cable Clamp for Copper Bar (.47 x .16" / 12 x 4 mm)

0.002 in2 to 0.006 in2 / 1.5 mm2 to 4 mm2 Capacity — Set of 100 SJBGBC154

0.009 in2 to 0.025 in2 / 6 mm2 to 16 mm2 Capacity — Set of 10 SJBGBC616

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

556

cCSAus Approved

CEC/NEC

Class I Zone 1

Exe/AExe II, T5 or T6

Enclosure: IP66

CSA Approved

CSA Type 4X

SJB Series 316L Stainless Steel Junction Boxes

Explosion Protected Terminal Enclosure

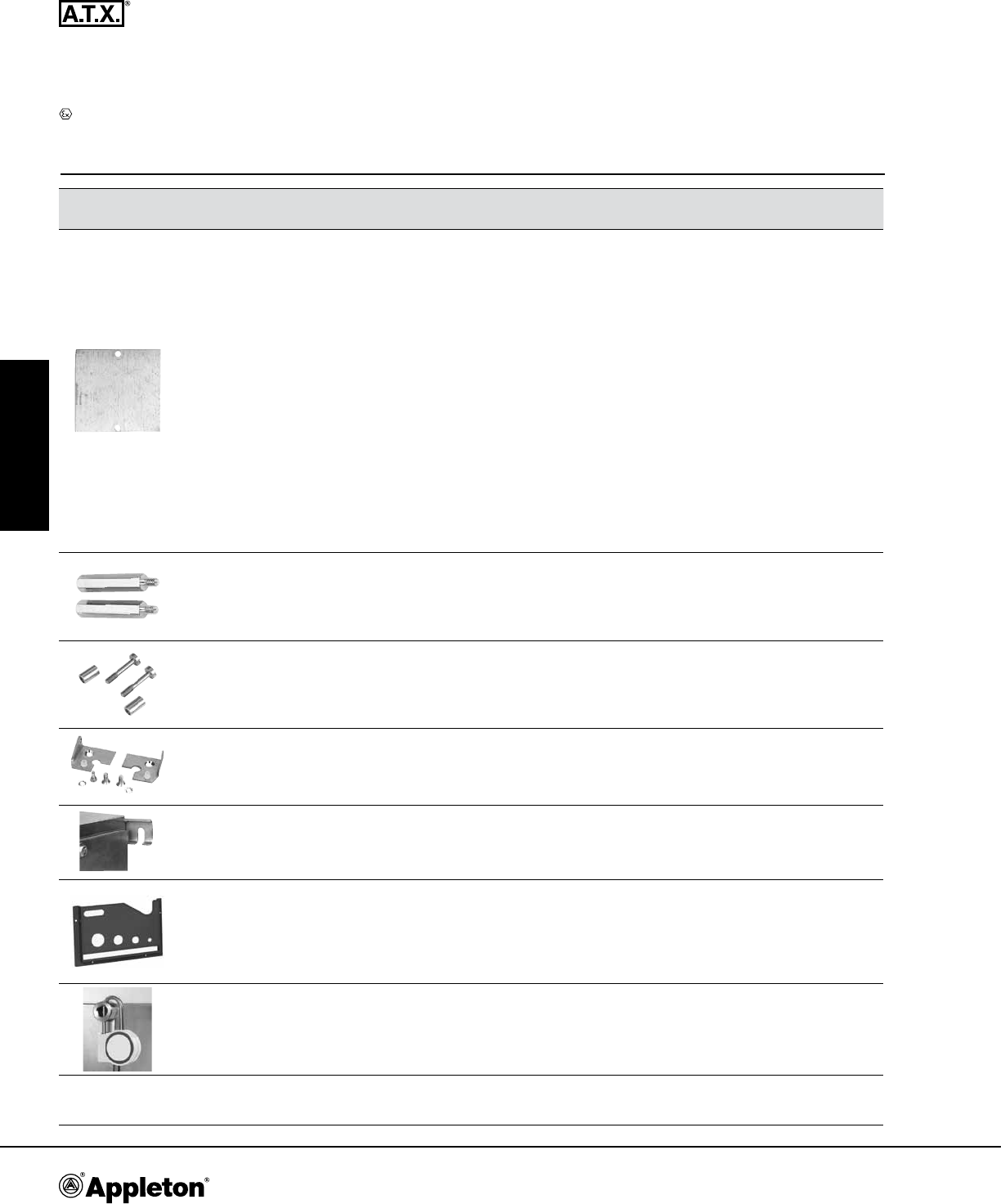

Dimensions Inches/Millimeters

Catalog NumberHeight Width

Mounting Pan – Zinc Plated Steel

8.66/220 14.57/370 SJBGP370

14.57/370 10.24/260 SJBGP260

10.24/260 14.57/370 SJBGP370

14.57/370 14.57/370 SJBGP370

22.05/560 14.57/370 SJBGP370

14.57/370 22.05/560 SJBGP560

29.53/750 14.57/370 SJBGP370

14.57/370 29.53/750 SJBGP750

22.05/560 22.05/560 SJBGP560

29.53/750 22.05/560 SJBGP560

22.05/560 29.53/750 SJBGP750

Spacers for Mounting at Back of Box

Set of two insulated pillars for copper bar .47 x .16" / 12 x 4 mm.

Height = 3.94"/100 mm SJBS100

Height = 1.97"/50 mm SJBS500

Additional Door Padlocking Device

Padlock not supplied SJBPL

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

557

JBES Series Pre-Drilled 316L Stainless Steel Junction Boxes

Increased Safety

Applications

• Terminal junction boxes designed to facilitate electrical

connections in hazardous areas.

• Designed for use in Zone 1 or 2 areas, where ammable gases or

vapors are present either continuously or intermittently such as:

— Petroleum

— Chemical

— Reneries

— Other industrial process facilities

• Ideal for wet or corrosive atmospheres.

• Designed for use in Zone 21 or 22 areas, where ammable

dusts are present either continuously or intermittently, such as:

— Food processing

— Dairy

— Brewing

— Pharmaceutical industry

— Silos and other facilities

Features

• Smooth, continuously welded seams.

• Hinges supplied on all boxes from 14.57" x 10.24" /

370 mm x 260 mm sizes.

• Poured-in-place polyurethane door gasket.

• Earth crossing terminal.

• Factory drilled and equipped.

Standard Material

• Enclosure: 316L chrome plated molybdenum stainless steel with

natural burnished nish

• Hardware: 316L stainless steel

Options

• For use with equipment other than Ex terminal blocks, see

ECES series enclosures and controls.

Certifications and Compliances

• Certication Type JBe

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II, Ex ia IIC, Ex ib IIC,

– T Rating: T6 to T5

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T176 °F/T80 °C to T203 °F/T95 °C

— Ambient Temperature: -58 °F/-50 °C to 158 °F/70 °C

— CE Declaration of Conformity: 50232

— ATEX Certicate: LCIE 02 ATEX 6118X

— IEC Certicate: IEC Ex 02.010X

• Other Certications: GOST

• Ingress Protection (solid and liquid): IP66

• Impact Resistance (shock): IK10

• Ex Standards: EN/IEC 60079-0; 60079-1; 60079-11, 61241-0;

61241-1; 61241-11

• Other Standards: EN/IEC 60529 (IP), 62262 (IK)

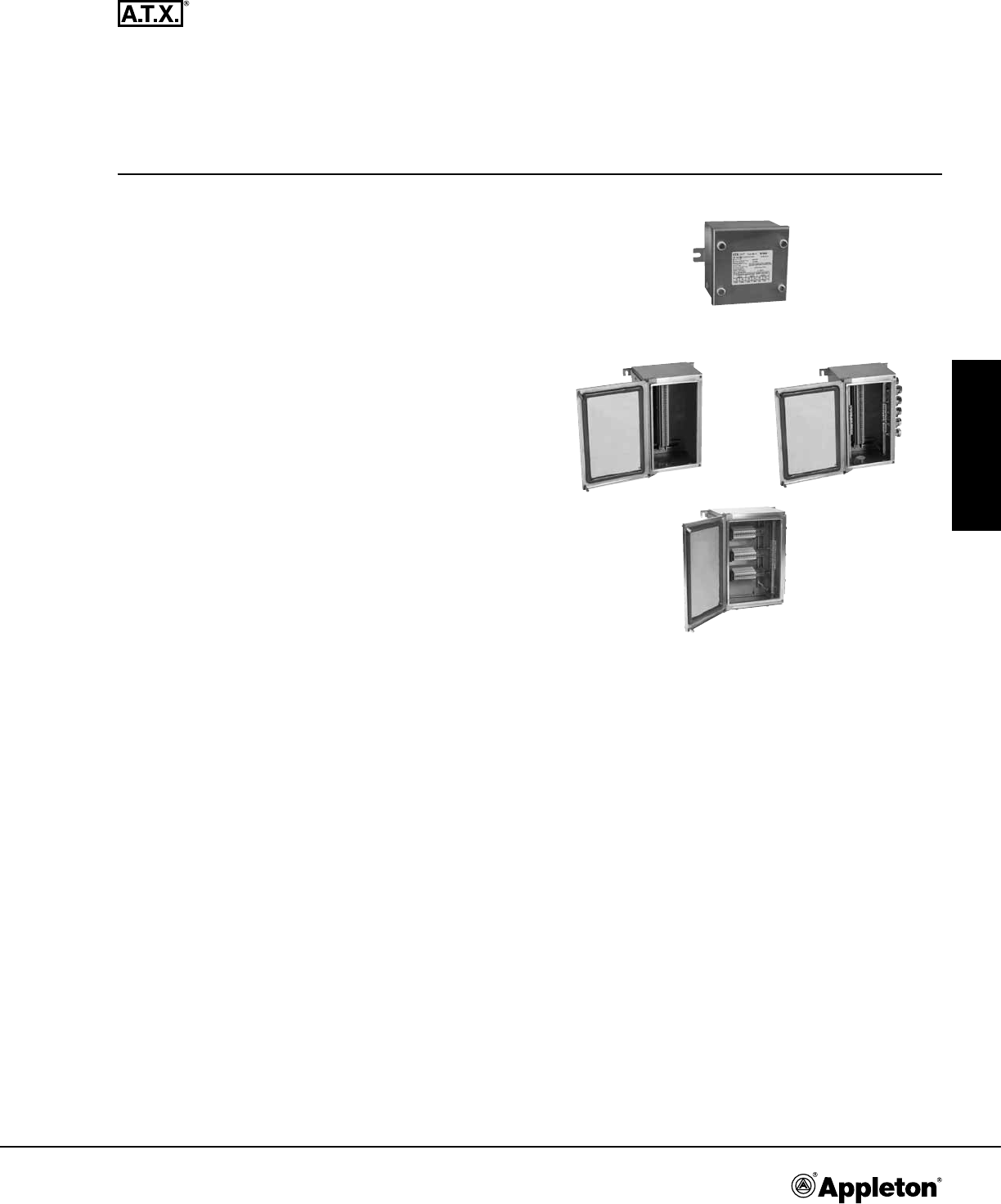

JBe10 — Without Terminals JBe46 — Equipped with Terminals

JBe46 — Equipped with Terminals JBe46 — Equipped with Terminals

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

558

JBES Series Pre-Drilled 316L Stainless Steel Junction Boxes

Increased Safety

Catalog Numbering Guide

JBES 12 12 09 0 0

Series

ATEX/IEC Certified:

E - Increased Safety

I - Intrinsic Safety

Depth Dimensions in/mm:

09 - 3.74/95.0

15 - 5.91/150.0

20 - 7.87/200.0

Length Dimensions in/mm:

12 - 4.72/120.0

18 - 7.09/180.0

22 - 8.66/220.0

26 - 10.24/260.0

37 - 14.57/370.0

Gland plate:

0 - None

1 - One Bottom

2 - One Top and Bottom

3 - Two Sides and Bottom

4 - All Sides

Width Dimensions in/mm:

12 - 4.72/120.0

18 - 7.09/180.0

22 - 8.66/220.0

26 - 10.24/260.0

37 - 14.57/370.0

Options:

(options must be listed alphabetically)

D1 - 5 x M20

D2 - 4 x M20 + 1 x M25

D3 - 7 x M20 + 1 x M25

F1 - Fitted with 0.019 x 0.004 in2 /

12 x 2.5 mm2 Terminals and Drilled

F2 - Fitted with 0.031 x 0.004 in2 /

20 x 2.5 mm2 Terminals and Drilled

F3 - Fitted with 0.062 x 0.004 in2 /

40 x 2.5 mm2 Terminals and Drilled

F4 - Fitted with 0.093 x 0.004 in2 /

60 x 2.5 mm2 Terminals and Drilled

F5 - Fitted with 0.022 x 0.004 in2 /

14 x 2.5 mm2 Terminals and Drilled

F6 - Fitted with 0.037 x 0.004 in2 /

24 x 2.5 mm2 Terminals and Drilled

F7 - Fitted with 0.057 x 0.004 in2 /

38 x 2.5 mm2 Terminals and Drilled

F8 - Fitted with 0.084 x 0.004 in2 /

54 x 2.5 mm2 Terminals and Drilled

# - Customized Enclosure (6 Digit number

will be assigned at time of order placement.)

Maximum Rail Arrangement According to Physical Dimensions

Type Protection

Terminal Size

in2/mm2Quantity

Max.

Amps

JBe10 T6 @ Ta = 131 °F/55° C

0.004/2.5 10 16A

0.006/4.0 8 25A

0.009/6.0 6 32A

JBe20 T6 @ Ta = 131 °F/55° C

0.004/2.5 21 16A

0.006/4.0 18 25A

0.009/6.0 13 32A

For other terminal block configurations, consult our drilling guide available online at our website www.egsatx.com.

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

559

JBES Series Pre-Drilled 316L Stainless Steel Junction Boxes

Increased Safety

Type

Dimensions

L x W x D in/mm

Rail Length

Capacity

in/mm

Clearance Holes per side Weight

lb/kg

Volume

in3/dm3

Catalog

NumberA B C D

Factory Drilled Ex e II 316L Stainless Steel Junction Boxes Fitted with:

One horizontal symmetrical zinc plated rail. For use only with Ex terminals (not supplied). M6 external earth crossing terminal.

D B

JBe10 4.72 x 4.72 x 3.74/

120 x 120 x 95 4/100 1 x M20 1 x M20 2 x M20 1 x M20 2.20/

1.0

85.43/

1.4 JBES1212090D1

JBe20 4.72 x 4.72 x 3.74/

120 x 120 x 95 6/160 –1 x M20 2 x M20

1 x M25 1 x M20 3.31/

1.5

122.05/

2.0 JBES1218090D2

JBe20 4.72 x 4.72 x 3.74/

120 x 120 x 95 6/160 –2 x M20 3 x M20

1 x M25 2 x M20 3.31/

1.5

122.05/

2.0 JBES1218090D3

Factory Drilled and Equipped with Terminals Ex e II 316L Stainless Steel Instrumentation Junction Boxes Fitted with:

Vertical beige Exe terminal block. Insulated copper bar with connectors. White laminated plastic tag with black lettering. M8 external earth crossing terminal.

Cable glands and plugs to be ordered separately.

D B

JBe20 7.09 x 4.72 x 3.74/

180 x 120 x 95

(6 Pairs) 8 3 x M20 1 x M25

1 x M20 3 x M20 5.51/

2.5

122.05/

2.0 JBES1812090F1

JBe36 10.24 x 8.66 x 5.91/

260 x 220 x 150

(10 Pairs) 12 5 x M20 1 x M32

1 x M20 5 x M20 8.82/

4.0

524.80/

8.6 JBES2622150F2

JBe46 14.57 x 8.66 x 7.87/

370 x 220 x 200

(20 Pairs) 22 10 x M20 1 x M40

1 x M20 10 x M20 19.84/

9.0

994.69/

16.3 JBES372220F3

JBe47 14.57 x 10.24 x 7.87/

370 x 260 x 200

(30 pairs) 32 15 x M20 1 x M50

1 x M20 15 x M20 11.0/

24.25

1177.76/

19.3 JBES3726200F4

Ex ia IIC Version: Replace Third Digit “E” with “I” (Example: JBES1812090F1 becomes JBIS1812090F1) Fitted with:

Vertical blue terminal block. Insulated copper bar with connectors. Blue laminated plastic tag with white lettering. M8 external earth crossing terminal. Cable

glands and plugs to be ordered separately.

Factory Drilled and Equipped with Terminals Ex e II 316L Stainless Steel Instrumentation Junction Boxes Fitted with:

Horizontal beige Exe terminal block. Continuity shield. White laminated plastic tag with black lettering. M8 External earth crossing terminal. Cable glands and

plugs to be ordered separately.

D B

JBe36 8.66 x 10.24 x 5.91/

220 x 260 x 150

(7 Pairs) 7 1 x M25 7 x M20 8.82/

4.0

524.80/

8.6 JBES2226150F5

JBe36 8.66 x 10.24 x 5.91/

220 x 260 x 150

(12 pairs) 12 1 x M32 12 x M20 8.82/

4.0

524.80/

8.6 JBES2226150F6

JBe46 8.66 x 14.57 x 7.87/

220 x 370 x 200

(19 pairs) 19 1 x M32 19 x M20 19.84/

9.0

994.69/

16.3 JBES2237200F7

JBe46 8.66 x 14.57 x 7.87/

220 x 370 x 200

(27 pairs) 27 1 x M40 27 x M20 19.84/

9.0

994.69/

16.3 JBES2237200F8

Ex ia IIC Version: Replace Third Digit “E” with “I” (Example: JBES2226150F5 becomes JBIS2226150F5) Fitted with:

Horizontal blue terminal block. Continuity shield. Blue laminated plastic tag with white lettering. M8 external earth crossing terminal. Cable glands and plugs to be

ordered separately.

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

560

JBES Series Pre-Drilled 316L Stainless Steel Junction Box Dimensions

Increased Safety

Dimensions in Inches/Millimeters

Factory Drilled without Terminal Block (DIN rail supplied)

JBe10 JBe20

4.72/120

3.15/80

Fix. 5.51/140

6.30/160

0.31/8

4.33/110

3.74/95

2.95/75

7.09/180

5.51/140

4.72/120

Fix. 7.87/200

8.66/220

3.15/80

0.31/8 3.74/95

2.95/75

4.33/110

4.09/104

Factory Drilled and Equipped with Vertical Terminal Block

JBe20 JBe36

7.09/180

5.83/148

6.69/170

5.51/140

4.72/120

Fix. 7.87/200

8.66/220

3.15/80

0.31/8 3.74/95

0.23 x 0.63/

6 x 16

2.95/75

4.09/104

0.08/2

8.66/220

6.06/154

10.24/260

7.09/180

Fix. 10.11/257

11.25/286

5.51/140

7.67/194

Fix. 8.86/225

0.35/9

5.90/150

0.10/2.5

Factory Drilled and Equipped with Vertical Terminal Block

JBe46 JBe47

0.10/2.5

7.87/200

8.66/220

6.06/154

5.51/140

Fix. 10.12/257

11.26/286

14.57/370

11.42/290

11.97/304

Fix. 13.19/335

0.35/9 10.24/260

7.64/194

14.57/370

7.09/180

Fix. 11.69/297

12.83/326

11.97/304

13.19/335

7.87/200

6.69/170

13.78/350

11.42/290

0.10/2.5

Factory Drilled and Equipped with Horizontal Terminal Block

JBe36 JBe46

8.66/220

10.24/260

7.64/194

7.09/180

12.91/328

Fix. 11.69/297

6.06/154

Fix. 7.28/185

7.87/200

5.51/140

2.5/.010

5.91/150

4.72/120

0.35/9

14.57/370

11.97/304

8.66/220

11.42/290

Fix. 16.02/407

17.17/436

7.87/200

6.69/170

7.87/200

5.51/140

0.10/2.5

0.35/9

6.06/154

Fix. 7.28/185

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

561

JBES and ECES Series 316L Stainless Steel Enclosures

Increased Safety

Applications

• Designed for use in Zone 1 or 2 areas where ammable gases

or vapors are present either continuously or intermittently.

• Ideal for use in wet or corrosive atmospheres such as:

— Petroleum

— Chemical

— Reneries

— Other industrial process facilities

• Designed for use in Zone 21 or 22 areas where ammable dusts

are present either continuously or intermittently such as:

— Food processing

— Dairy

— Brewing

— Pharmaceutical industry

— Other commercial facilities

• JBES Series

— Terminal junction box for electrical low voltage and

instrumentation connections for use in hazardous areas.

— Refer to technical data to dene permitted number of

terminal blocks and cable entries on selected junction boxes.

• ECES Series

— Enclosure for distribution and control applications must

be customized at our workshop to house a large range

of components such as control units, switches, breakers,

transformers, meters, etc.

Features

• Smooth, continuously welded seams.

• Available in a wide range of sizes.

• Operating temperature -58 °F/-50 °C to 158 °F/70 °C (JBES

series) and -58 °F/-50 °C to 131 °F/55 °C (ECES series).

• Can be supplied with 1, 2, 3 or even 4 neoprene sealed gland

plates for ease of cable installation.

• Hinges standard on all sizes above 14.57" x 10.24" /

370.0 mm x 260.0 mm.

• Poured-in-place polyurethane door gasket.

• Feed-thru earth grounding stud.

• Reversible door, opens 210 degrees, from any location top;

bottom, left or right, by means of removable hinges that can be

installed in any position.

• Reversible anti-vibration mounting brackets can be mounted on

the top, bottom or side positions.

• Optional removable padlocking device.

Standard Materials

• Enclosure: 316L chrome plated stainless steel

• Hardware: 316L stainless steel

Standard Finishes

• Natural brushed nish

Accessories

• Mounting pan

• Rail mounting

• Padlocking device

• Door locking bracket for easy access

• Inside pocket

• Refer to technical data to dene permitted number of terminals

and cable entries acceptance

Options

• Removable gland plates.

• Nameplate.

• Factory drilled and assembled, contact your local representative

for information.

• Medium voltage application (11 kV max.), contact your local

representative for information.

• Intrinsic safety version (JBIS) available with the use of intrinsic

terminals.

• CSA and CUL certied terminal junction box available. Contact

your local representative for information.

Certifications and Compliances

• Certication Type JBe

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II, Ex ia IIC, Ex ib IIC, Ex de IIC,

Ex demb IIC

– T Rating: T6 to T4

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T176 °F/T80 °C to T266 °F/T130 °C

— Ambient Temperature: -58 °F/-50 °C to 158 °F/70 °C

— CE Declaration of Conformity: 50232

— ATEX Certicate: LCIE 02 ATEX 6118X

— IEC Certicate: LCIE Ex 02.010X

— Other Certications: GOST

• Certication Type JBe U

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e II

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

— Ambient Temperature: -58 °F/-50 °C to 158 °F/70 °C

— CE Declaration of Conformity: 5C240

— ATEX Certicate: LCIE 09 ATEX 3025U

— IEC Certicate: LCIE Ex 09.001U

• Ingress Protection (solid and liquid): IP66

• Impact Resistance (shock): IK10

• Ex Standards: EN/IEC 60079-0; 60079-1; 60079-7; 60079-11,

61241-0; 61241-1; 61241-11

• Other Standards: EN/IEC 60529 (IP), 62262 (IK)

JBES Series ECES Series

Closed

Open

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

562

JBES and ECES Series 316L Stainless Steel Enclosures

Increased Safety

Illustrated Features

Optional removable locking device.

Part Number 097209

Reversible antivibration mounting brackets,

can be mounted in top, side or bottom

positions.

M8 feed-thru earth/ground terminal. Polyurethane poured in place door gasket and

stainless steel captive screws.

Reversible door. Opens to 210°, top, bottom,

left or right, by moving the location of the

hinges Optional removable gland plate.

Catalog Numbering Guide

JBES 12 12 09 0 M

Series

ATEX/IEC Certified:

EC - Enclosure and Controls

JB - Junction Box

E - Increased Safety

I - Intrinsic Safety

S - Stainless Steel

Depth Dimensions in/mm:

09 - 3.58/91.0

15 - 5.91/150.0

20 - 7.87/200.0

30 - 11.81/300.0

Length Dimensions in/mm:

12 - 4.72/120.0

18 - 7.09/180.0

22 - 8.66/220.0

26 - 10.24/260.0

37 - 14.57/370.0

56 - 22.05/560.0

75 - 29.53/750.0

11 - 44.49/1130.0

Gland plate:

0 - None

1 - One Bottom

2 - One Top and Bottom

3 - Two Sides and Bottom

4 - All Sides

Width Dimensions in/mm:

12 - 4.72/120.0

18 - 7.09/180.0

22 - 8.66/220.0

26 - 10.24/260.0

37 - 14.57/370.0

56 - 22.05/560.0

75 - 29.53/750.0

Options:

(options must be listed

alphabetically)

M - Mounting Pan

U - Component Certification

“U”

# - Customized Enclosure (6

Digit number will be assigned

at time of order placement.)

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

JBES Series

Type

Dimensions

L x W x D in/mm

Hinged

Door ‡

Vertical

Orientation

Rail Length in/mm

Horizontal

Orientation

Rail Length in/mm

Weight

lb/kg

Volume

in3/dm3

Catalog

Number

Ex e II 316L Stainless Steel Junction Boxes without Gland Plate

For use only with Ex terminals (not supplied). External earth crossing terminal. (M6 for JBe10/20/30 and M8 for other boxes). Mounting pan and rails to be ordered

separately.

JBe10 4.72 x 4.72 x 3.74/

120 x 120 x 95 N–3.94/

100

2.20/

1.0

85.43/

1.4 JBES1212090_

JBe20 4.72 x 7.09 x 3.74/

120 x 180 x 95 N–6.30/

160

3.31/

1.5

122.05/

2.0 JBES1218090_

JBe30 7.09 x 7.09 x 3.74/

180 x 180 x 95 N–6.30/

160

3.97/

1.8

183.07/

3.0 JBES1818090_

JBe36 8.66 x 10.24 x 5.91/

220 x 260 x 150 R6.69/

170

8.27/

210

11.02/

5.0

524.80/

8.6 JBES2226150_

JBe36 10.24 x 8.66 x 5.91/

260 x 220 x 150 R8.27/

210

6.69/

170

11.02/

5.0

524.80/

8.6 JBES2622150_

JBe46 8.66 x 14.57 x 7.87/

220 x 370 x 200 †R6.69/

170

12.60/

320

18.74/

8.5

994.69/

16.3 JBES2237200_

JBe47 10.24 x 14.57 x 7.87/

260 x 370 x 200 †Y8.27/

210

12.60/

320

19.84/

9.0

1177.76/

19.3 JBES2637200_

JBe46 14.57 x 8.66 x 7.87/

370 x 220 x 200 †R12.60/

320

6.69/

170

18.74/

8.5

1012.99/

16.6 JBES3722200_

JBe47 14.57 x 10.24 x 7.87/

370 x 260 x 200 †Y12.60/

320

8.27/

210

19.84/

9.0

1177.76/

19.3 JBES3726200_

JBe55 14.57 x 14.57 x 7.87/

370 x 370 x 200 †Y12.60/

320

12.60/

320

28.66/

13.0

1672.05/

27.4 JBES3737200_

JBe65 14.57 x 22.05 x 7.87/

370 x 560 x 200 †Y12.60/

320

20.08/

510

19.84/

19.0

2532.49/

41.5 JBES3756200_

JBe75 14.57 x 29.53 x 7.87/

370 x 750 x 200 †Y12.60/

320

27.56/

700

52.91/

24.0

3386.82/

55.5 JBES3775200_

JBe65 22.05 x 14.57 x 7.87/

560 x 370 x 200 †Y20.08/

510

12.60/

320

19.84/

19.0

2532.49/

41.5 JBES5637200_

JBE77 22.05 x 22.05 x 7.87/

560 x 560 x 200 †Y20.08/

510

20.08/

510

61.73/

28.0

3832.29/

62.8 JBES5656200_

JBe79 22.05 x 29.53 x 7.87/

560 x 750 x 200 †Y20.08/

510

27.56/

700

72.75/

33.0

5125.99/

84.0 JBES5675200_

JBe75 29.53 x 14.57 x 7.87/

750 x 370 x 200 †Y27.56/

700

12.60/

320

52.91/

24.0

3386.82/

55.5 JBES7537200_

JBe79 29.53 x 22.05 x 7.87/

750 x 560 x 200 †Y27.56/

700

20.08/

510

72.75/

33.0

5125.99/

84.0 JBES7556200_

JBe86 44.49 x 29.53 x 11.81/

1130 x 750 x 300 Y42.52/

1080

27.56/

700

110.23/

50.0

14340.58/

235.0 JBES1175300_

† 7.87"/200 mm depth enclosure available with 11.81"/300 mm depth – replace digit 2 with 3 – Example: JBES3737304.

‡ N: Not Available, R: On request or separate accessories, Y: Supplied.

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

563

JBES and ECES Series 316L Stainless Steel Enclosures

Increased Safety

JBES Series

Type

Dimensions

L x W x D in/mm

Hinged

Door ‡

One Gland Plate

Catalog Number

Two Gland Plates

Catalog Number

Three Gland Plate

Catalog Number

Four Gland Plates

Catalog Number

Ex e II 316L Stainless Steel Terminal Junction Boxes with Gland Plates 0.12"/3 mm Thick

For use only with Ex terminals (not supplied). M8 External earth crossing terminal. Mounting pan and rails to be ordered separately.

One Gland Plate

Two Gland Plate

Gland Plate Three

Four Gland Plate

JBe36 8.66 x 10.24 x 5.91/

220 x 260 x 150 RJBES2226151_ JBES2226152_ JBES2226153_ JBES2226154_

JBe36 8.66 x 10.24 x 5.91/

220 x 260 x 150 RJBES2622151_ JBES2622152_ JBES2622153_ JBES2622154_

JBe46 8.66 x 14.57 x 7.87/

220 x 370 x 200 †RJBES2237201_ JBES2237202_ JBES2237203_ JBES2237204_

JBe47 8.66 x 14.57 x 7.87/

220 x 370 x 200 †YJBES2637201_ JBES2637202_ JBES2637203_ JBES2637204_

JBe46 14.57 x 8.66 x 7.87/

370 x 220 x 200 †RJBES3722201_ JBES3722202_ JBES3722203_ JBES3722204_

JBe47 14.57 x 10.24 x 7.87/

370 x 260 x 200 †YJBES3726201_ JBES3726202_ JBES3726203_ JBES3726204_

JBe55 14.57 x 14.57 x 7.87/

370 x 370 x 200 †YJBES3737201_ JBES3737202_ JBES3737203_ JBES3737204_

JBe65 14.57 x 22.05 x 7.87/

370 x 560 x 200 †YJBES3756201_ JBES3756202_ JBES3756203_ JBES3756204_

JBe75 14.57 x 29.53 x 7.87/

370 x 750 x 200 †YJBES3775201_ JBES3775202_ JBES3775203_ JBES3775204_

JBe65 22.05 x 14.57 x 7.87/

560 x 370 x 200 †YJBES5637201_ JBES5637202_ JBES5637203_ JBES5637204_

JBe77 22.05 x 22.05 x 7.87/

560 x 560 x 200 †YJBES5656201_ JBES5656202_ JBES5656203_ JBES5656204_

JBe79 22.05 x 29.53 x 7.87/

560 x 750 x 200 †YJBES5675201_ JBES5675202_ JBES5675203_ JBES5675204_

JBe75 29.53 x 14.57 x 7.87/

750 x 370 x 200 †YJBES7537201_ JBES7537202_ JBES7537203_ JBES7537204_

JBe79 29.53 x 22.05 x 7.87/

750 x 560 x 200 †YJBES7556201_ JBES7556202_ JBES7556203_ JBES7556204_

JBe86 44.49 x 29.53 x 11.81/

1130 x 750 x 300 YJBES1175301_ JBES1175302_ JBES1175303_ JBES1175304_

† 7.87"/200 mm depth enclosure available with 11.81"/300 mm depth – replace digit 2 with 3 – Example: JBES3737304.

‡ N: Not Available, R: On request or separate accessories, Y: Supplied.

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

JBES and ECES Series 316L Stainless Steel Enclosures

Increased Safety

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

564

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

565

JBES and ECES Series 316L Stainless Steel Enclosure Accessories

Increased Safety

Enclosure Length in/mm Rail Length in/mm

Catalog Number

PackSymmetrical Depth = 0.59"/15 mm Asymmetrical

Symmetrical

Asymmetrical

Zinc Plated Steel Rail

For fixing onto uprights with clip nut supplied.

4.72/120 3.93/100 097246 — 1

7.09/180 6.30/160 097247 — 1

8.66/220 6.69/170 097240 097250 1

10.24/260 8.27/210 097241 097251 1

14.57/370 12.60/320 097242 097252 1

22.05/560 20.08/510 097243 097253 1

29.53/750 27.56/700 097244 097254 1

44.49/1130 42.52/1080 097245 097255 1

Enclosure Length in/mm

Bar Length

in/mm

Catalog

Number Pack

Zinc Plated Steel Uprights

Set of two.

8.66/220 6.30/160 097230 1

10.24/260 7.87/200 097231 1

14.57/370 12.20/310 097232 1

22.05/560 19.68/500 097233 1

29.53/750 27.17/690 097234 1

44.49/1130 42.13/1070 097235 1

Copper Bar (.47 x .16" / 12 x 4 mm)

Copper bar not perforated for cable clamps.

8.66/220 6.30/160 097270 1

10.24/260 7.87/200 097271 1

14.57/370 12.20/310 097272 1

22.05/560 19.68/500 097273 1

29.53/750 27.17/690 097274 1

44.49/1130 42.13/1070 097275 1

Cable Clamp for Copper Bar (.47 x .16" / 12 x 4 mm)

0.002 in2 to 0.006 in2 / 1.5 mm2 to 4 mm2 Capacity 097203 1

0.009 in2 to 0.025 in2 / 6 mm2 to 16 mm2 Capacity 097204 1

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

566

JBES and ECES Series 316L Stainless Steel Enclosure Accessories

Increased Safety

Enclosure Dimensions Inches/Millimeters Mounting Pan Dimensions

Inches/Millimeters Catalog Number PackHeight Width

Mounting Pan – Zinc Plated Steel

4.72/120 4.72/120 3.93 x 3.93 / 100 x 100 097277 1

4.72/120 7.09/180 3.93 x 6.30 / 100 x 160 097278 1

7.09/180 7.09/180 6.30 x 6.30 / 160 x 160 097279 1

8.66/220 10.24/260 6.30 x 7.87 / 160 x 200 097280 1

8.66/220 14.57/370 6.30 x 12.20 / 160 x 310 097281 1

10.24/260 14.57/370 7.87 x 12.20 / 200 x 310 097282 1

14.57/370 14.57/370 12.20 x 21.20 / 310 x 310 097283 1

14.57/370 22.05/560 12.20 x 19.68 / 310 x 500 097284 1

14.57/370 29.53/750 12.20 x 27.17 / 310 x 690 097285 1

22.05/560 22.05/560 19.68 x 19.68 / 500 x 500 097286 1

22.05/560 29.53/750 19.68 x 27.17 / 500 x 690 097287 1

44.49/1130 29.53/750 27.17 x 42.13 / 690 x 1070 097288 1

Spacers for Mounting at Back of Box

Set of two insulated pillars for copper bar .47 x .16" / 12 x 4 mm.

Height = 3.94"/100 mm 097206 1

Height = 1.97"/50 mm 097207 1

Conversion Kit — Door to Cover

Must be used to remove hinges.

097202 1

Spare Hinges

Set of Two 097201 1

Spare Mounting Brackets — Set of Two

One left and one right. 097200 1

Self Adhesive Pocket for Drawings

External dimensions: 10.24 x 6.50" / 260 x 165 mm

Internal dimensions: 9.06 x 5.12 x .071" / 230 x 130 x 18 mm 097263 1

External dimensions: 13.39 x 9.25" / 340 x 235 mm

Internal dimensions: 12.20 x 7.87 x 0.71" / 310 x 200 x 18 mm 097264 1

Additional Door Padlocking Device

Padlock not supplied. 097209

Locking Bracket

Locks door in open position during wiring 097265 1

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

567

JBES and ECES Series 316L Stainless Steel Enclosure Accessories

Increased Safety

Dimensions Inches/Millimeters Gland Plate/Coupling Flange

Dimensions

Inches/Millimeters Catalog Number PackEnclosure Width Height

Spare Gland Plate

8.66/220 5.91/150 B/D 6.69 x 4.72 / 170 x 120 JBESGP221B 1

10.24/260 5.91/150 A/C 9.84 x 4.72 / 250 x 120 JBESGP261A 1

10.24/260 7.87/200 A/C 9.84 x 6.69 / 250 x 170 JBESGP262A 1

10.24/260 7.87/200 B/D 8.27 x 6.69 / 210 x 170 JBESGP262B 1

14.57/370 7.87/200 A/C 14.17 x 6.69 / 360 x 170 JBESGP372A 1

14.57/370 7.87/200 B/D 12.60 x 6.69 / 320 x 170 JBESGP372B 1

22.05/560 7.87/200 A/C 21.65 x 6.69 / 550 x 170 JBESGP562A 1

22.05/560 7.87/200 B/D 20.08 x 6.69 / 510 x 170 JBESGP562B 1

29.53/750 7.87/200 A/C 29.13 x 6.69 / 740 x 170 JBESGP752A 1

29.53/750 7.87/200 B/D 27.56 x 6.69 / 700 x 170 JBESGP752B 1

10.24/260 11.81/300 A/C 9.84 x 10.63 / 250 x 270 JBESGP263A 1

14.57/370 11.81/300 A/C 14.17 x 10.63 / 360 x 270 JBESGP373A 1

14.57/370 11.81/300 B/D 12.60 x 10.63 / 320 x 270 JBESGP373B 1

22.05/560 11.81/300 A/C 21.65 x 10.63 / 550 x 270 JBESGP563A 1

22.05/560 11.81/300 B/D 20.08 x 10.63 / 510 x 270 JBESGP563B 1

29.53/750 11.81/300 A/C 29.13 x 10.63 / 740 x 270 JBESGP753A 1

29.53/750 11.81/300 B/D 27.56 x 10.63 / 700 x 270 JBESGP753B 1

Coupling Flange

10.24/260 7.87/200 A/C 9.84 x 4.72 / 250 x 120 JBESCF262A 1

14.57/370 7.87/200 A/C 14.17 x 6.69 / 360 x 170 JBESCF372A 1

14.57/370 7.87/200 B/D 12.60 x 6.69 / 320 x 170 JBESCF372B 1

22.05/560 7.87/200 A/C 21.65 x 6.69 / 550 x 170 JBESCF562A 1

22.05/560 7.87/200 B/D 20.08 x 6.69 / 510 x 170 JBESCF562B 1

29.53/750 7.87/200 A/C 29.13 x 6.69 / 740 x 170 JBESCF752A 1

29.53/750 7.87/200 B/D 27.56 x 6.69 / 700 x 170 JBESCF752B 1

14.57/370 11.81/300 A/C 14.17 x 10.63 / 360 x 270 JBESCF373A 1

14.57/370 11.81/300 B/D 12.60 x 10.63 / 320 x 270 JBESCF373B 1

22.05/560 11.81/300 A/C 21.65 x 10.63 / 550 x 270 JBESCF563A 1

22.05/560 11.81/300 B/D 20.08 x 10.63 / 510 x 270 JBESCF563B 1

29.53/750 11.81/300 A/C 29.13 x 10.63 / 740 x 270 JBESCF753A 1

29.53/750 11.81/300 B/D 27.56 x 10.63 / 700 x 270 JBESCF753B 1

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

568

JBES and ECES Series 316L Stainless Steel Enclosures

Increased Safety

JBES Series for Terminal Junction Box Application Only.

Use the table shown below to select the proper size junction box based upon your requirements. Custom drilled and equipped boxes can be

configured using our drilling guide available online at www.egsatx.com.

Define maximum cable entries according to number of modules available per side.

Cable Entry Metric Thread Number of Modules

M20 1

M25 1

M32 1

M40 2

M50 3

Type

Dimensions Inches/Millimeters Number of Modules Number of Modules †Terminal Dim.

H — in/mmHeight Width Depth A/C B/D A’/C’ B’/D’

JBe10 4.72/120 4.72/120 3.74/95 5 5 – – 8.66/220

JBe20 4.72/120 7.09/180 3.74/95 9 5 – – 8.66/220

JBe30 7.09/180 7.09/180 3.74/95 9 9 – – 8.66/220

JBe36 8.66/220 10.24/260 5.91/150 11 7 9 5 8.66/220

JBe36 10.24/260 8.66/220 5.91/150 7 11 5 9 10.24/260

JBe46 8.66/220 14.57/370 7.87/200 31 16 19 7 10.24/260

JBe46 14.57/370 8.66/220 7.87/200 16 31 7 9 14.57/370

JBe47 14.57/370 10.24/260 7.87/200 20 31 14 20 14.57/370

JBe47 10.24/260 14.57/370 7.87/200 31 20 19 10 10.24/260

JBe55 14.57/370 14.57/370 7.87/200 31 31 19 18 14.57/370

JBe65 22.05/560 14.57/370 7.87/200 31 49 19 31 22.05/560

JBe65 14.57/370 22.05/560 7.87/200 49 31 34 18 14.57/370

JBe75 29.53/750 14.57/370 7.87/200 31 66 19 47 29.53/750

JBe75 14.57/370 29.53/750 7.87/200 66 31 49 18 14.57/370

JBe77 22.05/560 22.05/560 7.87/200 49 49 34 31 22.05/560

JBe79 29.53/750 22.05/560 7.87/200 49 66 34 45 29.53/750

JBe79 22.05/560 29.53/750 7.87/200 66 49 49 31 22.05/560

JBe86 44.49/1130 29.53/750 11.81/300 102 –82 –44.49/1130

2. Maximum rail arrangement according to physical dimensions.

Maximum Quantity of Horizontal Rails Per Quantity

Terminal Capacity (in2/mm2)0.004/2.5 0.006/4 0.009/6 0.016/10 0.025/16 0.054/35 0.078/50 0.109/70

JBe10/20/30/36 11111100

JBe36/46/47 22211100

JBe46/47/55/65/75 33222211

JBe65/77/79 55444322

JBe75/79 77665432

JBe86 10 10 9 9 8 6 4 4

† Enclosure with gland plate.

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

569

JBES and ECES Series 316L Stainless Steel Enclosures

Increased Safety

3. Defining maximum terminal block quantity according to power dissipation:

• Junction boxes used for instrumentation applications carry very low current levels. Therefore there is no risk of overheating whatever the

number of terminals inside the box.

• For applications other than instrumentation, the following tables allow you to dene your junction box depending on the number of terminals

and the maximum authorized current being carried with feed-through terminals.

• For single feed terminals using cross connection, consult factory for calculation.

For other terminal block configurations, please consult our drilling guide available online at www.egsatx.com.

Small Junction Boxes Non-Hinged Junction Boxes

T Rating:

T6 @ Ta 131 °F/55° C

Type

T Rating:

T6 @ Ta 131 °F/55° C

Type

JBe10

5 x 5 x 4"

120 x 120 x

95 mm

JBe20

5 x 7 x 4"

120 x 180 x

95 mm

JBe30

7 x 7 x 4"

180 x 180 x

95 mm

JBe36

9 x 10 x 6"

220 x 260 x

150 mm

JBe46

9 x 15 x 8"

220 x 370 x

200 mm

JBe47

10 x 15 x 8'

260 x 370 x

200 mm

JBe55

15 x 15 x 8"

370 x 370 x

200 mm

0.004 in2/

2.5 mm2

Qty.

1 max.

16 A

0.004 in2/

2.5 mm2

Qty.

1 max.

16 A

14 A

12 A

110

10 A

0.006 in2/

4 mm2

Qty.

1 max.

25 A

0.006 in2/

4 mm2

Qty.

1 max.

25 A

20 A

16 A

15 A

0.009 in2/

6 mm2

Qty.

1 max.

32 A

0.009 in2/

6 mm2

Qty.

1 max.

32 A

0.016 in2/

10 mm2

Qty.

1 max.

50 A

0.016 in2/

10 mm2

Qty.

1 max.

50 A

45 A

0.024 in2/

16 mm2

Qty.

1 max.

63 A

50 A

0.039 in2/

25 mm2

Qty.

1 max.

80 A

76 A

0.054 in2/

35 mm2

Qty.

1 max.

100 A

93 A

Hinged Junction Boxes

T Rating:

T6 @ Ta 104 °F/40 °C

T5 @ Ta 131 °F/55° C

Type

CAe6

16 x 12 x 8"

400 x 300 x

206 mm

CAe7

20 x 16 x 8"

500 x 400 x

206 mm

CAe8

24 x 16 x 10"

610 x 400 x

257 mm

CAe10

32 x 24 x 12"

820 x 610 x

300 mm

CAe11

40 x 32 x 12"

1020 x 810 x

300 mm

0.054 in2/

35 mm2

Qty.

1 Max.

100 A

100 A — —

0.078 in2/

50 mm2

Qty.

1 Max.

125 A

125 A — —

0.109 in2/

70 mm2

Qty.

1 Max.

160 A

160 A — —

0.147 in2/

95 mm2

Qty.

1 Max.

200 A

200 A — —

0.186 in2/

120 mm2

Qty.

1 Max. —8

250 A

200 A

150 A

0.233 in2/

150 mm2

Qty.

1 Max. — — 6

250 A

190 A

0.287 in2/

185 mm2

Qty.

1 Max. ——— 8

300 A

240 A

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

570

JBES and ECES Series 316L Stainless Steel Enclosure Dimensions

Increased Safety

Dimensions in Inches/Millimeters

Box 3.74/95 Depth

Fix. J

0.08/2

0.31/82

Fix. J

0.08/2

0.31/82

Box 7.87/200 or 11.81/300 Depth Mounting Bracket

Fix. J

Fix. I

0.73/

18.50

0.35/9

Fix. J

Fix. I

0.73/

18.50

0.35/9

0.73/18.5

0.65/16.51.30/33

0.10/2.5

0.45/11.5

0.35/9

L x W x D in/mm A B C D E F G H I J K

Box Depth 3.74/95

4.72 x 4.72 x 3.74/

120 x 120 x 95 4.72/120 4.72/120 3.74/95 5.00/127 5.00/127 4.09/104 3.31/84 3.46/88 6.30/160 5.51/140 0.06/1.5

4.72 x 7.09 x 3.74/

120 x 180 x 95 4.72/120 7.09/180 3.74/95 5.00/127 7.36/187 4.09/104 5.67/144 5.83/148 8.66/220 7.87/200 0.06/1.5

7.06 x 7.09 x 3.74

180 x 180 x 95/ 7.09/180 7.09/180 3.74/95 7.36/187 7.36/187 6.47/164 5.67/144 5.83/148 8.66/220 7.87/200 0.06/1.5

Box Depth 7.87/200

8.66 x 14.57 x 7.87/

220 x 370 x 200/ 8.66/220 14.57/370 7.87/200 6.54/166 12.44/316 5.51/140 11.42/290 17.17/436 7.28/185 16.02/407 0.06/1.5

14.57 x 10.24 x 7.87/

370 x 260 x 200 14.57/370 10.24/260 7.87/200 12.44/316 8.11/206 11.42/290 7.09/180 12.83/326 13.19/335 11.69/297 0.06/1.5

14.57 x 14.57 x 7.87/

370 x 370 x 200 14.57/370 14.57/370 7.87/200 12.44/316 12.44/316 11.42/290 11.42/290 17.17/436 13.19/335 16.02/407 0.08/2

22.05 x 14.57 x 7.87/

560 x 370 x 200 22.05/560 14.57/370 7.87/200 19.92/506 12.44/316 18.90/480 11.42/290 17.17/436 20.67/525 16.02/407 0.08/2

29.53 x 14.57 x 7.87/

750 x 370 x 200 29.53/750 14.57/370 7.87/200 63.74/95 12.44/316 26.38/670 11.42/290 17.17/436 28.15/715 16.02/407 0.08/2

22.05 x 22.05 x 7.87/

560 x 560 x 200 22.05/560 22.05/560 7.87/200 19.92/506 19.92/506 18.90/480 18.90/480 24.65/626 20.67/525 23.50/597 0.08/2

29.53 x 22.05 x 7.87/

750 x 560 x 200 29.53/750 22.05/560 7.87/200 24.40/696 19.92/506 26.38/670 18.90/480 24.65/626 28.15/715 23.50/597 0.08/2

Box Depth 11.81/300

14.57 x 14.57 x 11.81/

370 x 370 x 300 14.57/370 14.57/370 11.81/300 12.44/316 12.44/316 11.42/290 11.42/290 17.17/436 13.19/335 16.02/407 0.08/2

22.05 x 14.57 x 11.81/

560 x 370 x 300/ 22.05/560 14.57/370 11.81/300 19.92/506 12.44/316 18.90/480 11.42/290 17.17/436 20.67/525 16.02/407 0.08/2

29.53 x 14.57 x 11.81/

750 x 370 x 300 29.53/750 14.57/370 11.81/300 63.74/95 12.44/316 26.38/670 11.42/290 17.17/436 28.15/715 16.02/407 0.08/2

22.05 x 22.05 x 11.81/

560 x 560 x 300 22.05/560 22.05/560 11.81/300 19.92/506 19.92/506 18.90/480 18.90/480 24.65/626 20.67/525 23.50/597 0.08/2

29.53 x 22.05 x 11.81/

750 x 560 x 300 29.53/750 22.05/560 11.81/300 24.40/696 19.92/506 26.38/670 18.90/480 24.65/626 28.15/715 23.50/597 0.08/2

44.49 x 29.53 x 11.81/

1130 x 750 x 300 44.49/1130 29.53/750 11.81/300 42.36/1076 19.92/506 41.34/1050 26.38/670 32.13/816 103.74/95 30.98/787 0.08/2

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

571

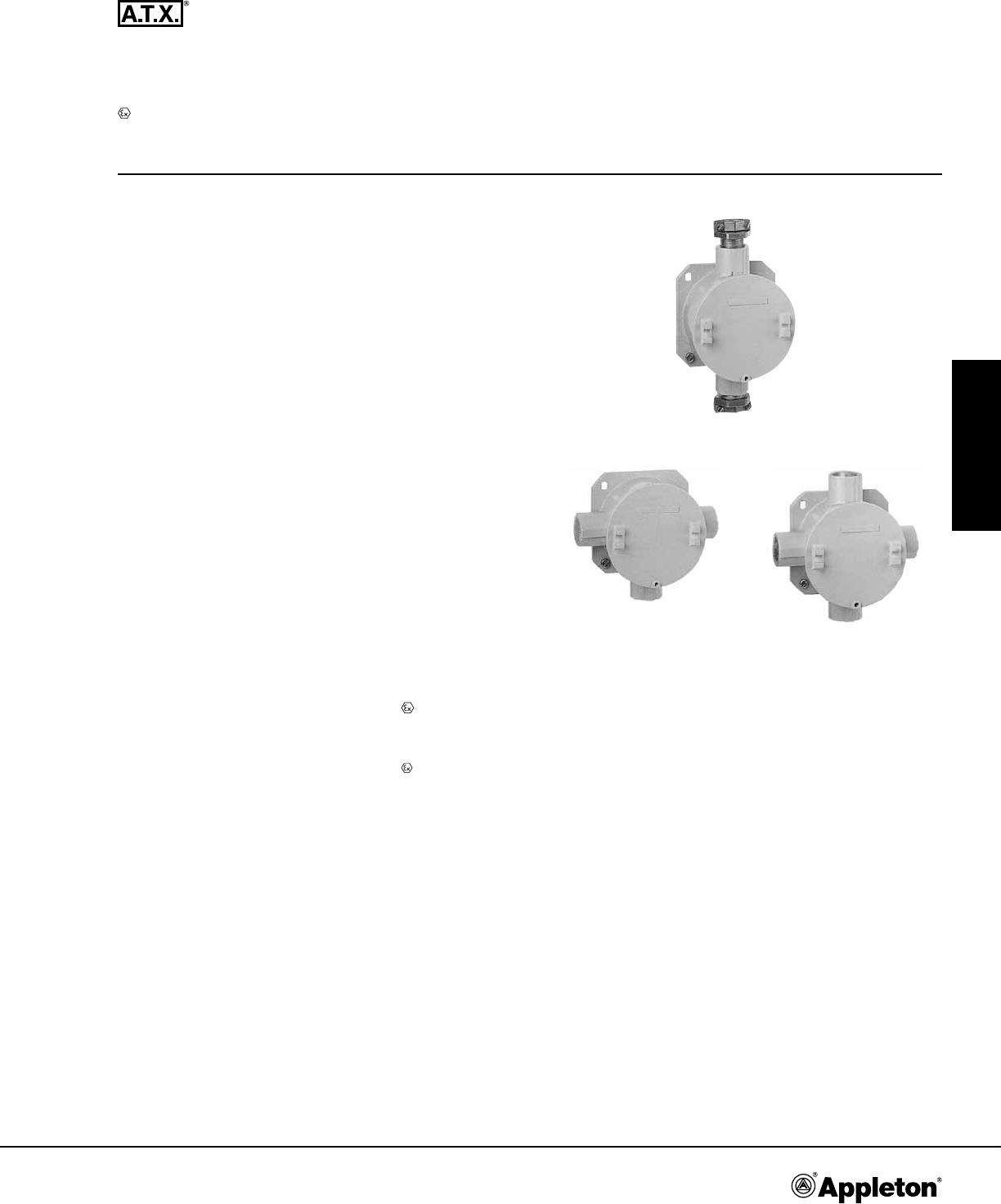

JBDR Series Pre-Drilled Round Junction Boxes

Flameproof

2 Entry Version with Cable Glands

3 Entry Version 4 Entry Version

Applications

• Small terminal junction boxes designed to facilitate electrical

connections in hazardous areas.

• Designed for use in Zone 1 or 2 areas, where ammable gases

or vapors are present either continuously or intermittently.

• Ideal for use in wet or corrosive atmospheres such as:

— Petroleum reneries

— Chemical reneries

— Other industrial process facilities

• Designed for use in Zone 21 or 22 areas, where ammable

dusts are present either continuously or intermittently such as:

— Food processing

— Dairy

— Brewing

— Silos

— Other facilities

Features

• IK10 (20 Joules) high impact resistant box.

• Pillar type terminal block (4 x terminals) for easy connection.

• Terminal capacity: 0.006 x 0.006 in2 / 4 x 4 mm2 or 0.003 x

0.009 in2 / 2 x 6 mm2.

• Internal Earth: ground plate with 4 x M4 screws for connection

to 4 mm diameter lugs.

• External Earth: M5 screw.

• Back plate supplied.

• Operating temperature -40 °F/-40 °C to 131 °F/55 °C.

Standard Materials

• Housing: gray painted marine grade aluminum

• Hardware: stainless steel

Certifications and Compliances

• Certication Type BR1d

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e IIC

– T Rating: T6 to T4 = 104 °C/40 ºC

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T203 °F/T95 °C

— Ambient Temperature: -40 °F/-40 °C to 131 °F/55 °C

— CE Declaration of Conformity: 50230

— ATEX Certicate: LCIE 02 ATEX 6056

— IEC Certicate: LCIE Ex 02.005

— Other Certications: GOST

• Ingress Protection (solid and liquid): IP66

• Impact Resistance (shock): IK10

• Internal Volume: ≤ 2dm3 (2 liters)

• Ex Standards: EN/IEC 60079-0; 60079-1; 61241-0; 61241-1

• Other Standards: EN/IEC 60529 (IP), 62262 (IK)

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

572

JBDR Series Pre-Drilled Round Junction Boxes

Flameproof

Catalog Numbering Guide

JBDR 1 0 G

Series

ATEX/IEC Certified:

JB - Junction Box

D - Flameproof

R - Round Shape in Aluminum

Entry Size: †

0 - M20

5 - M25

3 - 3/4" NPT

1 - 1" NPT

Number of Entries:

Options:

G - Cable Gland supplied

T - With Pillar Terminal Block

Equipment Weight lb/kg Volume in3/dm3Catalog Number

2 Entry

3 Entry

4 Entry

Threaded Entries with M25 Integrated Cable Gland:

For unarmored cable: – sealed Ø: 0.35 to 0.59" / 9 to 15 mm (093496)

2 x M25 entries (feed through)

2 integrated cable glands supplied 1.76/0.8 122.05/2 JBDR25G

3 x M25 entries (in a “T”)

3 integrated cable glands supplied 1.76/0.8 122.05/2 JBDR35G

4 x M25 entries (in a cross)

4 integrated cable glands supplied 1.98/0.9 122.05/2 JBDR45G

Threaded Entries for M20 Cable Gland – Not Supplied

2 x M20 entries (feed through) 0.7/1.54 122.05/2 JBDR20

3 x M20 entries (in a “T”) 0.7/1.54 122.05/2 JBDR30

4 x M20 entries (in a cross) 1.76/0.8 122.05/2 JBDR40

Threaded Entries for NPT 3/4” Cable Gland – Not Supplied

2 x 3/4” NPT entries (feed through) 0.7/1.54 122.05/2 JBDR23

3 x 3/4” NPT entries (in a “T”) 0.7/1.54 122.05/2 JBDR33

4 x 3/4” NPT entries (in a cross) 1.76/0.8 122.05/2 JBDR43

Threaded Entries for NPT 1” Cable Gland – Not Supplied

4 x 1” NPT entries (in a cross) 1.76/0.8 122.05/2 JBDR41

Accessories

Description Weight lb/kg Volume in3/dm3Catalog Number

Pillar Terminal Block

4 terminals

0.006 x 0.006 in2 / 4 x 4 mm2 or 0.003 x 0.009 in2 / 2 x 6 mm2 cables 0.22/0.1 24.41/0.4 TBP44

M25 Integrated Cable Gland

for unarmored cables (dia. 0.35 to 0.59" / 9 to 15 mm) 1.32/0.6 54.92/0.9 093496

† For other entry size, use adaptor.

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

573

JBDR Series Pre-Drilled Round Junction Box Dimensions

Flameproof

Dimensions in Inches/Millimeters

2 Entry Version

0.28/7

0.35/9

3.23/82

4.33/110

5.91/150

0.28/

1.97/

7.68/195

3.15/80

3.35/85

3 Entry Version

0.28/7

0.35/9

3.23/82

4.33/110

5.91/150

0.28/

1.97/50

5.98/152

7.68/195

3.35/85

3.15/80

5.12/130

1.61/

3 Entry Version

0.28/7

0.35/9

3.23/82

0.28/

1.97/

3.23/82

4.33/110

5.91/150

7.68/195

3.35/85

3.15/80

1.61/

7.68/195

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

574

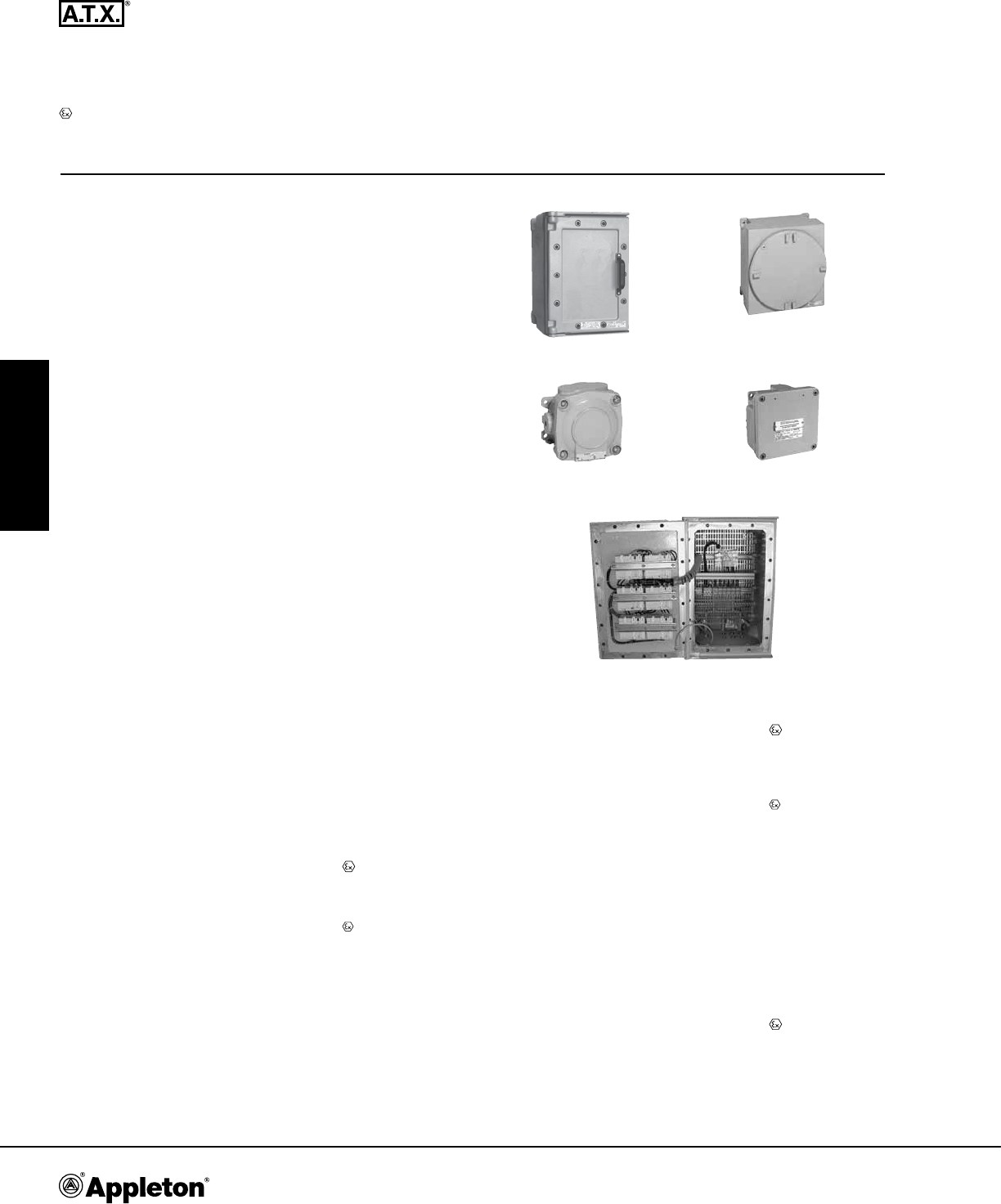

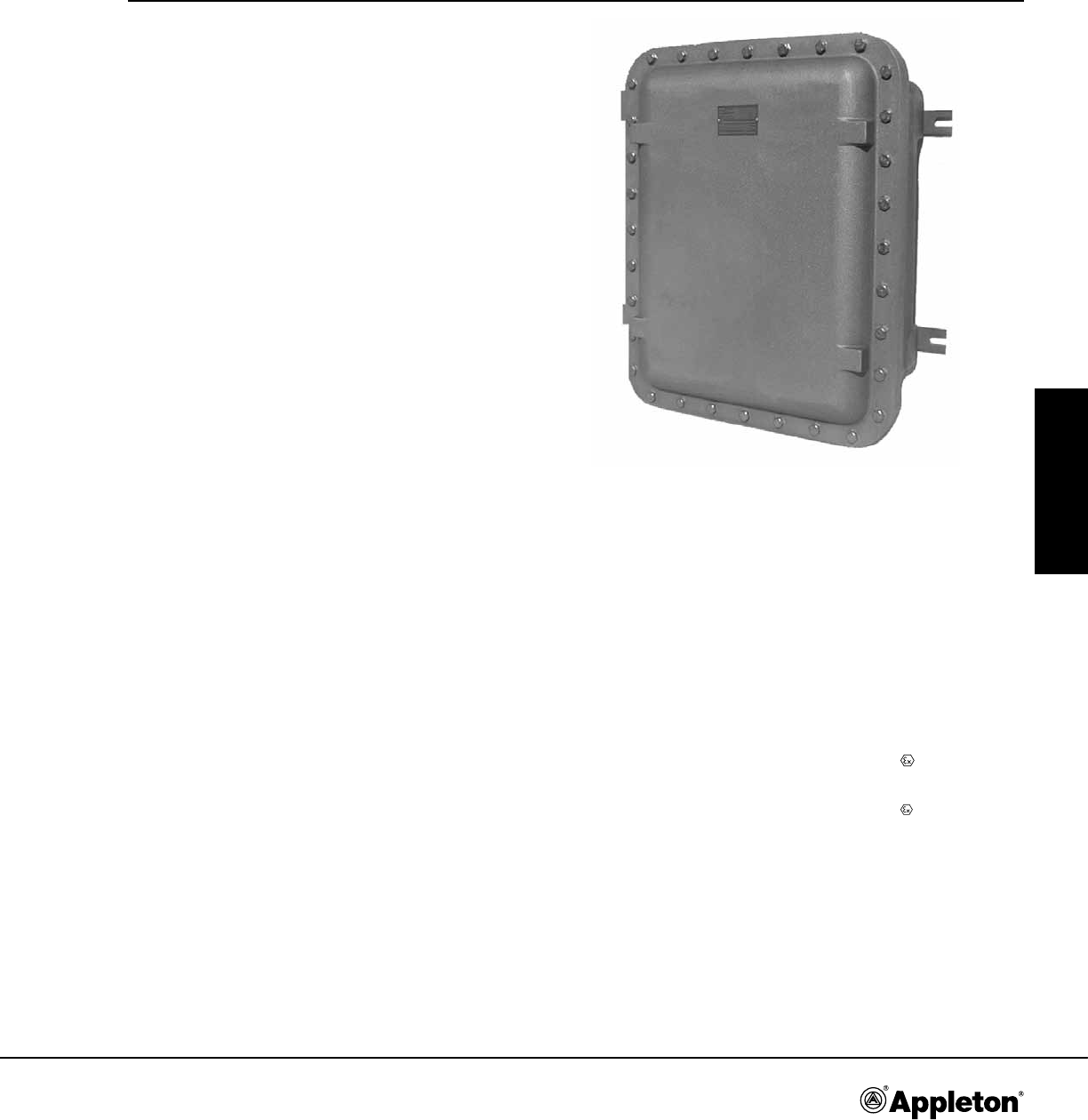

JBDA and JBDF – ECDA and ECDF Series Customized Enclosures

Flameproof

Applications

• Designed for use in Zones 1, 2, 21 and 22 in the oil and gas

industry such as:

— Petroleum

— Chemical

— Reneries

— Other industrial process facilities

• Junction box applications:

— JBD series enclosures may be customized to house

terminal blocks.

• Enclosure and control applications:

— ECD series enclosures may be customized to house a large

range of components such as:

– Control units

– Breakers

– Starters

– Relays

– Meters

– Etc.

Features

• Enclosures are available in a wide range of sizes.

• Precision machined ameproof joint between body and cover.

• Wall thickness suitable for all sizes of cable entries.

• External xing lugs.

• Internal mounting pan.

• Square and round windows available in a wide range of sizes.

• Machining and drilling must be completed in our workshops.

• Power dissipated calculation including cables must be

completed according to each size of certied enclosure.

Standard Materials

• Enclosures: gray painted cast iron or marine grade aluminum

alloy

• Hardware: stainless steel

Options

• Indirect cable entries available through Ex e connection

enclosure.

• Factory assembled and wired.

• Empty enclosure with Ex “U” component marking for

re-certication by notied body (CF10B to CF70B).

Certifications and Compliances

• Certication Type CF2/A/B/C

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e IIB

– T Rating: T6 to T2

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T203 °F/T95 °C to T554 °F/T290 °C

— Ambient Temperature: -40 °F/-40 °C to 131 °F/55 °C.

— CE Declaration of Conformity: 50254

— ATEX Certicate: LCIE 03 ATEX 6061X

— IEC Certicate: LCIE Ex 03.006X

— Other Certications: GOST

— Internal Volume: ≤ 2dm3 (2 liters)

• Certication Type CF10B to CF70B, CF10C to CF70C

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection CF10B to CF70B: Ex e IIB

– ATEX/IEC Protection CF10C to CF70C: Ex e IIC

– T Rating: T6 to T4

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T80 °C to T130 °C

— Ambient Temperature CF30B, CF70B, CF70C: -4 °F/-20 °C

to 131 °F/55 °C

— Ambient Temperature CF10B, CF20B, CF40B, CF50B,

CF10C, CF30C, CF50C: -40 °F/-40 °C to 131 °F/55 °C.

— Ambient Temperature CF60B: -58 °F/-50 °C to 131 °F/55 °C

— CE Declaration of Conformity: 50229

— ATEX Certicate: LCIE 02 ATEX 6057X

— IECEx Certicate: IECEx LCI 08.0023X

— Other Certications: GOST

— Internal Volume: ≤ 2dm3 (2 liters)

• Certication Type CF1A/B/D/E

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e IIC

– T Rating: T6 to T2

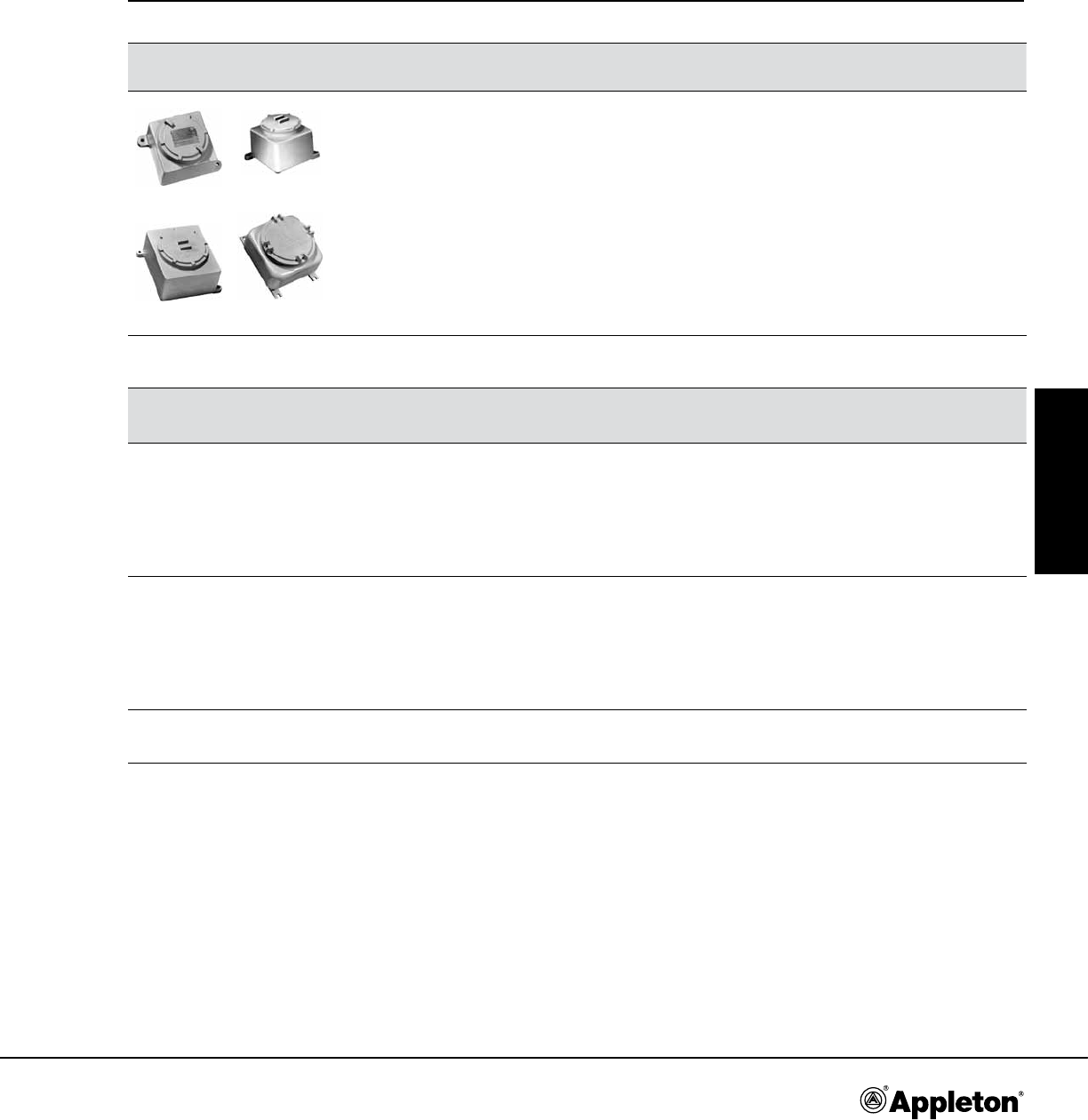

JBDA ECDF

ECDA JBDF

Customized Enclosures

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

575

JBDA and JBDF – ECDA and ECDF Series Customized Enclosures

Flameproof

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T203 °F/T95 °C to T554 °F/T290 °C

— Ambient Temperature: -40 °F/-40 °C to 131 °F/55 °C.

— CE Declaration of Conformity: 50257

— ATEX Certicate: LCIE 03 ATEX 6044X

— IEC Certicate: LCIE Ex 03.003X

— Other Certications: GOST

— Internal Volume CF1A/B/D/E: > 2dm3 (2 liters)

— Internal Volume CF1E: ≤ 2dm3 (2 liters)

• Certication Type CF10BU to CF70BU

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex e IIB

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

— Ambient Temperature CF30BU, CF60BU, CF70BU:

-4 °F/-20 °C to 131 °F/55 °C

— Ambient Temperature CF10BU, CF20BU, CF40BU, CF50BU:

-40 °F/-40 °C to 131 °F/55 °C

— CE Declaration of Conformity: 5C238

— ATEX Certicate: LCIE 07 ATEX 0005U

— Internal Volume: > 2dm3 (2 liters)

• Certication Type JBEW

— Gas, Zones 1 and 2

– Conforming to ATEX 94/9/CE: CE 0081 II 2 G

– ATEX/IEC Protection: Ex d IIB + H2

– T Rating: T6 to T4

— Dust, Zones 21 and 22

– Conforming to ATEX 94/9/CE: CE 0081 II2 D

– ATEX/IEC Protection: Ex tD A21

– Surface Temperature: T80 °C to T130 °C

— Ambient Temperature: -40 °F/-40 °C to 131 °F/55 °C

— CE Declaration of Conformity: 50279

— ATEX Certicate: LCIE 07 ATEX 6069X

— Internal Volume: > 2dm3 (2 liters)

• Ingress Protection (solid and liquid): IP66

• Impact Resistance (shock): IK10

• Ex Standards: EN/IEC 60079-0; 60079-1; 61241-0; 61241-1

• Other Standards: EN/IEC 60529 (IP), 62262 (IK)

Catalog Numbering Guide

JBDA B –– –– –– U

Series

ATEX/IEC Certified:

JB - Junction Box

EC - Enclosure and Controls

D - Flameproof

A - Aluminum

F - Cast Iron

Dimensions (in/mm):

Length x Width x Depth

(see ordering information on following pages)

Classification:

B - IIB

C - IIC

Options:

(options must be listed alphabetically)

U - Component Certification “U”

# - Customized Enclosure (6 Digit number will be

assigned at time of order placement.)

Zone 1 and 2 – 21 and 22

II 2 GD

ATEX / IEC

IP66 – IK10

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

576

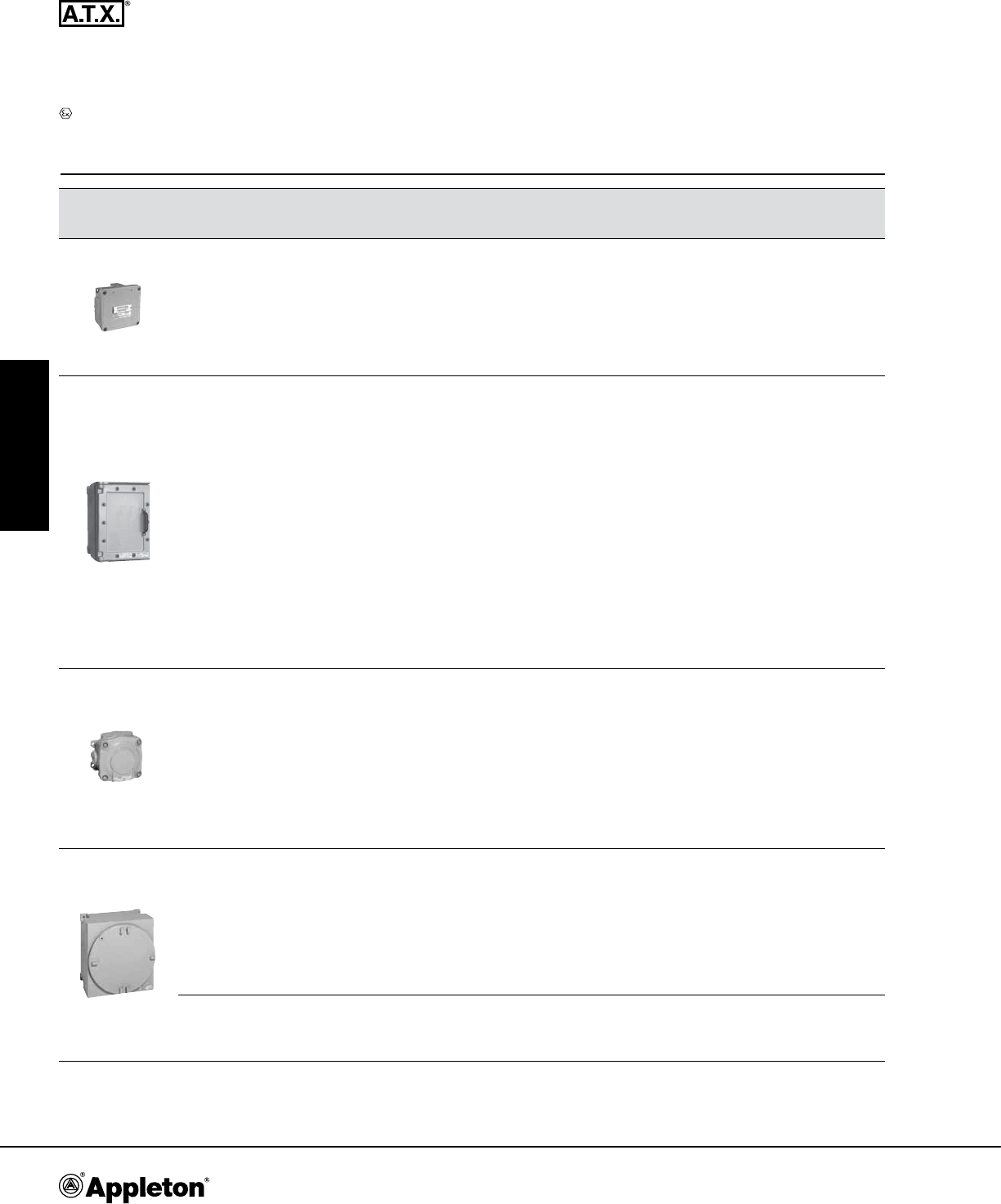

JBDA and JBDF – ECDA and ECDF Series Customized Enclosures

Flameproof

Type

Dimensions in/mm

L x W x D

Hinged

Door

Weight

lb/kg

Volume

in3/dm3

Catalog Number †

JBD Series ECD Series

Ex d IIB Enclosure in Cast Iron with Flanged Flameproof Joint

CF2C 5.12 x 5.12 x 3.54/

130 x 130 x 90 –8.82/

183.07/

3JBDFB131309 ECDFB131309

CF2A 8.07 x 5.71 x 5.00/

205 x 145 x 127 –20.72/

9.4

183.07/

3JBDFB201413 ECDFB201413

CF2B 10.63 x 7.48 x 4.72/

270 x 190 x 120 –27.78/

12.6

427.17/

7JBDFB271912 ECDFB271912

Ex d IIB Enclosure in Cast Aluminum with Flanged Flameproof Joint

CF10B 10.24 x 10.63 x 8.19/

260 x 270 x 208 –19.84/

1037.40/

17 JBDAB262720 ECDAB262720

CF20B 15.57 x 10.63 x 8.19/

370 x 270 x 208 –28.66

1464.57/

24 JBDAB372720 ECDAB372720

CF30B 13.39 x 12.60 x 9.06/

340 x 320 x 230 Yes 63.93/

4149.61/

68 JBDAB343223 ECDAB343223

CF40B 17.91 x 12.60 x 13.66/

455 x 320 x 347 Yes 110.23/

7688.99/

126 JBDAB453234 ECDAB453234

CF50B 17.97 x 17.32 x 13.66/

455 x 440 x 347 Yes 143.30/

14645.70/

240 JBDAB454434 ECDAB454434

CF60B 26.77 x 17.32 x 16.26/

680 x 440 x 413 Yes 233.69/

106

23066.98/

378 JBDAB684441 ECDAB684441

CF70B 26.77 x 25.20 x 16.26/

680 x 640 x 413 Yes 286.60/

130

23311.07/

382 JBDAB686441 ECDAB686441

Ex d IIC Enclosure in Cast Aluminum with Spigot Flameproof Joint

CF1E 5.51 x 6.38 x 3.94/

140 x 162 x 100 –3.31/

1.5

134.25/

2.2 JBDAC141610 ECDAC141610

CF1B 8.27 x 9.06 x 4.92/

210 x 230 x 125 –8.82/

335.63/

5.5 JBDAC212312 ECDAC212312

CF1A 11.61 x 10.43 x 7.68/

295 x 265 x 195 –22.05/

585.83/

9.6 JBDAC292619 ECDAC292619

CF1D 14.17 x 13.19 x 7.87/

360 x 335 x 200 –22.05/

890.95/

14.6 JBDAC363320 ECDAC363320

Ex d IIC Enclosure in Cast Aluminum with Screwed Flameproof Joint

CF10C 9.05 x 8.46 x 9.37/

230 x 215 x 238 –26.46/

976.38/

16 JBDAC232124 ECDAC232124

CF30C 12.60 x 13.39 x 9.21/

320 x 340 x 234 –61.73/

4149.61/

68 JBDAC323423 ECDAC323423

CF50C 17.32 x 17.91 x 13.58/

440 x 455 x 345 –141.10/

14950.82/

245 JBDAC444534 ECDAC444534

Ex d IIC Enclosure in Cast Iron with Screwed Flameproof Joint

CF70C 26.77 x 25.20 x 17.72/

680 x 640 x 450 Yes 683.43/

310

23311.07/

382 JBDFC686445 ECDFC686445

† Options: Component Certification “U” and/or Customized Enclosure # add digits as per examples: JBDAB2627203 #, JBDAB2627203U #.

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

577

JBDA and JBDF – ECDA and ECDF Series Customized Enclosure Dimensions

Flameproof

D B(L)

(W)

Type

Dimensions in/mm

L x W x D

Maximum Quantity of Threaded Entries Per Side Rail Length Capacity

for Terminal Block in/mmA B C D Max.

M20 M20 M20 M20 Size †(L) (W)

Ex d IIB Enclosure in Cast Iron

CF2C 5.12 x 5.12 x 3.54/

130 x 130 x 90 1 2 1 2 M25 –2.52/

CF2A 8.07 x 5.71 x 5.00/

205 x 145 x 127 1 3 1 1 M32 –4.72/

120

CF2B 10.63 x 7.48 x 4.72/

270 x 190 x 120 2 4 2 4 M50 –6.38/

162

Ex d IIB Enclosure in Cast Aluminum

CF10B 10.24 x 10.63 x 8.19/

260 x 270 x 208 8 6 8 6 M75 6.10/

155

5.83/

148

CF20B 15.57 x 10.63 x 8.19/

370 x 270 x 208 6 12 6 12 M75 10.24/

260

5.83/

148

CF30B 13.39 x 12.60 x 9.06/

340 x 320 x 230 8 8 8 8 M75 10.24/

260

8.58/

218

CF40B 17.91 x 12.60 x 13.66/

455 x 320 x 347 16 28 16 28 M75 12.99/

330

7.87/

200

CF50B 17.97 x 17.32 x 13.66/

455 x 440 x 347 26 26 26 26 M75 11.61/

295

12.99/

330

CF60B 26.77 x 17.32 x 16.26/

680 x 440 x 413 26 51 26 51 M100 21.26/

540

11.81/

300

CF70B 26.77 x 25.20 x 16.26/

680 x 640 x 413 38 42 38 42 M100 20.87/

530

20.87/

530

Ex d IIC Enclosure in Cast Iron

CF1E 5.51 x 6.38 x 3.94/

140 x 162 x 100 1 2 1 2 M32 –3.90/

CF1B 8.27 x 9.06 x 4.92/

210 x 230 x 125 1 3 2 3 M32 –6.10/

155

CF1A 11.61 x 10.43 x 7.68/

295 x 265 x 195 6 6 5 6 M63 7.48/

190

7.48/

190

CF1D 14.17 x 13.19 x 7.87/

360 x 335 x 200 16 17 15 17 M63 7.09/

180

9.84/

250

Ex d IIC Enclosure in Cast Aluminum

CF10C 9.05 x 8.46 x 9.37/

230 x 215 x 238 5 5 5 5 M75 4.72/

120

4.13/

105

CF30C 12.60 x 13.39 x 9.21/

320 x 340 x 234 8 8 8 8 M75 10.24/

260

8.46/

215

CF50C 17.32 x 17.91 x 13.58/

440 x 455 x 345 26 26 26 26 M75 11.61/

295

12.99/

330

† Consult your local sales representative for quantity.

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

578

JBDA and JBDF – ECDA and ECDF Series Customized Enclosure Dimensions

Flameproof

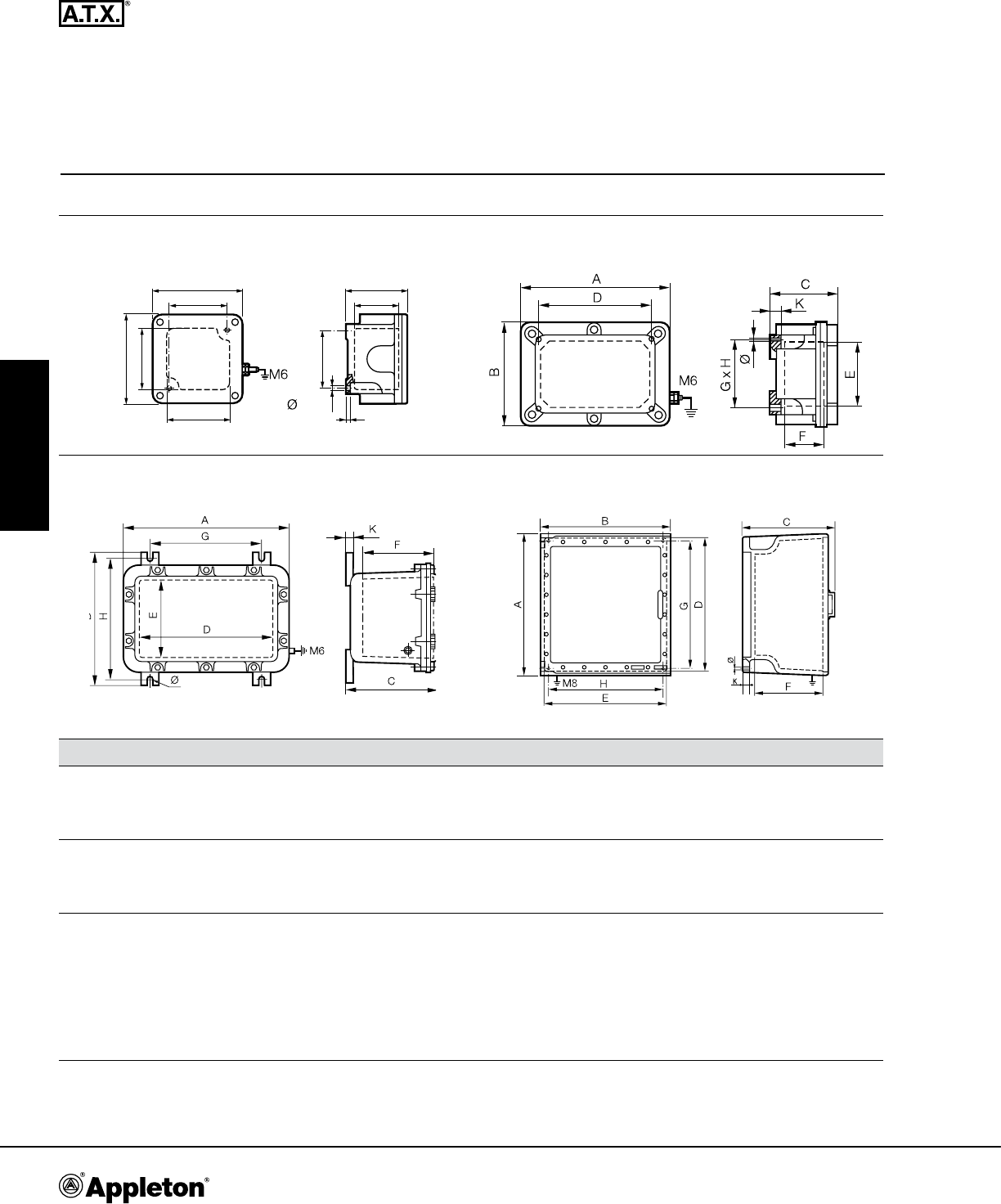

Dimension in Inches/Millimeters

JBDF and ECDF: CF2C JBDF and ECDF: CF2A and CF2B

5.12/130

Fix. 3.39/86

5.19/130

3.54/90

2.56/65

0.31/8

0.28/7

JBDA and ECDA: CF10B and CF20B JBDA and ECDA: CF30B and CF70B

Type A B C D E F G H K Ø

JBDF and ECDF: CF2A and CF2B

CF2A 7.95/202 5.67/144 3.78/96 6.14/156 6.06/154 2.58/65.5 3.86/98 6.14/156 0.39/10 0.27/7

CF2B 10.51/267 736/187 4.53/115 7.95/202 7.78/200 3.19/81 4.80/122 7.95/202 0.47/12 0.27/7

JBDA and ECDA: CF10B and CF20B

CF10B 10.20/259 10.63/270 8.15/207 7.48/190 6.89/175 6.34/161 5.51/140 9.65/245 0.59/15 0.43/11

CF20B 14.53/369 10.63/270 8.15/207 11.81/300 6.89/175 6.34/161 9.84/250 9.65/245 0.59/15 0.43/11

JBDA and ECDA: CF30B and CF70B

CF30B 13.39/340 12.60/320 9.37/238 11.22/285 10.43/265 6.34/161 11.73/298 10.94/278 0.79/20 0.35/9

CF40B 17.91/455 12.60/320 14.84/377 15.55/395 10.43/265 9.96/253 15.39/391 10.08/256 0.98/25 0.43/11

CF50B 17.91/455 17.32/440 14.96/380 15.75/400 14.80/376 9.96/253 15.39/391 14.80/376 0.98/25 0.43/11

CF60B 26.77/680 17.32/440 17.52/445 24.02/610 14.80/376 11.50/292 24.25/616 14.80/376 0.98/25 0.55/14

CF70B 26.77/680 25.20/640 17.52/445 24.02/610 22.68/576 11.50/292 24.25/616 22.68/576 0.98/25 0.55/14

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous location outlEt BoxEs — caBlE

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

579

JBDA and JBDF – ECDA and ECDF Series Customized Enclosure Dimensions

Flameproof

Dimension in Inches/Millimeters

JBDF and ECDF: CF10C to CF70C JBDA and ECDA: CF1D

13.19/335

14.17/360

Diameter 11.02/280

7.87/200

6.10/155

0.59/

0.47/

12.60 x 11.61/

JBDA and ECDA: CF1B and CF1E Type JBDA and ECDA: CF1A Type

0.35/9

10.31/262

11.61/295 7.68/195

10.43/265

0.43/

11 0.59/15

Type A B C D E F G H K Ø

JBDF and ECDF: CF10C to CF70C

CF10C 9.06/230 8.46/215 9.37/238 7.09/180 6.50/165 6.89/175 7.40/188 6.81/173 0.79/20 0.35/9

CF30C 12.60/320 13.39/340 9.21/234 10.67/271 11.42/290 6.06/154 10.94/278 11.73/298 0.79/20 0.35/9

CF50C 17.32/440 17.91/455 13.58/345 15.20/386 15.79/401 9.49/241 14.80/376 15.39/391 0.98/25 0.43/11

CF70C 26.77/680 25.20/640 17.72/450 24.25/616 22.68/576 11.42/290 24.25/616 22.68/576 0.98/25 0.55/14

JBDA and ECDA: CF1B and CF1E Type

CF1B 9.06/230 8.27/210 4.92/125 6.89/175 6.89/175 3.54/90 8.27/210 3.94/100 0.59/15 0.35/9

CF1E 5.51/140 6.38/162 4.76/121 4.72/120 4.72/120 3.15/80 4.72/120 4.72/120 0.47/12 0.35/9

GUBB

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 3R, 4, 7BCD, 9EFG

GUBBD

Class I, Division 1 and 2, Group D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 3R, 4

GUBBM

Class I, Division 1 and 2, Group D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 3R, 4

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

580

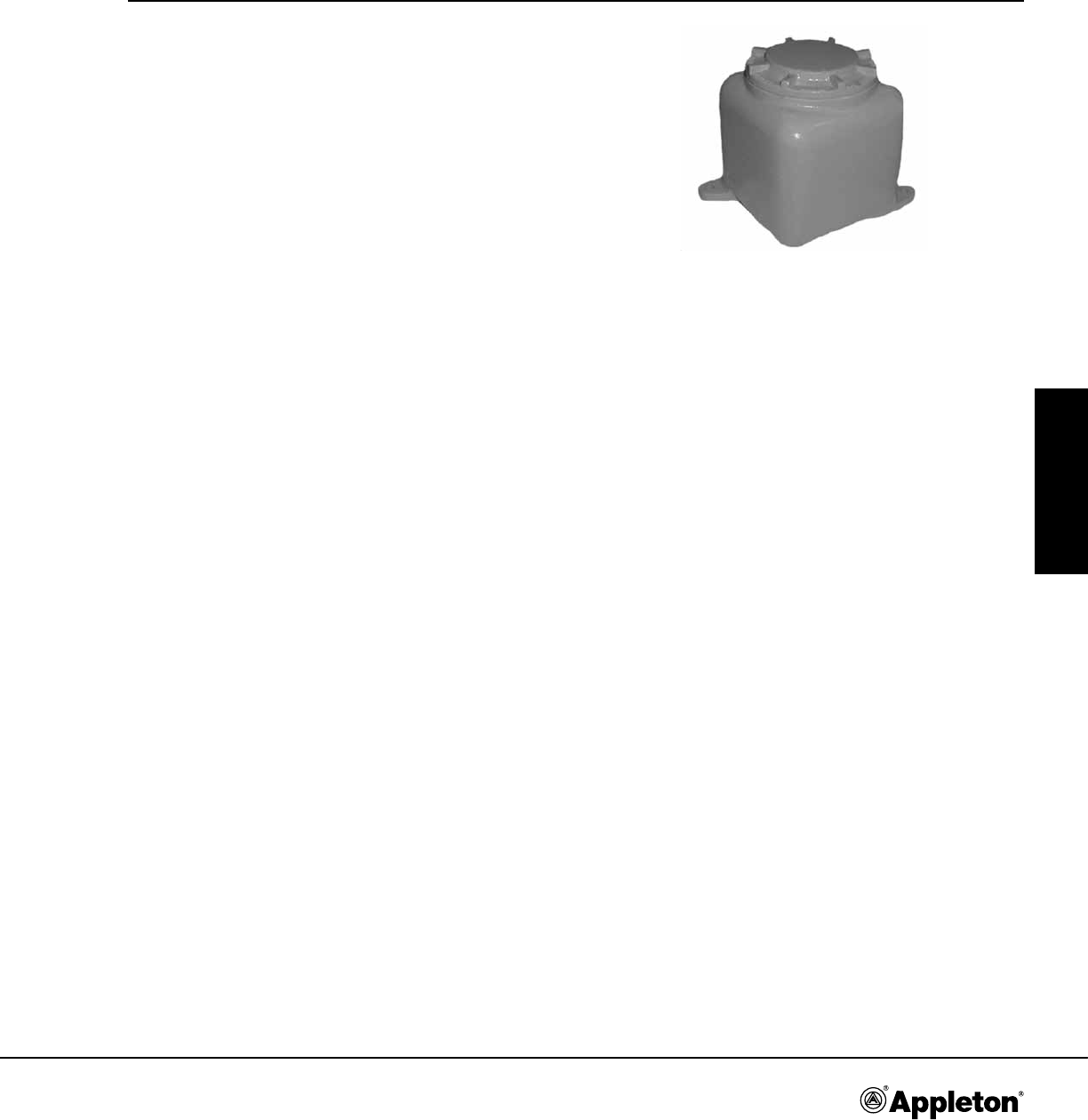

GUBB, GUBBD and GUBBM Cast Junction Boxes

Explosionproof, Dust-Ignitionproof

UNILETS® for Use with Threaded Metal Conduit.

Applications

• Explosionproof and dust-ignitionproof, for use in classied

locations.

• Corrosion-resistant: ideal indoors or outdoors.

• Junction or pull box for pulling and splicing of wires and as an

enclosure for electrical devices.

• Ideal where number and size of conductors require a junction

box with additional space.

Features

• All GUBB/GUBBD/GUBBM Series Boxes

— Provided with mounting lugs.

— Furnished with covers.

— All conduit hubs and openings provide a minimum of ve full

threads to meet UL requirements.

— Accurately tapped, tapered conduit threads provide tight,

rigid joints and ground continuity.

• GUBB Series

— Wide selection of sizes and locations for drilled and tapped

conduit openings.

— Suitable for use as an enclosure for relays, instrument and

other control apparatus in classied locations.

— Available in high tensile strength malleable iron or copperfree

aluminum bodies.

— Provided with mounting lugs.

— O-Rings standard for forms 1, 2 and 3 to provide raintight t.

• GUBBD Series (Dome and Plate)

— GUBB junction boxes with dome cover and mounting plate

provide exibility for a wide variety of applications.

— Ideal for housing relays, contactors, terminal blocks and

other classied area applications.

— Mounting plate can be drilled to accommodate a variety of

devices.

— Dome cover has nominal depth of 6”/152mm or 17”/431mm,

depending upon box selected. Provides signicant increase

in cubic inch capacity.

— O-Rings standard to provide raintight t.

— Provided with mounting lugs.

• GUBBM Series (Instrument)

— GUBBM junction boxes serve as an enclosure for meters,

gauges and similar devices.

— Complete with round, explosionproof glass window cover.

Permits direct reading of enclosed instrument.

— Furnished with one 3/4” drilled and tapped entry.

— Mounted bosses provided in back of GUBBM can be drilled

and tapped for fastening of instrument mounting bracket.

— O-Rings standard to provide raintight t.

— Provided with mounting lugs.

Standard Materials

• GUBB bodies: copperfree (4/10 of 1% max.) aluminum or

malleable iron bodies

• GUBBD bodies: malleable iron bodies

• GUBB, GUBBD covers: copperfree (4/10 of 1% max.) aluminum

• GUBBM bodies: copperfree (4/10 of 1% max.) aluminum

• GUBBM covers: copperfree (4/10 of 1% max.) aluminum

and glass

• O-Ring: neoprene

Standard Finishes

• GUBB malleable iron bodies: triple-coat — (1) zinc electroplate,

(2) chromate, and (3) epoxy powder coat.

• GUBB aluminum covers and aluminum bodies: epoxy powder

coat

Options

• GUBB

— Less cover, add sufx —LC.

— Terminal blocks. Information provided upon request.

• Instrument mounting plate and bracket for GUBBM. Information

provided upon request (submit complete dimensions of

instrument to be used).

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E10444

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 025875

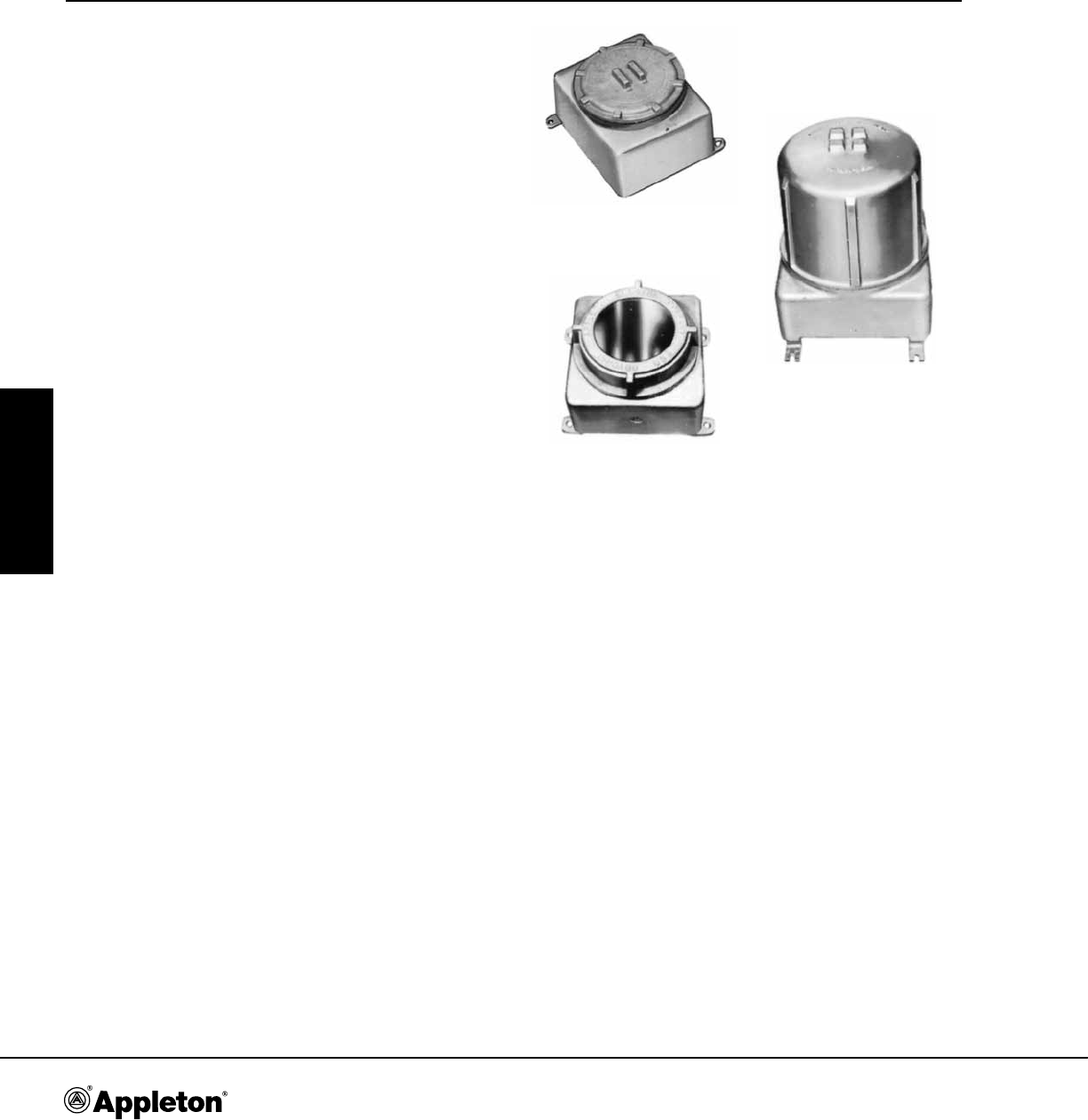

GUBB

GUBBD

Dome Cover

GUBBM

Instrument Box

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 3R, 4, 7BCD, 9EFG

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

581

GUBB Cast Junction Boxes for Drilling and Tapping Blank Body Ordering Information

Explosionproof, Dust-Ignitionproof

Determine catalog number as follows: (1) select GUBB junction

box catalog number; (2) select “Conduit Opening Arrangement

Diagram” number; and (3) select symbols that represent conduit

opening sizes from “Symbol Table.”

Where no opening is required, the symbol 0 must be inserted.

Add suffix for other Optional Features. The various divisions of the

complete catalog number should be separated by dashes.

Example

The junction box selected is GUBB-33 and the “Conduit Opening

Arrangement” is diagram #1. Opening “a” is to be 3/4”; “b”, no

opening required; “c”, 2”; and “d”, 1-1/4”.

In this example, the complete catalog number is

GUBB-33—1—B0FD

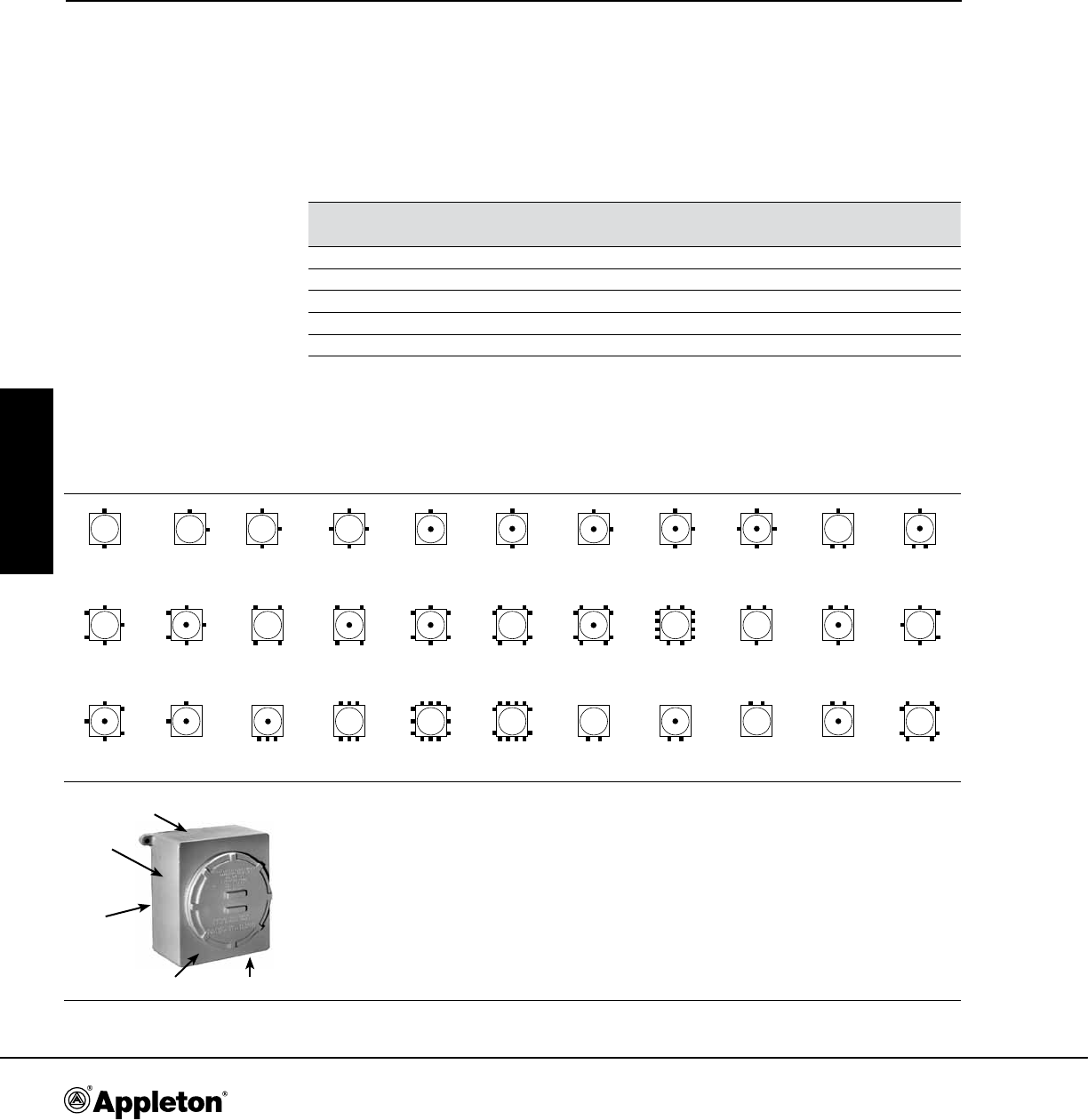

Standard Conduit Opening Arrangement Diagrams

Opening “a” is always TOP of box

Minimum Recommended Spacing Between Conduit Openings

Allowance made for clearance over bushings. When unions or seals are used, additional space must be allowed.

Table shows minimum distances between conduit-opening centerlines in various size combinations. For example, if 1-1/2” and 3/4” openings

are to be drilled and tapped into one side of box, the minimum spacing between centerlines would be 2.13”.

Conduit

Size

Inches

Minimum Space Between Conduit Opening Centerlines in Inches/Millimeters

1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 3-1/2 4

1/2 1.25/31.8

3/4 1.38/35.1 1.50/38.1

1 1.56/39.6 1.69/42.9 1.88/47.8

1-1/4 1.88/47.8 2.00/50.8 2.19/55.6 2.44/62.0

1-1/2 2.00/50.8 2.13/54.1 2.31/58.7 2.63/66.8 2.75/69.9

2 2.38/60.5 2.50/63.5 2.69/68.3 2.94/74.7 3.13/79.5 3.44/87.4

2-1/2 2.50/63.5 2.63/66.8 2.81/71.4 3.13/79.5 3.25/82.6 3.63/92.2 3.75/95.3

3 2.88/73.2 3.00/76.2 3.19/81.0 3.44/87.4 3.63/92.2 3.94/100.1 4.13/104.9 4.44/112.8

3-1/2 3.13/79.5 3.25/82.6 3.44/87.4 3.75/95.3 3.88/98.6 4.25/108.0 4.38/111.3 4.75/120.7 5.00/127.0

4 3.44/87.4 3.56/90.4 3.75/95.3 4.06/103.1 4.19/106.4 4.56/115.8 4.69/119.1 5.06/128.5 5.31/134.9 5.63/143.0

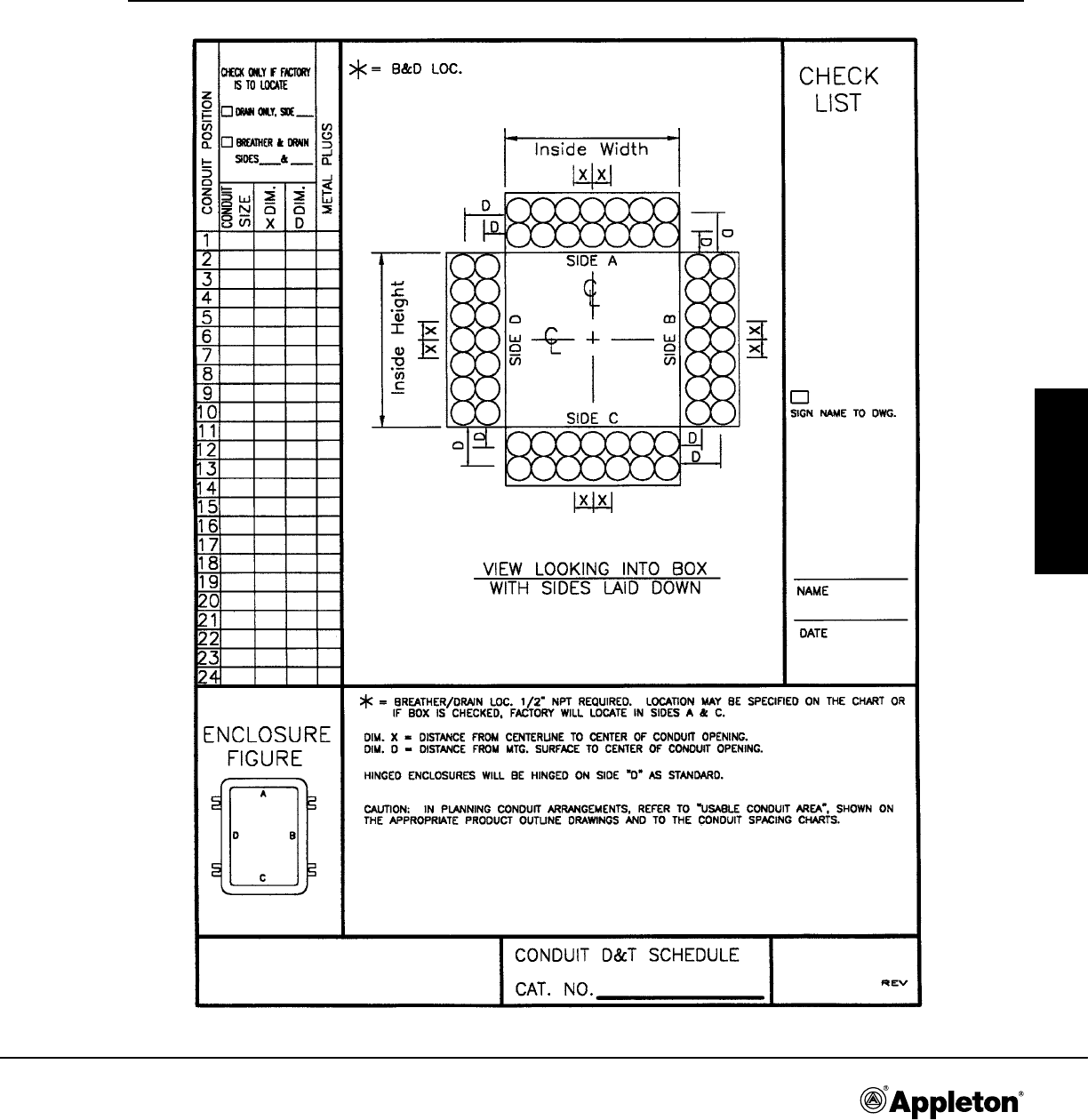

If a “Standard Conduit Opening Arrangement” is not suitable for the

application, or when openings are to be more accurately spaced,

submit sketch, locating openings (1) from centerlines of box and

(2) from outside back of box (or from mounting lug surface if lugs

are supplied).

GUBB-11,22

(also GUBB-11A, 22A)

GUBB-33

(also GUBB-33A)

Contact your local representative for drilling the back side of GUBB boxes.

Standard Conduit Opening Arrangement Diagrams

Opening “a” is always TOP of box. All conduit openings will be located in

centerline of walls and evenly spaced unless otherwise specified.

Diag.

Symbol Table

Drilling and Tapping (Five Threads Minimum)

Conduit Size

Inches Symbol

Conduit Size

Inches Symbol

0 Blank – –

1/2 A 2 F

3/4 B 2-1/2 G

1C3H

1-1/4 D 3-1/2 J

1-1/2 E 4 K

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

582

Wall Thickness and Maximum Conduit Size (in Inches/Millimeters)

Box Type

Top, Bottom and Sides Back

Wall

Thickness

Maximum

Conduit Size Wall Thickness

Maximum

Conduit Size

GUBB-11, GUBB-11A 0.44/11.2 2 0.44/11.2 2

GUBB-22, GUBB-22A 0.44/11.2 2 0.63/16.0 4

GUBB-33, GUBB-33A 0.63/16.0 2 0.81/20.6 4

† T.R. is turning radius.

Diameters of Bushings, Unions, Conduit and Seals (in Inches/Millimeters)

Conduit Size Inches

Diameters of fittings for 1/2 through 4” conduit

1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 3-1/2 4

BBU Bushing 1.06/26.9 1.31/33.3 1.56/39.6 1.94/49.3 2.19/55.6 2.69/68.3 3.19/81.0 3.88/98.6 4.38/111.3 4.88/124.0

BU Bushing 1.13/28.7 1.25/31.8 1.63/41.4 2.06/52.3 2.31/58.7 2.94/74.7 3.25/82.6 3.88/98.6 4.56/115.8 5.06/128.5

UNY-UNF (R) Union 1.50/38.1 1.75/44.5 2.00/50.8 2.81/71.4 3.06/77.7 3.75/95.3 4.94/125.5 5.44/138.2 5.94 /150.9 6.50/165.1

Conduit 0.88/22.4 1.06/26.9 1.38/35.1 1.69/42.9 1.94/49.3 2.38/60.5 2.88/73.2 3.50/88.9 4.00/101.6 4.50/114.3

EYM-EYF Seals T.R.†1.06/26.9 1.19/30.2 1.38/35.1 1.75/44.5 2.06/52.3 2.31/58.7 2.69/68.3 3.13/79.5 3.44/87.4 3.69/93.7

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 3R, 4, 7BCD, 9EFG

GUBB Cast Junction Boxes for Drilling and Tapping Blank Body Ordering Information

Explosionproof, Dust-Ignitionproof

Class I, Division 1 and 2, Groups B, C, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 3R, 4, 7BCD, 9EFG

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

583

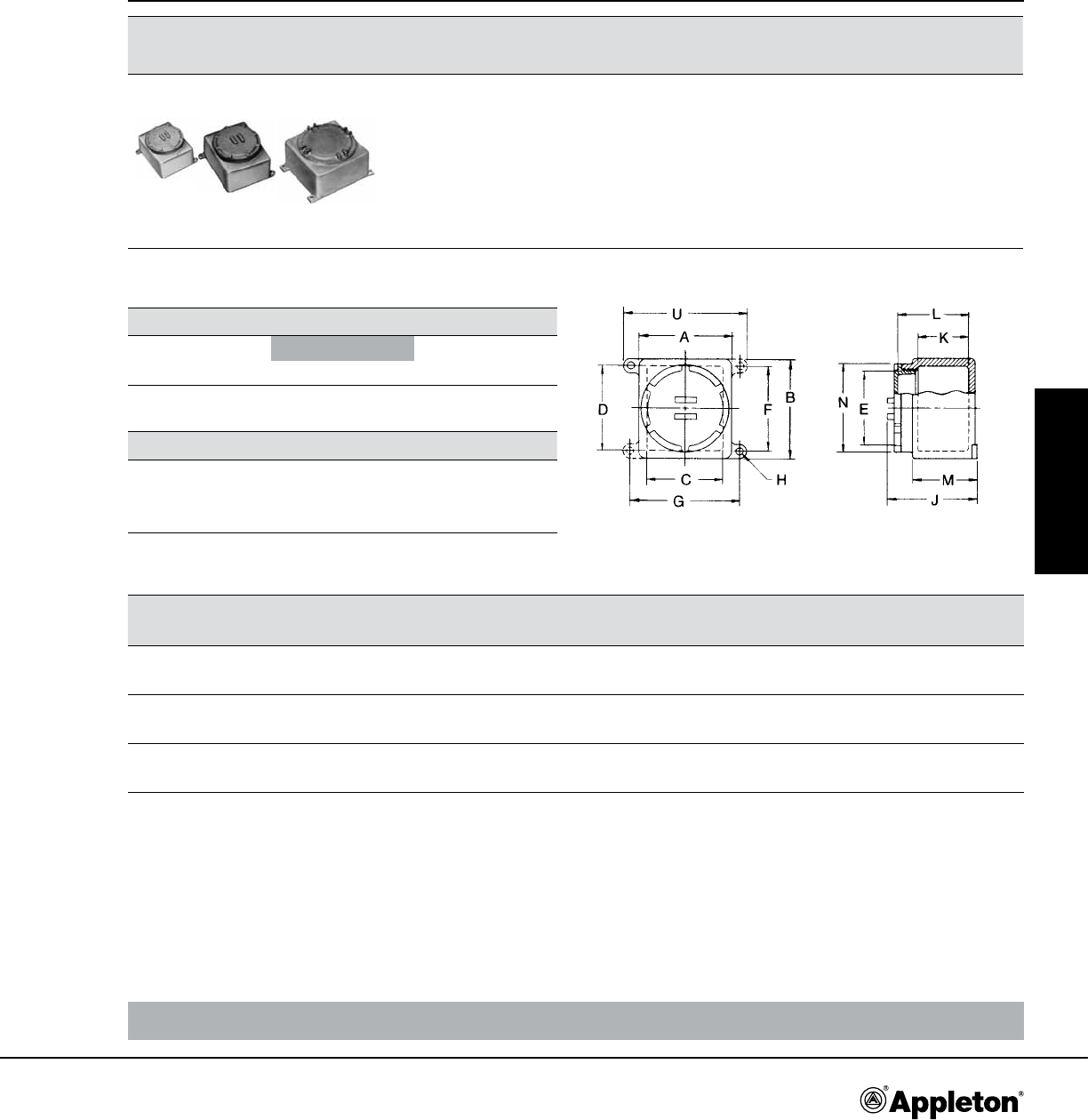

GUBB Cast Junction Boxes for Drilling and Tapping

Explosionproof, Dust-Ignitionproof

Drilled and tapped openings from 1/2” thru 4” as specified.

Size LxWxD

Inches/Millimeters

Cover Opening

Inches/Millimeters

Form

Number

Volume

in3/dm3

Catalog Number

Malleable Iron ‡Aluminum ‡

7.00 x 6.50 x 6.75/

177.8 x 165.1 x 171.5 5.38/136.7 1 120/

2.0 GUBB-11 GUBB-11A

10.00 x 8.00 x 6.88/

254.0 x 203.2 x 174.8 7.19/182.6 2 224/

3.7 GUBB-22 GUBB-22A

12.00 x 12.00 x 7.75/

304.8 x 304.8 x 196.9 9.69/246.1 3 455/

7.5 GUBB-33 GUBB-33A

Catalog Number

Dimensions in Inches/Millimeters

A B C D E F G H J K †L M N U

GUBB-11 6.50/

165.1

7.00/

177.8

5.50/

139.7

5.94/

150.9

5.38/

163.7

6.00/

152.4

7.75/

196.9

0.50/

12.7

6.75/

171.5

3.69/

93.7

5.25/

133.4

4.63/

117.6

6.25/

158.8

8.75/

222.3

GUBB-11A

GUBB-22 8.00/

203.2

10.00/

254.0

7.13/

181.1

9.00/

228.6

7.19/

182.6

9.00/

228.6

9.25/

235.0

0.50/

12.7

6.88/

174.8

3.50/

88.9

5.25/

133.4

4.63/

117.6

8.00/

203.2

10.25/

260.4

GUBB-22A

GUBB-33 12.00/

304.8

12.00/

304.8

10.75/

273.1

10.75/

273.1

9.69/

246.1

10.00/

254.0

13.13/

333.5

0.63/

16.0

7.75/

196.9

3.94/

100.0

5.75/

146.1

5.38/

136.7

11.00/

279.4

14.38/

365.3

GUBB-33A

‡ Malleable iron and aluminum boxes furnished with aluminum cover.

† Inside dimensions.

 Sealing fitting must be installed within 2” of each conduit entrance (max. conduit for Group B and C is 2”). Seals not required in Class I, Division 2 areas

provided there are no arcing or sparking devices in the box.

Class I, Division 1 Sealing Requirements

Box Group Seals Required 

GUBB B, C Yes

GUBB D No

Catalog Number Mounting Lugs

GUBB-11, 11A 2

GUBB-22, 22A 2

GUBB-33, 33A 4

Class I, Division 1 and 2, Group D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 3R, 4

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

584

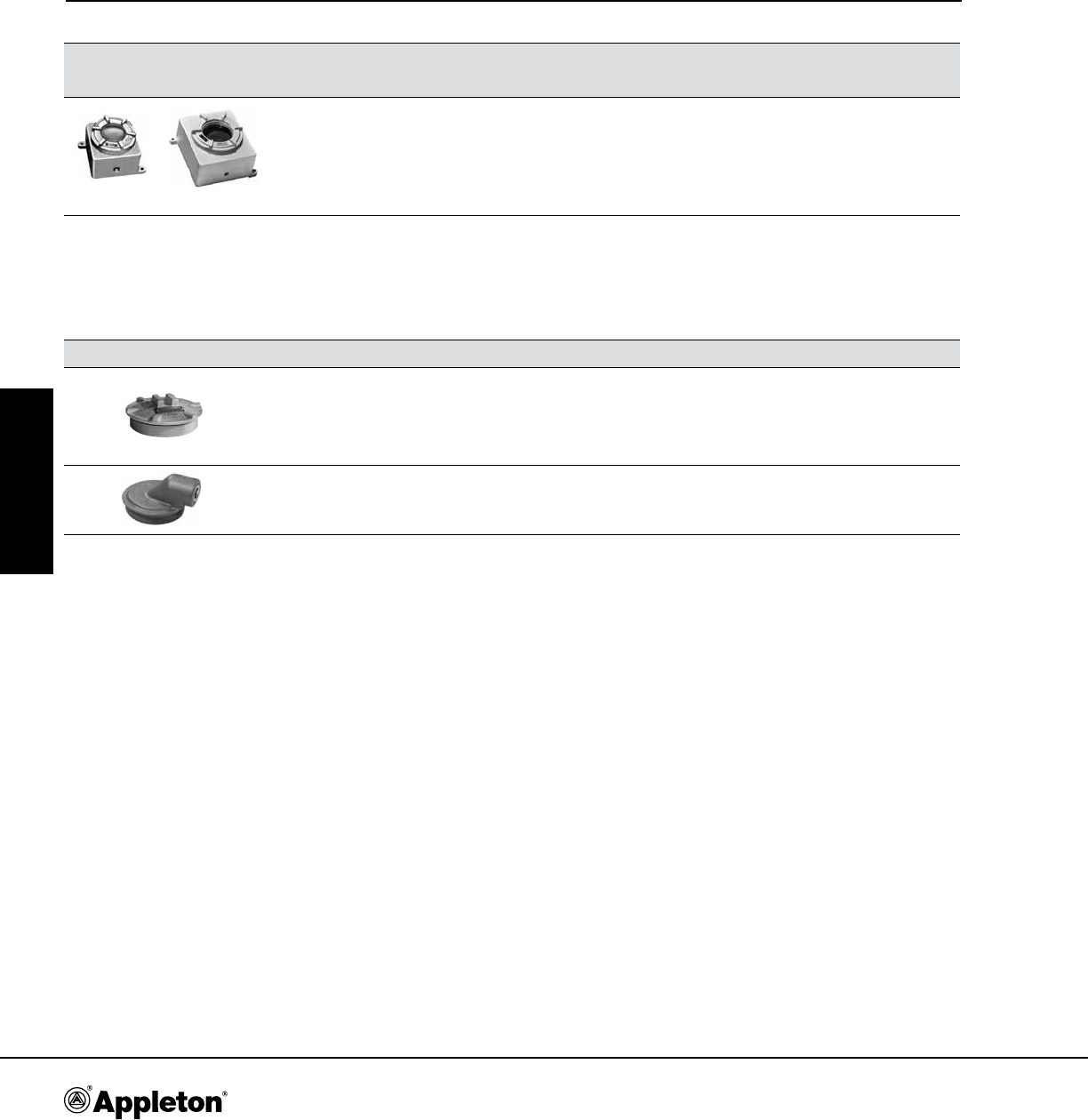

GUBBM Instrument Enclosures

Explosionproof, Dust-Ignitionproof

GUBBM: Furnished with one 3/4” threaded conduit opening. Aluminum body with aluminum/glass cover.

Type Box

Conduit Opening Size

(Inches-NPT)

Cover Opening

Inches/Millimeters

Wall Thickness

Inches/Millimeters

Form

Number Catalog Number

GUBB-11A 3/4 5.38/136.7 0.44/11.2 1 GUBBM-1A

GUBB-22A 3/4 7.19/182.6 0.44/11.2 2 GUBBM-2A

GUBB-33A 3/4 9.69/246.1 0.56/14.2 3 GUBBM-3A

Other drilled and tapped conduit opening arrangements and sizes available in addition to the one 3/4” conduit opening provided.

GUBB Cast Junction Boxes for Drilling and Tapping Blank Body Ordering Information

For Covers and Mounting Plates, Order from GUBB Surface and Special Purpose Covers page.

Type Box

Mounting

Lugs

Dimensions in Inches/Millimeters

A B C D E F G

GUBBM-1A 2 6.50/

165.1

7.00/

177.8

3.13/

79.5

5.63/

143.0

2.06/

52.3

4.63/

117.6

0.50/

12.7

GUBBM-2A 2 8.00/

203.2

10.00/

254.0

4.75/

120.7

5.63/

143.0

2.06/

52.3

4.63/

117.6

0.50/

12.7

GUBBM-3A 4 12.00/

304.8

12.00/

304.8

6.88/

174.8

8.94/

227.1

3.50/

88.9

5.38/

136.7

0.63/

16.0

Class I, Division 1 and 2, Group D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 3R, 4

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

585

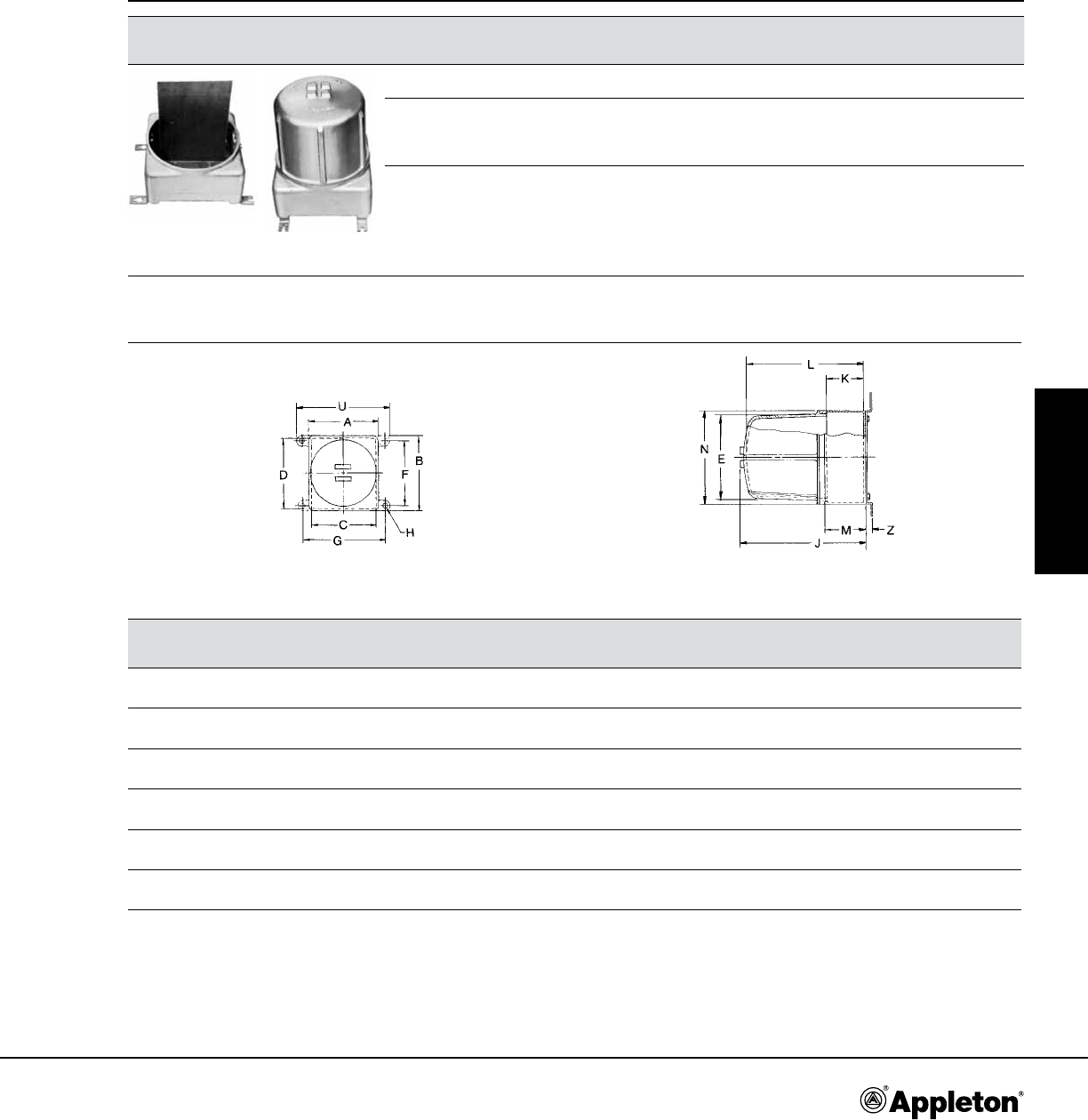

GUBBD Cast Boxes for Drilling and Tapping With Dome Cover and Mounting Plate

Explosionproof, Dust-Ignitionproof

Malleable iron junction boxes furnished with aluminum cover.

Nominal Cover Depth

Inches/Millimeters

Width of Mounting Plate

Inches/Millimeters

Adjustment

Inches/Millimeters †Form Number Catalog Number

Cover removed,

showing mounting

plate

Body with

dome cover

10.00/254.0 3.50/88.9 1.00/25.4 1 GUBBD-1-10

6.00/152.4

4.88/124.0 1.50/38.1 2

GUBBD-2-6

12.00/304.8 GUBBD-2-12

6.00/152.4

6.25/158.8 2.13/54.1 3

GUBBD-3-6

12.00/304.8 GUBBD-3-12

17.00/431.8 GUBBD-3-17

Dimensions

GUBBD-1 (2 Lugs), GUBBD-2 (2 Lugs), GUBBD-3 (4 Lugs) All Types

Catalog Number

Dimensions in Inches/Millimeters

A B C ‡D ‡E F G H J K ‡L ‡M N U

GUBBD-1-10 6.50/

165.1

7.00/

177.8

6.06/

153.9

6.56/

166.6

5.38/

136.7

6.00/

152.4

7.75/

196.9

0.50/

12.7

16.13/

409.7

3.75/

95.3

14.75/

374.7

4.63/

117.6

6.25/

41.0

8.75/

222.3

GUBBD-2-6 8.00/

203.2

10.00/

254.0

7.56/

192.0

9.56/

242.8

7.19/

182.6

9.00/

228.6

9.25/

235.0

0.50/

12.7

12.19/

309.6

3.81/

96.8

10.75/

273.1

4.63/

117.6

8.06/

77.1

10.25/

260.4

GUBBD-2-12 8.00/

203.2

10.00/

254.0

7.56/

192.0

9.56/

242.8

7.19/

182.6

9.00/

228.6

9.25/

235.0

0.50/

12.7

18.19/

462.0

3.81/

96.8

16.75/

425.5

4.63/

117.6

8.06/

77.1

10.25/

260.4

GUBBD-3-6 12.00/

304.8

12.00/

304.8

11.38/

289.1

11.38/

289.1

9.69/

246.1

10.00/

254.0

13.13/

333.5

0.63/

16.0

13.81/

350.8

4.38/

111.3

11.56/

293.6

5.38/

136.7

11.00/

125.2

14.38/

365.3

GUBBD-3-12 12.00/

304.8

12.00/

304.8

11.38/

289.1

11.38/

289.1

9.69/

246.1

10.00/

254.0

13.13/

333.5

0.63/

16.0

19.81/

503.2

4.38/

111.3

17.56/

446.0

5.38/

136.7

11.00/

125.2

14.38/

365.3

GUBBD-3-17 12.00/

304.8

12.00/

304.8

11.38/

289.1

11.38/

289.1

9.69/

246.1

10.00/

254.0

13.13/

333.5

0.63/

16.0

25.31/

642.9

4.38/

111.3

23.06/

585.7

5.38/

136.7

11.00/

125.2

14.38/

365.3

† Mounting plate is adjustable. May be centered or located to one side.

‡ Inside dimensions.

Class I, Division 1 and 2, Group D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 3, 3R, 4

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

586

GUBB/GUBBD/GUBBM Cast Junction Box Surface and Special Purpose Covers

Explosionproof, Dust-Ignitionproof

Covers provide raintight fit when used with O-rings. Available in malleable iron, aluminum, and aluminum/glass.

Fits Box Catalog Number

Nominal Cover

Depth Inches/

Millimeters

Nominal Cover

Diameter Inches/

Millimeters

Window

Diameter Inches/

Millimeters

Form

Number Catalog Number

Covers — Aluminum — O-Ring Gasket Included

GUBB-11 (11A) Surface 5.38/136.7 2.12/53.8 1 GUBK-1

GUBB-22 (22A) Surface 7.19/182.6 4.75/120.7 2 GUBK-2

GUBB-33 (33A) Surface 9.69/246.1 7.00/177.8 3 GUBK-3

GUBK-1, GUBK-2 GUBK-3

Instrument Box Covers — Aluminum and Glass

GUBB-11 (11A) — 5.38/136.7 1 GUBMK-1

GUBB-22 (22A) — 7.19/182.6 2 GUBMK-2

GUBB-33 (33A) — 9.69/246.1 3 GUBMK-3

GUBMK-1, GUBMK-2 GUBMK-3

Dome Covers for GUBB Boxes — Aluminum — O-Ring Gasket Included

GUBB-11 (11A) 10.00/254.0 5.38/136.7 1 GUBK-1-10

GUBB-22 (22A) 6.00/152.4 7.19/182.6 2 GUBK-2-6

GUBB-22 (22A) 12.00/304.8 7.19/182.6 2 GUBK-2-12

GUBB-33 (33A) 6.00/152.4 9.69/246.1 3 GUBK-3-6

GUBB-33 (33A) 12.00/304.8 9.69/246.1 3 GUBK-3-12

GUBB-33 (33A) 17.00/431.8 9.69/246.1 3 GUBK-3-17

Replacement O-Rings—Neoprene

Provide raintight fit for GUBB, GUBBM and GUBBD Boxes

GUBB-11 (11A) 1 GUBG-1

GUBB-22 (22A) 2 GUBG-2

GUBB-33 (33A) 3 GUBG-3

Mounting Plates—0.13”/3.3mm Thick Aluminum. 4 standoffs, 4 mounting screws

GUBB-11 (11A) * 4.50 x 4.50/

114.3 x 114.3 1GUBBMP-11

GUBB-22 (22A) * 6.50 x 6.50/

165.1 x 165.1 2GUBBMP-22

GUBB-33 (33A) * 9.00 x 9.00/

228.6 x 228.6 3GUBBMP-33

* GUBB boxes are predrilled to accept a mounting plate.

CSA Certied

Class I, Division 1 and 2, Groups A, B, C, D

Class I, Zone 1 and 2

Class II, Division 1 and 2, Groups E, F, G

Class III, Enclosure 4

V CSA Certification Only.

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

587

DER, GUB and GUBM Cast Junction Boxes V

CSA Certification Only. Explosionproof, Dust-Ignitionproof, Watertight

Furnished with surface cover and mounting lugs.

Applications

• Explosionproof and dust-ignitionproof for use in classied

locations.

• Corrosion-resistant: ideal indoors or outdoors.

• Junction or pull box for pulling and splicing of wires and as an

enclosure for electrical devices.

• Ideal where number and size of conductors require a junction

box with additional space.

Features

• Provided with mounting lugs.

• Furnished with covers.

• All conduit hubs and openings provide a minimum of ve full

threads to meet CSA requirements.

• Accurately tapped, tapered conduit threads provide tight, rigid

joints and ground continuity.

• DER and GUB Series

— Wide selection of sizes and locations for drilled and tapped

conduit openings.

— Suitable for use as an enclosure for relays, instrument and

other control apparatus in classied locations.

— Available in high tensile strength malleable iron or copperfree

aluminum bodies.

— O-Rings standard for forms 1, 2 and 3 to provide raintight t.

• GUBM Series (Instrument)

— GUBM junction boxes serve as an enclosure for meters,

gauges and similar devices.

— Complete with round, explosionproof glass window cover.

Permits direct reading of enclosed instrument.

— Furnished with one 3/4” drilled and tapped entry.

— Mounting bosses are provided in the bottom of GUBM can

be drilled and tapped for fastening of instrument mounting

bracket.

— O-Rings standard to provide raintight t.

• Surface covers furnished with DER and GUB junction boxes

have lugs to take a bar or wrench. Other style covers, as listed

below, are available.

• Sealing covers have a plugged hole through which the box

can be lled with sealing cement after installation. See Fittings

Section for information regarding sealing cement. Note: When

sealing covers are used, splices or taps within the Unilets are

prohibited by the CEC.

• Dome covers permit conductors to be pulled in with the ends

extending well out beyond box body where splices can easily

be made. The splices need not be crowded back into the

box, but can be left as is when dome cover is used for their

enclosure and protection.

Standard Materials

• Bodies: copperfree (4/10 of 1% max.) aluminum or malleable

iron bodies

• DER and GUB covers: copperfree (4/10 of 1% max.) aluminum

• GUBM covers: copperfree (4/10 of 1% max.) aluminum and

glass

• O-Ring: neoprene

Options

• Other hub arrangements and sizes are available. Contact your

local representative for details.

• Other means of instrument fastening are available. Contact your

local representative for details.

• Instrument mounting plates or brackets can be furnished.

On receipt of complete instrument dimensions, prices will be

quoted. Contact your local representative for details.

• To order DER1C or DER1CA without mounting lugs add

sufx -LF.

Certifications and Compliances

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 013017

DER1C GUB2C

GUBM-2C

CSA Certied

Class I, Division 1 and 2, Groups A, B, C, D

Class I, Zone 1 and 2

Class II, Division 1 and 2, Groups E, F, G

Class III, Enclosure 4

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

588

DER, GUB and GUBM Cast Junction Box Ordering Information V

CSA Certification Only. Explosionproof, Dust-Ignitionproof, Watertight

Furnished with surface cover and mounting lugs.

Determining Catalog Numbers

• To determine the catalog number of junction boxes with entries, the following information should be shown:

1) Junction box catalog number from listings on the following pages

2) Sketch number of hub arrangement selected from the illustration below.

3) Entry symbols taken from the table shown below. Start from the left (at Hub “A”) on the top of the junction box and continue in rotation

clockwise around its body. Where no entry is required, the symbol X should be inserted. The three various divisions of the catalog number

should be separated by dashes.

Example (Inches/Millimeters)

GUB2C junction box is required with

threaded conduit entries and unions.

The arrangement of entries is per

sketch #16.

A — is to be 2.00/50.8 drilled and

tapped entry

B — 1.25/31.8

C — Blank (no entry)

D — 2.00/50.8

E — Blank

F — 1.00/25.4

J — Blank

The catalog number is:

GUB2C-16-64X634X.

Unions are required at B and D.

Order UNY male unions from the Fittings

Section of the catalog.

Conduit Entry Symbols

Drilling and Tapped or Threaded Hubs Union Hubs (GUB4 only)

Size in/mm Symbol Size in/mm Symbol Size in/mm Symbol Size in/mm Symbol

0.50/12.7 1 2.00/50.8 6 0.50/12.7 1E 2.00/50.8 6E

0.75/19.1 2 2.50/63.5 7 0.75/19.1 2E 2.50/63.5 7E

1.00/25.4 3 3.00/76.2 8 1.00/25.4 3E 3.00/76.2 8E

1.25/31.8 4 3.50/88.9 9 1.25/31.8 4E 3.50/88.9 9E

1.50/38.1 5 4.00/101.6 10 1.50/38.1 5E 4.00/101.6 10E

D B

C B

1234567891011

A B

C D

A B

C D

E C

F B

A B

F E

G D

H C

A B

F E

G D

H C

A B

H G

CM DL EK FJ

A B

12 13 14 15 16 17 18 19 20 21 22

B A

M D

L E

K F

H G

C C

M E

L F

B A

A B

H C

G D

23 24 25 26 27 28 29 30 31 32 33

Top *

Side *

Back

Front Bottom

Send sketch and description for other arrangements.

* GUB2C shown. Top and bottom measures 9.25"/235.0 mm x 5.25"/139.7 mm and sides measure 10.63"/269.9 mm x 5.50"/139.7 mm.

V CSA Certification Only.

CSA Certied

Class I, Division 1 and 2, Groups A, B, C, D

Class I, Zone 1 and 2

Class II, Division 1 and 2, Groups E, F, G

Class III, Enclosure 4

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

589

DER and GUB Cast Junction Boxes V

CSA Certification Only. Explosionproof, Dust-Ignitionproof, Watertight

Furnished with surface cover and mounting lugs.

DER and GUB Junction Boxes

Dimensions in Inches/Millimeters Catalog Number

Outside Cover Dia. (in./mm) Ferrous Alloy Aluminum

DER1C

GUB2C

GUB1C

GUB3C

5.13/130.3 x 5.13/130.3 x 4.06/103.1 3.88/98.8 DER1C †DER1CA †

7.00/177.8 x 7.00/177.8 x 6.50/165.1 5.38/136.7 GUB1C GUB1CA

10.63/270.0 x 9.25/235.0 x 6.75/171.5 7.19/182.6 GUB2C GUB2CA

12.44/316.0 x 12.44/316.0 x 8.44/214.4 9.81/249.2 GUB3C GUB3CA

Maximum Size and Number of Entries Supplied on Any One Side

Catalog Number

Dimensions in Inches/Millimeters

0.50/12.7 0.75/19.1 1.00/25.4 1.25/31.8 1.50/38.1 2.00/50.8 2.50/63.5 3.00/76.2 3.50/88.9 4.00/101.6

Drilled and Tapped - With Clearance for Conduit Seals

DER1C 3 2 2 ‡1 ‡— — — — — —

GUB1C 4 4 4 2 2 1 — — — —

GUB2C 4 4 4 3 3 2 2 ‡———

GUB3C 4 4 4 3 3 2 2 — — —

With UNY Male Unions

DER1C 3 2 2 ‡1 ‡— — — — — —

GUB1C 3 3 4 2 2 — — — — —

GUB2C 4 4 4 3 3 2 1 ‡———

GUB3C 4 4 4 3 3 2 1 — — —

Maximum Entry in Back

GUB1C - 2”; GUB2C - 2”; GUB3C - 6”

† To order DER1C or DER1CA without mounting lugs add the suffix -LF to the catalog number.

‡ Requires pad. Available on special order, contact your local sales representative.

V CSA Certification Only.

CSA Certied

Class I, Division 1 and 2, Groups A, B, C, D

Class I, Zone 1 and 2

Class II, Division 1 and 2, Groups E, F, G

Class III, Enclosure 4

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

590

GUBM Cast Junction Boxes and DER, GUB and GUBM Covers V

CSA Certification Only. Explosionproof, Dust-Ignitionproof, Watertight

Furnished with surface cover and mounting lugs.

GUBM Instrument Junction Boxes

Type

of Body

Mounting

Lugs

Hub Size

(Inches)

Cover Opening *

In Inches/Millimeters

Catalog Number

Ferrous Alloy Aluminum

GUB-1C GUB-2C

GUB-1C 2 3/4 5.38/136.5 GUBM-1C GUBM-1CA

GUB-2C 2 3/4 7.44/188.9 GUBM-2C GUBM-2CA

DER, GUB and GUBM Junction Box Covers

DER Form 1 and GR Form 2 have the same cover opening.

DER and GUB junction boxes are furnished with surface covers. Order the remaining below listed covers as follows: Specify junction box

catalog number and the catalog number of the cover required from the listings below.

Example: GUB-2-16-64EX63E4EX, except with GUBK-2-6 dome cover.

Type of Body Type of Cover Inside Diameter in Inches/Millimeters Catalog Number

DER1C

Surface Covers

3.56/90.5 GRK-2C

GUB1C 4.63/117.5 GUBK-1C

GUB2C 6.25/158.8 GUBK-2C

GUB3C 8.88/225.4 GUBK-3C

DER1C Sealing Covers 3.56/90.5 GRK-2SC

V CSA Certification Only.

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

591

DER, GUB and GUBM Cast Junction Box Dimensions V

CSA Certification Only. Explosionproof, Dust-Ignitionproof, Watertight

Furnished with surface cover and mounting lugs.

DER1C, GUB1C, GUB2C (2 Lugs) GUB3C (4 Lugs) All Types

Box

Type

Dimensions in Inches/Millimeters

A B C D E F G H J K L M N O T U Z

DER1C 5.13/

130.2

5.13/

130.2

4.38/

111.1

3.91/

99.2

3.91/

99.2

4.00/

101.6

6.00/

152.4

0.31/

7.9

4.06/

103.2

2.44/

61.9

3.25/

82.6

2.31/

58.7

4.50/

114.3 — — 7.00/

177.8 —

GUB1C 7.00/

177.8

7.00/

177.8

5.75/

146.1

5.41/

137.3

7.19/

182.6

6.00/

152.4

8.25/

209.6

0.50/

12.7

6.38/

161.9

3.81/

96.8

5.03/

127.8

4.63/

117.5

6.19/

157.2 — — 9.25/

235.0

0.13/

3.2

GUB2C 9.25/

235.0

10.63/

269.9

8.13/

206.4

7.25/

184.2

7.19/

182.6

9.60/

243.7

10.38/

263.5

0.50/

12.7

6.63/

168.3

3.94/

100.0

5.22/

132.6

5.06/

128.6

8.00/

203.2 — — 11.38/

288.9

0.13/

3.2

GUB3C 12.44/

315.9

12.44/

315.9

10.94/

277.8

9.88/

250.8

9.88/

250.8

9.00/

228.6

14.00/

355.6

0.63/

15.9

8.25/

209.6

4.44/

112.7

6.19/

157.2

5.63/

142.9

10.75/

273.1

7.00/

177.8

7.00/

177.8

14.94/

379.4

0.31/

7.9

V CSA Certification Only.

Dimensions of GUBM

Catalog

Number

Mounting

Lugs

Dimensions in Inches/Millimeters

A B C D E F G - Dia. H - Dia. J K - Dia. L

GUBM-1C 2 7.00/

177.8

7.00/

177.8

6.50/

165.1

5.25/

133.4

8.25/

209.6

6.00/

152.4

3.63/

92.1

5.38/

136.5

4.63/

117.5

0.50/

12.7

2.06/

52.4

GUBM-2C 2 9.27/

235.3

10.59/

269.1

6.72/

170.7

5.63/

142.9

10.38/

263.5

9.59/

243.4

5.00/

127.0

7.31/

185.7

4.38/

111.1

0.50/

12.7

2.06/

52.4

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

592

Type

Entry

Size

Dimensions in Inches/Millimeters

P Q R X Y AA BB CC DD

Threaded Entries ‡

DER1C

1/2 1.44/36.5 1.19/30.2 1.44/36.5 — — 2 0.97/24.6 — —

3/4 1.44/36.5 1.19/30.2 — — — — — — —

1 †1.44/36.5 †1.19/30.2 †———————

1-1/4 †1.44/36.5 †————————

GUB1C

1/2 2.06/52.4 1.44/36.5 1.75/44.5 0.69/17.5 1.38/34.9 3.38/85.7 1.75/44.5 3.50/88.9 1.69/42.9

3/4 2.06/52.4 1.44/36.5 1.75/44.5 0.69/17.5 1.38/34.9 3.38/85.7 1.75/44.5 3.50/88.9 1.69/42.9

1 2.06/52.4 1.44/36.5 1.75/44.5 0.69/17.5 1.13/28.6 3.38/85.7 1.75/44.5 3.50/88.9 1.69/42.9 

1-1/4 2.06/52.4 1.44/36.5 — — — — — — —

1-1/2 2.06/52.4 — — — — — — — —

2 2.50/63.5 — — — — — — — —

Top or Bottom Side

9-1/4” x 5-1/2”

GUB2C

1/2 2.06/52.4 2.06/52.4 2.81/71.4 1.00/254 2.00/50.8 3.31/84.1 2.00/50.8 3.56/90.5 3.75/95.3

3/4 2.06/52.4 2.06/52.4 2.81/71.4 1.00/254 2.00/50.8 3.31/84.1 2.00/50.8 3.56/90.5 3.75/95.3

1 2.06/52.4 2.06/52.4 2.81/71.4 1.00/254 2.00/50.8 3.31/84.1 2.00/50.8 3.56/90.5 3.75/95.3

1-1/4 2.06/52.4 2.06/52.4 2.81/71.4 — — 3.31/84.1 22.00/50.8 — —

1-1/2 2.06/52.4 2.06/52.4 2.81/71.4 — — 3.31/84.1 2.00/50.8 — —

2 2.63/66.8 2.25/57.2 — — — — — — —

2-1/2 †2.63/66.8 †2.25/57.2 †———————

1/2 3.25/82.6 2.38/60.3 3.25/82.6 1.19/30.2 2.38/60.3 3.88/98.4 2.69/68.3 2.69/68.3 3.88/98.4

3/4 3.25/82.6 2.38/60.3 3.25/82.6 1.19/30.2 2.38/60.3 3.88/98.4 2.69/68.3 2.69/68.3 3.88/98.4

GUB3C 1 3.25/82.6 2.38/60.3 3.25/82.6 1.19/30.2 2.38/60.3 3.88/98.4 2.69/68.3 2.69/68.3 3.88/98.4

1-1/4 3.25/82.6 2.38/60.3 3.25/82.6 — — 3.88/98.4 2.69/68.3 — —

1-1/2 3.25/82.6 2.38/60.3 3.25/82.6 — — 3.88/98.4 2.69/68.3 — —

2 3.25/82.6 2.38/60.3 — — — — — — —

2-1/2 3.25/82.6 2.38/60.3 †———————

Left or Right Side

10-5/8” x 5-1/2”

1/2 2.06/52.4 2.06/52.4 2.81/71.4 1.00/254 2.00/50.8 3.31/84.1 2.00/50.8 3.56/90.5 1.75/44.5

3/4 2.06/52.4 2.06/52.4 2.81/71.4 1.00/254 2.00/50.8 3.31/84.1 2.00/50.8 3.56/90.5 1.75/44.5

GUB2C 1 2.06/52.4 2.06/52.4 2.81/71.4 1.00/254 2.00/50.8 3.31/84.1 2.00/50.8 3.56/90.5 1.75/44.5

1-1/4 2.06/52.4 2.06/52.4 2.81/71.4 1.19/30.2 * 2.31/58.7 * 3.31/84.1 2.00/50.8 3.44/87.3 * 0.88/47.6 *

1-1/2 2.06/52.4 2.06/52.4 3.13/79.4 — — 3.31/84.1 2.00/50.8 — —

2 2.63/66.8 2.25/57.2 — — — — — — —

2-1/2 †2.63/66.8 †2.25/57.2 †———————

Caution: Dimensions between hub centres are for use with hubs of the same size. These dimensions will not necessarily hold true for a combination of hubs of

extreme sizes. Please consult Engineering Dept. for special combinations of hubs.

‡ Dimensions permit assembly of seals on adjacent conduit runs.

 Seals must be staggered for assembly on adjacent conduit runs.

† Requires pad. Available only on special order from factory.

* Dimensions will not permit assembly of unions on adjacent conduit runs.

V CSA Certification Only.

DER, GUB and GUBM Cast Junction Box Dimensions V

CSA Certification Only. Explosionproof, Dust-Ignitionproof, Watertight

Furnished with surface cover and mounting lugs.

Class I, Division 1 and 2, Groups B◊, C◊, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 4, 4X, 7BCD, 9EFG

Enclosures and Junction Boxes EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

593

AGUB Instrument and Meter Enclosures

Explosionproof, Dust-Ignitionproof

Furnished with aluminum body and solid or window cover.

Application

• To pull or splice wires and/or to mount and enclose electrical

devices in hazardous locations.

Features

• Precision threaded ame path between box and cover.

• O-ring gasket provided to seal out moisture, dust, oil, dirt etc.

for interior and exterior locations.

• Cast mounting feet provided on all enclosures.

• Large cover opening for easy access.

• Available with solid or window covers.

Standard Materials

• Bodies: copperfree (4/10 of 1% max.) aluminum

• AGUB covers: copperfree (4/10 of 1% max.) aluminum

• AGUBSW covers: copperfree (4/10 of 1% max.) aluminum

and glass

• O-ring: neoprene

Standard Finishes

• Corrosion resistant gray powder coat epoxy standard

Certifications and Compliances

• UL Standard: UL 886 (UL 1203)

• UL Listed: E85310

• CSA Standard: C22.2 No. 25, C22.2 No. 30

• CSA Certied: 020945

• cUL Listed: E84577

AGUB Series

◊ Shaded items on following page are for Groups B and C, all conduits must be sealed within specified distance of enclosure.

Class I, Division 1 and 2, Groups B◊, C◊, D

Class II, Division 1 and 2, Groups E, F, G

Class III

NEMA 4, 4X, 7BCD, 9EFG

Enclosures and Junction Boxes

EnclosurEs and Junction BoxEs: Hazardous Junction BoxEs

Visit our website at www.appletonelec.com or contact us at (800) 621-1506.

594

AGUB Enclosures for Drilling and Tapping Blank Body Ordering Information

Explosionproof, Dust-Ignitionproof

Furnished with aluminum body and solid or window cover.

Determine catalog number as follows: (1) select AGUB enclosure

catalog number; (2) select “Conduit Opening Arrangement

Diagram” number; and (3) select symbols that represent conduit

opening sizes from “Symbol Table.”

Where no opening is required, the symbol 0 must be inserted.

Add suffix for other Optional Features. The various divisions of the

complete catalog number should be separated by dashes.

Example

The junction box selected is AGUB443A and the “Conduit Opening

Arrangement” is diagram #1. Opening “a” is to be 3/4”; “b”, no

opening required; “c”, 2”; and “d”, 1-1/4”.

In this example, the complete catalog number is

AGUB443A-1-BOFD
