SCEPTER PVC CONDUIT SCEPTER PVC

FITTINGS CONDUIT REPAIR KIT SCEPTALIGHT CORLINE ENT &

KIWKON FITTINGS SUPERDUCT SCEPTACON KWIKPATH

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .2

Applications . . . . . . . . . . . . . . . . . . . . . . . . . .3

Advantages . . . . . . . . . . . . . . . . . . . . . . . . . .4

Scepter®Rigid PVC Conduit . . . . . . . . . . . . . . .7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Expansion and Contraction . . . . . . . . . . . . . . . . . . .10

Conduit Dimensions . . . . . . . . . . . . . . . . . . . . . . . .15

Scepter®PVC Conduit Fittings . . . . . . . . . . . .17

Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Cover Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Weatherproof Covers . . . . . . . . . . . . . . . . . . . . . . . .34

Boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Conduit Cements & Primers . . . . . . . . . . . . . . . . . .42

Conduit Repair Kit . . . . . . . . . . . . . . . . . . . .43

EPR Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

EPR Kit Adapters . . . . . . . . . . . . . . . . . . . . . . . . . .43

SceptalightTM: Nonmetallic Light Fixtures . . . .45

Cor-Line®ENT & Kwikon®Fittings . . . . . . . . . .53

Cor-Line Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Kwikon Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Kwikon Accessories . . . . . . . . . . . . . . . . . . . . . . . .61

Super Duct® . . . . . . . . . . . . . . . . . . . . . . . . . .63

Advantages/Engineering Data . . . . . . . . . . . . . . . . .64

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Vertical-Lok Spacers . . . . . . . . . . . . . . . . . . . . . . . .76

Monobloc®Spacers . . . . . . . . . . . . . . . . . . . . . . . .77

SceptaConTM Trenchless Raceway Systems . . .79

Kwikpath®Communication Raceway Systems . .81

Engineers, electricians, contractors, specifiers and utilities have

realized for many years the advantages of PVC. Today, IPEX electrical

systems include Scepter®PVC conduit and fittings, Super Duct®power

and communication ducts, Cor-Line®ENT, Kwikon®ENT fittings and

FiberTel®high density polyethylene innerduct. These brands are the

number-one choice for power, communication and data needs.

Whether exposed, concealed in walls, encased in concrete, or directly

buried, IPEX electrical products are preferred

For The Long Run

Only when you specify IPEX branded products by name are you

guaranteed our commitment to excellence.

Applications

Typical industrial/commercial and residential applications for IPEX

electrical systems include:

• Utilities

• Cable

• Communications

• Street and highway lighting

• Residential applications

• Water treatment plants

• Airports

• Subways

• Sewage treatment plants

• Pulp and paper industries

• Parking garages

• Car washes

• Fish plants

• Marinas

• Agricultural, dairy, hogs, cattle,

chicken, etc.

• Bridges and tunnels

• Food processing plants

• Steel mills

• Mines

APPLICATIONS

INTRODUCTION

Pocket Pro provides the most comprehensive information about PVC

systems – from basic raw material to installation characteristics of the

finished product. Written with the engineer, contractor and distributor

in mind, it is based on laboratory test results and IPEX’s many years of

field experience.

At IPEX, we have been extruding PVC conduit and molding fittings

since 1951. We formulate our own compounds, maintain strict quality

control during production, and offer one of the most comprehensive

lines of nonmetallic electrical products throughout North America.

More important, our commitment to customers extends beyond the

sale. Quality control and thorough jobsite field reports have earned

IPEX a reputation for product quality and service excellence.

Easy Wire Pulls

PVC’s exceptionally smooth interior surface greatly reduces the

amount of friction while pulling conductors/wires through long runs,

even with 90° bends. A large pull-rope and wire-pulling compound

should be used when pulling all conductors and wires.

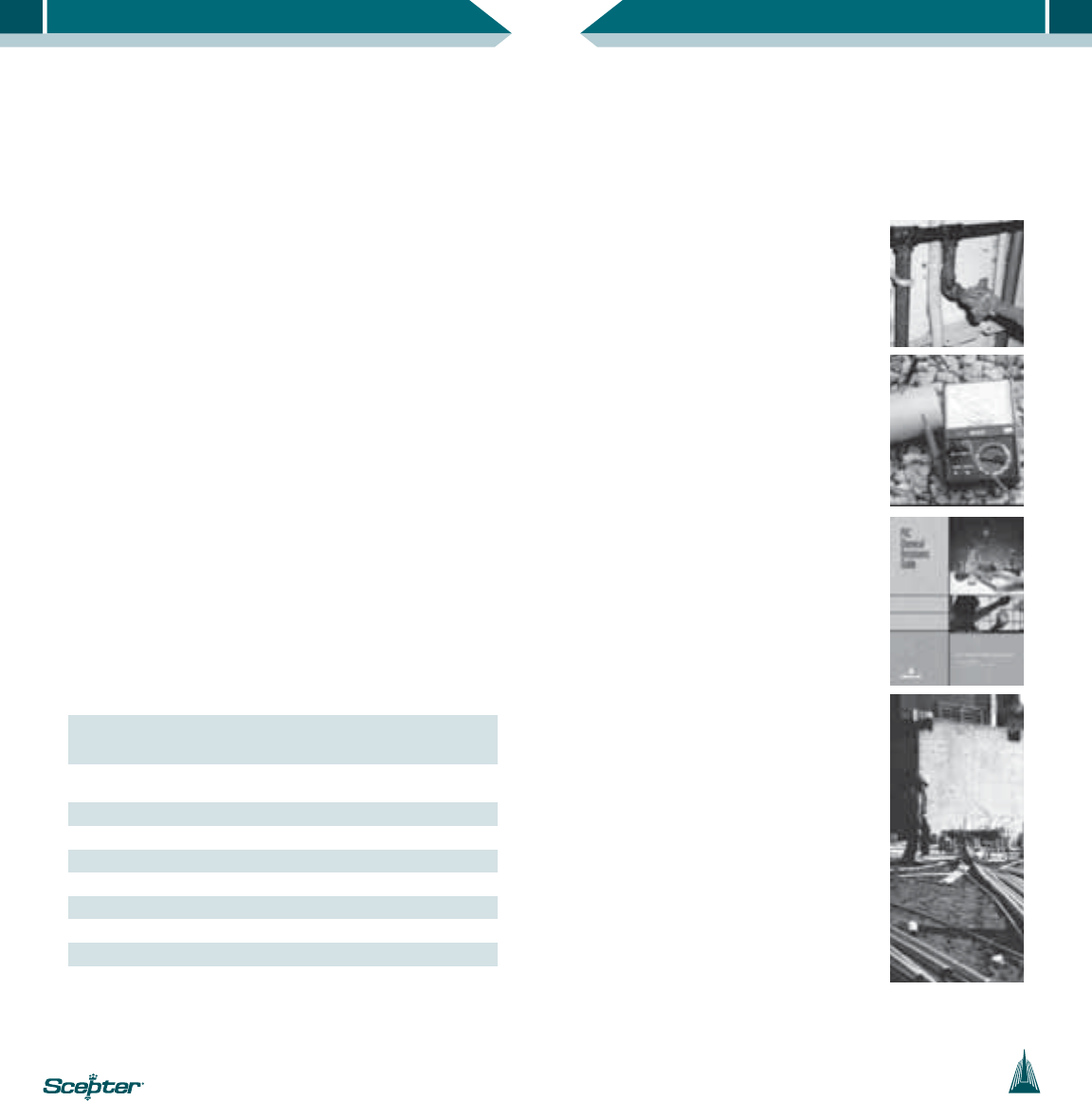

Noncorroding

PVC is immune to damage from naturally

corrosive soil conditions, as well as electro-

chemical and galvanic corrosion. This

ensures lower maintenance costs and

superior performance

For The Long Run.

Nonconducting

Scepter Rigid PVC conduit pipe and fittings

are nonsparking and nonconducting, thereby

eliminating the most dangerous ‘second

point of contact’ and ‘phase to ground’

faults. The use of a separate grounding

conductor provides a complete and positive

ground for the whole system.

Chemical Resistance

One of the greatest benefits of PVC is its

excellent chemical resistance. It resists

attack by acids, alkalies, salt solutions, and

many other types of chemicals. For more

information on PVC and chemical

resistance, refer to the IPEX Chemical

Resistance Guide.

Long Life

Scepter Rigid PVC Conduit pipe and fittings

retain their original properties after years of

exposure to heat and weather. In addition,

resistance to fungi, bacterial action,

rodents, termites and corrosive agents

ensures a long, trouble-free life for PVC

conduit installed indoors or outdoors.

Concrete Tight

Scepter Rigid PVC Conduit pipe and fittings

are designed and engineered to be concrete

tight in all weather conditions.

ADVANTAGES

Labour Savings

Compared to metal, PVC products reduce labour on a typical installation

by up to two-thirds. The reason? PVC is easy to work with. It can also be

cut and joined without pipe vises, cutters, threading equipment and

reamers associated with metal conduit.

Lightweight Conduit

Scepter Rigid PVC Conduit is one-half the weight of aluminum and

one-sixth the weight of steel. As a result, handling and installation are

easier and faster, reducing labour costs.

Sunlight Resistant

The 2006 Canadian Electrical Code rule 2-130 is intended to ensure

that totally enclosed nonmetallic raceways are properly protected

against adverse effects from direct exposure to UV rays. Electrical

nonmetallic raceways marked for such applications are suitable for

installation and use in direct exposure to the rays of the sun. Scepter

rigid PVC Conduit meets the criteria for sunlight resistance, is

approved for the purpose, and is appropriately marked.

Easy Joining

Solvent cementing is all that is required, eliminating the need for

power-threading machines, pipe vises and cutting equipment. A

hacksaw or carpenter’s saw is the only equipment required.

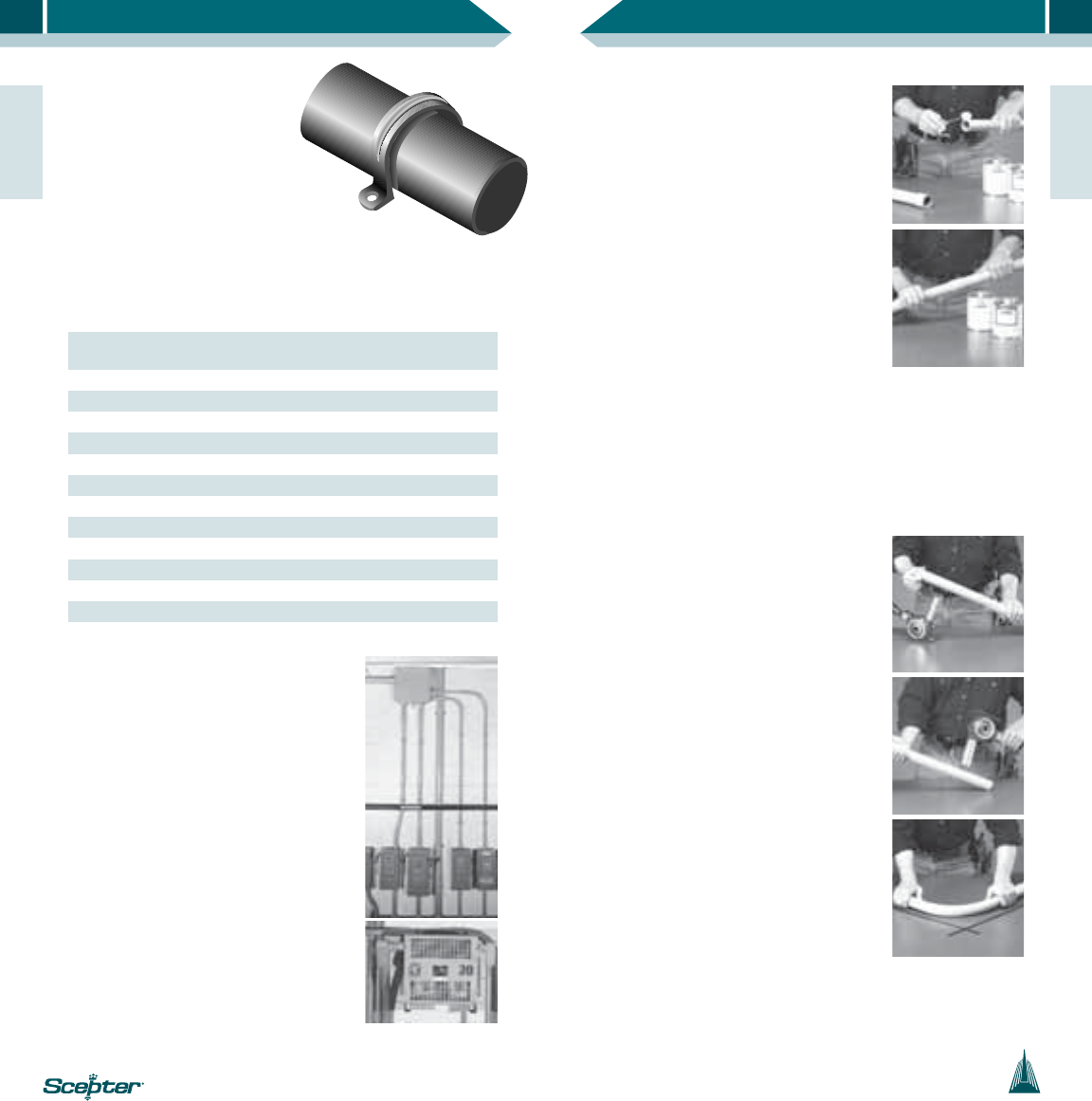

Strength

Scepter Rigid PVC Conduit offers both high impact and high tensile

strength, even in cold temperatures. Scepter Rigid PVC Conduit and

fittings meet and exceed all CSA and UL standards.

Scepter Rigid

PVC Conduit

CSA

Impact Test

Size

(in)

Size

(mm) @ -29°F (-34°C) @ 72°F (23°C)

1/2 12 8.9 ft.lbs. (12 joules) 50 ft.lbs. (68 joules)

3/4 20 8.9 ft.lbs. (12 joules) 80 ft.lbs. (109 joules)

125 8.9 ft.lbs. (12 joules) 100 ft.lbs. (136 joules)

1 1/4 32 8.9 ft.lbs. (12 joules) 120 ft.lbs. (163 joules)

1 1/2 40 8.9 ft.lbs. (12 joules) 150 ft.lbs. (204 joules)

250 8.9 ft.lbs. (12 joules) 190 ft.lbs. (258 joules)

2 1/2 65 8.9 ft.lbs. (12 joules) 210 ft.lbs. (285 joules)

3 – 6 75 – 150 8.9 ft.lbs. (12 joules) 220 ft.lbs. (298 joules)

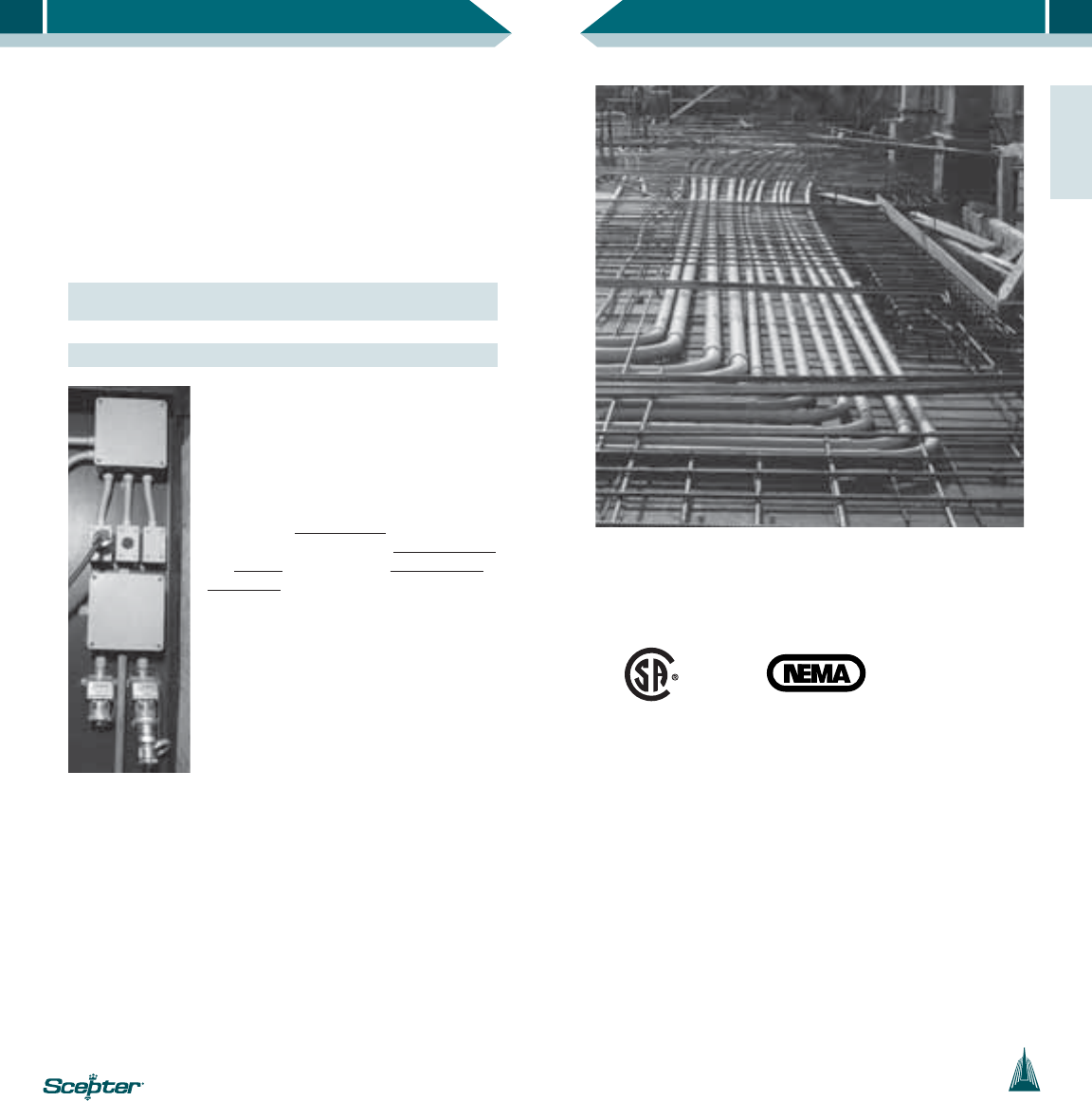

SCEPTER PVC CONDUIT

This section covers the most comprehensive design and installation of

Scepter Rigid PVC Conduit pipe and fittings. Always consult the

authority having jurisdiction for specific installation procedures.

CSA C22.2 No. 211.2

CSA C22.2 No. 211.0

FT-4 for 1/2" to 6"

NEMA TC-2

Corps. of Engineers Spec.

CE 303:01

Military Spec, Federal Spec.

WC 1094A

SCEPTER RIGID PVC CONDUIT

Fire Resistant

IPEX’s proprietary PVC compound used to manufacture Scepter

products is a self-extinguishing material and will not support

combustion. Samples taken from an actual fire show the outer surface

of the conduit was blistered and charred. The interior of the conduit,

however, was unaffected. Additionally, the undamaged conductors

were then removed and reinstalled in new conduit.

Fire-resistant characteristics when tested to CAN ULC S102.2 are as

follows:

FT-4 Rating

Scepter Rigid PVC conduit is certified to meet

the requirements of FT-4 allowing its use in

noncombustible construction per Section 3.1.5.20

of the National Building Code, which reads:

1.)

Subject to the limits on the size of elements

that penetrate fire separations as stated in

Sentence 3.1.9.3.(2), within a fire compartment

of a building required to be of noncombustible

construction, totally enclosed nonmetallic

raceways not more than 175mm in outside

diameter, or of an equivalent rectangular area,

are permitted to be used to enclose optical fibre

cables and electrical wires and cables, provided

the raceways exhibit a vertical char not more

than 1.5m when tested in conformance with the

Vertical Flame Test (FT - 4) Conduit or Tubing

on Cable Tray in Clause 6.16 of CSA C22.2

No. 211.0, “General Requirements and

Methods of Testing for Nonmetallic conduit.”

Suitable for Direct Burial

PVC is suitable for direct burial and requires no extra protection when

installed in accordance with the Canadian Electrical Code and the

local inspection authority guidelines. The usual care regarding

trenches and backfilling should be respected.

One-Source Specification

IPEX offers a full range of PVC fittings and accessories. As a result, it

is easy to specify a single source PVC system.

Quality Control

In addition to IPEX’s quality control testing, all Scepter electrical

products carry third-party certification by CSA, UL and NRTL.

ADVANTAGES

IPEX Compound Flame

Spread

Smoke

Developed

Fuel

Contribution

0.080" (2mm) thickness 10 – 20 225 – 270 0

0.630" (16mm) thickness 10 – 20 300 – 390 0

SCEPTER PVC CONDUIT

Solvent Cementing

After cutting Scepter Rigid PVC conduit,

sharp edges or burrs from inside the conduit

should be removed with a knife. Thoroughly

clean the end of the pipe and inside the

fitting with a pipe cleaner. Apply a generous

amount of IPEX solvent cement to both

surfaces; slide together and give a quarter

turn to ensure the solvent is spread evenly on

the material. Hold together for a few seconds

until the joint is made.

Usually the solvent-cemented joint will be

strong enough to install immediately.

However, in climates with low temperatures or

areas with high humidity, extra time may be

required before moving the pipe for permanent installation. Solvent-

cemented joints appear to “set up” instantly, but will take 24 hours to

cure properly. After this time, the solvent-cemented joint has

completely cured and is waterproof. For extreme cold weather

installations, the use of IPEX PVC Primer is recommended. IPEX

cements and primers are available in quarter-pint (125ml), half-pint

(250ml), pint (500ml), quart (1-litre) and gallon (4-litre) containers.

Bending

PVC is a thermoplastic material that, when

heated, becomes soft and pliable. As a

result, its shape can be altered.

A flameless heat source is recommended to

heat the pipe. AN OPEN FLAME SHOULD

NOT BE USED. Either an electric unit or an

infra-red propane unit is recommended.

The necessary temperature for bending pipe

is 260°F (127°C). The pipe must be heated

evenly over an area approximately ten times

the diameter of the pipe before any attempt

at bending is made. Bending the pipe when

it has not been thoroughly heated will cause

the pipe to “kink.” With proper care and a

little practice, the bend will form easily.

Cooling the pipe with cold air or water will

cause “spring back.” Allow a few extra

degrees of overbending to compensate.

Maximum bending radius shall be six times

the internal diameter according to the

Canadian Electrical Code.

INSTALLATION

Maximum Operating

Temperature

The Canadian Electrical Code (CEC) allows

the use of Scepter Rigid PVC Conduit up

to a maximum ambient temperature of

167°F (75°C).

Cutting

Scepter Rigid PVC conduit can be easily cut

on the jobsite by using a hacksaw,

carpenter’s saw or PVC conduit cutters. For

larger sizes of conduit, the use of a mitre box

is also recommended to ensure a square cut.

Support

Due to PVC’s light weight, support

spacing is different than that used

with metal conduits. Supporting

straps should NOT be firmly tightened,

so that linear movement of the pipe is

possible. The maximum allowable support

spacing, as per Canadian Electrical Code (CEC),

is as follows:

Support Spacing For Scepter Rigid PVC

Conduit Pipe

INSTALLATION

Nominal Conduit Diameter Maximum Support Spacing

inches mm feet metres

1/2 12 2-1/2 0.75

3/4 20 2-1/2 0.75

125 2-1/2 0.75

1-1/4 32 41.2

1-1/2 40 41.2

250 51.5

2-1/2 65 61.8

375 61.8

3-1/2 90 72.1

4100 72.1

5125 72.1

6150 82.5

10 11

SCEPTER PVC CONDUIT

Number of Expansion Joints Required

Use the following equation to determine the number of expansion

joints needed for a Scepter Rigid PVC Conduit installation:

Number of joints =

E = Expansion joint travel length 101.6mm (4") or 203.2mm (8")

depending on diameter.

Always round up to the next whole number.

Setting the Piston Opening

The expansion joint must be installed to allow for expansion and

contraction of the conduit run. On a cold day, if an expansion joint is

installed completely closed with the piston bottomed, there is no room

for expansion when the conduit is warmed. If it is installed open to the

maximum on a hot day, the expansion joint will pull apart when cooled.

The correct piston opening for any installation condition can be easily

determined using the formula below:

Piston setting =

Compressed length + max. temp. – installation temp. x E

max. temp. – min. temp.

Formula can be used for both metric and imperial measurements.

total expansion (mm or in)

EXPANSION & CONTRACTION

Using Expansion Joints

It’s just as important to know when to use an

expansion joint as it is to know how to install it

correctly. Expansion joints are required when the

temperature change is greater than 25°F (14°C).

Scepter Rigid PVC conduit has a coefficient of

linear expansion of 3.6 x 10-4 in./ft./°F

(.054mm/m/°C.) Generally, a 100 ft. (30.48m)

run of PVC conduit will undergo a change in

length of 3.6 inches (91.44mm) for every 100°F

(56°C) temperature change.

For conduit installed indoors, the range of expansion and contraction

can be calculated using the maximum air temperature plus the heat

contributed by the conductors inside the conduit and minimum air

temperature expected. Expansion joints are not required indoors

unless there are widely varying temperatures such as the attic of a

building.

Conduit installed outdoors, exposed to direct sunlight, will be

considerably hotter than the air temperature. As a guideline in this

case, add 27°F (15°C) to the temperature change. Expansion joints

should be installed to allow for all anticipated temperature changes.

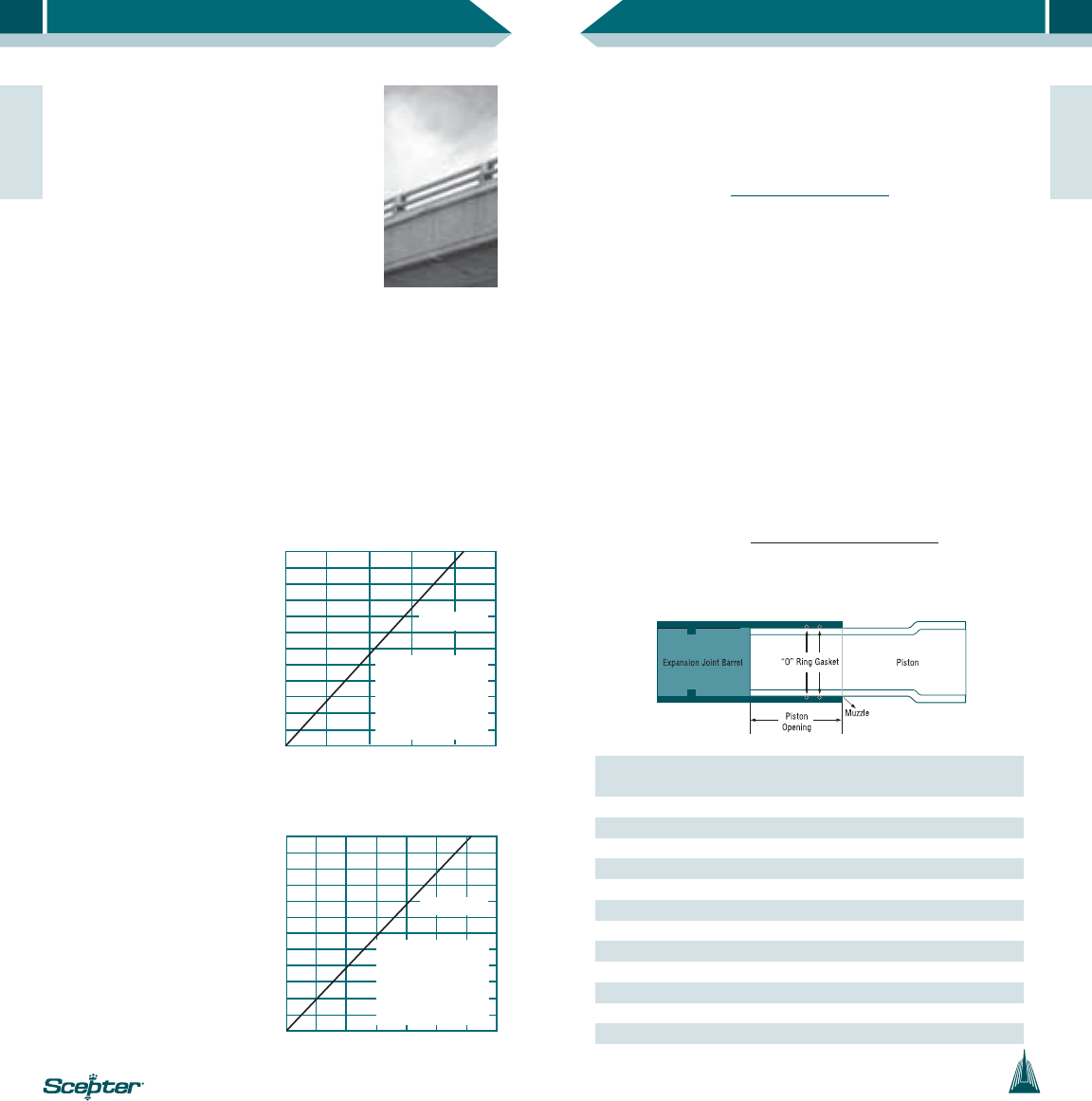

Expansion

Formula

By using the following

formulas and the charts

below, the total expected

expansion in a run can be

easily determined:

°F

Total Expansion (in.)

= length of run (ft.)

x temperature change

(°F) x 0.00036

°C

Total Expansion (mm)

= length of run (m)

x temperature change

(°C) x 0.054

0 1 2 3 4 5

120

110

100

PVC PIPE

As a general rule

for every

temperature

change of 10ºF,

PVC pipe will

expand or contract

3/8" per 100'

TEMPERATURE CHANGE IN ºF

LENGTH VARIATION in/100 ft OF PIPE

PVC PIPE LENGTH VARIATION

DUE TO TEMPERATURE CHANGE (ºF)

Coefficient = 3.6 x 10-4 in/ft/ºF

0 .5

1.0 1.5 2.0

2.5 3.0 3.5

TEMPERATURE CHANGE IN ºC

LENGTH VARIATION mm/m OF PIPE

PVC PIPE LENGTH VARIATION

DUE TO TEMPERATURE CHANGE (ºC)

Coefficient = .054/mm/m/ºC

As a general rule

for every

temperature

change of 5ºC,

PVC pipe will

expand or contract

2.7mm per 10m

PVC PIPE

Size Compressed Length Travel

(mm) (in) (mm) (in) (mm) (in)

13 1/2 203.2 8.00 101.6 4

20 3/4 203.2 8.00 101.6 4

25 1215.9 8.50 101.6 4

32 1-1/4 228.6 9.00 101.6 4

38 1-1/2 228.6 9.00 101.6 4

51 2235.0 9.25 101.6 4

64 2-1/2 235.0 9.25 101.6 4

76 3362.0 14.25 203.2 8

89 3-1/2 362.0 14.25 203.2 8

102 4362.0 14.25 203.2 8

127 5362.0 14.25 203.2 8

152 6362.0 14.25 203.2 8

()

12 13

SCEPTER PVC CONDUIT

EXPANSION & CONTRACTION

Figure 1

Figure 2

Figure 3

Figure 4

EXPANSION & CONTRACTION

Location of Expansion Joints

Proper functioning of an expansion joint depends on three procedures:

1. The correct placement of the expansion joint.

2. The proper installation of Scepter Rigid PVC conduit and the

expansion joint.

3. The proper placement and fastening of support straps.

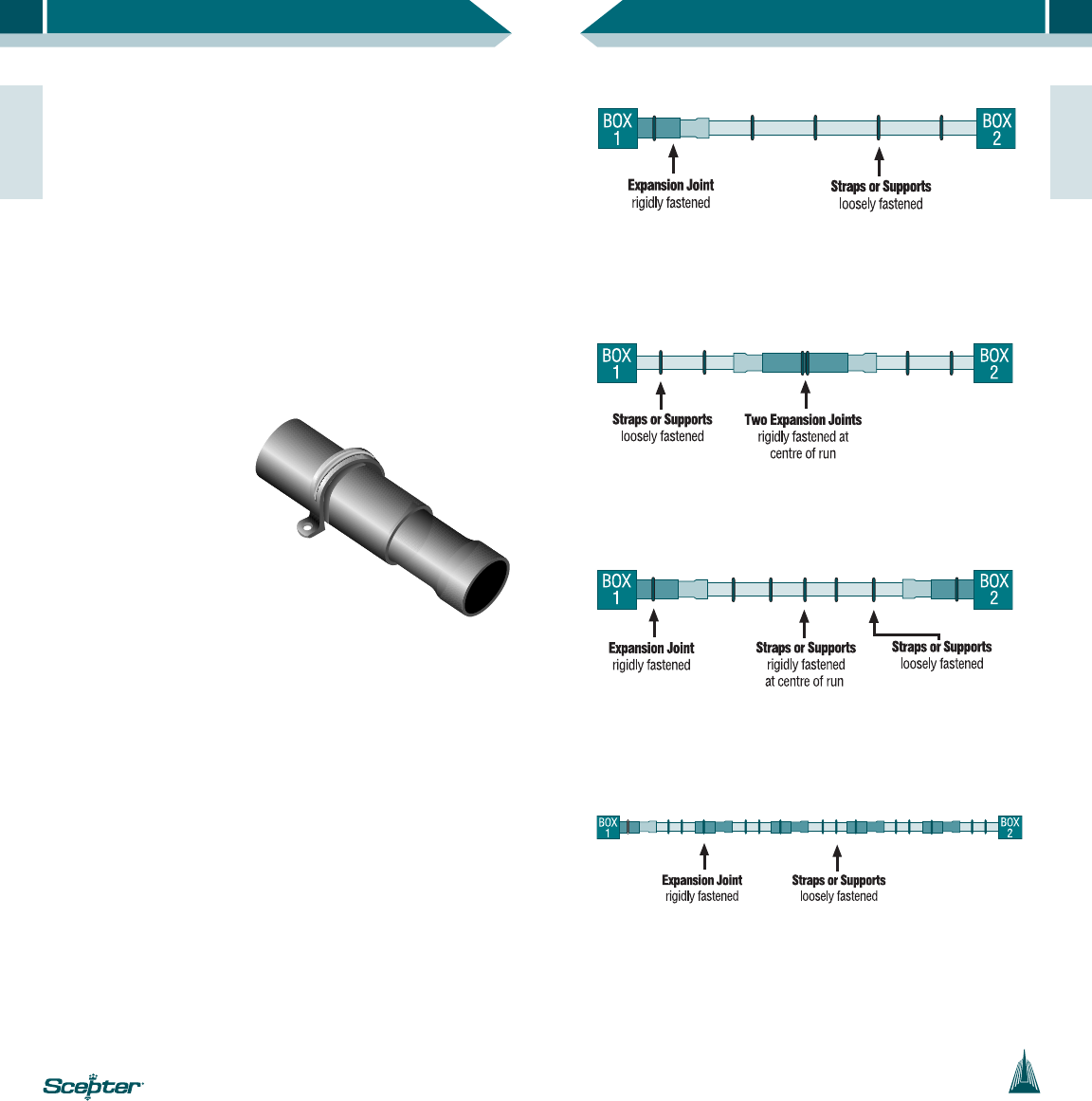

One Expansion Joint

Figure 1

If only one expansion joint is needed between two boxes, the barrel of

the joint is rigidly fastened close to the first box. Scepter Rigid PVC

conduit should then be loosely supported with straps, allowing the

conduit to move freely as it expands and contracts.

Two Expansion Joints

Figure 2

If two expansion joints are

needed, the joints should

be firmly fastened back to

back at the centre of the run.

Scepter Rigid PVC conduit is

loosely supported with straps,

allowing the conduit to move freely as it

expands and contracts.

Two Expansion Joints (Alternative)

Figure 3

Alternatively, the centre of the run and the two expansion joints

(located at the boxes) should be rigidly fastened. All other support

straps should be loosely fastened.

Three or More Expansion Joints

Figure 4

If more than two joints are needed in a very long run, they should be

put in a series, one after the other. Each barrel must be rigidly

fastened while conduit is loosely supported with straps allowing the

conduit to move freely as it expands and contracts. When installed in a

series, each section acts independently of the other. Spacing of conduit

supports must be in accordance with Section 12-1114 of the Canadian

Electrical Code (CEC).

14 15

SCEPTER PVC CONDUIT

Scepter Rigid PVC Conduit Dimensions (inches)

CONDUIT DIMENSIONS

Scepter Rigid PVC Conduit Dimensions (mm)

EXPANSION & CONTRACTION

Installation of Expansion Joints

Installation recommendations:

• Expansion joints should be mounted so the piston can travel in a

straight line in the barrel. If the alignment is not straight, the

piston will bind, preventing the joint from functioning correctly.

• The expansion joint barrel should be clamped tight, but the conduit

mounted loose enough in its hangers to allow for movement as it

expands and contracts.

• Scepter nonmetallic straps are correctly sized and designed for

proper support, and must be used to secure the conduit.

• When expansion joints are used in a vertical position, the piston

should be mounted in a downward position so dirt cannot deposit

between the barrel and piston at the muzzle of the expansion joints.

WARNING

Common Mistakes

Three common mistakes are:

1. Forgetting to use expansion joints.

2. Not using enough expansion joints.

3. Overtightening of support straps.

It is more cost effective to use more expansion joints than needed,

rather than too few. It is difficult to correct the problem after

conductors are installed and in service. Failure to accommodate

expansion/contraction may result in pipe fracture.

Nominal

Size Product Code OD ID Min.

Wall

Weight

lbs/100'

Standard

ft/crate

1/2 (10') 032105 0.840 0.622 0.109 15 6,000

(20') 032106 12,000

3/4 (10') 032107 1.050 0.824 0.113 21 4,400

(20') 032108 8,800

1(10') 032110 1.315 1.049 0.133 31 3,600

(20') 032111 7,200

1-1/4 (10') 032112 1.660 1.380 0.140 42 3,300

(20') 032114 6,600

1-1/2 (10') 032115 1.900 1.610 0.145 53 2,250

(20') 032116 4,500

2(10') 032120 2.375 2.067 0.154 71 1,400

(20') 032121 2,800

2-1/2 (10') 032125 2.875 2.469 0.203 112 780

(20') 032126 1,560

3(10') 032130 3.500 3.068 0.216 166 780

(20') 032131 1,560

3-1/2 (10') 032135 4.000 3.548 0.226 200 630

(20') 032136 1,260

4(10') 032140 4.500 4.026 0.237 236 600

(20') 032141 1,200

5(10') 032150 5.563 5.047 0.258 321 230

(20') 032151 460

6(10') 032160 6.625 6.065 0.280 417 260

(20') 032161 520

Nominal

Size OD ID Min. Wall Weight

kgs/100'

12 21.3 15.8 2.8 22.6

20 26.7 20.9 2.9 31.2

25 33.4 26.6 3.4 46.2

32 42.2 35.1 3.6 63.0

40 48.3 40.9 3.7 78.4

50 60.3 52.5 3.9 105.5

65 73.0 62.7 5.2 167.2

75 88.9 77.9 5.5 247.8

90 101.6 90.1 5.7 297.7

100 114.3 102.3 6.0 352.4

125 141.3 128.2 6.6 478.5

150 168.3 154.1 7.1 621.0

16 17

SCEPTER PVC

FITTINGS

SCEPTER PVC CONDUIT

Industry leaders specify Scepter PVC fittings by name. For years,

Scepter PVC fittings have set the standard for quality and value-added

features not normally available from other suppliers. Features such as our

threaded brass inserts, brass screws, and superior PVC gasketing system

make a real difference.

NEMA TC-2, 3

C22.2 No. 85 UL Listed

UL514B – UL514C

SCEPTER

CONDUIT FITTINGS

Weight Comparison of Scepter Rigid PVC

Conduit - kg/100 m

CONDUIT DIMENSIONS

Weight Comparison of Scepter Rigid PVC

Conduit - lbs./100 ft.

Nominal Size (in) Rigid PVC Aluminum Rigid Steel

1/2 15 28 79

3/4 21 27 105

131 53 153

1-1/4 42 70 201

1-1/2 53 86 249

271 116 334

2-1/2 112 183 527

3166 239 690

3-1/2 200 288 831

4236 340 982

5321 465 1,334

6417 613 1,771

NEMA TC2

Corps. of Engineers Spec.

CE 303:01

Military Spec, Federal Spec.

WC 1094A

Nominal Size (in) Rigid PVC Aluminum Rigid Steel

12 23 41 118

20 31 54 157

25 46 79 228

32 63 104 300

40 78 129 371

50 106 173 498

65 167 272 786

75 248 356 1,029

90 298 429 1,239

100 352 507 1,464

125 479 694 1,989

150 621 914 2,641

CSA C22.2 No. 211.2

FT-4 for 1/2 " to 6"

18 19

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

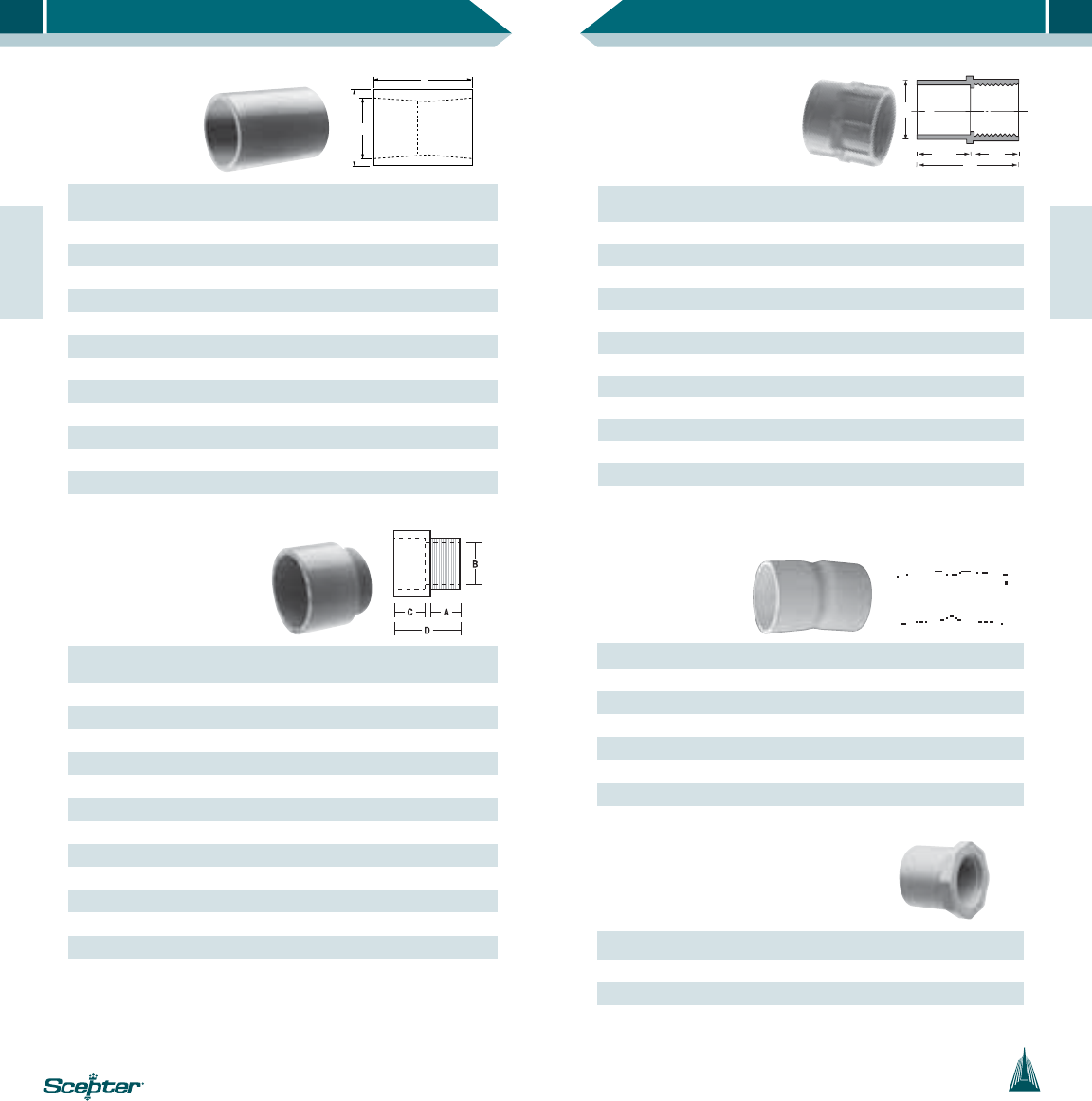

Female Adapters

5° Couplings

FITTINGS

Threaded Reducer Bushings

FITTINGS

A B

Couplings

Terminal Adapters

Note: 1/2" to 1-1/4" TA – tapered thread.

1-1/2" to 6" TA – non-tapered thread.

Size (in) Part

Number

Product

Code A (in) B (in) C (in)

1/2 EC10 077001 1.080 0.840 1.437

3/4 EC15 077002 1.300 1.050 2.200

1EC20 077003 1.590 1.315 2.031

1-1/4 EC25 077004 2.000 1.660 2.156

1-1/2 EC30 077005 2.230 1.900 2.281

2EC35 077006 2.720 2.375 2.406

2-1/2 EC40 077007 3.320 2.875 3.187

3EC45 077008 4.000 3.500 3.437

3-1/2 EC50 077009 4.500 4.000 3.625

4EC55 077010 5.000 4.500 3.750

5EC60 077011 6.120 5.563 4.187

6EC65 077012 7.370 6.625 4.562

Size (in) Part

Number

Product

Code A (in) B (in) C (in) D (in)

1/2 TA10 077021 0.700 0.591 0.750 1.550

3/4 TA15 077022 0.675 0.790 1.000 1.750

1TA20 077023 0.625 1.000 1.115 1.860

1-1/4 TA25 077024 0.640 1.311 1.300 2.125

1-1/2 TA30 077025 0.725 1.530 1.425 2.250

2TA35 077026 0.800 1.970 1.150 2.100

2-1/2 TA40 077027 0.800 2.346 1.900 2.930

3TA45 077028 0.815 2.915 2.000 3.055

3-1/2 TA50 077029 1.000 3.385 1.715 3.055

4TA55 077030 0.815 3.850 1.990 3.215

5TA60 077031 1.725 5.015 2.000 5.985

6TA65 077032 1.875 6.025 2.130 6.500

Note: All female adapters have NPT-tapered threads.

Size (in) Part Number Product Code L (in)

25EC35 077100 4.0

2-1/2 5EC40 077101 5.5

35EC45 077103 6.0

3-1/2 5EC50 077102 7.0

45EC55 077104 7.0

55EC60 077105 7.5

65EC65 077106 11.0

Size (in) Part Number Product Code

3/4 x 1/2 1825 077314

1 x 1/2 1826 077315

1 x 3/4 1827 077316

Size (in) Part

Number

Product

Code A (in) B (in) C (in) D (in)

1/2 FA10 076544 0.620 1.080 0.800 1.725

1/2 FA10 077041 0.620 1.080 0.800 1.725

3/4 FA15 077042 0.820 1.300 0.800 1.900

1FA20 077043 1.065 1.590 1.000 2.300

1-1/4 FA25 077044 1.395 2.000 1.015 2.425

1-1/2 FA30 077045 1.575 2.230 1.050 2.440

2FA35 077046 2.050 2.720 1.075 2.550

2-1/2 FA40 077047 1.020 3.250 1.500 2.700

3FA45 077048 3.090 4.000 1.630 4.100

3-1/2 FA50 077049 3.540 4.500 1.800 3.895

4FA55 077050 4.025 5.000 1.755 4.210

5FA60 077051 5.035 6.120 2.065 5.240

FA65 077052 6.045 7.370 2.065 5.235

20 21

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

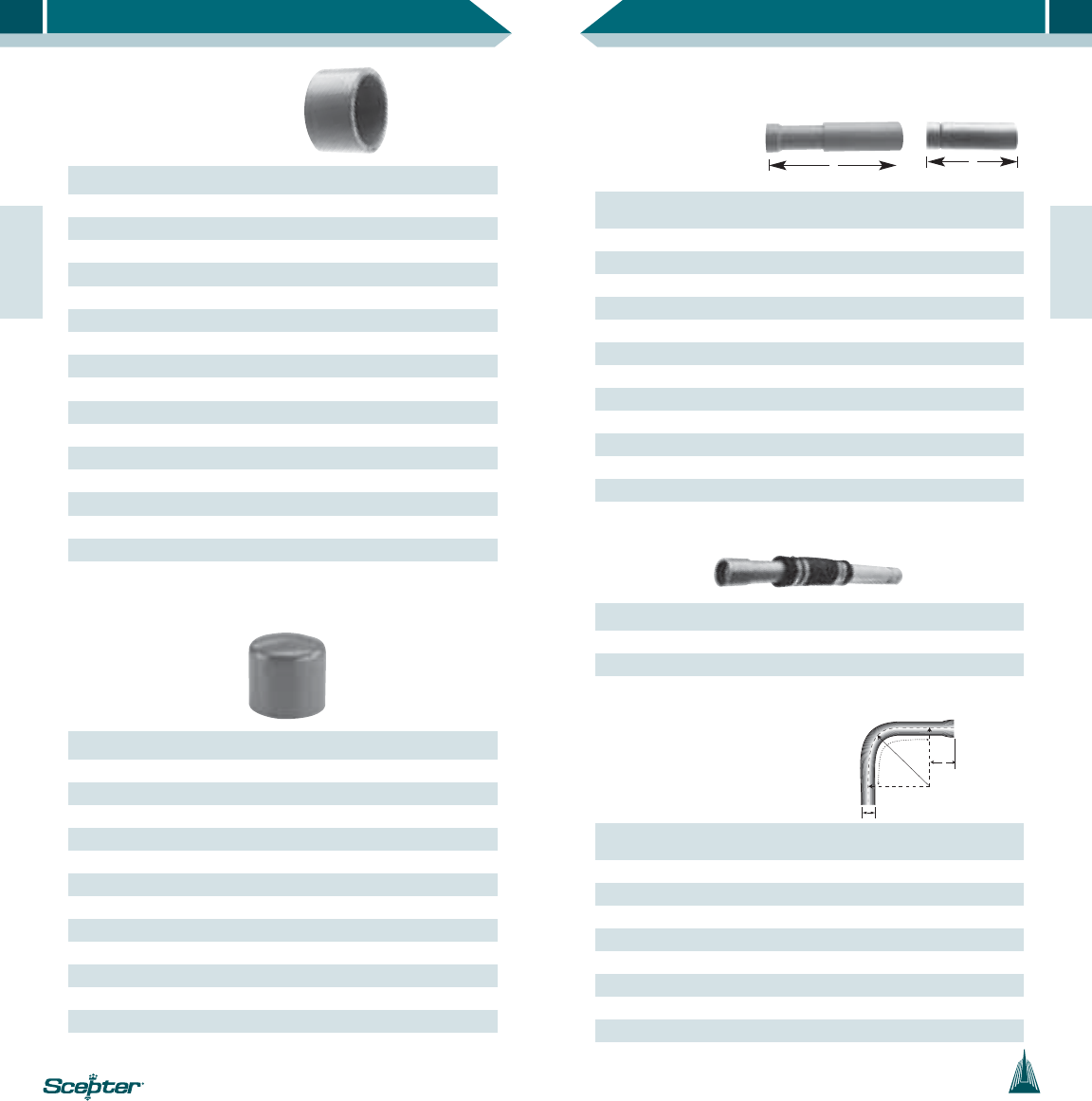

Reducer Bushings

End Caps

FITTINGS

Size (in) Part Number Product Code

3/4 x 1/2 1805 077300

1 x 1/2 1805-1 077301

1 x 3/4 1806 077302

1-1/4 x 3/4 1807-1 077303

1-1/4 x 1 1807 077304

1-1/2 x 1 1808-1 077305

1-1/2 x 1-1/4 1808 077306

2 x 1 1809-1 077313

2 x 1-1/4 1809 077307

2 x 1-1/2 1810 077308

2-1/2 x 2 1811 077309

3 x 2 1812-1 077310

3 x 2-1/2 1812 077311

4 x 2 1813-1 077319

4 x 3 1813 077312

4 x 3-1/2 1814 077317

Size (in) Part Number Product Code

1/2 CAP10 077421

3/4 CAP15 077422

1CAP20 077423

1-1/4 CAP25 077424

1-1/2 CAP30 077425

2CAP35 077426

2-1/2 CAP40 077427

3CAP45 077428

3-1/2 CAP50 077429

4CAP55 077430

5CAP60 077431

6CAP65 077432

Size

(in)

Part

Number

Product

Code

A (in)

max.

B (in)

min.

1/2 EJ10 077381 12.00 8.00

3/4 EJ15 077382 12.00 8.00

1EJ20 077383 12.50 8.50

1-1/4 EJ25 077384 13.00 9.00

1-1/2 EJ30 077385 13.00 9.00

2EJ35 077386 13.25 9.25

2-1/2 EJ40 077387 13.25 9.25

3EJ45 077388 22.25 14.25

3-1/2 EJ50 077389 22.25 14.25

4EJ55 077390 22.25 14.25

5EJ60 077391 22.25 14.25

6EJ65 077392 22.25 14.25

“O” Ring Expansion Joints

Expansion and Deflection Fitting Assemblies

Size (in) Part Number Description Product Code

2SE-J-35 Complete Assembly 077889

3SE-J-45 Complete Assembly 077890

4SE-J-55 Complete Assembly 077891

Utility 90° Elbows c/w

Solvent Bell End

min.

max.

Size

(in)

Part

Number

Product

Code D (in) T (in) R (in)

2NSL 2-24 069257 2.375 41.20 24

2NSL 2-36 069260 2.375 31.70 36

3NSL 3-24 069265 3.500 41.20 24

3NSL 3-36 069261 3.500 31.70 36

4NSL 4-36 069267 4.500 31.70 36

4NSL 4-48 069266 4.500 22.25 48

5NSL 5-36 069263 5.563 31.70 36

6NSL 6-36 069264 6.625 31.70 36

*Additional sizes of reducer bushings are available upon request.

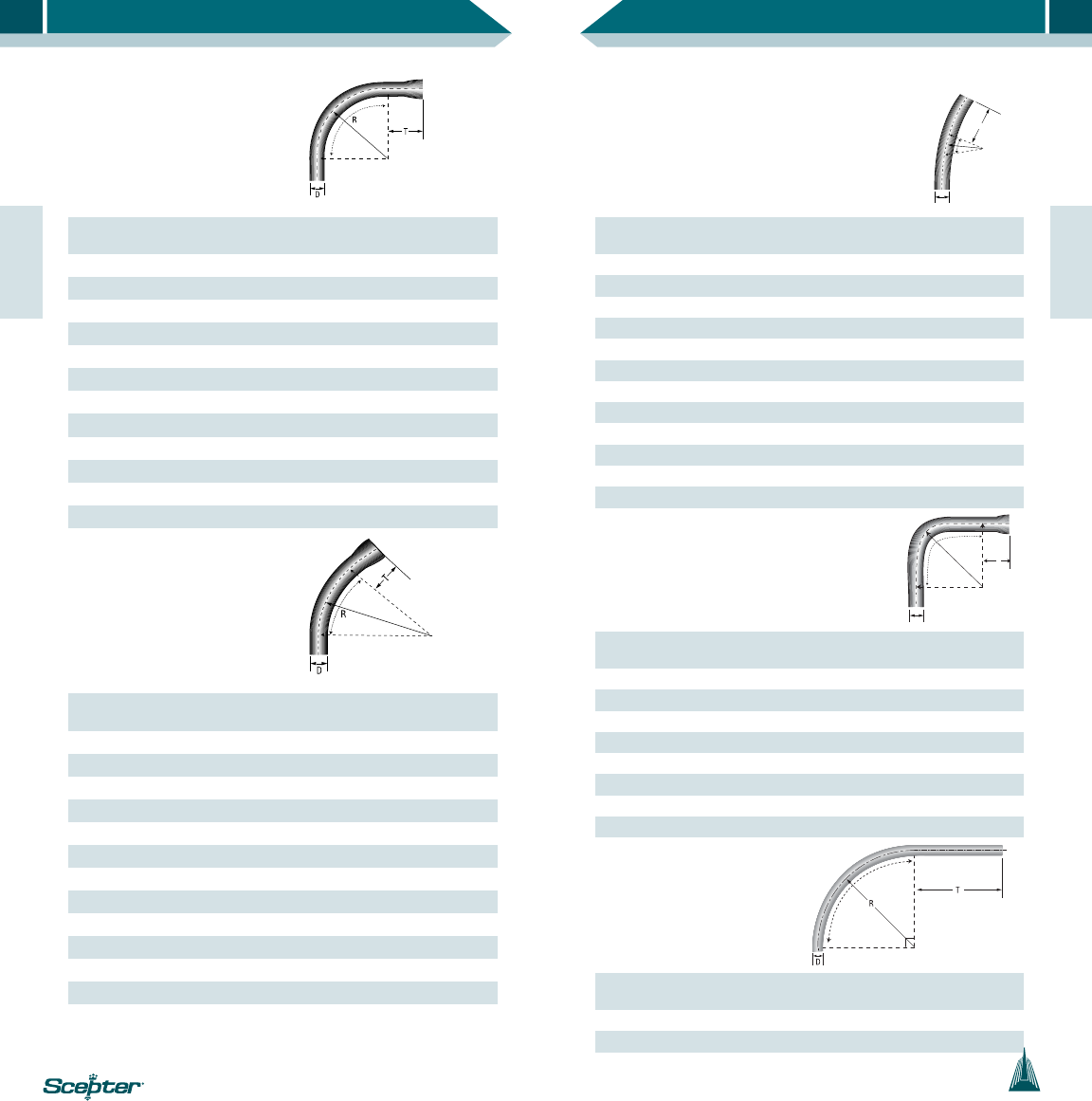

90° Elbows

c/w Solvent Bell End

22 FITTINGS 23

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

Size

(in)

Part

Number

Product

Code D (in) T (in) R (in)

1/2 EE1090 069081 0.840 1.500 4.00

3/4 EE1590 069082 1.050 1.500 4.50

1EE2090 069083 1.315 1.875 5.75

1-1/4 EE2590 069084 1.660 2.000 7.25

1-1/2 EE3090 069085 1.900 2.000 8.25

2EE3590 069086 2.375 2.000 9.50

2-1/2 EE4090 069087 2.875 3.000 10.50

3EE4590 069088 3.500 3.125 13.00

3-1/2* EE5090 069089 4.000 3.250 15.00

4EE5590 069090 4.500 3.375 16.00

5EE6090 069091 5.563 3.625 24.00

6EE6590 069092 6.625 3.750 30.00

With integral bell.

45° Elbows

c/w Solvent Bell End

Size

(in)

Part

Number

Product

Code D (in) T (in) R (in)

1/2 EE1045 069201 0.840 1.500 4.00

3/4 EE1545 069202 1.050 1.500 4.50

1EE2045 069203 1.315 1.875 5.75

1-1/4 EE2545 069204 1.660 2.000 7.25

1-1/2 EE3045 069205 1.900 2.000 8.25

2EE3545 069206 2.375 2.000 9.50

2-1/2 EE4045 069207 2.875 3.000 10.50

3EE4545 069208 3.500 3.125 13.00

3-1/2* EE5045 069209 4.000 3.250 15.00

4EE5545 069210 4.500 3.375 16.00

5EE6045 069211 5.563 3.625 24.00

6EE6545 069212 6.625 3.750 30.00

With integral bell.

30° Elbows

(Plain End x Plain End)

Size

(in)

Part

Number

Product

Code D (in) T (in) R (in)

1/2 EE1030 069241 0.840 1.500 4.00

3/4 EE1530 069242 1.050 1.500 4.50

1EE2030 069243 1.315 1.875 5.75

1-1/4 EE2530 069244 1.660 2.000 7.25

1-1/2 EE3030 069245 1.900 2.000 8.25

2EE3530 069246 2.375 2.000 9.50

2-1/2 EE4030 069247 2.750 3.000 10.50

3EE4530 069248 3.500 3.125 13.00

3-1/2 EE5030 069249 4.000 3.250 15.00

4EE5530 069250 4.500 3.375 16.00

5EE6030 069251 5.563 3.625 24.00

6EE6530 069252 6.625 3.750 30.00

Utility 90° Elbows

c/w Solvent Bell End

Size

(in)

Part

Number

Product

Code D (in) T (in) R (in)

2NSL 2-24 069257 2.375 10.200 24.00

2NSL 2-36 069260 2.375 31.700 36.00

3NSL 3-24 069265 3.500 41.200 24.00

3NSL 3-36 069261 3.500 31.700 36.00

4NSL 4-36 069267 4.500 31.700 36.00

4NSL 4-48 069266 4.500 31.700 48.00

5NSL 5-36 069263 5.563 31.700 36.00

6NSL 6-36 069264 6.625 31.700 36.00

* Plain end only

90° Elbows

Extended bend

Size

(in)

Part

Number

Product

Code D (in) T (in) R (in)

1-1/4 EE2590E 069096 1.66 10.24 6.73

1-1/2 EE3090E 069097 1.90 12.80 8.25

2EE3590E 069098 2.38 11.02 13.00

90º

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

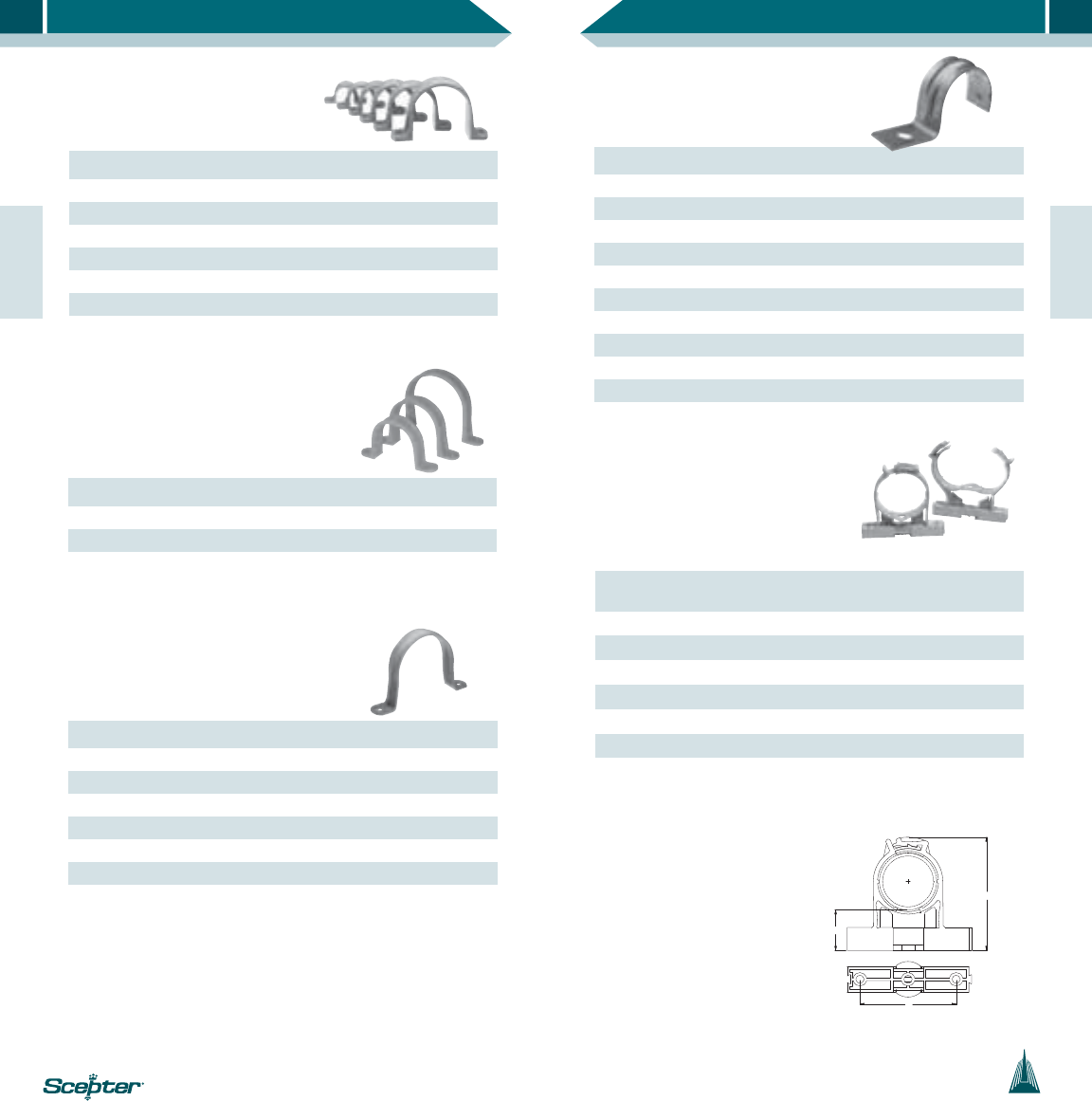

PVC Coated Steel, 2 Hole

Size (in) Part Number Product Code

2CS35 077818

2-1/2 CS40 077819

3CS45 077820

3-1/2 CS50 077821

4CS55 077822

5CS60 077824

6CS65 077823

PVC Coated Steel, 1 Hole

Size (in) Part Number Product Code

1/2 CS10-1 077831

3/4 CS15-1 077832

1CS20-1 077833

1-1/4 CS25-1 077834

1-1/2 CS30-1 077835

2CS35-1 077836

2-1/2 CS40-1 077837

3CS45-1 077838

3-1/2 CS50-1 077839

4CS55-1 077840

Conduit Clamps & Spacers

Size

(in)

Part

Number

Product

Code X (in) Y (in) Z (in)

1/2 CCS10 077794 1.191 2.414 1.824

3/4 CCS15 077796 1.195 2.660 2.106

1CCS20 077797 1.215 2.962 2.443

1-1/4 CCS25 077798 1.182 3.300 2.855

1-1/2 CCS30 077799 1.193 3.600 3.170

2CCS35 077800 1.195 4.135 3.785

Strut

Base CCS-B 077343 _ _ _

*CCS-B are sold individually, two pieces are required

to create one base unit.

Pipe Straps PVC, 2 Hole

Size (in) Part Number Product Code

1/2 PS10 077811

3/4 PS15 077812

1PS20 077813

1-1/4 PS25 077814

1-1/2 PS30 077815

2PS35 077816

Polyethylene (PE), 2 Hole

Size (in) Part Number Product Code

2-1/2 PS40 077262

3PS45 077263

4PS55 077264

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

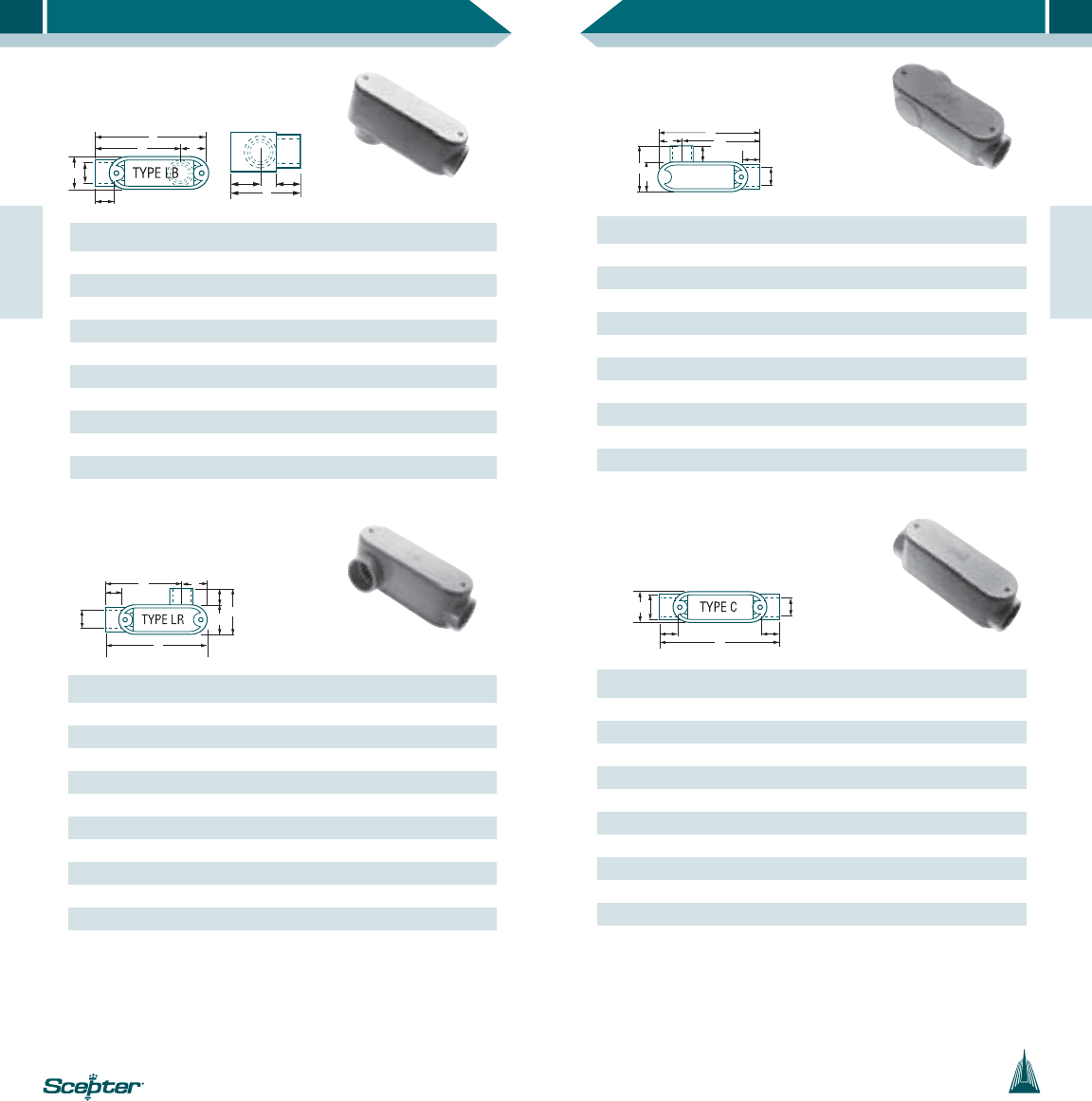

Access Fittings* Type LL

Size (in) Part Number Product Code

1/2 SLL10S 077521

3/4 SLL20S 077522

1SLL30S 077523

1-1/4 SLL40S 077524

1-1/2 SLL50S 077525

2SLL60S 077526

2-1/2 SLL70S 077527

3SLL80S 077528

3-1/2 SLL90S 077530

4SLL100S 077529

TYPE LL

Access Fittings* Type C

Size (in) Part Number Product Code

1/2 SC10S 077501

3/4 SC20S 077502

1SC30S 077503

1-1/4 SC40S 077504

1-1/2 SC50S 077505

2SC60S 077506

2-1/2 SC70S 077507

3SC80S 077508

3-1/2 SC90S 077510

4SC100S 077509

FITTINGS

Access Fittings* Type LB

Size (in) Part Number Product Code

1/2 SLB10S 077541

3/4 SLB20S 077542

1SLB30S 077543

1-1/4 SLB40S 077544

1-1/2 SLB50S 077545

2SLB60S 077546

2-1/2 SLB70S 077547

3SLB80S 077548

3-1/2 SLB90S 077549

4SLB100S 077550

Access Fittings* Type LR

Size (in) Part Number Product Code

1/2 SLR10S 077481

3/4 SLR20S 077482

1SLR30S 077483

1-1/4 SLR40S 077484

1-1/2 SLR50S 077485

2SLR60S 077486

2-1/2 SLR70S 077480

3SLR80S 077488

3-1/2 SLR90S 077487

4SLR100S 077489

* All access fittings are CSA and UL listed for wet locations. Supplied with threaded brass

inserts, combination brass head screws and PVC gasketing.

* Stainless steel screws are available upon request.

**Not UL Listed.

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

Access Fittings* Type TB**

Size (in) Part Number Product Code

1/2 STB10S 077451

3/4 STB20S 077452

1STB30S 077453

1-1/4 STB40S 077454

1-1/2 STB50S 077455

2STB60S 077456

Access Fitting Dimensions*

Size (in) A (in) B (in) C (in) D (in) E (in) F (in)

1/2 5.606 0.639 1.268 1.100 0.840 4.337

3/4 5.606 0.810 1.536 1.325 1.050 5.395

16.500 0.910 1.700 1.600 1.335 6.250

1-1/4 7.900 1.050 2.300 2.250 1.660 7.625

1-1/2 8.500 1.125 2.675 2.250 1.900 8.250

210.875 1.160 3.188 2.820 2.375 10.531

2-1/2 14.600 1.750 4.500 3.950 2.870 13.630

314.600 1.900 4.500 3.950 3.510 13.630

3-1/2 17.040 2.125 5.536 5.000 4.000 16.000

417.040 2.125 5.536 5.000 4.530 16.000

Size (in) G (in) H (in) I (in) J (in) K (in) L (in)

1/2 4.095 1.297 2.487 2.280 1.005 0.750

3/4 4.095 1.297 2.487 2.803 1.005 0.810

14.750 1.500 2.075 3.250 1.125 1.115

1-1/4 5.750 1.750 3.575 3.950 1.562 1.300

1-1/2 6.500 1.750 3.938 4.250 1.656 1.425

28.156 2.344 4.535 5.438 1.968 1.160

2-1/2 9.825 3.805 6.240 7.300 2.610 -

310.897 2.733 6.240 7.300 2.610 -

3-1/2 11.465 4.535 7.500 8.535 2.975 -

411.465 4.535 7.500 8.535 2.975 -

* All access fittings are CSA and UL listed for wet locations. Supplied with threaded brass

inserts, combination brass head screws and PVC gasketing.

* Stainless steel screws are available upon request.

**Not UL Listed.

FITTINGS

* All access fittings are CSA and UL listed for wet locations. Supplied with threaded brass

inserts, combination brass head screws and PVC gasketing.

* Stainless steel screws are available upon request.

**Not UL Listed.

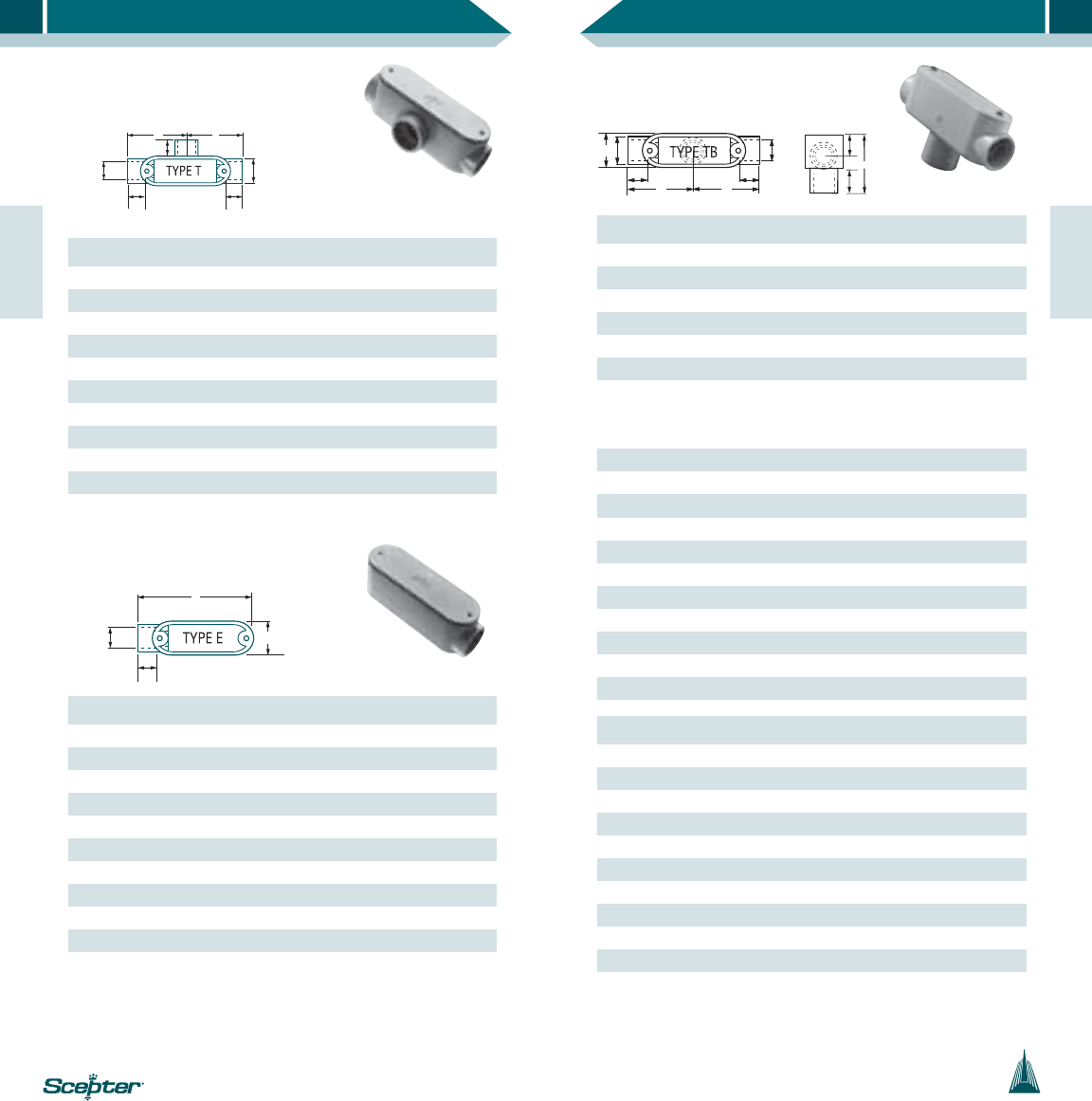

Access Fittings* Type T

Size (in) Part Number Product Code

1/2 ST10S 077461

3/4 ST20S 077462

1ST30S 077463

1-1/4 ST40S 077464

1-1/2 ST50S 077465

2ST60S 077466

2-1/2 ST70S 077467

3ST80S 077468

3-1/2 ST90S 077571

4ST100S 077572

J J

Access Fittings* Type E

Size (in) Part Number Product Code

1/2 SE10S 077561

3/4 SE20S 077562

1SE30S 077563

1-1/4 SE40S 077564

1-1/2 SE50S 077565

2SE60S 077566

2-1/2 SE70S 077567

3SE80S 077568

3-1/2 SE90S 077569

4SE100S 077570

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

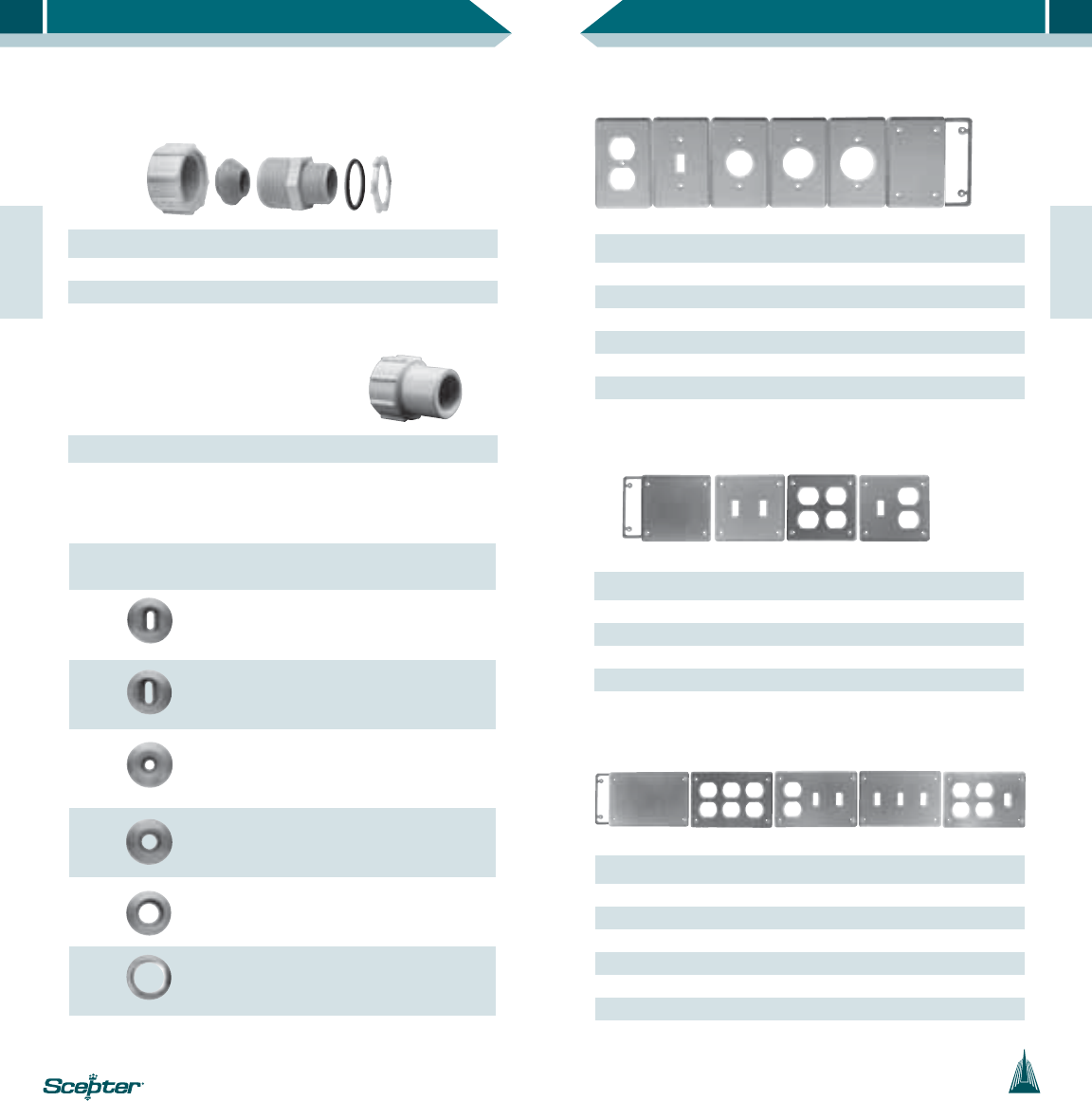

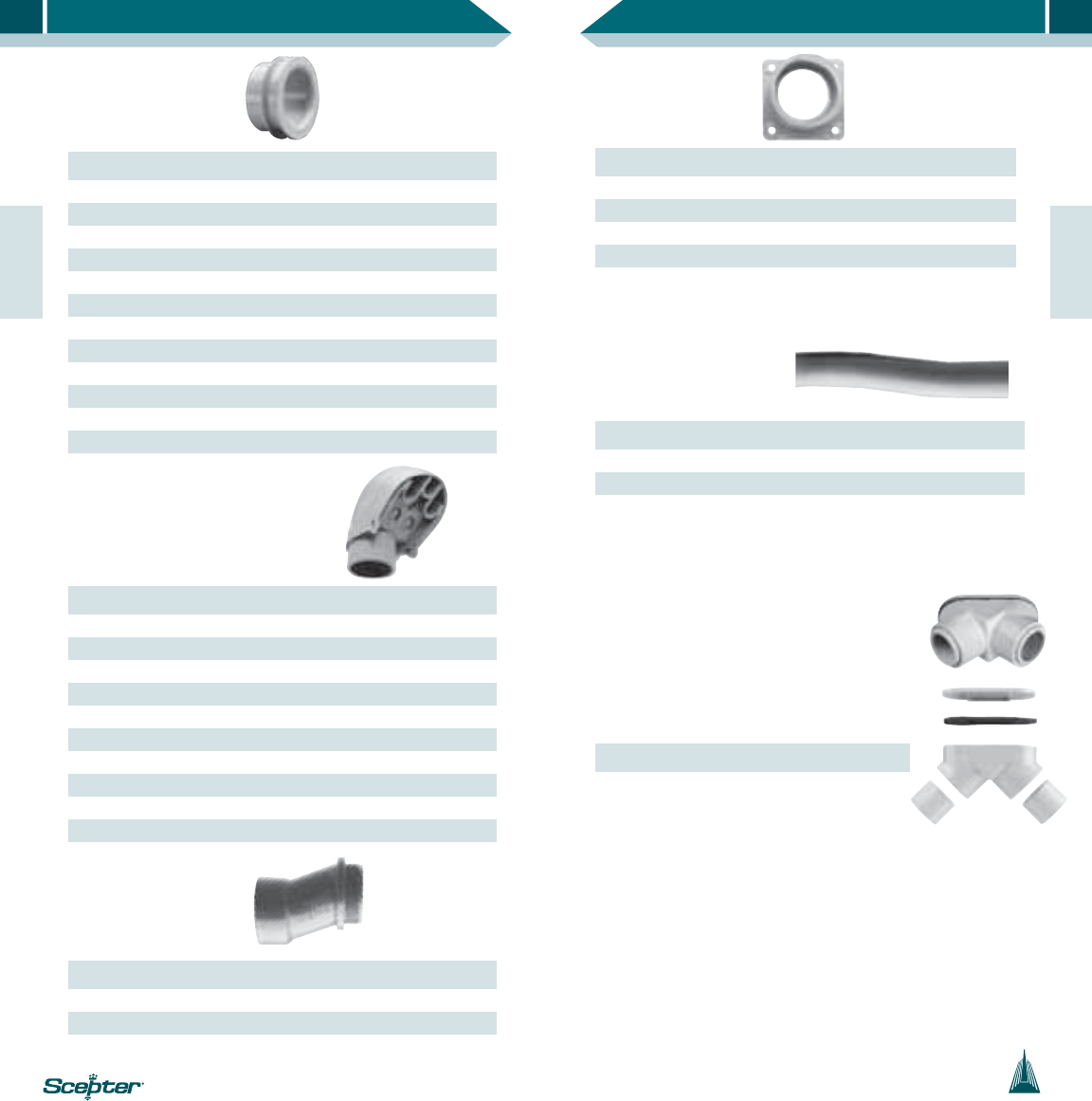

Meter Hubs

Size (in) Part Number Product Code

1-1/4 MHU25 077961

1-1/2 MHU30 077963

2MHU35 077965

2-1/2 MHU40 077967

3MHU45 077968

Long Meter Offsets

(Fabricated)

Size (in) Part Number Product Code

1-1/4 LMO25 069641

1-1/2 LMO30 069645

2LMO35 069646

End Bells

Size (in) Part Number Product Code

1/2 EB-10 077406

3/4 EB-15 077085

1EB-20 077323

1-1/4 EB-25 077324

1-1/2 EB-30 077325

2EB-35 077326

2-1/2 EB-40 077327

3EB-45 077328

3-1/2 EB-50 077329

4EB-55 077330

5EB-60 077331

6EB-65 077332

Service Entrance Fittings

Size (in) Part Number Product Code

1/2 EF10 077281

3/4 EF15 077282

1EF20 077283

1-1/4 EF25 077284

1-1/2 EF30 077285

2EF35 077286

2-1/2 EF40 077287

3EF45 077288

3-1/2 EF50 077289

4EF55 077290

Meter Offsets

Size (in) Part Number Product Code

1-1/4 MO25 077941

2MO35 077942

FITTINGS

“Two in One” Pull Elbow

The “two in one” access pull elbow reduces

inventory costs & increases installation flexibility

(3/4" hub fitting supplied with 3/4" x 1/2"

reducers). The pull elbow is approved for wet

location use and is manufactured from high

impact, nonconducting and noncorroding PVC.

Size (in) Part Number Product Code

1/2 or 3/4 PE15/10 077491

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

GASK20-3

F Series - Double Gang Plates

F Series - Triple Gang Plates

COVER PLATES

1.415”

dia. dia. dia.

1.610” 1.760”

DRC15/10 TSC15/10 20RC15/10 20-3RC15/10 30-3RC15/10 BRC15/10

BRC20-2 TSC20-2 TSDC20-2

DRC20-2

BRC20-3 DRC20-3 DSDR20-3 TSC20-3 TSDC20-3

GASK 15/10

GASK20-2

F Series - Single Gang Plates

Description Part Number Product Code

Duplex Receptacle DRC15/10 077617

Toggle Switch TSC15/10 077616

Single Receptacle 20RC15/10 077618

Single Receptacle 20-3RC15/10 077619

Single Receptacle 30RC15/10 077620

Blank c/w Gasket BRC15/10 077611

PVC Gasket GASK15/10 077621

Description Part Number Product Code

Blank Cover c/w Gasket BRC20-2 077614

Double Switch TSC20-2 077738

Double Duplex Receptacle DRC20-2 077740

Combo Switch Duplex Rec. TSDC20-2 077739

PVC Gasket GASK20-2 077743

Description Part Number Product Code

Triple Receptacle DRC20-3 077747

Combo Switch Receptacle DSDR20-3 077745

Triple Switch TSC20-3 077744

Combo Switch Receptacle TSDC20-3 077746

Blank Cover c/w Gasket BRC20-3 077748

PVC Gasket GASK20-3 077749

Grommet From To

W = .195" W = .285"

L = .450" L = .530"

W = .220" W = .291"

L = .516" L = .565"

Ø = .240" Ø = .300"

Ø = .290" Ø = .385"

Ø = .405" Ø = .500"

Ø = .525" Ø = .625"

Strain Relief Connectors Grommet Dimensions

Note: All grommets are supplied with TSRC10, TSRC15 and SRC15.

FITTINGS

Strain Relief Connectors

c/w 6 Grommets

Size (in) Part Number Product Code

3/4 SRC15 077985

Nonmetallic Threaded Strain Relief Connector

c/w “O” Ring, Locknut & 6 Grommets

Size (in) Part Number Product Code

1/2 TSRC10 077754

3/4 TSRC15 077756

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

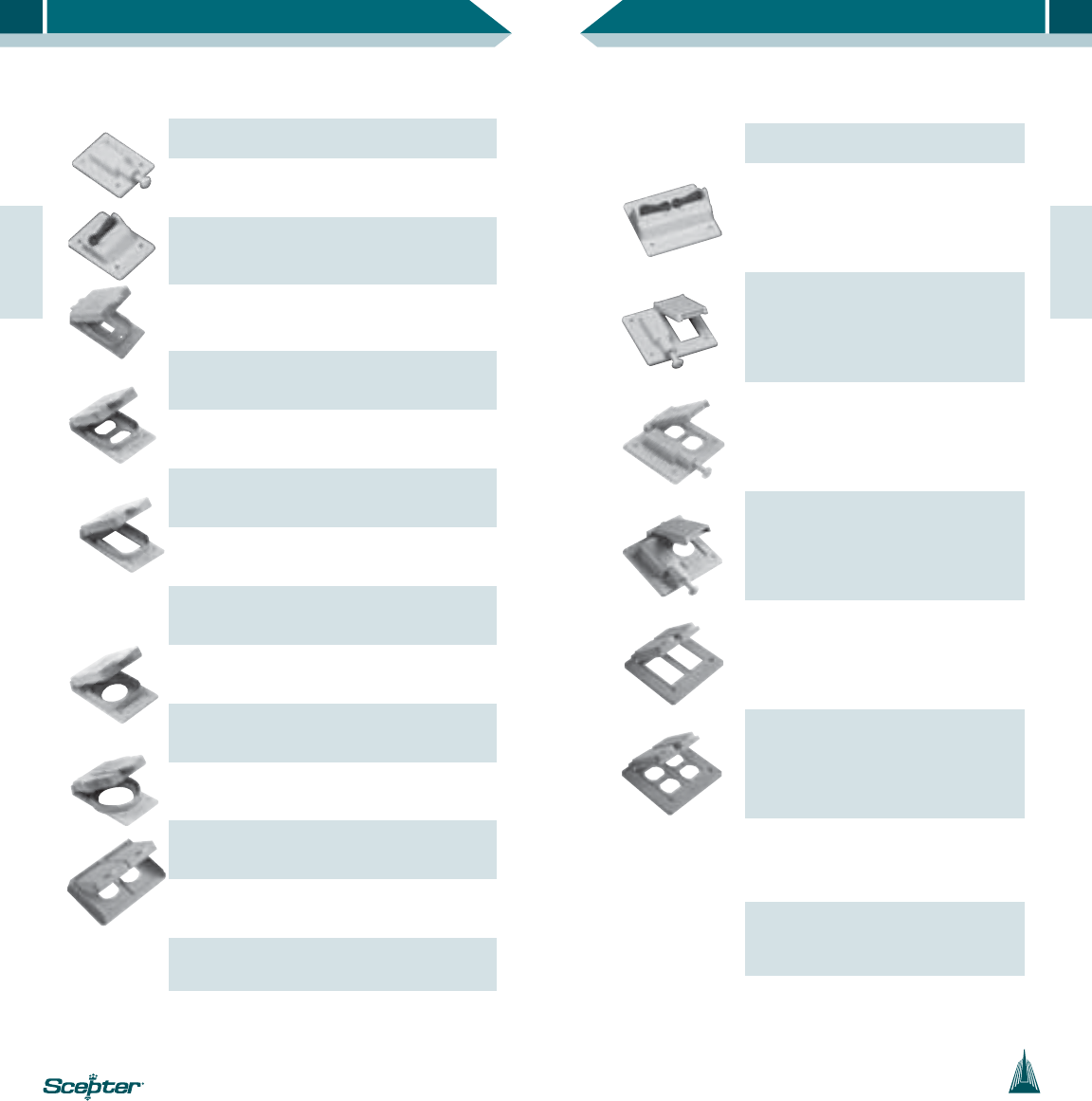

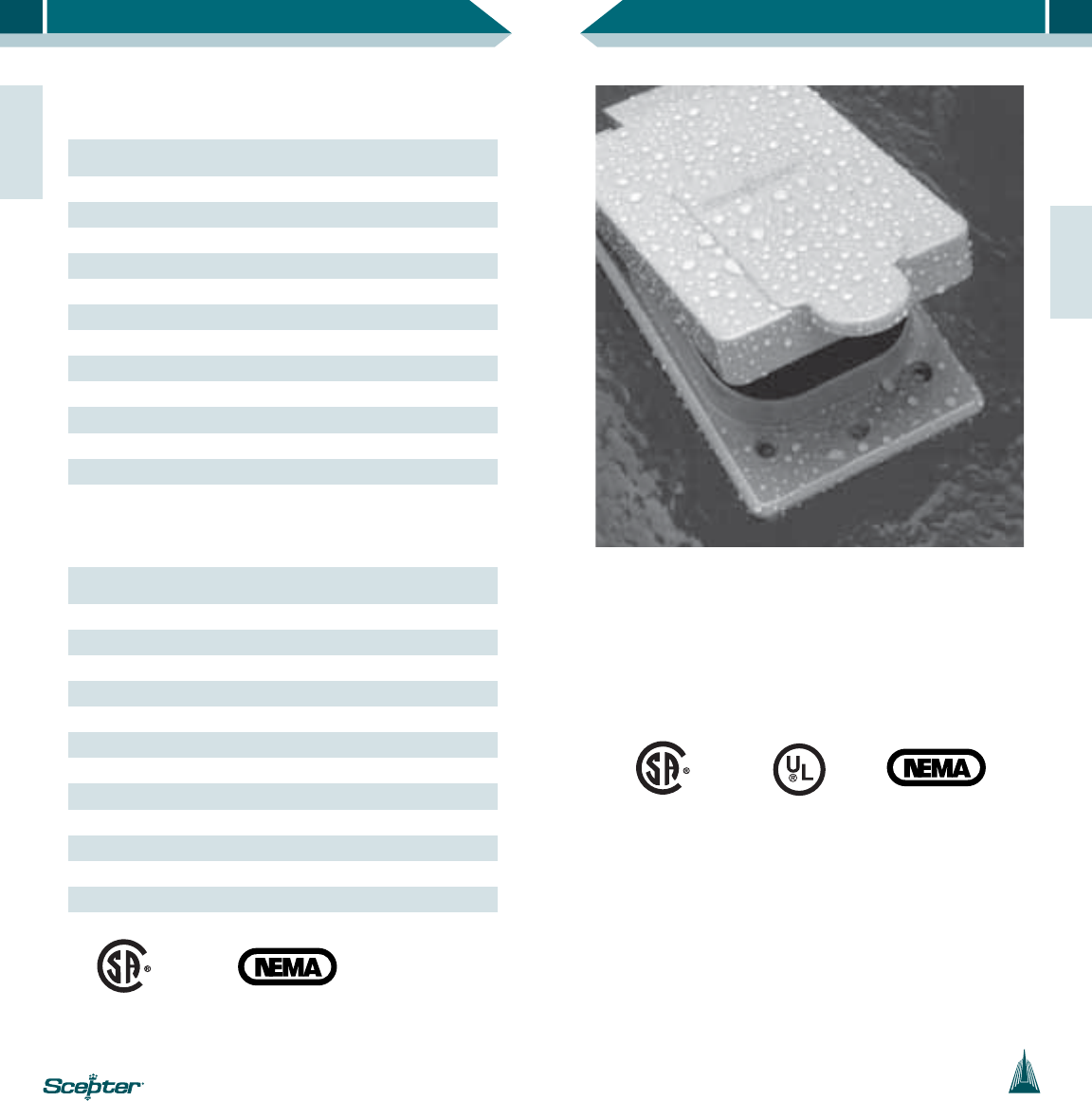

WEATHERPROOF COVERS

VSC20-2

VSRC20-2

VSDR20-2

VSGG20-2

VSDD20-2

VSRR20-2

Weatherproof Covers - Double Gang

Description Part

Number

Product

Code

Toggle Switch Cover VSC20-2 077741

Combination Switch

& GFI Receptacle VSRC20-2 077742

Combination Switch

& Duplex Receptacle VSDR20-2 077752

Combination Switch

& Single Receptacle

Cover

VSRR20-2 077753

Double Door GFCI

Cover VSGG20-2 077096

Double Door Duplex

Cover VSDD20-2 077097

Gasket for 2-Gang ‘F’

Boxes

(except VSGG20-2

& VSDD20-2)

GASK20-2 077743

Gasket for VSGG20-2

& VSDD20-2 Double

Gangs

GASKV20-2 072227

WEATHERPROOF COVERS

WTL15

WTL20

WTL30

WDR15/10

RWDR15/10

WTL50

WGF15/10

RWGF15/10

Note: Weatherproof covers, with lids closed, are CSA and UL Listed for wet locations.

WDRE15/10

RWDRE15/10

Description (in) Part

Number

Product

Code

Plunger-style Switch

Cover VPT15/10 077630

Toggle Switch Cover VSC15/10 077612

Grey Toggle Switch

Cover WTG15/10 077606

Grey Duplex

Receptacle WDR15/10 077993

White Duplex

Receptacle RWDR15/10 077786

Grey Ground Fault

Receptacle WGF15/10 077785

White Ground Fault

Receptacle RWGF15/10 077787

Single Receptacle

Device 15 AMP 1.375 WTL15 077992

Single Receptacle

Device 20 AMP 1.625 WTL20 077994

Single Receptacle

Device 30 AMP 1.722 WTL30 077991

Single Receptacle

Device 50 AMP 2.187 WTL50 077951

Grey Double Door

Duplex Receptacle WDRE15/10 077087

White Double Door

Duplex Receptacle RWDRE15/10 077408

Gasket for W Series

Cover (except WDRE &

RWDRE)

GASKW 077755

Gasket for WDRE &

RWDRE Covers GASKDD 072225

Weatherproof Covers - Single Gang

VSC15/10

VPT15/10

WTG15/10

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

FD-3

FD-2

FSC-2-101520

FSCC-2-101520

FSS-2-101520

FSC-3-101520

FS-3-101520

BOXES

Note: All F series boxes are supplied with integral mounting feet, threaded brass inserts and

grounding clips.

FS-2-101520

F Series Double Gang Boxes

FS-2 cu.in = 39.5, FSC-2 & FSS-2 cu.in. = 37.0, FSCC-2 cu.in.= 36.0

Hub Size (in) Part Number Product

Code

OD (inches)

HWD

1/2, 3/4, 1 FS-2-101520 077440 4.5 4.75 2.5

1/2, 3/4, 1 FSC-2-101520 077441 4.5 4.75 2.5

1/2, 3/4, 1 FSS-2-101520 077442 4.5 4.75 2.5

1/2, 3/4, 1 FSCC-2-101520 077443 4.5 4.75 2.5

Blank FD-2 077734 4.75 4.75 3.0

F Series Triple Gang Boxes

Hub Size (in) Part Number Product

Code

OD (inches)

HWD

1/2, 3/4, 1 FS-3-101520 077337 4.5 6.6 2.5

1/2, 3/4, 1 FSC-3-101520 077438 4.5 6.6 2.5

Blank FD-3 077737 4.5 6.6 3.0

BOXES

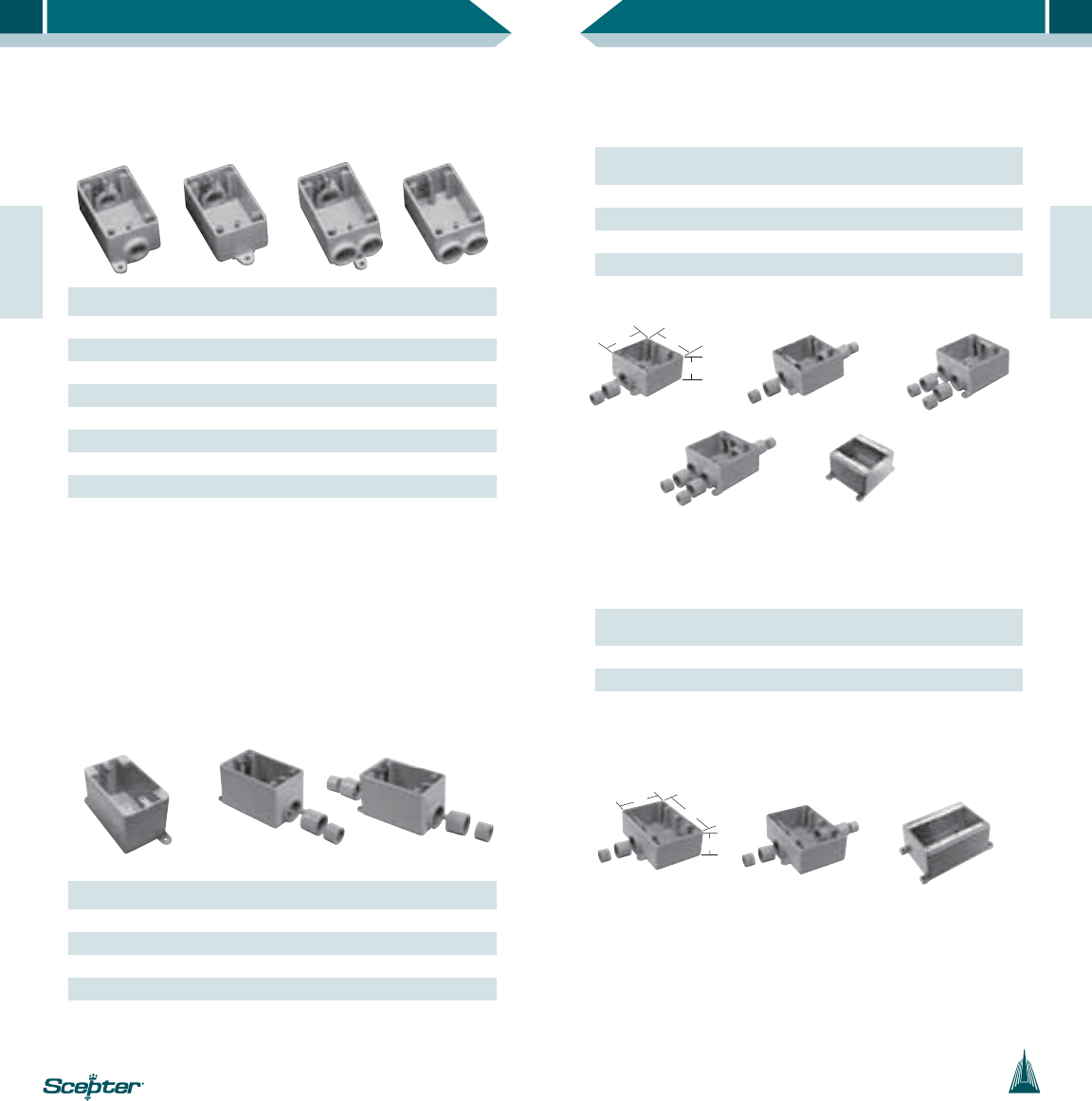

F Series Single Gang Boxes

Outside Dimensions:

Height, 49/16" – Width, 213/16" – Depth 2", Cubic Inches = 25.67

Size (in) Part Number Product Code

1/2 FSC10 077607

3/4 FSC15 077608

1/2 FS10 077601

3/4 FS15 077602

1/2 FSCC10 077622

3/4 FSCC15 077623

1/2 FSS10 077604

3/4 FSS15 077605

Note: 10 = 1/2" Hub, 15 = 3/4" Hub

FS FSCC

FSC FSS

FD Series Single Gang Deep Boxes

Outside Dimensions:

Height, 49/16" – Width, 213/16" – Depth 23/4", Cubic Inches = 35.30

With the exception of the FD Blank Box, Scepter FD Series Single

Gang Deep Boxes are molded with 1" conduit hubs and supplied with

reducer bushings. The conduit hub(s) are field modified as 1/2", 3/4"

or 1" to accommodate job-site requirements. The appropriate quantity

of 1" x 3/4" and 3/4" x 1/2" reducers to create the desired hub size

are packaged with each FD Series Single Gang Deep Box.

Size (in) Part Number Product Code

1/2, 3/4, 1 FDC101520 077291

1/2, 3/4, 1 FDS101520 077299

BLANK FD BLANK 077603

347 VOLT FD347 077610

FDC101520

FDS101520

FD Blank

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

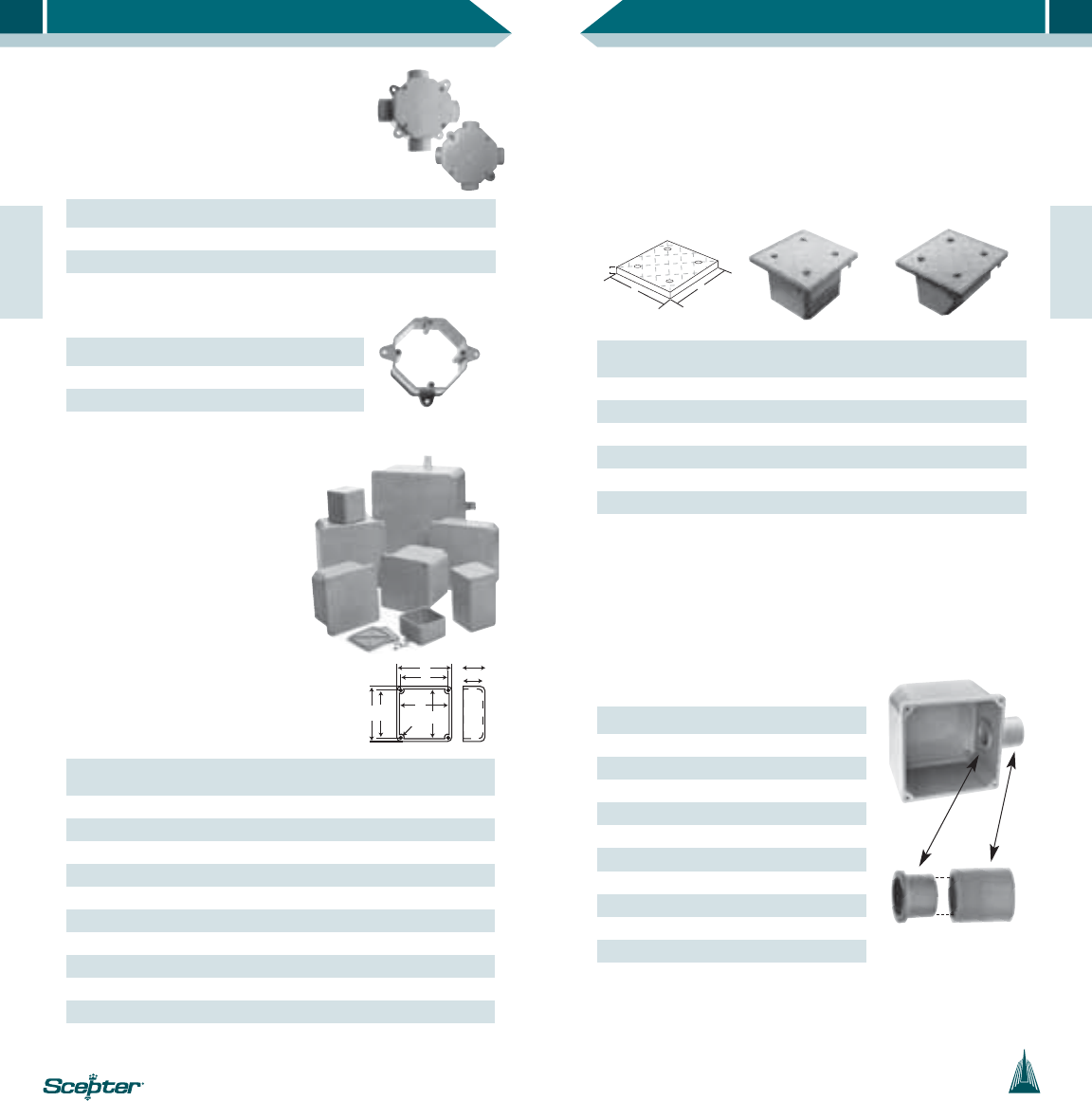

BOXES

Standard PVC

Coupling

Flanged Box with Fibre-Reinforced Safety

Tread Cover

Scepter’s Flanged ‘H’ Series Junction Boxes provide H10 Highway

Loading. The fiber-reinforced safety tread cover secures using recessed

Hex Key fastening hardware offering a simple installation while

reducing the opportunity for tampering.

Size

(in)

Part

Number

Box ID (in)

LWD

Lid Dimensions (in)

ABC

H664 077685 6 6 4-1/4 9.0 9.0 0.60

H666 077686 6 6 6-1/4 9.0 9.0 0.60

H884 077687 8 8 4-1/4 11.5 11.5 0.75

H886 077688 8 8 6-1/4 11.5 11.5 0.75

H887 077689 8 8 7-1/4 11.5 11.5 0.75

H887-A 077692 8 8 7-1/4 11.5 11.5 0.75

H887 H887A

Fabricated Boxes

Unflanged PVC fabricated boxes of any size may be made to

customers’ specifications and come complete with lids, gaskets and

screws. These boxes are not CSA Certified and are not returnable.

Junction Box Adapters

Size (in) Part Number Product Code

1/2 JBA10 077721

3/4 JBA15 077722

1JBA20 077723

1-1/4 JBA25 077724

1-1/2 JBA30 077725

2JBA35 077726

2-1/2 JBA40 077727

3JBA45 077728

3-1/2 JBA50 077729

4JBA55 077730 Junction Box

Adapter

BOXES

BCA

* Octagonal Boxes are not designed for supporting luminaires.

Octagonal Boxes*

Octagonal Boxes are shipped complete with cover,

gasket, 4 reducing bushings (3/4" x 1/2") and 4

sealing caps to be installed from inside box to

seal off unused entry hubs.

Size (in) Part Number Hub Size (in) Product Code

4 x 1-1/2 OB15/10 1/2 – 3/4 077983*

4 x 2-1/8 OB20 1077984*

Octagonal Box Extension Rings

Size (in) Part Number Product Code

4 x 1 deep XR20 077989*

4 x 2 deep XR35 077990*

Junction boxes are supplied with

threaded brass inserts, brass screws,

PVC gasketing and mounting feet.

Nylon and stainless steel screws, as

well as larger sizes of fabricated

junction boxes, are available upon

request.

Part

Number

Product

Code

(in)

JB442 077659 3.675 4.000 3.450 2.125 2.000 8-32

JB444 077696 3.675 4.000 3.450 4.188 3.750 8-32

JB446 077669 3.675 4.000 3.450 6.225 6.000 8-32

JB552 077670 4.680 5.000 4.485 2.000 1.845 8-32

JB664 077697 6.000 6.375 5.813 4.188 4.000 10-32

JB666 077698 6.000 6.375 5.813 6.188 6.000 10-32

JB884 077664 8.075 8.625 7.966 4.230 4.005 1/4-20

JB887 077671 8.100 8.625 7.966 7.250 7.035 1/4-20

JB12124 077672 12.085 12.580 11.874 4.256 4.030 1/4-20

JB12126 077666 12.085 12.580 11.874 6.240 6.025 1/4-20

JB12128 077668 12.085 12.580 11.874 8.250 8.025 1/4-20

PVC Molded Junction Boxes

(F = Threaded brass insert size.)

Scepter PVC junction boxes are:

NEMA 1, 2, 3, 4, 4x, 6P, 12, 13

UL listed for wet locations

SCEPTER PVC

FITTINGS

SCEPTER PVC

FITTINGS

BOXES

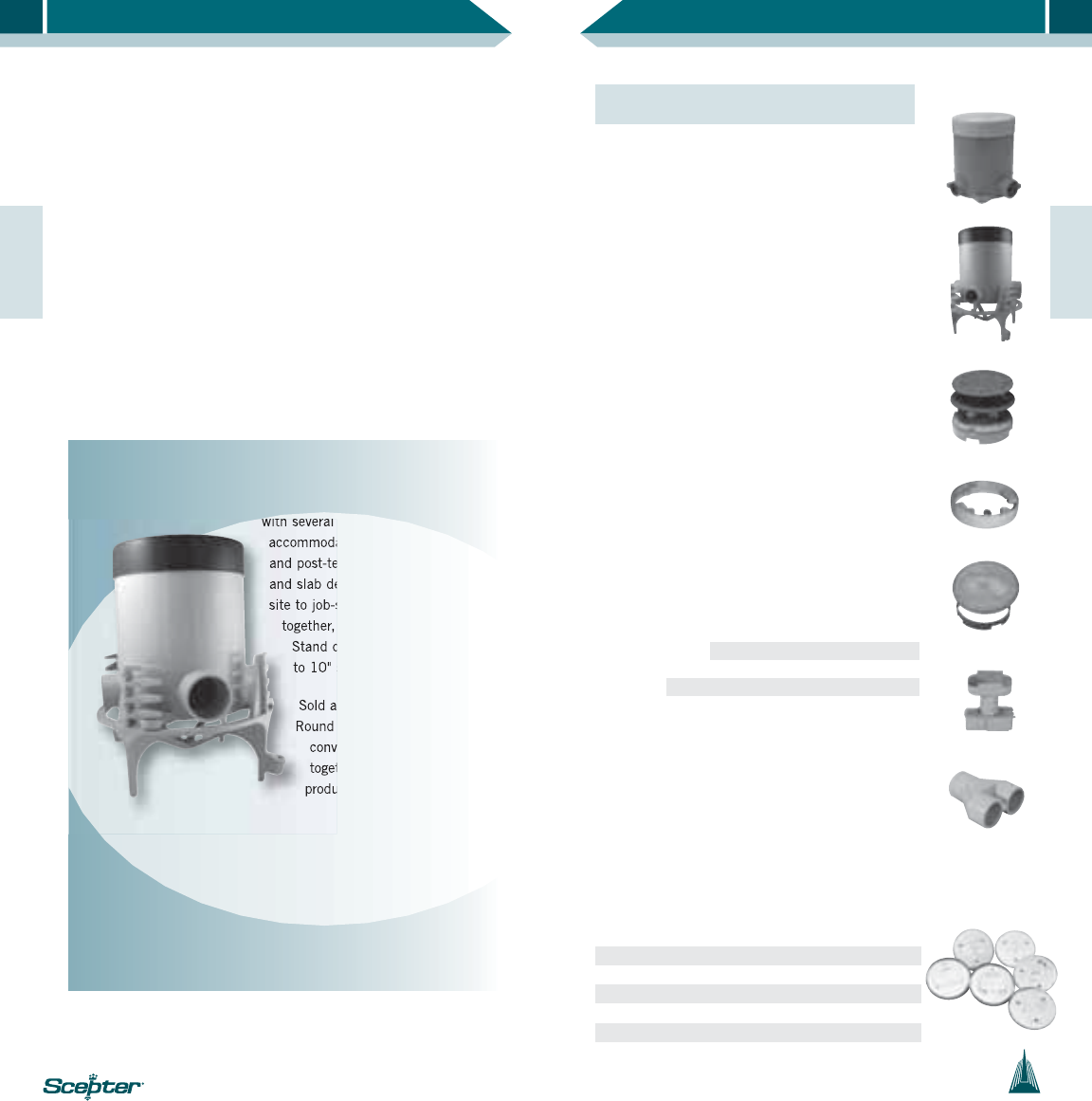

Floor Box Base

(Includes disposable protective cap & reducer plugs)

076954 FB

Floor Box Base c/w Leveling Ring Adapter

(includes disposable protective cap, reducer plugs

& leveling ring adapter)

077068 FBKIT

Floor Box Stand Kit (includes FB Box)

(is equiped with several height brackets which

accommodate the different rebar and post-tension cable

heights and slab depths found from job-site to job-site.)

077700 FBS-KIT

Metal Cover Adapter Kit

(includes leveling ring, metal cover adapter & 2 gaskets)

076953 AFMC

Universal Leveling Ring Adapter

076606 LRA-U

Floor Box Duplex Receptacle Cover (Nonmetallic)

(includes flush mount cover, blank cover & gasket)

Brown 076943 FBDRCB

Gold 076942 FBDRCG

Grey 076941 FBDRCGr

Light Almond 076940 FBDRCA

Tri-Service Universal Divider Kit

(includes upper & lower dividers, riser tube & two grommets)

077948 FBUDK

Y Connector (3/4")

077499 FBYC

Brass Cover Plates

(offers a one-piece design measuring 5-3/4" diameter. Are available

in a variety of styles accommodating power and communication

needs. Install to the FB box using the universal leveling ring adapter.

Nonmetallic Floor Box, Cover & Metal Cover

Adapter

Installation is quick and simple with our nonmetallic floor box and

covers, saving both time and money over similar metallic assemblies.

Scepter’s floor box and duplex receptacle covers are constructed from

high impact, noncorroding and nonconducting PVC.

The flush-mount covers are available in custom colours and are shipped

with a leveling ring complete with a grounding clip. Metal cover adapter

kits are also available, allowing you to adapt to metal floor plates. Our 6"

deep floor box allows flexibility for various concrete floor pours, while

the 4 3/4" width offers easy access and ample wire room. Scepter’s FB

box is molded with 2 - 1" and 2 - 3/4" hub openings.

All boxes are shipped complete with reducer plugs for added versatility.

AFMC

FBS-KIT

LRA-U

FBDRC

Description Part

Number

Product

Code

FBUDK

FBYC

This simple yet innovative Round Floor Box Stand is equipped

with several height brackets which

accommodate the different rebar

and post-tension cable heights

and slab depths found from job-

site to job-site. When installed

together, the Floor Box and

Stand can be used in 5-1/2"

to 10" slab depths.

Sold as a Kit, IPEX offers the

Round Floor Box and Stand

conveniently packaged

together as one complete

product offering.

• Four Adjustable Heights

• Raises Entrance Hubs to

Rebar

• Minimizes Footprint on

Concrete Form

• Withstands Tough Job Site

Conditions

• Easy to Install

• Cost Effective

For more information, visit our NEW website www.ipexelectrical.com

One Kit, Four Heights, One Low Cost!

FEATURE & BENEFITS

Duplex Screw Cover DSC 178091

Duplex Screw Cover DSC-P/C 178092

Single Screw Cover SSC 178093

Single Screw Cover SSC-P/C 178094

Duplex Flip Lid (single) DFL-1 178095

Duplex Flip Lid (double) DFL-2 178096

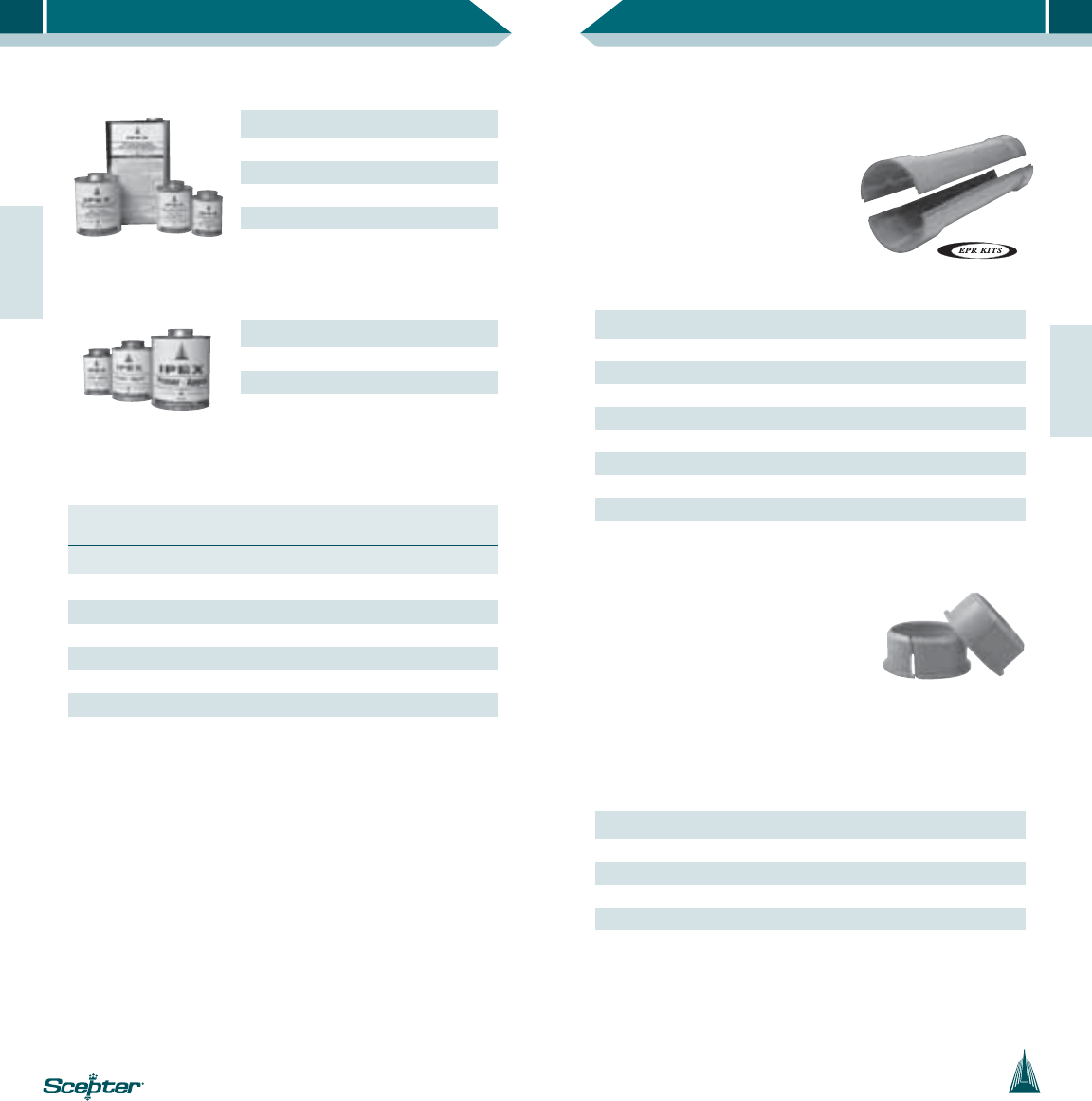

CONDUIT REPAIR KIT

Size (in) Part Number Product Code

1-1/4 EPR25 077976

1-1/2 EPR30 077971

2EPR35 077972

2-1/2 EPR40 077973

3EPR45 077974

4EPR55 077975

5EPR60 077977

6EPR65 077979

EPR Kit for Conduit Repair

EPR Kits from IPEX are the first total

repair systems for broken and damaged

PVC conduit. They offer fast and easy

repairs for damaged conduit caused by

actions such as earth excavation,

horizontal and core drilling.

All sizes are 24 inches in length.

Conduit Repair Kit

Size (in) Part Number Product Code

2EPRA35 077852

3EPRA45 077853

4EPRA55 077854

5EPRA60 077855

6EPRA65 077856

EPR Kit Adapters for Duct

Repair

EPR Conduit Repair Kits allow contractors

to repair a broken section of DB-II duct

while leaving the cables inside. The Adapters are pre-cut allowing

each to open around existing cabling and are then solvent cemented

onto the outside diameter of the broken duct. Using standard PVC

solvent cement, an EPR Kit is then easily assembled and connected to

the Adapters, restoring the duct to its original form.

SCEPTER PVC

FITTINGS

Conduit Cement c/w Applicator Cap

Size Part Number Product Code

125ml S100PT25 074717

250ml S100PT5 074713

500ml S100PT 074714

1L S100QT 074715

4L S100GAL 074716

Primer

Size Part Number Product Code

250ml C100PT5 074306

500ml C100PT 074307

1L C100QT 074308

1/2 12 350 700 2-1/2 12 40 80

3/4 19 200 400 319 35 70

125 150 300 3-1/2 25 30 60

1-1/4 32 110 220 432 24 48

1-1/2 38 80 160 538 10 20

250 45 90 650 816

Nominal Pipe

Size

# of

Joints

# of

Joints

Nominal Pipe

Size

# of

Joints

# of

Joints

inches mm /Pint /Quart inches mm /Pint /Quart

Average # of Joints per Pint or Quart of Cement

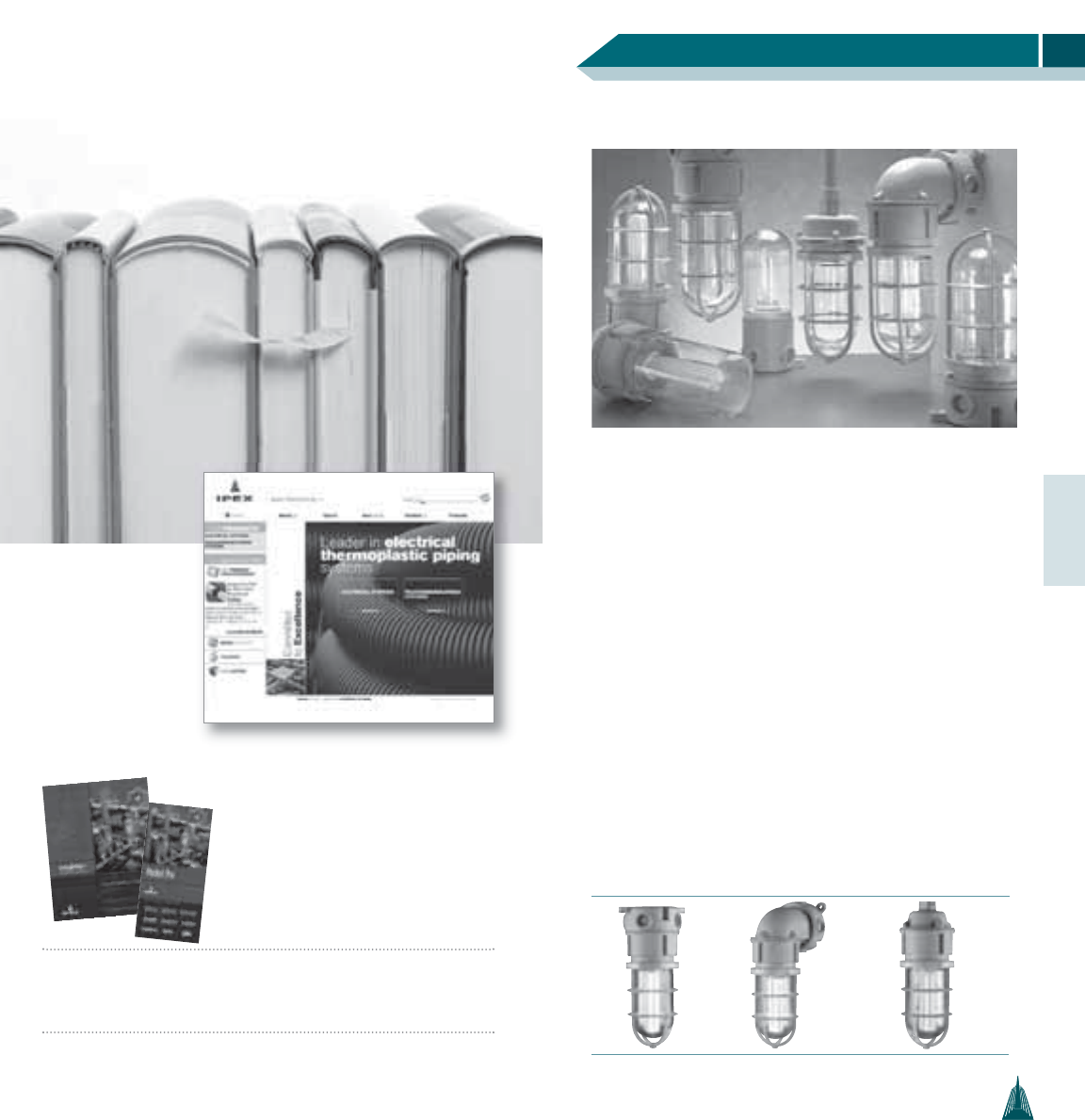

SCEPTALIGHT

SCEPTALIGHT: The Light That Lasts

Sceptalight fixtures from IPEX prove themselves to be all-round

performers in a variety of indoor and outdoor applications.

Sceptalight fixtures are made from a glass-reinforced thermoplastic

polyester resin, which enable them to stand up better to corrosive

elements than metal. This thermoplastic design marries an unrivaled

balance of strength, stiffness and toughness with all the benefits

users appreciate of Scepter rigid PVC conduit and fittings - long life,

easy servicing and high impact-resistance.

Sceptalight's thermoplastic construction offers outstanding corrosion

and chemical resistance. And its interior and exterior silicone gaskets

create a watertight seal, the reason it performs equally well indoors

and outside.

Features and Benefits

• Stable Construction

• Watertight seal with weather-resistant silicone gaskets

• Corrosion Resistant

• Durable and Impact Resistant

Mounting Options

SCEPTALIGHTTM

Box with four 3/4

threaded hubs and

integral mounting feet.

CEILING MOUNT

Box with four 3/4

threaded hubs, 90º wall

bracket and integral

mounting feet.

WALL MOUNT

Pendant cap with

3/4

threaded hub

and a locking set

screw.

PENDANT MOUNT

Bookmark Our New Website

www.ipexelectrical.com

OUR SCEPTER ELECTRICAL

CATALOGUE & ELECTRICAL

POCKET PRO INCLUDE MORE

INFORMATION ON:

•Conduit & Fittings •Duct

•Light Fixtures •Trenchless Raceways

•ENT Tubing & Fittings •and much more ...

PRODUCT INFO,

TECHNICAL

DOCUMENTS,

ONLINE TRAINING

& MUCH MORE ...

available at www.ipexelectrical.com

SCEPTALIGHT

SCEPTALIGHTTM

Wet Locations

Ceiling Mount

with Standard Clear Glass Globe

Part

Number

Product

Code

150W Incandescent LVPF150C 077225

150W Incandescent less guard LVPF150LG 077237

26W Compact Fluorescent LVPL26C 077170

18W Compact Fluorescent LVPL18C 077210

13W Compact Fluorescent LVPL13C 077122

9W Compact Fluorescent LVPL9C 077121

7W Compact Fluorescent LVPL7C 077120

Ceiling Mount with Clear Polycarbonate

Glass Globe (no guard)

Part

Number

Product

Code

26W Compact Fluorescent LVPL26PCC 077176

18W Compact Fluorescent LVPL18PCC 077211

13W Compact Fluorescent LVPL13PCC 077165

9W Compact Fluorescent LVPL9PCC 077155

7W Compact Fluorescent LVPL7PCC 077145

4 3/4"

10"

9 1/2"

4 3/4"

11 3/4"

Ceiling Mount Ceiling Mount Ceiling Mount

Polycarbonate Globe

C22.2 No. 250

UL 1598

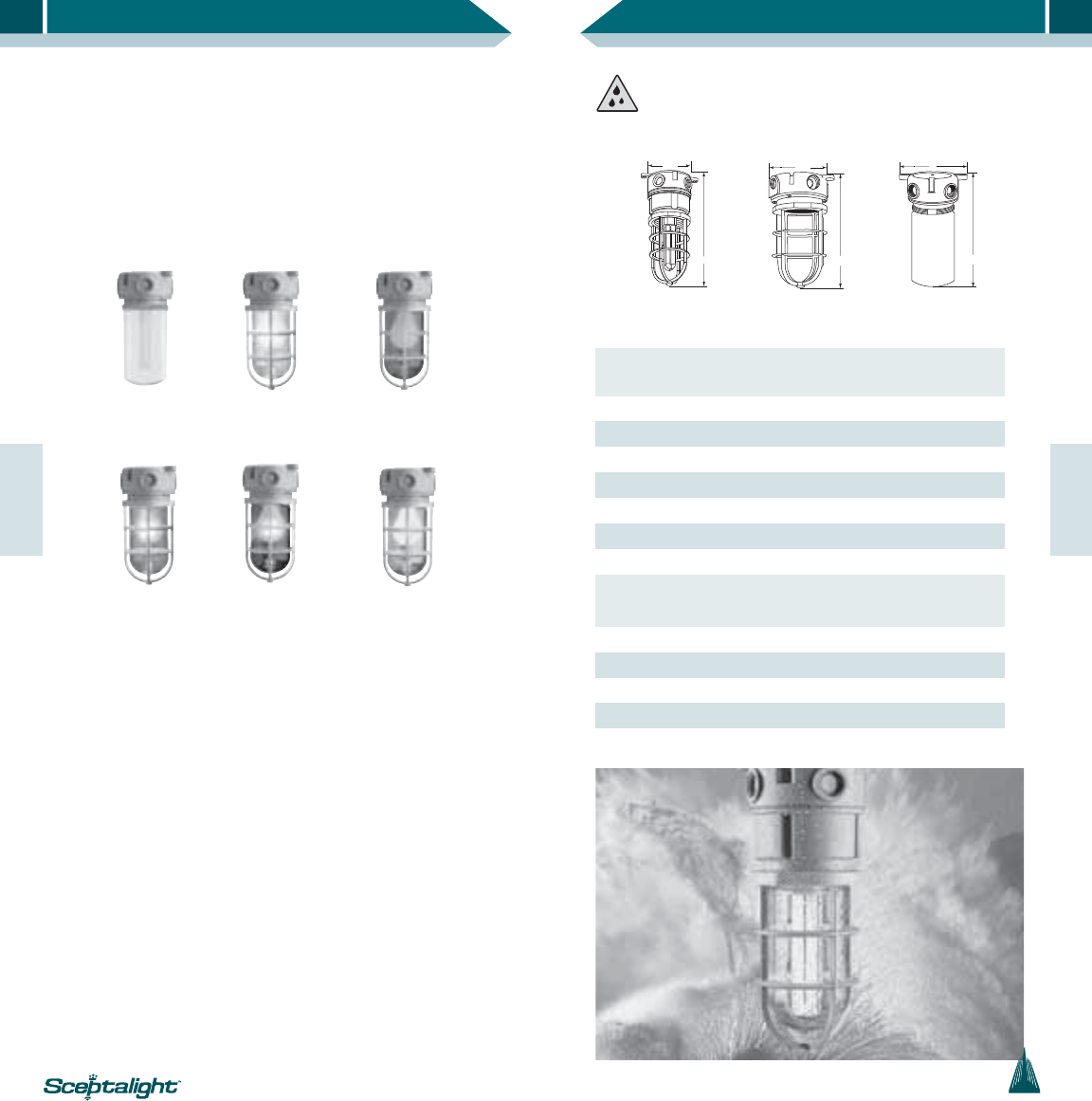

Globe Options

Sceptalight offers a variety of globe options to suit a wide range of

applications and environments. Our standard clear glass globes are

ideal for general purpose area lighting for either indoor or outdoor use.

Polycarbonate globes offer impact resistance in case of accidental

contact and the assurance that work areas are not contaminated by

broken glass. Coloured globes - available in red, blue, green or amber -

can transform the light to an indicator or warning light.

Light Options

Fluorescents

Our compact fluorescent fixtures work four to five times more

efficiently per watt than incandescents and provide 10-20 times the

lamp life, yet use approximately 75% less energy. In this way,

Sceptalight fluorescents lower energy and maintenance costs without

sacrificing light levels.

Incandescents

With their low initial cost, Sceptalight incandescent fixtures make

the most practical choice to meet the daily needs of commercial,

industrial, marine and agricultural applications. Our incandescents

are ideal for short burn times as well as flashing and dimming

applications.

SCEPTALIGHTTM

Heat-treated

Amber Glass

Heat-treated

Green Glass

Heat-treated

Blue Glass

Heat-treated

Red Glass

Clear

Polycarbonate

Standard or Heat-treated

Clear Glass

SCEPTALIGHT

SCEPTALIGHTTM

Ceiling Mount

with Heat Resistant Glass Globe

Part

Number

Product

Code

150W Incandescent clear LVPF150HRC-HAZ 077414

150W Incandescent red LVPF150HRR-HAZ 077415

150W Incandescent blue LVPF150HRB-HAZ 077416

150W Incandescent green LVPF150HRG-HAZ 077417

150W Incandescent amber LVPF150HRA-HAZ 077494

26W Compact Fluorescent clear LVPL26HRC-HAZ 077377

26W Compact Fluorescent red LVPL26HRR-HAZ 077378

26W Compact Fluorescent blue LVPL26HRB-HAZ 077379

26W Compact Fluorescent green LVPL26HRG-HAZ 077399

26W Compact Fluorescent amber LVPL26HRA-HAZ 077400

18W Compact Fluorescent clear LVPL18HRC-HAZ 077347

18W Compact Fluorescent red LVPL18HRR-HAZ 077348

18W Compact Fluorescent blue LVPL18HRB-HAZ 077349

18W Compact Fluorescent green LVPL18HRG-HAZ 077353

18W Compact Fluorescent amber LVPL18HRA-HAZ 077354

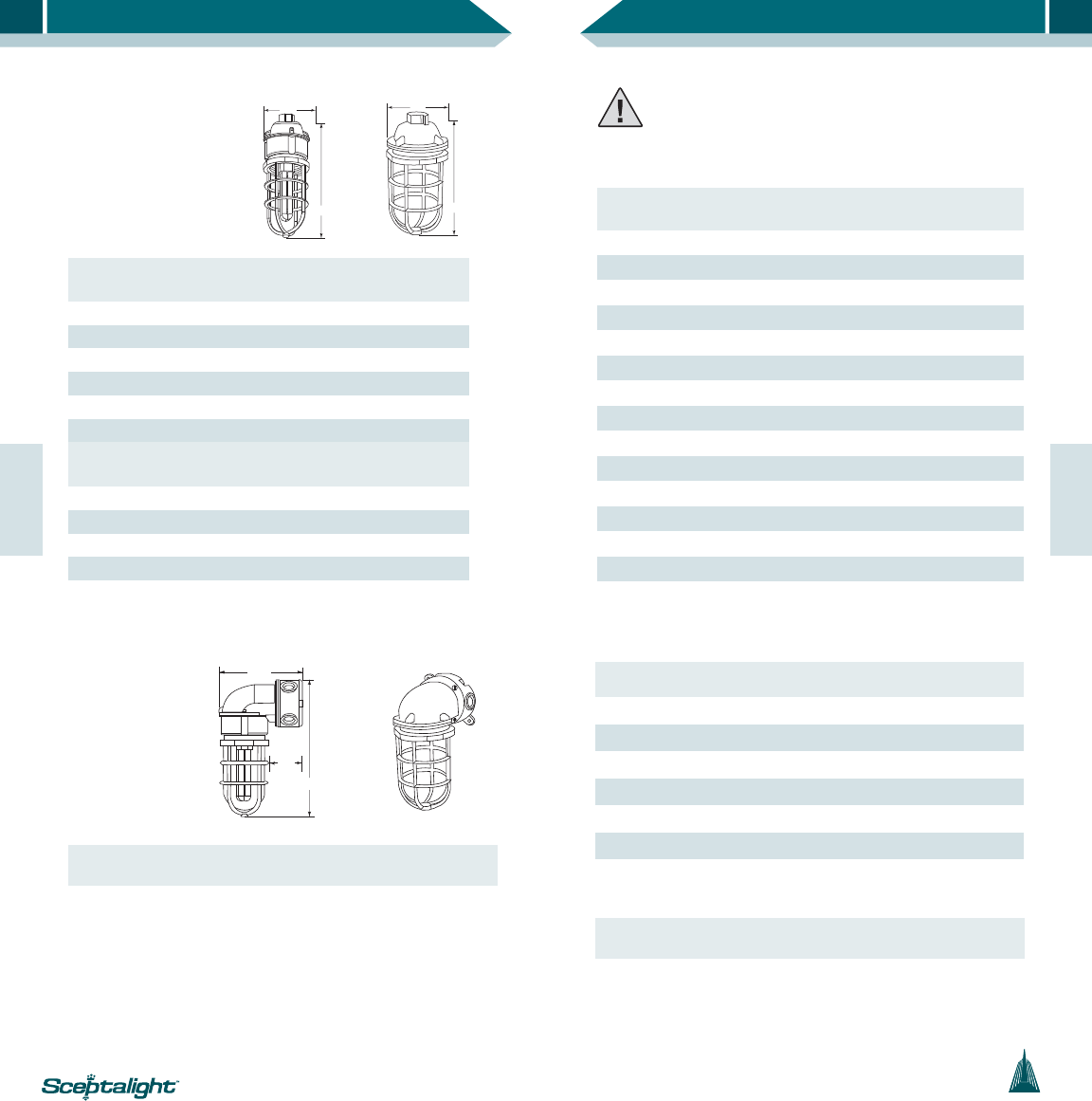

Hazardous

Locations

Ceiling Mount

Wall Mount

Pendant Mount

with Heat Resistant Glass Globe

Part

Number

Product

Code

150W Incandescent clear LPMF150HRC-HAZ 077495

150W Incandescent red LPMF150HRR-HAZ 077496

26W Compact Fluorescent clear LPPL26HRC-HAZ 077407

26W Compact Fluorescent red LPPL26HRR-HAZ 077409

18W Compact Fluorescent clear LPPL18HRC-HAZ 077500

18W Compact Fluorescent red LPPL18HRR-HAZ 077498

Description Part

Number

Product

Code

For wall mount fixtures select and order the

appropriate style (wattage and globe) ceiling

mount fixture from above and add LWB150

Wall Mount bracket

LWB150 077233

Pendant Mount

Class I, Div 2 Groups A, B, C & D

Class II, Div 2 Groups F & G

SCEPTALIGHTTM

Wall Mount

7 1/4"

2 7/8"

13 1/4"

Description Part

Number

Product

Code

For wall mount fixtures select and order the

appropriate style (wattage and globe) ceiling

mount fixture from above and add LWB150

Wall Mount bracket

LWB150 077233

Pendant Mount

with Standard Clear Glass Globe

Part

Number

Product

Code

150W Incandescent LPMF150C 077231

26W Compact Fluorescent LPPL26C 077184

18W Compact Fluorescent LPPL18C 077212

13W Compact Fluorescent LPPL13C 077185

9W Compact Fluorescent LPPL9C 077183

7W Compact Fluorescent LPPL7C 077182

Pendant Mount with Clear

Polycarbonate Globe (no guard)

Part

Number

Product

Code

26W Compact Fluorescent LPPL26PCC 077375

18W Compact Fluorescent LPPL18PCC 077273

13W Compact Fluorescent LPPL13PCC 077365

9W Compact Fluorescent LPPL9PCC 077355

7W Compact Fluorescent LPPL7PCC 077345

4 3/4"

10 1/4"

4 3/4"

12"

Pendant Mount

SCEPTALIGHT

SCEPTALIGHTTM

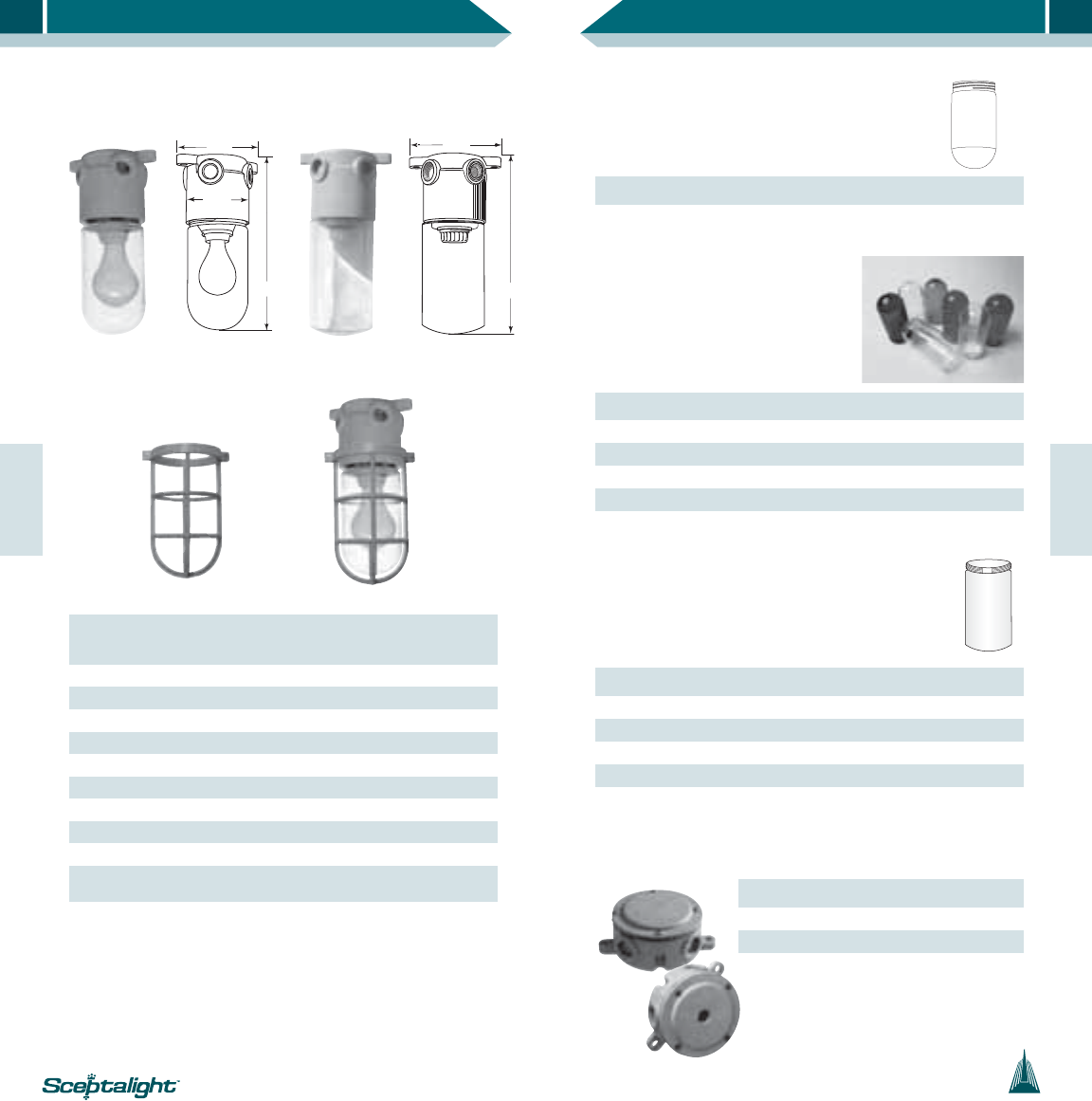

Accessories & Components

*LFB150T complete with 1/2 threaded"

hole in center of cover

Heat Resistant Globes

Description Part Number Product Code

Clear LG150T 077909

Red LCGR150T 077239

Blue LCGB150T 077910

Green LCGG150T 077241

Amber LCGA150T 077242

Threaded Junction Boxes

Part Number Product Code

LFB150C 077250

LFB150T * 077251

Polycarbonate Globes (for use with

compact fluorescent or maximum 60W incandescent lamp)

Description Part Number Product Code

Clear LPCC18 077911

Red LPCR18 077912

Blue LPCB18 077913

Green LPCG18 077914

Amber LPCA18 077915

Standard Glass Globes

Description Part Number Product Code

Clear LGC150 077247

SCEPTALIGHTTM

Nonmetallic Utility Light Fixture

Description Part

Number

Hub

Size

Product

Code

Fixture c/w Clear Glass Globe LVPE150-10/15 1/2"-3/4"077493

Fixture c/w Clear Polycarbonate Globe LVPE150-PCC*1/2"-3/4"077181

Fixture c/w Heat Resistant Clear Globe LVPE150-HRC 1/2"-3/4"077578

Fixture c/w Heat Resistant Red Globe LVPE150-HRR 1/2"-3/4"077599

Fixture c/w Heat Resistant Blue Globe LVPE150-HRB 1/2"-3/4" 077579

Fixture c/w Heat Resistant Green Globe LVPE150-HRG 1/2"-3/4"077597

Fixture c/w Heat Resistant Amber Globe LVPE150-HRA 1/2"-3/4" 077598

Replacement Clear Glass Globe LGC150 077247

Nonmetallic Clamp-on Guard LVPUG150 077558

Fixture c/w Clear Glass Globe

& Clamp-on guard LVPE150-1015G 1/2"-3/4"077402

*Maximum 60W incandescent lamp with polycarbonate globe

LVPE150 LVPE150-PCC

LVPUG150 LVPE150-1015G

5 1/8"

9 7/8"

3 1/2"

CORLINE ENT &

KIWKON FITTINGS

SCEPTALIGHT

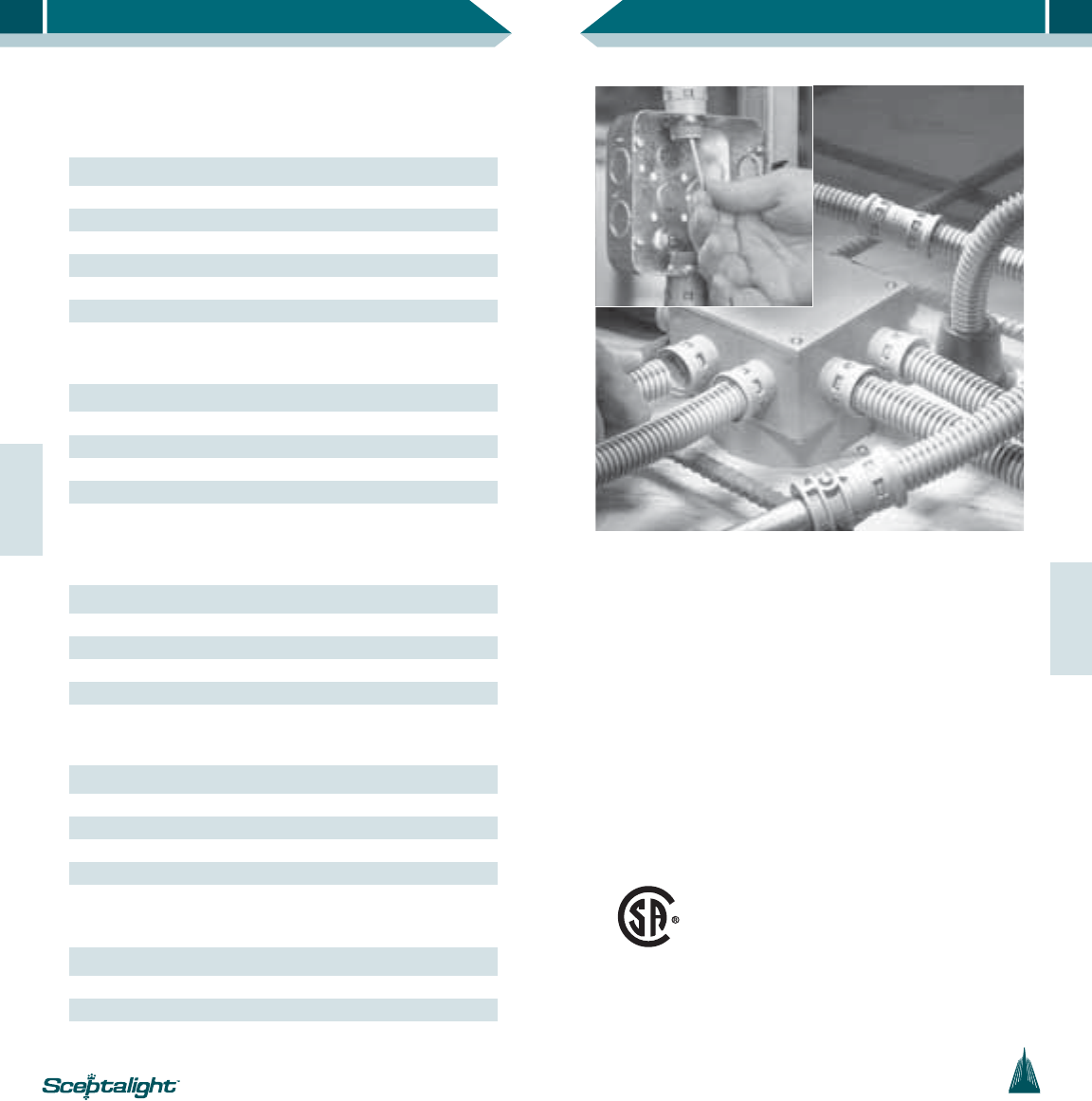

Cor-Line ENT –

Savings for the Long Run

Noncorroding and nonconducting, Cor-Line Electrical Nonmetallic

Tubing and fittings are designed

For The Long Run

. Coiled in

lengths up to 1,500 feet, the Cor-Line system can span the longest

run. Encased in concrete, concealed in walls or ceilings, Cor-Line

offers the best alternative to the labour-intensive, 10' lengths of

metal conduit with its couplings and scrap. The Cor-Line System is

the right choice!

Kwikon Fittings

Our unique Kwikon couplings, transition couplings and connectors are

designed with six 360° locking tabs to ensure a secure concrete-tight

connection.

Time-consuming taping and solvent cementing are eliminated.

C22.2 – No. 227.1

COR-LINE

ENT & KWIKON

FITTINGSSCEPTALIGHTTM

Accessories & Components con’t

Fixture Components (LVPF, LVPL, LPMF, LPPL)

Description Part Number Product Code

Ceiling Mount Box LVPB 150 077243

Pendant Mount Cap LPC 150 077246

90 Wall Bracket LWB 150 077233

Socket Base Assembly LSBA 150 077245

Medium Base Replacement Socket LSOC 150 077249

Screw-on Guard LVPG 150 077978

Replacement Lamps

Description Part Number Product Code

7 Watt LD/E 7 072841

9 Watt LD/E 9 072844

13 Watt LD/E 13 072847

18 Watt (Quad) LD/E 18 077947

26 Watt (Quad) LD/E 26 077081

Replacement Lamp Holders

Description Part Number Product Code

7/9 Watt Lamp Holder LLH 7/9 072843

13 Watt Lamp Holder LLH 13 072849

18 Watt Lamp Holder (4 Pin) LLH 18 072818

26 Watt Lamp Holder (4 Pin) LLH 26 077082

Ballasts

Description Part Number Product Code

7/9 Watt Magnetic Ballast (NPF) LEB 7/9 072842

13 Watt Magnetic Ballast (NPF) LEB 13 072848

18 Watt Electronic Ballast (HPF) LEB 18 077224

26 Watt Electronic Ballast (HPF) LEB 26 077080

Gaskets

Description Part Number Product Code

Box Gasket LBGASK 150 072820

Lamp Gasket LLGASK 150 076971

CORLINE ENT &

KIWKON FITTINGS

CORLINE ENT &

KIWKON FITTINGS

COR-LINE

ENT & KWIKON

FITTINGS

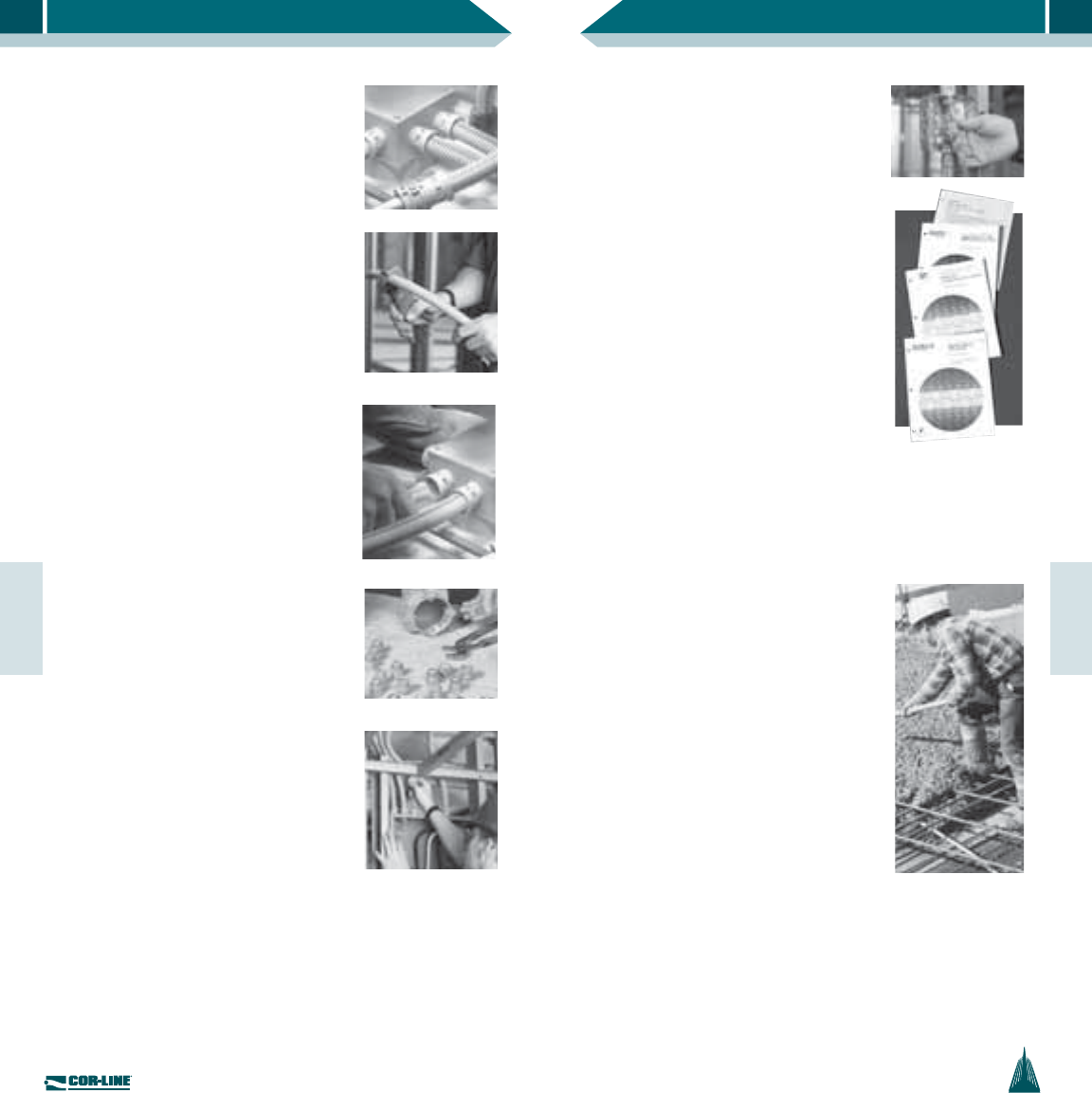

Pulling Wire

Kwikon’s interior corrugated surface greatly

reduces the amount of friction while pulling

conductors through long runs, even with 90°

bends.

CSA Certified

Cor-Line Electrical nonmetallic tubing and

Kwikon fittings are certified to CSA C22.2

No. 227.1.

FT-4 Approved

IPEX Cor-Line ENT tubing meets and

exceeds the requirements of CSA’s vertical

char test as described in Clause 4.11.4 of

CSA C22.2 No. 0.3M.

Direct Burial

The Canadian Electrical Code approves ENT for direct earth burial.

Rules governing installation of Cor-Line ENT are covered in the CEC

Part 1, Rule 12-1500 through 12-1516.

Installation in Noncombustible/Combustible

Construction

Refer to Section 3.1.5.19 of the National

Building Code for rules governing the use of

combustible conduit in noncombustible and/or

combustible buildings. Where provincial codes

vary, please consult with the building

authority having jurisdiction.

Nonmetallic Raceways for

Fire Alarm System Conductors

Rule 32-102 of the CEC allows Cor-Line

ENT to be used for fire alarm systems in

noncombustible or combustible buildings

provided: (1) the raceway is embedded in at

least 50mm (2 in.) of masonry or poured

concrete, and (2) where electrical

nonmetallic tubing (ENT) is used, the

transition from ENT to metal raceways is made in the concrete

using a transition fitting or other acceptable means. (Kwikon

transition fittings are specifically designed for this application.)

Ease of Installation

Engineered for the rugged day-to-day

challenges of the construction industry,

Cor-Line has already established itself as a

market leader. Requiring no special tools for

bending or cutting, Cor-Line is easily installed.

Bending & Cutting

Cor-Line’s corrugated construction allows it

to be easily bent by hand, no longer

requiring special bending equipment

traditionally required with metal conduit

systems. When bending, ensure the radius of

the curve is at least six times the internal

diameter of the tubing.

Pre-Assembly of Kwikon Slab

Boxes

IPEX’s Kwikon slab boxes are available with or

without molded connectors. For boxes without

molded connectors, pre-assembly is quick and

simple using our snap-in connector or

threaded male adapter with locknuts. Both

provide a secure concrete-tight connection.

Pre-Assembly of Metallic

Boxes

Metallic slab boxes can be quickly pre-

assembled with Kwikon connectors.

Secured with a locknut, Kwikon connectors

provide a concrete-tight connection.

Installation in Sheer Walls,

Interior Walls & Block Walls

Cor-Line’s flexibility, lightweight and ease of

handling in metal, wood, or block walls,

combined with Kwikon connectors and

couplings, substantially reduce time and

labour needed to install electrical raceways.

COR-LINE

ENT & KWIKON

FITTINGS

CORLINE ENT &

KIWKON FITTINGS

CORLINE ENT &

KIWKON FITTINGS

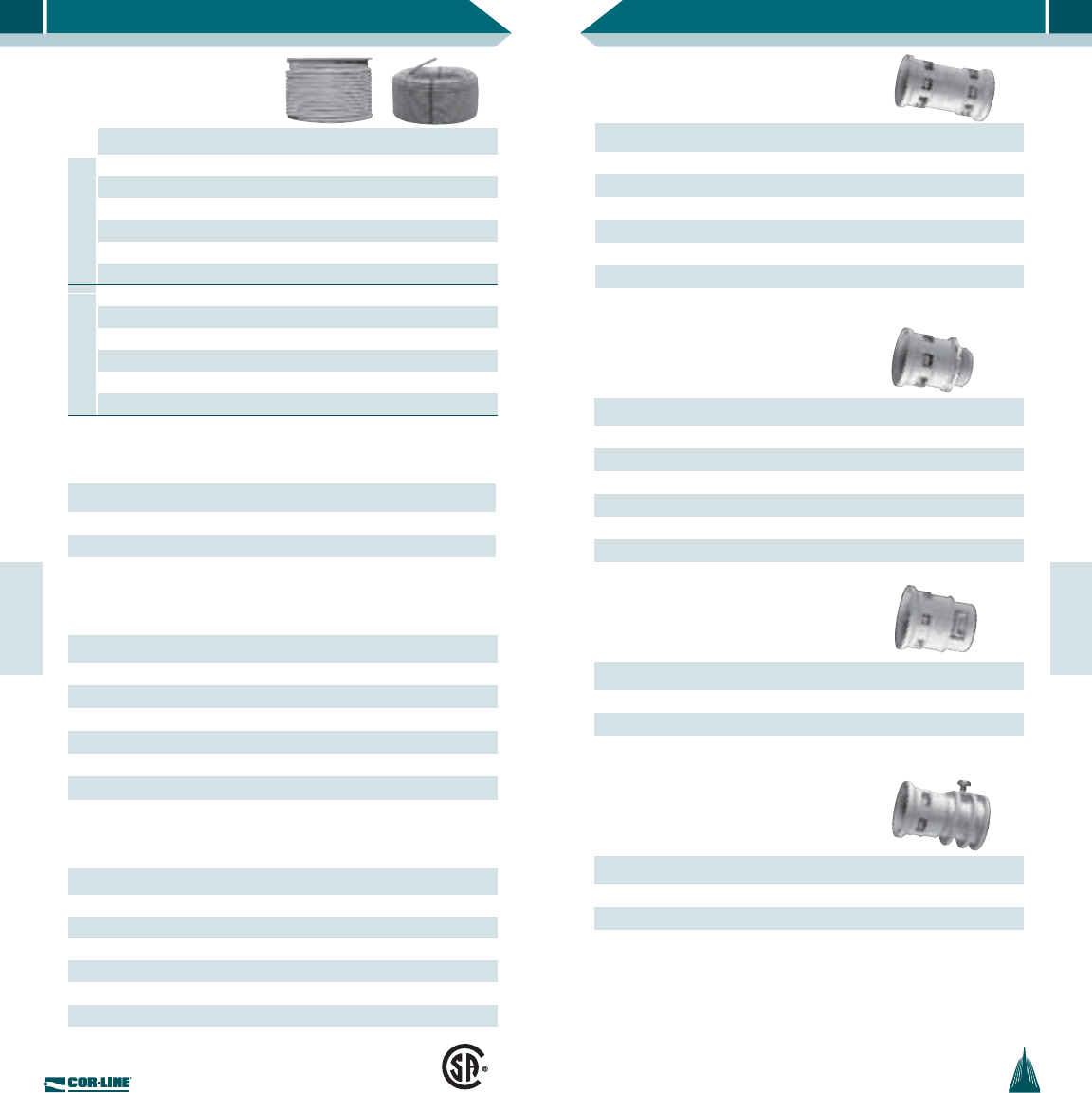

KWIKON

ENT FITTINGS

Kwikon Coupling

Size (in) Part Number Product Code Package Qty

1/2 KC10 089000 150

3/4 KC15 089001 100

1 KC20 089002 50

1-1/4 KC25 189670 30

1-1/2 KC30 189671 30

2KC35 189672 20

Kwikon Connector For

Concrete Encasement

Size (in) Part Number Product Code Package Qty

1/2 KTA10 089006 150

3/4 KTA15 089007 100

1 KTA20 089008 50

1-1/4 KTA25 189680 30

1-1/2 KTA30 189681 30

2KTA35 189682 20

Kwikon Snap-in Connector

Size (in) Part Number Product Code Package Qty

1/2 KTS10 089146 150

3/4 KTS15 089147 100

1 KTS20 089148 50

Kwikon Transition Coupling

Size (in) Part Number Product Code Package Qty

1/2 KTC10 089012 125

3/4 KTC15 089013 100

1 KTC20 089014 50

COR-LINE

ENT

Reel & Coil Size

Size (in) Length (ft) Product Code Weight lbs/pkg

1/2 1500 012004 185

3/4 1000 012009 145

1 750 012019 155

1-1/4 1000 012047 205

1-1/2 750 012033 180

2 500 012044 160

1/2 370 012000 37

3/4 240 012008 30

1 160 012018 28

1-1/4 500 012046 102

1-1/2 300 012032 72

2 225 012043 62

Wrapped in plastic, coils are easily dispensed from the centre.

Cor-Line Dimensions

10' Sticks

Size (in) ID (in) OD (in)

1/2 0.574 0.840

3/4 0.778 1.050

11.000 1.315

1-1/4 1.340 1.660

1-1/2 1.574 1.900

22.020 2.375

Size (in) Length (ft) Product Code Weight lbs/pkg

1/2 x 10' 3600 012005

345

3/4 x 10' 2200 012006

315

1 x 10' 1800 012007

345

Weight Comparison of Cor-Line ENT vs EMT

Size (in) ENT lbs/1000' EMT lbs/1000'

1/2 100 295

3/4 125 440

1175 668

1-1/4 185 970

1-1/2 220 1,100

2319 1,517

ReelCoil

CSA C22.2

No. 227.1

CORLINE ENT &

KIWKON FITTINGS

CORLINE ENT &

KIWKON FITTINGS

KWIKON

ENT FITTINGS

Kwikon Slab Box

Engineered to be rugged and durable, IPEX’s boxes will withstand

construction’s harshest environments.

in two unique styles, with or without molded connectors. Now you can

provide a complete, nonmetallic slab system. Priced competitively with

traditional steel mud boxes, Kwikon slab boxes increase labour

efficiencies, reducing costs.

Features

• Approved for use with ceiling fans up to 35 lbs. and luminaries

up to 50 lbs.

• Concrete tight

• All molded connectors have 360° locking tabs that exceed CSA and

UL requirements for pull-out

• Molded connectors are also approved for use with Scepter Rigid

PVC Conduit

• Manufactured from high impact PVC

• Nonmetallic / Nonconducting / Noncorroding

• Threaded brass inserts

Slab Box w/ Molded Connectors

Hub Size (in) Part Number Product Code Package Qty

8 x 1/2 SMB-H-10 089455 25

4 x 1/2, 2 x 3/4, 2 x 1 SMB-H-10/20 089456 25

4 x 1/2, 4 x 3/4 SMB-H-10/15 089457 25

8 x 3/4 SMB-H-15 089459 25

4 x 3/4, 4 x 1 SMB-H-15/20 089463 25

Slab Box w/o Molded Connectors

Knockout Size (in) Part Number Product Code Package Qty

8 x 1/2 SMB-10 089450 25

4 x 1/2, 2 x 3/4, 2 x 1 SMB-10/20 089451 25

Part

Number

Product

Code Standard Packaging

SMBR 089494 20

Slab Box Extension Ring

Adjusts height of SMB/SMBH series slab boxes by 1"

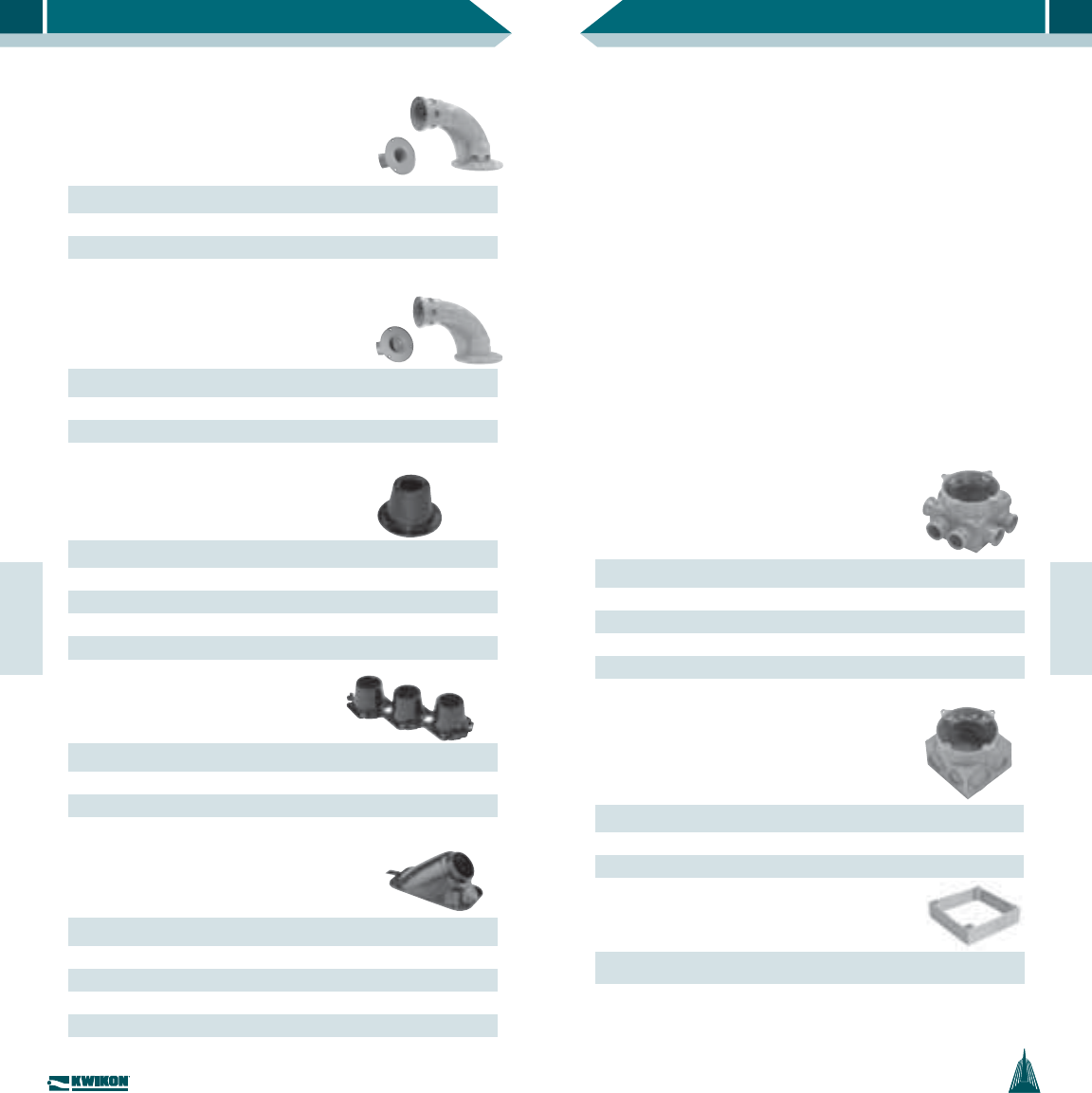

Kwikon ENT Form Stubby

Size (in) Part Number Product Code Package Qty

1/2 KSTB-10 089330 150

3/4 KSTB-15 089331 150

1 KSTB-20 089332 150

1-1/4 KSTB-25 089333 150

Kwikon ENT Multi-LinkTM

Form Stubby

Size (in) Part Number Product Code Package Qty

1/2 MSTB-10 089031 75

3/4 MSTB-15 089026 75

1 MSTB-20 089025 50

Kwikon ENT Angled Form Stubby

Size (in) Part Number Product Code Package Qty

1/2 KASTB-10 089233 50

3/4 KASTB-15 089234 50

1KASTB-20 089235 50

1-1/4 KASTB-25 089236 50

1-1/2 KASTB-30 089238 50

KWIKON

ENT FITTINGS

Kwikon 90oStub Down Fittings

Size (in) Part Number Product Code Package Qty

1/2 KT90-10 089060 40

3/4 KT90-15 089059 35

1 KT90-20 089058 25

KT90 Stub Down Fittings

(Kwikon x Threaded)

Size (in) Part Number Product Code Package Qty

1/2 KK90-10 089055 40

3/4 KK90-15 089056 35

1 KK90-20 089057 25

KK90 Stub Down Fittings

(Kwikon x Kwikon)

CORLINE ENT &

KIWKON FITTINGS

CORLINE ENT &

KIWKON FITTINGS

KWIKON

ENT FITTINGS

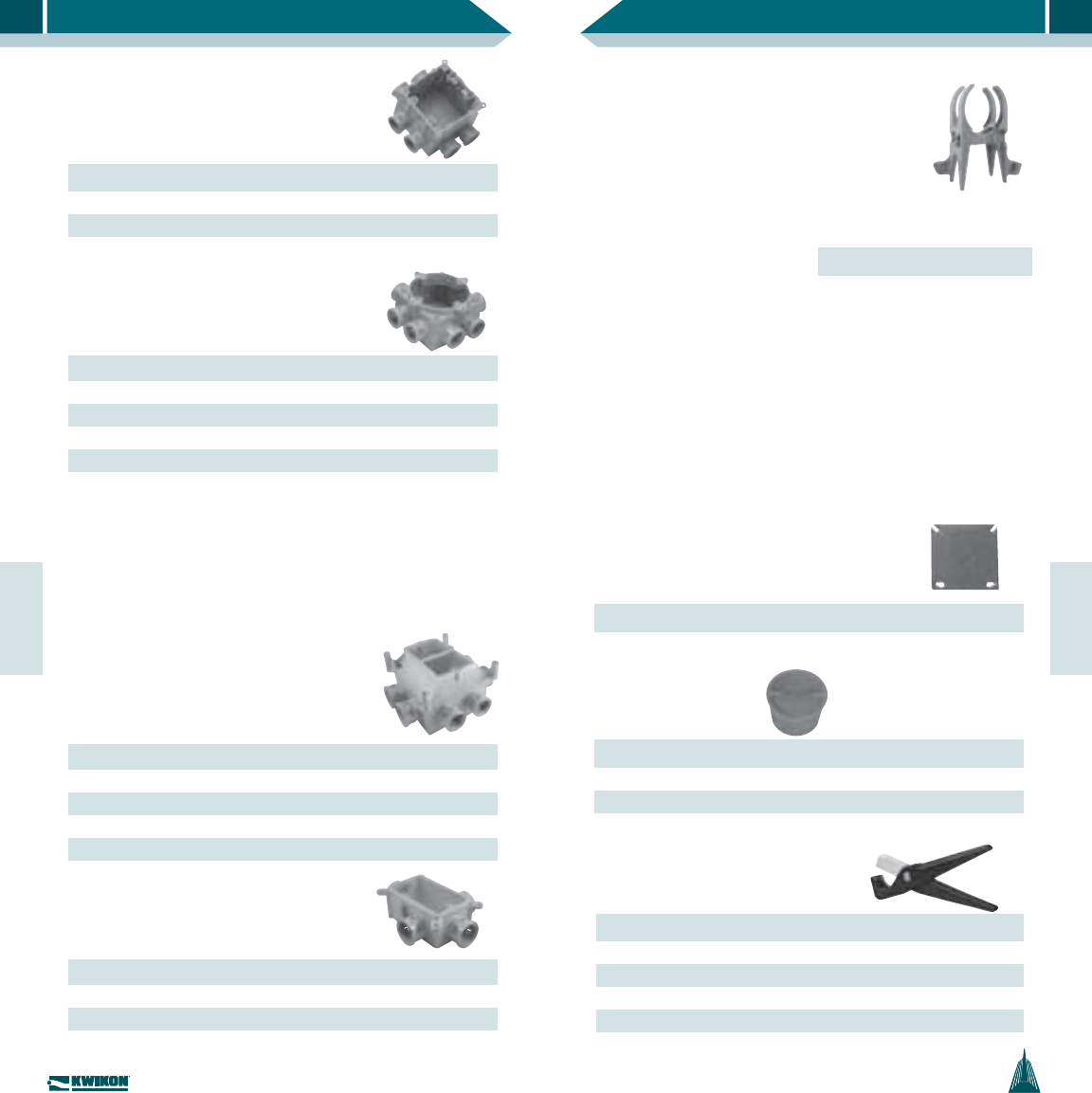

Tapered Plugs

Size (in) Part Number Product Code Package Qty

1/2 TP10 089003 100

3/4 TP15 089004 100

1TP20 089005 100

ENT 4" Square Box Flat Cover

Accessories

Size (in) Part Number Product Code

1/2 KO KWBC-10 089500

Kwikon Cutter & Blades

Description Part Number Product Code

Cutter (1/2"- 1") CLC20 089066

Blades for CLC20 SSB 089067

Cutter (1/2"- 2") CLC35 089068

Blades for CLC35 SB35 089069

The

NEW ENT Support Unit (ESU)

raises the tubing or conduit up off the concrete form

during the concrete pour maintaining a level raceway

and allows for maximum aggregate flow and concrete

consolidation.

Easy to use, the ESU snaps around any size of ENT.

It is perfect for use in high rise buildings constructed with post-tensioned

(PT) concrete slabs.

Features

• One size fits all 1/2" - 2"

• Saves time and labour

• Easy locking mechanism

• Securable to the concrete form

• Minimal footprint reduces amount of surface contact

Part Number Product Code

ESU-10-35 089149

KWIKON

ENT FITTINGS

Hub Size (in) Part Number Product Code Package Qty

8 x 1/2 SSBH-10 089452 25

8 x 3/4 SSBH-15 089453 25

4 x 1/2 & 4 x 3/4 SSBH-10/15 089454 25

4" Square Slab Box

Hub Size (in) Part Number Product Code Package Qty

8 x 1/2 SMBS-H-10 089485 20

4 x 1/2 & 4 x 3/4 SMBS-H-10/15 089486 20

8 x 3/4" SMBS-H-15 089487 20

4 x 1/2, 2 x 3/4, 2 x 1 SMBS-H-10/20 089488 20

4 x 3/4 & 4 x 1 SMBS-H-15/20 089489 20

Shallow Slab Box

Hub Size (in) Part Number Product Code

4 x 1/2, 4 x 3/4 SVDB-H-10/15 089496

4 x 3/4, 4 x 1 SVDB-H-15/20 089049

4 x 1/2, 2 x 3/4, 2 x 1 SVDB-H-10/20 089052

8 x 3/4 SVDB-H-15 089065

Kwikon Concrete 3-1/2"

Deep Concrete Wall Box

Hub Size (in) Part Number Product Code

4 x 1/2 SVSB-H-10 089054

4 x 3/4 SVSB-H-15 089053

Kwikon 2" Shallow

Concrete Wall Box

Concrete Wall Boxes

• Fully assembled and installation ready

• Perfectly suited for deep or shallow construction preferences

• Concrete-tight poly film covering the box opening

• Kwikon hubs do not protrude inside the box

SUPERDUCT

Super Duct Pipe and Fittings

Super Duct is recognized by major utilities, contractors and engineering

firms as the premier ducting product available on the market.

Super Duct is manufactured with a specialized compound and

engineered for high impact and crush strength specifically required by

utilities for underground duct. This compound enhances the friction

coefficient of Super Duct for easier pulling of conductors/wires

through long runs.

Rigid Super Duct (Type DB-2) conforms to the testing requirements of

CSA Standard C22.2 No. 211.1 both for encasement in

concrete/masonry and for direct burial.

CSA C22.2

No. 211.1

SUPER DUCT®PIPE & FITTINGS

&MUCH MORE ...

DOWNLOAD

OUR SCEPTER ELECTRICAL

CATALOGUE OR OUR

ELECTRICAL POCKET PRO

ONLINE TRAINING

TECHNICAL DOCUMENTS

PRODUCT INFO

Visit our website:

www.ipexelectrical.com

SUPERDUCT

CORLINE ENT &

KIWKON FITTINGS

INSTALLATION

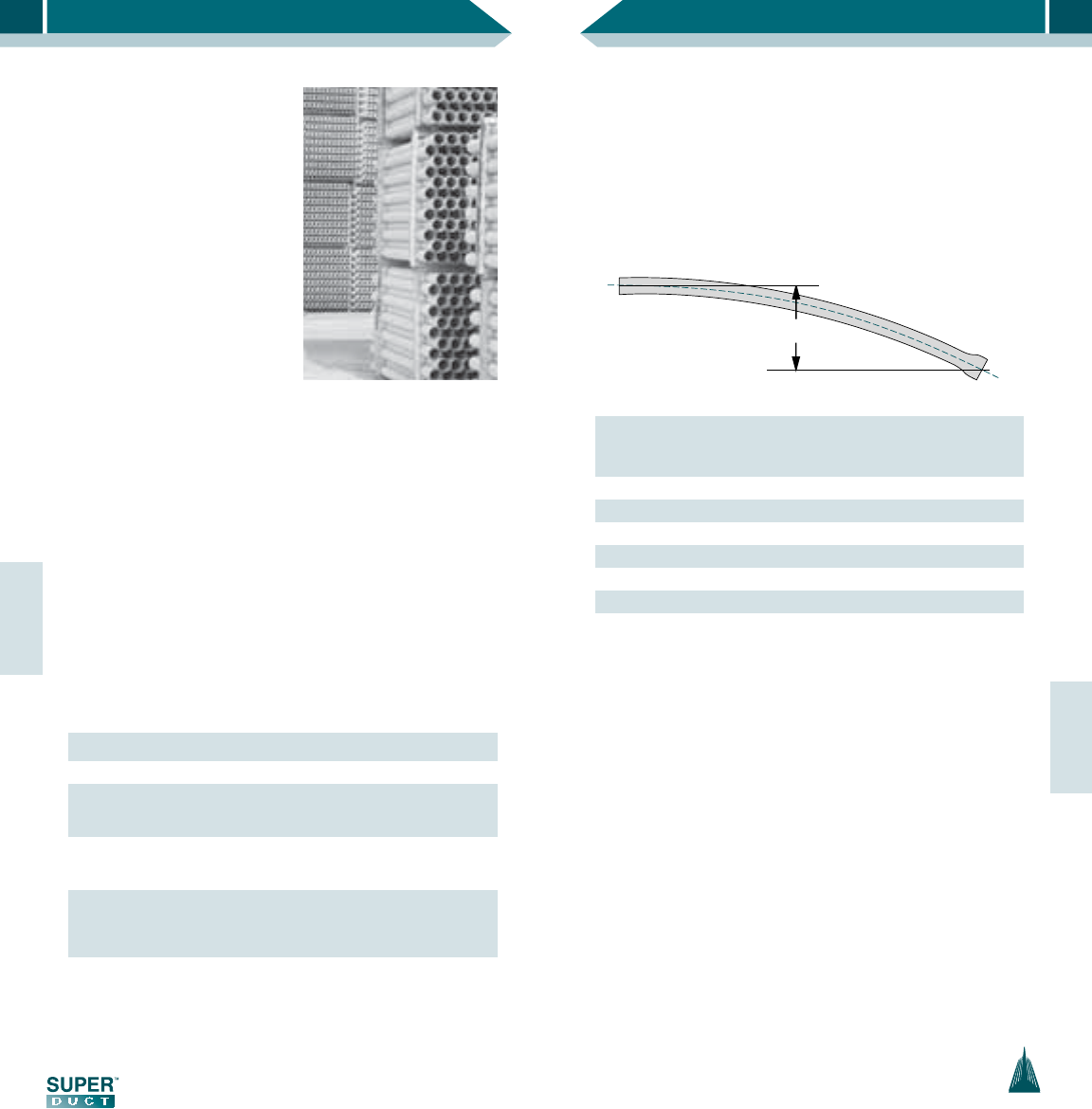

Field Bending

The natural flexibility of IPEX Super Duct allows field bending, so

minor changes in elevation or direction can often be accommodated

without the use of special sweeps or fittings. The following table

indicates typical maximum offset bends that can be achieved by

“cold bending.”

Offset

Allowable Offset for Super Duct

NOTES:

1. Axial deflection should not be attempted at the joints.

2. The above values were established for ambient temperatures

above the freezing point. Increased radii may be desirable at

below-freezing temperatures.

Size Max Allowable Offset

10' Length

Max Allowable Offset

20' Length

in. mm in. mm in.mm

250 20 508 79 2 007

375 14 356 56 1 422

3-1/2 90 12 305 49 1 245

4100 11 279 43 1 092

5125 7178 35 889

6150 7178 29 737

ENGINEERING DATA

Lightweight

Super Duct is easy to carry and

install, reducing labour and costs.

Long Lengths

Super Duct is available in 10' and

20' lengths, minimizing the

number of connections needed.

Bell Ends

Super Duct is bell-ended, allowing

for easy assembly in the field.

High Compressive

Strength

Super Duct’s specially formulated compound is designed to withstand

high loads.

Low Coefficient of Friction

The smooth bore of Super Duct facilitates cable pulling and eliminates

costly cable damage.

Quality Control

Stringent, continuous testing ensures that Super Duct is a consistently

high quality product.

Note: Super Duct meets or exceeds all CSA requirements.

Super Duct (Type DB-2)

Description CSA Requirements Reference

Pipe Stiffness @ 5% 43.5 psi (300 kPa) CSA C22.2 No. 211.1

Crush Resistance 198 lbs. @ 73°F (90 kg @ 23°C)

10% max. residual deflection CSA C22.2 No. 211.1

Impact Resistance 45 ft. lbf @ 73°F (61J @ 23°C)

25 ft. lbf @ 0°F (34J @ -18°C) CSA C22.2 No. 211.1

Residual Stress

149°F (65°C) for 4 hours.

Allow to cool to 73°F (23°C).

0.5% shrinkage allowed.

CSA C22.2 No. 211.1

Joint Tightness 5 psi (35 kPa) internal water

pressure applied for 24 hours. CSA C22.2 No. 211.1

SUPERDUCT

Concrete Encased Duct Installation

For multipurpose power cable and communication duct banks,

spacing between ducts is critical for optimum performance. IPEX

has designed the Monobloc and Vertical Lok

Spacer systems to accommodate all

specification and field installations.

These light weight spacers provide the vertical

and horizontal separation required in a trench.

With spacers in place on the trench bottom,

lay the first tier of ducts. When using a

concrete base, lay the bottom tier before the

base has taken initial set. Place subsequent

tiers of spacers on top of the tier until the

required number of ducts are installed. Then

tie the entire assembly together. It is not

necessary to weight or brace the bank unless

the concrete mix is very wet.

The Concrete Pour

Do not allow a heavy mass of concrete to fall directly onto the duct. If

this is a possibility, use a plank to direct the concrete down the sides

of the bank assembly to the trench bottom. The concrete will flow to

the centre of the bank and rise up in the middle, uniformly filling all

open spaces. Voids can be eliminated by carefully working a long, flat

slicing bar or spatula up and down between the vertical rows of ducts.

Concrete should then flow between and under all of the ducts.

Duct Bank Elevation

Monobloc spacers should be staggered. It is recommended that

spacers be located approximately one-fifth of duct length from each

end. Vertical Lok spacers should be located to a maximum of every

5.5 ft. (1.7m).

Backfilling

Backfill with regular excavated soil after the concrete has set.

INSTALLATION

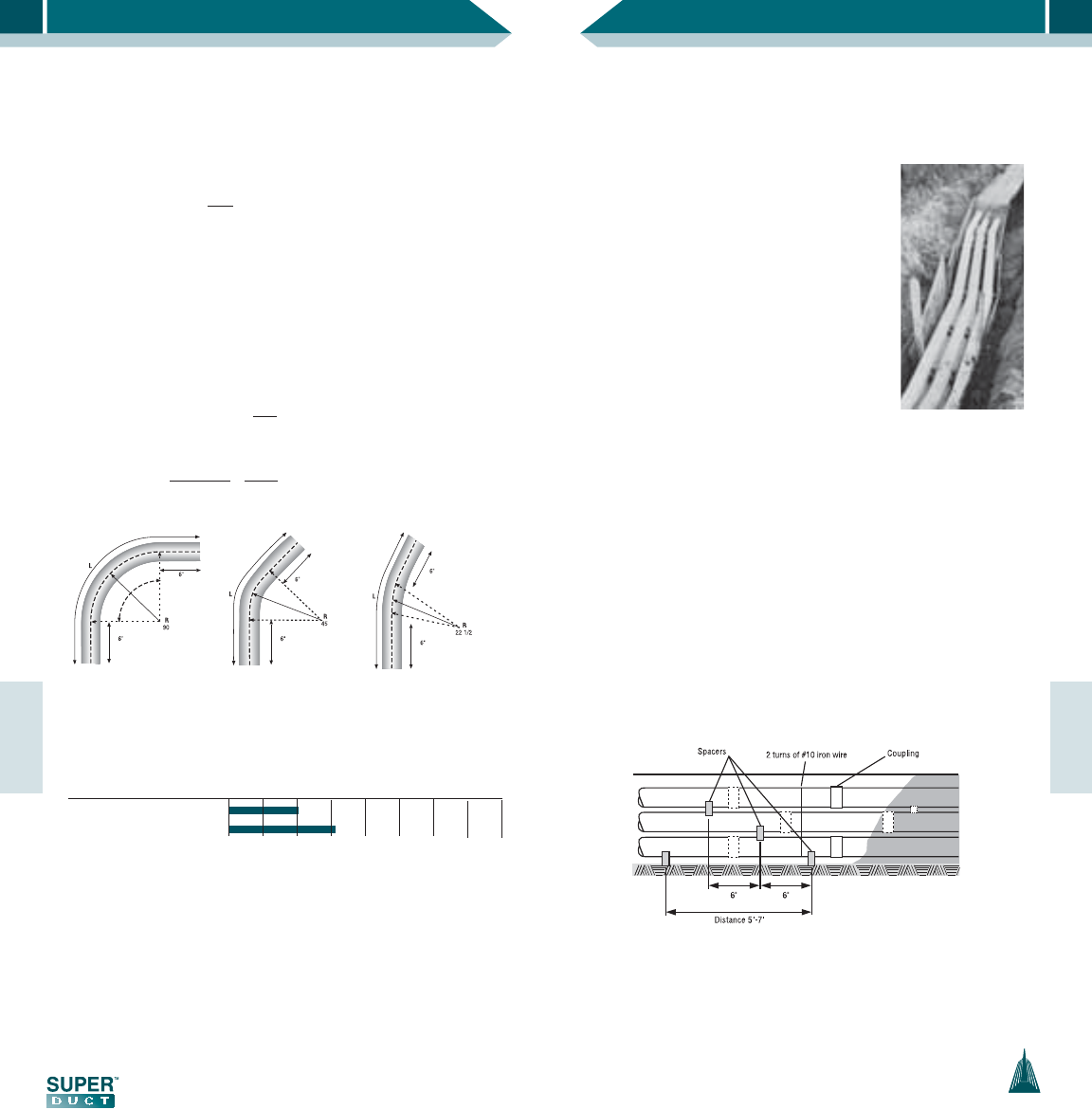

90° 45° 221/2°

Bends

Standard 90°, 45° and 22 1/2° bends are available from sizes 2"

through to 6" in 24", 36", 42" and 60" radius. All bends are supplied

with 6" (15.2cm) tangents. The centre line lay length (L) can be

calculated using;

L=(πr x §

180 )+ 2 (tangent)

Where: π=3.14

L = centre line lay length

r = radius of bend

§ = angle of bend

tangent = 6"

Example: for a 3" 90° bend with a 36" radius - calculate the lay length:

L=(3.14 x 36 x 90°

180°)+ 2 (6)

L = 69 inches

L (metres) = L imperial = 69" = 1.75m

12 x 3.281 39.37

INSTALLATION

Static Friction Coefficient

Ducting Materials

.0 .1 .2 .3 .4 .5 .6 .7 .8

PVC

RTRC

SUPERDUCT

INSTALLATION

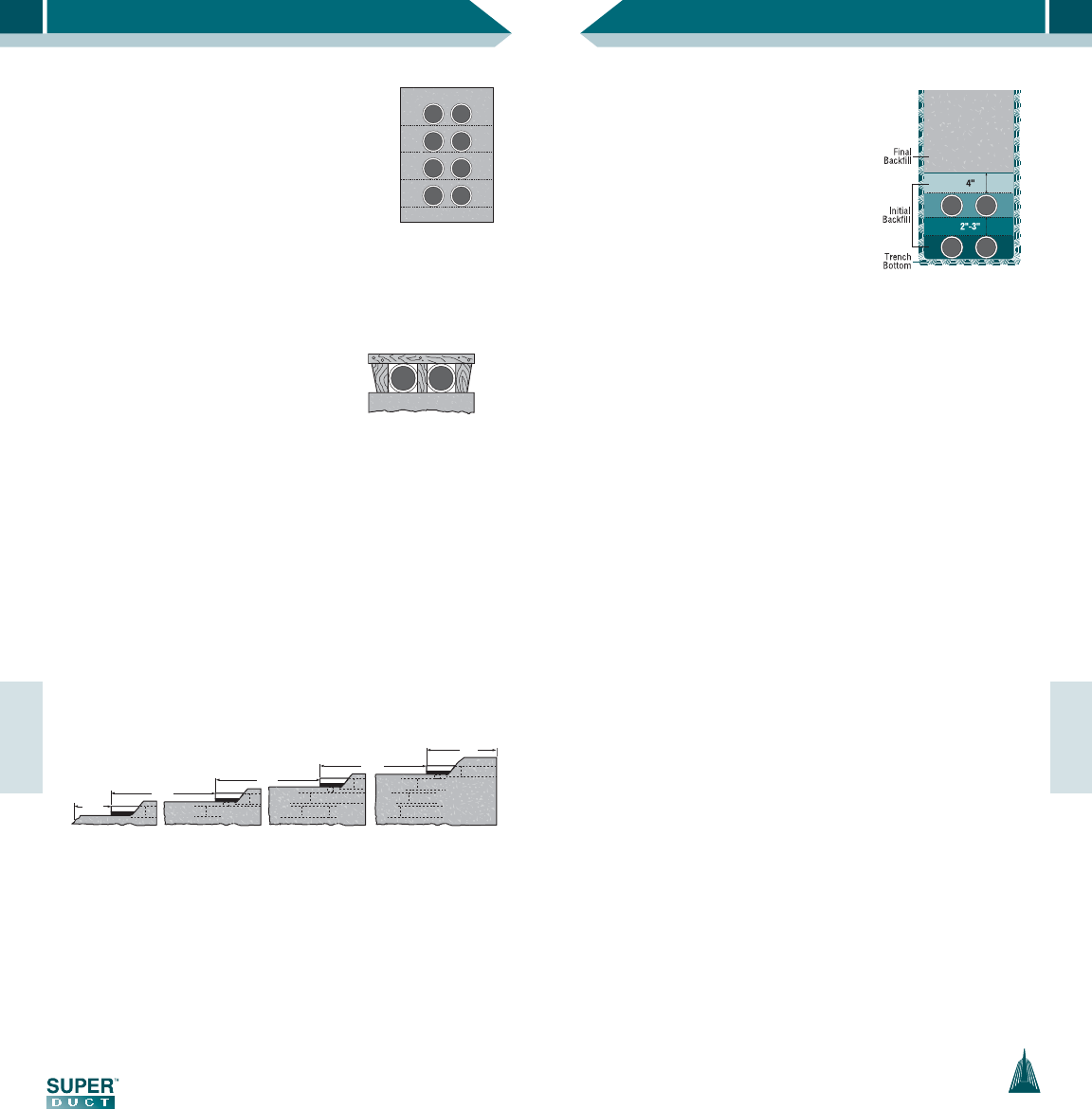

Direct Burial Installation

Trench Bottom

The trench bottom should provide a

continuous, firm and uniform support for the

duct bank construction. Care should be

taken to avoid lumps, ridges, depressions

and stones causing “point” contacts or

uneven bearing.

Rock or Shale

Excavate 3" below the desired depth and bring the trench back to

grade with selected tamped soil. This will provide the duct with a

uniform bedding surface.

Unstable Soils

Tests should be conducted to establish the soil strength in marshy or

swampy areas. It may be necessary in these conditions to dig deeper

and refill with crushed stone or gravel, or to employ mats, timbers or a

concrete base.

Placement of Duct

After the first tier of ducts is installed, backfill and compact as

outlined below. If wood combs are employed for spacing, remove them

as the backfill is placed and tamped. Then begin the next tier.

Initial Backfilling

1. Fit side and centre to the top of the ducts. Use a hand tamper only

to tamp firmly.

2. Backfill over the duct to the required thickness (see note) and

tamp firmly, using only a hand tamper.

Final Backfilling

When the last tier is placed, hand-place the backfill to 4" over the

duct with soil that does not contain stones larger than 3/8". Hand-

tamping of this layer is optional, depending on the specifications.

From this point, backfill may be completed by hand or by pneumatic

tamping in layers from 4" to 12" depending on the degree of

compaction desired.

When placing backfill by machine, avoid the use of large rocks until a

protective layer (minimum of 12") is established.

Note: In direct burial, no spacer should be used with Type 2; spacers provide “point” support

instead of the continuous bed required. Backfill thickness between ducts is usually 2" to 3".

INSTALLATION

Concrete Encased Tier-by-Tier

Installation

The advantage of this method is the production

of a solid, void-free concrete envelope. Simply

pour each tier independently.

Trench Bottom

After grading the trench, place a foundation of

3" of concrete on the bottom. It should be

smooth and graded.

Bank Assembly

Lay the bottom tier of ducts on the

concrete base. Ducts should be spaced with

wooden combs (two per duct length).

Concrete the first tier level to the top of the

comb. Remove combs and fill the voids.

Light tamping will ensure an even surface.

Repeat this sequence until the bank is built up.

Concreting

If the concrete is allowed to set before assembling the next tier, the

concrete will be stronger and more dense and the ducts will be

aligned straighter. One problem with this method is that the bank will

be in a

series of layers and therefore more likely to heave and

separate under frost conditions. If successive tiers are laid before the

concrete has set, a satisfactory bond will be achieved by tamping the

dry concrete.

Backfilling

Backfill with regular excavated soil when the bank is complete.

Duct is usually laid in 100' sections once the trench is excavated.

Therefore, concreting can be a continuous process.

Cross-section of

tier-by-tier method.

Type of wood comb used.

100'

SUPERDUCT

SUPER DUCT

FITTINGS

PVC Coupling - Solvent Weld

Dimension (in) Part Number Product Code

2SWC020 029001

2 (long) SWC020L 029009

3 SWC030 029002

3-1/2 SWC035 029003

4SWC040 029004

5SWC050 029005

6SWC060 029006

Polyethylene Coupling – Push Fit

PVC 5° Coupling – Solvent Weld

Dimension (in) Part Number Product Code

25ACS20 029041

35ACS30 029042

3-1/2 5ACS35 029043

45ACS40 029044

55ACS50 029045

65ACS60 029046

Polyethylene 5° Coupling – Push Fit

Dimension (in) Part Number Product Code

35APF30 029030

3-1/2 5APF35 029502

45APF40 029998

55APF50 029050

Dimension (in) Part Number Product Code

2PFC020 029011

3PFC030 029012

3-1/2 PFC035 029013

4PFC040 029014

5PFC050 029015

6PFC060 029016

SUPER DUCT

PIPE

CSA Type II

Dimension

(in)

10' L Belled

Product Code Ft/Crate 20' L Belled

Product Code Ft/Crate Weight/100'

(lbs)

2 008220 2,460 08221 4,920 33.7

3 008230 1,120 08231 2,240 61.2

3-1/2 008235 810 08236 1,620 77.3

4 008240 630 08241 1,260 99.2

5 008250 430 08251 860 159.6

6008260 280 08261 560 226.6

CSA Type II Split Duct

Dimension (in) Product Code Ft/Crate Weight/100' (lbs)

2 008222 2,460 33.7

3 008232 1,120 61.2

3-1/2 008237 810 77.3

4 008242 630 99.2

5008252 430 159.6

6008262 280 226.6

Super Duct Dimensions in Inches

Duct Diameter Minimum ID Nominal Wall Average OD

2 2.001 .082 2.250

3 3.000 .097 3.250

3-1/2 3.480 .109 3.730

4 3.941 .120 4.216

54.974 .153 5.299

65.896 .180 6.275

Super Duct Dimensions in Millimetres

Duct Diameter Minimum ID Nominal Wall Average OD

50 50.83 2.08 57.15

75 76.20 2.46 82.55

90 88.39 2.77 94.74

100 100.10 3.05 107.09

125 126.34 3.89 134.60

150 149.76 4.57 159.39

SUPERDUCT

Terminator with Knock-Out Plugs

Dimension (in) Part Number Product Code

3TERM30 029826

3 1/2 TERM35 029523

4 (with holes) TERM40H 029822

4 (no holes) TERM40W 029827

Cap – Solvent Weld

Dimension (in) Part Number Product Code

2SWCA20 029071

3SWCA30 029072

3-1/2 SWCA35 029073

4SWCA40 029074

5SWCA50 029075

6SWCA60 029076

90° Long Sweep Bend

Dimension (in) Part Number Product Code

2 x 24 R 902024 029091

2 x 36 R 902036 029092

2 x 60 R 902060 029036

3 x 24 R 903024 029055

3 x 36 R 903036 029093

3 x 60 R 903060 029134

3-1/2 x 24 R 903524 029123

3-1/2 x 36 R 903536 029094

3-1/2 x 60 R 903560 029135

4 x 24 R 904024 029047

4 x 36 R 904036 029095

4 x 60 R 904060 029096

5 x 42 R 905042 029097

5 x 60 R 905060 029037

6 x 60 R 906060 029098

SUPER DUCT

FITTINGSSUPER DUCT

FITTINGS

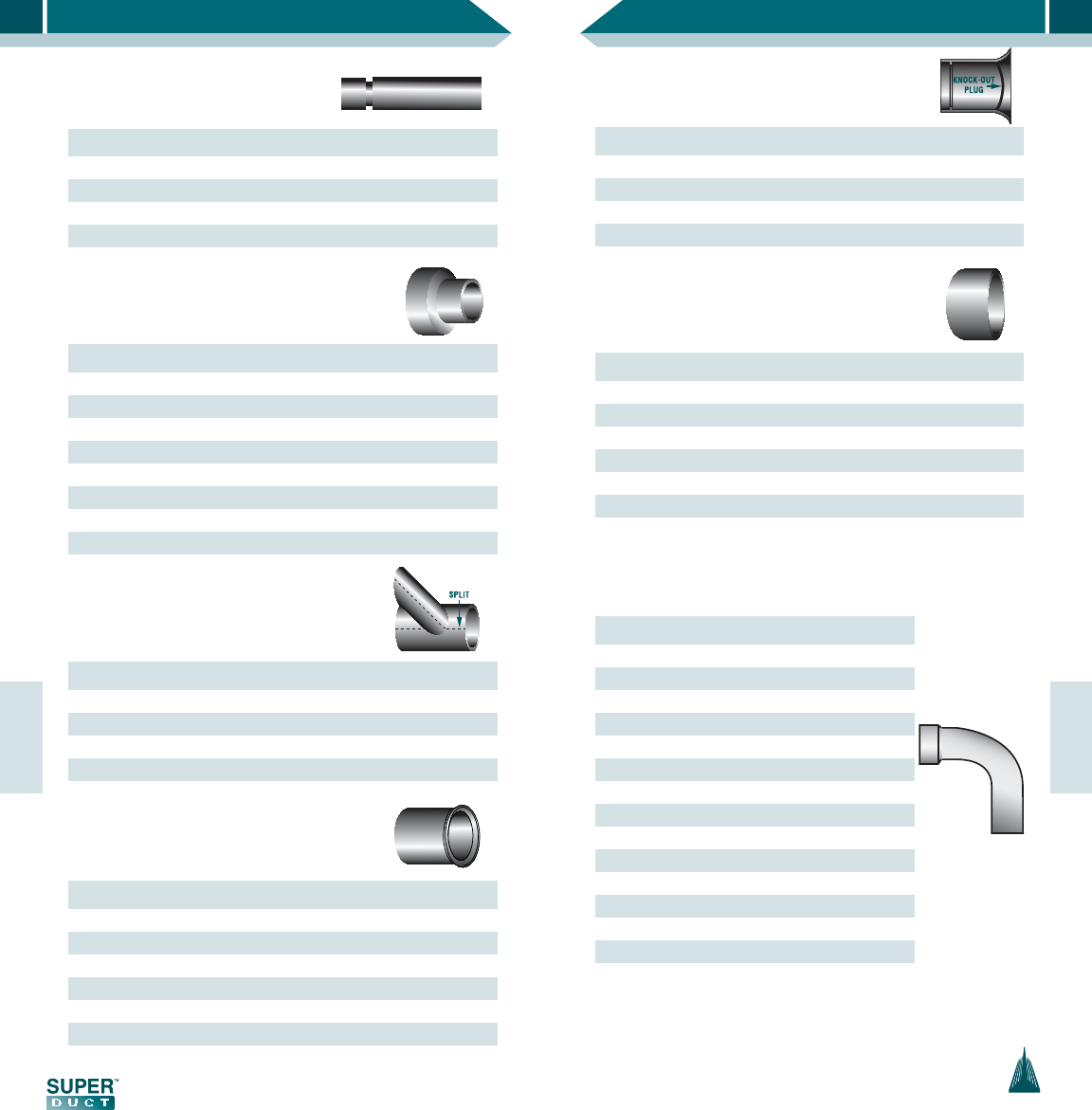

Expansion Joint

Dimension (in) Part Number Product Code

2EXPJ20 029151

3EXPJ30 029152

3-1/2 EXPJ35 029153

4EXPJ40 029154

Reducer Coupling – Solvent Weld

Dimension (in) Part Number Product Code

3 x 2 RC3020 029021

3-1/2 x 2 RC3520 029039

3-1/2 x 3 RC3530 029022

4 x 2 RC4020 029023

4 x 3 RC4030 029024

4 x 3-1/2 RC4035 029025

5 x 4 RC5040 029026

6 x 4 RC6040 029027

Split Wye – Solvent Weld

Dimension (in) Part Number Product Code

2SPLY20 029051

3SPLY30 029052

3-1/2 SPLY35 029053

4SPLY40 029054

PVC Bell Ends

Dimension (in) Part Number Product Code

2BELL20 029061

3BELL30 029062

3-1/2 BELL35 029063

4BELL40 029064

5BELL50 029065

6BELL60 029066

SUPERDUCT

SUPER DUCT

FITTINGS

Note: Duct to RTRC Conduit Adapters are available on request.

Universal Pipe Plug

Dimension (in) Part Number Product Code

2 & 2-1/2 UPP35 077433

3 & 3-1/2 UPP45 077434

4UPP55 077435

5UPP60 077436

6UPP65 077437

Female Adapter

Dimension (in) Part Number Product Code

2FEMA20 029141

3FEMA30 029142

3-1/2 FEMA35 029143

4FEMA40 029144

5FEMA50 029145

6FEMA60 029146

Sleeve

Conduit to Duct Adapter

Dimension (in) Part Number Product Code

2ARIG20 029181

2 (long) ARIG20L 029188

3ARIG30 029182

3-1/2 ARIG35 029183

4ARIG40 029184

5ARIG50 029185

6ARIG60 029186

Conduit

Socket

Duct

Socket

SUPER DUCT

FITTINGS

Note: Special radius bends are available upon request.

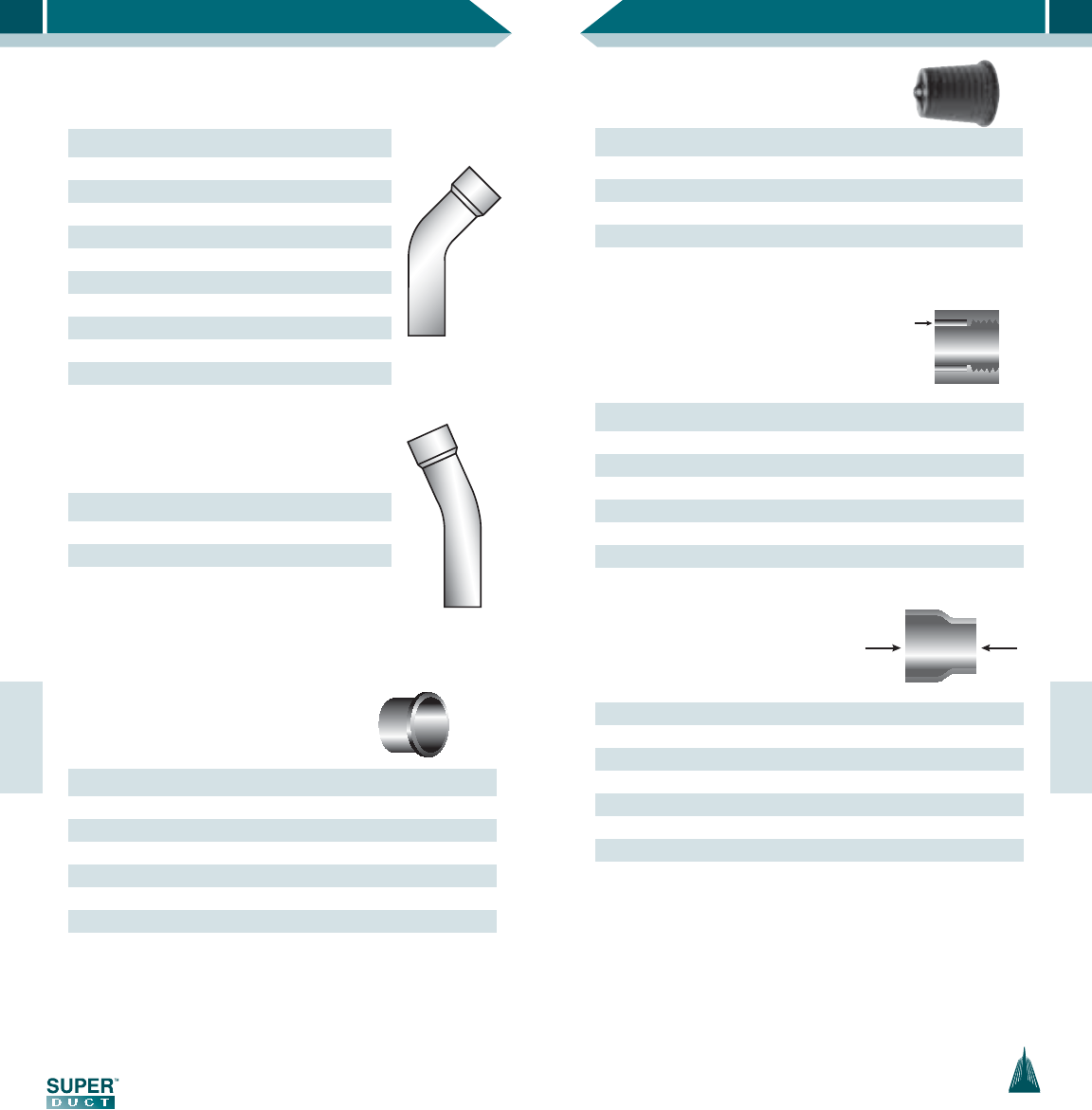

45° Long Sweep Bend

Dimension (in) Part Number Product Code

2 x 24 R 452024 029111

2 x 36 R 452036 029112

3 x 24 R 453024 029082

3 x 36 R 453036 029113

3-1/2 x 36 R 453536 029114

4 x 24 R 454024 029128

4 x 36 R 454036 029115

4 x 60 R 454060 029116

5 x 42 R 455042 029117

6 x 60 R 456060 029118

22 1/2° Long Sweep Bend

Dimension (in) Part Number Product Code

3 x 36 R 223036 029085

4 x 36 R 224036 029204

5 x 42 R 225042 029249

Tapered Plug

Dimension (in) Part Number Product Code

2PLUG20 029131

3PLUG30 029132

3-1/2 PLUG35 029133

4PLUG40 029078

5PLUG50 029079

6PLUG60 029136

SUPERDUCT

Monobloc Spacer Benefits for Telephone Duct:

• lightweight; easy to handle

and install

• weatherproof

• resilient at extremely low

temperatures

• flexible, yet tough

• readily available in a wide

range of sizes and

configurations

• economical

• immune to corrosion attack

• approved by Bell Canada

• versatile, as they can be used as both a base & intermediate spacer

MONOBLOC

™

SPACERS

Selection Table (in inches)

Nominal Size Vertical

Spacing

Horizontal

Spacing

Ground

Clearance

Number of

Ways

(A) (B) (C) (D) (E)

21-1/2 1-1/2 3 2

31-1/2 1-1/2 3 2

3-1/2 1 1 2 2 - 3 - 4

4 1 1 2 1 - 2 - 3 - 4

41-1/2 1-1/2 32 - 3 - 4

4 2 2 3 1 - 2 - 3 - 4

4 3 3 3 2 - 3 - 4

4 3 3 4 2 - 3 - 4

4-1/2 2 2 3 1 - 2 - 3

51-1/2 2-1/8 3-5/8 1

51-1/2 1-1/2 32 - 3 - 4

* Do not have rebar slots or base holes

SUPER DUCT

FITTINGS

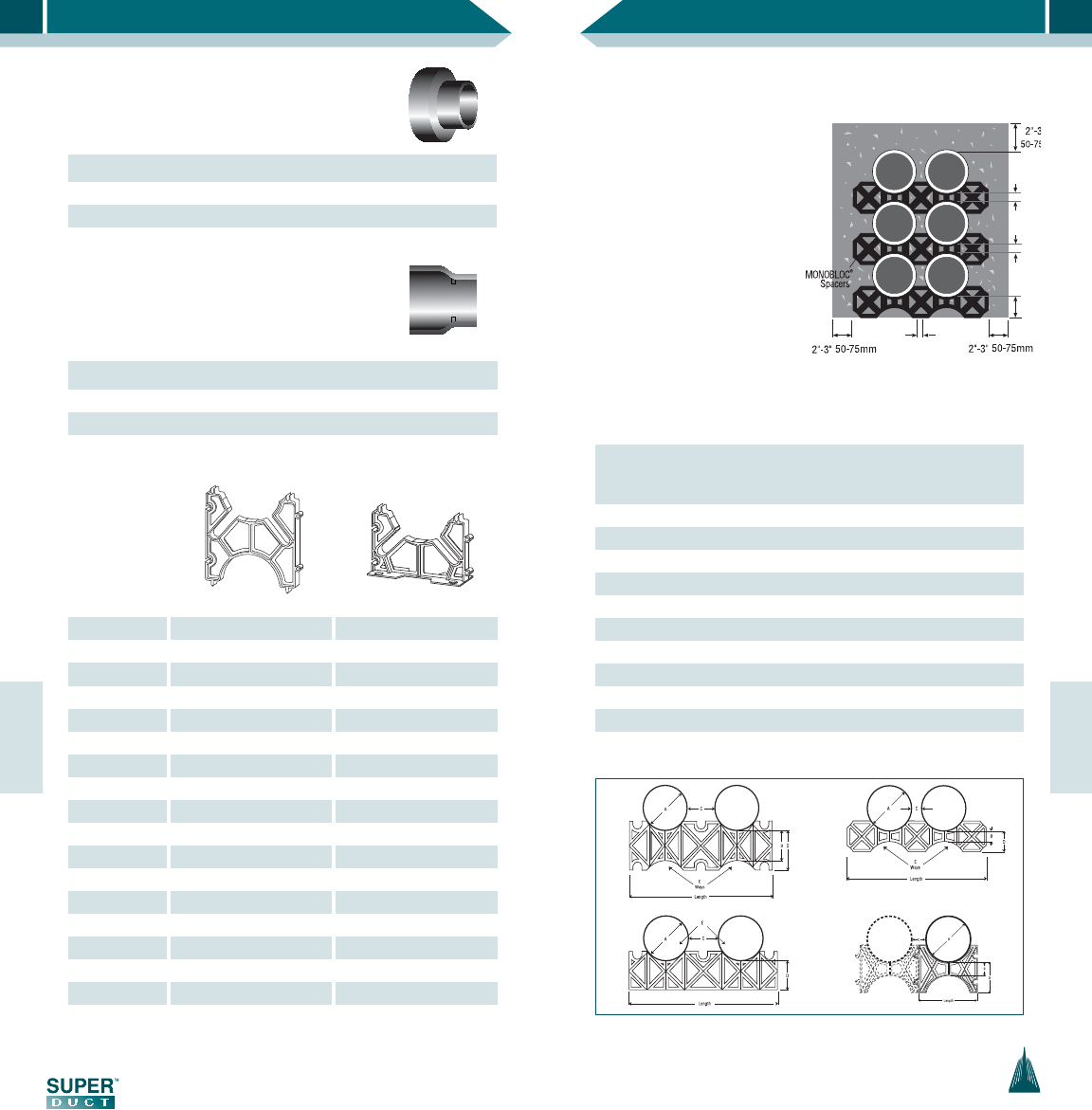

Reducing Adapter Coupling –

Duct to PVC Conduit

Dimension (in) Part Number Product Code

3 x 2 ARIG3020 029191

4 x 2 ARIG4020 029192

4 x 3 ARIG4030 029187

PVC Adapter Coupling – Asbestos

Cement or Bituminous Fibre

Dimension (in) Part Number Product Code

3-1/2 ACFB35 029163

4ACFB40 029164

Vertical-Lok

Spacers

Intermediate Base

Dimension (in) Part Number Product Code Part Number Product Code

2 x 1-1/2 IS3530 029550 BS3530 029566

2 x 2 IS3535 029551 BS3535 029567

2 x 3 IS3545 029552 BS3545 029568

3 x 1-1/2 IS4530 029553 BS4530 029569

3 x 2 IS4535 029554 BS4535 029570

3 x 3 IS4545 029555 BS4545 029571

4 x 1 IS5520 029556 BS5520 029572

4 x 1-1/2 IS5530 029557 BS5530 029573

4 x 2 IS5535 029558 BS5535 029574

4 x 3 IS5545 029559 BS5545 029575

5 x 1-1/2 IS6030 029560 BS6030 029576

5 x 2 IS6035 029561 BS6035 029577

5 x 3 IS6045 029562 BS6045 029578

6 x 1-1/2 IS6530 029563 BS6530 029579

6 x 2 IS6535 029564 BS6535 029580

6 x 3 IS6545 029565 BS6545 029581

8 x 2 IS8035 029294 BS8035 029293

SCEPTACON

SUPERDUCT

SceptaConTM Trenchless Raceway Systems

SceptaCon is one of the first PVC systems designed for the rigors of

trenchless applications. It links seamlessly to existing PVC conduit

infrastructures and allows utility companies to standardize on PVC

throughout their entire electrical systems.

SceptaCon's slide-in locking system and pre-installed, pre-lubricated

gaskets allow contractors to create a water-tight seal by hand in

seconds - in all temperatures - without having to worry about solvents

or chemicals freezing or drying too quickly.

Its unique spline-lock snaps into a recessed opening, ensuring the

spline won't get snagged during pull-through. SceptaCon's rounded

bell shoulders slide easily past roots, rocks and other debris in the

borehole, ensuring a smooth, easy installation. And because

SceptaCon is made to the same high standards as our Scepter rigid

PVC conduit, contractors and electrical utilities can be assured of the

same level of quality - above ground and below.

SCEPTACONTM TRENCHLESS RACEWAY SYSTEMS

MONOBLOC

SPACERS

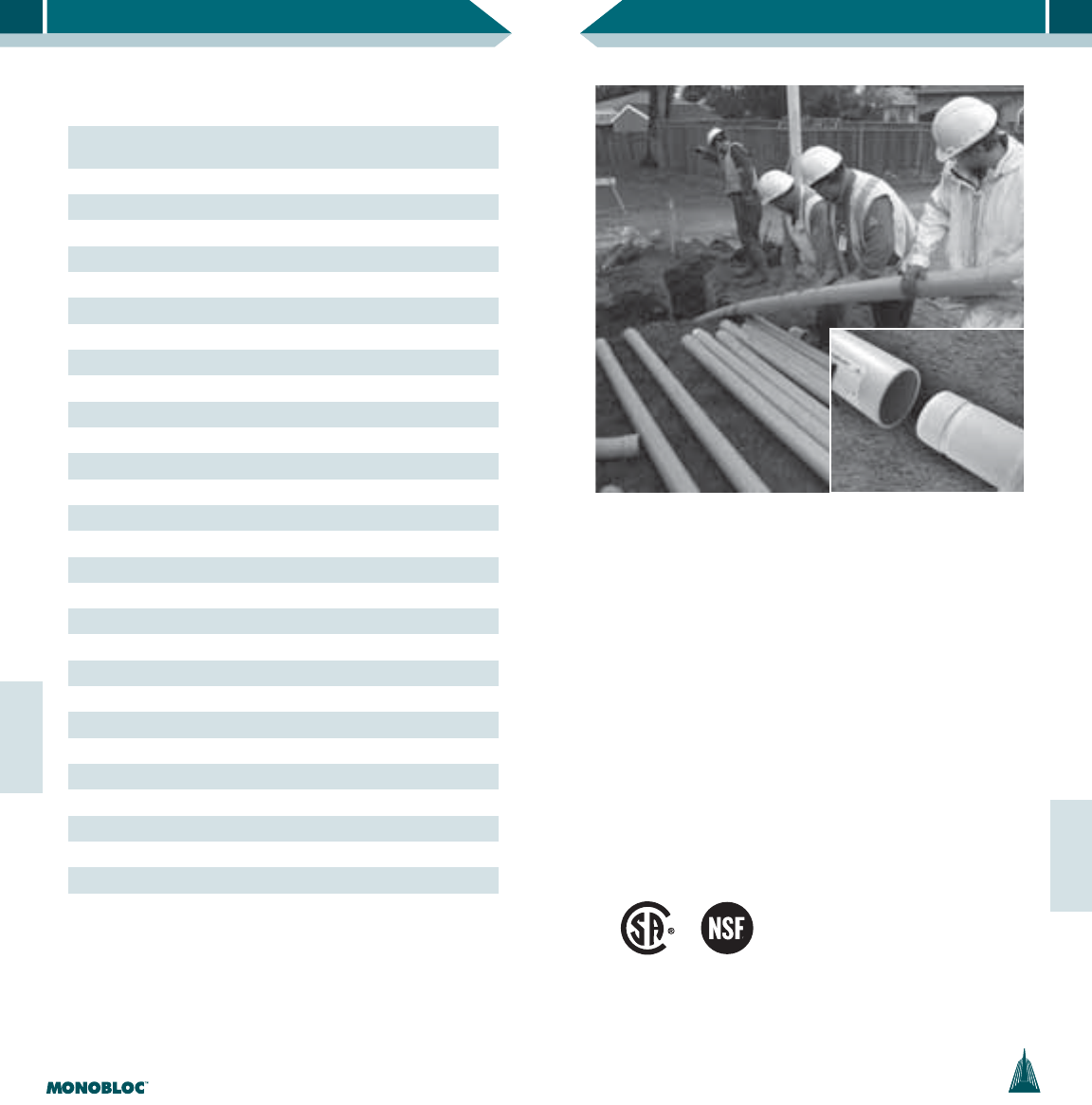

Monobloc Duct Spacers

Description (in)

A, B, C, D EProduct

Code

Dimensional

Drawing

F length

(in)

2 x 1-1/2 x 1-1/2 x 3 2 way 029473 27.9

3 x 1-1/2 x 1-1/2 x 3 2 way 029474 210.3

3-1/2 x 1 x 1 x 2 2 way 029860 212.4

3-1/2 x 1 x 1 x 2 3 way 029861 217.3

3-1/2 x 1 x 1 x 2 4 way 029479 220.9

4 x 1 x 1 x 2 1 way 029475 28.3

4 x 1 x 1 x 2 2 way 029476 213.5

4 x 1 x 1 x 2 3 way 029477 218.8

4 x 1 x 1 x 2 4 way 029478 224.2

4 x 1-1/2 x 1-1/2 x 3 2 way 029470 114.2

4 x 1-1/2 x 1-1/2 x 3 3 way 029471 120.0

4 x 1-1/2 x 1-1/2 x 3 4 way 029472 126.0

4 x 2 x 2 x 3 1 way 029480 28.3

4 x 2 x 2 x 3 2 way 029464 114.5

4 x 2 x 2 x 3 3 way 029465 120.7

4 x 2 x 2 x 3 4 way 029499 127.0

4 x 3 x 3 x 3 (Base) 2 way 029466 315.0

4 x 3 x 3 x 3 (Base) 3 way 029488 322.5

4 x 3 x 3 x 3 (Base) 4 way 029489 330.0

4 x 3 x 3 x 4 2 way 029469 115.0

4 x 3 x 3 x 4 3 way 029497 122.5

4 x 3 x 3 x 4 4 way 029498 130.1

4-1/2 x 2 x 2 x 3 1 way 029485 28.7

4-1/2 x 2 x 2 x 3 2 way 029486 215.5

4-1/2 x 2 x 2 x 3 3 way 029487 222.2

5 x 1-1/2 x 2-1/8 x 3-5/8 1 way 029455 47.0

5 x 1-1/2 x 1-1/2 x 3 2 way 029494 216.2

5 x 1-1/2 x 1-1/2 x 3 3 way 029495 223.1

5 x 1-1/2 x 1-1/2 x 3 4 way 029496 230.0

KWIKPATH

SCEPTACON

Kwikpath®Optical Fibre & Communication

Cable Raceway Systems

Kwikpath comes together faster and easier than other raceway

systems, thanks largely to a patented "snap-on" design that ensures

fittings and raceway assemble and terminate easily with no special

tools or handling equipment needed. The six locking tabs keep the

fitting tightly connected with tremendous pull-out resistance. All

without messy cementing or screws to tighten.

With its handy coil lengths delivered in dual purpose protective

packaging/pull box, Kwikpath makes home-run systems easy and

economical, letting you run cable from your telecommunications box

directly to a workstation outlet with fewer couplings. Being able to cut

to length on the job site ensures that you don't run short or have

wasted conduit left over.

Whether in narrow shafts or tight plenums, its lightweight and fast,

trouble-free installation make Kwikpath the number one choice for

commercial and residential cable management.

Codes & Standards

• EIA/TIA

• CEC 2002/NBC

• NFPA

• Plenum FT6

• Riser FT4

• General Purpose FT1

KWIKPATH®COMMUNICATION RACEWAY SYSTEMS

SCEPTACONTM TRENCHLESS RACEWAY SYSTEMS

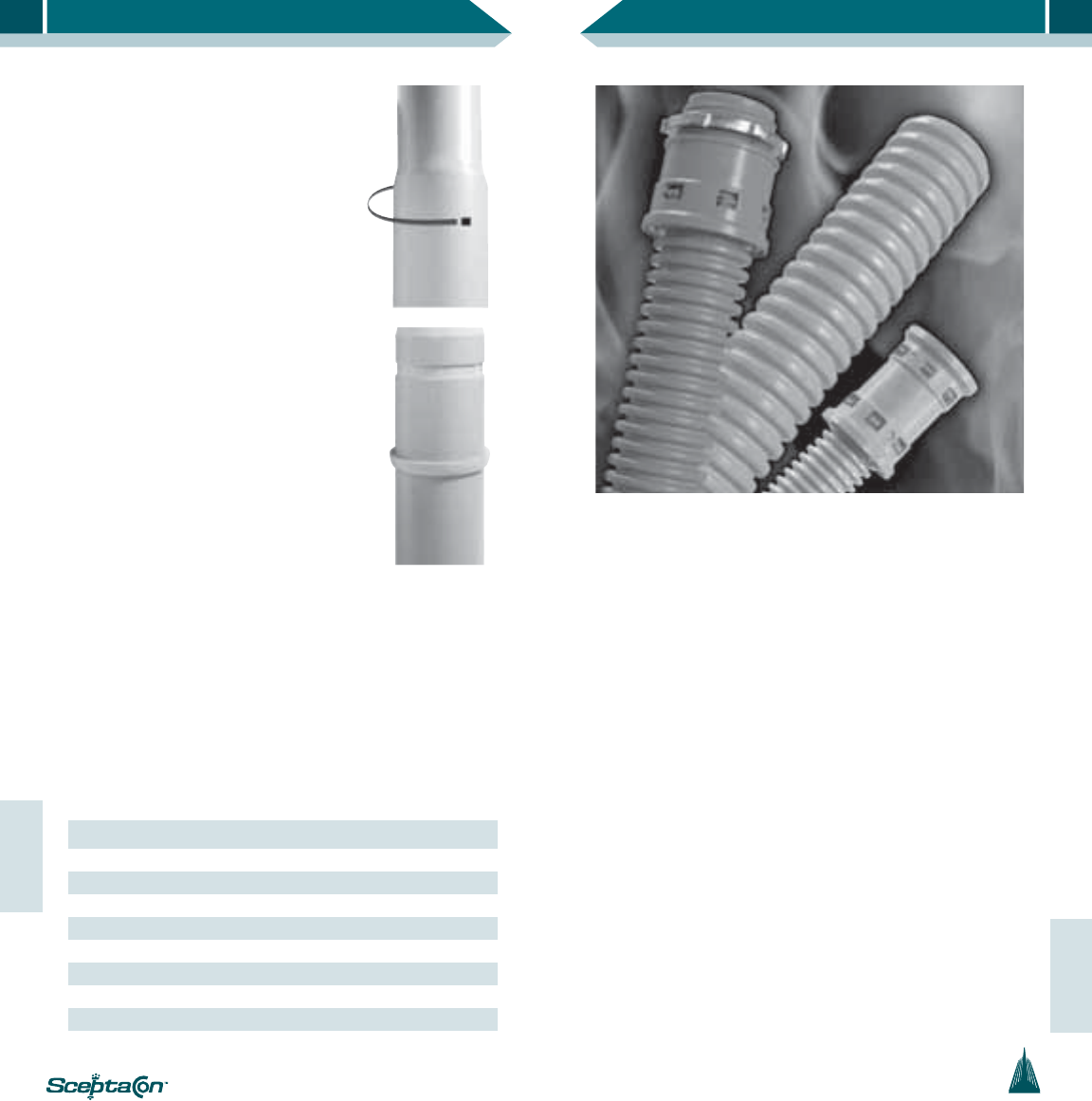

No Cementing or Lubrication

SceptaCon’s slide-in locking system and pre-

installed, pre-lubricated gaskets allow contractors

to create a water-tight seal by hand in seconds.

Outperforms Other PVC

Products

SceptaCon’s unique spline-lock snaps into a

recessed opening, ensuring the spline won’t

get snagged during pull-through. SceptaCon’s

rounded bell shoulders slide easily past roots,

rocks and other debris in the borehole,

ensuring a smooth, easy installation.

No Fusion Required

Because SceptaCon’s joints can be quickly

joined by hand in seconds, crews don’t need

large, expensive fusion equipment or special

training to create water-tight joints. In addition,

SceptaCon can be assembled one pipe length

at a time, then pulled underground, eliminating

the need for long strings of pipe on the job.

Superior Performance

SceptaCon is made from durable schedule 40 PVC that’s resistant to

creasing, scoring or flattening when pulled past obstructions in the

borehole, yet flexible enough to bend with underground twists and

turns. SceptaCon remains round, unlike HDPE which can stretch and

become oval.

Easy to Handle

SceptaCon is available in convenient 10' and 20' lengths that are

light-weight, easy to handle and no problem to work with in all types

of weather.

Length Product Code

3" x 10' 106330

3" x 20' 106331

4" x 10' 106340

4" x 20' 106341

5" x 10' 106350

5" x 20' 106351

6" x 10' 106360

6" x 20' 106361

SceptaConTM Raceway

KWIKPATH

KWIKPATH®COMMUNICATION RACEWAY SYSTEMS

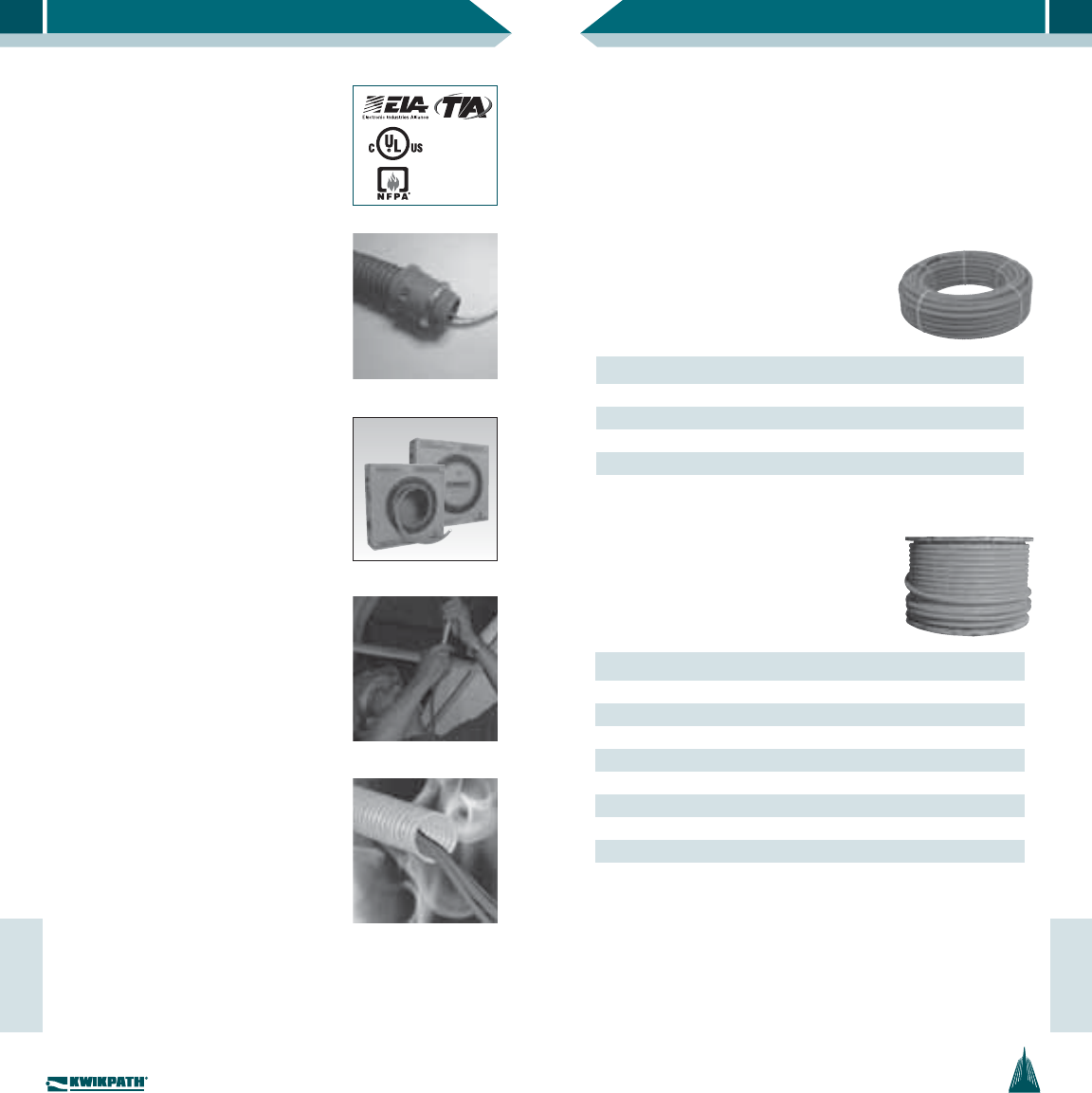

Plenum Coil with Pull Tape

Kwikpath Plenum Raceway

Kwikpath Plenum is made from a UL approved compound and like

Kwikpath Riser, forms nonmetallic, flexible corrugated cable raceways.

Vibrant orange in colour, Kwikpath Plenum meets the UL tests on

flame propagation and smoke density with values well below the

standard requirements. This heat/smoke-resistance makes it an ideal

raceway to run Optical Fiber Cables (OFPN) and/or Communication

Cables (CMP/CMP-OF) through plenums and other spaces used for

environmental air. Kwikpath Plenum comes with

sequential markers every foot.

Size Length Part Number Product Code

3/4" 200' KPP075TC 124020

1" 200' KPP100TC 124011

1-1/4" 200' KPP125TC 124012

1-1/2" 200' KPP150TC 124013

2" 200' KPP200TC 124014

Size Length Part Number Product Code

3/4" 1000' KPP075TR 124021

1" 1000' KPP100TR 124015

1" 2500' KPP100TR48 124022

1" 5000' KPP100TR72 124023

1-1/4" 1000' KPP125TR 124016

1-1/4" 4000' KPP125TR72 124024

1-1/2" 750' KPP150TR 124017

2" 500' KPP200TR 124018

Plenum Reel with Pull Tape

Also available without pull tape - minimum quantity required.

Compliance to Building

Regulations

Kwikpath meets all building regulations

and is the only fully approved raceway and

fitting combination on the market.

A Fitting Choice

The Kwikpath fitting system reduces the

need for pulling long runs of raceway

around awkward corners and tight spaces.

And the industry first Y-Coupler reduces the

number of pull boxes required in your

system design.

Installation Friendly

Packaging

200' coils are packaged individually in

corrugated boxed cartons for ease of

handling and dispensing. Designed into the

cartons are packaging features that assist

with moving and dispensing the product. By

using the dispensing method, only the

necessary product amount is withdrawn

from the carton with the balance being

contained and easily managed.

Reduces Costs Now and

Over Long Term

Kwikpath is designed to allow easier cable

installation and removal than other careway

systems. Simply pull cables through the

raceway – no more fishing new cables

blindly through walls or ceilings. Kwikpath

also reduces renovation costs by

eliminating the need to remove existing

cabling in retrofit applications.

Protects Cable Integrity and

Performance

Kwikpath prevents cables from being

damaged on edges or snags as they’re

pulled through the raceway. Once cables

are installed, Kwikpath offers flame resisting properties and its

protective shell prevents damage to cables when renovations cause

tradesmen to enter or change the walls or ceilings.

KWIKPATH®COMMUNICATION RACEWAY SYSTEMS

NBC

CEC

KWIKPATH

KWIKPATH®COMMUNICATION RACEWAY SYSTEMS

Kwikpath Riser Raceway

The backbone of the structured cabling syste, Kwikpath Riser is a

nonmetallic, flexible PVC corrugated product manufactured and tested

specifically for riser applications. Easily identified by its mandarin

orange color, it’s available in convenient coil

or reel packaging with squential markers

every foot.

Riser Coil with Pull Tape

Size Length Part Number Product Code

3/4" 200' KPR075TC 125026

1" 200' KPR100TC 125011

1-1/4" 200' KPR125TC 125012

1-1/2" 200' KPR150TC 125013

2" 200' KPR200TC 125014

Size Length Part Number Product Code

3/4" 1000' KPR075TR 124027

1" 1000' KPR100TR 125015

1" 2500' KPR100TR48 125023

1" 5000' KPR100TR72 125025

1-1/4" 1000' KPR125TR 125016

1-1/4" 4000' KPR125TR72 125024

1-1/2" 750' KPR150TR 125017

2" 500' KPR200TR 125018

Riser Reel with Pull Tape

Also available without pull tape - minimum quantity required.

KWIKPATH®COMMUNICATION RACEWAY SYSTEMS

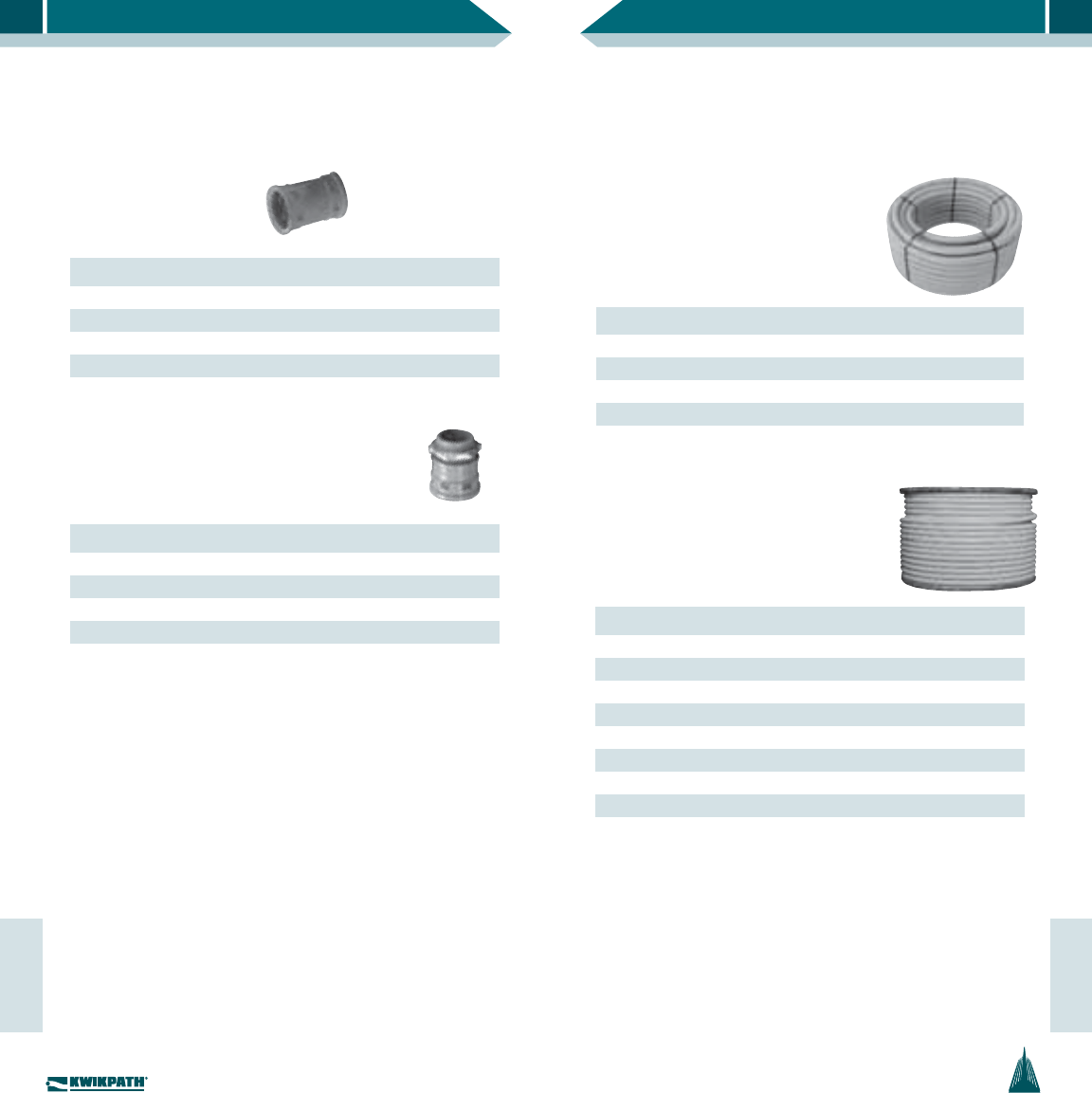

Plenum Coupling

Kwikpath Plenum Fittings

Kwikpath Plenum fittings are molded from approved material to be

used with Kwikpath Plenum raceway meeting all Standards requirements.

Size Part Number Product Code

3/4" KPPC075 132650

1" KPPC100 132651

1-1/4" KPPC125 132652

1-1/2" KPPC150 132653

2" KPPC200 132654

Size Part Number Product Code

3/4" KPTA075 132660

1" KPTA100 132661

1-1/4" KPTA125 132662

1-1/2" KPTA150 132663

2" KPTA200 132664

Plenum Terminal Adapter c/w Lockout

KWIKPATH

KWIKPATH®COMMUNICATION RACEWAY SYSTEMS

Resi Coil Empty

Kwikpath Resi Raceway

Kwikpath Resi is a flexible raceway system

created especially for residential

communications systems, arranging and

organizing telephone, ethernet, satellite,

internet, video, security and sound cabling.

Resi Reel Empty

Kwikpath Resi Fittings

Kwikpath Resi couplings and terminal

adapters are available in 3/4" to 2" sizes and

are also Kwikpath Riser fittings.

Refer to Kwikpath Riser Part Numbers.

Size Length Part Number Product Code

3/4" 200' KPH075C 127001

1" 200' KPH100C 127002

1-1/4" 200' KPH125C 127003

1-1/2" 200' KPH150C 127004

2" 200' KPH200C 127005

Size Length Part Number Product Code

3/4" 1000' KPH075R 127006

1" 1000' KPH100R 127007

1-1/4" 1000' KPH125R 127008

1-1/2" 750' KPH150R 127009

2" 500' KPH200R 127010

KWIKPATH®COMMUNICATION RACEWAY SYSTEMS

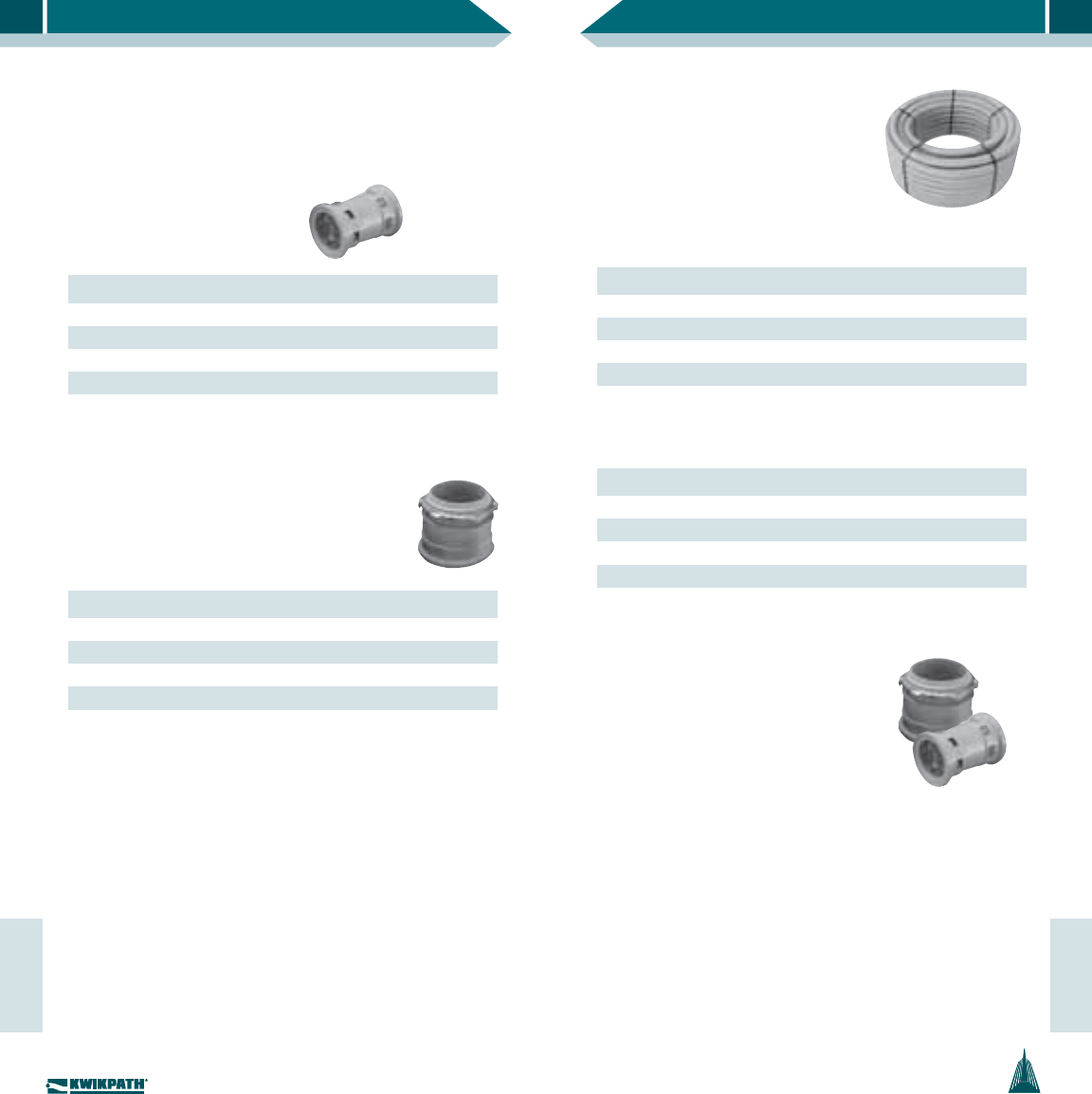

Riser Coupling

Kwikpath Riser Fittings

Made from the same material as Kwikpath Riser Raceway.

Riser Terminal Adapter c/w Lockout

Size Part Number Product Code

3/4" KPRC075 132655

1" KPRC100 132656

1-1/4" KPRC125 132657

1-1/2" KPRC150 132658

2" KPRC200 132659

Size Part Number Product Code

3/4" KRTA075 132665

1" KRTA100 132666

1-1/4" KRTA125 132667

1-1/2" KRTA150 132668

2" KRTA200 132669

KWIKPATH

KWIKPATH®COMMUNICATION RACEWAY SYSTEMS

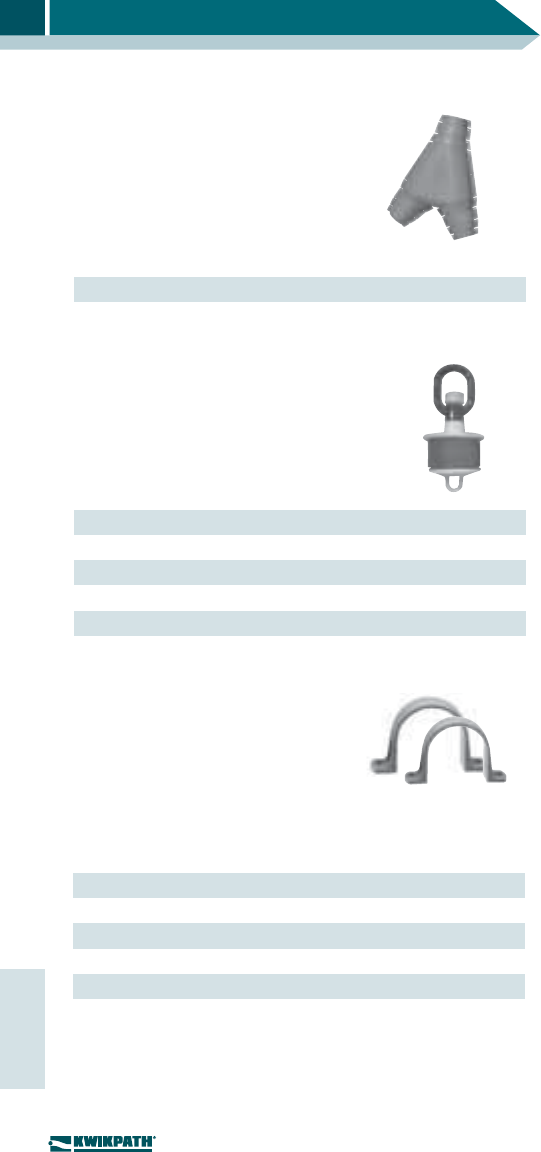

Kwikpath Y-Coupler

Size Part Number Product Code

3/4" to 2" KPPY075-200 132011

Riser / Resi Straps

Size Part Number Product Code

3/4" KPS075 132006

1" KPS100 132007

1-1/4" KPS125 132008

1-1/2" KPS150 132009

2" KPS200 132010

The Y-Coupler is a fitting designed to allow

contractors to branch off from any size (3/4" to 2")

– new or existing – corrugated communication

raceway. Manufactured in traditional Kwikpath

vibrant orange, the Y-Coupler is ideal for use

in high-rise residential and commercial building

applications.

Seal End Plugs

Size Part Number Product Code

3/4" SEP075 132000

1" SEP100 132001

1-1/4" SEP125 132002

1-1/2" SEP150 132003

2" SEP200 132004

For temporary and long-term closure of raceway

ends, the insertion of sealing end plugs ensures

the raceway conduit remains clean and ready for

future needs.

Manufactured of the same material as

Riser/RESI raceway, Kwikpath pipe straps allow

for compliance with installation requirements providing for the proper

support of Riser/RESI raceways.

Company

Name

Title

Address

City Province Postal Code

Phone ext.

Fax Email / Website

This is a:

❏ Home Address ❏ Business Address ❏ Jobsite Address

Business Type:

(check 1 or 2 that best apply)

SIC or industry sector:

My primary markets are (check all that apply):

PLEASE PRINT

Fax this form to (905) 403-1124 and we’ll add

you to our mailing list.

Toll Free: (866) 473-9462

Fax: (905) 403-1124

Website: www.ipexelectrical.com

IPEX

2441 Royal Windsor Drive

Mississauga, Ontario

L5J 4C7

❏ Commercial

❏ Residential

❏ Industrial

❏ Other

❏ Utility

❏ OEM

❏ Institutional

Company classification:

❏ Distributor/Wholesaler

❏ Engineering Firm

❏ Contractor

❏ Government

❏ OEM - Products manufactured:

❏ Other

CUSTOMER SERVICE CENTRES

Vancouver

Tel (604) 534-8631

Fax (604) 534-7616

Calgary

Tel (403) 236-8333

Fax (403) 279-8443

Edmonton

Tel (780) 415-5300

Fax (780) 415-5358

Winnipeg

Tel (204) 633-3111

Fax (204) 633-3075

Toronto

Tel (905) 670-7676

Fax (905) 670-5295

Montreal

Tel (514) 337-2624

Fax (514) 337-7886

Saint John

Tel (506) 633-7473

(PIPE)

Fax (506) 633-8720

St. John’s

Tel (709) 747-7473

(PIPE)

Fax (709) 368-9111

Toll Free 1-866-473-9462 (IPEXINC)

www.ipexelectrical.com

About the IPEX Group of Companies

As leading suppliers of thermoplastic piping systems, the IPEX Group of

Companies provides our customers with some of the world’s largest and

most comprehensive product lines. All IPEX products are backed by more

than 50 years of experience. With state-of-the-art manufacturing facilities

and distribution centers across North America, we have established a

reputation for product innovation, quality, end-user focus and performance.

Markets served by IPEX group products are:

•Electrical systems

•Telecommunications and utility piping systems

•PVC, PVCO, CPVC, PP, ABS, PEX, FR-PVDF & PE pipe & ftgs (1/4" to 48")

•Industrial process piping systems

•Municipal pressure and gravity piping systems

•Plumbing and mechanical piping systems

•PE Electrofusion systems for gas and water

•Industrial, plumbing and electrical cements

•Irrigation systems

This literature is published in good faith and is believed to be reliable.

However, it does not represent and/or warrant in any manner the

information and suggestions contained in this brochure. Data presented is

the result of laboratory tests and field experience.

A policy of ongoing product improvement is maintained. This may

result in modifications of features and/or specifications without notice.

Products are manufactured by IPEX Electrical Inc.

Cor-Line

®, FiberTel®, Kwikon®, Kwikpath®, Monobloc®, SceptaConTM,

SceptalightTM and SuperDuct®are trademarks of IPEX Branding Inc.

646385 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
