HEADER

PERFORMANCE CABLETRAY™

HEADER

2 | 888.4WB.TRAY

PERFORMANCE CABLETRAY™

PERFORMANCE

CABLETRAY™

What exactly is performance cabletray? Look no further.

WBT was created to offer the best in cable management

products to the market today. WBT’s industry leaders

reviewed every tray construction, hardware bracket

and splice solution, asking, how can we make it better,

easier and faster to install?

We often make the point that WBT solves installation

problems that many didn’t even know they had. We

are a company of ‘firsts’. We manufacture the best,

most robustly constructed products in today’s market.

We ship faster and we service our customers to a

level that few companies do today, with unparalleled

leadtimes and customer service.

Our premise is simple. A higher quality ‘PERFORMANCE’

cabletray, 100% manufactured in the U.S., utilizing

100% domestic recycled steel, with minimized

environmental impact finishes. WBT offers better cabling

support, opportunities for LEED submittal documentation,

and engineering support. Our Shaped Wire (Patented)

constructions are documented to decrease pressure/

strain on high performance cabling up to 65%.

Today, a majority of the industry trends towards cheap

tray constructions with thinner, weaker wires, and

leadtimes measured in weeks, not days. Most don’t

even make their own products. Instead, it’s farmed out

to be contract manufactured by others. This is not the

WBT business model.

WBT is a company designed and created with a sole

purpose, to provide the BEST in mesh cabletray, while

supporting you and your customers with the most

innovative and creative products in the market, period.

Welcome to WBT, where we are shaping the future

in cabletray. Browse through our catalog and see the

results of almost 45 years of combined mesh experience,

new ideas and fresh approaches to your needs.

1 | 888.4WB.TRAY

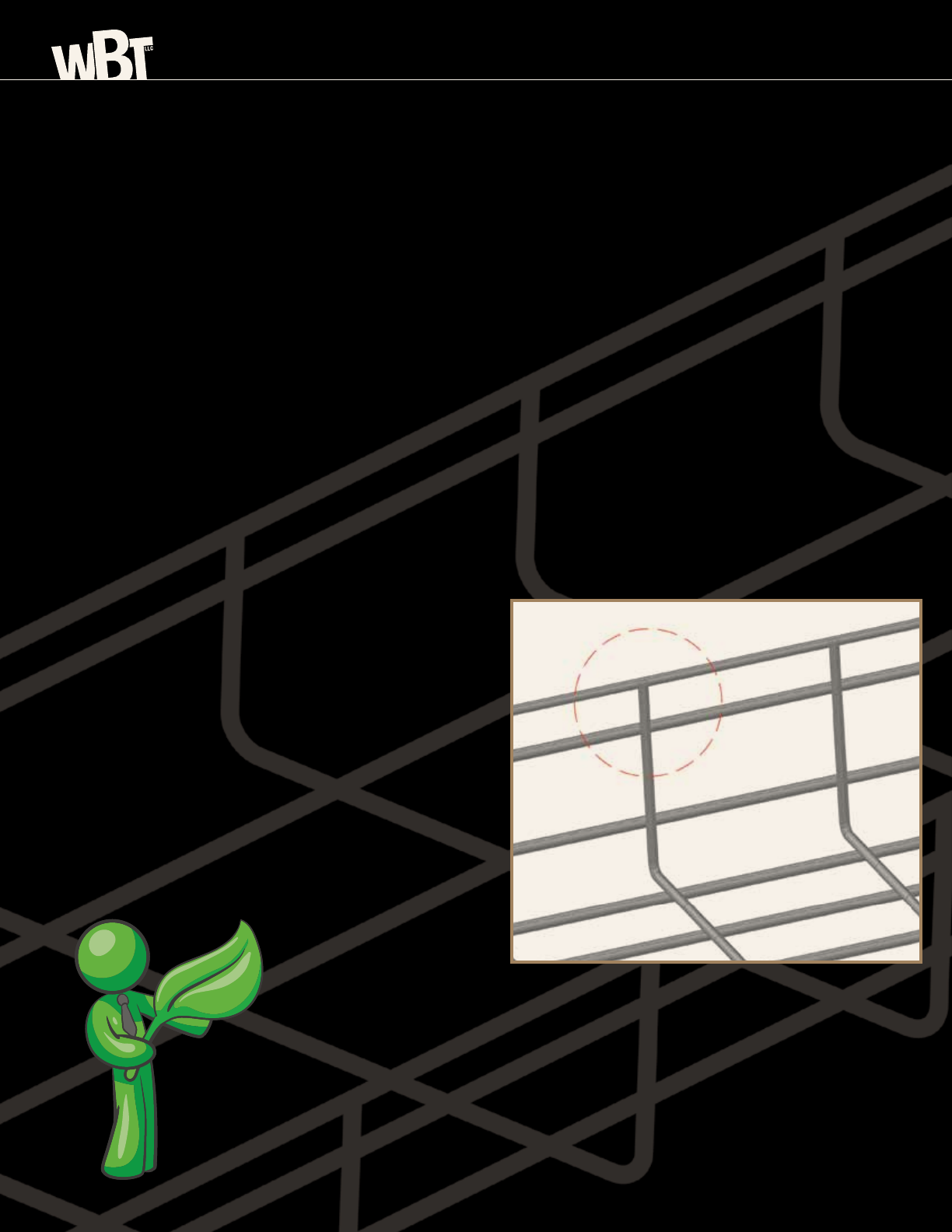

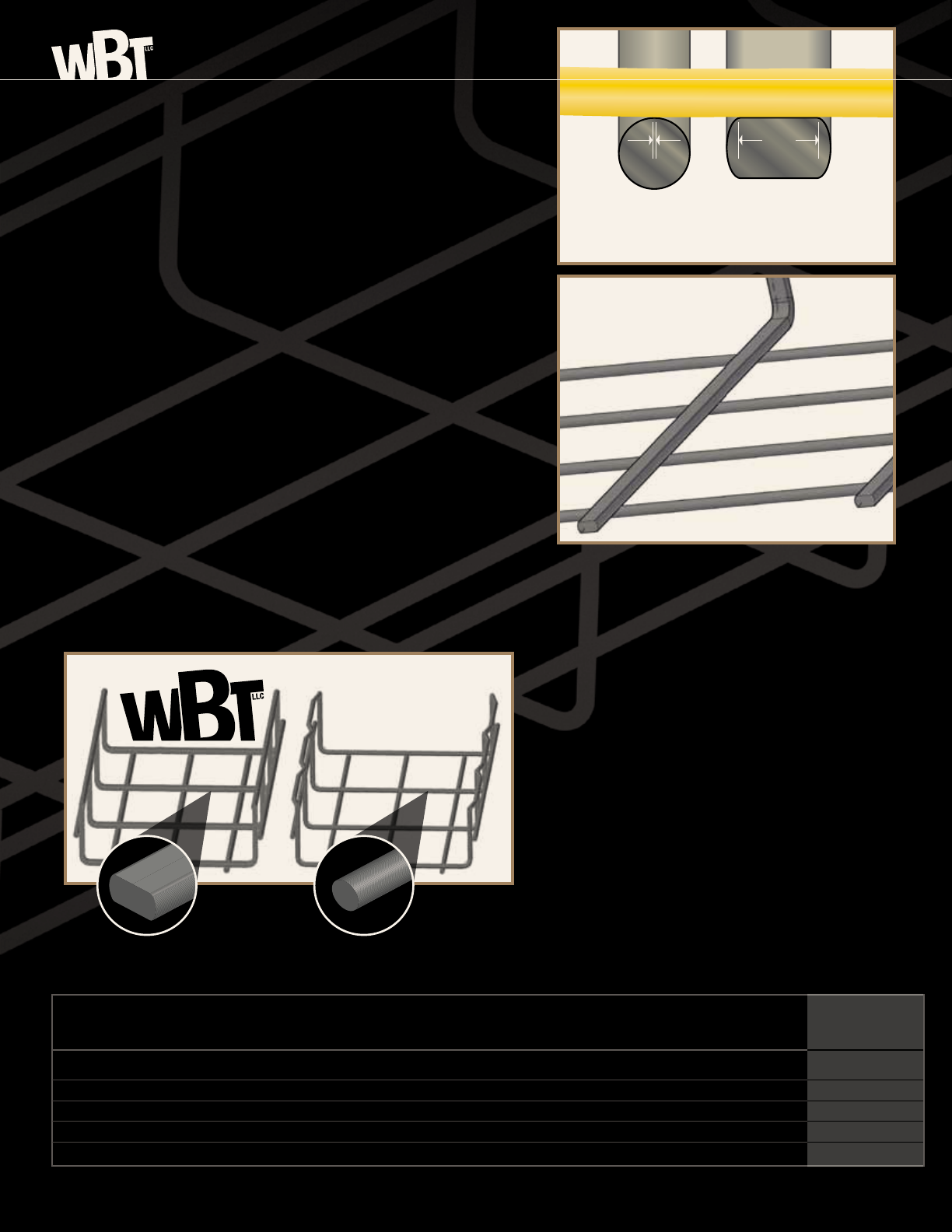

SHAPED TRAY

SHAPED CROSSWIRE

All wire tray manufacturers utilize round wire in the

construction of their trays. Today, unfortunately, the trend

is towards smaller, cheaper, lighter gauge constructions.

The problem is that high performance cabling installed

in the tray today has evolved several generations.

A round crosswire supporting a round cable offers very

little surface area support. When you add additional

cables, the weight creates a pressure point/strain on

the cables within the tray. What WBT has pioneered is

a design utilizing shaped crosswires, which increases

the support of your critical cabling.

WBT’s shaped crosswires eliminate cable stress by

increasing the support of the cabling, yet still offers the

same functionality of wire tray to cut and configure,

and utilizes the same splicing and mounting hardware.

WBT does offer the full round wire configuration,

if preferred, or for industrial or electrical applications

where you’re not facing the same performance issues,

or where inserts are being utilized.

* Please contact WBT for our independent study testing round versus WBT’s shaped wire constructions.

0.216”

CABLING

standard tray

support area:

.0078125” sq.

(based on cable contact area of .125”)

SHAPED TRAY

support area:

.03125” sq.

400% increase in

cable support

CONTACT AREA FLAT LOAD WIRE PRESSURE BENDING STRAIN CONTACT AREA ROUND LOAD WIRE PRESSURE BENDING STRAIN

SQUARE INCH LBS. PSI INCHES SQUARE INCH LBS. PSI MICROINCHES

.03125 .1291 4.1 18 .00781 .1291 16.5 24

.03125 .1876 6.0 27 .00781 .1876 24.0 44

.03125 .2507 8.0 38 .00781 .2507 32.1 61

.03125 .3168 10.1 51 .00781 .3168 40.6 74

.03125 1.1023 35.3 113 .00781 1.1023 141.1 187

DECREASE IN STRAIN

FLAT VS. ROUND

33.3%

63.0%

60.5%

45.1%

65.5%

CABLE PRESSURE REDUCTION

•A Minimum 400% Increase

in Cabling Support

•Up To 65% Reduction

in Cabling Pressure/Strain

(see table)*

•100% Domestic Recycled Content

•100% Domestic Manufactured Tray

•Cuts, Configures and Splices

the Same

•No Premium over Competitors

‘Old Round Crosswire’

OUR SHAPED WIRE OFFERS:

COMPETITOR

TRAY

WBTray.com | 2

THE WBT DIFFERENCE

NEW INNOVATIONS FROM WBT

WBT is always looking for ways to help customers

reduce costs and labor, while keeping our products

at the leading edge of the marketplace. Our newest

innovations include:

WBT PreForm, WBT NoSplice and WBT’s Configurator

WBT PreForm patent pending

Preformed radius/tee/intersections that save installation

time and labor. Available either in flame retardant

polymer or steel. No field cutting or configuration,

simply install as you would a straight section.

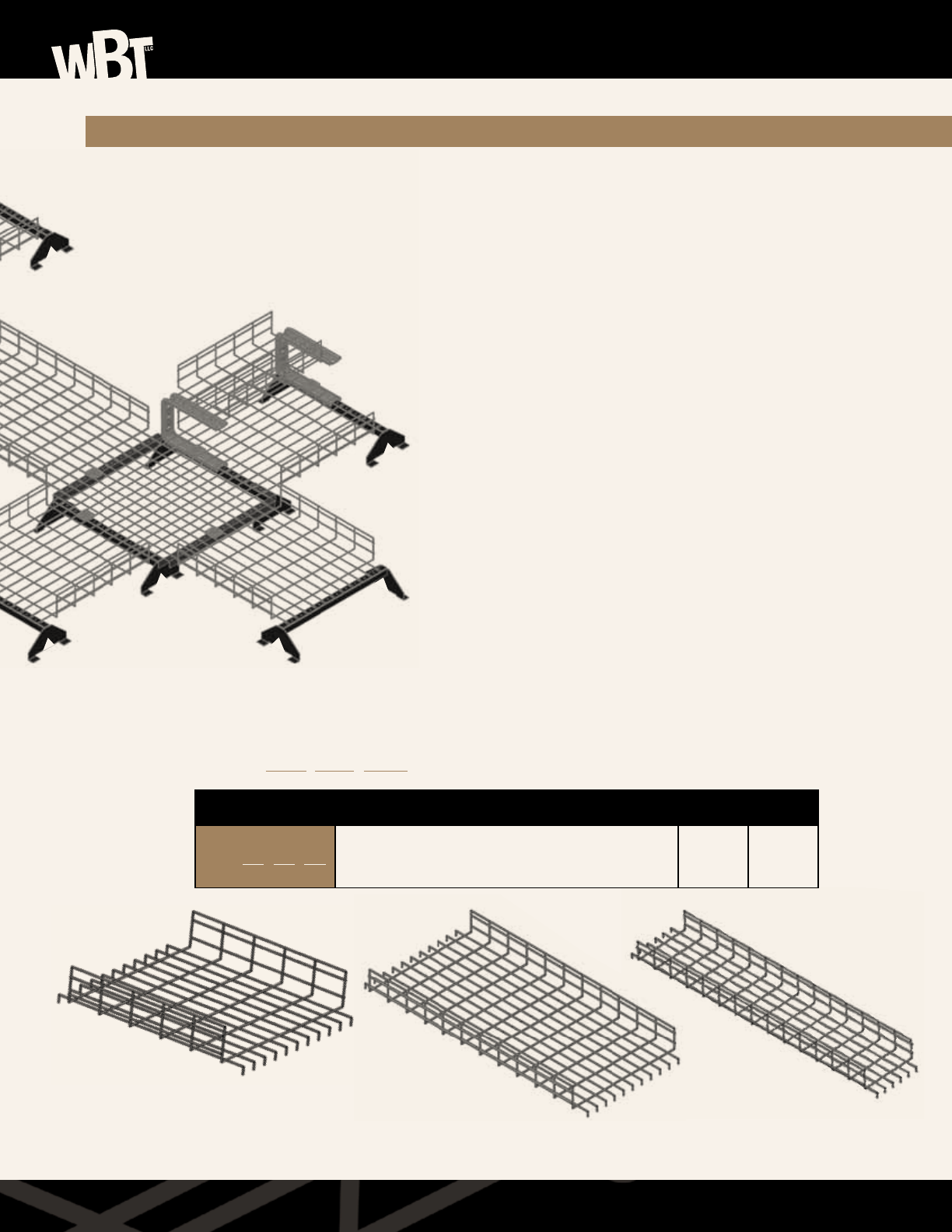

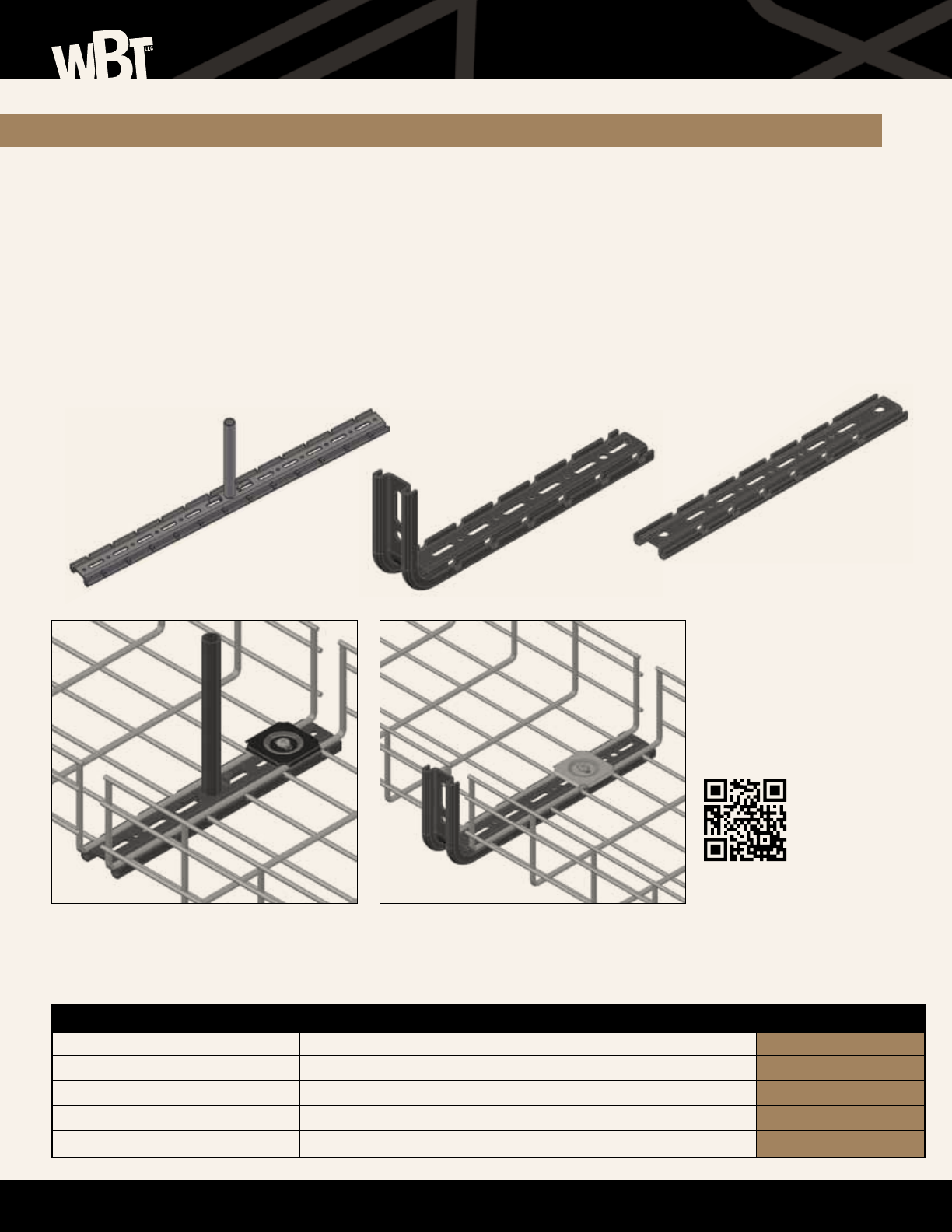

WBT NoSplice patent pending

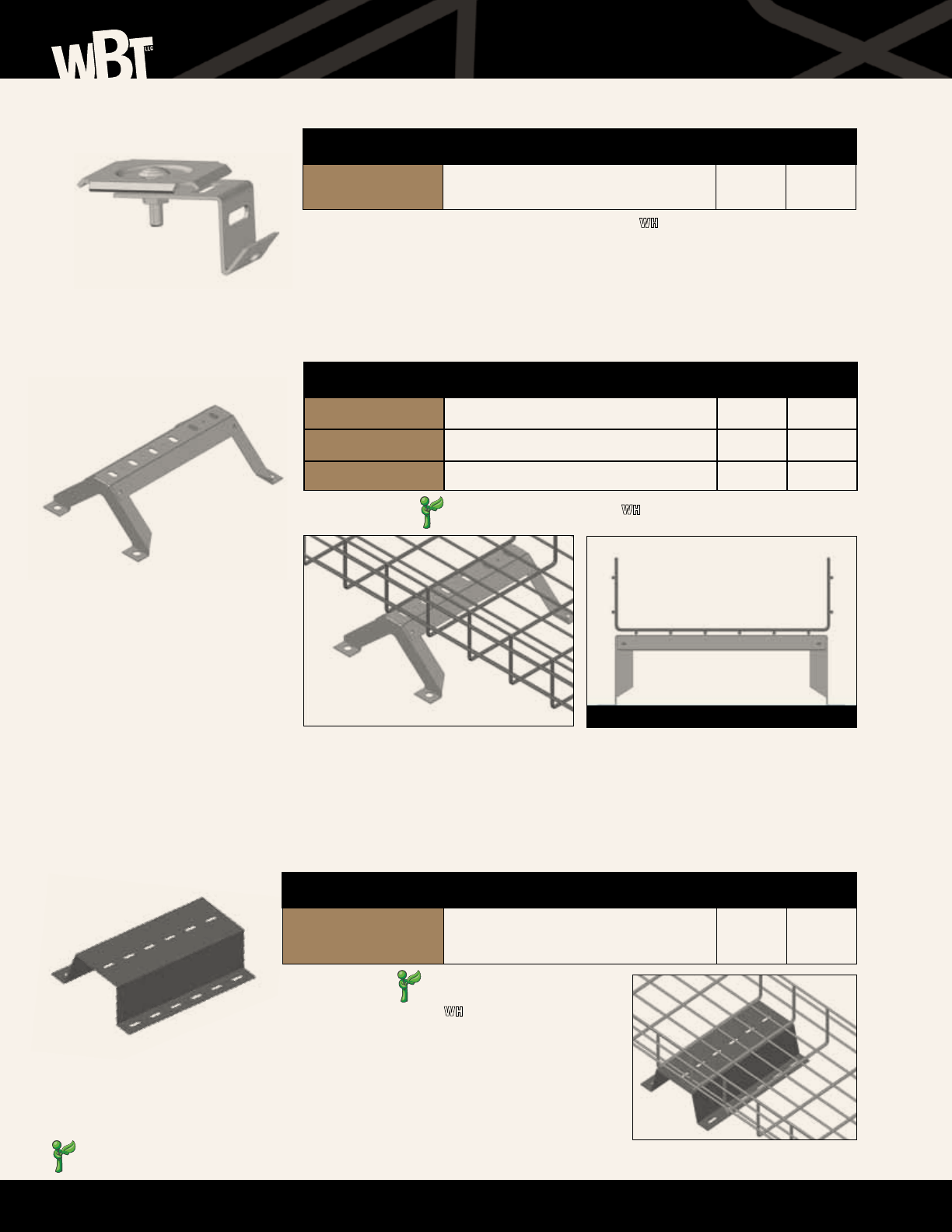

We’ve redesigned our most popular support hardware

for double duty: tray support and splice point. No more

butt splicing each section juncture.

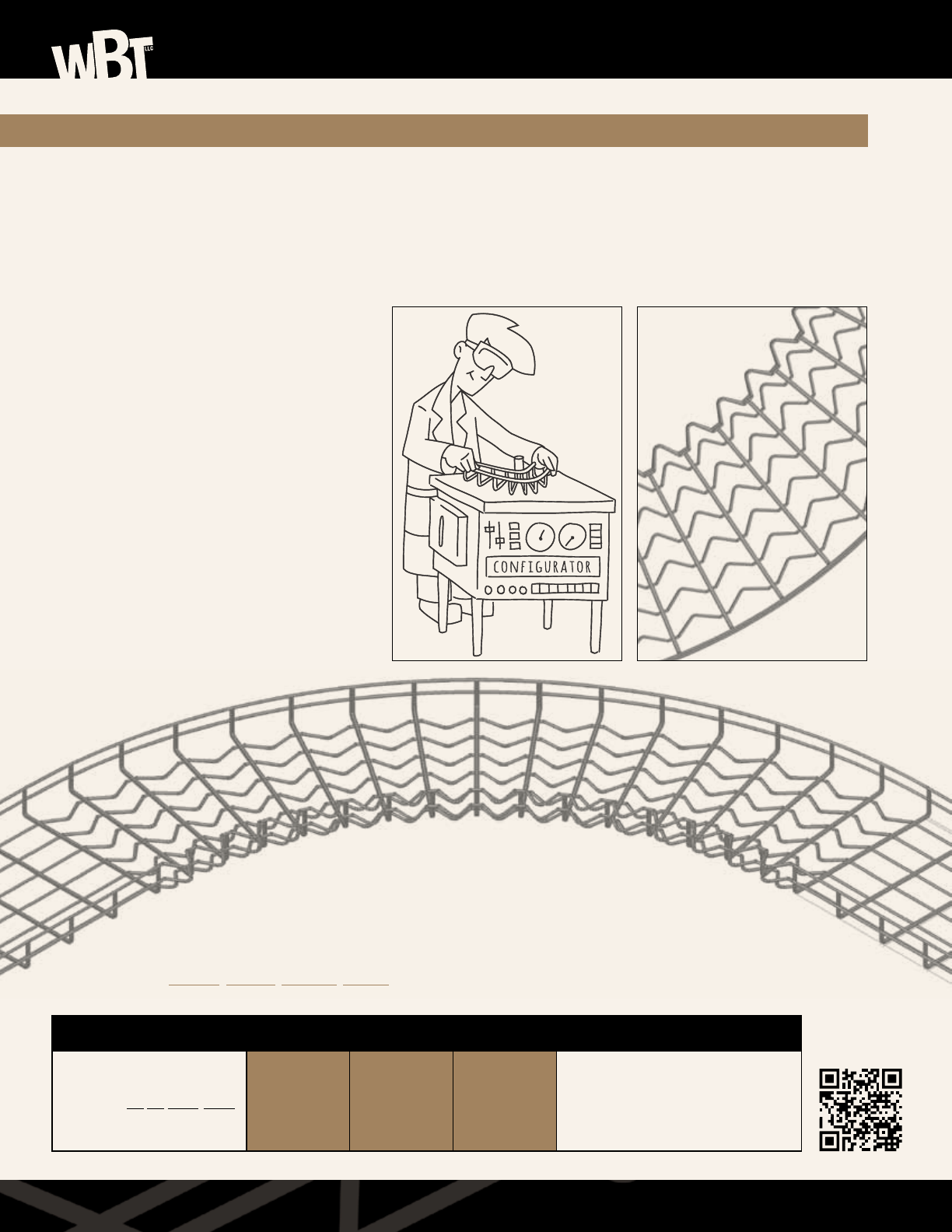

WBT Configurator

A new option for field installs. The labor and cost of field

configuration of tray has been eliminated, in addition

to insuring a perfect radius section, with no removal of

wire, sharp points, or variability of the finished section.

WBT Configurator sections are formed at the factory,

and ship with your order. A repeatable and engineered

section of tray fits every time.

On larger installs, WBT will provide the machinery on-site

for the installer to configure at the installation location.

WBT GREEN POINTS:

• Utilizing 100% domestic recycled steel content in the manufacturing of our trays

• MillCerts are available to document recycled content for possible LEED credits/certication

• No post production chemical cleaning and plating (a huge environmental impact)

• WBT utilizes kraft packaging (no bleaching white). Packaging and strapping are recyclable

UL CLASSIFIED PAINTED TRAY

If you prefer a painted tray, no problem. Most manufacturers

require you to remove the paint at the splicing

points

to complete an electrical ground (for UL and cUL

classifications). All of WBT’s tray sections are UL Classified

when they leave the factory. There is no labor and time

in field removal of the paint. Simply splice the trays as

you would any galvanized sections, and you’re compliant.

WBT offers black, white and pewter as standard colors.

Other custom colors are available with minimal leadtimes.

T-WELD ON ALL TRAY CONFIGURATIONS

WBT provides a T-Weld edgewire on all of its tray

configurations. This product design provides protection

for both the installer and the cabling from any sharp

points within the tray.

3 | 888.492.8729

TRAY FINISHES

WBT trays are available in a wide variety of finishes to meet the environmental or aesthetic requirements

of your installations. Use the chart below to find the finish suffix that will meet your needs.

Finish codes: WBT2x4 BL = Tray Depth x Width x Finish

Notate finish code when ordering trays and fittings.

Suffix Finish Specifications Use UL/cUL

no

suffix

required

Pre-Galvanized

Finish applied before

fabrication ASTM A641 Limited industrial & interior

applications recommended on sizes below when

spliced as recommended

ZP Electro Zinc Plating ASTM B633 Controlled interior

applications on sizes below when

spliced as recommended

PW Pewter Powder Coated

Finish applied after

fabrication N/A Controlled interior

applications on sizes below when

spliced as recommended

BL Black Powder Coated

Finish applied after

fabrication N/A Controlled interior

applications on sizes below when

spliced as recommended

White Powder Coated

Finish applied after

fabrication N/A Controlled interior

applications on sizes below when

spliced as recommended

CPC Custom Powder

Coated Finish applied

after fabrication N/A Controlled interior

applications on sizes below when

spliced as recommended

304L

&

316L

304L Stainless

Steel & 316S

Stainless Steel ASTM A580

Food preparation,

wash-down areas, highly

corrosive applications &

marine environments

UL CLASSIFIED & cUL CLASSIFIED ON PAINTED TRAY

WBT offers painted tray that is UL Classified and cUL Classified as an equipment ground conductor.

No field removal of the paint is required.

2” depth 4” depth 6” depth 8” depth

*WBT2x4S WBT4x6/S WBT6x8/S WBT8x8/S

WBT2x6/S WBT4x8/S WBT6x12/S WBT8x12/S

WBT2x8/S WBT4x12/S WBT6x16/S WBT8x16/S

WBT2x12/S WBT4x16/S WBT6x18/S WBT8x18/S

WBT2x16/S WBT4x18/S WBT6x20/S WBT8x20/S

WBT2x18/S WBT4x20/S WBT6x22/S

WBT2x20/S WBT4x24/S WBT6x24/S

WBT2x24/S

/S denotes the part number for shaped.

*WBT is the only

manufacturer that provides

a UL Classified 2x4 tray

construction, WBT2x4S

WBTray.com | 4

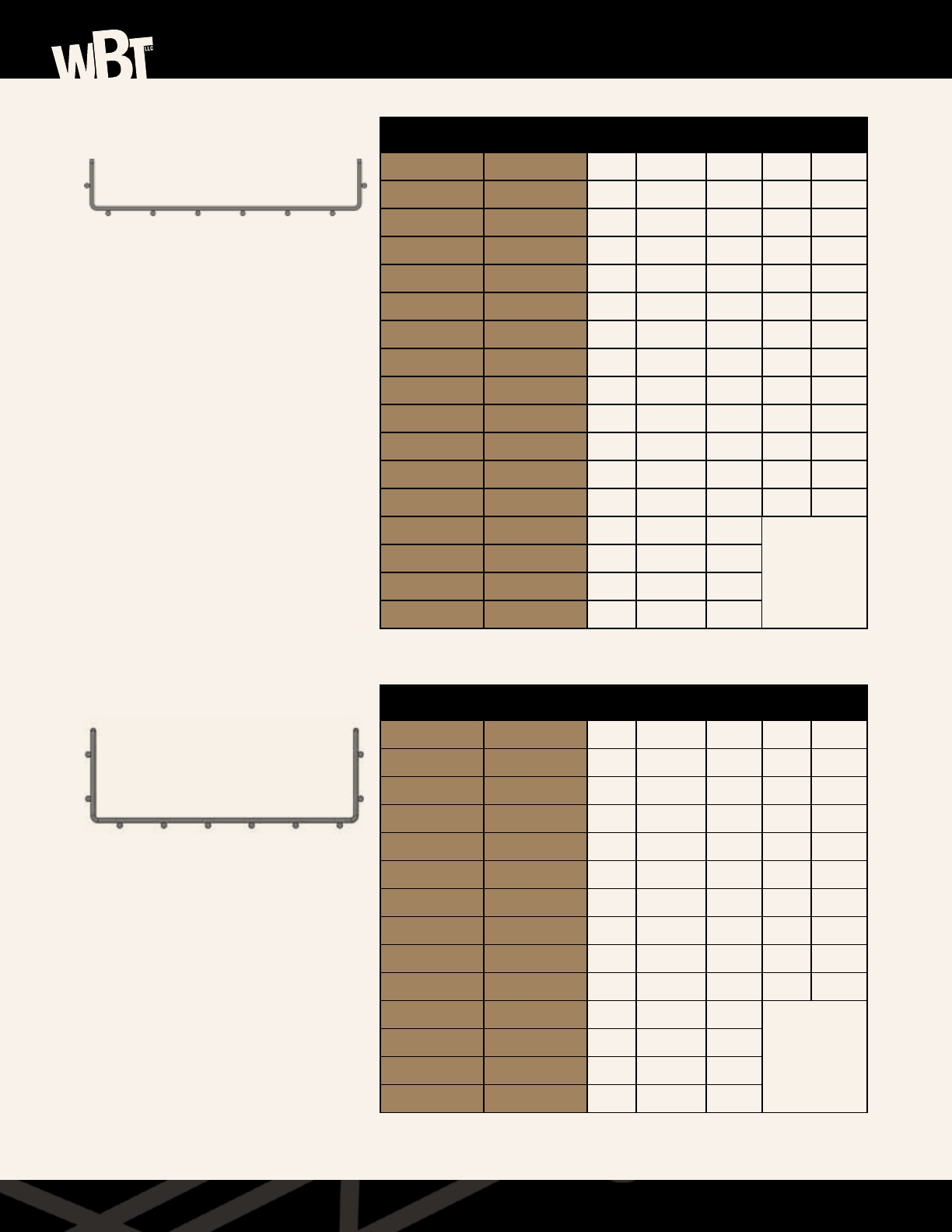

TRAYS

PART

NUMBER

PART

NUMBER WIDTH WT.

per pc. FILL* LOAD

lbs/ft

SPLICE

quantity

WBT2X4 WBT2X4S 4" 7 lbs 108 45 2

WBT2X6 WBT2X6S 6" 9 lbs 163 50 4

WBT2X8 WBT2X8S 8" 10.5 lbs 218 52 4

WBT2X12 WBT2X12S 12" 12 lbs 326 58 4

WBT2X16 WBT2X16S 16" 15 lbs 439 70 4

WBT2X18 WBT2X18S 18" 23 lbs 495 70 4

WBT2X20 WBT2X20S 20" 25 lbs 550 73 5

WBT2X22 WBT2X22S 22" 27 lbs 600 73 5

WBT2X24 WBT2X24S 24" 31 lbs 660 75 5

WBT2X26 WBT2X26S 26" 33 lbs 671 73 6

WBT2X28 WBT2X28S 28" 35 lbs 723 73 6

WBT2X30 WBT2X30S 30" 38 lbs 826 70 6

WBT2X32 WBT2X32S 32" 39 lbs 881 70 6

WBT2X34 WBT2X34S 34" 41 lbs 894 7

WBT2X36 WBT2X36S 36" 42 lbs 947 7

WBT2X38 WBT2X38S 38" 44 lbs 1000 8

WBT2X40 WBT2X40S 40" 45 lbs 1052 8

PART

NUMBER

PART

NUMBER WIDTH WT.

per pc. FILL* LOAD

lbs/ft

SPLICE

quantity

WBT4X4 WBT4X4S 4" 12 lbs 205 49 4

WBT4X6 WBT4X6S 6" 13 lbs 310 49 5

WBT4X8 WBT4X8S 8" 15 lbs 416 78 6

WBT4X12 WBT4X12S 12" 23 lbs 621 78 6

WBT4X16 WBT4X16S 16" 27 lbs 837 108 7

WBT4X18 WBT4X18S 18" 29 lbs 942 116 7

WBT4X20 WBT4X20S 20" 31 lbs 1047 116 7

WBT4X22 WBT4X22S 22" 33 lbs 1152 116 8

WBT4X24 WBT4X24S 24" 35 lbs 1257 116 8

WBT4X28 WBT4X28S 28" 39 lbs 1460 108 9

WBT4X30 WBT4X30S 30" 41 lbs 1578 10

WBT4X32 WBT4X32S 32" 42 lbs 1684 10

WBT4X34 WBT4X34S 34" 44 lbs 1789 11

WBT4X36 WBT4X36S 36" 45 lbs 1894 11

2” DEEP TRAY

4” DEEP TRAY

S denotes the part number for shaped.

S denotes the part number for shaped.

CONSULT WBT

FOR FACTORY

SPECIFICATIONS

CONSULT WBT

FOR FACTORY

SPECIFICATIONS

5 | 888.4WB.TRAY

PART

NUMBER

PART

NUMBER WIDTH WT.

per pc. FILL* LOAD

lbs/ft

SPLICE

quantity

WBT6X8 WBT6X8S 8" 23 lbs 623 116 6

WBT6X12 WBT6X12S 12" 27 lbs 931 123 6

WBT6X16 WBT6X16S 16" 31 lbs 1255 123 7

WBT6X18 WBT6X18S 18" 33 lbs 1413 127 7

WBT6X20 WBT6X20S 20" 35 lbs 1571 127 7

WBT6X22 WBT6X22S 22" 37 lbs 1728 127 8

WBT6X24 WBT6X24S 24" 39 lbs 1886 150 8

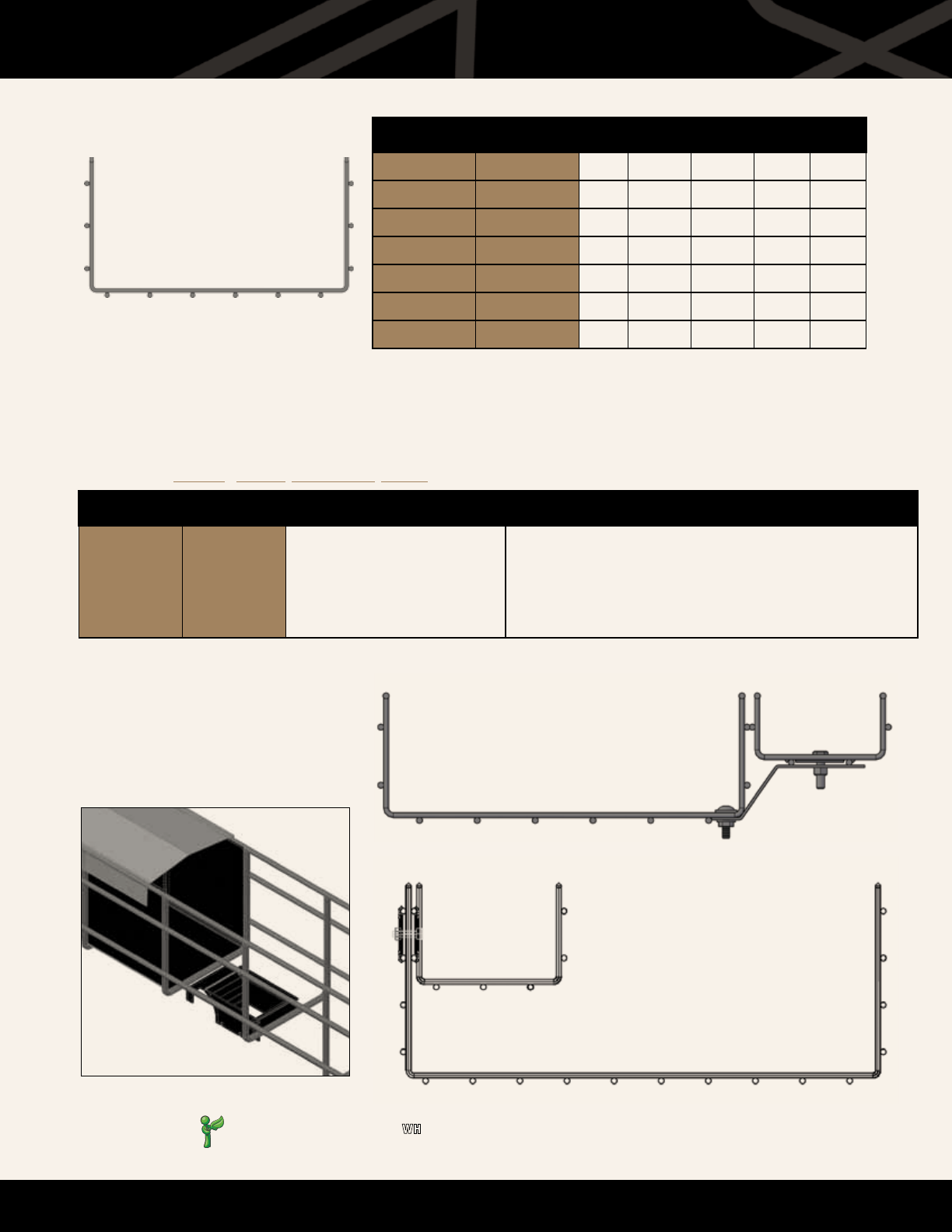

6” DEEP TRAY

CUSTOM TR AY

WBT can fabricate various custom

configurations. Please contact the

factory for details.

S denotes the part number for shaped.

DEPTH WIDTH CROSSWIRE FINISH

2”–12” 2”–40” S for shaped crosswire

Blank for round crosswire

Blank for PreGalv

ZP for Electro Zinc Plate

PW/BL/WH for Standard Powder

CPC for Custom Powder

304L/316L Stainless

KEY: WBTdepthXwidth crosswire finish (example: W BT4X18 S B L – 4” deep X 18” wide Shaped Black)

TRAY AVAILABLE IN 8, 10 & 12” DEPTH

*fill is a theoretical calculation based on a .22” diameter cable

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC, ZP

WBTray.com | 6

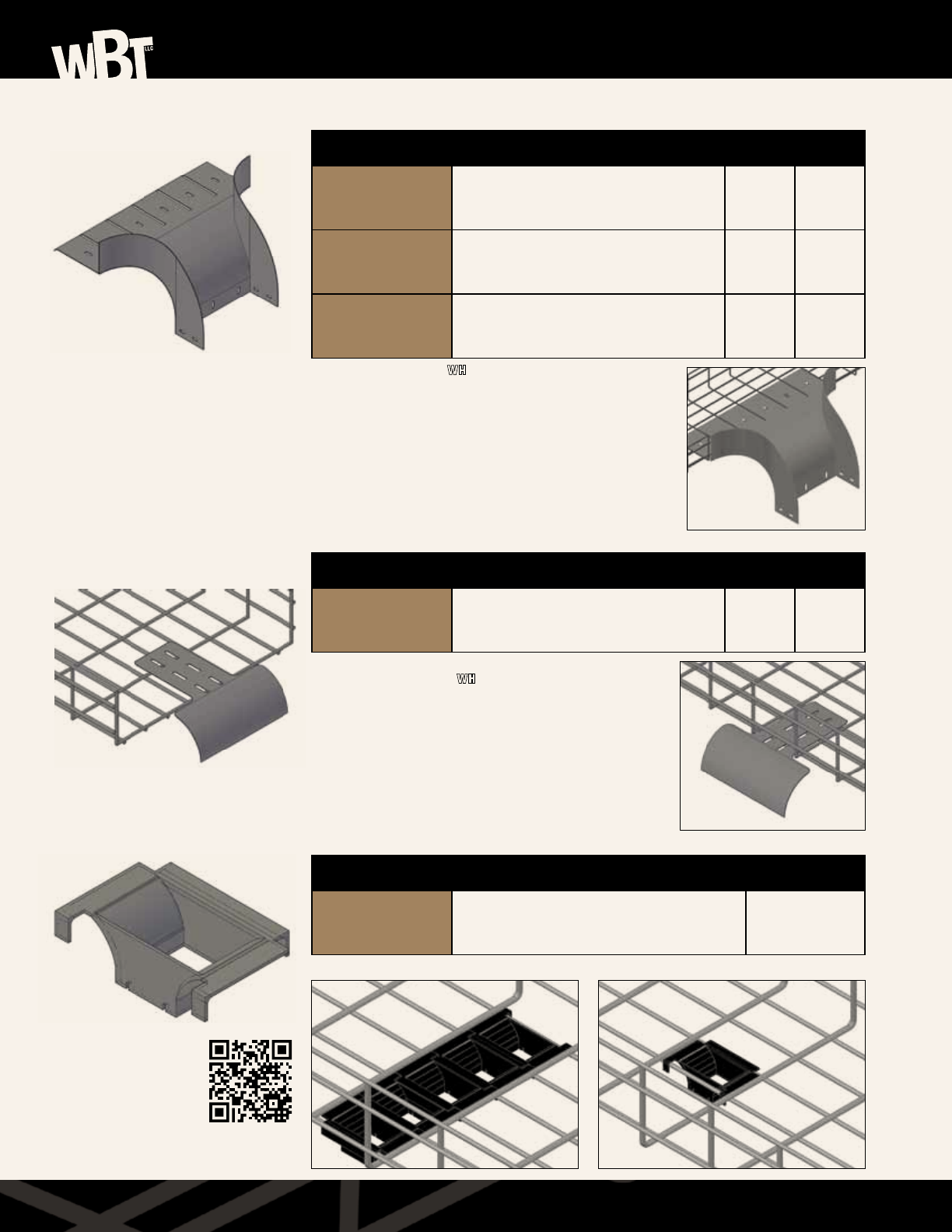

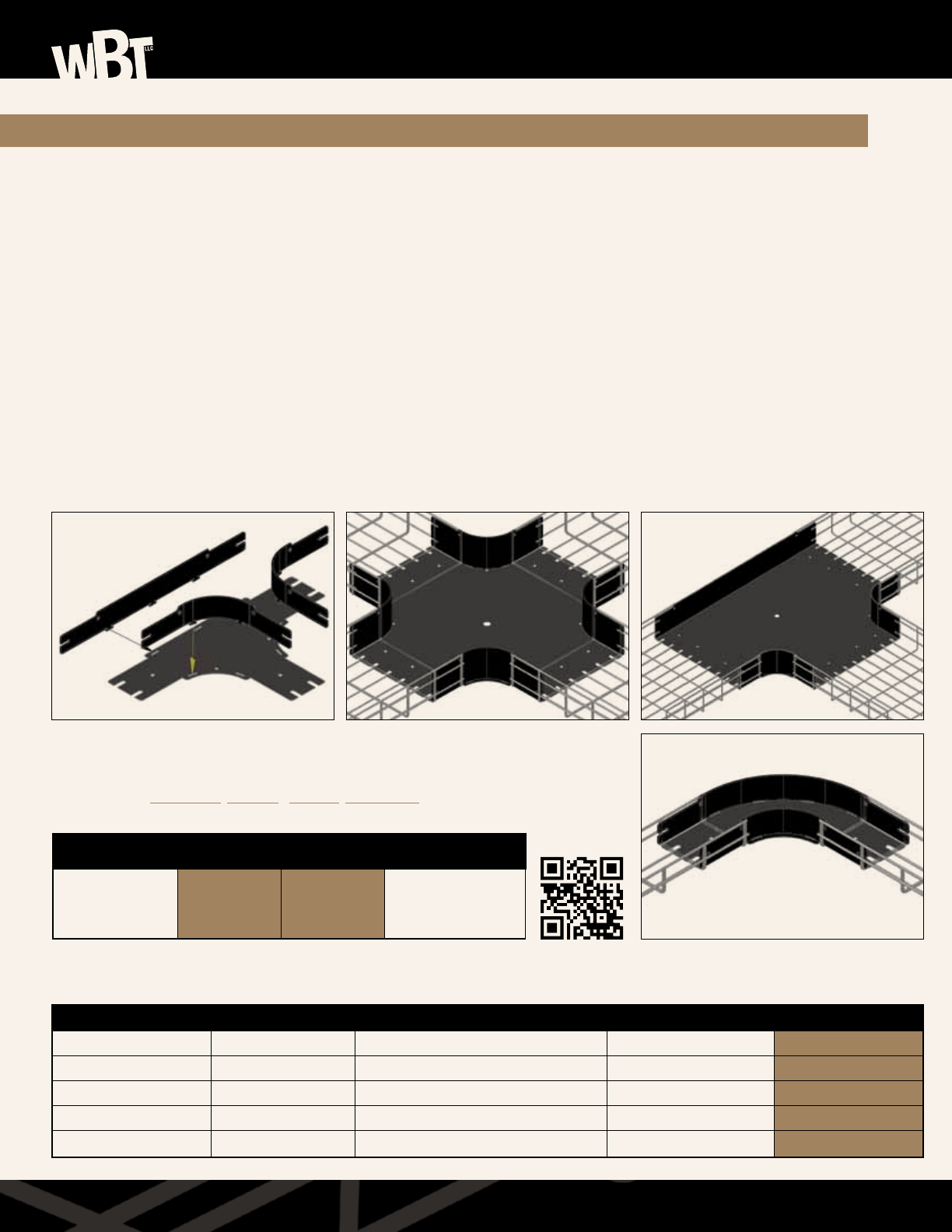

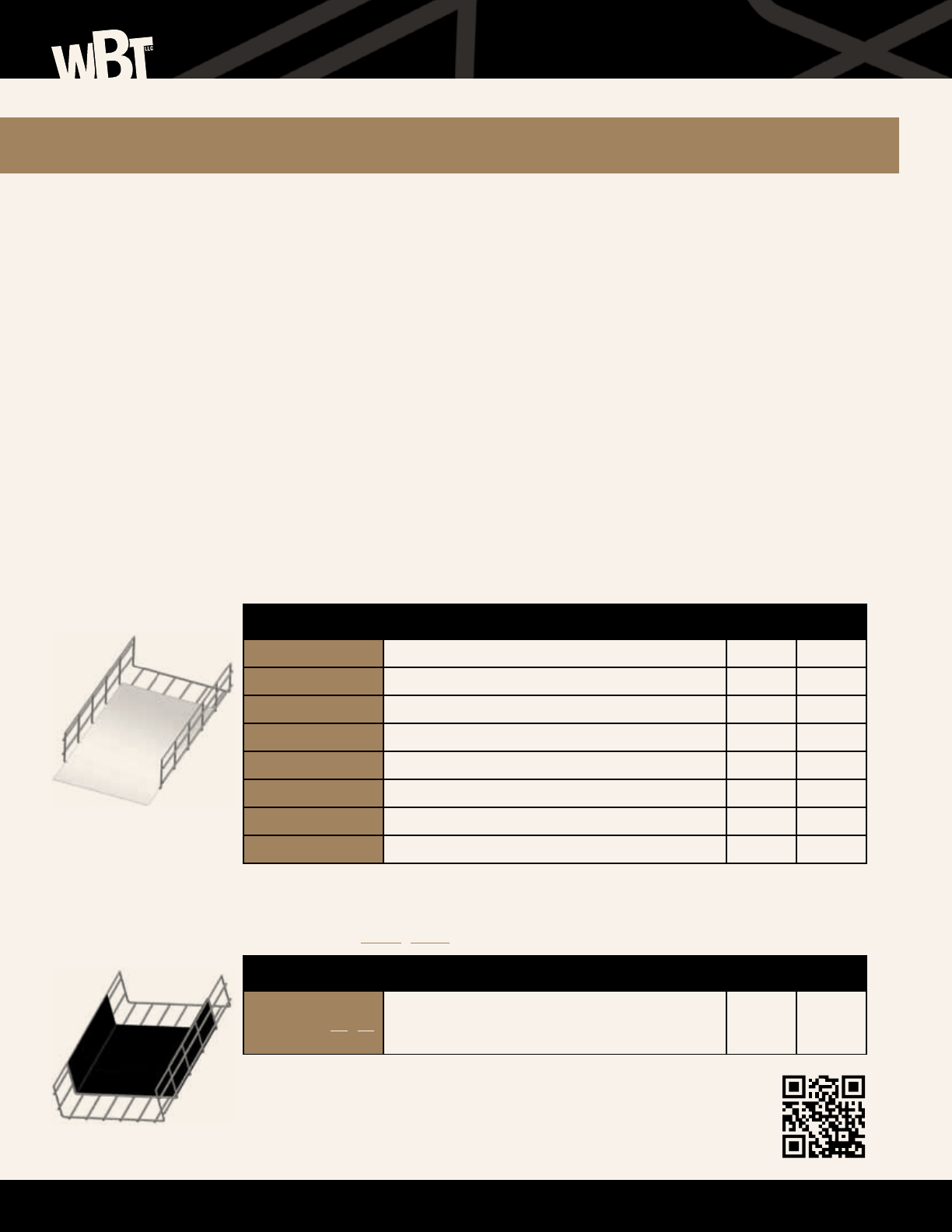

WBT PreForm patent pending

NEW Fittings for Tray Radius, Tee and Intersections

WBT PreForm is a time and cost effective solution to pathway tees, intersections and radius bends, no cutting…no

configuring. You can choose either a steel solution, or a flame retardant polymer (UL 94V-0) that simply attaches

at the Intersection, Tee or juncture, when you want a radius bend. The sections are manufactured precisely to the

trays being utilized, so it’s a clean engineered solution. Vertical surfaces from tray to tray keep cables properly

routed to avoid any excessive bends.

Installation of WBT PreForm can take installation configurations from hours to a few minutes. Labor and time savings can

exceed 90%+ versus traditional cutting and splicing, all while avoiding sharp protrusions by less trained technicians.

WBT PreForm and Fittings allow you to retrofit to any installed tray pathway, and it doesn’t lock you into a single

sourced supplier with proprietary sections and solutions.

WBT PreForm sections ship in the flat for easy and quick installation, so no excessive transportation costs or

likelihood of damage. Most can simply be shipped UPS to the jobsite.

JUNCTURE DEPTH WIDTH MATERIAL

R - Radius

T - Tee

I - Intersection

2”–6” 4”–30” S for Steel

P for Polymer

KEY: WBT juncture depthXwidth material

(example: WBT R 4X18 – Radius 4” deep X 18” Steel)

CONFIGURATION TRAY TRADITIONAL CONFIGURATION WBT PreForm TIME SAVINGS (%)

RADIUS 2x8 7 minutes 1 minute 85%

RADIUS 4x12 20 minutes 2 minutes 90%

TEE (CORNER SPLICE) 4x12 8 minutes 45 seconds 2 minutes 30 seconds 70%

TEE (RADIUS) 4x18 10 minutes 2 minutes 30 seconds 74%

INTERSECTION 6x24 29 minutes 4 minutes 45 seconds 83%

TIME SAVINGS CHART

7 | 888.4WB.TRAY

WBT NoSplice patent pending AVAILABLE EARLY 2014

NEW WBT Supports Eliminate Splice Hardware

Splice hardware? We don’t need no stinking hardware.

Every installer is used to butt splicing tray sections together, whether using nut/bolt or other ornate hardware, every

10 feet. This is in addition to the tray supports and attachment methods.

WBT has redesigned its most popular supports so they now pull double duty: tray support AND splice point.

With WBT NoSplice, simply lay the tray ends into the support, and a single hold down does everything.

No tedious multiple splice hardware at each juncture.

Saves time, saves hardware, and saves money.

TRAY WIDTH SPLICE QUANTITY TRADITIONAL SPLICE WBT NO SPLICE TIME SAVINGS (%) MATERIAL COST SAVINGS

2X4 2 40 seconds 10 seconds 75% $1.28

2X12 4 75 seconds 10 seconds 86% $2.55

4X12 6 135 seconds 10 seconds 93% $3.83

4X18 7 160 seconds 20 seconds 87% $4.46

4X24 8 180 seconds 20 seconds 89% $5.10

TIME SAVINGS CHART

CENTER HANGER

SEE PAGES 11 & 12 FOR

ORDERING INFORMATION

L BRACKET

CEILING SUPPORT

WBTray.com | 8

WBT Configurator patent pending

NEW WBT Field Configured Radius Sections

Another WBT first, and another market first.

WBT now offers preconfigured radius sections. This benefit provides uniform, repeatable bends and radius with

no sharp edges, that are stronger than traditional cut sections, and appear as a more engineered solution than

traditional configuration methods. There is no removal of any wires with the tray construction. In addition, field

time spent cutting and configuring tray is eliminated. No longer is quality a variable on radius bends and offsets.

In 2014, on select projects, installers will

have the ability to utilize WBT machinery

that will field configure these same bends.

We call it the Configurator. Just as at WBT,

the installer will be allowed to quickly and

easily on-site configure radius sections, in

seconds versus minutes.

WBT’s Configurator, saves time, saves money,

and provides a better engineered solution

than traditional cut/configure methods.

PART NUMBER DEPTH WIDTH RADIUS MATERIAL

WBT-C__-__-__ __ 2”, 4”, 6” 4”–24” 45° or 90°

PG for Pre-Galvanized

PW/BL/WH for Standard Powder

CPC for Custom Powder

ZP for Electro Zinc Plating

KEY: WBT-C depth-width-radius finish

(example: WBT- C4-12-90 PG – 4” X 12” tray formed into 90 degree Pre-Galvazined finish)

9 | 888.4WB.TRAY

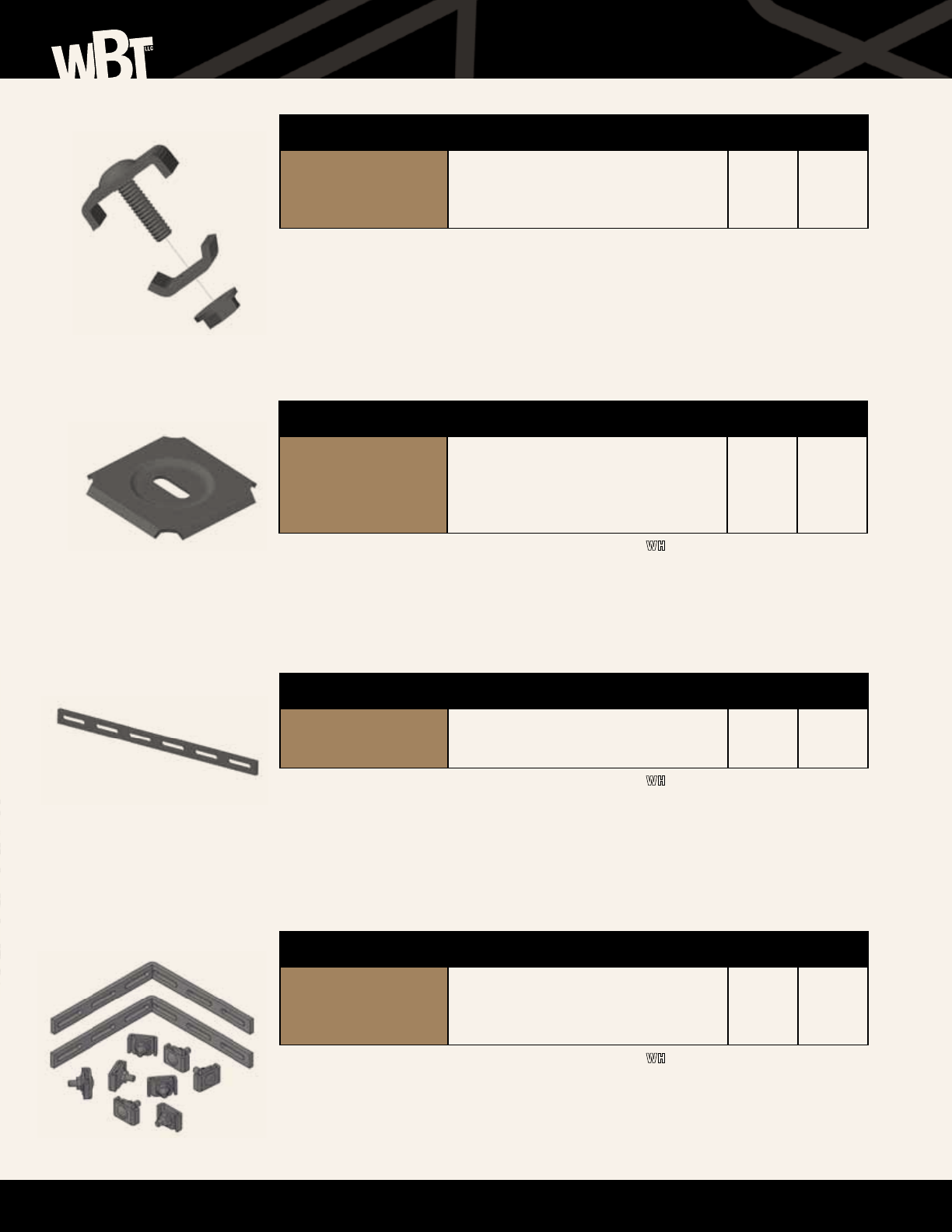

SPLICING

SPLICE KIT PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

SPLICE KIT

3 piece staked bolt/washer and nut

combination used to splice straight

sections and fittings.

5 lbs 50

sets

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISH: BL

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

WASHER SUPPORT

2" square washer that can be

used to splice straight sections and

fittings. This part can also be used

as a hold down method.

6 lbs 50

each

WASHER SUPPORT

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES: BL, , PW, CPC

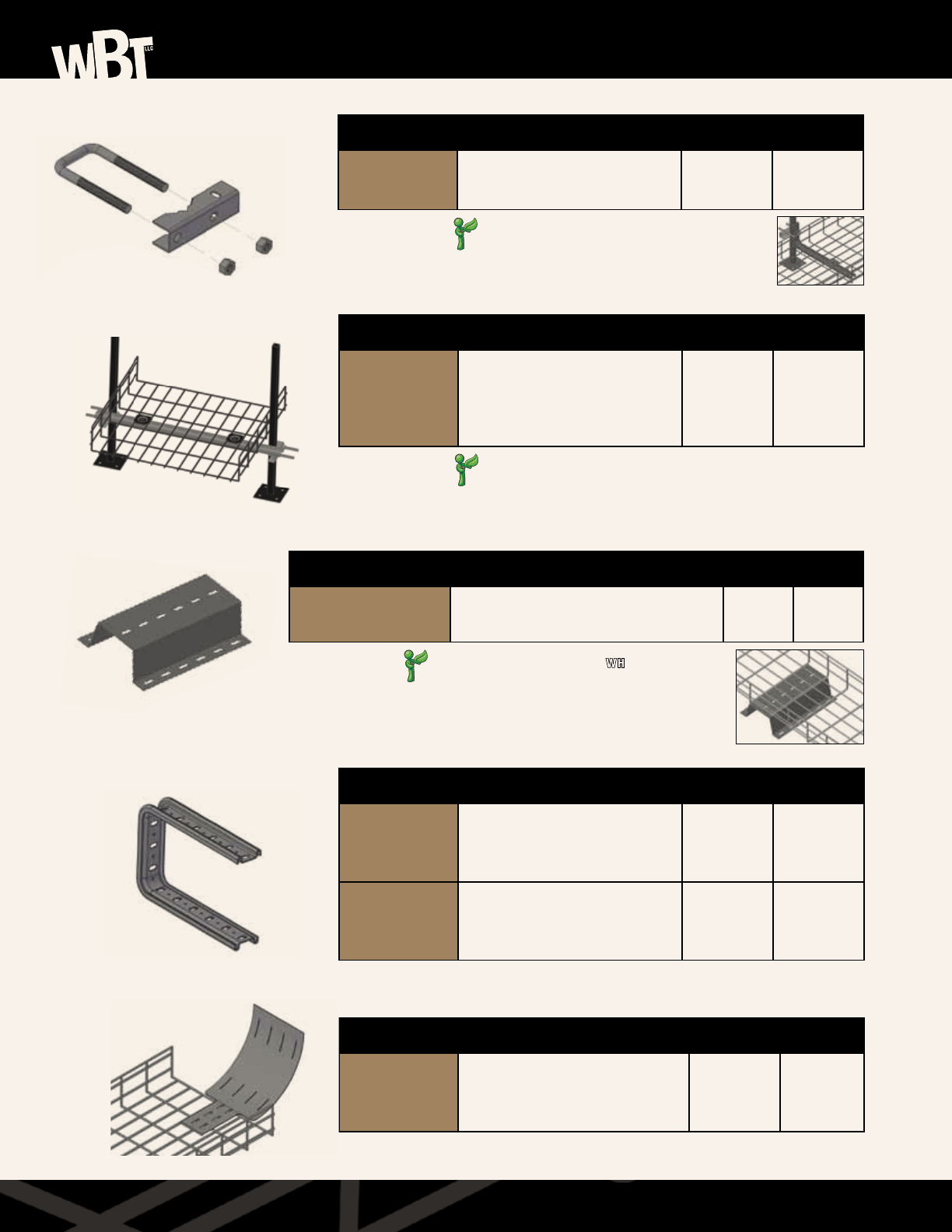

BAR SPLICE PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

BAR SPLICE Slotted bar 11-15/16" long used to

splice straight sections and fittings. 14 lbs 50

each

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES: BL, , PW, CPC

CORNER SPLICE PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

CORNER SPLICE

Kit used to splice fittings. Each kit

includes two 90 degree splice bars

and 8 sets of the splice kit.

1 lbs 1 kit

STANDARD FINISH: ZINC PLATED | AVAILABLE IN FINISHES: BL, , PW, CPC

WBTray.com | 10

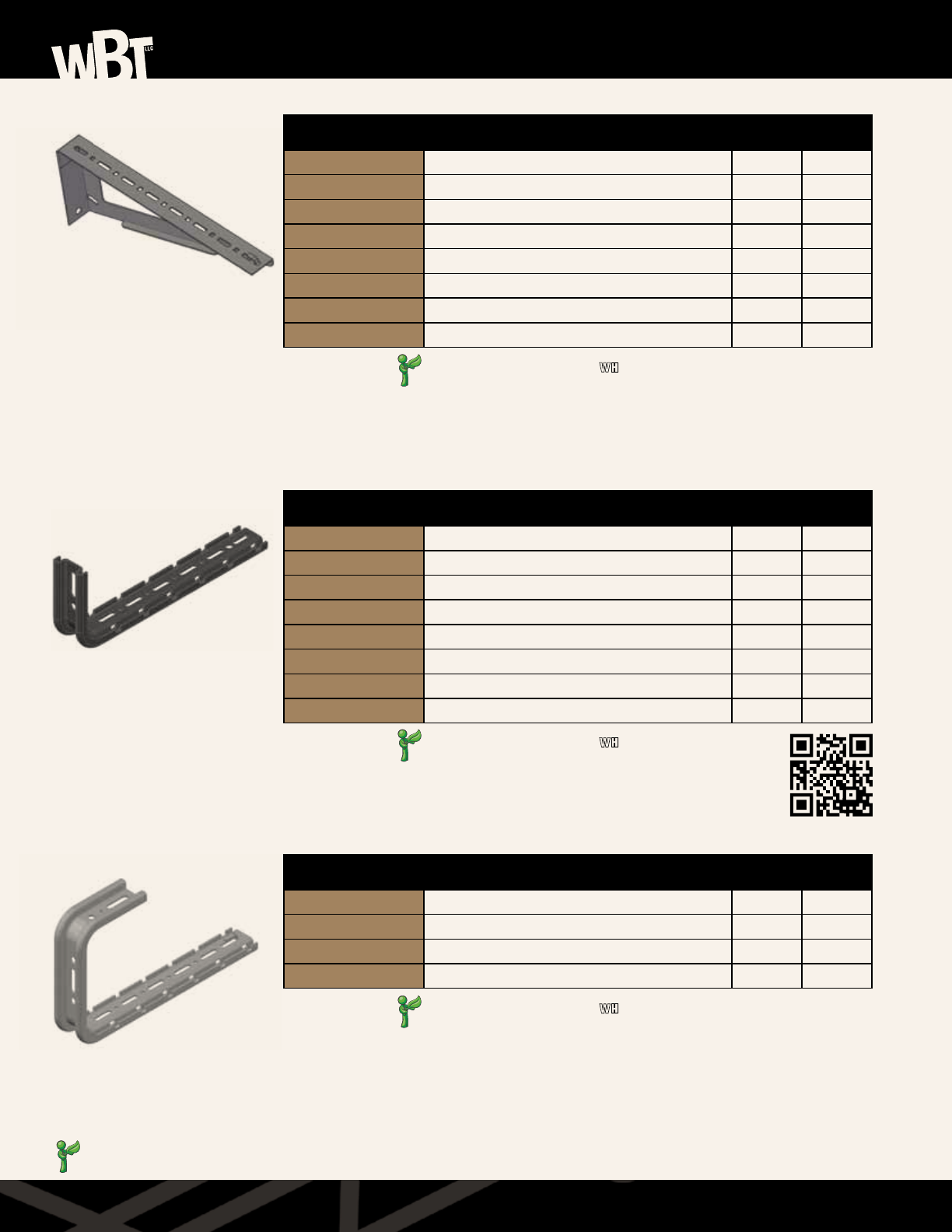

WALL SUPPORTS

SHELF SUPPORT

L BRACKET

C BRACKET

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

SHELF SUPT 4 Shelf/Wall support for 4" wide tray. 0.4 lbs 1 each

SHELF SUPT 6 Shelf/Wall support for 6" wide tray. 0.5 lbs 1 each

SHELF SUPT 8 Shelf/Wall support for 8" wide tray. 0.6 lbs 1 each

SHELF SUPT 12 Shelf/Wall support for 12" wide tray. 1.2 lbs 1 each

SHELF SUPT 16 Shelf/Wall support for 16" wide tray. 1.7 lbs 1 each

SHELF SUPT 18 Shelf/Wall support for 18" wide tray. 1.9 lbs 1 each

SHELF SUPT 20 Shelf/Wall support for 20" wide tray. 2.6 lbs 1 each

SHELF SUPT 24 Shelf/Wall support for 24" wide tray. 3.2 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

L BRACKET 4 Wall L bracket for 4" wide tray. 0.7 lbs 1 each

L BRACKET 6 Wall L bracket for 6" wide tray. 0.8 lbs 1 each

L BRACKET 8 Wall L bracket for 8" wide tray. 0.9 lbs 1 each

L BRACKET 12 Wall L bracket for 12" wide tray. 1.4 lbs 1 each

L BRACKET 16 Wall L bracket for 16" wide tray. 1.5 lbs 1 each

L BRACKET 18 Wall L bracket for 18" wide tray. 1.7 lbs 1 each

L BRACKET 20 Wall L bracket for 20" wide tray. 2.1 lbs 1 each

L BRACKET 24 Wall L bracket for 24" wide tray. 2.3 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

C BRACKET 4 Wall/Ceiling C bracket for 4" wide tray. 1.2 lbs 1 each

C BRACKET 8 Wall/Ceiling C bracket for 8" wide tray. 1.5 lbs 1 each

C BRACKET 12 Wall/Ceiling C bracket for 12" wide tray. 2 lbs 1 each

C BRACKET 18 Wall/Ceiling C bracket for 18" wide tray. 2.7 lbs 1 each

= PRE-GALVANIZED FINISH

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

11 | 888.492.8729

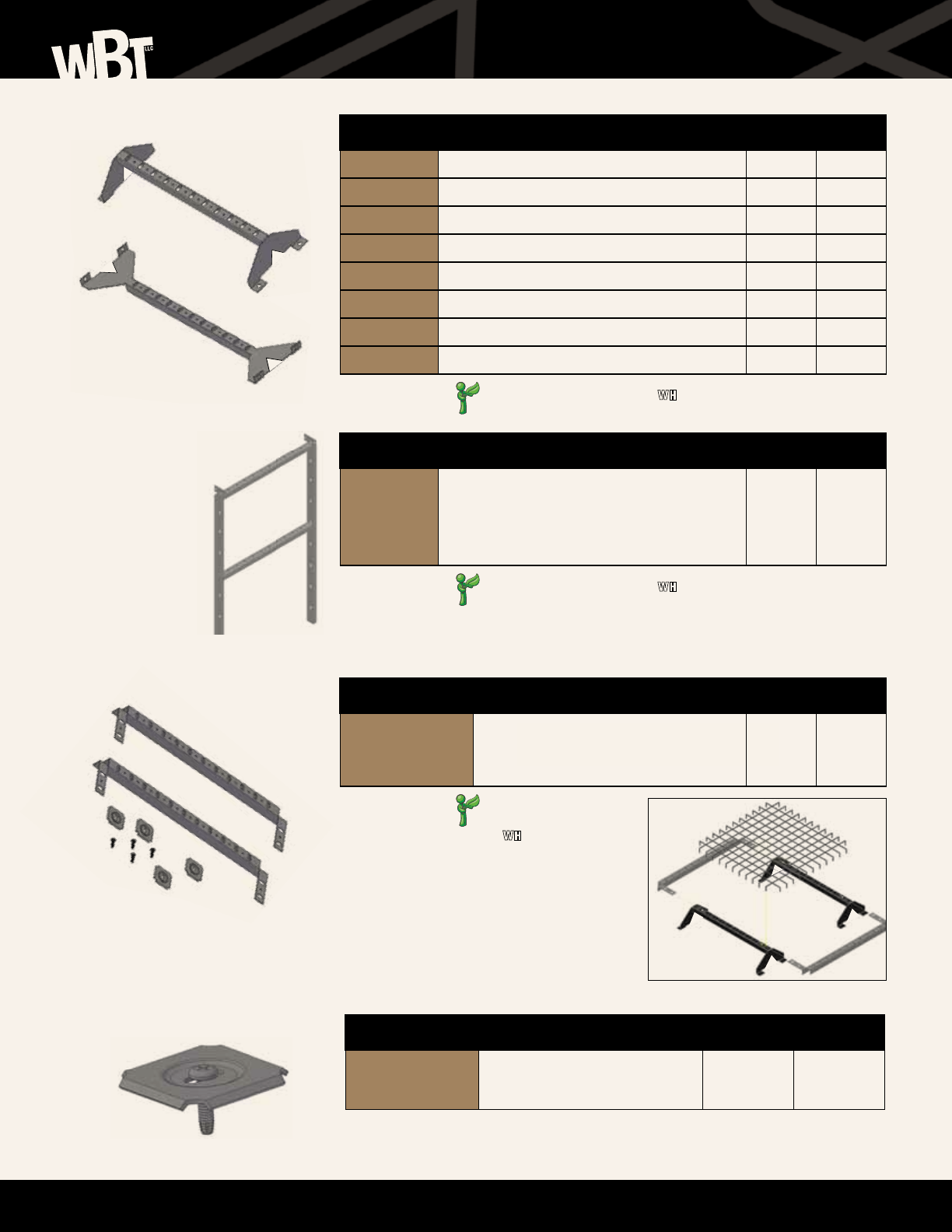

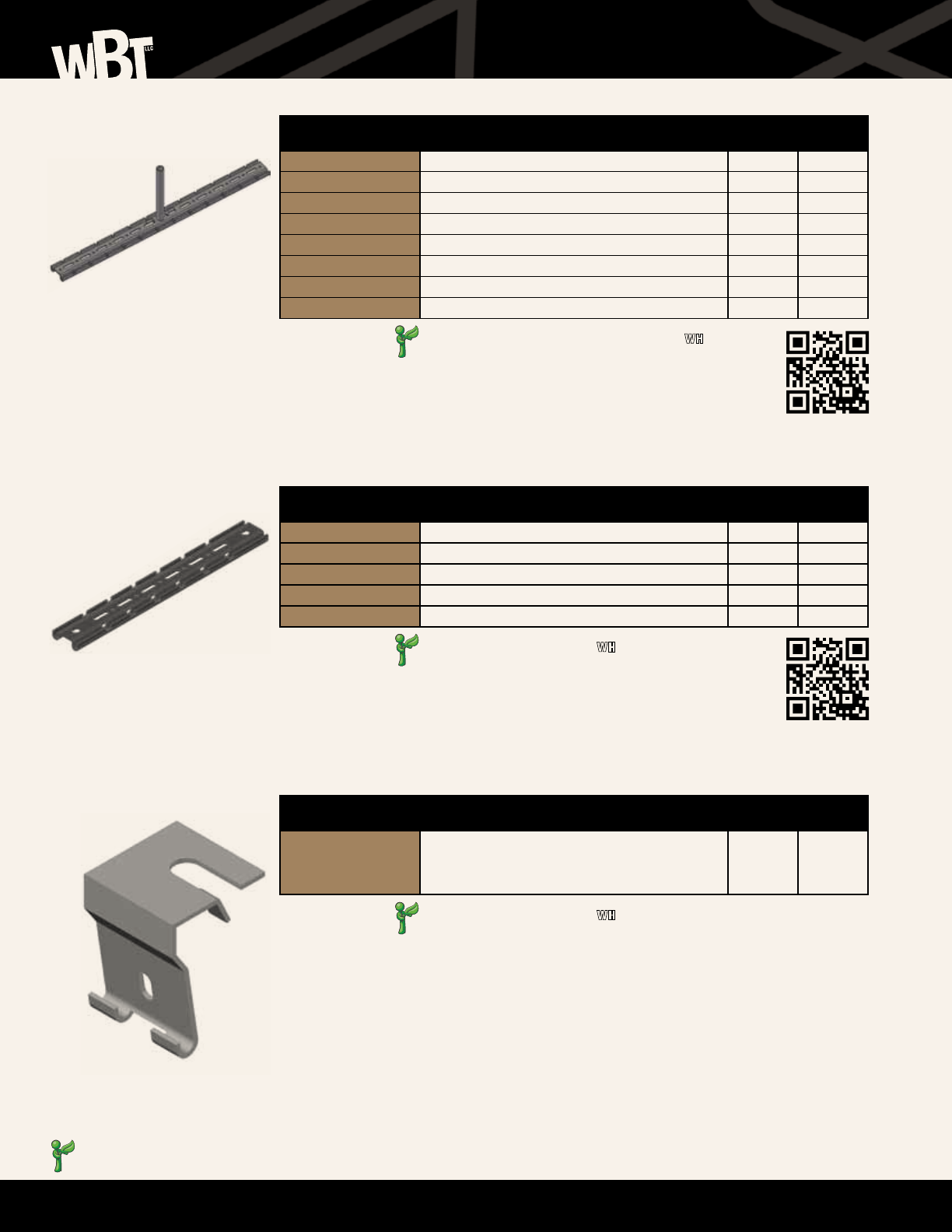

CEILING SUPPORTS

CEILING SUPPORTS

TRAPEZE SUPPORTS

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

CEILING SUPT 12 Profile style support for 12" wide tray & smaller. 1.1 lbs 1 each

CEILING SUPT 16 Profile style support for 16" wide tray. 1.5 lbs 1 each

CEILING SUPT 18 Profile style support for 18" wide tray. 1.6 lbs 1 each

CEILING SUPT 20 Profile style support for 20" wide tray. 1.9 lbs 1 each

CEILING SUPT 24 Profile style support for 24" wide tray. 1.9 lbs 1 each

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

TRAP SUPT

Trapeze style side support attaches to the

side of the tray; suggested for tray sizes 16"

wide & smaller.

9 lbs 50pcs/

box

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

STANDARD FINISH: & ZINC PLATED | AVAILABLE IN FINISHES: BL, , PW, CPC

= PRE-GALVANIZED FINISH

TRAPEZE SUPPORTS

• No polymer grommets required to hold threaded rod in place

• Able to support two individual sections of tray

• Works with splice hardware at tray junctions

CENTER SUPPORTS PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

CENTER SUPT 4 Center Support for 4" wide tray. 1.6 lbs 1 each

CENTER SUPT 6 Center Support for 6" wide tray. 1.8 lbs 1 each

CENTER SUPT 8 Center Support for 8" wide tray. 2 lbs 1 each

CENTER SUPT 12 Center Support for 12" wide tray. 2.7 lbs 1 each

CENTER SUPT 16 Center Support for 16" wide tray. 3.3 lbs 1 each

CENTER SUPT 18 Center Support for 18" wide tray. 3.4 lbs 1 each

CENTER SUPT 20 Center Support for 20" wide tray. 3.8 lbs 1 each

CENTER SUPT 24 Center Support for 24" wide tray. 4.4 lbs 1 each

WBTray.com | 12

CABLE DROPOUT

PART NUMBER DESCRIPTION QUANTITY

per box

CABLE DROPOUT

UL 94V-0 polymer for cable dropout

within the tray. Can be stacked for

multiple dropouts.

1 each

VERTICAL DOWN PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

VERTICAL DOWN

Use the vertical down when

dropping cables from the end or

the side of tray.

1.5 lbs 1 each

STANDARD FINISH: ZINC PLATED

AVAILABLE FINISHES: BL, , PW, CPC

STANDARD FINISH: BL

RADIUS DOWN PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

RADIUS DOWN 4

Radius Down with side panels for

increased cable protection. Allows

connection between both trays.

2.5 lbs 1 each

RADIUS DOWN 6

Radius Down with side panels for

increased cable protection. Allows

connection between both trays.

3.75 lbs 1 each

RADIUS DOWN 12

Radius Down with side panels for

increased cable protection. Allows

connection between both trays.

7. 5 l b s 1 each

STANDARD FINISH: BL, , PW, CPC

ACCESSORIES

13 | 888.4WB.TRAY

= PRE-GALVANIZED FINISH

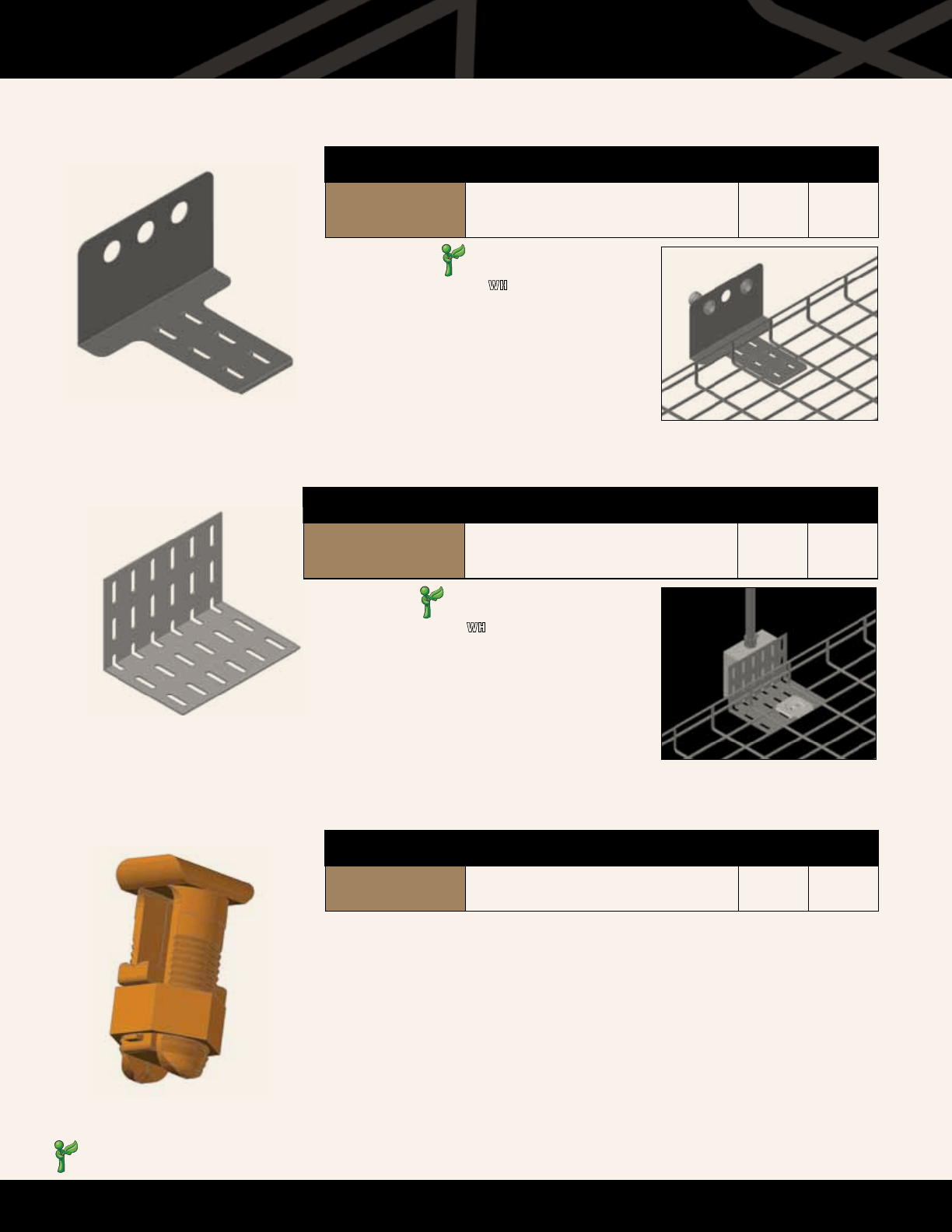

RACK ATTACHMENT PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

RACK

ATTACHMENT

Attaches tray directly to the top of a

standard rack. 1 lb 1 kit

STANDARD FINISH: ZINC PLATED | AVAILABLE FINISH: BL, , PW, CPC

PAN SUPPORT PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

PAN SUPT 2/4/6/8 Cabinet/Underfloor support for tray. 1-3 lb 1 each

STANDARD FINISH:

AVAILABLE IN FINISHES: BL, , PW, CPC

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTUS4 Independent cabinet support 4" high. 1.9 lbs 1 each

WBTUS6 Independent cabinet support 6" high. 2.1 lbs 1 each

WBTUS8 Independent cabinet support 8" high. 2.4 lbs 1 each

CABINET SUPPORT

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

WBTray.com | 14

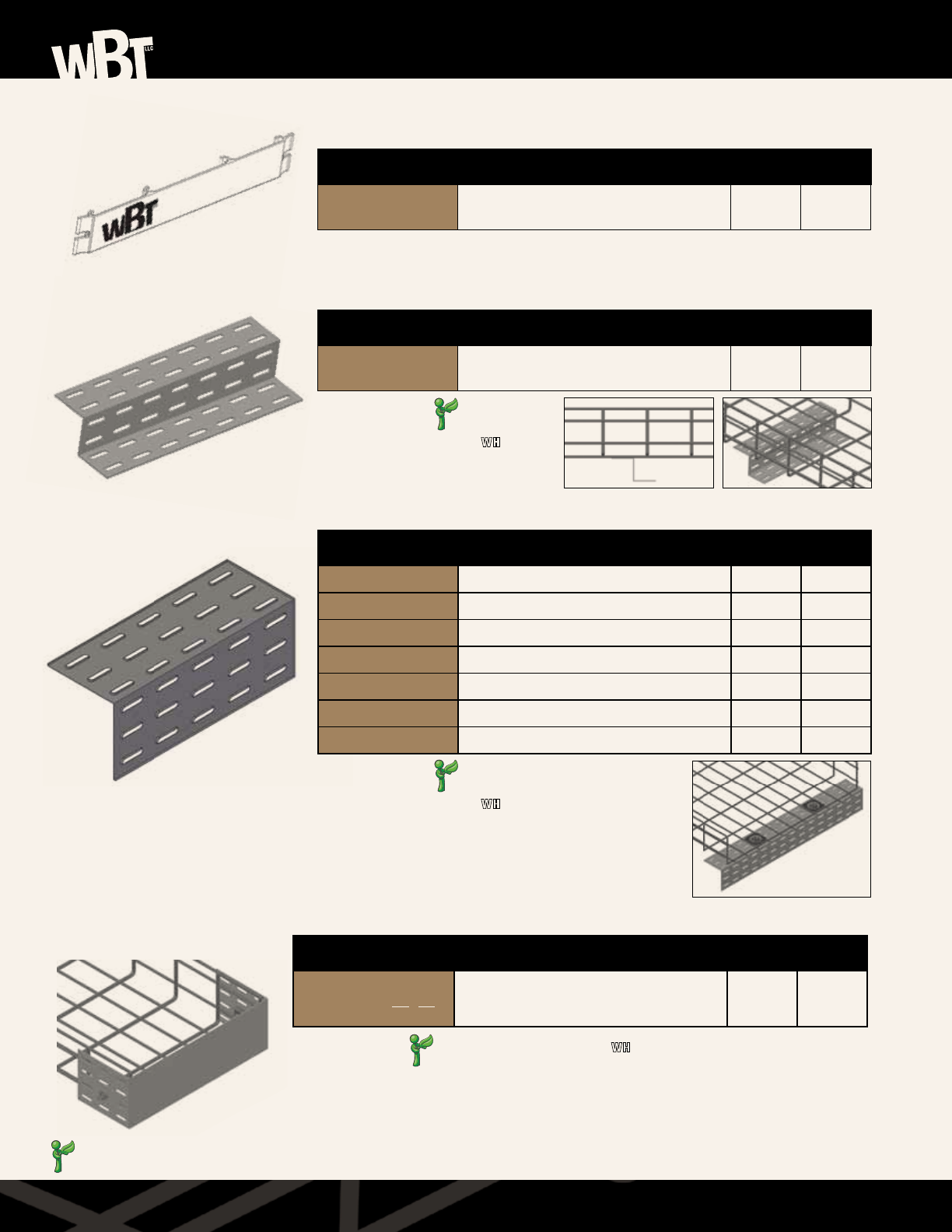

BLIND END PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

BLIND END__X__ A solid barrier at tray section end. 1-3 lbs 1 each

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

= PRE-GALVANIZED FINISH

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

TERM SUPPORT 6 Wall termination for 6” wide tray. 0.75 lb 1 each

TERM SUPPORT 8 Wall termination for 8” wide tray. 1 lb 1 each

TERM SUPPORT 12 Wall termination for 12” wide tray. 1.2 lbs 1 each

TERM SUPPORT 16 Wall termination for 16” wide tray. 1.4 lbs 1 each

TERM SUPPORT 18 Wall termination for 18” wide tray. 1.6 lbs 1 each

TERM SUPPORT 20 Wall termination for 20” wide tray. 1.75 lbs 1 each

TERM SUPPORT 24 Wall termination for 24” wide tray. 2 lbs 1 each

TERMINATION

SUPPORT

Custom widths available.

ACCESSORIES

LABEL CLIP PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

LABEL CLIP Label Clip attachment for

all sizes of tray. 0.1 lb 1 each

STANDARD FINISH:

AVAILABLE IN FINISHES: BL, , PW, CPC

STANDARD FINISH:

AVAILABLE IN FINISHES: BL, , PW, CPC

Z BRACKET PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

Z BRACKET 4–24 Support for wall, underfloor or

cabinet installation. 1-3 lb 1 each

15 | 888.4WB.TRAY

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTELECTRICALBOX Box to tray attachment. 0.75 lb 1 each

ELECTRICAL BOX

STANDARD FINISH:

AVAILABLE IN FINISHES: BL, , PW, CPC

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

CONDUIT

ATTACHMENT 3

Conduit to tray attachment for 1/2”,

3/4” & 1” Conduit. 1.5 lbs 1 each

CONDUIT ATTACHMENT

STANDARD FINISH:

AVAILABLE IN FINISHES: BL, , PW, CPC

GROUND BOLT

= PRE-GALVANIZED FINISH

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

GROUND BOLT Ground bolt/lug to secure ground

wire to tray sections. 1 lb 1 each

WBTray.com | 16

ACCESSORIES

CABLE GUIDES PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

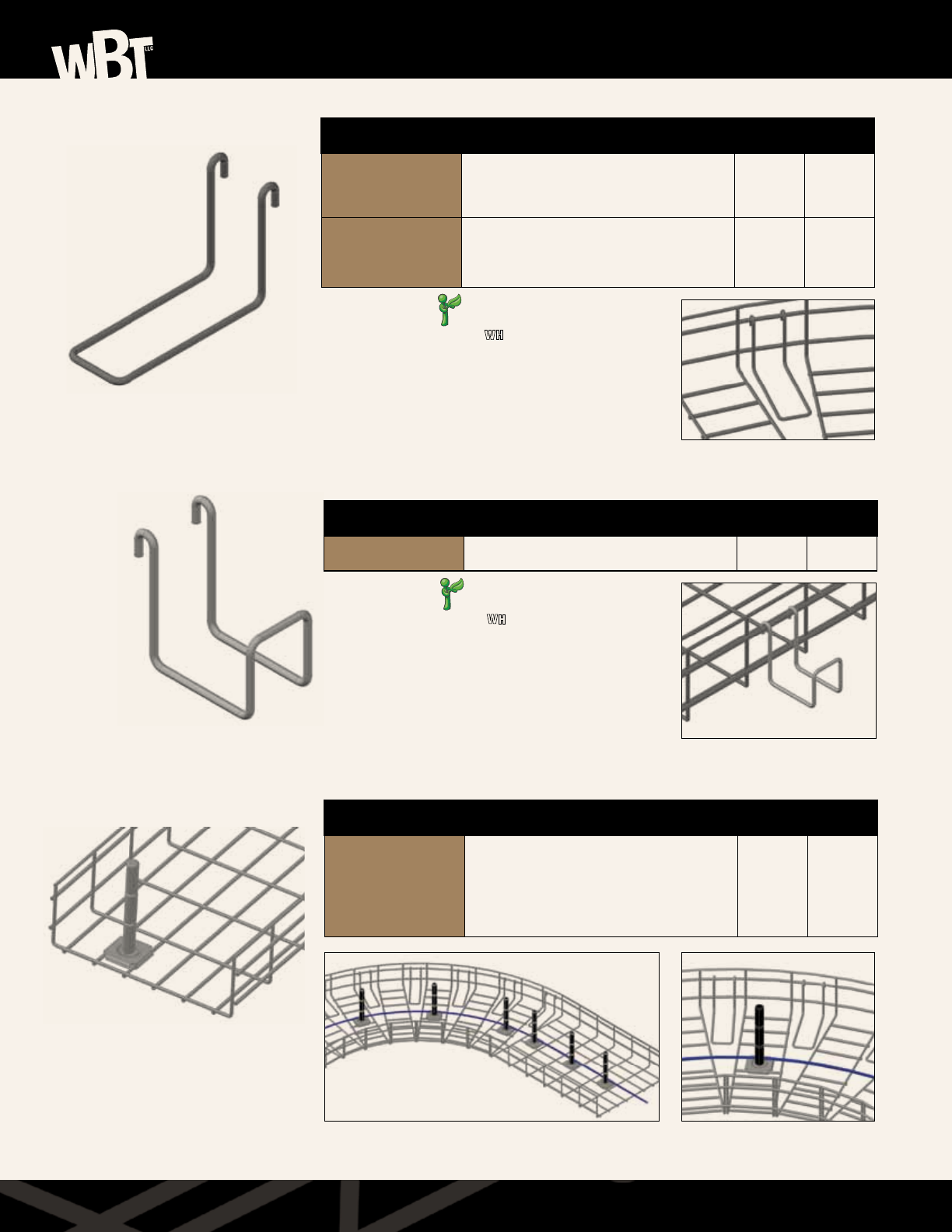

CABLE GUIDE

The cable guide is used to maintain

cable bend radius when routing or

pulling cables through fittings. It can

also be used as a divider for straight

sections as well as fittings.

1 lb 1 each

FITTING ATTACHMENT PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

FITTING

ATTACHMENT 2

Use the fitting attachment 2 to

fill the gap in 2" tray when creating

fittings.

1 lb 1 each

FITTING

ATTACHMENT 4/6

Use the fitting attachment 4/6 to

fill the gap in 4" or 6" tray when

creating fittings.

1 lb 1 each

STANDARD FINISH:

AVAILABLE IN FINISHES: BL, , PW, CPC

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

SIDE CAR Additional cable support 2” deep. 0.5 lb 1 each

SIDECAR

STANDARD FINISH:

AVAILABLE IN FINISHES: BL, , PW, CPC

17 | 888.492.8729

WBTFORM

WBTFORM PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTFORM04 Polymer bottom insert for 4” wide tray 10’ long. 0.5 lb 1 each

WBTFORM06 Polymer bottom insert for 6” wide tray 10’ long. 0.65 lb 1 each

WBTFORM08 Polymer bottom insert for 8” wide tray 10’ long. 0.75 lb 1 each

WBTFORM12 Polymer bottom insert for 12” wide tray 10’ long. 1 lb 1 each

WBTFORM16 Polymer bottom insert for 16” wide tray 10’ long. 1.25 lbs 1 each

WBTFORM18 Polymer bottom insert for 18” wide tray 10’ long. 1.5 lbs 1 each

WBTFORM20 Polymer bottom insert for 20” wide tray 10’ long. 1.75 lbs 1 each

WBTFORM24 Polymer bottom insert for 24” wide tray 10’ long. 2.25 lbs 1 each

*WBTFORM parts are supplied as one continuous roll.

WBTFORM

WITH SIDES

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTFORM__X__ Polymer bottom insert with sides for

specific tray depth and width 10’ long. 1 lb 1 each

*WBTFORM parts are supplied as one continuous roll.

KEY: WBTFORMdepthXwidth (example: W BT FO R M2 X12 – 2” deep X 12” wide tray)

WBTFORM

Non metallic solutions

WBT is proud to introduce WBTFORM, a new system for utilizing flame retardant polymer for use in creating tray inserts and

covers. WBTFORM allows you to configure the material as a tray liner or insert, with the option of a flat bottom, or prescored to

the tray depth for coverage of the bottom and sides.

WBTFORM can even be utilized to envelop the entire tray, providing bottom, side and cover protection. WBTFORM is easily

configurable into a variety of solutions from the simple to creative.

WBTFORM is:

•UL94V-0FlameClassRating.

•RoHScompliant.

•Non-hydroscopic(moistureabsorption<0.1%).

•Temperaturerangeto115°C/239°F.

•Easilyeldcongurable.

•Canbeprescoredatthefactoryforspecicapplications.

•Availableinwhiteorblack

WBTray.com | 18

WBT for Fiber

= PRE-GALVANIZED FINISH

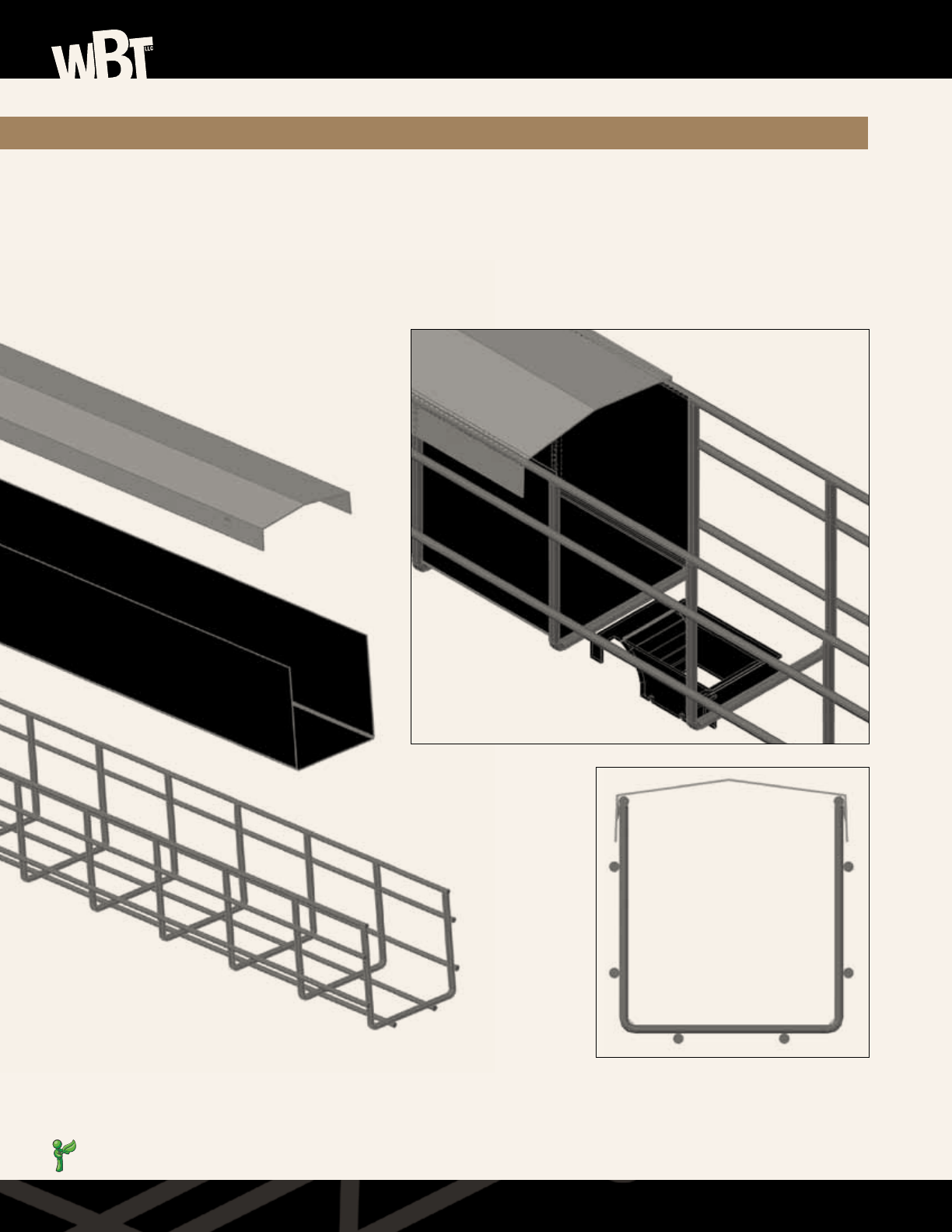

WBT for Fiber

Utilizing the proprietary WBTFORM material along with traditional tray and our newly designed covers,

WBT has configured a solution to the high price of polymer fiber tray management.

WBTFORM provides a solid surface (bottom and sides) to support optical fibers. Traditional tray sections can

be configured into curves and spillouts (our new cable dropout), while the newly designed WBT covers simply

snap into place. No oversized covers or attachment hardware. The solution provides maximum flexibility and

protection for cabling.

Need a custom all metal solution, give us a call. We can create solutions for most applications.

19 | 888.4WB.TRAY

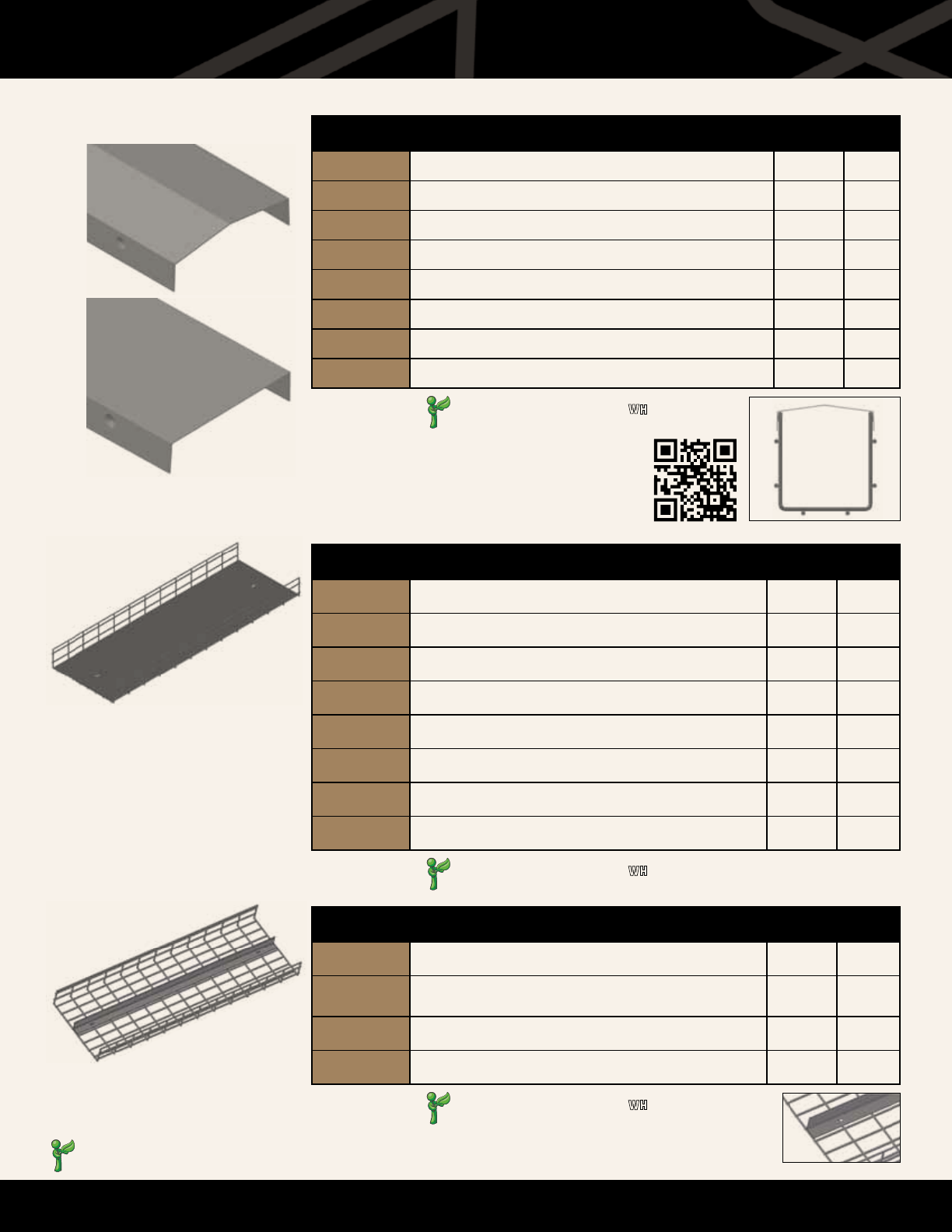

INSERTS PART NUMBER DESCRIPTION WT.

per pc. LENGTH

INSERT4 Solid insert used with 4" wide tray galvanized. 3.5 lbs 5'

INSERT6 Solid insert used with 6" wide tray galvanized. 5 lbs 5'

INSERT8 Solid insert used with 8" wide tray galvanized. 7 lbs 5'

INSERT12 Solid insert used with 12" wide tray galvanized. 11 l bs 5'

INSERT16 Solid insert used with 16" wide tray galvanized. 13.5 lbs 5'

INSERT18 Solid insert used with 18" wide tray galvanized. 16.5 lbs 5'

INSERT20 Solid insert used with 20" wide tray galvanized. 18 lbs 5'

INSERT24 Solid insert used with 24" wide tray galvanized. 20 lbs 5'

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

DIVIDERS PART NUMBER DESCRIPTION WT.

per pc. LENGTH

DIVIDER2 Divider used with 2" deep tray galvanized. 2 lbs 5'

DIVIDER4 Divider used with 4" deep tray galvanized. 5 lbs 5'

DIVIDER6 Divider used with 6" deep tray galvanized. 7. 5 l b s 5'

DIVIDER8 Divider used with 8" deep tray galvanized. 10 lbs 5'

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

PART NUMBER DESCRIPTION WT.

per pc. LENGTH

COVER4 Metal cover for 4" wide tray galvanized. 3 lbs 5'

COVER6 Metal cover for 6" wide tray galvanized. 3.5 lbs 5'

COVER8 Metal cover for 8" wide tray galvanized. 4.5 lbs 5'

COVER12 Metal cover for 12" wide tray galvanized. 6 lbs 5'

COVER16 Metal cover for 16" wide tray galvanized. 8 lbs 5'

COVER18 Metal cover for 18" wide tray galvanized. 8.5 lbs 5'

COVER20 Metal cover for 20" wide tray galvanized. 9.5 lbs 5'

COVER24 Metal cover for 24" wide tray galvanized. 11 l b s 5'

COVERS

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

= PRE-GALVANIZED FINISH

WBTray.com | 20

WBT-U

DATACENTERORGENERALOFFICE:WBT-UHASYOUSUPPORTED.

WBT introduces another innovation to the marketplace, WBT-U. Too many underfloor/access floor solutions in today’s

market are comprised of components that require onsite assembly and configuration. WBT-U solves that problem.

With WBT-U, the need to assemble each support, multilevel bars, brackets and complex splicing scenarios are gone.

The supports ship as a complete unit. From the box to the floor in seconds, no fabrication or assembly, no tools or

fasteners – start to finish.

WBT-U

TR AYS PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBT__ X__ X__ Underfloor tray sections for use

with WBTUS supports. 1-11 l b s 1 each

KEY: WBTdepthXwidthXlength (example: WBT2X12X4 – 2” deep X 12” wide tray X 4’ long)

THE BENEFITS OF WBT-U INCLUDE:

•UL/cULclassiedasequipmentgroundconductor.

•SingleandMultileveltrayrunscanbesupported.

•WBT-Uiszincwhiskerfree.

•ManufacturedfromPreGalvmaterial,andthenmechanically

cleanedpriortoshipmenttoremoveoilsandmetallicparticles.

•Traylengthsfrom2’upto10’.Lesssplicing,lesssupports,

lowermaterialandinstalledcost.

•WBT-Uistotallyselfsupporting.

•Shipsasacompleteunit.Noeldfabricationorassembly.

•Thefastest/quickestinstallationwithinaDataCenterenvironment.

•

Substantialsavingsonmaterialsandlaborversusothermarketsolutions.

21 | 888.492.8729

WBT-U ACCESSORIES

GROUND/HOLDDOWN PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

GROUND

SPLICE

Ground/hold down method

used with underfloor tray. 7 lbs 50 sets

SUPPORT PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTUS4 Independent Underfloor support 4" high. 1.9 lbs 1 each

WBTUS6 Independent Underfloor support 6" high. 2.1 lbs 1 each

WBTUS8 Independent Underfloor support 8" high. 2.4 lbs 1 each

WBTUS10 Independent Underfloor support 10" high. 3.0 lbs 1 each

WBTUS12 Independent Underfloor support 12" high. 3.5 lbs 1 each

WBTUS14 Independent Underfloor support 14" high. 4.1 lbs 1 each

WBTUS16 Independent Underfloor support 16" high. 4.7 lbs 1 each

WBTUS18 Independent Underfloor support 18" high. 5.3 lbs 1 each

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

MULTI-TIER

Independent support structure for multiple

tray layers. Support is two vertical and one

horizontal support, and two attachment kits

(U bolt and backer plate).

4 lbs 1 each

MULTI-TIER SUPPORT

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

UNDERFLOOR FITTING PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

WBTUFITTING Intersection fitting kit used with

WBT0x24x2. 3 lbs 1 kit

STANDARD FINISH:

AVAILABLE IN FINISHES: BL, , PW, CPC

WBTray.com | 22

WBT-U ACCESSORIES

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

PEDESTAL

KIT

Underfloor support kit.

Includes 2 pedestal

clamps, profile support and

hardware.

3 lbs 1 each

PEDESTAL KIT

UNDERFLOOR C BRACKET PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

WBTU6C

Multi-tier C bracket used to

support 2nd tier of 6" wide

tray underfloor.

2 lbs 1 each

WBTU12C

Multi-tier C bracket used to

support 2nd tier of 12" wide

tray underfloor.

4 lbs 1 each

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

VERTICAL UP

The Vertical Up is used when

transitioning cabling up from

a raised computer floor.

1.75 lbs 1 each

VERTICAL UP

PART NUMBER DESCRIPTION WT.

per box

QUANTITY

per box

PEDESTAL

CLAMP Underfloor support clamp. 0.5 lbs 1 each

PEDESTAL CLAMP

PAN SUPPORT PART NUMBER DESCRIPTION WT.

per pc.

QUANTITY

per box

PAN SUPT 2/4/6/8 Cabinet/Underfloor support for tray. 1-3 lb 1 each

STANDARD FINISH: | AVAILABLE IN FINISHES: BL, , PW, CPC

STANDARD FINISH:

STANDARD FINISH:

23 | 888.4WB.TRAY

APPLICATIONS

APPLICATIONS FOR WBT

Whatever your project details, WBT has a solution (standard or custom) to meet your leadtimes and budgets,

and to exceed your expectations.

Largest number/variety of trays and UL certified solutions.

Industry Firsts:

• WBT shaped wire (patent pending) for increased cable support and minimized cable strain

• Green PreGalv nish

• WBT-U DataCenter/Access Floor solution

• UL Classied on all painted tray colors

• 8, 10 & 12” depths available

• Black, White and Pewter as standard paint nishes

• WBTFORM

• Vertical UP for cable routing from underoor into cabinets or racks

COMMUNICATIONS/DATACOM

• Full offering of solutions to install tray in any industrial environment

• Higher loading capabilities allow for higher quantities and heavier cables

• Stainless steel tray, mounting accessories and splicing hardware for outdoor, caustic environments,

food preparation and marine/offshore

• Custom tray congurations and solutions for unique environments

• Full inventory of trays and support products for quick ship capabilities

INDUSTRIAL/ELECTRICAL

• WBT offers Stainless Steel tray, mounting accessories and splicing hardware for marine/offshore

• Hot Dipped tray sections for severe/outdoor installation environments

• Shaped tray offers higher load capabilities than competitive round/round constructions

MARINE/OFFSHORE

WBTray.com | 24

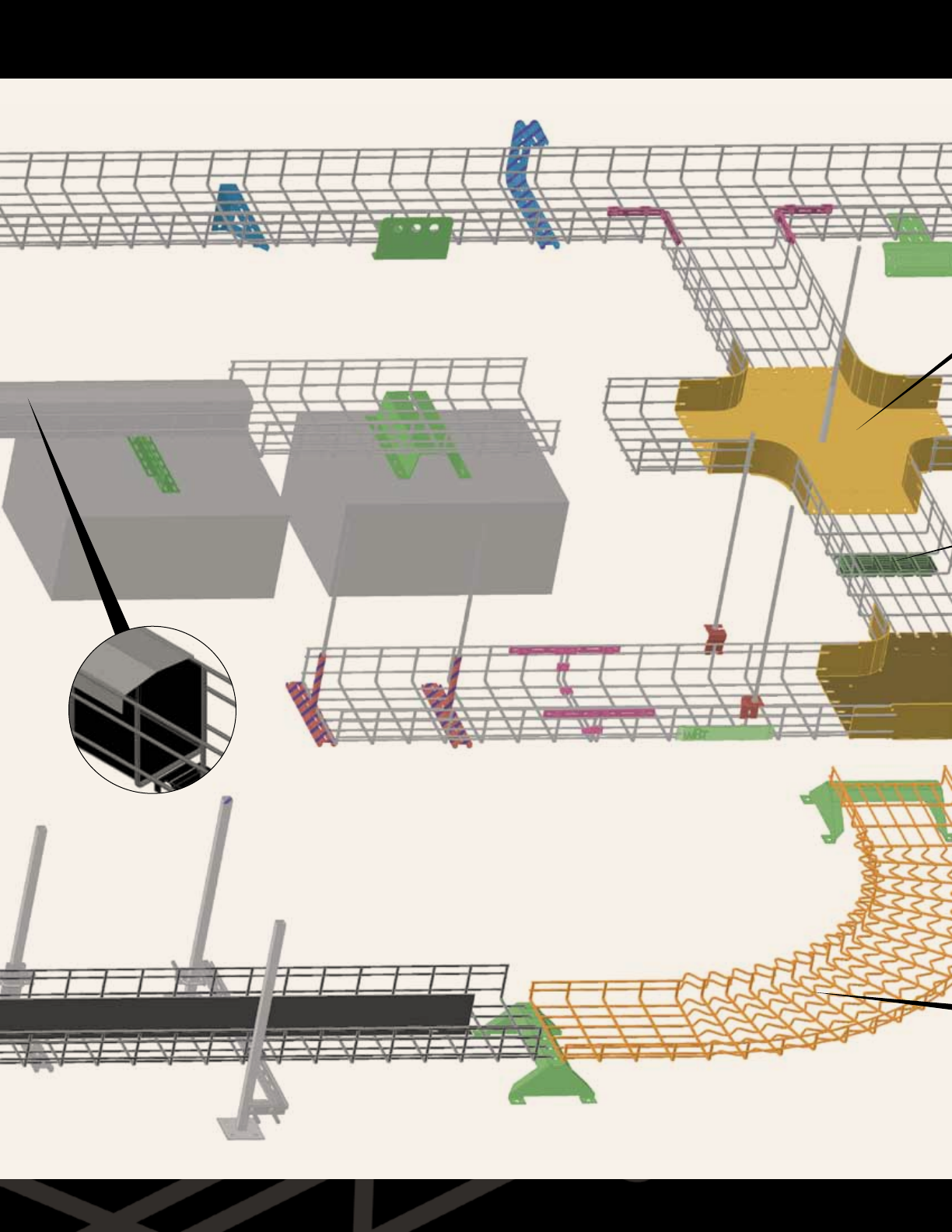

APPLICATIONS

PERFORMANCE

CABLETRAY™

PreForm ANGLE

PAGE 7

RADIUS DOWN

PAGE 13

WBT TRAY

PAGE 5

WBT-U

PAGE 21

25 | 888.4WB.TRAY

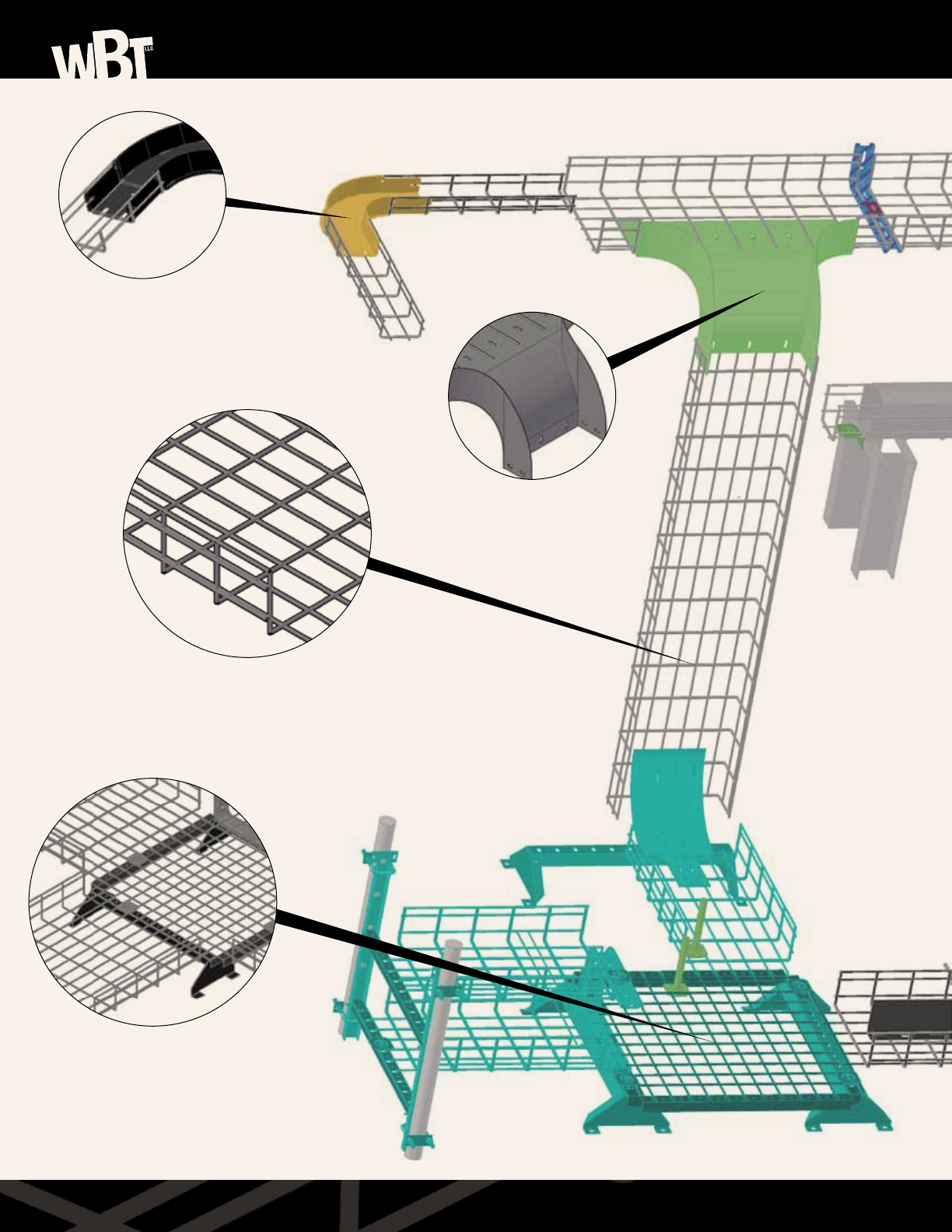

HEADER

WBTray.com | 27

COVERS

PAGE 19

HEADER

28 | 888.4WB.TRAY

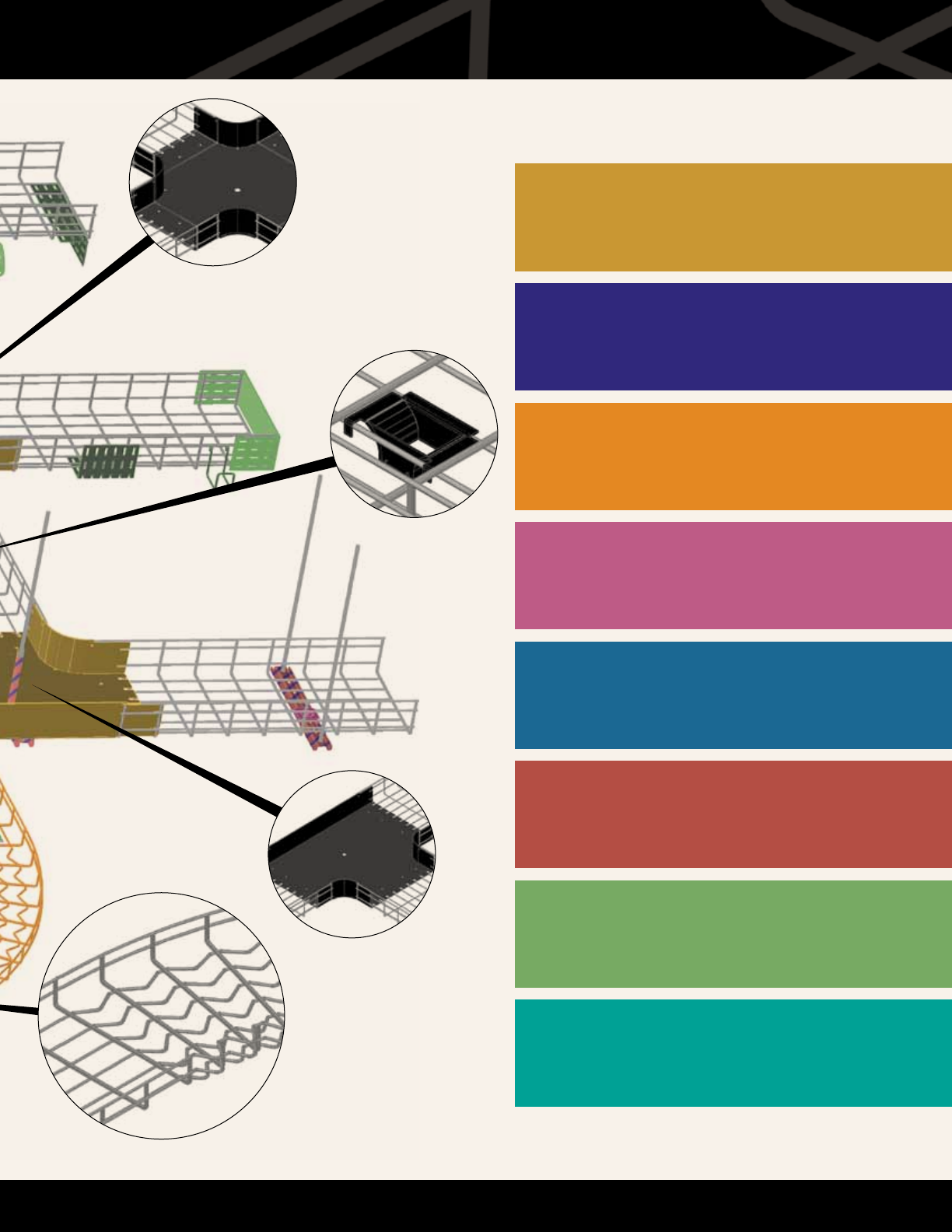

PARTS CATEGORY KEY

WBT PreForm

PAGE 7

SPLICING

PAGE 10

WALL SUPPORTS

PAGE 11

ACCESSORIES

PAGE 13

CEILING SUPPORTS

PAGE 12

WBT-U

PAGE 21

WBT NoSplice

PAGE 8

CONFIGURATOR

PAGE 9

FIELD CONFIGURED TRAY

PAGE 9

PreForm INTERSECTION

PAGE 7

PreForm TEE

PAGE 7

CABLE DROPOUT

PAGE 13

WBTray.com | 29

CONTACT

WBToffersunrivaledCustomerSupport.

Ourservicesincludethefollowing:

• Installation assistance

• Free BOM from your drawings or blueprints

• Bid Specication Documents

• Engineering Drawings

• Design Assistance

• Custom Fabricated parts for your specic installation needs

As part of a process of ongoing innovation, WBT reserves the right to change specifications without

prior notice. This includes changes in product dimensions, materials and finish material/processes

and product availability. Please consult WBT for any questions.

It is acknowledged that all Trade Marks, Product Data, Logos, etc. used within this catalog are the sole

and exclusive property of WBT LLC.

VISIT US ONLINE:WWW.WBTRAY.COM

WBT gives you access to a bevy of valuable online tools and forms such as cut sheets, CSI specs,

technical specs, certified test reports & more.

CONTACT US

Email us: sales@WBTray.com

Call us toll free: 888.4WB.TRAY (888.492.8729)

Call us locally: 618.918.3821

Fax us: 618.918.3825

115 Harting Drive Centralia, IL 62801 888.4WB.TRAY WBTRAY.COM

PERFORMANCE CABLETRAY™
