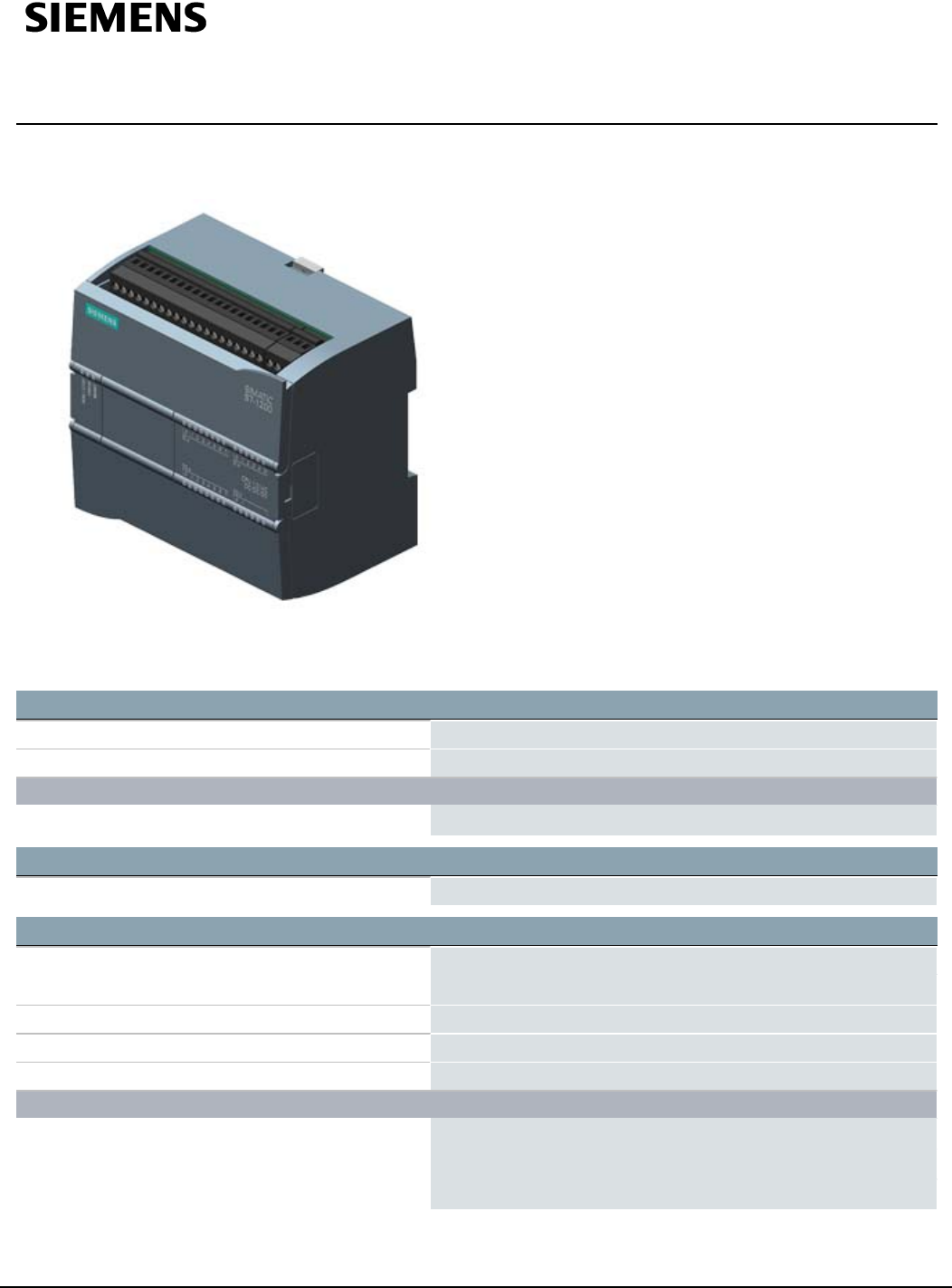

Data sheet 6ES7214-1AG40-0XB0

SIMATIC S7-1200, CPU 1214C, COMPACT CPU, DC/DC/DC,

ONBOARD I/O: 14 DI 24V DC; 10 DO 24 V DC; 2 AI 0 - 10V DC,

POWER SUPPLY: DC 20.4 - 28.8 V DC, PROGRAM/DATA

MEMORY: 100 KB

General information

Product type designation CPU 1214C DC/DC/DC

Firmware version V4.1

Engineering with

● Programming package STEP 7 V13 SP1 or higher

Display

with display No

Supply voltage

Rated value (DC)

● 24 V DC Yes

permissible range, lower limit (DC) 20.4V

permissible range, upper limit (DC) 28.8V

Reverse polarity protection Yes

Load voltage L+

● Rated value (DC) 24V

● permissible range, lower limit (DC) 20.4V

● permissible range, upper limit (DC) 28.8V

6ES7214-1AG40-0XB0 Changes preserved

Page 1/

8

18.01.2016 © Copyright Siemens AG

Input current

Current consumption (rated value) 500mA; CPU only

Current consumption, max. 1500mA; CPU with all expansion modules

Inrush current, max. 12A; at 28.8 V

Encoder supply

24 V encoder supply

● 24 V L+ minus 4 V DC min.

Output current

for backplane bus (5 V DC), max. 1600mA; Max. 5 V DC for SM and CM

Power loss

Power loss, typ. 12W

Memory

Type of memory RAM

Work memory

● integrated 100kbyte

● expandable No

Load memory

● integrated 4Mbyte

● Plug-in (SIMATIC Memory Card), max. with SIMATIC memory card

Backup

● present Yes; maintenance-free

● without battery Yes

CPU processing times

for bit operations, typ. 0.085µs; / instruction

for word operations, typ. 1.7µs; / instruction

for floating point arithmetic, typ. 2.3µs; / instruction

CPU-blocks

Number of blocks (total) DBs, FCs, FBs, counters and timers. The maximum number of

addressable blocks ranges from 1 to 65535. There is no

restriction, the entire working memory can be used

OB

● Number, max. Limited only by RAM for code

Data areas and their retentivity

retentive data area in total (incl. times, counters,

flags), max.

10kbyte

Flag

● Number, max. 8kbyte; Size of bit memory address area

Local data

● per priority class, max. 16kbyte; Priority class 1 (program cycle): 16 KB, priority class 2

to 26: 6 KB

6ES7214-1AG40-0XB0 Changes preserved

Page 2/

8

18.01.2016 © Copyright Siemens AG

Address area

Process image

● Inputs, adjustable 1kbyte

● Outputs, adjustable 1kbyte

Hardware configuration

Number of modules per system, max. 3 comm. modules, 1 signal board, 8 signal modules

Time of day

Clock

● Hardware clock (real-time clock) Yes

● Backup time 480h; Typical

● Deviation per day, max. 60 s/month at 25 °C

Digital inputs

Number of digital inputs 14; Integrated

● of which inputs usable for technological

functions

6; HSC (High Speed Counting)

integrated channels (DI) 14

m/p-reading Yes

Number of simultaneously controllable inputs

all mounting positions

— up to 40 °C, max. 14

Input voltage

● Rated value (DC) 24V

● for signal "0" 5 V DC at 1 mA

● for signal "1" 15 VDC at 2.5 mA

Input delay (for rated value of input voltage)

for standard inputs

— parameterizable 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms,

selectable in groups of four

— at "0" to "1", min. 0.2ms

— at "0" to "1", max. 12.8ms

for interrupt inputs

— parameterizable Yes

for counter/technological functions

— parameterizable Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80

kHz & 3 @ 30 kHz

Cable length

● shielded, max. 500m; 50 m for technological functions

● unshielded, max. 300m; For technological functions: No

Digital outputs

Number of digital outputs 10

● of which high-speed outputs 4; 100 kHz Pulse Train Output

6ES7214-1AG40-0XB0 Changes preserved

Page 3/

8

18.01.2016 © Copyright Siemens AG

integrated channels (DO) 10

Limitation of inductive shutdown voltage to L+ (-48 V)

Switching capacity of the outputs

● with resistive load, max. 0.5A

● on lamp load, max. 5W

Output voltage

● for signal "0", max. 0.1V; with 10 kOhm load

● for signal "1", min. 20 V

Output current

● for signal "1" rated value 0.5A

● for signal "0" residual current, max. 0.1mA

Output delay with resistive load

● "0" to "1", max. 1µs

● "1" to "0", max. 5µs

Switching frequency

● of the pulse outputs, with resistive load, max. 100kHz

Cable length

● shielded, max. 500m

● unshielded, max. 150m

Analog inputs

Number of analog inputs 2

integrated channels (AI) 2; 0 to 10V

Input ranges

● Voltage Yes

Input ranges (rated values), voltages

● 0 to +10 V Yes

● Input resistance (0 to 10 V) ≥100k ohms

Cable length

● shielded, max. 100m; twisted and shielded

Analog outputs

Number of analog outputs 0

Analog value generation

Integration and conversion time/resolution per channel

● Resolution with overrange (bit including sign),

max.

10bit

● Integration time, parameterizable Yes

● Conversion time (per channel) 625µs

Encoder

Connectable encoders

● 2-wire sensor Yes

6ES7214-1AG40-0XB0 Changes preserved

Page 4/

8

18.01.2016 © Copyright Siemens AG

1. Interface

Interface type PROFINET

Physics Ethernet

Isolated Yes

automatic detection of transmission rate Yes

Autonegotiation Yes

Autocrossing Yes

Functionality

● PROFINET IO Controller Yes

● PROFINET IO Device Yes

● Open IE communication Yes

● Web server Yes

PROFINET IO Controller

● Transmission rate, max. 100Mbit/s

Services

— Number of connectable IO Devices, max. 16

PROFINET IO Device

Services

— Shared device Yes

— Number of IO Controllers with shared

device, max.

2

Protocols

Supports protocol for PROFINET IO Yes

PROFIBUS Yes; CM 1243-5 required

AS-Interface Yes

Protocols (Ethernet)

● TCP/IP Yes

Further protocols

● MODBUS Yes

Communication functions

S7 communication

● supported Yes

● as server Yes

● as client Yes

Open IE communication

● TCP/IP Yes

● ISO-on-TCP (RFC1006) Yes

● UDP Yes

Web server

● supported Yes

● User-defined websites Yes

6ES7214-1AG40-0XB0 Changes preserved

Page 5/

8

18.01.2016 © Copyright Siemens AG

Number of connections

● overall 16; dynamically

Test commissioning functions

Status/control

● Status/control variable Yes

● Variables Inputs/outputs, memory bits, DBs, distributed I/Os, timers,

counters

Forcing

● Forcing Yes

Diagnostic buffer

● present Yes

Traces

● Number of configurable Traces 2; Up to 512 KB of data per trace are possible

Integrated Functions

Number of counters 6

Counting frequency (counter) max. 100kHz

Frequency meter Yes

controlled positioning Yes

Number of position-controlled positioning axes, max. 8

Number of positioning axes via pulse-direction

interface

4; With integrated DO

PID controller Yes

Number of alarm inputs 4

Number of pulse outputs 4

Limit frequency (pulse) 100kHz

Potential separation

Potential separation digital inputs

● Potential separation digital inputs 500V AC for 1 minute

● between the channels, in groups of 1

Potential separation digital outputs

● Potential separation digital outputs Yes

● between the channels No

● between the channels, in groups of 1

EMC

Interference immunity against discharge of static electricity

● Interference immunity against discharge of

static electricity acc. to IEC 61000-4-2

Yes

— Test voltage at air discharge 8kV

— Test voltage at contact discharge 6kV

Interference immunity to cable-borne interference

6ES7214-1AG40-0XB0 Changes preserved

Page 6/

8

18.01.2016 © Copyright Siemens AG

● Interference immunity on supply lines acc. to

IEC 61000-4-4

Yes

● Interference immunity on signal cables acc. to

IEC 61000-4-4

Yes

Interference immunity against voltage surge

● on the supply lines acc. to IEC 61000-4-5 Yes

Interference immunity against conducted variable disturbance induced by high-frequency fields

● Interference immunity against high-frequency

radiation acc. to IEC 61000-4-6

Yes

Emission of radio interference acc. to EN 55 011

● Limit class A, for use in industrial areas Yes; Group 1

● Limit class B, for use in residential areas Yes; When appropriate measures are used to ensure compliance

with the limits for Class B according to EN 55011

Degree and class of protection

Degree of protection acc. to EN 60529

● IP20 Yes

Standards, approvals, certificates

CE mark Yes

UL approval Yes

cULus Yes

FM approval Yes

RCM (formerly C-TICK) Yes

Marine approval

● Marine approval Yes

Ambient conditions

Free fall

● Drop height, max. (in packaging) 0.3m; five times, in dispatch package

Ambient temperature during operation

● min. -20°C

● max. 60°C; Number of simultaneously activated inputs or outputs 7 or

5 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 14 or

10 at 55 °C horizontal or 45 °C vertical

● horizontal installation, min. -20°C

● horizontal installation, max. 60°C

● vertical installation, min. -20°C

● vertical installation, max. 50°C

Ambient temperature during storage/transportation

● min. -40°C

● max. 70°C

Air pressure acc. to IEC 60068-2-13

● Storage/transport, min. 660hPa

● Storage/transport, max. 1080hPa

6ES7214-1AG40-0XB0 Changes preserved

Page 7/

8

18.01.2016 © Copyright Siemens AG

● permissible operating height -1000 to 2000 m

Relative humidity

● permissible range (without condensation) at 25

°C

95 %

Vibrations

● Vibrations 2G wall mounting, 1G DIN rail

● Operation, tested according to IEC 60068-2-6 Yes

Shock test

● tested according to IEC 60068-2-27 Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak

value), duration 11 ms

Extended ambient conditions

Pollutant concentrations

— SO2 at RH < 60% without condensation S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free

Configuration

Programming

Programming language

— LAD Yes

— FBD Yes

— SCL Yes

Cycle time monitoring

● adjustable Yes

Dimensions

Width 110mm

Height 100mm

Depth 75mm

Weights

Weight, approx. 415g

last modified: 13.01.2016
