Electrical Sector Solutions

Volume 14: Fuses

Available in electronic format only. Publication No. CA08100016E / MSC

Electrical Sector Solutions

Volume 14:

Fuses

www.comoso.com

Volume 14—Fuses

Tab 1—Fuses General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T1-1

Tab 2—Expulsion Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-1

Tab 3—Current Limiting Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-1

Appendix 1—Eaton Terms & Conditions . . . . . . . . . . . . . . . . . . . . . . . . V14-A1-1

Appendix 2—Superseded Style Number Index. . . . . . . . . . . . . . . . . . . V14-A2-1

Appendix 3—Catalog Number/Style Number Cross Reference . . . . . V14-A3-1

www.comoso.com

Dimensions, Weights and Ratings

Dimensions, weights and ratings given in this catalog are approximate and should not

be used for construction purposes. Drawings containing exact dimensions are available

upon request. All listed product specifications and ratings are subject to change without

notice. Photographs are representative of production units.

Terms and Conditions

All prices and discounts are subject to change without notice. When price changes

occur, they are published in the Eaton Corporation Price and Availability Digest (PAD).

All orders accepted by Eaton’s electrical sector are subject to the general terms and

conditions as set forth in Appendix 1—Eaton Terms & Conditions.

Technical and Descriptive Publications

This catalog contains brief technical data for proper selection of products. Further

information is available in the form of technical information publications and illustrated

brochures. If additional product information is required, contact your local Eaton

Products Distributor, call 1-800-525-2000 or visit our Web site at www.eaton.com.

Compliance with Nuclear Regulation 10 CFR 21

Eaton products are sold as commercial grade products not intended for application in

facilities or activities licensed by the United States Nuclear Regulatory Commission for

atomic purposes, under 10 CFR 21. Further certification will be required for use of these

products in a safety-related application in any nuclear facility licensed by the U.S.

Nuclear Regulatory Commission.

WARNING

The installation and use of Eaton products should be in accordance with the provisions

of the U.S. National Electrical Code® and/or other local codes or industry standards that

are pertinent to the particular end use. Installation or use not in accordance with these

codes and standards could be hazardous to personnel and/or equipment.

These catalog pages do not purport to cover all details or variations in equipment, nor to provide for

every possible contingency to be met in connection with installation, operation or maintenance.

Should further information be desired or should particular problems arise which are not covered

sufficiently for the purchaser’s purposes, the matter should be referred to the local Eaton Products

Distributor or Sales Office. The contents of this catalog shall not become part of or modify any prior

or existing agreement, commitment or relationship. The sales contract contains the entire

obligation of Eaton’s electrical sector. The warranty contained in the contract between the parties

is the sole warranty of Eaton. Any statements contained herein do not create new warranties or

modify the existing warranty.

www.comoso.com

Volume 14—Fuses CA08100016E—February 2012 www.eaton.com i

Introduction

Eaton Corporation is a global leader in power distribution, power quality,

control and automation, and monitoring products.

At Eaton, we believe a reliable, efficient and safe power system is the foundation of every

successful enterprise. Through innovative technologies, cutting-edge products and our highly

skilled services team, we empower businesses around the world to achieve a powerful advantage.

In addition, Eaton is committed to creating and maintaining powerful customer relationships built

on a foundation of excellence. From the products we manufacture to our dedicated customer

service and support, we know what’s important to you.

Solutions

Eaton takes the complexity out of power systems management with a holistic and strategic

approach, leveraging our industry-leading technology, solutions and services. We focus on

the following three areas in all we do:

●Reliability—maintain the

appropriate level of power

continuity without

disruption or unexpected

downtime

●Efficiency—minimize

energy usage, operating

costs, equipment footprint

and environmental impact

●Safety—identify and

mitigate electrical hazards

to protect what you value

most

Using the Eaton Catalog Library

As we grow, it becomes increasingly difficult to include all products in one or two comprehensive

catalogs. Knowing that each user has their specific needs, we have created a library of catalogs for our

products that when complete, will contain 14 volumes. Since the volumes will continuously be a work

in progress and updated, each volume will stand alone. Refer to our volume directory, MZ08100001E,

for a quick glance of where to look for the products you need. The 14 volumes include:

●Volume 1—Residential

and Light Commercial

(CA08100002E)

●Volume 2—Commercial

Distribution (CA08100003E)

●Volume 3—Power

Distribution and Control

Assemblies (CA08100004E)

●Volume 4—Circuit

Protection (CA08100005E)

●Volume 5—Motor Control

and Protection

(CA08100006E)

●Volume 6—Solid-State

Motor Control

(CA08100007E)

●Volume 7—Logic Control,

Operator Interface and

Connectivity Solutions

(CA08100008E)

●Volume 8—Sensing

Solutions (CA08100010E)

●Volume 9—Original

Equipment Manufacturer

(CA08100011E)

●Volume 10—Enclosed

Control (CA08100012E)

●Volume 11—Vehicle and

Commercial Controls

(CA08100013E)

●Volume 12—Aftermarket,

Renewal Parts and Life

Extension Solutions

(CA08105001E)

●Volume 13—Counters,

Timers and Tachometers

(CA08100015E)—Available

in electronic format only

●Volume 14—Fuses

(CA08100016E)—Available

in electronic format only

These volumes are not all-inclusive of every product, but they are meant to be an overview

of our product lines. For our full range of product solutions and additional product information,

consult Eaton.com/electrical and other catalogs and product guides in our literature library.

These references include:

●The Consulting Application

Guide (CA08104001E)

●The Eaton Power Quality

Product Guide (COR01FYA)

If you don’t have the volume that contains the product or information that you are looking for,

not to worry. You can access every volume of the catalog library at Eaton.com/electrical in the

Literature Library.

By installing our Automatic Tab Updater (ATU), you can be sure you always have the most recent

version of each volume and tab.

www.comoso.com

ii Volume 14—Fuses CA08100016E—February 2012 www.eaton.com

Introduction

Icons

Green Leaf

Eaton Green Solutions are products, systems or solutions that represent Eaton

benchmarks for environmental performance. The green leaf symbol is our

promise that the solution has been reviewed and documented as offering

exceptional, industry-leading environmental benefits to customers, consumers

and our communities. Though all of Eaton's products and solutions are

designed to meet or exceed applicable government standards related to

protecting the environment, our products with the Green Leaf designation

further provide “exceptional environmental benefit”.

Learn Online

When you see the Learn Online icon, go to Eaton.com/electrical and search for

the product or training page. There you will find 100-level training courses,

podcasts, webcasts or games and puzzles to learn more.

Drawings Online

When you see the Drawings Online icon, go to Eaton.com/electrical and find the

products page. There you will find a tab that includes helpful product drawings

and illustrations.

If you need additional help, you can find contact information

under the Customer Care heading of Eaton.com/electrical.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T1-1

Fuses General

Current Limiting Fuses

Expulsion Fuses

1.1 Product Overview

Power Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T1-2

Power vs. Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T1-2

Low vs. Medium vs. High Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T1-2

Expulsion vs. Current Limiting (Deﬁnitions per ANSI C47.40-1993). . . V14-T1-3

Current Limiting Fuse Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T1-3

General Fuse Component Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T1-3

www.comoso.com

V14-T1-2 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

1.1

Fuses General

Product Overview

Typical Eaton Fuses Contents

Description Page

Current Limiting Fuse Types . . . . . . . . . . . . . . . . . V14-T1-3

Expulsion vs. Current Limiting

(Deﬁnitions per ANSI C47.40-1993). . . . . . . . . . . V14-T1-3

General Fuse Component Terms . . . . . . . . . . . . . . V14-T1-3

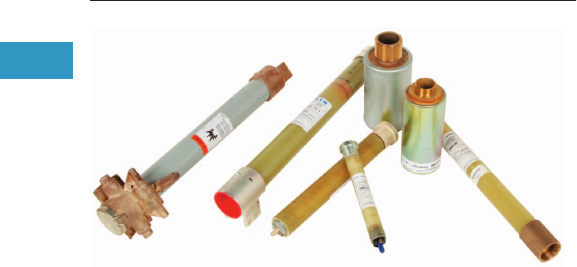

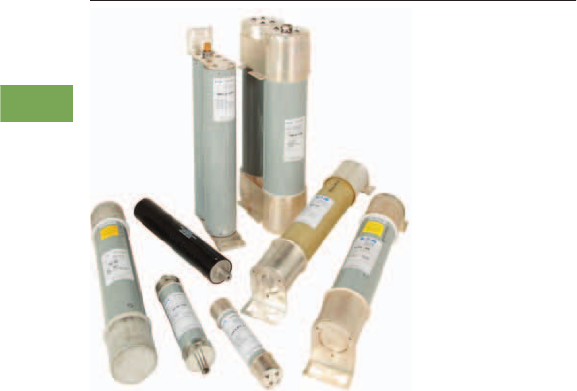

Product Overview

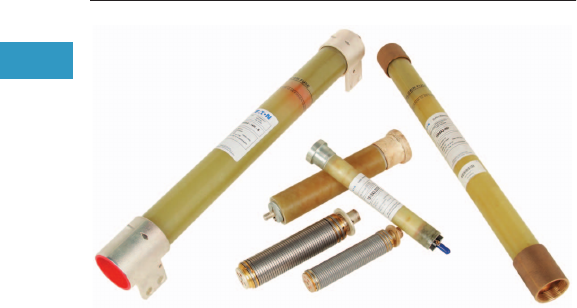

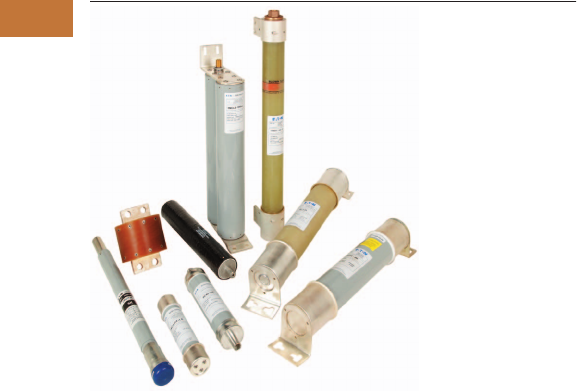

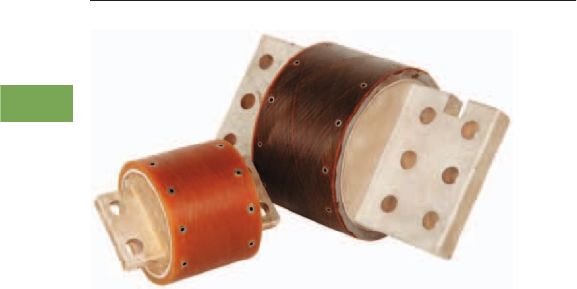

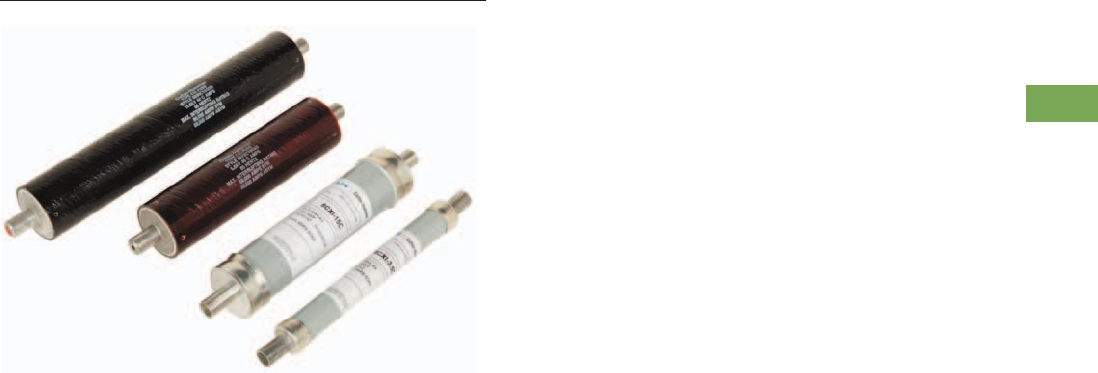

Power Fuse

Eaton’s roots in the

medium voltage power

fuse business began

over 75 years ago under

Westinghouse® Electric.

In 1935, Westinghouse

introduced the medium

voltage boric acid expulsion

fuse followed by the medium

voltage current limiting fuse.

Even today, medium voltage

fuses continue to use that

core technology. Eaton

continues to build on

the technology legacy

by engineering high

performance, cost-effective

power fuse products.

Eaton’s medium voltage

fuses are manufactured and

tested to the requirements

of the C37-4X series of

standards that are maintained

and updated regularly to

maintain currency with

industry practices. These

standards are:

IEEE Std. C37.40 ™

IEEE Standard Service

Conditions and Definitions

for High Voltage Fuses,

Distribution Enclosed Single-

Pole Air Switches, Fuse

Disconnecting Switches,

and Accessories (ANSI).

IEEE Std. C37.41 ™

IEEE Standard Design

Tests for High-Voltage

(>1000V) Fuses, Fuse and

Disconnecting Cutouts,

Distribution Enclosed Single-

Pole Air Switches, Fuse

Disconnecting Switches, and

Fuse Links and Accessories

used with These Devices

(ANSI).

IEEE Std. C37.42 ™

IEEE Standard Specifications

for High-Voltage (>1000V)

Expulsion-Type Distribution-

Class Fuses, Fuse and

Disconnecting Cutouts,

Fuse Disconnecting

Switches, and Fuse Links,

and Accessories used with

These Devices (ANSI).

IEEE Std. C37.46™

IEEE Standard Specifications

for High Voltage Expulsion

and Current Limiting Type

Power Class Fuses and Fuse

Disconnecting Switches.

IEEE Std. C37.47™

IEEE Standard Specifications

for High Voltage Current

Limiting Type Distribution

Class Fuses and Fuse

Disconnecting Switches.

The following IEEE standards

are also applicable to the fuse

products covered in this

publication:

IEEE Std. C37.48 ™

IEEE Guide for the

Application, Operation, and

Maintenance of High Voltage

Fuses, Distribution Enclosed

Single-Pole Air Switches,

Fuse Disconnecting

Switches, and Accessories

(ANSI).

IEEE Std. C37.48.1 ™

IEEE Guide for the

Classification, Application,

and Coordination of Current-

Limiting Fuses with Rated

Voltages 1–38 kV.

A better understanding of

some fuse terminology will

help you understand and

select the correct fuse. The

following is a brief overview

of those terms.

Power vs. Distribution

The differentiation is intended

to indicate the test conditions

and where fuses are normally

applied on an electrical

system, based on specific

requirements for generating

sources, substations and

distribution lines. Each

class has its own unique

set of voltage, current and

construction requirements

(see C37.42, .46 and .47).

Low vs. Medium vs.

High Voltage

While fuses are defined in

the ANSI standards as either

low or high voltage, Eaton

has elected to name their

fuses to correspond with the

equipment in which they are

installed. Therefore, per ANSI

C84, our fuses are named

as follows:

●Low voltage—1000V and

below

●Medium voltage—greater

than 1000 to 69,000V

●High voltage—greater than

69,000V

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T1-3

1.1

Fuses General

Product Overview

Expulsion vs. Current

Limiting (Deﬁnitions per ANSI

C47.40-1993)

An expulsion fuse is a vented

fuse in which the expulsion

effect of the gases produced

by internal arcing, either

alone or aided by other

mechanisms, results in

current interruption.

A current limiting fuse is a

fuse that, when its current

responsive element is melted

by a current within the fuse’s

specified current limiting

range, abruptly introduces

a high resistance to reduce

current magnitude and

duration, resulting in

subsequent current

interruption. Refer to Fuse

Types Protection Range

figure below for a features

comparison.

An expulsion fuse is not

current limiting and as a

result limits the duration of a

fault on the electrical system,

not the magnitude.

Current Limiting Fuse Types

There are three current

limiting fuse types: Backup,

General Purpose and Full

Range. It is important that the

user have an understanding

of these definitions to ensure

proper application of the fuse

(see Fuse Types Protection

Range figure below).

Backup Fuses

A fuse capable of interrupting

all currents from the

maximum rated interrupting

current down to the rated

minimum interrupting

current.

Backup fuses are always

used in a series with another

interrupting device capable of

interrupting currents below

the fuse’s minimum

interrupting current.

General Purpose Fuses

A fuse capable of interrupting

all currents from the rated

interrupting current down

to the current that causes

melting of the fusible element

in no less than one hour.

General Purpose fuses are

typically used to protect

feeders and components

such as transformers.

Full Range Fuses

A fuse capable of interrupting

all currents from the rated

interrupting current down

to the minimum continuous

current that causes melting

of the fusible element,

with the fuse applied at

the maximum ambient

temperature specified by

the manufacturer.

General High Voltage Fuse Comparison

Fuse Types Protection Range

Expulsion Current Limiting

Vented Sealed

Electromechanical Static

Interrupts at current zero Limits fault current

Generally higher voltage and current application

capabilities

Generally higher interrupting ratings

Different time/current characteristics Different time/current characteristics

Current Limiting Type

Interrupting Current

ii hr. i min. i max.

ACKUP

ENERAL

URPOSE

ULL

ANGE

i max. — Maximum rated interrupting current

i min. — Minimum rated interrupting current

i hr. — Current causing element melting in 1 hour

i — Any current melting element with no time limit

General Fuse Component Terms

Fuse Reﬁll Unit (of an

Expulsion Fuse)

A fuse refill unit is a

replaceable assembly

containing the calibrated

current-responsive fuse

element and certain other

items that facilitate current

interruption. On its own, the

refill unit has no interrupting

ability. A refill unit must be

mounted in a fuse holder with

a spring assembly to form a

refillable fuse unit. The refill

unit is the section of the fuse

that must be replaced after a

fuse operation.

Fuse Holder (of an

Expulsion Fuse)

A fuse holder is a reusable

holder that when equipped

with a fuse refill unit forms

a fuse unit, capable of

interrupting an overload or

fault current. A fuse holder

is supplied with a spring and

shunt assembly, necessary

to complete the internal

interrupting assembly. The

spring and shunt assembly is

supplied with the fuse holder

but is also available as a

replacement part, as it may

need replacement after

several of heavy operations.

Fuse Unit

A fuse unit is a replaceable

unit or assembly that is

able, on its own, to perform

current interruption. In

the case of a refillable fuse

unit, the refill unit must

be replaced after a fuse

operation. Where a complete

fuse unit is supplied from the

factory, the complete fuse

unit must be replaced after a

fuse operation. All current-

limiting fuses are fuse units.

Exhaust Control Device

When expulsion fuses are

used in enclosures, exhaust

control devices (filters,

condensers or mufflers) are

used to control the sound

of the fuse operation, and

to de-ionize and absorb the

fuse exhaust products. These

devices are normally supplied

separately, because of

different characteristics and

ratings. They are reusable but

may need replacement after

several heavy operations.

Mounting

A mounting provides all the

necessary parts to safely

mount a fuse in its intended

piece of equipment. The

base is the metal support to

which all other pieces attach.

Insulators attach to the base

and insulate the live fuse unit

from the base and everything

beyond the base. Live parts

are the parts of the mounting

that are energized once

electricity is flowing. The live

parts provide the means to

hold the fuse unit in place,

electrical contact, and a

place to make line and load

connections.

Non-Disconnect Mounting

A non-disconnect mounting

does not provide a means for

removing the fuse unit until

the circuit is dead and the

fuse unit can be removed

manually. The fuse unit is

held in place by friction

through the use of fuse

clips or by a cross bar.

www.comoso.com

V14-T1-4 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

1.1

Fuses General

Product Overview

Disconnect Mounting

The disconnect mounting

allows the fuse unit to be

removed (off load) using an

insulated switch stick. The

switch stick grabs a pull ring

and disconnects the fuse unit

that may then be lifted out of

its mounting.

Dropout Mounting

Dropout mountings are

used in outdoor applications.

The fuse unit is equipped

with a mechanical trigger that

unlatches the upper contact,

allowing the fuse unit to drop

out, increasing the dielectric

separation, and providing

visible indication of a

blown fuse.

Live Parts

Live parts were briefly

discussed as part of the

“Mounting” definition.

Everything above the

insulators on the mounting

excluding the fuse unit, fuse

holder, and the fuse end

fittings (if required) are

considered the live parts. Fuse

end fittings are discussed

next and are not required

with non-disconnect live

parts, but are required and

included with disconnect live

parts. Live parts may be sold

separately as replacement

parts or for new OEM

applications.

End Fittings

End fittings are metal parts

that attach to each end of a

fuse unit’s ferrules (end caps).

As previously mentioned,

they are used solely with

disconnect fuse applications

or when converting a non-

disconnect to a disconnect

fuse configuration.

When end fittings are

ordered, a fitting for each end

of the fuse is included. Keep

in mind that end fittings can

become damaged in use and,

therefore, are sold separately

from the live parts when

necessary. It is not necessary

to purchase an entire set of

live parts when only the end

fittings are required.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-1

Expulsion Fuses

Eaton Expulsion Fuses 2.1 Product Overview

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-2

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-2

Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-2

Reﬁllable and Replaceable Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-3

Outdoor Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-3

2.2 Fuse Selection

Voltage Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-4

Interrupting Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-5

Continuous Current Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-7

Coordination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-9

2.3 Application

Transformer Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-12

Repetitive Faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-19

2.4 BA Type Fuses

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-20

Catalog Number Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-21

Interrupting Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-21

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-22

2.5 DBA Type Fuses

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-27

Catalog Number Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-32

Interrupting Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-32

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-33

2.6 DBU Type Fuses

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-39

Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-39

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-40

Interruption and Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-41

Testing and Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-43

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-43

Catalog Number Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-44

Interrupting Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-44

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-45

Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-50

2.7 RBA and RDB Type Fuses

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-52

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-52

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-53

Operation and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-53

Catalog Number Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-58

Interrupting Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-59

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-60

Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-68

www.comoso.com

V14-T2-2 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.1

Expulsion Fuses

Product Overview

Eaton Expulsion Fuses Contents

Description Page

Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-2

Reﬁllable and Replaceable Fuses. . . . . . . . . . . . . . V14-T2-3

Outdoor Applications . . . . . . . . . . . . . . . . . . . . . . . V14-T2-3

Product Description

Eaton’s expulsion fuses use

boric acid as the interrupting

medium. Under a fault

condition, arc heat

decomposes the boric acid

into water vapor. The water

vapor blast de-ionizes the arc

path preventing arc re-ignition

after a natural current zero.

RBA type indoor expulsion

fuses must be fitted with a

discharge filter or condenser,

that moderates the discharge

exhaust. The discharge filter

limits the exhaust to a small

and relatively inert amount of

gas and lowers the noise

level without affecting the

fuse interrupting rating.

Steam discharge, that can

effect the interrupting, is fully

restricted by the condenser.

RDB type outdoor dropout

fuses include an ejector

spring that forces the arcing

rod through the top of the

fuse. The arcing rod strikes a

latch on the mounting that

forces the fuse to swing

outward through a 180° arc

into the dropout position.

Refill units can be field

installed into RBA and RDB

expulsion fuses. Once the

operated unit has been

removed, the separately

purchased unit can be easily

installed into the fuse holder.

DBU type fuse units are

designed for new and

aftermarket utility applications.

End fittings are available, in

both indoor and outdoor

versions, as well as live parts

and mountings. Mufflers

confine the arc within the fuse

and substantially reduce the

noise and exhaust when the

fuse interrupts.

RBA E-Rated Reﬁllable

Boric Acid

RDB E-Rated Reﬁllable

Outdoor Dropout Boric

Acid

DBU Dropout Boric Acid—

for Use Indoors, Inside

Switchgear or Outdoors

Accessories

The following accessories are

available for expulsion fuses:

Mountings

Mountings include a base,

porcelain or glass polyester

insulators, and live parts.

They help enable the fuse to

be safely attached to the

gear. Mountings can be

either disconnect, non-

disconnect or dropout. Non-

disconnect mountings are

available in bolt-on or clamp-

type arrangements. Fuses

may be vertical or underhung.

Live Parts

Live parts attach the fuse to

the insulators and are

considered part of the

mounting. All parts above the

insulators are live parts.

End Fittings

End fittings are metal parts

that attach to each end of the

fuse at the ferrules. They are

used only on disconnect

fuses or when converting a

non-disconnect to a

disconnect fuse.

Catalog Numbers

Each Eaton fuse product is

identified by a unique

descriptive catalog number

that contains major

information such as the fuse

family and item, and rated

maximum continuous current

and rated maximum

application voltage where

applicable. The catalog

number does not change

where form, fit and function

remain unchanged, although

the associated Eaton internal

10 character style number

may change. Fuse products

should be ordered by the

descriptive catalog number.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-3

2.1

Expulsion Fuses

Product Overview

Reﬁllable and Replaceable Fuses

Boric acid expulsion power

fuses are divided into two

types, refillable and

replaceable.

Refillable fuses are

constructed so that the

consumable refill unit can be

removed and replaced after a

fuse operation. Because the

fuse holder and spring and

shunt assembly components

are reused, they can be

constructed with a heavy

duty design that also allows

the unit to have a high

interrupting capacity.

Because these components

are reused it is easy to

change fuse current rating by

simply changing the refill unit.

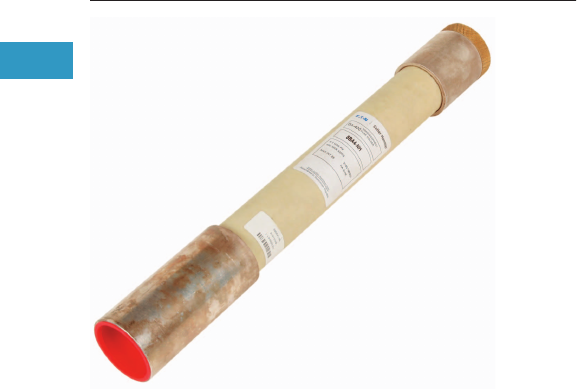

The indoor refillable fuse is

the RBA (Refillable Boric

Acid) fuse. It is designed to

be used indoor or in an

enclosure with an exhaust

control device that limits the

discharge given off by the

fuse during operation. Three

types of exhaust control

devices are available to limit

the discharge. A condenser

may be used that fully

restricts the discharge but

reduces the interrupting

rating. A discharge filter is

available that restricts

discharge but not to a level

that causes a reduction in the

interrupting rating. A high

capacity discharge filter is

also available, but its use is

restricted to certain

applications on 15.5 kV

equipment at maximum

voltages below 14.4 kV. This

device allows a higher

interrupting rating, but allows

more discharge.

The outdoor refillable fuse is

the RDB (Refillable Dropout

Boric acid) fuse. RDB fuses

cannot be equipped with

exhaust control devices.

The construction of the RDA

and RDB is similar. They both

utilize RBA refill units. The

main difference in the internal

construction is the ballistic

kick-out pin that initiates the

dropout action. Externally the

RBD outdoor fuse holder

tube has a protective coating

of tough epoxy paint that

provides ultraviolet

protection. The fuse holder

has a sealed weatherproof

design.

Typical Discharge Pattern from an Eaton Outdoor Boric Acid

Power Fuse

Vent

End

of Fuse

Intense

Discharge

up to

3 Feet

Vapor Clouds

May Rebound From Ground

Extending to 10 Feet

Innocuous

Gases

Innocuous

Gases

Clouds of Water Vapor

up to 6 Feet

A complete fuse consists of a

fuse mounting, a fuse holder

that includes the spring and

shunt assembly, a refill unit,

and an exhaust control device

for indoor applications. These

parts are shown in the RBA/

RDB section.

Both disconnect and non-

disconnect mountings are

available for RBA fuses. Each

of these mountings has front

connected terminals. Indoor

non-disconnect fuse holders

have translucent tubes, and

the lower end of the spring

and shunt assembly is

equipped with a bright orange

cap to give a visual indication

of fuse operation. RDB

outdoor mountings must be

disconnecting because of the

dropout requirement to

provide dielectric isolation

and visible indication.

BA type installations were

made obsolete several years

ago, but BA refill units are still

available to enable re-fusing

in existing applications. BA

and RBA installations use the

same exhaust control

devices. RBA filters or

condensers can be used to

replace BA filters or

condensers if required.

Replacement BA mountings

and fuse holders are not

normally available.

Replaceable fuses have a

lower initial installed cost by

providing a more cost

effective construction.

Replaceable fuses generally

offer faster reconnection, but

with higher replacement cost

and lower interrupting

ratings.

Eaton offers a replaceable

style DBU fuse for either

indoor or outdoor

applications. DBU fuses are

lighter, less expensive fuses

than the higher rated RBA/

RBD fuses. DBA fuse units

are offered as replacement

fuses, but DBA mountings

are no longer available.

Outdoor Applications

For outdoor application of the

RDB, DBU and DBA fuses, it

is important that fuses that

have not operated are not left

hanging in the disconnected

position for extended periods.

If the weather seals on these

fuses are broken or damaged,

it is possible for water to

enter and damage the fuse

unit or fuse refill unit. The

integrity of these seals is

directly related to the

integrity of the fuse unit or

fuse refill unit. Seals should

be checked periodically and

an affected fuse unit or fuse

refill unit replaced. The

condition of the paint on the

fuse unit should also be

checked periodically.

Eaton expulsion fuses use

boric acid for the interrupting

medium. When the fuse

element melts, the heat of

the arc decomposes the boric

acid, releasing water vapor

that cools and extinguishes

the arc by blasting through it

and exiting the bottom of the

fuse. The interruption

process produces both a flow

of exhaust gas and a good

deal of noise. To moderate

the pressure wave and noise,

an exhaust control device is

added to indoor fuses.

Exhaust control devices limit

the exhaust to a small and

relatively inert amount of gas

while lowering the noise

level, but have little or no

effect on the interrupting

rating of the fuse. Mufflers

and condensers absorb and

contain the exhaust while

drastically reducing the noise

level; however, a condenser

or muffler may cause a

reduction of the interrupting

rating of the fuse.

www.comoso.com

V14-T2-4 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.2

Expulsion Fuses

Fuse Selection

DBU Outdoor Mounting Contents

Description Page

Fuse Selection

Interrupting Rating . . . . . . . . . . . . . . . . . . . . . . V14-T2-5

Continuous Current Rating . . . . . . . . . . . . . . . . V14-T2-7

Coordination . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-9

Fuse Selection

There are four factors

involved in the selection of a

boric acid expulsion fuse.

The first three considerations

are the rated maximum

voltage, the rated maximum

interrupting current including

the rate of rise of the

transient recovery voltage,

and the rated continuous

current of the fuse. Proper

attention must be given to

each of these as improper

application in any one of

these areas may result in the

fuse failing to perform its

intended function. The fourth

consideration is coordination

with line and load side

protective equipment that is

needed to give selectivity of

outage and to prevent

premature operation.

Each of these four areas is

discussed in detail.

Voltage Rating

The first consideration

regarding fuse application is

that the fuse selected must

have a rated maximum

voltage equal to or greater

than the maximum power

frequency voltage that could

be impressed across the fuse

under any possible

conditions. In most cases,

this means that the rated

maximum voltage of the fuse

must equal or exceed the

system maximum line-to-line

voltage. The only exception

to this rule occurs when

fusing single-phase loads

connected from line-to-

neutral on an effectively

grounded four-wire system.

Here, the fuse rated

maximum voltage need only

exceed the system maximum

line-to-neutral voltage,

providing it is impossible for

the fuse to experience the full

line-to-line voltage under any

fault condition. A good rule of

thumb is that if more than

one phase of the system is

extended beyond the fuse

location, the fuse rated

maximum voltage must equal

or exceed the system

maximum line-to-line voltage,

regardless of how the three-

phase system is grounded on

the source side of the fuse or

how the transformers or

loads are connected on the

load side of the fuse. It is a

fairly common practice to

fuse wye grounded wye

transformers with fuses that

have a rated maximum

voltage that only exceeds

then system line-to-neutral

voltage. In most cases, this

presents no problem, but the

user should be aware of the

remote possibility of a

secondary phase-to-phase

fault that could impose full

line-to-line voltage across a

single fuse. When only one

phase of a four-wire

effectively grounded system

is extended beyond the fuse

location to supply a load

connected from phase-to-

neutral, it is usually

acceptable to have the fuse

rated maximum voltage equal

or exceed the maximum line-

to neutral voltage.

It is permissible for expulsion

fuse rated voltage to exceed

the system voltage by any

desired amount but under no

circumstances may the

system maximum voltage

exceed the fuse rated

maximum voltage.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-5

2.2

Expulsion Fuses

Fuse Selection

Interrupting Rating

Under no circumstance should

a fuse be applied in a situation

where the available fault

current exceeds the

interrupting rating of the fuse.

The rated maximum

interrupting current of a boric

acid expulsion fuse is the rms

value of the symmetrical AC

component of the highest

current that the fuse has been

demonstrated to be able to

interrupt under any conditions

of asymmetry with specified

circuit conditions. In other

words, the rated maximum

interrupting current denotes

the maximum symmetrical

fault current permitted at the

fuse location. Historically, boric

acid expulsion fuses have

alternately been rated in terms

of asymmetrical fault current.

Asymmetrical currents are

related to symmetrical

currents by the asymmetry

factor, which is the ratio of the

rms values of the

asymmetrical and symmetrical

currents. The asymmetrical

current includes the decaying

DC component of the fault

current. Asymmetry factors

are a function of the circuit X/R

ratio, and this relationship is

shown below. Theoretically,

the maximum asymmetry

factor in a purely inductive

circuit 1.732; however, with

X/R ratios encountered in

power circuits, it is rarely ever

more than 1.6. Fuse standards

suggest an asymmetry factor

of 1.56 to 1.6. The minimum

asymmetry factor at which

Eaton boric acid expulsion

fuses are tested to determine

their rated maximum

interrupting current is 1.6. In

general, historically stated

asymmetrical rms rated

maximum interrupting

currents can be converted to

their rms symmetrical rated

maximum counterparts by

dividing the asymmetrical

value by 1.6.

Historically, a third way to

state the interrupting rating of

a boric acid expulsion fuse

was with nominal three-phase

kVA ratings. Three-phase kVA

ratings are calculated by the

formula kVA = I x kV x 1.732,

where I is the rated maximum

interrupting current in

symmetrical rms amperes and

kV is the fuse nominal voltage

rating. With this method, it

must be kept in mind that

fuses are not constant kVA

devices, that is, if the voltage

is half the fuse rating, the

interrupting current does not

double but remains the same.

The fuse will interrupt any

current up to the rated

maximum interrupting current

as long as the power

frequency voltage does not

exceed the rated maximum

voltage of the fuse.

Interrupting ratings for each

type of Eaton expulsion fuse

are listed in the detailed

sections for each fuse type.

Asymmetry Factors

When the fusible element in

an expulsion fuse melts as

the result of a fault, an arc is

established within the fuse.

Normal operation of an

expulsion fuse causes

elongation of the arc due to

spring tension. The current

continues to flow in the

circuit and within the fuse

until a natural current zero of

the circuit is reached. When

the arc is extinguished at a

current zero, the voltage

across the fuse terminals

changes abruptly from a

relatively low value of arc

voltage to the power

frequency recovery voltage.

The rapid voltage change, in

association with the inherent

capacitance in the circuit,

causes a short duration high

frequency voltage oscillation

to be superimposed on the

power frequency recovery

voltage. This combination of

power frequency voltage and

high frequency oscillatory

voltage is known as the

Transient recovery voltage.

Transient recovery voltages

produce high voltage

stresses across the fuse

terminals. The dielectric

strength between the fuse

terminals must rise faster

than the transient recovery

voltage if a successful

interruption is to occur. The

natural frequency of the

transient recovery voltage is

determined by the circuit

inductance and capacitance,

and the amplitude and decay

rate are determined by the

circuit resistance. The peak

factor is the ratio of the

highest (first) peak of the

transient recovery voltage to

the power frequency

recovery voltage.

1.7

1.6

1.5

1.4

1.3

1.2

1.1

1234510

Circuit X/R Ratio

20 30 40 50

Asymmetry Factor at 1/2 Cycle

www.comoso.com

V14-T2-6 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.2

Expulsion Fuses

Fuse Selection

Primary faults, or faults on

the primary side of a

transformer, will generally

produce higher short-circuit

currents and less severe

transient recovery voltages.

Secondary faults produce

lower fault currents and more

severe transient recovery

voltages. This is due to the

insertion of the transformer

impedance in the circuit.

Eaton recognizes the effects

of the different parameters

involved in primary and

secondary fault phenomena.

These various conditions are

also reflected in the test

parameters called for in IEEE

Std. C37.41-2000™. Eaton’s

line of expulsion fuses have

proven their ability to

successfully withstand the

transient recovery voltage

associated with both types

of faults. The table on Page

V14-T2-6 lists the frequency

of the transient recovery

voltage and amplitude factors

at which these fuses were

tested. These conditions

meet or exceed the

requirements of the ANSI

Standards.

Another consideration when

applying power fuses is the

altitude at which they are

installed. The dielectric

strength of air decreases with

increasing altitude. De-rating

is required for applications at

altitudes above 1000 meters

(3300 feet). Correction

factors

for various altitudes are

listed

in IEEE Std. C37.40™.

Fuses are fault protective

devices, and are overload

tolerant not overload

protective devices. By

design, power type expulsion

fuses are not intended to

operate on fault currents

below the secondary terminal

fault of the associated

transformer. Distribution type

expulsion fuses can be used

where the protection

requirements call for a

greater degree of overload

protection. However, E-rated

and K-rated fuses do not

provide protection for fault

currents less than two times

the continuous current rating

of the fuse.

Transient Recovery Voltage Values for RBA, RDB and DBU Fuses

Voltage kV Transient Recovery Voltage Values

Nominal Maximum Design

Primary Fault Recovery

Frequency in kHz Amplitude Factor

Secondary Fault Recovery

Frequency in kHz Amplitude Factor

2.40 2.75 9.0 1.6 26.0 1.6

4.16 4.80 9.0 1.6 26.0 1.6

4.80 5.50 9.0 1.6 26.0 1.6

7.20 8.25 9.0 1.6 26.0 1.6

13.80 14.40 5.5 1.6 17.4 1.6

14.40 15.50 5.5 1.6 17.4 1.6

23.00 25.50 4.2 1.6 13.0 1.6

34.50 38.00 3.9 1.6 8.5 1.6

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-7

2.2

Expulsion Fuses

Fuse Selection

Continuous Current Rating

Eaton’s expulsion fuses are

designed to carry rated

current continuously

without exceeding the

temperature and temperature

rise limits permitted by

IEEE Std. C37.40™-2003

when tested as specified in

IEEE Std. C37.41™-2000. The

ranges of continuous current

ratings available in Eaton’s

fuses are shown in the table

below. These current ratings

carry either an E or a K

designation as defined in

ANSI C37.42-1996 or

ANSI C37.46-2000.

The current responsive

element of a power fuse with

a continuous current rating of

100E or below shall melt in

300 seconds at an rms

current between 200% and

240% of the continuous

current rating.

The current responsive

element of a power fuse with

a continuous current rating of

above 100E shall melt in 600

seconds at an rms current

between 220% and 264% of

the continuous current rating.

The current responsive

element of a distribution fuse

with a K designation on the

current rating shall melt

within the required time

ranges specified for various

current levels in Table 8 of

ANSI C37.42-1996.

Although the E and K ratings

do not make time current

curves identical, they do

produce a similarity among

different manufacturer’s

fuses, as they all must satisfy

the same requirements. The

E and K ratings also reflect

the 2:1 minimum melting

current versus continuous

current rating that is a design

feature of these fuses.

Note that this similarity

between the time current

curves of E-rated expulsion

fuses from various

manufacturers does not imply

that the time current curves

of E-rated expulsion and

current limiting fuses are

similar even from the same

manufacturer—there are in

fact, considerable differences,

and this must be considered

when comparing expulsion

and current-limiting fuses.

Power fuses are designed to

continuously carry their rated

current without exceeding

temperature rise restrictions.

If rated current is exceeded

enough to cause the

temperature or temperature

rise limits to be exceeded,

but the current is still below

the 300 or 600 second

melting current for a

considerable length of time, a

large amount of heat will be

generated that may cause

permanent damage to the

fuse. Even though the DBU

and RBA/RDB standard fuses

employ silver elements that

are not subject to thermal

degradation unless the

element temperature nearly

reaches the melting

temperature, caution should

still be exercised when

overloading the fuse as

prolonged overheating will

cause deterioration of the

boric acid interrupting

medium and charring of the

fuse wall before the fuse

element melts. The following

curve shows the overload

characteristics of Eaton’s

expulsion fuses. Do not

exceed these overload

restrictions under any

circumstances.

In practice, expulsion power

fuses are used to protect

transformers and other

equipment where overloads

and inrush currents are

common. As boric acid

expulsion fuses have a rather

low thermal capacity and

cannot carry overloads of the

same magnitude and duration

as motors and transformers

of equal continuous currents,

general fuse application ratio

of 1.4:1 fuse continuous

current rating to full load

current is suggested to

prevent nuisance fuse

operations on acceptable

overloads and inrush

conditions. Remember that

this is only a general ratio for

typical applications, and that

ratios as low as 1:1 or as high

as 2:1 can be used for

specific applications. More

specific application

information can be found in

the individual equipment

applications sections that

follow.

Continuous Current Ratings Available in Eaton Expulsion Fuses

Note

Using the two paralleled 800 fuse design, which has a 10% derating factor, ratings of 450, 540 and 720 are available.

Maximum

Design kV

RBA-RDB-200

Standard

RBT-200

Time Lag

RBA-RDB-400

Standard 

RBT-400

Time Lag DBU Standard DBU Slow DBU K-Rated

DBA-1, 2

Standard

2.75 10E to 200E 20E to 200E 0.5E to 400E1 20E to 400E1 ————

5.50 10E to 200E 20E to 200E 0.5E to 400E1 20E to 400E1 ————

8.25 10E to 200E 20E to 200E 0.5E to 400E1 20E to 400E1 — — — 0.5E to 200E

14.40 10E to 200E 20E to 200E 0.5E to 400E1 20E to 400E1 5E to 200E 15E to 200E 3K to 200L 0.5E to 200E

15.50 10E to 200E 20E to 200E 0.5E to 400E1 20E to 400E1 5E to 200E 15E to 200E 3K to 200L 0.5E to 200E

25.50 10E to 200E 20E to 200E 0.5E to 300E2 20E to 300E2 5E to 200E 15E to 200E 3K to 200L 0.5E to 200E

38.00 10E to 200E 20E to 200E 0.5E to 300E2 20E to 300E2 5E to 200E 15E to 200E 3K to 200L 0.5E to 200E

www.comoso.com

V14-T2-8 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.2

Expulsion Fuses

Fuse Selection

Overload Characteristics

for Eaton Expulsion Fuses

Eaton’s expulsion type

fuses must not be

paralleled to obtain

continuous current ratings

greater than those

indicated, with the

exceptions stated below.

Satisfactory operation of

untested parallel

arrangements cannot be

predicted.

RBA-8, RDB-8 and BA-8

assemblies have been

specifically tested to

demonstrate their correct

operation throughout the

rated range of interrupting

currents, with the specific

physical arrangements

shown.

Corrections for applying

expulsion fuses above

3300 feet also apply to the

continuous current ratings as

well as the interrupting rating.

De-rating is required for

applications at altitudes

above 1000 meters (3300

feet). Correction factors for

various altitudes are listed in

IEEE Std. C47.40™.

Remember that:

●Under no circumstances

must the continuous rating

of the fuse be less than the

continuous load current

●E-rated fuses do not

provide protection for

currents below two times

the continuous current

rating

100% of Fuse Rating

123

100

300

600

Sec.

1000

1/2

Hrs.

Average

Melting

Curves

100A

or Less

Above

100A

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-9

2.2

Expulsion Fuses

Fuse Selection

Coordination

In addition to selecting a fuse

that meets the voltage,

interrupting and continuous

current ratings, it is important

to examine the time-current

curves of the fuse. These

curves are designated as

minimum melt and total

clearing curves. The

minimum melt curve gives

the minimum amount of time

in seconds required to melt

the fuse elements at a

particular value of rms

symmetrical current under

specified conditions. The total

clearing curve gives the

maximum amount of time in

seconds to complete

interruption of the circuit

at a particular value of rms

symmetrical current under

conditions specified in

ANSI C37.42-1996 or

ANSI C36.46-2000.

The time-current curves for

Eaton fuses are derived

from tests on fuses at an

ambient temperature of

25 degrees C and no initial

loading as specified in

IEEE Std. C37.46™.

Arcing time is defined as the

amount of time in seconds

elapsing from the melting of

the fusible element to the

final interruption of the

circuit. It is important to

examine these characteristics

to assure proper protection

and selectivity with other

overcurrent protective

devices. These curves are

located in each fuse section

of the catalog.

The melting curves of all

E-rated fuses must lie within

the range defined in IEEE Std.

C37.46™ at either the 300 or

600 second point, but there

are no limitations placed on

the melting time at high

currents. To take advantage

of this, Eaton increases the

applicability of their fuses by

producing fast or standard

fuses and slow or time-lag

fuses. The curves for time-lag

fuses are less inverse and

allow for more of a time delay

at high currents.

The melting curves of all K-

rated DBU fuses must lie

within the ranges defined in

IEEE Std. C37.42™.

Proper coordination of power

fuses requires keeping the

minimum melting current

time-current curve above the

total clearing time-current

curve of any downstream

protective device, and

keeping the total clearing

time-current curve beneath

the minimum melting time-

current curve of any

upstream protective device.

Manufacturers publish time-

current curves based on

standard conditions that do

not allow for variables such

as pre-loading or ambient

temperature. Fuses subject

to conditions other than the

above will experience shifts

in the time-current curves.

For this reason, it is

recommended that a safety

zone be used to ensure that

proper coordination is

maintained allowing for these

variables. Eaton recommends

the use of a 10% safety zone

on current for a particular

value of time as it allows the

safety band to be published

on the left-hand side of all the

time-current curves.

Coordination is then achieved

by overlaying curves and

shifting one by the width of

the published safety zone.

Although the relevant ANSI

and IEEE standards allow a

20% tolerance band on

current between minimum

and maximum melting

characteristics, Eaton

published characteristics in

general only show a 10%

tolerance band that can be

seen for times greater than

0.5 second. Note that the

published upper limit time-

current curve is for total

clearing, and not maximum

melting. The total clearing

time-current curve gives the

maximum melting time plus

the arcing time of the fuse.

If desired or if unusual

conditions exist, shifts in the

time-current curve due to pre-

loading may be examined

individually. The following

illustration gives the adjusting

factor for preloaded fuses.

These adjusting factors are

valid only for Eaton power

fuses.

Preloading Adjustment Factor for Eaton Expulsion Fuses

Load Current in Percent of Fuse Ampere Rating

100

00 50 100 150 200 250

Fuses Above 100A

Melting Time in Percent

of Time Shown on Time-

Current Characterist Curve

Fuses 100A and Less

www.comoso.com

V14-T2-10 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.3

Expulsion Fuses

Application

RBA Fuses Contents

Description Page

Application

Transformer Application . . . . . . . . . . . . . . . . . . V14-T2-12

Repetitive Faults . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-19

Application

Use of the current generation

of protection and coordination

computer programs has

taken much of the hard work

out of checking coordination

between medium voltage

fuses and the upstream and

downstream devices and

protective equipment in the

circuit. In addition, they allow

detailed analysis of potential

arc flash that could occur due

to faults at particular circuit

locations. Additional

considerations such as the

effects of cable run lengths

can also be included in the

fault current calculations to

increase the accuracy of

coordination and arc flash

studies. However, a basic

understanding of the

coordination principles behind

such studies is necessary for

correct interpretation of the

results.

When applying expulsion

fuses, physical as well as

electrical properties must be

considered. Expulsion fuses

emit gases from the bottom

of the fuse and as a result,

care should also be taken to

maintain minimum phase-to-

phase and phase-to-ground

clearances when mounting

fuses. Indoor fuses employ

an exhaust control device, a

discharge filter, a muffler or a

condenser to absorb some or

most of the exhaust from the

fuse but specified clearances

must still be maintained.

Outdoor fuses are vented and

thus have a high noise level

and expel a greater amount of

gas making clearance from

ground an important

consideration. However, the

noise level of outdoor power

fuses that employ boric acid

solid material to control the

arcing process is generally

much lower, and the exhaust

column is less violent than

that associated with fuses

employing links and cutouts,

even at higher levels of

interrupting current. When

applying outdoor fuses,

clearance must also be

allowed for the arc that the

fuse swings through during

dropout. The tables on Page

V14-T2-11

give the minimum

clearance to ground and the

minimum phase spacing.

Outdoor fuses are vented,

and the venting of the hot

gases resembles a cylindrical

or narrowly conical column

height above the minimum

ground clearance. It is not

really a factor except as

related to rebounding from

the ground of hot particles

and gases. The illustration on

Page V14-T2-3 shows the

nature of the discharge and

allows the user to suggest

specific safety zones for each

particular application.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-11

2.3

Expulsion Fuses

Application

Recommended Spacings—Typical Single Fuse Unit

Typical Filter or Condenser Typical Vented

Typical paralleled fuse unit

with standard Eaton

mounting.

Legend

A= Recommended phase-to-phase

centerline spacing without barriers

B= Minimum clearance to ground

(A) Recommended Phase-to-Phase Centerline Spacing without Barriers in Inches

(B) Minimum Clearance to Ground in Inches

400 800

Maximum

Design kV

RBA Disconnect RBA Non-Disconnect RDB

200/400 800 200/400 800 200/400 800 DBU DBA

2.75 11.75 27.51 11.16 19.92 19.0 26.76 17.0 17.0

4.80 11.75 27.51 11.16 19.92 18.0 26.75 17.0 17.0

5.50 11.75 27.51 11.16 19.92 18.0 26.75 17.0 17.0

8.25 13.25 29.01 12.56 21.32 18.0 26.76 17.0 17.0

14.40 14.75 30.51 13.06 21.82 24.0 32.76 19.0 19.0

15.50 16.25 32.01 15.56 24.32 24.0 32.76 19.0 19.0

25.50 20.25 — 19.56 — 30.0 38.76 23.0 23.0

38.00 25.25 — 24.56 — 36.0 44.76 30.0 30.0

48.30 ———————33.0

72.50 ———————44.0

Maximum Design kV RBA Filter RBA Condenser

RDB-200, DBU and

DBA-1 Vented

RDB-400, 800 and

DBA-2 Vented

2.75 7.5 3.0 17.5 22.0

4.80 7.5 3.0 17.5 22.0

5.50 8.5 4.0 17.5 22.0

8.25 8.5 4.0 17.5 22.0

14.40 11.5 6.0 21.0 26.0

15.40 11.5 6.0 21.0 26.0

25.50 15.0 8.5 26.0 32.0

38.00 19.5 12.0 33.0 42.0

48.30 (DBA only) — — 40.0 54.0

72.50 (DBA only) — — 54.0 84.0

www.comoso.com

V14-T2-12 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.3

Expulsion Fuses

Application

Transformer Application

Fuses are installed on the

primary side of a transformer to:

●

Protect the system on the

source side of the fuses from

an outage due to faults in or

beyond the transformer

(isolate a faulted transformer

from an otherwise healthy

distribution system to

prevent further

disturbance)—in the case of

an internal winding fault in

the transformer, the fuse

should prevent further

collateral damage to the

transformer and its

surroundings (although the

primary fuses will isolate a

transformer with an internal

fault from the primary

system, expulsion fuses

generally are not fast enough

to prevent extensive damage

to the transformer)

●

Coordinate with protection

on the low-voltage side of

the transformer (transformer

primary protection must be

overload tolerant, allowing

the secondary protection to

clear faults occurring

downstream of the

secondary protection)

●

Protect the transformer

against bolted secondary

faults (the fuse should

operate on any bolted

secondary faults, between

the transformer secondary

terminals and the secondary

protection before the

transformer is damaged—

usually thru-fault protection is

provided to the transformer

by a main secondary breaker

or breakers and the main

purpose of the primary fuses

is to isolate a faulted

transformer from the primary

system)

●

Protect the transformer

against higher impedance

secondary faults to whatever

extent is possible (the fuse

should limit damage to the

transformer windings to the

best extent possible)

Selecting the proper voltage,

interrupting and continuous

current ratings for the fuse is

straightforward and has been

sufficiently covered in their

respective sections.

There are two sometimes

conflicting factors when

selecting a fuse to protect a

transformer circuit. The

continuous current rating must

be large enough to prevent

premature fuse interruption

from magnetizing or inrush

currents and it must also be

large enough to prevent fuse

deterioration or fuse

interruption during normal or

emergency overload situations.

The fuse rating must also be

small enough to provide the

protection listed in the purpose

hierarchy.

Fuses on the primary side of

transformers should not

operate on transformer

magnetizing or inrush current.

The magnitude of the first loop

of inrush current and the rate at

which the peaks of subsequent

loops decay is a function of

many factors. Some of these

are transformer design, residual

flux in the core at the instant of

energization, the point on the

voltage wave at which the

transformer is energized and

the characteristics of the source

supplying the transformer.

When energizing, the heating

effect of the inrush current can

be considered equal to 12 times

the transformer full load current

for 1/10 of a second. Thus,

when selecting the current

rating for fuses used at the

primary side of a transformer,

the fuse minimum melting

curve must lie above and to the

right of the point on the time-

current curve representing 12

times full load current and 0.1

seconds. The fuse whose

minimum melting curve lies just

above and to the right of this

point is the lowest rated fuse

that can be used at the primary

terminals to satisfy the inrush

requirements. This criterion is

normally satisfied for all Eaton

expulsion fuses if the fuse

current rating is equal to or

greater than the transformer

self-cooled full load current.

Thus, a fusing ratio as low as

1:1 could be used in selecting

primary side fuses if inrush or

magnetizing current were the

only concern.

Typical Fuse—Transformer Coordination

1000

800

600

400

200

100

0.8

0.6

0.4

0.2

0.1

0.08

0.06

0.04

0.02

0.01

100

200

1000

800

600

400

2000

10000

8000

6000

4000

Scale x 10 = Secondary Current In Amperes

Time In Seconds

Minimum

Melt

Total

Clearing

C B A

4.8 kV

1000 kVA

480V

DS-416

1200 LSI

DS-206

400 LI

C C C

ARBA

200E

Breaker

LD LD SD SD I

Amps PU T PU T PU

BDS-416 1200 IX 4

sec

4X 0.18

sec

12X

CCDS-206 400 IX 20

sec

—— 9X

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-13

2.3

Expulsion Fuses

Application

System operators frequently

overload their transformers

for short periods of time

during normal and emergency

situations. To allow this

flexibility, it is necessary to

select a fuse that can carry

the overload without

deteriorating. To accommodate

these overloads, a fusing

ratio higher than 1:1 is almost

always required when

applying fuses for transformer

protection. The fuse

emergency overload curve on

Page V14-T2-8 along with

the required extent of

overloading is used to

determine the smallest fuse

that can be applied. Determine

the minimum fuse rating by

using the duration (ordinate)

of the transformer overload

on the fuse overload curve on

Page V14-T2-8 to obtain the

multiple of the current rating

that should not be exceeded.

Divide the transformer

overload current by the

multiple obtained from the

overload curve. The result is

the minimum fuse current

rating. Select the fuse rating

that equals or is just larger

than this value. The allowable

time duration of the current in

the primary side fuses during

transformer overload should

never exceed the values

shown by the fuse overload

curve on Page V14-T2-8.

Note: Short term and long term

overloading of transformers will

adversely affect the service life of

the transformer. Also, increasing

the primary fuse size to allow for

higher overloads decreases the

protection afforded the transformer.

The extent to that transformers

are overloaded and the

implications for system security

are economic decisions that are

made by the system operator.

Suggested minimum fuse

sizes for protection of self-

cooled transformers are given

in the tables on Pages

V14-T2-14 and V14-T2-15.

These tables are based on

the premise that the maximum

1.5 hour overload on the

transformer would not exceed

200 percent of the transformer

rating. This overload condition

requires that the minimum

ratio of fuse current rating to

transformer full load current

is 1.4:1. Fuse sizes listed

in the tables on Pages

V14-T2-14 and V14-T2-15

are those that are just

higher than 1.4 times the

transformer full load current.

If higher or longer duration

transformer overloads are to

be permitted, a fuse with a

higher continuous current

rating may be required. The

procedure described above

should then be used to find

the smallest permissible

fuse size.

www.comoso.com

V14-T2-14 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.3

Expulsion Fuses

Application

Suggested Minimum Expulsion Fuse Current Ratings

Self-Cooled 2.4 to 12.0 kV Power Transformer Applications

Notes

Two (2) 300E ampere fuse reﬁlls used in parallel with 10% derating factor.

Two (2) 400E ampere fuse reﬁlls used in parallel with 10% derating factor.

Two (2) 250E ampere fuse reﬁlls used in parallel with 10% derating factor.

Nominal kV 2.4 2.4 4.16 4.16 4.8 4.8 7.2 7.2 12.0 12.0

Fuse Maximum kV 8.3 8.3 8.3 8.3 8.3 8.3 8.3 8.3 15.5 15.5

Transformer Full kVA

Rating Self-Cooled

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Three-Phase Transformers

9 2.16 3E 1.25 3E 1.10 3E 0.72 3E 0.43 3E

15 3.60 5E 2.08 3E 1.80 3E 1.20 3E 0.72 3E

30 7.20 10E 4.20 7E 3.60 5E 2.40 5E 1.44 3E

45 10.80 15E 6.20 10E 5.40 10E 3.60 5E 2.16 3E

75 18.00 25E 10.40 15E 9.00 15E 6.00 10E 3.60 5E

112 27.00 40E 15.60 25E 13.60 20E 9.00 15E 5.40 10E

150 36.00 50E 20.80 30E 18.00 25E 12.00 20E 7.20 10E

225 54.00 80E 31.30 50E 27.20 40E 18.00 25E 10.80 15E

300 72.00 100E 41.60 65E 36.00 50E 24.00 40E 14.40 20E

500 120.00 200E 69.40 100E 60.00 100E 40.00 65E 24.10 40E

750 180.00 250E 104.00 150E 90.00 125E 60.00 100E 36.10 50E

1000 241.00 400E 140.00 200E 120.00 200E 80.00 125E 48.10 80E

1500 360.00 540E 208.00 300E 180.00 250E 120.00 200E 72.00 100E

2000 481.00 720E 278.00 400E 241.00 400E 160.00 250E 496.20 150E

2500 600.00 — 346.00 540E 301.00 450E 200.00 300E 120.00 200E

3750 —————… ——180.00 250E

5000 —————… ——241.00 400E

Single-Phase Transformers

5 2.08 3E 1.20 3E 1.04 3E 0.69 3E 0.416 3E

10 4.17 7E 2.40 5E 2.08 3E 1.39 3E 0.832 3E

15 6.25 10E 3.60 5E 3.13 5E 2.08 3E 1.25 3E

25 10.40 15E 6.00 10E 5.20 10E 3.47 5E 2.08 3E

37 15.60 25E 9.00 15E 7.80 15E 5.21 10E 3.12 5E

50 20.80 30E 12.00 20E 10.40 15E 6.95 10E 4.16 7E

75 31.30 50E 18.00 25E 15.60 25E 10.40 15E 6.25 10E

100 41.70 65E 24.00 40E 20.80 30E 13.90 20E 8.32 15E

167 70.00 100E 40.00 65E 35.00 65E 23.20 40E 13.90 20E

250 104.00 150E 60.00 100E 52.00 80E 34.80 50E 20.80 30E

333 139.00 200E 80.00 125E 69.50 100E 46.30 65E 27.70 40E

500 208.00 300E 120.00 200E 104.00 150E 69.60 100E 41.60 65E

667 278.00 400E 160.00 250E 139.00 200E 92.60 150E 55.40 80E

833 347.00 540E 200.00 300E 173.00 250E 115.50 200E 69.40 100E

1250 521.00 720E 300.00 540E 260.00 400E 174.00 250E 104.00 150E

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-15

2.3

Expulsion Fuses

Application

Self-Cooled 13.2 to 34.5 kV Power Transformer Applications

System

Nominal kV 13.2 13.2 13.8 13.8 14.4 14.4 22.9 22.9 23.9 23.9 24.9 24.9 34.5 34.5

Fuse

Maximum kV 15.5 15.5 15.5 15.5 15.5 15.5 25.5 25.5 25.5 25.5 25.5 25.5 38.0 38.0

Transformer

Full kVA

Rating

Self-Cooled

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Full Load

Current

Amps

Fuse

E-Ampere

Rating

Three-Phase Transformers

9.00 0.40 3E 0.38 3E 0.36 1/2E 0.22 1/2E 0.21 1/2E 0.20 1/2E 0.15 1/2E

15.00 0.66 3E 0.62 3E 0.60 3E 0.38 3E 0.36 1/2E 0.35 1/2E 0.25 1/2E

30.00 1.32 3E 1.25 3E 1.20 3E 0.75 3E 0.72 3E 0.69 3E 0.50 3E

45.00 1.98 3E 1.88 3E 1.80 3E 1.14 3E 1.09 3E 1.04 3E 0.75 3E

75.00 3.30 5E 3.10 5E 3.00 5E 1.89 3E 1.81 3E 1.74 3E 1.25 3E

112.50 4.95 7E 4.70 7E 4.51 7E 2.84 5E 2.72 5E 2.60 5E 1.88 3E

150.00 6.56 10E 6.20 10E 6.01 10E 3.78 7E 3.62 5E 3.47 5E 2.51 5E

225.00 9.90 15E 9.40 15E 9.02 15E 5.68 10E 5.44 10E 5.21 10E 3.77 7E

300.00 13.10 20E 12.50 20E 12.00 20E 7.58 15E 7.25 10E 6.94 10E 5.02 7E

500.00 21.90 30E 21.00 30E 20.10 30E 12.60 20E 12.10 20E 11.60 20E 8.37 15E

750.00 32.80 50E 31.00 50E 30.10 50E 18.90 30E 18.10 25E 17.40 25E 12.60 20E

1000.00 43.70 65E 42.00 65E 40.10 65E 25.30 40E 24.20 40E 23.10 40E 16.70 25E

1500.00 65.60 100E 62.00 100E 60.10 65E 37.90 65E 36.20 50E 34.70 50E 25.10 40E

2000.00 87.50 125E 84.00 125E 80.20 125E 50.50 80E 48.30 80E 46.30 65E 33.50 50E

2500.00 109.00 150E 104.00 150E 100.00 150E 63.10 100E 60.40 100E 57.90 80E 41.80 65E

3750.00 165.00 250E 156.00 250E 150.00 250E 94.70 150E 90.60 150E 86.60 125E 62.80 100E

5000.00 218.00 300E 210.00 300E 200.00 300E 126.00 200E 121.00 200E 116.00 200E 83.70 125E

Single-Phase Transformers

5.00 0.38 3E 0.36 3E 0.35 1/2E 0.22 1/2E 0.21 1/2E 0.20 1/2E 0.14 1/2E

10.00 0.76 3E 0.72 3E 0.69 3E 0.44 3E 0.42 3E 0.40 3E 0.29 1/2E

15.00 1.14 3E 1.09 3E 1.64 3E 0.66 3E 0.63 3E 0.60 3E 0.43 3E

25.00 1.90 3E 1.81 3E 1.74 3E 1.09 3E 1.05 3E 1.00 3E 0.72 3E

37.50 2.84 5E 2.71 5E 2.60 5E 1.64 3E 1.57 3E 1.50 3E 1.09 3E

50.00 3.80 7E 3.62 5E 3.47 5E 2.19 3E 2.09 3E 2.00 3E 1.45 3E

75.00 5.70 10E 5.43 10E 5.21 10E 3.28 5E 3.14 5E 3.01 5E 2.17 3E

100.00 7.60 15E 7.24 10E 6.94 10E 4.37 7E 4.18 7E 4.01 7E 2.90 5E

167.00 12.70 20E 12.10 20E 11.60 20E 7.31 10E 6.99 10E 6.70 10E 4.84 7E

250.00 19.00 30E 18.10 25E 17.40 25E 10.90 15E 10.50 15E 10.00 15E 7.25 10E

333.00 27.70 40E 25.20 40E 23.10 40E 14.60 20E 13.90 20E 13.40 20E 9.65 15E

500.00 38.00 65E 36.20 50E 34.70 50E 21.90 30E 20.90 30E 20.10 30E 14.50 20E

667.00 50.50 80E 48.20 80E 46.30 65E 29.20 40E 27.90 40E 26.80 40E 19.30 30E

833.00 63.50 100E 60.40 100E 57.90 80E 36.40 50E 34.90 50E 33.40 50E 24.10 40E

1250.00 95.00 150E 90.60 125E 86.80 125E 54.70 80E 52.30 80E 50.10 80E 36.20 50E

www.comoso.com

V14-T2-16 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.3

Expulsion Fuses

Application

If provisions are made to limit

transformer overloads to a

lower range, by thermal or

other protective devices, the

ratio of fuse current to

transformer full load current

can be less than 1.4:1. To find

the amount of reduction

permissible without damage

to the fuse, the procedure

using the overload curve

should be employed.

When the transformer has

forced cooling, the minimum

fuse size that can be applied

should be based on the

transformer top rating and

the extent to which the

transformer will be overloaded

beyond the top rating.

It should be remembered that

E- or K-rated expulsion fuses

applied at the primary

terminals of a transformer do

not provide protection for

currents below two times the

continuous current rating of

the fuse. That is, for currents

that exceed the time limits

shown by the fuse overload

curve on Page V14-T2-5, the

fuse may have deteriorated

before the fusible element

melts. In order to provide

dependable overload

protection for the

transformer, protection must

be applied on the secondary

side of the transformer.

Equal concern should be

given to the upper limit of

continuous current rating that

will provide protection for the

transformer. The extent to

which the fuses are to

protect the transformer

against secondary faults is

one of several factors that

determines the upper limit.

When a main secondary

breaker is not used, the

primary fuses may be the

only devices that provide

thru-fault protection for the

transformer. In these

circumstances the fuse

should operate before the

transformer windings are

damaged due to heavy

currents. The capability of

transformer windings to carry

these thru-fault or heavy

currents varies from one

transformer design to

another. When specific

information applicable to

individual transformers is not

available, the transformer

heat curves shown on

Page V14-T2-18 can be used

to evaluate the thru-fault

protection offered the

transformer by the fuses. The

curve labeled N=1 is drawn

through the points defined in

IEEE Std. C57.92™, such that

the curve has the same

shape as shown in Figure 1 of

IEEE publication 273 titled,

“Guide to Protective Relay

Application to Power

Transformers”. This curve

applies to single-phase

transformers and to three-

phase faults on three-phase

transformer banks. Curves for

values of N other than 1 apply

to unsymmetrical faults on

three-phase transformers and

three-phase transformer

banks that have at least one

delta connected winding.

Ideally, the total clearing

time-current of the primary

fuse would lie below the heat

curve for all values of current

up to 25 times the

transformer rated current.

However this is not usually

possible as the fuse has

minimum limitations placed

on the rating due to long time

overload impressed on the

transformer and the fact that -

E-rated expulsion fuses do

not provide protection for

currents below two times

their continuous current

rating. In spite of these lower

limitations, primary side fuses

should protect the

transformer for bolted

secondary faults and higher

impedance secondary faults

to whatever extent is

possible.

Wye connected transformers,

regardless of whether or not

the neutral is grounded, tied

to the system neutral or

floating have line currents

that are equal to the winding

currents for faults external to

the transformer. Thus a fuse

connected to the terminal of

a wye connected winding will

see the same current that is

in the winding for all faults

external to the transformer.

Also, there is a simple

relation between the primary

and secondary amperes,

whether or not load of fault

currents are being

considered.

This is not the case when the

transformer has a delta

connected winding, either on

the primary or the secondary

side of the transformer. With

delta connected primary

windings the current in the

lines (fuses) supplying the

delta winding and currents in

the primary delta windings

generally are not equal, and

of greater importance, the

ratio of line (fuse) current to

the winding current varies

with the type of fault on the

external system. With delta

connected secondary

windings, the current in the

transformer secondary

windings is generally not

equal to the secondary line

current, and the ratio of

primary line current to the

secondary line current varies

with the type of fault on the

secondary system.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-17

2.3

Expulsion Fuses

Application

The relationship between

rated line (fuse) current and

rated winding current

(referred to as the base

current of the winding in

IEEE/ANSI Std. C57.12.00™)

is 1 for wye connected

primaries and is for delta

connected primaries. IEEE/

ANSI Std. C57.12.00™ also

indicates that the transformer

winding shall be capable of

withstanding 25 times rated

winding current for two

seconds and smaller

multiples of rated winding

current for longer periods of

time. However, transformer

overloads and faults are

generally expressed in terms

of line and not winding

current. This could present a

problem for fault conditions

where the type of fault

changes the relationship

between the line and the

winding current. The table

below gives a multiplier that

will translate the line current

in multiples of the winding

current for different type

faults for various transformer

windings. These tables lead

us back to the transformer

heat curves shown where it

can be verified that the curve

N=1 passes through the point

25 times full load line current

at two seconds. The curves

for other than N=1 are for

unsymmetrical faults as can be

seen from the table below.

Coordination diagrams

employ the transformer heat

curves and fuse time current

curves to determine which

fuse rating may be safely

applied. These diagrams are

the tools used to apply the

information previously cited.

The most straightforward

diagram involves fuses

applied at the terminals of

transformers with wye

primary windings. The table

below shows that the fuse

current is the same as the

winding current for all faults

external to the transformer.

This means the coordination

diagram consists simply of

the direct reading of the fuse

time-current curves and the

transformer heat curve N=1

for coordination diagrams

where the abscissa is labeled

in amperes in the primary

system. To coordinate with

the abscissa labeled in

secondary amperes, the

same two curves are shifted

to allow for the ratio between

the primary and secondary

amperes.

When fuses are employed at

the terminals of a delta-wye

transformer, the coordination

diagram becomes a bit more

involved. In this instance, the

table below shows that the

fuse current varies in relation

to the winding current

depending on the nature of

the fault. Thus, when the

coordination is with respect

to primary amperes, the

diagram consists of one

direct reading fuse time-

current curve and one or

more transformer heat

curves. The number of heat

curves included would be

determined by the types of

secondary faults considered.

The table below gives the N

curve to be used for the

different faults to be

considered. When the

coordination is with respect

to secondary amperes the

diagram consists of one

transformer heating curve

(N=1) and up to three fuse

time-current curves. The

three time-current curves are

again dependent on the

possible faults to be

considered. The table below

shows that to obtain proper

coordination after the curve is

translated to secondary

amperes, it must be shifted

when phase-to-ground

faults are considered and

when phase-to-phase

faults are considered.

Regardless of whether a

primary or secondary current

abscissa is employed, a

coordination diagram for a

delta-wye transformer shows

that the primary side fuses do

not protect the transformer

for high impedance

secondary faults and

overloads. This type of

protection can be obtained

through the application of

secondary side breakers. If a

secondary breaker were

used, it would be added to

the coordination diagram by

plotting the breaker phase

and ground trip

characteristics. Selective

coordination would exist if

the breaker phase trip

characteristic curve lies

below the fuse characteristic

for a phase-to-phase fault

and the heating curve,

and breaker ground trip

characteristic for a single line-

to-ground fault and the heat

curve.

Multiples of Primary Line Current for Fixed Secondary Winding Current

1/ 3

2/ 3

Transformer Connection

All Neutrals Grounded

(N Times Secondary Winding Current Gives Multiples of Primary Line Current)

Primary Secondary Three-Phase Fault Phase-to-Ground Fault Phase-to-Phase Fault

YY1 1 1

YD1 — 1

DY1

DD1 —

1/ 3 2/ 3

3/2

www.comoso.com

V14-T2-18 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.3

Expulsion Fuses

Application

The preceding pertains to

diagrams using secondary

amperes. If the breaker

characteristic is to be

translated to primary

amperes, its characteristics

must lie beneath the fuse

characteristic and the heating

curve for N=1. For

unsymmetrical faults the

breaker characteristic will

shift by the same multiple as

the heating curve. If further

secondary protection is

translated to the primary,

the characteristic must lie

beneath the secondary

breaker characteristic for

the different types of faults

considered.

Fuses used at the terminals

of a delta-delta transformer

require:

1. fuse time-current curves

and

2. heat curves

if both three-phase and

phase-to-phase faults are to

be considered. This agrees

with the information

presented in the table on

Page V14-T2-17. When the

abscissa is in primary

amperes the curves are read

directly. An abscissa in

secondary amperes uses the

same curves but shifts them

from primary to secondary

amperes.

When using the current

generation of protection and

coordination computer

programs, all the factors such

as the ratios of line to

winding ratios and

transformation ratios should

be accounted for by the

software if the transformer

details are correctly entered

into the program, and it

should only be necessary to

correctly interpret the

program plots to evaluate the

levels of secondary to

primary protection, and the

level of transformer overload

protection afforded by a

selected fuse rating.

For all the coordination

diagrams discussed above,

the vertical distance between

the total clearing curve and

the safe heat curve indicates

the margin of protection

offered for different types of

faults. It should be

remembered, however, that

the transformer heat curves

illustrated in this application

data are drawn from the

reference previously cited

and they may not apply to all

transformer designs.

In practice, it is not always

possible to select a fuse large

enough to allow for all the

over-loading required and still

provide complete protection

for the transformer. In these

cases, the user should decide

where his priorities lie and

trade off overloading ability

for transformer protection.

Typical Transformer Heat Curves

Capacitor Application

Another common use of

power fuses is for the

protection of capacitor banks.

This application is unique in

that the protected

equipment, capacitors, are

designed with a zero minus

tolerance and some value

positive tolerance. For this

reason a ratio of 1.65:1 fuse

rating to full load current is

suggested for all single bank

protection. If two or more

banks are paralleled with

automatic switching, refer to

Eaton Technical Support for

fusing information.

10000

8000

6000

4000

2000

800

600

400

200

1000

100

N=2A/ 3

N=1

N= 3/2

N=1/ 3

0.6 0.8 1 2 4 6 8 10 20 40 60 80 100

Inrush Current

Adjusted

Heat Curves

Transformer

Full Load

Line Current in Multiples of Transformer Full Load (Rated) Line Current

Time in Seconds

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-19

2.3

Expulsion Fuses

Application

Repetitive Faults

Temperature Cycle of a Fuse During Reclosing Operation

It is often desirable to

determine the performance

of fuses under repetitive

faults such as produced by

the operation of reclosing

circuit breakers. This

performance is determined

by graphically simulating the

heating and cooling

characteristics of the fuse,

which are found and

expressed by the melting

time-current curves. The

theory behind the above

implications is available upon

request, but in this section

only the practical use of those

implications will be

discussed.

Conventional E-rated fuses

can with good approximation

be regarded as bodies whose

heating and cooling

properties are described by

the basic exponential curves

A and B as shown above.

Except for being inverted, the

cooling curve is the same as

the heating curve as both

have the same time constant.

Each fuse has a specific time

constant that can be

calculated with sufficient

accuracy by the formula

θ = 0.1S2 where S is the fuse

speed ratio, that is, the

melting current at 0.1

seconds divided by the

melting current at 300 or 600

seconds. The 300 seconds

applies to fuses rated 100A or

less and the 600 seconds for

fuses rated above 100A.

100%

80%

60%

40%

20%

0p2 2134

134

Unit Time

Constant

Relative Time t/ t = Time in Seconds

= Time Constant

of Fuse

.75M

Curve A–Basic fuse heating curve: Tf (I-e t/ )

Curve B–Basic fuse cooling curve: Tf x e t/ )

Curve C–Temperature rise curve of fuse subjected to reclosing cycle

M–Melting time of fuse at a given fault current

N–Total clearing time of fuse at same fault current

Tm, Tn–Levels of melting temperature of fastest and of slowest fuse

(See note below)

Ts–Safe temperature level, considering service variables

Tf–Hypothetical steady-state temperature level (100%) attained if the

fuse element did not open when melting temperature was reached

but continued to be a resistance of constant value

Note: The absolute temperature at which the elements of the fastest

and of the slowest fuse melt is the same since both fuses are made

of the same material, However, Tn and Tm are different if measured

by the final temperature level if reached at a given current.

Percent Temperature Rise T%

The time constant of a

specific fuse, having been

obtained in terms of seconds,

gives to the general heating

and cooling curves shown

below a specific time scale.

In enables us to plot the

course of the fuse

temperature (in percent

values) if we know the

sequence and duration of the

open and closed periods of

the recloser. This is illustrated

by curve C that is formed by

piecing together the proper

sections of curves A and B.

Reclosing Circuit Breaker Fuse Coordination

Next we must determine the

temperature at which the

fuse element will melt. Here

we refer to the standard time-

current curves and find the

melting time M for specific

value of fault current. The

melting temperature Tm lies

where the ordinate to the

time M intersects curve A. It

is not necessary to know the

absolute value of this

temperature, as it is sufficient

to know its relation to the

peaks. A similar temperature

Tn can be found using the

total clearing time for the

specific fault current. What

we have then are two

temperatures where we can

state that any time the curve

C intersects the line Tm, the

fuse could operate and any

time it intersects line Tn the

fuse will definitely operate.

The gap between Tm and Tn

indicates the tolerance range

as set forth in ANSI and

NEMA® standards where

E-rated fuses are defined.

If the fuse is not to operate,

curve C must remain below

the level Tm by a safe margin.

It is common practice to

provide such a safety margin

by coordinating the breaker

with a fuse curve whose time

ordinates are 75 percent of

those of the melting curve.

Line Ts represents this

temperature in illustration

above.

Although the construction of

the temperature diagram as

outlined above basically

offers no difficulties, the

manipulation is made easier

and more accurate by putting

the graph on semi-log

coordinates as shown. On

these coordinates, the

cooling curve B becomes a

straight line.

Relative Time t/

QMMN

100

10.5 1 1.5 2 2.5 3

t = Time in Seconds

= Time Constant of Fuse

Notes: Recloser data: 400PR (cycling code A1-3CH3).

Fuse type and rating: CLT (drawout) 8.3 kV 150°C.

Fuse speed ration, S-2150/420 = 5.11.

Thermal time constant, = 0.10 S2, 2.61 seconds.

Fault current 1350A.

Heating

P-5P-4

Cooling

Percent Temperature Rise T%

www.comoso.com

V14-T2-20 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.4

Expulsion Fuses

BA Type Fuses

BA Fuseholder Contents

Description Page

BA Type Fuses

Catalog Number Selection . . . . . . . . . . . . . . . . V14-T2-21

Interrupting Ratings . . . . . . . . . . . . . . . . . . . . . V14-T2-21

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T2-22

BA Type Fuses

Product Description

The refillable BA type (boric

acid) high voltage expulsion

fuse is an E-rated fuse that

can be vented (outdoor) or

enclosed (indoor). These

fuses are designed for power

applications and were

introduced by the

Westinghouse Electric

Company in the middle

1930s. The refill units have

been in continuous

production since that time

and are still available for use

in existing installations.

Mountings are no longer

available for use with BA refill

units, but a limited range of

replacement fuse holders is

still available.

New and replacement

applications should use RBA

fuses that superseded BA

fuses a number of years ago.

Introduction

BA power fuses provide

protection for circuits and

equipment that operate on

voltages from 7.2 to 38 kV.

When the calibrated current

responsive element melts,

the fuse reacts rapidly to

de-ionize the arc and interrupt

the circuit. On outdoor

vented installations, a

mechanical dropout action

gives a 180˚ air break. On

indoor applications, the arc

exhaust is absorbed by the

attached exhaust control

device (filter or condenser).

The fuse refill unit is of the

replaceable type rather than

the renewable type, resulting

in light weight for ease in

handling.

Construction

DE-ION® arc interruption

permits application of the BA

type power fuse over a range

of system voltages. This line

of dropout fuses carries the

boric acid principle of circuit

protection to higher voltage

ratings, and at the same time

provides short-circuit

protection for systems of

moderate capacity at a lower

cost.

Main operating parts are the

fusible element, arcing rod,

helical spring, and dry boric

acid cylinder. To prevent

warping under outdoor

conditions, a heavy glass-

epoxy or ceramic tube

encloses the entire assembly.

This glass-epoxy tube also

assures adequate strength to

contain the force of the arc

interruption.

Within the fuse, the current

path is maintained by tight

electrical connections. From

the top ferrule, the path is

through the extended spring

and shunt assembly; then to

the arcing rod, on through the

fusible element that is

bridged by the mechanical

strain element, and into the

bottom ferrule. When the

fuse element melts, the

arcing rod is pulled upward

drawing the arc into the boric

acid cylinder. As it strikes,

intense heat from the arc

decomposes the compressed

boric acid powder.

Decomposition of the dry

boric acid forms water vapor

and boric acid anhydride. The

electrical interruption is

caused by the steam cooling

and de-ionizing the arc as it is

drawn through the cylinder by

the action of the spring and

rod.

Operation

BA type fuses are of the

refillable type. When a fuse

operates due to a fault blown,

the fuse holder is removed

with from the mounting.

After replacement of the refill

unit, the fuse holder can be

reinserted into the fuse

mounting.

Application

BA fuses are applied in utility

and industrial high voltage

power systems for

protecting:

●Power transformers

●Feeder circuit

sectionalizing

●Distribution transformers

●Potential transformers

Ratings

●8.3 to 38 kV

●0.5E to 400E Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-21

2.4

Expulsion Fuses

BA Type Fuses

Catalog Number Selection

BA Fuse Units

Interrupting Ratings

BA Fuse Interrupting Ratings

Type

BA2

BA4

Maximum kV

8= 8.3 kV

15 = 15.5 kV

25 = 25.5 kV

38 = 38 kV

Amperes

Rating

0.5

10E

20E

25E

30E

40E

50E

65E

80E

100E

125E

150E

200E

250E

300E

400E

Hardware

2 100

Reﬁll Maximum

Rated Voltage

Rating kV

Maximum

System

Voltage kV

Vented or with

Filter rms

Symmetrical kA

With Condenser rms

Symmetrical kA

8.3 2.75 17.5 10.0

— 5.5 17.5 10.0

— 8.3 16.0 10.0

15.5 15.5 12.5 8.0

25.8 25.8 10.0 6.3

38 38 6.3 5.0

www.comoso.com

V14-T2-22 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.4

Expulsion Fuses

BA Type Fuses

Product Selection

BA2 Type Expulsion Fuse Reﬁll Units

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

7.2 8.3 0.5 8BA2-.5 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 5E 8BA2-5E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 7E 8BA2-7E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 10E 8BA2-10E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 15E 8BA2-15E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 20E 8BA2-20E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 25E 8BA2-25E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 30E 8BA2-30E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 40E 8BA2-40E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 50E 8BA2-50E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 65E 8BA2-65E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 80E 8BA2-80E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 100E 8BA2-100E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 125E 8BA2-125E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 150E 8BA2-150E 1.0 (0.45) TC28115801 TC28021601

7.2 8.3 200E 8BA2-200E 1.0 (0.45) TC28115801 TC28021601

14.4 15.5 0.5 15BA2-.5 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 5E 15BA2-5E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 7E 15BA2-7E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 10E 15BA2-10E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 15E 15BA2-15E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 20E 15BA2-20E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 25E 15BA2-25E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 30E 15BA2-30E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 40E 15BA2-40E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 50E 15BA2-50E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 65E 15BA2-65E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 80E 15BA2-80E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 100E 15BA2-100E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 125E 15BA2-125E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 150E 15BA2-150E 1.2 (0.55) TC28115801 TC28021601

14.4 15.5 200E 15BA2-200E 1.2 (0.55) TC28115801 TC28021601

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-23

2.4

Expulsion Fuses

BA Type Fuses

BA2 Type Expulsion Fuse Reﬁll Units, continued

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

23 25.5 0.5 25BA2-.5 1.5 (0.7) TC28115801 TC28021601

23 25.5 5E 25BA2-5E 1.5 (0.7) TC28115801 TC28021601

23 25.5 7E 25BA2-7E 1.5 (0.7) TC28115801 TC28021601

23 25.5 10E 25BA2-10E 1.5 (0.7) TC28115801 TC28021601

23 25.5 15E 25BA2-15E 1.5 (0.7) TC28115801 TC28021601

23 25.5 20E 25BA2-20E 1.5 (0.7) TC28115801 TC28021601

23 25.5 25E 25BA2-25E 1.5 (0.7) TC28115801 TC28021601

23 25.5 30E 25BA2-30E 1.5 (0.7) TC28115801 TC28021601

23 25.5 40E 25BA2-40E 1.5 (0.7) TC28115801 TC28021601

23 25.5 50E 25BA2-50E 1.5 (0.7) TC28115801 TC28021601

23 25.5 65E 25BA2-65E 1.5 (0.7) TC28115801 TC28021601

23 25.5 80E 25BA2-80E 1.5 (0.7) TC28115801 TC28021601

23 25.5 100E 25BA2-100E 1.5 (0.7) TC28115801 TC28021601

23 25.5 125E 25BA2-125E 1.5 (0.7) TC28115801 TC28021601

23 25.5 150E 25BA2-150E 1.5 (0.7) TC28115801 TC28021601

23 25.5 200E 25BA2-200E 1.5 (0.7) TC28115801 TC28021601

34.5 38 0.5 38BA2-.5 1.8 (0.82) TC28115801 TC28021601

34.5 38 5E 38BA2-5E 1.8 (0.82) TC28115801 TC28021601

34.5 38 7E 38BA2-7E 1.8 (0.82) TC28115801 TC28021601

34.5 38 10E 38BA2-10E 1.8 (0.82) TC28115801 TC28021601

34.5 38 15E 38BA2-15E 1.8 (0.82) TC28115801 TC28021601

34.5 38 20E 38BA2-20E 1.8 (0.82) TC28115801 TC28021601

34.5 38 25E 38BA2-25E 1.8 (0.82) TC28115801 TC28021601

34.5 38 30E 38BA2-30E 1.8 (0.82) TC28115801 TC28021601

34.5 38 40E 38BA2-40E 1.8 (0.82) TC28115801 TC28021601

34.5 38 50E 38BA2-50E 1.8 (0.82) TC28115801 TC28021601

34.5 38 65E 38BA2-65E 1.8 (0.82) TC28115801 TC28021601

34.5 38 80E 38BA2-80E 1.8 (0.82) TC28115801 TC28021601

34.5 38 100E 38BA2-100E 1.8 (0.82) TC28115801 TC28021601

34.5 38 125E 38BA2-125E 1.8 (0.82) TC28115801 TC28021601

34.5 38 150E 38BA2-150E 1.8 (0.82) TC28115801 TC28021601

34.5 38 200E 38BA2-200E 1.8 (0.82) TC28115801 TC28021601

www.comoso.com

V14-T2-24 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.4

Expulsion Fuses

BA Type Fuses

BA4 Type Expulsion Fuse Reﬁll Units

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

7.2 8.3 0.5 8BA4-.5 2 (0.9) TC28021201 TC28021401

7.2 8.3 5E 8BA4-5E 2 (0.9) TC28021201 TC28021401

7.2 8.3 7E 8BA4-7E 2 (0.9) TC28021201 TC28021401

7.2 8.3 10E 8BA4-10E 2 (0.9) TC28021201 TC28021401

7.2 8.3 15E 8BA4-15E 2 (0.9) TC28021201 TC28021401

7.2 8.3 20E 8BA4-20E 2 (0.9) TC28021201 TC28021401

7.2 8.3 25E 8BA4-25E 2 (0.9) TC28021201 TC28021401

7.2 8.3 30E 8BA4-30E 2 (0.9) TC28021201 TC28021401

7.2 8.3 40E 8BA4-40E 2 (0.9) TC28021201 TC28021401

7.2 8.3 50E 8BA4-50E 2 (0.9) TC28021201 TC28021401

7.2 8.3 65E 8BA4-65E 2 (0.9) TC28021201 TC28021401

7.2 8.3 80E 8BA4-80E 2 (0.9) TC28021201 TC28021401

7.2 8.3 100E 8BA4-100E 2 (0.9) TC28021201 TC28021401

7.2 8.3 125E 8BA4-125E 2 (0.9) TC28021201 TC28021401

7.2 8.3 150E 8BA4-150E 2 (0.9) TC28021201 TC28021401

7.2 8.3 200E 8BA4-200E 2 (0.9) TC28021201 TC28021401

7.2 8.3 250E 8BA4-250E 2 (0.9) TC28021201 TC28021401

7.2 8.3 300E 8BA4-300E 2 (0.9) TC28021201 TC28021401

7.2 8.3 400E 8BA4-400E 2 (0.9) TC28021201 TC28021401

14.4 15.5 0.5 15BA4-.5 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 5E 15BA4-5E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 7E 15BA4-7E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 10E 15BA4-10E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 15E 15BA4-15E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 20E 15BA4-20E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 25E 15BA4-25E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 30E 15BA4-30E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 40E 15BA4-40E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 50E 15BA4-50E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 65E 15BA4-65E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 80E 15BA4-80E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 100E 15BA4-100E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 125E 15BA4-125E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 150E 15BA4-150E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 200E 15BA4-200E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 250E 15BA4-250E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 300E 15BA4-300E 2.5 (1.15) TC28021201 TC28021401

14.4 15.5 400E 15BA4-400E 2.5 (1.15) TC28021201 TC28021401

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-25

2.4

Expulsion Fuses

BA Type Fuses

BA4 Type Expulsion Fuse Reﬁll Units, continued

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

23 25.5 0.5 25BA4-.5 3.5 (1.6) TC28021201 TC28021401

23 25.5 5E 25BA4-5E 3.5 (1.6) TC28021201 TC28021401

23 25.5 7E 25BA4-7E 3.5 (1.6) TC28021201 TC28021401

23 25.5 10E 25BA4-10E 3.5 (1.6) TC28021201 TC28021401

23 25.5 15E 25BA4-15E 3.5 (1.6) TC28021201 TC28021401

23 25.5 20E 25BA4-20E 3.5 (1.6) TC28021201 TC28021401

23 25.5 25E 25BA4-25E 3.5 (1.6) TC28021201 TC28021401

23 25.5 30E 25BA4-30E 3.5 (1.6) TC28021201 TC28021401

23 25.5 40E 25BA4-40E 3.5 (1.6) TC28021201 TC28021401

23 25.5 50E 25BA4-50E 3.5 (1.6) TC28021201 TC28021401

23 25.5 65E 25BA4-65E 3.5 (1.6) TC28021201 TC28021401

23 25.5 80E 25BA4-80E 3.5 (1.6) TC28021201 TC28021401

23 25.5 100E 25BA4-100E 3.5 (1.6) TC28021201 TC28021401

23 25.5 125E 25BA4-125E 3.5 (1.6) TC28021201 TC28021401

23 25.5 150E 25BA4-150E 3.5 (1.6) TC28021201 TC28021401

23 25.5 200E 25BA4-200E 3.5 (1.6) TC28021201 TC28021401

23 25.5 250E 25BA4-250E 3.5 (1.6) TC28021201 TC28021401

23 25.5 300E 25BA4-300E 3.5 (1.6) TC28021201 TC28021401

34.5 38 0.5 38BA4-.5 4 (1.8) TC28021201 TC28021401

34.5 38 5E 38BA4-5E 4 (1.8) TC28021201 TC28021401

34.5 38 7E 38BA4-7E 4 (1.8) TC28021201 TC28021401

34.5 38 10E 38BA4-10E 4 (1.8) TC28021201 TC28021401

34.5 38 15E 38BA4-15E 4 (1.8) TC28021201 TC28021401

34.5 38 20E 38BA4-20E 4 (1.8) TC28021201 TC28021401

34.5 38 25E 38BA4-25E 4 (1.8) TC28021201 TC28021401

34.5 38 30E 38BA4-30E 4 (1.8) TC28021201 TC28021401

34.5 38 40E 38BA4-40E 4 (1.8) TC28021201 TC28021401

34.5 38 50E 38BA4-50E 4 (1.8) TC28021201 TC28021401

34.5 38 65E 38BA4-65E 4 (1.8) TC28021201 TC28021401

34.5 38 80E 38BA4-80E 4 (1.8) TC28021201 TC28021401

34.5 38 100E 38BA4-100E 4 (1.8) TC28021201 TC28021401

34.5 38 125E 38BA4-125E 4 (1.8) TC28021201 TC28021401

34.5 38 150E 38BA4-150E 4 (1.8) TC28021201 TC28021401

34.5 38 200E 38BA4-200E 4 (1.8) TC28021201 TC28021401

34.5 38 250E 38BA4-250E 4 (1.8) TC28021201 TC28021401

34.5 38 300E 38BA4-300E 4 (1.8) TC28021201 TC28021401

www.comoso.com

V14-T2-26 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.4

Expulsion Fuses

BA Type Fuses

BA2 Type Expulsion Fuse Fuse Holders and Exhaust Control Devices 

BA4 Type Expulsion Fuse Fuse Holders and Exhaust Control Devices 

Notes

Available as replacements in exiting installations. For new installations, use RBA fuse assemblies.

Mounting no longer available. If mounting is required, convert installation to RBA fuse assemblies.

Exhaust Control Device

Voltage (kV) Non-Disconnect Fuse Holder Filter Condenser

Nominal Maximum Ampere Rating Catalog Number Catalog Number Catalog Number

7.2 8.3 0.5–200E 8BA2-NH RBA2-FLTR RBA2-COND

14.4 15.5 0.5–200E 15BA2-NH RBA2-FLTR RBA2-COND

23 25.5 0.5–200E — RBA2-FLTR RBA2-COND

34.5 38 0.5–200E — RBA2-FLTR RBA2-COND

Exhaust Control Device

Voltage (kV) Non-Disconnect Fuse Holder Filter Condenser

Nominal Maximum Ampere Rating Catalog Number Catalog Number Catalog Number

7.2 8.3 0.5–400E 8BA4-NH RBA4-FLTR RBA4-COND

14.4 15.5 0.5–400E 15BA4-NH RBA4-FLTR RBA4-COND

23 25.5 0.5–300E — RBA4-FLTR RBA4-COND

34.5 38 0.5–300E — RBA4-FLTR RBA4-COND

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-27

2.5

Expulsion Fuses

DBA Type Fuses

DBA Fuse Contents

Description Page

DBA Type Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-27

Catalog Number Selection. . . . . . . . . . . . . . . . . V14-T2-32

Interrupting Ratings . . . . . . . . . . . . . . . . . . . . . . V14-T2-32

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T2-33

DBA Type Fuses

Product Description

The DBA type (dropout, boric

acid) high voltage expulsion

fuse is an E-rated, vented

device designed for power

applications.

Introduction

The DBA power fuse

provides double protection

for circuits and equipment

that operate on voltages from

7.2 to 145 kV. The fuse has

instant acting DE-ION circuit

interruption and almost

simultaneously, a mechanical

dropout action gives a 180˚ air

break. The fuse unit is of the

replaceable type rather than

the renewable type, resulting

in light weight for ease in

handling.

Construction

DE-ION arc interruption

permits application of the DBA

type power fuse over a wide

range of system voltages. This

line of dropout fuses carries

the boric acid principle of

circuit protection to higher

voltage ratings, and at the

same time provides at lower

cost short-circuit protection for

systems of moderate capacity.

Principle parts of the DBA fuse

unit are shown in the cross

section illustration on this

page. Main operating parts are

the fusible element, arcing

rod, helical spring, and dry

boric acid cylinder. To prevent

warping under outdoor

conditions, a heavy Micarta

tube encloses the entire

assembly. This Micarta tube

also assures adequate

strength to contain the force of

the arc interruption.

Within the fuse unit, the

current path is maintained by

tight electrical connections.

From the top ferrule, the path

is to the copper tube spring

shunt; then to the arcing rod

collar and the arcing rod, on

through the fusible element

that is bridged by the strain

element, and into the bottom

ferrule. The copper spring

shunt and the arcing rod

collar are firmly held together

by the contact finger spring.

When the fuse element is

blown, the arcing rod is pulled

upward drawing the arc into

the boric acid cylinder. The

spring shunt contact fingers

close in on the rod to

maintain the electrical path.

Intense heat from the arc, as

it strikes, decomposes the

compressed boric acid

powder.

Decomposition of the dry boric

acid forms water vapor and

boric acid anhydride. The

electrical interruption is caused

by the steam de-ionizing the

arc as it is drawn through the

cylinder by action of the spring

and rod.

The arcing rod is prevented

from falling back into the fuse

until after interruption by a

friction stop just inside the top

ferrule.

DBA Fuse Construction

Retaining Ring

Top Ferrule

Micarta Tube

Copper Tube

Spacing Shunt

Arcing Rod End

Helical Spring

Compressed Boric

Acid Powder

Arcing Rod

Bottom Ferrule

Strain Element

Fusible Element

www.comoso.com

V14-T2-28 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.5

Expulsion Fuses

DBA Type Fuses

Operation

The DBA type fuse unit is of

the replaceable type rather

than the renewable type.

When the fuse has blown and

drop-out completed, the

entire unit is removed with a

switch stick. After

replacement of the blown

unit, it is closed back into

place with the switch stick.

In replacing the blown fuse,

the end fittings are removed

and clamped on a new fuse.

End fittings consist of an

operating eye at the top and

hinge lifting eye at the

bottom. The two fittings have

different shapes and are

keyed with different

projections. Fittings are

simple to remove or replace,

and cannot be reversed since

the keys insure quick, correct

alignment.

DE-ION circuit interruption

by action of the boric acid

fuse unit is followed

simultaneously by a

mechanical drop-out action.

When closing the fuse unit

with the switch stick, the

ejector casting located under

the sleet hood, compresses

the ejector spring. Under fault

conditions the fuse element

melts, the helical spring pulls

the arcing rod and arc through

the cylinder. The upper end of

the arcing rod drives through

a small hole in the top of the

ferrule of the fuse unit and

strikes the trigger-releasing

ejector. The trigger operates

and causes the ejector spring

to force the ejector casting

against the fuse assembly

forcing it outward to swing

through a 180˚ arc into a drop-

out position. Drop-out action

provides immediate visual

indication that the particular

circuit in which the fuse is

connected has been

interrupted. The additional

drop-out break insulates the

fault from the feeders with an

air gap of at least one foot on

lower voltage system and up

to six feet on higher voltage

systems.

This air break eliminates any

possibility of carbonized fuse

parts breaking down to allow

leakage or another fault.

Since drop-out action takes

place after current

interruption within the boric

acid cylinder, burning or

arcing at the contact surfaces

is eliminated.

Application

The DBA fuse is applicable in

utility and industrial high voltage

power systems for protecting:

●

Power transformers

●

Feeder circuit sectionalizing

●

Distribution transformers

●

Potential transformers

Ratings

●

8.3 to 145 kV

●

0.5E to 200E Amperes

The power fuse is an inherently

fast circuit-interrupting device.

This must be taken into account

when determining the required

short-circuit interrupting rating

of a fuse.

The boric acid power fuse will

interrupt currents of short-

circuit magnitude in

approximately 1/2 cycle

measured from the instant of

short-circuit. During this 1/2

cycle, the short-circuit current

may be much higher than the

sustained rms short-circuit

current of the system at that

point. The fuse must be

capable of safely interrupting

this transient current that might

exist at the instant the fuse

operates.

In an alternating current circuit

containing inductance, a

sudden change in the AC

current is accompanied by a

transient DC component that is

a function of the AC current

before and after the change and

the point on the cycle at that

the change occurs. The

decrement of the transient is a

function of the inductance and

resistance or losses of the

circuit.

If a short is suddenly

established on a circuit, the DC

component can have a

maximum peak value equal to

the crest of the 60 cycle short-

circuit current of the system.

This maximum transient is

obtained if the fault occurs at

voltage zero. Due to the system

losses, this DC component will

die out to a low value in a few

cycles. However, a fuse

normally interrupts a short-

circuit in 1/2 cycle, and this DC

component of current must be

taken into consideration in

rating the fuse. If the

decrement of DC component in

this half cycle is neglected, the

rms value of current for the

totally asymmetrical condition

would be 1.73 times the rms

symmetrical value of the 60

cycle component.

Experience has shown that

there is some decrement in this

first half cycle and also that the

current is limited somewhat by

the arc drop in the fuse. For this

reason, a ratio of 1.6 has been

selected between the rms

asymmetrical current the fuse

must be designed to interrupt,

and the rms short-circuit of the

system on which the fuse is to

be used. This instantaneous

rms asymmetrical value of

short-circuit current, which the

fuse must be designed to

interrupt, is often referred to as

the rms symmetrical value

including the DC component.

The asymmetrical value is

obtained by multiplying the

symmetrical value by 1.6. The

symmetrical value of short-

circuit current on a three-phase

system is determined by

dividing the available three-

phase, short-circuit kVA by the

product of the system voltage

and

1/ 3

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-29

2.5

Expulsion Fuses

DBA Type Fuses

Instructions for DBA Type Fuse Units 8.3 kV to 145 kV

Installation of Replacement Fuses

DBA fuse units are available in

two classifications, DBA-1 and

DBA-2 and are used for utility-

type applications from 8.3 kV

through 145 kV.

Remove fuses from all three

phases and replace with new or

tested units. Fuses having been

involved in a fault but not blown

should be tested by resistance

measurements to ascertain that

they are suitable for continued

service. Resistance limits are

available on request.

Prior to installation, it is

advisable to check the

functioning of the mounting as

follows:

1. Remove fuse ﬁttings

from hinge casting

(see the ﬁgures on

Pages V14-T2-30

and

V14-T2-31

) and mount

on a suitable fuse unit as

shown in the ﬁgure on

this page.

2. Check gauging distance

“S” between center of

guide pin in latch housing

and bottom of socket in

hinge casting as

illustrated in

the ﬁgures

Pages V14-T2-30

and

V14-T2-31. Dimension

“S” must measure the

same on both sides of

the mounting. If

dimension “S” is found

to be incorrect, adjust it

by using the clearances

provided in the bolt

holes

(see the ﬁgures on

Pages V14-T2-30

and

V14-T2-31

)

3. Put the suitable fuse unit

equipped with ﬁttings in

the mounting. Check

operation of latch

assembly by closing and

opening the fuse as

shown in the ﬁgures on

Pages V14-T2-30

and

V14-T2-31

DBA-1 fuses up to 69 kV as

well as DBA-2 fuses up to 46

kV can be lifted into the hinge

casting by means of

conventional all-purpose switch

sticks. For lifting heavier fuses

into the hinge, a switch stick

about one foot shorter than

the distance from ground

level to the fuse hinge is

recommended. This switch

stick should be held

approximately vertical as

shown in the ﬁgures on

Pages

V14-T2-30

and

V14-T2-31

For the closing-in or

disconnecting operation, a

switch stick of at least four foot

greater length should be

employed. Insert the switch

stick pin into the eye of the fuse

fitting from the right-hand side

and have it form an angle of at

least 35˚ with the fuse.

Fuse should be closed in with a

sharp thrust. A similar impact-

like pull is required to open the

fuse. After the latch contacts

have parted, the fuse may be

allowed to disengage itself

from the switch stick and drop

out in a normal manner.

Maintenance

General maintenance

instructions are published in the

IEEE Std. C-37.48

™

-1973.

Inspection of the fuse

mounting should include

checking the gauge distance

“S” (see the ﬁgures on

Pages

V14-T2-30

and

V14-T2-31

)

and the operation of the latch

mechanism.

Fuse Unit With Fittings

Dimensions in Inches (mm)

kV DBA-1 DBA-2

8.3 13.5 (342.9) —

15.5 17.0 (431.8) —

25.5 21.5 (546.1) —

38 28.5 (723.9) 28.13 (714.5)

48.3 34.0 (863.6) 33.63 (854.2)

69 43.88 (1,114.6) 43.63 (1,108.2)

92 — 52.0 (1,320.8)

121 — 62.0 (1,574.8)

145 — 72.0 (1,828.8)

Lower

Eye

Casting

Fuse

Unit

Upper

Eye

Casting

Clamp Ring

Locating Pin

Nameplate

Locating Pin

(See table below)

www.comoso.com

V14-T2-30 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.5

Expulsion Fuses

DBA Type Fuses

Insulator Spacing

Approximate Dimensions in Inches (mm)

Hinge Assembly

kV Dimension C Dimension S Dimension C Dimension S

DBA-1 DBA-2

7.2 13.63 (346.2) 15.25 (387.4) — —

15 17.13 (435.1) 18.75 (476.3) — —

23 21.63 (549.4) 23.25 (590.6) — —

34.5 28.63 (727.2) 30.25 (768.4) 27.88 (708.2) —

46 34.13 (866.9) 35.75 (908.1) 33.38 (847.9) —

69 44.00 (1117.6) 45.63 (1159.0) 43.38 (1101.9) —

92 — — 51.75 (1314.5) —

115 — — 61.75 (1568.5) —

138 — — 71.75 (1822.5) —

7.2 to 46 kV 69 kV 92 to 138 kV

DBA-2

38 to 72.5 kV

DBA-2

92 to 145 kV

DBA-1

8.3 to 69 kV

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-31

2.5

Expulsion Fuses

DBA Type Fuses

Spacer Adjustment

Procedure

1. Loosen all four through bolts.

2. Turn adjusting nut the desired amount.

3. Retighten all four through bolts.

Switch Stick Operation

www.comoso.com

V14-T2-32 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.5

Expulsion Fuses

DBA Type Fuses

Catalog Number Selection

DBA Fuse Units

Interrupting Ratings

DBA Fuse Interrupting Ratings

Fuse Unit Maximum

Voltage Rating kV

Maximum System

Voltage kV

DBA-1 rms

Symmetrical kA

DBA-2 rms

Symmetrical kA

8.3 2.75 6.3 —

— 5.5 6.3 —

— 8.3 6.3 —

15.5 15.5 6.3 —

25.8 25.8 6.3 12.5

38 38 5.0 12.5

48 48 4.0 12.5

72 72 — 10.0

92 92 — 6.3

121 121 — 5.0

145 145 — 4.0

Type

DBA1

DBA2

Maximum kV

8= 8.3 kV

15 = 15.5 kV

25 = 25.5 kV

38 = 38 kV

48 = 48 kV

72 = 72 kV

92 = 92 kV

121 = 121 kV

145 = 145 kV

Ampere

Rating

0.5

10E

15E

20E

25E

30E

40E

50E

65E

80E

100E

125E

150E

200E

DBA

2 100

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-33

2.5

Expulsion Fuses

DBA Type Fuses

Product Selection

DBA-1 Type Expulsion Fuse Units

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

7.2 8.3 0.5 8DBA1-0.5 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 3 8DBA1-3 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 5E 8DBA1-5E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 7E 8DBA1-7E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 10E 8DBA1-10E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 15E 8DBA1-15E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 20E 8DBA1-20E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 25E 8DBA1-25E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 30E 8DBA1-30E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 40E 8DBA1-40E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 50E 8DBA1-50E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 65E 8DBA1-65E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 80E 8DBA1-80E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 100E 8DBA1-100E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 125E 8DBA1-125E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 150E 8DBA1-150E 1.5 (0.7) TC45935101 TC45935201

7.2 8.3 200E 8DBA1-200E 1.5 (0.7) TC45935101 TC45935201

14.4 15.5 0.5 15DBA1-0.5 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 3 15DBA1-3 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 5E 15DBA1-5E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 7E 15DBA1-7E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 10E 15DBA1-10E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 15E 15DBA1-15E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 20E 15DBA1-20E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 25E 15DBA1-25E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 30E 15DBA1-30E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 40E 15DBA1-40E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 50E 15DBA1-50E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 65E 15DBA1-65E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 80E 15DBA1-80E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 100E 15DBA1-100E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 125E 15DBA1-125E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 150E 15DBA1-150E 2.1 (1.0) TC45935101 TC45935201

14.4 15.5 200E 15DBA1-200E 2.1 (1.0) TC45935101 TC45935201

www.comoso.com

V14-T2-34 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.5

Expulsion Fuses

DBA Type Fuses

DBA-1 Type Expulsion Fuse Units, continued

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

23 25.5 0.5 25DBA1-0.5 3.1 (1.4) TC45935101 TC45935201

23 25.5 3 25DBA1-3 3.1 (1.4) TC45935101 TC45935201

23 25.5 5E 25DBA1-5E 3.1 (1.4) TC45935101 TC45935201

23 25.5 7E 25DBA1-7E 3.1 (1.4) TC45935101 TC45935201

23 25.5 10E 25DBA1-10E 3.1 (1.4) TC45935101 TC45935201

23 25.5 15E 25DBA1-15E 3.1 (1.4) TC45935101 TC45935201

23 25.5 20E 25DBA1-20E 3.1 (1.4) TC45935101 TC45935201

23 25.5 25E 25DBA1-25E 3.1 (1.4) TC45935101 TC45935201

23 25.5 30E 25DBA1-30E 3.1 (1.4) TC45935101 TC45935201

23 25.5 40E 25DBA1-40E 3.1 (1.4) TC45935101 TC45935201

23 25.5 50E 25DBA1-50E 3.1 (1.4) TC45935101 TC45935201

23 25.5 65E 25DBA1-65E 3.1 (1.4) TC45935101 TC45935201

23 25.5 80E 25DBA1-80E 3.1 (1.4) TC45935101 TC45935201

23 25.5 100E 25DBA1-100E 3.1 (1.4) TC45935101 TC45935201

23 25.5 125E 25DBA1-125E 3.1 (1.4) TC45935101 TC45935201

23 25.5 150E 25DBA1-150E 3.1 (1.4) TC45935101 TC45935201

23 25.5 200E 25DBA1-200E 3.1 (1.4) TC45935101 TC45935201

34.5 38 0.5 38DBA1-0.5 4.2 (1.9) TC45935101 TC45935201

34.5 38 3 38DBA1-3 4.2 (1.9) TC45935101 TC45935201

34.5 38 5E 38DBA1-5E 4.2 (1.9) TC45935101 TC45935201

34.5 38 7E 38DBA1-7E 4.2 (1.9) TC45935101 TC45935201

34.5 38 10E 38DBA1-10E 4.2 (1.9) TC45935101 TC45935201

34.5 38 15E 38DBA1-15E 4.2 (1.9) TC45935101 TC45935201

34.5 38 20E 38DBA1-20E 4.2 (1.9) TC45935101 TC45935201

34.5 38 25E 38DBA1-25E 4.2 (1.9) TC45935101 TC45935201

34.5 38 30E 38DBA1-30E 4.2 (1.9) TC45935101 TC45935201

34.5 38 40E 38DBA1-40E 4.2 (1.9) TC45935101 TC45935201

34.5 38 50E 38DBA1-50E 4.2 (1.9) TC45935101 TC45935201

34.5 38 65E 38DBA1-65E 4.2 (1.9) TC45935101 TC45935201

34.5 38 80E 38DBA1-80E 4.2 (1.9) TC45935101 TC45935201

34.5 38 100E 38DBA1-100E 4.2 (1.9) TC45935101 TC45935201

34.5 38 125E 38DBA1-125E 4.2 (1.9) TC45935101 TC45935201

34.5 38 150E 38DBA1-150E 4.2 (1.9) TC45935101 TC45935201

34.5 38 200E 38DBA1-200E 4.2 (1.9) TC45935101 TC45935201

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-35

2.5

Expulsion Fuses

DBA Type Fuses

DBA-1 Type Expulsion Fuse Units, continued

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

46 48 0.5 48DBA1-0.5 6.5 (3.0) TC45935101 TC45935301

46 48 3 48DBA1-3 6.5 (3.0) TC45935101 TC45935301

46 48 5E 48DBA1-5E 6.5 (3.0) TC45935101 TC45935301

46 48 7E 48DBA1-7E 6.5 (3.0) TC45935101 TC45935301

46 48 10E 48DBA1-10E 6.5 (3.0) TC45935101 TC45935301

46 48 15E 48DBA1-15E 6.5 (3.0) TC45935101 TC45935301

46 48 20E 48DBA1-20E 6.5 (3.0) TC45935101 TC45935301

46 48 25E 48DBA1-25E 6.5 (3.0) TC45935101 TC45935301

46 48 30E 48DBA1-30E 6.5 (3.0) TC45935101 TC45935301

46 48 40E 48DBA1-40E 6.5 (3.0) TC45935101 TC45935301

46 48 50E 48DBA1-50E 6.5 (3.0) TC45935101 TC45935301

46 48 65E 48DBA1-65E 6.5 (3.0) TC45935101 TC45935301

46 48 80E 48DBA1-80E 6.5 (3.0) TC45935101 TC45935301

46 48 100E 48DBA1-100E 6.5 (3.0) TC45935101 TC45935301

46 48 125E 48DBA1-125E 6.5 (3.0) TC45935101 TC45935301

46 48 150E 48DBA1-150E 6.5 (3.0) TC45935101 TC45935301

46 48 200E 48DBA1-200E 6.5 (3.0) TC45935101 TC45935301

69 72 0.5 72DBA1-0.5 7.1 (3.25) TC45935101 TC45935301

69 72 3 72DBA1-3 7.1 (3.25) TC45935101 TC45935301

69 72 5E 72DBA1-5E 7.1 (3.25) TC45935101 TC45935301

69 72 7E 72DBA1-7E 7.1 (3.25) TC45935101 TC45935301

69 72 10E 72DBA1-10E 7.1 (3.25) TC45935101 TC45935301

69 72 15E 72DBA1-15E 7.1 (3.25) TC45935101 TC45935301

69 72 20E 72DBA1-20E 7.1 (3.25) TC45935101 TC45935301

69 72 25E 72DBA1-25E 7.1 (3.25) TC45935101 TC45935301

69 72 30E 72DBA1-30E 7.1 (3.25) TC45935101 TC45935301

69 72 40E 72DBA1-40E 7.1 (3.25) TC45935101 TC45935301

69 72 50E 72DBA1-50E 7.1 (3.25) TC45935101 TC45935301

69 72 65E 72DBA1-65E 7.1 (3.25) TC45935101 TC45935301

69 72 80E 72DBA1-80E 7.1 (3.25) TC45935101 TC45935301

69 72 100E 72DBA1-100E 7.1 (3.25) TC45935101 TC45935301

69 72 125E 72DBA1-125E 7.1 (3.25) TC45935101 TC45935301

69 72 150E 72DBA1-150E 7.1 (3.25) TC45935101 TC45935301

69 72 200E 72DBA1-200E 7.1 (3.25) TC45935101 TC45935301

www.comoso.com

V14-T2-36 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.5

Expulsion Fuses

DBA Type Fuses

DBA-2 Type Expulsion Fuse Units

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

34.5 38 0.5 38DBA2-.5 10 (4.6) TC45935101 TC45935301

34.5 38 3 38DBA2-3 10 (4.6) TC45935101 TC45935301

34.5 38 5E 38DBA2-5E 10 (4.6) TC45935101 TC45935301

34.5 38 7E 38DBA2-7E 10 (4.6) TC45935101 TC45935301

34.5 38 10E 38DBA2-10E 10 (4.6) TC45935101 TC45935301

34.5 38 15E 38DBA2-15E 10 (4.6) TC45935101 TC45935301

34.5 38 20E 38DBA2-20E 10 (4.6) TC45935101 TC45935301

34.5 38 25E 38DBA2-25E 10 (4.6) TC45935101 TC45935301

34.5 38 30E 38DBA2-30E 10 (4.6) TC45935101 TC45935301

34.5 38 40E 38DBA2-40E 10 (4.6) TC45935101 TC45935301

34.5 38 50E 38DBA2-50E 10 (4.6) TC45935101 TC45935301

34.5 38 65E 38DBA2-65E 10 (4.6) TC45935101 TC45935301

34.5 38 80E 38DBA2-780E 10 (4.6) TC45935101 TC45935301

34.5 38 100E 38DBA2-100E 10 (4.6) TC45935101 TC45935301

34.5 38 125E 38DBA2-125E 10 (4.6) TC45935101 TC45935301

34.5 38 150E 38DBA2-150E 10 (4.6) TC45935101 TC45935301

34.5 38 200E 38DBA2-200E 10 (4.6) TC45935101 TC45935301

46 48 0.5 48DBA2-.5 12 (5.5) TC45935101 TC45935301

46 48 3 48DBA2-3 12 (5.5) TC45935101 TC45935301

46 48 5E 48DBA2-5E 12 (5.5) TC45935101 TC45935301

46 48 7E 48DBA2-7E 12 (5.5) TC45935101 TC45935301

46 48 10E 48DBA2-10E 12 (5.5) TC45935101 TC45935301

46 48 15E 48DBA2-15E 12 (5.5) TC45935101 TC45935301

46 48 20E 48DBA2-20E 12 (5.5) TC45935101 TC45935301

46 48 25E 48DBA2-25E 12 (5.5) TC45935101 TC45935301

46 48 30E 48DBA2-30E 12 (5.5) TC45935101 TC45935301

46 48 40E 48DBA2-40E 12 (5.5) TC45935101 TC45935301

46 48 50E 48DBA2-50E 12 (5.5) TC45935101 TC45935301

46 48 65E 48DBA2-65E 12 (5.5) TC45935101 TC45935301

46 48 80E 48DBA2-780E 12 (5.5) TC45935101 TC45935301

46 48 100E 48DBA2-100E 12 (5.5) TC45935101 TC45935301

46 48 125E 48DBA2-125E 12 (5.5) TC45935101 TC45935301

46 48 150E 48DBA2-150E 12 (5.5) TC45935101 TC45935301

46 48 200E 48DBA2-200E 12 (5.5) TC45935101 TC45935301

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-37

2.5

Expulsion Fuses

DBA Type Fuses

DBA-2 Type Expulsion Fuse Units, continued

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

69 72 0.5 72DBA2-.5 15 (6.8) TC45935101 TC45935301

69 72 3 72DBA2-3 15 (6.8) TC45935101 TC45935301

69 72 5E 72DBA2-5E 15 (6.8) TC45935101 TC45935301

69 72 7E 72DBA2-7E 15 (6.8) TC45935101 TC45935301

69 72 10E 72DBA2-10E 15 (6.8) TC45935101 TC45935301

69 72 15E 72DBA2-15E 15 (6.8) TC45935101 TC45935301

69 72 20E 72DBA2-20E 15 (6.8) TC45935101 TC45935301

69 72 25E 72DBA2-25E 15 (6.8) TC45935101 TC45935301

69 72 30E 72DBA2-30E 15 (6.8) TC45935101 TC45935301

69 72 40E 72DBA2-40E 15 (6.8) TC45935101 TC45935301

69 72 50E 72DBA2-50E 15 (6.8) TC45935101 TC45935301

69 72 65E 72DBA2-65E 15 (6.8) TC45935101 TC45935301

69 72 80E 72DBA2-780E 15 (6.8) TC45935101 TC45935301

69 72 100E 72DBA2-100E 15 (6.8) TC45935101 TC45935301

69 72 125E 72DBA2-125E 15 (6.8) TC45935101 TC45935301

69 72 150E 72DBA2-150E 15 (6.8) TC45935101 TC45935301

69 72 200E 72DBA2-200E 15 (6.8) TC45935101 TC45935301

92 92 3 92DBA2-3 19 (8.7) TC45935101 TC45935401

92 92 5E 92DBA2-5E 19 (8.7) TC45935101 TC45935401

92 92 7E 92DBA2-7E 19 (8.7) TC45935101 TC45935401

92 92 10E 92DBA2-10E 19 (8.7) TC45935101 TC45935401

92 92 15E 92DBA2-15E 19 (8.7) TC45935101 TC45935401

92 92 20E 92DBA2-20E 19 (8.7) TC45935101 TC45935401

92 92 25E 92DBA2-25E 19 (8.7) TC45935101 TC45935401

92 92 30E 92DBA2-30E 19 (8.7) TC45935101 TC45935401

92 92 40E 92DBA2-40E 19 (8.7) TC45935101 TC45935401

92 92 50E 92DBA2-50E 19 (8.7) TC45935101 TC45935401

92 92 65E 92DBA2-65E 19 (8.7) TC45935101 TC45935401

92 92 80E 92DBA2-780E 19 (8.7) TC45935101 TC45935401

92 92 100E 92DBA2-100E 19 (8.7) TC45935101 TC45935401

92 92 125E 92DBA2-125E 19 (8.7) TC45935101 TC45935401

92 92 150E 92DBA2-150E 19 (8.7) TC45935101 TC45935401

92 92 200E 92DBA2-200E 19 (8.7) TC45935101 TC45935401

www.comoso.com

V14-T2-38 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.5

Expulsion Fuses

DBA Type Fuses

DBA-2 Type Expulsion Fuse Units, continued

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

115 121 3 121DBA2-3 22 (10) TC45935101 TC45935401

115 121 5E 121DBA2-5E 22 (10) TC45935101 TC45935401

115 121 7E 121DBA2-7E 22 (10) TC45935101 TC45935401

115 121 10E 121DBA2-10E 22 (10) TC45935101 TC45935401

115 121 15E 121DBA2-15E 22 (10) TC45935101 TC45935401

115 121 20E 121DBA2-20E 22 (10) TC45935101 TC45935401

115 121 25E 121DBA2-25E 22 (10) TC45935101 TC45935401

115 121 30E 121DBA2-30E 22 (10) TC45935101 TC45935401

115 121 40E 121DBA2-40E 22 (10) TC45935101 TC45935401

115 121 50E 121DBA2-50E 22 (10) TC45935101 TC45935401

115 121 65E 121DBA2-65E 22 (10) TC45935101 TC45935401

115 121 80E 121DBA2-780E 22 (10) TC45935101 TC45935401

115 121 100E 121DBA2-100E 22 (10) TC45935101 TC45935401

115 121 125E 121DBA2-125E 22 (10) TC45935101 TC45935401

115 121 150E 121DBA2-150E 22 (10) TC45935101 TC45935401

115 121 200E 121DBA2-200E 22 (10) TC45935101 TC45935401

138 145 3 145DBA2-3 25 (11.4) TC45935101 TC45935401

138 145 5E 145DBA2-5E 25 (11.4) TC45935101 TC45935401

138 145 7E 145DBA2-7E 25 (11.4) TC45935101 TC45935401

138 145 10E 145DBA2-10E 25 (11.4) TC45935101 TC45935401

138 145 15E 145DBA2-15E 25 (11.4) TC45935101 TC45935401

138 145 20E 145DBA2-20E 25 (11.4) TC45935101 TC45935401

138 145 25E 145DBA2-25E 25 (11.4) TC45935101 TC45935401

138 145 30E 145DBA2-30E 25 (11.4) TC45935101 TC45935401

138 145 40E 145DBA2-40E 25 (11.4) TC45935101 TC45935401

138 145 50E 145DBA2-50E 25 (11.4) TC45935101 TC45935401

138 145 65E 145DBA2-65E 25 (11.4) TC45935101 TC45935401

138 145 80E 145DBA2-780E 25 (11.4) TC45935101 TC45935401

138 145 100E 145DBA2-100E 25 (11.4) TC45935101 TC45935401

138 145 125E 145DBA2-125E 25 (11.4) TC45935101 TC45935401

138 145 150E 145DBA2-150E 25 (11.4) TC45935101 TC45935401

138 145 200E 145DBA2-200E 25 (11.4) TC45935101 TC45935401

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-39

2.6

Expulsion Fuses

DBU Type Fuses

DBU Fuse Unit in Outdoor Mounting Contents

Description Page

DBU Type Fuses

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-40

Interruption and Protection . . . . . . . . . . . . . . . . V14-T2-41

Testing and Performance. . . . . . . . . . . . . . . . . . V14-T2-43

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-43

Catalog Number Selection. . . . . . . . . . . . . . . . . V14-T2-44

Interrupting Ratings . . . . . . . . . . . . . . . . . . . . . . V14-T2-44

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T2-45

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-50

DBU Type Fuses

Product Description

Introduction

Eaton’s DBU (Distribution

Boric acid fuse Unit) power

and distribution fuses are

expulsion-style fuse units

designed for both indoor and

outdoor applications. DBU

fuse units provide a low initial

cost alternative to refillable

fuses.

Conventional distribution

cutouts use a fuse link in a

fiber tube within the fuse

holder for fault interruption.

DBU fuses far exceed the

cutout in interrupting rating,

and considerably reduce the

hazards and noise produced

by the violent exhaust of

cutouts under fault

interrupting conditions. DBU

fuses employ calibrated silver

elements with a parallel strain

links, boric acid interrupting

media, and a spring and rod

mechanism, all housed inside

a sealed rigid enclosure. The

design is optimized to give a

low arc voltage and mild

exhaust during fault

interruption. DBU expulsion

fuses are available in three

voltage classes: 17 kV, 27 kV,

and 38 kV, and in three speed

variations: Standard “E”,

Slow “E”, and “K” with

amperage sizes ranging from

3A through 200A.

Construction

A DBU fuse comprises the

fuse unit, end fittings

(including a muffler when

installed in an indoor

mounting), and a mounting.

Principle parts of the

replaceable DBU fuse unit are

illustrated in the cross section

view of the figure on Page

V14-T2-40. The active parts

of the fuse unit are the

calibrated current responsive

silver element with a parallel

high strength strain wire,

arcing rod, boric acid cylinder,

and spring. To ensure

adequate strength to contain

the force of the arc

interruption, the assembly is

enclosed in a high strength

glass-epoxy tube with plated

copper end connections. The

use of a calibrated pure silver

element and Nichrome™

strain wire makes the DBU

less prone to premature

operation caused by vibration,

corona corrosion, or aging of

the fuse elements. It is not

susceptible to damage by

transient faults or overloads

that may approach the

minimum melt time-current

curve point.

Under normal load conditions,

a positive low resistance

sliding connection is

maintained between the

movable arcing rod and the

fixed contact at the upper end

of the fuse unit with a tulip

contact. Durable

weatherproof labels are

attached to each fuse to

provide rating and

manufacturer information.

Operation

DBU expulsion fuses use the

proven performance of boric

acid to create the de-ionizing

action needed to interrupt

fault currents. Interruption is

achieved by the action of the

arcing rod and a charged

compression spring that

elongates the arc through a

boric acid chamber when the

arcing rod is released by the

melting and arcing of the fuse

element and strain wire. The

high temperature of the arc

separates the hydrated boric

acid producing a blast of

water vapor and inert boric

anhydride. This expanding

mixture extinguishes the arc

by blasting through and de-

ionizing it. At high levels of

fault current, the exhaust

caused by the interruption

ruptures the vent disc and

exits from the bottom of the

fuse. At lower values of fault

current, the interruption is

confined within the fuse unit,

and there is no exhaust from

the fuse. The de-ionizing

action prevents the arc from

restriking after a current zero.

DBU fuses are designed to

interrupt short-circuit currents

within 1/2 cycle at the next

current zero. The relative

details of the boric acid

cylinder and the arcing rod

and element assemblies are

tuned to limit any noise and

hazard produced by a fuse

operation at all levels of fault

current.

www.comoso.com

V14-T2-40 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.6

Expulsion Fuses

DBU Type Fuses

DBU Sectioned View

When the fuse operates, the

spring forces the top of the

arcing rod to penetrate the

upper seal. On indoor

applications, this action

causes the visible blown fuse

indicator to actuate.

On outdoor installations, the

latch releases the fuse unit

allowing the ejector spring to

move the assembly outward

and swing into the vertical

down dropout position. This

dropout action provides

immediate visual indication

that the fuse has interrupted

a fault. When a fuse has

operated and the dropout

action is complete, the fuse

unit complete with end

fittings can be removed with

a switch stick. Refer to I.L.36-

642-E for Installation

Instructions.

Applications

DBU fuses provide effective

protection for circuits and

equipment that operate on

systems with voltage ratings up

to 34,500V. They can be used

on both electric utility and

industrial distribution systems

and are suitable for use on the

following:

●

Power transformers

●

Feeder circuits

●

Distribution transformers

●

Potential transformers

●

Station service transformers

●

Metal-enclosed switchgear

●

Pad mount switches

DBU fuse units are sealed and

can be used in outdoor or

indoor applications. They can be

used to directly replace

competitive equivalent units.

DBU fuse units have reliable

performance in compliance

with industry-standard time-

current characteristics which

allow close coordination that

other DBU fuses, as well as

other fuses and a wide variety

of other protective devices.

DBU fuses operate promptly to

limit the stress on electrical

systems due to short-circuits.

They isolate the faulted circuit,

limiting service interruptions.

They act rapidly to take

transformers off-line,

preventing tank rupture, and

feeder circuits off-line before

damage can become

widespread. They also provide

excellent isolation for

capacitors, preventing case

failure in the event of a fault

condition.

When installed on the primary

side of substation power

transformers, DBU fuses

provide protection against

small, medium or large faults.

Regardless of the nature of the

fault, full protection is provided

even down to minimum melt

current.

DBU Details

Eaton’s DBU fuses provide

superior performance and are

applicable for distribution

system protection up to an

operational voltage of 34.5KV.

Because DBU fuses are

available in a range of current

and speed ratings, close fusing

can be achieved to maximize

protection and overall

coordination. The quality of the

DBU design and manufacturing

process ensures repeatable

accuracy and ongoing time-

current protection.

DBU Fuse Unit

A DBU fuse unit is comprised

of a compression spring, an

arcing rod, a calibrated

current responsive silver

element with a parallel

mechanical strain wire that

isolates the silver element

from the spring tension, and a

solid boric acid liner that

assists with the interruption.

All of these components are

contained within a high

strength glass-epoxy tube

sealed with high conductivity

copper end contacts that are

compatible with industry

standard end fittings for

indoor or outdoor application.

The calibrated fuse element

determines the operational

fault response characteristics

of the fuse unit, which are

indicated on the specific

time-current characteristic

curve.

The heavy copper cylindrical

arcing rod is contained within

the boric acid liner and

performs two functions.

Under normal conditions, it

conducts the continuous

rated current of the fuse.

When the fuse element and

strain wire melt during a fault

condition, the arcing rod

draws and lengthens the arc

as it moves up through the

boric acid liner. This

movement is caused by

spring tension accelerating

the arcing rod after release by

the melted strain link.

Intense heat from the arc

separates the hydrated boric

acid producing water vapor

and inert boric anhydride that

extinguishes and de-ionizes

the arc.

On low current interruptions,

the vent diaphragm is not

ruptured, and the pressure

retained within the fuse unit

helps to extinguish the low

intensity arc. On high current

interruptions, the vent

diaphragm is ruptured and

the exhaust exits from the

bottom of the fuse.

In either case, the resulting

dielectric strength generated

in the fuse unit prevents

reignition of the arc after a

current zero.

DBU fuse units are discarded

after fault interruption, and do

not present any

environmental hazard if

discarded in a landfill.

DBU End Fittings

End fittings that are

positioned on the top and

bottom of the fuse unit and

are required to complete the

electrical connection

between the fuse unit and

mounting, can be reused if

they remain undamaged.

They are completely

interchangeable with other

comparable industry standard

end fittings.

Outdoor End Fittings

Reusable outdoor end fittings

are silver plated and made of

a cast high conductivity

copper alloy. The hookeye in

the lower end fitting allows

the fuse unit to be easily

lifted in or out of the lower

hinge contact of the

mounting. A large hookeye

on the upper fitting allows for

easy operation in pole-top

mountings with a switch

stick. The design of the upper

end fitting provides for proper

engagement in the upper

contact assembly of the

mounting. The positive

locking action of the latch

mechanism prevents

detachment from the

mounting due to shock or

vibration. The lower end

fitting has two cylindrical

posts that insert into the

lower contact assembly of

the mounting. These posts

allow the fuse to rotate into

the proper engaged position,

and suspend the fuse in the

operated, drop-out position. If

a fault occurs, the arcing rod

will pierce the seal at the

upper end of the fuse unit,

and cause the latch to

release. Once released, the

fuse will rotate down into the

drop-out position to indicate

that the fuse has operated.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-41

2.6

Expulsion Fuses

DBU Type Fuses

Indoor End Fittings

Reusable indoor end fittings

are composed of high-impact

plastic and high conductivity

copper alloy. The visual

indicator located on the top

end fitting, provides clear

indication of a fuse unit that

has operated. The silver-

plated contact rod insures

positive conductivity

between the fuse unit and

the upper contact assembly

of the mounting.

The spring-biased plastic

latch hookeye actuates the

latch mechanism when

engaged into the mounting. It

readily accepts a switch stick

to insert or remove the

assembled fuse unit. A

locating pin in the upper end

fitting assembly ensures

proper alignment and

engagement with the fuse

unit. The cast bottom indoor

end fitting has a locating slot

on the inside bore that aligns

with a locating pin on the

lower section of the fuse unit

to provide proper alignment

with the mounting.

The bottom indoor end fitting

is attached to the fuse unit by

threading a muffler into the

end fitting, and so clamping

the fitting to the fuse unit.

Projections on the bottom of

the muffler allow sufficient

torque to be applied to seal

the muffler to the fuse unit.

The lower ferrule of the fuse

unit directly contacts the

lower contacts of the

mounting. The muffler

absorbs noise and

contamination from arcing

products to prevent

contamination of indoor

equipment. The muffler is

constructed of a plated steel

housing, containing copper

mesh screening. This copper

mesh acts to absorb and

contain the noise, and

de-ionize exhaust materials

of the fuse during a fault

interruption. De-ionizing the

exhaust gases prevents

accidental flashover from

phase-to-phase or phase-to-

ground by limiting foreign

airborne particles and gases.

Mountings and Live Parts

Eaton offers a full line of

outdoor mountings  and

indoor loadbreak and non-

loadbreak mountings and live

parts for the DBU fuse family.

Mountings are available in

17 kV, 27 kV, and 38 kV class

designs, and these

mountings will readily

accommodate DBU fuses

and other equivalent industry

standard fuses. DBU

mountings have a rated

maximum continuous current

of 200A, with a rated

maximum interrupting

current up to 14 kA. The

following lists the LIWV rated

lightning impulse withstand

voltage rating of each voltage

class (BIL):

●17 kV–95 kV

●27 kV–125 kV

●38 kV–150 kV

Indoor loadbreak units have a

maximum three-time fault

close ASYM of 22,400A rms.

Refer to the catalog number

section for exact ratings per

unit. Indoor mountings are

constructed with rigid steel

bases that are powder coated

and baked. Bases are

supplied with preformed

mounting holes for easy

installation.

Insulators are molded of high

strength epoxy material for

superior insulating

characteristics. Live parts are

rigidly secured to the

insulators with standard

mounting hardware.

Both left and right side cable

terminations are available for

indoor mountings for proper

installation spacing. All bus

connections are plated

copper for improved

conductivity and endurance.

All loadbreak units have a

three-time fault close rating.

These fuse mountings can

withstand a fuse assembly

being closed into a fault of

the magnitude specified

three times when closed

briskly without hesitation, and

remain operable and able to

carry and interrupt the

continuous current. All live

parts are constructed of

silver-plated copper to ensure

maximum and sustained

conductivity.

Live parts can be purchased

as separate kits without

mountings.

Interruption and Protection

DBU fuses provide effective

protection for circuits and

equipment operating on

voltages from 2400V through

34,500V. They are designed

to carry their rated

continuous current without

exceeding the temperature

rise limits specified in IEEE

and ANSl standards.

Under normal conditions, the

temperature of the fusible

element is well below the

melting temperature and

does not melt.

Under overload conditions,

when the current is above

any allowable overload

condition for an extended

period of time, but below the

minimum level of current

indicated on the total clearing

time-current curve, the

element temperature is

below the melting

temperature, but the heat

generated within the fuse

unit may be sufficient to

cause permanent degradation

of the structure of the fuse

unit, sufficient to interfere

with the ability of the fuse

unit to perform as designed.

Under fault conditions, when

a fault occurs that is large

enough to melt the fuse

element, an arc is initiated

and elongated by the spring,

pulling the arcing rod up into

the boric acid interrupting

media. The heat produced

separates the material of the

boric acid liner producing

water vapor and boric

anhydride that de-ionize the

arc. At low fault current levels

the pressure in the arcing

chamber along with the

elongation of the arc gives

sufficient dielectric strength

to extinguish the arc at a

natural current zero without

bursting the pressure

diaphragm. At higher fault

current levels, the by-

products extinguish the arc at

a natural current zero by

bursting the pressure

diaphragm and forcing the arc

products out of the bottom of

the fuse unit. When installed

indoors, the exhaust and

noise produced during the

interruption process are

limited by the muffler

attached to the lower end

fitting. When installed

outdoors, the arc products

are exhausted.

During the interrupting

process, current continues to

flow in the circuit and in the

fuse until a current zero is

reached. When the arc is

extinguished at current zero,

the voltage across the fuse

will attempt to re-ignite the

arc. The voltage across the

fuse immediately after the

voltage zero is the sum of the

circuit power frequency

recovery voltage and a high

frequency oscillatory voltage

controlled by the circuit

inductance and stray

capacitance. This high

frequency oscillatory voltage

is called the Transient

Recovery Voltage (TRV). After

the fuse has interrupted a

fault current at a natural

circuit current zero, the

dielectric gap must withstand

this combined voltage to

prevent re-ignition of the arc

for a successful interruption

to occur.

The rated maximum voltage

of a DBU fuse is the highest

rms voltage at which the fuse

is designed to operate. The

dielectric withstand level

corresponds to insulation

levels of power class and

distribution class equipment,

as DBU fuses can be used in

either environment.

Maximum voltage ratings for

DBU fuses are: 17 kV, 27 kV,

and 38 kV.

Note

Outdoor mountings available for 17 kV

and 27 kV.

www.comoso.com

V14-T2-42 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.6

Expulsion Fuses

DBU Type Fuses

Fuses should never be

applied where the available

fault current exceeds the

rated maximum interrupting

current of the fuse, or the

maximum value of the power

frequency system voltage

exceeds the rated maximum

voltage of the fuse.

The rated maximum

interrupting current values for

DBU fuses are listed on Page

V14-T2-44.

The continuous current rating

of a DBU power fuse should

equal or exceed the

maximum load current where

the fuse is applied.

DBU fuse units are available

with continuous current

ratings up to 200A and are

designated as either E- or

K-rated. These designations

are defined in ANSI/IEEE Std.

C37.42™ and C37.46™.

Coordination Consideration

Coordination considerations

must be made to help

determine what type of fuse

is applied. The DBU power

fuse interrupts at a natural

current zero in the current

wave and allows a minimum

of a half cycle of fault current

to flow before the fault is

cleared. The time-current

characteristics associated

with a DBU has a rather

gradual slope making it easier

to coordinate with

downstream equipment. In

addition, the DBU is ideal for

higher voltage (up to 38 kV)

and high current applications

(through 200A). It is

important to examine the

minimum melting and total

clearing time-current

characteristics of this

particular fuse.

The melting time is the time

in seconds required to melt

the fuse element. This curve

indicates when or even if the

element of the fuse will melt

for different symmetrical

current magnitudes.

The total clearing time is the

total amount of time it takes

to clear a fault once the

element has melted. The

total clearing time is really the

sum of the melting time and

the time the fuse arcs during

the clearing process. The

DBU power fuse is offered in

three configurations for use

with high currents: “E”

(Standard), “K” (Fast) and

“SE” (Slow). The curves for

the SE are less inverse and

allow for more of a time delay

at high currents.

Finally, low currents, usually

referred to as overload

currents, must also be

considered. The DBU and

other expulsion fuses have a

rather low thermal capacity

and cannot carry overloads of

the same magnitude and

duration as motors and

transformers of equal

continuous currents. For this

reason, the fuse must be

sized with the full load

current in mind. This

consideration should be

made so the fuse does not

blow on otherwise

acceptable overloads and

inrush conditions.

The Eaton DBU family of

power fuses is broad and

comprehensive. Refer to the

table below to review the

ratings available for most

application requirements. The

final selection process for

new applications will include

the fuse unit, end fittings, and

a mounting.

DBU Power Fuse Short-Circuit Interrupting Ratings

Note

Applies to 23 kV single-insulator style only, for the protection of single-phase-to-neutral circuits (line or transformers) and three-phase

transformers or banks with solidly grounded neutral connections.

Nominal kV Interrupting Amperes

Interrupting mVA

(Three-Phase Symmetrical)

DBU System

Symmetrical

Based on X/R = 16 Asymmetrical Where X/R = 16

17 7.2 14,000 22,400 175

4.8/8.32Y 200

7.2/12.47Y 300

7.62/13.2Y 320

13.8 335

14.4 350

16.5 400

27 7.2/12.47Y 12,500 20,000 270

7.62/13.2Y 285

13.8 300

14.4 310

16.5 365

23.0 500

14.4/24.9Y 540

20/34.5Y —

38 23.0 10,000 16,000 —

14.4/24.9Y —

27.6 475

20/34.5Y 600

34.5 600

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-43

2.6

Expulsion Fuses

DBU Type Fuses

Testing and Performance

●Standards

●Testing

●Quality standards

Eaton does not compromise

when performance, quality

and safety are involved.

Exacting standards have been

established relative to the

design, testing and

application of expulsion type

power fuses. Compliance

with these standards ensures

the best selection and

performance. DBU type

power fuses are designed

and tested to applicable

portions of ANSl standards as

well as other industry

standards. The ANSl

standards are Consensus

Standards jointly formulated

by IEEE and NEMA.

IEEE (Institute of Electrical

and Electronic Engineers) is

an objective technical

organization made up of

manufacturers, users and

other general interest parties.

NEMA (National Electrical

Manufacturers Association) is

an electrical equipment

manufacturer only

organization with members

like Eaton. ANSl (American

National Standards Institute)

is a nonprofit, privately

funded membership

organization that coordinates

the development of U.S.

voluntary national standards.

It is also the U.S. member

body to the non-treaty

international standards

bodies, such as International

Organization for

Standardization ([SO) and the

International Electrotechnical

Commission (IEC).

The specific standards

associated with DBU power

fuses are:

●ANSl C37.40–Service

Conditions and Deﬁnitions

●ANSl C37.41–Power Fuse

Design and Testing

●ANSl C37.42–Distribution

Fuse Ratings and

Speciﬁcation

●ANSl C37.46–Power Fuse

Ratings and Speciﬁcations

●ANSI ~37.48–Power Fuse

Application, Operation and

Maintenance

Testing

DBU power fuse unit design

testing was performed on

standard production fuses,

holders, mountings and

accessories. Demanding

tests were performed by

Eaton Technical Support and

also at recognized

independent power testing

laboratories. Thermal and

interrupting testing was

conducted at 17, 27, and

38 kV levels. The entire

series of tests was

conducted in a specific

sequence as stipulated by

governing standards without

any maintenance being

performed.

All test results are verified by

laboratory tabulations and

oscillogram plots.

Quality

Every effort is made to

ensure the delivery of quality

fuse units and customer

satisfaction. All Eaton fuses

are completely inspected at

each manufacturing stage. In

addition to ongoing quality

control inspections, testing is

performed prior to shipment.

A Micro-Ohm Resistance

Test is performed on each

fuse to assure proper

element construction,

alignment and tightness of

electrical connections.

Construction integrity testing

is also performed on every

unit.

Each DBU fuse unit is

checked to ensure that all

items are supplied in keeping

with manufacturing drawings.

Individual fuses are packed in

a plastic bag and then put into

individual cartons. In addition,

fuses are overpacked in a

shipping carton to prevent

shipping damage. Finally,

mountings are packaged in

heavy cardboard containers

with reinforced wooden

bases.

Installation

Installation instructions are

contained within I.L. 36-642.

www.comoso.com

V14-T2-44 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.6

Expulsion Fuses

DBU Type Fuses

Catalog Number Selection

DBU Fuse Units

DBU Mounting Catalog Numbers

Interrupting Ratings

DBU Fuse Interrupting Ratings

Fuse Unit

Maximum Rated

Voltage Rating kV

Maximum System

Voltage kV

Outdoor Vented rms

Symmetrical kA

Indoor with

Mufﬂer rms

Symmetrical kA

17.1 17.1 14.0 14.0

27 27 12.5 12.5

38 38 10.0 8.5

Type

DBU Ampere

Rating

100

125

140

150

175

200

Speed

Voltage Rating

17 = 17.1 kV

27 = 27 kV

38 = 38 kV

DBU 17 100 E

Insulator

G= Glass polyester

P= Porcelain

Hardware

DL = Disconnect live parts

DM = Disconnect mounting

EFID = Indoor end fittings

EFOD = Outdoor end fittings

MFLR = Muffler

NL = Non-disconnect live parts

NLP = Non-disconnect live parts (SS)

NM = Non-disconnect mounting

NMP = Non-disconnect mounting (SS)

Type

DBU Voltage Rating

17 = 17.1 kV

27 = 27 kV

38 = 38 kV

Connection Side

L = Left hand

R = Right hand

DBU 17 - G DM - L

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-45

2.6

Expulsion Fuses

DBU Type Fuses

Product Selection

DBU17 Type Standard E Speed Expulsion Fuse Units

DBU17 Type K Speed Expulsion Fuse Units

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

14.4 17.1 5 DBU17-5E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 7 DBU17-7E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 10 DBU17-10E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 13 DBU17-13E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 15 DBU17-15E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 20 DBU17-20E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 25 DBU17-25E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 30 DBU17-30E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 40 DBU17-40E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 50 DBU17-50E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 65 DBU17-65E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 80 DBU17-80E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 100 DBU17-100E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 125 DBU17-125E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 150 DBU17-150E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 175 DBU17-175E 2.1 (1.0) TC66702701 TC66703001

14.4 17.1 200 DBU17-200E 2.1 (1.0) TC66702701 TC66703001

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

14.4 17.1 3 DBU17-3K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 6 DBU17-6K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 8 DBU1780K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 10 DBU17-10K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 12 DBU17-12K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 15 DBU17-15K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 20 DBU17-20K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 25 DBU17-25K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 30 DBU17-30K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 40 DBU17-40K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 50 DBU17-50K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 65 DBU17-65K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 80 DBU17-80K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 100 DBU17-100K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 140 DBU17-140K 2.1 (1.0) TC66702801 TC66703101

14.4 17.1 200 DBU17-200K 2.1 (1.0) TC66702801 TC66703101

www.comoso.com

V14-T2-46 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.6

Expulsion Fuses

DBU Type Fuses

DBU17 Type Slow E Speed Expulsion Fuse Units

DBU27 Type Standard E Speed Expulsion Fuse Units

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

14.4 17.1 15 DBU17-15SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 20 DBU17-20SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 25 DBU17-25SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 30 DBU17-30SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 40 DBU17-40SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 50 DBU17-50SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 65 DBU17-65SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 80 DBU17-80SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 100 DBU17-100SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 125 DBU17-125SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 150 DBU17-150SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 175 DBU17-175SE 2.1 (1.0) TC66702601 TC66702901

14.4 17.1 200 DBU17-200SE 2.1 (1.0) TC66702601 TC66702901

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

23 27 5 DBU27-5E 2.5 (1.15) TC66702701 TC66703901

23 27 7 DBU27-7E 2.5 (1.15) TC66702701 TC66703901

23 27 10 DBU27-10E 2.5 (1.15) TC66702701 TC66703901

23 27 13 DBU27-13E 2.5 (1.15) TC66702701 TC66703901

23 27 15 DBU27-15E 2.5 (1.15) TC66702701 TC66703901

23 27 20 DBU27-20E 2.5 (1.15) TC66702701 TC66703901

23 27 25 DBU27-25E 2.5 (1.15) TC66702701 TC66703901

23 27 30 DBU27-30E 2.5 (1.15) TC66702701 TC66703901

23 27 40 DBU27-40E 2.5 (1.15) TC66702701 TC66703901

23 27 50 DBU27-50E 2.5 (1.15) TC66702701 TC66703901

23 27 65 DBU27-65E 2.5 (1.15) TC66702701 TC66703901

23 27 80 DBU27-80E 2.5 (1.15) TC66702701 TC66703901

23 27 100 DBU27-100E 2.5 (1.15) TC66702701 TC66703901

23 27 125 DBU27-125E 2.5 (1.15) TC66702701 TC66703901

23 27 150 DBU27-150E 2.5 (1.15) TC66702701 TC66703901

23 27 175 DBU27-175E 2.5 (1.15) TC66702701 TC66703901

23 27 200 DBU27-200E 2.5 (1.15) TC66702701 TC66703901

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-47

2.6

Expulsion Fuses

DBU Type Fuses

DBU27 Type K Speed Expulsion Fuse Units

DBU27 Type Slow E Speed Expulsion Fuse Units

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

23 27 3 DBU27-3K 2.5 (1.15) TC66702801 TC66704001

23 27 6 DBU27-6K 2.5 (1.15) TC66702801 TC66704001

23 27 8 DBU27-8K 2.5 (1.15) TC66702801 TC66704001

23 27 10 DBU27-10K 2.5 (1.15) TC66702801 TC66704001

23 27 12 DBU27-12K 2.5 (1.15) TC66702801 TC66704001

23 27 15 DBU27-15K 2.5 (1.15) TC66702801 TC66704001

23 27 20 DBU27-20K 2.5 (1.15) TC66702801 TC66704001

23 27 25 DBU27-25K 2.5 (1.15) TC66702801 TC66704001

23 27 30 DBU27-30K 2.5 (1.15) TC66702801 TC66704001

23 27 40 DBU27-40K 2.5 (1.15) TC66702801 TC66704001

23 27 50 DBU27-50K 2.5 (1.15) TC66702801 TC66704001

23 27 65 DBU27-65K 2.5 (1.15) TC66702801 TC66704001

23 27 80 DBU27-80K 2.5 (1.15) TC66702801 TC66704001

23 27 100 DBU27-100K 2.5 (1.15) TC66702801 TC66704001

23 27 140 DBU27-140K 2.5 (1.15) TC66702801 TC66704001

23 27 200 DBU27-200K 2.5 (1.15) TC66702801 TC66704001

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

23 27 15 DBU27-15SE 2.5 (1.15) TC66702601 TC66703801

23 27 20 DBU27-20SE 2.5 (1.15) TC66702601 TC66703801

23 27 25 DBU27-25SE 2.5 (1.15) TC66702601 TC66703801

23 27 30 DBU27-30SE 2.5 (1.15) TC66702601 TC66703801

23 27 40 DBU27-40SE 2.5 (1.15) TC66702601 TC66703801

23 27 50 DBU27-50SE 2.5 (1.15) TC66702601 TC66703801

23 27 65 DBU27-65SE 2.5 (1.15) TC66702601 TC66703801

23 27 80 DBU27-80SE 2.5 (1.15) TC66702601 TC66703801

23 27 100 DBU27-100SE 2.5 (1.15) TC66702601 TC66703801

23 27 125 DBU27-125SE 2.5 (1.15) TC66702601 TC66703801

23 27 150 DBU27-150SE 2.5 (1.15) TC66702601 TC66703801

23 27 175 DBU27-175SE 2.5 (1.15) TC66702601 TC66703801

23 27 200 DBU27-200SE 2.5 (1.15) TC66702601 TC66703801

www.comoso.com

V14-T2-48 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.6

Expulsion Fuses

DBU Type Fuses

DBU38 Type Standard E Speed Expulsion Fuse Units

DBU38 Type K Speed Expulsion Fuse Units

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

34.5 38 5 DBU38-5E 2.8 (1.3) TC66702701 TC66703901

34.5 38 7 DBU38-7E 2.8 (1.3) TC66702701 TC66703901

34.5 38 10 DBU38-10E 2.8 (1.3) TC66702701 TC66703901

34.5 38 13 DBU38-13E 2.8 (1.3) TC66702701 TC66703901

34.5 38 15 DBU38-15E 2.8 (1.3) TC66702701 TC66703901

34.5 38 20 DBU38-20E 2.8 (1.3) TC66702701 TC66703901

34.5 38 25 DBU38-25E 2.8 (1.3) TC66702701 TC66703901

34.5 38 30 DBU38-30E 2.8 (1.3) TC66702701 TC66703901

34.5 38 40 DBU38-40E 2.8 (1.3) TC66702701 TC66703901

34.5 38 50 DBU38-50E 2.8 (1.3) TC66702701 TC66703901

34.5 38 65 DBU38-65E 2.8 (1.3) TC66702701 TC66703901

34.5 38 80 DBU38-80E 2.8 (1.3) TC66702701 TC66703901

34.5 38 100 DBU38-100E 2.8 (1.3) TC66702701 TC66703901

34.5 38 125 DBU38-125E 2.8 (1.3) TC66702701 TC66703901

34.5 38 150 DBU38-150E 2.8 (1.3) TC66702701 TC66703901

34.5 38 175 DBU38-175E 2.8 (1.3) TC66702701 TC66703901

34.5 38 200 DBU38-200E 2.8 (1.3) TC66702701 TC66703901

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

34.5 38 3 DBU38-3K 2.8 (1.3) TC66702801 TC66704001

34.5 38 6 DBU38-6K 2.8 (1.3) TC66702801 TC66704001

34.5 38 8 DBU38-8K 2.8 (1.3) TC66702801 TC66704001

34.5 38 10 DBU38-10K 2.8 (1.3) TC66702801 TC66704001

34.5 38 12 DBU38-12K 2.8 (1.3) TC66702801 TC66704001

34.5 38 15 DBU38-15K 2.8 (1.3) TC66702801 TC66704001

34.5 38 20 DBU38-20K 2.8 (1.3) TC66702801 TC66704001

34.5 38 25 DBU38-25K 2.8 (1.3) TC66702801 TC66704001

34.5 38 30 DBU38-30K 2.8 (1.3) TC66702801 TC66704001

34.5 38 40 DBU38-40K 2.8 (1.3) TC66702801 TC66704001

34.5 38 50 DBU38-50K 2.8 (1.3) TC66702801 TC66704001

34.5 38 65 DBU38-65K 2.8 (1.3) TC66702801 TC66704001

34.5 38 80 DBU38-80K 2.8 (1.3) TC66702801 TC66704001

34.5 38 100 DBU38-100K 2.8 (1.3) TC66702801 TC66704001

34.5 38 140 DBU38-140K 2.8 (1.3) TC66702801 TC66704001

34.5 38 200 DBU38-200K 2.8 (1.3) TC66702801 TC66704001

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-49

2.6

Expulsion Fuses

DBU Type Fuses

DBU38 Type Slow E Expulsion Fuse Units

DBU Type Fuse Mountings and Accessories Indoor Applications

DBU Type Fuse Mountings and Accessories

Outdoor Applications

Voltage (kV) Performance Curves

Nominal Maximum Ampere Rating Catalog Number

Approximate Shipping

Weight Lbs (kg) Minimum Melting Total Clearing

34.5 38 15 DBU38-15SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 20 DBU38-20SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 25 DBU38-25SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 30 DBU38-30SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 40 DBU38-40SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 50 DBU38-50SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 65 DBU38-65SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 80 DBU38-80SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 100 DBU38-100SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 125 DBU38-125SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 150 DBU38-150SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 175 DBU38-175SE 2.8 (1.3) TC66702601 TC66703801

34.5 38 200 DBU38-200SE 2.8 (1.3) TC66702601 TC66703801

Voltage (kV)

Ampere

Rating

Non-Loadbreak Loadbreak

End Fittings

Connection

Mountings Live Parts Mountings Live Parts Mufﬂer

Nominal Maximum

Catalog

Number

Catalog

Number

Catalog

Number

Catalog

Number

Catalog

Number

Catalog

Number

14.4 17.1 3–200 DBU17-GNM-L DBU17-NL-L DBU17-GDM-L DBU17-DL-L DBU-EFID DBU-MFLR Left hand connections

14.4 17.1 3–200 DBU17-GNM-R DBU17-NL-R DBU17-GDM-R DBU17-DL-R DBU-EFID DBU-MFLR Right hand connections

14.4 17.1 3–200 DBU17-GNMP-L DBU17-NLP-L — — DBU-EFID DBU-MFLR Left hand connections stainless steel hardware

14.4 17.1 3–200 DBU17-GNMP-R DBU17-NLP-R — — DBU-EFID DBU-MFLR Right hand connections stainless steel hardware

23 27 3–200 DBU27-GNM-L DBU27-NL-L DBU27-GDM-L DBU27-DL-L DBU-EFID DBU-MFLR Left hand connections

23 27 3–200 DBU27-GNM-R DBU27-NL-R DBU27-GDM-R DBU27-DL-R DBU-EFID DBU-MFLR Right hand connections

23 27 3–200 DBU27-GNMP-L DBU27-NLP-L — — DBU-EFID DBU-MFLR Left hand connections stainless steel hardware

23 27 3–200 DBU27-GNMP-R DBU27-NLP-R — — DBU-EFID DBU-MFLR Right hand connections stainless steel hardware

34.5 38 3–200 DBU38-GNM-L DBU38-NL-L — — DBU-EFID DBU-MFLR Left hand connections

34.5 38 3–200 DBU38-GNM-R DBU38-NL-R — — DBU-EFID DBU-MFLR Right hand connections

34.5 38 3–200 DBU38-GNMP-L DBU38-NLP-L — — DBU-EFID DBU-MFLR Left hand connections stainless steel hardware

34.5 38 3 –200 DBU38-GNMP-R DBU38-NLP-R — — DBU-EFID DBU-MFLR Right hand connections stainless steel hardware

Voltage (kV)

Non-Loadbreak

Mountings End Fittings

Nominal Maximum

Ampere

Rating

Catalog

Number

Catalog

Number

14.4 17.1 3–200 DBU17-DM DBU-EFOD

23 27 3–200 DBU27-DM DBU-EFOD

www.comoso.com

V14-T2-50 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.6

Expulsion Fuses

DBU Type Fuses

Dimensions

Dimensions are in Inches (mm)

Non-Loadbreak Mounting

Loadbreak Mounting

Notes

Bus for cable termination on right side of mounting.

Bus for cable termination on left side of mounting.

Catalog

Number 

Dimensions

kV Max. kv BIL B D E F K

17 DBU17-GNM 95 18.00

(457.2)

16.87

(428.0)

12.12

(307.9)

8.81

(223.8)

2.25

(57.2)

27 DBU27-GNM 125 22.25

(565.2)

19.63

(498.6)

14.87

(377.7)

11.56

(293.6)

2.25

(57.2)

38 DBU38-GNM 150 28.25

(717.6)

21.33

(541.8)

16.58

(421.1)

13.28

(337.3)

2.25

(57.2)

Side View

Front View

(Fuse removed)

1.00 (25.4)

0.56 (14.2) Dia.

0.75 (19.1)

4.25 (108.0)

0.50 (12.7)

Catalog

Number

Dimensions

kV Max. kv BIL A B C D E F G H J K L M

17 DBU17-GDML 95 22.50

(571.5)

18.44

(468.4)

30.50

(774.7)

19.25

(489.0)

14.25

(362.0)

9.25

(235.0)

18.44

(468.4)

9.44

(240.0)

11.50

(292.1)

3.0

(76.2)

9.50

(241.3)

3.75

(95.3)

DBU17-GDMR 

27 DBU27-GDML 125 26.75

(679.5)

22.69

(576.3)

34.63

(879.6)

21.38

(543.1)

16.75

(425.5)

11.56

(293.6)

22.69

(576.3)

11.75

(298.5)

13.50

(343.0)

3.0

(76.2)

9.50

(241.3)

3.75

(95.3)

DBU27-GDMR 

0.50 x 0.75

(12.7 x 19.1)

Mtg. Slots

(Four)

0.50

(12.7) 2.03

(51.6)

Side View

Mounting Base Detail

1.50 (38.1)

5.50 (139.7)

Front View

(Fuse removed)

3.00 (76.2)

6.50 (165.1)

0.75

(19.1)

0.56

(14.2)

Dia.

2.03 (51.6)

1.88 (47.8)

3.50 (88.9)

43°

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-51

2.6

Expulsion Fuses

DBU Type Fuses

Dimensions are in Inches (mm)

Indoor DBU Fuse Fittings

Outdoor DBU Fuse Fittings

Fuse Unit Fittings

kV Max. A B C

17 19.08 (484.6) 27.19 (538.2) 28.82 (732.0)

27 22.58 (573.5) 30.69 (779.5) 32.32 (821.0)

38 28.76 (730.5) 36.87 (936.5) 38.50 (978.0)

B Ref.

1.24

(31.6)

Dia.

0.94

(24.0)

0.72 (18.3) Ref.

Fuse Unit Fittings

kV Max. A B

17 19.08 (484.6) 19.41 (493.0)

27 22.58 (573.5) 22.91 (581.9)

38 28.76 (730.5) 28.09 (713.5)

1.24

(31.6)

Dia.

0.94

(24.0)

0.72 (18.3) Ref.

www.comoso.com

V14-T2-52 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

RBA Fuses Contents

Description Page

RBA/RDB Type Fuses (Including Superseded BA Fuses)

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-52

Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-53

Operation and Features . . . . . . . . . . . . . . . . . . V14-T2-53

Catalog Number Selection . . . . . . . . . . . . . . . . V14-T2-58

Interrupting Ratings . . . . . . . . . . . . . . . . . . . . . V14-T2-59

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T2-60

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T2-68

RBA/RDB Type Fuses (Including Superseded BA Fuses)

Product Description

BA Fuses

Westinghouse Electric

Company introduced the BA

range of DE-ION boric acid

refillable fuses in the 1930s,

and BA refill units have been

in continuous use and

production since then. Eaton

still manufactures BA refill

units for use in existing fuse

holders and installations.

However, the manufacture of

most BA fuse holders and all

BA mountings has been

discontinued.

RBA and RDB Fuses

In 1969, Westinghouse

Electric Company introduced

the redesigned and improved

RBA (indoor with exhaust

control device—filter or

condenser) and RDB (vented

outdoor dropout) ranges of

boric acid DE-ION fuses to

replace the BA range of fuses

Eaton’s RBA (Refillable Boric

Acid) and RDB (Refillable

Dropout Boric acid) power

fuses are expulsion type

power fuses designed for

indoor or weatherproof

enclosure (RBA) or outdoor

vented (RDB) applications.

RBA/RDB fuses are

renewable (refillable) as the

descriptions above state. The

whole fuse unit is not

discarded after a fault

interruption. Usually, only one

piece of the fuse, the refill

unit, needs to be replaced

after an interruption and for

this reason, RBA/RDB fuses

provide an economical

approach to the protection of

power circuits rated up to a

maximum of 38 kV. They are

especially well suited for

large industrial load fusing

needs.

An RBA/RDB fuse is basically

a vented electromechanical

device which is applicable to

many different power

applications. RBA/RDB power

fuses are particularly

effective for higher

operational voltage and

higher continuous current

applications. RBA/RDB

expulsion type fuses do not

limit the magnitude of the

fault current during operation.

They limit the duration of the

fault in the electrical system.

RBA/RDB expulsion fuses are

available in a wide range of

ratings to simplify the

selection process. They offer

continuous current ratings of

0.5 through 720 amperes, at

maximum voltages of 8.3

through 38 kV and with

symmetrical interrupting

ratings up to 37,500

amperes. RBA and RBB

fuses both use replaceable

RBA refill units, which are

available with both standard

speed or time lag

characteristics, that when

combined with the wide

range of ratings, allow

maximization of both

coordination and protection.

RBA power fuses can be

used with either disconnect

or non-disconnect mounting,

so matching these fuses into

the equipment type and

layout is a simplified process.

Thus RBA fuses are easy to

install and maintain. RDB

fuses are only available for

use in outdoor dropout style

mountings.

RBA power fuses have a long

and enviable reputation for

outstanding protection and

reliability, broad selection

possibilities, ease of

installation and economy over

time.

Installation

See Publication No.

IL.36-65A-1C for installation

instructions.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-53

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses

Applications

In general, an electrical

power system consists of

three major parts: generation,

transmission and distribution.

The power distribution area

offers an especially

significant potential for RBA

and RDB power fuse

applications. This power

distribution system potential

could be with the utility, an

industrial or commercial user,

or the manufacturer of

electrical equipment.

Since the RBA/RDB power

fuse is refillable (renewable),

it is economical for use in a

variety of distribution system

applications. Primarily, the

RBA/RDB is designed for use

on:

●Load interrupter

switchgear;

●Power transformers;

●High voltage capacitors;

●Pad mounted transformers

RBA fuses can be installed in

indoor metalclad or metal

enclosed load interrupter

switchgear, or fuse cabinets

for both indoor and outdoor

use. RDB fuses are intended

for outdoor use, but

protecting the same types of

loads as RBA fuses.

A common application for

RBA power fuses is in the

primary circuit of a power

transformer. In this

application, fuses must

isolate the transformer circuit

from the upstream supply

when a fault occurs in or

beyond the transformer, but

must not operate on

transformer inrush.

RBA fuses can also be used

to protect capacitor banks.

Capacitors require protection

from fault currents which

could cause a capacitor to

rupture.

Selection of the fuse type is

dependent on many factors,

including: user or supplier

preference, cost and

system coordination. If the

required voltage and

continuous current ratings

are high and downstream

coordination is critical, RBA

power fuses can provide

very effective protection.

See Page V14-T2-20 for

more information on

expulsion fuse application.

Operation and Features

A renewable (refillable) boric

acid expulsion type fuse

comprises the following

major components:

●A replaceable reﬁll unit,

comprising the current

responsive element and

the arc de-ionizing and

extinguishing boric acid

sold ﬁller material, all

contained within a high

strength glass epoxy tube

and with end connections

for interfacing with the

fuse holder. This is the part

of the fuse which is

discarded after a fuse

interruption

●A reusable fuse holder. The

fuse holder comprises a

high strength glass epoxy

tube and cast high

conductivity end

connections to interface

the fuse holder with the

internal reﬁll unit and the

external fuse mounting.

The fuse holder assembly

also includes the spring

and shunt assembly which

is pre-loaded when a fuse

holder is charged with a

reﬁll unit

●For indoor applications only

(RBA fuses only), a

reusable exhaust control

device, (condenser,

discharge ﬁlter, or high

capacity discharge ﬁlter)

which de-ionizes and

absorbs all or part of the

“expulsion exhaust” from

the fuse during operation

●A reusable mounting to

interface the loaded fuse

holder assembly into the

protected circuit. The

mounting comprises the

live parts, a pair of

assembles that interface

with and securely support

the fuse holder, and

provide suitable

connection points for the

external circuit. Below the

live parts are insulators,

appropriate for the system

insulation rating, which are

mounted on a rigid metal

support to prevent ﬂexing

of the mounting during

fuse or associated switch

operation

Mountings are available in

disconnect and non-

disconnect configurations for

RBA fuses and a dropout

configuration for RDB fuses.

A non-disconnect mounting

permanently mounts the fuse

holder containing the refill

with tension type fuse clips

or bolted connections until it

is completely removed.

The disconnect mounting

permits a fuse to be opened,

closed, or even lifted out of

the mounting once it is

opened. An insulated stick

with a hook on the end of it is

used to perform the opening

and closing functions in a

disconnect mounting. The

insulated stick is referred to

as a switch stick.

Depending on the point of

application, it is often

necessary to attach a

discharge suppressor (filter,

condenser or muffler) to the

fuse unit. This metallic device

acts to retard, to varying

degrees, the gases and noise

associated with an expulsion

type fuse.

When the fuse element

melts inside the refill, an arc

is initiated and elongated. The

heat of the arc decomposes

the boric acid producing

water vapor and boric

anhydride. These two by-

products extinguish the arc

by blasting through it and exit

from the bottom of the fuse.

The gases are usually

assisted with the interruption

process by a spring loaded

mechanical device located

inside the fuse holder. In

addition to the exhaust

produced during interruption,

a significant amount of noise

also results. At this point, the

previously mentioned

suppressor is often used to

limit this discharge and noise.

The type of suppressor

installed depends upon the

requirements at the point of

application.

www.comoso.com

V14-T2-54 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

RBA and RDB Details

Eaton’s renewable RBA or

RDB fuse unit is not totally

discarded after it interrupts a

fault. This makes the RBA

quite economical to use over

time. Normally, only the fuse

refill is discarded with the

RBA design.

The RBA power fuse

provides performance

characteristics especially

intended for power system

protection up to an

operational voltage of 34.5

kV. Because RBA fuses are

available in a wide range of

continuous current ratings

and time-current

characteristics, close fusing

can be achieved, maximizing

the protection and overall

coordination. The quality and

accuracy of the RBA design

and manufacturing process

ensures accurate initial and

ongoing melting time-current

characteristics. Proven RBA

power fuses perform as

intended and operate exactly

when and how they should,

and do not operate when

they should not operate. This

is a subtle but important

point.

Each individual RBA fuse

component is discussed

individually. Its makeup and

unique role in the protection

process are also discussed.

RBA Reﬁll Unit

The internal parts of an RBA

refill unit are a calibrated

current responsive fuse

element and a parallel high

strength strain element, an

arcing rod, an auxiliary arcing

rod assembly, and a solid

boric acid liner which assists

with the interruption. The

lower end of the fuse

element is attached to an end

cap which is securely

crimped onto the lower end

of a glass-epoxy refill tube

and the upper end is brazed

or securely crimped to the

main arcing rod. The upper

end of the tube permits the

upper end of the arcing rod to

exit the refill tube through a

molded plug. At the upper

end of the refill unit, the plug

is sealed around the arcing

rod where it exits from the

refill tube. The lower end of

the refill unit is sealed with a

blowout disc to maintain the

integrity of the seal in RDB

outdoor applications. The seal

must be removed before an

exhaust control device is

fitted to a fuse holder for

indoor applications, to

prevent clogging the exhaust

control device.

The calibrated fuse element

assembly determines the

operational time-current

characteristics of the RBA

fuse. It is sensitive to the

heat produced by the amount

of current flowing. How,

when or if it melts for

different magnitudes of

current and amounts of time,

a particular current magnitude

experienced by the fuse is

indicated on the specific

time-current characteristic

curve for a particular fuse.

RBA fuse elements are

available in standard and

time-lag configurations. The

standard element assemblies

are made of pure silver with a

parallel Nichrome strain wire,

and the time-lag elements

have a calibrated tin alloy

joint. The Nichrome wire

relieves the fuse element of

any strain put on it by the

spring loaded arcing rod. This

parallel high resistance

vaporizes immediately after

the fuse element melts.

The heavy copper cylindrical

arcing rod is contained within

the main bore of the boric

acid liner and performs two

functions. Under normal

operating conditions, it

carries the continuous rated

current of the fuse. When the

fuse element melts during a

fault interruption, the acing

rod lengthens the arc as it is

pulled through the boric acid

liner. This backward

movement occurs because

the arcing rod is under spring

tension from the outside of

the refill.

An auxiliary arcing rod is

contained within the small

bore of the boric acid liner. It

plays a role in the proper

operation of the fuse under

low intensity fault conditions.

No load current is carried by

the auxiliary wire.

RBA Refill Unit Operation

Under fault conditions, the

fuse and strain elements melt

and the arcing rods pull the

arc back through the boric

acid liner. Intense heat from

the arc separates the

hydrated boric acid,

producing water vapor and

inert boric anhydride. This

expanding mixture

extinguishes the arc by

blasting through and de-

ionizing it. The exhaust

caused by the interruption

exits from the bottom of the

fuse. The de-ionizing action

prevents the arc from re-

striking after a current zero.

RBA fuses are designed to

interrupt short-circuit currents

within 1/2 cycle at the next

current zero. Two different

chambers in parallel within

the solid boric acid liner

provide for selective

operation and interruption for

both low current and high

current faults using the

principles of de-ionization.

Low Current Fault

Interruption

When a low current fault

occurs, the main fuse and

strain elements melt and the

main and auxiliary arcing rods

start to draw through the

boric acid liner. At this stage,

the main rod circuit is open,

shorted out by the auxiliary

rod. The fine auxiliary coil

rapidly melts and the arc is

extinguished in the small

bore of the boric acid liner.

The arcing rod drawing no

arc, moves back to an open

position because of the

spring tension.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-55

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

High Current Fault

Operation

A high fault current melts the

main fuse and strain element

and transfers to the auxiliary

fuse wire. In the small bore,

the high arc current creates a

high voltage causing the

arcing rod in the main bore to

restrike. The arcing rod then

draws the arc through the

main bore where it is quickly

extinguished.

RBA Refill Unit Ratings

RBA fuse refills are ANSI/

IEEE “E” rated. The “E”

rating defines a current

response that is intended to

produce a degree of electrical

interchangeability among

fuse manufacturers. A 100E

fuse carries 100 amperes or

below continuously and will

melt in a defined amount of

time for a defined range of

current above the fuse’s

continuous current

magnitude. This performance

will be the same for all fuses

with an E designation.

RBA Fuse Holder

An RBA fuse holder has a

glass epoxy tube which

encloses and supports the

fuse refill unit. Also inside the

tube is a spring and shunt

assembly, which makes an

electrical connection to the

top end of the refill unit. At

the ends, the fuse holder has

high conductivity copper alloy

ferrules, which include the

required features to interface

with a non-disconnect, or

disconnect mounting. The

holder delivers excellent

dielectric strength as well as

mechanical strength for

support purposes. The RBA

holder is not suitable for

outdoor applications.

RDB Fuse Holder

An RDB fuse holder has a

glass epoxy tube which is

coated with a protective gray

colored UV resistant coating

for outdoor application. This

tube encloses and supports

the fuse refill unit. Also inside

the tube is a spring and shunt

assembly which makes an

electrical connection to the

top end of the refill unit. The

RBD spring and shunt

assembly incorporates a

ballistic trip pin to unlatch the

fuse holder when the fuse

operates, initiating the

dropout action. At the ends,

the fuse holder has high

conductivity silver plated

copper alloy ferrules, which

include the required features

to interface with a dropout

mounting. The holder delivers

excellent dielectric strength

as well as mechanical

strength for support

purposes. The RDB holder

is designed for outdoor

applications with the UV

protected tube and silver

plated terminals.

After an RBA or RDB fuse

unit performs its function by

interrupting a fault, the fuse

holder is removed from its

mounting, opened and only

the fuse refill unit is replaced.

The fuse unit can then be

once again put back into

operation.

Spring and Shunt

Assembly

A spring and shunt assembly

comprises a stainless steel

helical spring that encloses a

tangle free flexible braided

high conductivity copper

shunt, which prevents the

spring from conducting load

or fault current. This

assembly attaches on the

lower end to the threaded

end of the refill unit, and at

the top end to the top contact

of the fuse holder. With the

spring and shunt assembly

properly attached to and

enclosed in the holder, the

refill arcing rod assembly is

put under spring tension,

ready to move the rod

through the boric acid liner.

Holder Contacts and

Hardware

The high conductivity cast

copper alloy upper and lower

contacts of the fuse holder

make low resistance

electrical connections

between the fuse refill and

the mounting. These contacts

also function to dissipate heat

in normal service.

The difference between non-

disconnect and disconnect or

dropout type fuse holders is

the design of the top and

bottom contacts of the fuse

holder. Disconnect or dropout

electrical contacts permit the

fuse to be switch stick

operated in a compatible

disconnect or dropout type

mounting. A hookeye is

provided at the lower contact

of the fuse holder to allow

the fuse holder to be lifted

into the hinge end of the

mounting, and at the upper

contact to allow the fuse

holder to be swung to open

or close the fuse. A non-

disconnect contact requires

the fuse unit to be supported

in a permanent position until

completely assembled into or

removed from a compatible

mounting.

RBA and RDB Mountings

Both non-disconnect and

disconnect mountings are

available for RBA power

fuses. Dropout mountings

are used with RDB fuse

units. Mountings provide

everything necessary to

safely install a compatible

RBA fuse unit into the

protected circuit. The rigid

mounting base is a metal

support to which the

porcelain or glass polyester

insulators are attached. They

insulate the live parts and the

installed fuse unit from the

mounting base and

everything beyond the base.

Live parts are available

without the insulators or

mounting base because

some applications have

unique mounting situations or

the customer may choose to

add additional value by

supplying the insulators and

base. It is still necessary to

mount the live parts and

insulators to a rigid support

structure to prevent the fuse

from unlatching due to

mechanical disturbances. It is

the responsibility of the

customer to make sure that

all mounting requirements

are met when using just the

live parts.

RBA non-disconnect

mountings can be supplied in

one of two configurations.

RBA-200 and RBA-400

mountings use upper and

lower fuse clamps to hold the

fuse unit in position. The

clamps securely locate each

end of the fuse holder into

the mounting. RBA-800

mountings hold the fuse unit

in place by solidly bolting it

into position. The type of non-

disconnect mounting to be

used depends on the size and

configuration of the fuse unit.

www.comoso.com

V14-T2-56 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

RBA disconnect and RDB

dropout mountings are

switch stick-operable,

facilitating opening, closing,

and fuse replacement. The

switch stick can be used to

open and close the fuse, and

also to lift the fuse into and

out of the mounting. This

keeps the operator well clear

of any live parts during fuse

removal. The lower end of

the mounting is the hinged

end and the upper end is the

latched end and they work in

conjunction with the

compatible contacts of the

fuse holder. Positive electrical

connections are maintained

at both ends of the mounting

through the spring fingers at

the lower end and clip type

contacts on the upper end.

The spring fingers are

compressed on closing in of

the fuse holder.

RBA Exhaust Control Devices

For indoor applications, phase-

to-phase clearances and

clearances to ground are

generally restricted, and

exhaust control devices must

be used with RBA indoor

expulsion fuses to retard the

gases and reduce the noise

associated with this type of

fuse operation. Eaton offers

three devices called the

condenser, the discharge filter

and the high capacity discharge

filter—the high capacity

discharge filter has limited

application at a specific voltage

level. Other manufacturers

refer to such devices as

suppressors or silencers.

The exhaust control device is

threaded onto the bottom of an

RBA fuse holder to minimize

the noise and exhaust while

containing the arc within the

fuse during interruption, and

also to clamp the lower end of

the fuse refill unit into the fuse

holder to ensure an adequately

tight electrical and mechanical

connection to minimize contact

resistance and enable thermal

conduction out of the refill unit.

Exhaust control devices are

metallic containers with copper

screen inside to absorb and

dissipate arc heat and

condense steam to water.

Although the inner and outer

metals of the condenser and

discharge filter are similar, the

internal designs and venting

methods are different. A

condenser can be identified by

the very restrictive bottom plate

with only one small hole to

allow the slow release, after

interruption, of water absorbed

by the condenser during a fuse

interruption. A discharge filter is

very less restrictive, and acts

only to de-ionize the exhaust

gases and reduce the flow rate

of the discharge. The flow

restriction in a condenser

causes a back-pressure in the

fuse which reduces the ability

of the fuse to interrupt higher

current faults.

RBA/RDB Interruption and

Protection

The operation of RBA and

RDB fuses must be

considered for three sets of

conditions:

●Normal loading—This is

when the circuit current is

below the allowable

continuous current or

within the limits of the

allowable short-time

overload current shown on

Page V14-T2-8 of the

Expulsion Fuse

Introduction, for the

particular set of application

conditions. Under such

normal loading, the fuse is

not subject to any

conditions that would

degrade its long term

integrity, or affect its ability

to correctly interrupt fault

conditions.

Note: If the current is at or below

the allowable continuous current

for the particular set of

conditions, that is, allowing for an

elevated ambient temperature,

high altitude, or an enclosure that

restricts natural cooling, the

temperature rise and maximum

temperature of the fuse will be

below the allowable limits stated

in IEEE Std. C37.40™-2003.

Note: If temporary overloads are

below the temporary overload

curve, with values based on the

allowable continuous current, not

on the rated continuous current,

the fuse unit or reﬁll unit,

although it may be subject to

temporarily slightly elevated

temperatures, will not be subject

to conditions that could affect its

long term integrity or degrade its

ability to correctly interrupt fault

conditions.

Note: After the fuse has been

subjected to a temporary

overload as indicated on Page

V14-T2-8, the current should be

reduced to no more than the

normal circuit full load condition—

typically (fuse rated continuous

current) /1.4 for a period long

enough for any temporary excess

heat to be dissipated—typically 2

hours minimum.

●Overloading—This occurs

if the circuit current

exceeds the allowable

short-time overload

conditions shown on Page

V14-T2-8 of the Expulsion

Fuse Introduction, but is

below 240% (for fuses

rated 100E or below) or

264% (for fuses rated

above 100E).

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-57

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

If the fuse is exposed to

these overload conditions,

the long term integrity of the

fuse refill unit can be

degraded and its ability to

correctly interrupt fault

conditions may be seriously

compromised.

Note: With a fuse unit or fuse

reﬁll unit rated 100E or less, the

element may melt at any current

between 200% and 240% of the

E rating, and with a fuse unit or

reﬁll unit rated more than 100E,

the element may melt at any

current between 220% and

264% of the E rating. These 10%

ranges allow for variations

between fuses because of

manufacturing tolerances, and so

on, on the fuse assembly. The

minimum melting current of the

fuse could be anywhere in the

range between the value on the

minimum-melting time-current

characteristic and the value on

the total-clearing time-current

characteristic. At this end of the

curve, the total-clearing and

maximum-melting characteristics

are effectively the same. The

maximum values of the range are

quoted here because this is the

lower limit of the current at which

it is known that the fuse element

will melt.

●Faults—This covers all

conditions from about

240% for a fuse rating of

100E or less, or 264% for a

fuse rating greater than

100E up to the interrupting

rating of the fuse. The fuse

will interrupt the fault

current in a time indicated

by the published fuse time-

current characteristic

curves. Interruption occurs

at a natural current zero of

the fault current, when the

dielectric strength of the

fuse withstands the

combination of power

frequency recovery voltage

and transient recovery

voltage.

The noise of the operation

and the quantity of exhaust

products is reduced in indoor

RBA applications by the use

of an exhaust control device

which partially absorbs and

de-ionizes the exhaust gases.

In outdoor applications, RDB

fuses are exhausted to

atmosphere.

The rated maximum

voltage of RBA or RDB

power fuse is the highest

power frequency system

voltage at which the fuse is

designed to operate. The

dielectric withstand level

corresponds to insulation

levels of power class

equipment. Rated maximum

voltage levels for RBA power

fuses are: 8.3, 15.5, 25.5 and

38.0 kV.

Fuses, including RBA/RDB

power fuses, should never be

applied where the available

fault current at the fuse

location exceeds the rated

maximum interrupting

current of the fuse. The rated

maximum interrupting

current of an RBA fuse is the

rms value of the symmetrical

component (AC component)

of the highest current which

the RBA is has been

demonstrated to be able to

successfully interrupt under

any condition of asymmetry.

RBA interrupting ratings are

shown in the table on Page

V14-T2-59. The rated

continuous current of an RBA

or RDB power fuse should at

least equal or preferably

exceed the maximum load

current where the fuse is

applied. Fuses are designed

to carry their rated

continuous current without

exceeding the temperature

rise outlined in IEEE

standards. RBA and RDB

fuses are available with

continuous current ratings up

to 720 amperes current

ratings and carry an “E”

designation.

www.comoso.com

V14-T2-58 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

Catalog Number Selection

RBA and RBT Fuse Units

RBA and RBT Fuse Holders, Mounting and Accessories

Type

RBA2

RBA4

RBT2

RBT4

Maximum kV

8= 8.3 kV

15 = 15.5 kV

25 = 25.5 kV

38 = 38 kV

Ampere

Rating

0.5

10E

20E

25E

30E

40E

50E

65E

80E

100E

125E

150E

175E

200E

250E

300E

400E

15 RBA2 100E

Insulator

P= Porcelain

G= Glass polyester

H= Porcelain, high

LIWL (BIL)

Hardware

COND = Condenser

DH = Disconnect fuse holder

DL = Disconnect live parts

DM = Disconnect mounting

FLTR = Filter

HC-FLTR = High capacity filter

IDH = Indicating disconnect fuse holder

INH = Indicating non-disconnect fuse

holder

INH-B = Indicating non-disconnect fuse

holder, bolt in

NH = Non-disconnect fuse holder

NL = Non-disconnect live parts

NM = Non-disconnect mounting

UL = Underhung live parts

UM = Underhung mounting

VL = Vertical live parts

VM = Vertical mounting

15 RBA2 P NM

Type

RBA2

RBA4

RBA8

RDB4

RDB8

Maximum kV

8= 8.3 kV

15 = 15.5 kV

25 = 25.5 kV

38 = 38 kV

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-59

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

Interrupting Ratings

RBA and RBT Fuse Interrupting Ratings

RBA and RBT Fuse Interrupting Ratings, continued

Fuse Nominal

Rated Voltage

Rating kV

Maximum System

Voltage kV

RDB2 Outdoor Vented

rms Symmetrical kA

RBA2 Indoor with Filter

rms Symmetrical kA

RDB2 Indoor with Condenser

rms Symmetrical kA

2.4 2.75 19.0 19.0 10.0

4.16 4.8 19.0 19.0 10.0

4.8 5.5 19.0 19.0 10.0

7.2 8.3 16.6 16.6 10.0

13.8 14.4 14.4 14.4 8.0

14.4 15.5 14.4 14.4 8.0

23 25.5 10.5 10.5 6.3

34.5 38 6.9 6.9 5.0

Fuse Nominal

Rated Voltage

Rating kV

Maximum System

Voltage kV

RDB4/8 Outdoor Vented

rms Symmetrical kA

RBA4/8 Indoor with Filter

rms Symmetrical kA

RDA4/4 Indoor with

Condenser

rms Symmetrical kA

RBA4/8 Indoor with

High Capacity Filter

rms Symmetrical kA

2.4 2.75 37.7 37.7 20.0 —

4.16 4.8 37.5 37.5 20.0 —

4.8 5.5 37.5 37.5 20.0 —

7.2 8.3 29.4 29.4 16.0 —

13.8 14.4 29.4 29.4 12.5 36.0

14.4 15.5 29.4 29.4 12.5 —

23 25.5 21.0 21.0 10.0 —

34.5 38 16.8 16.8 10.0 —

www.comoso.com

V14-T2-60 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

Product Selection

8RBA2 and 8RBA4 Type Standard Speed and 8RBT2 and 8RBT4 Time Lag Fuse Reﬁll Units

Voltage (kV)

Ampere

Rating

Standard Speed Time Lag Approximate

Shipping Weight

Lbs (kg)

Performance Curves

Standard Speed Time Lag

Nominal Maximum

Catalog

Number

Catalog

Number

Minimum

Melting

Total

Clearing

Minimum

Melting

Total

Clearing

7.2 8.3 10E 8RBA2-10E — 1.0 (0.5) TC62882301 TC66701401 — —

7.2 8.3 15E 8RBA2-15E — 1.0 (0.5) TC62882301 TC66701401 — —

7.2 8.3 20E 8RBA2-20E 8RBT2-20E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 25E 8RBA2-25E 8RBT2-25E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 30E 8RBA2-30E 8RBT2-30E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 40E 8RBA2-40E 8RBT2-40E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 50E 8RBA2-50E 8RBT2-50E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 65E 8RBA2-65E 8RBT2-65E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 80E 8RBA2-80E 8RBT2-80E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 100E 8RBA2-100E 8RBT2-100E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 125E 8RBA2-125E 8RBT2-125E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 150E 8RBA2-150E 8RBT2-150E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 175E 8RBA2-175E — 1.0 (0.5) TC62882301 TC66701401 — —

7.2 8.3 200E 8RBA2-200E 8RBT2-200E 1.0 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

7.2 8.3 0.5 8RBA4-.5 — 2.1 (1.0) TC62886101 TC66701501 — —

7.2 8.3 3 8RBA4-3 — 2.1 (1.0) TC62886101 TC66701501 — —

7.2 8.3 5E 8RBA4-5E — 2.1 (1.0) TC62886101 TC66701501 — —

7.2 8.3 7E 8RBA4-7E — 2.1 (1.0) TC62886101 TC66701501 — —

7.2 8.3 10E 8RBA4-10E — 2.1 (1.0) TC62886101 TC66701501 — —

7.2 8.3 15E 8RBA4-15E — 2.1 (1.0) TC62886101 TC66701501 — —

7.2 8.3 20E 8RBA4-20E 8RBT4-20E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 25E 8RBA4-25E 8RBT4-25E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 30E 8RBA4-30E 8RBT4-30E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 40E 8RBA4-40E 8RBT4-40E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 50E 8RBA4-50E 8RBT4-50E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 65E 8RBA4-65E 8RBT4-65E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 70E 8RBA4-80E 8RBT4-80E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 100E 8RBA4-100E 8RBT4-100E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 125E 8RBA4-125E 8RBT4-125E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 150E 8RBA4-150E 8RBT4-150E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 175E 8RBA4-175E — 2.1 (1.0) TC62886101 TC66701501 — —

7.2 8.3 200E 8RBA4-200E 8RBT4-200E 2.1 (1.0) TC62886101 TC66701501 TC62886501 TC66701201

7.2 8.3 250E 8RBA4-250E 8RBT4-250E 2.1 (1.0) TC62886101 TC66701501 TC63943501 TC66701101

7.2 8.3 300E 8RBA4-300E 8RBT4-300E 2.1 (1.0) TC62886101 TC66701501 TC63943501 TC66701101

7.2 8.3 400E 8RBA4-400E 8RBT4-400E 2.1 (1.0) TC62886101 TC66701501 TC63943501 TC66701101

7.2 8.3 450E (2) 8RBA4-250E (2) 8RBT2-250E —TC62886102 TC66701001 TC63943502 TC66700901

7.2 8.3 540E (2) 8RBA4-300E (2) 8RBT2-300E —TC62886102 TC66701001 TC63943502 TC66700901

7.2 8.3 720E (2) 8RBA4-400E (2) 8RBT2-400E —TC62886102 TC66701001 TC63943502 TC66700901

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-61

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

15RBA2 and 15RBA4 Type Standard Speed and 15RBT2 and 15RBT4 Time Lag Fuse Reﬁll Units

Voltage (kV)

Ampere

Rating

Standard Speed Time Lag Approximate

Shipping Weight

Lbs (kg)

Performance Curves

Standard Speed Time Lag

Nominal Maximum

Catalog

Number

Catalog

Number

Minimum

Melting

Total

Clearing

Minimum

Melting

Total

Clearing

14 16 10E 15RBA2-10E — 1.1 (0.5) TC62882301 TC66701401 — —

14 16 15E 15RBA2-15E — 1.1 (0.5) TC62882301 TC66701401 — —

14 16 20E 15RBA2-20E 15RBT2-20E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 25E 15RBA2-25E 15RBT2-25E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 30E 15RBA2-30E 15RBT2-30E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 40E 15RBA2-40E 15RBT2-40E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 50E 15RBA2-50E 15RBT2-50E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 65E 15RBA2-65E 15RBT2-65E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 80E 15RBA2-80E 15RBT2-80E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 100E 15RBA2-100E 15RBT2-100E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 125E 15RBA2-125E 15RBT2-125E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 150E 15RBA2-150E 15RBT2-150E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 175E 15RBA2-175E — 1.1 (0.5) TC62882301 TC66701401 — —

14 16 200E 15RBA2-200E 15RBT2-200E 1.1 (0.5) TC62882301 TC66701401 TC62886301 TC66701301

14 16 0.5 15RBA4-.5 — 2.3 (1.05) TC62886101 TC66701501 — —

14 16 3 15RBA4-3 — 2.3 (1.05) TC62886101 TC66701501 — —

14 16 5E 15RBA4-5E — 2.3 (1.05) TC62886101 TC66701501 — —

14 16 7E 15RBA4-7E — 2.3 (1.05) TC62886101 TC66701501 — —

14 16 10E 15RBA4-10E — 2.3 (1.05) TC62886101 TC66701501 — —

14 16 15E 15RBA4-15E — 2.3 (1.05) TC62886101 TC66701501 — —

14 16 20E 15RBA4-20E 15RBT4-20E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 25E 15RBA4-25E 15RBT4-25E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 30E 15RBA4-30E 15RBT4-30E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 40E 15RBA4-40E 15RBT4-40E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 50E 15RBA4-50E 15RBT4-50E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 65E 15RBA4-65E 15RBT4-65E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 70E 15RBA4-80E 15RBT4-80E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 100E 15RBA4-100E 15RBT4-100E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 125E 15RBA4-125E 15RBT4-125E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 150E 15RBA4-150E 15RBT4-150E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 175E 15RBA4-175E — 2.3 (1.05) TC62886101 TC66701501 — —

14 16 200E 15RBA4-200E 15RBT4-200E 2.3 (1.05) TC62886101 TC66701501 TC62886501 TC66701201

14 16 250E 15RBA4-250E 15RBT4-250E 2.3 (1.05) TC62886101 TC66701501 TC63943501 TC66701101

14 16 300E 15RBA4-300E 15RBT4-300E 2.3 (1.05) TC62886101 TC66701501 TC63943501 TC66701101

14 16 400E 15RBA4-400E 15RBT4-400E 2.3 (1.05) TC62886101 TC66701501 TC63943501 TC66701101

14 16 450E (2) 15RBA4-250E (2) 15RBT2-250E — TC62886102 TC66701001 TC63943502 TC66700901

14 16 540E (2) 15RBA4-300E (2) 15RBT2-300E — TC62886102 TC66701001 TC63943502 TC66700901

14 16 720E (2) 15RBA4-400E (2) 15RBT2-400E — TC62886102 TC66701001 TC63943502 TC66700901

www.comoso.com

V14-T2-62 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

25RBA2 and 25RBA4 Type Standard Speed and 25RBT2 and 25RBT4 Time Lag Fuse Reﬁll Units

Voltage (kV)

Ampere

Rating

Standard Speed Time Lag Approximate

Shipping Weight

Lbs (kg)

Performance Curves

Standard Speed Time Lag

Nominal Maximum

Catalog

Number

Catalog

Number

Minimum

Melting

Total

Clearing

Minimum

Melting

Total

Clearing

23 26 10E 25RBA2-10E — 1.3 (0.6) TC62882301 TC66701401 — —

23 26 15E 25RBA2-15E — 1.3 (0.6) TC62882301 TC66701401 — —

23 26 20E 25RBA2-20E 25RBT2-20E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 25E 25RBA2-25E 25RBT2-25E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 30E 25RBA2-30E 25RBT2-30E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 40E 25RBA2-40E 25RBT2-40E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 50E 25RBA2-50E 25RBT2-50E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 65E 25RBA2-65E 25RBT2-65E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 80E 25RBA2-80E 25RBT2-80E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 100E 25RBA2-100E 25RBT2-100E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 125E 25RBA2-125E 25RBT2-125E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 150E 25RBA2-150E 25RBT2-150E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 175E 25RBA2-175E — 1.3 (0.6) TC62882301 TC66701401 — —

23 26 200E 25RBA2-200E 25RBT2-200E 1.3 (0.6) TC62882301 TC66701401 TC62886301 TC66701301

23 26 0.5 25RBA4-.5 — 2.7 (1.25) TC62886101 TC66701501 — —

23 26 3 25RBA4-3 — 2.7 (1.25) TC62886101 TC66701501 — —

23 26 5E 25RBA4-5E — 2.7 (1.25) TC62886101 TC66701501 — —

23 26 7E 25RBA4-7E — 2.7 (1.25) TC62886101 TC66701501 — —

23 26 10E 25RBA4-10E — 2.7 (1.25) TC62886101 TC66701501 — —

23 26 15E 25RBA4-15E — 2.7 (1.25) TC62886101 TC66701501 — —

23 26 20E 25RBA4-20E 25RBT4-20E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 25E 25RBA4-25E 25RBT4-25E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 30E 25RBA4-30E 25RBT4-30E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 40E 25RBA4-40E 25RBT4-40E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 50E 25RBA4-50E 25RBT4-50E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 65E 25RBA4-65E 25RBT4-65E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 70E 25RBA4-80E 25RBT4-80E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 100E 25RBA4-100E 25RBT4-100E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 125E 25RBA4-125E 25RBT4-125E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 150E 25RBA4-150E 25RBT4-150E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 175E 25RBA4-175E — 2.7 (1.25) TC62886101 TC66701501 — —

23 26 200E 25RBA4-200E 25RBT4-200E 2.7 (1.25) TC62886101 TC66701501 TC62886501 TC66701201

23 26 250E 25RBA4-250E 25RBT4-250E 2.7 (1.25) TC62886101 TC66701501 TC63943501 TC66701101

23 26 300E 25RBA4-300E 25RBT4-300E 2.7 (1.25) TC62886101 TC66701501 TC63943501 TC66701101

23 26 450E (2) 25RBA4-250E (2) 25RBT2-250E 2.7 (1.25) TC62886102 TC66701001 TC63943502 TC66700901

23 26 540E (2) 25RBA4-300E (2) 25RBT2-300E — TC62886102 TC66701001 TC63943502 TC66700901

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-63

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

38RBA4 and 38RBA4 Type Standard Speed and 38RBT2 and 238RBT4 Time Lag Fuse Reﬁll Units

Voltage (kV)

Ampere

Rating

Standard Speed Time Lag Approximate

Shipping Weight

Lbs (kg)

Performance Curves

Standard Speed Time Lag

Nominal Maximum

Catalog

Number

Catalog

Number

Minimum

Melting

Total

Clearing

Minimum

Melting

Total

Clearing

35 38 10E 38RBA2-10E — 1.4 (0.65) TC62882301 TC66701401 — —

35 38 15E 38RBA2-15E — 1.4 (0.65) TC62882301 TC66701401 — —

35 38 20E 38RBA2-20E 38RBT2-20E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 25E 38RBA2-25E 38RBT2-25E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 30E 38RBA2-30E 38RBT2-30E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 40E 38RBA2-40E 38RBT2-40E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 50E 38RBA2-50E 38RBT2-50E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 65E 38RBA2-65E 38RBT2-65E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 80E 38RBA2-80E 38RBT2-80E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 100E 38RBA2-100E 38RBT2-100E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 125E 38RBA2-125E 38RBT2-125E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 150E 38RBA2-150E 38RBT2-150E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 175E 38RBA2-175E — 1.4 (0.65) TC62882301 TC66701401 — —

35 38 200E 38RBA2-200E 38RBT2-200E 1.4 (0.65) TC62882301 TC66701401 TC62886301 TC66701301

35 38 0.5 38RBA4-.5 — 3.1 (1.4) TC62886101 TC66701501 — —

35 38 3 38RBA4-3 — 3.1 (1.4) TC62886101 TC66701501 — —

35 38 5E 38RBA4-5E — 3.1 (1.4) TC62886101 TC66701501 — —

35 38 7E 38RBA4-7E — 3.1 (1.4) TC62886101 TC66701501 — —

35 38 10E 38RBA4-10E — 3.1 (1.4) TC62886101 TC66701501 — —

35 38 15E 38RBA4-15E — 3.1 (1.4) TC62886101 TC66701501 — —

35 38 20E 38RBA4-20E 38RBT4-20E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 25E 38RBA4-25E 38RBT4-25E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 30E 38RBA4-30E 38RBT4-30E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 40E 38RBA4-40E 38RBT4-40E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 50E 38RBA4-50E 38RBT4-50E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 65E 38RBA4-65E 38RBT4-65E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 70E 38RBA4-80E 38RBT4-80E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 100E 38RBA4-100E 38RBT4-100E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 125E 38RBA4-125E 38RBT4-125E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 150E 38RBA4-150E 38RBT4-150E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 175E 38RBA4-175E — 3.1 (1.4) TC62886101 TC66701501 — —

35 38 200E 38RBA4-200E 38RBT4-200E 3.1 (1.4) TC62886101 TC66701501 TC62886501 TC66701201

35 38 250E 38RBA4-250E 38RBT4-250E 3.1 (1.4) TC62886101 TC66701501 TC63943501 TC66701101

35 38 300E 38RBA4-300E 38RBT4-300E 3.1 (1.4) TC62886101 TC66701501 TC63943501 TC66701101

35 38 450E (2) 38RBA4-250E (2) 38RBT2-250E — TC62886102 TC66701001 TC63943502 TC66700901

35 38 540E (2) 38RBA4-300E (2) 38RBT2-300E — TC62886102 TC66701001 TC63943502 TC66700901

www.comoso.com

V14-T2-64 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

RBA2 Fuse Holders, Mountings and Live Parts

RBA2 Exhaust Control Devices

Voltage (kV)

Ampere

Rating

LIWL

(BIL) Style

Fuse Holder

Mounting Spring and Shunt

AssemblyPorcelain Glass Polyester Live Parts

Nominal Maximum

Catalog

Number

Catalog

Number

Catalog

Number

Catalog

Number

Catalog

Number

4.8 5.5 10E–200E 60 Disconnect non-indicating 8RBA2-DH 5RBA2-PDM 5RBA2-GDM 15RBA2-DL 8RBA2-ISHNT

Non-disconnect non-indicating 8RBA2-NH 5RBA2-PNM 5RBA2-GNM 15RBA2-NL 8RBA2-ISHNT

Disconnect indicating 8RBA2-IDH 5RBA2-PDM 5RBA2-GDM 15RBA2-DL 8RBA2-ISHNT

Non-disconnect indicating 8RBA2-INH 5RBA2-PNM 5RBA2-GNM 15RBA2-NL 8RBA2-ISHNT

Non-disconnect indicating bolt in 8RBA2-INH-B 5RBA8-PNM 5RBA8-GNM 15RBA8-NL 8RBA2-ISHNT

7.2 8.3 10E–200E 75 Disconnect non-indicating 8RBA2-DH 8RBA2-PDM 8RBA2-GDM 15RBA2-DL 8RBA2-ISHNT

Non-disconnect non-indicating 8RBA2-NH 8RBA2-PNM 8RBA2-GNM 15RBA2-NL 8RBA2-ISHNT

Disconnect indicating 8RBA2-IDH 8RBA2-PDM 8RBA2-GDM 15RBA2-DL 8RBA2-ISHNT

Non-disconnect indicating 8RBA2-INH 8RBA2-PNM 8RBA2-GNM 15RBA2-NL 8RBA2-ISHNT

Non-disconnect indicating bolt in 8RBA2-INH-B 8RBA8-PNM 8RBA8-GNM 15RBA8-NL 8RBA2-ISHNT

13.8 15.5 10E–200E 95 Disconnect non-indicating 15RBA2-DH 14RBA2-PDM 14RBA2-GDM 15RBA2-DL 15RBA2-ISHNT

Non-disconnect non-indicating 15RBA2-NH 14RBA2-PNM 14RBA2-GNM 15RBA2-NL 15RBA2-ISHNT

Disconnect indicating 15RBA2-IDH 14RBA2-PDM 14RBA2-GDM 15RBA2-DL 15RBA2-ISHNT

Non-disconnect indicating 15RBA2-INH 14RBA2-PNM 14RBA2-GNM 15RBA2-NL 15RBA2-ISHNT

Non-disconnect indicating bolt in 15RBA2-INH-B 14RBA8-PNM 14RBA8-GNM 15RBA8-NL 15RBA2-ISHNT

13.8 15.5 10E–200E 110 Disconnect non-indicating 15RBA2-DH 15RBA2-PDM — 15RBA2-DL 15RBA2-ISHNT

Non-disconnect non-indicating 15RBA2-NH 15RBA2-PNM — 15RBA2-NL 15RBA2-ISHNT

Disconnect indicating 15RBA2-IDH 15RBA2-PDM — 15RBA2-DL 15RBA2-ISHNT

Non-disconnect indicating 15RBA2-INH 15RBA2-PNM — 15RBA2-NL 15RBA2-ISHNT

Non-disconnect indicating bolt in 15RBA2-INH-B 15RBA8-PNM — 15RBA8-NL 15RBA2-ISHNT

23 25.5 10E–200E 150 Disconnect non-indicating 25RBA2-DH 25RBA2-PDM — 38RBA2-DL 25RBA2-ISHNT

Non-disconnect non-indicating 25RBA2-NH 25RBA2-PNM — 38RBA2-NL 25RBA2-ISHNT

Disconnect indicating 25RBA2-IDH 25RBA2-PDM — 38RBA2-DL 25RBA2-ISHNT

Non-disconnect indicating 25RBA2-INH 25RBA2-PNM — 38RBA2-NL 25RBA2-ISHNT

Non-disconnect indicating bolt in 25RBA2-INH-B 25RBA8-PNM — 38RBA8-NL 25RBA2-ISHNT

34.5 38 10E–200E 150 Disconnect non-indicating 38RBA2-DH 38RBA2-PDM — 38RBA2-DL 38RBA2-ISHNT

Non-disconnect non-indicating 38RBA2-NH 38RBA2-PNM — 38RBA2-NL 38RBA2-ISHNT

Disconnect indicating 38RBA2-IDH 38RBA2-PDM — 38RBA2-DL 38RBA2-ISHNT

Non-disconnect indicating 38RBA2-INH 38RBA2-PNM — 38RBA2-NL 38RBA2-ISHNT

Non-disconnect indicating bolt in 38RBA2-INH-B 38RBA8-PNM — 38RBA8-NL 38RBA2-ISHNT

Voltage (kV)

Exhaust Control

Devices

Nominal Maximum Ampere Rating LIWL (BIL) Style

Catalog

Number

4.8–13.8 5.5–15.5 10E–200E — Condenser (1 pack) RBA2-COND-1

— Condenser (3 pack) RBA2-COND

— Filter (1 pack) RBA2-FLTR-1

— Filter (3 pack) RBA2-FLTR

23–34.5 25.5–38 10E–200E — Condenser (1 pack) RBA2-COND-1

— Condenser (3 pack) RBA2-COND

— Filter (1 pack) RBA2-FLTR-1

— Filter (3 pack) RBA2-FLTR

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-65

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

RBA4 Fuse Holders, Mountings and Live Parts

Voltage (kV)

Ampere

Rating

LIWL

(BIL) Style

Fuse Holder

Mounting Spring and Shunt

AssemblyPorcelain Glass Polyester Live Parts

Nominal Maximum

Catalog

Number

Catalog

Number

Catalog

Number

Catalog

Number

Catalog

Number

4.8 5.5 0.5–400E 60 Disconnect non-indicating 8RBA4-DH 5RBA4-PDM 5RBA4-GDM 15RBA4-DL 8RBA4-ISHNT

Non-disconnect non-indicating 8RBA4-NH 5RBA4-PNM 5RBA4-GNM 15RBA4-NL 8RBA4-ISHNT

Disconnect indicating 8RBA4-IDH 5RBA4-PDM 5RBA4-GDM 15RBA4-DL 8RBA4-ISHNT

Non-disconnect indicating 8RBA4-INH 5RBA4-PNM 5RBA4-GNM 15RBA4-NL 8RBA4-ISHNT

Non-disconnect indicating bolt in 8RBA4-INH-B 5RBA8-PNM 5RBA8-GNM 15RBA8-NL 8RBA4-ISHNT

7.2 8.3 0.5–400E 75 Disconnect non-indicating 8RBA4-DH 8RBA4-PDM 8RBA4-GDM 15RBA4-DL 8RBA4-ISHNT

Non-disconnect non-indicating 8RBA4-NH 8RBA4-PNM 8RBA4-GNM 15RBA4-NL 8RBA4-ISHNT

Disconnect indicating 8RBA4-IDH 8RBA4-PDM 8RBA4-GDM 15RBA4-DL 8RBA4-ISHNT

Non-disconnect indicating 8RBA4-INH 8RBA4-PNM 8RBA4-GNM 15RBA4-NL 8RBA4-ISHNT

Non-disconnect indicating bolt in 8RBA4-INH-B 8RBA8-PNM 8RBA8-GNM 15RBA8-NL 8RBA4-ISHNT

13.8 15.5 0.5–400E 95 Disconnect non-indicating 15RBA4-DH 14RBA4-PDM 14RBA4-GDM 15RBA4-DL 15RBA4-ISHNT

Non-disconnect non-indicating 15RBA4-NH 14RBA4-PNM 14RBA4-GNM 15RBA4-NL 15RBA4-ISHNT

Disconnect indicating 15RBA4-IDH 14RBA4-PDM 14RBA4-GDM 15RBA4-DL 15RBA4-ISHNT

Non-disconnect indicating 15RBA4-INH 14RBA4-PNM 14RBA4-GNM 15RBA4-NL 15RBA4-ISHNT

Non-disconnect indicating bolt in 15RBA4-INH-B 14RBA8-PNM 14RBA8-GNM 15RBA8-NL 15RBA4-ISHNT

13.8 15.5 0.5–400E 110 Disconnect non-indicating 15RBA4-DH 15RBA4-PDM — 15RBA4-DL 15RBA4-ISHNT

Non-disconnect non-indicating 15RBA4-NH 15RBA4-PNM — 15RBA4-NL 15RBA4-ISHNT

Disconnect indicating 15RBA4-IDH 15RBA4-PDM — 15RBA4-DL 15RBA4-ISHNT

Non-disconnect indicating 15RBA4-INH 15RBA4-PNM — 15RBA4-NL 15RBA4-ISHNT

Non-disconnect indicating bolt in 15RBA4-INH-B 15RBA8-PNM — 15RBA8-NL 15RBA4-ISHNT

23 25.5 0.5–300E 150 Disconnect non-indicating 25RBA4-DH 25RBA4-PDM — 38RBA4-DL 25RBA4-ISHNT

Non-disconnect non-indicating 25RBA4-NH 25RBA4-PNM — 38RBA4-NL 25RBA4-ISHNT

Disconnect indicating 25RBA4-IDH 25RBA4-PDM — 38RBA4-DL 25RBA4-ISHNT

Non-disconnect indicating 25RBA4-INH 25RBA4-PNM — 38RBA4-NL 25RBA4-ISHNT

Non-disconnect indicating bolt in 25RBA4-INH-B 25RBA8-PNM — 38RBA8-NL 25RBA4-ISHNT

34.5 38 0.5–300E 150 Disconnect non-indicating 38RBA4-DH 38RBA4-PDM — 38RBA4-DL 38RBA4-ISHNT

Non-disconnect non-indicating 38RBA4-NH 38RBA4-PNM — 38RBA4-NL 38RBA4-ISHNT

Disconnect indicating 38RBA4-IDH 38RBA4-PDM — 38RBA4-DL 38RBA4-ISHNT

Non-disconnect indicating 38RBA4-INH 38RBA4-PNM — 38RBA4-NL 38RBA4-ISHNT

Non-disconnect indicating bolt in 38RBA4-INH-B 38RBA8-PNM — 38RBA8-NL 38RBA4-ISHNT

www.comoso.com

V14-T2-66 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

RBA8 Fuse Holders, Mountings and Live Parts

RBA4 and RBA8 Exhaust Control Devices

Voltage (kV)

Ampere

Rating

LIWL

(BIL) Style

Fuse Holder

Mounting Spring and Shunt

AssemblyPorcelain Glass Polyester Live Parts

Nominal Maximum

Catalog

Number

Catalog

Number

Catalog

Number

Catalog

Number

Catalog

Number

4.8 5.5 450E–720E 60 Non-disconnect indicating bolt in 8RBA8-INH 5RBA8-PNM 5RBA8-GNM 15RBA8-NL 8RBA4-ISHNT

7.2 8.3 450E–720E 75 Non-disconnect indicating bolt in 8RBA8-INH 8RBA8-PNM 8RBA8-GNM 15RBA8-NL 8RBA4-ISHNT

13.8 15.5 450E–720E 95 Non-disconnect indicating bolt in 15RBA8-INH 14RBA8-PNM 14RBA8-GNM 15RBA8-NL 15RBA4-ISHNT

13.8 15.5 450E–720E 110 Non-disconnect indicating bolt in 15RBA8-INH 15RBA8-PNM — 15RBA8-NL 15RBA4-ISHNT

23 25.5 450E–754E 150 Non-disconnect indicating bolt in 25RBA8-INH 25RBA8-PNM — 38RBA8-NL 15RBA4-ISHNT

34.5 38 450E–754E 150 Non-disconnect indicating bolt in 38RBA8-INH 38RBA8-PNM — 38RBA8-NL 38RBA4-ISHNT

Voltage (kV)

Exhaust Control

Devices

Nominal Maximum Ampere Rating LIWL (BIL) Style

Catalog

Number

4.8–13.8 5.5–15.5 0.5–720E — Condenser (1 pack) RBA4-COND-1

— Condenser (3 pack) RBA4-COND

— Filter (1 pack) RBA4-FLTR-1

— Filter (3 pack) RBA4-FLTR

23–34.5 25.5–38 0.5–540E — Condenser (1 pack) RBA4-COND-1

— Condenser (3 pack) RBA4-COND

— Filter (1 pack) RBA4-FLTR-1

— Filter (3 pack) RBA4-FLTR

13.2 14.4 0.5–720E — High capacity ﬁlter (3 pack) RBA4-FLTR-HC-1

— High capacity ﬁlter (1 pack) RBA4-FLTR-HC

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-67

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

RDB2 Outdoor Dropout Fuse Holders, Mounting and Live Parts

RDB4 Outdoor Dropout Fuse Holders, Mounting and Live Parts

RDB8 Outdoor Dropout Fuse Holders, Mounting and Live Parts

Ampere

Rating LIWL (BIL) Style

Mounting Live Parts Spring and

Shunt AssyFuse Holder Vertical Underhung Vertical Underhung

Catalog Number Catalog Number Catalog Number Catalog Number Catalog Number Catalog Number

10E–200E 95 Dropout 8RDB2-DH 8RDB2-VM 8RDB2-UM RDB2-VL RDB2-UL 8RDB2-SHNT

110 Dropout 8RDB2-DH 8RDB2-HVM 8RDB2-HUM RDB2-VL RDB2-UL 8RDB2-SHNT

10E–200E 110 Dropout 15RDB2-DH 15RDB2-VM 15RDB2-UM RDB2-VL RDB2-UL 15RDB2-SHNT

150 Dropout 15RDB2-DH 15RDB2-HVM 15RDB2-HUM RDB2-VL RDB2-UL 15RDB2-SHNT

10E–200E 150 Dropout 25RDB2-DH 25RDB2-VM 15RDB2-UM RDB2-VL RDB2-UL 25RDB2-SHNT

200 Dropout 25RDB2-DH 25RDB2-HVM 25RDB2-HUM RDB2-VL RDB2-UL 25RDB2-SHNT

10E–200E 200 Dropout 38RDB2-DH 38RDB2-VM 38RDB2-UM RDB2-VL RDB2-UL 38RDB2-SHNT

250 Dropout 38RDB2-DH 38RDB2-HVM 38RDB2-HUM RDB2-VL RDB2-UL 38RDB2-SHNT

Ampere

Rating LIWL (BIL) Style

Mounting Live Parts Spring and

Shunt AssyFuse Holder Vertical Underhung Vertical Underhung

Catalog Number Catalog Number Catalog Number Catalog Number Catalog Number Catalog Number

0.5–400E 95 Dropout 8RDB4-DH 8RDB4-VM 8RDB4-UM RDB4-VL RDB4-UL 8RDB4-SHNT

110 Dropout 8RDB4-DH 8RDB4-HVM 8RDB4-HUM RDB4-VL RDB4-UL 8RDB4-SHNT

0.5–400E 110 Dropout 15RDB4-DH 15RDB4-VM 15RDB4-UM RDB4-VL RDB4-UL 15RDB4-SHNT

150 Dropout 15RDB4-DH 15RDB4-HVM 15RDB4-HUM RDB4-VL RDB4-UL 15RDB4-SHNT

0.5–300E 150 Dropout 25RDB4-DH 25RDB4-VM 25RDB4-UM RDB4-VL RDB4-UL 25RDB4-SHNT

200 Dropout 25RDB4-DH 25RDB4-HVM 25RDB4-HUM RDB4-VL RDB4-UL 25RDB4-SHNT

0.5–300E 200 Dropout 38RDB4-DH 38RDB4-VM 38RDB4-UM RDB4-VL RDB4-UL 38RDB4-SHNT

250 Dropout 38RDB4-DH 38RDB4-HVM 38RDB4-HUM RDB4-VL RDB4-UL 38RDB4-SHNT

Ampere

Rating LIWL (BIL) Style

Mounting Live Parts Spring and

Shunt AssyFuse Holder Vertical Underhung Vertical Underhung

Catalog Number Catalog Number Catalog Number Catalog Number Catalog Number Catalog Number

450E–720E 95 Dropout 8RDB4-DH 8RDB8-VM 8RDB8-UM RDB8-VL RDB8-UL 8RDB4-SHNT

110 Dropout 8RDB4-DH 8RDB8-HVM 8RDB8-HUM RDB8-VL RDB8-UL 8RDB4-SHNT

450E–720E 110 Dropout 15RDB4-DH 15RDB8-VM 15RDB8-UM RDB8-VL RDB8-UL 15RDB4-SHNT

150 Dropout 15RDB4-DH 15RDB8-HVM 15RDB8-HUM RDB8-VL RDB8-UL 15RDB4-SHNT

450E–540E 150 Dropout 25RDB4-DH 25RDB8-VM 25RDB8-UM RDB8-VL RDB8-UL 25RDB4-SHNT

200 Dropout 25RDB4-DH 25RDB8-HVM 25RDB8-HUM RDB8-VL RDB8-UL 25RDB4-SHNT

450E–540E 200 Dropout 38RDB4-DH 38RDB8-VM 38RDB8-UM RDB8-VL RDB8-UL 38RDB4-SHNT

250 Dropout 38RDB4-DH 38RDB8-HVM 38RDB8-HUM RDB8-VL RDB8-UL 38RDB4-SHNT

www.comoso.com

V14-T2-68 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

Dimensions

Approximate Dimensions in Inches (mm)

RBA Fuse Mountings—RBA200, RBA400 Disconnect Mounting—4.8 to 34.5 kV

0.75

(19.0)

0.75

(19.0)

0.88

(22.4) 1.75

(44.4)

3.56

(90.4)

3.56

(90.4)

1.75

(44.5)

0.62 (15.7) Dia. Holes (4)

0.56 (14.2) Dia. Holes (4)

A-20 Insulators Used on 4.8 to 14.4 kV

A-30 Insulators Used on 23.0 and 34.5 kV

W—Minimum

Clearance to Ground

Fuse Holder

Fuse Refill

0.61

(15.5)

45º Opening

0.75

(19.0)

0.75

(19.0)

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-69

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

Approximate Dimensions in Inches (mm)

RBA200, RBA400

Note

Phase-to-phase center spacing, without barriers.

Catalog

Number

BILABCDE F GHI J KL MNPR

WRecommended

Phase

Spacing



With

Condenser

With

Discharge

5RBA2 60 22.62

(574.5)

7.00

(177.8)

7.50

(190.5)

3.50

(89.9)

5.87

(149.1)

14.25

(362.0)

27.19

(690.6)

3.34

(84.8)

18.69

(474.7)

18.81

(477.7)

9.25

(234.9)

1.56

(39.6)

10.12

(257.0)

1.64

(41.7)

1.50

(38.1)

7.50

(190.5)

3.00

(76.2)

7.50

(190.5)

11.50

(292.1)

8RBA2 75 22.62

(574.5)

7.00

(177.8)

10.00

(254.0)

6.00

(152.4)

5.87

(149.1)

14.25

(362.0)

29.69

(754.1)

6.34

(161.0)

18.69

(474.7)

18.81

(477.7)

9.25

(234.9)

1.56

(39.6)

10.12

(257.0)

1.64

(41.7)

1.50

(38.1)

7.50

(190.5)

4.00

(101.6)

8.50

(215.9)

13.00

(330.2)

14RBA2 95 22.62

(574.5)

7.00

(177.8)

10.00

(254.0)

6.00

(152.4)

2.62

(66.5)

17.62

(447.5)

32.12

(815.8)

6.34

(161.0)

22.06

(560.3)

22.19

(563.6)

9.25

(234.9)

1.56

(39.6)

10.12

(257.0)

1.64

(41.7)

1.50

(

38.1

)

8.75

(222.2)

6.00

(152.4)

11.50

(292.1)

14.50

(368.3)

15RBA2 110 22.62

(574.5)

7.00

(177.8)

11.50

(292.1)

7.50

(190.5)

2.62

(66.5)

17.62

(447.5)

33.62

(853.9)

7.84

(199.1)

22.06

(560.3)

22.19

(563.6)

9.25

(234.9)

1.56

(39.6)

10.12

(257.0)

1.64

(41.7)

1.50

(

38.1

)

8.75

(222.2)

6.00

(152.4)

11.50

(292.1)

16.00

(406.4)

25RBA2 150 33.88

(860.6)

7.00

(177.8)

12.00

(304.8)

10.50

(254.0)

2.50

(63.5)

22.25

(565.1)

37.69

(957.3)

11.71

(297.4)

26.69

(677.9)

26.81

(681.0)

9.25

(234.9)

1.56

(39.6)

10.12

(257.0)

1.64

(41.7)

1.50

(

38.1

)

10.50

(266.7)

8.50

(215.9)

15.00

(381.0)

20.00

(508.0)

38RBA2 150 33.88

(860.6)

7.00

(177.8)

12.00

(304.8)

10.50

(254.0)

2.50

(63.5)

29.25

(742.9)

42.62

(1082.5)

11.71

(297.4)

33.69

(855.7)

33.81

(858.7)

9.25

(234.9)

1.56

(39.6)

10.12

(257.0)

1.64

(41.7)

1.50

(

38.1

)

13.12

(333.2)

12.00

(304.8)

19.50

(495.3)

25.00

(635.0)

5RBA4 60 22.25

(565.1)

7.00

(177.8)

7.50

(190.5)

3.50

(89.9)

5.94

(150.9)

13.81

(350.7)

27.40

(696.0)

3.03

(77.0)

19.69

(500.1)

20.00

(508.0)

9.25

(234.9)

2.63

(39.6)

11.75

(298.4)

2.17

(55.1)

2.20

(55.9)

7.62

(193.5)

3.00

(76.2)

7.50

(

190.5

)

11.75

(

292.1

)

8RBA4 75 22.25

(565.1)

7.00

(177.8)

10.00

(254.0)

6.00

(152.4)

5.94

(150.9)

13.81

(350.7)

29.90

(759.5)

5.53

(140.5)

19.69

(500.1)

20.00

(508.0)

9.25

(234.9)

2.63

(39.6)

11.75

(298.4)

2.17

(55.1)

2.20

(55.9)

7.62

(193.5)

4.00

(101.6)

8.50

(215.9)

13.25

(336.5)

14RBA4 95 22.25

(565.1)

7.00

(177.8)

10.00

(254.0)

6.00

(152.4)

2.56

(65.0)

17.19

(436.6)

32.81

(833.4)

5.53

(140.5)

23.69

(601.7)

23.38

(593.9)

9.25

(234.9)

2.63

(39.6)

11.75

(298.4)

2.17

(55.1)

2.20

(55.9)

8.88

(225.6)

6.00

(152.4)

11.50

(292.1)

14.75

(374.6)

15RBA4 110 22.25

(565.1)

7.00

(177.8)

11.50

(292.1)

7.50

(190.5)

2.56

(65.0

17.19

(436.6)

34.31

(871.5)

7.03

(178.6)

23.69

(601.7)

23.38

(593.9)

9.25

(234.9)

2.63

(39.6)

11.75

(298.4)

2.17

(55.1)

2.20

(55.9)

8.88

(25.6)

6.00

(152.4)

11.50

(292.1)

16.25

(412.7)

25RBA4 150 33.81

(858.8)

8.00

(203.2)

13.50

(342.9)

10.50

(254.0)

2.50

(63.5)

21.81

(554.0)

39.56

(1004.8)

9.03

(229.4)

27.69

(703.3)

28.00

(711.2)

9.25

(234.9)

2.63

(39.6)

11.75

(298.4)

2.17

(55.1)

2.20

(55.9)

11.38

(289.1)

8.50

(215.9)

15.00

(381.0)

20.25

(514.4)

38RBA4 150 33.81

(858.8)

8.00

(203.2)

13.50

(342.9)

10.50

(254.0)

2.50

(63.5)

28.81

(731.8)

44.50

(1130.3)

9.03

(229.4)

27.69

(703.3)

35.00

(889.0)

9.25

(234.9)

2.63

(39.6)

11.75

(298.4)

2.17

(55.1)

2.20

(55.9)

13.62

(356.0)

12.00

(304.8)

19.50

(4953)

25.25

(641.4)

www.comoso.com

V14-T2-70 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

Approximate Dimensions in Inches (mm)

RBA200, RBA400 and RBA800 (Piggyback Type)—Non-Disconnect Mounting 4.8 to 34.5 kV

1.75

(44.4)

0.62

(15.7)

1.00

(25.4)

5.87 (149.1)

6.00

(152.4)

0.62

(15.7) 4.25

(108.0)

0.44 (11.2) Dia.

Holes (8)

D5.87 (149.1)

W—Minimum

Clearance to Ground

0.66

(16.8)

6.12 (155.4)

W—Minimum

Clearance to Ground

Fuse Holder RBA800

0.41 (11.2) Dia.

Holes (2)

0.41 (11.2) Dia.

Holes (2)

Fuse Holder RBA200, RBA400

1.75

(44.4)

1.00

(25.4)

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T2-71

2.7

Expulsion Fuses

RBA/RDB Type Fuses (Including Superseded BA Fuses)

Approximate Dimensions in Inches (mm)

RBA200, RBA400 and RBA800 (Piggyback Type)

Note

Phase-to-phase center spacing, without barriers.

Catalog

Number

BILABCDE F GHJ KR

WRecommended

Phase

Spacing



With

Condenser

With

Discharge

5RBA2 60 15.62

(396.7)

4.62

(117.3)

11.43

(290.3)

8.62

(218.9)

15.62

(396.7)

7.50

(190.5)

1.32

(33.5)

7.50

(190.5)

— 18.25

(463.5)

1.64

(41.7)

3.00

(76.2)

7.50

(190.5)

11.16

(283.5)

8RBA2 75 15.62

(396.7)

7.12

(180.8)

13.93

(353.8)

8.62

(218.9)

15.62

(396.7)

7.50

(190.5)

1.32

(33.5)

7.50

(190.5)

— 18.25

(463.5)

1.64

(41.7)

4.00

(101.6)

8.50

(215.9)

12.56

(319.0)

14RBA2 95 19.00

(482.6)

7.12

(180.8)

13.93

(353.8)

8.62

(218.9)

19.00

(482.6)

7.50

(190.5)

1.32

(33.5)

7.50

(190.5)

— 21.63

(549.4)

1.64

(41.7)

6.00

(152.4)

11.50

(292.1)

13.06

(331.7)

15RBA2 110 19.00

(482.6)

8.62

(218.9)

15.43

(391.9)

8.62

(218.9)

19.00

(482.6)

7.50

(190.5)

1.32

(33.5)

7.50

(190.5)

— 21.63

(549.4)

1.64

(41.7)

6.00

(152.4)

11.50

(292.1)

15.56

(395.2)

25RBA2 150 26.43

(671.3)

12.12

(307.8)

18.93

(480.8)

7.25

(184.1)

29.43

(747.5)

8.50

(215.9)

2.50

(63.5)

8.50

(215.9)

— 26.25

(666.7)

1.64

(41.7)

8.50

(215.9)

15.00

(381.0)

19.56

(496.8)

38RBA2 150 33.43

(849.1)

12.12

(307.8)

18.93

(480.8)

7.25

(184.1)

36.43

(925.3)

8.50

(215.9)

2.50

(63.5)

8.50

(215.9)

— 33.25

(844.5)

1.64

(41.7)

12.00

(304.8)

19.50

(495.3)

24.56

(623.8)

5RBA4 60 16.56

(420.6)

4.62

(117.3)

12.31

(312.7)

8.75

(222.2)

16.56

(420.6)

7.50

(190.5)

1.32

(33.5)

7.50

(190.5)

— 19.52

(495.8)

2.17

(55.1)

3.00

(76.2)

7.50

(190.5)

11.16

(283.5)

8RBA4 75 16.56

(420.6)

7.12

(180.8)

14.81

(376.2)

8.75

(222.2)

16.56

(420.6)

7.50

(190.5)

1.32

(33.5)

7.50

(190.5)

—19.52

(495.8)

2.17

(55.1)

4.00

(101.6)

8.50

(215.9)

12.56

(319.0)

14RBA4 95 19.94

(506.5)

7.12

(180.8)

14.81

(376.2)

8.75

(222.2)

19.94

(506.5)

7.50

(190.5)

1.32

(33.5)

7.50

(190.5)

— 22.90

(581.7)

2.17

(55.1)

6.00

(152.4)

11.50

(292.1)

13.06

(331.7)

15RBA4 110 19.94

(506.5)

8.62

(218.9)

16.31

(414.3)

8.75

(222.2)

19.94

(506.5)

7.50

(190.5)

2.50

(63.5)

7.50

(190.5)

— 22.90

(581.7)

2.17

(55.1)

6.00

(152.4)

11.50

(292.1)

15.56

(395.2)

25RBA4 150 27.37

(695.2)

12.12

(307.8)

19.81

(503.2)

7.37

(187.2)

30.37

(771.4)

8.50

(215.9)

1.32

(33.5)

8.50

(215.9)

— 22.90

(581.7)

2.17

(55.1)

8.50

(215.9)

15.00

(381.0)

19.56

(496.8)

38RBA4 150 34.37

(873.0)

12.12

(307.8)

19.81

(503.2)

7.37

(187.2)

37.37

(949.2)

8.50

(215.9)

2.50

(63.5)

8.50

(215.9)

—34.52

(876.8)

2.17

(55.1)

12.00

(304.8)

19.50

(495.3)

24.56

(623.8)

5RBA8 60 16.31

(414.3)

4.50

(114.3)

12.85

(326.4)

9.31

(236.5)

17.56

(446.0)

3.50

(88.9)

1.62

(41.1)

3.50

(88.9)

16.31

(414.3)

— 2.17

(55.1)

3.00

(76.2)

7.50

(190.5)

11.00

(279.4)

8RBA8 75 16.31

(414.3)

7.00

(177.8)

15.35

(389.9)

9.31

(236.5)

17.56

(446.0)

6.00

(152.4)

1.62

(41.1)

6.00

(152.4)

16.31

(414.3)

— 2.17

(55.1)

4.00

(101.6)

8.50

(215.9)

12.50

(317.5)

14RBA8 95 19.81

(503.2)

7.00

(177.8)

15.35

(389.9)

9.31

(236.5)

21.06

(534.9)

6.00

(152.4)

1.62

(41.1)

6.00

(152.4)

19.81

(503.2)

— 2.17

(55.1)

6.00

(152.4)

11.50

(292.1)

14.00

(355.6)

15RBA8 110 19.81

(503.2)

8.50

(215.9)

16.85

(428.0)

9.31

(236.5)

21.06

(534.9)

7.50

(190.5)

1.62

(41.1)

7.50

(190.5)

19.81

(503.2)

—2.17

(55.1)

6.00

(152.4)

11.50

(292.1)

15.50

(393.)

25RBA8 150 24.50

(622.3)

11.50

(292.1)

19.85

(504.2)

9.31

(236.5)

27.50

(698.5)

10.50

(266.7)

2.50

(63.5)

10.50

(266.7)

24.50

(622.3)

— 2.17

(55.1)

6.00

(152.4)

15.00

(381.0)

19.50

(4953)

38RBA8 150 31.50

(800.1)

11.50

(292.1)

19.85

(504.2)

9.31

(236.5)

34.50

(876.3)

10.50

(266.7)

2.50

(63.5)

10.50

(266.7)

31.50

(800.0)

— 2.17

(55.1)

12.00

(304.8)

19.50

(495.3)

24.50

(622.3)

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-1

Current Limiting Fuses

Eaton Current Limiting Fuses 3.1 Product Overview

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-2

3.2 Fuse Selection

Fuse Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-5

Current Limiting Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-6

3.3 Applications

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-11

3.4 CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses . . . . . . . . V14-T3-19

3.5 CLPT and NCLPT Type Fuses

CLPT and NCLPT Type Fuses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-42

3.6 ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses . . . . . . . . . . . . . . . . . V14-T3-50

3.7 CLT Type Fuses

CLT Type Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-65

3.8 CX, CXI and CXN Type Fuses

CX, CXI and CXN Type Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-67

3.9 DSL, MDSL and NPL Type Low Voltage Current Limiters

DSL, MDSL and NPL Type Low Voltage Current Limiters . . . . . . . . . . V14-T3-76

www.comoso.com

V14-T3-2 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.1

Current Limiting Fuses

Product Overview

Current Limiting Fuses Contents

Description Page

Construction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-3

Interruption and Operation . . . . . . . . . . . . . . . . . . . V14-T3-3

Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-4

Mountings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-4

Product Description

Introduction

Eaton’s medium voltage

fuses provide diverse

characteristics that allow

them to be used in any

application within their

practical range. This

difference is due to the

offering of both expulsion and

current-limiting fuses.

Expulsion and current-limiting

fuses employ different

interrupting techniques that

cause the criteria with which

they are employed to differ.

This requires that a different

set of questions should be

answered when applying

expulsion and current-limiting

fuses. For this reason, and to

avoid confusion, this

application data applies only

to current-limiting fuses. For

information on the application

of expulsion fuses see

Eaton’s Expulsion Fuse

Product Focus.

Available Types

Current ANSI/IEEE fuse

standards define three types

of current-limiting fuses:

back-up fuses, general-

purpose fuses and full-range

fuses. It is important for the

user to have an

understanding of these

definitions to ensure proper

application of the fuse.

A backup current-limiting

fuse is able to safely interrupt

all values of fault current from

the rated minimum

interrupting current up to the

rated maximum interrupting

current of the fuse.

Although only backup current

limiting fuses make a specific

reference to a rated minimum

interrupting current, general-

purpose and full-range define

a rated minimum interrupting

current in different terms.

The rated minimum

interrupting current of a

general-purpose fuse is the

current that causes the fuse

to operate in one hour, and

the rated minimum

interrupting current of a full-

range fuse is the minimum

value of current that will melt

the fusible element(s) under

specified conditions.

Generally, Eaton’s backup

current-limiting fuses are the

R-rated range, which have a

rated minimum interrupting

current equivalent to the 100

second current on the

minimum melting time-

current curve. This point is

not necessarily the limit of

low fault performance,

merely the required limit of

low fault performance, in line

with the normal application

practices for this type of fuse,

which is used for high fault

protection of medium voltage

motor starters in conjunction

with relays and overload

contactors.

Eaton’s R-rated backup fuses

may be thermally damaged or

may not operate correctly if

subjected to overload

currents greater than those

shown on the safe overload

curves and the rated

minimum interrupting current

for long times.

A general-purpose current-

limiting fuse is able to safely

interrupt all values of fault

current from the current that

causes the fuse to operate in

one hour or more up to the

rated maximum Interrupting

current of the fuse.

The one hour melting time is

with the fuse in a

conventional mount, and in a

25˚C ambient. Other

mountings or ambient

conditions may cause the

fuse to melt earlier, but this

does not alter this rated

minimum interrupting

current. Eaton’s general

purpose current-limiting

fuses are used to protect

circuits feeding transformers

and feeders, where there is

downstream protection that

will operate before the

medium voltage general-

purpose fuse is affected by a

long term overload. See

application notes on feeder

and transformer protection

for details. Eaton’s E-rated

general-purpose fuses may

be thermally damaged or may

not operate correctly if

subjected to overload

currents greater than those

shown on the safe overload

curves and the indicated one

hour interrupting current for

long times.

A full-range current-limiting

fuse is able to safely interrupt

all values of fault from the

minimum value of current

that will melt the fusible

element up to the rated

maximum interrupting

current under specified

conditions.

Eaton’s full range current-

limiting fuses are used to

protect circuits feeding

transformers and feeders,

where there may not be any

effective downstream

protection.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-3

3.1

Current Limiting Fuses

Product Overview

Construction

Current-limiting fuses are

sometimes referred to as

silver-sand fuses. This

reference comes from the

fact that calibrated pure silver

current responsive elements

are surrounded by pure silica

or quartz sand with controlled

grain size that acts as a

cooling and absorbing agent

when the fuse interrupts a

fault. Interruption of a fault by

a current-limiting fuse is quiet

and completely self

contained. In general, pure

silver is used for the

elements in Eaton current

limiting fuses because it

provides the ideal mix of

physical characteristics. With

uniquely designed element

constructions for each class,

these current limiting fuses

offer the highest available

ratings in the smallest barrel

sizes. All components are

housed in a fiberglass

reinforced resin tube with

plated copper contact caps

that are magna-formed onto

the housing for optimum

strength and filled with high

purity silica sand. Blown fuse

indication is provided by

either a striker pin or a pop-up

button. A durable nameplate

label provides rating and

manufacturer information.

Interruption and Operation

Current limiting fuses operate

in two modes, depending on

the magnitude of the fault

current. The first is operation

in the overload mode where

the fault current is below the

threshold current for the

fuse. In this mode, the fuse

does not operate during the

first major half cycle, and

does not limit the magnitude

of the fault current. The

second is operation in the

short-circuit or current-

limiting mode where the

current is above the threshold

current for the fuse. In this

mode, the fuse does operate

during the first major half

cycle, and does limit the

magnitude of the fault

current.

There is a small overlap zone

between the overload and

short-circuit modes of

operation, where the fuse

may or may not act in the

current-limiting mode. The

performance of the fuse in

this zone is dependent on

circuit conditions such as the

power-factor of the circuit,

and the point on wave of the

inception of the fault. The

threshold value for any

particular fuse can be read off

the peak let-through (cut-off

current) chart. The threshold

current is the value of

available current in amperes

on the horizontal axis that

corresponds to the intercept

of the individual fuse line and

the peak asymmetrical

available diagonal line.

In the overload mode, the

fuse does not limit the peak

value of the current, as in this

mode, it carries one or more

full half cycles of current

before the current responsive

element(s) melt open. After

the current responsive

element(s) melt open, they

will arc until they have burnt

back far enough to interrupt

the overload current and

withstand the circuit recovery

voltage.

In the short-circuit mode, the

fuse element(s) melt almost

instantaneously, producing a

number of series arcs at the

neck points on the elements.

The interaction of these

series arcs and the

constraining medium

(typically sand) introduces a

rapidly rising resistance into

the fault circuit that limits the

peak value of the current to a

value considerably less than

the peak value of the

prospective current wave.

The stored energy in the

circuit causes current to

continue to flow through the

fuse until it is dissipated and

this produces a high arc

voltage across the fuse. The

fuse changes a high current

low power factor circuit into a

lower current, higher power

factor circuit, and as a result,

the current is forced to near

zero well before the natural

current zero of the circuit.

Because the current is forced

to zero before the natural

current zero of the circuit, the

effects of transient recovery

voltage of the circuit are

reduced because the current

and voltage are nearly in

phase. Current–limiting fuses

are thus relatively insensitive

to the transient recovery

voltage.

www.comoso.com

V14-T3-4 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.1

Current Limiting Fuses

Product Overview

CL Fuse Operation

Because of the limitation of

the peak value of the current,

and the early extinction of the

current, the energy let

through by the fuse in the

short-circuit mode is

considerably lower then the

energy that would have been

let through by the unaltered

prospective current wave.

This significantly reduces

energy let through and can

protect the circuit from

mechanical and thermal

damage that would be

caused in the absence of the

current-limiting fuse.

Eaton’s current-limiting fuses

produce arc voltages that are

within the limits specified in

the applicable C37 standards.

The arc voltage is seen on the

supply side of the fuse, but is

not normally seen on the

load-side of the fuse.

Element melts forming multiple series arcs at element necks

Heat from arcing melts the sand into a glass-like structure referred to

as “fulgurite”

Fulgurite absorbs the heat from the arcs but also encloses them,

depressing current peak value

Arc is extinguished as current is forced to zero

Application

Eaton offers a wide range of

interrupting ratings in single

barrel designs with ratings

extended to higher currents

in double, triple and quad

barrel designs. E-rated fuses

are available in both long

(CLE) and short (HLE) clip

center designs. BHLE and

HCL versions are available for

bolt-in and clamp in mounting

arrangements. R-rated motor

starter fuses for standard clip

mounting (CLS), are also

available with an integral

hookeye for Eaton’s

Ampgard™ starter

assemblies (ACLS) or bolt-in

style mounting (BCLS). CLPT

fuses are available for

potential transformer

protection in several different

diameters. CX and CLT fuses

are ideally suited for canister

applications and available in a

wide range of ratings. Low

voltage current limiters,

MDSL for Magnum and DSL

breakers and NPL for

network protectors, which

are not covered in this

catalog, are also available in a

variety of current ratings.

Mountings

Eaton’s current-limiting fuses

are available in industry-

standard mounting sizes.

Disconnect and non-

disconnect mountings are

available for most fuse case

sizes. Mountings include the

base, porcelain or glass

polyester insulators and live

parts. Live parts, fuse clips

and fuse end fittings are also

available separately. All

Eaton’s current-limiting fuses

and mountings are easy to

install and operate.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-5

3.2

Current Limiting Fuses

Fuse Selection

Current Limiting Fuses Contents

Description Page

Fuse Selection

Current Limiting Applications . . . . . . . . . . . . . . . . . V14-T3-6

Voltage Rating . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-6

Interrupting Rating. . . . . . . . . . . . . . . . . . . . . . . V14-T3-6

Continuous Current Rating . . . . . . . . . . . . . . . . V14-T3-7

Fuse Enclosure Packages . . . . . . . . . . . . . . . . . V14-T3-8

Parallel Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-8

Coordination . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-8

Interchangeability . . . . . . . . . . . . . . . . . . . . . . . V14-T3-9

Speciﬁc Applications . . . . . . . . . . . . . . . . . . . . . V14-T3-9

Let-Through Current . . . . . . . . . . . . . . . . . . . . . V14-T3-10

Fuses and Lightning Arresters . . . . . . . . . . . . . V14-T3-10

Fuse Selection

There are four major

considerations involved in the

selection of a current limiting

fuse. The first three

considerations are the

voltage rating, the

interrupting rating and the

continuous current rating of

the fuse. Proper attention

should be given to each of

these considerations as

improper application in any

one area may result in the

fuse failing to perform its

intended function. The fourth

consideration is coordination

with line and load side

protective equipment that is

needed to give selectivity of

outage and to prevent

premature fuse operation.

Each of the four areas is

discussed here individually.

www.comoso.com

V14-T3-6 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.2

Current Limiting Fuses

Fuse Selection

Current Limiting Applications

Voltage Rating

The rated maximum power

frequency voltage of a

current-limiting fuse is the

maximum rms value of circuit

voltage at which the fuse has

been demonstrated to be

able to operate with specified

circuit fault conditions. A fuse

must not be applied at any

location where the circuit

voltage exceeds the rated

maximum power frequency

voltage of the fuse.

Voltage ratings of particular

fuse types are listed in the

appropriate fuse data sheets.

The first rule regarding fuse

application is that the fuse

selected must have a

maximum design voltage

rating equal to or greater than

the maximum power

frequency voltage that will be

available in the system in

which the fuse is installed

under all possible conditions.

In most cases this means the

maximum design voltage of

the fuse must equal or

exceed the system maximum

line-to-line voltage. The only

exception to this rule occurs

in distribution systems when

fusing single-phase loads

connected from line-to-

neutral on a four-wire

effectively grounded system.

Here the fuse maximum

design voltage need only

exceed the system maximum

line-to-neutral voltage

providing it is impossible

under all fault conditions for

the fuse to experience the full

line-to-line voltage. When

only one phase of a four-wire

effectively grounded system

is extended beyond the fuse

to supply a single-phase load

connected from phase-to-

neutral, it is acceptable to

have the fuse maximum

design voltage equal or

exceed the system maximum

line-to-neutral voltage.

It is good practice that if more

than one phase of the system

is extended beyond the fuse

location, the fuse maximum

design voltage should equal

or exceed the system

maximum line-to-line voltage

regardless of how the three-

phase system is grounded on

the source side of the fuse or

how the transformers or

loads are connected on the

load side of the fuse.

It is a common practice,

however, to choose to fuse

wye grounded wye

transformers on the primary

side with fuses with a voltage

rating that only exceeds the

system line-to-neutral

voltage. In most cases this

presents no problems but the

user should be aware of the

remote possibility of a

secondary phase-to-phase

ungrounded fault that could

impose full line-to-line voltage

across the fuse.

The interrupting action of

current limiting fuses

produces arc voltages that

can exceed the system

voltage. Care must be taken

to ensure that these arc

voltages do not exceed the

insulation level of the system.

If the fuse voltage rating is

not permitted to exceed 140

percent of the system

voltage, the arc voltages will

generally not create

problems. This 140 percent

limit on the voltage rating

over system voltage does not

restrict the use of a higher

rated fuse if the system has a

high enough insulation level

to withstand the short time

application of the arc voltage.

Eaton’s current limiting fuses

are designed so that the arc

voltage peak at rated

interrupting current is less

than three times that of the

nominal voltage rating. If the

system can withstand this

peak the higher rated fuse

may be used.

Probably the most common

problem created by high arc

voltages is the sparking over

of lightning arresters. As this

is a common problem, it is

discussed in detail in the

section Fuses and Lightning

Arresters.

It should be remembered that

in most cases the fuse

voltage rating should not

exceed the system voltage

by more than 40% and under

no circumstances may the

system voltage exceed the

maximum design voltage

rating of the fuse. The

altitude at which a current-

limiting fuse is applied must

also be considered. The

dielectric strength of air

decreases with increases in

altitude, necessitating a

modification to the voltage

rating above 1000m.

Altitude correction factors

are listed in Annex B of

IEEE Std. C37™.100.1.

Interrupting Rating

The rated maximum

interrupting current of a

current-limiting fuse is the

rms value of the symmetrical

AC component of the highest

current that the fuse has

been demonstrated to be

able to successfully interrupt

under any possible condition

of asymmetry with specified

circuit conditions. A fuse

must not be applied at any

location where the available

fault current exceeds the

rated maximum interrupting

current of the fuse.

In general, current-limiting

fuses are not sensitive to

higher levels of interrupting

current. Interrupting ratings

are normally based on market

requirements and economic

cost or availability of testing

facilities.

Interrupting ratings of

particular fuse types are listed

in the appropriate fuse data

sheets.

Asymmetry Factors

1.7

1.6

1.5

1.4

1.3

1.2

1.1

1234510

Circuit X/R Ratio

20 30 40 50

Asymmetry Factor at 1/2 Cycle

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-7

3.2

Current Limiting Fuses

Fuse Selection

Historically, current limiting

fuses had been assigned

asymmetrical interrupting

ratings and MVA interrupting

ratings. Compliance with the

test requirements in IEEE

Std. C37.41™-2000 for

current limiting fuses ensures

that Eaton’s fuses are tested

under peak asymmetry

conditions. Fuses are not

constant kVA devices; if the

circuit voltage is reduced, the

interrupting capacity is not

increased. The kVA

interrupting rating is reduced

if the fuse is applied at a

lower value of circuit voltage.

The peak asymmetry factor in

the first half cycle is a

function of the circuit X/R

ratio of the circuit, and the

relationship is shown on

Page V14-T3-6. The

theoretical maximum value of

the asymmetry factor in a

purely inductive circuit would

be 1.732. However, with the

X/R values encountered in

power circuits, the factor is

rarely more than 1.6.

In the past, fuses were

sometimes rated by nominal

three-phase kVA ratings. The

nominal three-phase kVA

rating was calculated by the

formula kVA = I x kV x 1.732,

where I is the rated

maximum interrupting

current in symmetrical rms

amperes and kV is the

nominal fuse voltage rating.

When a current-limiting fuse

interrupts a fault current

above its threshold current, it

will limit the amplitude of the

current in the first major loop.

The level of current limitation,

measured by the ratio of peak

circuit available current to the

fuse peak let-through current

increases as the value of

symmetrical available current

increases above the fuse

threshold current. In addition

to controlling the amplitude

of the let-through current, a

current-limiting fuse can also

cause the current to be

extinguished significantly

earlier than the natural

current zero of the circuit.

The altitude at which a

current-limiting fuse is

applied must also be

considered. The dielectric

strength of air decreases with

increases in altitude,

necessitating a reduced

interrupting rating above

1000m (3280 ft).

Altitude correction factors

are listed in Annex B of

IEEE Std. C37.100.1™.

A general purpose current

limiting fuse can have some

limits on interrupting low

currents. General purpose

fuses are fault protective but

not overload protective. They

do not provide protection for

values of overload current in

the range of one to two times

the fuse continuous current

rating.

A back-up current limiting

fuse only protects against

high values of fault current,

and must be applied with

another series protective

device. For lower values of

fault current, below the

minimum interrupting current

of the fuse, the series

protective device must

interrupt these lower values

of fault current.

Continuous Current Rating

Eaton current limiting fuses

have been demonstrated to

be able to carry their rated

current continuously without

exceeding the temperature

rise values permitted by

C37.40.

Continuous current ratings of

particular fuse types are

listed in the appropriate fuse

data sheets.

Eaton current-limiting fuses

have A-, C-, E-, R-, X- or dual

E/X-ratings.

An A-rating indicates that the

value before the A is the rated

continuous current of the fuse.

A C-rating indicates that the

value before the C is the rated

continuous current of the

fuse, and that the calibrated

current-responsive element

will melt in 1000 seconds at

an rms current within the

range of 170 to 240% of the

rated continuous current.

The C-requirement is

specified in ANSI C37.47™.

An E-rating (100E or less)

indicates that the value

before the E is the rated

continuous current of the

fuse, and that the calibrated

current-responsive element

will melt in 300 seconds at an

rms current within the range

of 200 to 240% of the rated

continuous current.

An E-rating (greater than

100E) indicates that the value

before the A is the rated

continuous current of the

fuse, and that the calibrated

current-responsive element

will melt in 600 seconds at an

rms current within the range

of 220 to 264% of the rated

continuous current.

The E-requirements are

specified in ANSI C37.46.

Some Heritage

Westinghouse CLE fuses

were assigned an X-rating

that indicates that the value

before the X was the rated

continuous current of the

fuse, but the fuse design did

not satisfy the E-

requirements specified

above. Other Heritage

Westinghouse CLE fuses

were assigned dual E- and X-

ratings, where the lower

value satisfied the E-

requirements above, but the

fuse could also carry a higher

value of continuous current

without exceeding the

temperature rise values

permitted by C37.40, the

X-rating.

An R-rated fuse has current

responsive elements

calibrated to melt between

15 and 35 seconds when

subjected to a current of 100

times the R value. These

fuses also have temperature

rise requirements at specific

values of current.

The R-requirement is

specified in ANSI C37.46.

E- and X-rated fuses are

power class fuses, used in

transformer and feeder

circuits.

R-rated fuses are power class

fuses, and are used

specifically in medium

voltage motor controllers.

C-rated fuses are distribution

class fuses, and are used

mainly in transformer circuits.

A-rated fuses can be

distribution or power class

fuses.

An E- or C-rating only define

one gate on the time-current

curve of the fuse, and does

not imply interchangeability

between fuses from different

manufacturers.

There are also significant

differences between the

time-current curves of E-rated

current-limiting and E-rated

expulsion fuses, both in the

low overcurrent and high fault

current areas. E-ratings for

expulsion fuses generally

give a 2:1 ratio of minimum

melting current to continuous

current rating. However,

E-ratings for current-limiting

fuses generally give a 1.6 to

1.8 ratio of minimum melting

current to continuous current

rating.

If the fuse is subjected to a

current below the 330, 600,

or 1000 second melting

current as stated in the E or C

fuse definitions, but

substantially above the

continuous current rating of

the fuse for an excessive

length of time, a large

amount of heat is generated

and this may cause damage

to the fuse, adversely

affecting the fuse integrity or

changing the time-current

characteristics of the fuse.

Specific allowable overload

characteristics for general-

purpose and full-range

current-limiting fuses must

not be exceeded under any

circumstances. If back-up

fuses are properly applied

with a suitable low current

protection device to clear low

fault currents, overloads

should not present a

problem.

www.comoso.com

V14-T3-8 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.2

Current Limiting Fuses

Fuse Selection

In practice, current-limiting

fuses are used to protect

circuits feeding transformers,

motors and other equipment

where overloads and inrush

currents are common.

Current-limiting fuses have a

rather low thermal capacity

and cannot carry overloads of

the same magnitude and

duration as transformers and

motors of equal continuous

current rating. For this

reason, a general fuse

application ratio of 1.4:1 fuse

continuous current rating to

full load current is suggested

so the fuse will not operate

on acceptable overloads and

inrush conditions. This is a

general figure for typical

applications and that a ratio

as low as 1:1 can be used if

the system current will never

exceed the rated current of

the fuse.

In other applications, a higher

ratio will be required to

prevent the fuse from

operating on transformer

inrush or motor starting

current or from being

damaged due to severe

overloading. More specific

application information can be

found in the individual

application sections that

follow.

Under no circumstances

must the fuse continuous

current rating be less than

continuous load current and

that E- and C-rated fuses may

not provide protection for

currents in the range of one

to two times the continuous

current rating.

Fuse Enclosure Packages

It is quite common for

current-limiting fuses to be

mounted in a fuse enclosure

package such as a switch in

an enclosure that is

surrounded by air, or a

transformer draw-out well

that is mounted in the

transformer and surrounded

by hot oil. Fuse enclosure

package classes are defined

in ANSI C37.40.

Due to the elevated ambient

temperature produced by

these enclosure packages, it

is sometimes necessary to

derate the continuous current

rating of the fuse. When an

Eaton fuse is to be used

within an enclosure, be sure

to check with the

manufacturer of that

enclosure and use the

suggested current rating or

apply the suggested derating

factor if one is necessary.

Parallel Fuses

At times it is desirable to

have a continuous current

rating larger than any single

fuse barrel can provide.

Higher ratings can be

obtained by paralleling fuses.

Two, three and four barrel

designs are available. Consult

Eaton for specific guidance.

Under no circumstances

should fuses be paralleled

unless the paralleling is one

of the extensively tested

Eaton designs.

Coordination

In addition to selecting a fuse

that meets the voltage,

interrupting and continuous

current requirements for the

application, it is also

important to ensure that the

melting and clearing

performance of the fuse

protects and coordinates

adequately with other circuit

components. Eaton publishes

minimum melt and total clear

time-current characteristics,

and minimum melting and

total clearing I2t values to

assist with this coordination.

The minimum melt curve

gives the minimum melting

time in seconds of the fusible

element(s) at a particular

value of symmetrical rms

current under specified

temperature conditions and

without pre-loading. The total

clearing curve gives the

maximum clearing time in

seconds to complete

interruption of the circuit at a

particular value of

symmetrical current under

specified conditions. The

range between the minimum

melting and the total clearing

time current curves includes

an allowance for

manufacturing tolerances,

and the arcing time of the

fuse after melting. Arcing

time is time in seconds

lapsing from the melting of

the fusible element(s) to the

final interruption of the

circuit. The minimum melting

and total clearing I2t values

indicate fuse and circuit

damage energy values and

are used only for fault

currents that melt the fuse

elements in less than 0.1

second, that is, above the

threshold value for the fuse.

As previously mentioned,

three types of current-limiting

fuses are defined in ANSI/

IEEE standards. Full-range

fuses will interrupt any value

of current from the

interrupting rating down to

that which will cause the

element(s) to melt under

specified conditions. General-

purpose fuses will interrupt

any value of current from the

interrupting rating down to a

current that will melt the

element(s) in one hour under

specified conditions. Back-up

fuses will interrupt any

current from the interrupting

rating down to the rated

minimum interrupting

current. When coordinating

using a full-range or general-

purpose fuse, it is necessary

to ensure the current does

not exceed the fuse overload

characteristics. If back-up

fuses are used, ensure that

another device that will clear

fault currents below the

minimum interrupting current

of the fuse is used.

Proper coordination of

current-limiting fuses in the

overload mode is ensured by

keeping the fuse minimum

melting curve above the total

clearing curve of any

downstream overcurrent

protective device, and

keeping the fuse total

clearing curve beneath the

minimum operating curve of

any upstream protective

equipment. Coordination in

the short-circuit zone is

achieved by simply using the

I2t values, and keeping the

minimum melting I2t of the

fuse above the total clearing

I2t of any downstream

protective device, and

keeping the total clearing I2t

of the fuse beneath the

damage value of the

upstream equipment.

Allowable Overload Factors

Effects of Ambient Temperature on Melting Curves

Average

Melting

Curves

Hours

1.5

1/2

1000

600

300

200

100

Sec. 100A

or Less

Average

Melting

Curves

Above

100A

ABC

1234 1234

x 100% of Fuse Rating

1234

W = E rated general purpose type fuse 100A or less except 15.5 kV CLE

X = E rated general purpose type fuse above 100A except 15.5 kV CLE

Y = C rated general purpose type fuse

Z = General purpose fuse CLE 15.5 kV pnly

Average

Melting

Curves

Silver Tin

Melting Time in Percent

of Time Shown on Time-

Current Characterist Curve

130

120

110

100

-40 -30 -20 -10 0 10 20 30 40 50 60

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-9

3.2

Current Limiting Fuses

Fuse Selection

Time-current curves for

Eaton’s current-limiting fuses

are based on standard

conditions of temperature

and altitude, and the zone

between the minimum

melting and total clearing

characteristics allows for

manufacturing tolerances.

Preloading and elevated

ambient temperatures are not

allowed for. It is

recommended that a safety

zone be used when applying

current-limiting fuses to

ensure that proper

coordination is maintained to

allow for these factors. There

are two approaches used to

achieve this safety zone and

both produce similar results.

One approach employs a

25% safety zone in time for a

given value of current and the

other uses a 10% safety zone

in current for a given value of

time. Eaton uses the second

method as it allows the

safety zone to be published

on the left-hand side of all the

time-current curves.

Coordination is then achieved

by overlaying curves and

shifting one by the width of

the published safety zone.

If desired or if unusual

conditions exist, shifts in the

time-current curve due to

ambient temperature and

preloading may be examined

individually. Eaton’s time-

current characteristics are

derived from tests on fuses

surrounded by freely

circulating air at an ambient

temperature of 25˚C and with

no initial preloading as

specified in C37.40. Fuses

subjected to conditions other

than the above will

experience shifts in the time-

current curves. The upper

right curve gives the

adjusting factors for changes

in ambient temperature and

also the adjusting factors for

preloaded fuses. These

adjusting factors are valid

only for Eaton’s power fuses.

The lower right curve gives

an example of a properly

coordinated fuse application.

The figure shows a general-

purpose CLE fuse protecting

the primary of a 1000 kVA

transformer with Eaton’s type

DS or Magnum low voltage

air circuit breakers protecting

the secondary equipment.

Coordination with reclosing

circuit breakers may be

performed with the aid of the

proper coordination chart.

This type of curve is

explained in the repetitive

faults section of the

application data.

Interchangeability

C-, E- and R-ratings define the

performance of a fuse at one

particular point on the time-

current curve, However, the

fuse performance at other

values of current are shown

by each manufacturer’s

published time-current

curves. Since these curves

are a function of the

distinctive current responsive

elements used by each

manufacturer, fuses with the

same C-, E- or R-ratings from

different manufacturers may

not be interchangeable in all

applications. Users must also

be aware that E-rated current

limiting type and E-rated

expulsion type fuses have

very different time-current

and short circuit

characteristics. It is the

responsibility of the user to

ensure that the physical

dimensions and electrical

characteristics of the fuse are

appropriate for the particular

application in the intended

equipment.

Speciﬁc Applications

There are aspects to be

considered other than voltage

rating, interrupting rating and

continuous current rating.

One concerns the types of

current-limiting fuses: full-

range fuses, general-purpose

fuses and back-up fuses. Full-

range and general-purpose

fuses are normally applied

without supplementary

protection in the medium

voltage system. These fuses

are used on transformer and

feeder applications. General-

purpose fuses are used in

power transformer circuits

where secondary side

protective devices will clear

secondary faults. Full-range

fuses are used in distribution

transformer circuits where

there may not be protection

on the secondary side of the

transformer and the primary

fuse may be called upon to

clear a secondary system

fault. A back-up fuse must

have another medium voltage

protective device so that it

will not be called upon to

interrupt currents below its

specified minimum

interrupting rating. An

example of a properly applied

medium-voltage back-up

current-limiting fuse is in a

motor starter unit where the

CLS fuse is used in series

with a relay and contactor to

protect it from faults that

exceed the contactor rating.

Pre-Loading Adjustment Factors for Power Fuses

Typical Fuse Coordination

Load Current in Percent of Fuse Ampere Rating

100

00 50 100 150 200 250

Fuses Above 100A

Fuses 100A and Less

Melting Time in Percent

of Time Shown on Time-

Current Characterist Curve

C-Rated Fuses

4.8 kV

1000 kVA

480V

DS-416

1200 LSI

DS-206

400 LI

CCC

ACLE-1

200E

1000

800

600

400

200

100

0.8

0.6

0.4

0.2

0.1

0.08

0.06

0.04

0.02

0.01

Time In Seconds

100

200

1000

800

600

400

2000

10000

8000

6000

4000

Scale x 10 = Secondary Current In Amperes

Minimum

Melt

Total

Clearing

C B A

LD LD SD SD I

Breaker Amps PU T PU T PU

DS-416 1200 1.0x 12 sec 7x 0.33 sec 10

DS-206 400 1.0x 36 sec — — 10

www.comoso.com

V14-T3-10 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.2

Current Limiting Fuses

Fuse Selection

Let-Through Current

An important feature of

current-limiting fuses is the

limitation of fault current and

energy seen by the system

being protected. Although a

current-limiting fuse is not

current-limiting for values of

fault current below the

threshold current of the fuse,

these lower values of fault

currents do not present

problems due to the low

energy. For currents equal to

or greater than its threshold

current, the fuse will limit the

current let-through to the

system. The value of this let-

through current is dependent

on the particular fuse type,

the magnitude of the fault

current and the timing of the

fault initiation—the power

factor of the circuit only has a

minimal effect.

If the timing of the fault is

such that fuse melts after the

current has crested, the fuse

will not limit the peak current

because the peak has already

passed. With a fully

asymmetrical fault, the

available current would have

crested in 1/4 cycle.

However, the presence of

the fuse in the circuit will limit

the peak value of current, and

have caused the current to

have peaked before the 1/4

cycle time. Thus, the current-

limiting action varies with the

degree of asymmetry of the

fault.

Typical Peak Let-Through Current Curves

100

450

400

350

300

250

200

175

150

125

100

0.8

0.6

100000

80000

60000

40000

20000

10000

8000

6000

4000

2000

1000

800

600

400

Available Current In Amperes

Peak Instantaneous Let-Through Current

In Kilo-Amperes

Eaton publishes let-through

curves that are based on power

circuits with an X/R ratio greater

than 15. The curve below

shows a typical let-through

curve. The horizontal axis gives

the rms symmetrical available

fault and the vertical axis the

peak instantaneous let-through

current. Let-through current for

any particular fuse may be

found by choosing the curve for

the fuse in question and reading

the let-through for any given

value of available fault. The point

where the curve intersects the

asymmetrical available peak line

is the threshold current (for that

fuse) or that point where the

fuse first become current

limiting. Curves like this are

found in Eaton’s current-limiting

fuse application data and make

it easy to check the fuse let-

through against the withstand of

the equipment it is protecting.

Fuses and Lightning Arresters

Current-limiting fuses generate

arc voltages that are higher than

the system power frequency

voltages. The magnitude of arc

voltage generated is dependent

on the element design, element

length, and the type and size of

filler. A strip type element, for

example, generates arc voltages

that are more dependent on the

system voltage, whereas a

uniform cross section wire

element produces arc voltages

dependent on the fault current

value. Users of current-limiting

fuses are not generally aware of

the fuse design so a general

estimation of generated arc

voltage is needed. Eaton’s

current-limiting fuses perform

their function by generating arc

voltages that may peak as high

as three times the nominal

voltage rating of the fuse at its

interrupting rating.

When applying current-limiting

fuses, care should be taken to

see that arc voltages produced

by the fuse do not exceed the

insulation level of the system.

An examination of the insulation

level of the system will show

that lightning arresters are the

principal equipment to check. If

arc voltages cause

interconnected lightning

arresters to operate, a relatively

high current would be shunted

into arresters that are not

designed for such interrupting

duty.

This problem could be

eliminated by mounting the fuse

on the line side of the arrester,

but this is not always practical.

Many utilities prefer to apply the

fuse on the load side of the

arrester to eliminate possible

fuse damage that might result

from lightning. Other utilities

employ transformers with

bushing mounted current-

limiting fuses where the fuse

must be installed on the load

side of the arrester.

For current-limiting fuse applied

on the load side of a distribution

arrester, arc voltages do not

affect the arrester if the fuse

and the arrester have the same

voltage rating; however, if an

arrester on the line side has a

voltage rating lower than that of

the fuse, it may sparkover.

Under this condition the arrester

and the fuse will share the

current. Distribution type

arresters have higher

impedances that keep them

from experiencing excessive

amounts of current and they are

not usually damaged.

Intermediate and station type

arresters on the other hand

have lower impedances that

allow them to experience higher

currents and they may become

damaged. Therefore, station

and line type arresters should

not be applied on the line side or

in parallel with current-limiting

fuses unless their sparkover

value is greater than the

maximum arc voltage the fuse

can produce.

Machine protection arresters

are purposely designed to have

low sparkover values. They

should, however, be connected

directly to the machine

terminals and not on the line

side of the fuse. If properly

connected, the fuse arc voltage

can have no effect on them.

Correctly applied distribution

class lightning arresters found

on the line side of the fuse have

sparkover values sufficiently

high to remain unaffected by

fuse operations.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-11

3.3

Current Limiting Fuses

Applications

CLPT Fuses Contents

Description Page

Applications

Potential and Control Transformer

Application . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-16

Motor Protection . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-16

Repetitive Faults . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-17

Applications

Transformer Applications

Fuses are installed on the

primary side of a transformer

to:

●Protect the system on the

source side of the fuses

from an outage due to

faults in or beyond the

transformer (isolate a

faulted transformer from

an otherwise healthy

distribution system to

prevent further

disturbance). In the case of

an internal winding fault in

the transformer, the fuse

should prevent further

collateral damage to the

transformer and its

surroundings. Current-

limiting fuses are generally

better able to limit internal

damage to the transformer

than expulsion fuses

●Coordinate with protection

on the low voltage side of

the transformer

(transformer primary

protection must be

overload tolerant, allowing

the secondary protection

to clear faults occurring

downstream of the

secondary protection)

●Protect the transformer

against bolted secondary

faults (the fuse should

operate on any bolted

secondary faults between

the transformer secondary

terminals and the

secondary protection

before the transformer is

damaged)

●Protect the transformer

against higher impedance

secondary faults to

whatever extent is

possible (the fuse should

limit damage to the

transformer windings to

the best extent possible)

Selecting the proper voltage

and interrupting ratings for

the fuse is straightforward

and has been sufficiently

covered in their respective

sections.

There are two sometimes

conflicting factors when

selecting a fuse to protect a

transformer circuit. The

continuous current rating

must be large enough to

prevent premature fuse

interruption from magnetizing

or inrush currents and it must

also be large enough to

prevent fuse deterioration or

fuse interruption during

normal or emergency

overload situations. The fuse

continuous current rating

must also be small enough to

provide the protection listed

in the purpose hierarchy. In

practice, it is not always

possible to select a fuse large

enough to allow for all the

overloading required and still

provide complete protection

for the transformer. In these

cases, the user should decide

how the priorities lie and

trade off overloading ability

for transformer protection.

Fuses on the primary side of

transformers should not

operate on transformer

magnetizing inrush current.

The magnitude of the first

loop of inrush current and the

rate at which the peaks of

subsequent loops decay is a

function of many factors.

Some of these are

transformer design, residual

flux in the core at the instant

of energization, the point on

the voltage wave at which

the transformer is energized,

and the characteristics of the

source supplying the

transformer. When

energizing, the heating effect

of the inrush current in a fuse

can be considered equal to 12

times the transformer full

load current flowing for 1/10

of a second. Thus, when

selecting the current rating

for fuses used at the primary

side of a transformer, the

fuse minimum-melting curve

must lie above and to the

right of the point on the time-

current curve corresponding

to 12 times full load current

and 0.1 second. The fuse

whose minimum melting

curve lies just above and to

the right of this point is the

lowest rated fuse that can be

used at the primary terminals

to satisfy the inrush

requirements. This criterion is

often satisfied for all Eaton’s

fuses if the fuse current

rating is equal to or greater

than the transformer self-

cooled full load current.

System operators frequently

overload their transformers

for short periods of time

during normal and emergency

situations. To allow this

flexibility, it is necessary to

select a fuse that can carry

the overload without being

deteriorating.

www.comoso.com

V14-T3-12 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.3

Current Limiting Fuses

Applications

To accommodate these

overloads, a fusing ratio

higher than 1:1 is almost

always required when

applying fuses for

transformer protection. The

fuse emergency overload

curve (Page V14-T3-8) and

the required extent of

overloading is used to

determine the smallest fuse

that can be applied.

Determine the minimum fuse

rating by using the duration

(ordinate) of the transformer

overload on the fuse overload

curve (Page V14-T3-8) to

obtain a the multiple of

current rating that should not

be exceeded. Divide the

transformer overload current

by the multiple obtained from

the overload curve—the

result is the minimum fuse

current rating. Select the fuse

with a continuous current

rating that equals or is just

larger than this value. The

allowable time duration of the

current in the primary side

fuses during transformer

overload should never exceed

the values shown by the

fuse overload curve on Page

V14-T3-8.

Note: Short term and long term

overloading of transformers will

adversely affect the service life of

the transformer. Also, increasing

the primary fuse size to allow for

higher overloads decreases the

protection afforded the

transformer. The extent to which

transformers are overload, and

the implications for system

security are economic decisions

that are taken by the system

operator.

Suggested minimum fuse

sizes for protection of self-

cooled transformers are

given in the table on Page

V14-T3-15. These tables are

based on the premise that

the maximum 1.5 hour

overload on the transformer

would not exceed 200

percent of the transformer

rating. This overload condition

requires that the minimum

ratio of fuse current rating to

transformer full load

current is 1.4:1. Fuse sizes

listed in the table on Page

V14-T3-15 are those that are

just higher than 1.4 times the

transformer full load current.

If higher or longer duration

transformer overloads are to

be permitted, a fuse with a

higher continuous current

rating may be required. The

procedure described above

should then be used to find

the smallest permissible fuse

size.

If provisions are made by

thermal or other protective

devices to limit transformer

overloads to a lower range,

the ratio of fuse current to

transformer full load current

can be less than 1.4:1. To find

the amount of reduction

permissible without damage

to the fuse, the procedure

using the overload curve

should be used.

When the transformer has

forced cooling, the minimum

fuse size that can be applied

that be based on the

transformer top rating and

the extent to which the

transformer will be

overloaded beyond the top

rating.

It should be remembered that

E-rated current limiting fuses

applied at the primary

terminals of a transformer

might not provide protection

for currents between one and

two times the continuous

current rating of the fuse.

That is, for currents in this

range that exceed the time

limits shown by the fuse

overload curve on Page

V14-T3-8 under the heading

“Coordination”. Fuses

subjected to such overloads

may suffer from undetectable

deterioration before the

fusible element melts. In

order to provide dependable

overload protection for the

transformer, protection must

be applied on the secondary

side of the transformer.

Equal concern should be

given to the upper limit of

continuous current rating that

will provide protection for the

transformer. The extent to

which the fuses are to

protect the transformer

against secondary faults is

one of several factors that

determines the upper limit.

When a main secondary

breaker is not used, the

primary fuses may be the

only devices that provide

thru-fault protection for the

transformer. In these

circumstances the fuse

should operate before the

transformer windings are

damaged due to the heavy

currents. The capability of

transformer windings to carry

these thru-fault or heavy

currents varies from one

transformer design to

another. When specific

information applicable to

individual transformers is not

available, the transformer

heat curves given on Page

V14-T3-14 can be used to

evaluate the thru-fault

protection offered the

transformer by the fuses. The

curve labeled N=1 is drawn

through the points defined in

IEEE/ANSI Appendix C57.92,

Section 92-06.200 such that

the curve has the same

shape as shown in Figure 1 of

IEEE publication 273 titled,

Guide for Protective Relay

Application to Power

Transformers. This curve

applies to single-phase

transformers and to three-

phase faults on three phase

transformer banks. Curves for

values of N other than 1 apply

to unsymmetrical faults on

three-phase transformers and

three-phase transformer

banks that have at least one

delta-connected winding.

Ideally, the total clearing

time-current of the primary

fuse would lie below the heat

curve for all values of current

up to 25 times the

transformer rated current.

However, this is not usually

possible as the fuse has

minimum limitations placed

on the rating due to long time

overload impressed on the

transformer and the fact that

E-rated expulsion fuses do

not provide protection for

currents below two times

their continuous current

rating. In spite of these lower

limitations, primary side fuses

should protect the

transformer for bolted

secondary faults and higher

impedance secondary faults

to whatever extent is

possible.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-13

3.3

Current Limiting Fuses

Applications

Wye connected transformers

tied to the system neutral or

floating have line currents

that are equal to the winding

currents for faults external to

the transformer, regardless of

whether the neutral is or is

not grounded. Thus a fuse

connected to the terminal of

a wye-connected winding will

see the same current that is

in the winding for all faults

external to the transformer.

Also, there is a simple

relation between the primary

and secondary amperes,

whether load or fault currents

are being considered.

This is not the case when the

transformer has a delta-

connected winding, either on

the primary or secondary side

of the transformer. With

delta-connected primary

windings, the current in the

lines (fuses) supplying the

delta winding and currents in

the primary delta windings

generally are not equal, and

of greater importance the

ratio of line (fuse) current to

winding current varies with

the type of fault on the

external system. With delta

connected secondary

windings, the current in the

transformer secondary

windings is generally not

equal to the secondary line

current, and the ratio of

primary line current to the

secondary line current varies

with the type of fault on the

secondary system.

The relationship between rated

line (fuse) current and rated

winding current (referred to,

as the “base current of the

winding” in IEEE/ANSI Std.

C57

™

.12.00 is 1 for wye

connected primaries and is

for delta-connected primaries.

IEEE/ANSI Std. C57

™

.12.00

also indicates that the

transformer winding shall be

capable of withstanding 25

times rating winding current for

two seconds and smaller

multiples of rated winding

current for longer periods of

time. However, transformer

overloads and faults are

generally expressed in terms of

line and not winding current.

This could present a problem for

fault conditions where the type

of fault changes the relationship

between the line and winding

current (see the

table below

)

gives a multiplier that will

translate the line current in

multiples of the winding current

for different type faults for

various transformer windings.

This table leads us back to the

transformer heat curves shown

on Page V14-T3-14 where it

can be verified that the curve

N=1 passes through the point

25 times full load line current

and two seconds. The curves

for other than N=1 are for

unsymmetrical faults as can be

seen from the

table below.

Coordination diagrams employ

the transformer heat curves and

fuse time-current curves to

determine which fuse rating

may be safely applied. These

diagrams are the tools used to

apply the information previously

cited. The most straight-forward

diagram involves fuses applied

at the terminals of transformers

with wye primary windings. The

table below

shows that the

fuse current is the same as the

winding current for all faults

external to the transformer. This

means the coordination diagram

consists simply of the direct

reading of the fuse time-current

curves and the transformer heat

curve N=1 for coordination

diagrams where the abscissa is

labeled in amperes in the

primary system. To coordinate

with the abscissa labeled in

secondary amperes, the same

two curves are shifted to allow

for the ratio between primary

and secondary amperes.

Multiples of Primary Line Current for Fixed Secondary Winding Current

1/ 3

Transformer Connection

All Neutrals Grounded

(N Times Secondary Winding Current Gives Multiples of Primary Line Current)

Primary Secondary Three-Phase Fault Phase-to-Ground Fault Phase-to-Phase Fault

—

1 1

…

1/ 3 2/ 3

…3/2

www.comoso.com

V14-T3-14 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.3

Current Limiting Fuses

Applications

When fuses are employed at

the terminals of a delta-wye

transformer, the coordination

diagram becomes a bit more

involved. In this instance the

table on Page V14-T3-13

shows that the

fuse current

varies in relation to the

winding current depending on

the nature of the fault. Thus,

when the coordination is with

respect to primary amperes,

the diagram consists of one

direct reading fuse time-

current curve and one or more

transformer heat curves. The

number of heat curves

included would be determined

by the types of secondary

faults considered. The

table

on Page V14-T3-13

gives the

N curve to be used for the

different faults to be

considered. When the

coordination is with respect to

secondary amperes, the

diagram consists of one

transformer heating curve (N=1)

and up to three fuse time-

current curves. The three time-

current curves are again

dependent on the possible

faults to be considered. The

table on Page V14-T3-13

shows that after the curve is

translated to secondary

amperes it must be shifted one

over the square root of 3 when

phase-to-earth faults are

considered and two over the

square root of 3 when phase-to-

phase faults are considered to

obtain proper coordination.

Regardless of whether a

primary or secondary current

abscissa is employed, a

coordination diagram for a delta-

wye transformer shows that the

primary side fuses do not

protect the transformer for high-

impedance secondary faults and

overloads. This type of

protection can be obtained

through the application of

secondary side breakers. If a

secondary breaker were used it

would be added to the

coordination diagram by plotting

the breaker phase and ground

trip characteristics. Selective

coordination would exist if the

breaker phase trip characteristic

curve lies below the fuse

characteristic for a phase-to-

phase fault and the heating

curve, and the breaker ground

trip characteristic for a single

line-to-ground fault and the

heating curve.

The proceeding pertains to

diagrams using secondary

amperes. If the breaker

characteristic is to be

translated to primary

amperes, its characteristics

must lie beneath the fuse

characteristic and the heating

curve for N=1. For

unsymmetrical faults, the

breaker characteristic shifts

by the same multiple as the

heating curve.

If further secondary

protection is translated to the

primary, the characteristic

must lie beneath the

secondary breaker

characteristic for the different

types of faults considered.

Fuses used at the terminals of a

delta-delta transformer require:

1. Fuse time-current.

2. Heating curves if both

three-phase and phase-to-

phase faults are to be

considered.

This agrees with information

presented in the

table on Page

V14-T3-13.

When the abscissa

is in primary amperes, the

curves are read directly. An

abscissa in secondary amperes

uses the same curves but shifts

them from primary to secondary

amperes.

For all the coordination diagrams

just discussed, the vertical

distance between the total

clearing curve and the safe heat

curve indicates the margin of

protection offered for different

types of faults. It should be

remembered, however, that the

transformer heat curves

illustrated in this application data

are drawn from the reference

previously cited and they may

not apply to all transformer

designs.

Typical Transformer Heat Curves

10000

8000

6000

4000

2000

800

600

400

200

1000

100

N=2A/ 3

N=1

N= 3/2

N=1/ 3

0.6 0.8 1 2 4 6 8 10 20 40 60 80 100

Inrush Current

Adjusted

Heat Curves

Transformer

Full Load

Line Current in Multiples of Transformer Full Load (Rated) Line Current

Time in Seconds

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-15

3.3

Current Limiting Fuses

Applications

Suggested Minimum Current Limiting Fuse Current Ratings

Self-Cooled 2.4–15.5 kV Power Transformer Applications

System

Nominal kV 2.4 4.16 4.8 7.2 12.0 13.2 13.8 14.4

Fuse

Maximum kV 2.75 5.5 5.5 8.3 15.5 15.5 15.5 15.5

Transformer

kVA Rating

Self-Cooled

Full

Load

Current

Amps

Fuse

Rating

Amps

E or C

Full

Load

Current

Amps

Fuse

Rating

Amps

E or C

Full

Load

Current

Amps

Fuse

Rating

Amps

E or C

Full

Load

Current

Amps

Fuse

Rating

Amps

E or C

Full

Load

Current

Amps

Fuse

Rating

Amps

E or C

Full

Load

Current

Amps

Fuse

Rating

Amps

E or C

Full

Load

Current

Amps

Fuse

Rating

Amps

E or C

Full

Load

Current

Amps

Fuse

Rating

Amps

E or C

Three-Phase Transformers

9 2.2 5E 1.3 3E 1.1 3E 0.7 3E/3.5C 0.4 1E 0.4 1E 0.4 1E 0.4 1E

15 3.6 15E 2.1 3E 1.8 3E 1.2 3E/3.5C 0.7 1E 0.7 1E 0.6 1E 0.6 1E

30 7.2 15E 4.2 10 3.6 5E 2.4 4.5C/5E 1.4 3E/4C 1.3 3E/4C 1.3 1E/4C 1.2 3E/4C

45 10.8 15E/18C 6.2 10 5.4 10 3.6 5E/6C 2.2 4C/5E 2 3C/5E 1.9 3E/4E 1.8 3E/4E

75 18 25 10.4 15 9 15E/18C 6 10 3.6 6C/10E 3.3 5E/6C 3.1 5E/6C 3 5E/6C

112.5 27 40E/45C 15.6 25 13.6 20 9 15 5.4 8C/10E 5 8C/10E 4.7 8C/10E 4.5 8C/10E

150 36 50 20.8 30 18 25 12 18C/20E 7.2 10 6.6 10 6.2 10 6 10

225 54 75C/80E 31.3 45C/50E 27.2 40 18 25 10.8 15 9.9 15 9.4 15 9 15

300 72 100 41.6 60C/65E 36 50 24 35C/40E 14.4 25 13.1 20 12.5 18C/20E 12 18C/20E

500 120 200E 69.4 100 60 100E 40 60C/65E 24.1 40 21.9 30 21 30 20 30

750 180 250E 104 150E 90 125E 60 100 36.1 60C/65E 32.8 45C/50E 31 45C/50E 30.1 45C/50E

1000 241 350E 140 200E 120 200E 80 125 48.1 75C/80E 43.7 60C/55E 42 60C/65E 40.1 60C/65E

1500 360 600E 208 300E 180 250E 120 200 72.2 100 65.6 100 62 100 60.1 100

2000 481 750E 278 400E 241 350E 160 250 96.2 150 87.5 125E/

150C

84 125E/

150C

80.2 125E/

150C

2500 600 1100E 346 600E 301 450E 200 350E 120 200E 109 175 104 175 100 175

Single-Phase Transformers

5 2.1 5E 1.2 3E 1 1.5E 0.7 3E/3.5C 0.4 1E 0.4 1E 0.4 1E 0.4 1E

10 4.2 15E 2.4 5E 2.1 3E 1.4 3E/3.5C 0.8 1.5E 0.8 1.5E 0.7 1E 0.7 1E

15 6.3 15E 3.6 5E 3.1 5E 2.1 3E/3.5C 1.3 3E/4C 1.1 3E/4C 1.1 3E/4C 1.1 3E/4C

25 10.4 15E 6 10 5.2 10 3.5 5E/6C 2.1 3E/4C 1.9 3E/4C 1.8 3E/4C 1.7 3E/4C

37.5 15.6 25 9 15E/18C 7.8 12C/15E 5.2 8C/10E 3.1 5E/6C 2.8 4C/5E 2.7 4C/5E 2.6 4C/5E

50 20.8 30E/35D 12 20 10.4 15 7 10 4.2 8C/10E 3.8 8C/10E 3.6 8C/10E 3.5 5E/6C

75 31.3 45C/50E 18 25 15.6 25 10.4 15 6.3 10 5.7 8C/10E 5.4 8C/10E 5.2 8C/10E

100 41.7 60C/65E 24 40 20.8 30 13.9 20 8.3 12C/15E 7.6 12C/15E 7.2 12C/15E 6.9 10

167 70 100 40 50 35 50 23.2 40 13.9 20 12.7 18C/20E 12.1 18C/20E 11.6 18C/20E

250 104 150E 60 100E 52.1 80E 34.8 50E/60C 20.8 30 19 30 18.1 30 17.4 30

333 139 200E 80 125E 69.5 100E 46.3 65E/100C 27.7 40 25.2 40 24.1 40 23.1 40

500 208 300E 120 200E 104 150E 39.6 100 41.6 60 38 60C/65E 36.2 60C/65E 34.7 60C/65E

667 278 400E 160 250E 139 200E 92.6 150 55.4 85C/100E 50.5 75C/80E 48.2 75C/80E 46.3 75C/80E

883 347 600E 200 350E 173 250E 115.5 200 69.4 100 63.5 100 60.4 85C/100E 57.8 85C/100E

1250 521 750E 300 450E 260 400E 174 250 104 175 95 150 90.6 150 86.8 125E/

150C

www.comoso.com

V14-T3-16 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.3

Current Limiting Fuses

Applications

Potential and Control

Transformer Application

CLPT (CLE-PT) and (N)CLPT

type fuses provide protection

for the systems to which

potential and control power

transformers are connected.

Like other fuses, (N)CLPT

fuses must meet all of the

basic selection requirements

but there are a couple of

differences in the application

that will be mentioned here.

Instrument potential

transformer fuses are

selected on the basis of the

transformer magnetizing

inrush current instead of the

full load current rating. To

prevent unnecessary fuse

operation, the fuses must

have sufficient inrush

capacity to safely pass the

magnetizing current inrush of

the transformer. Fuses

should be selected on the

basis of the smallest current

rating whose minimum

melting time-current

relationship lies above and to

the right of the inrush value.

In some applications these

types of transformers are

operated in a wye connection

at 0.557 times their normal

rated voltage. (N)CLPT fuses

will usually protect the

transformer when applied at

this reduced voltage but if the

short circuit is through long

leads or if the primary voltage

is materially decreased by the

short circuit on the

secondary, the short-circuit

current may not be sufficient

to operate the fuses.

Motor Protection

Medium voltage motor

starters are used to protect

medium voltage motor

circuits. These starters use

overload relays, contactors

and back-up current-limiting

fuses to provide complete

overcurrent protection. The

fuses operate to interrupt

high values of fault current

that exceed the interrupting

rating of the contactor and

the overload relay operates to

open the contactor before the

fuse operates for lesser, yet

abnormal, currents due to

motor overloads, locked

rotor, repeated starts,

extended accelerating time or

low value fault currents. To

obtain this coordination, the

proper combination of fuse,

contactor, current

transformer and overload

relay must be used to ensure

that the contactor operates

within its ratings and the fuse

for those values of fault

current that exceed the

contactor’s rating.

Responsibility for this

coordination rests with the

manufacturer of the motor

starter. In choosing suitable

components, the following

four areas of protection must

be considered:

1. Protection of the motor

against sustained

overloads and locked

rotor conditions by

means of the overload

relays and contactor;

2. Protection of the fuses

against sustained

currents above the fuse

continuous current

ratings and yet below

their minimum

interrupting value by

means of overload relays

and contactor;

3. Protection of the circuit

by means of the overload

relays and contactor for

currents within the

interrupting limits of the

contactor where it is

more economic for the

contactor to operate

rather than the fuses;

and

4. Protection of the circuit,

contactor, overload

relays and current

transformers from

damaging effects of

maximum fault currents

by means of properly

sized back-up current-

limiting fuses that

restrict the let-through

currents on high current

faults to tolerable levels.

The fuses are not protecting

the motor itself; they are

protecting the system from

faults in the motor and motor

control circuit.

When selecting a fuse for

such a coordinated motor

starter scheme, the basic

requirements for the fuse in

addition to those of adequate

voltage and interrupting rating

are:

1. The fuse continuous

current rating must be

equal to or greater than

the full load current of

the motor;

2. The fuse must have the

capacity to carry

continuously, without

damage, currents less

than the pick-up value of

the overload relay, but no

less than 125% of the

motor full load current;

and

3. The fuse must have the

capacity to carry, without

damage, currents greater

than the pick-up value of

the overload relay but

less than the fuse melt

and relay overload

setting curves for

sufﬁcient time to allow

the overload relay to

operate.

4. The fuse must be

selected to allow for the

run-up time of the motor,

and also for the

frequency of starts. It is

typical also to select

fuses to allow for two

consecutive starts.

This is the reason for

emphasizing the need to

avoid damage to the fuse

from long duration overloads

such as those caused by

locked rotor conditions.

Damage can generally be

avoided by keeping the

melting curve of the fuse

above the locked rotor

current by a safe margin until

it is intersected by the relay

curve. A reasonable margin is

10% but the manufacturer’s

application instructions will

state just how close an

application is permissible.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-17

3.3

Current Limiting Fuses

Applications

Typical Fuse and Motor Starter Coordination

Although it is possible to

protect a medium voltage

motor circuit with a general-

purpose or full-range fuse

without a series relay-contactor

combination, it is not a

common practice for two

reasons. First, the melting

current of the fuse is

approximately twice its rated

current. This means that the

fuse does not provide

protection against anything less

than 100% overload, and

usually this range is even larger.

Second, the damage

characteristics of the apparatus

and the total clearing time-

current characteristic of the

fuse hardly ever coincide. Thus

a motor protected only by a

general-purpose or full-range

fuse may be exposed to

overloads of somewhat longer

duration than desirable or the

fuse may limit the equipment’s

overload capacity.

As should be obvious, the

duty of fuses in motor starter

circuits is characterized by

the frequent application of

high overloads such as motor

starting currents and cooling

periods while the motor is

off. Eaton’s CLS fuse has

been thoroughly tested to

1000

100

0.1

0.01

4160V

Current

Limiting Fuse

Thermal

Overload

Contractor

Motor

Time in Seconds

Current in Amperes

100 1000 10000

Locked Rotor

Amperes = 600

Overload Relay

100% of Locked

Rotor Amperes = 660

Starting Time

for Motor

FullLoad

Amperes = 160

125% of Full Load

Amperes = 200

Fuse Melting

Curve

Fuse Total

Clearing

Curve

ensure the fuse is capable of

withstanding these frequent

and severe heating and

cooling cycles. The test

consisted of running 2000A

through a 24R fuse for 10

seconds, then 400A for 5

minutes and finally cooling

the fuse with no current for 5

minutes. This three-step

cycle was repeated 3000

times with the fuse showing

no deterioration as measured

by change in resistance at the

conclusion.

To aid in selecting a fuse for

motor starter application, the

following may prove helpful:

Full load current =

(horsepower).(746)/

[(voltage).(3^.5).(efficiency).

(PF)

For general use, a 0.9 for

efficiency and a 0.8 for power

factor yield the following

simple relationship between

full load current and

horsepower:

Full load current =

(horsepower).(0.701)/(kV)

Again on a general basis,

inrush current may be

assumed to be six times the

full load current for a duration

of 15 seconds.

Repetitive Faults

It is often desired to determine

the performance of fuses

under repetitive faults such as

produced by the operation of

reclosing circuit breakers. This

performance is becoming of

increasing interest as a result

of the increased application of

current limiting fuses on pole

type transformers. The

performance is determined by

graphically simulating the

fuse’s heating and cooling

characteristics that are found

in and expressed by the

melting time-current curves.

Conventional E- and C-rated

fuses can with good

approximation be regarded as

bodies whose heating and

cooling properties are

described by the basic

exponential Curves A and B as

shown in Page V14-T3-18.

Except for being inverted, the

cooling curve is the same as

the heating curve as both have

the same time constant. Each

fuse has a specific time

constant that can be calculated

with sufficient accuracy by the

formula 0 = 0.1 S2 where S is

the melting current at 0.1

second divided by the melting

current at 300,600 or 1000

seconds. The 300 seconds

applies for fuses rated 100E

amperes or less, the 600

seconds for fuses rated above

100E amperes, and the 1000

seconds for C-rated fuses.

The time constant of a

specific fuse, having been

obtained in terms of seconds,

gives a specific time scale to

the general heating and

cooling curves of Page

V14-T3-18. It enables plotting

the course of the fuse

temperature (in percent

values) if the sequence and

duration of the open and

closed periods of the recloser

are known. This is illustrated

by curve C that is formed by

piecing together the proper

sections of Curves A and B.

Next the temperature at

which the fuse will melt must

be determined. Refer to the

standard time-current curves

and find the melting time M

for a specific value of fault

current. The melting

temperature Tm lies where

the ordinate to the time M

intersects curve A. It is not

necessary to know the

absolute value of this

temperature as it is sufficient

to know its relation to the

peaks. A similar temperature

Tn can be found using the

total clearing time for the

specific fault current. The

results are two temperatures

where any time the fuse

curve C intersects line Tm the

fuse could operate and any

time it intersects line Tn the

fuse will definitely operate.

The gap between Tm and Tn

indicates the tolerance range

as set forth in ANSI and

NEMA standards where E-

and C-rated fuses are

defined.

www.comoso.com

V14-T3-18 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.3

Current Limiting Fuses

Applications

Temperature Cycle of a Fuse During Reclosing Operation

100%

80%

60%

40%

20%

0p2 2134

134

Unit Time

Constant

Relative Time t/ t = Time in Seconds

= Time Constant

of Fuse

.75M

Curve A–Basic fuse heating curve: Tf (I-e t/ )

Curve B–Basic fuse cooling curve: Tf x e t/ )

Curve C–Temperature rise curve of fuse subjected to reclosing cycle

M–Melting time of fuse at a given fault current

N–Total clearing time of fuse at same fault current

Tm, Tn–Levels of melting temperature of fastest and of slowest fuse

(See note below)

Ts–Safe temperature level, considering service variables

Tf–Hypothetical steady-state temperature level (100%) attained if the

fuse element did not open when melting temperature was reached

but continued to be a resistance of constant value

Note: The absolute temperature at which the elements of the fastest

and of the slowest fuse melt is the same since both fuses are made

of the same material, However, Tn and Tm are different if measured

by the final temperature level if reached at a given current.

Percent Temperature Rise T%

Reclosing Circuit Breaker Fuse Coordination

If the fuse is not to operate,

curve C must remain below

the level Tm by a safe margin.

It is common practice to

provide such a safety margin

by coordinating the breaker

with a fuse curve whose time

ordinates are 75 percent of

those of the melting curve.

Line Ts represents this

temperature as shown.

Although the construction of

the temperature diagram as

outlined above basically

offers no difficulties, the

manipulation is made easier

and more accurate by putting

the graph on semi-logarithmic

coordinates as shown. On

these coordinates, the

cooling curve B becomes a

straight line.

Relative Time t/

QMMN

100

10.5 1 1.5 2 2.5 3

t = Time in Seconds

= Time Constant of Fuse

Notes: Recloser data: 400PR (cycling code A1-3CH3).

Fuse type and rating: CLT (drawout) 8.3 kV 150°C.

Fuse speed ration, S-2150/420 = 5.11.

Thermal time constant, = 0.10 S2, 2.61 seconds.

Fault current 1350A.

Heating

P-5P-4

Cooling

Percent Temperature Rise T%

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-19

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

E-Rated Power Fuses Contents

Description Page

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Catalog Number Selection. . . . . . . . . . . . . . . . . V14-T3-21

Ratings and Selection . . . . . . . . . . . . . . . . . . . . V14-T3-21

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T3-24

CLE Type . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-24

HLE Type . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-28

LHLE Type . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-31

AHLE Type . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-32

BHLE Type . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-33

HCL Type . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-36

Mounting Details . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-38

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Product Description

Eaton offers a wide range of

interrupting ratings in single

barrel designs with ratings

extended to higher currents

in double, triple and quad

barrel designs. E-rated fuses

are available in both long

(CLE), intermediate (LHLE)

and short (HLE) clip center

designs.

CLE fuses conform to

dimensional standards

established in the past by

Westinghouse when the

original BAL current limiting

power fuses for transformer

and general feeder

applications were introduced.

HLE fuses conform to later,

shorter dimensional

standards.

BHLE fuses are identical to

HLE fuses with the addition

of “bolt-in” mounting blades.

HCL fuses are special

dimension fuses for “bolt-in”

and “clip-lock” mounting

blades.

Applications

Helix type (helical element

configuration, current

limiting) and Heritage CLE

type medium voltage fuses

are general purpose, indoor

fuses designed to provide

both high and low level fault

protection. Helix fuses may

be applied wherever it is

necessary to limit short-

circuit currents on high

capacity systems.

Because of their general

purpose, current limiting

characteristics, these types

of fuses are well suited for a

wide variety of distribution

systems and consumer

applications. Some of the

more frequent possibilities

are:

●Power transformer

protection

●Fused switches

●Feeder circuit

sectionalization

Features

Helix Type Fuses

Helix type current limiting

fuses, designed for indoor

and outdoor applications, are

replaceable fuse units with

automatic blown fuse

indication provided by a

striker pin. In addition to

giving local indication of fuse

condition, the striker pin can

be used to trigger an external

tripping device. The powerful

striker pin delivers

approximately three joules of

energy over a 5/8-inch travel

distance, more than sufficient

for mechanical operation of

trip-all-phase devices or

micro-switches. HLE and CLE

type fuses can be mounted in

disconnect or non-disconnect

mounting configurations.

BHLE type fuses can be

directly “bolted-in” onto

switchgear bus bars. HCL

type fuse units are mounted

in cam action clip-lock clips

for easy installation and

replacement.

Helix fuses have a semi-

coreless design, enclosed in

high strength, filament

wound glass and epoxy

tubes. They are filled with

high purity silica sand of

controlled grain size. Fuse

elements are pure silver in a

double helix configuration to

optimize performance by

maximizing the number of

elements.

The double helix design

delivers:

●Higher current ratings

●Cooler operation

●Improved time-current

characteristics

●Reduced 12t let-through

●Shorter length

Single, double and triple

barrel designs are available to

cover a wide range of current,

voltage and interrupting

ratings. For their sizes,

Eaton’s helix type fuses offer

the highest available E-

ratings.

In addition, Eaton’s 3-inch

diameter fuses will directly

replace other manufacturer's

fuses.

www.comoso.com

V14-T3-20 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Heritage Type Fuses

Certain “Heritage”

Westinghouse fuse types

have been retained where

there are no suitable helix

type fuses to replace them.

These fuses are normally only

supplied for replacement

purposes. The major items

here are the shorter 2-inch

diameter 2.75 kV CLE fuses

from 15E to 25E and 15.5 kV

fuses where the older

designs used more parallel

barrels than the current Helix

design.

The Heritage fuse designs

are suitable for indoor use

only.

CLE and HLE Features

Helix type current limiting

fuses offer a number of

advantages over competing

current limiting designs.

During the selection process,

consider the following:

●Optimized Energy

Exchange: The double

concentric helix

conﬁguration (inner and

outer) optimizes energy

exchange by making more

efﬁcient use of the sand

ﬁller

●Improved Arc Control:

The double helix design

has more elements for

more surface area

permitting better arc

control

●Lower Temperature Rise:

Heat radiation with the

HLE design is excellent

resulting in lower normal

operating temperatures

●Promotes Faster Melting:

Under overload conditions,

thermal transfer from the

inner helix is reduced by a

modiﬁed temperature

gradient leading to faster

melting

●Blown Fuse Indication:

Blown fuse striker pin will

protrude from the top of

the fuse providing a visual

indication of operation, as

well as a triggering means

for external devices

●Interchangeability: Helix

type fuses are

mechanically

interchangeable and in

many cases have higher

maximum current ratings

than competing current

limiting fuses

●Limited Arc Voltage:

Improved limited arc

voltage on 40E and higher

current rating fuses

permits 15.5 kV fuses to

be used on 8.3 kV circuits

and 8.3 kV fuses to be

used on 5.5 kV circuits

Helix type current limiting

fuses also offer additional

advantages over other types

of fuse designs:

●Quiet and Safe

Operation: Helix type

fuses are sealed static

units eliminating the need

for externally mounted

exhaust control devices

●Limits Fault Current: By

design, helix type fuses

interrupt high fault currents

before the ﬁrst loop of fault

current reaches its natural

crest value. The double

helix design delivers lower

I2t

●Higher Interrupting

Capabilities: Helix type

fuses have higher

interrupting ratings than

expulsion fuses because of

their current limiting

capabilities

●Indoor/Outdoor

Application: Helix type

fuse end caps are

magneformed to the tube

and sealed with resilient

RTV sealant

Mounting Hardware

●CLE type and HLE helix

type current limiting fuses

are designed to be used in

either disconnect or non-

disconnect mountings

●All CLE and HLE fuse units

can be mounted, as

supplied, in appropriate

non-disconnect mountings.

Adding disconnect fuse

end ﬁttings to a CLE or

HLE fuse unit permits it to

be mounted in an

appropriate disconnect

mounting

●Most HCL current limiting

fuse units have blades to

enable the fuse to be

mounted in cam locking

clips

●HCL5-900E and 750E, and

BHLE fuses have end

blades for direct bolting to

custom bus bars or

mountings

●AHLE and certain Heritage

designs are speciﬁcally

equipped for mounting in

Eaton’s Ampgard motor

starter equipment

●Disconnect and non-

disconnect live parts above

the insulator are available

for CLE, HLE and HCL clip-

lock fuses

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-21

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Catalog Number Selection

Helix Fuse Units

Helix Fuse Mounting

Ratings and Selection

When a decision has been

made to use current limiting

fuses, the minimum amount

of information required to

make the proper selection is:

●Voltage rating

●Current rating

●Interrupting rating

●Mounting method:

●Non-disconnect

mounting

●Disconnect mounting

●Clip-lock mounting

●Direct bolt-in mounting

●Live parts only

●No required mounting

Refer to tables on Pages

V14-T3-22 to V14-T3-41 for

assistance in selecting the

correct fuse catalog number.

These types of fuses

commonly provide protection

for transformer primaries.

There are specific rules

governing the selection of the

required fuse continuous

rating. The current limiting

fuse application notes earlier

in this publication offer

suggested minimum current

limiting fuse current ratings

for self-cooled transformers.

The suggested ratings are

intended as general

guidelines only.

When selecting the

appropriate fuse for a new

installation, keep in mind that

one fuse unit and one

compatible mounting is

required for each phase.

Type

CLE

CLE1

HCL

HLE

Class

(

)

LE - 100 E

(

- D

)

Special Mounting

A= Ampgard

B= Bolt-in

Maximum kV

2= 2.75 kV

5= 5.5 kV

8= 8.3 kV

15 = 15.5 kV

Continuos Amperes

10-1350

Size

D= 3-inch dia.

Insulator

G= Glass polyester

P= Porcelain

Hardware

DM = Disconnect mounting

NM = Non-disconnect mounting

DL = Disconnect live parts

NL = Non-disconnect live parts

DF = Disconnect end fittings

CLE

Type

CLE

HCL

HLE

Diameter Size

C= 2.00 in. (50.8 mm)

single barrel

D= 3.00 in. (76.2 mm)

single barrel

E= 3.00 in. (76.2 mm)

double barrel

F= 4.00 in. (101.6 mm)

double barrel

Maximum kV

2= 2.75 kV

5= 5.5 kV

8= 8.3 kV

15 = 15.5 kV

www.comoso.com

V14-T3-22 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Suggested Minimum Current Limiting Fuse Current Ratings for Self-Cooled 2.4–15.5 kV

Transformer Applications—E-Rated Fuses

Notes

CLPT fuses.

5CLE fuses.

Not FM compliant for less ﬂammable transformer liquids.

System

Nominal

kV 2.4 4.16 4.8 7.2 12.0 13.2 13.8 14.4

Fuse

Maximum

kV 2.75 5.5 5.5 8.3 15.5 15.5 15.5 15.5

Transformer

kVA Rating

Self-Cooled

Full

Load

Current

Amps

Fuse

Rating

Amps E

Full

Load

Current

Amps

Fuse

Rating

Amps E

Full

Load

Current

Amps

Fuse

Rating

Amps E

Full

Load

Current

Amps

Fuse

Rating

Amps E

Full

Load

Current

Amps

Fuse

Rating

Amps E

Full

Load

Current

Amps

Fuse

Rating

Amps E

Full

Load

Current

Amps

Fuse

Rating

Amps E

Full

Load

Current

Amps

Fuse

Rating

Amps E

Three-Phase Transformer

9 2.2 5E 1.3 3E 1.1 3E 0.7 3E 0.4 1E 0.4 1E 0.4 1E 0.4 1E 

15 3.6 10E 2.1 3E 1.8 3E 1.2 3E 0.7 1.5E 0.7 1E 0.6 1E 0.6 1E 

30 7.2 15E 4.2 10E 3.6 10E 2.4 5E 1.4 3E 1.3 3E 1.3 3E 1.2 3E 

45 10.8 20E 6.2 10E 5.4 10E 3.6 10E 2.2 5E 2.0 3E 1.9 3E 1.8 3E 

75 18.0 30E 10.4 15E 9.0 15E 6.0 10E 3.6 10E 3.3 5E 3.1 5E 3.0 5E 

112.5 27.1 50E 15.6 25E 13.5 20E 9.0 15E 5.4 10E 4.9 10E 4.7 10E 4.5 10E

150 36.1 65E 20.8 30E 18.0 30E 12.0 20E 7.2 15E 6.6 10E 6.3 10E 6.0 10E

225 54.1 80E 31.2 50E 27.1 50E 18.0 30E 10.8 20E 9.8 15E 9.4 15E 9.0 15E

300 72.2 125E 41.6 80E 36.1 65E 24.1 40E 14.4 25E 13.1 20E 12.6 20E 12.0 20E

500 120.3 200E 69.4 125E 60.1 100E 40.1 65E 24.1 50E 21.9 40E 20.9 40E 20.0 40E

750 180.4 300E 104.1 150E 90.2 150E 60.1 100E 36.1 65E 32.8 65E 31.4 65E 30.1 65E

1000 240.6 350E 138.8 200E 120.3 175E 80.2 125E 48.1 80E 43.7 80E 41.8 80E 40.1 80E

1500 360.8 600E  208.2 300E 180.4 300E 120.3 175E 72.2 125E 65.6 100E 62.8 100E 60.1 100E

2000 481.1 750E  277.6 400E 240.6 350E 160.4 250E 96.2 150E 87.5 150E 83.7 150E 80.2 125E

2500 601.4 1100E  347.0 600E 300.7 450E 200.5 300E 120.3 200E 109.3 175E 104.6 175E 100.2 175E

Single-Phase Transformer

5 2.08 3E 1.20 3E 1.04 1.5E 0.69 3E 0.42 1E 0.38 1E 0.36 1E 0.35 1E 

10 4.17 10E 2.40 5E 2.08 3E 1.39 3E 0.83 1.5E 0.76 1.5E 0.72 1.5E 0.69 1.5E 

15 6.25 10E 3.61 10E 3.13 5E 2.08 3E 1.25 3E 1.14 3E 1.09 3E 1.04 3E 

25 10.42 15E 6.01 10E 5.21 10E 3.47 5Ev 2.08 5E 1.89 3E 1.81 3E 1.74 3E 

37.5 15.63 25E 9.01 15E 7.81 15E 5.21 10E 3.13 5E 2.84 5E 2.72 5E 2.60 5E 

50 20.83 40E 12.02 20E 10.42 15E 6.94 10E 4.17 10E 3.79 10E 3.62 10E 3.47 10E

75 31.25 50E 18.03 30E 15.63 25E 10.42 15E 6.25 10E 5.68 10E 5.43 10E 5.21 10E

100 41.67 65E 24.04 50E 20.83 30E 13.89 20E 8.33 15E 7.58 15E 7.25 15E 6.94 15E

167 69.58 100E 40.14 80E 34.79 65E 23.19 40E 13.92 25E 12.65 20E 12.10 20E 11.60 20E

250 104.17 150E 60.10 125E 52.08 100E 34.72 65E 20.83 40E 18.94 30E 18.12 30E 17.36 30E

333 138.75 200E 80.05 150E 69.38 125E 46.25 80E 27.75 50E 25.23 50E 24.13 40E 23.13 40E

500 208.33 300E 120.19 175E 104.17 150E 69.44 125E 41.67 80E 37.88 65E 36.23 65E 34.72 65E

667 277.92 400E 160.34 250E 138.96 200E 92.64 150E 55.58 100E 50.53 80E 48.33 80E 46.32 80E

883 367.92 600E  212.26 300E 183.96 300E 122.64 175E 73.58 125E 66.89 125E 63.99 100E 61.32 100E

1250 520.83 750E  300.48 450E 260.42 400E 173.61 250E 104.17 175E 94.70 150E 90.58 150E 86.81 150E

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-23

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Eaton Helix Fuse I2t Values

Ampere Rating

5.5 kV 8.3 kV 15.5 kV

CLE HLE CLE HLE CLE HLE

63 kA 50 kA 63 kA

Min. Melt Max. Clear Min. Melt Max. Clear Min. Melt Max. Clear Min. Melt Max. Clear

10E 720 9000 9000 720 9000 9000 720 9000 720 9000

15E 1600 13,500 13,500 1600 13,500 13,500 1600 13,500 1600 13,500

20E 3000 20,000 20,000 3000 20,000 20,000 3000 20,000 3000 20,000

25E 4500 27,000 27,000 4500 27,000 27,000 4500 27,000 4500 27,000

30E 6500 36,000 36,000 6500 36,000 36,000 6500 36,000 6500 36,000

40E 1000 20,000 20,000 1000 20,000 20,000 1000 20,000 1000 20,000

50E 1500 40,000 40,000 1500 40,000 40,000 1500 40,000 1500 40,000

65E 2600 65,000 65,000 3000 65,000 65,000 2600 65,000 2600 65,000

80E 4300 120,000 120,000 5000 140,000 140,000 5000 140,000 5000 140,000

100E 6400 160,000 160,000 8500 225,000 225,000 8500 225,000 8500 225,000

125E 10,000 200,000 200,000 22,500 275,000 275,000 22,500 270,000 22,500 270,000

150E 36,000 230,000 245,000 30,000 325,000 325,000 42,000 450,000 — —

175E 53,000 575,000 625,000 48,000 400,000 400,000 ————

200E 74,000 600,000 630,000 ———————

250E 11,500 700,000 900,000 ———————

150E ————————20,000 450,000

175E ——————22,000 750,000 25,000 750,000

200E — — — 25,000 900,000 900,000 35,000 900,000 34,000 900,000

250E — — — 90,000 1,100,000 1,100,000 100,000 1,000,000 65,000 1,100,000

300E 18,500 1,600,000 1,700,000 145,000 1,300,000 1,300,000 170,000 1,700,000 — —

350E 225,000 2,000,000 2,100,000 190,000 1,600,000 1,600,000 ————

400E 300,000 2,300,000 2,500,000 ———————

450E 465,000 2,800,000 3,000,000 ———————

www.comoso.com

V14-T3-24 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Product Selection

CLE Type

CLE Type Current Limiting Fuses 2.75 kV Maximum (2.4 kV Nominal)

CLE Type Mountings and Hardware 2.75 kV Maximum (2.4 kV Nominal)

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

CLE Type Fuse

Notes

See Page V14-T3-38 for diagram of typical mounting.

End ﬁttings supplied only when required.

Current Rating

(Amperes)

Barrel

Number

Interrupting Rating

rms (kA Sym.)

Performance Curves

Catalog

Number

Heritage

Product

Indoor/

Outdoor

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

15E 1 50 H Indoor TC56353202 TC56353302 TC63931702 2CLE-15E

20E 1 50 H Indoor TC56353202 TC56353302 TC63931702 2CLE-20E

25E 1 50 H Indoor TC56353202 TC56353302 TC63931702 2CLE-25E

10E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-10E

30E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-30E

40E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-40E

50E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-50E

65E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-65E

80E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-80E

100E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-100E

125E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-125E

150E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-150E

200E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-200E

225E 1 50 H Indoor TC53686104 TC53686204 TC63931704 2CLE-225E

250E 2 50 H Indoor TC53690002 TC53690102 TC63931802 2CLE-250E

300E 2 50 H Indoor TC53690002 TC53690102 TC63931802 2CLE-300E

350X 2 50 H Indoor TC53690002 TC53690102 TC63931802 2CLE-350X

400X 2 50 H Indoor TC53690002 TC53690102 TC63931802 2CLE-400X

450X 2 50 H Indoor TC53690002 TC53690102 TC63931802 2CLE-450X

Ampere

Rating

Fuse

Mounting

Type 

Voltage

BIL (kV)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including

End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator

Glass-Polyester

Insulator

Catalog Number Catalog Number Catalog Number Catalog NumberApprox. Dimensions in Inches (mm)

15E–25E Non-disconnect 60 2.00 (50.8) 8.13 (206.5) 9.50 (241.3) 2 (0.91) 2CLE-PNM-C 2CLE-GNM-C CLE-NL-C —

Disconnect 60 2CLE-PDM-C 2CLE-GDM-C CLE-DL-C CLE-DF-C

10E–250E Non-disconnect 60 3.00 (76.2) 7.00 (177.8) 10.90 (276.9) 7 (3.18) 2CLE-PNM-D 2CLE-GNM-D CLE-NL-D —

Disconnect 60 2CLE-PDM-D 2CLE-GDM-D CLE-DL-D CLE-DF-D

300E–450E Non-disconnect 60 3.00 (76.2) 7.00 (177.8) 10.90 (276.9) 15 (6.81) 2CLE-PNM-E 2CLE-GNM-E CLE-NL-E —

Disconnect 60 2CLE-PDM-E 2CLE-GDM-E CLE-DL-E CLE-DF-E

CLE Type

“L”

“B” Dia.

3.31

(84.1) Ref.

“L”

CLE kV “L” “B” Dia.

15E–25E 9.50 (241.3) 2.00 (50.8)

10E–450E 10.90 (276.9) 3.00 (76.2)

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-25

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

CLE Type Current Limiting Fuses 5.5 kV Maximum (4.8 kV Nominal)

CLE Type Mountings and Hardware 5.5 kV Maximum (4.8 kV Nominal)

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

CLE Type Fuse

Notes

See Page V14-T3-38 for diagram of typical mounting.

End ﬁttings supplied only when required.

Performance Curves

Current Rating

(Amperes)

Barrel

Number

Interrupting Rating

rms (kA Sym.)

Heritage

Product

Indoor/

Outdoor

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

Catalog

Number

15E 1 50 H Indoor TC56353204 TC56353304 TC63931702 5CLE-15E

20E 1 50 H Indoor TC56353204 TC56353304 TC63931702 5CLE-20E

25E 1 50 H Indoor TC56353204 TC56353304 TC63931702 5CLE-25E

10E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548701 5CLE-10E-D

15E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548701 5CLE-15E-D

20E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548701 5CLE-20E-D

25E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548701 5CLE-25E-D

30E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548701 5CLE-30E

40E 1 50 — Indoor/outdoor TC70545801 TC70545901 TC70546701 5CLE-40E

50E 1 50 — Indoor/outdoor TC70545801 TC70545901 TC70546701 5CLE-50E

65E 1 50 — Indoor/outdoor TC70545801 TC70545901 TC70546701 5CLE-65E

80E 1 50 — Indoor/outdoor TC70545801 TC70545901 TC70546701 5CLE-80E

100E 1 50 — Indoor/outdoor TC70545801 TC70545901 TC70546701 5CLE-100E

125E 1 50 — Indoor/outdoor TC70545801 TC70545901 TC70546701 5CLE-125E

150E 1 63 — Indoor/outdoor TC70545801 TC70545901 TC70547601 5CLE-150E

175E 1 63 — Indoor/outdoor TC70545801 TC70545901 TC70547601 5CLE-175E

200E 1 63 — Indoor/outdoor TC70545801 TC70545901 TC70547601 5CLE-200E

250E 1 63 — Indoor/outdoor TC70545801 TC70545901 TC70547601 5CLE-250E

300E 2 63 — Indoor/outdoor TC70546001 TC70546101 TC70547601 5CLE-300E

350E 2 63 — Indoor/outdoor TC70546001 TC70546101 TC70547601 5CLE-350E

400E 2 63 — Indoor/outdoor TC70546001 TC70546101 TC70547601 5CLE-400E

450E 2 63 — Indoor/outdoor TC70546001 TC70546101 TC70547601 5CLE-450E

600E 2 40 — Indoor TC62908902 TC62908903 TC62908904 5CLE-600E

750E 2 40 — Indoor TC62908902 TC62908903 TC62908904 5CLE-750E

1100E 4 31 — Indoor TC62908902 TC62908903 TC62908904 5CLE-1100E

1350E 4 31 — Indoor TC62908902 TC62908903 TC62908904 5CLE-1350E

Ampere

Rating

Fuse

Mounting

Type 

Voltage

BIL (kV)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including

End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator

Glass-Polyester

Insulator

Catalog Number Catalog Number Catalog Number Catalog NumberApprox. Dimensions in Inches (mm)

10E-D–25E-D

30E–250E

Non-disconnect 60 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 9 (4.09) 5CLE-PNM-D 5CLE-GNM-D CLE-NL-D —

Disconnect 60 5CLE-PDM-D 5CLE-GDM-D CLE-DL-D CLE-DF-D

15E–25E Non-disconnect 60 2.00 (50.8) 11.50 (292.1) 12.90 (327.7) 3 (1.36) 5CLE-PNM-C 5CLE-GNM-C CLE-NL-C —

Disconnect 60 5CLE-PDM-C 5CLE-GDM-C CLE-DL-C CLE-DF-C

300E–450E Non-disconnect 60 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 19 (8.63) 5CLE-PNM-E 5CLE-GNM-E CLE-NL-E —

Disconnect 60 5CLE-PDM-E 5CLE-GDM-E CLE-DL-E CLE-DF-E

600E and 750E Consult factory 60 4.00 (101.6) N/A N/A 40 (18.16) ————

1100E and 1350E Consult factory —4.00 (101.6) N/A N/A 80 (36.32) ————

CLE Type

“L”

“B” Dia.

3.31

(84.1) Ref.

“L”

CLE kV “L” “B” Dia.

15E–25E 12.90 (327.7) 2.00 (50.8)

10E–450E 17.90 (454.7) 3.00 (76.2)

www.comoso.com

V14-T3-26 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

CLE Type Current Limiting Fuses 8.3 kV Maximum (7.2 kV Nominal)

CLE Type Mountings and Hardware 8.3 kV Maximum (7.2 kV Nominal)

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

CLE Type Fuse

Notes

See Page V14-T3-38 for diagram of typical mounting.

End ﬁttings supplied only when required.

Current Rating

(Amperes)

Barrel

Number

Interrupting Rating

rms (kA Sym.)

Performance Curves

Catalog

Number

Heritage

Product

Indoor/

Outdoor

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

15E 1 50 H Indoor TC56353204 TC56353304 TC63931703 8CLE-15E

20E 1 50 H Indoor TC56353204 TC56353304 TC63931703 8CLE-20E

25E 1 50 H Indoor TC56353204 TC56353304 TC63931703 8CLE-25E

10E 1 50 — Indoor/outdoor TC70548501 TC70548601 TC70548801 8CLE-10E-D

15E 1 50 — Indoor/outdoor TC70548501 TC70548601 TC70548801 8CLE-15E-D

20E 1 50 — Indoor/outdoor TC70548501 TC70548601 TC70548801 8CLE-20E-D

25E 1 50 — Indoor/outdoor TC70548501 TC70548601 TC70548801 8CLE-25E-D

30E 1 50 — Indoor/outdoor TC70548501 TC70548601 TC70548801 8CLE-30E

40E 1 50 — Indoor/outdoor TC70546201 TC70546301 TC70547301 8CLE-40E

50E 1 50 — Indoor/outdoor TC70546201 TC70546301 TC70547301 8CLE-50E

65E 1 50 — Indoor/outdoor TC70546201 TC70546301 TC70547301 8CLE-65E

80E 1 50 — Indoor/outdoor TC70546201 TC70546301 TC70547301 8CLE-80E

100E 1 50 — Indoor/outdoor TC70546201 TC70546301 TC70547301 8CLE-100E

125E 1 50 — Indoor/outdoor TC70546201 TC70546301 TC70547301 8CLE-125E

150E 1 50 — Indoor/outdoor TC70546201 TC70546301 TC70547301 8CLE-150E

175E 1 50 — Indoor/outdoor TC70546201 TC70546301 TC70547301 8CLE-175E

200E 2 50 — Indoor/outdoor TC70546401 TC70546501 TC70547301 8CLE-200E

250E 2 50 — Indoor/outdoor TC70546401 TC70546501 TC70547301 8CLE-250E

300E 2 50 — Indoor/outdoor TC70546401 TC70546501 TC70547301 8CLE-300E

350E 2 50 — Indoor/outdoor TC70546401 TC70546501 TC70547301 8CLE-350E

Ampere

Rating

Fuse

Mounting

Type 

Voltage

BIL (kV)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including

End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator

Glass-Polyester

Insulator

Catalog Number Catalog Number Catalog Number Catalog NumberApprox. Dimensions in Inches (mm)

15E–25E Non-disconnect 75 2.00 (50.8) 14.00 (355.6) 15.50 (393.7) 3 (1.36) 8CLE-PNM-C 8CLE-GNM-C CLE-NL-C —

Disconnect 75 8CLE-PDM-C 8CLE-GDM-C CLE-DL-C CLE-DF-C

10E-D–25E-D

30E–175E

Non-disconnect 75 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 9 (4.09) 8CLE-PNM-D 8CLE-GNM-D CLE-NL-D —

Disconnect 75 8CLE-PDM-D 8CLE-GDM-D CLE-DL-D CLE-DF-D

200E–350E Non-disconnect 75 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 19 (8.63) 8CLE-PNM-E 8CLE-GNM-E CLE-NL-E —

Disconnect 75 8CLE-PDM-E 8CLE-GDM-E CLE-DL-E CLE-DF-E

CLE Type

“L”

“B” Dia.

3.31

(84.1) Ref.

“L”

CLE kV “L” “B” Dia.

15E–25E 15.50 (393.7) 2.00 (50.8)

10E–350E 17.90 (454.7) 3.00 (76.2)

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-27

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

CLE Type Current Limiting Fuses 15.5 kV Maximum (14.4 kV Nominal)

CLE Type Mountings and Hardware 15.5 kV Maximum (14.4 kV Nominal)

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

CLE Type Fuse

Notes

For mountings, consult factory.

See Page V14-T3-38 for diagram of typical mounting.

End ﬁttings supplied only when required.

Current Rating

(Amperes)

Barrel

Number

Interrupting Rating

rms (kA Sym.)

Performance Curves

Catalog

Number

Heritage

Product

Indoor/

Outdoor

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

15E 1 31.5 H Indoor TC56353204 TC56353304 TC63931703 15CLE-15E

20E 1 31.5 H Indoor TC56353204 TC56353304 TC63931703 15CLE-20E

25E 1 31.5 H Indoor TC56353204 TC56353304 TC63931703 15CLE-25E

10E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548802 15CLE-10E-D

15E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548802 15CLE-15E-D

20E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548802 15CLE-20E-D

25E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548802 15CLE-25E-D

30E 1 63 — Indoor/outdoor TC70548501 TC70548601 TC70548802 15CLE-30E

40E 1 63 — Indoor/outdoor TC70546801 TC70546901 TC70547501 15CLE-40E

50E 1 63 — Indoor/outdoor TC70546801 TC70546901 TC70547501 15CLE-50E

65E 1 63 — Indoor/outdoor TC70546801 TC70546901 TC70547501 15CLE-65E

80E 1 63 Indoor/outdoor TC70546801 TC70546901 TC70547501 15CLE-80E

100E 1 63 Indoor/outdoor TC70546801 TC70546901 TC70547501 15CLE-100E

125E 1 63 Indoor/outdoor TC70546801 TC70546901 TC70547501 15CLE-125E

150E 1 63 Indoor/outdoor TC70546801 TC70546901 TC70547501 15CLE-150E

175E 2 63 Indoor/outdoor TC70547001 TC70547101 TC70547501 15CLE-175E

200E 2 63 Indoor/outdoor TC70547001 TC70547101 TC70547501 15CLE-200E

250E 2 63 Indoor/outdoor TC70547001 TC70547101 TC70547501 15CLE-250E

300E 2 63 Indoor/outdoor TC70547001 TC70547101 TC70547501 15CLE-300E

80E 2 85 H Indoor TC59878302 TC59878402 TC63931604 15CLE2-80E

100E 2 85 H Indoor TC59878302 TC59878402 TC63931604 15CLE2-100E

125X 2 85 H Indoor TC59878302 TC59878402 TC63931604 15CLE2-125X

150E 3 50 H Indoor TC59878302 TC59878402 TC63931604 15CLE3-150E

175E/200X 3 50 H Indoor TC59878302 TC59878402 TC63931604 15CLE3-175E/200X

Ampere

Rating

Fuse

Mounting

Type 

Voltage

BIL (kV)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including

End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator

Glass-Polyester

Insulator

Catalog Number Catalog Number Catalog Number Catalog NumberApprox. Dimensions in Inches (mm)

15E–25E Non-disconnect 95 2.00 (50.8) 20.00 (508.0) 21.50 (546.1) 4.5 (2.04) 15CLE-PNM-C 15CLE-GNM-C CLE-NL-D —

110 15CLE-HPNM-C — — —

Disconnect 95 15CLE-PDM-C 15CLE-GDM-C CLE-DL-C CLE-DF-C

110 15CLE-HPDM-C — — —

10E-D–25E-D

30E–150E

Non-disconnect 95 3.00 (76.2) 20.00 (508.0) 23.90 (607.1) 11 (4.99) 15CLE-PNM-D 15CLE-GNM-D CLE-NL-D —

110 15CLE-HPM-D — — —

Disconnect 95 15CLE-PDM-D 15CLE-GNM-D CLE-DL-D CLE-DF-D

110 15CLE-HPDM-D — — —

175E–300E Non-disconnect 110 3.00 (76.2) 20.00 (508.0) 23.90 (607.1) 23 (10.44) 15CLE-PNM-E — CLE-DL-E CLE-DF-E

Disconnect 110 15CLE-PDM-E — — —

CLE Type

“L”

“B” Dia.

3.31

(84.1) Ref.

“L”

CLE kV “L” “B” Dia.

15E–25E 21.50 (546.1) 2.00 (50.8)

10E–300E 23.90 (607.1) 3.00 (76.2)

www.comoso.com

V14-T3-28 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

HLE Type

HLE Type Current Limiting Fuses 5.5 kV Maximum (4.8 kV Nominal) Interrupting Rating 63 (kA rms Sym.)

HLE Type Mountings and Hardware 5.5 kV Maximum (4.8 kV Nominal)

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

HLE Type Fuse

Notes

See Page V14-T3-38 for diagram of typical mounting.

End ﬁttings supplied only when required.

Current Rating

(Amperes)

Barrel

Number

Performance Curves

Catalog

Number

Indoor/

Outdoor

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

10E 1 Indoor/outdoor TC70548507 TC70548607 TC70548703 5HLE-10E

15E 1 Indoor/outdoor TC70548507 TC70548607 TC70548703 5HLE-15E

20E 1 Indoor/outdoor TC70548507 TC70548607 TC70548703 5HLE-20E

25E 1 Indoor/outdoor TC70548507 TC70548607 TC70548703 5HLE-25E

30E 1 Indoor/outdoor TC70548507 TC70548607 TC70548703 5HLE-30E

40E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-40E

50E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-50E

65E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-65E

80E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-80E

100E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-100E

125E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-125E

150E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-150E

175E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-175E

200E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-200E

250E 1 Indoor/outdoor TC70545805 TC70545905 TC70547603 5HLE-250E

300E 2 Indoor/outdoor TC70546005 TC70546105 TC70547603 5HLE-300E

350E 2 Indoor/outdoor TC70546005 TC70546105 TC70547603 5HLE-350E

400E 2 Indoor/outdoor TC70546005 TC70546105 TC70547603 5HLE-400E

450E 2 Indoor/outdoor TC70546005 TC70546105 TC70547603 5HLE-450E

Ampere

Rating

Fuse

Mounting

Type 

Voltage

BIL (kV)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including

End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator

Glass-Polyester

Insulator

Catalog Number Catalog Number Catalog Number Catalog NumberApprox. Dimensions in Inches (mm)

10E–250E Non-disconnect 60 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) 5HLE-PNM-D 5HLE-GNM-D CLE-NL-D —

Disconnect 60 5HLE-PDM-D 5HLE-GDM-D CLE-DL-D CLE-DF-D

300E–450E Non-disconnect 60 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 17 (7.72) 5HLE-PNM-E 5HLE-GNM-E CLE-NL-E —

Disconnect 60 5HLE-PDM-E 5HLE-GDM-E CLE-DL-E CLE-DF-D

HLE Type

3.31

(84.1)

L ± 0.03

3.00

(76.2) Dia.

HLE kV L ± 0.03

5.5 15.88 (403.4)

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-29

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

HLE Type Current Limiting Fuses 8.3 kV Maximum (7.2 kV Nominal) Interrupting Rating 50 (kA Sym.)

HLE Type Mountings and Hardware 8.3 kV Maximum (7.2 kV Nominal)

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

HLE Type Fuse

Notes

See Page V14-T3-38 for diagram of typical mounting.

End ﬁttings supplied only when required.

Current Rating

(Amperes)

Barrel

Number

Performance Curves

Catalog

Number

Indoor/

Outdoor

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

10E 1 Indoor/outdoor TC70548507 TC70548607 TC70548804 8HLE-10E

15E 1 Indoor/outdoor TC70548507 TC70548607 TC70548804 8HLE-15E

20E 1 Indoor/outdoor TC70548507 TC70548607 TC70548804 8HLE-20E

25E 1 Indoor/outdoor TC70548507 TC70548607 TC70548804 8HLE-25E

30E 1 Indoor/outdoor TC70548507 TC70548607 TC70548804 8HLE-30E

40E 1 Indoor/outdoor TC70546203 TC70546303 TC70547201 8HLE-40E

50E 1 Indoor/outdoor TC70546203 TC70546303 TC70547201 8HLE-50E

65E 1 Indoor/outdoor TC70546203 TC70546303 TC70547201 8HLE-65E

80E 1 Indoor/outdoor TC70546203 TC70546303 TC70547201 8HLE-80E

100E 1 Indoor/outdoor TC70546203 TC70546303 TC70547201 8HLE-100E

125E 1 Indoor/outdoor TC70546203 TC70546303 TC70547201 8HLE-125E

150E 1 Indoor/outdoor TC70546203 TC70546303 TC70547201 8HLE-150E

175E 1 Indoor/outdoor TC70546203 TC70546303 TC70547201 8HLE-175E

200E 2 Indoor/outdoor TC70546403 TC70546503 TC70547201 8HLE-200E

250E 2 Indoor/outdoor TC70546403 TC70546503 TC70547201 8HLE-250E

300E 2 Indoor/outdoor TC70546403 TC70546503 TC70547201 8HLE-300E

350E 2 Indoor/outdoor TC70546403 TC70546503 TC70547201 8HLE-350E

Ampere

Rating

Fuse

Mounting

Type 

Voltage

BIL (kV)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including

End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator

Glass-Polyester

Insulator

Catalog Number Catalog Number Catalog Number Catalog NumberApprox. Dimensions in Inches (mm)

10E–175E Non-disconnect 75 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) 8HLE-PNM-D 8HLE-GNM-D CLE-NL-D —

Disconnect 75 8HLE-PDM-D 8HLE-GDM-D CLE-DL-D CLE-DF-D

200E–350E Non-disconnect 75 8HLE-PNM-E 8HLE-GNM-E CLE-NL-E —

Disconnect 75 8HLE-PDM-E 8HLE-GDM-E CLE-DL-E CLE-DF-E

HLE Type

3.31

(84.1)

L ± 0.03

3.00

(76.2) Dia.

HLE kV L ± 0.03

8.3 15.88 (403.4)

www.comoso.com

V14-T3-30 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

HLE Type Current Limiting Fuses 15.5 kV Maximum (14.4 kV Nominal)

HLE Type Mountings and Hardware 15.5 kV Maximum (14.4 kV Nominal)

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

HLE Type Fuse

Notes

See Page V14-T3-38 for diagram of typical mounting.

End ﬁttings supplied only when required.

Current Rating

(Amperes)

Barrel

Number

Interrupting Rating

rms (kA Sym.)

Performance Curves

Catalog

Number

Indoor/

Outdoor

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

10E 1 63 Indoor/outdoor TC70548507 TC70548607 TC70548805 15HLE-10E

15E 1 63 Indoor/outdoor TC70548507 TC70548607 TC70548805 15HLE-15E

20E 1 63 Indoor/outdoor TC70548507 TC70548607 TC70548805 15HLE-20E

25E 1 63 Indoor/outdoor TC70548507 TC70548607 TC70548805 15HLE-25E

30E 1 63 Indoor/outdoor TC70548507 TC70548607 TC70548805 15HLE-30E

40E 1 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-40E

50E 1 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-50E

65E 1 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-65E

80E 1 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-80E

100E 1 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-100E

125E 1 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-125E

150E 2 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-150E

175E 2 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-175E

200E 2 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-200E

250E 2 63 Indoor/outdoor TC70546601 TC70546701 TC70547401 15HLE-250E

Ampere

Rating

Fuse

Mounting

Type 

Voltage

BIL (kV)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including

End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator

Glass-Polyester

Insulator

Catalog Number Catalog Number Catalog Number Catalog NumberApprox. Dimensions in Inches (mm)

10E–175E Non-disconnect 95 3.00 (76.2) 15.00 (381.0) 18.90 (480.1) 10 (4.54) 15HLE-PNM-D 15HLE-GNM-D CLE-NL-D —

Disconnect 95 15HLE-PDM-D 15HLE-GDM-D CLE-DL-D CLE-DF-D

150E–250E Non-disconnect 95 3.00 (76.2) 15.00 (381.0) 18.90 (480.1) 21 (9.53) 15HLE-PNM-E — CLE-NL-E —

Disconnect 95 15HLE-PDM-E — CLE-DL-E CLE-DF-E

HLE Type

3.31

(84.1)

L ± 0.03

3.00

(76.2) Dia.

HLE kV L ± 0.03

15.5 18.88 (479.6)

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-31

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

LHLE Type

LHLE Type Current Limiting Fuses 15.5 kV Maximum (14.4 kV Nominal) Indoor/Outdoor.

LHLE Type Mountings and Hardware 15.5 kV Maximum (14.4 kV Nominal)

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

LHLE Type Fuse

Current

Rating

(Amperes)

Barrel

Number

Approximate Dimensions

in Inches (mm) Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

NumberDiameter Length

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

65E 1 3.00 (76.2) 20.53 (521.5) 10.5 (4.80) TC66703203 TC66703303 TC70547404 15LHLE-65E

80E 1 3.00 (76.2) 20.53 (521.5) 10.5 (4.80) TC66703203 TC66703303 TC70547404 15LHLE-80E

100E 1 3.00 (76.2) 20.53 (521.5) 10.5 (4.80) TC66703203 TC66703303 TC70547404 15LHLE-100E

125E 1 3.00 (76.2) 20.53 (521.5) 10.5 (4.80) TC66703203 TC66703303 TC70547404 15LHLE-125E

150E 1 3.00 (76.2) 20.53 (521.5) 10.5 (4.80) TC66703203 TC66703303 TC70547404 15LHLE-150E

125E 2 3.00 (76.2) 20.53 (521.5) 21.0 (9.50) TC66703203 TC66703303 TC70547404 15LHLE2-125E

150E 2 3.00 (76.2) 20.53 (521.5) 21.0 (9.50) TC66703203 TC66703303 TC70547404 15LHLE2-150E

175E 2 3.00 (76.2) 20.53 (521.5) 21.0 (9.50) TC66703203 TC66703303 TC70547404 15LHLE-175E

200E 2 3.00 (76.2) 20.53 (521.5) 21.0 (9.50) TC66703203 TC66703303 TC70547404 15LHLE-200E

250E 2 3.00 (76.2) 20.53 (521.5) 21.0 (9.50) TC66703203 TC66703303 TC70547404 15LHLE-250E

300E 2 3.00 (76.2) 20.53 (521.5) 21.0 (9.50) TC66703203 TC66703303 TC70547404 15LHLE-300E

Ampere

Rating

Fuse

Mounting

Type

Diameter

Clip

Center Length

Live Parts

(Including

End Fittings)

End Fittings

(Disconnect Only)

Approximate Dimensions in Inches (mm) Catalog Number Catalog Number

65E–150E Single

barrel

Non-disconnect 3.00 (76.2) 18.00 (457.0) 20.53 (521.5) CLE-NL-D —

Disconnect CLE-DL-D CLE-DF-D

125E–300E

Double barrel

Non-disconnect 3.00 (76.2) 18.00 (457.0) 20.53 (521.5) CLE-NL-E —

Disconnect CLE-DL-E CLE-DF-E

LHLE Type

3.31

(84.1)

L ± 0.03

3.00

(76.2) Dia.

LHLE kV L ± 0.03

15.5 20.53 (521.5)

www.comoso.com

V14-T3-32 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

AHLE Type

5AHLE Type Current-Limiting Fuse Units 5.5 kV Maximum (4.8 kV Nominal)

8AHLE Type Current-Limiting Fuse Units 8.3 kV Maximum (7.2 kV Nominal)

Note: These fuses are equipped for mounting in Eaton Ampgard motor starting assemblies.

Current Rating

(Amperes)

Barrel

Number

Interrupting Rating

rms (kA Sym.)

Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

10E 1 63 8 (3.6) TC70548507 TC70548607 TC70548703 5AHLE-10E

15E 1 63 8 (3.6) TC70548507 TC70548607 TC70548703 5AHLE-15E

20E 1 63 8 (3.6) TC70548507 TC70548607 TC70548703 5AHLE-20E

25E 1 63 8 (3.6) TC70548507 TC70548607 TC70548703 5AHLE-25E

30E 1 63 8 (3.6) TC70548507 TC70548607 TC70548703 5AHLE-30E

40E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-40E

50E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-50E

65E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-65E

80E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-80E

100E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-100E

125E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-125E

150E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-150E

175E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-175E

200E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-200E

250E 1 63 8 (3.6) TC70545805 TC70545905 TC70547603 5AHLE-250E

300E 2 63 17 (7.8) TC70546005 TC70546105 TC70547603 5AHLE-300E

350E 2 63 17 (7.8) TC70546005 TC70546105 TC70547603 5AHLE-350E

400E 2 63 17 (7.8) TC70546005 TC70546105 TC70547603 5AHLE-400E

450E 2 63 17 (7.8) TC70546005 TC70546105 TC70547603 5AHLE-450E

Current Rating

(Amperes)

Barrel

Number

Interrupting Rating

rms (kA Sym.)

Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

10E 1 50 8 (3.6) TC70548507 TC70548607 TC70548804 8AHLE-10E

15E 1 50 8 (3.6) TC70548507 TC70548607 TC70548804 8AHLE-15E

20E 1 50 8 (3.6) TC70548507 TC70548607 TC70548804 8AHLE-20E

25E 1 50 8 (3.6) TC70548507 TC70548607 TC70548804 8AHLE-25E

30E 1 50 8 (3.6) TC70548507 TC70548607 TC70548804 8AHLE-30E

40E 1 50 8 (3.6) TC70546203 TC70546303 TC70547201 8AHLE-40E

50E 1 50 8 (3.6) TC70546203 TC70546303 TC70547201 8AHLE-50E

65E 1 50 8 (3.6) TC70546203 TC70546303 TC70547201 8AHLE-65E

80E 1 50 8 (3.6) TC70546203 TC70546303 TC70547201 8AHLE-80E

100E 1 50 8 (3.6) TC70546203 TC70546303 TC70547201 8AHLE-100E

125E 1 50 8 (3.6) TC70546203 TC70546303 TC70547201 8AHLE-125E

150E 1 50 8 (3.6) TC70546203 TC70546303 TC70547201 8AHLE-150E

175E 1 50 8 (3.6) TC70546203 TC70546303 TC70547201 8AHLE-175E

200E 2 50 17 (7.8) TC70546403 TC70546503 TC70547201 8AHLE-200E

250E 2 50 17 (7.8) TC70546403 TC70546503 TC70547201 8AHLE-250E

300E 2 50 17 (7.8) TC70546403 TC70546503 TC70547201 8AHLE-300E

350E 2 50 17 (7.8) TC70546403 TC70546503 TC70547201 8AHLE-350E

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-33

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

BHLE Type

BHLE Type Current Limiting Fuses 5.5 kV Maximum (4.8 kV Nominal), Indoor, Bolt-In

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

5BHLE Type Fuse—Single Barrel 5BHLE Type Fuse—Double Barrel

Current Rating

(Amperes)

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

Approximate Dimensions

in Inches (mm)

10E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548703 5BHLE-10E

15E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548703 5BHLE-15E

20E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548703 5BHLE-20E

25E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548703 5BHLE-25E

30E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548703 5BHLE-30E

40E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-40E

50E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-50E

65E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-65E

80E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-80E

100E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-100E

125E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-125E

150E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-150E

175E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-175E

200E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-200E

250E 1 63 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70545805 TC70545905 TC70547603 5BHLE-250E

300E 2 63 3.00 (76.2) 15.90 (403.9) 17 (7.72) TC70546005 TC70546105 TC70547603 5BHLE-300E

350E 2 63 3.00 (76.2) 15.90 (403.9) 17 (7.72) TC70546005 TC70546105 TC70547603 5BHLE-350E

400E 2 63 3.00 (76.2) 15.90 (403.9) 17 (7.72) TC70546005 TC70546105 TC70547603 5BHLE-400E

450E 2 63 3.00 (76.2) 15.90 (403.9) 17 (7.72) TC70546005 TC70546105 TC70547603 5BHLE-450E

3.00

(76.2)

Ref.

2.12

(53.8)

17.88

(454.2) 0.06

19.25

(488.9) Ref.

Indicator to be

Located Here 3.31

(84.1)

17.88

(454.2) 0.06

19.25

(488.9) Ref.

3.00

(76.2)

Ref.

2.12

(53.8)

www.comoso.com

V14-T3-34 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

BHLE Type Current Limiting Fuses 8.3 kV Maximum (7.2 kV Nominal), Indoor, Bolt-In

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

8BHLE Type Fuse—Single Barrel 8BHLE Type Fuse—Double Barrel

Current Rating

(Amperes)

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

Approximate Dimensions

in Inches (mm)

10E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548804 8BHLE-10E

15E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548804 8BHLE-15E

20E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548804 8BHLE-20E

25E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548804 8BHLE-25E

30E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70548507 TC70548607 TC70548804 8BHLE-30E

40E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70546203 TC70546303 TC70547201 8BHLE-40E

50E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70546203 TC70546303 TC70547201 8BHLE-50E

65E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70546203 TC70546303 TC70547201 8BHLE-65E

80E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70546203 TC70546303 TC70547201 8BHLE-80E

100E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70546203 TC70546303 TC70547201 8BHLE-100E

125E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70546203 TC70546303 TC70547201 8BHLE-125E

150E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70546203 TC70546303 TC70547201 8BHLE-150E

175E 1 50 3.00 (76.2) 15.90 (403.9) 8 (3.63) TC70546203 TC70546303 TC70547201 8BHLE-175E

200E 2 50 3.00 (76.2) 15.90 (403.9) 17 (7.72) TC70546403 TC70546503 TC70547201 8BHLE-200E

250E 2 50 3.00 (76.2) 15.90 (403.9) 17 (7.72) TC70546403 TC70546503 TC70547201 8BHLE-250E

300E 2 50 3.00 (76.2) 15.90 (403.9) 17 (7.72) TC70546403 TC70546503 TC70547201 8BHLE-300E

350E 2 50 3.00 (76.2) 15.90 (403.9) 17 (7.72) TC70546403 TC70546503 TC70547201 8BHLE-350E

3.00

(76.2)

Ref.

2.12

(53.8)

17.88

(454.2) 0.06

19.25

(488.9) Ref.

Indicator to be

Located Here 3.31

(84.1)

17.88

(454.2) 0.06

19.25

(488.9) Ref.

3.00

(76.2)

Ref.

2.12

(53.8)

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-35

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

BHLE Type Current Limiting Fuses 15.5 kV Maximum (14.4 kV Nominal), Indoor/Outdoor, Bolt-In

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

15BHLE Type Fuse—Single Barrel 15BHLE Type Fuse—Double Barrel

Current Rating

(Amperes)

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

Approximate Dimensions

in Inches (mm)

10E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70548507 TC70548607 TC70548805 15BHLE-10E

15E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70548507 TC70548607 TC70548805 15BHLE-15E

20E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70548507 TC70548607 TC70548805 15BHLE-20E

25E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70548507 TC70548607 TC70548805 15BHLE-25E

30E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70548507 TC70548607 TC70548805 15BHLE-30E

40E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70546601 TC70546701 TC70547401 15BHLE-40E

50E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70546601 TC70546701 TC70547401 15BHLE-50E

65E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70546601 TC70546701 TC70547401 15BHLE-65E

80E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70546601 TC70546701 TC70547401 15BHLE-80E

100E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70546601 TC70546701 TC70547401 15BHLE-100E

125E 1 63 3.00 (76.2) 18.90 (480.1) 10 (4.54) TC70546601 TC70546701 TC70547401 15BHLE-125E

150E 2 63 3.00 (76.2) 18.90 (480.1) 21 (9.53) TC70546601 TC70546701 TC70547401 15BHLE-150E

175E 2 63 3.00 (76.2) 18.90 (480.1) 21 (9.53) TC70546601 TC70546701 TC70547401 15BHLE-175E

200E 2 63 3.00 (76.2) 18.90 (480.1) 21 (9.53) TC70546601 TC70546701 TC70547401 15BHLE-200E

250E 2 63 3.00 (76.2) 18.90 (480.1) 21 (9.53) TC70546601 TC70546701 TC70547401 15BHLE-250E

3.31

(84.1)

20.88

(530.4) 0.06

22.25

(565.2) Ref.

3.00

(76.2)

Ref.

2.12

(53.8)

3.00

(76.2) Ref.

1.53

(38.9)

20.88

(530.4) 0.06

22.25

(565.2) Ref.

3.56

(90.4)

3.00

(76.2)

Ref.

2.12

(53.8)

www.comoso.com

V14-T3-36 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

HCL Type

HCL Type Current Limiting Fuses 5.5 kV Maximum (4.8 kV Nominal), Indoor

HCL Type Current Limiting Fuses (15.5 kV Maximum, 14.4 kV Nominal), Indoor

Current

Rating

(Amperes)

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Approximate

Diameter

in Inches

(mm)

Clip

Center

Approximate

Shipping

Weight Lbs (kg)

Mounting

Type

Live Parts

(Includes

End Fittings)

Catalog Number

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

10E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70548505 TC70548605 TC70548702 5HCL-10E

15E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70548505 TC70548605 TC70548702 5HCL-15E

20E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70548505 TC70548605 TC70548702 5HCL-20E

25E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70548505 TC70548605 TC70548702 5HCL-25E

30E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70548505 TC70548605 TC70548702 5HCL-30E

40E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70545803 TC70545903 TC70547602 5HCL-40E

50E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70545803 TC70545903 TC70547602 5HCL-50E

65E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70545803 TC70545903 TC70547602 5HCL-65E

80E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70545803 TC70545903 TC70547602 5HCL-80E

100E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70545803 TC70545903 TC70547602 5HCL-100E

125E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70545803 TC70545903 TC70547602 5HCL-125E

150E 1 63 3.00 (76.2) Clip-lock 9 (4.09) Non-disconnect HCL-NL-1 TC70545803 TC70545903 TC70547602 5HCL-150E

200E 1 63 3.00 (76.2) Clip-lock 10 (4.54) Non-disconnect HCL-NL-1 TC70545803 TC70545903 TC70547602 5HCL-200E

250E 1 63 3.00 (76.2) Clip-lock 10 (4.54) Non-disconnect HCL-NL-1 TC70545803 TC70545903 TC70547602 5HCL-250E

300E 2 63 3.00 (76.2) Clip-lock 20 (9.08) Non-disconnect HCL-NL-1 TC70546003 TC70516103 TC70547602 5HCL-300E

400E 2 63 3.00 (76.2) Clip-lock 20 (9.08) Non-disconnect HCL-NL-1 TC70546003 TC70516103 TC70547602 5HCL-400E

450E 2 63 3.00 (76.2) Clip-lock 20 (9.08) Non-disconnect HCL-NL-1 TC70546003 TC70516103 TC70547602 5HCL-450E

500E 2 63 3.00 (76.2) Clip-lock 20 (9.08) Non-disconnect HCL-NL-1 TC66703401 TC66703501 TC66703701 5HCL-500E

600E 2 63 3.00 (76.2) Clip-lock 20 (9.08) Non-disconnect HCL-NL-1 TC66703401 TC66703501 TC66703701 5HCL-600E

750E 3 63 3.00 (76.2) Bolt-in 30 (13.62) — — TC66703401 TC66703501 TC66703701 5HCL-750E

3 63 3.00 (76.2) Bolt-in 30 (13.62) — — TC66703401 TC66703501 TC66703701 5BHCL-750E

900E 3 63 3.00 (76.2) Bolt-in 30 (13.62) — — TC66703401 TC66703501 TC66703701 5HCL-900E

3 63 3.00 (76.2) Bolt-in 30 (13.62) — — TC66703401 TC66703501 TC66703701 5BHCL-900E

Current

Rating

(Amperes)

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Approximate

Diameter

in Inches

(mm)

Clip

Center

Approximate

Shipping

Weight Lbs (kg)

Mounting

Type

Live Parts

(Includes

End Fittings)

Catalog Number

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

Current

10E 1 63 3.00 (76.2) Clip-lock 10 (4.54) Non-disconnect HCL-NL-1 TC70548503 TC70548603 TC70548803 15HCL-10E

15E 1 63 3.00 (76.2) Clip-lock 10 (4.54) Non-disconnect HCL-NL-1 TC70548503 TC70548603 TC70548803 15HCL-15E

20E 1 63 3.00 (76.2) Clip-lock 10 (4.54) Non-disconnect HCL-NL-1 TC70548503 TC70548603 TC70548803 15HCL-20E

25E 1 63 3.00 (76.2) Clip-lock 10 (4.54) Non-disconnect HCL-NL-1 TC70548503 TC70548603 TC70548803 15HCL-25E

30E 1 63 3.00 (76.2) Clip-lock 10 (4.54) Non-disconnect HCL-NL-1 TC70548503 TC70548603 TC70548803 15HCL-30E

40E 1 63 3.00 (76.2) Clip-lock 10 (4.54) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-40E

50E 1 63 3.00 (76.2) Clip-lock 10 (4.54) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-50E

65E 1 50 3.00 (76.2) Clip-lock 12 (5.45) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-65E

80E 1 50 3.00 (76.2) Clip-lock 12 (5.45) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-80E

100E 1 50 3.00 (76.2) Clip-lock 12 (5.45) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-100E

125E 1 50 3.00 (76.2) Clip-lock 12 (5.45) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-125E

150E 2 50 3.00 (76.2) Clip-lock 24 (10.90) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-150E

200E 2 50 3.00 (76.2) Clip-lock 24 (10.90) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-200E

250E 2 50 3.00 (76.2) Clip-lock 24 (10.90) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-250E

300E 2 50 3.00 (76.2) Clip-lock 24 (10.90) Non-disconnect HCL-NL-1 TC66703201 TC66703301 TC70547402 15HCL-300E

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-37

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Fuse Dimensional Details

Approximate Dimensions in Inches (mm)

5.5 and 15.5 kV Clip Lock Mounted

15.5 kV Clip Lock Mounted

Bolt-In Series—5.5 kV

HCL-14 Type Fuse

HCL Type Fuse

Note

0.5 (12.7) tripped force 2 lb (0.9 kg).

Ampere

Rating

Number

Barrels

Figure

Number A B C

Interrupting

Rating rms

(kA Sym.)

5.5 kV Maximum—Clip Lock Style—15.25-Inch (387.4 mm)

Clip Centers—3.00-Inch (76.2 mm) Barrel Diameter

10E–150E 1 A 16.81 (427.0) 16.12 (409.4) 63

5.5 kV Maximum—Clip Lock Style—21.25-Inch (539.8 mm)

Clip Centers—3.00-Inch (76.2 mm) Barrel Diameter

200E–600E 1 A 22.81 (579.4) 22.12 (561.8) 63

Ampere

Rating

Number

Barrels

Figure

Number A B C

Interrupting

Rating rms

(kA Sym.)

15.5 kV Maximum—Clip Lock Style—21.25-Inch (539.8 mm)

Clip Centers—3.00-Inch (76.2 mm) Barrel Diameter

65E–125E 1 A 22.81 (579.4) 22.12 (561.8) 63

150E–300E 2 B 22.81 (579.4) 22.12 (561.8) 50

15.5 kV Maximum—Clip Lock Style—18.25-Inch (463.6 mm)

Clip Centers—3.00-Inch (76.2 mm) Barrel Diameter

10E–50E 1 A 19.81 (503.2) 19.12 (485.6) 63

Ampere

Rating

Number

Barrels

Figure

Number A B C D

Interrupting

Rating rms

(kA Sym.)

5.5 kV Maximum—Bolt-in Style—23.73-Inch (602.7 mm)

Hole Centers—3.00-Inch (76.2 mm) Barrel Diameter

750E,

900E

3 C 25.11

(637.8)

22.37

(568.2)

23.73

(602.7)

63

Figure A

3.00

(76.2)

Indicator Flush with Surface

in Untripped Position

Blown Fuse Indicator

0.25

(6.4)

1.25

(31.8)

Figure B

Figure C

1.50

(38.1)

0.44 x 0.91

(11.2 x 23.1) Slots

C 0.44

(11.2) Dia. Hole

11.62

(295.1)

Indicator Flush with Surface

in Untripped Position

1.25

(31.8)

4.31

(109.5)

Indicator Flush with Surface

in Untripped Position

1.25

(31.8)

1.25

(31.8) 3.00

(76.2)

0.25

(6.4)

CBlown Fuse Indicator

7.94

(201.7)

3.00

(76.2)

0.38

(9.7)

DBlown Fuse Indicator

1.50

(38.1)

16.38 (416.1) 0.06 for HCL-8

19.38 (492.3) 0.06 for HCL-15

www.comoso.com

V14-T3-38 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Mounting Details

Approximate Dimensions in Inches (mm)

CLE and HLE Type Disconnect Type Mountings

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-39

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Approximate Dimensions in Inches (mm)

CLE and HLE Type Disconnect Mounting—Single

CLE and HLE Type Non-Disconnect Mounting—Double

Catalog

Number

Hole Centers

Overall Length

Hole Inset

Hole Centers

Contact Height

Overall Height

BIL

Rating

2CLE-GDM-C 9.37 (238.0) 6.00 (152.4) 22.13 (562.1) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 9.75 (247.6) 60

2CLE-GDM-D 8.24 (209.3) 6.00 (152.4) 18.00 (457.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 11.72 (297.7) 60

2CLE-PDM-C 9.37 (238.0) 6.00 (152.4) 22.13 (562.1) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 9.75 (247.6) 60

2CLE-PDM-D 8.24 (209.3) 6.00 (152.4) 18.00 (457.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 11.72 (297.7) 60

5CLE-GDM-C 12.74 (323.6) 6.00 (152.4) 25.50 (647.7) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 9.75 (247.6) 60

5CLE-PDM-C 12.74 (323.6) 6.00 (152.4) 25.50 (647.7) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 9.75 (247.6) 60

5CLE-GDM-D 15.24 (387.1) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 11.72 (297.7) 60

5CLE-PDM-D 15.24 (387.1) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 11.72 (297.7) 60

5HLE-GDM-D 16.25 (412.8) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 11.72 (297.7) 60

5HLE-PDM-D 16.25 (412.8) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 11.72 (297.7) 60

8CLE-GDM-C 15.24 (387.1) 6.00 (152.4) 28.00 (711.2) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.37 (314.2) 75

8CLE-GDM-D 15.24 (387.1) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.22 (361.2) 75

8CLE-PDM-C 15.24 (387.1) 6.00 (152.4) 28.00 (711.2) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.37 (314.2) 75

8CLE-PDM-C 15.24 (387.1) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.22 (361.2) 75

8HLE-GDM-D 16.25 (412.8) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 11.72 (297.7) 75

8HLE-PDM-D 16.25 (412.8) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 11.72 (297.7) 75

15CLE-GDM-C 21.24 (539.5) 6.00 (152.4) 34.00 (863.6) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.37 (314.2) 95

15CLE-GDM-D 21.15 (537.2) 6.00 (152.4) 31.00 (787.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.22 (361.2) 95

15CLE-PDM-C 21.24 (539.5) 6.00 (152.4) 34.00 (863.6) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.37 (314.2) 95

15CLE-PDM-D 21.15 (537.2) 6.00 (152.4) 31.00 (787.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.22 (361.2) 95

15CLE-HPDM-C 21.24 (539.5) 6.00 (152.4) 34.00 (863.6) 0.75 (19.0) 1.75 (44.4) 8.50 (215.9) 13.87 (352.3) 110

15CLE-HPDM-D 21.15 (537.2) 6.00 (152.4) 31.00 (787.4) 0.62 (15.7) 1.75 (44.4) 8.50 (215.9) 13.87 (352.3) 110

15HLE-GDM-D 16.25 (412.8) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.22 (361.2) 95

15HLE-PDM-D 16.25 (412.8) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.22 (361.2) 95

Catalog

Number

Hole Centers

Overall Length

Hole Inset

Hole Centers

Contact Height

Overall Height

BIL

Rating

2CLE-GDM-E 8.24 (209.3) 6.00 (152.4) 18.00 (457.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 15.28 (388.1) 60

2CLE-PDM-E 8.24 (209.3) 6.00 (152.4) 18.00 (457.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 15.28 (388.1) 60

5CLE-GDM-E 15.24 (387.1) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 15.28 (388.1) 60

5CLS-PDM-E 15.24 (387.1) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 15.28 (388.1) 60

5HLE-GDM-E 16.25 (412.8) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 15.28 (388.1) 60

5HLE-PDM-E 16.25 (412.8) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 15.28 (388.1) 60

8CLE-GDM-E 15.24 (387.1) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 17.78 (451.6) 75

8CLE-PDM-E 15.24 (387.1) 6.00 (152.4) 25.00 (647.7) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 17.78 (451.6) 75

8HLE-GDM-E 16.25 (412.8) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 17.78 (451.6) 75

8HLE-PDM-E 16.25 (412.8) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 17.78 (451.6) 75

15CLE-PDM-E 21.15 (537.2) 6.00 (152.4) 31.00 (787.4) 0.62 (15.7) 1.75 (44.4) 8.50 (215.9) 19.28 (489.7) 95

15HLE-GDM-E 16.25 (412.8) 6.00 (152.4) 26.00 (660.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 17.78 (451.6) 95

15HLE-PDM-E 16.25 (412.8) 6.00 (152.4) 26.00 (660.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 17.78 (451.6) 95

www.comoso.com

V14-T3-40 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Approximate Dimensions in Inches (mm)

CLE and HLE Type Non-Disconnect Mountings

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-41

3.4

Current Limiting Fuses

CLE, HLE, LHLE, AHLE, BHLE, HCL and BHCL Type Fuses

Approximate Dimensions in Inches (mm)

CLE and HLE Type Non-Disconnect Mounting—Single

CLE and HLE Type Non-Disconnect Mounting—Double

Catalog

Number

Hole Centers

Overall Length

Hole Inset

Hole Centers

Contact Height

Overall Height

BIL

Rating

2CLE-GNM-C 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 7.25 (184.1) 60

2CLE-PNM-C 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 7.25 (184.1) 60

2CLE-GNM-D 8.24 (209.3) 6.00 (152.4) 18.00 (457.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 8.79 (223.3) 60

2CLE-PNM-D 8.24 (209.3) 6.00 (152.4) 18.00 (457.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 8.79 (223.3) 60

5CLE-GNM-C 12.75 (323.8) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 7.25 (184.1) 60

5CLE-PNM-C 12.75 (323.8) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 7.25 (184.1) 60

5CLE-GNM-D 15.24 (387.1) 6.00 (152.4) 25.00 (635.0) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 8.79 (223.3) 60

5CLE-PNM-D 15.24 (387.1) 6.00 (152.4) 25.00 (635.0) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 8.79 (223.3) 60

5HLE-GNM-D 16.25 (412.7) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 8.79 (223.3) 60

15HLE-PNM-D 16.25 (412.7) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 8.79 (223.3) 60

8CLE-GNM-C 15.25 (387.3) 6.00 (152.4) 24.50 (622.3) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.75 (247.6) 75

8CLE-PNM-C 15.25 (387.3) 6.00 (152.4) 24.50 (622.3) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.75 (247.6) 75

8CLE-PNM-D 15.25 (387.3) 6.00 (152.4) 25.00 (635.0) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 11.29 (286.7) 75

8HLE-GNM-D 16.25 (412.7) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 11.29 (286.7) 75

8HLE-PNM-D 16.25 (412.7) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 11.29 (286.7) 75

15CLE-GNM-C 21.25 (539.7) 6.00 (152.4) 30.50 (774.7) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.75 (247.6) 95

15CLE-PNM-C 21.25 (539.7) 6.00 (152.4) 30.50 (774.7) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.75 (247.6) 95

15CLE-HPMN-C 21.25 (539.7) 6.00 (152.4) 30.50 (774.7) 0.75 (19.0) 1.75 (44.4) 8.50 (215.9) 11.25 (285.7) 110

15CLE-GNM-D 21.15 (539.7) 6.00 (152.4) 31.00 (787.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 11.29 (286.7) 95

15CLE-PNM-D 21.15 (539.7) 6.00 (152.4) 31.00 (787.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 11.29 (286.7) 95

15CLE-HPNM-D 21.15 (539.7) 6.00 (152.4) 31.00 (787.4) 0.62 (15.7) 1.75 (44.4) 8.50 (215.9) 12.79 (286.7) 110

15HLE-GNM-D 16.25 (412.7) 6.00 (152.4) 26.00 (660.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 11.29 (286.7) 95

15HLE-PNM-D 16.25 (412.7) 6.00 (152.4) 26.00 (660.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 11.29 (286.7) 95

Catalog

Number

Hole Centers

Overall Length

Hole Inset

Hole Centers

Contact Height

Overall Height

BIL

Rating

2CLE-GNM-E 8.24 (209.3) 6.00 (152.4) 18.00 (457.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 12.48 (317.0) 60

2CLE-PNM-E 8.24 (209.3) 6.00 (152.4) 18.00 (457.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 12.48 (317.0) 60

5CLE-GNM-E 15.24 (387.1) 6.00 (152.4) 25.00 (635.0) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 12.48 (317.0) 60

5HLE-PNM-E 15.24 (387.1) 6.00 (152.4) 25.00 (635.0) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 12.48 (317.0) 60

5HLE-GNM-E 16.25 (412.7) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 12.48 (317.0) 60

5HLE-PNM-E 16.25 (412.7) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 4.50 (114.3) 12.48 (317.0) 60

8CLE-GNM-E 15.24 (387.1) 6.00 (152.4) 25.00 (635.0) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.98 (380.5) 75

8CLE-PNM-E 15.24 (387.1) 6.00 (152.4) 25.00 (635.0) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.98 (380.5) 75

8HLE-GNM-E 16.25 (412.7) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.98 (380.5) 75

8HLE-PNM-E 16.25 (412.7) 6.00 (152.4) 23.00 (584.2) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.98 (380.5) 75

15CLE-PNM-E 21.15 (539.7) 6.00 (152.4) 31.00 (787.4) 0.62 (15.7) 1.75 (44.4) 8.50 (215.9) 16.48 (418.5) 95

15HLE-GNM-E 16.25 (412.7) 6.00 (152.4) 26.00 (660.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.98 (380.5) 95

15HLE-PNM-E 16.25 (412.7) 6.00 (152.4) 26.00 (660.4) 0.62 (15.7) 1.75 (44.4) 7.00 (177.8) 14.98 (380.5) 95

www.comoso.com

V14-T3-42 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.5

Current Limiting Fuses

CLPT and NCLPT Type Fuses

(N)CLPT Fuses Contents

Description Page

CLPT and NCLPT Type Fuses

Catalog Number Selection . . . . . . . . . . . . . . . . V14-T3-43

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T3-43

Mounting Details. . . . . . . . . . . . . . . . . . . . . . . . V14-T3-48

CLPT and NCLPT Type Fuses

Product Description

Eaton CLPT (indicating) and

NCLPT (non-indicating) fuses

are applied wherever it is

necessary to limit the short-

circuit currents on control

transformer and potential

transformer circuits in high

capacity systems in industrial

installations and commercial

buildings.

Current ratings from 1/2E to

10E are available at 2.4 kV to

34.5 kV.

Features

CLPT and NCLPT type

current limiting fuses offer a

number of desirable

advantages. Consider the

following during the selection

process:

●Quiet Safe Operation:

These fuses are designed

for silent operation and

elimination of ﬂame

discharges when the fuse

operates

●Identiﬁcation of Blown

Fuse: These fuses are

available in indicating and

non-indicating versions.

Indicators protrude from

indicating type fuses

providing a visual indication

of a blown fuse

●Space Economy: Because

the fuse is designed to

eliminate ﬂame and gas

discharges, no exhaust

control devices, ﬂame

boxes, vents or reinforcing

are required

●Complete Protection

Provided: Current limiting

fuses provide positive

interruption even on low

fault currents. The fuse

limits the magnitude of

electromechanical stresses

in the apparatus to be

protected

●Mountings: Disconnect

and non-disconnect

mountings are available for

most types of fuses from

5 kV through 15 kV. Live

parts are available for

23 kV and 34.5 kV fuses

●Dimensions: Various fuse

sizes are available for a

wide range of applications

Construction

CLPT type current limiting

fuses are basically

constructed in a similar

fashion to other Eaton current

limiting fuses.

Ratings and Selection

When a decision has been

made to use current limiting

fuses, the minimum amount

of information required to

make the proper selection is:

●Voltage rating

●Current rating

●Interrupting rating

●Mounting method

●Non-disconnect

mounting

●Disconnect mounting

●Live parts only

●No required mounting

Refer to tables on Pages

V14-T3-43 to V14-T3-49 for

assistance in selecting the

correct fuse catalog number.

These types of fuses are

used in conjunction with

potential and control power

transformers. There are

specific rules governing the

selection of the required fuse

continuous rating. The

current limiting fuse

application notes earlier in

this publication offer

additional information about

this type of application.

When selecting the

appropriate fuse for a new

installation, keep in mind that

one fuse unit and one

compatible mounting may be

required for each phase.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-43

3.5

Current Limiting Fuses

CLPT and NCLPT Type Fuses

Catalog Number Selection

CLPT Fuse Units

CLPT Mounting

Product Selection

CLPT Type

CLPT Type Current Limiting Fuses 2.475 kV Maximum (2.4 kV Nominal)

Current

Rating

(Amperes)

Interrupting

Rating

rms (kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-

Through

CurrentApproximate Dimensions in Inches (mm)

0.25E 63 0.81 (20.6) — 4.50 (114.3) 0.25 (0.11) TC56357202 TC59883702 TC63933702 2NCLPT-.25E

0.5E 63 0.81 (20.6) — 4.50 (114.3) 0.25 (0.11) TC56357202 TC59883702 TC63933702 2NCLPT-.5E

1E 40 0.81 (20.6) — 4.50 (114.3) 0.25 (0.11) TC56357202 TC59883702 TC63933702 2NCLPT-1E

2E 40 0.81 (20.6) — 4.50 (114.3) 0.25 (0.11) TC56357202 TC59883702 TC63933702 2NCLPT-2E

5E 25 0.81 (20.6) — 4.50 (114.3) 0.25 (0.11) TC56357202 TC59883702 TC63933702 2NCLPT-5E

Ampere

Rating

0.5E

1.5E

10E

Type

CLPT

NCLPT

15 CLPT - 5E - A

Maximum kV

2= 2.75 kV

5= 5.5 kV

8= 8.3 kV

15 = 15.5 kV

25 = 25.8 kV

38 = 38 kV

Dimensions

A= Shorter length

B= Longer length

Insulator

G= Glass polyester

P= Porcelain

Hardware

DF = Disconnect end fittings

DL = Disconnect live parts

DM = Disconnect mounting

NL = Non-disconnect live parts

NM = Non-disconnect mounting

Type

CLPT

15 CLPT - P NM - A

Maximum kV

2= 2.75 kV

5= 5.5 kV

8= 8.3 kV

15 = 15.5 kV

25 = 25.8 kV

38 = 38 kV

Dimensions

A= Shorter length

B= Longer length

Indicating

www.comoso.com

V14-T3-44 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.5

Current Limiting Fuses

CLPT and NCLPT Type Fuses

CLPT Type Current Limiting Fuses 5.5 kV Maximum (4.8 kV Nominal)

CLPT Type Mountings and Hardware 5.5 kV Maximum (4.8 kV Nominal) 

Notes

 Refers only to 5CLPT and 5NCLPT-A fuses only.



See Page V14-T3-38 for diagram of typical mounting.



End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Interrupting

Rating

rms (kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-

Through

CurrentApproximate Dimensions in Inches (mm)

Non-Indicating

0.5E 63 0.81 (20.6) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 5NCLPT-.5E

1E 63 0.81 (20.6) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 5NCLPT-1E

2E 63 0.81 (20.6) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 5NCLPT-2E

3E 63 0.81 (20.6) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 5NCLPT-3E

4E 63 0.81 (20.6) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 5NCLPT-4E

5E 63 0.81 (20.6) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 5NCLPT-5E

0.5E 50 1.00 (25.4) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 317B487H02

1E 50 1.00 (25.4) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 317B487H06

2E 50 1.00 (25.4) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 317B487H03

3E 50 1.00 (25.4) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 317B487H04

5E 50 1.00 (25.4) — 5.63 (143.0) 0.25 (0.11) TC66702402 TC66702502 TC66704101 317B487H05

0.5E 63 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC70548302 TC70548402 TC63934002 5NCLPT-.5E-A

1E 63 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC70548302 TC70548402 TC63934002 5NCLPT-1E-A

2E 63 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC70548302 TC70548402 TC63934002 5NCLPT-2E-A

3E 63 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC70548302 TC70548402 TC63934002 5NCLPT-3E-A

5E 63 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC70548302 TC70548402 TC63934002 5NCLPT-5E-A

10E 63 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC70548302 TC70548402 TC63934002 5NCLPT-10E-A

Indicating

0.5E 80 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC56353206 TC56353306 TC63934001 5CLPT-.5E

1E 80 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC56353206 TC56353306 TC63934001 5CLPT-1E

1.5E 80 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC56353206 TC56353306 TC63934001 5CLPT-1.5E

3E 80 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC56353206 TC56353306 TC63934001 5CLPT-3E

5E 80 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC56353206 TC56353306 TC63934001 5CLPT-5E

10E 80 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.2 (0.54) TC56353206 TC56353306 TC63934001 5CLPT-10E

Ampere

Rating

Fuse Mounting

Type 

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

0.5–2 Non-disconnect 60 5CLPT-PNM-A 5CLPT-GNM-A CLPT-NL —

Disconnect 60 5CLPT-PDM-A 5CLPT-GDM-A CLPT-DL CLPT-DF

3–10 Non-disconnect 60 5CLPT-PNM-B 5CLPT-GNM-B CLPT-NL —

Disconnect 60 5CLPT-PDM-B 5CLPT-GDM-B CLPT-DL CLPT-DF

Non-Indicating

Indicating

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-45

3.5

Current Limiting Fuses

CLPT and NCLPT Type Fuses

CLPT Type Current Limiting Fuses 8.3 kV Maximum (7.2 kV Nominal)

CLPT Type Mountings and Hardware 8.3 kV Maximum (7.2 kV Nominal) 

Notes

 Refers only to 8CLPT and 8NCLPT-A or -B fuses only.



See Page V14-T3-38 for diagram of typical mounting.



End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Interrupting

Rating

rms (kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-

Through

CurrentApproximate Dimensions in Inches (mm)

Non-Indicating

2E 25 0.81 (20.6) — 8.00 (203.2) 0.25 (0.11) TC56357206 TC59883706 TC63933704 8NCLPT-2E

4E 25 0.81 (20.6) — 8.00 (203.2) 0.25 (0.11) TC56357206 TC59883706 TC63933704 8NCLPT-4E

10E 50 1.10 (27.9) — 5.00 (127.0) 0.5 (0.23) TC56357206 TC59883706 TC63933704 8NCLPT-0E

1E 50 1.10 (27.9) — 5.00 (127.0) 0.5 (0.23) TC56357206 TC59883706 TC63933704 8NCLPT-1E

5E 50 1.10 (27.9) — 5.00 (127.0) 0.5 (0.23) TC56357206 TC59883706 TC63933704 8NCLPT-5E

0.5E 50 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.5 (0.70) TC70548303 TC70548403 TC63934002 8NCLPT-.5E-A

1E 50 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.5 (0.70) TC70548303 TC70548403 TC63934002 8NCLPT-1E-A

2E 50 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.5 (0.70) TC70548303 TC70548403 TC63934002 8NCLPT-2E-A

3E 50 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.5 (0.70) TC70548303 TC70548403 TC63934002 8NCLPT-3E-B

5E 50 1.60 (40.6) 11.50 (292.1) 12.90 (327.7) 1.6 (0.73) TC70548303 TC70548403 TC63934002 8NCLPT-5E-B

10E 50 1.60 (40.6) 11.50 (292.1) 12.90 (327.7) 1.6 (0.73) TC70548303 TC70548403 TC63934002 8NCLPT-10E-B

Indicating

.5E 80 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.5 (0.70) TC56353206 TC56353306 TC63934001 8CLPT-.5E

3E 80 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.6 (0.73) TC56353206 TC56353306 TC63934001 8CLPT-3E

5E 50 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.6 (0.73) TC56353206 TC56353306 TC63934001 8CLPT-5E

10E 50 1.60 (40.6) 8.10 (205.7) 9.50 (241.3) 1.6 (0.73) TC56353206 TC56353306 TC63934001 8CLPT-10E

Ampere

Rating

Fuse Mounting

Type 

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

0.5–2 Non-disconnect 75 8CLPT-PNM-A 8CLPT-GNM-A CLPT-NL —

Disconnect 75 8CLPT-PDM-A 8CLPT-GDM-A CLPT-DL CLPT-DF

3–10 Non-disconnect 75 8CLPT-PNM-B 8CLPT-GNM-B CLPT-NL —

Disconnect 75 8CLPT-PDM-B 8CLPT-GDM-B CLPT-DL CLPT-DF

Non-Indicating

Indicating

www.comoso.com

V14-T3-46 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.5

Current Limiting Fuses

CLPT and NCLPT Type Fuses

CLPT Type Current Limiting Fuses 15.5 kV Maximum (7.2 kV Nominal)

CLPT Type Mountings and Hardware 15.5 kV Maximum (14.4 kV Nominal)

Notes

 See Page V14-T3-38 for diagram of typical mounting.



End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Interrupting

Rating

rms (kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-

Through

CurrentApproximate Dimensions in Inches (mm)

Non-Indicating

0.5E 63 1.60 (40.6) 11.50 (292.1) 12.90 (327.7) 1.6 (0.73) TC70548303 TC70548403 TC63934002 15NCLPT-.5E

1E 63 1.60 (40.6) 11.50 (292.1) 12.90 (327.7) 1.6 (0.73) TC70548303 TC70548403 TC63934002 15NCLPT-1E

2E 63 1.60 (40.6) 11.50 (292.1) 12.90 (327.7) 1.6 (0.73) TC70548303 TC70548403 TC63934002 15NCLPT-1.5E

3E 63 1.60 (40.6) 16.10 (408.9) 17.60 (447.0) 2 (0.91) TC70548303 TC70548403 TC63934002 15NCLPT-3E

5E 63 1.60 (40.6) 16.10 (408.9) 17.60 (447.0) 2 (0.91) TC70548303 TC70548403 TC63934002 15NCLPT-5E

10E 63 1.60 (40.6) 16.10 (408.9) 17.60 (447.0) 2 (0.91) TC70548303 TC70548403 TC63934002 15NCLPT-10E

Indicating

0.5E 80 1.60 (40.6) 11.50 (292.1) 12.90 (327.7) 1.6 (0.73) TC56353206 TC56353306 TC63934001 15CLPT-.5E

1E 80 1.60 (40.6) 11.50 (292.1) 12.90 (327.7) 1.6 (0.73) TC56353206 TC56353306 TC63934001 15CLPT-1E

2E 80 1.60 (40.6) 11.50 (292.1) 12.90 (327.7) 1.6 (0.73) TC56353206 TC56353306 TC63934001 15CLPT-1.5E

3E 80 1.60 (40.6) 16.10 (408.9) 17.60 (447.0) 2 (0.91) TC56353206 TC56353306 TC63934001 15CLPT-3E

5E 80 1.60 (40.6) 16.10 (408.9) 17.60 (447.0) 2 (0.91) TC56353206 TC56353306 TC63934001 15CLPT-5E

10E 50 1.60 (40.6) 16.10 (408.9) 17.60 (447.0) 2 (0.91) TC56353206 TC56353306 TC63934001 15CLPT-10E

Ampere

Rating

Fuse Mounting

Type 

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

0.5–2 Non-disconnect 95 15CLPT-PNM-A 15CLPT-GNM-A CLPT-NL —

Disconnect 95 15CLPT-PDM-A 15CLPT-GDM-A CLPT-DL CLPT-DF

3–10 Non-disconnect 95 15CLPT-PNM-B 15CLPT-GNM-B CLPT-NL CLPT-DF

Disconnect 95 15CLPT-PDM-B 15CLPT-GDM-B CLPT-DL —

Non-Indicating

Indicating

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-47

3.5

Current Limiting Fuses

CLPT and NCLPT Type Fuses

CLPT Type Current Limiting Fuses 25.5 kV Maximum (23.0 kV Nominal)

CLPT Type Mountings and Hardware 25.5 kV Maximum (23.0 kV Nominal)

CLPT Type Current Limiting Fuses 38.0 kV Maximum (34.5 kV Nominal)

CLPT Type Mountings and Hardware 38.0 kV Maximum (34.5 kV Nominal)

Notes

See Page V14-T3-38 for diagram of typical mounting.

End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Interrupting

Rating

rms (kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

CurrentApproximate Dimensions in Inches (mm)

0.5E 44 1.60 (40.6) 16.10 (408.9) 17.60 (447.0) 2 (0.91) TC56353208 TC56353308 TC63933901 25CLPT-.5E

1E 44 1.60 (40.6) 16.10 (408.9) 17.60 (447.0) 2 (0.91) TC56353208 TC56353308 TC63933901 25CLPT-1E

Ampere

Rating

Fuse Mounting

Type 

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

0.5E–1E Non-disconnect 150 25CLPT-PNM-A — 25CLPT-NL —

Disconnect 150 25CLPT-PDM-A — 25CLPT-DL CLPT-DF

Current

Rating

(Amperes)

Interrupting

Rating

rms (kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak Let-Through

CurrentApproximate Dimensions in Inches (mm)

0.5E 44 1.60 (40.6) 17.10 (434.3) 18.60 (472.4) 2 (0.91) TC56353208 TC56353308 TC63933901 38CLPT-.5E

Ampere

Rating

Fuse Mounting

Type 

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

0.5E Disconnect — Not applicable Not applicable 25CLPT-NL CLPT-DF

Non-disconnect — Not applicable Not applicable 25CLPT-DL —

www.comoso.com

V14-T3-48 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.5

Current Limiting Fuses

CLPT and NCLPT Type Fuses

Mounting Details

Approximate Dimensions in Inches (mm)

CLPT and NCLPT Type Disconnect Mountings

Catalog

Number

Hole Centers

Overall Length

Hole Inset

Hole Centers

Contact Height

Overall Height

BIL

Rating

5CLPT-GDM-A 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 9.56 (242.8) 60

5CLPT-PDM-A 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 9.56 (242.8) 60

8CLPT-GDM-A 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.06 (306.3) 75

8CLPT-GDM-B 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.06 (306.3) 75

8CLPT-PDM-A 12.74 (323.6) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.06 (306.3) 75

8CLPT-PDM-B 12.74 (323.6) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.06 (306.3) 75

15CLPT-GDM-A 12.74 (323.6) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.06 (306.3) 95

15CLPT-PDM-A 12.74 (323.6) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.06 (306.3) 95

15CLPT-GDM-B 17.46 (443.5) 6.00 (152.4) 26.63 (676.4) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.06 (306.3) 95

15CLPT-PDM-B 17.46 (443.5) 6.00 (152.4) 26.63 (676.4) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 12.06 (306.3) 95

15CLPY-HPDM-A 12.74 (323.6) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 8.50 (215.9) 13.56 (344.4) 110

15CLPT-HPDM-B 17.46 (443.5) 6.00 (152.4) 26.63 (676.4) 0.75 (19.0) 1.75 (44.4) 8.50 (215.9) 13.56 (344.4) 110

25CLPT-PNM-A 19.12 (485.6) 7.00 (177.8) 26.63 (676.4) 0.75 (19.0) 1.75 (44.4) 12.00 (304.8) 17.06 (433.3) 150

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-49

3.5

Current Limiting Fuses

CLPT and NCLPT Type Fuses

Approximate Dimensions in Inches (mm)

CLPT and NCLPT Type Non-Disconnect Mountings

Catalog

Number

Hole Centers

Overall Length

Hole Inset

Hole Centers

Contact Height

Overall Height

BIL

Rating

5CLPT-GNM-A 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 6.94 (176.2) 60

5CLPT-PNM-A 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 4.50 (114.3) 6.94 (176.2) 60

8CLPT-GNM-A 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.44 (239.8) 75

8CLPT-PNM-A 9.37 (238.0) 6.00 (152.4) 18.63 (473.2) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.44 (239.8) 75

8CLPT-GNM-B 12.75 (323.8) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.44 (239.8) 75

8CLPT-PNM-B 12.75 (323.8) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.44 (239.8) 75

15CLPT-GNM-A 12.74 (323.6) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.44 (239.8) 95

15CLPT-PNM-A 12.74 (323.6) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.44 (239.8) 95

15CLPT-HPNM-A 12.74 (323.6) 6.00 (152.4) 22.00 (558.8) 0.75 (19.0) 1.75 (44.4) 8.50 (215.9) 10.94 (277.9) 110

15CLPT-GNM-B 17.46 (443.5) 6.00 (152.4) 26.63 (676.4) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.44 (239.8) 95

15CLPT-PNM-B 17.46 (443.5) 6.00 (152.4) 26.63 (676.4) 0.75 (19.0) 1.75 (44.4) 7.00 (177.8) 9.44 (239.8) 95

15CLPT-HPNM-B 17.46 (443.5) 6.00 (152.4) 26.63 (676.4) 0.75 (19.0) 1.75 (44.4) 8.50 (215.9) 10.94 (277.9) 110

25CLPT-PNM-A 19.12 (485.6) 7.00 (177.8) 26.63 (676.4) 0.75 (19.0) 1.75 (44.4) 12.00 (304.8) 14.43 (367.0) 150

38CLPT-PNM-A 19.12 (485.6) 7.00 (177.8) 26.63 (676.4) 0.75 (19.0) 1.75 (44.4) 12.00 (304.8) 14.43 (367.0) 150

www.comoso.com

V14-T3-50 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

Motor Start Fuses Contents

Description Page

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

UL Component Recognition . . . . . . . . . . . . . . . V14-T3-51

Ratings and Selection . . . . . . . . . . . . . . . . . . . . V14-T3-51

Catalog Number Selection . . . . . . . . . . . . . . . . V14-T3-51

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T3-59

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-63

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

Product Description

Eaton’s CLS current limiting

fuses are used in conjunction

with medium voltage motor

starters to provide short-

circuit protection for

individual motor circuits.

Contactors in motor starting

equipment protect the

equipment from over-

currents due to starting,

stalling and plugging while

current limiting fuses provide

short-circuit protection only.

Duty cycles of fuses used in

medium voltage motor

starters are characterized by

the frequent application of

high overloads such as motor

starting currents. Motor

starter fuses, therefore, must

be designed to withstand the

consequent frequent severe

heating and cooling cycles

without fatigue failures. CLS

type fuses have such a

construction. The element

designs used are not

sensitive to low currents, and

have “fatigue proof” features

to provide highly uniform

flexing of elements during

heating cycles.

The mounting possibilities for

CLS type current limiting

fuses are shown on Page

V14-T3-64, with disconnect

type being the predominant

approach.

CLS Features

CLS type current limiting

fuses offer a number of

advantages over a number of

other designs. During the

selection process, consider

the following:

●Quiet Safe Operation:

CLS type current limiting

fuses are designed for

silent operation and

elimination of ﬂame

discharges when the fuse

operates

●Easy to Identify Operated

Fuse: CLS type current

limiting fuses are equipped

with an indicator that will

protrude indicating when a

fuse has operated

●Space Economy: Because

the design of these fuses

has eliminated ﬂame or

gas discharge, the need for

exhaust control devices,

vents and reinforcing is

eliminated

●Complete Protection

Provided: CLS type

current limiting fuses

ensure positive

interruption of high fault

currents. The fuse limits

the magnitude of the

electromechanical stresses

in the protected apparatus.

They also limit the arc

voltage to considerably

less than three times the

nominal circuit voltage

●Fatigue Proof: Controlled

“crimping” of the silver

elements during fuse

manufacture permits CLS

type current limiting fuses

to withstand severe duty

cycling without failure

Construction

CLS type current limiting

fuses are of basically

inorganic construction. The

only organic material used is

a high temperature glass-

resin outer casing and the

plastic indicator. The fuse

elements are pure silver and

are crimped at controlled

locations along the active

length to increase the

strength of the element, and

to uniformly distribute

mechanical expansion and

prevent fatigue failure due to

severe cycling duties.

Element design combines

maximum load carrying ability

with the most favorable short

circuit interruption

characteristics. These fuses

are filled with a high purity

silica sand with controlled

grain size.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-51

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

UL® Component Recognition

Underwriters Laboratories

has witnessed testing on and

recognizes certain styles of

5CLS and 5ACLS fuses.

These fuses carry the

“reversed UR” designation.

CLS type current limiting

motor start fuses

manufactured prior to 1975

were not identified by an “R”

designation. However, these

fuses can be used with or

replaced by newer fuses with

“R” designations as indicated

below.

Ratings and Selection

When a decision has been

made to use current limiting

fuses, the minimum amount

of information required to

make the proper selection is:

●Voltage rating

●Current rating

●Interrupting rating

●Mounting method

●Non-disconnect

mounting

●Disconnect mounting

●Clip-lock mounting

●Direct bolt-in mounting

●Live parts only

●No required mounting

Refer to Pages V14-T3-52 to

V14-T3-62 for assistance in

selecting the correct fuse

catalog number.

These types of fuses are

used in conjunction with high

voltage motor starters to

provide short-circuit

protection for individual

motors. There are specific

rules governing the selection

of the required fuse

continuous rating.

The current limiting fuse

application notes earlier in

this publication offer

additional information about

this type of application.

When selecting the

appropriate fuse for a new

installation, keep in mind that

one fuse unit and one

compatible mounting is

required for each phase.

Catalog Number Selection

CLS Fuse Units

Continuos

Amperes

25A, 2R–44R

Type

ACLS

BCLS

CLS

HCLS

15 CLS 200E

Maximum kV

2= 2.75 kV

4= 4.3 kV

5= 5.5 kV

8= 8.3 kV

15 = 15.5 kV

www.comoso.com

V14-T3-52 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses

Notes

Includes end ﬁttings.

Disconnect only.

Max.

Design

Voltage

(kV)

Current

Rating

(A)

“R”

Designation

Catalog

Number

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter

(Inches)

Clip

Center

(Inches)

Length

(Inches)

Approx.

Shipping

Weight

(Lbs)

Catalog Number Performance Curves

Live

Parts 

End

Fittings 

Minimum

Melting

Time

Total

Clearing

Time

Peak Let-

Through

Current

2.54 25 — 2CLS-25 1 50 3 7 10.8 7 CLE-NL-D

CLE-DL-D

—

CLE-DF-D

TC66664702 TC66664704 TC66700202

70 2R 2CLS-2R 1 50 3 7 10.8 7

100 3R 2CLS-3R 1 50 3 7 10.8 7

130 4R 2CLS-4R 1 50 3 7 10.8 7

150 5R 2CLS-5R 1 50 3 7 10.8 7

170 6R 2CLS-6R 1 50 3 7 10.8 7

200 9R 2CLS-9R 1 50 3 7 10.8 7

230 12R 2CLS-12R 1 50 3 7 10.8 7

390 18R 2CLS-18R 2 50 3 7 10.8 16 CLE-NL-E

CLE-DL-E

—

CLE-DF-E

TC66664702 TC66664704 TC66700202

450 24R 2CLS-24R 2 50 3 7 10.8 16

25 — 2ACLS-25 1 50 3 — 10.8 7 —TC66664702 TC66664704 TC66700202

70 2R 2ACLS-2R 1 50 3 — 10.8 7

100 3R 2ACLS-3R 1 50 3 — 10.8 7

130 4R 2ACLS-4R 1 50 3 — 10.8 7

150 5R 2ACLS-5R 1 50 3 — 10.8 7

170 6R 2ACLS-6R 1 50 3 — 10.8 7

200 9R 2ACLS-9R 1 50 3 — 10.8 7

230 12R 2ACLS-12R 1 50 3 — 10.8 7

390 18R 2ACLS-18R 2 50 3 — 10.8 16

450 24R 2ACLS-24R 2 50 3 — 10.8 16

25 — 2BCLS-25 1 50 3 ——8 —TC66664702 TC66664704 TC66700202

70 2R 2BCLS-2R 1 50 3 ——8

100 3R 2BCLS-3R 1 50 3 ——8

130 4R 2BCLS-4R 1 50 3 ——8

150 5R 2BCLS-5R 1 50 3 ——8

170 6R 2BCLS-6R 1 50 3 ——8

200 9R 2BCLS-9R 1 50 3 ——8

230 12R 2BCLS-12R 150 3 ——8

390 18R 2BCLS-18R 2 50 3 ——17

450 24R 2BCLS-24R 2 50 3 ——17

25 — 2HCLS-25 1 50 3 — 10.8 7 —TC66664702 TC66664704 TC66700202

70 2R 2HCLS-2R 1 50 3 — 10.8 7

100 3R 2HCLS-3R 1 50 3 — 10.8 7

130 4R 2HCLS-4R 1 50 3 — 10.8 7

150 5R 2HCLS-5R 1 50 3 — 10.8 7

170 6R 2HCLS-6R 1 50 3 — 10.8 7

200 9R 2HCLS-9R 1 50 3 — 10.8 7

230 12R 2HCLS-12R 1 50 3 — 10.8 7

390 18R 2HCLS-18R 2 50 3 — 10.8 16

450 24R 2HCLS-24R 2 50 3 — 10.8 16

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-53

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses, continued

Notes

Includes end ﬁttings.

Disconnect only.

Max.

Design

Voltage

(kV)

Current

Rating

(A)

“R”

Designation

Catalog

Number

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter

(Inches)

Clip

Center

(Inches)

Length

(Inches)

Approx.

Shipping

Weight

(Lbs)

Catalog Number Performance Curves

Live

Parts 

End

Fittings 

Minimum

Melting

Time

Total

Clearing

Time

Peak Let-

Through

Current

5.5 30 — 5CLS-30 1 50 3 12 15.9 8 CLE-NL-D

CLE-DL-D

—

CLE-DF-D

TC66690602 TC66690702 TC66700203

70 2R 5CLS-2R 1 50 3 12 15.9 8

100 3R 5CLS-3R 1 50 3 12 15.9 8

130 4R 5CLS-4R 1 50 3 12 15.9 8

150 5R 5CLS-5R 1 50 3 12 15.9 8

170 6R 5CLS-6R 1 50 3 12 15.9 8

200 9R 5CLS-9R 1 50 3 12 15.9 8

230 12R 5CLS-12R 1 50 3 12 15.9 8

390 18R 5CLS-18R 2 50 3 12 15.9 17 CLE-NL-E

CLE-DL-E

—

CLE-DF-E

TC66690602 TC66690702 TC66700203

450 24R 5CLS-24R 2 50 3 12 15.9 17

5.08 30 — 5ACLS-30 1 50 3 — 15.9 8 —TC66690602 TC66690702 TC66700203

70 2R 5ACLS-2R 1 50 3 — 15.9 8

100 3R 5ACLS-3R 1 50 3 — 15.9 8

130 4R 5ACLS-4R 1 50 3 — 15.9 8

150 5R 5ACLS-5R 1 50 3 — 15.9 8

170 6R 5ACLS-6R 1 50 3 — 15.9 8

200 9R 5ACLS-9R 1 50 3 — 15.9 8

230 12R 5ACLS-12R 1 50 3 — 15.9 8

390 18R 5ACLS-18R 2 50 3 — 15.9 17

450 24R 5ACLS-24R 2 50 3 — 15.9 17

4.3 480 26R 4ACLS-26R 2 50 3 — 15.9 17

5.08 30 — 5BCLS-30 1 50 3 ——8 —TC66690602 TC66690702 TC66700203

70 2R 5BCLS-2R 1 50 3 ——8

100 3R 5BCLS-3R 1 50 3 ——8

130 4R 5BCLS-4R 1 50 3 ——8

150 5R 5BCLS-5R 1 50 3 ——8

170 6R 5BCLS-6R 1 50 3 ——8

200 9R 5BCLS-9R 150 3 ——8

230 12R 5BCLS-12R 1 50 3 ——8

390 18R 5BCLS-18R 2 50 3 ——17

450 24R 5BCLS-24R 2 50 3 ——17

4.3 480 26R 4BCLS-26R 2 50 3 ——17

5.08 30 — 5HCLS-30 1 50 3 — 15.9 8 —TC66690602 TC66690702 TC66700203

70 2R 5HCLS-2R 1 50 3 — 15.9 8

100 3R 5HCLS-3R 1 50 3 — 15.9 8

130 4R 5HCLS-4R 1 50 3 — 15.9 8

150 5R 5HCLS-5R 1 50 3 — 15.9 8

170 6R 5HCLS-6R 1 50 3 — 15.9 8

200 9R 5HCLS-9R 1 50 3 — 15.9 8

230 12R 5HCLS-12R 1 50 3 — 15.9 8

390 18R 5HCLS-18R 2 50 3 — 15.9 17

450 24R 5HCLS-24R 2 50 3 — 15.9 17

www.comoso.com

V14-T3-54 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses, continued

Notes

Includes end ﬁttings.

Disconnect only.

Max.

Design

Voltage

(kV)

Current

Rating

(A)

“R”

Designation

Catalog

Number

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter

(Inches)

Clip

Center

(Inches)

Length

(Inches)

Approx.

Shipping

Weight

(Lbs)

Catalog Number Performance Curves

Live

Parts 

End

Fittings 

Minimum

Melting

Time

Total

Clearing

Time

Peak Let-

Through

Current

5.08 70 2R 5CLS70-2R 2 50 3 ——20—TC66690602 TC66690702 TC66700203

100 3R 5CLS70-3R 2 50 3 ——20

130 4R 5CLS70-4R 2 50 3 ——20

150 5R 5CLS70-5R 2 50 3 ——20

170 6R 5CLS70-6R 2 50 3 ——20

200 9R 5CLS70-9R 2 50 3 ——20

230 12R 5CLS70-12R 2 50 4 ——40

390 18R 5CLS70-18R 2 50 4 ——40

450 24R 5CLS70-24R 2 50 4 ——40

600 32R 5CLS70-32R 2 50 4 ——40

650 36R 5CLS70-36R 2 50 4 ——40

700 44R 5CLS70-44R 2 50 4 ——40

5.5 70 2R 5LCLS-2R 1 50 3 14 17.9 11 CLE-NL-D

CLE-DL-D

CLE-DF-D

—

CLE-DF-D

TC51285302 TC51285402 TC66700204

100 3R 5LCLS-3R 1 50 3 14 17.9 11

130 4R 5LCLS-4R 1 50 3 14 17.9 11

150 5R 5LCLS-5R 1 50 3 14 17.9 11

170 6R 5LCLS-6R 1 50 3 14 17.9 11

200 9R 5LCLS-9R 1 50 3 14 17.9 11

230 12R 5LCLS-12R 1 50 3 14 17.9 11

390 18R 5LCLS-18R 2 50 3 14 17.9 22

450 24R 5LCLS-24R 2 50 3 14 17.9 22

8.3 70 2R 8CLS-2R 1 50 3 12 15.9 7 CLE-NL-D

CLE-DL-D

—

CLE-DF-D

TC66700602 TC66700702 TC66700205

100 3R 8CLS-3R 1 50 3 12 15.9 7

130 4R 8CLS-4R 1 50 3 12 15.9 7

150 5R 8CLS-5R 1 50 3 12 15.9 7

170 6R 8CLS-6R 1 50 3 12 15.9 7

200 9R 7CLS-9R 1 50 3 12 15.9 7

230 12R 7CLS-12R 1 50 3 12 15.9 7

7.2 390 18R 7CLS-18R 250 3 12 15.9 16 CLE-NL-E

CLE-DL-E

—

CLE-DF-E

TC66700602 TC66700702 TC66700205

450 24R 7CLS-24R 2 50 3 12 15.9 16

8.3 70 2R 7BCLS-2R 1 50 3 ————TC66700602 TC66700702 TC66740205

100 3R 7BCLS-3R 1 50 3 ———

130 4R 7BCLS-4R 1 50 3 ———

150 5R 7BCLS-5R 1 50 3 ———

170 6R 7BCLS-6R 1 50 3 ———

200 9R 7BCLS-9R 1 50 3 ———

230 12R 7BCLS-12R 1 50 3 ———

7.2 390 18R 7BCLS-18R 2 50 3 ———

450 24R 7BCLS-24R 2 50 3 ———

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-55

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses, continued

Notes

Includes end ﬁttings.

Disconnect only.

Max.

Design

Voltage

(kV)

Current

Rating

(A)

“R”

Designation

Catalog

Number

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter

(Inches)

Clip

Center

(Inches)

Length

(Inches)

Approx.

Shipping

Weight

(Lbs)

Catalog Number Performance Curves

Live

Parts 

End

Fittings 

Minimum

Melting

Time

Total

Clearing

Time

Peak Let-

Through

Current

8.3 70 2R 8ACLS-2R 1 50 3 — 15.9 8 —TC66700602 TC66700702 TC66740205

100 3R 8ACLS-3R 1 50 3 — 15.9 8

130 4R 8ACLS-4R 1 50 3 — 15.9 8

150 5R 8ACLS-5R 1 50 3 — 15.9 8

170 6R 8ACLS-6R 1 50 3 — 15.9 8

7.2 200 9R 7ACLS-9R 1 50 3 — 15.9 8

230 12R 7ACLS-12R 1 50 3 — 15.9 8

390 18R 7ACLS-18R 2 50 3 — 15.9 17

450 24R 7ACLS-24R 2 50 3 — 15.9 17

450 24R 7CLS70-24R 2 50 3 ——20

650 36R 7CLS70-36R 3 50 3 ——30

700 44R 7CLS70-44R 2 50 4 ——40

8.3 15 — 8CLS-15 1 50 3 14 17.9 11 CLE-NL-D

CLE-DL-D

—

CLS-DF-D

TC66664202 TC66664302 TC66679802

30 — 8CLS-30 1 50 3 14 17.9 11

60 — 8CLS-60 1 50 3 14 17.9 11

70 — 8CLS-70 1 50 3 14 17.9 11

90 — 8CLS-90 1 50 3 14 17.9 11

110 — 8CLS-110 1 50 3 14 17.9 11

125 — 8CLS-125 1 50 3 14 17.9 11

150 — 8CLS-150 2 50 3 14 17.9 22 CLE-NL-E

CLE-DL-E

—

CLE-DF-E

TC66664202 TC66664302 TC66679802

200 — 8CLS-200 2 50 3 14 17.9 22

225 — 8CLS-225 2 50 3 14 17.9 22

www.comoso.com

V14-T3-56 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses—Mounting

Maximum

Design

Voltage (kV)

Current

Rating

(Amperes)

“R”

Designation

Catalog

Number

Mounting (Includes Live Parts, End Fittings)

Type

Voltage

(BIL) kV

Catalog Number

Porcelain Glass-Polyester

2.54 25 — 2CLS-25 Non-disconnect

Disconnect

2CLE-PNM-D

2CLE-PDM-D

2CLE-GNM-D

2CLE-GDM-E

70 2R 2CLS-2R

100 3R 2CLS-3R

130 4R 2CLS-4R

150 5R 2CLS-5R

170 6R 2CLS-6R

200 9R 2CLS-9R

230 12R 2CLS-12R

390 18R 2CLS-18R Non-disconnect

Disconnect

2CLE-PNM-E

2CLE-PDME

2CLE-GNM-E

2CLE-GDM-E

450 24R 2CLS-24R

25 — 2ACLS-25 For use with Ampgard 400A motor starters

70 2R 2ACLS-2R

100 3R 2ACLS-3R

130 4R 2ACLS-4R

150 5R 2ACLS-5R

170 6R 2ACLS-6R

200 9R 2ACLS-9R

230 12R 2ACLS-12R

390 18R 2ACLS-18R

450 24R 2ACLS-24R

25 — 2BCLS-25 Bolt-in

70 2R 2BCLS-2R

100 3R 2BCLS-3R

130 4R 2BCLS-4R

150 5R 2BCLS-5R

170 6R 2BCLS-6R

200 9R 2BCLS-9R

230 12R 2BCLS-12R

390 18R 2BCLS-18R

450 24R 2BCLS-24R

25 — 2HCLS-25 Hermetically sealed fuses for use with Ampgard 400A motor starters

70 2R 2HCLS-2R

100 3R 2HCLS-3R

130 4R 2HCLS-4R

150 5R 2HCLS-5R

170 6R 2HCLS-6R

200 9R 2HCLS-9R

230 12R 2HCLS-12R

390 18R 2HCLS-18R

450 24R 2HCLS-24R

5.5 30 — 5CLS-30 Non-disconnect

Disconnect

5HLE-PNM-D

5HLE-PDM-D

5HLE-GNM-D

5HLE-GDM-E

70 2R 5CLS-2R

100 3R 5CLS-3R

130 4R 5CLS-4R

150 5R 5CLS-5R

170 6R 5CLS-6R

200 9R 5CLS-9R

230 12R 5CLS-12R

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-57

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses—Mounting, continued

Maximum

Design

Voltage (kV)

Current

Rating

(Amperes)

“R”

Designation

Catalog

Number

Mounting (Includes Live Parts, End Fittings)

Type

Voltage

(BIL) kV

Catalog Number

Porcelain Glass-Polyester

5.5 390 18R 5CLS-18R Non-disconnect

Disconnect

5HLE-PNM-E

5HLE-PDME

5HLE-GNM-E

5HLE-GDM-E

450 24R 5CLS-24R

5.08 30 — 5ACLS-30 For use with Ampgard 400A motor starters

70 2R 5ACLS-2R

100 3R 5ACLS-3R

130 4R 5ACLS-4R

150 5R 5ACLS-5R

170 6R 5ACLS-6R

200 9R 5ACLS-9R

230 12R 5ACLS-12R

390 18R 5ACLS-18R

450 24R 5ACLS-24R

4.3 480 26R 4ACLS-26R

5.08 30 — 5BCLS-30 Bolt-in

70 2R 5BCLS-2R

100 3R 5BCLS-3R

130 4R 5BCLS-4R

150 5R 5BCLS-5R

170 6R 5BCLS-6R

200 9R 5BCLS-9R

230 12R 5BCLS-12R

390 18R 5BCLS-18R

450 24R 5BCLS-24R

4.3 480 26R 4BCLS-26R

5.08 30 — 5HCLS-30 Hermetically sealed for use with Ampgard 400A motor starters

70 2R 5HCLS-2R

100 3R 5HCLS-3R

130 4R 5HCLS-4R

150 5R 5HCLS-5R

170 6R 5HCLS-6R

200 9R 5HCLS-9R

230 12R 5HCLS-12R

390 18R 5HCLS-18R

450 24R 5HCLS-24R

70 2R 5CLS70-2R For use with Ampgard 800A motor starters

100 3R 5CLS70-3R

130 4R 5CLS70-4R

150 5R 5CLS70-5R

170 6R 5CLS70-6R

200 9R 5CLS70-9R

230 12R 5CLS70-12R

390 18R 5CLS70-18R

450 24R 5CLS70-24R

600 32R 5CLS70-32R

650 36R 5CLS70-36R

700 44R 5CLS70-44R

www.comoso.com

V14-T3-58 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses—Mounting, continued

Maximum

Design

Voltage (kV)

Current

Rating

(Amperes)

“R”

Designation

Catalog

Number

Mounting (Includes Live Parts, End Fittings)

Type

Voltage

(BIL) kV

Catalog Number

Porcelain Glass-Polyester

5.5 70 2R 5LCLS-2R Non-disconnect

Disconnect

5CLE-PNM-D

5CLE-PDM-D

8CLE-PDM-D

5CLE-GNM-D

5CLE-GDM-D

8CLE-GDM-D

100 3R 5LCLS-3R

130 4R 5LCLS-4R

150 5R 5LCLS-5R

170 6R 5LCLS-6R

200 9R 5LCLS-9R

230 12R 5LCLS-12R

390 18R 5LCLS-18R

450 24R 5LCLS-24R

8.3 70 2R 8CLS-2R Non-disconnect

Disconnect

8HLE-PNM-D

8HLE-PDM-D

8HLE-GNM-D

8HLE-GDM-D

100 3R 8CLS-3R

130 4R 8CLS-4R

150 5R 8CLS-5R

170 6R 8CLS-6R

200 9R 7CLS-9R

230 12R 7CLS-12R

7.2 390 18R 7CLS-18R Non-disconnect

Disconnect

8HLE-PDM-E

8HLE-GNM-E

8HLE-GDM-E

450 24R 7CLS-24R

8.3 70 2R 7BCLS-2R Bolt-in

100 3R 7BCLS-3R

130 4R 7BCLS-4R

150 5R 7BCLS-5R

170 6R 7BCLS-6R

200 9R 7BCLS-9R

230 12R 7BCLS-12R

7.2 390 18R 7BCLS-18R

450 24R 7BCLS-24R

8.3 70 2R 8ACLS-2R For use with Ampgard 400A motor starters

100 3R 8ACLS-3R

130 4R 8ACLS-4R

150 5R 8ACLS-5R

170 6R 8ACLS-6R

7.2 200 9R 7ACLS-9R

230 12R 7ACLS-12R

390 18R 7ACLS-18R

450 24R 7ACLS-24R

450 24R 7CLS70-24R For use with Ampgard 800A motor starters

650 36R 7CLS70-36R

700 44R 7CLS70-44R

8.3 15 — 8CLS-15 Non-disconnect

Disconnect

8CLE-PNM-D

8CLE-PDM-D

8CLE-GNM-D

8CLE-GDM-D

30 — 8CLS-30

60 — 8CLS-60

70 — 8CLS-70

90 — 8CLS-90

110 — 8CLS-110

125 — 8CLS-125

150 — 8CLS-150 Non-disconnect

Disconnect

8CLE-PNM-E

8CLE-PDM-E

8CLE-GNM-E

8CLE-GDM-E

200 — 8CLS-200

225 — 8CLS-225

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-59

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

Product Selection

CLS Type

CLS Type Current Limiting Fuses

Maximum

Design

Voltage (kV)

Current

Rating

(Amperes)

“R”

Designation

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak

Let-Through

CurrentApproximate Dimensions in Inches (mm)

2.54 25 — 1 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2CLS-25

70 2R 1 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2CLS-2R

100 3R 1 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2CLS-3R

130 4R 1 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2CLS-4R

150 5R 1 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2CLS-5R

170 6R 1 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2CLS-6R

200 9R 1 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2CLS-9R

230 12R 1 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2CLS-12R

390 18R 2 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 16 (7.26) TC66664702 TC66664704 TC66700202 2CLS-18R

450 24R 2 50 3.00 (76.2) 7.00 (177.8) 10.80 (274.3) 16 (7.26) TC66664702 TC66664704 TC66700202 2CLS-24R

25 — 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2ACLS-25

70 2R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2ACLS-2R

100 3R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2ACLS-3R

130 4R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2ACLS-4R

150 5R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2ACLS-5R

170 6R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2ACLS-6R

200 9R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2ACLS-9R

230 12R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2ACLS-12R

390 18R 2 50 3.00 (76.2) Not applicable 10.80 (274.3) 16 (7.26) TC66664702 TC66664704 TC66700202 2ACLS-18R

450 24R 2 50 3.00 (76.2) Not applicable 10.80 (274.3) 16 (7.26) TC66664702 TC66664704 TC66700202 2ACLS-24R

25 — 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 8 (3.63) TC66664702 TC66664704 TC66700202 2BCLS-25

70 2R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 8 (3.63) TC66664702 TC66664704 TC66700202 2BCLS-2R

100 3R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 8 (3.63) TC66664702 TC66664704 TC66700202 2BCLS-3R

130 4R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 8 (3.63) TC66664702 TC66664704 TC66700202 2BCLS-4R

150 5R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 8 (3.63) TC66664702 TC66664704 TC66700202 2BCLS-5R

170 6R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 8 (3.63) TC66664702 TC66664704 TC66700202 2BCLS-6R

200 9R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 8 (3.63) TC66664702 TC66664704 TC66700202 2BCLS-9R

230 12R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 8 (3.63) TC66664702 TC66664704 TC66700202 2BCLS-12R

390 18R 2 50 3.00 (76.2) Not applicable 10.80 (274.3) 17 (7.72) TC66664702 TC66664704 TC66700202 2BCLS-18R

450 24R 2 50 3.00 (76.2) Not applicable 10.80 (274.3) 17 (7.72) TC66664702 TC66664704 TC66700202 2BCLS-24R

25 — 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2HCLS-25

70 2R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2HCLS-2R

100 3R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2HCLS-3R

130 4R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2HCLS-4R

150 5R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2HCLS-5R

170 6R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2HCLS-6R

200 9R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2HCLS-9R

230 12R 1 50 3.00 (76.2) Not applicable 10.80 (274.3) 7 (3.18) TC66664702 TC66664704 TC66700202 2HCLS-12R

390 18R 2 50 3.00 (76.2) Not applicable 10.80 (274.3) 16 (7.26) TC66664702 TC66664704 TC66700202 2HCLS-18R

450 24R 2 50 3.00 (76.2) Not applicable 10.80 (274.3) 16 (7.26) TC66664702 TC66664704 TC66700202 2HCLS-24R

www.comoso.com

V14-T3-60 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses, continued

Maximum

Design

Voltage (kV)

Current

Rating

(Amperes)

“R”

Designation

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak

Let-Through

CurrentApproximate Dimensions in Inches (mm)

5.08 30 — 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5CLS-30

70 2R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5CLS-2R

100 3R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5CLS-3R

130 4R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5CLS-4R

150 5R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5CLS-5R

170 6R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5CLS-6R

200 9R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5CLS-9R

230 12R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5CLS-12R

390 18R 2 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 5CLS-18R

450 24R 2 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 5CLS-24R

5.08 30 — 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5ACLS-30

70 2R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5ACLS-2R

100 3R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5ACLS-3R

130 4R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5ACLS-4R

150 5R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5ACLS-5R

170 6R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5ACLS-6R

200 9R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5ACLS-9R

230 12R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5ACLS-12R

390 18R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 5ACLS-18R

450 24R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 5ACLS-24R

4.3 480 26R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 4ACLS-26R

5.08 30 — 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5BCLS-30

70 2R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5BCLS-2R

100 3R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5BCLS-3R

130 4R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5BCLS-4R

150 5R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5BCLS-5R

170 6R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5BCLS-6R

200 9R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5BCLS-9R

230 12R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5BCLS-12R

390 18R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 5BCLS-18R

450 24R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 5BCLS-24R

4.3 480 26R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 4BCLS-26R

5.08 30 — 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5HCLS-30

70 2R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5HCLS-2R

100 3R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5HCLS-3R

130 4R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5HCLS-4R

150 5R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5HCLS-5R

170 6R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5HCLS-6R

200 9R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5HCLS-9R

230 12R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66690602 TC66690702 TC66700203 5HCLS-12R

390 18R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 5HCLS-18R

450 24R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66690602 TC66690702 TC66700203 5HCLS-24R

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-61

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses, continued

Maximum

Design

Voltage (kV)

Current

Rating

(Amperes)

“R”

Designation

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak

Let-Through

CurrentApproximate Dimensions in Inches (mm)

5.08 70 2R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 20 (9.08) TC66690602 TC66690702 TC66700203 5CLS70-2R

100 3R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 20 (9.08) TC66690602 TC66690702 TC66700203 5CLS70-3R

130 4R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 20 (9.08) TC66690602 TC66690702 TC66700203 5CLS70-4R

150 5R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 20 (9.08) TC66690602 TC66690702 TC66700203 5CLS70-5R

170 6R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 20 (9.08) TC66690602 TC66690702 TC66700203 5CLS70-6R

200 9R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 20 (9.08) TC66690602 TC66690702 TC66700203 5CLS70-9R

230 12R 2 50 4.00 (101.6) Not applicable 15.90 (403.9) 40 (18.16) TC66690602 TC66690702 TC66700203 5CLS70-12R

390 18R 2 50 4.00 (101.6) Not applicable 15.90 (403.9) 40 (18.16) TC66690602 TC66690702 TC66700203 5CLS70-18R

450 24R 2 50 4.00 (101.6) Not applicable 15.90 (403.9) 40 (18.16) TC66690602 TC66690702 TC66700203 5CLS70-24R

600 32R 2 50 4.00 (101.6) Not applicable 15.90 (403.9) 40 (18.16) TC66690602 TC66690702 TC66700203 5CLS70-32R

650 36R 2 50 4.00 (101.6) Not applicable 15.90 (403.9) 40 (18.16) TC66690602 TC66690702 TC66700203 5CLS70-36R

700 44R 2 50 4.00 (101.6) Not applicable 15.90 (403.9) 40 (18.16) TC66690602 TC66690702 TC66700203 5CLS70-44R

5.5 70 2R 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC51285302 TC51285402 TC66700204 5LCLS-2R

100 3R 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC51285302 TC51285402 TC66700204 5LCLS-3R

130 4R 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC51285302 TC51285402 TC66700204 5LCLS-4R

150 5R 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC51285302 TC51285402 TC66700204 5LCLS-5R

170 6R 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC51285302 TC51285402 TC66700204 5LCLS-6R

200 9R 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC51285302 TC51285402 TC66700204 5LCLS-9R

230 12R 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC51285302 TC51285402 TC66700204 5LCLS-12R

390 18R 2 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 22 (9.99) TC51285302 TC51285402 TC66700204 5LCLS-18R

450 24R 2 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 22 (9.99) TC51285302 TC51285402 TC66700204 5LCLS-24R

8.3 70 2R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66700205 8CLS-2R

100 3R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66700205 8CLS-3R

130 4R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66700205 8CLS-4R

150 5R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66700205 8CLS-5R

170 6R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66700205 8CLS-6R

7.2 200 9R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66700205 7CLS-9R

230 12R 1 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66700205 7CLS-12R

390 18R 2 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 16 (7.26) TC66700602 TC66700702 TC66700205 7CLS-18R

450 24R 2 50 3.00 (76.2) 12.00 (304.8) 15.90 (403.9) 16 (7.26) TC66700602 TC66700702 TC66700205 7CLS-24R

8.3 70 2R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66740205 7BCLS-2R

100 3R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66740205 7BCLS-3R

130 4R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66740205 7BCLS-4R

150 5R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66740205 7BCLS-5R

170 6R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66740205 7BCLS-6R

7.2 200 9R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66740205 7BCLS-9R

230 12R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 7 (3.18) TC66700602 TC66700702 TC66740205 7BCLS-12R

390 18R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 16 (7.26) TC66700602 TC66700702 TC66740205 7BCLS-18R

450 24R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 16 (7.26) TC66700602 TC66700702 TC66740205 7BCLS-24R

8.3 70 2R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66700602 TC66700702 TC66740205 8ACLS-2R

100 3R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66700602 TC66700702 TC66740205 8ACLS-3R

130 4R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66700602 TC66700702 TC66740205 8ACLS-4R

150 5R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66700602 TC66700702 TC66740205 8ACLS-5R

170 6R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66700602 TC66700702 TC66740205 8ACLS-6R

www.comoso.com

V14-T3-62 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Current Limiting Fuses, continued

Maximum

Design

Voltage (kV)

Current

Rating

(Amperes)

“R”

Designation

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Diameter

Clip

Center Length Approximate

Shipping

Weight Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting Time

Total

Clearing Time

Peak

Let-Through

CurrentApproximate Dimensions in Inches (mm)

7.2 200 9R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66700602 TC66700702 TC66740205 7ACLS-9R

230 12R 1 50 3.00 (76.2) Not applicable 15.90 (403.9) 8 (3.63) TC66700602 TC66700702 TC66740205 7ACLS-12R

390 18R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66700602 TC66700702 TC66740205 7ACLS-18R

450 24R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 17 (7.72) TC66700602 TC66700702 TC66740205 7ACLS-24R

450 24R 2 50 3.00 (76.2) Not applicable 15.90 (403.9) 20 (9.08) TC66700602 TC66700702 TC66740205 7CLS70-24R

650 36R 3 50 3.00 (76.2) Not applicable 15.90 (403.9) 30 (13.62) TC66700602 TC66700702 TC66740205 7CLS70-36R

700 44R 2 50 4.00 (101.6) Not applicable 15.90 (403.9) 40 (18.16) TC66700602 TC66700702 TC66740205 7CLS70-44R

8.3 15 Not applicable 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC66664202 TC66664302 TC66679802 8CLS-15

30 Not applicable 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC66664202 TC66664302 TC66679802 8CLS-30

60 Not applicable 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC66664202 TC66664302 TC66679802 8CLS-60

70 Not applicable 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC66664202 TC66664302 TC66679802 8CLS-70

90 Not applicable 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC66664202 TC66664302 TC66679802 8CLS-90

110 Not applicable 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC66664202 TC66664302 TC66679802 8CLS-110

125 Not applicable 1 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 11 (4.99) TC66664202 TC66664302 TC66679802 8CLS-125

150 Not applicable 2 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 22 (9.99) TC66664202 TC66664302 TC66679802 8CLS-150

200 Not applicable 2 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 22 (9.99) TC66664202 TC66664302 TC66679802 8CLS-200

225 Not applicable 2 50 3.00 (76.2) 14.00 (355.6) 17.90 (454.7) 22 (9.99) TC66664202 TC66664302 TC66679802 8CLS-225

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-63

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

Dimensions

Approximate Dimensions in Inches (mm)

CLS Type Fuse

5BCLS and 7BCLS Type Fuses

2BCLS Type Fuse

10.81 (274.6) 0.06 for 2CLS

15.85 (402.6) 0.06 for 5, 7 and 8CLS

3.31

(84.1) Ref.

3.00

(76.2) Dia. Ref.

10.81 (274.6) 0.06 for 2CLS

15.85 (402.6) 0.06 for 5, 7 and 8CLS

3.00

(76.2)

Ref. 19.25

(488.9)

17.88

(454.2)

17.88

(454.2)

0.06

19.25

(488.9) Ref.

0.455 (11.6) Dia. x 0.91 Slot (4)

2.12

(53.8) 1.53

(38.9)

3.31

(84.1)

2.12

(53.8)

3.00

(76.2)

Ref.

3.00

(76.2)

Ref. 19.25

(488.9)

17.88

(454.2)

17.88

(454.2)

0.06

19.25

(488.9) Ref.

0.455 (11.6) Dia. x 0.91 Slot (4)

2.12

(53.8) 1.53

(38.9)

3.31

(84.1)

2.12

(53.8)

3.00

(76.2)

Ref.

www.comoso.com

V14-T3-64 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.6

Current Limiting Fuses

ACLS, BCLS, CLS, HCLS and NCLS Type Fuses

CLS Type Mountings and Hardware

Note

Disconnect only.

Maximum

Design

Voltage (kV)

Ampere

Rating

Fuse Mounting

Type

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings)

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

2.54 25–230 Non-disconnect 60 2CLE-PNM-D 2CLE-GNM-D CLE-NL-D —

Disconnect 60 2CLE-PDM-D 2CLE-GDM-E CLE-DL-D CLE-DF-D

390–450 Non-disconnect 60 2CLE-PNM-E 2CLE-GNM-E CLE-NL-E —

Disconnect 60 2CLE-PDM-E 2CLE-GDM-E CLE-DL-E CLE-DF-E

5.5 (CLS) 30–230 Non-disconnect 60 5HLE-PNM-D 5HLE-GNM-D CLE-NL-D —

Disconnect 60 5HLE-PDM-D 5HLE-GDM-E CLE-DL-D CLE-DF-D

390–480 Non-disconnect 60 5HLE-PNM-E 5HLE-GNM-E CLE-NL-E —

Disconnect 60 5HLE-PDM-E 5HLE-GDM-E CLE-DL-E CLE-DF-E

5.5 (LCLS) 70–230 Non-disconnect 60 5CLE-PNM-D 5CLE-GNM-D CLE-NL-D —

Disconnect 60 5CLE-PDM-D 5CLE-GDM-D CLE-DL-D CLE-DF-D

75 8CLE-PDM-D 8CLE-GDM-D CLE-DL-D CLE-DF-D

390–450 Non-disconnect 60 5CLE-PNM-E 5CLE-GNM-E CLE-NL-E —

Disconnect 60 5CLE-PDM-E 5CLE-GDM-E CLE-DL-E CLE-DF-E

75 8CLE-PDM-E 8CLE-PDM-E CLE-DL-E CLE-DF-E

8.3 70–100 Non-disconnect 75 8HLE-PNM-D 8HLE-GNM-D CLE-NL-D —

130–230 Disconnect 75 8HLE-PDM-D 8HLE-GDM-D CLE-DL-D CLE-DF-D

7.2 390–450 Non-disconnect 75 8HLE-PDM-E 8HLE-GNM-E CLE-NL-E —

Disconnect 75 8HLE-PDM-E 8HLE-GDM-E CLE-DL-E CLE-DF-E

8.3 15–30 Non-disconnect 75 8CLE-PNM-D 8CLE-GNM-D CLE-NL-D —

60–125 Disconnect 75 8CLE-PDM-D 8CLE-GDM-D CLE-DL-D CLS-DF-D

150–225 Non-disconnect 75 8CLE-PNM-E 8CLE-GNM-E CLE-NL-E —

Disconnect 75 8CLE-PDM-E 8CLE-GDM-E CLE-DL-E CLE-DF-E

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-65

3.7

Current Limiting Fuses

CLT Type Fuses

CLT Fuse Contents

Description Page

CLT Type Fuses

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T3-66

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-66

CLT Type Fuses

Applications

Eaton’s CLT fuses are

designed specifically to

provide fault protection on

high capacity indoor and

underground distribution

systems. These general

purpose current limiting

fuses meet or exceed C37

standards for this class of

distribution fuse. CLT fuses

may be used in conjunction

with EFD load break switches

that meet the full switching

requirements of underground

distribution systems using

pad-mounted transformers.

In addition, CLT fuses may be

applied in pad-mounted

transformer drawout wells or

in conjunction with LBOR oil

switches as a means of low-

cost transformer protection.

Fuse Ratings Available

CLT Features

CLT type current limiting

fuses offer a number of

desirable advantages.

Consider the following during

the selection process:

●Quiet Safe Operation:

CLT fuses are non-

indicating and will clear

all currents from minimum

melting to maximum

interrupting rating without

any external disturbance or

expulsion of gas

●Limits Fault Current Let-

Through: The let-through

current for a high short-

circuit fault is limited to a

value far below the

available peak current

because the current is

forced to zero before the

end of the ﬁrst half cycle

●Arc-Voltage Protection:

CLT fuses control the arc

voltage that is produced

during current limitation to

less than three times the

normal operating voltage

rating

●Maintains Non-

Conductance After

Interruption: Specially

designed cores prevent

internal ﬂash through

when rated voltage

remains across the fuse

after interruption

●Low-Cost Transformer

Protection: The CLT fuse

can be used in EFD load

break switches and dry

well drawout holders

Construction and Operation

CLT fuses are constructed with

pure silver fuse elements, high

purity silica sand fill with

controlled grain size, a specially

designed core, and a glass-

epoxy outer casing.

During a high fault current, the

silver element(s) melts almost

instantly losing energy to the

surrounding sand. The energy

melts the sand forming a glass-

like substance commonly

referred to as “fulgurite.” The

arc voltage rapidly increases to

about three times the fuse

voltage rating, forcing the

current to zero. The fault

current is interrupted in one-half

cycle or less without noise or

expulsion of gases.

Current limiting action occurs

only when the current is above

the threshold current for the

fuse, that is, the current is high

enough to melt the fuse

element(s) before the peak

value of current is reached in

the first half cycle.

Low level currents are cleared

by the melting of a tin solder

drop on the fuse element that

in turn causes the silver

element to melt. This is called

the M-effect. The silver

element then burns back until

there is sufficient internal gap

to interrupt the current.

Ratings and Selection

When a decision has been

made to use current limiting

fuses, the minimum amount

of information required to

make the proper selection is:

●Voltage rating

●Current rating

●Interrupting rating

●Mounting method

See the table on Page

V14-T3-66 for assistance

in selecting the correct fuse

catalog number.

These types of fuses are

designed specifically to

provide fault protection on

high capacity indoor and

underground distribution

systems.

Voltage (kV) Amperes

2.75 5–150

5.5 8–60

8.3 5–45

14.4 30

15.5 4–18

www.comoso.com

V14-T3-66 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.7

Current Limiting Fuses

CLT Type Fuses

Product Selection

CLT Type Current Limiting Fuses

Dimensions

Approximate Dimensions in Inches (mm).

The drawing below specifies certain dimensions and references other dimensions.

Refer to the table above for the referenced dimensions of particular CLT type fuses.

CLT Type Fuse

Maximum

Design

Voltage (kV)

Current Rating

(Amperes)

Catalog

Number

Barrel

Number

Interrupting

Rating

rms (kA Sym.)

Approx.

Diameter

in (mm) Length (Inches)

Approx.

Shipping

Weight (Lbs)

Performance Curves

Minimum

Melting Time

Total Clearing

Time

Peak Let-

Through

Current

2.75 5 2CLT-5 1 25 1.60 (40.6) 9.70 (246.4) 1.25 TC59885801 TC66675901 TC62909001

12 2CLT-12 1 25 1.60 (40.6) 9.70 (246.4) 1.25

18 2CLT-18 1 25 1.60 (40.6) 9.70 (246.4) 1.25

25 2CLT-25 1 25 1.60 (40.6) 9.70 (246.4) 1.25

30 2CLT-30 1 25 1.60 (40.6) 9.70 (246.4) 1.25

75 2CLT-75 1 25 1.60 (40.6) 9.70 (246.4) 1.25

90 2CLT-90 1 25 2.25 (57.1) 9.76 (248.0) 2.5

150 2CLT-150 1 25 2.25 (57.1) 9.76 (248.0) 2.5

5.5 8 5CLT-8 1 25 1.60 (40.6) 9.70 (246.4) 1.25 TC59885803 TC66675903 TC62909002

12 5CLT-12 1 25 1.60 (40.6) 9.70 (246.4) 1.25

18 5CLT-18 1 25 1.60 (40.6) 9.70 (246.4) 1.25

25 5CLT-25 1 25 1.60 (40.6) 9.70 (246.4) 1.25

30 5CLT-30 1 25 2.25 (57.1) 9.76 (248.0) 2.5

45 5CLT-45 1 25 2.25 (57.1) 9.76 (248.0) 2.5

60 5CLT-60 1 25 2.25 (57.1) 9.76 (248.0) 2.5

8.3 5 8CLT-5 1 25 1.60 (40.6) 9.70 (246.4) 1.25 TC59885805 TC66675905 TC62909003

88CLT-8 1 25 1.60 (40.6) 9.70 (246.4) 1.25

12 8CLT-12 1 25 1.60 (40.6) 9.70 (246.4) 1.25

18 8CLT-18 1 25 1.60 (40.6) 9.70 (246.4) 1.25

25 8CLT-25 1 25 1.60 (40.6) 9.70 (246.4) 1.25

30 8CLT-30 1 25 1.60 (40.6) 11.00 (279.4) 1.25

30 8CLT-30 1 25 2.25 (57.1) 9.76 (248.0) 2.5

45 8CLT-45 1 25 2.25 (57.1) 9.76 (248.0) 2.5

15.5 4 15CLT-4 1 25 2.25 (57.1) 9.76 (248.0) 2.5 TC59885701 TC66676001 TC63942701

515CLT-5 1 25 2.25 (57.1) 9.76 (248.0) 2.5

815CLT-8 125 2.25 (57.1) 9.76 (248.0) 2.5

12 15CLT-12 1 25 2.25 (57.1) 9.76 (248.0) 2.5

18 15CLT-18 1 25 2.25 (57.1) 9.76 (248.0) 2.5

14.4 30 15CLT-30 1 25 2.25 (57.1) 9.76 (248.0) 2.5 TC59885701 TC66676001 TC63942701

0.250-20 (6.3-5.1) Threads (Both Ends)

0.62

(15.7)

0.62

(15.7)

Length

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-67

3.8

Current Limiting Fuses

CX, CXI and CXN Type Fuses

Eaton CX Fuses Contents

Description Page

CX, CXI and CXN Type Fuses

CXN Construction . . . . . . . . . . . . . . . . . . . . . . . V14-T3-68

CXN Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-68

CX Construction and Operation . . . . . . . . . . . . . V14-T3-68

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T3-69

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-T3-75

CX, CXI and CXN Type Fuses

Applications

Eaton’s CX, CXI and CXN

general purpose current

limiting fuses are designed

specifically to provide

complete fault protection on

high capacity indoor and

underground distribution

systems. These fuses are

C-rated and exceed the

requirements of C37

standards for general

purpose distribution

current limiting fuses.

●Pad-mounted and

submersible three-phase

and single-phase

transformers

●Pad-mounted and

submersible switch and

fuse units

●Station service protection

●Primary switch and fuse

units on mine rectiﬁers

Note: CXI fuses are not suitable

for submersible applications.

CXN fuses are applied in:

●Power transformer

protection

●Power centers

●Load interrupters

●Feeder circuit protection

●Mine rectiﬁers

CX, CXI and CXN Features

CX and CXN type current

limiting fuses offer a number

of desirable advantages.

Consider the following during

the selection process:

●Quiet Safe Operation: CX

and CXN fuses are non-

indicating devices—CXI

fuses are indicating

devices. These fuses will

clear all currents from their

minimum melting current

to their maximum

interrupting rating without

any external disturbance or

expulsion of gas

●Limits Fault Current Let-

Through: The let-through

current for a high short-

circuit fault is limited to a

value far below the

available peak current

because the current is

forced to zero before the

end of the ﬁrst half cycle

●Arc-Voltage Protection:

CX and CXN fuses control

the arc voltage that is

produced during current

limitation to less than three

times the normal operating

voltage rating

●Maintains Non-

Conductance After

Interruption: An inorganic

core with spaced arc

guards prevent internal

ﬂash through when rated

voltage remains across the

fuse after interruption

●Fits Many Mountings: CX

and CXN fuses can be

used in disconnect and

non-disconnect mountings.

CX fuses can be used in

EFD load break switches

through 8.3 kV and dry well

drawout fuse holders

●Interchangeable: CX and

CXI fuses are a direct

replacement for

competitive general

purpose distribution class

current limiting fuses

www.comoso.com

V14-T3-68 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.8

Current Limiting Fuses

CX, CXI and CXN Type Fuses

CXN Construction

CXN type fuses are

constructed with pure silver

fuse elements, high purity

silica sand filler with

controlled grain size, an

inorganic core with spaced

arc suppressors, and a glass

melamine or glass epoxy

outer casing.

The end studs of CXN fuses

are identical to the CX type.

However, CXN fuses have a

much higher C-rating, are

longer in physical length and

larger in diameter. The

diameters are 3 or 4 inches

depending on the ratings.

CXN Ratings

The C-rating range is from

60C to 300C at 8.3 kV, with

some ratings including 300C

being achieved by paralleling

two (2) 150C single barrel

fuses.

At 15 kV, the ranges are 45C

to 175C, with 120C, 150C

and 175C being achieved by

paralleling single barrel fuses.

The tested and approved

parallel ratings are specified

in the product selection

tables.

CX Construction and Operation

CX and CXI type fuses are

constructed with pure silver

fuse elements, high purity

silica sand filler with

controlled grain size, an

inorganic core with spaced

arc suppressors, and a glass

melamine or glass epoxy

outer casing.

During a high fault current,

the silver element(s) melts

almost instantly losing energy

to the surrounding sand. The

energy melts the sand

forming a glass-like

substance commonly

referred to as “fulgurite.” The

arc voltage rapidly increases

to about three times the fuse

voltage rating, forcing the

current to zero. The fault

current is interrupted in one-

half cycle or less without

noise or expulsion of gases.

Current limiting action occurs

only when the current is

above the threshold current

for the fuse, that is, the

current is high enough to

melt the fuse elements)

before the peak value of

current is reached in the first

half cycle.

Low level currents are

cleared by the melting of a tin

solder drop on the fuse

element that in turn causes

the silver element to melt.

This is called the M-effect.

The silver element then burns

back until there is sufficient

internal gap to interrupt the

current.

In some instances where the

required C-rating exceeds the

limits of CX fuses, it is

possible to move the live

parts to accommodate the

longer CXN fuse, and where

space and clearances present

no problem, the larger CXN

fuse can be substituted for a

CX fuse.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-69

3.8

Current Limiting Fuses

CX, CXI and CXN Type Fuses

Product Selection

CX Type

CX Type Current Limiting Fuses 4.3 kV Maximum (2.4 kV Nominal)

CX Type Mountings and Hardware 4.3 kV Maximum (2.4 kV Nominal)

Notes

 See Page V14-T3-38 for diagram of typical mounting.



End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Fuse

Mounting

Code

Diameter Length Approximate

Shipping

Weight

Lbs (kg)

Performance Curves

I2t

Catalog

Number

Minimum

Melting

Time

Total

Clearing

Time

Peak

Let-Through

Current

Approximate Dimensions

in Inches (mm)

Non-Indicating

18C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544101 TC70544501 TC70544901 TC70545101 4CX-18C

25C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544101 TC70544501 TC70544901 TC70545101 4CX-25C

35C 1 50 G 2.00 (50.8) 10.00 (254.0) 1 (0.45) TC70544101 TC70544501 TC70544901 TC70545101 4CX-35C

45C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544101 TC70544501 TC70544901 TC70545101 4CX-45C

50C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544101 TC70544501 TC70544901 TC70545101 4CX-50C

60C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544502 TC70544901 TC70545101 4CX-60C

65C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544501 TC70544901 TC70545101 4CX-65C

75C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544501 TC70544901 TC70545101 4CX-75C

80C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544502 TC70544901 TC70545101 4CX-80C

100C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544501 TC70544901 TC70545101 4CX-100C

Indicating

18C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544101 TC70544501 TC70544901 TC70545101 4CXI-18C

25C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544101 TC70544501 TC70544901 TC70545101 4CXI-25C

35C 1 50 G 2.00 (50.8) 10.00 (254.0) 1 (0.45) TC70544101 TC70544501 TC70544901 TC70545101 4CXI-35C

45C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544101 TC70544501 TC70544901 TC70545101 4CXI-45C

50C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544101 TC70544501 TC70544901 TC70545101 4CXI-50C

60C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544502 TC70544901 TC70545101 4CXI-60C

65C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544501 TC70544901 TC70545101 4CXI-65C

75C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544501 TC70544901 TC70545101 4CXI-75C

80C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544502 TC70544901 TC70545101 4CXI-80C

100C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544102 TC70544501 TC70544901 TC70545101 4CXI-100C

Ampere

Rating

Fuse Mounting

Type Size

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

18C–100C Non-disconnect A 60 — 5CX-GNM-G CX-NL —

Disconnect A 60 — 5CX-GDM-G CX-DL CX-DF

CX Type

www.comoso.com

V14-T3-70 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.8

Current Limiting Fuses

CX, CXI and CXN Type Fuses

CX Type Current Limiting Fuses 5.5 kV Maximum (4.8 kV Nominal)

CX Type Mountings and Hardware 5.5 kV Maximum (4.8 kV Nominal)

Notes

 See Page V14-T3-38 for diagram of typical mounting.



End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Fuse

Mounting

Code

Diameter Length Approximate

Shipping

Weight

Lbs (kg)

Performance Curves

I2t

Catalog

Number

Minimum

Melting

Time

Total

Clearing

Time

Peak

Let-Through

Current

Approximate Dimensions

in Inches (mm)

Non-Indicating

10C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CX-10C

12C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CX-12C

18C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CX-18C

20C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CX-20C

21C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544202 TC70544602 TC70544902 TC70545201 5CX-21C

25C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CX-25C

30C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CX-30C

35C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544202 TC70544602 TC70544902 TC70545201 5CX-35C

40C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CX-40C

50C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CX-50C

60C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544202 TC70544602 TC70544902 TC70545201 5CX-60C

65C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CX-65C

75C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CX-75C

Indicating

10C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-10C

12C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-12C

18C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-18C

20C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-20C

21C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544202 TC70544602 TC70544902 TC70545201 5CXI-21C

25C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-25C

30C 1 50 G 1.13 (28.7) 10.00 (254.0) 1 (0.45) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-30C

35C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544202 TC70544602 TC70544902 TC70545201 5CXI-35C

40C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-40C

50C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-50C

60C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544202 TC70544602 TC70544902 TC70545201 5CXI-60C

65C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-65C

75C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544201 TC70544601 TC70544902 TC70545201 5CXI-75C

Ampere

Rating

Fuse Mounting

Type Size

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

10C–75C Non-disconnect A 60 — 5CX-GNM-G CX-NL —

Disconnect A 60 — 5CX-GDM-G CX-DL CX-DF

CX Type

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-71

3.8

Current Limiting Fuses

CX, CXI and CXN Type Fuses

CX Type Current Limiting Fuses 8.3 kV Maximum (7.2 kV Nominal)

CX Type Mountings and Hardware 8.3 kV Maximum (7.2 kV Nominal)

Notes

 See Page V14-T3-38 for diagram of typical mounting.



End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Fuse

Mounting

Code

Diameter Length Approximate

Shipping

Weight

Lbs (kg)

Performance Curves

I2t

Catalog

Number

Minimum

Melting

Time

Total

Clearing

Time

Peak

Let-Through

Current

Approximate Dimensions

in Inches (mm)

Non-Indicating

3.5C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CX-3.5C

4C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CX-4C

4.5C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-4.5C

6C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-6C

7C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CX-7C

8C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-8C

10C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-10C

12C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-12C

15C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CX-15C

18C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-18C

20C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-20C

25C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-25C

30C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-30C

35C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CX-35C

40C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CX-40C

Indicating

3.5C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CXI-3.5C

4C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CXI-4C

4.5C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-4.5C

6C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-6C

7C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CXI-7C

8C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-8C

10C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-10C

12C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-12C

15C 1 50 G 1.13 (28.7) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CXI-15C

18C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-18C

20C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-20C

25C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-25C

30C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-30C

35C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544302 TC70544702 TC70545001 TC70545301 8CXI-35C

40C 1 50 G 2.00 (50.8) 10.00 (254.0) 2 (0.91) TC70544301 TC70544701 TC70545001 TC70545301 8CXI-40C

Ampere

Rating

Fuse Mounting

Type Size

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

3.5C–40C Non-disconnect B 75 — 8CX-GNM-G CX-NL —

Disconnect B 75 — 8CX-GDM-G CX-DL CX-DF

CX Type

www.comoso.com

V14-T3-72 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.8

Current Limiting Fuses

CX, CXI and CXN Type Fuses

CX Type Current Limiting Fuses 15.5 kV Maximum (14.4 kV Nominal)

CX Type Mountings and Hardware 15.5 kV Maximum (14.4 kV Nominal)

Notes

 See Page V14-T3-38 for diagram of typical mounting.



End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Barrel

Number

Interrupting

Rating rms

(kA Sym.)

Fuse

Mounting

Code

Diameter Length Approximate

Shipping

Weight

Lbs (kg)

Performance Curves

I2t

Catalog

Number

Minimum

Melting

Time

Total

Clearing

Time

Peak

Let-Through

Current

Approximate Dimensions

in Inches (mm)

Non-Indicating

4C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-4C

6C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-6C

7C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544402 TC70544802 TC70545002 TC70545401 15CX-7C

8C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-8C

10C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-10C

12C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-12C

15C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544402 TC70544802 TC70545002 TC70545401 15CX-15C

18C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-18C

20C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-20C

25C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-25C

30C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-30C

40C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CX-40C

Indicating

4C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-4C

6C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-6C

7C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544402 TC70544802 TC70545002 TC70545401 15CXI-7C

8C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-8C

10C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-10C

12C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-12C

15C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544402 TC70544802 TC70545002 TC70545401 15CXI-15C

18C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-18C

20C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-20C

25C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-25C

30C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-30C

40C 1 50 G 2.00 (50.8) 14.30 (363.2) 2 (0.91) TC70544401 TC70544801 TC70545002 TC70545401 15CXI-40C

Ampere

Rating

Fuse Mounting

Type Size

Voltage

BIL (kV)

Mounting

(Including Live Parts, End Fittings) 

Live Parts

(Including End Fittings) 

End Fittings

(Disconnect Only)

Porcelain Insulator Glass-Polyester Insulator

Catalog Number Catalog Number Catalog Number Catalog Number

4C–40C Non-disconnect C 95 — 15CX-GNM-G CX-NL —

Disconnect C 95 — 15CX-GDM-G CX-DL CX-DF

CX Type

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-73

3.8

Current Limiting Fuses

CX, CXI and CXN Type Fuses

CXN Type

CXN Type Current Limiting Fuses 8.3 kV Maximum (7.2 kV Nominal)

CXN Type Mountings and Hardware 8.3 kV Maximum (7.2 kV Nominal)

Notes

 See Page V14-T3-38 for diagram of typical mounting.



End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Barrel

Number

Interrupting

Rating

rms (kA Sym.)

Diameter Length Approximate

Shipping

Weight

Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting

Time

Total

Clearing

Time

Peak

Let-Through

Current

Approximate Dimensions

in Inches (mm)

60C 1 50 3.00 (76.2) 18.80 (477.5) 8 (3.63) TC66675102 TC66675202 TC66664902 8CXN-60C

100C 1 50 3.00 (76.2) 18.80 (477.5) 8 (3.63) TC66675102 TC66675202 TC66664902 8CXN-100C

125C 1 50 4.00 (101.6) 18.80 (477.5) 14 (6.36) TC66675102 TC66675202 TC66664902 8CXN-125C

150C 1 50 4.00 (101.6) 18.80 (477.5) 14 (6.36) TC66675102 TC66675202 TC66664902 8CXN-150C

200C 1 50 4.00 (101.6) 18.80 (477.5) 14 (6.36) TC66675102 TC66675202 TC66664902 8CXN-200C

250C 1 50 4.00 (101.6) 18.80 (477.5) 14 (6.36) TC66675102 TC66675202 TC66664902 8CXN-250C

120C 2 50 3.00 (76.2) 18.80 (477.5) 16 (7.26) TC66675104 TC66675204 TC66664902 2 X 60C 8CXN-120C

200C 2 50 3.00 (76.2) 18.80 (477.5) 16 (7.26) TC66675104 TC66675204 TC66664902 2 X 100C 8CXN-200C

250C 2 50 3.00 (76.2) 18.80 (477.5) 16 (7.26) TC66675104 TC66675204 TC66664902 2 X 125C 8CXN-250C

300C 2 50 4.00 (101.6) 18.80 (477.5) 28 (12.71) TC66675104 TC66675204 TC66664902 2 X 150C 8CXN-300C

Ampere Rating

Fuse Mounting

Type 

Voltage

LIWL (BIL)

Glass Polyester Insulator Mounting

(Including Live Parts, End Fittings) Live Parts 

End Fittings

(Disconnect Only)

Catalog Number Catalog Number Catalog Number

60C–100C

Single barrel

Non-disconnect 95 15CXN-GNM-D 15CXN-NL-D —

Non-disconnect 95 15CXN-GNM-G 15CXN-NL-G —

Disconnect 95 15CXN-GDM-G 15CXN-DL-G 15CXN-DF-G

125C–250C

Single barrel

Non-disconnect 95 15CXN-GNM-F 15CXN-NL-F —

Non-disconnect 95 15CXN-GNM-G 15CXN-NL-G —

Disconnect 95 25CXN-GDM-G 15CXN-DL-G 15CXN-DF-G

120C, 200C

Double barrel

Non-disconnect 95 15CXN-GNM-D 15CXN-NL-D —

250C, 300C

Double barrel

Non-disconnect 95 15CXN-GNM-F 15CXN-NL-F —

Type CXN

www.comoso.com

V14-T3-74 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.8

Current Limiting Fuses

CX, CXI and CXN Type Fuses

CXN Type Current Limiting Fuses 15.5 kV Maximum (14.4 kV Nominal)

CXN Type Mountings and Hardware 15.5 kV Maximum (14.4 kV Nominal)

Notes

 See Page V14-T3-38 for diagram of typical mounting.



End ﬁttings supplied only when required.

Current

Rating

(Amperes)

Barrel

Number

Interrupting

Rating

rms (kA Sym.)

Diameter Length Approximate

Shipping

Weight

Lbs (kg)

Performance Curves

Catalog

Number

Minimum

Melting

Time

Total

Clearing

Time

Peak

Let-Through

Current

Approximate Dimensions

in Inches (mm)

45C 1 50 3.00 (76.2) 18.80 (477.5) 8 (3.63) TC66674802 TC66675002 TC66665002 15CXN-45C

60C 1 50 3.00 (76.2) 18.80 (477.5) 8 (3.63) TC66674802 TC66675002 TC66665002 15CXN-60C

75C 1 50 4.00 (101.6) 18.80 (477.5) 14 (6.36) TC66674802 TC66675002 TC66665002 15CXN-75C

85C 1 50 4.00 (101.6) 18.80 (477.5) 14 (6.36) TC66674802 TC66675002 TC66665002 15CXN-85C

100C 1 50 4.00 (101.6) 18.80 (477.5) 14 (6.36) TC66674802 TC66675002 TC66665002 15CXN-100C

90C 2 50 3.00 (76.2) 18.80 (477.5) 16 (7.26) TC66674804 TC66675004 TC66665002 2 X 45C 15CXN-90C

120C 2 50 3.00 (76.2) 18.80 (477.5) 16 (7.26) TC66674804 TC66675004 TC66665002 2 X 60C 15CXN-120C

150C 2 50 4.00 (101.6) 18.80 (477.5) 28 (12.71) TC66674804 TC66675004 TC66665002 2 X 75C 15CXN-150C

175C 2 50 4.00 (101.6) 18.80 (477.5) 28 (12.71) TC66674804 TC66675004 TC66665002 2 X 85C 15CXN-175C

Ampere Rating

Fuse Mounting

Type 

Voltage

LIWL (BIL)

Glass Polyester Insulator Mounting

(Including Live Parts, End Fittings) Live Parts 

End Fittings

(Disconnect Only)

Catalog Number Catalog Number Catalog Number

45C–60C

Single barrel

Non-disconnect 95 15CXN-GNM-D 15CXN-NL-D —

Non-disconnect 95 15CXN-GNM-G 15CXN-NL-G —

Disconnect 95 15CXN-GDM-G 15CXN-DL-G 15CXN-DF-G

75C–100C

Single barrel

Non-disconnect 95 15CXN-GNM-F 15CXN-NL-F —

Non-disconnect 95 15CXN-GNM-G 15CXN-NL-G —

Disconnect 95 25CXN-GDM-G 15CXN-DL-G 15CXN-DF-G

90C, 120C

Double barrel

Non-disconnect 95 15CXN-GNM-D 15CXN-NL-D —

150C, 175C

Double barrel

Non-disconnect 95 15CXN-GNM-F 15CXN-NL-F —

CXN Type

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-75

3.8

Current Limiting Fuses

CX, CXI and CXN Type Fuses

Dimensions

Approximate Dimensions in Inches (mm).

CXN Type Fuse

CX Type Fuse

CXN Type Fuse Dimensional Details

C Dia.

1.21 Ref.

w/Indicator

1.19

(30.2)

1.85 (47.0)

B ± 0.09 (22.9)

A ± 0.09 (22.9)

0.625 (15.9) Dia.

(Both ends)

1.19 (30.2) Ref.

w/o Indicator

1.85 (47.0)

10.00 (254.0) ± 0.09 (2.3)

0.625 (15.9) Dia.

0.625 (15.9) Ref.

1.13 (28.7) Dia.

2.00 (50.8) Dia.

2.12 (53.8) Dia.

1.00 (25.4)

1.06 (26.9)

1.00 (25.4)

8.00 (203.2) ± 0.06 (1.5)

10.00 (254.0) ± 0.09 (2.3)

10.00 (257.0) ± 0.09 (2.3)

Maximum

Ampere

Rating

Dimensions

ABC

8.3

60–100

125–250

18.86 (479.0)

16.41 (416.8)

3.00 (76.2)

4.00 (101.6)

15.5

45–60

75–100

18.86 (479.0)

3.00 (76.2)

4.00 (101.6)

www.comoso.com

V14-T3-76 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

3.9

Current Limiting Fuses

DSL, MDSL and NPL Type Low Voltage Current Limiters

DSL Current Limiters Contents

Description Page

DSL, MDSL and NPL Type Low Voltage Current Limiters

Product Selection . . . . . . . . . . . . . . . . . . . . . . . V14-T3-77

DSL, MDSL and NPL Type Low Voltage Current Limiters

Product Description

Refer to DSL, Magnum™

DSL or NPL sections of this

catalog for product

description and application

guidelines.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-T3-77

3.9

Current Limiting Fuses

DSL, MDSL and NPL Type Low Voltage Current Limiters

Product Selection

The following current limiters are available as renewal/replacement parts for use in conjunction

with DLL, MDSL low voltage power circuit breakers, and network protectors.

Types DSL, MDSL and NPL

Maximum Design

Voltage

Interrupting Rating

(kA Sym.) Catalog Number Style Number

Approx. Shipping Weight

Lbs (kg) Average Melting Time

Peak Let-Through

Current

600 200 6DSL-A150 140D816G01 3.00 (1.4) TC63977102 TC63977202

600 200 6DSL-A200 140D816G02 3.00 (1.4) TC63977102 TC63977202

600 200 6DSL-A250 140D816G03 3.00 (1.4) TC63977102 TC63977202

600 200 6DSL-A300 140D816G04 3.00 (1.4) TC63977102 TC63977202

600 200 6DSL-A400 140D816G05 3.00 (1.4) TC63977102 TC63977202

600 200 6DSL-A600 140D816G06 3.00 (1.4) TC63977102 TC63977202

600 200 6DSL-A800 140D816G07 3.00 (1.4) TC63977102 TC63977202

600 200 6DSL-B1200 140D816G10 4.00 (1.8) TC63977102 TC63977202

600 200 6DSL-B1600 140D816G11 4.00 (1.8) TC63977102 TC63977202

600 200 6DSL-B3000 140D816G12 4.00 (1.8) TC63977102 TC63977202

600 200 6DSL-C800 151D982G01 5.50 (2.5) TC63943102 TC63943202

600 200 6DSL-C1000 151D982G02 5.50 (2.5) TC63943102 TC63943202

600 200 6DSL-C1200 151D982G03 5.50 (2.5) TC63943102 TC63943202

600 200 6DSL-C1600 151D982G04 5.50 (2.5) TC63943102 TC63943202

600 200 6DSL-C2000 151D982G05 5.50 (2.5) TC63943102 TC63943202

600 200 6DSL-D2500 151D982G09 8.50 (3.9) TC63943102 TC63943202

600 200 6DSL-D3000 151D982G10 8.50 (3.9) TC63943102 TC63943202

600 200 6DSL-E2500 5980C01G01 20.0 (9.1) TC70550302 TC70550402

600 200 6DSL-E3000 5980C01G02 20.0 (9.1) TC70550302 TC70550402

600 200 6DSL-E4000 5980C01G03 20.0 (9.1) TC70550302 TC70550402

600 200 6DSL-F5000 5980C01G04 24.0 (10.9) TC70550302 TC70550402

600 200 6MDSL-MA150 5982C90G01 3.00 (1.4) TC63977103 TC63977202

600 200 6MDSL-MA200 5982C90G02 3.00 (1.4) TC63977103 TC63977202

600 200 6MDSL-MA250 5982C90G03 3.00 (1.4) TC63977103 TC63977203

600 200 6MDSL-MA300 5982C90G04 3.00 (1.4) TC63977103 TC63977203

600 200 6MDSL-MA400 5982C90G05 3.00 (1.4) TC63977103 TC63977203

600 200 6MDSL-MA600 5982C90G07 3.00 (1.4) TC63977103 TC63977203

600 200 6MDSL-MA800 5982C90G08 3.00 (1.4) TC63977103 TC63977203

600 200 6MDSL-MB-1200 5981C91G01 4.00 (1.8) TC63977103 TC63977203

600 200 6MDSL-MB-1600 5981C91G02 4.00 (1.8) TC63977103 TC63977203

600 200 6MDSL-MB-2000 5981C91G03 4.00 (1.8) TC63977103 TC63977203

600 200 6MDSL-MC-800 5981C92G01 5.50 (2.5) TC63943102 TC63943202

600 200 6MDSL-MC-1000 5981C92G02 5.50 (2.5) TC63943102 TC63943202

600 200 6MDSL-MC-1200 5981C92G03 5.50 (2.5) TC63943102 TC63943202

600 200 6MDSL-MC-1600 5981C92G04 5.50 (2.5) TC63943102 TC63943202

600 200 6MDSL-MC-2000 5981C92G05 5.50 (2.5) TC63943102 TC63943202

600 200 6MDSL-MD2500 5981C93G01 8.50 (3.9) TC63977103 TC63977203

600 200 6MDSL-MD3000 5981C93G02 8.50 (3.9) TC63977103 TC63977203

480 150 4NPL-900 140D318G04 —TC63942802 TC63942803

480 150 4NPL-1300 140D318G05 —TC63942803 TC63942803

480 150 4NPL-1875 140D318G01 —TC63942804 TC63942803

480 150 4NPL-2000 140D318G07 —TC63942805 TC63942803

480 150 4NPL-2825 140D318G02 —TC63942806 TC63942803

480 150 4NPL-3000 140D318G06 —TC63942807 TC63942803

480 200 4NPL-3500 5982C64G01 —TC70550306 —

480 200 4NPL-5000 5982C64G02 —TC70550306 —

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A1-1

Appendix 1—Eaton Terms & Conditions

Effective Date: November 1, 2008

Eaton Terms & Conditions Contents

Description Page

Terms and Conditions of Sale . . . . . . . . . . . . . . . . . V14-A1-1

Terms of Payment . . . . . . . . . . . . . . . . . . . . . . . . . V14-A1-2

Freight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-A1-3

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V14-A1-3

Selling Policy (Supersedes Selling Policy 25-000, dated February 20, 2006)

Terms and Conditions of Sale

The Terms and Conditions of

Sale set forth herein, and any

supplements which may be

attached hereto, constitute

the full and final expression

of the contract for the sale

of products or services

(hereinafter referred to as

Product(s) or Services by

Eaton Corporation

(hereinafter referred to as

Seller) to the Buyer, and

supersedes all prior

quotations, purchase orders,

correspondence or

communications whether

written or oral between the

Seller and the Buyer.

Notwithstanding any contrary

language in the Buyer’s

purchase order,

correspondence or other

form of acknowledgment,

Buyer shall be bound by

these Terms and Conditions

of Sale when it sends a

purchase order or otherwise

indicates acceptance of this

contract, or when it accepts

delivery from Seller of the

Products or Services.

THE CONTRACT FOR SALE

OF THE PRODUCTS OR

SERVICES IS EXPRESSLY

LIMITED TO THE TERMS

AND CONDITIONS OF SALE

STATED HEREIN. ANY

ADDITIONAL OR DIFFERENT

TERMS PROPOSED BY

BUYER ARE REJECTED

UNLESS EXPRESSLY

AGREED TO IN WRITING BY

SELLER. No contract shall

exist except as herein

provided.

Complete Agreement

No amendment or

modification hereto nor any

statement, representation or

warranty not contained herein

shall be binding on the Seller

unless made in writing by an

authorized representative of

the Seller. Prior dealings,

usage of the trade or a course

of performance shall not be

relevant to determine the

meaning of this contract even

though the accepting or

acquiescing party had

knowledge of the nature

of the performance and

opportunity for objection.

Quotations

Written quotations are valid

for 30 days from its date

unless otherwise stated in

the quotation or terminated

sooner by notice.

Verbal quotations, unless

accepted, expire the same

day they are made.

A complete signed order

must be received by Seller

within 20 calendar days of

notification of award,

otherwise the price and

shipment will be subject to

re-negotiation.

Termination and Cancellation

Any order may be terminated

by the Buyer only by written

notice and upon payment

of reasonable termination

charges, including all costs

plus profit.

Seller shall have the right to

cancel any order at any time

by written notice if Buyer

breaches any of the terms

hereof, becomes the subject

of any proceeding under state

or federal law for the relief

of debtors, or otherwise

becomes insolvent or

bankrupt, generally does not

pay its debts as they become

due or makes an assignment

for the benefit of creditors.

www.comoso.com

V14-A1-2 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 1—Eaton Terms & Conditions

Effective Date: November 1, 2008

Prices

All prices are subject to

change without notice. In the

event of a price change, the

effective date of the change

will be the date of the new

price or discount sheet, letter

or telegram. All quotations

made or orders accepted

after the effective date will be

on the new basis. For existing

orders, the price of the

unshipped portion of an order

will be the price in effect at

time of shipment.

Price Policy—Products and

Services

When prices are quoted as

firm for quoted shipment, they

are firm provided the following

conditions are met:

1. The order is released

with complete

engineering details.

2. Shipment of Products

are made, and Services

purchased are provided

within the quoted

lead time.

3. When drawings for

approval are required

for any Products, the

drawings applicable to

those Products must be

returned within 30*

calendar days from the

date of the original

mailing of the drawings

by Seller. The return

drawings must be

released for manufacture

and shipment and must

be marked “APPROVED”

or “APPROVED AS

NOTED.” Drawing

re-submittals which are

required for any other

reason than to correct

Seller errors will not

extend the 30-day

period.

* 60 days for orders

through contractors

to allow time for their

review and approval

before and after

transmitting them

to their customers.

If the Buyer initiates or in

any way causes delays

in shipment, provision of

Services or return of approval

drawings beyond the periods

stated above, the price of the

Products or Services will be

increased 1% per month

or fraction thereof up to a

maximum of 18 months from

the date of the Buyer’s order.

For delays resulting in

shipment or provision of

Services beyond 18 months

from the date of the Buyer’s

order, the price must be

renegotiated.

Price Policy—BLS

Refer to Price Policy 25-050.

Minimum Billing

Orders less than $1,000 will

be assessed a shipping and

handling charge of 5% of the

price of the order, with a

minimum charge of $25.00

unless noted differently on

Product discount sheets.

Taxes

The price does not include

any taxes. Buyer shall be

responsible for the payment

of all taxes applicable to, or

arising from the transaction,

the Products, its sale, value,

or use, or any Services

performed in connection

therewith regardless of

the person or entity

actually taxed.

Terms of Payment

Products

Acceptance of all orders is

subject to the Buyer meeting

Seller’s credit requirements.

Terms of payment are

subject to change for failure

to meet such requirements.

Seller reserves the right at

any time to demand full or

partial payment before

proceeding with a contract of

sale as a result of changes in

the financial condition of the

Buyer. Terms of Payment are

either Net 30 days from the

date of invoice of each

shipment or carry a cash

discount based on Product

type. Specific payment terms

for Products are outlined in

the applicable Product

discount schedules.

Services

Terms of payment are net

within 30 days from date of

invoice for orders amounting

to less than $50,000.00.

Terms of payment for orders

exceeding $50,000.00 shall

be made according to the

following:

1. Twenty percent (20%) of

order value with the

purchase order payable

30 days from date of

invoice.

2. Eighty percent (80%) of

order value in equal

monthly payments over

the performance period

payable 30 days from

date of invoice.

Except for work performed (i)

under a firm fixed price basis

or (ii) pursuant to terms of a

previously priced existing

contract between Seller and

Buyer, invoices for work

performed by Seller shall

have added and noted on

each invoice a charge of 3%

(over and above the price of

the work) which is related

to Seller compliance with

present and proposed

environmental, health, and

safety regulations associated

with prescribed requirements

covering hazardous materials

management and employee

training, communications,

personal protective

equipment, documentation

and record keeping

associated therewith.

Adequate Assurances

If, in the judgment of Seller,

the financial condition of the

Buyer, at any time during the

period of the contract, does

not justify the terms of

payment specified, Seller

may require full or partial

payment in advance.

Delayed Payment

If payments are not made in

accordance with these terms,

a service charge will, without

prejudice to the right of Seller

to immediate payment, be

added in an amount equal to

the lower of 1.5% per month

or fraction thereof or the

highest legal rate on the

unpaid balance.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A1-3

Appendix 1—Eaton Terms & Conditions

Effective Date: November 1, 2008

Freight

Freight policy will be listed on

the Product discount sheets,

or at option of Seller one of

the following freight terms

will be quoted.

F.O.B.—P/S—Frt./Ppd. and

Invoiced

Products are sold F.O.B.

point of shipment freight

prepaid and invoiced to the

Buyer.

F.O.B.—P/S—Frt./Ppd.

and Allowed

Products sold are delivered

F.O.B. point of shipment,

freight prepaid and included

in the price.

F.O.B. Destination—Frt./Ppd.

and Allowed

At Buyer’s option, Seller will

deliver the Products F.O.B.

destination freight prepaid

and 2% will be added to the

net price.

The term “freight prepaid”

means that freight charges

will be prepaid to the

accessible common carrier

delivery point nearest the

destination for shipments

within the United States and

Puerto Rico unless noted

differently on the Product

discount sheets. For any

other destination contact

Seller’s representative.

Shipment and Routing

Seller shall select the point of

origin of shipment, the

method of transportation, the

type of carrier equipment and

the routing of the shipment.

If the Buyer specifies a

special method of

transportation, type of carrier

equipment, routing, or

delivery requirement, Buyer

shall pay all special freight

and handling charges.

When freight is included in

the price, no allowance will

be made in lieu of

transportation if the Buyer

accepts shipment at factory,

warehouse, or freight station

or otherwise supplies its own

transportation.

Risk of Loss

Risk of loss or damage to the

Products shall pass to Buyer

at the F.O.B. point.

Concealed Damage

Except in the event of F.O.B.

destination shipments, Seller

will not participate in any

settlement of claims for

concealed damage.

When shipment has been

made on an F.O.B. destination

basis, the Buyer must unpack

immediately and, if damage is

discovered must:

1. Not move the Products

from the point of

examination.

2. Retain shipping container

and packing material.

3. Notify the carrier in

writing of any apparent

damage.

4. Notify Seller

representative within

72 hours of delivery.

5. Send Seller a copy of

the carrier’s inspection

report.

Witness Tests/Customer

Inspection

Standard factory tests may

be witnessed by the Buyer

at Seller’s factory for an

additional charge calculated

at the rate of $2,500 per day

(not to exceed eight (8) hours)

per Product type. Buyer may

final inspect Products at the

Seller’s factory for $500 per

day per Product type.

Witness tests will add one (1)

week to the scheduled

shipping date. Seller will

notify Buyer fourteen (14)

calendar days prior to

scheduled witness testing

or inspection. In the event

Buyer is unable to attend, the

Parties shall mutually agree

on a rescheduled date.

However, Seller reserves

the right to deem the witness

tests waived with the right to

ship and invoice Products.

Held Orders

For any order held, delayed

or rescheduled at the request

of the Buyer, Seller may, at

its sole option (1) require

payment to be based on any

reasonable basis, including

but not limited to the contract

price, and any additional

expenses, or cost resulting

from such a delay; (2) store

Products at the sole cost and

risk of loss of the Buyer; and/

or (3) charge to the Buyer

those prices under the

applicable price policy.

Payment for such price,

expenses and costs, in any

such event, shall be due by

Buyer within thirty (30) days

from date of Seller’s invoice.

Any order so held delayed or

rescheduled beyond six (6)

months will be treated as a

Buyer termination.

Drawing Approval

Seller will design the

Products in line with, in

Seller’s judgment, good

commercial practice. If at

drawing approval Buyer

makes changes outside of

the design as covered in their

specifications, Seller will then

be paid reasonable charges

and allowed a commensurate

delay in shipping date based

on the changes made.

Drawing Re-Submittal

When Seller agrees to do so

in its quotation, Seller shall

provide Buyer with the first

set of factory customer

approval drawing(s) at Seller’s

expense. The customer

approval drawing(s) will be

delivered at the quoted

delivery date. If Buyer

requests drawing changes

or additions after the initial

factory customer approval

drawing(s) have been

submitted by Seller, the

Seller, at its option, may

assess Buyer drawing

charges. Factory customer

approval drawing changes

required due to

misinterpretation by Seller

will be at Seller’s expense.

Approval drawings generated

by Bid Manager are excluded

from this provision.

Warranty

Warranty for Products

Seller warrants that the

Products manufactured by

it will conform to Seller’s

applicable specifications and

be free from failure due to

defects in workmanship and

material for one (1) year from

the date of installation of

the Product or eighteen (18)

months from the date of

shipment of the Product,

whichever occurs first.

In the event any Product fails

to comply with the foregoing

warranty Seller will, at its

option, either (a) repair or

replace the defective

Product, or defective part or

component thereof, F.O.B.

Seller’s facility freight

prepaid, or (b) credit Buyer

for the purchase price of the

Product. All warranty claims

shall be made in writing.

Seller requires all non-

conforming Products be

returned at Seller’s expense

for evaluation unless

specifically stated otherwise

in writing by Seller.

This warranty does not

cover failure or damage

due to storage, installation,

operation or maintenance not

in conformance with Seller’s

recommendations and

industry standard practice

or due to accident, misuse,

abuse or negligence. This

warranty does not cover

reimbursement for labor,

gaining access, removal,

installation, temporary power

or any other expenses, which

may be incurred in connection

with repair or replacement.

This warranty does not

apply to equipment not

manufactured by Seller.

Seller limits itself to

extending the same warranty

it receives from the supplier.

www.comoso.com

V14-A1-4 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 1—Eaton Terms & Conditions

Effective Date: November 1, 2008

Extended Warranty for Products

If requested by the Buyer and

specifically accepted in

writing by Seller, the

foregoing standard warranty

for Products will be extended

from the date of shipment for

the period and price indicated

below:

●24 months—2% of

Contract Price

●30 months—3% of

Contract Price

●36 months—4% of

Contract Price

Special Warranty (In and Out)

for Products

If requested by the Buyer

and specifically accepted in

writing by Seller, Seller will,

during the warranty period

for Products, at an additional

cost of 2% of the contract

price, be responsible for the

direct cost of:

1. Removing the Product

from the installed

location.

2. Transportation to the

repair facility and return

to the site.

3. Reinstallation on site.

The total liability of Seller for

this Special Warranty for

Products is limited to 50%

of the contract price of the

particular Product being

repaired and excludes

expenses for removing

adjacent apparatus, walls,

piping, structures, temporary

service, etc.

Warranty for Services

Seller warrants that the

Services performed by it

hereunder will be performed

in accordance with generally

accepted professional

standards.

The Services, which do not

so conform, shall be

corrected by Seller upon

notification in writing by the

Buyer within one (1) year

after completion of the

Services.

Unless otherwise agreed to

in writing by Seller, Seller

assumes no responsibility

with respect to the suitability

of the Buyer’s, or its

customer’s, equipment or

with respect to any latent

defects in equipment not

supplied by Seller. This

warranty does not cover

damage to Buyer’s, or its

customer’s, equipment,

components or parts

resulting in whole or in part

from improper maintenance

or operation or from their

deteriorated condition. Buyer

will, at its cost, provide Seller

with unobstructed access

to the defective Services,

as well as adequate free

working space in the

immediate vicinity of the

defective Services and such

facilities and systems,

including, without limitation,

docks, cranes and utility

disconnects and connects,

as may be necessary in order

that Seller may perform its

warranty obligations. The

conducting of any tests shall

be mutually agreed upon and

Seller shall be notified of, and

may be present at, all tests

that may be made.

Warranty for Power Systems

Studies

Seller warrants that any

power systems studies

performed by it will conform

to generally accepted

professional standards. Any

portion of the study, which

does not so conform, shall

be corrected by Seller upon

notification in writing by the

Buyer within six (6) months

after completion of the study.

All warranty work shall be

performed in a single shift

straight time basis Monday

through Friday. In the event

that the study requires

correction of warranty items

on an overtime schedule,

the premium portion of such

overtime shall be for the

Buyer’s account.

Limitation on Warranties for

Products, Services and Power

Systems Studies

THE FOREGOING

WARRANTIES ARE

EXCLUSIVE EXCEPT FOR

WARRANTY OF TITLE.

SELLER DISCLAIMS ALL

OTHER WARRANTIES

INCLUDING ANY IMPLIED

WARRANTIES OF

MERCHANTABILITY

AND FITNESS FOR A

PARTICULAR PURPOSE.

CORRECTION OF NON-

CONFORMITIES IN THE

MANNER AND FOR THE

PERIOD OF TIME PROVIDED

ABOVE SHALL CONSTITUTE

SELLER’S SOLE LIABILITY

AND BUYER’S EXCLUSIVE

REMEDY FOR FAILURE OF

SELLER TO MEET ITS

WARRANTY OBLIGATIONS,

WHETHER CLAIMS OF

THE BUYER ARE BASED

IN CONTRACT, IN TORT

(INCLUDING NEGLIGENCE

OR STRICT LIABILITY), OR

OTHERWISE.

Asbestos

Federal Law requires that

building or facility owners

identify the presence,

location and quantity of

asbestos containing material

(hereinafter “ACM”) at work

sites. Seller is not licensed to

abate ACM. Accordingly, for

any contract which includes

the provision of Services,

prior to (i) commencement of

work at any site under a

specific Purchase Order, (ii) a

change in the work scope of

any Purchase Order, the

Buyer will certify that the

work area associated with

the Seller’s scope of work

includes the handling of Class

II ACM, including but not

limited to generator wedges

and high temperature gaskets

which include asbestos

materials. The Buyer shall, at

its expense, conduct

abatement should the

removal, handling,

modification or reinstallation,

or some or all of them, of said

Class II ACM be likely to

generate airborne asbestos

fibers; and should such

abatement affect the cost

of or time of performance

of the work then Seller shall

be entitled to an equitable

adjustment in the schedule,

price and other pertinent

affected provisions of

the contract.

Compliance with Nuclear

Regulation

Seller’s Products are sold as

commercial grade Products

not intended for application in

facilities or activities licensed

by the United States Nuclear

Regulatory Commission for

atomic purposes. Further

certification will be required

for use of the Products in any

safety-related application in

any nuclear facility licensed

by the U.S. Nuclear

Regulatory Commission.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A1-5

Appendix 1—Eaton Terms & Conditions

Effective Date: November 1, 2008

Returning Products

Authorization and shipping

instructions for the return

of any Products must be

obtained from Seller before

returning the Products.

When return is occasioned

due to Seller error, full credit

including all transportation

charges will be allowed.

Product Notices

Buyer shall provide the user

(including its employees) of

the Products with all Seller

supplied Product notices,

warnings, instructions,

recommendations, and

similar materials.

Force Majeure

Seller shall not be liable for

failure to perform or delay

in performance due to fire,

flood, strike or other labor

difficulty, act of God, act of

any governmental authority or

of the Buyer, riot, embargo,

fuel or energy shortage, car

shortage, wrecks or delays in

transportation, or due to any

other cause beyond Seller’s

reasonable control. In the

event of delay in performance

due to any such cause, the

date of delivery or time for

completion will be extended

by a period of time reasonably

necessary

to overcome the

effect of such delay.

Liquidated Damages

Contracts which include

liquidated damage clauses for

failure to meet shipping or job

completion promises are not

acceptable or binding on

Seller, unless such clauses

are specifically accepted in

writing by an authorized

representative of the Seller at

its headquarters office.

Patent Infringement

Seller will defend or, at its

option, settle any suit or

proceeding brought against

Buyer, or Buyer’s customers,

to the extent it is based upon

a claim that any Product or

part thereof, manufactured by

Seller or its subsidiaries and

furnished hereunder,

infringes any United States

patent, other than a claim of

infringement based upon use

of a Product or part thereof in

a process, provided Seller is

notified in reasonable time

and given authority,

information and assistance

(at Seller’s expense) for the

defense of same. Seller shall

pay all legal and court costs

and expenses and court-

assessed damages awarded

therein against Buyer

resulting from or incident to

such suit or proceeding. In

addition to the foregoing, if at

any time Seller determines

there is a substantial question

of infringement of any United

States patent, and the use of

such Product is or may be

enjoined, Seller may, at its

option and expense: either (a)

procure for Buyer the right to

continue using and selling the

Product; (b) replace the

Product with non-infringing

apparatus; (c) modify the

Product so it becomes non-

infringing; or (d) as a last

resort, remove the Product

and refund the purchase

price, equitably adjusted for

use and obsolescence. In no

case does Seller agree to pay

any recovery based upon its

Buyer’s savings or profit

through use of Seller’s

Products whether the use be

special or ordinary. The

foregoing states the entire

liability of Seller for patent

infringement.

The preceding paragraph

does not apply to any claim of

infringement based upon: (a)

any modification made to a

Product other than by Seller;

(b) any design and/or

specifications of Buyer to

which a Product was

manufactured; or (c) the use

or combination of Product

with other products where

the Product does not itself

infringe. As to the above-

identified claim situations

where the preceding

paragraph does not apply,

Buyer shall defend and hold

Seller harmless in the same

manner and to the extent as

Seller’s obligations described

in the preceding paragraph.

Buyer shall be responsible for

obtaining (at Buyer’s

expense) all license rights

required for Seller to be able

to use software products in

the possession of Buyer

where such use is required in

order to perform any Service

for Buyer.

With respect to a Product or

part thereof not manufactured

by Seller or its subsidiaries,

Seller will attempt to obtain

for Buyer, from the supplier(s),

the patent indemnification

protection normally provided

by the supplier(s) to

customers.

Compliance with OSHA

Seller offers no warranty and

makes no representation that

its Products comply with the

provisions or standards of the

Occupational Safety and

Health Act of 1970, or any

regulation issued thereunder.

In no event shall Seller be

liable for any loss, damage,

fines, penalty or expenses

arising under said Act.

Limitation of Liability

THE REMEDIES OF THE

BUYER SET FORTH IN THIS

CONTRACT ARE EXCLUSIVE

AND ARE ITS SOLE

REMEDIES FOR ANY

FAILURE OF SELLER

TO COMPLY WITH ITS

OBLIGATIONS HEREUNDER.

NOTWITHSTANDING

ANY PROVISION IN THIS

CONTRACT TO THE

CONTRARY, IN NO EVENT

SHALL SELLER BE LIABLE

IN CONTRACT, IN TORT

(INCLUDING NEGLIGENCE

OR STRICT LIABILITY) OR

OTHERWISE FOR DAMAGE

TO PROPERTY OR

EQUIPMENT OTHER THAN

PRODUCTS SOLD

HEREUNDER, LOSS OF

PROFITS OR REVENUE,

LOSS OF USE OF

PRODUCTS, COST OF

CAPITAL, CLAIMS OF

CUSTOMERS OF THE

BUYER OR ANY SPECIAL,

INDIRECT, INCIDENTAL OR

CONSEQUENTIAL

DAMAGES WHATSOEVER,

REGARDLESS OF WHETHER

SUCH POTENTIAL

DAMAGES ARE

FORESEEABLE OR IF

SELLER HAS BEEN ADVISED

OF THE POSSIBILITY OF

SUCH DAMAGES.

THE TOTAL CUMULATIVE

LIABILITY OF SELLER

ARISING FROM OR

RELATED TO THIS

CONTRACT WHETHER

THE CLAIMS ARE BASED

IN CONTRACT, IN TORT

(INCLUDING NEGLIGENCE

OR STRICT LIABILITY) OR

OTHERWISE, SHALL NOT

EXCEED THE PRICE OF THE

PRODUCT OR SERVICES

ON WHICH SUCH LIABILITY

IS BASED.

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-1

Appendix 2—Superseded Style Number Index

Westinghouse 6 and 7 Digit Style Numbers

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

282429 25CLPT-.5E 677C452G04 CL fuse unit CLE-PT 25 0.5

282430 8CLPT-.5E 677C452G02 CL fuse unit CLE-PT 8.3 0.5

364228 Obsolete—contact Eaton — 6 ft switch stick — — —

364229 Obsolete—contact Eaton — 10 ft switch stick — — —

562477 Obsolete—contact Eaton 677C593G01 CL fuse unit CLV 0.6 2

823252 15BA2-5E 117D123A18 Fuse reﬁll unit BA-200 15.5 5

825626 Obsolete—contact Eaton 304C437G01 Outdoor disconnect mounting BA-200 8.3 200

825627 Obsolete—contact Eaton 304C437G02 Outdoor disconnect mounting BA-200 15.5 200

825628 Obsolete—contact Eaton — Outdoor disconnect mounting BA-200 25.5 200

825629 Obsolete—contact Eaton 423D769G05 Disconnect fuse holder BA-200 8.3 200

825630 Obsolete—contact Eaton 423D769G06 Disconnect fuse holder BA-200 15.5 200

825631 Obsolete—contact Eaton 423D769G07 Disconnect fuse holder BA-200 25.5 200

825725 Obsolete—contact Eaton — Disconnect live parts BA-200 — 200

834237 25BA2-200E 117D123A46 Fuse reﬁll unit BA-200 25.5 200

834238 8BA2-5E 117D123A02 Fuse reﬁll unit BA-200 8.3 5

834239 8BA2-10E 117D123A04 Fuse reﬁll unit BA-200 8.3 10

834240 8BA2-15E 117D123A05 Fuse reﬁll unit BA-200 8.3 15

834241 8BA2-20E 117D123A06 Fuse reﬁll unit BA-200 8.3 20

834242 8BA2-25E 117D123A07 Fuse reﬁll unit BA-200 8.3 25

834243 8BA2-30E 117D123A08 Fuse reﬁll unit BA-200 8.3 30

834244 8BA2-40E 117D123A09 Fuse reﬁll unit BA-200 8.3 40

834245 8BA2-50E 117D123A10 Fuse reﬁll unit BA-200 8.3 50

834246 8BA2-65E 117D123A11 Fuse reﬁll unit BA-200 8.3 65

834247 8BA2-80E 117D123A12 Fuse reﬁll unit BA-200 8.3 80

834248 8BA2-100E 117D123A13 Fuse reﬁll unit BA-200 8.3 100

834249 8BA2-125E 117D123A14 Fuse reﬁll unit BA-200 8.3 125

834250 8BA2-150E 117D123A15 Fuse reﬁll unit BA-200 8.3 150

834251 8BA2-200E 117D123A16 Fuse reﬁll unit BA-200 8.3 200

834252 15BA2-5E 117D123A18 Fuse reﬁll unit BA-201 15.5 5

834253 15BA2-10E 117D123A20 Fuse reﬁll unit BA-200 15.5 10

834254 15BA2-15E 117D123A21 Fuse reﬁll unit BA-200 15.5 15

834255 15BA2-20E 117D123A22 Fuse reﬁll unit BA-200 15.5 20

834256 15BA2-25E 117D123A23 Fuse reﬁll unit BA-200 15.5 25

834257 15BA2-30E 117D123A24 Fuse reﬁll unit BA-200 15.5 30

834258 15BA2-40E 117D123A25 Fuse reﬁll unit BA-200 15.5 40

834259 15BA2-50E 117D123A26 Fuse reﬁll unit BA-200 15.5 50

834260 15BA2-65E 117D123A27 Fuse reﬁll unit BA-200 15.5 65

834261 15BA2-80E 117D123A28 Fuse reﬁll unit BA-201 15.5 80

834262 15BA2-125E 117D123A29 Fuse reﬁll unit BA-202 15.5 100

834263 15BA2-125E 117D123A30 Fuse reﬁll unit BA-203 15.5 125

834264 15BA2-150E 117D123A31 Fuse reﬁll unit BA-204 15.5 150

834265 15BA2-200E 117D123A32 Fuse reﬁll unit BA-205 15.5 200

834266 25BA2-5E 117D123A34 Fuse reﬁll unit BA-201 25.5 5

834267 25BA2-10E 117D123A36 Fuse reﬁll unit BA-200 25.5 10

834268 25BA2-15E 117D123A37 Fuse reﬁll unit BA-200 25.5 15

834269 25BA2-20E 117D123A38 Fuse reﬁll unit BA-200 25.5 20

834270 25BA2-25E 117D123A39 Fuse reﬁll unit BA-200 25.5 25

834271 25BA2-30E 117D123A40 Fuse reﬁll unit BA-200 25.5 30

834272 25BA2-40E 117D123A41 Fuse reﬁll unit BA-200 25.5 40

834273 25BA2-50E 117D123A42 Fuse reﬁll unit BA-200 25.5 50

www.comoso.com

V14-A2-2 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

834274 25BA2-65E 117D123A43 Fuse reﬁll unit BA-200 25.5 65

834275 25BA2-80E 117D123A44 Fuse reﬁll unit BA-200 25.5 80

834276 25BA2-125E 117D123A45 Fuse reﬁll unit BA-200 25.5 100

834277 25BA2-125E 117D123A46 Fuse reﬁll unit BA-200 25.5 125

834278 25BA2-150E 117D123A47 Fuse reﬁll unit BA-200 25.5 150

841737 8BA2-.5E 117D123A01 Fuse reﬁll unit BA-200 8.3 0.5

841831 Obsolete—contact Eaton — Indoor non-disconnect mounting BA-100 15.5 100

858999 15BA2-.5E 117D123A17 Fuse reﬁll unit BA-200 15.5 0.5

859000 25BA2-.5E 117D123A33 Fuse reﬁll unit BA-200 25.5 0.5

859003 Obsolete—contact Eaton — Indoor non-disconnect mounting BA-100 8.3 100

859004 Obsolete—contact Eaton — Indoor non-disconnect mounting BA-100 25.5 100

859198 Obsolete—contact Eaton 423D769G01 Disconnect fuse holder ECD BA-200 8.3 200

859199 Obsolete—contact Eaton 423D769G02 Disconnect fuse holder ECD BA-200 15.5 200

859200 Obsolete—contact Eaton 423D769G03 Disconnect fuse holder ECD BA-200 25.5 200

895134 Obsolete—contact Eaton 423D769G04 Disconnect fuse holder ECD BA-200 38 400

895307 Obsolete—contact Eaton — Disconnect fuse holder BA-400 25.5 400

896681 Obsolete—contact Eaton — Disconnect fuse holder BA-400 8.3 400

896682 Obsolete—contact Eaton — Disconnect fuse holder BA-400 15.5 400

896727 Obsolete—contact Eaton — Disconnect fuse holder BA-400 8.3 400

896728 Obsolete—contact Eaton — Disconnect fuse holder BA-400 15.5 400

896729 Obsolete—contact Eaton — Disconnect fuse holder BA-400 25.5 400

896730 Obsolete—contact Eaton — Disconnect fuse holder BA-400 38 400

896735 Obsolete—contact Eaton — Disconnect live parts BA-400 400

896793 8BA4-125E 116D977A14 Fuse reﬁll unit BA-400 8.3 125

896794 15BA4-125E 116D977A34 Fuse reﬁll unit BA-400 12.5 125

896795 25BA4-125E 116D977A54 Fuse reﬁll unit BA-400 25.5 125

896796 38BA4-125E 116D977A74 Fuse reﬁll unit BA-400 38 125

896804 8BA4-5E 116D977A02 Fuse reﬁll unit BA-400 8.3 5

896805 Obsolete—contact Eaton — Fuse reﬁll unit BA-400 8.3 8

896806 8BA4-10E 116D977A04 Fuse reﬁll unit BA-400 8.3 10

896807 8BA4-15E 116D977A05 Fuse reﬁll unit BA-400 8.3 15

896808 8BA4-20E 116D977A06 Fuse reﬁll unit BA-400 8.3 20

896809 8BA4-25E 116D977A07 Fuse reﬁll unit BA-400 8.3 25

896810 8BA4-30E 116D977A08 Fuse reﬁll unit BA-400 8.3 30

896811 8BA4-40E 116D977A09 Fuse reﬁll unit BA-400 8.3 40

896812 8BA4-50E 116D977A10 Fuse reﬁll unit BA-400 8.3 50

896813 8BA4-65E 116D977A11 Fuse reﬁll unit BA-400 8.3 62

896814 8BA4-80E 116D977A12 Fuse reﬁll unit BA-400 8.3 80

896815 8BA4-100E 116D977A13 Fuse reﬁll unit BA-400 8.3 100

896816 8BA4-150E 116D977A15 Fuse reﬁll unit BA-400 8.3 150

896817 8BA4-200E 116D977A16 Fuse reﬁll unit BA-400 8.3 200

896818 8BA4-250E 116D977A17 Fuse reﬁll unit BA-400 8.3 250

896819 8BA4-300E 116D977A18 Fuse reﬁll unit BA-400 8.3 300

896820 8BA4-400E 116D977A19 Fuse reﬁll unit BA-400 8.3 400

896821 15BA4-5E 116D977A22 Fuse reﬁll unit BA-400 15.5 5

896822 Obsolete—contact Eaton — Fuse reﬁll unit BA-400 15.5 8

896823 15BA4-10E 116D977A24 Fuse reﬁll unit BA-400 15.5 10

896824 15BA4-15E 116D977A25 Fuse reﬁll unit BA-400 15.5 15

896825 15BA4-20E 116D977A26 Fuse reﬁll unit BA-400 15.5 20

896826 15BA4-25E 116D977A27 Fuse reﬁll unit BA-400 15.5 25

896827 15BA4-30E 116D977A28 Fuse reﬁll unit BA-400 15.5 30

896828 15BA4-40E 116D977A29 Fuse reﬁll unit BA-400 15.5 40

896829 15BA4-50E 116D977A30 Fuse reﬁll unit BA-400 15.5 50

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-3

Appendix 2—Superseded Style Number Index

896830 15BA4-65E 116D977A31 Fuse reﬁll unit BA-400 15.5 62

896831 15BA4-80E 116D977A32 Fuse reﬁll unit BA-400 15.5 80

896832 15BA4-100E 116D977A33 Fuse reﬁll unit BA-400 15.5 100

896833 15BA4-150E 116D977A35 Fuse reﬁll unit BA-400 15.5 150

896834 15BA4-200E 116D977A36 Fuse reﬁll unit BA-400 15.5 200

896835 15BA4-250E 116D977A37 Fuse reﬁll unit BA-400 15.5 250

896836 15BA4-300E 116D977A38 Fuse reﬁll unit BA-400 15.5 300

896837 15BA4-400E 116D977A39 Fuse reﬁll unit BA-400 15.5 400

896838 25BA4-5E 116D977A42 Fuse reﬁll unit BA-400 25.5 5

896839 Obsolete—contact Eaton — Fuse reﬁll unit BA-400 25.5 8

896840 25BA4-10E 116D977A44 Fuse reﬁll unit BA-400 25.5 10

896841 25BA4-15E 116D977A45 Fuse reﬁll unit BA-400 25.5 15

896842 25BA4-20E 116D977A46 Fuse reﬁll unit BA-400 25.5 20

896843 25BA4-25E 116D977A47 Fuse reﬁll unit BA-400 25.5 25

896844 25BA4-30E 116D977A48 Fuse reﬁll unit BA-400 25.5 30

896845 25BA4-40E 116D977A49 Fuse reﬁll unit BA-400 25.5 40

896846 25BA4-50E 116D977A50 Fuse reﬁll unit BA-400 25.5 50

896847 25BA4-65E 116D977A51 Fuse reﬁll unit BA-400 25.5 62

896848 25BA4-80E 116D977A52 Fuse reﬁll unit BA-400 25.5 80

896849 25BA4-100E 116D977A53 Fuse reﬁll unit BA-400 25.5 100

896850 25BA4-150E 116D977A55 Fuse reﬁll unit BA-400 25.5 150

896851 25BA4-200E 116D977A56 Fuse reﬁll unit BA-400 25.5 200

896852 25BA4-250E 116D977A57 Fuse reﬁll unit BA-400 25.5 250

896853 25BA4-300E 116D977A58 Fuse reﬁll unit BA-400 25.5 300

896854 Obsolete—contact Eaton — Fuse reﬁll unit BA-400 25.5 400

896855 38BA4-5E 116D977A62 Fuse reﬁll unit BA-400 38 5

896856 Obsolete—contact Eaton — Fuse reﬁll unit BA-400 38 8

896857 38BA4-10E 116D977A64 Fuse reﬁll unit BA-400 38 10

896858 38BA4-15E 116D977A65 Fuse reﬁll unit BA-400 38 15

896859 38BA4-20E 116D977A66 Fuse reﬁll unit BA-400 38 20

896860 38BA4-25E 116D977A67 Fuse reﬁll unit BA-400 38 25

896861 38BA4-30E 116D977A68 Fuse reﬁll unit BA-400 38 30

896862 38BA4-40E 116D977A69 Fuse reﬁll unit BA-400 38 40

896863 38BA4-50E 116D977A70 Fuse reﬁll unit BA-400 38 50

896864 38BA4-65E 116D977A71 Fuse reﬁll unit BA-400 38 62

896865 38BA4-80E 116D977A72 Fuse reﬁll unit BA-400 38 80

896866 38BA4-100E 116D977A73 Fuse reﬁll unit BA-400 38 100

896867 38BA4-150E 116D977A75 Fuse reﬁll unit BA-400 38 150

896868 38BA4-200E 116D977A76 Fuse reﬁll unit BA-400 38 200

896869 38BA4-250E 116D977A77 Fuse reﬁll unit BA-400 38 250

896870 38BA4-300E 116D977A78 Fuse reﬁll unit BA-400 38 300

896871 Obsolete—contact Eaton — Fuse reﬁll unit BA-400 38 400

918534 8BA2-5E 117D123A02 Fuse reﬁll unit BA-200 8.3 5

918535 Obsolete—contact Eaton — Fuse reﬁll unit BA-200 15.5 8

918536 Obsolete—contact Eaton — Fuse reﬁll unit BA-200 25.5 8

918537 8BA2-200E 117D123A16 Fuse reﬁll unit BA-200 8.3 200

918538 15RBA2-150E 117D123A31 Fuse reﬁll unit BA-200 15.5 150

918539 25RBA2-150E 117D123A47 Fuse reﬁll unit BA-200 25.5 150

938936 25RBA4-.5E 116D977A41 Fuse reﬁll unit BA-400 25.5 0.5

938937 38RBA4-.5E 116D977A61 Fuse reﬁll unit BA-400 38 0.5

940001 Obsolete—contact Eaton — Indoor disconnect mounting BA-400 8.3 400

940002 Obsolete—contact Eaton — Indoor disconnect mounting BA-400 15.5 400

940003 Obsolete—contact Eaton — Indoor disconnect mounting BA-400 25.5 400

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-4 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

940004 Obsolete—contact Eaton — Indoor disconnect mounting BA-200 8.3 200

940005 Obsolete—contact Eaton — Indoor disconnect mounting BA-200 15.5 200

940006 Obsolete—contact Eaton — Indoor disconnect mounting BA-200 25.5 200

940007 Obsolete—contact Eaton — Indoor non-disconnect fuse holder BA-100 8.3 100

940008 Obsolete—contact Eaton — Indoor non-disconnect fuse holder BA-100 15.5 100

940009 Obsolete—contact Eaton — Indoor non-disconnect fuse holder BA-100 25.5 100

948932 Obsolete—contact Eaton — Indoor disconnect mounting BA-400 38 400

948933 Obsolete—contact Eaton — Indoor non-disconnect live parts BA-100 100

948934 8RBA4-.5E 116D977A01 Fuse reﬁll unit BA-400 8.3 0.5

948935 15RBA4-.5E 116D977A21 Fuse reﬁll unit BA-400 15.5 0.5

970699 Obsolete—contact Eaton 434D316A04 Time lag fuse reﬁll unit BA-200 8.3 15

970700 Obsolete—contact Eaton 434D316A04 Time lag fuse reﬁll unit BA-200 8.3 15

970701 Obsolete—contact Eaton 434D316A05 Time lag fuse reﬁll unit BA-200 8.3 20

970702 Obsolete—contact Eaton 434D316A06 Time lag fuse reﬁll unit BA-200 8.3 25

970703 Obsolete—contact Eaton 434D316A07 Time lag fuse reﬁll unit BA-200 8.3 30

970704 Obsolete—contact Eaton 434D316A08 Time lag fuse reﬁll unit BA-200 8.3 40

970705 Obsolete—contact Eaton 434D316A09 Time lag fuse reﬁll unit BA-200 8.3 50

970706 Obsolete—contact Eaton 434D316A10 Time lag fuse reﬁll unit BA-200 8.3 65

970707 Obsolete—contact Eaton 434D316A11 Time lag fuse reﬁll unit BA-200 8.3 80

970708 Obsolete—contact Eaton 434D316A12 Time lag fuse reﬁll unit BA-200 8.3 100

970713 Obsolete—contact Eaton 434D316A19 Time lag fuse reﬁll unit BA-200 15.5 15

970714 Obsolete—contact Eaton 434D316A19 Time lag fuse reﬁll unit BA-200 15.5 15

970715 Obsolete—contact Eaton 434D316A20 Time lag fuse reﬁll unit BA-200 15.5 20

970716 Obsolete—contact Eaton 434D316A21 Time lag fuse reﬁll unit BA-200 15.5 25

970717 Obsolete—contact Eaton 434D316A22 Time lag fuse reﬁll unit BA-200 15.5 30

970718 Obsolete—contact Eaton 434D316A23 Time lag fuse reﬁll unit BA-200 15.5 40

970719 Obsolete—contact Eaton 434D316A24 Time lag fuse reﬁll unit BA-200 15.5 50

970720 Obsolete—contact Eaton 434D316A25 Time lag fuse reﬁll unit BA-200 15.5 65

970721 Obsolete—contact Eaton 434D316A26 Time lag fuse reﬁll unit BA-200 15.5 80

970722 Obsolete—contact Eaton 434D316A27 Time lag fuse reﬁll unit BA-200 15.5 100

907027 Obsolete—contact Eaton 434D316A34 Time lag fuse reﬁll unit BA-200 25.5 15

907028 Obsolete—contact Eaton 434D316A34 Time lag fuse reﬁll unit BA-200 25.5 15

907029 Obsolete—contact Eaton 434D316A35 Time lag fuse reﬁll unit BA-200 25.5 20

907030 Obsolete—contact Eaton 434D316A36 Time lag fuse reﬁll unit BA-200 25.5 25

907031 Obsolete—contact Eaton 434D316A37 Time lag fuse reﬁll unit BA-200 25.5 30

907032 Obsolete—contact Eaton 434D316A38 Time lag fuse reﬁll unit BA-200 25.5 40

907033 Obsolete—contact Eaton 434D316A39 Time lag fuse reﬁll unit BA-200 25.5 50

907034 Obsolete—contact Eaton 434D316A40 Time lag fuse reﬁll unit BA-200 25.5 65

907035 Obsolete—contact Eaton 434D316A41 Time lag fuse reﬁll unit BA-200 25.5 80

907036 Obsolete—contact Eaton 434D316A42 Time lag fuse reﬁll unit BA-200 25.5 100

1014184 Obsolete—contact Eaton 434D316A36 Time lag fuse reﬁll unit BA-200 25.5 25

1014190 Obsolete—contact Eaton 434D316A28 Time lag fuse reﬁll unit BA-200 15.5 125

1014191 Obsolete—contact Eaton 434D316A43 Time lag fuse reﬁll unit BA-200 25.5 125

1014286 RBA4-COND 310C197G04 Condenser (3 pack) BA-400/RBA400 — —

1043291 Obsolete—contact Eaton 423D769G08 Outdoor fuse holder 75 BA-200 38 200

1043297 38BA2-5E 117D123A50 Fuse reﬁll unit BA-200 38 5

1043298 38BA2-5E 117D123A50 Fuse reﬁll unit BA-200 38 5

1043299 38BA2-7E 117D123A51 Fuse reﬁll unit BA-200 38 7

1043300 38BA2-10E 117D123A52 Fuse reﬁll unit BA-200 38 10

1043301 38BA2-15E 117D123A53 Fuse reﬁll unit BA-200 38 15

1043302 38BA2-15E 117D123A53 Fuse reﬁll unit BA-200 38 15

1043303 38BA2-20E 117D123A54 Fuse reﬁll unit BA-200 38 20

1043304 38BA2-25E 117D123A55 Fuse reﬁll unit BA-200 38 25

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-5

Appendix 2—Superseded Style Number Index

1043305 38BA2-30E 117D123A56 Fuse reﬁll unit BA-200 38 30

1043306 38BA2-40E 117D123A57 Fuse reﬁll unit BA-200 38 40

1043307 38BA2-50E 117D123A58 Fuse reﬁll unit BA-200 38 50

1043308 38BA2-65E 117D123A59 Fuse reﬁll unit BA-200 38 65

1043309 38BA2-80E 117D123A60 Fuse reﬁll unit BA-200 38 80

1043310 38BA2-100E 117D123A61 Fuse reﬁll unit BA-200 38 100

1043311 38BA2-125E 117D123A62 Fuse reﬁll unit BA-200 38 125

1043312 38BA2-150E 117D123A63 Fuse reﬁll unit BA-200 38 150

1043331 38BA2-.5E 117D123A49 Fuse reﬁll unit BA-200 38 0.5

1043673 Obsolete—contact Eaton — Outdoor fuse holder ECD 50 BA-200 25.5 200

1043678 Obsolete—contact Eaton 434D316A49 Time lag fuse reﬁll unit BA-200 38 15

1043679 Obsolete—contact Eaton 434D316A49 Time lag fuse reﬁll unit BA-200 38 15

1043680 Obsolete—contact Eaton 434D316A50 Time lag fuse reﬁll unit BA-200 38 20

1043681 Obsolete—contact Eaton 434D316A51 Time lag fuse reﬁll unit BA-200 38 25

1043682 Obsolete—contact Eaton 434D316A52 Time lag fuse reﬁll unit BA-200 38 30

1043683 Obsolete—contact Eaton 434D316A53 Time lag fuse reﬁll unit BA-200 38 40

1043684 Obsolete—contact Eaton 434D316A54 Time lag fuse reﬁll unit BA-200 38 50

1043685 Obsolete—contact Eaton 434D316A55 Time lag fuse reﬁll unit BA-200 38 65

1043686 Obsolete—contact Eaton 434D316A56 Time lag fuse reﬁll unit BA-200 38 80

1043687 Obsolete—contact Eaton 434D316A57 Time lag fuse reﬁll unit BA-200 38 100

1043688 Obsolete—contact Eaton 434D316A58 Time lag fuse reﬁll unit BA-200 38 125

1043691 Obsolete—contact Eaton 423D769G04 Outdoor fuse holder ECD 50 BA-400 38 400

1043720 8BA4-300E 116D977A18 Fuse reﬁll unit BA-400 8.3 300

1081323 2NCLPT-.5E 677C592G02 CL fuse unit NCLE-PT 2.75 0.5

1105207 Obsolete—contact Eaton 423D769G12 Outdoor fuse holder ECD 180 BA-400 38 200

1105208 Obsolete—contact Eaton 505D616A01 Live parts BA-200 — —

1105209 Obsolete—contact Eaton 505D615A01 Live parts BA-400 — —

1123938 Obsolete—contact Eaton 423D770G08 Outdoor fuse holder BA-400 38 300

1196126 8CLPT-.5E 677C452G02 CL fuse unit CLE-PT 8.3 0.5

1196127 15CLPT-.5E 677C452G03 CL fuse unit CLE-PT 15.5 0.5

1196127D 2NCLPT-1E 677C592G03 CL fuse unit NCLE-PT 2.75 1

1169143 2NCLPT-.5E 677C592G02 CL fuse unit NCLE-PT 2.75 0.5

1247212 2NCLPT-1E 677C592G03 CL fuse unit NCLE-PT 2.75 1

1247217 5CLPT-.5E 677C452G01 CL fuse unit CLE-PT 5.5 0.5

1247218 8CLPT-.5E 677C452G02 CL fuse unit CLE-PT 8.3 0.5

1247219 15CLPT-.5E 677C452G03 CL fuse unit CLE-PT 15.5 0.5

1247220 25CLPT-.5E 677C452G04 CL fuse unit CLE-PT 25.5 0.5

1251000 8DBA1-0.5 5980C15G01 — — — —

1251000 8DBA1-3E 505D420G01 — — — —

1251002 8DBA1-5E 5980C15G03 — — — —

1251003 8DBA1-7E 5980C15G04 — — — —

1251004 8DBA1-10E 5980C15G05 — — — —

1251005 8DBA1-15E 5980C15G06 — — — —

1251006 8DBA1-20E 5980C15G07 — — — —

1251007 8DBA1-25E 5980C15G08 — — — —

1251008 8DBA1-30E 5980C15G09 — — — —

1251009 8DBA1-40E 5980C15G10 — — — —

1251010 8DBA1-50E 5980C15G11 — — — —

1251011 8DBA1-65E 5980C15G12 — — — —

1251012 8DBA1-80E 5980C15G13 — — — —

1251013 8DBA1-100E 5980C15G14 — — — —

1251014 8DBA1-125E 5980C15G15 — — — —

1251015 8DBA1-150E 5980C15G16 — — — —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-6 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1251016 8DBA1-200E 5980C15G17 — — — —

1251017 15DBA1-0.5 5980C15G21 — — — —

1251018 15DBA1-3E 505D420G02 — — — —

1251019 15DBA1-5E 5980C15G23 — — — —

1251020 15DBA1-7E 5980C15G24 — — — —

1251021 15DBA1-10E 5980C15G25 — — — —

1251022 15DBA1-15E 5980C15G26 — — — —

1251023 15DBA1-20E 5980C15G27 — — — —

1251024 15DBA1-25E 5980C15G28 — — — —

1251025 15DBA1-30E 5980C15G29 — — — —

1251026 15DBA1-40E 5980C15G30 — — — —

1251027 15DBA1-50E 5980C15G31 — — — —

1251028 15DBA1-65E 5980C15G32 — — — —

1251029 15DBA1-80E 5980C15G33 — — — —

1251030 15DBA1-100E 5980C15G34 — — — —

1251031 15DBA1-125E 5980C15G35 — — — —

1251032 15DBA1-150E 5980C15G36 — — — —

1251033 15DBA1-200E 5980C15G37 — — — —

1251034 25DBA1-0.5 5980C16G01 — — — —

1251035 25DBA1-3E 505D420G03 — — — —

1251036 25DBA1-5E 5980C16G03 — — — —

1251037 25DBA1-7E 5980C16G04 — — — —

1251038 25DBA1-10E 5980C16G05 — — — —

1251039 25DBA1-15E 5980C16G06 — — — —

1251040 25DBA1-20E 5980C16G07 — — — —

1251041 25DBA1-25E 5980C16G08 — — — —

1251042 25DBA1-30E 5980C16G09 — — — —

1251043 25DBA1-40E 5980C16G10 — — — —

1251044 25DBA1-50E 5980C16G11 — — — —

1251045 25DBA1-65E 5980C16G12 — — — —

1251046 25DBA1-80E 5980C16G13 — — — —

1251047 25DBA1-100E 5980C16G14 — — — —

1251048 25DBA1-125E 5980C16G15 — — — —

1251049 25DBA1-150E 5980C16G16 — — — —

1251050 25DBA1-200E 5980C16G17 — — — —

1251051 38DBA1-0.5 5980C16G21 — — — —

1251052 38DBA1-3E 505D420G04 — — — —

1251053 38DBA1-5E 5980C16G23 — — — —

1251054 38DBA1-7E 5980C16G24 — — — —

1251055 38DBA1-10E 5980C16G25 — — — —

1251056 38DBA1-15E 5980C16G26 — — — —

1251057 38DBA1-20E 5980C16G27 — — — —

1251058 38DBA1-25E 5980C16G28 — — — —

1251059 38DBA1-30E 5980C16G29 — — — —

1251060 38DBA1-40E 5980C16G30 — — — —

1251061 38DBA1-50E 5980C16G31 — — — —

1251062 38DBA1-65E 5980C16G32 — — — —

1251063 38DBA1-80E 5980C16G33 — — — —

1251064 38DBA1-100E 5980C16G34 — — — —

1251065 38DBA1-125E 5980C16G35 — — — —

1251066 38DBA1-150E 5980C16G36 — — — —

1251067 38DBA1-200E 5980C16G37 — — — —

1251068 48DBA1-0.5 5980C17G01 — — — —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-7

Appendix 2—Superseded Style Number Index

1251069 48DBA1-3E 505D420G05 — — — —

1251070 48DBA1-5E 5980C17G03 — — — —

1251071 48DBA1-7E 5980C17G04 — — — —

1251072 48DBA1-10E 5980C17G05 — — — —

1251073 48DBA1-15E 5980C17G06 — — — —

1251074 48DBA1-20E 5980C17G07 — — — —

1251075 48DBA1-25E 5980C17G08 — — — —

1251076 48DBA1-30E 5980C17G09 — — — —

1251077 48DBA1-40E 5980C17G10 — — — —

1251078 48DBA1-50E 5980C17G11 — — — —

1251079 48DBA1-65E 5980C17G12 — — — —

1251080 48DBA1-80E 5980C17G13 — — — —

1251081 48DBA1-100E 5980C17G14 — — — —

1251082 48DBA1-125E 5980C17G15 — — — —

1251083 48DBA1-150E 5980C17G16 — — — —

1251084 48DBA1-200E 5980C17G17 — — — —

1251085 72DBA1-0.5 5980C17G21 — — — —

1251086 72DBA1-3E 505D420G06 — — — —

1251087 72DBA1-5E 5980C17G23 — — — —

1251088 72DBA1-7E 5980C17G24 — — — —

1251089 72DBA1-10E 5980C17G25 — — — —

1251090 72DBA1-15E 5980C17G26 — — — —

1251091 72DBA1-20E 5980C17G27 — — — —

1251092 72DBA1-25E 5980C17G28 — — — —

1251093 72DBA1-30E 5980C17G29 — — — —

1251094 72DBA1-40E 5980C17G30 — — — —

1251095 72DBA1-50E 5980C17G31 — — — —

1251096 72DBA1-65E 5980C17G32 — — — —

1251097 72DBA1-80E 5980C17G33 — — — —

1251098 72DBA1-100E 5980C17G34 — — — —

1251099 72DBA1-125E 5980C17G35 — — — —

1251100 72DBA1-150E 5980C17G36 — — — —

1251101 72DBA1-200E 5980C17G37 — — — —

1251138 2NCLPT-1E 677C592G03 CL fuse unit NCLE-PT 2.75 1

1254953 Obsolete—contact Eaton 677C593G01 CL fuse unit CLV 0.6 2

1253955 Obsolete—contact Eaton 677C593G02 CL fuse unit CLV 0.6 5

1257527 Obsolete—contact Eaton — Live parts DBA-2

1257601 72DBA2-3E 11A8127G02 — — — —

1257603 72DBA2-7E 11A8127G03 — — — —

1257604 72DBA2-10E 11A8127G04 — — — —

1257605 72DBA2-15E 11A8127G05 — — — —

1257606 72DBA2-20E 11A8127G06 — — — —

1257607 72DBA2-25E 11A8127G07 — — — —

1257608 72DBA2-30E 11A8127G08 — — — —

1257609 72DBA2-40E 11A8127G09 — — — —

1257610 72DBA2-50E 11A8127G10 — — — —

1257611 72DBA2-65E 11A8127G11 — — — —

1257612 72DBA2-80E 11A8127G12 — — — —

1257613 72DBA2-100E 11A8127G13 — — — —

1257614 72DBA2-125E 11A8127G14 — — — —

1257615 72DBA2-150E 11A8127G15 — — — —

1257617 92DBA2-3E 11A8127G21 — — — —

1257618 92DBA2-5E 11A8127G22 — — — —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-8 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1257619 92DBA2-7E 11A8127G23 — — — —

1257620 92DBA2-10E 11A8127G24 — — — —

1257621 92DBA2-15E 11A8127G25 — — — —

1257622 92DBA2-20E 11A8127G26 — — — —

1257623 92DBA2-25E 11A8127G27 — — — —

1257624 92DBA2-30E 11A8127G28 — — — —

1257625 92DBA2-40E 11A8127G29 — — — —

1257626 92DBA2-50E 11A8127G30 — — — —

1257627 92DBA2-65E 11A8127G31 — — — —

1257628 92DBA2-80E 11A8127G32 — — — —

1257629 92DBA2-100E 11A8127G33 — — — —

1257630 92DBA2-125E 11A8127G34 — — — —

1257631 92DBA2-150E 11A8127G35 — — — —

1257633 121DBA2-3E 11A8127G41 — — — —

1257634 121DBA2-5E 11A8127G42 — — — —

1257635 121DBA2-7E 11A8127G43 — — — —

1257636 121DBA2-10E 11A8127G44 — — — —

1257637 121DBA2-15E 11A8127G45 — — — —

1257638 121DBA2-20E 11A8127G46 — — — —

1257639 121DBA2-25E 11A8127G47 — — — —

1257640 121DBA2-30E 11A8127G48 — — — —

1257641 121DBA2-40E 11A8127G49 — — — —

1257642 121DBA2-50E 11A8127G50 — — — —

1257641 121DBA2-65E 11A8127G51 — — — —

1257642 121DBA2-80E 11A8127G52 — — — —

1257643 121DBA2-100E 11A8127G53 — — — —

1257644 121DBA2-125E 11A8127G54 — — — —

1257645 121DBA2-150E 11A8127G55 — — — —

1285491 5CLPT-1E 677C452G06 CL fuse unit CLE-PT 5.5 1

1291963 5CLPT-5E 677C453G01 CL fuse unit CLE-PT 5.5 5

1291964 8CLPT-5E 677C453G02 CL fuse unit CLE-PT 8.3 5

1291965 15CLPT-5E 677C453G03 CL fuse unit CLE-PT 15.5 5

1291968 5CLPT-10E 677C453G04 CL fuse unit CLE-PT 5.5 10

1291969 8CLPT-10E 677C453G05 CL fuse unit CLE-PT 8.3 10

1291970 15CLPT-10E 677C453G06 CL fuse unit CLE-PT 15.5 10

1301110 RBA2-COND 310C197G03 Condenser (3 pack) BA-200/RBA-200 — —

1305001 Obsolete—contact Eaton — Non-disconnect mounting BA-100 5.5 100

1305002 Obsolete—contact Eaton — Non-disconnect mounting BA-100 8.3 100

1305003 Obsolete—contact Eaton — Non-disconnect mounting BA-100 14.4 100

1305004 Obsolete—contact Eaton — Non-disconnect mounting BA-100 15.5 100

1305005 Obsolete—contact Eaton — Non-disconnect mounting BA-100 25.5 100

1305006 Obsolete—contact Eaton — Non-disconnect mounting BA-200 38 200

1305020 Obsolete—contact Eaton 414D224G01 Disconnect mounting BA-200 5.5 200

1305021 Obsolete—contact Eaton 414D224G02 Disconnect mounting BA-200 8.3 200

1305022 Obsolete—contact Eaton 414D224G03 Disconnect mounting BA-100 14.4 100

1305023 Obsolete—contact Eaton 414D224G04 Disconnect mounting BA-100 15.5 100

1305024 Obsolete—contact Eaton 414D224G05 Disconnect mounting BA-200 25.5 —

1305025 Obsolete—contact Eaton 414D224G07 Mounting BA-200 5.5 —

1305026 Obsolete—contact Eaton 414D224G08 Mounting BA-200 8.3 —

1305027 Obsolete—contact Eaton 414D224G09 Mounting BA-200 14.5 —

1305028 Obsolete—contact Eaton 414D224G10 Mounting BA-200 15.5 —

1305030 Obsolete—contact Eaton 414D224G11 Mounting BA-200 5.5 —

1305031 Obsolete—contact Eaton 414D224G12 Mounting BA-200 8.3 —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-9

Appendix 2—Superseded Style Number Index

1305032 Obsolete—contact Eaton 414D224G13 Mounting BA-200 14.5 —

1305033 Obsolete—contact Eaton 414D224G14 Mounting BA-200 15.5 —

1305035 Obsolete—contact Eaton 414D224G15 Disconnect mounting RC BA-200 5.5 —

1305036 Obsolete—contact Eaton 414D224G16 Disconnect mounting RC BA-200 8.3 —

1305037 Obsolete—contact Eaton 414D224G17 Disconnect mounting RC BA-200 14.5 —

1305038 Obsolete—contact Eaton 414D224G18 Disconnect mounting RC BA-200 15.5 —

1305040 Obsolete—contact Eaton 414D226G01 Disconnect mounting BA-400 5.5 —

1305041 Obsolete—contact Eaton 414D226G02 Disconnect mounting BA-400 8.3 —

1305042 Obsolete—contact Eaton 414D226G03 Disconnect mounting BA-400 14.5 —

1305043 Obsolete—contact Eaton 414D226G04 Disconnect mounting BA-400 15.5 —

1305044 Obsolete—contact Eaton 414D226G05 Disconnect mounting BA-400 25.5 —

1305045 Obsolete—contact Eaton 414D226G07 Mounting BA-400 5.5 —

1305046 Obsolete—contact Eaton 414D226G08 Mounting BA-400 8.3 —

1305047 Obsolete—contact Eaton 414D226G09 Mounting BA-400 14.5 —

1305048 Obsolete—contact Eaton 414D226G10 Mounting BA-400 15.5 —

1305049 Obsolete—contact Eaton 414D226G11 Mounting BA-400 15.5 —

1305050 Obsolete—contact Eaton 414D226G12 Mounting BA-400 5.5 —

1305051 Obsolete—contact Eaton 414D226G13 Mounting BA-400 8.3 —

1305052 Obsolete—contact Eaton 414D226G14 Mounting BA-400 14.5 —

1305053 Obsolete—contact Eaton 414D226G15 Mounting BA-400 15.5 —

1305054 Obsolete—contact Eaton 414D226G16 Mounting BA-400 25.5 —

1305055 Obsolete—contact Eaton 414D226G17 Disconnect mounting RC BA-400 5.5 —

1305056 Obsolete—contact Eaton 414D226G18 Disconnect mounting RC BA-400 8.3 —

1305057 Obsolete—contact Eaton 414D226G19 Disconnect mounting RC BA-400 14.5 —

1305058 Obsolete—contact Eaton 414D226G20 Disconnect mounting RC BA-400 15.5 —

1305059 Obsolete—contact Eaton 414D226G21 Mounting BA-400 25.5 —

1305060 Obsolete—contact Eaton 414D225G01 Disconnect mounting FCV BA-200 5.5 —

1305061 Obsolete—contact Eaton 414D225G02 Disconnect mounting FCV BA-200 8.3 —

1305062 Obsolete—contact Eaton 414D225G03 Disconnect mounting FCV BA-200 14.5 —

1305063 Obsolete—contact Eaton 414D225G04 Disconnect mounting FCV BA-200 15.5 —

1305064 Obsolete—contact Eaton 414D225G05 Disconnect mounting FCV BA-200 25.5 —

1305065 Obsolete—contact Eaton 414D225G07 Mounting BA-200 5.5 —

1305066 Obsolete—contact Eaton 414D225G08 Mounting BA-200 8.3 —

1305067 Obsolete—contact Eaton 414D225G09 Mounting BA-200 14.5 —

1305068 Obsolete—contact Eaton 414D225G10 Mounting BA-200 15.5 —

1305070 Obsolete—contact Eaton 414D225G11 Mounting BA-200 5.5 —

1305071 Obsolete—contact Eaton 414D225G12 Mounting BA-200 8.3 —

1305072 Obsolete—contact Eaton 414D225G13 Mounting BA-200 14.5 —

1305073 Obsolete—contact Eaton 414D225G14 Mounting BA-200 15.5 —

1305075 Obsolete—contact Eaton 414D225G15 Disconnect mounting RCV BA-200 5.5 —

1305076 Obsolete—contact Eaton 414D225G16 Disconnect mounting RCV BA-200 8.3 —

1305077 Obsolete—contact Eaton 414D225G17 Disconnect mounting RCV BA-200 14.5 —

1305078 Obsolete—contact Eaton 414D225G18 Disconnect mounting RCV BA-200 15.5 —

1305080 Obsolete—contact Eaton 414D227G01 Disconnect mounting FCV BA-400 5.5 —

1305081 Obsolete—contact Eaton 414D227G02 Disconnect mounting FCV BA-400 8.3 —

1305082 Obsolete—contact Eaton 414D227G03 Disconnect mounting FCV BA-400 14.5 —

1305083 Obsolete—contact Eaton 414D227G04 Disconnect mounting FCV BA-400 15.5 —

1305084 Obsolete—contact Eaton 414D227G05 Disconnect mounting FCV BA-400 25.5 —

1305085 Obsolete—contact Eaton 414D227G07 Mounting BA-400 5.5 —

1305086 Obsolete—contact Eaton 414D227G08 Mounting BA-400 8.3 —

1305087 Obsolete—contact Eaton 414D227G09 Mounting BA-400 14.5 —

1305088 Obsolete—contact Eaton 414D227G10 Mounting BA-400 15.5 —

1305089 Obsolete—contact Eaton 414D227G11 Mounting BA-400 25.5 —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-10 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1305090 Obsolete—contact Eaton 414D227G12 Mounting BA-400 5.5 —

1305091 Obsolete—contact Eaton 414D227G13 Mounting BA-400 8.3 —

1305092 Obsolete—contact Eaton 414D227G14 Mounting BA-400 14.5 —

1305093 Obsolete—contact Eaton 414D227G15 Mounting BA-400 15.5 —

1305094 Obsolete—contact Eaton 414D227G16 Mounting BA-400 25.5 —

1305095 Obsolete—contact Eaton 414D227G17 Disconnect mounting RCV BA-400 5.5 —

1305096 Obsolete—contact Eaton 414D227G18 Disconnect mounting RCV BA-400 8.3 —

1305097 Obsolete—contact Eaton 414D227G19 Disconnect mounting RCV BA-400 14.5 —

1305098 Obsolete—contact Eaton 414D227G20 Disconnect mounting RCV BA-400 15.5 —

1305099 Obsolete—contact Eaton 414D227G21 Mounting BA-400 25.5 —

1305318 Obsolete—contact Eaton 304C437G01 Mounting BA-200 8.3 —

1305319 Obsolete—contact Eaton 304C437G02 Mounting BA-200 15.5 —

1305320 Obsolete—contact Eaton 304C437G03 Mounting BA-200 25.5 —

1305321 Obsolete—contact Eaton 304C437G04 Mounting BA-200 38 —

1305326 Obsolete—contact Eaton 304C444G01 Disconnect mounting ECD BA-400 8.3 —

1305327 Obsolete—contact Eaton 304C444G02 Disconnect mounting ECD BA-400 15.5 —

1305328 Obsolete—contact Eaton 304C444G03 Disconnect mounting ECD BA-400 25.5 —

1305329 Obsolete—contact Eaton 304C444G04 Disconnect mounting ECD BA-400 38 —

1305334 Obsolete—contact Eaton 304C438G01 Disconnect mounting ECD BA-200 8.3 —

1305335 Obsolete—contact Eaton 304C438G02 Disconnect mounting ECD BA-200 15.5 —

1305336 Obsolete—contact Eaton 304C438G03 Disconnect mounting ECD BA-200 25.5 —

1305337 Obsolete—contact Eaton 304C438G04 Disconnect mounting ECD BA-200 38 —

1305432 Obsolete—contact Eaton 432D140A02 Mounting BAL 5.5 —

1305437 Obsolete—contact Eaton 432D140A32 Mounting BAL 2.75 —

1305438 Obsolete—contact Eaton 432D140A33 Mounting BAL 5.5 —

1305445 72DBA2-200E 11A8127G16 — — — —

1305445 92DBA2-200E 11A8127G36 — — — —

1305445 121DBA2-200E 11A8127G56 — — — —

1310755 Obsolete—contact Eaton — Mounting BAL-100 25.5 —

1310996 Obsolete—contact Eaton 310C197G04 Condenser (outdoor) BA-400 — —

1310997 Obsolete—contact Eaton 310C197G03 Condenser (outdoor) BA-200 — —

1314000 8BA2-.5E 117D123A01 Fuse reﬁll unit BA-200 8.3 0.5

1314001 8BA2-5E 117D123A02 Fuse reﬁll unit BA-200 8.3 5

1314002 8BA2-7E 117D123A03 Fuse reﬁll unit BA-200 8.3 7

1314003 8BA2-10E 117D123A04 Fuse reﬁll unit BA-200 8.3 10

1314004 8BA2-15E 117D123A05 Fuse reﬁll unit BA-200 8.3 15

1314005 8BA2-20E 117D123A06 Fuse reﬁll unit BA-200 8.3 20

1314006 8BA2-25E 117D123A07 Fuse reﬁll unit BA-200 8.3 25

1314007 8BA2-30E 117D123A08 Fuse reﬁll unit BA-200 8.3 30

1314008 8BA2-40E 117D123A09 Fuse reﬁll unit BA-200 8.3 40

1314009 8BA2-50E 117D123A10 Fuse reﬁll unit BA-200 8.3 50

1314010 8BA2-65E 117D123A11 Fuse reﬁll unit BA-200 8.3 654

1314011 8BA2-80E 117D123A12 Fuse reﬁll unit BA-200 8.3 80

1314012 8BA2-100E 117D123A13 Fuse reﬁll unit BA-200 8.3 100

1314013 8BA2-125E 117D123A14 Fuse reﬁll unit BA-200 8.3 125

1314014 8BA2-150E 117D123A15 Fuse reﬁll unit BA-200 8.3 150

1314015 8BA2-200E 117D123A16 Fuse reﬁll unit BA-200 8.3 200

1314016 15BA2-.5E 117D123A01 Fuse reﬁll unit BA-200 15.5 0.5

1314017 15BA2-5E 117D123A02 Fuse reﬁll unit BA-200 15.5 5

1314018 15BA2-7E 117D123A03 Fuse reﬁll unit BA-200 15.5 7

1314019 15BA2-10E 117D123A04 Fuse reﬁll unit BA-200 15.5 10

1314020 15BA2-15E 117D123A05 Fuse reﬁll unit BA-200 15.5 15

1314021 15BA2-20E 117D123A06 Fuse reﬁll unit BA-200 15.5 20

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-11

Appendix 2—Superseded Style Number Index

1314022 15BA2-25E 117D123A07 Fuse reﬁll unit BA-200 15.5 25

1314023 15BA2-30E 117D123A08 Fuse reﬁll unit BA-200 15.5 30

1314024 15BA2-40E 117D123A09 Fuse reﬁll unit BA-200 15.5 40

1314025 15BA2-50E 117D123A10 Fuse reﬁll unit BA-200 15.5 50

1314026 15BA2-65E 117D123A11 Fuse reﬁll unit BA-200 15.5 654

1314027 15BA2-80E 117D123A12 Fuse reﬁll unit BA-200 15.5 80

1314028 15BA2-100E 117D123A13 Fuse reﬁll unit BA-200 15.5 100

1314029 15BA2-125E 117D123A14 Fuse reﬁll unit BA-200 15.5 125

1314030 15BA2-150E 117D123A15 Fuse reﬁll unit BA-200 15.5 150

1314031 15BA2-200E 117D123A16 Fuse reﬁll unit BA-200 15.5 200

1314032 25BA2-.5E 117D123A01 Fuse reﬁll unit BA-200 25.5 0.5

1314033 25BA2-5E 117D123A02 Fuse reﬁll unit BA-200 25.5 5

1314034 25BA2-7E 117D123A03 Fuse reﬁll unit BA-200 25.5 7

1314035 25BA2-10E 117D123A04 Fuse reﬁll unit BA-200 25.5 10

1314036 25BA2-15E 117D123A05 Fuse reﬁll unit BA-200 25.5 15

1314037 25BA2-20E 117D123A06 Fuse reﬁll unit BA-200 25.5 20

1314038 25BA2-25E 117D123A07 Fuse reﬁll unit BA-200 25.5 25

1314039 25BA2-30E 117D123A08 Fuse reﬁll unit BA-200 25.5 30

1314040 25BA2-40E 117D123A09 Fuse reﬁll unit BA-200 25.5 40

1314041 25BA2-50E 117D123A10 Fuse reﬁll unit BA-200 25.5 50

1314042 25BA2-65E 117D123A11 Fuse reﬁll unit BA-200 25.5 654

1314043 25BA2-80E 117D123A12 Fuse reﬁll unit BA-200 25.5 80

1314044 25BA2-100E 117D123A13 Fuse reﬁll unit BA-200 25.5 100

1314045 25BA2-125E 117D123A14 Fuse reﬁll unit BA-200 25.5 125

1314046 25BA2-150E 117D123A15 Fuse reﬁll unit BA-200 25.5 150

1314047 25BA2-200E 117D123A16 Fuse reﬁll unit BA-200 25.5 200

1314048 38BA2-.5E 117D123A01 Fuse reﬁll unit BA-200 38 0.5

1314049 38BA2-5E 117D123A02 Fuse reﬁll unit BA-200 38 5

1314050 38BA2-7E 117D123A03 Fuse reﬁll unit BA-200 38 7

1314051 38BA2-10E 117D123A04 Fuse reﬁll unit BA-200 38 10

1314052 38BA2-15E 117D123A05 Fuse reﬁll unit BA-200 38 15

1314053 38BA2-20E 117D123A06 Fuse reﬁll unit BA-200 38 20

1314054 38BA2-25E 117D123A07 Fuse reﬁll unit BA-200 38 25

1314055 38BA2-30E 117D123A08 Fuse reﬁll unit BA-200 38 30

1314056 38BA2-40E 117D123A09 Fuse reﬁll unit BA-200 38 40

1314057 38BA2-50E 117D123A10 Fuse reﬁll unit BA-200 38 50

1314058 38BA2-65E 117D123A11 Fuse reﬁll unit BA-200 38 654

1314059 38BA2-80E 117D123A12 Fuse reﬁll unit BA-200 38 80

1314060 38BA2-100E 117D123A13 Fuse reﬁll unit BA-200 38 100

1314061 38BA2-125E 117D123A14 Fuse reﬁll unit BA-200 38 125

1314062 38BA2-150E 117D123A15 Fuse reﬁll unit BA-200 38 150

1314063 38BA2-200E 117D123A16 Fuse reﬁll unit BA-200 38 200

1314067 Obsolete—contact Eaton 434D316A04 Time lag fuse reﬁll unit BA-200 8.3 15

1314068 Obsolete—contact Eaton 434D316A05 Time lag fuse reﬁll unit BA-200 8.3 20

1314069 Obsolete—contact Eaton 434D316A06 Time lag fuse reﬁll unit BA-200 8.3 25

1314070 Obsolete—contact Eaton 434D316A07 Time lag fuse reﬁll unit BA-200 8.3 30

1314071 Obsolete—contact Eaton 434D316A08 Time lag fuse reﬁll unit BA-200 8.3 40

1314072 Obsolete—contact Eaton 434D316A09 Time lag fuse reﬁll unit BA-200 8.3 50

1314073 Obsolete—contact Eaton 434D316A10 Time lag fuse reﬁll unit BA-200 8.3 654

1314074 Obsolete—contact Eaton 434D316A11 Time lag fuse reﬁll unit BA-200 8.3 80

1314075 Obsolete—contact Eaton 434D316A12 Time lag fuse reﬁll unit BA-200 8.3 100

1314076 Obsolete—contact Eaton 434D316A13 Time lag fuse reﬁll unit BA-200 8.3 125

1314077 Obsolete—contact Eaton 434D316A14 Time lag fuse reﬁll unit BA-200 8.3 150

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-12 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1314078 Obsolete—contact Eaton 434D316A15 Time lag fuse reﬁll unit BA-200 8.3 200

1314082 Obsolete—contact Eaton 434D316A19 Time lag fuse reﬁll unit BA-200 15.5 15

1314083 Obsolete—contact Eaton 434D316A20 Time lag fuse reﬁll unit BA-200 15.5 20

1314084 Obsolete—contact Eaton 434D316A21 Time lag fuse reﬁll unit BA-200 15.5 25

1314085 Obsolete—contact Eaton 434D316A22 Time lag fuse reﬁll unit BA-200 15.5 30

1314086 Obsolete—contact Eaton 434D316A23 Time lag fuse reﬁll unit BA-200 15.5 40

1314087 Obsolete—contact Eaton 434D316A24 Time lag fuse reﬁll unit BA-200 15.5 50

1314088 Obsolete—contact Eaton 434D316A25 Time lag fuse reﬁll unit BA-200 15.5 654

1314089 Obsolete—contact Eaton 434D316A26 Time lag fuse reﬁll unit BA-200 15.5 80

1314090 Obsolete—contact Eaton 434D316A27 Time lag fuse reﬁll unit BA-200 15.5 100

1314091 Obsolete—contact Eaton 434D316A28 Time lag fuse reﬁll unit BA-200 15.5 125

1314092 Obsolete—contact Eaton 434D316A29 Time lag fuse reﬁll unit BA-200 15.5 150

1314093 Obsolete—contact Eaton 434D316A30 Time lag fuse reﬁll unit BA-200 15.5 200

1314097 Obsolete—contact Eaton 434D316A34 Time lag fuse reﬁll unit BA-200 25.5 15

1314098 Obsolete—contact Eaton 434D316A35 Time lag fuse reﬁll unit BA-200 25.5 20

1314099 Obsolete—contact Eaton 434D316A36 Time lag fuse reﬁll unit BA-200 25.5 25

1314100 Obsolete—contact Eaton 434D316A37 Time lag fuse reﬁll unit BA-200 25.5 30

1314101 Obsolete—contact Eaton 434D316A38 Time lag fuse reﬁll unit BA-200 25.5 40

1314102 Obsolete—contact Eaton 434D316A39 Time lag fuse reﬁll unit BA-200 25.5 50

1314103 Obsolete—contact Eaton 434D316A40 Time lag fuse reﬁll unit BA-200 25.5 654

1314104 Obsolete—contact Eaton 434D316A41 Time lag fuse reﬁll unit BA-200 25.5 80

1314105 Obsolete—contact Eaton 434D316A42 Time lag fuse reﬁll unit BA-200 25.5 100

1314106 Obsolete—contact Eaton 434D316A43 Time lag fuse reﬁll unit BA-200 25.5 125

1314107 Obsolete—contact Eaton 434D316A44 Time lag fuse reﬁll unit BA-200 25.5 150

1314108 Obsolete—contact Eaton 434D316A45 Time lag fuse reﬁll unit BA-200 25.5 200

1314112 Obsolete—contact Eaton 434D316A49 Time lag fuse reﬁll unit BA-200 38 15

1314113 Obsolete—contact Eaton 434D316A50 Time lag fuse reﬁll unit BA-200 38 20

1314114 Obsolete—contact Eaton 434D316A51 Time lag fuse reﬁll unit BA-200 38 25

1314115 Obsolete—contact Eaton 434D316A52 Time lag fuse reﬁll unit BA-200 38 30

1314116 Obsolete—contact Eaton 434D316A53 Time lag fuse reﬁll unit BA-200 38 40

1314117 Obsolete—contact Eaton 434D316A54 Time lag fuse reﬁll unit BA-200 38 50

1314118 Obsolete—contact Eaton 434D316A55 Time lag fuse reﬁll unit BA-200 38 654

1314119 Obsolete—contact Eaton 434D316A56 Time lag fuse reﬁll unit BA-200 38 80

1314120 Obsolete—contact Eaton 434D316A57 Time lag fuse reﬁll unit BA-200 38 100

1314121 Obsolete—contact Eaton 434D316A58 Time lag fuse reﬁll unit BA-200 38 125

1314122 Obsolete—contact Eaton 434D316A59 Time lag fuse reﬁll unit BA-200 38 150

1314123 Obsolete—contact Eaton 434D316A60 Time lag fuse reﬁll unit BA-200 38 200

1314124 8BA4-.5E 116D977A01 Fuse reﬁll unit BA-400 8.3 0.5

1314125 8BA4-5E 116D977A02 Fuse reﬁll unit BA-400 8.3 5

1314126 8BA4-7E 116D977A03 Fuse reﬁll unit BA-400 8.3 7

1314127 8BA4-10E 116D977A04 Fuse reﬁll unit BA-400 8.3 10

1314128 8BA4-15E 116D977A05 Fuse reﬁll unit BA-400 8.3 15

1314129 8BA4-20E 116D977A06 Fuse reﬁll unit BA-400 8.3 20

1314130 8BA4-25E 116D977A07 Fuse reﬁll unit BA-400 8.3 25

1314131 8BA4-30E 116D977A08 Fuse reﬁll unit BA-400 8.3 30

1314132 8BA4-40E 116D977A09 Fuse reﬁll unit BA-400 8.3 40

1314133 8BA4-50E 116D977A10 Fuse reﬁll unit BA-400 8.3 50

1314134 8BA4-65E 116D977A11 Fuse reﬁll unit BA-400 8.3 654

1314135 8BA4-80E 116D977A12 Fuse reﬁll unit BA-400 8.3 80

1314136 8BA4-100E 116D977A13 Fuse reﬁll unit BA-400 8.3 100

1314137 8BA4-125E 116D977A14 Fuse reﬁll unit BA-400 8.3 125

1314138 8BA4-150E 116D977A15 Fuse reﬁll unit BA-400 8.3 150

1314139 8BA4-200E 116D977A16 Fuse reﬁll unit BA-400 8.3 200

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-13

Appendix 2—Superseded Style Number Index

1314140 8BA4-250E 116D977A17 Fuse reﬁll unit BA-400 8.3 250

1314141 8BA4-300E 116D977A18 Fuse reﬁll unit BA-400 8.3 300

1314142 8BA4-400E 116D977A19 Fuse reﬁll unit BA-400 8.3 400

1314143 15BA4-.5E 116D977A01 Fuse reﬁll unit BA-400 15.5 0.5

1314144 15BA4-5E 116D977A02 Fuse reﬁll unit BA-400 15.5 5

1314145 15BA4-7E 116D977A03 Fuse reﬁll unit BA-400 15.5 7

1314146 15BA4-10E 116D977A04 Fuse reﬁll unit BA-400 15.5 10

1314147 15BA4-15E 116D977A05 Fuse reﬁll unit BA-400 15.5 15

1314148 15BA4-20E 116D977A06 Fuse reﬁll unit BA-400 15.5 20

1314149 15BA4-25E 116D977A07 Fuse reﬁll unit BA-400 15.5 25

1314150 15BA4-30E 116D977A08 Fuse reﬁll unit BA-400 15.5 30

1314151 15BA4-40E 116D977A09 Fuse reﬁll unit BA-400 15.5 40

1314152 15BA4-50E 116D977A10 Fuse reﬁll unit BA-400 15.5 50

1314153 15BA4-65E 116D977A11 Fuse reﬁll unit BA-400 15.5 654

1314154 15BA4-80E 116D977A12 Fuse reﬁll unit BA-400 15.5 80

1314155 15BA4-100E 116D977A13 Fuse reﬁll unit BA-400 15.5 100

1314156 15BA4-125E 116D977A14 Fuse reﬁll unit BA-400 15.5 125

1314157 15BA4-150E 116D977A15 Fuse reﬁll unit BA-400 15.5 150

1314158 15BA4-200E 116D977A16 Fuse reﬁll unit BA-400 15.5 200

1314159 15BA4-250E 116D977A17 Fuse reﬁll unit BA-400 15.5 250

1314160 15BA4-300E 116D977A18 Fuse reﬁll unit BA-400 15.5 300

1314161 15BA4-400E 116D977A19 Fuse reﬁll unit BA-400 15.5 400

1314162 25BA4-.5E 116D977A01 Fuse reﬁll unit BA-400 25.5 0.5

1314163 25BA4-5E 116D977A02 Fuse reﬁll unit BA-400 25.5 5

1314164 25BA4-7E 116D977A03 Fuse reﬁll unit BA-400 25.5 7

1314165 25BA4-10E 116D977A04 Fuse reﬁll unit BA-400 25.5 10

1314166 25BA4-15E 116D977A05 Fuse reﬁll unit BA-400 25.5 15

1314167 25BA4-20E 116D977A06 Fuse reﬁll unit BA-400 25.5 20

1314168 25BA4-25E 116D977A07 Fuse reﬁll unit BA-400 25.5 25

1314169 25BA4-30E 116D977A08 Fuse reﬁll unit BA-400 25.5 30

1314170 25BA4-40E 116D977A09 Fuse reﬁll unit BA-400 25.5 40

1314171 25BA4-50E 116D977A10 Fuse reﬁll unit BA-400 25.5 50

1314172 25BA4-65E 116D977A11 Fuse reﬁll unit BA-400 25.5 654

1314173 25BA4-80E 116D977A12 Fuse reﬁll unit BA-400 25.5 80

1314174 25BA4-100E 116D977A13 Fuse reﬁll unit BA-400 25.5 100

1314175 25BA4-125E 116D977A14 Fuse reﬁll unit BA-400 25.5 125

1314176 25BA4-150E 116D977A15 Fuse reﬁll unit BA-400 25.5 150

1314177 25BA4-200E 116D977A16 Fuse reﬁll unit BA-400 25.5 200

1314178 25BA4-250E 116D977A17 Fuse reﬁll unit BA-400 25.5 250

1314179 25BA4-300E 116D977A18 Fuse reﬁll unit BA-400 25.5 300

1314180 38BA4-.5E 116D977A01 Fuse reﬁll unit BA-400 38 0.5

1314181 38BA4-5E 116D977A02 Fuse reﬁll unit BA-400 38 5

1314182 38BA4-7E 116D977A03 Fuse reﬁll unit BA-400 38 7

1314183 38BA4-10E 116D977A04 Fuse reﬁll unit BA-400 38 10

1314184 38BA4-15E 116D977A05 Fuse reﬁll unit BA-400 38 15

1314185 38BA4-20E 116D977A06 Fuse reﬁll unit BA-400 38 20

1314186 38BA4-25E 116D977A07 Fuse reﬁll unit BA-400 38 25

1314187 38BA4-30E 116D977A08 Fuse reﬁll unit BA-400 38 30

1314188 38BA4-40E 116D977A09 Fuse reﬁll unit BA-400 38 40

1314189 38BA4-50E 116D977A10 Fuse reﬁll unit BA-400 38 50

1314190 38BA4-65E 116D977A11 Fuse reﬁll unit BA-400 38 654

1314191 38BA4-80E 116D977A12 Fuse reﬁll unit BA-400 38 80

1314192 38BA4-100E 116D977A13 Fuse reﬁll unit BA-400 38 100

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-14 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1314193 38BA4-125E 116D977A14 Fuse reﬁll unit BA-400 38 125

1314194 38BA4-150E 116D977A15 Fuse reﬁll unit BA-400 38 150

1314195 38BA4-200E 116D977A16 Fuse reﬁll unit BA-400 38 200

1314196 38BA4-250E 116D977A18 Fuse reﬁll unit BA-400 38 250

1314197 38BA4-300E 116D977A17 Fuse reﬁll unit BA-400 38 300

1314199 38BA4-250E 116D977A18 Fuse reﬁll unit BA-400 38 250

1318260 38DBA2-0.5 22A6782G04 — — — —

1318261 38DBA2-3E 505D420G07 — — — —

1318262 38DBA2-5E 18A7330G13 — — — —

1318263 38DBA2-7E 18A7330G14 — — — —

1318264 38DBA2-10E 18A7330G15 — — — —

1318265 38DBA2-15E 18A7330G16 — — — —

1318266 38DBA2-20E 18A7330G17 — — — —

1318267 38DBA2-25E 18A7330G18 — — — —

1318268 38DBA2-30E 18A7330G19 — — — —

1318269 38DBA2-40E 18A7330G20 — — — —

1318270 38DBA2-50E 18A7330G21 — — — —

1318271 38DBA2-65E 18A7330G22 — — — —

1318272 38DBA2-80E 18A7330G23 — — — —

1318273 38DBA2-100E 18A7330G24 — — — —

1318274 38DBA2-125E 18A7330G25 — — — —

1318275 38DBA2-150E 18A7330G26 — — — —

1318276 38DBA2-200E 18A7330G27 — — — —

1318280 48DBA2-0.5 22A6782G05 — — — —

1318281 48DBA2-3E 505D420G08 — — — —

1318282 48DBA2-5E 18A7330G33 — — — —

1318283 48DBA2-7E 18A7330G34 — — — —

1318284 48DBA2-10E 18A7330G35 — — — —

1318285 48DBA2-15E 18A7330G36 — — — —

1318286 48DBA2-20E 18A7330G37 — — — —

1318287 48DBA2-25E 18A7330G38 — — — —

1318288 48DBA2-30E 18A7330G39 — — — —

1318289 48DBA2-40E 18A7330G40 — — — —

1318290 48DBA2-50E 18A7330G41 — — — —

1318291 48DBA2-65E 18A7330G42 — — — —

1318292 48DBA2-80E 18A7330G43 — — — —

1318293 48DBA2-100E 18A7330G44 — — — —

1318294 48DBA2-125E 18A7330G45 — — — —

1318295 48DBA2-150E 18A7330G46 — — — —

1318296 48DBA2-200E 18A7330G47 — — — —

1318511 8BA4-NH 310C196G01 Non-disconnect fuse holder BA-400 8.3 400

1318512 15BA4-NH 310C196G02 Non-disconnect fuse holder BA-400 15.5 400

1318513 8BA2-NH 310C198G01 Non-disconnect fuse holder BA-200 8.3 200

1318514 15BA2-NH 310C198G02 Non-disconnect fuse holder BA-200 15.5 200

1318710 2CLE-50E 310C095G02 CL fuse unit CLE 2.75 50

2CLE-50E 449D797G03 CL fuse unit CLE 2.75 50

1318711 2CLE-65E 310C095G03 CL fuse unit CLE 2.75 65

2CLE-65E 449D797G04 CL fuse unit CLE 2.75 65

1318712 2CLE-80E 310C095G04 CL fuse unit CLE 2.75 90

2CLE-80E 449D797G05 CL fuse unit CLE 2.75 90

1318713 2CLE-100E 310C095G05 CL fuse unit CLE 2.75 100

2CLE-100E 449D797G06 CL fuse unit CLE 2.75 100

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-15

Appendix 2—Superseded Style Number Index

1318714 2CLE-125E 310C095G06 CL fuse unit CLE 2.75 125

2CLE-125E 449D797G07 CL fuse unit CLE 2.75 125

1318715 2CLE-150E 310C095G07 CL fuse unit CLE 2.75 150

2CLE-150E 449D797G08 CL fuse unit CLE 2.75 150

1318716 2CLE-200E 310C095G08 CL fuse unit CLE 2.75 200

2CLE-200E 449D797G09 CL fuse unit CLE 2.75 200

1318720 5CLE-50E 310C095G12 CL fuse unit CLE 5.5 50

5CLE-50E 5981C65G02 CL fuse unit CLE 5.5 50

1318721 5CLE-65E 310C095G13 CL fuse unit CLE 5.5 65

5CLE-65E 5981C65G03 CL fuse unit CLE 5.5 65

1318722 5CLE-80E 310C095G14 CL fuse unit CLE 5.5 90

5CLE-80E 5981C65G04 CL fuse unit CLE 5.5 90

1318723 5CLE-100E 310C095G15 CL fuse unit CLE 5.5 100

5CLE-100E 5981C65G05 CL fuse unit CLE 5.5 100

1318724 5CLE-125E 310C095G16 CL fuse unit CLE 5.5 125

5CLE-125E 5981C65G06 CL fuse unit CLE 5.5 125

1318725 5CLE-150E 310C095G17 CL fuse unit CLE 5.5 150

5CLE-150E 5981C65G07 CL fuse unit CLE 5.5 150

1318726 5CLE-200E 310C095G18 CL fuse unit CLE 5.5 200

5CLE-200E 5981C65G09 CL fuse unit CLE 5.5 200

1318727 8CLE-50E 5981C17G05 CL fuse unit CLE 8.3 50

8CLE-50E 677C573G03 CL fuse unit CLE 8.3 50

1318728 8CLE-65E 5981C17G06 CL fuse unit CLE 8.3 65

8CLE-65E 677C573G04 CL fuse unit CLE 8.3 65

1318730 8CLE-100E 5981C17G08 CL fuse unit CLE 8.3 100

8CLE-100E 677C573G06 CL fuse unit CLE 8.3 100

1318731 15CLE-50E 439D378G05 CL fuse unit CLE 15.5 50

15CLE-50E 5981C19G05 CL fuse unit CLE 15.5 50

1318732 15CLE-65E 439D378G06 CL fuse unit CLE 15.5 65

15CLE-65E 5981C19G06 CL fuse unit CLE 15.5 65

1318733 15CLE-80E 439D482G04 CL fuse unit CLE 15.5 80

15CLE-80E 5981C19G07 CL fuse unit CLE 15.5 80

1318734 15CLE-100E 439D482G05 CL fuse unit CLE 15.5 100

15CLE-100E 5981C19G08 CL fuse unit CLE 15.5 100

1318739 Obsolete—contact Eaton 505D615A02 Live parts BA-400 — —

1318740 Obsolete—contact Eaton 505D615A04 Live parts BA-400 — —

1318741 Obsolete—contact Eaton 505D615A05 Live parts BA-400 — —

1318742 Obsolete—contact Eaton 505D615A06 Live parts BA-400 — —

1318803 Obsolete—contact Eaton 505D616A03 Live parts BA-200 — —

1318840 Obsolete—contact Eaton 505D616A06 Live parts BA-200 — —

1318841 Obsolete—contact Eaton 505D616A07 Live parts BA-200 — —

1318842 Obsolete—contact Eaton 505D616A08 Live parts BA-200 — —

1318843 Obsolete—contact Eaton 505D616A09 Live parts BA-200 — —

1332763 2CLE-15E 678C240G01 CL fuse unit CLE 2.75 15

1332764 2CLE-20E 678C240G02 CL fuse unit CLE 2.75 20

1332765 2CLE-25E 678C240G03 CL fuse unit CLE 2.75 25

1332766 5CLE-15E 678C240G04 CL fuse unit CLE 5.5 15

1332767 5CLE-20E 678C240G05 CL fuse unit CLE 5.5 20

1332768 5CLE-25E 678C240G06 CL fuse unit CLE 5.5 25

1332769 8CLE-15E 678C240G07 CL fuse unit CLE 8.3 15

1332770 8CLE-20E 678C240G08 CL fuse unit CLE 8.3 20

1332771 8CLE-25E 678C240G09 CL fuse unit CLE 8.3 25

1332772 15CLE-15E 678C240G10 CL fuse unit CLE 15.5 15

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-16 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1332773 15CLE-20E 678C240G11 CL fuse unit CLE 15.5 20

1332774 15CLE-25E 678C240G12 CL fuse unit CLE 15.5 25

1362998 Obsolete—contact Eaton — End ﬁttings CLE — —

1363084 Obsolete—contact Eaton 505D615A03 Live parts BA-400 — —

1392538 2CLS-2R 591C812G02 CL fuse unit CLS 2.54 70

1392539 2CLS-4R 591C812G04 CL fuse unit CLS 2.54 130

1392540 2CLS-6R 591C812G06 CL fuse unit CLS 2.54 170

1392541 2CLS-9R 591C812G07 CL fuse unit CLS 2.54 200

1392542 2CLS-12R 591C812G08 CL fuse unit CLS 2.54 230

1392543 2CLS-12R 591C812G08 CL fuse unit CLS 2.54 230

1392544 5LCLS-2R 676C546G15 CL fuse unit CLS 5.08 70

1392545 5LCLS-4R 676C546G17 CL fuse unit CLS 5.08 130

1392546 5LCLS-6R 676C546G19 CL fuse unit CLS 5.08 170

1392547 5LCLS-9R 676C546G22 CL fuse unit CLS 5.08 200

1392548 5LCLS-12R 676C546G25 CL fuse unit CLS 5.08 230

1392549 5LCLS-12R 676C546G25 CL fuse unit CLS 5.08 230

1392788 Obsolete—contact Eaton 432D140A35 Mounting BAL — —

1404766 8BA2-NH 310C198G01 Non-disconnect fuse holder BA-200 8.3 200

1404767 15BA2-NH 310C198G02 Non-disconnect fuse holder BA-200 15.5 200

1414114 Obsolete—contact Eaton 434D316A51 Time lag fuse reﬁll unit BA-200 38 25

1446152 Obsolete—contact Eaton 304C108G01 Outdoor mounting 180 BA-200 8.3 200

1446153 Obsolete—contact Eaton 304C108G02 Outdoor mounting 180 BA-200 15.5 200

1446154 Obsolete—contact Eaton 304C108G03 Outdoor mounting 180 BA-200 25.5 200

1446155 Obsolete—contact Eaton 304C108G04 Outdoor mounting 180 BA-200 38 200

1446156 Obsolete—contact Eaton 304C109G01 Outdoor mounting 180 BA-400 8.3 400

1446157 Obsolete—contact Eaton 304C109G02 Outdoor mounting 180 BA-400 15.5 400

1446158 Obsolete—contact Eaton 304C109G03 Outdoor mounting 180 BA-400 25.5 400

1446159 Obsolete—contact Eaton 304C109G04 Outdoor mounting 180 BA-400 38 400

1446293 Obsolete—contact Eaton 434D830A01 Outdoor mounting DBA-1 8.3 200

1446294 Obsolete—contact Eaton 434D830A02 Outdoor mounting DBA-1 15.5 200

1446295 Obsolete—contact Eaton 434D830A03 Outdoor mounting DBA-1 25.5 200

1446296 Obsolete—contact Eaton 434D830A04 Outdoor mounting DBA-1 38 200

1446297 Obsolete—contact Eaton 434D830A05 Outdoor mounting DBA-1 48 200

1446298 Obsolete—contact Eaton 434D830A09 Outdoor mounting DBA-1 72 200

1446355 Obsolete—contact Eaton 434D831A02 Outdoor mounting DBA2/5 48 200

1446356 Obsolete—contact Eaton 434D831A09 Outdoor mounting DBA2/5 72 200

1446357 Obsolete—contact Eaton 434D831A10 Outdoor mounting DBA2/5 92 200

1446358 Obsolete—contact Eaton 434D831A11 Outdoor mounting DBA2/5 121 200

1446359 Obsolete—contact Eaton 434D831A12 Outdoor mounting DBA2/5 145 200

1481432 Obsolete—contact Eaton 304C108G05 Outdoor mounting Hi BIL BA-200 8.3 200

1481433 Obsolete—contact Eaton 304C108G06 Outdoor mounting Hi BIL BA-200 15.5 200

1481434 Obsolete—contact Eaton 304C108G07 Outdoor mounting Hi BIL BA-200 25.5 200

1481435 Obsolete—contact Eaton 304C108G08 Outdoor mounting Hi BIL BA-200 38 200

1481436 Obsolete—contact Eaton 314C109G05 Outdoor mounting Hi BIL BA-400 8.3 400

1481437 Obsolete—contact Eaton 314C109G06 Outdoor mounting Hi BIL BA-400 15.5 400

1481438 Obsolete—contact Eaton 314C109G07 Outdoor mounting Hi BIL BA-400 25.5 400

1481439 Obsolete—contact Eaton 314C109G08 Outdoor mounting Hi BIL BA-400 38 400

1482184 Obsolete—contact Eaton 505D620A02 Live parts BA-200 — —

1482185 Obsolete—contact Eaton 505D620A03 Live parts BA-200 — —

1482186 Obsolete—contact Eaton 505D620A04 Live parts BA-200 — —

1482187 Obsolete—contact Eaton 505D620A05 Live parts BA-200 — —

1482193 Obsolete—contact Eaton 505D620A01 Live parts BA-200 — —

1482194 Obsolete—contact Eaton 505D620A06 Live parts BA-200 — —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-17

Appendix 2—Superseded Style Number Index

1482195 Obsolete—contact Eaton 505D620A07 Live parts BA-200 — —

1482196 Obsolete—contact Eaton 505D620A08 Live parts BA-200 — —

1491006 Obsolete—contact Eaton 414D224G06 Mounting BA-400 38 —

1491007 Obsolete—contact Eaton 414D226G06 Mounting BA-400 38 —

1491008 Obsolete—contact Eaton 414D225G06 Mounting BA-400 38 —

1491009 Obsolete—contact Eaton 414D227G06 Mounting BA-400 38 —

1491043 Obsolete—contact Eaton 505D615A07 Live parts BA-200 — —

1491044 Obsolete—contact Eaton 505D615A08 Live parts BA-200 — —

1491045 Obsolete—contact Eaton 505D615A09 Live parts BA-200 — —

1491046 Obsolete—contact Eaton 505D615A10 Live parts BA-200 — —

1491052 15CLPT-1.5E 677C452G10 CL fuse unit CLE-PT 15.5 1.5

1508801 Obsolete—contact Eaton 676C236A01 Mounting BAL-PT 5.5 10

1508802 Obsolete—contact Eaton 676C236A02 Mounting BAL-PT 7.2 —

1508803 Obsolete—contact Eaton 676C236A03 Mounting BAL-PT 7.2 —

1508804 Obsolete—contact Eaton 676C236A04 Mounting BAL-PT 15.5 —

1508805 Obsolete—contact Eaton 676C236A05 Mounting BAL-PT 15.5 —

1508806 Obsolete—contact Eaton 676C236A06 Mounting BAL-PT 25.5 —

1508807 Obsolete—contact Eaton 676C236A11 Mounting BAL-PT 5.5 —

1508808 Obsolete—contact Eaton 676C236A12 Mounting BAL-PT 7.2 —

1508809 Obsolete—contact Eaton 676C236A13 Mounting BAL-PT 7.2 —

1508810 Obsolete—contact Eaton 676C236A14 Mounting BAL-PT 15.5 —

1508811 Obsolete—contact Eaton 676C236A15 Mounting BAL-PT 15.5 —

1508812 Obsolete—contact Eaton 676C236A16 Mounting BAL-PT 25.5 —

1508813 Obsolete—contact Eaton 676C236A21 Mounting BAL-PT 5.5 —

1508814 Obsolete—contact Eaton 676C236A22 Mounting BAL-PT 7.2 —

1508815 Obsolete—contact Eaton 676C236A23 Mounting BAL-PT 7.2 —

1508816 Obsolete—contact Eaton 676C236A24 Mounting BAL-PT 15.5 —

1508817 Obsolete—contact Eaton 676C236A25 Mounting BAL-PT 15.5 —

1508818 Obsolete—contact Eaton 676C236A26 Mounting BAL-PT 25.5 —

1508820 Obsolete—contact Eaton 676C233A01 Mounting BAL-PT 5.5 —

1508821 Obsolete—contact Eaton 676C233A02 Mounting BAL-PT 7.2 —

1508822 Obsolete—contact Eaton 676C233A03 Mounting BAL-PT 7.2 —

1508823 Obsolete—contact Eaton 676C233A04 Mounting BAL-PT 15.5 —

1508824 Obsolete—contact Eaton 676C233A05 Mounting BAL-PT 15.5 —

1508825 Obsolete—contact Eaton 676C233A06 Mounting BAL-PT 25.5 —

1508826 Obsolete—contact Eaton 676C233A09 Mounting BAL-PT 5.5 —

1508827 Obsolete—contact Eaton 676C233A10 Mounting BAL-PT 7.2 —

1508828 Obsolete—contact Eaton 676C233A11 Mounting BAL-PT 7.2 —

1508829 Obsolete—contact Eaton 676C233A12 Mounting BAL-PT 15.5 —

1508830 Obsolete—contact Eaton 676C233A13 Mounting BAL-PT 15.5 —

1508831 Obsolete—contact Eaton 676C233A14 Mounting BAL-PT 25.5 —

1508832 Obsolete—contact Eaton 676C233A17 Mounting BAL-PT 5.5 —

1508833 Obsolete—contact Eaton 676C233A18 Mounting BAL-PT 7.2 —

1508834 Obsolete—contact Eaton 676C233A19 Mounting BAL-PT 7.2 —

1508835 Obsolete—contact Eaton 676C233A20 Mounting BAL-PT 15.5 —

1508836 Obsolete—contact Eaton 676C233A21 Mounting BAL-PT 15.5 —

1508837 Obsolete—contact Eaton 676C233A22 Mounting BAL-PT 25.5 —

1508838 Obsolete—contact Eaton 676C233A25 Mounting BAL-PT 5.5 —

1508839 Obsolete—contact Eaton 676C233A26 Mounting BAL-PT 7.2 —

1508841 Obsolete—contact Eaton 676C233A28 Mounting BAL-PT 15.5 —

1508842 Obsolete—contact Eaton 676C233A29 Mounting BAL-PT 15.5 —

1508845 Obsolete—contact Eaton 676C237A01 Mounting BAL-10 8.3 —

1508846 Obsolete—contact Eaton 676C237A02 Mounting BAL-10 8.3 —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-18 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1508847 Obsolete—contact Eaton 676C237A03 Mounting BAL-10 15.5 —

1508848 Obsolete—contact Eaton 676C237A04 Mounting BAL-10 15.5 —

1508849 Obsolete—contact Eaton 676C237A11 Mounting BAL-10 8.3 —

1508850 Obsolete—contact Eaton 676C237A12 Mounting BAL-10 8.3 —

1508851 Obsolete—contact Eaton 676C237A13 Mounting BAL-10 15.5 —

1508852 Obsolete—contact Eaton 676C237A14 Mounting BAL-10 15.5 —

1508853 Obsolete—contact Eaton 676C237A21 Mounting BAL-10 8.3 —

1508854 Obsolete—contact Eaton 676C237A22 Mounting BAL-10 8.3 —

1508855 Obsolete—contact Eaton 676C237A23 Mounting BAL-10 15.5 —

1508856 Obsolete—contact Eaton 676C237A24 Mounting BAL-10 15.5 —

1508858 Obsolete—contact Eaton 676C234A01 Mounting BAL-10 8.3 —

1508859 Obsolete—contact Eaton 676C234A02 Mounting BAL-10 8.3 —

1508860 Obsolete—contact Eaton 676C234A03 Mounting BAL-10 15.5 —

1508861 Obsolete—contact Eaton 676C234A04 Mounting BAL-10 15.5 —

1508862 Obsolete—contact Eaton 676C234A09 Mounting BAL-10 8.3 —

1508863 Obsolete—contact Eaton 676C234A10 Mounting BAL-10 8.3 —

1508864 Obsolete—contact Eaton 676C234A11 Mounting BAL-10 15.5 —

1508865 Obsolete—contact Eaton 676C234A12 Mounting BAL-10 15.5 —

1508866 Obsolete—contact Eaton 676C234A17 Mounting BAL-10 8.3 —

1508867 Obsolete—contact Eaton 676C234A18 Mounting BAL-10 8.3 —

1508868 Obsolete—contact Eaton 676C234A19 Mounting BAL-10 15.5 —

1508869 Obsolete—contact Eaton 676C234A20 Mounting BAL-10 15.5 —

1508870 Obsolete—contact Eaton 676C234A26 Mounting BAL-10 8.3 —

1508871 Obsolete—contact Eaton 676C234A27 Mounting BAL-10 8.3 —

1508872 Obsolete—contact Eaton 676C234A28 Mounting BAL-10 15.5 —

1508873 Obsolete—contact Eaton 676C234A29 Mounting BAL-10 15.5 —

1508875 Obsolete—contact Eaton 676C238A01 Mounting BAL-25 2.75 —

1508876 Obsolete—contact Eaton 676C238A02 Mounting BAL-25 5.5 —

1508877 Obsolete—contact Eaton 676C238A03 Mounting BAL-25 5.5 —

1508878 Obsolete—contact Eaton 676C238A04 Mounting BAL-25 5.5 —

1508879 Obsolete—contact Eaton 676C238A05 Mounting BAL-25 8.3 —

1508880 Obsolete—contact Eaton 676C238A06 Mounting BAL-25 8.3 —

1508881 Obsolete—contact Eaton 676C238A07 Mounting BAL-25 15.5 —

1508882 Obsolete—contact Eaton 676C238A08 Mounting BAL-25 15.5 —

1508883 Obsolete—contact Eaton 676C238A11 Mounting BAL-25 2.75 —

1508884 Obsolete—contact Eaton 676C238A12 Mounting BAL-25 2.75 —

1508885 Obsolete—contact Eaton 676C238A13 Mounting BAL-25 5.5 —

1508886 Obsolete—contact Eaton 676C238A14 Mounting BAL-25 5.5 —

1508887 Obsolete—contact Eaton 676C238A15 Mounting BAL-25 8.3 —

1508888 Obsolete—contact Eaton 676C238A16 Mounting BAL-25 8.3 —

1508889 Obsolete—contact Eaton 676C238A17 Mounting BAL-25 15.5 —

1508890 Obsolete—contact Eaton 676C238A18 Mounting BAL-25 15.5 —

1508891 Obsolete—contact Eaton 676C238A21 Mounting BAL-25 5.5 —

1508892 Obsolete—contact Eaton 676C238A22 Mounting BAL-25 2.75 —

1508893 Obsolete—contact Eaton 151D244G26 Disconnect live parts RC CLE — —

1508894 Obsolete—contact Eaton 676C238A24 Mounting BAL-25 5.5 —

1508895 Obsolete—contact Eaton 676C238A25 Mounting BAL-25 8.3 —

1508896 Obsolete—contact Eaton 676C238A26 Mounting BAL-25 8.3 —

1508897 Obsolete—contact Eaton 676C238A27 Mounting BAL-25 15.5 —

1508898 Obsolete—contact Eaton 676C238A28 Mounting BAL-25 15.5 —

1508900 Obsolete—contact Eaton 676C231A01 Mounting BAL-25 2.75 —

1508901 Obsolete—contact Eaton 676C231A02 Mounting BAL-25 5.5 —

1508902 Obsolete—contact Eaton 676C231A03 Mounting BAL-25 5.5 —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-19

Appendix 2—Superseded Style Number Index

1508903 Obsolete—contact Eaton 676C231A04 Mounting BAL-25 5.5 —

1508904 Obsolete—contact Eaton 676C231A05 Mounting BAL-25 8.3 —

1508905 Obsolete—contact Eaton 676C231A06 Mounting BAL-25 8.3 —

1508906 Obsolete—contact Eaton 676C231A07 Mounting BAL-25 15.5 —

1508907 Obsolete—contact Eaton 676C231A08 Mounting BAL-25 15.5 —

1508908 Obsolete—contact Eaton 676C231A09 Mounting BAL-25 2.75 —

1508909 Obsolete—contact Eaton 676C231A10 Mounting BAL-25 5.5 —

1508910 Obsolete—contact Eaton 676C231A11 Mounting BAL-25 5.5 —

1508911 Obsolete—contact Eaton 676C231A12 Mounting BAL-25 5.5 —

1508912 Obsolete—contact Eaton 676C231A13 Mounting BAL-25 8.3 —

1508913 Obsolete—contact Eaton 676C231A14 Mounting BAL-25 8.3 —

1508914 Obsolete—contact Eaton 676C231A15 Mounting BAL-25 15.5 —

1508915 Obsolete—contact Eaton 676C231A16 Mounting BAL-25 15.5 —

1508916 Obsolete—contact Eaton 676C231A17 Mounting BAL-25 2.75 —

1508917 Obsolete—contact Eaton 676C231A18 Mounting BAL-25 5.5 —

1508918 Obsolete—contact Eaton 676C231A19 Mounting BAL-25 5.5 —

1508919 Obsolete—contact Eaton 676C231A20 Mounting BAL-25 5.5 —

1508920 Obsolete—contact Eaton 676C231A21 Mounting BAL-25 8.3 —

1508921 Obsolete—contact Eaton 676C231A22 Mounting BAL-25 8.3 —

1508922 Obsolete—contact Eaton 676C231A23 Mounting BAL-25 15.5 —

1508923 Obsolete—contact Eaton 676C231A24 Mounting BAL-25 15.5 —

1508924 Obsolete—contact Eaton 676C231A25 Mounting BAL-25 2.75 —

1508925 Obsolete—contact Eaton 676C231A26 Mounting BAL-25 5.5 —

1508926 Obsolete—contact Eaton 676C231A27 Mounting BAL-25 5.5 —

1508927 Obsolete—contact Eaton 676C231A28 Mounting BAL-25 5.5 —

1508928 Obsolete—contact Eaton 676C231A29 Mounting BAL-25 8.3 —

1508929 Obsolete—contact Eaton 676C231A30 Mounting BAL-25 8.3 —

1508930 Obsolete—contact Eaton 676C231A31 Mounting BAL-25 15.5 —

1508931 Obsolete—contact Eaton 676C231A32 Mounting BAL-25 15.5 —

1508933 Obsolete—contact Eaton 308C427A01 Mounting BAL-200 2.75 —

1508934 Obsolete—contact Eaton 308C427A02 Mounting BAL-200 5.5 —

1508935 Obsolete—contact Eaton 308C427A03 Mounting BAL-200 5.5 —

1508936 Obsolete—contact Eaton 308C427A04 Mounting BAL-200 8.3 —

1508937 Obsolete—contact Eaton 308C427A05 Mounting BAL-200 8.3 —

1508938 Obsolete—contact Eaton 308C427A06 Mounting BAL-200 15.5 —

1508939 15CLE-HPNM-D 9078A68G19 CLE mounting CLE-1 15.5 —

1508940 Obsolete—contact Eaton 308C427A10 CLE mounting, rear connected CLE-1 2.75 —

1508941 Obsolete—contact Eaton 308C427A11 CLE mounting CLE-1 5.5 —

1508942 Obsolete—contact Eaton 308C427A12 CLE mounting CLE-1 5.5 —

1508943 Obsolete—contact Eaton 308C427A13 CLE mounting CLE-1 8.3 —

1508944 Obsolete—contact Eaton 308C427A14 CLE mounting CLE-1 8.3 —

1508945 Obsolete—contact Eaton 308C427A15 CLE mounting CLE-1 15.5 —

1508946 Obsolete—contact Eaton 308C427A16 CLE mounting CLE-1 15.5 —

1508947 Obsolete—contact Eaton 308C427A19 CLE mounting CLE-1 2.75 —

1508948 Obsolete—contact Eaton 308C427A20 CLE mounting CLE-1 5.5 —

1508949 Obsolete—contact Eaton 308C427A21 CLE mounting CLE-1 5.5 —

1508950 Obsolete—contact Eaton 308C427A22 CLE mounting CLE-1 8.3 —

1508951 Obsolete—contact Eaton 308C427A23 CLE mounting CLE-1 8.3 —

1508952 Obsolete—contact Eaton 308C427A24 CLE mounting CLE-1 15.5 —

1508953 Obsolete—contact Eaton 308C427A25 CLE mounting CLE-1 15.5 —

1508954 Obsolete—contact Eaton 151D907G25 Live parts, rear connected CLE-1 — —

1508955 — 432D140A01 CLE mounting CLE-1 2.75 —

1508956 — 432D140A02 CLE mounting CLE-1 5.5 —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-20 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1508957 — 432D140A05 CLE mounting CLE-1 5.5 —

1508958 — 432D140A06 CLE mounting CLE-1 8.3 —

1508959 — 432D140A09 CLE mounting CLE-1 8.3 —

1508960 — 432D140A10 CLE mounting CLE-1 15.5 —

1508961 — 432D140A11 CLE mounting CLE-1 15.5 —

1508962 — 432D140A12 CLE mounting CLE-1 2.75 —

1508963 — 432D140A13 CLE mounting CLE-1 5.5 —

1508964 — 432D140A15 CLE mounting CLE-1 5.5 —

1508965 — 432D140A16 CLE mounting CLE-1 8.3 —

1508966 — 432D140A19 CLE mounting CLE-1 8.3 —

1508967 — 432D140A20 CLE mounting CLE-1 15.5 —

1508968 — 432D140A21 CLE mounting CLE-1 15.5 —

1508969 — 432D140A22 CLE mounting CLE-1 2.75 —

1508970 — 432D140A23 CLE mounting CLE-1 5.5 —

1508971 — 432D140A25 CLE mounting CLE-1 5.5 —

1508972 — 432D140A26 CLE mounting CLE-1 8.3 —

1508973 — 432D140A29 CLE mounting CLE-1 8.3 —

1508974 — 432D140A30 CLE mounting CLE-1 15.5 —

1508975 — 432D140A31 CLE mounting CLE-1 15.5 —

1508976 — 432D140A32 CLE mounting CLE-1 2.75 —

1508977 — 432D140A33 CLE mounting CLE-1 5.5 —

1508978 — 432D140A35 CLE mounting CLE-1 5.5 —

1508979 — 432D140A36 CLE mounting CLE-1 8.3 —

1508980 — 432D140A39 CLE mounting CLE-1 8.3 —

1508981 — 432D140A40 CLE mounting CLE-1 15.5 —

1508982 — 432D140A41 CLE mounting CLE-1 15.5 —

1529011 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 15

1529012 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 20

1529013 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 25

1529014 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 30

1529015 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 40

1529016 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 50

1529017 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 65

1529018 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 80

1529019 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 100

1529020 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 125

1529021 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 150

1529022 Obsolete—contact Eaton — Time lag fuse unit DBA-2 72 200

1529074 Obsolete—contact Eaton 434D317A05 Time lag fuse reﬁll unit BA-400 8.3 20

1529075 Obsolete—contact Eaton 434D317A06 Time lag fuse reﬁll unit BA-400 8.3 25

1529076 Obsolete—contact Eaton 434D317A07 Time lag fuse reﬁll unit BA-400 8.3 30

1529077 Obsolete—contact Eaton 434D317A08 Time lag fuse reﬁll unit BA-400 8.3 40

1529078 Obsolete—contact Eaton 434D317A09 Time lag fuse reﬁll unit BA-400 8.3 50

1529079 Obsolete—contact Eaton 434D317A10 Time lag fuse reﬁll unit BA-400 8.3 65

1529080 Obsolete—contact Eaton 434D317A11 Time lag fuse reﬁll unit BA-400 8.3 80

1529081 Obsolete—contact Eaton 434D317A12 Time lag fuse reﬁll unit BA-400 8.3 100

1529082 Obsolete—contact Eaton 434D317A13 Time lag fuse reﬁll unit BA-400 8.3 125

1529083 Obsolete—contact Eaton 434D317A14 Time lag fuse reﬁll unit BA-400 8.3 150

1529084 Obsolete—contact Eaton 434D317A15 Time lag fuse reﬁll unit BA-400 8.3 200

1529085 Obsolete—contact Eaton 434D317A23 Time lag fuse reﬁll unit BA-400 15.5 20

1529086 Obsolete—contact Eaton 434D317A24 Time lag fuse reﬁll unit BA-400 15.5 25

1529087 Obsolete—contact Eaton 434D317A25 Time lag fuse reﬁll unit BA-400 15.5 30

1529088 Obsolete—contact Eaton 434D317A26 Time lag fuse reﬁll unit BA-400 15.5 40

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-21

Appendix 2—Superseded Style Number Index

1529089 Obsolete—contact Eaton 434D317A27 Time lag fuse reﬁll unit BA-400 15.5 50

1529090 Obsolete—contact Eaton 434D317A28 Time lag fuse reﬁll unit BA-400 15.5 65

1529091 Obsolete—contact Eaton 434D317A29 Time lag fuse reﬁll unit BA-400 15.5 80

1529092 Obsolete—contact Eaton 434D317A30 Time lag fuse reﬁll unit BA-400 15.5 100

1529093 Obsolete—contact Eaton 434D317A31 Time lag fuse reﬁll unit BA-400 15.5 125

1529094 Obsolete—contact Eaton 434D317A32 Time lag fuse reﬁll unit BA-400 15.5 150

1529095 Obsolete—contact Eaton 434D317A33 Time lag fuse reﬁll unit BA-400 15.5 200

1529096 Obsolete—contact Eaton 434D317A41 Time lag fuse reﬁll unit BA-400 25.5 20

1529097 Obsolete—contact Eaton 434D317A42 Time lag fuse reﬁll unit BA-400 25.5 25

1529098 Obsolete—contact Eaton 434D317A43 Time lag fuse reﬁll unit BA-400 25.5 30

1529099 Obsolete—contact Eaton 434D317A44 Time lag fuse reﬁll unit BA-400 25.5 40

1529100 Obsolete—contact Eaton 434D317A45 Time lag fuse reﬁll unit BA-400 25.5 50

1529101 Obsolete—contact Eaton 434D317A46 Time lag fuse reﬁll unit BA-400 25.5 65

1529102 Obsolete—contact Eaton 434D317A47 Time lag fuse reﬁll unit BA-400 25.5 80

1529103 Obsolete—contact Eaton 434D317A48 Time lag fuse reﬁll unit BA-400 25.5 100

1529104 Obsolete—contact Eaton 434D317A49 Time lag fuse reﬁll unit BA-400 25.5 125

1529105 Obsolete—contact Eaton 434D317A50 Time lag fuse reﬁll unit BA-400 25.5 150

1529106 Obsolete—contact Eaton 434D317A51 Time lag fuse reﬁll unit BA-400 25.5 200

1529107 Obsolete—contact Eaton 434D317A59 Time lag fuse reﬁll unit BA-400 38 20

1529108 Obsolete—contact Eaton 434D317A60 Time lag fuse reﬁll unit BA-400 38 25

1529109 Obsolete—contact Eaton 434D317A61 Time lag fuse reﬁll unit BA-400 38 30

1529110 Obsolete—contact Eaton 434D317A62 Time lag fuse reﬁll unit BA-400 38 40

1529111 Obsolete—contact Eaton 434D317A63 Time lag fuse reﬁll unit BA-400 38 50

1529112 Obsolete—contact Eaton 434D317A64 Time lag fuse reﬁll unit BA-400 38 65

1529113 Obsolete—contact Eaton 434D317A65 Time lag fuse reﬁll unit BA-400 38 80

1529114 Obsolete—contact Eaton 434D317A66 Time lag fuse reﬁll unit BA-400 38 100

1529115 Obsolete—contact Eaton 434D317A67 Time lag fuse reﬁll unit BA-400 38 125

1529116 Obsolete—contact Eaton 434D317A68 Time lag fuse reﬁll unit BA-400 38 150

1529117 Obsolete—contact Eaton 434D317A69 Time lag fuse reﬁll unit BA-400 38 200

1533412 Obsolete—contact Eaton 505D616A05 Live parts BA-200 — —

1533413 Obsolete—contact Eaton 505D616A04 Live parts BA-200 — —

1533505 — 676C237A05 CLE mounting CLE-PT 5.5 10

1533506 — 676C237A15 CLE mounting CLE-PT 5.5 10

1533507 — 676C237A25 CLE mounting CLE-PT 5.5 10

1533508 — 676C234A05 CLE mounting CLE-PT 5.5 10

1533509 — 676C234A13 CLE mounting CLE-PT 5.5 10

1533510 — 676C234A21 CLE mounting CLE-PT 5.5 10

1533511 — 676C234A30 CLE mounting CLE-PT 5.5 10

1533754 Obsolete—contact Eaton 677C593G03 CL fuse unit CLV 0.6 7

1533755 Obsolete—contact Eaton 677C593G04 CL fuse unit CLV 0.6 10

1533840 2CLS-4R 676C546G04 CL fuse unit CLS 2.54 130

1573979 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 15

1573980 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 20

1573981 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 25

1573982 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 30

1573983 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 40

1573984 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 50

1573985 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 65

1573986 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 80

1573987 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 100

1573988 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 125

1573989 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 150

1573990 Obsolete—contact Eaton — Time lag fuse unit DBA-2 121 200

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-22 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1574576 Obsolete—contact Eaton 423D140A07 Mounting BAL 5.5 —

1574577 Obsolete—contact Eaton 423D140A27 Mounting BAL 5.5 —

1574578 Obsolete—contact Eaton 423D140A24 Mounting BAL 2.75 —

1574579 Obsolete—contact Eaton 423D140A04 Mounting BAL 2.75 —

1576468 2CLE-30E 310C095G10 CL fuse unit CLE 2.75 30

2CLE-30E 449D797G02 CL fuse unit CLE 2.75 30

1576469 2CLE-40E 449D797G12 CL fuse unit CLE 2.75 40

2CLE-40E 676C546G01 CL fuse unit CLE 2.75 40

1576470 5CLE-30E 310C095G20 CL fuse unit CLE 5.5 30

5CLE-30E 5981C29G05 CL fuse unit CLE 5.5 30

1576471 5CLE-40E 5981C65G01 CL fuse unit CLE 5.5 40

5CLE-40E 676C546G14 CL fuse unit CLE 5.5 40

1576472 8CLE-30E 5981C31G05 CL fuse unit CLE 8.3 30

8CLE-30E 677C573G01 CL fuse unit CLE 8.3 30

1576473 8CLE-40E 5981C17G04 CL fuse unit CLE 8.3 40

8CLE-40E 677C573G02 CL fuse unit CLE 8.3 40

1576474 15CLE-30E 439D378G03 CL fuse unit CLE 15.5 30

15CLE-30E 5981C33G05 CL fuse unit CLE 15.5 30

1576475 15CLE-40E 439D378G04 CL fuse unit CLE 15.5 40

15CLE-40E 5981C19G04 CL fuse unit CLE 15.5 40

1584339 Obsolete—contact Eaton 434D831A01 Mounting DBA2/5 — —

1585177 Obsolete—contact Eaton 423D770G05 Outdoor fuse holder vented BA-400 8.3 —

1585178 Obsolete—contact Eaton 423D770G06 Outdoor fuse holder vented BA-400 15.5 —

1585179 Obsolete—contact Eaton 423D770G07 Outdoor fuse holder vented BA-400 25.5 —

1585180 Obsolete—contact Eaton 423D770G08 Outdoor fuse holder vented BA-400 38 —

1585181 Obsolete—contact Eaton 423D770G09 Outdoor fuse holder vented BA-400 8.3 —

1585182 Obsolete—contact Eaton 423D770G10 Outdoor fuse holder vented BA-400 15.5 —

1585183 Obsolete—contact Eaton 423D770G11 Outdoor fuse holder vented BA-400 25.5 —

1585184 Obsolete—contact Eaton 423D770G12 Outdoor fuse holder vented BA-400 38 —

1585232 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 15

1585233 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 20

1585234 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 25

1585235 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 30

1585236 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 40

1585237 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 50

1585238 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 65

1585239 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 80

1585240 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 100

1585241 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 125

1585242 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 150

1585243 Obsolete—contact Eaton — Time lag fuse unit DBA-2 96 200

1585245 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 15

1585246 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 20

1585247 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 25

1585248 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 30

1585249 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 40

1585250 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 50

1585251 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 65

1585252 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 80

1585253 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 100

1585254 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 125

1585255 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 150

1585256 Obsolete—contact Eaton — Time lag fuse unit DBA-2 145 200

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-23

Appendix 2—Superseded Style Number Index

1585319 2NCLPT-2E 677C592G04 CL fuse unit NCLE-PT 2.75 2

1585385 Obsolete—contact Eaton 117D122G05 Disconnect fuse holder BA-200 8.3 —

1585386 Obsolete—contact Eaton 117D122G06 Disconnect fuse holder BA-200 15.5 —

1585387 Obsolete—contact Eaton 117D122G07 Disconnect fuse holder BA-200 25.5 —

1585388 Obsolete—contact Eaton 117D122G08 Disconnect fuse holder BA-200 38 —

1585389 Obsolete—contact Eaton 117D122G01 Disconnect fuse holder BA-200 8.3 —

1585390 Obsolete—contact Eaton 117D122G02 Disconnect fuse holder BA-200 15.5 —

1585391 Obsolete—contact Eaton 117D122G03 Disconnect fuse holder BA-200 25.5 —

1585392 Obsolete—contact Eaton 117D122G04 Disconnect fuse holder BA-200 38 —

1585393 Obsolete—contact Eaton 676C880G01 Disconnect fuse holder BA-400 8.3 —

1585394 Obsolete—contact Eaton 676C880G02 Disconnect fuse holder BA-400 15.5 —

1585395 Obsolete—contact Eaton 676C880G03 Disconnect fuse holder BA-400 25.5 —

1585396 Obsolete—contact Eaton 676C880G04 Disconnect fuse holder BA-400 38 —

1585490 Obsolete—contact Eaton 505D616A02 Live parts BA-200 — —

1585492 5CLPT-1E 677C452G06 CL fuse unit CLE-PT 5.5 1

1594922 RBA2-COND 310C197G03 Condenser (3 pack) BA-200/RBA-200 — —

1594923 RBA2-COND 310C197G03 Condenser (3 pack) BA-200/RBA-200 — —

1611883 Obsolete—contact Eaton 423D140A08 Mounting BAL 5.5 —

1611884 Obsolete—contact Eaton 423D140A28 Mounting BAL 5.5 —

1616388 RBA4-COND 310C197G04 Condenser (3 pack) BA-400/RBA-400 — —

1616389 RBA4-COND 310C197G04 Condenser (3 pack) BA-400/RBA-400 — —

1616747 Obsolete—contact Eaton 30A6178G01 Mounting BA-800 — —

1616748 Obsolete—contact Eaton 30A6178G02 Mounting BA-800 — —

1802143 Obsolete—contact Eaton 60A1307G01 Mounting BA-800 — —

1804417 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 15

1804418 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 20

1804419 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 25

1804420 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 30

1804421 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 40

1804422 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 50

1804423 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 65

1804424 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 80

1804425 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 100

1804426 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 125

1804427 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 150

1804428 Obsolete—contact Eaton — Time lag fuse unit DBA-5 72 200

1804429 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 0.5

1804430 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 3E

1804431 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 5E

1804432 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 7E

1804433 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 10E

1804434 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 15E

1804435 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 20E

1804436 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 25E

1804437 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 30E

1804438 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 40

1804439 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 50

1804440 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 65

1804441 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 80

1804442 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 100

1804443 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 125

1804444 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 150

1804445 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 38.0 200

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-24 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1804446 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 0.5

1804447 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 3E

1804448 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 5E

1804449 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 7E

1804450 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 10E

1804451 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 15E

1804452 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 20E

1804453 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 25E

1804454 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 30E

1804455 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 40

1804456 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 50

1804457 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 65

1804458 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 80

1804459 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 100

1804460 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 125

1804461 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 150

1804462 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 48.3 200

1804463 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 0.5

1804464 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 3E

1804465 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 5E

1804466 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 7E

1804467 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 10E

1804468 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 15E

1804469 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 20E

1804470 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 25E

1804471 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 30E

1804472 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 40

1804473 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 50

1804474 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 65

1804475 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 80

1804476 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 100

1804477 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 125

1804478 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 150

1804479 Obsolete—contact Eaton — DBA5 fuse assembly DBA-5 72.5 200

1804577 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 15

1804578 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 20

1804579 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 25

1804580 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 30

1804581 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 40

1804582 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 50

1804583 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 65

1804584 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 80

1804585 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 100

1804586 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 125

1804587 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 150

1804588 Obsolete—contact Eaton — Time lag fuse unit DBA-5 38 200

1804589 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 15

1804590 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 20

1804591 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 25

1804592 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 30

1804593 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 40

1804594 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 50

1804595 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 65

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-25

Appendix 2—Superseded Style Number Index

1804596 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 80

1804597 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 100

1804598 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 125

1804599 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 150

1804600 Obsolete—contact Eaton — Time lag fuse unit DBA-5 48 200

1804601 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 15

1804602 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 20

1804603 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 25

1804604 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 30

1804605 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 40

1804606 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 50

1804607 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 65

1804608 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 80

1804609 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 100

1804610 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 125

1804611 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 150

1804612 Obsolete—contact Eaton — Time lag fuse unit DBA-2 38 200

1804613 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 15

1804614 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 20

1804615 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 25

1804616 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 30

1804617 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 40

1804618 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 50

1804619 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 65

1804620 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 80

1804621 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 100

1804622 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 125

1804623 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 150

1804624 Obsolete—contact Eaton — Time lag fuse unit DBA-2 48 200

1804654 5LCLS-2R 676C546G15 CL fuse unit CLS 5.5 70

1804655 5LCLS-4R 676C546G17 CL fuse unit CLS 5.5 130

1804656 5LCLS-6R 676C546G19 CL fuse unit CLS 5.5 170

1804657 5LCLS-9R 676C546G22 CL fuse unit CLS 5.5 200

1804658 5LCLS-12R 676C546G25 CL fuse unit CLS 5.5 230

1804760 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 15

1804761 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 20

1804762 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 25

1804763 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 30

1804764 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 40

1804765 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 50

1804766 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 65

1804767 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 80

1804768 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 100

1804769 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 125

1804770 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 150

1804771 Obsolete—contact Eaton — Time lag fuse unit DBA-1 8.3 200

1804772 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 15

1804773 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 20

1804774 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 25

1804775 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 30

1804776 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 40

1804777 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 50

1804778 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 65

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-26 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

1804779 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 80

1804780 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 100

1804781 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 125

1804782 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 150

1804783 Obsolete—contact Eaton — Time lag fuse unit DBA-1 15.5 200

1804784 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 15

1804785 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 20

1804786 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 25

1804787 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 30

1804788 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 40

1804789 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 50

1804790 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 65

1804791 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 80

1804792 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 100

1804793 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 125

1804794 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 150

1804795 Obsolete—contact Eaton — Time lag fuse unit DBA-1 25.5 200

1804796 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 15

1804797 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 20

1804798 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 25

1804799 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 30

1804800 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 40

1804801 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 50

1804802 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 65

1804803 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 80

1804804 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 100

1804805 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 125

1804806 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 150

1804807 Obsolete—contact Eaton — Time lag fuse unit DBA-1 38 200

1804808 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 15

1804809 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 20

1804810 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 25

1804811 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 30

1804812 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 40

1804813 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 50

1804814 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 65

1804815 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 80

1804816 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 100

1804817 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 125

1804818 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 150

1804819 Obsolete—contact Eaton — Time lag fuse unit DBA-1 48 200

1804820 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 15

1804821 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 20

1804822 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 25

1804823 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 30

1804824 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 40

1804825 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 50

1804826 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 65

1804827 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 80

1804828 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 100

1804829 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 125

1804830 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 150

1804831 Obsolete—contact Eaton — Time lag fuse unit DBA-1 72 200

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-27

Appendix 2—Superseded Style Number Index

1804860 2CLS-18R 591C813G01 CL fuse unit CLS 2.54 390

1804861 2CLS-24R 591C813G02 CL fuse unit CLS 2.54 450

1804862 5LCLS-18R 304C463G03 CL fuse unit CLS 5.08 390

1804863 5LCLS-24R 304C463G04 CL fuse unit CLS 5.08 450

1804880 Obsolete—contact Eaton 116D412A02 Mounting BAL-LR 5.08 —

1804881 Obsolete—contact Eaton 116D412A09 Mounting BAL-LR 8.3 —

1804882 Obsolete—contact Eaton 116D412A02 Mounting BAL-LR 5.08 —

1804883 Obsolete—contact Eaton 116D412A09 Mounting BAL-LR 8.3 —

1804884 Obsolete—contact Eaton 116D412A02 Mounting BAL-LR 5.08 —

1804885 Obsolete—contact Eaton 116D412A09 Mounting BAL-LR 8.3 —

1804886 Obsolete—contact Eaton 116D412A13 Mounting BAL-LR 5.08 —

1804887 Obsolete—contact Eaton 116D412A19 Mounting BAL-LR 8.3 —

1804888 Obsolete—contact Eaton 116D412A23 Mounting BAL-LR 5.08 —

1804889 Obsolete—contact Eaton 116D412A29 Mounting BAL-LR 8.3 —

1804890 Obsolete—contact Eaton 116D412A33 Mounting BAL-LR 5.08 —

1804891 Obsolete—contact Eaton 116D412A39 Mounting BAL-LR 8.3 —

1804892 Obsolete—contact Eaton 116D412A05 Mounting BAL-LR 5.08 —

1804893 Obsolete—contact Eaton 116D412A05 Mounting BAL-LR 5.08 —

1804894 Obsolete—contact Eaton 116D412A05 Mounting BAL-LR 5.08 —

1804895 Obsolete—contact Eaton 116D412A15 Mounting BAL-LR 5.08 —

1804896 Obsolete—contact Eaton 116D412A25 Mounting BAL-LR 5.08 —

1804897 Obsolete—contact Eaton 116D412A35 Mounting BAL-LR 5.08 —

1804898 Obsolete—contact Eaton 667C774G14 Live parts BAL-LR — —

1804899 Obsolete—contact Eaton 667C774G14 Live parts BAL-LR — —

Westinghouse

6/7 Digit

Style Number Eaton Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-28 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

10 Character Style Numbers

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

116D412A02 2CLE-PDM-E 9078A65G20 — CLE 2.75 450

116D412A05 5CLE-PDM-E 9078A65G21 — CLE 5.5 450

116D412A06 5CLE-PDM-E 9078A65G21 — CLE 5.5 450

116D412A09 8CLE-PDM-E 9078A65G22 — CLE 8.3 350

116D412A11 15CLE-PDM-E 9078A65G23 — CLE 15.5 300

116D412A13 Obsolete—contact Eaton — 2.4 kV top rear con. mounting CLE 2.75 450

116D412A15 Obsolete—contact Eaton — 4.8 kV top rear con. mounting CLE 5.5 450

116D412A16 Obsolete—contact Eaton — 4.8 kV top rear con. mounting CLE 5.5 450

116D412A19 Obsolete—contact Eaton — 7.2 kV top rear con. mounting CLE 8.3 350

116D412A21 Obsolete—contact Eaton — 14.4 kV top rear con. mounting CLE 15.5 300

116D412A23 Obsolete—contact Eaton — 2.4 kV double rear con. mounting CLE 2.75 450

116D412A25 Obsolete—contact Eaton — 4.8 kV double rear con. mounting CLE 5.5 450

116D412A26 Obsolete—contact Eaton — 4.8 kV double rear con. mounting CLE 5.5 450

116D412A29 Obsolete—contact Eaton — 7.2 kV double rear con. mounting CLE 8.3 350

116D412A31 Obsolete—contact Eaton — 14.4 kV double rear con. mounting CLE 15.5 300

116D412A33 Obsolete—contact Eaton — 2.4 kV bottom rear con. mounting CLE 2.75 450

116D412A35 Obsolete—contact Eaton — 4.8 kV bottom rear con. mounting CLE 5.5 450

116D412A36 Obsolete—contact Eaton — 4.8 kV bottom rear con. mounting CLE 5.5 450

116D412A39 Obsolete—contact Eaton — 7.2 kV bottom rear con. mounting CLE 8.3 350

116D412A41 Obsolete—contact Eaton — 14.4 kV bottom rear con. mounting CLE 15.5 300

116D977A1 8BA4-.5E 116D977A1 — BA4 8.3 0.5

116D977A2 8BA4-5E 116D977A2 — BA4 8.3 5

116D977A3 8BA4-7E 116D977A3 — BA4 8.3 7 E

116D977A4 8BA4-10E 116D977A4 — BA4 8.3 10 E

116D977A5 8BA4-15E 116D977A5 — BA4 8.3 15 E

116D977A6 8BA4-20E 116D977A6 — BA4 8.3 20 E

116D977A7 8BA4-25E 116D977A7 — BA4 8.3 25 E

116D977A8 8BA4-30E 116D977A8 — BA4 8.3 30 E

116D977A9 8BA4-40E 116D977A9 — BA4 8.3 40 E

116D977A10 8BA4-50E 116D977A10 — BA4 8.3 50 E

116D977A11 8BA4-65E 116D977A11 — BA4 8.3 65 E

116D977A12 8BA4-80E 116D977A12 — BA4 8.3 80 E

116D977A13 8BA4-100E 116D977A13 — BA4 8.3 100 E

116D977A14 8BA4-125E 116D977A14 — BA4 8.3 125 E

116D977A15 8BA4-150E 116D977A15 — BA4 8.3 150 E

116D977A16 8BA4-200E 116D977A16 — BA4 8.3 200 E

116D977A17 8BA4-250E 116D977A17 — BA4 8.3 250 E

116D977A18 8BA4-300E 116D977A18 — BA4 8.3 300 E

116D977A19 8BA4-400E 116D977A19 — BA4 8.3 400 E

116D977A21 15BA4-.5E 116D977A21 — BA4 15.5 0.5

116D977A22 15BA4-5E 116D977A22 — BA4 15.5 5

116D977A23 15BA4-7E 116D977A23 — BA4 15.5 7 E

116D977A24 15BA4-10E 116D977A24 — BA4 15.5 10 E

116D977A25 15BA4-15E 116D977A25 — BA4 15.5 15 E

116D977A26 15BA4-20E 116D977A26 — BA4 15.5 20 E

116D977A27 15BA4-25E 116D977A27 — BA4 15.5 25 E

116D977A28 15BA4-30E 116D977A28 — BA4 15.5 30 E

116D977A29 15BA4-40E 116D977A29 — BA4 15.5 40 E

116D977A30 15BA4-50E 116D977A30 — BA4 15.5 50 E

116D977A31 15BA4-65E 116D977A31 — BA4 15.5 65 E

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-29

Appendix 2—Superseded Style Number Index

116D977A32 15BA4-80E 116D977A32 — BA4 15.5 80 E

116D977A33 15BA4-100E 116D977A33 — BA4 15.5 100 E

116D977A34 15BA4-125E 116D977A34 — BA4 15.5 125 E

116D977A35 15BA4-150E 116D977A35 — BA4 15.5 150 E

116D977A36 15BA4-200E 116D977A36 — BA4 15.5 200 E

116D977A37 15BA4-250E 116D977A37 — BA4 15.5 250 E

116D977A48 15BA4-300E 116D977A48 — BA4 15.5 300 E

116D977A39 15BA4-400E 116D977A39 — BA4 15.5 400 E

116D977A41 25BA4-.5E 116D977A41 — BA4 25 0.5

116D977A42 25BA4-5E 116D977A42 — BA4 25 5

116D977A43 25BA4-7E 116D977A43 — BA4 25 7 E

116D977A44 25BA4-10E 116D977A44 — BA4 25 10 E

116D977A45 25BA4-15E 116D977A45 — BA4 25 15 E

116D977A46 25BA4-20E 116D977A46 — BA4 25 20 E

116D977A47 25BA4-25E 116D977A47 — BA4 25 25 E

116D977A48 25BA4-30E 116D977A48 — BA4 25 30 E

116D977A49 25BA4-40E 116D977A49 — BA4 25 40 E

116D977A50 25BA4-50E 116D977A50 — BA4 25 50 E

116D977A51 25BA4-65E 116D977A51 — BA4 25 65 E

116D977A52 25BA4-80E 116D977A52 — BA4 25 80 E

116D977A53 25BA4-100E 116D977A53 — BA4 25 100 E

116D977A54 25BA4-125E 116D977A54 — BA4 25 125 E

116D977A55 25BA4-150E 116D977A55 — BA4 25 150 E

116D977A56 25BA4-200E 116D977A56 — BA4 25 200 E

116D977A57 25BA4-250E 116D977A57 — BA4 25 250 E

116D977A58 25BA4-300E 116D977A58 — BA4 25 300 E

116D977A61 38BA4-.5E 116D977A61 — BA4 38 0.5

116D977A62 38BA4-5E 116D977A62 — BA4 38 5

116D977A63 38BA4-7E 116D977A63 — BA4 38 7 E

116D977A64 38BA4-10E 116D977A64 — BA4 38 10 E

116D977A65 38BA4-15E 116D977A65 — BA4 38 15 E

116D977A66 38BA4-20E 116D977A66 — BA4 38 20 E

116D977A67 38BA4-25E 116D977A67 — BA4 38 25 E

116D977A68 38BA4-30E 116D977A68 — BA4 38 30 E

116D977A69 38BA4-40E 116D977A69 — BA4 38 40 E

116D977A70 38BA4-50E 116D977A70 — BA4 38 50 E

116D977A71 38BA4-65E 116D977A71 — BA4 38 65 E

116D977A72 38BA4-80E 116D977A72 — BA4 38 80 E

116D977A73 38BA4-100E 116D977A73 — BA4 38 100 E

116D977A74 38BA4-125E 116D977A74 — BA4 38 125 E

116D977A75 38BA4-150E 116D977A75 — BA4 38 150 E

116D977A76 38BA4-200E 116D977A76 — BA4 38 200 E

116D977A77 38BA4-250E 116D977A77 — BA4 38 250 E

116D977A78 38BA4-300E 116D977A78 — BA4 38 300 E

117D122G01 Obsolete—contact Eaton — Obsolete BA2 disconnect fuse holders — — —

117D122G02 Obsolete—contact Eaton — Obsolete BA2 disconnect fuse holders — — —

117D122G03 Obsolete—contact Eaton — Obsolete BA2 disconnect fuse holders — — —

117D122G04 Obsolete—contact Eaton — Obsolete BA2 disconnect fuse holders — — —

117D122G05 Obsolete—contact Eaton — Obsolete BA2 disconnect fuse holders — — —

117D122G06 Obsolete—contact Eaton — Obsolete BA2 disconnect fuse holders — — —

117D122G07 Obsolete—contact Eaton — Obsolete BA2 disconnect fuse holders — — —

117D122G08 Obsolete—contact Eaton — Obsolete BA2 disconnect fuse holders — — —

117D123A01 8BA2-.5E 117D123A01 — BA2 8.3 0.5

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-30 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

117D123A02 8BA2-5E 117D123A02 — BA2 8.3 5

117D123A03 8BA2-7E 117D123A03 — BA2 8.3 7 E

117D123A04 8BA2-10E 117D123A04 — BA2 8.3 10 E

117D123A05 8BA2-15E 117D123A05 — BA2 8.3 15 E

117D123A06 8BA2-20E 117D123A06 — BA2 8.3 20 E

117D123A07 8BA2-25E 117D123A07 — BA2 8.3 25 E

117D123A08 8BA2-30E 117D123A08 — BA2 8.3 30 E

117D123A09 8BA2-40E 117D123A09 — BA2 8.3 40 E

117D123A10 8BA2-50E 117D123A10 — BA2 8.3 50 E

117D123A11 8BA2-65E 117D123A11 — BA2 8.3 65 E

117D123A12 8BA2-80E 117D123A12 — BA2 8.3 80 E

117D123A13 8BA2-100E 117D123A13 — BA2 8.3 100 E

117D123A14 8BA2-125E 117D123A14 — BA2 8.3 125 E

117D123A15 8BA2-150E 117D123A15 — BA2 8.3 150 E

117D123A16 8BA2-200E 117D123A16 — BA2 8.3 200 E

117D123A17 15BA2-.5E 117D123A17 — BA2 15.5 0.5

117D123A18 15BA2-5E 117D123A18 — BA2 15.5 5

117D123A19 15BA2-7E 117D123A19 — BA2 15.5 7 E

117D123A20 15BA2-10E 117D123A20 — BA2 15.5 10 E

117D123A21 15BA2-15E 117D123A21 — BA2 15.5 15 E

117D123A22 15BA2-20E 117D123A22 — BA2 15.5 20 E

117D123A23 15BA2-25E 117D123A23 — BA2 15.5 25 E

117D123A24 15BA2-30E 117D123A24 — BA2 15.5 30 E

117D123A25 15BA2-40E 117D123A25 — BA2 15.5 40 E

117D123A26 15BA2-50E 117D123A26 — BA2 15.5 50 E

117D123A27 15BA2-65E 117D123A27 — BA2 15.5 65 E

117D123A28 15BA2-80E 117D123A28 — BA2 15.5 80 E

117D123A29 15BA2-100E 117D123A29 — BA2 15.5 100 E

117D123A30 15BA2-125E 117D123A30 — BA2 15.5 125 E

117D123A31 15BA2-150E 117D123A31 — BA2 15.5 150 E

117D123A32 15BA2-200E 117D123A32 — BA2 15.5 200 E

117D123A33 25BA2-.5E 117D123A33 — BA2 25 0.5

117D123A34 25BA2-5E 117D123A34 — BA2 25 5

117D123A35 25BA2-7E 117D123A35 — BA2 25 7 E

117D123A36 25BA2-10E 117D123A36 — BA2 25 10 E

117D123A37 25BA2-15E 117D123A37 — BA2 25 15 E

117D123A48 25BA2-20E 117D123A48 — BA2 25 20 E

117D123A39 25BA2-25E 117D123A39 — BA2 25 25 E

117D123A40 25BA2-30E 117D123A40 — BA2 25 30 E

117D123A41 25BA2-40E 117D123A41 — BA2 25 40 E

117D123A42 25BA2-50E 117D123A42 — BA2 25 50 E

117D123A43 25BA2-65E 117D123A43 — BA2 25 65 E

117D123A44 25BA2-80E 117D123A44 — BA2 25 80 E

117D123A45 25BA2-100E 117D123A45 — BA2 25 100 E

117D123A46 25BA2-125E 117D123A46 — BA2 25 125 E

117D123A47 25BA2-150E 117D123A47 — BA2 25 150 E

117D123A48 25BA2-200E 117D123A48 — BA2 25 200 E

117D123A49 38BA2-.5E 117D123A49 — BA2 38 0.5

117D123A50 38BA2-5E 117D123A50 — BA2 38 5

117D123A51 38BA2-7E 117D123A51 — BA2 38 7 E

117D123A52 38BA2-10E 117D123A52 — BA2 38 10 E

117D123A53 38BA2-15E 117D123A53 — BA2 38 15 E

117D123A54 38BA2-20E 117D123A54 — BA2 38 20 E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-31

Appendix 2—Superseded Style Number Index

117D123A55 38BA2-25E 117D123A55 — BA2 38 25 E

117D123A56 38BA2-30E 117D123A56 — BA2 38 30 E

117D123A57 38BA2-40E 117D123A57 — BA2 38 40 E

117D123A58 38BA2-50E 117D123A58 — BA2 38 50 E

117D123A59 38BA2-65E 117D123A59 — BA2 38 65 E

117D123A60 38BA2-80E 117D123A60 — BA2 38 80 E

117D123A61 38BA2-100E 117D123A61 — BA2 38 100 E

117D123A62 38BA2-125E 117D123A62 — BA2 38 125 E

117D123A63 38BA2-150E 117D123A63 — BA2 38 150 E

117D123A64 38BA2-200E 117D123A64 — BA2 38 200 E

11A8127G02 72DBA2-5E 11A8127G02 — DBA-2 72 5

11A8127G03 72DBA2-7E 11A8127G03 — DBA-2 72 7 E

11A8127G04 72DBA2-10E 11A8127G04 — DBA-2 72 10 E

11A8127G05 72DBA2-15E 11A8127G05 — DBA-2 72 15 E

11A8127G06 72DBA2-20E 11A8127G06 — DBA-2 72 20 E

11A8127G07 72DBA2-25E 11A8127G07 — DBA-2 72 25 E

11A8127G08 72DBA2-30E 11A8127G08 — DBA-2 72 30 E

11A8127G09 72DBA2-40E 11A8127G09 — DBA-2 72 40 E

11A8127G10 72DBA2-50E 11A8127G10 — DBA-2 72 50 E

11A8127G11 72DBA2-65E 11A8127G11 — DBA-2 72 65 E

11A8127G12 72DBA2-80E 11A8127G12 — DBA-2 72 80 E

11A8127G13 72DBA2-100E 11A8127G13 — DBA-2 72 100 E

11A8127G14 72DBA2-125E 11A8127G14 — DBA-2 72 125 E

11A8127G15 72DBA2-150E 11A8127G15 — DBA-2 72 150 E

11A8127G16 72DBA2-200E 11A8127G16 — DBA-2 72 200 E

11A8127G21 92DBA2-3E 11A8127G21 — DBA-2 92 3

11A8127G22 92DBA2-5E 11A8127G22 — DBA-2 92 5

11A8127G23 92DBA2-7E 11A8127G23 — DBA-2 92 7 E

11A8127G24 92DBA2-10E 11A8127G24 — DBA-2 92 10 E

11A8127G25 92DBA2-15E 11A8127G25 — DBA-2 92 15 E

11A8127G26 92DBA2-20E 11A8127G26 — DBA-2 92 20 E

11A8127G27 92DBA2-25E 11A8127G27 — DBA-2 92 25 E

11A8127G28 92DBA2-30E 11A8127G28 — DBA-2 92 30 E

11A8127G29 92DBA2-40E 11A8127G29 — DBA-2 92 40 E

11A8127G30 92DBA2-50E 11A8127G30 — DBA-2 92 50 E

11A8127G31 92DBA2-65E 11A8127G31 — DBA-2 92 65 E

11A8127G32 92DBA2-80E 11A8127G32 — DBA-2 92 80 E

11A8127G33 92DBA2-100E 11A8127G33 — DBA-2 92 100 E

11A8127G34 92DBA2-125E 11A8127G34 — DBA-2 92 125 E

11A8127G35 92DBA2-150E 11A8127G35 — DBA-2 92 150 E

11A8127G36 92DBA2-200E 11A8127G36 — DBA-2 92 200 E

11A8127G41 121DBA2-3E 11A8127G41 — DBA-2 121 3

11A8127G42 121DBA2-5E 11A8127G42 — DBA-2 121 5

11A8127G43 121DBA2-7E 11A8127G43 — DBA-2 121 7 E

11A8127G44 121DBA2-10E 11A8127G44 — DBA-2 121 10 E

11A8127G45 121DBA2-15E 11A8127G45 — DBA-2 121 15 E

11A8127G46 121DBA2-20E 11A8127G46 — DBA-2 121 20 E

11A8127G47 121DBA2-25E 11A8127G47 — DBA-2 121 25 E

11A8127G48 121DBA2-30E 11A8127G48 — DBA-2 121 30 E

11A8127G49 121DBA2-40E 11A8127G49 — DBA-2 121 40 E

11A8127G50 121DBA2-50E 11A8127G50 — DBA-2 121 50 E

11A8127G51 121DBA2-65E 11A8127G51 — DBA-2 121 65 E

11A8127G52 121DBA2-80E 11A8127G52 — DBA-2 121 80 E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-32 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

11A8127G53 121DBA2-100E 11A8127G53 — DBA-2 121 100 E

11A8127G54 121DBA2-125E 11A8127G54 — DBA-2 121 125 E

11A8127G55 121DBA2-150E 11A8127G55 — DBA-2 121 150 E

11A8127G56 121DBA2-200E 11A8127G56 — DBA-2 121 200 E

11A8127G61 145DBA2-3E 11A8127G61 — DBA-2 145 3

11A8127G62 145DBA2-5E 11A8127G62 — DBA-2 145 5

11A8127G63 145DBA2-7E 11A8127G63 — DBA-2 145 7 E

11A8127G64 145DBA2-10E 11A8127G64 — DBA-2 145 10 E

11A8127G65 145DBA2-15E 11A8127G65 — DBA-2 145 15 E

11A8127G66 145DBA2-20E 11A8127G66 — DBA-2 145 20 E

11A8127G67 145DBA2-25E 11A8127G67 — DBA-2 145 25 E

11A8127G68 145DBA2-30E 11A8127G68 — DBA-2 145 30 E

11A8127G69 145DBA2-40E 11A8127G69 — DBA-2 145 40 E

11A8127G70 145DBA2-50E 11A8127G70 — DBA-2 145 50 E

11A8127G71 145DBA2-65E 11A8127G71 — DBA-2 145 65 E

11A8127G72 145DBA2-80E 11A8127G72 — DBA-2 145 80 E

11A8127G73 145DBA2-100E 11A8127G73 — DBA-2 145 100 E

11A8127G74 145DBA2-125E 11A8127G74 — DBA-2 145 125 E

11A8127G75 145DBA2-150E 11A8127G75 — DBA-2 145 150 E

11A8127G76 145DBA2-200E 11A8127G76 — DBA-2 145 200 E

11A8128G08 Obsolete—contact Eaton — DBA-2 end ﬁttings — — —

129D686G01 5ACLS-24R 151D933G04 — CLS 5.08 24R(450)

129D686G02 5ACLS-18R 151D933G03 — CLS 5.08 18R((390)

129D696G01 5ACLS-30 449D597G01 — CLS 5.08 30

129D696G02 5ACLS-2R 449D597G02 — CLS 5.08 2R(70)

129D696G03 5ACLS-3R 449D597G03 — CLS 5.08 3R(!100)

129D696G04 5ACLS-4R 449D597G04 — CLS 5.08 4R(130)

129D696G05 5ACLS-5R 449D597G05 — CLS 5.08 5R(150)

129D696G06 5ACLS-6R 449D597G06 — CLS 5.08 6R(170)

129D696G07 5ACLS-9R 151D933G01 — CLS 5.08 9R(200)

129D696G08 5ACLS-12R 151D933G02 — CLS 5.08 12R(230)

12A4519G03 CLE-DF-E 9078A63G04 — CLE — 450

13C8904G01 Obsolete—contact Eaton — Low voltage BAL fuses — — —

13C8904G02 Obsolete—contact Eaton — Low voltage BAL fuses — — —

13C8904G03 Obsolete—contact Eaton — Low voltage BAL fuses — — —

13C8904G04 Obsolete—contact Eaton — Low voltage BAL fuses — — —

13C8904G05 Obsolete—contact Eaton — Low voltage BAL fuses — — —

140D045G01 5CLS70-32R 140D045G01 — CLS 5.08 32R(600)

140D045G02 5CLS70-36R 140D045G02 — CLS 5.08 36R(650)

140D045G03 5CLS70-24R 140D045G03 — CLS 5.08 24R450)

140D045G04 5CLS70-12R 140D045G04 — CLS 5.08 12R(230)

140D045G05 5CLS70-44R 140D045G05 — CLS 5.08 44R(700)

140D045G06 5CLS70-18R 140D045G06 — CLS 5.08 18R(390)

140D144G01 Obsolete—contact Eaton — RBA-200 conversion kit — — —

140D144G02 Obsolete—contact Eaton — RBA-200 conversion kit — — —

140D144G03 Obsolete—contact Eaton — RBA-200 conversion kit — — —

140D144G04 Obsolete—contact Eaton — RBA-200 conversion kit — — —

140D144G05 Obsolete—contact Eaton — RBA-200 conversion kit — — —

140D144G06 Obsolete—contact Eaton — RBA-200 conversion kit — — —

140D144G07 Obsolete—contact Eaton — RBA-200 conversion kit — — —

140D144G08 Obsolete—contact Eaton — RBA-200 conversion kit — — —

140D144G09 Obsolete—contact Eaton — RBA-400 conversion kit — — —

140D144G10 Obsolete—contact Eaton — RBA-400 conversion kit — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-33

Appendix 2—Superseded Style Number Index

140D144G11 Obsolete—contact Eaton — RBA-400 conversion kit — — —

140D144G12 Obsolete—contact Eaton — RBA-400 conversion kit — — —

140D144G13 Obsolete—contact Eaton — RBA-400 conversion kit — — —

140D144G14 Obsolete—contact Eaton — RBA-400 conversion kit — — —

140D144G15 Obsolete—contact Eaton — RBA-400 conversion kit — — —

140D144G16 Obsolete—contact Eaton — RBA-400 conversion kit — — —

140D180G01 Obsolete—contact Eaton — Sealed 5LCLS-24R — — —

140D181G02 Obsolete—contact Eaton — Sealed 5LCLS-18R — — —

140D309A01 RDB2-VL 140D309A01 — RDB2 — 200

140D309G01 Obsolete—contact Eaton — 8RDB2-VM—obsolete cap and pin insulators — — —

140D309G02 Obsolete—contact Eaton — 15RDB2-VM—obsolete cap and pin insulators — — —

140D309G03 Obsolete—contact Eaton — 25RDB2-VM—obsolete cap and pin insulators — — —

140D309G04 Obsolete—contact Eaton — 38RDB2-VM—obsolete cap and pin insulators — — —

140D309G05 Obsolete—contact Eaton — 8RDB2-HVM—obsolete cap and pin insulators — — —

140D309G06 Obsolete—contact Eaton — 15RDB2-HVM—obsolete cap and pin insulators — — —

140D309G07 Obsolete—contact Eaton — 25RDB2-HVM—obsolete cap and pin insulators — — —

140D309G08 Obsolete—contact Eaton — 38RDB2-HVM—obsolete cap and pin insulators — — —

140D309G09 8RDB2-VM 140D309G09 Station post insulators RDB2 8.3 200

140D309G10 15RDB2-VM 140D309G10 Station post insulators RDB2 15.5 200

140D309G11 25RDB2-VM 140D309G11 Station post insulators RDB2 25 200

140D309G12 38RDB2-VM 140D309G12 Station post insulators RDB2 38 200

140D309G13 8RDB2-HVM 140D309G13 Station post insulators RDB2 8.3 200

140D309G14 15RDB2-HVM 140D309G14 Station post insulators RDB2 15.5 200

140D309G15 25RDB2-HVM 140D309G15 Station post insulators RDB2 25 200

140D309G16 38RDB2-HVM 140D309G16 Station post insulators RDB2 38 200

140D310A01 RDB4-VL 140D310A01 — RDB4 — 400

140D310G01 Obsolete—contact Eaton — 8RDB4-VM—obsolete cap and pin insulators — — —

140D310G02 Obsolete—contact Eaton — 15RDB4-VM—obsolete cap and pin insulators — — —

140D310G03 Obsolete—contact Eaton — 25RDB4-VM—obsolete cap and pin insulators — — —

140D310G04 Obsolete—contact Eaton — 38RDB4-VM—obsolete cap and pin insulators — — —

140D310G05 Obsolete—contact Eaton — 8RDB4-HVM—obsolete cap and pin insulators — — —

140D310G06 Obsolete—contact Eaton — 15RDB4-HVM—obsolete cap and pin insulators — — —

140D310G07 Obsolete—contact Eaton — 25RDB4-HVM—obsolete cap and pin insulators — — —

140D310G08 Obsolete—contact Eaton — 38RDB4-HVM—obsolete cap and pin insulators — — —

140D310G09 8RDB4-VM 140D310G09 Station post insulators RDB4 8.3 400

140D310G10 15RDB4-VM 140D310G10 Station post insulators RDB4 15.5 400

140D310G11 25RDB4-VM 140D310G11 Station post insulators RDB4 25 300

140D310G12 38RDB4-VM 140D310G12 Station post insulators RDB4 38 300

140D310G13 8RDB4-HVM 140D310G13 Station post insulators RDB4 8.3 400

140D310G14 15RDB4-HVM 140D310G14 Station post insulators RDB4 15.5 400

140D310G15 25RDB4-HVM 140D310G15 Station post insulators RDB4 25 300

140D310G16 38RDB4-HVM 140D310G16 Station post insulators RDB4 38 300

140D311A01 RDB8-VL 140D311A01 — RDB8 — 720

140D311G01 Obsolete—contact Eaton — 8RDB8-VM—obsolete cap and pin insulators — — —

140D311G02 Obsolete—contact Eaton — 15RDB8-VM—obsolete cap and pin insulators — — —

140D311G03 Obsolete—contact Eaton — 25RDB8-VM—obsolete cap and pin insulators — — —

140D311G04 Obsolete—contact Eaton — 38RDB8-VM—obsolete cap and pin insulators — — —

140D311G05 Obsolete—contact Eaton — 8RDB8-HVM—obsolete cap and pin insulators — — —

140D311G06 Obsolete—contact Eaton — 15RDB8-HVM—obsolete cap and pin insulators — — —

140D311G07 Obsolete—contact Eaton — 25RDB8-HVM—obsolete cap and pin insulators — — —

140D311G08 Obsolete—contact Eaton — 38RDB8-HVM—obsolete cap and pin insulators — — —

140D311G09 8RDB8-VM 140D311G09 Station post insulators RDB8 8.3 720

140D311G10 15RDB8-VM 140D311G10 Station post insulators RDB8 15.5 720

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-34 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

140D311G11 25RDB8-VM 140D311G11 Station post insulators RDB8 25 540

140D311G12 38RDB8-VM 140D311G12 Station post insulators RDB8 38 540

140D311G13 8RDB8-HVM 140D311G13 Station post insulators RDB8 8.3 720

140D311G14 15RDB8-HVM 140D311G14 Station post insulators RDB8 15.5 720

140D311G15 25RDB8-HVM 140D311G15 Station post insulators RDB8 25 540

140D311G16 38RDB8-HVM 140D311G16 Station post insulators RDB8 38 540

140D316G01 6DSL-A150 140D316G01 — DSL 0.6 160

140D316G02 6DSL-A250 140D316G02 — DSL 0.6 200

140D316G03 6DSL-A300 140D316G03 — DSL 0.6 300

140D316G04 6DSL-A400 140D316G04 — DSL 0.6 400

140D316G05 6DSL-A500 140D316G05 — DSL 0.6 500

140D316G06 6DSL-A600 140D316G06 — DSL 0.6 600

140D316G07 6DSL-A800 140D316G07 — DSL 0.6 800

140D316G10 6DSL-B1200 140D316G10 — DSL 0.6 1200

140D316G11 6DSL-B1600 140D316G11 — DSL 0.6 1600

140D316G12 6DSL-B2000 140D316G12 — DSL 0.6 2000

140D316G15 6DSL-C800 151D932G01 — DSL 0.6 800

140D316G16 6DSL-C1000 151D932G02 — DSL 0.6 1000

140D316G17 6DSL-C1200 151D932G03 — DSL 0.6 1200

140D316G18 6DSL-C1600 151D932G04 — DSL 0.6 1600

140D316G19 6DSL-C2000 151D932G05 — DSL 0.6 2000

140D316G21 6DSL-D2500 151D932G09 — DSL 0.6 2500

140D316G22 6DSL-D3000 151D932G10 — DSL 0.6 3000

140D318G01 4NPL-1875 140D318G01 — NPL 0.48 1875

140D318G02 4NPL-2825 140D318G02 — NPL 0.48 2825

140D318G04 4NPL-900 140D318G04 — NPL 0.48 900

140D318G05 4NPL-1300 140D318G05 — NPL 0.48 1300

140D318G06 4NPL-3000 140D318G06 — NPL 0.48 3000

140D318G07 4NPL-2000 140D318G07 — NPL 0.48 2000

140D318G08 4NPL-3500 140D318G08 — NPL 0.48 3500

140D331G02 Obsolete—contact Eaton — 2.4/4.8 kV RBA2 loadbreak mounting back connected — — —

140D331G03 Obsolete—contact Eaton — 2.4/4.8 kV RBA2 loadbreak mounting back connected — — —

140D331G04 Obsolete—contact Eaton — 2.4/4.8 kV RBA2 loadbreak mounting back connected — — —

140D331G06 Obsolete—contact Eaton — 7.2 kV RBA2 loadbreak mounting back connected — — —

140D331G07 Obsolete—contact Eaton — 7.2 kV RBA2 loadbreak mounting back connected — — —

140D331G08 Obsolete—contact Eaton — 7.2 kV RBA2 loadbreak mounting back connected — — —

140D331G10 Obsolete—contact Eaton — 13.8 kV RBA2 loadbreak mounting back connected — — —

140D331G11 Obsolete—contact Eaton — 13.8 kV RBA2 loadbreak mounting back connected — — —

140D331G12 Obsolete—contact Eaton — 13.8 kV RBA2 loadbreak mounting back connected — — —

140D331G14 Obsolete—contact Eaton — 14.4 kV RBA2 loadbreak mounting back connected — — —

140D331G15 Obsolete—contact Eaton — 14.4 kV RBA2 loadbreak mounting back connected — — —

140D331G16 Obsolete—contact Eaton — 14.4 kV RBA2 loadbreak mounting back connected — — —

140D332G02 Obsolete—contact Eaton — 2.4/4.8 kV RBA4 loadbreak mounting back connected — — —

140D332G03 Obsolete—contact Eaton — 2.4/4.8 kV RBA4 loadbreak mounting back connected — — —

140D332G04 Obsolete—contact Eaton — 2.4/4.8 kV RBA4 loadbreak mounting back connected — — —

140D332G06 Obsolete—contact Eaton — 7.2 kV RBA4 loadbreak mounting back connected — — —

140D332G07 Obsolete—contact Eaton — 7.2 kV RBA4 loadbreak mounting back connected — — —

140D332G08 Obsolete—contact Eaton — 7.2 kV RBA4 loadbreak mounting back connected — — —

140D332G10 Obsolete—contact Eaton — 13.8 kV RBA4 loadbreak mounting back connected — — —

140D332G11 Obsolete—contact Eaton — 13.8 kV RBA4 loadbreak mounting back connected — — —

140D332G12 Obsolete—contact Eaton — 13.8 kV RBA4 loadbreak mounting back connected — — —

140D332G14 Obsolete—contact Eaton — 14.4 kV RBA4 loadbreak mounting back connected — — —

140D332G15 Obsolete—contact Eaton — 14.4 kV RBA4 loadbreak mounting back connected — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-35

Appendix 2—Superseded Style Number Index

140D332G16 Obsolete—contact Eaton — 14.4 kV RBA4 loadbreak mounting back connected — — —

140D332G18 Obsolete—contact Eaton — 23 kV RBA4 loadbreak mounting back connected — — —

140D332G19 Obsolete—contact Eaton — 24 kV RBA4 loadbreak mounting back connected — — —

140D332G20 Obsolete—contact Eaton — 25 kV RBA4 loadbreak mounting back connected — — —

140D340G11 8RDB2-VM 140D340G11 — RDB2 8.3 200

140D340G12 15RDB2-VM 140D340G12 — RDB2 15.5 200

140D340G13 25RDB2-VM 140D340G13 — RDB2 25 200

140D340G14 38RDB2-VM 140D340G14 — RDB2 38 200

140D340G16 8RDB2-HVM 140D340G16 — RDB2 8.3 200

140D340G17 15RDB2-HVM 140D340G17 — RDB2 15.5 200

140D340G18 25RDB2-HVM 140D340G18 — RDB2 25 200

140D340G19 38RDB2-HVM 140D340G19 — RDB2 38 200

140D340G20 RDB2-VL 140D340G20 — RDB2 — 200

140D341G11 8RDB4-VM 140D341G11 — RDB4 8.3 400

140D341G12 15RDB4-VM 140D341G12 — RDB4 15.5 400

140D341G13 25RDB4-VM 140D341G13 — RDB4 25 300

140D341G14 38RDB4-VM 140D341G14 — RDB4 38 300

140D341G16 8RDB4-HVM 140D341G16 — RDB4 8.3 400

140D341G17 15RDB4-HVM 140D341G17 — RDB4 15.5 400

140D341G18 25RDB4-HVM 140D341G18 — RDB4 25 400

140D341G19 38RDB4-HVM 140D341G19 — RDB4 38 300

140D341G20 RDB4-VL 140D341G20 — RDB4 — 300

140D342G11 8RDB8-VM 140D342G11 — RDB8 8.3 720

140D342G12 15RDB8-VM 140D342G12 — RDB8 15.5 720

140D342G13 25RDB8-VM 140D342G13 — RDB8 25 540

140D342G14 38RDB8-VM 140D342G14 — RDB8 38 540

140D342G16 8RDB8-HVM 140D342G16 — RDB8 8.3 720

140D342G17 15RDB8-HVM 140D342G17 — RDB8 15.5 720

140D342G18 25RDB8-HVM 140D342G18 — RDB8 25 540

140D342G19 38RDB8-HVM 140D342G19 — RDB8 38 540

140D342G20 RDB8-VL 140D342G20 — RDB8 — 720

140D346G11 8RDB2-UM 140D346G11 — RDB2 8.3 200

140D346G12 15RDB2-UM 140D346G12 — RDB2 15.5 200

140D346G13 25RDB2-UM 140D346G13 — RDB2 25 200

140D346G14 38RDB2-UM 140D346G14 — RDB2 38 200

140D346G16 8RDB2-HUM 140D346G16 — RDB2 8.3 200

140D346G17 15RDB2-HUM 140D346G17 — RDB2 15.5 200

140D346G18 25RDB2-HUM 140D346G18 — RDB2 25 200

140D346G19 38RDB2-HUM 140D346G19 — RDB2 38 200

140D346G20 RDB2-UL 140D346G20 — RDB2 — 200

140D349G11 8RDB4-UM 140D349G11 — RDB4 8.3 400

140D349G12 15RDB4-UM 140D349G12 — RDB4 15.5 400

140D349G13 25RDB4-UM 140D349G13 — RDB4 25 300

140D349G14 38RDB4-UM 140D349G14 — RDB4 38 300

140D349G16 8RDB4-HUM 140D349G16 — RDB4 8.3 400

140D349G17 15RDB4-HUM 140D349G17 — RDB4 15.5 400

140D349G18 25RDB4-HUM 140D349G18 — RDB4 25 400

140D349G19 38RDB4-HUM 140D349G19 — RDB4 38 300

140D349G20 RDB4-UL 140D349G20 — RDB4 — 300

140D354G11 8RDB8-UM 140D354G11 — RDB8 8.3 720

140D354G12 15RDB8-UM 140D354G12 — RDB8 15.5 720

140D354G13 25RDB8-UM 140D354G13 — RDB8 25 540

140D354G14 38RDB8-UM 140D354G14 — RDB8 38 540

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-36 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

140D354G16 8RDB8-HUM 140D354G16 — RDB8 8.3 720

140D354G17 15RDB8-HUM 140D354G17 — RDB8 15.5 720

140D354G18 25RDB8-HUM 140D354G18 — RDB8 25 540

140D354G19 38RDB8-HUM 140D354G19 — RDB8 38 540

140D354G20 RDB8-UL 140D354G20 — RDB8 — 720

140D204G01 8CXN-60C 9570D01G01 — CXN 8.3 60C

140D204G02 8CXN-100C 9570D01G02 — CXN 8.3 100C

140D204G03 8CXN-125C 9570D01G03 — CXN 8.3 125C

140D204G04 8CXN-150C 9570D01G04 — CXN 8.3 150C

140D204G05 8CXN-200C 9570D01G05 — CXN 8.3 200C

140D204G06 8CXN-250C 9570D01G06 — CXN 8.3 250C

151D207G01 4ACLS-26R 151D207G01 — CLS 4.6 26R(480)

151D213G01 15CLE-10E 5981C33G01 15CLO-10E CLE 15.5 10E

151D213G02 15CLE-20E-D 5981C33G03 15CLO-20E CLE 15.5 20E

151D213G03 15CLE-30E 5981C33G05 15CLO-30E CLE 15.5 30E

151D213G04 15CLE-40E 5981C19G04 15CLO-40E CLE 15.5 40E

151D213G05 15CLE-50E 5981C19G05 15CLO-50E CLE 15.5 50E

151D213G06 15CLE-65E 5981C19G06 15CLO-65E CLE 15.5 65E

151D213G09 15CLE-50E 5981C19G05 15CLO-50E CLE 15.5 50E

151D213G10 15CLE-65E 5981C19G06 15CLO-65E CLE 15.5 60E

151D213G11 Obsolete—contact Eaton — 15CLO-10E (NI) — — —

151D213G12 Obsolete—contact Eaton — 15CLO-20E (NI) — — —

151D213G13 Obsolete—contact Eaton — 15CLO-30E (NI) — — —

151D213G14 Obsolete—contact Eaton — 15CLO-40E (NI) — — —

151D213G15 Obsolete—contact Eaton — 15CLO-50E (NI) — — —

151D213G16 Obsolete—contact Eaton — 15CLO-65E (NI) — — —

151D214G04 15CLE-80E 5981C19G07 15CLO-80E CLE 15.5 80E

151D214G05 15CLE-100E 5981C19G08 15CLO-100E CLE 15.5 100E

151D214G06 15CLE-125E 5981C19G09 15CLO-125E CLE 15.5 125E

151D218G02 15CXN-45C 9570D02G02 — CXN 15.5 45C

151D218G03 15CXN-60C 9570D02G03 — CXN 15.5 60V

151D218G04 15CXN-75C 9570D02G04 — CXN 15.5 75C

151D218G05 15CXN-85C 9570D02G05 — CXN 15.5 85C

151D218G06 15CXN-100C 9570D02G06 — CXN 15.5 100C

151D240G01 5HCLS-30 151D240G01 — CLS 5.08 30

151D240G02 5HCLS-2R 151D240G02 — CLS 5.08 2R(70)

151D240G03 5HCLS-3R 151D240G03 — CLS 5.08 3R(100)

151D240G04 5HCLS-4R 151D240G04 — CLS 5.08 4R(130)

151D240G05 5HCLS-4R 151D240G05 — CLS 5.08 5R(150)

151D240G06 5HCLS-6R 151D240G06 — CLS 5.08 6R(170)

151D241G01 5CLS-30 151D241G01 — CLS 5.08 30

151D241G02 5CLS-2R 151D241G02 — CLS 5.08 2R(70)

151D241G03 5CLS-3R 151D241G03 — CLS 5.08 3R(100)

151D241G04 5CLS-4R 151D241G04 — CLS 5.08 4R(130)

151D241G05 5CLS-5R 151D241G05 — CLS 5.08 5R(150)

151D241G06 5CLS-6R 151D241G06 — CLS 5.08 6R(170)

151D251302 Obsolete—contact Eaton — 15CLB-45C — — —

151D251303 Obsolete—contact Eaton — 15CLB-60C — — —

151D253G01 4CX-18C 5978C62G01 — CX 4.3 18C

151D253G02 4CX-25C 5978C62G02 — CX 4.3 25C

151D253G03 4CX-35C 5978C62G03 — CX 4.3 35C

151D253G04 4CX-45C 5978C66G01 — CX 4.3 45C

151D253G05 4CX-50C 5978C66G02 — CX 4.3 50C

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-37

Appendix 2—Superseded Style Number Index

151D253G06 4CX-60C 151D253G06 — CX 4.3 60C

151D253G07 4CX-75C 5978C66G04 — CX 4.3 75C

151D253G08 4CX-80C 151D253G08 — CX 4.3 80C

151D253G26 4CXI-60C 151D253G26 — CX 4.3 60C

151D253G28 4CXI-80C 151D253G28 — CX 4.3 80C

151D254G01 5CX-10C 151D254G11 — CX 5.5 10C

151D254G02 5CX-12C 151D254G12 — CX 5.5 12C

151D254G03 5CX-18C 5978C70G01 — CX 5.5 18C

151D254G04 5CX-21C 151D254G04 — CX 5.5 21C

151D254G05 5CX-25C 5978C70G03 — CX 5.5 25C

151D254G06 5CX-35C 151D254G06 — CX 5.5 35C

151D254G07 5CX-40C 5978C70G05 — CX 5.5 40C

151D254G08 5CX-50C 5978C70G06 — CX 5.5 50C

151D254G09 5CX-60C 151D254G09 — CX 5.5 60C

151D254G11 5CX-10C 151D254G11 — CX 5.5 10C

151D254G12 5CX-12C 151D254G12 — CX 5.5 12C

151D254G24 5CXI-21C 151D254G24 — CX 5.5 21C

151D254G26 5CXI-35C 151D254G26 — CX 5.5 35C

151D254G29 5CXI_60C 151D254G29 — CX 5.5 60C

151D254G31 5CXI-10C 151D254G31 — CX 5.5 10C

151D254G32 5CXI-12C 151D254G32 — CX 5.5 12C

151D255G01 8CX-3.5C 151D255G01 — CX 8.3 3.5C

151D255G02 8CX-4C 151D255G02 — CX 8.3 4C

151D255G03 8CX-7C 151D255G03 — CX 8.3 7C

151D255G04 8CX-10C 151D255G11 — CX 8.3 10C

151D255G05 8CX-12C 151D255G12 — CX 8.3 12C

151D255G06 8CX-15C 151D255G06 — CX 8.3 15C

151D255G07 8CX-18C 5978C72G01 — CX 8.3 18C

151D255G08 8CX-25C 5978C72G03 — CX 8.3 25C

151D255G09 8CX-35C 151D255G09 — CX 8.3 35C

151D255G10 8CX-40C 5978C72G05 — CX 8.3 40C

151D255G11 8CX-10C 151D255G11 — CX 8.3 10C

151D255G12 8CX-12C 151D255G12 — CX 8.3 12C

151D255G21 8CXI-3.5C 151D255G21 — CX 8.3 3.5C

151D255G22 8CXI-4C 151D255G22 — CX 8.3 4C

151D255G23 8CXI-7C 151D255G23 — CX 8.3 7C

151D255G26 8CXI-15C 151D255G26 — CX 8.3 15C

151D255G29 8CXI-35C 151D255G29 — CX 8.3 35C

151D255G31 8CXI-10C 151D255G31 — CX 8.3 10C

151D255G32 8CXI-12C 151D255G32 — CX 8.3 12C

151D256G01 8CLS-15 151D256G01 — CLS 8.3 15

151D256G02 8CLS-30 151D256G02 — CLS 8.3 30

151D256G03 8CLS-60 151D256G03 — CLS 8.3 60

151D256G04 8CLS-70 151D256G04 — CLS 8.3 70

151D256G05 8CLS-90 151D256G05 — CLS 8.3 90

151D256G06 8CLS-110 151D256G06 — CLS 8.3 110

151D256G07 8CLS-125 151D256G07 — CLS 8.3 125

151D256G11 8CLS-150 151D256G11 — CLS 8.3 150

151D256G12 8CLS-200 151D256G12 — CLS 8.3 200

151D256G13 8CLS-225 151D256G13 — CLS 8.3 225

151D257G01 5CLS75-36R 151D257G01 — CLS 5.08 36R(650)

151D257G02 5CLS75-32R 151D257G02 — CLS 5.08 32R(600)

151D257G03 151D257G03 151D257G03 Bolt in quads CLS 5.08 (1170)

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-38 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

151D257G04 151D257G04 151D257G04 Bolt in quads CLS 5.08 (1080)

151D257G05 5CLS75-24R 5CLS75-24R — CLS 5.08 24R(450)

151D883G01 15CX-3.5C 151D883G01 — CX 15.5 3.5C

151D883G02 15CX-4C 151D883G02 — CX 15.5 4C

151D883G03 15CX-7C 151D883G11 — CX 15.5 7C

151D883G04 15CX-12C 151D883G12 — CX 15.5 12C

151D883G06 15CX-15C 151D883G06 — CX 15.5 15C

151D883G09 15CX-35C 151D883G09 — CX 15.5 35C

151D883G11 15CX-10C 151D883G11 — CX 15.5 10C

151D883G12 15CX-3C 151D883G12 — CX 15.5 12C

151D883G21 15CXI-3.5C 151D883G21 — CX 15.5 3.5C

151D883G22 15CXI-4C 151D883G22 — CX 15.5 4C

151D883G23 15CXI-7C 151D883G23 — CX 15.5 7C

151D883G26 15CXI-15C 151D883G26 — CX 15.5 15C

151D883G29 15CXI-35C 151D883G29 — CX 15.5 35C

151D883G31 15CXI-10C 151D883G31 — CX 15.5 10C

151D883G32 15CXI-3C 151D883G32 — CX 15.5 12C

151D884G01 5CX-GNM-G 151D884G01 — CX 5.5 100

151D884G02 8CX-GNM-G 151D884G02 — CX 8.3 40

151D884G03 15CX-GNM-G 151D884G03 — CX 15.5 40

151D884G08 CX-NL 151D884G08 — CX — 100

151D885G01 5CX-GDM-G 151D885G01 — CX 5.5 100

151D885G02 8CX-GDM-G 151D885G02 — CX 8.3 40

151D885G03 15CX-GDM-G 151D885G03 — CX 15.5 40

151D885G05 CX-DL 151D885G05 — CX — 100

151D885G06 CX-DF 151D885G06 — CX — 100

151D907G01 2CLE-PNM-D 9078A68G15 — CLE 2.75 250

151D907G02 5CLE-PNM-D 9078A68G16 — CLE 5.5 250

151D907G03 8CLE-PNM-D 9078A68G17 — CLE 8.3 175

151D907G04 15CLE-PNM-D 9078A68G18 — CLE 15.5 150

151D907G05 15CLE-HPNM-D 9078A68G19 — CLE 15.5 150

151D907G07 Obsolete—contact Eaton — Obsolete 2.4 kV top rear con. mounting CLE — —

151D907G08 Obsolete—contact Eaton — Obsolete 4.8 kV top rear con. mounting CLE — —

151D907G09 Obsolete—contact Eaton — Obsolete 7.2 kV top rear con. mounting CLE — —

151D907G10 Obsolete—contact Eaton — Obsolete 13.8 kV top rear con. mounting CLE — —

151D907G11 Obsolete—contact Eaton — Obsolete 14.4 kV top rear con. mounting CLE — —

151D907G13 Obsolete—contact Eaton — Obsolete 2.4 kV double rear con. mounting CLE — —

151D907G14 Obsolete—contact Eaton — Obsolete 4.8 kV double rear con. mounting CLE — —

151D907G15 Obsolete—contact Eaton — Obsolete 7.2 kV double rear con. mounting CLE — —

151D907G16 Obsolete—contact Eaton — Obsolete 13.8 kV double rear con. mounting CLE — —

151D907G17 Obsolete—contact Eaton — Obsolete 14.4 kV double rear con. mounting CLE — —

151D907G19 Obsolete—contact Eaton — Obsolete 2.4 kV bottom rear con. mounting CLE — —

151D907G20 Obsolete—contact Eaton — Obsolete 4.8 kV bottom rear con. mounting CLE — —

151D907G21 Obsolete—contact Eaton — Obsolete 7.2 kV bottom rear con. mounting CLE — —

151D907G22 Obsolete—contact Eaton — Obsolete 13.8 kV bottom rear con. mounting CLE — —

151D907G23 Obsolete—contact Eaton — Obsolete 14.4 kV bottom rear con. mounting CLE — —

151D909G01 2CLE-PNM-E 9078A68G20 — CLE 2.75 450

151D909G02 5CLE-PNM-E 9078A68G21 — CLE 5.5 450

151D909G03 8CLE-PNM-E 9078A68G22 — CLE 8.3 350

151D909G04 15CLE-PNM-E 9078A68G23 — CLE 15.5 300

151D909G05 15CLE-HPNM-E 9078A68G24 — CLE 15.5 300

151D909G07 Obsolete—contact Eaton — Obsolete 2.4 kV top rear con. mounting CLE — —

151D909G08 Obsolete—contact Eaton — Obsolete 4.8 kV top rear con. mounting CLE — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-39

Appendix 2—Superseded Style Number Index

151D909G09 Obsolete—contact Eaton — Obsolete 7.2 kV top rear con. mounting CLE — —

151D909G10 Obsolete—contact Eaton — Obsolete 14.4 kV top rear con. mounting CLE — —

151D909G13 Obsolete—contact Eaton — Obsolete 2.4 kV double rear con. mounting CLE — —

151D909G14 Obsolete—contact Eaton — Obsolete 4.8 kV double rear con. mounting CLE — —

151D909G15 Obsolete—contact Eaton — Obsolete 7.2 kV double rear con. mounting CLE — —

151D909G16 Obsolete—contact Eaton — Obsolete 14.4 kV double rear con. mounting CLE — —

151D909G19 Obsolete—contact Eaton — Obsolete 2.4 kV bottom rear con. mounting CLE — —

151D909G20 Obsolete—contact Eaton — Obsolete 4.8 kV bottom rear con. mounting CLE — —

151D909G21 Obsolete—contact Eaton — Obsolete 7.2 kV bottom rear con. mounting CLE — —

151D909G22 Obsolete—contact Eaton — Obsolete 14.4 kV bottom rear con. mounting CLE — —

151D911G06 5ACLS-9R 151D933G01 Tin plated ferrule CLS 5.08 9R(200)

151D927G01 Contact EATON — Two—parallel 15CXN-60C — — —

151D927G02 Contact EATON — Two—parallel 15CXN-75C — — —

151D927G03 Contact EATON — Two—parallel 15CXN-85C — — —

151D927G05 Contact EATON — Two—parallel 8CXN-150C — — —

151D930G02 Obsolete—contact Eaton — 15CLTX-15K — — —

151D930G03 Obsolete—contact Eaton — 8CLTX-15K — — —

151D930G04 Obsolete—contact Eaton — 8CLTX-40K — — —

151D930G05 Obsolete—contact Eaton — 15CLTX-40K — — —

151D930G06 Obsolete—contact Eaton — 23CLTX-15K — — —

151D930G07 Obsolete—contact Eaton — 8CLTX-25K — — —

151D930G08 Obsolete—contact Eaton — 15CLTX-25K — — —

151D932G01 6DSL-C800 151D932G01 — DSL 0.6 800

151D932G02 6DSL-C1000 151D932G02 — DSL 0.6 1000

151D932G03 6DSL-C1200 151D932G03 — DSL 0.6 1200

151D932G04 6DSL-C1600 151D932G04 — DSL 0.6 1600

151D932G05 6DSL-C2000 151D932G05 — DSL 0.6 2000

151D932G09 6DSL-D2500 151D932G09 — DSL 0.6 2500

151D932G10 6DSL-D3000 151D932G10 — DSL 0.6 3000

151D933G01 5ACLS-9R 151D933G01 — CLS 5.08 9R(200)

151D933G02 5ACLS-12R 151D933G02 — CLS 5.08 12R(230)

151D933G03 5ACLS-18R 151D933G03 — CLS 5.08 18R(390)

151D933G04 5ACLS-24R 151D933G04 — CLS 5.08 24R(450)

151D937G01 Obsolete—contact Eaton 151D937G01 2HCLE-25E sealed with hookeye — — —

151D937G02 Obsolete—contact Eaton 151D937G02 2HCLE-30E sealed with hookeye — — —

151D937G03 Obsolete—contact Eaton 151D937G03 2HCLE-50E sealed with hookeye — — —

151D937G04 Obsolete—contact Eaton 151D937G04 2HCLE-65E sealed with hookeye — — —

151D937G05 Obsolete—contact Eaton 151D937G05 2HCLE-80E sealed with hookeye — — —

151D937G06 Obsolete—contact Eaton 151D937G06 2HCLE-100E sealed with hookeye — — —

151D937G07 Obsolete—contact Eaton 151D937G07 2HCLE-125E sealed with hookeye — — —

151D937G08 Obsolete—contact Eaton 151D937G08 2HCLE-150E sealed with hookeye — — —

151D937G09 Obsolete—contact Eaton 151D937G09 2HCLE-200E sealed with hookeye — — —

151D937G10 Obsolete—contact Eaton 151D937G10 2HCLE-225E sealed with hookeye — — —

151D937G13 Obsolete—contact Eaton 151D937G13 2HCLE-250E sealed with hookeye — — —

151D937G14 Obsolete—contact Eaton 151D937G14 2HCLE-300E sealed with hookeye — — —

151D937G15 Obsolete—contact Eaton 151D937G15 2HCLE-350E sealed with hookeye — — —

151D937G16 Obsolete—contact Eaton 151D937G16 2HCLE-365E sealed with hookeye — — —

151D937G17 Obsolete—contact Eaton 151D937G17 2HCLE-400E sealed with hookeye — — —

151D938G01 5AHLE-25E 5981C46G04 — HLE 5.5 25E

151D938G02 5AHLE-30E 5981C46G05 — HLE 5.5 30E

151D938G03 5AHLE-50E 5981C46G07 — HLE 5.5 50E

151D938G04 5AHLE-65E 5981C46G08 — HLE 5.5 65E

151D938G05 5AHLE-80E 5981C46G09 — HLE 5.5 80E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-40 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

151D938G06 5AHLE100E 5981C46G10 — HLE 5.5 100E

151D938G07 5AHLE-125E 5981C46G11 — HLE 5.5 125E

151D938G08 5AHLE-150E 5981C46G12 — HLE 5.5 150E

151D938G09 5AHLE-200E 5981C46G14 — HLE 5.5 200E

151D938G10 Obsolete—contact Eaton — — HLE 5.5 250E

151D939G01 5AHLE-250E 5981C46G15 — HLE 5.5 250E

151D939G02 5AHLE-300E 5981C46G16 — HLE 5.5 300E

151D939G03 5AHLE-400E 5981C46G18 — HLE 5.5 400E

151D961G01 5CLS-9R 151D961G01 — CLS 5.08 9R(200)

151D961G02 5CLS-12R 151D961G02 — CLS 5.08 12R(230)

151D961G03 5CLS-18R 151D961G03 — CLS 5.08 18R(390)

151D961G04 5CLS-24R 151D961G04 — CLS 5.08 24R(450)

151D962G01 5HCLS-9R 151D962G01 — CLS 5.08 9R(200)

151D962G02 5HCLS-12R 151D962G02 — CLS 5.08 12R(230)

151D962G03 5HCLS-18R 151D962G03 — CLS 5.08 18R(390)

151D962G04 5HCLS-24R 151D962G04 — CLS 5.08 24R(450)

151D963G01 8ACLS-2R 151D963G01 — CLS 8.3 2R(70)

151D963G02 8ACLS-3R 151D963G02 — CLS 8.3 3R(100)

151D963G03 8ACLS-4R 151D963G03 — CLS 8.3 4R(130)

151D963G04 8ACLS-5R 151D963G04 — CLS 8.3 5R(150)

151D963G05 8ACLS-6R 151D963G05 — CLS 8.3 6R(170)

151D963G06 7ACLS-9R 151D963G06 — CLS 7.2 9R(200)

151D963G07 7ACLS-12R 151D963G07 — CLS 7.2 12R(230)

151D963G10 7ACLS-18R 151D963G10 — CLS 7.2 18R(390)

151D963G11 7ACLS-24R 151D963G11 — CLS 7.2 24R(450)

151D967G01 Obsolete—contact Eaton — 3.65 kV CLS — —

151D967G02 Obsolete—contact Eaton — 3.65 kV CLS — —

151D967G03 Obsolete—contact Eaton — 3.65 kV CLS — —

151D967G04 Obsolete—contact Eaton — 3.65 kV CLS — —

151D967G05 Obsolete—contact Eaton — 3.65 kV CLS — —

151D967G06 Obsolete—contact Eaton — 3.65 kV CLS — —

151D967G07 Obsolete—contact Eaton — 3.65 kV CLS — —

151D967G08 Obsolete—contact Eaton — 3.65 kV CLS — —

151D967G09 Obsolete—contact Eaton — 3.65 kV CLS — —

151D967G10 Obsolete—contact Eaton — 3.65 kV CLS — —

151D978G01 5HLE-30E 5981C28G05 — HLE 5.5 30E

151D978G02 5HLE-50E 5981C64G02 — HLE 5.5 50E

151D978G03 5HLE-65E 5981C64G03 — HLE 5.5 65E

151D978G04 5HLE-80E 5981C64G04 — HLE 5.5 80E

151D978G05 5HLE-100E 5981C64G05 — HLE 5.5 100E

151D978G06 5HLE-125E 5981C64G06 — HLE 5.5 125E

151D978G07 5HLE-150E 5981C64G07 — HLE 5.5 150E

151D978G08 5HLE-200E 5981C64G09 — HLE 5.5 200E

151D978G09 Obsolete—contact Eaton — 5SCLE-225E — — —

151D978G11 5HLE-250E 5981C64G10 — HLE 5.5 250E

151D978G12 5HLE-300E 5981C66G01 — HLE 5.5 300E

151D978G13 5HLE-400E 5981C66G03 — HLE 5.5 400E

151D979G01 5CLS70-600E 151D979G01 — CLE 5.5 600E

151D979G02 5CLS70-750E 151D979G02 — CLE 5.5 750E

18A7330G13 38DBA2-5E 18A7330G13 — DBA2 38 5E

18A7330G14 38DBA2-7E 18A7330G14 — DBA2 38 7E

18A7330G15 38DBA2-10E 18A7330G15 — DBA2 38 10E

18A7330G16 38DBA2-15E 18A7330G16 — DBA2 38 15E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-41

Appendix 2—Superseded Style Number Index

18A7330G17 38DBA2-20E 18A7330G17 — DBA2 38 20E

18A7330G18 38DBA2-25E 18A7330G18 — DBA2 38 25E

18A7330G19 38DBA2-30E 18A7330G19 — DBA2 38 30E

18A7330G20 38DBA2-40E 18A7330G20 — DBA2 38 40E

18A7330G21 38DBA2-50E 18A7330G21 — DBA2 38 50E

18A7330G22 38DBA2-65E 18A7330G22 — DBA2 38 65E

18A7330G23 38DBA2-80E 18A7330G23 — DBA2 38 80E

18A7330G24 38DBA2-100E 18A7330G24 — DBA2 38 100E

18A7330G25 38DBA2-125E 18A7330G25 — DBA2 38 125E

18A7330G26 38DBA2-150E 18A7330G26 — DBA2 38 150E

18A7330G27 38DBA2-200E 18A7330G27 — DBA2 38 200E

18A7330G33 48DBA2-5E 18A7330G33 — DBA2 48 5E

18A7330G34 48DBA2-7E 18A7330G34 — DBA2 48 7E

18A7330G35 48DBA2-10E 18A7330G35 — DBA2 48 10E

18A7330G36 48DBA2-15E 18A7330G36 — DBA2 48 15E

18A7330G37 48DBA2-20E 18A7330G37 — DBA2 48 20E

18A7330G48 48DBA2-25E 18A7330G48 — DBA2 48 25E

18A7330G39 48DBA2-30E 18A7330G39 — DBA2 48 30E

18A7330G40 48DBA2-40E 18A7330G40 — DBA2 48 40E

18A7330G41 48DBA2-50E 18A7330G41 — DBA2 48 50E

18A7330G42 48DBA2-65E 18A7330G42 — DBA2 48 65E

18A7330G43 48DBA2-80E 18A7330G43 — DBA2 48 80E

18A7330G44 48DBA2-100E 18A7330G44 — DBA2 48 100E

18A7330G45 48DBA2-125E 18A7330G45 — DBA2 48 125E

18A7330G46 48DBA2-150E 18A7330G46 — DBA2 48 150E

18A7330G47 48DBA2-200E 18A7330G47 — DBA2 48 200E

18B1154G07 5LCLS-12R 676C546 225E 2.4 kV CLS-1 fuse CLS 5.08 12R(230)

18B3115A10 Obsolete — 2.4 kV CLE-1 mountings — — —

2A98253G01 5ACLS-30 449D597G02 Asheville 3 pack — — —

2A98253G02 5ACLS-2R 449D597G01 Asheville 3 pack — — —

2A98253G03 5ACLS-3R 449D597G03 Asheville 3 pack — — —

2A98253G04 5ACLS-4R 449D597G04 Asheville 3 pack — — —

2A98253G05 5ACLS-5R 449D597G05 Asheville 3 pack — — —

2A98253G06 5ACLS-6R 449D597G06 Asheville 3 pack — — —

2A98253G07 5ACLS-9R 151D933G01 Asheville 3 pack — — —

2A98253G08 5ACLS-12R 151D933G02 Asheville 3 pack — — —

2A98253G09 5ACLS-18R 151D933G03 Asheville 3 pack — — —

2A98253G10 5ACLS-24R 151D933G04 Asheville 3 pack — — —

2A98253G11 5CLS70-24R 140D045G03 Asheville 3 pack — — —

2A98253G12 5CLS70-36R 140D045G02 Asheville 3 pack — — —

2A98253G13 5CLS70-44R 140D045G05 Asheville 3 pack — — —

2A98253G21 8ACLS-2R 151D963G01 Asheville 3 pack — — —

2A98253G22 8ACLS-3R 151D963G02 Asheville 3 pack — — —

2A98253G23 8ACLS-4R 151D963G03 Asheville 3 pack — — —

2A98253G24 8ACLS-5R 151D963G04 Asheville 3 pack — — —

2A98253G25 8ACLS-6R 151D963G05 Asheville 3 pack — — —

2A98253G26 7ACLS-9R 151D963G06 Asheville 3 pack — — —

2A98253G27 7ACLS-12R 151D963G07 Asheville 3 pack — — —

2A98253G28 7ACLS18R 151D963G10 Asheville 3 pack — — —

2A98253G29 7ACLS-24R 151D963G11 Asheville 3 pack — — —

2A98253G30 7CLS70-24R 5987C91G01 Asheville 3 pack — — —

2A98253G31 7CLS70-36R 5987C91G02 Asheville 3 pack — — —

2A98253G32 7CLS70-44R 5980C03G01 Asheville 3 pack — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-42 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

2A98253G39 8ACLS-4L 5981C27G02 Asheville 3 pack — — —

2A98253G40 CLS-700 DUMMY 591C172G01 Asheville 3 pack — — —

2A98253G41 5AHLE-10E 5981C46G01 Asheville 3 pack — — —

2A98253G42 5AHLE-15E 5981C46G02 Asheville 3 pack — — —

2A98253G43 5AHLE-20E 5981C46G03 Asheville 3 pack — — —

2A98253G44 5AHLE-25E 5981C46G04 Asheville 3 pack — — —

2A98253G45 5AHLE-30E 5981C46G05 Asheville 3 pack — — —

2A98253G46 5AHLE-40E 5981C46G06 Asheville 3 pack — — —

2A98253G47 5AHLE-50E 5981C46G07 Asheville 3 pack — — —

2A98253G48 5AHLE-65E 5981C46G08 Asheville 3 pack — — —

2A98253G49 5AHLE-80E 5981C46G09 Asheville 3 pack — — —

2A98253G50 5AHLE-100E 5981C46G10 Asheville 3 pack — — —

2A98253G51 5AHLE-125E 5981C46G11 Asheville 3 pack — — —

2A98253G52 5AHLE-150E 5981C46G12 Asheville 3 pack — — —

2A98253G53 5AHLE-200E 5981C46G14 Asheville 3 pack — — —

2A98253G54 5ACLE-225E 449D362G09 Asheville 3 pack — — —

2A98253G55 5AHLE-250E 5981C46G15 Asheville 3 pack — — —

2A98253G56 5AHLE-300E 5981C46G16 Asheville 3 pack — — —

2A98253G57 5AHLE-350E 5981C46G17 Asheville 3 pack — — —

2A98253G58 5AHLE-400E 5981C46G18 Asheville 3 pack — — —

2A98253G59 5AHLE-450E 5981C46G19 Asheville 3 pack — — —

2A98253G60 5CLS70-600E 151D979G01 Asheville 3 pack — — —

2A98253G61 5CLS70-750E 151D979G02 Asheville 3 pack — — —

2A98253G62 5BCLS-600E 9570D64G04 Asheville 3 pack — — —

2A98253G63 5BCLS-750E 9570D64G05 Asheville 3 pack — — —

2A98253G64 5CLE-1100E 9570D70G01 Asheville 3 pack — — —

2A98253G65 5CLE-1350E 9570D70G02 Asheville 3 pack — — —

2A98253G71 8AHLE-10E 5981C47G01 Asheville 3 pack — — —

2A98253G72 8AHLE-15E 5981C47G02 Asheville 3 pack — — —

2A98253G73 8AHLE-20E 5981C47G03 Asheville 3 pack — — —

2A98253G74 8AHLE-25E 5981C47G04 Asheville 3 pack — — —

2A98253G75 8AHLE-30E 5981C47G05 Asheville 3 pack — — —

2A98253G76 8AHLE-40E 5981C47G06 Asheville 3 pack — — —

2A98253G77 8AHLE-50E 5981C47G07 Asheville 3 pack — — —

2A98253G78 8AHLE-65E 5981C47G08 Asheville 3 pack — — —

2A98253G79 8AHLE-80E 5981C47G09 Asheville 3 pack — — —

2A98253G80 8AHLE-100E 5981C47G10 Asheville 3 pack — — —

2A98253G81 8AHLE-125E 5981C47G11 Asheville 3 pack — — —

2A98253G82 8AHLE-150E 5981C47G12 Asheville 3 pack — — —

2A98253G83 8AHLE-175E 5981C47G13 Asheville 3 pack — — —

2A98253G84 8AHLE-200E 5981C47G14 Asheville 3 pack — — —

2A98253G85 8AHLE-250E 5981C47G15 Asheville 3 pack — — —

2A98253G86 8AHLE-300E 5981C47G16 Asheville 3 pack — — —

204B956G01 Obsolete—contact Eaton — BAL mounting conversion kit — — —

204B956G02 Obsolete—contact Eaton — BAL mounting conversion kit — — —

204B956G03 Obsolete—contact Eaton — BAL mounting conversion kit — — —

204B956G04 Obsolete—contact Eaton — BAL mounting conversion kit — — —

204B956G05 Obsolete—contact Eaton — BAL mounting conversion kit — — —

204B956G06 Obsolete—contact Eaton — BAL mounting conversion kit — — —

208D480G02 2CLS-2R 591C812G02 — CLS 2.54 2R(70)

208D480G04 2CLS-4R 591C812G04 — CLS 2.54 4R(130)

208D480G06 2CLS-6R 591C812G06 — CLS 2.54 6R(170)

208D480G07 2CLS-9R 591C812G07 — CLS 2.54 9R(200)

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-43

Appendix 2—Superseded Style Number Index

208D480G08 2CLS-12R 591C812G08 — CLS 2.54 12R(230)

208D481G01 2CLE-30E 449D797G02 — CLE 2.75 30E

208D481G03 2CLE-50E 449D797G03 — CLE 2.75 50E

208D481G04 2CLE-65E 449D797G04 — CLE 2.75 65E

208D481G05 2CLE-80E 449D797G05 — CLE 2.75 80E

208D481G06 2CLE-100E 449D797G06 — CLE 2.75 100E

208D481G07 2CLE-125E 449D797G07 — CLE 2.75 125E

208D481G08 2CLE-150E 449D797G08 — CLE 2.75 150E

208D481G09 2CLE-200E 449D797G09 — CLE 2.75 200E

208D502G01 15CLE-30E 5981C33G05 — CLE 15.5 30E

208D502G02 15CLE-40E 5981C19G04 — CLE 15.5 40E

208D502G03 15CLE-50E 5981C19G05 — CLE 15.5 50E

208D502G04 15CLE-65E 5981C19G06 — CLE 15.5 65E

208D502G05 15CLE-80E 5981C19G07 — CLE 15.5 80E

208D502G06 15CLE-100E 5981C19G08 — CLE 15.5 100E

21A5008A10 5CLPT-5E 677C453G01 — CLPT 5.5 5E

22A6782G04 38DBA2-.5E 22A6782G04 — DBA2 38 0.5

22A6782G05 48DBA2-.5E 22A6782G05 — DBA2 48 0.5

22A6782G06 72DBA2-.5E 22A6782G06 — DBA2 72 0.5

304C108G01 Obsolete—contact Eaton — BA-200 7.2 kV mounting — — —

304C108G02 Obsolete—contact Eaton — BA-200 14.4 kV mounting — — —

304C108G03 Obsolete—contact Eaton — BA-200 23 kV mounting — — —

304C108G04 Obsolete—contact Eaton — BA-200 34.5 kV mounting — — —

304C108G05 Obsolete—contact Eaton — BA-200 7.2/14.4 kV mounting — — —

304C108G06 Obsolete—contact Eaton — BA-200 14.4/23 kV mounting — — —

304C108G07 Obsolete—contact Eaton — BA-200 23/34.5 kV mounting — — —

304C108G08 Obsolete—contact Eaton — BA-200 34.5/46 kV mounting — — —

304C109G01 Obsolete—contact Eaton — BA-400 7.2 kV mounting — — —

304C109G02 Obsolete—contact Eaton — BA-400 14.4 kV mounting — — —

304C109G03 Obsolete—contact Eaton — BA-400 23 kV mounting — — —

304C109G04 Obsolete—contact Eaton — BA-400 34.5 kV mounting — — —

304C109G05 Obsolete—contact Eaton — BA-400 7.2/14.4 kV mounting — — —

304C109G06 Obsolete—contact Eaton — BA-400 14.4/23 kV mounting — — —

304C109G07 Obsolete—contact Eaton — BA-400 23/34.5 kV mounting — — —

304C109G08 Obsolete—contact Eaton — BA-400 34.5/46 kV mounting — — —

304C337G08 25CLPT-1E 677C452G09 — CLPT 25.5 1

304C356G01 Obsolete—contact Eaton — BA-400 7.2 kV mounting — — —

304C356G02 Obsolete—contact Eaton — BA-400 14.4 kV mounting — — —

304C356G03 Obsolete—contact Eaton — BA-400 23 kV mounting — — —

304C356G04 Obsolete—contact Eaton — BA-400 34.5 kV mounting — — —

304C356G05 Obsolete—contact Eaton — BA-400 7.2/14.4 kV mounting — — —

304C356G06 Obsolete—contact Eaton — BA-400 14.4/23 kV mounting — — —

304C356G07 Obsolete—contact Eaton — BA-400 23/34.5 kV mounting — — —

304C356G08 Obsolete—contact Eaton — BA-400 34.5/46 kV mounting — — —

304C437G01 Obsolete—contact Eaton — BA-200 7.2 kV mounting — — —

304C437G02 Obsolete—contact Eaton — BA-200 14.4 kV mounting — — —

304C437G03 Obsolete—contact Eaton — BA-200 23 kV mounting — — —

304C437G04 Obsolete—contact Eaton — BA-200 34.5 kV mounting — — —

304C438G01 Obsolete—contact Eaton — BA-200 7.2 kV mounting — — —

304C438G02 Obsolete—contact Eaton — BA-200 14.4 kV mounting — — —

304C438G03 Obsolete—contact Eaton — BA-200 23 kV mounting — — —

304C438G04 Obsolete—contact Eaton — BA-200 34.5 kV mounting — — —

304C444G01 Obsolete—contact Eaton — BA-200 7.2 kV mounting — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-44 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

304C444G02 Obsolete—contact Eaton — BA-200 14.4 kV mounting — — —

304C444G03 Obsolete—contact Eaton — BA-200 23 kV mounting — — —

304C444G04 Obsolete—contact Eaton — BA-200 34.5 kV mounting — — —

304C463G01 2CLS-18R 591C813G01 — CLS 2.54 18R(390)

304C463G02 2CLS-24R 591C813G02 — CLS 2.54 24R

304C463G03 5LCLS-24R 304C463G03 — CLS 5.08 18R(390)

304C463G04 5LCLS-18R 304C463G04 — CLS 5.08 24R

308C310G10 CLE-NL-E 9078A67G04 — CLE — 450

308C427A02 2CLE-PNM-D 9078A68G15 — CLE 2.75 250

308C427A03 5CLE-PNM-D 9078A68G16 — CLE 5.5 250

308C427A04 8CLE-PNM-D 9078A68G17 — CLE 8.3 175

308C427A06 15CLE-PNM-D 9078A68G18 — CLE 15.5 150

308C427A07 15CLE-HPNM-D 9078A68G19 — CLE 15.5 150

308C427A11 Obsolete—contact Eaton — Rear connected non-disconnect CLE mountings — — —

308C427A12 Obsolete—contact Eaton — Rear connected non-disconnect CLE mountings — — —

308C427A13 Obsolete—contact Eaton — Rear connected non-disconnect CLE mountings — — —

308C427A15 Obsolete—contact Eaton — Rear connected non-disconnect CLE mountings — — —

308C427A16 Obsolete—contact Eaton — Rear connected non-disconnect CLE mountings — — —

308C427A20 Obsolete—contact Eaton — Rear connected non-disconnect CLE mountings — — —

308C427A21 Obsolete—contact Eaton — Rear connected non-disconnect CLE mountings — — —

308C427A22 Obsolete—contact Eaton — Rear connected non-disconnect CLE mountings — — —

308C427A24 Obsolete—contact Eaton — Rear connected non-disconnect CLE mountings — — —

308C427A25 Obsolete — Rear connected non-disconnect CLE mountings — — —

309C024G03 RBA2-FLTR 309C024G03 (3 pack) RBA2 — 200

309C024G04 RBA4-FLTR 309C024G04 (3 pack) RBA4 — 400

309C024G05 RBA2-FLTR-1 309C024G05 (1 pack) RBA2 — 200

309C273G02 Obsolete—contact Eaton — BA-200 13.8 kV dummy fuse — — —

309C548G01 8RDB2-SHNT 309C548G01 — RDB2 8.3 200

309C548G02 15RDB2-SHNT 309C548G02 — RDB2 15.5 200

309C548G03 25RDB2-SHNT 309C548G03 — RDB2 25.5 200

309C548G04 38RDB2-SHNT 309C548G04 — RDB2 38 200

309C548G05 8RBA2-SHNT 309C548G05 — RBA2 8.3 200

309C548G06 15RBA2-SHNT 309C548G06 — RBA2 15.5 200

309C548G07 25RBA2-SHNT 309C548G07 — RBA2 25.5 200

309C548G08 38RBA2-SHNT 309C548G08 — RBA2 38 200

309C548G09 8RBA2-ISHNT 309C548G09 — RBA2 8.3 200

309C548G10 15RBA2-ISHNT 309C548G10 — RBA2 15.5 200

309C548G11 25RBA2-ISHNT 309C548G11 — RBA2 25.5 200

309C548G12 38RBA2-ISHNT 309C548G12 — RBA2 38 200

309C558G01 8RBA2-DH 309C558G01 — RBA2 8.3 200

309C558G02 15RBA2-DH 309C558G02 — RBA2 15.5 200

309C558G03 25RBA2-DH 309C558G03 — RBA2 25.5 200

309C558G04 38RBA2-DH 309C558G04 — RBA2 38 200

309C558G05 8RDB2-DH 309C558G05 — RDB2 8.3 200

309C558G06 15RDB2-DH 309C558G06 — RDB2 15.5 200

309C558G07 25RDB2-DH 309C558G07 — RDB2 25.5 200

309C558G08 38RDB2-DH 309C558G08 — RDB2 38 200

309C558G09 8RBA2-LBDH 309C558G09 — RBA2 8.3 200

309C558G10 15RBA2-LBDH 309C558G10 — RBA2 15.5 200

309C558G11 25RBA2-LBDH 309C558G11 — RBA2 25.5 200

309C660G02 2HCLS-2R 591C155G02 — CLS 2.75 2R(70)

309C660G03 2HCLS-3R 591C155G03 — CLS 2.75 B

309C660G04 2HCLS-4R 591C155G04 — CLS 2.75 4R(130)

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-45

Appendix 2—Superseded Style Number Index

309C660G05 2HCLS-5R 591C155G05 — CLS 2.75 5R(150)

309C660G06 2HCLS-6R 591C155G06 — CLS 2.75 6R(170)

309C660G09 2HCLS-9R 591C155G07 — CLS 2.75 9R(200)

309C660G12 2HCLS-12R 591C155G08 — CLS 2.75 12R(230)

309C660G15 Obsolete—contact Eaton — Hermetically sealed 5LCLS-2R fuse — — —

309C660G16 Obsolete—contact Eaton — Hermetically sealed 5LCLS-2R fuse — — —

309C660G17 Obsolete—contact Eaton — Hermetically sealed 5LCLS-2R fuse — — —

309C660G18 Obsolete—contact Eaton — Hermetically sealed 5LCLS-2R fuse — — —

309C660G19 Obsolete—contact Eaton — Hermetically sealed 5LCLS-2R fuse — — —

309C660G22 Obsolete—contact Eaton — Hermetically sealed 5LCLS-2R fuse — — —

309C660G25 Obsolete—contact Eaton — Hermetically sealed 5LCLS-2R fuse — — —

309C797G01 8RBA4-DH 309C797G01 — RBA4 8.3 400

309C797G02 15RBA4-DH 309C797G02 — RBA4 15.5 400

309C797G03 25RBA4-DH 309C797G03 — RBA4 25.5 300

309C797G04 38RBA4-DH 309C797G04 — RBA4 38 300

309C797G05 8RBA4-LBDH 309C797G05 — RBA4 8.3 400

309C797G06 15RBA4-LBDH 309C797G06 — RBA4 15.5 400

309C797G07 25RBA4-LBDH 309C797G07 — RBA4 25.5 300

30A6178G01 Obsolete—contact Eaton — BA-800 7.2 kV mounting — — —

30A6178G02 Obsolete—contact Eaton — BA-800 14.4 kV mounting — — —

30A6178G03 Obsolete—contact Eaton — BA-800 723 kV mounting — — —

30A6178G04 Obsolete—contact Eaton — BA-800 34.5 kV mounting — — —

30A6178G05 Obsolete—contact Eaton — BA-800 live parts — — —

30A6178G06 Obsolete—contact Eaton — BA-800 7.2 kV mounting — — —

30A6178G07 Obsolete—contact Eaton — BA-800 14.4 kV mounting — — —

30A6178G08 Obsolete—contact Eaton — BA-800 723 kV mounting — — —

30A6178G09 Obsolete—contact Eaton — BA-800 34.5 kV mounting — — —

310C095G01 Obsolete—contact Eaton — 3 in dia. 2.4 kV 25E fuse — — —

310C095G02 2CLE-50E 449D797G03 — CLE 2.75 50E

310C095G03 2CLE-65E 449D797G04 — CLE 2.75 65E

310C095G04 2CLE-80E 449D797G05 — CLE 2.75 80E

310C095G05 2CLE-100E 449D797G06 — CLE 2.75 100E

310C095G06 2CLE-125E 449D797G07 — CLE 2.75 125E

310C095G07 2CLE-150E 449D797G08 — CLE 2.75 150E

310C095G08 2CLE-200E 449D797G09 — CLE 2.75 200E

310C095G10 2CLE-30E 449D797G02 — CLE 2.75 30E

310C095G12 5CLE-50E 5981C65G02 — CLE 5.5 50E

310C095G13 5CLE-65E 5981C65G03 — CLE 5.5 65E

310C095G14 5CLE-80E 5981C65G04 — CLE 5.5 80E

310C095G15 5CLE100E 5981C65G05 — CLE 5.5 100E

310C095G16 5CLE-125E 5981C65G06 — CLE 5.5 125E

310C095G17 5CLE-150E 5981C65G07 — CLE 5.5 150E

310C095G18 5CLE-200E 5981C65G09 — CLE 5.5 200E

310C095G19 Obsolete—contact Eaton — 5CLE1-225E — — —

310C095G20 5CLE-30E 5981C28G03 — CLE 5.5 30E

310C095G21 5CLE-40E 5981C65G01 — CLE 5.5 40E

— 8BA4-NH 310C196G01 — BA4 8.3 400

— 15BA4-NH 310C196G02 — BA4 15.5 400

310C131G01 8RDB4-DH 310C131G01 — RDB4 8.3 400

310C131G02 15RDB4-DH 310C131G02 — RDB4 15.5 400

310C131G03 25RDB4-DH 310C131G03 — RDB4 25.5 300

310C131G04 38RDB4-DH 310C131G04 — RDB4 38 300

310C132G01 RBA4-FLTR 309C024G04 — RBA4 — 400

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-46 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

310C191A01 Obsolete—contact Eaton — BA-400 live parts — — —

310C191A02 Obsolete—contact Eaton — BA-400 live parts—rear connected — — —

310C191A03 Obsolete—contact Eaton — BA-400 live parts—rear connected — — —

310C191A04 Obsolete—contact Eaton — BA-400 live parts—rear connected — — —

310C192G01 Obsolete—contact Eaton — BA-400S fuse holder — — —

310C192G02 Obsolete—contact Eaton — BA-400S fuse holder — — —

310C192G03 Obsolete—contact Eaton — BA-400S fuse holder — — —

310C192G04 Obsolete—contact Eaton — BA-400S fuse holder — — —

310C196G01 8BA4-NH 310C196G01 — BA4 8.3 400

310C196G02 15BA4-NH 310C196G02 — BA4 15.5 400

310C196G03 Obsolete—contact Eaton — — — — —

310C196G04 Obsolete—contact Eaton — — — — —

310C197G03 RBA2-COND 310C197G03 (3 pack) RBA2 — 200

310C197G04 RBA4-COND 310C197G04 (3 pack) RBA4 — 400

310C197G05 RBA2-COND 310C197G05 (1 pack) RBA2 — 200

310C197G06 RBA4-COND 310C197G06 (1 pack) RBA4 — 400

310C198G01 8BA2-NH 310C198G01 — BA2 8.3 200

310C198G02 15BA2-NH 310C198G02 — BA2 15.5 200

310C198G03 Obsolete—contact Eaton — — — — —

310C198G04 Obsolete—contact Eaton — — — — —

310C392G01 Obsolete—contact Eaton — Special BA-400 fuse holder — — —

310C392G02 Obsolete—contact Eaton — Special BA-400 fuse holder — — —

310C658G02 5LCLS-2R 676C546G15 — CLS 5.08 2R(70)

310C658G03 5LCLS-3R 676C546G16 — CLS 5.08 3R(100)

310C658G04 5LCLS-4R 676C546G17 — CLS 5.08 4R(130)

310C658G05 5LCLS-5R 676C546G18 — CLS 5.08 5R(150)

310C658G06 5LCLS-6R 676C546G19 — CLS 5.08 6R(170)

310C658G09 5LCLS-9R 676C546G22 — CLS 5.08 9R(200)

310C658G12 5LCLS-12R 676C546G25 — CLS 5.08 12R(230)

310C660G01 2CLS-18R 591C813G01 — CLS 2.54 18R(390)

310C660G02 2CLS-24R 591C813G02 — CLS 2.54 24R(450)

310C660G03 Obsolete—contact Eaton — Hermetically sealed 5LCLS-18R — — —

310C660G04 Obsolete—contact Eaton — Hermetically sealed 5LCLS-24R — — —

310C905G01 2CLE-250E 449D797G13 — CLE 2.75 250E

310C905G03 2CLE-300E 449D797G14 — CLE 2.75 300E

310C905G04 2CLE-350X 449D797G15 — CLE 2.75 350X

310C905G06 2CLE-400X 449D797G17 — CLE 2.75 400X

310C905G09 5CLE-250E 5981C65G10 — CLE 5.5 250E

310C905G11 5CLE-300E 5981C67G01 — CLE 5.5 300E

310C905G12 5CLE-350E 5981C67G02 — CLE 5.5 350E

310C905G13 Obsolete—contact Eaton — 5CLE2-365X — — —

310C905G14 5CLE-400E 5981C67G03 — CLE 5.5 400E

336C490G01 2CLS-12R 591C812G08 — CLS 2.54 12R(230)

337A770G01 2CLS-2R 591C812G02 — CLS 2.54 2R(70)

337A771G01 2CLS-4R 591C812G04 — CLS 2.54 4R(130)

337A772G01 2CLS-6R 591C812G06 — CLS 2.54 6R(170)

337A773G01 2CLS-9R 591C812G07 — CLS 2.54 9R(200)

337A774G01 2CLS-12R 591C812G08 — CLS 2.54 12R(230)

337A775G01 5CLS-2R 151D241G02 — CLS 5.08 2R(70)

337A776G01 5CLS-4R 151D241G04 — CLS 5.08 4R(130)

337A777G01 5CLS-6R 151D241G06 — CLS 5.08 6R(170)

337A778G01 5CLS-9R 151D961G01 — CLS 5.08 9R(200)

337A779G01 5CLS-12R 151D961G02 — CLS 5.08 12R(230)

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-47

Appendix 2—Superseded Style Number Index

343D316A34 Obsolete—contact Eaton — 25BT-15E — — —

343D316A35 Obsolete—contact Eaton — 25BT-20E — — —

343D316A36 Obsolete—contact Eaton — 25BT-25E — — —

343D316A37 Obsolete—contact Eaton — 25BT-30E — — —

343D316A38 Obsolete—contact Eaton — 25BT-40E — — —

343D316A39 Obsolete—contact Eaton — 25BT-50E — — —

343D316A40 Obsolete—contact Eaton — 25BT-65E — — —

343D316A41 Obsolete—contact Eaton — 25BT-80E — — —

343D316A42 Obsolete—contact Eaton — 25BT-100E — — —

343D316A43 Obsolete—contact Eaton — 25BT-125E — — —

343D316A44 Obsolete—contact Eaton — 25BT-150E — — —

343D316A45 Obsolete—contact Eaton — 25BT-200E — — —

366C453G01 RBA2-FLTR 309C024G03 (3 pack) RBA2 — 200

366C453G02 RBA4-FLTR 309C024G04 (3 pack) RBA4 — 400

366C474G01 2CLS-2R 591C812G02 — CLS 2.54 2R(70)

366C474G02 2CLS-4R 591C812G04 — CLS 2.54 4R(130)

366C474G03 2CLS-6R 591C812G06 — CLS 2.54 6R(170)

366C474G04 2CLS-9R 591C812G07 — CLS 2.54 9R(200)

366C474G05 2CLS-12R 591C812G08 — CLS 2.54 12R(230)

366C474G07 5LCLS-2R 676C546G15 — CLS 5.08 2R(70)

366C474G08 5LCLS-4R 676C546G17 — CLS 5.08 4R(130)

366C474G09 5LCLS-6R 676C546G19 — CLS 5.08 6R(170)

366C474G10 5LCLS-9R 676C546G22 — CLS 5.08 9R(200)

366C474G11 5LCLS-12R 676C546G25 — CLS 5.08 12R(230)

366C474G13 5LCLS-2R 676C546G15 — CLS 5.08 2R(70)

366C474G14 5LCLS-4R 676C546G17 — CLS 5.08 4R(130)

366C474G15 5LCLS-6R 676C546G19 — CLS 5.08 6R(170)

366C474G16 5LCLS-9R 676C546G22 — CLS 5.08 9R(200)

366C474G17 5LCLS-12R 676C546G25 — CLS 5.08 12R(230)

366C490G01 2CLS-12R 591C812G08 — CLS 2.54 12R(230)

366C490G02 5CLS-12R 676C546G25 — CLS 5.08 12R(230)

366C490G03 2CLS-12R 591C812G08 — CLS 2.54 12R(230)

366C490G04 5CLS-12R 676C546G25 — CLS 5.08 12R(230)

366C569G02 Obsolete — BA-200 50E fuse — — —

366C569G03 Obsolete — BA-200 65E fuse — — —

366C569G04 Obsolete — BA-200 80E fuse — — —

366C569G05 Obsolete — BA-200 100E fuse — — —

366C569G06 Obsolete — BA-200 125E fuse — — —

366C569G07 Obsolete — BA-200 150E fuse — — —

366C569G08 Obsolete — BA-200 200E fuse — — —

390B923G01 2CLE-50E 449D797G03 — CLE 2.75 50E

390B924G01 2CLE-65E 449D797G04 — CLE 2.75 65E

390B925G01 2CLE-80E 449D797G05 — CLE 2.75 80E

390B926G01 2CLE100E 449D797G06 — CLE 2.75 100E

390B927G01 2CLE-125E 449D797G07 — CLE 2.75 125E

390B928G01 2CLE-150E 449D797G08 — CLE 2.75 150E

390B929G01 2CLE-200E 449D797G09 — CLE 2.75 200E

390B932G01 5CLE-50E 5981C65G02 — CLE 5.5 50E

390B932G02 5CLE-65E 5981C65G03 — CLE 5.5 65E

390B934G03 5CLE-80E 5981C65G04 — CLE 5.5 80E

390B935G01 5CLE100E 5981C65G05 — CLE 5.5 100E

390B936G01 5CLE-125E 5981C65G06 — CLE 5.5 125E

390B937G01 5CLE-150E 5981C65G07 — CLE 5.5 150E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-48 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

390B938G01 5CLE-200E 5981C65G09 — CLE 5.5 200E

390B941G01 5CLE-50E 5981C65G02 — CLE 5.5 50E

390B942G01 5CLE-65E 5981C65G03 — CLE 5.5 65E

391B247G01 5CLE-25E 678C240G05 — CLE 5.5 25E

391B271G01 2CLE-15E 678C240G01 — CLE 2.75 15E

391B272G01 2CLE-25E 678C240G03 — CLE 2.75 25E

391B273G01 5CLE-15E 678C240G04 — CLE 5.5 15E

391B275G01 15CLE-25E 678C240G12 — CLE 15.5 25E

414D224G01 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

414D224G02 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

414D224G03 Obsolete—contact Eaton — BA-200 mounting—13.8 kV — — —

414D224G04 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

414D224G05 Obsolete—contact Eaton — BA-200 mounting—23 kV — — —

414D224G06 Obsolete—contact Eaton — BA-200 mounting—34.5 kV — — —

414D224G07 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

414D224G08 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

414D224G09 Obsolete—contact Eaton — BA-200 mounting—13.8 kV — — —

414D224G10 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

414D224G11 Obsolete—contact Eaton — BA-200 mounting—23 kV — — —

414D224G12 Obsolete—contact Eaton — BA-200 mounting—34.5 kV — — —

414D224G13 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

414D224G14 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

414D224G15 Obsolete—contact Eaton — BA-200 mounting—13.8 kV — — —

414D224G16 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

414D224G17 Obsolete—contact Eaton — BA-200 mounting—23 kV — — —

414D224G18 Obsolete—contact Eaton — BA-200 mounting—34.5 kV — — —

414D225G01 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

414D225G02 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

414D225G03 Obsolete—contact Eaton — BA-200 mounting—13.8 kV — — —

414D225G04 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

414D225G05 Obsolete—contact Eaton — BA-200 mounting—23 kV — — —

414D225G06 Obsolete—contact Eaton — BA-200 mounting—34.5 kV — — —

414D225G07 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

414D225G08 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

414D225G09 Obsolete—contact Eaton — BA-200 mounting—13.8 kV — — —

414D225G10 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

414D225G11 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

414D225G12 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

414D225G13 Obsolete—contact Eaton — BA-200 mounting—13.8 kV — — —

414D225G14 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

414D225G15 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

414D225G16 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

414D225G17 Obsolete—contact Eaton — BA-200 mounting—13.8 kV — — —

414D225G18 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

414D226G01 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

414D226G02 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

414D226G03 Obsolete—contact Eaton — BA-400 mounting—13.8 kV — — —

414D226G04 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

414D226G05 Obsolete—contact Eaton — BA-400 mounting—23 kV — — —

414D226G06 Obsolete—contact Eaton — BA-400 mounting—34.5 kV — — —

414D226G07 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

414D226G08 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

414D226G09 Obsolete—contact Eaton — BA-400 mounting—13.8 kV — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-49

Appendix 2—Superseded Style Number Index

414D226G10 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

414D226G11 Obsolete—contact Eaton — BA-400 mounting—23 kV — — —

414D226G12 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

414D226G13 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

414D226G14 Obsolete—contact Eaton — BA-400 mounting—13.8 kV — — —

414D226G15 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

414D226G16 Obsolete—contact Eaton — BA-400 mounting—23 kV — — —

414D226G17 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

414D226G18 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

414D226G19 Obsolete—contact Eaton — BA-400 mounting—13.8 kV — — —

414D226G20 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

414D226G21 Obsolete—contact Eaton — BA-400 mounting—23 kV — — —

414D227G01 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

414D227G02 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

414D227G03 Obsolete—contact Eaton — BA-400 mounting—13.8 kV — — —

414D227G04 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

414D227G05 Obsolete—contact Eaton — BA-400 mounting—23 kV — — —

414D227G06 Obsolete—contact Eaton — BA-400 mounting—34.5 kV — — —

414D227G07 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

414D227G08 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

414D227G09 Obsolete—contact Eaton — BA-400 mounting—13.8 kV — — —

414D227G10 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

414D227G11 Obsolete—contact Eaton — BA-400 mounting—23 kV — — —

414D227G12 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

414D227G13 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

414D227G14 Obsolete—contact Eaton — BA-400 mounting—13.8 kV — — —

414D227G15 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

414D227G16 Obsolete—contact Eaton — BA-400 mounting—23 kV — — —

414D227G17 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

414D227G18 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

414D227G19 Obsolete—contact Eaton — BA-400 mounting—13.8 kV — — —

414D227G20 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

414D227G21 Obsolete—contact Eaton — BA-400 mounting—23 kV — — —

418D565G31 5CLE-200E 5981G65G09 — CLE 5.5 200E

421D701G17 8CLE-80E 5981C17G06 — CLE 8.3 80E

421D701G19 8CLE-100E 5981C17G07 — CLE 8.3 100E

421D701G25 15CLE-80E 5981C19G07 — CLE 15.5 80E

421D701G26 15CLE-100E 5981C19G08 — CLE 15.5 100E

422D324G01 Obsolete—contact Eaton — BA-800 mounting—4.8 kV — — —

422D324G02 Obsolete—contact Eaton — BA-800 mounting—4.8 kV — — —

422D324G03 Obsolete—contact Eaton — BA-800 mounting—4.8 kV — — —

422D324G04 Obsolete—contact Eaton — BA-800 mounting—4.8 kV — — —

422D324G05 Obsolete—contact Eaton — BA-800 mounting—7.2 kV — — —

422D324G06 Obsolete—contact Eaton — BA-800 mounting—7.2 kV — — —

422D324G07 Obsolete—contact Eaton — BA-800 mounting—7.2 kV — — —

422D324G08 Obsolete—contact Eaton — BA-800 mounting—7.2 kV — — —

422D324G09 Obsolete—contact Eaton — BA-800 mounting—13.2 kV — — —

422D324G10 Obsolete—contact Eaton — BA-800 mounting—13.2 kV — — —

422D324G11 Obsolete—contact Eaton — BA-800 mounting—13.2 kV — — —

422D324G12 Obsolete—contact Eaton — BA-800 mounting—13.2 kV — — —

422D324G13 Obsolete—contact Eaton — BA-800 mounting—14.4 kV — — —

422D324G14 Obsolete—contact Eaton — BA-800 mounting—14.4 kV — — —

422D324G15 Obsolete—contact Eaton — BA-800 mounting—14.4 kV — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-50 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

422D324G16 Obsolete—contact Eaton — BA-800 mounting—14.4 kV — — —

423D769G01 Obsolete—contact Eaton — 8BA2-MODH — — —

423D769G02 Obsolete—contact Eaton — 15BA2-MODH — — —

423D769G03 Obsolete—contact Eaton — 25BA2-MODH — — —

423D769G04 Obsolete—contact Eaton — 48BA2-MODH — — —

423D769G05 Obsolete—contact Eaton — 8BA2-75VODH — — —

423D769G06 Obsolete—contact Eaton — 15BA2-75VODH — — —

423D769G07 Obsolete—contact Eaton — 25BA2-75VODH — — —

423D769G08 Obsolete—contact Eaton — 48BA2-75VODH — — —

423D769G09 Obsolete—contact Eaton — 8BA2-180VODH — — —

423D769G10 Obsolete—contact Eaton — 15BA2-180VODH — — —

423D769G11 Obsolete—contact Eaton — 25BA2-180VODH — — —

423D769G12 Obsolete—contact Eaton — 48BA2-180VODH — — —

423D770G01 Obsolete—contact Eaton — 8BA4-MODH — — —

423D770G02 Obsolete—contact Eaton — 15BA4-MODH — — —

423D770G03 Obsolete—contact Eaton — 25BA4-MODH — — —

423D770G04 Obsolete—contact Eaton — 48BA4-MODH — — —

423D770G05 Obsolete—contact Eaton — 8BA4-75VODH — — —

423D770G06 Obsolete—contact Eaton — 15BA4-75VODH — — —

423D770G07 Obsolete—contact Eaton — 25BA4-75VODH — — —

423D770G08 Obsolete—contact Eaton — 48BA4-75VODH — — —

423D770G09 Obsolete—contact Eaton — 8BA4-180VODH — — —

423D770G10 Obsolete—contact Eaton — 15BA4-180VODH — — —

423D770G11 Obsolete—contact Eaton — 25BA4-180VODH — — —

423D770G12 Obsolete—contact Eaton — 48BA4-180VODH — — —

423D814A05 8RBA2-10E 423D814A05 — RBA2 8.3 10E

423D814A06 8RBA2-15E 423D814A06 — RBA2 8.3 15E

423D814A07 8RBA2-20E 423D814A07 — RBA2 8.3 20E

423D814A08 8RBA2-25E 423D814A08 — RBA2 8.3 25E

423D814A09 8RBA2-30E 423D814A09 — RBA2 8.3 30E

423D814A10 8RBA2-40E 423D814A10 — RBA2 8.3 40E

423D814A11 8RBA2-50E 423D814A11 — RBA2 8.3 50E

423D814A12 8RBA2-65E 423D814A12 — RBA2 8.3 65E

423D814A13 8RBA2-80E 423D814A13 — RBA2 8.3 80E

423D814A14 8RBA2-100E 423D814A14 — RBA2 8.3 100E

423D814A15 8RBA2-125E 423D814A15 — RBA2 8.3 125E

423D814A16 8RBA2-150E 423D814A16 — RBA2 8.3 150E

423D814A17 8RBA2-175E 423D814A17 — RBA2 8.3 175E

423D814A18 8RBA2-200E 423D814A18 — RBA2 8.3 200E

423D814A19 15RBA2-10E 423D814A19 — RBA2 15.5 10E

423D814A20 15RBA2-15E 423D814A20 — RBA2 15.5 15E

423D814A21 15RBA2-20E 423D814A21 — RBA2 15.5 20E

423D814A22 15RBA2-25E 423D814A22 — RBA2 15.5 25E

423D814A23 15RBA2-30E 423D814A23 — RBA2 15.5 30E

423D814A24 15RBA2-40E 423D814A24 — RBA2 15.5 40E

423D814A25 15RBA2-50E 423D814A25 — RBA2 15.5 50E

423D814A26 15RBA2-65E 423D814A26 — RBA2 15.5 65E

423D814A27 15RBA2-150E 423D814A27 — RBA2 15.5 80E

423D814A28 15RBA2-100E 423D814A28 — RBA2 15.5 100E

423D814A29 15RBA2-125E 423D814A29 — RBA2 15.5 125E

423D814A30 15RBA2-150E 423D814A30 — RBA2 15.5 150E

423D814A31 15RBA2-175E 423D814A31 — RBA2 15.5 175E

423D814A32 15RBA2-200E 423D814A32 — RBA2 15.5 200E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-51

Appendix 2—Superseded Style Number Index

423D814A33 25RBA2-10E 423D814A33 — RBA2 25.5 10E

423D814A34 25RBA2-15E 423D814A34 — RBA2 25.5 15E

423D814A35 25RBA2-20E 423D814A35 — RBA2 25.5 20E

423D814A36 25RBA2-25E 423D814A36 — RBA2 25.5 25E

423D814A37 25RBA2-30E 423D814A37 — RBA2 25.5 30E

423D814A38 25RBA2-40E 423D814A38 — RBA2 25.5 40E

423D814A39 25RBA2-50E 423D814A39 — RBA2 25.5 50E

423D814A40 25RBA2-65E 423D814A40 — RBA2 25.5 65E

423D814A41 25RBA2-250E 423D814A41 — RBA2 25.5 80E

423D814A42 25RBA2-100E 423D814A42 — RBA2 25.5 100E

423D814A43 25RBA2-125E 423D814A43 — RBA2 25.5 125E

423D814A44 25RBA2-150E 423D814A44 — RBA2 25.5 150E

423D814A45 25RBA2-175E 423D814A45 — RBA2 25.5 175E

423D814A46 25RBA2-200E 423D814A46 — RBA2 25.5 200E

423D814A47 38RBA2-10E 423D814A47 — RBA2 38 10E

423D814A48 38RBA2-15E 423D814A48 — RBA2 38 15E

423D814A49 38RBA2-20E 423D814A49 — RBA2 38 20E

423D814A50 38RBA2-25E 423D814A50 — RBA2 38 25E

423D814A51 38RBA2-30E 423D814A51 — RBA2 38 30E

423D814A52 38RBA2-40E 423D814A52 — RBA2 38 40E

423D814A53 38RBA2-50E 423D814A53 — RBA2 38 50E

423D814A54 38RBA2-65E 423D814A54 — RBA2 38 65E

423D814A55 38RBA2-380E 423D814A55 — RBA2 38 80E

423D814A56 38RBA2-100E 423D814A56 — RBA2 38 100E

423D814A57 38RBA2-125E 423D814A57 — RBA2 38 125E

423D814A58 38RBA2-150E 423D814A58 — RBA2 38 150E

423D814A59 38RBA2-175E 423D814A59 — RBA2 38 175E

423D814A60 38RBA2-200E 423D814A60 — RBA2 38 200E

423D815A01 8RBA4-.5E 5982C44G01 — RBA4 8.3 0.5

423D815A02 8RBA4-3E 5982C44G02 — RBA4 8.3 3

423D815A03 8RBA4-5E 5982C44G03 — RBA4 8.3 5E

423D815A04 8RBA4-7E 5982C44G04 — RBA4 8.3 7E

423D815A05 8RBA4-10E 5982C44G05 — RBA4 8.3 10E

423D815A06 8RBA4-15E 5982C44G06 — RBA4 8.3 15E

423D815A07 8RBA4-20E 5982C44G07 — RBA4 8.3 20E

423D815A08 8RBA4-25E 5982C44G08 — RBA4 8.3 25E

423D815A09 8RBA4-30E 5982C44G09 — RBA4 8.3 30E

423D815A10 8RBA4-40E 5982C44G10 — RBA4 8.3 40E

423D815A11 8RBA4-50E 5982C44G11 — RBA4 8.3 50E

423D815A12 8RBA4-65E 5982C44G12 — RBA4 8.3 65E

423D815A13 8RBA4-80E 5982C44G13 — RBA4 8.3 80E

423D815A14 8RBA4-100E 5982C44G14 — RBA4 8.3 100E

423D815A15 8RBA4-125E 5982C44G15 — RBA4 8.3 125E

423D815A16 8RBA4-150E 5982C44G16 — RBA4 8.3 150E

423D815A17 8RBA4-175E 5982C44G17 — RBA4 8.3 175E

423D815A18 8RBA4-200E 5982C44G18 — RBA4 8.3 200E

423D815A19 8RBA4-250E 5982C44G19 — RBA4 8.3 250E

423D815A20 8RBA4-300E 5982C44G20 — RBA4 8.3 300E

423D815A22 8RBA4-400E 5982C44G22 — RBA4 8.3 400E

423D815A26 15RBA4-.5E 5982C44G26 — RBA4 15.5 0.5

423D815A27 15RBA4-3E 5982C44G27 — RBA4 15.5 3

423D815A28 15RBA4-5E 5982C44G28 — RBA4 15.5 5E

423D815A29 15RBA4-7E 5982C44G29 — RBA4 15.5 7E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-52 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

423D815A30 15RBA4-10E 5982C44G30 — RBA4 15.5 10E

423D815A31 15RBA4-15E 5982C44G31 — RBA4 15.5 15E

423D815A32 15RBA4-20E 5982C44G32 — RBA4 15.5 20E

423D815A33 15RBA4-25E 5982C44G33 — RBA4 15.5 25E

423D815A34 15RBA4-30E 5982C44G34 — RBA4 15.5 30E

423D815A35 15RBA4-40E 5982C44G35 — RBA4 15.5 40E

423D815A36 15RBA4-50E 5982C44G36 — RBA4 15.5 50E

423D815A37 15RBA4-65E 5982C44G37 — RBA4 15.5 65E

423D815A38 15RBA4-80E 5982C44G38 — RBA4 15.5 80E

423D815A39 15RBA4-100E 5982C44G39 — RBA4 15.5 100E

423D815A40 15RBA4-125E 5982C44G40 — RBA4 15.5 125E

423D815A41 15RBA4-150E 5982C44G41 — RBA4 15.5 150E

423D815A42 15RBA4-175E 5982C44G42 — RBA4 15.5 175E

423D815A43 15RBA4-200E 5982C44G43 — RBA4 15.5 200E

423D815A44 15RBA4-250E 5982C44G44 — RBA4 15.5 250E

423D815A45 15RBA4-300E 5982C44G45 — RBA4 15.5 300E

423D815A47 15RBA4-400E 5982C44G47 — RBA4 15.5 400E

423D815A51 25RBA4-.5E 5982C44G51 — RBA4 25.5 0.5

423D815A52 25RBA4-3E 5982C44G52 — RBA4 25.5 3

423D815A53 25RBA4-5E 5982C44G53 — RBA4 25.5 5E

423D815A54 25RBA4-7E 5982C44G54 — RBA4 25.5 7E

423D815A55 25RBA4-10E 5982C44G55 — RBA4 25.5 10E

423D815A56 25RBA4-15E 5982C44G56 — RBA4 25.5 15E

423D815A57 25RBA4-20E 5982C44G57 — RBA4 25.5 20E

423D815A58 25RBA4-25E 5982C44G58 — RBA4 25.5 25E

423D815A59 25RBA4-30E 5982C44G59 — RBA4 25.5 30E

423D815A60 25RBA4-40E 5982C44G60 — RBA4 25.5 40E

423D815A61 25RBA4-50E 5982C44G61 — RBA4 25.5 50E

423D815A62 25RBA4-65E 5982C44G62 — RBA4 25.5 65E

423D815A63 25RBA4-80E 5982C44G63 — RBA4 25.5 80E

423D815A64 25RBA4-100E 5982C44G64 — RBA4 25.5 100E

423D815A65 25RBA4-125E 5982C44G65 — RBA4 25.5 125E

423D815A66 25RBA4-150E 5982C44G66 — RBA4 25.5 150E

423D815A67 25RBA4-175E 5982C44G67 — RBA4 25.5 175E

423D815A68 25RBA4-200E 5982C44G68 — RBA4 25.5 200E

423D815A69 25RBA4-250E 5982C44G69 — RBA4 25.5 250E

423D815A70 25RBA4-300E 5982C44G70 — RBA4 25.5 300E

423D815A76 38RBA4-.5E 5982C44G76 — RBA4 38 0.5

423D815A77 38RBA4-3E 5982C44G77 — RBA4 38 3

423D815A78 38RBA4-5E 5982C44G78 — RBA4 38 5E

423D815A79 38RBA4-7E 5982C44G79 — RBA4 38 7E

423D815A80 38RBA4-10E 5982C44G80 — RBA4 38 10E

423D815A81 38RBA4-15E 5982C44G81 — RBA4 38 15E

423D815A82 38RBA4-20E 5982C44G82 — RBA4 38 20E

423D815A83 38RBA4-25E 5982C44G83 — RBA4 38 25E

423D815A84 38RBA4-30E 5982C44G84 — RBA4 38 30E

423D815A85 38RBA4-40E 5982C44G85 — RBA4 38 40E

423D815A86 38RBA4-50E 5982C44G86 — RBA4 38 50E

423D815A87 38RBA4-65E 5982C44G87 — RBA4 38 65E

423D815A88 38RBA4-80E 5982C44G88 — RBA4 38 80E

423D815A89 38RBA4-100E 5982C44G89 — RBA4 38 100E

423D815A90 38RBA4-125E 5982C44G90 — RBA4 38 125E

423D815A91 38RBA4-150E 5982C44G91 — RBA4 38 150E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-53

Appendix 2—Superseded Style Number Index

423D815A92 38RBA4-175E 5982C44G92 — RBA4 38 175E

423D815A93 38RBA4-200E 5982C44G93 — RBA4 38 200E

423D815A94 38RBA4-250E 5982C44G94 — RBA4 38 250E

423D815A95 38RBA4-300E 5982C44G95 — RBA4 38 300E

423D816G01 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

423D816G02 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

423D816G03 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

423D816G04 Obsolete—contact Eaton — BA-200 mounting—4.8 kV — — —

423D816G05 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

423D816G06 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

423D816G07 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

423D816G08 Obsolete—contact Eaton — BA-200 mounting—7.2 kV — — —

423D816G09 Obsolete—contact Eaton — BA-200 mounting—13.2 kV — — —

423D816G10 Obsolete—contact Eaton — BA-200 mounting—13.2 kV — — —

423D816G11 Obsolete—contact Eaton — BA-200 mounting—13.2 kV — — —

423D816G12 Obsolete—contact Eaton — BA-200 mounting—13.2 kV — — —

423D816G13 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

423D816G14 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

423D816G15 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

423D816G16 Obsolete—contact Eaton — BA-200 mounting—14.4 kV — — —

423D816G17 Obsolete—contact Eaton — BA-200 mounting—23 kV — — —

423D816G21 Obsolete—contact Eaton — BA-200 mounting—134.5 kV — — —

423D885G01 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

423D885G02 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

423D885G03 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

423D885G04 Obsolete—contact Eaton — BA-400 mounting—4.8 kV — — —

423D885G05 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

423D885G06 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

423D885G07 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

423D885G08 Obsolete—contact Eaton — BA-400 mounting—7.2 kV — — —

423D885G09 Obsolete—contact Eaton — BA-400 mounting—13.2 kV — — —

423D885G10 Obsolete—contact Eaton — BA-400 mounting—13.2 kV — — —

423D885G11 Obsolete—contact Eaton — BA-400 mounting—13.2 kV — — —

423D885G12 Obsolete—contact Eaton — BA-400 mounting—13.2 kV — — —

423D885G13 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

423D885G14 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

423D885G15 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

423D885G16 Obsolete—contact Eaton — BA-400 mounting—14.4 kV — — —

42A4072G21 Obsolete—contact Eaton — 38DBA5-.5E — — —

42A4072G23 Obsolete—contact Eaton — 38DBA5-5E — — —

42A4072G24 Obsolete—contact Eaton — 38DBA5-7E — — —

42A4072G25 Obsolete—contact Eaton — 38DBA5-10E — — —

42A4072G26 Obsolete—contact Eaton — 38DBA5-15E — — —

42A4072G27 Obsolete—contact Eaton — 38DBA5-20E — — —

42A4072G28 Obsolete—contact Eaton — 38DBA5-25E — — —

42A4072G29 Obsolete—contact Eaton — 38DBA5-30E — — —

42A4072G30 Obsolete—contact Eaton — 38DBA5-40E — — —

42A4072G31 Obsolete—contact Eaton — 38DBA5.50E — — —

42A4072G32 Obsolete—contact Eaton — 38DBA5-65E — — —

42A4072G33 Obsolete—contact Eaton — 38DBA5-80E — — —

42A4072G34 Obsolete—contact Eaton — 38DBA5-100E — — —

42A4072G35 Obsolete—contact Eaton — 38DBA5-125E — — —

42A4072G36 Obsolete—contact Eaton — 38DBA5-150E — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-54 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

42A4072G37 Obsolete—contact Eaton — 38DBA5-200E — — —

42A4072G41 Obsolete—contact Eaton — 48DBA5-.5E — — —

42A4072G43 Obsolete—contact Eaton — 48DBA5-5E — — —

42A4072G44 Obsolete—contact Eaton — 48DBA5-7E — — —

42A4072G45 Obsolete—contact Eaton — 48DBA5-10E — — —

42A4072G46 Obsolete—contact Eaton — 48DBA5-15E — — —

42A4072G47 Obsolete—contact Eaton — 48DBA5-20E — — —

42A4072G48 Obsolete—contact Eaton — 48DBA5-25E — — —

42A4072G49 Obsolete—contact Eaton — 48DBA5-30E — — —

42A4072G50 Obsolete—contact Eaton — 48DBA5-40E — — —

42A4072G51 Obsolete—contact Eaton — 48DBA5.50E — — —

42A4072G52 Obsolete—contact Eaton — 48DBA5-65E — — —

42A4072G53 Obsolete—contact Eaton — 48DBA5-80E — — —

42A4072G54 Obsolete—contact Eaton — 48DBA5-100E — — —

42A4072G55 Obsolete—contact Eaton — 48DBA5-125E — — —

42A4072G56 Obsolete—contact Eaton — 48DBA5-150E — — —

42A4072G57 Obsolete—contact Eaton — 48DBA5-200E — — —

42A4072G61 Obsolete—contact Eaton — 72DBA5-.5E — — —

42A4072G63 Obsolete—contact Eaton — 72DBA5-5E — — —

42A4072G64 Obsolete—contact Eaton — 72DBA5-7E — — —

42A4072G65 Obsolete—contact Eaton — 72DBA5-10E — — —

42A4072G66 Obsolete—contact Eaton — 72DBA5-15E — — —

42A4072G67 Obsolete—contact Eaton — 72DBA5-20E — — —

42A4072G68 Obsolete—contact Eaton — 72DBA5-25E — — —

42A4072G69 Obsolete—contact Eaton — 72DBA5-30E — — —

42A4072G70 Obsolete—contact Eaton — 72DBA5-40E — — —

42A4072G71 Obsolete—contact Eaton — 72DBA5.50E — — —

42A4072G72 Obsolete—contact Eaton — 72DBA5-65E — — —

42A4072G73 Obsolete—contact Eaton — 72DBA5-80E — — —

42A4072G74 Obsolete—contact Eaton — 72DBA5-100E — — —

42A4072G75 Obsolete—contact Eaton — 72DBA5-125E — — —

42A4072G76 Obsolete—contact Eaton — 72DBA5-150E — — —

42A4072G77 Obsolete—contact Eaton — 72DBA5-200E — — —

431B345G01 2CLE-20E 678C240G02 — CLE 2.75 20E

431B346G01 5CLE-20E 678C240G05 — CLE 5.5 20E

431B347G01 8CLE-15E 678C240G07 — CLE 8.3 15E

431B348G01 8CLE-20E 678C240G08 — CLE 8.3 20E

431B349G01 8CLE-25E 678C240G09 — CLE 8.3 25E

431B350G01 15CLE-15E 678C240G10 — CLE 15.5 15E

431B351G01 15CLE-20E 678C240G11 — CLE 15.5 20E

431B373G01 15CLE-50E 678C240G12 — CLE 15.5 25E

431B374G09 15CLE-65E 5981C19G06 — CLE 15.5 65E

432D140A02 2CLE-PDM-D 9078A65G15 — CLE 2.75 250

432D140A04 2CLE-PDM-D 9078A65G15 — CLE 2.75 250

432D140A05 5CLE-PDM-D 9078A65G16 — CLE 5.5 250

432D140A06 8CLE-PDM-D 9078A65G17 — CLE 8.3 175

432D140A07 2CLE-PDM-D 9078A65G15 — CLE 2.75 250

432D140A10 15CLE-PDM-D 9078A65G18 — CLE 15.5 150

432D140A11 15CLE-HPDM-D 9078A65G19 — CLE 15.5 150

432D140A13 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A15 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A16 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A20 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-55

Appendix 2—Superseded Style Number Index

432D140A21 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A23 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A25 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A26 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A30 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A31 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A33 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A35 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A36 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A40 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D140A41 Obsolete—contact Eaton — Rear connected disconnect CLE mountings — — —

432D886G06 2CLE-250E 449D797G13 — CLE 2.75 250E

432D886G14 5CLE-250E 5981C65G10 — CLE 5.5 250E

434D316A04 Obsolete—contact Eaton — 8BT2-15E — — —

434D316A05 Obsolete—contact Eaton — 8BT2-20E — — —

434D316A06 Obsolete—contact Eaton — 8BT2-25E — — —

434D316A07 Obsolete—contact Eaton — 8BT2-30E — — —

434D316A08 Obsolete—contact Eaton — 8BT2-40E — — —

434D316A09 Obsolete—contact Eaton — 8BT2-50E — — —

434D316A10 Obsolete—contact Eaton — 8BT2-65E — — —

434D316A11 Obsolete—contact Eaton — 8BT2-80E — — —

434D316A12 Obsolete—contact Eaton — 8BT2-100E — — —

434D316A13 Obsolete—contact Eaton — 8BT2-125E — — —

434D316A14 Obsolete—contact Eaton — 8BT2-150E — — —

434D316A15 Obsolete—contact Eaton — 8BT2-200E — — —

434D316A19 Obsolete—contact Eaton — 15BT2-15E — — —

434D316A20 Obsolete—contact Eaton — 15BT2-20E — — —

434D316A21 Obsolete—contact Eaton — 15BT2-25E — — —

434D316A22 Obsolete—contact Eaton — 15BT2-30E — — —

434D316A23 Obsolete—contact Eaton — 15BT2-40E — — —

434D316A24 Obsolete—contact Eaton — 15BT2-50E — — —

434D316A25 Obsolete—contact Eaton — 15BT2-65E — — —

434D316A26 Obsolete—contact Eaton — 15BT2-80E — — —

434D316A27 Obsolete—contact Eaton — 15BT2-100E — — —

434D316A28 Obsolete—contact Eaton — 15BT2-125E — — —

434D316A29 Obsolete—contact Eaton — 15BT2-150E — — —

434D316A30 Obsolete—contact Eaton — 15BT2-200E — — —

434D316A34 Obsolete—contact Eaton — 25BT2-15E — — —

434D316A35 Obsolete—contact Eaton — 25BT2-20E — — —

434D316A36 Obsolete—contact Eaton — 25BT2-25E — — —

434D316A37 Obsolete—contact Eaton — 25BT2-30E — — —

434D316A48 Obsolete—contact Eaton — 25BT2-40E — — —

434D316A39 Obsolete—contact Eaton — 25BT2-50E — — —

434D316A40 Obsolete—contact Eaton — 25BT2-65E — — —

434D316A41 Obsolete—contact Eaton — 25BT2-80E — — —

434D316A42 Obsolete—contact Eaton — 25BT2-100E — — —

434D316A43 Obsolete—contact Eaton — 25BT2-125E — — —

434D316A44 Obsolete—contact Eaton — 25BT2-150E — — —

434D316A45 Obsolete—contact Eaton — 25BT2-200E — — —

434D316A49 Obsolete—contact Eaton — 38BT2-15E — — —

434D316A50 Obsolete—contact Eaton — 38BT2-20E — — —

434D316A51 Obsolete—contact Eaton — 38BT2-25E — — —

434D316A52 Obsolete—contact Eaton — 38BT2-30E — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-56 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

434D316A53 Obsolete—contact Eaton — 38BT2-40E — — —

434D316A54 Obsolete—contact Eaton — 38BT2-50E — — —

434D316A55 Obsolete—contact Eaton — 38BT2-65E — — —

434D316A56 Obsolete—contact Eaton — 38BT2-80E — — —

434D316A57 Obsolete—contact Eaton — 38BT2-100E — — —

434D316A58 Obsolete—contact Eaton — 38BT2-125E — — —

434D316A59 Obsolete—contact Eaton — 38BT2-150E — — —

434D316A60 Obsolete—contact Eaton — 38BT2-200E — — —

434D317A05 Obsolete—contact Eaton — 8BT4-20E — — —

434D317A06 Obsolete—contact Eaton — 8BT4-25E — — —

434D317A07 Obsolete—contact Eaton — 8BT4-30E — — —

434D317A08 Obsolete—contact Eaton — 8BT4-40E — — —

434D317A09 Obsolete—contact Eaton — 8BT4-50E — — —

434D317A10 Obsolete—contact Eaton — 8BT4-65E — — —

434D317A11 Obsolete—contact Eaton — 8BT4-80E — — —

434D317A12 Obsolete—contact Eaton — 8BT4-100E — — —

434D317A13 Obsolete—contact Eaton — 8BT4-125E — — —

434D317A14 Obsolete—contact Eaton — 8BT4-150E — — —

434D317A15 Obsolete—contact Eaton — 8BT4-200E — — —

434D317A23 Obsolete—contact Eaton — 15BT4-20E — — —

434D317A24 Obsolete—contact Eaton — 15BT4-25E — — —

434D317A25 Obsolete—contact Eaton — 15BT4-30E — — —

434D317A26 Obsolete—contact Eaton — 15BT4-40E — — —

434D317A27 Obsolete—contact Eaton — 15BT4-50E — — —

434D317A28 Obsolete—contact Eaton — 15BT4-65E — — —

434D317A29 Obsolete—contact Eaton — 15BT4-150E — — —

434D317A30 Obsolete—contact Eaton — 15BT4-100E — — —

434D317A31 Obsolete—contact Eaton — 15BT4-125E — — —

434D317A32 Obsolete—contact Eaton — 15BT4-150E — — —

434D317A33 Obsolete—contact Eaton — 15BT4-200E — — —

434D317A41 Obsolete—contact Eaton — 25BT4-20E — — —

434D317A42 Obsolete—contact Eaton — 25BT4-25E — — —

434D317A43 Obsolete—contact Eaton — 25BT4-30E — — —

434D317A44 Obsolete—contact Eaton — 25BT4-40E — — —

434D317A45 Obsolete—contact Eaton — 25BT4-50E — — —

434D317A46 Obsolete—contact Eaton — 25BT4-65E — — —

434D317A47 Obsolete—contact Eaton — 25BT4-250E — — —

434D317A48 Obsolete—contact Eaton — 25BT4-100E — — —

434D317A49 Obsolete—contact Eaton — 25BT4-125E — — —

434D317A50 Obsolete—contact Eaton — 25BT4-150E — — —

434D317A51 Obsolete—contact Eaton — 25BT4-200E — — —

434D317A59 Obsolete—contact Eaton — 38BT4-20E — — —

434D317A60 Obsolete—contact Eaton — 38BT4-25E — — —

434D317A61 Obsolete—contact Eaton — 38BT4-30E — — —

434D317A62 Obsolete—contact Eaton — 38BT4-40E — — —

434D317A63 Obsolete—contact Eaton — 38BT4-50E — — —

434D317A64 Obsolete—contact Eaton — 38BT4-65E — — —

434D317A65 Obsolete—contact Eaton — 38BT4-380E — — —

434D317A66 Obsolete—contact Eaton — 38BT4-100E — — —

434D317A67 Obsolete—contact Eaton — 38BT4-125E — — —

434D317A68 Obsolete—contact Eaton — 38BT4-150E — — —

434D317A69 Obsolete—contact Eaton — 38BT4-200E — — —

434D641G01 Obsolete—contact Eaton — DBA3 69 kV—300E fuse — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-57

Appendix 2—Superseded Style Number Index

434D650G01 Obsolete—contact Eaton — BA-800 mounting—4.8 kV — — —

434D650G02 Obsolete—contact Eaton — BA-800 mounting—4.8 kV — — —

434D650G03 Obsolete—contact Eaton — BA-800 mounting—4.8 kV — — —

434D650G04 Obsolete—contact Eaton — BA-800 mounting—4.8 kV — — —

434D650G05 Obsolete—contact Eaton — BA-800 mounting—7.2 kV — — —

434D650G06 Obsolete—contact Eaton — BA-800 mounting—7.2 kV — — —

434D650G07 Obsolete—contact Eaton — BA-800 mounting—7.2 kV — — —

434D650G08 Obsolete—contact Eaton — BA-800 mounting—7.2 kV — — —

434D650G09 Obsolete—contact Eaton — BA-800 mounting—13.2 kV — — —

434D650G10 Obsolete—contact Eaton — BA-800 mounting—13.2 kV — — —

434D650G11 Obsolete—contact Eaton — BA-800 mounting—13.2 kV — — —

434D650G12 Obsolete—contact Eaton — BA-800 mounting—13.2 kV — — —

434D650G13 Obsolete—contact Eaton — BA-800 mounting—14.4 kV — — —

434D650G14 Obsolete—contact Eaton — BA-800 mounting—14.4 kV — — —

434D650G15 Obsolete—contact Eaton — BA-800 mounting—14.4 kV — — —

434D650G16 Obsolete—contact Eaton — BA-800 mounting—14.4 kV — — —

434D830A01 Obsolete—contact Eaton — DBA-1—7.2 kV vertical mounting — — —

434D830A02 Obsolete—contact Eaton — DBA-1—14.4 kV vertical mounting — — —

434D830A03 Obsolete—contact Eaton — DBA-1—23 kV vertical mounting — — —

434D830A04 Obsolete—contact Eaton — DBA-1—34.5 kV vertical mounting — — —

434D830A05 Obsolete—contact Eaton — DBA-1—46 kV vertical mounting — — —

434D830A09 Obsolete—contact Eaton — DBA-1—69 kV vertical mounting — — —

434D831A01 Obsolete—contact Eaton — DBA-2/5—34.5 kV vertical mounting — — —

434D831A02 Obsolete—contact Eaton — DBA-2/5—46 kV vertical mounting — — —

434D831A09 Obsolete—contact Eaton — DBA-2/5—69 kV vertical mounting — — —

434D831A10 Obsolete—contact Eaton — DBA-2—92 kV mounting — — —

434D831A11 Obsolete—contact Eaton — DBA-2—115 kV mounting — — —

434D831A12 Obsolete—contact Eaton — DBA-2—138 kV mounting — — —

435B590G02 CLS-BAND 435B590G02 — CLS — —

436B732G01 PF8-5 436B732G01 — EMOLD — —

436B732G03 PF8-8 436B732G03 — EMOLD — —

436B732G05 PF8-12 436B732G05 — EMOLD — —

436B732G07 PF8-18 436B732G07 — EMOLD — —

436B764G01 Obsolete—contact Eaton — DBA-1—7.2 kV inverted mounting — — —

436B764G02 Obsolete—contact Eaton — DBA-1—14.4 kV inverted mounting — — —

436B764G03 Obsolete—contact Eaton — DBA-1—23 kV inverted mounting — — —

436B764G04 Obsolete—contact Eaton — DBA-1—34.5 kV inverted mounting — — —

436B764G05 Obsolete—contact Eaton — DBA-1—46 kV inverted mounting — — —

436B764G10 Obsolete—contact Eaton — DBA-1—69 kV inverted mounting — — —

436B764G20 Obsolete—contact Eaton — DBA-2/5—34.5 kV inverted mounting — — —

436B764G21 Obsolete—contact Eaton — DBA-2/5—46 kV inverted mounting — — —

436B764G22 Obsolete—contact Eaton — DBA-2/5—69 kV inverted mounting — — —

438D724A01 RDB2-VL 438D724A01 — RDB2 — 200

438D724G01 Obsolete—contact Eaton — 4.8/7.2 kV 95BIL RDB-2 mounting cap and pin — — —

438D724G02 Obsolete—contact Eaton — 15 kV 110BIL RDB-2 mounting cap and pin — — —

438D724G03 Obsolete—contact Eaton — 23 kV 150BIL RDB-2 mounting cap and pin — — —

438D724G04 Obsolete—contact Eaton — 34.5 kV 200BIL RDB-2 mounting cap and pin — — —

438D724G05 Obsolete—contact Eaton — 4.8/7.2 kV 110BIL RDB-2 mounting cap and pin — — —

438D724G06 Obsolete—contact Eaton — 15 kV 150BIL RDB-2 mounting cap and pin — — —

438D724G07 Obsolete—contact Eaton — 23 kV 200BIL RDB-2 mounting cap and pin — — —

438D724G08 Obsolete—contact Eaton — 34.5 kV 250BIL RDB-2 mounting cap and pin — — —

438D724G09 8RDB2-VM 438D724G09 — RDB2 8.3 200

438D724G10 15RDB2-VM 438D724G10 — RDB2 15.5 200

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-58 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

438D724G11 25RDB2-VM 438D724G11 — RDB2 25.5 200

438D724G12 38RDB2-VM 438D724G12 — RDB2 38 200

438D724G13 8RDB2-HVM 438D724G13 — RDB2 8.3 200

438D724G14 15RDB2-HVM 438D724G14 — RDB2 15.5 200

438D724G15 25RDB2-HVM 438D724G15 — RDB2 25.5 200

438D724G16 38RDB2-HVM 438D724G16 — RDB2 38 200

438D725A01 RDB4-VL 438D725A01 — RDB4 — 400

438D725G01 Obsolete—contact Eaton — 4.8/7.2 kV 95BIL RDB-4 mounting cap and pin — — —

438D725G02 Obsolete—contact Eaton — 15 kV 110BIL RDB-4 mounting cap and pin — — —

438D725G03 Obsolete—contact Eaton — 23 kV 150BIL RDB-4 mounting cap and pin — — —

438D725G04 Obsolete—contact Eaton — 34.5 kV 200BIL RDB-4 mounting cap and pin — — —

438D725G05 Obsolete—contact Eaton — 4.8/7.2 kV 110BIL RDB-4 mounting cap and pin — — —

438D725G06 Obsolete—contact Eaton — 15 kV 150BIL RDB-4 mounting cap and pin — — —

438D725G07 Obsolete—contact Eaton — 23 kV 200BIL RDB-4 mounting cap and pin — — —

438D725G08 Obsolete—contact Eaton — 34.5 kV 250BIL RDB-4 mounting cap and pin — — —

438D725G09 8RDB4-VM 438D725G09 — RDB4 8.3 400

438D725G10 15RDB4-VM 438D725G10 — RDB4 15.5 400

438D725G11 25RDB4-VM 438D725G11 — RDB4 25.5 300

438D725G12 38RDB4-VM 438D725G12 — RDB4 38 300

438D725G13 8RDB4-HVM 438D725G13 — RDB4 8.3 400

438D725G14 15RDB4-HVM 438D725G14 — RDB4 15.5 400

438D725G15 25RDB4-HVM 438D725G15 — RDB4 25.5 300

438D725G16 38RDB4-HVM 438D725G16 — RDB4 38 300

438D726A02 Obsolete—contact Eaton — 2.4/7.2 kV RBA-2 rear connected live parts — — —

438D726A03 Obsolete—contact Eaton — 2.4/7.2 kV RBA-2 rear connected live parts — — —

438D726A04 Obsolete—contact Eaton — 2.4/7.2 kV RBA-2 rear connected live parts — — —

438D726A06 Obsolete—contact Eaton — 13.8 kV RBA-2 rear connected live parts — — —

438D726A07 Obsolete—contact Eaton — 13.8 kV RBA-2 rear connected live parts — — —

438D726A08 Obsolete—contact Eaton — 13.8 kV RBA-2 rear connected live parts — — —

438D726A10 Obsolete—contact Eaton — 14.4 kV RBA-2 rear connected live parts — — —

438D726A11 Obsolete—contact Eaton — 14.4 kV RBA-2 rear connected live parts — — —

438D726A12 Obsolete—contact Eaton — 14.4 kV RBA-2 rear connected live parts — — —

438D726G02 Obsolete—contact Eaton — 2.4/4.8 kV RBA-2 rear connected mountings — — —

438D726G03 Obsolete—contact Eaton — 2.4/4.8 kV RBA-2 rear connected mountings — — —

438D726G04 Obsolete—contact Eaton — 2.4/4.8 kV RBA-2 rear connected mountings — — —

438D726G06 Obsolete—contact Eaton — 7.2 kV RBA-2 rear connected mountings — — —

438D726G07 Obsolete—contact Eaton — 7.2 kV RBA-2 rear connected mountings — — —

438D726G08 Obsolete—contact Eaton — 7.2 kV RBA-2 rear connected mountings — — —

438D726G10 Obsolete—contact Eaton — 13.8 kV RBA-2 rear connected mountings — — —

438D726G11 Obsolete—contact Eaton — 13.8 kV RBA-2 rear connected mountings — — —

438D726G12 Obsolete—contact Eaton — 13.8 kV RBA-2 rear connected mountings — — —

438D726G14 Obsolete—contact Eaton — 14.4 kV RBA-2 rear connected mountings — — —

438D726G15 Obsolete—contact Eaton — 14.4 kV RBA-2 rear connected mountings — — —

438D726G16 Obsolete—contact Eaton — 14.4 kV RBA-2 rear connected mountings — — —

438D727A02 Obsolete—contact Eaton — 2.4/7.2 kV RBA-4 rear connected live parts — — —

438D727A03 Obsolete—contact Eaton — 2.4/7.2 kV RBA-4 rear connected live parts — — —

438D727A04 Obsolete—contact Eaton — 2.4/7.2 kV RBA-4 rear connected live parts — — —

438D727A06 Obsolete—contact Eaton — 13.8 kV RBA-4 rear connected live parts — — —

438D727A07 Obsolete—contact Eaton — 13.8 kV RBA-4 rear connected live parts — — —

438D727A08 Obsolete—contact Eaton — 13.8 kV RBA-4 rear connected live parts — — —

438D727A10 Obsolete—contact Eaton — 14.4 kV RBA-4 rear connected live parts — — —

438D727A11 Obsolete—contact Eaton — 14.4 kV RBA-4 rear connected live parts — — —

438D727A12 Obsolete—contact Eaton — 14.4 kV RBA-4 rear connected live parts — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-59

Appendix 2—Superseded Style Number Index

438D727G02 Obsolete—contact Eaton — 2.4/4.8 kV RBA-4 rear connected mountings — — —

438D727G03 Obsolete—contact Eaton — 2.4/4.8 kV RBA-4 rear connected mountings — — —

438D727G04 Obsolete—contact Eaton — 2.4/4.8 kV RBA-4 rear connected mountings — — —

438D727G06 Obsolete—contact Eaton — 7.2 kV RBA-4 rear connected mountings — — —

438D727G07 Obsolete—contact Eaton — 7.2 kV RBA-4 rear connected mountings — — —

438D727G08 Obsolete—contact Eaton — 7.2 kV RBA-4 rear connected mountings — — —

438D727G10 Obsolete—contact Eaton — 13.8 kV RBA-4 rear connected mountings — — —

438D727G11 Obsolete—contact Eaton — 13.8 kV RBA-4 rear connected mountings — — —

438D727G12 Obsolete—contact Eaton — 13.8 kV RBA-4 rear connected mountings — — —

438D727G14 Obsolete—contact Eaton — 14.4 kV RBA-4 rear connected mountings — — —

438D727G15 Obsolete—contact Eaton — 14.4 kV RBA-4 rear connected mountings — — —

438D727G16 Obsolete—contact Eaton — 14.4 kV RBA-4 rear connected mountings — — —

438D727G18 Obsolete—contact Eaton — 23 kV RBA-4 rear connected mountings — — —

438D727G19 Obsolete—contact Eaton — 24 kV RBA-4 rear connected mountings — — —

438D727G20 Obsolete—contact Eaton — 25 kV RBA-4 rear connected mountings — — —

439D347A02 Obsolete—contact Eaton — 4.8/14.4 kV rear connected live parts — — —

439D347A03 Obsolete—contact Eaton — 4.8/14.4 kV rear connected live parts — — —

439D347A04 Obsolete—contact Eaton — 4.8/14.4 kV rear connected live parts — — —

439D347G02 Obsolete—contact Eaton — 2.4/4.8 kV RBA-2 rear connected mountings — — —

439D347G03 Obsolete—contact Eaton — 2.4/4.8 kV RBA-2 rear connected mountings — — —

439D347G04 Obsolete—contact Eaton — 2.4/4.8 kV RBA-2 rear connected mountings — — —

439D347G06 Obsolete—contact Eaton — 7.2 kV RBA-2 rear connected mountings — — —

439D347G07 Obsolete—contact Eaton — 7.2 kV RBA-2 rear connected mountings — — —

439D347G08 Obsolete—contact Eaton — 7.2 kV RBA-2 rear connected mountings — — —

439D347G10 Obsolete—contact Eaton — 13.8 kV RBA-2 rear connected mountings — — —

439D347G11 Obsolete—contact Eaton — 13.8 kV RBA-2 rear connected mountings — — —

439D347G12 Obsolete—contact Eaton — 13.8 kV RBA-2 rear connected mountings — — —

439D347G14 Obsolete—contact Eaton — 14.4 kV RBA-2 rear connected mountings — — —

439D347G15 Obsolete—contact Eaton — 14.4 kV RBA-2 rear connected mountings — — —

439D347G16 Obsolete—contact Eaton — 14.4 kV RBA-2 rear connected mountings — — —

439D349A02 Obsolete—contact Eaton — 4.8/14.4 kV RBA-4 rear connected live parts — — —

439D349A03 Obsolete—contact Eaton — 4.8/14.4 kV RBA-4 rear connected live parts — — —

439D349A04 Obsolete—contact Eaton — 4.8/14.4 kV RBA-4 rear connected live parts — — —

439D349G02 Obsolete—contact Eaton — 2.4/4.8 kV RBA-4 rear connected mountings — — —

439D349G03 Obsolete—contact Eaton — 2.4/4.8 kV RBA-4 rear connected mountings — — —

439D349G04 Obsolete—contact Eaton — 2.4/4.8 kV RBA-4 rear connected mountings — — —

439D349G06 Obsolete—contact Eaton — 7.2 kV RBA-4 rear connected mountings — — —

439D349G07 Obsolete—contact Eaton — 7.2 kV RBA-4 rear connected mountings — — —

439D349G08 Obsolete—contact Eaton — 7.2 kV RBA-4 rear connected mountings — — —

439D349G10 Obsolete—contact Eaton — 13.8 kV RBA-4 rear connected mountings — — —

439D349G11 Obsolete—contact Eaton — 13.8 kV RBA-4 rear connected mountings — — —

439D349G12 Obsolete—contact Eaton — 13.8 kV RBA-4 rear connected mountings — — —

439D349G14 Obsolete—contact Eaton — 14.4 kV RBA-4 rear connected mountings — — —

439D349G15 Obsolete—contact Eaton — 14.4 kV RBA-4 rear connected mountings — — —

439D349G16 Obsolete—contact Eaton — 14.4 kV RBA-4 rear connected mountings — — —

439D350A13 Obsolete—contact Eaton — 2.4 kV rear connected CLS mounting — — —

439D350A15 Obsolete—contact Eaton — 4.8 kV rear connected CLS mounting — — —

439D350A16 Obsolete—contact Eaton — 4.8 kV rear connected CLS mounting — — —

439D350A23 Obsolete—contact Eaton — 2.4 kV rear connected CLS mounting — — —

439D350A25 Obsolete—contact Eaton — 4.8 kV rear connected CLS mounting — — —

439D350A26 Obsolete—contact Eaton — 4.8 kV rear connected CLS mounting — — —

439D350A33 Obsolete—contact Eaton — 2.4 kV rear connected CLS mounting — — —

439D350A35 Obsolete—contact Eaton — 4.8 kV rear connected CLS mounting — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-60 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

439D350A36 Obsolete—contact Eaton — 4.8 kV rear connected CLS mounting — — —

439D378G03 15CLE-30E 5981C33G05 — CLE 15.5 30E

439D378G04 15CLE-40E 5981C19G04 — CLE 15.5 40E

439D378G05 15CLE-50E 5981C19G05 — CLE 15.5 50E

439D378G06 15CLE-65E 5981C19G06 — CLE 15.5 65E

439D482G04 15CLE-80E 5981C19G07 — CLE 15.5 80E

439D482G05 15CLE-100E 5981C19G08 — CLE 15.5 100E

439D482G06 15CLE-125E 5981C19G09 — CLE 15.5 125E

449D339G03 Obsolete—contact Eaton — 600V 600A SCL fuse — — —

449D361G01 5ACLS-2R 449D597G02 — CLS 5.08 2R(70)

449D361G02 5ACLS-3R 449D597G03 — CLS 5.08 3R(100)

449D361G03 5ACLS-4R 449D597G04 — CLS 5.08 4R(130)

449D361G04 5ACLS-5R 449D597G05 — CLS 5.08 5R(150)

449D361G05 5ACLS-6R 449D597G06 — CLS 5.08 6R(170)

449D361G06 5ACLS-9R 151D933H01 — CLS 5.08 9R(200)

449D361G07 5ACLS-12R 151D933H02 — CLS 5.08 12R(230)

449D361G08 5ACLS-30 449D597G01 — CLS 5.08 30

449D362G01 5AHLE-30E 5981C46G05 — HLE 5.5 30E

449D362G02 5AHLE-50E 5981C46G07 — HLE 5.5 50E

449D362G03 5AHLE-65E 5981C46G08 — HLE 5.5 65E

449D362G04 5AHLE-80E 5981C46G09 — HLE 5.5 80E

449D362G05 5AHLE-100E 5981C46G10 — HLE 5.5 100E

449D362G06 5AHLE-125E 5981C46G11 — HLE 5.5 125E

449D362G07 5AHLE-150E 5981C46G12 — HLE 5.5 150E

449D362G08 5AHLE-200E 5981C46G14 — HLE 5.5 200E

449D362G09 Obsolete—contact Eaton — 5ACLE-225E — — —

449D362G10 5AHLE-25E 5981C46G04 — HLE 5.5 25E

449D472A02 Obsolete—contact Eaton — 4.8/14 kV RBA-800 rear connected live parts — — —

449D472A03 Obsolete—contact Eaton — 4.8/14 kV RBA-800 rear connected live parts — — —

449D472A04 Obsolete—contact Eaton — 4.8/14 kV RBA-800 rear connected live parts — — —

449D472G02 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D472G03 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D472G04 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D472G06 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D472G07 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D472G08 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D472G10 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D472G11 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D472G12 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D472G14 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D472G15 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D472G16 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D513A01 Obsolete—contact Eaton — 2.4/15 kV RBA-800 rear connected live parts — — —

449D513A02 Obsolete—contact Eaton — 2.4/15 kV RBA-800 rear connected live parts — — —

449D513A03 Obsolete—contact Eaton — 2.4/15 kV RBA-800 rear connected live parts — — —

449D513A04 Obsolete—contact Eaton — 2.4/15 kV RBA-800 rear connected live parts — — —

449D513A05 Obsolete—contact Eaton — 2.4/15 kV RBA-800 rear connected live parts — — —

449D513G01 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D513G02 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D513G03 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D513G04 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D513G05 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D513G06 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-61

Appendix 2—Superseded Style Number Index

449D513G07 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D513G08 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D513G09 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D513G10 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D513G11 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D513G12 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D513G13 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D513G14 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D513G15 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D513G16 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D514A01 Obsolete—contact Eaton — 2.4/7.2 kV RBA-800 rear connected live parts — — —

449D514A02 Obsolete—contact Eaton — 2.4/7.2 kV RBA-800 rear connected live parts — — —

449D514A03 Obsolete—contact Eaton — 2.4/7.2 kV RBA-800 rear connected live parts — — —

449D514A04 Obsolete—contact Eaton — 2.4/7.2 kV RBA-800 rear connected live parts — — —

449D514A05 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected live parts — — —

449D514A06 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected live parts — — —

449D514A07 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected live parts — — —

449D514A08 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected live parts — — —

449D514A09 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected live parts — — —

449D514A10 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected live parts — — —

449D514A11 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected live parts — — —

449D514A12 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected live parts — — —

449D514G01 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D514G02 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D514G03 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D514G04 Obsolete—contact Eaton — 2.4/4.8 kV RBA-800 rear connected mountings — — —

449D514G05 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D514G06 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D514G07 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D514G08 Obsolete—contact Eaton — 7.2 kV RBA-800 rear connected mountings — — —

449D514G09 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D514G10 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D514G11 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D514G12 Obsolete—contact Eaton — 13.8 kV RBA-800 rear connected mountings — — —

449D514G13 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D514G14 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D514G15 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D514G16 Obsolete—contact Eaton — 14.4 kV RBA-800 rear connected mountings — — —

449D515A01 RDB8-DL 449D515A01 — RDB8 — 720

449D515G01 Obsolete—contact Eaton — 4.8/7.2 kV RDB-800 mounting, cap and pin 95BIL — — —

449D515G02 Obsolete—contact Eaton — 15 kV RBA-800 mounting, cap and pin 110BIL — — —

449D515G03 Obsolete—contact Eaton — 23 kV RDB-800 mounting, cap and pin 150BIL — — —

449D515G04 Obsolete—contact Eaton — 34.5 kV RDB-800 mounting, cap and pin 200BIL — — —

449D515G05 Obsolete—contact Eaton — 4.8/7.2 kV RDB-800 mounting, cap and pin110BIL — — —

449D515G06 Obsolete—contact Eaton — 15 kV RBA-800 mounting, cap and pin 150BIL — — —

449D515G07 Obsolete—contact Eaton — 23 kV RDB-800 mounting, cap and pin 200BIL — — —

449D515G08 Obsolete—contact Eaton — 34.5 kV RDB-800 mounting, cap and pin 250BIL — — —

449D515G09 8RBB8-VM 449D515G09 — RDB8 8.3 720

449D515G10 15RBB8-VM 449D515G10 — RDB8 15.5 7230

449D515G11 25RBB8-VM 449D515G11 — RDB8 25.5 540

449D515G12 38RBB8-VM 449D515G12 — RDB8 38 540

449D515G13 8RBB8H-VM 449D515G13 — RDB8 8.3 720

449D515G14 15RBB8-HVM 449D515G14 — RDB8 15.5 7230

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-62 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

449D515G15 25RBB8-HVM 449D515G15 — RDB8 25.5 540

449D515G16 38RBB8-HVM 449D515G16 — RDB8 38 540

449D595G01 5CLE-750E 449D595G01 — CLE 5.5 750E

449D595G02 5CLE-600E 449D595G02 — CLE 5.5 600E

449D595G03 Obsolete—contact Eaton — 1/2 5CLE-1350E — — —

449D595G04 Obsolete—contact Eaton — 1/2 5CLE-1100E — — —

449D597G01 5ACLS-30 449D597G01 — CLS 5.08 30

449D597G02 5ACLS-2R 449D597G02 — CLS 5.08 2R(70)

449D597G03 5ACLS-3R 449D597G03 — CLS 5.08 3R(100)

449D597G04 5ACLS-4R 449D597G04 — CLS 5.08 4R(130)

449D597G05 5ACLS-5R 449D597G05 — CLS 5.08 5R(150)

449D597G06 5ACLS-6R 449D597G06 — CLS 5.08 6R(170)

449D598G01 Obsolete—contact Eaton — 8CLB-80C — — —

449D598G02 Obsolete—contact Eaton — 8CLB-100C — — —

449D598G03 Obsolete—contact Eaton — 8CLB-125C — — —

449D635G01 8CLE-30E 5981C31G05 — CLE 8.3 30E

449D635G02 8CLE-40E 5981C17G04 — CLE 8.3 40E

449D635G03 8CLE-50E 5981C17G05 — CLE 8.3 50E

449D635G04 8CLE-65E 5981C17G06 — CLE 8.3 65E

449D635G05 8CLE-80E 5981C17G07 — CLE 8.3 80E

449D635G06 8CLE-100E 5981C17G08 — CLE 8.3 100E

449D635G07 8CLE-125E 5981C17G09 — CLE 8.3 125E

449D636G01 8CLE-150E 5981C17G10 — CLE 8.3 150E

449D636G02 8CLE-125E 5981C17G09 — CLE 8.3 125E

449D636G04 8CLE-100E 5981C17G08 — CLE 8.3 100E

449D671A07 8RBT2-20E 449D671A07 — RBA2 8.3 20E

449D671A08 8RBT2-25E 449D671A08 — RBA2 8.3 25E

449D671A09 8RBT2-30E 449D671A09 — RBA2 8.3 30E

449D671A10 8RBT2-40E 449D671A10 — RBA2 8.3 40E

449D671A11 8RBT2-50E 449D671A11 — RBA2 8.3 50E

449D671A12 8RBT2-65E 449D671A12 — RBA2 8.3 65E

449D671A13 8RBT2-80E 449D671A13 — RBA2 8.3 80E

449D671A14 8RBT2-100E 449D671A14 — RBA2 8.3 100E

449D671A15 8RBT2-125E 449D671A15 — RBA2 8.3 125E

449D671A16 8RBT2-150E 449D671A16 — RBA2 8.3 150E

449D671A18 8RBT2-200E 449D671A18 — RBA2 8.3 200E

449D671A27 15RBT2-20E 449D671A27 — RBA2 15.5 20E

449D671A28 15RBT2-25E 449D671A28 — RBA2 15.5 25E

449D671A29 15RBT2-30E 449D671A29 — RBA2 15.5 30E

449D671A30 15RBT2-40E 449D671A30 — RBA2 15.5 40E

449D671A31 15RBT2-50E 449D671A31 — RBA2 15.5 50E

449D671A32 15RBT2-65E 449D671A32 — RBA2 15.5 65E

449D671A33 15RBT2-80E 449D671A33 — RBA2 15.5 80E

449D671A34 15RBT2-100E 449D671A34 — RBA2 15.5 100E

449D671A35 15RBT2-125E 449D671A35 — RBA2 15.5 125E

449D671A36 15RBT2-150E 449D671A36 — RBA2 15.5 150E

449D671A38 15RBT2-200E 449D671A38 — RBA2 15.5 200E

449D671A47 25RBT2-20E 449D671A47 — RBA2 25.5 20E

449D671A48 25RBT2-25E 449D671A48 — RBA2 25.5 25E

449D671A49 25RBT2-30E 449D671A49 — RBA2 25.5 30E

449D671A50 25RBT2-40E 449D671A50 — RBA2 25.5 40E

449D671A51 25RBT2-50E 449D671A51 — RBA2 25.5 50E

449D671A52 25RBT2-65E 449D671A52 — RBA2 25.5 65E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-63

Appendix 2—Superseded Style Number Index

449D671A53 25RBT2-80E 449D671A53 — RBA2 25.5 80E

449D671A54 25RBT2-100E 449D671A54 — RBA2 25.5 100E

449D671A55 25RBT2-125E 449D671A55 — RBA2 25.5 125E

449D671A56 25RBT2-150E 449D671A56 — RBA2 25.5 150E

449D671A58 25RBT2-200E 449D671A58 — RBA2 25.5 200E

449D671A67 38RBT2-20E 449D671A67 — RBA2 38 20E

449D671A68 38RBT2-25E 449D671A68 — RBA2 38 25E

449D671A69 38RBT2-30E 449D671A69 — RBA2 38 30E

449D671A70 38RBT2-40E 449D671A70 — RBA2 38 40E

449D671A71 38RBT2-50E 449D671A71 — RBA2 38 50E

449D671A72 38RBT2-65E 449D671A72 — RBA2 38 65E

449D671A73 38RBT2-80E 449D671A73 — RBA2 38 80E

449D671A74 38RBT2-100E 449D671A74 — RBA2 38 100E

449D671A75 38RBT2-125E 449D671A75 — RBA2 38 125E

449D671A76 38RBT2-150E 449D671A76 — RBA2 38 150E

449D671A78 38RBT2-200E 449D671A78 — RBA2 38 200E

449D672A07 8RBT4-20E 5982C49A07 — RBA4 8.3 20E

449D672A08 8RBT4-25E 5982C49A08 — RBA4 8.3 25E

449D672A09 8RBT4-30E 5982C49A09 — RBA4 8.3 30E

449D672A10 8RBT4-40E 5982C49A10 — RBA4 8.3 40E

449D672A11 8RBT4-50E 5982C49A11 — RBA4 8.3 50E

449D672A12 8RBT4-65E 5982C49A12 — RBA4 8.3 65E

449D672A13 8RBT4-80E 5982C49A13 — RBA4 8.3 80E

449D672A14 8RBT4-100E 5982C49A14 — RBA4 8.3 100E

449D672A15 8RBT4-125E 5982C49A15 — RBA4 8.3 125E

449D672A16 8RBT4-150E 5982C49A16 — RBA4 8.3 150E

449D672A18 8RBT4-200E 5982C49A18 — RBA4 8.3 200E

449D672A19 8RBT4-250E 5982C49A19 — RBA4 8.3 250E

449D672A20 8RBT4-300E 5982C49A20 — RBA4 8.3 300E

449D672A21 8RBT4-400E 5982C49A21 — RBA4 8.3 400E

449D672A32 15RBT4-20E 5982C49A32 — RBA4 15.5 20E

449D672A33 15RBT4-25E 5982C49A33 — RBA4 15.5 25E

449D672A34 15RBT4-30E 5982C49A34 — RBA4 15.5 30E

449D672A35 15RBT4-40E 5982C49A35 — RBA4 15.5 40E

449D672A36 15RBT4-50E 5982C49A36 — RBA4 15.5 50E

449D672A37 15RBT4-65E 5982C49A37 — RBA4 15.5 65E

449D672A38 15RBT4-80E 5982C49A38 — RBA4 15.5 80E

449D672A39 15RBT4-100E 5982C49A39 — RBA4 15.5 100E

449D672A40 15RBT4-125E 5982C49A40 — RBA4 15.5 125E

449D672A41 15RBT4-150E 5982C49A41 — RBA4 15.5 150E

449D672A43 15RBT4-200E 5982C49A43 — RBA4 15.5 200E

449D672A44 15RBT4-250E 5982C49A44 — RBA4 15.5 250E

449D672A45 15RBT4-300E 5982C49A45 — RBA4 15.5 300E

449D672A46 15RBT4-400E 5982C49A46 — RBA4 15.5 400E

449D672A57 25RBT4-20E 5982C49A57 — RBA4 25.5 20E

449D672A58 25RBT4-25E 5982C49A58 — RBA4 25.5 25E

449D672A59 25RBT4-30E 5982C49A59 — RBA4 25.5 30E

449D672A60 25RBT4-40E 5982C49A60 — RBA4 25.5 40E

449D672A61 25RBT4-50E 5982C49A61 — RBA4 25.5 50E

449D672A62 25RBT4-65E 5982C49A62 — RBA4 25.5 65E

449D672A63 25RBT4-80E 5982C49A63 — RBA4 25.5 80E

449D672A64 25RBT4-100E 5982C49A64 — RBA4 25.5 100E

449D672A65 25RBT4-125E 5982C49A65 — RBA4 25.5 125E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-64 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

449D672A66 25RBT4-150E 5982C49A66 — RBA4 25.5 150E

449D672A68 25RBT4-200E 5982C49A68 — RBA4 25.5 200E

449D672A69 25RBT4-250E 5982C49A69 — RBA4 25.5 250E

449D672A70 25RBT4-300E 5982C49A70 — RBA4 25.5 300E

449D672A82 38RBT4-20E 5982C49A82 — RBA4 38 20E

449D672A83 38RBT4-25E 5982C49A83 — RBA4 38 25E

449D672A84 38RBT4-30E 5982C49A84 — RBA4 38 30E

449D672A85 38RBT4-40E 5982C49A85 — RBA4 38 40E

449D672A86 38RBT4-50E 5982C49A86 — RBA4 38 50E

449D672A87 38RBT4-65E 5982C49A87 — RBA4 38 65E

449D672A88 38RBT4-80E 5982C49A88 — RBA4 38 80E

449D672A89 38RBT4-100E 5982C49A89 — RBA4 38 100E

449D672A90 38RBT4-125E 5982C49A90 — RBA4 38 125E

449D672A91 38RBT4-150E 5982C49A91 — RBA4 38 150E

449D672A93 38RBT4-200E 5982C49A93 — RBA4 38 200E

449D672A94 38RBT4-250E 5982C49A94 — RBA4 38 250E

449D672A95 38RBT4-300E 5982C49A95 — RBA4 38 300E

449D689G03 Obsolete—contact Eaton — 1000V SCL 600A fuse — — —

449D689G04 Obsolete—contact Eaton — 1000V SCL 600A fuse — — —

449D689G05 Obsolete—contact Eaton — 1000V SCL 800A fuse — — —

449D759G01 5CLS-2R 151D241G02 — CLS 5.08 2R(70)

449D759G02 5CLS-3R 151D241G03 — CLS 5.08 3R(100)

449D759G03 5CLS-4R 151D241G04 — CLS 5.08 4R(130)

449D759G04 5CLS-5R 151D241G05 — CLS 5.08 5R(150)

449D759G05 5CLS-6R 151D241G06 — CLS 5.08 6R(170)

449D759G06 5CLS-9R 151D961G01 — CLS 5.08 9R(200)

449D759G07 5CLS-12R 151D961G02 — CLS 5.08 12R(230)

449D759G08 5CLS-30 151D241G02 — CLS 5.08 30

449D760G01 5CLS-18R 151D961G03 — CLS 5.08 18R(390)

449D760G02 5CLS-24R 151D961G04 — CLS 5.08 24R(450)

449D795G01 Obsolete—contact Eaton — 4.8/7.2 kV RDB2 45 mounting, cap and pin — — —

449D795G02 Obsolete—contact Eaton — 14.4 kV RDB2 45 mounting, cap and pin — — —

449D795G03 Obsolete—contact Eaton — 23 kV RDB2 45 mounting, cap and pin — — —

449D795G04 Obsolete—contact Eaton — 34.5 kV RDB2 45 mounting, cap and pin — — —

449D795G06 Obsolete—contact Eaton — 4.8/7.2 kV RDB2 45 mounting, station post — — —

449D795G07 Obsolete—contact Eaton — 14.4 kV RDB2 45 mounting, station post — — —

449D795G08 Obsolete—contact Eaton — 23 kV RDB2 45 mounting, station post — — —

449D795G09 Obsolete—contact Eaton — 34.5 kV RDB2 45 mounting, station post — — —

449D795G11 Obsolete—contact Eaton — 4.8/7.2 kV RDB4 45 mounting, cap and pin — — —

449D795G12 Obsolete—contact Eaton — 14.4 kV RDB4 45 mounting, cap and pin — — —

449D795G13 Obsolete—contact Eaton — 23 kV RDB4 45 mounting, cap and pin — — —

449D795G14 Obsolete—contact Eaton — 34.5 kV RDB4 45 mounting, cap and pin — — —

449D795G16 Obsolete—contact Eaton — 4.8/7.2 kV RDB4 45 mounting, station post — — —

449D795G17 Obsolete—contact Eaton — 14.4 kV RDB4 45 mounting, station post — — —

449D795G18 Obsolete—contact Eaton — 23 kV RDB4 45 mounting, station post — — —

449D795G19 Obsolete—contact Eaton — 34.5 kV RDB4 45 mounting, station post — — —

449D796G01 Obsolete—contact Eaton — 4.8/7.2 kV RDB2 90 mounting, cap and pin — — —

449D796G02 Obsolete—contact Eaton — 14.4 kV RDB2 90 mounting, cap and pin — — —

449D796G03 Obsolete—contact Eaton — 23 kV RDB2 90 mounting, cap and pin — — —

449D796G04 Obsolete—contact Eaton — 34.5 kV RDB2 90 mounting, cap and pin — — —

449D796G06 Obsolete—contact Eaton — 4.8/7.2 kV RDB2 90 mounting, station post — — —

449D796G07 Obsolete—contact Eaton — 14.4 kV RDB2 90 mounting, station post — — —

449D796G08 Obsolete—contact Eaton — 23 kV RDB2 90 mounting, station post — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-65

Appendix 2—Superseded Style Number Index

449D796G09 Obsolete—contact Eaton — 34.5 kV RDB2 90 mounting, station post — — —

449D796G11 Obsolete—contact Eaton — 4.8/7.2 kV RDB4 90 mounting, cap and pin — — —

449D796G12 Obsolete—contact Eaton — 14.4 kV RDB4 90 mounting, cap and pin — — —

449D796G13 Obsolete—contact Eaton — 23 kV RDB4 90 mounting, cap and pin — — —

449D796G14 Obsolete—contact Eaton — 34.5 kV RDB4 90 mounting, cap and pin — — —

449D796G16 Obsolete—contact Eaton — 4.8/7.2 kV RDB4 90 mounting, station post — — —

449D796G17 Obsolete—contact Eaton — 14.4 kV RDB4 90 mounting, station post — — —

449D796G18 Obsolete—contact Eaton — 23 kV RDB4 90 mounting, station post — — —

449D796G19 Obsolete—contact Eaton — 34.5 kV RDB4 90 mounting, station post — — —

449D797G01 2CLE-25E 449D797G01 — CLE 2.75 25E

449D797G02 2CLE-30E 449D797G02 — CLE 2.75 30E

449D797G03 2CLE-50E 449D797G03 — CLE 2.75 50E

449D797G04 2CLE-65E 449D797G04 — CLE 2.75 65E

449D797G05 2CLE-80E 449D797G05 — CLE 2.75 80E

449D797G06 2CLE-100E 449D797G06 — CLE 2.75 100E

449D797G07 2CLE-125E 449D797G07 — CLE 2.75 125E

449D797G08 2CLE-150E 449D797G08 — CLE 2.75 150E

449D797G09 2CLE-200E 449D797G09 — CLE 2.75 200E

449D797G10 Obsolete—contact Eaton — 2CLE-225E — — —

449D797G11 2CLE-10E 449D797G11 — CLE 2.75 10E

449D797G12 2CLE-40E 449D797G12 — CLE 2.75 40E

449D797G13 2CLE-250E 449D797G13 — CLE 2.75 250E

449D797G14 2CLE-300E 449D797G14 — CLE 2.75 300E

449D797G15 2CLE-350X 449D797G15 — CLE 2.75 350X

449D797G17 2CLE-400X 449D797G17 — CLE 2.75 400X

449D797G18 2CLE-450X 449D797G18 — CLE 2.75 450X

449D926G01 5HCLS-2R 151D240G02 — CLS 5.08 2R(70)

449D926G02 5HCLS-3R 151D240G03 — CLS 5.08 3R(100)

449D926G03 5HCLS-4R 151D240G04 — CLS 5.08 4R(130)

449D926G04 5HCLS-5R 151D240G05 — CLS 5.08 5R(150)

449D926G05 5HCLS-6R 151D240G06 — CLS 5.08 6R(170)

449D926G06 5HCLS-9R 151D962G01 — CLS 5.08 9R(200)

449D926G07 5HCLS-12R 151D962G02 — CLS 5.08 12R(230)

449D926G08 5HCLS-30 151D240G01 — CLS 5.08 30

449D935G01 5HCLS-18R 151D962G03 — CLS 5.08 18R(390)

449D935G02 5HCLS-24R 151D962G04 — CLS 5.08 24R(450)

502B206G01 Obsolete—contact Eaton — Adaptor kit — — —

502B206G02 Obsolete—contact Eaton — Adaptor kit — — —

502B206G03 Obsolete—contact Eaton — Adaptor kit — — —

505D420G01 8DBA1-3E 505D420G01 — DBA1 8.3 3

505D420G02 15DBA1-3E 505D420G02 — DBA1 15.5 3

505D420G03 25DBA1-3E 505D420G03 — DBA1 25.5 3

505D420G04 38DBA1-3E 505D420G04 — DBA1 38 3

505D420G05 48DBA1-3E 505D420G05 — DBA1 48 3

505D420G06 72DBA1-3E 505D420G06 — DBA1 72 3

505D420G07 38DBA2-3E 505D420G07 — DBA2 38 3

505D420G08 48DBA2-3E 505D420G08 — DBA2 48 3

505D420G09 72DBA2-3E 505D420G09 — DBA2 72 3

505D615A01 Obsolete—contact Eaton — BA-400 live parts — — —

505D615A02 Obsolete—contact Eaton — BA-400 live parts — — —

505D615A03 Obsolete—contact Eaton — BA-400 live parts — — —

505D615A04 Obsolete—contact Eaton — BA-400 live parts — — —

505D615A05 Obsolete—contact Eaton — BA-400 live parts — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-66 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

505D615A06 Obsolete—contact Eaton — BA-400 live parts — — —

505D615A07 Obsolete—contact Eaton — BA-400 live parts — — —

505D615A08 Obsolete—contact Eaton — BA-400 live parts — — —

505D615A09 Obsolete—contact Eaton — BA-400 live parts — — —

505D615A10 Obsolete—contact Eaton — BA-400 live parts — — —

505D616A01 Obsolete—contact Eaton — BA-200 live parts — — —

505D620A01 Obsolete—contact Eaton — BA-200 live parts — — —

505D620A02 Obsolete—contact Eaton — BA-200 live parts — — —

505D620A03 Obsolete—contact Eaton — BA-200 live parts — — —

505D620A04 Obsolete—contact Eaton — BA-200 live parts — — —

505D620A05 Obsolete—contact Eaton — BA-200 live parts — — —

505D620A06 Obsolete—contact Eaton — BA-200 live parts — — —

505D620A07 Obsolete—contact Eaton — BA-200 live parts — — —

505D620A08 Obsolete—contact Eaton — BA-200 live parts — — —

565D990A02 2CLS-2R 591C812G02 — CLS 2.54 2R(70)

565D990A04 2CLS-4R 591C812G04 — CLS 2.54 4R(130)

565D990A06 2CLS-6R 591C812G06 — CLS 2.54 6R(170)

565D990A09 2CLS-9R 591C812G07 — CLS 2.54 9R(200)

565D990A12 2CLS-12R 591C812G08 — CLS 2.54 12R(230)

565D990A15 5CLS-2R 151D241G02 — CLS 5.08 2R(70)

565D990A17 5CLS-4R 151D241G04 — CLS 5.08 4R(130)

565D990A19 5CLS-6R 151D241G06 — CLS 5.08 6R(170)

565D990A22 5CLS-9R 151D962G01 — CLS 5.08 9R(200)

565D990A25 5CLS-12R 151D962G02 — CLS 5.08 12R(230)

565C991A04 8BA2-10E 117D123A04 — BA2 8.3 10E

565C991A05 8BA2-15E 117D123A05 — BA2 8.3 15E

565C991A06 8BA2-20E 117D123A06 — BA2 8.3 20E

565C991A07 8BA2-25E 117D123A07 — BA2 8.3 25E

565C991A08 8BA2-30E 117D123A08 — BA2 8.3 30E

565C991A09 8BA2-40E 117D123A09 — BA2 8.3 40E

565C991A11 8BA2-65E 117D123A11 — BA2 8.3 65E

565C991A12 8BA2-80E 117D123A12 — BA2 8.3 80E

565C991A13 8BA2-100E 117D123A13 — BA2 8.3 100E

565C991A15 8BA2-150E 117D123A15 — BA2 8.3 150E

565C991A16 8BA2-200E 117D123A16 — BA2 8.3 200E

565C991A21 15BA2-15E 117D123A21 — BA2 15.5 15E

565C991A23 15BA2-25E 117D123A23 — BA2 15.5 25E

565C991A24 15BA2-30E 117D123A24 — BA2 15.5 30E

565C991A26 15BA2-50E 117D123A26 — BA2 15.5 50E

565C991A27 15BA2-65E 117D123A27 — BA2 15.5 65E

565C991A28 15BA2-80E 117D123A28 — BA2 15.5 80E

565C991A31 15BA2-150E 117D123A31 — BA2 15.5 150E

565C991A32 15BA2-200E 117D123A32 — BA2 15.5 200E

565D993A11 8BA4-65E 116D977A11 — BA4 8.3 65E

565D993A12 8BA4-80E 116D977A12 — BA4 8.3 80E

565D993A13 8BA4-100E 116D977A13 — BA4 8.3 100E

565D993A14 8BA4-125E 116D977A14 — BA4 8.3 125E

565D993A16 8BA4-200E 116D977A16 — BA4 8.3 200E

565D993A17 8BA4-250E 116D977A17 — BA4 8.3 250E

565D993A18 8BA4-300E 116D977A18 — BA4 8.3 300E

565D993A19 8BA4-400E 116D977A19 — BA4 8.3 400E

565D993A21 15BA4-5E 116D977A22 — BA4 15.5 5E

565D993A25 15BA4-20E 116D977A26 — BA4 15.5 20E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-67

Appendix 2—Superseded Style Number Index

565D993A27 15BA4-30E 116D977A28 — BA4 15.5 30E

565D993A28 15BA4-40E 116D977A29 — BA4 15.5 40E

565D993A30 15BA4-65E 116D977A31 — BA4 15.5 65E

565D993A31 15BA4-80E 116D977A32 — BA4 15.5 80E

565D993A32 15BA4-100E 116D977A33 — BA4 15.5 100E

565D993A33 15BA4-125E 116D977A34 — BA4 15.5 125E

565D993A34 15BA4-150E 116D977A35 — BA4 15.5 150E

565D993A36 15BA4-250E 116D977A37 — BA4 15.5 250E

565D993A37 15BA4-300E 116D977A38 — BA4 15.5 300E

565D993A48 15BA4-400E 116D977A39 — BA4 15.5 400E

566C137A25 15CLE-80E 5981C19G07 — CLE 15.5 80E

566C137A26 15CLE-100E 5981C19G08 — CLE 15.5 100E

5809A21G01 CLPT-DLC — — — — —

591C142G01 2ACLS-25 591C142G01 — CLS 2.54 25

591C142G02 2ACLS-2R 591C142G02 — CLS 2.54 2R(70)

591C142G03 2ACLS-3R 591C142G03 — CLS 2.54 3R(100)

591C142G04 2ACLS-4R 591C142G04 — CLS 2.54 4R(130)

591C142G05 2ACLS-5R 591C142G05 — CLS 2.54 5R(150)

591C142G06 2ACLS-6R 591C142G06 — CLS 2.54 6R(170)

591C142G07 2ACLS-9R 591C142G07 — CLS 2.54 9R(200)

591C142G08 2ACLS-12R 591C142G08 — CLS 2.54 12R(230)

591C143G01 2ACLS-18R 591C143G01 — CLS 2.54 18R(390)

591C143G02 2ACLS-24R 591C143G02 — CLS 2.54 24R(450)

591C144G02 Obsolete—contact Eaton — 2.4/7.2 kV RBA-200 rear con. live parts — — —

591C144G03 Obsolete—contact Eaton — 2.4/7.2 kV RBA-200 rear con. live parts — — —

591C144G04 Obsolete—contact Eaton — 2.4/7.2 kV RBA-200 rear con. live parts — — —

591C144G06 Obsolete—contact Eaton — 13.8 kV RBA-200 rear con. live parts — — —

591C144G07 Obsolete—contact Eaton — 13.8 kV RBA-200 rear con. live parts — — —

591C144G08 Obsolete—contact Eaton — 13.8 kV RBA-200 rear con. live parts — — —

591C144G10 Obsolete—contact Eaton — 14.4 kV RBA-200 rear con. live parts — — —

591C144G11 Obsolete—contact Eaton — 14.4 kV RBA-200 rear con. live parts — — —

591C144G12 Obsolete—contact Eaton — 14.4 kV RBA-200 rear con. live parts — — —

591C144G17 Obsolete—contact Eaton — 2.4/7.2 kV RBA-200 rear con. live parts — — —

591C144G18 Obsolete—contact Eaton — 2.4/7.2 kV RBA-200 rear con. live parts — — —

591C144G19 Obsolete—contact Eaton — 2.4/7.2 kV RBA-200 rear con. live parts — — —

591C144G21 Obsolete—contact Eaton — 13.8 kV RBA-200 rear con. live parts — — —

591C144G22 Obsolete—contact Eaton — 13.8 kV RBA-200 rear con. live parts — — —

591C144G23 Obsolete—contact Eaton — 13.8 kV RBA-200 rear con. live parts — — —

591C144G25 Obsolete—contact Eaton — 14.4/23 kV RBA-200 rear con. live parts — — —

591C144G26 Obsolete—contact Eaton — 14.4/23 kV RBA-200 rear con. live parts — — —

591C144G27 Obsolete—contact Eaton — 14.4/23 kV RBA-200 rear con. live parts — — —

591C152G01 Obsolete—contact Eaton — 8CLB-30C — — —

591C152G02 Obsolete—contact Eaton — 8CLB-45C — — —

591C152G03 Obsolete—contact Eaton — 8CLB-60C — — —

591C154G01 Obsolete—contact Eaton — 2.4 kV CLS-13 25 fuse — — —

591C154G02 Obsolete—contact Eaton — 2.4 kV CLS-13 2R fuse — — —

591C154G03 Obsolete—contact Eaton — 2.4 kV CLS-13 3R fuse — — —

591C154G04 Obsolete—contact Eaton — 2.4 kV CLS-13 4R fuse — — —

591C154G05 Obsolete—contact Eaton — 2.4 kV CLS-13 5R fuse — — —

591C154G06 Obsolete—contact Eaton — 2.4 kV CLS-13 6R fuse — — —

591C154G07 Obsolete—contact Eaton — 2.4 kV CLS-13 9R fuse — — —

591C154G08 Obsolete—contact Eaton — 2.4 kV CLS-13 12R fuse — — —

591C155G01 2HCLS-25 591C155G01 — CLS 2.54 25

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-68 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

591C155G02 2HCLS-2R 591C155G02 — CLS 2.54 2R(70)

591C155G03 2HCLS-3R 591C155G03 — CLS 2.54 3R(100)

591C155G04 2HCLS-4R 591C155G04 — CLS 2.54 4R(130)

591C155G05 2HCLS-5R 591C155G05 — CLS 2.54 5R(150)

591C155G06 2HCLS-6R 591C155G06 — CLS 2.54 6R(170)

591C155G07 2HCLS-9R 591C155G07 — CLS 2.54 9R(200)

591C155G08 2HCLS-12R 591C155G08 — CLS 2.54 12R(230)

591C156G01 Obsolete—contact Eaton — 2.4 kV CLS-13 18R fuse — — —

591C156G02 Obsolete—contact Eaton — 2.4 kV CLS-13 24R fuse — — —

591C157G01 2HCLS-18R 591C157G01 — CLS 2.54 18R(390)

591C157G02 2HCLS-24R 591C157G02 — CLS 2.54 24R(450)

591C162G01 15CLT-30 9570D10G01 — CLT 15.5 30

591C163G05 Obsolete—contact Eaton — 8.3 kV 15A FDL fuse — — —

591C163G06 Obsolete—contact Eaton — 17.1 kV 15A FDL fuse — — —

591C163G07 Obsolete—contact Eaton — 8.3 kV 25A FDL fuse — — —

591C163G10 Obsolete—contact Eaton — 8.3 kV 40A FDL fuse — — —

591C172G01 CLS700-DUMMY 591C172G01 — CLS 5.08 —

591C240G02 Obsolete — 23CLTB-18 — — —

591C248G02 8NCLPT-5E 591C248G02 — NCLPT 8.3 5E

591C248G07 8NCLPT-1E 591C248G07 — NCLPT 8.3 1E

591C252G03 8NCLPT-8E 591C252G03 — NCLPT 8.3 8E

591C254G01 Obsolete—contact Eaton — 8.3 kV 5A CLTS fuse — — —

591C254G02 Obsolete—contact Eaton — 8.3 kV 8A CLTS fuse — — —

591C254G03 Obsolete—contact Eaton — 8.3 kV 12A CLTS fuse — — —

591C254G04 Obsolete—contact Eaton — 8.3 kV 18A CLTS fuse — — —

591C273G03 8CLT-12 591C273G03 — CLT 8.3 12

591C358G01 8RBA8-INH 5981C54G01 — RBA8 8.3 720

591C358G02 15RBA8-INH 5981C54G02 — RBA8 15.5 720

591C358G03 25RBA8-INH 5981C54G03 — RBA8 25.5 540

591C358G04 38RBA8-INH 5981C54G04 — RBA8 38 540

591C376G01 15CLE-175E 5981C25G01 — CLE 15.5 175E

591C376G02 15CLE-150E 5981C19G10 — CLE 15.5 150E

591C404G01 Obsolete—contact Eaton — 8CLTB-18 — — —

591C607G01 RBA4-FLTR 591C607G01 (3 pack) RBA4 — —

591C607G02 RBA4-FLTR-HC 591C607G02 (3 pack) RBA4 — —

591C607G03 RBA4-FLTR 591C607G03 (1 pack) RBA4 — —

591C607G04 RBA4-FLTR-HC 591C607G04 (1 pack) RBA4 — —

591C812G01 2CLS-25 591C812G01 — CLS 2.54 25

591C812G02 2CLS-2R 591C812G02 — CLS 2.54 2R(70)

591C812G03 2CLS-3R 591C812G03 — CLS 2.54 3R(100)

591C812G04 2CLS-4R 591C812G04 — CLS 2.54 4R(130)

591C812G05 2CLS-5R 591C812G05 — CLS 2.54 5R(150)

591C812G06 2CLS-6R 591C812G06 — CLS 2.54 6R(170)

591C812G07 2CLS-9R 591C812G07 — CLS 2.54 9R(200)

591C812G08 2CLS-12R 591C812G08 — CLS 2.54 12R(230)

591C813G01 2CLS-18R 591C813G01 — CLS 2.54 18R(390)

591C813G02 2CLS-24R 591C813G02 — CLS 2.54 24R(450)

592C250G01 317A487H04 7186A29G14 — NCLPT 5.5 3E

595C204G04 CLE-DF-E 9078A63G04 — CLE — 450

5978C31G01 PF8-30 5978C31G01 — EMOLD — —

5978C62G01 4CX-18C 5978C62G01 — CX 4.3 18C

5978C62G02 4XC-25C 5978C62G02 — CX 4.3 25C

5978C62G03 4CX-35C 5978C62G03 — CX 4.3 35C

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-69

Appendix 2—Superseded Style Number Index

5978C62G04 8CX-4.5C 5978C62G04 — CX 8.3 4.5C

5978C62G05 8CX-6C 5978C62G05 — CX 8.3 6C

5978C62G06 8CX-8C 5978C62G06 — CX 8.3 8C

5978C62G21 4CXI-18C 5978C62G21 — CX 4.3 18C

5978C62G22 4XC-25C 5978C62G22 — CX 4.3 25C

5978C62G23 4CXI-35C 5978C62G23 — CX 4.3 35C

5978C62G24 8CXI-4.5C 5978C62G24 — CX 8.3 4.5C

5978C62G25 8CXI-6C 5978C62G25 — CX 8.3 6C

5978C62G26 8CXI-8C 5978C62G26 — CX 8.3 8C

5978C66G01 4XC-45C 5978C66G01 — CX 4.3 45C

5978C66G02 4CX-50C 5978C66G02 — CX 4.3 50C

5978C66G03 4CX-65C 5978C66G03 — CX 4.3 65C

5978C66G04 4CX-75C 5978C66G04 — CX 4.3 75C

5978C66G05 4CX-100C 5978C66G05 — CX 4.3 100C

5978C66G21 4XC-45C 5978C66G21 — CX 4.3 45C

5978C66G22 4CXI-50C 5978C66G22 — CX 4.3 50C

5978C66G23 4CXI-65C 5978C66G23 — CX 4.3 65C

5978C66G24 4CXI-75C 5978C66G24 — CX 4.3 75C

5978C66G25 4CXI-100C 5978C66G25 — CX 4.3 100C

5978C70G01 5CX-18C 5978C70G01 — CX 5.5 18C

5978C70G02 5CX-20C 5978C70G02 — CX 5.5 20C

5978C70G03 5CX-25C 5978C70G03 — CX 5.5 25C

5978C70G04 5CX-30C 5978C70G04 — CX 5.5 30C

5978C70G05 5CX-40C 5978C70G05 — CX 5.5 40C

5978C70G06 5CX-50C 5978C70G06 — CX 5.5 50C

5978C70G07 5CX-65C 5978C70G07 — CX 5.5 65C

5978C70G08 5CX-75C 5978C70G08 — CX 5.5 75C

5978C70G21 5CXI-18C 5978C70G21 — CX 5.5 18C

5978C70G22 5CXI-20C 5978C70G22 — CX 5.5 20C

5978C70G23 5CXI-25C 5978C70G23 — CX 5.5 25C

5978C70G24 5CXI-30C 5978C70G24 — CX 5.5 30C

5978C70G25 5CXI-40C 5978C70G25 — CX 5.5 40C

5978C70G26 5CXI-50C 5978C70G26 — CX 5.5 50C

5978C70G27 5CXI-65C 5978C70G27 — CX 5.5 65C

5978C70G28 5CXI-75C 5978C70G28 — CX 5.5 75C

5978C72G01 8CX-18C 5978C72G01 — CX 8.3 18C

5978C72G02 8CX-20C 5978C72G02 — CX 8.3 20C

5978C72G03 8CX-25C 5978C72G03 — CX 8.3 25C

5978C72G04 8CX-30C 5978C72G04 — CX 8.3 30C

5978C72G05 8CX-40C 5978C72G05 — CX 8.3 40C

5978C72G21 8CXI-18C 5978C72G21 — CX 8.3 18C

5978C72G22 8CXI-20C 5978C72G22 — CX 8.3 20C

5978C72G23 8CXI-25C 5978C72G23 — CX 8.3 25C

5978C72G24 8CXI-30C 5978C72G24 — CX 8.3 30C

5978C72G25 8CXI-40C 5978C72G25 — CX 8.3 40C

5978C92G01 17DBU-15SE 5981C77G01 — DBU 17 15SE

5978C92G02 17DBU-20SE 5981C77G02 — DBU 17 20SE

5978C92G03 17DBU-25SE 5981C77G03 — DBU 17 25SE

5978C92G04 17DBU-30SE 5981C77G04 — DBU 17 30SE

5978C92G05 17DBU-40SE 5981C77G05 — DBU 17 40SE

5978C92G06 17DBU-50SE 5981C77G06 — DBU 17 50SE

5978C92G07 17DBU-65SE 5981C77G07 — DBU 17 65SE

5978C92G08 17DBU-80SE 5981C77G08 — DBU 17 80SE

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-70 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5978C92G09 17DBU-100SE 5981C77G09 — DBU 17 100SE

5978C92G10 17DBU-125SE 5981C77G10 — DBU 17 125SE

5978C92G11 17DBU-150SE 5981C77G11 — DBU 17 150SE

5978C92G12 17DBU-175SE 5981C77G12 — DBU 17 175SE

5978C92G13 17DBU-200SE 5981C77G13 — DBU 17 200SE

5978C92G14 Obsolete—contact Eaton — 17DBU-1 — — —

5978C92G15 17DBU-3K 5981C75G01 — DBU 17 3K

5978C92G16 17DBU-6K 5981C75G02 — DBU 17 6K

5978C92G17 17DBU-8K 5981C75G03 — DBU 17 8K

5978C92G18 17DBU-10K 5981C75G04 — DBU 17 10K

5978C92G19 17DBU-12K 5981C75G05 — DBU 17 12K

5978C92G20 17DBU-15K 5981C75G06 — DBU 17 15K

5978C92G21 17DBU-20K 5981C75G07 — DBU 17 20K

5978C92G22 17DBU-25K 5981C75G08 — DBU 17 25K

5978C92G23 17DBU-30K 5981C75G09 — DBU 17 30K

5978C92G24 17DBU-40K 5981C75G10 — DBU 17 40K

5978C92G25 17DBU-50K 5981C75G11 — DBU 17 50K

5978C92G26 17DBU-65K 5981C75G12 — DBU 17 65K

5978C92G27 17DBU-80K 5981C75G13 — DBU 17 80K

5978C92G28 17DBU-100K 5981C75G14 — DBU 17 100K

5978C92G29 17DBU-140K 5981C75G15 — DBU 17 140K

5978C92G30 17DBU-200K 5981C75G16 — DBU 17 200K

5978C93G01 27DBU-15SE 5981C87G01 — DBU 27 15SE

5978C93G02 27DBU-20SE 5981C87G02 — DBU 27 20SE

5978C93G03 27DBU-25SE 5981C87G03 — DBU 27 25SE

5978C93G04 27DBU-30SE 5981C87G04 — DBU 27 30SE

5978C93G05 27DBU-40SE 5981C87G05 — DBU 27 40SE

5978C93G06 27DBU-50SE 5981C87G06 — DBU 27 50SE

5978C93G07 27DBU-65SE 5981C87G07 — DBU 27 65SE

5978C93G08 27DBU-80SE 5981C87G08 — DBU 27 80SE

5978C93G09 27DBU-100SE 5981C87G09 — DBU 27 100SE

5978C93G10 27DBU-125SE 5981C87G10 — DBU 27 125SE

5978C93G11 27DBU-150SE 5981C87G11 — DBU 27 150SE

5978C93G12 27DBU-175SE 5981C87G12 — DBU 27 175SE

5978C93G13 27DBU-200SE 5981C87G13 — DBU 27 200SE

5978C93G14 Obsolete—contact Eaton — 27DBU-1 — — —

5978C93G15 27DBU-3K 5981C85G01 — DBU 27 3K

5978C93G16 27DBU-6K 5981C85G02 — DBU 27 6K

5978C93G17 27DBU-8K 5981C85G03 — DBU 27 8K

5978C93G18 27DBU-10K 5981C85G04 — DBU 27 10K

5978C93G19 27DBU-12K 5981C85G05 — DBU 27 12K

5978C93G20 27DBU-15K 5981C85G06 — DBU 27 15K

5978C93G21 27DBU-20K 5981C85G07 — DBU 27 20K

5978C93G22 27DBU-25K 5981C85G08 — DBU 27 25K

5978C93G23 27DBU-30K 5981C85G09 — DBU 27 30K

5978C93G24 27DBU-40K 5981C85G10 — DBU 27 40K

5978C93G25 27DBU-50K 5981C85G11 — DBU 27 50K

5978C93G26 27DBU-65K 5981C85G12 — DBU 27 65K

5978C93G27 27DBU-80K 5981C85G13 — DBU 27 80K

5978C93G28 27DBU-100K 5981C85G14 — DBU 27 100K

5978C93G29 27DBU-140K 5981C85G15 — DBU 27 140K

5978C93G30 27DBU-200K 5981C85G16 — DBU 27 200K

5978C94G01 38DBU-15SE 5981C97G01 — DBU 38 15SE

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-71

Appendix 2—Superseded Style Number Index

5978C94G02 38DBU-20SE 5981C97G02 — DBU 38 20SE

5978C94G03 38DBU-25SE 5981C97G03 — DBU 38 25SE

5978C94G04 38DBU-30SE 5981C97G04 — DBU 38 30SE

5978C94G05 38DBU-40SE 5981C97G05 — DBU 38 40SE

5978C94G06 38DBU-50SE 5981C97G06 — DBU 38 50SE

5978C94G07 38DBU-65SE 5981C97G07 — DBU 38 65SE

5978C94G08 38DBU-80SE 5981C97G08 — DBU 38 80SE

5978C94G09 38DBU-100SE 5981C97G09 — DBU 38 100SE

5978C94G10 38DBU-125SE 5981C97G10 — DBU 38 125SE

5978C94G11 38DBU-150SE 5981C97G11 — DBU 38 150SE

5978C94G12 38DBU-175SE 5981C97G12 — DBU 38 175SE

5978C94G13 38DBU-200SE 5981C97G13 — DBU 38 200SE

5978C94G14 Obsolete—contact Eaton — 38DBU-1 — — —

5978C94G15 38DBU-3K 5981C95G01 — DBU 38 3K

5978C94G16 38DBU-6K 5981C95G02 — DBU 38 6K

5978C94G17 38DBU-8K 5981C95G03 — DBU 38 8K

5978C94G18 38DBU-10K 5981C95G04 — DBU 38 10K

5978C94G19 38DBU-12K 5981C95G05 — DBU 38 12K

5978C94G20 38DBU-15K 5981C95G06 — DBU 38 15K

5978C94G21 38DBU-20K 5981C95G07 — DBU 38 20K

5978C94G22 38DBU-25K 5981C95G08 — DBU 38 25K

5978C94G23 38DBU-30K 5981C95G09 — DBU 38 30K

5978C94G24 38DBU-40K 5981C95G10 — DBU 38 40K

5978C94G25 38DBU-50K 5981C95G11 — DBU 38 50K

5978C94G26 38DBU-65K 5981C95G12 — DBU 38 65K

5978C94G27 38DBU-80K 5981C95G13 — DBU 38 80K

5978C94G28 38DBU-100K 5981C95G14 — DBU 38 100K

5978C94G29 38DBU-140K 5981C95G15 — DBU 38 140K

5978C94G30 38DBU-200K 5981C95G16 — DBU 38 200K

5979C20G03 Obsolete—contact Eaton — 8.3 kV 40A CLTO fuse — — —

5979C20G04 Obsolete—contact Eaton — 8.3 kV 50A CLTO fuse — — —

5979C20G05 Obsolete—contact Eaton — 8.3 kV 65A CLTO fuse — — —

5979C20G06 Obsolete—contact Eaton — 8.3 kV 80A CLTO fuse — — —

5979C20G07 Obsolete—contact Eaton — 8.3 kV 100A CLTO fuse — — —

5979C20G08 Obsolete—contact Eaton — 8.3 kV 125A CLTO fuse — — —

5979C20G12 Obsolete—contact Eaton — 15.5 kV 40A CLTO fuse — — —

5979C20G13 Obsolete—contact Eaton — 15.5 kV 50A CLTO fuse — — —

5979C20G14 Obsolete—contact Eaton — 15.5 kV 65A CLTO fuse — — —

5979C20G15 Obsolete—contact Eaton — 15.5 kV 80A CLTO fuse — — —

5979C20G16 Obsolete—contact Eaton — 15.5 kV 100A CLTO fuse — — —

5979C20G17 Obsolete—contact Eaton — 15.5 kV 125A CLTO fuse — — —

5979C20G21 Obsolete—contact Eaton — 23 kV 40A CLTO fuse — — —

5979C20G22 Obsolete—contact Eaton — 23 kV 50A CLTO fuse — — —

5979C77G01 8RBA2-INH 5981C51G01 — RBA2 8.3 200

5979C77G02 15RBA2-INH 5981C51G02 — RBA2 15.2 200

5979C77G03 25RBA2-INH 5981C51G03 — RBA2 25.5 200

5979C77G04 38RBA2-INH 5981C51G04 — RBA2 38 200

5979C77G05 5979C77G05 5979C77G05 RBA2 holder with RDB shunt RBA2 8.3 200

5979C77G06 5979C77G06 5979C77G06 RBA2 holder with RDB shunt RBA2 15.2 200

5979C77G07 5979C77G07 5979C77G07 RBA2 holder with RDB shunt RBA2 25.5 200

5979C77G08 5979C77G08 5979C77G08 RBA2 holder with RDB shunt RBA2 38 200

5979C78G01 8RBA4-INH 5981C53G01 — RBA4 8.3 400

5979C78G02 15RBA4-INH 5981C53G02 — RBA4 15.2 400

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-72 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5979C78G03 25RBA4-INH 5981C53G03 — RBA4 25.5 300

5979C78G04 38RBA4-INH 5981C53G04 — RBA4 38 300

5979C78G05 5979C78G05 5979C78G05 RBA4 holder with RDB shunt RBA4 8.3 400

5979C78G06 5979C78G06 5979C78G06 RBA4 holder with RDB shunt RBA4 15.2 400

5979C78G07 5979C78G07 5979C78G07 RBA4 holder with RDB shunt RBA4 25.5 300

5979C78G08 5979C78G08 5979C78G08 RBA4 holder with RDB shunt RBA4 38 300

5979C79G01 8RBA8-INH 5981C54G01 — RBA8 8.3 720

5979C79G02 15RBA8-INH 5981C54G02 — RBA8 15.2 720

5979C79G03 25RBA8-INH 5981C54G03 — RBA8 25.5 540

5979C79G04 38RBA8-INH 5981C54G04 — RBA8 38 540

5979C79G05 5979C79G05 5979C79G05 RBA8 holder with RDB shunts RBA8 8.3 720

5979C79G06 5979C79G06 5979C79G06 RBA8 holder with RDB shunts RBA8 15.2 720

5979C79G07 5979C79G07 5979C79G07 RBA8 holder with RDB shunts RBA8 25.5 540

5979C79G08 5979C79G08 5979C79G08 RBA8 holder with RDB shunts RBA8 38 540

5979C91G01 7CLS70-24R 5979C91G01 — CLS 7.2 24R(450)

5979C91G02 7CLS70-36R 5979C91G02 — CLS 7.2 36R(650)

5980C01G01 6DSL-E2500 5980C01G01 — DSL 0.6 2500

5980C01G02 6DSL-E3000 5980C01G02 — DSL 0.6 3000

5980C01G03 6DSL-E4000 5980C01G03 — DSL 0.6 4000

5980C01G04 6DSL-F5000 5980C01G04 — DSL 0.6 5000

5980C03G05 7CLS70-44R 5980C03G05 — CLS 7.2 44R(700)

5980C15G01 8DBA1-.5E 5980C15G01 — DBA1 8.3 0.5

5980C15G03 8DBA1-5E 5980C15G03 — DBA1 8.3 5E

5980C15G04 8DBA1-7E 5980C15G04 — DBA1 8.3 7E

5980C15G05 8DBA1-10E 5980C15G05 — DBA1 8.3 10E

5980C15G06 8DBA1-15E 5980C15G06 — DBA1 8.3 15E

5980C15G07 8DBA1-20E 5980C15G07 — DBA1 8.3 20E

5980C15G08 8DBA1-25E 5980C15G08 — DBA1 8.3 25E

5980C15G09 8DBA1-30E 5980C15G09 — DBA1 8.3 30E

5980C15G10 8DBA1-40E 5980C15G10 — DBA1 8.3 40E

5980C15G11 8DBA1-50E 5980C15G11 — DBA1 8.3 50E

5980C15G12 8DBA1650E 5980C15G12 — DBA1 8.3 65E

5980C15G13 8DBA1-80E 5980C15G13 — DBA1 8.3 80E

5980C15G14 8DBA1-100E 5980C15G14 — DBA1 8.3 100E

5980C15G15 8DBA1-125E 5980C15G15 — DBA1 8.3 125E

5980C15G16 8DBA1-150E 5980C15G16 — DBA1 8.3 150E

5980C15G17 8DBA1-200E 5980C15G17 — DBA1 8.3 200E

5980C15G21 15DBA1-.5E 5980C15G21 — DBA1 15.5 0.5

5980C15G23 15DBA1-5E 5980C15G23 — DBA1 15.5 5E

5980C15G24 15DBA1-7E 5980C15G24 — DBA1 15.5 7E

5980C15G25 15DBA1-10E 5980C15G25 — DBA1 15.5 10E

5980C15G26 15DBA1-15E 5980C15G26 — DBA1 15.5 15E

5980C15G27 15DBA1-20E 5980C15G27 — DBA1 15.5 20E

5980C15G28 15DBA1-25E 5980C15G28 — DBA1 15.5 25E

5980C15G29 15DBA1-30E 5980C15G29 — DBA1 15.5 30E

5980C15G30 15DBA1-40E 5980C15G30 — DBA1 15.5 40E

5980C15G31 15DBA1-50E 5980C15G31 — DBA1 15.5 50E

5980C15G32 15DBA1650E 5980C15G32 — DBA1 15.5 65E

5980C15G33 15DBA1-80E 5980C15G33 — DBA1 15.5 80E

5980C15G34 15DBA1-100E 5980C15G34 — DBA1 15.5 100E

5980C15G35 15DBA1-125E 5980C15G35 — DBA1 15.5 125E

5980C15G36 15DBA1-150E 5980C15G36 — DBA1 15.5 150E

5980C15G37 15DBA1-200E 5980C15G37 — DBA1 15.5 200E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-73

Appendix 2—Superseded Style Number Index

5980C16G01 25DBA1-.5E 5980C16G01 — DBA1 25.5 0.5

5980C16G03 25DBA1-5E 5980C16G03 — DBA1 25.5 5E

5980C16G04 25DBA1-7E 5980C16G04 — DBA1 25.5 7E

5980C16G05 25DBA1-10E 5980C16G05 — DBA1 25.5 10E

5980C16G06 25DBA1-15E 5980C16G06 — DBA1 25.5 15E

5980C16G07 25DBA1-20E 5980C16G07 — DBA1 25.5 20E

5980C16G08 25DBA1-25E 5980C16G08 — DBA1 25.5 25E

5980C16G09 25DBA1-30E 5980C16G09 — DBA1 25.5 30E

5980C16G10 25DBA1-40E 5980C16G10 — DBA1 25.5 40E

5980C16G11 25DBA1-50E 5980C16G11 — DBA1 25.5 50E

5980C16G12 25DBA1650E 5980C16G12 — DBA1 25.5 65E

5980C16G13 25DBA1-80E 5980C16G13 — DBA1 25.5 80E

5980C16G14 25DBA1-100E 5980C16G14 — DBA1 25.5 100E

5980C16G15 25DBA1-125E 5980C16G15 — DBA1 25.5 125E

5980C16G16 25DBA1-150E 5980C16G16 — DBA1 25.5 150E

5980C16G17 25DBA1-200E 5980C16G17 — DBA1 25.5 200E

5980C16G21 38DBA1-.5E 5980C16G21 — DBA1 38 0.5

5980C16G23 38DBA1-5E 5980C16G23 — DBA1 38 5E

5980C16G24 38DBA1-7E 5980C16G24 — DBA1 38 7E

5980C16G25 38DBA1-10E 5980C16G25 — DBA1 38 10E

5980C16G26 38DBA1-15E 5980C16G26 — DBA1 38 15E

5980C16G27 38DBA1-20E 5980C16G27 — DBA1 38 20E

5980C16G28 38DBA1-25E 5980C16G28 — DBA1 38 25E

5980C16G29 38DBA1-30E 5980C16G29 — DBA1 38 30E

5980C16G30 38DBA1-40E 5980C16G30 — DBA1 38 40E

5980C16G31 38DBA1-50E 5980C16G31 — DBA1 38 50E

5980C16G32 38DBA1650E 5980C16G32 — DBA1 38 65E

5980C16G33 38DBA1-80E 5980C16G33 — DBA1 38 80E

5980C16G34 38DBA1-100E 5980C16G34 — DBA1 38 100E

5980C16G35 38DBA1-125E 5980C16G35 — DBA1 38 125E

5980C16G36 38DBA1-150E 5980C16G36 — DBA1 38 150E

5980C16G37 38DBA1-200E 5980C16G37 — DBA1 38 200E

5980C17G01 48DBA1-.5E 5980C17G01 — DBA1 48 0.5

5980C17G03 48DBA1-5E 5980C17G03 — DBA1 48 5E

5980C17G04 48DBA1-7E 5980C17G04 — DBA1 48 7E

5980C17G05 48DBA1-10E 5980C17G05 — DBA1 48 10E

5980C17G06 48DBA1-15E 5980C17G06 — DBA1 48 15E

5980C17G07 48DBA1-20E 5980C17G07 — DBA1 48 20E

5980C17G08 48DBA1-25E 5980C17G08 — DBA1 48 25E

5980C17G09 48DBA1-30E 5980C17G09 — DBA1 48 30E

5980C17G10 48DBA1-40E 5980C17G10 — DBA1 48 40E

5980C17G11 48DBA1-50E 5980C17G11 — DBA1 48 50E

5980C17G12 48DBA1650E 5980C17G12 — DBA1 48 65E

5980C17G13 48DBA1-80E 5980C17G13 — DBA1 48 80E

5980C17G14 48DBA1-100E 5980C17G14 — DBA1 48 100E

5980C17G15 48DBA1-125E 5980C17G15 — DBA1 48 125E

5980C17G16 48DBA1-150E 5980C17G16 — DBA1 48 150E

5980C17G17 48DBA1-200E 5980C17G17 — DBA1 48 200E

5980C17G21 72DBA1-.5E 5980C17G21 — DBA1 72 0.5

5980C17G23 72DBA1-5E 5980C17G23 — DBA1 72 5E

5980C17G24 72DBA1-7E 5980C17G24 — DBA1 72 7E

5980C17G25 72DBA1-10E 5980C17G25 — DBA1 72 10E

5980C17G26 72DBA1-15E 5980C17G26 — DBA1 72 15E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-74 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5980C17G27 72DBA1-20E 5980C17G27 — DBA1 72 20E

5980C17G28 72DBA1-25E 5980C17G28 — DBA1 72 25E

5980C17G29 72DBA1-30E 5980C17G29 — DBA1 72 30E

5980C17G30 72DBA1-40E 5980C17G30 — DBA1 72 40E

5980C17G31 72DBA1-50E 5980C17G31 — DBA1 72 50E

5980C17G32 72DBA1650E 5980C17G32 — DBA1 72 65E

5980C17G33 72DBA1-80E 5980C17G33 — DBA1 72 80E

5980C17G34 72DBA1-100E 5980C17G34 — DBA1 72 100E

5980C17G35 72DBA1-125E 5980C17G35 — DBA1 72 125E

5980C17G36 72DBA1-150E 5980C17G36 — DBA1 72 150E

5980C17G37 72DBA1-200E 5980C17G37 — DBA1 72 200E

5980C19G01 15CX-18C 5980C19G01 — CX 15.5 18C

5980C19G02 15CX-20C 5980C19G02 — CX 15.5 20C

5980C19G03 15CX-25C 5980C19G03 — CX 15.5 25C

5980C19G04 15CX-30C 5980C19G04 — CX 15.5 30C

5980C19G05 15CX-40C 5980C19G05 — CX 15.5 40C

5980C19G06 15CX-6C 5980C19G06 — CX 15.5 6C

5980C19G07 15CX-8C 5980C19G07 — CX 15.5 8C

5980C19G08 15CX-12C 5980C19G08 — CX 15.5 12C

5980C19G21 15CXI-18C 5980C19G21 — CX 15.5 18C

5980C19G22 15CXI-20C 5980C19G22 — CX 15.5 20C

5980C19G23 15CXI-25C 5980C19G23 — CX 15.5 25C

5980C19G24 15CXI-30C 5980C19G24 — CX 15.5 30C

5980C19G25 15CXI-40C 5980C19G25 — CX 15.5 40C

5980C19G26 15CXI-6C 5980C19G26 — CX 15.5 6C

5980C19G27 15CXI-8C 5980C19G27 — CX 15.5 8C

5980C19G28 15CXI-12C 5980C19G28 — CX 15.5 12C

5980C20G01 5NCLPT-.25E 5980C20G01 — CLPT 5.5 0.25

5980C20G02 5NCLPT-.5E 5980C20G02 — CLPT 5.5 0.5

5980C20G03 5NCLPT-2E 5980C20G03 — CLPT 5.5 2E

5980C20G04 5NCLPT-4E 5980C20G04 — CLPT 5.5 4E

5980C20G05 8NCLPT-2E 5980C20G05 — CLPT 8.3 2E

5980C20G06 8NCLPT-4E 5980C20G06 — CLPT 8.3 4E

5980C21G01 8HLE-20E 5981C30G03 — HLE 8.3 20E

5980C21G02 8HLE-25E 5981C30G04 — HLE 8.3 25E

5980C21G03 8HLE-30E 5981C30G05 — HLE 8.3 30E

5980C21G04 8HLE-40E 5981C16G04 — HLE 8.3 40E

5980C21G05 8HLE-50E 5981C16G05 — HLE 8.3 50E

5980C21G06 8HLE-65E 5981C16G06 — HLE 8.3 65E

5980C21G07 8HLE-80E 5981C16G07 — HLE 8.3 80E

5980C21G08 8HLE-100E 5981C16G08 — HLE 8.3 100E

5980C21G09 8HLE-125E 5981C16G09 — HLE 8.3 125E

5980C21G10 8HLE-150E 5981C16G10 — HLE 8.3 150E

5980C21G11 8HLE-175E 5981C16G11 — HLE 8.3 175E

5980C22G01 15HLE-15E 5981C32G02 — HLE 15.5 15E

5980C22G02 15HLE-20E 5981C32G03 — HLE 15.5 20E

5980C22G03 15HLE-25E 5981C32G04 — HLE 15.5 25E

5980C22G04 15HLE-30E 5981C32G05 — HLE 15.5 30E

5980C22G05 15HLE-40E 5981C18G05 — HLE 15.5 40E

5980C22G06 15HLE-50E 5981C18G06 — HLE 15.5 50E

5980C22G07 15HLE-65E 5981C18G07 — HLE 15.5 65E

5980C22G08 15HLE-80E 5981C18G08 — HLE 15.5 80E

5980C22G09 15HLE-100E 5981C18G09 — HLE 15.5 100E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-75

Appendix 2—Superseded Style Number Index

5980C22G10 15HLE-125E 5981C18G10 — HLE 15.5 125E

5980C22G11 15HLE-80E 5981C18G08 — HLE 15.5 80E

5980C22G12 15HLE-100E 5981C18G09 — HLE 15.5 100E

5980C22G13 15HLE-125E 5981C18G10 — HLE 15.5 125E

5980C23G01 15CLE-30E 5981C33G03 — CLE 15.5 30E

5980C23G02 15CLE-40E 5981C19G04 — CLE 15.5 40E

5980C23G03 15CLE-50E 5981C19G05 — CLE 15.5 50E

5980C23G04 15CLE-65E 5981C19G06 — CLE 15.5 65E

5980C23G05 15CLE-80E 5981C19G07 — CLE 15.5 80E

5980C23G06 15CLE-100E 5981C19G08 — CLE 15.5 100E

5980C23G07 15CLE-125E 5981C19G09 — CLE 15.5 125E

5980C23G08 15CLE-150E 5981C19G10 — CLE 15.5 150E

5980C24G01 8CLE-30E 5981C31G05 — CLE 8.3 30E

5980C24G02 8CLE-40E 5981C17G04 — CLE 8.3 40E

5980C24G03 8CLE-50E 5981C17G05 — CLE 8.3 50E

5980C24G04 8CLE-65E 5981C17G06 — CLE 8.3 65E

5980C24G05 8CLE-80E 5981C17G07 — CLE 8.3 80E

5980C24G06 8CLE-100E 5981C17G08 — CLE 8.3 100E

5980C24G07 8CLE-125E 5981C17G09 — CLE 8.3 125E

5980C24G08 8CLE-150E 5981C17G10 — CLE 8.3 150E

5980C24G09 8CLE-175E 5981C17G11 — CLE 8.3 175E

5980C25G01 5HLE-30E 5981C28G05 — HLE 5.5 30E

5980C25G02 5HLE-40E 5981C64G01 — HLE 5.5 40E

5980C25G03 5HLE-50E 5981C64G02 — HLE 5.5 50E

5980C25G04 5HLE-65E 5981C64G03 — HLE 5.5 65E

5980C25G05 5HLE-80E 5981C64G04 — HLE 5.5 80E

5980C25G06 5HLE-100E 5981C64G05 — HLE 5.5 100E

5980C25G07 5HLE-125E 5981C64G06 — HLE 5.5 125E

5980C25G08 5HLE-150E 5981C64G07 — HLE 5.5 150E

5980C25G09 5HLE-175E 5981C64G08 — HLE 5.5 175E

5980C25G10 5HLE-200E 5981C64G09 — HLE 5.5 200E

5980C25G11 5HLE-250E 5981C64G10 — HLE 5.5 250E

5980C26G01 5CLE-30E 5981C28G05 — CLE 5.5 30E

5980C26G02 5CLE-40E 5981C64G01 — CLE 5.5 40E

5980C26G03 5CLE-50E 5981C64G02 — CLE 5.5 50E

5980C26G04 5CLE-65E 5981C64G03 — CLE 5.5 65E

5980C26G05 5CLE-80E 5981C64G04 — CLE 5.5 80E

5980C26G06 5CLE-100E 5981C64G05 — CLE 5.5 100E

5980C26G07 5CLE-125E 5981C64G06 — CLE 5.5 125E

5980C26G08 5CLE-150E 5981C64G07 — CLE 5.5 150E

5980C26G09 5CLE-175E 5981C64G08 — CLE 5.5 175E

5980C26G10 5CLE-200E 5981C64G09 — CLE 5.5 200E

5980C26G11 5CLE-250E 5981C64G10 — CLE 5.5 250E

5980C29G01 Obsolete—contact Eaton — RBA2-IND — — —

5980C29G02 Obsolete—contact Eaton — RBA4-IND — — —

5980C31G01 8HLE-200E 5981C22G01 — HLE 8.3 200E

5980C31G02 8HLE-250E 5981C22G02 — HLE 8.3 250E

5980C31G03 8HLE-300E 5981C22G03 — HLE 8.3 300E

5980C31G04 8HLE-350E 5981C22G04 — HLE 8.3 350E

5980C32G01 15HLE-150E 5981C24G01 — HLE 15.5 150E

5980C32G02 15HLE-175E 5981C24G02 — HLE 15.5 175E

5980C32G03 15HLE-200E 5981C24G03 — HLE 15.5 200E

5980C32G04 15HLE-250E 5981C24G04 — HLE 15.5 250E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-76 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5980C32G05 15HLE-150E 5981C24G01 — HLE 15.5 175E

5980C32G06 15HLE-175E 5981C24G02 — HLE 15.5 200E

5980C32G07 15HLE-200E 5981C24G03 — HLE 15.5 250E

5980C32G08 15HLE-250E 5981C24G04 — HLE 15.5 250E

5980C33G01 15CLE-175E 5981C25G01 — CLE 15.5 175E

5980C33G02 15CLE-200E 5981C25G02 — CLE 15.5 200E

5980C33G03 15CLE-250E 5981C25G03 — CLE 15.5 250E

5980C33G04 15CLE-300E 5981C25G04 — CLE 15.5 300E

5980C34G01 8CLE-200E 5981C23G01 — CLE 8.3 200E

5980C34G02 8CLE-250E 5981C23G02 — CLE 8.3 250E

5980C34G03 8CLE-300E 5981C23G03 — CLE 8.3 300E

5980C34G04 8CLE-350E 5981C23G04 — CLE 8.3 350E

5980C35G01 5HLE-300E 5981C66G01 — HLE 5.5 300E

5980C35G02 5HLE-350E 5981C66G02 — HLE 5.5 350E

5980C35G03 5HLE-400E 5981C66G03 — HLE 5.5 400E

5980C35G04 5HLE-450E 5981C66G04 — HLE 5.5 450E

5980C36G01 5CLE-300E 5981C67G01 — CLE 5.5 300E

5980C36G02 5CLE-350E 5981C67G02 — CLE 5.5 350E

5980C36G03 5CLE-400E 5981C67G03 — CLE 5.5 400E

5980C36G04 5CLE-450E 5981C67G04 — CLE 5.5 450E

5980C38G01 8RBA2-IDH 5981C50G01 — RBA2 8.3 200

5980C38G02 15RBA2-IDH 5981C50G02 — RBA2 15.5 200

5980C38G03 25RBA2-IDH 5981C50G03 — RBA2 25.5 200

5980C38G04 38RBA2-IDH 5981C50G04 — RBA2 38 200

5980C39G01 8RBA4-IDH 5981C52G01 — RBA4 8.3 400

5980C39G02 15RBA4-IDH 5981C52G02 — RBA4 15.5 400

5980C39G03 25RBA4-IDH 5981C52G03 — RBA4 25.5 300

5980C39G04 38RBA4-IDH 5981C52G04 — RBA4 38 300

5980C61G01 5AHLE-30E 5981C46G05 — HLE 5.5 30E

5980C61G02 5AHLE-40E 5981C46G06 — HLE 5.5 40E

5980C61G03 5AHLE-50E 5981C46G07 — HLE 5.5 50E

5980C61G04 5AHLE-65E 5981C46G08 — HLE 5.5 65E

5980C61G05 5AHLE-80E 5981C46G09 — HLE 5.5 80E

5980C61G06 5AHLE-100E 5981C46G10 — HLE 5.5 100E

5980C61G07 5AHLE-125E 5981C46G11 — HLE 5.5 125E

5980C61G08 5AHLE-150E 5981C46G12 — HLE 5.5 150E

5980C61G09 5AHLE-175E 5981C46G13 — HLE 5.5 175E

5980C61G10 5AHLE-200E 5981C46G14 — HLE 5.5 200E

5980C61G11 5AHLE-250E 5981C46G15 — HLE 5.5 250E

5980C62G01 8AHLE-20E 5981C47G03 — HLE 8.3 20E

5980C62G02 8AHLE-25E 5981C47G04 — HLE 8.3 25E

5980C62G03 8AHLE-30E 5981C47G05 — HLE 8.3 30E

5980C62G04 8AHLE-40E 5981C47G06 — HLE 8.3 40E

5980C62G05 8AHLE-50E 5981C47G07 — HLE 8.3 50E

5980C62G06 8AHLE-65E 5981C47G08 — HLE 8.3 65E

5980C62G07 8AHLE-80E 5981C47G09 — HLE 8.3 80E

5980C62G08 8AHLE-100E 5981C47G10 — HLE 8.3 100E

5980C62G09 8AHLE-125E 5981C47G11 — HLE 8.3 125E

5980C62G10 8AHLE-150E 5981C47G12 — HLE 8.3 150E

5980C62G11 8AHLE-175E 5981C47G13 — HLE 8.3 175E

5980C63G01 Obsolete—contact Eaton — 15AHLE-15E — — —

5980C63G02 Obsolete—contact Eaton — 15AHLE-20E — — —

5980C63G03 Obsolete—contact Eaton — 15AHLE-25E — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-77

Appendix 2—Superseded Style Number Index

5980C63G04 Obsolete—contact Eaton — 15AHLE-30E — — —

5980C63G05 Obsolete—contact Eaton — 15AHLE-40E — — —

5980C63G06 Obsolete—contact Eaton — 15AHLE-50E — — —

5980C63G07 Obsolete—contact Eaton — 15AHLE-65E — — —

5980C63G08 Obsolete—contact Eaton — 15AHLE-80E — — —

5980C63G09 Obsolete—contact Eaton — 15AHLE-100E — — —

5980C63G10 Obsolete—contact Eaton — 15AHLE-125E — — —

5980C64G01 5AHLE-300E 5981C46G16 — HLE 5.5 300E

5980C64G02 5AHLE-300E 5981C46G17 — HLE 5.5 350E

5980C64G03 5AHLE-300E 5981C46G18 — HLE 5.5 400E

5980C64G04 5AHLE-300E 5981C46G19 — HLE 5.5 450E

5980C65G01 8AHLE-200E 5981C47G14 — HLE 8.3 200E

5980C65G02 8AHLE-250E 5981C47G15 — HLE 8.3 250E

5980C65G03 8AHLE-300E 5981C47G16 — HLE 8.3 300E

5980C65G04 8AHLE-350E 5981C47G17 — HLE 8.3 350E

5980C66G01 Obsolete—contact Eaton — 15AHLE-150E — — —

5980C66G02 Obsolete—contact Eaton — 15AHLE-175E — — —

5980C66G03 Obsolete—contact Eaton — 15AHLE-200E — — —

5980C66G04 Obsolete—contact Eaton — 15AHLE-250E — — —

5980C74G01 8RBA8-INH 5981C54G01 — RBA8 8.3 720

5980C74G02 15RBA8-INH 5981C54G02 — RBA9 15.5 720

5980C74G03 25RBA8-INH 5981C54G03 — RBA10 25.5 540

5980C74G04 38RBA8-INH 5981C54G04 — RBA11 38 540

5980C81G01 5CLS70-9R 5980C81G01 — CLS 5.08 9R(200)

5980C81G02 5CLS70-6R 5980C81G02 — CLS 5.08 6R(170)

5980C81G03 5CLS70-5R 5980C81G03 — CLS 5.08 5R(150)

5980C81G04 5CLS70-4R 5980C81G04 — CLS 5.08 4R(130)

5980C81G05 5CLS70-3R 5980C81G05 — CLS 5.08 3R(100)

5980C81G06 5CLS70-2R 5980C81G06 — CLS 5.08 2R(70)

5980C81G07 5CLE8-80E 5980C81G07 — HLE 5.5 80E

5980C81G08 5CLE8-100E 5980C81G08 — HLE 5.5 100E

5980C81G09 5CLE8-125E 5980C81G09 — HLE 5.5 125E

5980C81G10 5CLE8-150E 5980C81G10 — HLE 5.5 150E

5980C81G11 5CLE8-200E 5980C81G11 — HLE 5.5 200E

5980C81G12 5CLE8-250E 5980C81G12 — HLE 5.5 250E

5980C81G13 5CLE8-65E 5980C81G13 — HLE 5.5 65E

5980C81G14 5CLE8-30E 5980C81G14 — HLE 5.5 30E

5980C81G15 5CLE8-50E 5980C81G15 — HLE 5.5 50E

5980C81G16 5CLE8-450E 5980C81G16 — HLE 5.5 40E

5980C82G01 8HLE-20E 5981C30G03 — HLE 8.3 20E

5980C82G02 8HLE-25E 5981C30G04 — HLE 8.3 25E

5980C82G03 8HLE-30E 5981C30G05 — HLE 8.3 30E

5980C82G04 8HLE-40E 5981C16G04 — HLE 8.3 40E

5980C82G05 8HLE-50E 5981C16G05 — HLE 8.3 50E

5980C82G06 8HLE-65E 5981C16G06 — HLE 8.3 65E

5980C82G07 8HLE-80E 5981C16G07 — HLE 8.3 80E

5980C82G08 8HLE-100E 5981C16G08 — HLE 8.3 100E

5980C82G09 8HLE-125E 5981C16G09 — HLE 8.3 125E

5980C82G10 8HLE-150E 5981C16G10 — HLE 8.3 150E

5980C82G11 8HLE-175E 5981C16G11 — HLE 8.3 175E

5980C83G01 15HLE-15E 5981C32G02 — HLE 15.5 15E

5980C83G02 15HLE-20E 5981C32G03 — HLE 15.5 20E

5980C83G03 15HLE-25E 5981C32G04 — HLE 15.5 25E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-78 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5980C83G04 15HLE-30E 5981C32G05 — HLE 15.5 30E

5980C83G05 15HLE-40E 5981C18G05 — HLE 15.5 40E

5980C83G06 15HLE-50E 5981C18G06 — HLE 15.5 50E

5980C83G07 15HLE-65E 5981C18G07 — HLE 15.5 65E

5980C83G08 15HLE-80E 5981C18G08 — HLE 15.5 80E

5980C83G09 15HLE-100E 5981C18G09 — HLE 15.5 100E

5980C83G10 15HLE-125E 5981C18G10 — HLE 15.5 125E

5980C84G01 15CLE-20E 5981C33G03 — CLE 15.5 20E

5980C84G02 15CLE-25E 5981C33G04 — CLE 15.5 25E

5980C84G03 15CLE-30E 5981C33G05 — CLE 15.5 30E

5980C84G04 15CLE-40E 5981C19G04 — CLE 15.5 40E

5980C84G05 15CLE-50E 5981C19G05 — CLE 15.5 50E

5980C84G06 15CLE-65E 5981C19G06 — CLE 15.5 65E

5980C84G07 15CLE-80E 5981C19G07 — CLE 15.5 80E

5980C84G08 15CLE-100E 5981C19G08 — CLE 15.5 100E

5980C84G09 15CLE-125E 5981C19G09 — CLE 15.5 125E

5980C84G10 15CLE-150E 5981C19G10 — CLE 15.5 150E

5980C85G01 8CLE-20E 5981C31G03 — CLE 8.3 20E

5980C85G02 8CLE-25E 5981C31G04 — CLE 8.3 25E

5980C85G03 8CLE-30E 5981C31G05 — CLE 8.3 30E

5980C85G04 8CLE-40E 5981C17G04 — CLE 8.3 40E

5980C85G05 8CLE-50E 5981C17G05 — CLE 8.3 50E

5980C85G06 8CLE-65E 5981C17G06 — CLE 8.3 65E

5980C85G07 8CLE-80E 5981C17G07 — CLE 8.3 80E

5980C85G08 8CLE-100E 5981C17G08 — CLE 8.3 100E

5980C85G09 8CLE-125E 5981C17G09 — CLE 8.3 125E

5980C85G10 8CLE-150E 5981C17G10 — CLE 8.3 150E

5980C85G11 8CLE-175E 5981C17G11 — CLE 8.3 175E

5980C86G01 8HLE-200E 5981C22G01 — HLE 8.3 200E

5980C86G02 8HLE-250E 5981C22G02 — HLE 8.3 250E

5980C86G03 8HLE-300E 5981C22G03 — HLE 8.3 300E

5980C86G04 8HLE-350E 5981C22G04 — HLE 8.3 350E

5980C87G01 15HLE-150E 5981C24G01 — HLE 15.5 150E

5980C87G02 15HLE-175E 5981C24G02 — HLE 15.5 175E

5980C87G03 15HLE-200E 5981C24G03 — HLE 15.5 200E

5980C87G04 15HLE-250E 5981C24G04 — HLE 15.5 250E

5980C88G01 15CLE-175E 5981C25G01 — CLE 15.5 175E

5980C88G02 15CLE-200E 5981C25G02 — CLE 15.5 200E

5980C88G03 15CLE3505E 5981C25G03 — CLE 15.5 250E

5980C88G04 15CLE-300E 5981C25G04 — CLE 15.5 300E

5980C89G01 8CLE-200E 5981C23G01 — CLE 8.3 200E

5980C89G02 8CLE-250E 5981C23G02 — CLE 8.3 250E

5980C89G03 8CLE-300E 5981C23G03 — CLE 8.3 300E

5980C89G04 8CLE-350E 5981C23G04 — CLE 8.3 350E

5980C96G01 5HLE-10E 5981C28G01 — HLE 5.5 10E

5980C96G02 5HLE-15E 5981C28G02 — HLE 5.5 15E

5980C96G03 5HLE-20E 5981C28G03 — HLE 5.5 20E

5980C96G04 5HLE-25E 5981C28G04 — HLE 5.5 25E

5980C96G05 5HLE-30E 5981C28G05 — HLE 5.5 30E

5980C97G01 5CLE-10E-D 5981C29G01 — CLE 5.5 10E

5980C97G02 5CLE-15E-D 5981C29G02 — CLE 5.5 15E

5980C97G03 5CLE-20E-D 5981C29G03 — CLE 5.5 20E

5980C97G04 5CLE-25E-D 5981C29G04 — CLE 5.5 25E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-79

Appendix 2—Superseded Style Number Index

5980C97G05 5CLE-30E 5981C29G05 — CLE 5.5 30E

5980C98G01 8HLE-10E 5981C30G01 — HLE 8.3 10E

5980C98G02 8HLE-15E 5981C30G02 — HLE 8.3 15E

5980C98G03 8HLE-20E 5981C30G03 — HLE 8.3 20E

5980C98G04 8HLE-25E 5981C30G04 — HLE 8.3 25E

5980C98G05 8HLE-30E 5981C30G05 — HLE 8.3 30E

5980C99G01 8CLE-10E-D 5981C31G01 — CLE 8.3 10E

5980C99G02 8CLE-15E-D 5981C31G02 — CLE 8.3 15E

5980C99G03 8CLE-20E-D 5981C31G03 — CLE 8.3 20E

5980C99G04 8CLE-25E-D 5981C31G04 — CLE 8.3 25E

5980C99G05 8CLE-30E 5981C31G05 — CLE 8.3 30E

5981C01G01 15HLE-10E 5981C32G01 — HLE 15.5 10E

5981C01G02 15HLE-15E 5981C32G02 — HLE 15.5 15E

5981C01G03 15HLE-20E 5981C32G03 — HLE 15.5 20E

5981C01G04 15HLE-25E 5981C32G04 — HLE 15.5 25E

5981C01G05 15HLE-30E 5981C32G05 — HLE 15.5 30E

5981C02G01 15CLE-10E-D 5981C33G01 — CLE 15.5 10E

5981C02G02 15CLE-15E-D 5981C33G02 — CLE 15.5 15E

5981C02G03 15CLE-20E-D 5981C33G03 — CLE 15.5 20E

5981C02G04 15CLE-25E-D 5981C33G04 — CLE 15.5 25E

5981C02G05 15CLE-30E 5981C33G05 — CLE 15.5 30E

5981C03G01 5HLE-PDM-D 5981C03G01 — HLE 5.5 250

5981C03G02 8HLE-PDM-D 5981C03G02 — HLE 8.3 175

5981C03G03 15HLE-PDM-D 5981C03G03 — HLE 15.5 125

5981C03G04 5HLE-GDM-D 5981C03G04 — HLE 5.5 250

5981C03G05 8HLE-GDM-D 5981C03G05 — HLE 8.3 175

5981C03G06 15HLE-GDM-D 5981C03G06 — HLE 15.5 125

5981C03G07 5HLE-PNM-D 5981C03G07 — HLE 5.5 250

5981C03G08 8HLE-PNM-D 5981C03G08 — HLE 8.3 175

5981C03G09 15HLE-PNM-D 5981C03G09 — HLE 15.5 125

5981C03G10 5HLE-GNM-D 5981C03G10 — HLE 5.5 25

5981C03G11 8HLE-GNM-D 5981C03G11 — HLE 8.3 175

5981C03G12 15HLE-GNM-D 5981C03G12 — HLE 15.5 125

5981C03G13 5HLE-PDM-E 5981C03G13 — HLE 5.5 450

5981C03G14 8HLE-PDM-E 5981C03G14 — HLE 8.3 350

5981C03G15 15HLE-PDM-E 5981C03G15 — HLE 15.5 250

5981C03G16 5HLE-GDM-E 5981C03G16 — HLE 5.5 450

5981C03G17 8HLE-GDM-E 5981C03G17 — HLE 8.3 350

5981C03G18 15HLE-GDM-E 5981C03G18 — HLE 15.5 250

5981C03G19 5HLE-PNM-E 5981C03G19 — HLE 5.5 450

5981C03G20 8HLE-PNM-E 5981C03G20 — HLE 8.3 350

5981C03G21 15HLE-PNM-E 5981C03G21 — HLE 15.5 250

5981C03G22 5HLE-GNM-E 5981C03G22 — HLE 5.5 450

5981C03G23 8HLE-GNM-E 5981C03G23 — HLE 8.3 350

5981C03G24 15HLE-GNM-E 5981C03G24 — HLE 15.5 250

5981G05G01 5NCLPT-10E 5981G05G01 — CLPT 5.5 10E

5981G05G02 5NCLPT-5E 5981G05G02 — CLPT 5.5 5E

5981G05G03 5NCLPT-3E 5981G05G03 — CLPT 5.5 3E

5981G05G04 5NCLPT-2E 5981G05G04 — CLPT 5.5 2E

5981G05G05 5NCLPT-1E 5981G05G05 — CLPT 5.5 1E

5981G05G06 5NCLPT-0.5E 5981G05G06 — CLPT 5.5 0.5E

5981C06G01 8NCLPT-10E 5981C06G01 — CLPT 8.3 10E

5981C06G02 8NCLPT-5E 5981C06G02 — CLPT 8.3 5E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-80 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5981C06G03 8NCLPT-3E 5981C06G03 — CLPT 8.3 3E

5981C06G04 8NCLPT-2E 5981C06G04 — CLPT 8.3 2E

5981C06G05 8NCLPT-1E 5981C06G05 — CLPT 8.3 1E

5981C06G06 8NCLPT-0.5E 5981C06G06 — CLPT 8.3 0.5E

5981C07G01 15NCLPT-10E 5981C07G01 — CLPT 15.5 10E

5981C07G02 15NCLPT-5E 5981C07G02 — CLPT 15.5 5E

5981C07G03 15NCLPT-3E 5981C07G03 — CLPT 15.5 3E

5981C07G04 15NCLPT-2E 5981C07G04 — CLPT 15.5 2E

5981C07G05 15NCLPT-1E 5981C07G05 — CLPT 15.5 1E

5981C07G06 15NCLPT-0.5E 5981C07G06 — CLPT 15.5 0.5E

5981C14G01 5HLE-30E 5981C28G05 — HLE 5.5 30E

5981C14G02 5HLE-40E 5981C64G01 — HLE 5.5 40E

5981C14G03 5HLE-50E 5981C64G02 — HLE 5.5 50E

5981C14G04 5HLE-65E 5981C64G03 — HLE 5.5 65E

5981C14G05 5HLE-80E 5981C64G04 — HLE 5.5 80E

5981C14G06 5HLE-100E 5981C64G05 — HLE 5.5 100E

5981C14G07 5HLE-125E 5981C64G06 — HLE 5.5 125E

5981C14G08 5HLE-150E 5981C64G07 — HLE 5.5 150E

5981C14G09 5HLE-175E 5981C64G08 — HLE 5.5 175E

5981C14G10 5HLE-200E 5981C64G09 — HLE 5.5 200E

5981C14G11 5HLE-250E 5981C64G10 — HLE 5.5 250E

5981C15G01 5CLE-30E 5981C29G05 — CLE 5.5 30E

5981C15G02 5CLE-40E 5981C65G01 — CLE 5.5 40E

5981C15G03 5CLE-50E 5981C65G02 — CLE 5.5 50E

5981C15G04 5CLE-65E 5981C65G03 — CLE 5.5 65E

5981C15G05 5CLE-80E 5981C65G04 — CLE 5.5 80E

5981C15G06 5CLE-100E 5981C65G05 — CLE 5.5 100E

5981C15G07 5CLE-125E 5981C65G06 — CLE 5.5 125E

5981C15G08 5CLE-150E 5981C65G07 — CLE 5.5 150E

5981C15G09 5CLE-175E 5981C65G08 — CLE 5.5 175E

5981C15G10 5CLE-200E 5981C65G09 — CLE 5.5 200E

5981C15G11 5CLE-250E 5981C65G10 — CLE 5.5 250E

5981C16G04 8HLE-40E 5981C16G04 — HLE 8.3 40E

5981C16G05 8HLE-50E 5981C16G05 — HLE 8.3 50E

5981C16G06 8HLE-65E 5981C16G06 — HLE 8.3 65E

5981C16G07 8HLE-80E 5981C16G07 — HLE 8.3 80E

5981C16G08 8HLE-100E 5981C16G08 — HLE 8.3 100E

5981C16G09 8HLE-125E 5981C16G09 — HLE 8.3 125E

5981C16G10 8HLE-150E 5981C16G10 — HLE 8.3 150E

5981C16G11 8HLE-175E 5981C16G11 — HLE 8.3 175E

5981C17G04 8CLE-40E 5981C17G04 — CLE 8.3 40E

5981C17G05 8CLE-50E 5981C17G05 — CLE 8.3 50E

5981C17G06 8CLE-65E 5981C17G06 — CLE 8.3 65E

5981C17G07 8CLE-80E 5981C17G07 — CLE 8.3 80E

5981C17G08 8CLE-100E 5981C17G08 — CLE 8.3 100E

5981C17G09 8CLE-125E 5981C17G09 — CLE 8.3 125E

5981C17G10 8CLE-150E 5981C17G10 — CLE 8.3 150E

5981C17G11 8CLE-175E 5981C17G11 — CLE 8.3 175E

5981C18G05 15HLE-40E 5981C18G05 — HLE 15.5 40E

5981C18G06 15HLE-50E 5981C18G06 — HLE 15.5 50E

5981C18G07 15HLE-65E 5981C18G07 — HLE 15.5 65E

5981C18G08 15HLE-80E 5981C18G08 — HLE 15.5 80E

5981C18G09 15HLE-100E 5981C18G09 — HLE 15.5 100E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-81

Appendix 2—Superseded Style Number Index

5981C18G10 15HLE-125E 5981C18G10 — HLE 15.5 125E

5981C19G04 15CLE-40E 5981C19G04 — CLE 15.5 40E

5981C19G05 15CLE-50E 5981C19G05 — CLE 15.5 50E

5981C19G06 15CLE-65E 5981C19G06 — CLE 15.5 65E

5981C19G07 15CLE-80E 5981C19G07 — CLE 15.5 80E

5981C19G08 15CLE-100E 5981C19G08 — CLE 15.5 100E

5981C19G09 15CLE-125E 5981C19G09 — CLE 15.5 125E

5981C19G10 15CLE-150E 5981C19G10 — CLE 15.5 150E

5981C20G01 5HLE-300E 5981C66G01 — HLE 5.5 300E

5981C20G02 5HLE-350E 5981C66G02 — HLE 5.5 350E

5981C20G03 5HLE-400E 5981C66G03 — HLE 5.5 400E

5981C20G04 5HLE-450E 5981C66G04 — HLE 5.5 450E

5981C21G01 5CLE-300E 5981C67G01 — CLE 5.5 300E

5981C21G02 5CLE-350E 5981C67G02 — CLE 5.5 350E

5981C21G03 5CLE-400E 5981C67G03 — CLE 5.5 400E

5981C21G04 5CLE-450E 5981C67G04 — CLE 5.5 450E

5981C22G01 8CLE-200E 5981C22G01 — CLE 8.3 200E

5981C22G02 8CLE-250E 5981C22G02 — CLE 8.3 250E

5981C22G03 8CLE-300E 5981C22G03 — CLE 8.3 300E

5981C22G04 8CLE-350E 5981C22G04 — CLE 8.3 350E

5981C23G01 8HLE-200E 5981C23G01 — HLE 8.3 200E

5981C23G02 8HLE-250E 5981C23G02 — HLE 8.3 250E

5981C23G03 8HLE-300E 5981C23G03 — HLE 8.3 300E

5981C23G04 8HLE-350E 5981C23G04 — HLE 8.3 350E

5981C24G01 15CLE-175E 5981C24G01 — CLE 15.5 175E

5981C24G02 15CLE-200E 5981C24G02 — CLE 15.5 200E

5981C24G03 15CLE-250E 5981C24G03 — CLE 15.5 250E

5981C24G04 15CLE-300E 5981C24G04 — CLE 15.5 300E

5981C25G01 15HLE-150E 5981C25G01 — HLE 15.5 150E

5981C25G02 15HLE-175E 5981C25G02 — HLE 15.5 175E

5981C25G03 15HLE-200E 5981C25G03 — HLE 15.5 200E

5981C25G04 15HLE-250E 5981C25G04 — HLE 15.5 250E

5981C27G01 2ACLS-4L 5981C27G01 Conducting link CLS 2.54 450

5981C27G02 8ACLS-4L 5981C27G02 Conducting link CLS 8.3 480

5981C27G03 2BCLS-4L 5981C27G03 Conducting link CLS 2.54 450

5981C27G04 8BCLS-4L 5981C27G04 Conducting link CLS 8.3 480

5981C27G05 8HLE-CL 5981C27G05 Conducting link HLE 8.3 350

5981C27G06 8CLE-CL 5981C27G06 Conducting link CLE 8.3 350

5981C27G07 15HLE-CL 5981C27G07 Conducting link HLE 15.5 250

5981C27G08 15CLE-CL 5981C27G08 Conducting link CLE 15.5 300

5981C28G01 5HLE-10E 5981C28G01 — HLE 5.5 10E

5981C28G02 5HLE-15E 5981C28G02 — HLE 5.5 15E

5981C28G03 5HLE-20E 5981C28G03 — HLE 5.5 20E

5981C28G04 5HLE-25E 5981C28G04 — HLE 5.5 25E

5981C28G05 5HLE-30E 5981C28G05 — HLE 5.5 30E

5981C29G01 5CLE-10E-D 5981C29G01 — CLE 5.5 10E

5981C29G02 5CLE-15E-D 5981C29G02 — CLE 5.5 15E

5981C29G03 5CLE-20E-D 5981C29G03 — CLE 5.5 20E

5981C29G04 5CLE-25E-D 5981C29G04 — CLE 5.5 25E

5981C29G05 5CLE-30E 5981C29G05 — CLE 5.5 30E

5981C30G01 8HLE-10E 5981C30G01 — HLE 8.3 10E

5981C30G02 8HLE-15E 5981C30G02 — HLE 8.3 15E

5981C30G03 8HLE-20E 5981C30G03 — HLE 8.3 20E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-82 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5981C30G04 8HLE-25E 5981C30G04 — HLE 8.3 25E

5981C30G05 8HLE-30E 5981C30G05 — HLE 8.3 30E

5981C31G01 8CLE-10E-D 5981C31G01 — CLE 8.3 10E

5981C31G02 8CLE-15E-D 5981C31G02 — CLE 8.3 15E

5981C31G03 8CLE-20E-D 5981C31G03 — CLE 8.3 20E

5981C31G04 8CLE-25E-D 5981C31G04 — CLE 8.3 25E

5981C31G05 8CLE-30E 5981C31G05 — CLE 8.3 30E

5981C32G01 15HLE-10E 5981C32G01 — HLE 15.5 10E

5981C32G02 15HLE-15E 5981C32G02 — HLE 15.5 15E

5981C32G03 15HLE-20E 5981C32G03 — HLE 15.5 20E

5981C32G04 15HLE-25E 5981C32G04 — HLE 15.5 25E

5981C32G05 15HLE-30E 5981C32G05 — HLE 15.5 30E

5981C33G01 15CLE-10E-D 5981C33G01 — CLE 15.5 10E

5981C33G02 15CLE-15E-D 5981C33G02 — CLE 15.5 15E

5981C33G03 15CLE-20E-D 5981C33G03 — CLE 15.5 20E

5981C33G04 15CLE-25E-D 5981C33G04 — CLE 15.5 25E

5981C33G05 15CLE-30E 5981C33G05 — CLE 15.5 30E

5981C40G01 8AHLE-20E 5981C47G03 — HLE 8.3 20E

5981C40G02 8AHLE-25E 5981C47G04 — HLE 8.3 25E

5981C40G03 8AHLE-30E 5981C47G05 — HLE 8.3 30E

5981C40G04 8AHLE-40E 5981C47G06 — HLE 8.3 40E

5981C40G05 8AHLE-50E 5981C47G07 — HLE 8.3 50E

5981C40G06 8AHLE-65E 5981C47G08 — HLE 8.3 65E

5981C40G07 8AHLE-80E 5981C47G09 — HLE 8.3 80E

5981C40G08 8AHLE-100E 5981C47G10 — HLE 8.3 100E

5981C40G09 8AHLE-125E 5981C47G11 — HLE 8.3 125E

5981C40G10 8AHLE-150E 5981C47G12 — HLE 8.3 150E

5981C40G11 8AHLE-175E 5981C47G13 — HLE 8.3 175E

5981C41G01 8AHLE-200E 5981C47G14 — HLE 8.3 200E

5981C41G02 8AHLE-250E 5981C47G15 — HLE 8.3 250E

5981C41G03 8AHLE-300E 5981C47G16 — HLE 8.3 300E

5981C41G04 8AHLE-350E 5981C47G17 — HLE 8.3 350E

5981C46G01 5AHLE-10E 5981C46G01 — HLE 5.5 10E

5981C46G02 5AHLE-15E 5981C46G02 — HLE 5.5 15E

5981C46G03 5AHLE-20E 5981C46G03 — HLE 5.5 20E

5981C46G04 5AHLE-25E 5981C46G04 — HLE 5.5 25E

5981C46G05 5AHLE-30E 5981C46G05 — HLE 5.5 30E

5981C46G06 5AHLE-40E 5981C46G06 — HLE 5.5 40E

5981C46G07 5AHLE-50E 5981C46G07 — HLE 5.5 50E

5981C46G08 5AHLE-65E 5981C46G08 — HLE 5.5 65E

5981C46G09 5AHLE-80E 5981C46G09 — HLE 5.5 80E

5981C46G10 5AHLE-100E 5981C46G10 — HLE 5.5 100E

5981C46G11 5AHLE-125E 5981C46G11 — HLE 5.5 125E

5981C46G12 5AHLE-150E 5981C46G12 — HLE 5.5 150E

5981C46G13 5AHLE-175E 5981C46G13 — HLE 5.5 175E

5981C46G14 5AHLE-200E 5981C46G14 — HLE 5.5 200E

5981C46G15 5AHLE-250E 5981C46G15 — HLE 5.5 250E

5981C46G16 5AHLE-300E 5981C46G16 — HLE 5.5 300E

5981C46G17 5AHLE-350E 5981C46G17 — HLE 5.5 350E

5981C46G18 5AHLE-400E 5981C46G18 — HLE 5.5 400E

5981C46G19 5AHLE-450E 5981C46G19 — HLE 5.5 450E

5981C47G01 8AHLE-10E 5981C47G01 — HLE 8.3 10E

5981C47G02 8AHLE-15E 5981C47G02 — HLE 8.3 15E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-83

Appendix 2—Superseded Style Number Index

5981C47G03 8AHLE-20E 5981C47G03 — HLE 8.3 20E

5981C47G04 8AHLE-25E 5981C47G04 — HLE 8.3 25E

5981C47G05 8AHLE-30E 5981C47G05 — HLE 8.3 30E

5981C47G06 8AHLE-40E 5981C47G06 — HLE 8.3 40E

5981C47G07 8AHLE-50E 5981C47G07 — HLE 8.3 50E

5981C47G08 8AHLE-65E 5981C47G08 — HLE 8.3 65E

5981C47G09 8AHLE-80E 5981C47G09 — HLE 8.3 80E

5981C47G10 8AHLE-100E 5981C47G10 — HLE 8.3 100E

5981C47G11 8AHLE-125E 5981C47G11 — HLE 8.3 125E

5981C47G12 8AHLE-150E 5981C47G12 — HLE 8.3 150E

5981C47G13 8AHLE-175E 5981C47G13 — HLE 8.3 175E

5981C47G14 8AHLE-200E 5981C47G14 — HLE 8.3 200E

5981C47G15 8AHLE-250E 5981C47G15 — HLE 8.3 250E

5981C47G16 8AHLE-300E 5981C47G16 — HLE 8.3 300E

5981C47G17 8AHLE-350E 5981C47G17 — HLE 8.3 350E

5981C48G01 5AHLE-10E 5981C46G01 — HLE 5.5 10E

5981C48G02 5AHLE-15E 5981C46G02 — HLE 5.5 15E

5981C48G03 5AHLE-20E 5981C46G03 — HLE 5.5 20E

5981C48G04 5AHLE-25E 5981C46G04 — HLE 5.5 25E

5981C48G05 5AHLE-30E 5981C46G05 — HLE 5.5 30E

5981C49G01 8AHLE-10E 5981C47G01 — HLE 8.3 10E

5981C49G02 8AHLE-15E 5981C47G02 — HLE 8.3 15E

5981C49G03 8AHLE-20E 5981C47G03 — HLE 8.3 20E

5981C49G04 8AHLE-25E 5981C47G04 — HLE 8.3 25E

5981C49G05 8AHLE-30E 5981C47G05 — HLE 8.3 30E

5981C50G01 8RBA2-IDH 5981C50G01 — RBA2 8.3 200

5981C50G02 15RBA2-IDH 5981C50G02 — RBA2 15.5 200

5981C50G03 25RBA2-IDH 5981C50G03 — RBA2 25.5 200

5981C50G04 38RBA2-IDH 5981C50G04 — RBA2 38 200

5981C50G05 8RBA2-ILBDH 5981C50G05 — RBA2 8.3 200

5981C50G06 15RBA2-ILBDH 5981C50G06 — RBA2 15.5 200

5981C50G07 25RBA2-ILBDH 5981C50G07 — RBA2 25.5 200

5981C51G01 8RBA2-INH 5981C51G01 — RBA2 8.3 200

5981C51G02 15RBA2-INH 5981C51G02 — RBA2 15.5 200

5981C51G03 25RA2-INH 5981C51G03 — RBA2 25.5 200

5981C51G04 38RBA2-INH 5981C51G04 — RBA2 38 200

5981C52G01 8RBA4-IDH 5981C52G01 — RBA4 8.3 400

5981C52G02 15RBA4-IDH 5981C52G02 — RBA4 15.5 400

5981C52G03 25RBA4-IDH 5981C52G03 — RBA4 25.5 300

5981C52G04 38RBA4-IDH 5981C52G04 — RBA4 38 300

5981C52G05 8RBA4-ILBDH 5981C52G05 — RBA4 8.3 400

5981C52G06 15RBA4-ILBDH 5981C52G06 — RBA4 15.5 400

5981C52G07 25RBA4-ILBDH 5981C52G07 — RBA4 25.5 300

5981C53G01 8RBA4-INH 5981C53G01 — RBA4 8.3 400

5981C53G02 15RBA4-INH 5981C53G02 — RBA4 15.5 400

5981C53G03 25RBA4-INH 5981C53G03 — RBA4 25.5 300

5981C53G04 38RBA4-INH 5981C53G04 — RBA4 38 300

5981C54G01 8RBA8-INH 5981C54G01 — RBA4 8.3 720

5981C54G02 15RBA8-INH 5981C54G02 — RBA4 15.5 720

5981C54G03 25RBA8-INH 5981C54G03 — RBA4 25.5 540

5981C54G04 38RBA8-INH 5981C54G04 — RBA4 38 540

5981C58G01 5BHCL-750E 5981C58G01 — HCL 5.5 750E

5981C58G02 5BHCL-900E 5981C58G02 — HCL 5.5 900E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-84 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5981C61G01 15HCL-250E 5981C61G01 — HCL 15.5 250E

5981C61G02 15HCL-300E 5981C61G02 — HCL 15.5 300E

5981C61G03 15HCL-200E 5981C61G03 — HCL 15.5 200E

5981C61G04 15HCL-150E 5981C61G04 — HCL 15.5 150E

5981C61G05 15HCL-175E 5981C61G05 — HCL 15.5 175E

5981C61G06 15BHCL-300E 5981C61G06 — HCL 15.5 300E

5981C62G01 5HCL-500E 5981C62G01 — HCL 5.5 500E

5981C62G02 5HCL-600E 5981C62G02 — HCL 5.5 600E

5981C62G03 5HCL-450E 5981C62G03 — HCL 5.5 450E

5981C62G04 5HCL-400E 5981C62G04 — HCL 5.5 400E

5981C62G05 5HCL-300E 5981C62G05 — HCL 5.5 300E

5981C62G06 5HCL-250E 5981C62G06 — HCL 5.5 250E

5981C62G07 5HCL-200E 5981C62G07 — HCL 5.5 200E

5981C62G08 5BHCL-600E 5981C62G08 — HCL 5.5 600E

5981C62G09 5BHCL-500E 5981C62G09 — HCL 5.5 500E

5981C62G10 5BHCL-450E 5981C62G10 — HCL 5.5 450E

5981C62G11 5BHCL-400E 5981C62G11 — HCL 5.5 400E

5981C62G12 5BHCL-300E 5981C62G12 — HCL 5.5 300E

5981C62G13 5BHCL-250E 5981C62G13 — HCL 5.5 250E

5981C62G14 5BHCL-200E 5981C62G14 — HCL 5.5 200E

5981C64G01 5HLE-40E 5981C64G01 — HLE 5.5 40E

5981C64G02 5HLE-50E 5981C64G02 — HLE 5.5 50E

5981C64G03 5HLE-65E 5981C64G03 — HLE 5.5 65E

5981C64G04 5HLE-80E 5981C64G04 — HLE 5.5 80E

5981C64G05 5HLE-100E 5981C64G05 — HLE 5.5 100E

5981C64G06 5HLE-125E 5981C64G06 — HLE 5.5 125E

5981C64G07 5HLE-150E 5981C64G07 — HLE 5.5 150E

5981C64G08 5HLE-175E 5981C64G08 — HLE 5.5 175E

5981C64G09 5HLE-200E 5981C64G09 — HLE 5.5 200E

5981C64G10 5HLE-250E 5981C64G10 — HLE 5.5 250E

5981C65G1 5CLE-40E 5981C65G01 — CLE 5.5 40E

5981C65G2 5CLE-50E 5981C65G02 — CLE 5.5 50E

5981C65G3 5CLE-65E 5981C65G03 — CLE 5.5 65E

5981C65G4 5CLE-80E 5981C65G04 — CLE 5.5 80E

5981C65G5 5CLE-100E 5981C65G05 — CLE 5.5 100E

5981C65G6 5CLE-125E 5981C65G06 — CLE 5.5 125E

5981C65G7 5CLE-150E 5981C65G07 — CLE 5.5 150E

5981C65G8 5CLE-175E 5981C65G08 — CLE 5.5 175E

5981C65G9 5CLE-200E 5981C65G09 — CLE 5.5 200E

5981C65G10 5CLE-250E 5981C65G10 — CLE 5.5 250E

5981C66G01 5HLE-300E 5981C66G01 — HLE 5.5 300E

5981C66G02 5HLE-350E 5981C66G02 — HLE 5.5 350E

5981C66G03 5HLE-400E 5981C66G03 — HLE 5.5 400E

5981C66G04 5HLE-450E 5981C66G04 — HLE 5.5 450E

5981C67G01 5CLE-300E 5981C67G01 — CLE 5.5 300E

5981C67G02 5CLE-350E 5981C67G02 — CLE 5.5 350E

5981C67G03 5CLE-400E 5981C67G03 — CLE 5.5 400E

5981C67G04 5CLE-450E 5981C67G04 — CLE 5.5 450E

5981C68G01 15HCL-125E 5981C68G01 — HCL 15.5 125E

5981C68G02 15HCL-100E 5981C68G02 — HCL 15.5 100E

5981C68G03 15HCL-80E 5981C68G03 — HCL 15.5 80E

5981C68G04 15HCL-65E 5981C68G04 — HCL 15.5 65E

5981C69G02 DBU-MFLR 5981C69G02 — DBU — 200

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-85

Appendix 2—Superseded Style Number Index

5981C75G01 17DBU-3K 5981C75G01 — DBU 17 3K

5981C75G02 17DBU-6K 5981C75G02 — DBU 17 6K

5981C75G03 17DBU-8K 5981C75G03 — DBU 17 8K

5981C75G04 17DBU-10K 5981C75G04 — DBU 17 10K

5981C75G05 17DBU-12K 5981C75G05 — DBU 17 12K

5981C75G06 17DBU-15K 5981C75G06 — DBU 17 15K

5981C75G07 17DBU-20K 5981C75G07 — DBU 17 20K

5981C75G08 17DBU-25K 5981C75G08 — DBU 17 25K

5981C75G09 17DBU-30K 5981C75G09 — DBU 17 30K

5981C75G10 17DBU-40K 5981C75G10 — DBU 17 40K

5981C75G11 17DBU-50K 5981C75G11 — DBU 17 50K

5981C75G12 17DBU-65K 5981C75G12 — DBU 17 65K

5981C75G13 17DBU-80K 5981C75G13 — DBU 17 80K

5981C75G14 17DBU-100K 5981C75G14 — DBU 17 100K

5981C75G15 17DBU-140K 5981C75G15 — DBU 17 140K

5981C75G16 17DBU-200K 5981C75G16 — DBU 17 200K

5981C76G01 17DBU-5E 5981C76G01 — DBU 17 5E

5981C76G02 17DBU-7E 5981C76G02 — DBU 17 7E

5981C76G03 17DBU-10E 5981C76G03 — DBU 17 10E

5981C76G04 17DBU-12E 5981C76G04 — DBU 17 12E

5981C76G05 17DBU-15E 5981C76G05 — DBU 17 15E

5981C76G06 17DBU-20E 5981C76G06 — DBU 17 20E

5981C76G07 17DBU25E 5981C76G07 — DBU 17 25E

5981C76G08 17DBU-30E 5981C76G08 — DBU 17 30E

5981C76G09 17DBU-40E 5981C76G09 — DBU 17 40E

5981C76G10 17DBU-50E 5981C76G10 — DBU 17 50E

5981C76G11 17DBU-65E 5981C76G11 — DBU 17 65E

5981C76G12 17DBU-80E 5981C76G12 — DBU 17 80E

5981C76G13 17DBU-100E 5981C76G13 — DBU 17 100E

5981C76G14 17DBU-125E 5981C76G14 — DBU 17 125E

5981C76G15 17DBU-150E 5981C76G15 — DBU 17 150E

5981C76G16 17DBU-175E 5981C76G16 — DBU 17 175E

5981C76G17 17DBU-200E 5981C76G17 — DBU 17 200E

5981C77G01 17DBU-15SE 5981C77G01 — DBU 17 15SE

5981C77G02 17DBU-20SE 5981C77G02 — DBU 17 20SE

5981C77G03 17DBU25SE 5981C77G03 — DBU 17 25SE

5981C77G04 17DBU-30SE 5981C77G04 — DBU 17 30SE

5981C77G05 17DBU-40SE 5981C77G05 — DBU 17 40SE

5981C77G06 17DBU-50SE 5981C77G06 — DBU 17 50SE

5981C77G07 17DBU-65SE 5981C77G07 — DBU 17 65SE

5981C77G08 17DBU-80SE 5981C77G08 — DBU 17 80SE

5981C77G09 17DBU-100SE 5981C77G09 — DBU 17 100SE

5981C77G10 17DBU-125SE 5981C77G10 — DBU 17 125SE

5981C77G11 17DBU-150SE 5981C77G11 — DBU 17 150SE

5981C77G12 17DBU-175SE 5981C77G12 — DBU 17 175SE

5981C77G13 17DBU-200SE 5981C77G13 — DBU 17 200SE

5981C85G01 27DBU-3K 5981C85G01 — DBU 27 3K

5981C85G02 27DBU-6K 5981C85G02 — DBU 27 6K

5981C85G03 27DBU-8K 5981C85G03 — DBU 27 8K

5981C85G04 27DBU-10K 5981C85G04 — DBU 27 10K

5981C85G05 27DBU-12K 5981C85G05 — DBU 27 12K

5981C85G06 27DBU-15K 5981C85G06 — DBU 27 15K

5981C85G07 27DBU-20K 5981C85G07 — DBU 27 20K

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-86 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5981C85G08 27DBU-25K 5981C85G08 — DBU 27 25K

5981C85G09 27DBU-30K 5981C85G09 — DBU 27 30K

5981C85G10 27DBU-40K 5981C85G10 — DBU 27 40K

5981C85G11 27DBU-50K 5981C85G11 — DBU 27 50K

5981C85G12 27DBU-65K 5981C85G12 — DBU 27 65K

5981C85G13 27DBU-80K 5981C85G13 — DBU 27 80K

5981C85G14 27DBU-100K 5981C85G14 — DBU 27 100K

5981C85G15 27DBU-140K 5981C85G15 — DBU 27 140K

5981C85G16 27DBU-200K 5981C85G16 — DBU 27 200K

5981C86G01 27DBU-5E 5981C86G01 — DBU 27 5E

5981C86G02 27DBU-7E 5981C86G02 — DBU 27 7E

5981C86G03 27DBU-10E 5981C86G03 — DBU 27 10E

5981C86G04 27DBU-12E 5981C86G04 — DBU 27 12E

5981C86G05 27DBU-15E 5981C86G05 — DBU 27 15E

5981C86G06 27DBU-20E 5981C86G06 — DBU 27 20E

5981C86G07 27DBU25E 5981C86G07 — DBU 27 25E

5981C86G08 27DBU-30E 5981C86G08 — DBU 27 30E

5981C86G09 27DBU-40E 5981C86G09 — DBU 27 40E

5981C86G10 27DBU-50E 5981C86G10 — DBU 27 50E

5981C86G11 27DBU-65E 5981C86G11 — DBU 27 65E

5981C86G12 27DBU-80E 5981C86G12 — DBU 27 80E

5981C86G13 27DBU-100E 5981C86G13 — DBU 27 100E

5981C86G14 27DBU-125E 5981C86G14 — DBU 27 125E

5981C86G15 27DBU-150E 5981C86G15 — DBU 27 150E

5981C86G16 27DBU-175E 5981C86G16 — DBU 27 175E

5981C86G17 27DBU-200E 5981C86G17 — DBU 27 200E

5981C87G01 27DBU-15SE 5981C87G01 — DBU 27 15SE

5981C87G02 27DBU-20SE 5981C87G02 — DBU 27 20SE

5981C87G03 27DBU25SE 5981C87G03 — DBU 27 25SE

5981C87G04 27DBU-30SE 5981C87G04 — DBU 27 30SE

5981C87G05 27DBU-40SE 5981C87G05 — DBU 27 40SE

5981C87G06 27DBU-50SE 5981C87G06 — DBU 27 50SE

5981C87G07 27DBU-65SE 5981C87G07 — DBU 27 65SE

5981C87G08 27DBU-80SE 5981C87G08 — DBU 27 80SE

5981C87G09 27DBU-100SE 5981C87G09 — DBU 27 100SE

5981C87G10 27DBU-125SE 5981C87G10 — DBU 27 125SE

5981C87G11 27DBU-150SE 5981C87G11 — DBU 27 150SE

5981C87G12 27DBU-175SE 5981C87G12 — DBU 27 175SE

5981C87G13 27DBU-200SE 5981C87G13 — DBU 27 200SE

5981C95G01 38DBU-3K 5981C95G01 — DBU 38 3K

5981C95G02 38DBU-6K 5981C95G02 — DBU 38 6K

5981C95G03 38DBU-8K 5981C95G03 — DBU 38 8K

5981C95G04 38DBU-10K 5981C95G04 — DBU 38 10K

5981C95G05 38DBU-12K 5981C95G05 — DBU 38 12K

5981C95G06 38DBU-15K 5981C95G06 — DBU 38 15K

5981C95G07 38DBU-20K 5981C95G07 — DBU 38 20K

5981C95G08 38DBU-25K 5981C95G08 — DBU 38 25K

5981C95G09 38DBU-30K 5981C95G09 — DBU 38 30K

5981C95G10 38DBU-40K 5981C95G10 — DBU 38 40K

5981C95G11 38DBU-50K 5981C95G11 — DBU 38 50K

5981C95G12 38DBU-65K 5981C95G12 — DBU 38 65K

5981C95G13 38DBU-80K 5981C95G13 — DBU 38 80K

5981C95G14 38DBU-100K 5981C95G14 — DBU 38 100K

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-87

Appendix 2—Superseded Style Number Index

5981C95G15 38DBU-140K 5981C95G15 — DBU 38 140K

5981C95G16 38DBU-200K 5981C95G16 — DBU 38 200K

5981C96G01 38DBU-5E 5981C96G01 — DBU 38 5E

5981C96G02 38DBU-7E 5981C96G02 — DBU 38 7E

5981C96G03 38DBU-10E 5981C96G03 — DBU 38 10E

5981C96G04 38DBU-12E 5981C96G04 — DBU 38 12E

5981C96G05 38DBU-15E 5981C96G05 — DBU 38 15E

5981C96G06 38DBU-20E 5981C96G06 — DBU 38 20E

5981C96G07 38DBU25E 5981C96G07 — DBU 38 25E

5981C96G08 38DBU-30E 5981C96G08 — DBU 38 30E

5981C96G09 38DBU-40E 5981C96G09 — DBU 38 40E

5981C96G10 38DBU-50E 5981C96G10 — DBU 38 50E

5981C96G11 38DBU-65E 5981C96G11 — DBU 38 65E

5981C96G12 38DBU-80E 5981C96G12 — DBU 38 80E

5981C96G13 38DBU-100E 5981C96G13 — DBU 38 100E

5981C96G14 38DBU-125E 5981C96G14 — DBU 38 125E

5981C96G15 38DBU-150E 5981C96G15 — DBU 38 150E

5981C96G16 38DBU-175E 5981C96G16 — DBU 38 175E

5981C96G17 38DBU-200E 5981C96G17 — DBU 38 200E

5981C97G01 38DBU-15SE 5981C97G01 — DBU 38 15SE

5981C97G02 38DBU-20SE 5981C97G02 — DBU 38 20SE

5981C97G03 38DBU25SE 5981C97G03 — DBU 38 25SE

5981C97G04 38DBU-30SE 5981C97G04 — DBU 38 30SE

5981C97G05 38DBU-40SE 5981C97G05 — DBU 38 40SE

5981C97G06 38DBU-50SE 5981C97G06 — DBU 38 50SE

5981C97G07 38DBU-65SE 5981C97G07 — DBU 38 65SE

5981C97G08 38DBU-80SE 5981C97G08 — DBU 38 80SE

5981C97G09 38DBU-100SE 5981C97G09 — DBU 38 100SE

5981C97G10 38DBU-125SE 5981C97G10 — DBU 38 125SE

5981C97G11 38DBU-150SE 5981C97G11 — DBU 38 150SE

5981C97G12 38DBU-175SE 5981C97G12 — DBU 38 175SE

5981C97G13 38DBU-200SE 5981C97G13 — DBU 38 200SE

5982C01G01 8CLS-2R 5982C01G01 — CLS 8.3 2R(70)

5982C02G02 8CLS-3R 5982C02G02 — CLS 8.3 3R(100)

5982C02G03 8CLS-4R 5982C02G03 — CLS 8.3 4R(130)

5982C02G04 8CLS-5R 5982C02G04 — CLS 8.3 5R(150)

5982C02G05 8CLS-6R 5982C02G05 — CLS 8.3 6R(170)

5982C02G06 7CLS-9R 5982C02G06 — CLS 7.2 9R(200)

5982C02G07 7CLS-12R 5982C02G07 — CLS 7.2 12R(230)

5982C02G10 7CLS-18R 5982C02G10 — CLS 7.2 18R(390)

5982C02G11 7CLS-24R 5982C02G11 — CLS 7.2 24R(450)

5982C19G04 HCL-NL 5982C19G04 — HCL — 600

5982C29G01 HCL-NL 5982C19G04 — HCL — 600

5982C29G04 HCL-NL 5982C19G04 — HCL — 600

5982C31G01 5BCLS-30 5982C31G01 — CLS 5.5 30

5982C31G02 5BCLS-2R 5982C31G02 — CLS 5.5 2R(70)

5982C31G03 5BCLS-3R 5982C31G03 — CLS 5.5 3R(100)

5982C31G04 5BCLS-4R 5982C31G04 — CLS 5.5 4R(130)

5982C31G05 5BCLS-5R 5982C31G05 — CLS 5.5 5R(150)

5982C31G06 5BCLS-6R 5982C31G06 — CLS 5.5 6R(170)

5982C31G07 5BCLS-9R 5982C31G07 — CLS 5.5 9R(200)

5982C31G08 5BCLS-12R 5982C31G08 — CLS 5.5 12R(230)

5982C32G01 5BCLS-18R 5982C32G01 — CLS 5.5 18R(390)

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-88 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5982C32G02 5BCLS-24R 5982C32G02 — CLS 5.5 24R(450)

5982C32G03 4BCLS-26R 5982C32G03 — CLS 4.6 26R(480)

5982C34G01 15HCL-10E 5982C34G01 — HCL 15.5 10E

5982C34G02 15HCL-15E 5982C34G02 — HCL 15.5 15E

5982C34G03 15HCL-20E 5982C34G03 — HCL 15.5 20E

5982C34G04 15HCL-25E 5982C34G04 — HCL 15.5 25E

5982C34G05 15HCL-30E 5982C34G05 — HCL 15.5 30E

5982C34G06 15HCL-40E 5982C34G06 — HCL 15.5 40E

5982C34G07 15HCL-50E 5982C34G07 — HCL 15.5 50E

5982C35G01 5HCL-10E 5982C35G01 — HCL 5.5 10E

5982C35G02 5HCL-15E 5982C35G02 — HCL 5.5 15E

5982C35G03 5HCL-20E 5982C35G03 — HCL 5.5 20E

5982C35G04 5HCL-25E 5982C35G04 — HCL 5.5 25E

5982C35G05 5HCL-30E 5982C35G05 — HCL 5.5 30E

5982C35G06 5HCL-40E 5982C35G06 — HCL 5.5 40E

5982C35G07 5HCL-50E 5982C35G07 — HCL 5.5 50E

5982C35G08 5HCL-65E 5982C35G08 — HCL 5.5 65E

5982C35G09 5HCL-80E 5982C35G09 — HCL 5.5 80E

5982C35G10 5HCL-100E 5982C35G10 — HCL 5.5 100E

5982C35G11 5HCL-125E 5982C35G11 — HCL 5.5 125E

5982C35G12 5HCL-150E 5982C35G12 — HCL 5.5 150E

5982C36G01 7BCLS-2R 5982C36G01 — CLS 8.3 2R(70)

5982C36G02 7BCLS-3R 5982C36G02 — CLS 8.3 3R(100)

5982C36G03 7BCLS-4R 5982C36G03 — CLS 8.3 4R(130)

5982C36G04 7BCLS-5R 5982C36G04 — CLS 8.3 5R(150)

5982C36G05 7BCLS-6R 5982C36G05 — CLS 8.3 6R(170)

5982C36G06 7BCLS-9R 5982C36G06 — CLS 7.2 9R(200)

5982C36G07 7BCLS-12R 5982C36G07 — CLS 7.2 12R(230)

5982C36G08 7BCLS-18R 5982C36G08 — CLS 7.2 18R(390)

5982C36G09 7BCLS-24R 5982C36G09 — CLS 7.2 24R(450)

5982C44G01 8RBA4-.5E 5982C44G01 — RBA4 8.3 0.5

5982C44G02 8RBA4-3E 5982C44G02 — RBA4 8.3 3

5982C44G03 8RBA4-5E 5982C44G03 — RBA4 8.3 5E

5982C44G04 8RBA4-7E 5982C44G04 — RBA4 8.3 7E

5982C44G05 8RBA4-10E 5982C44G05 — RBA4 8.3 10E

5982C44G06 8RBA4-15E 5982C44G06 — RBA4 8.3 15E

5982C44G07 8RBA4-20E 5982C44G07 — RBA4 8.3 20E

5982C44G08 8RBA4-25E 5982C44G08 — RBA4 8.3 25E

5982C44G09 8RBA4-30E 5982C44G09 — RBA4 8.3 30E

5982C44G10 8RBA4-40E 5982C44G10 — RBA4 8.3 40E

5982C44G11 8RBA4-50E 5982C44G11 — RBA4 8.3 50E

5982C44G12 8RBA4-65E 5982C44G12 — RBA4 8.3 65E

5982C44G13 8RBA4-80E 5982C44G13 — RBA4 8.3 80E

5982C44G14 8RBA4-100E 5982C44G14 — RBA4 8.3 100E

5982C44G15 8RBA4-125E 5982C44G15 — RBA4 8.3 125E

5982C44G16 8RBA4-150E 5982C44G16 — RBA4 8.3 150E

5982C44G17 8RBA4-175E 5982C44G17 — RBA4 8.3 175E

5982C44G18 8RBA4-200E 5982C44G18 — RBA4 8.3 200E

5982C44G19 8RBA4-250E 5982C44G19 — RBA4 8.3 250E

5982C44G20 8RBA4-300E 5982C44G20 — RBA4 8.3 300E

5982C44G22 8RBA4-400E 5982C44G22 — RBA4 8.3 400E

5982C44G26 15RBA4-.5E 5982C44G26 — RBA4 15.5 0.5

5982C44G27 15RBA4-3E 5982C44G27 — RBA4 15.5 3

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-89

Appendix 2—Superseded Style Number Index

5982C44G28 15RBA4-5E 5982C44G28 — RBA4 15.5 5E

5982C44G29 15RBA4-7E 5982C44G29 — RBA4 15.5 7E

5982C44G30 15RBA4-10E 5982C44G30 — RBA4 15.5 10E

5982C44G31 15RBA4-15E 5982C44G31 — RBA4 15.5 15E

5982C44G32 15RBA4-20E 5982C44G32 — RBA4 15.5 20E

5982C44G33 15RBA4-25E 5982C44G33 — RBA4 15.5 25E

5982C44G34 15RBA4-30E 5982C44G34 — RBA4 15.5 30E

5982C44G35 15RBA4-40E 5982C44G35 — RBA4 15.5 40E

5982C44G36 15RBA4-50E 5982C44G36 — RBA4 15.5 50E

5982C44G37 15RBA4-65E 5982C44G37 — RBA4 15.5 65E

5982C44G38 15RBA4-80E 5982C44G38 — RBA4 15.5 80E

5982C44G39 15RBA4-100E 5982C44G39 — RBA4 15.5 100E

5982C44G40 15RBA4-125E 5982C44G40 — RBA4 15.5 125E

5982C44G41 15RBA4-150E 5982C44G41 — RBA4 15.5 150E

5982C44G42 15RBA4-175E 5982C44G42 — RBA4 15.5 175E

5982C44G43 15RBA4-200E 5982C44G43 — RBA4 15.5 200E

5982C44G44 15RBA4-250E 5982C44G44 — RBA4 15.5 250E

5982C44G45 15RBA4-300E 5982C44G45 — RBA4 15.5 300E

5982C44G47 15RBA4-400E 5982C44G47 — RBA4 15.5 400E

5982C44G51 25RBA4-.5E 5982C44G51 — RBA4 25.5 0.5

5982C44G52 25RBA4-3E 5982C44G52 — RBA4 25.5 3

5982C44G53 25RBA4-5E 5982C44G53 — RBA4 25.5 5E

5982C44G54 25RBA4-7E 5982C44G54 — RBA4 25.5 7E

5982C44G55 25RBA4-10E 5982C44G55 — RBA4 25.5 10E

5982C44G56 25RBA4-15E 5982C44G56 — RBA4 25.5 15E

5982C44G57 25RBA4-20E 5982C44G57 — RBA4 25.5 20E

5982C44G58 25RBA4-25E 5982C44G58 — RBA4 25.5 25E

5982C44G59 25RBA4-30E 5982C44G59 — RBA4 25.5 30E

5982C44G60 25RBA4-40E 5982C44G60 — RBA4 25.5 40E

5982C44G61 25RBA4-50E 5982C44G61 — RBA4 25.5 50E

5982C44G62 25RBA4-65E 5982C44G62 — RBA4 25.5 65E

5982C44G63 25RBA4-80E 5982C44G63 — RBA4 25.5 80E

5982C44G64 25RBA4-100E 5982C44G64 — RBA4 25.5 100E

5982C44G65 25RBA4-125E 5982C44G65 — RBA4 25.5 125E

5982C44G66 25RBA4-150E 5982C44G66 — RBA4 25.5 150E

5982C44G67 25RBA4-175E 5982C44G67 — RBA4 25.5 175E

5982C44G68 25RBA4-200E 5982C44G68 — RBA4 25.5 200E

5982C44G69 25RBA4-250E 5982C44G69 — RBA4 25.5 250E

5982C44G70 25RBA4-300E 5982C44G70 — RBA4 25.5 300E

5982C44G76 38RBA4-.5E 5982C44G76 — RBA4 38 0.5

5982C44G77 38RBA4-3E 5982C44G77 — RBA4 38 3

5982C44G78 38RBA4-5E 5982C44G78 — RBA4 38 5E

5982C44G79 38RBA4-7E 5982C44G79 — RBA4 38 7E

5982C44G80 38RBA4-10E 5982C44G80 — RBA4 38 10E

5982C44G81 38RBA4-15E 5982C44G81 — RBA4 38 15E

5982C44G82 38RBA4-20E 5982C44G82 — RBA4 38 20E

5982C44G83 38RBA4-25E 5982C44G83 — RBA4 38 25E

5982C44G84 38RBA4-30E 5982C44G84 — RBA4 38 30E

5982C44G85 38RBA4-40E 5982C44G85 — RBA4 38 40E

5982C44G86 38RBA4-50E 5982C44G86 — RBA4 38 50E

5982C44G87 38RBA4-65E 5982C44G87 — RBA4 38 65E

5982C44G88 38RBA4-80E 5982C44G88 — RBA4 38 80E

5982C44G89 38RBA4-100E 5982C44G89 — RBA4 38 100E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-90 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5982C44G90 38RBA4-125E 5982C44G90 — RBA4 38 125E

5982C44G91 38RBA4-150E 5982C44G91 — RBA4 38 150E

5982C44G92 38RBA4-175E 5982C44G92 — RBA4 38 175E

5982C44G93 38RBA4-200E 5982C44G93 — RBA4 38 200E

5982C44G94 38RBA4-250E 5982C44G94 — RBA4 38 250E

5982C44G95 38RBA4-300E 5982C44G95 — RBA4 38 300E

5982C47G01 2BCLS-25 5982C47G01 — CLS 2.54 25

5982C47G02 2BCLS-2R 5982C47G02 — CLS 2.54 2R(70)

5982C47G03 2BCLS-3R 5982C47G03 — CLS 2.54 3R(100)

5982C47G04 2BCLS-4R 5982C47G04 — CLS 2.54 4R(130)

5982C47G05 2BCLS-5R 5982C47G05 — CLS 2.54 5R(150)

5982C47G06 2BCLS-6R 5982C47G06 — CLS 2.54 6R(170)

5982C47G07 2BCLS-9R 5982C47G07 — CLS 2.54 9R(200)

5982C47G08 2BCLS-12R 5982C47G08 — CLS 2.54 12R(230)

5982C47G09 2BCLS-18R 5982C47G09 — CLS 2.54 18R(390)

5982C47G10 2BCLS-24R 5982C47G10 — CLS 2.54 24R(450)

5982C49A07 8RBT4-20E 5982C49A07 — RBA4 8.3 20E

5982C49A08 8RBT4-25E 5982C49A08 — RBA4 8.3 25E

5982C49A09 8RBT4-30E 5982C49A09 — RBA4 8.3 30E

5982C49A10 8RBT4-40E 5982C49A10 — RBA4 8.3 40E

5982C49A11 8RBT4-50E 5982C49A11 — RBA4 8.3 50E

5982C49A12 8RBT4-65E 5982C49A12 — RBA4 8.3 65E

5982C49A13 8RBT4-80E 5982C49A13 — RBA4 8.3 80E

5982C49A14 8RBT4-100E 5982C49A14 — RBA4 8.3 100E

5982C49A15 8RBT4-125E 5982C49A15 — RBA4 8.3 125E

5982C49A16 8RBT4-150E 5982C49A16 — RBA4 8.3 150E

5982C49A18 8RBT4-200E 5982C49A18 — RBA4 8.3 200E

5982C49A19 8RBT4-250E 5982C49A19 — RBA4 8.3 250E

5982C49A20 8RBT4-300E 5982C49A20 — RBA4 8.3 300E

5982C49A21 8RBT4-400E 5982C49A21 — RBA4 8.3 400E

5982C49A32 15RBT4-20E 5982C49A32 — RBA4 15.5 20E

5982C49A33 15RBT4-25E 5982C49A33 — RBA4 15.5 25E

5982C49A34 15RBT4-30E 5982C49A34 — RBA4 15.5 30E

5982C49A35 15RBT4-40E 5982C49A35 — RBA4 15.5 40E

5982C49A36 15RBT4-50E 5982C49A36 — RBA4 15.5 50E

5982C49A37 15RBT4-65E 5982C49A37 — RBA4 15.5 65E

5982C49A38 15RBT4-80E 5982C49A38 — RBA4 15.5 80E

5982C49A39 15RBT4-100E 5982C49A39 — RBA4 15.5 100E

5982C49A40 15RBT4-125E 5982C49A40 — RBA4 15.5 125E

5982C49A41 15RBT4-150E 5982C49A41 — RBA4 15.5 150E

5982C49A43 15RBT4-200E 5982C49A43 — RBA4 15.5 200E

5982C49A44 15RBT4-250E 5982C49A44 — RBA4 15.5 250E

5982C49A45 15RBT4-300E 5982C49A45 — RBA4 15.5 300E

5982C49A46 15RBT4-400E 5982C49A46 — RBA4 15.5 400E

5982C49A57 25RBT4-20E 5982C49A57 — RBA4 25.5 20E

5982C49A58 25RBT4-25E 5982C49A58 — RBA4 25.5 25E

5982C49A59 25RBT4-30E 5982C49A59 — RBA4 25.5 30E

5982C49A60 25RBT4-40E 5982C49A60 — RBA4 25.5 40E

5982C49A61 25RBT4-50E 5982C49A61 — RBA4 25.5 50E

5982C49A62 25RBT4-65E 5982C49A62 — RBA4 25.5 65E

5982C49A63 25RBT4-80E 5982C49A63 — RBA4 25.5 80E

5982C49A64 25RBT4-100E 5982C49A64 — RBA4 25.5 100E

5982C49A65 25RBT4-125E 5982C49A65 — RBA4 25.5 125E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-91

Appendix 2—Superseded Style Number Index

5982C49A66 25RBT4-150E 5982C49A66 — RBA4 25.5 150E

5982C49A68 25RBT4-200E 5982C49A68 — RBA4 25.5 200E

5982C49A69 25RBT4-250E 5982C49A69 — RBA4 25.5 250E

5982C49A70 25RBT4-300E 5982C49A70 — RBA4 25.5 300E

5982C49A82 38RBT4-20E 5982C49A82 — RBA4 38 20E

5982C49A83 38RBT4-25E 5982C49A83 — RBA4 38 25E

5982C49A84 38RBT4-30E 5982C49A84 — RBA4 38 30E

5982C49A85 38RBT4-40E 5982C49A85 — RBA4 38 40E

5982C49A86 38RBT4-50E 5982C49A86 — RBA4 38 50E

5982C49A87 38RBT4-65E 5982C49A87 — RBA4 38 65E

5982C49A88 38RBT4-80E 5982C49A88 — RBA4 38 80E

5982C49A89 38RBT4-100E 5982C49A89 — RBA4 38 100E

5982C49A90 38RBT4-125E 5982C49A90 — RBA4 38 125E

5982C49A91 38RBT4-150E 5982C49A91 — RBA4 38 150E

5982C49A93 38RBT4-200E 5982C49A93 — RBA4 38 200E

5982C49A94 38RBT4-250E 5982C49A94 — RBA4 38 250E

5982C49A95 38RBT4-300E 5982C49A95 — RBA4 38 300E

5982C64G01 4NPL-3500 5982C64G01 — NPL 0.48 3500

5982C64G02 4NPL-5000 5982C64G02 — NPL 0.48 5000

5982C90G01 6MDSL-A150 5982C90G01 — DSL 0.6 150

5982C90G02 6MDSL-A200 5982C90G02 — DSL 0.6 200

5982C90G03 6MDSL-A250 5982C90G03 — DSL 0.6 250

5982C90G04 6MDSL-A300 5982C90G04 — DSL 0.6 300

5982C90G05 6MDSL-A400 5982C90G05 — DSL 0.6 400

5982C90G06 6MDSL-A600 5982C90G06 — DSL 0.6 60

5982C90G07 6MDSL-A800 5982C90G07 — DSL 0.6 800

5982C91G01 6MDSL-B1200 5982C91G01 — DSL 0.6 1200

5982C91G02 6MDSL-B1600 5982C91G02 — DSL 0.6 1600

5982C91G03 6MDSL-B2000 5982C91G03 — DSL 0.6 2000

5982C92G01 6MDSL-C800 5982C92G01 — DSL 0.6 800

5982C92G02 6MDSL-C1000 5982C92G02 — DSL 0.6 1000

5982C92G03 6MDSL-C1200 5982C92G03 — DSL 0.6 1200

5982C92G04 6MDSL-C1600 5982C92G04 — DSL 0.6 1600

5982C92G05 6MDSL-C2000 5982C92G05 — DSL 0.6 2000

5982C93G01 6MDSL-D2500 5982C93G01 — DSL 0.6 2500

5982C93G02 6MDSL-D3000 5982C93G02 — DSL 0.6 3000

5983C02G01 5BHLE-10E 5983C02G01 — HLE 5.5 10E

5983C02G02 5BHLE-15E 5983C02G02 — HLE 5.5 15E

5983C02G03 5BHLE-20E 5983C02G03 — HLE 5.5 20E

5983C02G04 5BHLE-25E 5983C02G04 — HLE 5.5 25E

5983C02G05 5BHLE-30E 5983C02G05 — HLE 5.5 30E

5983C02G06 5BHLE-40E 5983C02G06 — HLE 5.5 40E

5983C02G07 5BHLE-50E 5983C02G07 — HLE 5.5 50E

5983C02G08 5BHLE-65E 5983C02G08 — HLE 5.5 65E

5983C02G09 5BHLE-80E 5983C02G09 — HLE 5.5 80E

5983C02G10 5BHLE-100E 5983C02G10 — HLE 5.5 100E

5983C02G11 5BHLE-125E 5983C02G11 — HLE 5.5 125E

5983C02G12 5BHLE-150E 5983C02G12 — HLE 5.5 150E

5983C02G13 5BHLE-175E 5983C02G13 — HLE 5.5 175E

5983C02G14 5BHLE-200E 5983C02G14 — HLE 5.5 200E

5983C02G15 5BHLE-250E 5983C02G15 — HLE 5.5 250E

5983C02G16 5BHLE-300E 5983C02G16 — HLE 5.5 300E

5983C02G17 5BHLE-350E 5983C02G17 — HLE 5.5 350E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-92 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5983C02G18 5BHLE-400E 5983C02G18 — HLE 5.5 400E

5983C02G19 5BHLE-450E 5983C02G19 — HLE 5.5 450E

5983C03G01 8BHLE-10E 5983C03G01 — HLE 8.3 10E

5983C03G02 8BHLE-15E 5983C03G02 — HLE 8.3 15E

5983C03G03 8BHLE-20E 5983C03G03 — HLE 8.3 20E

5983C03G04 8BHLE-25E 5983C03G04 — HLE 8.3 25E

5983C03G05 8BHLE-30E 5983C03G05 — HLE 8.3 30E

5983C03G06 8BHLE-40E 5983C03G06 — HLE 8.3 40E

5983C03G07 8BHLE-50E 5983C03G07 — HLE 8.3 50E

5983C03G08 8BHLE-65E 5983C03G08 — HLE 8.3 65E

5983C03G09 8BHLE-80E 5983C03G09 — HLE 8.3 80E

5983C03G10 8BHLE-100E 5983C03G10 — HLE 8.3 100E

5983C03G11 8BHLE-125E 5983C03G11 — HLE 8.3 125E

5983C03G12 8BHLE-150E 5983C03G12 — HLE 8.3 150E

5983C03G13 8BHLE-175E 5983C03G13 — HLE 8.3 175E

5983C03G14 8BHLE-200E 5983C03G14 — HLE 8.3 200E

5983C03G15 8BHLE-250E 5983C03G15 — HLE 8.3 250E

5983C03G16 8BHLE-300E 5983C03G16 — HLE 8.3 300E

5983C03G17 8BHLE-350E 5983C03G17 — HLE 8.3 350E

5983C08G01 8HCL-200E 5983C08G01 — HCL 8.3 200E

5983C08G02 8HCL-250E 5983C08G02 — HCL 8.3 250E

5983C08G03 8HCL-300E 5983C08G03 — HCL 8.3 300E

5983C08G04 8HCL-350E 5983C08G04 — HCL 8.3 350E

5983C08G05 8HCL-175E 5983C08G05 — HCL 8.3 175E

5983C08G06 8HCL-150E 5983C08G06 — HCL 8.3 150E

5983C08G07 8HCL125E 5983C08G07 — HCL 8.3 125E

5983C08G08 8HCL-100E 5983C08G08 — HCL 8.3 100E

5983C08G09 8HCL-80E 5983C08G09 — HCL 8.3 80E

5983C08G10 8HCL-65E 5983C08G10 — HCL 8.3 65E

5984C05G01 15BHLE-10E 5984C05G01 — HLE 15.5 10E

5984C05G02 15BHLE-15E 5984C05G02 — HLE 15.5 15E

5984C05G03 15BHLE-20E 5984C05G03 — HLE 15.5 20E

5984C05G04 15BHLE-25E 5984C05G04 — HLE 15.5 25E

5984C05G05 15BHLE-30E 5984C05G05 — HLE 15.5 30E

5984C05G06 15BHLE-40E 5984C05G06 — HLE 15.5 40E

5984C05G07 15BHLE-50E 5984C05G07 — HLE 15.5 50E

5984C05G08 15BHLE-65E 5984C05G08 — HLE 15.5 65E

5984C05G09 15BHLE-80E 5984C05G09 — HLE 15.5 80E

5984C05G10 15BHLE-100E 5984C05G10 — HLE 15.5 100E

5984C05G11 15BHLE-125E 5984C05G11 — HLE 15.5 125E

5984C05G12 15BHLE-150E 5984C05G12 — HLE 15.5 150E

5984C05G13 15BHLE-175E 5984C05G13 — HLE 15.5 175E

5984C05G14 15BHLE-200E 5984C05G14 — HLE 15.5 200E

5984C05G15 15BHLE-250E 5984C05G15 — HLE 15.5 250E

5984C05G16 15BHLE2-40E 5984C05G16 — HLE 15.5 40E

5984C05G17 15BHLE2-50E 5984C05G17 — HLE 15.5 50E

5984C05G18 15BHLE2-65E 5984C05G18 — HLE 15.5 65E

5984C05G19 15BHLE2-80E 5984C05G19 — HLE 15.5 80E

5984C05G20 15BHLE2-100E 5984C05G20 — HLE 15.5 100E

5984C05G21 15BHLE2-125E 5984C05G21 — HLE 15.5 125E

5984C17G01 8RBA4-INH-B 5984C17G01 — RBA4 8.3 400

5984C17G02 15RBA4-INH-B 5984C17G02 — RBA4 15.5 400

5984C17G03 25RBA4-INH-B 5984C17G03 — RBA4 25.5 300

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-93

Appendix 2—Superseded Style Number Index

5984C17G04 38RBA4-INH-B 5984C17G04 — RBA4 38 300

5094C18G01 8RBA2-INH-B 5094C18G01 — RBA2 8.3 200

5094C18G02 15RBA2-INH-B 5094C18G02 — RBA2 15.5 200

5094C18G03 25RBA2-INH-B 5094C18G03 — RBA2 25.5 200

5094C18G04 38RBA2-INH-B 5094C18G04 — RBA2 38 200

5984C25G01 DBU17-GNMP-L 5984C25G01 — DBU 17 200

5984C25G02 DBU27-GNMP-L 5984C25G02 — DBU 27 200

5984C25G03 DBU38-GNMP-L 5984C25G03 — DBU 38 200

5984C25G04 DBU17-GNMP-R 5984C25G04 — DBU 17 200

5984C25G05 DBU27-GNMP-R 5984C25G05 — DBU 27 200

5984C25G06 DBU38-GNMP-R 5984C25G06 — DBU 38 200

5984C25G07 DBU17-GNM-L 5984C25G07 — DBU 17 200

5984C25G08 DBU27-GNM-L 5984C25G08 — DBU 27 200

5984C25G09 DBU38-GNM-L 5984C25G09 — DBU 38 200

5984C25G10 DBU17-GNM-R 5984C25G10 — DBU 17 200

5984C25G11 DBU27-GNM-R 5984C25G11 — DBU 27 200

5984C25G12 DBU38-GNM-R 5984C25G12 — DBU 38 200

5984C29G01 DBU17-NL-L 5984C29G01 — DBU 17 200

5984C29G02 DBU27-NL-L 5984C29G02 — DBU 27 200

5984C29G03 DBU38-NL-L 5984C29G03 — DBU 38 200

5984C29G04 DBU17-NL-R 5984C29G04 — DBU 17 200

5984C29G05 DBU27-NL-R 5984C29G05 — DBU 27 200

5984C29G06 DBU38-NL-R 5984C29G06 — DBU 38 200

5984C29G07 DBU17-NLP-L 5984C29G07 — DBU 17 200

5984C29G08 DBU27-NLP-L 5984C29G08 — DBU 27 200

5984C29G09 DBU38-NLP-L 5984C29G09 — DBU 38 200

5984C29G10 DBU17-NLP-R 5984C29G10 — DBU 17 200

5984C29G11 DBU27-NLP-R 5984C29G11 — DBU 27 200

5984C29G12 DBU38-NLP-R 5984C29G12 — DBU 38 200

5984C38G01 DBU27-DM 5984C38G01 — DBU 17 200

5984C39G01 DBU17-DM 5984C39G01 — DBU 27 200

5984C50G01 5HME-40E 5984C50G01 — HME 5.5 40E

5984C50G02 5HME-125E 5984C50G02 — HME 5.5 125E

5984C50G04 5CME-40E 5984C50G04 — CME 5.5 40E

5984C50G05 5CME-125E 5984C50G05 — CME 5.5 125E

5984C50G06 5CME-200E 5984C50G06 — CME 5.5 200E

5984C50G21 5BHME-40E 5984C50G21 — HME 5.5 40E

5984C50G22 5BHME-125E 5984C50G22 — HME 5.5 125E

5984C50G24 5BCME-40E 5984C50G24 — CME 5.5 40E

5984C50G25 5BCME-125E 5984C50G25 — CME 5.5 125E

5984C50G26 5BCME-200E 5984C50G26 — CME 5.5 200E

5984C56G01 5MCLS-30-A 5984C56G01 — CLS 5.08 30

5984C56G02 5MCLS-2R-A 5984C56G02 — CLS 5.08 2R(70)

5984C56G03 5MCLS-3R-A 5984C56G03 — CLS 5.08 3R(100)

5984C56G04 5MCLS-4R-A 5984C56G04 — CLS 5.08 4R(130)

5984C56G05 5MCLS-5R-A 5984C56G05 — CLS 5.08 5R(150)

5984C56G06 5MCLS-5R-A 5984C56G06 — CLS 5.08 6R(170)

5984C56G09 5MCLS-8R-A 5984C56G09 — CLS 5.08 9R(200)

5984C56G12 5MCLS-12R-A 5984C56G12 — CLS 5.08 12R(230)

5984C56G18 5MCLS-18R-A 5984C56G18 — CLS 5.08 18R(390)

5984C56G24 5MCLS-24R-A 5984C56G24 — CLS 5.08 24R(450)

5984C56G36 5MCLS-36R-A 5984C56G36 — CLS 5.08 36R(650)

5984 C57G01 5MCLS-30-B 5984 C57G01 — CLS 5.08 30

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-94 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

5984 C57G02 5MCLS-2R-B 5984 C57G02 — CLS 5.08 2R(70)

5984 C57G03 5MCLS-3R-B 5984 C57G03 — CLS 5.08 3R(100)

5984 C57G04 5MCLS-4R-B 5984 C57G04 — CLS 5.08 4R(130)

5984 C57G05 5MCLS-5R-B 5984 C57G05 — CLS 5.08 5R(150)

5984 C57G06 5MCLS-5R-B 5984 C57G06 — CLS 5.08 6R(170)

5984 C57G09 5MCLS-8R-B 5984 C57G09 — CLS 5.08 9R(200)

5984 C57G12 5MCLS-12R-B 5984 C57G12 — CLS 5.08 12R(230)

5984 C57G18 5MCLS-18R-B 5984 C57G18 — CLS 5.08 18R(390)

5984 C57G24 5MCLS-24R-B 5984 C57G24 — CLS 5.08 24R(450)

5984 C57G36 5MCLS-36R-B 5984 C57G36 — CLS 5.08 36R(650)

5984C65G01 15LHLE-65E 5984C65G01 — HLE 15.5 65E

5984C65G02 15LHLE-80E 5984C65G02 — HLE 15.5 80E

5984C65G03 15LHLE-100E 5984C65G03 — HLE 15.5 100E

5984C65G04 15LHLE2-125E 5984C65G04 — HLE 15.5 125E

5984C65G05 15LHLE2-150E 5984C65G05 — HLE 15.5 150E

5984C65G06 15LHLE-175E 5984C65G06 — HLE 15.5 175E

5984C65G07 15LHLE-200E 5984C65G07 — HLE 15.5 200E

5984C65G08 15LHLE-125E 5984C65G08 — HLE 15.5 125E

5984C65G09 15LHLE-150E 5984C65G09 — HLE 15.5 150E

5984C65G10 15LHLE-250E 5984C65G10 — HLE 15.5 250E

5984C65G11 15LHLE-300E 5984C65G11 — HLE 15.5 300E

60A1307G01 Obsolete—contact Eaton — 4.8 kV RBA-800 mounting — — —

60A1307G02 Obsolete—contact Eaton — 7.2 kV RBA-800 mounting — — —

60A1307G03 Obsolete—contact Eaton — 13.2 kV RBA-800 mounting — — —

60A1307G04 Obsolete—contact Eaton — 14.4 kV RBA-800 mounting — — —

6379D26H01 Obsolete—contact Eaton — 5ACLS-.5R (10A) — — —

6379D26H02 Obsolete—contact Eaton — 5ACLS-.75R (20A) — — —

6379D26H03 5ACLS-30 449D597G01 — CLS 5.08 30

6379D26H04 Obsolete—contact Eaton — 5ACLS-1.5R (40A) CLS 5.08 2R(70)

6379D26H05 5ACLS-2R (70A) 449D597G02 — CLS 5.08 3R(100)

6379D26H06 5ACLS-3R (100A) 449D597G03 — CLS 5.08 4R(130)

6379D26H07 5ACLS-4R (130A) 449D597G04 — CLS 5.08 5R(150)

6379D26H08 5ACLS-5R (150A) 449D597G05 — CLS 5.08 6R(170)

6379D26H09 5ACLS-6R (170A) 449D597G06 — CLS 5.08 9R(200)

6379D26H12 5ACLS-9R (200A) 151D933G01 — CLS 5.08 12R(230)

6379D26H15 5ACLS-12R (230A) 151D933G02 — CLS 5.08 18R(390)

6369D26H20 5ACLS-19R (390A) 151D933G03 — CLS 5.08 24R(450)

6379D28H24 5ACLS-24R (450A) 151D933G04 — — — —

6379D26H26 Obsolete—contact Eaton — — — — —

6379D26H28 Obsolete—contact Eaton — — — — —

6379D26H30 Obsolete—contact Eaton — — — — —

676C231A10 Obsolete—contact Eaton — 2.4 kV rear connected disc. CLE mounting — — —

676C231A11 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLE mounting — — —

676C231A13 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLE mounting — — —

676C231A15 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLE mounting — — —

676C231A16 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLE mounting — — —

676C231A18 Obsolete—contact Eaton — 2.4 kV rear connected disc. CLE mounting — — —

676C231A19 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLE mounting — — —

676C231A21 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLE mounting — — —

676C231A23 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLE mounting — — —

676C231A24 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLE mounting — — —

676C231A26 Obsolete—contact Eaton — 2.4 kV rear connected disc. CLE mounting — — —

676C231A27 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLE mounting — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-95

Appendix 2—Superseded Style Number Index

676C231A29 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLE mounting — — —

676C231A31 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLE mounting — — —

676C231A32 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLE mounting — — —

676C232G07 CLPT-DL 9078A64G01 — CLPT — 10

676C233A09 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLPT mounting — — —

676C233A10 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C233A12 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C233A13 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C233A14 Obsolete—contact Eaton — 23 kV rear connected disc. CLPT mounting — — —

676C233A17 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLPT mounting — — —

676C233A18 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C233A20 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C233A21 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C233A22 Obsolete—contact Eaton — 23 kV rear connected disc. CLPT mounting — — —

676C233A25 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLPT mounting — — —

676C233A26 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C233A28 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C233A29 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C233A30 Obsolete—contact Eaton — 23 kV rear connected disc. CLPT mounting — — —

676C234A09 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C234A11 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C234A12 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C234A17 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C234A19 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C234A20 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C234A26 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C234A28 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C234A29 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C236A11 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLPT mounting — — —

676C236A12 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C236A14 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C236A15 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C236A16 Obsolete—contact Eaton — 23 kV rear connected disc. CLPT mounting — — —

676C236A21 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLPT mounting — — —

676C236A22 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C236A24 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C236A25 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C236A26 Obsolete—contact Eaton — 23 kV rear connected disc. CLPT mounting — — —

676C237A11 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C237A13 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C237A14 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C237A21 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLPT mounting — — —

676C237A23 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLPT mounting — — —

676C237A24 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLPT mounting — — —

676C238A12 Obsolete—contact Eaton — 2.4 kV rear connected disc. CLE-C mounting — — —

676C238A13 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLE-C mounting — — —

676C238A15 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLE-C mounting — — —

676C238A17 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLE-C mounting — — —

676C238A18 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLE-C mounting — — —

676C238A22 Obsolete—contact Eaton — 2.4 kV rear connected disc. CLE-C mounting — — —

676C238A23 Obsolete—contact Eaton — 4.8 kV rear connected disc. CLE-C mounting — — —

676C238A25 Obsolete—contact Eaton — 7.2 kV rear connected disc. CLE-C mounting — — —

676C238A27 Obsolete—contact Eaton — 13.8 kV rear connected disc. CLE-C mounting — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-96 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

676C238A28 Obsolete—contact Eaton — 14.4 kV rear connected disc. CLE-C mounting — — —

676C436G14 5CLE-40E 5981C65G01 — CLE 5.5 40E

676C546G02 2CLS-2R 591C812G02 — CLS 2.54 2R(70)

676C546G03 2CLS-3R 591C812G03 — CLS 2.54 3R(100)

676C546G04 2CLS-4R 591C812G04 — CLS 2.54 4R(130)

676C546G05 2CLS-5R 591C812G05 — CLS 2.54 5R(150)

676C546G06 2CLS-6R 591C812G06 — CLS 2.54 6R(170)

676C546G09 2CLS-9R 591C812G07 — CLS 2.54 9R(200)

676C546G12 2CLS-12R 591C812G08 — CLS 2.54 12R(230)

676C546G14 5CLE-40E 5981C65G01 — CLE 5.5 40E

676C546G15 5LCLS-2R 676C546G15 — CLS 2.54 2R(70)

676C546G16 5LCLS-3R 676C546G16 — CLS 2.54 3R(100)

676C546G17 5LCLS-4R 676C546G17 — CLS 2.54 4R(130)

676C546G18 5LCLS-5R 676C546G18 — CLS 2.54 5R(150)

676C546G19 5LCLS-6R 676C546G19 — CLS 2.54 6R(170)

676C546G22 5LCLS-9R 676C546G22 — CLS 2.54 9R(200)

676C546G25 5LCLS-12R 676C546G25 — CLS 2.54 12R(230)

676C774G10 Obsolete—contact Eaton — CLE rear connected live parts — — —

676C774G11 Obsolete—contact Eaton — CLE rear connected live parts — — —

676C774G14 Obsolete—contact Eaton — CLE rear connected live parts — — —

676C776A02 2CLE-PNM-D 9078A68G15 — CLE 2.75 250

676C776A03 5CLE-PNM-D 9078A68G16 — CLE 5.5 250

676C776A05 8CLE-PNM-D 9078A68G17 — CLE 8.3 175

676C776A07 15CLE-PNM-D 9078A68G18 — CLE 15.5 150

676C776A11 Obsolete—contact Eaton — 2.4 kV rear connected CLE-D mounting — — —

676C776A12 Obsolete—contact Eaton — 4.8 kV rear connected CLE-D mounting — — —

676C776A14 Obsolete—contact Eaton — 7.2 kV rear connected CLE-D mounting — — —

676C776A16 Obsolete—contact Eaton — 14.4 kV rear connected CLE-D mounting — — —

676C776A20 Obsolete—contact Eaton — 2.4 kV rear connected CLE-D mounting — — —

676C776A21 Obsolete—contact Eaton — 4.8 kV rear connected CLE-D mounting — — —

676C776A23 Obsolete—contact Eaton — 7.2 kV rear connected CLE-D mounting — — —

676C776A25 Obsolete—contact Eaton — 14.4 kV rear connected CLE-D mounting — — —

676C880G01 8RBA2-NH 5981C51G01 — RBA2 8.3 200

676C880G02 15RBA2-NH 5981C51G02 — RBA2 15.5 200

676C880G03 25RBA2-NH 5981C51G03 — RBA2 25.5 200

676C880G04 38RBA2-NH 5981C51G04 — RBA2 38 200

677C370G01 8RBA2-NH 5981C51G01 — RBA2 8.3 200

677C370G02 15RBA2-NH 5981C51G02 — RBA2 15.5 200

677C370G03 25RBA2-NH 5981C51G03 — RBA2 25.5 200

677C370G04 38RBA2-NH 5981C51G04 — RBA2 38 200

677C371G01 8RBA4-NH 5981C53G01 — RBA4 8.3 400

677C371G02 15RBA4-NH 5981C53G02 — RBA4 15.5 400

677C371G03 25RBA4-NH 5981C53G03 — RBA4 25.5 300

677C371G04 38RBA4-NH 5981C53G04 — RBA4 38 300

677C452G01 5CLPT-.5E 677C452G01 — CLPT 5.5 0.5

677C452G02 8CLPT-.5E 677C452G02 — CLPT 8.3 0.5

677C452G03 15CLPT-.5E 677C452G03 — CLPT 15.5 0.5

677C452G04 25CLPT-.5E 677C452G04 — CLPT 25.5 0.5

677C452G05 38CLPT-.5E 677C452G05 — CLPT 38 0.5

677C452G06 5CLPT-1E 677C452G06 — CLPT 5.5 1

677C452G08 15CLPT-1E 677C452G08 — CLPT 15.5 1

677C452G09 25CLPT-1E 677C452G09 — CLPT 25.5 1

677C452G10 15CLPT-1.5E 677C452G10 — CLPT 15.5 1.5

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-97

Appendix 2—Superseded Style Number Index

677C452G11 5CLPT-1.5E 677C452G11 — CLPT 5.5 1.5

677C453G01 5CLPT-5E 677C453G01 — CLPT 5.5 5E

677C453G02 8CLPT-5E 677C453G02 — CLPT 8.3 5E

677C453G03 15CLPT-5E 677C453G03 — CLPT 15.5 5E

677C453G04 5CLPT-10E 677C453G04 — CLPT 5.5 10E

677C453G05 8CLPT-10E 677C453G05 — CLPT 8.3 10E

677C453G06 15CLPT-10E 677C453G06 — CLPT 15.5 10E

677C453G07 5CLPT-3E 677C453G07 — CLPT 5.5 3E

677C453G08 8CLPT-3E 677C453G08 — CLPT 8.3 3E

677C453G09 15CLPT-3E 677C453G09 — CLPT 15.5 3E

677C573G01 8CLE-30E 5981C31G05 — CLE 8.3 30E

677C573G02 8CLE-40E 5981C17G04 — CLE 8.3 40E

677C573G03 8CLE-50E 5981C17G05 — CLE 8.3 50E

677C573G04 8CLE-65E 5981C17G06 — CLE 8.3 65E

677C573G05 8CLE-80E 5981C17G07 — CLE 8.3 80E

677C573G06 8CLE-100E 5981C17G08 — CLE 8.3 100E

677C573G07 8CLE-125E 5981C17G09 — CLE 8.3 125E

677C574G01 8CLE-150E 5981C17G10 — CLE 8.3 150E

677C574G02 8CLE-200E 5981C23G01 — CLE 8.3 200E

677C574G04 8CLE-100E 5981C17G08 — CLE 8.3 100E

677C578G01 5LCLS-18R 304C463G01 — CLS 5.08 18R(390)

677C578G02 5LCLS-24R 304C463G02 — CLS 5.08 24R(450)

677C579G02 5CLE-50E 5981C65G02 — CLE 5.5 50E

677C579G03 5CLE-65E 5981C65G03 — CLE 5.5 65E

677C579G04 5CLE-80E 5981C65G04 — CLE 5.5 80E

677C579G05 5CLE100E 5981C65G05 — CLE 5.5 100E

677C579G06 5CLE-125E 5981C65G06 — CLE 5.5 125E

677C579G07 5CLE-150E 5981C65G07 — CLE 5.5 150E

677C579G08 5CLE-200E 5981C65G08 — CLE 5.5 200E

677C579G09 Obsolete—contact Eaton — 5CLE1-225E — — —

677C579G10 5CLE-30E 5981C29G05 — CLE 5.5 30E

677C580G01 5CLE-250E 5981C65G09 — CLE 5.5 250E

677C580G02 5CLE-300E 5981C67G01 — CLE 5.5 300E

677C580G03 5CLE-350E 5981C67G02 — CLE 5.5 350E

677C580G04 Obsolete—contact Eaton — 5CLE2-365E — — —

677C580G05 5CLE-400E 5981C67G03 — CLE 5.5 400E

677C591G01 2CLE-10E 5981C29G01 — CLE 2.75 10E

677C592G01 2NCLPT-.25E 677C592G01 — CLPT 2.75 0.25E

677C592G02 2NCLPT-.5E 677C592G02 — CLPT 2.75 0.5E

677C592G03 2NCLPT-1E 677C592G03 — CLPT 2.75 1E

677C592G04 2NCLPT-2E 677C592G04 — CLPT 2.75 2E

677C592G05 5NCLPT-.5E 7186A29G01 — CLPT 5.5 0.5E

677C592G06 Obsolete—contact Eaton — 5NCLPT-0.25E — — —

677C592G07 2NCLPT-.5E 677C592G07 — CLPT 2.75 .5E

677C592G08 2NCLPT-5E 677C592G08 — CLPT 2.75 5E

677C592G09 5NCLPT-2E 7186A29G03 — CLPT 5.5 2E

677C592G10 8NCLPT-2E 677C592G10 — CLPT 8.3 2E

677C592G11 8NCLPT-4E 677C592G11 — CLPT 8.3 4E

677C592G12 5NCLPT-4E 7186A29G05 — CLPT 5.5 4E

677C593G01 Obsolete—contact Eaton — 6CLV-2E — — —

677C593G02 Obsolete—contact Eaton — 6CLV-5E — — —

677C593G03 Obsolete—contact Eaton — 6CLV-7E — — —

677C593G04 Obsolete—contact Eaton — 6CLV-10E — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-98 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

677C593G05 Obsolete—contact Eaton — 6CLV-15 — — —

677C593G06 Obsolete—contact Eaton — 6CLV-20 — — —

677C605G01 Obsolete—contact Eaton — 8BA8-NH — — —

677C605G02 Obsolete—contact Eaton — 15BA8-NH — — —

677C605G03 Obsolete—contact Eaton — 25BA8-NH — — —

677C605G04 Obsolete—contact Eaton — 38BA8-NH — — —

678C240G01 2CLE-15E 678C240G01 — CLE 2.75 15E

678C240G02 2CLE-20E 678C240G02 — CLE 2.75 20E

678C240G03 2CLE-25E 678C240G03 — CLE 2.75 25E

678C240G04 5CLE-15E 678C240G04 — CLE 5.5 15E

678C240G05 5CLE-20E 678C240G05 — CLE 5.5 20E

678C240G06 5CLE-25E 678C240G06 — CLE 5.5 25E

678C240G07 8CLE-15E 678C240G07 — CLE 8.3 15E

678C240G08 8CLE-20E 678C240G08 — CLE 8.3 20E

678C240G09 8CLE-25E 678C240G09 — CLE 8.3 25E

678C240G10 15CLE-15E 678C240G10 — CLE 15.5 15E

678C240G11 15CLE-20E 678C240G11 — CLE 15.5 20E

678C240G12 15CLE-25E 678C240G12 — CLE 15.5 25E

678C245G01 Obsolete—contact Eaton — 8CLTB-20 — — —

678C245G02 Obsolete—contact Eaton — 15CLTB-30 — — —

678C245G03 Obsolete—contact Eaton — 12CLTB-30 — — —

678C248G01 2CLT-5 678C248G01 — CLT 2.75 5

678C248G03 8CLT-5 678C248G03 — CLT 8.3 5

678C248G05 5CLT-8 678C248G05 — CLT 5.5 8

678C248G06 8CLT-8 678C248G06 — CLT 8.3 8

678C249G01 2CLT-12 678C249G01 — CLT 2.75 12

678C249G03 5CLT-12 678C249G03 — CLT 5.5 12

678C276G01 2CLT-18 678C276G01 — CLT 2.75 18

678C276G02 5CLT-18 678C276G02 — CLT 5.5 18

678C276G03 8CLT-18 678C276G03 — CLT 8.3 18

678C276G04 2CLT-25 678C276G04 — CLT 2.75 25

678C276G05 5CLT-25 678C276G05 — CLT 5.5 25

678C276G06 8CLT-25 678C276G06 — CLT 8.3 25

678C277G01 2CLT-30 678C277G01 — CLT 2.75 30

678C281G02 5CLE-15E 678C240G04 — CLT 5.5 15

678C282G01 2CLT-75 678C282G01 — CLT 2.75 75

678C283G01 8RBA4-SHNT 678C283G01 — RBA4 8.3 400

678C283G02 15RBA4-SHNT 678C283G02 — RBA5 15.5 400

678C283G03 25RBA4-SHNT 678C283G03 — RBA6 25.5 300

678C283G04 38RBA4-SHNT 678C283G04 — RBA7 38 300

678C283G05 8RBA4-ISHNT 678C283G05 — RBA8 8.3 400

678C283G06 15RBA4-ISHNT 678C283G06 — RBA9 15.5 400

678C283G07 25RBA4-ISHNT 678C283G07 — RBA10 25.5 300

678C283G08 38RBA4-ISHNT 678C283G08 — RBA11 38 300

678C284G01 8RDB4-SHNT 678C284G01 — RBA12 8.3 400

678C284G02 15RDB4-SHNT 678C284G02 — RBA13 15.5 400

678C284G03 25RDB4-SHNT 678C284G03 — RBA14 25.5 300

678C284G04 38RDB4-SHNT 678C284G04 — RBA15 38 300

678C290G01 8CLT-30CL 678C290G01 — CLT 8.3 30

678C292G01 2CLE-450X 449D797G18 — CLE 2.75 450X

678C292G02 5CLE-450E 5981C67G04 — CLE 5.5 450E

678C292G03 5CLE-400E 5981C67G03 — CLE 5.5 400E

678C295G02 15CLT-12 678C295G02 — CLT 15.5 12

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-99

Appendix 2—Superseded Style Number Index

678C295G03 15CLT-8 678C295G03 — CLT 15.5 8

678C295G04 15CLT-5 678C295G04 — CLT 15.5 5

678C295G05 15CLT-4 678C295G05 — CLT 15.5 4

678C295G07 15CLT-10 678C295G07 — CLT 15.5 10

678C305G01 Obsolete—contact Eaton — 5NCLPT-5E special — — —

678C310G01 5AHLE-30E 5981C46G05 — HLE 5.5 30E

678C310G02 5AHLE-50E 5981C46G07 — HLE 5.5 50E

678C310G03 5AHLE-65E 5981C46G08 — HLE 5.5 65E

678C310G04 5AHLE-80E 5981C46G09 — HLE 5.5 80E

678C310G05 5AHLE-100E 5981C46G10 — HLE 5.5 100E

678C310G06 5AHLE-125E 5981C46G11 — HLE 5.5 125E

678C310G07 5AHLE-150E 5981C46G12 — HLE 5.5 150E

678C310G08 5AHLE-200E 5981C46G14 — HLE 5.5 200E

678C310G09 Obsolete—contact Eaton — 5ACLE-225E — — —

680C386G01 8CLT30-CS 680C386G01 — CLT 8.3 30

680C386G02 5CLT-30 680C386G02 — CLT 5.5 30

680C386G03 5CLT-60 680C386G03 — CLT 5.5 60

680C386G04 Obsolete—contact Eaton — 8CLT-60 — — —

680C386G05 5CLT-45 680C386G05 — CLT 5.5 45

680C386G06 8CLT-45 680C386G06 — CLT 8.3 45

680C387G01 2CLT-150 680C387G01 — CLT 2.75 150

680C387G02 2CLT-90 680C387G02 — CLT 2.75 90

6911D50G02 Obsolete—contact Eaton — 15CLTX-15K—spade-to-spade — — —

6911D50G03 Obsolete—contact Eaton — 8CLTX-15K—spade-to-spade — — —

6911D50G04 Obsolete—contact Eaton — 8CLTX-40K—spade-to-spade — — —

6911D50G05 Obsolete—contact Eaton — 15CLTX-40K—spade-to-spade — — —

6911D50G06 Obsolete—contact Eaton — 23CLTX-15K—spade-to-spade — — —

6911D50G07 Obsolete—contact Eaton — 8CLTX-25K—spade-to-spade — — —

6911D50G08 Obsolete—contact Eaton — 15CLTX-25K—spade-to-spade — — —

692C771G01 Obsolete—contact Eaton — DBU condenser — — —

7184A64G01 5CLE-30E 5981C29G05 LCU 30E<=>5CLE-30E fuse private labelled for Littelfuse — — —

7184A64G02 5CLE-50E 5981C65G02 LCU 50E<=>5CLE-50E fuse private labelled for Littelfuse — — —

7184A64G03 5CLE-100E 5981C65G05 LCU 100E<=>5CLE-100E fuse private labelled for

Littelfuse

———

7184A64G04 5CLE-150E 5981C65G07 LCU 150E<=>5CLE-150E fuse private labelled for

Littelfuse

———

7184A64G05 5CLE-200E 5981C65G09 LCU 200E<=>5CLE-200E fuse private labelled for

Littelfuse

———

7184A64G06 Obsolete—contact Eaton — LCU 225E<=>5CLE1-225E fuse private labelled for

Littelfuse

———

7184A64G07 5CLE-300E 5981C67G01 LCU 300E<=>5CLE-300E fuse private labelled for

Littelfuse

———

7184A64G08 5HLE-400E 5981C66G03 LCY 400E<=>5HLE-400E fuse private labelled for

Littelfuse

———

7184A64G09 5CLE-400E 5981C67G03 LCU 400E<=>5CLE-400E fuse private labelled for

Littelfuse

———

7184A64G10 5CLE-600E 449D595G02 LCU 600E<=>5CLE-600E fuse private labelled for

Littelfuse

———

7184A64G11 5CLE-750E 449D595G01 LCU 750E<=>5CLE-750E fuse private labelled for

Littelfuse

———

7184A64G12 15CLE-30E 5981C33G05 LCN 30E<=>5CLE-30E fuse private labelled for Littelfuse — — —

7184A64G13 15CLE-40E 5981C65G01 LCN 34E<=>5CLE-34E fuse private labelled for Littelfuse — — —

7184A64G14 15CLE-50E 5981C65G02 LCN 50E<=>5CLE-35E fuse private labelled for Littelfuse — — —

7184A64G15 15CLE-65E 5981C65G03 LCN 65E<=>5CLE-65E fuse private labelled for Littelfuse — — —

7184A64G16 15CLE2-80E 439D482G04 LCN 80E<=>5CLE-80E fuse private labelled for Littelfuse — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-100 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

7184A64G17 15CLE2-100E 439D482G05 LCN 100E<=>5CLE-100E fuse private labelled for

Littelfuse

———

7184A64G18 15CLE2-125E 439D482G06 LCN 125E<=>5CLE-125E fuse private labelled for

Littelfuse

———

7184A64G19 15CLE3-150E 591C376G02 LCN 150E<=>5CLE-150E fuse private labelled for

Littelfuse

———

7184A64G20 15CLE3-175E 591C376G01 LCN 175E<=>5CLE-175E fuse private labelled for

Littelfuse

———

7184A64G21 2CLE-10E 449D797G11 LCX 10E<=>2CLE-10E fuse private labelled for Littelfuse — — —

7184A64G22 2CLE-15E 678C240G01 LCX 15E<=>2CLE-15E fuse private labelled for Littelfuse — — —

7184A64G23 2CLE-30E 449D797G02 LCX 30E<=>2CLE-30E fuse private labelled for Littelfuse — — —

7184A64G24 2CLE-250E 449D797G13 LCX 250E<=>2CLE-250E fuse private labelled for Littelfuse — — —

7184A64G25 5HLE-65E 5981C64G03 LCY 65E<=>5HLE-65E fuse private labelled for Littelfuse — — —

7184A64G26 5HLE-80E 5981C64G04 LCY 80E<=>5HLE-80E fuse private labelled for Littelfuse — — —

7184A64G27 5HLE-100E 5981C64G05 LCY 100E<=>5HLE-100E fuse private labelled for

Littelfuse

———

7184A64G28 5HLE-125E 5981C64G06 LCY 125E<=>5HLE-125E fuse private labelled for

Littelfuse

———

7184A64G29 5HLE-150E 5981C64G07 LCY 150E<=>5HLE-150E fuse private labelled for

Littelfuse

———

7184A64G30 5HLE-200E 5981C64G09 LCY 200E<=>5HLE-200E fuse private labelled for

Littelfuse

———

7184A64G31 5CLE-200E 5981C65G09 LCU 200E<=>5CLE-200E fuse private labelled for

Littelfuse

———

7184A64G32 8CLE-20E 678C140G08 LCZ 20E<=>8CLE-20E fuse private labelled for Littelfuse — — —

7184A64G33 2CLE-65E 449D797G04 LCX 65E<=>2CLE-65E fuse private labelled for Littelfuse — — —

7184A64G34 2CLE-400X 449D797G17 LCX400X<=>2CLE-400X fuse private labelled for Littelfuse — — —

7184A64G35 2CLE-20E 678C240G02 LCX 20E<=>2CLE-20E fuse private labelled for Littelfuse — — —

7184A64G36 2CLE-25E 678C240G03 LCX 25E<=>2CLE-25E fuse private labelled for Littelfuse — — —

7184A64G37 2CLE-50E 449D797G03 LCX 50E<=>2CLE-50E fuse private labelled for Littelfuse — — —

7184A64G38 2CLE80E 449D797G05 LCX 80E<=>2CLE-80E fuse private labelled for Littelfuse — — —

7184A64G39 2CLE-100E 449D797G06 LCX 100E<=>2CLE-100E fuse private labelled for Littelfuse — — —

7184A64G40 2CLE-125E 449D797G07 LCX 125E<=>2CLE-125E fuse private labelled for Littelfuse — — —

7184A64G41 2CLE-150E 449D797G08 LCX 150E<=>2CLE-150E fuse private labelled for Littelfuse — — —

7184A64G42 2CLE-200E 449D797G09 LCX 200E<=>2CLE-200E fuse private labelled for Littelfuse — — —

7184A64G43 2CLE-300E 449D797G14 LCX 300E<=>2CLE-300E fuse private labelled for Littelfuse — — —

7184A64G44 5CLE-65E 5981C65G03 LCU 65E<=>5CLE-65E fuse private labelled for Littelfuse — — —

7184A64G45 5CLE-80E 5981C65G04 LCU 80E<=>5CLE-80E fuse private labelled for Littelfuse — — —

7184A65G01 2NCLPT-.5E 677C592G02 LCD -1/2E-4<=>2NCLPT-.5E fuse private labelled for

Littelfuse

———

7184A65G02 2NCLPT--1E 677C592G03 LCD -1E-4<=>2NCLPT-1E fuse private labelled for

Littelfuse

———

7184A65G03 2NCLPT-2E 677C592G04 LCD -2E-4<=>2NCLPT-2E fuse private labelled for

Littelfuse

———

7184A65G04 2NCLPT-5E 677C592G08 LCD -5E-4<=>2NCLPT-5E fuse private labelled for

Littelfuse

———

7184A65G05 5CLPT-.5E 677C452G01 LCQ -1/2E-<=>5CLPT-.5E fuse private labelled for

Littelfuse

———

7184A65G06 5NCLPT-.5E 7186A29G01 LCE -1/2E-4<=>5NCLPT-.5E fuse private labelled for

Littelfuse

———

7184A65G07 5CLPT-1E 677C452G01 LCQ -1E-<=>5CLPT-1E fuse private labelled for Littelfuse — — —

7184A65G08 5NCLPT-2E 7186A29G03 LCE -2E-4<=>5NCLPT-2E fuse private labelled for

Littelfuse

———

7184A65G09 5CLPT-5E 677C453G01 LCQ -5E-<=>5CLPT-5E fuse private labelled for Littelfuse — — —

7184A65G10 5CLPT-10E 677C453G04 LCQ -10E-<=>5CLPT-10E fuse private labelled for

Littelfuse

———

7184A65G11 8CLPT-.5E 677C452G02 LCQ -1/2E-<=>8CLPT-.5E fuse private labelled for

Littelfuse

———

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-101

Appendix 2—Superseded Style Number Index

7184A65G12 15CLPT-.5E 677C452G03 LCT -1/2E-<=>15CLPT-.5E fuse private labelled for

Littelfuse

———

7184A65G13 15CLPT-1E 677C452G08 LCT -1E-<=>15CLPT-1E fuse private labelled for Littelfuse — — —

7184A65G14 15CLPT-3E 677C453G09 LCT -3E-<=>15CLPT-3E fuse private labelled for Littelfuse — — —

7184A65G15 15CLPT-5E 677C452G03 LCT -5E-<=>15CLPT-5E fuse private labelled for Littelfuse — — —

7184A65G16 15CLPT-10E 677C452G06 LCT -10E-<=>15CLPT-10E fuse private labelled for

Littelfuse

———

7184A65G17 25CLPT-.5E 677C452G03 LCJ -1/2E-<=>25CLPT-.5E fuse private labelled for

Littelfuse

———

7184A65G18 25CLPT-1E 677C452G08 LCJ -1E-<=>25CLPT-1E fuse private labelled for Littelfuse — — —

7184A66G01 2CLS-2R 591C812G02 LCK -2R-<=>2CLS-2R fuse private labelled for Littelfuse — — —

7184A66G02 2CLS-3R 591C812G03 LCK -3R-<=>2CLS-3R fuse private labelled for Littelfuse — — —

7184A66G03 2CLS-4R 591C812G04 LCK -4R-<=>2CLS-4R fuse private labelled for Littelfuse — — —

7184A66G04 5ACLS-2R 449D597G02 LCL -2R-1-<=>5ACLS-2R fuse private labelled for

Littelfuse

———

7184A66G05 5ACLS-3R 449D597G03 LCL -3R-1-<=>5ACLS-3R fuse private labelled for

Littelfuse

———

7184A66G06 5ACLS-4R 449D597G04 LCL -4R-1-<=>5ACLS-4R fuse private labelled for

Littelfuse

———

7184A66G07 5ACLS-5R 449D597G05 LCL -5R-1-<=>5ACLS-5R fuse private labelled for

Littelfuse

———

7184A66G08 5ACLS-6R 449D597G06 LCL -6R-1-<=>5ACLS-6R fuse private labelled for

Littelfuse

———

7184A66G09 5ACLS-9R 151D933G01 LCL -9R-1-<=>5ACLS-9R fuse private labelled for

Littelfuse

———

7184A66G10 5ACLS-12R 151D933G02 LCL -12R-1-<=>5ACLS-12R fuse private labelled for

Littelfuse

———

7184A66G11 5ACLS-18R 151D933G03 LCL -18R-1-<=>5ACLS-18R fuse private labelled for

Littelfuse

———

7184A66G12 5ACLS-24R 151D933G04 LCL -24R-1-<=>5ACLS-24R fuse private labelled for

Littelfuse

———

7184A66G13 5CLS70-36R 140D045G02 LCL -36R-1-<=>5CLS70-36R fuse private labelled for

Littelfuse

———

7184A66G14 2CLS-5R 591C812G05 LCK -5R-<=>2CLS-5R fuse private labelled for Littelfuse — — —

7184A66G15 2CLS-6R 591C812G06 LCK -6R-<=>2CLS-6R fuse private labelled for Littelfuse — — —

7184A66G16 2CLS-9R 591C812G07 LCK -9R-<=>2CLS-9R fuse private labelled for Littelfuse — — —

7184A66G17 2CLS-12R 591C812G08 LCK -12R-<=>2CLS-12R fuse private labelled for Littelfuse — — —

7184A66G18 2CLS-18R 591C813G01 LCK -18R-<=>2CLS-18R fuse private labelled for Littelfuse — — —

7184A66G19 2CLS-24R 591C813G02 LCK -24R-<=>2CLS-24R fuse private labelled for Littelfuse — — —

7184A66G20 5CLS-2R 151D241G02 LCL-2R<=>5CLS-2R fuse private labelled for Littelfuse — — —

7184A66G21 5CLS-3R 151D241G03 LCL-3R<=>5CLS-3R fuse private labelled for Littelfuse — — —

7184A66G22 5CLS-4R 151D241G04 LC -4R<=>5CLS-4R fuse private labelled for Littelfuse — — —

7184A66G23 5CLS-5R 151D241G05 LC -5R<=>5CLS-5R fuse private labelled for Littelfuse — — —

7184A66G24 5CLS-6R 151D241G06 LCL-6R<=>5CLS-6R fuse private labelled for Littelfuse — — —

7184A66G25 5CLS-9R 151D961G01 LCL-9R<=>5CLS-9R fuse private labelled for Littelfuse — — —

7184A66G26 5CLS-12R 151D961G02 LCL-12R<=>5CLS-12R fuse private labelled for Littelfuse — — —

7184A66G27 5CLS-18R 151D961G03 LCL-18R<=>5CLS-18R fuse private labelled for Littelfuse — — —

7184A66G28 5CLS-24R 151D961G04 LCL-24R<=>5CLS-24R fuse private labelled for Littelfuse — — —

7185A11G01 5HLE-30E 5981C28G03 LCY-30E<=>5HLE-30E fuse private labelled for Littelfuse — — —

7185A11G02 5HLE-40E 5981C64G01 LCY-40E<=>5HLE-340E fuse private labelled for Littelfuse — — —

7185A11G03 5HLE-50E 5981C64G02 LCY-50E<=>5HLE-50E fuse private labelled for Littelfuse — — —

7185A11G04 5HLE-250E 5981C64G10 LCY-250E<=>5HLE-250E fuse private labelled for

Littelfuse

———

7185A11G05 5HLE-300E 5981C66G01 LCY-300E<=>5HLE-300E fuse private labelled for

Littelfuse

———

7185A11G06 5HLE-450E 5981C66G04 LCY-450E<=>5HLE-450E fuse private labelled for

Littelfuse

———

7185A11G07 15HLE-20E 5981C32G03 LDN-20E<=>15HLE-20E fuse private labelled for Littelfuse — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-102 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

7185A11G08 15HLE-25E 5981C32G04 LDN-25E<=>15HLE-25E fuse private labelled for Littelfuse — — —

7185A11G09 15HLE-30E 5981C32G05 LDN-30E<=>15HLE-30E fuse private labelled for Littelfuse — — —

7185A11G10 15HLE-40E 5981C18G04 LDN-40E<=>15HLE-40E fuse private labelled for Littelfuse — — —

7185A11G11 15HLE-50E 5981C18G05 LDN-50E<=>15HLE-50E fuse private labelled for Littelfuse — — —

7185A11G12 15HLE-65E 5981C18G06 LDN-65E<=>15HLE-65E fuse private labelled for Littelfuse — — —

7185A11G13 15HLE-80E 5981C18G07 LDN-80E<=>15HLE-80E fuse private labelled for Littelfuse — — —

7185A11G14 15HLE-100E 5981C18G08 LDN-100E<=>15HLE-100E fuse private labelled for

Littelfuse

———

7185A11G15 15HLE-150E 5981C44G01 LDN-150E<=>15HLE-150E fuse private labelled for

Littelfuse

———

7185A11G16 15HLE-175E 5981C44G02 LDN-175E<=>15HLE-175E fuse private labelled for

Littelfuse

———

7185A11G17 8HLE-25E 5981C30G04 LDZ-25E<=>8HLE-25E fuse private labelled for Littelfuse — — —

7185A11G18 8HLE-30E 5981C30G05 LDZ-30E<=>8HLE-30E fuse private labelled for Littelfuse — — —

7185A11G19 8HLE40E 5981C16G04 LDZ-40E<=>8HLE-40E fuse private labelled for Littelfuse — — —

7185A11G20 8HLE-50E 5981C16G05 LDZ-50E<=>8HLE-50E fuse private labelled for Littelfuse — — —

7185A11G21 8HLE-65E 5981C16G06 LDZ-65E<=>8HLE-65E fuse private labelled for Littelfuse — — —

7185A11G22 8HLE-80E 5981C16G07 LDZ-80E<=>8HLE-80E fuse private labelled for Littelfuse — — —

7185A11G23 8HLE-100E 5981C16G08 LDZ-100E<=>8HLE-100E fuse private labelled for

Littelfuse

———

7185A11G24 8HLE-125E 5981C16G09 LDZ-125E<=>8HLE-125E fuse private labelled for

Littelfuse

———

7185A11G25 8HLE-150E 5981C16G10 LDZ-150E<=>8HLE-30E fuse private labelled for Littelfuse — — —

7185A11G26 8HLE-175E 5981C16G11 LDZ-175E<=>8HLE-175E fuse private labelled for

Littelfuse

———

7185A11G27 8HLE-200E 5981C22G01 LDZ-200E<=>8HLE-200E fuse private labelled for

Littelfuse

———

7185A11G28 8HLE-250E 5981C22G02 LDZ-250E<=>8HLE-250E fuse private labelled for

Littelfuse

———

7185A11G29 8HLE-300E 5981C22G03 LDZ-300E<=>8HLE-300E fuse private labelled for

Littelfuse

———

7185A11G30 8HLE-350E 5981C22G04 LDZ-350E<=>8HLE-350E fuse private labelled for

Littelfuse

———

7185A11G31 8HLE-20E 5981C30G03 LDZ-20E<=>8HLE-20E fuse private labelled for Littelfuse — — —

7185A11G32 8CLE-15E 678C248G07 LCZ-15E<=>8CLE-15E fuse private labelled for Littelfuse — — —

7185A11G33 8CLE-25E 678C248G09 LCZ-25E<=>8CLE-25E fuse private labelled for Littelfuse — — —

7185A11G34 8CLE-30E 5981C32G05 LCZ-30E<=>8CLE-30E fuse private labelled for Littelfuse — — —

7185A11G35 8CLE-40E 5981C17G04 LCZ-40E<=>8CLE-40E fuse private labelled for Littelfuse — — —

7185A11G36 8CLE-50E 5981C17G05 LCZ-50E<=>8CLE-50E fuse private labelled for Littelfuse — — —

7185A11G37 8CLE-65E 5981C17G06 LCZ-65E<=>8CLE-65E fuse private labelled for Littelfuse — — —

7185A11G38 8CLE-80E 5981C17G07 LCZ-80E<=>8CLE-80E fuse private labelled for Littelfuse — — —

7185A11G39 8CLE-100E 5981C17G08 LCZ-100E<=>8CLE-100E fuse private labelled for Littelfuse — — —

7185A11G40 8CLE-125E 5981C17G09 LCZ-125E<=>8CLE-125E fuse private labelled for Littelfuse — — —

7185A11G41 8CLE-150E 5981C17G10 LCZ-150E<=>8CLE-150E fuse private labelled for Littelfuse — — —

7185A11G42 8CLE-200E 5981C23G01 LCZ-200E<=>8CLE-200E fuse private labelled for Littelfuse — — —

7185A43G01 5HLE-10E 5981C28G01 LCY-10E <=> 5HLE-10E-N fuse private labelled for

Littelfuse

———

7185A43G02 5HLE-15E 5981C28G02 LCY-15E <=> 5HLE-15E-N fuse private labelled for

Littelfuse

———

7185A43G03 5HLE-20E 5981C28G03 LCY-20E <=> 5HLE-20E-N fuse private labelled for

Littelfuse

———

7185A43G04 5HLE-25E 5981C28G04 LCY-25E <=> 5HLE-25E-N fuse private labelled for

Littelfuse

———

7185A43G05 5HLE-30E 5981C28G05 LCY-30E <=> 5HLE-30E-N fuse private labelled for

Littelfuse

———

7185A43G06 5HLE-40E 5981C65G01 LCY-40E <=> 5HLE-40E-N fuse private labelled for

Littelfuse

———

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-103

Appendix 2—Superseded Style Number Index

7185A43G07 5HLE-50E 5981C65G02 LCY-50E <=> 5HLE-50E-N fuse private labelled for

Littelfuse

———

7185A43G08 5HLE-65E 5981C65G03 LCY-65E <=> 5HLE-65E-N fuse private labelled for

Littelfuse

———

7185A43G09 5HLE-80E 5981C65G04 LCY-80E <=> 5HLE-80E-N fuse private labelled for

Littelfuse

———

7185A43G10 5HLE-100E 5981C65G05 LCY-100E <=> 5HLE-100E-N fuse private labelled for

Littelfuse

———

7185A44G01 8HLE-10E 5981C30G01 LDZ-10E <=> 8HLE-10E-N fuse private labelled for

Littelfuse

———

7185A44G02 8HLE-15E 5981C30G02 LDZ-15E <=> 8HLE-15E-N fuse private labelled for

Littelfuse

———

7185A44G03 8HLE-20E 5981C30G03 LDZ-20E <=> 8HLE-20E-N fuse private labelled for

Littelfuse

———

7185A44G04 8HLE-25E 5981C30G04 LDZ-25E <=> 8HLE-25E-N fuse private labelled for

Littelfuse

———

7185A44G05 8HLE-30E 5981C30G05 LDZ-30E <=> 8HLE-30E-N fuse private labelled for

Littelfuse

———

7185A44G06 8HLE-40E 5981C16G01 LDZ-40E <=> 8HLE-40E-N fuse private labelled for

Littelfuse

———

7185A44G07 8HLE-50E 5981C16G02 LDZ-50E <=> 8HLE-50E-N fuse private labelled for

Littelfuse

———

7185A44G08 8HLE-65E 5981C16G03 LDZ-65E <=> 8HLE-65E-N fuse private labelled for

Littelfuse

———

7185A44G09 8HLE-80E 5981C16G04 LDZ-80E <=> 8HLE-80E-N fuse private labelled for

Littelfuse

———

7185A44G10 8HLE-100E 5981C16G05 LDZ-100E <=> 8HLE-100E-N fuse private labelled for

Littelfuse

———

7185A45G01 15HLE-10E 5981C32G01 LDN-10E <=> 15HLE-10E-N fuse private labelled for

Littelfuse

———

7185A45G02 15HLE-15E 5981C32G02 LDN-15E <=> 15HLE-15E-N fuse private labelled for

Littelfuse

———

7185A45G03 15HLE-20E 5981C32G03 LDN-20E <=> 15HLE-20E-N fuse private labelled for

Littelfuse

———

7185A45G04 15HLE-25E 5981C32G04 LDN-25E <=> 15HLE-25E-N fuse private labelled for

Littelfuse

———

7185A45G05 15HLE-30E 5981C32G05 LDN-30E <=> 15HLE-30E-N fuse private labelled for

Littelfuse

———

7185A45G06 15HLE-40E 5981C18G01 LDN-40E <=> 15HLE-40E-N fuse private labelled for

Littelfuse

———

7185A45G07 15HLE-50E 5981C18G02 LDN-50E <=> 15HLE-50E-N fuse private labelled for

Littelfuse

———

7185A45G08 15HLE-65E 5981C18G03 LDN-65E <=> 15HLE-65E-N fuse private labelled for

Littelfuse

———

7185A45G09 15HLE-80E 5981C18G04 LDN-80E <=> 15HLE-80E-N fuse private labelled for

Littelfuse

———

7185A45G10 15HLE-100E 5981C18G05 LDN-100E <=> 15HLE-100E-N fuse private labelled for

Littelfuse

———

7185A48G01 5CLE-10E-D 5981C29G01 LCU-10E<=>5CLE-10E-D fuse private labelled for

Littelfuse

———

7185A48G02 5CLE-15E 678C240G04 LCU-15E<=>5CLE-15E fuse private labelled for Littelfuse — — —

7185A48G03 5CLE-20E 678C240G05 LCU-20E<=>5CLE-20E fuse private labelled for Littelfuse — — —

7185A48G04 5CLE-25E 678C240G06 LCU-25E<=>5CLE-25E fuse private labelled for Littelfuse — — —

7185A48G05 5CLE-40E 5981C65G01 LCU-40E<=>5CLE-40E fuse private labelled for Littelfuse — — —

7185A48G06 5CLE-125E 5981C65G06 LCU-125E<=>5CLE-125E fuse private labelled for

Littelfuse

———

7185A48G07 15CLE-15E 678C240G10 LCN-15E<=>15CLE-15E fuse private labelled for Littelfuse — — —

7185A48G08 15CLE-20E 678C240G11 LCN-20E<=>15CLE-20E fuse private labelled for Littelfuse — — —

7185A48G09 15CLE-25E 678C240G12 LCN-25E<=>15CLE-25E fuse private labelled for Littelfuse — — —

7185A48G10 15CLE-80E 5981C19G07 LCN-80ES<=>15CLE-80E fuse private labelled for

Littelfuse

———

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-104 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

7185A48G11 15CLE-100E 5981C19G08 LCN-100ES<=>15CLE-100E fuse private labelled for

Littelfuse

———

7185A48G12 15CLE-125E 5981C19G09 LCN-125ES<=>15CLE-125E fuse private labelled for

Littelfuse

———

7185A48G13 15CLE-150E 5981C19G10 LCN-150ES<=>15CLE-150E fuse private labelled for

Littelfuse

———

7185A48G14 15CLE-175E 5982C25G01 LCN-175ED<=>15CLE-175E fuse private labelled for

Littelfuse

———

7185A48G15 15CLE-200E 5982C25G02 LCN-200ED<=>15CLE-200E fuse private labelled for

Littelfuse

———

7185A48G16 15CLE-250E 5982C25G03 LCN-250ED<=>15CLE-250E fuse private labelled for

Littelfuse

———

7185A48G17 15CLE-300E 5982C25G04 LCN-300ED<=>15CLE-300E fuse private labelled for

Littelfuse

———

7185A48G18 5CLE-175E 5981C65G08 LCU-175E<=>5CLE-175E fuse private labelled for

Littelfuse

———

7185A48G19 5CLE-250E 5981C65G10 LCU-250ES<=>5CLE-250E fuse private labelled for

Littelfuse

———

7185A48G20 5CLE-350X 5981C67G02 LCU-350X<=>5CLE-350E fuse private labelled for

Littelfuse

———

7185A48G21 Obsolete—contact Eaton — — — — —

7185A48G22 5CLE-450E 5981C67G04 LCU-450X<=>5CLE-450E fuse private labelled for

Littelfuse

———

7185A48G23 Obsolete—contact Eaton — — — — —

7185A48G24 Obsolete—contact Eaton — — — — —

7185A48G25 8CLE-175E 5981C17G11 LCZ-175E <=> 8CLE-175E fuse private labelled for

Littelfuse

———

7185A48G26 5CL5-350E 5981C67G02 LCU-350E <=> 5CLE-350E fuse private labelled for

Littelfuse

———

7185A48G27 5HLE-175E 5981C64G08 LCY-175E <=>5CLE-175E fuse private labelled for

Littelfuse

———

7185A48G28 5HLE-350E 5981C66G02 LCY-350E <=> 5CLE-350E fuse private labelled for

Littelfuse

———

7185A40G01 5HLE-10E 5981C28G01 — HLE 5.5 10E

7185A40G02 5HLE-15E 5981C28G02 — HLE 5.5 15E

7185A40G03 5HLE-20E 5981C28G03 — HLE 5.5 20E

7185A40G04 5HLE-25E 5981C28G04 — HLE 5.5 25E

7185A40G05 5HLE-30E 5981C28G05 — HLE 5.5 30E

7185A40G06 5HLE-40E 5981C64G01 — HLE 5.5 40E

7185A40G07 5HLE-50E 5981C64G02 — HLE 5.5 50E

7185A40G08 5HLE-65E 5981C64G03 — HLE 5.5 65E

7185A40G09 5HLE-80E 5981C64G04 — HLE 5.5 80E

7185A40G10 5HLE-100E 5981C64G05 — HLE 5.5 100E

7185A40G11 5AHLE-10E 5981C64G01 — HLE 5.5 10E

7185A40G12 5AHLE-15E 5981C64G02 — HLE 5.5 15E

7185A40G13 5AHLE-20E 5981C64G03 — HLE 5.5 20E

7185A40G14 5AHLE-25E 5981C64G04 — HLE 5.5 25E

7185A40G15 5AHLE-30E 5981C64G05 — HLE 5.5 30E

7185A40G16 5AHLE-40E 5981C64G06 — HLE 5.5 40E

7185A40G17 5AHLE-50E 5981C64G07 — HLE 5.5 50E

7185A40G18 5AHLE-65E 5981C64G08 — HLE 5.5 65E

7185A40G19 5AHLE-80E 5981C64G09 — HLE 5.5 80E

7185A40G20 5AHLE-100E 5981C64G10 — HLE 5.5 100E

7185A41G01 8HLE-10E 5981C30G01 — HLE 8.3 10E

7185A41G02 8HLE-15E 5981C30G02 — HLE 8.3 15E

7185A41G03 8HLE-20E 5981C30G03 — HLE 8.3 20E

7185A41G04 8HLE-25E 5981C30G04 — HLE 8.3 25E

7185A41G05 8HLE-30E 5981C30G05 — HLE 8.3 30E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-105

Appendix 2—Superseded Style Number Index

7185A41G06 8HLE-40E 5981C16G04 — HLE 8.3 40E

7185A41G07 8HLE-50E 5981C16G05 — HLE 8.3 50E

7185A41G08 8HLE-65E 5981C16G06 — HLE 8.3 65E

7185A41G09 8HLE-80E 5981C16G07 — HLE 8.3 80E

7185A41G10 8HLE-100E 5981C16G08 — HLE 8.3 100E

7185A41G11 8AHLE-10E 5981C47G01 — HLE 8.3 10E

7185A41G12 8AHLE-15E 5981C47G02 — HLE 8.3 15E

7185A41G13 8AHLE-20E 5981C47G03 — HLE 8.3 20E

7185A41G14 8AHLE-25E 5981C47G04 — HLE 8.3 25E

7185A41G15 8AHLE-30E 5981C47G05 — HLE 8.3 30E

7185A41G16 8AHLE-40E 5981C47G06 — HLE 8.3 40E

7185A41G17 8AHLE-50E 5981C47G07 — HLE 8.3 50E

7185A41G18 8AHLE-65E 5981C47G08 — HLE 8.3 65E

7185A41G19 8AHLE-80E 5981C47G09 — HLE 8.3 80E

7185A41G20 8AHLE-100E 5981C47G10 — HLE 8.3 100E

7185A42G01 15HLE-10E 5981C32G01 — HLE 15.5 10E

7185A42G02 15HLE-15E 5981C32G02 — HLE 15.5 15E

7185A42G03 15HLE-20E 5981C32G03 — HLE 15.5 20E

7185A42G04 15HLE-25E 5981C32G04 — HLE 15.5 25E

7185A42G05 15HLE-30E 5981C32G05 — HLE 15.5 30E

7185A42G06 15HLE-40E 5981C18G04 — HLE 15.5 40E

7185A42G07 15HLE-50E 5981C18G05 — HLE 15.5 50E

7185A42G08 15HLE-65E 5981C18G06 — HLE 15.5 65E

7185A42G09 15HLE-80E 5981C18G07 — HLE 15.5 80E

7185A42G10 15HLE-100E 5981C18G08 — HLE 15.5 100E

7186A29G01 5NCLPT-.5E 7186A29G01 — CLPT 5.5 .5E

7186A29G02 5NCLPT-1E 7186A29G02 — CLPT 5.5 1E

7186A29G03 5NCLPT-2E 7186A29G03 — CLPT 5.5 2E

7186A29G04 5NCLPT-3E 7186A29G04 — CLPT 5.5 3E

7186A29G05 5NCLPT-4E 7186A29G05 — CLPT 5.5 4E

7186A29G06 5NCLPT-5E 7186A29G06 — CLPT 5.5 5E

7186A29G11 317A487H02 7186A29G11 — CLPT 5.5 .5E

7186A29G12 317A487H06 7186A29G12 — CLPT 5.5 1E

7186A29G13 317A487H03 7186A29G13 — CLPT 5.5 2E

7186A29G14 317A487H04 7186A29G14 — CLPT 5.5 3E

7186A29G15 317A487H05 7186A29G15 — CLPT 5.5 5E

7187A11G01 DBU-EFID 7187A11G04 — DBU — 200

7187A11G02 DBU-EFOD 7187A11G02 — DBU — 200

7187A11G03 DBU-EFID 7187A11G04 — DBU — 200

7187A11G04 DBU-EFID 7187A11G04 — DBU — 200

722C373A02 2CLE-30E 449D797G02 — CLE 2.75 30E

722C373A04 2CLE-50E 449D797G03 — CLE 2.75 50E

722C373A05 2CLE-65E 449D797G04 — CLE 2.75 65E

722C373A06 2CLE-80E 449D797G05 — CLE 2.75 80E

722C373A07 2CLE-100E 449D797G06 — CLE 2.75 100E

722C373A08 2CLE-125E 449D797G07 — CLE 2.75 125E

722C373A09 2CLE-150E 449D797G08 — CLE 2.75 150E

722C373A10 2CLE-200E 449D797G09 — CLE 2.75 200E

726C972A02 5CLE-30E 5981C29G05 — CLE 5.5 30E

726C972A04 5CLE-50E 5981C65G02 — CLE 5.5 50E

726C972A05 5CLE-65E 5981C65G03 — CLE 5.5 65E

726C972A06 5CLE-80E 5981C65G04 — CLE 5.5 80E

726C972A07 5CLE100E 5981C65G05 — CLE 5.5 100E

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-106 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

726C972A08 5CLE-125E 5981C65G06 — CLE 5.5 125E

726C972A09 5CLE-150E 5981C65G07 — CLE 5.5 150E

726C972A10 5CLE-200E 5981C65G09 — CLE 5.5 200E

726C973A01 8CLE-30E 5981C31G05 — CLE 8.3 30E

726C973A02 8CLE-40E 5981C17G04 — CLE 8.3 40E

726C973A03 8CLE-50E 5981C17G05 — CLE 8.3 50E

726C973A04 8CLE-65E 5981C17G06 — CLE 8.3 65E

726C973A05 8CLE-80E 5981C17G07 — CLE 8.3 80E

726C973A06 8CLE-100E 5981C17G08 — CLE 8.3 100E

726C974A02 15CLE-30E 5981C33G05 — CLE 15.5 30E

726C974A03 15CLE-40E 5981C19G04 — CLE 15.5 40E

726C974A04 15CLE-50E 5981C19G05 — CLE 15.5 50E

726C974A05 15CLE-65E 5981C19G06 — CLE 15.5 65E

726C974A06 15CLE-80E 5981C19G07 — CLE 15.5 80E

726C974A07 15CLE-100E 5981C19G08 — CLE 15.5 100E

7275A85G02 CXN-CLMP 7275A85G02 — CXN — —

7276A67G01 15RBA2-DL 9078A26A01 — RBA2 — 200

7276A67G02 15RBA4-DL 9078A20A01 — RBA2 — 200

7276A67G03 38RBA2-DL 9078A26A02 — RBA4 — 400

7276A67G04 38RBA4-DL 9078A20A02 — RBA4 — 300

758C433A21 15CLPT-.5E 677C452G03 — CLPT 15.5 0.5

758C433A39 2CLE-15E 678C240G01 — CLE 2.75 15E

758C433A40 2CLE-20E 678C240G02 — CLE 2.75 20E

758C433A41 2CLE-25E 678C240G03 — CLE 2.75 25E

758C433A42 5CLE-15E 678C240G04 — CLE 5.5 15E

758C433A43 5CLE-20E 678C240G05 — CLE 5.5 20E

758C433A44 5CLE-25E 678C240G06 — CLE 5.5 25E

758C433A45 8CLE-15E 678C240G07 — CLE 8.3 15E

758C433A46 8CLE-20E 678C240G08 — CLE 8.3 20E

758C433A47 8CLE-25E 678C240G09 — CLE 8.3 25E

758C433A48 15CLE-15E 678C240G10 — CLE 15.5 15E

758C433A49 15CLE-20E 678C240G11 — CLE 15.5 20E

758C433A50 15CLE-25E 678C240G12 — CLE 15.5 25E

853C830G02 2NCLPT-1E 677C592G03 — CLPT 2.75 1

853C830G03 2NCLPT-.5E 677C592G02 — CLPT 2.75 0.5

853C830G07 5NCLPT-.5E 677C592G06 — CLPT 5.5 0.5

853C832G01 Obsolete—contact Eaton — 6CLV-2E — — —

853C832G02 Obsolete—contact Eaton — 6CLV-5E — — —

853C832G03 Obsolete—contact Eaton — 6CLV-7E — — —

853C832G04 Obsolete—contact Eaton — 6CLV-10E — — —

9078A19G01 5RBA4-PDM 9078A19G01 — RBA4 5.5 400

9078A19G02 5RBA4-GDM 9078A19G02 — RBA4 5.5 400

9078A19G03 14RBA4-PDM 9078A19G03 — RBA4 15.5 400

9078A19G04 14RBA4-GDM 9078A19G04 — RBA4 15.5 400

9078A19G05 15RBA4-PDM 9078A19G05 — RBA4 15.5 400

9078A19G06 25RBA4-PDM 9078A19G06 — RBA4 25.5 300

9078A19G07 38RBA4-PDM 9078A19G07 — RBA4 38 300

9078A19G08 8RBA4-PDM 9078A19G08 — RBA4 8.3 400

9078A19G09 8RBA4-GDM 9078A19G09 — RBA4 8.3 400

9078A20A01 15RBA4-DL 9078A20A01 — RBA4 15.5 400

9078A20A02 38RBA4-DL 9078A20A02 — RBA4 38 300

9078A20A03 15RBA4-LBDL 9078A20A03 — RBA4 15.5 400

9078A25G01 5RBA2-PDM 9078A25G01 — RBA2 5.5 200

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-107

Appendix 2—Superseded Style Number Index

9078A25G02 5RBA2-GDM 9078A25G02 — RBA2 5.5 200

9078A25G03 14RBA2-PDM 9078A25G03 — RBA2 15.5 200

9078A25G04 14RBA2-GDM 9078A25G04 — RBA2 15.5 200

9078A25G05 15RBA2-PDM 9078A25G05 — RBA2 15.5 200

9078A25G06 25RBA2-PDM 9078A25G06 — RBA2 25.5 200

9078A25G07 38RBA2-PDM 9078A25G07 — RBA2 38 200

9078A25G08 8RBA2-PDM 9078A25G08 — RBA2 8.3 200

9078A25G09 8RBA2-GDM 9078A25G09 — RBA2 8.3 200

9078A26A01 15RBA2-DL 9078A26A01 — RBA2 15.5 200

9078A26A02 38RBA2-DL 9078A26A02 — RBA2 38 200

9078A26A03 15RBA2-LBDL 9078A26A03 — RBA2 15.5 200

9078A30A01 38RBA2-NL 9078A30A01 — RBA2 38 200

9078A30A02 15RBA2-NL 9078A30A02 — RBA2 15.5 200

9078A30A03 38RBA4-NL 9078A30A03 — RBA4 38 300

9078A30A04 15RBA4-NL 9078A30A04 — RBA4 15.5 400

9078A30A05 38RBA8-NL 9078A30A05 — RBA8 38 540

9078A30A06 15RBA8-NL 9078A30A06 — RBA8 15.5 720

9078A33G01 5RBA2-PNM 9078A33G01 — RBA2 5.5 200

9078A33G02 8RBA2-PNM 9078A33G02 — RBA2 8.3 200

9078A33G03 14RBA2-PNM 9078A33G03 — RBA2 15.5 200

9078A33G04 25RBA2-PNM 9078A33G04 — RBA2 25.5 200

9078A33G05 38RBA2-PNM 9078A33G05 — RBA2 38 200

9078A33G06 5RBA4-PNM 9078A33G06 — RBA4 5.5 400

9078A33G07 8RBA4-PNM 9078A33G07 — RBA4 8.3 400

9078A33G08 14RBA4-PNM 9078A33G08 — RBA4 15.5 400

9078A33G09 25RBA4-GNM 9078A33G09 — RBA4 25.5 300

9078A33G10 38RBA4-GNM 9078A33G10 — RBA4 38 300

9078A33G11 5RBA8-PNM 9078A33G11 — RBA8 5.5 720

9078A33G12 8RBA8-PNM 9078A33G12 — RBA8 8.3 720

9078A33G13 14RBA8-PNM 9078A33G13 — RBA8 15.5 720

9078A33G14 25RBA8-GNM 9078A33G14 — RBA8 25.5 540

9078A33G15 38RBA8-GNM 9078A33G15 — RBA8 38 540

9078A33G16 5RBA2-GNM 9078A33G16 — RBA2 5.5 200

9078A33G17 8RBA2-GNM 9078A33G17 — RBA2 8.3 200

9078A33G18 14RBA2-GNM 9078A33G18 — RBA2 15.5 200

9078A33G19 5RBA4-GNM 9078A33G19 — RBA4 5.5 400

9078A33G20 8RBA4-GNM 9078A33G20 — RBA4 8.3 400

9078A33G21 14RBA4-GNM 9078A33G21 — RBA4 15.5 400

9078A33G22 5RBA8-GNM 9078A33G22 — RBA8 5.5 720

9078A33G23 8RBA8-GNM 9078A33G23 — RBA8 8.3 720

9078A33G24 14RBA8-GNM 9078A33G24 — RBA8 15.5 720

9078A33G25 15RBA2-PNM 9078A33G25 — RBA2 15.5 200

9078A33G26 15RBA4-PNM 9078A33G26 — RBA4 15.5 400

9078A33G27 15RBA8-PNM 9078A33G27 — RBA8 15.5 720

9078A63G01 CLPT-DF 9078A63G01 — CLPT — 10

9078A63G02 CLE-DF-C 9078A63G02 — CLE — 25

9078A63G03 CLE-DF-D 9078A63G03 — CLE — 250

9078A63G04 CLE-DF-E 9078A63G04 — CLE — 450

9078A64G01 CLPT-DL 9078A64G01 — CLPT — 10

9078A64G02 CLE-DL-C 9078A64G02 — CLE — 25

9078A64G03 CLE-DL-D 9078A64G03 — CLE — 250

9078A64G04 CLE-DL-E 9078A64G04 — CLE — 450

9078A64G12 9078A64G12 9078A64G12 Special mounting for triple barrel 15CLE3 fuse CLE — 200

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-108 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

9078A64G14 25CLPT-DL 9078A64G14 — CLPT 25.5 1

9078A65G01 5CLPT-PDM-A 9078A65G01 — CLPT 5.5 10

9078A65G02 8CLPT-PDM-A 9078A65G02 — CLPT 8.3 10

9078A65G03 15CLPT-PDM-A 9078A65G03 — CLPT 15.5 10

9078A65G04 15CLPT-HPDM-A 9078A65G04 — CLPT 15.5 10

9078A65G05 25CLPT-HPDM-A 9078A65G05 — CLPT 25.5 1

9078A65G06 5CLPT-PDM-A 9078A65G06 — CLPT 5.5 10

9078A65G07 8CLPT-PDM-B 9078A65G07 — CLPT 8.3 10

9078A65G08 15CLPT-PDM-B 9078A65G08 — CLPT 15.5 10

9078A65G09 15CLPT-HPDM-B 9078A65G09 — CLPT 15.5 10

9078A65G10 2CLE-PDM-C 9078A65G10 — CLE 2.75 25

9078A65G11 5CLE-PDM-C 9078A65G11 — CLE 5.5 25

9078A65G12 8CLE-PDM-C 9078A65G12 — CLE 8.3 25

9078A65G13 15CLE-PDM-C 9078A65G13 — CLE 15.5 25

9078A65G14 15CLE-HPDM-C 9078A65G14 — CLE 15.5 25

9078A65G15 2CLE-PDM-D 9078A65G15 — CLE 2.75 250

9078A65G16 5CLE-PDM-D 9078A65G16 — CLE 5.5 250

9078A65G17 8CLE-PDM-D 9078A65G17 — CLE 8.3 175

9078A65G18 15CLE-PDM-D 9078A65G18 — CLE 15.5 150

9078A65G19 15CLE-HPDM-D 9078A65G19 — CLE 15.5 150

9078A65G20 2CLE-PDM-E 9078A65G20 — CLE 2.75 450

9078A65G21 5CLE-PDM-E 9078A65G21 — CLE 5.5 450

9078A65G22 8CLE-PDM-E 9078A65G22 — CLE 8.3 350

9078A65G23 15CLE-PDM-E 9078A65G23 — CLE 15.5 300

9078A65G24 5CLPT-GDM-A 9078A65G24 — CLPT 5.5 10

9078A65G25 8CLPT-GDM-A 9078A65G25 — CLPT 8.3 2

9078A65G26 15CLPT-GDM-A 9078A65G26 — CLPT 15.5 2

9078A65G27 5CLPT-GDM-A 9078A65G27 — CLPT 5.5 10

9078A65G28 8CLPT-GDM-B 9078A65G28 — CLPT 8.3 10

9078A65G29 15CLPT-GDM-B 9078A65G29 — CLPT 15.5 10

9078A65G30 2CLE-GDM-C 9078A65G30 — CLE 2.75 25

9078A65G31 5CLE-GDM-C 9078A65G31 — CLE 5.5 25

9078A65G32 8CLE-GDM-C 9078A65G32 — CLE 8.3 25

9078A65G33 15CLE-GDM-C 9078A65G33 — CLE 15.5 25

9078A65G34 2CLE-GDM-D 9078A65G34 — CLE 2.75 250

9078A65G35 5CLE-GDM-D 9078A65G35 — CLE 5.5 250

9078A65G36 8CLE-GDM-D 9078A65G36 — CLE 8.3 175

9078A65G37 15CLE-GDM-D 9078A65G37 — CLE 15.5 150

9078A65G38 2CLE-GDM-E 9078A65G38 — CLE 2.75 450

9078A65G39 5CLE-GDM-E 9078A65G39 — CLE 5.5 450

9078A65G40 8CLE-GDM-E 9078A65G40 — CLE 8.3 350

9078A67G01 CLPT-NL 9078A67G01 — CLPT — 10

9078A67G02 CLE-NL-C 9078A67G02 — CLE — 25

9078A67G03 CLE-NL-D 9078A67G03 — CLE — 250

9078A67G04 CLE-NL-E 9078A67G04 — CLE — 450

9078A67G05 9078A67G05 9078A67G05 Special live parts for triple barrel 15CLE3 fuse CLE 15.5 200

9078A67G12 25CLPT-NL 9078A67G12 — CLPT 25.5 1

9078A67G15 CLE-NLC-E 9078A67G15 — CLE — 450

9078A67G16 CLPT-NLC 9078A67G16 — CLE — 25

9078A67G17 CLE-NLC-C 9078A67G17 — CLE — 25

9078A67G20 CLE-NLC-D 9078A67G20 — CLE — 250

9078A68G01 5CLPT-PNM-A 9078A68G01 — CLPT 5.5 10

9078A68G02 8CLPT-PNM-A 9078A68G02 — CLPT 8.3 1.5

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-109

Appendix 2—Superseded Style Number Index

9078A68G03 15CLPT-PNM-A 9078A68G03 — CLPT 15.5 1.5

9078A68G04 15CLPT-HPNM-A 9078A68G04 — CLPT 15.5 1.5

9078A68G05 25CLPT-HPNM-A 9078A68G05 — CLPT 25.5 1

9078A68G06 5CLPT-PNM-A 9078A68G06 — CLPT — —

9078A68G07 8CLPT-PNM-B 9078A68G07 — CLPT 8.3 10

9078A68G08 15CLPT-PNM-B 9078A68G08 — CLPT 15.5 10

9078A68G09 15CLPT-HPNM-B 9078A68G09 — CLPT 15.5 10

9078A68G10 2CLE-PNM-C 9078A68G10 — CLE 2.75 25

9078A68G11 5CLE-PNM-C 9078A68G11 — CLE 5.5 25

9078A68G12 8CLE-PNM-C 9078A68G12 — CLE 8.3 25

9078A68G13 15CLE-PNM-C 9078A68G13 — CLE 15.5 25

9078A68G14 15CLE-HPNM-C 9078A68G14 — CLE 15.5 25

9078A68G15 2CLE-PNM-D 9078A68G15 — CLE 2.75 250

9078A68G16 5CLE-PNM-D 9078A68G16 — CLE 5.5 250

9078A68G17 8CLE-PNM-D 9078A68G17 — CLE 8.3 175

9078A68G18 15CLE-PNM-D 9078A68G18 — CLE 15.5 150

9078A68G19 15CLE-HPNM-D 9078A68G19 — CLE 15.5 150

9078A68G20 2CLE-PNM-E 9078A68G20 — CLE 2.75 450

9078A68G21 5CLE-PNM-E 9078A68G21 — CLE 5.5 450

9078A68G22 8CLE-PNM-E 9078A68G22 — CLE 8.3 350

9078A68G23 15CLE-PNM-E 9078A68G23 — CLE 15.5 300

9078A68G24 9078A68G24 9078A68G24 Special mounting for triple barrel 15CLE3 fuse CLE 15.5 200

9078A68G25 5CLPT-GNM-A 9078A68G25 — CLPT 5.5 10

9078A68G26 8CLPT-GNM-A 9078A68G26 — CLPT 8.3 2

9078A68G27 15CLPT-GNM-A 9078A68G27 — CLPT 15.5 2

9078A68G28 5CLPT-GNM-A 9078A68G28 — — — —

9078A68G29 8CLPT-GNM-B 9078A68G29 — CLPT 8.3 10

9078A68G30 15CLPT-GNM-B 9078A68G30 — CLPT 15.5 10

9078A68G31 2CLE-GNM-C 9078A68G31 — CLE 2.75 25

9078A68G32 5CLE-GNM-C 9078A68G32 — CLE 5.5 25

9078A68G33 8CLE-GNM-C 9078A68G33 — CLE 8.3 25

9078A68G34 15CLE-GNM-C 9078A68G34 — CLE 15.5 25

9078A68G35 2CLE-GNM-D 9078A68G35 — CLE 2.75 250

9078A68G36 5CLE-GNM-D 9078A68G36 — CLE 5.5 250

9078A68G37 8CLE-GNM-D 9078A68G37 — CLE 8.3 175

9078A68G38 15CLE-GNM-D 9078A68G38 — CLE 15.5 150

9078A68G39 2CLE-GNM-E 9078A68G39 — CLE 2.75 450

9078A68G40 5CLE-GNM-E 9078A68G40 — CLE 5.5 450

9078A68G41 8CLE-GNM-E 9078A68G41 — CLE 8.3 350

9078A68G42 25CLPT-PNM 9078A68G42 — CLPT 25.5 1

9078A69G01 2CLE-PDM-D 9078A69G01 — CLE 2.75 250

9078A69G02 5CLE-PDM-D 9078A69G02 — CLE 5.5 250

9078A69G03 5CLS-HPDM-D 9078A69G03 — CLS 5.08 230

9078A69G04 9078A69G04 9078A69G04 Heavy duty hinge and contacts CLE 2.75 250

9078A69G05 9078A69G05 9078A69G05 Heavy duty hinge and contacts CLE 5.5 250

9078A69G06 9078A69G06 9078A69G06 Heavy duty hinge and contacts CLS 5.08 230

9078A69G07 2CLE-PDM-E 9078A69G07 — CLE 2.75 450

9078A69G08 5CLE-PDM-E 9078A69G08 — CLE 5.5 450

9078A69G09 5CLS-HPDM-E 9078A69G09 — CLS 5.08 480

9078A69G10 2CLE-GDM-D 9078A69G10 — CLE 2.75 250

9078A69G11 5CLE-GDM-D 9078A69G11 — CLE 5.5 250

9078A69G12 5CLS-HGDM-D 9078A69G12 — CLS 5.08 230

9078A69G13 9078A69G13 9078A69G13 Heavy duty hinge and contacts CLE 2.75 250

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

V14-A2-110 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 2—Superseded Style Number Index

9078A69G14 9078A69G14 9078A69G14 Heavy duty hinge and contacts CLE 5.5 250

9078A69G15 9078A69G15 9078A69G15 Heavy duty hinge and contacts CLS 5.08 230

9078A69G16 2CLE-GDM-E 9078A69G16 — CLE 2.75 450

9078A69G17 5CLE-GDM-E 9078A69G17 — CLE 5.5 450

9078A69G18 5CLS-HGDM-E 9078A69G18 — CLS 5.08 480

9078A70G01 Obsolete—contact Eaton — Glass polyester insulator mounting for CLE-750E — — —

9078A70G02 Obsolete—contact Eaton — Porcelain insulator mounting for CLE-750E — — —

9570D04G01 Obsolete—contact Eaton — 8CLTX-15K—comb. fuse and term. — — —

9570D04G02 Obsolete—contact Eaton — 8CLTX-15K—comb. fuse and term. — — —

9570D04G03 Obsolete—contact Eaton — 8CLTX-25K—comb. fuse and term. — — —

9570D04G04 Obsolete—contact Eaton — 8CLTX-25K—comb. fuse and term. — — —

9570D04G05 Obsolete—contact Eaton — 8CLTX-40K—comb. fuse and term. — — —

9570D04G06 Obsolete—contact Eaton — 8CLTX-40K—comb. fuse and term. — — —

9570D04G11 Obsolete—contact Eaton — 8CLTX-15K—comb. fuse and term. — — —

9570D04G12 Obsolete—contact Eaton — 8CLTX-15K—comb. fuse and term. — — —

9570D04G16 Obsolete—contact Eaton — 8CLTX-25K—comb. fuse and term. — — —

9570D04G17 Obsolete—contact Eaton — 8CLTX-25K—comb. fuse and term. — — —

9570D04G21 Obsolete—contact Eaton — 8CLTX-40K—comb. fuse and term. — — —

9570D04G22 Obsolete—contact Eaton — 8CLTX-40K—comb. fuse and term. — — —

9570D04G36 Obsolete—contact Eaton — 15CLTX-15K—comb. fuse and term. — — —

9570D04G37 Obsolete—contact Eaton — 15CLTX-15K—comb. fuse and term. — — —

9570D04G38 Obsolete—contact Eaton — 15CLTX-25K—comb. fuse and term. — — —

9570D04G39 Obsolete—contact Eaton — 15CLTX-25K—comb. fuse and term. — — —

9570D04G40 Obsolete—contact Eaton — 15CLTX-40K—comb. fuse and term. — — —

9570D04G41 Obsolete—contact Eaton — 15CLTX-40K—comb. fuse and term. — — —

9570D04G51 Obsolete—contact Eaton — 15CLTX-15K—comb. fuse and term. — — —

9570D04G52 Obsolete—contact Eaton — 15CLTX-15K—comb. fuse and term. — — —

9570D04G56 Obsolete—contact Eaton — 15CLTX-25K—comb. fuse and term. — — —

9570D04G57 Obsolete—contact Eaton — 15CLTX-25K—comb. fuse and term. — — —

9570D04G61 Obsolete—contact Eaton — 15CLTX-40K—comb. fuse and term. — — —

9570D04G62 Obsolete—contact Eaton — 15CLTX-40K—comb. fuse and term. — — —

9570D04G76 Obsolete—contact Eaton — 23CLTX-15K—comb. fuse and term. — — —

9570D04G77 Obsolete—contact Eaton — 23CLTX-15K—comb. fuse and term. — — —

9570D04G83 Obsolete—contact Eaton — 23CLTX-15K—comb. fuse and term. — — —

9570D04G84 Obsolete—contact Eaton — 23CLTX-15K—comb. fuse and term. — — —

9570D05G02 15CXN-GNM-G 9570D05G02 — CXN 15.5 —

9570D05G06 15CXN-NL-G 9570D05G06 — CXN 15.5 —

9570D06G01 15CXN-GDM-G 9570D06G01 — CXN 15.5 —

9570D06G03 15CXN-DL-G 9570D06G03 — CXN 15.5 —

9570D06G05 15CXN-DF-G 9570D06G05 — CXN 15.5 —

9570D10G01 15CLT-30 9570D10G01 — CLT 15.5 30

9570D33G01 15CXN-GNM-F 9570D33G01 — CXN 15.5 —

9570D33G02 15CXN--NL-F 9570D33G02 — CXN 15.5 —

9570D33G03 15CXN-GNM-D 9570D33G03 — CXN 15.5 —

9570D33G04 5CXN-NL-D 9570D33G04 — CXN 15.5 —

9570D34G01 15CXN-GDM-F 9570D34G01 — CXN 15.5 —

9570D34G02 15CXN-DL-F 9570D34G02 — CXN 15.5 —

9570D56G01 Obsolete—contact Eaton — 8CLTX-15K—spade-to-spade — — —

9570D56G02 Obsolete—contact Eaton — 8CLTX-15K—spade-to-stud — — —

9570D56G03 Obsolete—contact Eaton — 8CLTX-40K—spade-to-spade — — —

9570D56G04 Obsolete—contact Eaton — 8CLTX-40K—spade-to-stud — — —

9570D56G05 Obsolete—contact Eaton — 8CLTX-25K—spade-to-spade — — —

9570D56G06 Obsolete—contact Eaton — 8CLTX-25K—spade-to-stud — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A2-111

Appendix 2—Superseded Style Number Index

9570D56G09 Obsolete—contact Eaton — 15CLTX-15K—spade-to-spade — — —

9570D56G10 Obsolete—contact Eaton — 15CLTX-15K—spade-to-stud — — —

9570D56G11 Obsolete—contact Eaton — 15CLTX-25K—spade-to-spade — — —

9570D56G12 Obsolete—contact Eaton — 15CLTX-25K—spade-to-stud — — —

9570D56G13 Obsolete—contact Eaton — 15CLTX-40K—spade-to-spade — — —

9570D56G14 Obsolete—contact Eaton — 15CLTX-40K—spade-to-stud — — —

9570D56G15 Obsolete—contact Eaton — 23CLTX-15K—spade-to-spade — — —

9570D56G16 Obsolete—contact Eaton — 23CLTX-15K—spade-to-stud — — —

9570D64G01 5BCLS-32R 9570D64G01 — — — —

9570D64G02 5BCLS-36R 9570D64G02 — — — —

9570D64G03 5BCLS-44R 9570D64G03 — — — —

9570D64G04 5BCLS-600E 9570D64G04 — — — —

9570D64G05 5BCLS-750E 9570D64G05 — — — —

9570D69G01 7BCLS-44R 9570D69G01 — — — —

Old

10 Digit

Style Number

Current Eaton

Catalog Number

Eaton

10 Digit

Style Number Description Type

Voltage

Rating

kV Max.

Current

Rating

Amperes

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A3-1

Appendix 3—Catalog Number/Style Number Cross Reference

Cross Reference

Catalog Number—Style Number Cross Reference

Catalog Number Style Number

121DBA2-100E 11A8127G53

121DBA2-10E 11A8127G44

121DBA2-125E 11A8127G54

121DBA2-150E 11A8127G55

121DBA2-15E 11A8127G45

121DBA2-200E 11A8127G56

121DBA2-20E 11A8127G46

121DBA2-25E 11A8127G47

121DBA2-3 11A8127G41

121DBA2-30E 11A8127G48

121DBA2-40E 11A8127G49

121DBA2-50E 11A8127G50

121DBA2-5E 11A8127G42

121DBA2-65E 11A8127G51

121DBA2-780E 11A8127G52

121DBA2-7E 11A8127G43

145DBA2-100E 11A8127G73

145DBA2-10E 11A8127G64

145DBA2-125E 11A8127G74

145DBA2-150E 11A8127G75

145DBA2-15E 11A8127G65

145DBA2-200E 11A8127G76

145DBA2-20E 11A8127G66

145DBA2-25E 11A8127G67

145DBA2-3 11A8127G61

145DBA2-30E 11A8127G68

145DBA2-40E 11A8127G69

145DBA2-50E 11A8127G70

145DBA2-5E 11A8127G62

145DBA2-65E 11A8127G71

145DBA2-780E 11A8127G72

145DBA2-7E 11A8127G63

14RBA2-GDM 9078A25G04

14RBA2-GNM 9078A33G18

14RBA2-PDM 9078A25G03

14RBA2-PNM 9078A33G03

14RBA4-GDM 9078A19G04

14RBA4-GNM 9078A33G21

14RBA4-PDM 9078A19G03

14RBA4-PNM 9078A33G08

14RBA8-GNM 9078A33G24

14RBA8-PNM 9078A33G13

151D257G03 151D257G03

151D257G04 151D257G04

15BA2-.5 117D123A17

15BA2-100E 117D123A29

15BA2-10E 117D123A20

15BA2-125E 117D123A30

15BA2-150E 117D123A31

15BA2-15E 117D123A21

15BA2-200E 117D123A32

15BA2-20E 117D123A22

15BA2-25E 117D123A23

15BA2-30E 117D123A24

15BA2-40E 117D123A25

15BA2-50E 117D123A26

15BA2-5E 117D123A18

15BA2-65E 117D123A27

15BA2-7E 117D123A19

15BA2-80E 117D123A28

15BA2-NH 310C198G02

15BA4-.5 116D977A21

15BA4-100E 116D977A33

15BA4-10E 116D977A24

15BA4-125E 116D977A34

15BA4-150E 116D977A35

15BA4-15E 116D977A25

15BA4-200E 116D977A36

15BA4-20E 116D977A26

15BA4-250E 116D977A37

15BA4-25E 116D977A27

15BA4-300E 116D977A38

15BA4-30E 116D977A28

15BA4-400E 116D977A39

15BA4-40E 116D977A29

15BA4-50E 116D977A30

15BA4-5E 116D977A22

15BA4-65E 116D977A31

15BA4-7E 116D977A23

15BA4-80E 116D977A32

15BA4-NH 310C196G02

15BHLE-100E 5984C05G10

15BHLE-10E 5984C05G01

15BHLE-125E 5984C05G11

15BHLE-150E 5984C05G12

15BHLE-15E 5984C05G02

Catalog Number Style Number

15BHLE-175E 5984C05G13

15BHLE-200E 5984C05G14

15BHLE-20E 5984C05G03

15BHLE2-100E 5984C05G20

15BHLE2-125E 5984C05G21

15BHLE2-40E 5984C05G16

15BHLE-250E 5984C05G15

15BHLE2-50E 5984C05G17

15BHLE-25E 5984C05G04

15BHLE2-65E 5984C05G18

15BHLE2-80E 5984C05G19

15BHLE-30E 5984C05G05

15BHLE-40E 5984C05G06

15BHLE-50E 5984C05G07

15BHLE-65E 5984C05G08

15BHLE-80E 5984C05G09

15CLE-100E 5981C19G08

15CLE-10E 5981C33G01

15CLE-125E 5981C19G09

15CLE-150E 5981C19G10

15CLE-15E 678C240G10

15CLE-15E-D 5981C33G02

15CLE-175E 5981C25G01

15CLE-200E 5981C25G02

15CLE-20E 678C240G11

15CLE-20E-D 5981C33G03

15CLE2-100E 439D482G05

15CLE2-125X 439D482G06

15CLE-250E 5981C25G03

15CLE-25E 678C240G12

15CLE-25E-D 5981C33G04

15CLE2-80E 439D482G04

15CLE-300E 5981C25G04

15CLE-30E 5981C33G05

15CLE3-150E 591C376G02

15CLE3-175E/200X 591C376G01

15CLE-40E 5981C19G04

15CLE-50E 5981C19G05

15CLE-65E 5981C19G06

15CLE-80E 5981C19G07

15CLE-GDM-C 9078A65G33

15CLE-GDM-D 9078A65G37

15CLE-GNM-C 9078A68G34

15CLE-GNM-D 9078A68G38

15CLE-HPDM-C 9078A65G14

15CLE-HPDM-D 9078A65G19

15CLE-HPNM-C 9078A68G14

15CLE-HPNM-D 9078A68G19

15CLE-PDM-C 9078A65G13

Catalog Number Style Number

15CLE-PDM-D 9078A65G18

15CLE-PDM-E 9078A65G23

15CLE-PNM-C 9078A68G13

15CLE-PNM-D 9078A68G18

15CLE-PNM-E 9078A68G23

15CLT-12C 678C295G02

15CLT-18C 678C295G07

15CLT-30C 9570D10G01

15CLT-4C 678C295G05

15CLT-5C 678C295G04

15CLT-8C 678C295G03

15CX-10C 151D883G11

15CX-12C 5980C19G07

15CX-15C 151D883G05

15CX-18C 5980C19G01

15CX-20C 5980C19G02

15CX-25C 5980C19G03

15CX-30C 5980C19G04

15CX-3C 151D883G12

15CX-40C 5980C19G05

15CX-4C 151D883G01

15CX-6C 5980C19G06

15CX-7C 151D883G02

15CX-8C 5980C19G07

15CX-GDM-G 151D885G03

15CX-GNM-G 151D884G03

15CXI-10C 151D883G31

15CXI-12C 5980C19G27

15CXI-15C 151D883G25

15CXI-18C 5980C19G21

15CXI-20C 5980C19G22

15CXI-25C 5980C19G23

15CXI-30C 5980C19G24

15CXI-3C 151D883g32

15CXI-40C 5980C19G25

15CXI-4C 151D883G21

15CXI-6C 5980C19G26

15CXI-7C 151D883G22

15CXI-8C 5980C19G27

15CXN-100C 9570D02G06

15CXN-45C 9570D02G02

15CXN-60C 9570D02G03

15CXN-75C 9570D02G04

15CXN-85C 9570D02G05

15CXN-DF-G 9570D06G05

15CXN-DL-F 9570D34G02

15CXN-DL-G 9570D06G03

15CXN-GDM-F 9570D34G01

15CXN-GDM-G 9570D06G01

Catalog Number Style Number

www.comoso.com

V14-A3-2 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 3—Catalog Number/Style Number Cross Reference

15CXN-GNM-D 9570D33G03

15CXN-GNM-F 9570D33G01

15CXN-GNM-G 9570D05G02

15CXN-NL-D 9570D33G04

15CXN-NL-F 9570D33G02

15CXN-NL-G 9570D05G06

15DBA1-0.5 5980C15G21

15DBA1-100E 5980C15G34

15DBA1-10E 5980C15G25

15DBA1-125E 5980C15G35

15DBA1-150E 5980C15G36

15DBA1-15E 5980C15G26

15DBA1-200E 5980C15G37

15DBA1-20E 5980C15G27

15DBA1-25E 5980C15G28

15DBA1-3 5980C15G22

15DBA1-30E 5980C15G29

15DBA1-40E 5980C15G30

15DBA1-50E 5980C15G31

15DBA1-5E 5980C15G23

15DBA1-65E 5980C15G32

15DBA1-7E 5980C15G24

15DBA1-80E 5980C15G33

15HCL-100E 5981C68G06

15HCL-10E 5982C34G01

15HCL-125E 5981C68G07

15HCL-150E 5981C61G04

15HCL-15E 5982C34G02

15HCL-200E 5981C61G03

15HCL-20E 5982C34G03

15HCL-250E 5981C61G01

15HCL-25E 5982C34G04

15HCL-300E 5981C61G02

15HCL-30E 5982C34G05

15HCL-40E 5982C34G06

15HCL-50E 5982C34G07

15HCL-65E 5981C68G04

15HCL-80E 5981C68G05

15HLE-100E 5981C18G09

15HLE-10E 5981C32G01

15HLE-125E 5981C18G10

15HLE-150E 5981C24G01

15HLE-15E 5981C32G02

15HLE-175E 5981C24G02

15HLE-200E 5981C24G03

15HLE-20E 5981C32G03

15HLE-250E 5981C24G04

15HLE-25E 5981C32G04

15HLE-30E 5981C32G05

15HLE-40E 5981C18G05

15HLE-50E 5981C18G06

15HLE-65E 5981C18G07

15HLE-80E 5981C18G08

Catalog Number Style Number

15HLE-GDM-D 5981C03G06

15HLE-GDM-E 5981C03G18

15HLE-GNM-D 5981C03G12

15HLE-GNM-E 5981C03G24

15HLE-PDM-D 5981C03G03

15HLE-PDM-E 5981C03G15

15HLE-PNM-D 5981C03G09

15HLE-PNM-E 5981C03G21

15LHLE-100E 5984C65G03

15LHLE-125E 5984C65G08

15LHLE-150E 5984C65G09

15LHLE-175E 5984C65G06

15LHLE-200E 5984C65G07

15LHLE2-125E 5984C65G04

15LHLE2-150E 5984C65G05

15LHLE-250E 5984C65G10

15LHLE-300E 5984C65G11

15LHLE-65E 5984C65G01

15LHLE-80E 5984C65G02

15NCLPT-0.5E-A 5981C07G06

15NCLPT-10E-B 5981C07G01

15NCLPT-1E-A 5981C07G05

15NCLPT-20.5E-A 5981C07G04

15NCLPT-3E-B 5981C07G03

15NCLPT-5E-B 5981C07G02

15RBA2-100E 423D814A34

15RBA2-10E 423D814A25

15RBA2-125E 423D814A35

15RBA2-150E 423D814A36

15RBA2-15E 423D814A26

15RBA2-175E 423D814A37

15RBA2-200E 423D814A38

15RBA2-20E 423D814A27

15RBA2-25E 423D814A28

15RBA2-30E 423D814A29

15RBA2-40E 423D814A30

15RBA2-50E 423D814A31

15RBA2-65E 423D814A32

15RBA2-80E 423D814A33

15RBA2-DH 309C558G02

15RBA2-DL 9078A26A01

15RBA2-IDH 5981C50G02

15RBA2-INH 5981C51G02

Catalog Number Style Number

15RBA2-INH-B 5981C18G02

15RBA2-ISHNT 309C548G10

15RBA2-NH 677C370G02

15RBA2-NL 9078A30A01

15RBA2-PDM 9078A25G05

15RBA2-PNM 9078A33G25

15RBA4-.5 5982C44A26

15RBA4-100E 5982C44A39

15RBA4-10E 5982C44A30

15RBA4-125E 5982C44A40

15RBA4-150E 5982C44A41

15RBA4-15E 5982C44A31

15RBA4-175E 5982C44A42

15RBA4-200E 5982C44A43

15RBA4-20E 5982C44A32

15RBA4-250E 5982C44A44

15RBA4-25E 5982C44A33

15RBA4-3 5982C44A27

15RBA4-300E 5982C44A45

15RBA4-30E 5982C44A34

15RBA4-400E 5982C44A47

15RBA4-40E 5982C44A35

15RBA4-50E 5982C44A36

15RBA4-5E 5982C44A28

15RBA4-65E 5982C44A37

15RBA4-7E 5982C44A29

15RBA4-80E 5982C44A38

15RBA4-DH 309C797G02

15RBA4-DL 9078A20A01

15RBA4-IDH 5981C52G02

15RBA4-INH 5981C53G02

15RBA4-INH-B 5981C17G02

Catalog Number Style Number

15RBA4-INH-B 5981C17G02

15RBA4-ISHNT 678C283G06

15RBA4-NH 677C371G02

15RBA4-NL 9078A30A03

15RBA4-PDM 9078A19G05

15RBA4-PNM 9078A33G26

15RBA8-INH 5981C54G02

15RBA8-NL 9078A30A05

15RBA8-PNM 9078A33G27

15RBT2-100E 449D671A34

15RBT2-125E 449D671A35

15RBT2-150E 449D671A36

15RBT2-200E 449D671A38

15RBT2-20E 449D671A27

15RBT2-25E 449D671A28

15RBT2-30E 449D671A29

15RBT2-40E 449D671A30

15RBT2-50E 449D671A31

15RBT2-65E 449D671A32

15RBT2-80E 449D671A33

15RBT4-100E 5982C49A39

15RBT4-125E 5982C49A40

15RBT4-150E 5982C49A41

15RBT4-200E 5982C49A43

15RBT4-20E 5982C49A32

15RBT4-250E 5982C49A44

15RBT4-25E 5982C49A33

15RBT4-300E 5982C49A45

15RBT4-30E 5982C49A34

15RBT4-400E 5982C49A47

15RBT4-40E 5982C49A35

Catalog Number Style Number

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A3-3

Appendix 3—Catalog Number/Style Number Cross Reference

15RBT4-50E 5982C49A36

15RBT4-65E 5982C49A37

15RBT4-80E 5982C49A38

15RDB2-DH 309C558G06

15RDB2-HUM 140D349G17

15RDB2-HVM 140D340G17

15RDB2-SHNT 308C548G02

15RDB2-UM 140D349G12

15RDB2-UM 140D349G13

15RDB2-VM 140D340G12

15RDB4-DH 310C131G02

15RDB4-HUM 140D346G17

15RDB4-HVM 140D341G17

15RDB4-SHNT 678C284G02

15RDB4-UM 140D346G12

15RDB4-VM 140D341G12

15RDB8-HUM 140D354G17

15RDB8-HVM 140D342G17

15RDB8-UM 140D354G12

15RDB8-VM 140D342G12

25BA2-.5 117D123A33

25BA2-100E 117D123A45

25BA2-10E 117D123A36

25BA2-125E 117D123A46

25BA2-150E 117D123A47

25BA2-15E 117D123A37

25BA2-200E 117D123A48

25BA2-20E 117D123A38

25BA2-25E 117D123A39

25BA2-30E 117D123A40

25BA2-40E 117D123A41

25BA2-50E 117D123A42

25BA2-5E 117D123A34

25BA2-65E 117D123A43

25BA2-7E 117D123A35

25BA2-80E 117D123A44

25BA4-.5 116D977A41

25BA4-100E 116D977A53

25BA4-10E 116D977A44

25BA4-125E 116D977A54

25BA4-150E 116D977A55

25BA4-15E 116D977A45

25BA4-200E 116D977A56

25BA4-20E 116D977A46

25BA4-250E 116D977A57

25BA4-25E 116D977A47

25BA4-300E 116D977A58

25BA4-30E 116D977A48

Catalog Number Style Number

25BA4-40E 116D977A49

25BA4-50E 116D977A50

25BA4-5E 116D977A42

25BA4-65E 116D977A51

25BA4-7E 116D977A43

25BA4-80E 116D977A52

25DBA1-0.5 5980C16G01

25DBA1-100E 5980C16G14

25DBA1-10E 5980C16G05

25DBA1-125E 5980C16G15

25DBA1-150E 5980C16G16

25DBA1-15E 5980C16G06

25DBA1-200E 5980C16G17

25DBA1-20E 5980C16G07

25DBA1-25E 5980C16G08

25DBA1-3 5980C16G02

25DBA1-30E 5980C16G09

25DBA1-40E 5980C16G10

25DBA1-50E 5980C16G11

25DBA1-5E 5980C16G03

25DBA1-65E 5980C16G12

25DBA1-7E 5980C16G04

25DBA1-80E 5980C16G13

25RBA2-100E 423D814A54

25RBA2-10E 423D814A45

25RBA2-125E 423D814A55

25RBA2-150E 423D814A56

25RBA2-15E 423D814A46

25RBA2-175E 423D814A57

25RBA2-200E 423D814A58

25RBA2-20E 423D814A47

25RBA2-25E 423D814A48

25RBA2-30E 423D814A49

25RBA2-40E 423D814A50

25RBA2-50E 423D814A51

25RBA2-65E 423D814A52

25RBA2-80E 423D814A53

25RBA2-DH 309C558G03

25RBA2-IDH 5981C50G03

25RBA2-INH 5981C51G03

25RBA2-INH-B 5981C18G03

25RBA2-ISHNT 309C548G11

25RBA2-NH 676C880G03

25RBA2-PDM 9078A25G06

25RBA2-PNM 9078A33G04

25RBA4-.5 5982C44A51

25RBA4-100E 5982C44A64

25RBA4-10E 5982C44A55

25RBA4-125E 5982C44A65

25RBA4-150E 5982C44A66

25RBA4-15E 5982C44A56

Catalog Number Style Number

25RBA4-175E 5982C44A67

25RBA4-200E 5982C44A68

25RBA4-20E 5982C44A57

25RBA4-250E 5982C44A69

25RBA4-25E 5982C44A58

25RBA4-3 5982C44A52

25RBA4-300E 5982C44A70

25RBA4-30E 5982C44A59

25RBA4-40E 5982C44A60

25RBA4-50E 5982C44A61

25RBA4-5E 5982C44A53

25RBA4-65E 5982C44A62

25RBA4-7E 5982C44A54

25RBA4-80E 5982C44A63

25RBA4-DH 309C797G03

25RBA4-IDH 5981C52G03

25RBA4-INH 5981C53G03

25RBA4-INH-B 5981C17G03

25RBA4-ISHNT 678C283G07

25RBA4-NH 677C371G03

25RBA4-PDM 9078A19G06

25RBA4-PNM 9078A33G09

25RBA8-INH 5981C54G03

25RBA8-PNM 9078A33G27

25RBT2-100E 449D671A54

25RBT2-125E 449D671A55

25RBT2-150E 449D671A56

25RBT2-200E 449D671A58

25RBT2-20E 449D671A47

25RBT2-25E 449D671A48

25RBT2-30E 449D671A49

25RBT2-40E 449D671A50

25RBT2-50E 449D671A51

25RBT2-65E 449D671A52

25RBT2-80E 449D671A53

25RBT4-100E 5982C49A64

25RBT4-125E 5982C49A65

25RBT4-150E 5982C49A66

25RBT4-200E 5982C49A68

25RBT4-20E 5982C49A57

25RBT4-250E 5982C49A69

25RBT4-25E 5982C49A58

25RBT4-300E 5982C49A70

25RBT4-30E 5982C49A59

25RBT4-40E 5982C49A60

25RBT4-50E 5982C49A61

25RBT4-65E 5982C49A62

25RBT4-80E 5982C49A63

Catalog Number Style Number

25RDB2-DH 309C558G07

25RDB2-HUM 140D349G18

25RDB2-HVM 140D340G18

25RDB2-SHNT 308C548G03

25RDB2-VM 140D340G13

25RDB4-DH 310C131G03

25RDB4-HUM 140D346G18

25RDB4-HVM 140D341G18

25RDB4-SHNT 678C284G03

25RDB4-UM 140D346G13

25RDB4-VM 140D341G13

25RDB8-HUM 140D354G18

25RDB8-HVM 140D342G18

25RDB8-UM 140D354G13

25RDB8-VM 140D342G13

2ACLS-12R 591C142G08

2ACLS-18R 591C143G01

2ACLS-24R 591C143G02

2ACLS-25 591C142G01

2ACLS-2R 591C142G02

2ACLS-3R 591C142G03

2ACLS-4R 591C142G04

2ACLS-5R 591C142G05

2ACLS-6R 591C142G06

2ACLS-9R 591C142G07

2BCLS-12R 5982C47G08

2BCLS-18R 5982C47G09

2BCLS-24R 5982C47G10

2BCLS-25 5982C47G01

2BCLS-2R 5982C47G02

2BCLS-3R 5982C47G03

2BCLS-4R 5982C47G04

2BCLS-5R 5982C47G05

2BCLS-6R 5982C47G06

2BCLS-9R 5982C47G07

2CLE-100E 449D797G06

2CLE-10E 449D797G11

2CLE-125E 449D797G07

2CLE-150E 449D797G08

2CLE-15E 678C240G01

2CLE-200E 449D797G09

2CLE-20E 678C240G02

2CLE-225E 449D797G10

2CLE-250E 449D797G13

2CLE-25E 678C240G03

2CLE-25E 449D797G12

2CLE-300E 449D797G14

2CLE-30E 449D797G02

Catalog Number Style Number

www.comoso.com

V14-A3-4 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 3—Catalog Number/Style Number Cross Reference

2CLE-350X 449D797G15

2CLE-400X 449D797G17

2CLE-450X 449D797G18

2CLE-50E 449D797G03

2CLE-65E 449D797G04

2CLE-80E 449D797G05

2CLE-GDM-C 9078A65G30

2CLE-GDM-D 9078A65G34

2CLE-GDM-E 9078A65G38

2CLE-GNM-C 9078A68G31

2CLE-GNM-D 9078A68G35

2CLE-GNM-E 9078A68G39

2CLE-PDM-C 9078A65G10

2CLE-PDM-D 9078A65G15

2CLE-PDM-E 9078A65G20

2CLE-PNM-C 9078A68G10

2CLE-PNM-D 9078A68G15

2CLE-PNM-E 9078A68G20

2CLS-12R 591C812G08

2CLS-18R 591C813G01

2CLS-24R 591C813G02

2CLS-25 591C812G01

2CLS-2R 591C812G02

2CLS-3R 591C812G03

2CLS-4R 591C812G04

2CLS-5R 591C812G05

2CLS-6R 591C812G06

2CLS-9R 591C812G07

2CLT-12C 678C249G01

2CLT-150C 680C387G01

2CLT-18C 678C276G01

2CLT-25C 678C276G04

2CLT-30C 678C277G04

2CLT-5C 678C248G01

2CLT-75C 678C282G01

2CLT-90C 680C387G02

2HCLS-12R 591C155G08

2HCLS-18R 591C157G01

2HCLS-24R 591C157G02

2HCLS-25 591C155G01

2HCLS-2R 591C155G02

2HCLS-3R 591C155G03

2HCLS-4R 591C155G04

2HCLS-5R 591C155G05

2HCLS-6R 591C155G06

2HCLS-9R 591C155G07

38BA2-.5 117D123A49

38BA2-100E 117D123A61

38BA2-10E 117D123A52

38BA2-125E 117D123A62

38BA2-150E 117D123A63

38BA2-15E 117D123A53

38BA2-200E 117D123A64

Catalog Number Style Number

38BA2-20E 117D123A54

38BA2-25E 117D123A55

38BA2-30E 117D123A56

38BA2-40E 117D123A57

38BA2-50E 117D123A58

38BA2-5E 117D123A50

38BA2-65E 117D123A59

38BA2-7E 117D123A51

38BA2-80E 117D123A60

38BA4-.5 116D977A61

38BA4-100E 116D977A73

38BA4-10E 116D977A64

38BA4-125E 116D977A74

38BA4-150E 116D977A75

38BA4-15E 116D977A65

38BA4-200E 116D977A76

38BA4-20E 116D977A66

38BA4-250E 116D977A77

38BA4-25E 116D977A67

38BA4-300E 116D977A78

38BA4-30E 116D977A68

38BA4-40E 116D977A69

38BA4-50E 116D977A70

38BA4-5E 116D977A62

38BA4-65E 116D977A71

38BA4-7E 116D977A63

38BA4-80E 116D977A72

38DBA1-0.5 5980C16G21

38DBA1-100E 5980C16G34

38DBA1-10E 5980C16G25

38DBA1-125E 5980C16G35

38DBA1-150E 5980C16G36

38DBA1-15E 5980C16G26

38DBA1-200E 5980C16G37

38DBA1-20E 5980C16G27

38DBA1-25E 5980C16G28

38DBA1-3 5980C16G22

38DBA1-30E 5980C16G29

38DBA1-40E 5980C16G30

38DBA1-50E 5980C16G31

38DBA1-5E 5980C16G23

38DBA1-65E 5980C16G32

38DBA1-7E 5980C16G24

38DBA1-80E 5980C16G33

38DBA2-.5 22A6782G04

38DBA2-100E 18A7330G24

38DBA2-10E 18A7330G15

38DBA2-125E 18A7330G25

38DBA2-150E 18A7330G26

38DBA2-15E 18A7330G16

38DBA2-200E 18A7330G27

38DBA2-20E 18A7330G17

38DBA2-25E 18A7330G18

Catalog Number Style Number

38DBA2-3 505D420G07

38DBA2-30E 18A7330G19

38DBA2-40E 18A7330G20

38DBA2-50E 18A7330G21

38DBA2-5E 18A7330G13

38DBA2-65E 18A7330G22

38DBA2-780E 18A7330G23

38DBA2-7E 18A7330G14

38RBA2-100E 423D814A74

38RBA2-10E 423D814A65

38RBA2-125E 423D814A75

38RBA2-150E 423D814A76

38RBA2-15E 423D814A66

38RBA2-175E 423D814A77

38RBA2-200E 423D814A78

38RBA2-20E 423D814A67

38RBA2-25E 423D814A68

38RBA2-30E 423D814A69

38RBA2-40E 423D814A70

38RBA2-50E 423D814A71

38RBA2-65E 423D814A72

38RBA2-80E 423D814A73

38RBA2-DH 309C558G04

38RBA2-DL 9078A26A02

38RBA2-IDH 5981C50G04

38RBA2-INH 5981C51G04

38RBA2-INH-B 5981C18G04

38RBA2-ISHNT 309C548G12

38RBA2-NH 677C370G04

38RBA2-NL 9078A30A02

38RBA2-PDM 9078A25G07

38RBA2-PNM 9078A33G05

38RBA4-.5 5982C44A76

38RBA4-100E 5982C44A89

38RBA4-10E 5982C44A80

38RBA4-125E 5982C44A90

38RBA4-150E 5982C44A91

38RBA4-15E 5982C44A81

38RBA4-175E 5982C44A92

38RBA4-200E 5982C44A93

38RBA4-20E 5982C44A82

38RBA4-250E 5982C44A94

38RBA4-25E 5982C44A83

38RBA4-3 5982C44A77

38RBA4-300E 5982C44A95

Catalog Number Style Number

38RBA4-30E 5982C44A84

38RBA4-40E 5982C44A85

38RBA4-50E 5982C44A86

38RBA4-5E 5982C44A78

38RBA4-65E 5982C44A87

38RBA4-7E 5982C44A79

38RBA4-80E 5982C44A88

38RBA4-DH 309C797G04

38RBA4-DL 9078A20A02

38RBA4-IDH 5981C52G04

38RBA4-INH 5981C53G04

38RBA4-INH-B 5981C17G04

38RBA4-ISHNT 678C283G08

38RBA4-NH 677C371G04

38RBA4-NL 9078A30A04

38RBA4-PDM 9078A19G07

38RBA4-PNM 9078A33G10

38RBA8-INH 5981C54G04

38RBA8-NL 9078A30A06

38RBA8-PNM 9078A33G15

38RBT2-100E 449D671A74

38RBT2-125E 449D671A75

38RBT2-150E 449D671A76

38RBT2-200E 449D671A78

38RBT2-20E 449D671A67

38RBT2-25E 449D671A68

38RBT2-30E 449D671A69

38RBT2-40E 449D671A70

38RBT2-50E 449D671A71

38RBT2-65E 449D671A72

38RBT2-80E 449D671A73

38RBT4-100E 5982C49A89

38RBT4-125E 5982C49A90

38RBT4-150E 5982C49A91

38RBT4-200E 5982C49A93

38RBT4-20E 5982C49A82

38RBT4-250E 5982C49A94

38RBT4-25E 5982C49A83

38RBT4-300E 5982C49A95

38RBT4-30E 5982C49A84

38RBT4-40E 5982C49A85

38RBT4-50E 5982C49A86

38RBT4-65E 5982C49A87

38RBT4-80E 5982C49A88

38RDB2-DH 309C558G08

Catalog Number Style Number

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A3-5

Appendix 3—Catalog Number/Style Number Cross Reference

38RDB2-DH 309C558G08

38RDB2-HUM 140D349G19

38RDB2-HVM 140D340G19

38RDB2-SHNT 308C548G04

38RDB2-UM 140D349G14

38RDB2-VM 140D340G14

38RDB4-DH 310C131G04

38RDB4-HUM 140D346G19

38RDB4-HVM 140D341G19

38RDB4-SHNT 678C284G04

38RDB4-UM 140D346G14

38RDB4-VM 140D341G14

38RDB8-HUM 140D354G19

38RDB8-HVM 140D342G19

38RDB8-UM 140D354G14

38RDB8-VM 140D342G14

48DBA1-0.5 5980C17G01

48DBA1-100E 5980C17G14

48DBA1-10E 5980C17G05

48DBA1-125E 5980C17G15

48DBA1-150E 5980C17G16

48DBA1-15E 5980C17G06

48DBA1-200E 5980C17G17

48DBA1-20E 5980C17G07

48DBA1-25E 5980C17G08

48DBA1-3 5980C17G02

48DBA1-30E 5980C17G09

48DBA1-40E 5980C17G10

48DBA1-50E 5980C17G11

48DBA1-5E 5980C17G03

48DBA1-65E 5980C17G12

48DBA1-7E 5980C17G04

48DBA1-80E 5980C17G13

48DBA2-.5 22A6782G05

48DBA2-100E 18A7330G44

48DBA2-10E 18A7330G35

48DBA2-125E 18A7330G45

48DBA2-150E 18A7330G46

48DBA2-15E 18A7330G36

48DBA2-200E 18A7330G47

48DBA2-20E 18A7330G37

48DBA2-25E 18A7330G38

48DBA2-3 505D420G08

48DBA2-30E 18A7330G39

48DBA2-40E 18A7330G40

48DBA2-50E 18A7330G41

48DBA2-5E 18A7330G33

48DBA2-65E 18A7330G42

48DBA2-780E 18A7330G43

Catalog Number Style Number

48DBA2-7E 18A7330G34

4ACLS-26R 151D207G01

4BCLS-26R 5982C32G03

4CX-100C 5978C66G05

4CX-18C 5978C62G01

4CX-25C 5978C62G02

4CX-35C 5978C62G03

4CX-45C 5978C66G01

4CX-50C 5978C66G02

4CX-60C 151D253G06

4CX-65C 5978C66G03

4CX-75C 5978C66G04

4CX-80C 151D253G08

4CXI-100C 5978C66G25

4CXI-18C 5978C62G21

4CXI-25C 5978C62G22

4CXI-35C 5978C62G23

4CXI-45C 5978C66G21

4CXI-50C 5978C66G22

4CXI-60C 151D253G26

4CXI-65C 5978C66G23

4CXI-75C 5978C66G24

4CXI-80C 151D253G28

4NPL-1300 140D318G05

4NPL-1875 140D318G01

4NPL-2000 140D318G07

4NPL-2825 140D318G02

4NPL-3000 140D318G06

4NPL-3500 5982C64G01

4NPL-5000 5982C64G02

4NPL-900 140D318G04

5ACLS-12R 151D933G02

5ACLS-18R 151D933G03

5ACLS-24R 151D933G04

5ACLS-2R 449D597G02

5ACLS-30 449D597G01

5ACLS-3R 449D597G03

5ACLS-4R 449D597G04

5ACLS-5R 449D597G05

5ACLS-6R 449D597G06

5ACLS-9R 151D933G01

5AHLE-100E 5981C46G10

5AHLE-10E 5981C46G01

5AHLE-125E 5981C46G11

5AHLE-150E 5981C46G12

5AHLE-15E 5981C46G02

5AHLE-175E 5981C46G13

5AHLE-200E 5981C46G14

5AHLE-20E 5981C46G03

5AHLE-250E 5981C46G15

5AHLE-25E 5981C46G04

5AHLE-300E 5981C46G16

5AHLE-30E 5981C46G05

Catalog Number Style Number

5AHLE-350E 5981C46G17

5AHLE-400E 5981C46G18

5AHLE-40E 5981C46G06

5AHLE-450E 5981C46G19

5AHLE-50E 5981C46G07

5AHLE-65E 5981C46G08

5AHLE-80E 5981C46G09

5BCLS-12R 5982C31G08

5BCLS-18R 5982C32G01

5BCLS-24R 5982C32G02

5BCLS-2R 5982C31G02

5BCLS-30 5982C31G01

5BCLS-32R 9570D64G01

5BCLS-36R 9570D64G02

5BCLS-3R 5982C31G03

5BCLS-44R 9570D64G03

5BCLS-4R 5982C31G04

5BCLS-5R 5982C31G05

5BCLS-600E 9570D64G04

5BCLS-6R 5982C31G06

5BCLS-750E 9570D64G05

5BCLS-9R 5982C31G07

5BHCL-400E 5981C62G11

5BHCL-450E 5981C62G10

5BHCL-500E 5981C62G09

5BHCL-600E 5981C62G08

5BHCL-750E 5981C58G01

5BHCL-900E 5981C58G02

5BHLE-100E 5983C02G10

5BHLE-10E 5983C02G01

5BHLE-125E 5983C02G11

5BHLE-150E 5983C02G12

5BHLE-15E 5983C02G02

5BHLE-175E 5983C02G13

5BHLE-200E 5983C02G14

5BHLE-20E 5983C02G03

5BHLE-250E 5983C02G15

5BHLE-25E 5983C02G04

5BHLE-300E 5983C02G16

5BHLE-30E 5983C02G05

5BHLE-350E 5983C02G17

5BHLE-400E 5983C02G18

5BHLE-40E 5983C02G06

5BHLE-450E 5983C02G19

5BHLE-50E 5983C02G07

5BHLE-65E 5983C02G08

5BHLE-80E 5983C02G09

5CLE-100E 5981C65G05

5CLE-10E-D 5981C29G01

5CLE-1100E 9570D70G01

5CLE-125E 5981C65G06

5CLE-1350E 9570D70G02

5CLE-150E 5981C65G07

Catalog Number Style Number

5CLE-15E 678C240G04

5CLE-15E-D 5981C29G02

5CLE-175E 5981C65G08

5CLE-200E 5981C65G09

5CLE-20E 678C240G05

5CLE-20E-D 5981C29G03

5CLE-250E 5981C65G10

5CLE-25E 678C240G06

5CLE-25E-D 5981C29G04

5CLE-300E 5981C67G01

5CLE-30E 5981C29G05

5CLE-350E 5981C67G02

5CLE-400E 5981C67G03

5CLE-40E 5981C65G01

5CLE-450E 5981C67G04

5CLE-50E 5981C65G02

5CLE-600E 449D595G02

5CLE-65E 5981C65G03

5CLE-750E 449D595G01

5CLE-80E 5981C65G04

5CLE-GDM-C 9078A65G31

5CLE-GDM-D 9078A65G35

5CLE-GDM-E 9078A65G39

5CLE-GNM-C 9078A68G32

5CLE-GNM-D 9078A68G36

5CLE-GNM-E 9078A68G40

5CLE-PDM-C 9078A65G11

5CLE-PDM-D 9078A65G16

5CLE-PDM-E 9078A65G21

5CLE-PNM-C 9078A68G11

5CLE-PNM-D 9078A68G16

5CLE-PNM-E 9078A68G21

5CLS-12R 151D961G02

5CLS-18R 151D961G03

5CLS-24R 151D961G04

5CLS-2R 151D241G02

5CLS-30 151D241G01

5CLS-3R 151D241G03

5CLS-4R 151D241G04

5CLS-5R 151D241G05

5CLS-6R 151D241G06

5CLS70-12R 140D045G04

5CLS70-18R 140D045G06

5CLS70-24R 140D045G03

5CLS70-2R 5981C81G06

5CLS70-32R 140D045G01

5CLS70-36R 140D045G02

5CLS70-3R 5981C81G05

5CLS70-44R 140D045G05

5CLS70-4R 5981C81G04

5CLS70-5R 5981C81G03

5CLS70-6R 5981C81G12

5CLS70-9R 5981C81G01

Catalog Number Style Number

www.comoso.com

V14-A3-6 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 3—Catalog Number/Style Number Cross Reference

5CLS75-24R 151D257G05

5CLS75-32R 151D257G02

5CLS75-36R 151D257G01

5CLS-9R 151D961G01

5CLT-12C 678C249G02

5CLT-18C 678C276G02

5CLT-25C 678C276G05

5CLT-30C 680C386G02

5CLT-45C 680C386G05

5CLT-60C 680C386G03

5CLT-8C 678C248G05

5CX-10C 151D254G11

5CX-12C 151D254G12

5CX-18C 5978C70G01

5CX-20C 5978C70G02

5CX-21C 151D254G04

5CX-25C 151D254G03

5CX-30C 5978C70G04

5CX-35C 151D254G06

5CX-40C 5978C70G05

5CX-50C 5978C70G06

5CX-60C 151D254G09

5CX-65C 5978C70G07

5CX-75C 5978C70G08

5CX-GDM-G 151D885G01

5CX-GNM-G 151D884G01

5CXI-10C 151D254G31

5CXI-12C 151D254G32

5CXI-18C 5978C70G21

5CXI-20C 5978C70G22

5CXI-21C 151D254G24

5CXI-25C 151D254G23

5CXI-30C 5978C70G24

5CXI-35C 151D254G26

5CXI-40C 5978C70G25

5CXI-50C 5978C70G26

5CXI-60C 151D254G29

5CXI-65C 5978C70G27

5CXI-75C 5978C70G28

5HCL-100E 5981C65G10

5HCL-10E 5981C29G01

5HCL-125E 5981C65G11

5HCL-150E 5981C65G12

5HCL-15E 5981C29G02

5HCL-200E 5981C62G07

5HCL-20E 5981C29G03

5HCL-250E 5981C62G06

5HCL-25E 5981C29G04

5HCL-300E 5981C62G05

5HCL-30E 5981C29G05

5HCL-400E 5981C62G04

5HCL-40E 5981C65G06

5HCL-450E 5981C62G03

Catalog Number Style Number

5HCL-500E 5981C62G01

5HCL-50E 5981C65G07

5HCL-600E 5981C62G02

5HCL-65E 5981C65G08

5HCL-80E 5981C65G09

5HCLS-12R 151D962G02

5HCLS-18R 151D962G03

5HCLS-24R 151D962G04

5HCLS-2R 151D240G02

5HCLS-30 151D240G01

5HCLS-3R 151D240G03

5HCLS-4R 151D240G04

5HCLS-5R 151D240G05

5HCLS-6R 151D240G06

5HCLS-9R 151D962G01

5HLE-100E 5981C64G05

5HLE-10E 5981C28G01

5HLE-125E 5981C64G06

5HLE-150E 5981C64G07

5HLE-15E 5981C28G02

5HLE-175E 5981C64G08

5HLE-200E 5981C64G09

5HLE-20E 5981C28G03

5HLE-250E 5981C64G10

5HLE-25E 5981C28G04

5HLE-300E 5981C66G01

5HLE-30E 5981C28G05

5HLE-350E 5981C66G02

5HLE-400E 5981C66G03

5HLE-40E 5981C64G01

5HLE-450E 5981C66G04

5HLE-50E 5981C64G02

5HLE-65E 5981C64G03

5HLE-80E 5981C64G04

5HLE-GDM-D 5981C03G04

5HLE-GDM-E 5981C03G16

5HLE-GNM-D 5981C03G10

5HLE-GNM-E 5981C03G22

5HLE-PDM-D 5981C03G01

5HLE-PDM-E 5981C03G13

5HLE-PNM-D 5981C03G07

5HLE-PNM-E 5981C03G19

5LCLS-12R 676C546G25

5LCLS-18R 304C463G03

5LCLS-24R 304C463G04

5LCLS-2R 676C546G15

5LCLS-3R 676C546G16

5LCLS-4R 676C546G17

5LCLS-5R 676C546G18

5LCLS-6R 676C546G19

5LCLS-9R 676C546G22

5NCLPT-0.5E-A 5981C05G06

5NCLPT-10E-A 5981C05G01

Catalog Number Style Number

5NCLPT-1E-A 5981C05G05

5NCLPT-2E-A 5981C05G04

5NCLPT-3E-A 5981C05G03

5NCLPT-5E-A 5981C05G02

5RBA2-GDM 9078A25G02

5RBA2-GNM 9078A33G16

5RBA2-PDM 9078A25G01

5RBA2-PNM 9078A33G06

5RBA4-GDM 9078A19G02

5RBA4-GNM 9078A33G19

5RBA4-PDM 9078A19G01

5RBA4-PNM 9078A33G06

5RBA8-GNM 9078A33G22

5RBA8-PNM 9078A33G22

6DSL-A150 140D316G01

6DSL-A200 140D316G02

6DSL-A250 140D316G03

6DSL-A300 140D316G04

6DSL-A400 140D316G05

6DSL-A600 140D316G06

6DSL-A800 140D316G07

6DSL-B1200 140D316G10

6DSL-B1600 140D316G11

6DSL-B3000 140D316G12

6DSL-C1000 151D932G02

6DSL-C1200 151D932G03

6DSL-C1600 151D932G04

6DSL-C2000 151D932G05

6DSL-C800 151D932G01

6DSL-D2500 151D932G09

6DSL-D3000 151D932G10

6DSL-E2500 5980C01G01

6DSL-E3000 5980C01G02

6DSL-E4000 5980C01G03

6DSL-F5000 5980C01G04

6MDSL-MA150 5982C90G01

6MDSL-MA200 5982C90G02

6MDSL-MA250 5982C90G03

6MDSL-MA300 5982C90G04

6MDSL-MA400 5982C90G05

6MDSL-MA600 5982C90G07

Catalog Number Style Number

6MDSL-MA800 5982C90G08

6MDSL-MB1200 5982C91G01

6MDSL-MB1600 5982C91G02

6MDSL-MB2000 5982C91G03

6MDSL-MC1000 5982C92G02

6MDSL-MC1200 5982C92G03

6MDSL-MC1600 5982C92G04

6MDSL-MC2000 5982C92G05

6MDSL-MC800 5982C92G01

6MDSL-MD2500 5982C93G01

6MDSL-MD3000 5982C93G02

72DBA1-0.5 5980C17G21

72DBA1-100E 5980C17G34

72DBA1-10E 5980C17G25

72DBA1-125E 5980C17G35

72DBA1-150E 5980C17G36

72DBA1-15E 5980C17G26

72DBA1-200E 5980C17G37

72DBA1-20E 5980C17G27

72DBA1-25E 5980C17G28

72DBA1-3 5980C17G22

72DBA1-30E 5980C17G29

72DBA1-40E 5980C17G30

72DBA1-50E 5980C17G31

72DBA1-5E 5980C17G23

72DBA1-65E 5980C17G32

72DBA1-7E 5980C17G24

72DBA1-80E 5980C17G33

72DBA2-.5 22A6782G06

72DBA2-100E 11A8127G13

72DBA2-10E 11A8127G04

72DBA2-125E 11A8127G14

72DBA2-150E 11A8127G15

72DBA2-15E 11A8127G05

72DBA2-200E 11A8127G16

72DBA2-20E 11A8127G06

72DBA2-25E 11A8127G07

72DBA2-3 505D420G09

72DBA2-30E 11A8127G08

72DBA2-40E 11A8127G09

72DBA2-50E 11A8127G10

72DBA2-5E 11A8127G02

72DBA2-65E 11A8127G11

72DBA2-7E 11A8127G03

72DBA2-80E 11A8127G12

7ACLS-12R 151D963G07

7ACLS18R 151D963G10

7ACLS-24R 151D963G11

7ACLS-9R 151D963G06

7BCLS-12R 5982C36G07

7BCLS-18R 5982C36G08

7BCLS-24R 5982C36G09

7BCLS-2R 5982C36G01

Catalog Number Style Number

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A3-7

Appendix 3—Catalog Number/Style Number Cross Reference

7BCLS-3R 5982C36G02

7BCLS-44R 9570D69G01

7BCLS-4R 5982C36G03

7BCLS-5R 5982C36G04

7BCLS-6R 5982C36G05

7BCLS-9R 5982C36G06

7CLS-12R 5982C01G07

7CLS-18R 5982C01G10

7CLS-24R 5982C01G11

7CLS70-24R 5979C91G01

7CLS70-36R 5979C91G02

7CLS70-44R 5980C03G01

7CLS-9R 5982C01G06

8ACLS-2R 151D963G01

8ACLS-3R 151D963G02

8ACLS-4R 151D963G03

8ACLS-5R 151D963G04

8ACLS-6R 151D963G05

8AHLE-100E 5981C47G10

8AHLE-10E 5981C47G01

8AHLE-125E 5981C47G11

8AHLE-150E 5981C47G12

8AHLE-15E 5981C47G02

8AHLE-175E 5981C47G13

8AHLE-200E 5981C47G14

8AHLE-20E 5981C47G03

8AHLE-250E 5981C47G15

8AHLE-25E 5981C47G04

8AHLE-300E 5981C47G16

8AHLE-30E 5981C47G05

8AHLE-350E 5981C47G17

8AHLE-40E 5981C47G06

8AHLE-50E 5981C47G07

8AHLE-65E 5981C47G08

8AHLE-80E 5981C47G09

8BA2-.5 117D123A01

8BA2-100E 117D123A13

8BA2-10E 117D123A04

8BA2-125E 117D123A14

8BA2-150E 117D123A15

8BA2-15E 117D123A05

8BA2-200E 117D123A16

8BA2-20E 117D123A06

8BA2-25E 117D123A07

8BA2-30E 117D123A08

8BA2-40E 117D123A09

8BA2-50E 117D123A10

8BA2-5E 117D123A02

8BA2-65E 117D123A11

8BA2-7E 117D123A03

8BA2-80E 117D123A12

8BA2-NH 310C198G01

Catalog Number Style Number

8BA4-.5 116D977A01

8BA4-100E 116D977A13

8BA4-10E 116D977A04

8BA4-125E 116D977A14

8BA4-150E 116D977A15

8BA4-15E 116D977A05

8BA4-200E 116D977A16

8BA4-20E 116D977A06

8BA4-250E 116D977A17

8BA4-25E 116D977A07

8BA4-300E 116D977A18

8BA4-30E 116D977A08

8BA4-400E 116D977A19

8BA4-40E 116D977A09

8BA4-50E 116D977A10

8BA4-5E 116D977A02

8BA4-65E 116D977A11

8BA4-7E 116D977A03

8BA4-80E 116D977A12

8BA4-NH 310C196G01

8BHLE-100E 5983C03G10

8BHLE-10E 5983C03G01

8BHLE-125E 5983C03G11

8BHLE-150E 5983C03G12

8BHLE-15E 5983C03G02

8BHLE-175E 5983C03G13

8BHLE-200E 5983C03G14

8BHLE-20E 5983C03G03

8BHLE-250E 5983C03G15

8BHLE-25E 5983C03G04

8BHLE-300E 5983C03G16

8BHLE-30E 5983C03G05

8BHLE-350E 5983C03G17

8BHLE-40E 5983C03G06

8BHLE-50E 5983C03G07

8BHLE-65E 5983C03G08

8BHLE-80E 5983C03G09

8CLE-100E 5981C17G08

8CLE-10E 5981C31G01

8CLE-125E 5981C17G09

8CLE-150E 5981C17G10

8CLE-15E 678C240G07

8CLE-15E-D 5981C31G02

8CLE-175E 5981C17G11

8CLE-200E 5981C21G01

8CLE-20E 678C240G08

8CLE-20E-D 5981C31G03

8CLE-250E 5981C21G02

8CLE-25E 678C240G09

8CLE-25E-D 5981C31G04

8CLE-300E 5981C21G03

8CLE-30E 5981C31G05

8CLE-350E 5981C21G04

Catalog Number Style Number

8CLE-40E 5981C17G04

8CLE-50E 5981C17G05

8CLE-65E 5981C17G06

8CLE-80E 5981C17G07

8CLE-GDM-C 9078A65G32

8CLE-GDM-D 9078A65G36

8CLE-GDM-E 9078A65G40

8CLE-GNM-C 9078A68G33

8CLE-GNM-D 9078A68G37

8CLE-GNM-E 9078A68G41

8CLE-PDM-C 9078A65G12

8CLE-PDM-D 9078A65G17

8CLE-PDM-E 9078A65G22

8CLE-PNM-C 9078A68G12

8CLE-PNM-D 9078A68G17

8CLE-PNM-E 9078A68G22

8CLS-110 151D256G06

8CLS-125 151D256G07

8CLS-15 151D256G01

8CLS-150 151D256G11

8CLS-200 151D256G12

8CLS-225 151D256G13

8CLS-2R 5982C01G01

8CLS-30 151D256G02

8CLS-3R 5982C01G02

8CLS-4R 5982C01G03

8CLS-5R 5982C01G04

8CLS-60 151D256G03

8CLS-6R 5982C01G05

8CLS-70 151D256G04

8CLS-90 151D256G05

8CLT-12C 591C273G03

8CLT-18C 678C276G03

8CLT-25C 678C276G06

8CLT-30CL 678C290G01

8CLT-30CS 680C386G01

8CLT-45C 680C386G06

8CLT-5C 678C248G03

8CLT-8C 678C248G06

8CX-10C 151D255G11

8CX-12C 151D255G12

8CX-15C 151D255G06

8CX-18C 5978C72G01

8CX-20C 5978C72G02

8CX-25C 5978C72G03

8CX-3.5C 151D255G01

8CX-30C 5978C72G04

8CX-35C 151D255G09

8CX-4.5C 5978C62G04

8CX-40C 5978C72G05

8CX-4C 151D255G02

8CX-6C 5978C62G05

8CX-7C 151D255G03

Catalog Number Style Number

8CX-8C 5978C62G06

8CX-GDM-G 151D885G02

8CX-GNM-G 151D884G02

8CXI-10C 151D255G31

8CXI-12C 151D255G32

8CXI-15C 151D255G26

8CXI-18C 5978C72G21

8CXI-20C 5978C72G22

8CXI-25C 5978C72G23

8CXI-3.5C 151D255G21

8CXI-30C 5978C72G24

8CXI-35C 151D255G29

8CXI-4.5C 5978C62G24

8CXI-40C 5978C72G25

8CXI-4C 151D255G22

8CXI-6C 5978C62G25

8CXI-7C 151D255G23

8CXI-8C 5978C62G26

8CXN-100C 9570D01G02

8CXN-125C 9570D01G03

8CXN-150C 9570D01G04

8CXN-200C 9570D01G05

8CXN-250C 9570D01G06

8CXN-60C 9570D01G01

8DBA1-0.5 5980C15G01

8DBA1-100E 5980C15G14

8DBA1-10E 5980C15G05

8DBA1-125E 5980C15G15

8DBA1-150E 5980C15G16

8DBA1-15E 5980C15G06

8DBA1-200E 5980C15G17

8DBA1-20E 5980C15G07

8DBA1-25E 5980C15G08

8DBA1-3 5980C15G02

8DBA1-30E 5980C15G09

8DBA1-40E 5980C15G10

8DBA1-50E 5980C15G11

8DBA1-5E 5980C15G03

8DBA1-65E 5980C15G12

8DBA1-7E 5980C15G04

8DBA1-80E 5980C15G13

8HCL-100E 5983C05G08

8HCL-125E 5983C05G07

8HCL-150E 5983C05G06

8HCL-175E 5983C05G05

8HCL-200E 5983C05G01

8HCL-250E 5983C05G02

8HCL-300E 5983C05G03

8HCL-350E 5983C05G04

8HCL-65E 5983C05G10

8HCL-80E 5983C05G09

8HLE-100E 5981C16G08

8HLE-10E 5981C30G01

Catalog Number Style Number

www.comoso.com

V14-A3-8 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 3—Catalog Number/Style Number Cross Reference

8HLE-125E 5981C16G09

8HLE-150E 5981C16G10

8HLE-15E 5981C30G02

8HLE-175E 5981C16G11

8HLE-200E 5981C22G01

8HLE-20E 5981C30G03

8HLE-250E 5981C22G02

8HLE-25E 5981C30G04

8HLE-300E 5981C22G03

8HLE-30E 5981C30G05

8HLE-350E 5981C22G04

8HLE-40E 5981C16G04

8HLE-50E 5981C16G05

8HLE-65E 5981C16G06

8HLE-80E 5981C16G07

8HLE-GDM-D 5981C03G05

8HLE-GDM-E 5981C03G14

8HLE-GNM-D 5981C03G11

8HLE-GNM-E 5981C03G23

8HLE-PDM-D 5981C03G02

8HLE-PDM-E 5981C03G14

8HLE-PNM-D 5981C03G08

8HLE-PNM-E 5981C03G20

8NCLPT-0.5E-A 5981C06G06

8NCLPT-10E-B 5981C06G01

8NCLPT-1E-A 5981C06G05

8NCLPT-2E-A 5981C06G04

8NCLPT-3E-B 5981C06G03

8NCLPT-5E-B 5981C06G02

8RBA2-100E 423D814A14

8RBA2-10E 423D814A05

8RBA2-125E 423D814A15

8RBA2-150E 423D814A16

8RBA2-15E 423D814A06

8RBA2-175E 423D814A17

8RBA2-200E 423D814A18

8RBA2-20E 423D814A07

8RBA2-25E 423D814A08

8RBA2-30E 423D814A09

8RBA2-40E 423D814A10

8RBA2-50E 423D814A11

8RBA2-65E 423D814A12

8RBA2-80E 423D814A13

8RBA2-DH 309C558G01

8RBA2-GDM 9078A25G09

8RBA2-GNM 9078A33G17

8RBA2-IDH 5981C50G01

8RBA2-INH 5981C51G01

Catalog Number Style Number

8RBA2-INH-B 5984C18G01

8RBA2-ISHNT 309C548G09

8RBA2-NH 677C370G01

8RBA2-PDM 9078A25G08

8RBA2-PNM 9078A33G02

8RBA4-.5 5982C44A01

8RBA4-100E 5982C44A14

8RBA4-10E 5982C44A05

8RBA4-125E 5982C44A15

8RBA4-150E 5982C44A16

8RBA4-15E 5982C44A06

8RBA4-175E 5982C44A17

8RBA4-200E 5982C44A18

8RBA4-20E 5982C44A07

8RBA4-250E 5982C44A19

8RBA4-25E 5982C44A08

8RBA4-3 5982C44A02

8RBA4-300E 5982C44A20

8RBA4-30E 5982C44A09

8RBA4-400E 5982C44A22

8RBA4-40E 5982C44A10

8RBA4-50E 5982C44A11

8RBA4-5E 5982C44A03

8RBA4-65E 5982C44A12

8RBA4-7E 5982C44A04

8RBA4-80E 5982C44A13

8RBA4-DH 5981C52G01

8RBA4-GDM 9078A25G09

8RBA4-GNM 9078A33G17

8RBA4-IDH 5981C52G01

8RBA4-INH 5981C53G01

8RBA4-INH-B 5984C17G01

8RBA4-ISHNT 678C283G05

8RBA4-NH 677C371G01

8RBA4-PDM 9078A25G08

8RBA4-PNM 9078A33G02

8RBA8-GNM 9078A33G23

Catalog Number Style Number

8RBA8-INH 5981C54G01

8RBA8-PNM 9078A33G12

8RBT2-100E 449D671A14

8RBT2-125E 449D671A15

8RBT2-150E 449D671A16

8RBT2-200E 449D671A18

8RBT2-20E 449D671A07

8RBT2-25E 449D671A08

8RBT2-30E 449D671A09

8RBT2-40E 449D671A10

8RBT2-50E 449D671A11

8RBT2-65E 449D671A12

8RBT2-80E 449D671A13

8RBT4-100E 5982C49A14

8RBT4-125E 5982C49A15

8RBT4-150E 5982C49A16

8RBT4-200E 5982C49A18

8RBT4-20E 5982C49A07

8RBT4-250E 5982C49A19

8RBT4-25E 5982C49A08

8RBT4-300E 5982C49A20

8RBT4-30E 5982C49A09

8RBT4-400E 5982C49A22

8RBT4-40E 5982C49A10

8RBT4-50E 5982C49A11

8RBT4-65E 5982C49A12

8RBT4-80E 5982C49A13

8RDB2-DH 309C558G05

8RDB2-HUM 140D349G16

8RDB2-HVM 140D340G16

8RDB2-SHNT 308C548G01

8RDB2-UM 140D349G11

8RDB2-VM 140D340G11

8RDB4-DH 310C131G01

8RDB4-HUM 140D346G16

8RDB4-HVM 140D341G16

8RDB4-SHNT 678C284G01

8RDB4-UM 140D346G11

8RDB4-VM 140D341G11

8RDB8-HUM 140D354G16

8RDB8-HVM 140D342G16

8RDB8-UM 140D354G11

8RDB8-VM 140D342G11

92DBA2-100E 11A8127G33

92DBA2-10E 11A8127G24

Catalog Number Style Number

92DBA2-125E 11A8127G34

92DBA2-150E 11A8127G35

92DBA2-15E 11A8127G25

92DBA2-200E 11A8127G36

92DBA2-20E 11A8127G26

92DBA2-25E 11A8127G27

92DBA2-3 11A8127G21

92DBA2-30E 11A8127G28

92DBA2-40E 11A8127G29

92DBA2-50E 11A8127G30

92DBA2-5E 11A8127G22

92DBA2-65E 11A8127G31

92DBA2-780E 11A8127G32

92DBA2-7E 11A8127G23

CLE-DF-C 9078A63G02

CLE-DF-D 9078A63G03

CLE-DF-E 9078A63G04

CLE-DL-C 9078A63G04

CLE-DL-D 9078A67G03

CLE-DL-E 9078A64G04

CLE-NL-C 9078A67G02

CLE-NLC-C 9078A67G17

CLE-NLC-D 9078A67G20

CLE-NLC-E 9078A67G15

CLE-NL-D 9078A67G03

CLE-NL-E 9078A67G04

CLS-700 DUMMY 591C172G01

CX-DF 151D885G06

CX-DL 151D885G05

CXN-CLAMP 7275A85G02

CX-NL 151D884G08

DBU17-100E 5981C76G13

DBU17-100K 5981C75G14

DBU17-100SE 5981C77G09

DBU17-10E 5981C76G03

DBU17-10K 5981C75G04

DBU17-125E 5981C76G14

DBU17-125SE 5981C77G10

DBU17-12K 5981C75G05

DBU17-13E 5981C76G04

DBU17-140K 5981C75G15

DBU17-150E 5981C76G15

DBU17-150SE 5981C77G11

DBU17-15E 5981C76G05

DBU17-15K 5981C75G06

DBU17-15SE 5981C77G01

DBU17-175E 5981C76G16

DBU17-175SE 5981C77G12

DBU17-200E 5981C76G17

DBU17-200K 5981C75G16

DBU17-200SE 5981C77G13

DBU17-20E 5981C76G06

DBU17-20K 5981C75G07

Catalog Number Style Number

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A3-9

Appendix 3—Catalog Number/Style Number Cross Reference

DBU17-20SE 5981C77G02

DBU17-25E 5981C76G07

DBU17-25K 5981C75G08

DBU17-25SE 5981C77G03

DBU17-30E 5981C76G08

DBU17-30K 5981C75G09

DBU17-30SE 5981C77G04

DBU17-3K 5981C75G01

DBU17-40E 5981C76G09

DBU17-40K 5981C75G10

DBU17-40SE 5981C77G05

DBU17-50E 5981C76G10

DBU17-50K 5981C75G11

DBU17-50SE 5981C77G06

DBU17-5E 5981C76G01

DBU17-65E 5981C76G11

DBU17-65K 5981C75G12

DBU17-65SE 5981C77G07

DBU17-6K 5981C75G02

DBU17-7E 5981C76G02

DBU17-80E 5981C76G12

DBU1780K 5981C75G03

DBU17-80K 5981C75G13

DBU17-80SE 5981C77G08

DBU17-DL-L 5982C48G02

DBU17-DL-R 5982C48G03

DBU17-DM 5984C39G01

DBU17-GDM-L 5982C45G08

DBU17-GDM-R 5982C45G07

DBU17-GNM-L 5984C25G07

DBU17-GNMP-L 5984C25G01

DBU17-GNMP-R 5984C25G04

DBU17-GNM-R 5984C25G10

DBU17-NL-L 5984C29G01

DBU17-NLP-L 5984C29G07

DBU17-NLP-R 5984C29G10

DBU17-NL-R 5984C29G04

DBU27-100E 5981C76G13

DBU27-100K 5981C75G14

DBU27-100SE 5981C77G09

DBU27-10E 5981C76G03

DBU27-10K 5981C75G04

DBU27-125E 5981C76G14

DBU27-125SE 5981C77G10

DBU27-12K 5981C75G05

DBU27-13E 5981C76G04

DBU27-140K 5981C75G15

DBU27-150E 5981C76G15

DBU27-150SE 5981C77G11

DBU27-15E 5981C76G05

DBU27-15K 5981C75G06

DBU27-15SE 5981C77G01

DBU27-175E 5981C76G16

Catalog Number Style Number

DBU27-175SE 5981C77G12

DBU27-200E 5981C76G17

DBU27-200K 5981C75G16

DBU27-200SE 5981C77G13

DBU27-20E 5981C76G06

DBU27-20K 5981C75G07

DBU27-20SE 5981C77G02

DBU27-25E 5981C76G07

DBU27-25K 5981C75G08

DBU27-25SE 5981C77G03

DBU27-30E 5981C76G08

DBU27-30K 5981C75G09

DBU27-30SE 5981C77G04

DBU27-3K 5981C75G01

DBU27-40E 5981C76G09

DBU27-40K 5981C75G10

DBU27-40SE 5981C77G05

DBU27-50E 5981C76G10

DBU27-50K 5981C75G11

DBU27-50SE 5981C77G06

DBU27-5E 5981C76G01

DBU27-65E 5981C76G11

DBU27-65K 5981C75G12

DBU27-65SE 5981C77G07

DBU27-6K 5981C75G02

DBU27-7E 5981C76G02

DBU27-80E 5981C76G12

DBU27-80K 5981C75G13

DBU27-80SE 5981C77G08

DBU27-8K 5981C75G03

DBU27-DL-L 5982C48G05

DBU27-DL-R 5982C48G06

DBU27-DM 5984C38G01

DBU27-GDM-L 5982C45G05

DBU27-GDM-R 5982C45G06

DBU27-GNM-L 5984C25G08

DBU27-GNMP-L 5984C25G02

DBU27-GNMP-R 5984C25G05

DBU27-GNM-R 5984C25G11

DBU27-NL-L 5984C29G02

DBU27-NLP-L 5984C29G08

DBU27-NLP-R 5984C29G11

DBU27-NL-R 5984C29G05

DBU38-100E 5981C76G13

DBU38-100K 5981C75G14

DBU38-100SE 5981C77G09

DBU38-10E 5981C76G03

DBU38-10K 5981C75G04

DBU38-125E 5981C76G14

DBU38-125SE 5981C77G10

DBU38-12K 5981C75G05

DBU38-13E 5981C76G04

DBU38-140K 5981C75G15

Catalog Number Style Number

DBU38-150E 5981C76G15

DBU38-150SE 5981C77G11

DBU38-15E 5981C76G05

DBU38-15K 5981C75G06

DBU38-15SE 5981C77G01

DBU38-175E 5981C76G16

DBU38-175SE 5981C77G12

DBU38-200E 5981C76G17

DBU38-200K 5981C75G16

DBU38-200SE 5981C77G13

DBU38-20E 5981C76G06

DBU38-20K 5981C75G07

DBU38-20SE 5981C77G02

DBU38-25E 5981C76G07

DBU38-25K 5981C75G08

DBU38-25SE 5981C77G03

DBU38-30E 5981C76G08

DBU38-30K 5981C75G09

DBU38-30SE 5981C77G04

DBU38-3K 5981C75G01

DBU38-40E 5981C76G09

DBU38-40K 5981C75G10

DBU38-40SE 5981C77G05

DBU38-50E 5981C76G10

DBU38-50K 5981C75G11

DBU38-50SE 5981C77G06

DBU38-5E 5981C76G01

DBU38-65E 5981C76G11

DBU38-65K 5981C75G12

DBU38-65SE 5981C77G07

DBU38-6K 5981C75G02

DBU38-7E 5981C76G02

DBU38-80E 5981C76G12

DBU38-80K 5981C75G13

DBU38-80SE 5981C77G08

DBU38-8K 5981C75G03

DBU38-GNM-L 5984C25G09

DBU38-GNMP-L 5984C25G03

DBU38-GNMP-R 5984C25G06

DBU38-GNM-R 5984C25G12

DBU38-NL-L 5984C29G03

DBU38-NLP-L 5984C29G09

DBU38-NLP-R 5984C29G12

DBU38-NL-R 5984C29G06

DBU-EFID 7187A11G04

DBU-EFOD 7187A11G02

DBU-MFLR 5981C69G02

HANDLE ASSEMBLY 435B592G02

HCL-NL 5982C19G04

RBA2-COND 309C024G03

RBA2-COND 310C197G03

RBA2-COND-1 310C197G05

RBA2-FLTR 309C024G03

Catalog Number Style Number

RBA2-FLTR 309C024G05

RBA2-FLTR-1 309C024G03

RBA4-COND 309C024G04

RBA4-COND 310C197G04

RBA4-COND-1 310C197G06

RBA4-FLTR 591C607G01

RBA4-FLTR-1 591C607G03

RBA4-FLTR-HC 591C607G02

RBA4-FLTR-HC-1 591C607G04

RDB2-UL 140D349G20

RDB2-VL 140D340G20

RDB4-UL 140D346G20

RDB4-VL 140D341G20

RDB8-UL 140D354G20

RDB8-VL 140D342G20

Spring and shunt assy. for

15BA2-NH

309C054G02

Spring and shunt assy. for

15BA4-NH

676C878G02

Spring and shunt assy. for

8BA2-NH

309C054G01

Spring and shunt assy. for

8BA4-NH

676C878G01

Catalog Number Style Number

www.comoso.com

V14-A3-10 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 3—Catalog Number/Style Number Cross Reference

Style Number—Catalog Number Cross Reference

Style Number Catalog Number

8BA4-.5 116D977A01

8BA4-5E 116D977A02

8BA4-7E 116D977A03

8BA4-10E 116D977A04

8BA4-15E 116D977A05

8BA4-20E 116D977A06

8BA4-25E 116D977A07

8BA4-30E 116D977A08

8BA4-40E 116D977A09

8BA4-50E 116D977A10

8BA4-65E 116D977A11

8BA4-80E 116D977A12

8BA4-100E 116D977A13

8BA4-125E 116D977A14

8BA4-150E 116D977A15

8BA4-200E 116D977A16

8BA4-250E 116D977A17

8BA4-300E 116D977A18

8BA4-400E 116D977A19

15BA4-.5 116D977A21

15BA4-5E 116D977A22

15BA4-7E 116D977A23

15BA4-10E 116D977A24

15BA4-15E 116D977A25

15BA4-20E 116D977A26

15BA4-25E 116D977A27

15BA4-30E 116D977A28

15BA4-40E 116D977A29

15BA4-50E 116D977A30

15BA4-65E 116D977A31

15BA4-80E 116D977A32

15BA4-100E 116D977A33

15BA4-125E 116D977A34

15BA4-150E 116D977A35

15BA4-200E 116D977A36

15BA4-250E 116D977A37

15BA4-300E 116D977A38

15BA4-400E 116D977A39

25BA4-.5 116D977A41

25BA4-5E 116D977A42

25BA4-7E 116D977A43

25BA4-10E 116D977A44

25BA4-15E 116D977A45

25BA4-20E 116D977A46

25BA4-25E 116D977A47

25BA4-30E 116D977A48

25BA4-40E 116D977A49

25BA4-50E 116D977A50

25BA4-65E 116D977A51

25BA4-80E 116D977A52

25BA4-100E 116D977A53

25BA4-125E 116D977A54

25BA4-150E 116D977A55

25BA4-200E 116D977A56

25BA4-250E 116D977A57

25BA4-300E 116D977A58

38BA4-.5 116D977A61

38BA4-5E 116D977A62

38BA4-7E 116D977A63

38BA4-10E 116D977A64

38BA4-15E 116D977A65

38BA4-20E 116D977A66

38BA4-25E 116D977A67

38BA4-30E 116D977A68

38BA4-40E 116D977A69

38BA4-50E 116D977A70

38BA4-65E 116D977A71

38BA4-80E 116D977A72

38BA4-100E 116D977A73

38BA4-125E 116D977A74

38BA4-150E 116D977A75

38BA4-200E 116D977A76

38BA4-250E 116D977A77

38BA4-300E 116D977A78

8BA2-.5 117D123A01

8BA2-5E 117D123A02

8BA2-7E 117D123A03

8BA2-10E 117D123A04

8BA2-15E 117D123A05

8BA2-20E 117D123A06

8BA2-25E 117D123A07

8BA2-30E 117D123A08

8BA2-40E 117D123A09

8BA2-50E 117D123A10

8BA2-65E 117D123A11

8BA2-80E 117D123A12

8BA2-100E 117D123A13

8BA2-125E 117D123A14

8BA2-150E 117D123A15

8BA2-200E 117D123A16

15BA2-.5 117D123A17

15BA2-5E 117D123A18

15BA2-7E 117D123A19

15BA2-10E 117D123A20

15BA2-15E 117D123A21

15BA2-20E 117D123A22

15BA2-25E 117D123A23

15BA2-30E 117D123A24

Style Number Catalog Number

15BA2-40E 117D123A25

15BA2-50E 117D123A26

15BA2-65E 117D123A27

15BA2-80E 117D123A28

15BA2-100E 117D123A29

15BA2-125E 117D123A30

15BA2-150E 117D123A31

15BA2-200E 117D123A32

25BA2-.5 117D123A33

25BA2-5E 117D123A34

25BA2-7E 117D123A35

25BA2-10E 117D123A36

25BA2-15E 117D123A37

25BA2-20E 117D123A38

25BA2-25E 117D123A39

25BA2-30E 117D123A40

25BA2-40E 117D123A41

25BA2-50E 117D123A42

25BA2-65E 117D123A43

25BA2-80E 117D123A44

25BA2-100E 117D123A45

25BA2-125E 117D123A46

25BA2-150E 117D123A47

25BA2-200E 117D123A48

38BA2-.5 117D123A49

38BA2-5E 117D123A50

38BA2-7E 117D123A51

38BA2-10E 117D123A52

38BA2-15E 117D123A53

38BA2-20E 117D123A54

38BA2-25E 117D123A55

38BA2-30E 117D123A56

38BA2-40E 117D123A57

38BA2-50E 117D123A58

38BA2-65E 117D123A59

38BA2-80E 117D123A60

38BA2-100E 117D123A61

38BA2-125E 117D123A62

38BA2-150E 117D123A63

38BA2-200E 117D123A64

72DBA2-5E 11A8127G02

72DBA2-7E 11A8127G03

72DBA2-10E 11A8127G04

72DBA2-15E 11A8127G05

72DBA2-20E 11A8127G06

72DBA2-25E 11A8127G07

72DBA2-30E 11A8127G08

72DBA2-40E 11A8127G09

72DBA2-50E 11A8127G10

Style Number Catalog Number

72DBA2-65E 11A8127G11

72DBA2-80E 11A8127G12

72DBA2-100E 11A8127G13

72DBA2-125E 11A8127G14

72DBA2-150E 11A8127G15

72DBA2-200E 11A8127G16

92DBA2-3 11A8127G21

92DBA2-5E 11A8127G22

92DBA2-7E 11A8127G23

92DBA2-10E 11A8127G24

92DBA2-15E 11A8127G25

92DBA2-20E 11A8127G26

92DBA2-25E 11A8127G27

92DBA2-30E 11A8127G28

92DBA2-40E 11A8127G29

92DBA2-50E 11A8127G30

92DBA2-65E 11A8127G31

92DBA2-780E 11A8127G32

92DBA2-100E 11A8127G33

92DBA2-125E 11A8127G34

92DBA2-150E 11A8127G35

92DBA2-200E 11A8127G36

121DBA2-3 11A8127G41

121DBA2-5E 11A8127G42

121DBA2-7E 11A8127G43

121DBA2-10E 11A8127G44

121DBA2-15E 11A8127G45

121DBA2-20E 11A8127G46

121DBA2-25E 11A8127G47

121DBA2-30E 11A8127G48

121DBA2-40E 11A8127G49

121DBA2-50E 11A8127G50

121DBA2-65E 11A8127G51

121DBA2-780E 11A8127G52

121DBA2-100E 11A8127G53

121DBA2-125E 11A8127G54

121DBA2-150E 11A8127G55

121DBA2-200E 11A8127G56

145DBA2-3 11A8127G61

145DBA2-5E 11A8127G62

145DBA2-7E 11A8127G63

145DBA2-10E 11A8127G64

145DBA2-15E 11A8127G65

145DBA2-20E 11A8127G66

145DBA2-25E 11A8127G67

145DBA2-30E 11A8127G68

145DBA2-40E 11A8127G69

145DBA2-50E 11A8127G70

145DBA2-65E 11A8127G71

Style Number Catalog Number

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A3-11

Appendix 3—Catalog Number/Style Number Cross Reference

145DBA2-780E 11A8127G72

145DBA2-100E 11A8127G73

145DBA2-125E 11A8127G74

145DBA2-150E 11A8127G75

145DBA2-200E 11A8127G76

5CLS70-32R 140D045G01

5CLS70-36R 140D045G02

5CLS70-24R 140D045G03

5CLS70-12R 140D045G04

5CLS70-44R 140D045G05

5CLS70-18R 140D045G06

6DSL-A150 140D316G01

6DSL-A200 140D316G02

6DSL-A250 140D316G03

6DSL-A300 140D316G04

6DSL-A400 140D316G05

6DSL-A600 140D316G06

6DSL-A800 140D316G07

6DSL-B1200 140D316G10

6DSL-B1600 140D316G11

6DSL-B3000 140D316G12

4NPL-1875 140D318G01

4NPL-2825 140D318G02

4NPL-900 140D318G04

4NPL-1300 140D318G05

4NPL-3000 140D318G06

4NPL-2000 140D318G07

8RDB2-VM 140D340G11

15RDB2-VM 140D340G12

25RDB2-VM 140D340G13

38RDB2-VM 140D340G14

8RDB2-HVM 140D340G16

15RDB2-HVM 140D340G17

25RDB2-HVM 140D340G18

38RDB2-HVM 140D340G19

RDB2-VL 140D340G20

8RDB4-VM 140D341G11

15RDB4-VM 140D341G12

25RDB4-VM 140D341G13

38RDB4-VM 140D341G14

8RDB4-HVM 140D341G16

15RDB4-HVM 140D341G17

25RDB4-HVM 140D341G18

38RDB4-HVM 140D341G19

RDB4-VL 140D341G20

8RDB8-VM 140D342G11

15RDB8-VM 140D342G12

25RDB8-VM 140D342G13

38RDB8-VM 140D342G14

8RDB8-HVM 140D342G16

15RDB8-HVM 140D342G17

25RDB8-HVM 140D342G18

38RDB8-HVM 140D342G19

Style Number Catalog Number

RDB8-VL 140D342G20

8RDB4-UM 140D346G11

15RDB4-UM 140D346G12

25RDB4-UM 140D346G13

38RDB4-UM 140D346G14

8RDB4-HUM 140D346G16

15RDB4-HUM 140D346G17

25RDB4-HUM 140D346G18

38RDB4-HUM 140D346G19

RDB4-UL 140D346G20

8RDB2-UM 140D349G11

15RDB2-UM 140D349G12

15RDB2-UM 140D349G13

38RDB2-UM 140D349G14

8RDB2-HUM 140D349G16

15RDB2-HUM 140D349G17

25RDB2-HUM 140D349G18

38RDB2-HUM 140D349G19

RDB2-UL 140D349G20

8RDB8-UM 140D354G11

15RDB8-UM 140D354G12

25RDB8-UM 140D354G13

38RDB8-UM 140D354G14

8RDB8-HUM 140D354G16

15RDB8-HUM 140D354G17

25RDB8-HUM 140D354G18

38RDB8-HUM 140D354G19

RDB8-UL 140D354G20

4ACLS-26R 151D207G01

5HCLS-30 151D240G01

5HCLS-2R 151D240G02

5HCLS-3R 151D240G03

5HCLS-4R 151D240G04

5HCLS-5R 151D240G05

5HCLS-6R 151D240G06

5CLS-30 151D241G01

5CLS-2R 151D241G02

5CLS-3R 151D241G03

5CLS-4R 151D241G04

5CLS-5R 151D241G05

5CLS-6R 151D241G06

4CX-60C 151D253G06

4CX-80C 151D253G08

4CXI-60C 151D253G26

4CXI-80C 151D253G28

5CX-25C 151D254G03

5CX-21C 151D254G04

5CX-35C 151D254G06

5CX-60C 151D254G09

5CX-10C 151D254G11

5CX-12C 151D254G12

5CXI-25C 151D254G23

5CXI-21C 151D254G24

Style Number Catalog Number

5CXI-35C 151D254G26

5CXI-60C 151D254G29

5CXI-10C 151D254G31

5CXI-12C 151D254G32

8CX-3.5C 151D255G01

8CX-4C 151D255G02

8CX-7C 151D255G03

8CX-15C 151D255G06

8CX-35C 151D255G09

8CX-10C 151D255G11

8CX-12C 151D255G12

8CXI-3.5C 151D255G21

8CXI-4C 151D255G22

8CXI-7C 151D255G23

8CXI-15C 151D255G26

8CXI-35C 151D255G29

8CXI-10C 151D255G31

8CXI-12C 151D255G32

8CLS-15 151D256G01

8CLS-30 151D256G02

8CLS-60 151D256G03

8CLS-70 151D256G04

8CLS-90 151D256G05

8CLS-110 151D256G06

8CLS-125 151D256G07

8CLS-150 151D256G11

8CLS-200 151D256G12

8CLS-225 151D256G13

5CLS75-36R 151D257G01

5CLS75-32R 151D257G02

151D257G03 151D257G03

151D257G04 151D257G04

5CLS75-24R 151D257G05

15CX-4C 151D883G01

15CX-7C 151D883G02

15CX-15C 151D883G05

15CX-10C 151D883G11

15CX-3C 151D883G12

15CXI-4C 151D883G21

15CXI-7C 151D883G22

15CXI-15C 151D883G25

15CXI-10C 151D883G31

15CXI-3C 151D883g32

5CX-GNM-G 151D884G01

8CX-GNM-G 151D884G02

15CX-GNM-G 151D884G03

CX-NL 151D884G08

5CX-GDM-G 151D885G01

8CX-GDM-G 151D885G02

15CX-GDM-G 151D885G03

CX-DL 151D885G05

CX-DF 151D885G06

6DSL-C800 151D932G01

Style Number Catalog Number

6DSL-C1000 151D932G02

6DSL-C1200 151D932G03

6DSL-C1600 151D932G04

6DSL-C2000 151D932G05

6DSL-D2500 151D932G09

6DSL-D3000 151D932G10

5ACLS-9R 151D933G01

5ACLS-12R 151D933G02

5ACLS-18R 151D933G03

5ACLS-24R 151D933G04

5CLS-9R 151D961G01

5CLS-12R 151D961G02

5CLS-18R 151D961G03

5CLS-24R 151D961G04

5HCLS-9R 151D962G01

5HCLS-12R 151D962G02

5HCLS-18R 151D962G03

5HCLS-24R 151D962G04

8ACLS-2R 151D963G01

8ACLS-3R 151D963G02

8ACLS-4R 151D963G03

8ACLS-5R 151D963G04

8ACLS-6R 151D963G05

7ACLS-9R 151D963G06

7ACLS-12R 151D963G07

7ACLS18R 151D963G10

7ACLS-24R 151D963G11

38DBA2-5E 18A7330G13

38DBA2-7E 18A7330G14

38DBA2-10E 18A7330G15

38DBA2-15E 18A7330G16

38DBA2-20E 18A7330G17

38DBA2-25E 18A7330G18

38DBA2-30E 18A7330G19

38DBA2-40E 18A7330G20

38DBA2-50E 18A7330G21

38DBA2-65E 18A7330G22

38DBA2-780E 18A7330G23

38DBA2-100E 18A7330G24

38DBA2-125E 18A7330G25

38DBA2-150E 18A7330G26

38DBA2-200E 18A7330G27

48DBA2-5E 18A7330G33

48DBA2-7E 18A7330G34

48DBA2-10E 18A7330G35

48DBA2-15E 18A7330G36

48DBA2-20E 18A7330G37

48DBA2-25E 18A7330G38

48DBA2-30E 18A7330G39

48DBA2-40E 18A7330G40

48DBA2-50E 18A7330G41

48DBA2-65E 18A7330G42

48DBA2-780E 18A7330G43

Style Number Catalog Number

www.comoso.com

V14-A3-12 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 3—Catalog Number/Style Number Cross Reference

48DBA2-100E 18A7330G44

48DBA2-125E 18A7330G45

48DBA2-150E 18A7330G46

48DBA2-200E 18A7330G47

38DBA2-.5 22A6782G04

48DBA2-.5 22A6782G05

72DBA2-.5 22A6782G06

5LCLS-18R 304C463G03

5LCLS-24R 304C463G04

8RDB2-SHNT 308C548G01

15RDB2-SHNT 308C548G02

25RDB2-SHNT 308C548G03

38RDB2-SHNT 308C548G04

RBA2-COND 309C024G03

RBA2-FLTR 309C024G03

RBA2-FLTR-1 309C024G03

RBA4-COND 309C024G04

RBA2-FLTR 309C024G05

Spring and shunt

assy. for 8BA2-NH

309C054G01

Spring and shunt

assy. for 15BA2-NH

309C054G02

8RBA2-ISHNT 309C548G09

15RBA2-ISHNT 309C548G10

25RBA2-ISHNT 309C548G11

38RBA2-ISHNT 309C548G12

8RBA2-DH 309C558G01

15RBA2-DH 309C558G02

25RBA2-DH 309C558G03

38RBA2-DH 309C558G04

8RDB2-DH 309C558G05

15RDB2-DH 309C558G06

25RDB2-DH 309C558G07

38RDB2-DH 309C558G08

15RBA4-DH 309C797G02

25RBA4-DH 309C797G03

38RBA4-DH 309C797G04

8RDB4-DH 310C131G01

15RDB4-DH 310C131G02

25RDB4-DH 310C131G03

Style Number Catalog Number

25RDB4-DH 310C131G03

38RDB4-DH 310C131G04

8BA4-NH 310C196G01

15BA4-NH 310C196G02

RBA2-COND 310C197G03

RBA4-COND 310C197G04

RBA2-COND-1 310C197G05

RBA4-COND-1 310C197G06

8BA2-NH 310C198G01

15BA2-NH 310C198G02

8RBA2-10E 423D814A05

8RBA2-15E 423D814A06

8RBA2-20E 423D814A07

8RBA2-25E 423D814A08

8RBA2-30E 423D814A09

8RBA2-40E 423D814A10

8RBA2-50E 423D814A11

8RBA2-65E 423D814A12

8RBA2-80E 423D814A13

8RBA2-100E 423D814A14

8RBA2-125E 423D814A15

8RBA2-150E 423D814A16

8RBA2-175E 423D814A17

8RBA2-200E 423D814A18

15RBA2-10E 423D814A25

15RBA2-15E 423D814A26

15RBA2-20E 423D814A27

15RBA2-25E 423D814A28

15RBA2-30E 423D814A29

15RBA2-40E 423D814A30

15RBA2-50E 423D814A31

15RBA2-65E 423D814A32

15RBA2-80E 423D814A33

15RBA2-100E 423D814A34

15RBA2-125E 423D814A35

15RBA2-150E 423D814A36

15RBA2-175E 423D814A37

15RBA2-200E 423D814A38

25RBA2-10E 423D814A45

25RBA2-15E 423D814A46

25RBA2-20E 423D814A47

25RBA2-25E 423D814A48

25RBA2-30E 423D814A49

25RBA2-40E 423D814A50

25RBA2-50E 423D814A51

25RBA2-65E 423D814A52

25RBA2-80E 423D814A53

25RBA2-100E 423D814A54

25RBA2-125E 423D814A55

Style Number Catalog Number

25RBA2-150E 423D814A56

25RBA2-175E 423D814A57

25RBA2-200E 423D814A58

38RBA2-10E 423D814A65

38RBA2-15E 423D814A66

38RBA2-20E 423D814A67

38RBA2-25E 423D814A68

38RBA2-30E 423D814A69

38RBA2-40E 423D814A70

38RBA2-50E 423D814A71

38RBA2-65E 423D814A72

38RBA2-80E 423D814A73

38RBA2-100E 423D814A74

38RBA2-125E 423D814A75

38RBA2-150E 423D814A76

38RBA2-175E 423D814A77

38RBA2-200E 423D814A78

HANDLE ASSEMBLY 435B592G02

15CLE2-80E 439D482G04

15CLE2-100E 439D482G05

15CLE2-125X 439D482G06

5CLE-750E 449D595G01

5CLE-600E 449D595G02

5ACLS-30 449D597G01

5ACLS-2R 449D597G02

5ACLS-3R 449D597G03

5ACLS-4R 449D597G04

5ACLS-5R 449D597G05

5ACLS-6R 449D597G06

8RBT2-20E 449D671A07

8RBT2-25E 449D671A08

8RBT2-30E 449D671A09

8RBT2-40E 449D671A10

8RBT2-50E 449D671A11

8RBT2-65E 449D671A12

8RBT2-80E 449D671A13

8RBT2-100E 449D671A14

8RBT2-125E 449D671A15

8RBT2-150E 449D671A16

8RBT2-200E 449D671A18

15RBT2-20E 449D671A27

15RBT2-25E 449D671A28

15RBT2-30E 449D671A29

15RBT2-40E 449D671A30

15RBT2-50E 449D671A31

15RBT2-65E 449D671A32

15RBT2-80E 449D671A33

15RBT2-100E 449D671A34

15RBT2-125E 449D671A35

15RBT2-150E 449D671A36

15RBT2-200E 449D671A38

25RBT2-20E 449D671A47

25RBT2-25E 449D671A48

Style Number Catalog Number

25RBT2-30E 449D671A49

25RBT2-40E 449D671A50

25RBT2-50E 449D671A51

25RBT2-65E 449D671A52

25RBT2-80E 449D671A53

25RBT2-100E 449D671A54

25RBT2-125E 449D671A55

25RBT2-150E 449D671A56

25RBT2-200E 449D671A58

38RBT2-20E 449D671A67

38RBT2-25E 449D671A68

38RBT2-30E 449D671A69

38RBT2-40E 449D671A70

38RBT2-50E 449D671A71

38RBT2-65E 449D671A72

38RBT2-80E 449D671A73

38RBT2-100E 449D671A74

38RBT2-125E 449D671A75

38RBT2-150E 449D671A76

38RBT2-200E 449D671A78

2CLE-30E 449D797G02

2CLE-50E 449D797G03

2CLE-65E 449D797G04

2CLE-80E 449D797G05

2CLE-100E 449D797G06

2CLE-125E 449D797G07

2CLE-150E 449D797G08

2CLE-200E 449D797G09

2CLE-225E 449D797G10

2CLE-10E 449D797G11

2CLE-25E 449D797G12

2CLE-250E 449D797G13

2CLE-300E 449D797G14

2CLE-350X 449D797G15

2CLE-400X 449D797G17

2CLE-450X 449D797G18

38DBA2-3 505D420G07

48DBA2-3 505D420G08

72DBA2-3 505D420G09

2ACLS-25 591C142G01

2ACLS-2R 591C142G02

2ACLS-3R 591C142G03

2ACLS-4R 591C142G04

2ACLS-5R 591C142G05

2ACLS-6R 591C142G06

2ACLS-9R 591C142G07

2ACLS-12R 591C142G08

2ACLS-18R 591C143G01

2ACLS-24R 591C143G02

2HCLS-25 591C155G01

2HCLS-2R 591C155G02

2HCLS-3R 591C155G03

2HCLS-4R 591C155G04

Style Number Catalog Number

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A3-13

Appendix 3—Catalog Number/Style Number Cross Reference

2HCLS-5R 591C155G05

2HCLS-6R 591C155G06

2HCLS-9R 591C155G07

2HCLS-12R 591C155G08

2HCLS-18R 591C157G01

2HCLS-24R 591C157G02

CLS-700 DUMMY 591C172G01

8CLT-12C 591C273G03

15CLE3-175E/200X 591C376G01

15CLE3-150E 591C376G02

RBA4-FLTR 591C607G01

RBA4-FLTR-HC 591C607G02

RBA4-FLTR-1 591C607G03

RBA4-FLTR-HC-1 591C607G04

2CLS-25 591C812G01

2CLS-2R 591C812G02

2CLS-3R 591C812G03

2CLS-4R 591C812G04

2CLS-5R 591C812G05

2CLS-6R 591C812G06

2CLS-9R 591C812G07

2CLS-12R 591C812G08

2CLS-18R 591C813G01

2CLS-24R 591C813G02

4CX-18C 5978C62G01

4CX-25C 5978C62G02

4CX-35C 5978C62G03

8CX-4.5C 5978C62G04

8CX-6C 5978C62G05

8CX-8C 5978C62G06

4CXI-18C 5978C62G21

4CXI-25C 5978C62G22

4CXI-35C 5978C62G23

8CXI-4.5C 5978C62G24

8CXI-6C 5978C62G25

8CXI-8C 5978C62G26

4CX-45C 5978C66G01

4CX-50C 5978C66G02

4CX-65C 5978C66G03

4CX-75C 5978C66G04

4CX-100C 5978C66G05

4CXI-45C 5978C66G21

4CXI-50C 5978C66G22

4CXI-65C 5978C66G23

4CXI-75C 5978C66G24

4CXI-100C 5978C66G25

5CX-18C 5978C70G01

5CX-20C 5978C70G02

5CX-30C 5978C70G04

5CX-40C 5978C70G05

5CX-50C 5978C70G06

5CX-65C 5978C70G07

5CX-75C 5978C70G08

Style Number Catalog Number

5CXI-18C 5978C70G21

5CXI-20C 5978C70G22

5CXI-30C 5978C70G24

5CXI-40C 5978C70G25

5CXI-50C 5978C70G26

5CXI-65C 5978C70G27

5CXI-75C 5978C70G28

8CX-18C 5978C72G01

8CX-20C 5978C72G02

8CX-25C 5978C72G03

8CX-30C 5978C72G04

8CX-40C 5978C72G05

8CXI-18C 5978C72G21

8CXI-20C 5978C72G22

8CXI-25C 5978C72G23

8CXI-30C 5978C72G24

8CXI-40C 5978C72G25

7CLS70-24R 5979C91G01

7CLS70-36R 5979C91G02

6DSL-E2500 5980C01G01

6DSL-E3000 5980C01G02

6DSL-E4000 5980C01G03

6DSL-F5000 5980C01G04

7CLS70-44R 5980C03G01

8DBA1-0.5 5980C15G01

8DBA1-3 5980C15G02

8DBA1-5E 5980C15G03

8DBA1-7E 5980C15G04

8DBA1-10E 5980C15G05

8DBA1-15E 5980C15G06

8DBA1-20E 5980C15G07

8DBA1-25E 5980C15G08

8DBA1-30E 5980C15G09

8DBA1-40E 5980C15G10

8DBA1-50E 5980C15G11

8DBA1-65E 5980C15G12

8DBA1-80E 5980C15G13

8DBA1-100E 5980C15G14

8DBA1-125E 5980C15G15

8DBA1-150E 5980C15G16

8DBA1-200E 5980C15G17

15DBA1-0.5 5980C15G21

15DBA1-3 5980C15G22

15DBA1-5E 5980C15G23

15DBA1-7E 5980C15G24

15DBA1-10E 5980C15G25

15DBA1-15E 5980C15G26

15DBA1-20E 5980C15G27

15DBA1-25E 5980C15G28

15DBA1-30E 5980C15G29

15DBA1-40E 5980C15G30

15DBA1-50E 5980C15G31

15DBA1-65E 5980C15G32

Style Number Catalog Number

15DBA1-80E 5980C15G33

15DBA1-100E 5980C15G34

15DBA1-125E 5980C15G35

15DBA1-150E 5980C15G36

15DBA1-200E 5980C15G37

25DBA1-0.5 5980C16G01

25DBA1-3 5980C16G02

25DBA1-5E 5980C16G03

25DBA1-7E 5980C16G04

25DBA1-10E 5980C16G05

25DBA1-15E 5980C16G06

25DBA1-20E 5980C16G07

25DBA1-25E 5980C16G08

25DBA1-30E 5980C16G09

25DBA1-40E 5980C16G10

25DBA1-50E 5980C16G11

25DBA1-65E 5980C16G12

25DBA1-80E 5980C16G13

25DBA1-100E 5980C16G14

25DBA1-125E 5980C16G15

25DBA1-150E 5980C16G16

25DBA1-200E 5980C16G17

38DBA1-0.5 5980C16G21

38DBA1-3 5980C16G22

38DBA1-5E 5980C16G23

38DBA1-7E 5980C16G24

38DBA1-10E 5980C16G25

38DBA1-15E 5980C16G26

38DBA1-20E 5980C16G27

38DBA1-25E 5980C16G28

38DBA1-30E 5980C16G29

38DBA1-40E 5980C16G30

38DBA1-50E 5980C16G31

38DBA1-65E 5980C16G32

38DBA1-80E 5980C16G33

38DBA1-100E 5980C16G34

38DBA1-125E 5980C16G35

38DBA1-150E 5980C16G36

38DBA1-200E 5980C16G37

48DBA1-0.5 5980C17G01

48DBA1-3 5980C17G02

48DBA1-5E 5980C17G03

48DBA1-7E 5980C17G04

48DBA1-10E 5980C17G05

48DBA1-15E 5980C17G06

48DBA1-20E 5980C17G07

48DBA1-25E 5980C17G08

48DBA1-30E 5980C17G09

48DBA1-40E 5980C17G10

48DBA1-50E 5980C17G11

48DBA1-65E 5980C17G12

48DBA1-80E 5980C17G13

48DBA1-100E 5980C17G14

Style Number Catalog Number

48DBA1-125E 5980C17G15

48DBA1-150E 5980C17G16

48DBA1-200E 5980C17G17

72DBA1-0.5 5980C17G21

72DBA1-3 5980C17G22

72DBA1-5E 5980C17G23

72DBA1-7E 5980C17G24

72DBA1-10E 5980C17G25

72DBA1-15E 5980C17G26

72DBA1-20E 5980C17G27

72DBA1-25E 5980C17G28

72DBA1-30E 5980C17G29

72DBA1-40E 5980C17G30

72DBA1-50E 5980C17G31

72DBA1-65E 5980C17G32

72DBA1-80E 5980C17G33

72DBA1-100E 5980C17G34

72DBA1-125E 5980C17G35

72DBA1-150E 5980C17G36

72DBA1-200E 5980C17G37

15CX-18C 5980C19G01

15CX-20C 5980C19G02

15CX-25C 5980C19G03

15CX-30C 5980C19G04

15CX-40C 5980C19G05

15CX-6C 5980C19G06

15CX-12C 5980C19G07

15CX-8C 5980C19G07

15CXI-18C 5980C19G21

15CXI-20C 5980C19G22

15CXI-25C 5980C19G23

15CXI-30C 5980C19G24

15CXI-40C 5980C19G25

15CXI-6C 5980C19G26

15CXI-12C 5980C19G27

15CXI-8C 5980C19G27

5HLE-PDM-D 5981C03G01

8HLE-PDM-D 5981C03G02

15HLE-PDM-D 5981C03G03

5HLE-GDM-D 5981C03G04

8HLE-GDM-D 5981C03G05

15HLE-GDM-D 5981C03G06

5HLE-PNM-D 5981C03G07

8HLE-PNM-D 5981C03G08

15HLE-PNM-D 5981C03G09

5HLE-GNM-D 5981C03G10

8HLE-GNM-D 5981C03G11

15HLE-GNM-D 5981C03G12

5HLE-PDM-E 5981C03G13

8HLE-GDM-E 5981C03G14

8HLE-PDM-E 5981C03G14

15HLE-PDM-E 5981C03G15

5HLE-GDM-E 5981C03G16

Style Number Catalog Number

www.comoso.com

V14-A3-14 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 3—Catalog Number/Style Number Cross Reference

15HLE-GDM-E 5981C03G18

5HLE-PNM-E 5981C03G19

8HLE-PNM-E 5981C03G20

15HLE-PNM-E 5981C03G21

5HLE-GNM-E 5981C03G22

8HLE-GNM-E 5981C03G23

15HLE-GNM-E 5981C03G24

5NCLPT-10E-A 5981C05G01

5NCLPT-5E-A 5981C05G02

5NCLPT-3E-A 5981C05G03

5NCLPT-2E-A 5981C05G04

5NCLPT-1E-A 5981C05G05

5NCLPT-0.5E-A 5981C05G06

8NCLPT-10E-B 5981C06G01

8NCLPT-5E-B 5981C06G02

8NCLPT-3E-B 5981C06G03

8NCLPT-2E-A 5981C06G04

8NCLPT-1E-A 5981C06G05

8NCLPT-0.5E-A 5981C06G06

15NCLPT-10E-B 5981C07G01

15NCLPT-5E-B 5981C07G02

15NCLPT-3E-B 5981C07G03

15NCLPT-20.5E-A 5981C07G04

15NCLPT-1E-A 5981C07G05

15NCLPT-0.5E-A 5981C07G06

8HLE-40E 5981C16G04

8HLE-50E 5981C16G05

8HLE-65E 5981C16G06

8HLE-80E 5981C16G07

8HLE-100E 5981C16G08

8HLE-125E 5981C16G09

8HLE-150E 5981C16G10

8HLE-175E 5981C16G11

15RBA4-INH-B 5981C17G02

25RBA4-INH-B 5981C17G03

38RBA4-INH-B 5981C17G04

8CLE-40E 5981C17G04

8CLE-50E 5981C17G05

8CLE-65E 5981C17G06

8CLE-80E 5981C17G07

8CLE-100E 5981C17G08

8CLE-125E 5981C17G09

8CLE-150E 5981C17G10

8CLE-175E 5981C17G11

15RBA2-INH-B 5981C18G02

25RBA2-INH-B 5981C18G03

38RBA2-INH-B 5981C18G04

15HLE-40E 5981C18G05

15HLE-50E 5981C18G06

15HLE-65E 5981C18G07

15HLE-80E 5981C18G08

Style Number Catalog Number

15HLE-100E 5981C18G09

15HLE-125E 5981C18G10

15CLE-40E 5981C19G04

15CLE-50E 5981C19G05

15CLE-65E 5981C19G06

15CLE-80E 5981C19G07

15CLE-100E 5981C19G08

15CLE-125E 5981C19G09

15CLE-150E 5981C19G10

8CLE-200E 5981C21G01

8CLE-250E 5981C21G02

8CLE-300E 5981C21G03

8CLE-350E 5981C21G04

8HLE-200E 5981C22G01

8HLE-250E 5981C22G02

8HLE-300E 5981C22G03

8HLE-350E 5981C22G04

15HLE-150E 5981C24G01

15HLE-175E 5981C24G02

15HLE-200E 5981C24G03

15HLE-250E 5981C24G04

15CLE-175E 5981C25G01

15CLE-200E 5981C25G02

15CLE-250E 5981C25G03

15CLE-300E 5981C25G04

5HLE-10E 5981C28G01

5HLE-15E 5981C28G02

5HLE-20E 5981C28G03

5HLE-25E 5981C28G04

5HLE-30E 5981C28G05

5CLE-10E-D 5981C29G01

5HCL-10E 5981C29G01

5CLE-15E-D 5981C29G02

5HCL-15E 5981C29G02

5CLE-20E-D 5981C29G03

5HCL-20E 5981C29G03

5CLE-25E-D 5981C29G04

5HCL-25E 5981C29G04

5CLE-30E 5981C29G05

5HCL-30E 5981C29G05

8HLE-10E 5981C30G01

8HLE-15E 5981C30G02

8HLE-20E 5981C30G03

8HLE-25E 5981C30G04

8HLE-30E 5981C30G05

8CLE-10E 5981C31G01

8CLE-15E-D 5981C31G02

8CLE-20E-D 5981C31G03

8CLE-25E-D 5981C31G04

8CLE-30E 5981C31G05

15HLE-10E 5981C32G01

15HLE-15E 5981C32G02

15HLE-20E 5981C32G03

Style Number Catalog Number

15HLE-25E 5981C32G04

15HLE-30E 5981C32G05

15CLE-10E 5981C33G01

15CLE-15E-D 5981C33G02

15CLE-20E-D 5981C33G03

15CLE-25E-D 5981C33G04

15CLE-30E 5981C33G05

5AHLE-10E 5981C46G01

5AHLE-15E 5981C46G02

5AHLE-20E 5981C46G03

5AHLE-25E 5981C46G04

5AHLE-30E 5981C46G05

5AHLE-40E 5981C46G06

5AHLE-50E 5981C46G07

5AHLE-65E 5981C46G08

5AHLE-80E 5981C46G09

5AHLE-100E 5981C46G10

5AHLE-125E 5981C46G11

5AHLE-150E 5981C46G12

5AHLE-175E 5981C46G13

5AHLE-200E 5981C46G14

5AHLE-250E 5981C46G15

5AHLE-300E 5981C46G16

5AHLE-350E 5981C46G17

5AHLE-400E 5981C46G18

5AHLE-450E 5981C46G19

8AHLE-10E 5981C47G01

8AHLE-15E 5981C47G02

8AHLE-20E 5981C47G03

8AHLE-25E 5981C47G04

8AHLE-30E 5981C47G05

8AHLE-40E 5981C47G06

8AHLE-50E 5981C47G07

8AHLE-65E 5981C47G08

8AHLE-80E 5981C47G09

8AHLE-100E 5981C47G10

8AHLE-125E 5981C47G11

8AHLE-150E 5981C47G12

8AHLE-175E 5981C47G13

8AHLE-200E 5981C47G14

8AHLE-250E 5981C47G15

8AHLE-300E 5981C47G16

8AHLE-350E 5981C47G17

8RBA2-IDH 5981C50G01

15RBA2-IDH 5981C50G02

25RBA2-IDH 5981C50G03

38RBA2-IDH 5981C50G04

8RBA2-INH 5981C51G01

15RBA2-INH 5981C51G02

Style Number Catalog Number

25RBA2-INH 5981C51G03

38RBA2-INH 5981C51G04

8RBA4-DH 5981C52G01

8RBA4-IDH 5981C52G01

15RBA4-IDH 5981C52G02

25RBA4-IDH 5981C52G03

38RBA4-IDH 5981C52G04

8RBA4-INH 5981C53G01

15RBA4-INH 5981C53G02

25RBA4-INH 5981C53G03

38RBA4-INH 5981C53G04

8RBA8-INH 5981C54G01

15RBA8-INH 5981C54G02

25RBA8-INH 5981C54G03

38RBA8-INH 5981C54G04

5BHCL-750E 5981C58G01

5BHCL-900E 5981C58G02

15HCL-250E 5981C61G01

15HCL-300E 5981C61G02

15HCL-200E 5981C61G03

15HCL-150E 5981C61G04

5HCL-500E 5981C62G01

5HCL-600E 5981C62G02

5HCL-450E 5981C62G03

5HCL-400E 5981C62G04

5HCL-300E 5981C62G05

5HCL-250E 5981C62G06

5HCL-200E 5981C62G07

5BHCL-600E 5981C62G08

5BHCL-500E 5981C62G09

5BHCL-450E 5981C62G10

5BHCL-400E 5981C62G11

5HLE-40E 5981C64G01

5HLE-50E 5981C64G02

5HLE-65E 5981C64G03

5HLE-80E 5981C64G04

5HLE-100E 5981C64G05

5HLE-125E 5981C64G06

5HLE-150E 5981C64G07

5HLE-175E 5981C64G08

5HLE-200E 5981C64G09

5HLE-250E 5981C64G10

5CLE-40E 5981C65G01

5CLE-50E 5981C65G02

5CLE-65E 5981C65G03

5CLE-80E 5981C65G04

Style Number Catalog Number

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A3-15

Appendix 3—Catalog Number/Style Number Cross Reference

5CLE-100E 5981C65G05

5CLE-125E 5981C65G06

5HCL-40E 5981C65G06

5CLE-150E 5981C65G07

5HCL-50E 5981C65G07

5CLE-175E 5981C65G08

5HCL-65E 5981C65G08

5CLE-200E 5981C65G09

5HCL-80E 5981C65G09

5CLE-250E 5981C65G10

5HCL-100E 5981C65G10

5HCL-125E 5981C65G11

5HCL-150E 5981C65G12

5HLE-300E 5981C66G01

5HLE-350E 5981C66G02

5HLE-400E 5981C66G03

5HLE-450E 5981C66G04

5CLE-300E 5981C67G01

5CLE-350E 5981C67G02

5CLE-400E 5981C67G03

5CLE-450E 5981C67G04

15HCL-65E 5981C68G04

15HCL-80E 5981C68G05

15HCL-100E 5981C68G06

15HCL-125E 5981C68G07

DBU-MFLR 5981C69G02

DBU17-3K 5981C75G01

DBU27-3K 5981C75G01

DBU38-3K 5981C75G01

DBU17-6K 5981C75G02

DBU27-6K 5981C75G02

DBU38-6K 5981C75G02

DBU1780K 5981C75G03

DBU27-8K 5981C75G03

DBU38-8K 5981C75G03

DBU17-10K 5981C75G04

DBU27-10K 5981C75G04

DBU38-10K 5981C75G04

DBU17-12K 5981C75G05

DBU27-12K 5981C75G05

DBU38-12K 5981C75G05

DBU17-15K 5981C75G06

DBU27-15K 5981C75G06

DBU38-15K 5981C75G06

DBU17-20K 5981C75G07

DBU27-20K 5981C75G07

DBU38-20K 5981C75G07

DBU17-25K 5981C75G08

DBU27-25K 5981C75G08

DBU38-25K 5981C75G08

DBU17-30K 5981C75G09

DBU27-30K 5981C75G09

DBU38-30K 5981C75G09

Style Number Catalog Number

DBU17-40K 5981C75G10

DBU27-40K 5981C75G10

DBU38-40K 5981C75G10

DBU17-50K 5981C75G11

DBU27-50K 5981C75G11

DBU38-50K 5981C75G11

DBU17-65K 5981C75G12

DBU27-65K 5981C75G12

DBU38-65K 5981C75G12

DBU17-80K 5981C75G13

DBU27-80K 5981C75G13

DBU38-80K 5981C75G13

DBU17-100K 5981C75G14

DBU27-100K 5981C75G14

DBU38-100K 5981C75G14

DBU17-140K 5981C75G15

DBU27-140K 5981C75G15

DBU38-140K 5981C75G15

DBU17-200K 5981C75G16

DBU27-200K 5981C75G16

DBU38-200K 5981C75G16

DBU17-5E 5981C76G01

DBU27-5E 5981C76G01

DBU38-5E 5981C76G01

DBU17-7E 5981C76G02

DBU27-7E 5981C76G02

DBU38-7E 5981C76G02

DBU17-10E 5981C76G03

DBU27-10E 5981C76G03

DBU38-10E 5981C76G03

DBU17-13E 5981C76G04

DBU27-13E 5981C76G04

DBU38-13E 5981C76G04

DBU17-15E 5981C76G05

DBU27-15E 5981C76G05

DBU38-15E 5981C76G05

DBU17-20E 5981C76G06

DBU27-20E 5981C76G06

DBU38-20E 5981C76G06

DBU17-25E 5981C76G07

DBU27-25E 5981C76G07

DBU38-25E 5981C76G07

DBU17-30E 5981C76G08

DBU27-30E 5981C76G08

DBU38-30E 5981C76G08

DBU17-40E 5981C76G09

DBU27-40E 5981C76G09

DBU38-40E 5981C76G09

DBU17-50E 5981C76G10

DBU27-50E 5981C76G10

DBU38-50E 5981C76G10

DBU17-65E 5981C76G11

DBU27-65E 5981C76G11

Style Number Catalog Number

DBU38-65E 5981C76G11

DBU17-80E 5981C76G12

DBU27-80E 5981C76G12

DBU38-80E 5981C76G12

DBU17-100E 5981C76G13

DBU27-100E 5981C76G13

DBU38-100E 5981C76G13

DBU17-125E 5981C76G14

DBU27-125E 5981C76G14

DBU38-125E 5981C76G14

DBU17-150E 5981C76G15

DBU27-150E 5981C76G15

DBU38-150E 5981C76G15

DBU17-175E 5981C76G16

DBU27-175E 5981C76G16

DBU38-175E 5981C76G16

DBU17-200E 5981C76G17

DBU27-200E 5981C76G17

DBU38-200E 5981C76G17

DBU17-15SE 5981C77G01

DBU27-15SE 5981C77G01

DBU38-15SE 5981C77G01

DBU17-20SE 5981C77G02

DBU27-20SE 5981C77G02

DBU38-20SE 5981C77G02

DBU17-25SE 5981C77G03

DBU27-25SE 5981C77G03

DBU38-25SE 5981C77G03

DBU17-30SE 5981C77G04

DBU27-30SE 5981C77G04

DBU38-30SE 5981C77G04

DBU17-40SE 5981C77G05

DBU27-40SE 5981C77G05

DBU38-40SE 5981C77G05

DBU17-50SE 5981C77G06

DBU27-50SE 5981C77G06

DBU38-50SE 5981C77G06

DBU17-65SE 5981C77G07

DBU27-65SE 5981C77G07

DBU38-65SE 5981C77G07

DBU17-80SE 5981C77G08

DBU27-80SE 5981C77G08

DBU38-80SE 5981C77G08

DBU17-100SE 5981C77G09

DBU27-100SE 5981C77G09

DBU38-100SE 5981C77G09

DBU17-125SE 5981C77G10

DBU27-125SE 5981C77G10

DBU38-125SE 5981C77G10

DBU17-150SE 5981C77G11

DBU27-150SE 5981C77G11

DBU38-150SE 5981C77G11

DBU17-175SE 5981C77G12

Style Number Catalog Number

DBU27-175SE 5981C77G12

DBU38-175SE 5981C77G12

DBU17-200SE 5981C77G13

DBU27-200SE 5981C77G13

DBU38-200SE 5981C77G13

5CLS70-9R 5981C81G01

5CLS70-5R 5981C81G03

5CLS70-4R 5981C81G04

5CLS70-3R 5981C81G05

5CLS70-2R 5981C81G06

5CLS70-6R 5981C81G12

8CLS-2R 5982C01G01

8CLS-3R 5982C01G02

8CLS-4R 5982C01G03

8CLS-5R 5982C01G04

8CLS-6R 5982C01G05

7CLS-9R 5982C01G06

7CLS-12R 5982C01G07

7CLS-18R 5982C01G10

7CLS-24R 5982C01G11

HCL-NL 5982C19G04

5BCLS-30 5982C31G01

5BCLS-2R 5982C31G02

5BCLS-3R 5982C31G03

5BCLS-4R 5982C31G04

5BCLS-5R 5982C31G05

5BCLS-6R 5982C31G06

5BCLS-9R 5982C31G07

5BCLS-12R 5982C31G08

5BCLS-18R 5982C32G01

5BCLS-24R 5982C32G02

4BCLS-26R 5982C32G03

15HCL-10E 5982C34G01

15HCL-15E 5982C34G02

15HCL-20E 5982C34G03

15HCL-25E 5982C34G04

15HCL-30E 5982C34G05

15HCL-40E 5982C34G06

15HCL-50E 5982C34G07

7BCLS-2R 5982C36G01

7BCLS-3R 5982C36G02

7BCLS-4R 5982C36G03

7BCLS-5R 5982C36G04

7BCLS-6R 5982C36G05

7BCLS-9R 5982C36G06

7BCLS-12R 5982C36G07

7BCLS-18R 5982C36G08

7BCLS-24R 5982C36G09

8RBA4-.5 5982C44A01

8RBA4-3 5982C44A02

8RBA4-5E 5982C44A03

8RBA4-7E 5982C44A04

8RBA4-10E 5982C44A05

Style Number Catalog Number

www.comoso.com

V14-A3-16 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 3—Catalog Number/Style Number Cross Reference

8RBA4-15E 5982C44A06

8RBA4-20E 5982C44A07

8RBA4-25E 5982C44A08

8RBA4-30E 5982C44A09

8RBA4-40E 5982C44A10

8RBA4-50E 5982C44A11

8RBA4-65E 5982C44A12

8RBA4-80E 5982C44A13

8RBA4-100E 5982C44A14

8RBA4-125E 5982C44A15

8RBA4-150E 5982C44A16

8RBA4-175E 5982C44A17

8RBA4-200E 5982C44A18

8RBA4-250E 5982C44A19

8RBA4-300E 5982C44A20

8RBA4-400E 5982C44A22

15RBA4-.5 5982C44A26

15RBA4-3 5982C44A27

15RBA4-5E 5982C44A28

15RBA4-7E 5982C44A29

15RBA4-10E 5982C44A30

15RBA4-15E 5982C44A31

15RBA4-20E 5982C44A32

15RBA4-25E 5982C44A33

15RBA4-30E 5982C44A34

15RBA4-40E 5982C44A35

15RBA4-50E 5982C44A36

15RBA4-65E 5982C44A37

15RBA4-80E 5982C44A38

15RBA4-100E 5982C44A39

15RBA4-125E 5982C44A40

15RBA4-150E 5982C44A41

15RBA4-175E 5982C44A42

15RBA4-200E 5982C44A43

15RBA4-250E 5982C44A44

15RBA4-300E 5982C44A45

15RBA4-400E 5982C44A47

25RBA4-.5 5982C44A51

25RBA4-3 5982C44A52

25RBA4-5E 5982C44A53

25RBA4-7E 5982C44A54

25RBA4-10E 5982C44A55

25RBA4-15E 5982C44A56

25RBA4-20E 5982C44A57

25RBA4-25E 5982C44A58

25RBA4-30E 5982C44A59

25RBA4-40E 5982C44A60

25RBA4-50E 5982C44A61

25RBA4-65E 5982C44A62

25RBA4-80E 5982C44A63

25RBA4-100E 5982C44A64

25RBA4-125E 5982C44A65

25RBA4-150E 5982C44A66

Style Number Catalog Number

25RBA4-175E 5982C44A67

25RBA4-200E 5982C44A68

25RBA4-250E 5982C44A69

25RBA4-300E 5982C44A70

38RBA4-.5 5982C44A76

38RBA4-3 5982C44A77

38RBA4-5E 5982C44A78

38RBA4-7E 5982C44A79

38RBA4-10E 5982C44A80

38RBA4-15E 5982C44A81

38RBA4-20E 5982C44A82

38RBA4-25E 5982C44A83

38RBA4-30E 5982C44A84

38RBA4-40E 5982C44A85

38RBA4-50E 5982C44A86

38RBA4-65E 5982C44A87

38RBA4-80E 5982C44A88

38RBA4-100E 5982C44A89

38RBA4-125E 5982C44A90

38RBA4-150E 5982C44A91

38RBA4-175E 5982C44A92

38RBA4-200E 5982C44A93

38RBA4-250E 5982C44A94

38RBA4-300E 5982C44A95

DBU27-GDM-L 5982C45G05

DBU27-GDM-R 5982C45G06

DBU17-GDM-R 5982C45G07

DBU17-GDM-L 5982C45G08

2BCLS-25 5982C47G01

2BCLS-2R 5982C47G02

2BCLS-3R 5982C47G03

2BCLS-4R 5982C47G04

2BCLS-5R 5982C47G05

2BCLS-6R 5982C47G06

2BCLS-9R 5982C47G07

2BCLS-12R 5982C47G08

2BCLS-18R 5982C47G09

2BCLS-24R 5982C47G10

DBU17-DL-L 5982C48G02

DBU17-DL-R 5982C48G03

DBU27-DL-L 5982C48G05

DBU27-DL-R 5982C48G06

8RBT4-20E 5982C49A07

8RBT4-25E 5982C49A08

8RBT4-30E 5982C49A09

8RBT4-40E 5982C49A10

8RBT4-50E 5982C49A11

8RBT4-65E 5982C49A12

8RBT4-80E 5982C49A13

8RBT4-100E 5982C49A14

8RBT4-125E 5982C49A15

8RBT4-150E 5982C49A16

8RBT4-200E 5982C49A18

Style Number Catalog Number

8RBT4-250E 5982C49A19

8RBT4-300E 5982C49A20

8RBT4-400E 5982C49A22

15RBT4-20E 5982C49A32

15RBT4-25E 5982C49A33

15RBT4-30E 5982C49A34

15RBT4-40E 5982C49A35

15RBT4-50E 5982C49A36

15RBT4-65E 5982C49A37

15RBT4-80E 5982C49A38

15RBT4-100E 5982C49A39

15RBT4-125E 5982C49A40

15RBT4-150E 5982C49A41

15RBT4-200E 5982C49A43

15RBT4-250E 5982C49A44

15RBT4-300E 5982C49A45

15RBT4-400E 5982C49A47

25RBT4-20E 5982C49A57

25RBT4-25E 5982C49A58

25RBT4-30E 5982C49A59

25RBT4-40E 5982C49A60

25RBT4-50E 5982C49A61

25RBT4-65E 5982C49A62

25RBT4-80E 5982C49A63

25RBT4-100E 5982C49A64

25RBT4-125E 5982C49A65

25RBT4-150E 5982C49A66

25RBT4-200E 5982C49A68

25RBT4-250E 5982C49A69

25RBT4-300E 5982C49A70

38RBT4-20E 5982C49A82

38RBT4-25E 5982C49A83

38RBT4-30E 5982C49A84

38RBT4-40E 5982C49A85

38RBT4-50E 5982C49A86

38RBT4-65E 5982C49A87

38RBT4-80E 5982C49A88

38RBT4-100E 5982C49A89

38RBT4-125E 5982C49A90

38RBT4-150E 5982C49A91

38RBT4-200E 5982C49A93

38RBT4-250E 5982C49A94

38RBT4-300E 5982C49A95

4NPL-3500 5982C64G01

4NPL-5000 5982C64G02

6MDSL-MA150 5982C90G01

6MDSL-MA200 5982C90G02

6MDSL-MA250 5982C90G03

6MDSL-MA300 5982C90G04

6MDSL-MA400 5982C90G05

6MDSL-MA600 5982C90G07

6MDSL-MA800 5982C90G08

6MDSL-MB1200 5982C91G01

Style Number Catalog Number

6MDSL-MB1600 5982C91G02

6MDSL-MB2000 5982C91G03

6MDSL-MC800 5982C92G01

6MDSL-MC1000 5982C92G02

6MDSL-MC1200 5982C92G03

6MDSL-MC1600 5982C92G04

6MDSL-MC2000 5982C92G05

6MDSL-MD2500 5982C93G01

6MDSL-MD3000 5982C93G02

5BHLE-10E 5983C02G01

5BHLE-15E 5983C02G02

5BHLE-20E 5983C02G03

5BHLE-25E 5983C02G04

5BHLE-30E 5983C02G05

5BHLE-40E 5983C02G06

5BHLE-50E 5983C02G07

5BHLE-65E 5983C02G08

5BHLE-80E 5983C02G09

5BHLE-100E 5983C02G10

5BHLE-125E 5983C02G11

5BHLE-150E 5983C02G12

5BHLE-175E 5983C02G13

5BHLE-200E 5983C02G14

5BHLE-250E 5983C02G15

5BHLE-300E 5983C02G16

5BHLE-350E 5983C02G17

5BHLE-400E 5983C02G18

5BHLE-450E 5983C02G19

8BHLE-10E 5983C03G01

8BHLE-15E 5983C03G02

8BHLE-20E 5983C03G03

8BHLE-25E 5983C03G04

8BHLE-30E 5983C03G05

8BHLE-40E 5983C03G06

8BHLE-50E 5983C03G07

8BHLE-65E 5983C03G08

8BHLE-80E 5983C03G09

8BHLE-100E 5983C03G10

8BHLE-125E 5983C03G11

8BHLE-150E 5983C03G12

8BHLE-175E 5983C03G13

8BHLE-200E 5983C03G14

8BHLE-250E 5983C03G15

8BHLE-300E 5983C03G16

8BHLE-350E 5983C03G17

8HCL-200E 5983C05G01

8HCL-250E 5983C05G02

8HCL-300E 5983C05G03

8HCL-350E 5983C05G04

8HCL-175E 5983C05G05

8HCL-150E 5983C05G06

8HCL-125E 5983C05G07

8HCL-100E 5983C05G08

Style Number Catalog Number

www.comoso.com

Volume 14—Fuses CA08100016E—August 2011 www.eaton.com V14-A3-17

Appendix 3—Catalog Number/Style Number Cross Reference

8HCL-80E 5983C05G09

8HCL-65E 5983C05G10

15BHLE-10E 5984C05G01

15BHLE-15E 5984C05G02

15BHLE-20E 5984C05G03

15BHLE-25E 5984C05G04

15BHLE-30E 5984C05G05

15BHLE-40E 5984C05G06

15BHLE-50E 5984C05G07

15BHLE-65E 5984C05G08

15BHLE-80E 5984C05G09

15BHLE-100E 5984C05G10

15BHLE-125E 5984C05G11

15BHLE-150E 5984C05G12

15BHLE-175E 5984C05G13

15BHLE-200E 5984C05G14

15BHLE-250E 5984C05G15

15BHLE2-40E 5984C05G16

15BHLE2-50E 5984C05G17

15BHLE2-65E 5984C05G18

15BHLE2-80E 5984C05G19

15BHLE2-100E 5984C05G20

15BHLE2-125E 5984C05G21

8RBA4-INH-B 5984C17G01

8RBA2-INH-B 5984C18G01

DBU17-GNMP-L 5984C25G01

DBU27-GNMP-L 5984C25G02

DBU38-GNMP-L 5984C25G03

DBU17-GNMP-R 5984C25G04

DBU27-GNMP-R 5984C25G05

DBU38-GNMP-R 5984C25G06

DBU17-GNM-L 5984C25G07

DBU27-GNM-L 5984C25G08

DBU38-GNM-L 5984C25G09

DBU17-GNM-R 5984C25G10

DBU27-GNM-R 5984C25G11

DBU38-GNM-R 5984C25G12

DBU17-NL-L 5984C29G01

DBU27-NL-L 5984C29G02

DBU38-NL-L 5984C29G03

DBU17-NL-R 5984C29G04

DBU27-NL-R 5984C29G05

DBU38-NL-R 5984C29G06

DBU17-NLP-L 5984C29G07

DBU27-NLP-L 5984C29G08

DBU38-NLP-L 5984C29G09

DBU17-NLP-R 5984C29G10

DBU27-NLP-R 5984C29G11

DBU38-NLP-R 5984C29G12

DBU27-DM 5984C38G01

DBU17-DM 5984C39G01

Style Number Catalog Number

15LHLE-65E 5984C65G01

15LHLE-80E 5984C65G02

15LHLE-100E 5984C65G03

15LHLE2-125E 5984C65G04

15LHLE2-150E 5984C65G05

15LHLE-175E 5984C65G06

15LHLE-200E 5984C65G07

15LHLE-125E 5984C65G08

15LHLE-150E 5984C65G09

15LHLE-250E 5984C65G10

15LHLE-300E 5984C65G11

5LCLS-2R 676C546G15

5LCLS-3R 676C546G16

5LCLS-4R 676C546G17

5LCLS-5R 676C546G18

5LCLS-6R 676C546G19

5LCLS-9R 676C546G22

5LCLS-12R 676C546G25

Spring and shunt

assy. for 8BA4-NH

676C878G01

Spring and shunt

assy. for 15BA4-NH

676C878G02

25RBA2-NH 676C880G03

8RBA2-NH 677C370G01

15RBA2-NH 677C370G02

38RBA2-NH 677C370G04

8RBA4-NH 677C371G01

15RBA4-NH 677C371G02

25RBA4-NH 677C371G03

38RBA4-NH 677C371G04

2CLE-15E 678C240G01

2CLE-20E 678C240G02

2CLE-25E 678C240G03

5CLE-15E 678C240G04

5CLE-20E 678C240G05

5CLE-25E 678C240G06

8CLE-15E 678C240G07

8CLE-20E 678C240G08

8CLE-25E 678C240G09

15CLE-15E 678C240G10

15CLE-20E 678C240G11

15CLE-25E 678C240G12

2CLT-5C 678C248G01

8CLT-5C 678C248G03

5CLT-8C 678C248G05

8CLT-8C 678C248G06

2CLT-12C 678C249G01

5CLT-12C 678C249G02

2CLT-18C 678C276G01

5CLT-18C 678C276G02

Style Number Catalog Number

8CLT-18C 678C276G03

2CLT-25C 678C276G04

5CLT-25C 678C276G05

8CLT-25C 678C276G06

2CLT-30C 678C277G04

2CLT-75C 678C282G01

8RBA4-ISHNT 678C283G05

15RBA4-ISHNT 678C283G06

25RBA4-ISHNT 678C283G07

38RBA4-ISHNT 678C283G08

8RDB4-SHNT 678C284G01

15RDB4-SHNT 678C284G02

25RDB4-SHNT 678C284G03

38RDB4-SHNT 678C284G04

8CLT-30CL 678C290G01

15CLT-12C 678C295G02

15CLT-8C 678C295G03

15CLT-5C 678C295G04

15CLT-4C 678C295G05

15CLT-18C 678C295G07

8CLT-30CS 680C386G01

5CLT-30C 680C386G02

5CLT-60C 680C386G03

5CLT-45C 680C386G05

8CLT-45C 680C386G06

2CLT-150C 680C387G01

2CLT-90C 680C387G02

DBU-EFOD 7187A11G02

DBU-EFID 7187A11G04

CXN-CLAMP 7275A85G02

5RBA4-PDM 9078A19G01

5RBA4-GDM 9078A19G02

14RBA4-PDM 9078A19G03

14RBA4-GDM 9078A19G04

15RBA4-PDM 9078A19G05

25RBA4-PDM 9078A19G06

38RBA4-PDM 9078A19G07

15RBA4-DL 9078A20A01

Style Number Catalog Number

15RBA4-DL 9078A20A01

38RBA4-DL 9078A20A02

5RBA2-PDM 9078A25G01

5RBA2-GDM 9078A25G02

14RBA2-PDM 9078A25G03

14RBA2-GDM 9078A25G04

15RBA2-PDM 9078A25G05

25RBA2-PDM 9078A25G06

38RBA2-PDM 9078A25G07

8RBA2-PDM 9078A25G08

8RBA4-PDM 9078A25G08

8RBA2-GDM 9078A25G09

8RBA4-GDM 9078A25G09

15RBA2-DL 9078A26A01

38RBA2-DL 9078A26A02

15RBA2-NL 9078A30A01

38RBA2-NL 9078A30A02

Style Number Catalog Number

www.comoso.com

V14-A3-18 Volume 14—Fuses CA08100016E—August 2011 www.eaton.com

Appendix 3—Catalog Number/Style Number Cross Reference

38RBA2-NL 9078A30A02

15RBA4-NL 9078A30A03

38RBA4-NL 9078A30A04

15RBA8-NL 9078A30A05

38RBA8-NL 9078A30A06

8RBA2-PNM 9078A33G02

8RBA4-PNM 9078A33G02

14RBA2-PNM 9078A33G03

25RBA2-PNM 9078A33G04

38RBA2-PNM 9078A33G05

5RBA2-PNM 9078A33G06

5RBA4-PNM 9078A33G06

14RBA4-PNM 9078A33G08

25RBA4-PNM 9078A33G09

38RBA4-PNM 9078A33G10

8RBA8-PNM 9078A33G12

14RBA8-PNM 9078A33G13

38RBA8-PNM 9078A33G15

5RBA2-GNM 9078A33G16

Style Number Catalog Number

5RBA2-GNM 9078A33G16

8RBA2-GNM 9078A33G17

8RBA4-GNM 9078A33G17

14RBA2-GNM 9078A33G18

5RBA4-GNM 9078A33G19

14RBA4-GNM 9078A33G21

5RBA8-GNM 9078A33G22

5RBA8-PNM 9078A33G22

8RBA8-GNM 9078A33G23

14RBA8-GNM 9078A33G24

15RBA2-PNM 9078A33G25

15RBA4-PNM 9078A33G26

15RBA8-PNM 9078A33G27

25RBA8-PNM 9078A33G27

CLE-DF-C 9078A63G02

CLE-DF-D 9078A63G03

CLE-DF-E 9078A63G04

CLE-DL-C 9078A63G04

CLE-DL-E 9078A64G04

2CLE-PDM-C 9078A65G10

5CLE-PDM-C 9078A65G11

8CLE-PDM-C 9078A65G12

15CLE-PDM-C 9078A65G13

15CLE-HPDM-C 9078A65G14

2CLE-PDM-D 9078A65G15

5CLE-PDM-D 9078A65G16

8CLE-PDM-D 9078A65G17

15CLE-PDM-D 9078A65G18

15CLE-HPDM-D 9078A65G19

2CLE-PDM-E 9078A65G20

5CLE-PDM-E 9078A65G21

8CLE-PDM-E 9078A65G22

15CLE-PDM-E 9078A65G23

2CLE-GDM-C 9078A65G30

Style Number Catalog Number

5CLE-GDM-C 9078A65G31

8CLE-GDM-C 9078A65G32

15CLE-GDM-C 9078A65G33

2CLE-GDM-D 9078A65G34

5CLE-GDM-D 9078A65G35

8CLE-GDM-D 9078A65G36

15CLE-GDM-D 9078A65G37

2CLE-GDM-E 9078A65G38

5CLE-GDM-E 9078A65G39

8CLE-GDM-E 9078A65G40

CLE-NL-C 9078A67G02

CLE-DL-D 9078A67G03

CLE-NL-D 9078A67G03

CLE-NL-E 9078A67G04

CLE-NLC-E 9078A67G15

CLE-NLC-C 9078A67G17

CLE-NLC-D 9078A67G20

2CLE-PNM-C 9078A68G10

5CLE-PNM-C 9078A68G11

8CLE-PNM-C 9078A68G12

15CLE-PNM-C 9078A68G13

15CLE-HPNM-C 9078A68G14

2CLE-PNM-D 9078A68G15

5CLE-PNM-D 9078A68G16

8CLE-PNM-D 9078A68G17

15CLE-PNM-D 9078A68G18

15CLE-HPNM-D 9078A68G19

2CLE-PNM-E 9078A68G20

5CLE-PNM-E 9078A68G21

8CLE-PNM-E 9078A68G22

15CLE-PNM-E 9078A68G23

2CLE-GNM-C 9078A68G31

5CLE-GNM-C 9078A68G32

8CLE-GNM-C 9078A68G33

15CLE-GNM-C 9078A68G34

2CLE-GNM-D 9078A68G35

5CLE-GNM-D 9078A68G36

8CLE-GNM-D 9078A68G37

15CLE-GNM-D 9078A68G38

2CLE-GNM-E 9078A68G39

5CLE-GNM-E 9078A68G40

8CLE-GNM-E 9078A68G41

8CXN-60C 9570D01G01

8CXN-100C 9570D01G02

8CXN-125C 9570D01G03

8CXN-150C 9570D01G04

8CXN-200C 9570D01G05

8CXN-250C 9570D01G06

15CXN-45C 9570D02G02

15CXN-60C 9570D02G03

15CXN-75C 9570D02G04

15CXN-85C 9570D02G05

15CXN-100C 9570D02G06

Style Number Catalog Number

15CXN-GNM-G 9570D05G02

15CXN-NL-G 9570D05G06

15CXN-GDM-G 9570D06G01

15CXN-DL-G 9570D06G03

15CXN-DF-G 9570D06G05

15CLT-30C 9570D10G01

15CXN-GNM-F 9570D33G01

15CXN-NL-F 9570D33G02

15CXN-GNM-D 9570D33G03

15CXN-NL-D 9570D33G04

15CXN-GDM-F 9570D34G01

15CXN-DL-F 9570D34G02

5BCLS-32R 9570D64G01

5BCLS-36R 9570D64G02

5BCLS-44R 9570D64G03

5BCLS-600E 9570D64G04

5BCLS-750E 9570D64G05

7BCLS-44R 9570D69G01

5CLE-1100E 9570D70G01

5CLE-1350E 9570D70G02

Style Number Catalog Number

www.comoso.com
