Outdoor / PSG8

426 www.lithonia.com

Outdoor

Lithonia Lighting outdoor products are unmatched in the industry for

distinctive designs, signature accents and high-performance optical

systems.

These high-quality products are characterized by superior-grade

materials for reliability, highly-engineered designs for performance, and

skilled craftsmanship for aesthetic styling.

With a wide selection of luminaires, poles, mounting options and

finishes, Lithonia Lighting is your best choice for every architectural and

general purpose lighting application.

427

Outdoor / PSG8

www.lithonia.com

CONTENTS

Area Lighting 428

Security Lighting 442

Roadway Lighting 444

Site Lighting 448

Floodlighting 452

Sportslighting 469

Building-Mounted Lighting 471

Garage/Canopy Lighting 481

Options & Accessories 484

Poles 494

Outdoor / PSG8

428

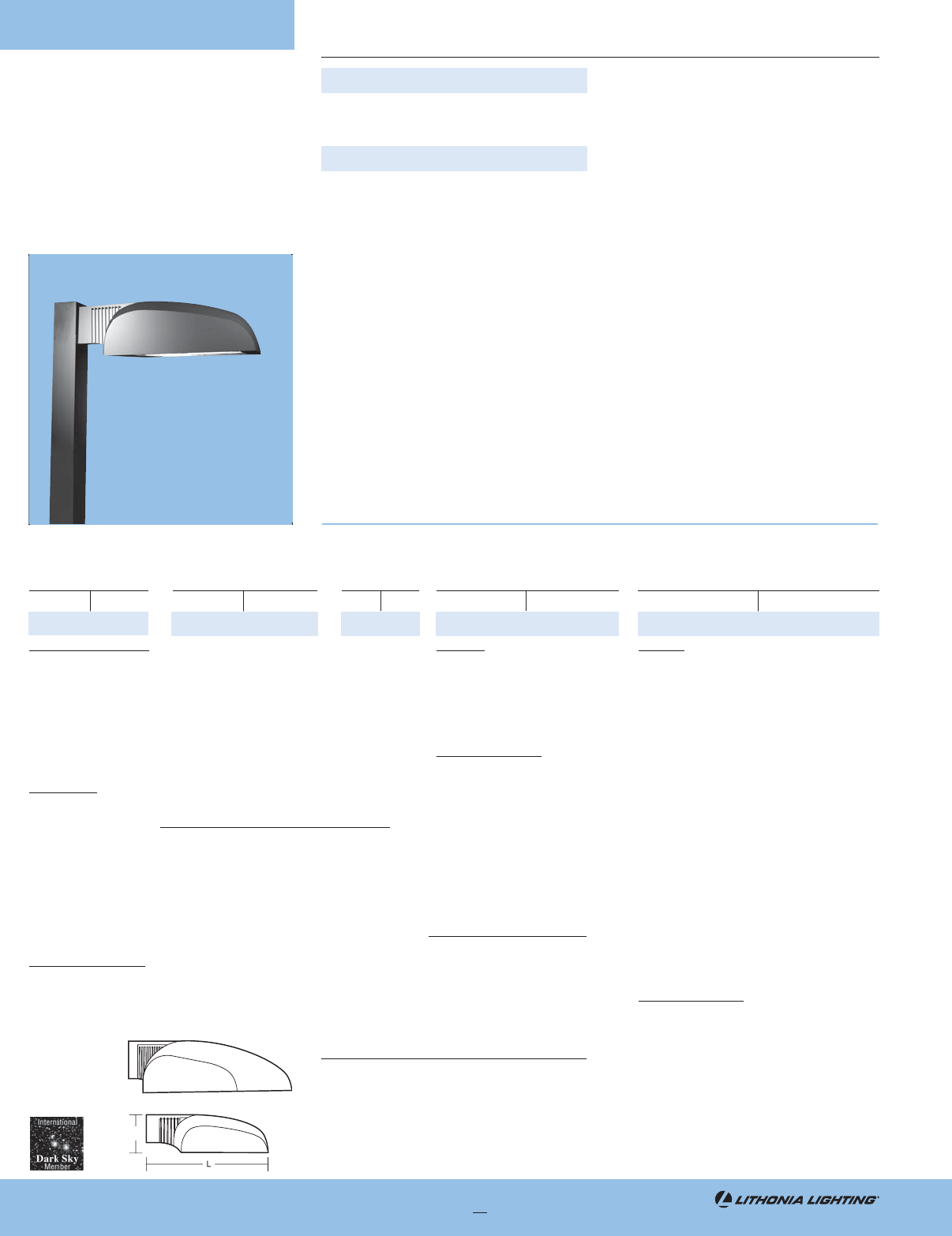

Ordering Information Example: AS1 150S SR2 120 SPA SF LPI

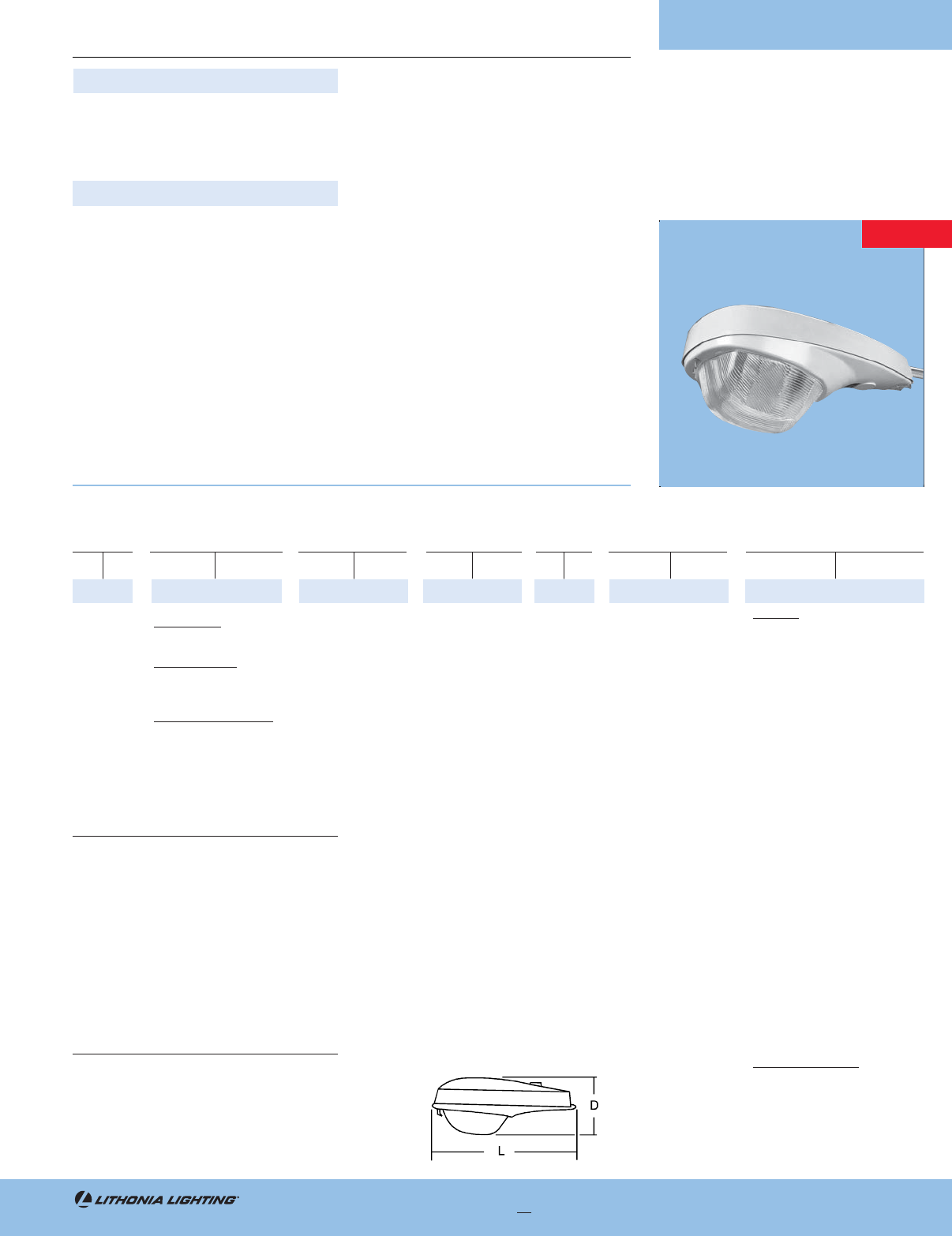

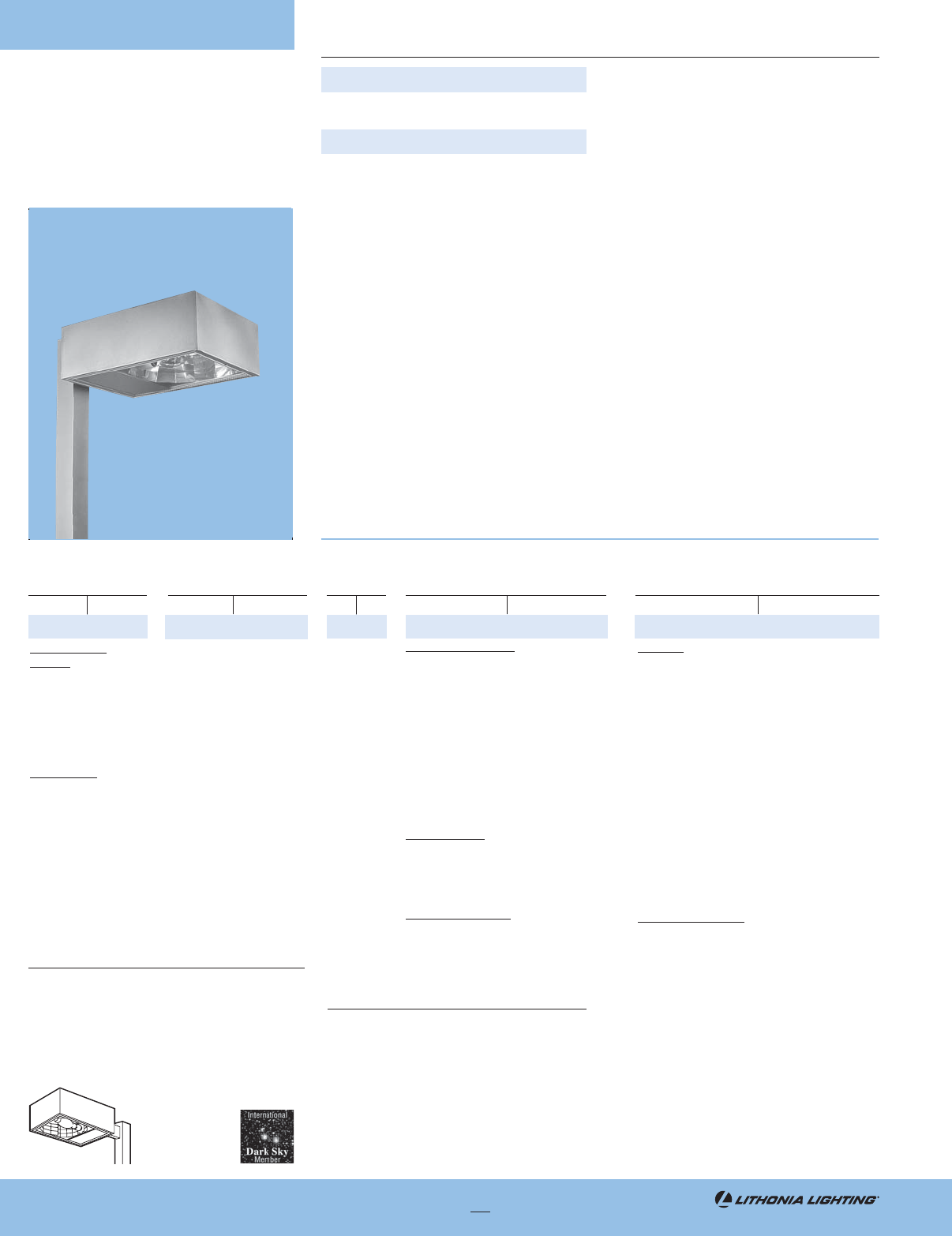

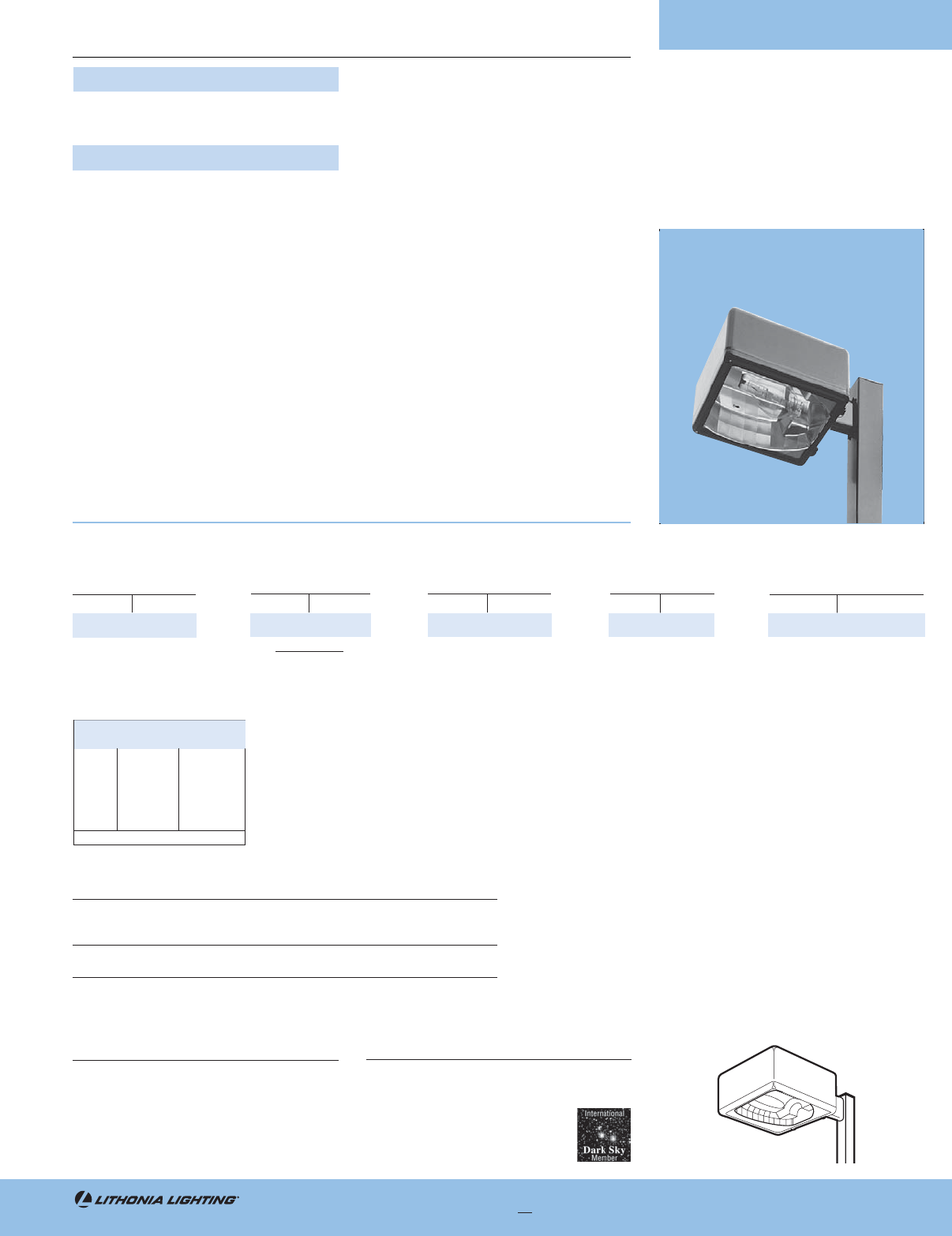

Architectural Arm-Mounted Cutoff

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V (n/a

TB & MVOLT)12

DF Double fuse, 208V, 240V, 480V (n/a

TB & MVOLT)12

PER NEMA twist-lock receptacle only

(no photocontrol)

QRS Quartz restrike system (100W max.

AS1, 250W max. AS2, lamp not

included)12

CR Enhanced corrosion resistance

HS House-side shield (n/a with

SR4SC)

EC Emergency circuit13

TP Tamperproof

SCWA Super CWA pulse start ballast (not

available with HPS, TRT, 50, 70,

100M or 480V)

LPI Lamp included (standard)

L/LP Less lamp

CSA CSA Certified

NOM NOM Certified13

For optional architectural colors, see page 485.

Shipped separately

PE1 NEMA twist-lock PE (120V, 208V,

240V)

PE3 NEMA twist-lock PE (347V)

PE4 NEMA twist-lock PE (480V)

PE7 NEMA twist-lock PE (277V)

SC Shorting cap

AS1VG Vandal guard

AS2VG Vandal guard

For tenon slipfitters, see page 486.

Mounting11

Included

SPA Square pole mounting

block

RPA Round pole mounting

block

WBA wall bracket (up or

down)

Shipped separately

ASKMA1 Mast arm adapter (size 1)

ASKMA2 Mast arm adapter (size 2)

DSAS1 Decorative straight arm,

square pole only (size 1)

DSAS2 Decorative straight arm,

square pole only (size 2)

DCAS1 Decorative curved arm,

square pole only (size 1)

DCAS2 Decorative curved arm,

square pole only (size 2)

Intended Use

For streets, walkways, parking lots and

surrounding areas.

Features

Housing – Die-cast single-piece alumi-

num with nominal 1/8" wall thickness. In-

tegral arm provides easy installation to

pole or wall. Housing completely sealed

against moisture or environmental con-

taminants.

Door Assembly – Die-cast door frame, im-

pact-resistant, tempered, glass lens, 3/16"

thick, fully sealed with one-piece tubular

silicone gasket. Tool-less entry and clo-

sure via spring-loaded die-cast latches.

Optics – Anodized segmented reflectors

for superior uniformity and control. Re-

flectors attach with tool-less fasteners

and are rotatable and interchangeable.

Installation – Heavy-duty easy-mount

block attaches to pole or wall to provide

ease of installation as well as ensured

Voltage

120, 2087, 2407,

277, 347, 4807,

TB8, MVOLT9,10

NOTES:

1 120V only.

2 120V & 277V only.

3 Not available with 480V.

4 May be ordered with SCWA option.

5 Must be ordered with SCWA option.

6 Available in SR3 only.

7 Consult factory for availability in Canada.

8 Optional multi-tap ballast (120V, 208V, 240V, 277V).

In Canada 120V, 277V, 347V; ships as 120V/347V.

9 Compact Fluorescent only, 120V-277V.

10 Multi-volt electronic ballast (for TRT lamps) ca-

pable of operating on any line voltage between

120V & 277V.

11 Mounting block standard.

12 SF, DF or QRS options cannot be ordered together.

13 Consult factory for availability.

Designation

High Pressure Sodium

AS1 35S1

AS1 50S2

AS1 70S

AS1 100S

AS1 150S

AS2 200S

AS2 250S

AS2 400S

Metal Halide

AS1 50M3

AS1 70M3

AS1 100M

AS1 150M4

AS1 175M

AS2 200M5

AS2 250M4

AS2 320M5

AS2 350M5

AS2 400M4

Compact Fluorescent

AS1 2/32TRT6

AS1 42TRT

AS1 2/42TRT6

AS1 57TRT

AS1 70TRT

Dimensions are shown in inches (centimeters) unless

otherwise noted.

AS1 AS2

EPA .7 ft

1.2 ft

Length 21.38

(54.5 cm)

28 (71.0 cm)

Width 12.5 (31.7 cm) 16.25 (41.9 cm)

Height 6.28 (15.9 cm) 8.25 (21.0 cm)

Weight 22 lbs (10 kg) 45 lbs (20.4 kg)

Distribution

SR2 Segmented Type II

roadway

SR3 Segmented Type III

asymmetric

SR4SC Segmented Type IV

forward throw,

sharp cutoff

SR4W Segmented Type IV

wide, forward throw

(size 2 only)

SR5S Segmented Type V

square

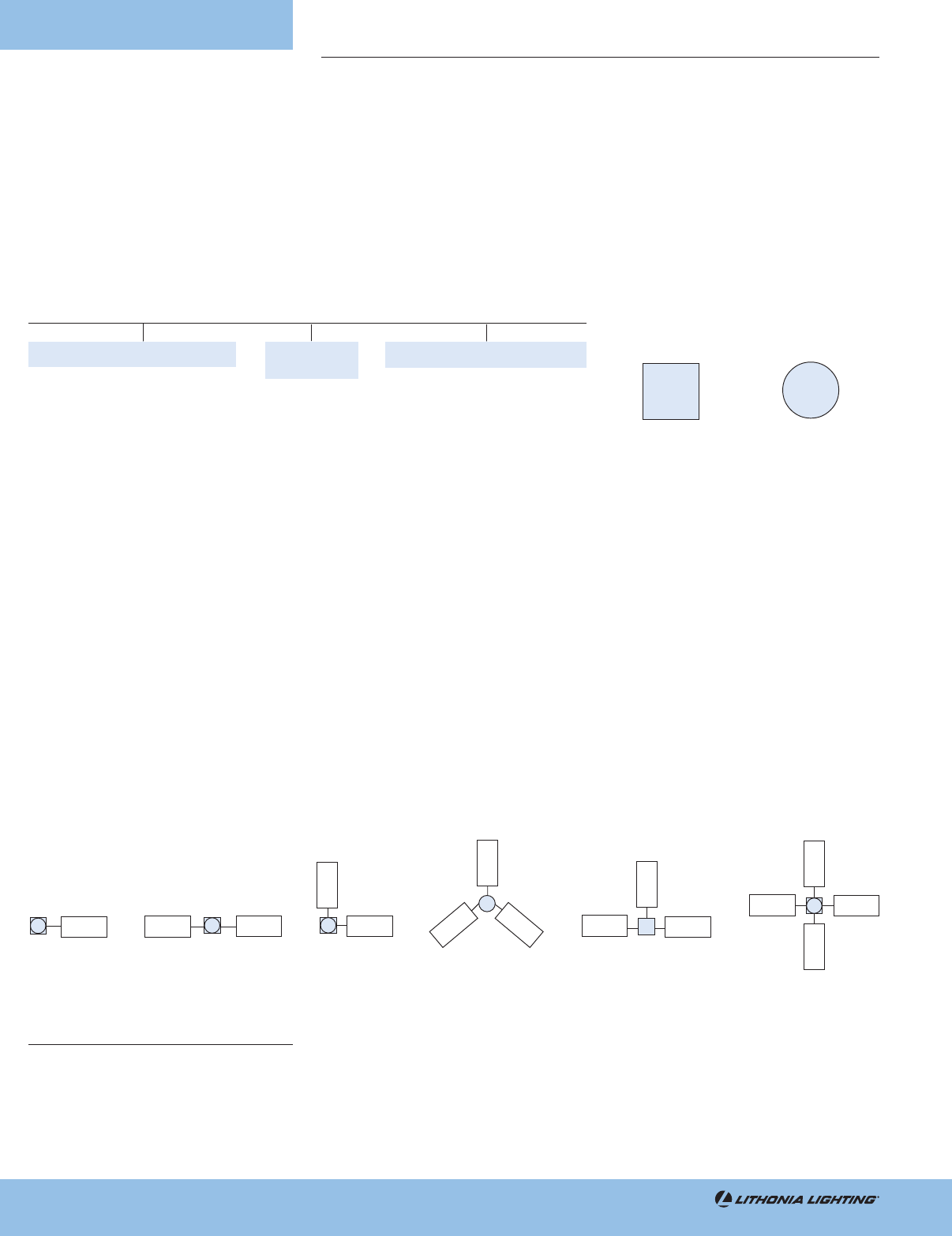

Drilling Pattern

(see pole ordering, pg. 494)

DM19AS 1 at 90°

DM28AS 2 at 180°

DM29AS 2 at 90°

DM39AS 3 at 90°

DM49AS 4 at 90°

DM32AS 3 at 120°

(Round poles only)

www.lithonia.com

keyword: AS

alignment and leveling.

Electrical – 150W and below utilize a high

reactance, high power factor. 175W and

above use a constant-wattage autotrans-

former ballast. Compact fluorescent uses

an electronic high frequency ballast. Bal-

lasts mounted on removable power tray

with tool-less latch and have positive lock-

ing disconnect plugs. Ballasts are copper

wound and 100% factory tested.

Finish – Standard finish is dark bronze (DDB)

corrosion-resistant polyester powder fin-

ish. Other architectural colors available.

Socket – Porcelain, medium-base socket

for AS1, mogul-base socket for AS2 , with

copper alloy nickel-plated screw shell and

center contact. UL listed.

Listings – UL Listed (standard). CSA Certi-

fied or NOM certified (see Options). UL

listed for wet locations in lens-down ori-

entation (damp location listed in lens-up

orientation. Meets IESNA full cutoff crite-

ria. U.S. patent no. D447, 590. Canadian

patent no. 94324.

Area Lighting

Aeris™

Outdoor / PSG8

429

Designation

High Pressure

Sodium

KSE1 70S

KSE1 100S

KSE1 150S

KSE2 250S

KSE2 400S

Metal Halide

KSE1 100M

KSE1 150M

KSE1 175M

KSE1 200M1

KSE2 250M

KSE2 320M1,2

KSE2 350M1,2

KSE2 400M2

Voltage

120

2083

2403

277

347

4803

TB4

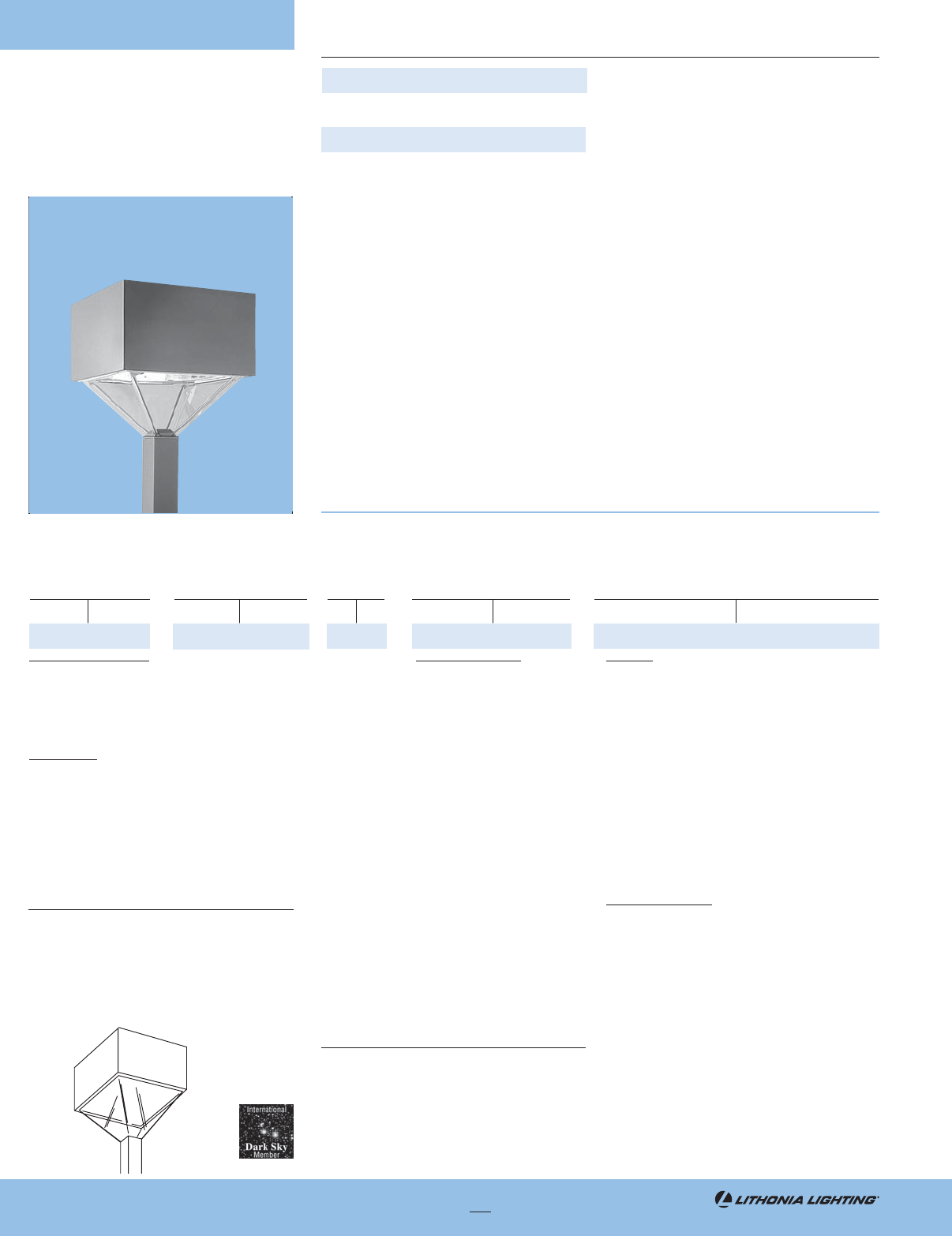

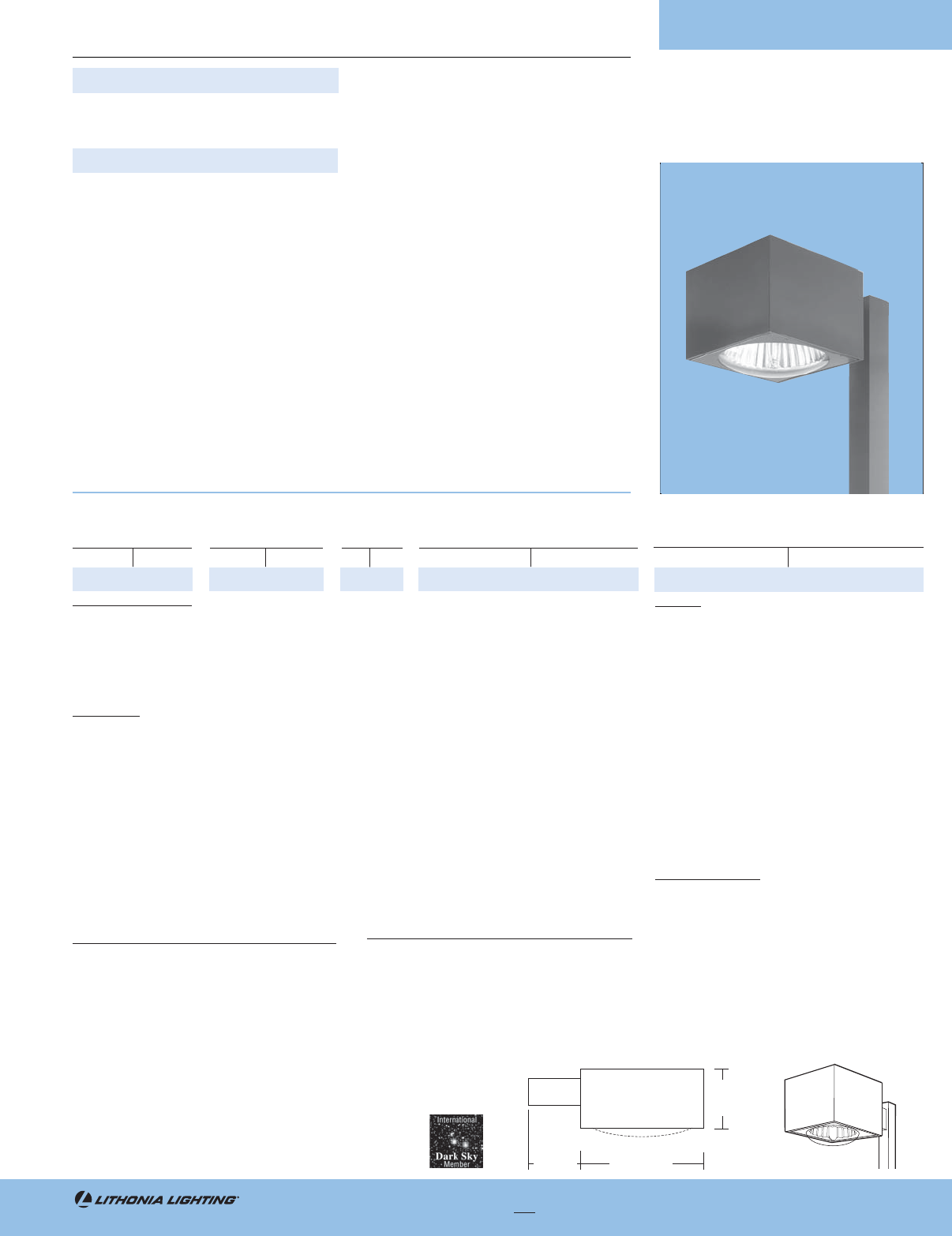

Architectural Arm-Mounted Cutoff

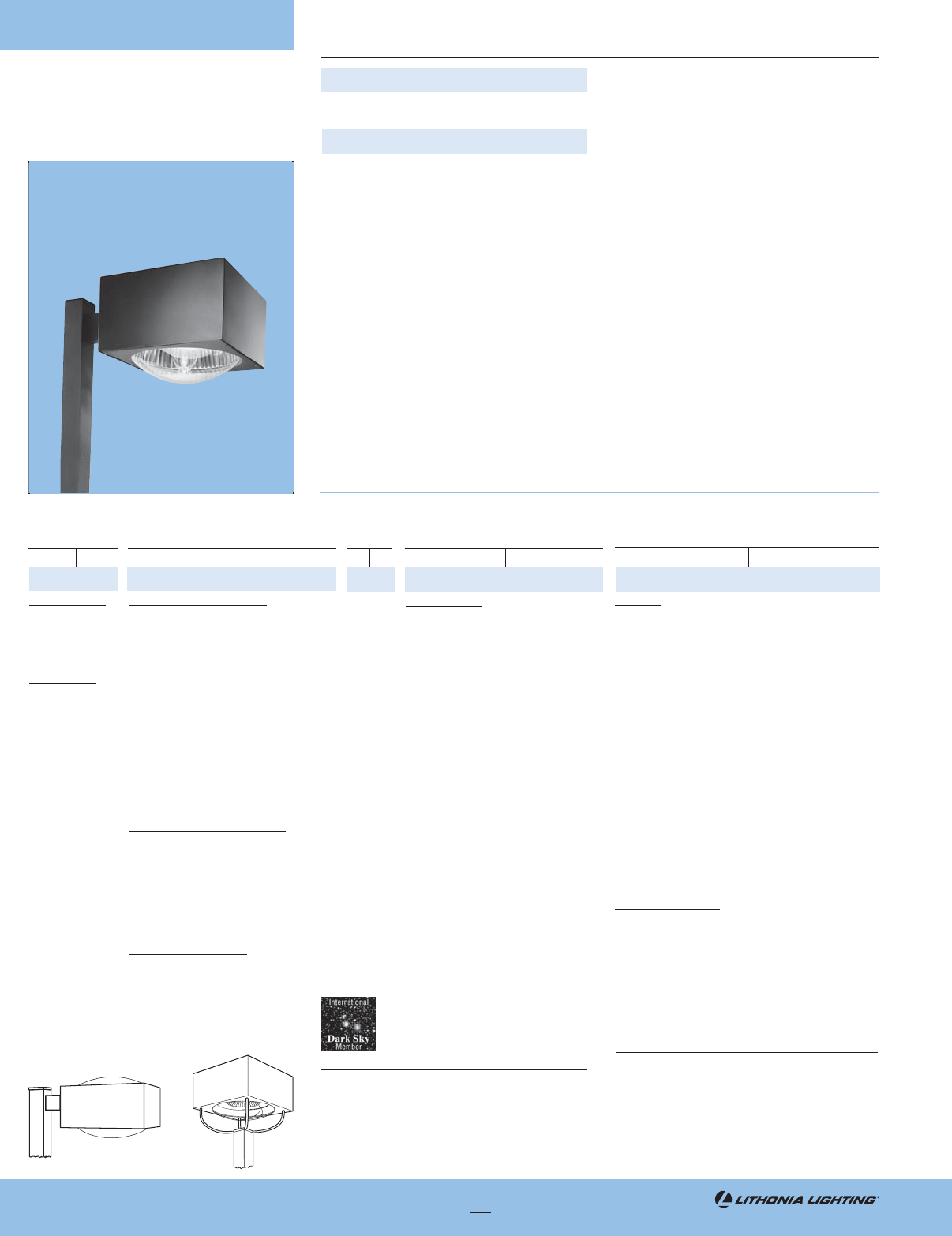

Ordering Information Example: KSE1 150S R2 120 SP09 PER

Intended Use

For car lots, street lighting or parking areas.

Features

Housing – Rugged, heavy-gauge, extrud-

ed aluminum housing. Square shape, seam-

welded and internally sealed for weather-

tight integrity. Standard finish is dark bronze

corrosion-resistant polyester powder

(DDB). Architectural Class 1 anodize finish

and other architectural colors available.

Optics – Anodized, segmented reflectors

for uniformity and control. Reflectors are

tool-less, rotatable and interchangeable.

Five cutoff distributions available: R2 (Road-

way), R3 (Asymmetric), R4SC (Forward

Throw, Sharp Cutoff), R4W (Wide, Forward

Throw) and R5S (Symmetric).

Door Frame – Naturally anodized, extruded

aluminum door frame sealed to housing by

silicone closed-cell gasket and secured

Area Lighting

KSE

Mounting

Included

SP04 4" square pole arm5 (std.)

SP09 9" square pole arm

RP04 4" round pole arm5

RP09 9" round pole arm

WW04 4" wood pole or wall5

WW09 9" wood pole or wall

WB04 4" wall bracket

WB09 9" wall bracket

Shipped separately

KMA Mast arm adapter

KTMB Twin mounting bar

DA12P Degree arm (pole)

DA12WB Degree arm (wall)

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V

(n/a TB)

DF Double fuse, 208V, 240V, 480V

(n/a TB)

PER NEMA twist-lock receptacle only

(no photocontrol)

QRS Quartz restrike system (100W max.

in KSE1, 150 W max in KSE2, 120V

lamp not included).

CR Enhanced corrosion resistance

EC Emergency circuit

GSL Glass sag lens6

SCWA Super CWA pulse start ballast

(n/a with HPS or 100, 175M)

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional architectural colors, see page 485.

Shipped separately

PE1 NEMA twist-lock PE (120V-240V)7

PE3 NEMA twist-lock PE (347V)7

PE4 NEMA twist-lock PE (480V)7

PE7 NEMA twist-lock PE (277V)7

SC Shorting cap for PER option

KSE1HS House-side shield (R2, R3 only)

KSE2HS House-side shield (R2, R3 only)

KSE1VG Vandal guard

KSE2VG Vandal guard

For tenon slipfitters, see page 486.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KSE1 KSE2

EPA71.3 ft2 (.12 m2) 1.9 ft2 (.18 m2)

Square 1511/16

(39.8) 19 (48.3)

Height 83/4 (22.2) 1015/16 (27.8)

Max. weight 26.6 lbs (12.1 kg) 39.9 lbs (18.1 kg)

NOTES:

1 Must be ordered with SCWA.

2 Must use ED28 lamp.

3 Consult factory for availability in Canada.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

5 Use 9" arm when mounting two luminaires at 90°.

6 Available on KSE2 only.

7 PER must be ordered with fixture.

Distribution

R2 Type II roadway

R3 Type III asymmetric

R4SC Type IV forward

throw, sharp cutoff

R4W Type IV wide,

forward throw (size

2 only)

R5S Type V square (size

2 only)

www.lithonia.com

keyword: KSE

with (3) quarter-turn closing screws. Can

be hinged from any of the four sides.

Lens – .125"-thick, impact-resistant tem-

pered glass.

Mounting – Extruded 4" aluminum arm for

square pole mounting,shipped in fixture

carton as standard. Optional mountings

available.

Electrical – High reactance, high power

factor for 150W and below. Constant watt-

age autotransformer for 175W and above.

Copper wound and 100% factory tested.

Removable power tray and positive-lock-

ing disconnect plug.

Socket – Medium-base socket for 100W

MH and below. Mogul-base porcelain sock-

et with copper alloy, nickel-plated screw

shell and center contact. UL listed 1500W-

600V. 4KV pulse rated.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL list-

ed for wet locations.

Arm Square

Outdoor / PSG8

430

Architectural Arm-Mounted Cutoff

Designation

High Pressure

Sodium

KSF1 70S

KSF1 100S

KSF1 150S

KSF2 250S

KSF2 400S

KSF3 1000S

Metal Halide

KSF1 100M

KSF1 150M

KSF1 175M

KSF1 200M1

KSF1 250M

KSF2 320M1,2

KSF2 350M1,2

KSF2 400M2

KSF3 1000M3

Voltage

120

2084

2404

277

347

4804

TB5

Intended Use

For car lots, street lighting or parking areas.

Features

Housing – Rugged, heavy-gauge, aluminum

rectilinear housing. All seams continuously

welded for weathertight integrity. Dark

bronze corrosion-resistant polyester pow-

der finish (DDB) standard. Other architec-

tural colors available

Door Frame – Natural, anodized, extruded

aluminum frame with mitered corners, re-

tained with two hinge pins and secured

with one quarter-turn, quick-release fas-

tener. Integrally designed, extruded sili-

cone gasket provides weatherproof seal

between housing and frame.

Lens – .125" thick, impact-resistant tem-

pered glass with thermally applied, silk-

screened power door shield.

Mounting – Extruded 4" (KSF1, KSF2) or 12"

(KSF3) aluminum arm for square pole mount-

ing shipped in fixture carton as standard.

Optional Mountings available.

NOTES:

1 Must be ordered with SCWA.

2 Must use ED28 lamp.

3 Must use BT37 lamp.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V).

In Canada 120V, 277V, 347V; ships as 120V/347V.

6 Use 9" arm when mounting two luminaires at 90°.

7 Use 12" arm when mounting two luminaires at 90o.

8 May be ordered as accessory.

9 QRSTD available in select wattages. Consult factory.

10 PER option must be ordered with fixture.

11 Includes mounting arm.

Area Lighting

KSF

Spec-Form

Mounting

Included, KSF1/KSF2

SP04 4" square pole arm6 (std.)

SP09 9" square pole arm

RP04 4" round pole arm6

RP09 9" round pole arm

WW04 4" wood pole or wall6

WW09 9" wood pole or wall

WB04 4" wall bracket

WB09 9" wall bracket

MB Mounting bracket

L/ARM When ordering KMA or

DA12

Included, KSF37

SP12 12" square pole arm (std.)

RP12 12" round pole arm

WW12 12" wood pole or wall

WB12 12" wall bracket

Shipped separately8

KMA Mast arm adapter

KTMB Twin mounting bar

DA12P Degree arm (pole)

DA12WB Degree arm (wall)

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V

(n/a TB)

DF Double fuse, 208V, 240V, 480V

(n/a TB)

PER NEMA twist-lock receptacle only

(no photocontrol)

QRS Quartz restrike system( 75W max in

KSF1, not to exceed HID wattages

on size 2;250W max. on KSF3, 120V

lamp not included)9

CR Enhanced corrosion resistance

EC Emergency circuit

SCWA Super CWA pulse start ballast (n/a

with HPS, 100M, 175M)

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional architectural colors, see page 485.

Shipped Separately

PE1 NEMA twist-lock PE (120V-240V)10

PE3 NEMA twist-lock PE (347V)10

PE4 NEMA twist-lock PE (480V)10

PE7 NEMA twist-lock PE (277V)10

SC Shorting cap for PER option

KSF_HS House-side shield (KSF1/KSF2: R2

and R3 only. KSF3 - R3 and R4 only)

KSF_VG Vandal guard (KSF1/KSF2 only)

For tenon slipfitters, see page 486.

Dimensions are shown in inches (centimeters) unless other-

wise noted.

KSF1 KSF2 KSF3

EPA11 1.5 ft2 (.14 m2) 2.0 ft2 (.19 m2) 3.0 ft2 (.28 m2)

Length 22 (55.9) 255/26

(64.3) 305/16

(77.0)

Width 163/16 (41.1) 181/2

(47.0) 245/16

(61.8)

Height 71/4

(18.4) 85/16 (21.1) 101/2

(26.7)

Max. weight 39 lbs (17.7 kg) 55 lbs (24.9 kg) 85 lbs (38.6 kg)

Distribution

R2 Type II roadway

(sizes 1 & 2 only)

R3 Type III asymmetric

R4 Type IV foward

throw (size 3 only)

R4SC Type IV forward

throw, sharp

cutoff (sizes 1 & 2

only)

R4W Type IV wide,

forward throw

(size 2 only)

R5S Type V square

(sizes 2 & 3 only)

www.lithonia.com

keyword: KSF

Optics – Anodized segmented reflectors

provide superior uniformity and control.

KSF1/KSF2 reflectors are rotatable and in-

terchangeable. KSF3 Type IV are only ro-

tatable but not interchangable. Five cutoff

distributions available: R2 (Roadway), R3

(Asymmetric), R4SC (Forward Throw, Sharp

Cutoff), R4W (Wide, Forward Throw), R5S

(Square).

Electrical – High reactance, high power

factor for 150W and below. Constant watt-

age autotransformer for 175W and above.

Copper wound and 100% factory tested.

Removable power door and positive-lock-

ing disconnect plugs.

Socket – Porcelain, horizontally oriented,

mogul-base socket (100M & 150M are medi-

um-base) with copper alloy, nickel-plated

screw shell and center contact. UL listed

1500W, 600V.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL list-

ed for wet locations.

Ordering Information Example: KSF1 150S R2 120 SP09 PER

Outdoor / PSG8

431

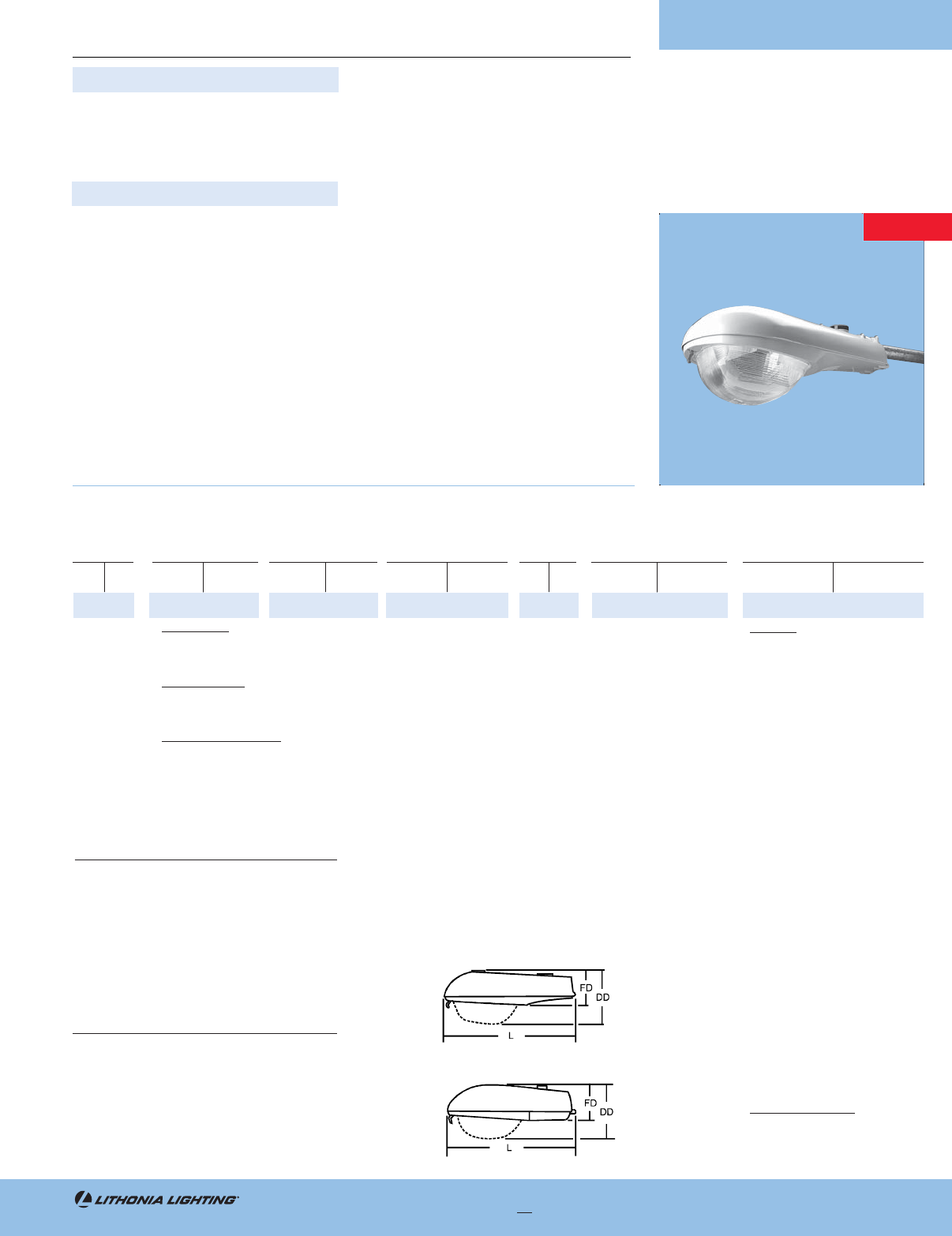

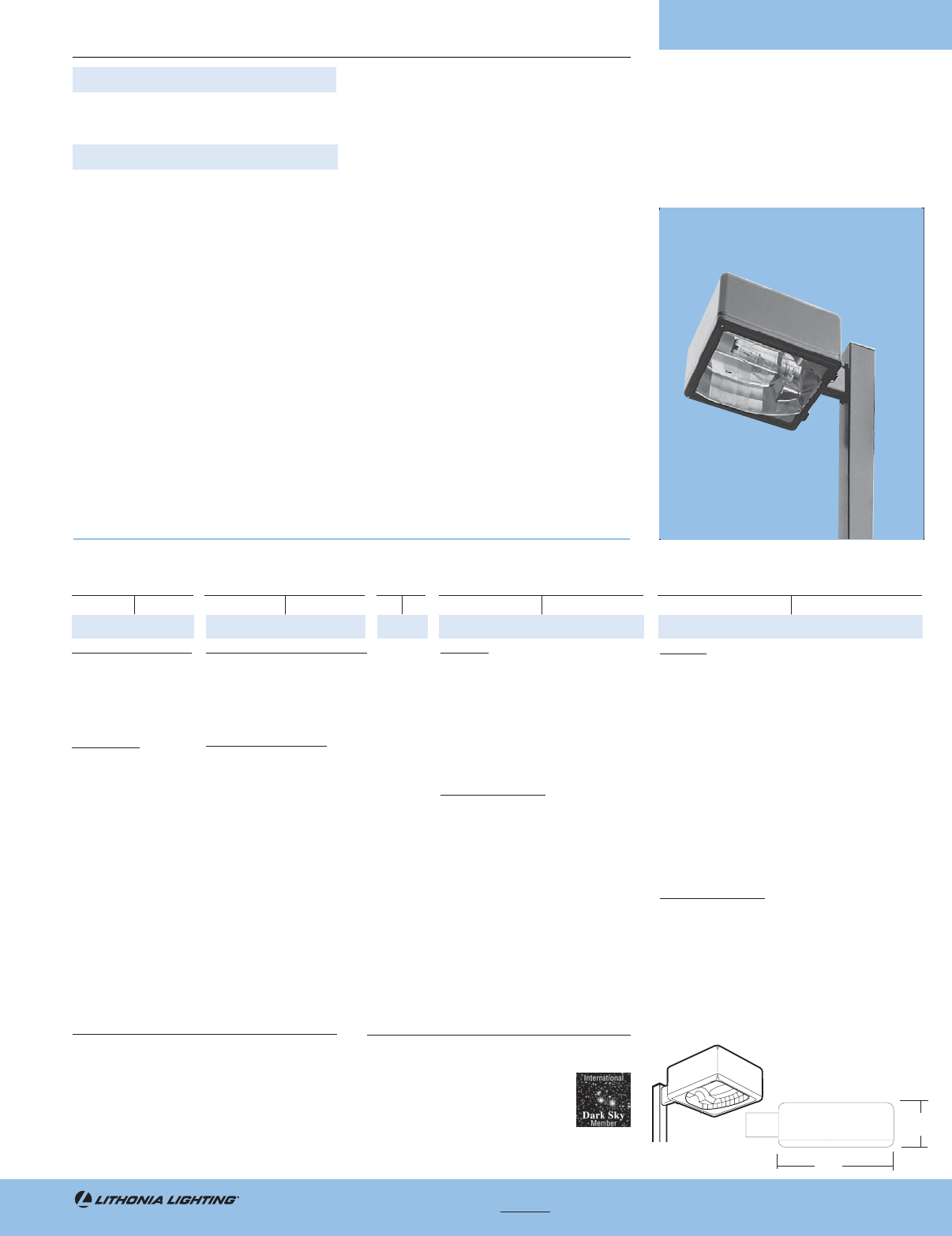

Ordering Information Example: KAD 400M R3 120 SPD09

Arm-Mounted Drop or Flat Lens Cutoff

Intended Use

For parking areas, street lighting, walk-

ways and car lots.

Features

Housing – Rugged, die-cast, soft-corner

aluminum housing with 0.12" nominal wall

thickness. Extruded 4" soft corner arm for

pole or wall mounting is standard.

Door Frame – KAD die-cast door frame

has impact-resistant, tempered glass lens

which is fully gasketed with one-piece

bonded tubular silicone. KAC die-cast alu-

minum door frame has prismatic, impact-

resistant, tempered glass, drop dish acryl-

ic lens or drop dish polycarbonate lens.

Door frame is fully gasketed with one-piece

tubular silicone.

Optics – KAD reflectors are anodized hy-

droformed and segmented aluminum. Four

cutoff distributions available: R2 (Road-

way), R3 (Asymmetric), R4 (Forward Throw)

and R5 (Symmetric). Segmented reflectors

are rotatable and field-interchangable.

Voltage

120

2082

2402

277

347

4802

TB3

Area Lighting

KAD

Contour

Mounting

Included

SPD04 4" square pole arm4 (std.)

SPD09 9" square pole arm

RPD04 4" round pole arm4

RPD09 9" round pole arm

WWD04 4" wood pole or wall4

WWD09 9" wood pole or wall

WBD04 4" wall bracket

WBD09 9" wall bracket

Shipped separately

KMA Mast arm adapter

KTMB Twin mounting bar

DAD12P Degree arm (pole)

DAD12WB Degree arm (wall)

Options/Accessories

Installed

LPI Lamp included

SF Single fuse, 120V, 277V, 347V (n/a TB)

DF Double fuse, 208V, 240V, 480V (n/a TB)

PER NEMA twist-lock receptacle only (no

photocontrol)

QRS Quartz restrike system (250W max.,

120V lamp not included)5

PD Power tray6

WTB Terminal bock6

EC Emergency circuit

SCWA Super CWA pulse start ballast (n/a with

any HPS, 100M or 175M)

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional architectural colors, see page 485.

Shipped separately7

PE1 NEMA twist-lock PE (120V-240V)

PE3 NEMA twist-lock PE (347V)

PE4 NEMA twist-lock PE (480V)

PE7 NEMA twist-lock PE (277V)

SC Shorting cap for PER option

HS House-side shield (R2, R3, R4) (SR2, SR3)

KADVG Vandal guard

KADWG Wireguard

Designation

High Pressure Sodium

KAD 70S

KAD 100S

KAD 150S

KAD 250S

KAD 400S

Metal Halide

KAD 100M

KAD 150M

KAD 175M

KAD 200M1

KAD 250M

KAD 320M1

KAD 350M1

KAD 400M

Distribution

KAD–Hydroformed Reflectors

R2 Type II roadway

R3 Type III asymmetric

R4 Type IV forward

throw, sharp cutoff

R5S Type V square

Segmented Reflectors

SR2 Type II asymmetric

SR3 Type III asymmetric

SR4SC Type IV forward

throw, sharp cutoff

NOTES:

1 Must be ordered with SCWA.

2 Consult factory for availability in Canada.

3 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

4 SPD09, RPD09 or WWD09 must be used when luminaires

are oriented on DM29, DM39 or DM49 drilling pattern.

5 QRSTD available in select wattages. Consult factory.

6 Only available with SR2, SR3, SR4CS optics.

7 May be ordered as an accessory.

8 Includes mounting arm.

www.lithonia.com

keyword: KAD-KAC

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KAD

EPA81.2 ft2 (.11 m2)

Square 171/2 (44.5)

Height 71/8 (18.1)

Max. weight 42 lbs (19.1 kg)

KAC reflector is optical-quality aluminum

that works in tandem with a light-diffusing

prismatic lens.

Electrical – Ballast is high-reactance, high

power factor (70-150W HPS,100M &150M)

or high power factor constant-wattage au-

totransformer (175-400W MH & HPS). Bal-

last is copper wound and 100% factory

tested.

Finish – Dark bronze (DDB) corrosion-resis-

tant polyester powder finish (DDB), with

other architectural colors available.

Socket – Porcelain, horizontally (position)

oriented mogul-base socket (100M & 150M

are medium-base) with copper alloy, nick-

el-plated screw shell and center contact.

UL listed 1500W-600V. 4KV pulse rated.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL list-

ed for wet locations. IP65 certified.

Outdoor / PSG8

432

Arm-Mounted Drop or Flat Lens Cutoff

Intended Use

For parking areas, street lighting, walk-

ways and car lots.

Features

Housing – Rugged, die-cast, soft-corner

aluminum housing with 0.12" nominal wall

thickness. Extruded 4" soft corner arm for

pole or wall mounting is standard.

Door Frame – KAD die-cast door frame

has impact-resistant, tempered glass lens

which is fully gasketed with one-piece

bonded tubular silicone. KAC die-cast alu-

minum door frame has prismatic, impact-

resistant, tempered glass, drop dish acryl-

ic lens or drop dish polycarbonate lens.

Door frame is fully gasketed with one-piece

tubular silicone.

Optics – KAD reflectors are anodized hy-

droformed & segmented aluminum. Four

cutoff distributions available: R2 (Road-

way), R3 (Asymmetric), R4 (Forward Throw)

and R5 (Symmetric). Segmented reflectors

Voltage

120

2083

2403

277

347

4803

TB4

Area Lighting

KAC

Contour

Mounting

Included

SPD04 4" square pole arm5 (std.)

SPD09 9" square pole arm

RPD04 4" round pole arm5

RPD09 9" round pole arm

WWD04 4" wood pole or wall5

WWD09 9" wood pole or wall

WBD04 4" wall bracket

WBD09 9" wall bracket

Shipped separately

KMA Mast arm adapter

KTMB Twin mounting bar

DAD12P Degree arm (pole)

DAD12WB Degree arm (wall)

Options/Accessories

Installed

LPI Lamp included

SF Single fuse, 120V, 277V, 347V (n/a TB)

DF Double fuse, 208V, 240V, 480V (n/a TB)

PER NEMA twist-lock receptacle only

(no photocontrol)

QRS Quartz restrike system (250W max.,

120V lamp not included)6

PD Power tray7

WTB Terminal bock7

EC Emergency circuit

SCWA Super CWA pulse start ballast (n/a

with any HPS, 100M or 175M)

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional architectural colors, see page 485.

Shipped separately8

PE1 NEMA twist-lock PE (120V-240V)

PE3 NEMA twist-lock PE (347V)

PE4 NEMA twist-lock PE (480V)

PE7 NEMA twist-lock PE (277V)

SC Shorting cap for PER option

HS House-side shield (R2, R3, R4)

(SR2, SR3)

KADVG Vandal guard

KADWG Wireguard

Designation

High Pressure Sodium

KAC 150S

KAC 250S

KAC 400S

Metal Halide

KAC 100M

KAC 150M

KAC 175M

KAC 200M1

KAC 250M

KAC 320M1,2

KAC 350M1,2

KAC 400M2

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KAC DP KAC FP

EPA91.4 ft2 (.13 m2) 1.2 ft2 (.11 m2)

Square 171/2

(44.5) 171/2

(44.5)

Height 111/8

(28.3) 71/8 (18.1)

Max. weight 40 lbs (18.1 kg) 42 lbs (19.1 kg)

Distribution

KAC (prismatic lens)

FP Flat C73T

DPA Drop acrylic

DPP Drop polycarbonate

www.lithonia.com

keyword: KAD-KAC

are rotatable and field-interchangable.

KAC reflector is optical-quality aluminum

that works in tandem with a light-diffusing

prismatic lens.

Electrical – Ballast is high-reactance, high

power factor (70-150W HPS,100M &150M)

or high power factor constant-wattage au-

totransformer (175-400W MH & HPS). Bal-

last is copper wound and 100% factory

tested.

Finish – Dark bronze (DDB) corrosion-resis-

tant polyester powder finish (DDB), with

other architectural colors available.

Socket – Porcelain, horizontally (position)

oriented mogul-base socket (100M & 150M

are medium-base) with copper alloy, nick-

el-plated screw shell and center contact.

UL listed 1500W-600V. 4KV pulse rated.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL list-

ed for wet locations. IP65 certified.

Ordering Information Example: KAC 250M DPA 120 SPD09

NOTES:

1 Must be ordered with SCWA.

2 Requires ED28 lamp when ordered with SR2, SR3 or

SR4C distributions.

3 Consult factory for availability in Canada.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

5 SPD09, RPD09 or WWD09 must be used when luminaires

are oriented on DM29, DM39 or DM49 drilling pattern.

6 QRSTD available in select wattages. Consult factory.

7 Only available with SR2, SR3, SR4CS optics.

8 May be ordered as an accessory.

9 Includes mounting arm.

Outdoor / PSG8

433

Ordering Information Example: KC1 250M 20C R3 4C

Die-Cast Cutoff with Pole

NOTES:

1 Ships with multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

2 Wind load shown with 1.3 gusts.

3 Includes arm.

* Consult KAD or SSS specification sheets for additional

information if needed.

Pole length

16C 16-foot "C" pole

20C 20-foot "C" pole

25C 25-foot "C" pole

25G 25-foot "G" pole

Pole diameter

4C 4-inch "C" pole

4G 4-inch "G" pole

Lamp

Metal Halide

250M

400M

Intended Use

For parking areas, street lighting, walkways

and car lots.

Features

Configuration – Choice of single-mount

(KC1) or double-mount (KC2).

Housing – Rugged, die-cast, soft-corner alu-

minum housing with 0.12" nominal wall thick-

ness. Extruded 4" soft corner arm for square

pole mounting. Dark bronze (DDB) corro-

sion-resistant polyester powder finish.

Door Frame – Die-cast door frame has

impact-resistant, tempered glass lens

which is fully gasketed with one-piece

bonded tubular silicone.

Lamp – Lamp included in fixture carton.

Electrical – Ballast is high-power factor,

constant wattage, autotransformer, cop-

per wound and 100% factory tested.

Socket – Porcelain, horizontally (position)

oriented mogul-base socket with copper

Typical Layouts using KC2 “twin” combos

Designing for Designing for

0.5 fc minimums 1.0 fc minimums

Wattage Pole* Spacing Avg. fc Spacing Avg. fc

(2) 400M R3 25' 120'x120' 2.5 120'x80' 3.9

(2) 250M R3 20' 120'x 100' 1.7 60'x110' 3.0

* Light levels assume 3' concrete base

Area Lighting

KAD Combo

Contour

Dimensions are shown in inches (centimeters) unless oth-

erwise noted.

EPA31.2 ft2 (.11 m2)

Square 171/2

(44.5)

Height 71/8 (18.1)

Arm length 4 (10.2)

Max. weight 42 lbs (19.1 kg)

Distribution

R3 Type III

asymmetric

(standard)

R4 Type IV

forward

throw, sharp

cutoff

Designation1

KC1 Single mount

KC2 Double mount

www.lithonia.com

keyword: KC

alloy, nickel-plated screw shell and center

contact. UL listed 1500W-600V. 4KV pulse

rated.

Poles – Straight square steel, pre-drilled

for single or double mount. Plugs included

to close off unused mounting holes.

Finish – Fixture and pole are finished with

dark bronze (DDB) corrosion-resistant poly-

ester powder.

Optics – Reflectors are anodized hydro-

formed/segmented aluminum. Two cutoff

distributors available: R3 (Asymmetric)

(std.) and R4 (Forward Throw).

Listings – UL Listed (standard). CSA Certified

(see Options). UL listed for wet locations.

Wind Shown with 1.3 gusts

Maximum Wind Load2

Pole KC1 Single KC2 Double

16' 4C 100 MPH 100 MPH

20' 4C 100 MPH 100 MPH

25' 4C 90 MPH 90 MPH

25' 4G 100 MPH 100MPH

Outdoor / PSG8

434

Voltage

120

2082

2402

277

347

4802

TB3

Distribution

Vertical lamp distributions

SYMDL Symmetric square, drop

lens, semi-cutoff

ASYDL Asymmetric, drop lens,

semi-cutoff

SYMFL Symmetric square, flat lens,

full-cutoff

ASYFL Asymmetric, flat lens,

full-cutoff

VFADL Vertical forward throw

automotive,

drop lens, semi-cutoff

VFAFL Vertical forward throw

automotive, flat lens,

full-cutoff

Horizontal lamp distributions*

R2DL Type II roadway, drop lens

R3DL Type III asymmetric, drop

lens

R2FL Type II roadway flat lens

R3FL Type III asymmetric flat lens

R4FL Type IV forward throw flat

lens

Segmented reflectors*

SR2 Type II asymmetric

SR3 Type III asymmetric

SR4C Type IV forward throw,

sharp cutoff

*Not available with 450M

Designation

High Pressure

Sodium

KVF 250S

KVF 400S

KVF 1000S1

Metal Halide

KVF 175M

KVF 250M

KVF 320M

KVF 350M

KVF 400M

KVF 450M

KVF 750M

KVF 1000M1

Mounting4

Arm mounting

SP04 4" square pole arm5

RP04 4" round pole arm5

SP06 6" square pole arm5

RP06 6" round pole arm5

SP09 9" square pole arm5

SP12 12" square pole arm

RP09 9" round pole arm5

RP12 12" round pole arm

WW12 12" wood pole or wall

WB12 12" wall bracket

KMA Mast arm (external fitter)

Post-top mounting

PT4 Posttop, 4" OD open-top pole

PT45 Posttop, 4

" OD open-top

pole

PT5 Posttop, 5" OD open-top pole

PT6 Posttop, 6" OD open-top pole

RPF20 Round pole fitter (23/8 OD

tenon)

RPF25 Round pole fitter (27/8 OD

tenon)

SPF20 Square pole fitter (23/8 OD

tenon)

SPF25 Square pole fitter (27/8 OD

tenon)

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V (n/a TB)

DF Double fuse, 208V, 240V, 480V (n/a TB)

PER NEMA twist-lock receptacle only

(no photocontrol)

QRS Quartz restrike system (250W max., 120V

lamp not included)

LPI Lamp included (standard)

L/LP Less lamp

TLS Tool-less access

EC Emergency circuit

CR Enhanced corrosion resistance

EHSB External house-side shield black6

SCWA Super CWA pulse start ballast (n/a with

any HPS)

EHS External house-side shield6

(matches fixture finish)

EA Embossed accents

CSA CSA Certified

For optional architectural colors, see page 485.

Shipped separately6

PE1 NEMA twist-lock PE (120V-240V)

PE3 NEMA twist-lock PE (347V)

PE4 NEMA twist-lock PE (480V)

PE7 NEMA twist-lock PE (277V)

SC Shorting cap for PER option

VG Vandal guard

KVFEHS External house-side shield (specify

color)

For tenon slipfitters, see page 486.

Architectural Vertical Cutoff

Ordering Information Example: KVF 1000M SYMDL 480 SP09 LPI

Intended Use

For car lots, street lighting or parking areas.

Features

Construction – Heavy-gauge, die-formed

aluminum housing, fabricated using robot-

ic continuous seam-weld process for

weathertight integrity. Integral structural

support plate for mounting arm and electri-

cal components. Hinged aluminium door

frame with stainless steel hardware. Con-

tinuous silicone gasketing surrounds lens.

Finish – Standard finish is dark bronze

corrosion-resistant electrostatically ap-

plied powder paint. Optional linear em-

bossed accent reveals are available.

Optics – Vertical-lamp reflectors are one-

piece spun and formed anodized alumi-

num. Horizontal-lamp reflectors also avail-

able. Mogul-base porcelain socket with

copper alloy, nickel-plated screw shell and

NOTES:

1 Must use BT37 lamp.

2 Consult factory for availability in Canada.

3 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

4 For arm mounting, see technical data section in Outdoor

binder for drilling template.

5 Must order SP12 or RP12 when two or more luminaires are

oriented on a 90o drilling pattern.

6 May be ordered as accessories.

Area Lighting

KVF

Dimensions are shown in inches (centimeters) unless oth-

erwise noted.

Arm-mount Post-top

EPA 2.8 ft2 (.25 m2) 2.8 ft2 (.25 m2)

Square 211/2 (54.6) 211/2

(54.6)

Height 17 (43.2) 17 (43.2)

Overall depth – 22.7 (57.7)

Max. weight 53 lbs (24 kg) 60 lbs (27.2 kg)

www.lithonia.com

keyword: KVF

center contact. Horizontal position-orient-

ed for types R2, R3 and R4. Reflectors are

rotatable and interchangable. UL listed

1500W-600V, 4KV pulse rated. Lamp includ-

ed with fixture.

Electrical – Electrical components mount-

ed to heavy-gauge plate to maximize heat

dissipation and structural integrity. Con-

stant-wattage autotransformer ballasts

are copper wound and 100% factory test-

ed. Super CWA PulseStart ballasts required

for 320M, 350M, 450M and 750M (must or-

der SCWA option).

Installation – Extruded aluminium arm with

integral splice compartment. Standard arm

is 9" in length. (12" arm is required for fix-

tures mounted at 90o.)

Listings – UL Listed (standard). CSA Certi-

fied (see Options). UL listed for wet

locations.Optical chamber rated certified

for ingress protection per IEC529 interna-

tional standards.

Outdoor / PSG8

435

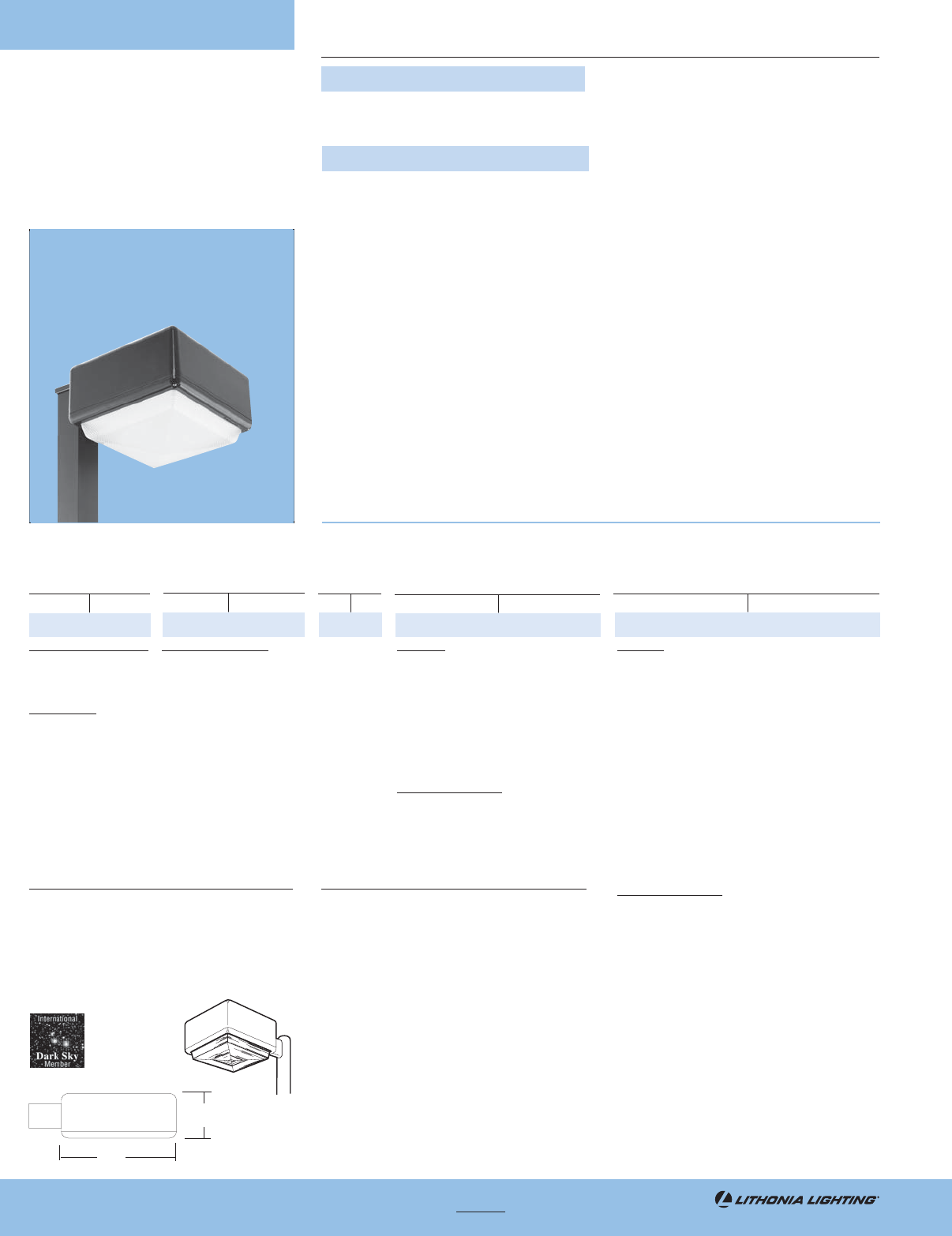

Arm-Mounted Square Cutoff

Ordering Information Example: KVS1 150S R2 120 SP09 PER

NOTES:

1 Must be ordered with SCWA.

2 Must use BT37reduced jacket lamp for 1000M, R2 & R3. R5

takes BT56 standard lamp.

3 Consult factory for availability in Canada.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

5 Single/twin, 180° configuration.

6 For use with 6" minimum 2-3/8" OD pipe.

7 PER must be ordered with fixture.

8 Includes mounting arm.

Intended Use

For lighting shopping center or stadium

parking lots.

Features

Housing – Rugged, heavy-gauge, aluminum

housing. Square shape, continuously welded

seams for weather-tight integrity. EPDM

closed-cell housing gasket. Dark bronze

corrosion-resistant polyester powder finish

(DDB) standard: other arch colors available.

Lens – Impact-resistant flat glass is stan-

dardfor KVS1, R2, R3 & R4. Convex glass

lens is standard with all KVS3, KVS1 & R5.

Door Frame – Extruded aluminum hinged

door frame. All exposed hardware is stain-

less steel.

Mounting – Extruded 9" (KVS1) and 12"

(KVS3) arms with integral splice compart-

ment for wall or pole mounting. Optional mount-

ing available.

Area Lighting

KVS

Voltage

120

2083

2403

277

347

4803

TB4

Designation Mounting

KVS1 (Shipped separately)

SP09 Square pole arm

RP09 Round pole arm

WW09 Wood pole or wall

WB09 Wall bracket

KTMB Twin mounting bar (Directly

mounts to 27/8" OD tenon)

KVS3 (Shipped separately)

SP12 Square pole arm

RP12 Round pole arm

WW12 Wood pole

WB12 Wall bracket

MA Mast arm internal fitter5

OPTIONAL MOUNTING

KVS1 AND KVS3 (Shipped separately)

KMA Mast arm adapter

(KVS1 only)6

DA12P Degree arm (pole)5

DA12WB Degree arm (wall)5

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V

DF Double fuse, 208V, 240V, 480V

PER NEMA twist-lock receptacle only

(no photocontrol)

QRS Quartz restrike system (100W max on

KVS1, 250W max on KVS2; lamp not

included)4

CR Enhanced corrosion resistance

EC Emergency circuit

MED Medium base socket (size 1 only)

HS House-side shield (R3, R4, R5 only)

SCWA Super CWA pulse start ballast (n/a with

HPS or 100M) (1000M & 175M with

R5 only).

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional architectural colors, see page 485.

Shipped separately

PE1 NEMA twist-lock PE (120-240V)7

PE3 NEMA twist-lock PE (347V)7

PE4 NEMA twist-lock PE (480V)7

PE7 NEMA twist-lock PE (277V)7

SC Shorting cap for PER option

VG Vandal guard (n/a KVS3)

For tenon slipfitters, see page 486.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KVS1 KVS3

EPA81.8 ft2 (.17 m2) 3.9 ft2 (.36 m2)

Square 163/4 (42.0) 24 (61.0)

Height 101/2

(26.0) 161/2

(42.0)

Max. weight 33 lbs (15.0 kg) 74 lbs (34.0 kg)

Distribution

High Pressure Sodium

KVS1 70S R2 R3 R4 R5

KVS1 100S R2 R3 R4 R5

KVS1 150S R2 R3 R4 R5

KVS1 250S R2 R3 R4 R5

KVS3 400S R2 R3 —R5

KVS3 1000S ———R5

Metal Halide

KVS1 100M R2 R3 R4 R5

KVS1 150M R2 R3 R4 R5

KVS1 175M R2 R3 R4 R5

KVS1 200M1R2 R3 R4 R5

KVS1 250M R2 R3 R4 R5

KVS3 320M1R2 R3 —R5

KVS3 350M1R2 R3 —R5

KVS3 400M R2 R3 —R5

KVS3 1000M2R2 R3 —R5

Arm L

www.lithonia.com

keyword: KVS

Optics – One-piece, anodized, hydroformed

aluminum reflector. Four cutoff distribu-

tions available: R2 (Roadway), R3 (Asym-

metric), R4 (Forward Throw) and R5 (Sym-

metric). Reflectors hinge out for easy re-

moval during installation/maintenance. R5

is vertically lamped; R2, R3, and R4 are

horizontally lamped.

Electrical – 150W and below high reac-

tance high power factor ballast. Con-

stant-wattage autotransformer ballasts are

copper wound and 100% factory tested. Re-

movable, unitized power module and pos-

itive-locking disconnect plugs.

Socket – Mogul-base porcelain socket

(100M & 150M are medium-base) with cop-

per alloy, nickel-plated screw shell and

center contact. UL listed 1500W-600V. 4KV

pulse rated.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL list-

ed for wet locations.

Outdoor / PSG8

436

Distribution

Vertical lamp distributions:

SYM Symmetric, semi-cutoff2

SYMC Symmetric, full-cutoff (n/a 1000S)

ASY Asymmetric, semi-cutoff

ASYC Asymmetric, full-cutoff

Horizontal lamp distributions:

R2 Type II roadway (n/a 1000S)3

R3 Type III asymmetric (n/a 1000S)3

R4SC Type IV forward throw, sharp

cutoff (n/a 1000S)3

R4W Type IV forward throw

(1000M only)3

R5S Type V symmetric square (1000M

Designation

High Pressure

Sodium

KVE2 250S

KVE2 400S

KVE3 1000S

Metal Halide

KVE2 175M

KVE2 200M1

KVE2 250M

KVE2 320M1,3

KVE2 350M1,3

KVE2 400M3

KVE3 1000M

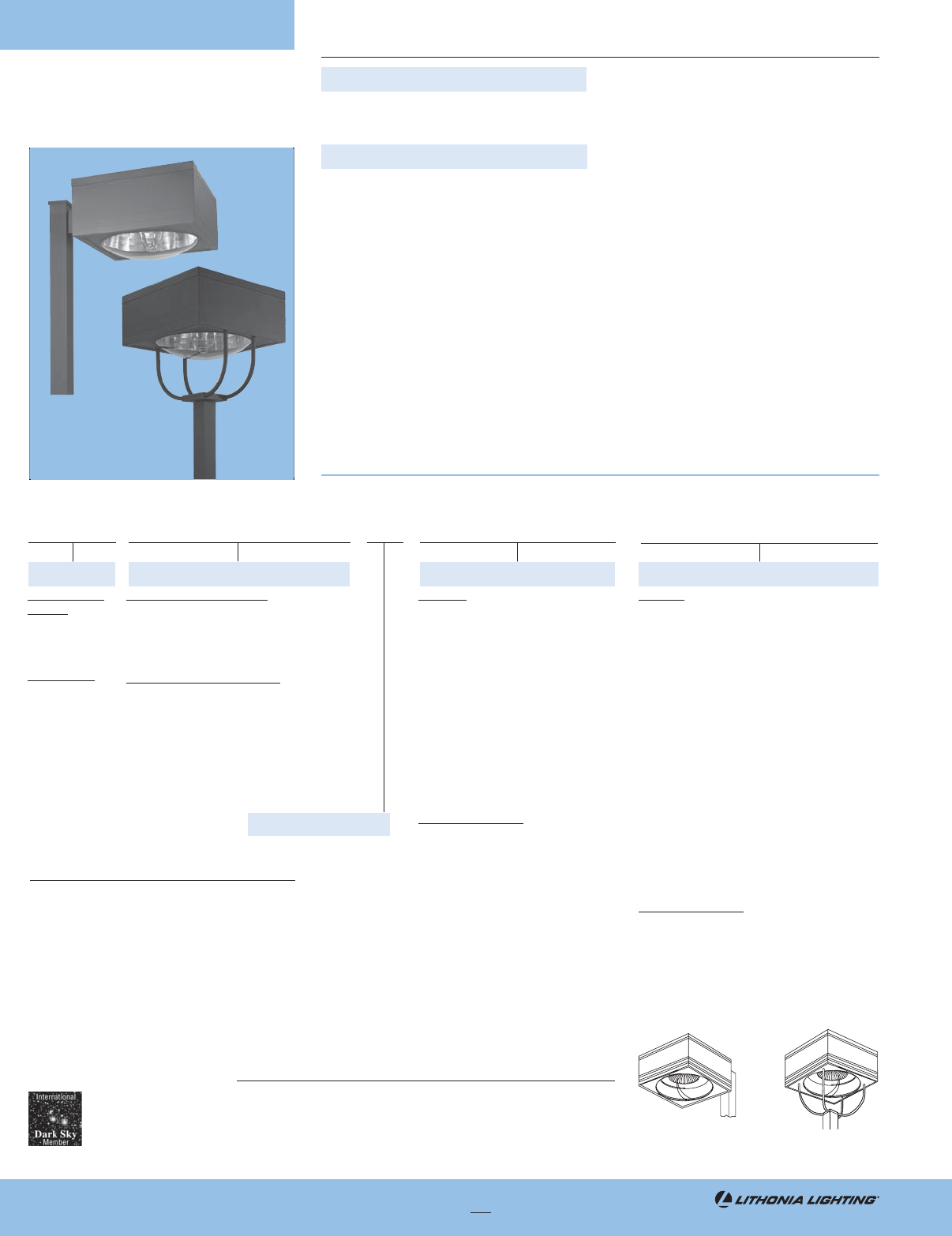

Architectural Square Vertical

Intended Use

For streets, parking lots and surrounding

areas.

Features

Housing – Square-shaped, rugged, heavy-

gauge, extruded aluminum housing. Fully

gasketed for weather-tight integrity. Stan-

dard finish is dark bronze (DDB) corrosion-

resistant polyester powder. Other archi-

tectural colors available.

Lens – Impact-resistant, clear, 3/16" thick,

tempered drop lens.

Mounting – Extruded aluminum arm with

integral splice compartment for wall or pole

mounting is shipped in fixture carton. Op-

tional mountings available.

Optics – Segmented, anodized aluminum

optics are interchangeable and rotatable.

Vertically lamped sealed optics include

Ordering Information Example: KVE2 250S SYM 120 RPV06 SF

NOTES:

1 Must be ordered with SCWA.

2 Meets IES cutoff criteria for 1000W high pressure sodium

luminaire.

3 320W, 350W, 400W MH requires ED28 lamp; 1000WMH

requires BT37 lamp. Not available with KVE3 1000S.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

6 For arm mounting, see technical data section in Outdoor

binder for drilling template.

7 For KVE2 luminaires, SPV12, RPV12, SPV14 or RPV14 must

be used when two or more luminaires oriented on a 90°

drilling pattern.

8 For KVE3 luminaires, SPV14 or RPV14 must be used when

two or more luminaires oriented on a 90° drilling pattern.

Area Lighting

KVE

Mounting6

Included

SPV04 4" square pole arm7,8

(standard)

SPV06 6" square pole arm7,8

SPV09 9" square pole arm7,8

SPV12 12" square pole arm8

SPV14 14" square pole arm

RPV04 4" round pole arm7,8

RPV06 6" square pole arm7,8

RPV09 9" round pole arm7,8

RPV12 12" square pole arm8

RPV14 14" square pole arm

WWV09 9" wood pole or wall

WBV09 9" wall bracket

Shipped separately

PT4 Posttop, 4" OD open-

top pole

PT45 Posttop, 4

OD open-top pole

PT5 Posttop, 5" OD open-

top pole

PT6 Posttop, 6" OD open-

top pole

RPF20 Round pole fitter

(23/8 OD tenon)

RPF25 Round pole fitter

(27/8 OD tenon)

SPF20 Square pole fitter

(23/8 OD tenon)

SPF25 Square pole fitter

(27/8 OD tenon)

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V (n/a TB)

DF Double fuse, 208V, 240V, 480V

(n/a TB)

PER NEMA twist-lock receptacle only

(no photocontrol)

QRS Quartz restrike system (250W max.,

120V only, lamp not included)

CR Enhanced corrosion resistance

EC Emergency circuit

HS House-side shield (ASY, ASYC only.

R2, R3 shipped separately)

SCWA Super CWA pulse start ballast (n/a

with any HPS or 175M or 1000M

horizontal)

LS Lamp support (size 3 horizontal

optics only)

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional architectural colors, see page 485.

Shipped separately

PE1 NEMA twist-lock PE (120-240V)

PE3 NEMA twist-lock PE (347V)

PE4 NEMA twist-lock PE (480V)

PE7 NEMA twist-lock PE (277V)

SC Shorting cap for PER option

Dimensions are shown in inches (centimeters) unless otherwise noted.

KVE2 (arm) KVE2 (post) KVE3 (arm) KVE3 (post)

EPA 3.3 ft2 (.31 m2) 3.4 ft2 (.32 m2) 4.2 ft2 (.39 m2) 4.5 ft2 (.42 m2)

Square 25 (63.5) 25 (63.5) 29 (73.7) 29 (73.7)

Height 163/4 (42.5) 237/8

(60.6) 181/2 (47.0) 181/2 (47.0)

Max. weight 77 lbs (34.9 kg) 87 lbs (39.5 kg) 87 lbs (39.5 kg) 97 lbs (44.0 kg)

Voltage

120, 2084, 2404, 277,

347, 4804, TB5

www.lithonia.com

keyword: KVE

symmetric, symmetric cutoff, asymmetric

and asymmetric cutoff. Design redirects

light around arc-tube for optimum lamp life

and maximum efficiency. Five horizontal

lamp cutoff distributions available: R2

(Roadway), R3 (Asymmetric), R4SC (For-

ward Throw, Sharp Cutoff, R4W (Wide,

Forward Throw) and R5S (Symmetric).

Electrical – Constant-wattage autotrans-

former, high-power factor ballast. Ballast

is copper wound and 100% factory tested.

Removable power tray and positive lock-

ing disconnect plug.

Socket – Mogul-base porcelain socket

with copper alloy, nickel-plated screw shell

and center contact. UL listed 1500W, 600V.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL

listed for wet locations. US patent no.

D417,026.

Outdoor / PSG8

437

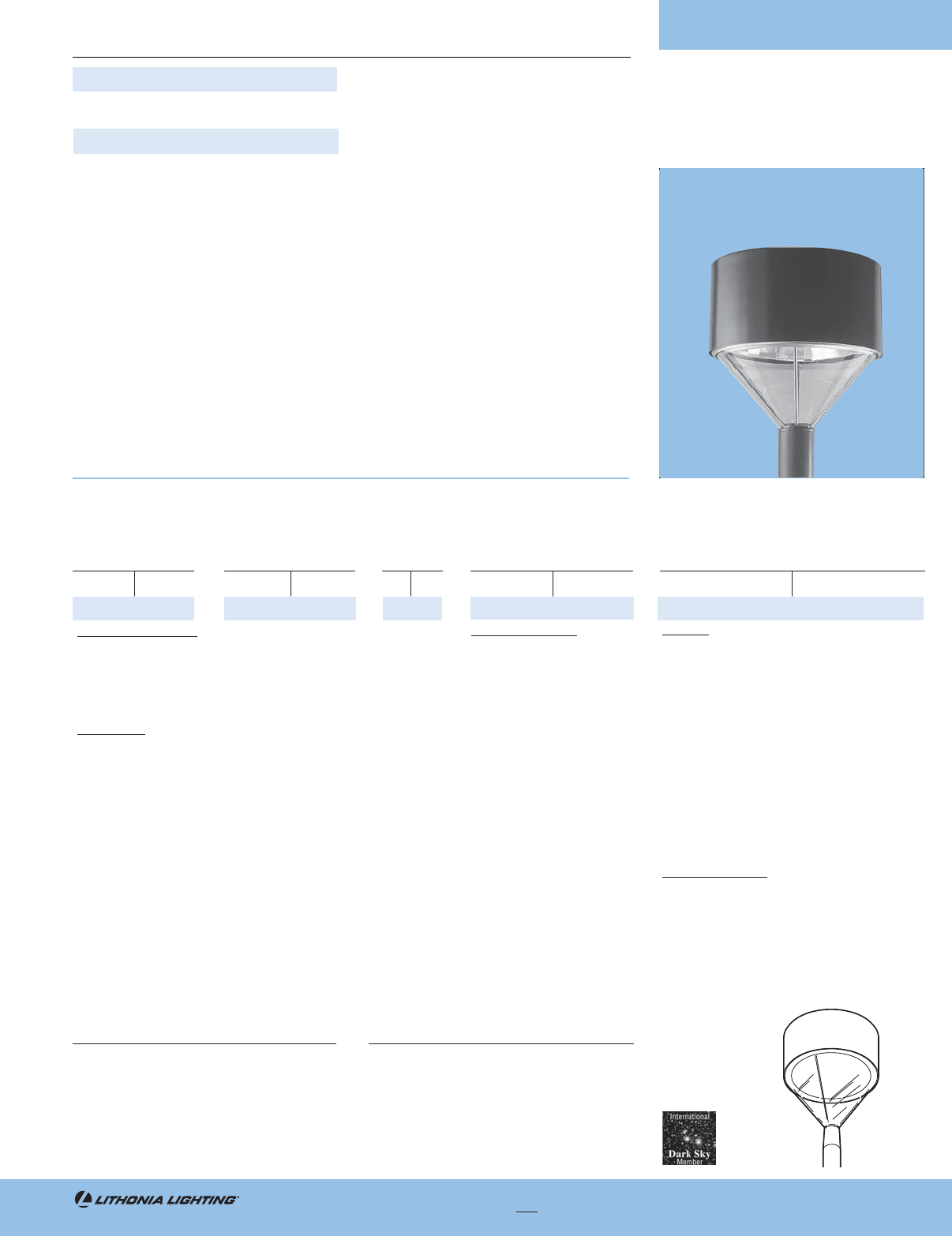

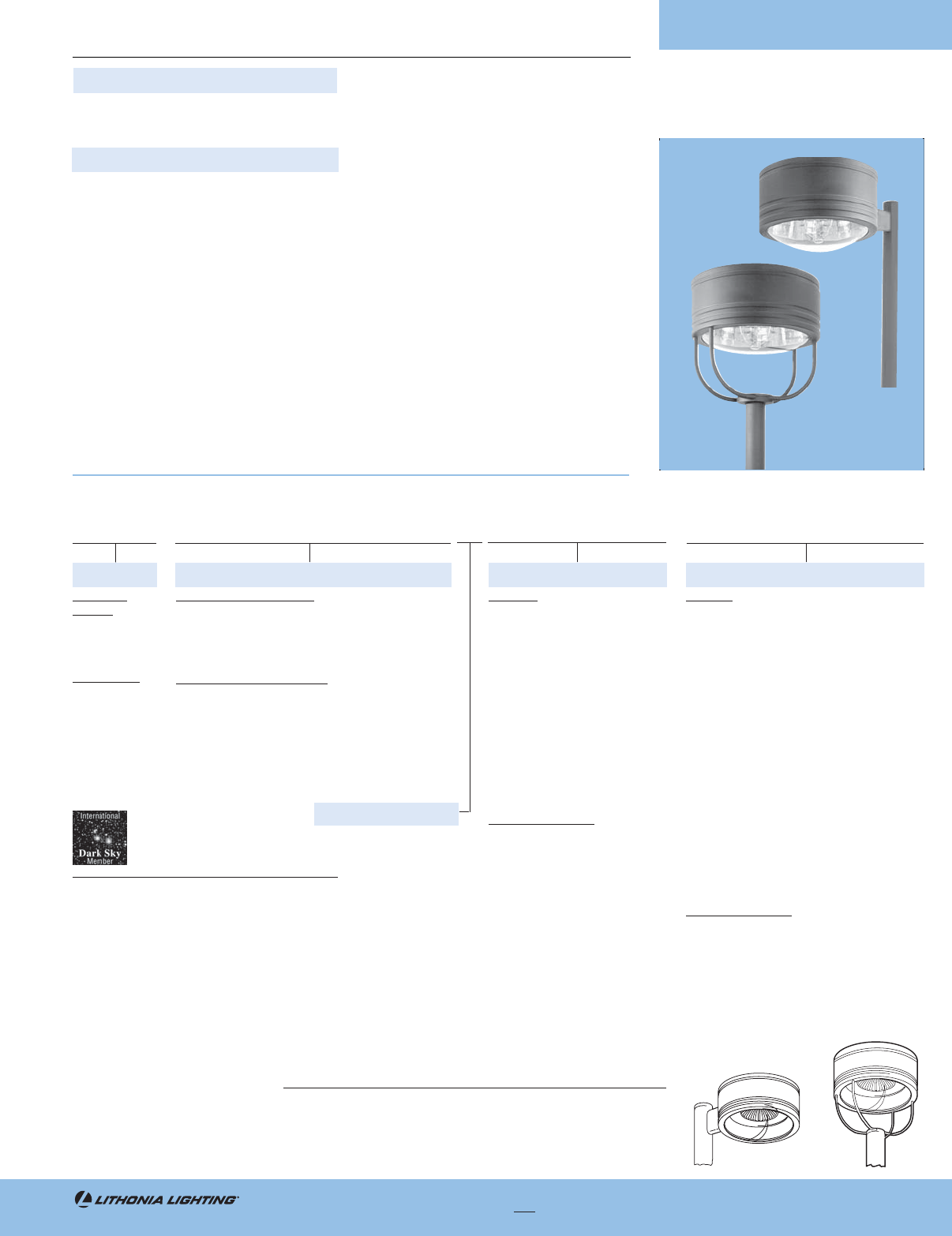

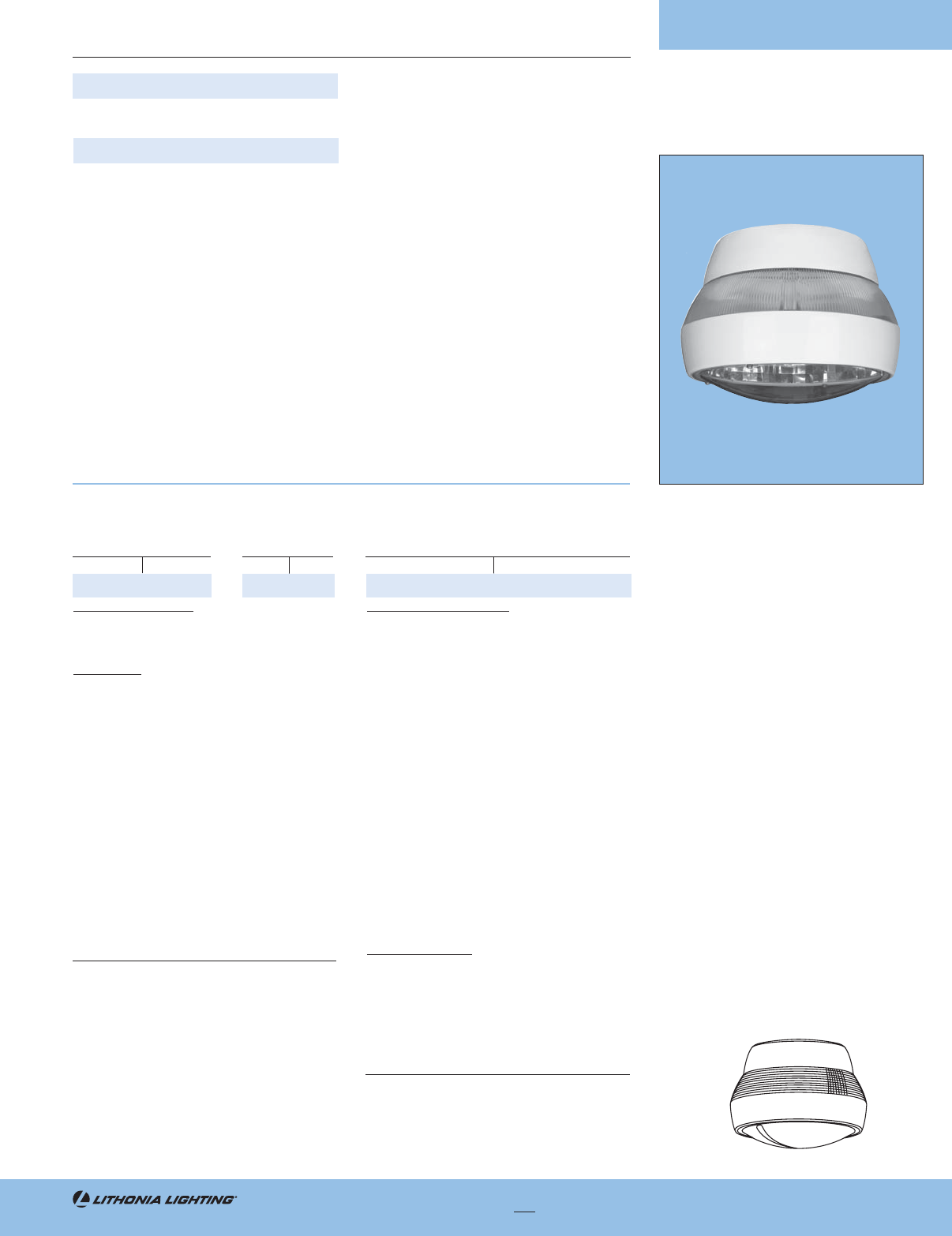

Architectural Round Vertical

Intended Use

For streets, parking lots and surrounding

areas.

Features

Housing – Cylindrically shaped, rugged,

heavy-gauge, spun aluminum housing.

Fully gasketed for weathertight integrity.

Standard finish is dark bronze (DDB) poly-

ester powder. Other architectural colors

available.

Lens – Impact-resistant, clear, 3/16" thick,

tempered drop lens.

Mounting – Extruded-aluminum arm with

integral splice compartment for wall or pole

mounting is shipped in fixture carton. Op-

tional mountings available.

Optics – Segmented, anodized aluminum

optics are interchangeable and rotatable.

Vertically lamped sealed optics include

Ordering Information Example: KVR2 250S SYM 120 RPVD06 SF

NOTES:

1 Must be ordered with SCWA.

2 Meets IES cutoff criteria for 1000W high pressure sodium

luminaire.

3 400W and 1000W metal halide require reduced jacket lamp.

Not available with KVR3 1000S.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V; 120V,

277V, 347V in Canada).

6 For arm mounting, refer to technical data section in Out-

door binder for drilling template.

7 For KVR2 luminaires, SPVD06, RPVD06, SPVD09, RPVD09,

SPVD12 or RPVD12 must be used when two or more

luminaires oriented on 90° drilling pattern.

8 For 1000W luminaires, SPVD09, RPVD09, SPVD12 or RPVD12

must be used when two or more luminaires oriented on 90°

drilling pattern.

9 For use with round poles only.

Area Lighting

KVR

Distribution

Vertical lamp distributions

SYM Symmetric, semi-cutoff2

SYMC Symmetric, full-cutoff (n/a 1000S)

ASY Asymmetric, semi-cutoff

ASYC Asymmetric, full-cutoff

Horizontal lamp distributions

R2 Type II roadway (n/a 1000S)3

R3 Type III asymmetric (n/a 1000S)3

R4SC Type IV forward throw, sharp cutoff (n/a

1000S)

R4W Type IV forward throw (1000M only)3

R5S Type V symmetric square (1000M only)3

Designation

High Pres.

Sodium

KVR2 250S

KVR2 400S

KVR3 1000S

Metal Halide

KVR2 175M

KVR2 200M1

KVR2 250M

KVR2 320M1

KVR2 350M1

KVR2 400M

KVR3 1000M

Mounting6

Included

SPVD04 4" square pole arm7,8

(std.)

SPVD06 6" square pole arm8

SPVD09 9" square pole arm

SPVD12 12" square pole arm

SPVD14 14" square pole arm

RPVD04 4" round pole arm7,8

RPVD06 6" square pole arm8

RPVD09 9" round pole arm

RPVD12 12" square pole arm

RPVD14 14" square pole arm

WWVD09 9" wood pole or wall

WBVD09 9" wall bracket

Shipped separately

PT4 Posttop, 4" OD open-

top pole9

PT45 Posttop, 4

OD open-top pole9

PT5 Posttop, 5" OD open-

top pole9

PT6 Posttop, 6" OD open-

top pole9

RPF20 Round pole fitter (23/8

OD tenon)

RPF25 Round pole fitter (27/8

OD tenon)

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V

(n/a TB)

DF Double fuse, 208V, 240V, 480V

(n/a TB)

PER NEMA twist-lock receptacle only

(no photocontrol)

QRS Quartz restrike system (250W

max., 120V only, lamp not included)

GFL Glass flat lens (n/a HPS)

CR Corrosion-resistant finish

EC Emergency circuit

LS Lamp support (size 3 horizontal

optics only)

HS House-side shield (ASY, ASYC

only. R2, R3 shipped separately)

SCWA Super CWA pulse start ballast (n/

a with HPS or 175M or 1000M hori-

zontal)

CSA CSA Certified

For optional architectural colors, see page 485.

Shipped separately

PE1 NEMA twist-lock PE (120V-240V)

PE3 NEMA twist-lock PE (347V)

PE4 NEMA twist-lock PE (480V)

PE7 NEMA twist-lock PE (277V)

SC Shorting cap for PER option

For tenon slipfitters, see page 486.

Dimensions are shown in inches (centimeters) unless otherwise noted.

KVR2 (arm) KVR2 (post) KVR3 (arm) KVR3 (post)

EPA 1.5 ft2 (.14 m2) 1.6 ft2 (.15 m2) 2.0 ft2 (.19 m2) 2.2 ft2 (.20 m2)

Diameter 25 (63.5) 25 (63.5) 29 (73.7) 29 (73.7)

Height 163/4 (42.5) 237/8 (60.6) 181/2 (47.0) 181/2 (47.0)

Max. weight 65 lbs. (29.5 kg) 75 lbs (34.0 kg) 70 lbs (31.8 kg) 80 lbs. (36.3 kg)

Voltage

120, 2084, 2404, 277,

347, 4804, TB5

www.lithonia.com

keyword: KVR

symmetric, symmetric cutoff, asymmetric

and asymmetric cutoff. Design redirects

light around arc-tube for optimum lamp life

and maximum efficiency. Five horizontal

lamp cutoff distributions available: R2

(Roadway), R3 (Asymmetric), R4SC (Forward

Throw, Sharp Cutoff), R4W (Wide, Forward

Throw) and R5S (Symmetric).

Electrical – Constant-wattage autotrans-

former, high-power factor ballast. Ballast

is copper wound and 100% factory tested.

Removable power tray and positive lock-

ing disconnect plug.

Socket – Mogul-base porcelain socket

with copper alloy, nickel-plated screw shell

and center contact. UL listed 1500W, 600V.

Listings – UL Listed (standard). CSA Cer-

tified (see Options). UL listed for wet

locations.

Outdoor / PSG8

438

Arm-Mounted Centriform Cutoff

Ordering Information Example: KAR3 1000S R4 120 RPD12 QRS

Intended Use

For parking lots, plazas or entrances.

Features

Housing – Rugged, heavy-gauge, spun-

aluminum housing in centriform shape.

Dark bronze polyester corrosion-resistant

powder finish (DDB) standard; other archi-

tectural colors available.

Door Frame – Aluminum door frame with

1/8" impact-resistant, tempered-glass lens.

Stainless steel external hardware. One-

piece EPT closed-cell gasket.

Mounting – Contoured, extruded-aluminum

9" (KAR1/ KAR2) and 12" (KAR3) arms with

integral splice compartment for pole or wall

mounting. Optional mountings available.

Optics – Anodized, hydroformed alumi-

num reflectors. Four cutoff distributions

available: R2 (Roadway), R3 (Asymmet-

NOTES:

1 Must be ordered with SCWA.

2 Consult factory for availability in Canada.

3 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

4 PER must be ordered with fixture.

5 Includes mounting arm.

Area Lighting

KAR

Voltage

120

2082

2402

277

347

4802

TB3

Distribution

R2 Type II roadway (n/a

1000S)

R3 Type III asymmetric

R4 Type IV forward

throw, (n/a size 1)

R5S Type V symmetric

square (n/a size 1)

Designation

High Pressure Sodium

KAR1 150S

KAR2 250S

KAR2 400S

KAR3 1000S

Metal Halide

KAR1 100M

KAR1 150M

KAR1 175M

KAR1 200M1

KAR1 250M

KAR2 320M1

KAR2 350M1

KAR2 400M

KAR3 1000M

Mounting

KAR1/KAR2, shipped separately

SPD09 9" square pole arm

RPD09 9" round pole arm

WWD09 9" wood pole or wall

WBD09 9" wall bracket

KAR3, shipped separately

SPD12 12" square pole arm

RPD12 12" round pole arm

WWD12 12" wood pole or wall

WBD12 12" wall bracket

Shipped separately

KMA Mast arm adapter

KTMB Twin mounting bar

DAD12P Degree arm (pole)

DAD12WB Degree arm (wall)

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V (n/a TB)

DF Double fuse, 208V, 240V, 480V (n/a TB)

PER NEMA twist-lock receptacle only (no

photocontrol)

QRS Quartz restrike system (250W max, 120V

lamp not included)

CR Enhanced corrosion resistance

EC Emergency circuit

HS House-side shield (R3, R4 only)

SCWA Super CWA pulse start ballast (n/a with

HPS, 100M, 175M or 1000M)

CSA CSA Certified

For optional architectural colors, see page 485.

Shipped separately

PE1 NEMA twist-lock PE (120V-240V)4

PE3 NEMA twist-lock PE (347V)4

PE4 NEMA twist-lock PE (480V)4

PE7 NEMA twist-lock PE (277V)4

SC Shorting cap for PER option

VG Vandal guard (KAR1/2 below 400W )

For tenon slipfitters, see page 486.

Arm Diameter

www.lithonia.com

keyword: KAR

ric), R4 (Forward Throw) and R5S (Sym-

metric). R4 reflector is field-rotatable.

Reflectors hinge out for easy installation

and maintenance.

Electrical – 150S, 100-150M high

reactance, high-power factor ballast.

Constant-wattage autotransformer ballast,

copper wound and 100% factory tested.

Removable power door and positive-lock-

ing disconnect plugs.

Socket – Horizontally oriented mogul-

base porcelain socket (100M & 150M are

medium-base) with copper alloy, nickel-

plated screw shell and center contact.

UL listed 1500W-600V. 4KV pulse rated.

Listings – UL Listed (standard). CSA Certified

(see Options). UL listed for wet locations.

Dimensions are shown in inches (centimeters) unless otherwise

noted.

KAR1 KAR2 KAR3

EPA51.2 ft2 (.11 m2) 1.5 ft2 (.14 m2) 2.2 ft2 (.20 m2)

Diameter 191/2 (49.5) 211/2

(54.6) 30 (75.6)

Width 163/16 (41.1) 181/2 (47.0) 245/16 (61.8)

Height 71/4 (18.4) 85/16 (21.1) 101/2 (26.7)

Arm length 9 (22.9) 9 (22.9) 12 (30.5)

Max. weight 36 lbs (15.0 kg) 45 lbs (20.0 kg) 53 lbs (24.0 kg)

Outdoor / PSG8

439

Centriform Post-Top Cutoff

120

2083

2403

277

347

4803

TB4

Designation

High Pressure Sodium

KKR 70S

KKR 100S

KKR 150S

KKR 250S

KKR 400S

Metal Halide

KKR 150M

KKR 175M

KKR 200M1

KKR 250M

KKR 320M1

KKR 350M1

KKR 400M

Voltage

Distribution

R42

R52

R5S

Intended Use

For walkways, plazas or pedestrian areas.

Features

Housing – Rugged, heavy-gauge, spun-

aluminum housing. EPDM one-piece,

closed-cell gasket. Dark bronze corro-

sion-resistant polyester powder finish

(DDB) standard; other architectural col-

ors available.

Enclosure – Thermoformed, clear acrylic,

0.125" minimum wall thickness. Lens gas-

kets are EPDM one-piece closed-cell.

Mounting – Internal expansion sleeve

pole-fitter with integral splice compart-

ment. Clean transition to pole via 1/4" tran-

sition plate. No external hardware. Mounts

to 4

" round, open-top pole. Other sizes

require tenon and tenon slipfitter.

Optics – One-piece, hydroformed, anod-

Ordering Information Example: KKR 175M R5S 120 QRS

Area Lighting

KKR

Optional mounting5

Shipped separately

SM Side-mounting

assembly (one per

luminaire)

WM Wall-mounting

assembly

T20 Tenon slipfitter (for 2"

pipe tenon, 23/8" OD)

T25 Tenon slipfiter (for 21/2"

pipe tenon, 27/8" OD)

Mounts to any 4

1/2

" round open-top pole.

Other pole sizes require tenon and tenon

slipfitter.

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V

DF Double fuse, 208V, 240V, 480V

PER NEMA twist-lock receptacle only (no

photocontrol)

QRS Quartz restrike system (250W max, 120V

lamp not included).

CR Enhanced corrosion resistance

EC Emergency circuit

PC Polycarbonate lens

LS Lamp support

HS House-side shield (R3 and R4 only)

SCWA Super CWA pulse start ballast (n/a with

HPS or 175M).

CSA CSA Certified

For optional architectural colors, see page 485.

Shipped separately

PE1 NEMA twist-lock PE (120V-240V)6

PE3 NEMA twist-lock PE (347V)6

PE4 NEMA twist-lock PE (480V)6

PE7 NEMA twist-lock PE (277V)6

SC Shorting cap for PER option

For tenon slipfitters, see page 486.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KKR

EPA 1.6 ft2 (.15 m2)

Diameter 221/4 (56.5)

Housing height 11 (27.9)

Overall height 201/2 (52.1)

Max. weight 45 lbs (20.0 kg)

NOTES:

1 Must be ordered with SCWA.

2 KKR 400M R4 and R5 require ED28 reduced jacket lamp.

3 Consult factory for availability in Canada.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

5 When ordering separately, order as KKR SM, KKR WM,

KKR T20, or KKR T25.

6 PER option must be ordered with fixture.

www.lithonia.com

keyword: KKR

ized-aluminum reflectors. Four cutoff dis-

tributions available: R3 (Asymmetric), R4

(Forward Throw), R5 (Symmetric, vertical)

and R5S (Square). Field-interchangeable

reflectors hinge out for easy maintenance.

Electrical – 70-150S high reactance, high-

power factor ballast. Constant-watttage

autotransformer ballasts (-40°F starting),

copper wound and 100% factory tested.

Removable, unitized power module. Posi-

tive-locking disconnect plugs (primary and

secondary).

Socket – Horizontally oriented, mogul-base

porcelain socket with copper alloy, nickel-

plated screw shell and center contact. UL

listed 1500W-600V. 4KV pulse rated.

Listings – UL Listed (standard). CSA Certified

(see Options). UL listed for wet locations.

Outdoor / PSG8

440

NOTES:

1 Must be ordered with SCWA.

2 KKS 400M R4 or R5 requires ED28 reduced jacket lamp.

3 Consult factory for availability in Canada.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

5 When ordering separately, order as KKS SM, KKS WM or

KKS T20.

6 PER option must be ordered with fixture.

Ordering Information Example: KKS 70S R3 120 QRS

Square Post-Top Cutoff

Intended Use

For walkways, plazas or pedestrian areas.

Features

Housing – Rugged, heavy-gauge, formed-

aluminum housing. EPDM one-piece,

closed-cell gasket. Dark bronze corro-

sion-resistant polyester powder finish

(DDB) standard; other architectural col-

ors available.

Door Frame – Permanent-mold, cast-alu-

minum door frame with positive hold-open

device. Stainless steel external hardware.

Enclosure – Thermoformed clear acrylic,

0.125" minimum wall thickness. Lens gas-

kets are EPDM one-piece closed-cell.

Mounting – Internal expansion sleeve

pole-fitter with integral splice compart-

ment. Clean transition to pole via 1/4" tran-

sition plate. No external hardware. Mounts

to 4" square, open-top pole. Other pole

sizes require tenon and tenon slipfitter.

Distribution

R42

R52

R5S

Designation

High Pressure Sodium

KKS 70S

KKS 100S

KKS 150S

KKS 250S

KKS 400S

Metal Halide

KKS 150M

KKS 175M

KKS 200M1

KKS 250M

KKS 320M1

KKS 350M1

KKS 400M

Voltage

120

2083

2403

277

347

4803

TB4

Optional mounting5

Shipped separately

SM Side-mounting

assembly (one per

luminaire)

WM Wall-mounting

assembly

T20 Tenon slipfitter (for 2"

pipe tenon, 2

" OD)

Mounts to any 4" square open-top

pole. Other pole sizes require tenon

and tenon slipfitter.

Area Lighting

KKS

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V

DF Double fuse, 208V, 240V, 480V

PER NEMA twist-lock receptacle only

(no photocontrol)

QRS Quartz restrike system (250W max, 120V

lamp not included).

CR Enhanced corrosion resistance

EC Emergency circuit

PC Polycarbonate lens

HS House-side shield (R3 and R4 only)

SCWA Super CWA pulse start ballast

(n/a with HPS or 175M).

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional architectural colors, see page 485.

Shipped separately

PE1 NEMA twist-lock PE (120V-240V)6

PE3 NEMA twist-lock PE (347V)6

PE4 NEMA twist-lock PE (480V)6

PE7 NEMA twist-lock PE (277V)6

SC Shorting cap for PER option

For tenon slipfitters, see page 486.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KKS

EPA 2.5 ft2 (.23 m2)

Square 201/4

(51.4)

Housing height 113/4 (29.9)

Overall height 203/4 (52.7)

Max. weight 54lbs (24.4kg)

www.lithonia.com

keyword: KKS

Optics – One-piece, hydroformed, anod-

ized-aluminum reflectors. Four cutoff dis-

tributions available: R3 (Asymmetric), R4

(Forward Throw), R5 (Symmetric, vertical)

and R5S (Square). Field-interchangeable

reflectors hinge out for easy maintenance.

Electrical – 70-150S high reactance, high-

power factor ballast. Constant-wattage au-

totransformer ballasts are copper wound

and 100% factory tested. Removable, unit-

ized power door and positive-locking dis-

connect plugs (primary and secondary).

Socket – Mogul-base porcelain socket

with copper alloy, nickel-plated screw shell

and center contact. UL listed 1500W-600V.

4KV pulse rated.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL list-

ed for wet locations.

Outdoor / PSG8

441

Distribution

R5S

Designation

High Pressure Sodium

KQS 150S

KQS 250S

KQS 400S

KQS 1000S1

Metal Halide

KQS 175M

KQS 200M2

KQS 250M

KQS 320M2

KQS 350M2

KQS 400M

KQS 1000M3

Voltage

120

2084

2404

277

347

4804

TB5

Square Post-Top Cutoff

Ordering Information Example: KQS 250S R3 120 SPF QRS

Intended Use

For parking areas, new construction or

retrofit.

Features

Housing – Rugged, heavy-gauge, alumi-

num housing in symmetric square shape.

Continuously welded seams for weather-

tight integrity. Recessed, combination-

head 13/4" turn fastener. Positive-locking

device retains housing open during ser-

vicing. Dark bronze corrosion-resistant

polyester powder finish (DDB) standard;

other architectural colors available.

Lens frame – Die-cast aluminum lens frame.

Butyl rubber gasket and EPT closed-cell

foam gasket prevent entry of outside con-

taminants. Brushed-aluminum legs facto-

ry-installed into lens frame.

Lens – Impact-resistant tempered flat glass.

Drop lens standard on 1000M.

Mounting – Slipfitter pole-top mounting for

Mounting

Shipped separately

SPF Square pole fitter

(standard) for 23/8"OD x 5"

tenon

RPF Round pole fitter

23/8"OD x 5" tenon

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V

DF Double fuse, 208V, 240V, 480V

PER NEMA twist-lock receptacle

only (no photocontrol)

QRS Quartz restrike system (500W

max, 120V lamp not included)

CR Enhanced corrosion resistance

EC Emergency circuit

LS Lamp support (1000W only)

HS House-side shield (R3 only)

SCWA Super CWA pulse start ballast

(n/a with HPS, 175M or 1000M)

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional architectural colors, see page 485.

Shipped separately

PE1 NEMA twist-lock PE (120V-240V)6

PE3 NEMA twist-lock PE (347V)6

PE4 NEMA twist-lock PE (480V)6

PE7 NEMA twist-lock PE (277V)6

SC Shorting cap for PER option

VG Vandal guard (400W max.)

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KQS

EPA 2.2 ft2 (.21 m2)

Square 24 (70.0)

Housing height 91/2 (24.1)

Overall height 271/2 (69.9)

Max. weight 67 lbs (30.0 kg)

NOTES:

1 Not available with R3 distribution.

2 Must be ordered with SCWA.

3 KQS 1000M requires BT37 reduced jacket lamp.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

6 PER option must be ordered with fixture.

www.lithonia.com

keyword: KQS

Area Lighting

KQS

23/8" OD x 5" high tenon. Mounting hardware

packaged separately.

Optics – One-piece, hydroformed aluminum,

multifaceted, anodized aluminum reflectors.

Two cutoff distributions available: R3 (Asym-

metric) and R5S (Square). Field-interchange-

able reflectors hinge out for servicing.

Electrical – 150S high-reactance, high

power factor ballast. Constant-wattage

autotransformer, copper wound and

100% factory-tested. All electrical com-

ponents are unitized on power module

for ease of installation and maintenance.

Positive-locking disconnect plugs (pri-

mary and secondary).

Socket – Horizontally oriented, mogul-base

porcelain socket with copper alloy, nickel-

plated screw shell and center contact. UL

listed 1500W-600V, 4KV pulse rated.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL list-

ed for wet locations.

Outdoor / PSG8

442

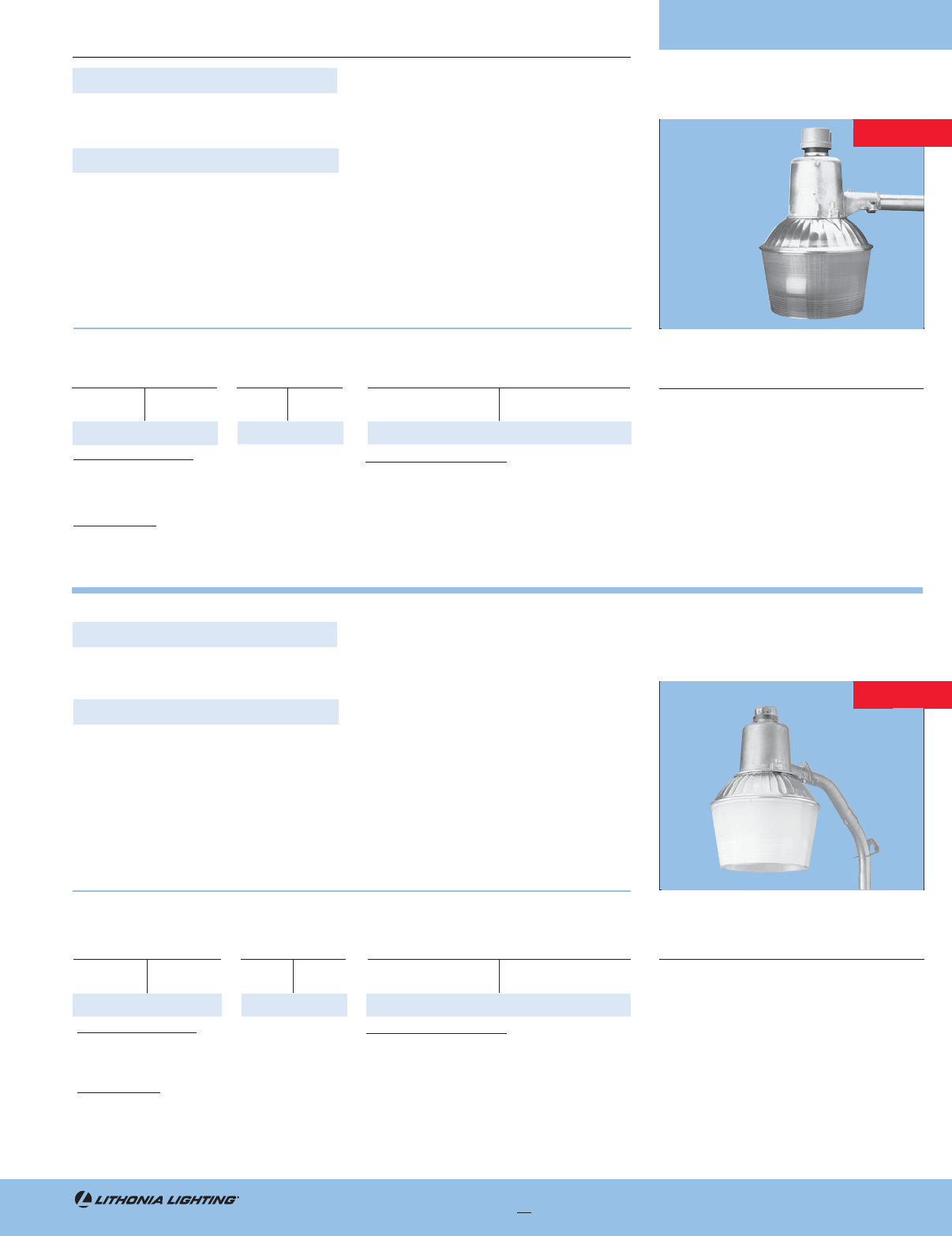

Security Lighting

TDD

Dusk-to-Dawn Area Lighters

Intended Use

For lighting yards and parking lots, service

roads and building perimeters.

Features

Housing – Rugged, die-cast, aluminum

head with standard NEMA photocell re-

ceptacle.

Optics – Formed aluminum reflectors and

open bottom refractor for ease of mainte-

nance and lamp replacement. Prismatic

refractor provides uniform symmetrical

Type V distribution, mogul based socket.

Ordering Information Example: TDB 175MV 120 PKG

Voltage

120 LPI Lamp

included as

standard

Lamp

Designation

High Pressure Sodium

TDD 100S

TDD 150S

Mercury Vapor

TDD 175MV

TDB

Ordering Information Example: TDD 175MV 120 PER LPI

Intended Use

For lighting yards and parking lots, service

roads and building perimeters.

Features

Housing – Rugged, die-cast, aluminum

head with standard NEMA photocell re-

ceptacle.

Optics – Formed aluminum reflectors and

open-bottom refractor for easy mainte-

nance and lamp replacement. Optical as-

sembly attaches via two tool-less toggle

latches. Prismatic acrylic refractor provides

Voltage

120

Designation

High Pressure Sodium

TDB 50S

70S

100S

150S

Mercury Vapor

TDB 100MV

175MV

250MV

Options/Accessories

Shipped installed in fixture

PKG Fixture, mounting arm, hardware,

lamp and photoeye included in

one box (standard)

L/PKG Fixture, optical and receptacle

only in box

www.lithonia.com

keyword: TD

Photocell

PER Photocell receptacle

and NEMA twist-lock

photocell included as

standard

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TDD

EPA 0.8 ft

(0.07m

)

Height 17 (43.18)

Width 12

(30.48)

Depth 12

(30.48)

Max weight 12 lbs (5.44 kg)

Accessories (Order separately)

PE1 Replacement photocell

RK1 TDDLENS Replacement lens

Accessories (Order separately)

RK1 TDDLENS A1250B Replacement lens

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TDB

EPA 0.8 ft

(0.07m

)

Height 15

1/2 (39.4)

Width 12

(30.48)

Depth 12

(30.48)

Max weight 15 lbs (6.8 kg)

NEW

Installation – Mounting arm and all mount-

ing hardware is included in carton. Photo-

cell and lamp are included in carton. (24"

mounting arm)

Listings – UL Listed to US and Canadian

safety standards. UL/C-UL listed for wet

locations (25°C ambient temperature).

uniform symmetrical Type V distribution.

(glass for 250MV).

Installation – Squared 1¼" (OD) Mounting

arm and all mounting hardware is included

in carton. Photocell and lamp are included

in carton. (24" mounting arm)

Listings – Standard Product is NOT listed

by UL, CSA, or NOM.

Outdoor / PSG8

443

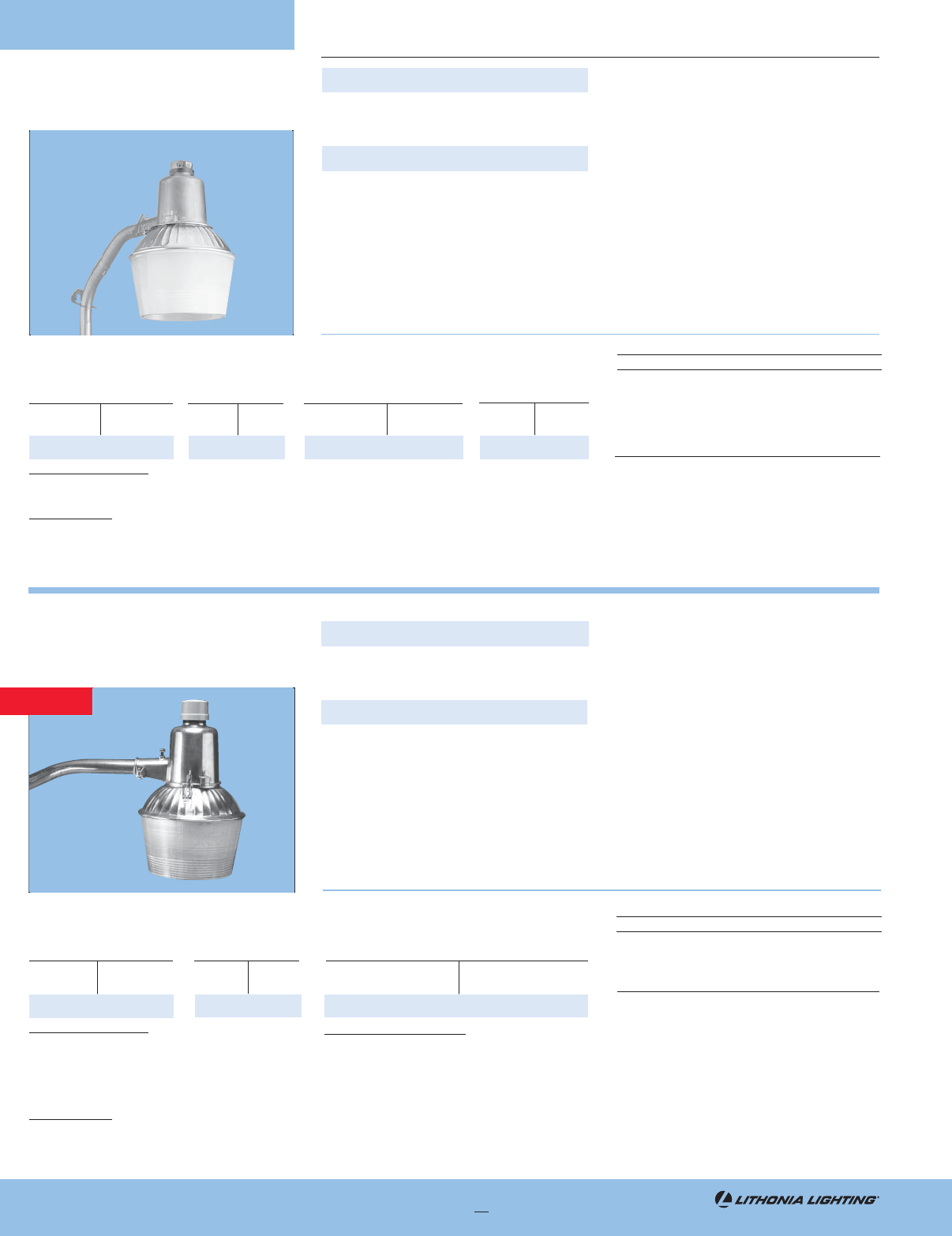

Security Lighting

TDL

Dusk-to-Dawn Area Lighters

Intended Use

For lighting yards and parking lots, service

roads and building perimeters.

Features

Housing – Rugged, die-cast, aluminum

head with standard NEMA photocell re-

ceptacle.

Optics – Fluted aluminum reflectors and

open bottom refractor for ease of mainte-

nance and lamp replacement. Prismatic

acrylic refractor provides uniform symmet-

Ordering Information Example: TDC 175MV 120 PKG

Voltage

120

Designation

High Pressure Sodium

TDL 70S

100S

150S

Mercury Vapor

TDL 175MV

250MV

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TDL

EPA 0.8ft2

(0.07m2)

Height 151/2 (39.4)

Width 12

(30.48)

Depth 12

(30.48)

Max weight 18 lbs (8.16 kg)

TDC

Ordering Information Example: TDL 175MV 120 PKG

Voltage

120

Designation

High Pressure Sodium

TDC 70S

100S

150S

Mercury Vapor

TDC 175MV

250MV

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TDC

EPA 1.2ft2

(0.11m2)

Height 17 (43.18)

Width 12

(30.48)

Depth 12

(30.48)

Max weight 12 lbs (5.44 kg)

www.lithonia.com

keyword: TD

Options

Shipped installed in fixture

PKG Fixture, mounting arm, hardware, lamp

and photoeye included in one box

(standard)

L/PKG Fixture, optical and receptacle only in

box

Options

Shipped installed in fixture

PKG Fixture, mounting arm, hardware,

lamp and photoeye included in one

box (standard)

L/PKG Fixture, optical and receptacle only in

box

rical Type V distribution. (Glass for 250MV).

Installation – 1¼" (OD) Mounting arm and

all mounting hardware is included in car-

ton. Photocell and lamp are included in

carton. (18"-24" mounting arm depending

on wattage).

Listings – 150S and below and 175 and be-

low are UL listed for wet locations. For CSA

or NOM requirements, consult factory.

Intended Use

For lighting yards and parking lots, service

roads and building perimeters.

Features

Housing – Rugged, die-cast, aluminum

head with standard NEMA photocell re-

ceptacle.

Optics – Spun anodized aluminum reflec-

tor delivers IES type V full-cutoff distribu-

tions. Open bottom housing provides easy

maintenance and lamp replacement.

Installation – 1¼" (OD) Mounting arm and

all mounting hardware is included in car-

ton. Photocell and lamp are included in

carton. (18" mounting arm)

Listings – Standard product is NOT listed

by UL, CSA, or NOM.

NEW

Outdoor / PSG8

444

NEMA distribution

Ordering Information Example: CHE 100S R2 DLG 120 PER LPI

Voltage

(blank) 120

L/E L/E2

Ballast options

(blank) Reactor normal

power factor

ballast

(standard)

RHP Reactor high

power factor

ballast

Roadway Lighting

CHE Intended Use

Ideal for roadways, residential streets,

storage areas, parking lots, campuses and

parks.

Features

Construction – Stainless steel latch per-

mits easy opening with one hand for

relamping and servicing. Large surface

area "breathing-seal" polyester gasketing

protects reflector and lens from contami-

nants; maintains maximum optical effi-

ciency. Available with or without twist-

lock photocontrol receptacle. Integral

wildlife shield.

Finish – Gray polyester powder paint fin-

ish is electrostatically applied for supe-

rior corrosion resistance.

Optical System – Ovate refractors in a va-

riety of materials or flat tempered glass

full cutoff lens provides a choice of effi-

Small Roadway Lighting

NOTES:

1 Not available with RHP.

2 Shipped without ballast/electrical components.

3 May be ordered as an accessory.

Options

Installed

LPI Lamp included

PER NEMA twist-lock

receptacle only

(photocontrol

not included)

PE1 NEMA twist-lock

PE (120V)

IP65 IP65 rating for

optics

Shipped separately3

SC Shorting cap for

PER option

Lens

DLG Drop lens

glass

(standard)

DLA Drop lens

acrylic

DLP Drop lens

polycarbonate

FL Flat tempered

glass lens, full

cutoff

Dimensions are shown in inches (centimeters) and

pounds (kilograms) unless otherwise noted.

CHE

Flat lens EPA .61 ft2 (.057 m2)

Drop lens EPA .77 ft2 (.072 m2)

Length 21 (53.3)

Width 127/8 (32.7)

Flat lens depth 67/8 (12.5)

Drop lens depth 101/2 (26.7)

Weight 12 (5.4)

NEW

Series

CHE

Wattage

High Pressure Sodium

35S1

50S

70S

100S

150S

www.lithonia.com

keyword: CH

cient light distributions for every applica-

tion. Optics are computer designed for

maximum performance.

Electrical System – Reactor, normal power

factor ballast standard. High power factor

available (see Options). Two or three-po-

sition (L1, L2, N) tunnel type compres-

sion terminal block standard.

Installation – Two-bolt mast arm mount.

Arm is compatible with 1.25" - 2.0" (3.2cm -

5.1cm) mast arm.

Listings – IP32 rated housing and IP54

rated optical assembly is standard. IP65

rating is available for optical assembly,

see options. Standard product is NOT

listed by UL, CSA or NOM. For specific list-

ing requirements, consult factory.

Outdoor / PSG8

445

Low-Wattage Roadway Lighting

Ordering Information Example: CHL 150S R2 DLG 120 LP1 PER

NOTES:

1 HPS only, 150W max. with R3.

2 Optional multi-tap ballast (120V, 208V, 240V, 277V). TB

prewired to 277V. Others are: TB1 = 120V, TB2 = 208V,

TB3 = 240V.

3 MV only, prewired to 120V.

4 MV only, prewired to 240V.

5 Shipped without ballast/electrical components.

6 HPS only, 150W max.

7 Available in 120V and 240V only.

8 120V, 277V only. Not available with TB.

9 208V, 240V and 480V only. Not available with TB.

10 May be ordered as an accessory.

Roadway Lighting

CHL

CHLD

Intended Use

Ideal for roadways, residential streets, stor-

age areas, parking lots, shopping centers,

apartments and condominium complexes,

campuses and parks.

Features

Construction – Die-cast trigger latch on

lower housing permits easy one-hand

opening for relamping and servicing.

Large surface area "breathing-seal" poly-

ester gasketing protects reflector and

lens from contaminants; maintains maxi-

mum optical efficiency. Die-cast low cop-

per aluminum alloy for light weight,

strength and reliable service. Available

with or without twist-lock, photocontrol

receptacle. CHLD units: all major electri-

cal components mounted on removable

power door for easy field servicing and

maintenance.

Finish – Gray polyester powder paint finish

Dimensions do not include mounting arm. Dimen-

sions are shown in inches (centimeters) and pounds

(kilograms) unless otherwise noted.

CHL CHLD

Flat Lens EPA .74 ft2 (.07 m2) .74 ft2 (.07 m2)

Drop Lens EPA .90 ft2 (.08 m2) .90 ft2 (.08 m2)

Flat Lens Depth 61/2 (16.5) 61/2 (16.5)

Drop Lens Depth 101/8 (25.7) 101/8 (25.7)

Length 27 (66.6) 27 (66.6)

Width 13 (33.0) 13 (33.0)

Weight 29 (13.2) 33 (15.0)

NEMA distribution

Voltage

120

208

240

277

480

TB2

TB12

TB22

TB32

120/2403

240/4804

L/E5

Ballast options

(blank) Standard

ballast (see

Features)

RNP Reactor

normal power

factor ballast6

RHP Reactor high

power factor

ballast

50HZ 50 Hertz

(consult

factory)

Options

Installed

LPI Lamp included

PER NEMA twist-lock

receptacle only

(photocontrol not

included)

PE1 NEMA twist-lock PE

(120V, 208V, 240V)

PE4 NEMA twist-lock PE

(480V)

PE7 NEMA twist-lock PE

(277V)

CF Charcoal filter,

silicone lens gasket

IP65 IP65 rating for optics

LSA1 Single lighting surge

arrestor7

LSA2 Dual lighting surge

arrestor7

SF Single 5 amp fuse8

SF10 Single 10 amp fuse8

SF15 Single 15 amp fuse8

SF20 Single 20 amp fuse8

DF Double 5 amp fuse9

DF10 Double 10 amp fuse9

DF15 Double 15 amp fuse9

DF20 Double 20 amp fuse9

DDB Dark bronze finish

DBL Black finish

Shipped separately10

SC Shorting cap for PER

option.

Lens

DLG Drop lens glass

(standard)

DLA Drop lens

acrylic

DLP Drop lens

polycarbonate

FL Flat tempered

glass lens, full

cutoff1

FLX Flat tempered

glass lens, high-

performance

full cutoff1

NEW

Series

CHL

CHLD

Wattage

www.lithonia.com

keyword: CH

is electrostatically applied for superior

corrosion resistance.

Optical System – Ovate refractors or full

cutoff flat lens styles provide a choice of

efficient light distributions for every ap-

plication. Optics are computer designed

for maximum performance. One-piece

screw shell socket provides positive re-

tention of lamp under vibration.

Electrical System – Lag, high power fac-

tor (HPS) or constant wattage autotrans-

former (MH and MV) standard. Two- or

three-position (L1, L2, N) tunnel type com-

pression terminal block standard.

Installation – Two-bolt mast arm mount

with integral stepped leveling system pro-

vides secure mounting and easy leveling.

Listings – IP64 rated optical assembly.

IP65 rating available; see Options. Stan-

dard product is NOT listed by UL, CSA or

NOM. For specific listing requirements,

consult factory.

CHLD

CHL

Metal Halide

175M

250M

Mercury Vapor

175MV

250MV

High Pressure Sodium

50S

70S

100S

150S

250S

Outdoor / PSG8

446

Ordering Information Example: CHM 400S R2 DLG 120 LPI PER

Intended Use

Ideal for roadways, residential streets,

storage areas, parking lots, shopping cen-

ters, apartments and condominium com-

plexes, campuses and parks.

Features

Construction – Die-cast trigger latch on

lower housing for easy one-hand open-

ing for relamping and servicing. Large

surface area "breathing-seal" polyester

gasketing protects reflector and lens

from contaminants; maintains maximum

optical efficiency. Die-cast low copper

aluminum alloy for light weight, strength

and reliable service. CHMD units: all ma-

jor electrical components mounted on re-

movable power door for easy field servic-

ing and maintenance.

Finish – Gray polyester powder paint finish

is electrostatically applied for superior cor-

rosion resistance.

Roadway Lighting

CHM

CHMD

Medium-Wattage Roadway Lighting

NOTES:

1 May be ordered with SCWA.

2 Must be ordered with SCWA.

3 HPS only.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V).

TB prewired to 277V. Others are: TB1 = 120V, TB2 = 208V,

TB3 = 240V.

5 MV only, prewired to 120V.

6 MV only, prewired to 240V.

7 Shipped without ballast/electrical components.

8 Available in 120V and 240V only.

9 120V and 277V only.

10 208V, 240V and 480V only.

11 May be ordered as an accessory.

Dimensions do not include mounting arm. Dimensions

are shown in inches (centimeters) and pounds (kilo-

grams) unless otherwise noted.

CHM CHMD

Flat Lens EPA 1.14 ft2 (.11 m2) 1.14 ft2 (.11 m2)

Drop Lens EPA 1.3 ft2 (.12 m2) 1.3 ft2 (.12 m2)

Flat Lens Depth 71/2 (19.1) 71/2 (19.1)

Drop Lens Depth 14 (35.6) 14 (35.6)

Length 311/2 (80.0) 311/2 (80.0)

Width 143/4 (37.5) 143/4 (37.5)

Weight 41 (18.6) 45 (20.4)

NEMA distribution

Voltage

120

208

240

277

480

TB4

TB14

TB24

TB34

120/2405

240/4806

L/E7

Ballast options

(blank) Standard

ballast (see

Features)

SCWA Super CWA

pulse start

50HZ 50 Hertz

(consult

factory)

RNP Reactor normal

power factor

ballast4

RHP Reactor high

power factor

ballast4

Options

Installed

LPI Lamp included

LPIC Coated lamp

included (MV)

PER NEMA twist-lock

receptacle only

(photocontrol not

included)

PE1 NEMA twist-lock PE

(120V, 208V, 240V)

PE4 NEMA twist-lock PE

(480V)

PE7 NEMA twist-lock PE

(277V)

CF Charcoal filter,

silicone lens gasket

IP65 IP65 rating for optics

LSA1 Single lighting surge

arrestor8

LSA2 Dual lighting surge

arrestor8

SF Single 5 amp fuse9

SF10 Single 10 amp fuse9

SF15 Single 15 amp fuse9

SF20 Single 20 amp fuse9

DF Double 5 amp fuse10

DF10 Double 10 amp fuse10

DF15 Double 15 amp fuse10

DF20 Double 20 amp fuse10

DDB Dark bronze finish

DBL Black finish

Shipped Separately11

SC Shorting cap for PER

option.

Lens

DLG Drop lens glass

(standard)

DLP Drop lens

polycarbonate

FL Flat tempered

glass lens, full

cutoff3

FLX Flat tempered

glass lens, high-

performance full

cutoff3

DLX Drop clear lens,

high-perfor-

mance cutoff

CHM

CHMD

NEW

Series

CHM

CHMD

Wattage

Metal Halide

175M

250M1

320M2

350M2

400M1

Mercury Vapor

175MV

250MV

400MV

High Pressure

Sodium

200S

250S

310S

400S

www.lithonia.com

keyword: CH

Optical System – Ovate refractors or full

cutoff flat lens styles provide a choice of

efficient light distributions for every ap-

plications. Optics are computer designed

for maximum performance. One-piece

screw shell socket for positive retention

of lamp under vibration.

Electrical System – Lag, high power fac-

tor or constant wattage autotransformer

standard. Two- or three-position (L1, L2,

N) tunnel type compression terminal

block standard.

Installation – Four-bolt mast arm mount –

the most secure mounting in the industry.

Listings – IP64 rated optical assembly.

IP65 rating available; see Options. Stan-

dard product is NOT listed by UL, CSA or

NOM. For specific listing requirements,

consult factory.

Outdoor / PSG8

447

Ordering Information Example: CHX 400S R2 DLG 120 LPI PER

Intended Use

Ideal for roadways, residential streets,

storage areas, parking lots, shopping cen-

ters, apartments and condominium com-

plexes, campuses and parks.

Features

Construction – Die-cast trigger latch on

lower housing for easy one-hand open-

ing for relamping and servicing. Large

surface area "breathing-seal" polyester

gasketing protects reflector and lens

from contaminants; maintains maximum

optical efficiency. Die-cast low copper

aluminum alloy for light weight,

strength and reliable service. Available

with or without twist-lock photocontrol

receptacle.

Finish – Gray polyester powder paint finish

is electrostatically applied for superior cor-

rosion resistance.

Large Roadway Lighting Roadway Lighting

CHX

NOTES:

1 Optional multi-tap ballast (120V, 208V, 240V, 277V). TB

prewired to 277V. Others are: TB1 = 120V, TB2 = 208V, TB3 =

240V.

2 MV only, prewired to 120V.

3 MV only, prewired to 240V.

4 Shipped without ballast/electrical components.

5 Available in 120V and 240V only.

6 120V and 277V only.

7 208V, 240V and 480V only.

8 May be ordered as an accessory.

Dimensions do not include mounting arm. Dimensions

are shown in inches (centimeters) and pounds (kilo-

grams) unless otherwise noted.

CHX

EPA 1.96 ft2 (.18 m2)

Depth 161/4 (41.3)

Length 383/8 (97.5)

Width 171/2 (44.5)

Weight 76 (34.5)

NEMA distribution

Voltage

120

208

240

277

480

TB1

TB11

TB21

TB31

120/2402

240/4803

L/E4

Ballast options

(blank) Standard

ballast (see

Features)

Options

Installed

LPI Lamp included

PER NEMA twist-lock

receptacle only

(photocontrol not

included)

PE1 NEMA twist-lock PE

(120V, 208V, 240V)

PE4 NEMA twist-lock PE

(480V)

PE7 NEMA twist-lock PE

(277V)

IP65 IP65 rating for optics

LSA1 Single lighting surge

arrestor5

LSA2 Dual lighting surge

arrestor5

SF Single 5 amp fuse6

SF10 Single 10 amp fuse6

SF15 Single 15 amp fuse6

SF20 Single 20 amp fuse6

DF Double 5 amp fuse7

DF10 Double 10 amp fuse7

DF15 Double 15 amp fuse7

DF20 Double 20 amp fuse7

DDB Dark bronze finish

DBL Black finish

Shipped Separately8

SC Shorting cap for PER

option.

Lens

DLG Drop lens

glass

(standard)

CHX

NEW

Series

CHX

Wattage

Metal Halide

1000M

Mercury Vapor

700MV

1000MV

High Pressure Sodium

310S

400S

1000S

www.lithonia.com

keyword: CH

Optical System – Precision ovate refrac-

tor/reflector optics provide a uniform dis-

tribution pattern with superior luminaire-

to-pole spacing. One-piece screw shell

socket provides positive retention of

lamp under vibration.

Electrical System – Constant wattage au-

totransformer standard. Two- or three-po-

sition (L1, L2, N) tunnel type compression

terminal block standard.

Installation – Four-bolt mast arm mount –

the most secure mounting in the industry.

Listings – Standard product is NOT listed

by UL, CSA or NOM. For specific listing

requirements, consult factory.

Outdoor / PSG8

448

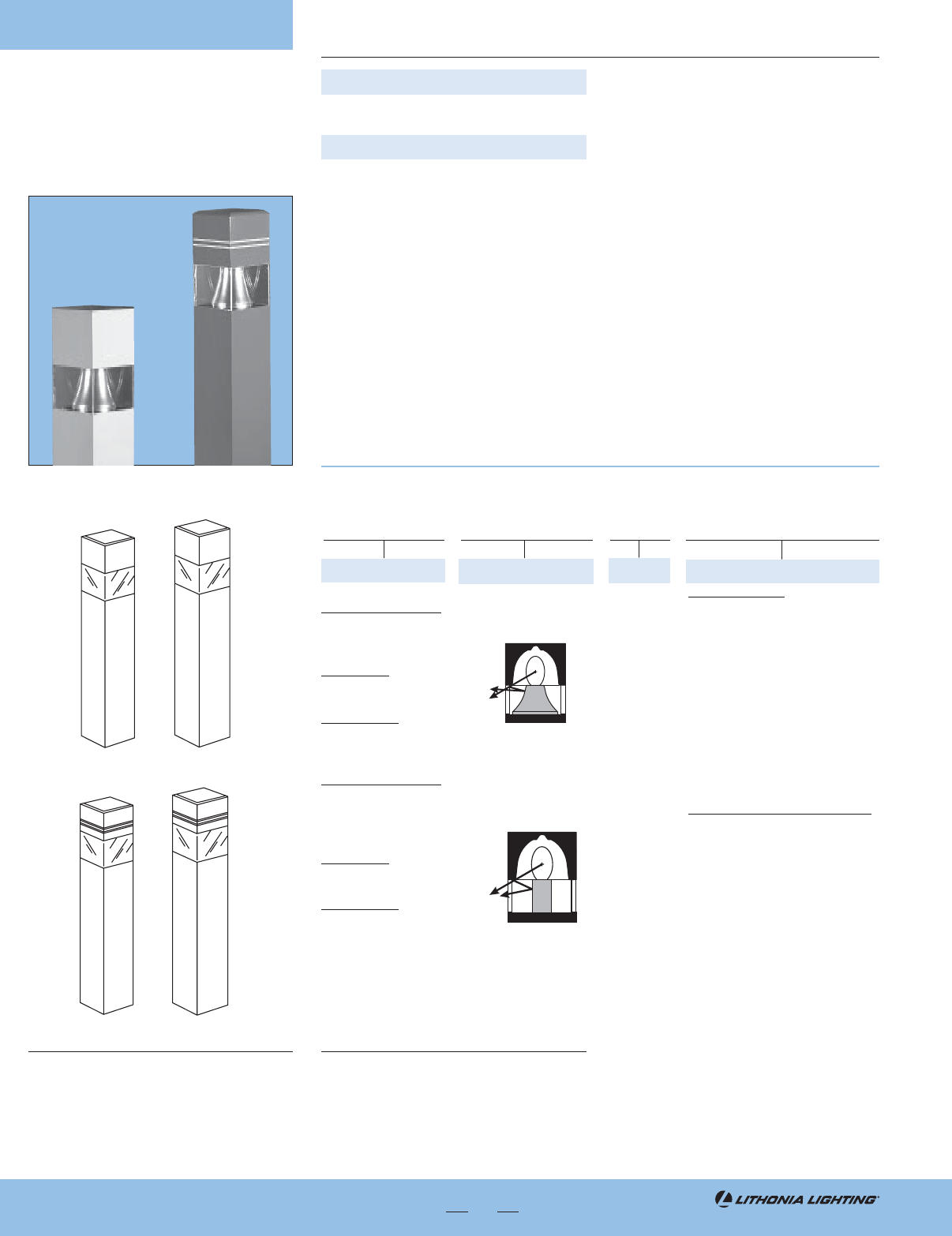

Square Bollards

Intended Use

For walkways, plazas or pedestrian areas.

Features

Housing – Bottom housing is 0.188" extrud-

ed aluminum. Top cover is a weldment of

0.188" aluminum extrusion and 0.250" alu-

minum plate. 42" overall height standard.

Flush-fitting lens is ¼", clear, 100% virgin

acrylic. Exposed hardware is tamper-re-

sistant stainless steel. Four ½" x 11" anchor

bolts with double nuts/washers and 4½"-

diameter bolt circle template provided for

mounting (shipped separately). Dark

bronze (DDB) corrosion-resistant polyes-

ter powder finish standard; other archi-

tectural colors available. Architectural

Class I dark bronze anodized finish also

available on KBS8.

Ordering Information Example: KBS6 35S R5 120 CR

Reflector

Standard Flared Cone:

R5 Type V

distribution

Optional Cylindrical

Reflector:

CYA Specular Alzak

CYB Black Alzak

CYG Gold Alzak

CYF Flat black

Voltage

120

208

240

277

347

TB5

Designation

6" Bollards:

High Pressure Sodium

KB_6 35S1

KB_6 50S

KB_6 70S

Metal Halide

KB_6 50M2

KB_6 70M2

Incandescent

KB_6 I1,3

8" Bollards:

High Pressure Sodium

KB_8 50S

KB_8 70S

KB_8 100S

KB_8 150S

Metal Halide

KB_8 70M2

KB_8 100M2

Incandescent

KB_8 I1,4

Options/Accessories

Options (installed)

SF Single fuse (120V, 277V,

347V)

DF Double fuse (208V, 240V)

CR Enhanced corrosion

resistance

H24 24" overall height

H30 30" overall height

H36 36" overall height

FD Festoon outlet

FG Festoon outlet with duplex

ground fault receptacle

PC Polycarbonate lens

CSA CSA Certified

Accessories (shipped separately)

S6S Half-shield (6" square)

S8S Half-shield (8" square)

For optional Architectural Colors, see page 485.

KBS – Square

KBE – Decorative

Square

NOTES:

1 120V only.

2 Requires coated lamp.

3 116W/TS, lamp not included.

4 150W max, lamp not included.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

KBE6 KBE8

KBS6 KBS8

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KBE6/KBS6 KBE8/KBS8

Square 6 (15.2) 8 (20.3)

Height* 42 (106.7) 42 (106.7)

Max weight 43.2 lbs (19.6 kg) 43.2 lbs (19.6 kg)

*Also available in 24" (H24), 30" (H30) and 36" (H36).

Site Lighting

KBS

KBE

www.lithonia.com

keywords: KBS and KBE

Optics – Reflector system incorporates

an anodized, spun aluminum flared cone

and an anodized, hydroformed, fluted up-

per reflector providing a Type V (Symmet-

ric) cutoff distribution. Optional cylindri-

cal lower reflector available.

Electrical – Ballasts are copper wound

and 100% factory tested. Electrical com-

ponents are unitized on removable power

module and accessible through bottom of

bollard. Positive-locking, quick-discon-

nect on secondary circuit. Medium-base

porcelain socket, 4KV pulse rated.

Listings – UL Listed (standard). CSA

Certified (see Options). UL listed for wet

locations.

449

Outdoor / PSG8

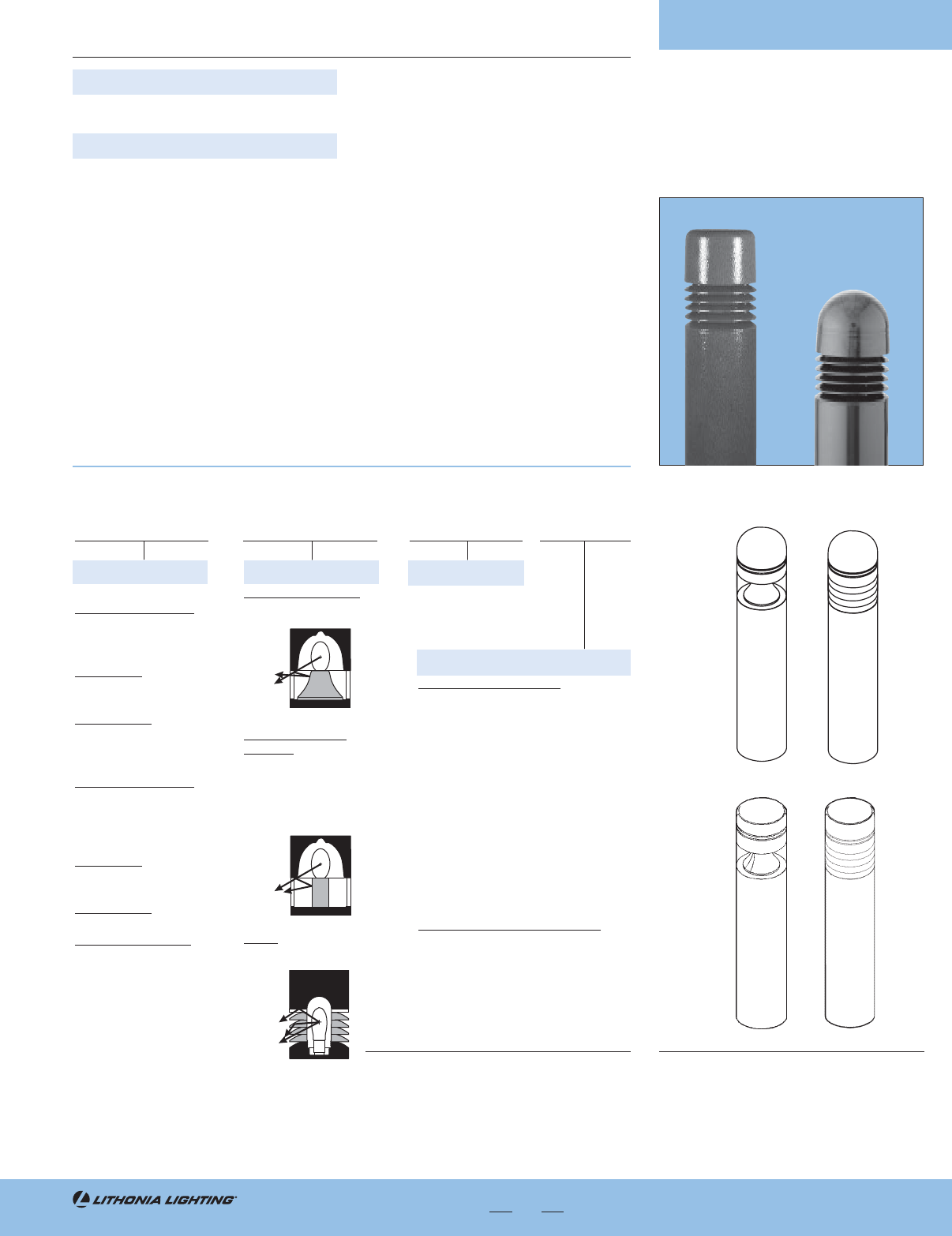

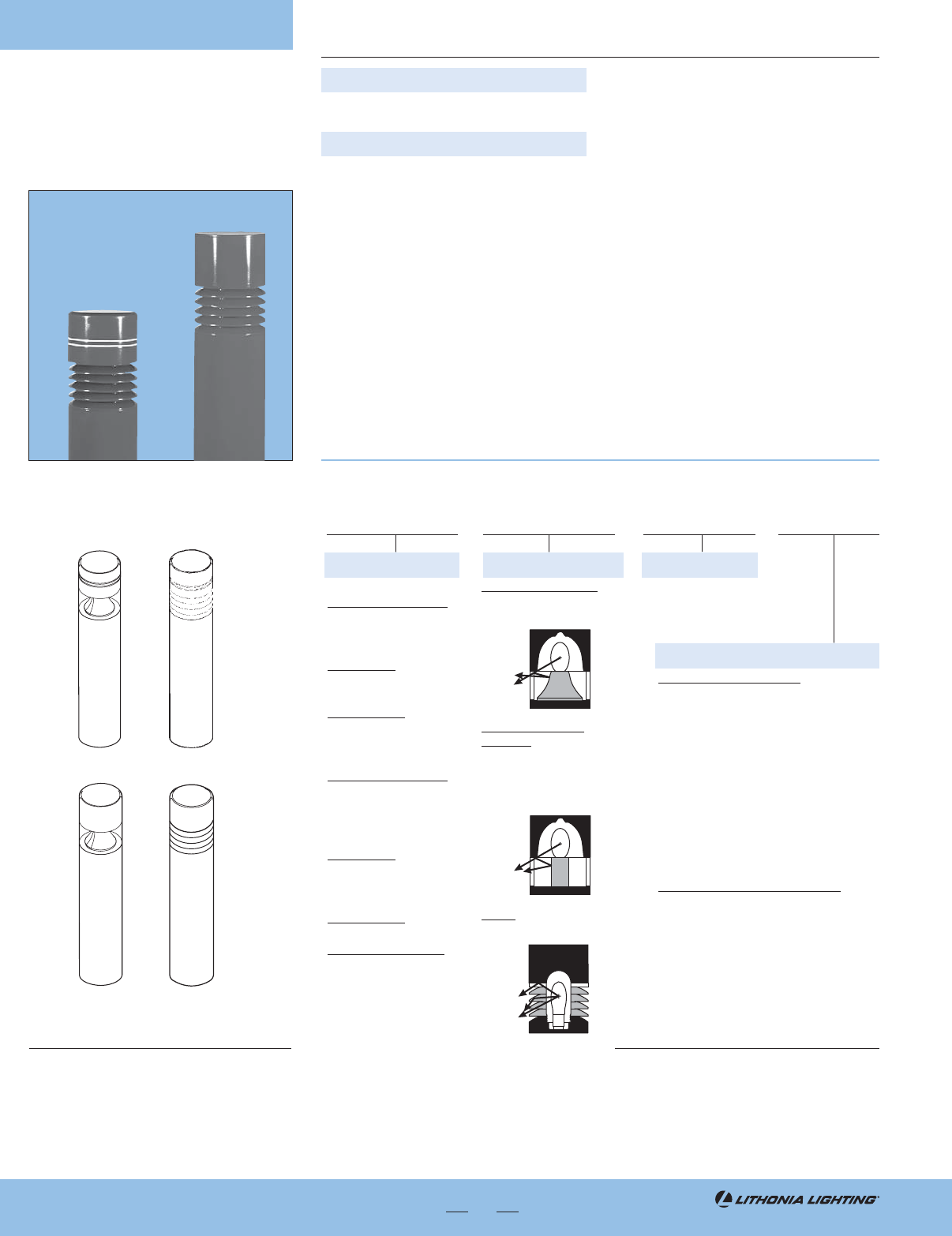

Round Bollards

Intended Use

For walkways, plazas or pedestrian areas.

Features

Housing – KB_6: Bottom housing is 0.125"

extruded aluminum. Top cover is 0.156" cast

aluminum. KB_8: Bottom housing is 0.156"

extruded aluminum. 42" overall height stan-

dard on KBR and KBA6. 43" overall height

standard on KBA8. Flush-fitting lens is ¼",

clear, 100% virgin acrylic. All exposed hard-

ware is tamper-resistant stainless steel.

Four ½" x 11" anchor bolts with double nuts/

washers and 4½"-diameter bolt circle tem-

plate provide for mounting (shipped sep-

arately). Dark bronze(DDB) corrosion-re-

sistant polyester powder finish standard;

other architectural colors available.

Optics – Reflector system incorporates an

anodized, spun aluminum, flared cone and

Ordering Information Example: KBA6 35S R5 120 CR

Designation

6" Bollards:

High Pressure Sodium

KB_6 35S1

KB_6 50S

KB_6 70S

Metal Halide

KB_6 50M2

KB_6 70M2

Incandescent

KB_6 I1,3

8" Bollards:

High Pressure Sodium

KB_8 50S

KB_8 70S

KB_8 100S

KB_8 150S

Metal Halide

KB_8 70M2

KB_8 100M2

Incandescent

KB_8 I1,4

Compact Fluorescent5

KB_8 22DTT

KB_8 28DTT

KB_8 26TRT

KB_8 32TRT

Reflector

Standard Flared Cone

R5 Type V distribution

Optional Cylindrical

Reflector

CYA Specular Alzak

CYB Black Alzak

CYG Gold Alzak

CYF Flat black

Louver (8" ONLY)

LV Louvers

Voltage

120, 208, 240,

277, 347, TB6

Options/Accessories

Options (shipped installed)

SF Single fuse (120V, 277V, 347V)

DF Double fuse (208V, 240V)

CR Enhanced corrosion

resistance

H24 24" overall height

H30 30" overall height

H36 36" overall height

FD Festoon outlet

FG Festoon outlet with duplex

ground fault receptacle

PC Polycarbonate lens (6" only)7

SCL Scribed lens7

CSA CSA Certified

For optional Architectural Colors, see page 485.

Accessories (shipped separately)

R6S Half-shield (6" round)

R8S Half-shield (8" round)7

KBD – Soft Corner

KBA – Dome-Top

NOTES:

1 120V only.

2 Requires coated lamp.

3 116W/TS, lamp not included.

4 150W max, lamp not included.

5 Louver must be used.

6 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

7 Not available with LV option, available in 6" units only.

Site Lighting

KBA

KBD

Shown with optional louvers.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KBD6/KBA6 KBD8/KBA8

Diameter 6 (15.2) 8 (20.3)

Height* 42 (106.7) 42 (106.7)

Max weight 34.9 lbs (15.9 kg) 34.9 lbs (15.9 kg)

*Also available in 24" (H24), 30" (H30) and 36" (H36)

KBD6 KBD8-LV

KBA6 KBA8-LV

www.lithonia.com

keywords: KBA and KBD

an anodized, hydroformed, fluted upper

reflector providing a Type V (Symmetric)

cutoff distribution. Optional cylindrical

lower reflector or cast aluminum louvers

available.

Electrical – All ballasts are copper wound

and 100% factory tested. Electrical com-

ponents are unitized on removable power

module and accessible through bottom of

bollard. Positive-locking quick disconnect

on secondary circuit. Medium-base por-

celain socket, 4KV pulse rated.

Listings – UL Listed (standard). CSA

Certified (see Options). UL listed for wet

locations.

Outdoor / PSG8

450

Intended Use

For walkways, plazas or pedestrian areas.

Features

Housing – KB_6: Bottom housing is 0.125"

extruded aluminum. Top cover is 0.156" cast

aluminum. KB_8: Bottom housing is 0.156"

extruded aluminum overall height stan-

dard. Flush-fitting lens is ½", clear, 100%

virgin acrylic. All exposed hardware is

tamper-resistant stainless steel. Four ½" x

11" anchor bolts with double nuts/wash-

ers and 4½"-diameter bolt circle template

provided for mounting (shipped separate-

ly). Dark bronze (DDB) corrosion-resistant

polyester powder finish standard; other

architectural colors available.

Optics – Reflector system incorporates an

anodized, spun aluminum, flared cone and

an anodized, hydroformed, fluted upper

Ordering Information Example: KBR8 100M R5 120 CR

KBR – Round

KBC – Decorative Round

Reflector

Standard Flared Cone

R5 Type V

distribution

Optional Cylindrical

Reflector

CYA Specular Alzak

CYB Black Alzak

CYG Gold Alzak

CYF Flat black

Louver (8" only)

LV Louvers

Designation

6" Bollards:

High Pressure Sodium

KB_6 35S1

KB_6 50S

KB_6 70S

Metal Halide

KB_6 50M2

KB_6 70M2

Incandescent

KB_6 I1,3

8" Bollards:

High Pressure Sodium

KB_8 50S

KB_8 70S

KB_8 100S

KB_8 150S

Metal Halide

KB_8 70M2

KB_8 100M2

KBR8 175M2,4

Incandescent

KB_8 I1,5

Compact Fluorescent4

KB_8 22DTT

KB_8 28DTT

KB_8 26TRT

KB_8 32TRT

Voltage

120, 208, 240,

277, 347, TB6

Options/Accessories

Options (shipped installed)

SF Single fuse (120V, 277V, 347V)

DF Double fuse (208V, 240V)

CR Enhanced corrosion resistance

H24 24" overall height

H30 30" overall height

H36 36" overall height

FD Festoon outlet

FG Festoon outlet with duplex

ground fault receptacle

PC Polycarbonate lens (6" only)7

SCL Scribed lens7

CSA CSA certified

For optional Architectural Colors, see page 485.

Accessories (shipped separately)

R6S Half-shield (6" round)

R8S Half-shield (8" round)7

NOTES:

1 120V only.

2 Use coated lamp

3 116W/TS, lamp not included

4 Louver must be used.

5 150W max, lamp not included

6 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

7 Not available with LV option, available in 6" units only.

Round Bollards

Site Lighting

KBC

KBR

Shown with optional louvers.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KBC6/KBR6 KBC8/KBR8

Diameter 6 (15.2) 8 (20.3)

Height* 42 (106.7) 42 (106.7)

Max weight 34.9 lbs (15.9 kg) 34.9 lbs (15.9 kg)

*Also available in 24" (H24), 30" (H30) and 36" (H36).

www.lithonia.com

keywords: KBC and KBR

KBR6 KBR8-LV

KBC6 KBC8-LV

reflector providing a Type V (Symmetric)

cutoff distribution. Optional cylindrical

lower reflector or cast-aluminum louvers

are available.

Electrical – All ballasts copper wound and

100% factory tested. Electrical compo-

nents unitized on removable power mod-

ule and accessible through bottom of

bollard. Positive-locking, quick-discon-

nect on secondary circuit. Medium-base

porcelain socket, 4KV pulse rated.

Listings – UL Listed (standard). CSA

Certified (see Options). UL listed for wet

locations.

451

Outdoor / PSG8

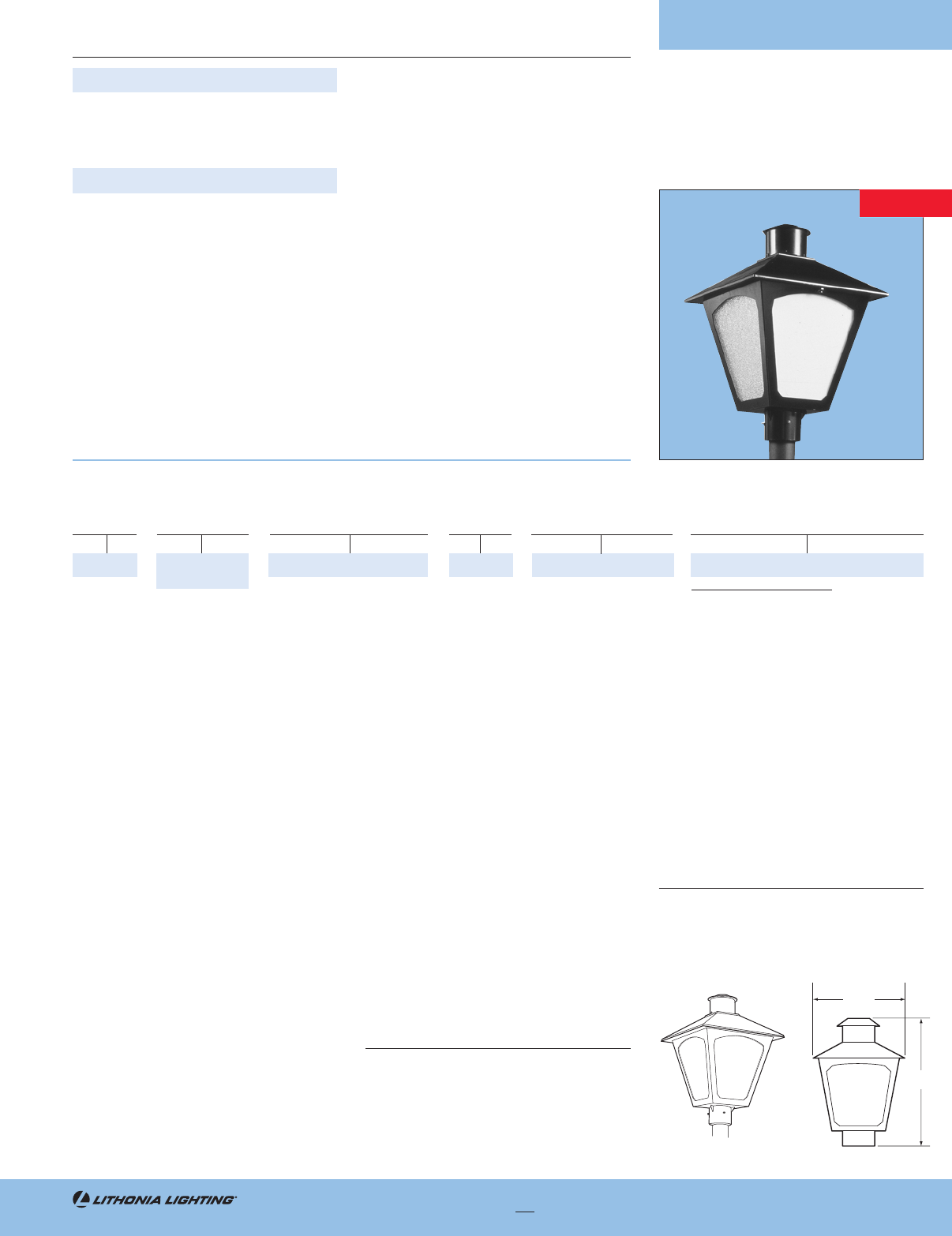

Series

TCL

Voltage

120, 208,

240, 277,

480, TB2,

TB12, TB22,

TB32,

120/2403,

240/4804

Distribution

R2A Type II roadway, acrylic

lens

R3A Type III asymmetric,

acrylic lens

R5A Type V symmetric,

acrylic lens

R2P Type II roadway,

polycarbonate lens

R3P Type III asymmetric,

polycarbonate lens

R5P Type V symmetric,

polycarbonate lens

Options

Shipped installed in fixture

LPI Lamp included

SF Single fuse (120V, 277V, n/a TB)

DF Double fuse (208V, 240V, 480V,

n/a TB)

PER NEMA twist-lock receptacle

only (photocontrol not

included).

PE1 NEMA twist-lock PE (120V, 208V,

240V)

PE4 NEMA twist-lock PE (480V)

PE7 NEMA twist-lock PE (277V)

Wattage/Lamp

Source

Ballast Options

(blank) Standard ballast

(see above)

RHP Reactor high

power factor5

50HZ 50 hertz. Consult

factory.

XHP High reactance,

high power

factor5

Dimensions are shown in inches (centimeters) unless other-

wise noted. Dimensions do not include mounting arm.

EPA 1.6 ft2 (0.15m2)

Height 255/8”(57.5)

Square 161/4” (41.3)

Weight 28 lbs. (12.7 kg)

NOTES:

1 Only available with 120V.

2 Optional multi-tap ballast (120V, 208V, 240V, 277V). TB

prewired to 277 volt. Others are; 1 = 120V; 2 = 208V; and

3 = 240V.

3 MV only. Prewired to 120V.

4 MV only. Prewired to 240V.

5 HPS only.

Decorative Post-Tops

www.lithonia.com

keyword: TCL

Electrical – Reactor, normal power factor

ballast is standard for HPS units (high pow-

er factor available). Constant wattage au-

totransformer (high power factor) is stan-

dard for MH and MV units.

Installation – Unit mounts quickly and eas-

ily to 23/8" OD to 3" OD poles or tenons. Set

screws anchor the fixture firmly.

Listings – Standard product is NOT listed

by UL, CSA or NOM. Complies to ANSI:

C136.2, C136.10, C136.15, C136.16.

Site Lighting

TCL

Ordering Information Example: TCL 100S R2A 120 LPI

Intended Use

Residential streets, office and retail com-

plexes, campuses, parks, condominiums

and hotels.

Features

Constuction – Die-cast aluminum housing

provides long life, strength and depend-

able service. Durable polyester powder

paint provides long-lasting standard black

finish. Integral die-cast hinged top for easy

lamping and maintenance, with captive

screw latch promoting case maintenance.

NEMA twistlock photocell is unobtrusively

integrated into top cap detail.

Optical System – Reflector/refractor sys-

tems deliver IES roadway types II, III or V.

Refractor panels are available in either

acrylic or polycarbonate.

NEW

35S1

50S1

70S

100S

150S

175M

175MV

Outdoor / PSG8

452

NOTES:

1 Only available with 120V.

2 Not available with acrylic or polycarbonate lens; must

order with either R2G, R3G or R5G.

3 Optional multi-tap ballast (120V, 208V, 240V, 277V). TB

prewired to 277 volt. Others are; 1=120V; 2=208V; and

3=240V.

4 MV only. Prewired to 120 volt.

5 MV only. Prewired to 240 volt.

6 HPS only.

All dimensions are inches (centimeters) unless otherwise

noted. Dimensions do not include mounting arm.

EPA: 1.3 ft2 (0.12m2)

Height: 20”(50.8)

Outside Diameter: 22” (55.9)

Weight: 41 lbs. (18.6 kg)

Decorative Post-Tops

Intended Use

Residential streets, office complexes, cam-

puses, parks, shopping areas, condomin-

iums and hotels.

Features

Construction – Die-cast aluminum housing

and spun aluminum hood coated with poly-

ester powder paint for long-lasting, de-

pendable service. Multi-gasketing system

provides weather-proof protection of the

optical assembly with hinged hood and

captive screw latch promoting case of main-

tenance. Standard finish is grey.

Optical System – Prismatic refractors de-

liver IES roadway distribution types II, III or

V. Refractors are available in acrylic, poly-

carbonate and tempered glass.

Electrical – Reactor, normal power factor

ballast (150-watt HPS and below), lag high

power factor ballast (250-watt HPS and

Site Lighting

TPA

Options

Shipped installed in fixture

LPI Lamp included

SF Single fuse (120V, 277V, n/a TB)

DF Double fuse (208V, 240V, 480V, n/a

TB)

PER NEMA twist-lock receptacle only

(photocontrol not included).

PE1 NEMA twist-lock PE (120V, 208V,

240V)

PE4 NEMA twist-lock PE (480V)

PE7 NEMA twist-lock PE (277V)

Ballast options

(blank) Standard ballast

(see above)

RHP6Reactor high

power factor

50HZ 50 hertz. Consult

factory.

XHP High reactance,

high power

factor.6

Voltage

120

208

240

277

480

TB3

TB13

TB23

TB33

120/2404

240/4805

Distribution

R2A Type II roadway, acrylic

lens

R3A Type III asymmetric,

acrylic lens

R5A Type V symmetric,

acrylic lens

R2P Type II roadway,

polycarbonate lens

R3P Type III asymmetric,

polycarbonate lens

R5P Type V symmetric,

polycarbonate lens

R2G Type II roadway, glass

lens

R3G Type III asymmetric,

glass lens

R5G Type V symmetric, glass

lens

Wattage/Lamp

source

35S1

50S1

70S

100S

150S

250S

400S2

175M

250M

400M2

175MV

250MV

400MV2

Series

TPA

Ordering Information Example: TPA 100S R2A 120 LPI

www.lithonia.com

keyword: TPA

above), or constant wattage autotrans-

former (MH and MV) is standard. Other

ballasts are available.

Installation – Cone mounting filter with

three unobtrusive set screws fastens fix-

ture securely to round poles or tenons sized

from 23/8" to 3" OD.

Listing – Standard product is NOT listed by

UL, CSA or NOM. Complies to ANSI: C136.2,

C136.10, C136.15, C136.16.

NEW

453

Outdoor / PSG8

Recessed Low-Mount Floods

Distribution

AArea

DDirectional

Designation

High Pressure Sodium

KL 50S

KL 70S

KL 100S1

Metal Halide

KL 70M

KL 100M1

Incandescent

KL I1,2,3,4

Voltage

120

2082

2405

277

347

TB6

Options (shipped installed)

SF Single fuse (120V, 277V)

QRS Quartz restrike system

PE Photoelectric cell (only

available with BBW, BBF)

EC Emergency circuit

BBS Backbox (stud wall mount)

BBW Backbox (surface wall mount)

BBF Backbox (flat horizontal

surface mount)

BBR Recessed (ceiling, soffit mount)

CSA CSA Certified

Options/Accessories

Intended Use

For use in site walls or as stair lighting.

Features

Housing – One-piece, cast-aluminum

housing (alloy contains less than 0.2%

copper) with integral splice compartment

(46 cu. in.); four ¾" NPT conduit entries.

Lens is one-piece, injection-molded, UV-

stabilized polycarbonate, .125" minimum

thickness. Tooled-in, stippled texture on

non-optical portions. Die-cut, closed-cell

EPDM gasket. Housing is shipped sepa-

rately from lens/reflector/power module.

Stainless steel, captive, Philips-type fas-

teners (tamper-resistant fasteners also

provided). Standard lens finish is dark

bronze enamel (painted on both inside

and outside of non-optical portion).

Black, white and natural aluminum finish-

es also available. Housing finish is clear

polyester powder for corrosion protec-

NOTES:

1 For inverted mounting application, maximum wattage

is 70W.

2 150W A21 max in A distribution.

3 100W A21 max in D distribution

4 120V only.

5 Consult factory for availability in Canada.

6 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada (120V, 277V, 347V; ships a 120V/347V).

Site Lighting

Ordering Information Example: KL 50S A 120 QRS

Dimensions are shown in inches (centimeters) un-

less otherwise noted.

Height 121/4 (31.1)

Width 141/4 (36.2)

Depth 83/16 (20.8)

Back box 6 (15.2)

Lens 23/16

(5.6)

Max weight 15 lbs (7 kg)

Architectural colors (optional)

DDB Dark bronze (standard)

DBL Black

DNA Natural aluminum

DWH White

www.lithonia.com

keyword: KL

Bi-adjustable socket assembly KL "D" distribution

Left or right directional light distribution may be

selected in the field.

tion. Recessed concrete cast in place is

standard; optional mountings available.

Optics – Reflectors are anodized, hydro-

formed aluminum. Two distributions avail-

able:

(for uniform symmetrical area light-

ing) and

(for left or right directional-

throw area lighting, featuring a unique bi-

adjustable socket assembly that can be

field-adjusted up or down to provide max-

imum light distribution on stairway plane).

Electrical – All ballasts are copper wound

and 100% factory-tested. Electrical com-

ponents are unitized on removable power

module. Positive-locking disconnect on

primary and secondary circuits. Medium-

base porcelain socket, 4KV pulse rated.

Listings – UL Listed (standard). CSA

Certified (see Options). UL listed for wet

locations.

Outdoor / PSG8

454

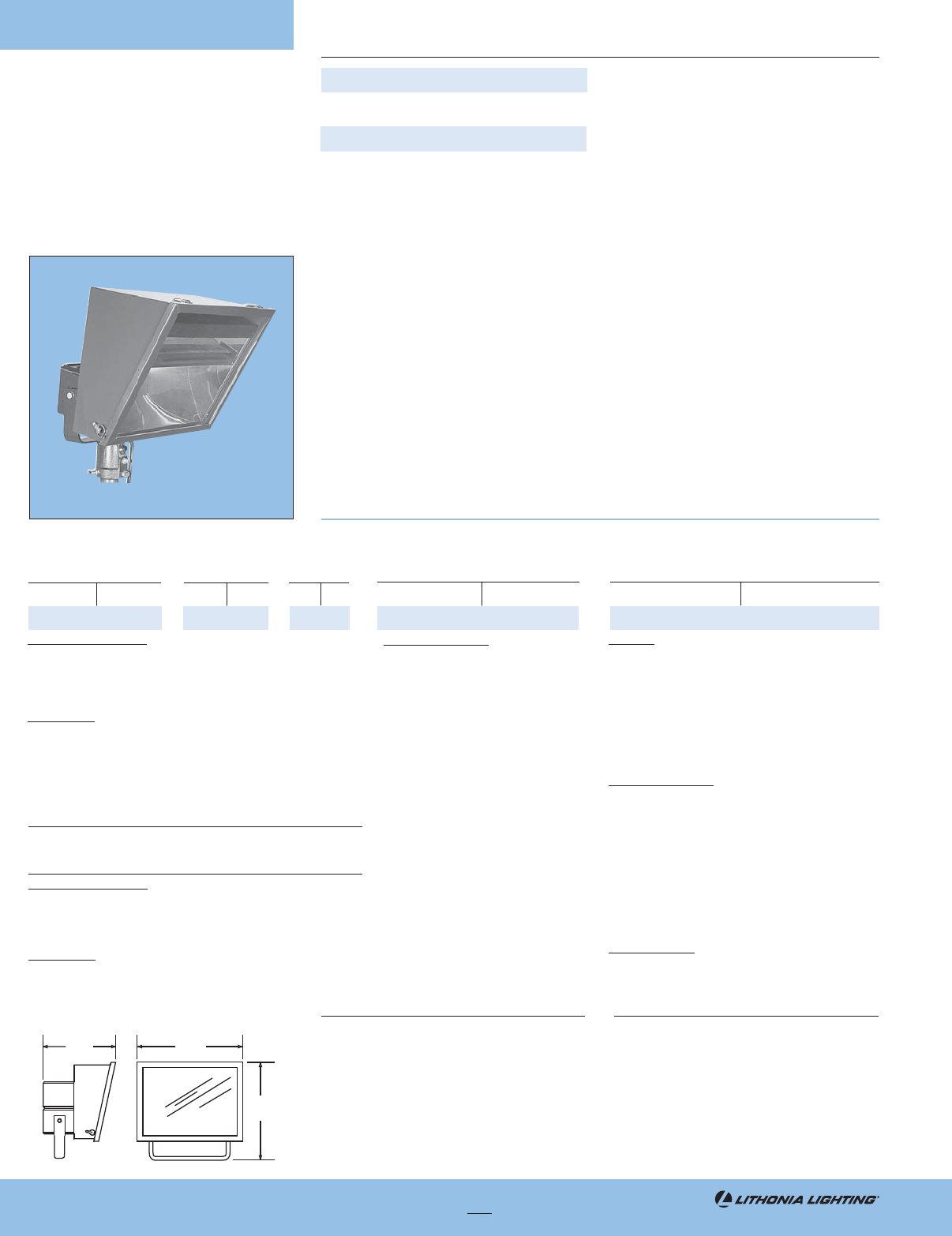

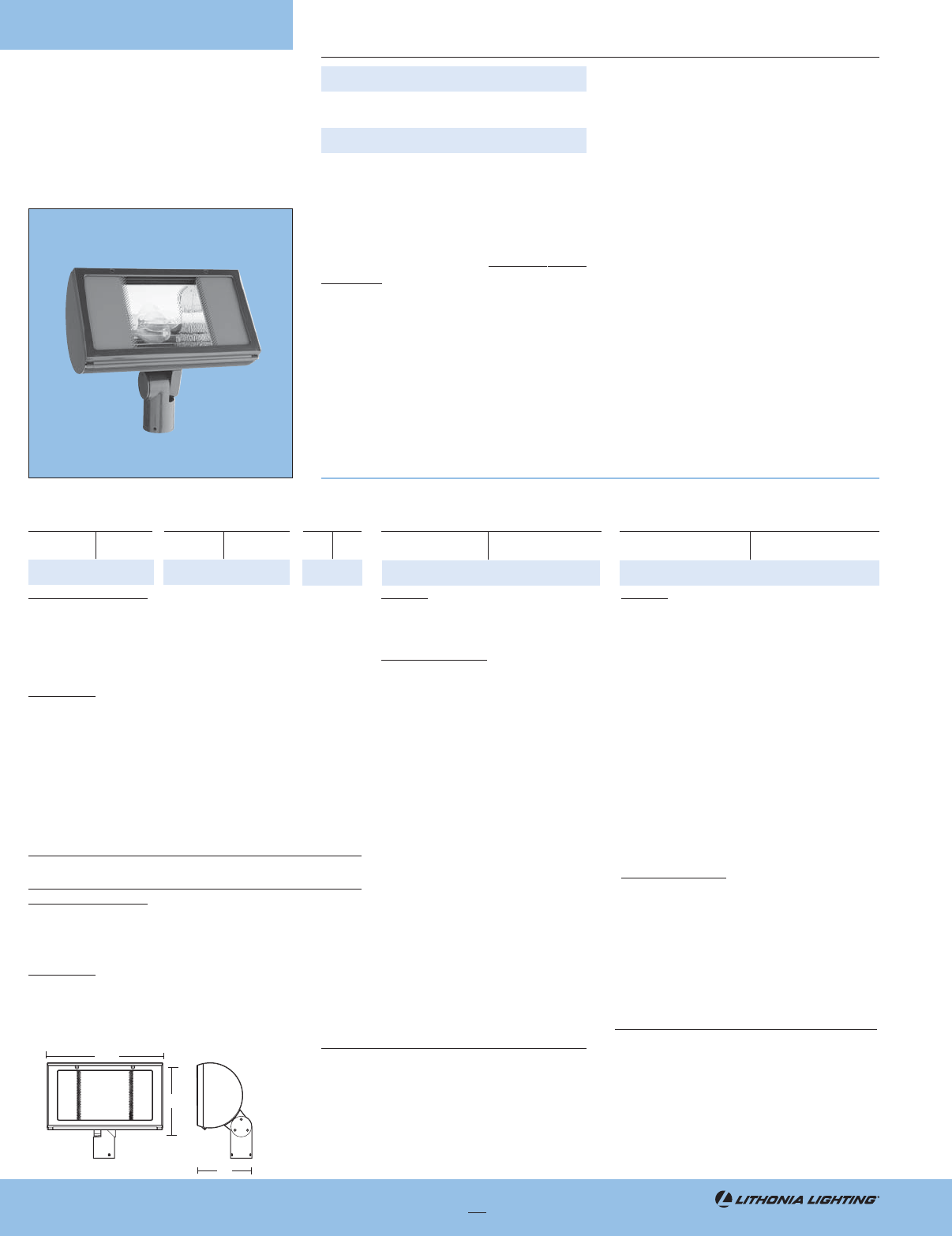

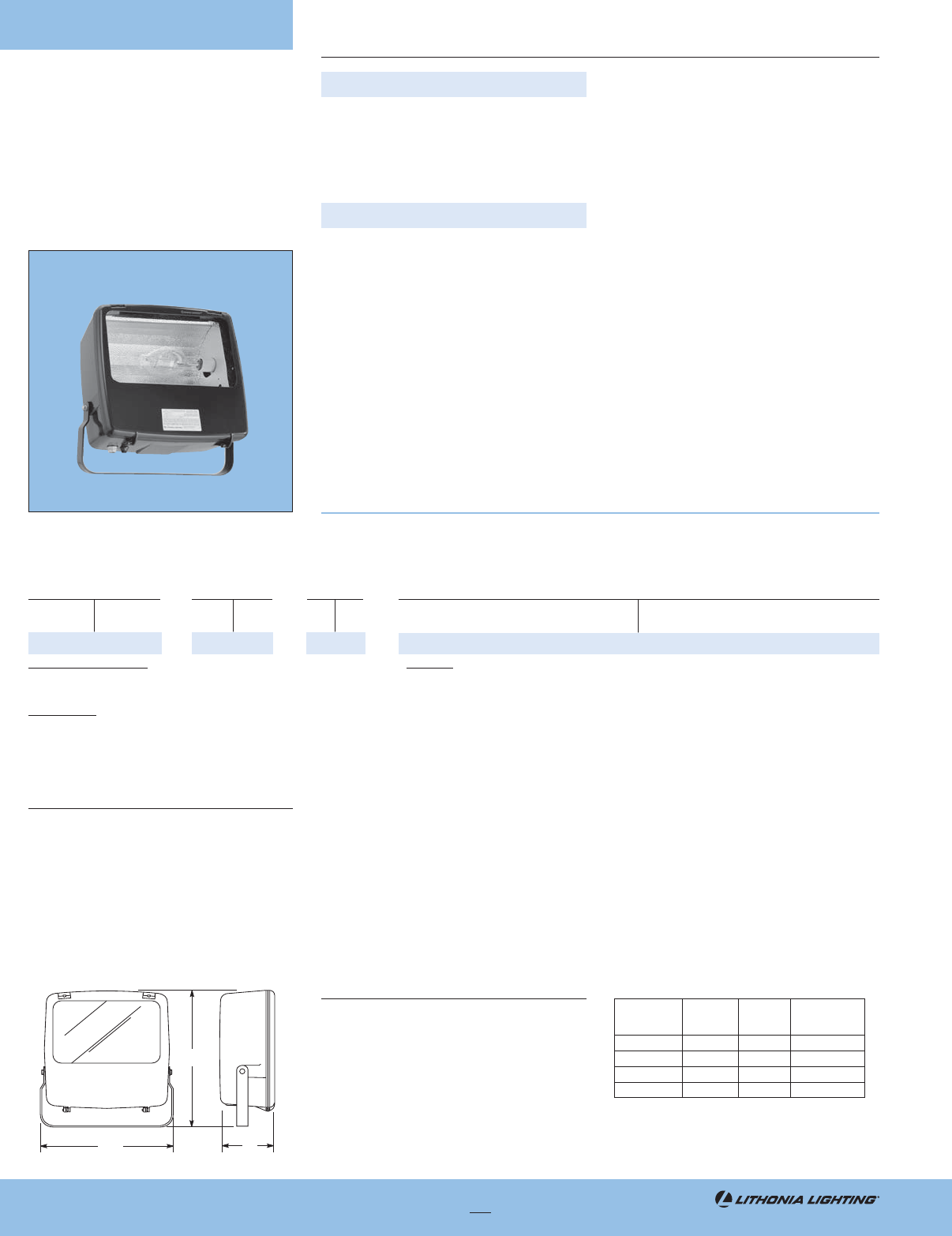

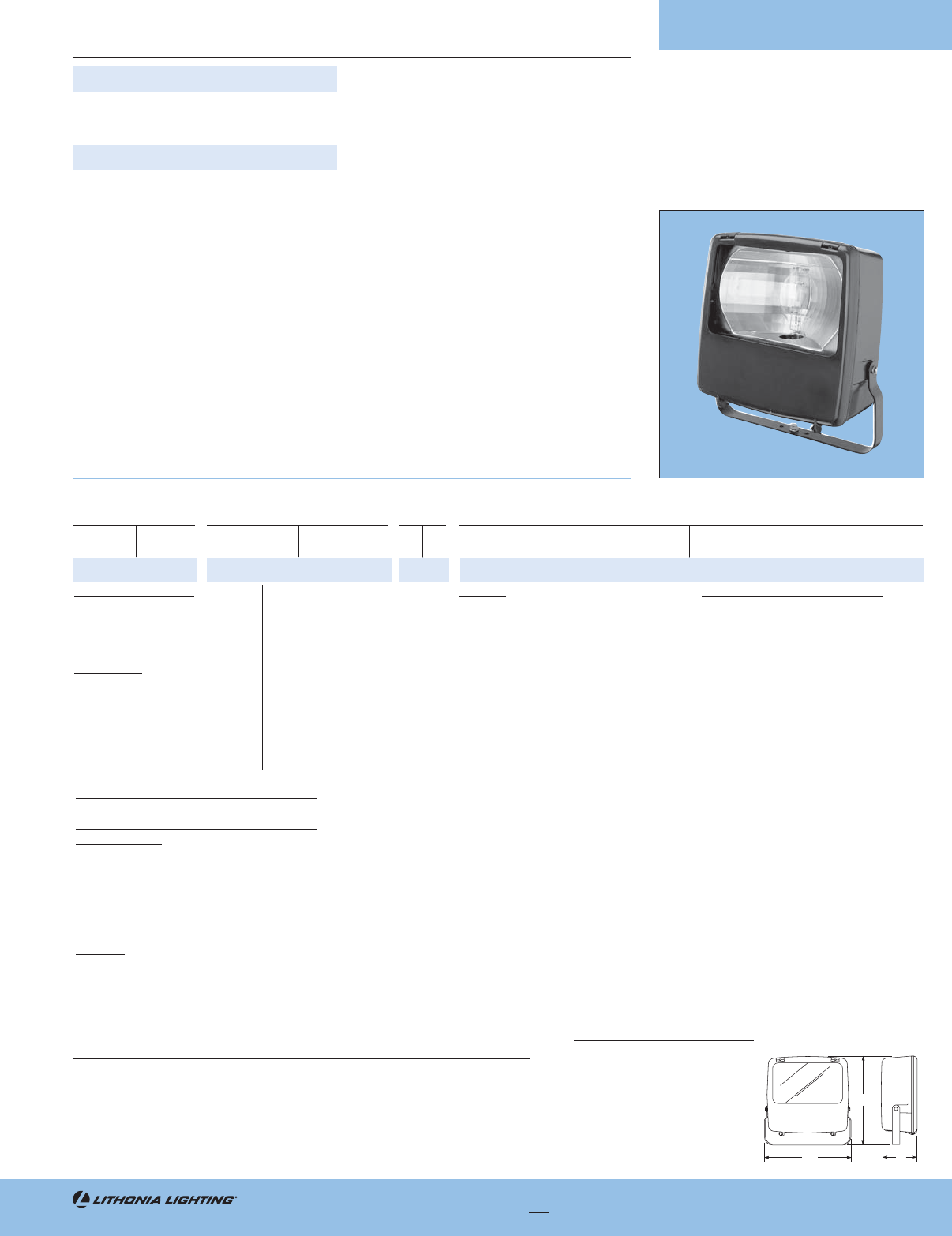

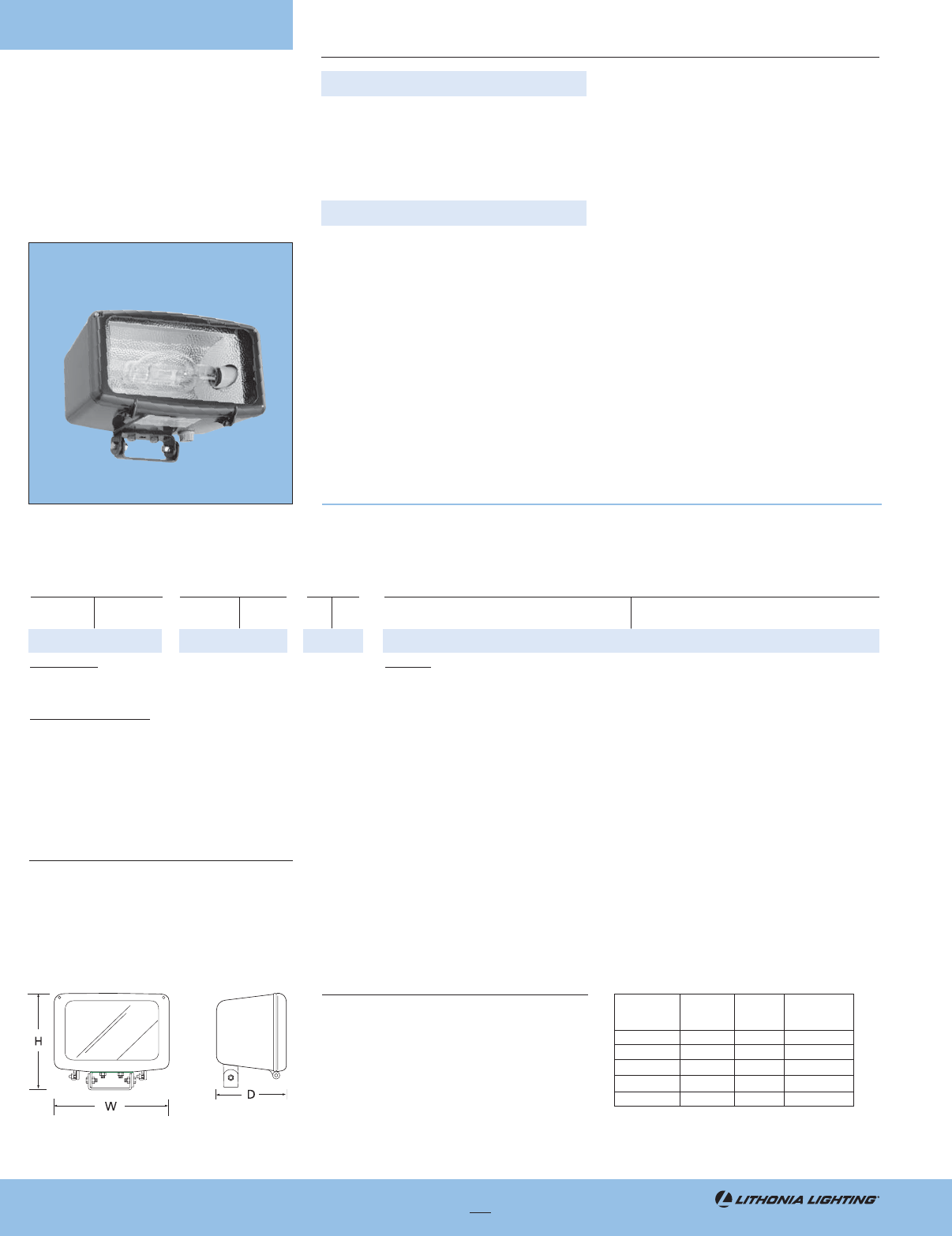

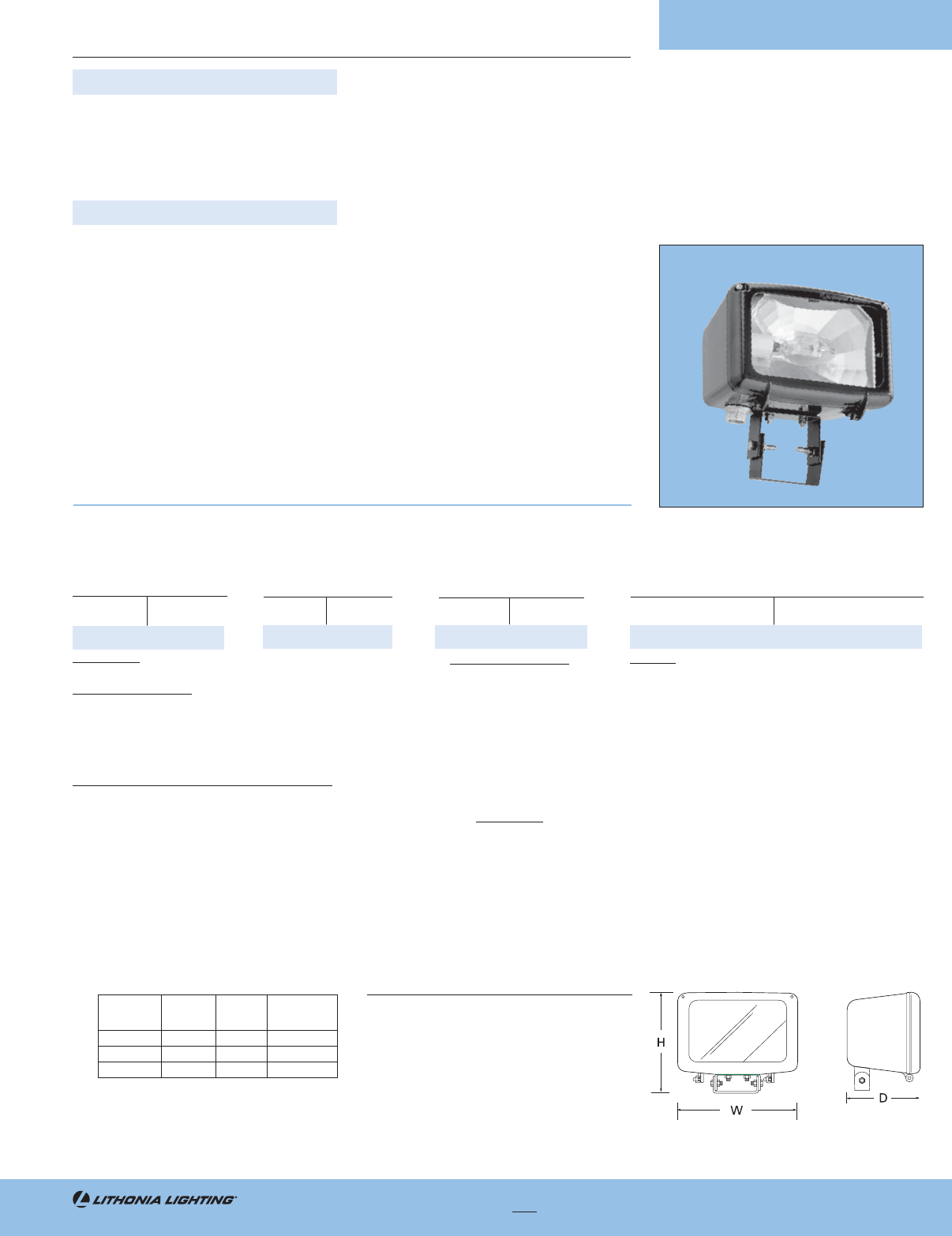

Designation

High Pressure Sodium

KFL2 70S

KFL2 100S

KFL2 150S

KFL3 250S

KFL3 400S

Metal Halide

KFL2 70M

KFL2 100M

KFL2 150M

KFL2 175M

KFL3 200M1

KFL3 250M

KFL3 320M1

KFL3 350M1

KFL3 400M2

Distribution

SP Spot

BP Horiz. flood3

RN Horiz. spot,

narrow

RM Horiz. spot,

medium

RW Horiz. spot, wide

HPN Vertical flood,

narrow

HPM Vertical flood,

medium

HPW Vertical flood,

wide

FT Forward throw

Ordering Information Example: KFL2 70S HPN 120 SF LPI

Voltage

120

2084

2404

277

347

480

TB5

Optional mounting

Installed

YK Yoke mount

THK Threaded knuckle

mount

Shipped separately

KFLSTM Stanchion mount

KFLSTMTHK Stanchion mount for

THK option6

TM Tenon base mount

KFLWMA Wall mount arm

KFLWMATHK Wall-mount arm for THK

option6

MP Mounting plate7

FCRA Crossarm adapter7

TS Tenon slipfitter7

KFLTMB Twin mounting bar

KFLTMBTHK Twin mounting bar for

THK option6

AJB Architectural J-box for

THK option6

KFLTBS Triangular base

Floodlighting

KFL Intended Use

For landscape and facade lighting.

Features

Housing – Welded, extruded body with cast

end caps. Standard finish is dark bronze

(DDB) corrosion-resistant polyester pow-

der. Other architectural colors available.

Lens Frame – Cast aluminum door frame is

hinged and secured by stainless steel

fasteners. Closed-cell silicone gasket pre-

vents entrance of contaminants.

Lens – Clear, impact-resistant, tempered

glass lens.

Mounting – Standard mount is two-piece,

heavy-duty, cast-aluminum swivel with in-

tegral wiring compartment (pictured). Swiv-

el fits over standard 1½" (1.9" OD) to 2" (2.38"

OD) tenon. Painted steel yoke with 3-foot, 16/

3 SEO cable or threaded knuckle mount are

optional.

Architectural Floodlights

NOTES:

1 Must be ordered with SCWA.

2 ED-28 reduced jacket lamp required.

3 KFL2 only.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

6 For use with THK mounting only. Must include THK

mount option on fixture.

7 For use with yoke mounting only. Must include yoke

mount option on fixture.

8 Field modification required unless ordered with fixture.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KFL2 KFL3

EPA 1.3 ft2 (.12 m2) 2.0 ft2 (.19 m2)

Width 17 (43.2) 20 (50.8)

Depth 8

1/16

(19.7) 91/16 (23.8)

Height 97/8 (24.8) 131/16 (33.2)

Overall height 14 1/16

(35.6) 1615/16 (42.9)

Max. weight 29 lbs (13.1 kg) 44 lbs (19.9 kg)

Options/Accessories

Installed

SF Single fuse, 120V, 277V, 347V (n/a TB)

DF Double fuse, 208V, 240V, 480V (n/a TB)

PE Photoelectric cell, button type

(n/a TB)

QRS Quartz restrike system (KFL3 only,

100W max.) (lamp not included)

EC Emergency circuit

CR Enhanced corrosion resistance

CFRO Color lens/rose

CFBL Color lens/blue

SCWA Super CWA pulse start ballast (n/a

with HPS, 70M, 100M or 175M)

LPI Lamp included as standard

L/LP Less lamp

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional architectural colors, see page 485.

Shipped separately8

UV Upper visor

EV Eggcrate visor (black)

FV Full visor

BV Bottom visor

WG Wireguard

BD Barn door

HLV Horizontal louver (black)

VLV Vertical louver (black)

BVG Bubble vandal guard

Shown with standard swivel mount

Lamp Beam Spread NEMA

Wattage Ballast Type HoxVoDist.

High Pressure Sodium

150 SP HX-HPF E17 142x127 3x1

150 HPW HX-HPF E17 39x12 7x6

400 SP CWA ET18 60x13 4x1

400 HPW CWA ET18 144x140 7x7

Metal Halide

175 SP CWA ED17 27x15 2x1

175 HPW CWA ED17 147x127 7x6

400 SP CWA BT28 42x17 3x1

400 HPW CWA BT28 146x140 7x7

www.lithonia.com

keyword: KFL

Optics – Anodized aluminum reflectors; seg-

mented, specular or hammertone finish.

Electrical – 150W and below utilizes a high-

reactance, high power factor ballast. 175W

and above utilizes a constant-wattage au-

totransformer ballast. Both ballast are cop-

per wound and 100% factory tested. Option-

al pulse start ballast available.

Socket – Medium-base (KFL2) or mogul-

base (KFL3) porcelain socket with copper

alloy, nickel-plated screw shell and center

contact. 4KV pulse rated. UL listed 660W,

600V.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL

listed for wet locations. IP65 rated in accor-

dance with standard IEC 529.

455

Outdoor / PSG8

Contour Specification Large Floodlights

Ordering Information Example: TFA 1000M TA TB LPI

Lamp/Fixture/Distribution Data

Lamp Beam Spread NEMA

Wattage Ballast Type H° x V° Dist.

High Pressure Sodium (mog/clear)

400 TA CWA ET18 140x134 7x7

400 RN CWA ET18 127x30 6x3

400 TA2 CWA ET18 138x112 7x6

400 RB CWA ET18 126x106 6x6

1000 TA CWA E25 139x133 7x7

1000 RN CWA E25 127x21 6x2

1000 TA2 CWA E25 144x119 7x6

1000 RB CWA E25 128x114 6x6

Metal Halide (mog/clear)

400 TA CWA BT37 143x133 7x7

400 RN CWA BT37 129x35 6x3

400 TA2 CWA BT37 135x111 7x6

400 RB CWA BT37 124x100 6x6

1000 TA CWA BT56 146x135 7x7

1000 RN CWA BT56 130x45 6x3

1000 TA2 CWA BT56 144x119 7x6

1000 RB CWA BT56 126x109 6x6

Floodlighting

TFA

Contour

Intended Use

For industrial yards, parking lots, construc-

tion sites, streets and recreational areas.

Features

Housing – Heavy-duty construction.

Contoured die-cast aluminum housing

and front bezel. Bezel hinged and latched

for fast, easy tool-less internal access to

optical and electrical compartments.

Lens is heavy-duty, thermal shock-resis-

tant, clear tempered glass with no metal-

to-glass contact. Standard finish is dark

bronze (DDB) corrosion-resistant polyes-

ter powder.

Optics – Computer-designed, precision

die-formed, specular anodized aluminum

reflector provides high efficiencies.

Premium, one-piece silicone gasket

seals optical chamber to inhibit entrance

of outside contaminants.

Designation

High Pressure Sodium

TFA 250S

TFA 400S

TFA 750S

TFA 1000S

Metal Halide

TFA 250M

TFA 320M1

TFA 350M1

TFA 400M

TFA 750M1

TFA 1000M

Voltage

120

2082

2402

277

347

4802

TB3

TBV4

Installed

SF Single fuse (120V, 277V, 347V)5

DF Double fuse (208, 240, 480V)5

EC Emergency circuit6,7

QRS Quartz restrike system6,7

QRSTD Quartz time delay6,7

CR Enhanced corrosion resistance

CRT Non-stick protective coating8

PER NEMA twist-lock receptacle9

LS Lamp support (standard w/ 1000W,

TA and RN)

LPI Lamp shipped as standard

L/LP Less lamp

IS Integral slipfitter (23/8" to 27/8" OD

tenon)

CF Charcoal filter

C62 2' 16-3 SEO cord prewired10

C42 2' 14-3 SEO cord prewired10

C22 2' 12-3 SEO cord prewired10

TP Tamperproof latches

SCWA Super CWA pulse start ballast

(n/a HPS or 1000M)

CSA CSA Certified11

NOM NOM Certified (consult factory)

Accessories / shipped separately

TFAWG Wireguard

TFAVG Vandal guard

TFAUV Upper visor12

TFAFV Full visor12

TFABV Bottom visor

FTS Tenon slipfitter (23/8" to 27/8" OD

tenon) (yoke only)

FCRA Crossarm adapter (horizontal)

FCRA45 Crossarm adapter (45° from

horizontal)

FPMB Wood pole/pipe/wall-mounting

bracket (includes FCRA)

FRWB Radius wall bracket13

FSAB Steel angle bracket

FSPB Steel square pole bracket (for

use with existing poles)

PE1 NEMA twist-lock photocontrol

(120V, 208V, 240V)

PE3 NEMA twist-lock photocontrol

(347V)

PE4 NEMA twist-lock photocontrol

(480V)

PE7 NEMA twist-lock photocontrol

(277V)

SC Shorting Cap

TM Tenon Mount13

For additional options and accessories, see page 484.

Options/Accessories

Dimensions are shown in inches

(centimeters) unless otherwise noted.

TFA

EPA 2.6 ft2 (.24 m2)

Width 22 (59.9)

Depth 93/4 (24.7)

Height 183/4 (47.6)

Overall height 221/2 (57.1)

Weight 65 lbs (29.5 kg)

Distribution

Horizontal Vertical

RN TA RB RC RE TA2 RM

RN TA RB – – TA2 RM

RN TA RB RC RE TA2 RM

RN T A – – – – –

RN TA RB – RE TA2 RM

www.lithonia.com

keyword: TFA

NOTES:

1 Must be ordered with SCWA.

2 Not available in Canada in 1000W metal halide.

3 Optional multi-tap ballast (120V, 208V, 240V, 277V).

In Canada 120V, 277V, 347V; ships as 120V/347V.

4 Optional 5-tap ballast (120V, 208V, 240V, 277V,

480V).

5 Not available in multi-tap ballast.

6 Lamp not included.

7 Quartz lamp wattage not to exceed ballast

wattage rating.

8 Black finish only.

9 Photocell not included.

10 Yoke-mount only.

11 Not available with TBV.

12 Field modification required unless ordered

with fixture.

13 Requires IS or FTS slipfitter.

Electrical – High-power factor, constant-

wattage autotransformer. Ballast is copper

wound and 100% factory tested. UL listed.

Electrical components mounted to rear

housing for maximum heat dissipation. (For 50

hertz availability, consult factory.)

Installation – Tool-less latches on front

bezel can be opened while wearing

gloves. Corrosion-resistant, painted steel

mounting yoke.

Socket – Porcelain, horizontally or verti-

cally oriented, mogul-base socket with

copper alloy, nickel-plated screw shell

and center contact.

Listings – UL Listed (standard) (ambient

temperature 25°C for 750W and above,

40°C for 400W and below). CSA Certified

or NOM Certified (see Options). UL listed

for wet locations. IP65 rated in accor-

dance with standard IEC 529.

Outdoor / PSG8

456

VERTICAL LAMP

High Pressure Sodium

TFL 70S TA2 (7x 6)

TFL 100S TA2

TFL 150S TA2

TFL 200S TA2

Metal Halide

TFL 150M TA2

TFL 175M TA2

TFL 200M1TA2

TFL 250M TA2

HORIZONTAL LAMP

High Pressure Sodium

TFL 250S RA2 (7x6)

TFL 400S RA2

Metal Halide

TFL 200M1RA2

TFL 250M RA2

TFL 320M1RA2

TFL 350M1RA2

TFL 400M2RA2

Contour Specification Medium Floodlights

Distribution

Designation Voltage Options/Accessories

120

2083

2403

277

347

4804

TB5

TBV6

Lamp/Fixture/Distribution Data (Vertical Lamp)

Lamp Beam Spread NEMA

Wattage Ballast Type H° x V° Dist.

High Pressure Sodium (mog/clear)

100 TA2 HX-HPF E17 148 x 123 7 x 6

150 TA2 HX-HPF E17 155 x 119 7 x 6

250 RA2 CWA BT28 143 x 111 7 x 6

400 RA2 CWA BT28 143 x 111 7 x 6

Metal Halide (mog/clear)

175 TA2 CWA BT28 147 x 122 7 x 6

250 RA2 CWA BT28 140 x 104 7 x 6

400 RA2 CWA BT28 145 x 100 7 x 6

Ordering Information Example: TFL 400S RA2 TB LPI

Intended Use

For recreation areas, parking lots, building

facades and car lots.

Features

Housing – Compact, soft-corner, die-cast alu-

minum housing and front cover. Front bezel is

fully sealed with one-piece, bonded silicone

gasket. Lens is thermal- and shock-resistant,

clear, tempered glass. Standard finish is dark

bronze (DDB) corrosion-resistant polyester

powder.

Optics – TA2: vertical lamp with one-

piece, hydroformed, anodized aluminum

reflector. Two-position adjustable socket.

RA2: horizontal lamp with anodized spec-

ular aluminum reflector. Both have sealed

optic chamber to inhibit entrance of out-

side contaminants.

Electrical – Components mounted to cast-

aluminum housing for maximum heat-dissi-

Installed

SF Single fuse (120V, 277V, 347V)7

DF Double fuse (208V, 240V, 480V)7

EC Emergency circuit8,9

QRS Quartz restrike system8,9

CR Enhanced corrosion resistance

CRT Non-stick protective coating10

PER NEMA twist-lock receptacle11

LS Lamp support (mogul socket only)

IS Integral slipfitter(23/8" OD max. tenon)

CF Charcoal filter

C62 2' 16-3 SEO cord prewired12

C42 2' 14-3 SEO cord prewired12

C22 2' 12-3 SEO cord prewired12

CSA CSA Certified13

NOM NOM Certified (consult factory)

SCWA Super CWA pulse start ballast

(n/a HPS, or 175M)

LPI Lamp included as standard.

L/LP Less lamp

Architectural textured colors available. Consult your

Lithonia Lighting representative.

Shipped separately

WG Wireguard14

VG Vandal guard14

UV Upper visor14

FV Full visor14

FTS Tenon slipfitter (23/8" to 27/8" OD tenon)

FRWB Radius wall bracket15

FSAB Steel angle bracket

FCRA Crossarm adapter(horizontal)

FCRA45 Crossarm adapter

(45o from horizontal)

FPMB Wood pole/pipe/wall-mounting

bracket (includes FCRA)

SC Shorting cap

TM Tenon mount15

Floodlighting

TFL

Contour

NOTES:

1 Must be ordered with SCWA.

2 Requires T-15, ED or BT28 reduced jacket lamp.

3 Consult factory for availability in Canada.

4 Not available in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). (In

Canada 120V, 277V, 347V; ships as 120V/347V).

6 Optional 5-tap ballast (120,208,240,277,480V)

7 Not available with multi-tap ballast.

8 Lamp not included.

9 Quartz lamp wattage not to exceed ballast wattage rating.

10 Black finish only.

11 Photocell not included.

12 Yoke mount only.

13 Not available with TBV.

14 Field modification required unless ordered wth fixture.

15 Requires IS or FTS slipfitter.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TFL

EPA 1.3ft2 (.12 m2)

Width 153/4

(40.0)

Depth 61/8 (15.6)

Height 161/8 (40.9)

Weight 27 lbs (11.8 kg)

www.lithonia.com

keyword: TFL

pation. Ballast is high-reactance, high-

power factor (70-150W HPS) or constant-

wattage autotransformer (175 and above

HPS, MH), copper wound and 100% factory

tested. UL listed.

Installation – Corrosion-resistant, heavy-

duty painted steel mounting yoke. Exter-

nal screws treated for corrosion resis-

tance. Above-horizontal aiming capabili-

ty standard.

Socket – Glazed porcelain, vertically or

horizontally oriented mogul-base socket

with copper alloy, nickel-plated screw

shell and center contact. UL listed 1500W,

600V, 4KV pulse rated.

Listings – UL Listed (standard) (ambient

temperature 25oC for 320W & above and

200S, 40oC for 250W and below). CSA Cer-

tified or NOM Certified (see Options). UL

listed for wet locations. IP65 rated in accor-

dance with standard IEC 529.

457

Outdoor / PSG8

NOTES:

1 Must be ordered with SCWA.

2 Consult factory for availability in Canada.

3 Not available in Canada.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

5 Optional 5-tap ballast (120V, 208V, 240V, 277V, 480V).

6 Not available in multi-tap ballast.

7 Lamp not included.

8 Quartz lamp wattage not to exceed ballast wattage rating.

9 Black finish only.

10 Photo-cell not included.

11 Yoke mounting only.

12 Not available with TBV.

13 Field modification required unless ordered with fixture.

14 Requires IS or FTS slipfitter.

Lamp/Fixture Data

Lamp Beam Spread NEMA

Wattage Ballast Type. H° x V° Dist.

High Pressure Sodium (mog/clear)

150 RB XHP E17 114 X 107 6 x 6

150 RC XHP E17 100 X 92 5 x 5

250 TA CWA ET18 132 X 118 7 x 6

250 RB CWA ET18 110 X 104 6 x 6

250 RC CWA CWA 99 x 97 5 x 5

400 TA CWA ET18 132 X 118 7 x 6

400 RB CWA ET18 110 X 104 6 x 6

400 RC CWA ET18 99 X 97 5 x 5

Metal Halide (mog/clear)

175 TA CWA BT28 132 x 111 7 x 6

175 RB CWA BT28 121 x 91 6 x 5

175 RC CWA BT28 100 x 90 5 x 5

250 TA CWA BT28 132 x 111 7 x 6

250 RB CWA BT28 121 x 91 6 x 5

250 RC CWA BT28 100 x 90 5 x 5

400 TA CWA BT37 138 x 119 7 x 6

400 RB CWA BT37 124 x 107 6 x 6

400 RC CWA BT37 96 x 100 5 x 5

Intended Use

For recreation areas, parking lots, building

facades and car lots.

Features

Housing – Compact, soft corner, die-cast

aluminum housing and front cover. Front

bezel is removable via position-oriented

hinge-cam design and is fully sealed with

one-piece, bonded silicone gasket. Lens

is thermal- and shock-resistant clear tem-

pered glass. Standard finish is dark

bronze (DDB) corrosion-resistant polyes-

ter powder.

Optics – Die-formed, anodized aluminum

reflectors provide rectangular, uniform

distributions. Three available beam distri-

butions for maximum flexibility in area light-

ing applications. Does not require use of

reduced-size lamp.

Electrical – Components mounted to cast-

Distribution

TA (7x6) (n/a

150S)

RB (6x6)

RC (5x5)

Designation

High Pressure

TFR 150S

TFR 250S

TFR 400S

Metal Halide

TFR 150M

TFR 175M

TFR 200M1

TFR 250M

TFR 320M1

TFR 350M1

TFR 400M

Voltage

120

2082

2402

277

347

4803

TB4

TBV5

Options/Accessories

Ordering Information Example: TFR 400M TA TB LPI

Installed

SF Single fuse (120V, 277V, 347V)6

DF Double fuse (208V, 240V, 480V)6

EC Emergency circuit7,8

QRS Quartz restrike system7,8

CR Enhanced corrosion resistance

CRT Non-stick protective coating9

PER NEMA twist-lock photoelectric

receptacle10

IS Integral slipfitter (23/8" O D tenon)

LS Lamp support

LPI Lamp included as standard

L/LP Less lamp

C22 2' 12-3 SEO cord pre-wired11

C42 2' 14-3 SEO cord pre-wired11

C62 2' 16-3 SEO cord pre-wired11

CF Charcoal filter

CSA CSA Certified12

NOM NOM Certified (consult factory)

SCWA Super CWA pulse start ballast (n/a HPS

or 175M)

Shipped separately

TFRWG Wireguard13

TFRVG Vandal guard13

TFRUV Upper visor13

TFRFV Full visor13

FRWB Radius wall bracket14

FSAB Steel angle bracket

SC Shorting cap for PER option

FTS Tenon slipfitter (23/8" to 27/8" OD tenon)11

FCRA Crossarm adapter (horizontal)

FCRA45 Crossarm adapter 45° from horizontal

FPMB Wood pole/pipe/wall mounting bracket

(includes FCRA)

TM Tenon mount14

EY Extended yoke

Contour Specification Medium Floodlights Floodlighting

TFR

Contour

Dimensions are shown in inches (centimeters)

unless otherwise noted.

TFR

EPA 1.3ft2

(.12m2)

Height 123/4

(32.4)

Width 175/8(44.8)

Depth 103/4 (27.3)

www.lithonia.com

keyword: TFR

aluminum housing, promoting maximum

heat dissipation. Ballast is high-reac-

tance HPF (70-150W HPS). 150M ballast is

high reactance HPF constant-wattage au-

totransformer (175W and above HPS,

MH), copper wound and 100% factory

tested.

Installation – Corrosion-resistant, heavy-

duty painted steel mounting yoke. Exter-

nal screws treated for corrosion resis-

tance. Above-horizontal aiming standard.

Socket – 150M is medium base. Glazed por-

celain, horizontally oriented, mogul-base

with copper alloy, nickel-plated screw shell

and center contact. UL listed 1500W, 600V,

4KV pulse rated.

Listings – UL Listed (standard) (ambient

temperature 25°C for 320W and above,

40°C for 250W and below). CSA Certified

or NOM Certified (see Options). UL listed

for wet locations. IP65 rated in accor-

dance with standard IEC 529.

Outdoor / PSG8

458

Designation

High Pressure Sodium

TFM 35S1

TFM 50S2

TFM 70S

TFM 100S

TFM 150S

Metal Halide

TFM 50M

TFM 70M

TFM 100M

TFM 150M

TFM 175M

Compact Fluorescent

TFM 13DTT

TFM 18DTT

TFM 26DTT

TFM 32TRT

TFM 42TRT

Ordering Information Example: TFM 175M RB 120 LPI

Distribution

TA (7x6)3

RB (6x6)

RG (3x3)

Voltage

120

2084

2404

277

4805

TB6

TBV7

MVOLT8

Options/Accessories

Intended Use

For signs, flags, building facades and land-

scaping.

Features

Housing – Compact, heavy-duty con-

struction. Die-cast aluminum housing and

removable front bezel. Lens is thermal and

shock-resistant, clear tempered glass.

Standard finish is dark bronze (DDB) cor-

rosion-resistant polyester powder.

Optics – Hydroformed, anodized alumi-

num, faceted parabolic (RB, RG) or die-

formed (TA) construction provides high

efficiencies. Medium-base lamp is in-

cluded.

Electrical – Ballast is high-reactance,

high-power factor for 50-150W metal ha-

lide or constant wattage autotransform-

er for 175W metal halide. Ballast is re-

actor normal-power factor for high pres-

sure sodium (XHP available). Ballast is

Lamp/Fixture/Ballast Data13

Lamp Beam Spread NEMA

Wattage Ballast Type HoxVoDist.

High Pressure Sodium (med/clear)

70 RB RNP or XHP E17 94 x 104 5 x 6

70 RG RNP or XHP E17 42 x 35 3 x 3

70 TA RNP or XHP E17 131 x 103 7 x 6

150 RB RNP or XHP E17 88 x 95 5 x 5

150 RG RNP or XHP E17 57 x 65 4 x 4

150 TA RNP or XHP E17 131 x 103 7 x 6

Metal Halide (med/clear)

100 RB XHP E17 83 x 108 5 x 6

100 RG XHP E17 58 x 60 4 x 4

100 TA XHP E17 128 x 107 6 x 6

175 RB CWA ED17 97 x 105 5 x 6

175 RG CWA ED17 42 x 35 4 x 4

Fluorescent

26DTT RB HPF-Electronic T4 125 x 132 6 x 6

42TRT RB HPF-Electronic T4 120 x 122 6 x 6

Installed

SF Single fuse (120V,

277V, 347V)9,10

DF Double fuse (208V,

240V, 480V)9,10

GMF Internal slow-blow

fuse (CF only)

CR Enhanced corrosion

resistance

CRT Non-stick protective

coating11

PE Photocell9

LPI Lamp included

as standard

L/LP Less lamp

YK Yoke mounting

C62 2' 16-3 SEO

cord pre-wired

C42 2' 14-3 SEO cord

pre-wired

C22 2' 12-3 SEO cord

pre-wired

CSA CSA Certified12

NOM NOM Certified

(consult factory)

SCWA Super CWA pulse

start ballast (only

available in 150M

with TA distribution

only)

Shipped separately

TFMWG Wireguard

TFMVG Vandal guard

TFMUV Upper visor

TFMFV Full visor

TFMTS Tenon slipfitter (23/8"

OD tenon) (fits on 1/2"

knuckle)

TM Tenon mount14

NOTES:

1 120V only.

2 120V, 277V only

3 TA distribution not available with 175M, compact fluo-

rescent lamps, TBV, or fusing.

4 Consult factory for availability inCanada.

5 Not available in Canada.

6 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

7 Optional 5-tap ballast (120V, 208V, 240V, 277V, 480V).

8 Optional multi-volt electronic ballast capable of

operating from 120V-277V

9 Not available in multi-tap ballast.

10 Not available with TA reflector.

11 Black finish only.

12 Not available with TBV.

13 Other ballasts available. Consult factory.

14 Requires TFMTS.

Contour Specification Mini Floodlights

Floodlighting

TFM

Contour

Dimensions are shown in inches (cen-

timeters) unless otherwise noted.

TFM

EPA .5ft2 (.05m2)

Width 10.6 (26.9)

Depth 6.9 (17.5)

Height 101/2 (26.7)

Weight 15 lbs (6.8 kg)

www.lithonia.com

keyword: TFM

copper wound and 100% factory tested.

UL 1029 listed. Electrical components

mounted to the cast-aluminum housing

for maximum heat-dissipation.

Installation – Die-cast aluminum ½"

NSPM threaded mounting knuckle is

standard. Steel painted mounting yoke

optional. Above-horizontal aiming capa-

bility standard. External screws treated

for corrosion resistance.

Socket – Porcelain, medium-base, hori-

zontally-oriented (RB, RG) or vertically-

oriented (TA) socket with copper alloy,

nickel-plated screw shell and center con-

tact. UL listed 1500W, 600V. 4-pin socket

for compact fluorescent.

Listings – UL Listed ((standard) ambient

temperature 25oC for 150M and above, 40oC

for 100M and below; 150S and below). CSA

Certified or NOM Certified (see Options).

UL listed for wet locations. IP65 rated in

accordance with standard IEC 529.

459

Outdoor / PSG8

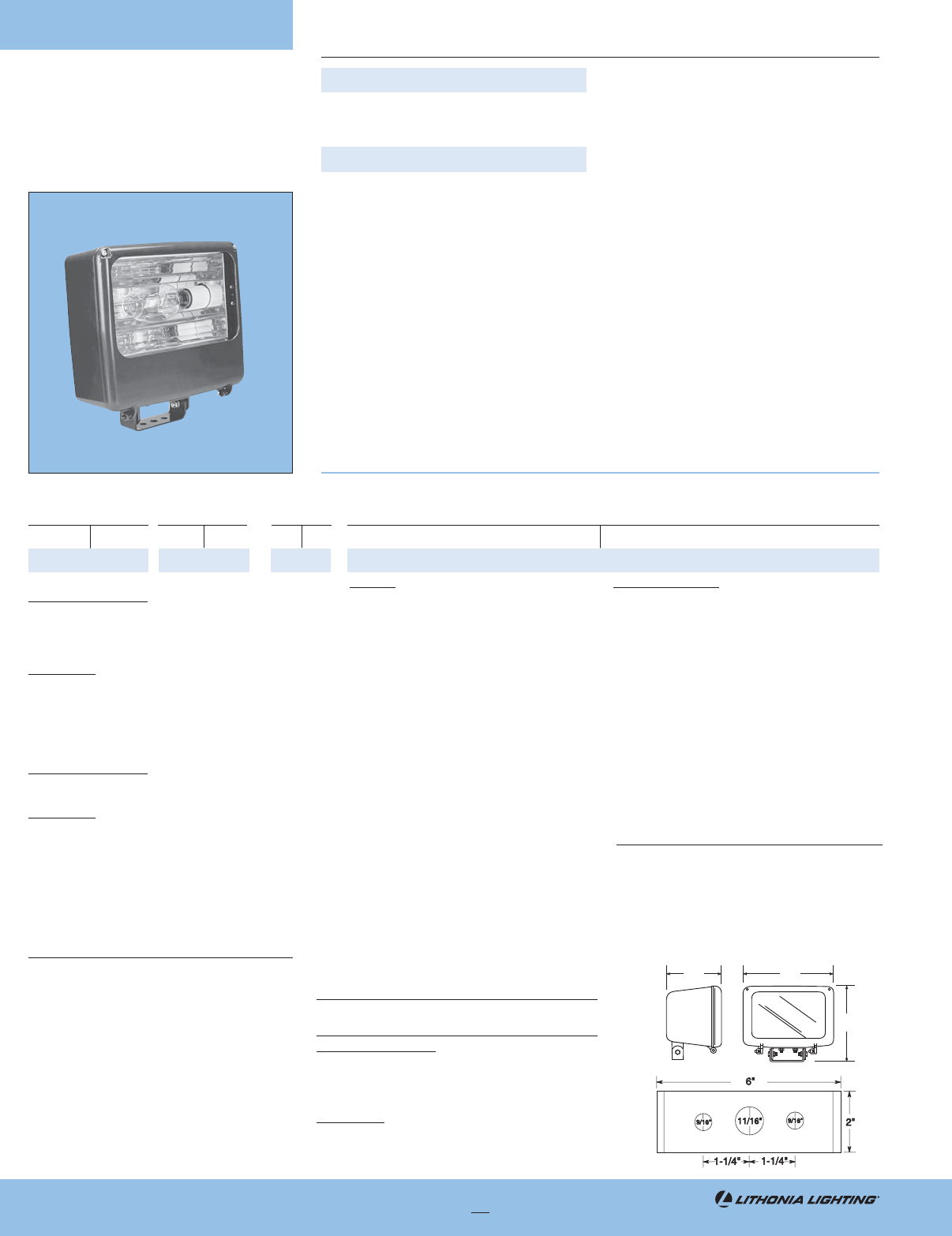

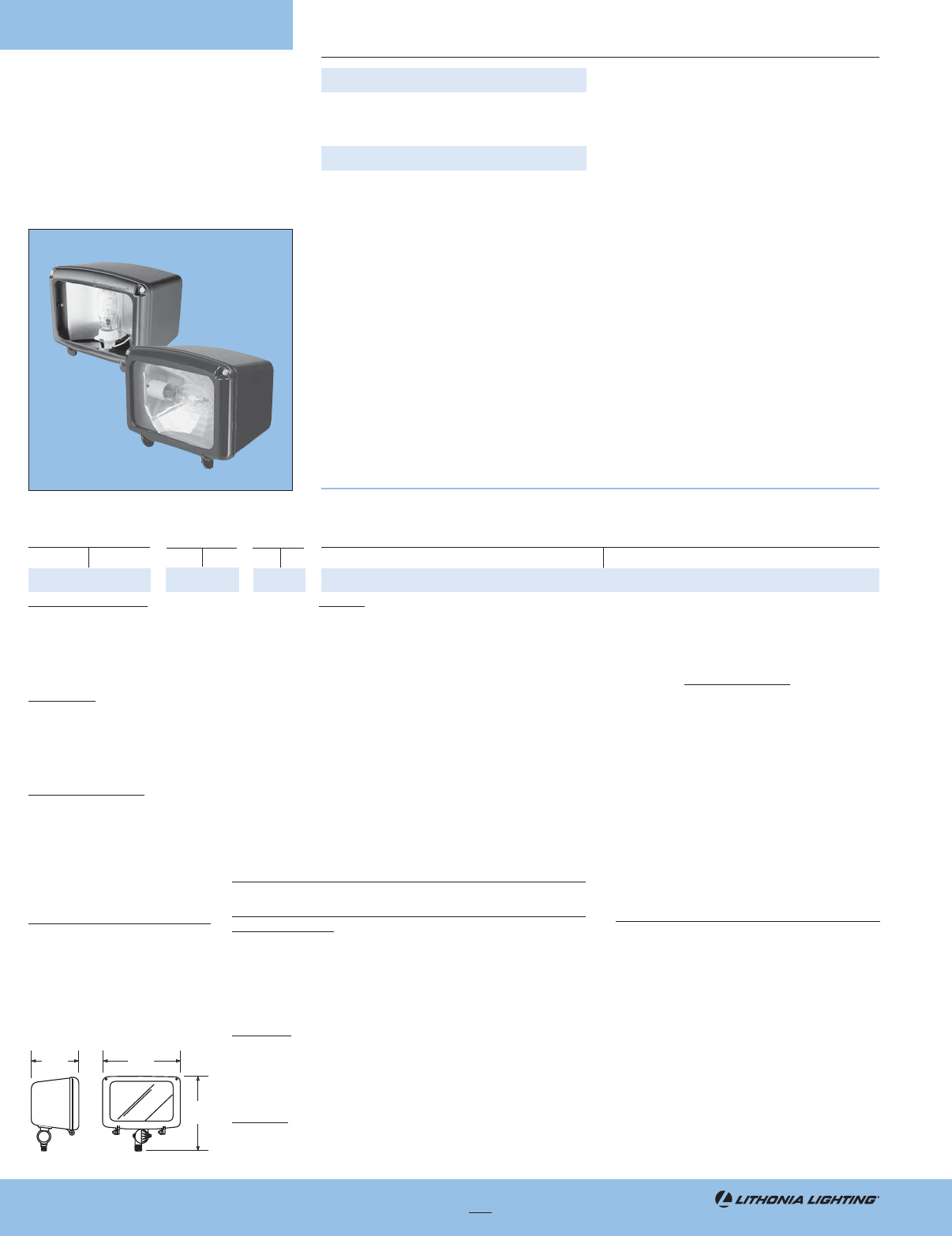

Ordering Information Example: TFS 50S 120 LPI

Options

LPI Lamp included as standard

Designation Voltage

120

General Purpose Micro Floodlights

Intended Use

For signs, landscaping and commercial or

residential building facades.

Features

Housing – Compact, rugged die-cast alu-

minum housing is ribbed for maximum heat

dissipation. Hinged die-cast aluminum

door frame inhibits the entrance of exter-

nal contaminant. Standard finish is bronze

polyester powder.

Installation – Adjustable mounting knuck-

le with ½" NPS threaded stem mounts to

standard outlet boxes.

Optics – Anodized aluminum reflector with

high efficiency and wide beamspread.

Tempered glass lens. Medium-base, E17

lamp included in carton as standard.

Electrical – Reactor HPS or high-reactance

(MH) normal power factor.

Floodlighting

TFS

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TFS

Width 87/8 (22.5)

Depth 61/8 (15.6)

Height 6.5 ft (16.5 m )

Max. weight 6.48 lbs (2.94 kg)

www.lithonia.com

keyword: TFS

Listings – UL Listed to U.S. and Canadian

safety standards. UL/C-UL listed for wet

locations.

High Pressure Sodium

TFS 50S

TFS 70S

TFS 100S

TFS 150S

Metal Halide

TFS 70M

Outdoor / PSG8

460

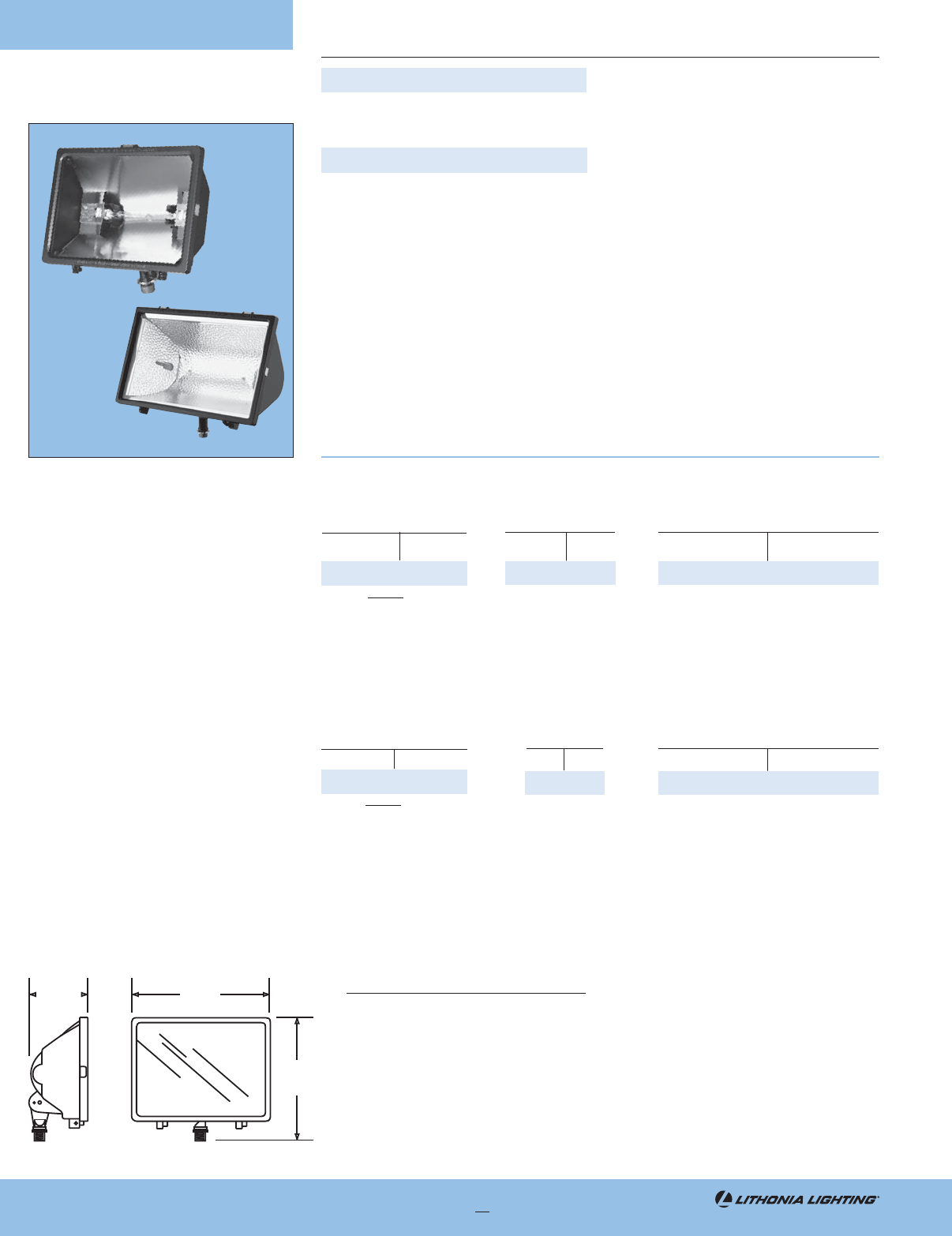

Floodlighting

TQ/TQE

General Purpose Quartz Floodlights

Intended Use

For signs, landscaping, and commercial or

residential building facades.

Features

Housing – Compact, rugged, die-cast alu-

minum housing is ribbed for maximum heat

dissipation. TQ has a die-cast aluminum

door frame, TQE lens attaches via tool-less

clips. TQ1500 door frame is die-cast alumi-

num with tool-less latch closure. Stan-

dard finish bronze polyester powder.

Installation – Adjustable mounting knuck-

le with ½" NPS threaded stem. Mounts to

standard outlet boxes.

Optics – Anodized aluminum reflector with

high efficiency and wide beamspread. Tem-

pered glass lens with high temperature

gasketing. 500W models include double-

Dimensions are shown in inches (centimeters)

unless otherwise noted.

TQ 1500 TQ/TQE 500

Width 13 (33.0) 87/8 (22.5)

Depth 6 (15.2) 31/2 (8.9)

Height 81/4

(21.0) 61/2 (16.5)

Max. weight 6 lbs (2.72 kg) 2.07 lbs (.93 kg)

TQ1500

www.lithonia.com

keyword: TQ

ended quartz 500W lamp. 1500W models do

not include double-ended quartz 1500W

lamp.

Listings – UL Listed to U.S. and Canadian

safety standards. UL/C-UL listed for wet

locations.

Ordering Information Example: TQ 1500 L/LP

Designation Voltage

Determined by lamp

(277V maximum)

Options

L/LP Lamp NOT included

(must be supplied by others.)

Ordering Information Example: TQE 500 120 LPI

Designation Voltage

120

Options

(blank) Bronze (500W only)

DWH White (500W only)

LPI Lamp included (500W models)

Quartz

TQ 1500

Quartz

TQE 500

TQ 500

461

Outdoor / PSG8

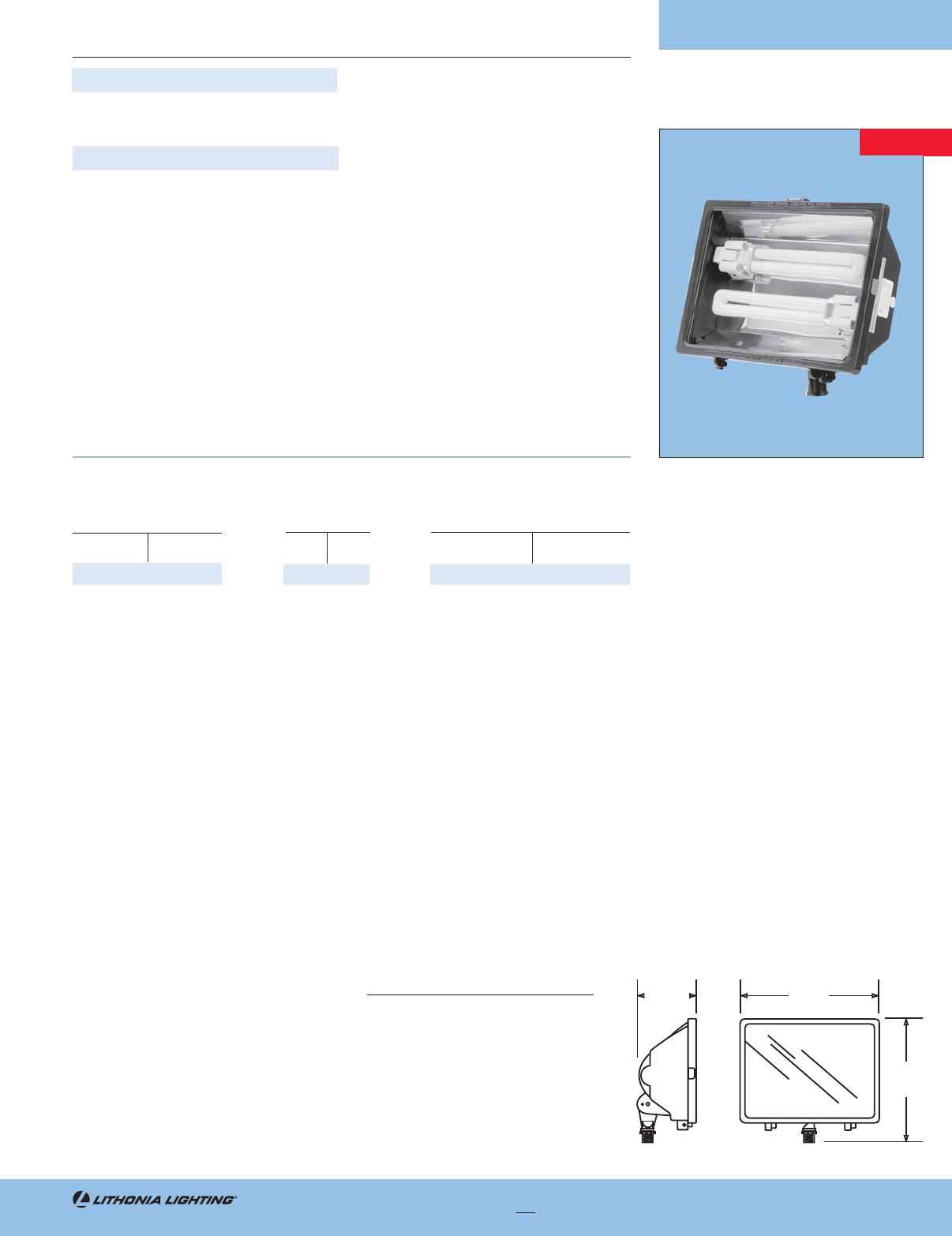

General Purpose Floodlights

Intended Use

For signs, landscaping and commercial or

residential building facades.

Features

Housing – Compact, rugged, die-cast alu-

minum housing is ribbed for maximum heat

dissipation. Hinged die-cast aluminum door

frame with tool-less latch closure. Stan-

dard finish bronze polyester powder.

Installation – Adjustable mounting knuck-

le with ½" NPS threaded stem. Mounts to

standard outlet boxes.

Optics – Anodized aluminum reflector with

high efficiency and wide beamspread. Tem-

pered glass lens with high temperature

gasketing. 13W twin-tube compact fluo-

rescent lamps.

Ordering Information Example: TCF 2/13DTT 120 LPI

Designation

TCF 13DTT

TCF 2/13DTT

Voltage

120

Options

LPI Lamp included

Dimensions are shown in inches (centimeters)

unless otherwise noted.

TCF

Width 87/8(22.5)

Depth 31/2 (8.9)

Height 61/2 (16.5)

Max. weight 2.07 lbs (.93 kg)

www.lithonia.com

keyword: TCF

Floodlighting

TCF

NEW

Listings – UL Listed to U.S. and Canadian

safety standards. UL/C-UL listed for wet

locations.

Outdoor / PSG8

462 www.lithonia.com

keyword: HFA

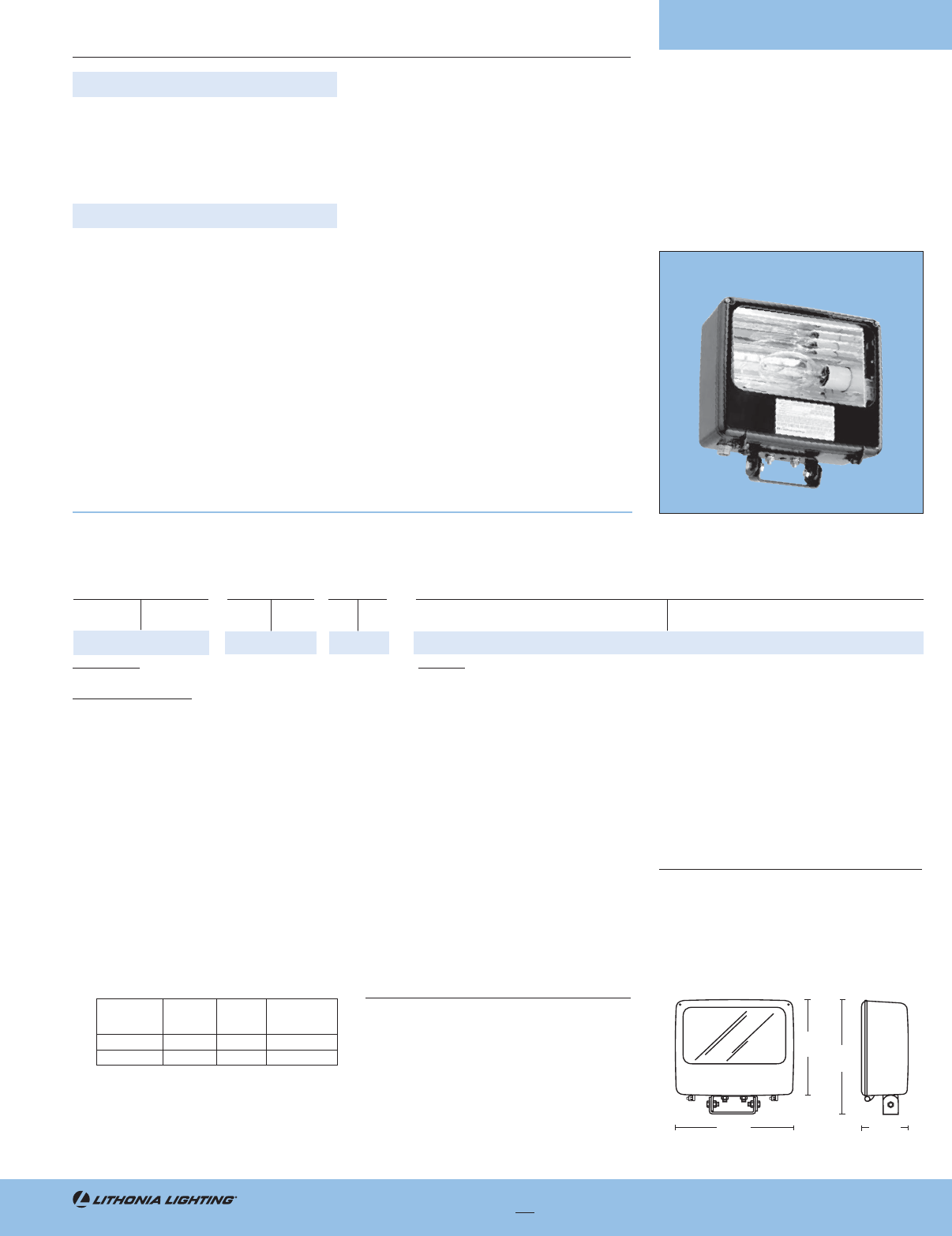

Hazardous Location Large Floodlights

Ordering Information Example: HFA 400M TA 120 LPI

Distribution

TA (7x7)

RN (6x3)

Designation

High Pressure Sodium

HFA 250S

HFA 400S

Metal Halide

HFA 250M

HFA 400M

Voltage

120

2081

2401

277

347

4801

TB2

Options

NOTES:

1 Consult factory for availability in Canada.

2 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

3 Black finish only.

Installed

CR Enhanced corrosion resistance

CRT Non-stick protective coating3

LS Lamp support

LPI Lamp included as standard

L/LP Less lamp

TP Tamperproof latches

CSA CSA Certified

DNA Architectural color – natural

aluminum

Intended Use

For general to heavy industrial applica-

tions, including Class 1, Division 2 classi-

fied hazardous locations, marine and cor-

rosive environments or wherever exces-

sive vibration and dirt may exist.

Features

Construction – NEMA heavy-duty con-

structed housing. Die-cast copper-free

(<.4%)aluminum housing with round cor-

ners and front bezel. Front bezel is remov-

able via position-oriented hinge-cam de-

sign. Lens is thermal- and shock-resistant,

clear tempered glass with no metal-to-glass

contact. Hardware is corrosion-resistant.

Finish – Standard finish is dark bronze (DDB)

corrosion-resistant polyester powder.

Optics – Porcelain, horizontally oriented

mogul-base socket with copper alloy,

nickel-plated screw shell and center con-

tact. UL listed 1500W, 600V, 4KV pulse rat-

ed. TA and RN distributions are available.

Temperature Codes

Description Wattage T-Code Max. Internal

or Temp. Temp.

HFA 250M T1 336°C

HFA 400M T1 343°C

HFA 250S T1 301°C

HFA 400S T1 352°C

Floodlighting

HFA

Dimensions are shown in inches (centimeters) unless

otherwise noted.

HFA

EPA 2.6 ft2 (.24 m2)

Width 233/4 (60.3)

Depth 93/4 (24.8)

Overall height 24

(61) (includes yoke)

Weight 65 lbs (29.5 kg)

DBL Architectural color, black

DMB Architectural color, medium

bronze

DGC Architectural color, charcoal

gray

DTG Architectural color, tennis green

DSS Architectural color, sandstone

DWH Architectural color, white

Architectural textured colors available. Consult

your Lithonia Lighting representative.

Computer-designed, precision formed re-

flectors for high performance and efficen-

cy. Premium one-piece silicone gasket

seals optical chamber to inhibit entrance

of contaminants.

Electrical – Ballast is HPF constant-watt-

age autotransformer, copper wound and

100% factory tested. Electrical components

are mounted to cast aluminum housing,

promoting maximum heat dissipation. Ac-

cesible through front bezel.

Installation – Front bezel is latched for easy

tool-less internal access to optical and

electrical compartments. Corrosion-resis-

tant, heavy-duty, painted steel mounting

yoke. Three-quarter-inch female thread-

ed conduit hub provided.

Listings – UL Listed (standard). CSA Certi-

fied (see Options). UL listed Class 1, Divi-

sion 2, Groups A, B, C, and D for hazardous

locations. UL listed for marine outside lo-

cations. IP65 rated in accordance with

standard IEC 529.

463

Outdoor / PSG8

Distribution

RA2 (7x6)

Designation

Metal Halide

HFL 400M1

High Pressure Sodium

HFL 400S

Voltage

120

2082

2402

277

347

4802

TB3

Options

NOTES:

1 Must use reduced jacket ED-28 lamp.

2 Consult factory for availability in Canada.

3 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

4 Black finish only.

Ordering Information Example: HFL 400S RA2 TB LPI

Installed

CR Enhanced corrosion resistance

CRT Non-stick protective coating4

LS Lamp support

LPI Lamp included as standard

L/LP Less lamp

CSA CSA Certified

DGC Architectural color, charcoal gray

DTG Architectural color, tennis green

DNA Architectural color, natural aluminum

DBL Architectural color, black

DMB Architectural color, medium bronze

DSS Architectural color, sandstone

DWH Architectural color, white

Architectural textured colors available. Consult your

Lithonia Lighting representative.

Intended Use

For general to heavy industrial applica-

tions, including Class 1, Division 2 classi-

fied hazardous locations, marine and cor-

rosive environments or wherever exces-

sive vibration and dirt may exist.

Features

Construction – Compact NEMA heavy-duty

constructed housing. Die-cast copper-free

(<.4%) aluminum housing with rounded cor-

ners and front bezel. Front bezel is remov-

able via position-oriented hinge-cam de-

sign. Lens is thermal- and shock-resistant,

clear tempered glass with no metal-to-glass

contact. Hardware is corrosion resistant.

Finish – Standard finish is dark bronze (DDB)

corrosion-resistant polyester powder.

Optics – Porcelain, horizontally oriented

mogul-base socket with copper alloy,

nickel-plated screw shell and center con-

tact. UL listed 1500W, 600V, 4KV pulse rat-

Hazardous Location Medium Floodlights Floodlighting

HFL

Dimensions are shown in inches (centimeters) unless

otherwise noted.

HFL

EPA 1.3 ft2 (.12 m2)

Width 153/4 (40.0)

Depth 61/8 (15.5)

Height 161/8

(40.9) (includes yoke)

Weight 27 lbs (12.3 kg)

www.lithonia.com

keyword: HFL

Temperature Codes

Description Wattage T-Code Max. Internal

or Temp. Temp.

HFL 400M T1 433°C

HFL 400S T1 426°C

ed. RA2 distribution is available. Computer-

designed, precision-formed reflector for

high performance and efficiency. Premi-

um one-piece silicone gasket seals opti-

cal chamber to inhibit entrance of outside

contaminants. 400W metal halide requires

an ED28 reduced jacketed lamp.

Electrical – Ballast is HPF constant-watt-

age autotransformer, copper wound and

100% factory tested. Electrical components

are mounted to the cast aluminum hous-

ing, promoting maximum heat dissipation.

Accessible through front bezel.

Installation – Corrosion-resistant, heavy-

duty, painted steel mounting yoke. Three-

quarter-inch female threaded conduit hub

provided.

Listings – UL Listed (standard). CSA Certi-

fied (see Options). UL listed, Class 1, Divi-

sion 2, Groups A, B, C, and D for hazardous

locations. UL listed for marine outside lo-

cations. IP65 rated in accordance with stan-

dard IEC 529.

Outdoor / PSG8

464

Distribution

TA (7x6)

RB (6x6)

RC (5x5)

Designation

Metal Halide

HFR 250M

HFR 400M

High Pressure Sodium

HFR 150S

HFR 250S

HFR 400S

Voltage

120

2081

2401

277

347

4801

TB2

Options

NOTES:

1 Consult factory for availability in Canada.

2 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

3 Black finish only.

Ordering Information Example: HFR 400M TA 120 LPI

Installed

CR Enhanced corrosion

resistance

CRT Non-stick protective

coating3

LS Lamp support

LPI Lamp included as standard

L/LP Less lamp

CSA CSA Certified

Intended Use

For general to heavy industrial applica-

tions, including Class 1, Division 2 classi-

fied hazardous locations, marine and cor-

rosive environments, or where excessive

vibration and dirt may exist.

Features

Construction – Compact NEMA heavy-duty

constructed housing. Die-cast copper-free

(<.4%) aluminum housing with rounded cor-

ners and front bezel. Front bezel is remov-

able via position-oriented hinge-cam de-

sign. Lens is thermal- and shock-resistant,

clear tempered glass with no metal-to-glass

contact. Hardware is corrosion resistant.

Finish – Standard finish is dark bronze (DDB)

corrosion-resistant polyester powder.

Optics – Porcelain, horizontally oriented

mogul-base socket with copper alloy,

nickel-plated screw shell and center con-

tact. UL listed 1500W, 600V, 4KV pulse rat-

Hazardous Location Medium Floodlights

Floodlighting

HFR

Dimensions are shown in inches (centimeters) unless

otherwise noted.

HFR

EPA 1.3 ft2 (.12 m2)

Width 175/8 (44.8)

Depth 103/4 (32.4)

Height 13

(33.0) (includes yoke)

Weight 29 lbs (13.2 kg)

www.lithonia.com

keyword: HFR

Temperature Codes

Description Wattage T-Code Max. Internal

or Temp. Temp.

HFR 250M T1 347°C

HFR 400M T1 359°C

HFR 150S T2B 238°C

HFR 250S T1 332°C

HFR 400S T1 376°C

ed. TA, RB and RC distributions are avail-

able. Computer-designed, precision-

formed reflector for high performance and

efficiency. Premium one-piece silicone

gasket seals optical chamber to inhibit en-

trance of outside contaminants. Does not

require use of reduced-size lamp.

Electrical – Ballast is HPF constant-watt-

age autotransformer, copper wound and

100% factory tested. Electrical components

mounted to cast aluminum housing, pro-

moting maximum heat dissipation. Ac-

cesible through front bezel.

Installation – Corrosion-resistant, heavy-

duty, painted steel mounting yoke. Three-

quarter-inch female threaded conduit hub

provided.

Listings – UL Listed (standard). CSA Certi-

fied (see Options). UL listed, Class 1, Divi-

sion 2, Groups A, B, C, and D for hazardous

locations. UL listed for marine outside lo-

cations. IP65 rated in accordance with stan-

dard IEC 529.

DNA Architectural color, natural

aluminum

DBL Architectural color, black

DMB Architectural color, medium bronze

DGC Architectural color, charcoal gray

DTG Architectural color, tennis green

DSS Architectural color, sandstone

DWH Architectural color, white

Architectural textured colors available. Consult your

Lithonia Lighting representative.

465

Outdoor / PSG8

NOTES:

1 HPS wattages require a high reactance, high power factor

ballast (XHP).

2 208 & 240V HPS in Canada, a constant wattage isolated

ballast CWI is standard.

3 Not available in Canada.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

5 Black finish only.

Designation

Metal Halide

HFM 175M

High Pressure Sodium

HFM 100S

HFM 150S

Ordering Information Example: HFM 175M RB 120 LPI

Distribution

(Select one)

RB (6x6)

RG (3x3)

Voltage

High Pressure Sodium

120

2081,2

2401,2

2771

3471

4801,3

120/2771,3

120/3471

TB4

Metal Halide

120

2083

2403

277

347

4803

120/2773

120/347

TB4

Options

Installed

CR Enhanced corrosion resistance

CRT Non-stick protective coating5

LPI Lamp included as standard

L/LP Less lamp

CSA CSA Certified

DNA Architectural color, natural aluminum

DBL Architectural color, black

DMB Architectural color, medium bronze

DGC Architectural color, charcoal gray

DTG Architectural color, tennis green

DSS Architectural color, sandstone

DWH Architectural color, white

Architectural textured colors available. Consult your Lithonia

Lighting representative.

Intended Use

For general to heavy industrial applica-

tions, including Class 1, Division 2 classi-

fied hazardous locations, marine and cor-

rosive environments or where excessive

vibration and dirt may exist.

Features

Construction – NEMA heavy-duty con-

structed housing. Die-cast copper-free

(<.4%) aluminum housing with round cor-

ners and front bezel. Front bezel is remov-

able via position-oriented hinge-cam de-

sign. Lens is thermal- and shock-resistant,

clear tempered glass with no metal to glass

contact. Hardware is corrosion resistant.

Finish – Standard finish is dark bronze (DDB)

corrosion-resistant polyester powder.

Optics – Porcelain, horizontally oriented

medium-base socket with copper alloy,

nickel-plated screw shell and center con-

tact. UL listed 660W, 600V, 4KV pulse rated.

Temperature Codes

Description Wattage T-Code Max. Internal

or Temp. Temp.

HFM 175M T1 402°C

HFM 100S 280 280°C

HFM 150S 350 341°C

Hazardous Location Mini Floodlights Floodlighting

HFM

Dimensions are shown in inches (centimeters) unless

otherwise noted.

HFM

EPA .5 ft2 (.05 m2)

Width 101/2 (26.9)

Depth 63/4 (17.5)

Height 101/2

(26.9) (includes yoke)

Weight 15 lbs (6.8 kg)

www.lithonia.com

keyword: HFM

RB and RG distributions are available. Com-

puter-designed, precision-formed reflec-

tors for high performance and efficiency.

Premium one-piece silicone gasket seals

optical chamber to inhibit entrance of con-

taminants.

Electrical – Ballast is HPF constant-watt-

age autotransformer, copper wound and

100% factory tested. Electrical components

mounted to cast aluminum housing, pro-

moting maximum heat dissipation. Acces-

sible through front bezel.

Installation – Corrosion-resistant, heavy-

duty, painted steel mounting yoke. Three-

quarter-inch female threaded conduit hub

provided.

Listings – UL Listed (standard). CSA Certi-

fied (see Options). UL listed, Class 1, Divi-

sion 2, Groups A, B, C, and D for hazardous

locations. UL listed for marine outside lo-

cations. IP65 rated in accordance with

standard IEC 529.

Outdoor / PSG8

466

Ordering Information Example: 95 1000S RMH 120 SF

NOTES:

1 Not available with 95 1000S.

2 BPH and SPV for use with 95V only. SPH and BPV for use

with 95 only.

3 Not available with 95V 1000S.

4 Consult factory for availability in Canada.

5 Multi-tap ballast (120V, 208V, 240V, 277V). In Canada 120V,

277V, 347V; ships as 120V/347V.

6 For use with YK mounting (standard) only.

7 For use with TS option only.

8 PER must be ordered with fixture.

Intended Use

For large area facade or monument flood-

lighting.

Features

Housing – Rugged, heavy-gauge, alumi-

num housing, horizontal (95) or vertical

(95V) lamp orientation. Continuous welded

seams, fully gasketed for weathertight in-

tegrity. Standard finish is dark bronze

(DDB) corrosion-resistant polyester pow-

der; other architectural colors available.

Architectural Class 1 anodize finish also

available.

Door Frame – Aluminum door frame se-

cured with four stainless steel latches.

Lens – Thermal-resistant and shock-re-

Designation

HORIZONTAL HOUSING

High Pressure Sodium

95 1000S

Metal Halide

95 1000M

VERTICAL HOUSING

High Pressure Sodium

95V 1000S

Metal Halide

95V 1000M

Options/Accessories

Installed

SF Single fuse (120V, 277V, 347V, n/a TB)

DF Double fuse (208V, 240V, 480V, n/a TB)

PER NEMA twist-lock receptacle only

CSA CSA certified

LPI Lamp included as standard

L/LP Less lamp

For optional Architectural Colors, see page 485.

Shipped separately

UV Upper visor

BV Bottom visor

FV Full visor (4-sided)

GV Glare visor (3-sided)

CV Concentric visor

VG Vandal guard

SC Shorting cap for PER option

PE1 NEMA twist-lock photocontrol

(120V, 208V, 240V)8

PE3 NEMA twist-lock photocontrol

(347V)8

PE4 NEMA twist-lock photocontrol

(480V)8

PE7 NEMA twist-lock photocontrol

(277V)8

Outdoor remote

MR1 Non-encapsulated

Optional mounting

Shipped separately

TS Tenon slipfitter6

(23/8"OD max.)

FCRA Crossarm adapter6

FCRA45 Crossarm adapter

(45° from horizontal)6

EWB Extended wall

bracket6

MP Mounting plate6

TM Tenon mount (base

mount)7

Distribution

Horiz. Vert.

Lamp Lamp

RMH RMV

RNH1RNV3

RWH RWV

BPH2BPV2

SPH2SPV2

Voltage

120

2084

2404

277

347

4804

TB5

Shown with TS mounting option

High-Performance Floodlights

Floodlighting

Dimensions are shown in inches (centimeters) unless

otherwise noted.

95 95V

EPA 4.7 ft2 (.44 m2) 4.3 ft2 (.40 m2)

Width 241/2 (62.5) 21 (53.5)

Height 30 (77) 30 (77)

Depth 121/2 (31.8) 181/8 (46)

Max. weight 90 lbs (40.7 kg) 90 lbs (40.7 kg)

www.lithonia.com

keyword: 95

Lamp/Fixture Data

95 95V

Distribution 1000M 1000S 1000M 1000S

RMH 4x1 5x2 3x5 6x6

RNH 3x1 – 3x3 5x6

RWH 5x1 5x1 3x5 6x6

BPH – – 4x5 6x6

SPH 2x1 4x1 – –

RMV 5x3 6x6 1x4 2x5

RNV 3x3 6x5 1x3 –

RWV 5x4 6x6 1x4 1x5

BPV 5x4 6x6 – –

SPV – – 1x2 1x4

sistant tempered flat lens.

Mounting – Painted steel yoke complete

with vertical angle selector stop, reaim-

ing, and 3-foot, 14/3 SEO cable is standard.

Optics – Segmented anodized aluminum,

precisely formed to provide varying rect-

angular beam patterns (non-rotatable).

Electrical – Constant-wattage autotrans-

former ballasts, copper wound and 100%

factory tested.

Socket – Mogul-base porcelain socket

with copper alloy, nickel-plated screw shell

and center contact. UL listed 1500W-600V.

4KV pulse rated. Uses BT 56 lamp.

Listings – UL Listed (standard). CSA Certified

(see Options). UL listed for wet locations.

467

Outdoor / PSG8

NOTES:

1 Must be ordered with SCWA.

2 RME, RNE, RPN, RWE require reduced jacket BT-37 lamp

with 1000M.

3 RMA, RNA, RWA are for use with 1000M only and require

standard BT-56 lamp.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

6 For use with YK mounting (standard) only.

7 For use with TS option only. TS included.

8 Lamp not included.

9 Quartz lamp wattage not to exceed ballast wattage rating.

10 PER must be ordered with fixture.

Shown with TS mounting option.

Intended Use

For large area facade or monument flood-

lighting.

Features

Housing – Rugged, heavy-gauge, alumi-

num housing, horizontal (55) or vertical

lamp (55V) orientation. Continuous welded

seams, fully gasketed for weathertight in-

tegrity. Standard finish is dark bronze (DDB)

corrosion-resistant polyester powder. Ar-

chitectural class 1 anodize finish also

available.

Door Frame – Aluminum door frame se-

cured with four stainless steel latches.

Lens – Thermal-resistant, tempered flat

lens.

Ordering Information Example: 55 750S RPN 120 SF

Voltage

120

2084

2404

277

347

4804

TB5

Optional mounting

Shipped separately

TS Tenon slipfitter6

(23/8"OD max.)

FCRA Crossarm adapter6

FCRA45 Crossarm adapter

(45° from horizontal)6

EWB Extended wall

bracket6

MP Mounting plate6

TM Tenon mount

(base mount)7

Distribution

RME2

RNE2

RPN2

RWE2

RNA3

RMA3

RWA3

Designation

HORIZONTAL HOUSING & LAMP

High Pressure Sodium

55 750S

55 1000S

Metal Halide

55 320M1

55 350M1

55 400M

55 1000M

VERTICAL HOUSING & LAMP

High Pressure Sodium

55V 750S

55V 1000S

Metal Halide

55V 320M1

55V 350M1

55V 400M

55V 1000M

Options/Accessories

Installed

SF Single fuse (120V, 277V,

347V,

n/a TB)

DF Double fuse (208V,

240V, 480V, n/a TB)

PER NEMA twist-lock

receptacle only

CSA CSA Certified (120V,

277V, 347V only)

LPI Lamp included as

standard

L/LP Less lamp

QRS Quartz restrike8,9

SCWA Super CWA pulse start

ballast (n/a HPS or

1000M)

For optional Architectural Colors, see page 485.

Shipped separately

UV Upper visor

BV Bottom visor

FV Full visor (4-sided)

GV Glare visor (3-sided)

VG Vandal guard

SC Shorting cap for PER

option

PE1 NEMA twist-lock

photocontrol

(120V, 208V, 240V)10

PE3 NEMA twist-lock

photocontrol (347V)10

PE4 NEMA twist-lock

photocontrol (480V)10

PE7 NEMA twist-lock

photocontrol (277V)10

Outdoor remote

MR1 Non-encapsulated

High-Performance Floodlights Floodlighting

Dimensions are shown in inches (centimeters) unless

otherwise noted.

55 55V

EPA 3.5 ft2 (.33 m2) 3.8 ft2 (.35 m2)

Width 231/4 (59.1) 173/8 (44.1)

Height 23 (58.4) 33 (83.8)

Depth 141/2 (36.8) 125/8 (32.1)

Max. weight 91 lbs (41.2 kg) 98 lbs (44.3 kg)

www.lithonia.com

keyword: 55

Lamp/Fixture Data

55 55V

Distribution 1000M 400M 1000S 1000M 400M 1000S

RME 6x5 6x5 6x5 4x6 5x6 5x6

RNE 6x4 6x4 6x4 4x6 4x6 4x6

RPN 6x2 6x2 5x1 1x6 1x6 1x5

RWE 6x5 6x5 6x5 5x6 5x6 5x6

RNA 5x1 – – 1x5 – –

RMA 6x6 – – 6x6 – –

RWA 6x5 – – 6x7 – –

Mounting – Painted, steel yoke complete

with angle selector, aiming stop, and 3-

foot, 14/3 SEO cable is standard.

Optics – Anodized aluminum reflector. Seven

distributions available to provide varying

rectangular beam patterns (non-rotatable).

Electrical – Constant-wattage autotrans-

former ballasts, copper wound and 100%

factory tested.

Socket – Mogul-base porcelain socket with

copper alloy, nickel-plated screw shell and

center contact. UL listed 1500W-600V. 4KV

pulse rated.

Listings – UL Listed (standard). CSA Certified

(see Options). UL listed for wet locations.

Outdoor / PSG8

468

Shown with TS mounting option

Ordering Information Example: 170S 400S HPN 120 SF

Intended Use

For airport aprons or parking areas.

Features

Housing – Rugged, heavy-gauge, alumi-

num housing. Continuous welded seams

for weathertight integrity. Dark bronze

(DDB) corrosion-resistant polyester pow-

der finish; other architectural colors avail-

able. Architectural Class 1 anodize finish

also available.

Door Frame – Aluminum door frame se-

cured with four stainless steel latches.

Lens – Thermal-resistant and shock-re-

sistant tempered flat lens.

Mounting – Painted steel yoke, complete

with vertical angle selector, retaining stop

and 3-foot, 14/3 SEO cable is standard.

Optics – Anodized aluminum reflector with

internal glare control louver, painted matte

black to provide an asymmetrical beam

pattern with sharp vertical cutoff.

Voltage

120

2083

2403

277

347

4803

TB4

Optional mounting

Shipped separately

TS Tenon slipfitter5

(23/8"OD max.)

FCRA Crossarm adapter5

FCRA45 Crossarm adapter (45°

from horizontal)5

EWB Extended wall bracket5

MPB29 Mounting pole bracket

for 2 fixtures at 90°6

MPB39 Mounting pole bracket

for 3 fixtures at 90°6

MPB49 Mounting pole bracket

for 4 fixtures at 90°6

Distribution

HPN

Options/Accessories

Installed

SF Single fuse (120V, 277V, 347V, n/a TB)

DF Double fuse (208V, 240V, 480V, n/a TB)

PER NEMA twist-lock receptacle only

CSA CSA Certified

QRS Quartz restrike7,8

SCWA Super CWA pulse start ballast

(n/a HPS and 1000M)

For optional Architectural Colors, see page 485.

Shipped separately

UV Upper visor

SC Shorting cap for PER option

PE1 NEMA Twist-lock photocontrol

(120V, 208V, 240V)9

PE3 NEMA twist-lock photocontrol

(347V)9

PE4 NEMA twist-lock photocontrol

(480V)9

PE7 NEMA twist-lock photocontrol

(277V)9

Outdoor remote

MR1 Non-encapsulated

NOTES:

1 Must be ordered with SCWA.

2 Requires a BT-37 reduced jacket lamp.

3 Consult factory for availability in Canada.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

5 For use with YK mounting (standard) only.

6 MPB bracket ships separately with junction box and

hinge mechanisms. Bracket weight: 12 lbs.

7 Lamp not included.

8 Quartz lamp wattage not to exceed ballast wattage

rating.

9 PER must be ordered with fixture.

Designation

High Pressure Sodium

170S 250S

170S 400S

170S 750S

170S 1000S

Metal Halide

170S 320M1

170S 350M1

170S 400M

170S 1000M2

High-Performance Floodlights

Floodlighting

170S

Dimensions are shown in inches (centimeters) unless

otherwise noted.

170S

EPA 2.7 ft2 (.25 m2)

Width 21

(53.3)

Height 201/2

(52.1)

Depth 191/4 (48.9)

Max weight 83 lbs (37.6 kg)

Lamp/Fixture Data

Beam

Lamp Spread NEMA

Wattage Ballast Type HoxVoDist.

High Pressure Sodium

250 HPN CWA ET18 128x55 6x4

400 HPN CWA ET18 129x52 6x4

750 HPN CWA BT37 133x57 7x4

1000 HPN CWA E25 132x56 7x4

Metal Halide

400 HPN CWA BT37 139x68 7x4

1000 HPN CWA BT37 138x63 7x4

www.lithonia.com

keyword: 170S

Electrical – Constant wattage autotrans-

former ballast, copper wound and 100%

factory tested.

Socket – Horizontal, mogul-base porce-

lain socket(s) with copper alloy, nickel-

plated screw shell and center contact. UL

listed 1500W-600V. 4KV pulse rated.

Listings – UL Listed (standard). CSA Certified

(see Options). UL listed for wet locations.

469

Outdoor / PSG8

Designation

Metal Halide

TSP 400M1

TSP 1000M

TSP 1500M

Distribution

General purpose Heavy duty2

GP24N HD24N

GP24NFX HD24NFX

GP24M HD24M

GP24MFX HD24MFX

GP24W HD24W

GP24WFX HD24WFX

Voltage

120

2083

2403

277

347

4803

TB4

Sportslighters

Options/Accessories

Options (shipped installed)

SF Single fuse (120V, 277V, 347V) n/a TB

DF Double fuse (208V, 240V, 480V) n/a TB

QRS Quartz restrike system (lamp not included)

C62 2 ft. of 16/3 SEO cable pre-wired

C42 2 ft. of 14/3 SEO cable pre-wired

C22 2 ft. of 12/3 SEO cable pre-wired

CV3P 3 ft. of 16/3 EO cord pre-wired with 3-prong plug

(use with prewired cages and crossarms)5,6

CR Enhanced corrosion resistance

CF Charcoal filter (heavy-duty only)7

SLR Stainless steel lens ring

WC Wood crossarm mounting bolt (5/8"-11 UNC x 7")

SCWA Super CWA pulse start ballast (400M only)

CSA CSA Certified

For optional Architectural Colors, see page 485.

Shipped separately8

FTS Tenon slipfitter

NOTES:

1 May be ordered with SCWA.

2 Heavy-duty anodized aluminum shroud.

3 Consult factory for availability in Canada.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

5 Must use mating receptacle, provided by others.

6 N/A 1500M, 120V.

7 HD option must be ordered.

8 See flood accessories sheet for additional ordering

information.

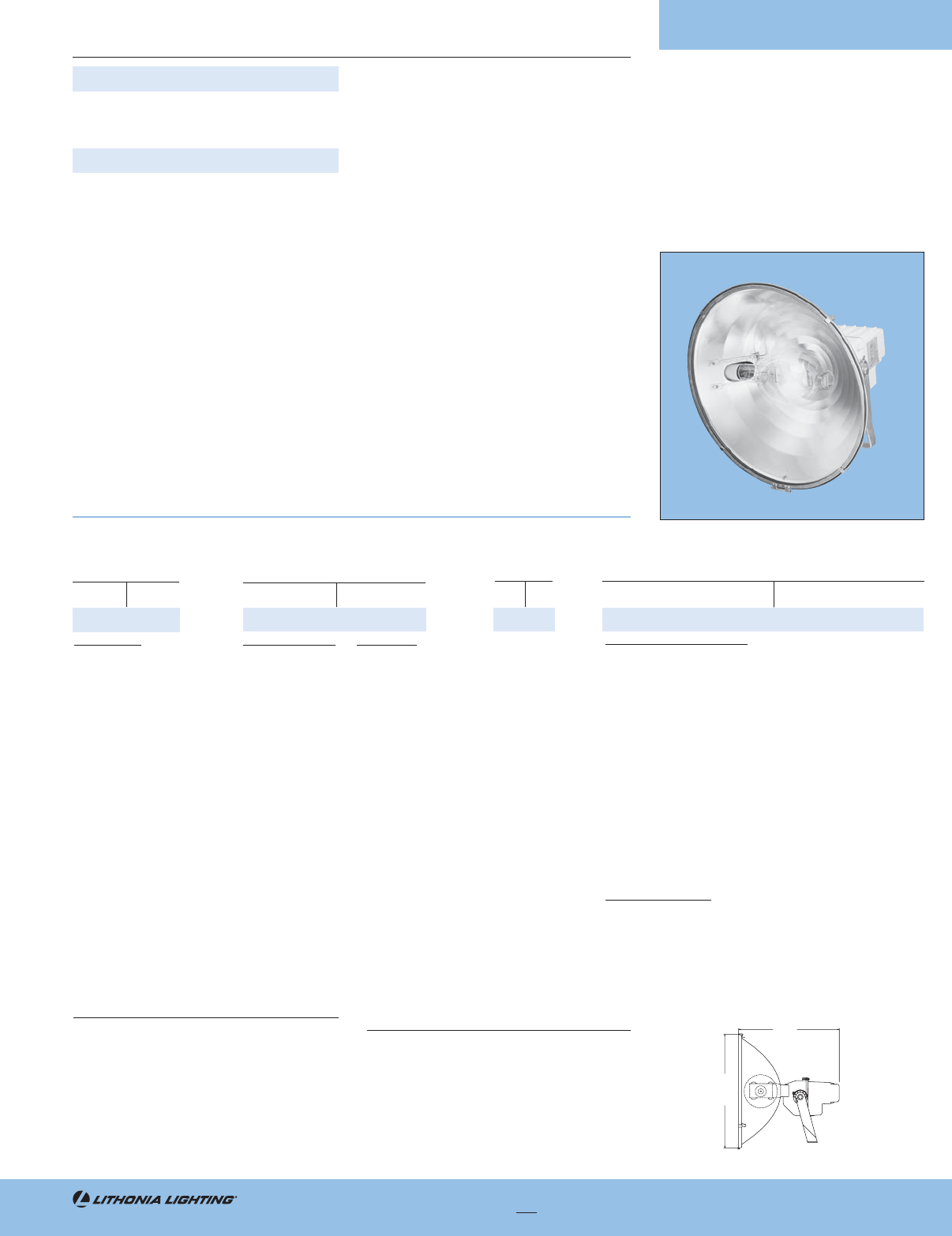

Sportslighting

TSP

Tru-Sport

Intended Use

For stadiums, fields, arenas, tracks or

courts.

Features

Housing – Two-piece, die-cast aluminum

ballast housing mounted to steel trun-

nion. Removable ballast is hinged with

captive fastener. Steel trunnion features

both vertical and horizontal aiming scale

with vertical repositioning stop. Stan-

dard finish is white (DWH) corrosion-re-

sistant polyester powder.

Optics – Heavy-gauge anodized reflector

with five distributions available. Transverse

mounting of lamp. Lamp support included.

Optical chamber is sealed to inhibit en-

trance of contaminants. Heavy-duty hinged

lens is thermal-resistant, shock-resistant

and impact-resistant tempered glass. Lens

frame is secured by spring clips for servic-

ing of lamp. "Flux manager" (NFX, WFX, MFX)

available for optimal glare and spill light

Ordering Information Example: TSP 1500M GP24N 120 SF

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TSP

EPA 3.3 ft2 (0.91m2)

Diameter 241/2 (62.2)

Length 20 (50.8)

Max weight 55 lbs (24.9 kg)

www.lithonia.com

keyword: TSP

control. Choice of General Purpose or heavy-

duty (shrouded) reflectors.

Electrical System – All electrical com-

ponents are thermally isolated from op-

tical assembly, promoting longer life.

Ballast is high-power factor, constant-

wattage autotransformer, copper wound

and 100% factory tested. Below horizon-

tal aiming only.

Installation – Fixture is mounted by secur-

ing trunnion directly to crossarm. Mount-

ing hardware is provided.

Socket – Die-cast socket housing. Porce-

lain, mogul-base socket with copper alloy,

nickel-plated screw shell and spring-

loaded center contact. UL listed 1500W-

600V, 4KV pulse rated.

Hardware – All external hardware is stain-

less steel.

Listings – UL Listed (standard). CSA Certi-

fied (see Options). UL listed for wet loca-

tions. US Patent no. 6,190,023. Canadian

patent no. 2,212,014. Other patent pending.

Outdoor / PSG8

470

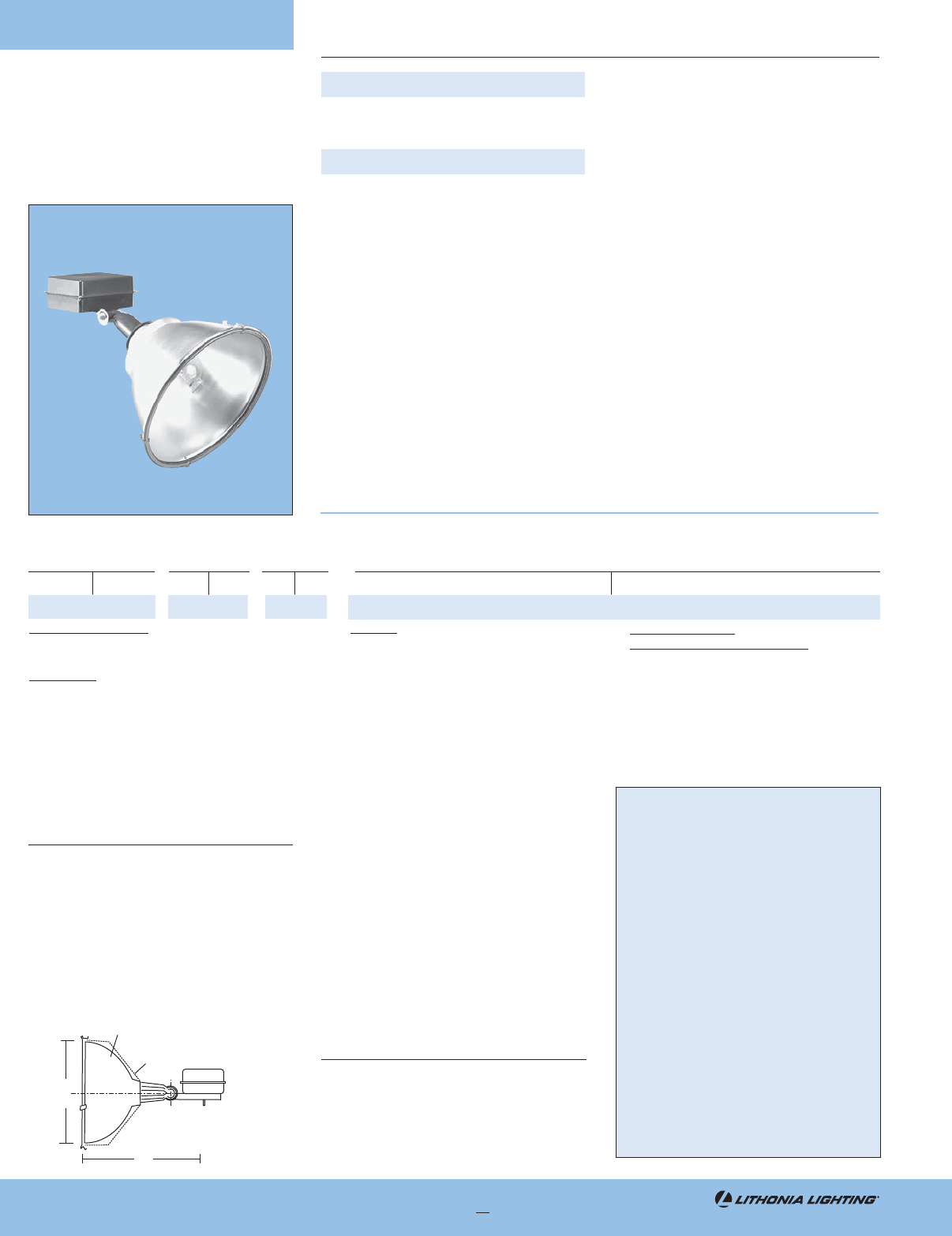

Sportslighting

Controlled-Beam Sportslighters

Designation

High Pressure Sodium

TV 400S

TV 1000S

Metal Halide

TV 400M

TV 1000M

TV 1500M

Voltage

120

2084

2404

277

347

4804

TB5

Installed

SF Single fuse (120V, 277V) n/a TB or 347V

DF Double fuse (208V, 240V, 480V) n/a TB

PER NEMA PE recept. only, no photocell

QRS Quartz restrike system (lamp not

included)

LS Lamp support

C62 2 ft. of 16-3 SEO cord pre-wired

C42 2 ft. of 14-3 SEO cord pre-wired

C22 2 ft. of 12-3 SEO cord pre-wired

CV3P 3 ft. of 16-3 SEO cord pre-wired w/ 3

prong plug for use with pre-wired

cages and crossarms6

AH Above horizontal aiming

CR Enhanced corrosion resistance

CF Charcoal filter (for use with heavy-

duty shroud only)

SLR Stainless steel lens ring

WC Wood crossarm mounting bolt

SCWA Super CWA Pulse Start Ballast

(400M only)

IBL Internal bottom louver

CSA CSA Certified

NOM NOM Certified (consult factory)

For optional Architectural Colors, see page 485.

Distribution1

GP22

GP32

GP43

GP53

GP6

ORDERING/PACKAGING OPTIONS

To accommodate the product's physical configuration

as well as a range of customer handling and process-

ing needs, alternative ordering/packaging methods are

available.

Example:

(21) TV 1500M GP4 TB

sportslighters

can be ordered/packaged as:

Standard

Packaging (Optimized form)

To order, use single catalog number shown in example

above. Fixtures ship as multiple components using

op-

timized

packaging. Example ships as:

(Qty 21) TV 1500M N4 TB HSG (21 cartons of

1 housing)

(Qty 20) GP20A J4 (5 cartons of 4 reflectors)

Qty 1) GP20A U (1 carton of 1 reflector)

Component

Packaging

Housings ship in unit cartons. Example:

(Qty 21) TV 1500M N4 TB HSG (21 cartons of

1 housing)

Reflectors ship in multiples of:

GP20A J4 (5 cartons of 4 reflectors)

GP20A U (1 carton of 1 reflector)

Heavy-duty Shroud (HD)

General Purpose Reflector (GP)

Intended Use

Ideal for recreational or competitive sports

fields, parking areas and industrial yards.

Features

Housing – Heavy-gauge, hydroformed

aluminum ballast housing mounted to

integral die-cast monoframe with hori-

zontal degree aiming scale and reposi-

tioning locator. Die-cast aluminum socket

housing provides vertical aiming adjust-

ment with degree aiming scale and repo-

sitioning stop.

Optics – Heavy-gauge anodized alumi-

num reflectors provide a range of

NEMA beam spreads. Optical chamber

sealed to inhibit entrance of contami-

nants. Hinged lens is heavy-duty, ther-

mal-, shock- and impact-resistant tem-

pered glass.

Electrical – All electrical components con-

tained in ballast housing, which is isolat-

ed thermally from socket housing and op-

Ordering Information Example: TV 1500M GP4 TB

NOTES:

1 To order heavy-duty aluminum shroud, change GP to HD

in catalog number. Example: TV 400S HD2.

2 Not available for 1000S or 1000H.

3 Not available for 1000H.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

6 Must use mating receptacle, provided by others (n/a

1500M 120V).

7 May be ordered as accessory.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

EPA NEMA 2, 3: 2.9 ft.2 (.27 m2)

NEMA 4, 5, 6: 2.5 ft. 2 (.23 m2)

Diameter NEMA 2, 3: 231/8, (58.7)

NEMA 4, 5, 6: 21½ (54.6)

Length NEMA 2, 3: 30 (76.2)

NEMA 4, 5, 6: 31½ (80)

www.lithonia.com

keyword: TV

tical assembly, promoting longer ballast

life. Ballast is high-power factor, constant-

wattage autotransformer, copper wound

and 100% factory tested.

Installation – Mounted by securing inte-

gral crossarm mounting bracket directly

to cross arm.

⁵⁄₈

" x 11UNC mounting bolt

provided. Exposed bolt length: 1

¹₂

Socket – Glazed porcelain, mogul-base

with copper alloy, nickel-plated screw

shell and center contact. UL listed 1500W,

600V.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL

listed for wet locations.

Shipped separately7

NEMA twist-lock PE photocontrol

PE1 120V-240V

PE3 347V

PE4 480V

PE7 277V

SC Shorting cap (metal halide only)

UV Upper visor

FTS Tenon slipfitter

Options/Accessories

471

Outdoor / PSG8

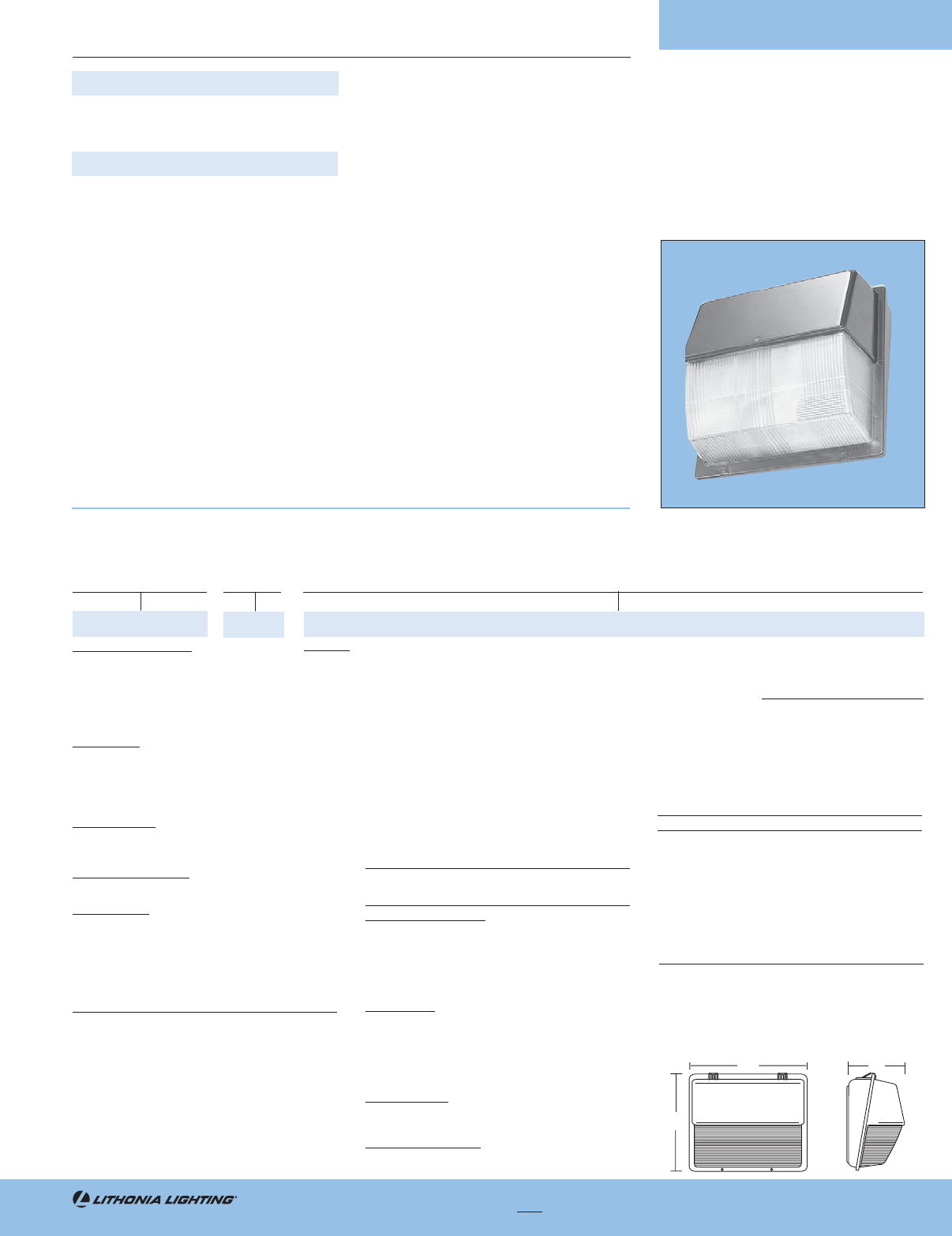

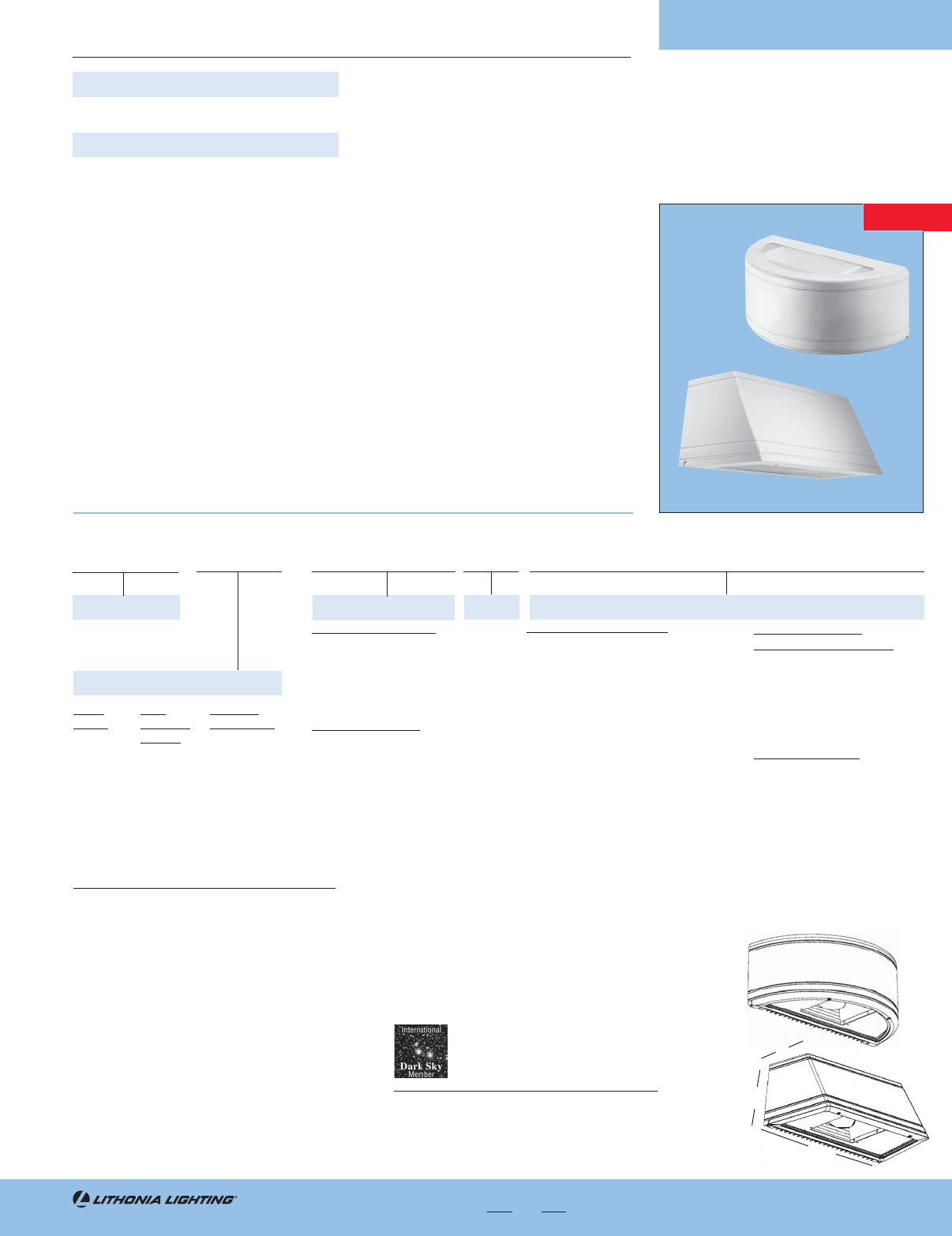

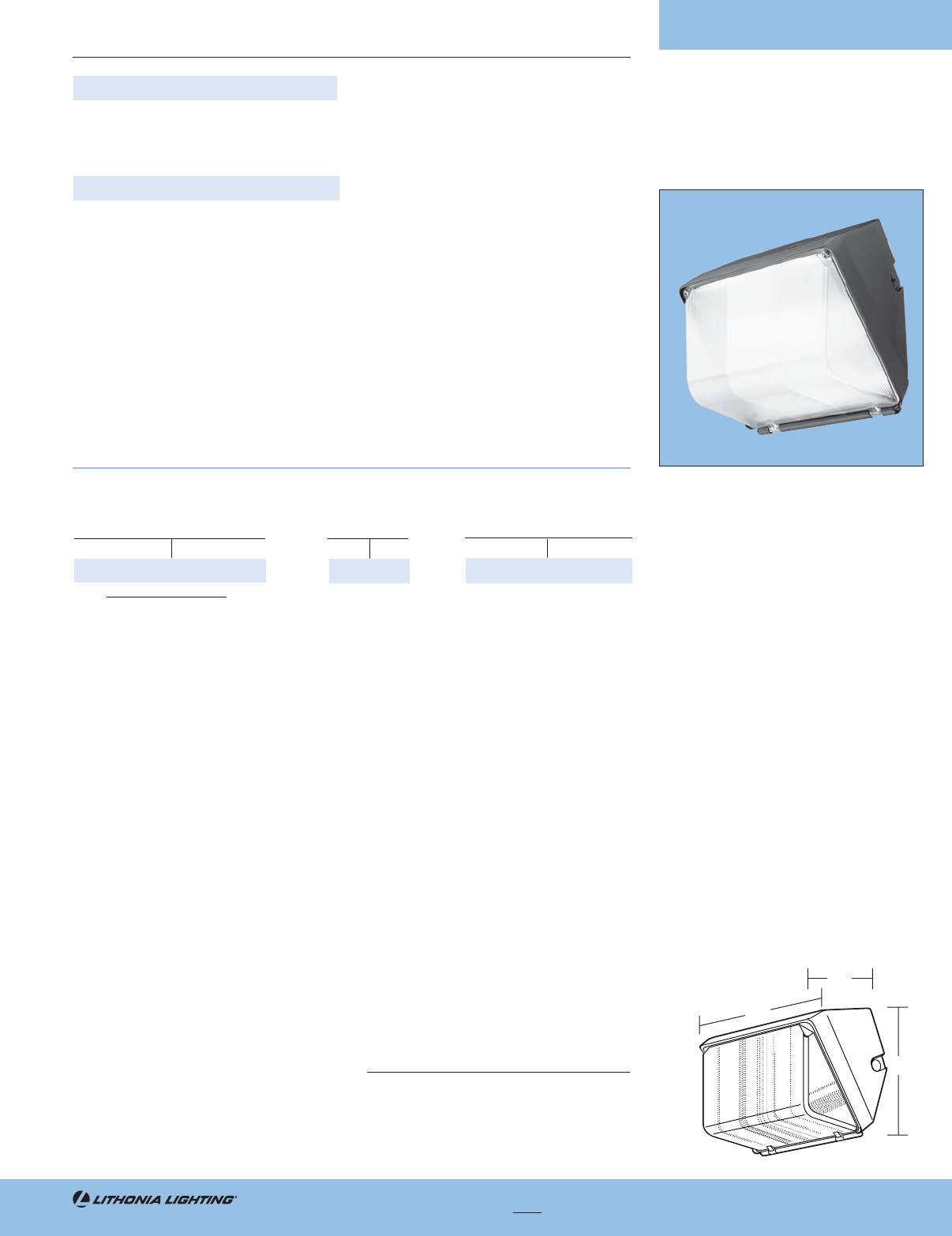

Building Mounted

WSR/WST

Architectural Building Mounted

Ordering Information Example: WST 175M FT 120 SF LPI

NOTES:

1 120V only.

2 Only available with MD, MDU, and MDU5 distributions.

3 Available on WSR fixture only.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

6 Optional penta-tap ballast (120V, 208V, 240V, 277V,

480V; not available in Canada). 175M only.

7 Optional multi-volt electronic ballast (for compact fluo-

rescent lamps only) capable of operating on any line

voltage from 120V-277V.

8 Not available with compact fluorescent.

9 Available for compact fluorescent units only.

10 Must specify voltage. Not available with MVOLT or TB.

11 Not available with SF, DF, or QRS.

12 Not available with 2/32TRT or 2/42TRT.

13 Black finish only.

14 Must be ordered with fixture; no field installations.

15 IBS not available with MD, MDU and MDU5

distributions.

16 Additional architectural colors available; see

www.lithonia.com for more information.

17 Must specify finish.

Shipped installed in fixture

SF Single fuse (120V, 277V,

347V, n/a TB)8

DF Double fuse (208V, 240V,

n/a TB or TBV)8

GMF Internal slow-blow

fusing9,10

EC Emergency circuit (25W

max, lamp included)

DC12 Emergency circuit 12 volt11

(35W lamp included

standard)

ELDW Emergency battery pack

(120V or 277V only)9,12

QRS Quartz restrike system

(100W max, lamp not

included)8

CR Enhanced corrosion

resistance

CRT Non-stick protective

coating13

PE Photoelectric cell-button

type (n/a TB)14

WLU Wet location door for up

orientation

IBS Internal backlight shield15

DFL Diffusing lens

TP Tamperproof

LPI Lamp included as standard

L/LP Less lamp

Series

WST Trapezoid

WSR Half round

Distribution

Downlight Distributions

FT Forward throw

MD Medium throw

(coated lamp

standard)

WT Wide throw

Uplight Distributions3

FTU Forward throw

with 10% uplight

MDU Medium throw

with 10% uplight

(coated lamp

standard)

WTU Wide throw with

10% uplight

MDU5 Up/down medium

throw with 50%

uplight & 50%

downlight (coated

lamp standard)

Intended Use

For building- and wall-mounted applications.

Features

Housing – Rugged, die-cast, single-piece

housing. Die-cast door frame has 1/8" thick

tempered glass lens. Door frame is fully

gasketed with one-piece solid silicone. Stan-

dard finish is textured dark bronze (DDBT)

corrosion-resistant polyester powder with

other architectural colors availabe.

Installation – Universal mounting mecha-

nism with integral mounting support al-

lows fixture to hinge down. Bubble level

provides correct alignment with each in-

stallation.

Optics – Interchangeable, segmented

reflectors for superior uniformity and con-

trol. Three full cutoff distributions avail-

able: FT (forward throw), MD (medium

throw), and WT (wide throw). Four up-

lightdistributions available: FTU (Forward

throw 10% up), MDU (medium throw, 10%

Dimensions are shown in inches (centimeters) unless

otherwise noted.

WSR WST

Width 18

(45.7) 161/4

(41.2)

Depth 9 (22.8) 91/8

(23.2)

Height 71/4

(18.4) 71/4 (18.4)

Max weight 30 lbs (13.6 kg) 30 lbs (13.6 kg)

www.lithonia.com

keywords: WSR and WST

Architectural Colors16

Standard Textured Colors

DDBT Dark bronze

(standard)

DSST Sandstone

DNAT Natural aluminum

DWHG White

DBLB Black

Shipped separately

WSBBW Surface-mounted

back box17

UT5 Uptilt 5 degrees17

WSTWG Wire guard (WST)14

WSTVG Vandal guard

(WST)14

WSRWG Wire guard (WSR)14

WSRVG Vandal guard

(WSR)14

Options

Voltage

120

2084

2404

277

347

TB5

TBV6

MVOLT7

NEW

up), WTU (wide throw, 10% up) and MDU5

(up/down, medium throw, 50% up, 50%

down). Compact fluorescent MD (medium

throw) only.

Electrical – H.I.D.: 50W-150W utilizes a high

reactance, high power factor ballast. 35S

utilizes a reactance high power factor

ballast. 175W utilizes a constant-wattage

auto transformer ballast. Quick-discon-

nect plug easily disconnects reflector from

ballast. Ballasts are copper wound and

100% factory tested. Porcelain, medium-

base copper alloy, nickel-plated screw

shell and center contact. UL listed 660W,

600V 4KV pulse rated. CFL: compact fluo-

rescent ballast is Class P, electronic, high

power factor, <10% THD with starting temp.

of 0o F (-18o C). Fluorescent socket is high-

temperature thermoplastic with integral

lamp retention clip.

Listings – UL Listed suitable for wet loca-

tions (damp location listed in lens-up orien-

tation). CSA Certified (see Options). IP rated.

Metal

Halide

50M

70M

100M

150M

175M

Wattage/Source

High

Pressure

Sodium

35S1

50S

70S

100S

150S

Compact

Fluorescent2

26DTT

2/26DTT

32TRT

2/32TRT

42TRT

2/42TRT

Outdoor / PSG8

472

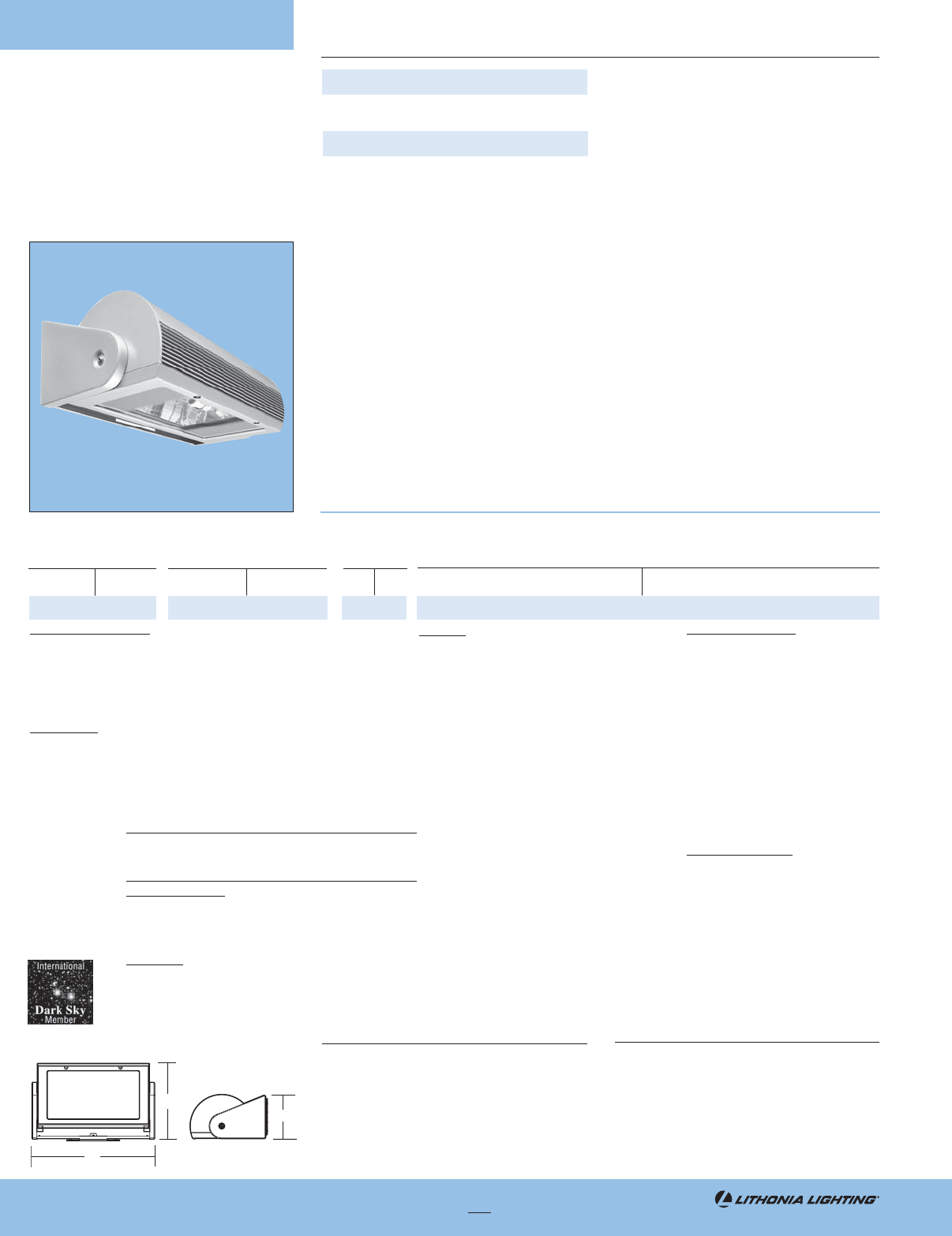

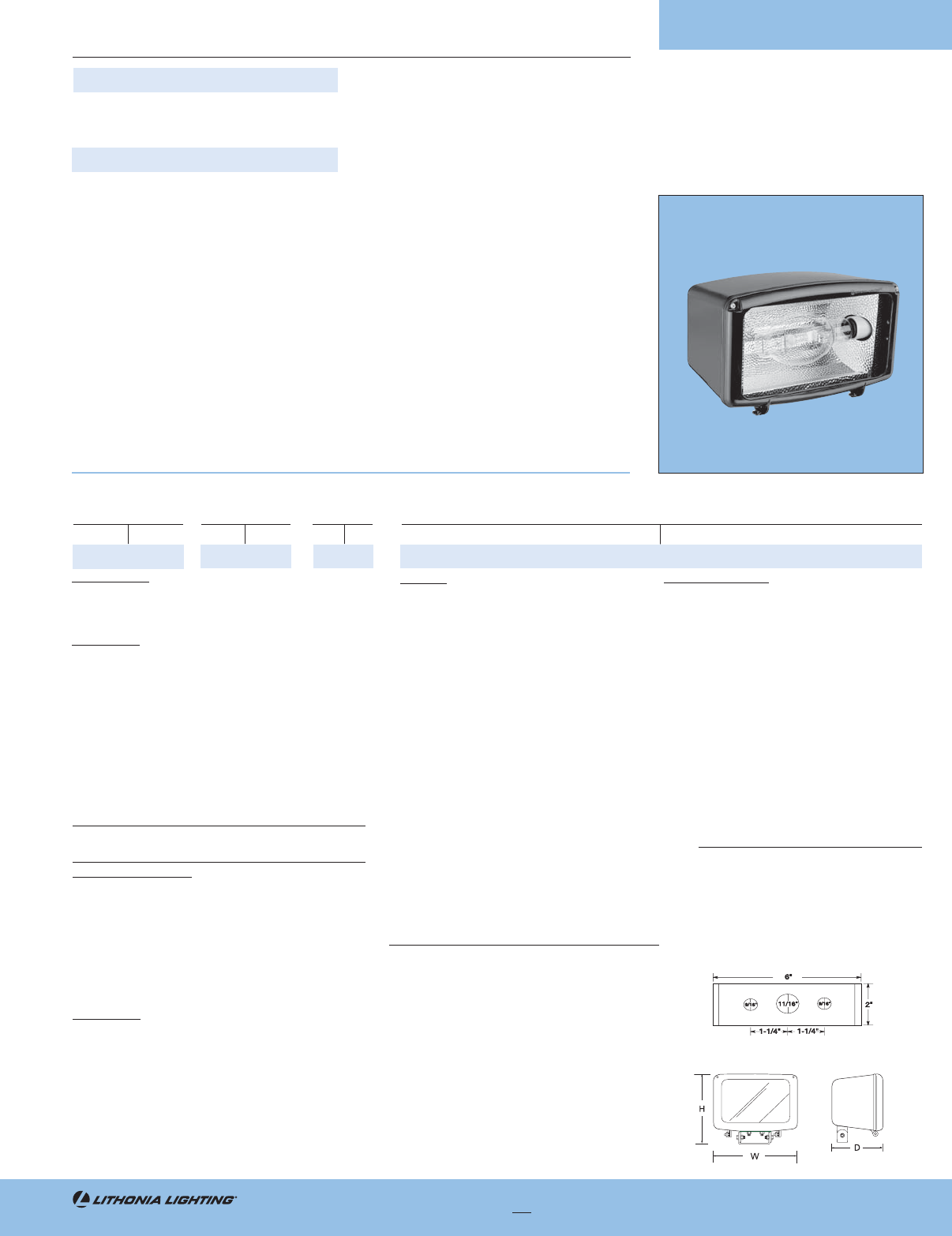

NOTES:

1 Must be ordered with SCWA.

2 Requires ED-28 reduced jacket lamp.

3 WFL2 only.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

6 Additional architectural colors available; see Architectural

Colors brochure on

www.lithonia.com.

7 May be ordered as an accessory. Door frame must be

factory drilled.

Intended Use

For building and wall-mounted applications.

Features

Housing – Extruded aluminum body with

cast end caps is mounted with ¼" bolts, to

formed steel wall bracket. Housing body

can be rotated and locked in any position

along horizontal axis. Standard finish is

dark bronze (DDB) corrosion-resistant poly-

ester powder. Other architectural colors

available.

Lens Frame – Cast aluminum frame is hinged

and secured by stainless steel fasteners.

Closed cell silicone gasket prevents the

penetration of dust and moisture.

Lens – Clear, impact-resistant, tempered

glass lens with silkscreen.

Mounting – Steel mounting plate attaches

directly to industry standard junction box.

Mounting plate includes provision for at-

tachment independent of junction box.

Voltage

120

2084

2404

277

347

4804

TB5

Distribution

SP Spot

BP Horizontal flood3

RN Horizontal spot,

narrow

RM Horizontal spot,

medium

RW Horizontal spot, wide

HPN Vertical flood, narrow

HPM Vertical flood, medium

HPW Vertical flood, wide

FT Forward throw

GZ Wall grazing

Designation

High Pressure Sodium

WFL2 70S

WFL2 100S

WFL2 150S

WFL3 250S

WFL3 400S

Metal Halide

WFL2 70M

WFL2 100M

WFL2 150M

WFL2 175M

WFL3 200M1

WFL3 250M

WFL3 320M1

WFL3 350M1

WFL3 400M2

Options/Accessories

Installed

SF Single fuse (120V, 277V, 347V,

n/a TB)

DF Double fuse (208V, 240V, 480V,

n/a TB)

QRS Quartz restrike system (WFL3 only,

100W max, lamp not included)

CR Enhanced corrosion resistance

CSA CSA Certified

PE Photoelectric cell, button type (n/a

TB 480V)

CFRO Color lens/rose

CFBL Color lens/blue

EC Emergency circuit (WFL3 only)

SCWA Super CWA pulse start ballast

(n/a HPS, 70M, 100M or 175M)

LC90 Lock at 90o for full cutoff

LPI Lamp included as standard

L/LP Less lamp

Ordering Information Example: WFL2 175M GZ 120 LPI

Architectural colors

(powder finish)6

Standard colors:

DDB Dark bronze (standard)

DWH White

DBL Black

Classic colors:

DMB Medium bronze

DNA Natural aluminum

DSS Sandstone

DGC Charcoal gray

DTG Tennis green

DBR Bright red

DSB Steel blue

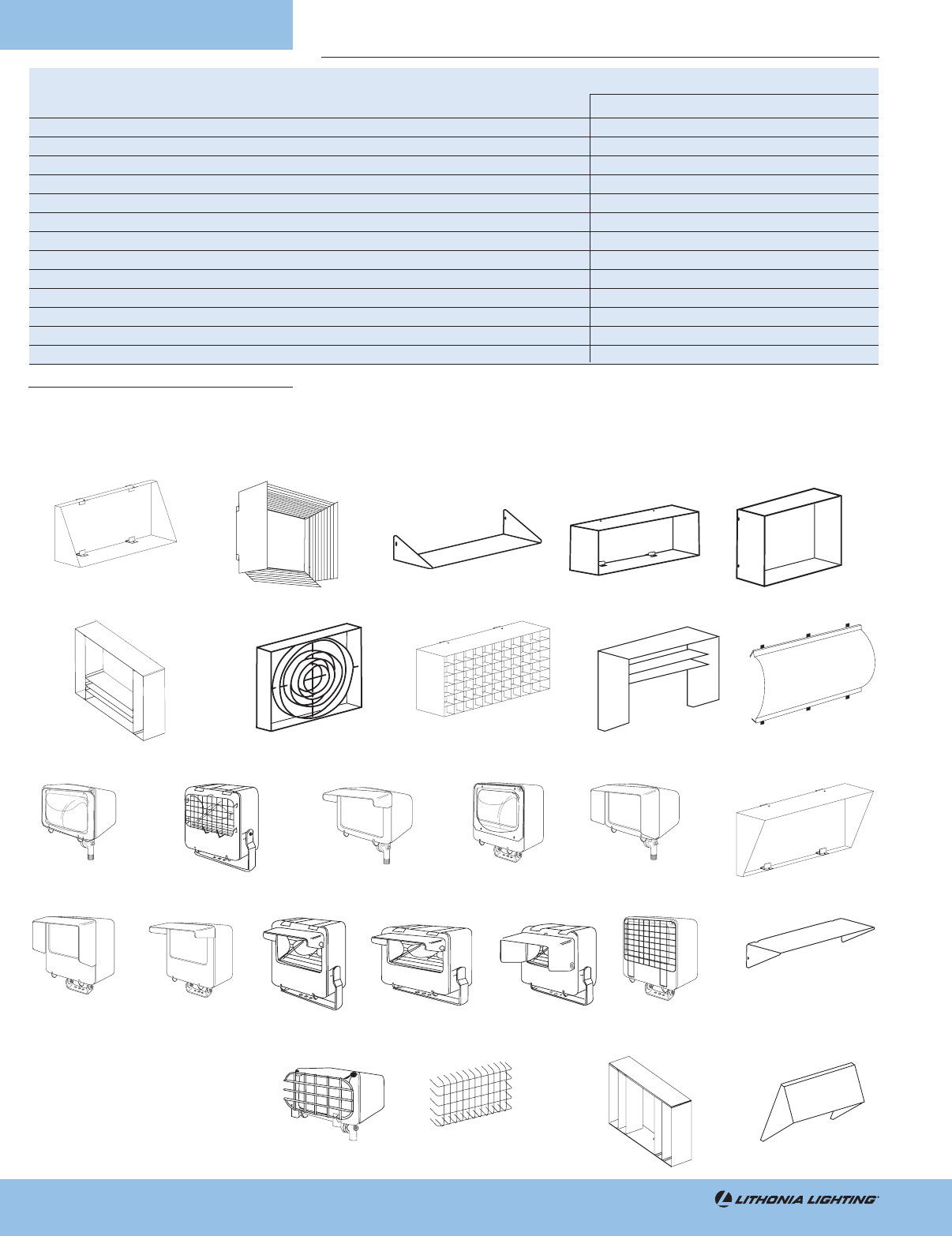

Shipped separately7

UV Upper visor

EV Eggcrate visor (black)

BV Bottom visor

FV Full visor

WG Wire guard

BD Barn door

HLV Horizontal louver

(black)

VLV Vertical louver (black)

BVG Bubble vandal guard

WFLBBW Back box

Architectural Building Mounted

Building Mounted

WFL

Dimensions are shown in inches (centimeters) unless

otherwise noted.

WFL2 WFL3

EPA 1.3 ft2 (.12 m2) 2.0 ft2 (.19 m2)

Width 181/2 (47) 211/2

(54.6)

Depth 63/4

(29.8) 83/4 (22.3)

Height 113/4 (29.8) 143/4

(37.5)

Max. weight 29 lbs (13.1 kg) 44 lbs (19.9 kg)

NEMA

Lamp Base Beam Dist.

Ballast Type Type Spread HoxVo

High Pressure Sodium

150 SP HX-HPF E17 Medium 142x127 7x6

150 HPW HX-HPF E17 Medium 39x12 3x1

400 SP CWA ET18 Mogul 60x13 4x1

400 HPW CWA ET18 Mogul 144x140 7x7

Metal Halide

175 SP CWA ED17 Medium 27x15 2x1

175 HPW CWA ED17 Medium 147x127 7x6

400 SP CWA BT28 Mogul 42x17 3x1

400 HPW CWA BT28 Mogul 146x140 7x7

www.lithonia.com

keyword: WFL

(Required for WFL3) Optional Backbox wall

mounting available for surface conduit ap-

plications.

Optics – Anodized aluminum reflectors: seg-

mented, specular or hammertone finish.

Electrical – 150W and below utilizes a high

reactance, high power ballast. 175W and

above utilizes a constant-wattage au-

totransformer ballast. Both ballasts are

copper wound and 100% factory tested.

Socket – Horizontal porcelain socket (WFL2

medium-base, WFL3 mogul-base) with cop-

per alloy, nickel-plated screw shell and

center contact. 4KV pulse rated. UL listed

660W, 600W.

Listings – UL Listed (standard). CSA Certi-

fied (see Options). UL listed for wet loca-

tions. IP65 rated in accordance with stan-

dard IEC 529.

473

Outdoor / PSG8

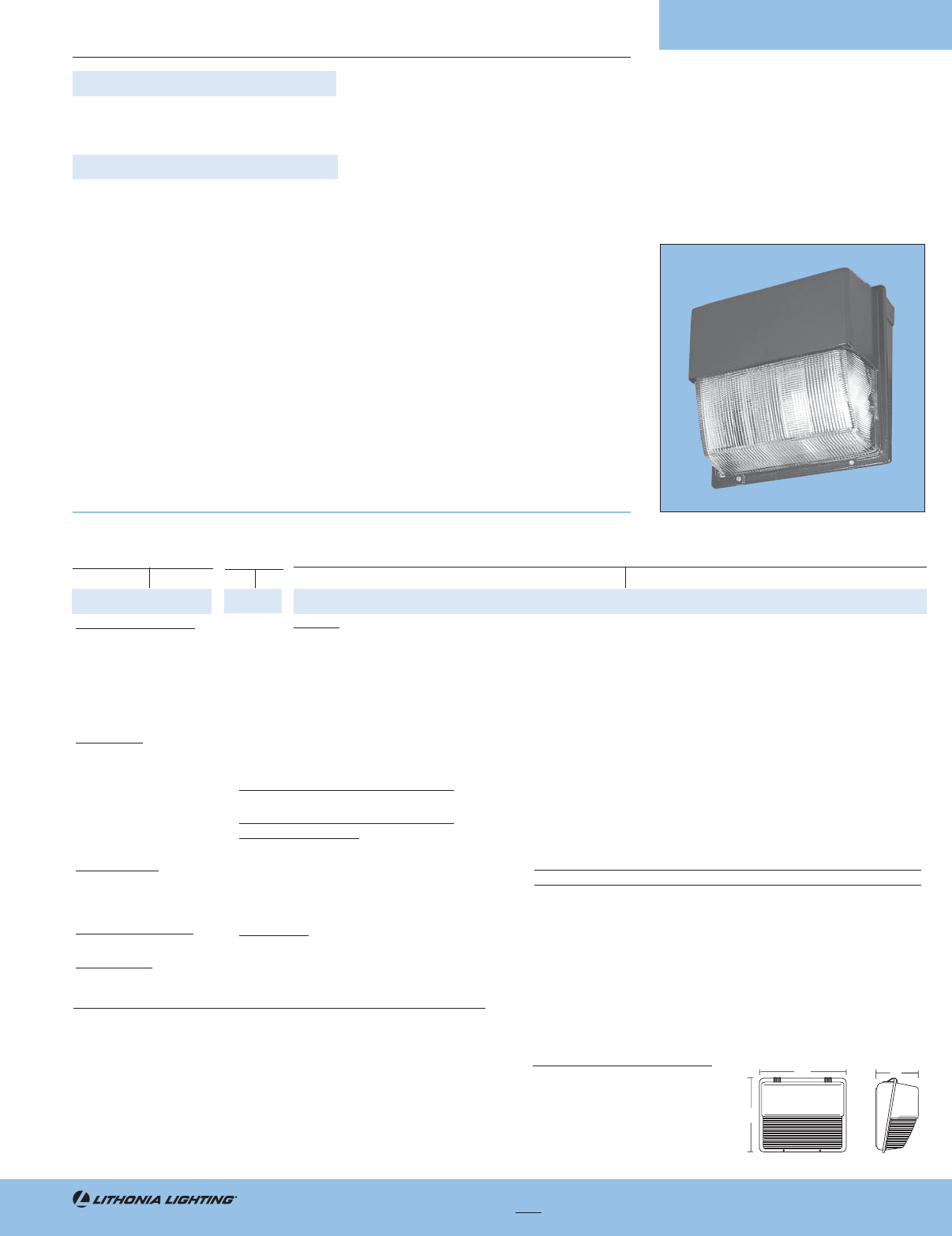

Ordering Information Example: TWH 250S TB LPI

Voltage

120

2087

2407

277

347

4808

TB9

TBV10

Options/Accessories

Designation

High Pressure Sodium

TWH 70S

TWH 100S

TWH 150S1

TWH 200S

TWH 250S

TWH 400S

TWH 250/400S2

Metal Halide

TWH 100M

TWH 150M

TWH 175M

TWH 200M3

TWH 250M

TWH 320M3

TWH 350M3

TWH 400M4

Mercury Vapor

TWH 100H

TWH 175H

TWH 250H

Low Pressure Sodium

TWH 35L5

Incandescent

TWH 300I6

PER NEMA twist-lock receptacle14

LS Lamp support (mogul socket only)

FS Full shield

WG Wireguard15

VG Vandal guard15

SCWA Super SCWA pulse start ballast

(150M-400M only--n/a 175M )

RHP Reactor high power factor ballast

(HPS 150W & below only)

RNP Reactor normal power factor

ballast (HPS 150W & below only)

XHP Reactance high power factor

ballast (HPS 150W & below only)

CSA CSA Certified16

Installed

SF Single fuse (120V, 277V, 347V)5

DF Double fuse (208V, 240V, 480V)5

EC Emergency circuit11,12

QRS Quartz restrike system11,12

CR Enhanced corrosion resistance

CRT Non-stick protective coating13

PE Photoelectric cell – button type5

NOTES:

1 Operates 55V lamp.

2 Shipped as 250S.

3 Must be ordered with SCWA.

4 Requires T-15, ED or BT 28 reduced jacket

lamp.

5 Not available TB.

6 120V only, A21 lamp.

7 Consult factory for availability in Canada.

8 Not available in Canada.

9 Optional multi-tap ballast (120V, 208V,

240V, 277V). In Canada 120V, 277V, 347V;

ships as 120V/347V.

NOM NOM Certified (consult

factory)

LPI Lamp included as

standard

L/LP Less lamp

TP Tamperproof fasteners

For optional Architectural

Colors, see page 485.

Dimensions are shown in inches

(centimeters) unless otherwise noted.

TWH

Height 151/4 (40)

Width 161/4 (41.3)

Depth 8 (20.3)

Weight 26-42 lbs (12-19kg)

Building Mounted

TWH

Accessories (Order separately)

RK1 PEB1 Photoelectric control kit, 120V

RK1 PEB2 Photoelectric control kit, 208V,240V,277V

RK1 PEB1 CSA Photoelectric control kit, 120V

RK1 PEB3 CSA Photoelectric control kit, 347V

RK1 TWHGL FS Field installable full shield, for cutoff

PE1 NEMA twist-lock photocontrol, 120V,208V,240V

PE3 NEMA twist-lock photocontrol, 347V

PE4 NEMA twist-lock photocontrol, 480V

PE7 NEMA twist-lock photocontrol, 277V

Lamp/Fixture/Ballast Data17

Lamp Base

Wattage Ballast Type Type

High Pressure Sodium (med/clear)

70 HX-HPF E17 medium

100 HX-HPF E17 medium

150 HX-HPF E17 medium

250 CWA BT28 medium

400 CWA BT28 medium

Metal Halide (med(100)/mog/clear)

150 HX-HPF E17 medium

175 CWA BT28 mogul

250 CWA BT28 mogul

400 CWA BT28 mogul

www.lithonia.com

keyword: TWH

10 Optional 5-tap ballast (120V, 208V, 240V,

277V, 480V).

11 Lamp not included.

12 Quartz lamp wattage not to exceed bal-

last wattage rating.

13 Black finish only.

14 Photocell not included.

15 Requires factory modification.

16 Not available with TBV.

17 Other ballast types available.

Intended Use

For outdoor storage areas, warehouse and

factory perimeters and loading docks.

Features

Housing – Rugged, die-cast aluminum

housing. Corrosion-resistant captive ex-

ternal hardware includes slotted hex-

head fasteners. Standard finish is dark

bronze (DDB) corrosion-resistant polyes-

ter powder. Other architectural colors

available.

Optics – Reflector is specular anodized alu-

minum. Refractor is prismatic borosilicate

glass. Lens is sealed and gasketed to inhib-

it entrance of outside contaminants.

Electrical – 70-150W HPS and 100-150M:

High-reactance, high-power factor. All

others: Constant-wattage autotransform-

er. Ballast is copper wound and 100% fac-

tory tested. UL listed. Electrical compo-

nents mounted in hinged front cover that

Die-Cast Wall-Paks, Glass Refractor

includes primary and secondary electri-

cal disconnect.

Installation – Back housing is separated

from front housing, eliminating ballast

weight and promoting easy handling. Top

¾" threaded wiring access. Back access

through removable ¾" knockout. Mount

on any flat, non-combustible vertical sur-

face. Not recommended in applications

where a sprayed stream of water can

come in direct contact with glass lens.

Socket – Glazed porcelain (mogul-base;

175M and above), horizontally oriented

with copper alloy, nickel-plated screw

shell and center contact. 4KV pulse rated.

Medium-base (150M,100S and below) UL

listed 660W, 600V. Mogul-base: UL listed

1500W, 600V.

Listings – UL Listed (standard). CSA or

NOM Certified (see Options). UL listed for

wet locations. IP65 rated (250W and be-

low) or IP54 rated (400W) in accordance

with IEC standard 529.

Outdoor / PSG8

474

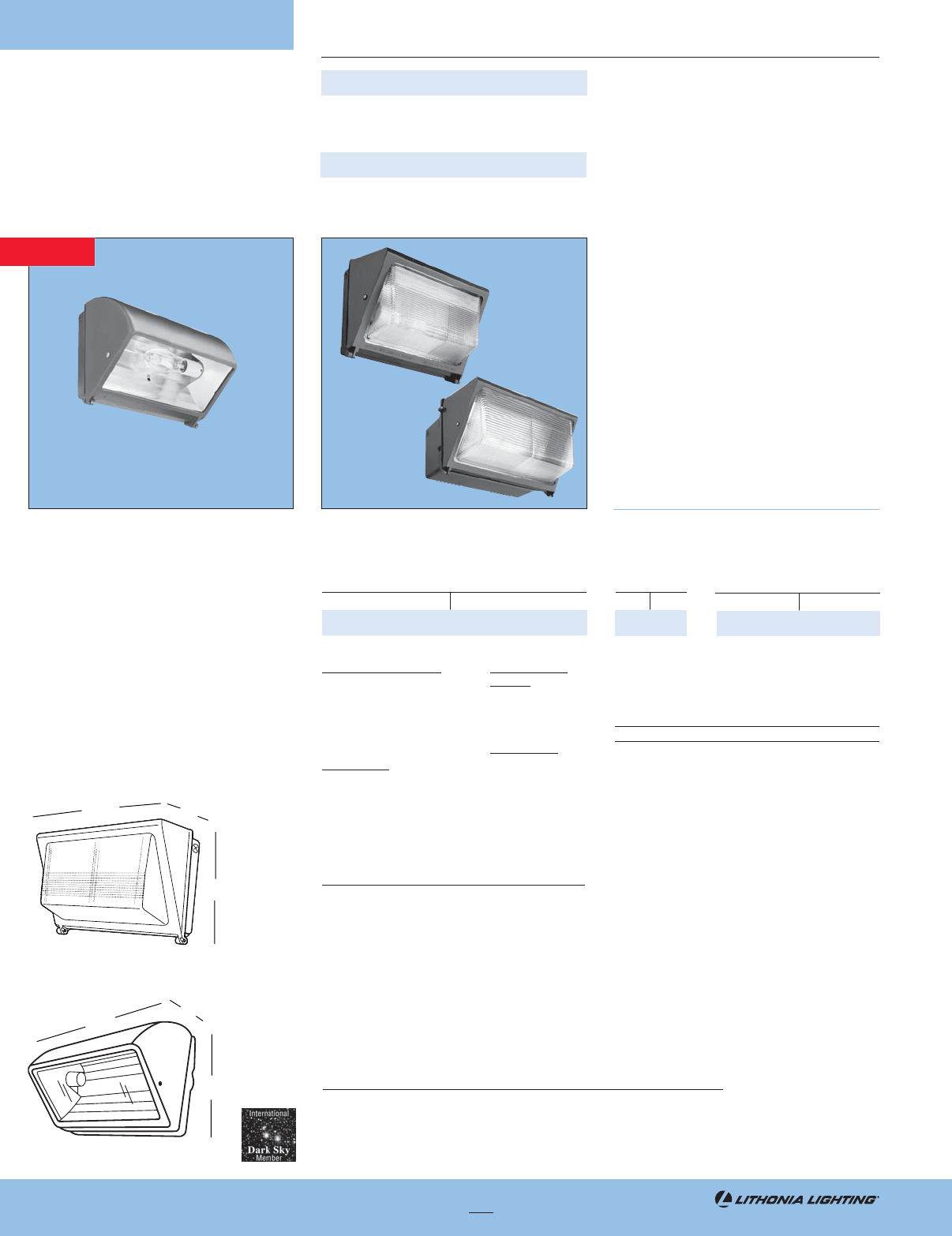

Building Mounted

TWR

Ordering Information Example: TWR1 70S TB LPI

Voltage

TB1

120/3472

Options

LPI Lamp included as

standard

CSA CSA Certified

TWR1/TWR2

High Pressure Sodium

TWR1 70S

TWR1 100S

TWR1 150S

TWR2 250S

TWR2 400S

Metal Halide

TWR1 70M

TWR1 100M

TWR1 175M

TWR2 250M

TWR2 400M

Dimensions are shown in inches (centimeters) unless otherwise noted.

TWR1 TWR2 250W TWR2 400W TWRIC

Height 9 (22.86) 91/4 (23.50) 9 1/4

(23.50) 815/32 (21.5)

Width 13 (33.02) 177/8 (45.40) 177/8 (45.40) 13 (33)

Depth 7

3/8

(18.75) 93/8 (23.81) 121/2 (31.75) 101/4 (26)

Max weight 18 lbs (11.8 kg) 26 lbs (11.8 kg) 31 lbs (14.07 kg)

NOTES:

1 TB is 120V, 208V, 240V, 277V. In Canada 120V, 277V, 347V;

ships as 120V/347V.

2 Only available with CSA.

Accessories (Order separately)

TWR1WG Wireguard

TWR2WG Wireguard

TWR1CWG Wireguard

RK1 TWR1 FA Lens repair kit

RK1 TWR2 FA Lens repair kit

RK1 TWR1 CFA Lens repair kit

TWRIC FCV Full cutoff visor

www.lithonia.com

keyword: TWR

Die-Cast Wall-Paks, Glass Refractor

Intended Use

For mounting above entryways and load-

ing docks.

Features

Housing – Rugged, die-cast aluminum back

housing and hinged door frame. Castings

TWR1

TWR2

TWRIC

High Pressure

Sodium

TWRIC 70S

TWRIC 100S

TWRIC 150S

Metal Halide

TWRIC 70M

TWRIC 100M

TWRIC 175M

Designation

TWR1C

TWR1

TWR1C

NEW

are sealed with a one-piece gasket to in-

hibit the entrance of external contami-

nants. Finish is bronze polyester powder

paint standard.

Installation – Housing configured for mount-

ing directly over a standard 4" outlet box or

for surface wiring via any of three conve-

nient ½" threaded conduit entry hubs.

Optics – (TWR1, TWR2) Refractor is pris-

matic borosilicate glass. Reflector is die-

formed anodized stippled aluminum. TWR1

medium-base and TWR2 mogul-base lamp

included in carton as standard. (TWRIC)

tempered glass lens. One-piece anodized

aluminum reflector.

Electrical – Quad-tap, constant wattage

autotransformer (175M-400M; 250S-400S).

High reactance, high power factor (70S-

150S; 70M-150M). Ballast is copper wound

and 100% factory tested.

Listings – UL Listed to US and Canadian safety

standards. UL/C-UL listed for wet locations.

(UL tested at 25°C ambient temperature).

475

Outdoor / PSG8

Lamp/Fixture/Ballast Data9

Lamp Base

Wattage Ballast Type Type

High Pressure Sodium (med/clear)

35 RHP E17 medium

50 RHP E17 medium

70 XHP E17 medium

100 XHP E17 medium

150 XHP E17 medium

Metal Halide (med(70/100/150)/mogul(175)/clear)

50 HX-HPF E17 medium

70 HX-HPF E17 medium

100 HX-HPF E17 medium

150 HX-HPF E17 medium

175 CWA BT28 mogul

Mercury Vapor (mog/coated)

100 CWA E17 medium

175 CWA BT/ED28 mogul

Low Pressure Sodium (D.C. bay/clear)

35 HPF-LAG T17 medium

Building Mounted

TWP

Intended Use

For entrances, loading docks, walkways

and vehicle ramps.

Features

Housing – Rear housing is rugged, die-cast

aluminum. Corrosion-resistant, captive ex-

ternal hardware includes slotted hex-head

and tamperproof fasteners. Finish is dark

bronze (DDB) corrosion-resistant polyester

powder.

Optics – Reflector is aluminum, finished in

white enamel. Front housing and refractor

are one-piece, injection-molded, UV-

stabilized polycarbonate. Standard fin-

ish an opaque portion of front cover and

back housing is dark bronze polyester.

Refractor is sealed and gasketed to inhib-

it the entrance of outside contaminants.

Electrical – HPS, 70-150M: High-reac-

tance, high-power factor (XHP). 175MH

and MV: Constant-wattage autotrans-

Ordering Information Example: TWP 175M TB LPI

Designation

High Pressure Sodium

TWP 35S1,2

TWP 50S1

TWP 70S

TWP 100S

TWP 150S3

Metal Halide

TWP 70M

TWP 100M

TWP 150M

TWP 175M

Mercury Vapor

TWP 100H

TWP 175H

Low Pressure Sodium

TWP 35L1

Incandescent

TWP 200I

Options/AccessoriesVoltage

120

2084

2404

277

347

4804

TB5

Installed

SF Single fuse (120V, 277V, 347V)1

DF Double fuse (208V, 240V, 480V)1

EC Emergency circuit6,7

QRS Quartz restrike system6,7

CR Enhanced corrosion resistance

CRT Non-stick protective coating8

PE Photoelectric cell, button type1

LPI Lamp included as standard

L/LP Less lamp

FS Full shield

NOTES:

1 Not available with 480V or TB.

2 120V only.

3 Operates 55V lamp.

4 Consult factory in Canada; not available with 35S, 50S and

150M.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

6 Lamp not included.

7 Quartz lamp wattage not to exceed ballast wattage rating.

8 Black finish on housing only.

9 Other ballast types available.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TWP

Height 157/16 (39.2)

Width 161/8 (41)

Depth 73/4

(19.7)

Weight 16 lbs (7 kg)

Cast Wall-Paks, Polycarbonate Refractor

WG Wireguard

SCWA Super CWA pulse start

ballast (150M only)

RHP Reactor high power factor

Ballast (HPS only)

RNP Reactor normal power factor

ballast (HPS only)

XHP Reactance high power

factor ballast (HPS only)

Accessories (Order separately)

RK1 PEB1 Photoelectric control kit, 120V

RK1 PEB2 Photoelectric control kit, 208V,

240V, and 277V.

RK1 PEB1 CSA Photoelectric control kit, 120V

RK1 PEB3 CSA Photoelectric control kit, 347V

RK1 TWPFA FS Field installable shield for cutoff

www.lithonia.com

keyword: TWP

CSA CSA Certified

NOM NOM Certified (consult

factory)

Architectural Colors (optional)

DNA Natural aluminum

DBL Black

DMB Medium bronze

DWH White

DSS Sandstone

former. Ballast is copper wound and 100%

factory tested. UL listed. Electrical com-

ponents mounted on back housing.

Installation – Top ¾" threaded wiring ac-

cess. Back access through ¾" opening.

For feed-thru wiring, use condulet tee

(not included). Mount on any flat, non-

combustible vertical surface.

Socket – Glazed porcelain (mogul base),

horizontally oriented socket with copper

alloy, nickel-plated screw shell and center

contact. Medium-base for 150W and be-

low: UL listed 660W, 600V, 4KV pulse rat-

ed. Mogul-base for 175W: UL listed

1500W, 600V, 4KV pulse rated.

Listings – UL Listed (standard). CSA or

NOM Certified (see Options). UL listed for

wet locations. IP65 rated in accordance

with IEC standard 529.

Outdoor / PSG8

476

Lamp/Fixture/Ballast Data

Lamp Base

Wattage Ballast Type Type

High Pressure Sodium (med/clear)

35 RNPF E17 medium

50 RNPF E17 medium

70 RNPF E17 medium

100 RNPF E17 medium

Metal Halide (med(70/100/150)/mog(175)/clear)

50 HX-HPF E17 medium

70 HX-HPF E17 medium

100 HX-HPF E17 medium

Fluorescent (double twin-tube/triple-tube)

22DTT Mag NPF T4 GX32D-2

26DTT Elec HPF T4 GX32D-3

28DTT Mag NPF T4 GX32D-3

32TRT Elec HPF T4 GX24Q-3

42TRT Elec HPF T4 GX24Q-3

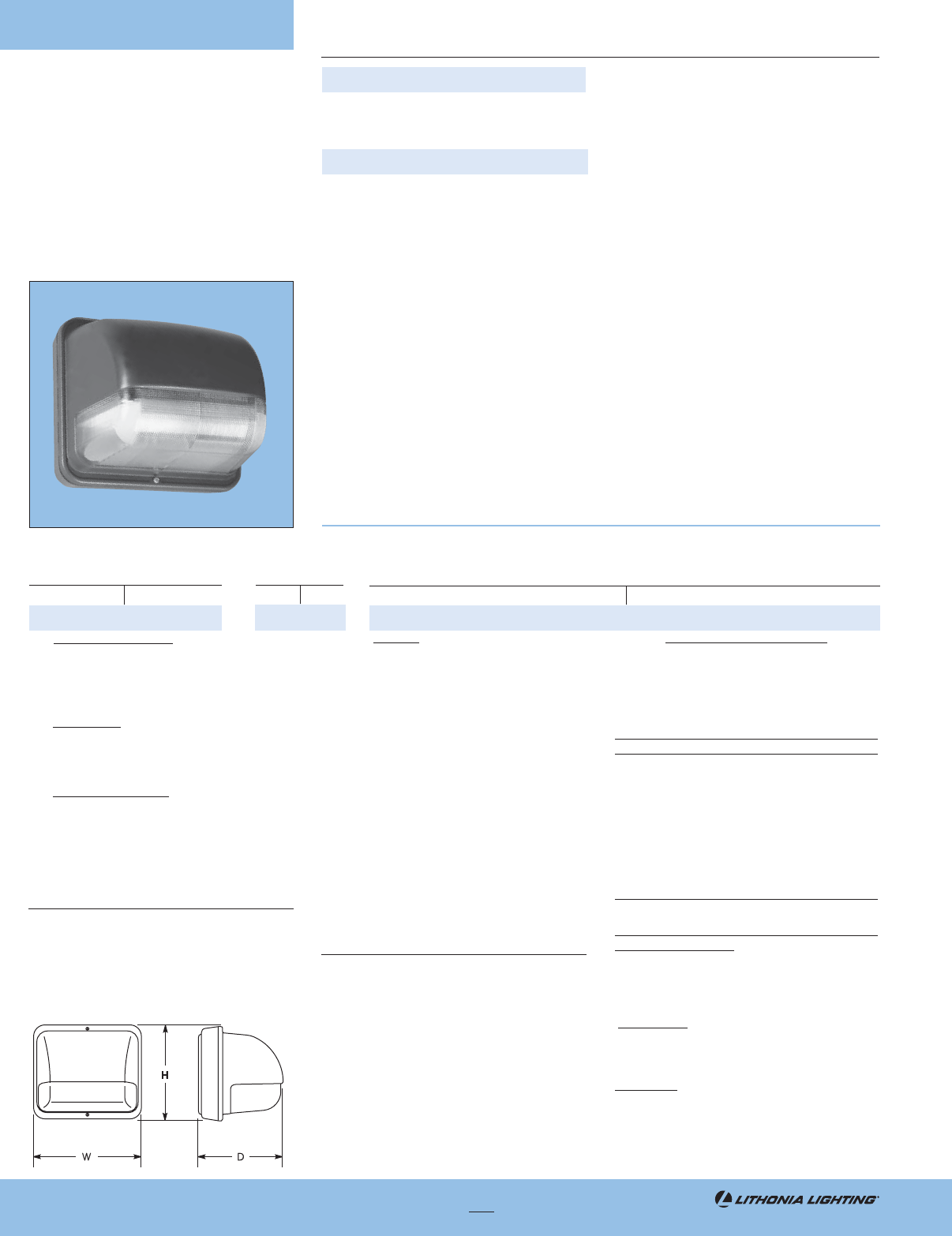

Building Mounted

TWA

Contour

Intended Use

For entrances, stairwells, corridors and

other pedestrian areas.

Features

Housing – Rear housing is rugged, die-

cast aluminum. Corrosion-resistant, cap-

tive external hardware includes slotted

hex-head and tamperproof fasteners. Fin-

ish is dark bronze (DDB) corrosion-resis-

tant polyester powder.

Optics – Front housing and refractor are

one-piece, injection-molded, UV-stabi-

lized polycarbonate. High-performance

optical system consists of specular an-

odized segmented reflector and comput-

er-designed prism pattern. Standard fin-

ish is dark bronze polyester enamel. Re-

fractor sealed with one-piece, high-tem-

perature silicone gasket to inhibit en-

trance of outside contaminants.

Electrical – MH: High-reactance, high-

power factor standard. HPS: Reactor nor-

mal power factor standard, HPF available.

Ordering Information Example: TWA 100M 120 LPI

Designation

High Pressure Sodium

TWA 35S1

TWA 50S2

TWA 70S3

TWA 100S3

Metal Halide

TWA 50M

TWA 70M

TWA 100M

Compact Fluorescent

TWA 22DTT (2-pin)

TWA 26DTT (4-pin)

TWA 28DTT (2-pin)

TWA 32TRT (4-pin)

TWA 42TRT (4-pin)

Voltage

120

2084

2404

277

347

TB5

MVOLT6

NOTES:

1 120V only.

2 120V or 277V only

3 120 R-NPF is standard, 208V, 240V, 277V, 347V and TB are

high-reactance high power factor.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V. In

Canada 120V, 277V, 347V; ships as 120V/347V.

6 Optional multi-volt electronic ballast (for compact

fluorescent) capable of operating any line voltage from

120V-277V.

7 Available for CF only. Not available with MVOLT.

8 Not available with multi-tap ballast.

9 Lamp not included.

10 Quartz lamp wattage not to exceed ballast wattage

rating; not available with compact fluorescent..

11 Black finish only.

Installed

GMF GMF Internal slow-blow

fusing7

SF Single fuse (120V, 277V, 347V)8

DF Double fuse (208V, 240V)8

EC Emergency circuit9,10

QRS Quartz restrike system9,10

CR Enhanced corrosion

resistance

CRT Non-stick protective coating

(rear housing only)11

PE Photocell (button type)8

LPI Lamp included as standard

L/LP Less lamp

XHP High power factor ballast

(HPS only)

CSA CSA Certified

NOM NOM Certified (consult

factory)

Architectural Colors (optional)

DNA Natural aluminum

DBL Black

DMB Medium bronze

DWH White

DSS Sandstone

Options/Accessories

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TWA

Height 10 (25.4)

Width 111/2 (29.2)

Depth 815/16 (22.7)

Max weight 14 lbs (6.4 kg)

Mini Wall-Paks, Polycarbonate Refractor

Accessories (Order separately)

RK1 PEB1 Photoelectric control kit, 120V

RK1 PEB1 CSA Photoelectric control kit, 120V

RK1 PEB2 Photoelectric control kit, 208V,

240V, 277V

RK1 PEB3 CSA Photoelectric control kit, 347V

TWAWG Wireguard

www.lithonia.com

keyword: TWA

UL listed. Electrical components are

mounted to the cast-aluminum housing,

promoting maximum heat dissipation.

(For 50 hertz availability consult facto-

ry). Fluorescent ballasts are magnetic

NPF (22 &28 DTT) or electronic HPF (26

DTT & TRT).

Installation – Top ½" threaded wiring ac-

cess. Back access through ¾" opening.

For feed-thru wiring, use condulet tee

(not included). Mount on any flat, non-

combustible vertical surface. Photocell is

field installable.

Socket – HID is porcelain, horizontally

oriented, medium-base socket with cop-

per alloy, nickel-plated screw shell and

center contact. UL listed 660W, 600V and

4KV pulse rated. Fluorescent is 2-pin

(DTT) or 4-pin (TRT), positive latching

thermoplastic.

Listings – UL Listed (standard). CSA or

NOM Certified (see Options). UL listed for

wet locations. IP65 rated in accordance

with IEC standard 529.

477

Outdoor / PSG8

Intended Use

For entrances, stairwells, corridors and

other pedestrian areas.

Features

Housing – Rear housing is rugged, die-

cast aluminum. Front cover is one-piece,

UV-resistant, injection-molded polycar-

bonate, internally painted. Captive exter-

nal hardware is treated for corrosion re-

sistance and included slotted hex-head

and tamper-proof fasteners.Finish is dark

bronze (DDB) corrosion-resistant polyes-

ter powder.

Optics – One-piece, die-formed reflector

is diffused aluminum. Refractor is clear

polycarbonate, providing IES cutoff dis-

tribution and maximum lateral light out-

put. Standard finish is dark bronze poly-

ester enamel. Front cover is sealed and

gasketed to inhibit the entrance of out-

side contaminants.

Electrical – MH: high-reactance, high-

power factor standard. HPS: Reactor nor-

mal power factor standard. HPF available.

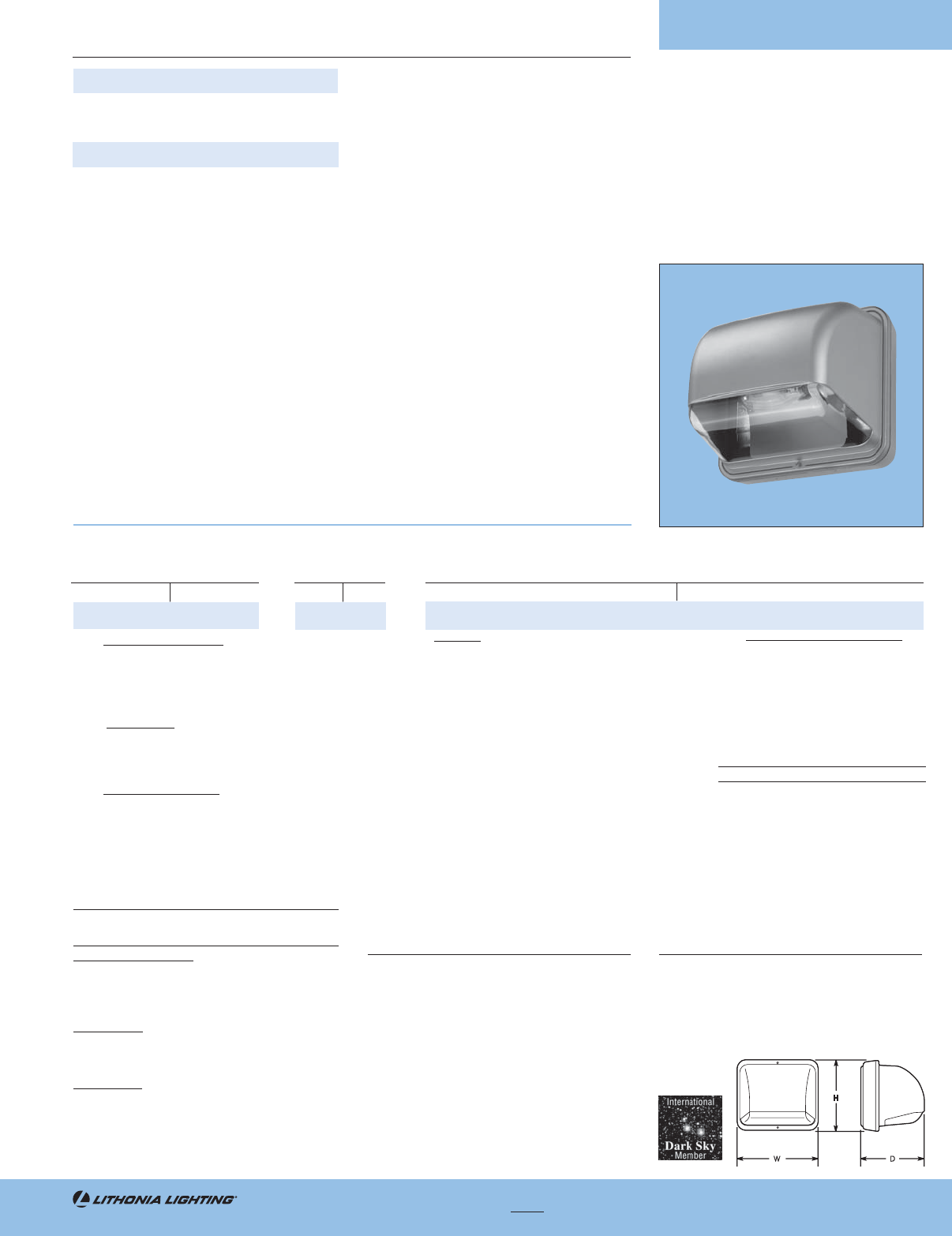

Building Mounted

TWAC

Contour

Designation

High Pressure Sodium

TWAC 35S1

TWAC 50S2

TWAC 70S3

TWAC 100S3

Metal Halide

TWAC 50M

TWAC 70M

TWAC 100M

Compact Fluorescent

TWAC 22DTT (2-pin)

TWAC 26DTT (4-pin)

TWAC 28DTT (2-pin)

TWAC 32TRT (4-pin)

TWAC 42TRT (4-pin)

Voltage

120

2084

2404

277

347

TB5

MVOLT6

Options/Accessories

Ordering Information Example: TWAC 100S 120 LPI

Installed

SF Single fuse (120V, 277V, 347V)7

DF Double fuse (208V, 240V)7

XHP High power factor ballast

EC Emergency circuit8,9

QRS Quartz restrike system8,9

CR Enhanced corrosion resistance

CRT Non-stick protective coating

(rear housing)10

CSA CSA Certified

NOM NOM Certified (consult factory)

PE Photocell (button type)7

LPI Lamp included as standard

L/LP Less lamp

DC12 Emergency circuit 12V. 35W lamp

included11

2DC12 Emergency circuit 12V. 2/35W lamps

included11

Architectural Colors (optional)

DNA Natural aluminum

DBL Black

DMB Medium bronze

DWH White

DSS Sandstone

NOTES:

1 120V only.

2 120V or 277V only.

3 120 R-NPF is standard, 208/240/277/347 and TB are high

reactance high power factor.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

6 Optional multi-volt electronic ballast (for CF) capable of

operating any line voltage from 120V-277V.

7 Not available with multi-tap ballast.

8 Lamp not included.

9 Quartz lamp wattage not to exceed ballast wattage rating.

10 Black finish only.

11 H.I.D. only. Not available with QRS, ES, or NOM.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TWAC

Height 10 (25.4)

Width 111/2 (29.2)

Depth 815/16 (22.7)

Weight 10 lbs (4.53 kg)

Cutoff Mini Wall-Paks, Polycarbonate Refractor

Accessories (Order separately)

RK1 PEB1 Photoelectric control

kit, 120V

RK1 PEB1 CSA Photoelectric control

kit, 120V

RK1 PEB2 Photoelectric control

kit, 208V, 240V or 277V

RK1 PEB3 CSA Photoelectric control

kit, 347V

TWAWG Wireguard

Lamp/Fixture/Ballast Data

Lamp Base

Wattage Ballast Type Type

High Pressure Sodium (med/clear)

35 RNPF E17 medium

50 RNPF E17 medium

70 RNPF E17 medium

100 RNPF E17 medium

Metal Halide (med(70/100/150)/mog(175)/clear)

50 HX-HPF E17 medium

70 HX-HPF E17 medium

100 HX-HPF E17 medium

Fluorescent (double twin-tube/triple-tube)

22DTT Mag NPF T4 GX32D-2

26DTT Elec HPF T4 GX32D-3

28DTT Mag NPF T4 GX32D-3

32TRT Elec HPF T4 GX24Q-3

42TRT Elec HPF T4 GX24Q-3

www.lithonia.com

keyword: TWAC

UL listed. Electrical components mounted

to cast-aluminum housing for maximum

heat-dissipation. Fluorescent ballasts are

magnetic NPF (22 & 28 DTT) or electronic

HPF (26 DTT & TRT). Encased and potted

solid-state ignitors (HPS). Components are

heat-sinked directly to cast housing for

maximum heat-dissipation. (For 50 hertz

availability, consult factory.)

Installation – Top ½" threaded wiring ac-

cess. Back access through ¾" opening.

For feed-thru wiring, use condulet tee

(not included). Mount on any flat, non-

combustible vertical surface.

Socket – H.I.D. is porcelain, horizontally ori-

ented, medium-base socket with copper al-

loy, nickel-plated screw shell and center

contact. Photocells are field-installable. UL

listed 660W, 600V and 4KV pulse rated. Flu-

orescent is two-pin (DTT) or four-pin (TRT),

positive latching thermoplastic.

Listings – UL Listed (standard). CSA or

NOM Certified (see Options). UL listed for

wet locations. IP65 rated in accordance

with IEC standard 529.

Outdoor / PSG8

478

Designation

High Pressure Sodium

TWL 35S1

TWL 50S

TWL 70S

Fluorescent

TWL 7TT1(2-pin)

TWL 9TT1(2-pin)

TWL 13TT1(2-pin)

TWL 13DTT1(2-pin)

TWL 22DTT1(2-pin)

TWL 26DTT (4-pin)

TWL 28DTT1(2-pin)

TWL 26TRT (4-pin)

TWL 32TRT (4-pin)

TWL 42TRT (4-pin)

Incandescent

TWL I2

Voltage

120

2083,4

2403,4

2773

3473

TB3,5

MVOLT6

Options

Installed

SF Single fuse (120V, 277V)7

PE Photoelectric cell (button type)7

LPI Lamp included as standard

L/LP Less lamp

RHP Reactor high power factor ballast

(HPS and 120V only)

XHP High reactance high power factor

ballast (208V, 240V, 277V, 347V, and TB)8

CSA CSA Certified

NOM NOM Certified (consult factory)

Architectural Colors (optional)

DNA Natural aluminum

DBL Black

DMB Medium bronze

DWH White

DSS Sandstone

Ordering Information Example: TWL 50S 120 SF LPI

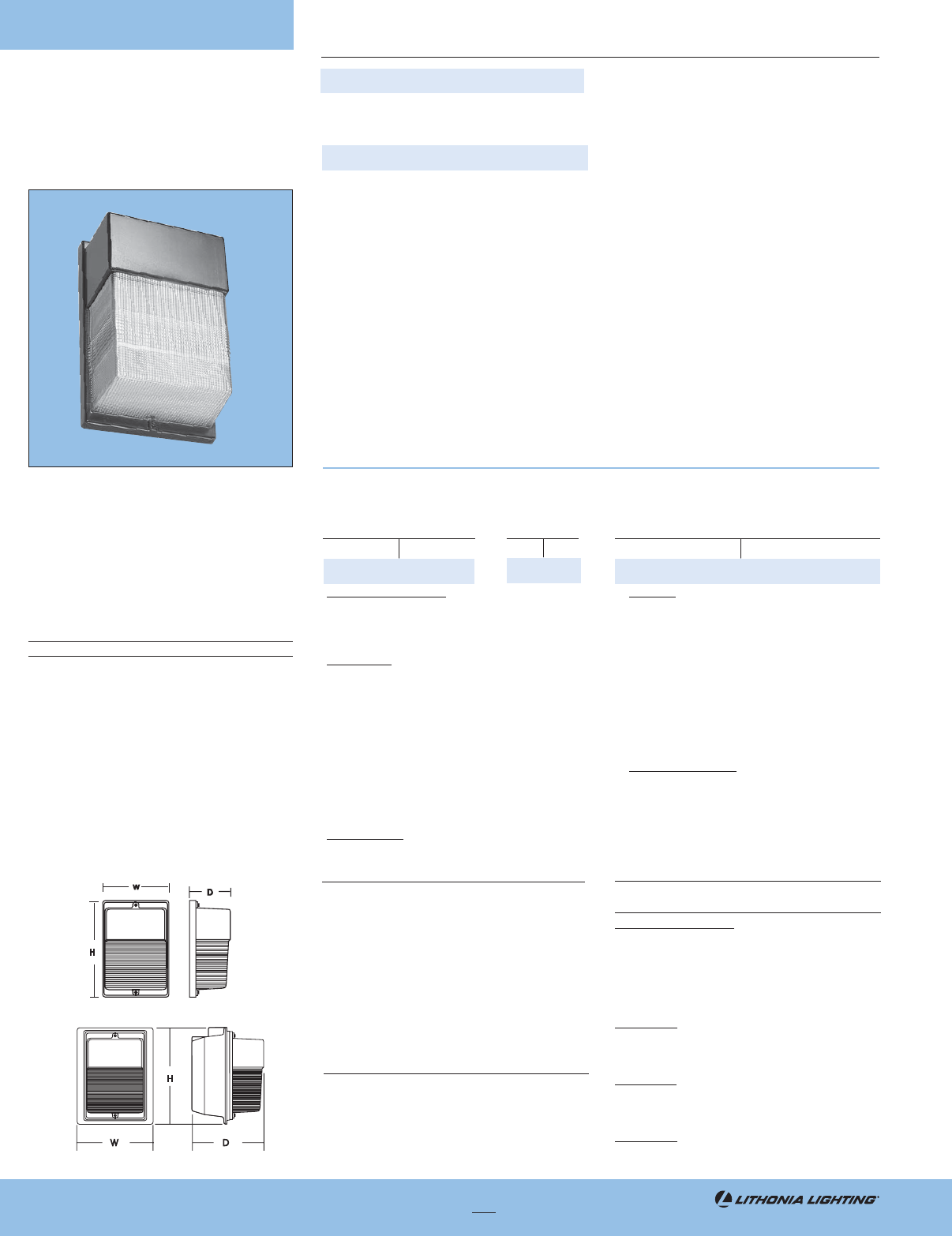

Building Mounted

TWL

Lamp/Fixture/Ballast Data

Lamp Base

Wattage Ballast Type Type

High Pressure Sodium (med/clear)

35 RNP E17 medium

35 HPF E17 medium

50 RMP E17 medium

50 HPF E17 medium

70 RNP E17 medium

70 HPF E17 medium

Fluorescent (twin-tube)

7 RNP T4 G23

9 RNP T4 G23

13 RNP T4 GX23

Fluorescent (double twin-tube)

13 RNP T4 GX23

22 RNP T4 GX32D-2

28 RNP T4 GX32D-3

Fluorescent (triple-tube)

32 HPF T4 GX24Q-3

42 HPF T4 GX24Q-4

NOTES:

1 120V only.

2 120V only, A19 lamp.

3 Requires cast HPF back housing.

4 Consult factory for availability in Canada.

5 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

6 Optional multi-volt electric ballast (for compact

fluorescent) capable of operating on any line voltage

from 120V-277V.

7 Not available with multi-tap ballast.

8 HPS only. Not available in 35S.

9 Order TWAWG with TWLMB, EP or HPF.

10 120V NPF units only.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TWL TWL

120V NPF HPF

Height 101/2 (26.7) 103/4 (27.3)

Width 63/4 (17.2) 71/8 (18.1)

Depth 37/8 (9.8) 711/16 (19.5)

Weight 4 lbs (1.8 kg) 8 lbs (3.6 kg)

Accessories (Order separately)

RK1 PEB1 Photoelectric control kit, 120V

RK1 PEB2 Photoelectric control kit, 208V,

240V, 277V

RK1 PEB3 CSA Photoelectric control kit, 347V

RK1 PEB1 CSA Photoelectric control kit, 120V

TWLMB Cast aluminum mounting box

TWLWG Wireguard9

TWLEP1 Extension collar 11/2" deep10

TWLEP2 Extension collar 21/8" deep10

www.lithonia.com

keyword: TWL

Intended Use

Use for entrances, stairwells, corridors,

other pedestrian areas.

Features

Housing – Normal Power Factor (NPF)

backplate is heavy-gauge steel. High

Power Factor (HPF) housing is heavy-duty

cast aluminum, finished in dark bronze.

Electrical components are mounted to

backplate (NPF) or cast housing (HPF) for

maximum heat-dissipation. Stainless

steel external hardware includes slotted

hex-head and tamperproof fasteners.

Finish is dark bronze (DDB) corrosion-re-

sistant polyester powder.

Optics – Front cover/refractor is injection-

molded, one-piece, UV-stabilized polycar-

bonate. Optical system is sealed and gasket-

ed to inhibit entrance of outside contami-

nants. Standard finish is dark bronze (DDB)

Cast Micro Wall-Paks, Polycarbonate Refractor

120V NPF

HPF (RNP, XHP)

corrosion-resistant polyester enamel.

Electrical – 120V reactor normal (RNP) or

high-power factor (RHP) or high-reac-

tance, high power factor (XHP). 100%

copper wound and factory tested. TRT

ballasts are HPF electronic, UL listed.

Installation – NPF unit mounts to stan-

dard J-box. Surface conduit mount re-

quires extension collar accessory. HPF

units may be mounted flush to wall or hor-

izontally facing down. HPF units have ¾"

threaded hub for wiring access. Closed-

cell gasketing seals junction.

Socket – HPS: Medium-base porcelain

socket, vertically oriented with copper al-

loy nickel-plated screw shell and center

contact. UL listed 660W, 600V. Compact

fluorescent socket.

Listings – UL Listed (standard). CSA or

NOM Certified (see Options). UL listed for

wet locations. IP65 rated in accordance

with IEC standard 529.

479

Outdoor / PSG8

Designation

High Pressure Sodium

TWM 50S

TWM 70S

TWM 100S

Voltage

120

Options

LPI Lamp included as

standard

Ordering Information Example: TWM 50S 120 LPI

Dimensions are shown in inches (centimeters) unless

otherwise noted.

TWM

Height 81/2 (21.59)

Width 81/2 (21.59)

Depth 6 (15.24)

Max weight 7 lbs (3.17 kg)

www.lithonia.com

keyword: TWM

Building Mounted

TWM

Intended Use

For security lighting that requires vandal

resistance and a variety of wall-mounting

options.

Features

Housing – Rear housing is rugged, die-

cast aluminum. One-piece gasket inhibits

the entrance of external contaminants.

Bronze polyester powder finish standard.

Installation – Housing is configured for

mounting directly over a standard 4" outlet

box or for surface wiring via two conve-

nient ½" threaded conduit entry hubs.

Optics – Refractor is one piece prismatic

polycarbonate designed for uniform area

illumination. Reflector is die-formed anod-

ized aluminum. Medium-base lamp in-

cluded in carton as standard.

Mini Wall-Paks, Polycarbonate Refractor

Electrical – 120V reactor, normal power

factor ballast. Ballast is copper wound and

100% factory tested.

Listings – UL Listed to US and Canadian

safety standards. UL/C-UL listed for wet lo-

cations. (UL tested at 250 C maximum am-

bient temperature).

Outdoor / PSG8

480

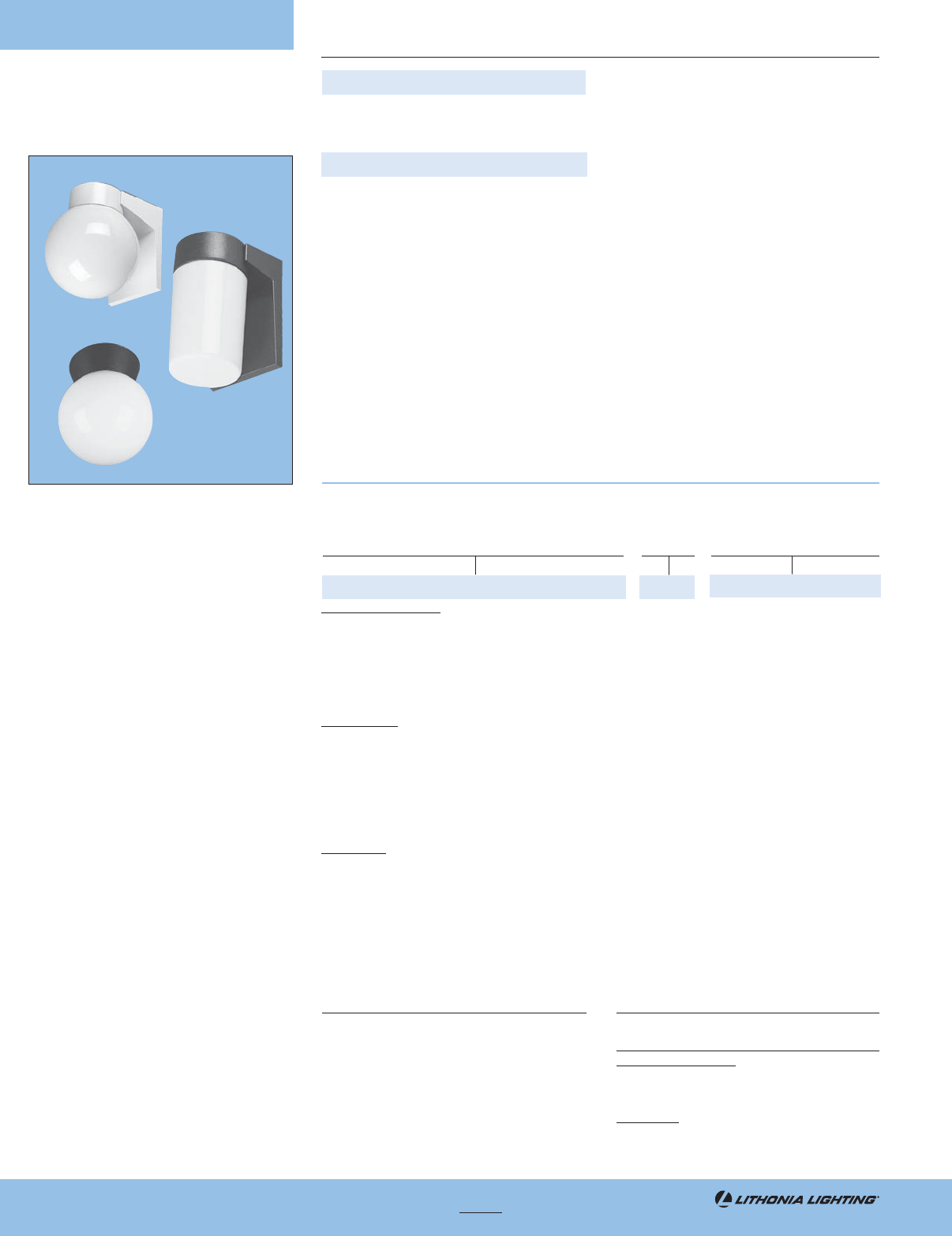

Building Mounted

WG/WP

Ordering Information Example: WGCW 70S 120 LPI

Designation

High Pressure Sodium

WPCW 35S White polycarbonate, cylinder/wall

WPCW 50S White polycarbonate, cylinder/wall

WGCW 70S White glass, cylinder/wall

WPGW 35S White polycarbonate, globe/wall

WPGW 50S White polycarbonate, globe/wall

WGGW 70S White glass, globe/wall

Incandescent

WGCW 100I White glass, cylinder/wall

WGGW 100I White glass, globe/wall

WGCC 60I White glass, cylinder/ceiling

WGGC 60I White glass, globe/ceiling

WPCW 60I White polycarbonate, cylinder/wall

WPGW 60I White polycarbonate, globe/wall

WPCC 60I White polycarbonate, cylinder/ceiling

Fluorescent

WPCW 22DTT (2-pin), white polycarbonate,

cylinder/wall

WPCW 28DTT (2-pin), white polycarbonate,

cylinder/wall

WPGW 28DTT (2-pin), white polycarbonate,

globe/wall

Intended Use

For entrances in motels, condominiums

and other pedestrian areas.

Features

Housing – Die-cast aluminum housing

with electrostatically applied dark bronze

polyester powder finish. White finish

available.

Optics – Opal glass or white polycarbon-

ate available.

Electrical – HPS-120V reactor normal

power factor (RNP). 100% copper wound

and factory tested. H.I.D. is UL 1029 listed.

Fluorescent is UL 935 listed, electro-

magnetic.

Installation – Wall and ceiling mounted.

Socket – Medium-base porcelain socket,

vertically oriented with copper alloy,

Options

(blank) Dark bronze finish

standard

DWH White finish

LPI Lamp included as

standard1

Voltage

120

NOTES:

1 Not included with incandescent fixtures.

Globe/Cylinder Wall-Paks, Glass/Polycarbonate

Lamp/Fixture/Ballast Data

Lamp Base

Wattage Ballast Type Type

High Pressure Sodium (Med/Clear)

35 RNP E17 medium

50 RNP E17 medium

70 RNP E17 medium

Fluorescent (Double Twin-Tube)

22 RNP T4 GX32D-2

28 RNP T4 GX32D-3

www.lithonia.com

keyword: WG-WP

nickel-plated screw shell and center

contact. UL listed 660W, 600V. Fluores-

cent 2-pin socket: 22DTT-GX32D-2,

28DTT-GX32D-3.

Listings – UL Listed. UL Listed for wet

locations.

481

Outdoor / PSG8

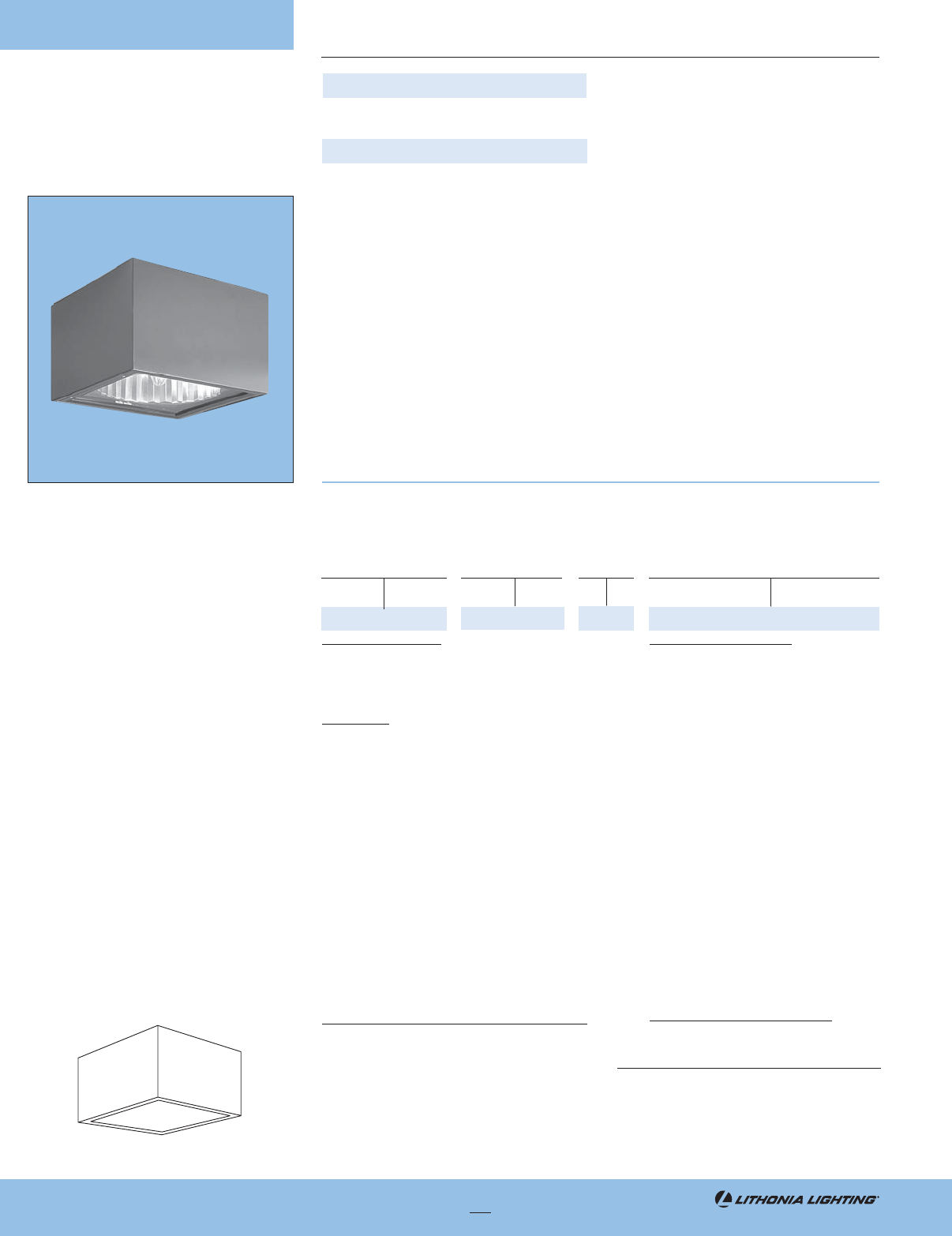

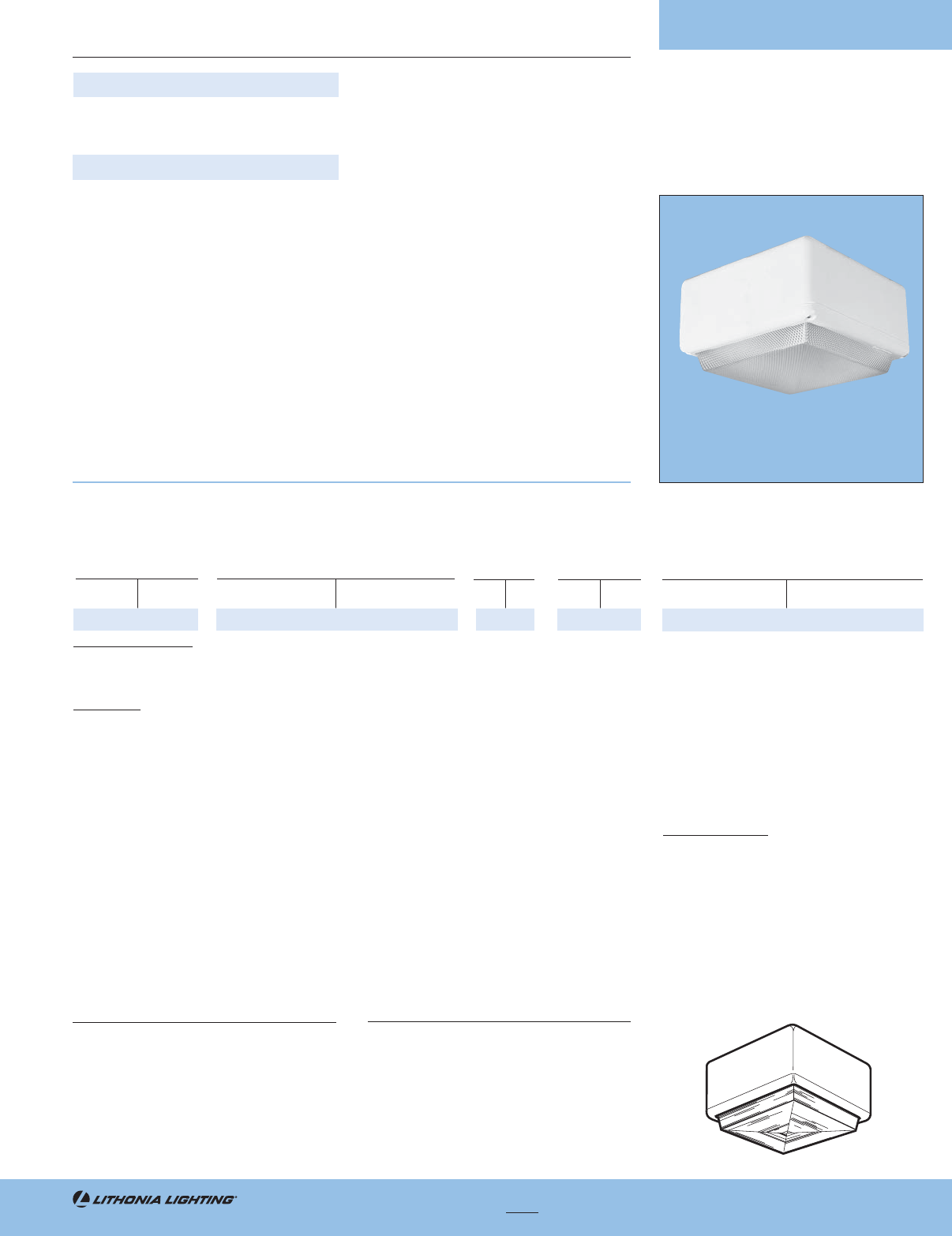

Garage Lighting, Surface-Mount

Ordering Information Example: PGR 150S 120 SF

Designation

High Pressure Sodium

PGR 70S

PGR 100S

PGR 150S

Metal Halide

PGR 100M

PGR 150M

PGR 175M

PGR 200M1

Voltage

120

2082

2402

277

347

4803

TB4

Options/Accessories

Options (shipped installed)

SF Single fuse (120V, 277V, 347V)5

DF Double fuse (208V, 240V, 480V)5

EC Emergency circuit (100W max. 120V)6,7

QRS Quartz restrike system (100W max.

120V)6

QRSTD Quartz restrike system time delay

(100W max. 120V)6,8

CR Enhanced corrosion resistance

CRT Non-stick protective coating9

KW1 KiloWatch® 120V control relay10,11

HA 40°C ambient (not available with EC

option or 200M ordered with 480V

together)

TP Tamperproof lens screws

PC Polycarbonate refractor/lens

LP Lamp factory installed (N/A with TB)

DN Downlight focused

SCWA Super CWA pulse start ballast (n/a

HPS or 100M)

CSA CSA Certified

NOM NOM Certified (consult factory)

Shipped separately

OJB Offset junction box12

YK Yoke mount

BDS Bird deterrent shroud

For optional Architectural Colors, see page 485.

NOTES:

1 Must be ordered with SCWA.

2 In Canada, available in 175W metal halide only.

3 Available in 175M, 200M and 150S only.

4 Optional multi-tap ballast (120V, 208V, 240V, 277V). In

Canada 120V, 277V, 347V; ships as 120V/347V.

5 Not available with multi-tap ballast.

6 Lamp not included.

7 Not available with HA option.

8 Not available with KiloWatch®.

9 Black finish only.

10 For specific ordering information, refer to the

KiloWatch brochure or consult factory.

11 Consult factory for availability in Canada.

12 Required when pendant is free-swinging.

Intended Use

For parking garage applications.

Features

Housing – Rugged, die-cast aluminum with

one-piece silicone gasketing. Standard

finish is white corrosion-resistant polyes-

ter powder paint. Other architectural col-

ors available.

Lens – Precision injection-molded, UV sta-

bilized, acrylic lens. Hinged and secured

with four stainless steel screws. Polycar-

bonate lens available.

Mounting – Fully silicone gasketed, galva-

nized steel plate. Surface mounts to re-

cessed box or pendant mounts to industry

standard J-boxes. The quick-mounting

bracket doubles as a hanger for the fixture

allowing for trouble-free electrical con-

nections. The fixture twist-locks into place

in a firm, secure fashion.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

PGR

Height 111/2 (29.2)

Width 15 (38.1)

Max weight 20 lbs (9 kg)

www.lithonia.com

keyword: PGR

Optics – Lower segmented, anodized

aluminum reflector and upper-precision, in-

jection-molded, prismatic acrylic refractor.

Polycarbonate refractor available.

Electrical – High-reactance, high-power

factor or constant-wattage autotrans-

former. Ballast is copper wound and 100%

factory tested. 180°C Class H insulation

system. Medium based, UL listed 660W,

600V, 4KV socket.

Listings – US patent no. D402,075. Cana-

dian patent 86779.UL Listed (standard).

CSA Certified or NOM Certified (see Op-

tions). UL listed for 25°C ambient operation

and wet locations.

Parking Garage

PGR

Outdoor / PSG8

482

Garage Lighting, Ceiling-Mount

Voltage

120

2081

2401

277

347

4801

TB2

Options/Accessories

Options (shipped installed)

SF Single fuse (120V, 277V, 347V)

DF Double fuse (208V, 240V, 480V)

QRS Quartz restrike system (100W

max., 120V lamp not included)

EC Emergency circuit (100W

max., 120V lamp not included)

MOG Mogul-base socket

CR Enhanced corrosion

resistance

NB Natural brushed

(SS option only)

HS House-side shield

(R3/R4 only)

YK Yoke mount

SS Stainless steel housing3

RMG Recessed mount 2" x 2"

(grid ceiling)3

WL Wet location

SCWA Super CWA pulse start

ballast, requires R5 distribu-

tion, (n/a HPS or 100M)

CSA CSA Certified

NOM NOM Certified (consult

factory)

For optional Architectural Colors, see page 485.

Accessories (shipped separately)

VG Vandal guard

Designation

High Pressure Sodium

KPS 50S

KPS 70S

KPS 100S

KPS 150S

Metal Halide

KPS 100M

KPS 150M

KPS 175M

Distribution

R2 Type II

Roadway

R3 Type III

Asym

R4 Type IV FT

R5 Type V

Sym.

NOTES:

1 Consult factory for availability in Canada.

2 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

3 SS and RMG cannot be ordered together.

Parking Garage

KPS Intended Use

For parking garage applications.

Features

Housing – Rugged, heavy-gauge, alumi-

num housing. Square shape, continuous

welded seams for weather-tight integrity.

Extruded-aluminum door frame has an im-

pact-resistant, tempered glass lens. Door

frame is sealed to housing by EPDM

closed-cell gasket. Direct mounting to

recessed J-box is standard; yoke or re-

cessed mountings optional. Housing will

accommodate both top and side branch-

circuit wiring and has internal splice com-

partment. Dark bronze (DDB) corrosion-

resistant polyester powder finish stan-

dard; other architectural colors available.

Stainless steel housing also available.

Optics – Reflectors are anodized, hydro-

formed aluminum. Four cutoff distributions

Ordering Information Example: KPS 150S R2 120 EC

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KPS

Length 163/4 (42.6)

Width 163/4 (42.6)

Depth 101/2 (26.7)

Max weight 36 lbs (16 kg)

www.lithonia.com

keyword: KPS

available: Type II (Roadway), Type III (Asym-

metric), Type IV (Forward Throw) and Type

V (Symmetric). Type V reflector is vertically

lamped, all others horizontally lamped. Re-

flectors are field-interchangeable and

hinge out for easy removal during installa-

tion/maintenance.

Electrical – All ballasts are copper wound

and 100% factory tested. Electrical compo-

nents are unitized on removable power

module. Positive-locking, quick-disconnect

on primary and secondary circuits. Medium-

base porcelain socket standard. Mogul-

base porcelain socket for 175W metal ha-

lide. 4KV pulse rated.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL list-

ed for damp locations.

SS option:

UL listed

for 25°C ambient and damp location.

RMG

option:

UL listed for recessed mounting,

wet locations and covered ceilings only.

483

Outdoor / PSG8

Canopy Lighting

KACM

Contour

Optional white finish shown.

Standard finish is dark bronze.

Intended Use

For parking garages, convenience stores,

hotels and walkways.

Features

Housing – Rugged, die-cast, soft-corner

aluminum housing with 0.12" nominal wall

thickness. Die-cast aluminum door frame

has prismatic, impact-resistant, tempered

glass; drop dish acrylic lens or drop dish

polycarbonate lens. Door frame is fully

gasketed with one-piece tubular silicone.

Surface mounted utilizing four 0.5" mount-

ing holes and one 0.875 wire-entry hole

(mounting hardware not included). Dark

bronze (DDB) corrosion-resistant polyes-

ter powder finish is standard. Other ar-

chitectural colors available.

Optics – Reflector is optical-quality alumi-

num that works in tandem with a light-

diffusing prismatic lens.

Designation

High Pressure Sodium

KACM 150S

KACM 250S

KACM 400S

Metal Halide

KACM 150M

KACM 175M

KACM 200M1

KACM 250M

KACM 320M1

KACM 350M1

KACM 400M

Voltage

120

2082

2402

277

347

4802

TB3

Mounting

YK Yoke

Options/Accessories

SF Single fuse (120V, 277V, 347V) n/a TB

DF Double fuse (208V, 240V, 480V) n/a TB

QRS Quartz restrike system (250W max,

120V lamp not included)

EC Emergency circuit (lamp not

included, 250W max.)

YK Yoke mount

TC Thru-wire condulet tee capability

SCWA Super CWA pulse start ballast

(n/a HPS or 175M)

CSA CSA Certified

NOM NOM Certified (consult factory)

Shipped separately4

KACVG Vandal guard5

KACWG Wire guard

Distribution

FP Flat prismatic lens (C73T)

DPA Drop prismatic lens (Acrylic)

DPP Drop prismatic lens (Polycarbonate)

Ordering Information Example: KACM 400M FP 120

NOTES:

1 Must be ordered with SCWA.

2 Consult factory for availability in Canada.

3 Optional multi-tap ballast (120V, 208V, 240V, 277V). In Canada

120V, 277V, 347V; ships as 120V/347V.

4 May be ordered as an accessory.

5 FP lens only.

Dimensions are shown in inches (centimeters) unless

otherwise noted.

KACM

Length 171/2 (44.5)

Width 171/2 (44.5)

Depth FP option 71/8 (18.1)

DP option 111/8 (28.3)

Max weight 40 lbs (18.1 kg)

Die-Cast, Cutoff Flat Lens/Drop Lens

www.lithonia.com

keyword: KACM

Electrical – Ballast is high-reactance, high-

power factor (150W) or high-power factor,

constant-wattage autotransformer (175-

400W MH & HPS).

Socket – Mogul-base porcelain socket,

4KV pulse rated. Position-oriented socket

standard on all metal halide units.

Listings – UL Listed (standard). CSA Certi-

fied or NOM Certified (see Options). UL

listed for wet locations. For covered ceil-

ing, mount on concrete, steel or alumi-

num. Not for use in dwellings. UL listed

for 25o C ambient temperature.

484

Outdoor / PSG8

Area Lighting

C22 C42 C62 CV3P DF EC FG KW1 KW4 LS MR1 MR6 PE PER QRS QRSTD SF

KSE ■■ ■

1■■ ■

KSF ■■ ■

2■■ ■

KAD ■■ ■ ■ ■

KAC ■■ ■ ■ ■

KVE ■■ ■

3■■ ■

KVR ■■ ■ ■ ■ ■

KVS ■■ ■

3■■ ■

KAR ■■ ■

4■■ ■

KKS ■■ ■ ■ ■

KKR ■■ ■ ■ ■

KQS ■■ ■ ■ ■ ■

Aeris ■■ ■ ■ ■

KVF ■■ ■■ ■■■■

Floodlighting

C22 C42 C62 CV3P DF EC FG KW1 KW4 LS MR1 MR6 PE PER QRS QRSTD SF

KFL ■■

6❑❑■ ■

6■

TFA ■■ ■ ■ ■ ■

7■■■■

TFR ■■ ■ ■ ■ ■ ■ ■ ■

TFL ■■ ■ ■ ■ ■ ■ ■ ■

TFM ■■ ■ ■

5 ■■

55 ■■ ❑ ■ ■ ■

95 ■■ ❑ ■ ■ ■

170S ■■ ■ ■ ■

Options and Accessories

C22 12-3 SEO cord (2' prewired)*

C42 14-3 SEO cord (2' prewired)*

C62 16-3 SEO cord (2' prewired)*

CV3P 3 ft. of 16-3 SEO cord pre-wired w/3 prong

plug for use with prewired cages and

crossarms. Must use matching receptacle,

provided by others. Not available with

1500W-120V.

DC12 Auxiliary emergency circuit for MR11 35

watt maximum double contact bayonet

based lamp, contains socket with leads for

use with separate external 12 volt emer-

gency power source (provided by others).

Factory installed only. Lamp included and

installed at factory (MR11 DC Bayonet base)

2DC12 Auxiliary emergency circuit for MR11 35

watt maximum double contact bayonet

based lamp, contains socket with leads

for use with separate external 12 volt

emergency power source (provided by

others). Factory installed only. Two lamps

included and installed at factory (MR11 DC

bayonet base).

DF Double Fuse. Use with 208V, 240V, 480V. Not

available for Multi-tap ballast. In-line, time-

delay type fusing isolates faulty luminaire

from circuit fusing.

EC Emergency circuit. Lamp not included.

ELDW Integral emergency battery system for

compact fluorescent units.

FG Festoon outlet. Duplex ground fault recep-

tacle. Cast box.

KW1 KiloWatch 120V control relay.

KW4 KiloWatch 277V control relay.

LS Lamp support. Mogul-base socket only.

MR1 Outdoor non-encapsulated remote ballast.

MR6 Indoor epoxy-encapsulated remote ballast.

PE Photoelectric cell. (Button-type) Not avail-

able for multi-tap ballast or 480V.

PER NEMA twist-lock photocontrol receptacle.

Photocontrol not included. Shipped in-

stalled.

PE1 NEMA twist-lock photocontrol. 120V, 208V,

240V. Shipped separately.

* Other cord lengths available. Consult factory.

❑= Available as an accessory, shipped separately

■= Available as an option, shipped installed

NOTES:

1 KSE2 only

2 KSF2/3 only

3 KVE/KVS size 3 only

4 KAR2 only

5 Not available in TA distribution

6 KFL3 only

7 Standard on 1000W TA & RN distributions

PE3 NEMA twist-lock photocontrol. 347V.

Shipped separately.

PE4 NEMA twist-lock photocontrol. 480V.

Shipped separately.

PE7 NEMA twist-lock photocontrol. 277V.

Shipped separately.

SC Shorting cap for PER. Ships as SC U.

QRS Quartz restrike system. Activates when

power interruption causes H.I.D. lamps

to drop out. Deactivates when fixture re-

strikes. QRS does not energize during cold

start of fixture. Wattage of quartz lamp

should not exceed that of H.I.D. source.

For 100W and below, use 100W DC bayo-

net-base lamp.

QRSTD

Quartz restrike time delay. Functions as

does QRS, but quartz lamp energizes un-

der hot and cold starting conditions.

Quartz lamp will come on when luminaire

is energized and remain on for two min-

utes after restrike.

SF Single fuse. Use with 120V, 277V, 347V. Not

available for multi-tap ballast. In-line, time-

delay type fusing isolates faulty luminaire

from circuit fusing.

www.lithonia.com

Electrical Options

485

Outdoor / PSG8

For electrical system compability (SCWA, CWA, CWI, XHP, RHP, RNP) please see indvidual product specification sheet or specific page in this catalog.

Powder finish. Add designation as suffix to

catalog number, KL series available in

DDB, DNA, DBL and DWH only. Additional

architectural colors are available. See

Architectural Colors brochure on

www.lithonia.com.

Standard Colors

DDB Dark bronze (standard)

DBL Black

DWH White

Classic Colors

DMB Medium bronze

DNA Natural aluminum

DGC Charcoal gray*

DSS Sandstone

DSB Steel blue*

DTG Tennis green*

DBR Bright red*

* Not available with TWP, TWA, TWAC or TWL.

NOTES:

1 Size 3 only

2 Size 3 only N/A 480V

3 BBW only

4 R5 distribution only

www.lithonia.com

Site Lighting

C22 C42 C62 CV3P DF EC FG KW1 KW4 LS MR1 MR6 PE PER QRS QRSTD SF

KBA ■■ ■

KBC ■■ ■

KBD ■■ ■

KBE ■■ ■

KBR ■■ ■

KBS ■■ ■

KL ■■ ■

3■■

Garage Lighting

C22 C42 C62 CV3P DF EC FG KW1 KW4 LS MR1 MR6 PE PER QRS QRSTD SF

PGR ■■ ■ ■ ■ ■

KPS ■■ ■

4■4■■■

KACM ■■ ■ ■

Sportslighting

C22 C42 C62 CV3P DF EC FG KW1 KW4 LS MR1 MR6 PE PER QRS QRSTD SF

TSP ■■ ■ ■■ ■ ■ ■

TV ■■ ■ ■■ ■ ■ ■ ■ ■

Options and Accessories

Electrical Options

Architectural Colors

Fixture Finishes

ADB Anodized dark bronze. Architectural Class

1. Round housing only for KAR2, KKR, KQR

and certain 8" KB bollards. Add as suffix to

catalog number.

CR Clear polyester coating for additional pro-

tection against some corrosive atmo-

spheres. Consult factory for corrosive com-

patibility. Not available on KL.

■= Available as an option, shipped installed Building-Mounted

C22 C42 C62 CV3P 2DC12 DC12 DF EC ELDW FG KW1 KW4 LS MR1 MR6 PE PER QRS QRSTD SF

TWH ■■ ■ ■■■ ■■

TWP ■■ ■ ■ ■ ■

TWA ■■ ■ ■ ■

TWAC ■■■■ ■ ■ ■

TWL ■■■

WFL ■■

1■■

2■

WSR ■■■ ■ ■ ■ ■

WST ■■■ ■ ■ ■ ■

486

Outdoor / PSG8

AS KSE KSF KAD KAC KVE KVR KVS KAR KKS KKR KQS KVF

DA12P Degree mounting arm. 30o max. uptilt in 5o❑❑ ❑

increments. Single or twin 180o config. for KVS.

DA12WB Degree arm for wall. 30o max. uptilt in 5o❑❑ ❑

incr. Single or twin 180o config. for KVS.

DAD12P Degree mounting arm. 30o max. uptilt, 5o incr. ❑ ❑ ❑

DAD12WB Degree arm for wood pole or wall. 30o max. uptilt, 5o incr. ❑ ❑ ❑

HS House-side shield (consult factory for specifics) ■❑❑❑ ■■ ■ ■❑

KMA Mast arm mounting for area lighting. 6" min. arm ❑❑❑❑ ❑ ❑

1❑❑

length. Use for 23/8" OD pipe.

KTMB Twin mounting bar square mounting arms. ❑❑❑ ❑ ❑❑ ❑

Mounts on T25 (27/8" OD tenon by 5” tall minimum).

MA Master arm for single/twin 180o configuration, ■

internal fitter (Size 3 only).

MB Mounting bracket. Use size 1 housing with KSF, KSE. ❑❑

PT4 Post-top round pole only (4" OD open-top pole). ■ ■ ■

PT45 Post-top round pole only (41/2" OD open-top pole). ■ ■ ■

PT5 Post-top. Must use with round pole only for KVR. ■ ■ ■

(5" OD open-top pole)

PT6 Post-top. Must use with round pole only for KVR. ■ ■

(6" OD open-top pole)

RPxRound pole mounting arm. ■■■■■ ■■■■ ■

RPF Round pole fitter. ■

RPF20 Round pole fitter (23/8" OD tenon). ❑ ❑

RPF25 Round pole fitter (27/8" OD tenon). ❑ ❑

For arm and/or bracket lengths, see product specification sheet or specific product page in this catalog.

DAD12P

HS – KSF

HS – KAD

Options and Accessories Area Lighting

❑= Available as an accessory, shipped separately

■= Available as an option, shipped installed

KTMBMB

KMA DA12P

14"

Tenon Slipfitters for Arm-Mounted Luminaires

Use with all arm-mounted luminaires. When ordered, fixture must include round pole

arm (RPx ) or pole degree aiming arm (DA12P or DAD12P). To order, locate catalog

number from chart below based on tenon size and mounting configuration. Example:

For 3 fixtures at 120°, using a 2-7/8" tenon, catalog number is T 25-320. Shipped

separately. Order as separate catalog numbers. For Aeris fixture specify AS.

Example: AS T20-190.

Tenon 1 fixture 2 fixtures 2 fixtures 3 fixtures 3 fixtures 4 fixtures

OD at 180° at 90° at 120° at 190° at 90°

2-3/8" T 20-190 T 20-280 T 20-290* T 20-320* T 20-390* T 20-490*

2-7/8" T 25-190 T 25-280 T 25-290* T 25-320* T 25-390* T 25-490*

4" T 35-190 T 35-280 T 35-290* T 35-320 T 35-390* T 35-490*

* RP09 must be used with KSF, KVS, KT or KSE.

for KK Series

Slipfitter Tenon Slipfitter

7-3/4"

RP09

Tenon

Set

www.lithonia.com

NOTES:

1 Size one housing only.

487

Outdoor / PSG8

AS KSE KSF KAD KAC KVE KVR KVS KAR KKS KKR KQS KVF

SM Side mount assembly. One per luminaire. ❑❑

SP__ Square pole mounting arm. Use 9" arm for two at 90o.■■ ■ ■■ ■■■■ ■

SPF Square pole fitter. ■

SPF20 Square pole fitter (23/8" OD tenon). ❑

SPF25 Square pole fitter (27/8" OD tenon). ❑

T20 Tenon slipfitter (for 2" pipe tenon 23/8" OD). ❑❑

T25 Tenon slipfitter (for 21/2" pipe tenon 27/8" OD). ❑

VG3Vandal guard. ■❑ ❑ ❑❑

1 ❑2❑

WBxWall mount for J-box. (Aeris only order WBA). ■■ ■ ■■ ■ ■ ■

WM Wall mount. 16" arm is used with a wall plate. ❑❑

WWxWood pole or wall for conduit stub 9" or 12". ■ ■ ■■ ■■■■ ■

SPx/RPx

Wall bracket size:

51/2" x 71/4"

VG–KAD

For arm and/or bracket lengths, see product specification sheet or specific product page in this catalog.

Options and Accessories

Area Lighting

NOTES:

1 Only available with FP option.

2 Only available in KVS1 (R2, R3 and R4).

3 Specify family as prefix when ordering

as a separate line item.

❑= Available as an accessory, shipped separately

■= Available as an option, shipped installed

16"

(40.6cm)

(17.8cm)

SM/WM

14"

(35.6cm)

WBx

Mounting bolts (4) by

others. Minimum

fastener size is 1/2"

diameter.

www.lithonia.com

488

Outdoor / PSG8

TWA/

KBA KBC KBD KBE KBR KBS KL TWH TWP TWAC TWL WFL WSR/WST

BBF Backbox for flat surfaces. ■

BBR Backbox, recessed (ceiling, soffit mount). ■

BBS Backbox for stud wall construction. ■

BBW Backbox for surface wall installation. ■❑❑

EP1

Extension collar, 1

" deep.

❑

Order as TWLEP1.

EP2 Extension collar, 21/8" deep. ❑

Order as TWLEP2.

FS Full shield for IES cutoff ■■

PC Polycarbonate lens. Standard on KL. ■■■ ■■ ■■

R6S/R8S Half-shield. Not for use with louvered bollards. ❑❑❑ ❑

S6S/S8S Half-shield. Not for use with louvered bollards. ❑❑

SCL Scribed Lens. Not available with louvered bollards. ■■■ ■■ ■

WG1Wireguard. ❑❑❑❑

2❑❑

VG1Vandal guard. ❑❑❑

TWLMB Mounting box, cast aluminum. ❑

UT5 Uptilt 5 degrees ❑

DFL Diffusing lens ■

WLU Wet location door for up orientation ■

IBS Internal backlight shield ■

LC90 Lock at 90o for full cutoff ■

BBF BBSBBW

TWLMB

EP1

TWHWG TWLWG

TWPWGTWHVG TWAWG

NOTES:

1 Specify family prefix.

2 Order TWAWG with TWLMB,

EP or HPF.

Options and Accessories Site Lighting and Building-Mounted Lighting

❑= Available as an accessory, shipped separately

■= Available as an option, shipped installed

IBS UT5

www.lithonia.com

WALL

489

Outdoor / PSG8

Floodlighting, Garage Lighting and Sportslighting

PGR KPS KACM TSP TV KFL 55 95 170S TFA TFR TFL TFM

RMG Recessed mount in grid ceiling. ■

SS Stainless steel ceiling mount housing (alloy 304 stainless steel). ■

AH Above horizontal aiming. ■

CF Charcoal filter. Must use with heavy-duty shroud. ■■

FCRA Crossarm adapter for horizontal mounting. * ❑ ❑ ❑❑❑ ❑ ❑ ❑❑❑

FCRA45 Crossarm adapter for horizontal mounting 45o. * ❑ ❑❑❑ ❑ ❑ ❑❑❑

SLR Stainless steel lens rings. ■■

IBL Internal bottom louver. Cannot order IBL and TVUV together. ■

FRWB Radius wall bracket. Standard finish is DDB. ❑❑❑❑❑❑❑❑ ❑❑❑

FSAB Steel angle bracket. Standard finish is DDB. ❑ ❑ ❑❑❑ ❑ ❑ ❑❑❑

FSPB Steel square pole bracket (for use with existing poles). ❑ ❑❑❑

Standard finish is DDB.

FPMB Pipe/wood/pole/wall mounting bracket. Mounts to 2” schedule 40 pipe. ❑ ❑ ❑❑❑ ❑ ❑❑❑

FWPB Wall/pipe bracket. ❑❑❑ ❑ ❑ ❑❑❑

FTS Tenon slipfitter. Fits 23/8” to 27/8” OD tenon. ❑ ❑❑❑ ❑ ❑ ❑❑❑

TVTS Tenon slipfitter. Fits 23/8” to 27/8” OD tenon. ■

TFMTS Tenon slipfitter. For 1/2” threaded knuckle. Fits 11/4”to 23/8” OD tenon. ❑

TVUV Upper visor. Cannot be ordered with IBL. ❑

FCX2 2-light wood pole crossarm. ❑ ❑ ❑❑❑ ❑ ❑ ❑❑

FCX3 3-light wood pole crossarm. ❑ ❑ ❑❑❑ ❑ ❑ ❑❑

FCX4 4-light wood pole crossarm. ❑ ❑ ❑❑❑ ❑ ❑ ❑❑

TVWC Wood crossarm mount bolt 5/8”- 11UNC, 8” length. ❑❑

YK Yoke mount. ■ ■ ■ ■■■ ■ ■ ■■■

IS Integral slipfitter. Fits 27/8” max OD with TFA, 23/8” with TFL and TFR. ■■■

FRWB

Options and Accessories

❑

■= Available as an option, shipped installed

= Available as an accessory, shipped separately

FSPB

* Order as separate catalog number.

www.lithonia.com

5/8"

Clearance

Hole

FTS

Degree markings

Pivot hole for 5/8" bolt

(not provided)

Pivot slot for 1/2"

bolt (not

provided)

5/8" x 1" hex bolt and lockwasher furnished

(15.2cm)

4-1/2"

(11.4cm)

1-1/4"

(3.2cm)

Fixture

yoke

FCRA45

Front view TFA Front view TFL,TFR

5/8" x 1-1/2" bolt,

lockwasher and

nut furnished

20-1/8"

(51.1cm)

(10.2cm)

11/16" diameter hole for

5/8" thru-bolt

FSAB

9/16" diameter holes

for lag bolts (not

provided)

TFMTS

9/16"

(1.4cm)

7/16" (1.1cm)

FWPB

4-3/4"

(12.1cm)

5/8" x 1-1/2" bolt, lock-

washer and nut furnished

RMG

Pivot slot

for 1/2"

bolt

Degree markings

Pivot hole for 5/8"

bolt (not provided)

5/8" x 1" hex bolt

and lockwasher

furnished

(10.2cm)

1-1/4"

(3.2cm)

Flood-

light

yoke

FCRA

41/2"

(11.4cm)

4-3/4"

(12.1cm)

1/2" x 1-1/2"

hex bolt and

flat washer

furnished

(2) 3/8" U-bolts

furnished with

nuts and

washers

3-3/8"

(8.6cm)

5/8" x 1" hex bolt and

lockwasher furnished

FPMB

8-11/16"

(22.1cm) Fits 2" or

2-1/2" pipe

(horizontal

or vertical)

4-3/16"

(10.6cm)

Wire

Access

Furnished with weather-

tight cord grip for 14-3

SO cord. (Grip for 12-3

SO optional).

(10.2cm)

66"

(167.6cm) EPA 3.9 sq. ft.

Weight 56 lbs.

FCX3

EPA 1.4 sq. ft.

Weight 20 lbs.

36"

(91.4cm)

FCX2

96"

(243.8cm)

FCX4 EPA 4.8 sq. ft.

Weight 64 lbs.

12"

13"

9/16" DIA.

8-1/4"

(21cm)

18-5/8"

(47.3cm)

12-1/2"

(31.8cm)

4-7/8"

(12.4cm)

3-1/4"

(8.3cm)

490

Outdoor / PSG8

KFL 55 95 170S TFA TFR TFL TFM

BD2Barn doors ❑

BV2Bottom visor ❑❑❑

BVG2Bubble vandal guard ❑

CV2Concentric visor ❑

EV2Eggcrate visor ❑

EY Extended yoke ■■

FV2Full visor ❑❑❑ ❑ ❑ ❑❑

GV2Glare visor ❑❑

HLV2Horizontal louver ❑

VG1,2 Vandal guard. Order TFAVG for TFA. ❑❑❑❑

UV Upper visor. Specify family designation. ❑❑❑❑ ❑ ❑ ❑❑

VLV Vertical louver ❑

WG Wire guard ❑❑ ❑❑❑

TFAWG

TFAUV TFAFVTFAVG

TFMFV/TFRFVTFMUV/TFRUV

TFMWG/TFRWG

TFLVG

TFLWGTFLFV

UV - UPPER VISOR (170)

UV - UPPER VISOR (55/95)

TFMVG/TFRVG

GV -GLARE VISOR (55/95)CV - CONCENTRIC VISOR (95)

FV - FULL VISOR (55/95)

BV - BOTTOM VISOR (KFL)

EV - EGGCRATE VISOR (KFL) BVG - VANDAL GUARD (KFL)

FV - FULL VISOR (KFL)

BV - BOTTOM VISOR (55/95)

BD - BARN DOORS (KFL)

HLV -HORIZONTAL LOUVER (KFL)

Options and Accessories

Floodlighting

❑= Available as an accessory, shipped separately

■= Available as an option, shipped installed

UV - UPPER VISOR (KFL)

VLV - VERTICAL LOUVER (KFL)

TFLUV

WG - WIREGUARD

NOTES:

1 Vandal gaurds are compatible with all wattages.

2 Specify family as prefix.

www.lithonia.com

491

Outdoor / PSG8

Floodlighting

KFL 55 95 170S TFA TFR TFL TFM

AJB Architectural J-box. ❑❑

EWB Extended wall bracket, yoke mount only. ❑❑❑❑ ❑❑❑

KFLTMB Twin mounting bar. ❑❑❑❑❑

KFLTMBTHK Twin mounting bar for THK option. Only compatible with KFLTHK. ❑

MP Mounting plate. (For use with yoke-mount option on fixture). ❑❑ ❑ ❑ ❑ ❑❑

KFLSTM Stanchion mount. Requires tenon slipfitter. (23/8" OD tenon) ❑❑❑❑ ❑❑❑❑

KFLSTMTHK Stanchion mount for THK option. (Use with THK mounting only or standard TFM). ❑❑

THK Threaded knuckle mount. ■

TM Tenon base mount. Use with slipfitter options. ❑❑❑❑ ❑❑❑❑

(23/8" OD teno

KFLWMA Wall mount arm. Requires IS, FTS or TFMTS. ❑❑❑❑ ❑❑❑❑

KFLWMATHK Wall mount arm for THK option. ❑

YK Yoke mounting bracket. ■■

STM Stanchion mount. (23/8" OD tenon) ❑❑❑❑ ❑❑❑❑

Options and Accessories

❑= Available as an accessory, shipped separately

■= Available as an option, shipped installed

NOTES:

1 When used with TFM yoke a 3/8" bolt, two lockwashers

and nuts must be furnished by others.

AJB - ARCHITECTURAL

JUNCTION BOX

KFLTMBTHK - TWIN

MOUNTING BAR FOR

THREADED KNUCKLE

www.lithonia.com

KFLTMB - TWIN

MOUNTING BAR

EWB - EXTENDED

WALL BRACKET

MP - MOUNTING PLATE

KFLSTM - STANCHION MOUNT

TM - TENON

BASE MOUNT

STM - STANCHION MOUNT KFLSTMTHK - STANCHION

MOUNT FOR THREADED

KNUCKLE

KFLWMA - WALL-MOUNT KFLWMATHK -

WALL-MOUNT ARM

FOR THREADED

KNUCKLE

THK-THREADED

KNUCKLE MOUNT

3/8"

5/8"

wire

access

cover

3/8" OD

YK - YOKE MOUNT

492

Outdoor / PSG8

Setback

The recommended setback is three-fourths the

building height. If a building is 30 feet tall, the

recommended setback is 22.5 feet from the

building. Locating the floodlight closer to the

building will sacrifice uniformity; setting it farther

back will result in a loss of efficiency.

Setback distance = 3/4 x building height

3/4 (30 ft.) = 22.5 ft.

Spacing

The rule of thumb for spacing floodlights is not to

exceed two times the setback distance. If the

setback is 22.5 feet, the floodlights should not be

placed more than 45 feet apart.

Spacing = 2 x setback distance

22.5 ft. x 2 = 45 ft. apart

Aiming

The floodlight should be aimed at least two-thirds

the height of the building. For example, if a building

is 30 feet high, the recommended aiming point is

approximately 20 feet high. After installation is com-

plete, aiming can be adjusted to produce the best

appearance.

Mounting a full or upper visor to the

floodlight can reduce unwanted spill light.

Aiming point = 2/3 x building height

2/3 (30 ft.) = 20 ft. high

IES Classifications

for general-purpose floodlighting

The IES classification was formerly referred to as

NEMA Type.

The following outdoor design tips provide general

guidelines for lighting design. These guidelines

may not apply to all applications.

GROUND-MOUNTED FLOODLIGHTS

Ground-mounted floodlights are used to light

building facades, signs and flagpoles.

Facade Lighting

When lighting building facades with ground-

mounted floodlights, three factors are considered:

setback, spacing and aiming.

4-1/2'

12'

Sign Lighting

When lighting a sign with ground-mounted flood-

lights, there are three considerations: setback,

spacing and aiming.

Setback

When using ground-mounted floodlights to light

a sign, the recommended setback is a distance

equal to three-fourths the sign height. For

example, the setback distance for a 12-foot by 6-

foot sign would be 4.5 feet. Locating the floodlight

closer will sacrifice uniformity while setting it

farther back will result in a loss of efficiency.

Setback distance = 3/4 x sign height

3/4 (6 ft.) = 4.5 ft.

Spacing

The rule of thumb for spacing floodlights is not to

exceed two times the setback distance. If the

setback is 4.5 feet, the floodlights should not be

placed more than 9 feet apart.

Spacing = 2 x setback distance

4.5 ft. x 2 = 9 ft. apart

Sign Lighting

Considerations:

1. Setback

2. Spacing

3. Aiming

The IES beam spreads indicate the angular ranges

(horizontally and vertically) through which the in-

tensity of the floodlight is greater than 10% of its

maximum intensity. This angular range is referred

to as the 'Field Angle'.

For example:

Asymmetrical beam spread

138° (H) x 119° (V)

HORIZONTAL VERTICAL

= IES 7 X 6

IES Beamspread Classification

Field

Angle IES Beam

Degrees Type Description

10° up to 18° 1 very narrow

18° up to 29° 2 narrow

29° up to 46° 3 medium narrow

46° up to 70° 4 medium

70° up to 100° 5 medium wide

100° up to 130° 6 wide

130° and up 7 very wide

Facade Lighting

Considerations:

1. Setback

2. Spacing

3. Aiming

www.lithonia.com

Floodlighting Design Guidelines

493

Outdoor / PSG8

Flag Lighting

Ground-mounted floodlights also can be used to

light flags. Setback, spacing and aiming must all be

considered.

Setback

The recommended setback for lighting a flag is

one-third times the pole height. If the pole is 30 feet

tall, the floodlight should be set back a distance of

10 feet away from the pole.

Setback distance = 1/3 x pole height

1/3

(30 ft.) = 10 ft.

30'

10'

120°

40'

20'

40'

20'

40'

80'

160'

90°

AIMING

POINT

AIMING LINE

4-1/2'

12'

Flag Lighting

Considerations:

1. Setback

2. Spacing

3. Aiming

Spacing

When more than one pole is added, pole place-

ment is a concern. The “4 times“ rule of thumb for

spacing indicates that a pole should be placed four

times the mounting height from the adjacent poles.

If a flood is mounted on a 20-foot pole, space the

poles 80 feet apart.

Pole spacing = 4 x mounting height

4 (20-ft. pole) = 80 feet between poles

Vertical Aiming

A single floodlight uses the two-thirds rule of

thumb for vertical aiming. The fixture is aimed 2/3 of

the distance across the area to be lighted and at

least 30° below horizontal. If the area to be lighted

is 40 feet across, the recommended aiming point

is 27 feet.

Aiming point = 2/3 across distance to be lighted

2/3 (40 ft.) = 27 ft. aiming point

Additionally, to minimize glare, the recommended

aiming point distance should never exceed twice

the mounting height. If a pole is 20 feet high, the ver-

tical aiming point should not exceed 40 feet out.

2 (20 ft. mtg. ht.) = 40 ft.

Horizontal Aiming

When an additional floodlight is added to a single

pole, horizontal aiming also must be considered.

First, each floodlight should be vertically aimed ac-

cording to the two-thirds rule. As long as the flood-

light has a horizontal NEMA 6 or 7 beamspread, the

floodlights can be aimed up to 90° apart.

General Lighting

Considerations:

1. Mtg. Height

2. Spacing

3. Vertical aiming

4. Horizontal aiming

www.lithonia.com

Floodlighting Design Guidelines

Spacing

Ideally, three floodlights are recommended to light

a flag. The floodlights should be placed approxi-

mately 120° apart.

3 floodlights spaced 120° apart

Aiming

The recommended aiming point for each flood-

light is the center of the flag or the top of the pole.

Mounting a full or upper visor to the floodlight can

reduce unwanted spill light.

POLE-MOUNTED FLOODLIGHTS

General Area Lighting

Pole-mounted floodlights are commonly used for

general area lighting applications such as parking

lots and storage yards. Mounting height, spacing,

vertical aiming and horizontal aiming should be

considered.

Mounting Height

The recommended mounting height is one half the

distance across the area to be lighted. If the area

to be lighted is 40 feet across, the lowest recom-

mended mounting height is 20 feet.

Mounting height = 1/2 distance to be lighted

1/2 (40ft.) = 20 ft.

Aiming

The floodlight should be aimed at least two-thirds

up the sign. For example, if a sign is six feet tall, then

the floodlight will be aimed approximately four feet

high. After installation is completed, aiming can be

adjusted to produce the best appearance.

Mount-

ing a full or upper visor to the floodlight can reduce

unwanted glare.

Aiming point = 2/3 x sign height

2/3 (6 ft.) = 4 ft. high

494

Outdoor / PSG8

Pole Selection Procedure

Step 1. Select the luminaire and decide how many will be mounted per pole.

Determine the Effective Projected Area, EPA (ft2), which is given on the

dimensional information table.

Step 2. Determine the appropriate mounting method for the luminaire. Options

include arm, bracket or wall mounting.

Step 3. Add together the EPA's (ft2) of the luminaire and arm/bracket. Multiply by

number of fixtures to be mounted on one pole.

Step 4. Consult the Wind Map on page 495 to determine the basic wind velocity

for your area.

Step 5. Select the material (steel or aluminum) and shape (square or round) of the

pole. Refer to the “Technical Information” chart on the appropriate pole page.

A. Find the desired nominal mounting height in the second column.

B. Verify that the fixture weight does not exceed the maximum number

listed.

C. Compare your total EPA (ft2) loading with the maximum EPA (ft2) value

found in the wind speed column for your area. Check that the equipment

you are using will not exceed this value.

D. If both the weight and EPA (ft2) values do not exceed for which the pole

is rated, you have selected the correct pole. If, however, either one of

those numbers exceeds the maximum rated values, compare the EPA

(ft2) and fixture weight loads to the next larger pole of the same mounting

height.

CAUTION: This pole selection process is a guideline only. Lithonia Lighting assumes no responsibility for

selection and recommends consultation with qualified individuals for verification of luminaire/pole

assembly selection.

All luminaire/pole assemblies require proper evalu-

ation to ensure that the structural integrity of the

assembly is not compromised when applied in spe-

cific wind conditions. Therefore, the basis for pole

selection in this catalog is total weight and effective

projected area, EPA (ft2), shown on the individual pole

catalog pages. Determination of maximum EPA (ft2)

and weight loading must include all luminaires,

bracketry, signs, decoration, overhead wire or other

equipment that will be mounted to the subject pole.

Luminaire EPA (ft2) and weight data are found on their

respective product pages.

The total effective projected area of the luminaires

and brackets shall not exceed the EPA (ft2) listed for

the pole selected at a given wind velocity. Poles that

are to be located in areas of known abnormal condi-

tions will require special consideration. The map on

page 495 gives the wind velocities to be used in

determining luminaire pole compatibility.

NOTE: If during the pole warranty period of one year,

the product proves defective in material or workman-

ship, the company shall correct, at its option, by repair-

ing or replacing at no charge to the purchaser, if the

purchaser promptly notifies the company. This war-

ranty specifically excludes fatigue failure or similar

phenomena resulting from induced vibration harmonic

oscillation or resonance associated with the move-

ment of air currents around the product.

Finish

Ordering Information Example: SSA 16 4G DM19 DMB

Nominal

mounting

height

8-50 feet

sportslighting

poles up to 115'.

See submittal

sheets for

specific

information.

Fixture mounting method

PT Open-top

Tenon Mounting

T20 23/8" OD (2" NPS)

T25 27/8" OD (21/2" NPS)

T30 31/2" OD (3" NPS)

T35 4" OD (31/2" NPS)

Drill Mounting

DM19 1 at 90°

DM28 2 at 180°

DM29 2 at 90°

DM39 3 at 90°

DM49 4 at 90°

DM32 3 at 120°

(Round Poles)

Aeris Drill Mounting

DM19AS 1 at 90°

DM28AS 2 at 180°

DM29AS 2 at 90°

DM39AS 3 at 90°

DM49AS 4 at 90°

DM32AS 3 at 120°

(Round Poles)

Architectural Colors1

Polyester Powder

Standard Colors

DDB Dark bronze

DWH White

DBL Black

BA Brushed Aluminum2

Classic Colors

DMB Medium bronze

DNA Natural aluminum

DSS Sandstone

DGC Charcoal gray

DTG Tennis green

DBR Bright red

DSB Steel blue

Class 1 Architectural Anodize3

ABL Black

ADB Dark bronze

ANA Natural

Existing Colors

MAEX Match existing

Shaft type

RTA Round tapered aluminum

RSA Round straight aluminum

RSAH Round straight aluminum

hinged

SSA Square straight aluminum

SSAH Square straight aluminum

hinged

RTS Round tapered steel

STS Square tapered steel

STSH Square tapered steel

hinged

RSS Round straight steel

SSS Square straight steel

SSF Square straight fiberglass

RTF Round tapered fiberglass

RTFDB Round tapered fiberglass

direct burial

SPRTC Round tapered concrete

sportslighting

STC Square tapered concrete

SPRTS Round tapered steel

Nominal shaft base

size/wall thickness

(in.)

4C 0.125

5E 0.156

6G 0.188

7J 0.250

8K 0.312

9L 0.219

10 P 0.375

General Information — Poles

(Poles are available only in U.S.)

Options

See page

509

NOTES:

1 Additional architectural colors available; see Architectural

Colors brochure on www.lithonia.com.

2 Aluminum poles only.

3 RTA, RSA, SSA only.

www.lithonia.com

495

Outdoor / PSG8

Wind Map

www.lithonia.com

496

Outdoor / PSG8

Features

Shaft – One-piece extruded 6063-T6 alumi-

num alloy with T6 temper. Circumferential

satin-brushed finish. 41/2" round straight

tube is uniform in cross-section down length

of shaft.

Anchor Base – Cast from A356 aluminum

alloy and heat treated to T6 temper. Base

slipfits shaft, and they are joined together

by continuous circumferential welds at

both top and bottom of anchor base to

provide maximum strength at area of criti-

cal stress.

Round Straight Aluminum

Pole Data

Shaft Bolt Bolt Base Anchor Warehouse

base circle projection square bolt anchor bolt Template

size A B C description description number

4" 61/2"-81/4"3

1/4"8

3/4" ABRSA-4 AB18-0 PJ50057

41/2"7

1/8"-83/8"3

1/4"8

1/2" ABRSA-4-5 AB18-0 PJ50040

5" 71/2"-91/2"3

1/4"9

1/4" ABRSA-5 AB18-0 PJ50058

6" 83/4"-101/4"3

1/2"10

1/4" ABRSA-6 AB30-0 PJ50059

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Wall Bolt Bolt Approx.

Catalog mount. shaft size thick. 80 90 100 Max. circle size ship wt.

Number ht. (ft.) (in. x in. x ft.) (in.) mph mph mph wt. (in.) (in. x in. x in.) (lbs.)

RSA 8 4C 8 4.0 x 8.0 0.125 11.2 8.6 6.8 125 6-1/2-8-1/4 3/4 x 18 x 3 22

RSA 8 4-5C 8 4.5 x 8.0 0.125 14.6 11.3 9.1 175 7-1/8-8-3/8 3/4 x 18 x 3 30

RSA 8 4-5G 8 4.5 x 8.0 0.188 21.8 17.0 13.7 225 7-1/8-8-3/8 3/4 x 18 x 3 38

RSA 10 4C 10 4.0 x 10.0 0.125 8.2 6.1 4.7 100 6-1/2-8-1/4 3/4 x 18 x 3 26

RSA 10 4-5C 10 4.5 x 10.0 0.125 10.6 8.1 6.5 133 7-1/8-8-3/8 3/4 x 18 x 3 34

RSA 10 4-5G 10 4.5 x 10.0 0.188 16.3 12.6 10.1 175 7-1/8-8-3/8 3/4 x 18 x 3 43

RSA 10 5C 10 5.0 x 10.0 0.125 13.6 10.6 8.5 150 7-1/2-9-1/2 3/4 x 18 x 3 36

RSA 12 4C 12 4.0 x 12.0 0.125 6.0 4.3 3.2 110 6-1/2-8-1/4 3/4 x 18 x 3 30

RSA 12 4-5C 12 4.5 x 12.0 0.125 8.1 6.0 4.8 80 7-1/8-8-3/8 3/4 x 18 x 3 38

RSA 12 4-5G 12 4.5 x 12.0 0.188 12.7 9.7 7.7 185 7-1/8-8-3/8 3/4 x 18 x 3 50

RSA 12 5C 12 5.0 x 12.0 0.125 10.3 8.0 6.3 150 7-1/2-9-1/2 3/4 x 18 x 3 36

RSA 12 5E 12 5.0 x 12.0 0.156 13.2 10.3 8.2 200 7-1/2-9-1/2 3/4 x 18 x 3 44

RSA 12 5G 12 5.0 x 12.0 0.188 16.2 12.6 10.1 225 7-1/2-9-1/2 3/4 x 18 x 3 53

RSA 14 4C 14 4.0 x 14.0 0.125 4.1 2.8 1.9 75 6-1/2-8-1/4 3/4 x 18 x 3 35

RSA 14 4-5C 14 4.5 x 14.0 0.125 5.8 4.2 3.3 60 7-1/8-8-3/8 3/4 x 18 x 3 42

RSA 14 4-5G 14 4.5 x 14.0 0.188 9.7 7.3 5.8 190 7-1/8-8-3/8 3/4 x 18 x 3 56

RSA 14 5C 14 5.0 x 14.0 0.125 7.8 6.0 4.7 100 7-1/2-9-1/2 3/4 x 18 x 3 39

RSA 14 5E 14 5.0 x 14.0 0.156 10.3 8.0 6.3 125 7-1/2-9-1/2 3/4 x 18 x 3 47

RSA 14 5G 14 5.0 x 14.0 0.188 12.8 9.9 7.9 150 7-1/2-9-1/2 3/4 x 18 x 3 56

RSA 16 4C 16 4.0 x 16.0 0.125 2.8 1.6 1.0 150 6-1/2-8-1/2 3/4 x 18 x 3 38

RSA 16 4-5C 16 4.5 x 16.0 0.125 4.2 2.8 2.1 50 7-1/8-8-3/8 3/4 x 18 x 3 46

RSA 16 4-5G 16 4.5 x 16.0 0.188 7.5 5.5 4.3 155 7-1/8-8-3/8 3/4 x 18 x 3 62

RSA 16 5C 16 5.0 x 16.0 0.125 5.9 4.4 3.4 175 7-1/2-9-1/2 3/4 x 18 x 3 46

RSA 16 5E 16 5.0 x 16.0 0.156 8.0 6.1 4.8 190 7-1/2-9-1/2 3/4 x 18 x 3 53

RSA 16 5G 16 5.0 x 16.0 0.188 10.1 7.8 6.1 200 7-1/2-9-1/2 3/4 x 18 x 3 60

RSA 16 6E 16 6.0 x 16.0 0.156 13.6 10.6 8.4 225 8-3/4-10-1/4 3/4 x 30 x 3 53

RSA 16 6G 16 6.0 x 16.0 0.188 16.8 13.0 10.4 245 8-3/4-10-1/4 3/4 x 30 x 3 78

RSA 18 4-5G 18 4.5 x 18.0 0.188 5.7 4.0 3.1 123 7-1/8-8-3/8 3/4 x 18 x 3 68

RSA 18 5C 18 5.0 x 18.0 0.125 4.3 3.1 2.4 150 7-1/2-9-1/2 3/4 x 18 x 3 48

RSA 18 5E 18 5.0 x 18.0 0.156 6.1 4.6 3.5 175 7-1/2-9-1/2 3/4 x 18 x 3 58

RSA 18 5G 18 5.0 x 18.0 0.188 8.0 6.8 4.7 225 7-1/2-9-1/2 3/4 x 18 x 3 68

RSA 18 6G 18 6.0 x 18.0 0.188 13.9 10.7 8.5 225 8-3/4-10-1/4 3/4 x 30 x 3 86

RSA 20 4-5G 20 4.5 x 20.0 0.188 4.3 2.9 2.1 95 7-1/8-8-3/8 3/4 x 18 x 3 74

RSA 20 5C 20 5.0 x 20.0 0.125 3.0 2.1 1.5 150 7-1/2-9-1/2 3/4 x 18 x 3 54

RSA 20 5E 20 5.0 x 20.0 0.156 4.7 3.4 2.6 150 7-1/2-9-1/2 3/4 x 18 x 3 68

RSA 20 5G 20 5.0 x 20.0 0.188 6.4 4.8 3.6 150 7-1/2-9-1/2 3/4 x 18 x 3 82

RSA 20 6E 20 6.0 x 20.0 0.156 9.3 7.1 5.5 175 8-3/4-10-1/4 3/4 x 30 x 3 95

RSA 20 6G 20 6.0 x 20.0 0.188 11.8 9.1 7.1 200 8-3/4-10-1/4 3/4 x 30 x 3 110

RSA 25 4-5G 25 4.5 x 25.0 0.188 1.3 — — 100 7-1/8-8-3/8 3/4 x 18 x 3 89

RSA 25 6E 25 6.0 x 25.0 0.156 5.2 3.8 2.8 150 8-3/4-10-1/4 3/4 x 30 x 3 108

RSA 25 6G 25 6.0 x 25.0 0.188 7.1 5.3 4.0 150 8-3/4-10-1/4 3/4 x 30 x 3 128

RSA 30 6G 30 6.0 x 30.0 0.188 3.5 2.4 1.6 200 8-3/4-10-1/4 3/4 x 30 x 3 146

Anchor Bolts – Top 12" is galvanized per

ASTM A-153. Made of carbon steel bar with

a minimum-yield strength of 55,000 psi.

Grounding – Ground lug located immedi-

ately inside hand hole is tapped for 3/8"-16

UNC ground bolt (not supplied).

Hand hole – Reinforced 3"x5" hand hole is

located 18" above base. Cover and attach-

ment hardware furnished.

Hardware – Stainless steel.

Top Cap – Cast-aluminum cap is provided

for drill-mount poles.

Finish – Standard finish is brushed alumi-

num. Optional polyester powder paint and

anodized finishes available.

Bolt Covers – A356 nut covers included

with anchor base unless otherwise speci-

fied.

NOTES:

1 Mounting Arrangement: (PT) Open Top; (T20) 23/8" OD

(2" NPS)

2 Drill Mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures

at 180°

3 Options: See page 509.

4 Brackets: See page 511.

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

Anchor Base Poles

RSA

www.lithonia.com

keyword: RSA

497

Outdoor / PSG8

Pole Data

Shaft Bolt Bolt Base Anchor Warehouse

base circle projection square bolt anchor bolt Template

size A B C description description number

5" 71/2"–91/2"3

1/4"9

1/4" ABRTA-5 AB18-0 PJ50032

6" 9"–10" 31/2" 10" ABRTA-6 AB30-0 PJ50033

7" 97/8"–111/4"4

1/8"10

1/2" ABRTA-7 AB36-0 PJ50034

8" 11-12" 41/4"11

1/2" ABRTA-8 AB36-0 PJ50035

10"G 141/4"–161/4"4

1/2"14

1/2" ABRTA-10G N/A PJ50036

10"J 141/2"–16" 5" 141/2" ABRTA-10J N/A PJ50063

Round Tapered Aluminum

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Wall Approx

Catalog mount shaft size thickness 80 90 100 Max. Bolt circle Bolt size ship wt.

number ht. (ft.) (in. x in. x ft.) (in.) mph mph mph wt. (in.) (in. x in. x in.) (lbs.)

RTA 20 5C 20 5 x 3 x 19’8” 0.125 3.9 2.5 1.6 100 7-1/2-9-1/2 3/4 x 18 x 3 62

RTA 20 5G 20 5 x 3 x 19’8” 0.188 7.4 5.2 3.8 100 7-1/2-9-1/2 3/4 x 18 x 3 72

RTA 20 6G 20 6 x 4 x 19’8” 0.188 12.2 9.2 7.2 214 9–10 3/4 x 30 x 3 107

RTA 20 7E 20 7 x 4 x 19’8” 0.156 15.0 11.4 9.0 256 9-7/8-11-1/4 1 x 36 x 4 103

RTA 25 6E 25 6 x 4 x 24’ 8” 0.156 5.3 3.6 2.6 114 9–10 3/4 x 30 x 3 106

RTA 25 7E 25 7 x 4 x 24’8” 0.156 9.5 7.0 5.4 162 9-7/8-11-1/4 1 x 36 x 4 120

RTA 25 8E 25 8 x 4.5 x 24’ 8” 0.156 14.2 10.9 8.5 220 11–12 1 x 36 x 4 130

RTA 25 8G 25 8 x 4.5 x 24’ 8” 0.188 18.0 13.8 10.9 261 11–12 1 x 36 x 4 153

RTA 30 7E 30 7 x 4 x 29’8” 0.156 5.5 3.8 2.7 111 9-7/8-11-1/4 1 x 36 x 4 135

RTA 30 8E 30 8 x 4.5 x 29’8” 0.156 9.4 7.0 5.3 151 11–12 1 x 36 x 4 150

RTA 30 8G 30 8 x 4.5 x 29’8” 0.188 12.4 9.4 7.3 179 11–12 1 x 36 x 4 175

RTA 30 10G 30 10 x 6 x 29’8” 0.188 23.8 18.3 14.3 377 14-1/4-16-1/4 1 x 40 x 4 235

RTA 35 8E 35 8 x 4.5 x 34’8” 0.156 5.8 4.1 2.9 119 11–12 1 x 36 x 4 185

RTA 35 8G 35 8 x 4.5 x 34’8” 0.188 8.3 6.0 4.5 141 11–12 1 x 36 x 4 220

RTA 35 8J 35 8 x 4.5 x 34’8” 0.250 12.9 9.7 7.5 183 11–12 1 x 36 x 4 251

RTA 35 10G 35 10 x 6 x 34’8” 0.188 17.9 13.6 10.4 295 14-1/4-16-1/4 1 x 40 x 4 268

RTA 39 8G 39 8 x 4.5 x 38’8” 0.188 5.6 3.9 2.7 122 11–12 1 x 36 x 4 250

RTA 39 8J 39 8 x 4.5 x 38’8” 0.250 9.7 7.1 5.4 158 11–12 1 x 36 x 4 280

RTA 39 10G 39 10 x 6 x 38’8” 0.188 14.2 10.5 7.8 253 14-1/4-16-1/4 1 x 40 x 4 295

RTA 39 10J 39 10 x 6 x 38’8” 0.250 20.4 15.5 11.9 300 14-1/2-16 1-1/4 x 48 x 5 373

NOTES:

1 Mounting Arrangement: (PT) Open Top; (T20) 23/8" OD

(2" NPS)

2 Drill Mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures

at 180°

3 Options: See page 509.

4 Brackets: See page 511.

Anchor Base Poles

RTA

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

18"

(45.7cm)

Features

Shaft – The shaft is spun tapered from

seamless 6063 alloy aluminum tubing and

is heat-treated to produce a T6 temper.

The shaft is cone tapered to the butt

diameter.

Anchor Base – Cast from A356 alloy alumi-

num, the anchor base is heat-treated to a

T6 condition. The anchor base telescopes

the pole shaft and is circumferentially

welded top and bottom.

Anchor Bolts – Top 12" galvanized per

ASTM A-153. Made of steel rod having a

www.lithonia.com

keyword: RTA

minimum yield strength of 55,000 PSI.

Grounding – A ground lug located immedi-

ately inside the hand hole is tapped round

bolt (by others).

Hand hole – A nominal 3"x5" or 4"x6" rein-

forced flushed covered hand hole is cen-

tered 18" above the base.

Hardware – All screws, nuts and bolts are

made of stainless steel.

Top Cap – Cast-aluminum cap is provided

for drill-mount poles.

Finish – Standard finish is brushed alumi-

num. Optional polyester powder paint and

anodized finishes available.

Bolt Covers – A356 nut covers shall be

included with each anchor base unless

otherwise specified.

498

Outdoor / PSG8

Features

Shaft – One-piece extruded 6063 aluminum

alloy with a T6 temper. Circumferential satin-

brushed finish. The round, straight tube is

uniform in cross-section down the length

of the shaft.

Hinged Anchor Base – Cast from A356

aluminum alloy, the anchor base is heat-

treated to a T6 temper. The shaft inserts

into the tilting section of the hinged base

and is joined together by continuous cir-

cumferential welds at the outside top and

inside bottom. The tilting and anchored

Round Straight Aluminum, Hinged

Pole Data

Shaft Bolt Bolt Base Anchor Warehouse

base circle projection square bolt anchor bolt Template

size A B C description description number

4" 81/2"–10" 31/2"12

5/8" ABRSAH-4 AB18-0 PJ50060

5" 81/2"–10" 31/2"12

5/8" ABRSAH-5 AB18-0 PJ50061

6" 81/2"–10" 31/2"12

5/8" ABRSAH-6 AB30-0 PJ50062

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Wall Bolt Bolt Approx.

Catalog mount. shaft size thick. 80 90 100 Max. circle size ship wt.

number ht. (ft.) (in. x in. x ft.) (in.) mph mph mph wt. (in.) (in. x in. x in.) (lbs)

RSAH 10 4C 10 4 x 4 x 10 0.125 8.2 6.1 4.7 100 8-1/2-10 3/4 x 18 x 3 43

RSAH 14 4C 14 4 x 4 x 14 0.125 4.4 3.0 2.1 100 8-1/2-10 3/4 x 18 x 3 50

RSAH 14 5E 14 5 x 5 x 14 0.156 10.6 8.2 6.5 100 8-1/2-10 3/4 x 18 x 3 66

RSAH 16 4C 16 4 x 4 x 16 0.125 3.1 1.9 1.2 100 8-1/2-10 3/4 x 18 x 3 54

RSAH 16 5C 16 5 x 5 x 16 0.125 6.2 4.7 3.6 100 8-1/2-10 3/4 x 18 x 3 60

RSAH 16 6E 16 6 x 6 x 16 0.156 13.8 10.7 8.5 100 8-1/2-10 3/4 x 30 x 3 88

RSAH 18 5C 18 5 x 5 x 18 0.125 4.5 3.3 2.5 130 8-1/2-10 3/4 x 18 x 3 65

RSAH 18 5G 18 5 x 5 x 18 0.188 8.2 6.2 4.9 130 8-1/2-10 3/4 x 18 x 3 90

RSAH 20 5C 20 5 x 5 x 20 0.125 3.2 2.2 1.6 130 8-1/2-10 3/4 x 18 x 3 69

RSAH 20 5G 20 5 x 5 x 20 0.188 6.4 4.8 3.7 130 8-1/2-10 3/4 x 18 x 3 97

RSAH 20 6G 20 6 x 6 x 20 0.188 11.7 9.0 7.1 130 8-1/2-10 3/4 x 30 x 3 110

3/4" Solid aluminum pivot rod

Two-piece cast-

aluminum cover

Anchor Base Poles

RSAH

Tapped 3/8"-16 for

ground connector

sections of the hinged base are joined by

" diameter solid aluminum pivot rod. The

tilting section of the hinged base is held in

a vertical position by three

"-13 x 2

stainless steel hex head bolts that attach

to stainless steel inserts cast into the alu-

minum base. A cast-aluminum two-piece

cover is included.

Anchor Bolts – Top 12" galvanized per

ASTM A-153. Made of carbon steel bar

having a minimum-yield strength of

55,000 PSI.

Hand hole – Available as an option, and

located 90o to the right of the hinge.

Hardware – Stainless steel.

Top Cap – Cast-aluminum cap is provided

for drill-mount poles.

Finish – Standard finish is brushed aluminum.

Optional polyester powder painted and

anodized finishes available.

NOTES:

1 Mounting arrangement: (PT) Open Top; (T20) 23/8" OD (2"

NPS)

2 Drill mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures

at 180°

3 Options: See page 509.

4 Brackets: See page 511.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

www.lithonia.com

keyword: RSAH

499

Outdoor / PSG8

Square Straight Aluminum

Pole Data

Shaft Bolt Bolt Base Anchor Warehouse

base circle projection square bolt anchor bolt Template

size A B C description description number

4"C 81/2-95/8"3

1/8"9

15/16" ABSSA-4C AB18-0 PJ50045

4"G 81/2-95/8"3

1/8"9

15/16" ABSSA-4G AB30-0 PJ50045

5" 101/2-111/2"3

1/4"11

9/16" ABSSA-5 AB30-0 PJ50046

6" 12"-13" 4" 121/4" ABSSA-6 AB36-0 PJ50044

Anchor Base Poles

SSA

Features

Shaft – Square, non-tapered shaft made

from extruded 6063-T6 or 6061-T6 alumi-

num alloy shaft width is 4, 5 or 6 inches.

Wall thickness is .125, .188 or .250, de-

pending on mounting height and loading

requirements.

Anchor Base – Cast from 356-T6 aluminum

alloy. Anchor bolt holes are recessed and

covered by aluminum caps.

Anchor Bolts – Top 12" galvanized per

ASTM A-153. Made of

" or 1" diameter

steel rod having minimum-yield strength

of 55,000 psi.

Grounding – Ground lug located immedi-

ately inside hand hole is tapped for

"-16

UNC grounding bolt (by others).

Hand hole – Rectangular reinforced hand

hole having nominal dimensions 2" x 4" (4"

sq.) or 2

" x 4" (5" or 6" sq.). Hand-hole cover

plate made from aluminum alloy with at-

tachment hardware provided.

Hardware – All screws, nuts and bolts are

made of stainless steel.

Top Cap – Weatherproof, cast-aluminum

cap is provided, for drill-mount poles.

Finish – Brushed aluminum is standard;

optional polyester powder paint and

anodized finishes available.

Bolt Covers – Nut covers included with

each anchor base.

NOTES:

1 Mounting arrangement: (PT) Open top; (T20) 23/8" OD (2" NPS)

2 Drill mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures at 180°

3 Options: See page 509.

4 Brackets: See page 511.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

Nut

cover

disc

Tapped 3/8"

for ground

connector

www.lithonia.com

keyword: SSA

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Wall Bolt Bolt Approx.

Catalog mount. shaft size thick. 80 90 100 Max. circle size ship wt.

number ht. (ft.) (in. x in. x ft.) (in.) mph mph mph wt. (in.) (in. x in. x in.) (lbs.)

SSA 8 4C 8 4.0 x 8.0 0.125 16.5 12.6 9.9 300 8-1/2-9-5/8 3/4 x 18 x 3 32

SSA 10 4C 10 4.0 x 10.0 0.125 11.5 8.6 6.5 230 8-1/2-9-5/8 3/4 x 18 x 3 37

SSA 12 4C 12 4.0 x 12.0 0.125 12.4 9.2 6.9 160 8-1/2-9-5/8 3/4 x 18 x 3 40

SSA 14 4C 14 4.0 x 14.0 0.125 9.3 6.7 4.8 120 8-1/2-9-5/8 3/4 x 18 x 3 50

SSA 15 4C 15 4.0 x 15.0 0.125 8.0 5.6 3.9 100 8-1/2-9-5/8 3/4 x 18 x 3 52

SSA 16 4C 16 4.0 x 16.0 0.125 6.9 4.7 3.1 90 8-1/2-9-5/8 3/4 x 18 x 3 54

SSA 16 4G 16 4.0 x 16.0 0.188 11.8 8.5 6.2 130 8-1/2-9-5/8 3/4 x 30 x 3 74

SSA 16 5G 16 5.0 x 16.0 0.188 15.0 11.1 7.5 280 10-1/2-11-1/2 3/4 x 30 x 3 83

SSA 18 4C 18 4.0 x 18.0 0.125 4.9 3.0 1.7 70 8-1/2-9-5/8 3/4 x 18 x 3 57

SSA 18 4G 18 4.0 x 18.0 0.188 9.2 6.4 4.4 100 8-1/2-9-5/8 3/4 x 30 x 3 80

SSA 18 5G 18 5.0 x 18.0 0.188 16.8 12.2 8.9 230 10-1/2-11-1/2 3/4 x 30 x 3 91

SSA 20 4C 20 4.0 x 20.0 0.125 3.3 1.7 0.5 40 8-1/2-9-5/8 3/4 x 18 x 3 62

SSA 20 4G 20 4.0 x 20.0 0.188 7.0 4.6 2.9 80 8-1/2-9-5/8 3/4 x 30 x 3 85

SSA 20 5G 20 5.0 x 20.0 0.188 13.6 9.5 6.6 180 10-1/2-11-1/2 3/4 x 30 x 3 107

SSA 20 6G 20 6.0 x 20.0 0.188 22.0 15.9 11.6 230 12-13 1 x 36 x 4 155

SSA 20 6J 20 6.0 x 20.0 0.250 30.4 22.6 17.0 300 12-13 1 x 36 x 4 202

SSA 25 5G 25 5.0 x 25.0 0.188 7.2 4.2 2.0 110 10-1/2-11-1/2 3/4 x 30 x 3 130

SSA 25 6G 25 6.0 x 25.0 0.188 13.2 8.6 5.4 180 12-13 1 x 36 x 4 180

SSA 25 6J 25 6.0 x 25.0 0.250 19.7 13.8 9.5 250 12-13 1 x 36 x 4 224

SSA 30 6G 30 6.0 x 30.0 0.188 7.0 3.4 0.8 130 12-13 1 x 36 x 4 210

SSA 30 6J 30 6.0 x 30.0 0.250 12.2 7.5 4.1 170 12-13 1 x 36 x 4 258

SSA 32 6J 32 6.0 x 32.0 0.250 9.7 5.4 2.3 160 12-13 1 x 36 x 4 272

SSA 35 6J 35 6.0 x 35.0 0.250 6.4 2.6 — 200 12-13 1 x 36 x 4 294

500

Outdoor / PSG8

Square Straight Aluminum, Hinged

NOTES:

1 Mounting arrangement: (PT) Open top; (T20) 23/8" OD (2"

NPS)

2 Drill mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures

at 180°

3 Options: See page 509.

4 Brackets: See page 511.

Pole Data

Shaft Bolt Bolt Base Anchor Warehouse

base circle projection square bolt anchor bolt Template

size A B C description description number

4"C 81/2-10" 31/2"11

11/16" ABSSAH-4C AB18-0 PJ50055

4"G 81/2-10" 31/2"11

11/16" ABSSAH-4G AB30-0 PJ50055

5" 95/16-10" 31/2"11

11/16" ABSSAH-5 AB30-0 PJ50056

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Wall Bolt Bolt Approx.

Catalog mount. shaft size thick. 80 90 100 Max. circle size ship wt.

number ht. (ft.) (in. x in. x ft.) (in.) mph mph mph wt. (in.) (in. x in. x in.) (lbs.)

SSAH 10 4C 10 4 x 4 x 10 0.125 13.1 9.9 7.5 100 8-1/2-10 3/4 x 18 x 3 48

SSAH 12 4C 12 4 x 4 x 12 0.125 9.6 7.0 5.1 100 8-1/2-10 3/4 x 18 x 3 53

SSAH 14 4C 14 4 x 4 x 14 0.125 7.0 4.9 3.3 100 8-1/2-10 3/4 x 18 x 3 57

SSAH 15 4C 15 4 x 4 x 15 0.125 6.0 4.0 2.6 100 8-1/2-10 3/4 x 18 x 3 60

SSAH 16 4C 16 4 x 4 x 16 0.125 5.0 3.2 1.9 100 8-1/2-10 3/4 x 18 x 3 62

SSAH 16 4G 16 4 x 4 x 16 0.188 8.9 6.2 4.3 150 8-1/2-10 3/4 x 30 x 3 86

SSAH 18 4C 18 4 x 4 x 18 0.125 3.4 1.8 0.7 100 8-1/2-10 3/4 x 18 x 3 67

SSAH 18 4G 18 4 x 4 x 18 0.188 6.8 4.5 2.9 100 8-1/2-10 3/4 x 30 x 3 93

SSAH 18 5G 18 5 x 5 x 18 0.188 12.6 8.8 6.1 150 9-5/16-10 3/4 x 30 x 3 108

SSAH 20 4G 20 4 x 4 x 20 0.188 5.0 3.0 1.6 150 8-1/2-10 3/4 x 30 x 3 100

SSAH 20 5G 20 5 x 5 x 20 0.188 9.9 6.6 4.2 175 9-5/16-10 3/4 x 30 x 3 117

Two-piece cast-

aluminum cover

Features

Shaft – Square, non-tapered shaft made

from extruded 6063-T6 aluminum alloy. Shaft

width is 4 or 5 inches. Wall thickness is .125

or .188 depending on mounting height and

loading requirements.

Hinged Anchor Base – Cast from A356

aluminum alloy and heat treated to a T6

temper. The shaft inserts into the tilting

section of the hinged base and is joined

together by continuous circumferential

welds at the outside top and inside bot-

tom. The tilting and anchored sections of

Anchor Base Poles

SSAH

the hinged base is held in a vertical posi-

tion by three

"–13 x 2

" stainless steel hex

head bolts which attach to stainless steel

inserts cast into the aluminum base. A cast-

aluminum two-piece cover is included.

Anchor Bolts – Top 12" galvanized per

ASTM A-153. Made of

" diameter steel

rod having minimum-yield strength of

55,000 psi.

Hand hole – Available as an option, and

located 90° to the right of the hinge.

Hardware – All screws, nuts and bolts are

made of stainless steel.

Top Cap – Weatherproof, cast-aluminum

cap is provided, for drill-mount poles.

Finish – Brushed aluminum is standard;

optional polyester powder paint and anod-

ized finishes available.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

Hinge direction

“A” Side of Pole

www.lithonia.com

keyword: SSAH

501

Outdoor / PSG8

Round Straight Steel Anchor Base Poles

RSS

Features

Shaft – Weldable grade A500 or A513 car-

bon steel tubing with minimum yield of

46,000 or 42,000 psi. Uniform wall thickness

of .120". Shafts are one-piece construc-

tion with a full longitudinal weld. The

round, straight tube is uniform in cross-

section down length of shaft.

Anchor Base – Fabricated from carbon

steel plate (ASTM A-36 ).

" thickness.

Base plate and shaft are circumferentially

welded at both top and bottom to provide

maximum strength at area of critical

stress.

Anchor Bolts – Top 12" is galvanized per

ASTM A-153. Made of carbon steel bar

with minimum-yield strength of 55,000 psi.

Grounding – Nut holder located immedi-

ately inside hand hole is tapped for ½"-13

UNC ground bolt and nut (provided by

others).

Hand hole – Nominal 3"x5" hand hole is

located 18" above base. Cover and attach-

ment hardware provided.

Hardware – Fasteners are high-strength

galvanized zinc-plated or stainless steel.

Top Cap – Plastic cap is provided for drill-

mount poles.

Finish – Dark bronze polyester powder

paint (DDB) standard; optional polyes-

ter powder paint finishes available.

Base Cover – Full-base cover finished to

match pole.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

NOTES:

1 Mounting arrangement: (PT) Open top accepts KKR;

(T20) 23/8" OD (2" NPS)

2 Drill mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures

at 180°

3 Options: See page 509.

4 Brackets: See page 511.

Pole Data

Shaft Bolt Bolt Base Anchor Warehouse

base circle projection square bolt anchor bolt Template

size A B C description description number

38"3

1/4" x 31/2" 8" ABRSS-4 AB18-0 PJ50041

4" 8" 31/4" x 31/2" 8" ABRSS-4 AB18-0 PJ50041

41/2"8"3

1/4" x 31/2" 8" ABRSS-4 AB18-0 PJ50041

5" 8" 31/4" x 31/2" 8" ABRSS-4 AB18-0 PJ50041

TECHNICAL INFORMATION

EPA (ft2) with 1.3 gust

Nom. Pole Wall Bolt Bolt Approx.

Catalog mount. Shaft Size Thick. 80 Max. 90 Max. 100 Max. Circle Size ship wt.

Number ht. (ft.) (in. x in. x ft.) (in.) mph wt. mph wt. mph wt. (in.) (in. x in. x in.) (lbs.)

RSS 8 4-5B 8 4.5 x 8.0 0.120 24.5 615 19.5 490 15.8 395 8 3/4 x 18 x 3 55

RSS 10 3B 10 3.0 x 10.0 0.120 10 250 7.7 190 6.0 175 8 3/4 x 18 x 3 55

RSS 10 4B 10 4.0 x 10.0 0.120 19.1 480 15.0 375 12.2 305 8 3/4 x 18 x 3 70

RSS 10 4-5B 10 4.5 x 10.0 0.120 24.5 615 19.5 490 15.8 395 8 3/4 x 18 x 3 75

RSS 12 3B 12 3.0 x 12.0 0.120 7.7 195 5.8 145 4.4 130 8 3/4 x 18 x 3 60

RSS 12 4B 12 4.0 x 12.0 0.120 15.0 390 11.8 300 9.5 240 8 3/4 x 18 x 3 80

RSS 12 4-5B 12 4.5 x 12.0 0.120 19.8 495 15.7 395 12.7 320 8 3/4 x 18 x 3 85

RSS 14 3B 14 3.0 x 14.0 0.120 6.0 175 4.4 130 3.3 90 8 3/4 x 18 x 3 70

RSS 14 4B 14 4.0 x 14.0 0.120 12.2 305 9.4 250 7.6 195 8 3/4 x 18 x 3 90

RSS 14 4-5B 14 4.5 x 14.0 0.120 16.2 405 12.8 320 10.3 260 8 3/4 x 18 x 3 95

RSS 15 4-5B 15 4.5 x 15.0 0.120 13.1 330 10.2 265 8.2 205 8 3/4 x 18 x 3 96

RSS 16 3B 16 3.0 x 16.0 0.120 4.6 125 3.2 100 2.3 60 8 3/4 x 18 x 3 80

RSS 16 4B 16 4.0 x 16.0 0.120 9.6 250 7.4 185 5.9 150 8 3/4 x 18 x 3 100

RSS 16 4-5B 16 4.5 x 16.0 0.120 13.1 330 10.2 265 8.2 205 8 3/4 x 18 x 3 105

RSS 18 3B 18 3.0 x 18.0 0.120 3.4 90 2.3 60 1.4 70 8 3/4 x 18 x 3 90

RSS 18 4B 18 4.0 x 18.0 0.120 7.6 190 5.7 180 4.5 130 8 3/4 x 18 x 3 110

RSS 18 4-5B 18 4.5 x 18.0 0.120 10.5 265 8.2 210 6.5 165 8 3/4 x 18 x 3 115

RSS 20 3B 20 3.0 x 20.0 0.120 2.4 100 1.4 75 — — 8 3/4 x 18 x 3 100

RSS 20 4B 20 4.0 x 20.0 0.120 6.0 150 4.45 150 3.45 125 8 3/4 x 18 x 3 120

RSS 20 4-5B 20 4.5 x 20.0 0.120 8.5 215 6.6 165 5.2 130 8 3/4 x 18 x 3 130

RSS 20 5B 20 5.0 x 20.0 0.120 11.75 300 9.1 230 7.25 180 8 3/4 x 18 x 3 145

RSS 22 4-5B 22 4.5 x 22.0 0.120 4.8 130 3.6 90 2.7 90 8 3/4 x 18 x 3 134

RSS 25 4B 25 4.0 x 25.0 0.120 2.85 100 1.95 75 1.35 75 8 3/4 x 18 x 3 145

RSS 25 4-5B 25 4.0 x 25.0 0.120 4.8 130 3.6 90 2.7 90 8 3/4 x 18 x 3 145

RSS 25 5B 25 5.0 x 25.0 0.120 7.25 180 5.5 150 4.25 150 8 3/4 x 18 x 3 180

RSS 30 4-5B 30 4.5 x 30.0 0.120 2.3 80 1.5 75 1.0 60 8 3/4 x 18 x 3 185

RSS 30 5B 30 5.0 x 30.0 0.120 4.2 150 3 125 2.25 100 8 3/4 x 18 x 3 210

Nut holder

Hand-hole

cover

www.lithonia.com

keyword: RSS

502

Outdoor / PSG8

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Wall Bolt Bolt Approx.

Catalog mount. shaft size thick. 80 Max. 90 Max. 100 Max. circle size ship wt.

number ht. (ft.) (in. x in. x ft.) (in.) Gauge mph wt. mph wt. mph wt. (in.) (in. x in. x in.) (lbs.)

RTS 20 5-9B 20 5.9 x 3.1 x 20 0.125 11 19.3 482 15.1 377 12.2 305 9.0 1 x 36 x 4 140

RTS 20 6-5B 20 6.5 x 3.7 x 20 0.125 11 24.2 605 19.3 482 15.6 390 9.5 1 x 36 x 4 160

RTS 25 5-9B 25 5.9 x 2.4 x 25 0.125 11 12.5 312 9.9 247 8 200 9.0 1 x 36 x 4 155

RTS 25 7-0B 25 7.0 x 3.5 x 25 0.125 11 20.3 507 16.2 405 13.1 327 10.0 1 x 36 x 4 200

RTS 25 7-0F 25 7.0 x 3.5 x 25 0.188 7 28.5 713 22.5 563 18.2 455 10.0 1 x 36 x 4 280

RTS 30 6-6B 30 6.6 x 2.4 x 30 0.125 11 11.7 292 9.3 232 7.5 187 9.5 1 x 36 x 4 200

RTS 30 8-0B 30 8.0 x 3.8 x 30 0.125 11 18.9 473 14.9 373 12 300 11.0 1 x 36 x 4 265

RTS 30 8-0F 30 8.0 x 3.8 x 30 0.188 7 27.5 550 21.6 542 17.5 439 11.0 1-1/4 x 42 x 6 380

RTS 35 7-3B 35 7.3 x 2.4 x 35 0.125 11 11.2 280 8.9 222 7.1 177 10.5 1 x 36 x 4 250

RTS 35 8-5B 35 8.5 x 3.6 x 35 0.125 11 18.9 472 15.1 377 12.2 305 11.5 1 x 36 x 4 315

RTS 35 9-5B 35 9.5 x 4.6 x 35 0.125 11 23.2 580 18.2 455 14.5 363 13.0 1 x 36 x 4 370

RTS 39 7-8B 39 7.8 x 2.4 x 39 0.125 11 10.7 267 8.5 212 6.6 165 11.0 1 x 36 x 4 285

RTS 39 9-0B 39 9.0 x 3.6 x 39 0.125 11 17.2 430 13.5 338 10.8 270 12.5 1 x 36 x 4 355

RTS 39 9-0F 39 9.0 x 3.6 x 39 0.188 7 26.1 654 20.6 517 16.7 419 12.5 1-1/4 x 42 x 6 515

RTS 45 10-0B 45 10.0 x 3.7 x 45 0.125 11 17.4 435 13.5 338 10.6 265 13.5 1 x 36 x 4 450

RTS 45 10-0F 45 10.0 x 3.7 x 45 0.188 7 25.5 639 20.2 505 16.3 409 13.5 1-1/4 x 42 x 6 650

RTS 50 10-0B 50 10.0 x 3.0 x 50 0.125 11 13.2 330 10.6 265 8.3 208 13.5 1 x 36 x 4 475

RTS 50 10-0F 50 10.0 x 3.0 x 50 0.188 7 20.5 512 16.5 412 13.6 340 13.5 1-1/4 x 42 x 6 680

Features

Shaft – Minimum weldable-grade (ASTM

A-595 Grade A), hot-rolled, commercial-

quality carbon steel tubing with mini-

mum yield of 55,000 psi. Uniform wall

thickness of 11-gauge (0.1196") or 7-

gauge (0.1793"). Shafts are constructed

with full-length, longitudinal, high-fre-

quency resistance welds. Round in

cross-section, having uniform taper of

approximately .14" per foot.

Anchor Base – Fabricated from hot-

rolled carbon steel plate that conforms

to ASTM A36.

Pole Data

Shaft Bolt Bolt Base Anchor Warehouse Template

base circle projection square bolt anchor bolt number

size A B C description description

5.9" B 9" 31/2"-41/4" 10" ABRTS-5-9B AB36-0 PJ50075

6.5" B 9.5" 31/2"-41/4"10

1/2" ABRTS-6-5B AB36-0 PJ50074

7.0" B 10" 31/2"-41/4"10

7/8" ABRTS-7-0B AB36-0 PJ50077

7.0" F 10" 33/4"-41/2"10

7/8" ABRTS-7-0F AB36-0 PJ50076

6.6" B 9.5" 31/2"-41/4"10

1/2" ABRTS-6-6B AB36-0 PJ50078

8.0" B 11" 31/2"-41/4"11

1/2" ABRTS-8-0B AB36-0 PJ50079

8.0" F 11" 41/2"-51/4"11

1/2" ABRTS-8-0F N/A PJ50080

7.3" B 10.5" 31/2"-41/4"11

1/4" ABRTS-7-3B AB36-0 PJ50081

8.5" B 11.5" 33/4"-41/2" 12" ABRTS-8-5B AB36-0 PJ50082

9.5" B 13" 33/4"-41/2" 13" ABRTS-9-5B AB36-0 PJ50083

7.8" B 11" 33/4"-41/2"11

1/2" ABRTS-7-8B AB36-0 PJ50084

9.0" B 12.5" 33/4"-41/2"12

3/8" ABRTS-9-0B AB36-0 PJ50085

9.0" F 12.5" 41/2"-51/4"12

3/8" ABRTS-9-0F N/A PJ50086

10.0" B 13.5" 33/4"-41/2" 14" ABRTS-10-B AB36-0 PJ50087

10.0" F 13.5" 41/2"-51/4" 14" ABRTS-10-F N/A PJ50088

Round Tapered Steel

NOTES:

1 Mounting Arrangement: (PT) Open Top; (T20) 23/8" OD

(2" NPS)

2 Drill Mounting: (DM19) 1 fixture at 90°; (DM28) 2

fixtures at 180°

3 Options: See page 509.

4 Brackets: See page 512.

18"

Anchor Base Poles

RTS

Hand hole – Rectangular, reinforced hand-

hole rim having nominal dimensions of 3"x5"

for shafts less than 6.25" base diameter and

4"x6.5" for all other shafts. Steel cover with

attachment screws included. Hand hole is

located 18" above base.

Grounding – Nut holder located immedi-

ately inside hand-hole rim is tapped for

" – 13 UNC ground bolt and nut (provided

by others).

Anchor Bolts – Fabricated from commer-

cial-quality hot-rolled carbon steel with

minimum yield strength of 55,000 psi. Bolts

have an "L" bend on one end.

Hardware – Fasteners are high-strength

galvanized zinc-plated or stainless steel.

Top Cap – Weatherproof removable top

cap provided with all drill-mount poles.

Finish – Dark bronze polyester powder fin-

ish (DDB) standard; other architectural col-

ors available.

Base Cover – Full-base cover standard.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

www.lithonia.com

keyword: RTS

503

Outdoor / PSG8

Square Straight Steel

Pole Data

Shaft Bolt Bolt Anchor Warehouse

base circle projection Base bolt anchor bolt Template

size A B square description description number

4"C 81/2"2

3/4"-4" 8" ABSSS-4C AB18-0 PJ50004

4"G 81/2"2

3/4"-4" 8" ABSSS-4G AB30-0 PJ50004

5" 10"-12" 33/8"-4" 11" ABSSS-5 AB36-0 PJ50010

6" 11"-13" 33/8"-4" 121/2" ABSSS-6 AB36-0 PJ50011

NOTES:

1 Mounting Arrangement: (PT) Open Top; (T20) 23/8" OD

(2" NPS)

2 Drill Mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures

at 180°

3 Options: See page 509.

4 Brackets: See page 512.

Anchor Base Poles

SSS

Features

Shaft – Weldable grade, hot-rolled, com-

mercial-quality carbon steel tubing with a

minimum yield of 55,000 psi (11-gauge),

50,000 psi (7-gauge). Uniform wall thick-

ness of .125" or .188". Shaft is one piece with

a longitudinal, electric, resistance weld.

Uniformly square in cross-section with flat

sides, small corner radii and excellent tor-

sional qualities. Available shaft widths are

4, 5 and 6 inches.

Anchor Base – Fabricated from hot-rolled

carbon steel plate that meets or exceeds a

minimum-yield strength of 36,000 psi. The

anchor base is provided with slotted holes.

Anchor Bolts – Top 12" galvanized per

ASTM A-153. Made of

" or 1" diameter steel

rod having a minimum-yield strength of

55,000 psi.

Grounding – Nut holder located immedi-

ately inside hand-hole rim is tapped for a

½" –13 UNC ground bolt and nut (provided

by others).

Hand hole – Rectangular, reinforced hand-

hole rim having nominal dimensions of 3"x5"

for all shafts. Included is steel cover with

attachment screws.

Hardware – Fasteners are high-strength,

galvanized zinc-plated or stainless steel.

Top Cap – Weatherproof, high-strength

plastic cap is provided for drill-mount

poles.

Finish – Dark bronze polyester powder paint

(DDB) standard; optional polyester pow-

der paint finishes available.

Base Cover – Full-base cover finished to

match pole.

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Wall Bolt Bolt Approx.

Catalog mount. Shaft Size Thick. 80 Max. 90 Max. 100 Max. Circle Size ship wt.

Number ht. (ft.) (in. x in. x ft.) ( in.) Gauge mph wt. mph wt. mph wt. (in.) (in. x in. x in.) (lbs.)

SSS 10 4C 10 4.0 x 10.0 0.125 11 30.6 765 23.8 595 18.9 473 8–9 3/4 x 18 x 3 75

SSS 12 4C 12 4.0 x 12.0 0.125 11 24.4 610 18.8 470 14.8 370 8–9 3/4 x 18 x 3 90

SSS 14 4C 14 4.0 x 14.0 0.125 11 19.9 498 15.1 378 11.7 293 8–9 3/4 x 18 x 3 100

SSS 16 4C 16 4.0 x 16.0 0.125 11 15.9 398 11.8 295 8.9 223 8–9 3/4 x 18 x 3 115

SSS 18 4C 18 4.0 x 18.0 0.125 11 12.6 315 9.2 230 6.7 168 8–9 3/4 x 18 x 3 125

SSS 20 4C 20 4.0 x 20.0 0.125 11 9.6 240 6.7 167 4.5 150 8–9 3/4 x 18 x 3 140

SSS 20 4G 20 4.0 x 20.0 0.188 7 16.5 415 12.25 310 9.3 240 8–9 3/4 x 30 x 3 198

SSS 20 5C 20 5.0 x 20.0 0.125 11 17.7 443 12.7 343 9.4 235 10–12 1 x 36 x 4 185

SSS 20 5G 20 5.0 x 20.0 0.188 7 28.1 703 21.4 535 16.2 405 10–12 1 x 36 x 4 265

SSS 25 4C 25 4.0 x 25.0 0.125 11 4.8 150 2.6 100 1.0 50 8–9 3/4 x 18 x 3 170

SSS 25 4G 25 4.0 x 25.0 0.188 7 10.8 270 7.7 188 5.4 135 8–9 3/4 x 30 x 3 245

SSS 25 5C 25 5.0 x 25.0 0.125 11 9.8 245 6.3 157 3.7 150 10–12 1 x 36 x 4 225

SSS 25 5G 25 5.0 x 25.0 0.188 7 18.0 350 12.6 350 9.0 250 10–12 1 x 36 x 4 320

SSS 30 4G 30 4.0 x 30.0 0.188 7 6.4 160 4.0 100 2.3 58 8–9 3/4 x 30 x 3 295

SSS 30 5C 30 5.0 x 30.0 0.125 11 4.7 150 2.0 50 — — 10–12 1 x 36 x 4 265

SSS 30 5G 30 5.0 x 30.0 0.188 7 10.7 267 6.7 167 3.9 100 10–12 1 x 36 x 4 380

SSS 30 6G 30 6.0 x 30.0 0.188 7 15.7 392 10.2 257 6.4 160 11–13 1 x 36 x 4 520

SSS 35 5G 35 5.0 x 35.0 0.188 7 5.9 150 2.5 100 — — 10–12 1 x 36 x 4 440

SSS 35 6G 35 6.0 x 35.0 0.188 7 9.5 237 5.0 150 1.8 50 11–13 1 x 36 x 4 540

SSS 39 6G 39 6.0 x 39.0 0.188 7 5.1 128 1.3 33 — — 11–13 1 x 36 x 4 605

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

www.lithonia.com

keyword: SSS

504

Outdoor / PSG8

Square Tapered Steel

NOTES:

1 Mounting Arrangement: (PT) Open Top; (T20) 23/8" OD

(2" NPS)

2 Drill Mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures

at 180°

3 Options: See page 509.

4 Brackets: See page 512.

Nom. Pole Wall Bolt Bolt Approx.

Catalog mount. shaft size thick. 80 Max. 90 Max. 100 Max. circle size ship wt.

number ht. (ft.) (in. x in. x ft.) (in.) Gauge mph wt. mph wt. mph wt. (in.) (in. x in. x in.) (lbs.)

STS 20 5-2B 20 5.25 x 3.05 x 20 0.125 11 18.0 452 13.8 345 10.7 268 10-3/4 1 x 36 x 4 155

STS 20 5-5F 20 5.50 x 3.30 x 20 0.188 7 30.5 764 24.0 602 19.0 477 11 1 x 36 x 4 235

STS 25 6-0B 25 6.00 x 3.25 x 25 0.125 11 16.8 422 12.6 315 9.5 238 12 1 x 36 x 4 205

STS 25 6-4F 25 6.41 x 3.66 x 25 0.188 7 28.5 713 22.5 563 18.2 455 12-1/2 1 x 36 x 4 310

STS 30 6-4B 30 6.41 x 3.11 x 30 0.125 11 13.6 340 9.8 245 7.0 175 12-1/2 1 x 36 x 4 260

STS 30 6-4F 30 6.41 x 3.11 x 30 0.188 7 23.6 590 17.9 448 13.7 343 12-1/2 1 x 36 x 4 375

STS 35 6-8B 35 6.81 x 2.96 x 35 0.125 11 10.7 269 7.3 184 4.8 120 13 1 x 36 x 4 305

STS 35 7-1F 35 7.13 x 3.28 x 35 0.188 7 23.4 585 17.4 435 13.0 325 13-1/2 1 x 36 x 4 475

STS 39 7-1B 39 7.18 x 2.92 x 39 0.125 11 8.6 215 5.4 135 3.0 75 13-1/2 1 x 36 x 4 345

STS 39 7-1F 39 7.13 x 2.87 x 39 0.188 7 19.3 483 14.2 355 10.4 260 13-1/2 1 x 36 x 4 500

STS 45 7-8F 45 7.88 x 2.93 x 45 0.188 7 16.0 400 11.1 278 7.4 187 14-1/2 1 x 36 x 4 620

STS 45 8-7F 45 8.75 x 3.80 x 45 0.188 7 23.5 588 16.6 415 11.4 287 15-3/4 1-1/4 x 42 x 6 730

STS 50 8-8F 50 8.81 x 3.31 x 50 0.188 7 19.4 485 13.2 332 8.7 218 16 1-1/4 x42 x 6 780

Anchor Base Poles

STS

Features

Shaft – Minimum weldable-grade (ASTM

A-595 Grade A) hot-rolled commercial-

quality carbon steel tubing with minimum

yield of 55,000 psi. Uniform wall thickness

of 11-gauge (0.1196") or 7-gauge (0.1793").

Shafts are constructed with full-length

longitudinal high-frequency resistance

welds and are round in cross-section,

having a uniform taper of approximately

.11" per foot.

Anchor Base – Fabricated from hot-rolled

carbon steel plate that conforms with

ASTM A36.

Anchor Bolts – Fabricated from commer-

cial-quality, hot-rolled carbon steel with

minimum-yield strength of 55,000 psi. Bolts

have an "L" bend on one end.

Grounding – Nut holder located immedi-

ately inside hand-hole rim is tapped for a

½" – 13 UNC ground bolt and nut (provided

by others).

Hand hole – Rectangular, reinforced

hand-hole rim having nominal dimensions

of 3"x5" for shafts less than 6.375" square

and 4"x6.5" for all other shafts. Steel cover

with attachment screws included. Hand

hole is located 18" above base.

Hardware – Fasteners are high-strength

galvanized zinc-plated or stainless steel.

Top Cap – Weatherproof, removable top

cap provided with all drill-mount poles.

Finish – Dark bronze polyester powder fin-

ish (DDB) standard; other architectural

colors available.

Base Cover – Full-base cover standard.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

Technical Information

EPA (ft2) with 1.3 gust

Shaft Bolt Bolt Base Anchor Warehouse Template

base circle projection square bolt anchor bolt number

size A B C description description

5.2" B 103/4"3

1/2"-41/4"10

3/4" ABSTS-5-2B AB36-0 PJ50095

5.5" F 11" 33/4"-41/2" 11" ABSTS-5-5F AB36-0 PJ50096

6.0" B 12" 31/2"-41/4"11

1/2" ABSTS-6-0B AB36-0 PJ50097

6.4" F 121/2" 4"-43/4"11

7/8" ABSTS-6-4F AB36-0 PJ50098

6.4" B 121/2"3

1/2"-41/4"11

7/8" ABSTS-6-4B AB36-0 PJ50099

6.8" B 13" 31/2"-41/4"12

1/4" ABSTS-6-8B AB36-0 PJ50101

7.1" F 131/2"4

1/4"-5" 125/8" ABSTS-7-1F AB36-0 PJ50102

7.1" B 131/2"3

1/2"-41/4"12

5/8" ABSTS-7-1B AB36-0 PJ50103

7.8" F 141/2" 4"-43/4"13

3/8" ABSTS-7-8F AB36-0 PJ50105

8.7" F 153/4"4

3/4"-51/2"14

1/4" ABSTS-8-7F N/A PJ50106

8.8" F 16" 41/2"-51/4"15

1/2" ABSTS-8-8F N/A PJ50107

18"

Pole Data

www.lithonia.com

keyword: STS

505

Outdoor / PSG8

Square Tapered Steel, Hinged

NOTES:

1 Mounting arrangement: (PT) Open top; (T20) 23/8" OD (2"

NPS).

2 Drill mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures

at 180°.

3 Options: See page 509.

4 Brackets: See page 512.

Technical Information

EPA (ft2) with 1.3 gust

Catalog Nom. Pole Wall Bolt Bolt Approx.

Number mount. shaft size thick. 80 Max. 90 Max. 100 Max. circle size ship .

(pounds) ht. (ft.) (in. x in. x ft.) (in.) Gauge mph wt. mph wt. mph wt. (in.) (in. x in. x in.) wt

STSH 20 4F 20 4 x 4 x 20 0.188 7 11.6 217 8.5 217 6.2 217 8-1/2-10 3/4 x 18 x 3 300

STSH 25 4B 25 4 x 4 x 25 0.125 11 7.1 160 4.8 160 3.1 160 8-1/2-10 3/4 x 18 x 3 370

STSH 25 6-4B 25 6.41 x 3.63 x 25 0.125 11 18.0 254 13.0 254 9.3 254 12-1/2 1 x 36 x 4 355

STSH 30 4F 30 4 x 4 x 30 0.188 7 4.0 120 2.1 120 0.8 120 8-1/2-10 3/4 x 18 x 3 435

STSH 30 6-4B 30 6.41 x 3.08 x 30 0.125 11 12.5 230 8.3 230 5.1 230 12-1/2 1 x 36 x 4 440

STSH 35 7-1B 35 7.18 x 2.88 x 35 0.125 11 7.1 160 3.2 160 — — 13-1/2 1 x 36 x 4 540

STSH 35 7-1F 35 7.13 x 2.87 x 35 0.188 7 22.0 155 16.9 155 12.1 155 13-1/2 1 x 36 x 4 700

STSH 39 7-1F 39 7.13 x 2.87 x 39 0.188 7 19.5 110 13.5 110 9.2 110 13-1/2 1 x 36 x 4 740

Anchor Base Poles

STSH

Features

Shaft – Weldable-grade, hot-rolled, com-

mercial-quality carbon steel having a

guaranteed minimum yield strength of

55,000 psi and is supplied in 11-gauge

(.1196") or 7-gauge (.1793") nominal thick-

ness. Pole is one-piece construction with

full-length, longitudinal, high-frequency,

electric-resistance weld. Shaft is square

in cross section having flat sides,

radiused corners, and uniform taper of ap-

proximately 0.11 inches per foot of length

(4-inch square poles are not tapered).

Hinge – The hinge includes a stainless

steel hinge pin. A flexible wiring guide is

provided, passing through the hinge area

for wiring protection. Hinge is external.

Anchor Base – Fabricated from hot-rolled

carbon steel plate that conforms with

ASTM A36.

Anchor Bolts – Fabricated from commer-

cial-quality, hot-rolled carbon steel with

minimum-yield strength of 55,000 psi. Bolts

have an "L" bend on one end.

Grounding – Nut holder located immedi-

ately inside hand-hole rim is tapped for a

½" – 13 UNC ground bolt and nut (provided

by others).

Hand hole – Rectangular, reinforced hand-

hole rim having nominal dimensions of 3" x

5" for shafts less than 6.375" square and 4" x

6.5" for all other shafts. Steel cover with at-

tachment screws included. Hand hole is lo-

cated 18" above base.

Hardware – Fasteners are high-strength,

galvanized zinc-plated or stainless steel.

Top Cap – Weatherproof, removable top

cap provided with all drill-mount poles.

Finish – Dark bronze polyester powder fin-

ish (DDB) standard; other architectural

colors available.

Base Cover – Full-base cover is provided.

Pole Data

Shaft Bolt Bolt Base Anchor Warehouse Template

base circle projection square bolt anchor bolt number

size A B C description description

4.0" F 81/2"-10" 31/2"-41/4"9

3/4" ABSTSH4F AB18-0 PJ50091

6.4" B 121/2"3

3/4"-41/2"11

7/8" ABSTSH6-4B AB36-0 PJ50092

7.1" F 131/2" 4"-43/4"12

5/8" ABSTSH7-1F AB36-0 PJ50093

7.1" B 131/2"3

1/2"-41/4"12

5/8" ABSTSH7-1B AB36-0 PJ50094

External Hinge Detail

Top

Assem

Hinge

Shroud

Wiring

Protection

Bottom

Winch Detail (accessory)

Removable

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

Winch Ordering

Family Winch Shaft size Order nomenclature

STSH WCH 4F STSHWCH 4F

6-4B STSHWCH 6-4B

7-1B STSHWCH 7-1B

7-1F STSHWCH 7-1F

www.lithonia.com

keyword: STSH

Bolt slots

506

Outdoor / PSG8

Round Tapered Steel

Anchor Base – Fabricated from hot-rolled

carbon steel plate that conforms to ASTM

A36 or ASTM A572 Grade 42.

Hand hole – An oval, reinforced hand-hole

rim having a nominal dimension of 4"x6.5".

Steel cover with attachment screws in-

cluded. Hand hole is located 18" above

base.

Grounding – Nut holder located immedi-

ately inside hand-hole rim is tapped for

" – 13 UNC ground bolt and nut (provided

by others).

Anchor Bolts – Fabricated from commer-

cial-quality hot-rolled carbon steel with

minimum-yield strength of 55,000 PSI. Bolts

have an "L" bend on one end.

Hardware – Fasteners are high-strength

galvanized zinc-plated or stainless steel.

Top Cap – Weatherproof removable top

cap provided with all drill-mount poles.

Features

Shaft – The cross section shall be round

or 16-sided with a 4" bend radius. Each

pole is a constant tapered hollow steel

section and shall be up to 55 feet in length

with a minimum 1

times diameter slip joint

as standard. The pole shaft sections shall

be high-strength low-alloy steel conform-

ing to ASTM A572 Grade 65 or ASTM A595

Grade A. The plate shall be single thick-

ness – no laminations.

Anchor Base Poles

SPRTS

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

www.lithonia.com

keyword: SPRTS

Top

Section

Bottom

Section EPA (ft2) with 1.3 gust

Technical Information

Nom. Base Wall Base Wall Bolt Bolt Num. of

Catalog mount. dia. thick. dia. thick. 80 Max. 90 Max. 100 Max. circle size anchor

number ht (ft.) (in.) (in.) (in.) (in.) mph wt. mph wt. mph wt. (in.) (in. x in. x in.) bolts

SPRTS 40 HT01 40 — — 9 0.1193 17.2 430 13.5 338 10.8 270 12.5 1 x 36 x 4 4

SPRTS 40 HT02 40 — — 9 0.1793 26.1 654 20.6 517 16.7 419 12.5 1.25 x 42 x 6 4

SPRTS 40 HT03 40 — — 10 0.1793 38.6 965 30.6 765 24.6 615 13.5 1.25 x 42 x 6 4

SPRTS 50 HT01 50 — — 10 0.1193 13.2 330 10.6 265 8.3 208 13.5 1 x 36 x 4 4

SPRTS 50 HT02 50 — — 10 0.1793 20.5 512 16.5 412 13.6 340 13.5 1.25 x 42 x 6 4

SPRTS 50 HT03 50 — — 11 0.1793 29.9 748 23.5 588 18.6 465 15 1.25 x 42 x 6 4

SPRTS 50 HT04 50 — — 13 0.1793 50.4 1,260 39.7 992 31.4 785 17 1.50 x 54 x 6 4

SPRTS 50 HT05 50 — — 13 0.2391 69.2 1,730 55.0 1,375 44.2 1,105 17.5 1.75 x 84 x 6 4

SPRTS 60 HT01 60 5 0.1196 11.5 0.1793 20.0 600 16.0 480 13.0 390 16 1.25 x 42 x 6 4

SPRTS 60 HT02 60 6.5 0.1196 13 0.1793 36.0 1,080 29.0 870 22.0 660 17 1.25 x 42 x 6 6

SPRTS 60 HT03 60 6.6 0.1793 13 0.2391 49.0 1,470 40.0 1,200 32.0 960 17 1.50 x 54 x 6 6

SPRTS 60 HT04 60 12 0.1793 15.87 0.1875 78.0 2,340 62.0 1,860 50.0 1,500 21 1.50 x 54 x 6 6

SPRTS 70 HT01 70 6.6 0.1793 13 0.1793 20.6 515 16.7 417 13.7 342 17 1.50 x 54 x 6 4

SPRTS 70 HT02 70 6.6 0.1793 13 0.2391 23.8 595 19.3 482 15.9 397 17.5 1.75 x 84 x 6 4

SPRTS 70 HT03 70 12 0.1793 14.57 0.1875 39.0 1,170 30.0 900 23.0 690 19 1.25 x 42 x 6 6

SPRTS 70 HT04 70 12 0.1793 15.87 0.1875 52.0 1,560 41.0 1,230 33.0 990 21 1.50 x 54 x 6 6

SPRTS 70 HT05 70 12 0.1793 16.82 0.1875 65.0 1,950 53.0 1,590 42.0 1,260 22.75 1.50 x 54 x 6 6

SPRTS 80 HT01 80 12 0.1793 15.87 0.1875 37.0 1,110 29.0 870 23.0 690 21 1.50 x 54 x 6 6

SPRTS 80 HT02 80 12 0.1793 16.82 0.1875 45.0 1,350 36.0 1,080 28.0 840 22.75 1.50 x 54 x 6 6

SPRTS 80 HT03 80 13 0.1875 17.53 0.2092 58.0 1,740 46.0 1,380 35.0 1,050 23 1.50 x 54 x 6 6

SPRTS 80 HT04 80 12 0.1793 18.7 0.1875 70.0 2,100 56.0 1,680 44.0 1,320 23 1.50 x 54 x 6 8

4-Bolt

Hand Hole

6-Bolt

Hand Hole

8-Bolt

18"

507

Outdoor / PSG8

Angle Iron Crossarms for Steel Poles

Projected area is for the crossarm only. The crossarm projected area is added to

the luminaire projected area to get a total effective projected area (EPA).

Angle Iron Crossarms for Steel Poles

Catalog Arm EPA Weight

number (sq. ft.) (lbs.)

ACR2 1.98 34.0

ACR3 3.12 54.0

ACR4 4.53 78.0

ACR5 5.95 103.0

ACR6 7.37 127.0

5-Fixture Angle Arm

10'-6" 1.75"

2'-6"

4'-11" 4'-11"

2.00"

8'-0" 2'-6" 1.75"

3'-8" 8" 3'-8"

3-Fixture Angle Arm

5'-6"

2'-5" 8" 2'-5"

2.00" 2-Fixture Angle Arm

3'-6"

3'-0"

1'-5" 8" 1'-5"

1.75"

2'-6" 1.75"

13'-0"

8" 6'-2"

1.75"

2'-6"

6-Fixture Angle Arm

1.75"

ACR6

ACR5 ACR4

ACR3 ACR2

4-Fixture Angle Arm

13'-0"

2'-6"

ACR6

ACR4

SPRTS Options

www.lithonia.com

Crossarms for SPRTS Sportslighting Poles

1.75"

508

Outdoor / PSG8

Catalog EPA Weight

number (sq. ft.) (lbs.)

CR2 1.28 44.0

CR3 2.45 65.0

CR4 3.21 98.0

CR5 4.17 116.0

CR6 5.13 150.0

CR7 6.10 176.0

CR8 7.06 271.0

Tubular Crossarms for Steel Poles

3'-0" 3" Sched 40 pipe

8-Fixture Crossarm

3'-0" 3" Sched 40 pipe

7-Fixture Crossarm 6-Fixture Crossarm

16'-0"

3'-0" 3" Sched

40 pipe

5-Fixture Crossarm

13'-0"

3'-0" 3" Sched

40 pipe

4-Fixture Crossarm

10'-0"

3'-0" 3" Sched

40 pipe

7'-0"

3" Sched

40 pipe

3'-0"

3-Fixture Crossarm

4'-0"

3" Sched

40 pipe

3'-0"

2-Fixture Crossarm

Tubular Crossarms for Steel Poles

Projected area is for the crossarm only. The crossarm projected area is added to the

luminaire projected area to get a total effective projected area (EPA).

CR2

CR3

CR5 CR4

CR6CR7

CR8

19'-0"

22'-0"

SPRTS Options

www.lithonia.com

Crossarms for SPRTS Sportslighting Poles

509

Outdoor / PSG8

Four nut covers are standard for RSA and RTA

poles only.

SSS HHC: For all SSS poles

All other poles order as hand-hole cover for full

pole description. Also specify if pole is existing.

Option Description

FDL Festoon Duplex Outlet, Less Electric

Festoon Outlets

Provision provided for mounting duplex outlet. When ordering, specify location

in height and feet above base of pole and orientation from the hand hole.

Note: SSS and SSA arm attachment is slightly different from RTA. Arm modifica-

tions located on pole to accept arms. Arms shipped as separate item.

It has been found that low steady winds sometimes

induce second mode vibration in lighting poles. Sec-

ond mode vibration is characterized by the maximum

periodic motion occuring at approximately the mid-

height of the pole. This type of vibration can result in

failure of the pole and/or luminaire. There is no method

of predicting destructive light pole vibration.

Note: FVD - Field installable vibrator damper available

upon request. Consult factory.

For full-base cover on other poles, must order FBC. When ordering separately,

specify full pole nomenclature; i.e., FBC for RTA 25 7E. Also specify if pole is existing.

Nut Covers

Dimensions

Option Pole (square) (depth)

SBC4 SSS 4" 8.75" x 5.8"

SBC5 SSS 5" 11.44" x 6.4"

SBC6 SSS 6" 13.5" x 4"

Tenon Dimensions

Cat. No. A B C D Wt. (lbs.)

SBT-4S 23/8"3"13

3/4"5" 7

SBT-5S 23/8"4"13

3/4"5" 8

SBT-6S 23/8"5"13

3/4"5" 17

EPA Weight

Option Material (sq. ft.) (lbs.)

HA Aluminum .43 7

Steel .50 11

Fiberglass .45 8

Concrete .55 9

Bolt on Tenon Square Steel Poles

Couplings & Nipples

Threaded couplings and/or nipples can be factory installed. When ordering,

specify location in height and feet above base of pole and orientation from

the hand hole.

12CP 1/2" threaded coupling 12NP 1/2" threaded nipple

34CP 3/4" threaded coupling 34NP 3/4" threaded nipple

1CP 1" threaded coupling 1NP 1" threaded nipple

Hand-hole Cover Plates

Field Installed

Vibration Dampener

Handhole Opening

Foundation

Anchor Bolts

Available in various sizes for use with Lithonia poles. Set includes hex nuts and

washers. Anchor bolt is partially galvanized for exposed threads per ASTM-

A153. Bolts have minimum-yield strength rating of 55,000 psi, AASHTO M314

GR55. See individual pole catalog pages for anchor bolt sizes and description.

Base Covers

Two-piece, full-base cover. Four fasteners provided to secure pieces together.

Finished to match pole. Shipped separately. Standard with steel poles only.

Horizontal Arm Bracket

Single or twin side-mounted horizontal arm brackets for additional luminaires.

Made from 2

" pipe. Upright is 18" from pole; special arm lengths may be

available upon request. Arms are rated for luminaires up to 4.5 sq. ft. EPA and

100 lbs. per arm. When ordering, specify location in height and feet above base

of pole and orientation from the hand hole.

VD - Vibration Damper

Tamperproof

Tamperproof (TP): Order as TP. Tamperproof screws provided with base cover.

Pole Options

Tenon Mounting Slipfitters (Order separately)

Number of fixtures

Tenon OD One Two@180° Two@90° Three@120° Three@90° Four@90°

23/8"T20-190 T20-280 T20-290 T20-320 T20-390 T20-490

27/8"T25-190 T25-280 T25-290 T25-320 T25-390 T25-490

4" T35-190 T35-280 T35-290 T35-320 T35-390 T35-490

www.lithonia.com

Threaded

Coupling

Threaded

Nipple

510

Outdoor / PSG8

Pole Options

www.lithonia.com

Hand Hole

Square

Hand Hole

Round

Drill Mounting Options1

Ordering Information Example: HA12B

Options

HA Horizontal arm

FDL Festoon outlet- less electrical

12CP 1/2” coupling

34CP 3/4” coupling

1CP 1” coupling

12NP 1/2” threaded nipple

34NP 3/4” threaded nipple

1NP 1” threaded nipple

HH Extra hand hole, 3 x 5 only

PT Open top

T20 23/8” tenon

T25 27/8” tenon

T30 31/2” tenon

T35 4” tenon

Height from

base (ft.)

Determined by

application.

Orientation

Aside of the pole with the hand

hole

Bside of the pole 90 degrees

counterclockwise from the

hand hole (right)

Cside of the pole 180 degrees

counterclockwise from the

hand hole (opposite)

Dside of the pole 270 degrees

counterclockwise (or 90

degrees clockwise) from the

hand hole (left)

The orientation from the hand hole and

location from the pole base must be speci-

fied when ordering the pole. The orienta-

tion from the hand hole is designated by

the pole sides A, B, C or D. The location on

the pole shaft is designated by the dis-

tance from the pole base.

Pole Orientation

See the following examples:

1. SSS 25 5G with one arm-mount fixture and two

floodlights on horizontal arm brackets. Flood-

lights are to be 180 degrees from each other,

90 degrees from the shoebox and 12 feet above

the base.

Order as: SSS 25 5G DM19 HA12A HA12C

2. RTA 30 8G with two arm-mount fixtures at 180

degrees, one floodlight on a horizontal arm

bracket and a ½” coupling. Floodlight is to be

opposite hand hole and 6 feet from top of pole.

Coupling should be 10 feet from top, same side

as floodlight.

Order as: RTA 30 8G HA24C 12CP20C

3. SSS 20 4C with a 23/8” tenon and festoon outlet

90 degrees left of the hand hole, 5 feet above

the base.

Order as: SSS 20 4C T20 FDL5D

DM28AS

DM28

DM19AS

DM19

DM29AS

DM29

DM32AS2

DM322

DM39AS3

DM393

DM49AS

DM49

NOTES:

1 AS denotes Aeris luminaire.

2 Available with round pole only.

3 Available with square pole only.

511

Outdoor / PSG8

Aluminum Mounting Brackets

Bullhorns and Spokes — order as separate items.

Projected area is for bracket only. Bracket

projected area is added to luminaire pro-

jected area to get total effective projected

area (EPA). All brackets have a luminaire

RBA28

Finish — Natural aluminum. Optional painted finishes available. Plastic cap supplied.

18'

Square Pole

Brackets flush mount on 4", 5" and 6" square poles.

For use with internal sleeve, plain open-top poles,

Lithonia Lighting poles only. Must be ordered with

pole to ensure proper fit.

Catalog EPA Weight

Number (sq. ft.) (lbs.)

SBA28 0.90 12

SBA38 1.50 17

SBA48 2.25 22

SBA49 1.7 22

SBA48

15"

Round Pole

Brackets mount to T25 tenon 2-7/8" OD.

Catalog EPA Weight

Number (sq. ft.) (lbs.)

RBA28 1.2 7.0

RBA32 1.7 14.3

RBA38 1.9 10.5

RBA48 2.7 14.5

RBA49 2.2 17.5

Brackets for Aluminum Poles Only

rating per tenon of 4.5 sq. ft. projected area

and 100 lbs. at a wind velocity of 100 mph

(luminaire drag coefficient = 1.0).

www.lithonia.com

Pole Options

SBA38 SBA49

SBA28

RBA48

RBA38

RBA49

RBA32

Finish — Natural aluminum. Optional painted finishes available. Plastic cap supplied.

512

Outdoor / PSG8

Steel Mounting Brackets

Bullhorns and Spokes — Order as separate items.

Projected area is for bracket only. Bracket

projected area is added to luminaire pro-

jected area to get total effective projected

area (EPA). All brackets have a luminaire

Catalog EPA Weight

Number (sq. ft.) (lbs.)

BS28 1.0 21.0

BS32 1.3 34.0

BS38 1.6 32.0

BS48 2.3 44.0

BS49 1.6 44.0

BS32

BS28

Standard Hub

OD 2⁷⁄₈" – I.D. 2½"

Requires T20 Tenon (min. 5" tall)

Finish — Dark bronze, standard. Other colors available (consult factory). Plastic cap supplied.

Brackets for Steel Poles Only

Brackets for Square Steel Poles Only

Requires T20 (23/8" max OD) tenon on pole for mounting.

Catalog EPA Weight

Number (sq. ft.) (lbs.)

SBS 28 1.1 30.0

SBS 38 1.7 42.0

SBS 49 2.1 45.0

SBS 28 SBS 38 SBS 49

rating per tenon of 4.5 sq. ft. projected

area and 100 lbs. at a wind velocity of 100

mph (luminaire drag coefficient = 1.0).

Finish — Dark bronze, standard.

Slipfitter for P2

T20 or T35

www.lithonia.com

Pole Options

BS48

30"

BS38

T20 or T35

BS49

30"

(4) 0.375"-16

Set Screws

Tenon

4" x 2.375" Dia.

Removable

Front Cap

42"

(4) 0.375"-16

Set Screws Removable

Front Cap

30"

(4) 0.375"-16

Set Screws

Tenon

4" x 2.375" Dia.

Removable

Front Cap

513

Outdoor / PSG8

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Bolt Bolt Approx.

Catalog mount. shaft size 80 90 100 Max. circle size ship wt.

number ht. (ft.) (in. x in. x ft.) mph mph mph wt. (in.) (in. x in. x in.) (lbs.)

RTF 10 5-4X 10 5.4 x 4.1 x 10 19.0 14.6 11.4 150 8 5/8 x 21 x 3 23

RTF 12 5-6X 12 5.6 x 4.1 x 12 16.0 12.1 9.3 150 81/25/8 x 21 x 3 28

RTF 14 5-9X 14 5.9 x 4.1 x 14 14.0 10.4 7.9 150 81/25/8 x 21 x 3 32

RTF 16 6-1X 16 6.1 x 4.1 x 16 10.0 7.4 5.5 100 81/25/8 x 21 x 3 36

RTF 20 6-6X 20 6.6 x 4.1 x 20 8.2 5.8 4.1 100 91/25/8 x 21 x 3 45

RTF 20 7-3X 20 7.3 x 4.6 x 20 14.4 11.1 8.9 200 111/21 x 30 x 4 62

RTF 25 6-7X 25 6.7 x 4.1 x 25 5.4 3.4 2.0 100 91/21 x 30 x 4 55

RTF 25 7-3X 25 7.3 x 4.6 x 25 9.6 7.3 5.7 200 111/21 x 30 x 4 75

RTF 30 8-4X 30 8.4 x 4.6 x 30 11.2 8.5 6.7 100 111/21 x 30 x 4 106

RTF 30 8-5X 30 8.5 x 4.8 x 30 15.6 12.0 9.5 200 111/21 x 30 x 4 140

RTF 30 10-5X 30 10.5 x 6.6 x 30 28.7 22.4 17.4 300 141/21 x 30 x 4 202

RTF 35 8-4X 35 8.4 x 4.6 x 35 5.5 3.8 2.7 100 111/21 x 30 x 4 125

RTF 35 8-5X 35 8.5 x 4.8 x 35 8.5 6.2 4.7 200 111/21 x 30 x 4 161

RTF 35 11-2X 35 11.2 x 6.6 x 35 21.8 16.6 12.5 300 15 11/4 x 36 x 6 248

RTF 40 11-7X 40 11.7 x 6.2 x 40 6.4 4.3 2.4 165 151/211/4 x 36 x 6 165

RTF 40 11-8X 40 11.8 x 6.4 x 40 12.2 8.8 6.0 300 151/211/4 x 36 x 6 227

RTF 40 12X 40 12.0 x 6.9 x 40 25.8 19.3 14.3 300 151/211/4 x 36 x 6 317

RTF 45 11-7X 45 11.7 x 6.2 x 45 3.9 2.0 0.6 300 151/211/4 x 36 x 6 183

RTF 45 11-9X 45 11.9 x 6.6 x 45 15.2 10.9 7.6 300 151/211/4 x 36 x 6 295

Features

Shaft – Constructed by the filament wind-

ing process from thermosetting polyester

resin and contains a minimum of 65 per-

cent "E" type fiberglass by weight. The fila-

ment windings are continuously applied

with uniform tension and are placed on the

pole helically at low angles to provide

axial strength. Additional windings are

placed on the pole in a circular manner to

provide compressive strength.

Round Tapered Fiberglass

Pole Data

Shaft Bolt Bolt Base Anchor

base circle projection square bolt Template

size A B C description number

5.4" 8" 3" 7.75" ABRTF-5-4 PJ50108

5.6" 8.5" 3" 8.125" ABRTF-5-6 PJ50109

5.9" 8.5" 3" 8.125" ABRTF-5-9 PJ50110

6.1" 8.5" 3" 8.125" ABRTF-6-1 PJ50111

6.6 9.5" 3" 8.8" ABRTF-6-6 PJ50112

6.7" 9.5" 3" 8.8" ABRTF-6-7 PJ50113

7.3" 11.5" 4" 11" ABRTF-7-3 PJ50114

8.4" 11.5" 4" 11" ABRTF-8-4 PJ50115

8.5" 11.5" 4" 11" ABRTF-8-5 PJ50116

10.5" 14.5" 4" 13.3" ABRTF-10-5 PJ50117

11.2 15" 4" 13.5" ABRTF-11-2 PJ50118

11.7" 15.5" 4" 14" ABRTF-11-7 PJ50119

11.8" 15.5" 4" 14" ABRTF-11-8 PJ50120

11.9" 15.5" 4" 14" ABRTF-11-9 PJ50121

12.0" 15.5" 4" 14" ABRTF-12-0 PJ50122

18"

Anchor Base Poles

RTF

Anchor Base – Heavy-duty, A356-T6 alu-

minum base casting which is perma-

nently bonded to the outside of the fiber-

glass shaft.

Anchor Bolts – Top 12" galvanized per

ASTM A-153. Made of

" or 1" diameter

steel rod having a minimum-yield strength

of 55,000 psi.

Hand hole – An oval, non-metallic,

2½"x5" hand hole secured with a vandal-

resistant, stainless steel ½" socket head

screw.

Hardware – Fasteners are high-strength

galvanized zinc-plated or stainless steel.

Top Cap – Weatherproof, high-strength

plastic cap provided with all drill-mount

poles.

Finish – The pole is ultraviolet-resistant

and pigmented approximately the same

color as the final polyurethane coating.

Dark bronze (DDB) is standard.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

www.lithonia.com

keyword: RTF

514

Outdoor / PSG8

Round Tapered Fiberglass

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Approx.

Catalog mount. shaft size 80 90 100 Max. ship wt.

number ht. (ft.) (in. x in. x ft.) mph mph mph wt. (lbs.)

RTFDB 18 6X 14 6.0 x 4.1 x 18 14.0 10.4 7.9 150 34

RTFDB 20 6-6X 16 6.6 x 4.1 x 20 10.0 7.4 5.5 100 38

RTFDB 24 6-7X 20 6.7 x 4.1 x 24 8.2 5.8 4.1 150 46

RTFDB 30 8-3X 25 8.3 x 4.4 x 30 6.2 4.7 3.6 100 71

RTFDB 30 8-4X 25 8.4 x 4.6 x 30 14.5 11.2 8.9 200 98

RTFDB 35 8-4X 30 8.4 x 4.6 x 35 10.5 8.0 6.2 200 116

RTFDB 35 8-5X 30 8.5 x 4.9 x 35 14.8 11.4 9.0 300 153

RTFDB 41 11-8X 35 11.8 x 6.4 x 41 14.3 10.8 7.8 300 218

Direct Burial Poles

RTFDB

Features

Shaft – Constructed by the filament wind-

ing process from thermosetting polyester

resin and contains a minimum of 65 per-

cent "E" type fiberglass by weight. The

filament windings are continuously ap-

plied with uniform tension and are placed

on the pole helically at low angles to pro-

vide axial strength. Additional windings

are placed on the pole in a circular man-

ner to provide compressive strength.

Hand hole – An oval, non-metallic, 2½"x5"

hand hole secured with a vandal-resis-

tant, stainless steel ¼" socket head

screw.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

www.lithonia.com

keyword: RTFDB

Hardware – Fasteners are high-strength

galvanized zinc-plated or stainless steel.

Top Cap – Weatherproof, high-strength

plastic cap provided with all drill-mount

poles.

Finish – Ultraviolet-resistant and pig-

mented approximately the same color as

the final polyurethane coating. Dark

bronze (DDB) is standard.

18"

Finish Grade

Hand Hole

Wiring access

515

Outdoor / PSG8

Square Straight Fiberglass

Pole Data

Shaft Bolt Bolt Base Anchor

base circle projection square bolt Template

size A B C description number

4" 8" 3" 7.4" ABSSF-4 PJ50123

5" 11" 4" 11.1" ABSSF-5 PJ50124

NOTES:

1 Mounting arrangement: (PT) Open Top; (T20) 23/8" OD (2"

NPS)

2 Drill mounting: (DM19) 1 fixture at 90°; (DM28) 2 fixtures

at 180°

3 Options: See page 509.

4 Brackets: See page 511.

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Bolt Bolt Approx.

Catalog mount. shaft size 80 90 100 Max. circle size ship wt.

number ht. (ft.) (in. x in. x ft.) mph mph mph wt. (in.) (in. x in. x in.) (lbs.)

SSF 6 4X 6 4 x 4 x 6 23.2 17.9 14.2 150 8 5/8 x 21 x 3 18

SSF 8 4X 8 4 x 4 x 8 16.5 12.6 9.8 150 8 5/8 x 21 x 3 23

SSF 10 4X 10 4 x 4 x 10 12.0 8.9 6.7 150 8 5/8 x 21 x 3 27

SSF 12 4X 12 4 x 4 x 12 9.1 6.5 4.6 100 8 5/8 x 21 x 3 31

SSF 14 4X 14 4 x 4 x 14 6.7 4.4 2.8 100 8 5/8 x 21 x 3 35

SSF 16 4X 16 4 x 4 x 16 3.7 2.2 1.1 100 8 5/8 x 21 x 3 39

SSF 20 4X 20 4 x 4 x 20 7.2 1.8 0.5 150 8 5/8 x 21 x 3 80

SSF 20 5X 20 5 x 5 x 20 12.2 9.1 6.9 200 11 1 x 30 x 4 110

SSF 25 4X 25 4 x 4 x 25 4.2 2.5 0.75 150 8 5/8 x 21 x 3 90

SSF 25 5X 25 5 x 5 x 25 8.7 6.2 4.4 200 11 1 x 30 x 4 115

SSF 30 5X 30 5 x 5 x 30 4.7 2.8 1.9 200 11 1 x 30 x 4 120

SSF 30 5XHD

30 5 x 5 x 30 8.6 5.1 2.6 200 10-12 1 x 30 x 4 164

Hand hole – An oval, non-metallic, 2½" x 5"

hand hole secured with a vandal-resis-

tant, stainless steel ¼" socket head

screw.

Hardware – Fasteners are high-strength

galvanized zinc-plated or stainless steel.

Top Cap – Weatherproof, high-strength

plastic cap provided with all drill-mount

poles.

Finish – Ultraviolet-resistant and pig-

mented approximately the same color as

the final polyurethane coating. Dark

bronze (DDB) is standard.

Base Cover – Full base cover finished to

match pole.

Features

Shaft – Constructed by the pultrusion pro-

cess from thermosetting polyester resin

and contain a minimum of 65 percent "E"

type fiberglass by weight. The fiberglass

strands traverse the length of the pole.

Anchor Base – Heavy-duty, A356-T6 alu-

minum base casting is permanently

bonded to the outside of the fiberglass

shaft.

Anchor Bolts – Top 12" galvanized per

ASTM A-153. Made of 5/8" or 1" diameter

steel rod having a minimum-yield strength

of 55,000 psi.

Anchor Base Poles

SSF

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Installation requires grout to be packed under base to ensure

full contact with foundation. Factory-supplied templates must

be used when setting anchor bolts. Lithonia Lighting will not

accept claim for incorrect anchorage placement due to failure

to use Lithonia Lighting factory templates.

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

www.lithonia.com

keyword: SSF

13/16" dia. hole

SSF 4" SHAFT

11/4" x 2" slot

SSF 5" SHAFT

516

Outdoor / PSG8

Round Tapered Concrete

Features

Construction – Centrifugal, pre-stressed

concrete with a minimum 28-day compres-

sive strength of 7000 PSI and conform with

ASTM C-150. Prestressing wire reinforce-

ment shall conform to ASTM A-421 and the

spiral wire shall conform to ASTM A-82.

The spiral reinforcement shall not be less

than 13 gauge. The reinforcement contin-

ues from the top of the pole over the en-

tire length. The concrete coverage over

the reinforcement spiral is ½" thick. The

raceway opening is 2 inches minimum for

wiring. Nominal hand hole size of

2.225”x7”. Ground wire runs from top of

pole to hand hole.

Finish – Concrete shall be color through-

out acrylic coating.

Anchor Bolts - Top portion of anchor bolt

is galvanized per ASTM A-153. Made of

steel rod having minimum yield strength of

55,000 PSI.

Anchor Base Poles

RTCD

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

*EPA based on post top mounting. Consult your representative for other attachment methods and increased load capacity requirements.

Technical Information

Pole Base Ultimate

Catalog height Anchor Bolt plate GL moment Weight

number "A" Base OD bolt circle (sq.) (ft. lbs.) (lbs.) 80 90 100

RTCD 20 8-25X 19'-8" 81/4" 1" x 36" x 4" 111/2" 11" 20,100 600 12.0 11.0 10.0

RTCD 25 8-06X 24'-7" 81/16" 1" x 36" x 4" 111/2" 11" 19,910 750 12.0 9.0 6.5

RTCD 30 8-62X 29'-6" 85/8" 1" x 36" x 4" 111/2" 11" 22,540 920 10.0 7.0 5.0

RTCD 35 9-31X 34'-9" 95/16" 1" x 36" x 4" 14" 13" 37,500 1,200 12.0 10.0 8.0

RTCD 43 11-31X 42'-8" 1115/16" 1" x 36" x 4" 161/2" 16" 51,050 2,100 12.0 8.0 5.0

www.lithonia.com

keyword: RTCD

NEW

Hand hole

18”

517

Outdoor / PSG8

Round Tapered Concrete Anchor Base Poles

RTCDDB

Features

Construction – Centrifugal, pre-stressed

concrete with a minimum 28-day compres-

sive strength of 7000 PSI and conform with

ASTM C-150. Prestressing wire reinforce-

ment shall conform to ASTM A-421 and the

spiral wire shall conform to ASTM A-82.

The spiral reinforcement shall not be less

than 13 gauge. The reinforcement contin-

ues from the top of the pole over the en-

tire length. The concrete coverage over

the reinforcement spiral is ½" thick. The

raceway opening is 2 inches minimum for

wiring. Nominal hand hole size of

2.225”x7”. Ground wire runs from top of

pole to hand hole.

Finish – Concrete shall be color through-

out acrylic coating.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

www.lithonia.com

keyword: RTCDDB

*EPA based on post top mounting. Consult your representative for other attachment methods and increased load capacity requirements.

Technical Information

Pole Ultimate

Catalog height Embedded Overall GL moment Weight

number "A" Base OD depth length (ft. lbs.) (lbs.) 80 90 100

RTCDDB 20 8-00X 19'-8" 8" 4' - 11' 24'-7" 17,440 750 13.0 11.0 10.0

RTCDDB 25 8-56X 24'-7" 89/16" 4' - 11' 29'-6" 19,910 850 12.0 9.0 6.5

RTCDDB 30 9-25X 29'-6" 91/4" 5' - 3' 34'-9" 22,540 1,200 10.0 7.0 5.0

RTCDDB 35 11-93X 36'-0" 1115/16" 6' - 8' 42'-8" 42,200 2,100 12.0 10.0 8.0

RTCDDB 43 13-33X 42'-8" 13" 6' - 5' 49'-2" 49,300 2,850 12.0 8.0 5.0

NEW

Ground Line

18”

518

Outdoor / PSG8

Direct Burial Poles

STC

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Approx.

Catalog mount. shaft size 80 Max 90 Max 100 Max. ship wt.

number ht. (ft.) (in. x in. x ft.) mph wt. mph wt. mph wt. (lbs.)

STC 20 7-24X 16 4.0 x 7.24 x 20 22 550 16 430 13 330 680

STC 20 9-24X 16 6.0 x 9.24 x 20 48 1,220 37 950 29 760 1,110

STC 25 8-05X 20 4.0 x 8.05 x 25 21 510 16 390 12 300 985

STC 25 10-05X 20 6.0 x 10.05 x 25 44 1,050 34 810 26 640 1,530

STC 30 8-86X 25 4.0 x 8.86 x 30 20 460 15 340 11 250 1,350

STC 30 10-86X 25 6.0 x 10.86 x 30 49 1,090 33 830 28 650 2,000

STC 35 9-67X 29 4.0 x 9.67 x 35 17 400 12 290 8 200 1,800

STC 35 11-67X 29 6.0 x 11.67 x 35 43 1,010 32 760 24 580 2,540

STC 40 12-48X 34 6.0 x 12.48 x 40 42 920 30 670 22 500 3,130

STC 45 13-29X 38 6.0 x 13.29 x 45 41 820 31 590 22 420 3,795

Square Tapered Concrete

Hand hole – A 3"x5" hand hole is located

24" above ground line and a 2½" x 7" mini-

mum conduit entrance is located 18" be-

low ground line. Inserts for the hand hole

and conduit entrance are non-corrosive

and weatherproof. Hand-hole frames and

covers conform to ASTM-B240.

Grounding – An 18" long, #4 stranded cop-

per pigtail, connected to reinforced

strand, is provided at pole top and at

cable entrance below grade.

Features

Shaft – Concrete mix has a minimum 28-

day compressive strength of 6,500 PSI

and conforms with ASTM-C150. Pre-

stressing steel reinforcement is un-

coated 7 wire, stress relieved strand per

ASTM-A416. Steel spiral reinforcement

conforms to ASTM-A82 and is not less

than .120 (11-gauge) diameter. Poles

have a continuous taper of 0.165 inches

per foot.

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

www.lithonia.com

keyword: STC

24"

18"

3" x 5" hand

hole with cover

Cast in 11/2" hole

@ 45°

Pigtail

Finish grade

Hardware – Fasteners are high-strength

galvanized zinc-plated or stainless steel.

Top Cap – Weatherproof top cap provided

with all drill-mount poles.

Finish – Smooth, natural form finish, soft

gray color is standard.

Outdoor / PSG8

519

Round Tapered Concrete Sportslighting

Technical Information

EPA (ft2) with 1.3 gust

Nom. Pole Approx.

Catalog mount. shaft size 80 Max 90 Max 100 Max. ship wt.

number ht. (ft.) (in. x in. x ft.) mph wt. mph wt. mph wt. (lbs.)

SPRTC C6 45 7-17 38 6.75 X 16.47 X 45 31 620 24 480 18 360 3,400

SPRTC C5 45 7-17 38 6.75 X 16.47 X 45 39 780 30 600 23 460 3,400

SPRTC C4 45 7-17 38 6.75 X 16.47 X 45 52 1,040 40 800 31 589 3,450

SPRTC C4 60 7-20 50 6.75 X 19.71 X 60 47 893 35 665 26 520 5,450

SPRTC C2 60 9-22 50 8.82 X 21.78 X 60 85 1,615 65 1,235 48 912 7,950

SPRTC H1 60 9-22 50 8.82 X 21.78 X 60 138 2,622 101 1,919 80 1,520 8,100

SPRTC C3 70 9-24 60 8.82 X 23.94 X 70 56 1,064 42 798 32 608 9,900

SPRTC C1 70 9-24 60 8.82 X 23.94 X 70 90 1,710 69 1,311 52 988 10,100

SPRTC H2 70 10-24 60 8.82 X 23.94 X 70 139 2,641 103 1,957 81 1,539 10,400

SPRTC C2 80 9-26 68 8.82 X 26.1 X 80 63 1,197 45 855 34 646 12,300

SPRTC C1 80 9-26 68 8.82 X 26.1 X 80 85 1,445 65 1,105 48 816 12,300

SPRTC H2 80 10-26 68 8.82 X 26.1 X 80 136 2,584 101 1,919 79 1,501 12,800

SPRTC C2 90 9-28 77 8.82 X 28.26 X 90 54 1,026 39 741 28 532 14,850

SPRTC C1 90 9-28 77 8.82 X 28.26 X 90 78 1,482 56 1,064 42 798 14,950

SPRTC H2 90 10-28 77 8.82 X 28.26 X 90 132 2,508 97 1,843 75 1,425 15,350

SPRTC C1 105 9-32 91 8.82 X 31.5 X 105 70 1,330 49 931 35 665 19,250

SPRTC H1 105 9-32 91 8.82 X 31.5 X 105 99 1,881 74 1,406 54 1,026 19,450

SPRTC H3 105 11-34 91 11.0 X 33.68 X 105 144 2,736 105 1,995 80 1,520 22,050

SPRTC C1 115 9-34 100 8.82 X 33.66 X 115 65 1,235 45 855 31 589 22,350

SPRTC H1 115 9-34 100 8.82 X 33.66 X 115 96 1,824 70 1,330 50 950 22,550

SPRTC H2 115 10-34 100 8.82 X 33.66 X 115 125 2,375 91 1,729 69 1,311 22,800

Hand hole – 4"x8" hand hole is located 24"

above ground line. 4"x8" conduit entrance

is located 18" below ground line. 2½"x8" re-

inforced hand hole with flush cover is lo-

cated at cage/crossarm locations. 1½"

coupling wire inlet/outlet is located oppo-

site this hand hole. Inserts for hand hole

and conduit entrance are non-corrosive

and weatherproof. Hand-hole frames and

covers conform to ASTM-B240.

Grounding – A continuous solid or stranded

copper ground wire is cast into the pole.

Wire terminates at top of pole to accept a

½"x24" lightning rod and approximately 12"

below grade. Copper coupling provides a ½"

tapped insert at pole face for grounding

hardware.

Hardware – Fasteners are high-strength

galvanized zinc-plated or stainless steel.

Finish – Smooth, natural form finish, soft

gray color is standard.

Features

Shaft – Concrete mix has a minimum 28-

day compressive strength of 11,000 PSI

and conforms with ASTM-C150. Prestress-

ing steel reinforcement is uncoated 7 wire,

stress relieved strand per ASTM-A416.

Steel spiral reinforcement conforms to

ASTM-A82 and is not less than .203 (5-

gauge wire) diameter. Poles have a con-

tinuous taper of 0.216 inches per foot.

Poles are centrifugally spun and round in

cross-section with a hollow center.

Direct Burial Poles

SPRTC

Ordering Information: See page 494

(Note: Poles are available only in U.S.)

INSTALLATION NOTES:

Do not erect poles without having fixtures installed.

If poles are stored outside, all protective wrapping must be

removed immediately to prevent finish damage.

www.lithonia.com

keyword: SPRTC

24"

18"

Cast in 4" x 8" hand-hole

frame and cover

1/2" ground

coupling

Cast in 4" x 8" slot

520

Outdoor / PSG8

Angle Iron Crossarms for Concrete Poles

Projected area is for the crossarm only. The crossarm projected area is added to

the luminaire projected area to get a total effective projected area (EPA).

5-Fixture Angle Arm 4-Fixture Angle Arm

3.5" x 5.0" x 0.25" angle

ACRCW4

Pole and mounting

hardware1

ACRCW5

2'-6" 6.0"

6.5"

Pole and mounting

hardware1

3.5" x 5.0" x 0.25" angle 2'-6" 6.0"

6.5"

4'-3"

11'-0" 4'-3"

3-Fixture Angle Arm 2-Fixture Angle Arm

ACRCW3 ACRCW2

Pole and mounting

hardware13.5" x 5.0" x 0.25" angle

2'-6" 6.0"

6'-0" 1'-9"

6.5"

Pole and mounting

hardware1

3.5" x 5.0" x 0.25" angle 6.0"

1'-9"

3'-6"

6.5"

Angle Iron Crossarms for Concrete Poles

Catalog Arm EPA Weight

Number (sq. ft.) (lbs.)

ACRCW2 1.80 50.0

ACRCW3 3.00 86.0

ACRCW4 4.50 121.0

ACRCW5 5.70 157.0

ACRCW6 7.00 193.0 6-Fixture Angle Arm

ACRCW6

3.5" x 5.0" x 0.25" angle

Pole and mounting hardware

see note

2'-6" 6.0"

13'-6" 6'-9"

6.5"

SPRTC Crossarm Options

www.lithonia.com

Round Tapered Concrete Sportslighting Poles

NOTES:

1 Connecting hardware for crossarm to pole is supplied

by others. Bolt holes in c-channel are 0.88" diameter.

8'-6"

Outdoor / PSG8

521

Pre-wired Tubular Crossarms for Concrete Poles

Projected area is for the crossarm only. The crossarm projected area is added to the

luminaire projected area to get a total effective projected area (EPA).

Use in conjunction with CV3P luminaire option.

3-Fixture Crossarm 2-Fixture Crossarm

SPXCW3 SPXCW2

Pole and mounting

hardware1

Pole and mounting

hardware1

Gusset (4 places)

2.5" Sched.

40 pipe

(2.88" OD)

Gusset

(4 places)

2.5" Sched. 40

pipe (2.88" OD)

6.0"

2'-6"

6'-0" 1'-9"

6.0"

3'-6" 1'-9"

6.5"

5-Fixture Crossarm 4-Fixture Crossarm

SPXCW4

SPXCW5

Pole and mounting

hardware1

Pole and mounting

hardware1

2.5" Sched. 40

pipe (2.88" OD)

2.5" Sched. 40 pipe

(2.88" OD)

Gusset

(4 places)

Gusset

(4 places) 2'-6" 6.0"

11'-0" 4'-3"

6.5"

2'-6" 6.0"

8'-6" 4'-3"

6.5"

Catalog EPA Weight

Number (sq. ft.) (lbs.)

SPXCW2 1.00 23.5

SPXCW3 1.80 40.0

SPXCW4 2.50 56.5

SPXCW5 3.20 73.0

SPXCW6 3.90 89.5

Pre-wired Tubular Crossarms for

Concrete Poles

6-Fixture Crossarm

SPXCW6

Pole and mounting

hardware1

2.5" Sched. 40 pipe

(2.88" OD) 2'-6" 6.0"

13'-6"

6.5" 6'-9"

Gusset

(4 places)

SPRTC Crossarm Options

Round Tapered Concrete Sportslighting Poles

NOTES:

1 Connecting hardware for crossarm to pole is supplied by

others. Bolt holes in c-channel are 0.88" diameter.

www.lithonia.com

Hydrel Intro Pages Rev 78786 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
