Introduction
1 General Information
2 Circuit Operation
- 2.1 Introduction
3 Introduction To Servicing
4 Setting Up, Testing & Fault Finding
5 T803 PCB Information
A3 Figures & Diagrams

M803-00-PRELIM

T803

Tone Remote And Alarm Interface

Service Manual

Preliminary Issue

May 1999

M803-00-PRELIM

17/05/99 Copyright TEL

T800

Head Office

New Zealand

Tait Electronics Ltd

558 Wairakei Road

P.O. Box 1645

Christchurch

New Zealand

Phone: 64 3 358-3399

Fax: 64 3 358-3903

Radio Systems Division

535 Wairakei Road

P.O. Box 1645

Christchurch

New Zealand

Phone: 64 3 358-1069

Fax: 64 3 358-6486

Australia

Tait Electronics (Aust) Pty Ltd

186 Granite Street

Geebung

Queensland 4034

P. O. Box 67 9

Virginia

Queensland 4014

Australia

Phone: 61 7 3865-7799

Toll Free: 1800 077-112

Fax: 61 7 3865-7990

Beijing

Tait Mobile Radio (HK) Ltd

Beijing Representative Office

Room 812, Tower A

Beijing Bright China

Chang An Building

No. 7 Jianguomennei Dai Jei

Dongcheng District

Beijing

China 100005

Canada

Tait Mobile Radio Inc.

Unit 5, 158 Anderson Avenue

Markham

Ontario L6E1A9

Canada

Phone: 1 905 472-1100

Toll Free: 1 800 890-8248

Fax: 1 905 472-5300

France

Tait France Sarl

2 Avenue de la Cristallerie

92 316 Sèvres, Cedex

France

Phone: 33 1 41 14-05-50

Fax: 33 1 41 14-05-55

Germany

Tait Mobilfunk GmbH

Willstätterstraße 50

D-90449 Nürnberg 60

Germany

Phone: 49 911 96 746-0

Fax: 49 911 96 746-79

Hong Kong

Tait Mobile Radio (HK) Ltd

Unit 2216

North Tower

Concordia Plaza

No. 1, Science Museum Road

Tsim Sha Tsui East

Kowloon

Hong Kong

Phone: 852 2369-3040

Fax: 852 2369-3009

New Zealand

Tait Communications Ltd

Unit 4, 75 Blenheim Road

P. O . B o x 11 8 5

Christchurch

Phone: 64 3 348-3301

Fax: 64 3 343-0558

Singapore

Tait Electronics (Far East) Pte Ltd

4 Leng Kee Road

SIS Building #05-11A

Singapore 159088

Phone: 65 471-2688

Fax: 65 479-7778

Ta i w a n

Tait Mobile Radio (Taiwan) Ltd

1104, No. 142 Chung Hsiao E. Rd

Sec. 4

Taipei

Taiwan

Phone: 886 2 2731-1290

Fax: 886 2 2711-6351

Thailand

Tait Mobile Radio Ltd

14/1 Suwan Tower

Ground Floor

Soi Saladaeng 1

North Sathorn Road

Bangrak

Bangkok 10500

Thailand

Phone: 662 267-6290-2

Fax: 662 267-6293

United Kingdom

Tait Europe Ltd

Ermine Business Park

Ermine Road

Huntingdon

Cambridgeshire PE18 6YA

United Kingdom

Phone: 44 1480-52255

Fax: 44 1480-411996

USA

Tait Electronics (USA) Inc.

9434 Old Katy Road

Suite 110

Houston

Texas 77055

USA

Phone: 1 713 984-8684

Toll Free: 1 800 222-1255

Fax: 1 713 468-6944

Internet

http://www.taitworld.com

M803-00-PRELIM

About This Manual

Scope This manual contains preliminary general, technical and servic-

ing information on the T803 tone remote and alarm interface.

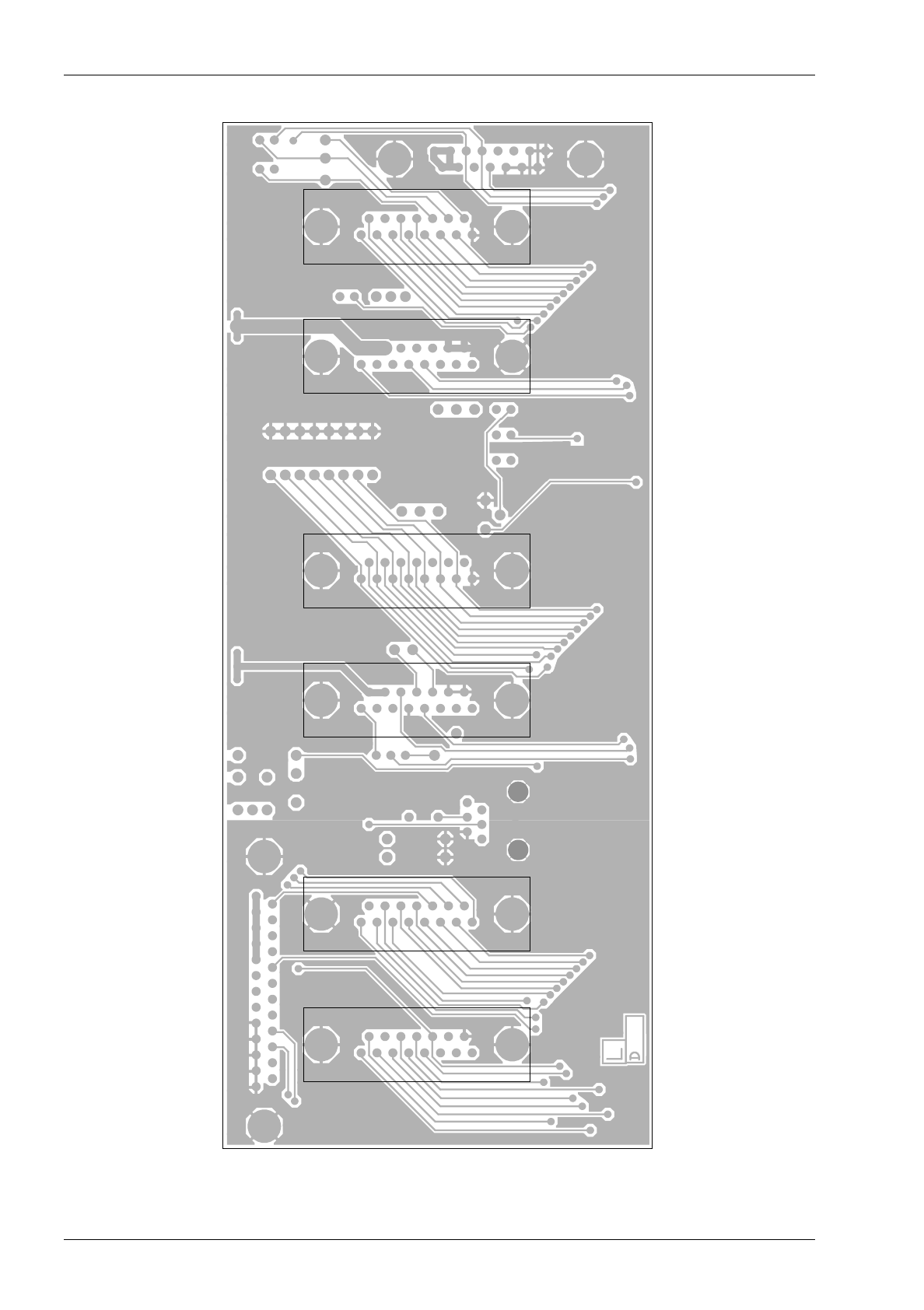

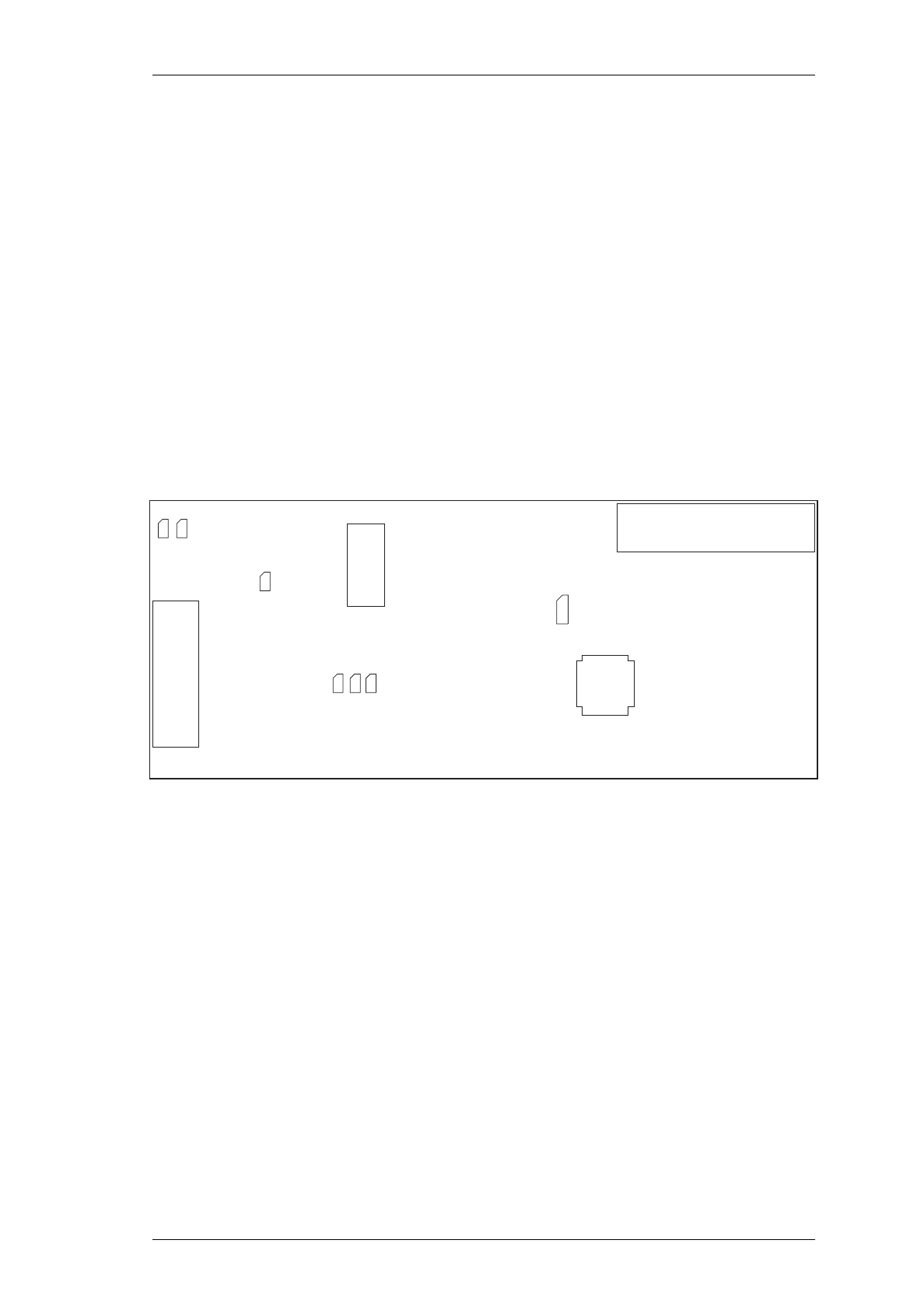

PCB Information PCB information is provided for the T803 main and front panel

PCBs, as well as for the associated T800-53-0000 rack frame

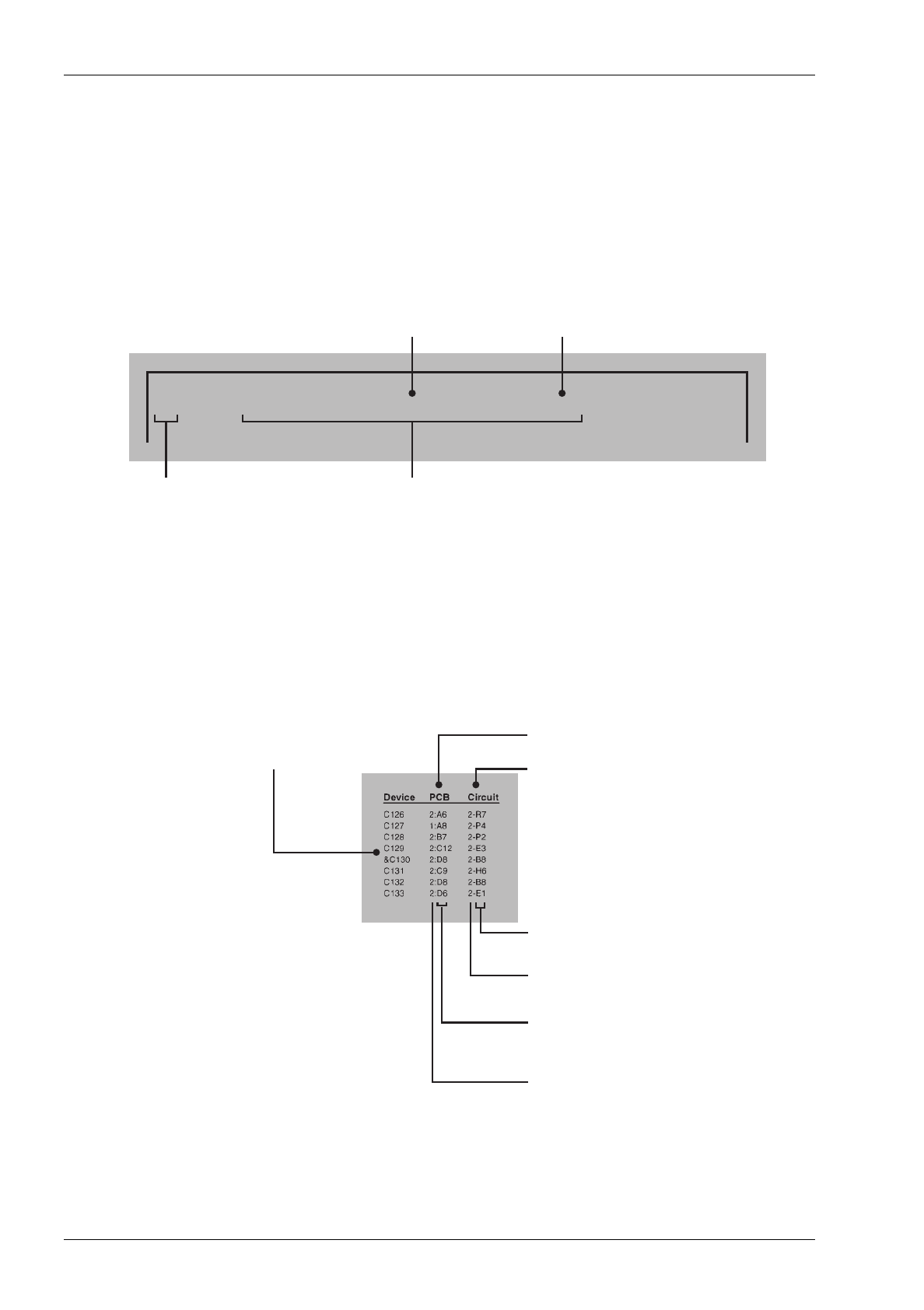

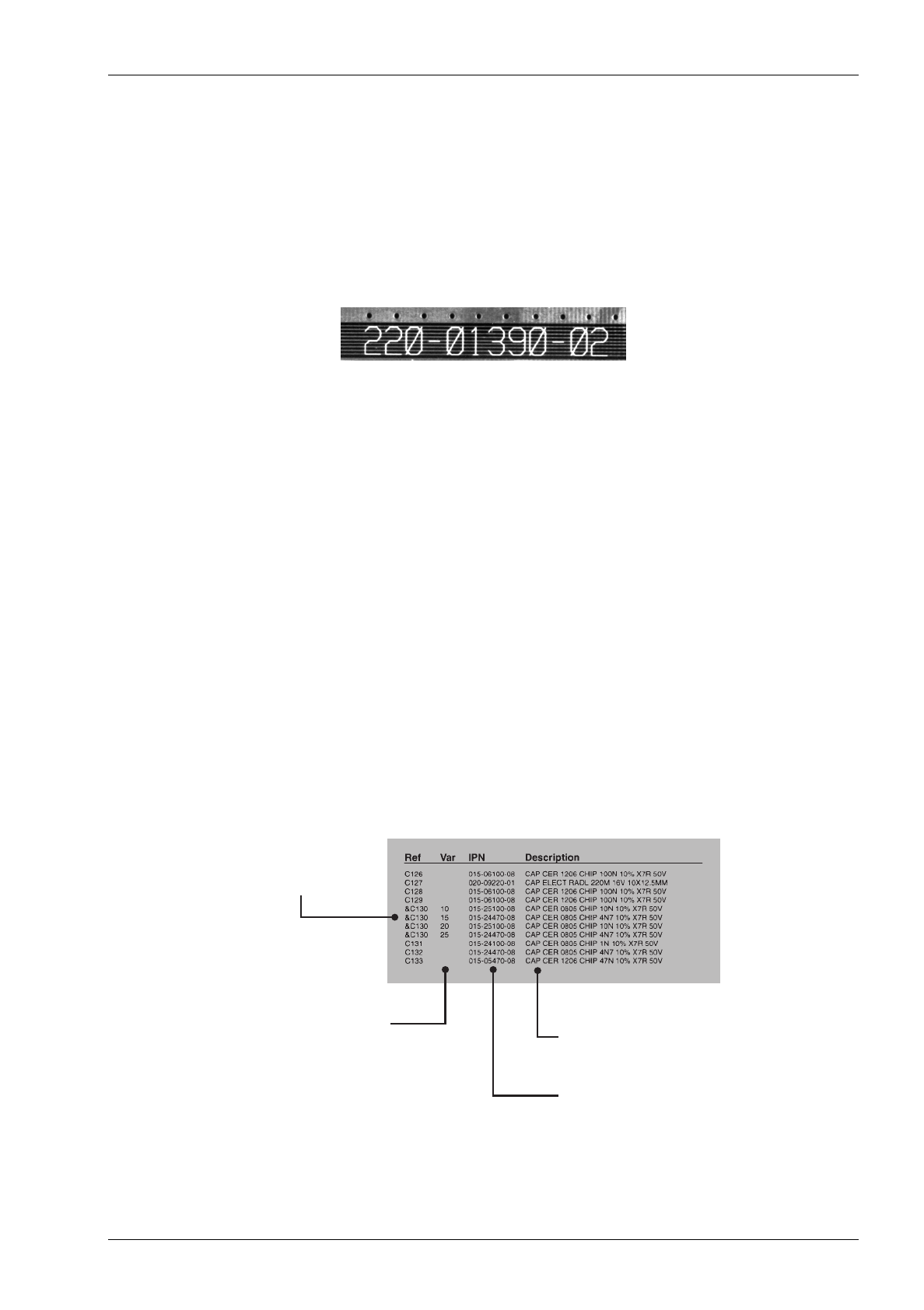

backplane PCB. You will find the parts list, grid reference index

(if necessary), PCB layouts and circuit diagram(s) for each indi-

vidual PCB grouped together.

Errors If you find an error in this manual, or have a suggestion on how

it might be improved, please do not hesitate to contact Customer

Support, Radio Systems Division, Tait Electronics Ltd, Christch-

urch, New Zealand (full contact details are on page 2).

Updating Equipment And Manuals

In the interests of improving performance, reliability or servicing, Tait Electronics Ltd

reserve the right to update their equipment and/or manuals without prior notice.

All information contained in this manual is the property of Tait Electronics Ltd. All

rights are reserved. This manual may not, in whole or part, be copied, photocopied,

reproduced, translated stored or reduced to any electronic medium or machine readable

form without prior written permission from Tait Electronics Ltd.

Ordering Tait Service Manuals

You can order additional copies of this service manual from your nearest Tait Dealer or

Customer Service Organisation. When ordering, make sure you quote the correct Tait

product code ("M" number).

Publication Information

T803 Service Manual

Issue Publication Date Product Code

Preliminary May 1999 M803-00-PRELIM

M803-00-PRELIM

17/05/99 Copyright TEL

Table Of Contents

This manual is divided into the five sections listed below. There is a detailed table of

contents at the start of each section.

Section Title

1 General Information

2 Circuit Operation

3 Introduction To Servicing

4 Setting Up, Testing & Fault Finding

5 PCB Information

M803-00-PRELIM

General Information

1.1

1 General Information

This section provides a brief description of the T803 tone remote, along with detailed

specifications and information on system configuration.

The following topics are covered in this section.

Section Title Page

1.1 Introduction 1.3

1.2

1.2.1

1.2.2

1.2.3

1.2.4

1.2.5

1.2.6

1.2.7

1.2.8

1.2.9

Specifications

Introduction

General

Line

Tone Remote

Audio Response

Alarms

Morse Code

Voting

Miscellaneous

1.5

1.6

1.7

1.3 System Configuration 1.8

1.4 Product Codes 1.9

1.5

1.5.1

1.5.1.1

1.5.1.2

1.5.2

1.5.3

1.5.4

Regulatory Information

Canada

Industry Canada Warnings

Avis d’Industrie Canada

United States Of America

Europe

New Zealand

1.10

1.12

1.13

1.14

Figure Title Page

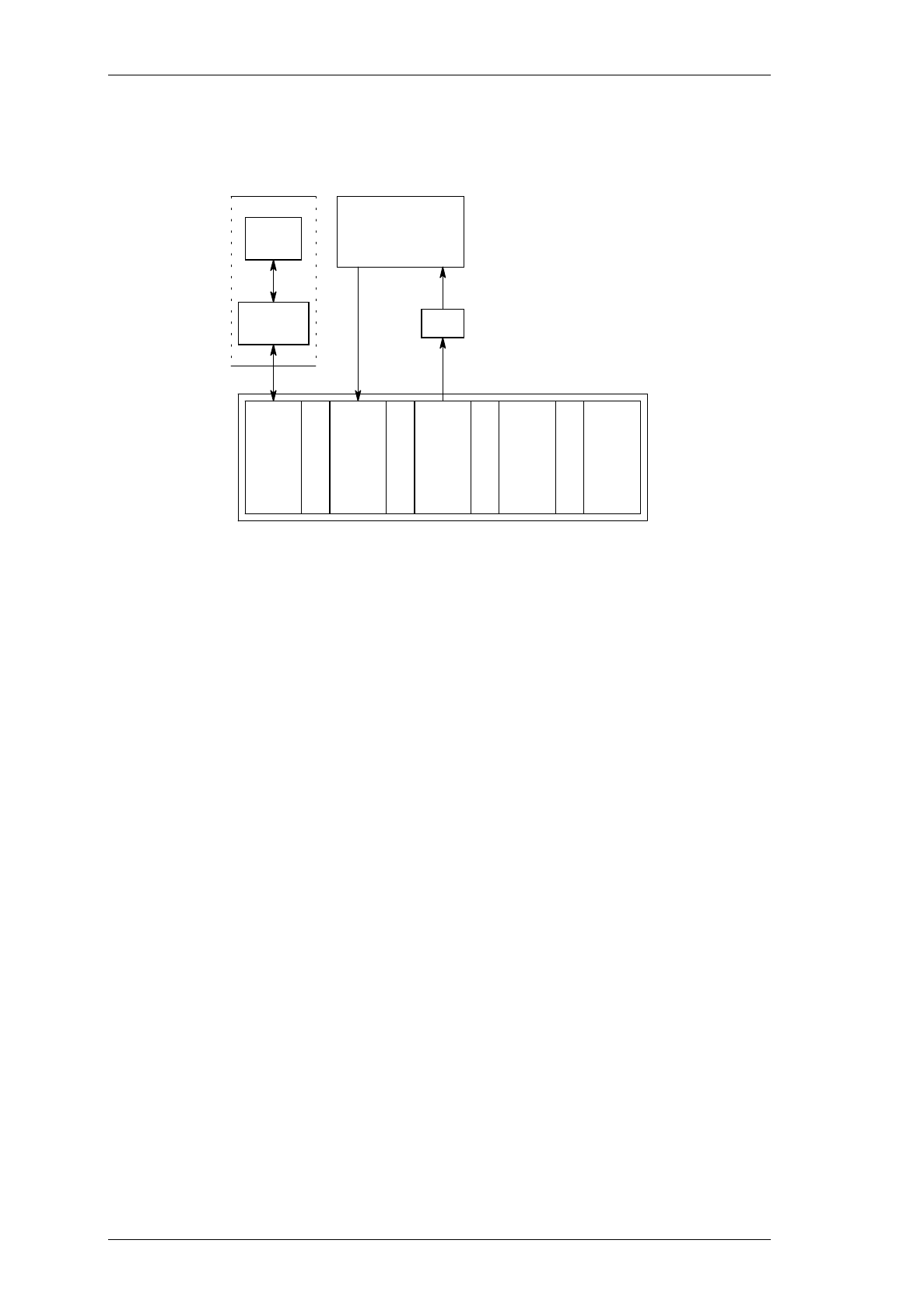

1.1 T803 System Configuration 1.8

1.2

General Information

M803-00-PRELIM

17/05/99 Copyright TEL

M803-00-PRELIM

General Information

1.3

1.1 Introduction

The T803 is an AC tone remote with alarm monitoring, voting tone generation and sim-

ple highsite control and is designed to fit into a Tait T800 Series II rack frame. It inter-

faces either a 2-wire or 4-wire line circuit to any standard T800 Series II receiver/

transmitter/exciter/power amplifier combination. It plugs into a backplane PCB

(which may be purchased separately or as part of a T800 Series II rack frame) which

eliminates wiring between the T803 and T800 Series II radios. The T803 is configured

using Tait PGM800Win programming software (V3.0 and later) which runs on a PC.

The T803 AC tone remote function enables a user to:

• remotely key a T800 Series II transmitter/exciter;

• defeat a receiver's CTCSS mute (to monitor a channel);

• change their set channel (up to 128 channels);

• change between base station and repeater modes (repeater knockdown);

• cancel alarms;

• turn repeater site equipment on or off (highsite control);

• loop back line audio (4-wire line interface only).

This is achieved using three industry-standard tone signalling plans for ease of integra-

tion into existing control systems and choice of vendor for office/control room equip-

ment. These plans are:

• EIA tone remote using a single function tone. In this system, when the control

room user presses the transmit key, the line control equipment sends a 120mS

burst of high level guard tone (HLGT - usually 2175Hz at +10dBM to line).

This is followed by a single 40mS function tone at 0dBm to line. This function

tone can change channel (1850Hz or 1950Hz) or monitor the radio channel

(defeat receiver CTCSS - 2050Hz). Other tones (1050Hz to 1750Hz in 100Hz

steps) can be used for various functions. Following these initial tone bursts, a

low level guard tone (LLGT - usually 2175Hz at -20dBm) is sent to line and

speech is gated onto line (at approx. 0dBm peak level). This continues until the

user releases the transmit key, whereupon speech is removed from the line and

LLGT tone ceases.

• EIA enhanced tone remote using two function tones. In this variant of the

above system two function tones are sent one after the other in the period

between HLGT and LLGT. The tone set is also expanded (650Hz to 2050Hz in

100Hz steps) to give 225 possible combinations which can be allocated to vari-

ous actions. Often the duration of both HLGT and function tones can be var-

ied.

• Simple Tx keying using LLGT. This is used where complex functionality is not

required. One application is to key a link transmitter where HLGT, the func-

tion tones and speech + LLGT are transparently carried to an end base station.

Note in this application the notch filters (which ordinarily remove the key tone

from the audio path) must be turned off using PGM800Win so that the keying

signal is propagated to the end transmitter.

The T803 can also generate voting tones where a 4-wire line interface is used. Voting

systems are used where several base station receivers are tuned to the same radio chan-

1.4

General Information

M803-00-PRELIM

17/05/99 Copyright TEL

nel and located at different sites, sending audio back to a central control where the best

quality audio must be selected or "voted upon". Tone-on-idle or sliding voting tones

can be generated to interface a T800 Series II rack frame to a wide variety of industry

standard radio voting systems. In tone-on-idle applications, a tone (normally the same

frequency as LLGT) is transmitted to line when the T800 Series II receiver is muted.

When the tone disappears, control room equipment can perform signal-to-noise meas-

urements on incoming audio lines and select the best for feeding to the control room

user. In sliding voting tone systems a tone is transmitted to line whose frequency is pro-

portional to the T800 Series II receiver's RSSI. Control room equipment determines

which receiver has the highest RSSI and thus selects which line carries the highest qual-

ity incoming audio.

The T803 monitors three T800 Series II rack alarms (transmitter/PA forward & reverse

power and low battery/power supply), one line alarm (line fail indication) and four

external closure alarms. If alarms are triggered, the T803 will generate tone sequences

to alert system users of a problem.

The T803 has a width of 60mm and occupies a single space in a Tait rack frame, which

has the ability to accommodate up to seven standard modules.

M803-00-PRELIM

General Information

1.5

1.2 Specifications

1.2.1 Introduction

The performance figures given are minimum figures, unless otherwise indicated, for

equipment operating at standard room temperature (+22°C to +28°C) and standard test

voltage (13.8V DC).

Details of test methods and the conditions which apply for Type Approval testing in all

countries can be obtained from Tait Electronics Ltd.

1.2.2 General

Complies with ETS 300 086 & CISPR22 radiated & conducted emissions specifications.

Supply Voltage:

Operating Voltage .. 10.8 to 16V DC

Standard Test Voltage .. 13.8V DC

Polarity .. negative earth only

Supply Current .. 250mA max.

Operating Temperature Range .. -30 to +70°C.

Dimensions:

Height .. 183mm

Width .. 60mm

Length .. 310mm

Weight .. 1.5kg

1.2.3 Line

Complies with TBR15 (2-wire line) & TBR17 (4-wire line) ETSI specifications.

Line Output (for receiver with 1kHz tone @ 60% mod):

2-Wire .. -10dBm ±0.5dBm

4-Wire .. -14dBm ±0.5dBm

Automatic Level Control (ALC):

Range .. 40dB

Line Input For -3dB To Transmitter .. -28dBm typical

Attack/Decay Time .. 20mS/5sec nominal

1.6

General Information

M803-00-PRELIM

17/05/99 Copyright TEL

Maximum Line Attenuation For Correct Tone Remote Operation:

Sending Unit With Standard

Line Output .. 30dB typical

Sending Unit ETSI Compliant .. 20dB typical

1.2.4 Tone Remote

Keytone Accept Bandwidth .. ±0.73% typical (±16Hz @ 2175Hz)

(speech @ -10dBm, keytone @ -30dBm)

Talkoff .. >27dB

(max. difference between speech & keytone)

Keytone Sensitivity .. <-50dBm

Programmable Guardtone Frequencies .. 2100, 2175, 2325, 2500, 2600, 2800,

2970 & 3000Hz

Programmable HLGT Duration .. 60 - 200mS

Function Tone Frequencies .. 650Hz - 2050Hz in 100Hz steps

Function Tone Accept Bandwidth .. ±19Hz typical

Maximum Number Of Function Tones .. 2

Programmable Function Tone Duration .. 20 - 100mS

1.2.5 Audio Response

Frequency Response .. ±1dB 300Hz to 3kHz except at

notch frequency

Notch Filter Bandwidth At -40dB .. ±0.5% typical (±10Hz @ 2175Hz)

Notch Filter Bandwidth At -3dB .. ±1.28% typical (±28Hz @ 2175Hz)

Audio Distortion:

From Line .. <5%

From Receiver .. <2%

1.2.6 Alarms

Supply Voltage Alarm Threshold .. 10.7V ±0.05V

RF Power Alarm Thresholds .. adjusted inside Tx/PA

M803-00-PRELIM

General Information

1.7

Line Fail Alarm Timer .. off or 1 minute - 4 hours

Alarm Input Threshold .. <1.5V (or to 0V via 3k3 resistor)

Maximum Alarm Input Voltage .. 25V

Alarm Sequence .. 0 - 14 tones to radio and/or line

Programmable 5-Tone Standards .. CCIR, EIA, EEA, ZVEI & DZVEI

5-Tone Carrier Deviation .. 70% nom. system deviation @ 1kHz

(for test tone set @ 60%)

Alarm Pip Tone Frequency/Duration .. 600Hz/200mS on tail of audio

1.2.7 Morse Code

Sending Speed .. 20 words per minute

Maximum Code Length .. 15.36 seconds

Tone Frequency .. 1200Hz

Valid Station ID .. alphanumeric only

Repetition Rate .. off or 1 - 60 minutes

Carrier Deviation .. 20% nominal system deviation

(for test tone set @ 60%)

1.2.8 Voting

Programmable Tone-On-Idle Frequencies .. 1950, 2100, 2175, 2325, 2500, 2600,

2800, 2970 and 3000Hz

Programmable Sliding Voting Tone

Frequencies .. 2700 to 3000Hz

Voting Tone Level To Line .. -30dBm to -10dBm

1.2.9 Miscellaneous

Auxiliary Output Rating .. open collector, 50V, 250mA (@25°C)

Momentary Monitor (CTCSS Defeat) Time .. off or 1 - 20 seconds

Line Fail Timer .. off or 1 - 240 minutes

1.8

General Information

M803-00-PRELIM

17/05/99 Copyright TEL

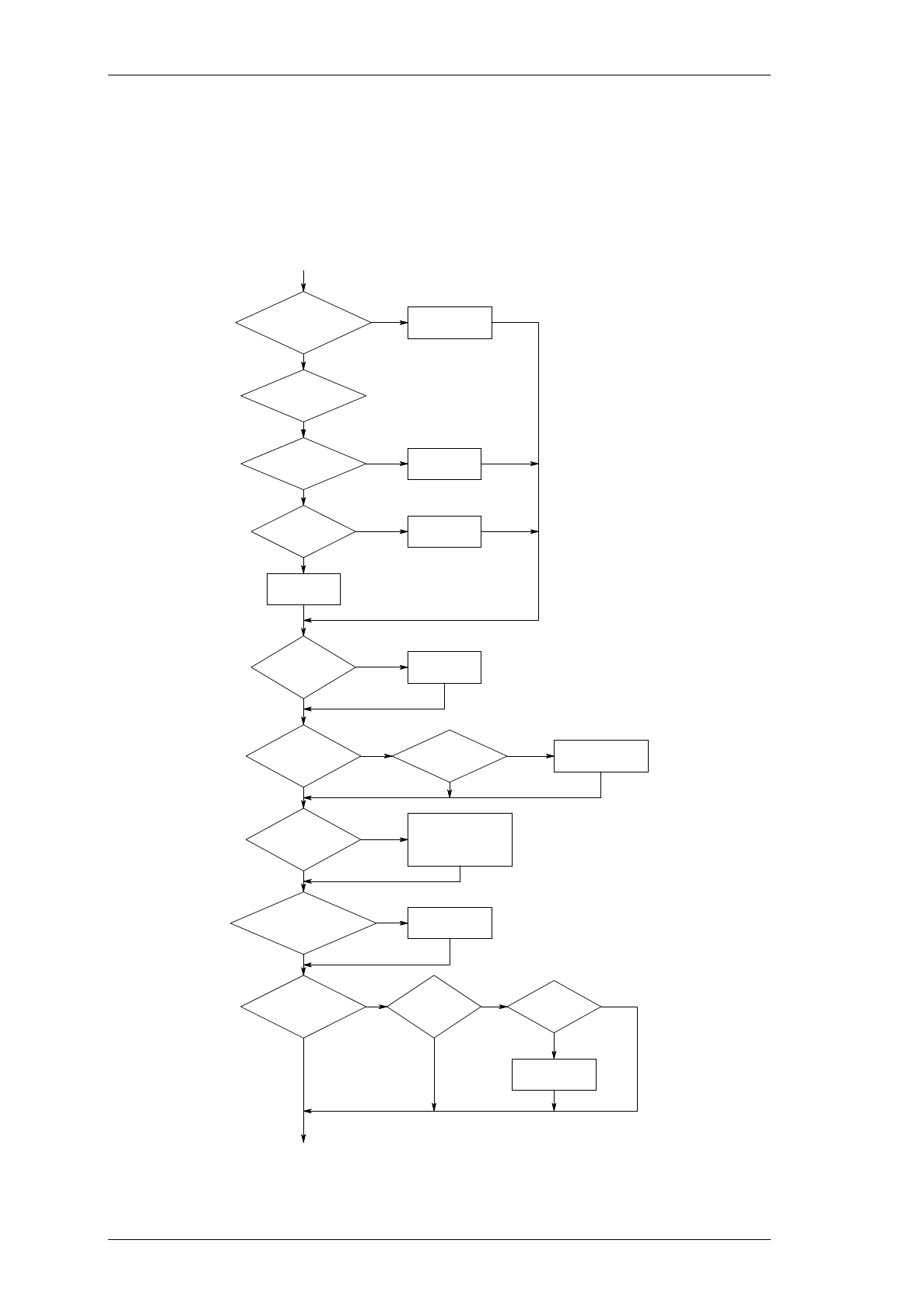

1.3 System Configuration

The following flow chart will help you to configure your T800 Series II system to

include a T803 tone remote module. Refer to Section 1.4 for details on the product types

mentioned in this chart.

Figure 1.1 T803 System Configuration

Line Intercom

needed T800-80-0001

is required

RF Power alarms

needed Using Tx (25W) Fit T1500-52-0000

into Tx

Remote channel

change needed

Fit T800-03-0000 into

RX & EX. Also fit into

TX if T1500-52-0000 is

not already required.

Channel Monitor (RX

CTCSS defeat) needed Fit T800-03-0000

into Rx

Voting tone

generation needed Tone on

idle system Rx is UHF

Fit T800-04-0000

into Rx

Yes

Yes Yes

Yes

Yes No

Yes

No No

No Yes

Yes

END

Existing T800II Rack

to be used

New Rack needed

Yes

Fit T800-53-0000

to existing rack

START

T800-27-0001

is required

Yes

For 50W/100W PA

For 1 or 2 TX 1T800-27-0000

is required

T800-27-0002

is required

M803-00-PRELIM

General Information

1.9

1.4 Product Codes

The following table provides a brief description of the products mentioned in Section

1.3. Consult your nearest Tait Dealer or Customer Service Organisation for more infor-

mation on these products.

Product Code Description

T800-01-0000 PGM800Win V3.0. Includes programming cable.

T800-03-0000 T800 auxiliary D-range kit.

T800-04-0000 T800 UHF RSSI kit.

T800-27-0000 T800 rack frame assembled for T803, Rx, 25W Tx & PSU.

Includes T800-53-0000.

T800-27-0001 T800 rack frame assembled for T803, Rx, Ex, PA (50W & 100W) &

PSU. Includes T800-53-0000.

T800-27-0002 T800 rack frame assembled for dual T803, dual Rx, dual Tx & single

PSU. Includes T800-53-0000.

T800-53-0000 T800 rack frame backplane PCB for T803-00-0000.

T800-80-0001 T803 test microphone. Used for line intercom and to talk on air.

T803-00-0000 Tone remote module.

T1500-52-0000 Tx alarm & multichannel kit.

1.10

General Information

M803-00-PRELIM

17/05/99 Copyright TEL

1.5 Regulatory Information

1.5.1 Canada

1.5.1.1 Industry Canada Warnings

Notice:

The Industry Canada Label identifies certified equipment. This certification means that

the equipment meets telecommunications network protective, operational and safety

requirements as prescribed in the appropriate Terminal Equipment Technical Require-

ments document(s). The Department does not guarantee the equipment will operate to

the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be con-

nected to the facilities of the local telecommunications company. The equipment must

also be installed using an acceptable method of connection. The customer should be

aware that compliance with the above conditions may not prevent degradation of serv-

ice in some situations.

Repairs to certified equipment should be coordinated by a representative designated by

the supplier. Any repairs or alterations made by the user to this equipment, or equip-

ment malfunctions, may give the telecommunications company cause to request the

user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of

the power utility, telephone lines and internal metallic water pipe system, if present, are

connected together. This precaution may be particularly important in rural areas.

Caution:

Users should not attempt to make such connections themselves, but

should contact the appropriate electric inspection authority, or electri-

cian, as appropriate.

1.5.1.2 Avis d’Industrie Canada

Avis:

L’étiquette d’Industrie Canada identifie le matériel homologué. Cette étiquette certifie

que le matériel est conforme aux normes de protection, d’exploitation et de sécurité des

réseaux de télécommunications, comme le prescrivent les documents concernant les exi-

gences techniques relatives au matériel terminal. Le Ministére n’assure toutefois pas que

le matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder

aux installations de l’entreprise locale de télécommunication. Le matériel doit égale-

ment être installé en suivant une méthode acceptée de raccordement. L’abonné ne doit

pas oublier qu’il est possible que la comformité aux conditions énoncées ci-dessus

n’empêche pas la dégradation du service dans certaines situations.

M803-00-PRELIM

General Information

1.11

Les réparations de matériel homologué doivent être coordonnées par un représentant

désigné par le fournisseur. L’entreprise de télécommunications peut demander à l’utili-

sateur de débrancher un appareil à la suite de réparations ou de modifications effec-

tuées par l’utilisateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre

de la source d’énergie électrique, des lignes téléphoniques et des canalisations d’eau

métalliques, s’il y en a, sont raccordés ensemble. Cette précaution est particuliérement

importante dans les régions rurales.

Avertissement:

L’utilisateur ne doit pas tenter de faire ces raccordements lui-même;

il doit avoir recours à un service d’inspection des installations élec-

triques, ou à un électricien, selon le cas.

1.12

General Information

M803-00-PRELIM

17/05/99 Copyright TEL

1.5.2 United States Of America

Analogue Device Warnings

This equipment complies with Part 68 of the Federal Communications Commission

(FCC) rules for the United States.

A label is located on the rear panel of the unit indicating the FCC registration number

and Ringer Equivalence Number (REN). You must upon request, provide the following

information to your local telephone company:

T803 Tone Remote and Alarm Interface, FCC Registration Number XXXXX.

Should you experience trouble with this telephone equipment, please contact:

Tait Electronics USA Inc.

39434 Old Katy Road

Houston, TX77055

Ph: 713 984 8684

Fax: 713 468 6944

If trouble is experienced with this equipment T803 Tone Remote and Alarm Interface,

for repair or warranty information, please contact Tait Electronics USA Inc. at 713 984

8684. If the equipment is causing harm to the telephone network, the telephone com-

pany may request that you disconnect the equipment until the problem is resolved.

For repair/warranty information. The telephone company may ask you to disconnect

this equipment from the line network until the problem has been corrected.

This equipment cannot be used on public coin phone service provided by the telephone

company. Connection to party line service is subject to state tariffs.

Your telephone company may discontinue your service if your equipment causes harm

to the telephone network. They will notify you in advance of disconnection, if possible.

During notification, you will be informed of your right to file a complaint to the FCC.

Occasionally, your telephone company may make changes in its facilities, equipment,

operation, or procedures that could affect the operation of your equipment. If so, you

will be given advance notice of the change to give you an opportunity to maintain unin-

terrupted service.

This device complies with part 15 of the FCC Rules. Operation is subject to the follow-

ing two conditions: (1) This device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause

undesired operation.

Unit Configuration Function USOC Jack Type REN

T803 2-wire 2-wire leased line RJ-11C -

T803 4-wire 4-wire leased line RJ-48S -

M803-00-PRELIM

General Information

1.13

1.5.3 Europe

European Union Declaration Of Conformity (according to IEC Guide 22)

We:-

declare under our sole legal responsibility and according to the requirements of the fol-

lowing EC Council Directives:

89/336/EEC + 92/31/EEC EMC Directive

73/23/EEC + 93/68/EEC LV Directive

91/263/EEC + 98/13/EEC TTE Directive

93/68/EEC CE Mark Directive

that the terminal equipment identified as:

Model: Tone Remote and Alarm Interface

Part Number: T803-00-0000

produced or sold by the above to which this declaration relates is in conformity with the

following Common Technical Regulations and or normative documents (or the relevant

standards where national approvals apply):

CTR 15, CTR 17

EN60950:1992 +A1, +A2, +A3, +A4

EN55022:1994

EN50082-1:1997

For and of behalf of Tait Electronics Ltd

David Balloch

RSD Development Manager

Christchurch, NZ, 18 May 1999, RSD/TCF/2027 Rev 001

Manufacturer:

Tait Electronics Ltd

Radio Systems Division

PO Box 1645

Christchurch

New Zealand

European Representative:

Tait Europe Ltd

Ermine Business Park

Ermine Road

Cambridgeshire

PE18 6YA

United Kingdom

1.14

General Information

M803-00-PRELIM

17/05/99 Copyright TEL

1.5.4 New Zealand

Warning

T803-00-0000 for use in New Zealand

"The grant of a Telepermit for any item of terminal equipment indicates only that Tele-

com New Zealand has accepted that the item complies with minimum conditions for

connection to its network. It indicates no endorsement of the product by Telecom New

Zealand, nor does it provide any sort of warranty. Above all, it provides no assurance

that any item will work correctly in all respects with another item of Telepermitted

equipment of a different make or model, nor does it imply that any product is compati-

ble with all of Telecom New Zealand's network services."

"This equipment does not fully meet Telecom New Zealand's impedance requirements.

Performance limitations may occur when used in conjunction with some parts of the

network. Telecom New Zealand will accept no responsibility should difficulties arise in

such circumstances."

M803-00-PRELIM

Circuit Operation

2.1

2 Circuit Operation

This section provides a basic description of the circuit operation of the T803 tone remote.

Note:

Unless otherwise specified, the term "PGM800Win" used in this and follow-

ing sections refers to version 3.00 and later of the software.

Refer to Section 5 where the parts lists, grid reference index and diagrams will provide

detailed information on identifying and locating components and test points on the

main PCB.

The following topics are covered in this section.

Section Title Page

2.1 Introduction 2.3

Figure Title Page

2.1

2.2

High Level Block Diagram

Signal Flow

2.3

2.5

2.2

Circuit Operation

M803-00-PRELIM

17/05/99 Copyright TEL

M803-00-PRELIM

Circuit Operation

2.3

2.1 Introduction

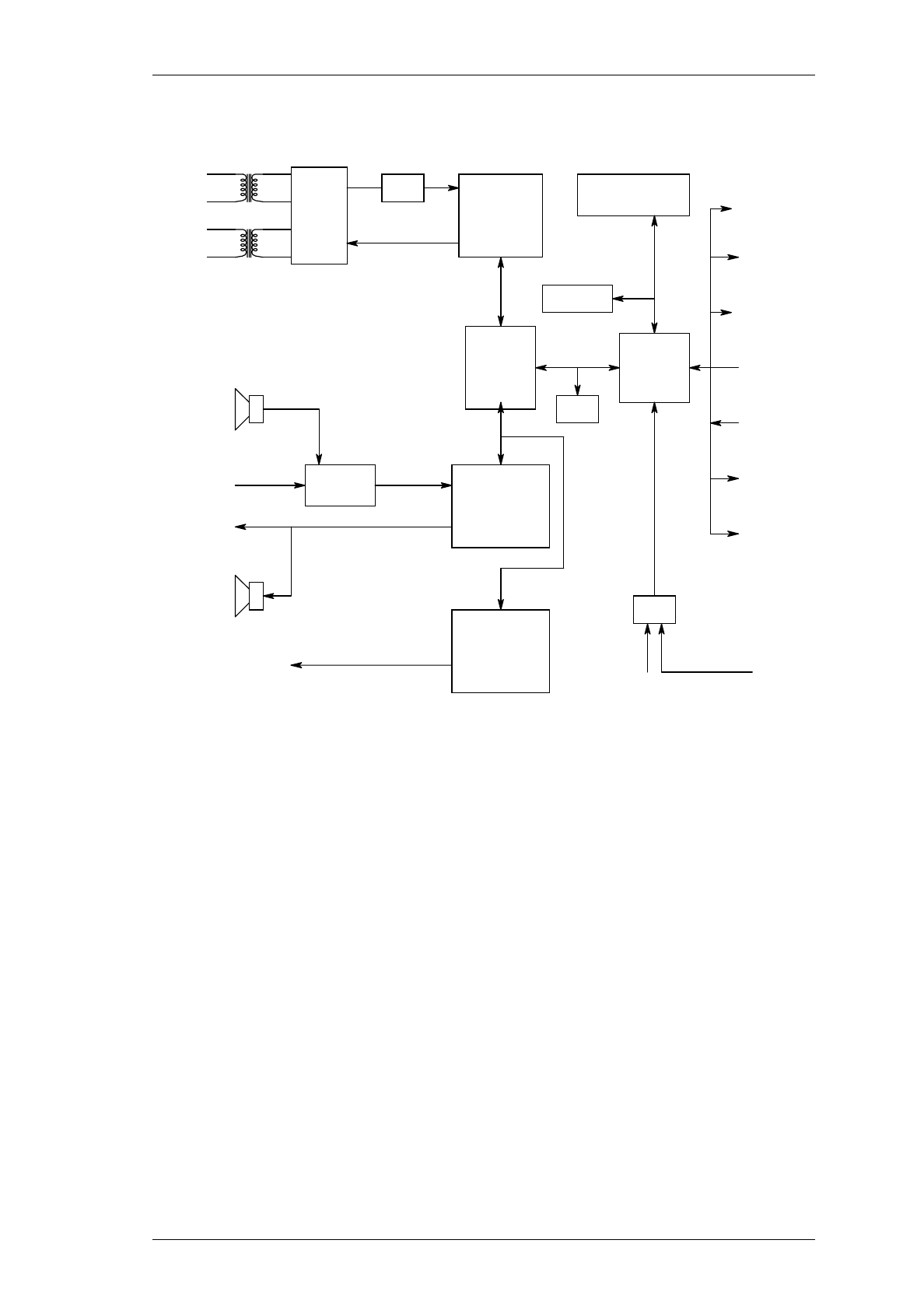

Figure 2.1 High Level Block Diagram

The T803 is connected to a leased line from control room equipment by means of an

RJ45 connector. 600R transformers are used to couple the audio into and out of the

T803. On the secondary of these line matching transformers are analogue transmission

switches which configure the line interface as either 2-wire or 4-wire compatible. Audio

from line is passed through an automatic level control (ALC) circuit before entering a

CODEC where it is digitised. The ALC ensures a good signal-to-noise ratio and effec-

tive radio channel utilisation for a wide range of line input levels. Audio to line is out-

put from the same line CODEC.

The line CODEC is connected to a digital signal processor (DSP) which is also connected

to a similar radio CODEC (the CTCSS CODEC is not used in this application). The

radio CODEC receives audio from the T800 Series II receiver and sends audio to the

T800 Series II transmitter/exciter to which it is connected via the special backplane PCB.

Receiver audio is low frequency filtered to extend the radio CODEC’s effective fre-

quency range.

The DSP processes the digitised audio streams from the CODECs in accord with instruc-

tions sent to it by the T803's microcontroller. The DSP can:

• detect HLGT, LLGT and function tones coming from line, notch filter line in

and receiver audio (used to eliminate LLGT from line out and transmitter

audio);

ALC

2W/4W

Select Line Codec

Digital

Signal

Processor

Radio Codec

from

line

to line

Micro

Controller

CTCSS Codec

A/D

Battery

Low freq

boost

Front Panel

LEDs & Switches

RAM

EEPROM

LINE

Test Mic

Speaker

PGM800 i/f

Channel

Select

Aux I/Ps

Power

Alarm I/Ps

Tx Key

CTCSS

Defeat

RSSI

Tx CTCSS

Audio

Rx Audio

Tx Audio

2.4

Circuit Operation

M803-00-PRELIM

17/05/99 Copyright TEL

• generate 5-tone alarms and pip tones to line out and transmitter audio;

• generate voting tones to line out;

• generate morse code to transmitter audio;

• cross connect line and radio audio paths;

• mute audio from line in and receiver.

The microcontroller boot loads the DSP, interfaces with the user via the front panel

switches and LEDs, interfaces with PGM800Win and runs the T803 state machines

(alarm monitoring, alarm tone generation, HLGT/function tone/LLGT timing, RSSI/

voting tone conversion etc.).

M803-00-PRELIM

Introduction To Servicing

3.1

3 Introduction To Servicing

This section of the manual provides some general and advisory information on servic-

ing procedures.

Note:

Unless otherwise specified, the term "PGM800Win" used in this and follow-

ing sections refers to version 3.00 and later of the software.

Refer to Section 5 where the parts lists, grid reference index and diagrams will provide

detailed information on identifying and locating components and test points on the

main PCB.

The following topics are covered in this section.

Section Title Page

3.1 Caution: CMOS Devices 3.3

3.2

3.2.1

3.2.2

Mechanical

Torx Recess Head Screws

Pozidriv & Philips Recess Head Screws

3.4

3.5

3.3

3.3.1

3.3.1.1

3.3.1.2

3.3.2

Component Replacement

Leaded Components

Desoldering Iron Method

Component Cutting Method

Surface Mount Devices

3.6

3.7

Figure Title Page

3.1

3.2

3.3

Typical Anti-static Bench Set-up

Torx Screw Identification

Pozidriv & Philips Screw & Screwdriver Identification

3.3

3.4

3.5

3.2

Introduction To Servicing

M803-00-PRELIM

17/05/99 Copyright TEL

M803-00-PRELIM

Introduction To Servicing

3.3

3.1 Caution: CMOS Devices

This equipment contains CMOS Devices which are susceptible to damage from static

charges. Care when handling these devices is essential. For correct handling proce-

dures refer to the manufacturers' data books, e.g. Philips data books covering CMOS

devices, or Motorola CMOS data books, Section 5 'Handling', etc.

An anti-static bench kit (refer to Figure 3.1) is available from Tait Electronics Ltd under

the following product codes:

• KS0001 - 1 conductive rubber bench mat

- 1 earth lead to connect the mat to ground

• KS0004 - 1 wrist strap.

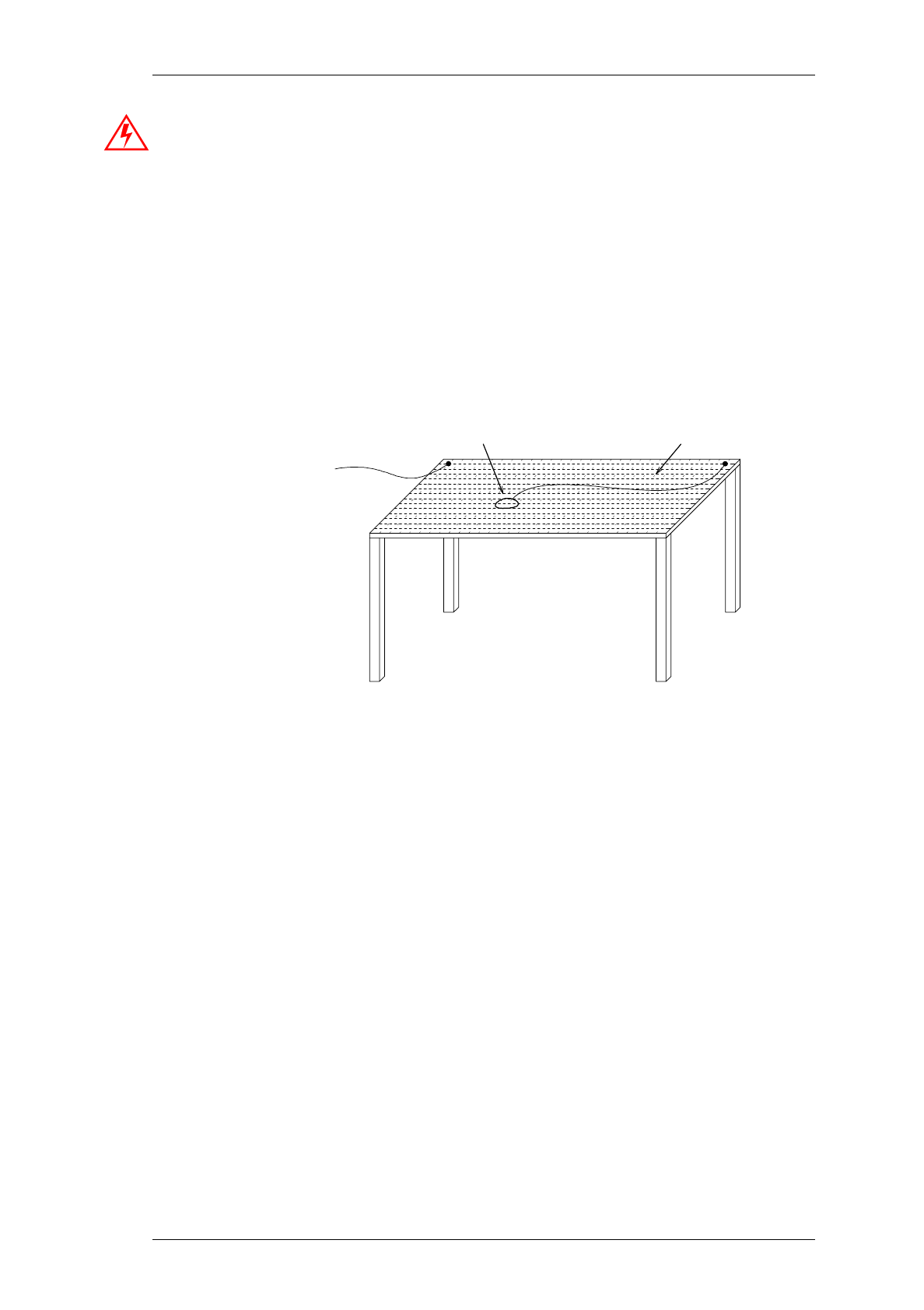

Figure 3.1 Typical Anti-static Bench Set-up

to building earth

(not mains earth)

conductive

wrist strap conductive rubber

bench mat

3.4

Introduction To Servicing

M803-00-PRELIM

17/05/99 Copyright TEL

3.2 Mechanical

3.2.1 Torx Recess Head Screws

Torx recess head screws are becoming the standard screw head type in all T800 Series II

equipment, with Pozidriv and Philips recess head screws being used in fewer applica-

tions.

The Torx recess head has the advantage of improved screwdriver tip location, reducing

the chances of screw head damage caused by the driver tip rotating within the recess. In

addition, using a ball-tip Torx screwdriver allows you to drive a Torx head screw with

the driver on a slight angle, which can be useful in situations where access is restricted.

It is important that you use the correct Torx screwdriver tip:

M3 screws - T10

M4 screws - T20.

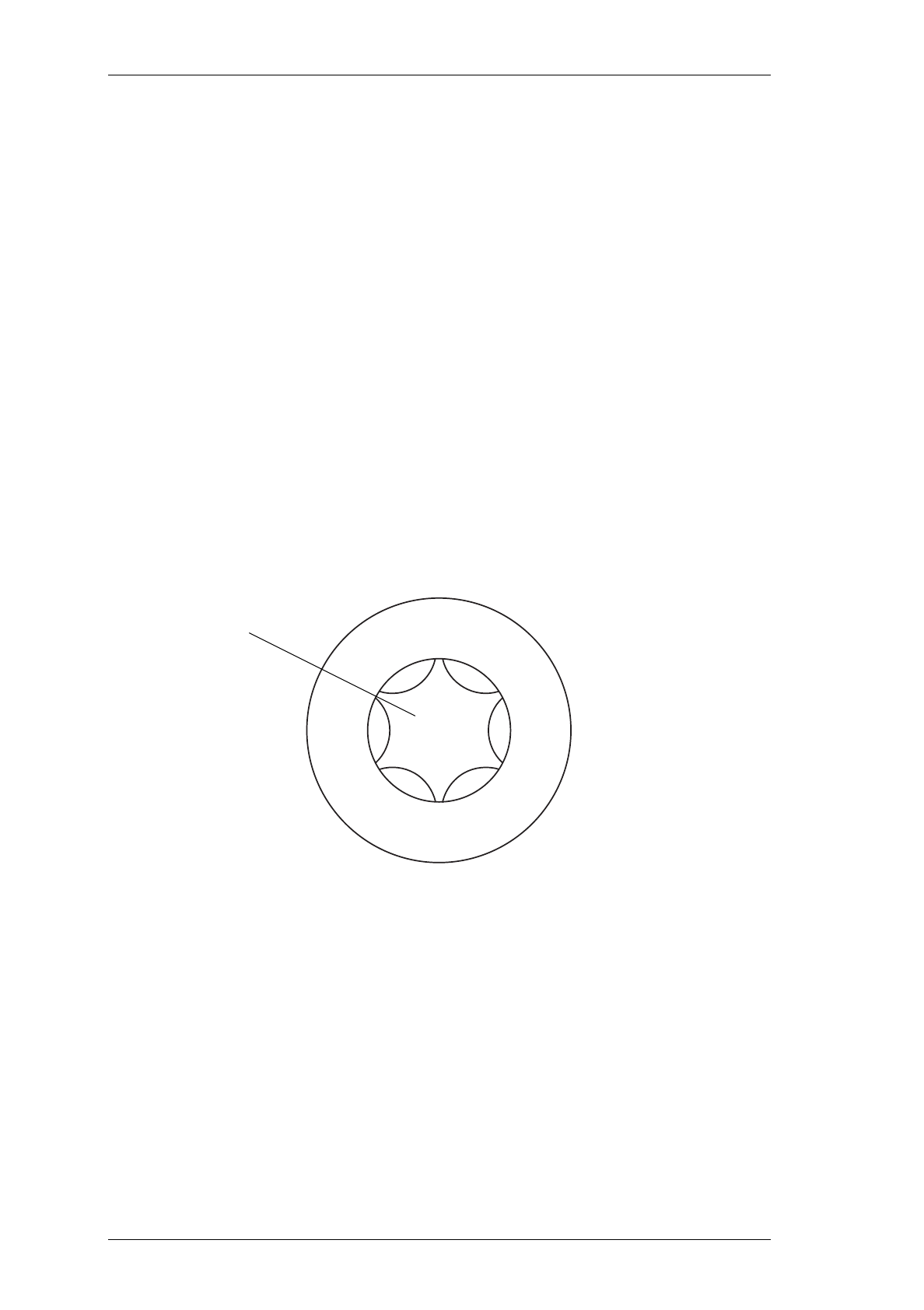

Figure 3.2 below shows a typical Torx recess head screw (actual hardware may differ

slightly from this illustration due to variations in manufacturing techniques).

Figure 3.2 Torx Screw Identification

"star" shaped recess with

six internal notches

M803-00-PRELIM

Introduction To Servicing

3.5

3.2.2 Pozidriv & Philips Recess Head Screws

Pozidriv and Philips recess head screws will continue to be used in T800 Series II equip-

ment in a few special applications. It is important that you use the correct type and size

screwdriver for each screw type to avoid damaging the screw head.

It is particularly important that you do not use Philips screwdrivers on Pozidriv screw

heads as the tapered driving flutes of the Philips screwdriver do not engage correctly

with the parallel-sided slots in the Pozidriv screw head. This can result in considerable

damage to the screw head if the screwdriver tip turns inside the recess.

Note:

If you find you need excessive downwards pressure to keep the screwdriver

tip in the Pozidriv screw head, you are probably using the wrong type and/

or size screwdriver.

Figure 3.3 below shows the main differences between typical Pozidriv and Philips screw

heads and screwdriver tips (actual hardware may differ slightly from these illustrations

due to variations in manufacturing techniques).

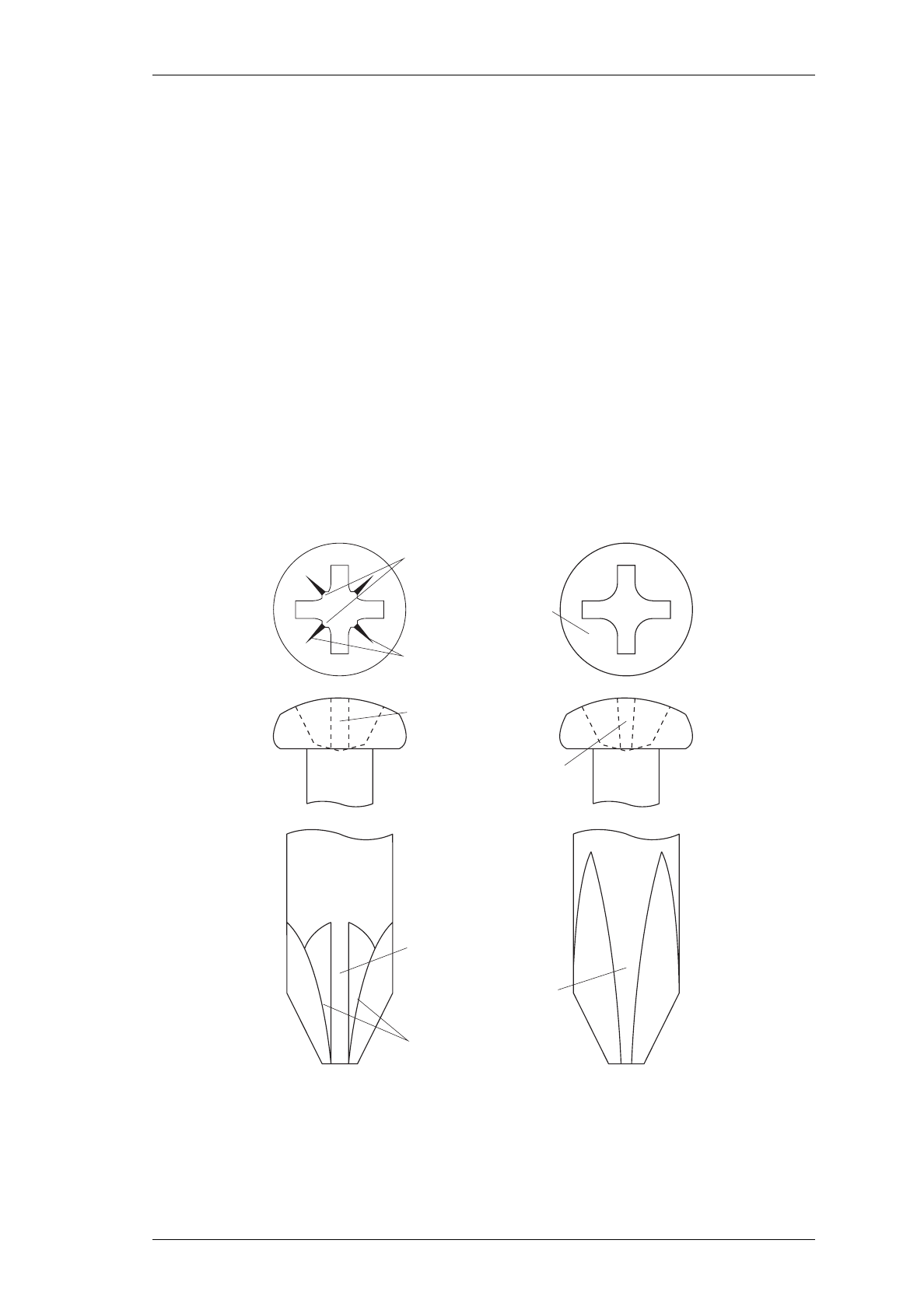

Figure 3.3 Pozidriv & Philips Screw & Screwdriver Identification

driving flutes with

parallel sides

driving flutes with

tapered sides

Pozidriv Philips

internal notches

"star" markings

between slots

no special markings

slots with parallel sides

slots with tapered sides

ridges between

driving flutes

3.6

Introduction To Servicing

M803-00-PRELIM

17/05/99 Copyright TEL

3.3 Component Replacement

3.3.1 Leaded Components

Whenever you are doing any work on the PCB that involves removing or fitting compo-

nents, you must take care not to damage the copper tracks. The two satisfactory meth-

ods of removing components from plated-through hole (PTH) PCBs are detailed below.

Note:

The first method requires the use of a desoldering station, e.g. Philips SBC

314 or Pace MBT-100E.

3.3.1.1 Desoldering Iron Method

Place the tip over the lead and, as the solder starts to melt, move the tip in a circu-

lar motion.

Start the suction and continue the movement until 3 or 4 circles have been com-

pleted.

Remove the tip while continuing suction to ensure that all solder is removed from

the joint, then stop the suction.

Before pulling the lead out, ensure it is not stuck to the plating.

If the lead is still not free, resolder the joint and try again.

Note:

The desoldering iron does not usually have enough heat to desolder leads

from the ground plane. Additional heat may be applied by holding a sol-

dering iron on the tip of the desoldering iron (this may require some addi-

tional help).

3.3.1.2 Component Cutting Method

Cut the leads on the component side of the PCB.

Heat the solder joint sufficiently to allow easy removal of the lead by drawing it

out from the component side: do not use undue force.

Fill the hole with solder and then clear with solderwick.

M803-00-PRELIM

Introduction To Servicing

3.7

3.3.2 Surface Mount Devices

Caution:

Surface mount devices (SMDs) require special storage, handling,

removal and replacement techniques. This equipment should be serv-

iced only by an approved Tait Dealer or Customer Service Organisa-

tion equipped with the necessary facilities. Repairs attempted with

incorrect equipment or by untrained personnel may result in perma-

nent damage. If in doubt, contact your nearest Tait Dealer or Customer

Service Organisation.

3.8

Introduction To Servicing

M803-00-PRELIM

17/05/99 Copyright TEL

M803-00-PRELIM

Setting Up, Testing & Fault Finding

4.1

4 Setting Up, Testing & Fault Finding

Caution:

This equipment contains CMOS devices which are susceptible to dam-

age from static charges. Refer to Section 3.1 for more information on

anti-static procedures when handling these devices.

This section of the manual describes how to set up the T803 in a T800 Series II rack

frame and test that it is functioning correctly. It also provides a brief fault finding proce-

dure.

Refer to Section 5 where the parts lists, grid reference index and diagrams will provide

detailed information on identifying and locating components and test points on the

main PCB.

The following topics are covered in this section.

Section Title Page

4.1

4.1.1

4.1.2

Setting Up

Rack Frame Preparation

T800 Series II Equipment Preparation

4.3

4.4

4.2 Testing 4.5

4.3 Fault Finding 4.6

Figure Title Page

4.1

4.2

T800-53-0000 Backplane PCB Link Locations

Test Equipment Set-up

4.3

4.4

4.2

Setting Up, Testing & Fault Finding

M803-00-PRELIM

17/05/99 Copyright TEL

M803-00-PRELIM

Setting Up, Testing & Fault Finding

4.3

4.1 Setting Up

4.1.1 Rack Frame Preparation

If you are not using a prewired T800-27-000X rack frame, you will have to install a

T800-53-0000 3-bin tone remote backplane PCB into the left side (looking from the

front) of a T800 Series II rack frame.

If you are using a transmitter and need to use power alarms, connect LINK1 &

LINK2 on the backplane PCB.

Note:

For correct power alarm operation these links should be correctly set at

power-up.

Connect pins 1 and 2 of LINK5.

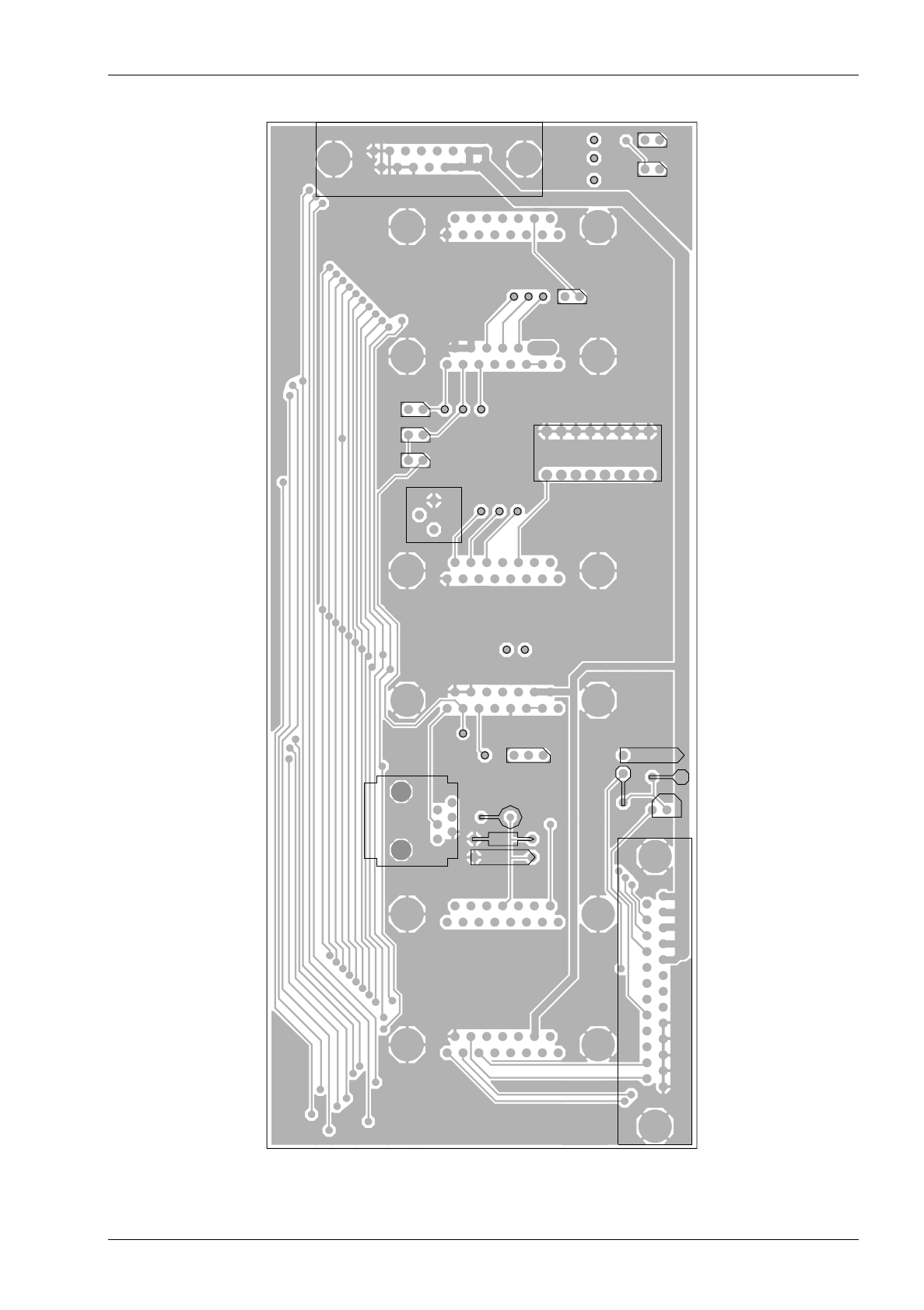

Figure 4.1 T800-53-0000 Backplane PCB Link Locations

SK10

SK8

SW1

SK7

LINK5

LINK6

LINK4

LINK3

LINK7

LINK1

LINK2

4.4

Setting Up, Testing & Fault Finding

M803-00-PRELIM

17/05/99 Copyright TEL

4.1.2 T800 Series II Equipment Preparation

Figure 4.2 Test Equipment Set-up

Remove any coaxial relay/duplexer from the T800 modules’ RF path and connect

the modules directly to an RF test set. Ensure that the transmitter/PA RF output

is sufficiently attenuated to prevent damage to the test set (refer to Figure 4.2).

Run up the receiver and transmitter/exciter/PA as instructed in the appropriate

T800 Series II service manual.

Install the T803, receiver and transmitter/exciter/PA in the rack frame as shown

in Figure 4.2.

Note 1:

A T800-03-0000 auxiliary D-range is required where remote channel change

or CTCSS defeat (for monitoring) is required.

Note 2:

A T1500-52-0000 should be fitted if a transmitter is being used and power

alarms are required.

T803 T800

(PA)

T800

PSU

T800-27 Rack

Audio

meter

line

matchin

optional

RF TEST SET

out in

Attn

RJ45

T800

(Ex)

M803-00-PRELIM

Setting Up, Testing & Fault Finding

4.5

4.2 Testing

Put the T803 into test mode by pressing the "Monitor On/Off" and "Mode Toggle"

buttons on the front panel simultaneously and holding them pressed for three sec-

onds.

Check that the T803 keys on the associated transmitter/exciter and encodes a

1kHz test tone to the transmitter/exciter for one minute. The test tone can be

heard on the built-in speaker and appears on the line out pair at -10dBm (2-wire)

or -14dBm (4-wire).

Adjust the "Line Sensitivity" control on the front panel of the transmitter/exciter

to give a reading on the RF test set of 60% system modulation, making allowances

for any CTCSS tone deviation.

Press the "Monitor On/Off" and "Mode Toggle" buttons on the T803 front panel

simultaneously to cancel test mode.

Use the RF test set to unmute the receiver.

Press the "Mode Toggle" switch on the T803 to put the unit into talk through

mode.

Modulate the RF carrier with a 1kHz tone at 60% system modulation, adding

CTCSS tone if necessary. Ensure that CTCSS tone is removed from the receiver’s

audio output by selecting the correct links inside the receiver.

Check that the transmitter/exciter is keyed on.

Adjust the "Line Level" control on the receiver front panel to produce 60% system

deviation at the transmitter/exciter RF output as measured on the test set.

The line levels are now automatically set to comply with ETSI TBR15 (2-wire line) and

TBR17 (4-wire line) specifications.

4.6

Setting Up, Testing & Fault Finding

M803-00-PRELIM

17/05/99 Copyright TEL

4.3 Fault Finding

1. Connect the T803 to its companion dispatch terminal via the leased line. Check

that speech sent from the terminal can be heard on the T803 speaker. One possible

cause of incorrect operation is that the line connections have become transposed

in the wiring network or that the dispatch terminal uses different Go/Return pairs

(also the speaker could be muted).

2. Use the console to key on the transmitter. If the transmitter does not key on, check

that the dispatch terminal and T803 have been compatibly programmed, i.e:

• check 2-wire/4-wire;

• check the keytone frequency;

• check if function tones are used;

• check high level guard tone and function tone periods (if used) are the same.

Finally check that the dispatch terminal is sending appropriate signal levels and

that tone durations are correct (which are often variable), and that the line is not

causing unacceptable attenuation or distortion.

3. If the dispatch terminal can key the transmitter but not change channel, repeater/

base station mode, auxiliary outputs, Rx defeat or cancel alarms, carry out the

checks in Step 1 above, but pay particular attention to the function tone program-

ming.

4. If the dispatch terminal can key the transmitter except when speech is present,

talkoff is occurring due to the keytone being 27dB lower than peak speech. Adjust

the relative levels inside the dispatch terminal (keytone should be 20dB lower

than peak speech).

M803-00-PRELIM

T803 PCB Information

5.1.1

5 T803 PCB Information

Caution:

This equipment contains CMOS devices which are susceptible to damage from

static charges. Refer to Section 3.1 for more information on anti-static procedures

when handling these devices.

This section provides the following information on the T803 and its associated rack frame back-

plane PCB, the T800-53-0000:

•parts list

• grid reference index

•PCB layouts

• circuit diagrams.

Section Title IPN Page

5.1 Introduction 5.1.3

5.2 T803 Main & Front Panel PCBs 220-01581-01 5.2.1

5.3 T800-53-0000 Backplane PCB 220-01449-02 5.3.1

5.1.2

T803 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

M803-00-PRELIM

T803 PCB Information

5.1.3

5.1 Introduction

PCB Identification

All PCBs are identified by a unique 10 digit “internal part number” (IPN), e.g. 220-12345-00, which

is screen printed onto the PCB (usually on the top side), as shown in the example below:

The last 2 digits of this number define the issue status, which starts at 00 and increments through 01,

02, 03, etc. as the PCB is updated. Some issue PCBs never reach full production status and are there-

fore not included in this manual. A letter following the 10 digit IPN has no relevance in identifying

the PCB for service purposes.

Note:

It is important that you identify which issue PCB you are working on so that you can

refer to the appropriate set of PCB information.

Parts Lists

The 10 digit numbers (000-00000-00) in this Parts List are “internal part numbers” (IPNs). We can

process your spare parts orders more efficiently and accurately if you quote the IPN and provide a

brief description of the part.

The components listed in this parts list are divided into two main types: those with a circuit refer-

ence (e.g. C2, D1, R121, etc.) and those without (miscellaneous and mechanical).

Those with a circuit reference are grouped in alphabetical order and then in numerical order within

each group. Each component entry comprises three or four columns, as shown below:

The mechanical and miscellaneous section lists the variant and common parts in IPN order.

circuit reference -

lists components

in alphanumeric

order

variant column -

indicates that this is

a variant component

which is fitted only to

the product type listed

Internal Part Number -

order the component

this number

description -

gives a brief description

of the component

5.1.4

T803 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

Parts List Amendments

At the front of the parts list is the Parts List Amendments box (an example of which is shown

below). This box contains a list of component changes which took place after the parts list and dia-

grams in this section were compiled. These changes (e.g. value changes, added/deleted compo-

nents, etc.) are listed by circuit reference in alphanumeric order and supersede the information

given in the parts list or diagrams. Components without circuit references are listed in IPN order.

The number in brackets at the end of each entry refers to the Tait internal Change Order document.

Grid Reference Index

This section contains a component grid reference index to help you find components and labelled

pads on the PCB layouts and circuit diagrams. This index lists the components and pads in alpha-

numeric order, along with the appropriate alphanumeric grid references, as shown below:

Parts List Amendments

R306 Changed from 180Ωto 560Ω(036-13560-00) to increase sensitivity (71003).

circuit reference

or IPN description

of change

IPN of new

component Change Order

number

circuit diagram

reference

PCB layout

reference

components listed

in alphanumeric order

layer number -

1 = top side layer

2 = bottom side layer

component location

on the layer

sheet number

component location

on the sheet

M803-00-PRELIM

T803 PCB Information

5.1.5

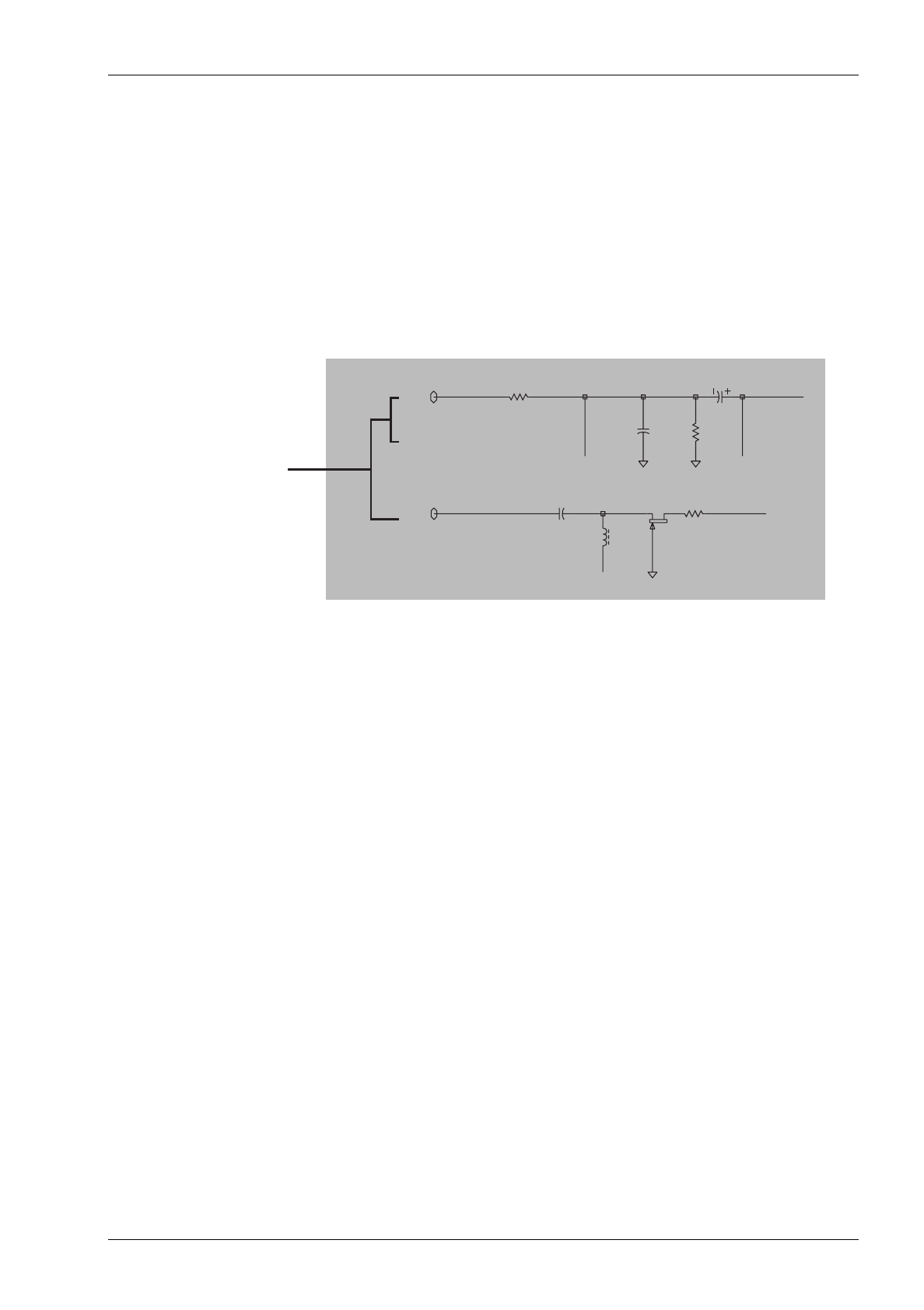

Using CAD Circuit Diagrams

Reading a CAD circuit diagram is similar to reading a road map, in that both have an alphanumeric

border. The circuit diagrams in this manual use letters to represent the horizontal axis, and num-

bers for the vertical axis. These circuit diagram “grid references” are useful in following a circuit

that is spread over two or more sheets.

When a line representing part of the circuitry is discontinued, a reference will be given at the end of

the line to indicate where the rest of the circuitry is located, as shown below. The first digit refers to

the sheet number and the last two characters refer to the location on that sheet of the continuation of

the circuit (e.g. 1R3).

C301

4N7

R303

L310

33U

IF-SIG

4R4

C369

100P

C371

10U

R339

100K

%R338

100

DISCRIMINATOR

1R3

2R9

8A2

hese grid references

how where the circuit

is continued

5.1.6

T803 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

M803-00-PRELIM

T803 PCB Information

5.2.1

5.2 T803 Main & Front Panel PCBs

This section contains the following information.

IPN Section Page

220-01581-01 Parts List

Mechanical & Miscellaneous Parts

Grid Reference Index

PCB Layout - Top Side

PCB Layout - Bottom Side

Overview & Front Panel Circuit Diagram

Interface Circuit Diagram

Control & Processing Circuit Diagram

P100 PI Filters Circuit Diagram

SK100 PI Filters Circuit Diagram

SK102 PI Filters Circuit Diagram

5.2.3

5.2.7

5.2.8

5.2.11

5.2.12

5.2.13

5.2.14

5.2.15

5.2.16

5.2.17

5.2.18

5.2.2

T803 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

IPN 220-01581-01

M803-00-PRELIM

T803 PCB Information

5.2.3

T803 Parts List (IPN 220-01581-01)

How To Use This Parts List

The components listed in this parts list are divided into two main types: those with a circuit reference (e.g. C2, D1, R121, etc.) and

those without (miscellaneous and mechanical).

Those with a circuit reference are grouped in alphabetical order and then in numerical order within each group. Each component

entry comprises three or four columns: the circuit reference, variant (if applicable), IPN and description. A number in the variant col-

umn indicates that this is a variant component which is fitted only to the product type listed. Static sensitive devices are indicated by

an (S) at the start of the description column.

The miscellaneous and mechanical section lists the variant and common parts in IPN order. Where possible, a number in the legend

column indicates their position in the mechanical assembly drawing.

The Parts List Amendments box below lists component changes that took place after the parts list and diagrams in this section were

compiled. These changes (e.g. value changes, added/deleted components, etc.) are listed by circuit reference in alphanumeric order

and supersede the information given in the parts list or diagrams. Components without circuit references are listed in IPN order.

Parts List Amendments

There were no amendments to the parts list at the time of publication.

IPN 220-01581-01

5.2.4

T803 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

Ref Var IPN Description Ref Var IPN Description

C1 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C2 016-08100-01 CAP EL 6X4 10M 20% 16V

C3 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C4 015-26100-08 CAP CER 0805 100N 10% X7R 50V

C5 016-08470-01 CAP EL SMD 6*4 47U 16V

C6 016-08470-01 CAP EL SMD 6*4 47U 16V

C7 015-27100-10 CAP CER 0805 1M+80-20% Y5V 16V

C128 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C145 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C162 016-08470-01 CAP EL SMD 6*4 47U 16V

C163 016-08100-01 CAP EL 6X4 10M 20% 16V

C164 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C165 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C166 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C167 016-08470-01 CAP EL SMD 6*4 47U 16V

C168 016-08100-01 CAP EL 6X4 10M 20% 16V

C170 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C172 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C173 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C174 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C202 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C203 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%

C204 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20%

C205 015-25220-08 CAP CER 0805 22N 10% X7R 50V

C206 015-25220-08 CAP CER 0805 22N 10% X7R 50V

C207 015-24470-08 CAP CER 0805 4N7 10% X7R 50V

C208 015-24470-08 CAP CER 0805 4N7 10% X7R 50V

C210 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C211 015-23470-08 CAP CER 0805 470P 10% X7R 50V

C212 015-05330-08 CAP CER 1206 33N 10% X7R 50V

C213 015-05330-08 CAP CER 1206 33N 10% X7R 50V

C214 015-23470-08 CAP CER 0805 470P 10% X7R 50V

C215 015-23470-08 CAP CER 0805 470P 10% X7R 50V

C216 015-23470-08 CAP CER 0805 470P 10% X7R 50V

C217 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C218 015-27100-10 CAP CER 0805 1M+80-20% Y5V 16V

C219 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C220 015-27100-10 CAP CER 0805 1M+80-20% Y5V 16V

C221 015-26100-08 CAP CER 0805 100N 10% X7R 50V

C222 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C223 016-08470-01 CAP EL SMD 6*4 47U 16V

C224 015-27100-10 CAP CER 0805 1M+80-20% Y5V 16V

C225 015-26100-08 CAP CER 0805 100N 10% X7R 50V

C226 015-24470-08 CAP CER 0805 4N7 10% X7R 50V

C227 015-26100-08 CAP CER 0805 100N 10% X7R 50V

C232 015-26100-08 CAP CER 0805 100N 10% X7R 50V

C233 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C235 015-26100-08 CAP CER 0805 100N 10% X7R 50V

C236 015-26100-08 CAP CER 0805 100N 10% X7R 50V

C239 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C240 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C300 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C301 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C302 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C303 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C304 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C305 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C306 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C307 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C308 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C310 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C311 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C312 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C313 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C314 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C315 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C316 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C317 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C318 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C319 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C320 015-25100-08 CAP CER 0805 10N 10% X7R 50V

C400 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C401 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C402 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C403 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C404 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C405 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C406 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C407 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C408 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C409 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C410 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C411 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C412 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C413 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C414 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C415 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C416 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C417 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C418 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C419 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C420 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C421 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C422 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C423 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C424 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C425 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C426 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C427 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C428 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C429 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C430 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C431 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C432 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C433 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C434 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C435 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C436 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C437 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C438 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C439 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C440 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C441 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C442 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C443 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C444 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C445 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C446 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C447 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C448 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C449 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C450 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C451 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C452 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C453 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C500 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C501 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C502 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C503 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C504 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C505 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C506 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C507 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C508 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C509 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C510 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C511 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C512 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C513 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C514 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C515 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C516 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C517 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C518 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C519 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C520 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C521 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C522 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C523 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C524 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C525 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C526 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C527 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C600 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C601 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C602 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C603 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C604 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C605 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C606 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C607 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C608 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C609 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C610 015-24100-08 CAP CER 0805 1N 10% X7R 50V

C611 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C612 015-22270-01 CAP CER 0805 27P 5% NPO 50V

C613 015-24100-08 CAP CER 0805 1N 10% X7R 50V

D1 008-00014-81 LED BICOLOR 5MM RED/GREEN

D2 008-00014-81 LED BICOLOR 5MM RED/GREEN

D3 008-00014-81 LED BICOLOR 5MM RED/GREEN

D4 008-00014-81 LED BICOLOR 5MM RED/GREEN

D5 008-00014-81 LED BICOLOR 5MM RED/GREEN

D6 001-10084-62 S)DIODE ZENSMD BZX84C6V2 SOT23

D206 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23

D207 001-18410-00 DIODE ZENSMD BZX84C10V SOT23

IC1 002-10078-00 S)IC SMD MC78M05CDT 5V REG0.5A

IC2 002-74905-95 S) IC SMD 74HC595 SHIFT REG

IC3 002-10854-10 LSH)IC TDA8541T 1W AUDIO AMP

IC100 002-10078-00 S)IC SMD MC78M05CDT 5V REG0.5A

IC101 002-10078-00 S)IC SMD MC78M05CDT 5V REG0.5A

IC200 002-74905-95 S) IC SMD 74HC595 SHIFT REG

IC201 002-12003-00 IC SMD ULN2003AD 7-DARL 16P SO

IC202 002-10140-21 S) IC MC14021BDR2 8B SREG SO16

IC203 002-74905-95 S) IC SMD 74HC595 SHIFT REG

IC204 002-74940-53 IC SMD 74HC4053 SO16

IC205 002-11454-80 LSH) IC SMD MC145480DW PCM

IC206 002-11454-80 LSH) IC SMD MC145480DW PCM

IC208 002-10832-00 IC TLC0832 8BIT A/D 8PIN SO

IC209 002-74940-53 IC SMD 74HC4053 SO16

IC300 002-10203-00 IC TMS320C203 80MHz PQFP100

IC301 002-74940-53 IC SMD 74HC4053 SO16

IC303 002-74900-00 S) IC SMD 74HC00 4X 2 I/P NAND

IC307 002-00090-00 IC SRAM 64Kx16 15*5 44SOJ

IC310 002-74905-73 S) IC SMD 74HC573D 8X 3STATE

IPN 220-01581-01

M803-00-PRELIM

T803 PCB Information

5.2.5

Ref Var IPN Description Ref Var IPN Description

IC311 002-18952-20 IC AT89C52 PLCC44 MIC 20MHz

IC312 002-12416-00 S)IC SMD AT24C16N-10SC EEPROM

IC313 002-10012-32 SMD DS1232LPS-2 LP RESET&W-DOG

JP302 036-10000-00 RES M/F 0805 ZERO OHM

JP303 036-10000-00 RES M/F 0805 ZERO OHM

JP307 036-10000-00 RES M/F 0805 ZERO OHM

L1 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L114 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L131 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L132 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L200 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L201 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L202 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L203 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L400 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L401 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L402 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L403 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L404 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L405 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L406 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L407 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L408 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L409 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L410 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L411 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L412 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L413 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L414 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L415 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L416 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L417 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L418 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L419 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L420 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L421 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L422 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L423 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L424 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L425 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L426 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L500 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L501 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L502 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L503 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L504 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L505 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L506 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L507 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L508 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L509 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L510 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L511 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L512 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L513 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L600 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L601 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L602 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L603 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L604 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L605 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

L606 057-10120-03 IND 805 EMI SUP 120E@100M 0.2A

P1 240-04020-72 SKT HOUSING 2W CORD MTG ULTREX

P100 240-00026-34 PLUG 15WAY DRNG DUAL PORT

Q201 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS

Q202 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS

Q203 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS

R1 036-12100-00 RES M/F 0805 10E 5%

R2 036-14470-10 RES M/F 0805 4K7 1%

R3 036-13470-00 RES M/F 0805 470E 5%

R4 036-13330-00 RES M/F 0805 330E 5%

R5 036-13220-00 RES M/F 0805 220E 5%

R7 036-13330-00 RES M/F 0805 330E 5%

R8 036-13220-00 RES M/F 0805 220E 5%

R9 036-13330-00 RES M/F 0805 330E 5%

R10 036-13220-00 RES M/F 0805 220E 5%

R12 036-13330-00 RES M/F 0805 330E 5%

R13 036-13220-00 RES M/F 0805 220E 5%

R14 036-13330-00 RES M/F 0805 330E 5%

R15 036-13220-00 RES M/F 0805 220E 5%

R100 036-10000-00 RES M/F 0805 ZERO OHM

R201 036-14100-10 RES M/F 0805 1K 1%

R202 036-14100-10 RES M/F 0805 1K 1%

R203 036-14100-10 RES M/F 0805 1K 1%

R204 036-14100-10 RES M/F 0805 1K 1%

R205 036-14100-10 RES M/F 0805 1K 1%

R206 036-14100-10 RES M/F 0805 1K 1%

R207 036-14100-10 RES M/F 0805 1K 1%

R208 036-14100-10 RES M/F 0805 1K 1%

R209 036-14470-10 RES M/F 0805 4K7 1%

R210 036-14100-10 RES M/F 0805 1K 1%

R211 036-14100-10 RES M/F 0805 1K 1%

R212 036-14100-10 RES M/F 0805 1K 1%

R213 036-14100-10 RES M/F 0805 1K 1%

R214 036-14100-10 RES M/F 0805 1K 1%

R215 036-14100-10 RES M/F 0805 1K 1%

R216 036-15100-10 RES M/F 0805 10K 1%

R217 036-14120-00 RES M/F 0805 1K2 5%

R218 036-15100-10 RES M/F 0805 10K 1%

R219 036-14560-00 RES M/F 0805 5K6 5%

R220 036-15100-10 RES M/F 0805 10K 1%

R221 036-15100-10 RES M/F 0805 10K 1%

R223 036-15100-10 RES M/F 0805 10K 1%

R224 036-15100-10 RES M/F 0805 10K 1%

R225 036-15100-10 RES M/F 0805 10K 1%

R226 036-15100-10 RES M/F 0805 10K 1%

R227 036-14220-00 RES M/F 0805 2K2 5%

R228 036-12100-00 RES M/F 0805 10E 5%

R229 036-12390-00 RES M/F 0805 39E 5%

R230 036-13470-00 RES M/F 0805 470E 5%

R231 036-16100-00 RES M/F 0805 100K 5%

R232 036-13470-00 RES M/F 0805 470E 5%

R233 036-12330-00 RES M/F 0805 33E 5%

R234 036-15100-10 RES M/F 0805 10K 1%

R235 036-13470-00 RES M/F 0805 470E 5%

R236 036-14330-10 RES M/F 0805 3K3 1%

R237 036-15100-10 RES M/F 0805 10K 1%

R238 036-15150-00 RES M/F 0805 15K 5%

R240 036-14220-00 RES M/F 0805 2K2 5%

R241 036-14100-10 RES M/F 0805 1K 1%

R242 036-14820-10 RES M/F 0805 8K2 1%

R243 036-15100-10 RES M/F 0805 10K 1%

R244 036-15180-00 RES M/F 0805 18K 5%

R245 036-15100-10 RES M/F 0805 10K 1%

R246 036-15100-10 RES M/F 0805 10K 1%

R247 036-15470-10 RES M/F 0805 47K 1%

R248 036-15100-10 RES M/F 0805 10K 1%

R250 036-17100-10 RES M/F 0805 1M 1%

R251 036-14470-10 RES M/F 0805 4K7 1%

R252 036-16120-00 RES M/F 0805 120K 5%

R254 036-15100-10 RES M/F 0805 10K 1%

R256 036-14150-00 RES M/F 0805 1K5 5%

R257 036-15120-00 RES M/F 0805 12K 5%

R258 036-15100-10 RES M/F 0805 10K 1%

R261 036-16120-00 RES M/F 0805 120K 5%

R262 036-15100-10 RES M/F 0805 10K 1%

R264 036-12220-00 RES M/F 0805 22E 5%

R266 036-15330-00 RES M/F 0805 33K 5%

R267 036-12100-00 RES M/F 0805 10E 5%

R268 036-12100-00 RES M/F 0805 10E 5%

R269 036-15100-10 RES M/F 0805 10K 1%

R271 036-15100-10 RES M/F 0805 10K 1%

R272 036-14220-00 RES M/F 0805 2K2 5%

R273 036-14470-10 RES M/F 0805 4K7 1%

R274 036-14470-10 RES M/F 0805 4K7 1%

R275 036-14470-10 RES M/F 0805 4K7 1%

R276 036-14470-10 RES M/F 0805 4K7 1%

R277 036-14470-10 RES M/F 0805 4K7 1%

R280 036-15100-10 RES M/F 0805 10K 1%

R281 036-18100-00 RES M/F 0805 10M 10%

R301 036-14220-00 RES M/F 0805 2K2 5%

R302 036-14220-00 RES M/F 0805 2K2 5%

R303 036-14470-10 RES M/F 0805 4K7 1%

R310 036-15100-10 RES M/F 0805 10K 1%

R311 036-15100-10 RES M/F 0805 10K 1%

R312 036-15100-10 RES M/F 0805 10K 1%

R313 036-15100-10 RES M/F 0805 10K 1%

R314 036-15100-10 RES M/F 0805 10K 1%

R317 036-15100-10 RES M/F 0805 10K 1%

R318 036-15100-10 RES M/F 0805 10K 1%

R320 036-15100-10 RES M/F 0805 10K 1%

R321 036-14470-10 RES M/F 0805 4K7 1%

R322 036-14180-00 RES M/F 0805 1K8 5%

R323 036-14180-00 RES M/F 0805 1K8 5%

R324 036-14180-00 RES M/F 0805 1K8 5%

R325 036-14180-00 RES M/F 0805 1K8 5%

R326 036-14180-00 RES M/F 0805 1K8 5%

R327 036-14180-00 RES M/F 0805 1K8 5%

R328 036-14180-00 RES M/F 0805 1K8 5%

R330 036-14180-00 RES M/F 0805 1K8 5%

R331 036-14180-00 RES M/F 0805 1K8 5%

R332 036-14180-00 RES M/F 0805 1K8 5%

R333 036-14180-00 RES M/F 0805 1K8 5%

R334 036-14180-00 RES M/F 0805 1K8 5%

R335 036-14180-00 RES M/F 0805 1K8 5%

R336 036-15100-10 RES M/F 0805 10K 1%

R341 036-15100-10 RES M/F 0805 10K 1%

R342 036-15100-10 RES M/F 0805 10K 1%

R343 036-15100-10 RES M/F 0805 10K 1%

R344 036-15100-10 RES M/F 0805 10K 1%

R345 036-15100-10 RES M/F 0805 10K 1%

R346 036-15100-10 RES M/F 0805 10K 1%

R347 036-15100-10 RES M/F 0805 10K 1%

R348 036-15100-10 RES M/F 0805 10K 1%

R351 036-15100-10 RES M/F 0805 10K 1%

R352 036-14150-00 RES M/F 0805 1K5 5%

R353 036-15100-10 RES M/F 0805 10K 1%

RV1 040-05500-09 POT 10K LOG 15K10 VERT PCB MTG

S1 230-00020-38 SWITCH SPNO THRU HOLE PCB MTG

IPN 220-01581-01

5.2.6

T803 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

Ref Var IPN Description Ref Var IPN Description

S2 230-00020-38 SWITCH SPNO THRU HOLE PCB MTG

SK1 240-10000-07 CONN SMD SKT 16W 2R M-MATCH

SK2 240-04021-60 SKT P/JACK 6-WAY VER 69254-001

SK100 240-04021-80 SKT 8WAY RJ45 R/A PCB LOW-PROF

SK101 240-10000-07 CONN SMD SKT 16W 2R M-MATCH

T200 054-00010-16 (L) XFMR LINE 600 OHM 1:1

T201 054-00010-16 (L) XFMR LINE 600 OHM 1:1

XL300 274-00010-59 XTAL 18.432MHz HC-49/U

IPN 220-01581-01

M803-00-PRELIM

T803 PCB Information

5.2.7

IPN Legend Description IPN Legend Description

T803 Mechanical & Miscellaneous Parts (220-01581-01)

201-00030-08 WIRE T/C 7/0.2 PVC GREY

201-00030-10 WIRE T/C 7/0.2 PVC BLACK

219-02685-00 TONE REMOTE RIBBON CABLE LOOM

220-01581-01 PCB T803-00-0000 TONE REMOTE

230-00010-38 SWITCH EXTENDER CAP 19MM

S1 & S2

240-00020-72 HEADER 2W PCB MG ULTREX

240-04020-42 SKT 44 PIN SMD PLCC

IC311

240-04020-76 SKT RECEP CRIMP 4 ULTREX HOUS

252-00010-74 SPEAKER 36MM 16E MERRY

303-23149-00 COVER SIDE T1511-20-0000

308-01007-02 HANDLE BASE STN-SII INT THREAD

316-06706-00 PNL FRT SUB CHASSIS 14mm

316-06707-00 PNL FRT T803-00-0000

316-21252-00 PNL REAR T803-00-0000 (RJ45)

318-01037-00 RAIL CHAS T1511-20 EXTR ALUM

345-00040-08 SCRW M3*12MM P/POZ ST BZ

345-00040-09 SCRW M3*6MM CSK POZI TRUNC

345-00050-04 SCRW M4X10MM CSK POZI ST BZ

349-00020-08 SCRW T/T 4-40X3/8 CSK POZI BZ

349-00020-09 SCRW T/T 4-40X3/8 IN P/POZ BLK

349-00020-36 SCREW TT M3X8m PANTORX BLK

365-00100-20 LABEL WHITE S/A 28X11MM

365-01391-01 LABEL 30*10.8 T/MARK VOID

369-01035-01 TAPE DIE CUT T3000 SPKR-F/P

399-00010-51 BAG PLASTIC 75*100MM

410-01081-01 CRT T800 SERIES II

IPN 220-01581-01

5.2.8

T803 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit

T803 Grid Reference Index (IPN 220-01581-01)

How To Use This Grid Reference Index

The first digit in the PCB layout reference is a "1" or "2", indicating the top or bottom side layout respectively, and the last two charac-

ters give the location of the component on that diagram.

The first digit in the circuit diagram reference is the sheet number, and the last two characters give the location of the component on

that sheet.

C1 1:Q10 1-N3

C2 1:Q11 1-O3

C3 1:Q11 1-O3

C4 1:S11 1-P3

C5 1:S11 1-Q3

C6 1:S7 1-Q4

C7 1:S7 1-R3

C128 1:H5 1-A0

C145 1:H5 1-B0

C162 1:H5 1-B0

C163 1:H8 1-C0

C164 1:H8 1-D0

C165 1:H3 1-E0

C166 1:H3 1-F0

C167 1:H4 1-F0

C168 1:H4 1-G0

C170 1:G4 1-G0

C172 1:G5 1-H0

C173 1:G5 1-H0

C174 1:G5 1-I0

C202 1:F5 2-E2

C203 1:C12 2-E9

C204 1:C9 2-E8

C205 1:C12 2-F9

C206 1:C9 2-F8

C207 1:C12 2-F9

C208 1:C9 2-F8

C210 1:F4 2-G4

C211 1:F12 2-G9

C212 1:F12 2-G9

C213 1:F10 2-G8

C214 1:F10 2-G7

C215 1:F11 2-H9

C216 1:F10 2-H7

C217 1:F7 2-H5

C218 1:C15 2-K5

C219 1:F11 2-J9

C220 1:D15 2-L5

C221 1:D15 2-L4

C222 1:F8 2-N2

C223 1:B14 2-N7

C224 1:C14 2-M4

C225 1:D15 2-M4

C226 1:E15 2-M5

C227 1:D14 2-N4

*C228 1:E13 2-N8

*C230 1:D14 2-N5

*C231 1:G13 2-N4

C232 1:E15 2-N7

C233 1:F7 2-O1

*C234 1:G15 2-N2

C235 1:F13 2-P8

C236 1:E13 2-P5

*C237 1:H13 2-O4

C239 1:F8 2-O2

C240 1:E15 2-K5

C300 1:L15 3-A9

C301 1:M15 3-B9

C302 1:K13 3-D9

C303 1:M14 3-D9

C304 1:K14 3-D9

C305 1:K14 3-G4

C306 1:K14 3-G4

C307 1:K11 3-I4

C308 1:L11 3-J4

C310 1:H9 3-L8

C311 1:K10 3-M6

C312 1:K15 3-H7

C313 1:L10 3-M6

C314 1:H9 3-P3

C315 1:L6 3-P6

C316 1:L8 3-P7

C317 1:K9 3-Q7

C318 1:M8 3-Q7

C319 1:H12 3-F3

C320 1:J5 3-Q2

C400 1:D7 4-H8

C401 1:E8 4-H8

C402 1:D6 4-H7

C403 1:D6 4-H6

C404 1:D7 4-H6

C405 1:D4 4-H5

C406 1:D3 4-H4

C407 1:D5 4-H3

C408 1:D6 4-H3

C409 1:D5 4-H2

C410 1:D4 4-H1

C411 1:D4 4-H1

C412 1:D6 4-H0

C413 1:D8 4-H8

C414 1:E8 4-H8

C415 1:D6 4-H7

C416 1:D6 4-H6

C417 1:D7 4-H6

C418 1:D4 4-H5

C419 1:D3 4-H4

C420 1:D5 4-H3

C421 1:D5 4-H3

C422 1:D5 4-H2

C423 1:D4 4-H1

C424 1:D3 4-H1

C425 1:D6 4-H0

C426 1:D7 4-J9

C427 1:D8 4-J8

C428 1:D7 4-J7

C429 1:D7 4-J7

C430 1:D6 4-J6

C431 1:D7 4-J5

C432 1:D4 4-J4

C433 1:D3 4-J4

C434 1:C3 4-J3

C435 1:D6 4-J2

C436 1:D5 4-J2

C437 1:D4 4-J1

C438 1:D5 4-J0

C439 1:D4 4-J0

C440 1:D8 4-J9

C441 1:D8 4-J8

C442 1:D7 4-J7

C443 1:D7 4-J7

C444 1:D6 4-J6

C445 1:D7 4-J5

C446 1:D3 4-J4

C447 1:D3 4-J4

C448 1:C3 4-J3

C449 1:D5 4-J2

C450 1:D5 4-J2

C451 1:D4 4-J1

C452 1:D5 4-J0

C453 1:D4 4-J0

C500 1:M6 5-E8

C501 1:M5 5-E7

C502 1:M5 5-E6

C503 1:M4 5-E5

C504 1:M4 5-E3

C505 1:M3 5-E2

C506 1:M3 5-E1

C507 1:M5 5-F8

C508 1:M5 5-F7

C509 1:M4 5-F6

C510 1:M4 5-F5

C511 1:M4 5-F3

C512 1:M3 5-F2

C513 1:M3 5-F1

C514 1:M6 5-G8

C515 1:M5 5-G7

C516 1:M5 5-G6

C517 1:M4 5-G5

C518 1:M4 5-G4

C519 1:M3 5-G3

C520 1:M3 5-G2

C521 1:M5 5-G8

C522 1:M5 5-G7

C523 1:M4 5-G6

C524 1:M4 5-G5

C525 1:M4 5-G4

C526 1:M3 5-G3

C527 1:M3 5-G2

C600 1:J4 6-E6

C601 1:K4 6-E5

C602 1:L4 6-E4

C603 1:J4 6-F6

C604 1:K4 6-F5

C605 1:L4 6-F4

C606 1:J4 6-F6

C607 1:J4 6-F5

C608 1:K4 6-F4

C609 1:L4 6-F3

C610 1:J4 6-G6

C611 1:K4 6-G5

C612 1:K4 6-G4

C613 1:L4 6-G3

D1 2:T9 1-T2

D1 2:T9 1-S2

D2 2:T8 1-T2

D2 2:T8 1-S2

D3 2:T7 1-S2

D3 2:T7 1-T2

D4 2:T6 1-S1

D4 2:T6 1-T1

D5 2:S14 1-S0

D5 2:S14 1-T0

D6 1:Q3 1-O0

*D200 1:B12 2-E9

*D201 1:B9 2-E8

*D202 1:F12 2-H9

*D203 1:F12 2-H9

*D204 1:F10 2-H8

*D205 1:F10 2-H8

D206 1:B15 2-M6

D207 1:E8 2-M2

IC1 1:R12 1-O3

IC2 1:S9 1-P1

IC3 1:R7 1-R3

IC100 1:H6 1-C0

IC101 1:G3 1-F0

IC200 1:F4 2-F1

IC201 1:E3 2-F3

IC202 1:F6 2-G4

IC203 1:F3 2-H3

IC204 1:F11 2-J8

IC205 1:F14 2-O7

IC206 1:D14 2-O4

*IC207 1:G14 2-O2

IC208 1:F8 2-P1

IC209 1:G11 2-S0

IC300 1:L14 3-F5

IC300 1:L14 3-B9

IC301 1:G12 3-F2

IC303 1:H9 3-K8

IC303 1:H9 3-J8

IC303 1:H9 3-I8

IC303 1:H9 3-I9

IC307 1:L11 3-J1

IC310 1:L9 3-M5

IC311 1:L7 3-P5

IC312 1:K6 3-Q1

IC313 1:G9 3-R3

JP200 1:F15 2-L8

JP201 1:E13 2-M8

*JP210 1:B15 2-M6

JP300 1:K15 3-F7

JP301 1:J15 3-E5

JP302 1:J15 3-F5

JP303 1:J15 3-E4

JP304 1:J15 3-F4

JP306 1:H9 3-P3

JP307 1:H9 3-P3

L1 1:Q11 1-O3

L114 1:J5 1-B0

IPN 220-01581-01

M803-00-PRELIM

T803 PCB Information

5.2.9

Device PCB Circuit Device PCB Circuit Device PCB CircuitDevice PCB Circuit

L131 1:H3 1-E0

L132 1:G5 1-H0

L200 1:C12 2-E9

L201 1:C12 2-E8

L202 1:C9 2-E8

L203 1:C9 2-E8

L400 1:E8 4-H8

L401 1:E8 4-H8

L402 1:D6 4-H7

L403 1:E6 4-H6

L404 1:D7 4-H6

L405 1:D4 4-H5

L406 1:D3 4-H4

L407 1:D5 4-H4

L408 1:D5 4-H3

L409 1:E5 4-H2

L410 1:E4 4-H1

L411 1:E3 4-H1

L412 1:D6 4-H0

L413 1:D8 4-J9

L414 1:E8 4-J8

L415 1:E7 4-J7

L416 1:E7 4-J7

L417 1:E6 4-J6

L418 1:D7 4-J5

L419 1:D3 4-J5

L420 1:E3 4-J4

L421 1:C3 4-J3

L422 1:E5 4-J2

L423 1:E5 4-J2

L424 1:E4 4-J1

L425 1:D5 4-J0

L426 1:D4 4-J0

L500 1:M5 5-F8

L501 1:M5 5-F7

L502 1:M5 5-F6

L503 1:M4 5-F5

L504 1:M4 5-F4

L505 1:M3 5-F3

L506 1:M3 5-F2

L507 1:N5 5-G8

L508 1:N5 5-G7

L509 1:N5 5-G6

L510 1:N4 5-G5

L511 1:N4 5-G4

L512 1:N3 5-G3

L513 1:N3 5-G2

L600 1:J3 6-E6

L601 1:K3 6-E5

L602 1:L3 6-E4

L603 1:J3 6-G6

L604 1:K3 6-G5

L605 1:K3 6-G4

L606 1:L3 6-G3

P1 2:Q5 1-T3

P100 1:B5 1-B3

P101 1:P9 1-U8

P101 1:P9 1-U6

*P300 1:P14 3-H3

*P301 1:K4 3-R0

Q201 1:B14 2-L7

Q202 1:B14 2-L7

Q203 1:J5 2-G0

R1 1:Q3 1-O0

R2 1:S7 1-S3

R3 1:R7 1-T3

R4 1:S9 1-S2

R5 1:S9 1-T2

R7 1:S8 1-S2

R8 1:S9 1-T2

R9 1:S8 1-S2

R10 1:S8 1-T2

R12 1:S7 1-S1

R13 1:S8 1-T1

R14 1:R13 1-S0

R15 1:R13 1-T0

R100 1:F5 1-H0

R201 1:F5 2-E2

R202 1:E5 2-E2

R203 1:E5 2-E2

R204 1:E5 2-E1

R205 1:E4 2-E1

R206 1:E4 2-E1

R207 1:E4 2-E1

R208 1:E4 2-E1

R209 1:H11 2-E1

R210 1:E6 2-E5

R211 1:E6 2-E5

R212 1:E6 2-E5

R213 1:E7 2-E5

R214 1:G6 2-E5

R215 1:G6 2-E5

R216 1:E6 2-E5

R217 1:F8 2-M2

R218 1:E6 2-F5

R219 1:F8 2-N2

R220 1:E6 2-F5

R221 1:E7 2-F5

R223 1:G6 2-F5

R224 1:G6 2-F5

R225 1:G7 2-G5

R226 1:E7 2-G5

R227 1:G6 2-H5

R228 1:F13 2-K8

R229 1:F10 2-H8

R230 1:F11 2-I8

R231 1:F12 2-J8

R232 1:F13 2-K8

R233 1:B15 2-L7

R234 1:C15 2-L5

R235 1:F15 2-L8

R236 1:D15 2-L5

R237 1:D15 2-L5

R238 1:C15 2-L5

R240 1:E15 2-L8

R241 1:B14 2-L7

R242 1:D15 2-L4

R243 1:F13 2-L8

R244 1:D15 2-M5

R245 1:C15 2-M7

R246 1:D15 2-M4

R247 1:F15 2-M8

R248 1:E13 2-M8

R250 1:E15 2-M5

R251 1:D13 2-M5

R252 1:C15 2-M7

*R253 1:G15 2-M3

R254 1:C14 2-M4

*R255 1:G13 2-M3

R256 1:C14 2-N7

R257 1:E13 2-N8

R258 1:D13 2-N5

*R260 1:G15 2-M3

R261 1:E15 2-N5

R262 1:F7 2-N1

*R263 1:G13 2-M3

R264 1:D14 2-N4

*R265 1:G15 2-N3

R266 1:F8 2-O1

R267 1:G13 2-O9

R268 1:E13 2-O6

R269 1:H10 2-R0

*R270 1:H13 2-O4

R271 1:J5 2-G0

R272 1:K5 2-G0

R273 1:G12 2-S7

R274 1:G12 2-S5

R275 1:G12 2-S3

R276 1:H11 2-S1

R277 1:G11 2-T1

R280 1:E15 2-L5

R281 1:B15 2-L7

R301 1:L15 3-E6

R302 1:J13 3-E5

R303 1:H12 3-E3

R310 1:K15 3-F7

R311 1:L15 3-G3

R312 1:M15 3-G4

R313 1:H9 3-H9

R314 1:J10 3-H8

R317 1:L13 3-I2

R318 1:K12 3-K4

R320 1:K13 3-K3

R321 1:K15 3-H7

R322 1:K9 3-M4

R323 1:L9 3-M4

R324 1:K9 3-M4

R325 1:L9 3-M4

R326 1:K9 3-M4

R327 1:L9 3-M4

R328 1:K9 3-M4

R330 1:L9 3-M4

R331 1:J7 3-M4

R332 1:J7 3-M4

R333 1:J6 3-M4

R334 1:J7 3-M4

R335 1:J7 3-M4

R336 1:K13 3-L3

R341 1:N10 3-P4

R342 1:N10 3-P4

R343 1:G10 3-P4

R344 1:N10 3-P4

R345 1:J8 3-P4

R346 1:J8 3-P4

R347 1:L6 3-O2

R348 1:L5 3-P2

R351 1:G9 3-Q3

R352 1:H9 3-Q3

R353 1:M8 3-R6

RV1 2:R6 1-S3

S1 2:T5 1-T1

S2 2:T4 1-S1

*S300 1:G8 3-R3

*SG200 1:B12 2-D9

*SG201 1:B9 2-D8

SK1 1:R8 1-M2

SK2 2:S2 1-T0

SK100 1:B11 1-B9

SK101 1:P4 1-K2

*SK102 1:K3 1-L3

T200 1:D12 2-G9

T201 1:D10 2-G8

TP200 1:F12 2-L8

TP201 1:G12 2-L3

TP202 1:B14 2-M7

TP203 1:C14 2-M5

TP204 1:G12 2-M8

TP205 1:F12 2-Q4

TP206 1:H12 2-Q2

TP207 1:C14 2-R7

TP208 1:H12 2-P3

TP209 1:J13 2-L3

TP211 1:G12 2-R8

TP212 1:G12 2-R5

TP213 1:H12 2-R3

TP300 1:J12 3-C5

TP301 1:J12 3-C5

TP302 1:H13 3-C4

TP303 1:J13 3-G5

TP304 1:J13 3-G4

TP305 1:J12 3-E3

TP306 1:H12 3-G3

XL300 1:J14 3-G4

IPN 220-01581-01

5.2.10

T803 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

M803-00-PRELIM

T800-53-0000 PCB Information

5.3.1

5.3 T800-53-0000 Backplane PCB

This section contains the following information.

IPN Section Page

220-01449-02 Parts List

PCB Layout - Top Side

PCB Layout - Bottom Side

Circuit Diagram

5.3.3

5.3.5

5.3.6

5.3.7

5.3.2

T800-53-0000 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

IPN 220-01449-02

M803-00-PRELIM

T800-53-0000 PCB Information

5.3.3

T800-53-0000 Parts List (IPN 220-01449-02)

How To Use This Parts List

The components listed in this parts list are divided into two main types: those with a circuit reference (e.g. C2, D1, R121, etc.) and

those without (miscellaneous and mechanical).

Those with a circuit reference are grouped in alphabetical order and then in numerical order within each group. Each component

entry comprises three or four columns: the circuit reference, variant (if applicable), IPN and description. A number in the variant col-

umn indicates that this is a variant component which is fitted only to the product type listed. Static sensitive devices are indicated by

an (S) at the start of the description column.

The miscellaneous and mechanical section lists the variant and common parts in IPN order. Where possible, a number in the legend

column indicates their position in the mechanical assembly drawing.

The Parts List Amendments box below lists component changes that took place after the parts list and diagrams in this section were

compiled. These changes (e.g. value changes, added/deleted components, etc.) are listed by circuit reference in alphanumeric order

and supersede the information given in the parts list or diagrams. Components without circuit references are listed in IPN order.

Parts List Amendments

There were no amendments to the parts list at the time of publication.

IPN 220-01449-02

5.3.4

T800-53-0000 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

Ref Var IPN Description Ref Var IPN Description

D1 001-00011-70 S) DIODE 1N4001 1A/50V

D5 001-00015-12 S) DIODE ZEN 5V6 0.4W 5%

D6 001-00011-70 S) DIODE 1N4001 1A/50V

Q1 000-50010-60 S) XSTR AI BC327 PNP TO92 AF

R1 030-06180-00 RES FILM 180K 5% 0.25W 7X2.5

R2 030-05100-00 RES FILM 10K 5% 0.25W 7X2.5

R5 032-32100-00 RES M/F PWR 10E 5% 1W 10X4MM

RV1 042-05100-10 RES PRE 10K CER 9.5MM SQ FLAT

SK1 240-02020-15 SKT 15 DRANGE PCB PLUS PCB HW

SK2 240-02020-15 SKT 15 DRANGE PCB PLUS PCB HW

SK3 240-02020-15 SKT 15 DRANGE PCB PLUS PCB HW

SK4 240-02020-15 SKT 15 DRANGE PCB PLUS PCB HW

SK5 240-02020-15 SKT 15 DRANGE PCB PLUS PCB HW

SK6 240-02020-15 SKT 15 DRANGE PCB PLUS PCB HW

SK7 240-02020-15 SKT 15 DRANGE PCB PLUS PCB HW

SK8 240-04021-60 SKT P/JACK 6-WAY VER 69254-001

SK10 240-02020-20 SKT 25 DRANGE PCB PLUS FULL HW

SW1 230-00010-19 SWITCH*8 SPST DIP PKG

220-01449-02 PCB TONE-REMOTE 3 BIN BACKPLAN

240-00020-59 HEADER 3 W 1 R PCB MTG

240-00020-68 HEADER 2W PCB MTG STD

240-04020-62 SKT 2 W RECEP SHORTING LINK

349-00020-03 SCRW T/T 4-40X1/4IN P/POZ

T800-53-0000 PCB (IPN 220-01449-02) - Top Side

IPN 220-01449-02

M803-00-PRELIM

T800-53-0000 PCB Information

5.3.5

0PT0+

0PTO-

CTCSS

LINK1

LINK2

LINK3

LINK4

LINK5

LINK6

LINK7

RELAY-CO

RELAY-NO

RV1

RX-AUDIO

RX-AUX0

RX-AUX1

RX-AUX2

RXAUDIO2

SK10

SK7 SK8

SW1

TX-AUDIO

TX-AUX0TX-AUX1TX-AUX2

TX-KEY

TXAUDIO2

IPN 220-01449-02

5.3.6

T800-53-0000 PCB Information

M803-00-PRELIM

17/05/99 Copyright TEL

T800-53-0000 PCB (IPN 220-01449-02) - Bottom Side

SK1

SK2SK3SK4SK5SK6

SK1SK2SK3SK4SK5SK6

803prel.bk T800/T803 Tone Remote & Alarm/803_A4 803 A4

T800/T803 Tone Remote & Alarm/803_A4 803_A4

T800/T803 Tone Remote & Alarm/803_A4 803_A4

T800/T803 Tone Remote & Alarm/803_A4 803_A4

Navigation menu

Versions of this User Manual:

Views

Navigation
