10/1/2014 Thermostats and Controls | Qmark | Product Detail

http://www.marleymep.com/en/qmark/pd-en-thermostats-and-controls/ 1/4

Product Type:

THERMOSTAT CONTROLS

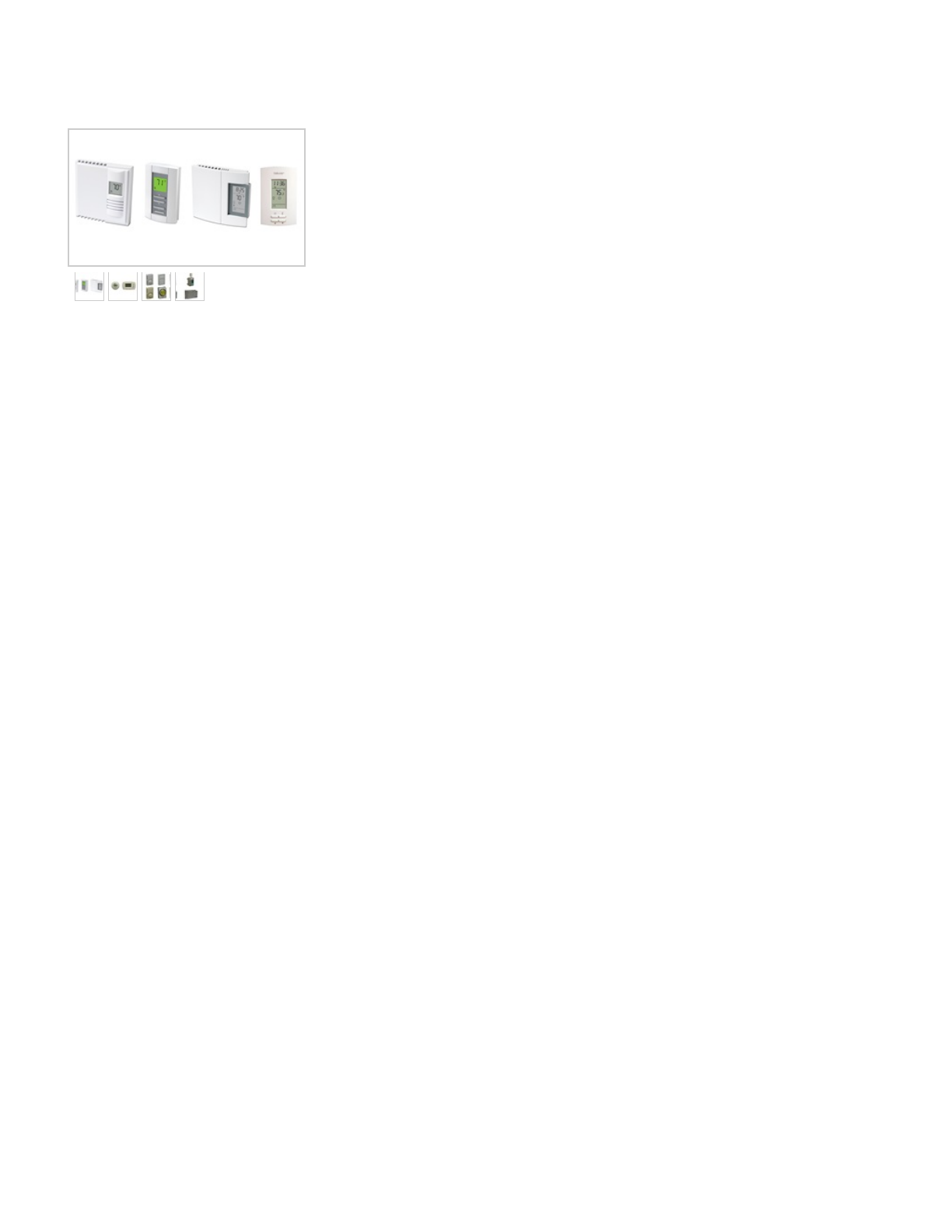

Thermostats and Controls -

Digital Thermostats,

Programmable Thermostats,

Line Voltage Thermostats, and

Controls

Thermostats and Controls

Specifications

CATALOG

NUMBER

TH300024 TH36004 TH400024 TH110DPP

Action Triac: Silent Operation Electronic Switch Triac: Silent Operation Microprocessor

Type 12.5A Resistive 2 wire SPST 15 A Resistive 4 wire DPST 16.7A Resistive 2 wire SPST 16.7 A Resistive 4 wire DPST

Watt

Rating

Minimum: 2 amp load No minimum load Minimum: 2 amp load No minimum load

120V n/a n/a 2000 watts n/a

208V n/a n/a n/a 3000 watts

240V 3000 watts 3600 watts 4000 watts 4000 watts

277V n/a n/a n/a n/a

Pilot Duty No No No No

Range (ºF) 40ºF to 85ºF 40ºF to 85ºF 40ºF to 85ºF 40ºF to 85ºF

Differential Accuracy: Within +/- 0.27ºF Accuracy: Within 1ºF of

setpoint

Accuracy: Within +/- 0.27ºF Accuracy: Within 1ºF of

setpoint

Features Digital, non-programmable

12.5amp model delivers

exceptional accuracy. Ideal for

radiant ceiling panels, and

baseboard. Not for fan-forced

heaters.

Digital, non-programmable

model delivers exceptional

accuracy. Ideal for radiant

ceiling panels, and baseboard.

Can be used for fan-forced

heaters..

Digital, programmable high

capacity model delivers

exceptional accuracy. Ideal for

radiant ceiling panels, and

baseboard. Not for fan-forced

heaters.

Digital, programmable model

delivers exceptional accuracy.

Ideal for radiant ceiling panels,

and baseboard. Can be used

for fan-forced heaters.

Catalog

No.

T8775A1009 T8775C1005 TH5220D1003 LT186F01

Action Electronic Switch Electronic Switch Electronic Switch Microprocessor

Type 24 volt .015 -1.0A @ 30V 2-

wire

24 volt .015 -1.0A @ 30V 2-

wire

24 volt .015 -1.0A @ 30V 5-

wire

Wall thermistor

Watt

Rating

120V n/a n/a n/a 22A

208V n/a n/a n/a 22A

240V n/a n/a n/a 22A

277V n/a n/a n/a 19A

Pilot Duty 24VAC 24VAC 24VAC n/a

Range (ºF) 40ºF to 90ºF 40ºF to 90ºF 40ºF to 90ºF 40ºF to 90ºF

Differential Accuracy: Within 1ºF of

setpoint

Accuracy: Within 1ºF of

setpoint

Accuracy: Within 1ºF of set Accuracy Within 1ºF of

setpoint

CATALOG

NUMBER

TH300024 TH36004 TH400024 TH110DPP

Action Triac: Silent Operation Electronic Switch Triac: Silent Operation Microprocessor

Type 12.5A Resistive 2 wire SPST 15 A Resistive 4 wire DPST 16.7A Resistive 2 wire SPST 16.7 A Resistive 4 wire DPST

Watt

Rating

Minimum: 2 amp load No minimum load Minimum: 2 amp load No minimum load

120V 1500 watts n/a 2000 watts n/a

208V n/a n/a n/a 3000 watts

240V 3000 watts 3600 watts 4000 watts 4800 watts

277V n/a n/a n/a n/a

Pilot Duty No No No No

Range (ºF) 40ºF to 85ºF 40ºF to 85ºF 40ºF to 85ºF 40ºF to 85ºF

Differential Accuracy: Within +/- 0.27ºF Accuracy: Within 1ºF of

setpoint

Accuracy: Within +/- 0.27ºF Accuracy: Within 1ºF of

setpoint

Features Digital, non-programmable

12.5amp model delivers

exceptional accuracy. Ideal for

radiant ceiling panels, and

baseboard. Not for fan-forced

heaters.

Digital, non-programmable

model delivers exceptional

accuracy. Ideal for radiant

ceiling panels, and baseboard.

Can be used for fan-forced

heaters..

Digital, programmable high

capacity model delivers

exceptional accuracy. Ideal for

radiant ceiling panels, and

baseboard. Not for fan-forced

heaters.

Digital, programmable model

delivers exceptional accuracy.

Ideal for radiant ceiling panels,

and baseboard. Can be used

for fan-forced heaters.

CATALOG

NUMBER

T8775A1009 T8775C1005 TH5220D1003 LT186F01

Action Electronic Switch Electronic Switch Electronic Switch Microprocessor

Type 24 volt .015

-1.0A @ 30V 2-

wire

24 volt .015

-1.0A @ 30V 2-

wire

24 volt .015 -1.0A @ 30V 5-wire Wall thermistor

Watt

Rating

120V n/a n/a n/a 22A

208V n/a n/a n/a 22A

240V n/a n/a n/a 22A

277V n/a n/a n/a 19A

Pilot Duty 24VAC 24VAC 24VAC n/a

Range (ºF) 40ºF to 90ºF 40ºF to 90ºF 40ºF to 90ºF 40ºF to 90ºF

Differential Accuracy: Within

1ºF of setpoint

Accuracy: Within

1ºF of setpoint

Accuracy: Within 1ºF of set Accuracy Within 1ºF of setpoint

Features Digital, non- Digital, non- Digital, 24volt programmable 2 stage 5-7 Proportional and Integral non-programmable

10/1/2014 Thermostats and Controls | Qmark | Product Detail

http://www.marleymep.com/en/qmark/pd-en-thermostats-and-controls/ 2/4

programmable

24 volt "Round"

model delivers

exceptional

accuracy. (Heat

Only)

programmable

24 volt "Round"

model delivers

exceptional

accuracy. (Heat

and Cool)

wire heat and cool thermostat. One touch

temperature control with exceptional

accuracy. Ideal for plenum heaters, and

HVAC systems.

electronic room sensor thermostat with set

point capability, providing exceptional

accuracy. Transmits actual temperature to a

LTR relay.

CATALOG

NUMBER

MS26 MD26 M601W M602W M601TPW M602TPW M611W M612W

Action Snap Action Snap Action Snap Action Snap Action

Type SPST DPST SPST DPST SPST DPST SPST DPST

Amp

Rating

Model MD26 has Positive OFF Model M602W has

Positive OFF

Model M602TPW has

Positive OFF

Model M612W has Positive OFF

120V 22A 22A 22A 22A

208V 22A 22A 22A 22A

240V 22A 22A 22A 22A

277V 18A 18A 18A 18A

Pilot Duty No Yes 125VA Yes 125VA Yes 125VA

Range (ºF) 50ºF to 80ºF 45ºF to 75ºF 45ºF to 75ºF 45ºF to 75ºF

Differential +/- 5ºF +/- 4ºF +/- 4ºF +/- 2 1/2ºF

Features These economy thermostats are the snap

action type that are used in apartment

construction. Good thermostat for its value.

Ideal for radiant cove heaters and

baseboard.

These bi-metal snap

action thermostats are

sensetive. Large knob

allow for easy

adjustment.

Same as M601W and

M602W except the

cover mounting cover

offer tamper proof

feature.

Built-in heat anticipator assures

closer control of room

temperature. These snap action

thermostats are more sensitive

that

CATALOG

NUMBER

M600MTP M600S T100 T200 WR651 WR661

Action Modulation (2 stage) Simultaneous switching (double

ckt)

Snap Action with Heat

Anticipator

Creep (Hydraulic) Action

Type DPST SPST DPST SPST DPST

Watt

Rating

120V 22A 22A 22A 22A

208V 22A 22A 22A 22A

240V 22A 22A 22A 22A

277V 18A 18A 18A na

Pilot Duty Yes 125VA Yes 125VA Yes 125VA No

Range (ºF) 50ºF to 80ºF 50ºF to 80ºF 50ºF to 90ºF 40ºF to 85ºF

Differential Accuracy: Within 3ºF of setpoint Accuracy: Within 3ºF of setpoint +/- 2 1/2ºF +/- 2ºF

Features One thermostat controls two

separate heating circuits and

reduces input during light load

periods. Second stage activates

when temperature drops to

approx. 1 1/2ºF below the first

stage turn-ON temperature.

Simultaneous control of two

heating loads. Used where the total

load slightly exceeds capacity of a

single switch, where two

thermostats are impractical. Both

switches are calibrated to operate

at approx. the same temperature.

Line voltage thermostat with

everything; Performance,

reliability, durability, and a

large knob. Built-in heat

anticipation assures close

temperature regulation.

Large knob for easy rotation.

Extra-sensitive element in

control knob senses radiant

heat as well as air

temperature for ultimate

control. May cause slight

radio or television

interference in outlying

fringe areas.

CATALOG

NUMBER

WR80 WR80EP WT11A WT12A LTR Series

Action Snap Action Switch Snap Action

Switch

Positive snap action switch Electronic Relays

Type SPST SPST SPDT Microprocessor base design

Amp

Rating

Nema 4X rated These electronic relays have been designed

for silent control of high voltage resistive

loads from a low voltage control circuit.

Inductive motor loads can also be controlled

(120V to 240V only). Compatible with 24V

thermostats and accepts analog signal of 0-

10V DC.

The relays can be used with model

LT186F01 electronic room sensor, providing

proportional and integral control. Also can be

tied to building management systems.

120V 25A 25A 25A -

208V 22A 22A 25A

240V 22A 22A 25A

277V 18A 18A 22A

Pilot Duty Yes 125VA Yes 125VA Yes 125VA

Range (ºF) 40ºF to 90ºF 40ºF to 90ºF 40ºF to 110ºF

Differential +/- 3ºF +/- 3ºF +/- 2 1/2ºF

Features Rugged design for garages,

factories, warehouses and

similar commercial and

industrial installations. The

WR80 can control several

heaters by using an external

contactor.

This explosion

proof room

thermostat is

suitable for Class

1, Group D and

Class II, Groups E,

F, and G locations.

Nema 4X weatherproof

enclosure. The control has a

SPDT output and can be used

for heating or cooling

(ventilation) Multi-positional

mounting offers flexibility in new

or existing installations.

CATALOG

NUMBER

LTR2240 TC1 Models Below M600THW

M600THB

Action Dual Silent Relay Enclosure protection for

thermostats.

This wall plate thermometer accurately displays

room temperature within 1 degree Fahrenheit, so

you can tell in a moments notice if a room is warm

or cool. This is ideal for zonal control of your room

temperature. No wiring is needed. (battery

included with the wall plate). Easy to install.

M600THW -

White

thermostat

cover with

built-in

thermometer.

For M600

Series stats.

M600THB -

Beige

thermostat

cover with

built-in

thermometer.

For M600

Series stats.

Minimum

50pcs

Allow 4 weeks.

10/1/2014 Thermostats and Controls | Qmark | Product Detail

http://www.marleymep.com/en/qmark/pd-en-thermostats-and-controls/ 3/4

Type 2 single pole switches. Material: Impact resistant

polycarbonate. Clear.

Dimensions are: 7"L X 4.28"H

X 2.75" D

Thermostat enclosure kits are

designed to protect the

thermostat. Circulating slots

allow airflow for proper

operation. Guards are lockable

and a key is provided to

maintain security.

Watt

Rating

Resistive Inductive

120V 25A 1/2HP, 8A

208V 25A 1HP, 8.8A

240V 25A 1HP, 8A

277V 22A n/a

Pilot Duty Yes 125VA

Range (ºF) Can be operate in 20 to

140ºF

Differential Accuracy: Within 1.5ºF of

setpoint

Features This dual level temperature

relay may be used to

operate two separate

heating loads by means of a

single low voltage

thermostat. Relay is

mounted in an enclosure.

HEATER MODEL WALL THERMOSTAT

AWH3150 M601W

AWH3180 M601W

AWH4408 M601W

AWH4404 M601W

AWH4407 M601W

AWH4307 M601W

AWH4303 NA

AWH4508 M601W

AWH4504 M601W

AWH4507 M601W

AWH4503 NA

AWH4506 NA

AWH44083 NA

AWH44043 NA

AWH4306 NA

NOTE: See note 10

CWH1101DSAG M601W

CWH1151DSAG M601W

CWH1201DSAG M601W

CWH1202DSAG M601W

CWH1207DSAG M601W

CWH1157DSAG M601W

CWH1208DSAG M601W

NOTE: See note 10

CWH1101DS M601W

CWH1151DS M601W

CWH1201DS M601W

CWH1202DS M601W

CWH1207DS M601W

CWH1157DS M601W

CWH1208DS M601W

NOTE: See note 10

CWH3150 M602W

CWH3180 M602W

CWH3404 M602W

CWH3407 M602W

CWH3307 M602W

CWH3408 M602W

CWH34083 NA

CWH34043 NA

CWH3504 M602W

CWH3507 M602W

CWH3508 NA

CWH35083 NA

CWH35043 NA

CWH3203 NA

CWH3206 NA

CWH3153 NA

CWH3156 NA

CWH3303 NA

CWH3306 NA

CWH3403 NA

CWH3406 NA

CWH3503 NA

CWH3506 NA

NOTE: See note 10

GFR1500 TH400024, M601W, M611W, T100, WR651

GFR2004 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

GFR2404 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

GFR1500T2 TH400024, M601W, M611W, T100, WR651

GFR2004T2 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

GFR2404T2 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

QFG1512IFM TH400024, M601W, M611W, T100, WR651

QFG2024IFM TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

QFG2224IFM TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

QFG2228IF M602W, M612W, T200, WR661

QFG1512T2M TH400024, M601W, M611W, T100, WR651

10/1/2014 Thermostats and Controls | Qmark | Product Detail

http://www.marleymep.com/en/qmark/pd-en-thermostats-and-controls/ 4/4

QFG2024T2M TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

QFG2224T2M TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

HEATER WALL

MODEL THERMOSTAT

LFK151 M602W

LFK204 M602W

LFK304 M602W

LFK404 M602W

LFK484 M602W

NOTE: See note 10

SED1012C TH400024, TH300024, M601W, M611W, T100, WR651

SED1024C TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

SED1512 TH400024, TH300024, M601W, M611W, T100, WR651

SED2024 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

ECP1024 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

ECP1524 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

CRA1512IF TH400024, M601W, M611W, T100, WR651

CRA2028IF M602W, M612W, T200, WR661

CRA2024IF TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

CRA2224IF TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

CRA1512T2 TH400024, M601W, M611W, T100, WR651

CRA2024T2 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

CRA2224T2 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

1235 TH400024, M601W, M611W, T100, WR651

1235P TH400024, M601W, M611W, T100, WR651

2435 TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

2435P TH110DPP, TH400024, TH300024, M602W, M612W, T200, WR661

CDF548 MS26, M601W

CDF542 TH400024, MS26, M601W

CDF547 MS26, M601W

CDF558 MS26, M601W

CDF552 MS26, M601W

CDF557 MS26, M601W

NOTE: See note 11

EFF1500 TH400024, MS26, M601W

EFF3007 MS26, M601W

EFF4008 MS26, M601W

EFF4004 TH400024, MS26, M601W

EFF4007 MS26, M601W

EFF4804 MS26, M601W

EFF4807 MS26, M601W

EFF3003 NA

EFF3006 NA

EFF4003 NA

EFF4006 NA

EFF4803 NA

EFF4806 NA

NOTE: See note 12

QCH1101 TH400024, TH300024, M601W, MS26

QCH1151 TH400024, M601W, MS26

QCH1202 TH400024, TH300024, M601W, MS26

QCH1207 TH400024, TH300024, M601W, MS26

NOTE: See note 12

Downloads

Product Manuals and Literature

Thermostat Bulletin (All Models) (644KB) TH110 Bulletin (134KB)

TH300024 Bulletin (242KB) TH 36004 Bulletin (187KB)

TH400024 Bulletin (286KB) TH110DPP Instructions (316KB)
